Secure Keypads
for access control
personnel, whilst securing premises against those who
are not. The high risk practice of issuing
duplicate door keys is no longer
acceptable or economically viable.
Keys (or cards) are regularly lost, stolen or
copied. If a breach in security is suspected,
locks must be changed and new keys (or cards) issued.
This is not practical on a repeated or routine basis.
The fitting of a STORM AXS Keypad provides a secure,
efficient and cost effective solution. Authorised personnel can
be allocated a ‘Personal Identification Number’ (PIN) which,
when entered into the keypad, triggers an electrically operated
strike or lock. This permits instant access through a normally
locked door or barrier. PIN codes can be regularly changed to
maintain system security, or can be withdrawn at any time to
discontinue an individual’s access to the secured area.
Code holders can be given access to selected areas and
debarred from others. For example; an office worker’s PIN code
can be programmed to allow access to an administration centre
but prohibit access to a stores area; whereas the Store
Manager’s PIN code can be programmed to access both the
administration centre and the stores area. PIN codes can be
programmed to unlock a door and leave it unlocked (latched)
until the code is re-entered. Alternatively they can be
programmed to unlock the door for a pre-set time allowing just
one person to enter before the door re-locks.
STORM AXS Keypads provide rapid and
reliable access control in
professional ‘high-traffic’
applications. Constructed
to withstand hard use and
abuse the keypads can
be fitted in exposed outdoor
locations. Available in both ‘general
service’ and ‘vandal resistant’
specifications, complying with current
and forthcoming mandatory standards,
STORM AXS Keypads are
ideal for use in all indoor
and outdoor installations.
STORM AXS Keypads include sophisticated
electronic controllers. These controllers,
utilising the latest developments in
microprocessor technology, are securely
housed within the keypad casing. The keypads
include high level protection against static
discharge damage. They can be selected to
achieve direct, local control of door locking
mechanisms (Strike Master) or to provide
electronic communication with centralised
alarm and access control systems (Code Master).
The STORM AXS Strike Master keypad includes
an electronic sensor that detects any attempt to
remove or tamper with the keypad.
This feature provides high level
system security whilst maintaining
the advantages of a self-contained,
compact, ‘one-box’ installation.
With rising
crime rates and
an increasing
incidence of
assaults on
personnel, the
need to control
access to
buildings or
work areas
has never
been greater.
It is essential to provide free access to authorised
Secure and simple
to install.
Robust,
responsive
keypad
technology,
proven in
military,
industrial
and public
environments.
t
m
r
o
Secure Keypads
for access control
Converts codes entered via the
keypad into industry standard
(Weigand) data. Suitable for use as a
replacement for (or in conjunction
with) most standard card readers.
Intended for use with integrated access control / security
systems, the keypad’s electronic interface is user
programmable for 26 or 32 bit (Weigand) data output.
• Selectable ‘keypress’ audible tone
• Selectable ‘code accepted’ audible tone
• All weather resistant
• LED status indication
• Requires 5V to 12V DC supply
• Quick and easy to install
• Three protection levels:
i) Anti-vandal keypad for exposed, unsupervised
hostile, public locations
ii) Vandal resistant keypad for unsupervised,
public, outdoor locations
iii) Robust keypad for outdoor/indoor location
Code Master
Strike Master
A CHOICE OF
ELECTRONIC INTERFACES
-COM
Secure, self-contained keypad
and controller for electrically
operated locks and strikes.
Authorised personnel can use their PIN code
to open either one or two normally locked doors. Up to 50
different 4, 5 or 6 digit codes can be individually
programmed. Each code can be set to trigger an electric
lock or strike for a pre-set time (allowing just one person
to access), or to ‘latch’ the door in an unlocked condition
(requiring the code to be re-entered to ‘unlatch’ or re-lock
the door). If the Strike Master keypad is used to control a
single door, the ‘forced door alarm’, ‘anti-tamper alarm’
and ‘duress alarm’ features can be enabled.
• Up to 50 user programmable PIN codes
• 4, 5 or 6 digit PIN codes
• Indexing permits the secure allocation and
re-allocation of PIN codes
• One or two door control
• Anti-tamper alarm
• PIN code entered under duress alarm
• Forced door alarm
• Timed release or latched door option for
each PIN code
• Fail (open) Fail (closed) option
• Timed lock out for repeated invalid code input
• Remote exit switch facility
• Hidden PIN code feature
• All weather resistant
• LED and audible tone status indication
• Requires 11 to 28V DC or 9 to 20V AC supply
• Quick and easy to install
• Three protection levels:
i) Anti-vandal keypad for exposed, unsupervised
hostile, public locations
ii) Vandal resistant keypad for unsupervised,
public, outdoor locations
iii) Robust keypad for outdoor/indoor location
The
Secure
Alternative
A Secure, self contained, two
way voice communication
system in 1 and 4
doorbell/callbutton versions
213
546
879
0
System
5. Indicator input (LED)
4. Weigand data 1
3. Weigand data 0
2. Supply - Range 5V to 12V DC
1. Return - Zero volts
t
m
r
o
Secure Keypads
for access control

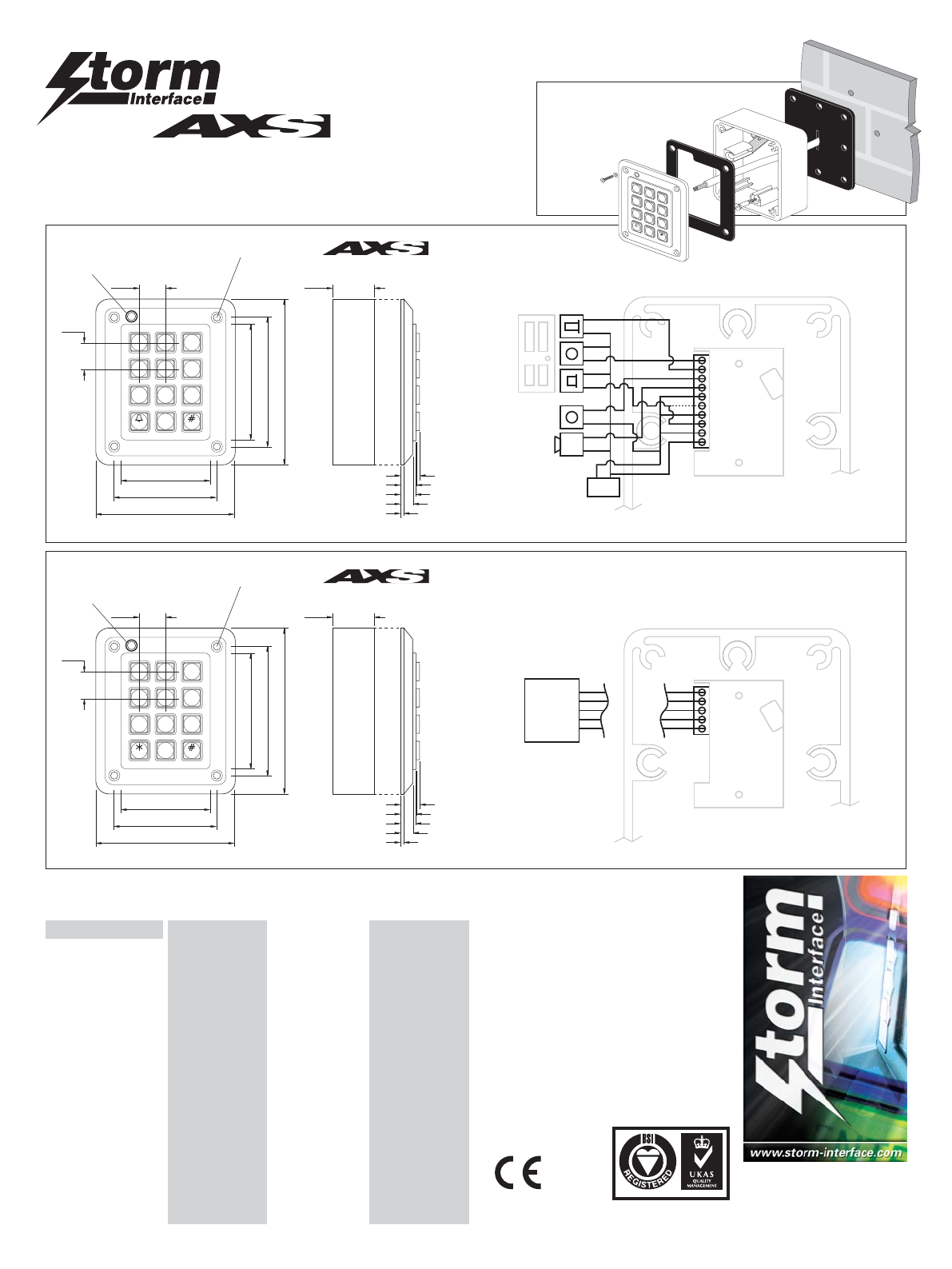

PRODUCT SPECIFICATIONS
99.50
118.50
63.50
82.50
19.00
19.00
74.00
93.00
10.50
30.00
231
564
897
0
13.35 Overall
2.5
8
11.1
Twin diode (2 colour)
LED indicator
Four
tamper-resistant
stainless steel
security screws
99.50
118.50
63.50
82.50
19.00
19.00
74.00
93.00
231
564
897
0
10.50
30.00
13.35 Overall
2.5
8
11.1
CLR ENT
Twin diode (2 colour)
LED indicator
Four
tamper-resistant
stainless steel
security screws
Strike Master
Connect to access
control / security system
(refer to manufacturer’s
instructions for
connection details).
PRODUCT FEATURES
> 4 Million
WE1KT1
DE1KT1
-20°C to +70°C
Chromed Zinc
Silver
Chromed Zinc
Silver
Engraved
Black Dark Grey
Carbon / Gold Carbon / Gold
> 4 Million
WE2KT1
DE2KT1
-20°C to +70°C
Super Impact Polymer
Mid Grey
Super Impact Polymer
Light Grey
Laser Marked
Key Life (cycles)
Code Master
Strike Master
Service Temp (Dry)
Keypad Material
Keypad Colour
Keytop Material
Keytop Colour
Keytop Legends
Legend Colour
Contact Materials
IP65 IP65Weather Sealed
> 12.5 KV > 12.5 KV
Resistance to
Static Discharge
ANTI
VANDAL
KEYPAD
GENERAL
SERVICE
KEYPAD
Black
Carbon / Gold
> 4 Million
WEPLXT2
DEPLXT2
-20°C to +70°C
Super Impact Polymer
Black
Chromed Zinc
Silver
Engraved
IP65
> 12.5 KV
VANDAL
RESISTANT
KEYPAD
All STORM AXS Keypads incorporate the proven
STORM switching technology ensuring rapid,
reliable and responsive data entry. Specified to
survive in different service environments, ranging
from exposed, unsupervised public environments
to general service / indoor installations. Keypads
in the STORM AXS range are dimensionally and
electrically interchangeable. This allows users,
entering codes at all outdoor or indoor access
points, to establish and maintain familiarity with
the keypad features.
Whilst every effort is made
to ensure details are
correct at time of print,
specifications are subject
to change without notice.
MAY 1999
AXS-LIT-01 1SS.3
13
2
6
5
4
79
8
0
(Fixing hardware, sealing
gaskets and comprehensive
installation / operating
instructions supplied)
213
546
879
0
Door Sensor
Remote/
Exit Switch
Door
Strike
Door/call Bell
Alarm Bell/
Klaxon
Power
Supply
10. Remote Switch - To open door 1 from within secure area
9. Door Sensor - Used to monitor door 1 condition (open/closed)
8. Door/Call Bell - Open collector gate
7. Alarm/Door 2 Release Relay - Fully floating (volts free contact)
5. Door 1 Release Relay - Relay output (normally closed)
4. Common - Relay common
3. Door 1 Release Relay - Relay output (normally open)
2. Supply - Range 11 to 28 volts dc or 9 to 20 volts ac.
1. Return - Zero volts
6. Alarm/Door 2 Release Relay - Fully floating (volts free contact)
+V 0V
All dimensions in mm
All dimensions in mm
FM 39602
003
Storm is a trademark of Keymat Technology Ltd
Storm Interface is a trading name of Keymat Technology Ltd
Storm Interface products include
technology protected by international patents
and design registration. All rights reserved.
Code Master
