©2015 Shure Incorporated
www.axient.net
www.shure.com
The Axient Spectrum Manager is a powerful tool for calculating, analyzing and assigning compatible frequencies to wireless components. The Spectrum
Manager scans the RF environment and uses this data to calculate compatible frequencies for all wireless channels found on the network. Networked
wireless systems can be programmed from the Compatible Frequency List, while backup frequencies are continuously monitored and ranked according
to quality. During operation, the Spectrum Manager deploys clear frequencies to receivers when interference occurs. Built-in spectrum monitoring tools
provide visual and audio tracking of RF activity.
• The Spectrum Manager captures scan data for the entire UHF frequency range available for wireless audio
• The on-board frequency calculator can be adjusted to avoid specific TV channels, frequency ranges or RF signal above a specified threshold
• Event Log records actions of the Spectrum Manager during operation and provides a snapshot of system performance.
• Backup Frequency Monitoring
• The data screen tracks the real-time status of in-use and backup frequencies
• Scanner feature graphically plots the measured RF signal across the full frequency range
• Use the Listen feature to tune to a frequency and monitor FM demodulated signal using headphones
• Networking enables many of the advanced features of the Axient system, including monitoring and control of remote devices
• RF Cascade Ports allow sharing of RF signal with up to 5 components without antenna splitters or distribution amplifiers
AXT600 Spectrum Manager
Component Specifications
Overview
RF Tuning Frequency Range 470–865, 925–952 MHz
RF Tuning Step Size 25, 200, 1000 kHz
Scan Time The Spectrum Manager scans the entire RF tuning frequency range in 64 seconds using 8 scanning modules in parallel.
Scan time per 60 MHz may be less for specified ranges that allow scanning modules to work in parallel.
Step Size Maximum Scan Time per 60 MHz
25 kHz: 48 seconds
*200 kHz: 7 seconds
*1000 kHz: 1 second
*Available only with WWB6 control
Noise Floor Resolution Bandwidth
25 kHz: -110 dBm
200 kHz: -100 dBm
1000 kHz: -90 dBm
Image Rejection >110 dB, typical
Spurious Response <-100 dBm, typical
Ultimate Quieting >90 dB, A-Weighted
Dimensions 44 mm x 483 mm x 366 mm (1.7 in. x 19.0 in. x 14.4 in.), H x W x D
Weight 5.5 kg (12.0 lbs)
Housing Steel; Extruded aluminum
Power Requirements 100 to 240 V AC, 50-60 Hz
Current Drain 0.8 A RMS (referenced at 120 V AC)
Operating Temperature Range -18°C (0°F) to 63°C (145°F)
Product Specifications (subject to change)
RF Input
Connector Type BNC
Configuration Unbalanced, active
Maximum Input Level -20 dBm
Impedance 50 Ω
Bias Voltage 12 V DC, 150 mA (300 mA maximum)
Cascade Output
Connector Type BNC
Configuration Unbalanced, active
Impedance 50 Ω
Insertion Loss <5 dB
Monitor Audio Output
Audio Frequency Response 40 – 18 kHz, ±3 dB
Configuration Unbalanced mono, 1/4 in. (will drive stereo phones)
Impedance 50 Ω
Maximum Signal Level
(45 kHz max. deviation)
1 W @ 63 Ω
Pin Assignments Tip: audio +
Ring: audio +
Sleeve: ground
Networking
Power Over Ethernet (PoE) 50 V DC, Class 1
Network Interface Dual Port Ethernet 10/100
Network Addressing Capability DHCP or Manual IP address
©2015 Shure Incorporated
www.axient.net
www.shure.com
Component Specifications
navigate navigate control monitor power
clip
push
on
o
push
enter
exit
AXT600
470-952 MHz
Spectrum Manager
antenna
in
cascade
out
12.7V OUT
150 mA
B A
8
AXT600
Input 100-240 V ~ 50/60 Hz 0.8A max.
(5.8A max. outlet loaded)
Output 100-240~
5A max. 50/60 Hz UNSW.

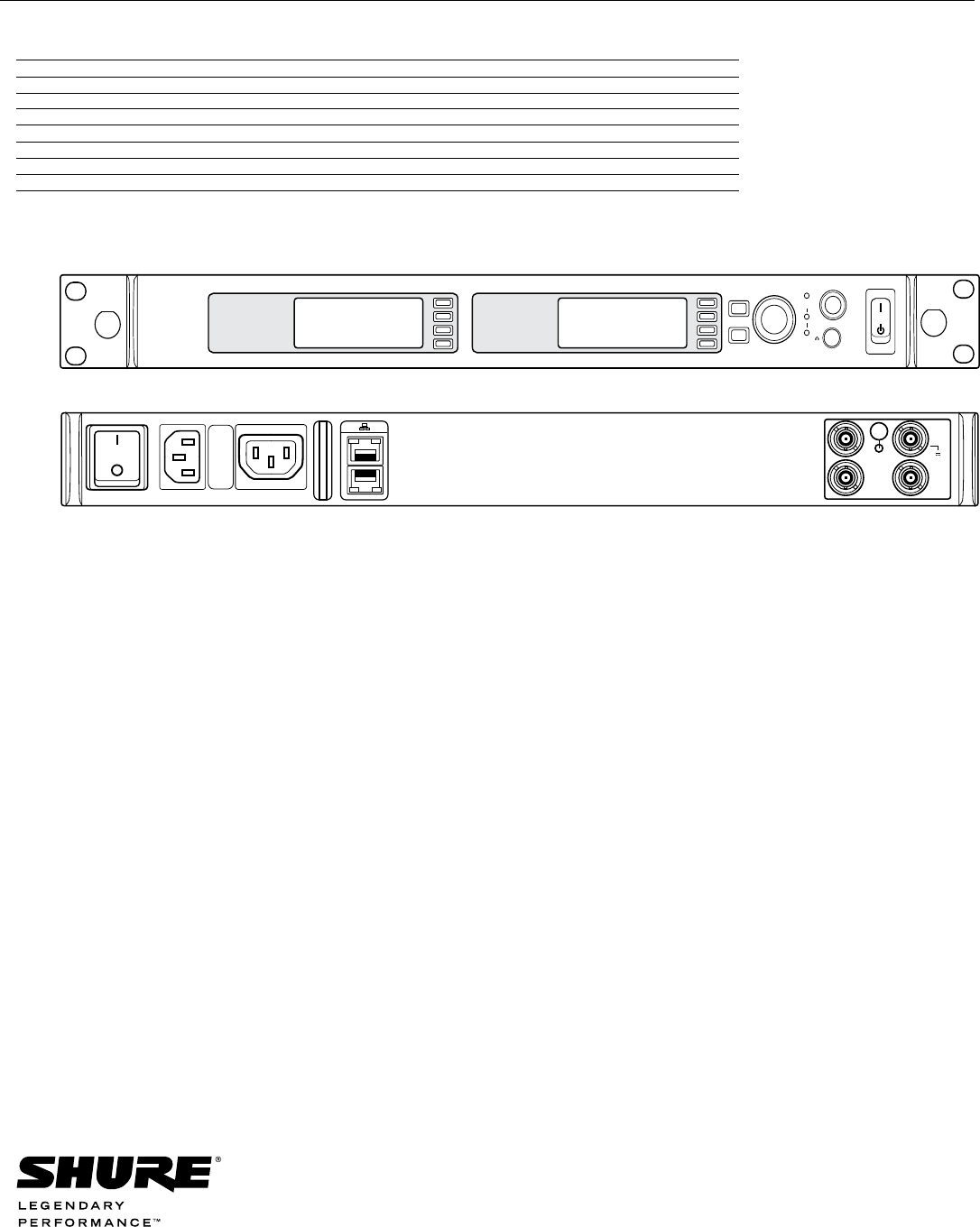

AXT600 Spectrum Manager Back
AXT600 Spectrum Manager Front
95N2035 1-foot Coaxial Cascade Cable (2)
95A9128 IEC AC Power Cable (1)
95A9129 IEC AC Extension Cable (1)
C803 Shielded 3-foot Ethernet Cable (1)
C8006 Shielded 8-inch Ethernet Jumper Cable (1)
90XN1371 Hardware Kit (1)
95B9023 22-inch Coaxial Cable* (1)
95C9023 33-inch Coaxial Cable* (1)
* with integrated bulkhead for front mounting antennas.
Included Components
