Vx810 Reference Guide
Contents
Preface
Vx810 Overview
- Features and Benefits
Using the Vx810 Keys
- Data Entry Modes
Setup
System Mode
File Authentication
Performing Downloads
Specifications
- Product Specifications
- Environmental, Regulatory and Performance Specifications
  - Temperature and Humidity
  - Compliance Certifications
Care and Maintenance
- Additional Safety Information
  - Power Adapter
  - Potentially Explosive Environments
Service and Support
- Product Returns
- Accessories and Documentation
Troubleshooting Guidelines
Appendix A – System Messages
- Error Messages
- Information Messages
Appendix B – Port Pinouts
- Multi-Port
- COM Port
Appendix C – ASCII Table
Glossary
Index
Contact VeriFone

VeriFone Part Number 24964, Revision A

Vx810

Reference Guide

permission of VeriFone, Inc.

The information contained in this document is subject to change without notice. Although VeriFone has attempted to ensure the

accuracy of the contents of this document, this document may include errors or omissions. The examples and sample programs

are for illustration only and may not be suited for your purpose. You should verify the applicability of any example or sample

program before placing the software into productive use. This document, including without limitation the examples and software

programs, is supplied “As-Is.”

VeriFone, Inc.

2099 Gateway Place, Suite 600

San Jose, CA, 95110 USA

www.verifone.com

VeriFone Part Number 24964, Revision A

VX810 Reference Guide

VeriFone, the VeriFone logo, Omni, VeriCentre, Verix, and ZonTalk are registered trademarks of VeriFone. Other brand

names or trademarks associated with VeriFone’s products and services are trademarks of VeriFone, Inc.

All other brand names and trademarks appearing in this manual are the property of their respective holders.

Comments? Please e-mail all comments on this document to your local VeriFone Support Team.

VX810 REFERENCE GUIDE 3

CONTENTS

PREFACE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Audience. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Conventions and Acronyms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Acronyms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

CHAPTER 1

Vx810 Overview Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

CHAPTER 2

Using the Vx810

Keys Data Entry Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Entering Normal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Entering System Mode With No Application Loaded . . . . . . . . . . . . . . . . . . 16

Entering System Mode While in Normal Mode . . . . . . . . . . . . . . . . . . . . . . . 16

Re-entering Normal Mode From System Mode . . . . . . . . . . . . . . . . . . . . . . 16

Main Keypad. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

ALPHA Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Command Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Programmable Function (PF) Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

CHAPTER 3

Setup Selecting Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Ease of Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Environmental Factors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Electrical Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Unpacking the Shipping Carton . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Examining the Vx810 Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Installing/Replacing MSAM Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Privacy Shield . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Cable Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Other VFI Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

RS-232 Connection with External Power Brick. . . . . . . . . . . . . . . . . . . . . . . 27

Standard USB Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

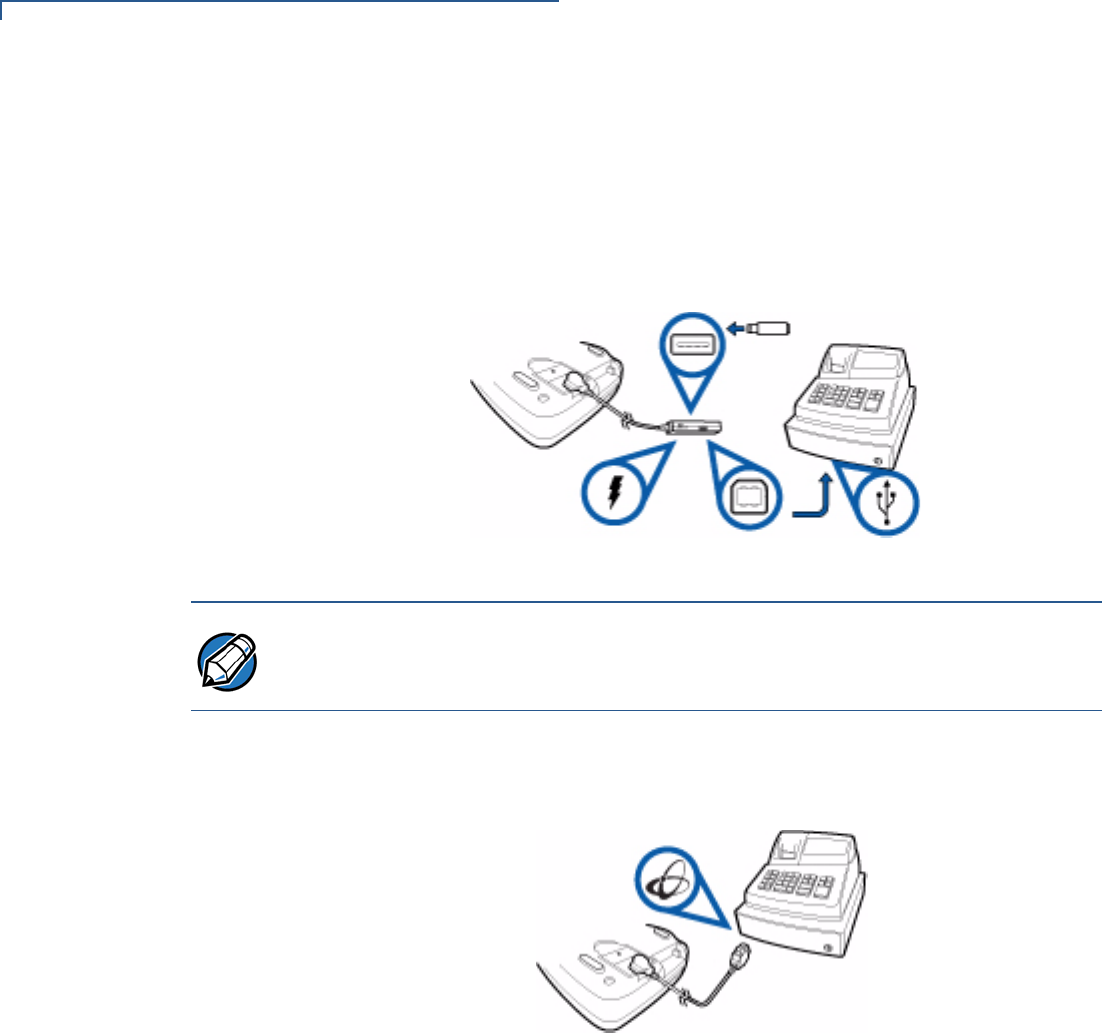

USB Download Support with External Power Brick . . . . . . . . . . . . . . . . . . . 28

Powered USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Ethernet Connection with External Power Brick . . . . . . . . . . . . . . . . . . . . . . 29

Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Using the Primary Smart Card Reader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Using the Magnetic Stripe Card Reader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

CONTENTS

4VX810 REFERENCE GUIDE

CHAPTER 4

System Mode When to Use System Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Local and Remote Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Verifying Device Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Entering System Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

File Groups. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

System Mode Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

File Group Passwords. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Password Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

System Mode Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

System Mode Procedures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Entering System Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Menu 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Menu 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Menu 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

CHAPTER 5

File Authentication Introduction to File Authentication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

The VeriFone Certificate Authority . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Special Files Used in the File Authentication Process . . . . . . . . . . . . . . . . . 64

How File Authentication Works. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Planning for File Authentication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Digital Certificates and the File Authentication Process . . . . . . . . . . . . . . . . 72

File Authentication and the File System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

VeriShield File Signing Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

System Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Command-Line Entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Command-Line Mode Syntax Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Graphical Interface Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

CHAPTER 6

Performing

Downloads Downloads and Uploads. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Download Methods. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Download Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Download Content . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Full and Partial Downloads. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Support for Multiple Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

How the File System Supports Multiple Applications . . . . . . . . . . . . . . . . . . 92

The Main Application is Always Stored in GID1 . . . . . . . . . . . . . . . . . . . . . . 93

Physical and Logical Access to File Groups. . . . . . . . . . . . . . . . . . . . . . . . . 93

Use of SRAM and Flash ROM Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Defragment Flash ROM for Application Downloads . . . . . . . . . . . . . . . . . . . 94

Redirection of Files During Application Downloads . . . . . . . . . . . . . . . . . . . 94

Manually Redirecting Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Redirecting Files to Other File Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Restrictions on File Redirection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Using DDL.EXE to Automatically Redirect Files. . . . . . . . . . . . . . . . . . . . . . 97

File Redirection in Operating System Downloads. . . . . . . . . . . . . . . . . . . . . 98

File Redirection in Back-to-Back Application Downloads . . . . . . . . . . . . . . . 98

CONTENTS

VX810 REFERENCE GUIDE 5

File Authentication Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Required Certificates and Signature Files . . . . . . . . . . . . . . . . . . . . . . . . . . 99

The File Authentication Process During an Application Download. . . . . . . 100

File Group Permissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Download an Operating System Update Provided by VeriFone. . . . . . . . . 103

File Authentication for Back-to-Back Application Downloads . . . . . . . . . . . 104

Timing Considerations Due to the Authentication Process. . . . . . . . . . . . . 105

Optimize Available Memory Space for Successful Downloads. . . . . . . . . . 106

Support for File Compression . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Effect of Downloads on Existing Files and Data. . . . . . . . . . . . . . . . . . . . . . . . 106

Set Up the Download Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Cable Connection for Direct Downloads. . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Cable Connection for Back-to-Back Application Downloads . . . . . . . . . . . 108

Direct Application Downloads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Hardware Checklist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Software Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Checklist for Effects on Files and Settings in the Receiving Device. . . . . . 110

Direct Application Download Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Direct Operating System Downloads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Hardware Checklist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Software Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Checklist for Effects on Files and Settings in the Receiving Device. . . . . . 115

Direct Operating System Download Procedure . . . . . . . . . . . . . . . . . . . . . 116

Back-to-Back Application Downloads. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Hardware Checklist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Software Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Checklist for Effects on Files and Settings in the Receiving Device. . . . . . 120

Back-to-Back Application Download Procedure . . . . . . . . . . . . . . . . . . . . . 121

CHAPTER 7

Specifications Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Flash ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

SRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Operating System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Magnetic Card Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Primary Smart Card Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

SAM Card Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Input Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Peripheral Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Supported Memory Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Audio Output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Environmental, Regulatory and Performance Specifications . . . . . . . . . . . . . . 128

Temperature and Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Compliance Certifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

CONTENTS

6VX810 REFERENCE GUIDE

CHAPTER 8

Care and

Maintenance Additional Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Power Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Potentially Explosive Environments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

CHAPTER 9

Service and Support Product Returns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Accessories and Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Power Pack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Connectivity Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Privacy Shield . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Integrated Base Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

VeriFone Cleaning Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

CHAPTER 10

Troubleshooting

Guidelines Display Does Not Show Correct/Readable Info . . . . . . . . . . . . . . . . . . . . . . . . 137

Blank Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Device Does Not Dial Out. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Keypad Does Not Respond . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Transactions Fail To Process. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

APPENDIX A

System Messages Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Information Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

APPENDIX B

Port Pinouts Multi-Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

COM Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

APPENDIX C

ASCII Table GLOSSARY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .149

INDEX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .155

VX810 REFERENCE GUIDE 7

PREFACE

This guide is your primary source of information for setting up and installing the

Vx810.

Audience

This document has two primary audiences, but is useful for anyone installing and

configuring the Vx810:

•Deployment Administrators who prepare multiple devices for deployment to

customers, configuring the devices with applications, network configurations,

phone numbers, and security. Deployment Administrators may work for a

bank, credit card service company, or any company with a vertical application

for the Vx810.

•Local Administrators integrate and maintain Vx810 devices into a single

business site. Business owners or store managers generally perform this

function.

Organization

This guide is organized as follows:

Chapter 1, Vx810 Overview. Provides an overview of the Vx810.

Chapter 2, Using the Vx810 Keys. Explains the operational features of the Vx810

and describes how to use the Vx810 keys to perform all the data entry or system

mode tasks described in this manual.

Chapter 3, Setup. Explains how to set up and install the Vx810. It tells you how to

select a location, establish power and telephone line connections, and how to

configure optional peripheral devices.

Chapter 4, System Mode. Describes password-controlled, system-mode

operations, as well as how to use it to perform a variety of test and configuration

procedures.

Chapter 5, File Authentication. Describes the file authentication module of the

VeriShield security architecture and describes how to use the file signing utility,

the VeriShield File Signing Tool, to generate signature files.

Chapter 6, Performing Downloads. Documents procedures for downloading

applications and files to the Vx810.

Chapter 7, Specifications. Discusses the power requirements and dimensions of

the Vx810.

Chapter 8, Care and Maintenance. Explains how to maintain the Vx810.

PREFACE

Related Documentation

8VX810 REFERENCE GUIDE

Chapter 9, Service and Support. Provides information on contacting your local

VeriFone representative or service provider, and information on how to order

accessories or documentation from VeriFone.

Chapter 10, Troubleshooting Guidelines. Provides troubleshooting guidelines,

should you encounter a problem in installation and configuration.

This guide also contains appendices for System Messages, Port Pinouts, ASCII

Table, and a Glossary.

Documentation

To learn more about the Vx810, refer to the following set of documents:

Conventions and

Acronyms

This section describes conventions and acronyms used in this guide.

Conventions

The following table describes the conventions used in this guide to help you

quickly identify special formatting.

Vx810 Certifications and Regulations Sheet VPN 24960

Vx810 Quick Installation Guide VPN 24961

Vx810 Installation Guide VPN 24963

Vx810 Privacy Shield Quick Installation Guide VPN 24965

Verix V Operating System Programmers Manual VPN 23230

Verix V Tools Programmers Manual VPN 23231

Table 1 Document Conventions

Convention Meaning Example

Blue Text in blue indicates terms that

are cross references.

See Conventions and Acronyms.

Italics Italic typeface indicates book

titles or emphasis.

Operating system files must

always be downloaded onto

Group 1.

The pencil icon is used to

highlight important information.

VeriFone ships variants of the

this device for different markets.

Your device may have a different

configuration.

The caution symbol indicates

hardware or software failure, or

loss of data.

The device is not waterproof or

dustproof, and is intended for

indoor use only.

The lighting symbol is used as a

warning when bodily injury might

occur.

Due to risk of shock do not use

the device near water.

NOTE

CAUTION

WARNING

PREFACE

Conventions and Acronyms

VX810 REFERENCE GUIDE 9

Acronyms

The following table lists various acronyms used throughout this guide in place of

the full definition.

Table 2 Acronyms

Acronym Definitions

3DES Triple Data Encryption Standard

ARM Advanced RISC Machines

CTS Clear to Send

ECR Electronic Cash Register

EMV Joint Europay, MasterCard and Visa Standard

GID Group Identifier

ICC Integrated Chip Card (Smart Card)

LCD Liquid Crystal Display

MSAM Micromodule-size Security Access Module

MSR Magnetic Stripe Reader

OS Operating System

PED PIN Entry Device

PIN Personal Identification Number

POS Point-of-Sale

PSCR Primary Smart Card Reader

RFID Radio Frequency Identification

RTS Ready to Send

SAM Security Access Module

SC Smart Card (Integrated Chip Card)

SD Secure Digital

SDK Software Development Kit

SSL Secure Sockets Layer

SRAM Static Random Access Memory

USB Universal Serial Bus

PREFACE

Conventions and Acronyms

10 VX810 REFERENCE GUIDE

VX810 REFERENCE GUIDE 11

CHAPTER 1

Vx810 Overview

This chapter provides a brief description of the Vx810. The Vx810 is a customer-

facing premium PIN pad brought about by VeriFone’s innovative Purpose Inspired

Design program which focuses on real-world usage.

Apart from its sleek, compact, and functional design, the Vx810 features a triple-

track, high coercivity magnetic stripe reader (MSR) and a Smart Card reader, both

built and proven to perform consistently, even under the heaviest volumes. It also

has a Secure Digital Input Output (SDIO) expansion port that allows you to

upgrade the device to support contactless payments.

The Vx810 also offers an array of connectivity options all from a single port

(including serial, USB, or optional Ethernet) so you can connect to almost any

device or ECR. Plus, the Vx810 gives you the option to add a base unit with a

printer and modem to create a fully-loaded payment solution with a hand-over PIN

pad – all in one single device.

Figure 1 The Vx810

NOTE VeriFone ships variants of the Vx810 for different markets. Your device may have

a different configuration. For example, the Vx810 may or may not have a PSCR; it

may or may not have an MSR; it may have none or 3 SAMs; flash ROM size may

be from 4MB, to 8MB or 16MB; and SRAM size may be from 2MB to 4MB.

However, the basic processes described in this guide remain the same,

regardless of configuration.

VX810 OVERVIEW

Features and Benefits

12 VX810 REFERENCE GUIDE

Features and

Benefits

Acclaimed Vx Solutions Reliability and Security Guarantees Extra

Protection

•Runs on Verix-based platform, proven in millions of VeriFone Vx Solutions

installed worldwide.

•Has exceptionally reliable magnetic stripe and smart card readers to

reduce read errors.

•Is PCI-PED approved for secure, reliable PIN entry on debit transactions.

•Has received EMV Level 1 and 2 Type Approval for smart card

transactions.

•Provides end-to-end SSL security and supports the latest security options

– including 3DES encryption, and Master/Session and DUKPT (Derived

Unique Key Per Transaction) key management.

•Relies on VeriShield file authentication to help stop fraud and misuse, such

as downloading rogue files or physical tampering.

•Hardware and software application separation minimizes or eliminates the

need to re-certify existing payment applications every time an application

is added or modified.

Flexibility and Future-Proofing Can Put You Years Ahead to

Safeguard Your Investment

•Includes an SDIO expansion port to simplify upgrades to contactless or

other emerging technologies – without replacing the PIN pad.

•Provides for a wide range of connectivity via a single connector – including

RS-232, USB, and optional Ethernet – to accomodate nearly any ECR and

fit most merchant needs.

•Offers the option of adding a base unit with a printer and modem that

transforms the PIN pad into an all-in-one payment solution.

•Extensive memory (6 MB standard, 12 MB or 20 MB optional) to support

multiple applications, including revenue-producing value-added solutions.

•Uses a 200 MHz, 32-bit, ARM 9 processor for trouble-free multitasking.

VX810 OVERVIEW

Features and Benefits

VX810 REFERENCE GUIDE 13

Ultra Sleek PIN Pad Puts Everything at Your Customer’s Fingertips

•Ergonomic shape and silver casing holds high consumer appeal.

•Offers 128 x 128, high-resolution display with white backlighting for

enhanced readability and branding opportunities.

•MAXui design provides a large keypad and screen without wasted space.

•Programmable function keys and on-screen prompts add to the Vx810’s

outstanding usability.

•Works well as either a handheld or a counter/poll-mounted device, offering

flexibility in placement.

VX810 OVERVIEW

Features and Benefits

14 VX810 REFERENCE GUIDE

VX810 REFERENCE GUIDE 15

CHAPTER 2

Using the Vx810 Keys

Before proceeding to other tasks, familiarize yourself with the operational features

of the Vx810 keypad.

This section describes how to use the Vx810 keypad, which consists of four ATM-

style function keys (F1 to F4), four programmable function keys (PF1 to PF4), an

ALPHA key, a main keypad (0 to 9, *, and #), and three command keys (CANCEL,

CLEAR, and ENTER).

Using these keys, you can perform all data-entry tasks described in this manual.

The function keys allow you to navigate though the system mode menus and

select specific operations.

Figure 2 The Vx810 Keys.

USING THE VX810 KEYS

Data Entry Modes

16 VX810 REFERENCE GUIDE

Data Entry

Modes

Before you can enter data in the form of ASCII characters, the Vx810 must be in a

mode that accepts keyed data entry. There are two operating modes:

•Normal mode: This is the operating mode where an application is present

and currently running.

•System mode: This is a special, password-controlled operating mode for

performing a variety of test and configuration procedures that cannot be

performed when an application is running.

Entering Normal

Mode

If you turn on a Vx810 with an application stored in system memory, the

application executes and the device automatically enters normal mode. The

application controls how the keys process transactions and when you can use

specific keys to type characters or respond to prompts.

Entering System

Mode With No

Application Loaded

If you turn on a Vx810 that does not have an application stored in system memory,

the system prompt DOWNLOAD NEEDED appears. You can enter system mode by

simultaneously pressing F2 and F4, and entering the password. Once in system

mode, you can configure the device as required or perform downloads.

To know more about system mode operations, see System Mode.

Entering System

Mode While in

Normal Mode

If you enter system mode while in normal mode, the active application is

preempted and system mode takes control of the display and keypad.

Re-entering Normal

Mode From System

Mode

The only way to re-enter normal mode from system mode is to restart the device.

For this reason, once you enter system mode, you cannot return to the previously

active application in the same session.

NOTE Alternatively, a second method for entering system mode is available – by

simultaneously pressing the 7 and ENTER keys and then entering the password.

But for simplification in this manual, only the first method, simultaneously

pressing F2 and F4 and entering the password, is mentioned from this point on.

Some application downloads can automatically reset the system mode

password. If your system mode password no longer works, check if an

application download has changed your password.

USING THE VX810 KEYS

Data Entry Modes

VX810 REFERENCE GUIDE 17

Main Keypad

The main keypad consists of the keys 0 to 9, *, and #. You can enter up to 50

ASCII characters, including the letters A–Z, the numerals 0–9, and special

characters such as: (*), (,), (‘), (“), (-), (.), (#), (%), (:), (!), (+), (@), (=), (&), (space),

(;), ($), (_), (\), and (/). For more information, see ASCII Table.

ALPHA Key

In normal mode, the ALPHA key enables you to enter one of the two or more

characters or symbols assigned to individual keys on the main keypad (note that

this is in normal mode and is application-specific).

Use the ALPHA key to enter up to 50 different ASCII characters through the

following procedure:

1Press the key on the keypad that shows the desired letter or symbol (for

example, pressing the 2 key displays 2.

2Press ALPHA once to display the first letter. Continuing our example, press

the 2 key, then ALPHA to display the letter A.

3Press ALPHA as many times as required to display the desired character. For

example, press 2 to display the number 2; press ALPHA once to display the

letter A, twice to display B, or three times to display C.

If two or more characters display on the Vx810 screen, pressing ALPHA changes

the last character on the line to the next letter, number, or symbol in the key

sequence.

The following table provides additional examples of how to use the ALPHA key to

select ASCII characters from the Telco-style keypad.

NOTE If you firmly press and hold down one of the keys on the main keypad without

using ALPHA, the same character repeats until you stop pressing the key. For

example, if you press 2 and hold it down, “2222222...” appears on the display.

Table 3 Example ALPHA Key Entries

Desired Character Press Keys

2 2

A2 ALPHA

S7 ALPHA ALPHA ALPHA

!# ALPHA

Space 0 ALPHA ALPHA

Comma (,) * ALPHA

Plus sign (+) 0 ALPHA ALPHA ALPHA

USING THE VX810 KEYS

Data Entry Modes

18 VX810 REFERENCE GUIDE

The following table lists all the ASCII characters you can type using the ALPHA

key and the main keypad.

Table 4 Using the Keypad

Key to

Press

Without

Pressing

ALPHA

Press

ALPHA

One Time

Press

ALPHA

Two Times

Press

ALPHA

Three

Times

1 QZ. 1 Q Z .

2 ABC 2 A B C

3 DEF 3 D E F

4 GHI 4 G H I

5 JKL 5 J K L

6 MNO 6 M N O

7 PRS 7 P R S

8 TUV 8 T U V

9 WXY 9 W X Y

0 -SP 0 – [space] +

* ,’" * , ’ "

a. The # key also supports eight additional characters: (@), (=), (&), (/), (\), (%), ($), and

(_). To enter @, press # once, then ALPHA four times. To enter =, press # once, then

ALPHA five times. To enter &, press # once, then ALPHA six times. To enter /, press #

once, then ALPHA seven times. To enter \, press # once, then ALPHA eight times. To

enter %, press # once, then ALPHA nine times. To enter =, press $ once, then ALPHA

ten times. To enter _, press # once, then ALPHA eleven times.

# ! : ;

NOTE Actual keypad layout may vary. The Verix V OS in the Vx810 supports the

following keyboard layouts: Calculator, Singapore Calculator, Telco, and EBS100.

USING THE VX810 KEYS

Data Entry Modes

VX810 REFERENCE GUIDE 19

Command Keys

The following are the command keys of the Vx810:

CANCEL Key

Pressing the CANCEL key in normal mode – when an application is loaded and

running – terminates the current function or operation.

In system mode, use CANCEL to perform a variety of functions. The most

common use of CANCEL in system mode is to exit a system mode submenu and

return to the main system mode menu. The specific effect of pressing the

CANCEL key depends on the currently active system mode menu.

CLEAR Key

In normal mode, the CLEAR key is commonly used to delete a number, letter, or

symbol on the display screen. Press the CLEAR key one time to delete the last

character typed on a line. To delete additional characters, moving from right-to-

left, press the CLEAR key once for each character or hold down the CLEAR key to

delete all characters in a line.

In system mode, the specific effect of pressing the CLEAR key depends on the

currently active system mode menu.

ENTER Key

In normal mode, the ENTER key is used to end a procedure, confirm a value or

entry, answer “Yes” to a query, or select a displayed option.

In system mode, press the enter key to begin a selected procedure, step forward

or backward in a procedure, and confirm data entries. The specific effect of the

ENTER key depends on the currently active system mode menu.

Programmable

Function (PF) Keys

The row of four PF keys directly above the keypad from left-to-right are referred to

as PF1, PF2, PF3, and PF4. These keys can be assigned application-specific

functions. Because such functions are often unique and can vary greatly between

applications, they are not discussed in this manual.

The PF keys are also used to navigate through the system mode menus. These

keys are functioning when arrows appear in the display screen above the

associated key, indicating that the keys can be used as follows:

•PF1 ©Move to the previous menu or screen

•PF2 ªMove to the next menu or screen

•PF3 §Scroll left

•PF4 ¨Scroll right

USING THE VX810 KEYS

Data Entry Modes

20 VX810 REFERENCE GUIDE

Sound

The Vx810 supports only monophonic sound capabilities. The keys produce a

beeping sound when pressed.

NOTE The OS does not contain any pre-defined tunes. This feature is handled entirely

by an application. The OS merely provides an API.

VX810 REFERENCE GUIDE 21

CHAPTER 3

Setup

This chapter describes the setup procedure for Vx810, in the following sections:

•Selecting Location

•Unpacking the Shipping Carton

•Examining the Vx810 Features

•Cable Connections

•Using the Primary Smart Card Reader

•Using the Magnetic Stripe Card Reader

Selecting

Location

Use the following guidelines to select a location for the Vx810.

Ease of Use

•Select a location convenient for both merchant and cardholder.

•Select a flat support surface, such as a countertop or table.

•Select a location near a power outlet and the other VFI device, ECR, or

computer connected to the Vx810. For safety, do not string cables or cords

across a walkway.

Environmental

Factors

•Do not use the device where there is high heat, dust, humidity, moisture, or

caustic chemicals or oils.

•Keep the device away from direct sunlight and anything that radiates heat,

such as a stove or a motor.

•Do not use the device outdoors.

CAUTION The device is not waterproof or dustproof, and is intended for indoor use only.

Any damage to the device from exposure to rain or dust can void warranty.

SETUP

Unpacking the Shipping Carton

22 VX810 REFERENCE GUIDE

Electrical

Considerations

•Avoid using this product during electrical storms.

•Avoid locations near electrical appliances or other devices that cause

excessive voltage fluctuations or emit electrical noise (for example, air

conditioners, electric motors, neon signs, high-frequency or magnetic security

devices, or computer equipment).

•Do not use the device near water or in moist conditions.

Unpacking the

Shipping Carton

Open the shipping carton and carefully inspect its contents for possible tampering

or shipping damage. The Vx810 is a secure product and any tampering can cause

it to cease to function or to operate in an insecure manner.

1Remove and inspect the contents of the shipping carton. Since the Vx810

ships in multiple configurations, the carton can include:

•Vx810 device

•Data cable

•Power adapter

•Power adapter patch cable

•Power pack

•Power cord

•ECR cable

•Privacy shield

2Remove all plastic wrapping from the device and components.

3Remove the clear protective film from the display.

4Save the shipping carton and packing material for future repacking or moving

of the device.

WARNING Do not use a device that has been tampered with or damaged.

The device comes equipped with tamper-evident labels. If a label or component

appears damaged, please notify the shipping company and your VeriFone

representative or service provider immediately.

SETUP

Examining the Vx810 Features

VX810 REFERENCE GUIDE 23

Examining the

810 Features

Before you continue the installation process, examine the features of the Vx810.

Figure 3 Vx810 Features

The Vx810 has the following features:

•A display.

•Five types of keys:

•Four ATM-style function keys (F1 to F4).

•Four programmable function keys (PF1 to PF4).

•ALPHA key used for entering text.

•Main keypad (0 to 9, *, and #).

•Three color-coded command keys (CANCEL = Red; CLEAR = Yellow;

and ENTER = Green).

•A magnetic stripe card reader, built onto the top side. An icon on the Vx810

surface shows the proper card swipe direction, with the stripe located near the

bottom edge of the card when the card is slotted in, and the stripe faces the

side where the icon is printed.

•A primary smart card reader, built onto the front side. An icon indicates the

proper card position and insertion direction, with the IC chip contacts facing

upwards when the card is inserted.

SETUP

Installing/Replacing MSAM Cards

24 VX810 REFERENCE GUIDE

•A SAM (Security Access Module) compartment, built into the back side of

the device. The Vx810 can have up to 3 Micromodule-size SAM (MSAM)

cardholders to support multiple stored-value card programs or other merchant

card requirements.

Installing/

Replacing MSAM

Cards

You may need to install one or more MSAM cards or replace old cards.

To change or install

MSAMs 1Place the device facedown on a soft, clean surface to protect the lens from

scratches.

2Remove the locking screw from the data cable compartment door, open the

data cable compartment door, and then unplug the data cable.

NOTE VeriFone ships variants of the Vx810 for different markets. Your device may have

a different configuration. For example, the Vx810 may or may not have a PSCR; it

may or may not have an MSR; it may have none or 3 SAMs; flash ROM size may

be from 4MB, to 8MB or 16MB; and SRAM size may be from 2MB to 4MB.

However, the basic processes described in this guide remain the same,

regardless of configuration.

CAUTION Observe standard precautions for handling electrostatically sensitive devices.

Electrostatic discharges can damage this equipment. VeriFone recommends

using a grounded anti-static wrist strap.

NOTE

Removal of the cable ensures that no power is applied to the Vx810.

SETUP

Installing/Replacing MSAM Cards

VX810 REFERENCE GUIDE 25

3Remove the locking screw from the MSAM card compartment door, and then

open the MSAM card compartment door.

Figure 4 Removing the MSAM Compartment Door

4Remove any previously installed MSAM card by sliding the card out.

5Install an MSAM card by sliding it into the numbered slots. The MSAM card

has a notch on one corner to ensure correct positioning of the MSAM card

when inserted. The correct card position is also indicated on the MSAM card

slot.

Figure 5 MSAM Insertion

6Replace the MSAM compartment door and reinstall the locking screws.

Figure 6 Replacing the MSAM Compartment

SETUP

Options

26 VX810 REFERENCE GUIDE

Options

VeriFone ships variants of the Vx810 for different markets. Your device may have

a different configuration. Additionally, these variants can be ordered with different

options.

Privacy Shield

Example of an installed privacy shield.

Figure 7 Installed Privacy Shield

Cable

Connections

The Vx810 has six general cabling scenarios, depending on what the device

connects to:

•Other VFI Devices

•RS-232 Connection with External Power Brick

•Standard USB Connection

•USB Download Support with External Power Brick

•Powered USB

•Ethernet Connection with External Power Brick

Other VFI Devices

Vx810 will connect to another VFI device via a straight cable. There is a minimum

power requirement for the Vx810, currently specified as 3.5W. In cases where the

other device is only able to provide a 7V DC output to power the Vx810, the other

device must be able to source at least 0.5A of current. Otherwise, proper

functioning of the Vx810 is not guaranteed.

Figure 8 Connection with Another VFI Device

SETUP

Cable Connections

VX810 REFERENCE GUIDE 27

RS-232 Connection

with External Power

Brick

A special dongle cable is used, where one end of the cable plugs into the Vx810

while the other end terminates to a female DB-9 connector housing (which is used

to connect to an RS-232 serial port). On the housing, a DC jack is provided to

connect to an external power brick. This is the generic cable for all RS-232-based

hosts.

Figure 9 RS-232 Connection with External Power Brick

Standard USB

Connection

For standard USB environments, this cable option has the host end terminating in

a Type-A USB plug. Power (5V 500mA) for the Vx810 is provided via this

connector.

Figure 10 Standard USB Connection

SETUP

Cable Connections

28 VX810 REFERENCE GUIDE

USB Download

Support with

External Power

Brick

This cable option comes with a junction box that provides a mini-style Type B USB

socket for connecting to the USB-based host and a DC jack for external power

connection.

In addition, a Type A USB socket is provided on the junction box to support

application download via a USB flash drive.

Figure 11 USB with Download Support

Powered USB

For a USB-based host with PoweredUSB feature, a straight cable is all that is

required. The Vx810 supports the 12V DC option.

Figure 12 PoweredUSB

NOTE The Vx810 only supports download functions from a USB flash drive. There is no

API for applications or libraries to access the USB flash drive as an extension of

internal RAM or flash.

SETUP

Power Supply

VX810 REFERENCE GUIDE 29

Ethernet

Connection with

External Power

Brick

This cable option has a junction box that provides a standard RJ-45 LAN socket

and a DC jack. However, since most hosts do not support peer-to-peer LAN

connection to a PIN pad, an additional RJ-45 socket is provided on the junction

box to allow a direct connection between Vx810 and the host.

Figure 13 Ethernet Connection with External Power Brick

Power Supply

Not all Vx810 configurations and device contexts require use of a power supply.

However, VeriFone ships power supplies with those that require them.

If you have changed the context in which the Vx810 must work or have questions

about whether a power supply should be used, contact your VeriFone

representative.

Before connecting a power supply, disconnect the power pack cord from the

power outlet.

Make all Vx810 and device ECR or PC connections before connecting the power

pack cord into a wall outlet or surge protector.

When the Vx810 has power and an application is loaded, the application starts

after the initial VeriFone copyright screen and displays a unique copyright screen.

If no application is loaded, DOWNLOAD NEEDED appears on the display after the

initial VeriFone copyright screen.

CAUTION Using an incorrectly rated power supply can damage the device or cause it not to

work properly.

WARNING Do not plug the power pack into an outdoor outlet or operate the device outdoors.

Also, disconnecting power during a transaction can cause transaction data files

not yet stored in memory to be lost.

NOTE To protect against possible damage caused by lightning strikes and electrical

surges, VeriFone recommends installing a power surge protector.

SETUP

Using the Primary Smart Card Reader

30 VX810 REFERENCE GUIDE

Using the

Primary Smart

Card Reader

The smart card transaction procedure can vary depending on the application.

Verify the proper procedure with your application provider before performing a

smart card transaction.

To conduct a smart card transaction:

1Position a smart card with the gold contacts facing upward.

2Insert it into the smart card reader slot in a smooth, continuous motion until it

seats firmly.

3Remove the card when the display indicates the transaction is completed.

Figure 14 Smart Card Reader Use

Using the

Magnetic Stripe

Card Reader

To conduct a credit/debit card transaction:

1Position a magnetic stripe card with the stripe facing the keypad.

2Swipe it through the magnetic stripe card reader.

Figure 15 Magnetic Stripe Card Reader Use

CAUTION Leave the smart card in the card reader until the transaction is completed.

Premature removal can void the transaction.

VX810 REFERENCE GUIDE 31

CHAPTER 4

System Mode

This chapter describes a category of VFI device functions called system mode

operations.

•Press F2 and F4 at the same time and enter the password to invoke system

mode. See Entering System Mode.

•Assign files and applications to groups for access control. See File Groups.

•Use the system and file group passwords to secure applications and

information on the Vx810. See Passwords.

•Use the system mode menus and submenus to configure the Vx810;

download, test, and debug applications; and perform routine tests and device

maintenance. See System Mode Menus.

The Vx810 System Mode menus are designed to reference four ATM-style

function keys (F1 to F4). System mode is used exclusively by those responsible

for configuring, deploying, and managing on-site Vx810 installations.

When to Use

System Mode

Use the system mode functions to perform different subsets of related tasks:

•Application programmers configure a development device, download

development versions of applications, then test and debug these applications

until they are validated and ready to be downloaded to other devices.

•Deployers perform the specific tasks required to deploy a new device on-site,

including configuring the device, downloading applications, and testing the

device prior to deployment.

•System administrators or site managers change passwords, perform

routine tests and device maintenance, and configure devices for remote

diagnostics and downloads.

To perform the subset of tasks that corresponds to a job, select the appropriate

system mode menus and execute the corresponding procedures.

SYSTEM MODE

Local and Remote Operations

32 VX810 REFERENCE GUIDE

Local and

Remote

Operations

The system mode operations available on a Vx810 can be divided into the

following two categories or types:

•Local operations address a stand-alone device and do not require

communication or data transfers between the device and a host computer or

another VFI device. Perform local system mode operations to configure, test,

and display information about the device.

•Remote operations require communication between the device and a host

computer or another VFI device over a cable connection. Perform remote

system mode operations to download applications to the device, upload

software from one device to another, or perform diagnostics.

This chapter contains descriptions on how to perform local system mode

operations. For information on performing remote operations, such as downloads,

refer to the Performing Downloads section.

Verifying Device

Status

The device you are using may or may not have an application running on it. After

you have set up the device (refer to Setup) and the device is turned on, use the

following guidelines to verify device status regarding software and current

operating mode:

•If no application is loaded onto system SRAM or flash ROM, the message

DOWNLOAD NEEDED appears on the display screen.

•If an application is loaded onto system SRAM or flash ROM, an application-

specific prompt appears. The application is running and the device is in normal

mode. If all installation steps are complete, the device can process

transactions.

Entering System

Mode

To prevent unauthorized use of the system mode menus, the Vx810 OS requires a

system password each time you enter system mode. After entering the correct

password, the device enters system mode and displays the first system mode

main menu, SYS MODE MENU 1. From here you can cycle through the system mode

main menus.

NOTE From this point, press F2 and F4 to access system mode and perform the

required download.

SYSTEM MODE

File Groups

VX810 REFERENCE GUIDE 33

File Groups

The Vx810 operating system implements a file system in non-volatile, battery-

backed SRAM, and in non-volatile flash ROM memory. Files are assigned to one

of 15 groups for access control. Each group has a separate CONFIG.SYS file, and

each group is protected by a separate password. Groups are referred to as Group

n or GIDn throughout this manual.

The following rules apply to the Vx810 file group system:

•The primary application must be downloaded onto Group 1.

•On power up and after a restart, the device defaults to Group 1 as the

controlling group.

•Group 1 applications have access to files stored in all other groups.

•Applications stored in Groups 2 to 14 have access only to their own respective

files and to files stored in Group 15.

•Group 15 is globally accessible, making it an ideal location for files shared by

multiple applications, such as shared libraries.

•Groups 1–15 are empty until they are filled through a download.

For more information on managing file groups, refer to the Verix V Operating

System Programmers Manual, VPN 23230.

Passwords

Passwords for the Vx810 are enforced by the Verix V operating system (OS) in

compliance with PCI PED password requirements. These requirements include

the requiring of two passwords for sensitive operations; and, the requiring of all

passwords to be at least five characters in length.

Downloading and IPP Keyloading are considered sensitive operations that require

two passwords, the System Mode password, followed by the GID1 password. The

OS will require the user to enter the GID 1 password every time the user selects

these operations in System Mode, regardless of whether the operation has

already been previously selected in the current System Mode session. For

example, the DOWNLOAD operation will require a password each time it is

selected, even if the user performs a second DOWNLOAD operation immediately

after the first DOWNLOAD operation is completed and does not exit System

Mode.

The OS will require all passwords to be at least five characters and up to ten

characters in length for System Mode and all GIDs.

SYSTEM MODE

Passwords

34 VX810 REFERENCE GUIDE

System Mode

Password

The default, factory-set password for System Mode is “Z66831.” Use the following

key sequence to enter this password:

1 ALPHA ALPHA 6 6 8 3 1 then press ENTER

File Group

Passwords

The default, factory-set password for file group 1 (GID1) is also “Z66831.” For file

groups 2-15 (GID2-GID15), password is <EMPTY> by default.

Password

Maintenance

The OS supports two methods by which passwords can be changed. Passwords

can either be changed manually, or by downloading a password change

parameter. You can change a password at any time, provided you know the

current password.

When you key in a password, an asterisk ( * ) appears for each character you

type. These asterisks prevent your password from being seen by an unauthorized

person. You can use the ALPHA key to change the characters or symbols you

enter. This does not cause additional asterisks to appear.

CAUTION If you change the System Mode password but forget it later on, no password

recovery method is available. Without the password, you will not be able to

access System Mode operations and will be prevented from requesting

downloads, performing remote diagnostics, or changing any of the information

already stored in memory. The device can, however, continue to process

transactions in Normal mode.

If you forget or lose the System Mode password of your device, please contact

your local VeriFone representative for assistance.

SYSTEM MODE

Passwords

VX810 REFERENCE GUIDE 35

Manual Password Change

A user can change the System Mode password or any GID password from the

Passwords submenu in System Mode. The user must choose a password at least

five characters long and no more than ten characters long.

If the user attempts to enter a new password less than five characters long, the

OS will sound a beep and the screen will display an error message (see Figure

16):

Figure 16 Error message for insufficient password length

To return to the New Password prompt, press ENTER. Re-enter the new

password, and then press ENTER. To abort the password change, press

CANCEL.

If the user attempts to enter more than ten characters for the new password, the

password will be set to the first ten characters entered.

Download Password Change

A user can set the System Mode password or any GID password by downloading

a Password Change parameter from any download server (VeriCentre, DDL, or

customer-developed server).

If the downloaded password is at least five characters long and no more than ten

characters long, the OS will accept the new password.

If the downloaded password is more than ten characters long, the OS will truncate

the downloaded password to the first ten characters and will accept the new

truncated password.

If the downloaded password is less than five characters long, the OS will accept

the new password. The OS will initially acdept the new “short” password, but the

next time an operation is performed where the password is required, the user will

be prompted to change the password to a valid password before the requested

operation can be performed.

SYS MODE PASSWORD_G1

ERROR: PASSWORD MUST

BE 5 TO 10 CHARACTERS

SYSTEM MODE

Passwords

36 VX810 REFERENCE GUIDE

For operations which do not require a password, the OS will continue to operate

normally and any applications loaded on the device will be unaffected.

Previous versions of the OS will allow a password to be as short as one character.

If a customer has configured a device with “short” passwords and upgrades its OS

to the PCI PED password-compliant OS, the device will follow the logic described

in Download Password Change.

This means that the OS will not enforce the five-character minimum password

requirement until the user attempts to perform an operation which requires a

password. When a password-requiring operation is performed, the user will be

required to change the password to a compliant password before the operation

can be performed.

Any applications loaded on the device will be unaffected by the new OS.

CAUTION It is possible for a download server to change a password to one which can not

be entered on the Vx810 keypad. In this case, the device could be rendered

unusable, depending on which password is changed and the specific

configuration of the device.

NOTE Some application downloads can automatically reset the system password. If

your system password no longer works, check if an application download has

changed your password.

SYSTEM MODE

System Mode Menus

VX810 REFERENCE GUIDE 37

System Mode

Menus

The Vx810 has 3 system mode menus.

Table 5 System Mode Menus

On successful entry of the system password, SYS MODE MENU 1 appears.

To return to a previous menu, press the PF1 key (below the up arrow). To go to the

next menu, press the PF2 key (below the down arrow). Pressing the ENTER key

also cycles you through the system mode menus. To return to the main system

mode menu and cancel any changes, press the CANCEL key.

Each menu option may immediately execute an operation upon selection, or it

may contain a submenu or a series of prompts.

When performing downloads or operations that change or clear files, the

password for each file group is required. The password is only required once per

session per file group.

System Mode

Procedures

The procedures in this section explain how to use each of the system mode

menus. Each procedure description starts at a main system mode menu. Each

procedure takes you step-by-step through a complete system mode operation in

the following sequence:

1When a main system mode menu appears, select an option by pressing the

appropriate function key.

2Complete the operation.

3Return to the main system mode menu.

Procedure descriptions are arranged in the following tabular format:

SYS MODE MENU 1

EDIT PARAMETERS F2

DOWNLOAD F3

RESTART F4

SYS MODE MENU 2

MEMORY FUNCTIONS F2

TERMINAL INFO F3

CLOCK F4

SYS MODE MENU 3

CONTRAST F2

PASSWORDS F3

IPP KEY LOAD F4

Table 6 Procedural Description Example

Display Action

Screen displayed Action required

Submenu Row

Screens displayed on

submenu option

Action required

SYSTEM MODE

System Mode Menus

38 VX810 REFERENCE GUIDE

The Display column indicates what appears on the display screen at each step of

the procedure. Please note the following conventions used in this column:

•If a prompt or message appears on the screen exactly as it is described, it is

shown in Arial bold font and ALL CAPS. For example, DOWNLOAD NEEDED.

•If text is enclosed in parentheses, the actual text or message may vary

depending on the application installed. For example, in (Application Prompt),

the normal font is used and text is typed in title case.

The Action column provides a procedural description that:

•Describes the current step and context of the procedure.

•Indicates the entries to perform using the keypad in response to a prompt or

message.

•Provides additional explanations or information about the steps for that

particular system mode menu option.

A submenu row indicates a specific menu invoked from a main menu screen. A

description of that screen and procedure immediately follows the submenu row.

The following keys have the same function on all submenus:

•Press the ENTER key to save changes from a submenu and return to the

menu screen.

•Press the CANCEL key to exit any submenu without saving changes.

SYSTEM MODE

System Mode Menus

VX810 REFERENCE GUIDE 39

Entering System

Mode

The following describes how to enter system mode after you have turned on the

Vx810.

NOTE On successful completion, some operations automatically exit system mode and

restart the device. Other operations require that you exit system mode and restart

the device. To manually exit system mode, select RESTART (F4) in

SYS MODE MENU 1.

Table 7 Entering System Mode

Display Action

VERIFONE VX810

QG000829

03/29/2007 VERIX

¹DEFAULT CERTIFICATE¹

VERIFONE

At startup, the device displays a copyright notice

screen that shows the device model number, the OS

version of the Vx810 stored in the device’s flash ROM

memory, the date the firmware was loaded onto the

device, and the copyright notice.

This screen appears for three seconds, during which

time you can enter system mode by simultaneously

pressing F2 and F4.

You can extend the display period of this screen by

pressing any key during the initial three seconds. Each

key press extends the display period an additional

three seconds.

(Application Prompt)

DOWNLOAD NEEDED

¹GO FILE NOT FOUND

If an application already resides on the device, an

application-specific prompt is displayed. If no

application resides on the device, the following

message is displayed:

DOWNLOAD NEEDED

To enter system mode from this screen, simultaneously

press F2 and F4.

Note: The device will automatically download the file

VeriFone.zip from a USB flash drive without the

user having to go through System Mode under

the following conditions:

•The USB flash drive is connected before the device

is turned on.

•The USB flash drive is inserted when the initial

DOWNLOAD NEEDED message is displayed.

In both cases, the USB DOWNLOAD COMPLETE

message will appear on the screen after the

VeriFone.zip file has been downloaded.

SYSTEM MODE

System Mode Menus

40 VX810 REFERENCE GUIDE

SYSTEM MODE ENTRY

PASSWORD

_ _ _ _ _ _ _ _ _ _

If an application prompt appeared and you chose to

enter system mode, you are prompted to type the

system password.

If DOWNLOAD NEEDED appeared, use the default

password “Z66831.” This password is entered as:

1 ALPHA ALPHA 6 6 8 3 1, then press ENTER.

If you enter an incorrect password, the device exits the

SYSTEM MODE ENTRY screen. Verify your password

and re-enter it.

To quit this operation and return to the application

prompt or DOWNLOAD NEEDED screen, press

CANCEL.

SYS MODE MENU 1

EDIT PARAMETERS F2

DOWNLOAD F3

RESTART F4

©ª

SYS MODE MENU 1 is the first menu displayed. To cycle

through to the other menus, press the PF2 key or press

ENTER until you reach the desired menu.

Table 7 Entering System Mode (continued)

Display Action

SYSTEM MODE

System Mode Menus

VX810 REFERENCE GUIDE 41

Menu 1

In this menu you can edit system parameters, perform downloads, and restart the

device.

Table 8 System Mode Menu 1

Display Action

SYS MODE MENU 1

EDIT PARAMETERS F2

DOWNLOAD F3

RESTART F4

To edit system parameters, select EDIT PARAMETERS

(F2)

To download an application to your device, select

DOWNLOAD (F3).

To restart the device, select RESTART (F4).

To go to the next system mode menu, press PF2 or

ENTER.

EDIT PARAMETERS

SYS MODE MENU 1

EDIT PARAMETERS F2

DOWNLOAD F3

RESTART F4

To edit system parameters, select EDIT PARAMETERS

(F2)

To abort any action at any step, press CANCEL.

GROUP SELECT

GROUP ID: nn

APP: NOT EMPTY

Scroll to the group whose parameters you want to edit.

Press PF1 to move up the list or PF2 to move down

the list. Then press ENTER.

SYSTEM MODE DOWNLOAD

GROUP nn PASSWORD

_ _ _ _ _ _ _ _ _ _

To continue, enter the required password.

The default group password is “Z66831.” This is

entered as: 1 ALPHA ALPHA 6 6 8 3 1, then press

ENTER.

SYS MODE PASSWORD Gnn

PLEASE TRY AGAIN

This message appears if you enter an incorrect

password.

Press ENTER to try again. Re-enter your password.

SYS MODE EDIT Gnn

FILE CONFIG

SYS

The CONFIG.SYS file is displayed. Press ENTER to

continue.

SYSTEM MODE

System Mode Menus

42 VX810 REFERENCE GUIDE

GID 1: NOT EMPTY

NEW (F1)

PARAMETER:

¹GO _ _ _ _ _ _ _ _ _ FIND (F2)

VALUE:

F : VX81 . OUT EDIT (F3)

CLEAR (F4)

©ª

Do one of the following:

•To create a new parameter, select NEW (F1). Enter a

name for the parameter, then press ENTER. Enter a

value for the parameter, then press ENTER.

•To look for an existing parameter, select FIND (F2).

Type the name of the parameter, then press ENTER.

•To edit the value for an existing parameter, scroll

through the list of existing parameters by pressing

PF1 to move up the list or PF2 to move down the list,

then select EDIT (F3). Change the value for the

parameter, then press ENTER.

•To erase an existing parameter, scroll through the

list of existing parameters by pressing PF1 to move

up the list or PF2 to move down the list, then select

CLEAR (F4). Then either select YES (F3) to confirm

or NO (F4) to cancel the action.

DOWNLOAD

SYS MODE MENU 1

EDIT PARAMETERS F2

DOWNLOAD F3

RESTART F4

To download an application to your device, select

DOWNLOAD (F3).

To abort any action at any step, press CANCEL.

SYSTEM MODE DOWNLOAD

GROUP ID: nn

Type the Group ID (valid values are 1 to 15) of the

group into which you want to download files to. (Refer

to Chapter 6 for detailed download instructions and

information.) Then press ENTER to select the group.

SYSTEM MODE DOWNLOAD

GROUP nn PASSWORD

_ _ _ _ _ _ _ _ _ _

To continue, enter the required password.

The default group password is “Z66831.” This is

entered as: 1 ALPHA ALPHA 6 6 8 3 1, then press

ENTER.

SYS MODE PASSWORD Gnn

PLEASE TRY AGAIN

This message appears if you enter an incorrect

password.

Press ENTER to try again. Re-enter your password.

SYS MODE DOWNLOAD Gnn

SINGLE-APP F3

MULTI-APP F4

To download a single application, select SINGLE-APP

(F3).

To download multiple applications, select MULTI-APP

(F4).

Table 8 System Mode Menu 1 (continued)

Display Action

SYSTEM MODE

System Mode Menus

VX810 REFERENCE GUIDE 43

SYS MODE DOWNLOAD Gnn

FULL F3

PARTIAL F4

For a full download, select FULL (F3).

For a partial download, select PARTIAL (F4).

To return to SYS MODE MENU 1, press the PF1 key.

SYS MODE DOWNLOAD Gnn

COM2 F3

Select the download source, COM 2 (F3).

SYS MODE DOWNLOAD Gnn

UNIT RECEIVE MODE

WAITING FOR DOWNLOAD

The device is ready to receive a download from the

selected source.

SYS MODE DOWNLOAD Gnn

¹¹¹_ _ _ _ _ _ _

DOWNLOADING NOW

During download, a line of asterisks appears that

shows the percentage of completion. Each asterisk

equals approximately 10% of the download.

When the download is completed, the device will

restart.

You can cancel a download in progress by pressing

CANCEL. This will also restart the device.

RESTART

SYS MODE MENU 1

EDIT PARAMETERS F2

DOWNLOAD F3

RESTART F4

Select RESTART F4 to exit system mode and restart

the device.

Table 8 System Mode Menu 1 (continued)

Display Action

NOTE Before performing a download to flash ROM memory in an initialized device (one

that contains an application), reclaim all available flash ROM space. Unlike

SRAM, unused flash ROM and duplicate flash ROM information are not

automatically reclaimed during a download. To reclaim this space, perform a

defragment operation from system mode (refer to the procedure flash ROM

FILES F3). This operation makes all files in flash ROM memory contiguous. You

must also clear some or all flash ROM memory if your device does not have

enough space for the impending download.

SYSTEM MODE

System Mode Menus

44 VX810 REFERENCE GUIDE

Menu 2

In this menu, you can perform memory functions, view device configuration

information, or set the device clock.

Edit Keyed Files A keyed file is a collection of individual records that contain ASCII data and are

identified by unique search keys. You can edit the ASCII data directly from the

keypad using the device’s built-in keyed file editor. Each record has two parts: a

key name and a key value. The search key is a variable-length string, or key

name, that identifies the record. The information assigned to the search key is

contained in a separate variable-length string, or key value.

For example, in CONFIG.SYS, the key name for the application serial ID number

is *ZT. The value for the key is the actual application ID number. By entering *ZT

using the editor, the device can quickly locate the application serial ID number.

You can also use ENTER to scroll through the search keys instead of entering the

characters *ZT through the keypad.

CONFIG.SYS: Protected and Non-protected Records

The concept of protected and non-protected records applies only to the

CONFIG.SYS files in your device. Prior to a download, the recommended

procedure is to clear SRAM files.

Protected records in the file Group 1 CONFIG.SYS file are retained in a full

application download and when SRAM is cleared. Protected records are those

with search keys beginning with an asterisk (*) or a pound/hash symbol (#).

Non-protected records are all other CONFIG.SYS files, and records of other files.

These records are deleted deleted in a full application download and when SRAM

is cleared.

Editing CONFIG.SYS with an External Editor

You can create and edit the CONFIG.SYS files of Vx810 applications through an

IBM PC-compatible computer when you download files to the device. For more

information on editing an application’s CONFIG.SYS file, refer to the VeriCentre

Reference Manual, VPN 24698, and the Verix V Operating System Programmers

Manual, VPN 23230, or contact your local VeriFone representative.

For more information about using VeriCentre Download Management Module in

client/server installations, please contact your local VeriFone representative.

NOTE For a complete list of the ASCII characters supported by the Vx810 series, as

well as their decimal and hexadecimal equivalents, please refer to Appendix C.

NOTE The Verix V OS in the Vx810 will support all non-modem-related VeriCentre

operations, including full/partial downloads and compressed downloads, but not

VeriCentre-initiated downloads because this requires a modem.

SYSTEM MODE

System Mode Menus

VX810 REFERENCE GUIDE 45

Table 9 System Mode Menu 2

Display Action

SYS MODE MENU 2

MEMORY FUNCTIONS F2

TERMINAL INFO F3

CLOCK F4

©ª

To perform memory functions, select MEMORY

FUNCTIONS (F2).

To view device configuration information, select

TERMINAL INFO (F3).

To set the device clock, select CLOCK (F4).

To go to the previous system mode menu, press

PF1. To go to the next system mode menu, press

PF2 or ENTER.

MEMORY FUNCTIONS X USAGE

SYS MODE MENU 2

MEMORY FUNCTIONS F2

TERMINAL INFO F3

CLOCK F4

©ª

To perform memory functions, select MEMORY

FUNCTIONS (F2).

To abort any action at any step, press CANCEL.

SYS MODE MEM FUNCS

RAM: 2048

FLASH: 4096

USAGE F2

DIRECTORIES F3

CLEAR MEM F4

This screen shows the amount of installed SRAM

and flash ROM memory.

To view memory usage, select USAGE (F2).

MEMORY USAGE

RAM FILES 6

INUSE 1 KB

AVAIL 1907 KB

FLASH FILES 1

INUSE 6 KB

AVAIL 3450 KB

Selecting USAGE (F2) displays the following

information:

•Number of files in SRAM memory

•Total KB of SRAM memory in use

•Total KB of SRAM memory available

•Number of files in flash ROM memory

•Total KB of flash ROM memory in use

•Total KB of flash ROM memory available

SYSTEM MODE

System Mode Menus

46 VX810 REFERENCE GUIDE

MEMORY FUNCTIONS X DIRECTORIES

SYS MODE MENU 2

MEMORY FUNCTIONS F2

TERMINAL INFO F3

CLOCK F4

©ª

To perform memory functions, select MEMORY

FUNCTIONS (F2).

To abort any action at any step, press CANCEL.

SYS MODE MEM FUNCS

RAM: 2048

FLASH: 4096

USAGE F2

DIRECTORIES F3

CLEAR MEM F4

This screen shows the amount of installed SRAM

and flash ROM memory.

To view directory information, select DIRECTORIES

(F3).

SYS MODE DIRECTORY

GROUP ID: nn

RAM FILES F3

FLASH FILES F4

Type the Group ID (valid values are 1 to 15) of the

group whose directory you want to view.

To view the files in SRAM memory for the selected

group, select RAM FILES (F3).

To view the files in flash ROM memory for the

selected group, select FLASH FILES (F4).

MEMORY FUNCTIONS X CLEAR MEM

SYS MODE MENU 2

MEMORY FUNCTIONS F2

TERMINAL INFO F3

CLOCK F4

©ª

To perform memory functions, select MEMORY

FUNCTIONS (F2).

To abort any action at any step, press CANCEL.

SYS MODE MEM FUNCS

RAM: 2048

FLASH: 4096

USAGE F2

DIRECTORIES F3

CLEAR MEM F4

This screen shows the amount of installed SRAM

and flash ROM memory.

To clear memory information, select CLEAR MEM

(F4).

SYS MODE MEMORY

GROUP ID: nn

Type the Group ID (valid values are 1 to 15) of the

group whose memory you want to erase, then press

ENTER.

Table 9 System Mode Menu 2 (continued)

Display Action

SYSTEM MODE

System Mode Menus

VX810 REFERENCE GUIDE 47

SYS MODE MEMORY

GROUP nn PASSWORD

_ _ _ _ _ _ _ _ _ _

To continue, enter the required password. If you

enter an incorrect password, the following message

appears:

SYS MODE PASSWORD Gnn

PLEASE TRY AGAIN

Press ENTER to try again. Re-enter your password.

SYS MODE MEMORY

CLEAR CONFIG

SYS F2

CLEAR Gnn FILES F3

CLEAR ALL GROUPS F4

To clear the CONFIG.SYS records for the selected

group, select CLEAR CONFIG

SYS (F2).

To clear the other files stored in the selected group,

select CLEAR Gnn FILES (F3).

To clear the other files stored in all groups, select

CLEAR ALL GROUPS (F4).

SYS MODE MEMORY

CLEAR ALL F2

KEEP PROTECTED

VARIABLES F3

Selecting CLEAR CONFIG.SYS (F2) will further

display the following options:

•Select CLEAR ALL (F2) to clear all CONFIG.SYS

records, including both protected and non-

protected records.

•Select KEEP PROTECTED VARIABLES (F3) to

clear non-protected CONFIG.SYS records but

retain protected CONFIG.SYS records.

RAM & FLASH CLEARED

COALESCING FLASH

This message will be displayed when clearing is

completed.

TERMINAL INFO X SYSTEM INFO

SYS MODE MENU 2

MEMORY FUNCTIONS F2

TERMINAL INFO F3

CLOCK F4

©ª

To view device configuration information, select

TERMINAL INFO (F3).

To abort any action at any step, press CANCEL.

SYS MODE MENU

SYSTEM INFO F2

DIAGS AND LOGS F3

To view system information, select SYSTEM INFO

(F2).

Table 9 System Mode Menu 2 (continued)

Display Action

SYSTEM MODE

System Mode Menus

48 VX810 REFERENCE GUIDE

SYS MODE TERM INFO

SERNO 303-000-040

PTID 12000000

PART M28150302DMO

REV 1

OS VER QG000829

Selecting SYSTEM INFO (F2) shows the following

information:

•Device Serial Number (9-character, numeric code)

•Permanent Device ID Number (8-character,

numeric code)

•Device Part Number (12-character alphanumeric

code)

•Hardware Revision Number (2-character numeric

code)

•System OS Version (8-character alphanumeric

code)

SYS MODE TERM INFO

MODL VX810

CTRY GEN

KEYPAD 0

DISPLAY 128128

MAG RDR 3

©ª

•Hardware Model: VX810

•Country of Manufacture: GEN = Generic

•Keypad Type: 0 = TelCo, 1 = Calculator, 2 =

Singapore

•Display Resolution: 128 x 128 pixels

•Magnetic Stripe Reader Type

SYS MODE TERM INFO

PINPAD 1

LIFE 143457

RSET 070613131233

RCNT 171

TAMPER DETECTED N

©ª

•Integrated PIN Pad: 1 = Yes, 0 = No

•Running Life (in seconds)

•Last Reset Date & Time (in YYMMDDHHMMSS

format, where YY = year, MM = month, DD = day,

HH = hour, MM = minute, and SS = second)

•Reset Count – either through application control,

system mode request, or a power cycle.

•Occurence of Tampering: Y = Yes, N = No

SYS MODE TERM INFO

CERT 234000

HEAP 772

STACK 1708

NEXT CERT F3

•CERT indicates the certificate numbers

pertaining to the device. Pressing NEXT CERT

(F3) will show the other certificate numbers.

•HEAP indicates the memory designation used by

the OS.

•STACK indicates the memory set aside by the OS

for running tasks.

Table 9 System Mode Menu 2 (continued)

Display Action

SYSTEM MODE

System Mode Menus

VX810 REFERENCE GUIDE 49

TERMINAL INFO X DIAGS AND LOGS

SYS MODE MENU 2

MEMORY FUNCTIONS F2

TERMINAL INFO F3

CLOCK F4

©ª

To view device configuration information, select

TERMINAL INFO (F3).

To abort any action at any step, press CANCEL.

SYS MODE MENU

SYSTEM INFO F2

DIAGS AND LOGS F3

To perform system diagnostic tests and view log

information, select DIAGS AND LOGS (F3).

SYS MODE DIAGS

SMART CARD DIAG F2

KEYBOARD DIAG F3

MAG CARD DIAG F4

To run a test on any inserted ICC or SAM cards,

select SMART CARD DIAG (F2).

To run a test on the keypad, select KEYBOARD DIAG

(F3).

To run a test on the magnetic stripe reader (MSR),

select MAG CARD DIAG (F4).

SYS MODE DIAGS

SCREEN DIAG F2

IPP DIAG F3

©ª

To perform a diagnostic test on the screen, select

SCREEN DIAG (F2).

To perform a diagnostic test on the internal PIN pad,

select IPP DIAG (F3).

SYS MODE DIAGS

REMOTE DIAGS F2

DEBUGGER F3

©ª

The REMOTE DIAGS (F2) functions are reserved for

VeriFone use only.

To use the debugging tool, select DEBUGGER (F3).

SYS MODE DIAGS

ERROR LOG F2

TAMPER LOG F3

To view the error logs, select ERROR LOG (F2).

To view the tamper logs, select TAMPER LOG (F3).

Table 9 System Mode Menu 2 (continued)

Display Action

SYSTEM MODE

System Mode Menus

50 VX810 REFERENCE GUIDE

TERMINAL INFO X DIAGS AND LOGS X SMART CARD DIAG

SYS MODE MENU 2

MEMORY FUNCTIONS F2

TERMINAL INFO F3

CLOCK F4

©ª

To view device configuration information, select

TERMINAL INFO (F3).

To abort any action at any step, press CANCEL.

SYS MODE MENU

SYSTEM INFO F2

DIAGS AND LOGS F3

To perform system diagnostic tests and view log

information, select DIAGS AND LOGS (F3).

SYS MODE DIAGS

SMART CARD DIAG F2

KEYBOARD DIAG F3

MAG CARD DIAG F4

To run a test on any inserted ICC or SAM cards,

select SMART CARD DIAG (F2).

VOYAGER VER 02080000

DRVR VER 070329161412

PHILIP VER 2.0 6/06

SMART CARD TEST F3

LIST SYNC DRIVERS F4

The screen displays system and driver information

pertaining to the SAM slots available.

TEST CUST SLOT F1

SAM1 F2

SAM2 F3

SAM3 F4

Selecting SMART CARD TEST (F3) will display this

screen. Select the SAM card slot you want to test.

•Customer Card slot (F1)

•SAM Card 1 slot (F2)

•SAM Card 2 slot (F3)

•SAM Card 3 slot (F4)

Table 9 System Mode Menu 2 (continued)

Display Action

SYSTEM MODE

System Mode Menus

VX810 REFERENCE GUIDE 51

SAM 1

POWER UP: PASSED

GET ATR: PASSED

This is the screen that is displayed when an inserted

SAM card is successfully tested.

SAM 2

POWER UP: FAILED

This is the screen that is displayed when there is no

inserted SAM card in the slot being tested.

TERMINAL INFO X DIAGS AND LOGS X KEYBOARD DIAG

SYS MODE MENU 2

MEMORY FUNCTIONS F2

TERMINAL INFO F3

CLOCK F4

©ª

To view device configuration information, select

TERMINAL INFO (F3).

To abort any action at any step, press CANCEL.

SYS MODE MENU

SYSTEM INFO F2

DIAGS AND LOGS F3

To perform system diagnostic tests and view log

information, select DIAGS AND LOGS (F3).

Table 9 System Mode Menu 2 (continued)

Display Action

SYSTEM MODE

System Mode Menus

52 VX810 REFERENCE GUIDE

SYS MODE DIAGS

SMART CARD DIAG F2

KEYBOARD DIAG F3

MAG CARD DIAG F4

To run a test on the keypad, select KEYBOARD DIAG

(F3).

Pressing a key on the device, will return a

corresponding keycode. These are listed as follows:

SYS MODE KBD TEST

KEYCODE 00

TERMINAL INFO X DIAGS AND LOGS X MAG CARD DIAG

SYS MODE MENU 2

MEMORY FUNCTIONS F2

TERMINAL INFO F3

CLOCK F4

©ª

To view device configuration information, select

TERMINAL INFO (F3).

To abort any action at any step, press CANCEL.

SYS MODE MENU

SYSTEM INFO F2

DIAGS AND LOGS F3

To perform system diagnostic tests and view log

information, select DIAGS AND LOGS (F3).

SYS MODE DIAGS

SMART CARD DIAG F2

KEYBOARD DIAG F3

MAG CARD DIAG F4

To run a test on the magnetic stripe reader (MSR),

select MAG CARD DIAG (F4).

SYS MODE

TRK 1: NO DATA

TRK 2: NO DATA

TRK 3: NO DATA

The Vx810 has 3-track, high coercivity, bi-directional

MSR heads. Initially, each track will indicate NO

DATA.

Table 9 System Mode Menu 2 (continued)

Display Action

SYSTEM MODE

System Mode Menus

VX810 REFERENCE GUIDE 53

SYS MODE

TRK 1: VALID DATA

TRK 2: VALID DATA

TRK 3: VALID DATA

When you swipe a magnetic stripe card through the

MSR slot, a successful read would indicate VALID

DATA for each track.

An unsuccessful read may indicate any one of the

following:

•NO START

•PARITY ERR

TERMINAL INFO X DIAGS AND LOGS X SCREEN DIAG

SYS MODE MENU 2

MEMORY FUNCTIONS F2

TERMINAL INFO F3

CLOCK F4

©ª

To view device configuration information, select

TERMINAL INFO (F3).

To abort any action at any step, press CANCEL.

SYS MODE MENU

SYSTEM INFO F2

DIAGS AND LOGS F3

To perform system diagnostic tests and view log

information, select DIAGS AND LOGS (F3).

SYS MODE DIAGS

SCREEN DIAG F2

IPP DIAG F3

©ª

To perform a diagnostic test on the screen, select

SCREEN DIAG (F2).

A successful screen test is indicated by all 128 x

128 pixels being shaded BLACK.

Any part of the screen that is not shaded black

indicates defective pixels.

Table 9 System Mode Menu 2 (continued)

Display Action

SYSTEM MODE

System Mode Menus

54 VX810 REFERENCE GUIDE

TERMINAL INFO X DIAGS AND LOGS X IPP DIAG

SYS MODE MENU 2

MEMORY FUNCTIONS F2

TERMINAL INFO F3

CLOCK F4

©ª

To view device configuration information, select

TERMINAL INFO (F3).

To abort any action at any step, press CANCEL.

SYS MODE MENU

SYSTEM INFO F2

DIAGS AND LOGS F3

To perform system diagnostic tests and view log

information, select DIAGS AND LOGS (F3).

SYS MODE DIAGS

SCREEN DIAG F2

IPP DIAG F3

©ª

To perform a diagnostic test on the internal PIN pad,

select IPP DIAG (F3).

INTERNAL PIN PAD

IPP8 EMUL01A 07/05 0D

SN: 0000000000000000

MODE: VISA

BAUD: 1200

RESET F3

EXIT F4

To perform a diagnostic test on the internal PIN pad,

select IPP DIAG (F3).

To reset the internal PIN pad settings, select RESET

(F3).

To exit this option, select EXIT (F4).

TERMINAL INFO X DIAGS AND LOGS X REMOTE DIAGS

SYS MODE MENU 2

MEMORY FUNCTIONS F2

TERMINAL INFO F3

CLOCK F4

©ª

To view device configuration information, select

TERMINAL INFO (F3).

To abort any action at any step, press CANCEL.

SYS MODE MENU

SYSTEM INFO F2

DIAGS AND LOGS F3

To perform system diagnostic tests and view log

information, select DIAGS AND LOGS (F3).

Table 9 System Mode Menu 2 (continued)

Display Action

SYSTEM MODE

System Mode Menus

VX810 REFERENCE GUIDE 55

SYS MODE DIAGS

REMOTE DIAGS F2

DEBUGGER F3

©ª

To perform remote diagnostic tests, select REMOTE

DIAGS (F2).

This option is reserved for VeriFone use only, and

requires the loading of a Device Management

Agent.

TERMINAL INFO X DIAGS AND LOGS X DEBUGGER

SYS MODE MENU 2

MEMORY FUNCTIONS F2

TERMINAL INFO F3

CLOCK F4

©ª

To view device configuration information, select

TERMINAL INFO (F3).

To abort any action at any step, press CANCEL.

SYS MODE MENU

SYSTEM INFO F2

DIAGS AND LOGS F3

To perform system diagnostic tests and view log

information, select DIAGS AND LOGS (F3).

SYS MODE DIAGS

REMOTE DIAGS F2

DEBUGGER F3

©ª

To use the debugging tool, select DEBUGGER (F3).

The debugging tool is included in the SDK, but is not

stored in the terminal memory of a factory unit. It

must be signed, downloaded, and authenticated

before it can be used.

SYS MODE FILE

FILE GROUP nn

Type the Group ID (valid values are 1 to 15) of the

files you want to debug. Then press ENTER.

LOAD DBMON.OUT This message is displayed when the debugger tool

is run.

SYSTEM MODE FILE

GROUP nn PASSWORD

_ _ _ _ _ _ _ _ _ _

To continue, enter the required password.

Table 9 System Mode Menu 2 (continued)

Display Action

SYSTEM MODE

System Mode Menus

56 VX810 REFERENCE GUIDE

TERMINAL INFO X DIAGS AND LOGS X ERROR LOG

SYS MODE MENU 2

MEMORY FUNCTIONS F2

TERMINAL INFO F3

CLOCK F4

©ª

To view device configuration information, select

TERMINAL INFO (F3).

To abort any action at any step, press CANCEL.

SYS MODE MENU

SYSTEM INFO F2

DIAGS AND LOGS F3

To perform system diagnostic tests and view log

information, select DIAGS AND LOGS (F3).

SYS MODE DIAGS

ERROR LOG F2

TAMPER LOG F3

To view the error logs, select ERROR LOG (F2).

SYS MODE ERR LOG

TYPE 1

TASK 2

TIME 030904092217

CSPR 40000030

PC 704201A0

LR 70420140

ADDR 00000000

The error log screens display internal diagnostic

information about the most recent unrecoverable

software error.

If you report a problem with your device, you may be

asked to provide this information.

Table 9 System Mode Menu 2 (continued)

Display Action

SYSTEM MODE

System Mode Menus

VX810 REFERENCE GUIDE 57

This first screen displays the following:

•TYPE (Error Type), where the error type code is:

1 = Data abort: attempt to access data at an

invalid address

2 = Program abort: attempt to execute code at

an invalid address

3 = Undefined abort: attempt to execute an

illegal instruction

•TASK (Task Number): indicates type of task that

was currently executed:

1 = Data abort: attempt to access data at an

invalid address

2 = Program abort: attempt to execute code at

an invalid address

•TIME (time of crash): clock time of the error in the

format YYMMDDhhmmss, where YY = year, MM

= month, DD = day, hh = hour, mm = minute, and

ss = second

•CPSR (Current Program Status Register):

contains the processor and state condition code

•PC (Program Counter): holds the execution

address

•LR (Link Register): holds the return address of

the function call

Note: LR may not always contain the current

return address.

•ADDR (fault address): contains the illegal address

that the application was trying to access

•After making any notations, press the key under

the down arrow (PF2) to view additional error log

information, if shown.

TERMINAL INFO X DIAGS AND LOGS X TAMPER LOG

SYS MODE MENU 2

MEMORY FUNCTIONS F2

TERMINAL INFO F3

CLOCK F4

©ª

To view device configuration information, select

TERMINAL INFO (F3).

To abort any action at any step, press CANCEL.

SYS MODE MENU

SYSTEM INFO F2

DIAGS AND LOGS F3

To perform system diagnostic tests and view log

information, select DIAGS AND LOGS (F3).

Table 9 System Mode Menu 2 (continued)

Display Action

SYSTEM MODE

System Mode Menus

58 VX810 REFERENCE GUIDE

SYS MODE DIAGS

ERROR LOG F2

TAMPER LOG F3

To view the tamper logs, select TAMPER LOG (F3).

TAMPER LOG

18-OCT-05 23:10

TAMPER CODE 0 00 04

10-OCT-05 12:05

TAMPER CLEAR

10-OCT-05 12:00

TAMPER CODE 2 00 00

The Tamper Log screen displays a list of possible

tamper events. The list is sorted from the most

current tamper event to the oldest event. The date is

displayed in DD-MON-YY format, while the time is

displayed as a 24-hour clock.

TERMINAL INFO X CLOCK

SYS MODE MENU 2

MEMORY FUNCTIONS F2

TERMINAL INFO F3

CLOCK F4

©ª

To set the device clock, select CLOCK (F4).

To abort any action at any step, press CANCEL.

SYS MODE CLOCK

INCREMENT HOUR F1

EDIT TIME F2

EDIT DATE F3

DECREMENT HOUR F4

To adjust the current time one hour forward, select

INCREMENT HOUR (F1).

To adjust the time, select EDIT TIME (F2).

To adjust the date, select EDIT DATE (F3).

To adjust the current time one hour back, select

DECREMENT HOUR (F4).

Note: The device clock is battery-backed to retain

date and time settings when the device is

switched off.

SYS MODE TIME

CURRENT TIME:

10 : 01 : 50

NEW TIME:

_ _ : _ _ : _ _

Selecting EDIT TIME (F2), will prompt you to enter

new time values. Enter the new time in HH:MM:SS

format, then press ENTER.

Table 9 System Mode Menu 2 (continued)

Display Action

SYSTEM MODE

System Mode Menus

VX810 REFERENCE GUIDE 59

SYS MODE DATE

CURRENT DATE:

06 / 15 / 07

NEW DATE:

_ _ / _ _ / _ _

Selecting EDIT DATE (F3), will prompt you to enter

new date values. Enter the new date in MM/DD/YY

format, then press ENTER.

SYS MODE CLOCK

TIME AND DATE

10 : 01 : 50

06 / 15 / 07

After adjusting the time or date, the new time and

date setting is displayed.

Table 9 System Mode Menu 2 (continued)

Display Action

SYSTEM MODE

System Mode Menus

60 VX810 REFERENCE GUIDE

Menu 3

In this menu you can adjust screen contrast, change passwords, or perform IPP

key loading.

Table 10 System Mode Menu 3

Display Action

SYS MODE MENU 3

CONTRAST F2

PASSWORDS F3

IPP KEY LOAD F4

©ª

To adjust screen contrast, select CONTRAST (F2).

To change passwords, select PASSWORDS (F3).

To perform IPP key loading, select IPP KEY LOAD (F4).

To go to the previous system mode menu, press PF1.

To go to the next system mode menu, press PF2 or

ENTER.

CONTRAST

SYS MODE MENU 3

CONTRAST F2

PASSWORDS F3

IPP KEY LOAD F4

©ª

To adjust screen contrast, select CONTRAST (F2).

To abort any action at any step, press CANCEL.

SYS MODE CONTRAST

CONTRAST UP F2

CONTRAST DOWN F3

TOGGLE INVERSE F4

To increase screen contrast, select CONTRAST UP (F2).

To decrease screen contrast, select CONTRAST DOWN

(F3).

To inverse the screen, select TOGGLE INVERSE (F4).

From having black text on a white background, the

screen will have white text on a black background.

To bring the screen back to its original setting, select

TOGGLE INVERSE (F4) again.

PASSWORDS

SYS MODE MENU 3

CONTRAST F2

PASSWORDS F3

IPP KEY LOAD F4

©ª

To change passwords, select PASSWORDS (F3).

To abort any action at any step, press CANCEL.

SYSTEM MODE

System Mode Menus

VX810 REFERENCE GUIDE 61

SYS MODE PASSWORD

FILE GROUP nn F2

SYS MODE ENTRY F3

To change the password for a file group, type the

Group ID (valid values are 1 to 15) of the group whose

password you want to change. Then select FILE

GROUP nn (F2).

To change the password for System Mode Entry, select

SYS MODE ENTRY (F3).

SYS MODE PASSWORD

GROUP nn PASSWORD

_ _ _ _ _ _ _ _ _ _

To continue, enter the required password.

The default group password is “Z66831.” This is

entered as: 1 ALPHA ALPHA 6 6 8 3 1, then press

ENTER.

SYS MODE PASSWORD Gnn

PLEASE TRY AGAIN

This message appears if you enter an incorrect

password.

Press ENTER to try again. Re-enter your password.

SYS MODE PASSWORD Gnn

NEW _ _ _ _ _ _ _ _ _ _

Enter the new password, then press ENTER.

SYS MODE PASSWORD Gnn

AGAIN_ _ _ _ _ _ _ _ _ _

Re-enter the new password, then press ENTER.

SYS MODE PASSWORD Gnn

PLEASE TRY AGAIN

This message is displayed if the entry and re-entry of

the new password does not match. Press ENTER to

continue.

SYS MODE PASSWORD Gnn

PASSWORD CHANGED

This message is displayed upon successful changing

of the password.

IPP KEY LOAD

SYS MODE MENU 3

CONTRAST F2

PASSWORDS F3

IPP KEY LOAD F4

©ª

To perform IPP key loading, select IPP KEY LOAD (F4).

To abort any action at any step, press CANCEL.

Table 10 System Mode Menu 3 (continued)

Display Action

SYSTEM MODE

System Mode Menus

62 VX810 REFERENCE GUIDE

SYS MODE PASSWORD

GROUP nn PASSWORD

_ _ _ _ _ _ _ _ _ _

To continue, enter the required password.

The default group password is “Z66831.” This is

entered as: 1 ALPHA ALPHA 6 6 8 3 1, then press

ENTER.

SYS MODE PASSWORD Gnn

PLEASE TRY AGAIN

This message appears if you enter an incorrect

password.

Press ENTER to try again. Re-enter your password.

INTERNAL PIN PAD

KEY LOADING MODE

BYTES SENT 0

BYTES RCVD 0

END F4

A communication channel is opened through COM2 to

the IPP to allow key loading.

The number of bytes sent and received is displayed.

Press END (F4) when done. The system will restart.

KEY LOADING STOPPED:

TIMER EXPIRED

This message is displayed if no data is sent within 1.25

minutes.

Press END (F4) to continue. The system will restart.

Table 10 System Mode Menu 3 (continued)

Display Action

VX810 REFERENCE GUIDE 63

CHAPTER 5

File Authentication

This chapter discusses the VeriShield file authentication security architecture,

VeriShield file authentication module, and the organizational infrastructure that

supports it (see Introduction to File Authentication).

This chapter also explains how the file authentication process may affect the tasks

normally performed by application programmers, system deployers, site

administrators, or entities authorized to download files to the Vx810 (see File

Authentication and the File System).

Lastly, this chapter explains how to generate the signature files required to

perform downloads and authenticate files on the Vx810 using the VeriShield File

Signing Tool (see VeriShield File Signing Tool).

In Chapter 6, the topic of file authentication is also discussed in the context of

specific file download procedures.

Introduction to

File

Authentication

The Vx810 uses the VeriShield security architecture, which has both physical and

logical components. The logical security component of the VeriShield architecture,

which is part of the operating system software, is called the file authentication

module.

File authentication is a secured process for authenticating files using digital

signatures, cryptographic keys, and digital certificates. This process makes it

possible for the sponsor of a Vx810 to logically secure access to the device by

controlling who is authorized to download application files to that device. It verifies

the file’s origin, sender’s identity, and integrity of the file’s information.

The VeriFone

Certificate Authority

To manage the tools and processes related to the file authentication module of the

VeriShield security architecture, VeriFone has established a centralized VeriFone

Certificate Authority, or VeriFone CA. This agency is responsible for managing

keys and certificates. The VeriFone CA uses an integrated set of software tools to

generate and distribute digital certificates and private cryptographic keys to

customers who purchase the Vx810.

FILE AUTHENTICATION

Introduction to File Authentication

64 VX810 REFERENCE GUIDE

Special Files Used

in the File

Authentication

Process

The following specially formatted files support the file authentication process:

•A digital certificate is a digital public document used to verify the signature of

a file.

•A digital signature is a piece of information based on both the file and the

signer’s private cryptographic key. The file sender digitally signs the file using

a private key. The file receiver uses a digital certificate to verify the sender’s

digital signature.

•Signer private keys are securely conveyed to clients on smart cards. The

secret passwords required by clients to generate signature files, using signer

private keys, are sent as PINs over a separate channel such as registered

mail or encrypted e-mail.

Some files, such as private key files, are encrypted and password protected for

data security. Others, such as digital certificates and signature files, do not need

to be kept secure to safeguard the overall security of VeriShield.

Within the VeriShield File Signing Tool, you can recognize the special file types

that support the file authentication process by the filename extensions.

All digital certificates are generated and managed by the VeriFone CA, and are

distributed on request to Vx810 clients – either internally within VeriFone or

externally to sponsors.

All certificates issued by the VeriFone CA for the Vx810 platform, and for any

VeriFone platform with the VeriShield security architecture, are hierarchically

related. That is, a lower-level certificate can only be authenticated under the

authority of a higher-level certificate.

The security of the highest-level certificate, called the platform root certificate, is

tightly controlled by VeriFone.

Table 11 VeriShield File Signing Tool Filename Extensions

File Type Extension

Signature *.p7s

Private key *.key

Digital certificate *.crt

FILE AUTHENTICATION

Introduction to File Authentication

VX810 REFERENCE GUIDE 65

Certificates Contain Keys That Authenticate Signature Files

•A sponsor certificate certifies a client’s sponsorship of the device. It does

not, however, convey the right to sign and authenticate files. To add flexibility

to the business relationships that are logically secured under the file

authentication process, a second type of certificate is usually required to sign

files.

A sponsor certificate is authenticated under a higher-level system certificate,

called the application partition certificate.

•A signer certificate certifies the right to sign and authenticate files for devices

belonging to the sponsor.

A signer certificate is authenticated under the authority of a higher-level client

certificate (the sponsor certificate).

The required sponsor and signer certificates must either have been previously

downloaded and authenticated on the device, or they must be downloaded

together with the new signature and target files to authenticate.

Signer Private Keys Are Issued to Secure the File Signing Process

Signer private keys are loaded onto a smart card. This smart card is securely

delivered to the business entity that the device sponsor has authorized to sign,

download, and authenticate applications to run on the sponsor’s device.

The VeriFone CA can also issue additional sets of sponsor and signer certificates,

signer private keys to support multiple sponsors, and multiple signers for a

specific platform.

To establish the logical security of applications to download to a Vx810, the

designated signer uses the signer private key issued by the VeriFone CA as this is

a required input to the VeriShield File Signing Tool.

A signature file is generated using a signer private key. Successful authentication

depends on whether the signer private key used to sign the target file matches the

signer certificate stored in the device’s certificate tree.

NOTE

Only one sponsor certificate is permitted per device.

NOTE The signer private keys loaded onto the smart card is the only copy of the private

key.

FILE AUTHENTICATION

Introduction to File Authentication

66 VX810 REFERENCE GUIDE

How File

Authentication

Works

File authentication consists of three basic processes:

1Development: The VeriShield File Signing Tool creates a signature file for

each application file to authenticate.

2Pre-deployment: An optimal certificate structure is determined, and the

necessary certificates and keys are created.

3Deployment: The development and pre-deployment processes, once

complete, are used in combination to prepare a device for deployment.

Development Process

In this process:

1The application developer creates an application file.

2The developer assigns a name to the application file.

3The application file becomes a required input for the VeriShield File Signing

Tool (included in the SDK).

4The default certificate (VXSIGN.CRT) and default key (VXSIGN.KEY)

included in the SDK are inputs for the VeriShield File Signing Tool.

5Using the application file, default certificate, and default key, the VeriShield

File Signing Tool creates a signature file (*.p7s).

6The signature file and the original application file are loaded onto a

development device, where the following actions occur:

aThe device’s operating system searches for signature files.

bWhen a signature file is found, the operating system searches for a

matching application file.

cWhen a matching application file is found, the operating system compares

the signature file’s signature against the values stored in the application

file’s calculated signature.

dIf these values match, the operating system marks the application file

“authenticated” and allows it to run.

7The application file is tested and debugged.

8After the application file is fully debugged, it becomes an input for the

deployment process.

FILE AUTHENTICATION

Introduction to File Authentication

VX810 REFERENCE GUIDE 67

The following diagram describes the development process.

Figure 17 The Development Process

Pre-Deployment Process

In this process:

1A sponsor goes to the VeriFone CA Web site and requests certificates for

deployment devices.

2Based on information provided by the sponsor through the VeriFone CA Web

site, the VeriFone CA determines the required certificate structure.

3The VeriFone CA generates the following items for the sponsor:

aSmart card containing a set of certificates and private key

bSmart card PIN

4The VeriFone CA sends the smart card and smart card PIN to the sponsor.

5The sponsor uses the smart card and smart card PIN as inputs for the

deployment process.

FILE AUTHENTICATION

Introduction to File Authentication

68 VX810 REFERENCE GUIDE

The following diagram describes the pre-deployment process.

Figure 18 The Pre-Deployment Process

Deployment Process

In this process:

1The sponsor provides the application file (from the development process), the

smart card, and smart card PIN (from the pre-deployment process) as inputs

to VeriShield.

2VeriShield extracts the signer key, signer certificate, and sponsor certificate

from the smart card.

3VeriShield uses the extracted data, along with the application file, to create a

signature file (*.p7s).

4VeriShield creates files suitable for downloading from the extracted smart card

data.

5The signature file, application file, and extracted signer and sponsor

certificates are downloaded onto a deployment device, where the following

actions occur:

aThe device’s operating system searches for signature files.

bIf a signature file is found, the operating system searches for a matching

application file.

FILE AUTHENTICATION

Introduction to File Authentication

VX810 REFERENCE GUIDE 69

cIf a matching application file is found, the operating system compares the

signature file’s signature against the values stored in the application file’s

calculated signature.

dIf these values match, the operating system marks the application file

“authenticated” and allows it to run.

6Each successfully authenticated executable application file is allowed to run

on the device (otherwise, the executable remains stored in the device’s

memory but is not allowed to run).

The following diagram describes the deployment process.

Figure 19 The Deployment Process

FILE AUTHENTICATION

Introduction to File Authentication

70 VX810 REFERENCE GUIDE

Planning for File

Authentication

File authentication is an integral part of every Vx810 device. To safeguard the

device’s logical security, the file authentication module requires that any

executable code file must be successfully authenticated before the operating

system allows it to execute on the device.

Authentication Requirements for Specific File Types

For the purposes of file authentication, executable code files include two file types

that can be recognized by the filename extensions listed below.

Depending on the logical security requirements of specific applications, other

types of files used by an application (that is, non-executable files) must also be

authenticated.

•Data files (*.dat) that contain sensitive customer information or other data that

must be secure

•Font files (*.vft or *.fon) may need to be secure to prevent unauthorized text or

messages from being displayed on the screen.

•Any other type of file used by an application in which the application designer

would like to logically secure using file authentication requirements

Decide Which Files to Authenticate in a Specific Application

The first step in the file authentication process is to determine which files must be

authenticated for an application to meet its design specifications for logical

security under the VeriShield security architecture.

In most cases, application designers make these decisions based on

specifications provided by the device sponsor. Determining which files to

authenticate can be completely transparent to the person or business entity

responsible for signing, downloading, and authenticating an application prior to

deployment.

How (and When) Signature Files Authenticate Their Target Files

Signature files are usually downloaded together with their target application files in

the same data transfer operation. This recommended practice lets you specify

and confirm the logical security status of the Vx810 each time you perform an

application download.

When the file authentication module detects a new signature file after a device

restart, it locates and attempts to authenticate the target file that corresponds to

the new signature file.

Table 12 Executable File Extensions

File Type Extension

Compiled and linked application files *.out

Global function libraries *.lib

FILE AUTHENTICATION

Introduction to File Authentication

VX810 REFERENCE GUIDE 71

It is not mandatory to always download a signature file and its target application

file at the same time. For example, you can download the corresponding signature

file in a separate operation. A non-authenticated application can reside in the

device’s memory, but is not authenticated or allowed to run on the device until the

signature files for the application executable files are processed by the file

authentication module after a subsequent download procedure and device restart.

Determine Successful Authentication

To ensure the Vx810’s logical security, never assume that a target file was

authenticated simply because it downloaded onto the Vx810 together with its

signature file.

There are several ways to ensure a target file is successfully authenticated after a

download:

•Confirm if all downloaded executable files run. If an executable code file is

not successfully authenticated, the operating system does not allow it to

execute and run, either following the initial download or on subsequent device

restarts. The effect of this rule depends on whether or not all executable files

are successfully authenticated.

•If the executable file that failed to authenticate is the main application

(*.out) specified in the CONFIG.SYS *GO variable, the main application is

not allowed to run.

•If the executable that failed to authenticate is a secondary executable

(*.out) or shared library (*.lib) used by the main application, the

CONFIG.SYS *GO application executes and runs until it issues a function

call to that library. When the main application attempts to access a non-

authenticated executable, the main application may crash.

•Visually (and audibly) confirm file authentication during the process.

When the file authentication module is invoked at device restart and detects a

new signature file, it displays status information on the screen indicating

success or failure of the authentication of each target file based on its

corresponding signature file. (A similar status display also appears on the

screen when you download digital certificates.)

You can watch the screen display following the download to see if a specific

target file fails authentication. If this happens, FAILED is displayed for five

seconds on the screen below the filenames of the target and signature files,

and the device beeps as an alert.

An application can issue a function call to read the ATTR_NOT_AUTH bit’s

current value for all relevant files to verify they were successfully

authenticated. If the ATTR_NOT_AUTH bit’s binary value is 1, the file did not

authenticate; if 0, the file did authenticate.

FILE AUTHENTICATION

Introduction to File Authentication

72 VX810 REFERENCE GUIDE

For non-executable files, it is the application that will confirm that all of the files

it uses is successfully authenticated on download completion, and when the

application executes the first time following a restart.

Each successfully authenticated file is also write-protected. That is, the file’s

read-only attribute is set. If the read-only file is removed or if the file is

modified in any way while stored in the device, the ATTR_NOT_AUTH bit is

automatically set to 1. If the modified file is an executable, it is no longer

allowed to run.

Digital Certificates

and the File

Authentication

Process

The file authentication module always processes certificates before it processes

signature files. Digital certificates (*.crt files) generated by the VeriFone CA have

two important functions in the file authentication process:

•They define the rules for file location and usage (for example, the valid file

group, replaceable *.crt files, parent *.crt files, whether child *.crt files can

exist, and so on).

•They convey the public cryptographic keys generated for device sponsors and

signers that are the required inputs to the VeriShield File Signing Tool to verify

file signatures.

Hierarchical Relationships Between Certificates

All digital certificates are hierarchically related to one another. Under the rules of

the certificate hierarchy managed by the VeriFone CA, a lower-level certificate

must always be authenticated under the authority of a higher-level certificate. This

rule ensures the overall security of VeriShield.

To manage hierarchical relationships between certificates, certificate data is

stored in device’s memory in a special structure called a certificate tree. New

certificates are authenticated based on data stored in the current certificate tree.

The data from up to 21 individual related certificates (including root, OS, and other

VeriFone-owned certificates) can be stored concurrently in a certificate tree.

This means that a new certificate can only be authenticated under a higher-level

certificate already resident in the device’s certificate tree. This requirement can be

met in two ways:

•The higher-level certificate may have already been downloaded onto the

device in a previous or separate operation.

•The higher-level certificate can be downloaded together with the new

certificate as part of the same data transfer operation.

NOTE Because the application is responsible for verifying data files and prompt files, it

is recommended that each application check the ATTR_NOT_AUTH bit of all

relevant files on restart.

FILE AUTHENTICATION

Introduction to File Authentication

VX810 REFERENCE GUIDE 73

A development set of higher-level certificates is downloaded onto each

Vx810 device upon manufacture. When you take a new Vx810 device out of its

shipping carton, certificate data is already stored in the device’s certificate tree. In

this just-out-of-the-box condition, the Vx810 is called a development device.

Typically, a sponsor requests an additional set of digital certificates from the

VeriFone CA to establish sponsor and signer privileges. This additional set of

certificates are downloaded onto the Vx810 when the device is being prepared for

deployment and replaces the default certificate. When this procedure is complete,

the Vx810 is called a deployment device.

Adding New Certificates

When you add a new certificate file to a Vx810, the file authentication module

detects it by filename extension (*.crt). On restart, the device attempts to

authenticate the certificate under the authority of the resident higher-level

certificate stored in the device’s certificate tree or one being downloaded with the

new certificate.

In a batch download containing multiple certificates, each lower-level certificate

must be authenticated under an already-authenticated, higher-level certificate.

Whether or not the data a new certificate contains is added to the device’s

certificate tree depends on if it is successfully authenticated. The following points

explain how certificates are processed:

•If a new certificate is successfully authenticated, the information it contains is

automatically stored in the device’s certificate tree. The corresponding

certificate file (*.crt) is deleted from that file group’s SRAM.

•If the relationship between the new certificate and an existing higher-level

certificate cannot be verified, the authentication procedure for the new

certificate fails. In this case, the certificate information is not added to the

certificate tree and the failed certificate file (usually ~400 bytes) is retained in

the application memory.

Certificate Tree Restoration

The Verix V OS in the Vx810 supports certificate tree restoration. When a

certificate tree is restored, any custom certificate is cleared. The DUKPT PIN

entry limit bucket is also cleared.

FILE AUTHENTICATION

Introduction to File Authentication

74 VX810 REFERENCE GUIDE

Development Devices

A development device is a Vx810 still maintaining the original factory set of

certificates in its certificate tree. This set of certificates includes several higher-

level system certificates and a special client certificate called a default signer

certificate.

In the development device, the level of logical security provided by the file

authentication module is minimal, even though applications must still be signed

and authenticated before they can run on the device. In most application

development and test environments, tight security is not required, and the

flexibility offered by the Vx810 development device is more important.

Deployment Devices

While the application development process is being completed and while the new

application is being tested on a development device, a sponsor can order specific

sponsor and signer certificates from the VeriFone CA to use to logically secure

sponsor and signer privileges when the Vx810 is prepared for deployment.

Customer-specific sponsor and signer certificates are usually downloaded onto a

device as part of the standard application download procedure performed by a

deployment service. In this operation, the new sponsor and signer certificates

replace the development sponsor certificate that is part of the factory set of

certificates.

When the sponsor and signer certificates are downloaded and successfully

authenticated, the device is ready to deploy.

NOTE With the factory set of certificates stored in the device’s memory, anyone who

has the Vx810 SDK and VeriShield File Signing Tool can generate valid signature

files for downloading and authenticating files on the Vx810 platform.

FILE AUTHENTICATION

Introduction to File Authentication

VX810 REFERENCE GUIDE 75

Ultimately, it is the sponsor’s decision how to implement the logical security

provided by file authentication on a field-deployed device. Additional certificates

can be obtained from the VeriFone CA anytime to implement new sponsor and

signer relationships in deployment devices. VeriShield allows for multiple

sponsors and signing certificates in a device. This allows the flexibility of unique

signatures for each executable or data files.

Figure 20 Certificate Trees in Development and Deployment Devices

Permanency of the Certificate Tree

The data contained in a digital certificate is stored in the device’s certificate tree

when the certificate is authenticated, and the certificate file itself is erased from

SRAM.

The certificate tree file is stored in a reserved area of non-volatile memory and is

therefore relatively permanent. New certificate data can be added to the existing

certificate tree (up to a maximum of 21 certificates).

FILE AUTHENTICATION

Introduction to File Authentication

76 VX810 REFERENCE GUIDE

Required Inputs to the File Signing Process

The required inputs to the file signing process are somewhat different for

development devices than deployment devices.

Table 13 Differences Between Required Inputs

Development Device Deployment Devices

Manufacturing inputs to the file signing

process are included, together with the

VeriShield File Signing Tool in the Vx810

SDK. These inputs make it possible for

anyone who has the

Vx810 SDK to sign and authenticate files.

The required inputs to the VeriShield File

Signing Tool must be obtained from the

VeriFone CA to logically secure the

sponsor and signer privileges for the

device.

The following two factory inputs are

required for the file signing process, in

addition to the application files you want to

sign and authenticate:

•Default signer certificate, with the

filename VXSIGN.CRT

•Default signer private key, with the

filename VXSIGN.KEY

The following three unique inputs, which

are issued at customer request by the

VeriFone CA, are required for the file

signing process, as well as the application

files you want to sign and authenticate:

•Customer signer certificate: This

unique certificate is a required input for

the VeriShield File Signing Tool and

must be downloaded onto the device

along with the signature files and target

application files to authenticate, unless

already downloaded onto the device in

a previous operation.

•Customer signer private key: The

VeriFone CA issues this unique,

encrypted private key file (*.key) to an

authorized signer at the sponsor’s

request. The signer private key is a

required input to the VeriShield File

Signing Tool, but does not have to be

downloaded onto the device.

•Customer signer PIN: The VeriFone

CA issues this unique password to an

authorized signer at the sponsor’s

request. The customer signer password

is a required input to the VeriShield File

Signing Tool, but it does not have to be

downloaded onto the device.

Note: A default signer password is not

a required entry when using the

VeriShield File Signing Tool to

sign files for a Vx810

development device.

Note: The customer sponsor certificate,

which authenticates the

customer signer certificate, is

usually downloaded onto the

device with the customer signer

certificate, but it is not a required

VeriShield File Signing Tool input

when signing files.

FILE AUTHENTICATION

File Authentication and the File System

VX810 REFERENCE GUIDE 77

Replace a Sponsor Certificate

A sponsor may need to clear the current sponsor certificate from a device so that

a new sponsor can load certificates and applications. To do this, the original

sponsor must order a Clear Smart Card from the VeriFone CA. The Clear Smart

Card is specific to the requesting sponsor. It restores a deployment device to the

development state by:

•Deleting the current sponsor and signer certificates from the device’s

application partition.

•Restoring the default certificate to the device’s application partition.

Figure 21 Certificate Replacement Process

File

Authentication

and the File

System

Application Memory Logically Divided Into File Groups

The memory of a Vx810 is logically divided into two main areas, or partitions:

•Operating system

•Applications

The application partition is further divided into sub-partitions. These sub-partitions

are called file groups or GIDs.

NOTE The process for replacing a signer certificate is the same as replacing a sponsor

certificate.

FILE AUTHENTICATION

File Authentication and the File System

78 VX810 REFERENCE GUIDE

This system of partitions and sub-partitions makes it possible to store multiple

applications into a device’s memory and prevent these applications from

overlapping or interfering with each other’s operation.

There are a total of 16 file groups. Group 0 is the name of the operating system

partition. Group 1 is reserved for the main application. Groups 2–14 are available

for related executable files or secondary applications. Group 15 is open, and used

for shared files such as shared libraries.

Figure 22 Vx810 Application Memory Partitions

Rules for Storing Applications in Specific File Groups

Here are some important Vx810 file system features, as they relate to storing

application files in specific file groups, and how these features affect the file

authentication process:

•Most applications consist of more than one executable. For each executable

to run on the device, it must be signed and authenticated.

•Although not enforced by the operating system, it is recommended that only

one application be stored per file group in the application partition. Any

number of executable files can, however, be stored in a single file group.

•Using the CONFIG.SYS *GO variable, you can specify only one application to

automatically execute following a download and device restart. The defined

application is usually the main application stored in Group 1 and called from

the *GO variable in the CONFIG.SYS file in GID1.

•The main application stored in GID1 can access files, secondary applications,

or function libraries stored in any other file group.

•The application downloaded onto GID1 is always the primary application for

the device. This application is owned by the primary device sponsor (sponsor

A) in cases where there are multiple sponsors.

•The Group 1 application controls any and all secondary applications stored in

device’s memory. That is, a secondary application can only be invoked by a

RUN command issued by the Group 1 application.

NOTE The Vx810 operating system only enforces the rule that the main application be

always stored in GID1. You can, for example, store a shared library in any file

group.

FILE AUTHENTICATION

File Authentication and the File System

VX810 REFERENCE GUIDE 79

•An application stored in Groups 2–15 can only access files stored in its own

file group and in Group 15. For example, an application authorized by the

sponsor to be authenticated in Group 4 can only access files and libraries

stored in Group 4 and Group 15.

•If multiple applications (main and secondary) are to run on the same device,

each .OUT and shared library file must have its own matching signature file.

Because each application is responsible for verifying its own data and prompt

files, the other application files should have their own matching signature files.

The master .OUT file should validate that these additional signature files are

authenticated before they are used.

•If two or more applications will run on the same device, the signature files for

the respective applications must be downloaded, together with the

corresponding target files, into the specific file groups for which the

applications are authorized. If an application is downloaded onto a group for

which is it not authorized, file authentication for that application fails.

If, for example, Application B is downloaded onto GID4, where it is authorized

to run, but the signature files for all Application B executable files are

downloaded onto GID7, file authentication for Application B fails and it is not

allowed to run.

•Each certificate contains an attribute to verify if an application is valid for a

particular group.

Authenticate Files Stored in the SRAM or Flash ROM of a File Group

All *.p7s files are loaded onto SRAM and contain flags that indicate if the file to

verify is stored in SRAM or flash ROM. A signature file must know if its matching

application file is stored in SRAM or flash ROM. If a signature file cannot locate its

matching application file, the application file is not authenticated.

If the signature file authenticates its target file, and if the *FA variable is present in

the config.sys file of the target file group and is set to 1, the signature file is

retained in memory and is automatically moved, if necessary, into the same file

system as the target file it authenticates. That is, if the target file is stored in the

flash ROM, the signature file is also stored in the flash ROM; if the target file is

stored in SRAM, the signature file is also stored in SRAM.

FILE AUTHENTICATION

File Authentication and the File System

80 VX810 REFERENCE GUIDE

If the signature file authenticates its target file and the *FA variable is present in

the config.sys file of the target file group and is set to 0, the signature file is erased

when its target file is authenticated.

If you intend to perform back-to-back downloads, as described in Chapter 6, all

signature files must be retained in the Vx810’s application memory, together with

the target application files they authenticate.

Restrictions on Downloading Different File Types

A typical application download includes a variety of different file types. The

following restrictions describe how you can download different kinds of files to the

Vx810 and how files are stored in its file system:

The normal size of a signature file is approximately 400 bytes. Depending on the

application’s size and on how memory space is allocated, the area available for

storing multiple signature files must be carefully managed. The memory space

required by a certificate file is also approximately 400 bytes, but certificate files

are temporary. When a certificate is authenticated, the data it contains is copied to

the certificate tree, and the certificate file is erased from the target file group’s

SRAM.

NOTE Normally signature files are retained in the device even after being used to

authenticate executable (code) or data files. This is to facilitate back-to-back

downloads, as described in Chapter 6. Users who do not intend to perform

back-to-back downloads can remove signature files after use, gaining space for

other files. Automatic removal is performed if the user sets *FA=0 in the

config.sys file of Group 1. The main reason for using *FA is to force automatic

removal. If the user desires the default behavior (retain signature files, to allow

for back-to-back downloads), the user does not need to set *FA.

NOTE To control if signature files are retained or deleted when they are processed by

the file authentication module, you must use the protected config.sys variable

*FA as documented in the Verix V Operating System Programmers Manual.

Table 14 Download File Extensions

File Type Restriction

Certificate (*.crt) Must be downloaded onto the SRAM of the target file group

(GID1–GID15) selected in system mode.

Signature (*.p7s) Must be downloaded onto the SRAM of the target file group

(GID1–GID15) selected in system mode.

Operating system Must be downloaded onto Group 1 SRAM. When the OS files,

related certificates and signature files are authenticated, they are

automatically moved from Group 1 SRAM into the Group 0 sub-

partition reserved for the operating system.

FILE AUTHENTICATION

VeriShield File Signing Tool

VX810 REFERENCE GUIDE 81

VeriShield File

Signing Tool

To generate the signature files required for file authentication, you must sign all

executable files and other files to be logically protected using the VeriShield File

Signing Tool. This section discusses the use of this tool, which is included in the

Vx810 Verix V DTK.

The VeriShield File Signing Tool generates a formatted file called a signature file,

recognized by the filename extension *.p7s.

You can run the VeriShield File Signing Tool on a host computer (PC) in DOS

command-line mode, or invoke the program under Windows 2000 or Windows XP

and use the FileSign dialog box to make the required entries.

System

Requirements

The VeriShield File Signing Tool requires one of the following computing

environments:

•Windows NT, Version 4.0, SP5

•Windows 95, with Internet Explorer Version 5.0

The SP5 and Internet Explorer Version 5.0 software can be downloaded from the

Microsoft Web site located at www.microsoft.com.

Operating Modes

The VeriShield File Signing Tool can run on the host computer in two user modes:

•Command-line mode (Windows PC DOS shell): Command-line mode is

useful for application developers who perform batch file downloads and is

convenient when using file download tools provided by VeriFone, such as the

VeriCentre Download Management Module (DMM) and the DDL.EXE direct

download utility. In command-line mode, you can sign a batch of files in a

single operation.

•Graphical interface mode (Windows NT or Windows 95): Use the FileSign

dialog box to select the file to sign, and assign a name and destination

location for the generated signature file on the host computer. When you run

the VeriShield File Signing Tool under Windows, you can sign only one file at a

time.

You can also specify to store the target file in the target file group’s SRAM

(default location) or in the flash ROM file system. If required, you can navigate

through the file system on your PC to select the signer certificate file (*.crt) and

signer private key file (*.key) to use as inputs to the file signing process.

NOTE The file signing process for operating system files is done for Vx810 customers

by the VeriFone CA. For operating system updates, VeriFone provides

customers with a complete download package that includes all certificates and

signature files required for authentication.

FILE AUTHENTICATION

VeriShield File Signing Tool

82 VX810 REFERENCE GUIDE

The following image shows the FileSign dialog box.

Figure 23 FileSign Dialog Box

Command-Line

Entries

The following table lists the switches that make up the command-line mode syntax

for the VeriShield File Signing Tool.

NOTE If the entry of a signer password is a required input, a secondary dialog box is

displayed to enter and confirm the password. Please also note that a signer

password is required for a deployment device, but not for a development device.

Table 15 Command-Line Mode Switches for VeriShield File Signing

Toola

Switch Description Requirements

-C, -c Signer certificate file name (*.crt). Required input for development

devices and deployment devices.

Use the VXSIGN.CRT default

signer certificate for development

devices.

Use the signer certificate issued

by the VeriFone CA for

deployment devices.

-K, -k Signer private key filename

(*.key).

Required input for development

devices and deployment devices.

Use the VXSIGN.KEY default

signer private key for

development devices.

Use the signer private key

provided by the VeriFone CA for

deployment devices.

-P, -p Signer password for decrypting

the signer private key.

Required input only for

deployment devices.

The VeriFone CA issues and

securely conveys this password

to an authorized signer.

FILE AUTHENTICATION

VeriShield File Signing Tool

VX810 REFERENCE GUIDE 83

-F, -f Name of the application file to

sign (*.out, *.lib, or other file type).

Required for development

devices and for deployment

devices.

-S, -s Name of the signature file (*.p7s)

for the VeriShield File Signing

Tool to generate for the target

application file.

Required for development

devices and for deployment

devices.

-L, -l Specifies to store the target

application file to sign and

authenticate in the flash ROM

(drive F:) file system.

If you do not use this switch to

specify flash ROM as the target

file destination, it is stored by

default in the SRAM file system

(drive I:).

Optional entry.

This switch assigns an F: prefix to

the name of the *.out or *.lib file to

download, and also stores this

information in the signature file as

part of the special filetype

attribute.

Note: Signature files must be

downloaded onto the

target file group’s SRAM.

If the target file is authenticated,

the corresponding *.p7s file is

moved to the same memory area

as the target file it authenticates.

For example, if the target file is

stored in flash ROM (F:), its *.p7s

file is moved into the flash ROM

file system. If, however, you set

the *FA variable in the file group’s

CONFIG.SYS file to 0, all

signature files are deleted from

SRAM when file authentication is

complete. Removing *.p7s files

will prevent application files from

executing after a back-to-back

download.

a. The switches described are not case-sensitive and can be entered on the command line in

any order.

Table 15 Command-Line Mode Switches for VeriShield File Signing

Toola

Switch Description Requirements

FILE AUTHENTICATION

VeriShield File Signing Tool

84 VX810 REFERENCE GUIDE

Command-Line

Mode Syntax

Example

In the following VeriShield File Signing Tool command-line entry example, note

that the syntax used applies to a Vx810 development device with the factory set of

certificates, and not to a deployment device. There are two differences:

•The default signer certificate and default signer key file names provided by

VeriFone as part of the Vx810 SDK are entered on the command line instead

of customer-specific customer signer certificate and customer signer private

key file names.

•The switch for signer password (-P password) is not used, because a

customer signer password is only required to sign and authenticate files for

Vx810 deployment devices being prepared for deployment.

Please note also how the command-line mode switches are used in this example:

filesign -L -f file.out -s file.p7s -c vxsign.crt -k vxsign.key

•The -L switch indicates to store the application file in the flash ROM file

system instead of the target group’s (default) SRAM file system. (The target

group for the download must be selected from system mode when the

download is performed.)

•The -f switch indicates that the application file “file.out” must be signed

by the VeriShield File Signing Tool.

Executable files, such as *.out and *.lib files, must always be signed if they are

to run on the device following a download. Depending on the application’s

logical security requirements, other types of files, such as data files and font

files, may also need to be signed and authenticated on download.

•The -s switch is followed by the name of the signature file to be generated,

file.p7s.

•The -c switch is followed by the name of the default signer certificate to be

used for file authentication with the development device, “vxsign.crt.”

•The -k switch is followed by the name of the default signer private key file,

vxsign.key. A signer private key is a required input to the file signing

process for development devices and for deployment devices.

Graphical Interface

Mode

When you execute the the VeriShield File Signing Tool file, the FileSign dialog box

is displayed.

The FileSign dialog box has four entry fields, each of which is followed by a “next”

[...] selection button. There is one check box, and the OK and CANCEL buttons.

•Press ALT+C or click the [...] button to the right of the Certificate field to locate

and select the certificate file (*.crt) to be used to sign the file.

•Press ALT+K or click the [...] button to the right of the Key field to locate and

select the signer private key file (*.key).

VeriShield File Signing Tool

VX810 REFERENCE GUIDE 85

•Press ALT+F or click the [...] button to the right of the File to be signed field to

locate and select the application file (*.out, *.lib, or other) to sign. If necessary,

the filename can also be modified.

To store the file in flash ROM memory upon download to the device, check the

Stored in Flash check box. This adds the F: prefix to the target file name.

•Press ALT+S or click the [...] button to the right of the Signature file field to

enter a filename for the signature file to be generated. The filename extension

must always be *.p7s. You can also choose another directory on the host PC

to store the generated signature file.

•When all entries are complete, press ALT+O or click the OK button to execute

VeriShield File Signing Tool and generate the signature file; otherwise, press

ALT+A or click CANCEL to exit the the VeriShield File Signing Tool.

When the necessary signature files are generated to authenticate the application

or applications on the Vx810, perform the application download procedure.

For more information about file authentication within the context of specific

download procedures, refer to Chapter 6.

VeriShield File Signing Tool

86 VX810 REFERENCE GUIDE

VX810 REFERENCE GUIDE 87

CHAPTER 6

Performing Downloads

This chapter contains information and procedures to allow you to perform the

various types of data transfers required to:

•Develop applications for the Vx810.

•Prepare the Vx810 for deployment.

•Maintain Vx810 installations in the field.

•Transfer data to/from Vx810 devices.

In this chapter, information pertaining to file authentication is only discussed in the

context of procedures while performing file downloads. See Chapter 5 for further

file authentication discussion.

The Vx810 has ports that allow connection to a network or to other VFI devices

(for back-to-back downloads).

Downloads and

Uploads

Data can be transferred from a sending system to a receiving system while

performing downloads. The term download also refers to a device receiving data.

The term upload describes the process of a device sending data.

Use any of the following two operations to program, deploy, transfer data files

from, and support devices:

•Host computer downloads: Applications, operating systems or OS updates,

and associated files transfer from a host PC to the Vx810.

•Back-to-back downloads: Applications and associated files transfer from

one VFI device to a Vx810 device.

Download

Methods

The following three methods are available for file and data downloads through the

Vx810 download and upload procedures:

•Direct downloads: Files or data transfer directly from the sending system (a

host computer) to the receiving Vx810 device. A special cable, VPN 08362-01-

R, is used to connect to the RS-232 serial port of the host computer.

•Back-to-back downloads: Files and data transfer from a sending

VFI device to a receiving Vx810 device.

PERFORMING DOWNLOADS

Download Tools

88 VX810 REFERENCE GUIDE

•USB downloads: Files and data are transferred from a USB-connected drive.

The device searches for the VeriFone.zip file on the drive and downloads data

from it.

Download Tools

Three software tools are available from VeriFone for performing downloads:

VeriCentre Download Management Module (DMM), VeriCentre, and DDL.EXE

(Direct Download Utility).

The following tools perform direct downloads from a host computer to a Vx810:

•VeriCentre DMM: Multi-user environment for software downloads. DMM

supports Windows NT clients and has a sophisticated database to manage up

to 100,000 devices. The Vx810 operating system supports file decompression

for archives created using DMM.

•VeriCentre: PC-based software tool to manage applications and data for

VeriFone. In addition to being a database and communications management

tool, VeriCentre automates application downloads and updates to device

records.

NOTE The device will automatically download the file VeriFone.zip from a USB flash

drive without the user having to go through System Mode under the following

conditions:

•The USB flash drive is connected before the device is turned on.

•The USB flash drive is inserted when the initial DOWNLOAD NEEDED

message is displayed.

In both cases, the USB DOWNLOAD COMPLETE message will appear on the screen

after the VeriFone.zip file has been downloaded.

NOTE Because of the large size of some download files, VeriFone recommends only

using download tools provided by VeriFone. CRC and other error checking is not

supported on the GSM system. VeriFone download tools provide these error

checking mechanisms.

NOTE The Verix V OS in the Vx810 will support all non-modem-related VeriCentre

operations, including full/partial downloads and compressed downloads, but not

VeriCentre-initiated downloads because this requires a modem.

PERFORMING DOWNLOADS

Download Content

VX810 REFERENCE GUIDE 89

•DDL.EXE: Downloads files and data from a development system or another

host computer, directly to a Vx810 over a serial cable connection. DDL.EXE is

a Windows program included in the Verix V DTK (Verix V Developer’s Toolkit).

Download

Content

In general, you can download files and data to a Vx810. The types of files and

data can be grouped into the following functional categories:

•Operating system files: A set of related programs and data files provided by

VeriFone to control the device’s basic processes and functions. Files that

belong to the OS are stored in a reserved area of the device’s memory.

A complete OS is downloaded onto each Vx810 during the manufacture. If

necessary, download newer versions during application development, or when

preparing for deployment to on-site devices.

•Applications and related files: An application is a computer program

consisting of one or more executables, including compiled and linked object

files (*.out), and one or more function libraries (*.lib). Most applications also

include font files (*.vft, *.fon), data files (*.dat), and other related file types.

Vx810 applications can be developed by VeriFone, customers, or third parties

on customer request. One or more applications must be downloaded onto the

Vx810 before it can be deployed at a customer site and used to process

transactions.

•Files related to file authentication: The logical component of the VeriShield

security architecture in the Vx810 is file authentication. For an executable to

run on a Vx810, it must be authenticated by the VeriShield file authentication

module. For more information on file authentication, see Chapter 5.

Two special types of files are required for the file authentication process:

digital certificates (*.crt) and signature files (*.p7s). These file types must be

downloaded onto the device together with the application files to authenticate.

•Device configuration settings: Files or records that contain various types of

data can also be downloaded onto a Vx810, including CONFIG.SYS variables,

passwords for accessing protected system mode functions, and the current

date and time (For more information on device configuration settings, see

Chapter 4).

NOTE No special software tool or utility is required to perform back-to-back application

downloads. Only a serial cable connected between the two devices is required.

This data transfer procedure, invoked from within system mode, is handled by the

OS software and firmware of the sending and receiving Vx810 devices.

PERFORMING DOWNLOADS

Full and Partial Downloads

90 VX810 REFERENCE GUIDE

Full and Partial

Downloads

When preparing to initiate a download procedure, choose either a full or partial

download and the COM 2 port, through the system mode menu options (refer to

Chapter 4). Depending on the type of files you are downloading and the download

method you are using, there are some restrictions on whether a full or partial

download is permitted.

Table 16 Types of Full and Partial Downloads

Download

Type Description and Effects Download

Methods

Supported

Full application

download

An entire application, including all executables

and data files, transfers from one system to

another in a single operation.

Files related to the file authentication process

and device configuration settings can be

included in a full application download. During

this process, SRAM is cleared.

Following a full application download, the

device restarts and the file authentication

module is invoked. If application files are

authenticated and config.sys *GO variable is

set, then the application executes.

•Direct downloads

•Back-to-back

downloads

Partial

application

download

A subset of application executables, font files,

or data files transfer from one system to

another to modify or update an existing

application.

Files related to file authentication and device

configuration settings can be included in a

partial application download. During this

process, SRAM is not cleared.

Following a partial application download, the

device does not restart and returns control to

system mode or the issuing application. The

file authentication module is not invoked, nor

are any applications allowed to execute, until

the device is manually restarted from within

system mode.

•Direct downloads

Note: Partial back-

to-back

downloads

are not

supported.

PERFORMING DOWNLOADS

Full and Partial Downloads

VX810 REFERENCE GUIDE 91

Here are a few more points on the topic of full and partial downloads:

•The most common download procedure is a full (complete) application

download.

•Partial application downloads are useful when developing and testing new

applications, but are seldom performed by those who deploy devices on-site.

•Full OS downloads are usually performed by VeriFone at the factory and, on

occasion, by those who deploy devices on-site to upgrade older devices to a

newer OS version.

Full operating

system

download

An entire OS version transfers from a host PC

to the Vx810.

Files related to file authentication and device

configuration settings can be included in a full

OS download. During this process, SRAM is

cleared.

Following a full OS download, the device

restarts and the file authentication module is

invoked. If the OS files are authenticated, the

new OS updates (replaces) the existing OS.

Application files stored in the memory area

where the OS downloads (Group 1) are

erased.

•Direct downloads

Note: Full back-to-

back OS

downloads

are not

supported.

Partial

operating

system

download

Either an entire or a partial OS version

transfers from a host PC to the

Vx810 device.

Files related to file authentication and device

configuration settings can be included in a

partial OS download.

Following a partial OS download, the device

does not restart and returns control to system

mode or the issuing application. The file

authentication module is not invoked, and the

new OS is not processed until you manually

restart the device from within system mode. If

the new OS is authenticated, it updates

(replaces) the existing OS.

Application files stored in the memory area

where the OS downloads into (Group 1) are

retained.

•Direct downloads

Note: Partial back-

to-back

operating

system

downloads

are not

supported.

Table 16 Types of Full and Partial Downloads (continued)

Download

Type Description and Effects Download

Methods

Supported

PERFORMING DOWNLOADS

Support for Multiple Applications

92 VX810 REFERENCE GUIDE

•Partial OS downloads are performed mainly by VeriFone for development

purposes and are rarely performed in the field.

•Partial downloads are routinely performed by many applications. This

procedure, which can be automated by an application running on a remote

host computer, permits the host application to update data files and device

configuration settings in a Vx810 and return control to the main application.

•Full downloads restart the device; partial downloads return control to system

mode or the issuing application. OS and application downloads can be

combined. The file authentication module is not invoked until the device is

restarted following the download procedure.

Support for

Multiple

Applications

The Vx810 architecture supports multiple applications. This means that more than

one application can reside in device’s memory, and that more than one application

can run (execute) on the device.

The application memory of the Vx810 uses a system of file groups to store and

manage multiple applications, as well as operating system files. This system of file

groups are used in such a way that the data integrity of each application is

ensured and applications do not interfere with each other (see File Groups).

How the File System

Supports Multiple

Applications

The application memory partition of the Vx810 is divided into 15 logically-defined

sub-partitions called file groups or GIDs (for example, Group 1, Group 2, and so

on through GID15).

Another partition of the device’s memory area, called Group 0, is reserved for the

operating system and is logically separated from the application memory area. So,

including Group 0, there is a total of 16 file groups.

An application must be downloaded onto a specific file group, along with any

related files. Select the target file group for the download using system mode

menu options and by entering a file group password.

Usually, one application is stored in one file group. An application can, however,

consist of more than one executable program file, and any number of executables

(*.out or *.lib) can be stored in a given group. In most implementations, there is a

main application, one or more related programs or secondary applications, and

one or more libraries.

The main application, or the application to execute set in the *GO CONFIG.SYS

variable, must always be stored in the Group 1 sub-partition. Related programs or

secondary applications can be stored in GIDs 2–14. GID15 is available to all other

groups.

PERFORMING DOWNLOADS

Use of SRAM and Flash ROM Memory

VX810 REFERENCE GUIDE 93

The Main

Application is

Always Stored in

GID1

The main application stored in GID1 is the controlling application for the device.

Any function call that invokes a related program or a secondary application stored

in GIDs 2–14 must be initiated by the GID1 application.

An application stored in a file group other than GID1 is limited in that it can only

access executables and files stored in its own file group and in GID15.

Physical and

Logical Access to

File Groups

The Vx810 operating system controls physical access to GIDs 1–15 using

password-protected system mode functions.

To download data into a specific file group, first enter system mode and choose

the target group by making the appropriate menu selections, then enter the

correct password for that file group.

Each file group has its own CONFIG.SYS file. The CONFIG.SYS settings of the

selected target group are used as the system parameters for the download

operation.

The system of file groups also imposes some logical restrictions on which files can

download into specific file groups:

•If GID1 is selected as the target group in system mode, you can download files

into GID1 and redirect files into any of the other file groups, as required, in the

same download operation.

•If another file group is selected as the target file group, you can download files

only into that group and redirect files only to GID15. For example, if you select

GID5 as the target group for the download, files can only download into GID5

and be redirected to GID15.

Use of SRAM

and Flash ROM

Memory

The Vx810 application memory partition has two separate file systems:

•SRAM (battery-backed volatile memory, also called SRAM), partition

designator I:

•Flash ROM (non-volatile memory), partition designator F:

Having two different file systems has the following important implications for data

transfer procedures:

•Depending on the requirements of a specific application, some files must

download into SRAM and others into flash ROM.

•There are also rules that restrict which types of files you can download and

store in a file system (SRAM or flash ROM).

With application files, the application designer or programmer usually decides

which file types to download into which file system. Other file types, such as

operating system files, digital certificates, and signature files, must download into

SRAM.

PERFORMING DOWNLOADS

Use of SRAM and Flash ROM Memory

94 VX810 REFERENCE GUIDE

In a typical download procedure, all files are loaded onto the SRAM file system of

the target group selected in system mode. Specific files included in the download

package must be redirected, as necessary, to the flash ROM file system of the

target group or to the SRAM or flash ROM file system of another file group.

To redirect files during a download procedure, see the following sections.

Defragment Flash

ROM for Application

Downloads

Before performing an application download, defragment the device’s flash ROM

memory. To ensure the best results when performing back-to-back downloads,

defragment the flash ROM memory of both the sending and receiving devices. A

system mode procedure is also available for clearing the SRAM or flash ROM

memory, either entirely or for a specific file group, to prepare a Vx810 for a clean

download.

Redirection of Files

During Application

Downloads

You can download application files into SRAM or flash ROM memory. By default,

files downloaded onto a specific file group are stored in the SRAM of that group.

To store a file in the flash ROM memory of that file group, provide instructions to

redirect the file to flash ROM as part of the procedure (see Manually Redirecting

Files).

There are two methods used to redirect files during an application download,

depending on the download tool:

•If you are using DMM, you must manually create and include special zero-

length files called SETDRIVE.x and SETGROUP.n on the download computer,

and add these files to the batch download list to direct files to a specific file

system (drive) or file group.

•If you are using DDL.EXE to perform direct downloads, you can use a special

command-line option that automatically redirects files to the drive and file

group you specify.

Both of these methods are described in the following sections.

Manually

Redirecting Files

To manually redirect files for DMM application downloads, create one or more files

on the download computer with the special filename, SETDRIVE.x, where, x is the

name of the partition (memory area) to download files to.

•Partition designator I: is SRAM: This is the system mode default for

downloads.

•Partition designator F: is flash ROM.

To create a zero-length SETDRIVE file on the download computer, use the DOS

command, REM, as in the following example:

REM >SETDRIVE.F

NOTE The flash ROM defragment operation is not necessary for a Vx810 in a just-out-

of-the-box condition. In this case, the device’s flash ROM file system is still in

factory-new condition.

PERFORMING DOWNLOADS

Use of SRAM and Flash ROM Memory

VX810 REFERENCE GUIDE 95

To redirect a file from the SRAM of the target group to the flash ROM memory of

the same file group, insert the zero-length SETDRIVE.F file into the batch of

application files to download. All files that follow the SETDRIVE.F file in the

download list automatically load into the flash ROM memory (F:) of the target

group.

If you do not insert a SETDRIVE.F special file in the download list, all files

download by default into the SRAM (Drive I:) of the target file group. You can also

insert a zero-length file with the name SETDRIVE.I into the download list at any

point to indicate that all following files will download into SRAM.

For example, the following batch download list loads the executable code file

FOO.OUT into the SRAM of the selected file group (default Group 1). Because

the signature file, FOO.P7S is included, FOO.OUT is also authenticated when the

device restarts after the download.

The *GO variable in this example indicates that the FOO.OUT application

executes on restart, after successful authentication. The two data files that follow

the zero-length SETDRIVE.F file, FOO.DAT and FOO.VFT, are redirected into

GID1 flash ROM. Because it follows the inserted zero-length SETDRIVE.I file,

GOO.DAT downloads into Group 1 SRAM.

FOO.OUT

FOO.P7S

*GO=FOO.OUT

SETDRIVE.F

FOO.DAT

FOO.VFT

SETDRIVE.I

GOO.DAT

You can also insert zero-length SETGROUP.n files into a batch download list to

redirect files from the target file group to other file groups (see Redirecting Files to

Other File Groups). Together, the zero-length SETDRIVE.x and SETGROUP.n

files allow you flexibility to store files as required in the SRAM or flash ROM file

systems, and in specific file groups in a single batch download operation.

NOTE You can only use zero-length SETDRIVE.x files for batch application direct

downloads, and only using the DMM download tool (and not DDL.EXE).

You cannot use this special file convention for operating system downloads or for

back-to-back application downloads.

PERFORMING DOWNLOADS

Use of SRAM and Flash ROM Memory

96 VX810 REFERENCE GUIDE

Redirecting Files to

Other File Groups

GID1 is the default system mode setting for performing downloads. Using the

system mode menu options, you can select another file group (GID 2–15) as the

target group for the application download. If you select another group, files

download directly into the SRAM of that file group.

To redirect files from the selected target file group to another file group as part of

the download operation, insert a zero-length SETGROUP.n file in the batch

download list (the same as SETDRIVE.x). The syntax of this convention is

SETGROUP.n, where n = 1–15 for GIDs 1–15.

To create a zero-length SETGROUP file on the download computer, use the DOS

command REM as in the following example:

REM >SETGROUP.2

If you do not insert SETGROUP.n special files into the download list, all files

download into the target group selected in system mode. If no number is added to

the SETGROUP filename, SETGROUP.1 (GID1) is assumed.

Restrictions on File

Redirection

The Vx810 file system restricts how you can redirect files to other file groups. Here

are the important points to remember:

•The main application must always be downloaded onto GID1.

•Because of the way file groups are managed in the Vx810 file system, only two

schemes are available for redirecting files during a batch application

download:

•If using system mode menu options, select Group 1 (default) as the target

group for the download; files can be redirected to any other file group,

including GID15.

•If using system mode menu options, select a file group other than Group 1

(GIDs 2–14) as the target group for the download; files can be redirected

only into the selected file group or into GID15.

In the following example, GID1 is selected as the target group for the download.

The download list loads FOO.OUT into Group 1 SRAM, GOO.OUT into GID2, and

COMN.LIB shared library into GID15. When the device restarts after the

download, the file authentication module is invoked for all three files, based on the

certificate data that authorizes them to be stored in their respective file groups.

PERFORMING DOWNLOADS

Use of SRAM and Flash ROM Memory

VX810 REFERENCE GUIDE 97

If FOO.OUT is authenticated, the GID1 application, FOO.OUT, executes as

specified by the *GO variable when the device restarts following successful file

authentication. The function library stored in GID15 can be shared by both

applications, as both Group 1 and Group 2 applications can access Group 15.

FOO.OUT

FOO.P7S

*GO=FOO.OUT

SETGROUP.2

GOO.OUT

GOO.P7S

SETGROUP.15

COMN.LIB

COMN.P7S

Using DDL.EXE to

Automatically

Redirect Files

The version of DDL.EXE included in the Vx810 SDK allows you to change the

default drive and file group for a direct download by preceding the filenames on

the DDL command line with a special filename. The syntax is as follows:

SETDRIVE.<drive letter>

where, drive letter is I: for SRAM, (default) or F: for flash ROM, and

SETGROUP.<group number>

where, group number is 1–15.

For example, the command-line entry

DDL SETDRIVE.F cardco.lib SETDRIVE.I SETGROUP.15 card.dat

downloads the executable file cardco.lib into the flash ROM of the selected

target group and the data file card.dat into Group 15 SRAM. (Because drive or

group settings apply to all files that follow in the list, it is necessary to use

SETDRIVE.x to reset the drive from F: back to I:.)

If you are using this DDL.EXE method, zero-length SETDRIVE.x and

SETGROUP.n files do not need to exist as files on the download computer.

NOTE You can only use zero-length SETGROUP.x files for batch application direct

downloads, and only using the Download Manager or ZonTalk 2000 download

tools (not DDL.EXE). You cannot use this special file convention for operating

system downloads or back-to-back application downloads.

PERFORMING DOWNLOADS

Use of SRAM and Flash ROM Memory

98 VX810 REFERENCE GUIDE

File Redirection in

Operating System

Downloads

When performing an operating system download, you must download the OS files

into Group 1 SRAM and not into flash ROM memory or into another file group.

OS files are downloaded onto Group 1 SRAM because it is not possible to

download these files directly into Group 0. OS files are redirected to Group 0

depending on if you perform a full or partial download.

•For full OS downloads, the redirection of OS files into Group 0 is performed

automatically, after the device restart, and as part of the download procedure.

•For partial OS downloads, OS files are redirected from the SRAM of Group 1

into Group 0 on manual device restart by selecting the appropriate system

mode menu option.

A downloaded OS is processed and authenticated while stored in Group 1 SRAM.

As the files are authenticated under the authority of the certificates and signature

files included in the OS download package, they move automatically into Group 0.

This process, which usually takes a few moments, is completely transparent

during the download procedure.

File Redirection in

Back-to-Back

Application

Downloads

In a back-to-back application download, all application files stored on the sending

device – in both file systems and in all file groups – transfer to the receiving device

in a single operation.

For this type of download, you must select Group 1 as the target group on the

sending and receiving devices. When you initiate the download on the receiving

device, all application files, as well as all special files required for file

authentication and device configuration settings on the sending device, download

to the receiving device.

In this type of data transfer operation, some file redirection does occur

automatically as a result of the file authentication procedure that occurs on the

receiving device. This redirection process is transparent during the download.

Briefly, all files initially download into SRAM, and are redirected based on the

directory and subdirectory names of the sending device’s file system. Signature

files must always be authenticated in SRAM. If the target file that the signature file

authenticates is stored in flash ROM, the signature file is moved to flash ROM

only after the target file successfully authenticates.

To successfully perform a back-to-back download, all signature files that are

required to authenticate application executables must reside in the memory of the

sending device. If the *FA variable is present in the Group 1 CONFIG.SYS file of

the sending device, it must be set to 1 to retain all previously downloaded

signature files.

If a signature file is missing on the sending device, the target application file that it

authenticates is not authenticated on the receiving device and, if the target file is

an executable, it is not allowed to run on the receiving device.

PERFORMING DOWNLOADS

File Authentication Requirements

VX810 REFERENCE GUIDE 99

File

Authentication

Requirements

Chapter 5 provided a general introduction to the file authentication process. Now

we become more task-oriented and see how the file authentication process

affects how to perform the various download procedures.

Required

Certificates and

Signature Files

The following are some important points to remember about how certificates and

signature files relate to application download procedures:

•Before an executable file can be downloaded onto and allowed to run on a

Vx810, the file must be digitally signed on the download computer using the

VeriShield File Signing Tool. The result of this procedure is a signature file

recognized by its *.p7s filename extension.

•A signature file must be downloaded with each executable that makes up an

application. An executable can be a compiled and linked object file (*.out) or a

shared function library (*.lib).

In most cases, an application consists of multiple executables and requires a

number of corresponding signature files.

•In a typical batch application download, all files, including executables,

signature files, and any required certificates, download in the same operation.

•After the download is complete and the device restarts, the file authentication

module is invoked if a new signature file (or certificate) is detected. If the

application (executable) is authenticated, it is allowed to run on the device.

Otherwise, it does not execute.

•If one executable file required by an application with multiple executables fails

to authenticate, the main application may crash when it attempts to access the

non-authenticated executable.

•Application files other than executables (for example, font and data files) may

also require logical security under file authentication. In these cases, each

protected non-executable file also requires a corresponding signature file.

•Digital certificates (*.crt) and signature files (*.p7s) are required to authenticate

both application files and operating system files, which must be downloaded

onto the SRAM of the target file group.

•Certificate files are deleted from application memory after they are

authenticated. If a certificate is not authenticated, it is retained in device’s

memory.

•If the *FA variable in the CONFIG.SYS file of the target group is set to 1,

signature files are redirected to the same location where the application file it

authenticates is stored. If *FA is 0, signature files are deleted from SRAM

when the file authentication process is complete.

PERFORMING DOWNLOADS

File Authentication Requirements

100 VX810 REFERENCE GUIDE

The File

Authentication

Process During an

Application

Download

In the following example of a typical file authentication process, it is assumed that:

•An application is being downloaded to prepare a Vx810 deployment device for

deployment. That is, a sponsor certificate and a signer certificate are

downloaded in batch mode to GID1 SRAM of the receiving device, together

with the application to authenticate.

•A signature file is generated for each executable that comprises the

application on the download computer using the VeriShield File Signing Tool,

with the signer certificate, signer private key, and signer password as required

inputs. These signature files are also downloaded onto the receiving device.

In a typical batch application download, file authentication proceeds as follows:

1All certificate files (*.crt), signature files (*.p7s), and application files (*.out,

*.lib, *.fon, *.vft, *.dat, and so on) download to the Vx810 deployment device in

batch mode.

2When the device restarts after the download, the file authentication module

searches the SRAM-based file system for the following two file types:

•Authenticated certificate files (*.crt) to add to the permanent certificate

tree.

•Signature files (*.p7s) that authenticate corresponding target application

files.

Certificate files and signature files can download into the SRAM of any file

group. For this reason, the file authentication module searches through the

entire file system (all file groups) for new files with these filename extensions

each time the device restarts.

3The file authentication module builds a list of all newly detected certificates

and signature files. If no new certificates or signature files are located, the

module just returns. If one or more new files of this kind are detected, the file

authentication module starts processing them based on the list.

4Certificates are always processed first (before signature files). The processing

routine is called one time for each certificate in the list. If a certificate is

authentic, it is noted, and the next certificate is processed. This process

continues in random order until all certificates are authenticated.

When a certificate file in the processing list is authenticated, the “Authentic”

message is displayed below the corresponding filename. If it fails to be

authenticated, the “Failed” message is displayed for five seconds and the

device beeps three times. The routine resumes processing and continues until

all certificates are successfully processed.

The processing routine gives both visible and audible indications if a specific

certificate authenticates successfully. The file authentication module does not

halt the process if a certificate fails to authenticate, but continues to the next

step, which is authenticating signature files.

PERFORMING DOWNLOADS

File Authentication Requirements

VX810 REFERENCE GUIDE 101

If one or more certificates fail to authenticate, the ensuing file authentication

process based on signature files also fails, resulting to an application not

authenticated and not allowed to execute on the device.

When a certificate file is authenticated, the data it contains is added to the

certificate tree and the certificate file is deleted from the SRAM. When all

required certificates are authenticated and stored in the certificate tree, the file

authentication process for signature files can proceed.

Figure 24 Display Prompts During the File Authentication Process

5Signature files are now processed (after certificate files). The file

authentication module calls the signature checking routine once for each new

signature file it detects. Each *.p7s file is checked as it is detected; a list is not

built and multiple processing passes are not required.

•If a signature file is authenticated, “AUTHENTIC” is displayed and the target

file is flagged authentic.

•If the authentication process fails, “FAILED” is displayed for five seconds

and the device beeps three times. The routine continues processing the

next signature file until all newly detected signature files are checked.

•If a signature file fails to authenticate and its target file is an executable

code file, such as *.out or *.lib, the executable is not allowed to run on

device restart.

For data files, font files, and any other files that require authentication to meet

the application’s design specification, the application must ensure that these

files are successfully authenticated.

While a signature file is being processed, it remains stored in the SRAM file

system of the target file group. The target application file may be redirected

immediately on download to the SRAM or flash ROM.

PERFORMING DOWNLOADS

File Authentication Requirements

102 VX810 REFERENCE GUIDE

When the signature file successfully authenticates its target file, it is

automatically moved to the same file system and file group as the target file it

authenticates (that is, if *FA = 1).

The processing routine gives visible and audible indications when a specific

signature file authenticates successfully. The file authentication module does

not halt the process if a signature file fails to authenticate, but continues to the

next step, storing the downloaded files in their final locations in the device file

system.

6Certificate files and signature files are retained in the SRAM file system until

the file authentication process is complete. These special files are either

deleted or automatically redirected to another file system or file group, as

previously described.

When an application file is authenticated, the operating system sets the file’s

read-only attribute to protect it from being modified while stored in device

memory. This is also true for a signature file retained in device memory. When

a signature file is assigned the read-only attribute, it is no longer detected as a

new signature file by the file authentication module on device restart.

7When all certificates and signature files are processed and special files are

deleted or redirected as required, the device restarts and the *GO application

executes.

File Group

Permissions

This section discusses how file authentication controls who (which business

entity) can store application files in which file groups in the Vx810 file system.

By inserting zero-length SETDRIVE.x and SETGROUP.n files into a download list,

you can specify which drive (x = I: SRAM or F: flash ROM) and in which group (n

= 1–15) to store an application file. In addition to this file redirection protocol, the

file authentication module controls which files are allowed, under the authority of

the signer certificate used to sign them, to be stored in which file groups in the

Vx810 file system.

For example, if the device owner specifies storing a loyalty application in GID2,

the information is encoded in the sponsor and signer certificates and issued by

the VeriFone CA for that device.

Chapter 5 discussed how signer certificates are required inputs to the VeriShield

File Signing Tool when preparing a deployment device. Each signature file

generated under that signer certificate contains a logical link that allows the

application to authenticate and run on the device only if the signature files and

corresponding target files are downloaded onto the target GID.

Although you can store files in any file group simply by selecting the target group

in system mode, the files downloaded are not authenticated for the selected target

group unless they are properly signed under the authority of the sponsor and

signer certificates issued for that device.

PERFORMING DOWNLOADS

File Authentication Requirements

VX810 REFERENCE GUIDE 103

Download an

Operating System

Update Provided by

VeriFone

Because the operating system software for the Vx810 is developed and controlled

by VeriFone for its customers, VeriFone provides the necessary certificates and

signature files to ensure the authenticity and integrity of the operating system

update as part of the download package.

The file authentication procedure for OS downloads is much the same as that for

application downloads, with the following exceptions:

•VeriFone provides all files required for the OS download, including:

•The operating system files (such as Q.out, 1.out, and 2.out).

•An encrypted list of the new files, called VFI.PED.

•A signature file generated by the VeriFone CA under the authority of a

higher-level OS partition sponsor certificate, called VFI.crt. The file

authentication logic on the receiving device uses this signature file to

confirm the origin and authenticity of the encrypted list of files, VFI.PED.

•The entire OS package must download into Group 1 SRAM. If you select a

target group other than Group 1, the operation fails.

•Before initiating an OS download, either full or partial, ensure that enough

memory space is available in Group 1 SRAM to temporarily store the OS files

and that any application files can also be stored in Group 1.

•If a full OS download was selected in system mode, the device automatically

restarts and the new OS is processed and replaces the existing OS. In this

download operation, all application files stored in Group 1 are automatically

erased.

•If a partial OS download was selected in the system mode, the operating

system returns control to system mode after the download completes. To

process the new OS, you must manually restart the device by selecting the

appropriate system mode menu option. In a partial OS download operation,

application files stored in Group 1 are not erased.

•When the OS download is initiated, the OS file authentication progress is

displayed on the screen as new certificates are authenticated and added to

the device’s certificate tree, and as signature files for corresponding OS files

are detected and authenticated.

NOTE Operating system files can only be transferred to a Vx810 device using a PC-to-

device direct download procedure. OS files cannot be downloaded onto a Vx810

device in a back-to-back operation.

PERFORMING DOWNLOADS

File Authentication Requirements

104 VX810 REFERENCE GUIDE

•While the new OS is being processed, there is no visible indication on the

device display of the progress of processing. When the new OS is processed

(this usually takes a few moments), the device restarts automatically and the

OS download procedure is complete.

File Authentication

for Back-to-Back

Application

Downloads

When performing a back-to-back application download between two Vx810

devices, the file authentication process on the receiving device is similar to an

application download from a host computer to a standalone Vx810 device. There

are, however, some important differences to take into account:

•Only a full application download is supported for back-to-back data transfers.

You cannot perform partial back-to-back application downloads.

•Before you can initiate the back-to-back download, you must enter system

mode in both devices, select Group 1 as the target group for both devices, and

enter all required passwords.

•All signature files required to authenticate the download applications must

reside in the memory of the sending device. They must not be deleted through

the *FA variable being cleared to 0 on previous downloads.

•Any sponsor and signer certificates downloaded onto and authenticated on

the sending device are stored in the certificate tree of that device. When you

perform a back-to-back download, certificate files are reconstructed from the

data present in the sending device’s certificate tree.

•All certificates transfer to Group 1 SRAM on the receiving device, except for

the highest-level platform root certificate, which can never be transferred to

another device.

•When certificates are detected by the file authentication module of the

receiving device, they are processed exactly as in a direct download: All

certificates are checked one by one and, on authentication, are added to the

certificate tree of the receiving device. Then all signature files are checked.

CAUTION If the power supply to the receiving device is accidentally cycled during an

operating system download procedure, the device may permanently lock up. In

that case, return the device to VeriFone for service.

PERFORMING DOWNLOADS

File Authentication Requirements

VX810 REFERENCE GUIDE 105

•Downloaded certificates (receiving device) must synchronize with the

certificate data present in the certificate tree.

“Synchronized” means that the certificate tree of the receiving device can be

no more than one revision out-of-sync with the certificate tree on the sending

device or the files on the receiving device do not successfully authenticate. In

this case, the term revision refers to any generic change to the current

sponsor and signer certificates stored in the certificate tree of a deployment

device.

•When the back-to-back download completes and all certificates and signature

files authenticate, the receiving device restarts. If the name of the *GO

application is specified in the Group 1 CONFIG.SYS file of the receiving

device, the application executes and the application prompt or logo is

displayed on the device.

Timing

Considerations Due

to the

Authentication

Process

The file authentication process takes some time. The total amount of time required

depends on a number of factors:

•The number and size of application files.

•The number of certificates and signature files.

•Whether the file compression feature of Download Manager is being used to

perform the download.

Here are a few additional considerations that may affect the total elapsed time

required to complete the download operation:

•Because additional processing steps are required, an operating system

download takes longer to complete than an application download (several

minutes as opposed to a few seconds).

•The download order of a batch of certificate files may affect total processing

time. Digital certificates are validated in a looping process where the validation

process cycles as many times as necessary to establish the proper

relationship and position of a given certificate in the certificate tree that exists

in the device.

To optimize the authentication process, download certificates in a higher-level-

certificates-first order. This way, they process faster than a random order

download.

PERFORMING DOWNLOADS

Effect of Downloads on Existing Files and Data

106 VX810 REFERENCE GUIDE

Optimize Available

Memory Space for

Successful

Downloads

One certificate file or signature file requires approximately 400 bytes of memory

space. The application designer must account for the extra memory required to

download and store these special files.

When planning your download procedure, carefully consider the total amount of

memory space required to store certificates and signature files and the application

files. In some cases, a considerable number of 400-byte signature files reside in

device memory at any given time. Here are some general guidelines to follow:

•Know the size of available memory (SRAM and flash ROM) of the receiving

device; also in back-to-back downloads, know the size of available memory on

both the sending and receiving devices.

•Know in advance how application files are redirected to SRAM or flash ROM

and to file groups other than the target group.

•Defragment flash ROM memory before performing a download to optimize the

available space in the flash ROM file system.

•Before performing a download, use the system mode menu selections to clear

the entire SRAM and flash ROM of a specific file group, as necessary, to

ensure proper use of available memory in the target group.

Support for File

Compression

For information regarding file compression, refer to the Verix V Operating System

Programmers Manual, VPN 23230.

Effect of

Downloads on

Existing Files

and Data

When downloading application files and data to a Vx810 device, an important

consideration is the effect of the download procedure on existing application files,

files used in the file authentication process, and device configuration settings

stored in CONFIG.SYS files in the receiving device. Here are some important

points:

•If a file already exists in the target file group, the existing file is replaced with

the new file of the same name. (Files in separate file groups can have identical

names.)

•Always download executable files (and any other files to logically protect

under VeriShield file authentication) with the certificates and signature files

required to authenticate them.

•In full or partial application downloads, all CONFIG.SYS records on the

receiving device, both protected and non-protected (that is, beginning with * or

#), are retained. New CONFIG.SYS variables included in the download

package, including the *GO variable, selectively replace existing variables

with the same key name in the CONFIG.SYS file of the target group.

PERFORMING DOWNLOADS

Set Up the Download Environment

VX810 REFERENCE GUIDE 107

•All current passwords are retained on the receiving device during an

application or operating system download (direct and back-to-back). These

include the system mode password and file group passwords. If required, you

can replace existing file group passwords with new values as part of the data

transfer operation.

•For back-to-back application downloads, clear the SRAM and flash ROM of

the receiving device before initiating the download. All application files stored

on the receiving device, including CONFIG.SYS settings, are replaced by

those of the sending device. System mode and file group passwords are

retained on the receiving device.

•For full operating system downloads, Group 1 SRAM is cleared as part of the

operation and any application files stored in GID1 are erased. In this case,

previously downloaded and authenticated applications must be downloaded

on a subsequent operation, together with the certificates and signature files

required to authenticate them.

Set Up the

Download

Environment

The first step in performing a download to a Vx810 device is to establish the

physical communication link between the sending and receiving systems required

to support the following download methods:

•Direct serial cable connection for direct application and OS downloads:

The link is between the COM2 port of a download computer and the COM2

port on the receiving Vx810 device.

A DB9-type serial connectors cable, VPN 08362-01-R, is available for

supporting direct downloads. This cable has a 10-pin RJ-45 modular plug on

one end for the external dongle or multi-port adapter.

•Direct serial cable connection for back-to-back application downloads:

The link is between the RS-232 serial ports of the sending and receiving

devices.

A special cable is required for back-to-back downloads, VPN 05651-00. This

cable has two 10-pin RJ-45 modular plugs on each end to establish the

device-to-device connection.

NOTE Always modify the system mode password in a separate, securely-controlled

operation. Ensure that this password is retained in a secure place.

PERFORMING DOWNLOADS

Set Up the Download Environment

108 VX810 REFERENCE GUIDE

Cable Connection

for Direct

Downloads

A special dongle cable, VPN 08362-01-R, is provided for direct downloads. This is

the generic cable for all RS-232-based hosts.

The following steps describe how to establish the cable link between the sending

host computer and the receiving Vx810 device using the special dongle cable:

1Connect the 14-pin header end of the cable to the Vx810.

2Connect the female DB-9 connector end of the cable to the RS-232 serial port

of the host computer.

3Connect an external power brick to the DC jack provided on the DB-9

connector housing.

Figure 25 Serial Cable Connection with Multi-Port Adapter

Cable Connection

for Back-to-Back

Application

Downloads

To prepare for a back-to-back application download:

1Connect a MOD10 cable (P/N 05651-XX) between the RS-232 serial ports of

the devices using a UART Dongle connected to each device.

2Power up both devices.

Figure 26 MOD10 Cable Connection Between Two Vx810 Devices

PERFORMING DOWNLOADS

Set Up the Download Environment

VX810 REFERENCE GUIDE 109

Direct Application

Downloads

This section provides the hardware and software checklist needed for direct

application downloads. The procedure for direct application downloads is also

discussed.

Hardware Checklist

Software Checklist

The correct cable connects the download computer serial port (COM2) to the RS-

232 serial port (COM2) of the Vx810.

Download Manager, VeriCentre, or DDL.EXE running on the host computer.

The application file to download (full or partial) is located on the host computer.

The correct keyed record variables exist in the CONFIG.SYS files of the file

groups to store the application files.

Certificate files (*.crt) required for file authentication on the receiving device are

stored in memory or they are located on the host computer, and must download

with the application files.

All required signature files (*.p7s) generated using the VeriShield File Signing Tool

are located on the host computer. One signature file downloads for each

executable (*.out or *.lib) to run on the device.

The filenames in the batch download list on the host computer indicate which

application files to redirect to flash ROM and file groups other than the target

group.

Ensure that filenames and CONFIG.SYS variables to download are correct in

relation to those stored in the memory of the receiving device to avoid accidental

overwrites.

The required system mode and file group passwords are available to make the

required system mode menu selections and to prepare the receiving device to

receive the application download.

Sufficient memory space exists in the SRAM of the target group so that it can

accept the entire download package, including certificates, signature files, and all

data files.

Use the system mode menu options to clear the entire SRAM or flash ROM or

specific file groups on the receiving device (as necessary). Perform a flash ROM

defragment (coalesce) operation to optimize the flash ROM file system (as

necessary, the application itself can issue a function call to defragment the flash

ROM on restart after the download.) For more information on system mode

operations, refer to Chapter 4.

PERFORMING DOWNLOADS

Set Up the Download Environment

110 VX810 REFERENCE GUIDE

Checklist for Effects

on Files and

Settings in the

Receiving Device

Direct Application

Download

Procedure

The following procedure describes how to perform a direct application download

from a host download computer into the Group 1 application memory area of a

Vx810 deployment device.

Steps described in the Action column are performed directly on the Vx810 device.

Notes provided in this column indicate and explain actions you must perform on

the host computer.

The following table describes the common steps required for all download and

upload procedures.

Protected records in the CONFIG.SYS files of the receiving device – keyed

records that begin with * or # – are not erased.

The bootloader, OS, and other firmware on the receiving device are not modified

as a result of the application download.

The certificate tree that exists on the receiving device is not modified unless one or

more new certificate files are downloading to the device. When new certificates

are authenticated on the receiving device, the data they contain is stored in the

certificate tree and the certificate files are deleted from the SRAM of the target

group.

Table 17 Common Steps to Start a Download

Step Display Action

1VERIFONE VX810

QG000829

03/29/2007 VERIX

¹DEFAULT CERTIFICATE¹

VERIFONE

At startup, the device displays a copyright

notice screen that shows the device model

number, the OS version of the Vx810 stored in

the device’s flash ROM memory, the date the

firmware was loaded onto the device, and the

This screen appears for three seconds, during

which time you can enter system mode by

simultaneously pressing F2 and F4.

You can extend the display period of this

screen by pressing any key during the initial

three seconds. Each key press extends the

display period an additional three seconds.

PERFORMING DOWNLOADS

Set Up the Download Environment

VX810 REFERENCE GUIDE 111

2 (Application Prompt)

DOWNLOAD NEEDED

¹GO FILE NOT FOUND

If an application already resides on the device,

an application-specific prompt is displayed. If

no application resides on the device, the

following message is displayed:

DOWNLOAD NEEDED

To enter system mode from this screen,

simultaneously press F2 and F4.

Note: The device will automatically download

the file VeriFone.zip from a USB flash

drive without the user having to go

through System Mode under the

following conditions:

•The USB flash drive is connected before

the device is turned on.

•The USB flash drive is inserted when the

initial DOWNLOAD NEEDED message is

displayed.

In both cases, the USB DOWNLOAD

COMPLETE message will appear on the

device screen after the VeriFone.zip file has

been downloaded.

3SYSTEM MODE ENTRY

PASSWORD

_ _ _ _ _ _ _ _ _ _

If an application prompt appeared and you

chose to enter system mode, you are

prompted to type the system password.

If DOWNLOAD NEEDED appeared, use the

default password “Z66831.” This password is

entered as:

1 ALPHA ALPHA 6 6 8 3 1, then press ENTER.

If you enter an incorrect password, the device

exits the SYSTEM MODE ENTRY screen. Verify

your password and re-enter it.

To quit this operation and return to the

application prompt or DOWNLOAD NEEDED

screen, press CANCEL.

Table 17 Common Steps to Start a Download (continued)

Step Display Action

PERFORMING DOWNLOADS

Set Up the Download Environment

112 VX810 REFERENCE GUIDE

The following table describes the specific steps required for performing a direct

application download.

4SYS MODE MENU 1

EDIT PARAMETERS F2

DOWNLOAD F3

RESTART F4

©ª

SYS MODE MENU 1 is the first menu displayed.

To cycle through to the other menus, press the

PF2 key or press ENTER until you reach the

desired menu.

To perform download operations, select

DOWNLOAD (F3).

To abort any action at any step, press

CANCEL.

Table 18 Direct Application Download Procedure

Step Display Action

1SYSTEM MODE DOWNLOAD

GROUP ID: nn

Type the Group ID (valid values are 2 to 15) of

the group into which you want to download

files to. Then press ENTER to select the group.

2SYSTEM MODE DOWNLOAD

GROUP nn PASSWORD

_ _ _ _ _ _ _ _ _ _

To continue, enter the required password.

The default group password is “Z66831.” This

is entered as: 1 ALPHA ALPHA 6 6 8 3 1,

then press ENTER.

SYS MODE PASSWORD Gnn

PLEASE TRY AGAIN

This message appears if you enter an

incorrect password.

Press ENTER to try again. Re-enter your

password.

3SYS MODE DOWNLOAD Gnn

SINGLE-APP F3

MULTI-APP F4

To download a single application, select

SINGLE-APP (F3).

To download multiple applications, select

MULTI-APP (F4).

4SYS MODE DOWNLOAD Gnn

FULL F3

PARTIAL F4

For a full download, select FULL (F3).

For a partial download, select PARTIAL (F4).

To return to SYS MODE MENU 1, press the PF1

key.

Table 17 Common Steps to Start a Download (continued)

Step Display Action

PERFORMING DOWNLOADS

Set Up the Download Environment

VX810 REFERENCE GUIDE 113

5SYS MODE DOWNLOAD Gnn

COM2 F3

Select the download source, COM 2 (F3).

SYS MODE DOWNLOAD Gnn

UNIT RECEIVE MODE

WAITING FOR DOWNLOAD

The device is ready to receive a download

from the selected source.

SYS MODE DOWNLOAD Gnn

¹¹¹_ _ _ _ _ _ _

DOWNLOADING NOW

During download, a line of asterisks appears

that shows the percentage of completion.

Each asterisk equals approximately 10% of

the download.

When the download is completed, the device

will restart.

You can cancel a download in progress by

pressing CANCEL. This will also restart the

device.

6**VERIFYING FILES**

CHECK CERTIFICATE

(FILENAME.CRT)

**AUTHENTIC**

--- FAILED ---

The file authentication module on the

receiving device begins to check for new

certificate (*.crt) and signature (*.p7s) files

included in the download. Then these special

files process one at a time; certificates

process first, then signature files.

When the file authentication module is

invoked, the status display informs you of the

progress of the file authentication process. If

file authentication succeeds for a specific

certificate, the “AUTHENTIC” message is

displayed directly below the certificate

filename. If file authentication fails for a

specific certificate, the “FAILED” message is

displayed for five seconds below the filename

and the device beeps three times, allowing

you to note which certificate failed to

authenticate.

The authentication process continues to the

next certificate until all new certificates are

authenticated.

Table 18 Direct Application Download Procedure (continued)

Step Display Action

PERFORMING DOWNLOADS

Set Up the Download Environment

114 VX810 REFERENCE GUIDE

7**VERIFYING FILES**

COMPARE SIGNATURE

FILENAME.P7S

FILENAME.OUT

**AUTHENTIC**

--- FAILED ---

The file authentication module continues to

authenticate any new signature files

downloaded with the OS files.

When the signature file authentication routine

starts, the status display informs you of the

progress of the authentication process.

If file authentication succeeds for a specific

signature file, the “AUTHENTIC” message is

displayed directly below the filename of the

signature file. If file authentication fails for a

specific signature file, the “FAILED” message

is displayed for five seconds below the

filename and the device beeps three times,

allowing you to note which signature file failed

to authenticate. The authentication process

proceeds to the next signature file until all

signature files are validated.

When all new signature files are

authenticated, the device restarts, and the

application specified in the *GO variable or the

default application in Group 1 executes and

starts running on the device.

8(Application Prompt)

DOWNLOAD NEEDED

If the downloaded application successfully

authenticates, the corresponding application

prompt or logo is displayed upon restart.

The device can now process transactions.

Note: The message DOWNLOAD NEEDED

appears if:

•The *GO variable is not set.

•*GO does not specify that an application is

present.

•The application did not authenticate (invalid

or missing *.p7s file).

•The application uses shared libraries that

are missing or were not authenticated

(invalid or missing *.p7s files).

If one or more executables in the application

fail to successfully authenticate, the

application may not run. If the application

attempts to access an unauthenticated

executable or library, it may crash. Repeat the

Direct Operating System Download Procedure

using the correct certificates and signature

files.

Table 18 Direct Application Download Procedure (continued)

Step Display Action

PERFORMING DOWNLOADS

Direct Operating System Downloads

VX810 REFERENCE GUIDE 115

Direct Operating

System

Downloads

This section provides the hardware and software checklist needed for direct

operating system downloads. The procedure for direct operating system

downloads is also discussed.

Hardware Checklist

Software Checklist

Checklist for Effects

on Files and

Settings in the

Receiving Device

The correct cable connects the download computer serial port (COM2) to the

RS-232 serial port (COM2) of the Vx810 device (refer to Cable Connection for

Direct Downloads).

Download Manager, VeriCentre, or DDL.EXE running on the host computer.

The complete OS version to download is located on the host computer.

Select full or partial download of the OS. In a full OS download, the device restarts

automatically and the new OS is processed, replacing the existing OS. In a partial

OS download, the device returns to system mode and the new OS does not

process until you manually initiate a device restart from system mode.

The correct keyed record variables for the download exist in the CONFIG.SYS files

of Group 1. (OS files must always download into GID1 SRAM). The required

variables can also be written into the CONFIG.SYS file as part of the download

operation.

The following files provided by VeriFone CA for full OS downloads must reside on

the host computer:

•The new OS version or OS update (Q*.out, 1*.out, 2*.out, 3*.out, 4*.out, 5*.out,

6*.out).

•A signature file called VFI.p7s for the OS update. This signature file is

generated by the VeriFone CA using the high-level OS certificates for the Vx810

platform.

•A file called VFI.PED. This file is an encrypted list of the new OS files.

The required system mode and file group passwords are available to make the

required system mode menu selections to prepare the receiving device to receive

the application download.

Sufficient memory space exists in the Group 1 SRAM to accept the OS download

package including certificates, signature files, and all data files.

Use the system mode menu options to clear the entire SRAM or flash ROM or the

SRAM of Group 1 on the receiving device (as necessary).

A full OS download replaces the existing OS and erases all application files from

the Group 1 SRAM.

A partial OS download returns control of the device to system mode and does not

erase application files from the Group 1 SRAM.

Protected records in the CONFIG.SYS files of the receiving device – keyed

records that begin with * or # – are not erased.

An OS download does not overwrite device configuration settings, including the

current date and time, and passwords. If required, you can download new device

configuration settings together with the OS files.

PERFORMING DOWNLOADS

Direct Operating System Downloads

116 VX810 REFERENCE GUIDE

Direct Operating

System Download

Procedure

The following procedure describes how to perform a direct operating system

download from a host computer into the Group 1 SRAM of a Vx810 device.

Steps described in the Action column are performed directly on the Vx810 device.

Notes provided in this column indicate and explain actions you must perform on

the host computer.

The certificate tree that exists on the receiving device is not modified unless one or

more new certificate files required to authenticate the new OS are being

downloaded onto the device. When new certificates authenticate on the receiving

device, the data they contain is stored in the certificate tree and the certificate files

are deleted from the Group 1 SRAM.

The certificates and signature files required to authenticate the new OS are

processed by the file authentication module of the receiving device the same as

application files.

When the device restarts and the new OS files process, they are moved out of the

Group 1 SRAM into the Group 0 area of the Vx810 file system.

Table 19 Direct Operating System Download Procedure

Step Display Action

1SYSTEM MODE DOWNLOAD

GROUP ID: nn

Type the Group ID (valid values are 1 to 15) of

the group into which you want to download

files to. Then press ENTER to select the group.

Operating system files must always be

downloaded onto Group 1.

2SYSTEM MODE DOWNLOAD

GROUP nn PASSWORD

_ _ _ _ _ _ _ _ _ _

To continue, enter the required password.

The default group password is “Z66831.” This

is entered as: 1 ALPHA ALPHA 6 6 8 3 1,

then press ENTER.

SYS MODE PASSWORD Gnn

PLEASE TRY AGAIN

This message appears if you enter an

incorrect password.

Press ENTER to try again. Re-enter your

password.

3SYS MODE DOWNLOAD Gnn

SINGLE-APP F3

MULTI-APP F4

To download a single application, select

SINGLE-APP (F3).

To download multiple applications, select

MULTI-APP (F4).

PERFORMING DOWNLOADS

Direct Operating System Downloads

VX810 REFERENCE GUIDE 117

4SYS MODE DOWNLOAD Gnn

FULL F3

PARTIAL F4

For a full download, select FULL (F3).

For a partial download, select PARTIAL (F4).

To return to SYS MODE MENU 1, press the PF1

key.

5SYS MODE DOWNLOAD Gnn

COM2 F3

Select the download source, COM 2 (F3).

6SYS MODE DOWNLOAD Gnn

UNIT RECEIVE MODE

WAITING FOR DOWNLOAD

The device is ready to receive a download

from the selected source.

Initiate the download by executing the proper

commands in the download tool running on

the host computer (when the receiving device

is ready to receive the direct OS download).

SYS MODE DOWNLOAD Gnn

¹¹¹_ _ _ _ _ _ _

DOWNLOADING NOW

During download, a line of asterisks appears

that shows the percentage of completion.

Each asterisk equals approximately 10% of

the download.

When the download is completed, the device

will restart.

You can cancel a download in progress by

pressing CANCEL. This will also restart the

device.

Table 19 Direct Operating System Download Procedure

Step Display Action

PERFORMING DOWNLOADS

Direct Operating System Downloads

118 VX810 REFERENCE GUIDE

7**VERIFYING FILES**

CHECK CERTIFICATE

(FILENAME.CRT)

**AUTHENTIC**

--- FAILED ---

When the OS download is complete, the

device restarts automatically. The file

authentication module on the receiving device

begins to check for new certificate (*.crt) and

signature (*.p7s) files included in the

download. These special files process one at

a time; certificates process first, then

signature files.

When the file authentication module is

invoked, the status display informs you of the

progress of the file authentication process. If

file authentication succeeds for a specific

certificate, the “AUTHENTIC” message is

displayed directly below the certificate

filename. If file authentication fails for a

specific certificate, the “FAILED” message is

displayed for five seconds below the filename

and the device beeps three times, allowing

you to note which certificate failed to

authenticate.

The authentication process continues to the

next certificate until all new certificates are

checked.

Table 19 Direct Operating System Download Procedure

Step Display Action

PERFORMING DOWNLOADS

Direct Operating System Downloads

VX810 REFERENCE GUIDE 119

8**VERIFYING FILES**

COMPARE SIGNATURE

FILENAME.P7S

FILENAME.OUT

**AUTHENTIC**

--- FAILED ---

The file authentication module continues to

authenticate new signature files downloaded

with the OS files.

When the signature file authentication routine

starts, the status display informs you of the

progress of the authentication process.

If file authentication succeeds for a specific

signature file, the “AUTHENTIC” message is

displayed directly below the filename of the

signature file. If file authentication fails for a

specific signature file, the “FAILED” message

is displayed for five seconds below the

filename and the device beeps three times,

allowing you to note which signature file failed

to authenticate. The authentication process

proceeds to the next signature file until all

signature files are validated.

When all new signature files are

authenticated, the device restarts and begins

processing the new OS (full download) or it

returns control to system mode (partial

download).

If you are performing a partial download, the

device does not restart until you manually

press the F4 key in SYSMODEMENU1. If an

application resides on the device following the

OS download, it executes on restart.

Note: Because a full OS download clears the

SRAM, all device applications, related

certificates, and signature files must be

downloaded to the device when

performing this type of download.

9(Application Prompt)

DOWNLOAD NEEDED

If you performed a full OS download, the

DOWNLOAD NEEDED prompt is displayed.

A direct application download on the receiving

device can be performed.

If you performed a partial OS download and

manually restarted the device, the application

residing in the device (if any) executes. The

application prompt is displayed on device

restart, after OS processing, and the

application starts.

Table 19 Direct Operating System Download Procedure

Step Display Action

PERFORMING DOWNLOADS

Back-to-Back Application Downloads

120 VX810 REFERENCE GUIDE

Back-to-Back

Application

Downloads

This section provides the hardware and software checklist needed for back-to-

back application downloads. The procedure for back-to-back device downloads is

also discussed.

Hardware Checklist

Software Checklist

Checklist for Effects

on Files and

Settings in the

Receiving Device

The correct serial cable connects the RS-232 serial ports of the sending and

receiving Vx810 devices (refer to Cable Connection for Back-to-Back Application

Downloads).

Verify that the SRAM size on the receiving device is large enough to receive files

uploaded from the sending device. If the SRAM on the sending device is 512 KB,

the SRAM on the receiving device must be at least 512 KB.

The firmware versions of the sending and receiving devices must be identical or

very similar.

One or more complete and authenticated applications are stored in the GIDs 1–15,

SRAM or flash ROM of the sending device. In this type of operation, all files stored

in application memory of the sending device download to the receiving device.

Before initiating the download procedure, remember to select Group 1 as the

target file group on both the sending and receiving devices. The required system

mode and file group passwords must also be available to make the required

system mode menu selections on both devices.

The current CONFIG.SYS variables, date and time, and other device configuration

settings on the sending device are those downloaded onto the receiving device.

Ensure that the desired settings are correct.

All signature files required to authenticate the application files being downloaded

onto the receiving device are present in the SRAM or flash ROM file system of the

sending device.

The certificate tree of the sending and receiving device must be synchronized.

That is, there can be no more than one revision difference between the certificate

data currently stored in the memory of the sending and receiving devices.

If application files are downloaded onto the receiving device in previous

operations, use the system mode menu options to clear the SRAM and flash ROM

file systems of the receiving device before you initiate the back-to-back download

procedure. This ensures a clean download.

A back-to-back application download overwrites existing applications, libraries, or

any other files stored in the SRAM of the receiving device.

All CONFIG.SYS records and settings on the receiving device – protected and

non-protected – are replaced by those of the sending device. Ensure that these

records and settings on the sending device are correct before initiating the

download.

Passwords on the receiving device are retained.

Certificates and signature files downloaded onto the receiving device, together

with application files, must be processed by the file authentication module on the

receiving device on device restart after the back-to-back download completes.

PERFORMING DOWNLOADS

Back-to-Back Application Downloads

VX810 REFERENCE GUIDE 121

Back-to-Back

Application

Download

Procedure

The back-to-back application download process consists of two main phases:

1Preparing a source Vx810 device (transfers application files to the receiving

Vx810 device).

2Downloading application files from the sending device to a properly configured

receiving device.

Prepare Sending Device (PC-to-Device)

1Configure the host PC for an application download operation to the sending

device:

•Set the *FA variable (if present in the application) to 1.

•Ensure that all certificates, *p7s files, applications, and other required files

are present.

•Ensure that the download is exactly what you want your receiving device

to receive.

2Configure the sending device to receive an application download from a PC:

•From SYS MODE MENU 1, set Group 1 and COM2 as the port to receive the

download.

3Connect a cable between the RS-232 serial ports of the PC and the sending

device.

4Initiate the file transfer on the PC.

5From SYS MODE MENU 1 on the sending device, select either a full or a partial

download using a UART Dongle connected to each device.

The PC transfers files to the sending device.

The OS software on the receiving device is not affected by a back-to-back

application download.

Note: OS files cannot be downloaded on a back-to-back operation.

An application upload does not overwrite the existing certificate tree on the

receiving device. Any downloaded certificate files are authenticated and added to

the tree.

PERFORMING DOWNLOADS

Back-to-Back Application Downloads

122 VX810 REFERENCE GUIDE

Download Application Files to Receiving Device

1Configure a sending device for an application download operation to a

deployment device:

•If the *FA variable (if present in the application) is set to 0, you can reset it

to 1. For more information on the *FA variable, refer to the Verix V

Programmers Manual.

•Ensure that the download is exactly what you want your receiving devices

to receive.

•Ensure that previously authenticated files are not changed prior to the file

transfer operation.

2Configure the receiving device to receive an application download from the

sending device. From SYS MODE MENU 1, set Group 1 and COM2 as the port to

receive the file transfer.

3Connect a cable, VPN 08362-01-R, between the RS-232 serial ports of the

source and receiving devices using a UART Dongle connected to each device.

4From any system mode menu on the sending device, press [*] and enter the

GID1 password to initiate the file transfer.

5From SYS MODE MENU 1 on the deployment device, select either a full or a

partial download. The sending device begins to transfer files to the receiving

device.

PERFORMING DOWNLOADS

Back-to-Back Application Downloads

VX810 REFERENCE GUIDE 123

The following diagram describes the procedure for a back-to-back application

download from a sending Vx810 device to a receiving Vx810 device.

Figure 27 Back-To-Back Download Process

PERFORMING DOWNLOADS

Back-to-Back Application Downloads

124 VX810 REFERENCE GUIDE

Back-to-back downloads require that one device, the sending device, be loaded

with the required applications. The receiving device is the receiving device. The

procedure assumes the following:

•The receiving device has no applications loaded.

•There is enough memory in the receiving device to complete the download.

•You are performing a full download

NOTE The receiving device does not display an error message if there is not enough

memory to complete the download. However, the sending device displays

DOWNLOAD INCOMPLETE before returning to SYS MODE MENU 2.

Table 20 Back-to-Back Application Download Procedure

Step Display Action

1Connect a MOD10 cable (P/N 05651-XX) between the RS-232 serial ports of

the devices using a UART Dongle connected to each device. Then start up

both devices.

2 (Application Prompt)

DOWNLOAD NEEDED

¹GO FILE NOT FOUND

After start up, the sending device displays the

application prompt; while the receiving device

displays DOWNLOAD NEEDED.

For both devices, enter system mode by

simultaneously pressing F2 and F4.

3SYSTEM MODE ENTRY

PASSWORD

_ _ _ _ _ _ _ _ _ _

For both devices, enter the default system

password “Z66831.” This password is entered

as:

1 ALPHA ALPHA 6 6 8 3 1, then press ENTER.

4SYS MODE MENU 1

EDIT PARAMETERS F2

DOWNLOAD F3

RESTART F4

©ª

For the receiving device, select DOWNLOAD

(F3). Enter the system mode password when

prompted.

SYS MODE DOWNLOAD Gnn

SINGLE-APP F3

MULTI-APP F4

Select SINGLE-APP (F3).

SYS MODE DOWNLOAD Gnn

FULL F3

PARTIAL F4

Select FULL (F3).

PERFORMING DOWNLOADS

Back-to-Back Application Downloads

VX810 REFERENCE GUIDE 125

SYS MODE DOWNLOAD Gnn

¹¹¹¹WARNING¹¹¹¹

ALL FILES WILL BE

CLEARED FROM GROUP 1

CANCEL DOWNLOAD F3

CONTINUE F4

To abort the download, select CANCEL

DOWNLOAD (F3).

To proceed with the download, select

CONTINUE (F4).

SYS MODE DOWNLOAD Gnn

COM2 F3

Select COM2 (F3) as the download source.

SYS MODE DOWNLOAD Gnn

UNIT RECEIVE MODE

WAITING FOR DOWNLOAD

The device is ready to receive a download

from the selected source.

SYS MODE DOWNLOAD Gnn

¹¹¹_ _ _ _ _ _ _

DOWNLOADING NOW

During download, a line of asterisks appears

that shows the percentage of completion.

Each asterisk equals approximately 10% of

the download.

5SYS MODE MENU 1

EDIT PARAMETERS F2

DOWNLOAD F3

RESTART F4

©ª

For the sending device, press the Asterisk (*)

key to enter Upload mode. Enter the system

mode password when prompted.

SYS MODE UPLOAD

¹¹¹_ _ _ _ _ _ _

UPLOADING NOW

To message UPLOADING NOW is displayed.

During upload, a line of asterisks appears that

shows the percentage of completion. Each

asterisk equals approximately 10% of the

download.

SYS MODE UPLOAD

UPLOAD COMPLETE

For the sending device, a message is

displayed when the upload is successful.

Otherwise, an error message will be

displayed.

6The receiving device begins to validate all files. Allow the receiving device to

complete file authentication and reboot the device. An application-specific

menu is displayed after the receiving device completes the reboot.

The sending device is ready to perform another download.

Table 20 Back-to-Back Application Download Procedure

Step Display Action

PERFORMING DOWNLOADS

Back-to-Back Application Downloads

126 VX810 REFERENCE GUIDE

VX810 REFERENCE GUIDE 127

CHAPTER 7

Specifications

This chapter describes the technical specifications for the Vx810 device.

Product

Specifications

Model

Vx810

Processor

200 MHz Samsung S3C2410 ARM920 32-bit microprocessor

Flash ROM

4MB installed (expandable to 8MB or 16MB)

SRAM

2MB installed (expandable to 4MB)

Operating System

Verix V platform. Built specifically to provide true and secure multi-application

capability, as well as dynamic memory allocation and file authentication.

Display

128 x 128 pixel (2.75-inch) graphical LCD with high-contrast white backlighting.

Supports 16 lines x 21 characters with standard font set.

Magnetic Card

Reader

(Optional) Triple-track. High coercivity. Bi-directional. Compliant to ISO 7810 and

ISO 7811.

Primary Smart Card

Reader

(Optional) Support for ISO 7816, 1.8V, 3V, 5V or synchronous and asynchronous

cards. EMV Level 1 and Level 2 Type approved.

SAM Card Reader

(Optional) 1-3 Security Access Modules

Input Device

Rubber keys:

•4 ATM-style function keys (F1 to F4)

•4 programmable function keys (PF1 to PF4)

•1 ALPHA key

•Main keypad (0 to 9, *, and #)

•3 command keys (CANCEL, CLEAR, and ENTER)

Peripheral Ports

Single multi-connector, which supports power, RS-232, USB Client, USB Host,

Ethernet, and power over Ethernet. SDIO interface supports optional expansion

module for contactless payments or SD memory card.

SPECIFICATIONS

Environmental, Regulatory and Performance Specifications

128 VX810 REFERENCE GUIDE

Supported Memory

Media

SD Memory Card

•Sandisk SD: SDSDB-512 / SDSDB-256 / SDSDB-128

USB Flash Drive

•Sandisk Cruzer Mini: SDCZ2-256-A10

•Memorex Thumbdrive: 32507725

•Kingston DataTraveler: KUSBDTI256

•PNY USB Flash: PFD256U20RF

•Lexar USB Pro: JD256-80-231

Security

3DES encryption, Master / Session and DUKPT key management. PCI-PED

approved. VeriShield file authentication.

Audio Output

Monophonic

Physical

Length: 150 mm (5.9 in.). Width: 85 mm (3.3 in.). Height: 32 mm (1.2 in.). Weight:

terminal, 270g (0.59 lbs.); full shipping, 850g (1.87 lbs.).

Voltage

Input: AC 100-240V, 50-60Hz. Output: DC 5-12V. 2.5-W maximum consumption.

Environmental,

Regulatory and

Performance

Specifications

The Vx810 meets all the necessary environmental, regulatory and performance

standards for its intended use and expected market. VeriFone recognizes its

responsibility to minimize the environmental impacts of its operations and

products.

The Vx810 is classified as a “portable general purpose” device. It is designed for

operation in retail environments where the product is handed over the counter to

the consumer for payment transactions, PIN verification, etc.

This device is not intended for outdoor use and is certified for indoor use only.

Temperature and

Humidity

Operating Temperature and Humidity

•Temperature: 0oC to +40oC (+32oF to +104oF)

•Humidity: 5% to 90% RH, non-condensing

Storage Temperature and Humidity

•Temperature: -40oC to +70oC (-40oF to +158oF)

•Humidity: 15% to 95% RH, non-condensing

Compliance

Certifications

Emission Standards

This device is compliant to the following emission standards for information

technology equipment: Radiated and Conducted Emissions (EN 55022:1998 /

CISPR22 Class A).

SPECIFICATIONS

Environmental, Regulatory and Performance Specifications

VX810 REFERENCE GUIDE 129

Immunity Standards

This device is compliant to the following immunity standards for information

technology equipment: Electrostatic Discharge (ESD) Immunity (EN/IEC 61000-4-

2:1998), Radiated Immunity (EN 61000-4-3:1998), Electrical Fast Transients

(EFT) Burst Immunity (EN/IEC 61000-4-4:1995), Surge (EN/IEC 61000-4-5:1995),

Conducted Immunity (EN/IEC 61000-4-6:1996), Magnetic Field Susceptibility (EN/

IEC 61000-4-8:1993), Voltage Dips (EN/IEC 61000-4-11:1994), Harmonic Current

Emissions (EN/IEC 61000-3-2:1994), Flicker (EN 61000-3-3:1994).

Safety Standards

This device is compliant to the following immunity standards for information

technology equipment: UL 1950 (3rd Ed.) and EN 60950 Amend 4 (1997).

Other Standards

This device is compliant to the following PTT certifications: CFR 47 Part 68 and

CS-03.

SPECIFICATIONS

Environmental, Regulatory and Performance Specifications

130 VX810 REFERENCE GUIDE

VX810 REFERENCE GUIDE 131

CHAPTER 8

Care and Maintenance

Your Vx810 device is a product of superior design and craftsmanship and should

be treated with care. The following suggestions will help you protect your warranty

coverage.

•Keep the device dry. Precipitation, humidity, and all types of liquids or

moisture can contain minerals that will corrode electronic circuits. If your

device does get wet, switch off the power, and allow the device to dry

completely before replacing it.

•Do not use or store the device in dusty, dirty areas. Its moving parts and

electronic components can be damaged.

•Do not store the device in hot areas. High temperatures can shorten the

life of electronic devices, damage batteries, and warp or melt certain

plastics.

•Do not store the device in cold areas. When the device returns to its

normal temperature, moisture can form inside the device and damage

electronic circuit boards.

•Do not drop, knock, or shake the device. Rough handling can break

internal circuit boards and fine mechanics.

•Do not use harsh chemicals, cleaning solvents, or strong detergents to

clean the device. Use only a soft, clean, dry cloth for cleaning. For best

results, use the VeriFone Cleaning Kit.

•Do not paint the device. Paint can clog the moving parts and prevent

proper operation.

•Keep the device free from any small, loose items (such as paper clips,

staples, or coins) that could accidentally get inside it through an opening,

such as the SD card reader slot or the primary smart card reader slot.

•Do not attempt to open the device other than as instructed in this guide.

This device has security features that protect it from tampering. For

example, if the device’s outer casing is opened, file content will be deleted.

These suggestions apply equally to your Vx810 device, or any of its attachments

or accessories. If your device is not working properly, take it to the nearest

authorized service facility for servicing or replacement. For your safety, have this

device serviced only by a VeriFone-authorized service provider.

CARE AND MAINTENANCE

Additional Safety Information

132 VX810 REFERENCE GUIDE

Additional

Safety

Information

The following are additional information for your safety in using this device.

Power Adapter

Use only the power adapter that came with your device. Adapters for other

electronic devices (including other VFI devices) may look similar, but they may

affect your device’s performance or damage it.

Potentially

Explosive

Environments

Do not use this device in any area with a potentially explosive atmosphere, and

obey all signs and instructions. Potentially explosive atmospheres include areas

where you would normally be advised to turn off your vehicle engine. Sparks in

such areas could cause an explosion or fire resulting in bodily injury or even

death.

VX810 REFERENCE GUIDE 133

CHAPTER 9

Service and Support

For problems concerning your Vx810 device, contact your local VeriFone

representative or service provider.

For Vx810 product service and support information:

•USA – VeriFone Service and Support Group, 1-800-VERIFONE (837-4366),

Monday - Friday, 8 A.M. - 7 P.M. EST

•International – Contact your VeriFone representative

Product Returns

Before returning a Vx810 device to VeriFone, you must first obtain a Merchandise

Return Authorization (MRA) number. The following procedure describes how to

return one or more Vx810 devices for repair or replacement (U.S. customers only).

To return a Vx810 device:

1Gather the following information from the printed labels on the bottom of each

Vx810 device to be returned:

•Model Name. That is, “Vx810”.

•Part Number (P/N). 12-digit, alphanumeric code. For example, “M281-503-

02-DMO”.

•Serial Number (S/N). 9-digit, numeric code. For example, “303-000-040”.

Figure 28 Information Labels on Device Bottom

NOTE Customers outside the United States are advised to contact their local VeriFone

representative for assistance regarding repair or replacement of their Vx810

devices.

SERVICE AND SUPPORT

Product Returns

134 VX810 REFERENCE GUIDE

2Obtain the MRA numbers by doing one of the following:

aCall VeriFone toll-free within the United States at 1-800-VERIFONE

(837-4366) and follow the automated menu options.

•Select the MRA option from the automated message. The MRA

department is open Monday to Friday, 8 A.M. - 7 P.M. EST.

•Give the MRA representative the information you gathered in Step 1

and describe the problem that you are having with each Vx810 device.

•If you are returning several (3 or more) devices, it is advisable to send

a fax or email instead.

bSend a fax to the “VeriFone MRA Department”.

•Place the information you gathered in Step 1 in the body of the fax,

including a description of the problem you are having with each device.

Include also your contact information.

•Send the fax to 727-953-4172 (U.S.).

cEmail the VeriFone MRA Department at i_mra_help@verifone.com.

•Place the information you gathered in Step 1 in the body of your email,

including a description of the problem you are having with each device.

dComplete the Contact Form found at http://www.verifone.com/aboutus/

contact/contact_form.cfm.

•In the Inquiry field, specify “VeriFone MRA Department” followed by

the information you gathered in Step 1 and the description of the

problem you are having with each device.

3An MRA representative will contact you and provide you with your MRA

numbers.

4Send your Vx810 devices to your designated VeriFone service center. Provide

the shipping address where the devices will be delivered once repaired or

replaced.

Be sure to keep a record of the following items:

•Assigned MRA numbers.

•Part and serial numbers assigned to the Vx810 devices you are returning

for service or repair.

•Shipping documentation, such as airway bill numbers used to trace your

shipment.

NOTE One MRA number must be issued for each Vx810 device you return to VeriFone,

even if you are returning several of the same model and problems.

SERVICE AND SUPPORT

Accessories and Documentation

VX810 REFERENCE GUIDE 135

Accessories

and

Documentation

VeriFone produces the following accessories and documentation for the

Vx810. When ordering, please refer to the part number (VPN).

•VeriFone online store at www.store.verifone.com

•USA – VeriFone Customer Development Center, 800-VeriFone (837-4366),

Monday - Friday, 7 A.M. - 8 P.M., Eastern time

•International – Contact your VeriFone representative

Power Pack

Contact your local VeriFone distributor to determine which power pack or power

cord fits your needs.

CPS 11212-3A-R DC Power Supply

VPN 07152-02-R AC Power Cord

Connectivity

Cables

VPN 08360-01-R Cable 14-PIN Header / IO Box (with 12V DC Power Socket,

Mini USB Socket, USB Socket, and RJ48 Socket), 1.0m

VPN 08360-02-R Cable 14-PIN Header / IO Box (with 12V DC Power Socket,

Mini USB Socket, USB Socket, and RJ48 Socket), 0.5m

VPN 08361-01-R Cable 14-PIN Header / RJ45, 0.3m Coil

VPN 08362-01-R Cable 14-PIN Header / Power / DB9, 1.38m

VPN 08366-01-R Cable 14-PIN Header / Power, 0.15m

Privacy Shield

VPN 08368-01-R Privacy Shield

Integrated Base

Station

VPN 08388-01-R Integrated Base Station

VeriFone Cleaning

Kit

VPN 02746-01 Cleaning Kit

Documentation

For the Vx810:

Vx810 Certifications and Regulations Sheet VPN 24960

Vx810 Quick Installation Guide VPN 24961

Vx810 Installation Guide VPN 24963

Vx810 Privacy Shield Quick Installation Guide VPN 24965

Verix V Operating System Programmers Manual VPN 23230

Verix V Tools Programmers Manual VPN 23231

SERVICE AND SUPPORT

Accessories and Documentation

136 VX810 REFERENCE GUIDE

VX810 REFERENCE GUIDE 137

CHAPTER 10

Troubleshooting

Guidelines

The troubleshooting guidelines provided in the following section are included to

assist you to successfully install and configure your Vx810 device. If you have

problems operating your Vx810 device, please read through these troubleshooting

examples.

If the problem persists even after performing the outlined guidelines or if the

problem is not described below, contact your local VeriFone representative for

assistance. Typical examples of malfunction you may encounter while operating

your Vx810 device and steps you can take to resolve them are listed.

Display Does

Not Show

Correct/

Readable Info

When the Vx810’s display screen does not show correct or clearly readable

information:

•Remove and reapply power to the device.

•If the problem persists, contact your local VeriFone service provider.

Blank Display

When the Vx810’s display screen does not show any information:

•Check the device’s power connection.

•Remove and reapply power to the device.

•If the problem persists, contact your local VeriFone service provider.

NOTE The Vx810 device comes equipped with tamper-evident labels. The Vx810

contains no user serviceable parts. Do not, under any circumstance, attempt to

disassemble the device. Perform only those adjustments or repairs specified in

this guide. For all other services, contact your local VeriFone service provider.

Service conducted by parties other than authorized VeriFone representatives

may void warranty.

CAUTION Use only a VeriFone-supplied power pack. Using an incorrectly rated power

supply may damage the device or cause it not to work as specified. Before

troubleshooting, ensure that the power supply matches the requirements

specified at the bottom of the device. (See Chapter 7, for detailed power supply

specifications.) Obtain the appropriately rated power supply before continuing

with troubleshooting.

TROUBLESHOOTING GUIDELINES

Device Does Not Dial Out

138 VX810 REFERENCE GUIDE

Device Does Not

Dial Out

If the device does not dial out:

•Check the telephone line connections.

•Check that the telephone line is working by plugging it into a working

telephone and listening for a dial tone.

•Replace the telephone cable that connects the device with a cable you know

is working correctly.

•If the problem persists, contact your local VeriFone service provider.

Keypad Does

Not Respond

If the keypad does not respond properly:

•Check the device’s display. If it displays the wrong character or nothing at all

when you press a key, follow the steps outlined in Transactions Fail To

Process.

•If pressing a function key does not perform the expected action, refer to the

user documentation for that application to ensure you are entering data

correctly.

•Run the system mode keypad diagnostic.

•If the problem persists, contact your local VeriFone representative.

Transactions

Fail To Process

There are several reasons why the device may not be processing transactions.

Use the following steps to troubleshoot failures.

Check Magnetic Stripe Card Reader

•Perform a test transaction using one or more different magnetic stripe cards to

ensure the problem is not a defective card.

•Process a transaction manually, using the keypad instead of the card reader. If

the manual transaction works, the problem may be a defective card reader.

•If the manual transaction does not work, check the telephone line.

•Run the system mode magnetic stripe card reader diagnostic.

•Contact your VeriFone distributor or service provider.

Check Primary Smart Card Reader

•Perform a test transaction using several different smart cards to ensure the

problem is not a defective card.

•Ensure that the card is inserted correctly and that the card is not removed

prematurely.

•Ensure the MSAM cards are properly inserted in the cardholders and that the

cardholders are properly secured.

•If the manual transaction does not process, check the telephone line.

•Contact your VeriFone distributor or service provider.

VX810 REFERENCE GUIDE 139

APPENDIX A

System Messages

This appendix describes system messages, which are grouped into two

categories: error messages and information messages.

Error Messages

The following error messages may appear when the Vx810 device is in system

mode.

This message displays when DEBUGGER F5 in SYS MODE MENU 2 is selected and

the debugging monitor program, DBMON.OUT, is already running on the device.

A corrupt file is detected in the flash ROM file system during device start up, after

power on, or during restart. This message may indicate a hardware problem; the

error condition may be resolved through another download of the file.

This message is displayed if you enter an incorrect system mode password or an

incorrect file group password. Repeat the password entry and press ENTER.

A corrupt file is detected in the SRAM file system at device start up, after power-

on, or during restart. This message may indicate a hardware problem; the error

condition may be resolved through another download of the file.

If you are using the file compression module in DMM, information similar to what

is shown above appears when an error occurs during file extraction from a

downloaded ZIP archive. Note the error number and error codes (XXXXX and

YYYYY) and try to download the archive again.

ALREADY DEBUGGING

FLASH CHKSUM ERROR

PLEASE TRY AGAIN

RAM CHKSUM ERROR

** UNZIP ERROR N

XXXXXX

YYYYYY

SYSTEM MESSAGES

Information Messages

140 VX810 REFERENCE GUIDE

Information

Messages

The following information messages may appear when the Vx810 device is in

system mode.

The operating system is unable to start the application specified in the *GO

variable for the following reasons:

•Application is not resident in the device.

•The *GO variable is not set in the Group 1 CONFIG.SYS file.

•The application file specified in the *GO variable does not exist in Group 1.

(The *GO variable cannot specify an application file stored in a file group other

than Group 1.)

•The application or a shared library used by the application either does not

exist or is not authenticated. All executables must be authenticated to run on

the device.

•There is not enough memory available to run the application requested in the

*GO variable.

This message displays when the DEBUGGER F5 option in SYS MODE MENU 2 is

selected. The DBMON.OUT debugging monitor program is included in the SDK,

but is not stored in the device’s memory. To use the debugging tool, you must

sign, download, and authenticate the DBMON.OUT application.

This message displays if you select REMOTE DIAGS F3 in SYS MODE MENU 2 and the

(optional) Terminal Management Agent (TMA) software is not resident in the

Vx810 device. The TMA software is required to perform remote diagnostics. For

more information about support for remote diagnostics, contact your VeriFone

service provider.

In back-to-back downloads, the Target (receiving) device displays this message

on data transfer initiation when pressing the asterisk key (*). To stop the upload,

press CANCEL on either device (sending or Target).

This message is displayed when you select FLASH FILES F3 in SYS MODE MENU 1

and select CLEAR GROUP_NN F2 or CLEAR ALL FILES F3 to clear files from the flash

ROM memory of a specific file group (Group 1–15) or from the entire flash ROM

memory. This message remains until the files within the file group or all files in

flash ROM are deleted.

If you select CLEAR ALL FILES F3, only application files stored in the flash-based file

system – not the files stored in SRAM – are erased.

DOWNLOAD NEEDED

LOAD DBMON.OUT

LOAD TERMINAL

MANAGEMENT AGENT

RECEIVING NOW

SYS MODE CLEAR

CLEARING FLASH

PLEASE WAIT

SYSTEM MESSAGES

Information Messages

VX810 REFERENCE GUIDE 141

This message is displayed when you select RAM FILES F2 in SYS MODE MENU 1 and

select CLEAR GROUP_NN F2 or CLEAR ALL FILES F3 to clear files from the SRAM of a

specific file group (Group 1–15) or from the entire SRAM. This message remains

until the files within the file group or all files in SRAM are deleted.

If you select CLEAR ALL FILES F3, only the application files stored in SRAM – not

the files stored in flash ROM – are erased. If you erase the main application

stored in the SRAM file system, the device displays DOWNLOAD NEEDED after the

VeriFone copyright screen on device restart.

This message is displayed when you select FLASH FILES F3, followed by DEFRAG F4

in SYS MODE MENU 1 to perform defragmentation (coalesce) of the flash ROM

memory file system. PLEASE WAIT remains displayed during the defragmentation

process. On successful completion, the device automatically restarts.

An application is being downloaded onto a receiving Vx810 device from a host PC

directly over a serial cable. This message is also displayed on the Target device in

a back-to-back download.

The device displays a series of asterisks (*) to indicate the progress of the

download (each asterisk represents 10% of the download). When ten asterisks

appear, the data transfer is complete.

This information appears when you select ERROR & TMPR LOGS F4 in SYS MODE

MENU 2 or on system crash. Select TAMPER LOG F4 to view a list of possible tamper

events. Select ERROR LOG F3 to display the following information which helps

developers interpret the cause of the most recent unrecoverable software error

that occurred on the device:

•TYPE: The error type code.

•TASK: The type of task that was currently executed.

•TIME: The clock time when the last error occurred in YYMMDDhhmmss format.

•CSPR: The register that contains the processor and state condition code.

•PC: The register that holds the execution address.

•LR: The register that holds the return address of the function call.

•ADDR: Contains the illegal address that the application was trying to access.

If you report a system error to VeriFone, you may be asked to provide the

information displayed on this screen. For detailed information about the error log

function and the terms listed above, please refer to the Verix V Programmers

Manual.

SYS MODE CLEAR

CLEARING RAM

PLEASE WAIT

NOTE Clearing the SRAM does not erase the keyed variable settings stored in

protected CONFIG.SYS records – that is, in records that start with an asterisk (*).

SYS MODE DEFRAG

RECLAIMING FLASH

PLEASE WAIT

SYS MODE DOWNLOAD

DOWNLOADING NOW

SYS MODE ERROR LOG

TYPE

TASK

TIME

CSPR

ADDR

SYSTEM MESSAGES

Information Messages

142 VX810 REFERENCE GUIDE

This message is displayed when you initiate a local diagnostic test of the device

keyboard through KEYBOARD DIAG F1 in SYS MODE MENU 3. When invoked, the

decimal ASCII keycode of each key pressed appears to the right of KEYCODE. For

example, pressing the 1 key on the device keypad displays the corresponding

ASCII code, 31.

This message is displayed when you initiate the procedure for modifying existing

system mode passwords through PASSWORDS F2 in SYS MODE MENU 2. The menu

options displayed allow you to change the password of a file group (F2) or the

system mode password (F3).

This message is displayed when you select PASSWORDS F2 in SYS MODE MENU 2to

modify the existing system mode password.

•NEW: Make the appropriate menu selections to enter the new password.

•AGAIN: Repeat the entry to confirm the new password.

•PASSWORD CHANGED: Displayed when the new password is accepted.

In a back-to-back download, the sending device displays this message when you

initiate an upload from the receiving device. To stop the upload, press CANCEL on

either device.

When you invoke a local system mode diagnostic test of the magnetic stripe card

reader, status information appears for the data tracks (TRK1, TRK2, and TRK3)

on the card.

To perform this test, select MAG CARD DIAG F2 in SYS MODE MENU 3 and swipe a

magnetic stripe card through the card reader.

NO DATA or VALID DATA: A successful test of the magnetic stripe card reader results

in one of these two messages for each track. Actual data stored on the card is not

displayed.

An error condition generates one of the following error messages for each track

with an error:

•NO DATA

•NO START

•NO END

•LRC ERR

•PARITY ERR

•REVERSE END

Press CANCEL to end the local diagnostic test of the card reader.

SYS MODE KBD TEST

KEYCODE NN

SYS MODE PASSWORD

FILE GROUP NN

SYS MODE ENTRY

SYS MODE PASSWORD

NEW

AGAIN

PASSWORD CHANGED

SYS MODE UPLOAD

UPLOADING NOW

TRK1:

TRK2:

TRK3:

Information Messages

VX810 REFERENCE GUIDE 143

If you are using the file compression module in DMM, information similar to that

displayed appears when a compressed file archive downloaded onto the device

decompresses (unzipped), and the files extract from the archive.

This message is displayed when the file authentication module detects a new

digital certificate, together with the filename of the certificate to authenticate,

during a download to the Vx810. If the authentication is successful, AUTHENTIC is

displayed; otherwise, FAILED is displayed for five seconds and the device beeps

three times to draw attention to the filename of the certificate that could not be

authenticated.

This message remains on screen until all new certificates are checked, one by

one. In special cases where system certificates are being installed, SYSTEM

CERTIFICATE is displayed instead of CHECK CERTIFICATE.

This message is displayed when the file authentication module detects a new

signature file, together with the application file for which the signature file was

generated, during a download to the Vx810 device. If the authentication is

successful, AUTHENTIC is displayed; otherwise, FAILED appears for five seconds

and the device beeps three times to draw attention to the filename of the

certificate that could not be authenticated.

This message remains on screen until all new signature files are checked. New

digital certificates are always checked first, followed by new signature files, in an

uninterrupted process.

UNZIP STUFF.ZIP

MYPROG.OUT

MYDATA.TXT

6X8.FON

10X14.FON

...

** VERIFYING FILES **

CHECK CERTIFICATE

FILENAME.CRT

** AUTHENTIC **

---FAILED---

** VERIFYING FILES **

COMPARE SIGNATURE

MYFILE.P7S

MYFILE.OUT

** AUTHENTIC **

---FAILED---

Information Messages

144 VX810 REFERENCE GUIDE

VX810 REFERENCE GUIDE 145

APPENDIX B

Port Pinouts

The tables in this appendix list pinouts for the Vx810 device, dongles, and cable

connectors.

Multi-Port

COM Port

Connector Pin Function Description

1EXTGND External Ground

2USB_DEVICE– USB Device Signal (–)

3USB_DEVICE+ USB Device Signal (+)

4SGND System Ground

5RXD_HOST RS-232 Receive Data

6TXD_HOST RS-232 Transmit Data

7SGND System Ground

8USB_HOST– USB Host Signal (–)

9USB_HOST+ USB Host Signal (+)

10 SGND System Ground

11 EXTPWR 12Vdc External Power

12 EXTPWR 12Vdc External Power

13 EXTGND External Ground

14 RESERVED (n/a)

LOOKING INTO

CONNECTOR

Connector Pin Function Description

1NC No Connection

2NC No Connection

3DCD Data Carrier Detect

4DTR Data Terminal Ready

5GND Signal Ground

6RXD RS-232 Receive Data

7TXD RS-232 Transmit Data

8nCTS RS-232 Clear to Send

9nRTS RS-232 Ready to Send

10 NC No Connection

110

LOOKING INTO

CONNECTOR

PORT PINOUTS

COM Port

146 VX810 REFERENCE GUIDE

VX810 REFERENCE GUIDE 147

APPENDIX C

ASCII Table

An ASCII table for the Vx810 is presented below.

Table 21 Vx810 ASCII Table

Dec Hex ASCII Dec Hex ASCII Dec Hex ASCII Dec Hex ASCII

000 NUL 32 20 SP 64 40 @96 60 '

101 SOH 33 21 !65 41 A97 61 a

202 STX 34 22 "66 42 B98 62 b

303 ETX 35 23 #67 43 C99 63 c

404 EOT 36 24 $68 44 D100 64 d

505 ENQ 37 25 %69 45 E101 65 e

606 ACK 38 26 &70 46 F102 66 f

707 BEL 39 27 '71 47 G103 67 g

808 BS 40 28 (72 48 H104 68 h

909 HT 41 29 )73 49 I105 69 i

10 0A LF 42 2A *74 4A J106 6A j

11 0B VT 43 2B +75 4B K107 6B k

12 0C FF 44 2C ,76 4C L108 6C l

13 0D CR 45 2D -77 4D M109 6D m

14 0E SO 46 2E .78 4E N110 6E n

15 0F SI 47 2F /79 4F O111 6F o

16 10 DLE 48 30 080 50 P112 70 p

17 11 DC1 49 31 181 51 Q113 71 q

18 12 DC2 50 32 282 52 R114 72 r

19 13 DC3 51 33 383 53 S115 73 s

20 14 DC4 52 34 484 54 T116 74 t

21 15 NAK 53 35 585 55 U117 75 u

22 16 SYN 54 36 686 56 V118 76 v

23 17 ETB 55 37 787 57 W119 77 w

24 18 CAN 56 38 888 58 X120 78 x

25 19 EM 57 39 989 59 Y121 79 y

148 VX810 REFERENCE GUIDE

26 1A SUB 58 3A :90 5A Z122 7A z

27 1B ESC 59 3B ;91 5B [123 7B {

28 1C FS 60 3C <92 5C \124 7C |

29 1D GS 61 3D =93 5D ]125 7D }

30 1E RS 62 3E >94 5E ^126 7E ~

31 1F US 63 3F ?95 5F _127 7F DEL

Table 21 Vx810 ASCII Table

Dec Hex ASCII Dec Hex ASCII Dec Hex ASCII Dec Hex ASCII

VX810 REFERENCE GUIDE 149

GLOSSARY

Application ID An alphanumeric code that

identifies an application downloaded onto a device

from a download computer. For ZonTalk 2000

application downloads, the application ID is stored in

the CONFIG.SYS record which begins with the *ZA

key. A Vx810 application ID can be up to 21

characters long. For VeriCentre Download

Management Module, the application ID, as well as

other CONFIG.SYS variables, may differ from those

used for ZonTalk 2000.

Application The ordered set of programmed

instructions by which a computer performs an

intended task or series of tasks.

Application prompt The information shown on

the device’s display panel when power is applied to

the device, assuming that an application has already

been downloaded onto the device’s memory and

authenticated by the file authentication module. The

application prompt often contains a graphical logo,

and date and time, but it can consist of anything the

programmer chooses for that purpose.

ASCII Abbreviation for American Standard Code for

Information Interchange. A 7-bit code (with no parity

bit) that provides a total of 128 bit patterns. ASCII

codes are widely used for information interchange in

data processing and communication systems.

Back-to-back application download The

process of copying the contents of one device’s

application memory to another device’s application

memory. A terminal-to-terminal application upload

require that the sending and receiving device be

connected to each other by a serial cable. The same

operation as a terminal-to-terminal application

upload.”

Baud The number of times per second that a

system, especially a data transmission channel,

changes state. The state of a system may represent

a bit, digit, or symbol. For a POS terminal, the baud

rate indicates the number of bits per second that are

transmitted or received by the device’s serial ports or

modem.

Bit Short for binary digit. Either of the two digits 0

and 1 in the binary number system. Also, a unit of

information equal to one binary decision. The bit is

the smallest unit of storage and hence of information

in any binary system within a computer.

Byte A term developed to indicate a measurable

number of consecutive binary digits that are usually

operated on as a unit.

Carrier Usually, an analog signal that is selected to

match the characteristics of a particular transmission

system. The carrier signal on a phone line is

modulated with frequency or amplitude variations to

allow a device to transmit or receive data using a

modem. A carrier signal transmits data from a host

computer to a Vx810 modem dongle over an analog

telephone line.

Certificate Also called a digital certificate. A digital

document or file that attests to the binding of a public

key to an individual or entity, and that allows

verification that a specific public key does in fact

belong to a specific individual.

Character An element of a given character set. The

smallest unit of information in a record. A letter,

numeral, or other symbol to express information.

CONFIG.SYS file A special keyed file that is

stored in device memory and which contains system

and application configuration parameters. Each

record in a CONFIG.SYS file is identified by an

alphanumeric search key. In the Vx810 file system,

there is one password-protected CONFIG.SYS file

per file group (Groups 1–15). You can modify

CONFIG.SYS records using the keyed file editor.

Data Information prepared, often in a particular

format, for a specific purpose. Data is to be

distinguished from applications or program

instructions. In the Vx810, application files and data

files can be stored in RAM or flash memory.

Data entry The process of using a keyboard, card

reader, or other device to input data directly into a

system.

GLOSSARY

150 VX810 REFERENCE GUIDE

Default A value, parameter, option, or attribute that

is assigned by the program or system when another

has not been assigned by the user.

Delete To remove a record, field, or item of data.

Diagnostics Techniques employed for detection

and isolation of malfunctions and errors in programs,

systems, and devices. In a diagnostic test, a

program or routine is run to detect failures or

potential failures. These tests and routines help

detect and isolate problems in a device or peripheral.

Direct download The process of transferring files

and data from a download computer to a device over

a serial cable connection and in a local, as opposed

to a remote, system environment.

Display The backlit LCD screen on the

Vx810 that shows numerals, letters, and punctuation

symbols in selected fonts, graphics in various

formats, information entered from the keypad, as

well as system prompts and messages.

Download To transfer files or data from a host

computer or sending device over a communication

link to a receiving device.

File authentication A process through which one

proves and verifies the origin of a file, the identity of

the sender, and the integrity of the information it

contains.

Firmware System software, including the operating

system, boot loader, default display font, and system

messages, stored in device flash memory.

Flash memory An area of non-volatile memory

where files can be stored. The Vx810 also has a

RAM-based file system. Files can be stored in RAM

(drive I:) or in flash (drive F:) memory area of any

file group (Groups 1–15).

Host computer Also called a download computer.

The primary or controlling computer in a multiple

computer operation. Also, a computer—usually a PC

running Windows XP, Windows 2000, Windows NT

or Windows 95 or 98—used to prepare programs for

download to POS terminals. Host computers are

also used to process transactions that originate from

a distributed network of POS terminals.

Input The process of entering data into a

processing system or a peripheral device such as a

PIN pad terminal, or the data that is entered.

Interface A common boundary between two

systems, devices, or programs. Also, to interact with

a device.

Keyed file editor A keyed file editor lets you

create new records or modify existing records stored

in a keyed file such as CONFIG.SYS.

Keyed file record ASCII data, or variables, stored

in the device’s CONFIG.SYS files. A keyed file

record consist of two parts: a search key that

identifies the record, and the data or variable stored

in the record.

Keypad A small keyboard or section of a keyboard

containing a smaller number of keys, generally those

used in simple calculators. The 16-key core keypad

of the Vx810 is used to enter data and perform

operations.

Manual transaction A transaction involving the

manual entry of account information from the device

keypad instead of automatic entry of the information

from a reading device, such as a magnetic stripe

card reader.

Memory A device or medium that can retain

information for subsequent retrieval. The term is

most frequently used to refer to the internal storage

of a computer (or any electronic device) that can be

directly addressed by operating instructions. In the

Vx810, files can be stored in battery-backed RAM or

in non-volatile flash memory.

Messages Words and symbols appearing on the

display screen which inform the user of the result of

a process, or if an error has occurred. The term

“prompt” is used when the displayed message is

requesting the user to enter information or to select

an option.

Modem Modulator/demodulator. A device that

converts a digital bit stream into an analog signal to

transmit over an analog communication channel

(modulation), and converts incoming analog signals

into digital signals (demodulation). The Vx810

modem dongle allows communication with a host

computer over a dial-up telephone line.

GLOSSARY

VX810 REFERENCE GUIDE 151

Non-volatile memory A memory or storage

medium that retains data in the absence of power so

that the data is available when power is restored. For

the Vx810, application files and data files can be

stored in battery-backed RAM or non-volatile flash

memory, according to the requirements of the

application.

Normal Mode The operating mode for normal

transaction processing. The main application

(downloaded and authenticated) starts and displays

an application prompt, indicating that the device is in

normal mode. In this mode, the device is ready to

process transactions.

Packet A group of bits of fixed maximum size and

well-defined format that is switched and transmitted

as a composite whole through a packet switching

network. Any message that exceeds the maximum

size is partitioned and carried as several packets.

Parameter A variable that is usually assigned a

constant value for a specific subroutine, procedure,

or function. Parameters stored in device memory or

in the CONFIG.SYS files, enable a host or download

computer to identify to device configuration.

Password A group of characters that identify a

user to the system so that they can gain access to

the system or part of that system. Passwords are

used to ensure the security of computer systems by

regulating the amount of access freedom. The

password used to enter system mode is called the

system mode password. In the Vx810 file system,

each file group (Groups 1–15) also has its own

password.

PC Abbreviation for personal computer. Usually, PC

refers to an IBM-compatible personal computer.

Peripheral device In a computer system, any

equipment that provides the processing device with

outside communication. Typical peripheral devices

for a POS terminal include PIN pads and check

readers.

Port An opening or connection that provides

electrical or physical access to a system or circuit.

Also, a connection point with associated control

circuitry that allows I/O devices to be connected to

the internal bus of a microprocessor.

POS terminal A device used at the point of sale,

which is usually at a merchant site where a customer

pays for goods or services received. Information

concerning the sale can be entered into the device

and transmitted to a remote host computer for

verification and processing.

Power pack A unit for transforming and converting

electrical power from one AC voltage level to another

AC voltage level, or from AC to DC, for electronic

devices.

Prompt A short message, sent from a process to a

user, indicating that the process expects the user to

input data. For example, a prompt appears on the

device display asking the user to enter specific

information.

Protocol An agreement that governs the

procedures used to exchange information between

cooperating entities. For example, protocols govern

the format and timing of messages exchanged

between devices in a communication system, such

as between a device and a host computer.

PTID Permanent Terminal ID. An optional identifier

that can be permanently assigned to a VeriFone

device at the factory, upon customer request. The

PTID is an eight digit number, consisting of a two

digit manufacturer’s ID (12 for VeriFone), followed by

a six digit terminal ID. If no PTID is assigned to the

device, the default value 12000000 is used.

RAM Random Access Memory. The type of

memory in which storage locations are addressable

and can therefore be accessed in any order. In the

Vx810, the RAM (or SRAM) is commonly used to

store applications and temporary data generated

during a transaction.

The RAM is battery-backed, meaning that if power is

turned off, data stored in this area of volatile memory

is not lost. Application files and data can also be

stored in the non-volatile flash memory system. By

default, files downloaded onto the device are stored

in the RAM of the target file groups. The RAM file

system is called drive I:

GLOSSARY

152 VX810 REFERENCE GUIDE

Remote host computer A host computer

connected to a Vx810 modem dongle over a dial-up

telephone line to download files or data, or to

process transactions. The opposite of remote is

local.

RS-232 A widely used standard interface that

covers the electrical connection between data

communication equipment, such as a modem, and

data terminal equipment, such as a microcomputer

or computer terminal. The RS-232 interface

standard was developed by the EIA (Electronic

Industries Association) and is essentially equivalent

to the CCITT’s V.24 interface.

Scroll To move all or part of the information

displayed on a screen up or down, left or right, to

allow new information to appear. For the Vx810, text

that does not fit entirely within the display area can

be scrolled to the left or right using the pound (#) and

asterisk (*) keys.

Search key Also called key. In the Vx810, a short

character string used by an application to identify a

keyed file record stored in CONFIG.SYS files. For

example, *ZA or *OT. A keyed file record consist of

two parts: a search key to identify the record, and the

variable data stored in the record.

Serial port A connection point through which

digital information is transferred one digital bit at a

time. Same as serial interface. The Vx810 has one

serial port, available at the multiport connector. The

main serial port on a download computer is usually

assigned the device ID, COM1.

Signature file A digital file with the filename

extension *.p7s generated in an industry-standard

format by the VeriShield File Signing Tool. The

output of the VeriShield File Signing Tool is a

signature file in an industry-standard format.

Swipe The action of sliding a magnetic stripe card

through a card reader. The Vx810 card reader has a

bi-directional swipe direction. The user must hold the

card so that the magnetic stripe is faces in and

towards the keyboard.

System Mode For the Vx810, system mode

temporarily disables normal mode operations,

allowing you to perform local functions such as

downloads, diagnostics, and other operations that

cannot be performed while the application is running.

At startup, the device displays a copyright notice

screen that shows the version of Vx810 system

firmware stored in device flash memory, the date it

was loaded onto the device, and the copyright

notice. This screen appears for three seconds. To

enter system mode, simultaneously press the F2

and F4 keys during this three-second period.

Pressing any other keys during that period resets the

seconds.

System mode password A unique set of

characters entered by the user to access the system

mode local functions of the device. A default

password is supplied with each device. For the

Vx810, the default system password set at

manufacture is: Z66831.

To prevent unauthorized access, change the default

password to a confidential password on device

deployment. Store the new password in a safe place,

as it is impossible to restore the device default

password without sending the device to VeriFone for

service.

Telephone download The process of transferring

an application and data from a remote host or

download computer to a device over a telephone

line.

Telephone line The standard telephone wiring

connecting your phone or device to a local or private

telephone company.

Terminal Any device capable of sending and

receiving data over a data link, such as a telephone

line or a RS-232 cable. Some devices, such as the

Vx810, can print receipts and display information and

graphics on a screen.

GLOSSARY

VX810 REFERENCE GUIDE 153

Terminal ID An alphanumeric code that identifies a

terminal to a download computer. In this way, the

download computer can determine what data or

applications to download to that terminal. For

ZonTalk 2000 downloads, the Vx810 terminal ID is

stored in the *ZT record in the CONFIG.SYS file.

This variable should not exceed 10 characters in

length.

Terminal-to-terminal application upload The

process of copying the application memory contents

of one terminal to the application memory of another

terminal. A terminal-to-terminal application upload

requires that the terminals be connected to each

other by a serial cable.

Track 1, 2, or 3 data Information stored on tracks

1, 2, or 3 of a debit or credit card magnetic stripe,

which can be read by a magnetic card reader device,

such as the one that is integrated in the Vx810.

Transaction An exchange of data resulting in a

transfer of goods, services, value, or information

between two parties.

Variable A string of characters that denotes some

value stored within the computer and that can be

changed during execution. A variable may be

internal to a program, in which case it is held in

memory, or external if the program must perform an

input operation to read its value.

Volatile memory A type of memory where the

contents are destroyed if the power supply to the

memory is interrupted. When volatile memory, such

as SRAM, is used for crucial applications, it is often

back up by battery-supplied power.

GLOSSARY

154 VX810 REFERENCE GUIDE

VX810 REFERENCE GUIDE 155

INDEX

Numerics

3DES 12, 128

accessories 135

back-to-back application downloads 120

effects on files and settings 120

hardware checklist 120

procedure 121

software checklist 120

back-to-back downloads 87, 121

Certificate Authority, VeriFone 63

cleaning kit 135

data entry modes

normal mode 16

system mode 16

device status

verifying 32

digital certificate 64

digital signature 64

direct application downloads 109

effects on files and settings 110

hardware checklist 109

procedure 110

software checklist 109

direct downloads 87

direct operating system downloads 115

effects on files and settings 115

hardware checklist 115

procedure 116

software checklist 115

documentation 135

downloads

content 89

methods 87

back-to-back downloads 87

direct downloads 87

USB downloads 88

tools 88

VeriCentre 88

VeriCentre DMM 88

DUKPT 12, 73, 128

EMV 9, 12, 127

error messages 139

file authentication

Certificate Authority, VeriFone 63

file system 77

authenticate files 79

file groups 77

restrictions on downloading 80

how it works 66

introduction 63

planning 70

files 70

requirements 70

signature files 70

successful authentication 71

processes 66, 72

adding new certificates 73

certificate tree restoration 73

deployment 66, 68

deployment devices 74

development 66

development devices 74

hierarchical relationships between

certificates 72

permanency of the certificate tree 75

pre-deployment 66, 67

replace a sponsor certificate 77

required inputs to the file signing process 76

INDEX

156 VX810 REFERENCE GUIDE

special files 64

digital certificate 64

signer certificate 65

sponsor certificate 65

digital signature 64

signer private keys 64

file groups 33

host computer downloads 87

keypad

command keys 19

cancel key 19

clear key 19

enter key 19

data entry modes 16

normal mode 16

system mode 16

keys 15

programmable function keys 19

magnetic stripe card reader

how to use 30

MSAM cards

installing 24

replacing 24

normal mode 16

PCI-PED 12, 128

power pack 22, 135

primary smart card reader

how to use 30

product (Vx810)

features and benefits 12

flexibility and future-proofing 12

reliability and security 12

ultra sleek PIN pad 13

overview 11

service and support

accessories and documentation 135

cleaning kit 135

connectivity cables 135

documentation 135

integrated base station 135

power pack 135

privacy shield 135

product returns 133

setup

cable connections 26

ethernet connection 29

other VFI devices 26

powered USB 28

RS-232 connection 27

Standard USB 27

USB download support 28

location 21

MSAM cards

installing 24

replacing 24

options 26

privacy shield 26

power supply 29

unpacking 22

Signer private keys 64

specifications

environmental, regulatory and performance 128

temperature and humidity 128

product 127

audio output 128

display technology 127

flash ROM 127

input device 127

magnetic stripe reader 127

model 127

operating system 127

primary smart card reader 127

processor 127

security access module card reader 127

SRAM 127

supported memory media 128

voltage 128

SSL 12

INDEX

VX810 REFERENCE GUIDE 157

system mode 16

entering 32, 39

menus 37

menu 1 41

DOWNLOAD 42

EDIT PARAMETERS 41

RESTART 43

menu 2 44

MEMORY FUNCTIONS 45

CLEAR MEM 46

DIRECTORIES 46

USAGE 45

TERMINAL INFO 47

CLOCK 58

DIAGS AND LOGS 49

DEBUGGER 55

ERROR LOG 56

IPP DIAG 54

KEYBOARD DIAG 51

MAG CARD DIAG 52

REMOTE DIAGS 54

SCREEN DIAG 53

SMART CARD DIAG 50

TAMPER LOG 57

SYSTEM INFO 47

menu 3 60

CONTRAST 60

IPP KEY LOAD 61

PASSWORDS 60

operations 32

local operations 32

remote operations 32

passwords 33

file group passwords 34

maintenance 34

manual password change 35

system mode password 34

procedures 37

when to use 31

troubleshooting

blank display 137

device does not dial out 138

display does not show correct/readable info 137

keypad does not respond 138

USB downloads 88

VeriCentre 88

VeriCentre DMM 88

VeriShield 12, 63, 64, 66, 81

command-line entries 82

command-line mode syntax example 84

graphical interface mode 84

operating modes 81

system requirements 81

Vx810

Reference Guide

VeriFone Part Number 24964, Revision A

VeriFone, Inc.

2099 Gateway Place, Suite 600

San Jose, CA, 95110 USA

Tel: (800) VeriFone (837-4366)

www.verifone.com

Vx810 Reference Guide 24964 B GN
