User Manual: AI-400 Series
Open the PDF directly: View PDF .
Page Count: 24
![](asset-1.png)
400 SERIES
2 00 SERIES
1 0 0 S E R I E S
REPLACEMENT
SOLUTIONS
FOR PROFESSIONALS
REPLACE WITH
ANDERSEN
®
.
![](asset-2.png)
For over 100 years, Andersen has built a reputation for innovation, reliability and customer
support. In fact, Andersen is the most trusted brand of windows and doors among builders
and remodelers*. Today, we’re bringing that same commitment to window and patio door
replacement contractors. No one is more dedicated to delivering the replacement solutions
you need than Andersen.
Whether it’s custom-sized windows designed specically for replacement, tools to get more
jobs, or an easier way to order, Andersen has solutions to help your business and to make
you look good to your customers. And because your reputation is the cornerstone of your
business, we back** you as only Andersen can — with time-tested products, a renowned
limited warranty** and support that gives homeowners condence and peace of mind.
With Andersen, you’re not just choosing replacement windows and doors. You’re choosing
the most trusted name in the industry.
PRODUCTS FOR REPLACEMENT.
SOLUTIONS FOR YOUR BUSINESS.
2
CUSTOM SIZES
Andersen® replacement
casement windows are
available without a nailing
flange for easy installation.
ALL OF THE WINDOWS AND
DOORS FEATURED IN THIS
BROCHURE ARE CUSTOM-SIZED
TO FIT YOUR PROJECTS.
*2014 Hanley Wood Brand Perception Study.
**Visit andersenwindows.com/warranty for details.
![](asset-3.png)
AVAILABLE IN CUSTOM
SIZES FOR REPLACEMENT:
400 Series Woodwright® windows
400 Series casement and awning windows
400 Series tilt-wash double-hung insert windows
400 Series specialty windows
400 Series bay, bow and box windows
400 Series Frenchwood® patio doors
200 Series gliding patio doors
100 Series windows
100 Series gliding patio doors
Storm doors
3

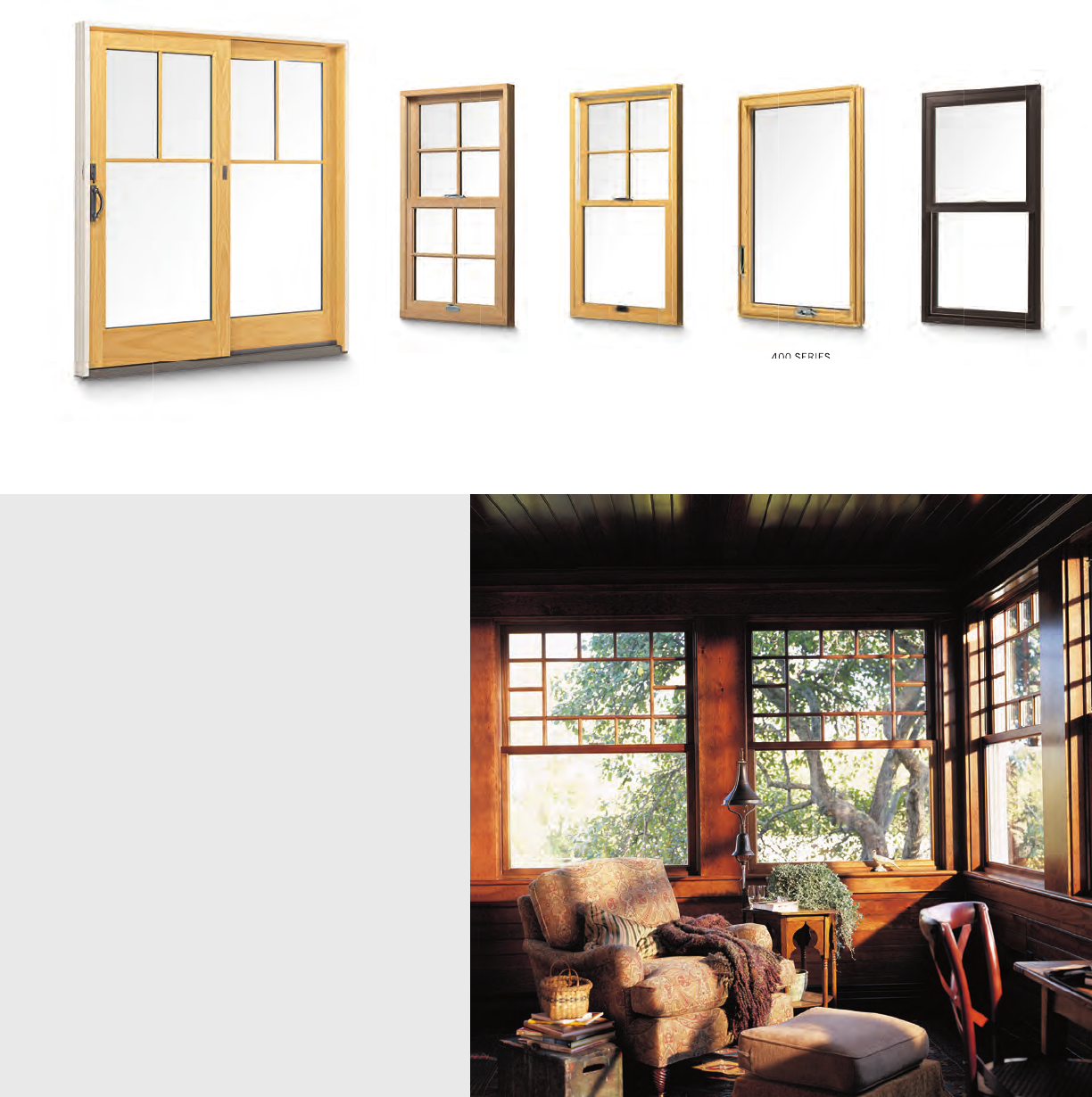

100 SERIES
SINGLE-HUNG
WINDOW
400 SERIES
FRENCHWOOD® GLIDING
PATIO DOOR
We put the same industry-leading quality and standards you’ve come to know and trust into every
replacement window and patio door. With Andersen, you get the replacement solutions you need, the
comfort and low maintenance your customers want and the con dent installs your reputation requires.
REPLACEMENT SOLUTIONS
FOR EVERY JOB.
400 SERIES
WOODWRIGHT® DOUBLE-HUNG
INSERT WINDOW
400 SERIES
TILT-WASH DOUBLE-HUNG
INSERT WINDOW
400 SERIES
REPLACEMENT CASEMENT
WINDOW
400 SERIES
![](asset-4.png)
4

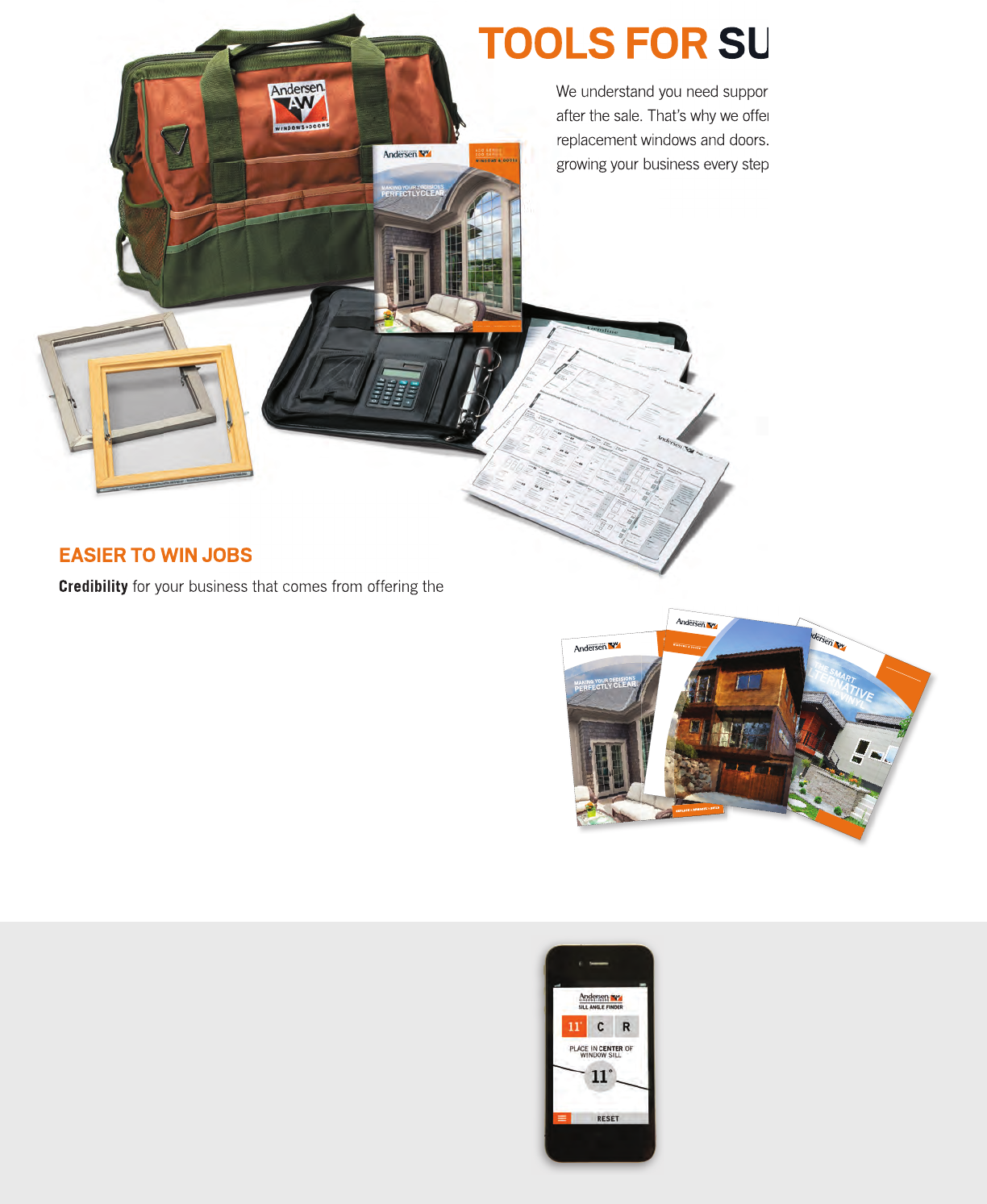

TOOLS FOR SUCCESS
We understand you need support before, during and
after the sale. That’s why we offer more than just
replacement windows and doors. We offer tools for
growing your business every step of the way.
EASIER TO WIN JOBS
Credibility for your business that comes from offering the
brand purchased by more trade professionals*
.
Selection bag with tools such as real color and hardware nish
samples, literature and more to help your customers select products.
Sales support including beautiful, photo- lled consumer catalogs
to help sell your customers, plus product guides with complete,
detailed information on all of our products.
EASIER TO ORDER PRODUCTS
Measurement guides that simplify the ordering process to
make sure your order is right the rst time.
Innovative app helps you quickly and easily nd the sill
angle of existing double-hung windows. Available for free for
both iPhone® and Android™ smartphones.
REPLACE • REMODEL • BUILD
400 SERIES
200 SERIES
MAKING YOUR
DECISIONS
PERFECTLY
CLEAR.
WINDOWS & DOORS
BEAUTIFUL • COLORFUL • DURABLEBEAUTIFUL • COLORFUL • DURABLE
WINDOWS & DOORS
100 SERIES
THE SMART
ALTERNATIVE
VINYL
TO
BEAUTIFUL • COLORFUL • DURABLEBEAUTIFUL • COLORFUL • DURABLE
THE SMART
ALTERNATIVE
REPLACE • REMODEL • BUILDREPLACE • REMODEL • BUILD
400 SERIES 400 SERIES
200 SERIES 200 SERIES
FOR PROFESSIONALS
2015-16
PRODUCT
GUIDE
4 0 0 S E R I E S
200 SERIES
TOOLS FOR TOOLS FOR
SUCCESS
We understand you need support before, during and
after the sale. That’s why we offer more than just
replacement windows and doors. We offer tools for
growing your business every step of the way.
EASIER TO WIN JOBSEASIER TO WIN JOBS
Credibility
for your business that comes from offering the
*2014 Hanley Wood Brand Perception Study.
“iPhone” is a registered trademark of Apple Inc. “Android” is a trademark
of Google, Inc.
![](asset-5.png)

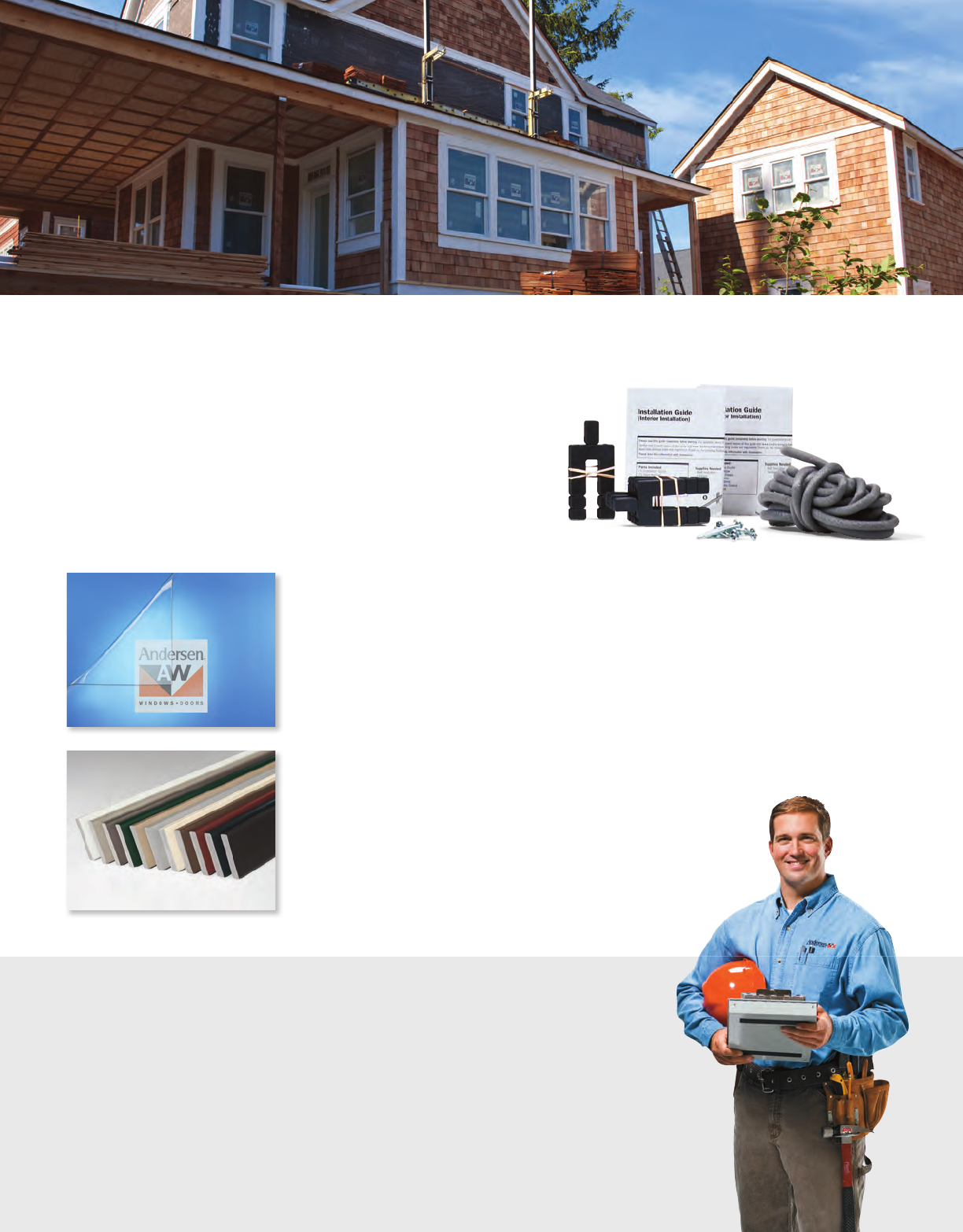

QUICKER, MORE CONFIDENT INSTALLS
Products designed speci cally for replacement make your job easier.
Custom sizes are available with all Andersen® replacement products
to provide a perfect t for any project in any architectural style.
Installation materials with backer rod, screws, shims and complete
instructions are included with replacement casement windows,
replacement awning windows and double-hung insert windows
for consistent quality installations.
Time-saving translucent lm helps
protect Andersen® 400 Series and
200 Series windows and doors
during delivery and construction,
minimizes time spent masking on
the jobsite, and then peels away
for a spotless window.
Cellular Fibrex® trim board is
available in 10-foot lengths that are
3 ½" wide by ¾" thick. Available
in
the same 11 colors as the exterior
trim system, this solid trim board
can
be cut or ripped to size and can be
fastened using nails or screws.
Andersen® aluminum coil stock can
be ordered to match any of our 11
trim colors. Made from .019-gauge
aluminum, it’s available in 24" x 50'
rolls. Color-matched 1 ¼" stainless
steel trim nails are also available and
can be ordered in one-pound boxes.
Andersen® exterior trim for windows
installs in about ve minutes.
See page 7 for details.
INDUSTRY-LEADING SUPPORT
The Andersen national service network includes over 900 factory-trained
service provider companies to resolve both warranty and nonwarranty requests,
so you can spec Andersen® products with con dence.
Replacement parts are readily available, even for some products that were
discontinued 50 years ago.
5
![](asset-6.png)
*Visit andersenwindows.com/warranty for details.

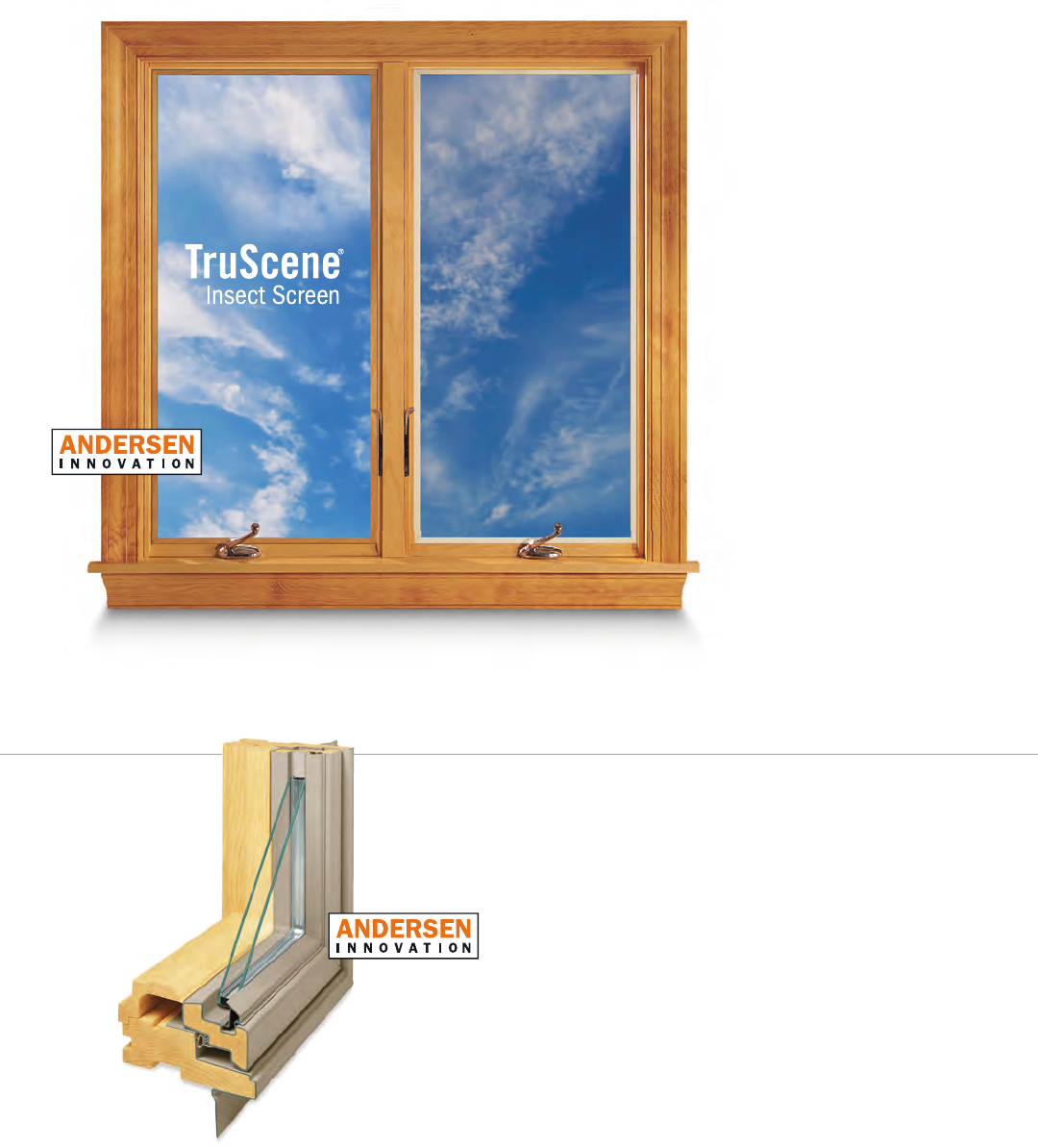

TRUSCENE®
INSECT SCREENS
Andersen® TruScene® insect
screens for windows provide
more than 50% greater clarity
than our conventional insect
screens for a beautifully
unobstructed view. And they let
in more fresh air and sunlight,
while doing a better job of
keeping out small insects.
Conventional
Insect Screen
TRUSCENE® INSECT SCREENS — 50% GREATER CLARITY
6
PERMA-SHIELD® EXTERIORS
The Andersen® Perma-Shield® system gives our 400 Series and
200 Series products a tough, protective shell that safeguards the
wood inside. Perma-Shield® exteriors repel water,
resist dents and won’t peel, ake, blister or corrode,*
so they stay beautiful for years* and are virtually maintenance-free.
We strive to engineer and build products that are different and better than any others on the market. It’s an approach
we’ve embraced for over 110 years. That’s because we believe our job is to do more than just make windows and doors.
It’s to make your job easier, and to make you look good to your customers today and for years to come.
ANDERSEN EXCLUSIVES
![](asset-7.png)
7
*Visit andersenwindows.com/warranty for details.
Printing limitations prevent exact color duplication.
See your Andersen supplier for actual color samples.
FIBREX® MATERIAL
Fibrex® composite material contains 40% pre-consumer reclaimed wood
ber by weight, so it’s environmentally smart. It also provides these
additional bene ts for you and your customers:
• Two times stronger than vinyl — won’t bend, rot, pit or corrode.*
• Available in dark colors that won’t fade, ake, blister, chalk or peel.*
• Blocks thermal transfer nearly 700 times better than aluminum
to help reduce heating and cooling bills.
• Retains its stability and rigidity in all climates for exceptional durability.
• Andersen exterior trim and 100 Series windows are made with Fibrex®
material. It’s also used as a component in other Andersen® products.
TRIM COLORS
White Sandtone
Forest Green
Terratone
Red Rock
Canvas
BlackDark Bronze Cocoa Bean
Dove Gray
Red Rock trim and cornice with Sandtone window
Prairie Grass

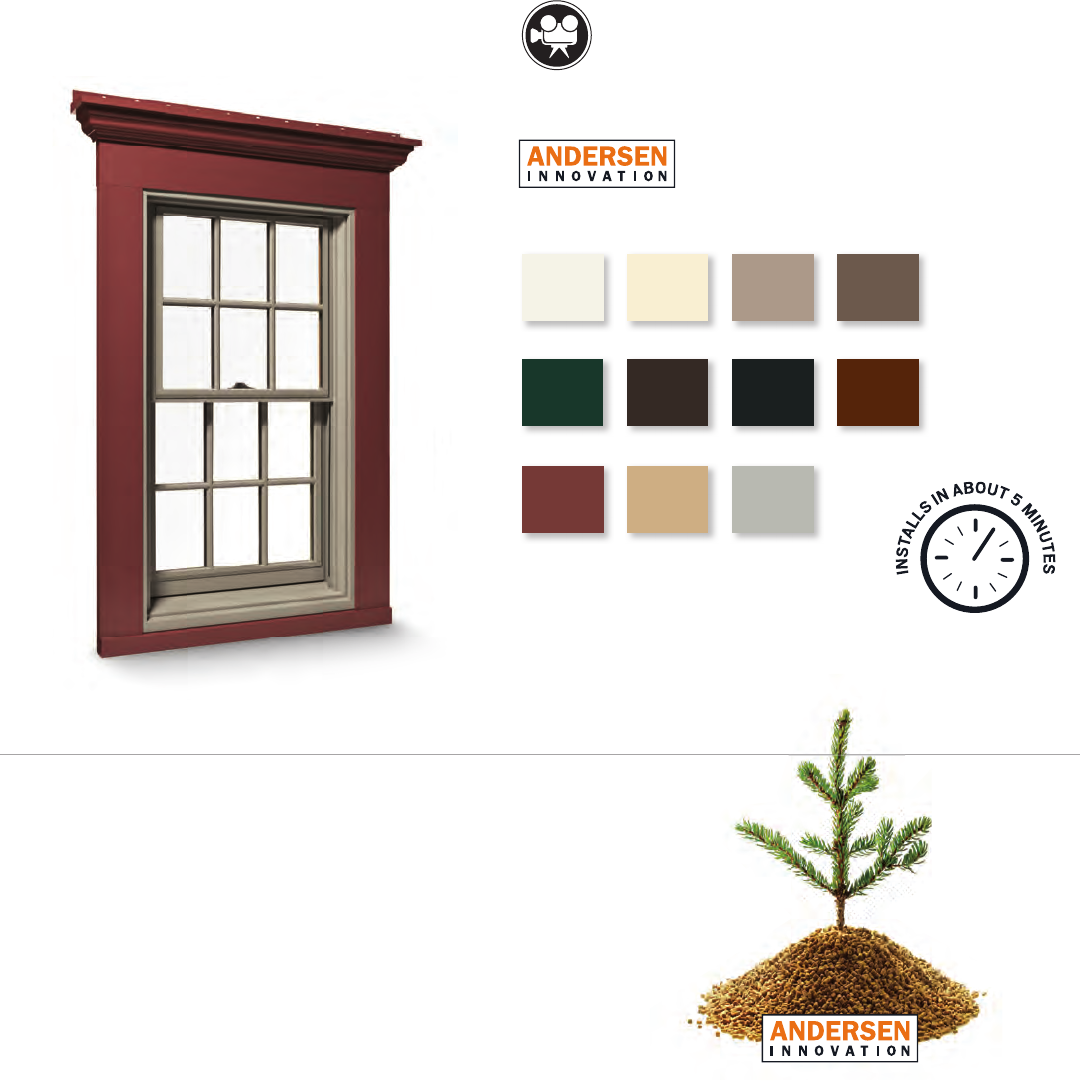

EXTERIOR TRIM SYSTEM
When you’re replacing windows, doors or siding, Andersen® exterior trim saves time and money. In fact,
you can install a preassembled trim surround in about ve minutes per window. It eliminates measuring, cutting,
mitering and lling nail holes while providing an exceptional t and nish.
Choose from a variety of pro les, plus 11 factory- nished colors that won’t fade, ake, blister, chalk or peel no
matter what the climate.* Trim can match window and door colors, or select complementary colors to create
a variety of looks. Color-matched drip caps are included. Cornices or a decorative drip cap are also available.
Watch videos and use our visualizer
tool to create your own look at:
andersenwindows.com/exteriortrim
![](asset-8.png)
8
HARDWARE FINISHES
Brushed
Chrome
Brushed
Oil Rubbed
Bronze
Oil Rubbed
Bright
Brass
Bright
Satin
Nickel
Satin
Polished
Chrome
Polished
Distressed
Bronze
Distressed
Distressed
Nickel
Distressed
Stone
Stone
White
White
Black
Black
Gold Dust
Gold Dust
Antique
Brass
Antique

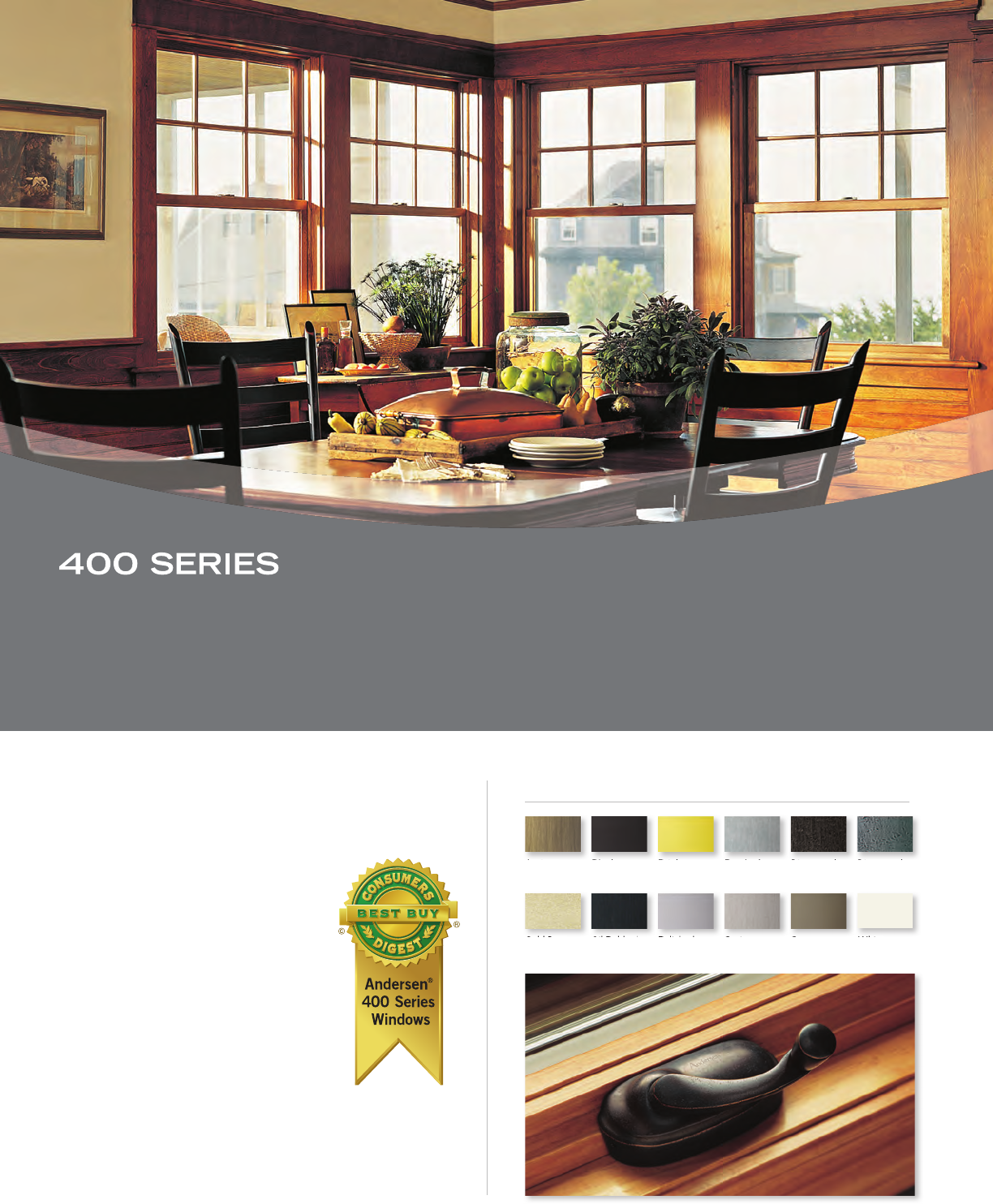

400 SERIES REPLACEMENT WINDOW OPTIONS:
• Full-frame & insert double-hung windows
• Full-frame casement windows
• Full-frame awning windows
• Full-frame & insert stationary windows
• Full-frame specialty windows

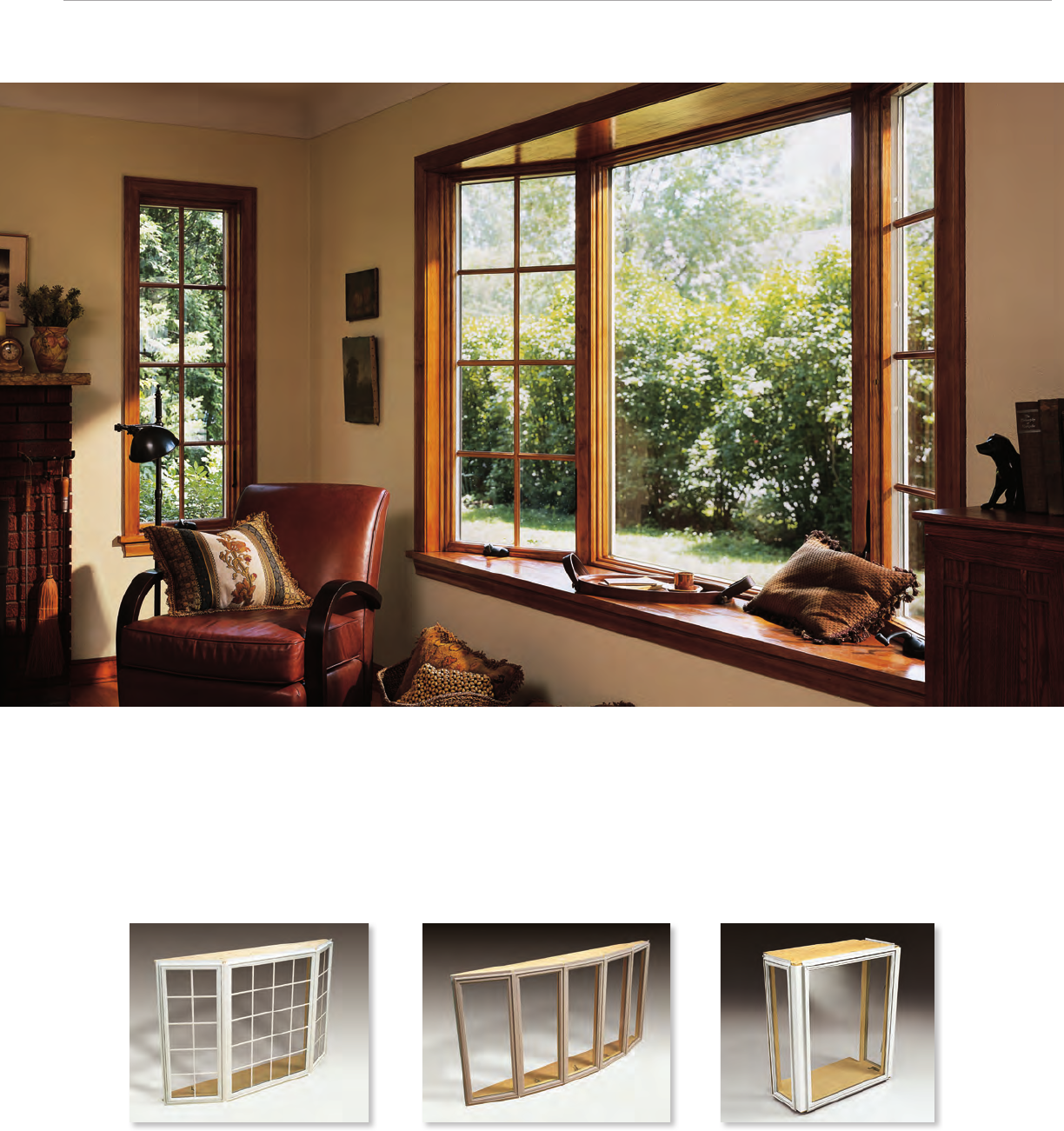

• Full-frame bay & bow windows
400 SERIES REPLACEMENT PATIO DOOR OPTIONS:
• Gliding patio doors
• Hinged inswing patio doors
• Hinged outswing patio doors
400 Series replacement products offer a classic blend of engineering and
craftsmanship with traditional styling. They feature beautiful wood interiors
that add value to your customers’ homes — so they’re not just replacing,
they’re upgrading. In addition, they’re available with a full range of options
and accessories to complement any home or customer’s taste.
Distressed bronze and oil rubbed bronze are “living” nishes that will change with time and use. Printing limitations prevent exact nish replication. See your Andersen supplier for actual nish samples.
The Best Buy Seal and other licensed materials are registered certi cation marks and trademarks of Consumers Digest Communications, LLC, used under license. For award information, visit ConsumersDigest.com.
Andersen® 400 Series windows have been
named a Best Buy for replacement windows
by Consumers Digest. Criteria for the award
included performance ratings, quality of
construction and materials, ease of operation
and warranty. For more information, visit
andersenwindows.com/bestbuy.
![](asset-9.png)
ANDERSEN®
WINDOW & PATIO DOOR OVERVIEW
Whether you need an insert window, a replacement casement window or a full-frame
replacement window or patio door, Andersen has custom-sized products for every
opening, price point and preference. The information here will give you a quick,
at-a-glance overview of our replacement offerings for each Andersen® product line.
9
100 SERIES REPLACEMENT WINDOW OPTIONS:
• Full-frame and insert single-hung windows
• Full-frame and insert casement windows
• Full-frame and insert awning windows
• Full-frame and insert gliding windows
• Full-frame and insert stationary windows
100 SERIES REPLACEMENT PATIO DOOR OPTION:
• Gliding patio doors

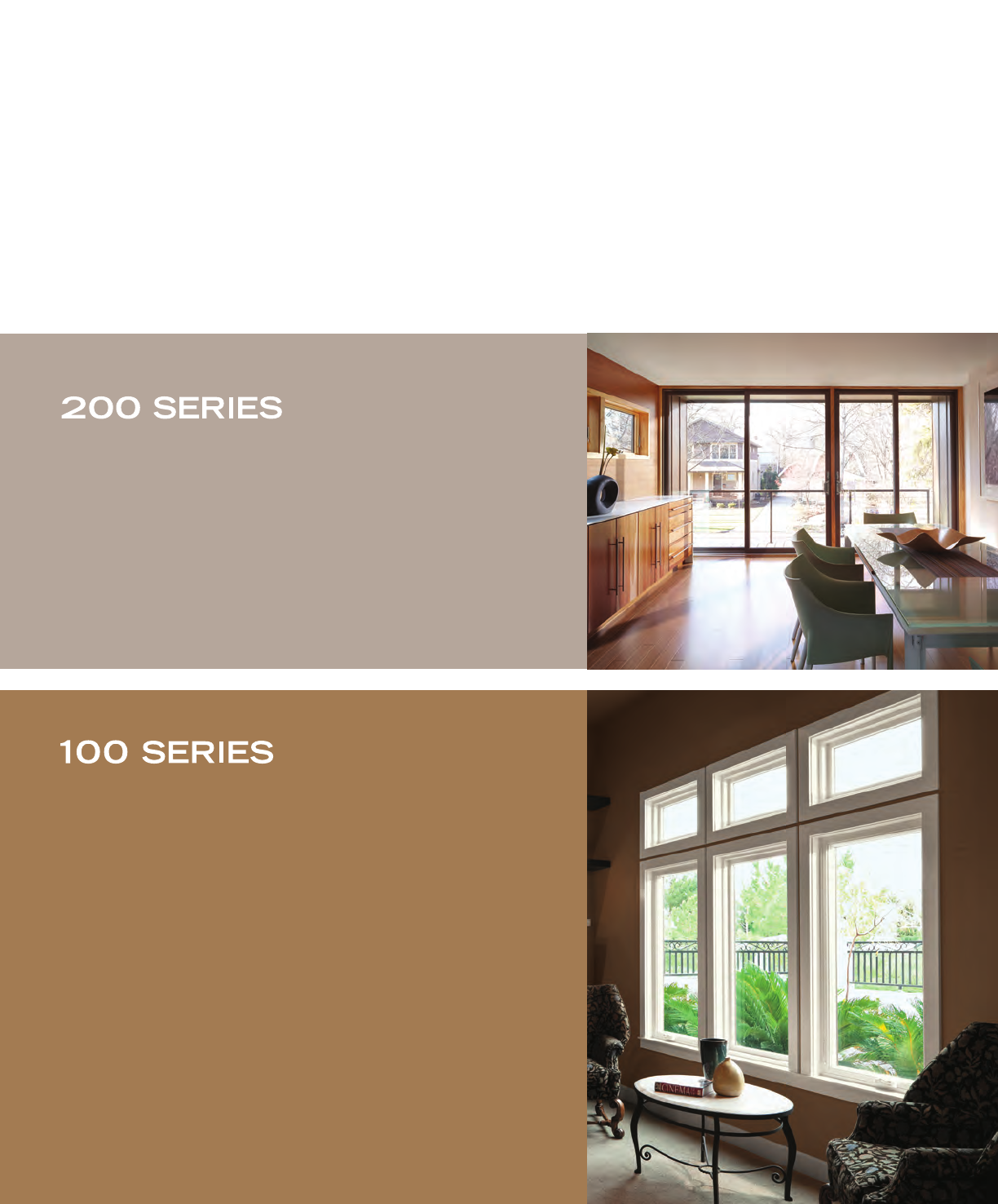

100 Series windows and patio doors are made with our revolutionary Fibrex®
composite material, which allows us to offer a value that others can’t match.
It’s environmentally responsible and energy efcient, and it comes in
durable colors that are darker and richer than most vinyl windows.
200 Series patio doors feature sleek, narrow proles with
a larger glass area for a contemporary appearance, plus
low-maintenance exteriors. This series allows you to deliver
Andersen quality at an uncommon value while still offering
customers our most popular options.
200 SERIES REPLACEMENT PATIO DOOR OPTION:
• Gliding patio doors
*Visit andersenwindows.com/warranty for details.
![](asset-a.png)
10
GLASS OPTIONS
Andersen has the glass you need to get the performance you want. From SmartSun™
glass with HeatLock® coating that is ENERGY STAR® certi ed in all climate zones*
toPassiveSun® glass that helps heat homes in northern areas, there’s an optionforevery
climate, project and customer. Check with your supplier for theselections that are
ENERGY STAR® certi ed in your area.
ADDITIONAL GLASS OPTIONS**
Tempered safety glass (standard on patio doors).
Laminated glass for added strength, enhanced security and sound control.
Patterned glass to let in light while obscuring vision (patterns shown below).
Obscure Fern
Reed Cascade
10
Cascade and Reed patterns can be ordered with either a vertical or horizontal orientation.
*Limitations may apply. See your Andersen supplier for details.
**Andersen 400 and 200 Series products only with SmartSun™ glass with HeatLock® coating (argon gas blend), no grilles, no breather tubes. Excludes patterned/textured glass.
Center of glass performance only. Ratings based on glass options available as of June 2015. Visit andersenwindows.com for ENERGY STAR® map and NFRC total unit performance data.
U- FACTOR SOLAR HEAT
GAIN COEFFICIENT
VISIBLE LIGHT
TRANSMITTANCE UV PROTECTION
GLASS How well a product prevents
heat from escaping.
How well a product blocks
heat caused by sunlight.
How much visible light comes
through a product.
How well a product blocks
ultraviolet rays.
SmartSun™
Thermal control similar to tinted glass,
but with the visible light
transmittance of clear glass.
SmartSun with HeatLock® Coating
Applied to the room-side surface, it refl ects
heat back into the home and improves U-Factors.
Low-E4®/Low-E
Outstanding overall performance for
climates where both heating and
cooling costs are a concern.
Low-E4 with HeatLock® Coating
Applied to the room-side surface, it refl ects
heat back into the home and improves U-Factors.
Sun
Outstanding thermal control in southern
climates where less solar heat gain is desired.
PassiveSun®
Ideal for northern, passive solar construction
applications where solar heat gain is desired.
Clear Dual-Pane
High visibility with basic
thermal performance.
![](asset-b.png)
DiamondColonial
Specified Equal
Light* Fractional
Tall Fractional
Simulated
Double-Hung
Tall Fractional
with 2
1/
4" rail
Short Fractional Short Fractional
with 2
1/
4" rail
Prairie
2 x 2 1 x 4
Specified
Equal Light*
Custom Patterns
GRILLE OPTIONS
With Andersen, you’ll nd grille patterns, widths and con gurations to t any architectural style
or the taste of any homeowner. If you’re replacing windows and doors, we can match virtually
any existing grille. We’ll even work with you and your customers to create custom patterns.
Contact your Andersen supplier for your custom needs.
Our 2 ¼-inch-wide
grille can make a
casement window look
like a double-hung.
Note: Some grille options not available in all confi gurations and products.
GRILLE CONFIGURATIONS
11
Permanent Exterior
Permanent Interior with Spacer
Full Divided Light
For an authentic look,
full divided light grilles
are permanently
applied to the interior
and exterior of the
window with a spacer
between the glass.
Convenient
Cleaning Options
Removable interior
grilles come off for easy
cleaning. Andersen®
Finelight™ grilles are
installed between
the glass panes and
feature a contoured
1" or ¾" pro le.
Removable
Interior Grille
Finelight™ Grilles-
Between-the-Glass
Finelight
™
Grilles-
Removable
Finelight
Simulated Divided Light
Simulated divided light
offers permanent grilles
on the exterior and interior
with no spacer between
the glass. We also offer
permanent exterior grilles
with removable interior
grilles in natural wood or
pre nished white.
Permanent Exterior
Permanent Interior
Permanent Exterior
Removable Interior
Permanent Exterior
*Specify number of same-size rectangles across or down.
![](asset-c.png)
400 SERIES WOODWRIGHT®
INSERT WINDOWS
Woodwright® insert windows give you all the
advantages of Woodwright® full-frame windows,
plus they install faster and easier while keeping
the mess and disruption to a minimum. In most
cases, you can even keep the original trim
and preserve the character of your customers’
homes. Installation materials included.
12
400 SERIES
WOODWRIGHT® WINDOWS
Woodwright® windows help replicate the look of
traditional architecture. Their thick, sloped sills
and historically accurate grille patterns bring
old-world character to homes of all ages. To
help match existing interiors when replacing or
remodeling, you can order them in a variety of
wood species, with custom extension jambs,
and with a range of hardware and grille options,
including custom grilles.
400 SERIES TILT-WASH
INSERT WINDOWS
All the features of our best-selling
double-hung windows — including their
energy-ef cient design and wide array
of decorative and performance options —
are now available in an insert window
that’s faster and easier to install.
Installation materials included.
NARROLINE® WINDOW
CONVERSION KIT
For homes with Andersen® Narroline® windows
that were made after 1967, our quick conversion
kit lets you turn them into tilt-wash double-hung
windows with high-performance Low-E4® glass.
Unequal Arch
Unequal
Arch
Springline™
Springline
™
Arch
Arch
Woodwright® windows give you the option to use a variety
of graceful arches that can add an uncommon elegance.
DOUBLE- AND SINGLE-HUNG WINDOWS
100 SERIES
SINGLE-HUNG WINDOWS
These single-hung windows come with a
3 ¼" overall frame depth and are available
with or without a nailing ange for ease
of installation. They may also be ordered
with an arched top for additional style.
CUSTOM SIZES
All double- and single-hung windows
shown here are available in custom sizes
with the exception of the Narrroline®
Window Conversion Kit.
NARROLINENARROLINE
CONVERSION KIT CONVERSION KIT
For homes with Andersen
that were made after 1967, our quick conversion
kit lets you turn them into tilt-wash double-hung
windows with high-performance Low-E4
![](asset-d.png)
400 SERIES OPTIONAL DOUBLE-HUNG HARDWARE*
100 SERIES SINGLE-HUNG HARDWARE
400 SERIES STANDARD DOUBLE-HUNG HARDWARE
Antique Brass | Bright Brass | Brushed Chrome | Distressed Bronze
Distressed Nickel | Oil Rubbed Bronze | Polished Chrome | Satin Nickel
Finger LiftsLock & Keeper Hand Lift
ESTATE™
Antique Brass | Bright Brass | Brushed Chrome | Oil Rubbed Bronze
Polished Chrome | Satin Nickel | Stone | White
TRADITIONAL
Hand Lift Finger LiftsBar Lift
CLASSIC SERIES™
Stone | White
Hand Lift Finger LiftsSash Lift
400 SERIES
WOODWRIGHT® WINDOWS
Stone | White
Optional Hand LiftStandard Window Lock
Sandtone | White
Bar Lift
Hand Lift
Lock & Keeper
Hand Lift
Finger Lifts
Sash Lift
400 SERIES
TILT-WASH WINDOWS
STANDARD: Stone | White
OPTIONAL: Black | Gold Dust
13
INSTALLATION EXTRAS
Exterior stop covers and installation materials are included with all
Andersen® double-hung insert windows. Contains backer rod, screws,
shims and complete instructions. Stop covers provide a clean transition
from the new window to the existing opening.
DOUBLE- AND
SINGLE-HUNG
WINDOW FEATURES
400 SERIES
WOODWRIGHT®
400 SERIES
WOODWRIGHT®
INSERT
400 SERIES
TILT-WASH
INSERT
NARROLINE®
CONVERSION
KIT
100 SERIES
SINGLE-HUNG
Low-Maintenance Exteriors
White
Canvas
Sandtone
Terratone
Forest Green
Cocoa Bean
Dark Bronze
Black
Interiors
Maple
Oak
Pine
White
Sandtone
Easy Cleaning
Tilt-to-Clean Sash
Grilles
Full Divided Light
Simulated Divided Light
Finelight™ (Grilles-Between-the-Glass)
Removable Interior Grilles
Glass Additional glass options are available. See page 10 for details.
Low-E4®
Low-E4 Sun
Low-E4 SmartSun™
Low-E
Low-E Sun
Low-E SmartSun
Dual-Pane
Unit Sizes
Minimum Width 21 5
/8"16 1/2" 21 1/4"17 1/2"
Maximum Width 45 5
/8"45 5
/8" 44 7/8"47 1/2"
Minimum Height 36 7
/8"26 3/4" 35 3/8"23 1/2"
Maximum Height 76 7
/8"78" 91 3/4"89 1/2"
For complete technical details, visit andersenwindows.com. Or reference Andersen® product guides.
AVAILABLE
IN ALL
STANDARD
NARROLINE®
WINDOW
SIZES
Distressed bronze and oil rubbed bronze are “living” nishes that will change with time and use. Printing limitations prevent exact duplication of colors and replication of nishes. See your Andersen supplier
for actual color and nish samples. Naturally occurring variations in grain, color and texture of wood make each window one of a kind. *All Andersen® hardware is sold separately, except standard hardware.
![](asset-e.png)
14
CUSTOM SIZES
All casement, awning and gliding windows
shown here are available in custom sizes.
400 SERIES
CASEMENT WINDOWS
The Andersen® 400 Series casement
window is our best-selling casement
window. It has an extremely energy-
ef cient design and a solid wood sash
that’s covered inside and out by low-
maintenance Perma-Shield® cladding to
protect against water damage. The interior
features rich, natural pine.
NEW
400 SERIES REPLACEMENT
CASEMENT WINDOWS
This window has the same customer-
pleasing features as our 400 Series
casement window, but comes fully prepped
for replacement with predrilled, through-
the-jamb installation holes and the nailing
ange removed. Thick replacement
extension jambs are also available to
preserve the original alignment of trim and
paint lines. Installation materials included.
400 SERIES
AWNING WINDOWS
These windows are built on the same
platform as our casement windows
and deliver the same outstanding
performance.
400 SERIES REPLACEMENT
AWNING WINDOWS
Like our replacement casement, this window
comes without a nailing ange and is available
with thick replacement extension jambs to
preserve the original alignment of trim and
paint lines. It also has predrilled, through-the-
jamb installation holes, so it installs easily from
inside or out. Installation materials included.
100 SERIES
GLIDING WINDOWS
Our gliding windows come with a 3 ¼"
overall frame depth and are available
with or without a nailing ange for ease
of installation. These units have one
stationary sash and one that opens
for ventilation.
100 SERIES CASEMENT
& AWNING WINDOWS
100 Series casement and awning windows
come with a 3 ¼" overall frame depth
and are available with or without a nailing
ange for ease of installation. Both styles
can also be ordered as stationary windows.
A three-sash
con guration, where two
sash glide past a xed center
sash, is also available.
CASEMENT AWNING GLIDING WINDOWS
NEW
![](asset-f.png)
400 SERIES CASEMENT & AWNING HARDWARE*
100 SERIES HARDWARE
ESTATE™
ESTATE
™
Antique Brass | Bright Brass | Brushed Chrome
Distressed Bronze | Distressed Nickel | Oil Rubbed Bronze
Polished Chrome | Satin Nickel
Standard Gliding Window Lock
Sandtone | White
Sandtone | White
Optional Gliding Window Handle
TRADITIONAL FOLDING
Antique Brass | Black | Bright Brass | Distressed Bronze
Distressed Nickel | Gold Dust | Oil Rubbed Bronze
Satin Nickel | Stone | White
TRADITIONAL FOLDING
Black | Bright Brass | Gold Dust | Oil Rubbed Bronze
Satin Nickel | Stone | White
CONTEMPORARY FOLDING
Stone | White
CLASSIC SERIES™
Sandtone | White
Standard Casement and Awning
15
CASEMENT,
AWNING & GLIDING
WINDOW FEATURES
400 SERIES
CASEMENT
400 SERIES
REPLACEMENT
CASEMENT
400 SERIES
AWNING
400 SERIES
REPLACEMENT
AWNING
100 SERIES
GLIDING
100 SERIES
CASEMENT
100 SERIES
AWNING
Low-Maintenance Exteriors
White
Canvas
Sandtone
Terratone
Forest Green
Cocoa Bean
Dark Bronze
Black
Interiors
Pine
White
Sandtone
Grilles
Full Divided Light
Simulated Divided Light
Finelight™ (Grilles-Between-the-Glass)
Removable Interior Grilles
Glass Additional glass options are available. See page 10 for details.
Low-E4®
Low-E4 Sun
Low-E4 SmartSun™
Low-E
Low-E Sun
Low-E SmartSun
Dual-Pane
Unit Sizes
Minimum Width 17" 17" 24 1/8"24 1/8"23 1/2"17 1/2"17 1/2"
Maximum Width 35 7/8" 35 7/8" 84 5/8" 71 7
/8"71 1/2"35 1/2"47 1/2"
Minimum Height 24 1/8"24 1/8"17" 17" 11 1/2"23 1/2"17 1/2"
Maximum Height 71 7
/8" 71 7
/8"48" 48" 71 1/2"71 1/2"35 1/2"
For complete technical details, visit andersenwindows.com. Or reference Andersen® product guides.
Distressed bronze and oil rubbed bronze are “living” nishes that will change with time and use. Printing limitations prevent exact duplication of colors and replication of nishes. See your Andersen supplier
for actual color and nish samples. Naturally occurring variations in grain, color and texture of wood make each window one of a kind. *All Andersen® hardware is sold separately, except standard hardware.
INSTALLATION MATERIALS
Contains at, self-hanging shims, backer rod,
installation screws and complete instructions.
![](asset-10.png)
16
400 SERIES SPECIALTY WINDOWS
Andersen
®
400 Series specialty windows give you the ability to replace
uniquely shaped windows. Ask your Andersen supplier for further details.
EXAMPLES OF ALTERNATIVE SHAPESEXAMPLES OF ALTERNATIVE SHAPES
HALF CIRCLETRAPEZOID
TRAPEZOID
ARCH
SPRINGLINE™ FLANKER
SPRINGLINE
™
FLANKER
SPECIALTY STATIONARY WINDOWS
CUSTOM SIZES
Available in custom
sizes to fi t all projects,
including replacement.
100 SERIES PICTURE & SPECIALTY WINDOWS
Arch, Springline™
, half circle, quarter circle, full circle, rectangle shapes
and more are available to complement any home’s architecture.
400 SERIES FLEXIFRAME® WINDOWS
Flexiframe® windows are available in custom sizes and can be
designed in nearly any shape made with straight lines, providing
no angle is less than 14 degrees. When other window companies
say it can’t be done, Andersen does it easily — and beautifully.
PICTURE AND
TRANSOM WINDOWS
Andersen offers custom-sized picture and transom
windows to complement the sizes and pro les
of our double-hung, casement and awning windows
and patio doors.
![](asset-11.png)
BAY, BOW & BOX WINDOWS
17
BAY BOW
See the Andersen ® Product Guide for more information.
BOX
Andersen® 400 Series bay, bow and box units utilize all of the individual qualities of our Woodwright,
® tilt-wash
and casement windows. They can easily replace traditional at windows, which means you can give customers
an opportunity to dramatically change a room without major remodeling. Each is delivered as a complete unit
to speed installation. Custom sizes are available for casement units, and all offer a choice of pine veneer or oak
veneer head and seat boards. We also offer a cable support system for easier installation.
![](asset-12.png)
200 SERIES PERMA-SHIELD®
GLIDING PATIO DOORS
A tried-and-true classic, Perma-Shield® gliding patio doors are
protected inside and out with rigid vinyl cladding to give homes
a contemporary look while keeping maintenance to a minimum.
Available assembled or unassembled.
400 SERIES FRENCHWOOD®
GLIDING PATIO DOORS
With interiors that feature wide wood pro les in a variety
of species, Frenchwood® gliding patio doors have the old-
world character of traditional French doors, but also offer the
convenience and space savings no hinged door can provide.
Available assembled or unassembled.
200 SERIES NARROLINE®
GLIDING PATIO DOORS
Our 200 Series Narroline® gliding patio doors combine the beauty
of natural wood with sleek contemporary pro les to maximize views
and ll homes with sunlight. Available assembled or unassembled.
100 SERIES
GLIDING PATIO DOORS
Made with our exclusive Fibrex® material, these patio doors deliver
all of the low maintenance of vinyl replacement doors, but with a
material that’s twice as strong. All interiors come in an attractive
matte white or sandtone nish.
100 SERIES 100 SERIES
CUSTOM SIZES
All gliding patio doors
shown here are available
in custom sizes.
400 SERIES FRENCHWOOD400 SERIES FRENCHWOOD
®®
200 SERIES NARROLINE200 SERIES NARROLINE
®®
18
Four-Panel
Center Opening
Available for 400 Series patio doors
and 200 Series Narroline® patio doors.
Two-Panel
Right Opening
Two-Panel
Left Opening
Stationary
Panel
AVAILABLE COMBINATIONS (As viewed from exterior)
When replacing a three-panel door, combine a stationary
panel with a two-panel operating unit.
GLIDING PATIO DOORS
![](asset-13.png)
Matches exterior
unit color.
EXTERIOR
Sandtone
White
Antique Brass
Black
Bright Brass
Satin Nickel
Antique Brass
Black
Bright Brass
Satin Nickel
INTERIOR INTERIOREXTERIOR
AFTON HARDWARETULSA HARDWARE
100 SERIES GLIDING PATIO DOOR HARDWARE*
19
400 SERIES/200 SERIES GLIDING PATIO DOOR HARDWARE*
Antique Brass
Bright Brass
Oil Rubbed Bronze
Satin Nickel
WHITMORE®
Black
Gold Dust
Stone
White
ALBANY
Stone
White
TRIBECA®
Antique Brass
Bright Brass
Oil Rubbed Bronze
COVINGTON™
Distressed Bronze
Distressed Nickel
ENCINO®
Bright Brass
Oil Rubbed Bronze
Satin Nickel
ANVERS®
Antique Brass
Bright Brass
Brushed Chrome
Oil Rubbed Bronze
Polished Chrome
Satin Nickel
NEWBURY®
YUMA®
Distressed Bronze
Distressed Nickel
GLIDING PATIO
DOOR FEATURES
400 SERIES
FRENCHWOOD®
200 SERIES
NARROLINE®
200 SERIES
PERMA-SHIELD®
100 SERIES
Low-Maintenance Exteriors
White
Canvas
Sandtone
Terratone
Forest Green
Cocoa Bean
Dark Bronze
Black
Interiors
Maple
Oak
Pine
White
Sandtone
Same as Exterior
Grilles
Full Divided Light
Simulated Divided Light
Finelight
™
(Grilles-Between-the-Glass)
Removable Interior Grilles
Glass Additional glass options are available. See page 10 for details.
Low-E4® Tempered
Low-E4 Sun Tempered
Low-E4 SmartSun™ Tempered
Low-E Tempered
Low-E Sun Tempered
Low-E SmartSun
Tempered
Dual-Pane Tempered
Unit Sizes
Minimum Width 55 1/4" 55 1/4" 59 1/4" 59 1/4"
Maximum Width 189" 189" 95 1/4" 95 1/4"
Minimum Height 79 1/2"79 1/2"79 1/2"79 1/2"
Maximum Height 95 1/2" 95 1/2" 95 1/2" 95 1/2"
For complete technical details, visit andersenwindows.com. Or reference Andersen® product guides.
Distressed bronze and oil rubbed bronze are “living” nishes that will change with time and use. Printing
limitations prevent exact duplication of colors and replication of nishes. See your Andersen supplier
for actual color and nish samples. Naturally occurring variations in grain, color and texture of wood
make each window one of a kind. *All Andersen® hardware is sold separately, except standard hardware.
![](asset-14.png)
Two-Panel Three-Panel
Available for 400 Series
inswing patio doors only.
Single
20
AVAILABLE COMBINATIONS
CUSTOM SIZES
All hinged patio doors
shown here are available
in custom sizes.
400 SERIES FRENCHWOOD®
HINGED OUTSWING PATIO DOORS
Frenchwood® hinged outswing patio doors are often used in warmer
climates and allow furniture, artwork and decorations to be placed closer
to the entryway. They are available in one- and two-panel con gurations.
These doors can also replace a gliding door to give you a wider entryway.
400 SERIES FRENCHWOOD®
HINGED INSWING PATIO DOORS
Frenchwood® hinged inswing patio doors are a good choice for
opening to a small balcony, deck or patio, and are often used in
colder climates where snow might build up outside the door. They
are available in one-, two- and three-panel units. These doors can
also replace a gliding door to give you a wider entryway.
400 SERIES FRENCHWOOD400 SERIES FRENCHWOOD
®®
400 SERIES FRENCHWOOD400 SERIES FRENCHWOOD
®®
MULTI-POINT LOCKING SYSTEM
The Frenchwood® hinged patio
door has a multi-point locking
system with two hook bolts
above and below the center
deadbolt. This system provides
added weathertightness and
enhanced security.
EXTERIOR KEYED LOCK
A six-pin key cylinder lock is
available for all patio doors
in styles and nishes that
coordinate with hardware.
This lock allows the patio
door to be locked and
unlocked from the exterior.
ADJUSTABLE HINGES AND
REMOVABLE DOOR PANELS
Adjustable hinges have ball-bearing
pivots for smooth, frictionless
movement. They offer easy
horizontal and vertical adjustment,
plus a quick-release feature for
easy panel removal. The release
feature is ideal for transporting
large units up stairs or to other
hard-to-reach areas. Removable
panels also simplify nishing.
RAMPED SILL INSERT
Ramped sills provide a smooth
transition from interior to
exterior and can be used with
a retractable insect screen, but
not a gliding insect screen.
Shown here with an Andersen®
Frenchwood® patio door.
(Speci er must check with local
and federal of cials to determine
if product meets accessibility
codes.) For inswing doors only.
HINGED PATIO DOORS
![](asset-15.png)
21
400 SERIES HINGED PATIO DOOR HARDWARE*
Antique Brass
Bright Brass
Oil Rubbed Bronze
Satin Nickel
WHITMORE®
Black
Gold Dust
Stone
White
ALBANY
Stone
White
TRIBECA®
Antique Brass
Bright Brass
Oil Rubbed Bronze
COVINGTON™
Bright Brass
Oil Rubbed Bronze
Satin Nickel
ANVERS®
Distressed Bronze
Distressed Nickel
ENCINO®
Antique Brass
Bright Brass
Brushed Chrome
Oil Rubbed Bronze
Polished Chrome
Satin Nickel
NEWBURY®
TRIBECA
®
TRIBECA®
TRIBECA
YUMA®
Distressed Bronze
Distressed Nickel
HINGED PATIO
DOOR FEATURES
Low-Maintenance Exteriors
White
Sandtone
Terratone
Forest Green
Interiors
Maple
Oak
Pine
White
Grilles
Full Divided Light
Simulated Divided Light
Finelight
™
(Grilles-Between-the-Glass)
Removable Interior Grilles
Glass Additional glass options are available. See page 10 for details.
Low-E4® Tempered
Low-E4 Sun Tempered
Low-E4 SmartSun™ Tempered
Unit Sizes
Minimum Width 30 1/8" 30 1/8"
Maximum Width 107 1/8" 71 1/4"
Minimum Height 79 1/2"79 1/2"
Maximum Height 95 1/2" 95 1/2"
400 SERIES
FRENCHWOOD®
INSWING
400 SERIES
FRENCHWOOD®
OUTSWING
For complete technical details, visit andersenwindows.com. Or reference an Andersen® product guide.
Distressed bronze and oil rubbed bronze are “living” nishes that will change with time and use. Printing limitations prevent exact duplication of colors and replication of nishes. See your Andersen supplier
for actual color and nish samples. Naturally occurring variations in grain, color and texture of wood make each window one of a kind. *All Andersen® hardware is sold separately, except standard hardware.
![](asset-16.png)
22
If you’re replacing windows and doors for your customers, chances are their storm doors also need replacing. We have a full line
of storm doors with the styles, innovative features, energy efciency and low-maintenance designs homeowners want. And since
they’re made with the craftsmanship you’d expect from Andersen, you’ll look as good as the storm doors you install. Ask your
Andersen supplier for details about our complete line.
STORM DOORS
![](asset-17.png)
23
EMCO Enterprises LLC. manufactures and supports the limited warranties for Andersen® storm doors. *See your Andersen supplier for complete terms of limited warranties.
ANDERSEN BEAUTY
Andersen® storm doors are available in up to eight colors, up to 13 glass
options and a variety of hardware styles and nishes so you can add
instant curb appeal, complement virtually any architectural style and suit
any customer’s taste.
STORM DOOR COLORS
Cinnamon Toast
BlackTerratoneForest Green
Bronze
White SandtoneAlmond
Warranties,* features and options will vary by
door style. Not all are offered on all door styles.
Storm Door
Lifetime Limited Warranty
All Andersen® storm doors are
backed by a lifetime limited
warranty that covers paint
adhesion, hinges and frame
with a 5-year limited warranty
on all of the components.
*
Oops-Proof Installation
We replace any parts lost
or miscut during your storm
door installation. Coverage
good within 90 days of
purchase.
*
ANDERSEN EXCLUSIVES
Patented quick-release glass/insect screen
change system makes switching between glass
and insect screen fast and easy.
TruScene® insect screens provide 50%
greater clarity than our conventional insect
screens for an unobstructed view.
SplineLoc® insect screen has 3x greater holding
strength than our standard insect screen.
Image for demonstration purposes only.
DO NOT STAND ON INSECT SCREEN.
Standing on the insect screen may damage the product
and is not covered under the Lifetime Limited Warranty.
DOOR STYLE & VENTILATION OPTIONS
Andersen has over 30 door styles and a variety of ventilation options.
![](asset-18.png)
“ENERGY STAR” is a registered trademark of the U.S. Environmental Protection Agency.
“Andersen” and all other marks where denoted are trademarks of Andersen Corporation and its subsidiary.
©2015 Andersen Corporation. All rights reserved. 09/15 Part #9046527 andersenwindows.com
Printed on FSC® certi ed paper, produced using Green-e certi ed renewable energy, with
10% post-consumer recovered ber.
10%
10% POST CONSUMER RECYCLED FIBER
Andersen is a charter member
of the U.S. Green Building Council
and a strong supporter of its LEED®
(Leadership in Energy and Environmental
Design) Green Building Rating System.
Andersen was the fi rst window and
door manufacturer with Green Seal™
certifi ed products. Please visit our web
site at www.andersenwindows.com for
a list of certifi ed products.
IMPROVING
THE VIEW OUTSIDE.
Respect for the environment is nothing new at Andersen.
For more than a century, it’s been part of who we are. Our commitment to recycle and reclaim materials began simply
because it was good business. Now it’s part of our commitment to sustainability and responsible stewardship of all our
resources. Andersen Corporation is committed to providing you with long-lasting, energy-ef cient windows and doors.
Andersen makes windows and
doors with options that achieve
ENERGY STAR® 6.0 certifi cation
throughout the United States.
