Outdoor Wood Furnace
CentralBoiler.com
TOTALLY RENEWABLE HEAT SOURCE

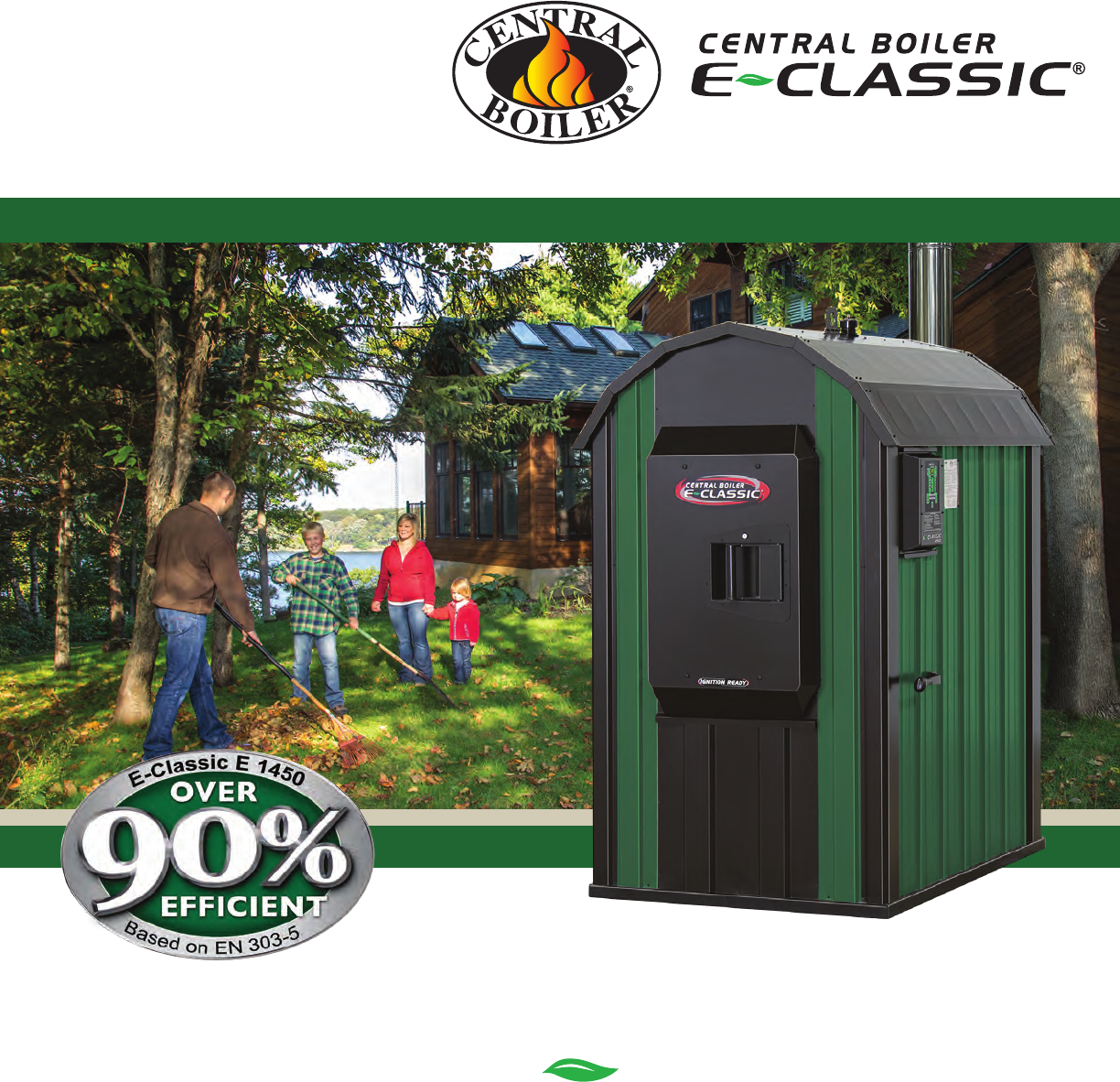

The most advanced, ecient outdoor wood furnace on the market today.
Look for exclusive E-Classic features.
3
2
What do you currently pay for heat?
x
x
x
x
x=
=
=
=
=
Cost of fuel annually
Cost of fuel annually
Cost of fuel annually
Cost of fuel annually
Cost of fuel annually
Cost per cord
of seasoned
red oak
Cost for
one gallon of
fuel oil
Cost for
one therm of
natural gas
Cost for
one gallon of
propane
Cost per
kilowatt of
electricity
Appliance eciency will aect annual fuel cost.
Water heater savings up to an additional $1200 per year.
$$
$$
$$
$$
$$
Cost per 100 million Btu
6.61
892.9
1250
1359
29300
Welcome to the best way to heat with wood.
Welcome to Central Boiler.
Your reasons for heating with wood are likely the same reasons
Central Boiler was founded in 1984. But rather than just develop
another way to heat with wood, Central Boiler set out to develop
better ways to heat with wood. They dared ask the tough questions:
can heating with wood be safer, less time-consuming, cleaner
and more ecient? Today, with those questions still in mind, and a
goal of continuous improvement and renement, Central Boiler is the
largest manufacturer in North America of the best-selling, industry-
leading outdoor wood furnaces available.
PEACE OF MIND Keep the re outside and it
eliminates the traditional indoor wood stove
hazards. Burning wood indoors is inherently
dangerous as there is a threat of a re and
carbon monoxide buildup.
IMPROVED INDOOR ENVIRONMENT The mess stays
outside with a Central Boiler outdoor wood furnace.
Anyone that has burned wood inside is familiar with
the smoke, ashes, odors and soot that often occur. In
addition, bringing wood indoors can bring unwanted
bugs, bark and dirt.
FREEDOM TO DO MORE Those that choose to heat
with wood often do so because of the cost savings.
With a Central Boiler outdoor wood furnace, it can
take less wood to heat more space, so no matter what
your costs and time are associated with acquiring your
wood supply, using less wood means you’ll have more
time (plus save more money!) to do other things.
STABILITY Wood is usually sourced locally.
Conventional heat sources like propane, natural
gas and fuel oil will always be susceptible to price
uctuations and are irreplaceable fossil fuels.
Historically, the price of electricity trends only upward.
SUSTAINABILITY Harvesting wood with sustainable
forestry practices helps to maintain a healthy
ecosystem for wildlife habitats, aesthetics, soil and
water quality, native biological diversity, recreational
opportunities and re prevention.
PRESERVES WILDLIFE HABITAT AESTHETICS AND RECREATIONSOIL AND WATER QUALITY REDUCES FOREST FIRES
Harvesting wood has a pruning eect
on forests – planting new trees ensures
wildlife will have a healthy habitat.
Sustainable forestry makes more room
for new and healthier growth through
reforestation.
By harvesting old and dead trees that can
easily burn, it can signicantly reduce the
risks of costly wildres.
Reforestation reduces erosion risks and
protects watersheds that are a source of
the water we drink and use.
“It’s the right thing to do!”
5
4
Installing your Central Boiler outdoor furnace
is easier than you might think. Many customers
choose to install their own furnace because the
installation can be easily completed using the
installation manual. Authorized Central Boiler
dealers have all the supplies and accessories
you need for installation and maintenance. All
of our dealers can provide you with information
regarding your installation, and most dealers can
even handle the entire installation for you.
Find additional information
about how outdoor furnaces
work, installation scenarios,
and more at CentralBoiler.com
Sophisticated, yet simple.
How a Central Boiler outdoor wood
furnace works.

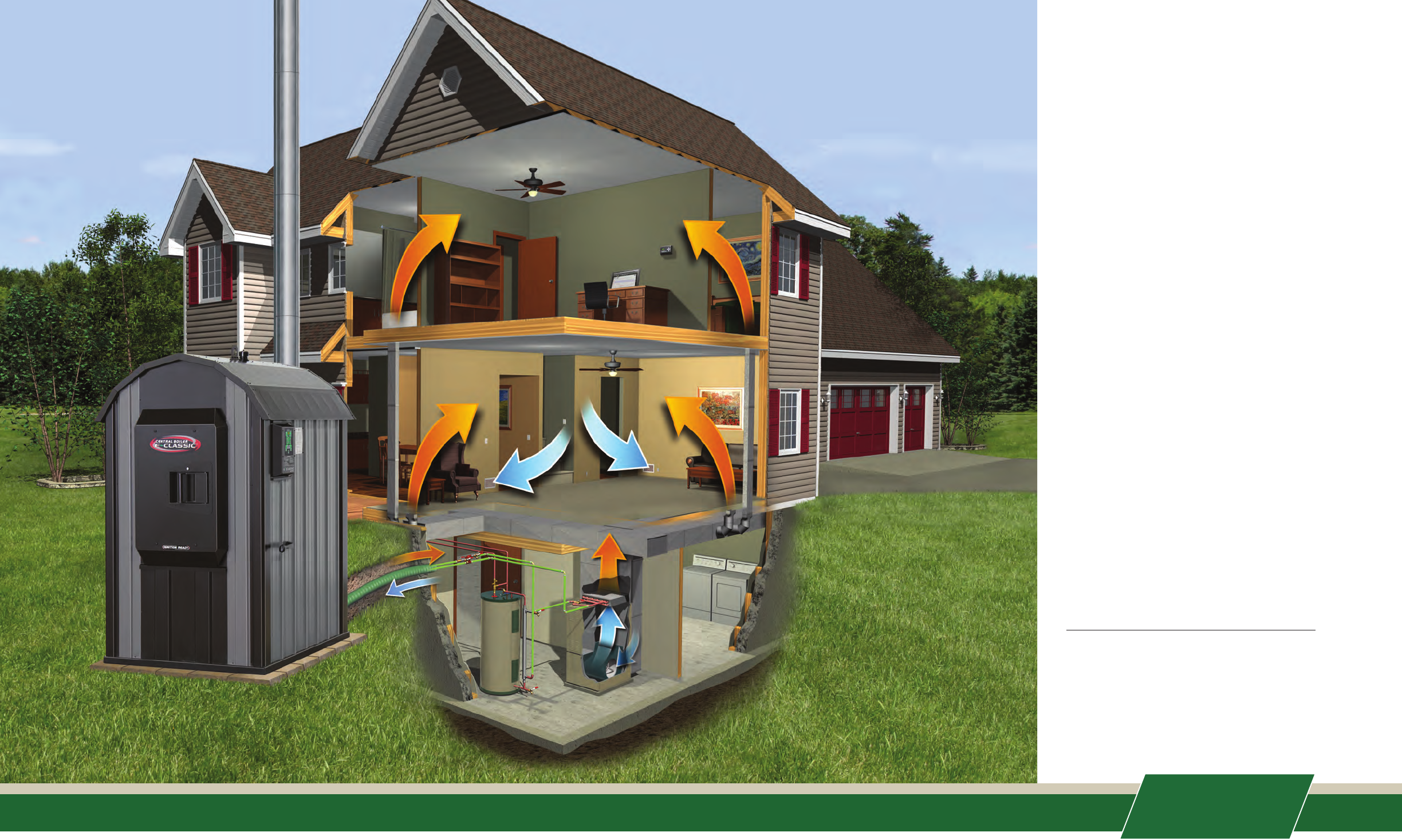

While a Central Boiler outdoor wood furnace is one of the most
sophisticated, technologically advanced ways to heat with wood,
how it heats is a pretty simple idea. A Central Boiler outdoor wood
furnace burns wood to heat water. The heated water is circulated
through insulated underground pipes called ThermoPEX to the
buildings being heated. Heated water can transfer its heat energy
by direct circulation or by moving through one or more heat
exchangers, or both.
LOCATION The Central Boiler outdoor wood furnace is located
outside, typically 30 to 200 feet (but as far as 500 feet) away.
CIRCULATION The furnace contains a high volume of water that
surrounds the furnace rebox and heat exchanger. This heated
water is circulated to buildings through insulated underground
pipes which is a highly ecient way to move heat over distances.
INTEGRATION Central Boiler outdoor wood furnaces are
designed to work with your existing heating system. Water-to-air
or water-to-water heat exchangers or direct circulation conveys
the heat into the structure’s forced-air furnace, radiant baseboard
or radiant oor heating system. This allows you to control the heat
simply with your thermostat.
UNLIMITED HOT WATER When you install a heat exchanger on
your domestic water heater, you can enjoy unlimited hot water
and the savings from turning your water heater o.
HEAT MULTIPLE BUILDINGS Unlike an indoor wood stove,
a Central Boiler outdoor wood furnace has the ability to heat
multiple buildings such as a house, garage, workshop, shed,
greenhouse or barn. It can even be used to heat a swimming pool
or hot tub.
Installation is a breeze.
Connect the piping and heat exchangers to your existing heating
system and the E-Classic is ready to go to work.
67
E High Eciency
Final combustion takes place as these gases move downward
through the Fusion Combustor to the Reaction Chamber where
extremely high temperatures aid in complete combustion. This entire
process results in high eciency and extremely low emissions.
F Operational Convenience
Bypass Door allows you to redirect the exhaust before
opening the rebox door. The Bypass Door Alarm reminds
you to close the bypass door after you have closed the
rebox door for ecient operation of your furnace.
G Easy Loading
This triple insulated rebox door is just the right height and
features a large opening for easy loading, making your job much
easier. The ergonomically designed, lockable door features a
Cam Loc door closure that secures the door at all four corners and
provides a tight seal each time the door is closed. Its triple insulation
keeps the heat in and the cold out for maximum eciency.
H LED Lights
( Photo Electronic Controlled)
The long-lasting, energy ecient LED lights save money
and enhance safety. They illuminate the inside of the rebox
and the front and sides of the outdoor furnace and can be
set to conveniently, automatically turn on at night.
I Easy Ignition Option
The optional gas-red wood ignition takes the work and worry out of
lighting a re. With just the push of a button, the power ignition will light
the re. It will also automatically relight the re if needed, even when you
are away from home. It is just that easy.
A Ultimate Control
The FireStar™ II Electronic Controller automatically adjusts
the primary and secondary air which optimizes the gasication
process allowing the furnace to be more ecient and cleaner
burning. It is capable of data collection with the ability to
communicate with other devices, and provides the user with
easy operation of the furnace with just the touch of a button.
B Less Maintenance
The Xtract® Heat Exchanger allows you to get the most heat
out of your wood. It is designed to optimize the transfer of heat
from the extremely hot gases to the water. The vertical design of
the heat exchanger allows any small particles in the exhaust to
drop to the bottom. They are easy to clean out from the Reaction
Chamber. This minimizes the amount of maintenance.
C Burns Less Wood
A hallmark of Central Boiler furnaces for over 30 years, spray-on
urethane is the ultimate airtight, waterproof insulation that
locks the heat in to reduce wood usage, even at temperatures
of -35˚F or colder. It provides 2-3 times the eective R-value
of conventional berglass batt insulation. Fiberglass batt
insulation also settles and compresses over time.
D Performance
Patented Air Charge Tube adds air in all the right places
to aid in the combustion process and keeps the coals from
falling through into the lower Reaction Chamber.
A
C
G
H
Model
E-Classic 3250
B
D
E
F
I
Clean Burning
7
Engineered to the highest standards...ours.
Waterproof
Maintains R value
Higher R value
Doesn’t compress
Airtight
Eectively covers
all surfaces
Urethane
Comparing Insulation
Fiberglass Batt
Central Boiler's Research and
Development department
is home to one of the most
complete state-of-the-art
testing laboratories in the
industry. Since 1984, its goal
has been to develop, engineer,
test and rene a wide range of
quality heating products to ensure
Central Boiler quality, performance
and value are in every outdoor
furnace manufactured.
Exclusive
E-Classic features.
The optional FireStar XP is
easy to install and congure.
Wireless outdoor version shown.
Also available as desktop
or wall-mount version.
89
with E-Link Technology
™
Live FireStar XP Demo
at CentralBoiler.com
Smart features designed with you in mind.
Convenient operation and choices to fit your lifestyle.
THE MOST ADVANCED FURNACE

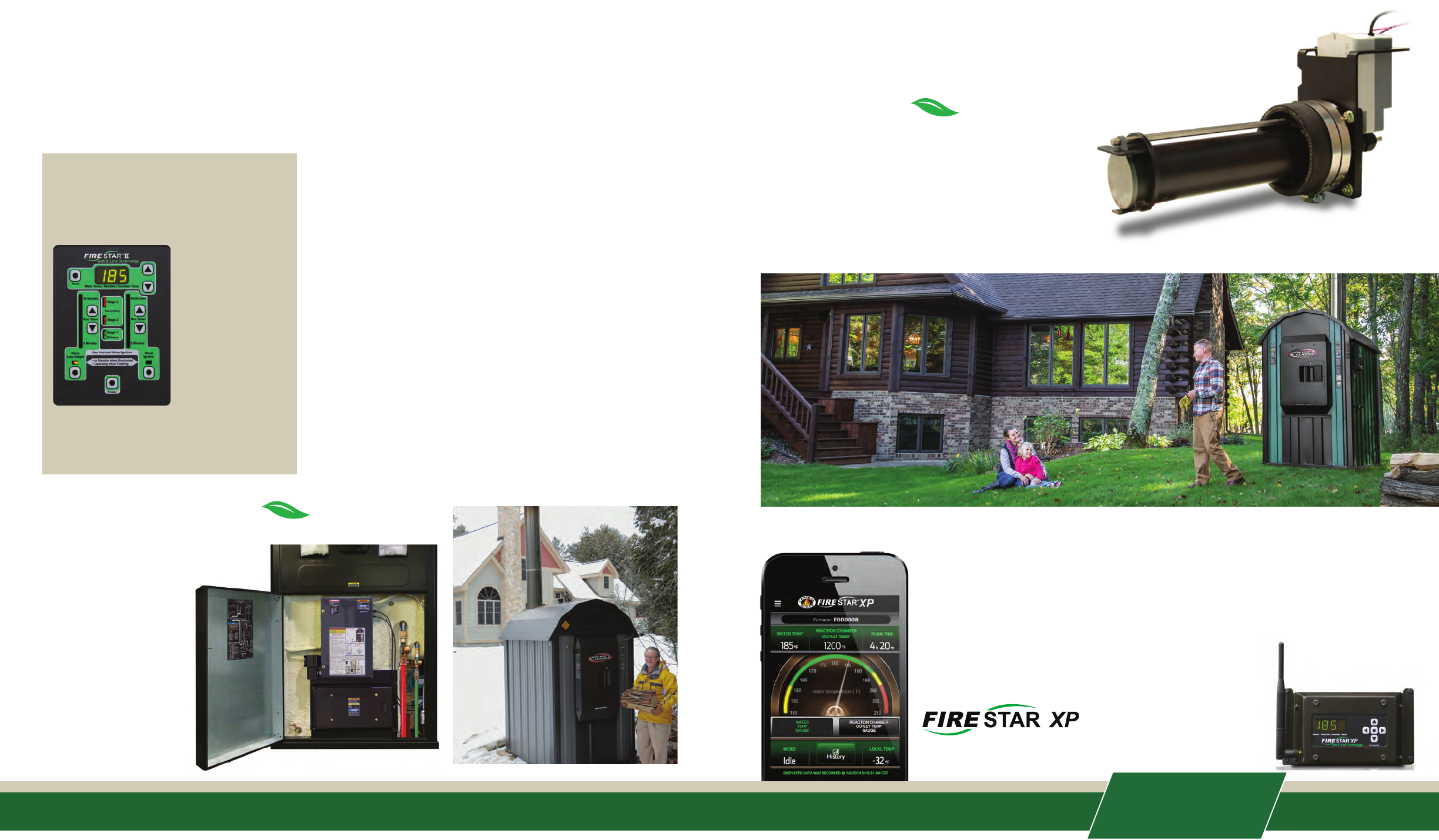

The FireStar II electronic controller comes
standard on all E-classic models. The FireStar II
electronic controller monitors all functions
of the furnace and
can store and share
operational data. The
controller’s technology
optimizes the
gasication process
by automatically
adjusting the primary
and secondary
air for a cleaner
and more ecient
burn. Operational data can be utilized with a
memory card or on the FireStar™ XP module
when connected to the FireStar™ II.
EFFICIENCY MEANS MORE HEAT FROM LESS WOOD
Central Boiler E-Classic outdoor furnaces’ energy ecient designs
maximize the combustion and heat transfer process for better heat
delivery. In other words, our outdoor furnaces burn more completely
and eciently, and transfer more of the heat generated to your home.
Current owners of E-Classic outdoor furnaces report that they are using
up to 25% to 70% less wood compared to traditional wood furnaces
or other brands of outdoor wood furnaces. Indoor wood stoves can
be less ecient because heated indoor air used for combustion is
sent out the chimney, causing cold air to be drawn into the house
to replace it. Indoor wood stoves can also overheat the room.
BURN WOOD, NOT YOUR SPARE TIME.
Continuous stoking of wood is a necessary part of replace and
wood stove use. If you don’t have the time or energy to continually
babysit these heat sources, a Central Boiler outdoor furnace is your
low-maintenance alternative. Since Central Boiler outdoor wood
furnaces can burn larger pieces of wood they can dramatically
reduce time spent preparing the wood. The large rebox door
is designed for easy loading of wood and removal of ash.
INSULATED REAR ACCESS PANEL
This panel swings open giving you full
access to the Reaction Chamber door, power
disconnect and pumps, all from one location.
That makes installation and
maintenance convenient and
easy. The insulated panel
keeps the heat in and the
cold out, which preheats the
combustion air and makes
the furnace more ecient.
TIME SAVING OPTION
Never start a re manually again! The optional Gas-red Wood
Ignition Kit is easily installed in minutes without modications and
gives you the convenience of easy push-button lighting of the wood
with the added convenience of automatic relighting if needed. The
propane burner is standard. A natural gas conversion kit is available.
Kit is pre-assembled and easy to install no wiring needed.
Available for all E-Classic Ignition Ready (IR) models, the Gas-red
Wood Ignition Kit is available from your Central Boiler dealer.
STAYING CONNECTED
Stay connected to the furnace that saves you money on your heating bills from
almost anywhere in the world. Adding the FireStar XP wi- module keeps you
in constant contact with your Central Boiler furnace if you’re away. The FireStar
XP wi- module can send you reminders such as when to add wood.
View operational information on any web enabled device and receive text alerts on your smartphone.
Phone not included. Requires data plan, wireless router and
internet to enable remote access.
11
1010
Sample Applications
Greenhouse Applications
Dual Heat System
In-Floor Radiant/Forced Air
Multi-Zone In-Floor
Heating Multiple Buildings
OUT
IN
Radiant PEX
piping under
the table
Forced Air
Return
Supply
When using mesh style
tables - PEX piping must
be protected from UV rays.
4 mil.
black poly NOTE
Finned
Tube
H
C
M
R
Plenum
Forced Air
Furnace
Water
Heater
Zoning
Pump
This horizontal
assembly must not
exceed a height
of 4 inches above
top of water heater.
Water-to-Water
Heat Exchanger
Bypass
Line
NOTE
Installer must comply with all applicable
codes and regulations.
1"
Central
PEX®
Hot Supply
Optional 3-Way
Bypass Valve
Thermostatic
Mixing Valve
NOTE
4 x Pipe Dia. Max.
(e.g., for 1" pipe, ttings must
not be more than 4" apart)
For illustration purposes only:
• Water heater styles may vary.
• Size of incoming line may vary
(depending on application).
• Location of thermostat may vary.
NOTE
If heating loops are above manifolds,
additional controls (e.g. zone valve or
ow check) may be needed to prevent
ghost ow (see Radiant Heat with
Flow-Check Valve illustration).
Hot Supply from Pump
on Outdoor Furnace
Return to Outdoor Furnace
Thermostatic Valve
NOTE
Outdoor furnace water
temperature setpoint should
be set at 185˚F minimum.
NOTE
A pump must be installed in the hot
supply line between the outdoor furnace
and thermostatic valve.
1" Central PEX
Top
View
1" Copper Piping
Return to Outdoor Furnace
Mixing Valve
Insulation
Insulation
Poly Vapor
Barrier
Slab
1/2" Central PEX Piping is spaced
6" from outside wall. Remaining piping
is spaced 12" on center.
Sheet Rock
Minimal
heat radiated
downward
PEX Hangers should be installed every 18".
It is recommended that you maintain a 2" cavity
between piping and insulation for best performance.
Floor Joist
Floor Covering
Sub Floor
2" Minimum
1/2" Central PEX Piping
Insulation
Underlayment
Heating Upper Level
Hot Supply from Pump on
Outdoor Furnace
Top
View
R W X X R C
P N H
R W
Zoning Pump
ON / OFF switch must
be in the "ON" position
for this install.
NOTE
FAN
TIME PRGM RUN HOLD
SYSTEM
COOLON AUTO OFF HEAT
NOTE
Outdoor furnace water
temperature setpoint should
be set at 185˚F minimum.
NOTE
A pump must be installed in the hot
supply line between the outdoor furnace
and thermostatic valve.
NOTE
Installer must comply with all applicable
codes and regulations.
RC
Y
W
B
R
O
RH
G
W
24-Volt Thermostat
Find more applications
at CentralBoiler.com
13
12
Insulated Piping System
Central Boiler authorized
system parts and accessories
For the maximum performance and life of your
outdoor furnace, always insist on using Central
Boiler authorized system parts and accessories.
Your Central Boiler dealer can provide
you with a complete selection of parts
and accessories to simplify the installation
and maintenance of your system.
To locate your nearest dealer for parts,
pricing or technical information, use the
Dealer Locator at CentralBoiler.com.
What Central Boiler owners say.
“
Our new Central Boiler system
is without a doubt the nest wood
burning system we have ever had
the pleasure of using. The ease of
operation, the eciency, safety and
the end result of a steady, dependable
heat source provided by our Central
Boiler stove surpass anything we have
encountered in the past 50 years of
wood burning as a heat source.
”
- Justin, MN
“
I installed a Central Boiler 2 years
ago. I heat a 2,500 square foot farm
house and heat water for a family of 6. I
haven't used a drop of fuel oil since and
have even turned o the breaker to the
water heater.
”
- Lee, MI
“
I have been an owner of a Central
Boiler since 1992. It has been a great
money saver over these many years.
”
-Randal, MN
“
I think that the Central Boiler should
be rated a 12 on a 1 out of 10. This is
such a wonderful product, no home
should be without one.
”
- David, OH
“
This is my second winter with the
Central Boiler and my only regret is
that I didn’t buy it sooner.
”
- David, IL
“
This is the fourth year I have owned
my Central Boiler and I have to say, it
may very well be the best investment I
have ever made. The furnace has paid
for itself. I continue to be impressed
with the quality and eciency of the
Central Boiler product, the simplicity
of maintenance, and the excellent
dealer support I receive. I have
recommended your product to many
people and will continue to do so, as
I truly believe it is superior to your
competitors.
”
- John, WV
“
I load it once a day and forget
about it. It is so much more convenient
than having to constantly load the
indoor wood burner and I am using
about half the wood. I am more at ease
with the re outside away from the
house along with the dust, bugs and
ash. It has also been nice not having to
hear the propane hot water heater run
at all. The unit is nicely constructed and
blends in with the surroundings out in
the yard.
”
- Lucas, NC
“
The best decision I ever made was
purchasing my Central Boiler.
”
- Matt, MI
“
I recently bought an E-Classic, when
the heater arrived I was skeptical that it
could heat my entire house! My home is
8,000 plus square feet, well I'm happy to
say I was wrong! This thing is amazing!
I was on heating oil, and in the dead
of winter I was burning about $1,600
a month in heating oil and propane to
heat my house and hot water! I now
have more hot water than I know what
to do with! And my cost savings are
out of this world! I'm going through a
cord of wood a week at $125 a cord so
that's $500 per month compared to
the $1,600 I was spending! I know this
sounds too good to be true but it is!
”
- Thad, AK
“
We purchased our Central Boiler last
December and we love it! I sometimes
nd myself saying I wish I had it 10 years
ago. Thanks.
”
- Barry, TN
Read, watch and hear more
at CentralBoiler.com
Download the parts and accessories
catalog at CentralBoiler.com/pdf/
catalog-parts.pdf
IN A HURRY? Some ThermoPEX
can be UPS shipped - see dealer
for details.
Choose ThermoPEX. Because performance matters.
Choosing the best insulated piping system for your outdoor furnace is imperative if you want to lower heat loss and reduce
the amount of wood you’ll burn. The ThermoPEX insulated piping system from Central Boiler is a proven system that saves
energy and maximizes the eciency of your outdoor furnace.
ENERGY EFFICIENT – ThermoPEX saves energy and maximizes eciency. The thick waterproof jacket keeps moisture
out and the inner urethane insulation locks the heat in. Greater system eciency maximizes the delivery of heat from
each pound of wood so you will burn less wood compared to a system using inferior insulated piping.
FLEXIBILITY – Easy to work with, easy to install.
RELIABILITY – ThermoPEX is a proven, time-tested insulated piping system.
INSTALLS FAST – Easy to handle and easy to install, requiring only a narrow
trench approximately a foot deep.
12"
Front
E-Classic 1450
(Foundation Optional)
59"
47"
72"
72"
6.5" 16.5"
Base
48"
20"
Recommended maintenance clearances
2" rigid foam insulation (optional)
53"
71"
72"
Front
Base
E-Classic 3250
(Foundation Optional)
72"
12"
24.5"
13.5"
14 15
E-Classic E 1450
E-Classic 1450
Ignition Ready
Door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18"W x 18"H
Firebox Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32"
Firebox Volume. . . . . . . . . . . . . . . . . . . . . . . . . . . 15 cu ft
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2,110 lbs
Water Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 gal.
Supply/Return Ports, 3/4" . . . . . . . . . . . . . . . . . . . . . 1 pair
Supply/Return Ports, 1-1/4" . . . . . . . . . . . . . . . . . . . . 1 pair
Color selections are close representations but are limited due to print variations.
Realtree™ Camo
and Bronze
Green and Bronze Charcoal and Bronze Taupe and Bronze
Four color combinations to complement your landscape
E-Classic 3250
Ignition Ready
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22.5"W x 28.5"H
Firebox Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40"
Firebox Volume. . . . . . . . . . . . . . . . . . . . . . . . . . . 32 cu ft
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3,240 lbs
Water Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . .410 gal.
Supply/Return Ports, 3/4" . . . . . . . . . . . . . . . . . . . . . 2 pair
Supply/Return Ports, 1-1/4" . . . . . . . . . . . . . . . . . . . . 1 pair
Factors that aect your fuel burn rate
Increased heat loss
Decreased heat loss
• Poorly insulated building(s)
• Cold air inltration
• Colder temperature
• Using wood with high moisture
Higher Fuel
Consumption
Lower Fuel
Consumption
• Well insulated building(s)
• Minimal cold air inltration
• Warmer temperature
• Using seasoned wood with
moisture content of less than 25%
The Best Way to Size Your Furnace – Using Previous Heating History Including Water Heater
Fuel Type Fuel Oil Propane Natural Gas Electricity
Total Sizing Value
If you have New, Well-Insulated Buildings
††
cordskilowattscubic feet, thermsgallons
x 1.18
x 0.06
Be sure to consult your dealer when sizing. Previous heating eciencies and heat loss need to be considered when sizing a furnace. This is only a guideline.
†Full cords of medium to high-quality wood.
††Improperly insulated radiant slab heating can dramatically aect sizing requirements and heat load.
x 0.78 x 0.037 x 150
gallons
Wood
†
Units
Units per Month
Multiplier
Sizing Value
Total sq. ft.
Multiplier
Total Sizing Value
This sizing worksheet calculation estimates the existing fossil fuel (heating oil, propane, natural gas) heating equipment performing at 75% eciency.
x 0.0087/cu.ft
x 0.87/therm
New well-insulated buildings with R28 walls, R40 ceilings, insulated basement
walls. Normal sizing allows for one picture window and one patio door.
Calculation does not allow for extremely large glass or air exchange heat losses.
Buildings that are not well insulated are not applicable in this calculation. Use
previous heating history to determine sizing.
We recommend you complete a heat loss estimate (e.g., Hydronics
Institute - form 1504WH).
Compare your Total Sizing Value to the
Suggested Sizing Range for the listed models.
Furnace
Suggested Sizing Range
E-Classic 1450
E-Classic 3250
0-475
475-1800*
* Estimate subject to change.
The dierence between a full load of 25% moisture wood and 50% moisture wood is up to six gallons of water.
BURN LESS WOOD WITH SEASONED WOOD
Btu's Lost when Burning High Moisture Content Wood
Choose the right Central Boiler outdoor wood furnace for
your application.
E-Classic Model Lineup
Foundation Dimensions
Furnace must be installed on a non-
combustible surface or foundation
that incorporates an enclosure that will
prevent supply and return lines from any
possible exposure to sunlight, re, or
physical damage that may be caused by an
occurrence outside the furnace enclosure.
20502 160th Street • Greenbush, MN 56726
(800) 248-4681 or (218) 782-2575
CentralBoiler.com
© 2015 Central Boiler
® ™ Trademarks of Central Boiler, Inc.
Printed in the United States 6/16
For the maximum performance and life of your furnace, always insist
on using Central Boiler authorized system parts and accessories.
See Owner’s Manual for proper chimney height and installation.
Minimum chimney height is determined by proximity to other
buildings. Consider location and direction smoke may travel with
prevailing winds before installing your furnace.
Content of this brochure is information in possession of
Central Boiler at the time of the design of this publication
and may not represent what was previously manufactured.
Product specications and appearance subject to change.
Operating an outdoor furnace may not be suitable to
some individuals' abilities or lifestyles. Be sure to review
the Owner’s Manual for the appliance with your dealer.
*European EN 303-5 eciency results for the
E-Classic E 1450 are rounded to the nearest whole
number. Results vary based on wood species, wood quality,
wood quantity and moisture content. The eciency of
other models varies.
Ask your dealer about Outdoor Furnace
Best Burn Practices.
Using wood as a heating fuel is endorsed by the U.S.
Forestry Service.
p/n 9000372 Rev. B
LEADERS IN PRODUCT QUALITY,
DESIGN AND INNOVATION
Central Boiler traces its roots back to 1984 in a
workshop just south of Greenbush, Minnesota.
There, a single idea and some welded pieces of
metal would grow into a company that is recognized
today as North America’s largest manufacturer of
outdoor furnaces. The company’s innovations and
patents come from people who take a little more
time, pay a little more attention and go a little further
to make sure that every Central Boiler product is
ready to meet the demands of the real world.
AUTHORIZED CENTRAL BOILER
DEALERS LOCATED ACROSS
THE U.S. AND CANADA
When you’re looking for a wood heating system, a
Central Boiler dealer is there to answer questions,
provide you with literature about Central Boiler
outdoor wood furnaces and help you choose
the model right for your heating needs.
To locate a Central Boiler dealer in your area, visit
the dealer locator at CentralBoiler.com.
Also check out Central Boiler's Classic Edge
line of outdoor wood furnaces.
Your Authorized Central Boiler Dealer
FREE 25 YEAR LIMITED WARRANTY
A free 25 year limited warranty is available if your E-Classic is registered at the
time of purchase. Central Boiler leads the industry with its commitment to stand
behind its outdoor wood furnaces. See Warranty Registration form for details.
