GENERATOR

BSI525-W-1

PROFESSIONAL POWER TOOLS

PARTS LIST NO. D27087-028-0

Copyright© 2002 Porter-Cable Corporation

Maintenance and Accessory Parts

WARNING: Electrical repairs should only be

attempted by trained repairmen. Contact the

nearest Porter-Cable Service Center or other

competent repair center.

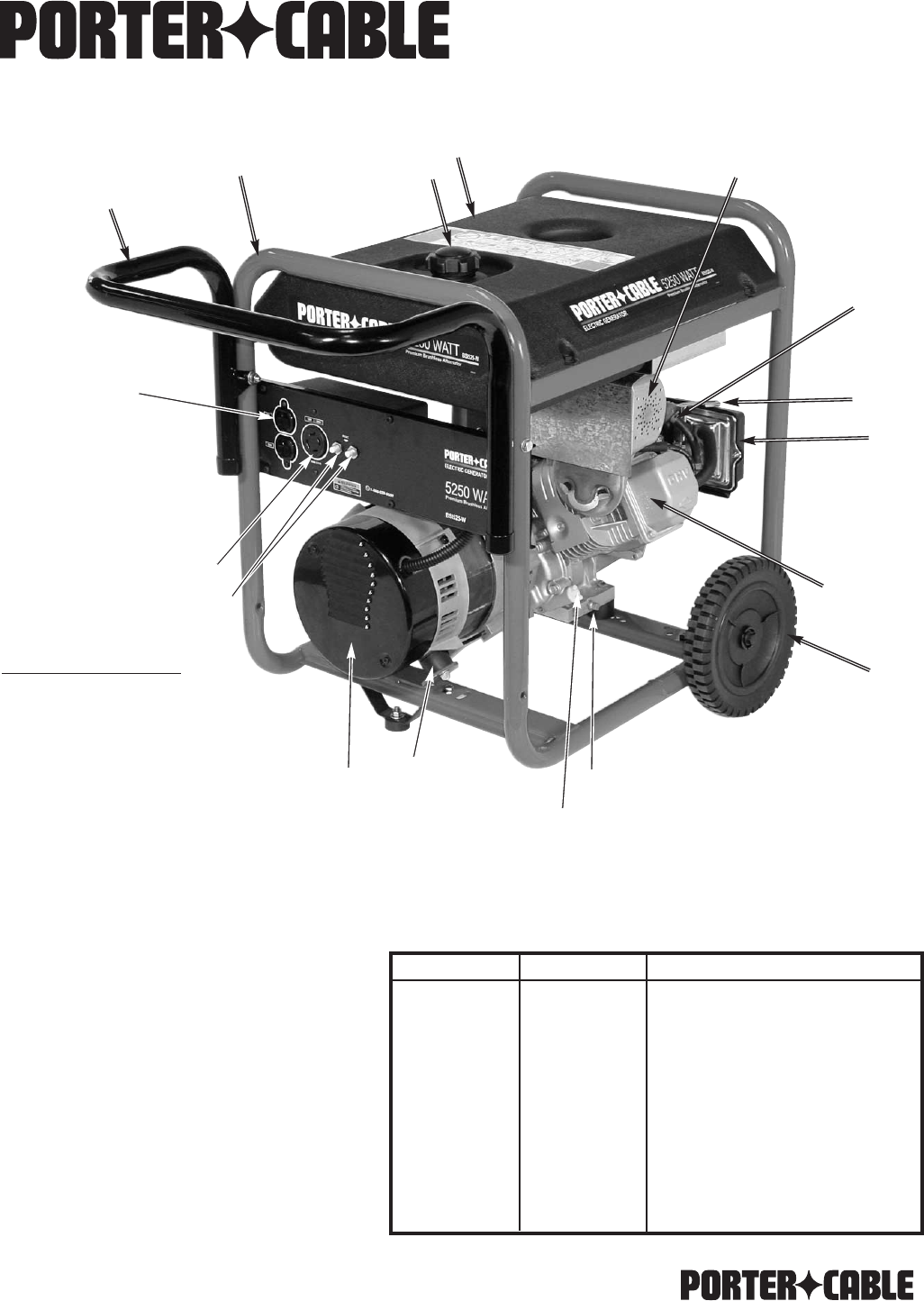

Parts Identification

1. Frame assembly

2. Fuel Tank - Seven (7) gallon capacity

3. Fuel Cap

4. Fuel Shut-off Valve (not shown)

5. Fuel Hose (not shown)

6. Fuel Filter

7. Receptacle- 120V Duplex

8. Grounding Lug- (not shown) This is the

attachment point for a ground wire to an

external earth ground.

9. Circuit Breaker

10. Vibration Isolator

11. Receptacle- 120/240V 4-Prong Twistlock

12. Generator Housing

13. Oil Drain Plug

14. Oil Fill/Dipstick

15. Exhaust Muffler

16. Air Filter

17. "ON/OFF" Switch (Not Shown - See Engine

Manual)

18. Wheel/Handle Kit- Included with this

generator to make portability easier.

19. Choke

20. 10 HP Briggs & Stratton- Included with this

generator is a copy of the Engine

Manufacturer's Operator's Manual. See this

manual for more detail on the engine.

1

18

18

2

3

6

16

15

13

20

12

9

7

11

10

Qty.

1

1

2

1

4

1

4

4

1

1

1

Description

Fuel Filter

Air Filter

Fuel Line Clamps

Fuel Line

Vibration Isolator

Gas Tank

Gas Tank Screws (1/4 - 20 x .75)

Gas Tank Washers

Gas Cap

Wheel/Handle Kit

Champion Spark Plug -

May be purchased locally

Part No.

GS-0459

D23219

GS-0227

Z-GS-0225

GS-0033

Z-GS-0795

91895680

SSN-632

GS-0443

GA80

RC12YC

14

19
