Hot-Swapping Information

Note: This device cannot be Hot Swapped.

IMPORTANT!

CPU Status Indicators

Indicator Status Description

PWR

OFF Base Power OFF

Green Base Power ON

Yellow Low Battery

RUN

OFF CPU is in STOP Mode

Green CPU is in RUN Mode

Yellow Forces are Active

MEM

OFF No ROM Activity, No SD Card

Yellow ROM Activity (Flash or SD Card)

Green SD Card Installed and Mounted

Red SD Card Installed and Not Mounted

ERR OFF CPU is functioning normally

Red CPU Fatal Hardware Error or Software Watchdog Error

Terminal Block Connector Specifications

Part Number BX-RTB03S BX-RTB18 BX-RTB18-1

Connector Type Screw Type-90° Screw Type-90° Spring Clamp

Type-180°

Wire Exit 180° 180° 180°

Pitch 3.5mm 5.0mm 5.0mm

Screw Size M2 M2.5 N/A

Recommended

Screw torque

<1.77 lb·in

(0.2 N·m)

< 3.98 lb·in

(0.45 N·m) N/A

Screwdriver Blade

Width 2.5mm 3.5mm 3.5mm

Wire Gauge

(Single Wire) 28-16 AWG 28-12 AWG 28-14 AWG

Wire Gauge

(Dual Wire) 28-16 AWG 28-16 AWG

28-16 AWG

(Dual Wire Ferrule

Required)

Wire Strip Length 0.24in (6mm) 0.3in (7.5mm) 0.37in (9.5mm)

Equiv. Dinkle part # EC350V-03P-BK 5ESDV-0nP-BK*5ESDSR-0nP-BK*

*NOTE: n=(3) 3-terminal, (5) 5-terminal, or (6) for 6-terminal

CPU Mode Switch Functions

RUN position CPU is forced into RUN Mode if no errors are encountered.

TERM position

RUN, PROGRAM and DEBUG modes are available. In this

position, the mode of operation can be changed through the

Do-more Designer Software.

STOP position CPU is forced into STOP Mode.

Built-in RS-232/485 Port Specifications

Port Name RS-232/RS-485 Serial Port

Description*

Non-isolated serial port that can communicate via

RS-232 or RS-485 (software selectable). Includes

ESD protection and built-in surge protection.

Supported Protocols

Do-more Protocol (Default)

Modbus RTU (Master & Slave)

K-Sequence (Slave)

ASCII (In & Out)

Data Rates 1200, 2400, 4800, 9600, 19200, 38400, 57600, and

115200

Default Settings RS-232, 115200 bps, No Parity, 8 Data Bits, 1 Stop

Bit, Station #1

Port Type 3-pin terminal strip 3.5mm pitch

Port Status LED Green LED is illuminated when active for TXD and

RXD

RS-485 Station Addresses 1-247

Cable Recommendations RS-232 use L19772-XXX from AutomationDirect.com

RS-485 use L19827-XXX from AutomationDirect.com

Replacement Connector ADC Part # BX-RTB03S

Removable connector included.

* NOTE: When using RS-485, a terminator resistor is built-in and software selectable.

TX

RX

RS232/RS485

Pinout RS232 RS485

1 GND GND

2 RXD D-

3 TXD D+

GND

RX/D-

TX/D+

microSD Specifications

Port Name microSD Card Slot

Description Standard microSD socket for data logging / file management

Maximum Card

Capacity 32GB

Transfer Rate

(ADATA microSDHC

Class 4 memory card)

Mbps Minimum Typical Maximum

Read 14.3 14.4 14.6

Write 4.8 4.9 5.1

Port Status LED Green LED is illuminated when card is inserted/detected

Optional microSD Card ADC Part # MICSD-16G

BX-DM1E-18ER3-D

Document Name Edition/Revision Date

BX-DM1E-18ER3-D 1st Ed. RevC 4/10/2017

Copyright 2017, AutomationDirect.com Incorporated/All Rights Reserved Worldwide.

Do-more BRX Manual available at

www.automationdirect.com/pn/doc/

manual/BX-DM1E-18ER3-D

Built-in Ethernet Specifications

Port Name ETHERNET

Description Standard transformer isolated Ethernet port with built-in

surge protection.

Transfer Rate 10Mbps (Yellow LED) and 100Mbps (Green LED)

Port Status LED LED is solid when network LINK is established. LED

flashes when port is active (ACT).

Supported Protocols

Do-more! Protocol

Ethernet Remote I/O

Modbus TCP/IP (Client & Server)

EtherNet/IP (Explicit Messaging)

HOST ECOM (DirectLogic)

SMTP (Email), SNTP (Time Server)

TCP/IP, UDP/IP (Raw packet)

Cable Recommendation C5E-STxxx-xx from AutomationDirect.com

Port Type RJ45, Category 5, 10/100 BASE-T, Auto Crossover

Ethernet Port Numbers:

MODBUS TCP/IP

EtherNet/IP (Explicit Messaging)

HOST ECOM

Do-more Protocol

502, TCP

44818, TCP

28784, UDP

28784, UDP

BRX MPU with Do-more! DM1 technology

24 VDC required, serial port, Ethernet port, microSD

slot, Discrete Input: 10-point, sink / source, Analog Input:

1-channel, current / voltage, Discrete Output: 8-point,

relay, Analog Output: 1-channel, current / voltage.

Power Supply Specifications

Nominal Voltage Rating 12–24 VDC

Input Voltage Range (Tolerance) 10–36 VDC

Maximum Input Voltage Ripple <± 10%

Maximum Input Power 30W

Cold Start Inrush Current 5A, 2ms

Maximum Inrush Current (Hot Start) 5A, 2ms

Internal Input Protection Reverse Polarity Protection and

Undervoltage

Heat Dissipation 3.2W Max

Voltage Withstand (dielectric) 1500VAC Power Inputs to Ground

applied for 1 minute

General Specifications

Operating Temperature 0° to 60°C (32° to 140°F)

Storage Temperature -20° to 85°C (-4° to 185°F)

Humidity 5 to 95% (non-condensing)

Environmental Air No corrosive gases permitted

Vibration IEC60068-2-6 (Test Fc)

Shock IEC60068-2-27 (Test Ea)

Enclosure Type Open Equipment

Agency Approvals UL61010-2 - UL File # E185989 Canada and USA

CE Compliant EN61131-2*

Noise Immunity NEMA ICS3-304

EU Directive See the “EU Directive” topic in the Help File

Weight 295g (10.4 oz)

*Meets EMC and Safety requirements. See the D.O.C. for details.

CPU Specifications

Program Memory Type FLASH memory

User Data Memory Type Battery Backed RAM, User configurable

Pluggable Option Module RS-232, RS-485, Ethernet 10/100 BASE-T

(1Mbps throughput max), USB 2.0 Type B

Expansion Modules 8 expansion modules max

Real Time Clock Accuracy ±2.6s per day typical at 25°C

±8s per day max at 60°C

Programming Software Do-more Designer – Ver. 2.0 or higher

Programming Cable Options BX-PGM-CBL

Custom Label Window Size 0.75″ x 2.25″ (19mm x 57.2mm)

Terminal Block Connection Options

BX-RTB18

Terminal Block Kit, 90-degree screw type, Fits all BRX

18-point PLCs. Kit includes (3) 5-pin 5mm plugs, (2) 6-pin

5mm plugs, (1) 3-pin 5mm plugs.

BX-RTB18-1

Terminal Block Kit, 180-degree spring clamp type, Fits all

BRX 18-point PLCs. Kit includes (3) 5-pin 5mm plugs, (2)

6-pin 5mm plugs, (1) 3-pin 5mm plugs.

ZL-BX-CBL15 ZIPLink PLC I/O cable, 15-position terminal block to 24-pin

connector, 24AWG. 0.5 meter (1.6 ft.) length, 2 required.

ZL-BX-CBL15-1 ZIPLink PLC I/O cable, 15-position terminal block to 24-pin

connector, 24AWG. 1 meter (3.3 ft.) length, 2 required.

ZL-BX-CBL15-2 ZIPLink PLC I/O cable, 15-position terminal block to 24-pin

connector, 24AWG. 2 meter (6.6 ft.) length, 2 required.

ZL-BX-CBL15-1P ZIPLink PLC I/O cable, 15-position terminal block to pigtail

connection, 24AWG. 1 meter (3.3 ft.) length, 2 required.

ZL-BX-CBL15-2P ZIPLink PLC I/O cable, 15-position terminal block to pigtail

connection, 24AWG. 2 meter (6.6 ft.) length, 2 required.

ZL-RTB20 ZIPLink Two-Level Feedthrough Module. 20 pole, 35mm DIN

mount, 2 required.

ZL-RTB20-1 ZIPLink Three-Level Feedthrough Module. 20 pole, 35mm

DIN mount, 2 required.

I/O Terminal Blocks sold separately.

(See Terminal Block Connection Options table).

Sales 800-633-0405

Tech Support 770-844-4200 Your Automation Foundation!™

www.do-moreplcs.com

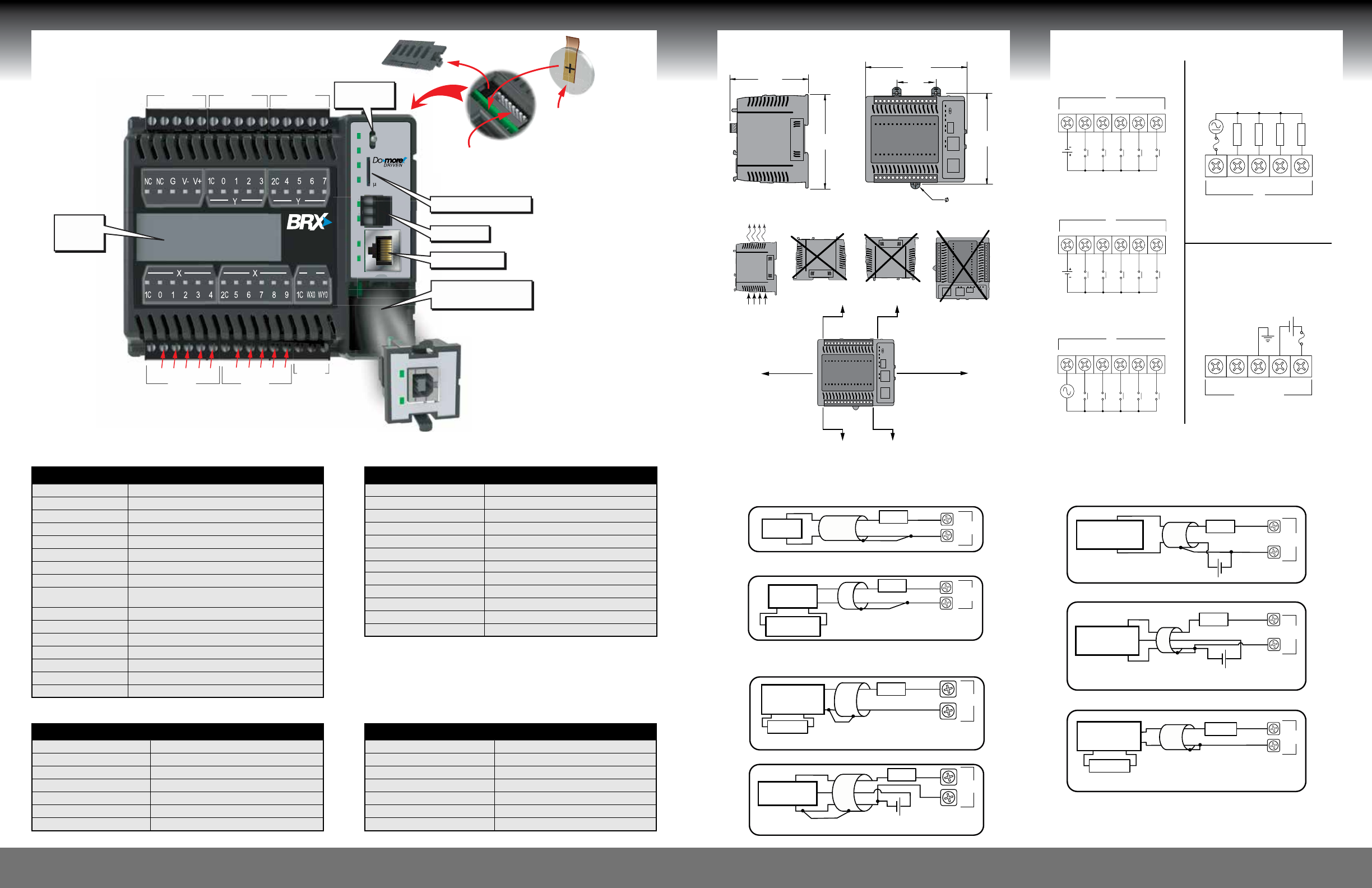

I/O WiringTerminal and Front Panel Layout

Mounting Restrictions

AIRFLOW

OK

1.78

″

[45.3mm]

#8 Thru all (3 Places)

4.25

″

[107.9mm

″

]

4.69

″

[119.1mm]

4.41

″

[112.1mm]

3.59

″

[91.1mm]

2″ (50mm)

Minimum

from Enclosure

2″ (50mm)

Minimum from

Enclosure

2″ (50mm) Minimum

from Enclosure

2″ (50mm)

Minimum

from Wire Duct

2″ (50mm)

Minimum

from Enclosure

2″ (50mm)

Minimum

from Wire Duct

Dimensional

Information

RUN

TERM

STOP

RS-232/485

SD

PWR

RUN

MEM

ERR

TX

RX

LNK

ACT

ETHERNET

RX/D-

TX/D+

GND

T

X

T

T

R

GND

R

X

R

R

RX/D

GND

R

LN

A

C

A

A

R

X

R

R

N

K

C

T

ETH

ERN

ET

RX/D-

TX

/

D

+

BX-DM1E-18ER3-D

10-36VDC

25VA

6-PIN6-PIN

3-PIN

HSIHSI HSIHSI HSIHSI HSIHSI HSIHSI

5-PIN5-PIN

5-PIN

W

Ethernet Port

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

+

CR2032

76543210

CR

2

76543210

NOTE: DIP switches located in this compartment

are used for debug and recovery functions only.

Please refer to the BRX User Manual for full

instructions on using these switches.

Battery Replacement

Coin Battery CR2032

ADC Part # D0-MC-BAT

Custom

Label

Window

Micro SD Card Slot

Pluggable Option

Module (POM) Slot

CPU Mode

Switch

Serial Port

20

R

2

NOTE: Do not

remove tape

from battery.

1.84

″

[46.8mm]

1.23

″

[31.2mm]

4.59

″

[116.7mm]

3.73

″

[94.6mm]

5.57

″

[141.4mm]

4.25

″

[107.9mm]

8.11

″

[206mm]

4.41

″

[112.1mm]

3.59

″

[91.1mm]

*Fuse

.032A

*Fuse

.032A

+

*Fuse

.032A

- +

- +

WX0

1C

WX0

1C

WX0

1C

3-Wire Current

Transmitter

4-Wire 4-20 mA

Transmitter

2-Wire 4-20 mA

Transmitter

2-Wire Transmitter

3-Wire Transmitter

4-Wire Transmitter

Power

Supply

24VDC User

Supplied Power

+

–

+

–

+

–

User Supplied

Transmitter Power

AC or DC

W

W

W

*NOTE: An Edison S500-32-R 0.032A fast-acting fuse is recommended

for all analog voltage inputs, analog outputs, and current loops.

Analog Current Sinking Input Circuits

1C

WX0

.032A

*Fuse

4-Wire Voltage

Transmitter

4-Wire Transmitter

Optional Transmitter Power Supply

AC or DC

- +

24 VDC User

Supplied Power

+

.032A

*Fuse

3-Wire Voltage

Transmitter

WX0

1C

3-Wire Transmitter

W

W

Analog Voltage Input Circuits

Analog Output Wiring

Load

Power Supply

.032A

*Fuse

VDC

Load

Current Source Output

Voltage Output

.032A

*Fuse

mA Load

WY0

1C W

WY0

1C W

Discrete Output Specifications

Output Type Relay Form A (SPST)

Total Outputs per Module 8 Relay

Commons 2 (4 points/common) Isolated

Maximum current per common 8A

Nominal Voltage Ratings 5–48 VDC, 24–240 VAC

Output Voltage Range 5–60 VDC, 18–264 VAC

Maximum Voltage 60VDC, 264VAC

Minimum Output Current 0.1mA @ 24VDC

Maximum Output Current 2A

Maximum Leakage Current 1µA (DC), 300µA (AC) due to RC snubber

Maximum Switching Frequency 10Hz

Status Indicators Logic Side, Green

Discrete Input Specifications

Input Type Sink/Source

Total Inputs per Module 10 High Speed – All inputs may be used as standard inputs

Commons 2 (5 points/common) Isolated

Nominal Voltage Rating 12–24 VAC/DC

Input Voltage Range 9–30 VAC/DC

Maximum Voltage 30 VAC/DC

DC Frequency 250kHz - High Speed

Minimum Pulse Width 0.5 μs - High Speed

AC Frequency 47–63 Hz (240Hz filter must be set in software for AC

operation)

Input Impedance 3kΩ @ 24VDC

Input Current (typical) 6mA @ 24 VAC/DC

Maximum Input Current 12mA @ 30 VAC/DC

Maximum OFF Current 2.0 mA

ON Voltage Level > 9.0 VAC/VDC

OFF Voltage Level < 2.0 VAC/VDC

Status Indicators Logic Side, Green

nC 01 23

LOAD

LOAD

LOAD

LOAD

Relay Output

Y

nC 01234

Sinking Input

X

nC 01234

Sourcing Input

X

Discrete Input

Wiring

Discrete

Output Wiring

nC 01234

AC Input

X

Supply Power

Wiring

NC NC GV+V-

DC Power

DC Power In

12–24VDC

-+

Analog Input Specifications

Inputs per Module 1

Input Voltage Range* Software Selectable ±10V, ±5V, 0-10V, 0-5V

Input Current Range* Software Selectable ±20mA, 4-20 mA

Resolution 16 bit @ ± 10V, ± 20mA

Conversion Time 1.2 ms

Input Impedance Voltage Modes 220kΩ

Input Impedance Current Modes 249Ω

*Software selectable per channel.

Analog Output Specifications

Outputs per Module 1

Output Voltage Range* Software Selectable ±10V, ±5V, 0-10V, 0-5V

Minimum Voltage Load Impedance 1kΩ

Output Current Range* Software Selectable ±20mA, 4-20 mA

Maximum Current Load Impedance 500Ω

Conversion Time < 1ms

Resolution 16 bit @ ± 10V, ± 20mA

*Software selectable per channel.

I/O Terminal Blocks sold separately.

(See Terminal Block Connection Options table).
