QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Overview

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 1

HP MSA P2000 G3 Modular Smart Array Systems

Hewlett Packard's MSA P2000 Family of storage arrays features P2000 G3 arrays with the latest 8 Gb Fibre Channel, 6 Gb SAS,

10GbE iSCSI connected models, and an iSCSI model with four 1 Gb iSCSI ports per controller. The arrays are designed for entry-

level customers and feature the latest in functionality and host-connect technology while offering excellent price/performance.

They are ideal for companies with small budgets or limited IT expertise, and also larger companies with departmental or remote

requirements. Each solution is designed to be easy to deploy, to be secure, along with low management costs, while driving rapid

return on investment through efficient storage consolidation.

The MSA P2000 G3 arrays are 2U storage area network (SAN) or direct connect solutions (OS and protocol dependent) offering a

choice of five controllers - two FC, one SAS, one 10GbE iSCSI and the newest model features a four port 1 Gb iSCSI. The first Fibre

Channel controller is a high-performance, 8 Gb dual port model. The second offering is a unique dual-purpose Combo controller

with two 8 Gb Fibre Channel ports with the addition of two 1GbE iSCSI ports. The third controller choice is 6Gb SAS with four ports

per controller. There is also the addition of a two port 10 Gb iSCSI, while the latest controller introduction features four 1 Gb iSCSI

ports per controller. Whatever the situation calls for, the P2000 G3 line-up has the right solution.

The dual-protocol MSA P2000 G3 MSA FC/iSCSI Combo Controller gives exceptional flexibility. The 8 Gb FC ports support a full FC

SAN while the two 1GbE iSCSI ports can serve two purposes. With this combination you can economically share the array storage

resource with a smaller department accessing it over iSCSI or enable the new optional Remote Snap functionality over iSCSI

protocol (also available over FC).

The MSA P2000 G3 SAS is the follow-on product to the MSA2000sa G2, adding the latest 6 Gb SAS technology to the four host

ports per controller. The P2000 G3 SAS array is designed for directly attaching up to four dual-path or eight single path rack

servers. SAS array support for BladeSystems utilizes the HP 6 Gb SAS BL Switch.

The MSA P2000 G3 10GbE iSCSI brings the very latest in high-performance host connection with technology generally found only

in higher priced arrays. The bandwidth it provides in conjunction with server consolidation is highly advantageous in shared

storage configurations. Array connection to 10GbE switches that are in turn connected to 1GbE NICs is commonplace. Directly

attached server support requires the server units to have 10GbE NICs.

Rounding out the controller choices is the MSA P2000 G3 iSCSI controller featuring four 1Gb iSCSI Ethernet ports, double the

number of the G2 model. This allows an array that keeps the price of the components, particularly the interconnection, low while

markedly increasing the performance capabilities.

All MSA P2000 G3 models can be equipped with single or dual controllers, feature the same scalability, and offer 6 Gb SAS back-

end transmission speed to drives and JBODs. Significant data protection advances are delivered by the all P2000 G3 arrays. All G3

units come STANDARD with sixty-four snapshot capability at no extra cost and there is an option for the G3 series of five hundred

and twelve snapshots. Volume Copy (clone) also comes standard. In a further move to protect the user's data, optional Remote

Snap (replication) capability is offered on the FC, FC/iSCSI, and both iSCSI versions.

All MSA P2000 G3 models support hot plug replacement of redundant controllers, fans, power supplies, and I/O modules. Hot add

of expansion enclosures is also supported.

The controller-less MSA P2000 chassis is offered in two models - one comes standard with twelve Large Form Factor (LFF) 3.5-

inch drive bays, the other can accommodate twenty-four Small Form Factor (SFF) 2.5-inch drives. Both are able to simultaneously

support enterprise-class SAS drives, SAS Midline, and archival-class SATA Midline drives. Either chassis can have one or two

matching P2000 G3 controllers (same protocol) and are available with AC or DC power Supplies.

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Overview

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 2

The HP modular approach to entry level SAN solutions enables incremental customer purchases, allowing the array to grow as

needs grow, thus allowing a maximum return on investment. Choose a single controller unit for low initial cost with the ability to

upgrade later; or decide on a model with dual controllers for the most demanding entry-level situations. There are no unexpected

additional charges, licenses or fees as you add enclosures or hosts and users.

Capacity can easily be added as the need develops by attaching additional drive enclosures. Maximum capacity ranges with LFF

drives up to 57.6 TB SAS, 576 TB SAS Midline or 192 TB SATA Midline with the addition of the maximum number of drive

enclosures. Configurations utilizing the SFF drive chassis and the maximum number of drive enclosures can grow to 178 TB of SAS,

149 TB of SAS Midline or 74.5 TB SATA Midline with a total of 96 LFF or 149 SFF drives. The P2000 G3 Arrays do not support SSDs.

What's New in the P2000 G3 array family

 Introducing support for 12G SFF Hard Disk Drives.

o HP MSA 300GB 12G SAS 10K 2.5in Dual Port Enterprise 3yr Warranty Hard Drive

o HP MSA 600GB 12G SAS 10K 2.5in Dual Port Enterprise 3yr Warranty Hard Drive

o HP MSA 900GB 12G SAS 10K 2.5in Dual Port Enterprise 3yr Warranty Hard Drive

o HP MSA 1.2TB 12G SAS 10K 2.5in Dual Port Enterprise 3yr Warranty Hard Drive

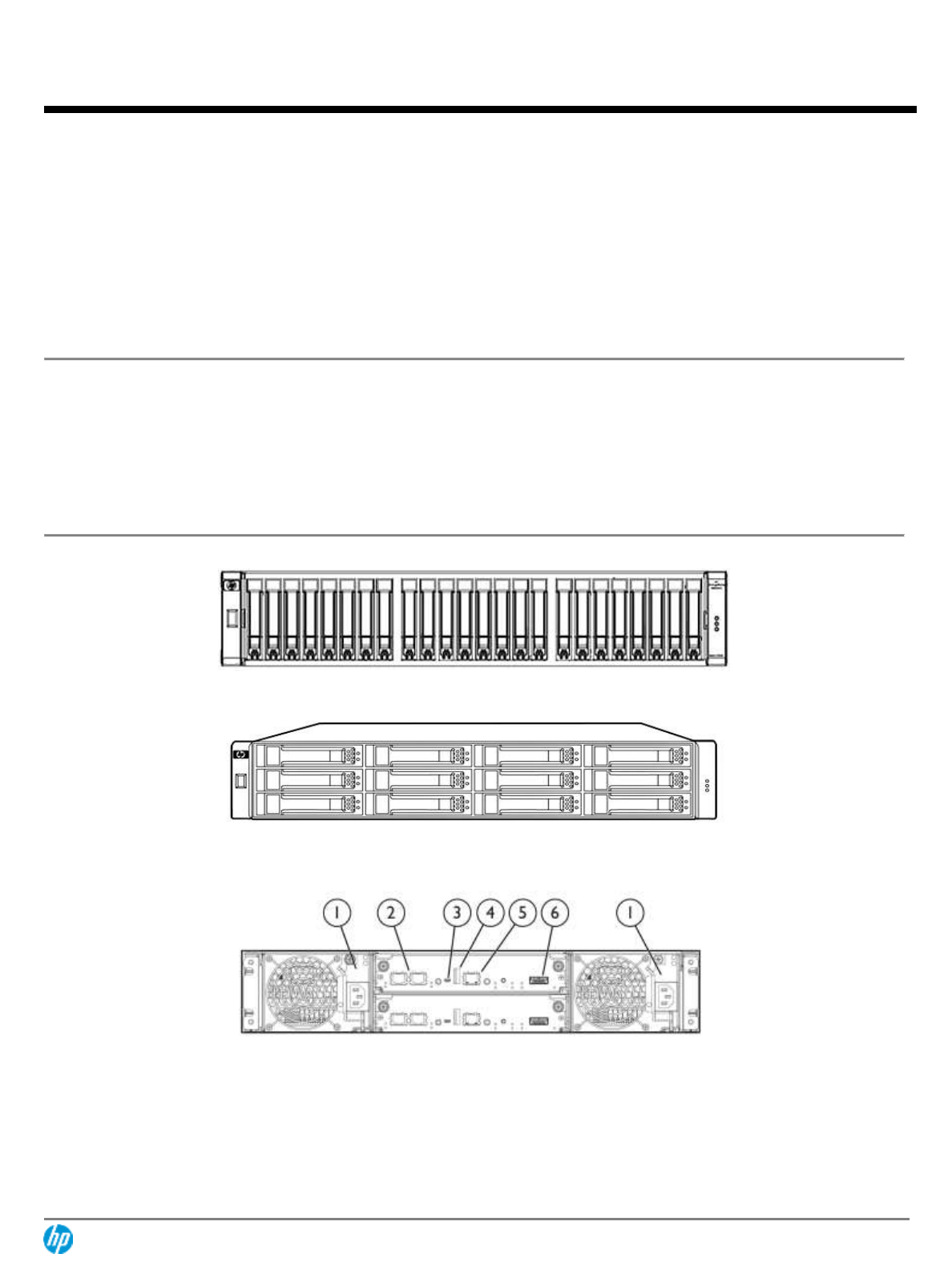

HP P2000 G3 SFF Modular Smart Array

HP P2000 G3 LFF Modular Smart Array

P2000 G3 FC Controllers, 2 installed

1.

Power supplies

4.

Reserved for future use

2.

8 Gb Fibre Channel ports

5.

Management Ethernet port

3.

CLI port (mini-USB)

6.

Expansion port

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Overview

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 3

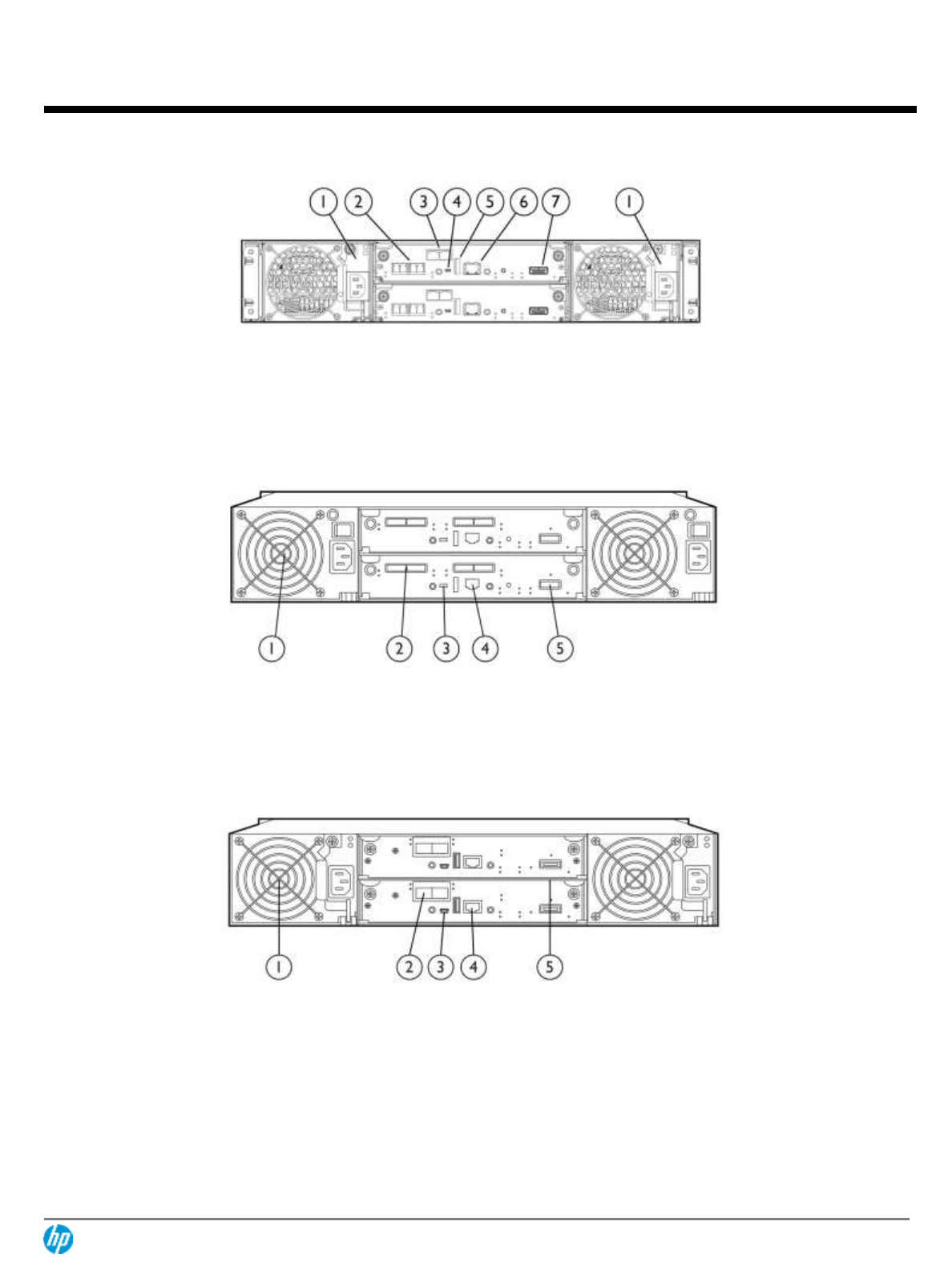

P2000 G3 FC/iSCSI Combo Controllers, 2 installed

1.

Power supplies

5.

Reserved for future use

2.

8 Gb Fibre Channel ports

6.

Management Ethernet port

3.

1GbE iSCSI ports

7.

Expansion port

4.

CLI port (mini-USB)

P2000 G3 SAS controllers, 2 installed

1.

Power supplies

4.

Management Ethernet port

2.

6Gb SAS ports (four per

controller)

5.

Expansion port

3.

CLI port (mini-USB)

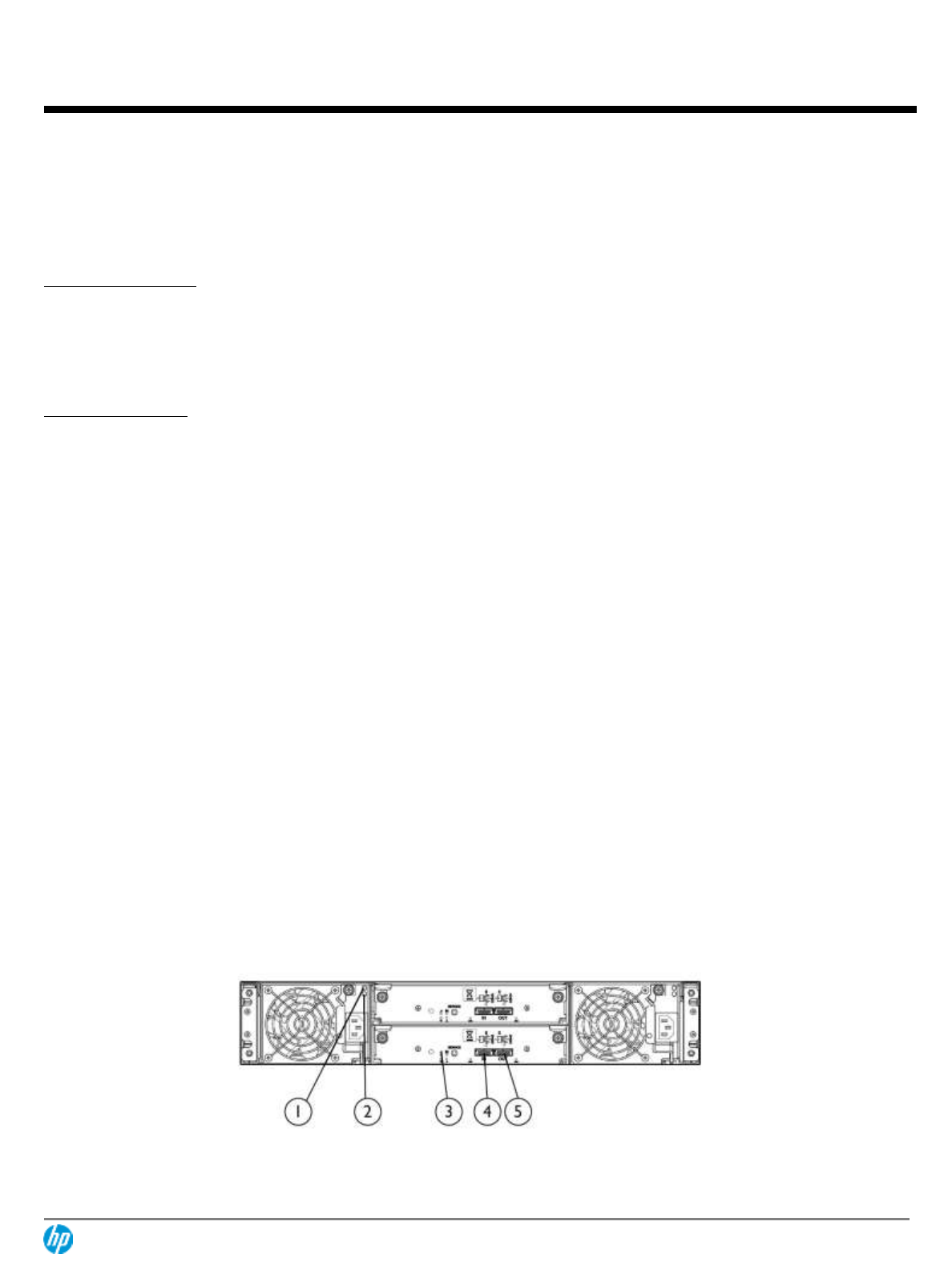

P2000 G3 10GbE iSCSI controllers, 2 installed

1.

Power supplies

4.

Management Ethernet port

2.

10GbE iSCSI ports

5.

Expansion port

3.

CLI port (mini-USB)

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Overview

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 4

P2000 G3 iSCSI dual controller

1.

Power supplies

4.

CLI port (mini-USB)

2.

1 GbE iSCSI ports (4)

5.

Management Ethernet port

3.

1 GbE iSCSI ports (4)

6.

Expansion port

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Models

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 5

P2000 G3

Modular Smart Array

P2000 G3 Controllers

P2000 G3 Fibre Channel Controllers

HP P2000 G3 MSA Fibre Channel Controller

NOTE: two 8Gb FC ports per controller

AP836B

HP P2000 G3 MSA FC/iSCSI Combo Modular Smart Array Controller

NOTE: two 8Gb FC ports and two 1GbE iSCSI ports per controller

AP837B

P2000 G3 SAS Controller

HP P2000 G3 SAS MSA Array System Controller

NOTE: four 6Gb SAS ports per controller

AW592B

P2000 G3 10GbE iSCSI controller

HP P2000 G3 10GbE iSCSI MSA Array System Controller

NOTE: two 10GbE iSCSI ports per controller

AW595B

P2000 G3 iSCSI controller (1Gb Ethernet)

HP P2000 G3 iSCSI MSA Array System Controller

NOTE: four 1Gb iSCSI ports per controller

BK829B

P2000 Chassis

P2000 Controller-less Chassis (AC-powered)

HP P2000 LFF Modular Smart Array Chassis

NOTE: Will accept one or two controllers or Disk Enclosure I/O modules

AP838B

HP P2000 SFF Modular Smart Array Chassis

NOTE: Will accept one or two controllers, not I/O modules

AP839B

P2000 G3 Configured Array Systems

Configured Units, 8 Gb Fibre Channel Systems

HP P2000 G3 MSA FC/iSCSI Dual Combo Controller LFF Array

AW567B

HP P2000 G3 MSA FC/iSCSI Dual Combo Controller SFF Array

AW568B

Configured Units, 6 Gb SAS Systems

HP P2000 G3 SAS MSA Dual Controller LFF Array System

AW593B

HP P2000 G3 SAS MSA Dual Controller SFF Array System

AW594B

Configured Units, 10GbE iSCSI Systems

HP P2000 G3 10GbE iSCSI MSA Dual Controller LFF Array System

AW596B

HP P2000 G3 10GbE iSCSI MSA Dual Controller SFF Array System

AW597B

Configured Units, 1Gb iSCSI Systems

HP P2000 G3 iSCSI MSA Dual Controller LFF Array System

BK830B

HP P2000 G3 iSCSI MSA Dual Controller SFF Array System

BK831B

P2000 G3 FC SAN Starter Kits

HP P2000 G3 FC MSA Dual Controller Small Business SAN Starter Kit

AP847B

includes (1) HP P2000G3 MSA FC Dual Controller LFF Array (AP845B) , (2) HP SN6000

12port Single Power FC Switch (BK780B) , (4) HP 81Q PCI-e FC Single Port HBA

(AK344A), (12 ) 8Gb Short Wave FC SFPs (AJ718A ), and (8 ) HP 5M OM3 FC Cables

(AJ836A ).

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Models

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 6

HP P2000 G3 FC MSA Dual Controller Virtualization SAN Starter Kit

AP848B

(includes (1) HP P2000G3 MSA FC Dual Controller SFF Array (AP846B) , (2) HP 8/24

Base 16 Ports Enabled SAN Switch (AM868B) , (6) HP 81B PCI-e 8Gb FC Single Port

HBA (AP769A), (16 ) 8Gb Short Wave B Series FC SFPs (AJ716B ), and (10 ) HP 5M

OM3 FC Cables (AJ836A )

Disk Enclosures

HP P2000 Dual I/O LFF Drive Enclosure

AP843B

HP P2000 LFF Drive Enclosure I/O Module

AP844B

HP D2700 Disk Enclosure

AJ941A

Controller-less Chassis (DC-powered)

HP P2000 DC-power LFF Chassis

AP840B

(can add one or two P2000 G3 controllers or P2000 JBOD I/O modules)

HP P2000 DC-power SFF Chassis

AP841B

P2000 G3 Array Bundles

In some areas HP is offering P2000 G3 Array bundles with SFF SAS drives. These bundles can simplify the process of ordering. HP

offers these bundles with different type of P2000 G3 Array controllers for different storage capacity needs.

NOTE: These bundles are not offered worldwide so please check the availability for your region

Protocol

Raw Capacity

Regions

Availability

Bundle Description

SKUs

Fully Populated Bundles:

FC Bundles

3.5 TB

AMS

APJ

HP P2000 G3 FC DC w/24 146GB SAS

15K SFF HDD 3.5TB Bundle

BV901B

7.2 TB

AMS

APJ

HP P2000 G3 FC DC w/24 300GB SAS

10K SFF HDD 7.2TB Bundle

BV902B

14.4 TB

AMS

APJ

HP P2000 G3 FC DC w/24 600GB SAS

10K SFF HDD 14.4TB Bundle

BV903B

21.6 TB

AMS

APJ

HP P2000 G3 FC 24x900GB SAS SFF

Bundle

QR517B

24 TB

AMS

APJ

HP P2000 G3 FC 24x1TB SAS SFF

Bundle

QR521B

7.2 TB AMS

AMS

APJ

HP P2000 G3 FC DC w/24 300GB SAS

15K SFF HDD 7.2TB Bundle

QW945B

SAS Bundles

7.2 TB

AMS

APJ

HP P2000 SAS DC w/24 300GB SAS

10K SFF HDD 7.2TB Bundle

BV908B

14.4 TB

AMS

APJ

HP P2000 SAS DC w/24 600GB SAS

10K SFF HDD 14.4TB Bundle

BV909B

21.6 TB

AMS

HP P2000 G3 SAS MSA DC w/24

QR519B

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Models

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 7

APJ

900GB SAS 10K SFF HDD 21.6TB

Bundle

24 TB

AMS

APJ

HP P2000 G3 SAS MSA DC w/24 1TB

SAS 7.2K SFF MDL HDD 24TB Bundle

QR523A

1G iSCSI

Bundles

7.2 TB

AMS

APJ

HP P2000 G3 iSCSI DC w/24 300GB

SAS 10K SFF HDD 7.2TB Bundle

BV911B

21.6 TB

AMS

APJ

HP P2000 G3 iSCSI MSA DC w/24

900GB SAS 10K SFF HDD 21.6TB

Bundle

QR520B

24 TB

AMS

APJ

HP P2000 G3 iSCSI MSA DC w/24 1TB

SAS 7.2K SFF MDL HDD 24TB Bundle

QR524B

Half Populated Bundles:

FC Bundles

3.6 TB

AMS

APJ

HP P2000 G3 FC DC w/12 300GB SAS

10K SFF HDD 3.6TB Bundle

BV913B

7.2 TB

AMS

APJ

EMEA

HP P2000 G3 FC DC w/12 600GB SAS

10K SFF HDD 7.2TB Bundle

BV914B

10.8 TB

AMS

APJ

HP P2000 G3 FC MSA DC w/12 900GB

SAS 10K SFF HDD 10.8TB Bundle

QR525B

12 TB

AMS

APJ

HP P2000 G3 FC MSA DC w/12 1TB

SAS 7.2K SFF MDL HDD 12TB Bundle

QR529B

3.6 TB

AMS

APJ

HP P2000 G3 FC DC w/12 300GB SAS

15K SFF HDD 3.6TB Bundle

QW949B

FC/iSCSI Combo

Bundles

10.8 TB

AMS

APJ

HP P2000 G3 FC/iSCSI MSA DC w/12

900GB SAS 10K SFF HDD 10.8TB

Bundle

QR526B

12 TB

AMS

APJ

HP P2000 G3 FC/iSCSI MSA DC w/12

1TB SAS 7.2K SFF MDL HDD 12TB

Bundle

QR530B

SAS Bundles

3.6 TB

AMS

APJ

HP P2000 G3 SAS DC w/12 300GB

SAS 10K SFF HDD 3.6TB Bundle

BV917B

7.2 TB

AMS

APJ

HP P2000 G3 SAS DC w/12 600GB

SAS 10K SFF HDD 7.2TB Bundle

BV918B

10.8 TB

AMS

APJ

HP P2000 G3 SAS MSA DC w/12

900GB SAS 10K SFF HDD 10.8TB

Bundle

QR527B

12 TB

AMS

APJ

HP P2000 G3 SAS MSA DC w/12 1TB

SAS 7.2K SFF MDL HDD 12TB Bundle

QR531B

3.6 TB

AMS

APJ

HP P2000 G3 SAS DC w/12 300GB

SAS 15K SFF HDD 3.6TB Bundle

QW951B

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Models

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 8

1G iSCSI G3

Bundles

3.6 TB

AMS

APJ

HP P2000 G3 iSCSI DC w/12 300GB

SAS 10K SFF HDD 3.6TB Bundle

BV919B

7.2 TB

AMS

APJ

HP P2000 G3 iSCSI DC w/12 600GB

SAS 10K SFF HDD 7.2TB Bundle

BV920B

10.8 TB

AMS

APJ

HP P2000 G3 iSCSI MSA DC w/12

900GB SAS 10K SFF HDD 10.8TB

Bundle

QR528B

12 TB

AMS

APJ

HP P2000 G3 iSCSI MSA DC w/12 1TB

SAS 7.2K SFF MDL HDD 12TB Bundle

QR532B

3.6 TB

AMS

APJ

EMEA

HP P2000 G3 iSCSI DC w/12 300GB

SAS 15K SFF HDD 3.6TB Bundle

QW952B

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Features

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 9

Key Features

The HP P2000 G3 Modular Smart Array family encompasses five controllers, each featuring different protocols or combination of

protocols to match the exact needs of the user.

 P2000 G3 FC/iSCSI Combo MSA controller: this unique controller offers both 8 Gb Fibre Channel and 1 GbE iSCSI

functionalities built into a single array controller. This allows customers to enable storage needing high performance thru

the FC ports while leveraging their SAN investment by sharing the array resources with smaller departments through

low-cost iSCSI. It also enables optional Remote Snap (replication) for data protection.

 P2000 G3 FC MSA controller: Dual 8 Gb Fibre Channel host ports per controller give high performance with a mature

topology and is compatible with the largest installed base of SAN users.

 P2000 G3 10GbE iSCSI MSA controller: HP was the first of the major modular array manufacturers that brought a high

performance dual-ported 10GbE iSCSI solution to the entry level segment. Ideal for those who want to utilize cost-

effective Ethernet as their infrastructure without sacrificing access time to their data. Now supports Remote Snap

(replication).

 P2000 G3 SAS MSA controller: the P2000 G3 SAS model gives fast 6 Gb transmission rates with low cost SAS connections.

Four host ports per controller support a highly efficient direct connect configuration.

 P2000 G3 iSCSI MSA controller offers four 1 Gb iSCSI ports utilizes the popular Ethernet infrastructure with its low cost

and ease of management, while the additional ports assure increased performance over the previous generation. Now

supports Remote Snap (replication).

All P2000 G3 models offer a common set of valuable features:

 Ease of management featuring browser-based out-of-band access. This allows a department or small company to

effectively handle growing storage requirements, with the aid of an intuitive GUI to administer the unit with a minimum of

complexity. Ideal for local or remote installations.

 All G3 models come standard with 64 controller-based snapshots and clone capability. The G3 arrays also support an

optional 512 snaps.

 Choose either a low-cost single controller array or start with a configured dual controller array model to fit the budget,

high availability, and performance needs.

 All models feature a wide variety of drives: enterprise-class SAS, SAS Midline, and archival-class SATA Midline in either

P2000 LFF 3.5-inch or HP Storage SFF 2.5-inch drives.

 P2000 G3 models can have a maximum number of P2000 LFF drive enclosures (7), a maximum number of D2700 SFF

enclosures (5), or mix both sizes. The array can grow incrementally from a few drives to 178 TB SAS, 576 TB of SAS MDL

or 192 TB SATA MDL.

 2 GB transportable read/write cache per controller. Battery-free cache backup with super capacitors and compact flash

 Vdisks can be spanned across multiple enclosures

RAID levels 0, 1, 3, 5, 6, 10, 50

 Maximums vary by RAID levels: 2 drive max for RAID level 1; max of 16 drives for RAID levels 0, 3, 5, 6, and 10; max of 32

drives for RAID level 50

 512 LUNs with LUN sizes greater than 40TB depending on the RAID configuration chosen. The maximum LUN size is 64TB

 Non-disruptive on-line controller code upgrade (requires dual controllers w/ multi-pathing software)

 Upgradable by design. Owners of an original MSA2000 G1 or G2 array are able to do data-in-place controller upgrades to

the P2000 G3 FC, Combo FC/iSCSI, 1 Gb or 10GbE iSCSI, or P2000 G3 SAS. Cross protocol upgrades are also supported

between the protocols. This unique ability protects the earlier investments in chassis, drives, and JBODs

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Features

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 10

Follow us on twitter and be a part of the conversation, and get the latest P2000 G3/MSA related news and information at:

http://www.twitter.com/MSAstorage

HP P2000 G3 FC MSA SAN Starter Kits

The new P2000 G3 FC MSA SAN Starter kits are offered to simplify ordering and implementation of your SAN. HP includes all the

necessary hardware components to build your own SAN solution in one package, just add the drives of your choice. These kits are

offered at very affordable prices which reflect a savings over purchasing each SAN component separately.

Virtualization SAN

Starter Kit

HP P2000 G3 FC MSA Dual Controller Virtualization SAN Starter Kit

AP848B

The HP P2000 G3 FC MSA Dual Controller Virtualization SAN Starter Kit addresses

the growing need for server and storage administrators to deliver end-to-end

storage, virtualization, and management capabilities across their network

infrastructure. The hardware bundle consists of six Host Bus Adapters (HBAs), two

FC switches, a P2000 G3 FC MSA Dual Controller Array (SFF Chassis), sixteen 8Gb FC

SFPs , ten HP 5M FC cables as well as two licenses per switch enabling Server

Application Optimization (SAO) and Adaptive Networking (AN). SAO is an adapter

technology that offers Quality of Service (QoS) capabilities that can be used in

conjunction with fabric wide QoS and to enable a high performing, virtualized

infrastructure. With SAO deployed, administrators can protect a VM and its

application by assigning its IO flow to a specific priority level. The QoS priorities are

enforced at the hardware level, thereby providing adequate bandwidth during

periods of high congestion. Applications such as email and databases achieve better

performance when deployed in specific SAO and MSA configurations.

Small Business SAN

Starter Kit

HP P2000 G3 FC MSA Dual Controller Small Business SAN Starter Kit

AP847B

The HP P2000 G3 FC MSA Dual Controller Small Business SAN Starter Kit is a unique

end-to-end 8 Gbps SAN Solution, just add disks and power. This kit includes one 8

Gbps P2000 G3 FC MSA Dual Controller Array (LFF Chassis), four 8 Gbps FC HBAs, two

HP SN6000 Stackable 8 Gbps 8-port FC switches, twelve 8Gb FC SFPs, eight HP 5M

FC cables and HP unique Simple SAN Connection Manager (SSCM) SAN management

software, cables, rails and optics. SSCM is the only SAN management software that

can manage the FC switch, HBA and provision HP storage from a single pane of

glass.

Application Solutions

The HP P2000 SAN is the ideal solution for customers running Oracle, Microsoft, SAP environments and

those customers who are deploying virtual server technologies like VMware, Hyper-V, and Oracle

Virtual Machine. The HP P2000 SAN delivers enterprise functionality that enhances virtual

environments, simplifies management, and reduces costs. Easy to deploy, scale and maintain, HP

P2000 SANs ensure that crucial business data remains available.

HP has developed best-in-class expertise in Oracle, Microsoft, SAP, and Virtualization Hypervisor

technology through extensive testing with the HP P2000 SAN, HP servers, and management software;

high availability and disaster recovery solutions; and backup and recovery on the Oracle, Microsoft,

and SAP application platforms. As a result, our customers can expect a wide range of operational and

business benefits where they can:

 Deploy IT assets across multiple locations.

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Features

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 11

 Incrementally grow storage without interruption.

 Enable high availability and disaster recovery capabilities for critical applications.

 Deploy a remote disaster recovery site.

Learn more

To learn more about specific HP Storage Solutions that are built with Oracle, Microsoft, SAP and

Virtualization environments in mind, visit the solution sites supporting each of these applications.

HP Storage for Oracle hyperlink to: http://www.hp.com/storage/oracle

HP Storage for Microsoft hyperlink to: http://www.hp.com/storage/microsoft

HP Storage for SAP hyperlink to: http://www.hp.com/storage/sap

HP Storage for VMware hyperlink to: http://www.hp.com/go/vmware/storage

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Family Information

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 12

P2000 G3 FC

P2000 G3 SAS

P2000 G3 10GbE iSCSI

P2000 G3 iSCSI (1GbE)

Capacity

Minimum / with maximum

additional drive

enclosures

LFF: 7.2 TB SAS

or 72 TB SAS MDL or 24

TB SATA MDL

w/ 7 LFF enclosures:

57.6 TB SAS,

576 TB SAS MDL or 192

TB SATA

SFF: 28 TB SAS

or 24 TB SAS MDL or 12

TB SATA MDL

w/ 5 D2700 JBODs:

178 TB SAS

or 149 TB SAS MDL or

74.5 TB SATA MDL

LFF: 7.2 TB SAS

or 72 TB SAS MDL or 24

TB SATA MDL

w/ 7 LFF enclosures:

57.6 TB SAS,

576 TB SAS MDL or 192

SATA

SFF: 28 TB SAS

or 24 TB SAS MDL or 12

TB SATA MDL

w/ 5 D2700 JBODs:

178 TB SAS

or 149 TB SAS MDL or

74.5 TB SATA MDL

LFF: 7.2 TB SAS

or 72 TB SAS MDL or 24

TB SATA MDL

w/ 7 LFF enclosures:

57.6 TB SAS,

576 TB SAS MDL or 192

TB SATA

SFF: 28 TB SAS

or 24 TB SAS MDL or 12

TB SATA MDL

w/ 5 D2700 JBODs:

178 TB SAS

or 149 TB SAS MDL or

74.5 TB SATA MDL

LFF: 7.2 TB SAS

or 72 TB SAS MDL or 24

TBSATA MDL

w/ 7 LFF enclosures:

57.6 TB SAS,

576 TB SAS MDL or 192

TB SATA

SFF: 28 TB SAS

or 24 TB SAS MDL or 12

TB SATA MDL

w/ 5 D2700 JBODs:

178TB SAS

or 149 TB SAS MDL or

74.5 TB SATA MDL

Controller Cache

2 GB per controller

2 GB per controller

2 GB per controller

2 GB per controller

Total LUNs

LUN sizes greater than

40TB depending on the

RAID configuration chosen

512

maximum LUN size:

64TB

512

maximum LUN size:

64TB

512

maximum LUN size:

64TB

512

maximum LUN size:

64TB

Host connect

P2000 & MSA2000 have 1

or 2 controllers, EVA has 2

controllers standard

Two 8 Gb

Fibre Channel ports or

Two 8Gb FC and two

1GbE iSCSI ports

per controller

Four 6 Gb (x4)

SAS ports

per controller

Two 10 GbE iSCSI ports

per controller

Four 1 Gb

iSCSI ports

per controller

Maximum Drives

w/ expansion

96 LFF/149 SFF

96 LFF/149 SFF

96 LFF/149 SFF

96 LFF/149 SFF

Maximum host supported

(dual controller)

64

64

w/ SAS switch: 32 single

blade servers (2x

c7000), or 16 dual

density blade servers

64

64

Optional software:

Snapshot, clone,

Remote Snap

Snapshot, 64 standard

(max 512)

Clone (standard)

Remote Snap (optional)

Snapshot, 64 standard

(max 512)

Clone (standard)

Snapshot, 64 standard

(max 512)

Clone (standard)

Remote Snap (optional)

Snapshot, 64 standard

(max 512)

Clone (standard) Remote

Snap (optional)

Use for Storage

Primary Storage

with SAS drives.

Secondary with SATA

Primary Storage

with SAS drives.

Secondary with SATA

Primary Storage

with SAS drives.

Secondary with SATA

Primary Storage

with SAS drives.

Secondary with SATA

NOTE: maximum available storage capacity depends on the RAID level being implemented

Product Technology

8Gb Fibre Channel

controller

Two host ports per FC controller shipped with SFPs. The P2000 G3 FC controller can run in either point-

to-point or FCAL (loop). The default is FCAL which is used in Direct Connect, particularly with two

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Family Information

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 13

controllers. The PtP (fabric) mode is used with almost all switches.

Combo controller with FC

and iSCSI ports

This ingenious dual-protocol "combo" controller supports a full FC SAN through the 8Gb FC ports, while

designating the two 1 GbE iSCSI ports to enable remote replication over iSCSI protocol and perform as

an iSCSI target. This allows economical sharing of the storage resource (the P2000 G3 array) with one

department needing the performance afforded by the 8 Gb FC ports while simultaneously supporting

another department with lesser performance needs and a budget only allowing a 1GbE iSCSI network.

6Gb SAS controller

Four 4x host ports per 6Gb SAS controller.

10GbE iSCSI controller

Two 10GbE ports per G3 10GbE iSCSI controller. Ports are ready for the choice of SFP (none included)

Supports the ProCurve and ISS versions of the following 10GbE parts for use in the controllers:

HP 10Gb Cables

 HP SFP+ 10GbE Copper Cable

 HP ProCurve 10-GbE SFP+-SFP+ Direct Attach Cable

HP SFP+ Transceivers

 HP BladeSystem 10Gb SR SFP+ and HP BladeSystem 10Gb LRM SFP+

 HP ProCurve 10-GbE SFP+ SR Transceiver and HP ProCurve 10-GbE SFP+ LRM Transceiver

 No SFP+ LR Transceiver support

1 Gb iSCSI controller

Four 1 Gb Ethernet iSCSI ports per G3 iSCSI controller

Modular Chassis

2U rack height. 12 Large Form Factor or 24 Small Form Factor drive bays, accommodating SAS and

SATA. Comes with space for one or two controllers, or P2000 3.5-inch disk Enclosure I/O modules (LFF

chassis only)

Drives available

The P2000 G3 controllers support both the P2000 3.5-inch Large Form Factor (LFF) drives, and the HP

Storage 2.5-inch Small Form Factor (SFF) drives.

 Serial Attached SCSI (SAS) enterprise-class drives are designed for high demand, 24x7 usage.

 SAS Midline and SATA Midline are usually reserved for archival of data as they are both

relatively inexpensive and are available in very large capacities.

The HP entry-level family of arrays can accommodate both SAS and SATA drives within the same

enclosure making it ideal to have both business-critical, high activity files on SAS drives while using

Snapshot, clone, or Remote Snap capability to keep back-up or archival data on the less expensive

drives.

For investment protection, the controllers will support single and dual port SAS & SATA drives in a

legacy single - or dual - domain MSA70. This support allows current owners of MSA70s to migrate their

single port drives (in their MSA70 only, not into the array head) to be attached to a P2000 G3 FC or SAS.

They can only cascade to another single I/O MSA70. This is not a data-in-place transition, and overall

performance could be impacted.

SAS drive performance can be approximately 30% greater than SATA performance on sequential host

I/O. SAS performance excels in sequential lower latency response time and random I/O per second

transaction performance due to higher rpm disk speeds yielding lower seek times. SAS drive random

performance is generally twice that of SATA drives.

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Family Information

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 14

NOTE: P2000 and MSA2 3.5-inch Large Form Factor (LFF) drives are for use only in the P2000 G3 or

MSA2000 models. The 2.5-inch Small Form Factor (SFF) drives are supported only with the P2000 G3

or the MSA2300 G2 controllers and are Storage hot-plug 2.5-inch drives.

Optional Disk enclosures

Just as the user has a choice of chassis for the array head (LFF and SFF drive bays, AC or DC powered),

so also do they have a choice of expansion disk enclosures accommodating either drive size. Both the

P2000 and the D2700 disk enclosures can be hot-added to an operating array.

(NOTE: these are not supported as part of a NEBS-certified configuration with the MSA Carrier Grade

Chassis. There is a certified JBOD listed in the Carrier-grade section)

P2000 3.5 - inch drive enclosure. This 2U storage enclosure (AP843B) is designed to support twelve

Storage 3.5 - inch Universal form factor (LFF) 6Gb SAS or SATA hard drives. It ships standard with dual

I/O modules installed.

 This 3.5-inch drive enclosure can be attached to either the P2000 G3 FC or SAS LFF or SFF

array head.

 Each configured model ships standard with two .5m mini-SAS to mini-SAS cables for

cascading to other P2000 drive enclosures

 Up to seven P2000 3.5-inch enclosures can be attached to a P2000 G3 FC, FC/iSCSI Combo, or

SAS controller in the array head.

D2700 2.5-inch drive enclosure. This 2U storage enclosure (AJ941A) is designed to support twenty

five ProLiant 2.5-inch Universal form factor (SFF) 6Gb SAS or SATA hard drives. It ships standard with

dual I/O modules installed.

 This 2.5-inch drive enclosure can be attached to a P2000 G3 controller (SFF or LFF) array head

 The D2700 enclosure ships with a two .5m miniSAS to miniSAS cable.

 Up to five D2700 may be attached to the P2000 G3 array head, given total support for 149

SFF drives.

Scalability

The P2000 G3 FC, Combo FC/iSCSI, SAS, 1 Gb or 10GbE iSCSI controllers are designed to allow an

installation to begin with smaller capacity and be able to grow gradually as needed. The flexibility of

SAS or SATA drive technology, form factors, sizes, speeds, and costs per GB allows a system to easily

fit in almost any budget.

 Large Form Factor configurations can scale up to 7.2 TB SAS, 72 TB SAS MDL or 24 TB SATA,

expandable to 57.6 TB SAS, 576 TB SAS MDL or 192 TB SATA with the addition of a maximum

of seven P2000 3.5-inch Drive Enclosures.

 Small Form Factor configurations can scale from 21.6 TB SAS, 24 TB SAS MDL or 12 TB SATA

MDL. With the addition of five D2700 JBODs, the P2000 G3 can support 134 TB SAS, 149 TB

SAS MDL or 74.5 TB SATA MDL.

 Users may configure a 24-drive P2000 G3 SFF array head with 12-drive LFF P2000 3.5-inch

disk enclosures. This is an excellent method for a configuration that supports fast SFF

enterprise-class SAS drives in the array head, combined with economical LFF drives staged for

archival purposes, all in the same array.

 Qualification of larger capacity drives is ongoing.

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Family Information

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 15

Vdisks

Vdisks can span across multiple enclosures, where drives used in the Vdisk can be contained in

different enclosures. The maximum number of drives that can be used in RAID 1 Vdisk is 2; RAID 0, 3, 5,

6, and 10 is 16; and for RAID 50 Vdisk is 32.

LUNs

The HP 2000 family of arrays supports 512 LUNs (total volumes in a dual controller system) and LUN

sizes up to 64 TB depending on the RAID configuration chosen. The array supports expansion and

deletion of any LUN.

RAID 0, 1, 3, 5, 6, 10, 50

In addition to the usual RAID levels, the P2000 G3 features several important additional levels. RAID 6

is the highest level of RAID protection. It allocates two sets of parity data across drives and allows

simultaneous write operations. It can withstand two simultaneous drive failures without downtime or

data loss. RAID 10 is mirroring and striping without parity. It is the most popular of the multiple RAID

levels, allowing large arrays with high performance in most cases and superior fault tolerance. RAID 50

combines the block striping and parity of RAID 5 with the straight block striping of RAID 0, yielding

higher performance than RAID 5 through the addition of RAID 0, particularly during writes.

Performance

Performance numbers are a guideline as established by tests using RAW I/O in an Operating System

Agnostic test lab environment. 144 GB 15K SAS drives were used in a dual controller configuration of

12 vdisks consisting of twelve disks per vdisk, 1.6 TB volumes, and 3 volumes per host. 4 hosts directly

attached to the P2000 G3 array were used in this test configuration (results cannot be expected with a

single host). Results were achieved in Sequential Writes with 256K blocks; all random tests were based

on 8K block sizes.

NOTE: Number and type of applications, drive type and number of drives, operating system used, and

the number of hosts will affect overall performance. This table is provided strictly as a test-lab

comparison. Note: These numbers reflect a full array configuration with the maximum number of

front-end ports, disks, and controllers. The test results shown for the P2000 G3 are designed to give a

conservative reference point for comparisons.

2000 Array

Performance

P2000 G3 FC

P2000 G3

SAS

P2000 G3 10GbE

iSCSI

P2000 G3 1GbE

iSCSI

Protocol (host

connect)

8 Gb

Fibre Channel

6 Gb

SAS

10Gb

Ethernet

1 Gb

Ethernet

2000 RAID 10 Performance Results

Sequential Reads

MB/s

1,650

1,650

1,600

550

Sequential Writes

MB/s

850

850

800

525

Random Mix IOPs

60/40 read/write

20,500

23,500

18,500

17,200

2000 RAID 5 Performance Results

Sequential Reads

MB/s

1,650

1,650

1,600

550

Sequential Writes

MB/s

1,300

1,350

1,000

525

Random Mix IOPs

60/40 read/write

14,000

16,000

12,500

9,400

2000 RAID 6 Performance Results

Sequential Reads

MB/s

1,650

1,650

1,600

550

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Family Information

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 16

Sequential Writes

MB/s

1,300

1,100

1,000

525

Random Mix IOPs

60/40 read/write

8,300

9,800

7,500

5,600

Refer to the paper titled "Upgrading the HP MSA2000 (G1 or G2) to the P2000 G3 MSA ", available in

the Resource Library at: www.hp.com/go/p2000.

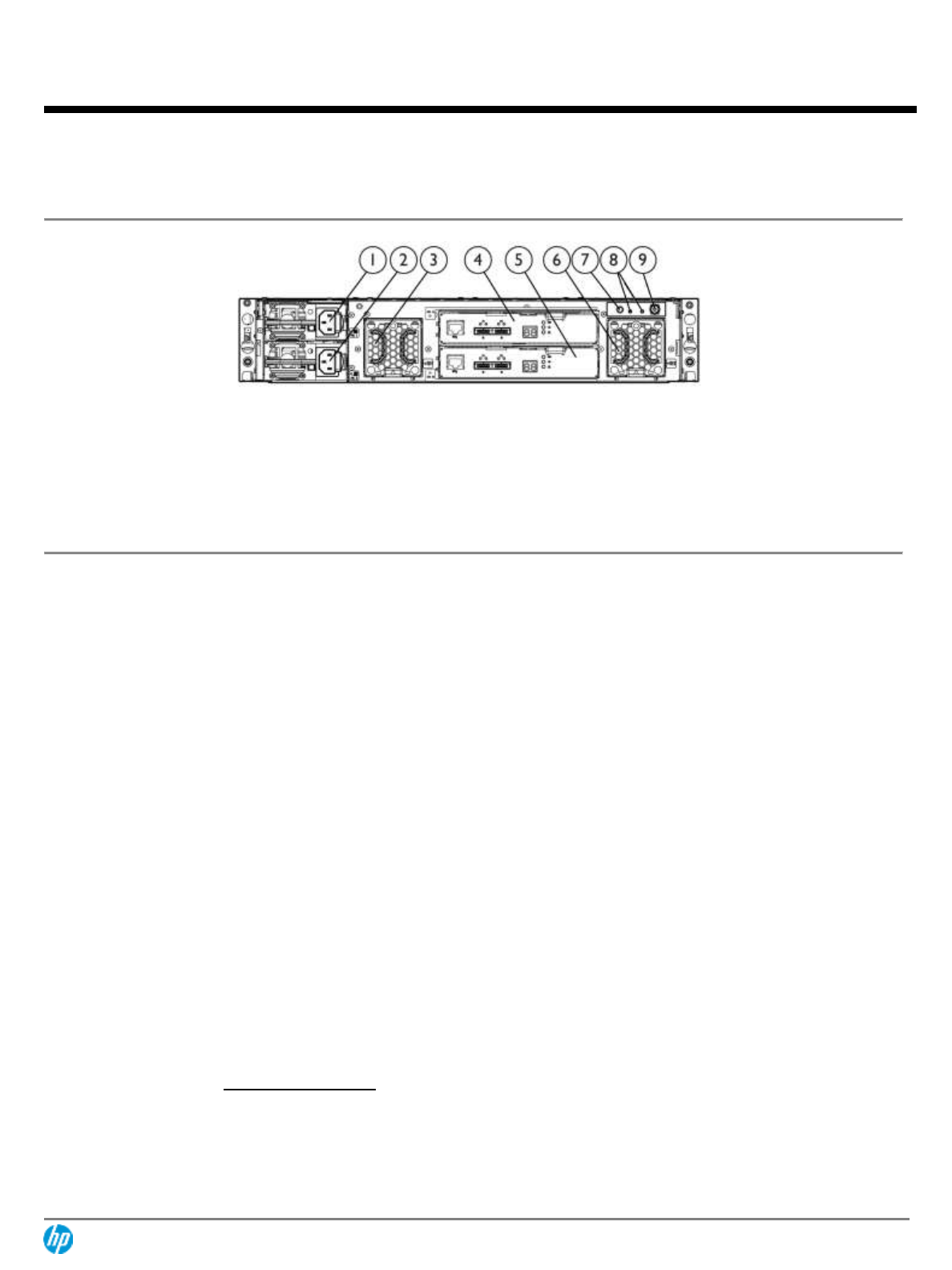

DC-power chassis

HP is making the two models of controller-less chassis available with direct current (DC) power

supplies. They each have the two empty bays where users can insert one or two P2000 G3

controller(s). In addition, the P2000 chassis with LFF drive bay can have P2000 3.5-inch I/O modules

inserted to create a LFF DC-power JBOD.

The 500 watt power supply is designed to operate over the input range of -40VDC to -75VDC.

SKU

HP P2000 DC-power LFF Chassis

AP840B

(supports up to 2 controllers or I/O modules)

HP P2000 DC-power SFF Chassis

AP841B

Configuration and

Management Tools

HP Storage Management Utility (SMU). Management access, out-of-band: WEB GUI, CLI. Interface

Types: USB, 10/100 Ethernet. Protocols Supported SNMP, SMI-S, SSL, SSH, SMTP, FTP, HTTP, Telnet

P2000 Software and

Documents

Support CD

 All product documentation (CD can be used on ALL supported server Operating Systems.)

 MSA Device Discovery Tool (Win and Linux) - reports P2000/MSA HW devices, and supported

storage software

 Host Software Bundles (Win and Linux for both ProLiant x86, ProLiant x64 and Integrity

IA64servers)

 CD updated quarterly on HP.com with sustaining firmware updates

 The P2000 G3 contains an embedded SMI-S provider for use by SMI-S client applications. The

embedded provider is designed to support P2000 configurations with up to 24 hard drives,

and up to 250 mapping paths. A mapping path is defined as a P2000 volume presented

through a P2000 target port to a Host initiator.

Hot Plug Expansion and

Replacement Support

All P2000 G3 models support hot plug expansion and replacement of redundant controllers,

enclosures, fans, power supplies, and I/O modules for simple, fast installation and maintenance. Hot

add expansion of disk enclosures is also supported.

Snapshot and Clone

All G3 arrays come standard with 64 snaps, 512 snaps available. Controller based functionality. Offers

higher levels of data protection, enabling an almost instant recovery from data failure or corruption.

Offers alternative development testing of 'offline' production data and the ability to backup

snapped/cloned data.

Overview

The P2000 G3 arrays come integrated with web browser and CLI based software for storage and RAID

management, setup, configuration, and troubleshooting. This reduces the cost of ownership by

reducing the training and technical expertise necessary to install and maintain your HP storage

solution.

The SPOCK database provides interoperability information for thousands of components and millions

of component combinations. It is available to all users at http://www.hp.com/storage/spock.

Server Compatibility

NOTE: depends on

protocol

Supports most HP ProLiant, BladeSystems and Integrity servers including

 HP ProLiant DL, ML

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Family Information

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 17

 HP c-Class Blade Servers

 Integrity servers, IA64 (FC and FC/iSCSI support only)

 Compatibility must be confirmed at: http://www.hp.com/storage/spock

Industry Standard

servers support

 Supports most multi-vendor industry standard 32-bit Intel and AMD based (x86) servers. HP

requires the Third-Party Server to be logo'd and listed on the Microsoft Windows Server

Catalog.

 Refer to the Microsoft website: http://www.microsoft.com/windows/catalog/server/

 HP Division recommends that the Third-Party Server Vendor is an active member of TSANet.

Refer to the TSANet website for details: www.tsanet.com

 Non-HP servers will generally be supported if the HP storage stack is used. This includes

supported HP branded HBAs and drivers, and supported FC switches.

OS Support

Fibre Channel ports

Refer to the HP support statements for complete current OS version support:

http://www.hp.com/storage/spock

 Microsoft Windows Server 2012

 Microsoft Windows Server 2008 IA32, x64, IA64 (Standard, Enterprise, Datacenter)

 Microsoft Windows Server 2008 R2 x64

 Microsoft Windows 2003 SP1, SP2, and R2 and 2003 R2 IA32, x64

 HP-UX

 Red Hat Linux (32/64)

 SuSE SLES (32/64)

 Microsoft Windows Server 2008 x64 Hyper-V

 VMware

 OpenVMS

 Apple Mac OS X (requires ATTO Celerity 8Gb FC HBA)

 Solaris 10 (x86)

OS Support

Fibre Channel Ports

(Integrity)

 HP-UX

 Windows

 OpenVMS

 Linux

OS Support

1GbE iSCSI ports

on the G3 Combo FC/iSCSI

Controller

 Microsoft Windows Server 2012

 Microsoft Windows Server 2008 and 2008 R2 (x64, IA64)

 Microsoft Windows Server 2008 x64 Hyper-V

 Microsoft Windows 2003 (SP1, SP2, and R2) and 2003 R2 (IA32, x64)

 Red Hat Enterprise Linux (32/64)

 SuSE Linux IA32, x64

 VMware ESX

OS Support

G3 SAS Controller

Refer to the HP support statements for complete current OS version support:

http://www.hp.com/storage/spock

 Microsoft Windows Server 2012

 Microsoft Windows Server 2008 IA32, x64

 Microsoft Windows Server 2008 R2

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Family Information

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 18

 Microsoft Windows 2003 and 2003 R2 IA32, x64

 Red Hat Linux (32/64)

 SuSE SLES (32/64)

 Microsoft Windows Server 2008 x64 Hyper-V

 VMware

 Solaris 10 (x86)

OS Support

G3 1Gb iSCSI Controller

 Microsoft Windows Server 2012

 Microsoft Windows Server 2008 SP1, SP2, R2

 Microsoft Hyper-V (x64 only)

 Microsoft Windows Server 2003 and 2003 R2, SP2

 VMware

 Red Hat Linux (32/64)

 SuSE SLES (32/64)

OS Support

G3 10GbE iSCSI Controller

 Microsoft Windows Server 2012

 Microsoft Windows Server 2008 SP1, SP2, R2

 Microsoft Hyper-V (x64 only)

 Microsoft Windows Server 2003 and 2003 R2, SP2

 Red Hat Linux (32/64)

 SuSE SLES (32/64)

 VMware

NOTE: the G3 10GbE array must connect to a 10GbE switch; direct connect to the G3 10GbE array must

be to a 10GbE NIC and supported by the OS.

Web Browser support

 The P2000 G3 and the older MSA2000 support target based management, and include a Web

interface and a telnet interface, and require a web browser for management.

 The P2000 G3 FC requires Microsoft Internet Explorer V7.x or V8.x

 The original MSA2000 and the MSA2000 G2 arrays require Microsoft Internet Explorer V6.X and

V7.X (strongly encouraged)

 Mozilla Firefox 1.0.7 or later is supported

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Hardware

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 19

VMware Site Recovery

Manager (SRM)

VMware Site Recovery Manager (SRM)

VMware vCenter Site Recovery Manager (SRM) is an extension to VMware vCenter that delivers

business-continuity and disaster-recovery solution that helps you plan, test, and execute the recovery

of vCenter virtual machines. SRM can discover and manage replicated datastores, and automate

migration of inventory from one vCenter to another. Site Recovery Manager integrates with the

underlying replication product through a Storage Replication Adapter (SRA).

HP P2000 Site Recovery Adapter (SRA)

The HP P2000 SRA, a free-to-use plugin, is the program that integrates the VMware cCenter SRM with

HP P2000 G3 arrays. It enables full-featured use of the VMware SRM. It is a host-software component

installed on a Microsoft Windows Server that enables disaster recovery management (DRM) software

on the host to communicate and control certain aspects of the replication feature in storage systems

connected to the server. It allows the VMware SRM software to automatically coordinate virtual

machine failover and failback between a protected data center and a disaster recovery site by

employing a disaster recovery solution called Remote Snap. A perfect combination of the Remote Snap

replication and VMware SRM provides an unfailing automated solution for implementing and testing

the disaster recovery between sites located across geographies. It enables communication between

the HP P2000 Remote Snap replication functionality that is embedded in HP P2000 Fibre Channel, iSCSI,

and Combo Fibre Channel systems. Users are required to acquire Remote Snap license for their local

and remote HP P2000 G3 arrays to use the HP P2000 SRA.

Site Recovery Manager Requirements/Dependencies:

 Requires vSphere 5.0/SRM 5.0

o Not compatible with SRM 4.x

 Requires HP's P2000 SRA 2.0 Plug-in (downloadable from Hp.com)

 SRM works with Remote Snap functionality

o Requires purchase of P2000 G3 Remote Snap licenses (one for each site)

 Customers must upgrade to T240 or the latest firmware

 SRM works with FC, iSCSI or Combo controllers only

HP Insight Control

Storage Module for

vCenter

HP Insight Control Storage Module for vCenter

HP Insight Control Storage Module for vCenter is a component within the HP Insight Control plug-in for

vCenter. It provides VMware administrators that are using VMware's vSphere management console

(vCenter) with the ability to see how virtual machines are mapped to datastores and individual P2000

volumes. By providing these clear relationships between VM's, datastores and storage, the VMware

administrator's productivity increases, as does the ability to ensure quality of service. Roles for

administrators can be defined on an individual basis, providing the ability to apply specific permissions

for both view and control functions.

The HP Insight Control Storage Module for vCenter supports mixed array environments including EVA,

P4000, P2000 (MSA), and the XP array series including the P9500.

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Hardware

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 20

When deployed with the P2000 array, provides the following:

 Active Management functionality for the P2000 array:

o Create/Expand/Delete a Datastore

o Create a Virtual Machine from a template

 Monitors the health and status of the P2000

 Displays LUN / volume connections from VMs and ESX servers to the arrays and provides the

location and attributes of the P2000 within the SAN

 Identifies what storage features are available to allow administrators to match the features

available on the P2000 to their requirements

 Provide a cluster-level view of the storage

HP Insight Control Storage Module for vCenter is downloadable from Software Depot:

https://h20392.www2.hp.com/portal/swdepot/displayProductInfo.do?productNumber=HPVPR

For more information on HP Insight Control Storage Module for vCenter visit: www.hp.com/go/vmware

vStorage API for Array

Integration (VAAI)

The vStorage API for Array Integration (VAAI) is one of the storage application programming interface

(API) sets in vSphere 4.1. VAAI is an API storage partners can leverage to enhance performance of

virtual machine (VM) management operations by delegating these operations to the storage array.

With hardware offload, ESX/ESXi hosts perform certain operations faster and consume less server CPU

and memory resources, and also storage port and storage fabric bandwidth. VAAI includes high

performance and scalable VM data path primitives. HP introduced VAAI support for HP MSA P2000

Storage array products starting with the T230 firmware release.

Storage Hardware Primitives for VAAI

In the VMware vSphere 4.1 release, the HP StorageWorks P2000 G3 MSA Array Systems offload

capabilities support the following three primitives:

 Full Copy or Hardware Assisted Move

 Block Zeroing or Hardware Assisted Zeroing

 Hardware Assisted Locking or Atomic Test and Set (ATS)

HP Storage Management

Pack for Microsoft

System Center

The HP Management Pack for Systems Center Operations Manager provides seamless integration with

Microsoft Systems Center Operations Manager and now System Center Essentials by integrating

predefined discovery and state monitoring policies, event processing rules and tasks, and diagram and

topology views for the storage system.

For more information:

http://h18000.www1.hp.com/products/quickspecs/14249_div/14249_div.html

HP Storage Management Pack can be downloaded free from the following website:

https://h20392.www2.hp.com/portal/swdepot/displayProductInfo.do?productNumber=SCOM

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Hardware

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 21

Snapshot and Volume

Copy Software for the

P2000 G3

Product Features

Data Protection

 Snapshots create up to 512 point-in-time pictures of data (512 snaps are exclusive to the

P2000 G3)

 Volume Copies create up to 128 point-in-time copies of data

 Recovery is instant - revert data from any previous Snapshot or Volume Copy

 Backup 'snapped' data to disk, virtual tape, or physical tape without a backup window

 A 64 snapshot license and Volume Copy are included with all P2000 G3 models.

 Support and updates are desired for bundled software functionalities (such as 64 LTU Snap

and/or Volume Copy etc. in the P2000 G3 products) a combination HW + SW support care pack

must be purchased.

 HP does not provide warranty assistance for software products included with our base

hardware products. This would either be SupportPlus or SupportPlus24. The hardware

warranty component of these services is accounted for in the pricing of the SP and SP24 care

packs.

Data Testing

 Snap or clone data to test the performance of a software application on 'offline' production

data

 Snap or clone data to test how a software patch or enhancement will function on 'offline;

production dat0061

P2000 G3 Snapshot and Clone:

G3 controllers/models come STANDARD with 64 snapshots and Volume Copy software

512 Snapshot option is ONLY available and supported with the G3, not the prior generation MSA2000

models

HP P2000 Array System Snapshot 512 Software LTU

TA806A

HP P2000 Array System Snapshot 512 Software E-LTU

TA806AAE

MSA2000 and MSA2000 G2 Snapshot and Volume Copy (clone) software:

Snapshot and Volume Copy software is optional on models other than the P2000 G3.

The following skus are designated for use by the MSA2000 G2 models. They are neither necessary nor

available for the P2000 G3 FC.

HP 2000 Modular Smart Array Volume Copy Software LTU

T5514A

HP MSA Recovery Manager Software

Overview

MSA Recovery Manager (RM) intelligently creates and manages application specific snapshots that can

be used to quickly restore application instances or databases. This optional software delivers a

standalone solution to augment your existing backup software strategy. It provides seamless

integration with HP P2000 G3 storage hardware.

Recovery Manager currently supports Microsoft Exchange and Microsoft SQL. Integrated with HP and

3rd party back up applications, RM provides reliable data recovery. Recovery Manager is integrated

with Microsoft Volume Shadow Copy Service (VSS) to make non-disruptive point-in-time copies of

Microsoft Exchange and Microsoft SQL databases for constant data protection. RM eases costs and

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Hardware

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 22

administration by providing rapid, affordable online recovery of Microsoft® SQL Server databases from

multiple, highly granular point-in-time snapshots. Quickly recover a database to a known point in time,

speeding up a variety of operations including rapid recovery of the production SQL server.

For more information please visit www.hp.com/go/recoverymanager

What's New

 Support for Microsoft Exchange and Microsoft SQL.

 Integration with HP and 3rd party backup tool allowing backup to tape and/or disk.

 Instant Recovery designed to respond to your needs for 24x7 application availability.

 Support on multiple Windows platforms.

Models

HP MSA Recovery Manager Software LTU

TC399A

HP MSA Recovery Manager Software E-LTU

TC399AAE

Licensing

 HP Recovery Manager Software is licensed per single array. One license is

required for each array that contains data, specific to applications being

supported by RM, intended for backup and recovery scenarios.

 The above license is applicable for all the applications currently supported.

 License bought for a specific array may not work on another similar array.

NOTE: Electronic software is available in all countries except China and Japan. For

China and Japan should order the physical equivalent

Product Highlights

Features

 Creates VSS based Point-In-Time snapshots.

 Supports mount, deletion of snapshots.

 Schedules snapshot creation.

 Single GUI & CLI for managing SQL and Exchange and for performing all

management.

 Auto-discovers applications - SQL and Exchange.

 Group level (Instance/Storage group) or single database level snapshot

creation.

 Recovery of database based on point-in-time snapshots or media backup.

 Exchange Database Integrity check using Microsoft utilities.

 Integrates with HP Data Protector & Symantec Netbackup for Media Backup

& recovery.

 Supports 2 types of recovery:

 Volume Recovery

 File Copy Recovery

 Supports recovery from tape backup.

 Supports snapshot policy management (snapshot rotation).

 Supports Microsoft Cluster Server (MSCS), Cluster Continuous Replication

(CCR) and Data Availability Group (DAG) environments.

Applications and Platform

 Supports SQL 2005, 2008 & R2, Exchange 2007, 2010.

 Supports Windows platforms as supported by the above applications.

Supports P2000 G3 (FC/ISCSI/SA).

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Hardware

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 23

HP P2000 Remote Snap

Software

(G3 FC and FC/iSCSI, 1GbE

and 10GbE iSCSI

controllers only)

 HP P2000 Remote Snap Software is array based software that provides remote replication on

the HP P2000 G3 MSA Array products (except SAS model). HP Remote Snap is a form of

asynchronous replication which consists of replication of block-level data from a volume on a

local system to a volume that may be on the same system or on a second independent system.

This second system may be collocated with the first system or may be located at a remote site.

It requires T230Rxx controller firmware or higher.

 HP Remote Snap functionality is based on existing Snapshot technology offered by HP P2000

SAN Array products. Snapshots are used to track the data to be replicated as well as to

determine the differences in data updated on the master volume, minimizing the amount of

data to be transferred.

 HP Remote Snap replication technology provides the ability to accomplish key data

management and protection capabilities. First, because Remote Snap uses snapshots as the

underlying technology it creates multiple local recovery points which can be used for such

tasks as to complement daily backups; second, replication provides the ability to access data in

a remote site which could be used for dispersed operations; and third but definitely not least

important replication allows for business continuance in the event of a failure on the primary

site.

 In order to perform a replication, a snapshot of the volume to be replicated is taken, creating a

point-in-time image of the data. This point-in-time image is then replicated to the destination

volume by copying the data represented by the snapshot via a transport medium such as

TCP/IP (iSCSI) or Fibre Channel. The amount of data transferred is minimized though the use of

snapshots whenever possible.

HP P2000 Array System Remote Snap Software LTU

TA808A

HP P2000 Array System Remote Snap Software E-LTU

TA808AAE

(NOTE: One license per array is required for replication. For example, if you have two

P2000 arrays performing replication (from Primary system to Remote System), you

will need 2 licenses).

Product Features

 Storage based asynchronous snapshot replication

 Initial copy of data can be performed locally, reducing burden on wide area networks

 Support of both Ethernet and Fiber Channel interconnects provides flexible options to the

application environments.

 Snapshot based replication technology means only changed data will be replicated to alternate

site

 Many to 1 replication (up to 4 nodes) - primary use case is to replicate from "many" branch

offices to the home office for the purpose of backing up data from the branches

 Single controller to single controller replication

 Mixed controller replication - replication between P2000 G3 Fibre Channel and P2000 G3

FC/iSCSI Combo arrays

 Advanced scheduler provides several options to IT administrators for business continuance

 Flexible architecture allows remote replication between P2000 G3 Fibre Channel and/or P2000

G3 FC/iSCSI Combo arrays. You can also join dissimilar controllers; for instance a Combo

controller can snap remotely to a 1 or 10 GbE iSCSI array. Protects existing investments and

enhances business continuity planning objectives.

 Replication Wizard simplifies the task of setting up and establishing replication pairs from one

unified, easy to use GUI.

 Snapshot based replication enables both local and remote recovery depending on the need.

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Hardware

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 24

Snapshot replication isolates problems to a specific point in time which can be selected by the

administrator. Additionally snapshot replication supports longer distance replication.

 Multiple relationships provide greater storage flexibility and utilization.

 Bundled 64 Snapshots and Volume Copy integration provides better efficiencies by combining

the management and array technologies to create local copies.

 Fast application recovery with minimal or no transaction loss

 Creation of disaster tolerant copies of your critical business data

 No-single-point-of-failure solution to increase the availability of your customers data

Customer Benefits

Disaster Recovery

Replication technology has typically been used to address disaster recovery issues. Disaster recovery is

still the driving business case behind replication. Remote replication can be implemented from the

production site to one or more remote sites across a campus, across town, across a state or across the

country. When a disaster strikes the primary location, the applications can be brought up at the remote

site and continue processing against the replicated copies. When the primary site is back online, the

replication can be reversed and when the data is resynchronized, processing can be switched back to

the primary site and business can continue. In the past, if an e-mail system experienced a disaster it

was an "oh well" moment. The loss of a day or more of e-mail was not considered important. Today, e-

mail is a critical component of many companies' business plans and recovering e-mail after a disaster

quickly and completely is required.

Maintenance

HP Remote Snap software can also be used to solve other business needs. For instance, E-mail servers

may need periodic maintenance that can take hours to complete. With remote replication in place, the

downtime can be minimal (as long as it takes to bring the remote peer of the primary e-mail server

online). The primary server can be worked on (patches, hardware upgrades, etc.) and then brought back

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Hardware

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 25

online and into production. A whole datacenter can be failed over to a remote site on purpose to

perform maintenance on generators, air conditioning, etc. Replication can also be used to perform a

datacenter move with minimal downtime (fail everything to the DR site, move the production

datacenter to its new location then fail the DR site back to the new datacenter).

Storage Based

Data replication is performed at the storage subsystem controller level and is totally transparent to the

host, alleviating unnecessary host cycles to perform the data mirroring functions. Unlike a fabric based

or host based solution, the storage based solution dedicates its resources to managing the replication

process between arrays, with minimal impact to applications, other data or devices on the SAN.

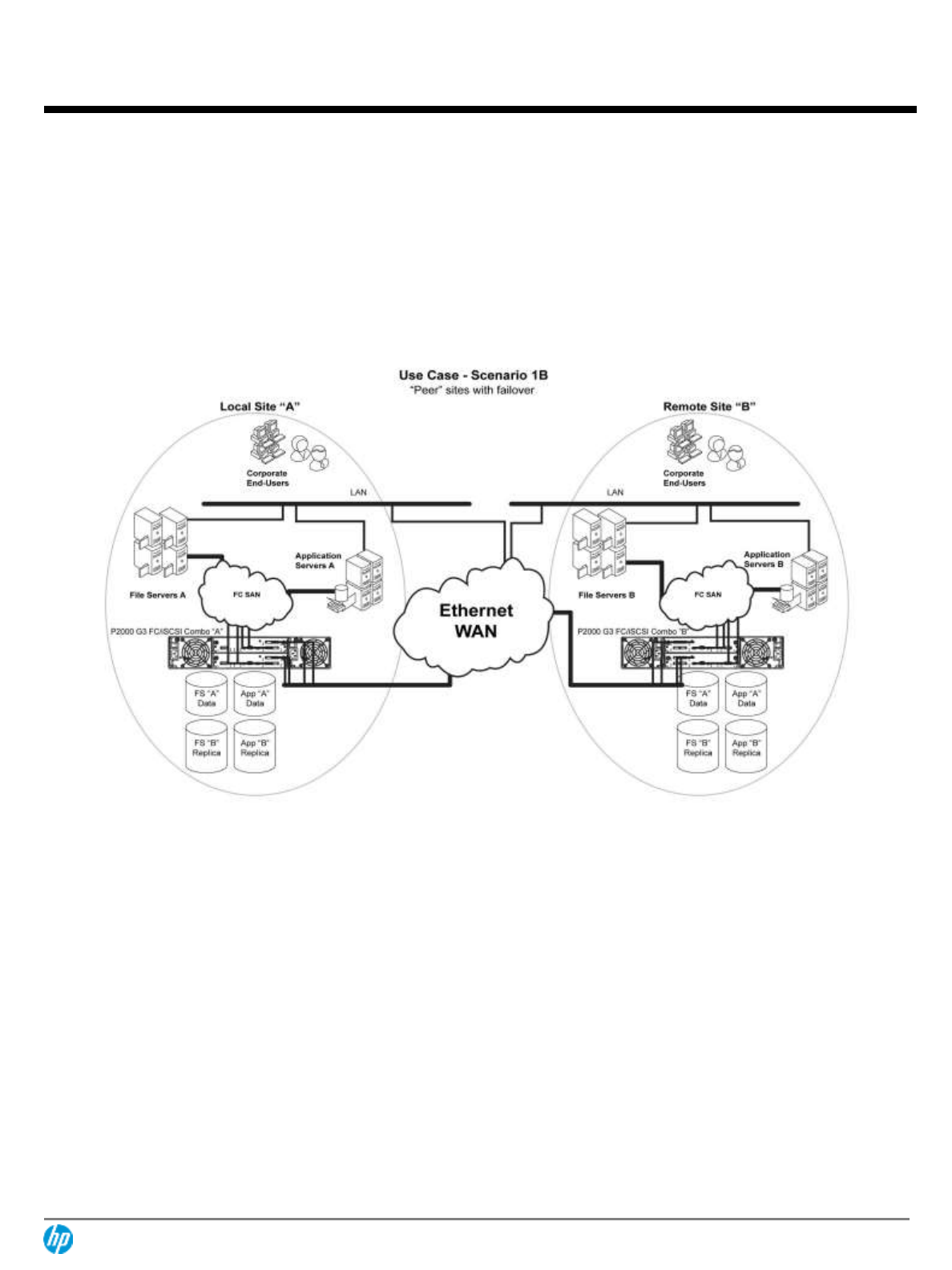

Bi-Directional

The bidirectional HP P2000 Array solution addresses the growing need among businesses to ensure

continuous availability of applications that are critical to daily business operations. HP P2000 enables

two sites in a remote replication connection to use each other as a destination to maintain replicated

copies of online data. This maximizes resource utilization while enabling business continuance, even in

the event of disaster.

Disaster Tolerance

The P2000 G3 FC products utilize snapshot data online and in real time to a remote P2000 G3 through a

local or extended storage area network (SAN). Additionally, data replication can be bidirectional,

meaning that a storage array can be both a source and a destination. A particular LUN can be replicated

in only one direction between the two storage arrays. Write I/O data sent to the source is replicated by

HP P2000 Array to the destination. A pair of properly configured HP P2000 G3 FC arrays is a replication

solution that guarantees data integrity in the event of a storage system or site failure.

Normalization (first initial copy)

When a DR site is initially created a normalization or initial copy of the data from the source volume to

the target volume must occur. The P2000 G3 array allows this first copy to take place locally. After

completion the disks can me manually moved to the remote location. Subsequent changes will only

remotely copy the changed blocks.

SAN Extensions

HP P2000 G3 Array provides the capability to replicate data over direct Fibre Channel. The distances

supported over dark fiber are determined by the speed of the dark fiber connection and the technology

used to communicate over the dark fiber.

Path failover (MPIO)

MPIO for Windows provides a single multi-path solution for HP P2000 G3 Modular Smart Array on HP

servers.

Support for Windows 2003 and Windows 2003 R2 operating systems is provided by HP MPIO Full

Featured DSM. For the P2000 G3 this version is 2.6.1.7 or greater.

Support for Microsoft Windows 2008 is bundled within the operating system

Support for Linux distributions is with Device Mapper 4.4.0 or greater.

Support for HPUX is native multipathing in HP-UX v3 and PV-Links in HP-UX v2.

HP StoreEasy 3000

Gateway Storage

Add more value to your P2000 array

HP MSA combined with HP StoreEasy 3840 Gateway Storage enables you to consolidate block and file

storage onto a single, high-performance system - giving your business the flexibility to meet changing

business needs on-demand.

The HP StoreEasy 3840 delivers efficient, secure, and highly available file services that help address

your changing file-serving needs. It reduces your cost of ownership by simplifying management,

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Hardware

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 26

increasing resource utilization, centralizing growth, and protecting data. HP StoreEasy 3840 provides a

simple and consistent experience for managing block and file storage for multiple workloads centrally.

HP StoreEasy 3840 Gateway Storage

E7X03A

HP StoreEasy 3840 Gateway Storage Blade

E7X08A

NOTE: For more information visit: www.hp.com/go/StoreEasy

HP P2000 G3

Carrier-Grade

Components

The P2000 G3 is an 8 Gb Fibre Channel connected 2U storage area network (SAN) or direct connect

solution designed for network equipment providers (NEPs) and communication service providers.

Suited for those who need a robust telecom infrastructure--- they need storage devices to catch videos,

photos, text, new services --- and need a place to have the data stored and cached.

The HP P2000 Carrier-Grade Chassis AP841B (RoHS Compliant SKU)) is a controller-less 6Gb chassis

capable of supporting one or two P2000 G3 8Gb Fibre Channel controllers (AP836A (Retiring SKU) or

AP836B (RoHS Compliant SKU)) and has twenty-four Small Form Factor (SFF) drive bays. It comes

equipped with two DC-power power supplies.

The HP P2000 2.5-in Dual I/O JBOD is a special model disk enclosure designed only for use with the

carrier-grade array heads. It has 24 drive bays (unlike the D2700 with 25 drive bays) and has dual DC-

power supplies. It is only sold with a carrier grade array. Five of these JBODs may be cascaded from the

array head.

When used in conjunction with specific Storage SFF SAS drives, the solution is NEBS certified. NEBS

level-3 certification provides the assurance that the equipment is safe to operate and sturdy enough to

withstand certain physical and environmental (for example, fire, earthquakes) conditions. For Seismic

Zone 4 rating, the P2000 must be mounted in an HP Seismic Rack (AH335A)

P2000 DC-power Carrier-grade SFF Chassis

RoHS Compliant

SKU

HP P2000 DC-power SFF Chassis

NOTE: NEBS certified

AP841B

G3 Controller 8Gb FC

HP P2000 G3 MSA Fibre Channel Controller

NOTE: (1 or 2) With two 8Gb FC ports per controller. NEBS certified.

AP836B

G3 Controller 10GbE iSCSI

HP P2000 G3 10GbE iSCSI MSA Array System Controller

NOTE: two 10GbE iSCSI ports per controller NEBS certified.

AW595B

G3 Controller 6Gb SAS

HP P2000 G3 SAS MSA Array System Controller

NOTE: (1 or 2) with four 6Gb SAS ports per controller. NEBS certified.

AW592B

HP Modular Smart Array SC08e 2-ports Ext PCIe x8 SAS Host Bus Adapter

614988-B21

SFF Carrier-grade (only) DC-power JBOD

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Hardware

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 27

HP P2000 Dual I/O DC-power Carrier-Grade SFF Drive Enclosure

NOTE: NEBS certified.

24-drive SFF bays, NEBS certified, NOTE: only sold with carrier-grade arrays

BV921B

HP MSA P2000 G3 Arrays support both the HP ProLiant Server SFF Hard Disk Drives

and HP MSA SFF Hard Disk Drives

HP ProLiant Server Hard Disk Drives

HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard

Drive

512547-B21

HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard

Drive

507127-B21

HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard

Drive

581284-B21

HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard

Drive

581286-B21

HP 900GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard

Drive

619291-B21

HP 300GB 6G SAS 15K rpm SFF (2.5-inch) Hot Plug Enterprise 3yr Warranty Hard

Drive

627117-B21

HP MSA Hard Disk Drives

Drives, carrier-grade (all NEBS certified)

HP MSA 146GB 6G SAS 15K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

E2D54A

HP MSA 300GB 6G SAS 10K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

E2D55A

HP MSA 450GB 6G SAS 10K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

E2D56A

HP MSA 600GB 6G SAS 10K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

C8S58A

HP MSA 900GB 6G SAS 10K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

C8S59A

HP MSA 300GB 6G SAS 15K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

C8S61A

Carrier-grade HBA

HP 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

NOTE: Emulex 82E

AJ763B

For more information on HP Carrier Grade Platforms go to

http://www.hp.com/products1/servers/carrier_grade/

index.html?jumpid=reg_R1002_USEN

HP P2000 Remote Snap

Software

(G3 FC and FC/iSCSI, 1GbE

and 10GbE iSCSI

controllers only)

 HP P2000 Remote Snap Software is array based software that provides remote replication on

the HP P2000 G3 MSA Array products (except SAS model). HP Remote Snap is a form of

asynchronous replication which consists of replication of block-level data from a volume on a

local system to a volume that may be on the same system or on a second independent

system. This second system may be collocated with the first system or may be located at a

remote site. It requires T230Rxx controller firmware or higher.

 HP Remote Snap functionality is based on existing Snapshot technology offered by HP P2000

SAN Array products. Snapshots are used to track the data to be replicated as well as to

determine the differences in data updated on the master volume, minimizing the amount of

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Hardware

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 28

data to be transferred.

 HP Remote Snap replication technology provides the ability to accomplish key data

management and protection capabilities. First, because Remote Snap uses snapshots as the

underlying technology it creates multiple local recovery points which can be used for such

tasks as to complement daily backups; second, replication provides the ability to access data

in a remote site which could be used for dispersed operations; and third but definitely not

least important replication allows for business continuance in the event of a failure on the

primary site.

 In order to perform a replication, a snapshot of the volume to be replicated is taken, creating

a point-in-time image of the data. This point-in-time image is then replicated to the

destination volume by copying the data represented by the snapshot via a transport medium

such as TCP/IP (iSCSI) or Fibre Channel. The amount of data transferred is minimized though

the use of snapshots whenever possible.

HP P2000 Array System Remote Snap Software LTU

TA808A

HP P2000 Array System Remote Snap Software E-LTU

TA808AAE

(NOTE: One license per array is required for replication. For example, if you have

two P2000 arrays performing replication (from Primary system to Remote System),

you will need 2 licenses).

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Service and Support, HP Care Pack, and Warranty Information

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 29

Warranty

Three-year limited warranty, parts exchange Next Business day delivery

Enclosures, Hard drives, and Options for the P2000 G3 FC carry their own warranty. Refer to HP's

Limited Warranty Statement for more information.

The P2000 G3 FC has been designed with customer self repairable parts to minimize repair time and

provide greater flexibility in performing defective parts replacement. Please refer to HP's limited

warranty Statement and parts replacement instructions for further details.

http://h18006.www1.hp.com/products/storageworks/warranty.html

Products included in various kits carry their own individual warranties.

NOTE: The warranty of the hard drive options purchased with the P2000 G3 FC, SAS, and 10GbE iSCSI

products is different for SAS hard drives versus SAS MDL and SATA hard drives. SAS hard drive options

have a three year warranty and SAS MDL and SATA hard drives options have a one year warranty.

Service and Support

Services to accelerate time to results

HP Storage Services bring you a rich portfolio of consulting and support services designed to add value

to our core storage products and solutions. We have the know-how and experience to put storage

technology to work for you. We work closely with you as your strategic partner, leveraging our full

services portfolio to make sure that everything works to optimize your enterprise.

Choose from services aligned to our storage product offerings and lifecycle. From mission-critical

onsite services to innovative web-based remote support, you choose the precise level of attention and

support your business demands.

Discover, plan, and

design

Choose from a rich portfolio of services to make the most of P2000 G3 MSA Array Systems (Goose

Island - PL Li), so you can efficiently and affordably consolidate, manage, and extract value from

unstructured data.

HP Services can help you discover needs and create a plan for simplifying the environment,

reducing risk, and maximizing your storage investments

HP Storage Efficiency Analysis - The HP Storage Efficiency Analysis provides customers with a view of

their storage infrastructure and operating environment; highlighting recommendations for

improvements. The report provides extensive insight about the existing storage environment,

opportunities for efficiency gains, asset aging and replacement through interaction with key decision

makers

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA3-6727ENW.pdf

HP Storage Impact Analysis (SIA) - The HP Storage Impact Analysis service provides a 2-4 week

discovery engagement with executive summary presentation. The goal of this service is to help

provide customers guidance on storage related issues and develop remediation plans.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-1174ENW.pdf

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Service and Support, HP Care Pack, and Warranty Information

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 30

HP Storage Cloud Design Service - Build a scalable, low-cost enterprise storage environment with

inherent cloud benefits to meet big data needs.

HP Storage Modernization Service - The HP Storage Modernization service is a 4-6 week service that

defines the customers envisioned target storage environment based on a proven solution design

methodology. HP architects will quickly perform tool-assisted automatic discovery and facilitate a

two-day strategy workshop with all key stakeholders involved in the storage infrastructure initiative

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA3-4620ENW.pdf

Deploy and integrate

We can help you configure, set up, and efficiently use P2000 G3 MSA Array Systems (Goose Island -

PL Li), as well as help migrate data, improve capacity utilization, and establish information

management standards used across backup, replication, and archiving needs.

HP MSA/P2000 Family Disk Array Installation and Startup Service - Implement right from the start,

as HP experts install, test, and configure your hardware and software onsite. We deliver a tailored

storage deployment properly integrated into your environment.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA0-3048ENW.pdf

HP Storage Data Migration Services - End-to-end data migration service providing seamless

discovery, assessment, planning, and design, completely customizable to your organization's storage

area network or network attached storage environment and using innovative software to help you

migrate to HP storage quickly and efficiently.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA3-0774ENW.pdf

HP Storage and Data Residency Service - Strategic augmentation of your current environment with

HP resources who become your trusted advisor to provide answers that are right for your storage and

backup environment. http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA3-9481ENW.pdf

HP Proactive Select - A flexible way to purchase services to fit your environment with an extensive

menu of HP Proactive Select event and technical services, such as onsite firmware upgrades, health

checks, assessments, and education.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENW.pdf

Operate and support

Choose the right support to maximize uptime, free up your resources, and achieve improved value-

as you get the most out of the existing IT assets while accelerating time-to-revenue.

HP Proactive Care 24x7 - Hardware and software support services designed specifically for your

technology with rapid access to Advanced Solution Center Specialists plus firmware and software

management and best practice advice

http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8855ENW.pdf

HP Proactive Care Advanced – Building on HP Proactive Care to give you personalized technical and

operational advice from an assigned local Account Support Manager for personalized technical

collaboration, flexible access to specialist skills to help fine-tune business critical IT, and Enhanced

Critical Incident Management to help make sure your business is not affected if you experience a

system or device outage.

HP Proactive Care Personalized Support - An option-if you have HP Proactive Care- to bring increased

personalization of the Proactive Care support experience through the assignment of an Account

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Service and Support, HP Care Pack, and Warranty Information

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 31

Service Manager (ASM) who provides IT best practice advice to help address IT issues and projects.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-3446ENW.pdf

HP Foundation Care 24x7 Service - HP Foundation Care 24x7 connects you to HP 24 hours a day,

seven days a week for assistance on resolving issues - hardware onsite response within four hours and

software call back within two hours after opening your case. Three years' coverage recommended with

HP Care Pack Service.

HP Education Services - Comprehensive training for new, as well as experienced, storage

administrators designed to expand your skills and keep you up to speed with the latest storage and

virtualization technology from HP Storage.

http://education.hp.com/curr-storsan.htm

Optimized Care - Delivers

the highest levels of

performance and stability

through deployment and

proactive management

practices

Choose from three levels of operate and support care

HP 6hr CTR Proactive Care Service

Additional options - HP Proactive Care Personalized Support (once per Proactive Care support new

environment), an additional day of HP Personalized Support, and 10 additional HP Proactive Select

credits per year, per array

Standard Care - maintains

high level of uptime, along

with expert help to cut the

cost and complexity of

implementation and

support

HP Proactive Care 24x7

Additional options - HP Proactive Care Personalized Support (once per Proactive Care support new

environment), an additional day of HP Personalized Support, and 10 additional HP Proactive Select

credits per year, per array

Basic Care - Minimum

recommended support

HP Foundation Care 24x7

Additional options - 10 Proactive Select Credits per Year

Remote

Support Automation

HP Automation provides 24x7 coverage, proactive problem prevention, accurate problem diagnosis

and faster problem resolution, as well as interactive support portals and tools. This is an integral, and

cost-free, part of your HP support relationship and we are continually investing in additional cutting-

edge capabilities to make it better.

For more information

www.hp.com/services/storage

To learn more on HP Storage Services, please contact your HP sales representative or HP Authorized

Channel Partner

HP Care Pack Services are sold by HP and HP Authorized Service Partners:

 Services for customers purchasing from HP or an enterprise reseller are quoted using HP

order configuration tools.

 Customers purchasing from a commercial reseller can find HP Care Pack Services at

www.hp.com/go/lookuptool

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Configuration Information

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 32

Configure to Order Program Information

HP has a very successful Configure to Order program for the P2000 G3 family The P2000 G3 models and options may or may not

be factory installed in a rack with add-on controllers, switches, P2000 disk enclosures and hard drives. The P2000 G3 arrays may

be integrated with ProLiant servers or as standalone storage.

Orders to be shipped through the CTO process must have a minimum of two drives of the same type (SAS, SAS MDL, or SATA)

ordered per controller. SAN Starter Kits are not eligible for CTO.

Description

Product Number

P2000 G3 Controllers & Controller-less Chassis

HP P2000 G3 FC Modular Smart Array Controller

NOTE: two 8Gb FC ports

AP836B#0D1

HP P2000 G3 FC/iSCSI Combo Modular Smart Array Controller

NOTE: two 8Gb FC ports and two 1GbE iSCSI ports

AP837B#0D1

HP P2000 G3 SAS Modular Smart Array Controller

NOTE: four 6Gb 4x SAS ports

AW592B#0D1

HP P2000 G3 10GbE iSCSI Modular Smart Array Controller

NOTE: two 10GbE iSCSI ports

AW595B#0D1

HP P2000 G3 iSCSI MSA Array System Controller

NOTE: four 1Gb Ethernet iSCSI ports

BK829B#0D1

HP P2000 Modular Smart Array 3.5-in Drive Bay Chassis (LFF)

NOTE: Will accept one or two controllers or Disk Enclosure I/O modules

AP838B#0D1

HP P2000 Modular Smart Array 2.5-in Drive Bay Chassis (SFF)

NOTE: Will accept one or two controllers, not I/O modules

AP839B#0D1

Disk Enclosures

HP P2000 Dual I/O LFF Drive Enclosure,

NOTE: twelve 3.5" drive bays

Used with single or dual controller LFF or SFF array head

AP843B#0D1

HP P2000 LFF Drive Enclosure I/O Module

NOTE: no cable included. Designed for use with blank LFF chassis AP838A

AP844B#0D1

Configured Units

HP P2000 G3 FC MSA Dual Controller LFF Modular Smart Array System

AP845B#0D1

HP P2000 G3 FC MSA Dual Controller SFF Modular Smart Array System

AP846B#0D1

HP P2000 G3 FC/iSCSI MSA Dual Combo Controller LFF Array

AW567B#0D1

HP P2000 G3 FC/iSCSI MSA Dual Combo Controller SFF Array

AW568B#0D1

HP P2000 G3 SAS MSA Dual Controller LFF Modular Smart Array System

AW593B#0D1

HP P2000 G3 SAS MSA Dual Controller SFF Modular Smart Array System

AW594B#0D1

HP P2000 G3 10GbE iSCSI MSA Dual Controller LFF Array System

AW596B#0D1

HP P2000 G3 10GbE iSCSI MSA Dual Controller SFF Array System

AW597B#0D1

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Configuration Information

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 33

HP P2000 G3 iSCSI MSA Dual Controller LFF Array System

BK830B#0D1

HP P2000 G3 iSCSI MSA Dual Controller SFF Array System

BK831B#0D1

HP D2700 Disk Enclosure

Rear Panel components

1.

Power Supply 1

4.

I/O Module A

7.

Rear UID push button

2.

Power Supply 2

5.

I/O Module B

8.

Enclosure LEDs

3.

Fan 1

6.

Fan 2

9.

Power on/standby button

D2700

HP D2700 Disk Enclosure

NOTE: 25 Small Form Factor (SFF) drive bays

AJ941A#0D1

HP MSA P2000 G3 Arrays support both the HP ProLiant Server SFF Hard Disk Drives and HP MSA SFF Hard Disk Drives

HP ProLiant Server SAS &

SATA Drives (SFF 2.5-

inch)

HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard

Drive

507127-B21

HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard

Drive

581284-B21

HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard

Drive

581286-B21

HP 900GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard

Drive

619291-B21

HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard

Drive

718160-B21

HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard

Drive

512547-B21

HP 300GB 6G SAS 15K rpm SFF (2.5-inch) Hot Plug Enterprise 3yr Warranty Hard

Drive

627117-B21

HP 300GB 12G SAS 15K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive

785099-B21

HP 450GB 12G SAS 15K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive

785101-B21

HP 600GB 12G SAS 15K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive

785103-B21

HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive

605835-B21

HP MSA SAS & SATA

Drives (SFF 2.5-inch)

12G SFF 10K SAS HDDs

HP MSA 300GB 12G SAS 10K SFF(2.5in) Dual Port Enterprise 3yr Warranty Hard Drive

J9F44A

HP MSA 600GB 12G SAS 10K SFF(2.5in) Dual Port Enterprise 3yr Warranty Hard Drive

J9F46A

HP MSA 900GB 12G SAS 10K SFF(2.5in) Dual Port Enterprise 3yr Warranty Hard Drive

J9F47A

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Configuration Information

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 34

HP MSA 1.2TB 12G SAS 10K SFF(2.5in) Dual Port Enterprise 3yr Warranty Hard Drive

J9F48A

6G SFF 10K SAS HDDs

HP MSA 300GB 6G SAS 10K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

E2D55A

HP MSA 450GB 6G SAS 10K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

E2D56A

HP MSA 600GB 6G SAS 10K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

C8S58A

HP MSA 900GB 6G SAS 10K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

C8S59A

HP MSA 1.2TB 6G SAS 10K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

E7W47A

HP MSA 146GB 6G SAS 15K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

E2D54A

HP MSA 300GB 6G SAS 15K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

C8S61A

HP MSA 300GB 12G SAS 15K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

J9F40A

HP MSA 450GB 12G SAS 15K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

J9F41A

HP MSA 600GB 12G SAS 15K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

J9F42A

HP MSA 1TB 6G SAS 7.2K SFF (2.5-inch) Dual Port Midline 3yr Warranty Hard Drive

C8S62A

NOTE: Go to the HP Hard Drive Compatibility table for complete drive compatibility

information (http://www.hp.com/products/harddiskdrives). Using hard drives in

unsupported configurations will result in voiding the warranty and could result in

damage to the drive and/or loss of data.

Step 1 - P2000 G3 - Base Configuration

Select one:

Model Name

SKU

HP P2000 Modular Smart Array 3.5-inch Drive Bay Chassis

AP838B

 Controller-less chassis with twelve Large Form Factor (LFF) drive bays. Space for two

controllers.

HP P2000 Modular Smart Array 2.5-inch Drive Bay Chassis

AP839B

 Controller-less chassis with twenty-four Small Form Factor (SFF) Storage drives bays. Space

for two controllers.

There are two array-head chassis - one with twelve 3.5-inch large form factor bays, the other with twenty-four 2.5-inch small

form factor drive bays. For an additional twelve drive bays purchase a P2000 3.5-inch Disk Enclosure. You may attach a total of

seven P2000 Drive Enclosures for a total of ninety-six LFF drive bays. For 25 additional SFF drive bays purchase D2700 JBOD. You

may attach a total of five D2700 JBODs for a total of one hundred and forty nine SFF drive bays. Dual I/O modules JBODS support

both single and dual controller arrays.

Step 2 - Options

Select each option with quantities specified.

Step 2a - Options

Quantity

Description with Parts Shipped:

SKU

1 or 2

HP P2000 G3 MSA Fibre Channel Controller

AP836B

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Configuration Information

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 35

NOTE: for either the LFF or SFF P2000 or the two DC-powered chassis

1 or 2

HP P2000 G3 MSA FC/iSCSI Combo Modular Smart Array Controller

NOTE: for either the LFF or SFF P2000 or the two DC-powered chassis

AP837B

1 or 2

HP P2000 G3 SAS MSA Array System Controller

NOTE: for either the LFF or SFF P2000 or the two DC-powered chassis

AW592B

1 or 2

HP P2000 G3 10GbE iSCSI MSA Array System Controller

NOTE: for either the LFF or SFF P2000 or the two DC-powered chassis

AW595B

1 or 2

HP P2000 G3 iSCSI MSA Array System Controller

NOTE: for either the LFF or SFF P2000 or the two DC-powered chassis

BK829B

Step 2b - SAS and SATA Drive Options

NOTE: SATA drives are designed for archival or reference data. They should not be used in a heavy or intense I/O environment.

Those situations require the use of enterprise-class SAS drives. P2000 3.5-inch drives are for use only with P2000 products.

P2000 Large Form Factor (LFF) SAS drives for P2000 G3 FC and P2000 3.5-inch Disk Enclosure

HP MSA 300GB 12G SAS 15K LFF (3.5in) Converter Enterprise 3yr Warranty Hard Drive

J9V68A

HP MSA 450GB 12G SAS 15K LFF (3.5in) Converter Enterprise 3yr Warranty Hard Drive

J9V69A

HP MSA 600GB 12G SAS 15K LFF (3.5in) Converter Enterprise 3yr Warranty Hard Drive

J9V70A

P2000 Large Form Factor (LFF) SAS MDL DP drives for P2000 G3 FC and P2000 3.5-inch Disk Enclosure

HP P2000 1TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port MDL Hard Drive

AP861A

HP P2000 2TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port MDL Hard Drive

AW555A

HP P2000 3TB 6G SAS 7.2K LFF (3.5- inch) Dual Port MDL 1yr Warranty Hard Drive

QK703A

HP MSA 4TB 6G SAS 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

C8R26A

HP MSA 6TB 6G SAS 7.2K 3.5in Midline 1yr Warranty Hard Drive

J9F36A

NOTE: Before installing >3TB HDDs in an P2000 G3 Array please update P2000 array controller firmware to

version TS230Rxxx or later

MSA2 Large Form Factor (LFF) SATA drives for P2000 array head an P2000 disk enclosure

HP MSA2 1TB 7.2K rpm LFF (3.5 inch) Dual-port SATA Hard Disk Drive

AJ740B

HP P2000 2TB 3G SATA 7.2K rpm LFF MDL Hard Drive

AW556B

HP MSA P2000 G3 Arrays support both the HP ProLiant Server SFF Hard Disk Drives and HP MSA SFF Hard Disk Drives

HP ProLiant Server Small Form Factor (SFF) SAS drives for P2000 G3 Array (24 drive bay) and the D2700 JBOD (25 drive bay)

HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

507127-B21

HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

581284-B21

HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

581286-B21

HP 900GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

619291-B21

HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

718160-B21

HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

512547-B21

HP 300GB 6G SAS 15K rpm SFF (2.5-inch) Hot Plug Enterprise 3yr Warranty Hard Drive

627117-B21

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Configuration Information

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 36

HP 300GB 12G SAS 15K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive

785099-B21

HP 450GB 12G SAS 15K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive

785101-B21

HP 600GB 12G SAS 15K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive

785103-B21

HP MSA Small Form Factor (SFF) SAS drives for P2000 G3 Array (24 drive bay) and the D2700 JBOD (25 drive bay)

12G SFF 10K SAS HDDs

HP MSA 300GB 12G SAS 10K 2.5in Dual Port Enterprise 3yr Warranty Hard Drive

J9F44A

HP MSA 600GB 12G SAS 10K 2.5in Dual Port Enterprise 3yr Warranty Hard Drive

J9F46A

HP MSA 900GB 12G SAS 10K 2.5in Dual Port Enterprise 3yr Warranty Hard Drive

J9F47A

HP MSA 300GB 12G SAS 10K 2.5in Dual Port Enterprise 3yr Warranty Hard Drive

J9F48A

6G SFF 10K SAS HDDs

HP MSA 300GB 6G SAS 10K 2.5in Dual Port Enterprise 3yr Warranty Hard Disk Drive e

E2D55A

HP MSA 450GB 6G SAS 10K 2.5in Dual Port Enterprise 3yr Warranty Hard Disk Drive

E2D56A

HP MSA 600GB 6G SAS 10K 2.5in Dual Port Enterprise 3yr Warranty Hard Disk Drive

C8S58A

HP MSA 900GB 6G SAS 10K 2.5in Dual Port Enterprise 3yr Warranty Hard Disk Drive

C8S59A

HP MSA 1.2TB 6G SAS 10K 2.5in Dual Port Enterprise 3yr Warranty Hard Disk Drive

E7W47A

HP MSA 146GB 6G SAS 15K 2.5in Dual Port Enterprise 3yr Warranty Hard Disk Drive

E2D54A

HP MSA 300GB 6G SAS 15K 2.5in Dual Port Enterprise 3yr Warranty Hard Disk Drive

C8S61A

HP MSA 300GB 12G SAS 15K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

J9F40A

HP MSA 450GB 12G SAS 15K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

J9F41A

HP MSA 600GB 12G SAS 15K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

J9F42A

HP ProLiant Server Small Form Factor (SFF) SAS MidLine drive for P2000 G3 Array (24 drive bay) and the D2700 JBOD (25 drive

bay)

HP 1TB 6G SAS 7.2K 2.5in Dual Port Midline 1yr Warranty Hard Drive

605835-B21

HP MSA Small Form Factor (SFF) SAS MidLine drive for P2000 G3 Array (24 drive bay) and the D2700 JBOD (25 drive bay)

HP 1TB 6G SAS 7.2K 2.5in Dual Port Midline 1yr Warranty Hard Drive

C8S62A

HP ProLiant Server Small Form Factor (SFF) SATA MidLine drive for P2000 G3 Array (24 drive bay) and the D2700 JBOD (25

drive bay)

(NOTE: SFF SATA drives are single ported and therefore do not have a fail-over path intrinsic to their design)

HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive

507750-B21

Step 2c - Drive Enclosure Options

P2000 Dual I/O 3.5-inch 12 Drive Enclosure

Rear Panel components

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Configuration Information

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 37

1.

Power Indicator

3.

Unit Locator

5.

SAS Out Port

2.

Fault Indicator

4.

SAS In Port

Use either disk enclosure with Large or Small Form Factor, single or dual controller array heads. Each ship with two .5m mini-SAS

to mini-SAS cables.

HP P2000 Dual I/O LFF Drive Enclosure

AP843B

HP D2700 Disk Enclosure

AJ941A

HP P2000 LFF Drive Enclosure I/O Module

NOTE: Only used in conjunction with the P2000 blank chassis (AP838A) if a single I/O disk enclosure is desired.

No cable included)

AP844B

Step 2c - SAS Cable Options

miniSAS to miniSAS Cables:

Connecting P2000 G3 FC or SAS controller to a JBOD if a longer cable is desired. Also used for attaching the

P2000 G3 SAS host ports to servers

HP External Mini SAS 2m Cable

407339-B21

Step 3 - Other P2000 G3 Options

Choose optional AC Power Cords (2 required)

NOTE: Two PDU cables: one 142263-008 (Black) and one 1422633-013 (Grey), ship standard with all AC-

powered enclosures.

Power Cord, (Australia/China/New Zealand)

227098-001

Power Cord, (Central Europe)

157215-001

Power Cord, (United Kingdom/Hong Kong)

157216-001

Power Cord, (Switzerland)

157219-001

Power Cord, (Italy)

157217-001

Power Cord, (Denmark)

157218-001

Power Cord, (Japan)

139867-001

Power Cord, (South East Asia/India)

157220-001

Step 4a - Choose Supported Options For Fibre Channel Infrastructure

Fibre Channel

Host Bus Adapters -

X86 servers

Model

Description

SKU

BladeSystem c-Class Fibre Channel Mezzanine HBAs

QLogic QMH2562 8Gb FC HBA for HP c-Class BladeSystem

451871-B21

HP BLc Emulex LPe1205- 8Gb FC HBA for HP c-Class BladeSystem

456972-B21

Brocade 804 8Gb FC HBA for HP BladeSystem c-Class, Windows, VMware, Linux

590647-B21

Fibre Channel HBAs

NOTE: Please visit www.hp.com/go/fchba for product details and

www.hp.com/storage/spock for compatibility details.

Brocade Fibre Channel HBAs

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Configuration Information

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 38

HP 81B PCI-e FC HBA Single Port

AP769B

HP 82B PCI-e FC HBA Dual Port

AP770B

HP 41B 4Gb PCI-e FC HBA

AP767B

HP 42B 4Gb Dual-Port PCI-e FC HBA

AP768B

Emulex Fibre Channel HBAs

HP 81E PCI-e FC HBA Single Port

AJ762B

HP 82E PCI-e FC HBA Dual Port

AJ763B

HP FC2142 4Gb PCI-e HBA

A8002B

QLogic Fibre Channel HBAs

HP 81Q PCI-e FC HBA Single Port

AK344A

HP 82Q PCI-e FC HBA Dual Port

AJ764A

HP FC1142 4Gb PCI-e HBA

AE311A

HP FC1242 Dual Channel 4Gb PCI-e HBA

AE312A

Fibre Channel

Host Bus Adapters -

Integrity servers

Integrity

HP 4Gb 1-port PCI-X 2.0 Fibre Channel Host Bus Adapter

AB378B

HP 4Gb 2-port PCIe Fibre Channel Host Bus Adapter

AD300A

HP 4Gb 1-port PCIe Fibre Channel Host Bus Adapter

AD299A

HP 4Gb 2-port PCIe Fibre Channel Host Bus Adapter

AD355A

HP PCIe 1-port 4Gb and 1-port 1000BT Adapter

AD221A

HP PCIe 2-port 4Gb and 2-port 1000BT Adapter

AD222A

HP PCIe 2-port 4Gb and 2-port 1000BSX Adapter

AD393A

HP PCI-X 1-port 4Gb FC and 1-port 1000BT Adapter

AD193A

HP PCI-X 2-port 4Gb FC and 2-port 1000BT Adapter

AD194A

HP PCI Express 1-port 8Gb Fibre Channel SR (QLogic) Adapter

AH400A

HP PCI Express 2-port 8Gb Fibre Channel SR (QLogic) Adapter

AH401A

HP 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

AH402A

HP 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

AH403A

Integrity server

blades

QLogic QMH2562 8Gb Fibre Channel Host Bus Adapter for c-Class

BladeSystem

451871-B21

Emulex LPe1205 8Gb Fibre Channel Host Bus Adapter for c-Class

BladeSystem

456972-B21

Fibre Channel

Switches

HP 8/8 Base SAN Switch

AM866B

HP 8/8 SAN Switch

AM867B

HP 8/24 Base SAN Switch

AM868B

HP 8/40 Base SAN Switch

AM869B

HP 8/40 Power Pack+ SAN Switch

AM870B

HP 8/80 Power Pack+ SAN Switch

AM872B

HP 8/80 Base SAN Switch

AM871B

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Configuration Information

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 39

HP 1606 Power Pack+ Extension SAN Switch

AP864B

HP 1606 Full Extension SAN Switch

AP863B

HP 1606 Base Extension SAN Switch

AP862B

HP 2408 FCoE Base Converged Network Switch

AP801B

HP 2408 FCoE Power Pack+ Converged Network Switch

AP802B

Brocade 8/12c SAN Switch for HP BladeSystem c-Class

AJ820B

Brocade 8/24c SAN Switch for HP BladeSystem c-Class

AJ821B

Brocade 8/24c SAN Switch for HP BladeSystem c-Class Power Pack+

AJ822B

Brocade 16Gb/16 SAN Switch for HP BladeSystem c-Class

C8S45A

Brocade 16Gb/28 SAN Switch for HP BladeSystem c-Class

C8S46A

Brocade 16Gb/28 SAN Switch Pwr Pk+ for HP BladeSystem c-Class

C8S47A

SKU

AQ233A

HP 8/20q Fibre Channel Switch

NOTE: 8 device ports active, upgradeable to 20 device ports active

AK241A

HP 8Gb Simple SAN Connection Kit

NOTE: 8 device ports active, upgradeable to 20 device ports active

AK242A

HP 8/20q Fibre Channel Switch

NOTE: 16 switch ports active

AW575B

HP SN6000 Stackable 8Gb 24-port single power supply FC Switch

NOTE: 20 device ports active/4 stacking (ISL) ports active

AW576B

HP SN6000 Stackable 8Gb 24-port dual power supply FC Switch

NOTE: 20 device ports active/4 stacking (ISL) ports active

BK780B

HP SN6000 Stackable 8 Gb 12-port Single Power Fibre Channel Switch

NOTE: 8 device ports/4 stacking (ISL) ports active, upgradeable to 20 device ports active

AG646A

Cisco MDS 9124 8-ports Active Fabric Switch

AG647A

Cisco MDS 9124 16-ports Active Fabric Switch

AG648A

Cisco MDS 9124 24-ports Active Fabric Switch

AW563A

Cisco MDS 8Gb 12-port Fabric Switch for HP BladeSystem c-Class

AW564A

Cisco MDS 8Gb 24-port Fabric Switch for HP BladeSystem c-Class

AG641A

Cisco MDS 9124e 12-port Fabric Switch for HP c-Class BladeSystem

AG642A

Cisco MDS 9124e 24-port Fabric Switch for HP c-Class BladeSystem

AG874A

Cisco MDS 9134 24-ports Active Fabric Switch

AG875A

Cisco MDS 9134 32-ports Active Fabric Switch

AG851B

Cisco MDS 9222i Fabric Switch

AW585A

HP SN6000C 16-ports Active Fabric Switch

AW586A

HP SN6000C 32-ports Active Fabric Switch

AP775A

HP Nexus 5010 Converged Network Switch

AP776A

HP Nexus 5020 Converged Network Switch

QK732A

PremierFlexOM4+

type cable

1m HP PremierFlex OM4 LC/LC Multi-mode Optical Cable

QK733A

2m HP PremierFlex OM4 LC/LC Multi-mode Optical Cable

QK734A

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Configuration Information

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 40

P2000 G2

5m HP PremierFlex OM4 LC/LC Multi-mode Optical Cable

QK735A

15m HP PremierFlex OM4 LC/LC Multi-mode Optical Cable

QK736A

30m HP PremierFlex OM4 LC/LC Multi-mode Optical Cable

QK737A

50m HP PremierFlex OM4 LC/LC Multi-mode Optical Cable

AJ833A

OM3 FC LC-LC cables

options for the

P2000 G3

LC-LC Multi-Mode OM3 Fibre Channel Cable 0.5m

AJ834A

LC-LC Multi-Mode OM3 Fibre Channel Cable 1m

AJ835A

LC-LC Multi-Mode OM3 Fibre Channel Cable 2m

AJ836A

LC-LC Multi-Mode OM3 Fibre Channel Cable 5m

AJ837A

LC-LC Multi-Mode OM3 Fibre Channel Cable 15m

AJ838A

LC-LC Multi-Mode OM3 Fibre Channel Cable 30m

AJ839A

LC-LC Multi-Mode OM3 Fibre Channel Cable 50m

AJ839A

Step 4b - Choose Supported Options For 10GbE Infrastructure

- verify that the cable/transceiver is supported with the connecting device (i.e. switch or NIC/iSCSI HBA)

Copper Cable

HP BladeSystem c-Class 10GbE SFP+ to SFP+ 1m Direct Attach Copper Cable

487652-B21

HP BladeSystem c-Class 10GbE SFP+ to SFP+ 3m Direct Attach Copper Cable

487655-B21

HP BladeSystem c-Class 10GbE SFP+ to SFP+ 5m Direct Attach Copper Cable

537963-B21

HP BladeSystem c-Class 10GbE SFP+ to SFP+ 7m Direct Attach Copper Cable

487658-B21

HP BladeSystem c-Class 10Gb SFP+ SR Transceiver

455883-B21

SFP

HP BladeSystem c-Class 10Gb SFP+ LRM Transceiver

455889-B21

HP X242 10G SFP+ to SFP+ 1m Direct Attach Copper Cable

J9281B

HP X242 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

J9283B

HP X242 10G SFP+ to SFP+ 7m Direct Attach Copper Cable

J9285B

HP X132 10G SFP+ LC SR Transceiver

J9150A

HP X132 10G SFP+ LC LRM Transceiver

J9152A

HP X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable

JD095C

HP X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable

JD096C

HP X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

JD097C

HP X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable

JG081C

HP X240 10G SFP+ SFP+ 7m Direct Attach Copper Cable

JC784C

NIC

HP NC532m Dual Port 10GbE Multifunction BL-c Adapter

467799-B21

HP NC552SFP 10Gb 2-port Ethernet Server Adapter

614203-B21

HP NC552SFP 10GbE 2P Svr Adapter

Reference sell

iSCSI HBA - standup

iSCSI HBA - mezz

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Configuration Information

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 41

NIC - mezz

Step 4c - Choose Supported Options For SAS connection

HP H221 PCIe 3.0 SAS Host Bus Adapter

729552-B21

HP Smart Array P712m/256 6Gb 2-ports Int/2-ports Ext Mezzanine SAS Controller

488348-B21

HP Smart Array P711m/1G 6Gb FBWC 4-ports Ext Mezzanine SAS Controller

513778-B21

HP 6Gb SAS Switch Single Pack for HP BladeSystem c-Class

BK763A

HP 6Gb SAS Switch Dual Pack for HP BladeSystem c-Class

BK764A

HP External Mini SAS 2m Cable

407339-B21

HP External Mini SAS 4m Cable

432238-B21

HP External Mini SAS 4m Cable

432238-B21

Step 5 - Choose Rack Options

Please refer to the HP Infrastructure products page for more information on HP racks and rack options or the HP 10000 G2 Series

Rack QuickSpec.

http://h18004.www1.hp.com/products/servers/platforms/rackandpower.html

http://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.HTML

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Technical Specifications

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 42

P2000 G3 FC

P2000 G3 FC/iSCSI

P2000 G3 SAS

P2000 G3 10GbE iSCSI

P2000 G3 iSCSI (1Gb)

POWER REQUIREMENTS

Input Power

Requirements

(typical-running I/O)

SFF/LFF arrays

 8G FC (2 Port - 8G FC) 110VAC 3.32A, 344-390 W; 220VAC

1.61A,374-432W

 FC/iSCSI Combo (2 Port - 8G FC + 2 Port -1G iSCSI)

110VAC; 3.64A,357-418W, 220VAC 1.77 A, 365-424W

 6G SAS (4 Port - 6G SAS) 110VAC 3.49A,344-390W, 220VAC 1.7A

374-432W

 10GbE iSCSI (2 Port - 10 GbE iSCSI) 110VAC 3.67A, 395W,

220VAC,1.95A 388.2W

 1G iSCSI (4 Port - 1GbE iSCSI) 110VAC 3.3A 363W, 220VAC, 1.63A

360W

Max Input Power

100-240 VAC, 50/60 Hz., 4.5-1.9A; 48-60 VDC 10.4A/8.3A

Heat Dissipation

1622 BTU/hr

TEMPERATURE AND HUMIDITY RANGES

Operating Temperature

41°F to 104°F (5°C to 40°C)

Shipping Temperature

-40°F to 158°F (-40°C to 70°C)

Operating Humidity

10% to 90% RH @ 104°F (40°C) non-condensing

Non-Operating Humidity

Up to 93% RH @ 104°F (40°C)

DECLARED ACOUSTIC NOISE LEVELS

Sound Power

A weighted sound power LWAd=6,75 B

Sound Pressure

A weighted sound pressure LpAm - 55dB

SHOCK AND VIBRATION

Shock, Operational

10G's for 10 milliseconds

Shock, Non-Operational

15G 11ms half sine

Vibration, Operational

5-500Hz, 0.21Grms flat

Vibration, Non-

Operational

3-365-3Hz, 1.22 Grms,z-axis,0.85 Grms, X&Y axis shaped spectrum

PHYSICAL

Height

3.5 in/ 8.9 cm

Depth (excluding cables)

(back of ear to back of

controller handle)

P2000 G3 SFF 24-bay array: 20.28 in / 51.510 cm

P2000 G3 LFF 12-bay array: 21.3 in. / 55.1 cm

Width (body only)

17.6 in / 44.7 cm (w/ ears 19 in / 48.26 cm)

Chassis Weight

(no controllers)

P2000 LFF chassis: 34.1 lbs. (DC-pwr model: 37.9 lbs)

P2000 SFF chassis: 32.3 lbs (DC-pwr model: 36.1 lbs)

P2000 G3 FC Controller

FC/iSCSI Combo

Controller

P2000 G3 SAS Controller

User Interface

Status and activity provided via management interfaces. Status Indicators

on front of Controller

RAID Support

0, 1, 3, 5, 6, 10, 50

Cache Memory

2GB Read/Write. ECC protection with backup to Flash memory (indefinite

backup)

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Technical Specifications

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 43

P2000 G3 10GbE iSCSI

Controller

P2000 G3 iSCSI Controller

(1Gb)

Cache Backup

ECC protection with back up to flash memory (indefinite backup)

Upgradeable Firmware

yes

Disk Drive and Enclosure

Protocol Support

6 Gb SAS - Serial Attached SCSI

Host Ports

FC: 2 x 8Gb Fibre Channel SFP+

SAS: 4 -4x lane 6 Gb SAS Host Connections

10GbE iSCSI: 2 x 10GbE SFP+

1GbE iSCSI: 4 x 1GbE RJ45

Expansion Port

SAS (SFF8088) 4x lane 6 Gb SAS

Weight, controller

P2000 G3 Fibre Channel, FC/iSCSI, SAS, and 10GbE iSCSI MSA Controllers

4.5lbs. 1GbE iSCSI is 4.89 lbs

P2000 G3

Regulatory Info

Safety

UL 60950-1 (USA)

CAN/CSA-C22.2 No.60950-1-03 (Canada)

EN 60950-1 (European Union)

GS mark (Germany)

IEC 60950-1 (International)

CCC Mark (power supply only, China PRC)

Electromagnetic

Compatibility

VCCI:2008-04 Class A (Japan)

FCC 15:109(g) Class A (USA)

ICES-003:2004 Class A (Canada)

EN55022 : (European Union Class A); CISPR 22 (International Class A)

EN61000-3-2 : (Harmonics) (European Union)

EN61000-3-3 : (Flicker) (European Union)

EN 55024 (European Union, Immunity, Class A);CISPR 24 (International

Immunity, Class A)

AS/NZS CISPR 22, Class A (Australia, New Zealand)

CNS 13438 Taiwan, Class A (Taiwan)

KN22 Class A (Emissions Class A); KN24 (Immunity) (S Korea)

RoHS and WEEE

RoHS-6/6 Compliance, China RoHS, WEEE

Country Approvals

United States ,Australia/New Zealand, Canada, China (PRC), European

Union, Germany (GS Mark), Japan, South Korea, Taiwan

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Summary of Changes

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 44

Date

Version History

Action

Description of Change:

19-Jun-2015

From Version 44 to 45

Changed

Replaced AJ941A with AP843B on page 14 since it was a

cut and paste error.

15-May-2015

From Version 43 to 44

Changed

Changes were made throughout the QuickSpecs.

30-Mar-2015

From Version 42 to 43

Changed

SKUs descriptions were updated, Obsolete SKU were

removed.

Added

Support for 12G SFF and LFF w Hard Disk Drives

01-Dec-2014

From Version 41 to 42

Changed

Changes were made throughout the QuickSpecs.

03-Oct-2014

From Version 40 to 41

Changed

Changes in the Family Information Section

29-Sep-2014

From Version 39 to 40

Changed

Changes were made throughout the QuickSpec

09-May-2014

From Version 38 to 39

Changed

Operate and Support and Basic Care were revised.

28-Mar-2014

From Version 37 to 38

Changed

SFP cables and Supported options for SAS connection

were revised in Configuration Information.

16-Jan-2014

From Version 36 to 37

Changed

Corrected an invalid part number in the Hardware Support

section.

09-Dec-2013

From Version 35 to 36

Changed

Models, Family Information, Hardware, and Configuration

Information were revised.

04-Oct-2013

From Version 34 to 35

Changed

Corrected an error in the Hardware section.

13-Sep-2013

From Version 33 to 34

Changed

Updated the following: Optional Software - Drives,

carrier-grade (all NEBS certified) - HP 600GB 6G SAS 10K

2.5in Dual Port Enterprise=3yr Warranty Storage Hard

Disk Drive - changed part number from E2D57A to

C8S58A.; Configuration Information - D2700 SAS & SATA

Drives (SFF 2.5-inch) - HP 600GB 6G SAS 10K 2.5in Dual

Port Enterprise 3yr Warranty Storage Hard Disk Drive -

changed part number from E2D57A to C8S58A; HP 900GB

6G SAS 10K 2.5in Dual Port Enterprise 3yr Warranty

Storage Hard Disk Drive - changed part number from

E2D58A to C8S59A.

19-Aug-2013

From Version 31 to 33

Changed

Capacity, Drives available, Optional Disk enclosures, and

Scalability were revised in Family Information

HP P2000 G3 Carrier-Grade Components and SAS & SATA

Drives were revised in Configuration Information

HP MSA 4TB 6G SAS 7.2K rpm LFF Midline Hard Drive was

added to SATA and SATA Drive Options in Configuration

Information

Brocade 16Gb/16 and 16Gb/28 SAN Switches for HP

BladeSystem c-Class and Brocade 16Gb/28 SAN Switch

Pwr Pk+ for HP BladeSystem c-Class were added to Fibre

Channel Switches in Configuration Information

HP 2000 Modular Smart Array Snapshot 255, 64, and 8

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Summary of Changes

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 45

Software LTUs and 8 to 255, 64 to 255, and 8 to 64

Upgrade Software LTUs were removed from MSA2000

and MSA2000 G2 Snapshot and Volume Copy software in

Options Software

19-Jun-2013

From Version 30 to 31

Removed

HP MSA 4TB 6G SAS 7.2K rpm Hard Drive was removed

13-May-2013

From Version 29 to 30

Removed

Configuration Information: Removed PremierFlex OM3+

type cables P2000 G3 sections from Step 4a

Changed

Overview: Updated What's New with

Adding support for the new HP P2000 4TB Large Form

Factor SAS MDL HDD

HP MSA 4 TB 6G SAS 7.2K 3.5 in MDL HDD

Microsoft Windows Server 2012 support

Support with HP StoreEasy 3830 Gateway Storage or

StoreEasy 3830 Gateway Storage Blades

Models: Updated P2000 G3 Modular Smart Array section.

Features: Updtaed Virtualization SAN Starter Kit section.

Family Information: Updated Capacity, Scalability, DC-

power chassis and P2000 Software and Documents

Support CD sections.

Optional Software: Updated Snapshot and Volume Copy

Software for the P2000 G3, HP P2000 Remote Snap

Software (G3 FC and FC/iSCSI, 1GbE and 10GbE iSCSI

controllers only), HP StoreEasy 3000 Gateway Storage

and HP P2000 G3 Carrier-Grade Components sections.

Configurations Information: Update d SAS & SATA Drives

(SFF 2.5-inch), Step 2b, Step 3 and Step 4a.

29-Mar-2013

From Version 28 to 29

Changed

Updated the following: What's new; Family Information -

P2000 Software and Documents Support CD; OS Support -

Fibre Channel ports; OS Support 1GbE iSCSI ports on the

G3 combo FC/iSCSI controller; OS Support G3 SAS

Controller; OS Support G3 1Gb 8SCSI Controller; OS

Support G3 10GbE iSCSI controller; added section on HP

StoreEasy 3000 Gateway Storage

21-Dec-2012

From Version 27 to 28

Changed

Changes made in the following sections:

Overview: in Overview and What's New

Models: updated part numbers in P2000 G3 Modular

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Summary of Changes

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 46

Smart Array and P2000 G3 Array Bundles

Features: updated part numbers in HP 2000 G3 FC MSA

SAN Starter Kits

Family Information: updated part numbers in Scalability,

DC-Power Chassis,

Optional Software: updated part numbers in HP2000 G3

Carrier Grade Components

Configuration Information: update product numbers in

Configure to Order Program Information, D2700 SAS &

SATA Drives, in Step 1, Step 2 and Step 4a.

Removed

Removed hyperlink in Service & Support, HP Care Pack

and Warranty Information: For More Information section.

23-Aug-2012

From Version 26 to 27

Changed

Changes made to the North America and Canada versions

only.

13-Aug-2012

From Version 25 to 26

Changed

Changes made throughout the entire QuickSpec.

14-May-2012

From Version 24 to 25

Changed

Changes made throughout the entire QuickSpec. Note

that the title has changed.

06-Apr-2012

From Version 23 to 24

Changed

URL was changed for HP Storage Management Pack for

Microsoft System Center.

09-Mar-2012

From Version 22 to 23

Changed

URL was changed in Optional Software.

02-Mar-2012

From Version 21 to 22

Changed

Updated the following: Overview; What's New updated to

reflect new 300GB 6G SAS 15K SFF drives; Key Features;

Family Information - Performance; Optional Software -

Product Features; HP P2000 G3 Carrier-Grade

Components; Configuration Information - D2700 - added

new drive; Configuration Information - Step 2b - added

new drive; Configuration Information - Step 4c.

13-Feb-2012

From Version 20 to 21

Added

All the HP Storage Management Pack for Microsoft

System Center section.

13-Jan-2012

From Version 19 to 20

Changed

P2000 G3 Array Bundles was revised

G3 Controller 10GbE iSCSI and HP 450GB and 600GB SAS

10K rpm SFF Dual Port Enterprise 3yr Warranty Hard

Drives were added and G2 Controller 3Gb SAS were

removed from HP P2000 G3 Carrier-Grade Components

Related Option: MSA2000 G2 Controllers were removed

from P2000 G3 Modular Smart Array models

14-Nov-2011

From Version 18 to 19

Changed

P2000 G3 Array Bundles chart was revised in Models

Citrix XenServer HP Enterprise Edition was removed from

Family Information

HP Storage Mirroring was removed from Optional

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Summary of Changes

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 47

Software

02-Sep-2011

From Version 17 to 18

Changed

Total LUNs, Maximum host supported and Optional

Software were updated in the Family Information chart

and Product Technology was revised in Family

Information

HP Insight Control Storage Module for vCenter, HP P2000

Remote Snap Software and Product Features were

revised and vStorage API for Array Integration (VAAI) was

added to Optional Software

Fibre Channel Switches was updated in Step 4a of the

Configuration Information

20-Jun-2011

From Version 16 to 17

Changed

Capacity was revised in the Family Information chart

HP 450GB and 600GB 6G SAS 10K 2.5 inch DP ENT HDDs

were added to SAS and SATA Drives

HP P2000 3TB 6G SAS 7.2K LFF DP MDL HDD was added to

P2000 Large Form Factor (LFF) SAS MDL DP drives for

P2000 G3 FC and P2000 3.5-inch Disk Enclosure

StorageWorks was removed throughout, including from

the title

09-Jun-2011

From Version 15 to 16

Removed

Mentions of StorageWorks were removed.

09-May-2011

From Version 14 to 15

Changed

HP Insight Control Storage Module for vCenter and HP

P2000 G3 Carrier-Grade Components were completely

revised

SAS and SATA Drives descriptions were revised

Apple MAC OS X was added and Citrix XenServer HP

Enterprise Edition was removed from OS Support

HP StorageWorks 2300fc G2 Modular Smart Array

Controller - 4 Gb FC was removed from Models

01-Apr-2011

From Version 13 to 14

Changed

Server Compatibility was revised in Product Technology

HP Smart Array P712m Controller/256 for Server Blades,

HP Smart Array P711m Controller 1 for Server Blades and

HP StorageWorks 6Gb/s SAS BL Switch - Single and Dual

Port for BladeSystems were added to Step 4c

18-Mar-2011

From Version 12 to 13

Changed

Small Form Factor SAS Capacity was increased

SuSE Linux IA32, x64 and Citrix XenServer HP Enterprise

Edition were added to OS Support in Family Information

HP Ext Mini SAS 2m and 4m cables were added to Step 4c

QuickSpecs

HP MSA P2000 G3 Modular Smart Array Systems

Summary of Changes

c04168365 — DA – 13551 Worldwide — Version 45 — June 19, 2015

Page 48

07-Feb-2011

From Version 10 to 12

Changed

HP 450GB and 600GB 6G SAS 10K 2.5 inch DP ENT HDD

were added to ProLiant Small Form Factor (SFF) SAS

drives for P2000 G3 Array and the D2700 JBOD in Step 2b

Note was removed from P2000 G3 Array Bundles Model

HP StorageWorks Encryption SAN Switch was removed

from Fibre Channel Switches in Step 4a

10-Jan-2011

From Version 9 to 10

Added

P2000 G3 Array Bundles was added to Models and HP 72

GB 6G 15K 2.5 inch SAS DP HDD was added to HP P2000

G3 and MSA2000 G2 Carrier-Grade Components.

15-Nov-2010

From Version 8 to 9

Changed

Changes made throughout the entire QuickSpec.

15-Oct-2010

From Version 7 to 8

Changed

Updated the Features - Application Solutions section only.

27-Sep-2010

From Version 6 to 7

Changed

Changes were made within the entire QuickSpec, including

removing Models and adding HP StorageWorks P2000 G3

10GbE iSCSI Modular Smart Array Controller and HP

StorageWorks P2000 G3 10GbE iSCSI MSA Dual Controller

LFF and SFF Array Systems to Configure to Order Program

Information.

18-Aug-2010

From Version 5 to 6

Added

Added new Smart Buys to the Models section in the North

America and Canada versions.

23-Jul-2010

From Version 4 to 5

Added

Added new Smart Buys to the Models section in the North

America and Canada versions.

29-Jun-2010

From Version 3 to 4

Changed

Note the title has changed.

21-Jun-2010

From Version 2 to 3

Changed

Changes made throughout the entire QuickSpec.

29-Mar-2010

From Version 1 to 2

Added

P2000 1TB and 2TB 6G SAS 7.2K LFF Hard Drives were

added throughout the QuickSpec.

© Copyright 2015 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel

Corporation. Unix is a registered trademark of The Open Group.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products

and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or

editorial errors or omissions contained herein.
