Introducing the HP ProLiant DL165G7, now available with the latest high performance Opteron Eight, Twelve and Sixteen core

processors, 24 DDR3 memory DIMMs, 2 PCIe Gen2 slots, four NIC ports and an Easy Setup CD.

Hot Plug SAS/SATA or Non-Hot Plug SATA Models

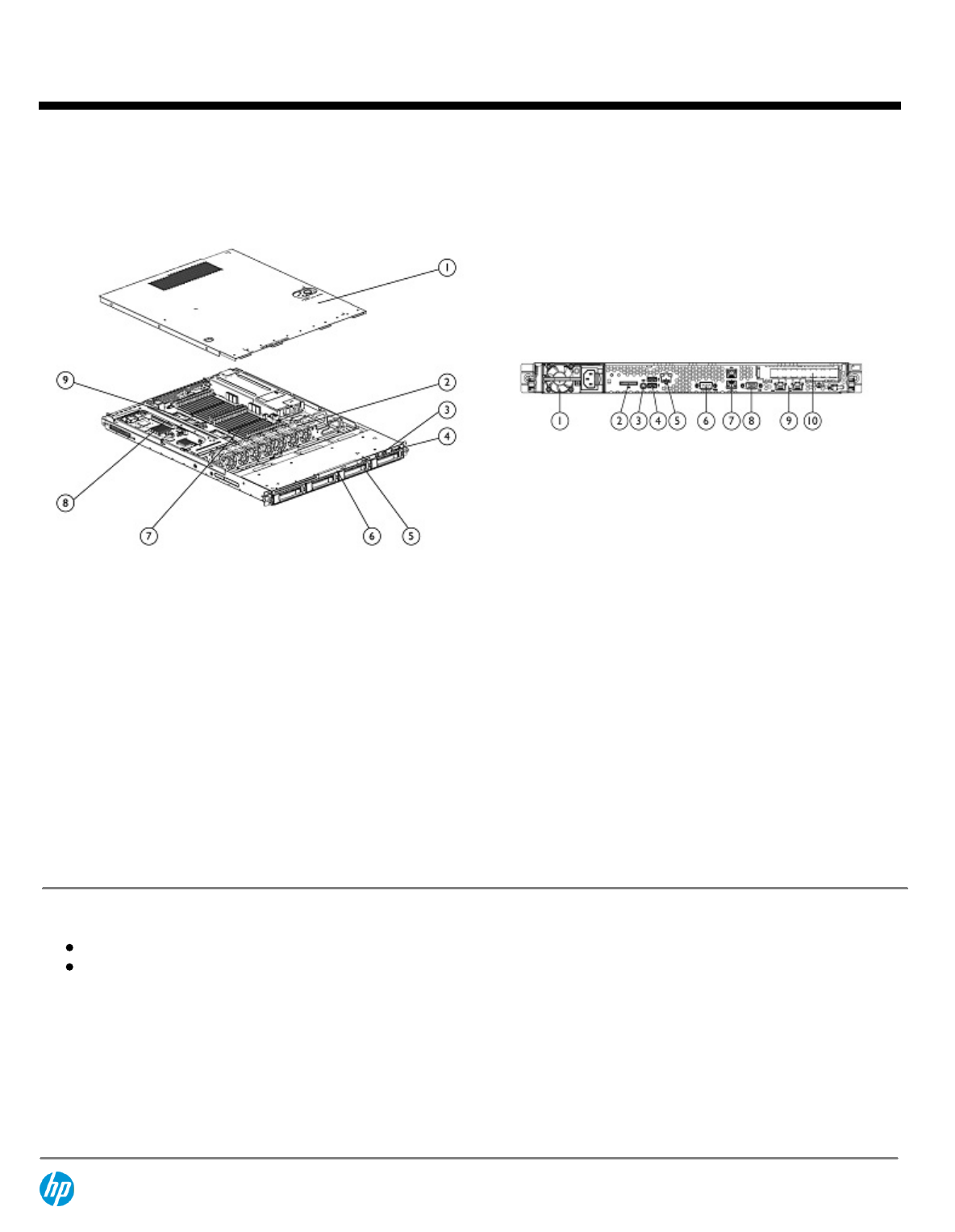

Front View:

Rear View:

Access panel

Power supply

System fans

Optional SD Card Reader

Front-panel USB 2.0 ports

Unit Identification LED (UID)

Power switch/system status LEDs

Two USB ports

Standard 1st , 2nd , 3rd and 4th 3.5" hot-plug SAS/SATA or

non-hot plug SATA hard drive bays

Optional Lights-Out 100 10/100Mbps port

Serial port

Optical drive bay

(2) RJ45 GbE LAN ports (3rd & 4th port)

Twenty Four DIMM Slots

VGA port

Slot 1:Full-length/Full height x16 PCI-Express Gen2 slot, or

Slot 1: Half-length/Full height x16 PCI-Express Gen2 slot and

Slot 2: Low Profile x4 PCI-Express Gen2 slot (accepts x8

cards, internal only)

(2) RJ45 GbE LAN ports (1st & 2nd port)

10.

Slot 1:Full-length/Full height x16 PCI-Express Gen2 slot, or

Slot 1: Half-length/Full height x16 PCI-Express Gen2 slot and

Slot 2: Low Profile x4 PCI-Express Gen2 slot (accepts x8

cards, internal only)

Two (2) AMD Opteron 6100 or 6200 series processors

What's New

Support for 6200 series processors

Support for PC3-12800R (DDR3-1600) Registered CAS-11 Memory DIMMs

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Overview

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 1

Retired

NOTE:

For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory

Integrated Models" section.

Processor

One of the following

depending on Model

Sixteen-Core Processors

AMD Opteron™ 6276 (2.30GHz/16-core/16MB/115W) Processor

AMD Opteron™ 6274 (2.20GHz/16-core/16MB/115W) Processor

AMD Opteron™ 6272 (2.10GHz/16-core/16MB/115W) Processor

AMD Opteron™ 6262HE (1.60GHz/16-core/16MB/85W) Processor

Twelve-Core Processors

AMD Opteron™ 6238 (2.60GHz/12-core/16MB/115W) Processor

AMD Opteron™ 6234 (2.40GHz/12-core/16MB/115W) Processor

AMD Opteron™ 6176 (2.3GHz/12-core/12MB/115W) Processor

AMD Opteron™ 6174 (2.2GHz/12-core/12MB/115W) Processor

NOTE:

Available through Configure To Order only. See Factory Integration Models section for more details.

AMD Opteron™ 6172 (2.1GHz/12-core/12MB/115W) Processor

AMD Opteron™ 6164HE (1.7GHz/12-core/12MB/85W) Processor

Eight-Core Processors

AMD Opteron™ 6220 (3.0GHz/8-core/16MB/115W) Processor

AMD Opteron™ 6212 (2.60GHz/8-core/16MB/115W) Processor

AMD Opteron™ 6140 (2.6GHz/8-core/12MB/115W) Processor

AMD Opteron™ 6136 (2.4GHz/8-core/12MB/115W) Processor

AMD Opteron™ 6134 (2.3GHz/8-core/12MB/115W) Processor

NOTE:

Available through Configure To Order only. See Factory Integration Models section for more details.

AMD Opteron™ 6132HE (2.2GHz/8-core/12MB/85W) Processor

AMD Opteron™ 6128 (2.0GHz/8-core/12MB/115W) Processor

AMD Opteron™ 6128HE (2.0GHz/8-core/12MB/85W) Processor

Four-Core Processors

AMD Opteron™ 6204 (3.3GHz/4-core/16MB/115W) Processor

NOTE:

Up to two AMD Opteron™ 6000 series Eight, Twelve and Sixteen Core processors supported.

NOTE:

Processor wattage references reflect Thermal Design Power (TDP). For more information on TDP

and Average CPU Power (ACP) visit:

http://www.amd.com/acp

NOTE:

Up to 3.0GHz clock speed.

NOTE:

Supports DirectConnect Architecture.

NOTE:

Supports Power Now.

Cache Memory

16MB shared L3 (Model Series 6000)

Chipset

AMD Chipset SR5670/SP5100

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Standard Features

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 2

Retired

Upgradeability

Upgradeable to two processors

Memory Protection

Advanced ECC

Memory

One of the following

depending on Model

Type

PC3-10600R DDR3 Registered (RDIMM) or Unbuffered (UDIMM)

DIMM Slots Available

24 DIMM slots

Standard

Entry Model

4 GB (2 x 2 GB) RDIMMs

Base Model

8 GB (4 x 2 GB) RDIMMs

Performance Model

16 GB (8 x 2 GB) RDIMMs

Maximum (RDIMM)

384 GB

(24 x 16 GB)

Maximum (UDIMM)

64 GB

(16 x 4 GB)

NOTE:

Depending on the memory configuration and processor model, the memory speed may run at

1333MHz, 1066MHz, or 800MHz. DDR3-1600MHz memory speed is only supported by 6200 series

Opteron™ Processors.

Network Controller

(2) HP NC362i Integrated Dual Port Gigabit Server Adapter

Expansion Slots #

Technology

Bus

Width

Connector

Width

Bus Number

Device No.

Form

Factor

Notes

PCI-Express

2.0

x16 x16

5 0

Full

Height/Full

Length

3.3 volts

***

PCI-Express

2.0

x4 x8

2 0

Half

Height/Low

Profile,

Internal Only

3.3 volts

* Default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment number.

** Slots are enumerated differently based on OS. MS OS's enumerate from lowest to highest Device ID by

bus (starting with the lowest bus).

***In order to access expansion slot #2, the low profile internal only slot, expansion slot #1 may only be

populated with a half length, full height form factor card.

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Standard Features

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 3

Retired

Storage Controller

Non-Hot Plug SATA

HP Smart Array B110i SATA RAID Controller

NOTE:

To enable RAID for embedded SATA controller, use EZ set-up CD to

download driver, hpahcisr.sys, is part of the 8.20 PSP, Smart Start, EZSetup

CD. For more information on Smart Array B110i, go to:

www.hp.com/go/sataraid

Cold Plug SATA Models

HP Smart Array B110i SATA RAID Controller

NOTE:

Supported on LFF models only.

Hot Plug SATA/SAS

HP Smart Array P410 Controller (RAID 0/1/1+0)

HP Smart Array P410 Controller 256 BBWC (RAID/0/1/1+0/5/5+0)

NOTE:

Transfer rate: up to 3 Gb/s SATA, up to 6 Gb/s SAS.

HP Smart Array B110i SATA RAID Controller

NOTE:

Hot plug functionality requires the addition of a Smart Array Advanced

Pack License Key upgrade (P/N TC421A)

NOTE:

To enable RAID for embedded SATA controller, use EZ set-up CD to

download driver, hpahcisr.sys, is part of the 8.20 PSP, Smart Start, EZSetup

CD. For more information on Smart Array, go to:

www.hp.com/go/sataraid

NOTE:

A diskette drive or virtual FDD using LO100 Advanced Pack is needed to install storage controller

drivers during a Windows operating system installation from a CD.

NOTE:

Addition of the battery backed cache upgrade enables BBWC, RAID 5, 5+0, array expansion, logical

drive extension, RAID migration, and stripe size migration.

NOTE:

RAID 6 functionality requires the addition of Smart Array Advanced Pack (P/N: 516471-B21).

NOTE:

HP Smart Array B110i does not support greater than 2TB hard drive.

Internal Storage Devices

Drives

Diskette Drives

Via USB only

Optical Drives

Optional SATA 9.5mm DVD-ROM Optical Drive

Optional SATA 9.5mm DVD RW Optical Drive

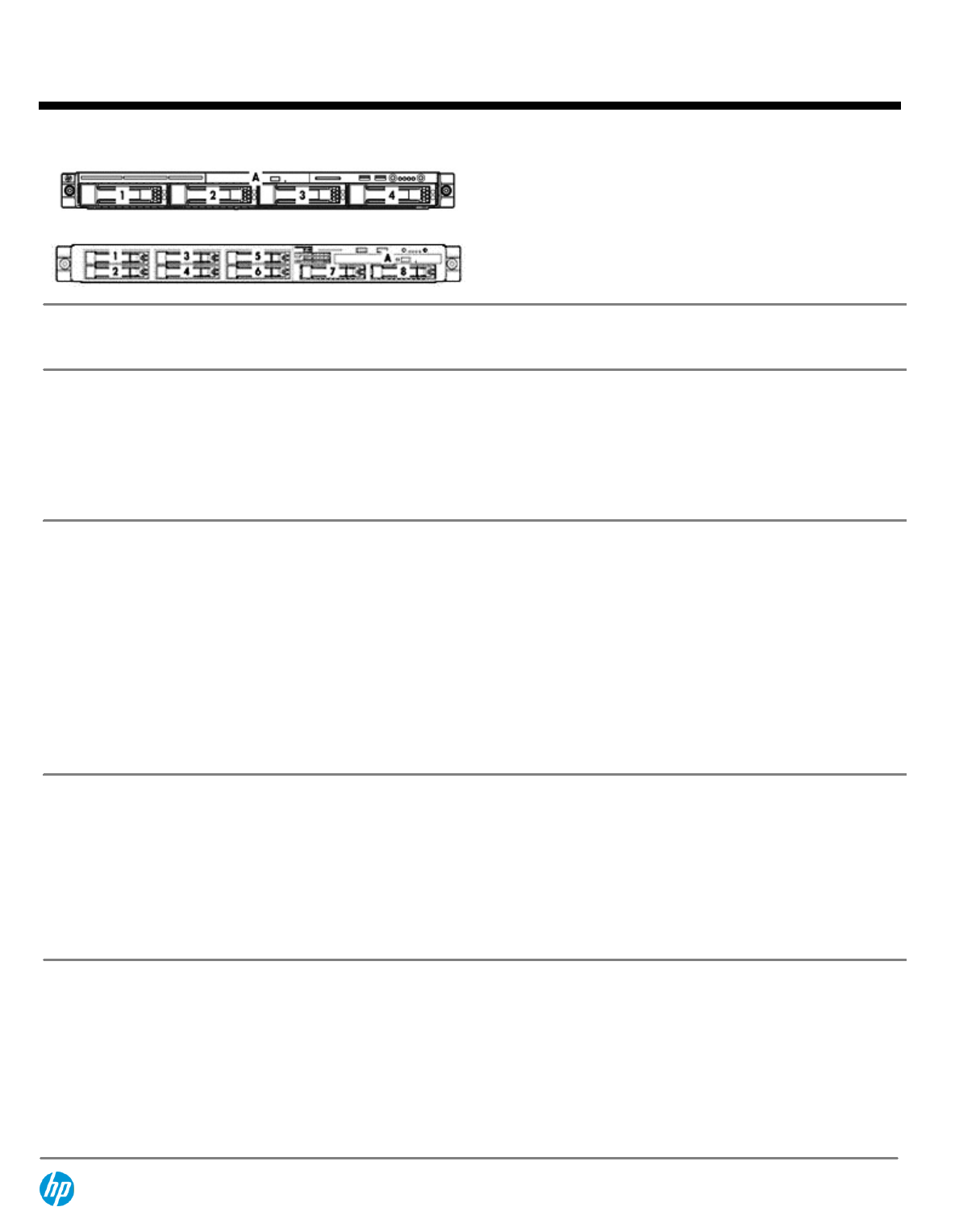

Hard Drives

Up to 4 Non-hot plug SATA 3.5" drives

Up to 4 Hot plug SAS/SATA 3.5" drives

Up to 8 Hot plug SAS 2.5" drives

Maximum Internal

Storage

Non-Hot Plug LFF SATA

12.0TB

4 x 3TB

Hot Plug LFF SATA

12.0TB

4 x 3TB

Hot Plug SFF SATA

8.0TB

8x1TB

Hot Plug SFF SATA SSD

3.2TB

8 x 400GB

Hot Plug LFF SATA SSD

1.6TB

4 x 400GB

Hot Plug LFF SAS

12.0TB

4 x 3TB

Hot Plug SFF SAS

8.0TB

8 x 1TB

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Standard Features

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 4

Retired

Interfaces

Parallel

None

Network RJ-45(Ethernet)

4 10/100/1000 NIC ports (plus 1 optional dedicated port for the HP ProLiant

Lights Out 100i Remote Management)

Serial

Pointing Device (Mouse)

0 (via USB only)

Graphics

Keyboard

0 (via USB only)

USB

6 (two front, two internal, two rear)

NOTE:

One optional internal USB connector is reserved for connection to the

rear SD Card Reader (592710-B21)

NOTE:

In order to connect a USB device internally, the internal USB Cable G6

Kit must be used (536769-B21)

Industry Standard

Compliance

ACPI V2.0 Compliant

PCI 2.2 Compliant

PXE Support

WOL Support

Microsoft® Logo certifications

IPMI 2.0, SMASH CLP, DCMI 1.0 compliant

Server Power Cords

One 6' Highline (IEC-IEC) power cord ships standard

NOTE:

HP ProLiant DL servers no longer ship standard with NEMA power cords (163719-002) that allow

connection to 110V US wall outlets in a home or office. ProLiant DL servers are primarily connected to

PDU's in data center racks so they now ship standard with only a PDU power cord (416151-B21). If a user

wishes to power a ProLiant DL server using a 110V receptacle (NEMA-15), the NEMA power cord must be

ordered separately.

If customers require a local power cord, they can check the power cord matrix for the appropriate cord.

Please see the following power cord matrix:

http://www.hp.com/go/powercordmatrix

Power Supply

500 Watts, auto-switching, high efficiency, PFC (Power Factor Correcting).

NOTE:

Factory upgradeable to high-efficiency 750W pluggable power supply.

750W Common Slot high efficiency, hot-pluggable power supply, FIO (Optional)

System Fans

4 non-hot plug system fans ship standard with 1P models, optional upgrade to N+1 redundant.

7 non-hot plug system fans ship standard with 2P models, N+1 Redundant Standard

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Standard Features

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 5

Retired

Operating Systems and

Virtualization Software

Support for ProLiant

Servers

Microsoft Windows Server

Red Hat Enterprise Linux (RHEL)

SUSE Linux Enterprise Server (SLES)

VMware

Citrix Essentials for XenServer (Retail)

NOTE:

For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization

Software and latest listing of software drivers available for your server, including how to purchase from

HP, please visit our OS Support Site at:

http://www.hp.com/go/ossupport

and our driver download page

http://www.hp.com/support/DL165G7

Graphics

32MB shared supporting all display resolutions up to 1600x1200 16bpp@75Hz

NOTE:

8MB is dedicated to video memory.

Form Factor

Rack (1U), (1.75 in/4.45 cm)

NOTE:

Fixed mounting rails included with all models.

Embedded Manageability

HP LO100 Advanced

HP Lights-Out 100 with Optional LO100 Advanced Licenses for Virtual KVM and

Virtual Media.

Standard Features:

Embedded IPMI standard reporting

System event log access

Remote Serial console (serial redirection)

Browser, Telnet access

SMASH-CLP compliant

IPMI 2.0 compliant

Secure Socket Layer (SSL) Encryption

Secure Shell (SSH) Encryption

Licensed Features:

Virtual media (Floppy, CD, USB 2.0)

Virtual KVM

NOTE:

Flexible and volume quantity (AKA) license kits are available for the

Lights-Out 100 Advanced Pack licenses as well as Electronic License To Use (E-

LTU). AKA Tracking licenses require a 100 unit minimum forecast at initial

contract signing. For these additional part numbers, please refer to each

software products. QuickSpecs at this link for more information:

www.hp.com/go/lo100

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Standard Features

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 6

Retired

Security

Power-on password

Setup password

Diskette boot control

Secure Sockets Layer (SSL)

Secure Shell (SSH)

Warranty

This product is covered by a global limited warranty and supported by HP Services and a worldwide

network of HP Authorized Channel Partners. Hardware diagnostic support and repair is available for three

years from date of purchase. Support for software and initial setup is available for 90 days from date of

purchase. Enhancements to warranty services are available through HP Care Pack services or customized

service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard

drive QuickSpecs for details.

NOTE:

Server Warranty includes 3 year Next Day Parts replacement, 0-Years Labor, 0-Years Onsite

support.

Warranty terms may vary by region. Additional information regarding worldwide limited warranty and

technical support is available at:

http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Standard Features

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 7

Retired

HP Insight Control

management software

Insight Control server

deployment

HP Insight Control server deployment is a deployment solution for HP ProLiant

and Integrity servers hosted on a Windows CMS. It automates the process of

deploying and provisioning server software, enabling companies to quickly

and easily adapt to changing business demands. Insight Control server

deployment includes software optimizations for HP servers, including the HP

scripting toolkits, configuration jobs for leading industry-standard operating

systems, sample unattended files, and HP server support packs that include

software drivers, management agents, and important documentation.

Deploying servers can be accomplished either through imaging or through

scripting.

Insight Control server deployment is hosted on a Windows server and is

intended for heterogeneous environments deploying Windows, Linux, VMware

ESX and Microsoft Hyper-V systems.

Insight Control server deployment includes one year of 24 x 7 HP Software

Technical Support and Update Service ensuring rapid access to HP support

staff and proactive delivery of software updates. For more information about

this service, please visit:

http://www.hp.com/services/insight

High Performance

Clusters

HP Cluster Platforms

HP Cluster Platforms are specifically engineered, factory-integrated large-

scale ProLiant clusters optimized for High Performance Computing, with a

choice of servers, networks and software. Operating system options include

specially priced offerings for Red Hat Enterprise Linux and SUSE Linux

Enterprise Server, as well as Microsoft Windows HPC Server. A Cluster

Platform Configurator simplifies ordering.

http://www.hp.com/go/clusters

HP HPC Interconnects

High Performance Computing (HPC) interconnect technologies are available

for this server as part of the HP Cluster Platform portfolio. These high-speed

InfiniBand and Gigabit interconnects are fully supported by HP when

integrated within an HP cluster. Flexible, validated solutions can be defined

with the help of configuration tools.

http://www.hp.com/techservers/clusters/ucp/index.html

HP Insight Cluster

Management Utility

HP Insight Cluster Management Utility (CMU) is an HP-licensed and HP-

supported suite of tools that are used for lifecycle management of hyperscale

clusters of Linux ProLiant systems. CMU includes software for the centralized

provisioning, management and monitoring of nodes. CMU makes the

administration of clusters user friendly, efficient, and effective.

http://www.hp.com/go/cmu

HP HPC Linux Value Pack

HP HPC Linux Value Pack (Value Pack) is an HP-licensed and HP-supported

option to HP Insight CMU, for the development and deployment of

applications on HPC Cluster Platforms. Value Pack includes the Platform LSF

workload scheduler and Platform Application Center, as well as the HP-MPI

parallelization library.

HP HPC Linux Value Pack

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Optional Features

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 8

Retired

HP Proactive Insight

experience

Prevent problems with innovative, automated monitoring tools and proactive services. The HP Proactive

Insight experience consist of using Insight Online, Insight Remote Support, and Proactive Care Support

Service as one integrated solution. The Proactive Insight experience provides you with expert advice and

personalized, cloud-based automated IT support, helping to prevent unplanned down time and solve

problems quickly. For more information, visit:

www.hp.com/go/proactiveinsightexperience

Factory Express Portfolio

for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP

servers and storage products. Customers can choose how their factory solutions are built, tested,

integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex

configuration and design services as well as individual factory services, such as image loading, asset

tagging, and custom packaging. HP products supported through Factory Express include a wide array of

servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000

servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network

switches.

For more information on Factory Express services for your specific server model please contact your sales

representative or go to:

http://www.hp.com/go/factory-express

HP Simple Configurator

HP Simple Configurator SCE is a guided self service tool to help sales and non technical people provide

customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for

configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or

configuration for products not available in SCE, please contact HP's Customer Business Center or an

Authorized Partner for assistance.

http://www.hp.com/products/configurator

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Optional Features

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 9

Retired

Service and Support

HP Technology Services for Industry Standard Servers and BladeSystem

Capitalizing on HP ProLiant server and HP BladeSystem capabilities requires a service partner who

understands your increasingly complex business technology environment. That's why it makes sense to

team up with the people who know HP infrastructure hardware and software best - the experienced

professionals at HP Services.

What HP ProLiant and BladeSystem Services can do for you

HP ProLiant and BladeSystem Services can help you design, deploy, test, integrate, support, and manage

IT and infrastructure solutions. This way, HP proposes services solutions that include more than just uplift

of base warranty. You can get the support you need by choosing from one of a number of service

packaged solutions we have designed to address wider set of customer support needs.

HP Technology Services meets business challenges with services offered in three packages:

Optimized Care Package, Standard Care Package, and Basic Care Package

Available for each product group. Such packaged solutions enable customers to optimize technology

operations, minimize risk and drive better business outcomes with easy-to-buy, easy-to-use scalable

support packages for servers, storage, networking and software.

Optimized Care Package

Supports maintaining servers at optimum performance availability

HP ProLiant Server Hardware Installation

Provides for the basic hardware installation of HP branded servers, storage devices and networking

options to assist you in bringing your new hardware into operation in a timely and professional manner.

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf

3-Year HP 6 hour Hardware Support Onsite Call-to-Repair Service

Provides an IT manager with a team of support specialists who will quickly begin troubleshooting the

system to help return the hardware to operating condition within 6 hours of the initial service request to

the HP Global Solution Center.

http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EN.pdf

Additional Services

: Software OS (Microsoft, Linux (SUSE/Red Hat) Installation and Start Up and Software

Support) plus Microsoft or Linux education courses +30 Proactive Select Credits, Factory Express.

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Service and Support

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 10

Retired

Standard Care Package

Package that maintains high level of server availability

HP ProLiant Server Hardware Installation

Provides for the basic hardware installation of HP branded servers, storage devices and networking

options to assist you in bringing your new hardware into operation in a timely and professional manner.

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf

3-Year HP 24x7 4 hour Response, Hardware Support Onsite Service

Provides you with rapid remote support and if required an HP authorized representative who will arrive on

site any time and day of the year to begin hardware maintenance service within 4 hours of the service

request being logged.

http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE.pdf

Additional Services

: Software OS (Microsoft, Linux (SUSE/Red Hat) Installation and Start Up and Software

Support); +10 Proactive Select Credits, Factory Express.

Basic Care Package

Delivers minimum recommended support service level

HP ProLiant Server Hardware Installation

Provides for the basic hardware installation of HP branded servers, storage devices and networking

options to assist you in bringing your new hardware into operation in a timely and professional manner

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf

3-Year HP 13x5 4 hour Response, Hardware Support Onsite Service

Delivers increased equipment availability and productivity with rapid remote support and onsite response

for your HP server and storage hardware

http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE.pdf

Additional Services

: Software OS (Microsoft, Linux (SUSE/Red Hat) Installation and Start Up and Software

Support), Factory Express.

Insight Remote Support

The packages include HP Insight Remote Support that uses proven technology to deliver secure, reliable

24x7 remote monitoring, diagnoses, and problem resolution. It is available at no additional cost to all

warranty, HP Care Pack Service, and service agreement customers.

For more information

To learn more on HP ProLiant servers and HP BladeSystem servers, please contact your HP sales

representative or HP Authorized Channel Partner. Or visit:

http://www.hp.com/services/proliant

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Service and Support

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 11

Retired

NOTE:

For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory

Integrated Models" section.

NOTE:

Pre-configured models ship with the configurations below. Options can be selected from the Core or Additional options section

of this QuickSpecs.

NOTE:

HP does not allow factory integration of options into pre-configured models. Any additional options purchased will be shipped

separately.

NOTE:

If you desire a custom configuration please see "Configuration Information - Factory Integrated Models" section of this

QuickSpecs.

NOTE:

Not all models are available in all regions. Check with your local country HP offices for availability.

Cold Plug/Hot Plug Serial ATA (SATA)/Serial Attached SCSI (SAS) Models

Performance Model

HP ProLiant DL165 G7

6274 2P 16GB-R P410/256

Hot Plug 8 SFF 750W PS

Server

663809-xx1

Processor(s)

(2) AMD Opteron™ 6274 (2.2GHz/16-core/16MB/115W) Processors

Cache Memory

16 MB shared L3 cache

Memory

16GB (8 x 2GB) PC3-10600R (RDIMM)

Network Controller

2x HP NC362i Integrated Dual Port Gigabit Server Adapter

Storage Controller

HP Smart Array P410/256MB BBWC

Hard Drive

None ship standard

Internal Storage

8.0TB (8 x 1TB Hot Plug 2.5" SATA Hard Drives), Maximum

8.0TB (8 x 1TB Hot Plug 2.5" SAS Hard Drives), Maximum

Optical Drive

None ship standard

Power Supply

750W Common Slot Gold Power Supply

Form Factor

Warranty

Server Warranty includes 3 year Next Day Parts replacement, 0-Years Labor,

0-Years Onsite support. Warranty terms may vary by region.

Base Model

HP ProLiant DL165 G7

6272 1P 8GB-R P410 Hot

Plug SAS/SATA 4 LFF

500W PS Server

663808-xx1

Processor(s)

(1) AMD Opteron™ 6272 (2.1GHz/16-core/16MB/115W) Processors

Cache Memory

16 MB shared L3 cache

Memory

8GB (4 x 2GB) PC3-10600R (RDIMM)

Network Controller

2x HP NC362i Integrated Dual Port Gigabit Server Adapter

Storage Controller

HP Smart Array P410 SAS/SATA RAID

Hard Drive

None ship standard

Internal Storage

12.0TB (4 x 3TB Hot Plug 3.5" SATA Hard Drives), Maximum

12.0TB (4 x 3TB Hot Plug 3.5" SAS Hard Drives), Maximum

Optical Drive

None ship standard

Power Supply

500W Power Supply

Form Factor

Warranty

Server Warranty includes 3 year Next Day Parts replacement, 0-Years Labor,

0-Years Onsite support. Warranty terms may vary by region.

Entry Model

HP ProLiant DL165 G7

Processor(s)

(1) AMD Opteron™ 6234 (2.4GHz/12-core/16MB/115W) Processors

Cache Memory

16 MB shared L3 cache

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Pre-configured Models

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 12

Retired

HP ProLiant DL165 G7

6234 1P 4GB-R Hot Plug

SATA 4 LFF 500W PS

Server

663807-xx1

Memory

4GB (2 x 2GB) PC3-10600R (RDIMM)

NOTE:

Total 24 DIMM slots.

Network Controller

2x HP NC362i Integrated Dual Port Gigabit Server Adapter

Storage Controller

HP Smart Array B110i

Hard Drive

None ship standard

Internal Storage

12.0TB (4 x 3TB Hot Plug 3.5" SATA Hard Drives), Maximum

12.0TB (4 x 3TB Hot Plug 3.5" SAS Hard Drives), Maximum

Optical Drive

None ship standard

Power Supply

500W Power Supply

Form Factor

Warranty

Server Warranty includes 3 year Next Day Parts replacement, 0-Years Labor,

0-Years Onsite support. Warranty terms may vary by region.

Country Code Key

xx=00

U.S.

xx=29

Japan

xx=37

APJ

xx=42

Euro

xx=AA

PRC

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Pre-configured Models

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 13

Retired

NOTE:

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are

ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO

product offerings and requirements.

NOTE:

Factory Integrated Models must start with a CTO Server.

NOTE:

FIO indicates that this option is only available as a Factory Installable Option.

Step 1: Base Configuration

Non-Hot Plug SATA Model (choose one of the following configurable models)

HP ProLiant DL165 G7 Non-hot Plug Configure-to-order Server

591660-B21

Factory Integrated Model ships with:

Two HP NC362i Integrated Dual Port Gigabit Server Adapters

Slot 1: FL /FH PCI-Express x16 Gen 2 slot or

Slot 1 : HL/FH x16 PCI-Express Gen2 slot and

Slot 2 : HL/LP x8 PCI-Express Gen2 slot (internal only)

HP Smart Array B110i SATA RAID Controller

One Highline IEC Power Cord

4 Fixed, Non-Redundant Fans (standard); 6 Fixed, N+1 Redundant Fans (standard with

addition of second processor)

Rack (1U), (1.75 in / 4.45 cm)

Tool-less Fixed Rails

Hot Plug/Cold Plug Models

HP ProLiant DL165 G7 LFF Configure-to-order Server

592226-B21

Factory Integrated Model ships with:

Two HP NC362i Integrated Dual Port Gigabit Server Adapters

Slot 1: FL /FH PCI-Express x16 Gen 2 slot or

Slot 1 : HL/FH x16 PCI-Express Gen2 slot and

Slot 2 : HL/LP x8 PCI-Express Gen2 slot (internal only)

One Highline IEC Power Cord

4 Fixed, Non-Redundant Fans (standard); 6 Fixed, N+1 Redundant Fans (standard with

addition of second processor)

Rack (1U), (1.75 in / 4.45 cm)

Tool-less Fixed Rails

HP ProLiant DL165 G7 SFF Configure-to-order Server

592227-B21

Factory Integrated Model ships with:

Two HP NC362i Integrated Dual Port Gigabit Server Adapters

Slot 1: FL /FH PCI-Express x16 Gen 2 slot or

Slot 1 : HL/FH x16 PCI-Express Gen2 slot and

Slot 2 : HL/LP x8 PCI-Express Gen2 slot (internal only)

One Highline IEC Power Cord

4 Fixed, Non-Redundant Fans (standard); 6 Fixed, N+1 Redundant Fans (standard with

addition of second processor)

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Configuration Information - Factory Integrated Models

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 14

Retired

Rack (1U), (1.75 in / 4.45 cm)

Tool-less Fixed Rails

NOTE:

SFF CTO Chassis (P/N: 592227-B21) requires the use of the HP 750W CS HE

Power Supply (P/N: 535683-B21)

Step 2: Choose Required Options (only one of the following from each list unless otherwise

noted)

HP Processors

NOTE:

If 2 processors are desired, select one xxxxxx-L21 and one xxxxxx-B21.

Sixteen-Core Processors

HP DL165 G7 AMD Opteron™ 6276 (2.30GHz/16-core/16MB/115W) FIO Processor Kit

663371-L21

HP DL165 G7 AMD Opteron™ 6274 (2.20GHz/16-core/16MB/115W) FIO Processor Kit

663373-L21

HP DL165 G7 AMD Opteron™ 6272 (2.10GHz/16-core/16MB/115W) FIO Processor Kit

663375-L21

HP DL165 G7 AMD Opteron™ 6262HE (1.60GHz/16-core/16MB/85W) FIO Processor Kit

663385-L21

Twelve-Core Processors

HP DL165 G7 AMD Opteron™ 6238 (2.60GHz/12-core/16MB/115W) FIO Processor Kit

663377-L21

HP DL165 G7 AMD Opteron™ 6234 (2.40GHz/12-core/16MB/115W) FIO Processor Kit

663379-L21

Eight-Core Processors

HP DL165 G7 AMD Opteron™ 6220 (3.0GHz/8-core/16MB/115W) FIO Processor Kit

663381-L21

HP DL165 G7 AMD Opteron™ 6212 (2.60GHz/8-core/16MB/115W) FIO Processor Kit

663383-L21

Four-Core Processors

HP DL165 G7 AMD Opteron™ 6204 (3.30GHz/4-core/16MB/115W) FIO Processor Kit

672323-L21

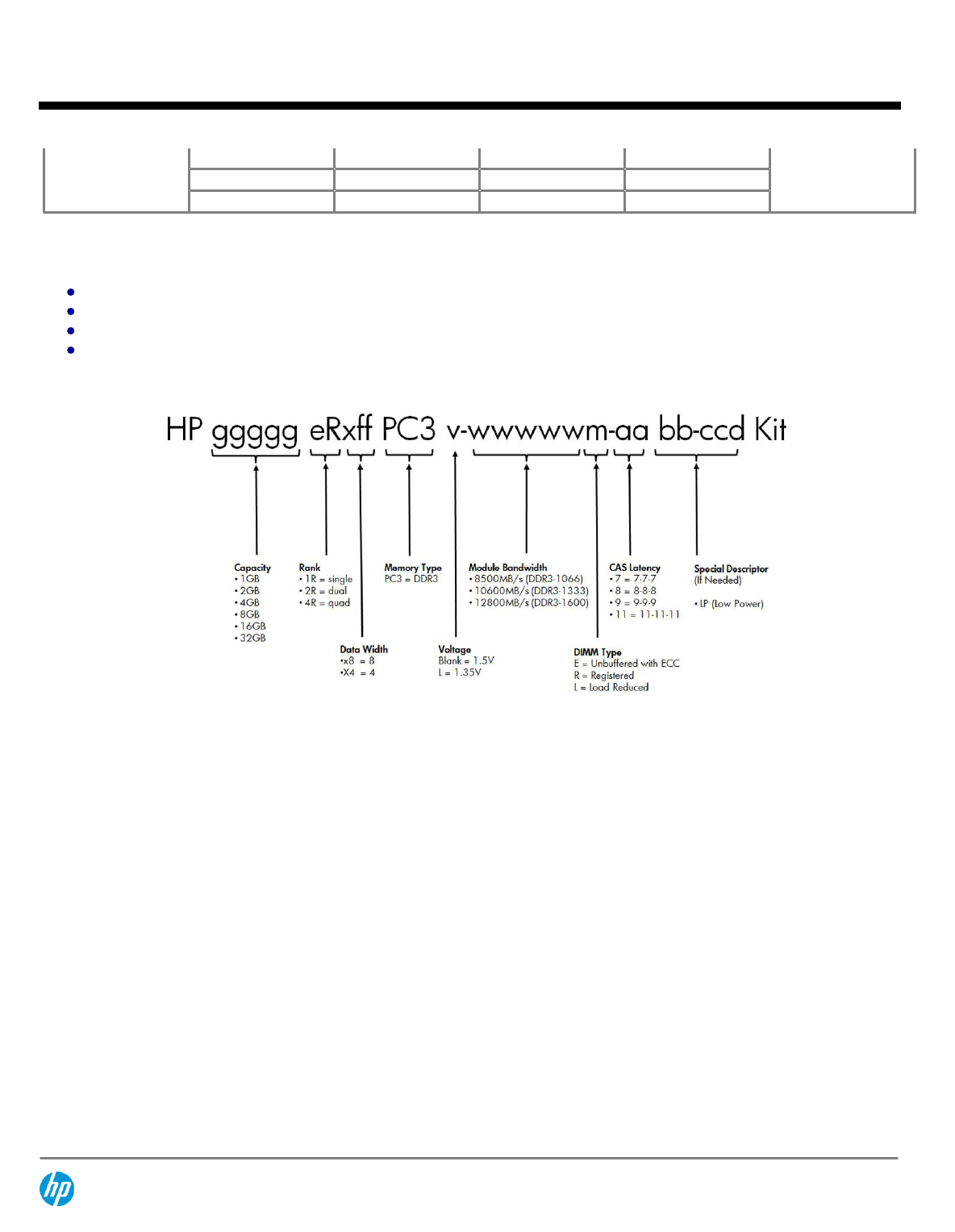

HP Memory

Registered DIMMs (RDIMMs)

HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

593907-B21

HP 4GB (1x4GB) Single Rank x4 PC3-12800 (DDR3-1600) Registered CAS-11 Memory Kit

676331-B21

HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

593911-B21

HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power

Memory Kit

604500-B21

HP 8GB (1x8GB) Single Rank x4 PC3-12800 (DDR3-1600) Registered CAS-11 Memory Kit

676333-B21

HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

593913-B21

HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power

Memory Kit

604502-B21

HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit

593915-B21

HP 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP

Memory Kit

627808-B21

HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory

Kit

684066-B21

Unbuffered with ECC DIMMs (UDIMMs)

HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit

593921-B21

HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit

593923-B21

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Configuration Information - Factory Integrated Models

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 15

Retired

NOTE:

All DDR3 memory option kits consist of one DIMM per kit. DDR3-1600MHz

memory speed is only supported by 6200 series Opteron™ Processors.

NOTE:

Kits described as LP include Low Power DIMMs. For more information on ProLiant

Energy Efficient Features, see:

http://www.hp.com/go/proliant-energy-efficient

NOTE:

There is a maximum support limitation of 8 ranks per memory channel

(maximum of 2 quad rank DIMMs per channel)

NOTE:

PC3L is a low voltage memory.

HP Hard Drives

NOTE:

A minimum of one SATA Non-Hot Plug hard drive is required ONLY when

purchasing Non-Hot Plug CTO Chassis Model (P/N 591660-B21) in Step 1.

NOTE:

The components of a storage subsystem (e.g. the drive, the HBA/controller, and

the server backplane) should operate at the same data transfer rate or the system

bandwidth will be negotiated down to an acceptable level for all components.

NOTE:

Hard drives have either a one year or three year warranty; refer to the specific

hard drive QuickSpecs for details.

NOTE:

HP Smart Array B110i does not support greater than 2TB hard drive.

Serial-ATA (SATA) Non-Hot Plug Hard Drives

(Non-Hot Plug Models Only)

SATA Non-Hot Plug LFF (3.5-inch) Entry (ETY) Drives

HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1yr Warranty Hard Drive

571232-B21

SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives

HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive

507774-B21

HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive

507772-B21

HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard

Drive

458941-B21

HP Storage Controllers

NOTE:

A minimum of one primary HP Storage Controller is required ONLY when

purchasing SFF CTO Chassis Model (P/N 592227-B21) in Step 1.

NOTE:

With the HP Smart Array P410 Controller, the addition of the battery backed

cache upgrade enables BBWC, RAID 5, 5+0, array expansion, logical drive extension,

RAID migration, and stripe size migration. In order to upgrade to RAID 6, at least 256MB

Cache and a Battery is required in addition to the Smart Array Advanced Pack license

(P/N 516471-B21).

NOTE:

To use the internal only PCI-e slot when purchasing the Hot Plug CTO Chassis, a

HP Smart Array P410 controller must be selected. When selecting the HP Smart Array

P212/256 BBWC 1-ports Int/1-ports Ext PCIe x8 FIO SAS Controller (P/N 491191-B21),

the controller will be installed in the x16 slot since it has both an internal and external

port. This prevents the use of the internal slot and no PCI-E slots will be available.

HP Smart Array P812/1G FBWC 2-ports Int/4-ports Ext PCIe x8 SAS Controller

487204-B21

HP Smart Array P410/1G FBWC 2-ports Int PCIe x8 SAS Controller

572532-B21

HP Smart Array P410/512 FBWC 2-ports Int PCIe x8 SAS Controller

578230-B21

HP Smart Array P410/ZM 2-ports Int PCIe x8 FIO SAS Controller

462860-B21

HP Smart Array P410/256 2-ports Int PCIe x8 SAS Controller

462862-B21

HP Smart Array P411/256 BBWC 2-ports Ext PCIe x8 FIO SAS Controller

491193-B21

HP Smart Array P410/256 BBWC 2-ports Int PCIe x8 FIO SAS Controller

491195-B21

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Configuration Information - Factory Integrated Models

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 16

Retired

HP Smart Array P410/512 BBWC 2-ports Int PCIe x8 SAS Controller

462864-B21

HP Power Supplies

NOTE:

Prior to making a power supply selection it is highly recommended that the HP

Power Advisor is run to determine the right size power supply for your server

configuration. The HP Power Advisor is located at:

http://www.hp.com/go/hppoweradvisor

NOTE:

HP ProLiant servers ship with an IEC-IEC power cord used for rack mounting with

Power Distribution Units (PDUs). For a full list of optional HP power cords please go to

www.hp.com/products/powercords

HP 500W Factory Integrated Power Supply Kit

515915-B21

HP 750W Common Slot Gold Hot Plug Factory Integrated Power Supply Kit with

Backplane

535683-B21

Step 3: Choose Additional Factory Integratable Options

HP Storage Controllers

NOTE:

With the HP Smart Array P410 Controller, the addition of the battery backed

cache upgrade enables BBWC, RAID 5, 5+0, array expansion, logical drive extension,

RAID migration, and stripe size migration. In order to upgrade to RAID 6, at least 256MB

Cache and a Battery is required in addition to the Smart Array Advanced Pack license

(P/N 516471-B21).

NOTE:

To use the internal only PCI-e slot when purchasing the Hot Plug CTO Chassis, a

HP Smart Array P410 controller must be selected. When selecting the HP Smart Array

P212/256 BBWC 1-ports Int/1-ports Ext PCIe x8 FIO SAS Controller (P/N 491191-B21),

the controller will be installed in the x16 slot since it has both an internal and external

port. This prevents the use of the internal slot and no PCI-E slots will be available.

HP Smart Array P212/256 BBWC 1-ports Int/1-ports Ext PCIe x8 FIO SAS Controller

NOTE:

P212 may be used as external controller only in SFF models.

491191-B21

HP Smart Array P410/ZM 2-ports Int PCIe x8 FIO SAS Controller

462860-B21

HP Smart Array P410/256 BBWC 2-ports Int PCIe x8 FIO SAS Controller

491195-B21

Step 4: Choose Additional Options for Factory Integration

NOTE:

For additional "Core Options" and "Additional Options", please refer to the "Options" sections below.

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Configuration Information - Factory Integrated Models

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 17

Retired

NOTE:

Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of

an HP approved configurator. Contact your local sales representative for additional information.

HP Unique Options

HP Dedicated Management Port Kit

516006-B21

HP Processors

Sixteen-Core Processors

HP DL165 G7 AMD Opteron™ 6276 (2.30GHz/16-core/16MB/115W) Processor Kit

663371-B21

HP DL165 G7 AMD Opteron™ 6274 (2.20GHz/16-core/16MB/115W) Processor Kit

663373-B21

HP DL165 G7 AMD Opteron™ 6272 (2.10GHz/16-core/16MB/115W) Processor Kit

663375-B21

HP DL165 G7 AMD Opteron™ 6262HE (1.60GHz/16-core/16MB/85W) Processor Kit

663385-B21

Twelve-Core Processors

HP DL165 G7 AMD Opteron™ 6238 (2.60GHz/12-core/16MB/115W) Processor Kit

663377-B21

HP DL165 G7 AMD Opteron™ 6234 (2.40GHz/12-core/16MB/115W) Processor Kit

663379-B21

HP DL165 G7 AMD Opteron™ 6176 (2.3GHz/12-core/12MB/115W) Processor Kit

635812-B21

HP DL165 G7 AMD Opteron™ 6174 (2.2GHz/12-core/12MB/115W) Processor Kit

601118-B21

HP DL165 G7 AMD Opteron™ 6172 (2.1GHz/12-core/12MB/115W) Processor Kit

601113-B21

HP DL165 G7 AMD Opteron™ 6164HE (1.7GHz/12-core/12MB/85W) Processor Kit

601116-B21

Eight-Core Processors

HP DL165 G7 AMD Opteron™ 6220 (3.0GHz/8-core/16MB/115W) Processor Kit

663381-B21

HP DL165 G7 AMD Opteron™ 6212 (2.60GHz/8-core/16MB/115W) Processor Kit

663383-B21

HP DL165 G7 AMD Opteron™ 6140 (2.6GHz/8-core/12MB/115W) Processor Kit

635818-B21

HP DL165 G7 AMD Opteron™ 6136 (2.4GHz/8-core/12MB/115W) Processor Kit

601112-B21

HP DL165 G7 AMD Opteron™ 6134 (2.3GHz/8-core/12MB/115W) Processor Kit

601115-B21

HP DL165 G7 AMD Opteron™ 6132HE (2.2GHz/8-core/12MB/85W) Processor Kit

635891-B21

HP DL165 G7 AMD Opteron™ 6128 (2.0GHz/8-core/12MB/115W) Processor Kit

601111-B21

HP DL165 G7 AMD Opteron™ 6128HE (2.0GHz/8-core/12MB/85W) Processor Kit

601110-B21

Four-Core Processors

HP DL165 G7 AMD Opteron™ 6204 (3.30GHz/4-core/16MB/115W) Processor Kit

672323-B21

NOTE:

Supports up to two AMD Opteron™ 6000 series Eight Twelve and Sixteen Core

processors.

NOTE:

Processor wattage references reflect Thermal Design Power (TDP). For more

information on TDP and Average CPU Power (ACP) visit:

http://www.amd.com/acp

NOTE:

Supports DirectConnect Architecture.

NOTE:

Supports Power Now.

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Core Options

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 18

Retired

HP Memory

Registered DIMMs (RDIMMs)

HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

593907-B21

HP 4GB (1x4GB) Single Rank x4 PC3-12800 (DDR3-1600) Registered CAS-11 Memory Kit

676331-B21

HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

593911-B21

HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power

Memory Kit

604500-B21

HP 8GB (1x8GB) Single Rank x4 PC3-12800 (DDR3-1600) Registered CAS-11 Memory Kit

676333-B21

HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

593913-B21

HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power

Memory Kit

604502-B21

HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit

593915-B21

HP 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP

Memory Kit

627808-B21

HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory

Kit

684066-B21

Unbuffered with ECC DIMMs (UDIMMs)

HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit

593921-B21

HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit

593923-B21

NOTE:

PC3L is a low voltage memory.

HP Optical Drives

HP 9.5mm SATA DVD-ROM Optical Drive

481045-B21

HP 9.5mm SATA DVD-RW Optical Drive

481047-B21

HP Hard Drives

NOTE:

The components of a storage subsystem (e.g. the drive, the HBA/controller, and

the server backplane) should operate at the same data transfer rate or the system

bandwidth will be negotiated down to an acceptable level for all components.

NOTE:

Hard drives have either a one year or three year warranty; refer to the specific

hard drive QuickSpecs for details.

NOTE:

HP Smart Array B110i does not support greater than 2TB hard drive.

SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives

HP 1TB 3G SATA 7.2K rpm SFF (2.5-inch) Hot Plug Midline 1yr Warranty Hard Drive

625609-B21

HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive

507750-B21

SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives

HP 3TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

628059-B21

HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

507632-B21

HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

454146-B21

HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

458928-B21

SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives

HP 3TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive

628063-B21

HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive

507774-B21

HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive

507772-B21

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Core Options

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 19

Retired

HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard

Drive

458941-B21

SATA Hot Plug LFF (3.5-inch) Entry (ETY) Drives

HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive

571230-B21

SATA Non-Hot Plug LFF (3.5-inch) Entry (ETY) Drives

HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1yr Warranty Hard Drive

571232-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

http://h18000.www1.hp.com/products/quickspecs/13021_div/13021_div.html

(Worldwide)

SATA Hot Plug 2.5" Enterprise Mainstream Solid State Drives

HP 400GB 3G SATA MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State

Drive

636597-B21

HP 200GB 3G SATA MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State

Drive

636595-B21

HP 100GB 3G SATA MLC SFF (2.5-inch) Enterprise Mainstream 3yr Warranty Solid State

Drive

636593-B21

SATA Hot Plug 3.5" Enterprise Mainstream Solid State Drives

HP 400GB 3G SATA MLC LFF (3.5-inch) Enterprise Mainstream 3yr Warranty Solid State

Drive

636611-B21

HP 200GB 3G SATA MLC LFF (3.5-inch) Enterprise Mainstream 3yr Warranty Solid State

Drive

636609-B21

HP 100GB 3G SATA MLC LFF (3.5-inch) Enterprise Mainstream 3yr Warranty Solid State

Drive

636607-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

http://h18000.www1.hp.com/products/quickspecs/14038_na/14038_na.html

(Worldwide)

SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives

HP 900GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

619291-B21

HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

581286-B21

HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

581284-B21

HP 300GB 6G SAS 15K rpm SFF (2.5-inch) Hot Plug Enterprise 3 yr Warranty Hard Drive

627117-B21

HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

507127-B21

HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

512547-B21

SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives

HP 600GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

516828-B21

HP 450GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

516816-B21

HP 300GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

516814-B21

SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives

HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive

605835-B21

HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive

507610-B21

SAS Hot Plug LFF (3.5-inch) Midline (MDL) Drives

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Core Options

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 20

Retired

HP 3TB 6G SAS 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

625031-B21

HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive

507616-B21

HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive

507614-B21

NOTE:

The purchase of SAS HBA or array controller is required.

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html

(Worldwide)

6G SAS Hot Plug Enterprise Performance Solid State Drives

HP 400GB 6G SAS SLC SFF (2.5-inch) Enterprise Performance 3yr Warranty Solid State

Drive

632494-B21

HP 200GB 6G SAS SLC SFF (2.5-inch) Enterprise Performance 3yr Warranty Solid State

Drive

632492-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

http://h18000.www1.hp.com/products/quickspecs/14038_div/14038_div.html

(Worldwide)

HP Networking

Gigabit Ethernet Adapters

HP NC112T PCI Express Gigabit Server Adapter

503746-B21

HP Ethernet 1Gb 4-port 331T Adapter

647594-B21

HP NC360T PCI-E Dual Port Gigabit Server Adapter

412648-B21

HP NC375T PCI Express Quad Port Gigabit Server Adapter

538696-B21

HP NC365T 4-port Ethernet Server Adapter

593722-B21

HP NC373F PCI-E Multifunction 1000SX Gigabit Svr Adapter

394793-B21

HP NC373T PCI-E Multifunction Gigabit Server Adapter

394791-B21

HP NC382T PCI Express Dual Port Multifunction Gigabit Server Adapter

458492-B21

10 Gigabit Ethernet Adapters

NOTE:

No more than two10GbE I/O devices are supported in a single ProLiant server.

NOTE:

A minimum of two Gigabytes (2 GB) of server memory is required per each

adapter.

NOTE:

Direct Attach Cable (DAC) for copper environments or fiber transceivers and

cables for fiber-optic environments must be purchased separately.

HP NC522SFP Dual Port 10GbE Gigabit Server Adapter

468332-B21

HP NC523SFP 10Gb 2-port Server Adapter

593717-B21

HP NC550SFP Dual Port 10GbE Server Adapter

581201-B21

HP NC552SFP 10Gb 2-port Ethernet Server Adapter

614203-B21

HP Ethernet 10Gb 2-port 560SFP+ Adapter

665249-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

www.hp.com/go/ProLiantNICs

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Core Options

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 21

Retired

HP Cooling Options

HP DL165 G7 Redundant Fan Option Kit

NOTE:

Redundant Fan Option Kit ONLY required for fan redundancy in single processor

configurations. Two processor configurations offer N+1 fan redundancy as standard.

593114-B21

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Core Options

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 22

Retired

NOTE:

Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of

an HP approved configurator. Contact your local sales representative for additional information.

HP Entry-Level Server

Management

HP Lights-Out 100i (LO100i) Advanced including 1yr 24x7 Support Single Server License

NOTE:

For additional License Kits please see the Lights-Out 100i QuickSpecs at:

www.hp.com/go/lo100

530521-B21

HP Insight Software

HP Insight Control server deployment

HP Insight Control Server Deployment including 1yr 24x7 Support Electronic License

T9082AAE

HP Insight Control Server Deployment including 1yr 24x7 Support Single Server License

452151-B21

NOTE:

Licenses ship without media. The Insight Control Media Kit can be ordered

separately, or can be downloaded at:

http://www.hp.com/go/insightupdates

NOTE:

Customer will receive a license entitlement certificate, which must be redeemed

online or via fax in order to obtain the license activation key(s). Includes one year of 24

x 7 HP Software Technical Support Service.

NOTE:

For additional license kits please see the Insight Control QuickSpecs at:

http://h18004.www1.hp.com/products/quickspecs/12631_div/12631_div.html

(Worldwide)

HP Insight Management Media Kit

436222-B21

NOTE:

HP Insight Management Media Kit contains DVDs without licenses. Contains HP

Systems Insight Manager, HP Insight Control, HP Matrix Operating Environment, and

Virtual Connect Enterprise Manager software. Uses an integrated installer to perform

quick and accurate software installation and updates.

NOTE:

Electronic and Flexible-Quantity licenses can be used to purchase multiple

licenses with a single activation key.

NOTE:

Customer will receive a license entitlement certificate. The license entitlement

certificate must be redeemed online or via fax in order to obtain the license activation

key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.

NOTE:

Licenses ship without media. The HP Insight Management Media Kit can be

ordered separately, or can be downloaded at:

http://www.hp.com/go/insightupdates

NOTE:

For additional license options please see the Insight Control QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.html

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Additional Options

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 23

Retired

High Performance

Clusters

HP Insight Cluster Management Utility

HP Insight Cluster Management Utility Flexible License

QL803B

NOTE:

This part number can be used to purchase one certificate for multiple licenses

with a single activation key. Each license is for one node (server). Customer will receive

a printed end user license agreement and license entitlement certificate via physical

shipment. The license entitlement certificate must be redeemed online in order to

obtain a license key.

NOTE:

For additional license kits please see the QuickSpecs at:

http://h18004.www1.hp.com/products/quickspecs/12612_div/12612_div.html

(Worldwide)

HP Insight Cluster Management Utility Flexible License with 3 years of 24x7 updates

and technical support

NOTE:

These part numbers can be used to purchase one certificate for multiple licenses

and support with a single activation key. Each license is for one node (server). Customer

will receive a printed end user license agreement and license entitlement certificate via

physical shipment. The license entitlement certificate must be redeemed online in order

to obtain a license key. Customer also will receive a support agreement.

BD476A

HP Insight Cluster Management Utility Media

BD477A

NOTE:

Order a minimum of one license per cluster to purchase media including

software and documentation, which will be delivered to the customer, and also licenses

Insight Cluster Management Utility Management. No license key is delivered or

required.

NOTE:

For additional license kits please see the QuickSpecs at:

http://h18004.www1.hp.com/products/quickspecs/12612_div/12612_div.html

(Worldwide)

HP HPC Linux Value Pack

HP High Performance Computing Linux Value Pack 1 Processor Flexible License

TC293B

NOTE:

This part number can be used to purchase one certificate for multiple licenses

with a single activation key. Each license is for one socket (a.k.a. processor). Customer

will receive a printed end user license agreement and license entitlement certificate via

physical shipment. The license entitlement certificate must be redeemed online in order

to obtain a license key.

NOTE:

For additional license kits please see the QuickSpecs at:

http://h18004.www1.hp.com/products/quickspecs/13485_div/13485_div.html

(Worldwide)

HP High Performance Computing Linux Value Pack Media Kit

TC294A

NOTE:

This part number can be used to purchase media including software and

documentation, which will be delivered to the customer.

NOTE:

For additional license kits please see the QuickSpecs at:

http://h18004.www1.hp.com/products/quickspecs/13485_div/13485_div.html

(Worldwide)

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Additional Options

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 24

Retired

HP Security

HP Trusted Platform Module Option

488069-B21

NOTE:

The TPM (Trusted Platform Module) is a microcontroller chip that can securely

store artifacts used to authenticate the server platform. These artifacts can include

passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption

(BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker

leverages the enhanced security capabilities of a Trusted Platform Module (TPM)

version 1.2. The TPM works with BitLocker to help protect user data and to ensure that

a server running Windows Server 2008 has not been tampered with while the system

was offline.

NOTE:

For more information about TPM, including a white paper, go to:

http://www.hp.com/go/TPM

NOTE:

ProLiant OS pre-installed units will come with the partition required for TPM

deployment.

NOTE:

The TPM key is unique to every TPM deployed server and must be retained.

Misplacing or losing the key could result in data loss.

HP Storage Controllers

SAS Controllers

NOTE:

To utilize the internal only slot, the HP Smart Array P410 Controller must be

selected. The selection of the HP Smart Array P212 Controller for internal and external

connectivity, will require the use of the Full Length Full Height PCI-E x16 slot.

NOTE:

With the HP Smart Array P410 Controller, the addition of the battery backed

cache upgrade enables BBWC, RAID 5, 5+0, array expansion, logical drive extension,

RAID migration, and stripe size migration. In order to upgrade to RAID 6, at least 256MB

Cache and a Battery is required in addition to the HP Smart Array Advanced Pack license

(P/N 516471-B21).

Smart Array P212 Controller

HP Smart Array P212/ZM 1-ports Int/1-ports Ext PCIe x8 SAS Controller

462828-B21

HP Smart Array P212/256 1-ports Int/1-ports Ext PCIe x8 SAS Controller

462834-B21

Smart Array P410 Controller

HP Smart Array P410/256 2-ports Int PCIe x8 SAS Controller

462862-B21

HP Smart Array P410/512 BBWC 2-ports Int PCIe x8 SAS Controller

462864-B21

HP Smart Array P410/512 FBWC 2-ports Int PCIe x8 SAS Controller

578230-B21

HP Smart Array P410/1G FBWC 2-ports Int PCIe x8 SAS Controller

572532-B21

Smart Array P411 Controller

NOTE:

Controllers for use with external storage only.

HP Smart Array P411/256 2-ports Ext PCIe x8 SAS Controller

462830-B21

HP Smart Array P411/512 BBWC 2-ports Ext PCIe x8 SAS Controller

462832-B21

HP Smart Array P411/512 FBWC 2-ports Ext PCIe x8 SAS Controller

578229-B21

HP Smart Array P411/1G FBWC 2-ports Ext PCIe x8 SAS Controller

572531-B21

Smart Array P812 Controller

HP Smart Array P812/1G FBWC 2-ports Int/4-ports Ext PCIe x8 SAS Controller

487204-B21

Optional upgrades

HP 1GB Flash Backed Cache

534562-B21

HP 512MB Flash Backed Write Cache

534916-B21

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Additional Options

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 25

Retired

HP 256MB P-series Cache Upgrade

462968-B21

NOTE:

Supported on HP Smart Array P212 Controller only.

HP 512MB P-Series Battery Backed Write Cache Upgrade

462967-B21

NOTE:

Supported on HP Smart Array P411 Controller only.

HP 650 mAh P-Series Battery

462969-B21

HP Smart Array Hot Plug Advance Pack for B110i w/1y 24x7 Supp Physical 1 Svr LTU

TC421A

SAS HBA

HP Modular Smart Array SC08e 2-ports Ext PCIe x8 SAS Host Bus Adapter

NOTE:

This is a 2 x4 External Port HBA.

614988-B21

NOTE:

Please see the following QuickSpecs for Technical Specifications and additional

information:

http://h18000.www1.hp.com/products/quickspecs/13203_div/13203_div.html

(Smart Array P212 Controller)

http://h18000.www1.hp.com/products/quickspecs/13201_div/13201_div.html

(Smart Array P410 Controller)

http://h18000.www1.hp.com/products/quickspecs/13202_div/13202_div.html

(Smart Array P411 Controller)

http://h18000.www1.hp.com/products/quickspecs/13558_div/13558_div.html

(Smart Array P812 Controller)

http://h18000.www1.hp.com/products/quickspecs/13495_div/13495_div.html

(Smart Array Advanced Pack)

http://h18004.www1.hp.com/products/quickspecs/13082_div/13082_div.html

(SC08Ge HBA)

HP InfiniBand Options

HP 10 GbE PCI-e G2 Dual Port Network Interface Card

516937-B21

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/13078_div/13078_div.html

(Worldwide)

HP Backup & Recovery

Software

Data Protector Express

HP Data Protector Express V5.0 for 1 Server E-LTU

TC330AAE

HP Data Protector Express V5.0 for 3 Servers E-LTU

TC331AAE

HP Data Protector Express V5.0 for 10 Servers E-LTU

TC332AAE

HP Basic Upgrade to Data Protector Express V5 for 1 Server E-LTU

TC333AAE

NOTE:

Only one of these Data Protector Express base products is required. To see

available options:

http://www.hp.com/go/dataprotectorexpress

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Additional Options

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 26

Retired

HP Tape Backup

NOTE:

For the complete range of tape drives, autoloaders, libraries and media see:

http://www.hp.com/go/tape

. For hardware and software compatibility of HP tape

backup products see:

http://www.hp.com/storage/SPOCK

NOTE:

Connection using the HP P212 SAS Smart Array Controller (462828-B21)

recommended.

HP DAT160 SAS Internal Tape Drive

NOTE:

For installation into 1U SAS Rack-Mount Kit (AE459B) or 3U SAS Rack-Mount Kit

(AG576B). No peripheral bay available for installation into the server.

Q1587B

HP Ultrium 448 SAS Internal Tape Drive

NOTE:

For installation into 1U SAS Rack-Mount Kit (AE459B) or 3U SAS Rack-Mount Kit

(AG576B). No peripheral bay available for installation into the server.

DW085B

HP Ultrium 920 SAS Internal Tape Drive

NOTE:

For installation into 1U SAS Rack-Mount Kit (AE459B) or 3U SAS Rack-Mount Kit

(AG576B). No peripheral bay available for installation into the server.

EH847B

HP 1/8 G2 Ultrium 920 SAS Autoloader

NOTE:

Requires HP 1U Tape Autoloader Rack-Mount Kit (AH166A) for rack installation.

AH558A

HP MSL2024 Ultrium 920 SAS Tape Library

AH559A

HP Disk Backup

NOTE:

For the complete range of D2D Backup Systems see:

http://www.hp.com/go/d2d

. For the complete range of RDX drives and media see:

http://www.hp.com/go/rdx

. For hardware and software compatibility of HP disk backup

products see:

http://www.hp.com/storage/SPOCK

HP D2D Backup Systems with Backup Data Deduplication

HP D2D2502i Backup System

NOTE:

1.5TB of usable network disk backup capacity. Network connected appliance

with connectivity using the iSCSI protocol. If the server requires a hardware iSCSI

initiator, the QLogic QLA4050 Host Bus Adapter is recommended.

EJ001C

HP D2D2504i Backup System

NOTE:

3.0TB of usable network disk backup capacity. Network connected appliance

with connectivity using the iSCSI protocol. If the server requires a hardware iSCSI

initiator, the QLogic QLA4050 Host Bus Adapter is recommended.

EJ002C

USB Removable Media RDX Disk Backup Systems

HP RDX1000 Internal Removable Disk Backup System

BV847A

HP RDX320 Internal Removable Disk Backup System

NOTE:

For installation into 1U USB Rack-Mount Kit (A8007A). No peripheral bay

available for drive installation into the server. 320GB of disk capacity per data cartridge.

AJ767A

HP RDX500 Internal Removable Disk Backup System

NOTE:

For installation into 1U USB Rack-Mount Kit (A8007A). No peripheral bay

available for drive installation into the server. 500GB of disk capacity per data cartridge.

AJ934A

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Additional Options

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 27

Retired

HP Storage Options

Fibre Channel HBA

NOTE:

The following is a list of all Fibre Channel Host Bus Adapters for Windows and

Linux. For detailed compatibility information please see:

http://h18006.www1.hp.com/storage/saninfrastructure/hba.html

Brocade Fibre Channel HBAs

HP 81B 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

AP769B

HP 82B 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

AP770A

HP 41B 4Gb 1-port PCIe Fibre Channel Host Bus Adapter

AP767B

HP 42B 4Gb 2-port PCIe Fibre Channel Host Bus Adapter

AP768B

Emulex Fibre Channel HBAs

HP 81E 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

AJ762B

HP 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

AJ763B

HP FC2142SR 4Gb 1-port PCIe Fibre Channel Host Bus Adapter

A8002B

HP FC2242SR 4Gb 2-port PCIe Fibre Channel Host Bus Adapter

A8003B

HP SN1000E 16Gb 2-port PCIe Fibre Channel Host Bus Adapter

QR559A

HP SN1000E 16Gb 1-port PCIe Fibre Channel Host Bus Adapter

QR558A

QLogic Fibre Channel HBAs

HP 81Q 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

AK344A

HP 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

AJ764A

HP FC1142SR 4Gb 1-port PCIe Fibre Channel Host Bus Adapter

AE311A

HP FC1242SR 4Gb 2-port PCIe Fibre Channel Host Bus Adapter

AE312A

SCSI HBA

HP U320e SCSI Dual Channel Host Bus Adapter

NOTE:

Recommended for MSL SCSI Tape Library connect.

AH627A

NOTE:

Recommended Dual Channel Ultra320 SCSI Controller for connecting multi-drive

MSL tape libraries to ProLiant servers.

Converged Network Adapters

HP CN1100E Dual Port Converged Network Adapter

BK835A

HP CN1000Q Dual Port Converged Network Adapter

BS668A

HP CN1000E Dual Port Converged Network Adapter

NOTE:

The iSCSI protocol and iSCSI BFS are not supported on this server.

NOTE:

No more than two 10GbE I/O or CNA Stand-up cards are supported in a single HP

ProLiant server.

AW520B

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Additional Options

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 28

Retired

HP Uninterruptible Power

Systems

HP Rack-mountable UPS

HP R/T3000 G2 Uninterruptible Power System (UPS)

HP R/T3000 G2 2U L530 Low Voltage NA/JP Uninterruptible Power System

AF466A

HP R/T3000 G2 2U L620 High Voltage NA/JP Uninterruptible Power System

AF467A

HP R/T3000 G2 2U Detachable Cord High Voltage INTL Uninterruptible Power System

AF468A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/14058_div/14058_div.html

(Worldwide)

HP R1500 G3 Uninterruptible Power Supply (UPS)

HP R1.5kVA G3 1U NA Uninterruptible Power System

AF469A

HP R1.5kVA G3 1U JP/TW Uninterruptible Power System

AF470A

HP R1.5kVA G3 1U INTL Uninterruptible Power System

AF471A

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/14059_div/14059_div.html

(Worldwide)

HP T1000 G3 UPS

HP T1000 G3 1000VA NA Tower Uninterruptible Power System

AF448A

HP T1000 G3 1000VA INTL Tower Uninterruptible Power System

AF449A

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/13160_div/13160_div.html

(Worldwide)

HP T1500 G3 UPS

HP T1500 G3 1400VA NA Tower Uninterruptible Power System

AF450A

HP T1500 G3 1400VA INTL Tower Uninterruptible Power System

AF451A

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/13160_div/13160_div.html

(Worldwide)

NOTE:

For additional information on all HP Uninterruptible Power Systems and

accessories please go to:

www.hp.com/products/ups

(Worldwide)

NOTE:

For additional information on sizing your server, please reference:

http://www.upssizer.com

NOTE:

Please see the UPS and PDU cable matrix's on the HP Power Protection and

Management page. Under Power Cords, click on the "HP Power Cord Matrix" link. That

link will list cable descriptions, requirements, and specifications for UPS and PDU units.

Please see the following link:

www.hp.com/products/powercords

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Additional Options

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 29

Retired

HP Intelligent Power

Distribution Units

(iPDU)

iPDU Core Units

HP 4.9kVA 24A Single Phase NA/JP Core Intelligent Modular Power Distribution Unit

AF520A

HP 8.6kVA 24A Three Phase NA/JP Core Intelligent Modular Power Distribution Unit

AF522A

HP 17.3kVA 48A 208V Three Phase 12 Outlet Core NA/JP Intelligent Power Distribution

Unit

AF535A

HP 17.3kVA 24A 415V Three Phase 12 Outlet Core NA/JP Intelligent Power Distribution

Unit

AF537A

HP 22kVA 32A 400V Three Phase 12 Outlet Core INTL Intelligent Power Distribution Unit

AF538A

HP 11.4kVA 16A 415V Three Phase L22-20 NA Core Intelligent Power Distribution Unit

AF900A

HP 17.3kVA 24A 415V Three Phase L22-30 NA Core Intelligent Power Distribution Unit

AF902A

HP 17.3kVA 24A 415V Three Phase IEC309 NA Core Intelligent Power Distribution Unit

AF901A

HP 7.3kVA 32A Single Phase INTL Core Intelligent Modular Power Distribution Unit

AF525A

HP 11kVA 16A Three Phase INTL Core Intelligent Modular Power Distribution Unit

AF526A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

http://h18000.www1.hp.com/products/quickspecs/13650_div/13650_div.html

(Worldwide)

HP Rack Series

HP Rack 10000 G2 Series

(Carbon/Graphite Metallic)

HP 10642 G2 1200mm deep Shock Rack

AF092A

HP 10647 G2 1200mm deep Shock Rack

AF094A

NOTE:

It is mandatory to use a shock pallet when shipping racks with equipment

installed.

NOTE:

xxxxxx-B22 (shock pallet) used to ship racks with equipment installed (by

custom systems, VARs and Channels).

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

http://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.html

(Worldwide)

NOTE:

For additional information regarding Rack Cabinets, please see the following

URL:

http://www.hp.com/go/rackandpower

NOTE:

The increasing power of new high-performance processor technology requires

increased cooling efficiency for rack-mounted servers. The 10000 G2 Series Racks

provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded

with servers using the latest processors.

CAUTION:

If a third-party rack is used, observe the following additional requirements to

ensure adequate airflow and to prevent damage to the equipment:

Front and rear doors: If your 42U server rack includes closing front and rear

doors, you must allow 830 square inches (5,350 sq cm) of hole evenly distributed

from top to bottom to permit adequate airflow (equivalent to the required 64

percent open area for ventilation).

Side: The clearance between the installed rack component and the side panels of

the rack must be a minimum of 2.75 inches (7 cm).

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Additional Options

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 30

Retired

CAUTION:

Always use blanking panels to fill all remaining empty front panel U-spaces in

the rack. This arrangement ensures proper airflow. Using a rack without blanking

panels results in improper cooling that can lead to thermal damage.

NOTE:

HP ProLiant DL rack models have fixed rails which provide support for racks with

round mounting holes and tool-free support for racks with square mounting holes

(including Compaq/HP 7000, 9000, 10000 and HP series), with an adjustment range of

26" - 36".

NOTE:

Support for all 2 and 4 post Telco racks and threaded hole racks requires an

additional option kit from Rack Solutions. The Rack Solutions brackets can be

purchased at:

www.hp.com/go/rackandpower

HP Rack Options

Keyboards and Monitors

HP USB BFR with PVC Free INDIA Keyboard/Mouse Kit

672097-D63

HP USB BFR with PVC Free AP-INTL Keyboard/Mouse Kit

672097-373

HP USB BFR with PVC Free INTL Keyboard/Mouse Kit

672097-B33

HP USB BFR with PVC Free PORT Keyboard/Mouse Kit

672097-133

HP USB BFR with PVC Free TURK Keyboard/Mouse Kit

672097-143

HP USB BFR with PVC Free CZ Keyboard/Mouse Kit

672097-223

HP USB BFR with PVC Free FIN Keyboard/Mouse Kit

672097-353

HP USB BFR with PVC Free SWE Keyboard/Mouse Kit

672097-103

HP USB BFR with PVC Free SWIS Keyboard/Mouse Kit

672097-113

HP USB BFR with PVC Free KOR Keyboard/Mouse Kit

672097-KD3

HP USB BFR with PVC Free US Keyboard/Mouse Kit

631341-B21

HP USB BFR with PVC Free UK Keyboard/Mouse Kit

631344-B21

HP USB BFR with PVC Free FR Keyboard/Mouse Kit

631346-B21

HP USB BFR with PVC Free ES Keyboard/Mouse Kit

631348-B21

HP USB BFR with PVC Free DE Keyboard/Mouse Kit

631358-B21

HP USB BFR with PVC Free JP Keyboard/Mouse Kit

631360-B21

HP USB BFR with PVC Free IT Keyboard/Mouse Kit

631362-B21

HP USB BFR with PVC Free CN Keyboard/Mouse Kit

631364-B21

HP USB BFR with PVC Free AE Keyboard/Mouse Kit

638212-B21

HP USB BFR with PVC Free RU Keyboard/Mouse Kit

638214-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

http://h18000.www1.hp.com/products/quickspecs/13972_div/13972_div.html

(Worldwide)

HP KVM Switch Options

HP Server Console 0x2x8 Port Analog Switch

AF616A

HP Server Console 0x2x16 Port Analog Switch

AF617A

HP 1x4 Console Switch

HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software

AF618A

HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software

AF619A

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Additional Options

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 31

Retired

HP 1x1Ex8 KVM IP Console Switch G2 with Virtual Media CAC Software

AF620A

HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software

AF621A

HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software

AF622A

NOTE:

For additional information regarding KVM switches, Serial Console servers, rack

mount monitors, keyboards and all related options please see the following URL:

http://www.hp.com/go/kvm

HP USB and SD Options

HP USB-P/S2 Mouse

DC369A

HP USB 04 Standard Keyboard

DT528A#ABA

HP DL165 G7 Secure Card Reader Module Option Kit

592710-B21

HP Internal USB Cable G6 Kit

536769-B21

HP Care Pack Services

HP 3y 4h 24x7 DL16x ProCare Service

U3A18E

HP 3y 4h 24x7 DL16x Collab Support

U1J98E

HP 3y 4h 24x7 ProLiant DL14x/16x HW Supp

U9510E

HP 3y Nbd DL16x ProCare Service

U3A12E

HP 3y Nbd DL16x Collab Support

U1J92E

HP 3y Nbd ProLiant DL14x/16x HW Supp

U9508E

NOTE:

For more information, customer/resellers can contact:

http://www.hp.com/services/carepack

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Additional Options

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 32

Retired

HP ProLiant DL165 G7 (all models)

NOTE:

Memory configurations listed do not apply to "Factory Integrated Models".

NOTE:

DDR3-1600MHz memory speed is only supported by 6200 series Opteron™ Processors.

Standard Memory

4 GB (2 x 2 GB) PC3-8500R DDR3 RDIMM memory, with Advanced ECC Capabilities memory installed.

Maximum Memory

Up to 384GB memory is available with the optional installation of PC3-12800-11 Registered DIMM memory kits.

Memory should be installed in pairs and matched for optimum performance.

Up to 256GB, using 2x8GB Dual-Rank and 1x16GB Quad-Rank PC3-8500R-7 DDR3 Registered (RDIMM) memory per memory channel,

operating at 800MHz in 24 slots. (See memory section for population rules).

Up to 192GB, using 8GB PC3-10600R or PC3-8500R DDR3 Registered (RDIMM) memory, operating at 800MHz when populated at 3

DIMMs per Channel in 24 slots.

Up to 64GB, using PC3-10600E DDR3 Unbuffered (UDIMM) memory, operating at 1066MHz when populated at 2 DIMMs per Channel in

16 slots

DDR3 memory population guidelines

Some DIMM installation guidelines are summarized below:

For servers with twenty-four (24) memory slots:

There are four (4) channels per processor; eight (8) channels per server

There are three (3) DIMM slots for each memory channel; twenty-four (24) total slots

Memory channel 1 consists of the three (3) DIMMs that are furthest from the processor

Memory channel 4 consists of the three (3) DIMMs that are closest to the processor

Do not mix Unbuffered memory (UDIMMs) with Registered memory (RDIMMs)

Do not install DIMMs if the corresponding processor is not installed

If only one processor is installed in a 2CPU system, only half of the DIMM slots are available

To maximize performance, balance the total memory capacity between all installed processors

It is not required, but it is recommended to load the channels similarly if possible

You can only have up to eight (8) ranks installed per channel

Mixing DIMM speeds is allowed, but the system processor speed rules always override the DIMM capabilities

If you do mix DIMM speeds, the memory bus will default to the minimum clock rate of all DIMMs in the system - even if the

slower DIMM is on the other processor

If you install 1x 1066MHz DIMM in channel 1 and 1x 1333MHz DIMM in channel 2, you still run at 1066MHz

If you install 1x 1066MHz DIMM in channel 1 and 5x 1333MHz DIMMs with 1 DIMM Per Channel (DPC) in each of the other

channels, you run at 1066MHz

If you install 3DPC in one channel (if applicable) and 1DPC in all other channels, you run at 800MHz

References to the above MHz speeds are for the various speeds of DDR3 DIMMs; 1333 refers to DDR3-1333, etc

You can only install one quad-rank DIMMs per channel and it must be in the center socket

You can only install two UDIMMs per channel; if available, the second (or middle) slot in the channel must remain empty

Populate DIMMs from heaviest load (quad-rank) to lightest load (single-rank) within a channel

Heaviest load (DIMM with most ranks) within a channel goes furthest from the chipset

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Memory

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 33

Retired

DIMM Type

Registered DIMMS (RDIMMs)

Unbuffered with

ECC DIMMs

(UDIMMs)

DIMM Rank

Single Rank

Dual Rank (2R)

Quad

Rank

(4R)

Dual Rank (2R)

DIMM Capacity

4GB 4GB 8GB 2GB 8GB

16GB 16GB 16GB

2GB 4GB

DIMM Native Speed (MHz)

1333 1600 1600 1333 1333 1333 1600 1066 1333 1333

Voltage

LV/Std

Std Std Std

LV/Std LV/Std

Std Std Std Std

SLOTS THAT CAN BE POPULATED

24 slot servers

24 24 24 24 24 24 24 8 16 16

MAXIMUM CAPACITY (GB)

24 slot servers

96 96 192 48 192 384 384 256

32 64

POPULATED DIMM SPEED (MHz)

1 DIMM Per Channel

1066/

1333

1600 1600 1333

1066/

1333

1333 1600 1066 1333 1333

2 DIMM Per Channel

1066/

1333

1333 1333 1333

1066/

1333

1333 1333

n/a

1333 1333

3 DIMM Per Channel

1066/

1333

1066 1066 1066 1066

800/

1066

n/a n/a n/a

* This capacity is achieved by loading 1 16GB in center socket and remaining sockets with 8GB DIMMs.

** 3DPC: LV runs at 800/Std voltage runs at 1066

DIMM slot and configuration diagrams

Basic memory slot & population diagram

Population order; start with "A" first, "B" second, "C" third, etc.

24 DIMM SLOTS (12 per CPU node)

CPU1 CPU2

slot #

population order

slot #

population order

Chnl 1

Chnl 2

Chnl 3

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Memory

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 34

Retired

Chnl 4

NOTE:

Capacity references are rounded to the common Gigabyte values.

2GB = 2048MB

4GB = 4096MB

8GB = 8192MB

16GB = 16384MB

DDR3 memory options part number decoder

Following are memory options available from HP:

HP Memory

Registered DIMMs (RDIMMs)

HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

593907-B21

HP 4GB (1x4GB) Single Rank x4 PC3-12800 (DDR3-1600) Registered CAS-11 Memory Kit

676331-B21

HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

593911-B21

HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power

Memory Kit

604500-B21

HP 8GB (1x8GB) Single Rank x4 PC3-12800 (DDR3-1600) Registered CAS-11 Memory Kit

676333-B21

HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

593913-B21

HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power

Memory Kit

604502-B21

HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit

593915-B21

HP 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP

Memory Kit

627808-B21

HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory

Kit

684066-B21

Unbuffered with ECC DIMMs (UDIMMs)

HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit

593921-B21

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Memory

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 35

Retired

HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit

593923-B21

NOTE:

PC3L is a low voltage memory.

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Memory

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 36

Retired

1-4

Hot plug 3.5" SATA or Hot-plug SAS/SATA hard drive bays

Optional DVD-ROM, or DVD/CD RW

1-8

Eight Hot-plug SAS hard drive bays

Optional DVD-ROM, or DVD RW

Drive Support

Removable Media

Quantity

Supported

Position

Supported

Controller

DVD-ROM

Up to 1

Integrated IDE (ATAPI) (optional)

DVD RW

Up to 1

Integrated IDE (ATAPI) (optional)

Hard Drives

NOTE:

The components of a storage subsystem (e.g. the drive, the HBA/controller, and the server backplane) should operate at the

same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.

NOTE:

Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives

Quantity

Supported

Position

Supported

Controller

1TB 3G SATA 7.2K

500GB SATA 7.2K

Up to 4

1-4

HP Smart Array P212 Controller

HP Smart Array P410 Controller

HP Smart Array P812 Controller

SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives

Quantity

Supported

Position

Supported

Controller

3TB 3G SATA 7.2K

2TB 3G SATA 7.2K

1TB 3G SATA 7.2K

500GB 3GSATA 7.2K

Up to 4

1-4

HP Smart Array P212 Controller

HP Smart Array P410 Controller

HP Smart Array P812 Controller

SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives

Quantity

Supported

Position

Supported

Controller

3TB 3G SATA 7.2K

2TB 3G SATA 7.2K

1TB 3G SATA 7.2K

500GB 3G SATA 7.2K

Up to 4

1-4

HP Smart Array P212 Controller

HP Smart Array P410 Controller

HP Smart Array P812 Controller

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Storage

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 37

Retired

SATA Hot Plug LFF (3.5-inch) Entry (ETY) Drives

Quantity

Supported

Position

Supported

Controller

250GB 3G SATA 7.2K

Up to 4

1-4

HP Smart Array P212 Controller

HP Smart Array P410 Controller

HP Smart Array P812 Controller

SATA Non-Hot Plug LFF (3.5-inch) Entry (ETY) Drives

Quantity

Supported

Position

Supported

Controller

250GB 3G SATA 7.2K

Up to 4

1-4

HP Smart Array P212 Controller

HP Smart Array P410 Controller

HP Smart Array P812 Controller

SATA Hot Plug 2.5" Enterprise Mainstream Solid State Drives

Quantity

Supported

Position

Supported

Controller

400GB 3G SATA MLC SFF

SSD

200GB 3G SATA MLC SFF

SSD

100GB 3G SATA MLC SFF

SSD

Up to 8

1-8

HP Smart Array P212 Controller

HP Smart Array P410 Controller

HP Smart Array P812 Controller

SATA Hot Plug 3.5" Midline (MDL) Solid State Drives

Quantity

Supported

Position

Supported

Controller

400GB 3G SATA MLC LFF

SSD

200GB 3G SATA MLC LFF

SSD

100GB 3G SATA MLC LFF

SSD

Up to 4

1-4

HP Smart Array P212 Controller

HP Smart Array P410 Controller

HP Smart Array P812 Controller

SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives

Quantity

Supported

Position

Supported

Controller

1.0TB 6G SAS 7.2K

500GB 6G SAS 7.2K

Up to 8

1-8

HP Smart Array P212 Controller

HP Smart Array P410 Controller

HP Smart Array P812 Controller

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Storage

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 38

Retired

SAS Hot Plug LFF (3.5-inch) Midline (MDL) Drives

Quantity

Supported

Position

Supported

Controller

3TB 6G SAS 7.2K

2TB 6G SAS 7.2K

1TB 6G SAS 7.2K

Up to 4

1-4

HP Smart Array P212 Controller

HP Smart Array P410 Controller

HP Smart Array P812 Controller

SAS Hot Plug SFF(2.5-inch) Enterprise (ENT) Drives

Quantity

Supported

Position

Supported

Controller

900GB 6G SAS 10K

600GB 6G SAS 10K

450GB 6G SAS 10K

300GB 6G SAS 15K

300GB 6G SAS 10K

146GB 6G SAS 15K

Up to 8

1-8

HP Smart Array P212 Controller

HP Smart Array P410 Controller

HP Smart Array P812 Controller

SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives

Quantity

Supported

Position

Supported

Controller

600GB 6G SAS 15K

450GB 6G SAS 15K

300GB 6G SAS 15K

Up to 4

1-4

HP Smart Array P212 Controller

HP Smart Array P410 Controller

HP Smart Array P812 Controller

6G SAS Hot Plug Enterprise Performance Solid State Drives

Quantity

Supported

Position

Supported

Controller

400GB 6G SAS SLC

200GB 6G SAS SLC

Up to 4

1-4

HP Smart Array P212 Controller

HP Smart Array P410 Controller

HP Smart Array P812 Controller

Tape and Disk Backup

NOTE:

For the complete range of tape drives, autoloaders, libraries and media, including the internal fitting models, see:

http://www.hp.com/go/tape

. For the complete range of D2D Backup Systems see:

http://www.hp.com/go/d2d

. For the complete

range of RDX drives and media see:

http://www.hp.com/go/rdx

. For hardware and software compatibility of HP disk and tape backup

products see:

http://www.hp.com/storage/SPOCK

Position

Recommended Controller

Part Number

HP SCSI Tape Drives

LTO-1 Ultrium 232

LTO-2 Ultrium 448

LTO-3 Ultrium 920

LTO-3 Ultrium 960

LTO4 Ultrium 1760

External

HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter

412911-B21

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Storage

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 39

Retired

LTO-4 Ultrium 1840

DAT 40

DAT 72

DAT 160

1U Rack-Mount Kit

3U Rack-Mount Kit

HP USB Tape Drives

DAT 40

DAT 72

DAT 160

DAT 320

1U USB Rack-Mount Kit

External

USB 2.0 Port

N/A

HP SAS Tape Drives

DAT 160

DAT 320

LTO-2 Ultrium 448

LTO-3 Ultrium 920

LTO-4 Ultrium 1760

LTO-4 Ultrium 1840

LTO-5 Ultrium 3000

LTO-5 Ultrium 3280

1U Rack-Mount Kit

3U Rack-Mount Kit

External

HP Smart Array P212/ZM 1-ports Int/1-ports Ext PCIe x8 SAS

Controller

462828-B21

HP SCSI Tape Autoloaders

DAT 72x10 Autoloader

1/8 G2 Autoloader

External

HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter

412911-B21

HP SCSI Tape Libraries

MSL2024

MSL4048

MSL8096

MSL6000

External

HP U320e SCSI Dual Channel Host Bus Adapter

AH627A

HP SAS Tape Autoloaders

and Libraries

1/8 G2 Autoloader

MSL2024

MSL4048

MSL8096

External

HP Smart Array P212/ZM 1-ports Int/1-ports Ext PCIe x8 SAS

Controller

462828-B21

HP Fibre Channel Tape

Libraries

MSL2024

MSL4048

MSL8096

External

Please consult the EBS connectivity matrix at:

http://www.hp.com/go/ebs

for connectivity information and the

supported Fibre Channel HBAs shown in this QuickSpecs.

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Storage

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 40

Retired

MSL6000

HP USB RDX Removable

Disk Backup System

RDX160

RDX320

RDX500

RDX750

External

USB 2.0 port

N/A

HP D2D Backup Systems,

iSCSI

D2D2500i

D2D4000i

External

Embedded Network Controller. If the server requires a hardware

iSCSI initiator, the QLogic QLA4050 Host Bus Adapter is

recommended.

HP D2D Backup Systems,

Fibre Channel

D2D4000fc

External

Direct server attach is not supported, requires connection via SAN

fabric. See:

http://www.hp.com/storage/SPOCK

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Storage

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 41

Retired

HP 500W Factory Integrated Power Supply Kit

Part Number

515915-B21

Input Voltage Range (Vrms)

100 to 240

Frequency Range (Nominal) (Hz)

47/63

Nominal Input Voltage (Vrms)

100 120 200 220 230 240

Maximum Rated Output Wattage

500 500 500 500 500 500

Nominal Input Current (A rms)

5.74 4.99 2.86 2.58 2.46 2.36

Max Rated Input Wattage Rating (Watts)

568 568 562 556 556 556

Max. Rated VA (Volt-Amp)

574 574 573 567 567 567

Efficiency (%) at Max. Rated Output Wattage

88 88 89 90 90 90

Power Factor

0.99 0.99 0.98 0.98 0.98 0.98

Leakage Current (mA)

0.42 0.50 0.81 0.91 0.95 1.00

Max. Inrush Current (A peak)

30 30 30 30 30 30

Max. Inrush Current duration (mS)

20 20 20 20 20 20

Maximum British Thermal Unit Rating (BTU-Hr)

HP 750W Common Slot Gold Hot Plug Factory Integrated Power Supply Kit with Backplane

Part Number

535683-B21

Input Voltage Range (Vrms)

100 to 240

Frequency Range (Nominal) (Hz)

50/60

Nominal Input Voltage (Vrms)

100 120 200 208 220 230 240

Maximum Rated Output Wattage Rating

750 750 750 750 750 750 750

Nominal Input Current (A rms)

8.9 7.4 4.3 4.1 3.9 3.7 3.6

Maximum Rated Input Wattage Rating (Watts)

857 847 824 825 820 820 820

Maximum Rated VA (Volt-Amp)

894 884 859 854 854 854 854

Efficiency (%)

87.5 88.5

91 91

91.5 91.5 91.5

Power Factor

0.97

Leakage Current (mA)

0.42 0.50 0.83 0.87 0.92 0.96 1.00

Maximum Inrush Current (A peak)

Maximum Inrush Current duration (mS)

Maximum British Thermal Unit Rating (BTU-Hr)

2925 2892 2812 2812 2797 2797 2797

NOTE:

To review typical system power ratings use the Active Answers Power Advisor which is available via the online tool located at URL:

www.hp.com/go/proliant-energy-efficient

www.hp.com/go/hppoweradvisor

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Power Specifications

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 42

Retired

Power

ProLiant DL165 G7 Fully Configured

115V/60Hz 220V/50Hz

Fully Loaded System Input Wattage (W)

568 556

Fully Loaded System Input Current (A rms)

4.99 2.58

Fully Loaded System Thermal (BTU- Hr)

1939.15 1898.18

Fully Loaded System VA (Volt-Amp)

574 567

System Inrush Current with all power supplies loaded (A)

30 30

Power cord requirements

Nema 5-15P to IEC320-C13

IEC320-C13 to IEC320-C14

NOTE:

Power shown is for a fully configured system consisting of (2) CPU, (8) double-sided DIMMs, (2) HDDs, (1) CD-ROM, and (2) PCI

cards.

Power Cord

AF556A

Server Power Cords

One 6' Highline (IEC-IEC) power cord ships standard

NOTE:

HP ProLiant DL servers no longer ship standard with NEMA power

cords (163719-002) that allow connection to 110V US wall outlets in a

home or office. ProLiant DL servers are primarily connected to PDU's in data

center racks so they now ship standard with only a PDU power cord

(416151-B21). If a user wishes to power a ProLiant DL server using a 110V

receptacle (NEMA-15), the NEMA power cord must be ordered separately.

If customers require a local power cord, they can check the power cord

matrix for the appropriate cord. Please see the following power cord matrix:

http://www.hp.com/go/powercordmatrix

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

System Specifications

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 43

Retired

System Unit

Dimensions

(H x W x D)

(with bezel)

1.70 x 17.64 x 27.59 in (4.32 x 44.80 x 69.95 cm)

Weight

(approximate)

Maximum

(all hard drives, power

supplies, and processors

installed)

32.08 lb (14.55 kg)

Minimum

(one hard drive, power

supply, and processor

installed)

27.4 lb (12.43 kg)

Input Requirements

(per 500W power supply)

Rated Line Voltage

100 to 127 VAC

200 to 240 VAC

Rated Input Current

4.99A (at 115 VAC), 2.46A (at 230 VAC)

Rated Input Frequency

47 to 63 Hz

Rated Input Power

574W (at 100 VAC)

573W (at 200 VAC)

BTU Rating

Maximum

500W

1700 BTU / hr (at 100

VAC)

1700 BTU/hr (at 200

VAC)

Power Specifications

To review typical system power ratings use the Power Advisor which is

available via the online tool located at URL:

www.hp.com/go/hppoweradvisor

- Click on the system of interest. Example: DL165 G7

- Follow the instructions of the next screens.

Power Supply Output

(per power supply)

Rated Steady-State Power

500 Watts (at 100 VAC),

500 Watts (at 200 VAC)

Maximum Peak Power

500 Watts (at 100 VAC),

500 Watts (at 200 VAC)

Optional High Efficiency Power Supply Specifications

Input Requirements

(per power supply)

Rated Line Voltage

90-110 VAC,

108-132 VAC

180-264VAC

Rated Input Current

7.4 A (at 115 VAC),

3.6 A (at 230 VAC)

Rated Input Frequency

47 to 63 Hz

Rated Input Power

846 W (at 115 VAC),

822W (at 230 VAC)

BTU Rating

Maximum

750 W

2550 BTU/hr (at 100

VAC),

2550 BTU/hr (at 200

VAC)

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Technical Specifications

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 44

Retired

Power Specifications

To review typical system power ratings use the Power Advisor which is

available via the online tool located at URL:

www.hp.com/go/proliant-energy-

efficient

- Click on the system of interest. Example: DL165 G7

- Follow the instructions of the next screens.

Power Supply Output

(per power supply)

Rated Steady-State Power

750 W (at 100 VAC),

750W (at 200 VAC)

Maximum Peak Power

750 W (at 100 VAC),

750 W (at 200 VAC)

System Inlet

Temperature

Operating

10° to 35°C (50° to 95°F) at sea level with an

altitude derating of 1.0°C per every 305 m (1.8°F

per every 1000 ft) above sea level to a maximum

of 3050 m (10,000 ft), no direct sustained

sunlight. Maximum rate of change is 10°C/hr

(18°F/hr). The upper limit may be limited by the

type and number of options installed.

System performance may be reduced if operating

with a fan fault or above 30°C (86°F).

Non-operating

-30° to 60°C (-22° to 140°F). Maximum rate of

change is 20°C/hr (36°F/hr).

Relative Humidity

(non-condensing)

Operating

10 to 90% relative humidity (Rh), 28°C (82.4°F)

maximum wet bulb temperature, non-

condensing.

Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F)

maximum wet bulb temperature, non-

condensing.

Altitude

Operating

3050 m (10,000 ft). This value may be limited by

the type and number of options installed.

Maximum allowable altitude change rate is 609

m/min (2000 ft/min).

Non-operating

9144 m (30,000 ft). Maximum allowable altitude

change rate is 609 m/min (2000 ft/min).

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared

average bystander position A-Weighted sound pressure levels (LpAm) when

the product is operating in a 23°C ambient environment. Noise emissions were

measured in accordance with ISO 7779 (ECMA 74) and declared in accordance

with ISO 9296 (ECMA 109).

Idle

LWAd

6.03 B

LpAm

46.1 dBA

Operating

LWAd

6.08 B

LpAm

46.4 dBA

Emissions Classification

(EMC)

FCC Rating

Class A

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Technical Specifications

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 45

Retired

(EMC)

Normative Standards

CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15;

ICES-003; CNS13438; GB9254; K22;K24; EN

61000-3-2; EN 61000-3-3; EN 60950-1; IEC

60950-1

NOTE:

Product conformance to cited product specifications is based on

sample (type) testing, evaluation, or assessment. This product or family of

products is eligible to bear the appropriate compliance logos and statements.

HP B110i Smart Array

Controller

Drives Supported

Up to 4 SATA devices

Channels

4 1.5Gb SATA

Storage Capacity

3.0TB internal storage

Data Transfer Method

32-bit/33-MHz PCI bus-master

Maximum SATA Channel

Transfer Rate

1.5Gb/s per channel

Maximum Transfer Rate

per PCI Bus

(peak)

266 MB/s per channel

Protocols

SATA

PIO Mode[0-4]

Cable

SATA

Internal ATA Connectors

Four SATA connectors

NOTE:

Raid support requires optional slot based raid controller.

Smart Array P410/410i

Controller

Disk Drive and Enclosure

Interface

6Gb/s SAS (Serial Attached SCSI)

3Gb/s SATA (Serial ATA)

SAS Connectors

2 internal (Mini-SAS) x8 wide port connectors

Cache Memory Speed

DDR2-533MHz with 40 or 72-bit wide bus provides up to 4.2 GB/s maximum

bandwidth.

Server Interface

x8 2.5G PCIe 2.0 provides 2GB/s maximum bandwidth

SAS Speed

x8 6Gb/s SAS provides 4.8GB/s maximum bandwidth

Cache Memory

40-bit 256MB ECC protected cache (72-bit 512MB BBWC module upgrades

available); transportable with battery-backed upgrade

Logical Drives Supported

Up to 64 logical drives

Host Memory Addressing

64-bit, supporting greater than 4GB server memory space

RAID Support

RAID 6, 6+0 (Advanced Data Guarding)

NOTE:

The minimum of 256 MB cache, battery kit, and Smart Array Advanced

Pack License Key upgrade is required to enable RAID 6, 6+0

RAID 5, 5+0 (Distributed Data Guarding)

NOTE:

The 256 MB is required to enable RAID 5, 5+0 support of the Smart

Array P410i

RAID 1+0 (Striping & Mirroring)

RAID 0 (Striping)

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Technical Specifications

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 46

Retired

(2x) NC362i Integrated

Dual Port Gigabit Server

Adapter

Network Interface

Integrated 10/100/1000BASE-T Transceiver

Combines a triple-speed IEEE 802.3TM - Compliant Media Access Controller

(MAC) with a triple-speed Ethernet transceiver.

Data Transfer Method

Compliant to x1 PCIe Specification

Controller

Intel® 82576

Network Transfer Rate

10Base-T (Half-Duplex)

10Base-T (Full-Duplex)

100Base-TX (Half-Duplex)

100Base-TX (Full-Duplex)

1000Base-TX (Half and Full-Duplex)

Connector

RJ-45 connector

Cable Support

Performs all the physical layer functions for 10BASE-T, 100BASE-T, and

1000BASE-T Ethemet on standard Category 5 UTP

Environment-friendly

Products and Approach

End-of-life Management

and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling

programs in many geographic areas. For trade-in information, please go to:

http://www.hp.com/go/green

. To recycle your product, please go to:

http://www.hp.com/go/green

or contact your nearest HP sales office.

Products returned to HP will be recycled, recovered or disposed of in a

responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide

treatment information for each product type for use by treatment facilities.

This information (product disassembly instructions) is posted on the Hewlett

Packard web site at:

http://www.hp.com/go/green

. These instructions may be

used by recyclers and other WEEE treatment facilities as well as HP OEM

customers who integrate and re-sell HP equipment.

The information contained herein is subject to change without notice.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. AMD, Opteron, and Hyper-Transport are trademarks

of AMD Corporation in the United States and other countries.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and

services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial

errors or omissions contained herein.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.

QuickSpecs

HP ProLiant DL165 Generation 7 (G7)

Technical Specifications

DA - 13602 Worldwide — Version 36 — March 25, 2013

Page 47

Retired

Pro Liant DL165 C04282737

Navigation menu

Versions of this User Manual:

Views

Navigation
