CATALOGUE

LAB

The mission of SENTINEL DIAGNOSTICS is the constant commitment

to the research and development of innovative in-vitro diagnostics

medical devices aimed at rendering clinical diagnostics more reliable

as well as being a safe point of reference for laboratory medicine.

REV 2009/1.2

Ref. DPL 601

VALID FROM 01/01/2009

Index LAB

Diagnostic Systems SENT i FOB™- automatic system for fecal occult blood (FOB)

Instruments 5

Reagents -

FOB Gold™

5

Calibrators 5

Controls 6

Accessories 6

Consumables 6

SENT iLAB - automatic system for clinical chemistry

Instruments 7

Reagents 7

Calibrators and Controls 30

ISE Module 10

Accessories 10

Consumables 11

Application List 12

SENT iCLOT - automatic system for coagulation tests

Instruments 14

Reagents 14

Controls 14

Consumables and Accessories 15

Index LAB

Clinical Chemistry Reagents 16

Calibrators 27

Controls 28

Clinical Chemistry automation Reagents - Calibrators - Controls 30

Clinical Chemistry Fecal occult blood 32

Immunology Plasmaproteins 33

Rheumatology 37

Other proteins 38

Calibrators 40

Controls 42

Immunology automation Reagents - Calibrators - Controls 43

Immunology Rapid tests 45

Hematology Coagulation 46

Analyte Index 48

Alphabetical Index 53

Code Index 56

General Conditions of Sale 59

Notes 60

REV 2009/1.2

VALID FROM 01/01/2009

+H3N

H

C COO-

CH2CH2SH

WATCHING OVER LIFE

ENZYMATIC

HOMOCYSTEINE

A real progress

for the Clinical Chemistry

laboratory

Two reagents

liquid stable

4

CERTIFIED QUALITY MANAGEMENT SYSTEM

ISO 9001:2000 - ISO 13485:2003

ISO 13485:2003 CMDCAS

Compliant with the 21CFR820 “Code of Federal Regulations” FDA

Further technical information is available through

the Sentinel Diagnostics website

(www.sentineldiagnostics.com)

where customers can navigate and download

more specific product information such as:

• IFU (Instructions For Use)

• MSDS (Material Safety Data Sheet)

• CE Certificates (Declarations of Conformity)

etc...

www.sentineldiagnostics.com

Support>Login>SentinelDoc

5

Ref. Product Kit size Tests

Instruments

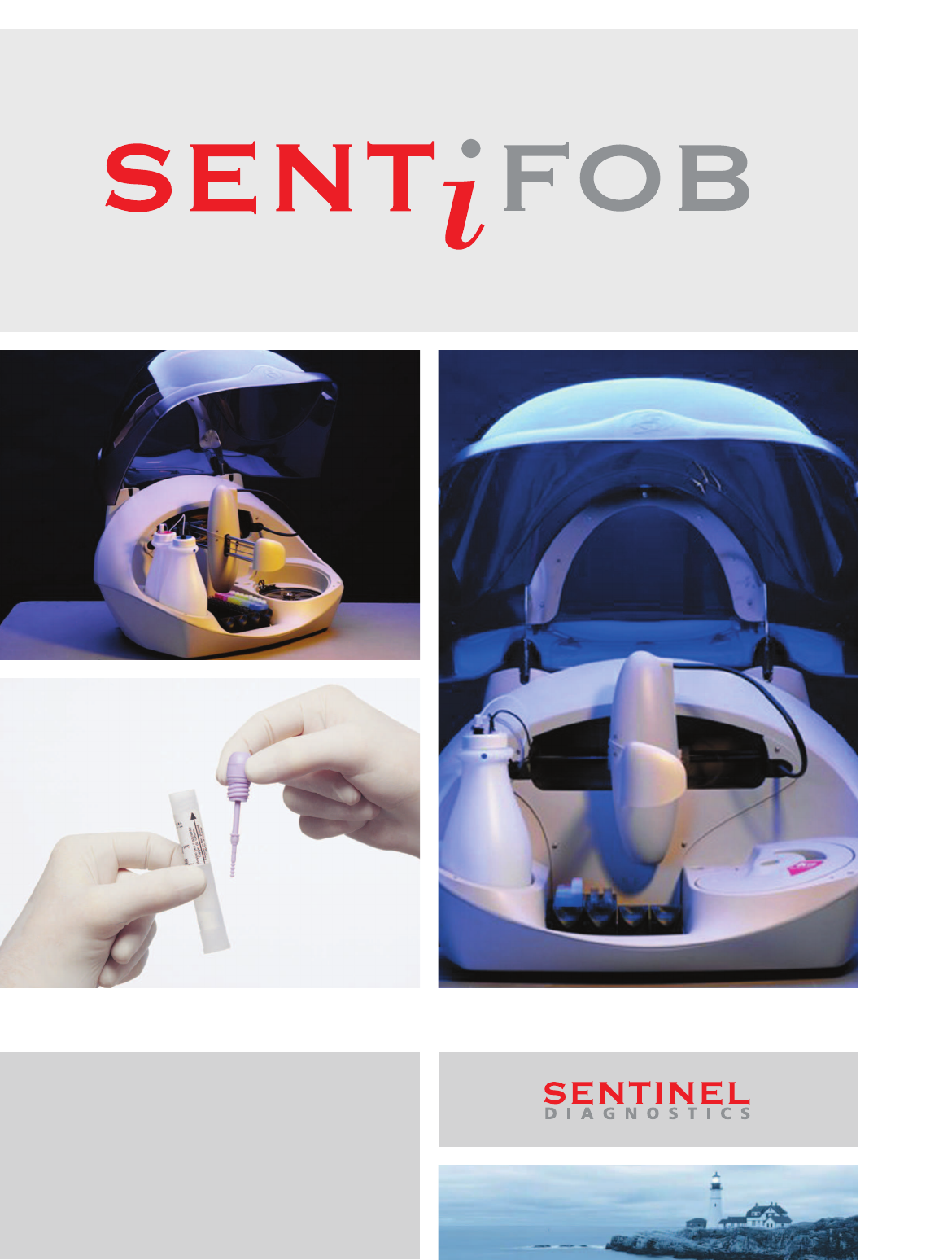

580000 SENT i FOB™ System 1 pcs

Fully automated photometric analyzer for Fecal Occult Blood determination - To be used

together with the FOB Gold TM kit (REF 11560) and the collection FOB Gold TM tube (REF

11561) for feces sampling and as primary tubes on the analyzer -Throughput around 100

test/hr - System supplied with Computer, Monitor and Printer - Manual Bar Code reader

available separately.

580001 SENT i FOB™ 1 pcs

SentiFob™ Analyzer Unit.

580002 Computer for Analyzer Unit 1 pcs

580003 Monitor for Analyzer Unit 1 pcs

580004 Printer for Analyzer Unit 1 pcs

580005 Manual Bar Code Reader 1 pcs

Reagents

11560 FOB Gold™ 1x20; 1x20 mL 170

Latex turbidimetric quantitative determination of human hemoglobin in feces - Liquid

reagents, ready to use: a buffer (R1) and a stable suspension of latex particles coated

with a specific polyclonal antibody (R2). The number of tests indicated refers to SentiFob™

System - Wavelength 570 nm - Ratio: Sample/Reagent 1/Reagent 2: 1/10.4/10.4 - Fixed

Time reaction - Total reading time: 8 min - Measuring range: 15-1000 ng/mL.

11561 FOB Gold™ tube 100

Collection tube for feces sampling to be used as primary tube (13x100 mm) for automatic

analyzers.

11561N FOB Gold™ tube NG 100

Collection tube for feces sampling to be used as primary tube (13x100 mm - guarantee

seal) for automatic analyzers.

Calibrators

11573 FOB Gold™ Calibrator 2x2 mL

Lyophilized calibrator of human hemoglobin, stable after reconstitution 8 hours at 2-8 °C

or 60 days at -20 °C - To be used with the product REF 11560.

Diagnostic Systems SENT iFOB™ SYSTEM

NEW

6

Ref. Product Kit size

Controls

11570 FOB Gold™ Control 2x (2x2) mL

Lyophilized control set (2 levels) of human hemoglobin - Stable after reconstitution 8 hours

at 2-8 °C or 60 days at -20 °C - To be used with the product REF 11560.

Accessories

SD8005 Reagent Rack 1 pcs

SD8003 Sample Tube Rack 1 pcs

Consumables

SD8006 A4 Printer paper 5x500 pcs

SD8002 Concentrated System Liquid 1000 mL

SD8001 Concentrated Washing Solution 100 mL

11561P FOB Gold™ Pack 500 pcs

500 plastic patient envelopes for the FOB Gold™ collection tube - 500 Italian/English IFU

to be given out to the patient.

SD8007 Printer cartridge C703 1 pcs

SD8000 Reaction Rotors 10x120 pcs

SD6007 Sample cups - 3 mL 6000 pcs

SR8003 Lamp 1 pcs

SR8002 Probe 1 pcs

Diagnostic Systems SENT iFOB™ SYSTEM

Instruments

570000 Biolis 24i ISE

571000 Biolis 24i

Discrete, random access Clinical Chemistry automatic analyzer for end-point, fixed-time,

kinetic and homogeneous immuno-assay determinations - 55 sampes/tray, various size

sample primary tubes and cups - Reusable plastic reaction cuvettes with automatic

washing system - 36 positions reagent tray - Sample ID and reagent bar codes - Westgard

multi-rule Quality Control - Windows user interface - Bi-directional host communication

(ASTM) - Throughput 240 tests/hr (400 tests/hr with ISE) - System supplied with Computer,

Monitor and Printer.

580002 Computer for Analyzer Unit 1 pcs

580003 Monitor for Analyzer Unit 1 pcs

580004 Printer for Analyzer Unit 1 pcs

Reagents

SC6017 ALP Liquid 8x25; 8x7.2 mL 864

Kinetic method according to DGKC

SC6005 ALT UV Liquid 8x25; 8x7.2 mL 864

IFCC Optimized method

SC6004 AST UV Liquid 8x25; 8x7.2 mL 864

IFCC Optimized method

SC6018 Amylase Liquid 8x25; 8x7.2 mL 864

Protected pNP-G7 colorimetric method according to IFCC recommendations

SC6011 Bilirubin Direct Liquid 4x25; 4x7.2 mL 432

Colorimetric Malloy Method

SC6010 Bilirubin Total Liquid 8x25; 8x7.2 mL 432

Colorimetric Malloy Method

7

Ref. Product Kit size Tests

Diagnostic Systems SENT iLAB SYSTEM

The following reagents and kits are for dedicated use on the Biolis 24i

and Prestige 24i analyzers.

For calibrators and controls refer to page 31.

8

Ref. Product Kit size Tests

SC6012 Calcium Liquid 8x25; 8x7.2 mL 864

Direct colorimetric method CPC (Cresolphtalein complexone)

SC6019 Cholesterol HDL Liquid NG 6x25; 6x9 mL 582

Direct method ( “elimination technique") in homogeneous phase without precipitation

SC6020 Cholesterol LDL Liquid NG 3x25; 3x9 mL 291

Direct method ( “elimination technique") in homogeneous phase without precipitation

SC6006 Cholesterol Liquid 10x25 mL 920

Enzymatic colorimetric Trinder Method

SC6021 Cholinesterase Liquid 4x25; 4x7.2 mL 456

Kinetic colorimetric optimized method according to DGKC recommendations

SC6014 CK-NAC Liquid 4x25; 4x7.2 mL 432

Kinetic method according to IFCC (with starter)

SC6002 Creatinine Liquid 8x25; 8x7.2 mL 864

Kinetic method alkaline picrate (Jaffè mod.)

SC6022 Dibucaine CHE Liquid 4x25; 4x7.2 mL 456

Kinetic colorimetric method for the determination of the Dibucaine number (DN)

SC6009 Gamma GT Liquid 8x25; 8x7.2 mL 864

Kinetic colorimetric according to Szasz mod./IFCC mod. method

SC6001 Glucose Liquid 10x25 mL 920

Enzymatic colorimetric Trinder method

SC6015 Iron Liquid 8x25; 8x7.2 mL 912

Direct colorimetric Ferene method without deproteinization

SC6016 LDH Liquid 4x25; 4x7.2 mL 432

Kinetic method according to DGKC

SC6028 Lipase Color Liquid 4x25; 4x7.2 mL 328

Colorimetric direct method with long chain substrate (dilauryl-glycerolglutaric-methylresorufine

ester)

Diagnostic Systems SENT iLAB SYSTEM

SC6007 Total Proteins 10x25 mL 920

Direct colorimetric Biuret method

SC6008 Triglycerides Liquid 10x25 mL 770

Enzymatic colorimetric Trinder Method (TOOS)

SC6003 Urea Liquid 8x25; 8x7.2 mL 864

Kinetic UV method Ureasi-GLDH

SC6013 Uric Acid Liquid 10x25 mL 920

Enzymatic colorimetric Trinder method (TOOS)

SC6025 ASO Latex Autom 3x9; 3x12 mL 186

Immuno-turbidimetric determination of Anti-streptolysin O

SC6026 CRP Ultra 3x13; 3x13 mL 225

Immuno-turbidimetric determination of CRP

SC6027 RF Latex Autom 3x25; 3x9 mL 276

Immuno-turbidimetric determination of Rheumathoid Factor (RF)

9

Ref. Product Kit size Tests

Diagnostic Systems SENT iLAB SYSTEM

Note: other applications for the SENT iLAB System are available

(please refer to pag. 12-13).

10

Ref. Product Kit size

ISE Module

570135 ISE Module with accessories 1 pcs

SD7011 Calibrator 1 1x420 mL

SD7012 Calibrator 2 2x20 mL

SD7013 Cleaning Solution 1x25 mL

SD7016 Dialysis Liquid Calibrator 1x20 pcs

SD7009 Electrode Cl 1 pcs

SD7010 Electrode K 1 pcs

SD7008 Electrode Na 1 pcs

SD7017 Pinch Tube ISE 1x2 pcs

SD7018 Pinch Valve Tube ISE 1x2 pcs

SD7007 Reference Electrode 1 pcs

SD7014 Urine Calibrator 1 e 2 10x2 pcs

SD7015 Urine Diluent 1x500 mL

Accessories

570133 Reagent Cover Tray 1 pcs

570134 Reagent Tray 36 1 pcs

570132 Sample Cover 1 Nr

570124 Sample Tray 3 1 pcs

570125 Sample Tray 4 1 pcs

Diagnostic Systems SENT iLAB SYSTEM

11

Ref. Product Kit size

570126 Sample Tray 5 1 pcs

570127 Sample Tray 6 1 pcs

570128 Sample Tray 7 1 pcs

570129 Sample Tray 8 1 pcs

570130 Sample Tray 9 1 pcs

570131 Sample Tray 10 1 pcs

Consumables

SD7022 Acid solution (conc) 5x500 mL

SD7021 Alkaline solution (conc) 5x500 mL

SD7006 Bottle caps 20 pcs

S00088 Printing paper 1x5 pcs

SD7003 Reaction cuvettes 60 pcs

SD7005 Reagent bottle 13 mL + cap 20 pcs

SD7004 Reagent bottle 25 mL + cap 20 pcs

SD7019 Reagent bottle 43 mL + cap 20 pcs

SD7029 Reagent bottle kit 3x43 mL; 7x25 mL; 7x13 mL 17 pcs

SD6007 Sample cups - 3 mL 6000 pcs

SD7020 Lamp 1 pcs

SD7002 Reagent probe 1 pcs

SD7001 Sample probe 1 pcs

Diagnostic Systems SENT iLAB SYSTEM

NEW

12

Diagnostic Systems automation SENT iLAB SYSTEM

Reagents

Ref. Product N° of Tests

11003D Albumin 162

17600 Albumin liquid 1667

SC6017 ALP Liquid 864

11135D alpha1- Acid Glycoprotein 164

11012N alpha1- Antitrypsin 164

SC6005 ALT UV Liquid 864

SC6018 Amylase Liquid 864

SC6025 ASO Latex Autom 186

SC6004 AST UV Liquid 864

17002B Bile acids TBA 166

SC6011 Bilirubin Direct Liquid 432

SC6010 Bilirubin Total Liquid 432

11060D C3 164

11062D C4 164

SC6012 Calcium Liquid 864

SC6019 Cholesterol HDL Liquid NG 582

SC6020 Cholesterol LDL Liquid NG 291

SC6006 Cholesterol Liquid 920

SC6021 Cholinesterase Liquid 456

17649 CK-MB Liquid 308

SC6014 CK-NAC Liquid 432

SC6002 Creatinine Liquid 864

SC6026 CRP Ultra 225

SC6022 Dibucain CHE Liquid 456

11560 FOB Gold™ 144

17350 Fructosamine 170

SC6009 Gamma GT Liquid 864

SC6001 Glucose Liquid 920

11050D Haptoglobin 164

17415A Hemoglobin A1c Direct Latex 118

11100D IgA 164

11102D IgG 164

11106D IgM 164

SC6015 Iron Liquid 912

SC6016 LDH Liquid 432

Application list for Biolis 24i and Prestige 24i

The codes SCxxxx indicate kits for use on Biolis 24i analyzer in dedicated vials and barcoded labels. For all the other codes,

the reagents must be filled into dedicated vials.

13

Diagnostic Systems automation SENT iLAB SYSTEM

Ref. Product N° of Tests

SC6028 Lipase Color Liquid 328

11504D Lp(a) ultra 92

17637 Magnesium Liquid 704

17182 Phosphorus enzymatic 148

SC6027 RF Latex Autom 276

SC6007 Total Proteins 920

11130D Transferrin 164

SC6008 Triglycerides Liquid 770

SC6003 Urea Liquid 864

SC6013 Uric Acid Liquid 920

17275 Urine Proteins 592

Calibrators and Controls

NOTE: please refer to page 31.

14

Diagnostic Systems SENT iCLOT SYSTEM

Instruments

55051 SENT i CLOT 50 # 1 pcs

Turbodensitometric analyser for the automatic coagulation test of PT, APTT, Fibrinogen

and TT - Automatic calibration and dilution for PT and Fibrinogen - 32 positions for samples

and reaction cuvettes - 6 positions reagent vials compartment - Throughput 50 PT,

25 APTT and 50 Fibrinogen.

Reagents

SR1020 HEMOPLASTIN SP 6x4 mL 120

Prothrombin Time (PT) determination reagent is sensitive to phase II and III factors (VII,

II, V, X, I) - For manual and automatic analyzers - Used for monitoring the oral anticoagulant

therapy from dicumarols through the inhibition of Vitamin K dependent factors to which

PT is sensitive (II, VII, X) - The kit contains lyophilized calcic thromboplastin obtained from

rabbit brain (ISI =1.1-1.3) - An accurate ISI value is assigned for each lot.

Control Plasma Normal (REF SR1100) and Abnormal (REF SR1200) are available separately.

SR1030 HEMOS PTT 3x10 mL 300

Determination of Activated Partial Thromboplastin Time (APTT), is sensitive to phase I

factors: (VIII, IX, XI, XII) - For manual and automatic analyzers - Used for heparin determination

in heparinic therapy monitoring, through the inhibition of activated forms of factors (XII,

XI, IX) - The kit contains liquid rabbit brain cephalin with Ellagic Acid as surface activator

- CaCl2 0.02M is included in the kit.

Control Plasma Normal (REF SR1100) and Abnormal (REF SR1200) are available separately.

SR1045 HEMOFIBRIN 5x2 mL 100

Fibrinogen determination assay - Determination of plasma coagulation time with Clauss

method - Used for fibrinogen functional anomalies diagnosis - For manual and automated

analyzers - The kit contains lyophilized bovine thrombin and lyophilized Normal Control

Plasma as calibrator and 125 mL Imidazole Buffer.

Controls

SR1100 HEMOTROL N 6x1 mL

Lyophilized human plasma with normal values for PT, APTT, Fibrinogen.

SR1200 HEMOTROL P 6x1 mL

Lyophilized human plasma with abnormal values for PT, APTT, Fibrinogen.

Ref. Product Kit size Tests

NEW

KEY: # Available by 1st Quarter

Consumables and Accessories

SR0500 Reaction cuvettes with magnetic stirrer 800 pcs

SR0501 Reaction cuvettes 1000 pcs

SR0502 Sample cups 1000 pcs

SR0503 Magnetic stirrers 1000 pcs

SR0504 Printer paper roll 6 pcs

SR0505 Forceps 5 pcs

SR0600 Concentrated cleaning solution 6x100 mL

SR0601 Deproteinizant solution 11x25 mL

15

Diagnostic Systems SENT iCLOT SYSTEM

Ref. Product Kit size Tests

16

Ref. Product Kit size Tests

KEY: § To be discontinued

Acid Phosphatase

17617 Acid Phosphatase 6x20 mL 120

17304 Acid Phosphatase § 14x3 mL 42

(TOTAL AND PROSTATIC) Kinetic colorimetric method - Wavelength 405 nm - stable 7

days at 2-8 °C from the preparation date - Temp. 37 °C - Citrate buffer - Substrate

chromogen: alpha-naphtylphosphate-Fast Red TR salt - Ratio: Sample/Reagent 1/10 -

Kinetic reading - Lag phase 4 min - Reading time 2 min - Linearity 75 U/L.

Albumin

17600 Albumin Liquid 6x90 mL 150

17261A Albumin Liquid § 4x250 mL 280

Bromcresol green method - Wavelength 625 nm - SINGLE LIQUID REAGENT- Ratio:

Sample/Reagent 1/175 - Immediate reading; color stable 1 hour - Linearity 7 g/dL - Human

based standard included in the kit.

Aldolase

17003 Aldolase 5x20 mL 40

Enzymatic UV method with TPI-GDH - Wavelength 340 nm - THREE REAGENTS with min

stability of 14 days from the preparation date - Ratio: Sample/Reagent 1/Reagent 2/

Reagent 3: 1/12.5/0.25/0.05 - Kinetic reading with reaction time 25 min - Linearity 30 U/L

- Sensitivity 1 U/L.

Alkaline Phosphatase

17308 ALP Liquid 4x20; 1x20 mL 80

17618 ALP Liquid 4x50; 1x50 mL 200

DGKC optimized kinetic method - Wavelength 405 nm - Temperature 25-30-37 °C - DEA

buffer and starter PNPP Liquid - Kinetic reading - TWO LIQUID REAGENTS - Ratio:

Sample/Reagent 1/Reagent 2: 1/50/12.5 - Lag phase 1 min - Reading time 3 min - Linearity

700 U/L.

Ammonia

17660 Ammonia Ultra 3x20 mL 60

Enzymatic UV method (GLDH) - SINGLE LIQUID REAGENT - Wavelength 340 nm - Ratio:

Sample/Reagent 1/11 - Linearity 1700 µg/dL - Standard included in the kit - Three levels

Ammonia Controls (REF 16635) are available separately - The number of tests refers to

a R1 volume of 330 µL.

Clinical Chemistry REAGENTS

For calibrators and controls refer to page 31.

The number of tests indicated in this catalogue is related to the reagent volumes

reported in the Instructions For Use (IFU) inside the kit.

17

Ref. Product Kit size Tests

Amylase

17632A Amylase Liquid 4x20; 1x20 mL 80

17632 Amylase Liquid 4x50; 1x50 mL 200

Protected pNPG7 (EPS) colorimetric method according to IFCC recommendations -

Wavelength 405 nm - TWO LIQUID REAGENTS - Ratio: Sample/Reagent 1/Reagent 2:

1/25/6.25 - Kinetic reading - Lag phase 1 min - Reading time 3 min - Linearity 1500 U/L.

17631 Pancreatic Amylase 2x40; 1x20 mL 80

Blocked pNPG7 (EPS) kinetic method according to IFCC recommendations - Inhibition

of salivary amylase with double monoclonal antibodies- Wavelength 405 nm - TWO LIQUID

REAGENTS - Ratio: Sample/Reagent 1/Reagent 2: 1/25/6.25 - the same R2 as in the

alpha Amylase Liquid kit is used - Kinetic reading - Reaction time 8 min - Linearity 1500

U/L.

AST/ALT

17238M ALT Microwell Autom 2x96 192

Enzymatic colorimetric test on microwell - to be used for the determination of ALT on

automatic EIA analyzers. - POX/POD/ESHPT method - End-point Wavelength 550 nm -

Ratio: Sample/Reagent 1/Reagent 2: 1/5/5/2.5 - Reaction time 60 min - Linearity 300 U/L

- Good correlation with IFCC method - Lyophilized Calibrator (2x1 mL) included in the kit.

17234E ALT UV Liquid 4x50; 1x21 mL 200

IFCC optimized UV method - Wavelength 340 nm - TWO LIQUID REAGENTS with substrate

starter - Ratio: Sample/Reagent1 /Reagent 2: 1/10/1 - Kinetic reading - Lag phase 1 min

- Reading time 3 min - Linearity 260 U/L.

Upon request: auxiliary reagent Pyridoxalphosphate (P5P) 40 tablets REF 16226, to conform

with IFCC recommendations. Each tablet must be dissolved in 50 mL of Reagent 1.

17613 ALT UV Liquid 6x80 ; 4x21 mL 480

IFCC optimized UV method - Wavelength 340 nm - TWO LIQUID REAGENTS with substrate

starter - Ratio: Sample/Reagent 1/Reagent 2: 1/10/1 - Kinetic reading - Lag phase 1 min

- Reading time 3 min - Linearity 260 U/L. Volumes R1 and R2 are balanced for automatic

analyzer.

Upon request: auxiliary reagent Pyridoxalphosphate (P5P) 40 tablets REF 16226, to conform

with IFCC recommendations - Each tablet must be dissolved in 50 mL of Reagent 1.

17224E AST UV Liquid 4x50; 1x21 mL 200

IFCC optimized UV method - Wavelength 340 nm - TWO LIQUID REAGENTS with substrate

starter - Ratio: Sample/Reagent 1/Reagent 2: 1/10/1 - Kinetic reading - Lag phase 1 min

- Reading time 3 min - Linearity 200 U/L.

Upon request: auxiliary reagent Pyridoxalphosphate (P5P) 40 tablets REF 16226, to conform

with IFCC recommendations. Each tablet must be dissolved in 50 mL of Reagent 1.

Clinical Chemistry REAGENTS

18

Ref. Product Kit size Tests

17612 AST UV Liquid 6x80; 4x21 mL 480

IFCC optimized UV method - Wavelength 340 nm - TWO LIQUID REAGENTS with substrate

starter - Ratio Sample/Reagent 1/Reagent 2: 1/10/1 - Kinetic reading - Lag phase 1 min

- Reading time 3 min - Linearity 200 U/L. Volumes R1 and R2 are balanced for automatic

analyzer.

Upon request: auxiliary reagent Pyridoxalphosphate (P5P) 40 tablets REF 16226, to conform

with IFCC recommendations - Each tablet must be dissolved in 50 mL of Reagent 1.

16226 Pyridoxalphosphate (P5P) 40

Auxiliary reagent for ALT/AST method IFCC; each tablet must be dissolved in 50 mL of

Reagent 1- Ready for use with REF 17224E and REF 17234E.

Bicarbonates

17634 Bicarbonates Liquid 4x50 mL 200

Enzymatic UV method with PEPC-MDH and use of NADH analogues (US patent n. 5801006)

- Bicromatic measurement 405/505 mn - SINGLE LIQUID REAGENT - Ratio: Sample/Reagent

1/100 - End-Point reaction in 8 min - Linearity 50 mmol/L - Bicarbonates calibrator (REF

16634A) and Controls (REF 16634B and REF 16634C) available separately.

Bile Acids

17002B Bile Acids TBA 5x10; 1x13 mL 125

Enzymatic colorimetric method with NBT - Wavelength 546 nm - Minimum stability of

reagents 7 days after preparation - TWO REAGENTS (fixed time reaction in 5 min) - Ratio:

Sample/Solution R1/Reagent 2: 1/2/0.5 - Linearity 200 µmol/L - Calibrator included, Bile

Acids Controls (REF 16002A) available separately.

Bilirubin Direct

17643 Bilirubin Direct Liquid 4x45; 1x20 mL 120

17602N Bilirubin Direct Liquid § 6x90; 2x20 mL 360

Colorimetric Jendrassik and Grof method - Wavelength 570 nm - Two analytical procedures:

TWO REAGENTS with sample blank, n. tests (60-180) - Ratio: Sample/Reagent 1/Reagent

2: 1/15/0.5 and single reagent without sample blank n. tests (120-360) - Ratio: Sample/Reagent:

1/15 - Reaction time 2 min - Linearity 20 mg/dL.

Bilirubin Total

17642 Bilirubin Total Liquid 8x45; 1x20 mL 240

17603N Bilirubin Total Liquid § 6x90; 2x20 mL 360

Colorimetric Jendrassik and Grof method - Wavelength 570 nm - Two analytical procedures:

TWO REAGENTS with sample blank, n. tests (120-180) - Ratio: Sample/Reagent 1/Reagent

2: 1/15/0.5 and single reagent without sample blank, n. tests (240-360) Ratio: Sample/Reagent

1/15 - Reaction time 5 min - Linearity 30 mg/dL.

Clinical Chemistry REAGENTS

KEY: § To be discontinued

19

Ref. Product Kit size Tests

Calcium

17667 Calcium Liquid 5x50; 2x50 mL 250

Direct colorimetric method CPC (Cresolphtalein complexone) - Wavelength 570 nm - TWO

REAGENTS LIQUID READY TO USE - Ratio: Sample/Reagent 1/Reagent 2: 1/25/10 -

Reaction time 10 min at 37 °C - Linearity 20 mg/dL - Standard included in the kit.

Chlorides

17170 Chlorides 2x100 mL 200

Direct colorimetric method according to Schoenfeld - Wavelength 480 nm - LIQUID SINGLE

REAGENT - Without sample blank - Ratio: Sample/Reagent 1/100 - End-Point reaction

5 min - color stable 120 min - Linearity 120 mEq/L - Standard included in the kit.

Cholesterol

17644 Cholesterol Liquid 5x50 mL 250

17627 Cholesterol Liquid 6x90 mL 540

17627M Cholesterol Liquid § 4x250 mL 1000

Enzymatic colorimetric Trinder method - Wavelength 510 nm - SINGLE LIQUID REAGENT

- Ratio: Sample/Reagent 1/100 - End-Point reaction 5 min - color stable 60 min - Linearity

700 mg/dL - Standard included in the kit.

Cholesterol HDL

17201P Cholesterol HDL Liquid NG 1x60; 1x20 mL 200

17201R Cholesterol HDL Liquid NG 6x90; 4x45 mL 1800

Direct method (“elimination technique”) in homogeneous phase - Without precipitation

(US Patent N° 6,479,249 B2) - Wavelength 600 nm - TWO REAGENTS - LIQUID, READY

TO USE - Improved performance - Ratio: Sample/Reagent 1/Regent 2: 1/75/25 - Reaction

time 8 min - Linearity 200 mg/dL - Calibrator (REF 11202H, REF 16203S and REF 16550)

and Controls (REF 34Q021, REF 16150 and REF 16250) available separately.

Cholesterol LDL

17203D Cholesterol LDL Liquid NG 1x30; 1x10 mL 100

17203E Cholesterol LDL Liquid NG 1x60; 1x20 mL 200

Direct method ("elimination technique") in homogeneous phase without precipitation (US

Patent N° 6,194,164,B1) - Wavelength 600 nm - TWO LIQUID REAGENTS - READY TO

USE - Improved performance - Ratio: Sample/Reagent 1/Reagent 2: 1/75/25 - Reaction

time 10 min - Linearity 1000 mg/dL - Calibrator (REF 16203S or REF 16550) and Controls

(REF 34Q021, REF 16150 and REF 16250) available separately.

Clinical Chemistry REAGENTS

KEY: § To be discontinued

20

Ref. Product Kit size Tests

Cholinesterase

17019A Cholinesterase Liquid 2x50; 1x20 mL 100

17606 Cholinesterase Liquid § 6x90; 6x20 mL 540

Kinetic-colorimetric optimized method according to DGKC recommendations - Substrate

Butyryltiocholine - TWO LIQUID REAGENTS - Wavelength 405 nm - Ratio: Sample/Reagent

1/Reagent 2: 1/50/10 - Kinetic reading - Lag phase 90 sec - Reading time 90 sec - Linearity

25.000 U/L.- FDA 510 (K) number: K981800.

CK

17296 CK-NAC Liquid 4x50; 1x50 mL 200

Kinetic method according to IFCC recommendations - Wavelength 340 nm - Temperature

37 °C - TWO LIQUID REAGENTS with substrate starter - Ratio: Sample/Reagent 1/Reagent

2: 1/20/5 at 37 °C - Kinetic reading - Lag phase 2 min - Reading time 3 min - Linearity

1000 U/L.

CK-MB

17649 CK-MB Liquid 2x44; 2x12 mL 110

Immunological test method for the determination of CK-MB sub-units by inhibitor antibodies

- Wavelength 340 nm - Temperature 37 °C – TWO LIQUID REAGENTS - Ratio: Sample/Reagent

1/ Reagent 2: 1/20/5 - Measuring range up to 1000 U/L – Calibrator (REF 16299C) and

Control (REF 16299S) available separately.

Copper

17106 Copper 5x10; 1x3 mL 50

17638 Copper 5x20; 1x21 mL 100

Direct colorimetric DiBr-PAESA method - Wavelength 582 nm - Without deproteinization

on serum and plasma - TWO REAGENTS stable 30 days at 2-8 °C after reconstitutions-

End-Point reaction in 5 min at 37 °C - Color stable 60 min - Ratio: Sample/Reagent

1/Reagent 2: 1/20/4 - Linearity 500 µg/dL - Standard included in the kit.

17109 Copper Urine 4x3 mL 60

Direct colorimetric method DiBr-PAESA - Wavelength 582 nm - Without deproteinization

on urine - Ratio: Sample/Reagent 1/Reagent 2: 10/1/1 - End-Point reaction in 5 min at

room temperature.- Linearity 20 µg/dL - Standard included in the kit.

Clinical Chemistry REAGENTS

KEY: § To be discontinued

21

Ref. Product Kit size Tests

Creatinine

17654 Creatinine Enz Liquid 3x50; 3x18 mL 480

Enzymatic colorimetric Trinder method (SOX-POD-ESPMT) without deproteinization with

starter reagent - Wavelength 546 nm - Fixed time reaction: reaction time 5 min after starter

with blank sample subtraction - Ratio: Sample/Reagent 1/ Reagent 2: 1/45/15 - Linearity

50 mg/dL - The N° of Tests is referred to automatic analyzer Hitachi 911-912.

17654A Creatinine Enz Liquid # 4x50; 4x18 mL 940

The N° of Tests is referred to automatic analyzer Hitachi 917- Modular.

17609 Creatinine Liquid 3x90; 3x90 mL 540

Kinetic method with alkaline picrate (Jaffe' mod.) - Wavelength 510 nm - Without

deproteinization - TWO LIQUID REAGENTS - Ratio: Sample/Reagent 1/Reagent 2: 1/5/5

- Fixed time reaction - Lag phase 60 sec - Reading time 1 min - Linearity 15 mg/dL -

Standard included in the kit.

Dibucaine

17018 Dibucaine CHE Liquid 6x50 mL 300

Auxiliary reagent for the determination of the dibucaine number (DN); to be used with

Cholinesterase Liquid REF 17019A and REF 17606 - Stable 30 days at 2-8 °C - Reaction

time 3 min.

Fructosamine

17350 Fructosamine 8x6 mL 48

Colorimetric method with NBT - SINGLE REAGENT stable 15 days after reconstitution -

Ratio: Sample/Reagent 1/10 - Wavelength 550 nm - Fixed time reaction from 9 to 10 min

- Calibrator is included in the kit, Controls (REF 16352 and REF 16353) available separately.

Gamma - GT

17336 Gamma GT Liquid 4x20; 1x20 mL 80

17335 Gamma GT Liquid 4x50; 1x50 mL 200

17335B Gamma GT Liquid § 8x90; 4x50 mL 720

Kinetic colorimetric according to Szaz mod/IFCC mod. method. - Buffer and substrate

liquid Carboxy-Glupa - Wavelength 405 nm - Temperature 25-30-37 °C - TWO LIQUID

REAGENTS - Ratio: Sample/Reagent 1/Reagent 2: 1/10/2.5 - Kinetic reading - Lag phase

30-60 sec - Reading time 3 min - Linearity 600 U/L.

Clinical Chemistry REAGENTS

KEY: § To be discontinued # Available by 1st Quarter

NEW

22

Ref. Product Kit size Tests

KEY: § To be discontinued

Glucose

17630 Glucose Liquid 6x90 mL 540

17133 Glucose Liquid § 4x250 mL 1000

Enzymatic colorimetric Trinder method - Wavelength 500 nm - SINGLE LIQUID REAGENT

- Ratio: Sample/Reagent 1/100 - End-Point reaction 10 min - Color stable 60 min - Linearity

400 mg/dL - Standard included in the kit.

Glucose-6-phosphate dehydrogenase

17005 G6P-DH 100 mL 40

Enzymatic UV method with NADP on serum, plasma or erythrocytes - Wavelength 340

nm - THREE REAGENTS, stable at least 4 weeks after preparation - Kinetic reading - Lag

phase 0 sec - Reading 3 min - Linearity 50 U/L - Total reaction time 8 min (erythrocytes).

Recommended controls: (REF G5888 Control Deficit, REF G5029 Control Intermediate

and REF G6888 Control Normal) – Available through Trinity Biotech - Ireland.

WARNING: for reconstitution volume see Important Notice FA 0048.

HBDH

17636 HBDH Liquid 2x50; 1x12 mL 66

α-hydroxybutirate deydrogenase DGKC optimized UV method - LIQUID REAGENTS -

Wavelength 340 nm - Temp. 30-37 °C - TWO REAGENTS - Ratio: Sample/Reagent

1/Reagent 2: 1/30/3 - Kinetic reading - Lag phase 60 sec. - Reading time 3 min - Linearity

500 U/L at 37 °C.

Hemoglobin A1c

17411B Hemoglobin A1c Column § 20

Method on mini chromatographic column - Not influenced by temperature in the range

of 21-26 °C (for temperatures of <21 °C or >26 °C use a correction factor) - The reagents

are ready to use, already dispensed in the column - Chromatographic elution time 60 min

- The kit does not require a Calibrator - HbA1c Control (REF 17412B) available separately.

17415A Hemoglobin A1c Direct Latex 1x30; 1x9.5; 1x0.5 mL 120

Hemoglobin Direct immuno-turbidimetric latex determination - Wavelength 600 nm- TWO

REAGENTS: 1 month stability on board after R2 preparation - Ratio: Sample/Reagent

1/Reagent 2: 1/40/13.3 - Linearity 2 - 16% HbA1c - Calibrator (REF 17418) and Control

(REF 17419) available separately - N° of Tests is referred to automatic analyzer on Hitachi

911-912.

17416 Hemolysis Reagent HbA1c 3x90 mL 1150

Auxiliary reagent to be used with the kit Hemoglobin A1c Direct Latex (REF 17415A) for

sample hemolysis.

Clinical Chemistry REAGENTS

23

Homocysteine

17370A Homocysteine Assay 1x30; 1x4.7 mL 100

Enzymatic Homocysteine assay in serum and heparinised plasma using a new Liquid

Stable (LS) 2-part homocysteine reagent for quantitative determination - The concentration

of HCY in the sample is directly proportional to the conversion rate of NADH at 340 nm

– TWO REAGENTS – Ratio: Sample/Reagent 1/Reagent 2: 1 / 15.1 / 1.5 – Linearity 1-

50 umol/L – Sensitivity 1 umol/L - Calibrator included in the kit – Controls (REF

FHCY200) available separately.

Iron

17648 Iron Liquid 4x45; 1x17 mL 90

Direct colorimetric Ferene method without deproteinization on Serum and Plasma - Ratio:

Sample/Reagent 1/Reagent 2: 1/5/0.25 - TWO LIQUID REAGENTS - Wavelength 590 nm

- Linearity 1000 µg/dL - End-Point reaction in 5 min at 37 °C - Sample blank required -

Standard included in the kit - Volumes R1 and R2 are balanced for automated analyzer.

17101G Iron Liquid 2x100; 1x10 mL 100

Manual, direct colorimetric Ferene method without deproteinization on Serum and Plasma

- Ratio: Sample/Reagent 1/Reagent 2: 1/5/0.25 - TWO LIQUID REAGENTS - Wavelength

590 nm - Linearity 1000 µg/dL - End-Point reaction in 5 min at 37 °C - Sample blank

required - Standard included in the kit.

Iron Binding Capacity

17639 UIBC Liquid 2x40; 1x11 mL 80

Unsaturated Iron Binding Capacity - Determination with direct Ferene method in homogeneous

phase with liquid reagents - Wavelength 590 nm - TWO REAGENTS - Reagents stable

60 days at 2-8 °C - Ratio: Sample/Reagent 1/Reagent 2: 1/10/1 - Standard included in

the kit - Reaction time 10 min.

Lactate

17285 Lactate Dry-Fast 5x10 mL 50

Enzymatic colorimetric Trinder method - Serum, Plasma or Liquor - Without sample blank

- Wavelength 550 nm - SINGLE REAGENT stable 30 days at 2-8 °C after reconstitution

- Ratio: Sample/Reagent 1/100 - End-Point reaction 5 min - color stable 60 min - Linearity

150 mg/dL - Standard included in the kit.

LDH

17294 LDH Liquid 4x50; 1x21 mL 200

17615 LDH Liquid § 6x80; 3x21 mL 480

Optimized SFBC UV method (pyruvate-lactate) Wavelength 340 nm - TWO LIQUID

REAGENTS with substrate starter - Ratio: Sample/Reagent 1/Reagent 2: 1/50/5 - Kinetic

reading - Lag phase 60 sec - Reading time 3 min - Linearity 1200 U/L - Volumes R1 and

R2 are balanced for automated analyzer.

Clinical Chemistry REAGENTS

Ref. Product Kit size Tests

KEY: § To be discontinued

NEW

24

Lipase

17401B Lipase Color Liquid 4x10; 1x8 mL 40

17616 Lipase Color Liquid 4x50; 2x21 mL 200

Colorimetric direct method with long chain substrate (dilauryl-glyceroglutaric-methylresorufineester)

specific for lipase - Liquid emulsion - TWO LIQUID REAGENTS - Temperature 37 °C -

Wavelength 580 nm - Ratio: Sample/Reagent 1/Reagent 2: 1/100/20 - Kinetic reading -

Lag phase 1 min - Reading 2 min - Linearity 250 U/L (methylresorufine units) - Calibrator

included in the kit - FDA 510 (K) number: K961179.

Magnesium

17281 Magnesium Enzymatic UV § 5x20 mL 100

Enzymatic UV kinetic method - Measure of activation of Hexokinase in the reaction of

glucose phosphorilation - Wavelength 340 nm - TWO REAGENTS - stable 7 days at

2-8 °C after reconstitution - Temperature 37 °C - Ratio: Sample/Reagent 1/Reagent 2:

1/100/10 - Lag phase 2 min - Reading 2 min - Linearity 6 mg/dL - Calibrator available

separately (REF 16550).

17637 Magnesium Liquid 4x50 mL 200

Direct colorimetric method Xilidil Blue-1 - Wavelength 510 nm - LIQUID SINGLE REAGENT

- Without sample blank - Ratio: Sample/Reagent 1/100 - Immediate reading - Color stable

30 min - Linearity 10 mg/dL - Standard included in the kit.

Phospholipids

17320 Phospholipids 5x10 mL 50

Enzymatic colorimetric Trinder method - Wavelength 520 nm - SINGLE REAGENT stable

15 days at 2-8 °C after reconstitution - Ratio: Sample/Reagent 1/100 - End-Point reaction

in 10 min - Color stable 30 min - Linearity 1000 mg/dL - Standard included in the kit.

Phosphorus

17619 Phosphorus 6x90 mL 540

Molybdenum blue direct method - Wavelength 650 nm - SINGLE REAGENT stable 60

days at 2-8 °C after reconstitutions - Ratio: Sample/Reagent 1/30 - End-Point reaction 3

min - color stable 60 min - Linearity 10 mg/dL - Standard included in the kit.

17182 Phosphorus Enzymatic 5x10 mL 50

Enzymatic colorimetric Trinder method - Wavelength 520 nm - SINGLE REAGENT stable

15 days at 2-8 °C after reconstitution - Ratio: Sample/Reagent 1/100 - End-Point reaction

5 min - Color stable 30 min - Linearity 20 mg/dL - Standard included in the kit.

Clinical Chemistry REAGENTS

Ref. Product Kit size Tests

KEY: § To be discontinued

25

Ref. Product Kit size Tests

Clinical Chemistry REAGENTS

Proteins

17620 Total Proteins 6x90 mL 540

17271 Total Proteins § 4x250 mL 1000

Direct colorimetric Biuret method - Wavelength 540 nm - LIQUID SINGLE REAGENT -

Ratio: Sample/Reagent 1/100 - End-Point reaction 15 min - Color stable 60 min - Linearity

12 g/dL - Standard (6 g/dL) included in the kit.

17275 Urine Proteins 2x100 mL 200

Direct colorimetric method with Pyrogallol Red at high sensitivity - Wavelength 600 nm -

Without sample blank - SINGLE LIQUID REAGENT - Ratio: Sample/Reagent 1/20 - End-

point reaction 1 min - color stable 30 min - Linearity 100 mg/dL (Extended to 500 mg/dL

by using a Sample/Reagent Ratio: 1/100) - Sensitivity 2 mg/dL - 2 levels of human albumin

included in the kit to be used separately for high sensitivity or high linearity procedure.

Recommended controls: (REF 143131 CTRL1 Urine Chemistry and REF 143231 CTRL2

Urine Chemistry) - Quantimetrix Corp., CA - USA.

Triglycerides

17624 Triglycerides Liquid 5x50 mL 250

17628 Triglycerides Liquid 6x90 mL 540

17625 Triglycerides Liquid § 4x250 mL 1000

Enzymatic colorimetric Trinder method (TOOS) - Wavelength 546 nm - SINGLE LIQUID

REAGENT - Ratio: Sample/Reagent 1/100 - End-Point reaction 5 min - color stable 30

min - Linearity 1000 mg/dL - Standard included in the kit.

Urea

17629A Urea Liquid 2x50; 1x21 mL 100

17629 Urea Liquid 8x50; 3x21 mL 400

Kinetic UV method Urease-GLDH - Wavelength 340 nm - TWO LIQUID REAGENTS -

Ratio: Sample/Reagent 1/Reagent 2: 1/100/10 - Fixed time reading - Lag phase 30 sec

- Reading 30 sec. - Linearity 350 mg/dL - Standard included in the kit - Volumes R1 and

R2 are balanced for automated analyzer.

17629M Urea Liquid § 4x250; 2x100 mL 1000

Kinetic UV method Urease-GLDH - Wavelength 340 nm - TWO LIQUID REAGENTS -

Ratio: Sample/Reagent 1/Reagent 2: 1/100/10 - Fixed time reading - Lag phase 30 sec.

- Reading 30 sec. - Linearity 350 mg/dL - Standard included in the kit.

KEY: § To be discontinued

26

Clinical Chemistry REAGENTS

Ref. Product Kit size Tests

Uric Acid

17658 Uric Acid Liquid 5x50 mL 250

17626 Uric Acid Liquid 6x90 mL 540

17656 Uric Acid Liquid § 4x250 mL 1000

Enzymatic Trinder method (TOOS) on serum - Wavelength 546nm - SINGLE LIQUID

REAGENT - Ratio: Sample/Reagent 1/40 - End-Point reaction 5 min - Color stable 10 min

- Linearity 25 mg/dL - Standard included in the kit.

Zinc

17255 Zinc 5x10; 1x5 mL 50

17640 Zinc 5x20; 1x11 mL 100

Direct colorimetric method with 5-Br-PAPS - Wavelength 560 nm - Without deproteinization

on Serum, Plasma and Seminal fluid - TWO REAGENTS: one liquid ready to use, the other

stable 10 days at 2-8 °C after reconstitution - Ratio: Sample/Reagent 1/Reagent 2: 1/20/2

- End-Point reaction 30 sec at 37 °C - Color stable 60 min - Linearity 2000 µg/dL - Standard

included in the kit.

KEY: § To be discontinued

27

Ref. Product Kit size

Clinical Chemistry CALIBRATORS

Multiparameters

11202H Apo-A1/Apo-B/HDL Cal 3x2 mL

Lyophilized human based serum - Stable 30 days at -20 °C or 7 days at 2-8 °C after

reconstitution - For Kits Apolipoprotein A-1 (REF 11040D), Apolipoprotein B (REF 11042D)

and Cholesterol HDL Liquid NG (REF 17201P, REF 17201R).

16550 Clin Chem Cal 4x3 mL

Lyophilized human based serum for the following calibration of clinical chemistry

assays:................................................................................................................................

ACP, ACP-NPP, ALB, ALD, ALP, ALT/ALAT/GPT, AMY, AMY-P, AST/ASAT/GOT, BIL-D, BIL-

T, Ca, CHE, CHOL, CK, Cl, CREA, GGT, GLUC, HBDH, HDL-C, LACT, LDH P-L, LDL-C,

Li, LPS, Mg, PHOS, PL, TG, TP, UA, UREA.

16203S HDL/LDL Calibrator 2x1 mL

Lyophilized human based serum - Stable 7 days at 2-8 °C after reconstitution or 30 days

at -20 °C; Calibration for the kits Cholesterol HDL Liquid NG (REF 17201P, REF 17201R),

Cholesterol LDL Liquid NG (REF 17203D, REF 17203E), Apolipoprotein A-1 Liquid

(REF 11040N) and Apolipoprotein B Liquid (REF 11042N).

Specific test

16634A Bicarbonates Calibrator 4x3 mL

Lyophilized human based serum - Stable 60 days at -20 °C after reconstitution - Calibrator

for Bicarbonates Liquid (REF 17634).

16299C CK-MB Calibrator 2x1 mL

Lyophilized human based serum, stable 30 days at -20°C after reconstitution - Calibrator

for CK-MB Liquid (REF 17649).

11573 FOB Gold™ Calibrator 2x2 mL

Lyophilized calibrator of human hemoglobin, stable after reconstitution 8 hours at 2-8 °C

or 60 days at -20 °C - To be used with the product REF 11560.

17418 Hemoglobin A1c Cal Set (4 levels) 4x0.5 mL

Lyophilized calibrator set (4 levels) to be used with the kit Hemoglobin A1c Direct Latex

(REF 17415A) - Approx. range from 5,3 to 14,5% HbA1c.

16401 Lipase Calibrator 4x1 mL

Lyophilized human based serum - Substrate methylresorufine - Stable 7 days at 2-8 °C

after reconstitution - Calibrator for Lipase Color Liquid (REF 17401B, REF 17616).

28

Ref. Product Kit size

Clinical Chemistry CONTROLS

Multiparameters

16150 Clin Chem Control 1 6x5 mL

16250 Clin Chem Control 2 6x5 mL

Lyophilized human based serum - Value ranges normal (REF 16150) and abnormal

(REF 16250) for:..............................................................................................................

ACP, ACP-NPP, ALB, ALD, ALP, ALT/ALAT/GPT, AMY, AMY-P, AST/ASAT/GOT, BIL-D, BIL-

T, Ca, CHE, CHOL, CK, Cl, CREA, Cu, Fe, GGT, GLUC, HBDH, HDL-C, K, LACT, LDH P-

L, LDL-C, Li, LPS, Mg, Na, PHOS, PL, TG, TP, UA, UIBC, UREA, Zn.

34Q021 Lipids Control 3x2 mL

Lyophilized human based control serum - 3 levels with values for Cholesterol and Triglycerides

(enzymatic methods), Cholesterol HDL and LDL (direct methods), Apo A-1 and Apo B

(immunoturbidimetric methods) and Lp(a) (latex-enhanced method).

Specific test

16635 Ammonia Controls 3x (1x5) mL

3 level liquid controls, bovine albumin based - Stable 30 days after opening at 2-8 °C -

To be used with the product REF 17660.

16634B Bicarbonates Ctrl 1 4x3 mL

16634C Bicarbonates Ctrl 2 4x3 mL

Lyophilized human based serum - Stable 60 days at -20 °C after reconstitution -

To be used with the product REF 17634.

16002A Bile Acids Controls (2 levels) 2x (2x3) mL

To be used with the product REF 17002B.

16299S CK-MB Control 2x1 mL

Lyophilized human based serum - Stable 30 days at -20 °C after reconstitution -

To be used with the product (REF 17649).

11570 FOB Gold™ Control 2x (2x2) mL

Lyophilized control set (2 levels) of human hemoglobin - Stable after reconstitution 8 hours

at 2-8 °C or 60 days at -20 °C - To be used with the product REF 11560.

29

Ref. Product Kit size

Clinical Chemistry CONTROLS

16352 Fructosamine Ctrl 1 4x1 mL

16353 Fructosamine Ctrl 2 4x1 mL

Lyophilized human based serum - Stable 30 days at 2-8 °C or 90 days at -20 °C after

reconstitution - To be used with the product REF 17350.

17412B Hb A1c Control - Column § 1x0.5 mL

Lyophilized human blood control with assigned values for HbA1c Column Kit (REF 17411B).

17419 Hemoglobin A1c Control Set (2 levels) 2x (2x0.5) mL

Lyophilized control set (2 levels) to be used with the kit Hemoglobin A1c Direct Latex

(REF 17415A).

FHCY200 Homocysteine Control Kit 3x (1x1.5) mL

Homocysteine quality control material (3 levels) to be used with the product REF 17370A.

NEW

KEY: § To be discontinued

30

Clinical Chemistry automation REAGENTS - CALIBRATORS - CONTROLS

Reagents

Ref. Product R1-R2 Tests on HITACHI 911-

912 N° of Tests

17617 Acid Phosphatase 6x20 mL 414

17600 Albumin Liquid 6x90 mL 1398

17618 ALP Liquid 4x50; 1x50 mL 792

17308 ALP Liquid 4x20; 1x20 mL 301

17234E ALT UV Liquid 4x50; 1x21 mL ° 478

17613 ALT UV Liquid 6x80; 4x21 mL ° 1910

17660 Ammonia Ultra 3x20 mL 173

17632 Amylase Liquid 4x50; 1x50 mL 776

17632A Amylase Liquid 4x20; 1x20 mL 301

17224E AST UV Liquid 4x50; 1x21 mL ° 478

17612 AST UV Liquid 6x80; 4x21 mL ° 1910

17002B Bile Acids TBA 5x10; 1x13 mL 137

17634 Bicarbonates Liquid 4x50 mL 596

17643 Bilirubin Direct Liquid 4x45; 1x20 mL 675

17602N Bilirubin Direct Liquid 6x90; 3x20 mL § 2046

17642 Bilirubin Total Liquid 8x45; 1x20 mL 1350

17603N Bilirubin Total Liquid 6x90; 3x20 mL § 2046

17667 Calcium Liquid 5x50; 2x50 mL 843

17201R Cholesterol HDL Liquid NG 6x90; 4x45 mL 1962

17201P Cholesterol HDL Liquid NG 1x60; 1x20 mL 212

17203D Cholesterol LDL Liquid NG 1x30; 1x10 mL 77

17203E Cholesterol LDL Liquid NG 1x60; 1x20 mL 163

17644 Cholesterol Liquid 5x50 mL 745

17627 Cholesterol Liquid 6x90 mL 1624

17019A Cholinesterase Liquid 2x50; 1x20 mL 381

17606 Cholinesterase Liquid 6x90; 6x20 mL § 2286

17649 CK-MB Liquid 2x44; 2x12 mL 350

17296 CK-NAC Liquid 4x50; 1x50 mL 776

17638 Copper 5x20; 1x21 mL 289

17654 Creatinine Enz Liquid 3x50; 3x18 mL 480

17609 Creatinine Liquid 3x90; 3x90 mL 1870

17018 Dibucaine CHE Liquid 6x50 mL 1321

11560 FOB Gold™ 1x20; 1x20 mL 133

17335 Gamma GT Liquid 4x50; 1x50 mL 776

17336 Gamma GT Liquid 4x20; 1x20 mL 301

17335B Gamma GT Liquid 8x90; 4x50 mL § 3105

17630 Glucose Liquid 6x90 mL 1624

17636 HBDH Liquid 2x50; 1x12 mL 263

17415A Hemoglobin A1c Direct Latex 1x30; 1x9.5; 1x0.5 mL °° 120

17370A Homocysteine Assay 1x30; 1x4.7 mL 100

17648 Iron liquid 4x45; 1x17 mL 544

Reagents for Hitachi 911- 912

Every kit contains reagents in dedicated vials with barcoded labels for use on Hitachi 911 and 912 analyzers.

Applications for open channels are available on request.

Validated applications on Hitachi series and the most common analyzers are available on request.

NEW

31

Ref. Product Reagents Tests

Clinical Chemistry automation REAGENTS - CALIBRATORS - CONTROLS

Calibrators and Controls

Ref. Product mL Form

Calibrators Multiparametric 16550 Clin Chem Cal 4x3 Lyophilized

Multiparametric 11202H Apo-A1/Apo-B/HDL Cal 3x2 Lyophilized

Specific 16634A Bicarbonates Calibrator 4x3 Lyophilized

Specific 16299C CK-MB Calibrator 2x1 Lyophilized

Specific 11573 FOB Gold™ Calibrator 2x2 Lyophilized

Specific 17418 Hemoglobin A1c Cal Set 4x0.5 Lyophilized

Specific 16203S HDL/LDL Calibrator 2x1 Lyophilized

Specific 16401 Lipase Calibrator 4x1 Lyophilized

Controls Multiparametric 16150 Clin Chem Control 1 6x5 Lyophilized

Multiparametric 16250 Clin Chem Control 2 6x5 Lyophilized

Multiparametric 34Q021 Lipids Control 3x2 Lyophilized

Specific 16635 Ammonia Controls 3x5 Liquid

Specific 16634B Bicarbonates Ctrl 1 4x3 Lyophilized

Specific 16634C Bicarbonates Ctrl 2 4x3 Lyophilized

Specific 16002A Bile Acid Control 2x (2x3) Lyophilized

Specific 16299S CK-MB Control 2x1 Lyophilized

Specific 11570 FOB Gold™ Control 2x (2x2) Lyophilized

Specific 16352 Fructosamine Ctrl 1 4x1 Lyophilized

Specific 16353 Fructosamine Ctrl 2 4x1 Lyophilized

Specific FHCY200 Homocysteine Control Kit 3x (1x1.5) Liquid

Specific 17419 Hemoglobin A1c Control Set 2x (1x1) Lyophilized

Reagents

Ref. Product R1-R2 Test on HITACHI 911-912

N° of Tests

17294 LDH Liquid 4x50; 1x21 mL 561

17615 LDH Liquid 6x80; 3x21 mL § 1682

17616 Lipase Color Liquid 4x50; 2x21 mL 542

17637 Magnesium Liquid 4x50 mL 596

17631 Pancreatic Amylase 2x40; 1x20 mL 301

17619 Phosphorus 6x90 mL 1937

17620 Total Proteins 6x90 mL 1624

17628 Triglycerides Liquid 6x90 mL 1624

17624 Triglycerides Liquid 5x50 mL 745

17639 UIBC liquid 2x40; 1x11 mL 239

17629 Urea Liquid 8x50; 3x21 mL 1217

17629A Urea Liquid 2x50; 1x21 mL 304

17658 Uric Acid Liquid 5x50 mL 889

17626 Uric Acid Liquid 6x90 mL 1937

17640 Zinc 5x20; 1x11 mL 239

NOTE: ° auxiliary reagent Pyridoxalphosphate (P5P) REF 16226 to conform with IFCC recommendations

°° auxiliary reagent Hemolysis Reagent HbA1c (REF 17416) for sample hemolysis

§ to be discontinued

NEW

32

Ref. Product Kit size Tests

Clinical Chemistry FECAL OCCULT BLOOD

Automated FOB Test

11560 FOB Gold™ 1x20; 1x20 mL 160

Latex turbidimetric quantitative determination of human hemoglobin in feces - Liquid

reagents, ready to use: a buffer (R1) and a stable suspension of latex particles coated

with a specific polyclonal antibody (R2). The number of tests indicated refers to Hitachi

717 - Wavelength 570 nm - Ratio: Sample/Reagent 1/Reagent 2: 1/10.4/10.4 - Fixed

Time reaction - Total reading time: 8 min - Measuring range: 15-1000 ng/mL.

11561 FOB Gold™ tube 100

Collection tube for feces sampling to be used as primary tube (13x100 mm) for automatic

analyzers.

11561N FOB Gold™ tube NG 100

Collection tube for feces sampling to be used as primary tube (13x100 mm - guarantee

seal) for automatic analyzers.

Automated FOB Calibrator

11573 FOB Gold™ Calibrator 2x2 mL

Lyophilized calibrator of human hemoglobin, stable after reconstitution 8 hours at 2-8 °C

or 60 days at -20 °C - To be used with the product REF 11560.

Automated FOB Control

11570 FOB Gold™ Control 2x (2x2) mL

Lyophilized control set (2 levels) of human hemoglobin - Stable after reconstitution 8

hours at 2-8 °C or 60 days at -20 °C - To be used with the product REF 11560.

FOB rapid test

14800 Easy-Card Occult Blood 25

Rapid "one step" immunochromatographic method on membrane - Combination of

monoclonal/polyclonal antibodies anti-human hemoglobin - Internal control system - No

meat free diet required - Kit contains a practical and hygienic sample collection system:

short extraction tube with applicator stick for sample collection - Easy test procedure:

dispense 4 drops of buffer/sample in the device well - Wait 5 min before reading - Sensitivity

200 ng/mL.

Auxiliary Automated FOB Test

11561P FOB Gold™ Pack 500 pcs

500 plastic patient envelopes for the FOB Gold™ collection tube (REF 11561) to be given

out to the patient.

FOB rapid test single component

14805 FOB Cards 400

The kit contains 400 membrane devices (cassettes) of the Occult blood test.

14804F FOB Collection Long Tube 400

The kit contains 400 vials (LONG TUBE) with extraction buffer for sample collection.

NEW

Turbidimetry

11003D Albumin (2x50; 2x4) 108 mL 80

Immuno-turbidimetric determination of human Albumin - The kit contains specific anti

Albumin polyclonal antiserum (2x1 mL), antiserum diluent buffer (1x10 mL), reaction buffer

(2x50 mL) in dedicated vials for automation - Ratio: Urine or diluted serum sample/Reagent

A/Solution BC 1/18/2 - Wavelength 340 nm - The Calibrators (serum: REF 11200D; REF

11206D and urine: REF 11207A) and the Controls (serum: REF 11210; REF 11212, REF

11211A 2 levels and urine: REF 125001** Microalbumin 2 level Set) are available separately

- Measuring range: Serum 700-14000 mg/dL, Urine 20-520 mg/dL.

**REF 125001 Microalbumin Control 2 level Set : Urine based - 2 levels with values for

microalbumin in urine - Manufactured by Quantimetrix Corp., CA - USA (available directly

or from the local authorized distributor).

11135D alpha 1-Acid Glycoprotein (2x50; 2x4) 108 mL 80

Immuno-turbidimetric determination of alpha 1-Acid Glycoprotein - The kit contains

specific anti alpha 1-Acid Glycoprotein polyclonal antiserum (2x1 mL), antiserum diluent

buffer (1x10 mL), reaction buffer (2x50 mL) in dedicated vials for automation - Ratio:

Dil.Sample/Reagent A/Solution BC 1/18/2 - Wavelength 340 nm - The Calibrator (REF

11200D; REF 11206D) and the Controls (REF 11210; REF 11212 or REF 11211A 2 levels)

are available separately - Measuring range: 20-600 mg/dL.

11012N alpha 1-Antitrypsin (2x50; 1x8) 108 mL 80

Immuno-turbidimetric determination of human alpha 1-Antitripsin - The kit contains

specific anti-alpha 1-antitripsine polyclonal antiserum (1x8 mL) liquid ready to use, reaction

buffer (2x50 mL) in dedicated vials for automation - Ratio: Dil.Sample/Reagent A/Reagent

B 1/45/5 - Wavelength 340 nm - The Calibrator (REF 11200D; REF 11206D) and the

Controls (REF 11210; REF 11212 or REF 11211A, 2 levels) are available separately -

Measuring range: 45-900 mg/dL.

11018D alpha 2-Macroglobulin (2x50; 2x4) 108 mL 80

Immuno-turbidimetric determination of alpha 2-Macroglobulin - The kit contains specific

anti alpha 2-Macroglobulin polyclonal antiserum (2x1 mL), antiserum diluent buffer (1x10

mL), reaction buffer (2x50 mL) in dedicated vials for automation - Ratio: Dil.Sample/Reagent

A/Solution BC 1/9/1 - Wavelength 340 nm - The Calibrator (REF 11200D; REF 11206D)

and the Controls (REF 11210; REF 11212 or REF 11211A, 2 levels) are available separately

- Measuring range: 70-1500 mg/dL.

33

Ref. Product Kit size Tests

Immunology PLASMAPROTEINS

For calibrators and controls refer to page 44.

The number of tests indicated in this catalogue is related to the reagent volumes

reported in the Instructions For Use (IFU) inside the kit.

- Immuno-turbidimetric determination - Wavelength 340 nm - Each kit contains a

reaction buffer (2x50 mL), a specific polyclonal antiserum (2x1 mL) and an

antiserum diluent buffer (1x10 mL).

For the kits Kappa light chains (Ref. 11004D), Lambda light chains (Ref. 11005D),

alpha 1-Antitrypsin (Ref. 11012N), Ceruloplasmin (Ref. 11065N), Apolipoprotein

A-1 Liquid (Ref. 11040N), Apolipoprotein B Liquid (Ref. 11042N) the antiserum is

supplied ready to use.

The size of each kit reported below refers to the total volume (e.g. 108 mL),

which is calculated by adding the total volume of the buffers (e.g. 2x50 mL)

to that of the antiserum (e.g. 2x4 mL).

- An empty 20 mL vial is supplied in the kit for the preparation of the reaction

antiserum and like the 50 ml vials, they can be used directly on Hitachi 704,

717, 911- 912 and other compatible analyzers.

- Applications for the most commonly used automated analyzers are available

upon request.

34

Ref. Product Kit size Tests

Immunology PLASMAPROTEINS

11030D Antithrombin III (2x50; 2x3) 106 mL 60

Immuno-turbidimetric determination of human Antithrombin III - The kit contains specific

anti Antithrombin III polyclonal antiserum (2x1 mL), antiserum diluent buffer (1x10 mL),

reaction buffer (2x50 mL) in dedicated vials for automation - Ratio: Dil.Sample/Reagent

A/Solution BC 1/9/1 - Wavelength 340 nm - The Calibrator (REF 11200D; REF 11206D)

and the Controls (REF 11210; REF 11212 or REF 11211A, 2 levels) are available separately

- Measuring range: 5 -120 mg/dL.

11040D Apolipoprotein A-1 § (2x50; 2x4) 108 mL 80

Immuno-turbidimetric determination of Apolipoprotein A-1 - The kit contains specific anti

Apolipoprotein A-1 polyclonal antiserum (2x1 mL), antiserum diluent buffer (1x10 mL),

reaction buffer (2x50 mL) in dedicated vials for automation - Ratio: Dil. Sample/Reagent

A/Solution BC 1/45/5 - Wavelength 340 nm - The Calibrator (REF 11202H) and the Controls

(REF 34Q021) are available separately - Measuring range: 30-270 mg/dL.

11040N Apolipoprotein A-1 Liquid ## (1x55; 1x12) 67 mL 195

Immuno-turbidimetric determination of Apolipoprotein A-1 in serum or plasma -

The kit contains specific anti human Apolipoprotein A-1 polyclonal antiserum (1x12 mL)

and reaction buffer in dedicated vials for automation - Ratio: Dil. Sample/Reagent 1/Reagent

2: 1/50/8 - Wavelength 340 nm - Calibrator (REF 16203S) and Controls (REF 34Q021) are

available separately - Measuring range: 30-270 mg/dL - The N° of test is referred to

automatic analyzer Hitachi 917- Modular.

11042D Apolipoprotein B § (2x50; 2x4) 108 mL 80

Immuno-turbidimetric determination of Apolipoprotein B - The kit contains specific anti

Apolipoprotein B polyclonal antiserum (2x1 mL), antiserum diluent buffer (1x10 mL),

reaction buffer (2x50 mL) in dedicated vials for automation - Ratio: Dil.Sample/Reagent

A/Solution BC 1/9/1 - Wavelength 340 nm - The Calibrator (REF 11202H) and the Control

(REF 34Q021) are available separately - Measuring range: 40-800 mg/dL.

11042N Apolipoprotein B Liquid ## (1x63; 1x8) 71 mL 190

Immuno-turbidimetric determination of Apolipoprotein B in serum or plasma - The kit

contains specific anti human Apolipoprotein B polyclonal antiserum (1x8 mL) and reaction

buffer in dedicated vials for automation - Ratio: Dil. Sample/Reagent 1/Reagent 2: 1/50/5

- Wavelength 340 nm - Calibrator (REF 16203S) and Controls (REF 34Q021) are available

separately - Measuring range: 40-800 mg/dL - The N° of test is referred to automatic

analyzer Hitachi 917-Modular.

11052D C1 Esterase Inhibitor (2x50; 2x4) 108 mL 80

Immuno-turbidimetric determination of C1 Esterase Inhibitor - The kit contains specific

anti C1 Esterase Inhibitor polyclonal antiserum (2x1 mL), antiserum diluent buffer (1x10

mL), reaction buffer (2x50 mL) in dedicated vials for automation - Ratio: Dil.Sample/Reagent

A/Solution BC 1/18/2 - Wavelength 340 nm - The Calibrator (REF 11200D; REF 11206D)

and the Controls (REF 11210; REF 11212 or REF 11211A, 2 levels) are available separately

- Measuring range: 5-120 mg/dL.

11060D C3 (2x50; 2x4) 108 mL 80

Immuno-turbidimetric determination of C3 factor - The kit contains specific anti C3

polyclonal antiserum (2x1mL), antiserum diluent buffer (1x10 mL), reaction buffer (2x50

mL) in dedicated vials for automation - Ratio: Dil.Sample/Reagent A/Solution BC 1/9/1 -

Wavelength 340 nm - The Calibrator (REF 11200D; REF 11206D) and the Controls (REF

11210; REF 11212 or REF 11211A, 2 levels) are available separately - Measuring range:

20-500 mg/dL.

11062D C4 (2x50; 2x4) 108 mL 80

Immuno-turbidimetric determination of C4 factor - The kit contains specific anti C4

polyclonal antiserum (2x1 mL), antiserum diluent buffer (1x10 mL), reaction buffer (2x50

mL) in dedicated vials for automation - Ratio: Dil.Sample/Reagent A/Solution BC 1/4.5/0.5

- Wavelength 340 nm - The Calibrator (REF 11200D; REF 11206D) and the Controls (REF

11210; REF 11212 or REF 11211A, 2 levels) are available separately - Measuring range:

5-200 mg/dL.

KEY: § To be discontinued # Available by 2nd Quarter

NEW

NEW

35

Ref. Product Kit size Tests

Immunology PLASMAPROTEINS

11065N Ceruloplasmin (2x50; 1x8) 108 mL 80

Immuno-turbidimetric determination of Ceruloplasmin - The kit contains specific anti

Ceruloplasmin polyclonal antiserum (1x8 mL) liquid ready to use, reaction buffer (2x50

mL) in dedicated vials for automation - Ratio: Sample/Reagent A/Reagent B 1/100/12.5

- Wavelength 340 nm - The Calibrator (REF 11200D; REF 11206D) and the Controls (REF

11210; REF 11212 or REF 11211A, 2 levels) are available separately - Measuring range:

5-90 mg/dL.

11050D Haptoglobin (2x50; 2x4) 108 mL 80

Immuno-turbidimetric determination of Haptoglobin - The kit contains specific anti

Haptoglobin polyclonal antiserum (2x1 mL), antiserum diluent buffer (1x10 mL), reaction

buffer (2x50 mL) in dedicated vials for automation - Ratio: Dil.Sample/Reagent A/Solution

BC 1/18/2 - Wavelength 340 nm - The Calibrators (REF 11200D; REF 11206D) and the

Controls (REF 11210; REF 11212 or REF 11211A, 2 levels) are available separately -

Measuring range: 35-700 mg/dL.

11100D IgA (2x50; 2x4) 108 mL 80

Immuno-turbidimetric determination of human IgA - The kit contains specific anti IgA

polyclonal antiserum (2x1 mL), antiserum diluent buffer (1x10 mL), reaction buffer (2x50

mL) in dedicated vials for automation - Ratio: Dil.Sample/Reagent A/Solution BC 1/18/2

- Wavelength 340 nm - The Calibrator (REF 11200D; REF 11206D) and the Controls (REF

11210; REF 11212 or REF 11211A, 2 levels) are available separately - Measuring range:

20-1600 mg/dL.

11102D IgG (2x50; 2x4) 108 mL 80

Immuno-turbidimetric determination of IgG - The kit contains specific anti IgG polyclonal

antiserum (2x1 mL), antiserum diluent buffer (1x10 mL), reaction buffer (2x50 mL) in

dedicated vials for automation - Ratio: Dil.Sample/Reagent A/Solution BC 1/45/5 -

Wavelength 340 nm - The Calibrator (REF 11200D; REF 11206D) and the Controls (REF

11210; REF 11212 or REF 11211A, 2 levels) are available separately - Measuring range:

200-7000 mg/dL.

11106D IgM (2x50; 2x4) 108 mL 80

Immuno-turbidimetric determination of IgM - The kit contains specific anti IgM polyclonal

antiserum (2x1 mL), antiserum diluent buffer (1x10 mL), reaction buffer (2x50 mL) in

dedicated vials for automation - Ratio: Dil.Sample/Reagent A/Solution BC 1/4.5/0.5 -

Wavelength 340 nm - The Calibrator (REF 11200D; REF 11206D) and the Controls (REF

11210; REF 11212 or REF 11211A, 2 levels) are available separately - Measuring range:

20-700 mg/dL.

11004D Kappa light chains (2x50; 2x10) 120 mL 130

Immuno-turbidimetric determination of Kappa light chains - The kit contains: reaction

buffer (2x50 mL) in dedicated vials for automation and a specific anti Kappa light chains

polyclonal antiserum (2x10 mL) - Ratio: Dil.Sample/Reagent A/Reagent B 1/35/7.5 -

Wavelength 340 nm - The Calibrator (REF 11200D; REF 11206D) and the Controls (REF

11210; REF 11212 or REF 11211A, 2 levels) are available separately - Measuring range:

70-1600 mg/dL.

11005D Lambda light chains (2x50; 2x10) 120 mL 130

Immuno-turbidimetric determination of Lambda light chains - The kit contains: reaction

buffer (2x50 mL) in dedicated vials for automation and specific anti Lambda light chains

polyclonal antiserum (2x10 mL) - Ratio: Dil.Sample/Reagent A/Reagent B 1/23.3/5 -

Wavelength 340 nm - The Calibrator (REF 11200D; REF 11206D) and the Controls (REF

11210; REF 11212 or REF 11211A, 2 levels) are available separately - Measuring range:

40-1000 mg/dL.

36

Ref. Product Kit size Tests

Immunology PLASMAPROTEINS

11110D Prealbumin (2x50; 2x4) 108 mL 80

Immuno-turbidimetric determination of Prealbumin - The kit contains specific anti Prealbumin

polyclonal antiserum (2x1 mL), antiserum diluent buffer (1x10 mL), reaction buffer (2x50

mL) in dedicated vials for automation - Ratio: Dil.Sample/Reagent A/Solution BC 1/18/2

- Wavelength 340 nm - The Calibrator (REF 11200D; REF 11206D) and the Controls

(REF 11210; REF 11212 or REF 11211A, 2 levels) are available separately - Measuring

range: 9-180 mg/dL.

11130D Transferrin (2x50; 2x4) 108 mL 80

Immuno-turbidimetric determination of Transferrin - The kit contains specific anti Transferrin

polyclonal antiserum (2x1 mL), antiserum diluent buffer (1x10 mL), reaction buffer (2x50

mL) in dedicated vials for automation - Ratio: Dil.Sample/Reagent A/Solution BC 1/45/5

- Wavelength 340 nm - The Calibrator ((REF 11200D; REF 11206D) and the Controls (REF

11210; REF 11212 or REF 11211A, 2 levels) are available separately - Measuring range:

100-1800 mg/dL.

Latex Turbidimetry

11501D ASO Latex Autom 2x15; 2x20 mL 80

Immuno-turbidimetric determination of Anti-streptolysin O in serum or plasma - The kit

contains specific streptolysin O antigen - Ratio: Sample/Reagent 1/Reagent 2: 1/23.3/40

- Wavelength 570 nm - The Calibrator (REF 11520D) and the Controls (REF 11210; REF

11212; REF 11211A) are available separately - Measuring range: 20-1200 IU/mL.

11502D CRP Latex Autom 2x20; 2x20 mL 110

Immuno-turbidimetric determination of CRP in serum or plasma - The kit contains specific

anti CRP - Ratio: Sample/Reagent 1/Reagent 2: 1/70/70 - Wavelength 570 nm - The

Calibrator (REF 11521D) and the Controls (REF 11210; REF 11212, REF 11211A) are

available separately - Measuring range: 0.08 -18 mg/dL.

11508 CRP Ultra 2x20; 2x20 mL 100

Immuno-turbidimetric determination of CRP in serum or plasma - The kit contains specific

anti CRP - Ratio: Sample/Reagent 1/Reagent 2: 1/50/50 e 1/25/25 (Ultra) - Wavelength 570

nm - It is possible to work using either a Standard Method with the CRP Calibrator Set (REF

11532), measuring range: 0.01-32 mg/dL or a Ultrasensitive Method adding the CRP

Calibrator US (REF 11533) to the Calibration Set, measuring range: 0.005-16 mg/dL.

The Calibrators (REF 11532; REF 11533) and the Controls (REF 11210; REF 11212; REF

11211A, 2 levels; REF 11540) are available separately.

11506D RF Latex Autom § 2x20; 1x14 mL 66

Immuno-turbidimetric determination of Rheumatoid Factor (RF) in serum or plasma - The

kit contains human IgG - Ratio: Sample/Reagent 1/Reagent 2: 1/30/10 - Wavelength 660

nm - The Calibrator (REF 11523D) and the Controls (REF 11210; REF 11212; REF 11211A)

are available separately - Measuring range: 4 - 120 IU/mL.

11506H RF Latex Autom NG ## 1x42; 1x16 mL 200

Immuno-turbidimetric determination of Rheumatoid Factor (RF) in serum or plasma -

The kit contains human IgG - Ratio: Sample/Reagent 1/Reagent 2: 1/30/10 - Wavelength

570 nm - The Calibrator (REF 11523D) and the Controls ( REF 11210; REF 11212; REF

11211A ) are available separately - Measuring range: 4-120 IU/mL - The N° of test is

referred to automatic analyzer Hitachi 917-Modular.

37

Ref. Product Kit size Tests

Immunology RHEUMATOLOGY

For calibrators and controls refer to page 44.

The number of tests indicated in this catalogue is related to the reagent volumes

reported in the Instructions For Use (IFU) inside the kit.

Latex: Quantitative immuno-turbidimetric assays - Each product contains a buffer

(R1) and a suspension of latex particles coated with a specific antibody (R2) -

Applications on most common automatic analyzers are available upon request -

Sample dilution is not required

NEW

KEY: § To be discontinued ## Available by 2nd Quarter

Latex Turbidimetry

11505H Beta-2 Micro Latex CN # 2x20; 2x10 mL 194

Immuno-turbidimetric determination of Beta-2-microglobulin in serum, plasma or urine -

The kit contains specific anti BMG - Plasma-serum, Ratio: Sample/Reagent 1/Reagent

2: 2/180/80 - Urine, Ratio: Sample/Reagent 1/Reagent 2: 9/135/60 - Wavelenght 570 nm

- The Calibrator (REF 11524H) and the Controls (REF 11210; REF 11212; REF 11211A )

are available separately - Measuring range: 0.2-80 mg/L (Serum) - Measuring range: 30-

8000 µg/L (Urine) - The N° of test is referred to automatic analyzer Hitachi 917-Modular.

Note: REAGENT 1 and REAGENT 2 are filled in a universal trapezoidal vial.

11510A Cystatin C ## 1x46; 1x13 mL 250

Immuno-turbidimetric determination of Cystatin C in serum or plasma - The kit contains

specific anti human Cystatin C - Wavelength 540 nm - Ratio: Sample/Reagent 1/

Reagent 2: 1/75/17 - Calibrator (REF 11527S) and Controls (REF 11527C) are available

separately - Measuring range from 0.05 to 8.00 mg/L - The N° of test is referred to automatic

analyzer Hitachi 917-Modular.

Note: REAGENT 1 and REAGENT 2 are filled in a universal trapezoidal vial.

11509A Ferritin Ultra CN 1x19; 1x10 mL 94

Immuno-turbidimetric determination of Ferritin in serum or plasma - The kit contains

specific anti-Ferritin antibodies - Ratio Sample/Reagent 1/ Reagent 2: 1/20/10 - Wavelength

570 nm - Calibrator (REF 11525A) and Controls (REF 11210; REF 11212; REF 11211A)

are available separately - Measuring range from 4 to 1000 ng/mL - The N° of tests is

referred to automatic analyzer Hitachi 911-912.

Note: REAGENT 1 and REAGENT 2 are filled in a universal trapezoidal vial.

11504D Lp(a) Ultra 1x18; 1x9 mL 30

Immuno-turbidimetric determination of Lp(a) in serum or plasma - The kit contains specific

anti Lp(a) - Ratio: Sample/Reagent 1/Reagent 2: 1/40/20 - Wavelength 700 nm - The

Calibrator (REF 11522D) and the Control (REF 34Q021) are available separately - Measuring

range: 3 -130 mg/dL.

Note: REAGENT 1 and REAGENT 2 are filled in a universal trapezoidal vial.

38

Immunology OTHER PROTEINS

Ref. Product Kit size Tests

For calibrators and controls refer to page 44.

The number of tests indicated in this catalogue is related to the reagent volumes

reported in the Instructions For Use (IFU) inside the kit.

Latex: Quantitative immuno-turbidimetric assays - Each product contains a buffer

(R1) and a suspension of latex particles coated with a specific antibody (R2) -

Applications on most common automatic analyzers are available upon request -

Sample dilution is not required.

NEW

KEY: # Available by 1st Quarter ## Available by 2nd Quarter

NEW

39

Immunology OTHER PROTEINS

Ref. Product Kit size Tests

11507D Myo Latex Autom § 1x36; 1x20 mL 160

Immuno-turbidimetric determination of blood Myoglobin in serum or plasma - The kit

contains specific anti-myoglobin - Ratio: Sample/Reagent 1/Reagent 2: 1/10/7.5 -

Wavelength 570 nm - Calibrator (REF 11526D) available separately - Measuring range:

3-560 ng/mL - The N° of test refers to automatic analyzer Hitachi 911-912.

Note: Barcode number, if printed on reagent labels, refers to the use of the product on

Advia Series Analyzers.....................................................................................................

REAGENT 1 and REAGENT 2 are filled in Advia vials.

11507H Myo Latex Autom CN ## 1x20; 1x7 mL 97

Immuno-turbidimetric determination of blood Myoglobin in serum or plasma - The kit

contains specific anti human Myoglobin - Ratio: Sample/reagent 1/Reagent 2: 1/30/10 -

Wavelength 570 nm - Calibrator (REF 11526D) available separately - Measuring range:

3-560ng/mL - The N° of test refers to automatic analyzer Hitachi 917-Modular.

Note: Barcode number, if printed on reagent labels, refers to the use of the product on

Advia Series Analyzers.....................................................................................................

REAGENT 1 and REAGENT 2 are filled in Advia/Hitachi 917-Modular vials.

NEW

KEY: § To be discontinued ## Available by 2nd Quarter

40

Immunology CALIBRATORS

Ref. Product Kit size Tests

Multiparameter Plasmaproteins

11200D Plasmaproteins Cal 3x1 mL

Liquid calibrator for plasmaproteins AAT, AGP, A2M, ALB, AT3, C1, CER, C3, C4, HPT,

IgA, IgG, IgM, Kappa, Lambda, PAL, TRF determination with sample dilution procedure.

11206D Plasmaproteins Cal 3x 4x1 mL

Liquid concentrated calibrator to be used on the instruments that work without sample

dilution procedure for plasmaproteins AAT, AGP, A2M, ALB, AT3, C1, CER, C3, C4, HPT,

IgA, IgG, IgM, Kappa, Lambda, PAL, TRF determination.

Multiparameter Lipoproteins

11202H Apo-A1/Apo-B/HDL Cal 3x2 mL

Lyophilized human based serum - Stable 30 days at -20 °C or 7 days at 2-8 °C after

reconstitution - For Kits Apolipoprotein A-1 (REF 11040D), Apolipoprotein B (REF 11042D)

and Cholesterol HDL Liquid NG (REF 17201P and REF 17201R).

Specific test

11520D ASO Calibrator 1x5 mL

Concentration: 500 UI/mL - To be used with the product REF 11501D.

11524H Beta-2 Micro Cal Set (4 levels) # 4x (1x2) mL

Calibrator concentrations: 1.5 - 10 - 50 - 80 mg/dL - To be used with the product REF 11505H

for serum, plasma and urine.

11521D CRP Calibrator 1x5 mL

Concentration: 5 mg/dL - To be used with the product REF 11502D.

11532 CRP Calibrator Set 7x2 mL

Calibrator concentrations: 0.5-1.0-2.0-4.0-8.0-16.0-32.0 mg/dL - To be used with the

product REF 11508.

11533 CRP Calibrator US 1x2 mL

Concentration: 0.25 mg/dL - To be used in combination with CRP Calibrator Set REF

11532 for Ultrasensitive CRP method REF 11508.

KEY: # Available by 1st Quarter

NEW

41

Immunology CALIBRATORS

Ref. Product Kit size Tests

11527S Cystatin C Calibrator ## 1x1 mL

Human based liquid calibrator - Calibrator concentration: from 7 to 9 mg/L - To be used

with REF 11510A - In house standardisation against highly purified material.

11525A Ferritin Cal Set 4x2 mL

Calibrator set concentration: 100-200-500-1000 ng/mL - To be used with the product

REF 11509A.

11522D Lp(a) Cal Set 5x1 mL

Calibrator set ( 5 levels) approx.range 5-100 mg/dL - To be used with the product REF

11504D.

11207A Microalbumin Cal Urine (4x1 mL) 4x1 mL

Calibrator concentration: about 100 mg/dL - To be used with the product REF 11003D.

11526D Myo Cal Set 4x1 mL

Calibrator set concentration: 70/140/280/560 ng/mL - To be used with the product REF

11507D and REF 11507H.

11523D RF Cal Set 5x1 mL

Calibrator set concentration: 10/20/40/80/120 IU/mL - To be used with the product REF

11506D and REF 11506H.

KEY: ## Available by 2nd Quarter

NEW

42

Immunology CONTROLS

Turbidimetry and Latex Turbidimetry

11540 CRP Control US 3x2 mL

Liquid control serum at very low CRP concentration - To be used with the product REF

11508.

11527C Cystatin C Control Set ## 2x (1x1) mL

Human based liquid control (2 levels) to be used to verify Cystatin C REF 11510A test

performances - Concentrations assigned under standardized conditions.

11210 Immuno Control 1 1x5 mL

11212 Immuno Control 2 1x5 mL

11211A Immuno Control Set (2 levels) 2x (2x1) mL

Liquid, ready to use - Values in normal and abnormal range for: alpha 1-Acid Glycoprotein;

alpha 1-Antitrypsin; alpha 2-Macroglobulin; beta 2-Microglobulin; Albumin; Anti-streptolysin

O; Antithrombin III; C1 Esterase Inhibitor; Ceruloplasmin; C-Reactive Protein; C3; C4;

Ferritin; Haptoglobin; IgA; IgG; IgM; Kappa light chains; Lambda light chains; Prealbumin;

Rheumatoid Factor; Transferrin.

34Q021 Lipids Control 3x2 mL

Lyophilized human based control serum - 3 levels with values for Cholesterol and Triglycerides

(enzymatic methods), Cholesterol HDL and LDL (direct methods), Apo A-1 and Apo B

(immunoturbidimetric methods) and Lp(a) (latex-enhanced method).

125001 Microalbumin Control 2 level Set 2x (5x7) mL

Prepared in urine - Two levels with values for microalbumin in urine

Manufactured by Quantimetrix Inc. USA

Ref. Product Kit size Tests

KEY: ## Available by 2nd Quarter

NEW

43

Reagents for Hitachi 911-912

Every kit contains reagents in dedicated vials for use on open channels of Hitachi 911 and 912 analyzers.

Validated applications on Hitachi series and the most common analyzers are available on request.

Reagents

Ref. Product R1-R2-R3 N° Tests on

HITACHI

mL 911-912

11003D Albumin 2x50;2x4 191

11135D alpha1-Acid Glycoprotein 2x50;2x4 191

11012N alpha1-Antitrypsin 2x50;2x4 191

11018D alpha2-Macroglobulin 2x50;2x4 191

11030D Antithrombin III 2x50;2x3 191

11040D Apolipoprotein A-1 2x50;2x4 § 191

11040N Apolipoprotein A-1 Liquid 1x55;1x12 -

11042D Apolipoprotein B 2x50;2x4 § 191

11042N Apolipoprotein B Liquid 1x63;1x8 -

11501D ASO Latex Autom 2x15;2x20 199

11505H Beta 2-Micro Latex CN 2x20;2x10 -

11052D C1 Esterase Inhibitor 2x50;2x4 191

11060D C3 2x50;2x4 191

11062D C4 2x50;2x4 191

11065N Ceruloplasmin 2x50;2x4 191

11502D CRP Latex Autom 2x20;2x20 170

11508 CRP Ultra 2x20;2x20 224

11510A Cystatin C 1x46;1x13 -

11509A Ferritin Ultra CN ° 1x19;1x10 94

11050D Haptoglobin 2x50;2x4 191

11100D IgA 2x50;2x4 191

11102D IgG 2x50;2x4 191

11106D IgM 2x50;2x4 191

11004D Kappa light chains 2x50;2x10 154

11005D Lambda light chains 2x50;2x10 179

11504D Lp(a) Ultra ° 1x18;1x9 68

11507D Myo Latex Autom ° 1x36;1x20 § 160

11507H Myo Latex Autom CN ° 1x20;1x7 -

11110D Prealbumin 2x50;2x4 191

11506D RF Latex Autom 2x20;1x14 § 136

11506H RF Latex Autom NG 1x42;1x16 -

11130D Transferrin 2x50;2x4 191

NOTE: °For more details about vials, please see pag. 33

§ To be discontinued

Immunology automation REAGENTS

NEW

NEW

NEW

NEW

NEW

NEW

44

Immunology automation CALIBRATORS - CONTROLS

Calibrators and Controls

Ref. Product mL Form

Calibrators Multiparametric 11200D Plasmaproteins Cal 3x1 Liquid

Multiparametric 11206D Plasmaproteins Cal 3x 4x1 Liquid

Multiparametric 11202H Apo-A1/Apo-B/HDL Cal 3x2 Lyophilized

Specific 11520D ASO Calibrator 1x5 Liquid

Specific 11524H Beta-2 Micro Cal Set (4 levels) 4x (1x2) Liquid

Specific 11521D CRP Calibrator 1x5 Liquid

Specific 11532 CRP Calibrator Set 7x2 Liquid

Specific 11533 CRP Calibrator US 1x2 Liquid

Specific 11527S Cystatin C Calibrator 1x1 Liquid

Specific 11525A Ferritin Cal Set 4x2 Liquid

Specific 11522D Lp(a) Cal Set 5x1 Lyophilized

Specific 11207A Microalbumin Cal Urine 4x1 Lyophilized

Specific 11526D Myo Cal Set 4x1 Lyophilized

Specific 11523D RF Cal Set 5x1 Liquid

Controls Multiparametric 11210 Immuno Control 1 1x5 Liquid

Multiparametric 11212 Immuno Control 2 1x5 Liquid

Multiparametric 11211A Immuno Control Set 2 lev. 2x (2x1) Liquid

Multiparametric 34Q021 Lipids Control 3x2 Lyophilized

Specific 11540 CRP Control US 3x2 Liquid

Specific 11527C Cystatin C Control Set 2x (1x1) Liquid

Specific 125001 Microalb. Control 2 lev. Set 2x (5x7) Liquid

NEW

NEW

NEW

45

Ref. Product Kit size Tests

Immunology RAPID TEST

Cardiac Markers

14710 Easy-Card CK-MB 20

Rapid "one-step" method on membrane for the screening of isoenzyme MB of Creatin

kinase (CK-MB) on serum - Simply dispense 5 drops of sample in the device well and

wait 15-20 minutes before reading - One colored band: negative result; two colored bands:

positive result - Cut-off 7 ng/mL

14711 Easy-Card Myoglobin 20

Rapid “one step” method on membrane for screening of myoglobin on serum, plasma

and whole blood - Only one liquid reagent in a dropper vial - Easy manual procedure:

dispense one drop of the sample (serum or plasma) or 2 drops (whole blood) and 5 drops

(6 drops for whole blood) of the diluent solution in the device well- Wait 5-10 minutes

before reading - One colored band: negative result;two colored bands: positive result -

Cut-off: 100 ng/mL.

14684A Easy-Card Troponin I 20

Rapid “one step” method on membrane for the screening of Troponin I in serum - No

liquid reagents required - Just dispense 6 drops of the sample (200 µl) in the device well

and wait 15-20 min before reading - One colored band: negative result; two colored bands:

positive result - Cut-off 1 ng/mL.

46

Ref. Product Kit size Tests

Hematology COAGULATION

PT

SR1020 HEMOPLASTIN SP 6x4 mL 120

Prothrombin Time (PT) determination reagent is sensitive to phase II and III factors (VII,

II, V, X, I) - For manual and automatic analyzers - Used for monitoring the oral anticoagulant

therapy from dicumarols through the inhibition of Vitamin K dependent factors to which

PT is sensitive (II, VII, X) - The kit contains lyophilized calcic thromboplastin obtained from

rabbit brain (ISI =1.1-1.3) - An accurate ISI value is assigned for each lot.

Control Plasma Normal (REF SR1100) and Abnormal (REF SR1200) are available separately.

PTT

SR1030 HEMOS PTT 3x10 mL 300

Determination of Activated Partial Thromboplastin Time (APTT), is sensitive to phase I

factors: (VIII, IX, XI, XII) - For manual and automatic analyzers - Used for heparin determination

in heparinic therapy monitoring, through the inhibition of activated forms of factors (XII,

XI, IX) - The kit contains liquid rabbit brain cephalin with Ellagic Acid as surface activator

- CaCl2 0.02M is included in the kit.

Control Plasma Normal (REF SR1100) and Abnormal (REF SR1200) are available separately.

Fibrinogen

SR1045 HEMOFIBRIN 5x2 mL 100

Fibrinogen determination assay - Determination of plasma coagulation time with Clauss

method - Used for fibrinogen functional anomalies diagnosis - For manual and automated

analyzers - The kit contains lyophilized bovine thrombin and lyophilized Normal Control

Plasma as calibrator and 125 mL Imidazole Buffer.

Controls

SR1100 HEMOTROL N 6x1 mL

Lyophilized human plasma with normal values for PT, APTT, Fibrinogen.

SR1200 HEMOTROL P 6x1 mL

Lyophilized human plasma with abnormal values for PT, APTT, Fibrinogen.

WATCHING OVER LIFE

Automated system

for the detection

of fecal occult blood

®

48

Acid Phoshatase Acid Phosphatase 14x3 mL Colorimetric 17304 16

Acid Phosphatase 6x20 mL Colorimetric 17617 16-30

Albumin Albumin (2x50; 2x4) 108 mL Turbidimetry 11003D 12-33-43

Albumin Liquid 4x250 mL Colorimetric 17261A 16

Albumin Liquid 6x90 mL Colorimetric 17600 12-16-30

Microalbumin Cal Urine (4x1 mL) 4x1 mL Turbidimetry 11207A 41-44

Aldolase Aldolase 5x20 mL Colorimetric 17003 16

Alkaline Phoshatase ALP Liquid 8x25; 8x7.2 mL Colorimetric SC6017 7-12

ALP Liquid 4x20; 1x20 mL Colorimetric 17308 16-30

ALP Liquid 4x50; 1x50 mL Colorimetric 17618 16-30

Alpha I Antitrypsin alpha 1-Antitrypsin (2x50; 1x8) 108 mL Colorimetric 11012N 12-33-43

Alpha I Glycoprotein alpha 1-Acid Glycoprotein (2x50; 2x4) 108 mL Turbidimetry 11135D 12-33-43

Alpha II Macroglobulin alpha 2-Macroglobulin (2x50; 2x4) 108 mL Turbidimetry 11018D 33-43

Ammonia Ammonia Controls 3x (1x5) mL Colorimetric 16635 28-31

Ammonia Ultra 3x20 mL Colorimetric 17660 16-30

Amylase Amylase Liquid 8x25; 8x7.2 mL Colorimetric SC6018 7-12

Amylase Liquid 4x50; 1x50 mL Colorimetric 17632 17-30

Amylase Liquid 4x20; 1x20 mL Colorimetric 17632A 17-30

Pancreatic Amylase 2x40; 1x20 mL Colorimetric 17631 17-31

Antithrombin III Antithrombin III (2x50; 2x3) 106 mL Turbidimetry 11030D 34-43

Apolipoproteins Apolipoprotein A-1 (2x50; 2x4) 108 mL Turbidimetry 11040D 34-43

Apolipoprotein A-1 Liquid (1x55; 1x12) 67 mL Turbidimetry 11040N 34-43

Apolipoprotein B (2x50; 2x4) 108 mL Turbidimetry 11042D 34-43

Apolipoprotein B Liquid (1x63; 1x8) 71 mL Turbidimetry 11042N 34-43

ASO ASO Calibrator 1x5 mL Turbidimetry 11520D 40-44

ASO Latex Autom 3x9; 3x12 mL Turbidimetry SC6025 9-12

ASO Latex Autom 2x15; 2x20 mL Turbidimetry 11501D 37-43

AST/ALT ALT Microwell Autom 2x96 Colorimetric 17238M 17

ALT UV Liquid 8x25; 8x7.2 mL Colorimetric SC6005 7-12

ALT UV Liquid 4x50; 1x21 mL Colorimetric 17234E 17-30

ALT UV Liquid 6x80 ; 4x21 mL Colorimetric 17613 17-30

AST UV Liquid 8x25; 8x7.2 mL Colorimetric SC6004 7-12

AST UV Liquid 4x50; 1x21 mL Colorimetric 17224E 17-30

AST UV Liquid 6x80; 4x21 mL Colorimetric 17612 18-30

Beta-2 Micro Beta-2 Micro Cal Set (4 levels) 4x(1x2) mL Turbidimetry 11524H 40-44

Beta-2 Micro Latex CN 2x20; 2x10 mL Turbidimetry 11505H 38-43

Bicarbonates Bicarbonates Calibrator 4x3 mL Colorimetric 16634A 27-31

Bicarbonates Ctrl 1 4x3 mL Colorimetric 16634B 28-31

Bicarbonates Ctrl 2 4x3 mL Colorimetric 16634C 28-31

Bicarbonates Liquid 4x50 mL Colorimetric 17634 18-30

Bile Acids Bile Acids Controls (2 levels) 2x (2x3) mL Colorimetric 16002A 28-31

Bile Acids TBA 5x10; 1x13 mL Colorimetric 17002B 12-18-30

Analyte Index

Analyte Product Kit size Method Ref. Pag.

49

Analyte Index

Analyte Product Kit size Method Ref. Pag.

Bilirubin Bilirubin Direct Liquid 4x25; 4x7.2 mL Colorimetric SC6011 7-12

Bilirubin Direct Liquid 6x90; 2x20 mL Colorimetric 17602N 18-30

Bilirubin Direct Liquid 4x45; 1x20 mL Colorimetric 17643 18-30

Bilirubin Total Liquid 8x25; 8x7.2 mL Colorimetric SC6010 7-12

Bilirubin Total Liquid 6x90; 2x20 mL Colorimetric 17603N 18-30

Bilirubin Total Liquid 8x45; 1x20 mL Colorimetric 17642 18-30

C1 Esterase C1 Esterase Inhibitor (2x50; 2x4) 108 mL Turbidimetry 11052D 34-43

C3 C3 (2x50; 2x4) 108 mL Turbidimetry 11060D 12-34-43

C4 C4 (2x50; 2x4) 108 mL Turbidimetry 11062D 12-34-43

Calcium Calcium Liquid 8x25; 8x7.2 mL Colorimetric SC6012 8-12

Calcium Liquid 5x50; 2x50 mL Colorimetric 17667 19-30

Ceruloplasmin Ceruloplasmin (2x50; 1x8) 108 mL Turbidimetry 11065N 35-43

Chlorides Chlorides 2x100 mL Colorimetric 17170 19

Cholesterol HDL Cholesterol HDL Liquid NG 6x25; 6x9 mL Colorimetric SC6019 8-12

Cholesterol HDL Liquid NG 1x60; 1x20 mL Colorimetric 17201P 19-30

Cholesterol HDL Liquid NG 6x90; 4x45 mL Colorimetric 17201R 19-30

Cholesterol LDL Cholesterol LDL Liquid NG 3x25; 3x9 mL Colorimetric SC6020 8-12

Cholesterol LDL Liquid NG 1x30; 1x10 mL Colorimetric 17203D 19-30

Cholesterol LDL Liquid NG 1x60; 1x20 mL Colorimetric 17203E 19-30

Cholesterol Total Cholesterol Liquid 10x25 mL Colorimetric SC6006 8-12

Cholesterol Liquid 6x90 mL Colorimetric 17627 19-30

Cholesterol Liquid 4x250 mL Colorimetric 17627M 19

Cholesterol Liquid 5x50 mL Colorimetric 17644 19-30

Cholinesterase Cholinesterase Liquid 4x25; 4x7.2 mL Colorimetric SC6021 8-12

Cholinesterase Liquid 2x50; 1x20 mL Colorimetric 17019A 20-30

Cholinesterase Liquid 6x90; 6x20 mL Colorimetric 17606 20-30

CK CK-NAC Liquid 4x25; 4x7.2 mL Colorimetric SC6014 8-12

CK-NAC Liquid 4x50; 1x50 mL Colorimetric 17296 20-30

CK - MB CK-MB Calibrator 2x1 mL Colorimetric 16299C 27-31

CK-MB Control 2x1 mL Colorimetric 16299S 28-31

CK-MB Liquid 2x44; 2x12 mL Colorimetric 17649 12-20-30

Easy-Card CK-MB Card 14710 45

Copper Copper 5x10; 1x3 mL Colorimetric 17106 20

Copper 5x20; 1x21 mL Colorimetric 17638 20-30

Copper Urine 4x3 mL Colorimetric 17109 20

Creatinine Creatinine Enz Liquid 3x50; 3x18 mL Colorimetric 17654 21-30

Creatinine Enz Liquid 4x50; 4x18 mL Colorimetric 17654A 21

Creatinine Liquid 8x25; 8x7.2 mL Colorimetric SC6002 8-12

Creatinine Liquid 3x90; 3x90 mL Colorimetric 17609 21-30

CRP CRP Calibrator 1x5 mL Turbidimetry 11521D 40-44

CRP Calibrator Set 7x2 mL Turbidimetry 11532 40-44

CRP Calibrator US 1x2 mL Turbidimetry 11533 40-44

CRP Control US 3x2 mL Turbidimetry 11540 42-44

CRP Latex Autom 2x20; 2x20 mL Turbidimetry 11502D 37-43

CRP Ultra 3x13; 3x13 mL Turbidimetry SC6026 9-12

CRP Ultra 2x20; 2x20 mL Turbidimetry 11508 37-43

50

Analyte Index

Analyte Product Kit size Method Ref. Pag.

Cystatin Cystatin C 1x46; 1x13 mL Turbidimetry 11510A 38-43

Cystatin C Control Set 2x (1x1) mL Turbidimetry 11527C 42-44

Cystatin C Calibrator 1x1 mL Turbidimetry 11527S 41-44

Dibucaine Dibucaine CHE Liquid 8x25 mL Colorimetric SC6022 8-12

Dibucaine CHE Liquid 6x50 mL Colorimetric 17018 21-30

Ferritin Ferritin Cal Set 4x2 mL Turbidimetry 11525A 41-44

Ferritin Ultra CN 1x19; 1x10 mL Turbidimetry 11509A 38-43

Fibrinogen HEMOFIBRIN 5x2 mL Coagulation SR1045 14-46

FOB Easy-Card Occult Blood Card 14800 32

FOB Cards Card 14805 32

FOB Collection Long Tube Card 14804F 32

FOB Gold™ 1x20; 1x20 mL Turbidimetry 11560 5-12-

30-32

FOB Gold™ Calibrator 2x2 mL Turbidimetry 11573 5-27-

31-32

FOB Gold™ Control 2x (2x2) mL Turbidimetry 11570 6-28-

31-32

FOB Gold™ tube Turbidimetry 11561 5-32

FOB Gold™ tube NG Turbidimetry 11561N 5-32

Fructosamine Fructosamine 8x6 mL Colorimetric 17350 12-21

Fructosamine Ctrl 1 4x1 mL Colorimetric 16352 29-31

Fructosamine Ctrl 2 4x1 mL Colorimetric 16353 29-31

G6P-DH G6P-DH 100 mL Colorimetric 17005 22

Gamma GT Gamma GT Liquid 8x25; 8x7.2 mL Colorimetric SC6009 8-12

Gamma GT Liquid 4x50; 1x50 mL Colorimetric 17335 21-30

Gamma GT Liquid 8x90; 4x50 mL Colorimetric 17335B 21-30

Gamma GT Liquid 4x20; 1x20 mL Colorimetric 17336 21-30

Glucose Glucose Liquid 10x25 mL Colorimetric SC6001 8-12

Glucose Liquid 4x250 mL Colorimetric 17133 22

Glucose Liquid 6x90 mL Colorimetric 17630 22-30

Haptoglobin Haptoglobin (2x50; 2x4) 108 mL Turbidimetry 11050D 12-35-43

Hemoglobin Hb A1c Control - Column 1x0.5 mL Cromatography 17412B 29

Hemoglobin A1c Cal Set (4 levels) 4x0.5 mL Colorimetric 17418 27-31

Hemoglobin A1c Column Cromatography 17411B 22

Hemoglobin A1c Control Set (2 levels)

2x (2x0.5) mL Colorimetric 17419 29-31

Hemoglobin A1c Direct Latex 1x30; 1x9.5; 1x0.5 mL Colorimetric 17415A 12-22-30

Hemolysis Reagent HbA1c 3x90 mL Colorimetric 17416 22

HBDH HBDH Liquid 2x50; 1x12 mL Colorimetric 17636 22-30

Homocysteine Homocysteine Assay 1x30; 1x4.7 mL Colorimetric 17370A 23-30

Homocysteine Control Kit 3x (1x1.5) mL Colorimetric

FHCY200

29-31

IgA IgA (2x50; 2x4) 108 mL Turbidimetry 11100D 12-35-43

IgG IgG (2x50; 2x4) 108 mL Turbidimetry 11102D 12-35-43

IgM IgM (2x50; 2x4) 108 mL Turbidimetry 11106D 12-35-43

51

Analyte Index

Analyte Product Kit size Method Ref. Pag.

Iron Iron Liquid 8x25; 8x7.2 mL Colorimetric SC6015 8-12

Iron Liquid 2x100; 1x10 mL Colorimetric 17101G 23

Iron Liquid 4x45; 1x17 mL Colorimetric 17648 23-30

Kappa Kappa light chains (2x50; 2x10) 120 mL Turbidimetry 11004D 35-43

Lactate Lactate Dry-Fast 5x10 mL Colorimetric 17285 23

Lambda Lambda light chains (2x50; 2x10) 120 mL Turbidimetry 11005D 35-43

LDH LDH Liquid 4x25; 4x7.2 mL Colorimetric SC6016 8-12

LDH Liquid 4x50; 1x21 mL Colorimetric 17294 23-31

LDH Liquid 6x80; 3x21 mL Colorimetric 17615 23-31

Lipase Lipase Calibrator 4x1 mL Colorimetric 16401 27-31

Lipase Color Liquid 4x25; 4x7.2 mL Colorimetric SC6028 8-13

Lipase Color Liquid 4x10; 1x8 mL Colorimetric 17401B 24

Lipase Color Liquid 4x50; 2x21 mL Colorimetric 17616 24-31

Lp(a) Lp(a) Cal Set 5x1 mL Turbidimetry 11522D 41-44

Lp(a) Ultra 1x18; 1x9 mL Turbidimetry 11504D 13-38-43

Magnesium Magnesium Enzymatic UV 5x20 mL Colorimetric 17281 24

Magnesium Liquid 4x50 mL Colorimetric 17637 13-24-31

Multiparametric Calibrator Apo-A1/Apo-B/HDL Cal 3x2 mL Turbidimetry 11202H 27-31-

40-44

Clin Chem Cal 4x3 mL Colorimetric 16550 27-31

HDL/LDL Calibrator 2x1 mL Colorimetric 16203S 27-31

Plasmaproteins Cal 3x1 mL Turbidimetry 11200D 40-44

Plasmaproteins Cal 3x 4x1 mL Turbidimetry 11206D 40-44

Multiparametric Control Clin Chem Control 1 6x5 mL Colorimetric 16150 28-31

Clin Chem Control 2 6x5 mL Colorimetric 16250 28-31

Immuno Control 1 1x5 mL Turbidimetry 11210 42-44

Immuno Control 2 1x5 mL Turbidimetry 11212 42-44

Immuno Control Set (2 levels) 2x (2x1) mL Turbidimetry 11211A 42-44

Lipids Control 3x2 mL Turbidimetry 34Q021 28-31-

42-44

Microalbumin Control 2 level Set 2x (5x7) mL Colorimetric 125001 42-44

Myoglobin Easy-Card Myoglobin Card 14711 45

Myo Cal Set 4x1 mL Turbidimetry 11526D 41-44

Myo Latex Autom 1x36; 1x20 mL Turbidimetry 11507D 39-43

Myo Latex Autom CN 1x20; 1x7 mL Turbidimetry 11507H 39-43

Phospholipids Phospholipids 5x10 mL Colorimetric 17320 24

Phosphorus Phosphorus 6x90 mL Colorimetric 17619 24-31

Phosphorus Enzymatic 5x10 mL Colorimetric 17182 13-24

Piridossalfosfato Pyridoxalphosphate (P5P) 40 Tab Colorimetric 16226 18

Plasma Control HEMOTROL N 6x1 mL Coagulation SR1100 14-46

HEMOTROL P 6x1 mL Coagulation SR1200 14-46

Prealbumin Prealbumin (2x50; 2x4) 108 mL Turbidimetry 11110D 36-43

PT HEMOPLASTIN SP 24 mL Coagulation SR1020 14-46

PTT HEMOS PTT 3x10 mL Coagulation SR1030 14-46

52

Analyte Index

Analyte Product Kit size Method Ref. Pag.

RF RF Cal Set 5x1 mL Turbidimetry 11523D 41-44

RF Latex Autom 3x25; 3x9 mL Turbidimetry SC6027 9-13

RF Latex Autom 2x20; 1x14 mL Turbidimetry 11506D 37-43

RF Latex Autom NG 1x42; 1x16 mL Turbidimetry 11506H 37-43

Total Protein Total Proteins 10x25 mL Colorimetric SC6007 9

Total Proteins 4x250 mL Colorimetric 17271 25

Total Proteins 6x90 mL Colorimetric 17620 25-31

Urine Proteins 2x100 mL Colorimetric 17275 13-25

Tranferrin Transferrin (2x50; 2x4) 108 mL Turbidimetry 11130D 13-36-43

Triglycerides Triglycerides Liquid 10x25 mL Colorimetric SC6008 9-13

Triglycerides Liquid 5x50 mL Colorimetric 17624 25-31

Triglycerides Liquid 4x250 mL Colorimetric 17625 25

Triglycerides Liquid 6x90 mL Colorimetric 17628 25-31

Troponin Easy-Card Troponin I Card 14684A 45

UIBC UIBC Liquid 2x40; 1x11 mL Colorimetric 17639 23-31

Urea Urea Liquid 8x25; 8x7.2 mL Colorimetric SC6003 9-13

Urea Liquid 8x50; 3x21 mL Colorimetric 17629 25-31

Urea Liquid 2x50; 1x21 mL Colorimetric 17629A 25-31

Urea Liquid 4x250; 2x100 mL Colorimetric 17629M 25

Uric Acid Uric Acid Liquid 10x25 mL Colorimetric SC6013 9-13

Uric Acid Liquid 6x90 mL Colorimetric 17626 26-31

Uric Acid Liquid 4x250 mL Colorimetric 17656 26

Uric Acid Liquid 5x50 mL Colorimetric 17658 26-31

Zinc Zinc 5x10; 1x5 mL Colorimetric 17255 26

Zinc 5x20; 1x11 mL Colorimetric 17640 26-31

53

Alphabetical Index

Product Ref. Pag.

A

A4 Printer paper SD80066 6

Acid Phosphatase 17304 16

Acid Phosphatase 17617 16-30

Acid Solution (conc) SD7022 11

Albumin 11003D 12-33-43

Albumin Liquid 17261A 16

Albumin Liquid 17600 12-16-30

Aldolase 17003 16

Alkaline solution (conc) SD7021 11

ALP Liquid SC6017 7-12

ALP Liquid 17308 16-30

ALP Liquid 17618 16-30

alpha 1-Acid Glycoprotein 11135D 12-33-43

alpha 1-Antitrypsin 11012N 12-33-43

alpha 2-Macroglobulin 11018D 33-43

ALT Microwell Autom 17238M 17

ALT UV Liquid SC6005 7-12

ALT UV Liquid 17234E 17-30

ALT UV Liquid 17613 17-30

Ammonia Controls 16635 28-31

Ammonia Ultra 17660 16-30

Amylase Liquid SC6018 7-12

Amylase Liquid 17632 17-30

Amylase Liquid 17632A 17-30

Antithrombin III 11030D 34-43

Apo-A1/Apo-B/HDL Cal 11202H 27-31-

40-44

Apolipoprotein A-1 Liquid 11040N 34-43

Apolipoprotein A-1 11040D 34-43

Apolipoprotein B 11042D 34-43

Apolipoprotein B Liquid 11042N 34-43

ASO Calibrator 11520D 40-44

ASO Latex Autom SC6025 9-12

ASO Latex Autom 11501D 37-43

AST UV Liquid SC6004 7-12

AST UV Liquid 17224E 17-30

AST UV Liquid 17612 18-30

B

Beta-2 Micro Cal Set (4 levels) 11524H 40-44

Beta-2 Micro Latex CN 11505H 38-43

Bicarbonates Calibrator 16634A 27-31

Bicarbonates Ctrl 1 16634B 28-31

Bicarbonates Ctrl 2 16634C 28-31

Bicarbonates Liquid 17634 18-30

Bile Acids Controls (2 levels) 16002A 28-31

Bile Acids TBA 17002B 12-18-30

Bilirubin Direct Liquid SC6011 7-12

Bilirubin Direct Liquid 17602N 18-30

Bilirubin Direct Liquid 17643 18-30

Bilirubin Total Liquid SC6010 7-12

Bilirubin Total Liquid 17603N 18-30

Bilirubin Total Liquid 17642 18-30

Biolis 24i 571000 7

Biolis 24i ISE 570000 7

Bottle caps SD7006 11

C

C1 Esterase Inhibitor 11052D 34-43

C3 11060D 12-34-43

C4 11062D 12-34-43

Calcium Liquid SC6012 8-12

Calcium Liquid 17667 19-30

Calibrator 1 SD7011 10

Calibrator 2 SD7012 10

Ceruloplasmin 11065N 35-43

Chlorides 17170 19

Cholesterol HDL Liquid NG SC6019 8-12

Cholesterol HDL Liquid NG 17201P 19-30

Cholesterol HDL Liquid NG 17201R 19-30

Cholesterol LDL Liquid NG SC6020 8-12

Cholesterol LDL Liquid NG 17203D 19-30

Cholesterol LDL Liquid NG 17203E 19-30

Cholesterol Liquid SC6006 8-12

Cholesterol Liquid 17627 19-30

Cholesterol Liquid 17627M 19

Cholesterol Liquid 17644 19-30

Cholinesterase Liquid SC6021 8-12

Cholinesterase Liquid 17019A 20-30

Cholinesterase Liquid 17606 20-30

CK-MB Calibrator 16299C 27-31

CK-MB Control 16299S 28-31

CK-MB Liquid 17649 12-20-30

CK-NAC Liquid SC6014 8-12

CK-NAC Liquid 17296 20-30

Cleaning solution SD7013 10

Clin Chem Cal 16550 27-31

Clin Chem Control 1 16150 28-31

Clin Chem Control 2 16250 28-31

Computer for Analyzer Unit 580002 5

Computer for Analyzer Unit 580002 7

Concentrated cleaning solution SR0600 15

Concentrated System Liquid SD8002 6

Concentrated Washing Solution SD8001 6

Copper 17106 20

Copper 17638 20-30

Copper Urine 17109 20

Creatinine Enz Liquid 17654A 21

Creatinine Enz Liquid 17654 21-30

Creatinine Liquid SC6002 8-12

Creatinine Liquid 17609 21-30

CRP Calibrator 11521D 40-44

CRP Calibrator Set 11532 40-44

CRP Calibrator US 11533 40-44

CRP Control US 11540 42-44

CRP Latex Autom 11502D 37-43

CRP Ultra SC6026 9-12

CRP Ultra 11508 37-43

Cystatin C 11510A 38-43

Cystatin C Control Set 11527C 42-44

Cystatin C Calibrator 11527S 41-44

Product Ref. Pag.

54

D

Deproteinizant solution SR0601 15

Dialysis Liquid Calibrator SD7016 10

Dibucaine CHE Liquid SC6022 8-12

Dibucaine CHE Liquid 17018 21-30

E

Easy-Card CK-MB 14710 45

Easy-Card Myoglobin 14711 45

Easy-Card Occult Blood 14800 32

Easy-Card Troponin I 14684A 45

Electrode Cl SD7009 10

Electrode K SD7010 10

Electrode Na SD7008 10

F

Ferritin Cal Set 11525A 41-44

Ferritin Ultra CN 11509A 38-43

FOB Cards 14805 32

FOB Collection Long Tube 14804F 32

FOB Gold™ 11560 5-12-

30-32

FOB Gold™ Calibrator 11573 5-27-

31-32

FOB Gold™ Control 11570 6-28-

31-32

FOB Gold™ Pack 11561P 6-32

FOB Gold™ tube 11561 5-32

FOB Gold™ tube NG 11561N 5-32

Forceps SR0505 15

Fructosamine 17350 12-21

Fructosamine Ctrl 1 16352 29-31

Fructosamine Ctrl 2 16353 29-31

G

G6P-DH 17005 22

Gamma GT Liquid SC6009 8-12

Gamma GT Liquid 17335 21-30

Gamma GT Liquid 17335B 21-30

Gamma GT Liquid 17336 21-30

Glucose Liquid SC6001 8-12

Glucose Liquid 17133 22

Glucose Liquid 17630 22-30

H

Haptoglobin 11050D 12-35-43

Hb A1c Control - Column 17412B 29

HBDH Liquid 17636 22-30

HDL/LDL Calibrator 16203S 27-31

HEMOFIBRIN SR1045 14-46

Hemoglobin A1c Cal Set (4 levels) 17418 27-31

Hemoglobin A1c Column 17411B 22

Hemoglobin A1c Control Set (2 levels) 17419 29-31

Hemoglobin A1c Direct Latex 17415A 12-22-30

Hemolysis Reagent HbA1c 17416 22

HEMOPLASTIN SP SR1020 14-46

HEMOS PTT SR1030 14-46

HEMOTROL N SR1100 14-46

HEMOTROL P SR1200 14-46

Homocysteine Assay 17370A 23-30

Homocysteine Control Kit

FHCY200

29-31

I

IgA 11100D 12-35-43

IgG 11102D 12-35-43

IgM 11106D 12-35-43

Immuno Control 1 11210 42-44

Immuno Control 2 11212 42-44

Immuno Control Set (2 levels) 11211A 42-44

Iron Liquid SC6015 8-12

Iron Liquid 17101G 23

Iron Liquid 17648 23-30

Ise Module with accessories 570135 10

K

Kappa light chains 11004D 35-43

L

Lactate Dry-Fast 17285 23

Lambda light chains 11005D 35-43

Lamp SD7020 11

Lamp SR8003 6

LDH Liquid SC6016 8-12

LDH Liquid 17294 23-31

LDH Liquid 17615 23-31

Lipase Calibrator 16401 27-31

Lipase Color Liquid SC6028 8-13

Lipase Color Liquid 17401B 24

Lipase Color Liquid 17616 24-31

Lipids Control 34Q021 28-31-

42-44

Lp(a) Cal Set 11522D 41-44

Lp(a) Ultra 11504D 13-38-43

M

Magnesium Enzymatic UV 17281 24

Magnesium Liquid 17637 13-24-31

Magnetic stirrers SR0503 15

Manual Bar Code Reader 580005 5

Microalbumin Cal Urine (4x1 mL) 11207A 41-44

Microalbumin Control 2 level Set 125001 42-44

Monitor for Analyzer Unit 580003 5-7

Myo Cal Set 11526D 41-44

Myo Latex Autom 11507D 39-43

Myo Latex Autom CN 11507H 39-43

Product Ref. Pag. Product Ref. Pag.

Alphabetical Index

Product Ref. Pag.

55

P

Pancreatic Amylase 17631 17-31

Phospholipids 17320 24

Phosphorus 17619 24-31

Phosphorus Enzymatic 17182 13-24

Pinch Tube ISE SD7017 10

Pinch valve tube ISE SD7018 10

Plasmaproteins Cal 11200D 40-44

Plasmaproteins Cal 3x 11206D 40-44

Prealbumin 11110D 36-43

Printer cartridge C703 SD8007 6

Printer for Analyzer Unit 580004 5-7

Printer paper roll SR0504 15

Printing Paper S00088 11

Probe SR8002 6

Pyridoxalphosphate (P5P) 16226 18

R

Reaction cuvettes SR0501 15

Reaction cuvettes SD7003 11

Reaction cuvettes with magnetic stirrer SR0500 15

Reaction Rotors SD8000 6

Reagent bottle 13 mL + cap SD7005 11

Reagent bottle 25 mL + cap SD7004 11

Reagent bottle 43 mL + cap SD7019 11

Reagent bottle kit SD7029 11

Reagent Cover tray 570133 10

Reagent probe SD7002 11

Reagent Rack SD8005 6

Reagent tray 36 570134 10

Reference Electrode SD7007 10

RF Cal Set 11523D 41-44

RF Latex Autom SC6027 9-13

RF Latex Autom 11506D 37-43

RF Latex Autom NG 11506H 37-43

S

Sample Cover 570132 10

Sample cups SR0502 15

Sample cups - 3 mL SD6007 6-11

Sample probe SD7001 11

Sample Tray 10 570131 11

Sample Tray 3 570124 10

Sample Tray 4 570125 10

Sample Tray 5 570126 11

Sample Tray 6 570127 11

Sample Tray 7 570128 11

Sample Tray 8 570129 11

Sample Tray 9 570130 11

Sample Tube Rack SD8003 6

SENT i CLOT 50 55051 14

SENT i FOB™ 580001 5

Product Ref. Pag.

Alphabetical Index

T

Total Proteins SC6007 9-13

Total Proteins 17271 25

Total Proteins 17620 25-31

Transferrin 11130D 13-36-43

Triglycerides Liquid SC6008 9-13

Triglycerides Liquid 17624 25-31

Triglycerides Liquid 17625 25

Triglycerides Liquid 17628 25-31

U

UIBC Liquid 17639 23-31

Urea Liquid SC6003 9-13

Urea Liquid 17629 25-31

Urea Liquid 17629A 25-31

Urea Liquid 17629M 25

Uric Acid Liquid SC6013 9-13

Uric Acid Liquid 17626 26-31

Uric Acid Liquid 17656 26

Uric Acid Liquid 17658 26-31

Urine calibrator 1 e 2 SD7014 10

Urine Diluent SD7015 10

Urine Proteins 17275 13-25

Z

Zinc 17255 26

Zinc 17640 26-31

56

Code Index

Ref. Product Pag.

11003D Albumin 12-33-43

11004D Kappa light chains 35-43

11005D Lambda light chains 35-43

11012N alpha 1-Antitrypsin 12-33-43

11018D alpha 2-Macroglobulin 33-43

11030D Antithrombin III 34-43

11040D Apolipoprotein A-1 34-43

11040N Apolipoprotein A-1 Liquid 34-43

11042D Apolipoprotein B 34-43

11042N Apolipoprotein B Liquid 34-43

11050D Haptoglobin 12-35-43

11052D C1 Esterase Inhibitor 34-43

11060D C3 12-34-43

11062D C4 12-34-43

11065N Ceruloplasmin 35-43

11100D IgA 12-35-43

11102D IgG 12-35-43

11106D IgM 12-35-43

11110D Prealbumin 36-43

11130D Transferrin 13-36-43

11135D alpha 1-Acid Glycoprotein 12-33-43

11200D Plasmaproteins Cal 40-44

11202H Apo-A1/Apo-B/HDL Cal 27-31-

40-44

11206D Plasmaproteins Cal 3x 40-44

11207A Microalbumin Cal Urine (4x1 mL) 41-44

11210 Immuno Control 1 42-44

11211A Immuno Control Set (2 levels) 42-44

11212 Immuno Control 2 42-44

11501D ASO Latex Autom 37-43

11502D CRP Latex Autom 37-43

11504D Lp(a) Ultra 13-38-43

11505H Beta-2 Micro Latex CN 38-43

11506D RF Latex Autom 37-43

11506H RF Latex Autom NG 37-43

11507D Myo Latex Autom 39-43

11507H Myo Latex Autom CN 39-43

11508 CRP Ultra 37-43

11509A Ferritin Ultra CN 38-43

11510A Cystatin C 38-43

11520D ASO Calibrator 40-44

11521D CRP Calibrator 40-44

11522D Lp(a) Cal Set 41-44

11523D RF Cal Set 41-44

11524H Beta-2 Micro Cal Set (4 levels) 40-44

11525A Ferritin Cal Set 41-44

11526D Myo Cal Set 41-44

11527C Cystatin C Control Set 42-44

11527S Cystatin C Calibrator 41-44

11532 CRP Calibrator Set 40-44

11533 CRP Calibrator US 40-44

11540 CRP Control US 42-44

11560 FOB Gold™ 5-12-

30-32

11561 FOB Gold™ tube 5-32

11561N FOB Gold™ tube NG 5-32

11561P FOB Gold™ Pack 6-32

11570 FOB Gold™ Control 6-28-

31-32

11573 FOB Gold™ Calibrator 5-27-

31-32

125001 Microalbumin Control 2 level Set 42-44

14684A Easy-Card Troponin I 45

14710 Easy-Card CK-MB 45

14711 Easy-Card Myoglobin 45

14800 Easy-Card Occult Blood 32

14804F FOB Collection Long Tube 32

14805 FOB Cards 32

16002A Bile Acids Controls (2 levels) 28-31

16150 Clin Chem Control 1 28-31

16203S HDL/LDL Calibrator 27-31

16226 Pyridoxalphosphate (P5P) 18

16250 Clin Chem Control 2 28-31

16299C CK-MB Calibrator 27-31

16299S CK-MB Control 28-31

16352 Fructosamine Ctrl 1 29-31

16353 Fructosamine Ctrl 2 29-31

16401 Lipase Calibrator 27-31

16550 Clin Chem Cal 27-31

16634A Bicarbonates Calibrator 27-31

16634B Bicarbonates Ctrl 1 28-31

16634C Bicarbonates Ctrl 2 28-31

16635 Ammonia Controls 28-31

17002B Bile Acids TBA 12-18-30

17003 Aldolase 16

17005 G6P-DH 22

17018 Dibucaine CHE Liquid 21-30

17019A Cholinesterase Liquid 20-30

17101G Iron Liquid 23

17106 Copper 20

17109 Copper Urine 20

17133 Glucose Liquid 22

17170 Chlorides 19

17182 Phosphorus Enzymatic 13-24

17201P Cholesterol HDL Liquid NG 19-30

17201R Cholesterol HDL Liquid NG 19-30

Ref. Product Pag.

57

17203D Cholesterol LDL Liquid NG 19-30

17203E Cholesterol LDL Liquid NG 19-30

17224E AST UV Liquid 17-30

17234E ALT UV Liquid 17-30

17238M ALT Microwell Autom 17

17255 Zinc 26

17261A Albumin Liquid 16

17271 Total Proteins 25

17275 Urine Proteins 13-25

17281 Magnesium Enzymatic UV 24

17285 Lactate Dry-Fast 23

17294 LDH Liquid 23-31

17296 CK-NAC Liquid 20-30

17304 Acid Phosphatase 16

17308 ALP Liquid 16-30

17320 Phospholipids 24

17335 Gamma GT Liquid 21-30

17335B Gamma GT Liquid 21-30

17336 Gamma GT Liquid 21-30

17350 Fructosamine 12-21

17370A Homocysteine Assay 23-30

17401B Lipase Color Liquid 24

17411B Hemoglobin A1c Column 22

17412B Hb A1c Control - Column 29

17415A Hemoglobin A1c Direct Latex 12-22-30

17416 Hemolysis Reagent HbA1c 22

17418 Hemoglobin A1c Cal Set (4 levels) 27-31

17419 Hemoglobin A1c Control Set (2 levels) 29-31

17600 Albumin Liquid 12-16-30

17602N Bilirubin Direct Liquid 18-30

17603N Bilirubin Total Liquid 18-30

17606 Cholinesterase Liquid 20-30

17609 Creatinine Liquid 21-30

17612 AST UV Liquid 18-30

17613 ALT UV Liquid 17-30

17615 LDH Liquid 23-31

17616 Lipase Color Liquid 24-31

17617 Acid Phosphatase 16-30

17618 ALP Liquid 16-30

17619 Phosphorus 24-31

17620 Total Proteins 25-31

17624 Triglycerides Liquid 25-31

17625 Triglycerides Liquid 25

17626 Uric Acid Liquid 26-31

17627 Cholesterol Liquid 19-30

17627M Cholesterol Liquid 19

17628 Triglycerides Liquid 25-31

17629 Urea Liquid 25-31

17629A Urea Liquid 25-31

17629M Urea Liquid 25

17630 Glucose Liquid 22-30

17631 Pancreatic Amylase 17-31

17632 Amylase Liquid 17-30

17632A Amylase Liquid 17-30

17634 Bicarbonates Liquid 18-30

17636 HBDH Liquid 22-30

17637 Magnesium Liquid 13-24-31

17638 Copper 20-30

17639 UIBC Liquid 23-31

17640 Zinc 26-31

17642 Bilirubin Total Liquid 18-30

17643 Bilirubin Direct Liquid 18-30

17644 Cholesterol Liquid 19-30

17648 Iron Liquid 23-30

17649 CK-MB Liquid 12-20-30

17654A Creatinine Enz Liquid 21

17654 Creatinine Enz Liquid 21-30

17656 Uric Acid Liquid 26

17658 Uric Acid Liquid 26-31

17660 Ammonia Ultra 16-30

17667 Calcium Liquid 19-30

34Q021 Lipids Control 28-31-

42-44

55051 SENT i CLOT 50 14

570000 Biolis 24i ISE 7

570124 Sample Tray 3 10

570125 Sample Tray 4 10

570126 Sample Tray 5 11

570127 Sample Tray 6 11

570128 Sample Tray 7 11

570129 Sample Tray 8 11

570130 Sample Tray 9 11

570131 Sample Tray 10 11

570132 Sample Cover 10

570133 Reagent Cover tray 10

570134 Reagent tray 36 10

570135 Ise Module with accessories 10

571000 Biolis 24i 7

580000 SENT i FOB™ System 5

580001 SENT i FOB™ 5

580002 Computer for Analyzer Unit 5-7

580003 Monitor for Analyzer Unit 5-7

580004 Printer for Analyzer Unit 5-7

580005 Manual Bar Code Reader 5

FHCY200 Homocysteine Control Kit 29-31

S00088 Printing Paper 11

Code Index

Ref. Product Pag.Ref. Product Pag.

58

SC6001 Glucose Liquid 8-12

SC6002 Creatinine Liquid 8-12

SC6003 Urea Liquid 9-13

SC6004 AST UV Liquid 7-12

SC6005 ALT UV Liquid 7-12

SC6006 Cholesterol Liquid 8-12

SC6007 Total Proteins 9

SC6008 Triglycerides Liquid 9-13

SC6009 Gamma GT Liquid 8-12

SC6010 Bilirubin Total Liquid 7-12

SC6011 Bilirubin Direct Liquid 7-12

SC6012 Calcium Liquid 8-12

SC6013 Uric Acid Liquid 9-13

SC6014 CK-NAC Liquid 8-12

SC6015 Iron Liquid 8-12

SC6016 LDH Liquid 8-12

SC6017 ALP Liquid 7-12

SC6018 Amylase Liquid 7-12

SC6019 Cholesterol HDL Liquid NG 8-12

SC6020 Cholesterol LDL Liquid NG 8-12

SC6021 Cholinesterase Liquid 8-12

SC6022 Dibucaine CHE Liquid 8-12

SC6025 ASO Latex Autom 9-12

SC6026 CRP Ultra 9-12

SC6027 RF Latex Autom 9-13

SC6028 Lipase Color Liquid 8-13

SD6007 Sample cups - 3 mL 6

SD6007 Sample cups - 3 mL 11

SD7001 Sample probe 11

SD7002 Reagent probe 11

SD7003 Reaction cuvettes 11

SD7004 Reagent bottle 25 mL + cap 11

SD7005 Reagent bottle 13 mL + cap 11

SD7006 Bottle caps 11

SD7007 Reference Electrode 10

SD7008 Electrode Na 10

SD7009 Electrode Cl 10

SD7010 Electrode K 10

SD7011 Calibrator 1 10

SD7012 Calibrator 2 10

SD7013 Cleaning solution 10

SD7014 Urine calibrator 1 e 2 10

SD7015 Urine Diluent 10

SD7016 Dialysis Liquid Calibrator 10

SD7017 Pinch Tube ISE 10

SD7018 Pinch valve tube ISE 10

SD7019 Reagent bottle 43 mL + cap 11

SD7020 Lamp 11

SD7021 Alkaline solution (conc) 11

SD7022 Acid Solution (conc) 11

SD7029 Reagent bottle kit 11

SD8000 Reaction Rotors 6

SD8001 Concentrated Washing Solution 6

SD8002 Concentrated System Liquid 6

SD8003 Sample Tube Rack 6

SD8005 Reagent Rack 6

SD8006 A4 Printer paper 6

SD8007 Printer cartridge C703 6

SR0500 Reaction cuvettes with magnetic stirrer 15

SR0501 Reaction cuvettes 15

SR0502 Sample cups 15

SR0503 Magnetic stirrers 15

SR0504 Printer paper roll 15

SR0505 Forceps 15

SR0600 Concentrated cleaning solution 15

SR0601 Deproteinizant solution 15

SR1020 HEMOPLASTIN SP 14-46

SR1030 HEMOS PTT 14-46

SR1045 HEMOFIBRIN 14-46

SR1100 HEMOTROL N 14-46

SR1200 HEMOTROL P 14-46

SR8002 Probe 6

SR8003 Lamp 6

Ref. Product Pag.

Code Index

Ref. Product Pag.

59

General Conditions of Sale

REV 2009/1.2

VALID FROM 01/01/2009

Ref. DPL 601

WHEN ORDERING Please indicate all necessary information such as product name,

product description, reference number, quantity required and shipping

instructions. Orders should be placed by fax or by E-mail (export@sentinel.it)

MINIMUM PURCHASE The minimum value of consignment is €500,00 for EC countries,

and €2.000,00 for non EC countries.

PRICES Please refer to our International Distributor Net Price List. All prices have

to be understood as ex-works. Special offers are valid 3 months from the

date of quotation. We reserve the right to change prices without notice.

CONSIGNMENTS The shipping date is mentioned on the order confirmation and has to be

considered indicative. The company reserves the right to apply a handling charge

of €25,00 for each invoice.

PAYMENT TERMS Payment terms are always indicated in the order confirmation and the

invoice. If the regular invoice has not been contested within 8 days upon

receipt, it is to be considered accepted.

COMPLAINTS Complaints must be reported in writing within 8 days from the receipt

of the goods.........................................................................................

In this case: 1) Notify carrier when signing receipt for goods. 2) Inform us as

soon as possible by fax or E-mail (customerservice@sentinel.it).

HEALTH AND SAFETY All products sold by Sentinel CH. should be handled by qualified personnel,

exercising care during usage and disposal.

For further information, contact us at the address below.

TECHNICAL SERVICES All questions or inquiries concerning the use of our products will be answered.

Should you need any assistance, please contact our Customer Service.

In the event of dispute the case shall be settled by the Court of Milan.

CERTIFIED QUALITY MANAGEMENT SYSTEM:

ISO 9001:2000 - ISO 13485:2003

SENTINEL CH. SpA - Via Robert Koch, 2 - 20152 Milan - Italy - Ph +39.02.345514.1 - Fax +39.02.34551464

Sales Office: Ph +39.02.34551463 - +39.02.34551465

Website: www.sentineldiagnostics.com

e-mail: export@sentinel.it

customerservice@sentinel.it

60

Notes

LOCAL DISTRIBUTOR

CONTACT SALESMAN

TECHNICAL ASSISTANCE

NOTES

www.sentineldiagnostics.com

Sentinel CH. SpA

Via Robert Koch, 2 - 20152 Milano - Italy

Ph. +39 02 3455141 - Fax +39 02 34551464

sentinel@sentinel.it

www.sentineldiagnostics.com

Mod. DPL 601

A.D. S&M
