PRODUCT SPECIFICATION
camera site
CC3751H-2/CC3651H-2X Digital CCD Color Camera
LOWLIGHT
™
DSS, 1/3-INCH, HIGH RESOLUTION, 480 TVL (NTSC/PAL)
Product Features
•
•Compact Body Style, Shorter Overall Than Most Full-Featured
CCD Cameras
•1/3-Inch Format CCD Imager
•C/CS Lens Mount
•24 VAC/12 VDC Power
•Line Lock With Phase Adjustment
•Backlight Compensation
•Horizontal Resolution of 480 TV Lines
•For Use with Direct Drive and Auto Iris Lenses or Fixed/Manual
Iris Lenses
•Removable Top/Bottom Mount
•Low Profile Mounting Block
•Optional Integral Feedthrough Mount
Designed and manufactured in the USA, the
CC3751H-2
and
CC3651H-2X
color cameras have extended digital slow shutter (DSS)
settings to enhance the low-light performance of the camera. DSS
settings slow the picture frame rate and increase the camera’s
sensitivity in low light conditions. Light sensitivity increases as the
number of fields of integration increase. The cameras have four DSS
settings
• Off to disable the DSS mode
• Four fields of integration maximum (1/15-second update rate)
• Fifteen fields of integration maximum (1/4-second update rate)
• Thirty fields of integration maximum (1/2-second update rate)
The
CC3751H-2
and
CC3651H-2X
have a 1/3-inch imager and
produce a horizontal resolution of 480 TV lines. Special camera
settings include electronic shutter control, phase adjustment,
enhanced sharpness, long line compensation, backlight compensa-
tion, and automatic gain control.
The cameras also have a direct drive/auto iris lens connector and
adjustable back focus for C/CS lenses. Back focus adjustment is
simple with the easy-to-grip thumb wheel, accessible from the top or
bottom of the camera.
Smaller than most full-featured CCD cameras, the
CC3751H-2
and
CC3651H-2X
are ideal for use with one of Pelco’s smaller enclosures
(EH100, EH3500, EH2500, EH2020, and EH2100). Pelco has a wide
selection of fixed and varifocal lenses available for the cameras to
meet your installation requirements.
The
CC3751H-2
and
CC3651H-2X
are quick and easy to install and
ideal for use in confined spaces. The cameras have a quick-connect
power connection, BNC video connector, and a removable mount
adapter for top or bottom mounting.
Accessories include the PCM100 camera mount designed specifically
for the
CC3751H-2
and
CC3651H-2X.
This adjustable mount has no
exposed cabling or hardware. All cable is integrated in the unit
making installation quick and easy. The PCM100 can be installed
directly to a wall or ceiling, or it can be adapted to a standard 2 x
4-inch (5.08 x 10.16 cm) electrical box.
U.S. Patent D460,773
AR
(REAR COVER REMOVED)
CAMERA MOUNTED ON
PCM100 CAMERA MOUNT
(LENS AND MOUNT NOT SUPPLIED WITH CAMERA)
Sec2.fm Page 121 Wednesday, March 9, 2005 8:26 AM
Pelco Worldwide Headquarters:
3500 Pelco Way, Clovis, California 93612-5699 USA
USA & Canada
Tel: (800) 289-9100 • FAX (800) 289-9150
International
Tel: (559) 292-1981 • FAX (559) 348-1120
www.pelco.com
TECHNICAL SPECIFICATIONS
MODELS
CC3751H-2 1/3-inch high resolution digital color CCD
camera, 480 TVL, NTSC format
CC3651H-2X 1/3-inch high resolution digital color CCD
camera, 480 TVL, PAL format
GENERAL
Imaging Device 1/3-inch interline transfer CCD
Picture Elements
CC3751H-2 768 (H) x 494 (V)
CC3651H-2X 795 (H) x 696 (V)
Sensing Area
CC3751H-2 6 mm diagonal
CC3651H-2X 6.3 mm (H) x 4.7 mm (V)
Scanning System
CC3751H-2 525 lines, 21 interlace
CC3651H-2X 625 lines, 21 interlace
Synchronization System AC line lock/internal
Horizontal Resolution 480 TV lines
Iris Control Electronic/passive
Minimum Illumination 0.01 lux, f1.2, 40 IRE, AGC on,
75% reflectance
Signal-to-Noise Ratio 50 dB
Gain Control Automatic
Vertical Phase Adjustable 0° ±170°
Backlight Compensation Selectable by DIP switch setting
Signal Processing DSP
Auto Iris Lens Type DC/video control
Video Output 1 Vp-p, 75 ohms
Electronic Shutter
Control Range 1/60-1/100,000 second
ELECTRICAL
Power Requirements 18-30 VAC or 10-36 VDC
Power Consumption Less than 3.3 watts
Power Connector 2-pin terminal strip, push-in type
Video Connector BNC
Lens Jack 4-pin connector (miniature square with
screw lock)
MECHANICAL
Lens Mount C/CS mount (adjustable)
Camera Mount 1/4-inch UNC-20 screw, top and bottom of
camera housing
ENVIRONMENTAL
Operating Temperature 14° to 122°F (-10° to 50°C)
Storage Temperature 14° to 158°F (-10° to 70°C)
PHYSICAL
Weight (without lens) 0.77 lb (0.35 kg)
Shipping Weight 2 lb (0.9 kg) approximate
CERTIFICATIONS/PATENTS
• CE, Class B (CC3751H-2)/Class A (CC3651H-2X)
• UL Listed
• UL Listed to Canadian safety standards
• Complies with Argentina compliance requirements under Res. 92/98
• FCC, Class B
• U.S. Patent D460,773
RECOMMENDED MOUNTS
BS1750/CM1750/
CM1750S/TB1750 Adjustable swivel head camera mounts for
wall, ceiling, or pedestal mounting.
PCM100 Adjustable camera mount for wall or ceiling
application. Includes inte-grated cable for
easy plug and play operation. Can also be
adapted to a standard 2 x 4-inch (5.08 x
10.16 cm) electrical box.
RECOMMENDED POWER SUPPLIES
TF2000 Power supply for one 24 VAC camera, 20 VA
MCS Series Multiple 24 VAC camera power supply, indoor
WCS Series Single/multiple 24 VAC camera power supply,
outdoor
RECOMMENDED LENSES
13FA, FD Series Fixed focal length lenses, 1/3-inch format.
FA manual iris); FD (auto iris, DD).
13VA, VD Series Varifocal lenses, 1/3-inch format. VA (manual
iris); VD (auto iris, DD).
13ZD, ZM Series Motorized zoom lenses, 1/3-inch format.
ZD (auto iris, DD); ZM (manual iris).
LENS ACCESSORIES
LDC100 Auto iris drive converter. Converts a DC-drive
auto iris lens to a video drive auto iris lens.
Compatible with all lens size formats.
Pelco and the Pelco logo are registered trademarks of Pelco.
Specifications subject to change without notice.
©Copyright 2003, Pelco. All rights reserved.
NOTE For outdoor camera installations, a Pelco enclosure is recommended.

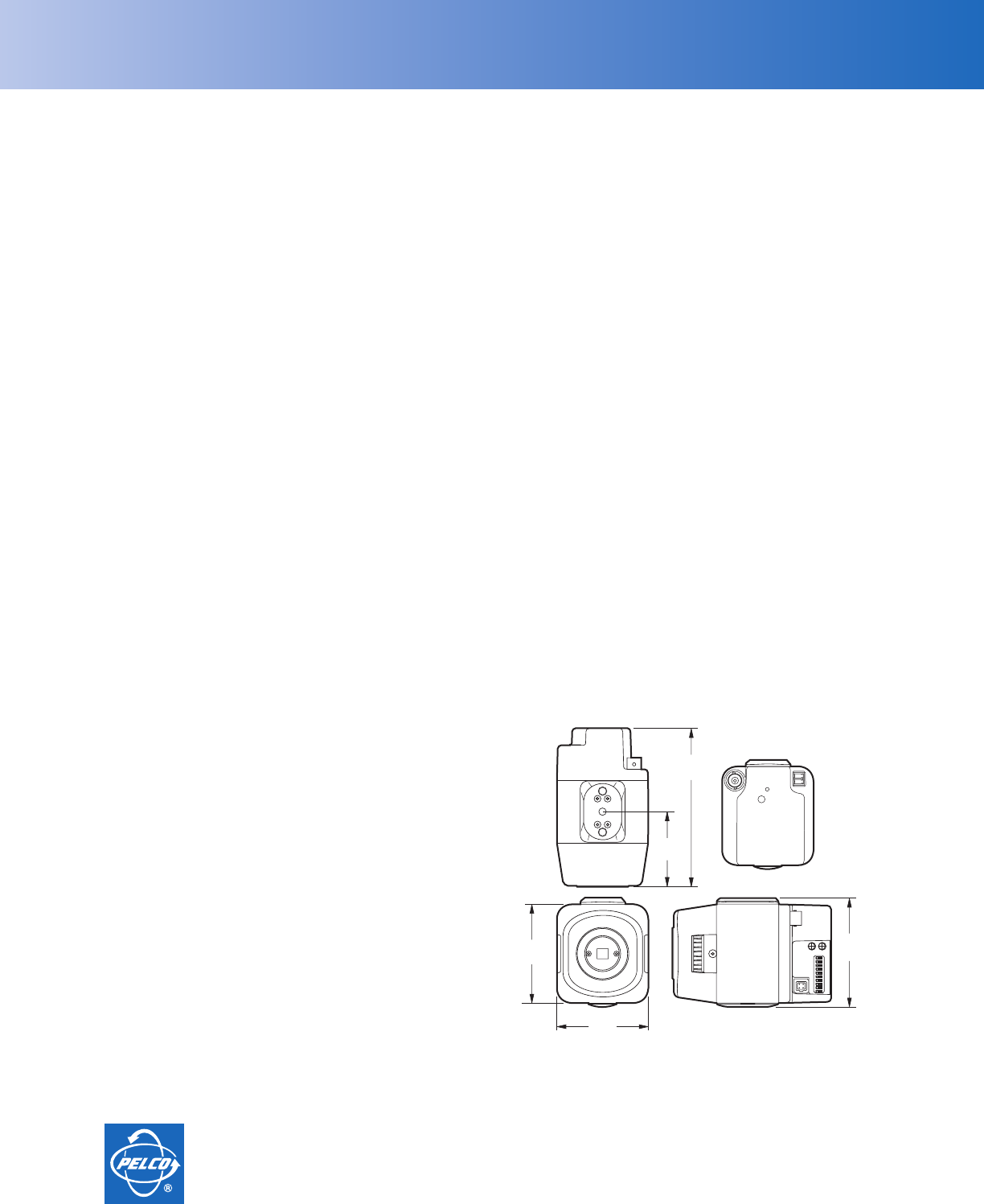

NOTE: VALUES IN PARENTHESES ARE CENTIMETERS;
ALL OTHERS ARE INCHES.
2.45
(6.22)
2.65
(6.73)
2.93
(7.44)
2.01
(5.10)
4.25
(10.79)
