Specialty Modules Overview
There are several Specialty modules available for use in local and remote I/O bases. These
modules are listed in the tables below and their specifications are found in this chapter. Each
specialty module is identified with a White bar across the front panel as seen below. The
module’s front panel is also equipped with LED status indicators. Depending on the module,
these indicators can show the network health, module health, I/O status or mode of operation
the module is currently in.
Module Type
(White: Specialty)
Module
Part Number
Specialty Modules
Part Number Description See Page
H2-CTRIO2* High Speed Counter Interface Module 7-5
H2-ECOM100 Ethernet Communications Module 7-14
H2-ERM100*
H2-EBC100
Ethernet Remote Master Module
Ethernet Base Controller 7-22
H2-SERIO(-4) Serial I/O Module 7-30
F2-08SIM 8-point Input Simulator Module 7-34
Specialty Modules
H2-SERIO
RCV A
RCV B
RCV C
XMT A
XMT B
XMT C
A
B
C
RS232 SERIAL PORTS
A
RS232 SERIAL POR
TS
SERIAL
PORTS
A
A
A
B
B
B
B
B
B
B
C
C
C
C
* The H2-CTRIO and H2-ERM modules are discontinued.
NOTE: The H2-CTRIO module has been discontinued. The H2-CTRIO2 is the replacement module.
Do-more H2 Series PLC User Manual, 1st Edition, Rev. E - H2-DM-M
7–4
Chapter 7: Specifications - Specialty Modules
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
Specialty Modules Overview - continued
* The H2-CTRIO, H2-ECOM and H2-EBC modules are discontinued but are still compatible with the new Do-more H2 Series
PLC.
* The D2-RMSM and H2-PBC modules are discontinued.
Specialty Modules Supported
Part Number Description Part Number Description
H2-CTRIO* High Speed Counter Interface Module H2-EBC* 10 Base-T Ethernet Base Controller
H2-CTRIO2 High Speed Counter Interface Module H2-EBC100 100 Base-T Ethernet Base Controller
H2-ECOM* 10 Base-T Ethernet Communication Module H2-EBC-F 10 Base-FL Ethernet Base Controller
H2-ECOM100 100 Base-T Ethernet Communication Module H2-SERIO Serial I/O Module
H2-ECOM-F 10 Base-FL Ethernet Communication Module H2-SERIO-4 Serial I/O Module
H2-ERM(100) 10/100 Base-T Ethernet Remote Master Module F2-08SIM 8-point Input Simulator Module
H2-ERM-F 10 Base-FL Ethernet Remote Master Module
Specialty Modules NOT Supported
Part Number Description Part Number Description
D2-CTRINT Counter Interface Module D2-EM Expansion Base I/F Module
D2-DCM Data Communication Module H2-PBC* Profibus Base Controller
D2-RMSM* Remote I/O Master Module F2-DEVNETS-1 DeviceNet Base Controller
D2-CM Expansion Base Controller F2-SDS-1 Smart Distributed System Base Controller
F2-CP128 CoProcessor Module DV-1000 DirectVIEW 1000 Timer/Counter access unit
D2-HPP Handheld Programmer
Do-more H2 Series PLC User Manual, 1st Edition, Rev. E - H2-DM-M 7–5
Chapter 7: Specifications - Specialty Modules
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
H2-CTRIO(2)
H2-CTRIO(2) Overview
The H2-CTRIO(2) Counter I/O (CTRIO) module is designed to accept high-speed pulse
input signals for counting or timing applications. This module also provides high-speed
pulse output signals for servo/stepper motor control, monitoring and alarming as well as other
discrete control functions.
The H2-CTRIO(2) module offers greater flexibility for applications which call for precise
counting or timing based on input events or for high-speed control output applications. They
can also be used for applications that call for a combination of both high-speed input and high-
speed output control functions.
The H2-CTRIO(2) module has its own internal microprocessor and operates asynchronously
with respect to the CPU. Therefore, the response time of the on-board outputs is based on
the module scan time, not the CPU’s scan time (unless the CPU is controlling the outputs
directly).
NOTE: The H2-CTRIO module has been discontinued. Please use the H2-CTRIO2 modules as the
replacement. H2-CTRIO and H2-CTRIO modules have the same terminal block layout.
CTR
IN
OK
ER
1A
2A
0
1
2
3
H2-CTRIO2
+24 VDC
OUTPUTS
2A
2B
2C
2D
2M
C2
Y2
C3
Y3
1A
1B
1C
1D
1M
NC
C0
Y0
C1
Y1
IN 9-30 VDC 5-12 mA
OUT 5-36 VDC
1.0Amax
per point
1
1D
1M
N
C
C
Y
C1
Y1
1A
1B
C
0
0
2A
2B
2C
2D
2C
2Y
3C
3Y
M
2
Input A
Input B
Input C
Input D
Input A
Input B
Input C
Input D
Channel 1
Channel 2
Output 2
Output 3
Output 1
Output 0
H2-CTRIO2 Terminal Block Layout
Do-more H2 Series PLC User Manual, 1st Edition, Rev. E - H2-DM-M
7–6
Chapter 7: Specifications - Specialty Modules
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

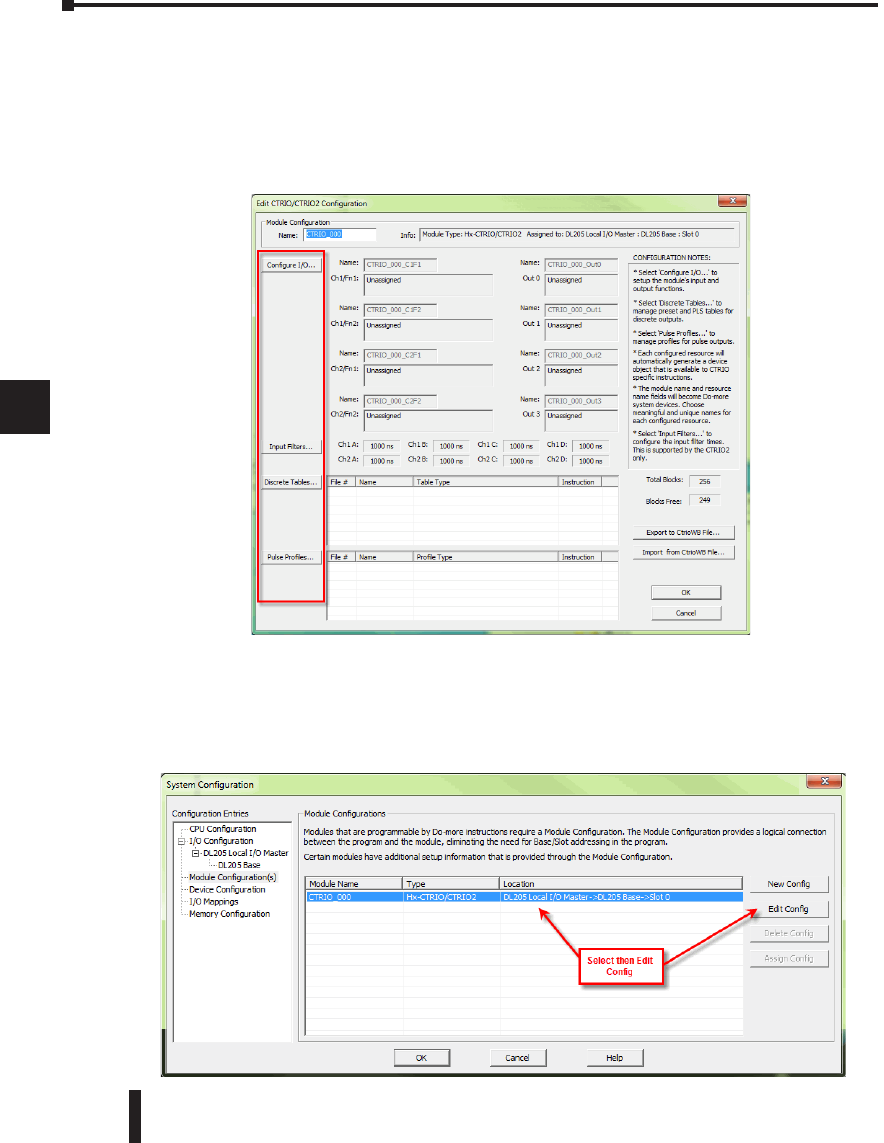

The module configuration of the H2-CTRIO2 is done from within the Edit
CTRIO/CTRIO2 Configuration window seen below. The Configure I/O..., Input Filters...,
Discrete Tables... and Pulse Profiles... buttons in the left hand column will allow you to
configure the input and output functions of the selected module. Refer to the Do-more
Designer Help File for more information on configuration options.
The above window can be accessed once the H2-CTRIO2 module is added to the I/O
configuration either manually or automatically. See the Verify Hardware Configuration
section of the Getting Started chapter for more information on setting up the I/O
configuration. With the module added, select the Module Configuration(s) entry from the
System Configuration page. Then choose the desired module and select Edit Config.
H2-CTRIO(2) Configuration
Do-more H2 Series PLC User Manual, 1st Edition, Rev. E - H2-DM-M 7–7
Chapter 7: Specifications - Specialty Modules
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

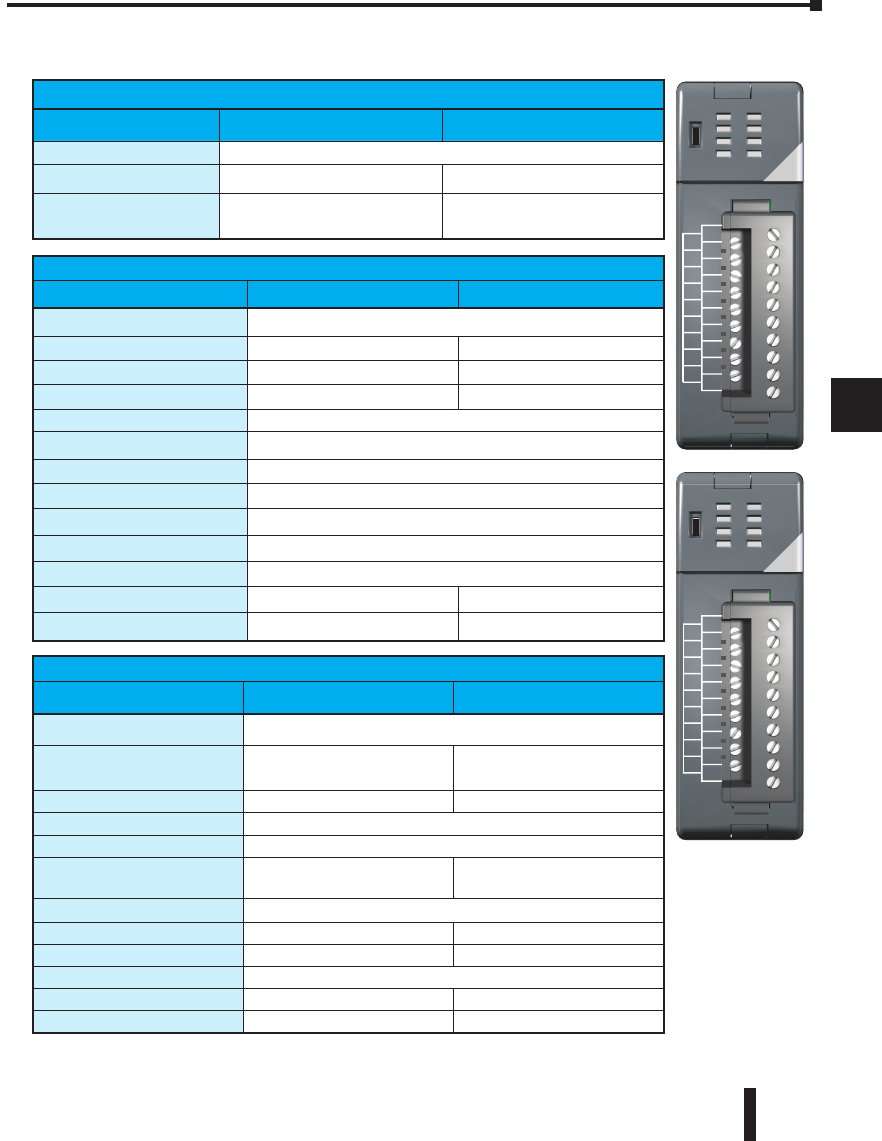

H2-CTRIO(2) Specifications
CTR
IN
OK
ER
1A
2A
0
1
2
3
H2-CTRIO
+24 VDC
OUTPUTS
2A
2B
2C
2D
2M
C2
Y2
C3
Y3
1A
1B
1C
1D
1M
NC
C0
Y0
C1
Y1
IN 9-30 VDC 5-12 mA
OUT 5-36 VDC
1.0Amax
per point
CTR
IN
OK
ER
1A
2A
0
1
2
3
H2-CTRIO2
+24 VDC
OUTPUTS
2A
2B
2C
2D
2M
C2
Y2
C3
Y3
1A
1B
1C
1D
1M
NC
C0
Y0
C1
Y1
IN 9-30 VDC 5-12 mA
OUT 5-36 VDC
1.0Amax
per point
Input Specifications
Specifications H2-CTRIO* H2-CTRIO2
Inputs 8 pts sink/source
Maximum Input Frequency 100kHz 250kHz
Minimum Pulse Width 5µsec 0.5 µs
Input Voltage Range 9–30 VDC 9–30 VDC
Maximum Voltage 30VDC
Input Voltage Protection Zener Clamped at 33VDC
Rated Input Current 8mA typical 12mA maximum
Minimum ON Voltage 9.0 VDC
Maximum OFF Voltage 2.0 VDC
Minimum ON Current 5.0 mA
Maximum OFF Current 2.0 mA
OFF to ON Response less than 3µs less than 0.5 µs
ON to OFF Response less than 3µs less than 0.5 µs
Output Specifications
Specifications H2-CTRIO* H2-CTRIO2
Outputs 4 pts (sink/source), independently isolated
Pulse Outputs 2 channels, 20Hz to 25kHz Pulse/
Direction or CW/CCW
2 channels, 20Hz to 250kHz Pulse/
Direction or CW/CCW
Minimum Pulse Width 5µs 0.5 µs
Output Voltage Range 5–36 VDC
Maximum Output Voltage 36VDC
Maximum Load Current 1.0 A 1.0 A at 23°C
0.5 A at 60°C
Maximum Leakage Current 100µA
Inrush Current 5.0 A for 20ms 2.0 A for 10ms
ON State V Drop 0.3 VDC or less 0.45 VDC or less
Overcurrent Protection Yes
OFF to ON Response less than 3µs less than 1µs
ON to OFF Response less than 3µs less than 1µs
General Specifications
Specifications H2-CTRIO* H2-CTRIO2
Discrete I/O Points Used None (I/O map directly in H2-DM1/E data structure)
Base Power Required 400mA Max 275mA Max
Isolation 2500V I/O to Logic, 1000V among Input
Channels and All Outputs 1500V I/O to Logic, 1000V among Input
Channels and All Outputs
* The H2-CTRIO module has been discontinued. The H2-CTRIO2 is the replacement.
Do-more H2 Series PLC User Manual, 1st Edition, Rev. E - H2-DM-M
7–8
Chapter 7: Specifications - Specialty Modules
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

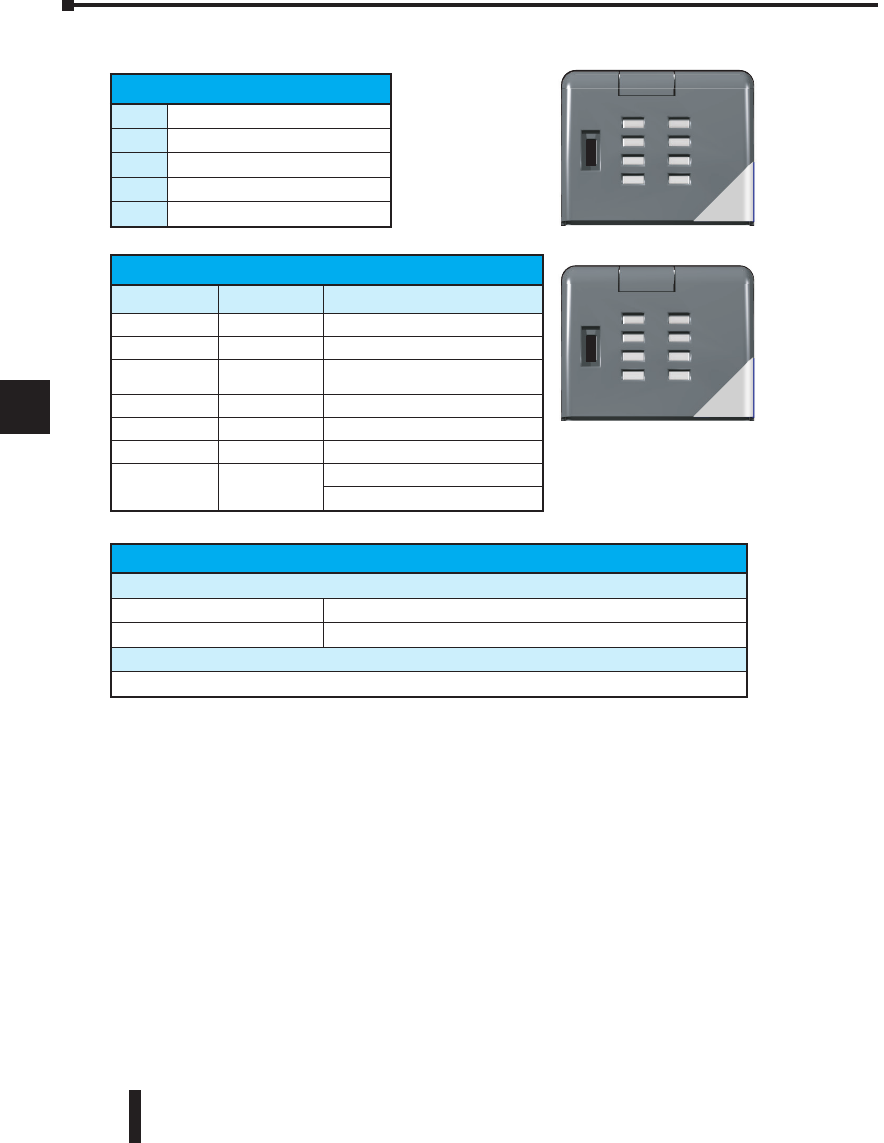

H2-CTRIO(2) LED Indicators
H2-CTRIO(2) LED Descriptions
OK Module OK
ER User Program Error
1A Channel 1 Status
2A Channel 2 Status
0–3 Output Status
H2-CTRIO(2) LED Diagnostic Definition
1A/2A
Blinking 7 times per second Input is configured as Counter and is changing
Following state of input Input is not configured as counter
0-3
Follow actual output state: ON = output is passing current
CTR
IN
OK
ER
1A
2A
0
1
2
3
H2-CTRIO
+24 VDC
OUTPUTS
2A
2B
2C
2D
2M
C2
Y2
C3
Y3
1A
1B
1C
1D
1M
NC
C0
Y0
C1
Y1
IN 9-30 VDC 5-12 mA
OUT 5-36 VDC
1.0Amax
per point
CTR
IN
OK
ER
1A
2A
0
1
2
3
H2-CTRIO2
+24 VDC
OUTPUTS
2A
2B
2C
2D
2M
C2
Y2
C3
Y3
1A
1B
1C
1D
1M
NC
C0
Y0
C1
Y1
IN 9-30 VDC 5-12 mA
OUT 5-36 VDC
1.0Amax
per point
H2-CTRIO(2) LED Diagnostic Definitions
LED OK LED ER Description
Blinking Blinking Boot Mode - Used for Field OS Upgrades
Blinking OFF Program Mode
OFF Blinking Module Self-Diagnostic Failure
(Blinks may be coded by counts)
OFF ON Module Error Due to Watchdog Timeout
OFF OFF No Power to Module
ON OFF All is well - RUN Mode
ON ON Hardware Failure (H2-CTRIO)
Not Used (H2-CTRIO2)
Do-more H2 Series PLC User Manual, 1st Edition, Rev. E - H2-DM-M 7–9
Chapter 7: Specifications - Specialty Modules
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
H2-CTRIO(2) Jumper Setup

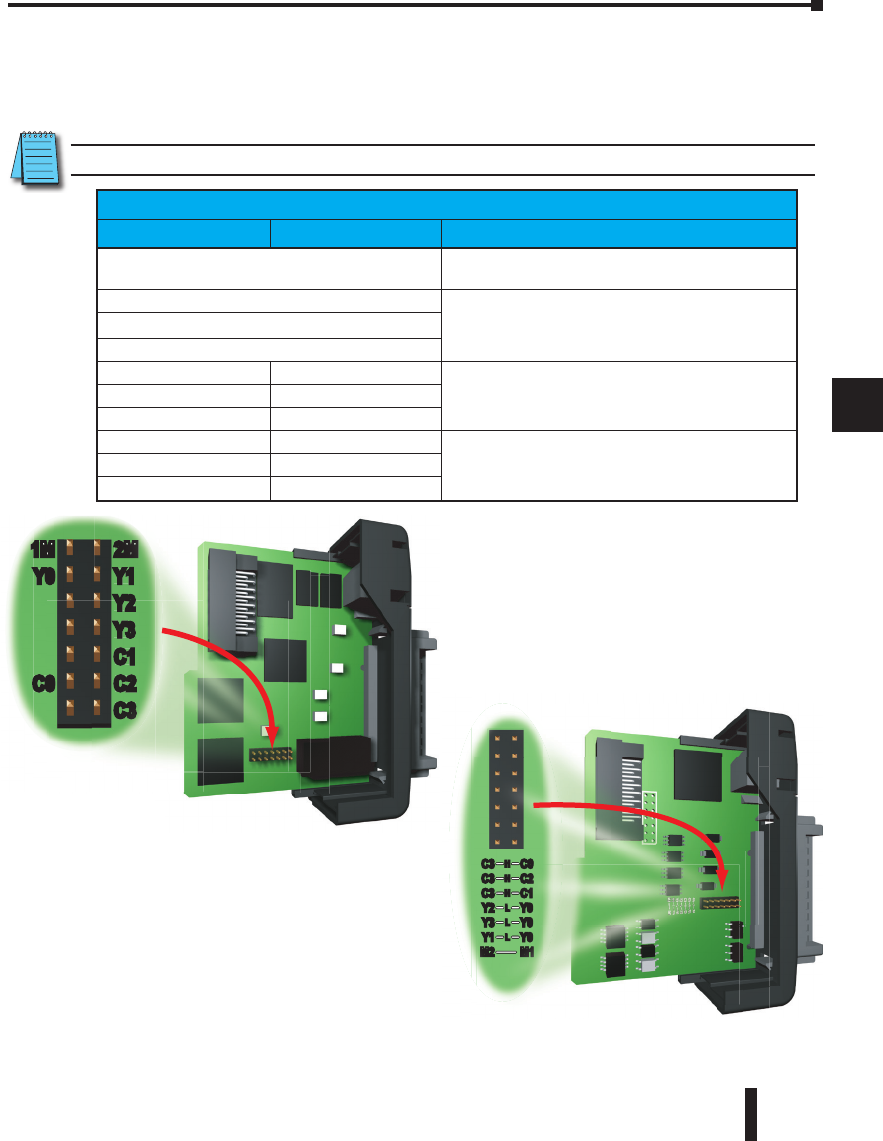

Jumpers are provided to connect input commons or outputs/output commons. Use of these
jumpers is not necessary to set up the CTRIO(2) module. The jumpers are provided solely for
convenience in wiring.
NOTE: The location of the jumper board and pin assignments are different between the CTRIO and CTRIO2.
H2-CTRIO(2) Jumper Functions
H2-CTRIO H2-CTRIO2 Function
1M-2M Install jumper to internally connect the input commons 1M and 2M in
order to reduce wiring if appropriate.
Y0-Y1
Install jumper(s) to internally connect Y0 to other Y terminals in order
to reduce wiring if appropriate. Connect wire at Y0.
Y0-Y2
Y0-Y3
C0-C1
Install jumper(s) to internally connect C0 to other C terminals in order
to reduce wiring if appropriate. Connect wire at C0.
C0-C2
C0-C3
C3-C0
Install jumper(s) to internally connect C3 to other C terminals in order
to reduce wiring if appropriate. Connect wire at C3.
C3-C1
C3-C2
C3
C3
C3
Y2
Y3
Y1
M2
C0
C2
C1
Y0
Y0
Y0
M1
H
H
H
L
L
L
C
3
C
3
C
0
C
0
H
H
Y3
Y3
Y1
Y
1
M2
M2
Y
0
Y
0
Y0Y0
M
1
1
M
1
1
1
L
L
C3C3
C3C3
C3C3
Y2Y2
Y
3
Y
3
Y0
Y0
L
C0C0
C2C2
C
1
C1
Y0Y0
Y
0
Y
0
H
H
H
H
H
H
L
L
L
L
H2-CTRIO2
1M
Y0
C0
2M
Y1
Y2
Y3
C1
C2
C3
1M
Y0
C0
2M
Y1
Y2
Y3
C1
C2
C3
1M
M
1M
Y0Y0
0
C
0
C
0
C
0
C
0
C
0
2
2
M
M
M
2M
Y
1
Y
Y
1
1
Y1
Y
Y
2
Y
Y
2
2
2
Y2
Y
2
Y
3
3
Y
3
C1
C
1
C
2
C
2
C
C
3
3
3
3
C
3
C
3
3
3
H2-CTRIO
Do-more H2 Series PLC User Manual, 1st Edition, Rev. E - H2-DM-M
7–10
Chapter 7: Specifications - Specialty Modules
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

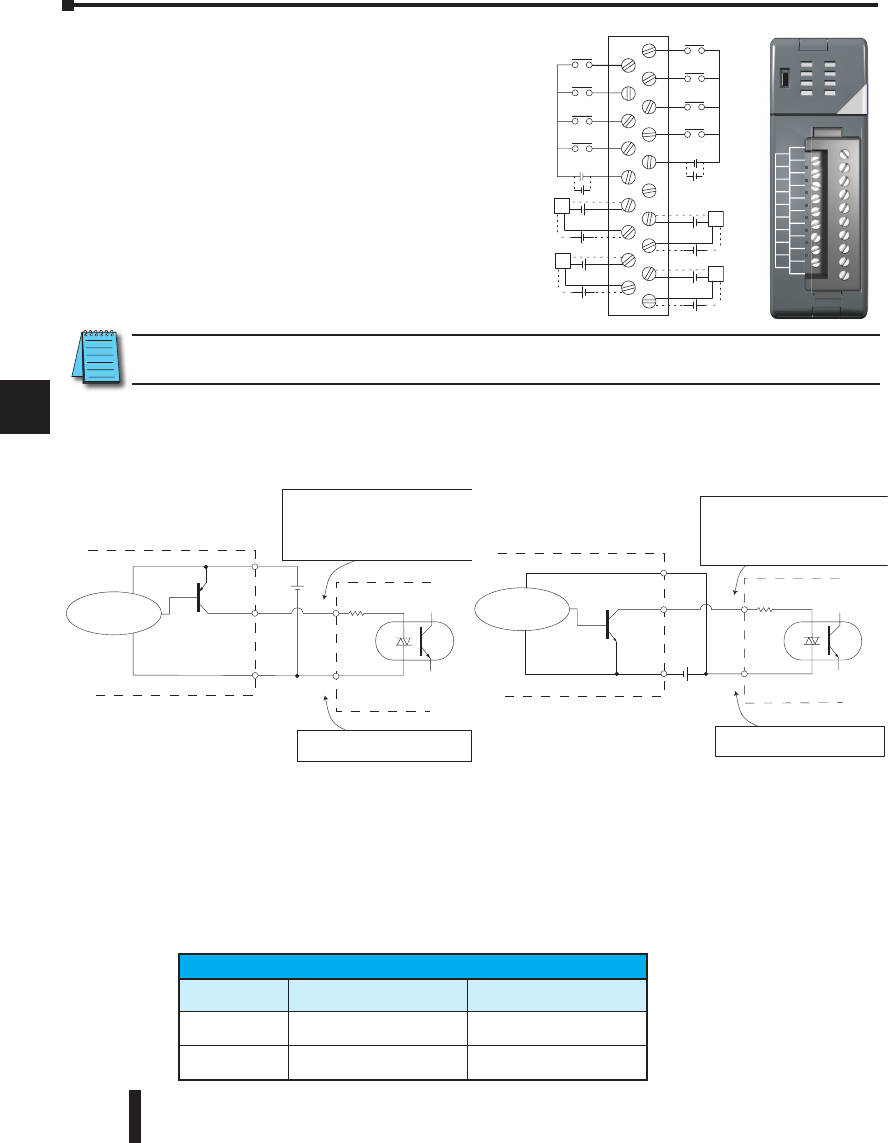

Wiring Information

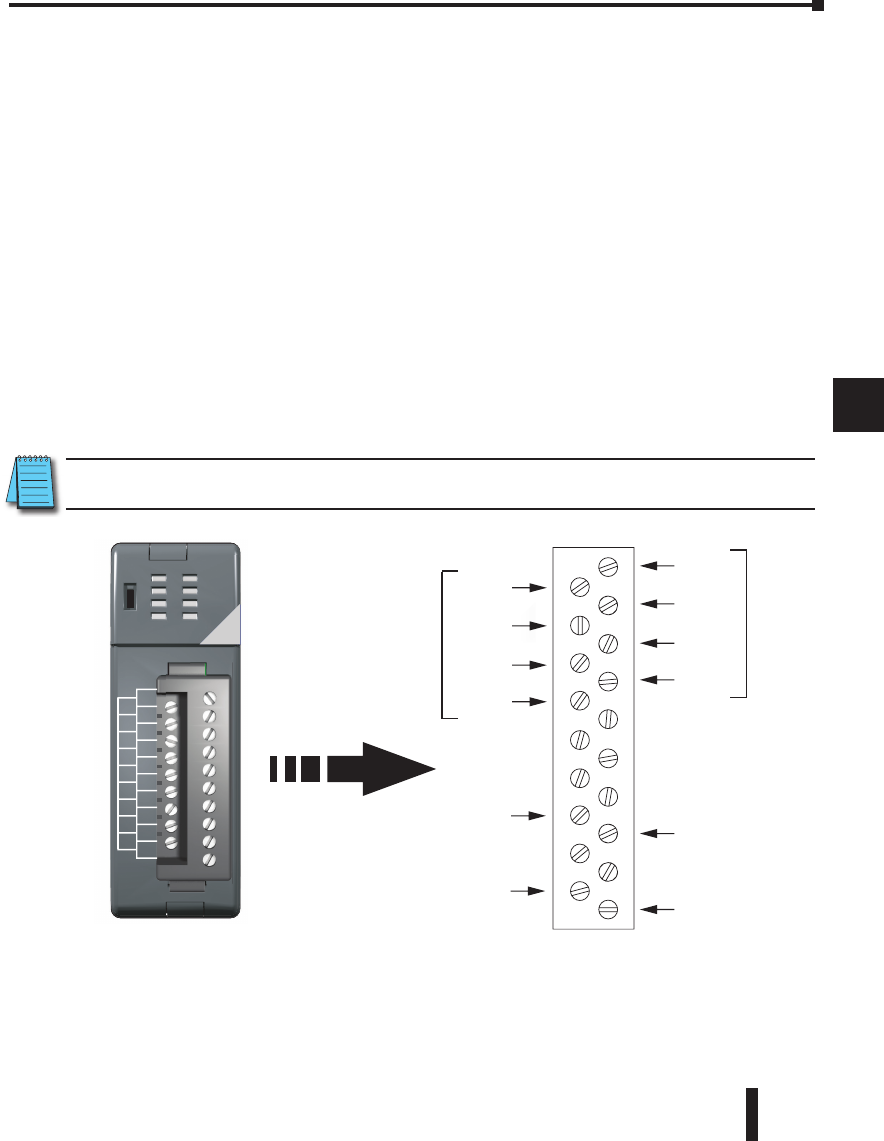

The H2-CTRIO(2) module has two
independent input channels, each consisting of
four optically isolated input points (pts. 1A-1D
on common 1M and pts. 2A-2D on common
2M). The inputs can be wired to either sink or
source current.
The module has four optically isolated output
points (Y0-Y3 with isolated commons C0-C3,
respectively) that can be wired to either sink
or source current. Remember that the internal
jumpers can be used to connect the input
commons or output commons together.
NOTE: Field device wiring must be compatible with the module configuration configured in Do-more
Designer
DC type field devices are configured to either sink or source current. This affects the wiring of
the device to the CTRIO module as seen below.
When wiring CTRIO(2) modules, please consider the following:
• Keep encoder input wiring as short as possible
• Route wiring to avoid any runs parallel to noisy cables.
• Route wiring to avoid the proximity of noisy devices.
• Use shielded, twisted pair cables, such as:
24VDC
+-
1A
1M
Sensing Circuit
This drawing illustrates wiring that is
typical for Channel 1 terminals 1A, 1B,
1C, and 1D. The same circuitry is also
present at the corresponding
Channel 2 terminals.
The same circuitry is present at the
corresponding Channel 2 terminal.
24VDC
+
-
1A
1M
Sensing Circuit
The same circuitry is present at the
corresponding Channel 2 terminal.
This drawing illustrates wiring that is
typical for Channel 1 terminals 1A, 1B,
1C, and 1D. The same circuitry is also
present at the corresponding
Channel 2 terminals.
NPN Field Device (sink)
1
1D
1M
N
C
C
Y
C1
Y1
1A
1B
C
0
0
2A
2B
2C
2D
2C
2Y
3C
3Y
M
2
+-
+-
+-
+-
L
– +
– +
L
– +
– +
L
– +
– +
L
– +
– +
CTR
IN
OK
ER
1A
2A
0
1
2
3
H2-CTRIO
+24 VDC
OUTPUTS
2A
2B
2C
2D
2M
C2
Y2
C3
Y3
1A
1B
1C
1D
1M
NC
C0
Y0
C1
Y1
IN 9-30 VDC 5-12 mA
OUT 5-36 VDC
1.0Amax
per point
PNP Field Device (source)
Suggested Cabling
Type of Cable Supplier/Part Number Supplier/Part Number
3 pair, twisted,
overall shield AutomationDirect/L19853-XXXX Belden/8103
1 pair, twisted,
overall shield AutomationDirect/L19827-XXXX Belden/9841
H2-CTRIO(2) Wiring Considerations
Do-more H2 Series PLC User Manual, 1st Edition, Rev. E - H2-DM-M 7–11
Chapter 7: Specifications - Specialty Modules
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

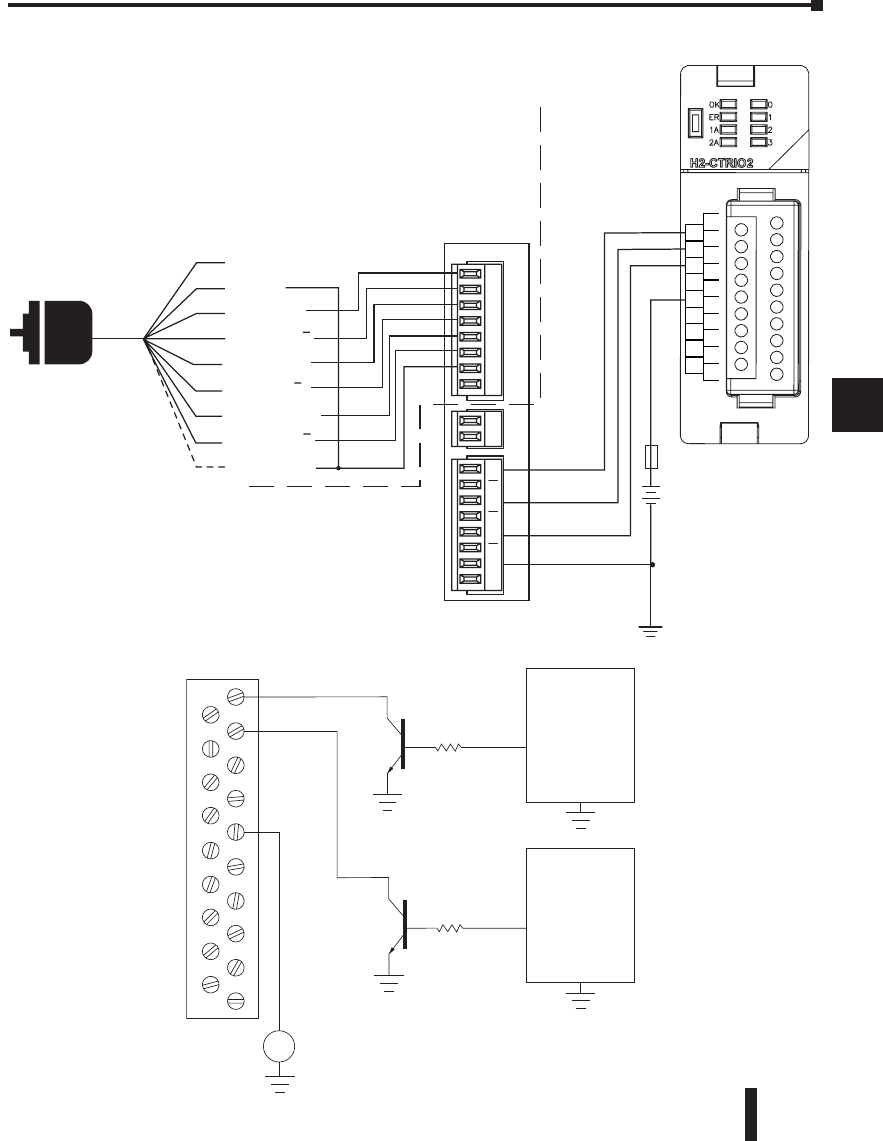

H2-CTRIO(2) Input Wiring Examples
FC-ISO-C
+Ai
-Ai
+Bi
-Bi
COM
COM
-Zi
+Zi
Ao
0V
V+
Bo
Zo
0V
0V
Ao
Bo
Zo
PLC High Speed Counter
Interface Module
ISOLATION
BARRIER
CTR/TMR IN 9-30V
OK
A
B
ERR
Y0
Y1
DC/Pulse OUT 5-36V
5-12mA
1A
IN
A
OUT
Y1
Y0
YC
M
D
C
B
24VDC
+
-
ENCODER
Brown: Power source*
Blue: 0 V
Black: OUT A
Purple: OUT A
White: OUT B
Gray: OUT B
Orange: OUT Z
Yellow: OUT Z
Shield: Ground
Differential Line
Driver Encoder
* Use separate power supply to maintain isolation
CTR
IN
+24 VDC
OUTPUTS
IN 9-30 VDC 5-12 mA
OUT 5-36 VDC
1.0 max
per point
1A
1B
1C
1D
1M
NC
C0
Y0
C1
Y1
2A
2B
2C
2D
2M
C2
Y2
C3
Y3
NPN
General Purpose Transistor
1
1D
1M
N
C
C
Y
C1
Y1
1A
1B
C
0
0
2A
2B
2C
2D
2C
2Y
3C
3Y
M
2
9 - 30VDC
+
-
C
B
E
HFE > 100
10K
10%
0.1W
C
B
E
HFE > 100
10K
10%
0.1W
TTL Device
TTL Device
TTL Quadrature Encoder Field Wiring
TTL Input Wiring Example
Do-more H2 Series PLC User Manual, 1st Edition, Rev. E - H2-DM-M
7–12
Chapter 7: Specifications - Specialty Modules
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
1
1D
1M
N
C
C
Y
C1
Y1
1A
1B
C
0
0
2A
2B
2C
2D
2C
2Y
3C
3Y
M
2
A
B
Z
+
-
9-30VDC
9-30VDC
Power
Gnd
A
B
Z
Power
Gnd
+
-
NPN Open
Collector
PNP Open
Collector or
Totem Pole
Quadrature Encoder Wiring Example
NPN Open Collector Device
Encoder
Shield twisted
pair 1A
1M
CITRIO2
PNP Open Collector Device
+
_
Ground shield this
end only
PNP Open Collector Device
+
_
Encoder Shield twisted
pair
CITRIO2
NPN Open Collector Device
1A
1M
Ground shield this
end only
Do-more H2 Series PLC User Manual, 1st Edition, Rev. E - H2-DM-M 7–13
Chapter 7: Specifications - Specialty Modules
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

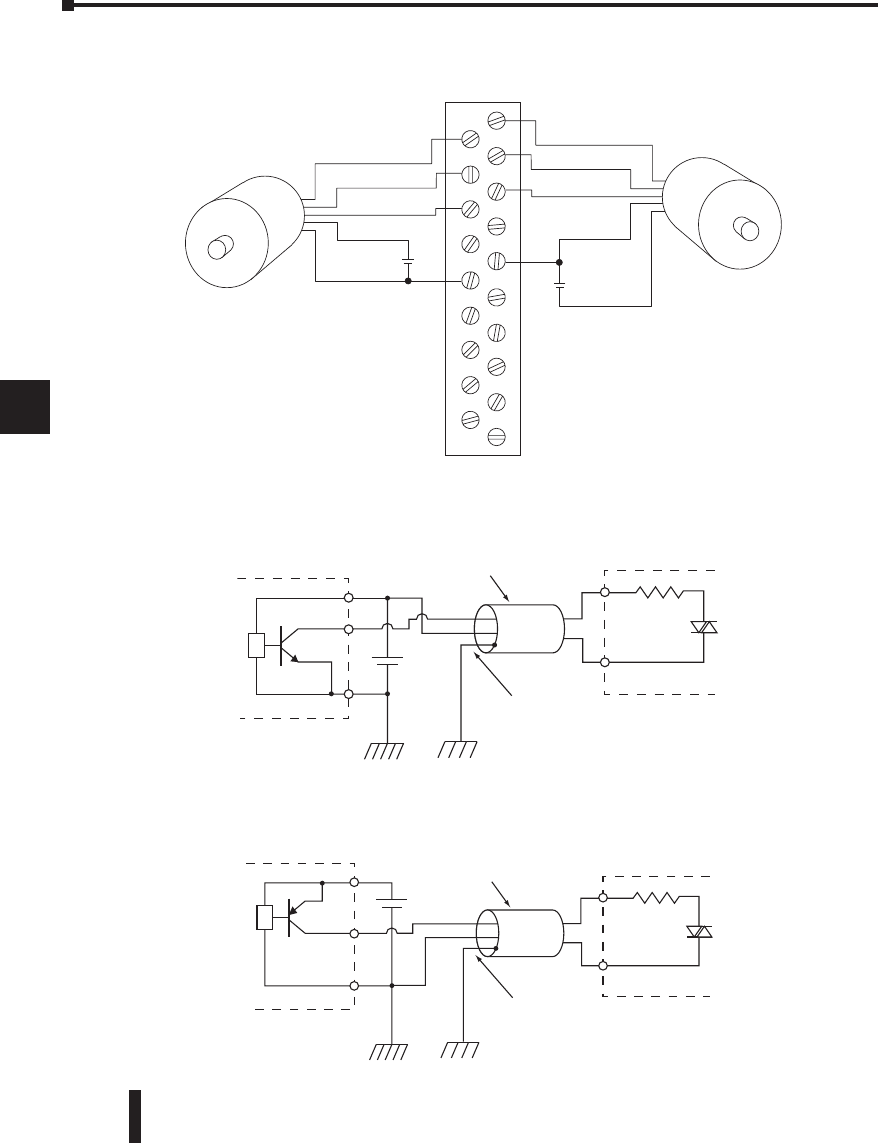

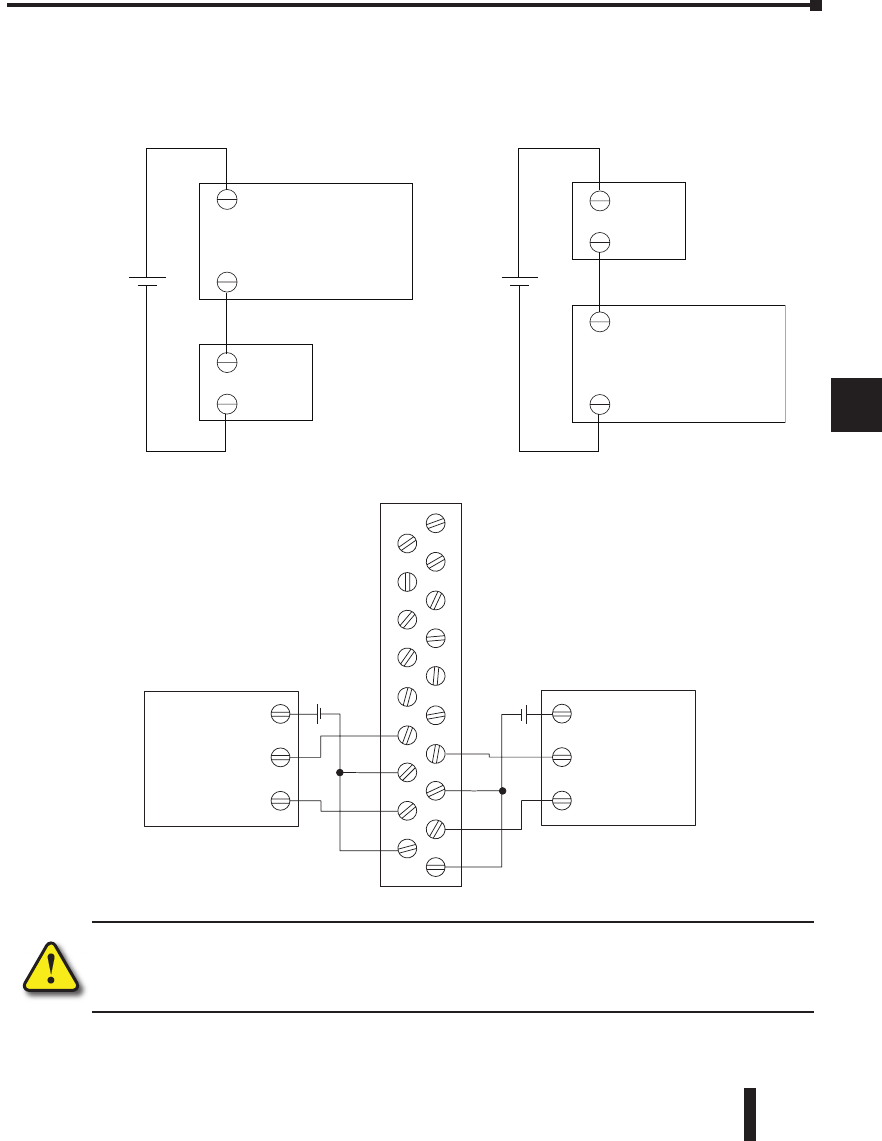

H2-CTRIO(2) Output Wiring Examples
WARNING: The above example assumes that the Step Amplifier interface is made up of optocoupler
LEDs (common anodes at the “OPTO Power” terminal) with internal current limiting resistors. This is
a standard method, but you must consult your step amplifier documentation to ensure that this method
is applicable.
+5 to 36VDC
CTRIO
Output
Cn (where n=0, 1, 2, 3)
Yn (where n=0, 1, 2, 3)
Load
+
-
+5 to 36VDC
Load
+
-
CTRIO
Output
Cn (where n=0, 1, 2, 3)
Yn (where n=0, 1, 2, 3)
The four outputs are individually isolated so each output can be used
to break the high or the low side of a DC load seperately
++
__
+-
1
1D
1M
N
C
C
Y
C1
Y1
1A
1B
C
0
0
2A
2B
2C
2D
2C
2Y
3C
3Y
M
2
5-36VDC
OPTO Power
Pulse (or CW)
Direction (or CCW)
Step Amplifier
OPTO Power
Pulse (or CW)
Direction (or CCW)
Step Amplifier
+
-
5-36VDC
Do-more H2 Series PLC User Manual, 1st Edition, Rev. E - H2-DM-M
7–14
Chapter 7: Specifications - Specialty Modules
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
H2-ECOM100
H2-ECOM100 Overview
The H2-ECOM100 Ethernet Communication (ECOM) module provides high-speed
Ethernet connections for the Do-more PLC. These modules are easy to set up and install on
10/100BaseT (twisted pair, copper wire) Ethernet networks.
LEDs on the face of each module give vital information about the status of the module and

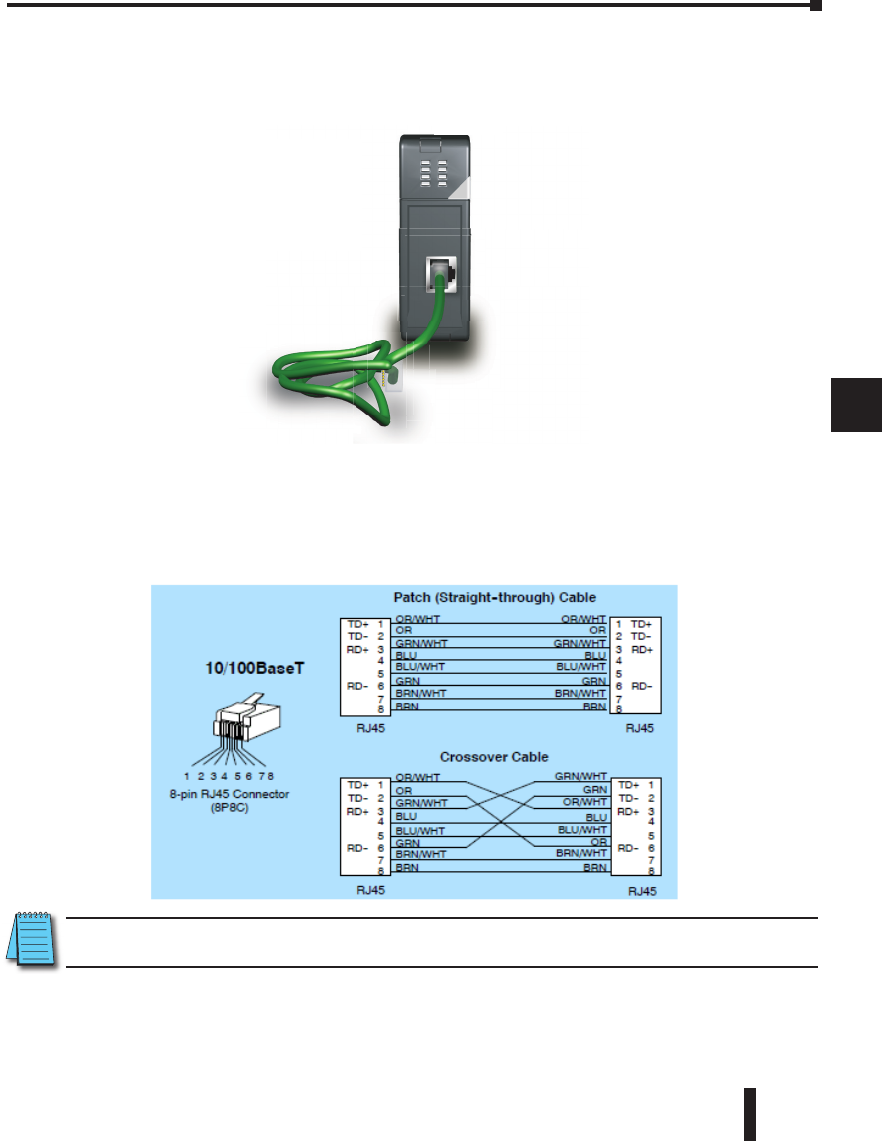

the communications link. The 10/100BaseT modules use standard RJ45 modular connectors.
You can use the ECOM modules to share data between two or more Do-more PLCs or between
Do-more PLCs and personal computers. The H2- ECOM100 additionally allows client/
server communications with other Ethernet devices using the MODBUS TCP/IP protocol.
Communication between PLCs and MODBUS TCP/IP devices is accomplished by using the
MRX/MWX instructions.
You can use a personal computer equipped with a 10/100BaseT network adapter card and
NetEdit3 software to configure the ECOM module over the network. Once configured, the
H2-ECOM100 module allows you to program your Do-more PLC over the Ethernet network
using the Do-more Designer programming software. The NetEdit3 utility installs with the
Do-more Designer software and can be very useful for troubleshooting certain communication
problems.
NOTE: We recommend using a dedicated network for your PLC control applications.

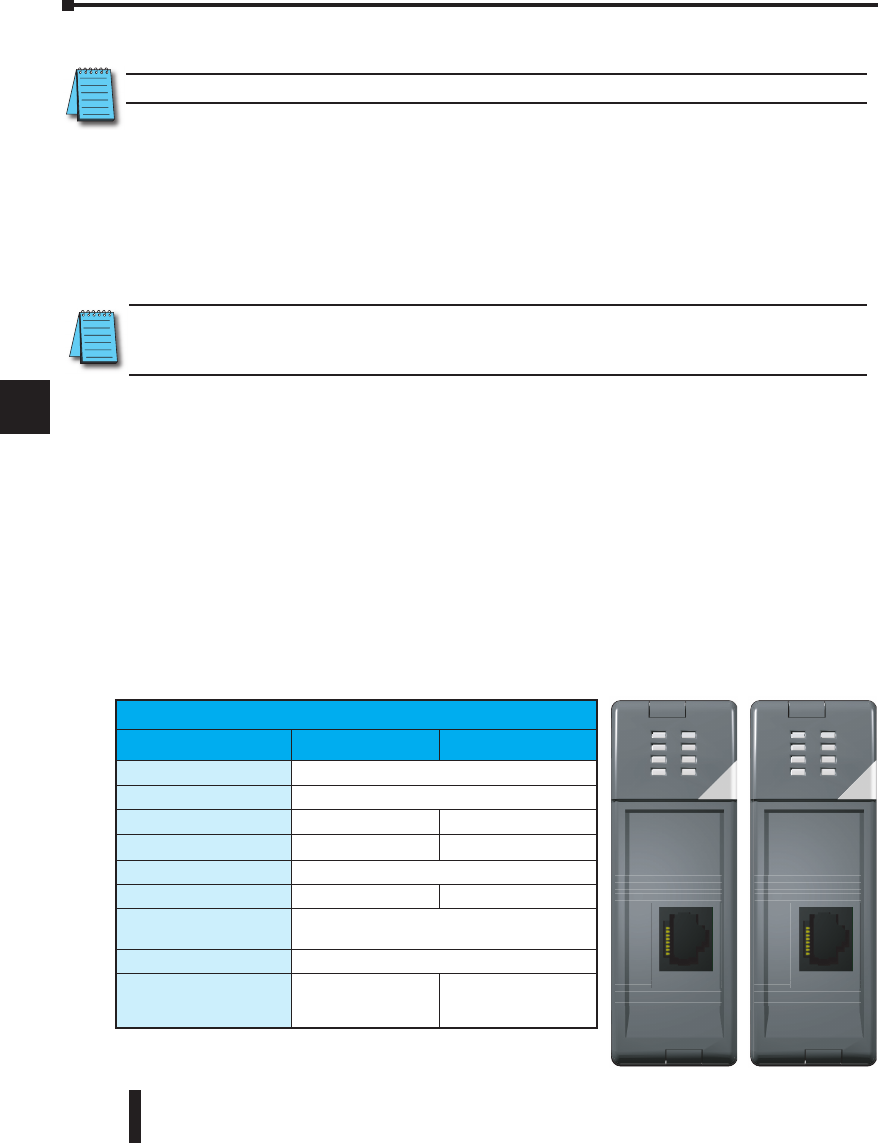

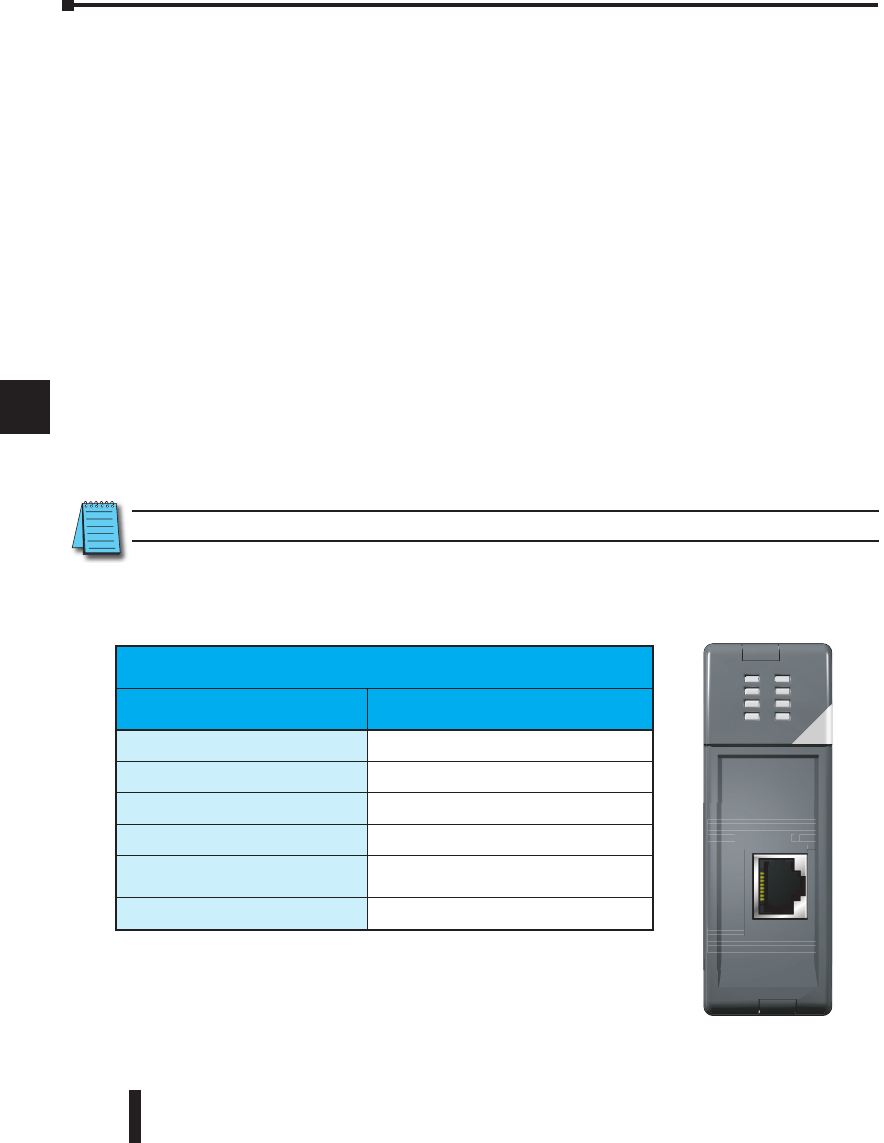

H2-ECOM100 Specifications
H2-ECOM100 Ethernet Communications Module
Specifications H2-ECOM100
Communications 10/100Base-T Ethernet
Data Transfer Rate 100 Mbps max.
Link Distance 100m (328ft)
Ethernet Port RJ45
Ethernet Protocols TCP/IP, IPX, Modbus TCP,
DHCP, HTML configuration
Power Consumption 300mA @ 5VDC
STATUS
LINKGD
ACTIVE
ERROR
100MBIT
H2-ECOM100
10/100 BASE-T
ETHERNET PORT
10/100 BASE
10/100
BASE
0/
00
S
-
T
T
-
ETHERNETPOR
T
ETHERNET POR
T
HERNET
POR
T
Do-more H2 Series PLC User Manual, 1st Edition, Rev. E - H2-DM-M 7–15
Chapter 7: Specifications - Specialty Modules
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

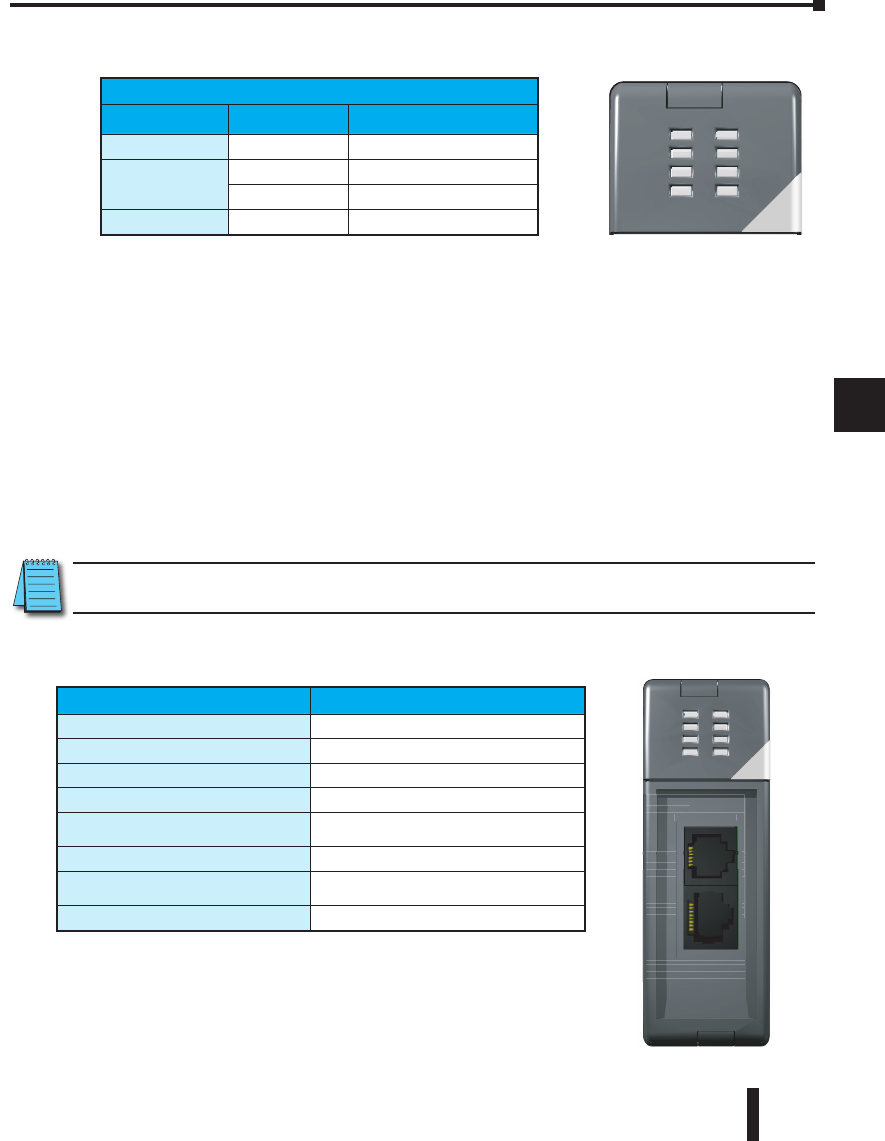

H2-ECOM100 LED Indicators
H2-ECOM100 Network Identifiers
Each module must be assigned at least one unique identifier to make it possible for other devices
to recognize it on the network. There are four identifiers possible with the ECOM modules:
• Module ID
• Name
• IP (Internet Protocol) Address
• Ethernet (MAC) Address
The first three are user selectable but the MAC address is set at the factory. The type of identifier
chosen depends on the requirements of your particular application. PC-to-PLC communication
typically uses one type of identifier while PLC-to-PLC communication may require another. The
following table summarizes Network Identifiers and their uses:

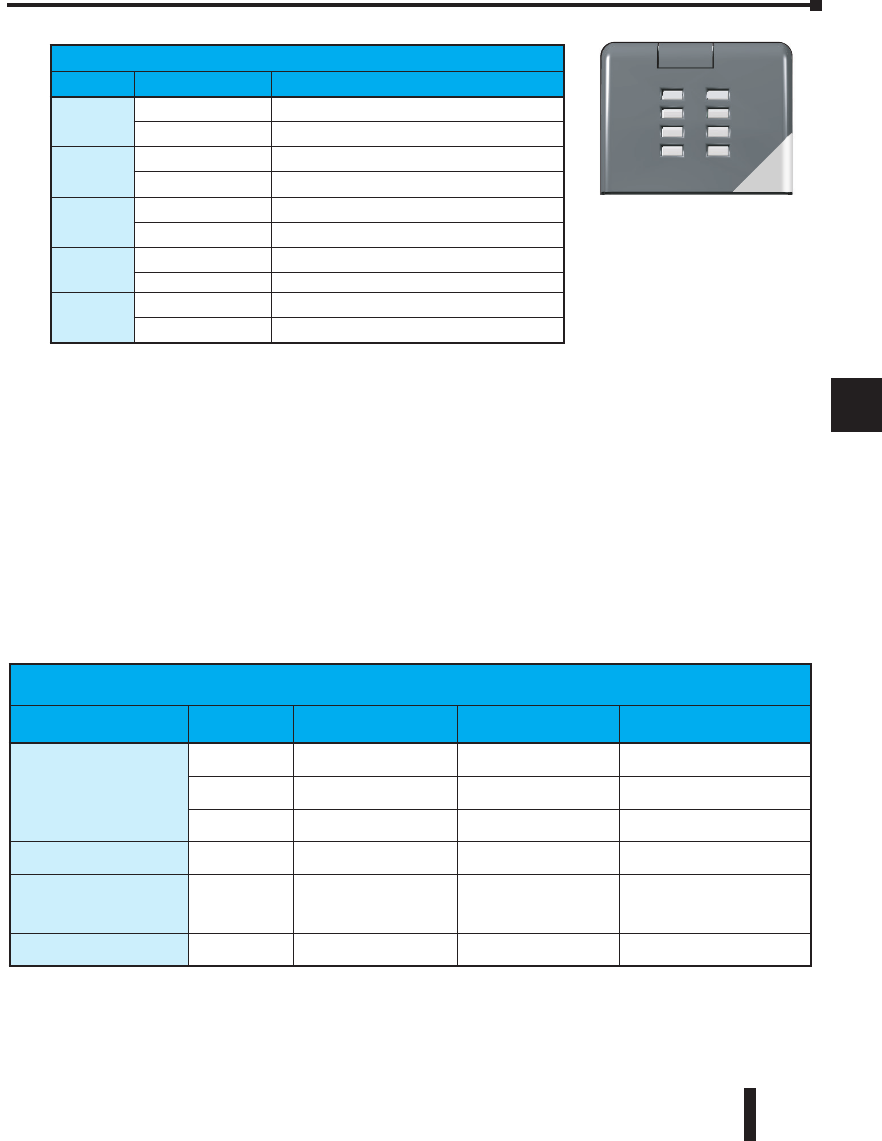

H2-ECOM100 LED Descriptions
Indicator Status Description
STATUS ON (Green) Module is powered up and functional
OFF Module powerup failed
LINKGD ON (Green) Properly connected to network
OFF Not connected to network or incorrect configuration
ACTIVE ON or FLASHING (Red) Active Network Data
OFF Network Idle
ERROR ON or FLASHING (Red) A fatal error has occurred
OFF No error present
100MBIT ON 100Base T Frequency detected
OFF (With ACTIVE LED ON) - 10Base T Frequency detected
STATUS
LINKGD
ACTIVE
ERROR
100MBIT
H2-ECOM100
10/100 BASE-T
ETHERNET PORT
10/100 BASE
10/100
BASE
0/
00
S
-
T
T
-
ETHERNETPOR
T
ETHERNET POR
T
HERNET
POR
T
Network Identifiers
Identifier How to Set Format Communication Notes
Module ID
DIP Switch Number 1–63 PLC-to-PLC or PC-to-PLC Disables Module ID in NetEdit3
NetEdit3 Number 1–90 PLC-to-PLC or PC-to-PLC DIP Switch must be set to “0”
NetEdit3 Number 1–999,999,999 PC-to-PLC only >90 (Not for PLC-to-PLC)
Name NetEdit3 32 Alphanumeric Characters PC-to-PLC only HMI software may have restrictions
IP Address NetEdit3 4 sets of numbers, up to three
digits each (192.168.76.3)
PC-to-PLC, (PLC-to-PLC
Client/Server using TCP/IP or
Modbus TCP protocols)
See your Network Administrator for
IP addresses
Ethernet (MAC) Address Set at Factory 12 Hex digits PC-to-PLC only Factory assigned for IPX
Do-more H2 Series PLC User Manual, 1st Edition, Rev. E - H2-DM-M
7–16
Chapter 7: Specifications - Specialty Modules
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

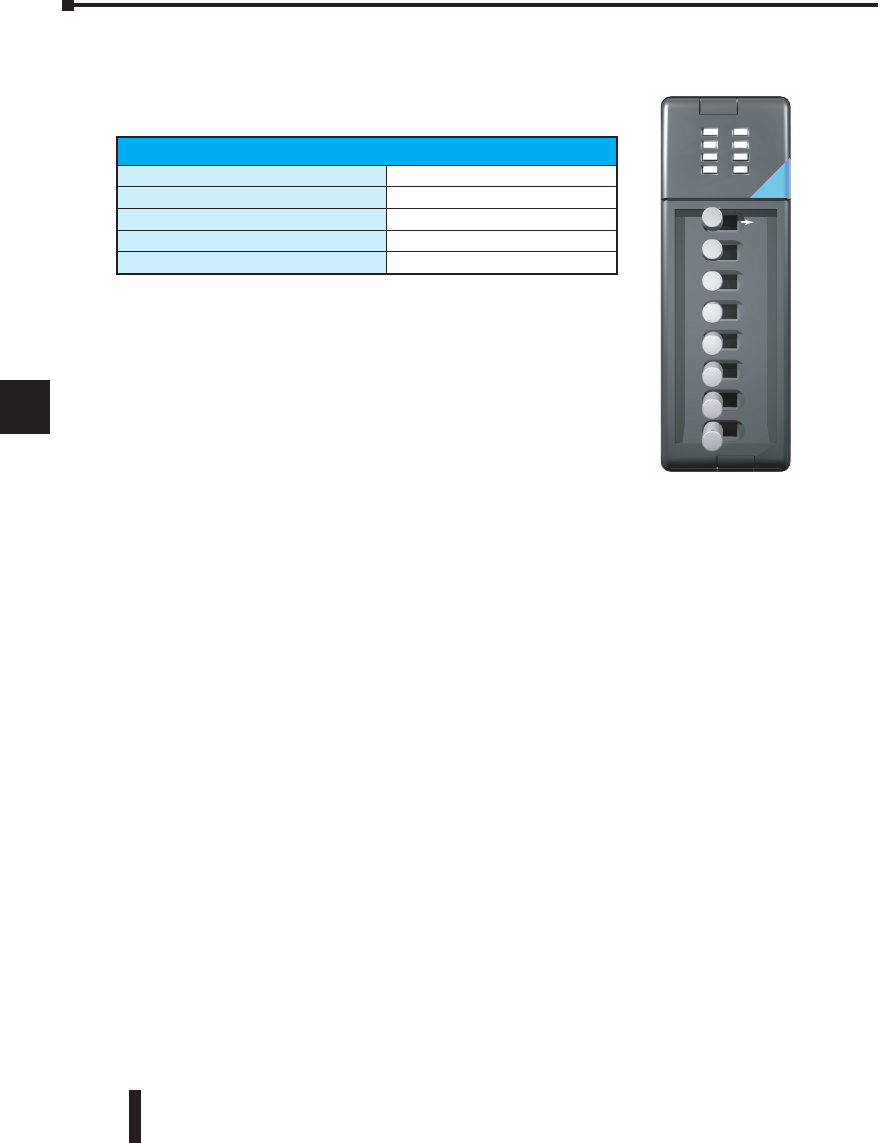

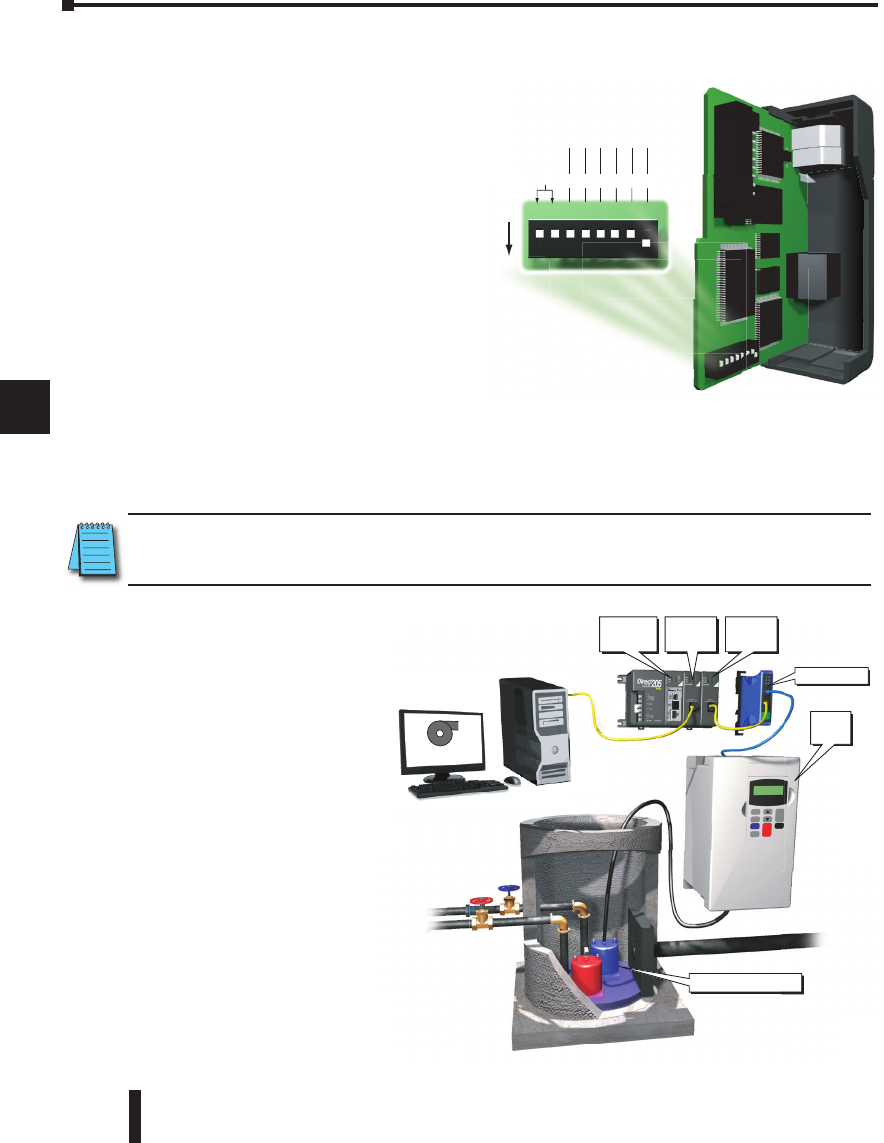

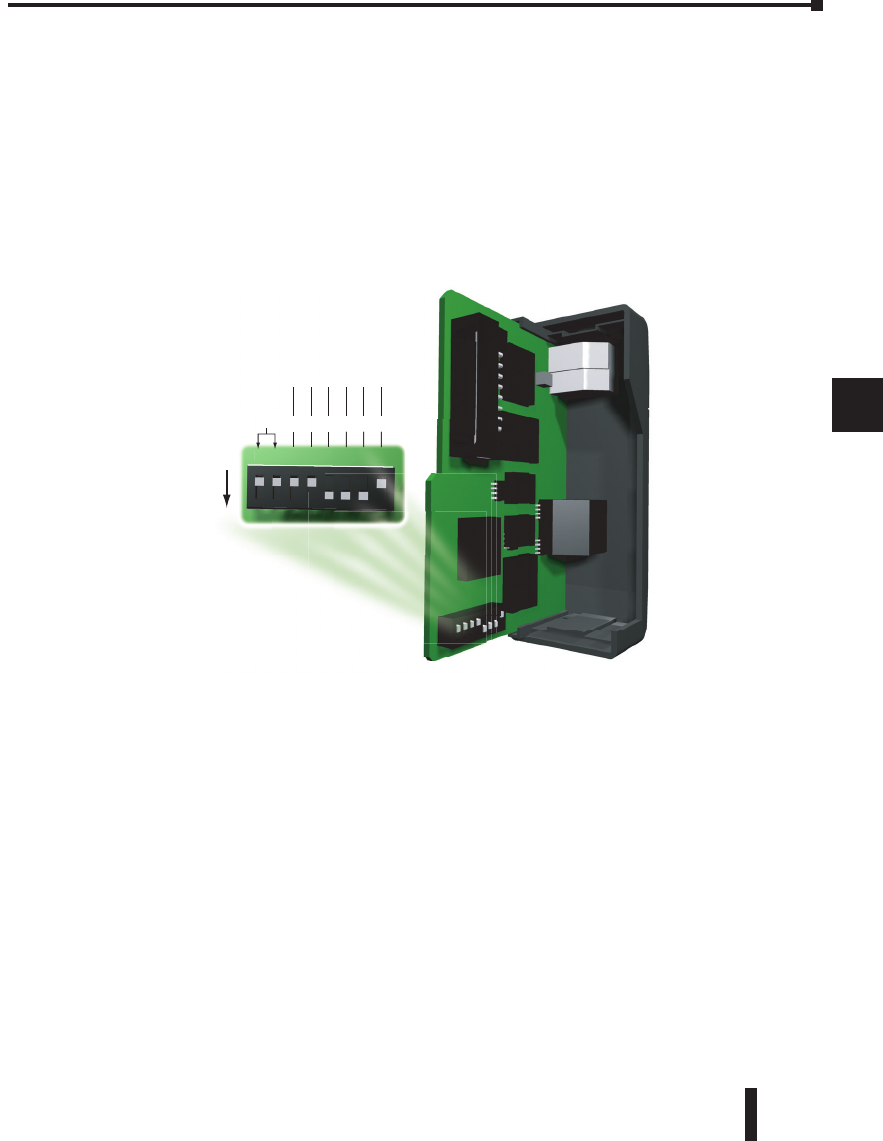

A Module ID is required for PLC-to-PLC communication and it can be set in two ways:
• Using the DIP switches on the module
• Using the configuration tools in
NetEdit3
• HTML configuration (after IP address is
assigned to module using NetEdit3)
Use the DIP switches if you want the
ability to install or change modules
without having to use a PC to set the
Module ID. Set the module’s DIP
switches, install the module in the base
and apply power. The Module ID will be
accepted on powerup and your ECOM
will be ready to communicate.
A Name makes it easy to recognize the PLC by its function. An example of a Name is
“PumpStationOne”, as seen in the diagram below. The Name can be up to 32 alphanumeric
characters in length.
NOTE: Some HMI software products will not accept Names with numbers as the first character, spaces or
certain other non-alphanumeric ASCII characters. Also, your HMI product may not accept Names longer
than 16 characters. Consult your HMI product documentation about its naming conventions.
An IP Address can be
assigned to the ECOM
module if your network
requires one. Usually, the IP
Address is required in cases
where PLCs are sharing the
same network with PCs, and
some of the PCs are carrying
out functions unrelated to
PLC control. Normally, a
network administrator will
assign an IP Address to each
device on the network. Use
NetEdit3 to configure the
assigned IP address to the
ECOM.
ON 7 6 5 4 3 2 1 0
252423222120
(32) (16) (8)(4) (2)(1)
Not
Used
Binary Value
2
1
1
0
0
0
0
3
2
2
2
1
2
0
H2-DM1E
Pump Station One
ECOM
Module
Do-more
PLC
ERM
Module
AC
Drive
GS-EDRV100
O
n
e
Pump Station One
Module ID
Name
IP Address
Do-more H2 Series PLC User Manual, 1st Edition, Rev. E - H2-DM-M 7–17
Chapter 7: Specifications - Specialty Modules
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
NOTE: You must use an IP address if you are using the UDP/IP or Modbus TCP protocol.
The module ships from the factory with an IP Address of 0.0.0.0. This is not a usable IP
Address for normal communication. It only serves as a default setting which can be changed
using NetEdit3. The valid setting for each field is 1 through 254. You do not have to change
the default IP Address unless you are using the IP Address to link to your ECOM module. The
default setting does not cause conflicts with other network communications. If you change the
default IP Address for linking to other network devices, you must change all four “0” fields.
Example IP Addresses - If the Client (PC/ECOM) Subnet Mask is 255.255.0.0 and the Client
has an IP Address of 192.168.50.2, then the following are valid Server IP Addresses:
• 192.168.55.5 - Valid Server ECOM IP Address
• 192.168.70.15 - Valid Server ECOM IP Address
The subnet mask determines which fields must match by assigning a 255 to that field. In the example
above, the first two fields are masked with a 255, therefore valid Server IP Addresses must match the first
two fields of the Client IP or 192.168. The last two fields are allowed to vary because they are masked
with a “0”.
WARNING: It is extremely important not to have duplicate IP Addresses on your network. If you are
using the IP Address to link the ECOM to any network devices (PCs or PLCs), the ECOM must have a
unique number.

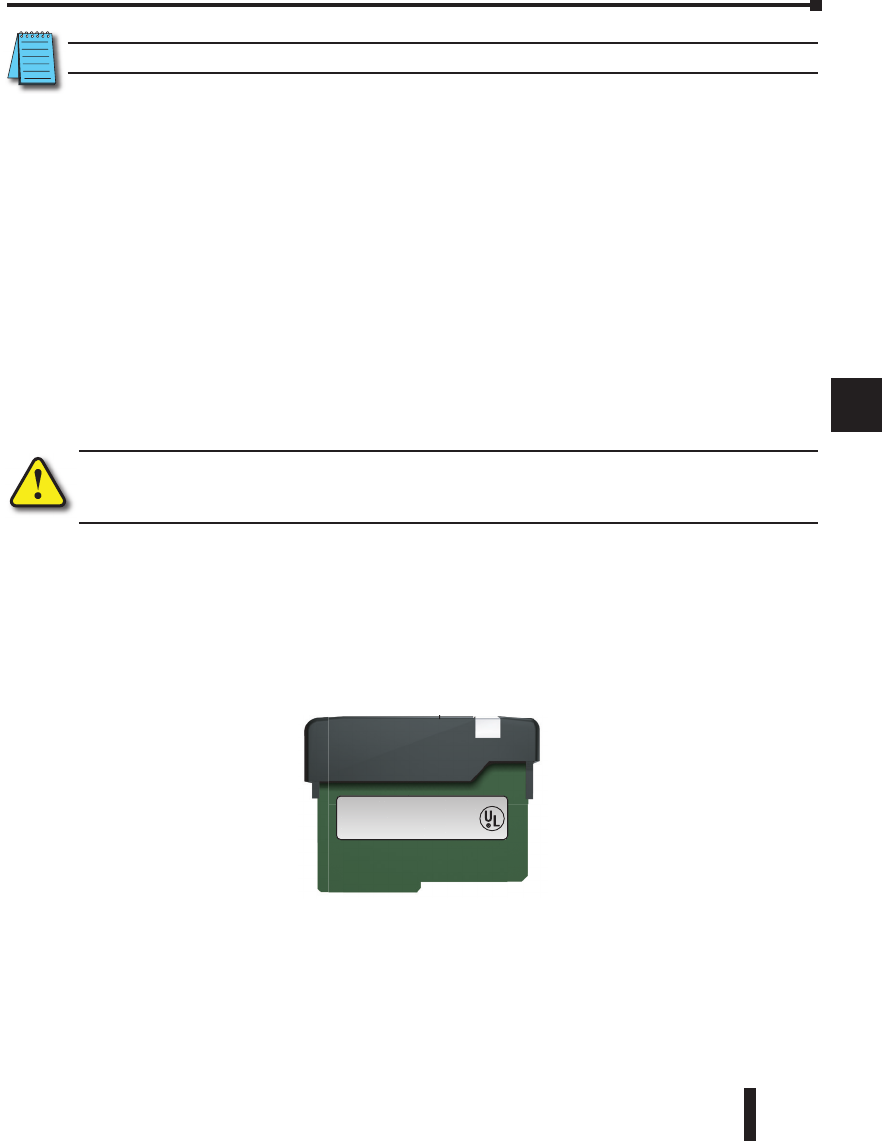

A unique Ethernet (MAC) Address is assigned to each module at the factory and will not
change. It is printed on a label attached to each ECOM module. The Ethernet (MAC)
Address is recognized by NetEdit3. The Ethernet (MAC) Address is a twelve digit number
with no deliberate relationship to your network or functional areas of your plant. Typically, the
MAC address is not a convenient and easily remembered identifier for your ECOM module.
You can use IP Addresses to satisfy network requirements, the Name identifier for PCs running
HMI software and Module IDs for PLCs to share data among themselves. Using one type of
identifier does not limit your use of the other identifier types.

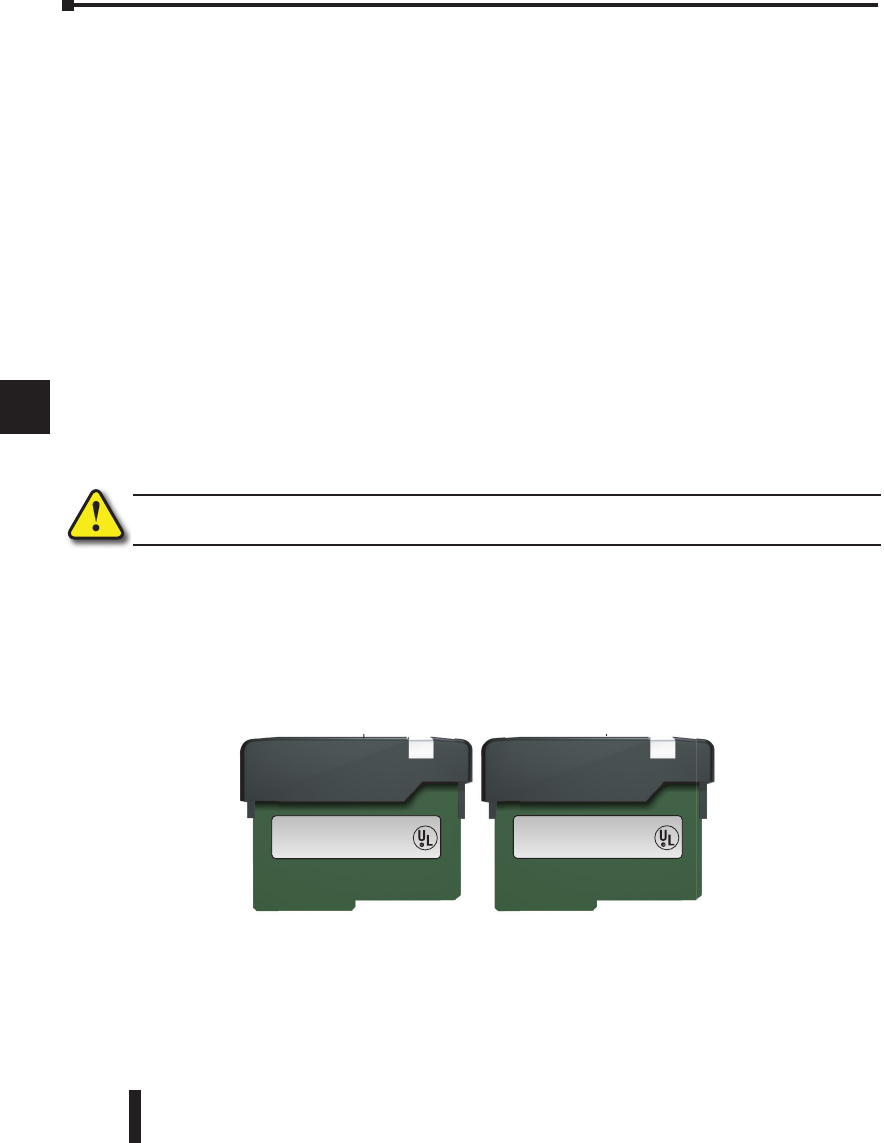

Ethernet (MAC) Address
Host Auto. Products
H2-EBC
MFG:IES 0903 9B
00.E0.62.00.21.6A
5VDC
LISTED
33ZL
Host Auto. Products
H2-ERM
MFG:IES 0802 4D
00.E0.62.20.1C.5C
5VDC
60DegC
LISTED
33ZL
Host Auto. Products
H2-ECOM
MFG:IES 0602 4D
00.E0.62.20.1B.95
5VDC
60DegC
LISTED
33ZL
H
ost
A
u
t
o
.
P
ro
d
uct
s
H2-E
CO
M
MF
G
:IE
S
060
2 4
D
00
.E
0
.
62
.
20
.
1
B.
95
5
VD
C
6
0De
g
C
L
I
S
TED
33
Z
L
Factory-assigned Ethernet (MAC) Address
Using Multiple Network Identifiers
Do-more H2 Series PLC User Manual, 1st Edition, Rev. E - H2-DM-M
7–18
Chapter 7: Specifications - Specialty Modules
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

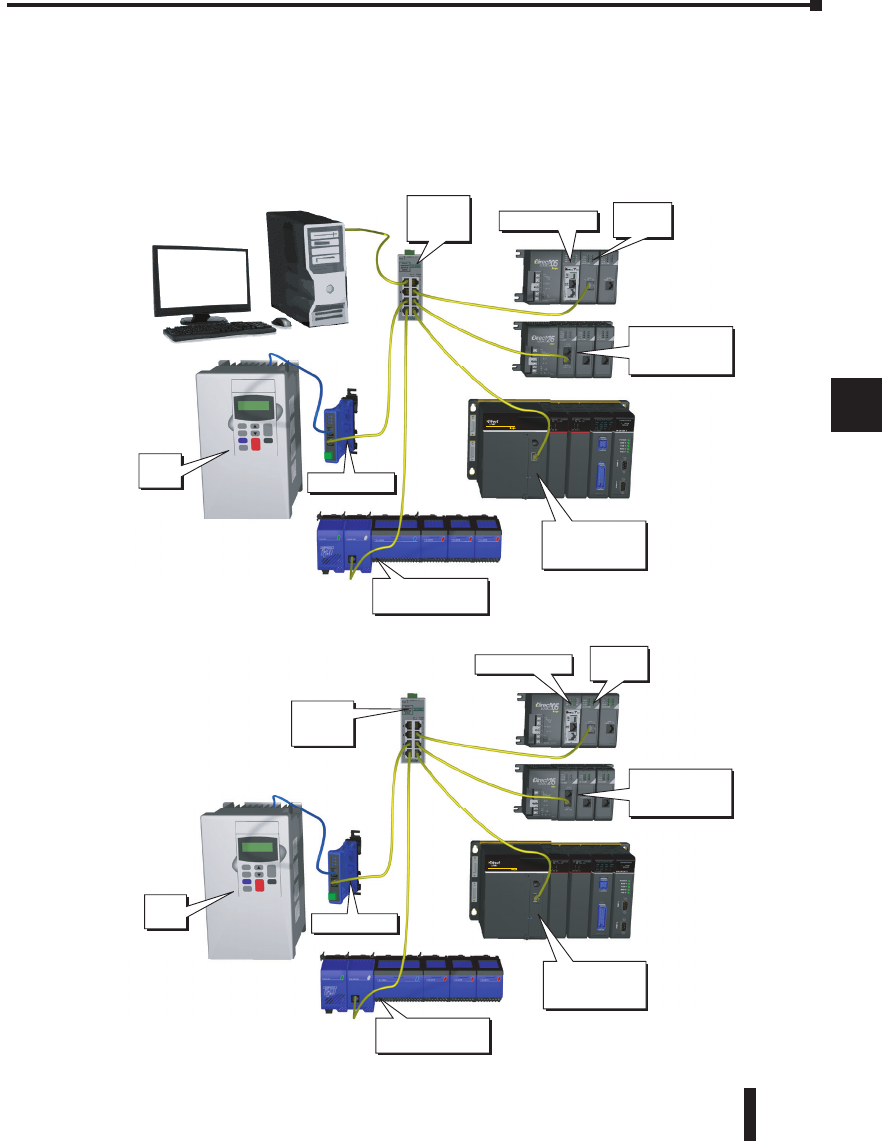

H2-ECOM100 Network Layouts
The ECOM Ethernet network is a peer-to-peer network. Using Read (RX) or Write (WX)
instructions, any PLC on the network can initiate communications with any other PLC on the
network. A PC running our KEPDirect software can also initiate communications with any
ECOM that is on the same network, but a PLC cannot initiate communication with the PC.
An ECOM can sequence through communication connections with each PLC on the network,
one at a time.

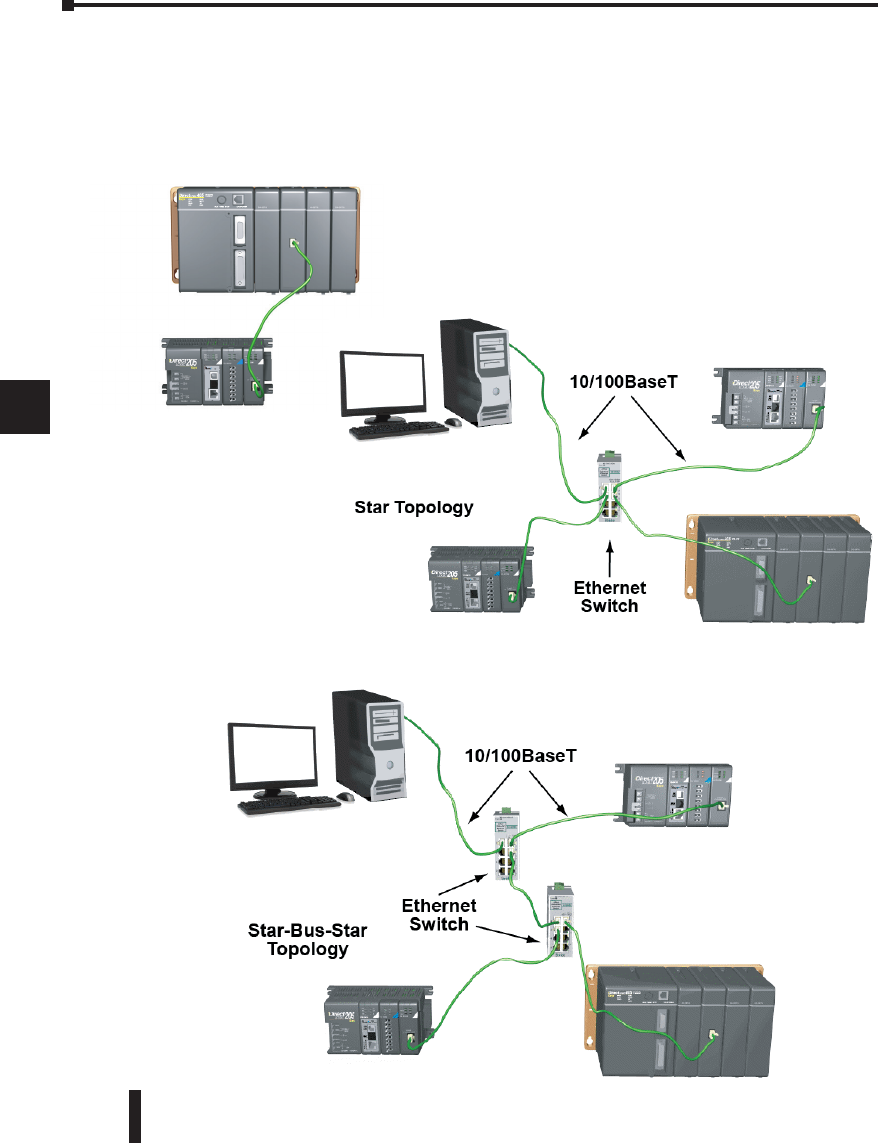

The ECOM products inherently support two network layouts:
point-to-point and star. The point-to-point layout can be
used to link together two PLCs or a PC and a PLC. A switch
connects multiple networkable devices into a star topology.
Multiple switches are used to modify the star topology so that
it becomes a star-bus-star topology. See the figures below
Switches can connect together to make it possible to connect more devices to the network or
to extend the range of the network.
Point-to-Point
RS-232
SERIAL
USB
PGM
PORT
RUN
TERM
STOP
1
0
/
1
0
0
E
T
H
E
R
N
E
T
H2-DM1E
Do-more H2 Series PLC User Manual, 1st Edition, Rev. E - H2-DM-M 7–19
Chapter 7: Specifications - Specialty Modules
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
H2-ECOM100 Network Cabling
The H2-ECOM100 module supports 10/100BaseT standard cabling consisting of copper wire
twisted pairs.

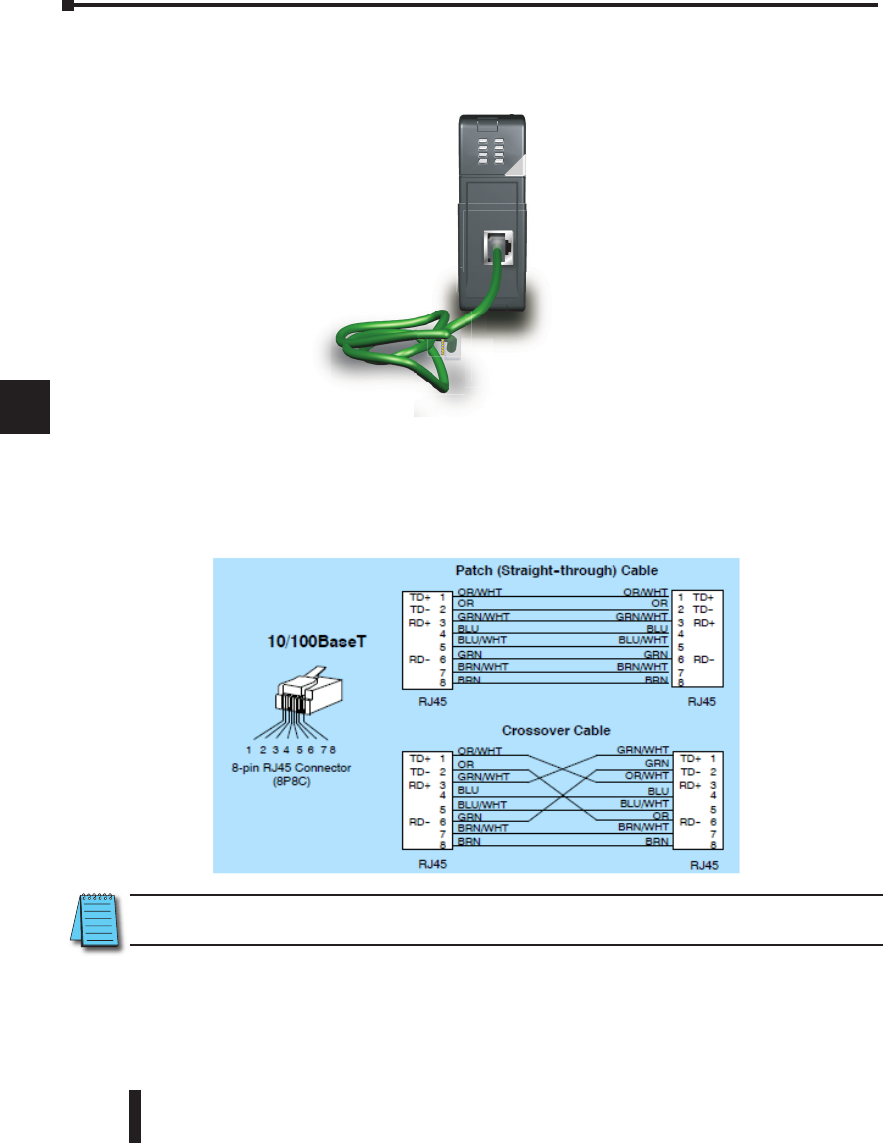

The cable used to connect a PLC (or PC) to an Ethernet switch is called a patch (straight-
through) cable. The cable used to connect together two PLCs, a PC and a PLC, or two
switches is a crossover cable. We recommend that you purchase cables pre-assembled with
connectors for convenient and reliable networking.
NOTE: The above diagram illustrates the standard wire positions in the RJ45 connector. We recommend
all ECOM 10/100BaseT cables to be Category 5, UTP cable.
STATUS
LINKGD
ACTIVE
ERROR
100MBIT
H2-ECOM100
10/100 BASE-T
ETHERNET PORT
10/100 BaseT Networks
10/100BaseT
Unshielded Twisted-
Pair cable with RJ45
connectors
Do-more H2 Series PLC User Manual, 1st Edition, Rev. E - H2-DM-M
7–20
Chapter 7: Specifications - Specialty Modules
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

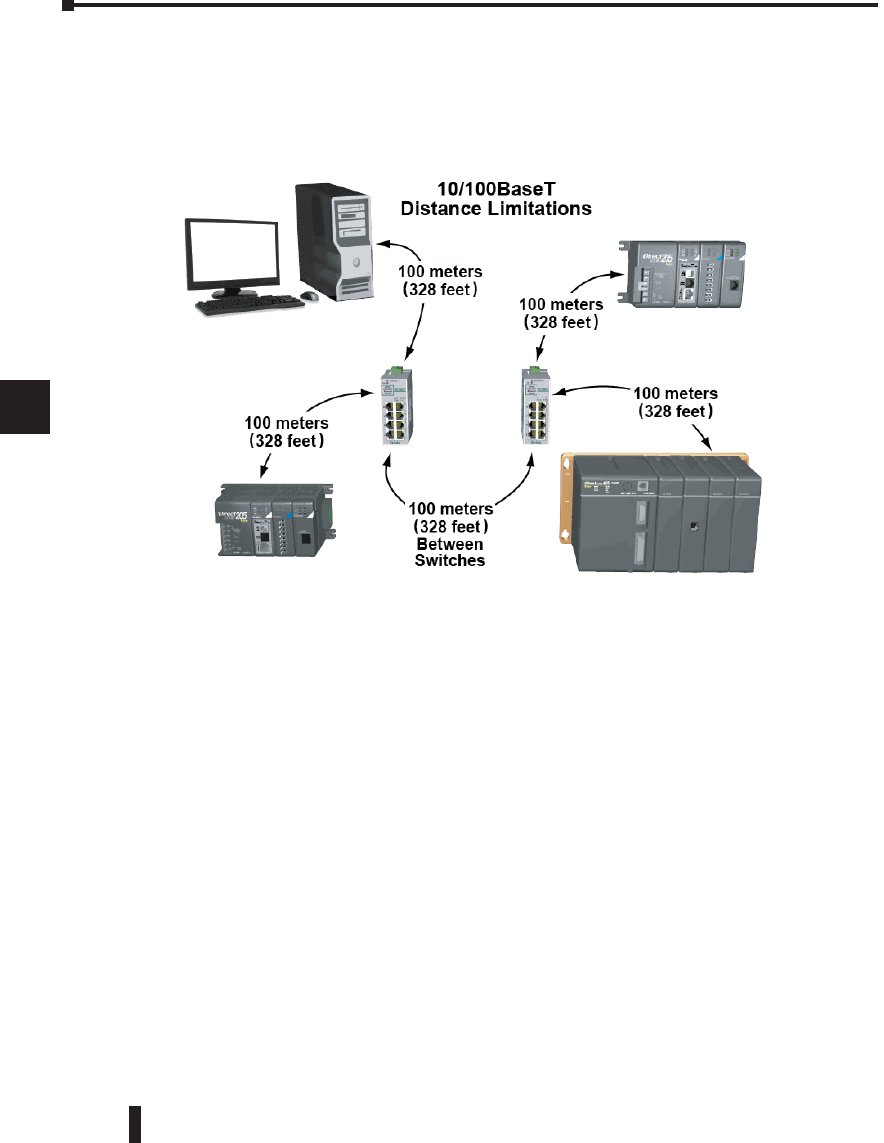

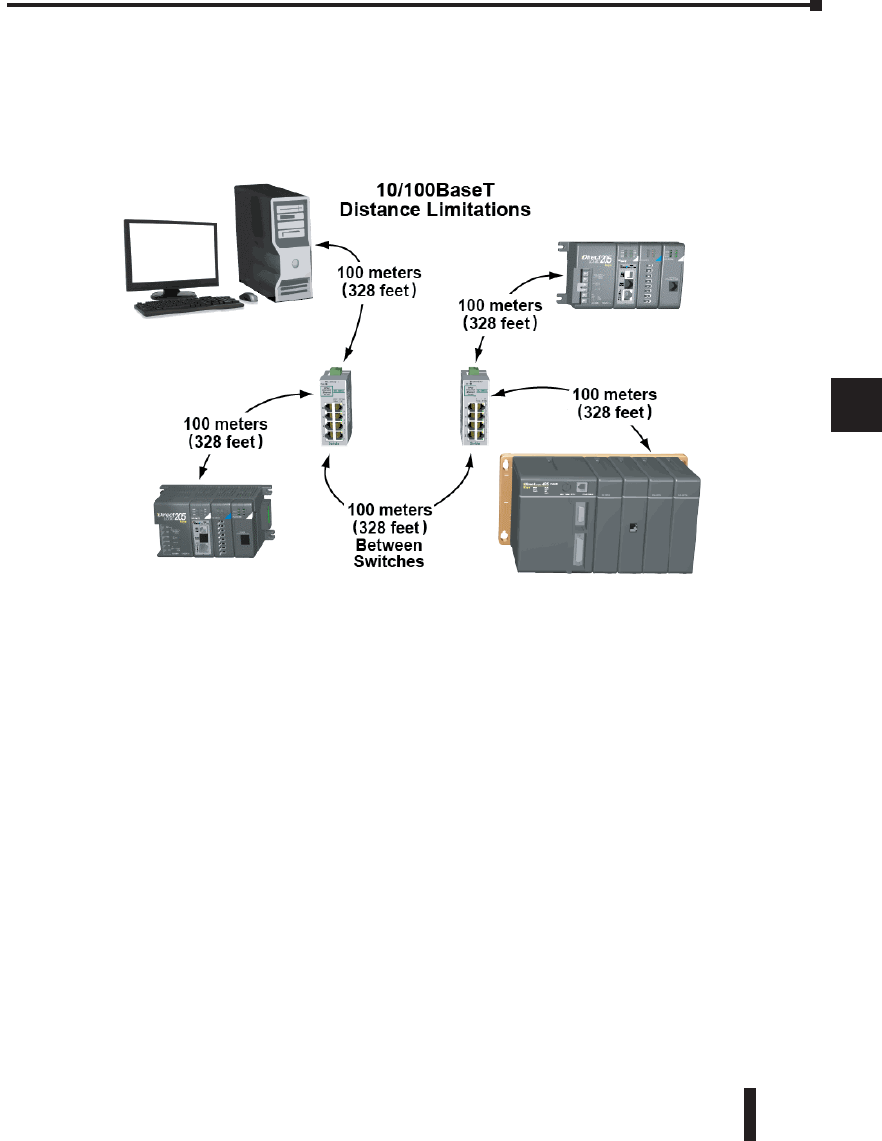

The maximum distance per 10/100BaseT cable segment is 100 meters or 328 feet. Switches
allow multiple 100 meter cable segments to be joined together increasing the allowable distance.
For example, two switches connected together adds an additional 200 meters to the system, for
a total range of 300 meters.
The maximum number of nodes that can be connected to a 10/100BaseT network is a function
of the topology used in constructing the network. Therefore, it is not possible to state an
absolute maximum number of nodes that would apply in all cases.
The IEEE 802.3 specification defines the maximum node limit for an Ethernet segment in
terms of the ability to detect and avoid data collisions. A “legal” network can have any number
of devices provided that they can:
• Detect all data collisions that may occur during the communication process and
• Respond to these collisions appropriately.
You must take into consideration the network limitations imposed by all cabling and network
devices. Consider the limitations imposed on your network if your network uses:
• A combination of cabling standards, such as 10/100 BaseT and 10Base2, or
• Intermediate devices, such as switches or routers.
Cable Lengths
Maximum Number of ECOM Modules on the Network
Do-more H2 Series PLC User Manual, 1st Edition, Rev. E - H2-DM-M 7–21
Chapter 7: Specifications - Specialty Modules
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
Each ECOM module can be assigned a Module ID ranging from 1 to 999,999,999.
Theoretically, you could have this many Ethernet modules coexisting on a single network.
Other network limitations would restrict the network size before reaching this limit. For the
majority of network PLC applications there is practically no limit to the number of ECOM
modules you can access from the NetEdit3 or Do-more Designer software. There is a node
limit for PLC-to-PLC communications. The network Read and Write instructions performed
by the initiating (master) PLC are only capable of accessing PLCs with Module IDs of 1
through 90. This effectively sets the maximum number of nodes available for PLC-to-PLC
communications at 90.
WARNING: We recommend against connecting Ethernet modules to the same network that serves as
your primary office network. While Ethernet networks can handle a very large number of data
transmissions, and normally handle them very quickly, heavy Ethernet traffic can adversely affect the
reliability and speed of the network.
Do-more H2 Series PLC User Manual, 1st Edition, Rev. E - H2-DM-M
7–22
Chapter 7: Specifications - Specialty Modules
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
H2-ERM(100)/ H2-EBC100*
NOTE: The H2-ERM module has been discontinued. The H2-ERM100 is the replacement module.
H2-ERM(100) Overview
Expanding I/O beyond the local chassis is useful for a system which has a sufficient number of
sensors and other field devices located a relatively long distance from the CPU. The Ethernet
Remote Master H2-ERM(100) connects Do-more CPU systems to slave I/O over a high-
speed Ethernet link.
Each ERM module can support up to 16 H2-EBC systems, 16 Terminator I/O EBC systems,
or 16 fully expanded H4-EBC systems. Of course, combinations are fine, too.
NOTE: Applications requiring an extremely large number of T1H-EBC analog I/O or H4-EBC 16-channel
analog I/O, could exceed the buffer capacity of a single H2-ERM(100) module. In these cases, an
additional H2-ERM(100) may be required.
The ERM connects to your control network using Category 5 UTP cables for cable runs up
to 100 meters (328ft). Use Ethernet switches to extend distances and expand the number of
nodes.
The PLC, ERM and EBC slave modules work together to update the remote I/O points.
These three scan cycles are occurring at the same time, but asynchronously. Critical I/O
points that must be monitored every scan are best placed in the CPU base.
It is highly recommended that a dedicated Ethernet remote I/O network be used for the ERM
and its slaves. While Ethernet networks can handle a large number of data transactions, and
normally handle them very quickly, heavy Ethernet traffic can adversely affect the reliability
of the slave I/O and the speed of the I/O network. Ensure ERM networks, multiple ERM
networks and ECOM/office networks are isolated from one another.

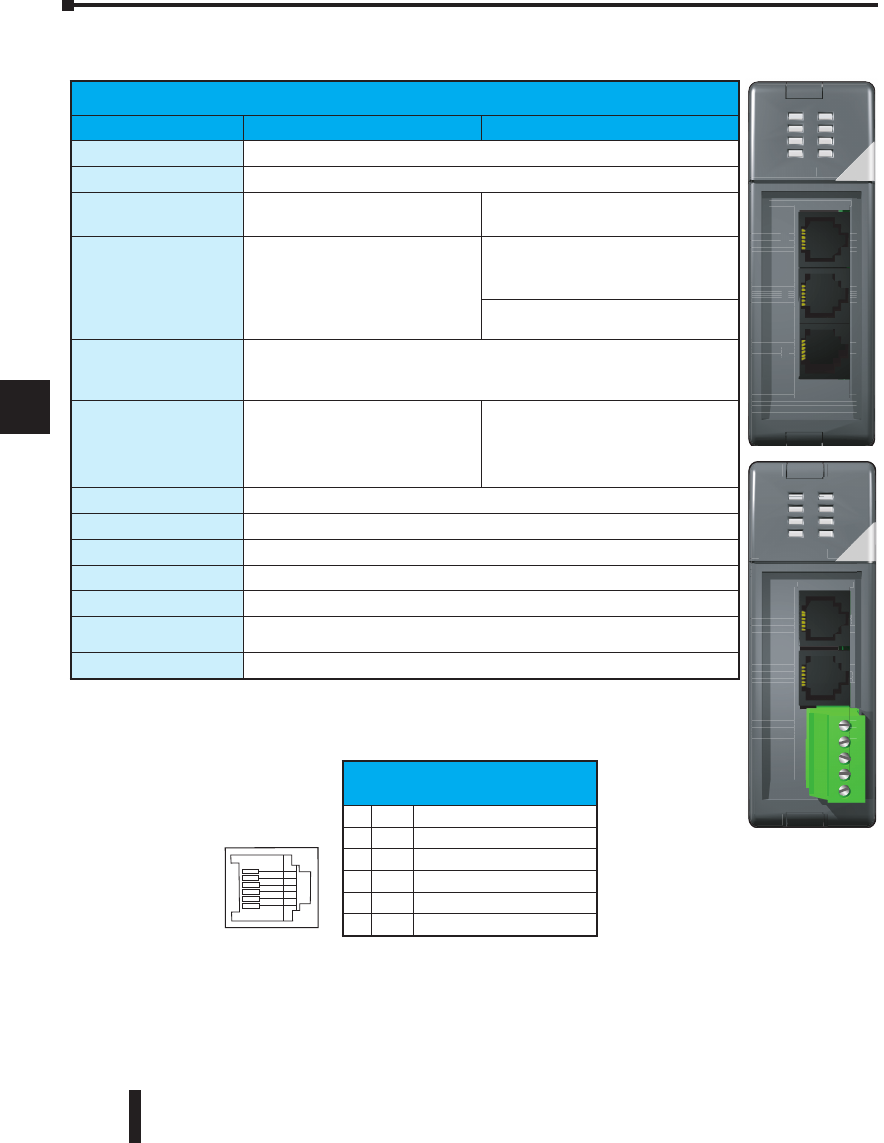

H2-ERM(100) Specifications
H2-ERM(100) Ethernet Remote I/O Master Module
Specifications H2-ERM H2-ERM100
Module Type Ethernet Communications Master Module
Slaves per ERM 16 Max
Communications 10BaseT Ethernet 10/100BaseT Ethernet
Data Transfer Rate 10Mbps 100Mbps
Ethernet Port RJ45
Power Consumption 320mA @5VDC 300mA @5VDC
Operating Environment 0ºC to 60ºC (32ºF to 140ºF), 35% to 95% humidity (non-
condensing)
Link Distance 100m (328ft)
Ethernet Protocols TCP/IP, IPX
TCP/IP, IPX
Modbus TCP/IP, DHCP,
HTML configuration
LINKGD
ACTIVE
ERROR
H2-ERM100
10/100BASE-T
ETHERNET PORT
LINKGD
ACTIVE
ERROR
H2-ERM
10BASE-T
ETHERNET PORT
Do-more H2 Series PLC User Manual, 1st Edition, Rev. E - H2-DM-M 7–23
Chapter 7: Specifications - Specialty Modules
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

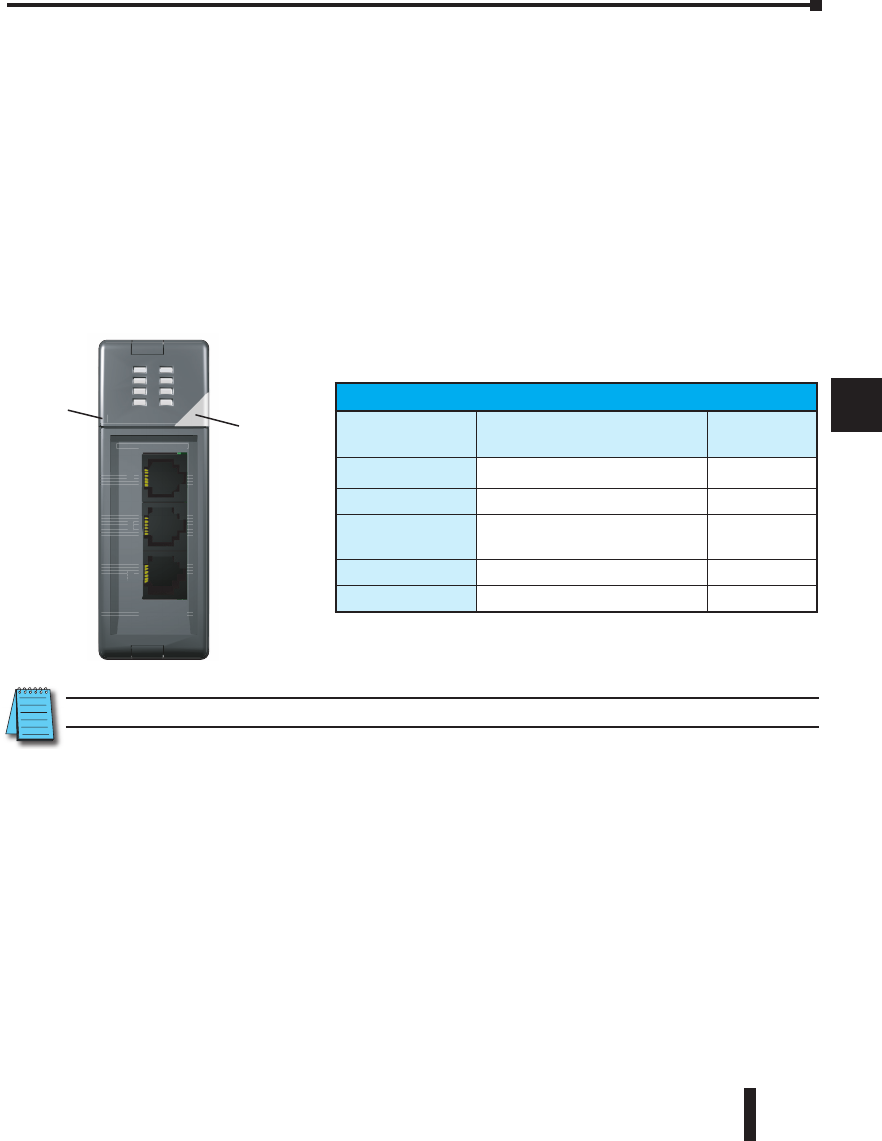

H2-ERM(100) LED Indicators
H2-EBC100 Overview
The Ethernet Base Controller (EBC) serves as an interface between the master control system
and remote I/O modules. The control function is performed by the master controller, not
the EBC slave. The EBC occupies the CPU slot in the base and communicates across the
backplane to input and output modules. The function of the EBC is to:
• Process analog and digital input signals
• Format the I/O signals to conform to the Ethernet standard
• Transmit input signals to the network master
• Receive and translate output signals from the network master
• Distribute the output signals to the appropriate output module in the base
The H2-EBC100 module supports industry standard 10/100BaseT Ethernet and Ethernet/IP
communications.
NOTE: The RS-232 serial port on the EBC module cannot be used when the EBC module is part of the
Do-more controller system.
H2-EBC100 Specifications
LINKGD
ACTIVE
ERROR
H2-ERM100
10/100BASE-T
ETHERNET PORT
H2-ERM(100) LED Descriptions
Indicator Status Description
LINKGD ON Communications Link OK
ACTIVE ON Network Active
OFF Network Idle
ERROR ON or Flashing Fatal Error Detected
Specifications H2-EBC100
Communications 10/100BaseT Ethernet
Data Transfer Rate 100Mbps max.
Link Distance 100 meters (328ft)
Ethernet Port RJ45
Ethernet Protocols Ethernet/IP, TCP/IP, IPX/Modbus TCP/IP,
DHCP, HTML configuration
Serial Port* RJ12
Serial Protocols K-Sequence, ASCII IN/OUT, Modbus RTU
Power Consumption 300mA @ 5VDC
STATUS
LINKGD
ACTIVE
ERROR
H2-EBC100
10/100 BASE-T
ETHERNET PORT
RS-232
SERIAL PORT
RS 232
RS
-
232
RS 232
SERIAL PORT
SERIAL
PORT
100MBIT
TXD
RXD
* The serial port on the EBC modules cannot be used when the H2-DM1/E is the
network master.
Do-more H2 Series PLC User Manual, 1st Edition, Rev. E - H2-DM-M
7–24
Chapter 7: Specifications - Specialty Modules
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

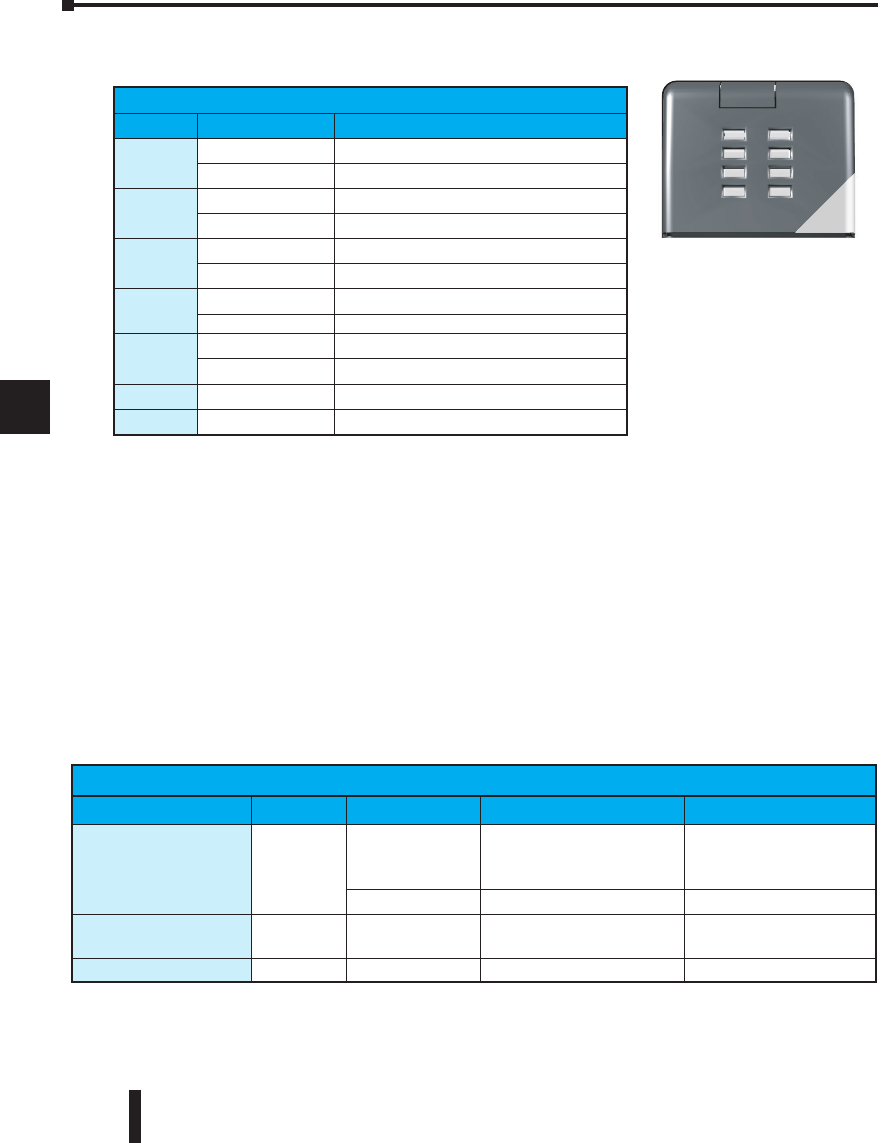

H2-EBC100 LED Indicators
H2-ERM(100)/H2-EBC100 Network Identifiers
Each module must be assigned at least one unique identifier to make it possible for other
devices to recognize it on the network. There are three identifiers possible with the
ERM/EBC modules:
• Module ID
• IP (Internet Protocol) Address
• Ethernet (MAC) Address
The first two are user selectable but the MAC address is set at the factory. The identifiers are
used to link the ERM module to its remote EBC slaves. The type of identifier chosen depends
on the protocol requirements of your particular application. The following table summarizes
Network Identifiers and their uses:
Network Identifiers
Identifier Protocol How to Set Format Notes
Module ID IPX DIP Switch Slave Number 1-63, Set ERM to 0 Module ID can be changed without
NetEdit3. When set, disables Module
ID selection in NetEdit3
NetEdit3 Slave Number 1-65535, Set ERM to 0 DIP Switch must be set to “0”
IP Address UDP/IP NetEdit3 4 sets of numbers, up to three digits
each (192.168.76.3) See your Network Administrator for
IP addresses
Ethernet (MAC) Address IPX Set at Factory 12 Hex digits Factory assigned for IPX
H2-EBC100 LED Descriptions
Indicator Status Description
STATUS ON (Green) Module is powered up and functional
OFF Module powerup failed
LINKGD ON (Green) Properly connected to network
OFF Not connected to network or incorrect configuration
ACTIVE ON or FLASHING (Red) Active Network Data
OFF Network Idle
ERROR ON or FLASHING (Red) A fatal error has occurred
OFF No error present
100MBIT ON 100Base T Frequency detected
OFF (With ACTIVE LED ON) - 10Base T Frequency detected
TXD FLASHING (green) Serial port is transmitting data
RXD FLASHING (green) Serial port is receiving data
STATUS
LINKGD
ACTIVE
ERROR
H2-EBC100
10/100 BASE-T
ETHERNET PORT
RS-232
SERIAL PORT
RS 232
RS
-
232
RS 232
SERIAL PORT
SERIAL
PORT
100MBIT
TXD
RXD
Do-more H2 Series PLC User Manual, 1st Edition, Rev. E - H2-DM-M 7–25
Chapter 7: Specifications - Specialty Modules
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
Always set the ERM module ID to 0. A slave EBC Module ID can be set in one of two ways:
• Use the DIP switches on the module (1-63).
• Use the configuration tools in NetEdit3 (1-65535).
Set the Module ID using the DIP switches if you wish to be able to install and change slave
modules without using a PC. The Module ID equals the sum of the binary values of the slide
switches set in the ON position. For example, if slide switches 1, 2 and 3 are set to the ON
position, the Module ID will be 14. This is found by adding 8+4+2=14. The maximum value
which can be set on the DIP switch is 32+16+8+4+2=63. This is achieved by setting switches
0 through 5 to the ON position. The 6 and 7 switch positions are inactive.
Set the module’s DIP switch, insert the module in the base, and connect the network cable.
The Module ID is set on powerup, and it is ready to communicate on the network.
The Module IDs can also be set or changed on the network from a single PC by using the tools
in NetEdit3.
Module ID
ON 7 6 5 4 3 2 1 0
252423222120
(32) (16) (8)(4) (2)(1)
Not
Used
Binary Value
2
1
1
0
0
0
0
3
2
2
2
1
2
0
H2-ERM(100)/H2-EBC Module
H2-ERM(100)/H2-EBC Module DIP Switch Location
Do-more H2 Series PLC User Manual, 1st Edition, Rev. E - H2-DM-M
7–26
Chapter 7: Specifications - Specialty Modules
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
An IP Address can be assigned to the ERM module or its slaves if your network requires one.
Normally, a network administrator will assign an IP Address to each device on the network.
Since it is recommended to use a separate dedicated network for your ERM , you do not have
to use the IP Address, unless you are using the UDP/IP protocol. Use the Module ID or
Ethernet Address for each module when using the IPX protocol. You can use NetEdit3 within
the ERM Workbench utility to give the ERM or its slave modules an IP Address. Each ERM
and slave must have a unique IP Address.
The module ships from the factory with an IP Address of 255.255.255.255. This is not a
usable IP Address for normal communications. It only serves as a default setting which can be
changed using NetEdit3. The valid settings are 0 through 254. You do not have to change
the default IP Address unless you are using IP Address protocol. The default setting does not
cause conflicts with other network communications. If you change the default IP Address for
linking to other network devices, you must change all four “255” fields. If any field contains
the number 255 and other fields have been changed, the module will not be recognized on the
network.
Example IP Addresses
• 192.168.55.5 - Valid IP Address
• 255.168.55.5 - Not Valid
WARNING: It is extremely important not to have duplicate IP Addresses on your network. If you are
using the IP Address, all modules must have a unique number.
A unique Ethernet (MAC) Address is assigned to each module at the factory and will not
change. It is printed on a label attached to each ERM/EBC module. The Ethernet (MAC)
Address is recognized by NetEdit3. The Ethernet (MAC) Address is a twelve digit number
with no deliberate relationship to your network or functional areas of your plant. Typically,
the MAC address is not a convenient and easily remembered identifier for your ERM/EBC
module.
You can use IP Addresses to satisfy network requirements and Module IDs for PLCs to share
data among themselves. Using one type of identifier does not limit your use of the other
identifier types.
IP Address
Ethernet (MAC) Address
Using Multiple Network Identifiers
Host Auto. Products
H2-EBC
MFG:IES 0903 9B
00.E0.62.00.21.6A
5VDC
LISTED
33ZL
Host Auto. Products
H2-ERM
MFG:IES 0802 4D
00.E0.62.20.1C.5C
5VDC
60DegC
LISTED
33ZL
Host Auto. Products
H2-ECOM
MFG:IES 0602 4D
00.E0.62.20.1B.95
5VDC
60DegC
LISTED
33ZL
H
ost
A
u
t
o
.
P
ro
d
uct
s
H2-E
CO
M
MF
G
:IE
S
060
2 4
D
00
.E
0
.
62
.
20
.
1
B.
95
5
VD
C
6
0De
g
C
L
I
S
TED
33
Z
L
Factory-assigned Ethernet (MAC) Address
Do-more H2 Series PLC User Manual, 1st Edition, Rev. E - H2-DM-M 7–27
Chapter 7: Specifications - Specialty Modules
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
H2-ERM(100)/H2-EBC100 Network Layouts
Each ERM module can support up to 16 remote slaves. The slaves supported are the
H4–EBC, H2–EBC, T1H–EBC, GS–EDRV100 and HA–EDRV2. Use a PC equipped with
a 10/100BaseT network adapter card and the Ethernet Remote Master (ERM) Workbench
software configuration utility to configure the ERM module and its slaves over the Ethernet
remote I/O network. Once the ERM I/O network is configured and running, the PC can be
removed from the network.
405EBC
POWER
ERROR
RELAY
LINK GOOD
ACTIVITY
BATT LOW
H4-EBC 110/220VAC
H2-DM1E
Do-more PLC
Terminator I/O
with EBC Module
GS-EDRV100
DirectLogic
DL205 I/O with
EBC Module
DirectLogic
DL405 I/O with
EBC Module
ERM
Module
Stride
Ethernet
Switch
AC
Drive
405EBC
POWER
ERROR
RELAY
LINK GOOD
ACTIVITY
BATT LOW
H4-EBC 110/220VAC
H2-DM1E
Do-more PLC
GS-EDRV100
AC
Drive
Stride
Ethernet
Switch
Terminator I/O
with EBC Module
DirectLogic
DL205 I/O with
EBC Module
DirectLogic
DL405 I/O with
EBC Module
ERM
Module
Do-more H2 Series PLC User Manual, 1st Edition, Rev. E - H2-DM-M
7–28
Chapter 7: Specifications - Specialty Modules
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
H2-ERM(100)/H2-EBC100 Network Cabling
The ERM/EBC modules support 10/100BaseT standard cabling consisting of copper wire
twisted pairs.
The cable used to connect a PLC (or PC) to an Ethernet switch is called a patch (straight-
through) cable. The cable used to connect together two PLCs, a PC and a PLC, or two
switches is a crossover cable. We recommend that you purchase cables pre-assembled with
connectors for convenient and reliable networking.
NOTE: The above diagram illustrates the standard wire positions in the RJ45 connector. We recommend
all ECOM 10/100BaseT cables to be Category 5, UTP cable.
LINKGD
ACTIVE
ERROR
H2-ERM
10/100 BASE-T
ETHERNET PORT
10/100 BaseT Networks
10/100BaseT
Unshielded Twisted-
Pair cable with RJ45
connectors
Do-more H2 Series PLC User Manual, 1st Edition, Rev. E - H2-DM-M 7–29
Chapter 7: Specifications - Specialty Modules
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
The maximum distance per 10/100BaseT cable segment is 100 meters or 328 feet. Switches
allow multiple 100 meter cable segments to be joined together increasing the allowable distance.
For example, two switches connected together adds an additional 200 meters to the system, for
a total range of 300 meters.
Cable Lengths
Do-more H2 Series PLC User Manual, 1st Edition, Rev. E - H2-DM-M
7–30
Chapter 7: Specifications - Specialty Modules
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
H2-SERIO(-4) Overview
With the H2-SERIO, three additional RS-232 ports can be added to your Do-more system. On
the other hand, the H2-SERIO-4 can give you two additional RS-232 ports and one RS-485 or
RS-422 port. As many as eight of these modules may be added to the local base, adding up to
24 serial ports (there is no means of using these modules in Ethernet remote bases).

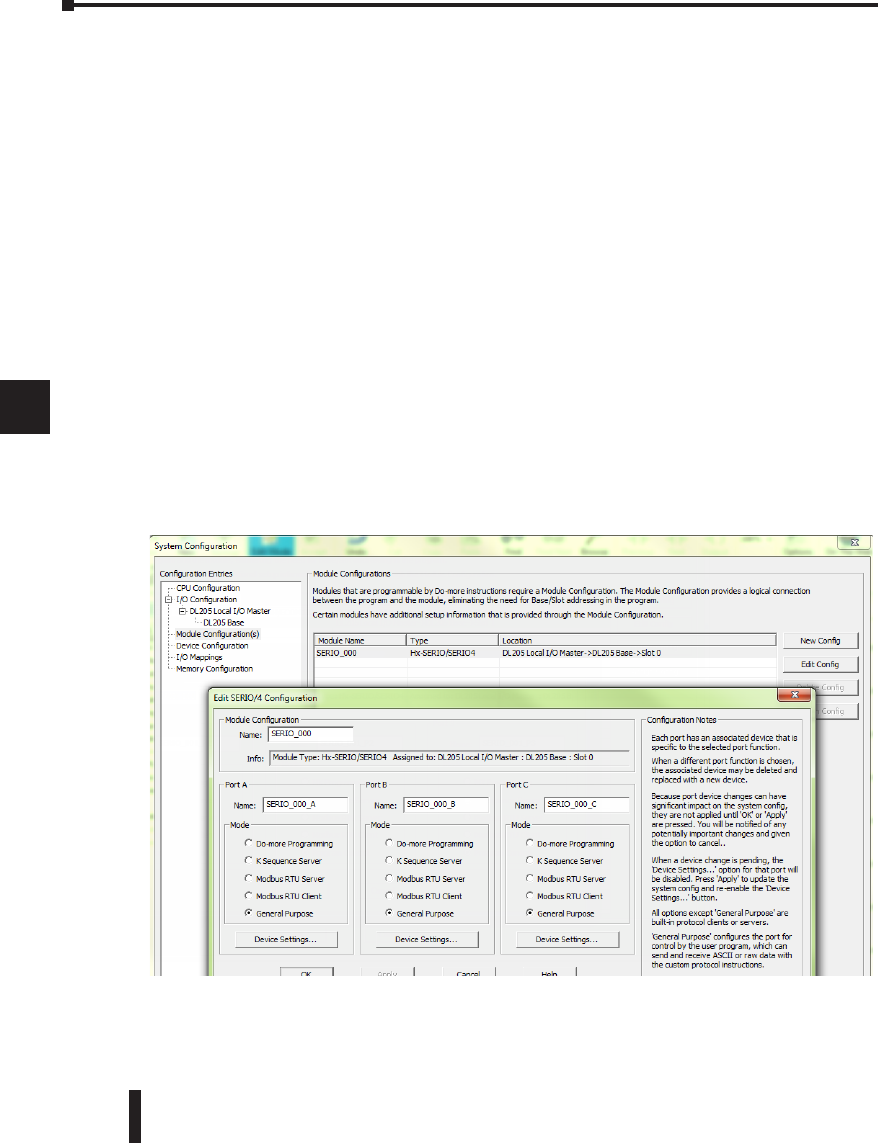

The serial ports of the H2-SERIO(-4) support the following functions which can be selected
in the Module Configuration of the Do-more software (as seen below):
• Do-more Programming - Select this option to setup the port to work with the Do-more Designer
programming software.
• K Sequence - Select this option to have the port respond to client devices running K Sequence
protocol.
• Modbus RTU Server - Select this option to have the port respond to client devices running
Modbus/RTU protocol.
• Modbus RTU Client - Select this option to make the port available for use by the Do-more
controller’s Modbus Network Read (MRX) and Modbus Network Write (MWX) instructions.
• General Purpose - Select this option to make the port available for use by the Do-more controller’s
Input String from Device (STREAMIN) and Output String to Device (STREAMOUT)
instructions.
Baud rates, parity and communication bit settings are accessible by selecting the Device
Settings... button located below the General Purpose selection or through the Device
Configuration section of the System Configuration window. Baud rates up to 115,200 are
supported.
H2-SERIO(-4)
Do-more H2 Series PLC User Manual, 1st Edition, Rev. E - H2-DM-M 7–31
Chapter 7: Specifications - Specialty Modules
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D

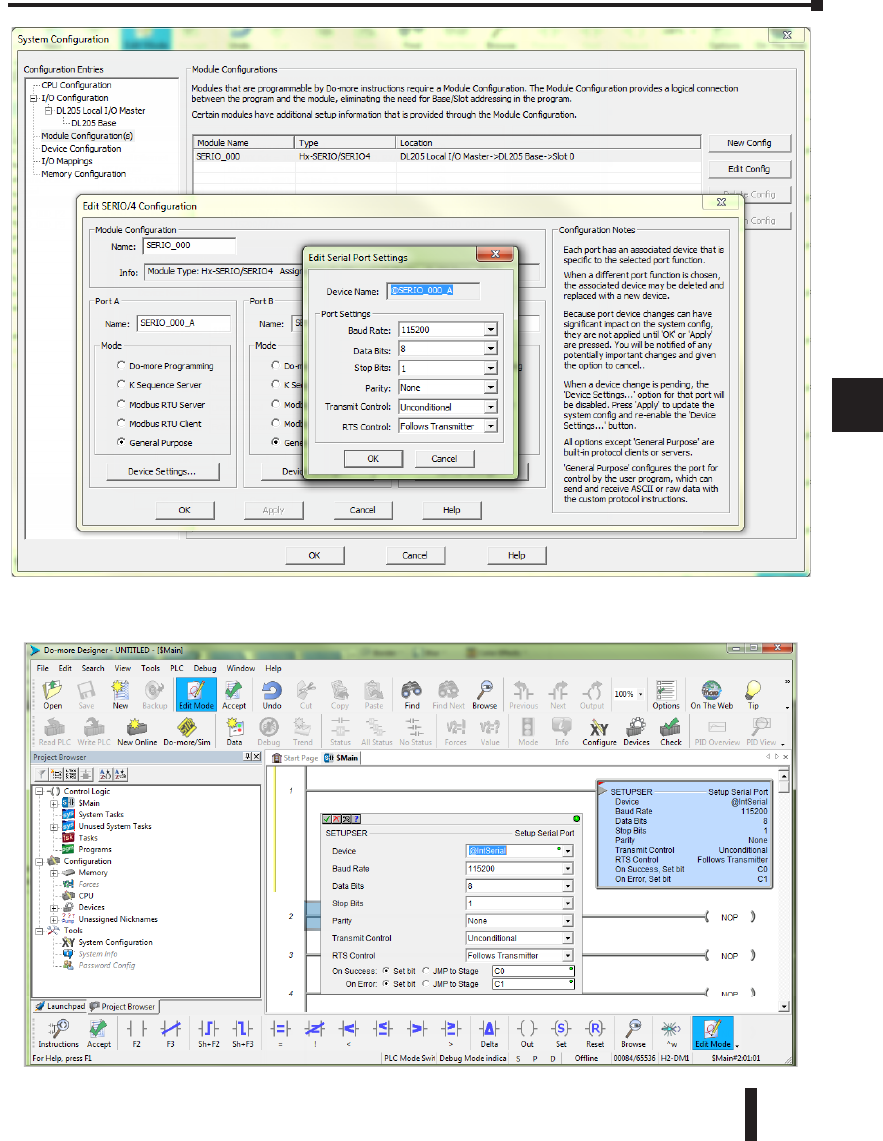

These parameters can also be set programmatically using the SETUPSER instruction seen here.
See the Do-more Help file for more information on communication instructions.
Do-more H2 Series PLC User Manual, 1st Edition, Rev. E - H2-DM-M
7–32
Chapter 7: Specifications - Specialty Modules
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
H2-SERIO(-4) Specifications
H2-SERIO(-4) Wiring: RS-232
H2-SERIO / H2-SERIO-4 Serial Communications Module
Specifications H2-SERIO H2-SERIO-4
Module Type Intelligent
Approvals cUL Listed, file number E185989
Number of Serial Ports
per Module 3 ports: all RS-232 (RJ12 jack) 3 ports: 2 RS-232 ports (RJ12 jack) and 1
RS-422/485 (5 position terminal strip)
Signals RS-232: CTS, RXD, TXD RTS, GND
RTS transmission delay times: 5, 50, 250 and
500ms
RS-232: CTS, RXD, TXD RTS, GND
RTS transmission delay times: 5, 50, 250 and
500ms
RS-422 (4 wire) : TX+, TX-, RX-, RX+, GND
RS-485 (2 wire): Data+, Data-, GND
Number of Modules
Supported per Do-more
PLC
8
Recommended Cables RS-232: ZL-RJ12CBL-2
RS-232: ZL-RJ12CBL-2
RS-422: ADC L19853-x (Belden 8103)
RS-485: ADC L19954-x (Belden 9842)
Protocols Supported Serial ASCII (full-duplex), K Sequence, Modbus/RTU and Do-more programming
Power Consumption 80mA @ 5VDC
Baud Rates 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Parity None, odd, even
Start and Stop Bits 1, 2
Operating Environment 0 to 60°C (32°F to 140°F), 5% to 95% RH (non-condensing); No corrosive gases, Pollution level
2; Vibration: MIL STD 810C 514.2; Shock: MIL STD 810C 516.2
Storage Temperature -20 to 70°C (-4°F to 158°F)
H2-SERIO
RCV A
RCV B
RCV C
XMT A
XMT B
XMT C
A
B
C
RS232 SERIAL PORTS
A
RS232 SERIAL POR
TS
SERIAL
PORTS
A
A
A
B
B
B
B
B
B
B
C
C
C
C
H2-SERIO(-4) RS-232 Pin
Descriptions
10V Power (-) connection (GND)
2CTS Clear to Send
3RXD Receive data (RS-232)
4TXD Transmit data (RS-232)
5RTS Request to Send
60V Signal Ground (GND)
RS-232
1
6
6 pin RJ12 Phone
Type Jack – both ports
H2-SERIO-4
RCV A
RCV B
RCV C
XMT A
XMT B
XMT C
A
B
SERIAL PORTS
A
A
SERIAL PORTS
SERIAL
PORTS
A
A
A
A
A
A
B
B
B
B
B
B
B
B
RS232
RS422/485
TXD+
TXD-
(D-) RXD-
(D+) RXD+
GND
Do-more H2 Series PLC User Manual, 1st Edition, Rev. E - H2-DM-M 7–33
Chapter 7: Specifications - Specialty Modules
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
RS-422
TXD+
TXD-
GND GND
RX+
RX-
TX-
TX+
SERIO-4
GND
RX+
RX-
TX-
TX+
Slave 1 Last Slave
User Supplied
120Ω Termination
Resistor
(H2-SERIO-4 contains an optional 120Ω
termination resistor between RX+ and RX-; use
DI
P switch S2 to activate or deactivate resistor.)
GND
RX+
RX-
TX-
TX+
Slave 2
(D-) RXD-
(D+) RXD+
Set DIP switch S2 on the H2-SERIO-4 to:
1. Activate or deactivate the internal 120Ω termination resistor.
2. Select RS-422 or RS-485 operation.
RS-485
GND
TXD+
TXD-
(D-) RXD-
(D+) RXD+
SERIO-4
GND
D+
D-
Slave 1
GND
D+
D-
Last Slave
User Supplied
120Ω Termination
Resistor
GND
D+
D-
Slave 2
(H2-SERIO-4 contains an optional 120Ω
termination resistor between RX+ and RX-; use
DIP switch S2 to activate or deactivate resistor.)
H2-SERIO-4 Wiring: RS-422/485
OFF
RS422
ON
RS485
NOTE: Set DIP Switch for
desired configuration
NO TERM 120 OHM
Do-more H2 Series PLC User Manual, 1st Edition, Rev. E - H2-DM-M
7–34
Chapter 7: Specifications - Specialty Modules
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B
C
D
F2-08SIM, Input Simulator
F2-08SIM Specifications
F2-08SIM Input Simulator
Inputs per Module 8
Base Power Required 5VDC 50mA
Terminal Type None
Status Indicator Switch side
Weight 2.65 oz. (75g)
F2-08SIM
IN SIM
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
ON
