Chip Antenna Selection Guide
User Manual:
Open the PDF directly: View PDF
.
Page Count: 1
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
Rev. 1.1 2018 Johanson Technology, Inc. All Rights Reserved
Have questions? Feel free to contact our team at: www.johansontechnology.com/ask-a-question
More information regarding our antenna
layout review and tuning services

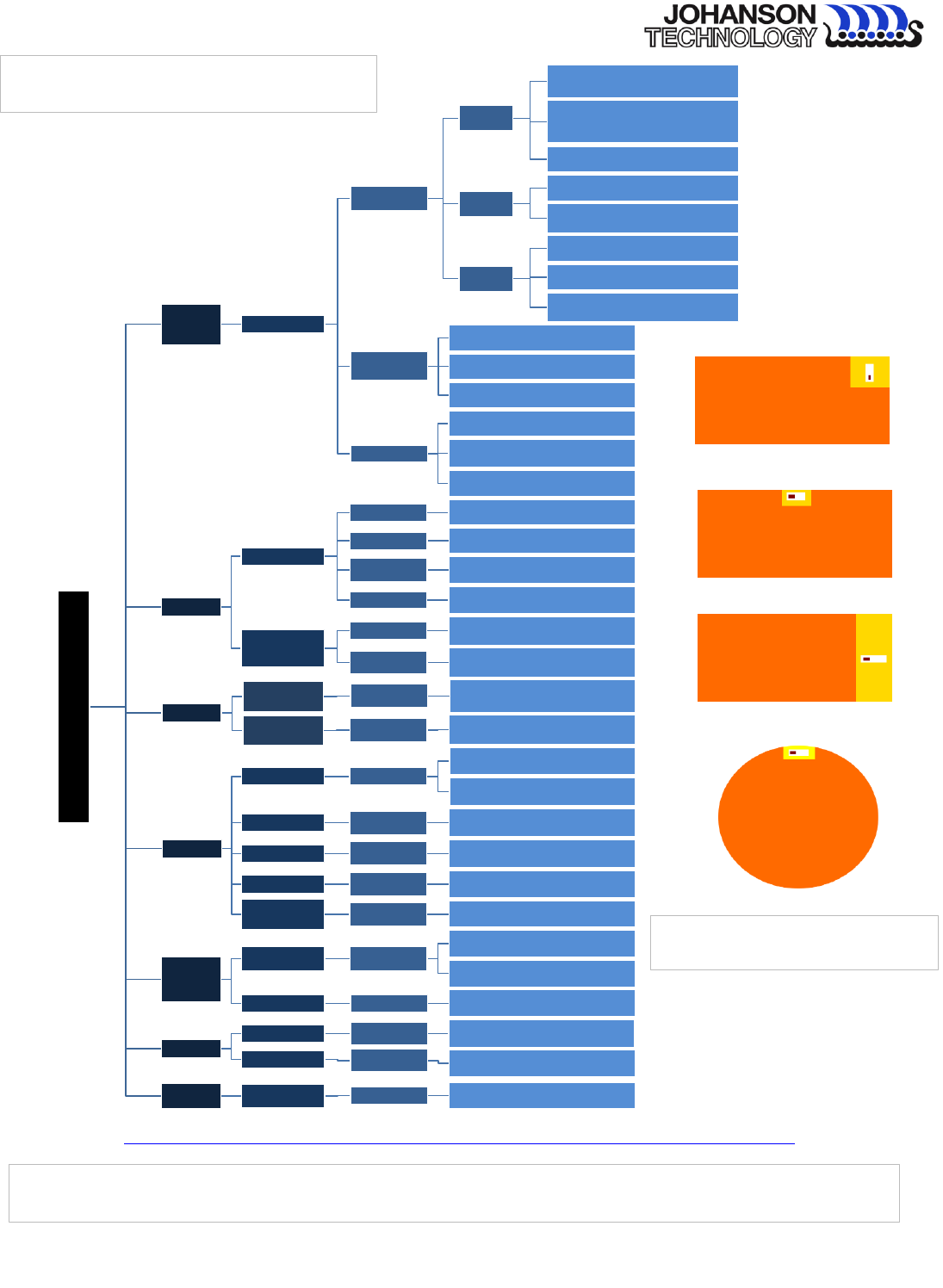

Chip Antenna Selection
Bluetooth/
Wi-Fi/Zigbee 2.4 GHz
End Mount /
Corner mount
Small
2450AT14A0100
*Ultra-low profile, smallest corner mount*
2450AT18A100
*Good for capacitively-loaded designs like over
-molded applications*
2450AT18B100
*Great small monopole antenna*
Medium
2450AT42B100
*Exceptional gain for medium size*
2450AT43B100
*Larger size, higher gain*
Large
2450AT42A100
*Great performance, large size*
2450AT43F100
*Wide Band*
2450AT45A100
*High gain, largest antenna*
Center-edge
mount
2450AT07A0100
*Low profile, resistant to capacitive de-tuning*
2450AT18D0100
*High gain, resistant to capacitive de-tuning*
2450AT42E0100
*Mounts directly above GND/metal*
Circular mount
2450AT07A0100
*High gain, resistant to capacitive de-tuning*
2450AT18D0100
*High gain, resistant to capacitive de-tuning*
2450AT42E0100
*Mounts directly above GND/metal*
Wi-Fi
5.5 GHz
Corner mount 5400AT18A1000
*Small form factor, wideband*
End mount 5400AT18A1000
*Small form factor, wideband*
Center-edge
mount
5500AT07A0900
*Miniature 5.5GHz antenna*
Circular mount 5500AT07A0900
*Miniature 5.5GHz antenna*
2.4/5.5 GHz (Dual-
band)
Corner mount 2450AD46A5400
*Large, dual-feed dual-band antenna*
Center Edge mount 2450AD14A5500
*Low profile, small form factor*
Dual-band
900 MHz /
2.4GHz End mount 0900AD47AD2450
*900MHz ISM + 2.4GHz Blutooth/WiFi Bands*
GPS / 2.4GHz Center Edge mount 2450AD47A1590
*Unique dual-band antenna for 2.4 GHz/GPS*
ISM
400 MHz End mount
0433AT62A0020
*433MHz Center frequency*
0490AT62A0040
*490MHz Center frequency*
783 MHz End mount /
Corner mount
0783AT43A0008
*Small antenna for single-band operation*
868 MHz End mount /
Corner mount
0868AT43A0020
*Small antenna for single-band operation*
915 MHz End mount /
Corner mount
0915AT43A0026
*Small antenna for single-band operation
900 MHz
(868 + 915)
End mount /
Corner mount
0900AT43A0070
*Wide band, larger keep-out area*
GPS/GLONASS
/ BDS/GALILEO
1.575 - 1.602 GHz End mount /
Corner mount
1575AT43A0040
*Medium size*
1575AT54A0010
*Larger keep-out area, higher gain, wider BW*
1.227 GHz End mount 1227AT45A0042
*Optimized for GPS L2 band*
WiMAX
2.5 GHz End mount /
Corner mount
2500AT44M0400
*Wide band*
2.6 GHz End mount /
Corner mount
2600AT44A0600
*Wide band*
Ultra-wide
Band 3.1 - 10.3 GHz Corner mount 3100AT51A7200
*UWB antenna*
PCB Corner Mounting
PCB Center-edge Mounting
PCB End Mounting
Circular PCB Mounting
Johanson Technology, Inc. reserves the right to make design changes without notice. Please confirm the specifications and del ive
ry conditions when
placing your order. All sales are subject to Johanson Technology, Inc. terms and conditions.
Chip Antenna Selection Guide
General Chip Antenna Mounting
and Tuning Guidelines
