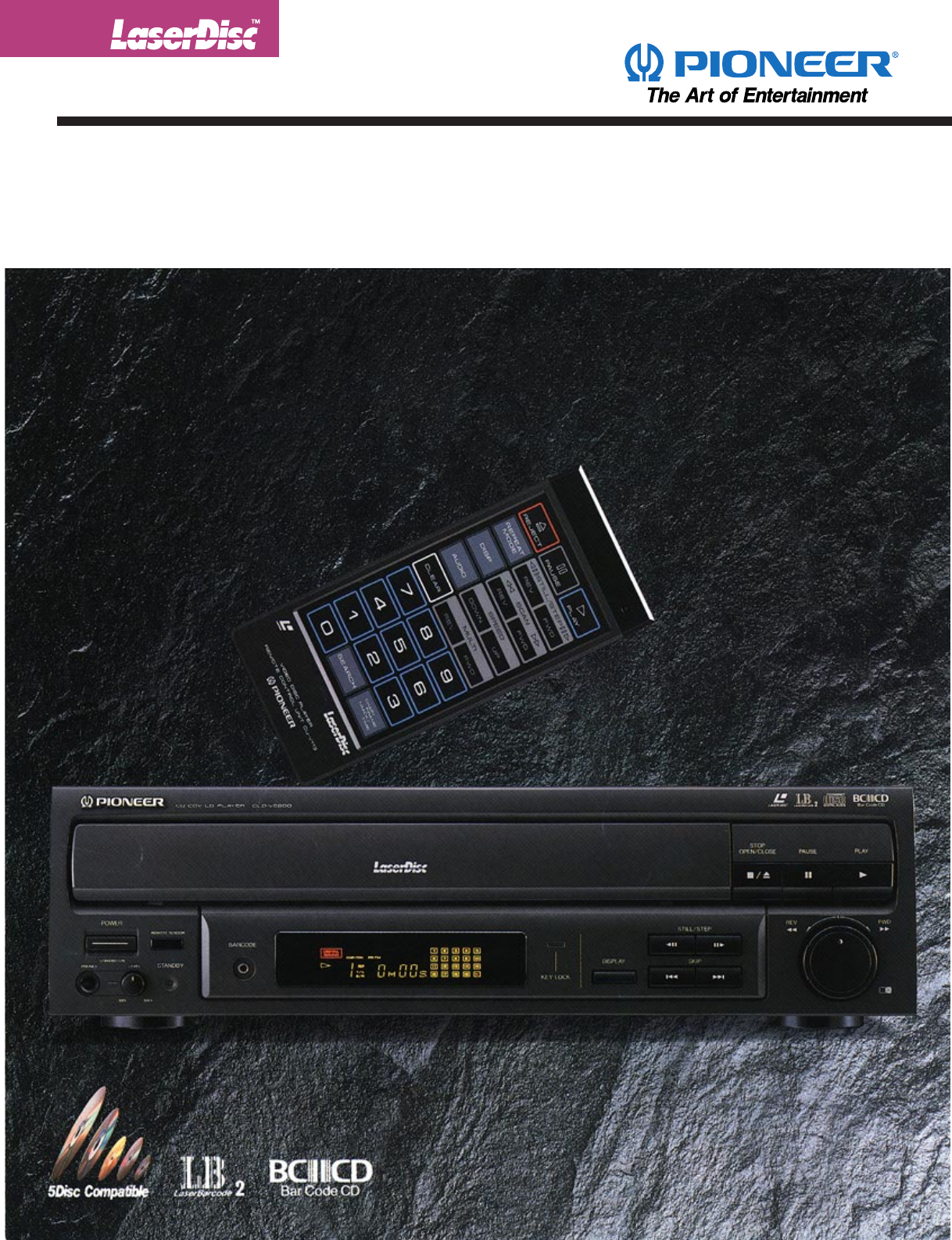

INDUSTRIAL LASERDISCTM PLAYER
CLD-V2600
Introducing the CLD-V2600 the
professional multi-disc player for
instructional and communications use
The CLD-V2600 is the latest innovative
LaserDisc player from Pioneer. It is de-
signed especially for use in demanding
professional fields where videobased in-
struction and communications are rapidly
growing. Offering functional versatility,
easy operation and long-term durability, the
CLD-2600 plays laser discs, audio CDs and
CDV discs. It can be operated by remote
control, barcode or computer-or with the
extensive controls right on the front panel.
To meet the needs of applications in areas
as diverse as education, training, merchan-
dising and public access information, this
popularly-priced model is packed with a
host of new features such as a 2-speed
shuttle dial control, an S-video terminal, a
front panel display and a headphone jack
with volume control.
RS-232C Interface for Computer Control
The RS-232C Interface allows the CLD-V2600 to be connected
to virtually any computer including IBM, Macintosh, Apple II
or Amiga brands. In addition, the CLD-V2600 responds to the
same standard command protocol as that used for Pioneer
LaserDisc player models CLD-V2400, LD-V2200 and LD-
V4400, so programs developed for these models can be used
with little or no modification. This protocol for Pioneer play-
ers is supported by dozens of multimedia authoring systems.
The LaserBarcode System makes Learning and
Presentations a Pleasure
The CLD-V2600’s LaserBarcode system conforms fully with
the latest industry standards, and provides an easy way of re-
motely operating the LaserDisc player. Use an optional
LaserBarcode reader to scan any barcode, and the CLD-V2600
will execute the playback commands encoded in that barcode.
In the classroom, courtroom or boardroom, anyone can make
use of the barcodes incorporated into thousands of instructional
and presentation support materials. In addition, barcode cre-
ation computer software, such as Bar’n’CoderTM , enables you
to generate your own barcodes in order to integrate existing
resource materials with videodisc-based presentations.
CD Audio Playback
The CLD-V2600 provides unrivalled convenience in playing
audio CDs. The Bar Code CDTM system gives teachers access
to any point on the CD for instant playback of any desired music
or language selection, as well as permitting computer-controlled
playback. Entirely new applications of interactive audio can be
prepared in this way. With Bar Code CD or with computer
control, the CLD-V2600 can play audio segments of a fraction
of second-small enough to pinpoint a word, a syllable or a mu-
sical note.
Capable of Playing Five Kinds of Discs
In addition to playing both 12” and 8” laser discs, the CLD-
V2600 is capable of playing standard 5” CD audio discs and 3”
CD singles. It will also play 5” CDV format discs.
Superb Video and Audio Quality
The LaserDisc optical system with its non-contact laser pickup
ensures excellent video clarity with no deterioration over time.
On the audio front , the CLD-V2600’s 95 dB Signal-to-Noise
ratio provides digital sound output that matches the performance
of popular CD players. For additional audio flexibility, this model
can reproduce four audio channels (two digital or two analog),
permitting multiple language applications. The CLD-V2600
also provides three video outputs: S-video, composite video and
RF modulated video for ease of connection with your chosen
video monitor.
Auto Start and Auto Repeat
If a disc is loaded and the player is in the Power On mode , play
begins automatically when the main power is switched on. The
player can also be set to repeat continuously until you stop play
back manually, by remote control or with the main power switch.
This makes the CLD-V2600 ideal for applications in exhibi-
tions or retail displays, as play begins and ends automatically
when the room’s power is turned on and off.
Shuttle Dial Simplifies Disc Playback Control
In addition to extensive front panel push-button controls for
Play, Pause, Skip forward/reverse and Step forward/reverse, the
CLD-V2600 also incorporates a shuttle dial that provides flex-
ible control over the player’s scanning speed. The unique dual
speed shuttle control permits scanning at 9X or 32X speeds (for-
ward or reverse) for CAV Discs, and scanning with Clear Scan
or without Clear Scan for CLV Discs.
Large Size Remote Control
The CLD-V2600 is equipped with a large-buttoned remote
control which was designed for easy and convenient control by
educators and presenters alike.
Text Display for Titles, Instructions and Comments
This features allows you to display up to 12 lines by 20 charac-
ters of text superimposed over any image in the form of English
characters and symbols in either upper or lower case.

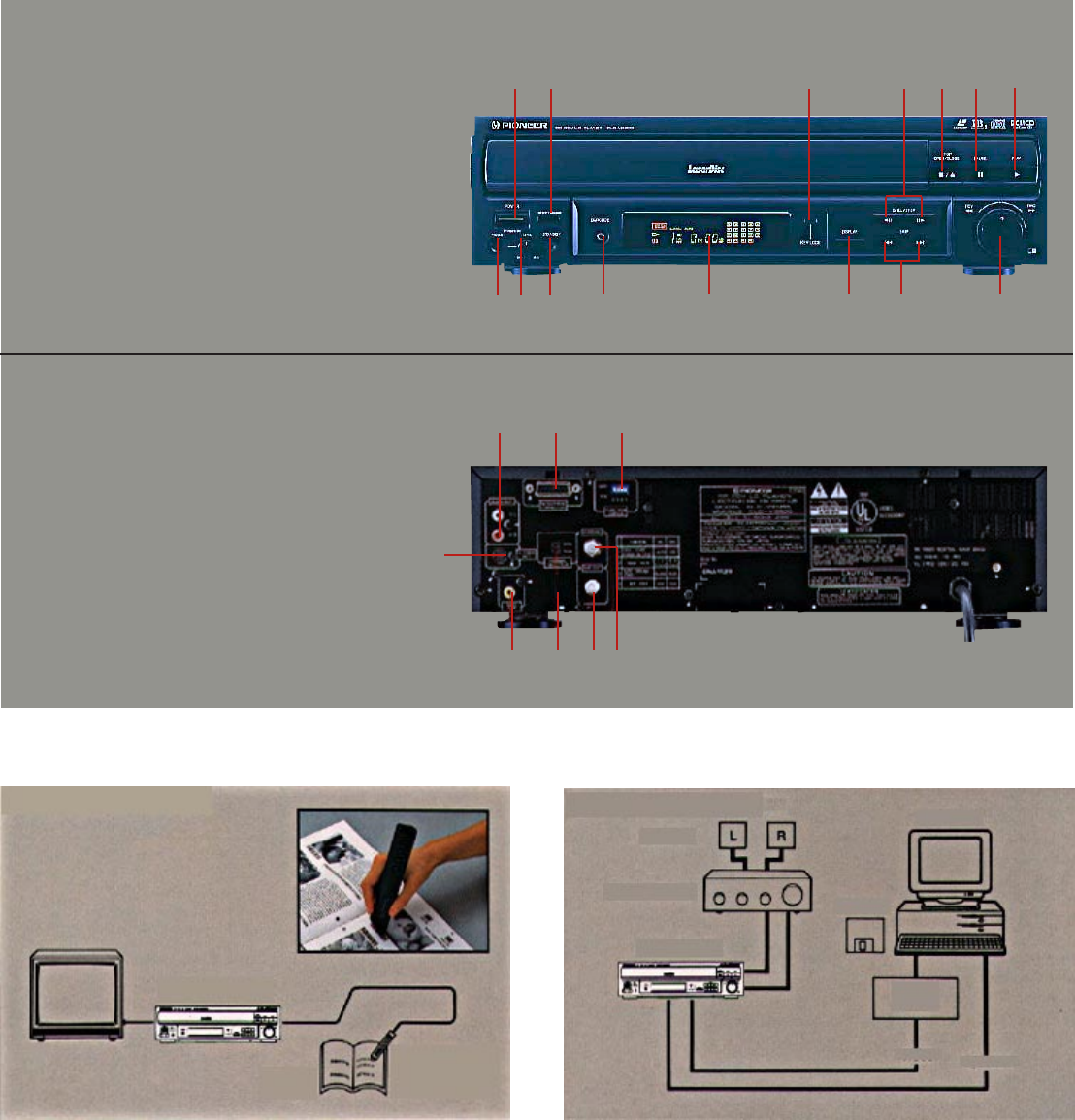

Front Panel
Rear Panel
1 Power Switch
2 Headphone Jack
3 Headphone Volume Control
4 Remote Sensor Window
5 Standby Indicator
6 LaserBarcode Jack
7 Status Display
8 Key Lock Indicator
9 Display Key
10 Step FWD/REV Keys
11 Skip FWD/REV Keys
12 Shuttle Dial
13 Stop, Open/Close Key
14 Pause Key
15 Play Key
1 Function Switches (1: Start
Mode, 2: Baud Rate, 3: Blue/Black
Background Select, 4: Not Used)
2 RS-232C Serial Port (D-Sub 15-pin)
3 Left and Right Audio Out Terminals (RCA pin)
4 S-Video Out (Y/C separation) Terminal
5 Video Out (RCA pin) Terminal
6 RF Output Channel Selector Switch
7 VHF Out Terminal
8 Antenna Terminal
Reinforced Chassis for High Durability
The CLD-V2600’s frame is strong enough to easily support
the weight of a 13”TV. This model employs a specially designed
reinforced chassis to ensure extra durability and reliability. In
addition, a three-prong, grounded power cord is utilized for
maximum safety.
Built-In RF Modulator
Pioneer has included a built-in RF modulator to allow the CLD-
V2600 to be connected to any TV set or video monitor.
Headphone Jack with Volume Control
Featuring a handy volume control, this headphone jack is ideal
for library or media center use, individual lessons and other
situations where private listening is desired.
Front Panel Display
The CLD-V2600 is equipped with a bright fluoro-luminescent
display which provides an easily viewed indication of the player’s
current status.
14 8 10 13 14 15
235 6 7 9 11 12
32 1
4
5 6 7 8
TV
CLD-V2600
The LaserBarcode System
The printed material
Barcode Reader
(UC-V108BC or 109BC,
wireless also available)
Speakers
CLD-V2600
Standard MultiMedia System
Audio Amplifier
Computer
Program
Video
Board
RS-232C
Video

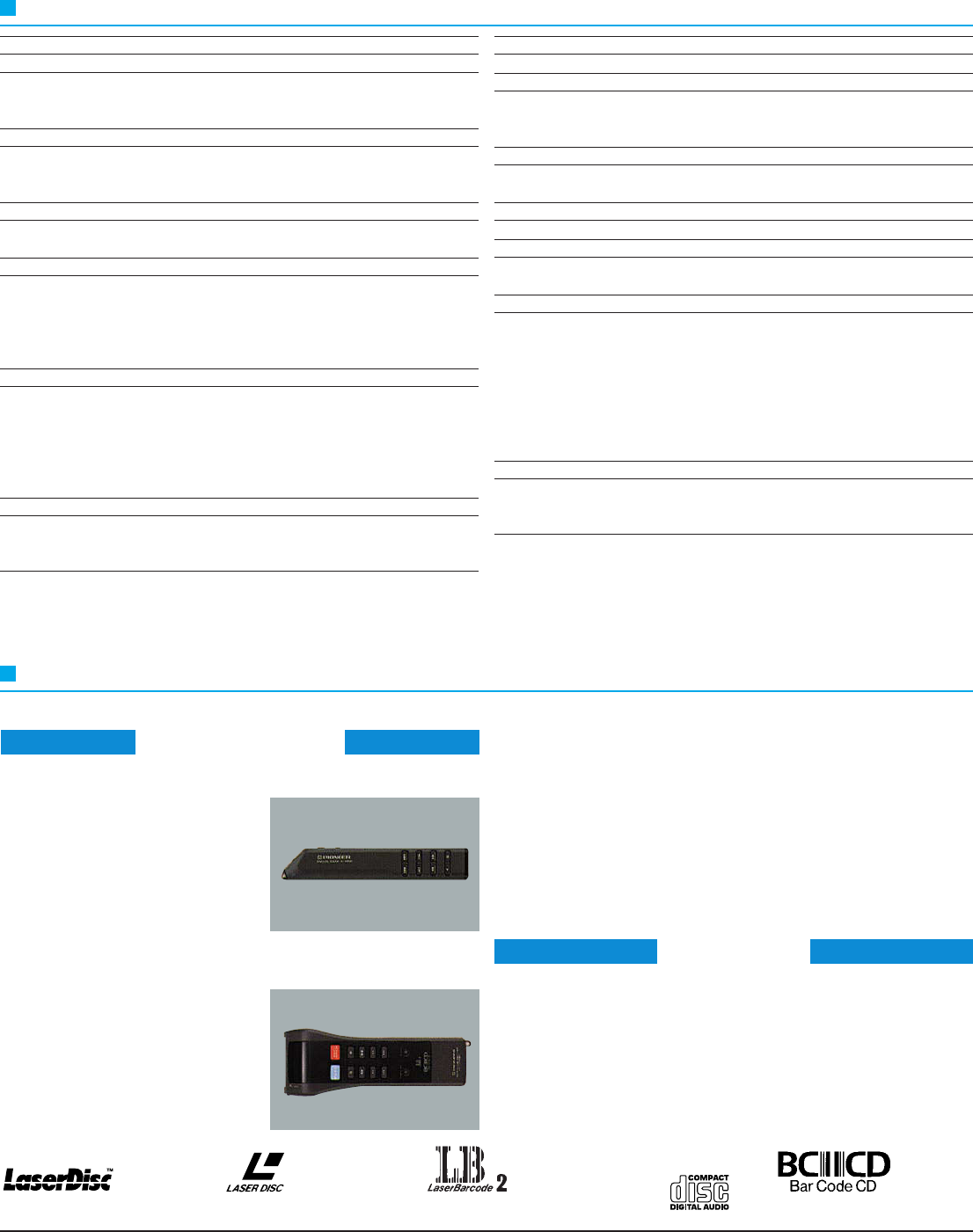

CLD-V2600 Specifications
LaserBarcode Readers
UC-V109BC
This slim, pen-type model features a
built-in remote control function to enable
wired or wireless LaserBarcode or Bar
Code CD operation. Direct player opera-
tion is also possible with function buttons
that support eight popular player
commands.
UC-V108BC
Designed for easy, one-step scanning, this
model comes with built-in remote control
to allow wired or wireless operation and
is both LaserBarcode and Bar Code CD
compatible. Direct player operation is
also possible with function buttons that
support ten popular player commands.
Bar ‘n’ Coder
This software package supports Macintosh-based barcode printing.
LaserDisc Controller
MS-DOS-based barcode printing software.
BarKoder for Windows
Windows 3.1-based barcode printing software.
Interface Cables
CC-03 CC-12
DB-15 male to DB-25 male DB-15 male to DB-25 female.
For Apple II Super serial Card. For IBM PS/2 25-pin connector.
CC-04 CC-13
DB-15 male to circular 8 pin. DB-15 male to DB-9 female.
For Macintosh and Apple II GS. For IBM PC/AT style 9-pin connector.
Options
General
Mechanism
Pick up Laser Diode (780 nano-meter)
Spindle Motor Blushless type
Loading Mechanism Full Automatic
Power Requirement
Primary Power 120 V ± 10% 50/60Hz
Power Consumption
Less than 43 Watts (Typical)
Less than 95 Watts (Max.)
Others 3 Prong Plug
Applied Safety Regulations
Safety UL & CSA UL-1409, CSA 22.2 No 1
Radiation FCC
Environment
Operating Temperature 5°C ~ 35°C
Operating Humidity Less than 85% No Moisture Condensation
Dimension (W x H x D)
16-9/16
x
4-13/15
x
15-9/16inches
Excluding buttons
(420 x 122 x 395 mm)
Weight 17.0 lbs. (7.7 kg)
Playable Discs
Signal Type Laser Disc NTSC
CD (Including CDV)
Size, Type 3/5 inches (CD)
5 inches (CDV)
8/12 inches (LD)
Material Acrylic, Policarbonate
Video Signal
Output Level 1 Volt p-p ± 10% 75
terminated
Signal to Noise ratio 50dB Un-weighted (EIAJ)
Horizontal Resolution 425 lines
Audio
Output Connector RCA pin jack (one pair) Auto Digital
Digital Audio (LD and CD)
Output Level 200mVolts ± 15% 1kHz at –20dB
Signal to Noise Ratio Better than 95dB
Frequency Response 4 ~ 20kHz ± 0.5dB
Analog Audio (LD only)
Output Level 200mVolts ± 15% 1kHz at 40% modulation
Frequency Response 20 ~ 20kHz ± 2dB
Operating Time
Stop Time Less than 5 sec.
Search Time
1 ~ 54,000 (Frame) 4.2 sec. (Average)
5 ~ 55 Min. (Time) 11 sec. (Average)
Functions
Loading Fully Automatic Tray
User's Display 20 characters x 12 lines
RCU Wired/Wireless SR Type
LaserBarcode Mode 2 Control Built in
Bar Code CD
RS-232C Serial I/F D-sub 15pin (LD & CD) 4.8K/1.2K
Commands Protocol Same as LD-V2200 With Additional Commands
Function Switch Dip Switch
Player Accessories
1. Operating Instructions 4. Remote Control (Large Size)
2. Video Cable 5. RF Antenna Cable
3. Audio Cable (Stereo)
Note: 1. Design and specifications are subject to modification without notice.
2. Apple II and Macintosh are trademarks of Apple Computer, Inc.
3. IBM is a trademark of IBM Corporation.
4. CX is a trademark of CBS, Inc.
5. Amiga is a trademark of Commodore Business Machines, Inc.
6. MS-DOS and Windows are trademarks of Microsoft Corporation.
7. Bar ‘n’ Coder is a trademark of Pioneer New Media Technologies, Inc.
8. Bar Code CD is a trademark of Sony Corporation.
LaserDisc is a trademark of
Pioneer Electronic Corporation. This mark is the world-wide
Laserdisc mark.
This mark expresses compatibility
with the LaserBarcode systems. This mark expresses compatibility
with Bar Code CD systems.
