Industrial Vacuum Cleaner
Quick Change to a Cleaner by just setting onto a pail !
Compressed Air Use
BLOVAC Co,.Ltd.
High Vacuum Type
Standard Type
Large Capacity Type
Silencer Type (with silencer)
Economical Type
Standard Accessories
● Suction Hose（of Oil-resistance）φ 32 × 2m
● Suction Nozzle（of Aluminium）φ 32 × 30cm
By just setting onto a pail, BLOVAC CLEANER powerfully collects the unnecessary things that come out at the various work
spots such as the factory and the gas station etc. It can be used for water, oil, cutting chips, pellets, dust and sludge etc.
regardless dry or wet. And, since there is no rotation part inside, there is no fear of troubles that are caused by wear etc.
◎ Quick Change to a Cleaner by just setting onto a pail（
O.D. 300mm
）.
◎ Easy to carry thanks to compact design.
◎ No Oil Mist generated.
◎ Maintenance-Free and No Trouble by wear
etc.
◎ Safe even in the fire-strict-prohibition area.
It is possible to suck a large quantity of
cutting chips, wooden waste, pellets, dust
etc.
Note : It is recommended to use an air
compressor of more than 10HP.
The air exhaust sound is lowered 15dB than
the standard type.
Note : The silencer cannot be equipped with
the large capacity type.
This is exclusively for the liquid,
Vacuum Degree：7000mmH2O at 5kg/cm2
Note : Use a reinforced can.
Industrial Vacuum Cleaner using compressed air
High Vacuum Type

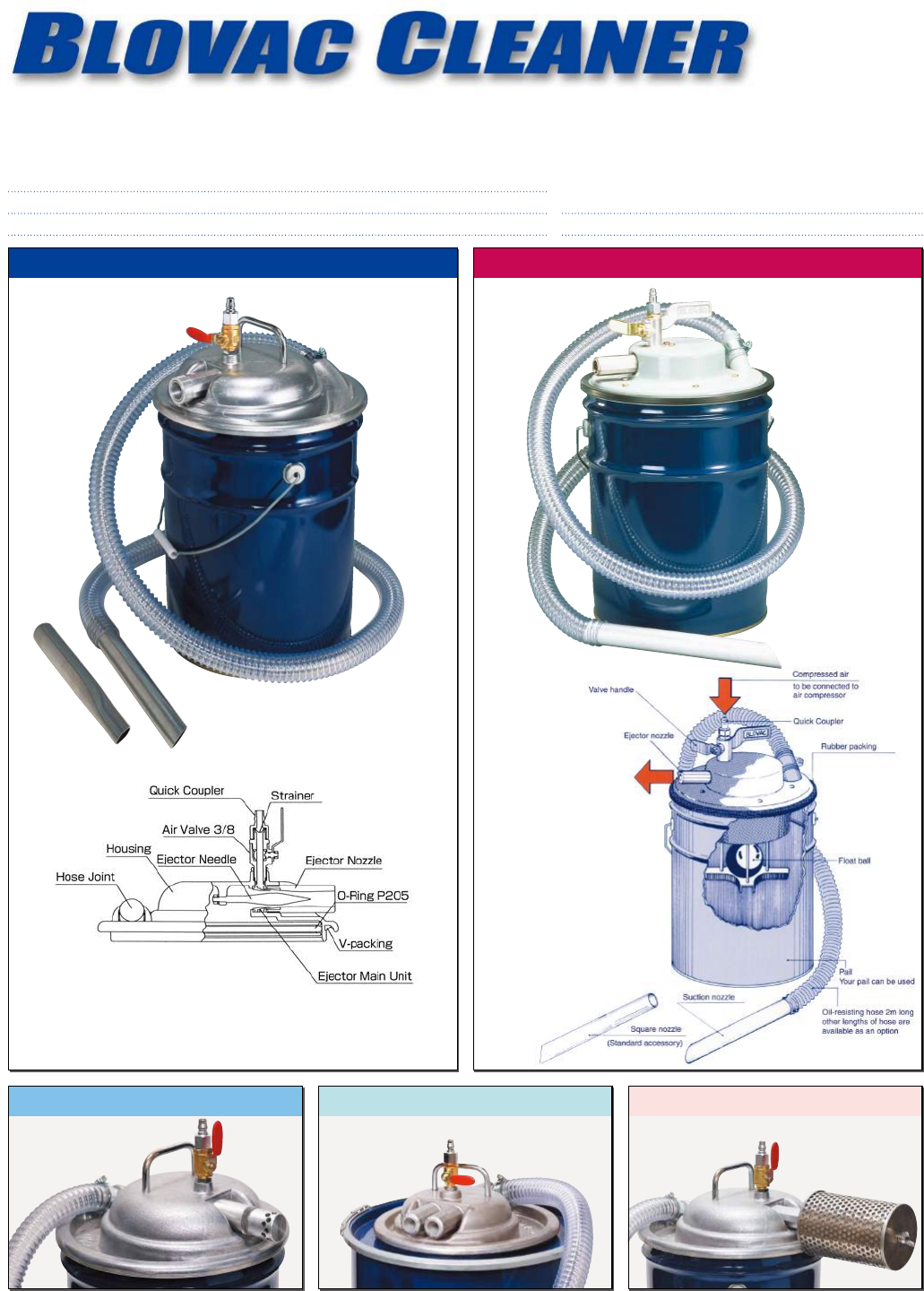

Standard Type（A pail is not included.）
Large Capacity Type Silencer Type (with silencer)
Square Nozzle Round Nozzle
Economical Type（A pail is not included.）
Standard Accessories
● Suction Hose
（of Oil-resistance）
φ 32 × 2m
● Suction Nozzle
（of Aluminium）
φ 32 × 30m
● Oil Stopper
Model V500EXModel V300 / V500
Model V300H / V500H Model V530W / V550W Model VS300 / VS500
＜ Main Unit ＞
Aluminum Alloy Casting
＜ Main Unit ＞
Deep Drawing Steel Plate
(SPCE)

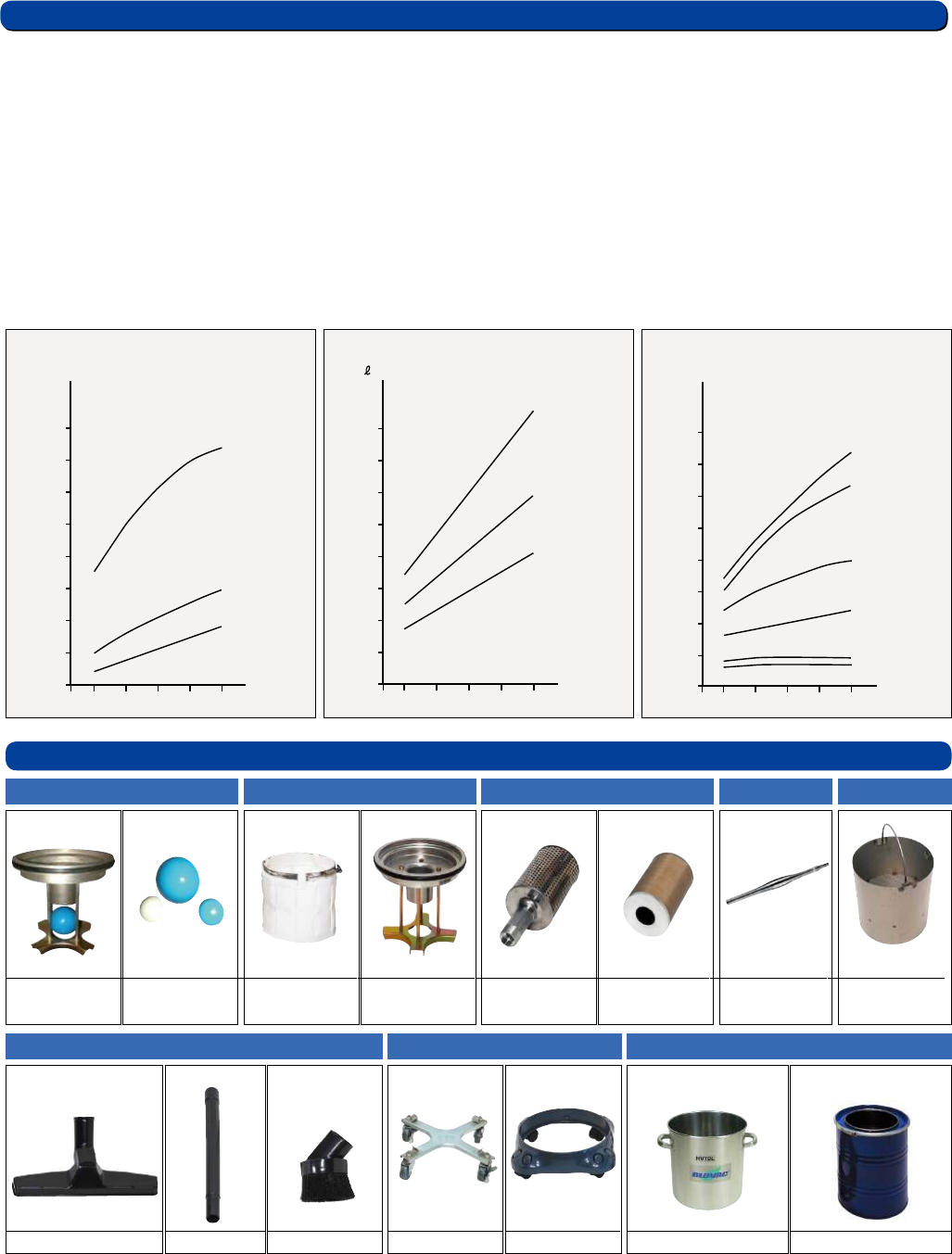

8,000
0
1,000
2,000
3,000
04,000
5,000
6,000
7,000
H2O/mm
V300H, V500H
kg/cm2
02 3 4 5 6
V300, V500, V500EX
V530W, V550W
0
100
200
300
400
500
600
700
800
/min
kg/cm2
02 3 4 5 6
V530W, V550W
V500, V500H, V500EX
V300, V300H
0
m3/min
kg/cm2
02 3 4 5 6
V500
, V500EX
V300
V500H
1.0
2.0
3.0
4.0
V550W
V530W
V300H
● Oil Exchange of various machines and Collection of Sludge.
● Collection of Cutting Chips etc. at machining factories.
● Collection of Sand and Cutting Chips at foundries.
● Collection of Pellets at injection forming works.
● Collection of Oil and Sewage staying in the manhole and the drain.
● Collection of Punching Chips and Exchange of Hydraulic Oil of press machines.
● Collection of Sludge in car washing machine and Cleaning of car inside at gas stations.
● Collection of Sand and Steel Balls of shot blasting machines.
● Collection of Unnecessary Things that come out at various work spots.
■ Specifications
Applications
Special Accessories
Oil Stopper
Main Unit Float ball
①
②
③
Filter Set Mounting Metals
Filter
Mounting Metals
Silencer
Main Unit Spare Element
Needle ＊ 1) P Frame
＊ 2)
T-type Nozzle Set ＊ 3)
T type Nozzle
（Large）
＜ Option ＞
Round Brush
Pail Can Caster ＊ 4)
Steel-made
with stopper
Resin-made
Exclusive Can ＊ 5)
Stainless Steel-
Reinforced Can（19 ℓ）
50 ℓ Drum
(with top cover)
*1) Needle S：Degree of Vacuum is raised approx. 50%
*2) P Frame：Reinforcement of pail and Separation of cutting chips and oil.
*3) T-type Nozzle：Cutting chips, fine dust etc. scattered on the floor are efficiently sucked in.
*4) Pail Can Caster：Movement of the pail is easily done.
*5) Exclusive Can：50L Drum (with top cover) /use for collection of large quantities of liquids and cutting chips etc.
19L Reinforced Stainless Steel Can / use with the high vacuum type.
Extension Pipe
Vacuum Degree Air Consumption Volume Air Suction Volume
Code No.
OS500（Standard）
OS500W（W Type）
for V500 for V500 for V500
Code No.
PK20S
Code No.
PK20R
Code No.
HV19L
Code No.
50LD
Code No.
① FB70（Standard）
② FB130（W Type）
③ FB70P
Code No.
F20（Standard）
F20W（W Type）
Code No.
KS20（Standard）
KS20W（W Type）
Code No.
S30N（for V300）
S50N（for V500）
Code No.
50F
Code No.
P20for V300
for V500
Air Consumption Amount
350ℓ /min
500ℓ /min
500ℓ /min
750ℓ /min
750ℓ /min
350ℓ /min
500ℓ /min
350ℓ /min
500ℓ /min
350ℓ /min
500ℓ /min
with filter
V300-F
V500-F
V500EX-F
V530W-F
V550W-F
—
—
VS300-F
VS500-F
—
—
031417.N.000
Standard Type
Large Capacity
Type
High Vacuum
Type
Economical Type
V500EX
Standard Type
High Vacuum
Type
Standard
V300
V500
V530W
V550W
V300H
V500H
VS300
VS500
VS300H
VS500H
Model
with oil stopper
V300-OS
V500-OS
V530W-OS
V550W-OS
V300H-OS
V500H-OS
VS300-OS
VS500-OS
VS300H-OS
VS500H-OS
Oil-proof Hose
φ 25 × 2m
φ 32 × 2m
φ 32 × 2m
φ 38 × 2m
φ 50 × 2.5m
φ 25 × 2m
φ 32 × 2m
φ 25 × 2m
φ 32 × 2m
φ 25 × 2m
φ 32 × 2m
Specifications at.5kg/cm2
Aluminium nozzle
φ 25×30cm
φ 32×30cm
φ 32×30cm
φ 38×30cm
φ 50×50cm
φ 25×30cm
φ 32×30cm
φ 25×30cm
φ 32×30cm
φ 25×30cm
φ 32×30cm
Vacuum Degree
2,600mm/H2O
2,600mm/H2O
2,600mm/H2O
1,500mm/H2O
1,500mm/H2O
7,000mm/H2O
7,000mm/H2O
2,600mm/H2O
2,600mm/H2O
7,000mm/H2O
7,000mm/H2O
Air Suction Amount
1.1m3/min
1.8m3/min
1.7m3/min
2.9m3/min
3.3m3/min
0.4m3/min
0.5m3/min
1.0m3/min
1.5m3/min
0.2m3/min
0.3m3/min
（1）Prepare a container(pail) of thicker wall with no bruise and also with the even rim which has not been deformed.
（2）The capacity of air compressor required is 3HP for V300/V300H, 5HP for V500/V500H and more than 10HP for
V530W/V550W.
（3）The air pressure to be supplied must be below 7kg/cm2.
（4）The temperature of the thing to be sucked must be below 60℃ .
（5）V300H/V500H are only for the liquid. Be sure to use an exclusive can (HS19L) or a can of thick wall according
to the exclusive can.
（6）If the hose is stuffed up or damaged, it causes functional fall. Check it regularly.
（7）If the strainer in the coupler is blocked, functional fall will occur. Sometimes wash it with the soap water etc.
(Do not take the strainer out of the coupler)
■ Caution/Maintenance
■ Model and Type
