- Manual
- Preface
- Chapter 1: Introduction
- Overview
- Specifications
- External Locator - Front View with LCD Panel Open
- External Locator - Front and Rear View
- External Locator - Left & Right Side View
- External Locator - Bottom View

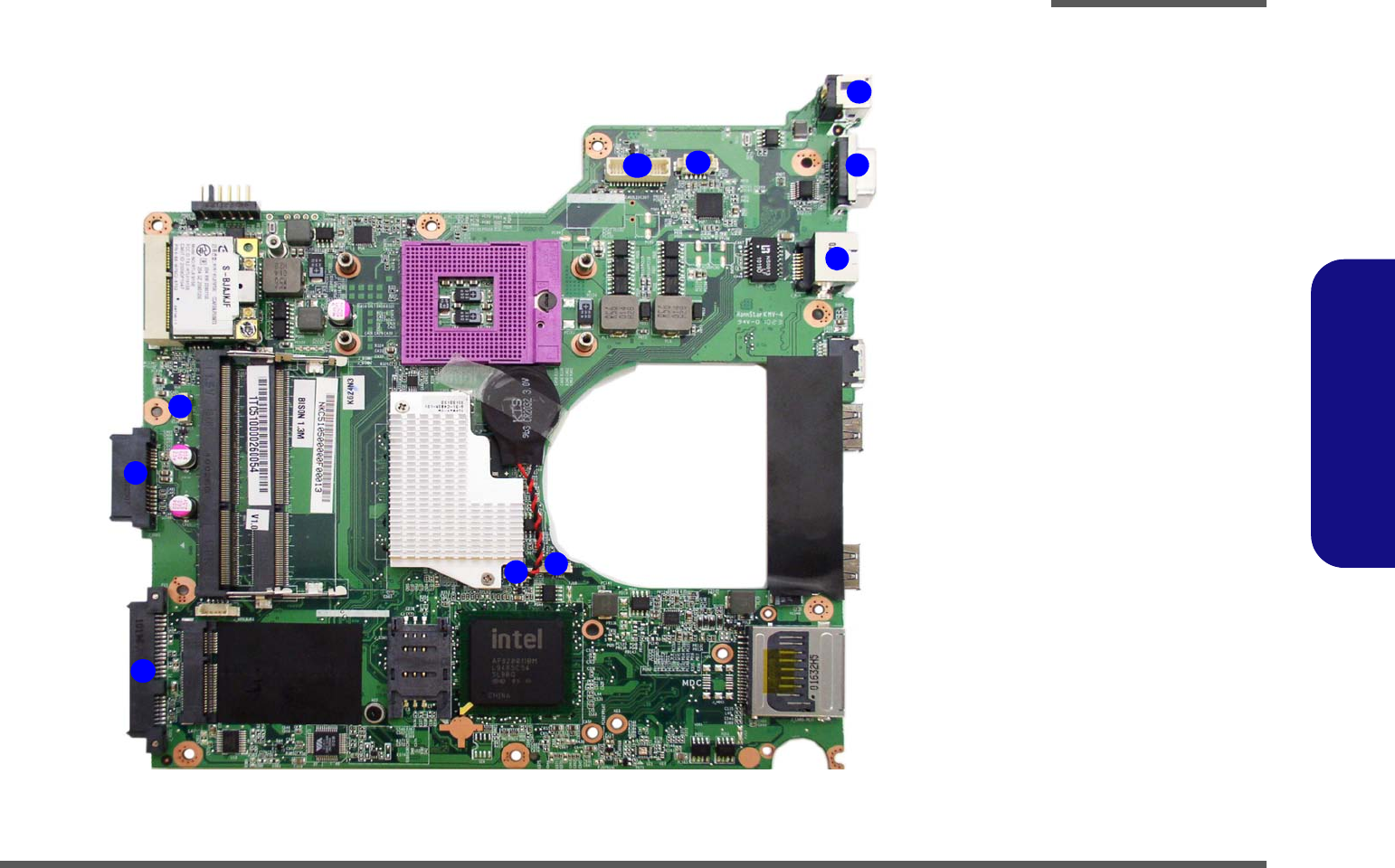

- Mainboard Overview - Top (Key Parts)

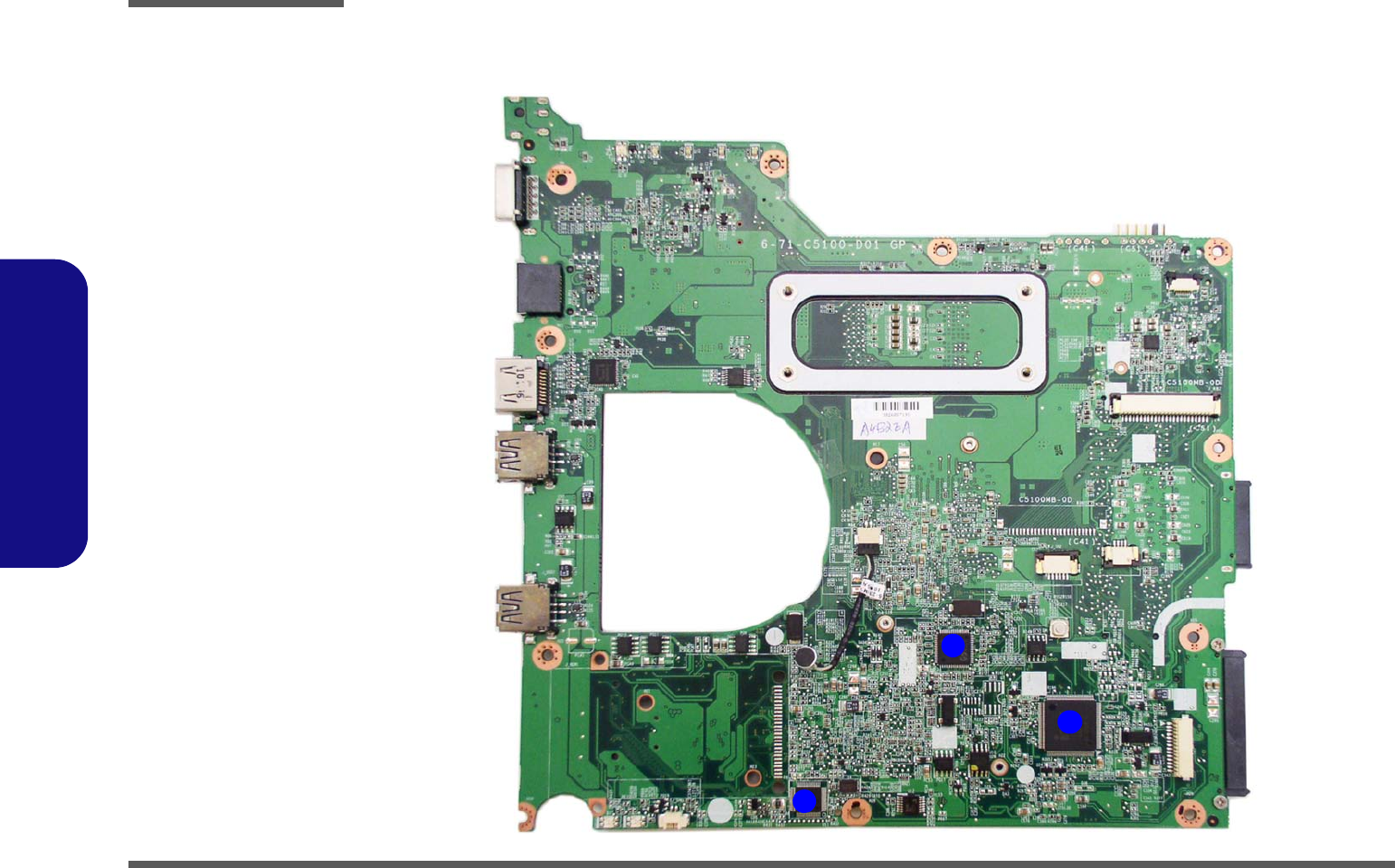

- Mainboard Overview - Bottom (Key Parts)
- Mainboard Overview - Top (Connectors)
- Mainboard Overview - Bottom (Connectors)
- Chapter 2: Disassembly
- Overview
- Disassembly Steps
- Removing the Battery
- Removing the Hard Disk Drive
- Removing the Optical (CD/DVD) Device
- Removing the System Memory (RAM)
- Removing and Installing a Processor
- Removing the 3G Module
- Removing the Wireless LAN Module
- Removing the Bluetooth Module
- Removing the Keyboard
- Appendix A: Part Lists
- Appendix A: Part Lists
- Appendix B: Schematic Diagrams

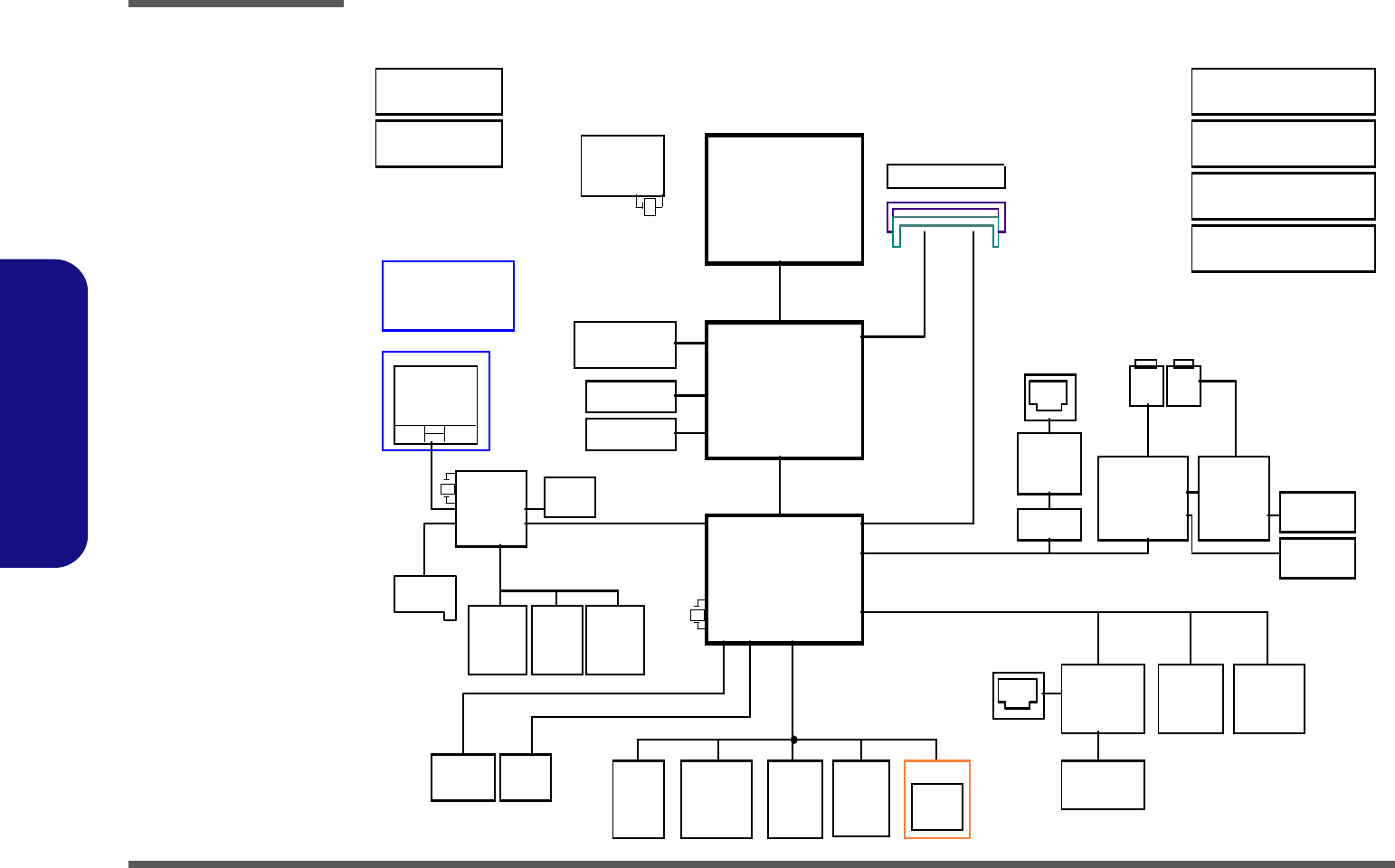

- System Block Diagram
- Clock Generator
- Penryn (Socket-P)1/2
- Penryn (Socket-P)2/2
- CANTIGA 1/7, HOST
- CANTIGA 2/7, Graphics
- CANTIGA 3/7
- CANTIGA 4/7
- CANTIGA 5/7
- CANTIGA 6/7
- CANTIGA 7/7
- DDRIII SO-DIMM A
- DDRIII SO-DIMM B
- Panel, CRT
- Inverter, Bluetooth, Fan
- ICH9M 1/4, SATA
- ICH9M 2/4, PCI, USB
- ICH9M 3/4
- ICH9M 4/4
- HDMI
- KBC-ITE IT8502E
- Card Reader/LAN JMB261C
- Audio Codec VT1812
- Audio AMP
- HDD, ODD, MDC, TP, Conn, 3G
- New Card, USB, Mini PCIE
- LED, CCD, Audio Conn
- System Power, PWR SW
- AC_In, Charger
- VCORE
- VDD3, VDD5
- 1.8V/1.05VS
- 1.5V,0.75VS
- Click Board
- Audio Board/USB
- Power Switch & Lid Board
- External Odd Board
- Power Sequence V1.0
- Appendix C: Updating the FLASH ROM BIOS
C5100Q/C5100Q-C/C5105/C5105-C
Preface
I
Preface
Notebook Computer
C5100Q/C5100Q-C/C5105/C5105-C
Service Manual
Preface
II
Preface
Notice
The company reserves the right to revise this publication or to change its contents without notice. Information contained
herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven-
dor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are
they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.
This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or
reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publica-
tion, except for copies kept by the user for backup purposes.
Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of
their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement
of that product or its manufacturer.
Version 3.0
November 2010
Trademarks
Intel, Intel Core, Intel Pentium and Intel Celeron are trademarks/registered trademarks of Intel Corporation.
Other brand and product names are trademarks and./or registered trademarks of their respective companies.
Preface
III
Preface
About this Manual
This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and
inspection of personal computers.
It is organized to allow you to look up basic information for servicing and/or upgrading components of the C5100Q/
C5100Q-C/C5105/C5105-C series notebook PC.
The following information is included:
Chapter 1, Introduction, provides general information about the location of system elements and their specifications.
Chapter 2, Disassembly, provides step-by-step instructions for disassembling parts and subsystems and how to upgrade
elements of the system.
Appendix A, Part Lists
Appendix B, Schematic Diagrams
Appendix C, Updating the FLASH ROM BIOS
Preface
IV
Preface
IMPORTANT SAFETY INSTRUCTIONS
Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock and injury to per-
sons when using any electrical equipment:
1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet
basement or near a swimming pool.
2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of elec-
trical shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity of the leak.
4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may
explode. Check with local codes for possible special disposal instructions.
5. This product is intended to be supplied by a Listed Power Unit (Full Range AC/DC Adapter - AC Input 100 - 240V,
50 - 60Hz/ DC Output 19V, 3.42A or 18.5V, 3.5A 65W minimum).
This Computer’s Optical Device is a Laser Class I Product
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired operation.
Preface
V
Preface
Instructions for Care and Operation
The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:
1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.
2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This
is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.
3. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save
your work. Remember to periodically save your data as data may be lost if the battery is depleted.
Do not expose the computer
to any shock or vibration. Do not place it on an unstable
surface. Do not place anything heavy
on the computer.
Do not expose it to excessive
heat or direct sunlight. Do not leave it in a place
where foreign matter or mois-
ture may affect the system.
Don’t use or store the com-
puter in a humid environment. Do not place the computer on
any surface which will block
the vents.
Do not turn off the power
until you properly shut down
all programs.
Do not turn off any peripheral
devices when the computer is
on.
Do not disassemble the com-
puter by yourself. Perform routine maintenance
on your computer.
Preface
VI
Preface
4. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag-
netic fields. These can hinder proper performance and damage your data.
5. Take care when using peripheral devices.
Power Safety
The computer has specific power requirements:
• Only use a power adapter approved for use with this computer.
• Your AC adapter may be designed for international travel but it still requires a steady, uninterrupted power supply. If you are
unsure of your local power specifications, consult your service representative or local power company.
• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety feature; do
not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.
• When you want to unplug the power cord, be sure to disconnect it by the plug head, not by its wire.
• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.
• Before cleaning the computer, make sure it is disconnected from any external power supplies (i.e. AC/DC adapter or car
adapter).
Use only approved brands of
peripherals. Unplug the power cord before
attaching peripheral devices.
Do not plug in the power
cord if you are wet. Do not use the power cord if
it is broken. Do not place heavy objects
on the power cord.
Power Safety
Warning
Before you undertake
any upgrade proce-
dures, make sure that
you have turned off the
power, and discon-
nected all peripherals
and cables (including
telephone lines). It is
advisable to also re-
move your battery in
order to prevent acci-
dentally turning the
machine on.
Preface
VII
Preface
Battery Precautions
• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.
• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the
computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.
• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.
• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service
personnel.
• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries may explode
or leak if exposed to fire, or improperly handled or discarded.
• Keep the battery away from metal appliances.
• Affix tape to the battery contacts before disposing of the battery.
• Do not touch the battery contacts with your hands or metal objects.
Battery Guidelines
The following can also apply to any backup batteries you may have.
• If you do not use the battery for an extended period, then remove the battery from the computer for storage.
• Before removing the battery for storage charge it to 60% - 70%.
• Check stored batteries at least every 3 months and charge them to 60% - 70%.
Battery Disposal
The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under var-
ious state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste
officials for details in your area for recycling options or proper disposal.
Caution
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.
Discard used battery according to the manufacturer’s instructions.
Battery Level
Click the battery icon in the taskbar to see the current battery level and charge status. A battery that drops below a level of 10%
will not allow the computer to boot up. Make sure that any battery that drops below 10% is recharged within one week.
Preface
VIII
Preface
Related Documents
You may also need to consult the following manual for additional information:
User’s Manual on CD/DVD
This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro-
gram. It also describes the installation and operation of the utility programs provided with the notebook PC.
System Startup
1. Remove all packing materials.
2. Place the computer on a stable surface.
3. Insert the battery and make sure it is locked in position.
4. Securely attach any peripherals you want to use with the computer
(e.g. keyboard and mouse) to their ports.
5. Attach the AC/DC adapter to the DC-In jack on the left of the
computer, then plug the AC power cord into an outlet, and connect
the AC power cord to the AC/DC adapter.

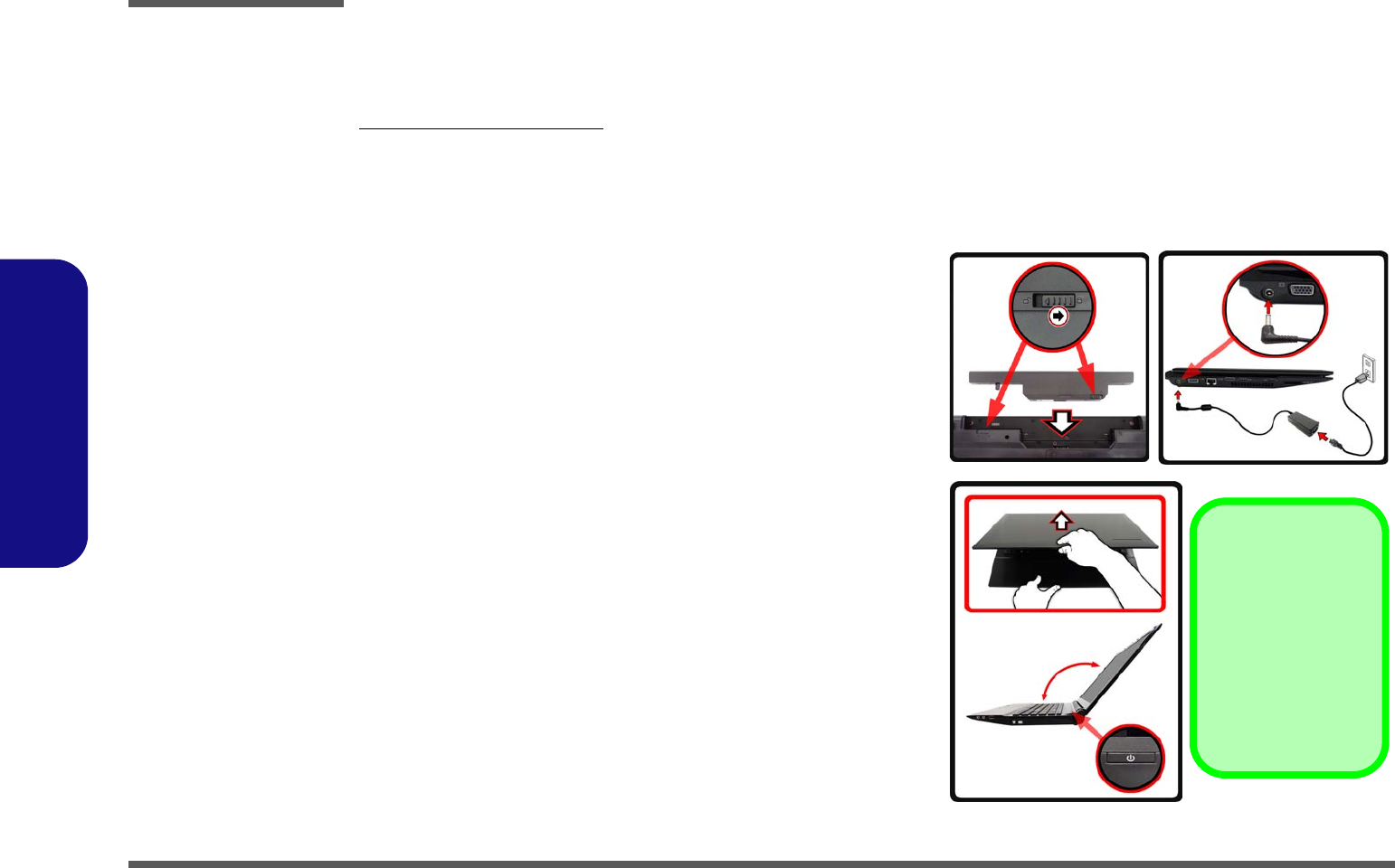

6. Use one hand to raise the lid/LCD to a comfortable viewing angle (do
not exceed 135 degrees); use the other hand (as illustrated in
<Hyperlink B n I>Figure ) to support the base of the computer (Note:
Never lift the computer by the lid/LCD).
7. Press the power button to turn the computer “on”.
Figure 1 - Opening the Lid/LCD/Computer with AC/DC Adapter
Plugged-In
Shut Down
Note that you should al-
ways shut your com-
puter down by
choosing Shut Down
from the Start Menu.
This will help prevent
hard disk or system
problems.
135 ﾟ
Preface
XI
Preface
Contents
Introduction ..............................................1-1
Overview .........................................................................................1-1
Specifications ..................................................................................1-2
External Locator - Front View with LCD Panel Open ....................1-4
External Locator - Front and Rear View .........................................1-5
External Locator - Left & Right Side View ...................................1-6
External Locator - Bottom View .....................................................1-7
Mainboard Overview - Top (Key Parts) .........................................1-8
Mainboard Overview - Bottom (Key Parts) ....................................1-9
Mainboard Overview - Top (Connectors) .....................................1-10
Mainboard Overview - Bottom (Connectors) ...............................1-11
Disassembly ...............................................2-1
Overview .........................................................................................2-1
Maintenance Tools ..........................................................................2-2
Connections .....................................................................................2-2
Maintenance Precautions .................................................................2-3
Disassembly Steps ...........................................................................2-4
Removing the Battery ......................................................................2-5
Removing the Hard Disk Drive .......................................................2-6
Removing the Optical (CD/DVD) Device ......................................2-8
Removing the System Memory (RAM) ..........................................2-9
Removing and Installing a Processor ............................................2-11
Removing the 3G Module .............................................................2-14
Removing the Wireless LAN Module ...........................................2-15
Removing the Bluetooth Module ..................................................2-16
Removing the Keyboard ................................................................2-17
Part Lists ..................................................A-1
Part List Illustration Location ........................................................A-2
Top (C5105Q) ................................................................................A-3
Top (C5100Q) ................................................................................ A-4
Bottom ........................................................................................... A-5
DVD Dual Drive ............................................................................ A-6
LCD ............................................................................................... A-7
Schematic Diagrams.................................B-1
System Block Diagram ...................................................................B-2
Clock Generator ..............................................................................B-3
Penryn (Socket-P)1/2 ......................................................................B-4
Penryn (Socket-P)2/2 ......................................................................B-5
CANTIGA 1/7, HOST ....................................................................B-6
CANTIGA 2/7, Graphics ................................................................B-7
CANTIGA 3/7 ................................................................................B-8
CANTIGA 4/7 ................................................................................B-9
CANTIGA 5/7 ..............................................................................B-10
CANTIGA 6/7 ..............................................................................B-11
CANTIGA 7/7 ..............................................................................B-12
DDRIII SO-DIMM A ...................................................................B-13
DDRIII SO-DIMM B ...................................................................B-14
Panel, CRT ....................................................................................B-15
Inverter, Bluetooth, Fan ................................................................B-16
ICH9M 1/4, SATA .......................................................................B-17
ICH9M 2/4, PCI, USB ..................................................................B-18
ICH9M 3/4 ....................................................................................B-19
ICH9M 4/4 ....................................................................................B-20
HDMI ............................................................................................B-21
KBC-ITE IT8502E .......................................................................B-22
Card Reader/LAN JMB261C .......................................................B-23
Audio Codec VT1812 ...................................................................B-24
Audio AMP ..................................................................................B-25
HDD, ODD, MDC, TP, Conn, 3G ................................................B-26
Preface
XII
Preface
New Card, USB, Mini PCIE ........................................................ B-27
LED, CCD, Audio Conn .............................................................. B-28
System Power, PWR SW ............................................................. B-29
AC_In, Charger ............................................................................ B-30
VCORE ........................................................................................ B-31
VDD3, VDD5 ............................................................................... B-32
1.8V/1.05VS ................................................................................. B-33
1.5V,0.75VS ................................................................................. B-34
Click Board ..................................................................................B-35
Audio Board/USB ........................................................................ B-36
Power Switch & Lid Board .......................................................... B-37
External Odd Board ...................................................................... B-38
Power Sequence V1.0 ..................................................................B-39
Updating the FLASH ROM BIOS......... C-1
To update the FLASH ROM BIOS you must: C-1
Download the BIOS ....................................................................... C-1
Unzip the downloaded files to a bootable CD/DVD/ or USB Flash
drive ................................................................................................ C-1
Set the computer to boot from the external drive ........................... C-1
Use the flash tools to update the BIOS ..........................................C-2
Restart the computer (booting from the HDD) .............................. C-2
Introduction
Overview 1 - 1
1.Introduction
Chapter 1: Introduction
Overview
This manual covers the information you need to service or upgrade the C5100Q/C5100Q-C/C5105/C5105-C series note-
book computer. Information about operating the computer (e.g. getting started, and the Setup utility) is in the User’s
Manual. Information about drivers (e.g. VGA & audio) is also found in User’s Manual. That manual is shipped with the
computer.
Operating systems (e.g. Windows Vista/ Window 7, etc.) have their own manuals as do application software (e.g. word
processing and database programs). If you have questions about those programs, you should consult those manuals.
The C5100Q/C5100Q-C/C5105/C5105-C series notebook is designed to be upgradeable. See Disassembly on page 2 -
1 for a detailed description of the upgrade procedures for each specific component. Please note the warning and safety
information indicated by the “” symbol.
The balance of this chapter reviews the computer’s technical specifications and features.
Introduction
1 - 2 Specifications
1.Introduction
Specifications
Latest Specification Information
The specifications listed in this here are correct
at the time of going to press. Certain items (par-
ticularly processor types/speeds) may be
changed, delayed or updated due to the manu-
facturer's release schedule. Check with your
service center for details.
CPU
The CPU is not a user serviceable part. Ac-
cessing the CPU in any way may violate your
warranty.
Processor Options
Intel® Core™2 Duo Processor
T6670 (2.2GHz)
2MB L2 Cache & 800MHz FSB
Intel® Pentium® Processor
T4500 (2.30GHz)
1MB L2 Cache & 800MHz FSB
Intel® Celeron® Processor
T3300 (2.0GHz), 900 (2.2GHz)
1MB L2 Cache & 800MHz FSB
LCD
15.6" (39.62) HD TFT LCD
Memory
Two 204 Pin SO-DIMM Sockets Supporting DDR3 1066/
1333MHz Memory (Real operation frequency of memory
depends on FSB of processor)
Memory Expandable up to 8GB
Core Logic
Intel ® GL40 + ICH9M
Video Adapter
Intel ® GL40 Integrated Video
Shared Memory Architecture of up to 1GB
MS DirectX® 10 compatible
BIOS
One 16Mb SPI Flash ROM
Phoenix™ BIOS
Storage
(Factory Option) One Changeable 12.7mm(h) Super Multi
Optical Device Drive
One Changeable 2.5" 9.5 mm (h) SATA HDD
Audio
High Definition Audio Compliant Interface
2 * Built-In Speakers
Built-In Microphone
Keyboard
Full-size “WinKey” keyboard (with numeric keypad)
Pointing Device
Built-in Touchpad
Security
Security (Kensington® Type) Lock Slot
BIOS Password
Interface
Three USB 2.0 Ports
One HDMI Out Port
One Headphone-Out Jack
One Microphone-In Jack
One RJ-45 LAN Jack
One DC-in Jack
One External Monitor Port
Communication
10Mb/100Mb Ethernet LAN
(Factory Option) 300K/1.3M Pixel USB PC Camera Module
(Factory Option) Bluetooth 2.1 + EDR Module
(Factory Option) 3.75G/HSPA Half Mini-Card Module
(Factory Option) 802.11b/g/n Wireless LAN Mini-Card Mo-
dule
(Factory Option) 802.11b/g/n Wireless LAN + Bluetooth
v3.0
Introduction
Specifications 1 - 3
1.Introduction
Card Reader
Embedded Multi-in-1 Card Reader
MMC (MultiMedia Card) / RS MMC
SD (Secure Digital) / Mini SD / SDHC/ SDXC
Compatible
MS (Memory Stick) / MS Pro / MS Duo
Power
6 Cell Smart Lithium-Ion Battery Pack, 48.84WH
(Factory Option) 6 Cell Smart Lithium-Ion Battery Pack,
62.16WH + 4 Cell Battery 32.5WH
Full Range AC/DC Adapter
AC Input: 100 - 240V, 50 - 60Hz
DC Output: 19V, 3.42A or 18.5V, 3.5A (65W)
Energy Star 5.0 Compliant
Environmental Spec
Temperature
Operating: 5°C - 35°C
Non-Operating: -20°C - 60°C
Relative Humidity
Operating: 20% - 80%
Non-Operating: 10% - 90%
Dimensions & Weight
374mm (w) * 250mm (d) * 14.3 - 34.1mm (h)
2.3 kg (with 48.84WH Battery and ODD)
Introduction
1 - 4 External Locator - Front View with LCD Panel Open
1.Introduction

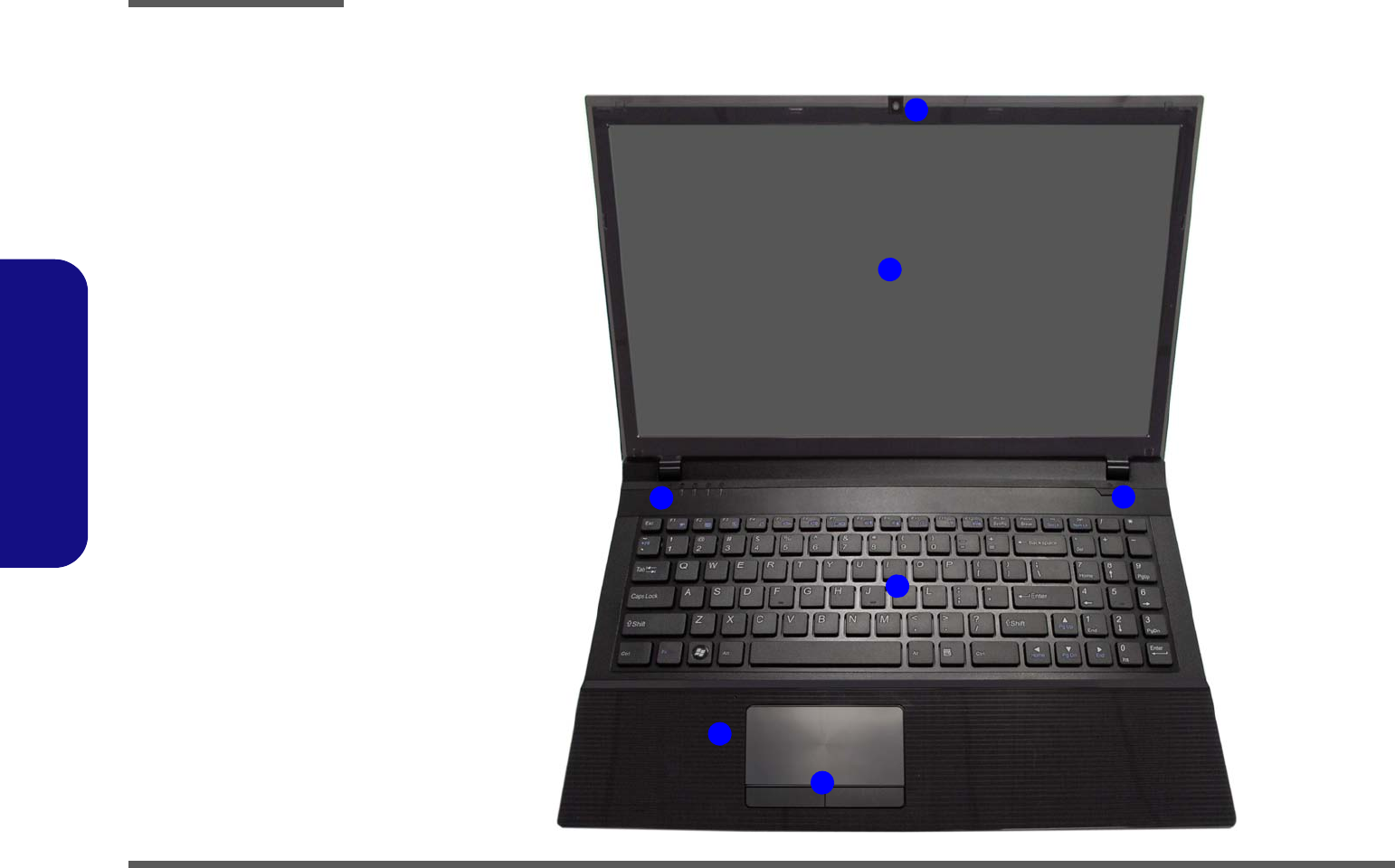

External Locator - Front View with LCD Panel Open
Figure 1
Front View with LCD Pan-
el Open
1. Built-In PC Camera
(Optional)
2. LCD
3. Power Button
4. LED Status
Indicators
5. Keyboard
6. Built-In Microphone
7. Touchpad &
Buttons
1
4
6
7
3
5
2
Introduction
External Locator - Front and Rear View 1 - 5
1.Introduction

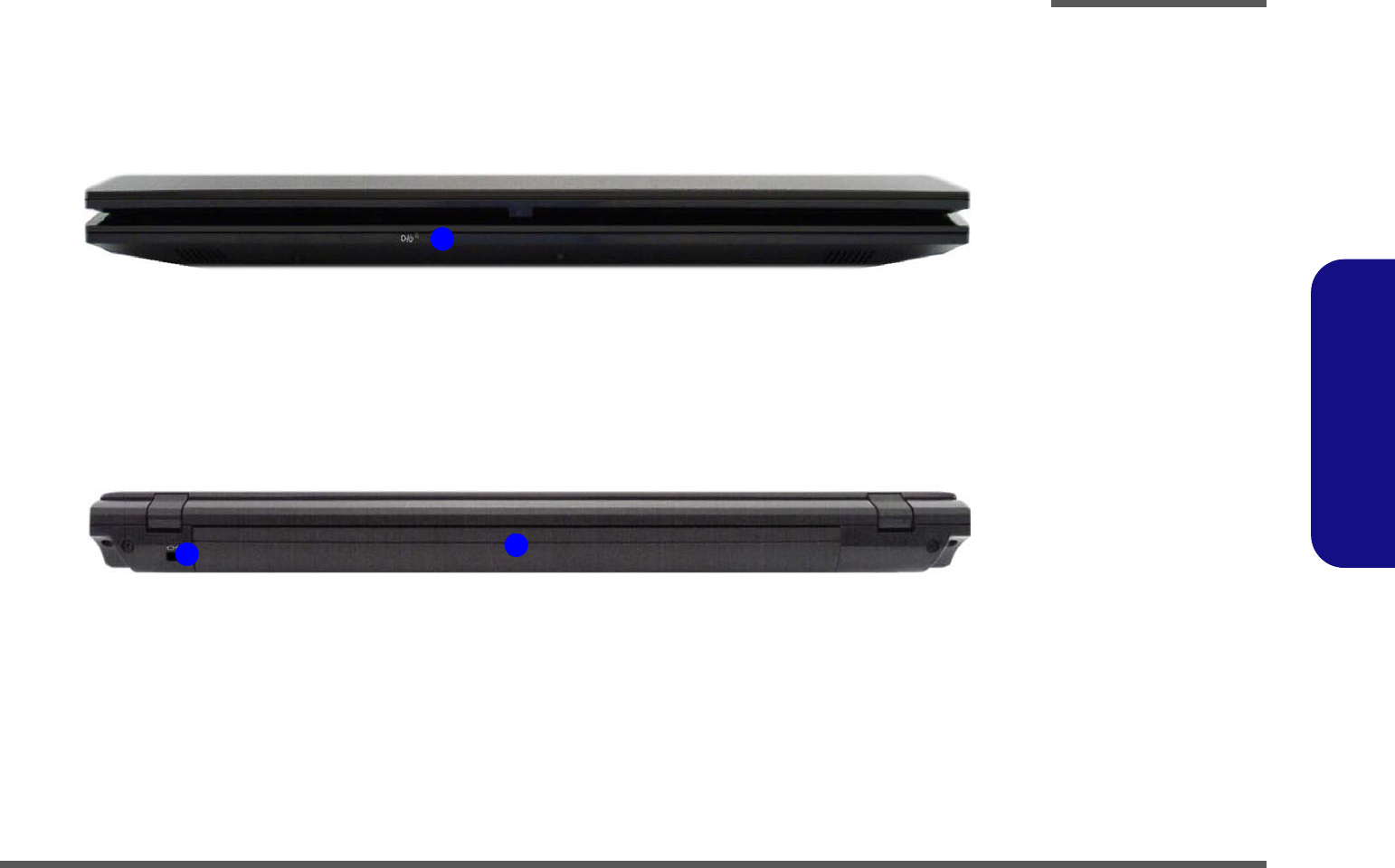

External Locator - Front and Rear View
1
Figure 2
Front View
1. LED Power
Indicators
Figure 3
Rear View
1. Security Lock Slot
2. Battery

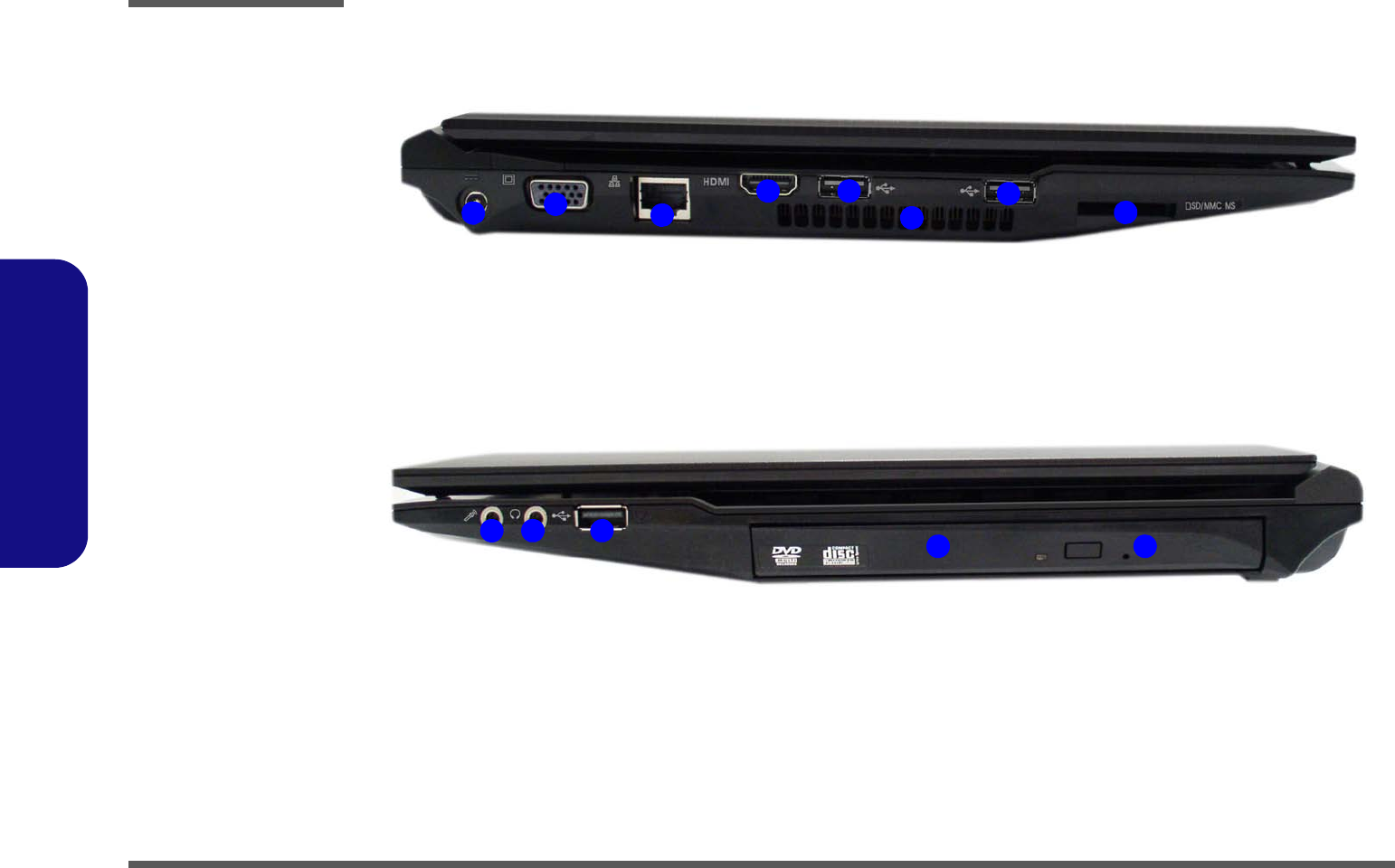

12
Introduction
1 - 6 External Locator - Left & Right Side View
1.Introduction
External Locator - Left & Right Side View
124
6
357
5
Figure 4
Left Side View
1. DC-In Jack
2. External Monitor
Port
3. RJ-45 LAN Jack
4. HDMI Port
5. 2 * USB 2.0 Ports
6. Vent
7. Multi-in-1 Card
Reader
Figure 5
Right Side View
1. Microphone-In
Jack
2. Headphone-Out
Jack
3. USB 2.0 Port
4. Optical Device
Drive Bay
5. Emergency Eject
Hole
1 2 3 54
Introduction
External Locator - Bottom View 1 - 7
1.Introduction
External Locator - Bottom View

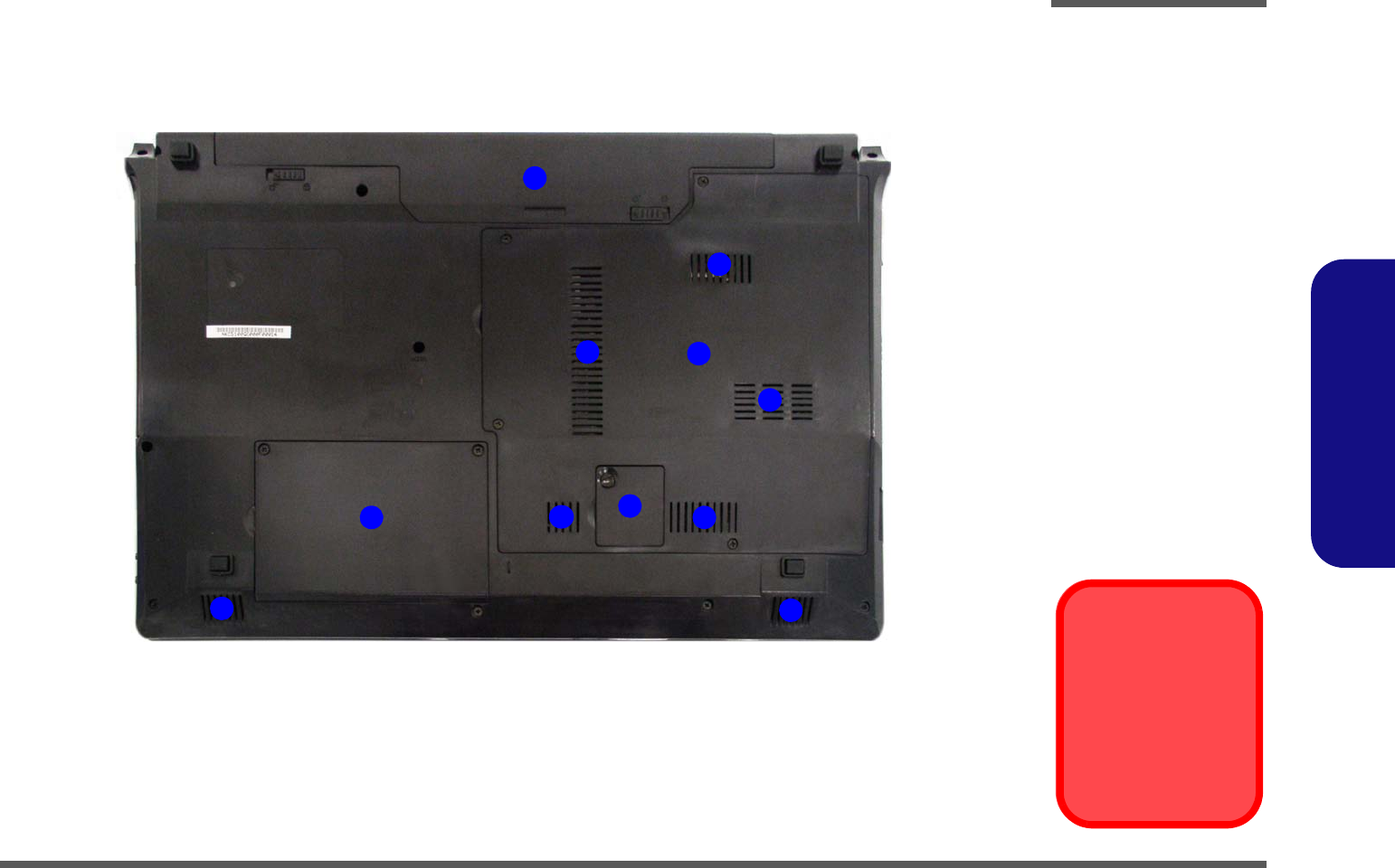

Figure 6
Bottom View
1. Vent
2. Component Bay
Cover
3. Hard Disk Bay
Cover
4. Speakers
5. Battery
6. USIM Card Cover
Overheating
To prevent your com-
puter from overheating
make sure nothing
blocks the vent/fan in-
takes while the com-
puter is in use.
2
4
1
1
31
1
4
5
16
Introduction

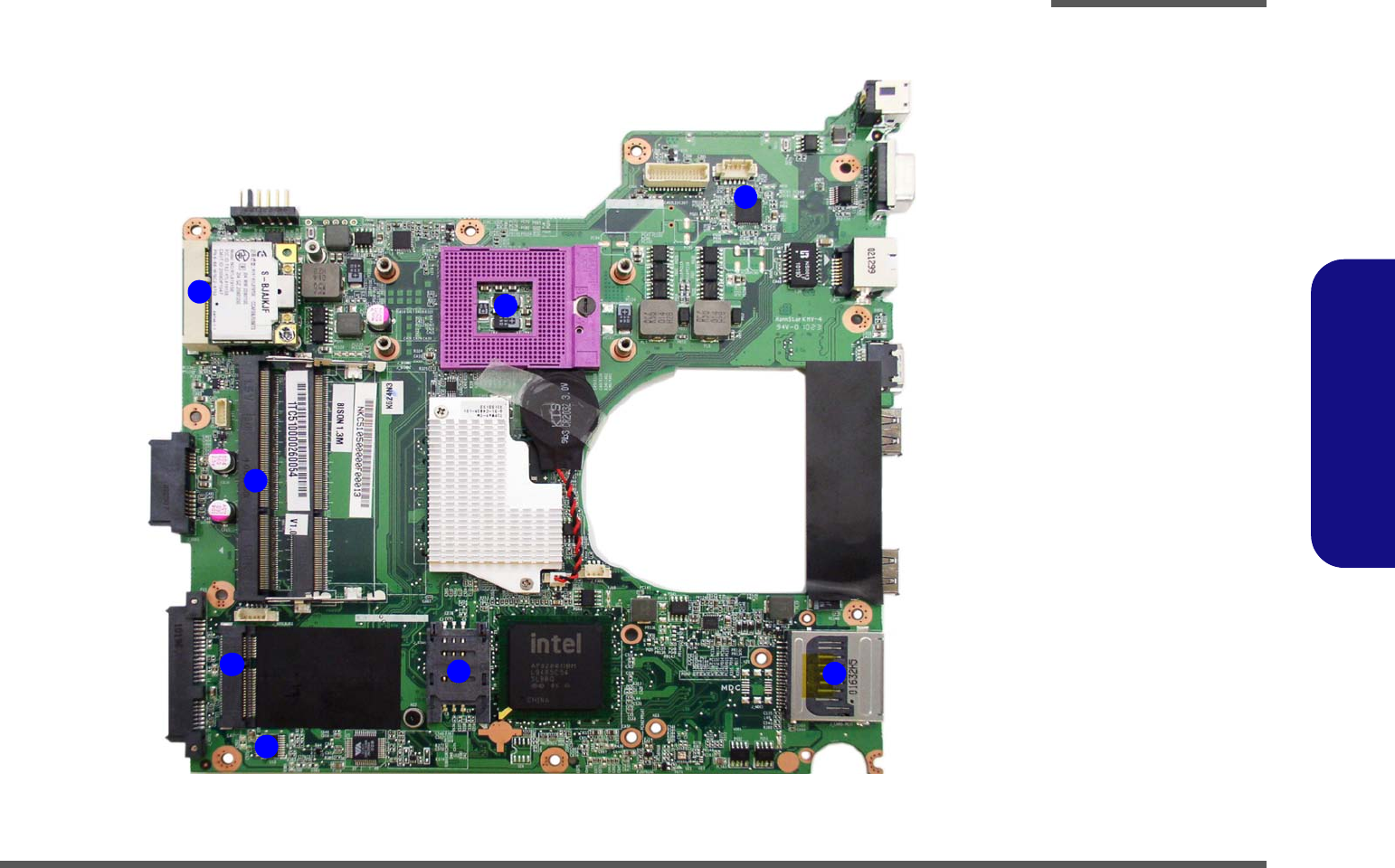

1 - 8 Mainboard Overview - Top (Key Parts)
1.Introduction
Mainboard Overview - Top (Key Parts)
Figure 7
Mainboard Top
Key Parts
1. JMB261
2. Clock Generator
3. ITE 8502E
2
1
3
Introduction
Mainboard Overview - Bottom (Key Parts) 1 - 9
1.Introduction
Mainboard Overview - Bottom (Key Parts)
Figure 8
Mainboard Bottom
Key Parts
1. Power IC
2. CPU Socket (no
CPU installed)
3. Mini-Card
Connector
(Wireless Lan
Module)
4. Memory Slots
DDR3 SO-DIMM
5. Half Mini-Card
Connector (3G
Module)
6. Audio AMP
7. USIM Card
8. Card Reader
Socket
1
6
2
7
5
4
3
8
Introduction
1 - 10 Mainboard Overview - Top (Connectors)
1.Introduction

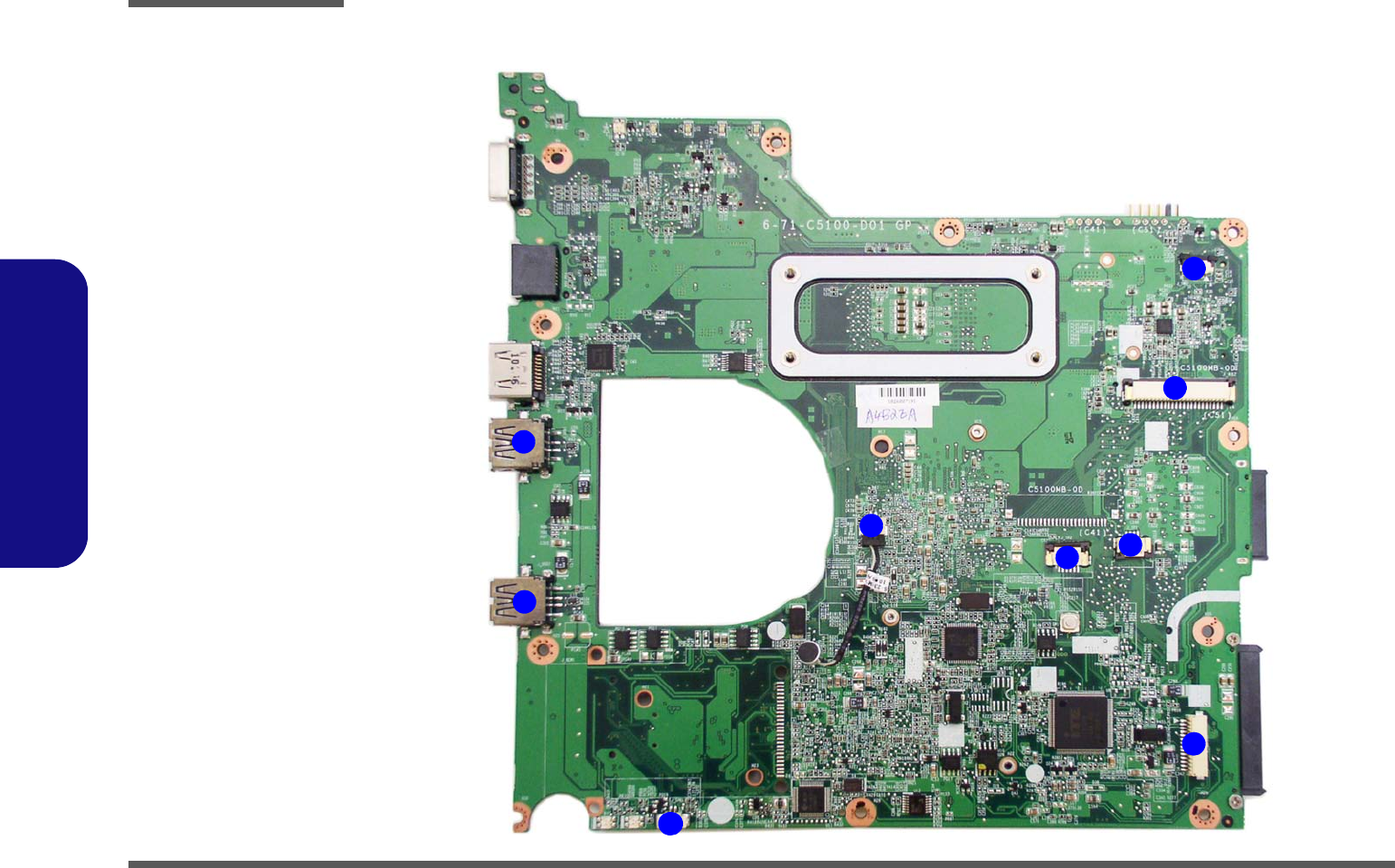

Mainboard Overview - Top (Connectors)Figure 9
Mainboard Top
Connectors
1. USB Ports
2. Speaker Cable
Connector
3. Microphone Cable
Connector
4. Click Board LED
Connector
5. Touch Pad Cable
Connector
6. Audio Cable
Connector
7. Keyboard Cable
Connector
8. Switch Cable
Connector
1
5
4
3
2
1
6
7
8
Introduction
Mainboard Overview - Bottom (Connectors) 1 - 11
1.Introduction
Mainboard Overview - Bottom (Connectors)
Figure 10
Mainboard Bottom
Connectors
1. Bluetooth Cable
Connector
2. ODD Connector
3. HDD Connector
4. CMOS Battery
Connector
5. Fan Cable
Connector
6. RJ-45 LAN Jack
7. External Monitor
Port
8. DC-In Jack
9. CCD Cable
Connector
10. LCD Cable
Connector
1
6
2
3
5
7
4
9
8
10
Introduction
1 - 12
1.Introduction
Disassembly
Overview 2 - 1
2.Disassembly
Chapter 2: Disassembly
Overview
This chapter provides step-by-step instructions for disassembling the C5100Q/C5100Q-C/C5105/C5105-C series note-
book’s parts and subsystems. When it comes to reassembly, reverse the procedures (unless otherwise indicated).
We suggest you completely review any procedure before you take the computer apart.
Procedures such as upgrading/replacing the RAM, CD device and hard disk are included in the User’s Manual but are
repeated here for your convenience.
To make the disassembly process easier each section may have a box in the page margin. Information contained under
the figure # will give a synopsis of the sequence of procedures involved in the disassembly procedure. A box with a
lists the relevant parts you will have after the disassembly process is complete. Note: The parts listed will be for the dis-
assembly procedure listed ONLY, and not any previous disassembly step(s) required. Refer to the part list for the previ-
ous disassembly procedure. The amount of screws you should be left with will be listed here also.
A box with a will also provide any possible helpful information. A box with a contains warnings.
An example of these types of boxes are shown in the sidebar.
Information
Warning
Disassembly
2 - 2 Overview
2.Disassembly
NOTE: All disassembly procedures assume that the system is turned OFF, and disconnected from any power supply (the
battery is removed too).
Maintenance Tools
The following tools are recommended when working on the notebook PC:
• M3 Philips-head screwdriver
• M2.5 Philips-head screwdriver (magnetized)
• M2 Philips-head screwdriver
• Small flat-head screwdriver
• Pair of needle-nose pliers
• Anti-static wrist-strap
Connections
Connections within the computer are one of four types:
Locking collar sockets for ribbon connectors To release these connectors, use a small flat-head screwdriver to
gently pry the locking collar away from its base. When replac-
ing the connection, make sure the connector is oriented in the
same way. The pin1 side is usually not indicated.
Pressure sockets for multi-wire connectors To release this connector type, grasp it at its head and gently
rock it from side to side as you pull it out. Do not pull on the
wires themselves. When replacing the connection, do not try to
force it. The socket only fits one way.
Pressure sockets for ribbon connectors To release these connectors, use a small pair of needle-nose pli-
ers to gently lift the connector away from its socket. When re-
placing the connection, make sure the connector is oriented in
the same way. The pin1 side is usually not indicated.
Board-to-board or multi-pin sockets To separate the boards, gently rock them from side to side as
you pull them apart. If the connection is very tight, use a small
flat-head screwdriver - use just enough force to start.
Disassembly
Overview 2 - 3
2.Disassembly
Maintenance Precautions
The following precautions are a reminder. To avoid personal injury or damage to the computer while performing a re-
moval and/or replacement job, take the following precautions:
1. Don't drop it. Perform your repairs and/or upgrades on a stable surface. If the computer falls, the case and other
components could be damaged.
2. Don't overheat it. Note the proximity of any heating elements. Keep the computer out of direct sunlight.
3. Avoid interference. Note the proximity of any high capacity transformers, electric motors, and other strong mag-
netic fields. These can hinder proper performance and damage components and/or data. You should also monitor
the position of magnetized tools (i.e. screwdrivers).
4. Keep it dry. This is an electrical appliance. If water or any other liquid gets into it, the computer could be badly
damaged.
5. Be careful with power. Avoid accidental shocks, discharges or explosions.
•Before removing or servicing any part from the computer, turn the computer off and detach any power supplies.
•When you want to unplug the power cord or any cable/wire, be sure to disconnect it by the plug head. Do not pull on the wire.
6. Peripherals – Turn off and detach any peripherals.
7. Beware of static discharge. ICs, such as the CPU and main support chips, are vulnerable to static electricity.
Before handling any part in the computer, discharge any static electricity inside the computer. When handling a
printed circuit board, do not use gloves or other materials which allow static electricity buildup. We suggest that
you use an anti-static wrist strap instead.
8. Beware of corrosion. As you perform your job, avoid touching any connector leads. Even the cleanest hands pro-
duce oils which can attract corrosive elements.
9. Keep your work environment clean. Tobacco smoke, dust or other air-born particulate matter is often attracted
to charged surfaces, reducing performance.
10. Keep track of the components. When removing or replacing any part, be careful not to leave small parts, such as
screws, loose inside the computer.
Cleaning
Do not apply cleaner directly to the computer, use a soft clean cloth.
Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer.
Power Safety
Warning
Before you undertake
any upgrade proce-
dures, make sure that
you have turned off the
power, and discon-
nected all peripherals
and cables (including
telephone lines). It is
advisable to also re-
move your battery in
order to prevent acci-
dentally turning the
machine on.
Disassembly
2 - 4 Disassembly Steps
2.Disassembly
Disassembly Steps
The following table lists the disassembly steps, and on which page to find the related information. PLEASE PERFORM
THE DISASSEMBLY STEPS IN THE ORDER INDICATED.
To remove the Battery:
1. Remove the battery page 2 - 5
To remove the HDD:
1. Remove the battery page 2 - 5
2. Remove the HDD page 2 - 6
To remove the Optical Device:
1. Remove the battery page 2 - 5
2. Remove the Optical device page 2 - 8
To remove the System Memory:
1. Remove the battery page 2 - 5
2. Remove the system memory page 2 - 9
To remove and install a Processor:
1. Remove the battery page 2 - 5
2. Remove the processor page 2 - 11
3. Install the processor page 2 - 13
To remove the 3G Module:
1. Remove the battery page 2 - 5
2. Remove the 3G module page 2 - 14
To remove the Wireless LAN Module:
1. Remove the battery page 2 - 5
2. Remove the WLAN module page 2 - 15
To remove the Bluetooth Module:
1. Remove the battery page 2 - 5
2. Remove the Bluetooth Module page 2 - 16
To remove the Keyboard:
1. Remove the battery page 2 - 5
2. Remove the keyboard page 2 - 17
Disassembly
Removing the Battery 2 - 5
2.Disassembly
Removing the Battery
1. Turn the computer off, and turn it over.
2. Slide the latch in the direction of the arrow.
3. Slide the latch in the direction of the arrow, and hold it in place.
4. Slide the battery in the direction of the arrow .
2. Battery
1
2
6
3
4
Figure 1
Battery Removal
a. Slide latch at point 1 to-
wards the unlock symbol
and hold it in place.
b. Slide the battery in the di-
rection of the arrow.
1
a. b.
3
2
4
Disassembly
2 - 6 Removing the Hard Disk Drive
2.Disassembly
Removing the Hard Disk Drive
The hard disk drive can be taken out to accommodate other 2.5" serial (SATA) hard disk drives with a height of 9.5mm
(h). Follow your operating system’s installation instructions, and install all necessary drivers and utilities (as outlined in
Chapter 4 of the User’s Manual) when setting up a new hard disk.
Hard Disk Upgrade Process
1. Turn off the computer, and remove the battery (page 2 - 5).
2. Locate the hard disk bay cover and remove screw & .

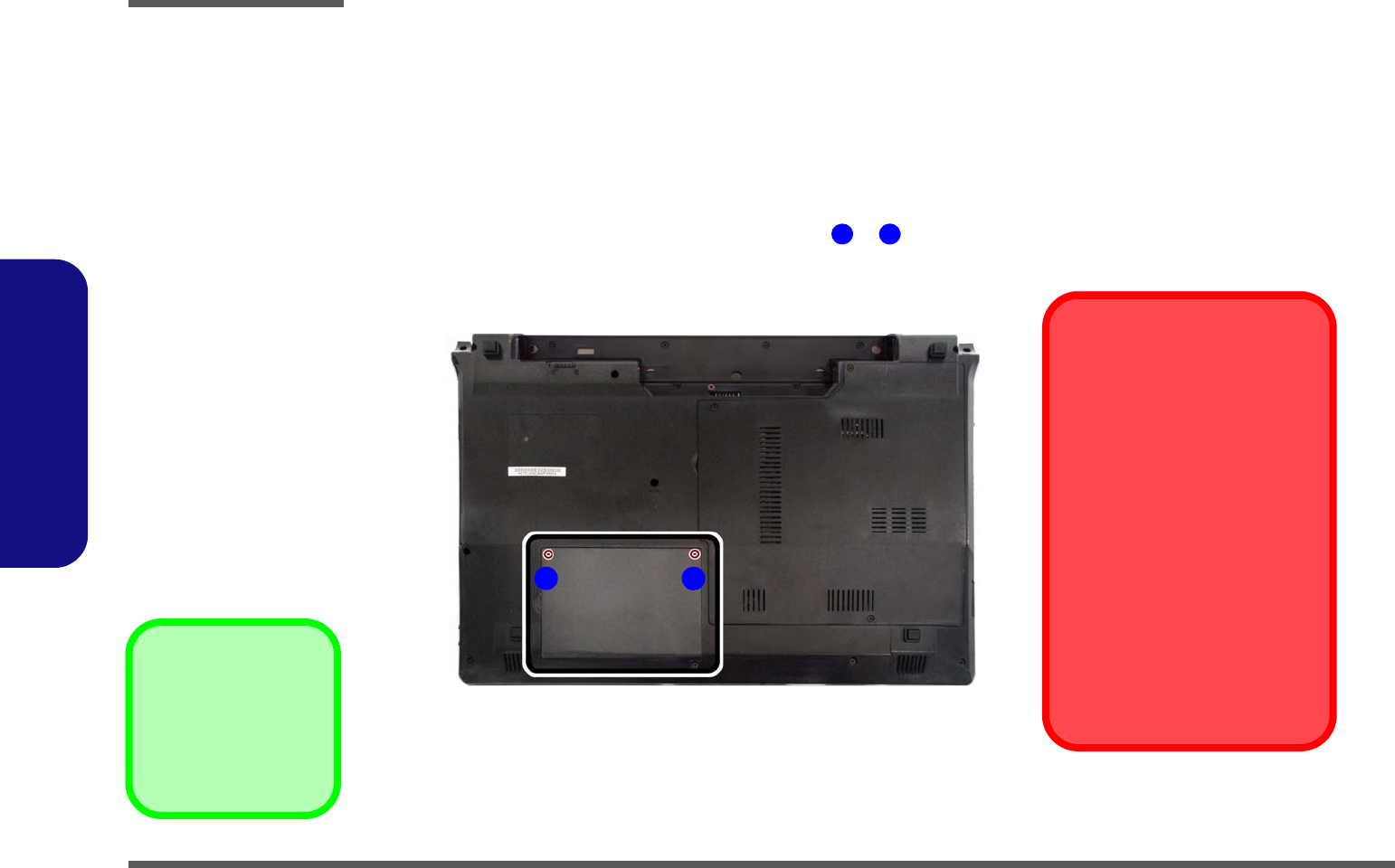

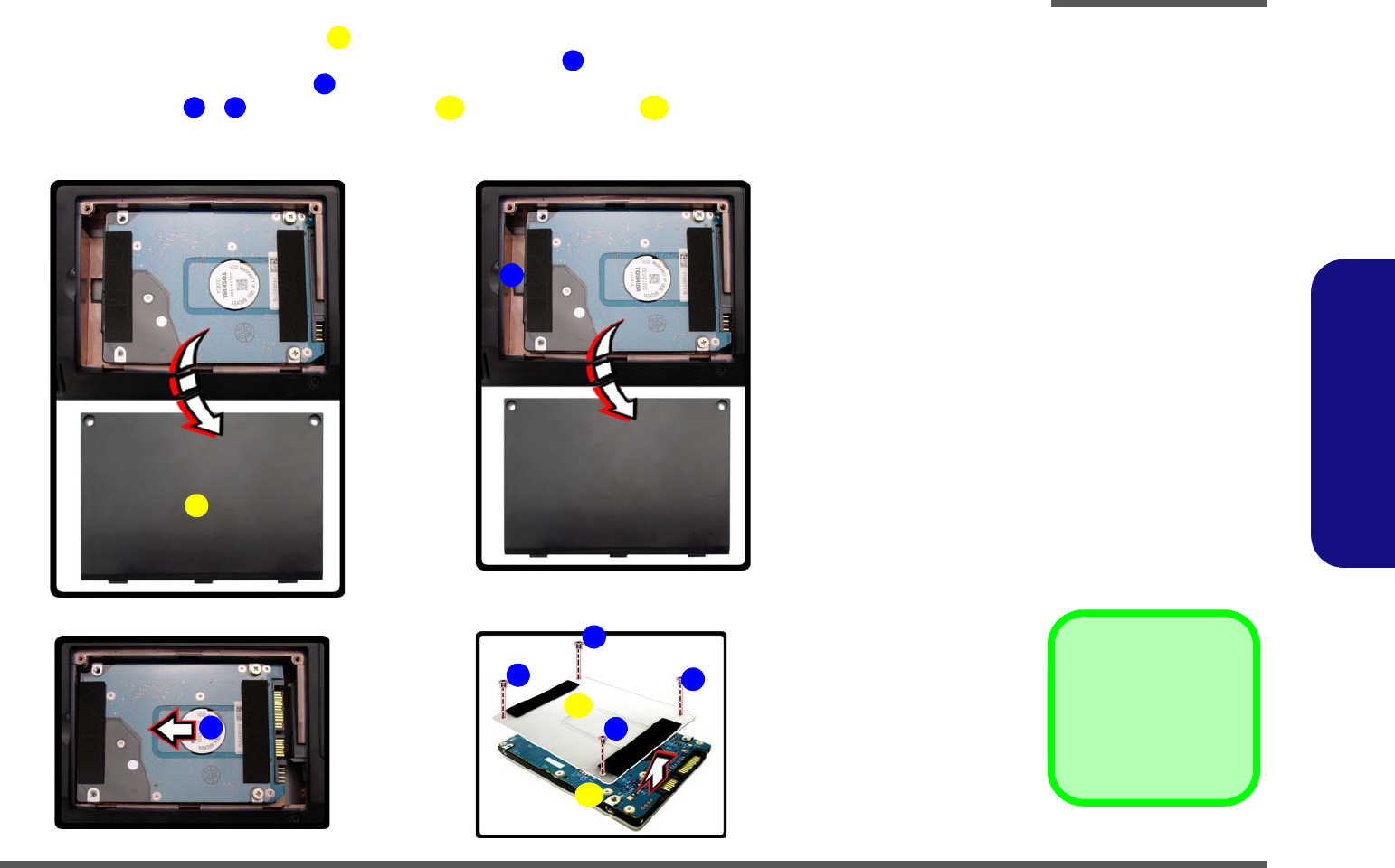

Figure 2
HDD Assembly
Removal
a. Locate the HDD bay
cover and remove th
screws.
•2 Screws
1
2
2
1
a.
HDD System Warning
New HDD’s are blank. Before you
begin make sure:
You have backed up any data
you want to keep from your old
HDD.
You have all the CD-ROMs and
FDDs required to install your op-
erating system and programs.
If you have access to the internet,
download the latest application
and hardware driver updates for
the operating system you plan to
install. Copy these to a remov-
able medium.
Disassembly
Removing the Hard Disk Drive 2 - 7
2.Disassembly
3. Remove the hard disk bay cover .
4. Grip the tab and slide the hard disk in the direction of arrow .
5. Lift the hard disk out of the bay .
6. Remove screws - and the mylar cover from the hard disk .
7. Reverse the process to install a new hard disk (do not forget to replace all the screws and covers).
6
3
4
5
6
9
10
11
4
b.
c.
e.
5
9
d.
3
e.
10 8
7
6
11
3. HDD Bay Cover
10. Adhesive Cover
11. HDD
•4 Screws
Figure 3
HDD Assembly
Removal (cont’d.)
b. Remove the HDD bay
cover.
c. Grip the tab and slide the
HDD in the direction of
the arrow.
d. Lift the HDD assembly
out of the bay.
e. Remove the screws and
mylar cover.
Disassembly
2 - 8 Removing the Optical (CD/DVD) Device
2.Disassembly
Removing the Optical (CD/DVD) Device
1. Turn off the computer, remove the battery (page 2 - 5) and hard disk (page 2 - 6).
2. Remove the screw at point .
3. Use a screwdriver to carefully push out the optical device at point .
4. Insert the new device and carefully slide it into the computer (the device only fits one way. DO NOT FORCE IT; The
screw holes should line up).
5. Restart the computer to allow it to automatically detect the new device.

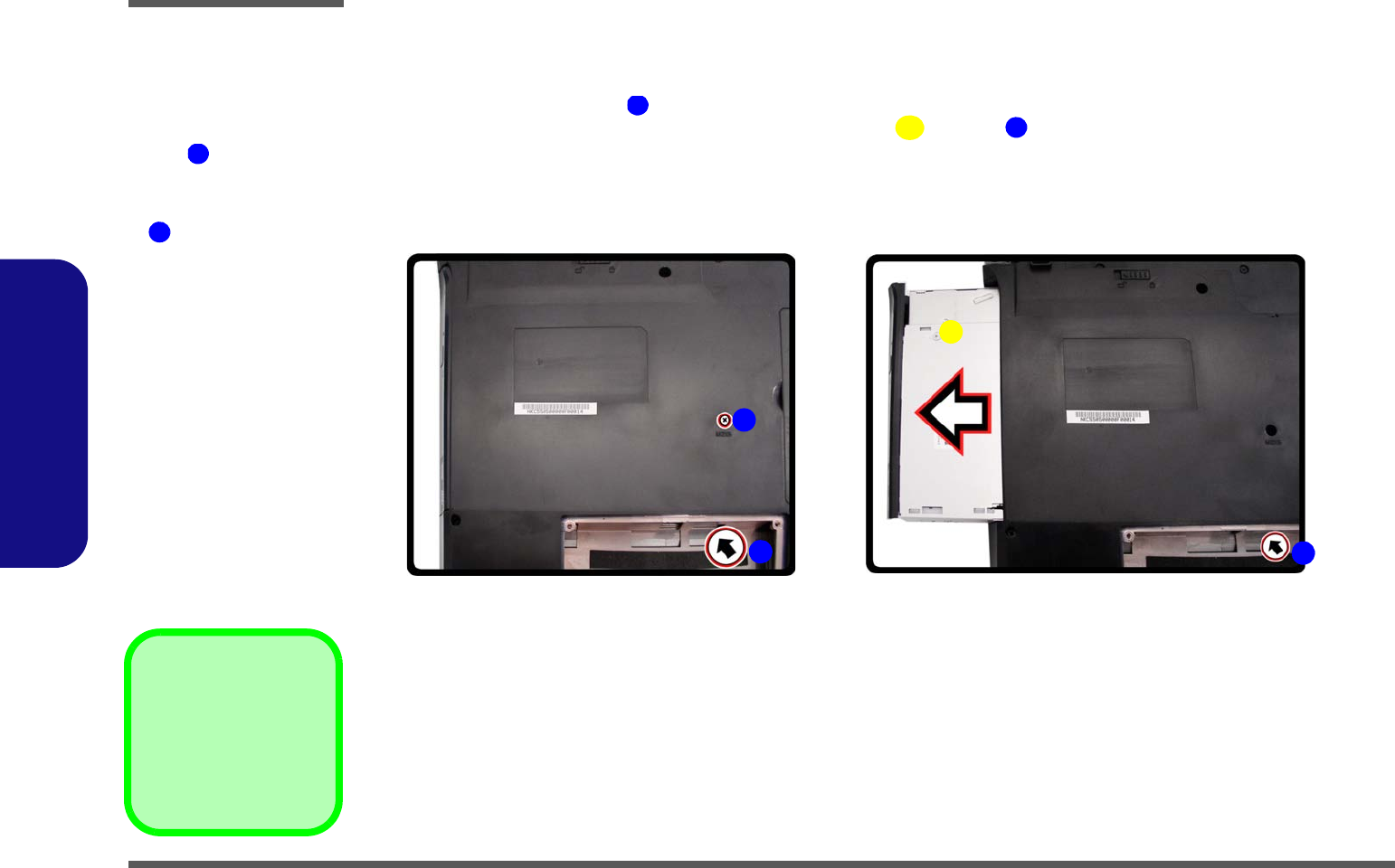

Figure 4
Optical Device
Removal
a. Remove the screw at
point .
b. Use a screwdriver to
carefully push out the
optical device at point
.
1
2
1
3
2
3. Optical Device
•1 Screw
1
b.
3
a.
22
Disassembly
Removing the System Memory (RAM) 2 - 9
2.Disassembly
Removing the System Memory (RAM)
The computer has two memory sockets for 200 pin Small Outline Dual In-line Memory Modules (SO-DIMM) supporting
DDRIII (DDR3) Up to 1066/1333 MHz. The main memory can be expanded up to 8GB. The SO-DIMM modules sup-
ported are 1024MB and 2048MB DDRIII Modules. The total memory size is automatically detected by the POST rou-
tine once you turn on your computer.
Memory Upgrade Process
1. Turn off the computer, turn it over and remove the battery (page 2 - 5).
2. Remove screws - from the component bay cover (Figure 5a).
3. The RAM modules will be visible at point on the mainboard (Figure 5b).
4. Gently pull the two release latches ( & ) on the sides of the memory socket in the direction indicated by the
arrows (Figure 5c). The RAM module will pop-up (Figure 5d), and you can then remove it.

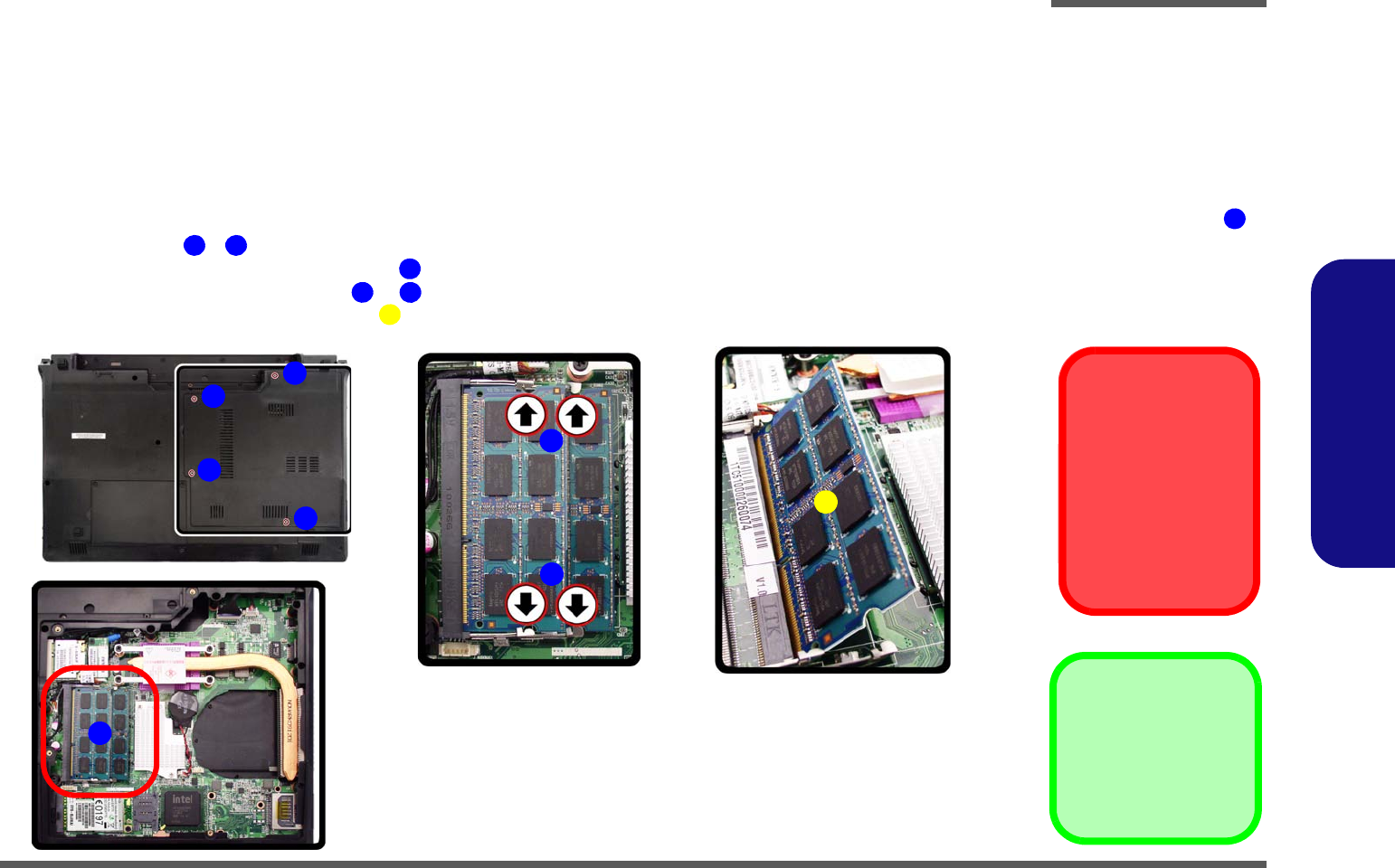

Figure 5
RAM Module
Removal
a. Remove the screws
from the component
bay cover.
b. The RAM modules will
be visible at point
on the mainboard.
c. Pull the release lat-
ches.
d. Remove the module.
Contact Warning
Be careful not to touch
the metal pins on the
module’s connecting
edge. Even the cleanest
hands have oils which
can attract particles, and
degrade the module’s
performance.
5
8. RAM Module
•4 Screws
1
4
5
6
7
a. c. d.
5
7
6
8
b.
1
2
3
4
8
Disassembly
2 - 10 Removing the System Memory (RAM)
2.Disassembly
5. Pull the latches to release the second module if necessary.
6. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot.
7. The module will only fit one way as defined by its pin alignment. Make sure the module is seated as far into the slot
as it will go. DO NOT FORCE IT; it should fit without much pressure.
8. Press the module in and down towards the mainboard until the slot levers click into place to secure the module.
9. Replace the component bay cover and the screws (see page 2 - 8).
10. Restart the computer to allow the BIOS to register the new memory configuration as it starts up.
Disassembly
Removing and Installing a Processor 2 - 11
2.Disassembly
Removing and Installing a Processor
Processor Removal Procedure
1. Turn off the computer, turn it over, and remove the battery (page 2 - 5) and the component bay cover (page 2 - 8).
2. Locate the heat sink.
3. Loosen the CPU heat sink screws in the order , , & (the reverse order as indicated on the label Figure
6b).
4. Carefully lift up the heat sink (Figure 6c) off the computer.
4
3
2
1
5

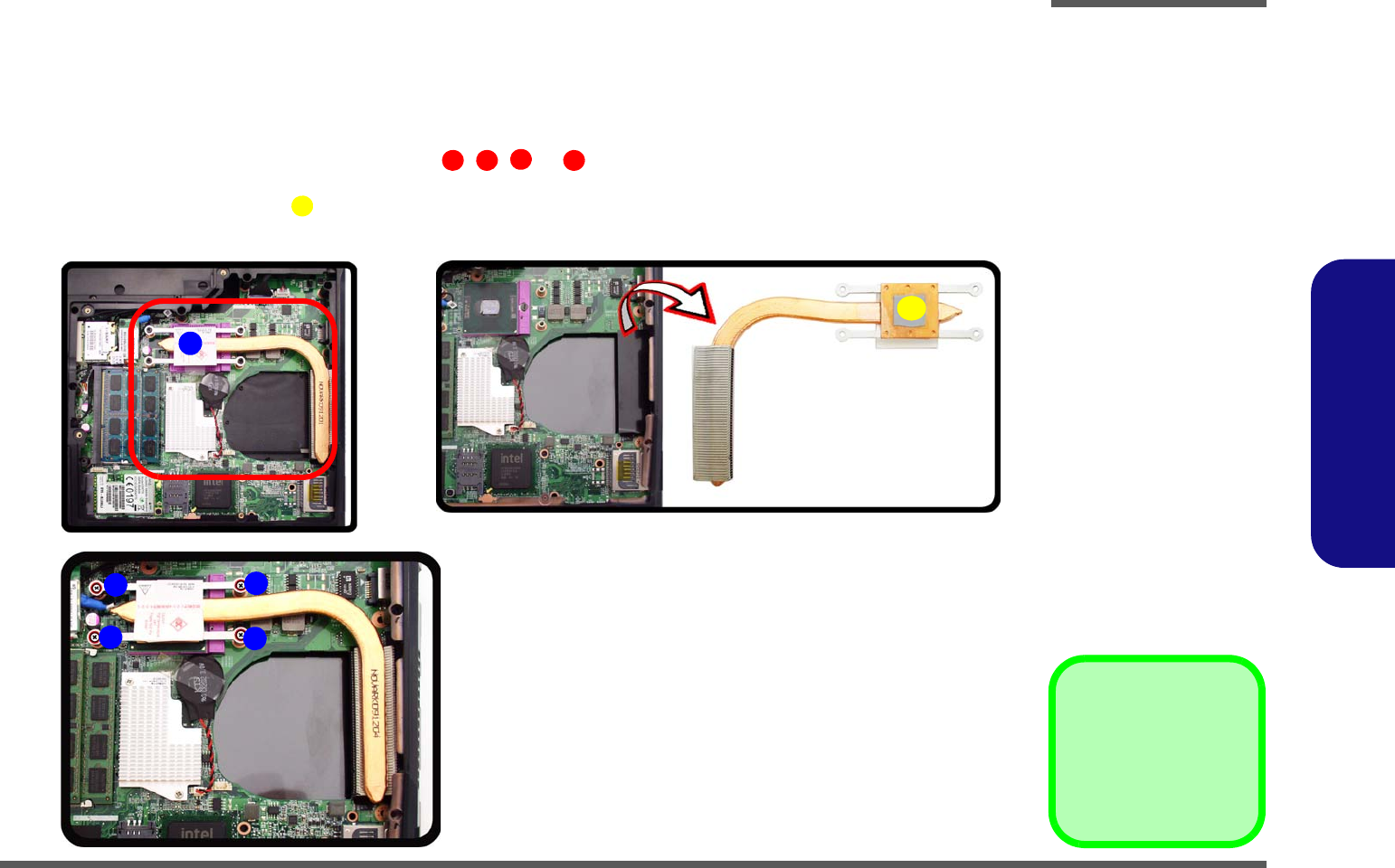

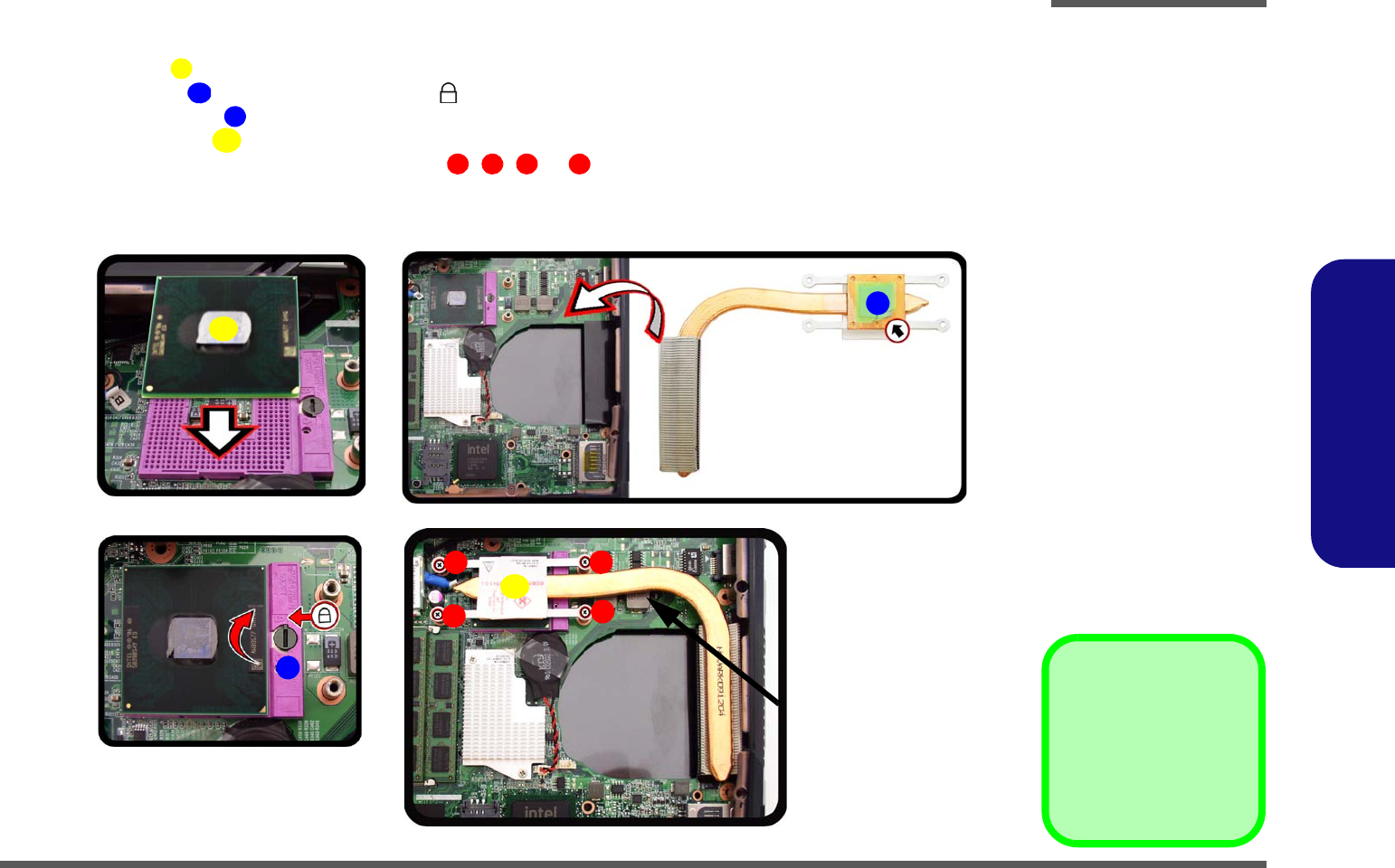

Figure 6
Processor Removal
a. Locate the heat sink.
b. Remove the screws from
the CPU heatsink.
c. Remove the CPU heat
sink.
5. Heat Sink
•4 Screws
2
3
4
a. c.
b.
5
A
1
Disassembly
2 - 12 Removing and Installing a Processor
2.Disassembly
5. Turn the release latch towards the unlock symbol to release the CPU (Figure 7d).
6. Carefully (it may be hot) lift the CPU up and out of the socket (Figure 7e).
7. Reverse the process to install a new CPU.
8. When re-inserting the CPU, pay careful attention to the pin alignment, it will fit only one way (DO NOT FORCE IT!).
6
7

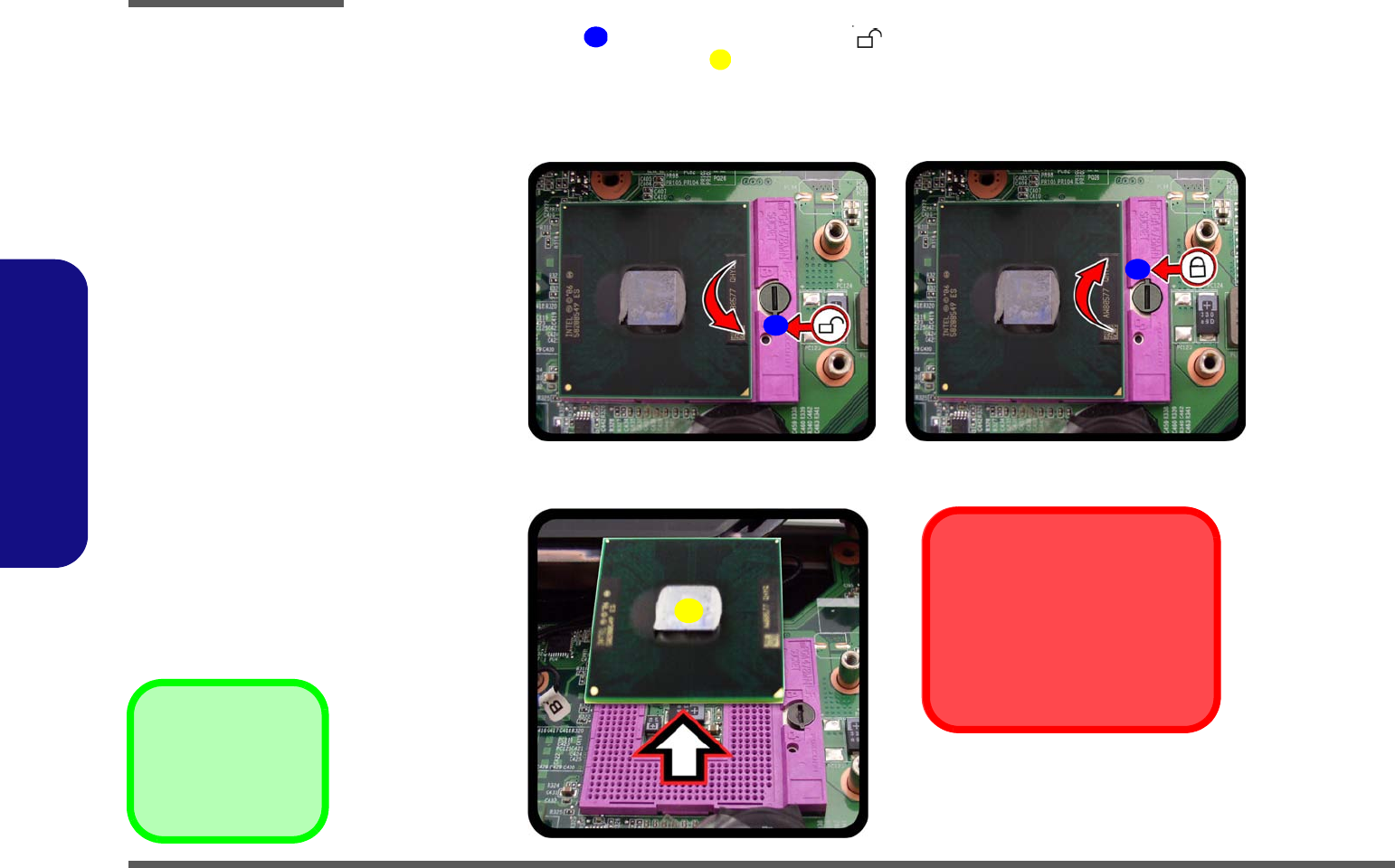

Figure 7
Processor Removal
(cont’d)
d. Turn the release latch to
unlock the CPU.
e. Lift the CPU out of the
socket.
d.
e.
Caution
The heat sink, and CPU area in
general, contains parts which are
subject to high temperatures. Allow
the area time to cool before remov-
ing these parts.
Unlock Lock
6
7
6
7. CPU
Disassembly
Removing and Installing a Processor 2 - 13
2.Disassembly
Processor Installation Procedure
1. Insert the CPU , pay careful attention to the pin alignment, it will fit only one way (DO NOT FORCE IT!), and turn
the release latch towards the lock symbol (Figure 8b).
2. Remove the sticker (Figure 8c) from the heat sink.
3. Insert the heat sink as indicated in Figure 8d.
4. Tighten the CPU heat sink screws in the order , , & (the order as indicated on the label and Figure
8d).
5. Replace the component bay cover (don’t forget to replace the fan cable) and tighten the screws (page 2 - 9).
A
B
C
D
1
2
3
4
b.
B
a.
D
13
2
4
Note:
Tighten the screws
in the order as indi-
cated on the label.
C
A
c.
d.
Figure 8
Processor
Installation
a. Insert the CPU.
b. Turn the release latch to-
wards the lock symbol.
c. Remove the sticker from
the heat sink and insert
the heat sink.
d. Tighten the screws.
A. CPU
D. Heat Sink
•4 Screws
Disassembly
2 - 14 Removing the 3G Module
2.Disassembly
Removing the 3G Module
1. Turn off the computer, turn it over, and remove the battery (page 2 - 5) and the component bay cover (page 2 - 9).
2. The 3G module will be visible at point on the mainboard (Figure 9a).
3. Carefully disconnect the cable , and then remove the screw (Figure 9b).
4. The 3G module (Figure 9c) will pop-up, and you can remove it from the computer.
Figure 9
3G Module Removal
a. Locate the 3G module.
b. Disconnect the cable
and remove the screw.
c. Remove the 3G module.
Note: Make sure you
reconnect the antenna
cable to socket (Fig-
ure 9b).
1
2
3
4
b.
c.
a.
3
1
2
4
4. 3G Module
•1 Screw
Disassembly
Removing the Wireless LAN Module 2 - 15
2.Disassembly
Removing the Wireless LAN Module
1. Turn off the computer, turn it over, and remove the battery (page 2 - 5) and the component bay cover (page 2 - 9).
2. The Wireless LAN module will be visible at point on the mainboard (Figure 10a).
3. Carefully disconnect the cables & , and then remove the screw (Figure 10b).
4. The Wireless LAN module (Figure 10c) will pop-up, and you can remove it from the computer (Figure 10d).
Figure 10

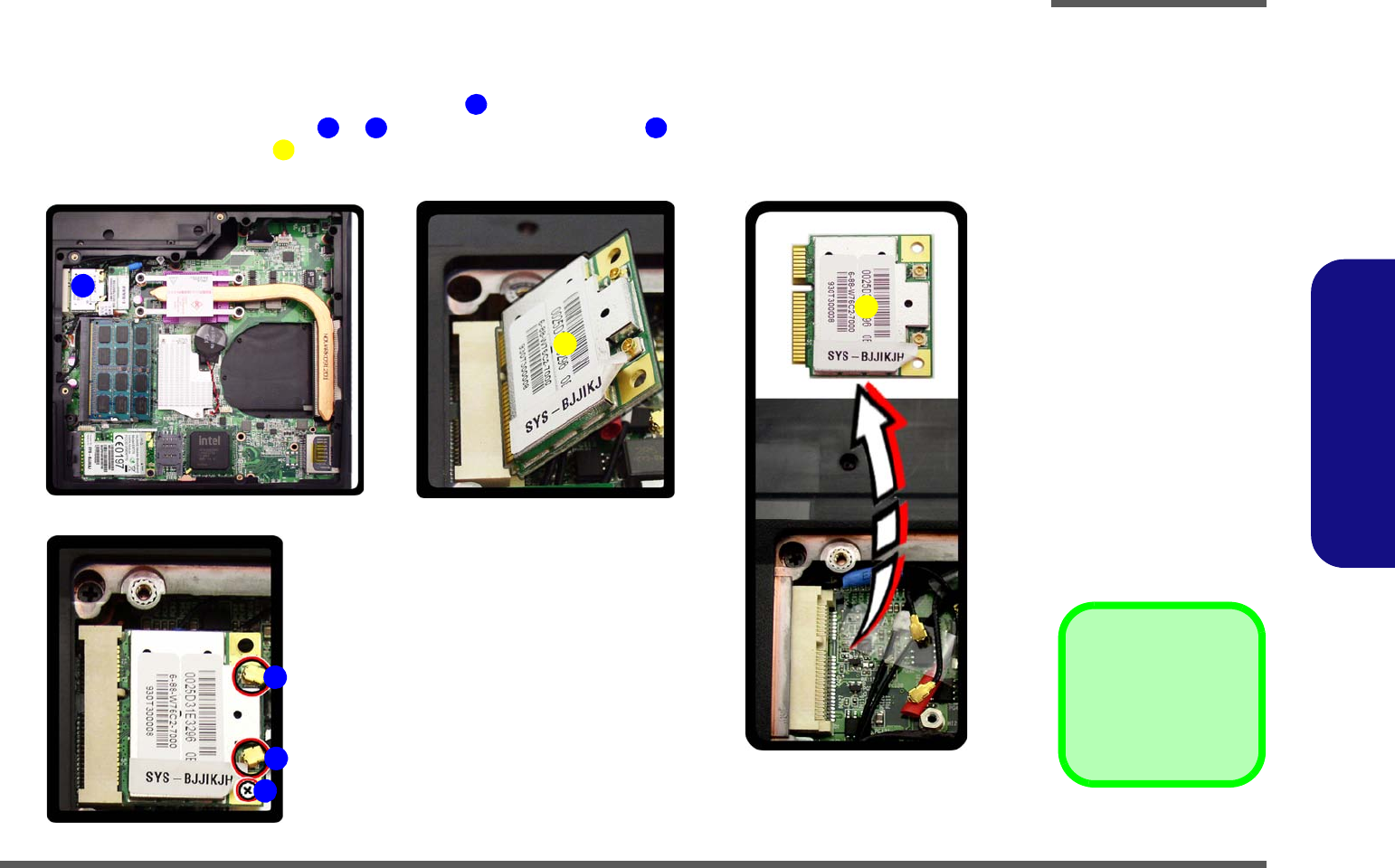

Wireless LAN
Module Removal
a. Locate the WLAN.
b. Disconnect the cable
and remove the screw.
c. The WLAN module will
pop up.
d. Remove the Wireless
LAN module.
Note: Make sure you
reconnect the antenna
cable to the “1 + 2”
socket (Figure 10b).
1
2
3
4
5
b.
c.
a.
4
3
2
d.
5
5
1
5.Wireless LAN Module
•1 Screw
Disassembly
2 - 16 Removing the Bluetooth Module
2.Disassembly
Removing the Bluetooth Module
1. Turn off the computer, turn it over, and remove the battery (page 2 - 5) and the component bay cover (page 2 - 8).
2. The Bluetooth module will be visible at point on the mainboard (Figure 11a).
3. Remove the screw (Figure 11b) and turn the module over (Figure 11c).
4. Carefully disconnect the cable and separate the connector (Figure 11c) from the Bluetooth Module.
5. Lift the Bluetooth Module (Figure 11d) up and off the computer.
Figure 11

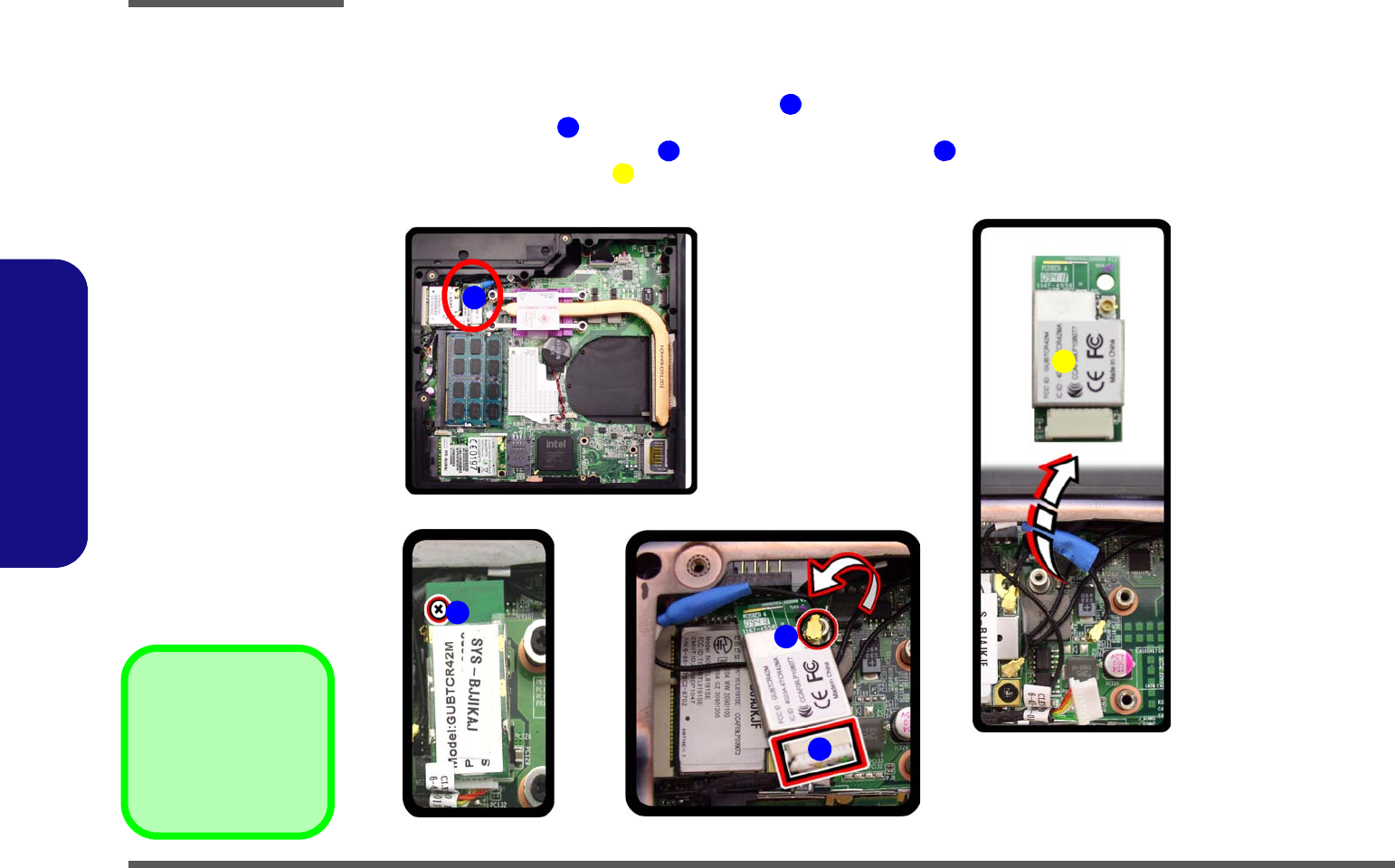

Bluetooth Module
Removal
a. Locate the Bluetooth
module.
b. Remove the screw.
c. Disconnect the cable
and the connector from
the Bluetooth module.
d. Lift the Bluetooth module
out.
1
2
3
4
5
c.
a.
4
1
5
23
b.
d.
5. Bluetooth Module
•1 Screw
Disassembly
Removing the Keyboard 2 - 17
2.Disassembly
Removing the Keyboard
1. Turn off the computer, and remove the battery (page 2 - 5).
2. Remove screws - from the bottom of the computer. Press at point to unsnap the LED cover module (you
may need to use a small screwdriver to do this Figure 12a).
3. Turn the computer over, unsnap up the LED cover module from point to the right (Figure 12b).
4. Remove screws - from the keyboard (Figure 12c).
5. Carefully lift the keyboard up, being careful not to bend the keyboard ribbon cable . Disconnect the keyboard
ribbon cable from the locking collar socket (Figure 12d)
6. Carefully lift up the keyboard (Figure 12e) off the computer.

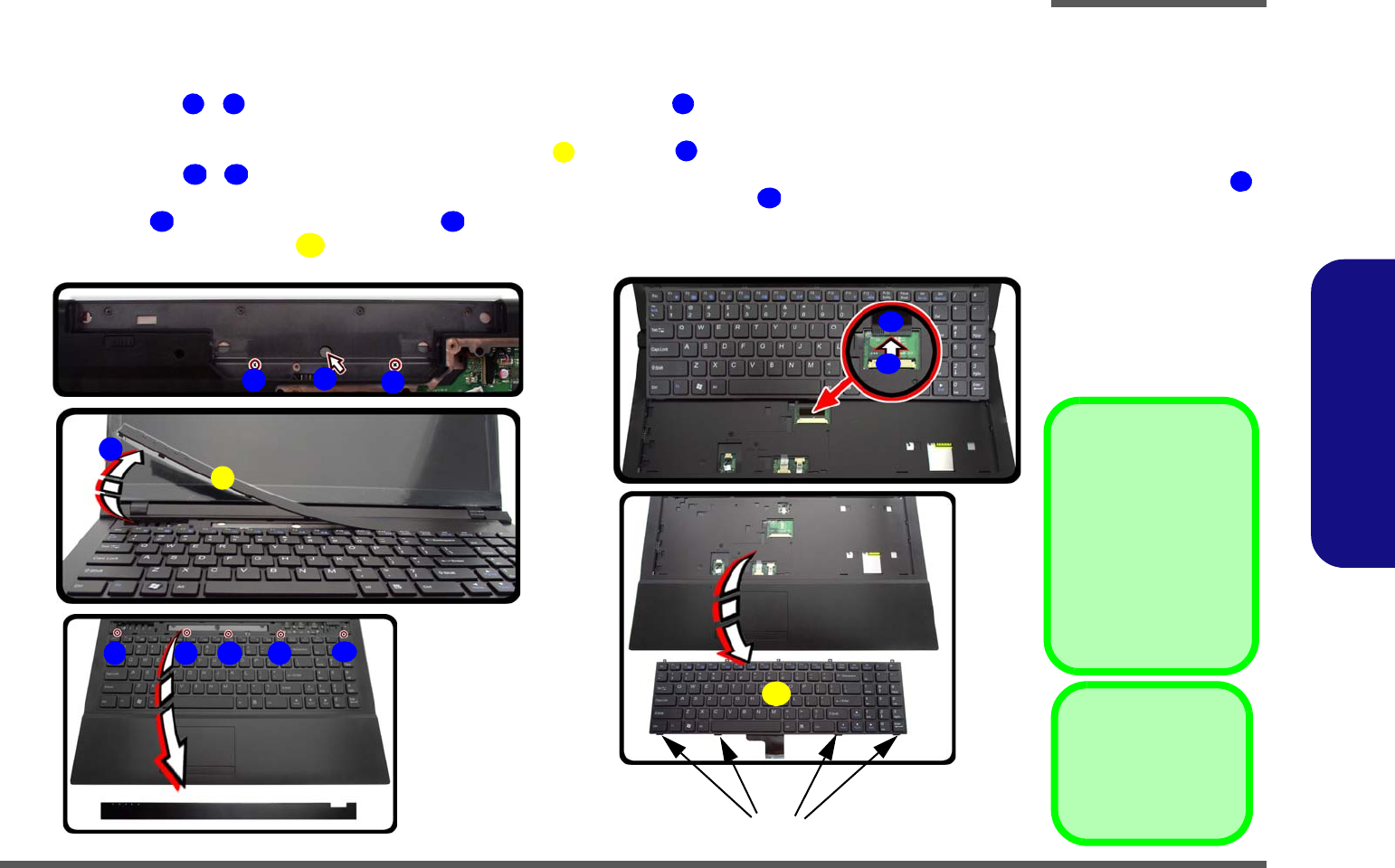

Figure 12
Keyboard Removal
a. Remove screws from the
bottom of the computer.
b. Turn the computer over,
unsnap up the LED cov-
er module from point
to the right .
c. Remove screws from
the keyboard.
d. Carefully lift the key-
board up and disconnect
the keyboard ribbon ca-
ble from the locking col-
lar socket.
e. Remove the keyboard.
5
1
2
3
4
5
6
10
11
11
12
13
Re-Inserting the
Keyboard
When re-inserting the
keyboard firstly align the
four keyboard tabs at the
bottom (Figure 12c) at
the bottom of the key-
board with the slots in the
case.
a.
b.
Keyboard Tabs
132
5
76
d.
c.
e.
8 9
13
10
11
12
4
4. LED Cover Module
13. Keyboard
•7 Screws
Disassembly
2 - 18
2.Disassembly
Part Lists
A - 1
A.Part Lists
Appendix A:Part Lists
This appendix breaks down the C5100Q/C5100Q-C/C5105/C5105-C series notebook’s construction into a series of il-
lustrations. The component part numbers are indicated in the tables opposite the drawings.
Note: This section indicates the manufacturer’s part numbers. Your organization may use a different system, so be sure
to cross-check any relevant documentation.
Note: Some assemblies may have parts in common (especially screws). However, the part lists DO NOT indicate the
total number of duplicated parts used.
Note: Be sure to check any update notices. The parts shown in these illustrations are appropriate for the system at the
time of publication. Over the product life, some parts may be improved or re-configured, resulting in new part numbers.
Part Lists
A - 2 Part List Illustration Location
A.Part Lists
Part List Illustration Location
The following table indicates where to find the appropriate part list illustration.
Table A - 1
Part List Illustration
Location Part C5100Q/C5100Q-C/C5105/
C5105-C
Top (C5105Q) page A - 3
Top (C5100Q) page A - 4
Bottom page A - 5
DVD Dual Drive page A - 6
LCD page A - 7
Part Lists
Top (C5105Q) A - 3
A.Part Lists

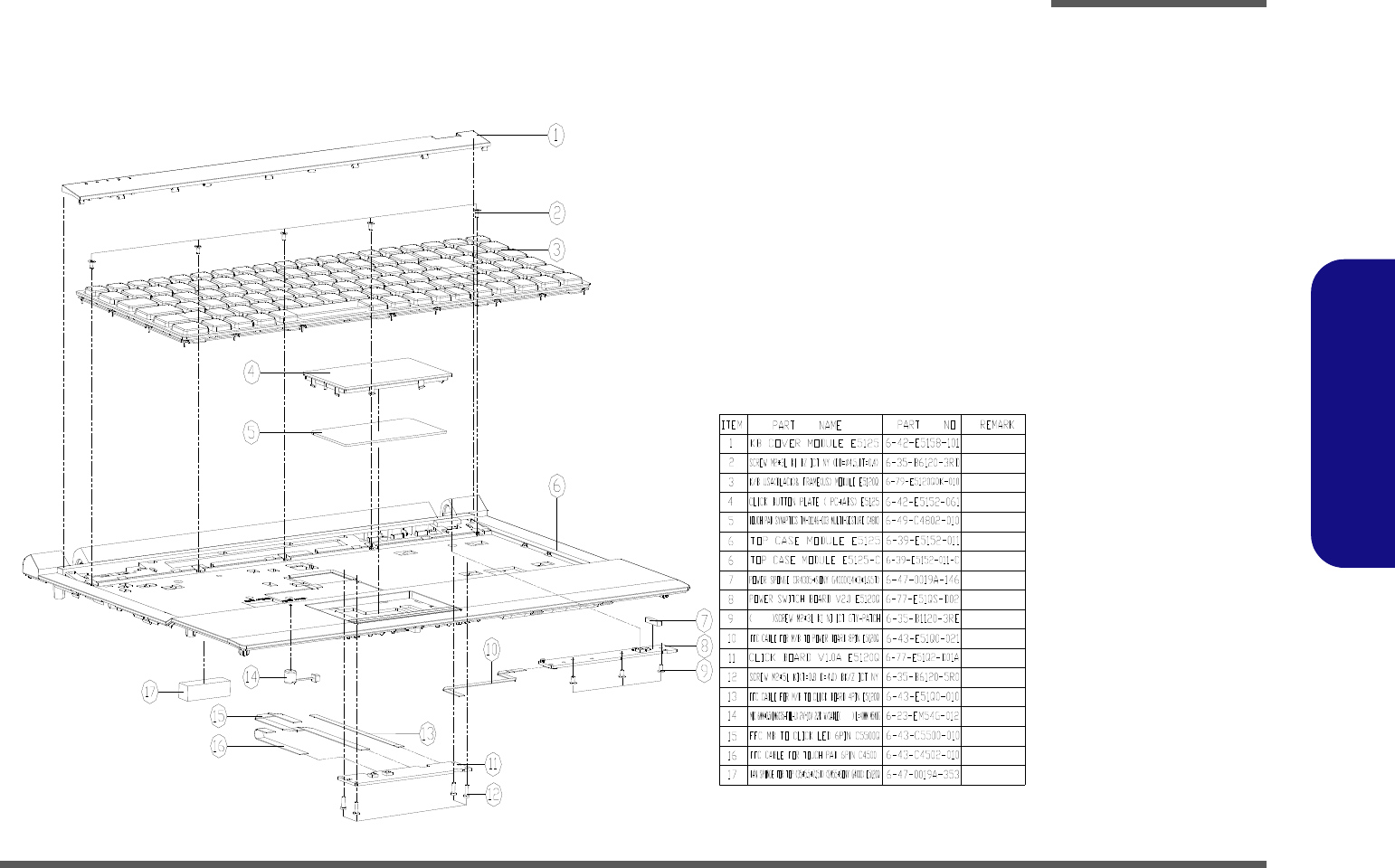

Top (C5105Q)
灰色
非耐落
Figure A - 1
Top (C5105Q)
Part Lists
A - 4 Top (C5100Q)
A.Part Lists
Top (C5100Q)
Figure A - 2
Top (C5100Q)
灰色

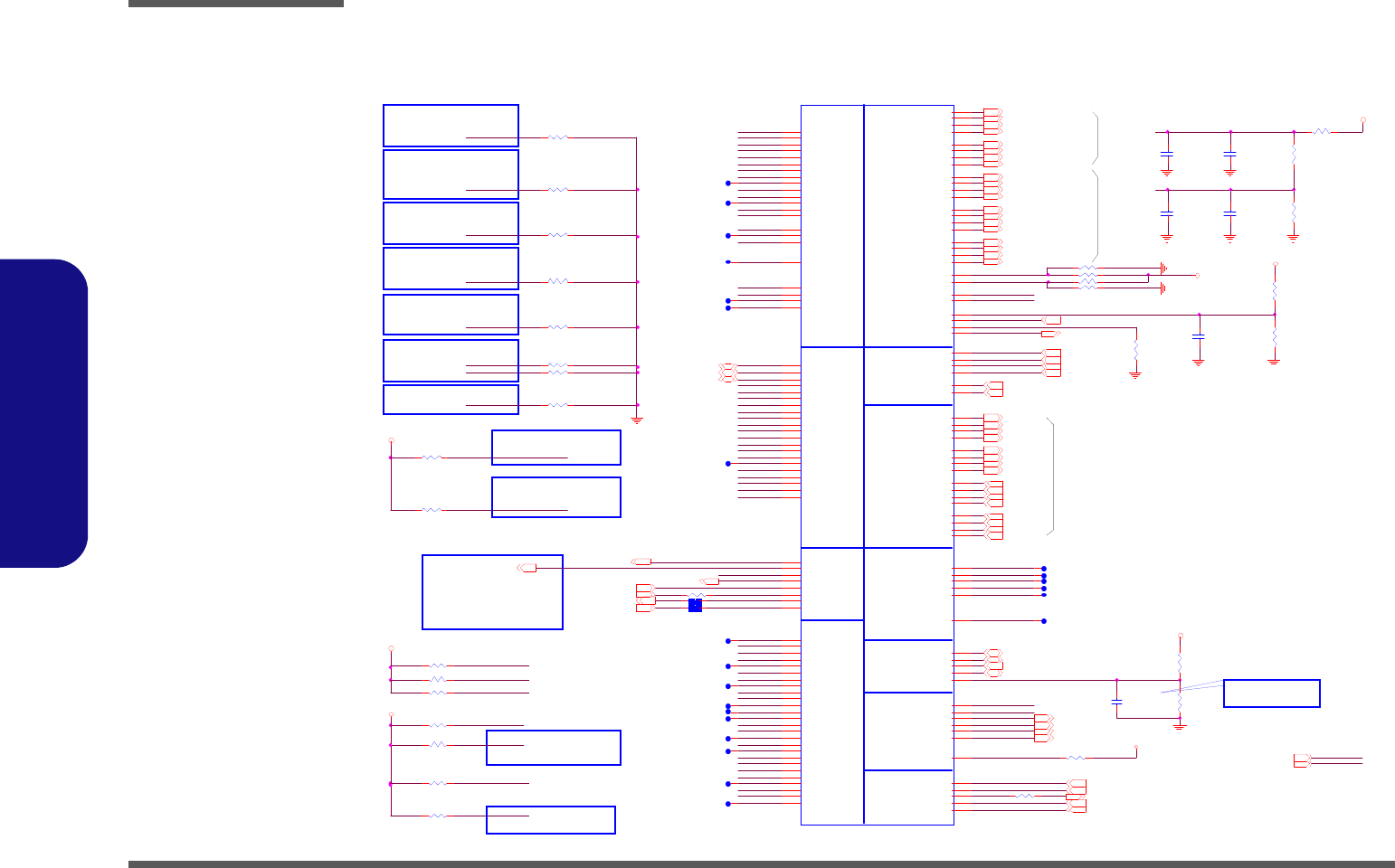

非耐落
Part Lists
Bottom A - 5
A.Part Lists
Bottom
Figure A - 3
Bottom
Part Lists

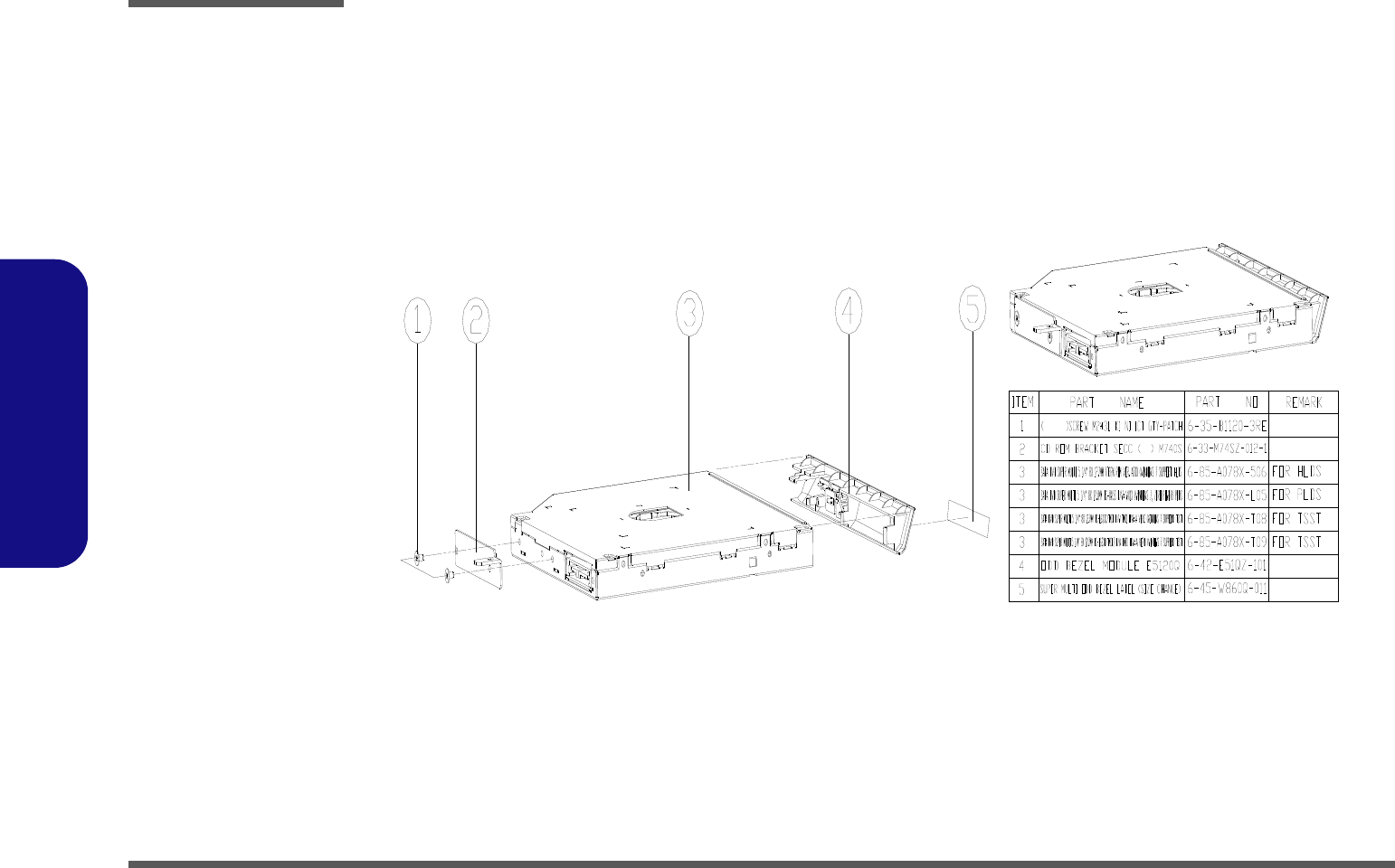

A - 6 DVD Dual Drive
A.Part Lists
DVD Dual Drive
非耐落
志精
Figure A - 4
DVD Dual Drive
Part Lists
LCD A - 7
A.Part Lists

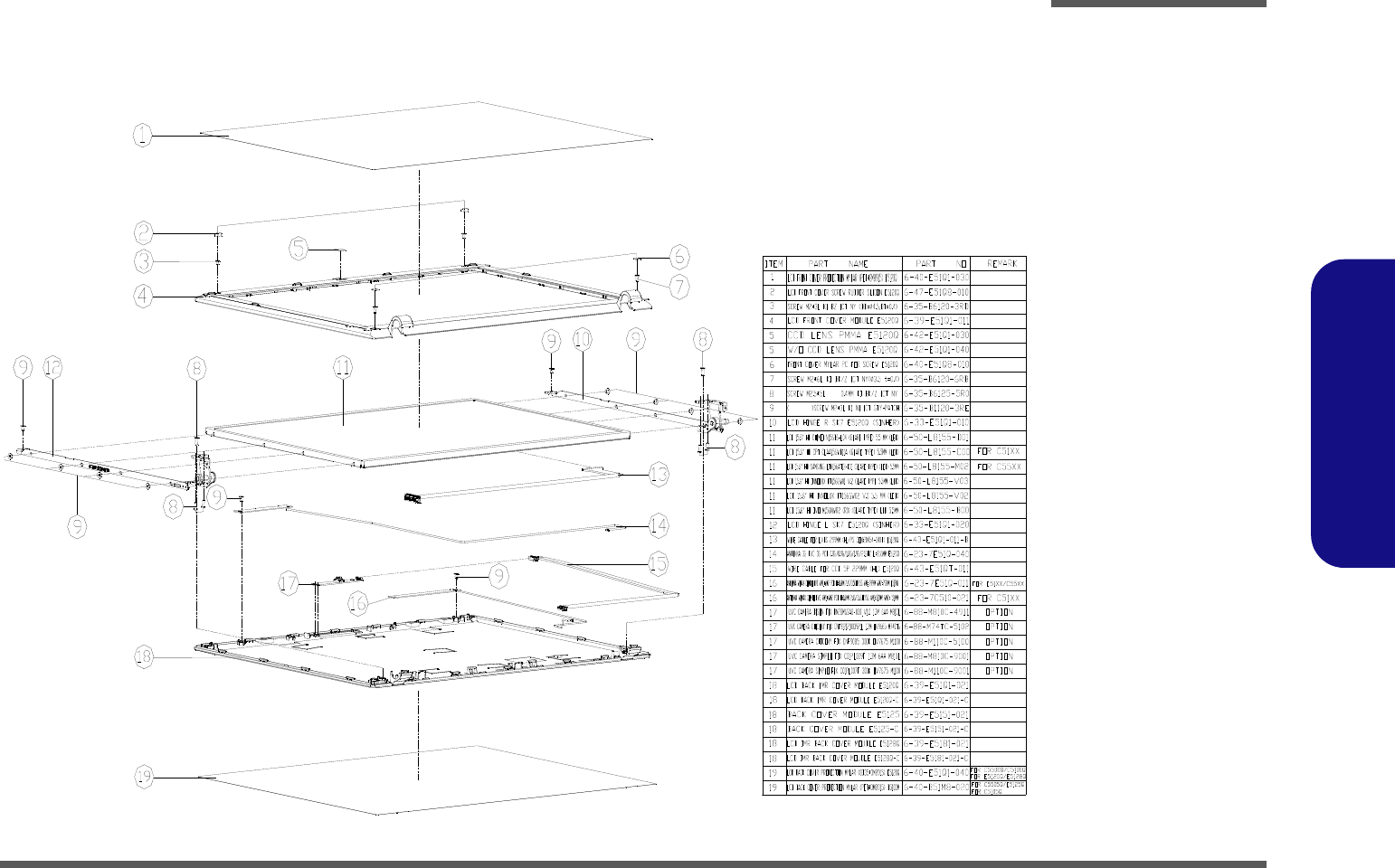

LCD
Figure A - 5
LCD
頭厚
非耐落
Part Lists
A - 8
A.Part Lists
Schematic Diagrams
B - 1
B.Schematic Diagrams
Appendix B:Schematic Diagrams

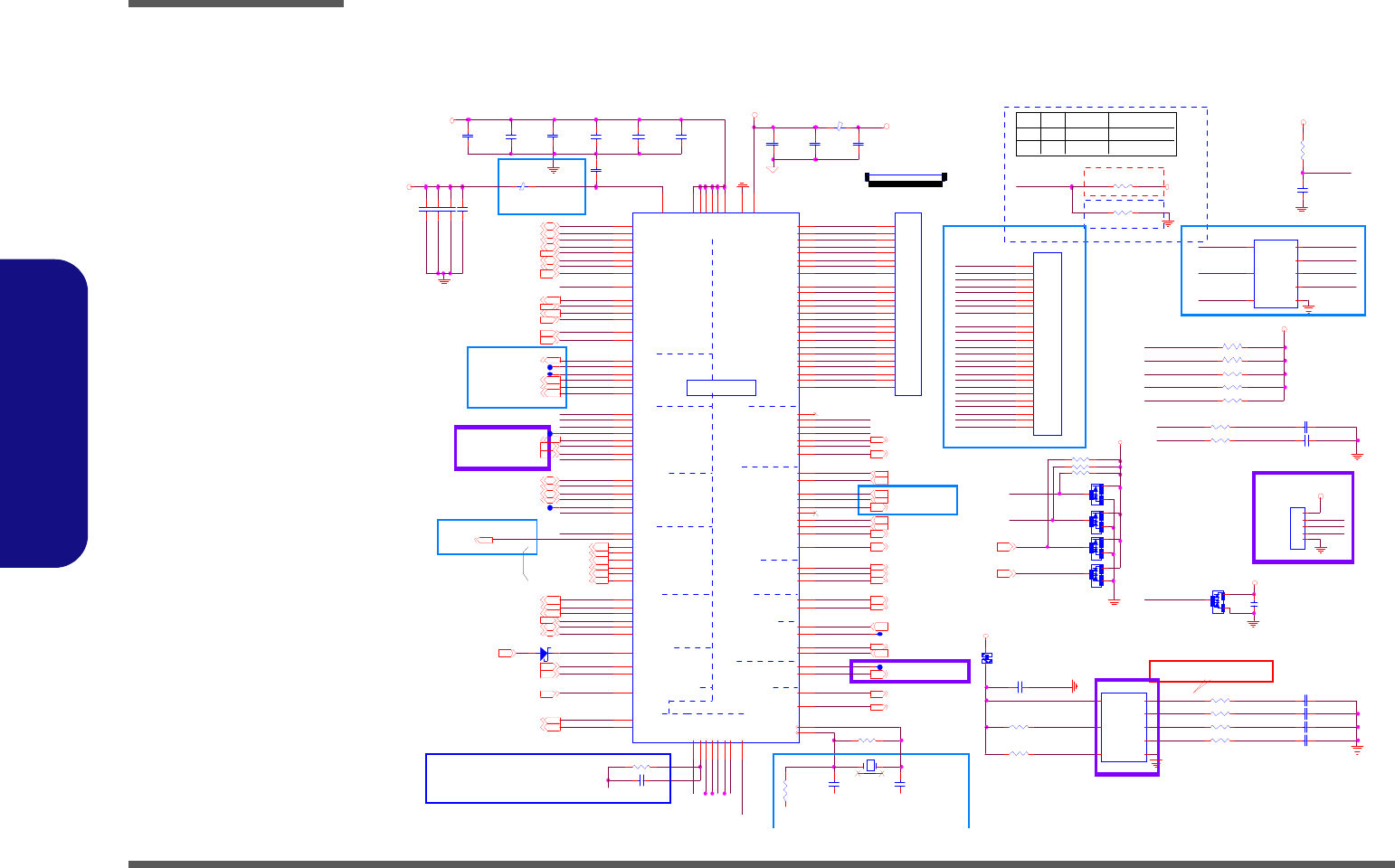

This appendix has circuit diagrams of the C5100Q/C5100Q-C/C5105/C5105-C notebook’s PCB’s. The following table
indicates where to find the appropriate schematic diagram.
Diagram - Page Diagram - Page Diagram - Page
System Block Diagram - Page B - 2 Panel, CRT - Page B - 15 LED, CCD, Audio Conn - Page B - 28
Clock Generator - Page B - 3 Inverter, Bluetooth, Fan - Page B - 16 System Power, PWR SW - Page B - 29
Penryn (Socket-P)1/2 - Page B - 4 ICH9M 1/4, SATA - Page B - 17 AC_In, Charger - Page B - 30
Penryn (Socket-P)2/2 - Page B - 5 ICH9M 2/4, PCI, USB - Page B - 18 VCORE - Page B - 31
CANTIGA 1/7, HOST - Page B - 6 ICH9M 3/4 - Page B - 19 VDD3, VDD5 - Page B - 32
CANTIGA 2/7, Graphics - Page B - 7 ICH9M 4/4 - Page B - 20 1.8V/1.05VS - Page B - 33
CANTIGA 3/7 - Page B - 8 HDMI - Page B - 21 1.5V,0.75VS - Page B - 34
CANTIGA 4/7 - Page B - 9 KBC-ITE IT8502E - Page B - 22 Click Board - Page B - 35
CANTIGA 5/7 - Page B - 10 Card Reader/LAN JMB261C - Page B - 23 Audio Board/USB - Page B - 36
CANTIGA 6/7 - Page B - 11 Audio Codec VT1812 - Page B - 24 Power Switch & Lid Board - Page B - 37
CANTIGA 7/7 - Page B - 12 Audio AMP - Page B - 25 External Odd Board - Page B - 38
DDRIII SO-DIMM A - Page B - 13 HDD, ODD, MDC, TP, Conn, 3G - Page B - 26 Power Sequence V1.0 - Page B - 39
DDRIII SO-DIMM B - Page B - 14 New Card, USB, Mini PCIE - Page B - 27
Table B - 1
Schematic
Diagrams
Version Note
The schematic dia-
grams in this chapter
are based upon ver-
sion 6-7P-C5105-002.
If your mainboard (or
other boards) are a lat-
er version, please
check with the Service
Center for updated di-
agrams (if required).

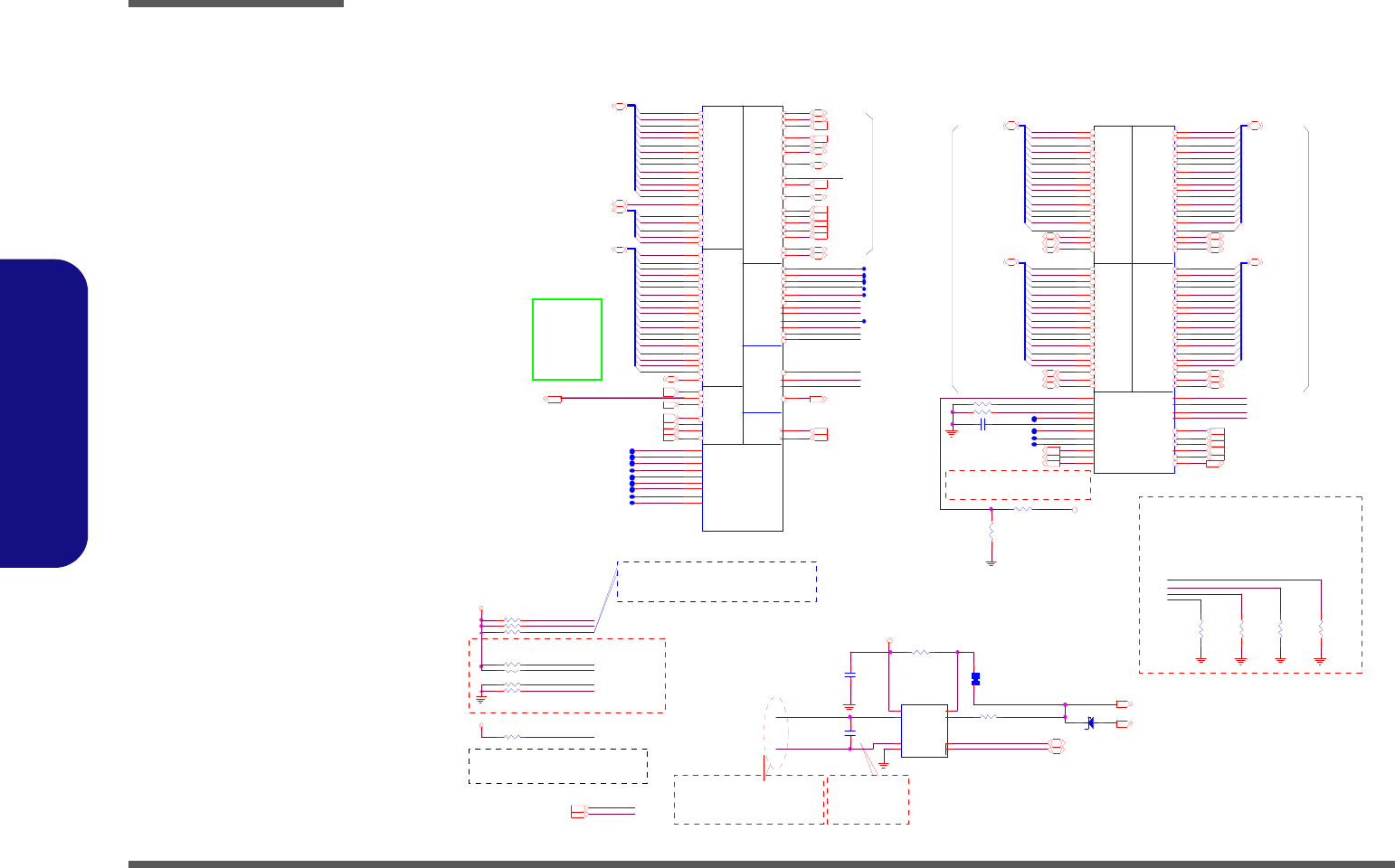

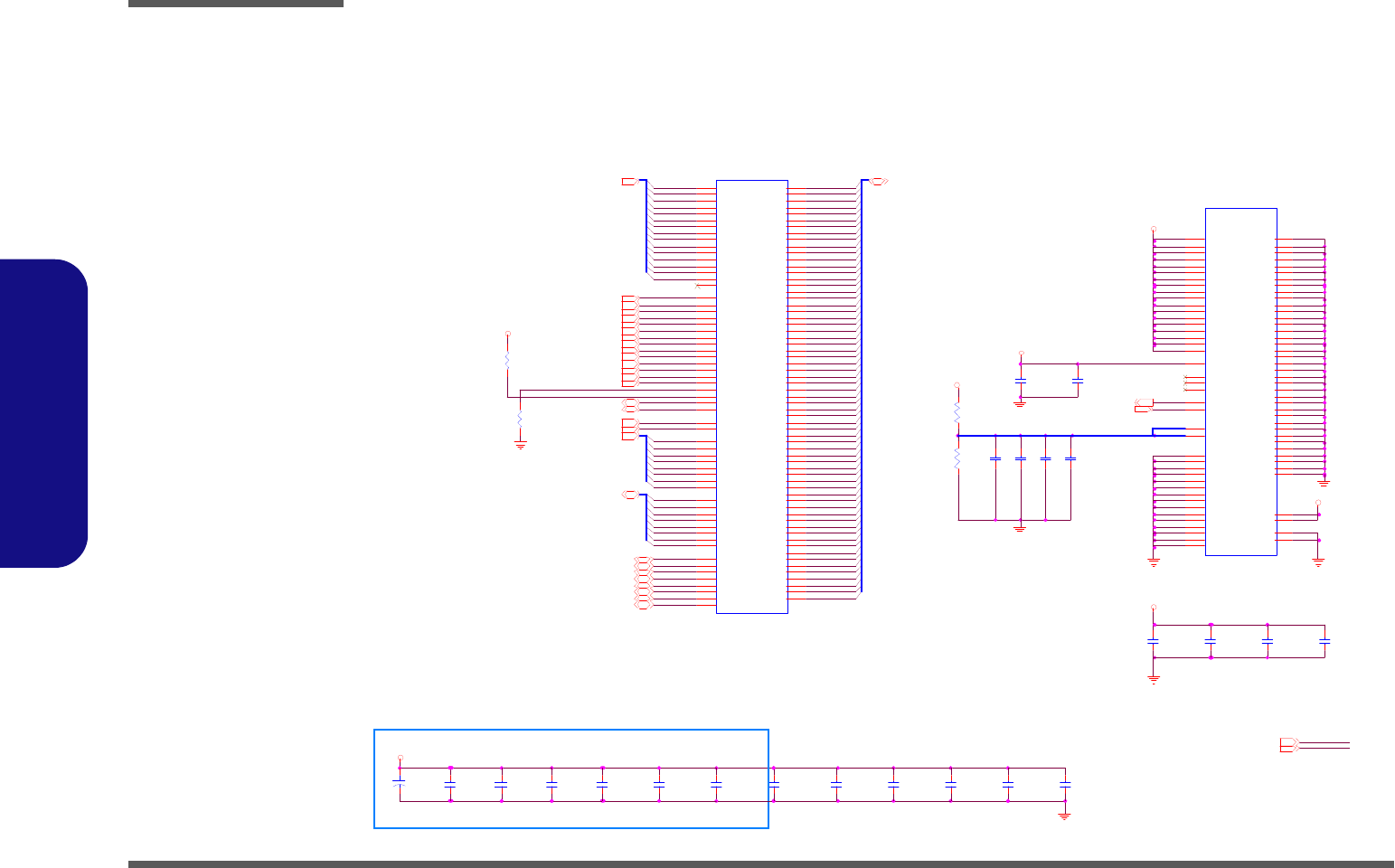

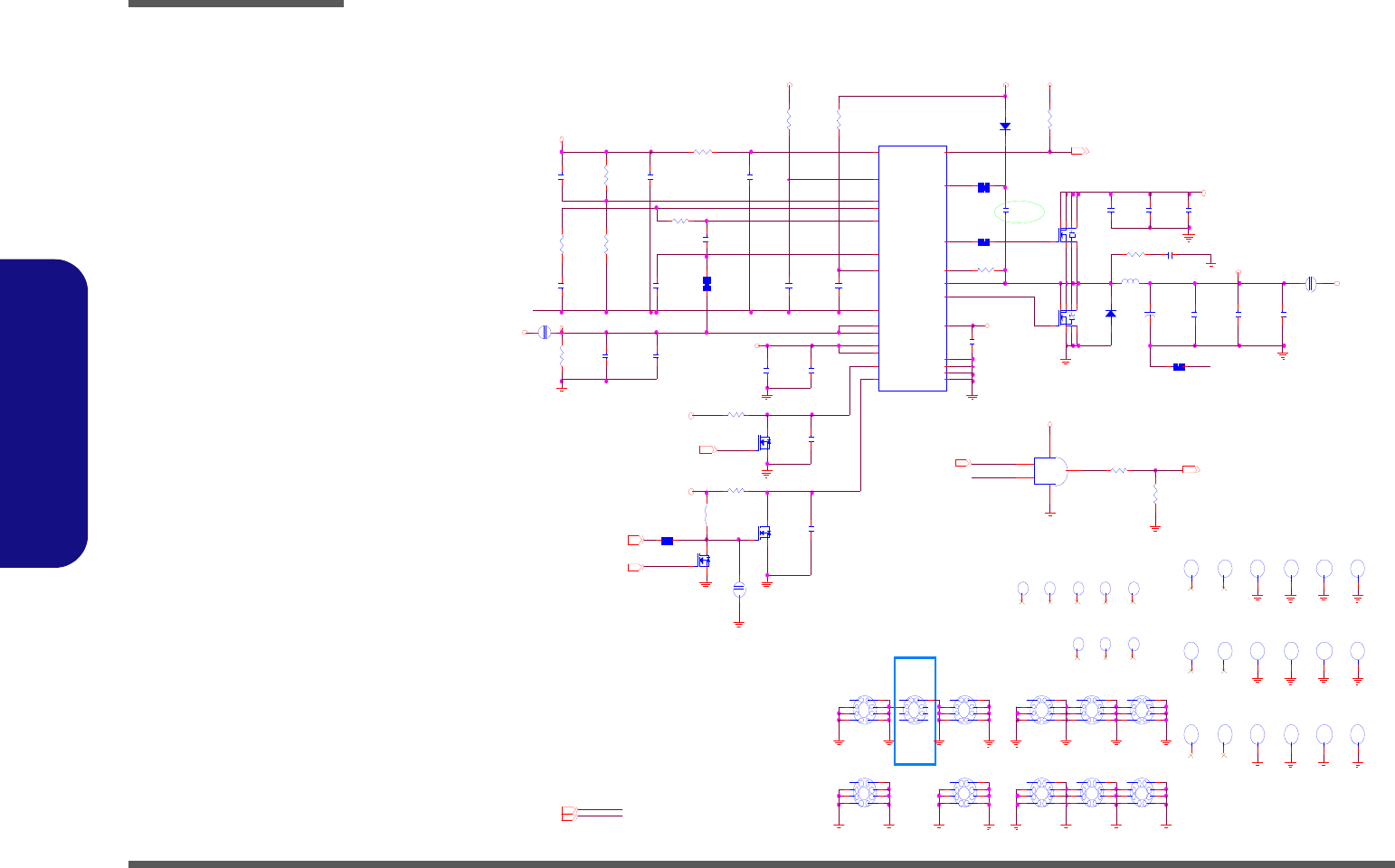

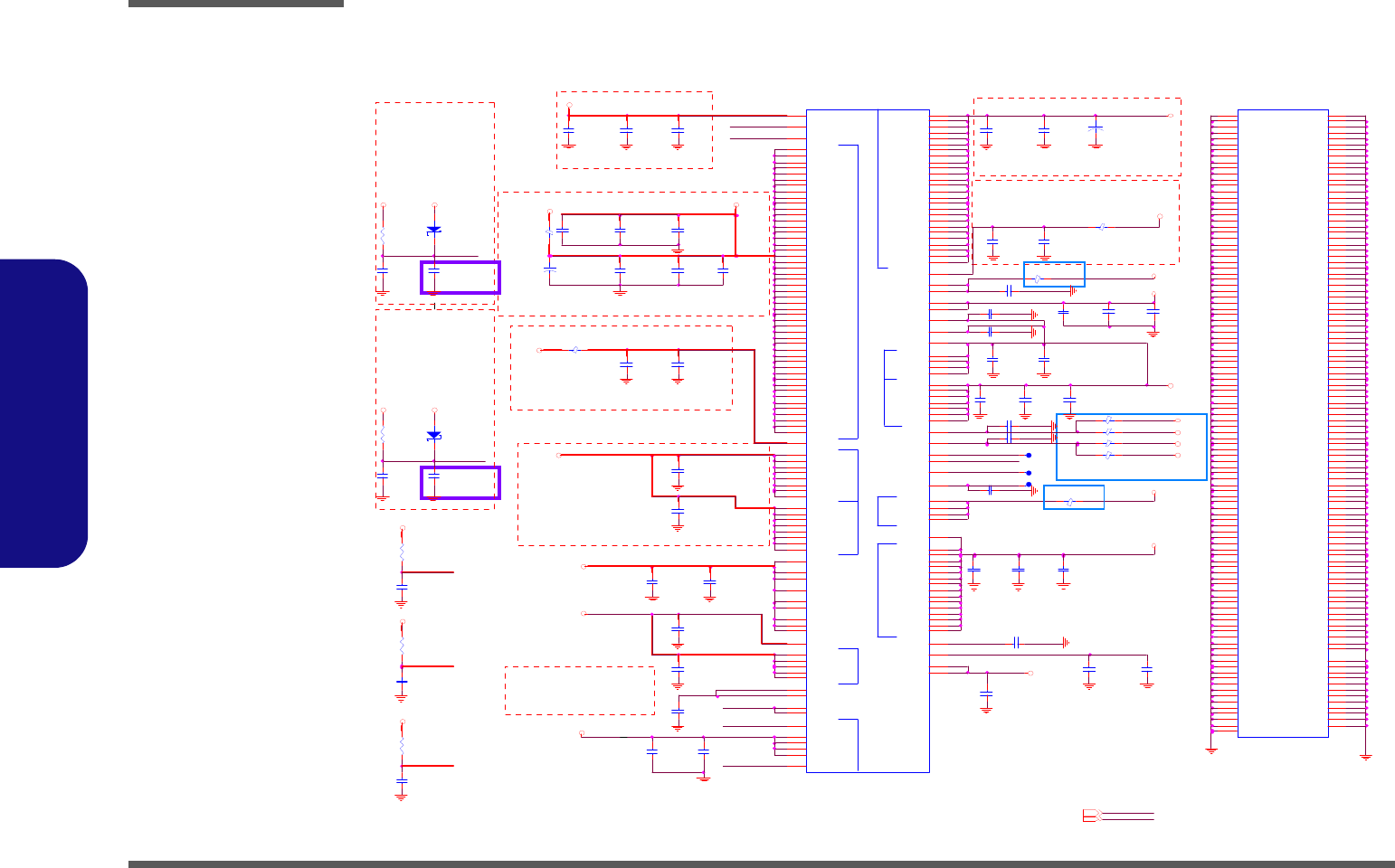

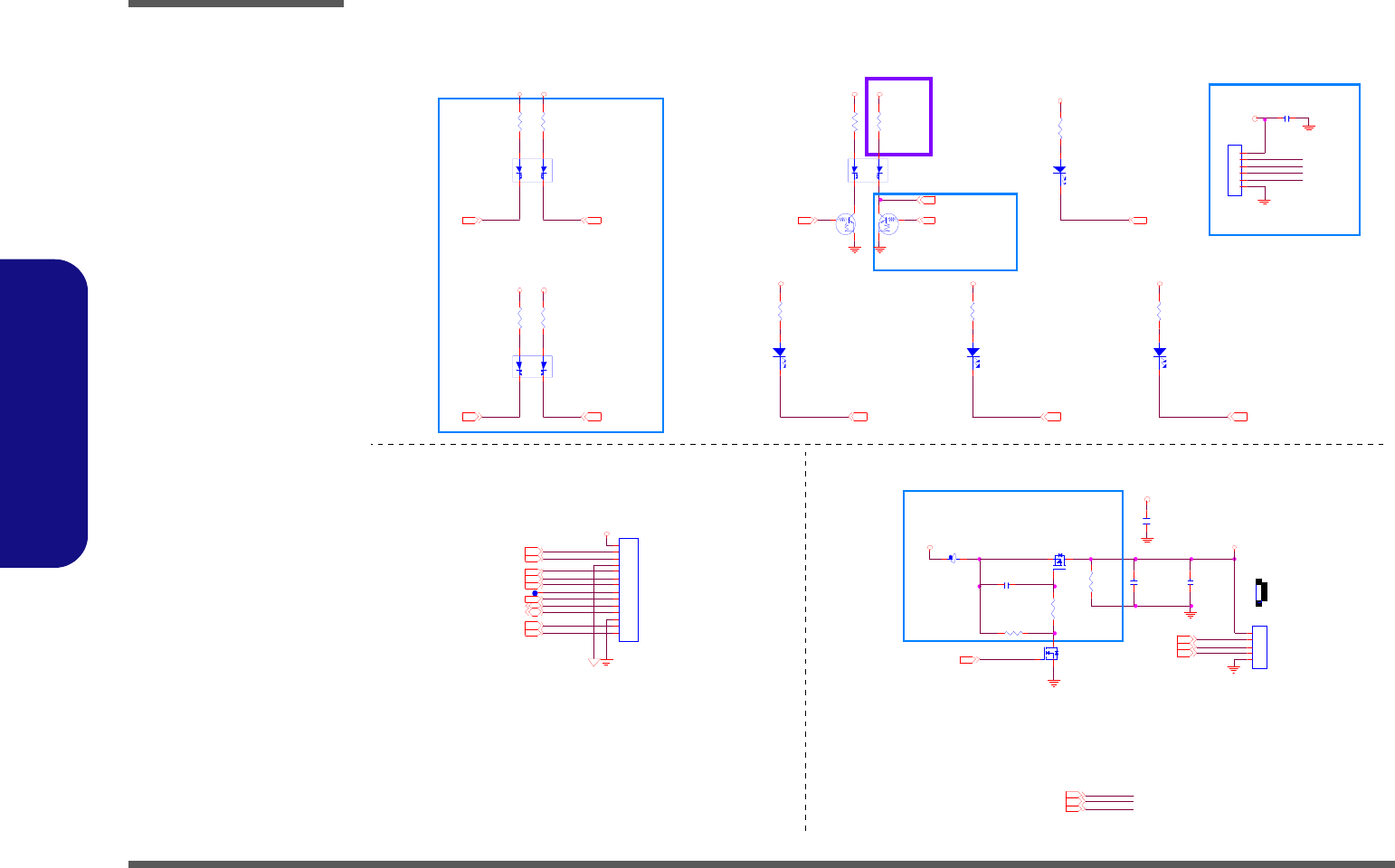

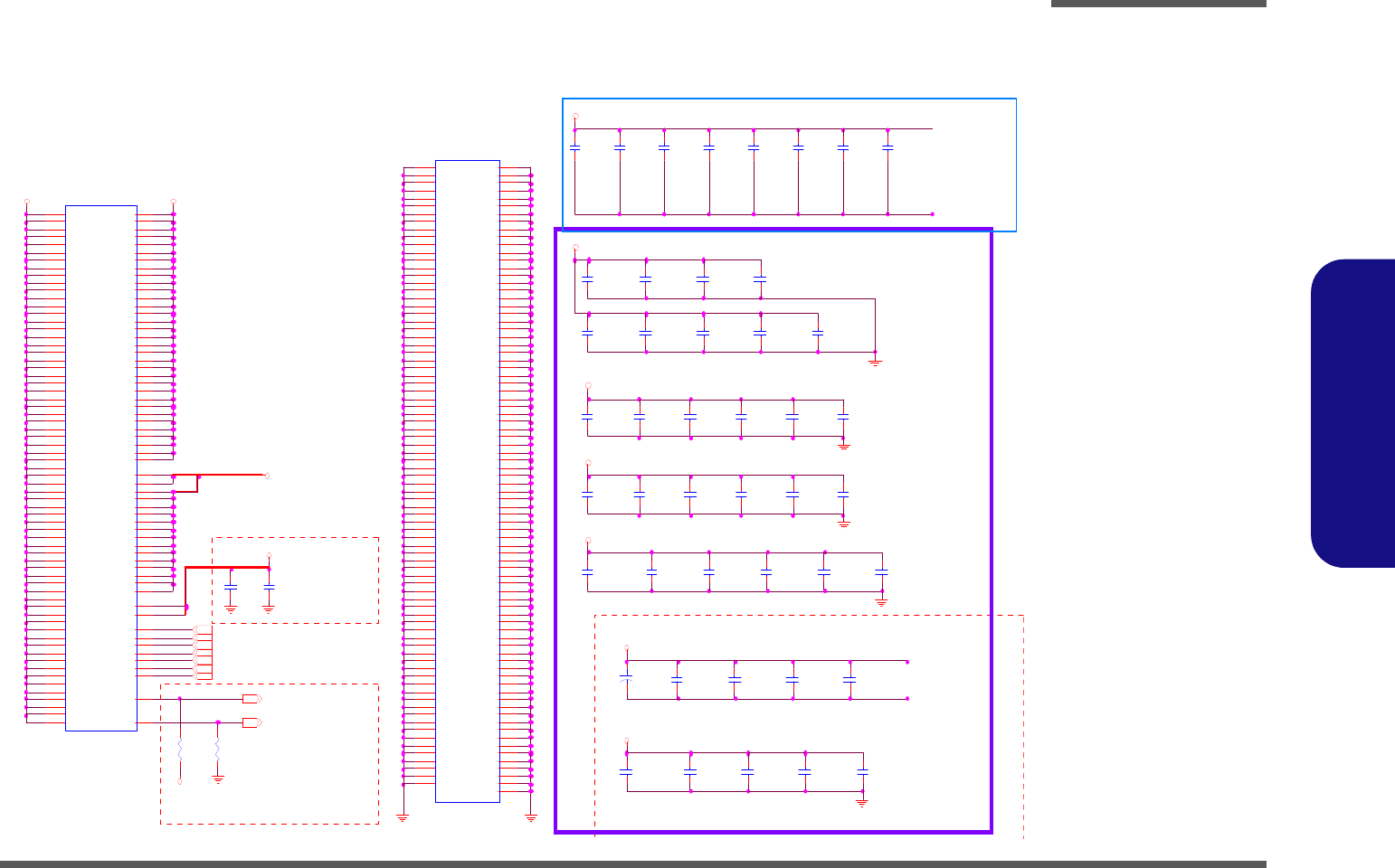

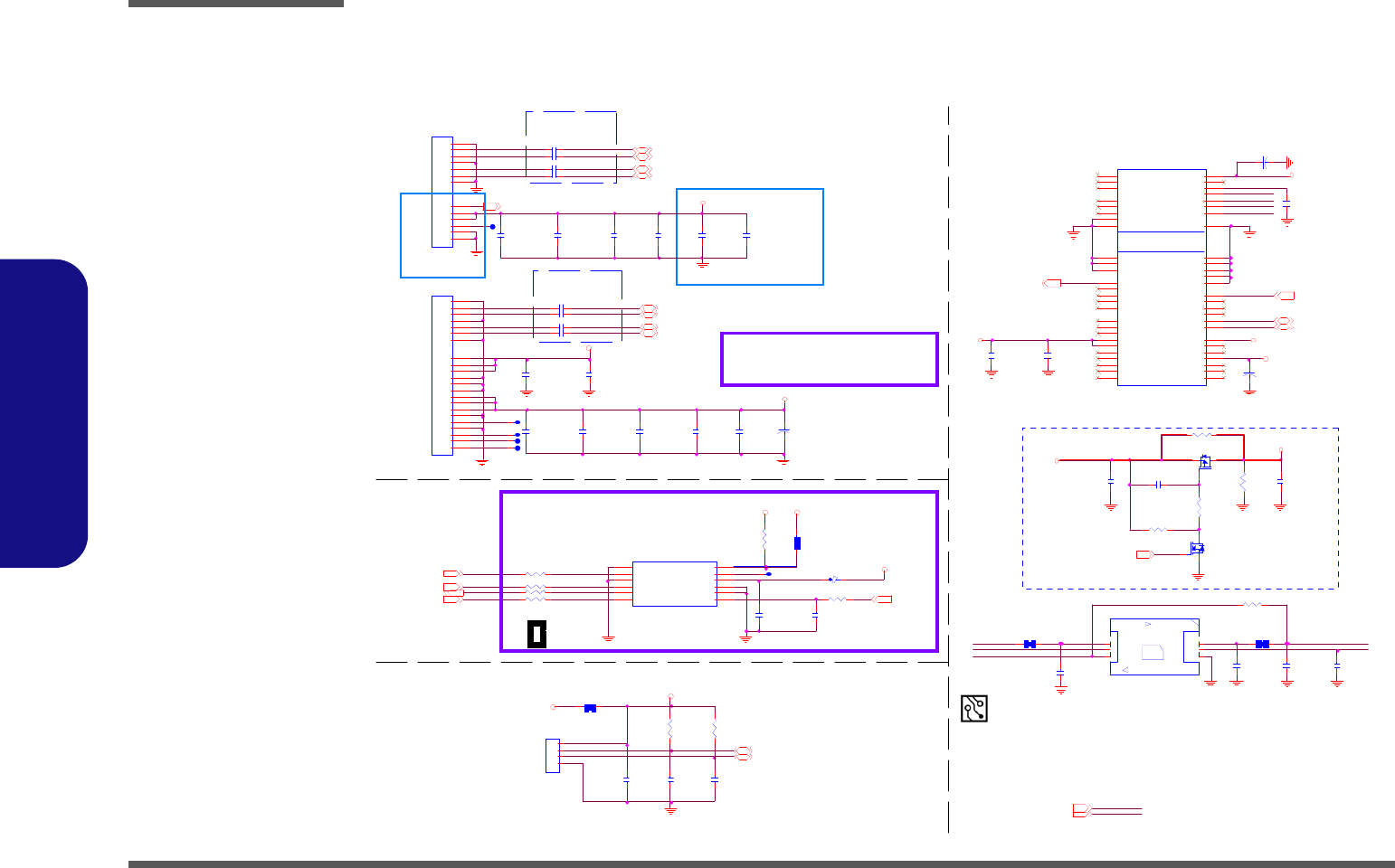

Schematic Diagrams
B - 2 System Block Diagram
B.Schematic Diagrams
System Block Diagram
Sheet 1 of 38
System Block
Diagram
HDMI
US B
(J US B 0)
SATA HDD,
LID
SA TA ODD
<= 8"
0.5"~5.5"
Ne w Ca rd
(USB8)
SOCKET
Mini PCIE
SOCKET
(USB4)
SOCKET
CARD READER
LAN
JMC261C
4IN1
SO-DIMM1
USB2
CLEVO C5100Q System Block Diagram
USB2 .0
(JUSB1)
Memory Termination
24 MHz
Sy na pt i c
MIC IN,HEADPHONE
667/800 MHz
US B
USB11
AZALIA LINK
32.768 KHz
48pins LQFP
AC-IN,CHARGER
CLICK BOARD
Audio Board
SYSTEM POWER +VCORE
PCIE
IT E 85 02 E
USB5
PATA-133
RJ-45
AUDIO AMP
128pins LQFP INT SPK
100 MHz
INT. K/B
VDD3,VDD5,3.3V,5V
SATA I/II 3.0Gb/s
LPC
EC SMBUS
VT1812
Bluetooth
MD C CO N
480 Mbps
SM AR T
FA N
24pins TSSOP
LCD CONNECTOR,
INVERTER
MIC
IN
14 *1 4*1 .6m m
1.8V,1.05VS
TO UC H P AD
32.768KHz
USB & Phone
Jack B'd
F7 53 83 M
3G CARD
667/800MHz
810602-1703
1.5V,0.75VS
FSB
9.8*6.4*1.2mm
AZAL IA
MDC
MODU LE
EC
TH ER MA L
SE NS OR
SP I
9 * 9* 1. 6m m
33 MHz
INT MIC
SMART
BATTERY
SO-DIMM2
USB3
RJ - 1 1
Azal ia C o de c
HP
OU T
DDRIII
CRT
DDRIII
CCD
Intel Penryn
DMI
1329 Ball FCBGA
NORTH BRIDGE
PROCESSOR
Intel GL40
478pins uFCBGA
ICH9M
676 mBGA
SOUTH BRIDGE
14.318 MHz
CLOCK GEN.
SLG8SP513V
0.1"~13
SYSTEM SMBUS
Schematic Diagrams
Clock Generator B - 3

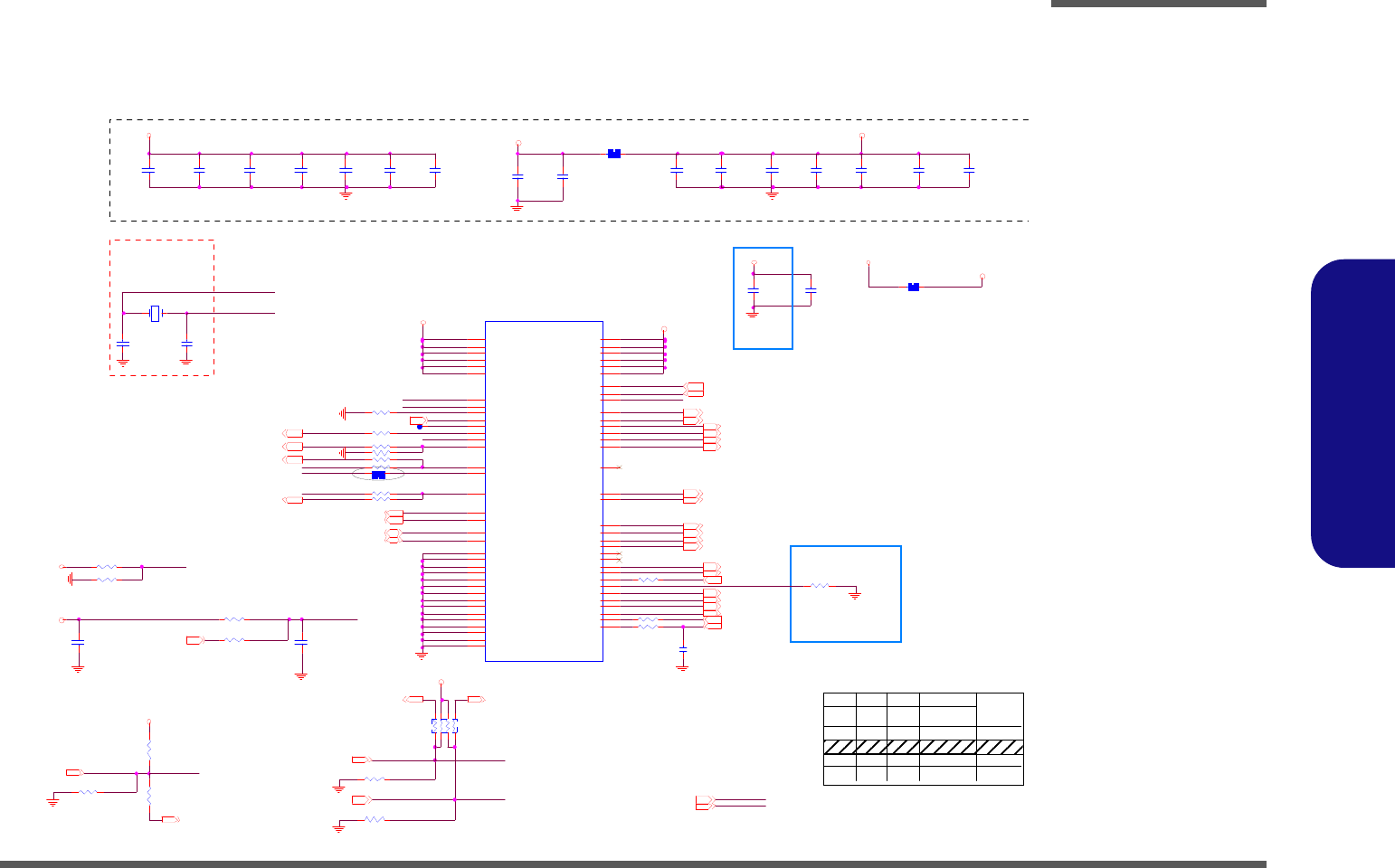

B.Schematic Diagrams

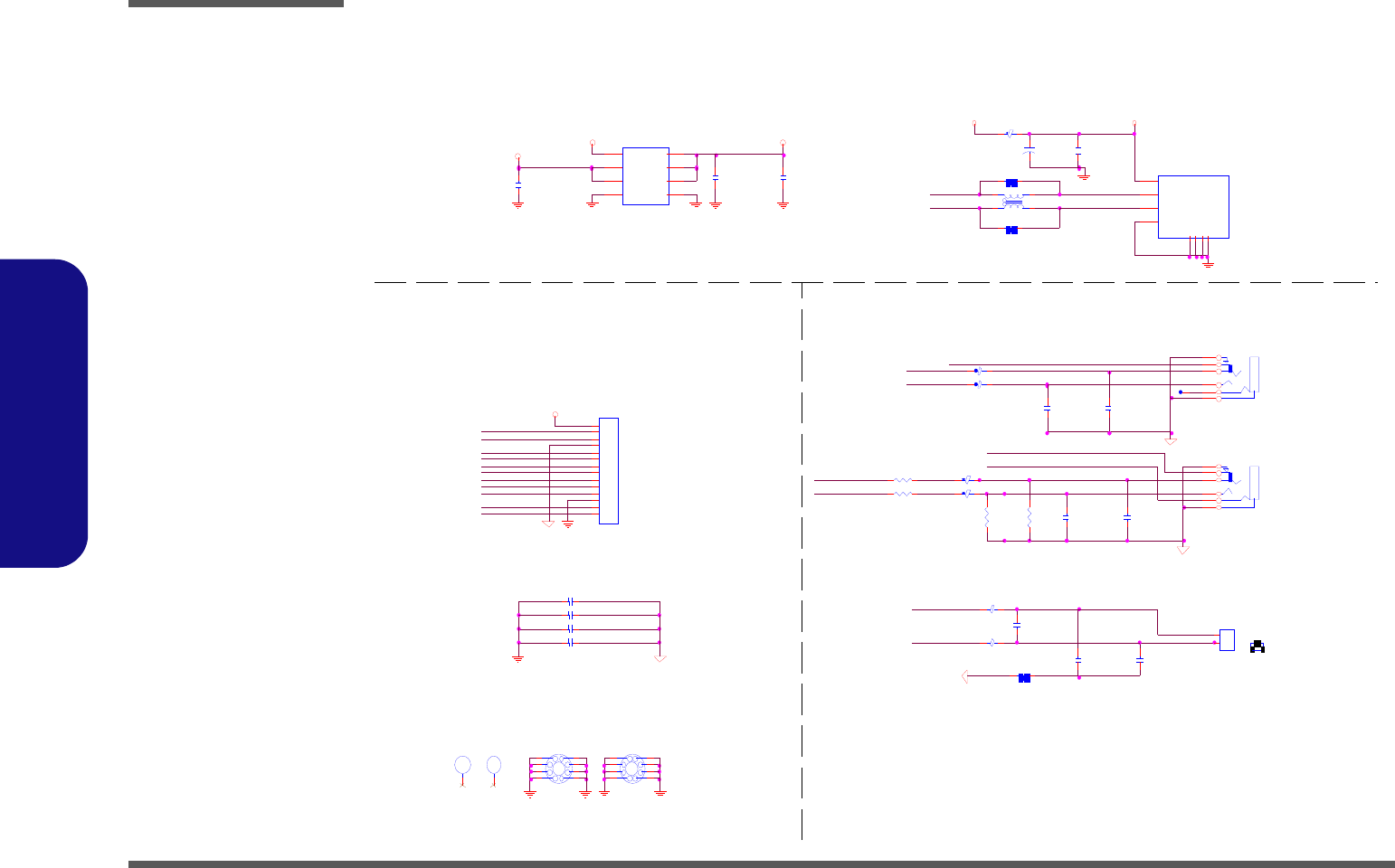

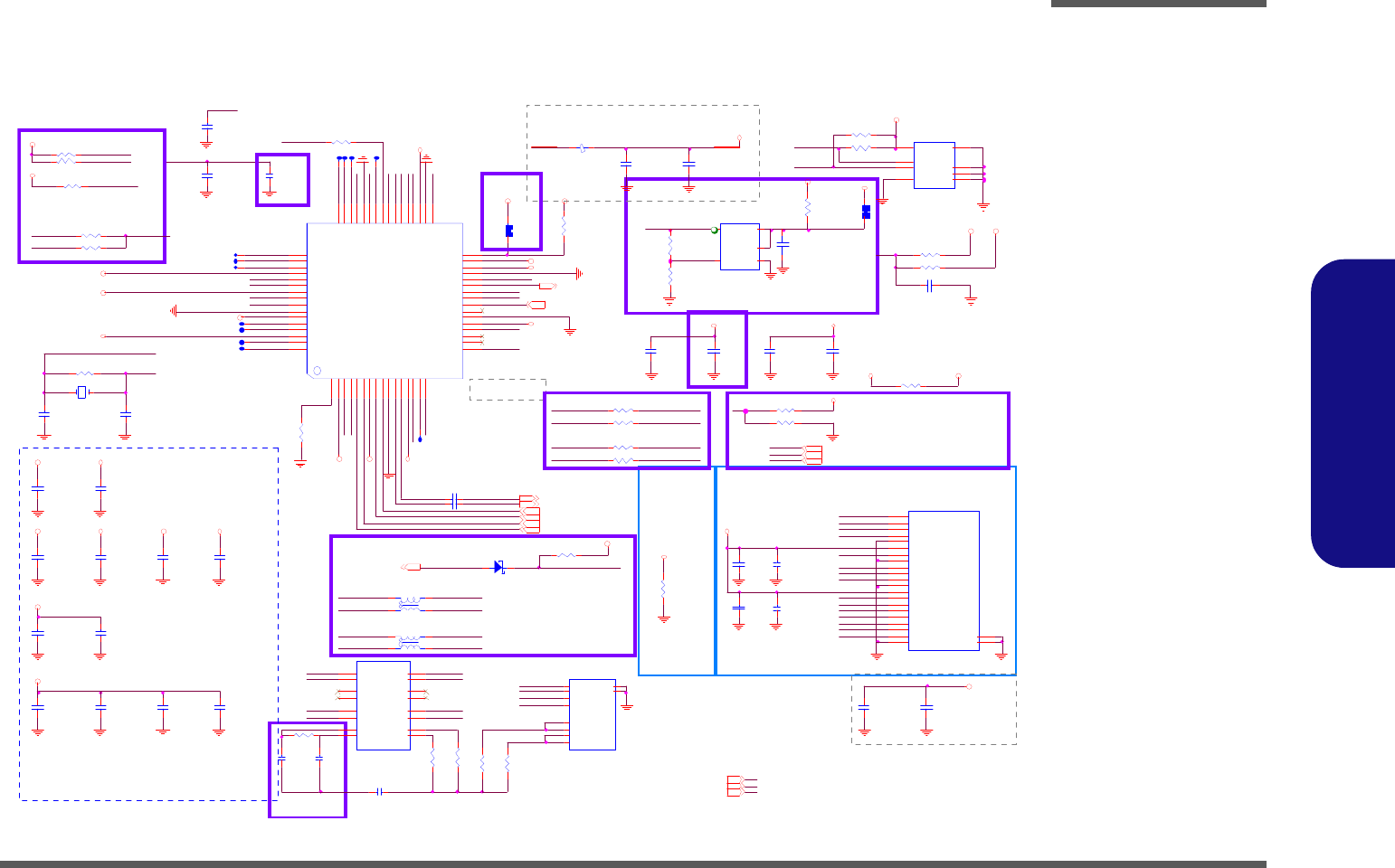

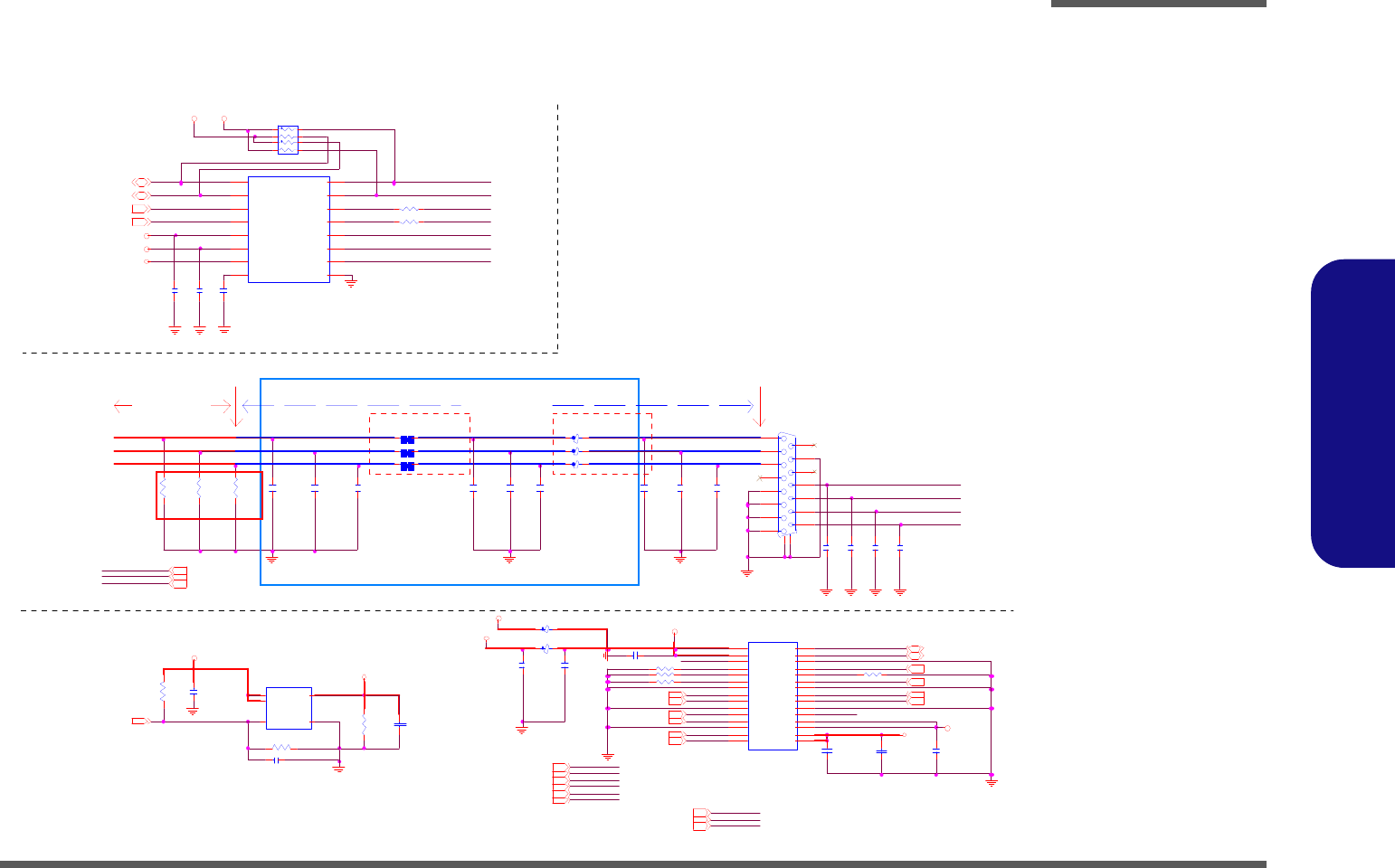

Clock Generator
CLK_ SEL
C LK_ SEL
CLOCK GENERATOR
C217
0.1u_16V_Y5V_04
CL K_ MC H_ B C L K
CL K_ MC H_ B C L K #
RN26
1K_8P 4R _04
1
2
3
45
6
7
8
CLK_ PC IE_M IN I#
CLK_ PC IE_M IN I
CL K_ CP U_ B CL K#
CL K_ CP U_ B CL K
R137
* 56_04
R 133 * 0_04
R 150 * 0_04
R 143 1K_04
CLK_ PC IE_N EW _C ARD #
CLK_ PC IE_N EW _C ARD
3.3VS
R138
1K_04
PCLK_ KBC
C LK_B SEL 1
VTT_ PW R_ GD
EMI
IC H_ S MB CL K 012,13,18
IC H_ S MB DA T012,13,18
MC H_BSEL 2 7
PC LK KBC
10mil
PLACE CRYSTAL
WITHIN 500 MILS
OF CK410M
CLK_ BSEL2 CLK_ DR EFSS
C LK_D REF SS# 7
C LK_D REF SS 7
CLK_ DR EFSS#
3.3VS _G
1.05VS_G
VTT_ PW R_GDXTAL_O UT
XTAL_IN
R132 *10K_04
R144 2.2K_04
R159 100K_04
R151 33_04
R 170 475_1%_04
C582
22p_50V_NP O_04
R128 2.2K_04
CL K_ P C I E_C R
CL K_ P C I E_C R#
R 126 *10K_04
R 178 475_1%_04
R127 33_04
R130 33_04
C215
* .1U _10V_X7R_04
R136 33_04
MC H_C LKR EQ # 7
P M_STPPCI# 18
C PU_BSEL23
PW RSAVE #18
WLAN_C LK REQ # 26
NEW CAR D_CLKR EQ# 2 6
PM_STPCPU# 18
CLK_ PW R GD18
C PU_BSEL13
CPU _BSEL03
R161 0_04
CLK_ BSEL1
1.05VS
3.3VS
3.3VS
1.05VS
3.3VS3,6,7,10,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,30
3.3V3,15,16,17,18,19,21,22,25,26,28,32,33
CL K_ P C I E_I CH
CL K_ P C I E_I CH #
CL K_ DR EF
1
CL K_ DR EF #
0
13 3 MH z
FS A
0
FSC
0
667 MHz
1
800 MHz
1066 MHz
20 0 MH z
0
Host Clock
0
FSB
0
1
533 MHz
01
BSEL2
0
16 6 MH z
26 6 MH z
BS EL 0
CK505
Fr eq ue nc y
BS EL 1
CL K_ P C I E_3 G PL L
CL K_ P C I E_3 G P L L#
R 180 33_04
C210
33p_50V_NP O_04
C502
10u_6.3V_X5R_08
X1
FSX8L_14.31818MH z
1 2
C2 0 9
33p_50V_NPO _04
CLK_ BSEL0
M CH _ BSEL 17
C501
1u_6.3V_Y 5V_04
3.3VS
3.3VS_G
LAN_CL KR EQ#
XTAL _I N
XTAL _O UT
C LK_ BSEL 0
PC LK TPM
R172 475_1%_04
FSLA
U6
SLG 8SP 513V
PC I_0/C LK REQ _A #
8
VD D_PCI
9
PC I_1/C LK REQ _B #
10
PC I_2
11
PC I_3
12
^PC I_4 /LC DC LK_ SEL
13
PC IF_5/ITP_EN
14
VSS_PC I
15
VD D_48
16
US B_4 8 MH z/F S_A
17
VSS_48
18
VDD _I/O 19
SR C_ 0 /DO T_ 9 6
20
SR C_0#/D OT_96#
21
VSS_I/O
22
VD D_PLL3
23
LCD CLK/27M 24
LCD CLK#/27M_SS 25
VSS_PL L 3
26
VDD _PLL3_I/O 27
SRC _2 28
SRC _2# 29
VSS_SR C_1
30
SR C_3 /CLKR EQ_C# 31
SR C_3#/CLKR EQ_D# 32
VD D_SR C_I/O _1 33
SRC _4 34
SRC _4# 35
VSS_SR C_2
36 SRC _9 37
SRC _9# 38
S RC _11#/CLKR EQ_G# 39
SC L
7
SD A
6
RE F/FS_ C/TEST_SEL
5
VD D_REF
4
XTAL_IN
3XTAL_O UT
2
VSS_R EF
1
FS_B/TEST_MO DE
64
C KPW R GD /PD# 63
VD D_CPU
62
CPU _0 61
CPU _ 0# 60
VSS_C PU
59
C PU_1_MC H 58
CPU _1_MC H# 57
VDD_CPU_I/O 56
NC 55
SRC_8/CPU_ITP 54
SR C_8#/CPU _ITP# 53
VD D_SR C_I/O _3 52
SR C_7 /C LKR EQ_F# 51
SRC _7# /C LKR EQ_E# 50
VSS_SR C_3
49
SRC _6 48
SRC _6# 47
VD D_SRC
46
PCI_STOP# 45
CPU_STOP# 44
VD D_SR C_I/O _2 43
SR C_10# 42
SRC _10 41
SR C_11/CLKR EQ_H# 40
THR M_ PAD _1
65
THR M_ PAD _2
66
THR M_ PAD _3
67
THR M_ PAD _4
68
THR M_ PAD _5
69
THR M_ PAD _6
70
0.1 uF near th e e very powe r pin .
C221
0.1u_16V _Y 5V_04
C507
0.1u_16V_Y 5V _04
3.3VS_G
C225
0.1u_16V_Y 5V _04
R 179 *20m il_short_04
C505
0.1u_16V_Y5V_04
C504
1u_6.3V_Y5V_04
C247
0.1u_16V_Y 5V_04
C248
1u_6.3V_Y 5V_04
C250
0.1u_16V _Y 5V_04
C218
0.1u_16V _Y 5V_04
R351 *20m il_short_04
C503
0.1u_16V_Y5V_04
C246
0.1u_16V_Y5V_04
1.05VS
C216
0. 1u_16V _Y 5V_04
C222
0.1u_16V_Y5V_04
C249
1u_6.3V_Y5V_04
C245
10u_6.3V_X5R_06
C206
0.1u_16V_Y 5V_04
1.05VS_ G
R129 10K_04
PC LK ICH
D02
R152 *10mil_short
CL K_ ICH 1 4
CLK_PCIE_ICH# 17
C LK_C PU_BC LK 3
PC LK _K BC21
CL K_ ICH 1418
CL K_ ICH 4818
CLK_S ATA # 16
CLK_ PC IE_ MIN I 2 6
CL K_ M CH_ B C L K # 5
PC LK_IC H17 CLK_ PC IE_ NEW _ C ARD 2 6
M CH_BSE L0 7
CL K_ P C I E_ 3G PL L# 7
CL K_ P C I E_ 3G PL L 7
CLK_ PC IE_NEW _C ARD # 26
CL K_ DR EF #7
CLK_ PC IE_ MIN I# 26
CL K_ M CH_ B C L K 5
CL K_ DR EF7
C LK_C PU_BC LK# 3
CL K_ P C I E_ CR 22
CLK_PC IE_CR # 22
CLK_PCIE_ICH 17
CLK_SATA 16
CL K_ S AT A
CL K_ S AT A#
C LK_B SEL 2
FSLB
FSLC
R 131 10K _04
Sheet 2 of 38
Clock Generator
Schematic Diagrams
B - 4 Penryn (Socket-P)1/2
B.Schematic Diagrams
Penryn (Socket-P)1/2
Sheet 3 of 38
Penryn (Socket-
P)1/2
R329
*10mil_short
H_A # 3 2
U14
W83L771AWG
VDD
1
D+
2
D-
3
THER M 4
GND
5
ALERT 6
SDATA 7
SCLK 8
R3 22
27 . 4 _1 %_ 0 4
H_BR0# 5
H_D STBN # 2 5
H_DBSY# 5
SM C_CPU_ THER M 21
H_HITM# 5 H_ D# [63 :0 ] 5
H_ D# [63 :0 ] 5
H_HIT# 5
H_D STBP # 2 5
H_D INV#3 5
H_ADS# 5
H_D STBP # 3 5
H_D INV#2 5
SM D_CPU_ THER M 21
H_DRDY# 5
H_LOCK# 5
H_BNR# 5
H_D STBN # 3 5
10mils
THERMAL SENSER
<12 inch es
no decoupling should be
placed on the
GTLREF pin
DESIGN GUIDE P.65
H_CPURST# 1"<L<5"
Zo= 55O? 5%
R 3 24 * 1K _ 04
Within 2.0"
of the CPU
H_NMI
H_INTR
H_A20M#
H_DPSLP#
H_IGNNE#
H_INIT#
H_SMI#
H_STPCLK#
0.5" < L< 12"
CPU TO ICH with same
ground plane
Layout Note:
Layout note:
Layout Note:
Zo= 55O? 5%
COMP0, COMP2: 0.5" Max, Zo=27.4 Ohms
COMP1, COMP3: 0.5" Max, Zo=55 Ohms
Best estimate is 18 mils wide trace for outer
layers and 14 mils wide trace if on internal
la y er s.
COMP3
COMP0
COMP2
COMP1
La yo ut no te :
Zo=55 ohm, 0.5"max for
GT LR EF
H_TD I
Circ ult: 54. 9 oh m ch eck 150 ohm
H_A # 3 5
CPU_ TEST 7
CPU_ TEST 2
CPU_ TEST 1
If PRO CHOT # is rou ted betw een CPU, IMV P an d MC H,
pu ll-u p re sist or h as t o be 68 ohm ? 5% . If not
us e, p ull- up r esis tor has to b e 56 ohm ? 5 %
Route H_THERMDA and
H_THERMDC on same layer.
10 mil trace on 10 mil
spacing.
Zo= 55O? 5%
Layout Note:
Near to Thermal
IC
TO PO WE R P AG E
COMP[3:0]
traces should be at least 25 mils (> 50 mils
preferred) away from any other toggling
signal.
H_A # 3 3
H_ D# [6 3:0 ]5
H_ REQ# [4:0 ]5
H_AD STB#15H_DSTBP#15
H_D #[ 6 3:0 ]5
H_DSTBP#05
H_A#[35:3]5
H_AD STB# 05
H_DINV# 05
H_DSTBN#05
H_DSTBN#15
H_ A# [3 5:3 ]5
H_DINV# 15
H_A # 5
H_A # 1 0
H_R EQ# 3
H_R EQ# 1
H_R EQ# 0
H_A # 6
H_A # 8
H_R EQ# 2
H_A # 3
H_A # 4
H_R EQ# 4
H_A # 9
H_A # 7
H_A # 1 1
H_A # 2 0
H_A # 1 3
H_A # 1 9
H_A # 1 8
H_A # 2 4
H_A # 2 3
H_A # 2 5
H_A # 1 6
H_A # 2 1
H_A # 1 7
H_A # 2 2
H_A # 1 2
H_A # 1 5
H_A # 1 4
H_A # 3 1
H_A # 2 6
H_A # 2 8
H_A # 2 7
H_A # 2 9
H_A # 3 0
CPU_ GTL RE F
CPU_ TEST 5
CPU_ TEST 4
CPU_ TEST 6
CPU_ TEST 3
AD DR GR O UP_ 0 AD D R
GROUP_1
CONTROLXD P/I TP S IGNALS
H CLK
THERMAL
RE SER VED
ICH
JSKT1A
FOXCON N PZ4782A-274M-01
A[10]#
N3
A[11]#
P5
A[12]#
P2
A[13]#
L2
A[14]#
P4
A[15]#
P1
A[16]#
R1
A[17]#
Y2
A[18]#
U5
A[19]#
R3
A[20]#
W6
A[21]#
U4
A[22]#
Y5
A[23]#
U1
A[24]#
R4
A[25]#
T5
A[26]#
T3
A[27]#
W2
A[28]#
W5
A[29]#
Y4
A[3]#
J4
A[30]#
U2
A[31]#
V4
RSVD[0 1]
M4
RSVD[0 2]
N5
RSVD[0 3]
T2
RSVD[0 4]
V3
RSVD[0 5]
B2
RSVD[0 6]
D2
RSVD[0 7]
D22
A[4]#
L5
A[5]#
L4
A[6]#
K5
A[7]#
M3
A[8]#
N2
A[9]#
J1
A20 M#
A6
ADS# H1
ADSTB[0]#
M1
ADSTB[1]#
V1
RSVD[0 8]
D3
BCLK[0] A2 2
BCLK[1] A2 1
BN R# E2
BPM[0]# AD 4
BPM[1]# AD 3
BPM[2]# AD 1
BPM[3]# AC 4
BPRI# G5
BR0# F1
DBR# C20
DBSY# E1
DEFER# H5
DRD Y# F21
FERR#
A5
HIT# G6
HITM# E4
IER R# D20
IGNNE#
C4
INIT# B3
LI N T0
C6
LI N T1
B4
LO C K # H4
PRD Y# AC 2
PR E Q # AC 1
PRO CHOT# D21
REQ[0 ]#
K3
REQ[1 ]#
H2
REQ[2 ]#
K2
REQ[3 ]#
J3
REQ[4 ]#
L1
RESET# C1
RS[0 ]# F3
RS[1 ]# F4
RS[2 ]# G3
SMI#
A3
STPCLK#
D5
TC K AC 5
TD I AA6
TDO AB3
TH ERMTRIP# C7
THERMD A A2 4
TH E R M D C B25
TM S AB5
TR D Y # G2
TR S T # AB6
A[32]#
W3
A[33]#
AA4
A[34]#
AB2
A[35]#
AA3
RSVD[0 9]
F6
H_A # 3 4
H_TDI
H_TRST#
H_TMS
H_IERR#
ITP_D BRST#
H_TCK
H_PROCHOT#
H _PREQ #
H_THERM DA
H_THERM DC
DA T A GRP 0 DATA GRP 1
DA TA G RP 2DA TA G RP 3
MISC
JSKT1B
F O X C O N N P Z 47 82 A - 2 74 M - 0 1
CO MP[0] R2 6
CO MP[1] U2 6
CO MP[2] AA1
CO MP[3] Y1
D[0]#
E22
D[1]#
F24
D[10 ]#
J24
D[11 ]#
J23
D[12 ]#
H22
D[13 ]#
F26
D[14 ]#
K22
D[15 ]#
H23
D[16 ]#
N22
D[17 ]#
K25
D[18 ]#
P26
D[19 ]#
R23
D[2]#
E26
D[20 ]#
L23
D[21 ]#
M24
D[22 ]#
L22
D[23 ]#
M23
D[24 ]#
P25
D[25 ]#
P23
D[26 ]#
P22
D[27 ]#
T24
D[28 ]#
R24
D[29 ]#
L25
D[3]#
G22
D[30 ]#
T25
D[31 ]#
N25
D[32]# Y2 2
D[33]# AB24
D[34]# V2 4
D[35]# V2 6
D[36]# V2 3
D[37]# T22
D[38]# U2 5
D[39]# U2 3
D[4]#
F23
D[40]# Y2 5
D[41]# W22
D[42]# Y2 3
D[43]# W24
D[44]# W25
D[45]# AA23
D[46]# AA24
D[47]# AB25
D[48]# AE24
D[49]# AD24
D[5]#
G25
D[50]# AA21
D[51]# AB22
D[52]# AB21
D[53]# AC26
D[54]# AD20
D[55]# AE22
D[56]# AF2 3
D[57]# AC25
D[58]# AE21
D[59]# AD21
D[6]#
E25
D[60]# AC22
D[61]# AD23
D[62]# AF2 2
D[63]# AC23
D[7]#
E23
D[8]#
K24
D[9]#
G24
TE S T 5
AF1
DINV [0 ]#
H25
DINV [1 ]#
N24
DINV [2 ]# U2 2
DINV [3 ]# AC20
DPRST P# E5
DPSLP# B5
DPWR# D2 4
DSTBN [0]#
J26
DSTBN [1]#
L26
DSTBN[2]# Y2 6
DSTBN[3]# AE2 5
DSTBP [0 ]#
H26
DSTBP [1 ]#
M26
DSTBP[2 ]# AA26
DSTBP[3 ]# AF24
GTL RE F
AD 26
PSI# AE6
PW RG OOD D6
SLP# D7
TE S T 3
C24
BSEL [0]
B22
BSEL [1]
B23
BSEL [2]
C21
TE S T 2
D25
TE S T 4
AF26
TE S T 6
A26
TE S T 1
C23
TE S T 7
C3
R 3 25 5 6 _0 4
R 2 6 5 4 . 9_ 1% _ 04
3.3V
1.05VS
1. 0 5V S
C4 33
1000p_50V_X7R_04
H_D# 32
H_D# 34
H_D# 33
H_D# 36
H_D# 39
H_D# 35
H_D# 37
H_D# 38
R3 3 1 *0 _ 04
H_D# 44
H_D# 43
H_D# 40
H_D# 41
H_D# 42
R 3 28 5 6 _0 4
H_D# 47
H_D# 46
H_D# 45
C413 *.1U_10V_X7R_04
R 2 5 5 4 . 9_ 1% _ 04 R31
54.9_1%_04
R 3 20 5 4 . 9_ 1% _ 04
PM_THRM# 18
H_F ERR#16
PS I # 3 0
THERM_AL ER T# 21
C4 42
*1 U_ 6.3 V _0 4
R3 3 0
10K_04
3.3V1 5,1 6,1 7 ,18 ,19 ,2 1,2 2,2 5 ,26 ,28 ,32 ,3 3
H_RS#2 5
H_A2 0 M#16
H_D P WR # 5
H_CPURST# 5
H_D PRSTP# 7,1 6 ,30
H_IN TR16
H_RS#1 5
H_SM I#16
H_ST PCLK#16
H_C P USLP# 5
H_BPRI# 5
H_D P SLP# 16
H_N MI16 C LK_ CP U_ BCL K 2
H_IG NNE#16
H_TRDY# 5
H_RS#0 5
H_P W RG D 1 6
C LK_ CP U_ BCL K# 2
H_DEFER# 5
H _IN IT# 1 6
3. 3 V S
3.3VS2,6,7,10,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,30
R 2 7 5 4 . 9_ 1% _ 04
C PURSVD0 6
C PURSVD0 8
C PURSVD0 5
R2 9
27 . 4 _1 %_ 0 4
C PURSVD0 9
C PURSVD0 3
C PURSVD0 1
C PURSVD0 2
C PURSVD0 4
R319
2K_1%_04
R 2 8 5 4 . 9_ 1% _ 04
R321
54.9 _ 1% _0 4
D35 RB751V
AC
R327 * 1K_ 04
R318 1K_1%_04
R 3 26 * 1K _ 04
C PURSVD0 7
H_D#1
H_D#11
H_D#9
H_D#13
H_D#8
H_D#7
H_D#10
H_D#6
H_D#2
H_D#4
H_D#12
H_D#14
H_D#3
H_D#0
H_D#5
H_D#15
H_BPM0#
H_BPM1#
H_T CK
H_PREQ#
H_BPM2#
H_PRDY #
H_BPM3#
H_T DI
H_T MS
H_T DO
H_T RST#
ITP_DBR ST#
H_PROC HOT#
H_T HERMDC
H_T HERMDA
CPU_BSEL02
CPU_BSEL12
PM _T HRM TRIP # 7 ,16 ,31
CPU_BSEL22
H_IERR#
H_D#25
H_D#22
H_D#20
H_D#26
H_D#17
H_D#24
H_D#21
H_D#16
H_D#23
H_D#18
H_D#19
H_D#31
H_D#28
H_D#29
H_D#27
H_D#30
H_D# 48
H_D# 50
H_D# 53
H_D# 51
H_D# 49
H_D# 52
H_D# 56
H_D# 55
H_D# 57
H_D# 54
H_D# 58
H_D# 59
H_D# 61
H_D# 60
H_D# 63
H_D# 62
COM P0
COM P3
COM P1
COM P2
Schematic Diagrams
Penryn (Socket-P)2/2 B - 5
B.Schematic Diagrams
Penryn (Socket-P)2/2
Sheet 4 of 38
Penryn (Socket-
P)2/2
C4 0 5
0.1u_10V_X5R _04
C440
1u_6.3V_Y 5V_0 4
C4 2 3
10 u _ 6 . 3V _X 5R _ 08
R316
100_1%_06
C34
22u_6.3V_X5R _08
C4 3 9
0.1u_10V_X5R _04
C4 3 5
1u_6.3V_Y5V_04
JS K T1 D
FOXC ON N PZ4782A-274M-01
.
VSS[08 2] P6
VSS[14 8] AE11
V SS[002]
A8
V SS[003]
A11
V SS[004]
A14
V SS[005]
A16
V SS[006]
A19
V SS[007]
A23
V SS[008]
AF2
V SS[009]
B6
V SS[010]
B8
V SS[011]
B11
V SS[012]
B13
V SS[013]
B16
V SS[014]
B19
V SS[015]
B21
V SS[016]
B24
V SS[017]
C5
V SS[018]
C8
V SS[019]
C11
V SS[020]
C14
V SS[021]
C16
V SS[022]
C19
V SS[023]
C2
V SS[024]
C22
V SS[025]
C25
V SS[026]
D1
V SS[027]
D4
V SS[028]
D8
V SS[029]
D11
V SS[030]
D13
V SS[031]
D16
V SS[032]
D19
V SS[033]
D23
V SS[034]
D26
V SS[035]
E3
V SS[036]
E6
V SS[037]
E8
V SS[038]
E11
V SS[039]
E14
V SS[040]
E16
V SS[041]
E19
V SS[042]
E21
V SS[043]
E24
V SS[044]
F5
V SS[045]
F8
V SS[046]
F11
V SS[047]
F13
V SS[048]
F16
V SS[049]
F19
V SS[050]
F2
V SS[051]
F22
V SS[052]
F25
V SS[053]
G4
V SS[054]
G1
V SS[055]
G23
V SS[056]
G26
V SS[057]
H3
V SS[058]
H6
V SS[059]
H21
V SS[060]
H24
V SS[061]
J2
V SS[062]
J5
V SS[063]
J22
V SS[064]
J25
V SS[065]
K1
V SS[066]
K4
V SS[067]
K23
V SS[068]
K26
V SS[069]
L3
V SS[070]
L6
V SS[071]
L21
V SS[072]
L24
V SS[073]
M2
V SS[074]
M5
V SS[075]
M22
V SS[076]
M25
V SS[077]
N1
V SS[078]
N4
V SS[079]
N23
V SS[080]
N26
V SS[081]
P3 VSS[16 2] A25
VSS[16 1] AF2 1
VSS[16 0] AF1 9
VSS[15 9] AF1 6
VSS[15 8] AF1 3
VSS[15 7] AF1 1
VSS[15 6] AF8
VSS[15 5] AF6
VSS[15 4] A2
VSS[15 3] AE26
VSS[15 2] AE23
VSS[15 1] AE19
VSS[08 3] P21
VSS[08 4] P24
VSS[08 5] R2
VSS[08 6] R5
VSS[08 7] R2 2
VSS[08 8] R2 5
VSS[08 9] T1
VSS[09 0] T4
VSS[09 1] T23
VSS[09 2] T26
VSS[09 3] U3
VSS[09 4] U6
VSS[09 5] U2 1
VSS[09 6] U2 4
VSS[09 7] V2
VSS[09 8] V5
VSS[09 9] V22
VSS[10 0] V25
VSS[10 1] W1
VSS[10 2] W4
VSS[10 3] W23
VSS[10 4] W26
VSS[10 5] Y3
VSS[10 7] Y21
VSS[10 8] Y24
VSS[10 9] AA2
VSS[11 0] AA5
VSS[11 1] AA8
VSS[11 2] AA11
VSS[11 3] AA14
VSS[11 4] AA16
VSS[11 5] AA19
VSS[11 6] AA22
VSS[11 7] AA25
VSS[11 8] AB1
VSS[11 9] AB4
VSS[12 0] AB8
VSS[12 1] AB11
VSS[12 2] AB13
VSS[12 3] AB16
VSS[12 4] AB19
VSS[12 5] AB23
VSS[12 6] AB26
VSS[12 7] AC3
VSS[12 8] AC6
VSS[12 9] AC8
VSS[13 0] AC11
VSS[13 1] AC14
VSS[13 2] AC16
VSS[13 3] AC19
VSS[13 4] AC21
VSS[13 5] AC24
VSS[13 6] AD2
VSS[13 7] AD5
VSS[13 8] AD8
VSS[13 9] AD11
VSS[14 0] AD13
VSS[14 1] AD16
VSS[14 2] AD19
VSS[14 3] AD22
VSS[14 4] AD25
VSS[14 5] AE1
VSS[14 6] AE4
VSS[10 6] Y6
V SS[001]
A4
VSS[14 9] AE14
VSS[15 0] AE16
VSS[14 7] AE8
VSS[16 3] AF2 5
R317
100_1%_06
C4 1 2
0.1u_10V_X5R_04
C4 2 4
22u_6.3V_X5R _08
C25
22u_6.3V_X5R_08
C4 2 8
1u_6.3V_Y5V_04
C30
22u_6.3V_X5R_08
C4 3 1
10u_10V_Y5V_08
C4 1 7
10 u _ 6 . 3V _X 5R _ 08
C2 9
*.1U _10V_X7R_04
VC CSEN SE
Layout note:
0.1UF*6 INSIDE CPU CENTER CAVITY IN 2 ROWS
+VCCP = 1.05V (0.997V~1.102V)
C441
1u_6.3V_Y5V_04
NEAR CPU PIN
C425
22u_6.3V_X5R _08
C3 1
*10u_6.3V_X5R_08
C2 8
0.1u_10V_X5R _04
C4 1 9
*10u_6.3V_X5R_06
1.05V S
VCO RE
VCORE
1.5VS
VC OR E
VC OR E
VCORE
1.05VS
VC OR E
1.05V S
VCORE
VCORE
C22
22u_6.3V_X5R_08
C4 1 8
10 u _ 6 . 3V _X 5R _ 08
C36
* 0. 1u_10V _X7R_04
C4 3 4
1u_6.3V_Y5V_04
PLACE NEAR CPU
TO POWER PAGE
PL AC E AS C LO SE
AS POSSIBLE TO
TH E CP U VC CA P IN
Ro ut e VC CS EN SE a nd
VS SS EN SE t ra ce s at 2 7. 4O hm
wi th 5 0 mi l sp ac in g.
Pl ac e PU a nd P D wi th in 1
in ch o f CP U.
Layout note:
80mils
20mils
VSSSE NSE 30
VC CSEN SE 30
+
C422
150u_4V_B_A
H_VID3 30
H_VID2 30
H_VID0 30
H_VID4 30
H_VID5 30
H_VID1 30
H_VID6 30
C4 0 6
0.01u_16V _X7R_04
C1 6
22u_6.3V_X5R _08
C4 0 8
0. 1u_10V _X5R_04
C4 0 7
1u_6.3V_Y5V_04
C4 2 9
1u_6.3V_Y 5V_04
C2 7
*10u_6.3V_X5R_08
JS K T1 C
FOXCO NN PZ4782A -274M- 01
.
VC C[ 001]
A7
VC C[ 002]
A9
VC C[ 003]
A10
VC C[ 004]
A12
VC C[ 005]
A13
VC C[ 006]
A15
VC C[ 007]
A17
VC C[ 008]
A18
VC C[ 009]
A20
VC C[ 010]
B7
VC C[ 011]
B9
VC C[ 012]
B10
VC C[ 013]
B12
VC C[ 014]
B14
VC C[ 015]
B15
VC C[ 016]
B17
VC C[ 017]
B18
VC C[ 018]
B20
VC C[ 019]
C9
VC C[ 020]
C1 0
VC C[ 021]
C1 2
VC C[ 022]
C1 3
VC C[ 023]
C1 5
VC C[ 024]
C1 7
VC C[ 025]
C1 8
VC C[ 026]
D9
VC C[ 027]
D1 0
VC C[ 028]
D1 2
VC C[ 029]
D1 4
VC C[ 030]
D1 5
VC C[ 031]
D1 7
VC C[ 032]
D1 8
VC C[ 033]
E7
VC C[ 034]
E9
VC C[ 035]
E10
VC C[ 036]
E12
VC C[ 037]
E13
VC C[ 038]
E15
VC C[ 039]
E17
VC C[ 040]
E18
VC C[ 041]
E20
VC C[ 042]
F7
VC C[ 043]
F9
VC C[ 044]
F10
VC C[ 045]
F12
VC C[ 046]
F14
VC C[ 047]
F15
VC C[ 048]
F17
VC C[ 049]
F18
VC C[ 050]
F20
VC C[ 051]
AA7
VC C[ 052]
AA9
VC C[ 053]
AA10
VC C[ 054]
AA12
VC C[ 055]
AA13
VC C[ 056]
AA15
VC C[ 057]
AA17
VC C[ 058]
AA18
VC C[ 059]
AA20
VC C[ 060]
AB9
VC C[ 061]
AC10
VC C[ 062]
AB10
VC C[ 063]
AB12
VC C[ 064]
AB14
VC C[ 065]
AB15
VC C[ 066]
AB17
VC C[ 067]
AB18
VCC[068] AB 20
VCC[069] AB 7
VCC[070] AC 7
VCC[071] AC 9
VCC[072] AC 12
VCC[073] AC 13
VCC[074] AC 15
VCC[075] AC 17
VCC[076] AC 18
VCC[077] AD 7
VCC[078] AD 9
VCC[079] AD 10
VCC[080] AD 12
VCC[081] AD 14
VCC[082] AD 15
VCC[083] AD 17
VCC[084] AD 18
VCC[085] AE 9
VCC[086] AE 10
VCC[087] AE 12
VCC[088] AE 13
VCC[089] AE 15
VCC[090] AE 17
VCC[091] AE 18
VCC[092] AE 20
VCC[093] AF 9
VCC[094] AF 10
VCC[095] AF 12
VCC[096] AF 14
VCC[097] AF 15
VCC[098] AF 17
VCC[099] AF 18
VCC[100] AF 20
VC CA[0 1] B2 6
VC CP[0 3] J6
VC CP[0 4] K6
VC CP[0 5] M6
VC CP[0 6] J21
VC CP[0 7] K2 1
VC CP[0 8] M21
VC CP[0 9] N21
VC CP[1 0] N6
VC CP[1 1] R21
VC CP[1 2] R6
VC CP[1 3] T21
VC CP[1 4] T6
VC CP[1 5] V2 1
VC CP[1 6] W21
VCC SEN SE AF 7
VID[0] AD 6
VID[1] AF 5
VID[2] AE 5
VID[3] AF 4
VID[4] AE 3
VID[5] AF 3
VID[6] AE 2
VSSSEN SE AE 7
VC CA[0 2] C26
VC CP[0 1] G21
VC CP[0 2] V6
C4 1 6
22u_6.3V_X5R _08
C436
1u_6.3V_Y5V_04
C40
* .1U _10V_X7R_04
C1 7
*10u_6.3V_X5R_08
VSSSEN SE
C437
0.01u_16V_X7R _04
C432
0.01u_16V_X7R _04
C4 2 1
1u_6.3V_Y5V_04
C430
1u_6.3V_Y 5V_0 4
C2 3
10 u _ 6 . 3V _X 5R _ 08
C20
* .1U_10V_X7R _04
C4 1 0
1u_6.3V_Y 5V_04
C32
0.1u_10V_X5R _04
C3 7
22u_6.3V_X5R _08
C4 3 8
1u_6.3V_Y5V_04
C26
0.1u_10V_X5R_04
C42
0.1u_10V_X5R_04
C3 3
0.1u_10V_X5R _04
Schematic Diagrams
B - 6 CANTIGA 1/7, HOST
B.Schematic Diagrams
CANTIGA 1/7, HOST
Sheet 5 of 38
CANTIGA 1/7,
HOST
C4 62
0.1u_10V_X5R_04
R340
2K _1 %_ 04
C463
0.1u_10V _X5R_04
R341
1K _1 %_ 04
H_BR0# 3
H_DRDY# 3
H_DINV#0 3
H_DINV#1 3
H_DSTBP#2 3
H_DSTBN#3 3
H_HIT# 3
H_DSTBP#1 3
H_DSTBN#0 3
H_DINV#2 3
H_REQ#[4:0] 3
H_DSTBN#2 3
H_ADS# 3
H_DSTBP#3 3
H_DSTBN#1 3
H_DINV#3 3
H _A DSTB# 1 3
H_DSTBP#0 3
H_A#[35:3] 3
H_D#[63:0]3
H_BNR# 3
H _A DSTB# 0 3
H_DBSY# 3
H_HITM# 3
HOST
U15A
CANTIGA
H_A#_10 P16
H_A#_11 R16
H_A#_12 N17
H_A#_13 M13
H_A#_14 E17
H_A#_15 P17
H_A#_16 F17
H_A#_17 G20
H_A#_18 B19
H_A#_19 J16
H_A#_20 E20
H_A#_21 H16
H_A#_22 J20
H_A#_23 L17
H_A#_24 A17
H_A#_25 B17
H_A#_26 L16
H_A#_27 C21
H_A#_28 J17
H_A#_29 H20
H_ A# _3 A14
H_A#_30 B18
H_A#_31 K17
H_ A# _4 C15
H_ A# _5 F16
H_ A# _6 H13
H_ A# _7 C18
H_ A# _8 M16
H_ A# _9 J13
H_ADS# H12
H _A DSTB# _0 B1 6
H _A DSTB# _1 G17
H_ BN R# A9
H_BPR I# F11
H_BR EQ# G12
HPLL_CLK# AH 6
H_CPURST#
C12
HPLL_CLK AH 7
H_D#_0
F2
H_REQ#_2 F13
H_REQ#_3 B13
H_D#_1
G8
H_D#_10
M9
H_D#_20
L6
H_D#_30
N10
H_D#_40
AA8
H_D#_50
AA2
H_D#_60
AE 11
H_D#_8
D4
H_D#_9
H3
H_ DB SY# B10
H_D#_11
M11
H_D#_12
J1
H_D#_13
J2
H_D#_14
N12
H_D#_15
J6
H_D#_16
P2
H_D#_17
L2
H_D#_18
R2
H_D#_19
N9
H_D#_2
F8
H_D#_21
M5
H_D#_22
J3
H_D#_23
N2
H_D#_24
R1
H_D#_25
N5
H_D#_26
N6
H_D#_27
P13
H_D#_28
N8
H_D#_29
L7
H_D#_3
E6
H_D#_31
M3
H_D#_32
Y3
H_D#_33
AD 14
H_D#_34
Y6
H_D#_35
Y10
H_D#_36
Y12
H_D#_37
Y14
H_D#_38
Y7
H_D#_39
W2
H_D#_4
G2
H_D#_41
Y9
H_D#_42
AA 13
H_D#_43
AA9
H_D#_44
AA 11
H_D#_45
AD 11
H_D#_46
AD 10
H_D#_47
AD 13
H_D#_48
AE 12
H_D#_49
AE9
H_D#_5
H6
H_D#_51
AD 8
H_D#_52
AA3
H_D#_53
AD 3
H_D#_54
AD 7
H_D#_55
AE 14
H_D#_56
AF3
H_D#_57
AC 1
H_D#_58
AE3
H_D#_59
AC 3
H_D#_6
H2
H_D#_61
AE8
H_D#_62
AG2
H_D#_63
AD 6
H_D#_7
F6
H _ DEF ER# E9
H_DINV#_0 J8
H_DINV#_1 L3
H_DINV#_2 Y13
H_DINV#_3 Y1
H_DPWR# J11
H_DRDY# F9
H_DSTBN#_0 L10
H_DSTBN#_1 M7
H_DSTBN#_2 AA5
H_DSTBN#_3 AE6
H_DSTBP#_0 L9
H_DSTBP#_1 M8
H_DSTBP#_2 AA6
H_DSTBP#_3 AE5
H _AVR EF
A11
H_DVREF
B11
H_ TR D Y# C9
H_HIT# H9
H_ HI TM# E1 2
H_LOCK# H11
H_REQ#_0 B15
H_REQ#_1 K13
H_REQ#_4 B14
H_A#_32 B20
H_A#_33 F21
H_A#_34 K21
H_A#_35 L20
H_SWING
C5
H_CPUSLP#
E11
H_RCOMP
E3
H_RS#_0 B6
H_RS#_1 F12
H_RS#_2 C8
H_ A# 35
H_ A# 34
H_ D# 1
H_ D# 7
H_ D# 0
H_ D# 1 4
H_ D# 1 5
H_ D# 6
H_ D# 2
H_ D# 9
H_ D# 4
H_ D# 5
H_ D# 1 3
H_ D# 8
H_ D# 1 1
H_ D# 3
H_ D# 1 0
H_ D# 1 9
H_ D# 1 2
H_ D# 1 8
H_ D# 1 7
H_ D# 2 2
H_ D# 2 9
H_ D# 2 7
H_ D# 3 1
H_ D# 2 3
H_ D# 3 5
H_ D# 2 1
H_ D# 2 8
H_ D# 2 0
H_ D# 3 0
H_ D# 2 6
H_ D# 2 4
H_ D# 4 1
H_ D# 1 6
H_ D# 2 5
H_ D# 4 2
H_ D# 5 1
H_ D# 4 5
H_ D# 4 7
H_ D# 4 3
H_ D# 3 7
H_ D# 3 9
H_ D# 3 4
H_ D# 4 0
H_ D# 3 6
H_ D# 4 4
H_ D# 3 3
H_ D# 6 3
H_ D# 3 2
H_ D# 3 8
H_ D# 6 0
H_ D# 4 6
H_ D# 5 4
H_ D# 6 1
H_ D# 5 3
H_ D# 5 0
H_ D# 4 9
H_ D# 6 2
H_ D# 4 8
H_ D# 5 6
H_ D# 5 9
H_ D# 5 8
H_ D# 5 2
H_ RE Q# 3
H_ D# 5 7
H_ RE Q# 0
H_ D# 5 5
H_ RE Q# 1
H_ RE Q# 2
H_ RE Q# 4
H_ A# 8
MCH_HRCOMP
H_ A# 3
H_ A# 9
H_ A# 6
H_ A# 4
H_ A# 13
H_ A# 10
H_ A# 5
H_ A# 22
H_ A# 12
H_ A# 20
H_ A# 19
H_ A# 14
H_ A# 7
H_ A# 21
H_ A# 27
H_ A# 11
H_ A# 30
H_ A# 23
H_ A# 17
H_ A# 24
H_ A# 15
H_ A# 18
H_ A# 25
H_ A# 16
H_ A# 29
H_ A# 31
H_ A# 28
H_ A# 26
H_LOCK# 3
CLK_ MC H _BC L K 2
CLK_MCH_BCLK# 2
1.05VS
1. 0 5V S
MCH_HSWING
H_ A# 33
H_ A# 32
R65
24.9_1%_04
MCH_H RCOMP a 10 m ils tr aces
and 2 0 mils spaci ng
Lay out Not ice:
Layo ut Not ice:
10mils
10mils
0.1 uF shou ld be placed
100 mils or less from G MCH
pin .
C459
0.1u_10V_X5R_04
R338
100_1%_04
R339
221_1%_04
FOR QU AD COR E
16.9_1 %_04
10mils
SHORT BOTH PIN
BELOW GMCH
PACKAGE
CLOSE TO PIN
H_RS#2 3
H_DPWR# 3
H_CPUSLP#3
H_RS#1 3
H_RS#0 3
H_TRDY# 3
H_BPRI# 3
H_DEFER# 3
H_CPURST#3

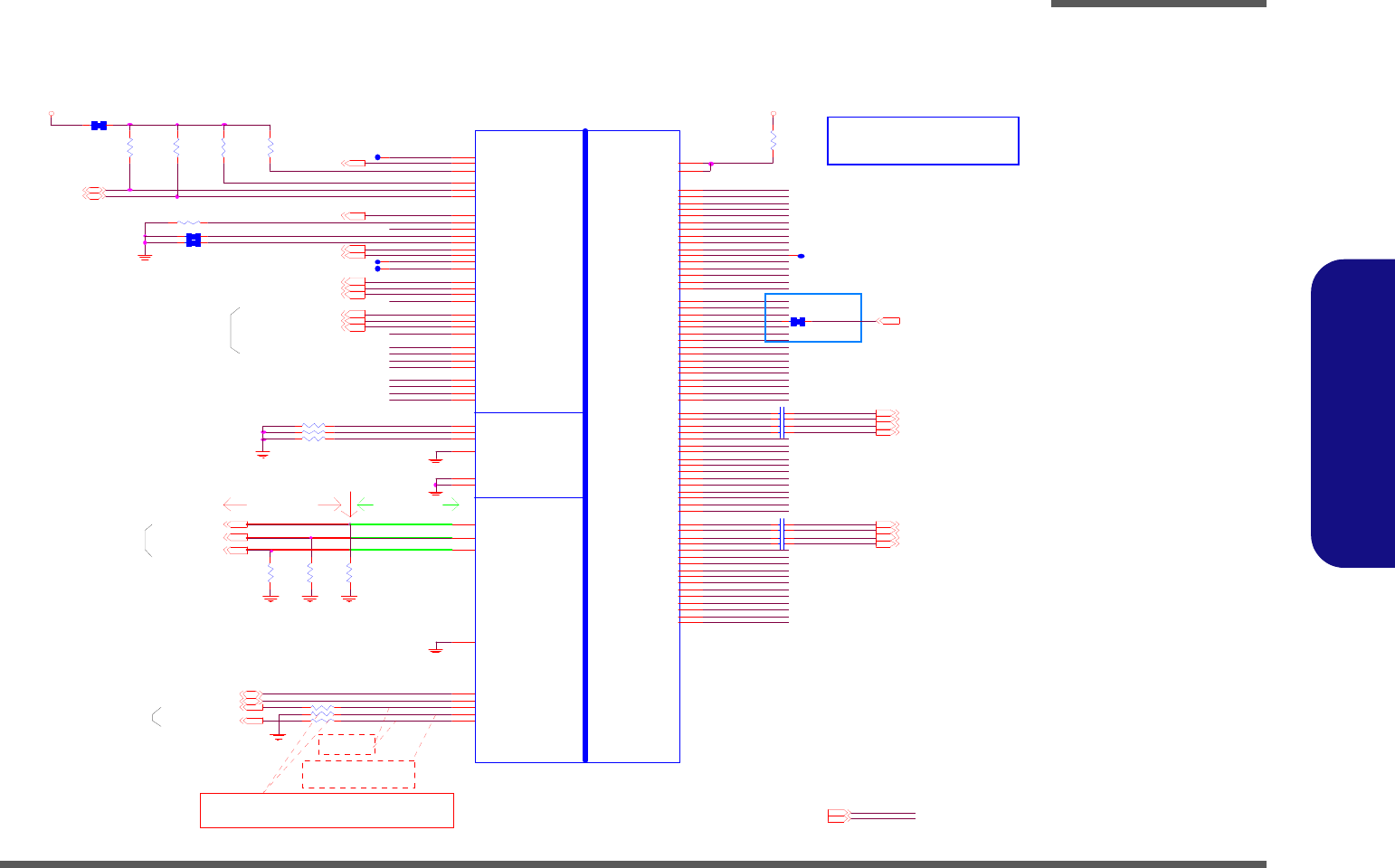

Schematic Diagrams
CANTIGA 2/7, Graphics B - 7
B.Schematic Diagrams
CANTIGA 2/7, Graphics
Sheet 6 of 38
CANTIGA 2/7,
Graphics
PEG_RX#5
PEG_RX#4
PEG_RX#7
PEG_RX#6
PEG_ RX#10
PEG_RX#8
PEG_ RX#11
PEG_RX#9
TVC_DAC
PEG_ RX#13
PEG_ RX#12
DAC_DDCACLK14
DAC_ DDCAD ATA14
P_ DDC_CLK14
PEG_ RX#15
PEG_ RX#14
LVDSB_DATA#3
P_ DDC_DATA14
LVDSA_DATA#3
LVDSA_DATA3
LVDSB_DATA3
LVDS_ IBG
LVDS- UCLK N
LVDS- U2N
LVDS- U2P
LVDS- U0P
LVDS- U1N
LVDS- U0N
LVDS_ VB G
LVDS- U1P
LVDS- UCLK P
R121 * 10m i l_ s hor t
TV A_ D AC
TV B_ D AC
L_BKLT_CTRL
DAC_GREEN
DAC_RED
R8 4 7 5_1%_04
R7 6 7 5_1%_04
R8 2 7 5_1%_04
R334
15 0_1%_04
R332
15 0_1%_04
R333
15 0_1%_04
LVDS
PCI-EXPRESS GRAPHICS
TV VGA
U15C
CANTIGA
PE G_C OMP I T37
PE G _ C OM PO T36
PE G_R X #_ 0 H44
PE G_R X #_ 1 J46
PE G_R X #_ 2 L44
PE G_R X #_ 3 L40
PE G_R X #_ 4 N41
PE G_R X #_ 5 P48
PE G_R X #_ 6 N44
PE G_R X #_ 7 T43
PE G_R X #_ 8 U43
PE G_R X #_ 9 Y43
PE G _ R X# _ 1 0 Y48
PE G _ R X# _ 1 1 Y36
PE G _ R X# _ 1 2 AA 43
PE G _ R X# _ 1 3 AD 3 7
PE G _ R X# _ 1 4 AC 4 7
PE G _ R X# _ 1 5 AD 3 9
PEG_RX_0 H43
PEG_RX_1 J44
PEG_RX_2 L43
PEG_RX_3 L41
PEG_RX_4 N40
PEG_RX_5 P47
PEG_RX_6 N43
PEG_RX_7 T42
PEG_RX_8 U42
PEG_RX_9 Y42
PE G_R X _1 0 W47
PE G_R X _1 1 Y37
PE G_R X _1 2 AA 42
PE G_R X _1 3 AD 36
PE G_R X _1 4 AC 48
PE G_R X _1 5 AD 40
PE G_ TX #_ 0 J41
PE G_TX# _ 10 Y40
PE G_ TX #_ 3 M40
PE G_ TX #_ 4 M42
PE G_ TX #_ 5 R48
PE G_ TX #_ 6 N38
PE G_ TX #_ 7 T40
PE G_ TX #_ 8 U37
PE G_ TX #_ 9 U40
PE G_ TX #_ 1 M46
PE G_TX# _ 11 AA 46
PE G_TX# _ 12 AA 37
PE G_TX# _ 13 AA 40
PE G_TX# _ 14 AD 4 3
PE G_TX# _ 15 AC 4 6
PE G_ TX #_ 2 M47
PEG_TX_0 J42
PEG_TX_1 L46
PEG_TX_2 M48
PEG_TX_3 M39
PEG_TX_4 M43
PEG_TX_5 R47
PEG_TX_6 N37
PEG_TX_7 T39
PEG_TX_8 U36
PEG_TX_9 U39
PE G_ TX _1 0 Y39
PE G_ TX _1 1 Y46
PE G_ TX _1 2 AA 36
PE G_ TX _1 3 AA 39
PE G_ TX _1 4 AD 4 2
PE G_ TX _1 5 AD 4 6
L_ CTRL_CL K
M32
L_ CTRL_DATA
M33
L_ DDC_CLK
K33
L_ DDC_DATA
J33
L_ VDD_ EN
M29
LVDS _IBG
C44
LVDS _VBG
B43
LVDS_VREFH
E37
LVDS_VREFL
E38
LVDSA_ CLK#
C41
LVDSA_ CLK
C40
LVDSA_ DAT A#_ 0
H47
LVDSA_ DAT A#_ 1
E46
LVDSA_ DAT A#_ 2
G40
LVDSA_ DAT A_1
D45
LVDSA_ DAT A_2
F40
LVDSB_ CLK#
B37
LVDSB_ CLK
A37
LVDSB_ DAT A#_ 0
A41
LVDSB_ DAT A#_ 1
H38
LVDSB_ DAT A#_ 2
G37
LVDSB_ DAT A_1
G38
LVDSB_ DAT A_2
F37
L_ BK LT_EN
G32
TVA_DAC
F25
TVB_DAC
H25
TVC_DAC
K25
TV _R T N
H24
CRT _BL UE
E28
CRT_DDC_CLK
H32
CRT_DDC_DATA
J32
CRT_GREEN
G28
CRT_HSY NC
J29
CRT_TVO_IREF
E29
CRT_RED
J28
CRT_IRTN
G29
CRT_VSYNC
L29
LVDSA_ DAT A_0
H48
LVDSB_ DAT A_0
B42
L_ BK LT_C TRL
L32
TV_DCON SEL_0
C31
TV_DCON SEL_1
E32
LVDSA_ DAT A#_ 3
A40
LVDSA_ DAT A_3
B40
LVDSB_ DAT A#_ 3
J37
LVDSB_ DAT A_3
K37
R114
1 0K_04 PE G _ C OM P
R113
2.2K _04
R3 37 30 .1_1% _04
R11 2
2. 2K_ 04
R9 9 1. 02K _1%_04
R3 35 30 .1_1% _04
R120
49.9 _1% _04
R115
10K_04
R123 2.3 7K_ 1%_ 04
3.3 VS 1.05 VM_ PEG
Z s.e =5 0O
PEG_RX11
PEG_RX7
PEG_RX6
PEG_RX9
PEG_RX4
PEG_RX10
PEG_RX8
PEG_RX5
PEG_RX15
PEG_RX13
PEG_RX12
PEG_RX2
PEG_RX3
PEG_RX0
PEG_RX1
PEG_RX14
PO R T B_ H P D # 2 0
3. 3VS2,3, 7,10, 12, 13,14 ,15, 16,1 7,18 ,19, 20,2 1,22, 23, 24,25 ,26, 27,2 8,30 3. 3V3,15 ,16, 17,1 8,19, 21, 22,25 ,26, 28,3 2,33
DAC_BL UE
HDMI B_ D1BP 20
HDMI B_ CLKBN 20
HDMI B_ D0BN 2 0
HDMI B_ CLKBP 20
HDMI B_ D1BN 2 0
HDMI B_ D0BP 20
HDMI B_ D2BP 20
HDMI B_ D2BN 2 0
Z s .e =3 7. 5O
PEG_RX#0
LVD S-L CLK P14
NB_ENAVDD14
LVDS- L2P14
DAC_ RED14
D AC_VSYNC14
DAC _GREEN14
LVDS- L0N14
BLON15
LVDS- L1P14
LVDS- LCLKN14
DAC_BLUE14
LVDS- L1N14
LVDS- L0P14
LVDS- L2N14
DAC_ HSY NC14
PEG_RX#1
PEG_RX#2
CRT_HS
CRT_VS
PEG_TX#_1 0
C494 0.1u_ 10V_X7R_ 04
PEG_TX_15
PEG_TX#_1 3
CRT_TVO
C495 0.1u_ 10V_X7R_ 04
PEG_TX_13
PEG_TX_12
C182 0.1u_ 10V_X7R_ 04
PEG_RX#3
C493 0.1u_ 10V_X7R_ 04
Zo= 55O? 5%
PEG_TX#_3 C492 0.1u_ 10V_X7R_ 04
PEG_TX#_7
PEG_TX_2
PEG_TX_1
PEG_TX#_1 4
PEG_TX#_5
C201 0.1u_ 10V_X7R_ 04
Minimize REF SET
routing leng th and
shield with VSS
PEG_TX_14
C200 0.1u_ 10V_X7R_ 04
PEG_TX_4
PEG_TX#_2
PEG_TX#_1 2
PEG_TX#_6
PEG_TX_9
PEG_TX_8
MAX =0.5"
PEG_TX_6
PEG_TX#_1 1
PEG_TX#_1 5
PEG_TX#_9
PEG_TX#_4
PEG_TX#_1
PEG_TX#_8
PEG_TX#_0
PEG_TX_0
PEG_TX_10
PEG_TX_7
PEG_TX_11
PEG_TX_3
PEG_TX_5
C183 0.1u_ 10V_X7R_ 04
Zo= 50O? 5%
L1 2
* 20m i l_ s hor t_04
F OR IN TEL H DMI C ONN
PEG_C OMPI and t he PE G_COM PO pi ns sh ould be
short ed at the packa ge an d the n rou ted t o one
end o f a 4 9.9 O ? % pull- up re sisto r to
VCC_P EG. P lace the r esist or wi thin 500 m ils
(1.27 cm) of th e (G) MCH
Zdiff=
100O? 0%
R109 * 10m il _ s hort
R108 * 10m il _ s hort
Schematic Diagrams
B - 8 CANTIGA 3/7
B.Schematic Diagrams
CANTIGA 3/7
Sheet 7 of 38
CANTIGA 3/7
PCI express graphics lane
re ve r se o pt io n fo r la yo ut
co nv e ni en ce
MC H_ C FG _1 0
PC IE
Lo op b ac k
en ab l e
MC H_ N C_ 1 1
MC H_ N C_ 2 0
MC H_ N C_ 1 7
MC H_ N C_ 1 9
MC H_ N C_ 1 2
MC H_ N C_ 1 5
MC H_ N C_ 1 3
MC H_ N C_ 1 8
MC H_ N C_ 1 6
MC H_ N C_ 2 1
MC H_ N C_ 2 4
MC H_ N C_ 2 3
MC H_ N C_ 2 2
iT PM HO ST I NT ER FA CE
Lo w= en ab le
Hi gh = di sa bl e
(d ef a ul t)
MC H_ N C_ 2 5
R 83 * 2.21K_1%_04MC H_ C F G_ 6
Add 0.1uF capacitor on this
rail close to (G)MCH.
MC H_ C F G_ 1 6
HDMI_CTRLDATA
H DM I_CTR LC LK
MC H_ C F G_ 5
R105 2.2K_04
R106 2.2K_04
3.3VS
MC H_ C F G_ 2 0
MC H_ C F G_ 9
R9 1 2 .2 K _ 04
MC H_ C F G_ 1 9
D DPC _CTR LD ATA
DM I la ne r ev er sa l
This "Daisy Chain" CMOS topology
should be routed from ICH9M to Intel
MVP, then to (G)MCH and CPU (in this
order exactly). CPU must be end agent
on the DPRSTP topology to avoid
signal integrity degradation.
R72 80.6_1%_04
R86 80.6_1%_04
MC H_R SVD25
MC H_R SVD24
MC H_R SVD22
MC H_R SVD23
SM _R CO MP _V OL
MC H_ N C_ 2 6
CLK_DREFSS
CLK_DREFSS#
CLK_DREF#
CLK_DREF
SM _PWR OK 33
MC H _B S E L 22
MC H _B S E L 12
CL_CLK0 18
MC H _B S E L 02
CL_RST#0 18
CL _ DATA 0 1 8
MCH_CLKREQ#
R107 10K_04
SM _ REXT
SM _R CO MP _V OH
C155
0.01u_16V_X7R_04
R95
1K_1%_04
C156
2.2u_6.3V_Y 5V_06
C147
2.2u_6.3V_Y 5V_06
C148
0.01u_16V_X7R_04
R96
1K_1%_04
R92
3.01K_1%_04
MC H_ C F G_ 1 2
MC H_ C F G_ 1 3
MC H_C FG_19R 94 * 4.02K_1% _06
MC H_ C F G_ 8
MC H_ C F G_ 1 1
MC H_ C F G_ 1 0
MC H_ C F G_ 1 7
MC H_ C F G_ 1 8
MC H_ C F G_ 4
MC H_ C F G_ 6
MC H_ C F G_ 7
MC H_ C F G_ 3
DDR3_DRAMRST# 12,13
R 77 * 2.21K_1%_04
MC H_ C F G_ 7
R87 *20_1%_04
3.3VS2,3,6,10,12,13, 14,15,16, 17,18,19,20,21,22,23,24,25,26,27,28,30
3.3V3 ,1 5 ,1 6 ,17 ,1 8 ,1 9 ,21 ,2 2 ,2 5 ,26 ,2 8 ,3 2 ,3 3
Zo=
40O? 5%
R79 *20_1%_04
HDMI_CTRLDATA
H D M I _C T R L C LK
MC H_ C F G_ 9 R343 *2.21K_1%_04
PM _ EXTTS_D DR #12, 13
CLK_ PC IE_3 GPL L # 2
DM I_ RX N 2 17
C LK_ DR EFSS# 2
C LK_ DR EF# 2
DM I_RXP1 17
PLT_RST#17
DM I_RXP3 17
C LK_ DR EF 2
CLK_ PC IE_3 GPL L 2
DM I_ RX N 1 17
C LK_ DR EFSS 2
DM I_ RX N 3 17
PM _D PR SL PVR18,30
DM I_RXP0 17
DELAY_PW RGD18,30
DM I_ RX N 0 17
MC H_R SVD1
DM I_RXP2 17
1.5V
3.3VS
1.5V
1.05V S
3.3VS
1.5V
MC H_R SVD6
MC H_R SVD8
MC H_R SVD5
MC H_R SVD4
MC H_R SVD12
MC H_R SVD9
MC H_R SVD3
MC H_R SVD13
MC H_R SVD10
MC H_R SVD14
MC H_R SVD7
MC H_R SVD11
MC H_R SVD2
MC H_R SVD20
MC H_ N C_ 1 4
MC H_ D PRS L PVR
M_ A _ C K E 0 1 2
M_CLK_A_DDR1 12
M_ B _ C S 1 # 13
M_ A _ C S 0 # 12
M_ B _ C K E 0 1 3
M_CLK_B_DDR1 13
M_CLK_A_DDR0# 12
M_ A _ C K E 1 1 2
M_CLK_B_DDR1# 13
M_CLK_B_DDR0 13
M_ A _ O DT 1 1 2
M_CLK_B_DDR0# 13
M_ B _ O DT 0 1 3
MC H_ I C H _ S Y NC # 18
M_ A _ O DT 0 1 2
M_ B _ C S 0 # 13
M_CLK_A_DDR0 12
M_ B _ O DT 1 1 3
MC H_C LKR EQ # 2
M_CLK_A_DDR1# 12
M_ B _ C K E 1 1 3
M_ A _ C S 1 # 12
MC H_C FG_20R 88 * 4.02K_1% _06
PM _EXTTS0#
PM _EXTTS_D DR #
R100 10K_04
R104 10K_04
SM _RC OM P#
MC H_ R STI N#
MPWROK 15,18,21
DDPC_CTRLDATA
R344 *2.21K_1%_04MC H_ C F G_ 1 0
DFGT_VID_4
DDPC_CTRLCLK
MC H_ N C_ 9
MC H_ N C_ 1 0
MC H_ N C_ 8
M_V REF_MCH
DFGT_VID_1
DFGT_VID_3
DFGT_VID_0
DFGT_VID_2
MC H_ C F G_ 1 3
MC H_ C F G_ 1 2 R 74 * 2.21K_1%_04
R 75 * 2.21K_1%_04
MCH _C LKRE Q#
R10 2 * 1 0m il_s h ort
R70 * 1 0m il_s h o rt
MC H_ N C_ 3
MC H_ N C_ 1
MC H_ N C_ 2
MC H_ N C_ 4
PM
MISC
NC
DDR CLK/ CONTROL/COMPENSATION
CLK
DMI
CFG
RSVD
GRAPHICS VID
MEHDA
U15B
CA NTIG A
SA_C K_ 0 AP2 4
SA_C K_ 1 AT2 1
SB_C K_ 0 AV2 4
SA _C K#_0 AR 24
SA _C K#_1 AR 21
SB _C K#_0 AU 24
SA_C KE_0 BC 28
SA_C KE_1 AY 28
SB_C KE_0 AY 36
SB_C KE_1 BB3 6
SA _C S#_0 BA17
SA _C S#_1 AY 16
SB _C S#_0 AV16
SB _C S#_1 AR 13
SM _ DR AMR ST# BC 36
SA_O DT_0 BD 17
SA_O DT_1 AY 17
SB_O DT_0 BF1 5
SB_O DT_1 AY 13
SM_ R CO MP BG 22
SM _R C OM P# BH 21
CF G _ 1 8
P29
CF G _ 1 9
R28
CF G _ 2
P25
CF G _ 0
T25
CF G _ 1
R25
CF G _ 2 0
T28
CF G _ 3
P20
CF G _ 4
P24
CF G _ 5
C25
CF G _ 6
N24
CF G _ 7
M24
CF G _ 8
E21
CF G _ 9
C23
CF G _ 1 0
C24
CF G _ 1 1
N21
CF G _ 1 2
P21
CF G _ 1 3
T21
CF G _ 1 4
R20
CF G _ 1 5
M20
CF G _ 1 6
L21
CF G _ 1 7
H21
PM_ SY NC #
R29
PM_ EXT _ TS# _0
N33
PM_ EXT _ TS# _1
P32
PW R OK
AT4 0
RST IN #
AT1 1
D PLL_R EF_C LK B38
DPLL_REF_C LK# A3 8
D PLL_R EF_SSC LK E4 1
DPLL_REF_SSCLK# F41
DMI_RXN_0 AE41
DMI_RXN_1 AE37
DMI_RXN_2 AE47
DMI_RXN_3 AH 39
DM I_R XP_0 AE4 0
DM I_R XP_1 AE3 8
DM I_R XP_2 AE4 8
DM I_R XP_3 AH 40
DM I_ T XN _ 0 AE35
DM I_ T XN _ 1 AE43
DM I_ T XN _ 2 AE46
DM I_ T XN _ 3 AH 42
DMI_TXP_0 AD 35
DMI_TXP_1 AE44
DMI_TXP_2 AF4 6
DMI_TXP_3 AH 43
RSV D1 0
AL3 4
RSV D1 2
AN 35 RSV D1 1
AK34
RSV D1 3
AM 35
RSV D2 2
BG 23
RSV D2 3
BF23
RSV D2 4
BH 18
RSV D2 5
BF18
PM_DPRSTP#
B7
SB_C K_ 1 AU 20
SB _C K#_1 AV20
RSV D2 0
AY 21
RSV D5
AH 9
RSV D6
AH 10
RSV D7
AH 12
RSV D8
AH 13
RSV D1
M36
RSV D2
N36
RSV D3
R33
RSV D4
T33
GF X_ V ID _ 0 B33
GF X_ V ID _ 1 B32
GF X_ V ID _ 2 G3 3
GF X_ V ID _ 3 F33
GFX_VR_EN C3 4
SM_ R CO MP _VO H BF2 8
SM_ R CO MP_VO L BH 28
THER MTR IP#
T20
DPR SLPVR
R32
RSV D9
K12
CL _ C LK AH 37
CL _ DA TA AH 36
CL _ PW R OK AN 36
CL_RST# AJ 3 5
CL_VREF AH 34
NC _ 26
A47
NC _ 1
BG 48
NC _ 2
BF48
NC _ 3
BD 48
NC _ 4
BC 48
NC _ 5
BH 47
NC _ 6
BG 47
NC _ 7
BE47
NC _ 8
BH 46
NC _ 9
BF46
NC _ 10
BG 45
NC _ 11
BH 44
NC _ 12
BH 43
NC _ 13
BH 6
NC _ 14
BH 5
NC _ 15
BG 4
SD VO _C TRLC LK G3 6
SD VO_C TRLDA TA E36
CLKREQ# K36
RSV D1 4
T24
IC H_ S Y NC # H3 6
TSATN # B1 2
PEG_C L K# E43
PEG_CLK F43
NC _ 16
BH 3
GF X_ V ID _ 4 E33
RSV D1 5
B31
DD PC _C TRL C LK N2 8
NC _ 17
BF 3
NC _ 18
BH 2
NC _ 19
BG 2
NC _ 20
BE 2
NC _ 21
BG 1
NC _ 22
BF 1
NC _ 23
BD 1
NC _ 24
BC 1
NC _ 25
F1
SM _VREF AV4 2
SM_PWROK AR 36
SM_ R EXT BF1 7
RSV D1 7
M1
HD A_BC LK B2 8
HDA_RST# B30
HD A_ S DI B29
HDA_SDO C2 9
HD A_SYN C A28
DD PC_ C T RL DA TA M2 8
RSV D1 6
B2
C184
0.01u_16V_X7R_04
DDPC_CTRLCLK
DDR3_DRAMRST#
R390 2.2K_04
SM_RC OMP_VOH
SM_RC OMP_VOL
MC H_ C F G_ 5 R 78 * 2.21K_1%_04
H_DPRSTP#3,16,30
DM I_ T XN 3 1 7
DM I_ T XP 0 1 7
DM I_ T XP 1 1 7
DM I_ T XP 2 1 7
PM _TH RM TRIP#3, 1 6 , 3 1
DM I_ T XN 0 1 7
DM I_ T XN 1 1 7
PM_BM BUS Y#18
DM I_ T XP 3 1 7
DM I_ T XN 2 1 7
R68
499_1%_04
DFGT_VR_EN
MC H_ C F G_ 1 5
MC H_ C F G_ 1 4
HD MI_C TR LDATA 20
HD MI_C TR LCLK 20
R6 6 1 0 0_ 0 4
MC H_ C F G_ 1 6 R 73 * 2.21K_1%_04
M CH _HD A_BCLK 16
M CH _ HD A_ RS T# 1 6
MCH_HD A_SDO 16
MCH_HDA_SYNC 16
R117
10K_1%_04
MCH_HD A_SDI 16
MC H_ N C_ 6
MC H_ N C_ 7
MC H_ N C_ 5
R 67 54.9_1%_04MCH_TSATN#
SM _RC OM P
FSB Dynamic ODT
MCH _CL_VRE F
C1 6 8
0. 1 u _ 1 0V _X 5 R _ 0 4
R1 0 1
1K _ 1 % _ 0 4
R1 0 3
511_1%_04
PM _EXTTS0#
PM_EXTTS_D DR #
Zdif f=
75O? 0%
R345 33_04
R116
10K_1%_04
DM I X 2 se le ct Lo w= D MI x 2
High=DMI x 4 (default)
1.05VS
Zo= 1 00O? 5%
ME T L S
Confidentiality
SDVO/DP/iHDMI
Concurrent
with PCIe
Hi gh : iH DM I/ DP e na bl e
MC H_R SVD15
MC H_R SVD16
MC H_R SVD17
MC H_ C FG _1 2
MC H_ C FG _1 3
cl oc k
un -g a ti ng
High: SDVO/iHDMI/DP enable

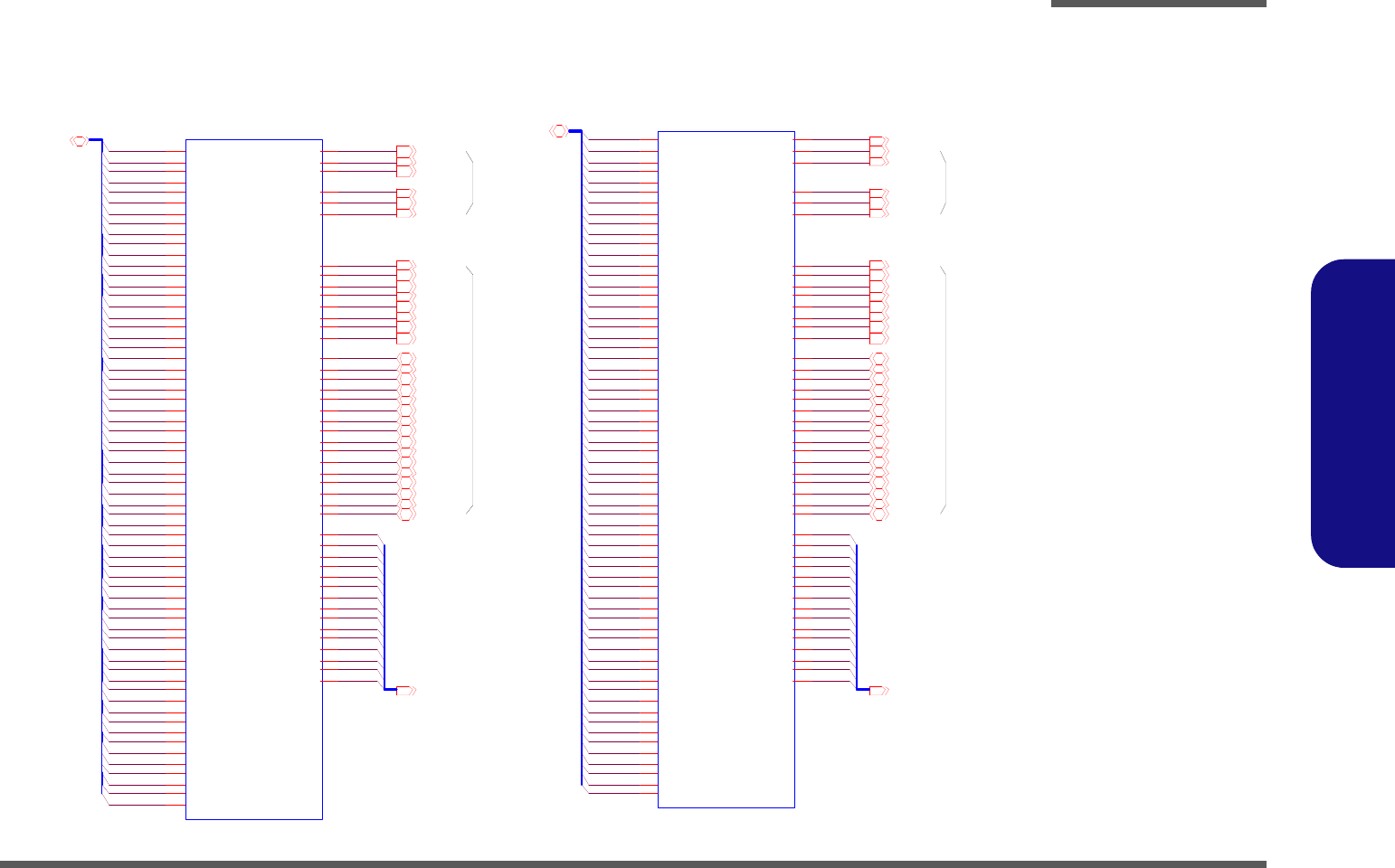

Schematic Diagrams
CANTIGA 4/7 B - 9
B.Schematic Diagrams
CANTIGA 4/7
Sheet 8 of 38
CANTIGA 4/7
M _A_A[14:0] 12
DDR SYSTEM MEMORY B
U15E
CANTIGA
SB_D Q_0
AK47
SB_D Q_1
AH46
SB_D Q_10
BA48
SB_D Q_11
AY48
SB_D Q_12
AT47
SB_D Q_13
AR47
SB_D Q_14
BA47
SB_D Q_15
BC47
SB_D Q_16
BC46
SB_D Q_17
BC44
SB_D Q_18
BG43
SB_D Q_19
BF43
SB_D Q_2
AP47
SB_D Q_20
BE45
SB_D Q_21
BC41
SB_D Q_22
BF40
SB_D Q_23
BF41
SB_D Q_24
BG38
SB_D Q_25
BF38
SB_D Q_26
BH35
SB_D Q_27
BG35
SB_D Q_28
BH40
SB_D Q_29
BG39
SB_D Q_3
AP46
SB_D Q_30
BG34
SB_D Q_31
BH34
SB_D Q_32
BH14
SB_D Q_33
BG12
SB_D Q_34
BH11
SB_D Q_35
BG8
SB_D Q_36
BH12
SB_D Q_37
BF11
SB_D Q_38
BF8
SB_D Q_39
BG7
SB_D Q_4
AJ46
SB_D Q_40
BC5
SB_D Q_41
BC6
SB_D Q_42
AY3
SB_D Q_43
AY1
SB_D Q_44
BF6
SB_D Q_45
BF5
SB_D Q_46
BA1
SB_D Q_47
BD3
SB_D Q_48
AV2
SB_D Q_49
AU3
SB_D Q_5
AJ48
SB_D Q_50
AR3
SB_D Q_51
AN2
SB_D Q_52
AY2
SB_D Q_53
AV1
SB_D Q_54
AP3
SB_D Q_55
AR1
SB_D Q_56
AL1
SB_D Q_57
AL2
SB_D Q_58
AJ 1
SB_D Q_59
AH1
SB_D Q_6
AM4 8
SB_D Q_60
AM2
SB_D Q_61
AM3
SB_D Q_62
AH3
SB_D Q_63
AJ 3
SB_D Q_7
AP48
SB_D Q_8
AU47
SB_D Q_9
AU46
SB_BS _0 BC16
SB_BS _1 BB17
SB_BS _2 BB33
S B_CAS# BG16
SB_DM_0 AM47
SB_DM_1 AY47
SB_DM_2 BD40
SB_DM_3 BF35
SB_DM_4 BG11
SB_DM_5 BA3
SB_DM_6 AP1
SB_DM_7 AK2
SB _D QS _0 AL47
SB _D QS _1 AV48
SB _D QS _2 BG41
SB _D QS _3 BG37
SB _D QS _4 BH9
SB _D QS _5 BB2
SB _D QS _6 AU1
SB _D QS _7 AN6
SB_DQS#_0 AL46
SB_DQS#_1 AV47
SB_DQS#_2 BH41
SB_DQS#_3 BH37
SB_DQS#_4 BG9
SB_DQS#_5 BC2
SB_DQS#_6 AT2
SB_DQS#_7 AN5
SB_MA _0 AV17
SB_MA _1 BA25
SB_ M A_ 10 BB16
SB_ M A_ 11 AW33
SB_ M A_ 12 AY33
SB_ M A_ 13 BH15
SB_MA _2 BC25
SB_MA _3 AU25
SB_MA _4 AW25
SB_MA _5 BB28
SB_MA _6 AU28
SB_MA _7 AW28
SB_MA _8 AT33
SB_MA _9 BD33
SB_ M A_ 14 AU33
S B_RAS# AU17
SB_ W E# BF14
M _A_DQ S7# 12
M_B_D QS2# 13
M_B_D QS7 13
M _A_DQ S0 12
M_B_D QS5# 13
M _A_DQ S2# 12
M _A_DQ S0# 12
M _A_DQ S3 12
M _A_DQ S6# 12
M_B_D QS3 13
M _A_DQ S4# 12
M _A_DQ S4 12
M_B_D QS0# 13
M _A_DQ S7 12
M _A_DQ S2 12
M _A_DQ S3# 12
M_B_D QS2 13
M_B_D QS0 13
M_B_D QS5 13
M_B_D QS1 13
M_B_D QS1# 13
M_B_D QS7# 13
M _B _D Q[ 63:0]13
M_B_D QS3# 13
M _A_DQ S1 12
M_B_D QS4# 13
M _A_DQ S6 12
M _A _D Q[63:0]12
M_B_D QS6 13
M_B_D QS4 13
M _A_DQ S1# 12
M _A_DQ S5# 12
M_B_D QS6# 13
M _A_DQ S5 12
Z o= 5 5O? 5 % Z o= 5 5O? 5%
Zo= 55O? 5%
M_A_A3
M_A_A4
M_A_A1
M_A_A2
M_A_A0
M_A_A5
M_A_A11
M_ B_ DQ 3 0
M_ B_ DQ 1 3
M_A_A12
M_ B_ DQ 6 2
M_ B_ DQ 2 8
M_A_A7
M_A_A6
M_ B_ DQ 1 1
M_ B_ DQ 1 6
M_A_A8
M_ B_ DQ 3 2
M_ B_ DQ 1 8
M_A_A13
M_ B_ DQ 4 5
M_A_A10
M_ B_ DQ 4 4
M_A_A9
M_ B_ DQ 3 6
M_ B_ DQ 1 5
M_ B_ DQ 5 0
M_ B_ DQ 4
M_ B_ DQ 4 7
M_ B_ DQ 3 3
M_ B_ DQ 4 3
M_A_A14
M_ B_ DQ 3 5
M_ B_ DQ 9
M_ B_ DQ 3 1
M_ B_ DQ 5 3
M_ B_ DQ 4 6
M_ B_ DQ 1 0
M_ B_ DQ 5 6
M_ B_ DQ 2 1
M_ B_ DQ 1 7
M_ B_ DQ 3
M_ B_ DQ 5 1
M_ B_ DQ 3 4
M_ B_ DQ 1 4
M_ B_ DQ 4 2
M_ B_ DQ 1
M_ B_ DQ 2 4
M_ B_ DQ 2 6
M_ B_ DQ 2
M_ B_ DQ 8
M_ B_ DQ 6 0
M_ B_ DQ 3 9
M_ B_ DQ 5 2
M_ B_ DQ 6
M_ B_ DQ 1 2
M_ B_ DQ 2 5
M_ B_ DQ 5 4
M_ B_ DQ 2 3
M_ B_ DQ 6 1
M_ B_ DQ 2 9
M_ B_ DQ 0
M_ B_ DQ 1 9
M_ B_ DQ 4 0
M_ B_ DQ 2 2
M_ B_ DQ 5 8
M_ B_ DQ 6 3
M_ B_ DQ 5 9
M_ B_ DQ 4 9
M_ B_ DQ 3 8
M_ B_ DQ 7
M_ B_ DQ 2 0
M_ B_ DQ 3 7
M_ B_ DQ 5 5
M_ B_ DQ 2 7
M_ B_ DQ 4 8
M_ B_ DQ 4 1
M_ B_ DQ 5 7
M_ B_ DQ 5
M_B_A13
M_B_A6
M_B_A12
M_B_A9
M_B_A4
M_B_A8
M_B_A2
M_B_A0
M_B_A3
M_B_A1
M_B_A5
M_B_A11
M_B_A7
M_B_A10
M_ A _ D Q 0
M_ A _ D Q 2
M_ A _ D Q 3
M_ A _ D Q 1
M_ A _ D Q 5
M_ A _ DQ 1 2
M_ A _ D Q 7
M_ A _ D Q 8
M_ A _ D Q 6
M_ A _ D Q 4
M_ A _ DQ 1 0
M_ A _ DQ 1 5
M_ A _ DQ 1 3
M_ A _ DQ 1 1
M_ A _ D Q 9
M_ A _ DQ 2 3
M_ A _ DQ 1 4
M_ A _ DQ 3 0
M_ A _ DQ 2 8
M_ A _ DQ 1 8
M_ A _ DQ 1 9
M_ A _ DQ 3 1
M_ A _ DQ 2 2
M_ A _ DQ 2 9
M_ A _ DQ 1 7
M_ A _ DQ 1 6
M_ A _ DQ 2 0
M_ A _ DQ 2 7
M_ A _ DQ 2 6
M_ A _ DQ 2 5
M_ A _ DQ 2 4
M_ A _ DQ 5 9
M_ A _ DQ 4 6
M_ A _ DQ 3 2
M_ A _ DQ 2 1
M_ A _ DQ 6 2
M_ A _ DQ 5 5
M_ A _ DQ 6 3
M_ A _ DQ 5 1
M_ A _ DQ 4 4
M_ A _ DQ 4 5
M_ A _ DQ 3 8
M_ A _ DQ 6 0
M_ A _ DQ 3 7
M_ A _ DQ 5 0
M_ A _ DQ 6 1
M_ A _ DQ 5 8
M_ A _ DQ 5 2
M_ A _ DQ 3 5
M_ A _ DQ 3 4
M_ A _ DQ 4 7
M_ A _ DQ 3 9
M_ A _ DQ 5 4
M_ A _ DQ 5 6
M_ A _ DQ 5 7
M_ A _ DQ 5 3
M_ A _ DQ 4 3
M_ A _ DQ 4 2
M_ A _ DQ 4 1
M_ A _ DQ 3 6
M_ A _ DQ 4 8
M_ A _ DQ 4 9
M_ A _ DQ 4 0
M_ A _ DQ 3 3
M_B_A[14:0] 13
M_ B _ D M0 1 3
M_B_R AS# 13
M_ B _ D M5 1 3
M_A_DM2 12
M _A_BS2# 12
M_A_DM7 12
M_B_BS2# 13
M_B_C AS# 13
M_ B _ D M2 1 3
M_B_BS1# 13M _A_ BS0# 12
M_ B _ D M4 1 3
M _A_CAS# 12
M_A_DM6 12
M_B_BS0# 13
M _A_BS1# 12
M_A_DM3 12
M_A_DM1 12
M_A_DM4 12
M_ B _ D M7 1 3
M_ B _ W E # 1 3
M_A_DM0 12 M_ B _ D M1 1 3
M_ B _ D M3 1 3
M_A_DM5 12 M_ B _ D M6 1 3
Zo = 45 O? 5 %
M_A_WE# 12
M _A_RAS# 12
Zo= 55O ? 5%
Zo= 45O ? 5%
Zo= 45O? 5%
M_B_A14
Zo= 45O? 5%
DDR SYSTEM MEMORY A
U1 5 D
CA NTIG A
SA_DQ _0
AJ 38
SA_DQ _1
AJ 41
SA_DQ _10
AU 40
SA_DQ _11
AT38
SA_DQ _12
AN 41
SA_DQ _13
AN 39
SA_DQ _14
AU 44
SA_DQ _15
AU 42
SA_DQ _16
AV39
SA_DQ _17
AY 44
SA_DQ _18
BA40
SA_DQ _19
BD 43
SA_DQ _2
AN 38
SA_DQ _20
AV41
SA_DQ _21
AY 43
SA_DQ _22
BB41
SA_DQ _23
BC 40
SA_DQ _24
AY 37
SA_DQ _25
BD 38
SA_DQ _26
AV37
SA_DQ _27
AT36
SA_DQ _28
AY 38
SA_DQ _29
BB38
SA_DQ _3
AM 38
SA_DQ _30
AV36
SA_DQ _31
AW36
SA_DQ _32
BD 13
SA_DQ _33
AU 11
SA_DQ _34
BC 11
SA_DQ _35
BA12
SA_DQ _36
AU 13
SA_DQ _37
AV13
SA_DQ _38
BD 12
SA_DQ _39
BC 12
SA_DQ _4
AJ 36
SA_DQ _40
BB 9
SA_DQ _41
BA 9
SA_DQ _42
AU 10
SA_DQ _43
AV 9
SA_DQ _44
BA11
SA_DQ _45
BD 9
SA_DQ _46
AY 8
SA_DQ _47
BA 6
SA_DQ _48
AV 5
SA_DQ _49
AV 7
SA_DQ _5
AJ 40
SA_DQ _50
AT9
SA_DQ _51
AN 8
SA_DQ _52
AU 5
SA_DQ _53
AU 6
SA_DQ _54
AT5
SA_DQ _55
AN 10
SA_DQ _56
AM 11
SA_DQ _57
AM 5
SA_DQ _58
AJ 9
SA_DQ _59
AJ 8
SA_DQ _6
AM 44
SA_DQ _60
AN 12
SA_DQ _61
AM 13
SA_DQ _62
AJ 11
SA_DQ _63
AJ 12
SA_DQ _7
AM 42
SA_DQ _8
AN 43
SA_DQ _9
AN 44
SA_BS_0 BD 2 1
SA_BS_1 BG 1 8
SA_BS_2 AT25
SA_ C AS# BD 2 0
SA_ D M_ 0 AM 37
SA_ D M_ 1 AT4 1
SA_ D M_ 2 AY 41
SA_ D M_ 3 AU 39
SA_ D M_ 4 BB1 2
SA_ D M_ 5 AY 6
SA_ D M_ 6 AT7
SA_DQ S_0 AJ 4 4
SA_DQ S_1 AT4 4
SA_DQ S_2 BA4 3
SA_DQ S_3 BC 3 7
SA_DQ S_4 AW 1 2
SA_DQ S_5 BC 8
SA_DQ S_6 AU 8
SA_DQ S_7 AM 7
SA_ D M_ 7 AJ 5
SA_D QS#_0 AJ 4 3
SA_D QS#_1 AT4 3
SA_D QS#_2 BA4 4
SA_D QS#_3 BD 3 7
SA_D QS#_4 AY 1 2
SA_D QS#_5 BD 8
SA_D QS#_6 AU 9
SA_D QS#_7 AM 8
SA_MA_0 BA21
SA_MA_1 BC 2 4
SA_MA_10 BC 2 1
SA_MA_11 BG 2 6
SA_MA_12 BH 2 6
SA_MA_13 BH 1 7
SA_MA_2 BG 2 4
SA_MA_3 BH 2 4
SA_MA_4 BG 2 5
SA_MA_5 BA24
SA_MA_6 BD 2 4
SA_MA_7 BG 2 7
SA_MA_8 BF25
SA_MA_9 AW 2 4
SA_ R AS# BB20
SA_WE# AY 2 0
SA_MA_14 AY 2 5

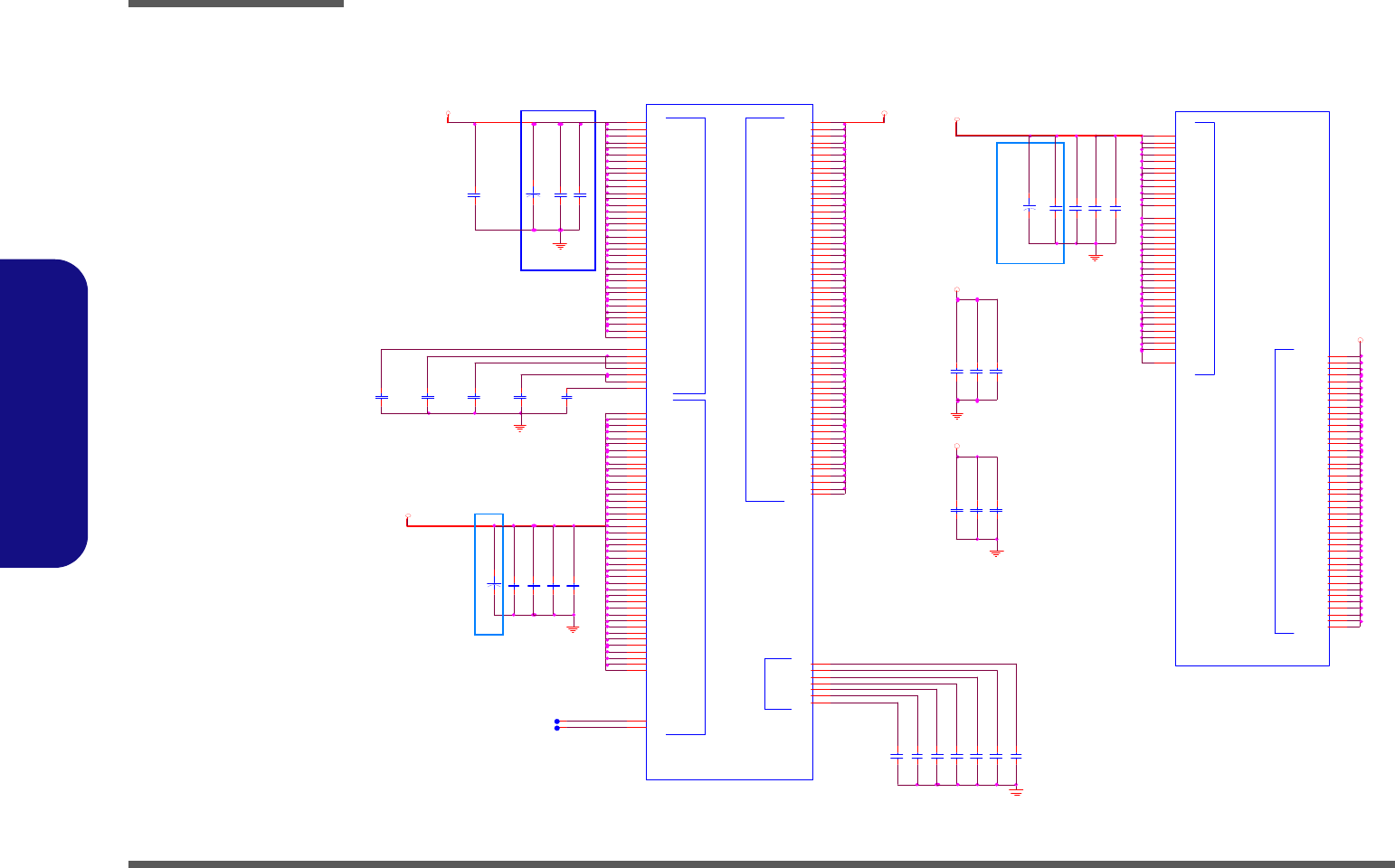

Schematic Diagrams
B - 10 CANTIGA 5/7
B.Schematic Diagrams
CANTIGA 5/7
Sheet 9 of 38
CANTIGA 5/7
3A
3A 8.7A
3A
+
C 444 220U_4V_D 2_D
1.5V
1.05V S
1. 05 V S
1.05VS
1.05V S
1. 05 V S
1.05VS
PLACE CLOSE
TO THE GMCH
+
C446 *10U _2.5V _B
C 167 0.22u_10V _Y 5V_04
C 70 0.22u_10V_Y5V _04
C 164 0.1u_16V_Y5V_04
C129 10u_6.3V_X5R _08
VC CSM _37
VC CSM _36
VC CSM _42
VCCSM_LF7
VC CSM _38
VC CSM _40
C 153 22u_6.3V_X5R _08
+
C 169 * 150U_4V_B2
C151 0.22u_10V_Y5V_04
G PU VSS SEN SE
GPUVCCSENSE
C158 0.1u_16V_Y5V_04
C179 0.47u_10V_X5R _04
C 112 0.1u_16V_Y5V_04
C 154 0.1u_16V_Y5V_04
C 126 0.1u_16V _Y5V_04
C 185 1u_6.3V_Y5V_04
C 101 1u_6.3V_Y5V_04
C120 0.22u_10V_Y5V_04 C110 22u_6.3V_X5R _08
C 177 1u_6.3V_Y5V_04
C 132 0.1u_16V_Y 5V _04
C134 22u_6.3V_X 5R _08
C 86 0.1u_16V_Y5V_04
C133
* .1U_16V_04
C171
*.1U_16V_04
C105
* .1U _16V_04
C106
* .1U_16V_04
POWER
VCC NCTF
VCC CORE
U1 5 F
CA NTIG A
VCC_NCTF_1 AM 32
VCC_NCTF_20 AC 30
VCC_NCTF_29 AJ 2 9
VCC_NCTF_42 AK 25
VCC_NCTF_9 AA 32
VCC_NCTF_10 Y32
VCC_NCTF_11 W32
VCC_NCTF_12 U32
VCC_NCTF_13 AM 30
VCC_NCTF_14 AL3 0
VCC_NCTF_15 AK 30
VCC_NCTF_17 AG 30
VCC_NCTF_18 AF 30
VCC_NCTF_19 AE 30
VCC_NCTF_2 AL3 2
VCC_NCTF_24 W30
VCC_NCTF_25 V30
VCC_NCTF_3 AK 32
VCC_NCTF_30 AH 29
VCC_NCTF_31 AG 29
VCC_NCTF_32 AE 29
VCC_NCTF_38 AL2 8
VCC_NCTF_39 AK 28
VCC_NCTF_40 AL2 6
VCC_NCTF_41 AK 26
VCC_NCTF_4 AJ 3 2
VCC_NCTF_43 AK 24
VCC_NCTF_5 AH 32
VCC_NCTF_6 AG 32
VCC_NCTF_7 AE 32
VCC_NCTF_8 AC 32
VCC_NCTF_33 AC 29
VCC_NCTF_34 AA 29
VCC_NCTF_35 Y29
VCC_NCTF_36 W29
VCC_NCTF_37 V29
VCC_NCTF_26 U30
VCC_NCTF_27 AL2 9
VCC_NCTF_28 AK 29
VCC_NCTF_16 AH 30
VCC_NCTF_21 AB 30
VCC_NCTF_22 AA 30
VCC_NCTF_23 Y30
VCC _1
AG34
VCC _2
AC34
VCC _3
AB3 4
VCC _4
AA3 4
VCC _5
Y34
VCC _6
V34
VCC _7
U3 4
VCC _8
AM33
VCC _9
AK3 3
VCC _1 0
AJ 3 3
VCC _1 1
AG33
VCC _1 2
AF3 3
VCC _1 3
AE3 3
VCC _1 4
AC33
VCC _1 5
AA3 3
VCC _1 6
Y33
VCC _1 7
W33
VCC _1 8
V33
VCC _1 9
U3 3
VCC _2 0
AH28
VCC _2 1
AF2 8
VCC _2 2
AC28
VCC _2 3
AA2 8
VCC _2 4
AJ 2 6
VCC _2 5
AG26
VCC _2 6
AE2 6
VCC _2 7
AC26
VCC _2 8
AH25
VCC _2 9
AG25
VCC _3 0
AF2 5
VCC _3 1
AG24
VCC _3 2
AJ 2 3
VCC _3 3
AH23
VCC _3 4
AF2 3
VCC _3 5
T32
VCC_NCTF_44 AK 23
C93
*.1U _16V _04
C113 0.1u_16V_Y 5V _04
C121 0.22u_10V_Y5V_04
C 94 0.1u_16V _Y 5V_04
C163 0.1u_16V_Y 5V _04
POWER
VCC SM VCC GFX
VCC GFX NCTF
VCC SM LF
U1 5 G
CA NTIG A
VCC _SM _10
AY32
VCC _SM _20
BF31
VCC _SM _30
AW 2 9
VCC _SM _6
BD32
VCC _SM _7
BC32
VCC _SM _8
BB32
VCC _SM _9
BA32
VCC _SM _11
AW 3 2
VCC _SM _12
AV32
VCC _SM _13
AU32
VCC _SM _14
AT32
VCC _SM _15
AR32
VCC _SM _16
AP32
VCC _SM _17
AN32
VCC _SM _18
BH31
VCC _SM _19
BG3 1
VCC _SM _2
AN33
VCC _SM _21
BG3 0
VCC _SM _22
BH29
VCC _SM _23
BG2 9
VCC _SM _24
BF29
VCC _SM _25
BD29
VCC _SM _26
BC29
VCC _SM _27
BB29
VCC _SM _28
BA29
VCC _SM _29
AY29
VCC _SM _3
BH32
VCC _SM _31
AV29
VCC _SM _32
AU29
VCC _SM _33
AT29
VCC _SM _34
AR29
VCC_AXG_NCTF_10 V23
VCC_AXG_NCTF_11 AM 21
VCC_AXG_NCTF_12 AL2 1
VCC_AXG_NCTF_13 AK21
VCC_AXG_NCTF_14 W21
VCC_AXG_NCTF_15 V21
VCC_AXG_NCTF_16 U2 1
VCC_AXG_NCTF_17 AM 20
VCC_AXG_NCTF_18 AK20
VCC_AXG_NCTF_19 W20
V CC _AXG_N CTF _2 V28
VCC_AXG_NCTF_20 U2 0
VCC_AXG_NCTF_21 AM 19
VCC_AXG_NCTF_22 AL1 9
VCC_AXG_NCTF_23 AK19
VCC_AXG_NCTF_24 AJ 19
VCC_AXG_NCTF_25 AH 19
VCC_AXG_NCTF_26 AG 19
VCC_AXG_NCTF_27 AF19
VCC_AXG_NCTF_28 AE19
VCC_AXG_NCTF_29 AB19
V CC _AXG_N CTF _3 W26
VCC_AXG_NCTF_30 AA19
VCC_AXG_NCTF_31 Y19
VCC_AXG_NCTF_32 W19
VCC_AXG_NCTF_33 V19
VCC_AXG_NCTF_34 U1 9
VCC_AXG_NCTF_35 AM 17
VCC_AXG_NCTF_36 AK17
VCC_AXG_NCTF_37 AH 17
VCC_AXG_NCTF_38 AG 17
VCC_AXG_NCTF_39 AF17
V CC _AXG_N CTF _4 V26
VCC_AXG_NCTF_40 AE17
VCC_AXG_NCTF_41 AC 17
VCC_AXG_NCTF_42 AB17
VCC_AXG_NCTF_43 Y17
VCC_AXG_NCTF_44 W17
VCC_AXG_NCTF_45 V17
VCC_AXG_NCTF_46 AM 16
VCC_AXG_NCTF_47 AL1 6
VCC_AXG_NCTF_48 AK16
VCC_AXG_NCTF_49 AJ 16
V CC _AXG_N CTF _5 W25
VCC_AXG_NCTF_50 AH 16
VCC_AXG_NCTF_51 AG 16
VCC_AXG_NCTF_52 AF16
VCC_AXG_NCTF_53 AE16
VCC_AXG_NCTF_54 AC 16
VCC_AXG_NCTF_55 AB16
VCC_AXG_NCTF_56 AA16
V CC _AXG_N CTF _6 V25
V CC _AXG_N CTF _7 W24
V CC _AXG_N CTF _8 V24
V CC _AXG_N CTF _9 W23
VCC _SM _35
AP29
VCC _SM _4
BG3 2
VCC _SM _5
BF32
V CC _AXG_N CTF _1 W28
VCC _SM _1
AP33
VCC _AXG _1
Y26
VCC _AXG _2
AE25
VCC _AXG _3
AB25
VCC _AXG _4
AA25
VCC _AXG _5
AE24
VCC _AXG _6
AC24
VCC _AXG _7
AA24
VCC _AXG _8
Y24
VCC _AXG _9
AE23
VCC _AXG _10
AC23
VCC _AXG _11
AB23
VCC _AXG _12
AA23
VCC _AXG _13
AJ21
VCC _AXG _14
AG2 1
VCC _AXG _15
AE21
VCC _AXG _16
AC21
VCC _AXG _17
AA21
VCC _AXG _18
Y21
VCC _AXG _19
AH20
VCC _AXG _20
AF20
VCC _AXG _21
AE20
VCC _AXG _22
AC20
VCC _AXG _23
AB20
VCC _AXG _24
AA20
VCC _AXG _25
T1 7
VCC _AXG _27
AM15
VCC _AXG _28
AL15
VCC _AXG _30
AJ15
VCC _AXG _31
AH15
VCC _AXG _33
AF15
VCC _AXG _34
AB15
VC C _SM_ LF1 AV4 4
VC C _SM_ LF2 BA3 7
VC C _SM_ LF3 AM 4 0
VC C _SM_ LF4 AV2 1
VC C _SM_ LF5 AY 5
VC C _SM_ LF6 AM 1 0
VC C _SM_ LF7 BB1 3
VCC _AXG _26
T1 6
VCC _AXG _32
AG1 5
VCC _AXG _35
AA15
VCC _AXG _36
Y15
VCC _AXG _37
V15
VCC _AXG _38
U1 5
VCC _AXG _39
AN14
VCC _AXG _40
AM14
VCC _AXG _41
U1 4
VCC _AXG _42
T1 4
VCC _AXG _SEN SE
AJ14
VSS_AXG _ SEN SE
AH14
VCC_AXG_NCTF_57 Y16
VCC_AXG_NCTF_58 W16
VCC_AXG_NCTF_59 V16
VCC_AXG_NCTF_60 U1 6
VCC _SM _36/ NC
BA36
VCC _SM _37/ NC
BB24
VCC _SM _38/ NC
BD16
VCC _SM _39/ NC
BB21
VCC _SM _40/ NC
AW 1 6
VCC _SM _41/ NC
AW 1 3
VCC _SM _42/ NC
AT13
VCC _AXG _29
AE15
C 60 0.22u_10V_Y5V_04
VCCSM_LF3
VCCSM_LF1
VCCSM_LF2
VCCSM_LF5
VCCSM_LF4
VCCSM_LF6
Schematic Diagrams
CANTIGA 6/7 B - 11
B.Schematic Diagrams
CANTIGA 6/7
C 166
0.01u_16V _X7R _04
1.5VS
C157
0.1u_10V_X5R_04
C195
0.1u_16V_Y5V _04
10mils
10mils
10mils
+
C194
*220U_6.3V_B2
10mils
10mils
10mils
C498
4.7u_6.3V_X5R_06
C202
10u_10V_Y 5V_08
C140
0.1u_10V_X5R_04
3.3VS2,3,6,7,12,13,14,15,16,17,18, 19,20,21,22,23, 24,25,26,27,28,30
3.3V3,15, 16,17,18,19,21, 22,25,26,28,32,33
C 187
0.1u_10V _X5R _04
C159
10u_10V_Y5V_08
C191
0.1u_16V_Y 5V_04
C150
1u_6.3V_Y 5V_04
C79
4.7u_6.3V_X5R _06
.
L16
HC B1005KF-121T20
C484
4.7u_6.3V_X5R_06
C 192
10u_10V _Y 5V_08
C 205
1000p_50V_X7R _04
+
C500
* 220U _6.3V _B2
C 499
10u_6.3V_X5R _08
C476
0.01u_16V_X7R_04
3.3VS
C473
0.1u_10V _X5R _04
1.8V_TXLVD S
1. 8V _T X L V D S
C198
1000p_50V_X7R _04
10mils
C193
0.1u_16V_Y 5V_04
VC C A_MPL L
VC CA_H PLL
C188
0.1u_16V_Y 5V_04
VC CA _H PL L
VC CA _M PLL
1.05V S
C175
1u_6.3V_Y 5V_04
1.8V
1.05V S
1.5VS
1.05V S
1.8V
3.3VS
1.05V S
1.05VS
1.05VS
3.3VS
1.05VS
1.5VS
1.05VM_PEG PLL
1.05VS
MCH_VCC_SMCK
C9 6
10u_6.3V_X5R_08
C103
0.1u_16V_Y 5V _04
R 346
* 0_04
R69 0_06
.
L14
HC B1608KF-121T25
C 108
* 10U_10V_08
C9 7
*0.1U _16V_04
C125
*0.1U _16V _04
.
L38
H CB1005KF-121T20
VC CA _D PLLA
1.05VM _DM I
3.3V S_TV_CR T_B G
.
L4 0
HC B1608K F-121T25
3.3VS_TV_CR T_BG
MC H _V CC _AXF
10mils
10mils
10 mils
10mils
C8 3
0.1u_16V_Y5V _04
C170
10u_10V_Y 5V _08
C100
*2.2u_6.3V_06
10 mils
10mils
10mils
C204
22u_6.3V_X5R_08
10mils
20mils
20mils
10mils
20mils
C477
0.1u_10V _X5R _04
1.05VM_PEG
10mils
POWER
CRT PL L A PEG A S M TV
D TV/CRT
LVDS
VTTLF PE G SM CK AXF
VTT
DMI HV
A CK
A LVDS HD A
U15H
CANTIGA
VTT_19 V3
VTT_20 U3
VTT_21 V2
VTT_22 U2
VC CA _P EG_B G
AD 48
VC CA _P EG_P LL
AA48
VC CA _C R T_D AC _1
B27
VC CA _C R T_D AC _2
A26
VC CA _D PL LA
F47
VC CA _D PL LB
L48
VC CA _H PL L
AD 1
VC CA _L V DS
J48
VC CA _M PLL
AE1
VCCA_TV_DAC_1
B24
VCCA_TV_DAC_2
A24
VC CD _PEG _PLL
AA47
VTT_15 U6
VTT_16 T6
VTT_17 U5
VTT_18 T5
VTT_12 T8
VTT_13 U7
VTT_14 T7
VC CD _HP LL
AF1
VTT_ 1 U1 3
VTT_ 2 T1 3
VTT_ 4 T1 2
VTT_ 5 U1 1
VTT_ 6 T1 1
VTT_ 7 U1 0
VTT_ 8 T1 0
VTT_ 9 U9
VTT_10 T9
VTT_11 U8
VTT_ 3 U1 2
VC CA _S M_C K_1
AP28
VC CA _S M_C K_2
AN 28
VC CA _D AC _ BG
A25
VC CD _TVDA C
M25
V TTLF1 A8
V TTLF2 L1
V TTLF3 AB2
VC C_D MI_1 AH48
VC C_D MI_2 AF4 8
VC C_SM _CK_1 BF2 1
VC C_SM _CK_2 BH20
VC C_SM _CK_3 BG2 0
VC C_SM _CK_4 BF2 0
VC CD _LVDS _1
M38
VC CD _QD AC
L28
VC C_AXF_1 B2 2
VC C_AXF_2 B2 1
VC C_AXF_3 A2 1
VC CA _S M_1
AR 20
VC CA _S M_2
AP20
VC CA _S M_3
AN 20
VC CA _S M_4
AR 17
VC CA _S M_5
AP17
VC CA _S M_7
AT1 6
VC CA _S M_8
AR 16
VC CA _S M_9
AP16
VCC_TX_LVDS K47
VSS A_LVDS
J47 VCC_HV_1 C3 5
VCC_HV_2 B3 5
VC C _P EG_1 V4 8
VC CD _LVDS _2
L37
VC C _P EG_2 U4 8
VC C _P EG_3 V4 7
VC C _P EG_4 U4 7
VC C _P EG_5 U4 6
VC CA _S M_6
AN 17
VC CA _S M_C K_3
AP25
VC CA _S M_C K_4
AN 25
VC CA _S M_C K_5
AN 24
VC CA _S M_C K_NC TF_1
AM 28
VC CA _S M_C K_NC TF_2
AM 26
VC CA _S M_C K_NC TF_3
AM 25
VC CA _S M_C K_NC TF_4
AL25
VC CA _S M_C K_NC TF_5
AM 24
VC CA _S M_C K_NC TF_6
AL24
VC CA _S M_C K_NC TF_7
AM 23
VTT_23 T2
VTT_24 V1
VTT_25 U1
VCC_HV_3 A3 5
VC C_D MI_3 AH47
VC C_D MI_4 AG4 7
VSS A_DA C_BG
B25
VC CA _S M_C K_NC TF_8
AL23
VC C_H DA
A32
C 460
0.47u_6.3V_X5R _04
C5 9
0. 47u_6.3V_X5R _04
.
L13
HC B1608KF-121T25
10mils
10mils
25mils
D1 7
SCS 355V
AC
R 122 10_06
C172
0.1u_16V_Y 5V_04
80mils
10mils
V TTLF_C AP2
V TTLF_C AP3
V TTLF_C AP1
C453
0.47u_6.3V_X5R_04
+
C5 6
*100U_6.3V_B2
.
L37
HC B1005K F-121T20
C472
1u_6.3V_Y 5V_04
R342 0_06
C469
*10U_10V_08
C180
0.1u_10V_X5R_04
C480
0.01u_16V_X7R_04
C478
0.1u_10V_X5R_04
C190
0.1u_16V_Y 5V _04
VC CA _D PLLB
R111
*20m il_short_04
C488
0. 1u_16V_Y5V_04
R9 0
*20m il_short_04
M C H_ VC C_ H DA
R 347
* 20m il_s hort_04
.
L11
H CB1005KF-121T20
1.05V M_PEG PLL
1.05VS
C160
0.1u_10V_X5R _04
VCC D _TVD AC
C131
0.01u_16V_X7R_04
1.05VS
C496
0. 1u_10V_X5R_04
C497
0.1u_10V _X5R _04
.
L41
H C B1005KF -121T20
1.5V
C196
10u_10V_Y 5V_08
C450
4.7u_6.3V_X5R_06
M C H_ VC CD _ L VDS
C451
0.1u_10V_X5R_04
C143
4. 7u_6.3V_X5R_06
C162
2.2u_6.3V_Y 5V_06
C181
1u_6.3V_Y 5V_04
C114
0.47u_6.3V_X5R _04
C449
10u_10V_Y5V _08
.
L4 2
HC B1005K F-121T20
C 452
0.1u_10V_X5R _04
C6 4
4.7u_6.3V_X5R_06
Sheet 10 of 38
CANTIGA 6/7
Schematic Diagrams
B - 12 CANTIGA 7/7
B.Schematic Diagrams
CANTIGA 7/7
VSS
U15I
CANTIGA
VSS_1
AU 4 8
VS S_198 A23
VSS_2
AR 4 8
VSS_3
AL48
VSS_4
BB47
VSS_5
AW 4 7
VSS_6
AN 4 7
VSS_7
AJ47
VSS_8
AF47
VSS_9
AD 4 7
VSS_10
AB47
VSS_11
Y47
VSS_12
T4 7
VSS_13
N47
VSS_14
L4 7
VSS_15
G47
VSS_16
BD 4 6
VSS_17
BA46
VSS_19
AV46
VSS_20
AR 4 6
VSS_21
AM4 6
VSS_22
V46
VSS_23
R46
VSS_24
P46
VSS_25
H46
VSS_26
F46
VSS_27
BF44
VSS_28
AH 4 4
VSS_29
AD 4 4
VSS_30
AA44
VSS_31
Y44
VSS_32
U44
VSS_33
T4 4
VSS_34
M44
VSS_35
F44
VSS_36
BC 4 3
VSS_37
AV43
VSS_38
AU 4 3
VSS_39
AM4 3
VSS_40
J4 3
VSS_41
C43
VSS_42
BG42
VSS_43
AY 42
VSS_44
AT42
VSS_45
AN 4 2
VSS_46
AJ42
VSS_47
AE42
VSS_48
N42
VSS_49
L4 2
VSS_50
BD 4 1
VSS_51
AU 4 1
VSS_52
AM4 1
VSS_53
AH 4 1
VSS_54
AD 4 1
VSS_55
AA41
VSS_56
Y41
VSS_57
U41
VSS_58
T4 1
VSS_59
M41
VSS_60
G41
VSS_61
B41
VSS_62
BG40
VSS_63
BB40
VSS_64
AV40
VSS_65
AN 4 0
VSS_66
H40
VSS_67
E40
VSS_68
AT39
VSS_69
AM3 9
VSS_70
AJ39
VSS_71
AE39
VSS_72
N39
VSS_73
L3 9
VSS_74
B39
VSS_75
BH 3 8
VSS_76
BC 3 8
VSS_77
BA38
VSS_78
AU 3 8
VSS_79
AH 3 8
VSS_80
AD 3 8
VSS_81
AA38
VSS_82
Y38
VSS_83
U38
VSS_84
T3 8
VSS_85
J3 8
VSS_86
F38
VSS_87
C38
VSS_97
BD 3 6
VS S_100 AM36
VS S_101 AE36
VS S_102 P36
VS S_103 L36
VS S_104 J36
VS S_105 F36
VS S_106 B36
VS S_107 AH35
VS S_108 AA35
VS S_109 Y35
VS S_110 U35
VS S_111 T35
VS S_112 BF34
VS S_113 AM34
VS S_114 AJ34
VS S_115 AF34
VS S_116 AE34
VS S_117 W34
VS S_118 B34
VS S_119 A34
VS S_120 BG33
VS S_121 BC33
VS S_122 BA33
VS S_123 AV33
VS S_124 AR33
VS S_125 AL33
VS S_126 AH33
VS S_127 AB33
VS S_128 P33
VS S_129 L33
VS S_130 H33
VS S_131 N32
VS S_132 K32
VS S_133 F32
VS S_134 C32
VS S_135 A31
VS S_136 AN29
VS S_137 T29
VS S_138 N29
VS S_139 K29
VS S_140 H29
VS S_141 F29
VS S_142 A29
VS S_143 BG28
VS S_144 BD28
VS S_145 BA28
VS S_146 AV28
VS S_147 AT28
VS S_148 AR28
VS S_149 AJ28
VS S_150 AG28
VS S_151 AE28
VS S_152 AB28
VS S_153 Y28
VS S_154 P28
VS S_155 K28
VS S_156 H28
VS S_157 F28
VS S_158 C28
VS S_159 BF26
VS S_160 AH26
VS S_161 AF26
VS S_162 AB26
VS S_163 AA26
VS S_164 C26
VS S_165 B26
VS S_166 BH25
VS S_167 BD25
VS S_168 BB25
VS S_169 AV25
VS S_170 AR25
VS S_171 AJ25
VS S_172 AC25
VS S_173 Y25
VS S_174 N25
VS S_175 L25
VS S_176 J25
VS S_177 G25
VS S_178 E25
VS S_179 BF24
VSS_88
BF37
VSS_89
BB37
VSS_90
AW 3 7
VSS_91
AT37
VSS_92
AN 3 7
VSS_93
AJ37
VSS_94
H37
VSS_95
C37
VSS_96
BG36
VSS_99
AU 3 6
VS S_182 AT24
VS S_184 AH24
VS S_186 AB24
VS S_188 L24
VSS_18
AY 46
VS S_191 G24
VS S_193 E24
VS S_195 AG23
VS S_197 B23
VS S_181 AY24
VS S_183 AJ24
VS S_185 AF24
VS S_187 R24
VS S_189 K24
VS S_190 J24
VS S_192 F24
VS S_194 BH23
VS S_196 Y23
VSS_98
AK15
VS S_180 AD12
VS S_199 AJ6
VSS
VSS NCTF
VSS SCB
NC
U15J
CANTIGA
VSS_199
BG21
VSS_201
AW 21
VSS_202
AU21
VSS_203
AP 21
VSS_204
AN21
VSS_205
AH21
VSS_206
AF 21
VSS_207
AB 21
VSS_208
R21
VSS_209
M21
VSS_210
J21
VSS_211
G21
VSS_212
BC20
VSS_213
BA 20
VSS_214
AW 20
VSS_215
AT20
VSS_216
AJ20
VSS_217
AG20
VSS_218
Y20
VSS_219
N20
VSS_220
K20
VSS_221
F20
VSS_222
C20
VSS_223
A20
VSS_224
BG19
VSS_225
A18
VSS_226
BG17
VSS_227
BC17
VSS_228
AW 17
VSS_229
AT17
VSS_230
R17
VSS_231
M17
VSS_232
H17
VSS_233
C17
VSS_235
BA 16
VSS_237
AU16
VSS_238
AN16
VSS_239
N16
VSS_240
K16
VSS_241
G16
VSS_242
E16
VSS_243
BG15
VSS_245
W15
VSS_246
A15
VSS_247
BG14
VSS_248
AA 14
VSS_249
C14
VSS_250
BG13
VSS_251
BC13
VSS_252
BA 13
VSS_255
AN13
VSS_256
AJ13
VSS_257
AE 13
VSS_258
N13
VSS_259
L13
VSS_260
G13
VSS_261
E13
VSS_262
BF 12
VSS_263
AV 12
VSS_264
AT12
VSS_265
AM12
VSS_266
AA 12
VSS_267
J12
VSS_268
A12
VSS_269
BD11
VSS_270
BB 11
VSS_271
AY11
VSS_272
AN11
VSS_273
AH11
VSS_275
Y11
VSS_276
N11
VSS_277
G11
VSS_278
C11
VSS_279
BG10
VSS_280
AV 10
VSS_281
AT10
VSS_282
AJ10
VSS_283
AE 10
VSS_284
AA 10
VSS_293
BH 8 VSS_292
B9 VSS_291
G9 VSS_290
AD 9 VSS_289
AM9 VSS_288
AN 9 VSS_287
BC 9
VSS_285
M10
VSS_286
BF9
V SS_29 7 AH 8
V SS_29 8 Y8
V SS_29 9 L8
V SS_30 0 E8
V SS_30 1 B8
V SS_30 2 AY 7
V SS_30 3 AU 7
V SS_30 4 AN 7
V SS_30 5 AJ 7
V SS_30 6 AE 7
V SS_30 7 AA 7
V SS_30 8 N7
V SS_30 9 J7
V SS_31 0 BG6
V SS_31 1 BD 6
V SS_31 2 AV 6
V SS_31 3 AT6
VSS_244
AC15
V SS_31 4 AM6
V SS_31 5 M6
V SS_31 6 C6
V SS_31 7 BA 5
V SS_31 8 AH 5
V SS_31 9 AD 5
V SS_32 0 Y5
V SS_32 1 L5
V SS_32 2 J5
V SS_32 3 H5
V SS_32 4 F5
V SS_32 5 BE 4
V SS_32 7 BC 3
V SS_32 8 AV 3
V SS_32 9 AL3
VSS _ N C TF _1 AF 32
VSS _ N C TF _2 AB 32
VSS _ N C TF _3 V32
VSS _ N C TF _4 AJ 30
VSS _ N C TF _5 AM29
VSS _ N C TF _6 AF 29
VSS _ N C TF _7 AB 29
VSS _ N C TF _8 U26
VSS _ N C TF _9 U23
VS S_ N C TF_ 1 0 AL20
VS S_ N C TF_ 1 1 V20
VS S_ N C TF_ 1 2 AC 1 9
VS S_ N C TF_ 1 3 AL17
VS S_ N C TF_ 1 4 AJ 1 7
VS S_ N C TF_ 1 5 AA 17
VS S_ N C TF_ 1 6 U17
VS S_S C B_1 BH 48
VS S_S C B_2 BH 1
VS S_S C B_3 A48
VS S_S C B_4 C1
VS S_S C B_5 A3
NC_26 E1
NC_27 D2
NC_28 C3
NC_29 B4
NC_30 A5
NC_31 A6
NC_32 A43
NC_33 A44
NC_34 B45
NC_35 C46
NC_36 D47
NC_37 B47
NC_38 A46
NC_39 F48
NC_40 E48
NC_41 C48
NC_42 B48
V SS_33 0 R3
V SS_33 1 P3
V SS_33 3 BA 2
V SS_33 6 AR 2
V SS_33 5 AU 2
V SS_33 7 AP 2
V SS_33 2 F3
V SS_33 4 AW 2
V SS_34 1 AE 2
V SS_34 0 AF 2
V SS_33 9 AH 2
V SS_33 8 AJ 2
V SS_34 2 AD 2
V SS_34 3 AC 2
V SS_34 4 Y2
V SS_34 5 M2
V SS_34 6 K2
V SS_34 7 AM1
V SS_34 8 AA 1
V SS_34 9 P1
V SS_35 0 H1
VSS_294
BB8
VSS_295
AV8
VSS_296
AT8
V SS_35 1 U24
V SS_35 2 U28
V SS_35 3 U25
V SS_35 4 U29
VSS_200
L12
R 8 0 * 10 m il_ s h or t
R 8 5 * 10 m il_ s h or t
R 9 8 * 10 m il_ s h or t
R 8 1 * 10 m il_ s h or t
Sheet 11 of 38
CANTIGA 7/7
Schematic Diagrams

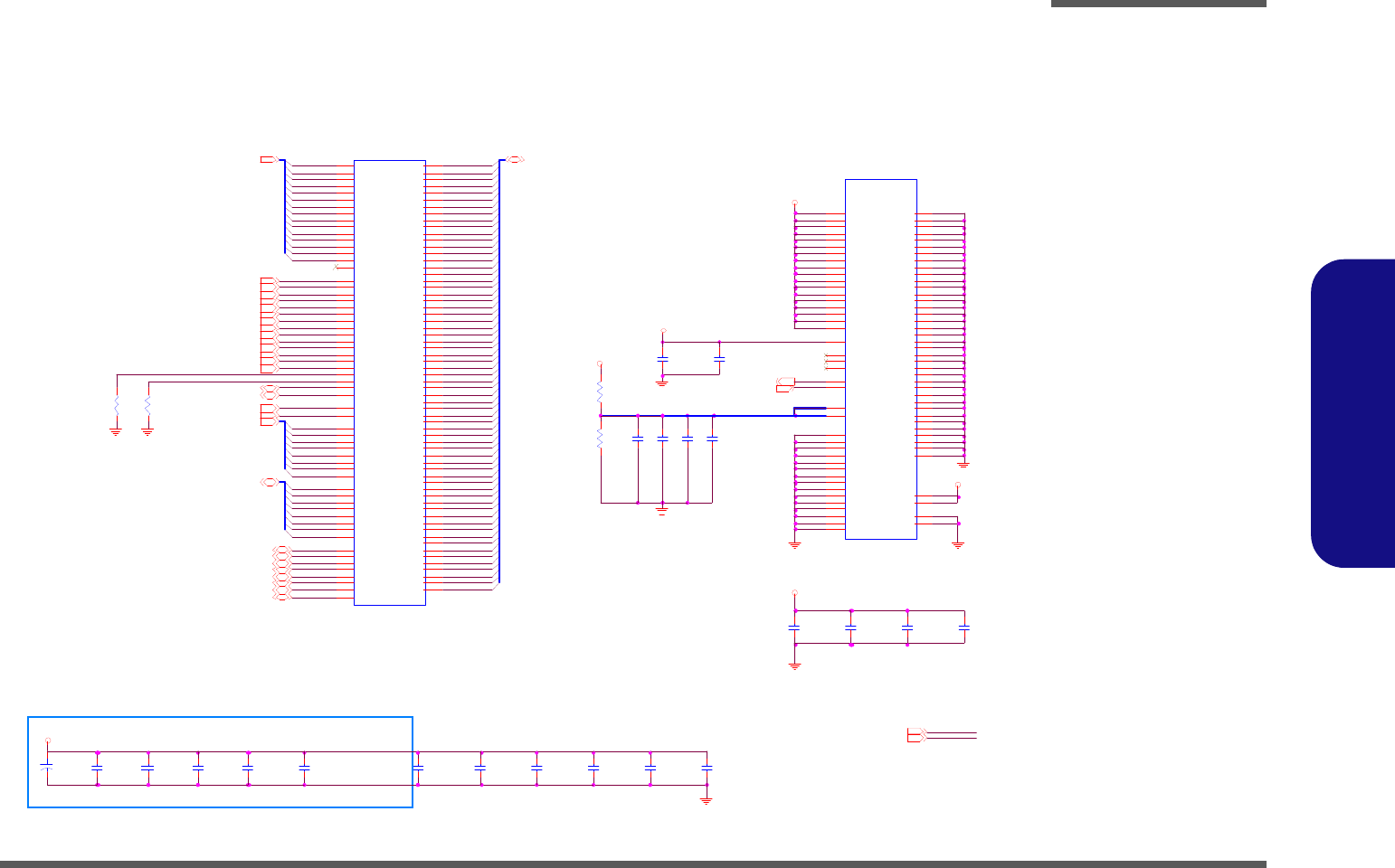

DDRIII SO-DIMM A B - 13
B.Schematic Diagrams
DDRIII SO-DIMM A
Sheet 12 of 38
DDRIII SO-DIMM A
C595
*10u_6.3V _X5R_08
C6 0 1
*0. 1u_10V _X5R_04
C628
2.2u_6.3V _Y 5V_06
C6 3 4
1u_6.3V_X5R _04
+
C6 3 8
560u_2.5V _6.6*6.6*5.9
J_DIMM1A
DDRRK-20401-TR4B
A0
98
A1
97
A2
96
A3
95
A4
92
A5
91
A6
90
A7
86
A8
89
A9
85
A10/AP
10 7
A11
84
A12/BC#
83
A13
11 9
A14
80
A15
78
DQ 0 5
DQ 1 7
DQ 2 15
DQ 3 17
DQ 4 4
DQ 5 6
DQ 6 16
DQ 7 18
DQ 8 21
DQ 9 23
DQ10 33
DQ11 35
DQ12 22
DQ13 24
DQ14 34
DQ15 36
DQ16 39
DQ17 41
DQ18 51
DQ19 53
DQ20 40
DQ21 42
DQ22 50
DQ23 52
DQ24 57
DQ25 59
DQ26 67
DQ27 69
DQ28 56
DQ29 58
DQ30 68
DQ31 70
DQ32 129
DQ33 131
DQ34 141
DQ35 143
DQ36 130
DQ37 132
DQ38 140
DQ39 142
DQ40 147
DQ41 149
DQ42 157
DQ43 159
DQ44 146
DQ45 148
DQ46 158
DQ47 160
DQ48 163
DQ49 165
DQ50 175
DQ51 177
DQ52 164
DQ53 166
DQ54 174
DQ55 176
DQ56 181
DQ57 183
DQ58 191
DQ59 193
DQ60 180
DQ61 182
DQ62 192
DQ63 194
BA0
10 9
BA1
10 8
RAS#
11 0
WE#
11 3
CAS#
11 5
S0#
11 4
S1#
12 1
CKE0
73
CKE1
74
CK0
10 1
CK0#
10 3
CK1
10 2
CK1#
10 4
SD A
20 0 SC L
20 2 SA1
20 1 SA0
19 7
DM0
11
DM1
28
DM2
46
DM3
63
DM4
13 6
DM5
15 3
DM6
17 0
DM7
18 7
DQS0
12
DQS1
29
DQS2
47
DQS3
64
DQS4
13 7
DQS5
15 4
DQS6
17 1
DQS7
18 8
DQS0#
10
DQS1#
27
DQS2#
45
DQS3#
62
DQS4#
13 5
DQS5#
15 2
DQS6#
16 9
DQS7#
18 6
ODT0
11 6
ODT1
12 0
BA2
79
R394
10K_04
C600
0.1u_16V_Y5V_04
R395
1K_1%_04
C637
0.1u_16V_Y5V_04
C6 3 2
2.2u_6.3V_Y5V_06
C6 3 3
*0.1u_10V_X5R_04
C5 9 7
* 10u_6 .3V_X5R_08
C6 3 9
*10u_6.3V_X5R_08
R392
1K_1%_04
C603
1u_6. 3V_X5R_04
C629
0.1u_16V_Y5V_04
C596
10u_6. 3V_X5R_08
C6 3 6
1u_6.3V _X5R_04
C594
10u_6.3V_X5R _08
C6 3 5
1u _ 6 . 3 V _ X5 R _0 4
J_ D I MM 1B
DD RR K-20 4 0 1 -TR 4 B
VDD1
75
VDD2
76
VDD3
81
VDD4
82
VDD5
87
VDD6
88
VDD7
93
VDD8
94
VDD9
99
VDD10
100
VDD11
105
VDD12
106
VDDSPD
199
NC1
77
NC2
122
N CTEST
125
VREF_DQ
1
VSS1
2
VSS2
3
VSS3
8
VSS4
9
VSS5
13
VSS6
14
VSS7
19
VSS8
20
VSS9
25
VSS10
26
VSS11
31
VSS12
32
VSS13
37
VSS14
38
VSS15
43
VSS16 44
VSS17 48
VSS18 49
VSS19 54
VSS20 55
VSS21 60
VSS22 61
VSS23 65
VSS24 66
VSS25 71
VSS26 72
VSS27 127
VSS28 128
VSS29 133
VSS30 134
VSS31 138
VSS32 139
VSS33 144
VSS34 145
VSS35 150
VSS36 151
VSS37 155
VSS38 156
VSS39 161
VSS40 162
VSS41 167
VSS42 168
VSS43 172
VSS44 173
VSS45 178
VSS46 179
VSS47 184
VSS48 185
VSS49 189
VSS50 190
VSS51 195
VSS52 196
G2 GND2
G1 GND1
VTT2 204
VTT1 203
VREF_CA
126
RESET#
30 EVENT#
198
VDD13
111
VDD14
112
VDD16
118 VDD15
117
VDD17
123
VDD18
124
C599
0.1u_16V_Y5V_04
C604
0.01u_16V_X7R_04
C631
*0.1u_10V_X5R_04
R393
10K_04
C630
1u_6.3V_X5R _04
C6 0 2
*0.1u_10V_X5R_04
1. 5 V
1.5V
VTT_MEM
1.5V
M_CLK_A_DDR0#73. 3 V S
VTT_MEM
M _A_C AS#8M _A_R AS#8
M_ CL K_ A _ DD R07
M_ A _ C S 0 #7
M_ A _ OD T 07
M_ A_BS1#8
ICH _ SMBC LK02, 13 , 1 8
M_ A_BS2#8
M_A_D Q[63:0] 8
ICH _SMBD AT02, 13 , 1 8
M_ A_BS0#8
M_ A _ C K E 07
PM_EXTTS_DDR#7,13
M_ A _ C S 1 #7
M_ CL K_ A _ DD R17
DDR3_DRAMRST#7,13
M_A_WE#8
M_ A_A[14 :0 ]8
M_ A _ C K E 17
M_ A _ OD T 17
M _A_D QS[7 :0 ]8
M _A _D M[7 :0 ]8
M_CLK_A_DDR1#7
M_ A_DQ S2#8
M_ A_DQ S1#8M_ A_DQ S0#8
M_ A_DQ S6#8M_ A_DQ S5#8
M_ A_DQ S3#8M_ A_DQ S4#8
M_ A_DQ S7#8
SO-DIMM A
(REV)4.0mm
SN:6-86-24204-012
6-86-24204-011
6-86-24204-007
20 mils
M_A _A2
M_A _A3
M_A _A4
M_A _A5
M_A _A6
M_A _A8
M_A _A7
M_A _A11
M_A _A10
M_A _A9
M_A _A13
M_A _A12
M_A _A14
M_A _BS 1#
M_A _BS 0#
M_CS1#
M_CS0#
M_A _BS 2#
M _A _C KE1
M _A _C KE0
M_ A_ DQ 2 9
M_ A_ DQ 2 5
M_ A_ DQ 1 5
M_ A_ DQ 2 3
M_ A_ DQ 2 1
M _A _C AS# M_ A_ DQ 2 8
M_ A_ DQ 2 4
M_ A_ DQ 1 9
M_ A_ DQ 2 2
M_ A_ DQ 2 7
M_ A_ DQ 2 0
M_ A_ DQ 1 8
M_ A_ DQ 1 6
M_ A_ DQ 2 6
M_ A_ DQ 1 7
SA0 _ A_DIM 0
M_ A_ DQ 3 7
M_A _WE #
M _A _R AS#
M_ A_ DQ 4 3
M_ A_ DQ 3 8
M_ A_ DQ 3 3
M_ A_ DQ 4 1
M_ A_ DQ 3 1
M_ A_ DQ 4 4
M_ A_ DQ 4 0
M_ A_ DQ 3 0
M_ A_ DQ 3 6
M_ A_ DQ 3 5
M_ A_ DQ 3 9
M_ A_ DQ 3 2
M_ A_ DQ 3 4
M_ A_ DQ 4 2
M_ A_ DQ 5 5
SA1 _ A_DIM 0
M_ A_ DQ 5 2
M_ A_ DQ 5 3
M_ A_ DQ 4 5
M_ A_ DQ 4 8
M_ A_ DQ 5 4
M_ A_ DQ 5 9
M_ A_ DQ 5 7
M_ A_ DQ 5 8
M_ A_ DQ 4 7
M_ A_ DQ 4 9
M_ A_ DQ 5 6
M_ A_ DQ 4 6
M_ A_ DQ 6 2
M_A _O DT0
M_ A_ DQ 5 1
M_ A_ DQ 5 0
M_A _O DT1
M_ A_ DQ 6 0
M_ A_ DQ 6 1
M_ A _ D Q 2
M_ A _ D Q 1
M_ A _ D Q 0
M_ A_ DQ 6 3
M_ A _ D Q 6
M_ A _ D Q 7
M_ A _ D Q 5
M_ A _ D Q 4
M_ A _ D Q 3
M_ A_ DQ 1 1
M_ A_ DQ 1 3
M_ A_ DQ 1 4
M_ A _ D Q 9
M_ A_ DQ 1 2
M_ A _ D Q 8
M_ A_ DQ 1 0
M_A _D QS1#
M_A _D QS7#
M_A _D QS0
M_A _D M3
M_A _D M1
M_A _D QS5
M_A _D M4
M_A _D M7
M_A _D M5
M_A _D QS7
M_A _D M6
M_A _D M0
M_A _D QS2
M_A _D QS0#
M_A _D QS3
M_A _D QS1
M_A _D M2
M_A _D QS4
M_A _D QS6
M_A _D QS2#
M_A _D QS4#
M_A _D QS3#
M_A _D QS5#
M_A _D QS6#
M_CLK_A_DDR0
MVREF_A_DIM0
M_CLK_A_DDR0#
For C5100 (Cost down)
M_CLK_A_DDR1#
M_CLK_A_DDR1
M_A _A1
M_A _A0
3.3VS2,3, 6,7,10,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,30 3.3V3,15,16,17,18,19,21,22,25,26,28,32,33
Schematic Diagrams

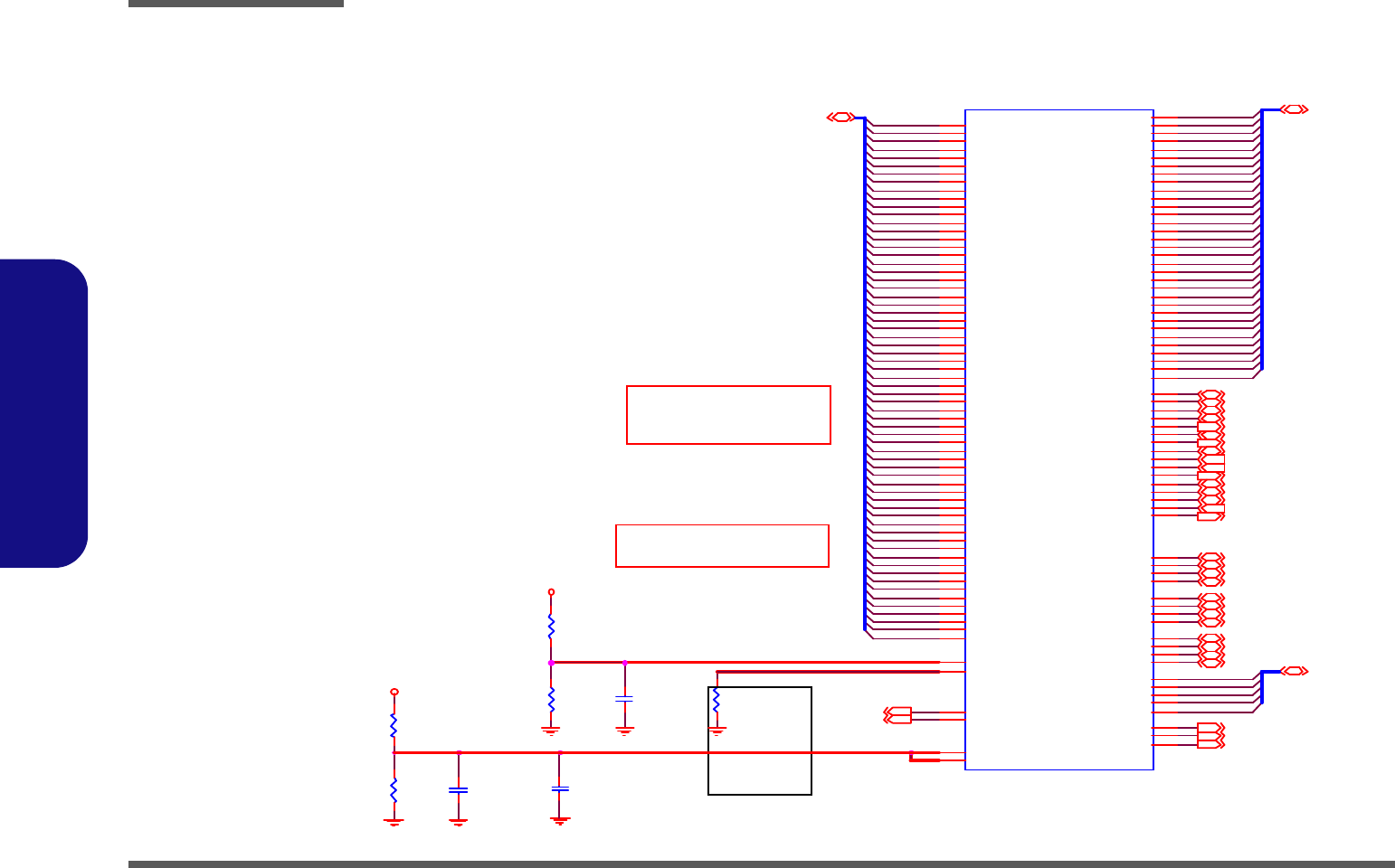

B - 14 DDRIII SO-DIMM B
B.Schematic Diagrams

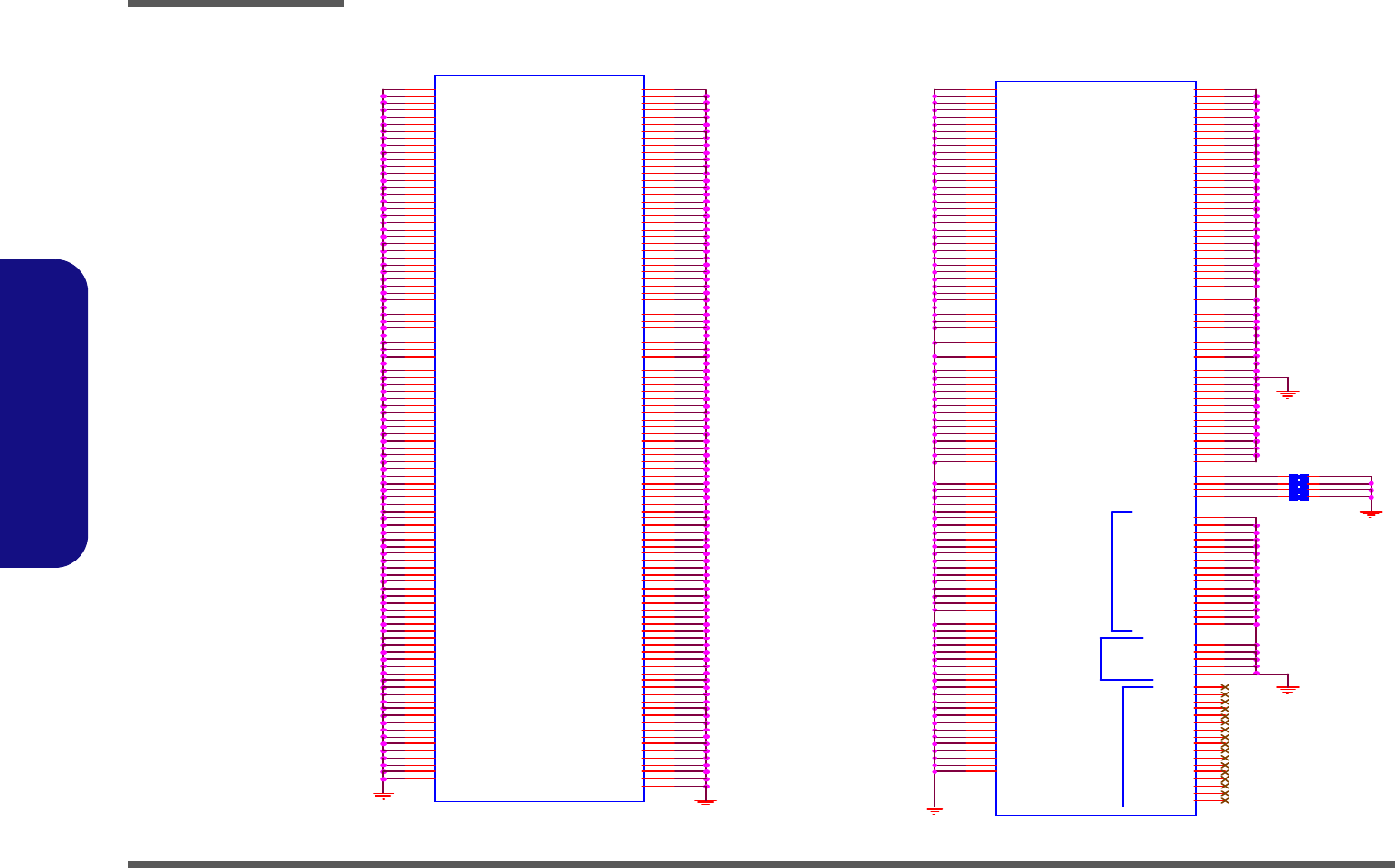

DDRIII SO-DIMM B
Sheet 13 of 38
DDRIII SO-DIMM B
M_B_ BS1 #
M_B_ BS0 #
M_ B _ C S1 #
M_ B _ C S0 #
M_B_ BS2 #
M_ B _ C K E 0
M_ B _ C K E 1
M_ B _ C A S #
M_ B _ W E #
M_ B _ R A S #
S A 0 _B _D I M 0
S A 1 _B _D I M 0
M_ B _ OD T 0
M_ B _ OD T 1
M_B_ DQ S1#
M_B_ DQ S7#
M_B_ DQ S0
M_ B _ D M 3
M_ B _ D M 1
M_B_ DQ S5
M_ B _ D M 5
M_ B _ D M 0
M_B_ DQ S2
M_ B _ D M 4
M_ B _ D M 7
M_B_ DQ S1
M_ B _ D M 2
M_B_ DQ S4
M_B_ DQ S6
M_B_ DQ S7
M_ B _ D M 6
M_B_ DQ S3#
M_B_ DQ S5#
M_B_ DQ S6#
M_B_ DQ S0#
M_B_ DQ S3
M_CLK_B_DD R0
M_B_ DQ S2#
M_B_ DQ S4#
MVREF_B_DIM0
M_CLK_B_DD R0#
M_CLK_B_DD R1#
M_CLK_B_DD R1
SO-DIMM B
C610
*0.1u_10V_X5R_04
C620
* 10u_6.3V_X5R_08
C6 0 9
2.2u_6.3V_Y5V_06
+
C615
560u_2.5V _6.6*6.6*5.9
R399
1K_1%_04
C6 1 6
10u_6.3V _X5R_08
C626
1u_6. 3V_X5R_04
C606
0.1u_16V_Y5V_04
C617
* 10u_6.3V _X5R_08
C6 1 3
1u_6.3V _X5R_04
C621
10u_6.3V_X5R _08
C619
10u_6. 3V_X5R_08
C6 1 2
1u_6.3V_X5R _04
J_ D I MM 2B
DD RR K -20 4 0 1 -TP 8D
VDD1
75
VDD2
76
VDD3
81
VDD4
82
VDD5
87
VDD6
88
VDD7
93
VDD8
94
VDD9
99
VDD10
100
VDD11
105
VDD12
106
VDDSPD
199
NC1
77
NC2
122
N CTEST
125
VREF_DQ
1
V SS1
2
V SS2
3
V SS3
8
V SS4
9
V SS5
13
V SS6
14
V SS7
19
V SS8
20
V SS9
25
V SS10
26
V SS11
31
V SS12
32
V SS13
37
V SS14
38
V SS15
43
VSS16 44
VSS17 48
VSS18 49
VSS19 54
VSS20 55
VSS21 60
VSS22 61
VSS23 65
VSS24 66
VSS25 71
VSS26 72
VSS27 127
VSS28 128
VSS29 133
VSS30 134
VSS31 138
VSS32 139
VSS33 144
VSS34 145
VSS35 150
VSS36 151
VSS37 155
VSS38 156
VSS39 161
VSS40 162
VSS41 167
VSS42 168
VSS43 172
VSS44 173
VSS45 178
VSS46 179
VSS47 184
VSS48 185
VSS49 189
VSS50 190
VSS51 195
VSS52 196
G2 GND2
G1 GND1
VTT2 204
VTT1 203
VREF_CA
126
R ESET#
30 E VENT#
198
VDD13
111
VDD14
112
VDD16
118 VDD15
117
VDD17
123
VDD18
124
C622
0.1u_16V_Y5V_04
C627
0.01u_16V_X7R_04
R398
10K_04
C608
*0.1u_10V_X5R_04
R397
10K_04
C6 2 5
* 0.1u_10V_X5 R_04
C618
10u_6.3V_X5R _08
C607
1u_6.3V_X5R _04
C605
2.2u_6.3V _Y 5V_06
C6 2 4
* 0. 1u_10V _X5R_04
C6 1 1
1u_6.3V_X5R _04
J_D IMM2A
DD RR K-20401-TP8D
A0
98
A1
97
A2
96
A3
95
A4
92
A5
91
A6
90
A7
86
A8
89
A9
85
A10/A P
107
A11
84
A12/B C#
83
A13
119
A14
80
A15
78
DQ0 5
DQ1 7
DQ2 15
DQ3 17
DQ4 4
DQ5 6
DQ6 16
DQ7 18
DQ8 21
DQ9 23
DQ 10 33
DQ 11 35
DQ 12 22
DQ 13 24
DQ 14 34
DQ 15 36
DQ 16 39
DQ 17 41
DQ 18 51
DQ 19 53
DQ 20 40
DQ 21 42
DQ 22 50
DQ 23 52
DQ 24 57
DQ 25 59
DQ 26 67
DQ 27 69
DQ 28 56
DQ 29 58
DQ 30 68
DQ 31 70
DQ 32 129
DQ 33 131
DQ 34 141
DQ 35 143
DQ 36 130
DQ 37 132
DQ 38 140
DQ 39 142
DQ 40 147
DQ 41 149
DQ 42 157
DQ 43 159
DQ 44 146
DQ 45 148
DQ 46 158
DQ 47 160
DQ 48 163
DQ 49 165
DQ 50 175
DQ 51 177
DQ 52 164
DQ 53 166
DQ 54 174
DQ 55 176
DQ 56 181
DQ 57 183
DQ 58 191
DQ 59 193
DQ 60 180
DQ 61 182
DQ 62 192
DQ 63 194
BA0
109
BA1
108
RAS#
110
WE#
113
CAS#
115
S0#
114
S1#
121
CKE0
73
CKE1
74
CK0
101
CK0 #
103
CK1
102
CK1 #
104
SDA
200 SCL
202 SA1
201 SA0
197
DM 0
11
DM 1
28
DM 2
46
DM 3
63
DM 4
136
DM 5
153
DM 6
170
DM 7
187
DQ S0
12
DQ S1
29
DQ S2
47
DQ S3
64
DQ S4
137
DQ S5
154
DQ S6
171
DQ S7
188
DQ S 0 #
10
DQ S 1 #
27
DQ S 2 #
45
DQ S 3 #
62
DQ S 4 #
135
DQ S 5 #
152
DQ S 6 #
169
DQ S 7 #
186
OD T0
116
OD T1
120
BA2
79
C614
0.1u_16V_Y5V_04
C623
0.1u_16V_Y5V_04
R400
1K_1%_04
1.5V
1.5V
1. 5 V
3. 3 V S
3.3V S
VTT_MEM
VTT_MEM
M_CLK_B_DDR07
M_B_CS0#7
M_ CL K _ B_ DD R0 #7
IC H_SM BCLK02,12,18
M_B_ CAS#8M_ B_RAS#8
M_ B _ D Q [6 3 :0] 8
IC H_SM BDAT02,12,18
M_B_ODT07
M_B_B S1#8
M _B_C KE07
P M_ EXTTS_D DR #7,12
M_B_B S2#8
M_CLK_B_DDR17
DDR3_DRAMRST#7,12
M_B_B S0#8
M _B_C KE17
M_B_ODT17
M_B_CS1#7
M_ CL K _ B_ DD R1 #7
M_ B _ W E #8
M _B_A[14:0]8
M_B_DQS 1#8M_B_DQS 0#8
M_B_ DQ S[7:0]8
M_ B _ D M [ 7 : 0 ]8
M_B_DQS 4#8
M_B_DQS 3#8M_B_DQS 2#8
M_B_DQS 7#8M_B_DQS 6#8
M_B_DQS 5#8
M_B_DQ29
M_B_DQ12
M_B_DQ61
M_B_DQ27
M_B_DQ15
M_B_DQ31
M_B_DQ17
M_B_DQ44
M_B_DQ43
M_B_DQ14
M_B_DQ49
M_B_DQ3
M_B_DQ46
M_B_DQ10
M_B_DQ32
M_B_DQ42
M_B_DQ34
M_B_DQ8
M_B_DQ30
M_B_DQ35
M_B_DQ45
M_B_DQ9
M_B_DQ55
M_B_DQ20
M_B_DQ16
M_B_DQ50
M_B_DQ33
M_B_DQ13
M_B_DQ41
M_B_DQ52
M_B_DQ0
M_B_DQ23
M_B_DQ25
M_B_DQ1
M_B_DQ7
M_B_DQ2
M_B_DQ38
M_B_DQ51
M_B_DQ5
M_B_DQ11
M_B_DQ24
M_B_DQ22
M_B_DQ60
M_B_DQ28
M_B_DQ63
M_B_DQ59
M_B_DQ18
M_B_DQ39
M_B_DQ21
M_B_DQ57
M_B_DQ62
M_B_DQ53
M_B_DQ48
M_B_DQ37
M_B_DQ6
M_B_DQ19
M_B_DQ36
M_B_DQ26
M_B_DQ47
M_B_DQ40
M_B_DQ56
M_B_DQ58
M_B_DQ4
M_B_DQ54
3.3VS2,3,6,7,10,12,14,15,16,17,18, 19,20,21,22,23, 24,25,26,27,28, 30
3.3V3,15, 16,17,18,19,21, 22,25,26,28,32, 33
M_B_A 2
M_B_A 0
M_B_A 13
M_B_A 6
M_B_A 12
M_B_A 11
M_B_A 7
M_B_A 9
M_B_A 4
M_B_A 8
M_B_A 14
M_B_A 10
M_B_A 3
M_B_A 1
M_B_A 5
(REV)8.0mm
S N :6 - 8 6 - 24 2 0 4 - XX X
20mils
20mils
For C5100 (Cost down)
Schematic Diagrams

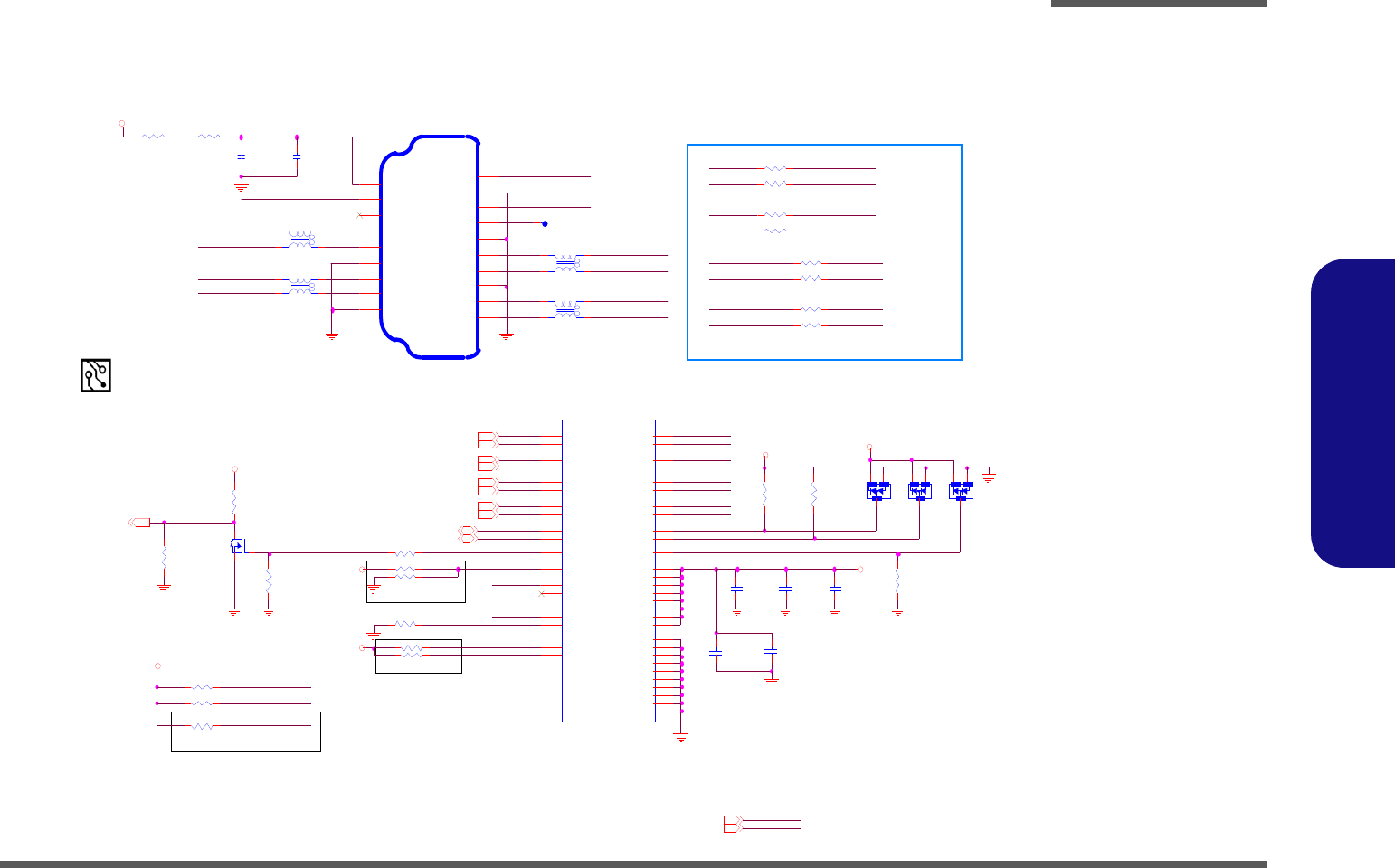

Panel, CRT B - 15
B.Schematic Diagrams

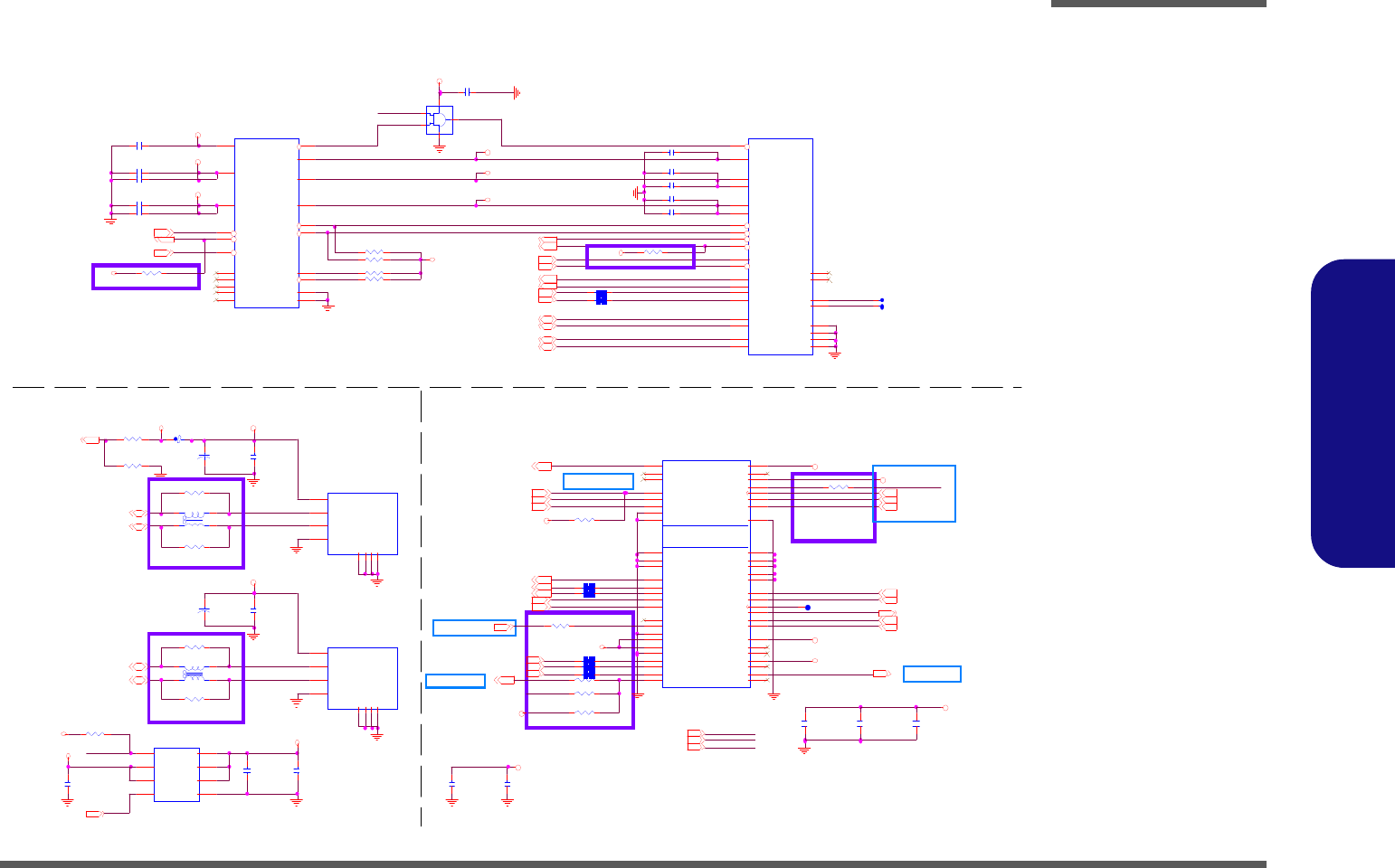

Panel, CRT
Sheet 14 of 38
Panel, CRT
GRE E N
C RT _ DD CA CL K
CRT_HSYNC
CR T_ D DCA DAT
CR T_ D DCA CLK
LE D 3 -15
LE D 5 -15
LED 3-
LED 5-
LED 1-
LE D 6 -15
LE D 1 -15
LED 6-
LE D 2 -15
LE D 4 -15
LED 2-
LED 4-
C RT _ DDC A DAT
C RT_VSYN C
C 12 * .01U _16V_X7R_04
80 m il
DAC _ RE D
R 4 58 0 _ 04
Z s.e=55OZ s.e=50O
2A
2A
DAC _ GRE E N
NB_ENAVDD6
C5100 cost down
R1 2 3 3_ 0 4
R1 3 3 3_ 0 4
DAC_BLUE 6
DA C_ GR EE N 6
D AC_ RE D 6
DA C_RED
DA C_ GR EEN
DA C_ BL UE
C6
* 1 0U _6 . 3 V _ 08
LE D 2 -
BLU E
R 459 0_04
R N27 2.2K_8P4R_04
81
72 6
5
3
4
3. 3 V S 5VS
L48 * 10m il_short
L48~L50? ? 47O? BEAD
DAC_VSYNC6
DAC_HSYNC6
DAC _ DDC ADAT A6
D AC_ DD CAC LK6
LED_PWR +15
R 4 60 0 _ 04
BEAD FCM1005MF-600T01 60OHM 100MA SMD0402
DAC_BLUE
PLVDD
3.3VS
U1
G5 2 43 A
VIN
4
VIN
5
EN
3
VO UT 1
GND 2
C11
0.1u_16V_Y 5V_04
R 18 * 100K_04
R8
*10K_04
LE D 1 -
L49 * 10m il_short
3.3VS2,3,6,7,10,12,13,15,16,17,18,19,20,21,22,23,24,25,26,27,28,30 3.3V3,15,16,17,18,19,21,22,25,26,28,32,33
C3 9 8
10p_50V_N PO_04
J_LC D1
87 2 1 6- 3 0 0 6
1
122
3
344
5
566
7
788
9
910 10
11
11 12 12
13
13 14 14
15
15 16 16
17
17 18 18
19
19 20 20
21
21 22 22
23
23 24 24
25
25 26 26
27
27 28 28
29
29 30 30
L32 60OH M
C395
0.1u_50V_Y5V _06
R3 1 2
15 0 _ 1% _ 0 4
R3 1 0
150_1%_04
C402
0.1u_50V_Y5V_06
C10
30p_50V _N PO_04
L34 60OH M
C396
10p_50V_N PO_04
PANEL
C391
0.1u_16V_Y5V_04
J_CRT1
108AH15FST04A1CC
8
7
6
5
4
3
2
1
9
10
11
12
13
14
15
GN D2
GND1
L33 HC B1608KF-121T25
C9
1000p_50V_X7R_04
C4 0 3
*10p_50V_N PO_04
C3 99
*10p_50V_N PO_04
L31 60OH M
C393
10p_50V_NPO_04
C3 90
0. 1 u _1 6 V _ Y 5 V _ 04
R314
150_1%_04
C4 0 4
1000p_50V_X7R _04
C394
* 10p_50V_NPO _04
C 397 * .1U_50V_0 6
C13
30p_50V_N PO_04
LVD S-L1P
LVD S-L1N
LVD S-LC LKN
LVD S-L0N
LVD S-LC LKP
PLVDD
3. 3 V S
INV_BLON
R16
*1 M _0 4
VIN_INV
VIN
P_ DD C_ CL K 6
P_ DD C_ DA TA 6
LVD S-L0P
LV D S - L 2P
LV D S - L 2N
BRIGH TNESS
LVDS-LCLKP6LVDS-LCLKN6
LVD S-L1P6
LVD S-L0N6
LVD S-L1N6
INV_ B L ON 15
LVD S-L0P6
LV D S - L 2P 6
BRIGH T NESS 1 5 ,2 1
LV D S - L 2N 6
C3
4.7u_6.3V_X5R_06
RED
LED6-
U1 3
TPD7S019
VCC _SY NC
1
VCC _VID EO
2
VIDEO _1 3
VIDEO _2 4
VIDEO _3 5
GN D 6
VCC_DDC
7
BYP
8
DD C_OU T1 9
DD C_IN1
10
DD C_IN2
11 DD C_OU T2 12
SYN C_ IN1
13 SYNC_OUT1 14
SYN C_ IN2
15 SYNC_OUT2 16
C401
0. 22u_10V_Y5V_04
C400
0.22u_10V_Y5V_04
C392
0.22u_10V_Y5V_04
L31,L31,L34? ? 47O?BEAD
L50 * 10m il_short
3.3VS
5VS
3. 3V S
CRT
HS
RED
BLUE
GR EEN
CR T_ VSY NCVS
CR T_ H SYN C
LE D 4 - LED5-
C5 92
22p_50V_NPO _04
C591
22p_50V_N PO_04
C590
22p_50V_NPO _04
CM2009-02QR PN:6-02-20090-B60
IP4772CZ16 PN:6-02-47721-B60
co -l ay ? TS SOP -1 6 IC( IP 477 2C Z1 6)
C9 80 90 3
R 4 57 0 _ 04
LED _PW R+
L63 *H CB1608KF-121T25
2A
LE D 3 -
Schematic Diagrams

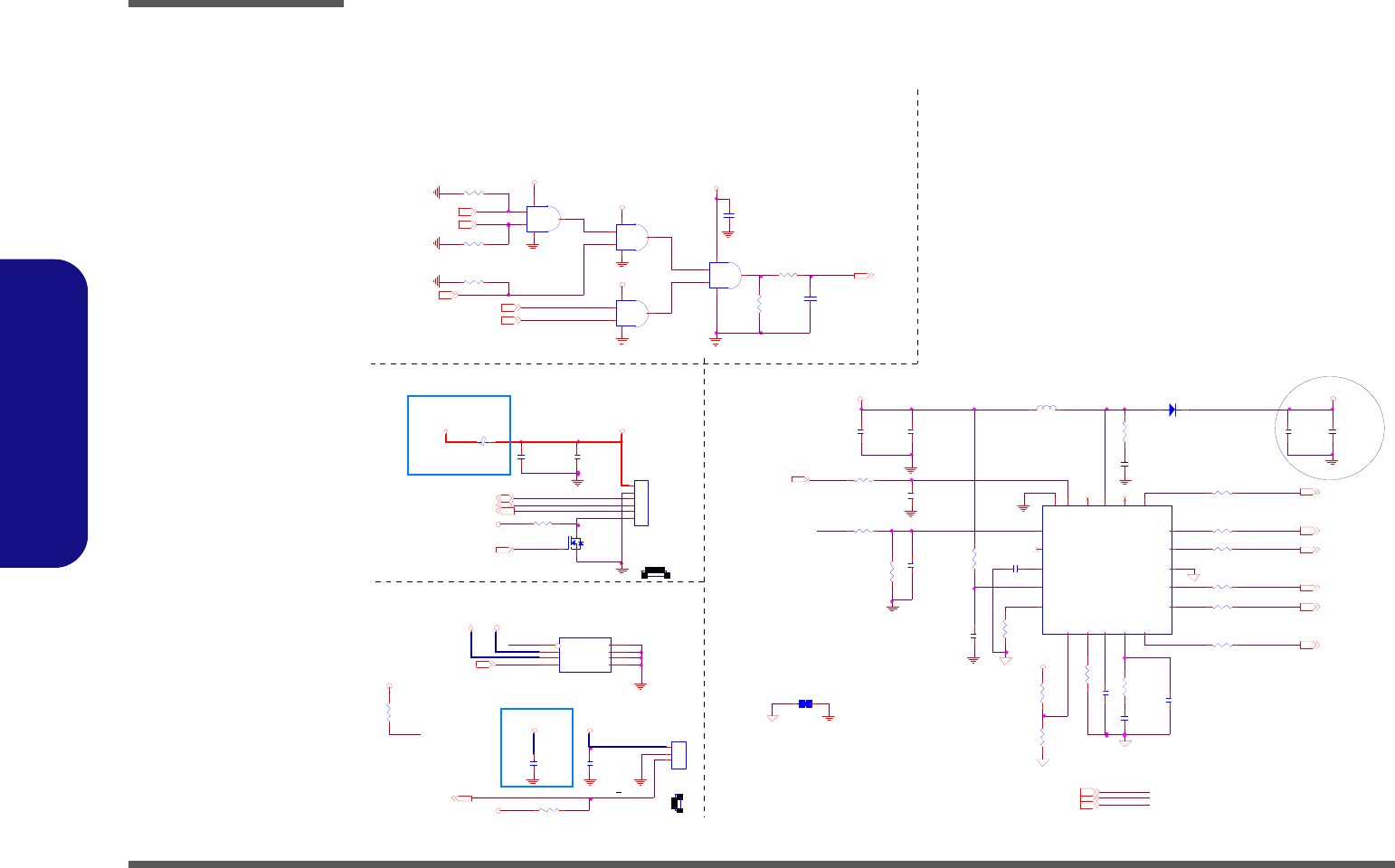

B - 16 Inverter, Bluetooth, Fan
B.Schematic Diagrams
Inverter, Bluetooth, Fan
Fsw = 3.75*10^4/R.RT
OVP=35V
LED=20mA
INV_BLON
Fsw =1M Hz
Vout = 1.2(1+R1/R2)
200 - 400H z
Bluetooth
LE D 5 -
LED PANEL BACKLIGHT DRIVER
LE D 4 -
LE D 2 -
LE D 3 -
Iout = 1.2V/ R.ISET * 54 (mA/LED)
INVERTER CONNECTOR
LE D 1 -
FAN CONTROL
40MIL
1
3
40MIL
J_FAN1
CPU _ F ON #
CPU_FON#
PC 18 9
1000p_50V_X7R_04
U3 A
74LVC 08PW
1
2
3
147
P R 18 2 3 . 2 4K _ 1 % _0 4
PR 179 10_06
.
L39
0_06
PC 186
1000p_50V_X7R_04
PR181
37.4K_1%_04
PC180
1u_50V_08
C491
* 0.1u_16V _Y 5V _04
PC 183
0.01u_50V _X7R _04
R350 4.7K_04
P C187 1u_6. 3V_Y5V_04
U3B
74LVC 08P W
4
56
147
C443
10u_10V_Y 5V_08
PC 17 9
* 4.7u_25V_X5R_08
R5 0
*1M_04
R47 *100K _04
C445
0.1u_16V_Y5V_04
PC185
0.1u_50V_Y5V_06
C4 6
0.1u_16V_Y 5V_04
U3 C
74LVC 08PW
9
10
8
147
PR 191 0_04
PR 190 0_04
PC182
*1000p_50V_X7R _04
PR 192 0_04
PR183
1 M _1 % _ 04
R49
4.7K_04
P C181
1u_50V_08
J_BT1
87212-06G0
1
2
3
4
5
6
PL12 10U H_6.8*7.3*3.5
PR 188 0_04
R48 *100K _04
R46 *100K _04
PU9
* A706A
NC
2
BY P
3
VIN
4
RT
5
SH DN #
1
OV P
6
ISET
7
SS
8
CO MP
9
OUT6
10
OUT5 11
OUT4 12
GND 13
OUT3 14
OUT2 15
OUT1 16
NC 17
SW 18
NC 19
PW M 20
PG ND 21
C44
* .1U _16V_04
P D 21 F M 26 0
A C
PR180
0_04
PC184
1u_6.3V_Y5V_04
PR185 * 15m il_s hort_06
PC188
0.01u_50V_X7R _04
R 336 10K_04
PR184
499_1%_04
R348
*10K_04
J_FAN1
85205-03701
1
2
3
PR 187
*10K_04
Q1 5
MTN 7002ZHS3
G
DS
PR175 0_04
U3D
74LVC 08P W
12
13
11
147
PR 189 0_04
C490
10u_10V_Y 5V_08
PR174
*10_06
PR186
39K_1%_04
PR 176
*10K_04
PC 17 8
4.7u_25V_X5R _08
U1 6
AX995 SA
VOU T
3
GN D 5
VIN
2FON
1
VSET
4GN D 6
GN D 7
GN D 8
3. 3 V
3. 3 V
3.3V
3.3V
5V S5VS_FAN
3.3VS
5V S
5VS
5VS_FAN
3. 3V
3VS_BT
3.3V
LED _PWR+
SGN D
SGN D
LED _P WR+
SG ND
SGN D
VIN
SB _BLO N18
SGND
MP W R O K7,18,21
BLON6
LI D _ S W #21,28
3. 3V S2,3,6,7,10,12,13,14,16,17,18,19,20,21,22,23,24,25,26,27, 28,30 3. 3V3,16,17,18,19,21,22,25,26,28, 32,33
INV _B L O N 1 4
BK L_EN21
BT_ DET#21 , 2 6
CPU_FAN21
C PU_FAN SEN21
U SB_PP317
U SB_PN317
BT_EN21,26,27
LED6- 14
LE D _ P W R +14
BRIG HT NES S14,21
LED3- 14
LED4- 14
LED5- 14
LED1- 14
LED2- 14
50mil
6-2 0- 41 A1 0- 10 6
C5 1 0 0 co s t do w n .
BT_ EN#
6
J_BT1
1
LE D 6 -
IN V_ B LO N
Sheet 15 of 38
Inverter, Bluetooth,
Fan
Schematic Diagrams

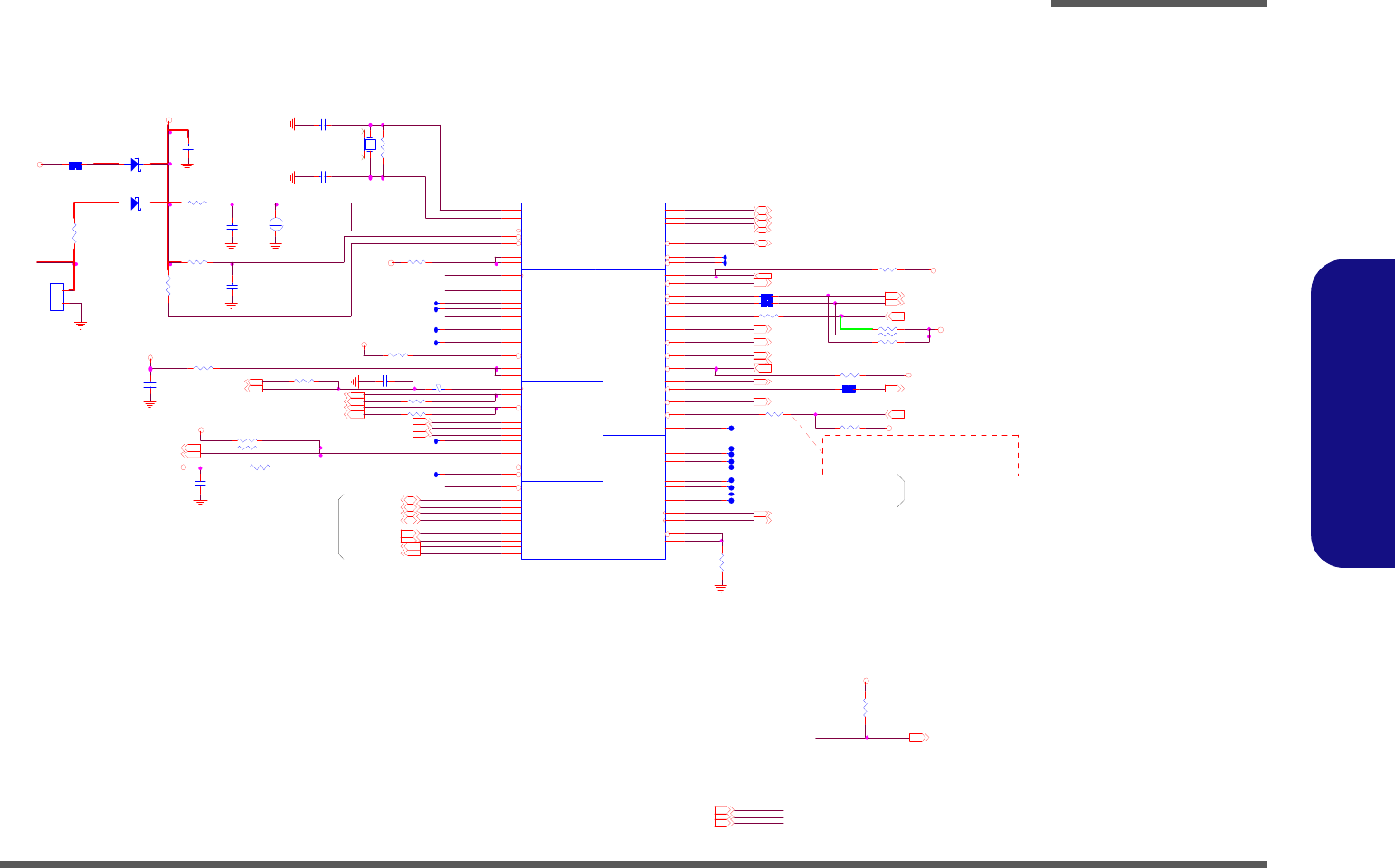

ICH9M 1/4, SATA B - 17
B.Schematic Diagrams
ICH9M 1/4, SATA
Sheet 16 of 38
ICH9M 1/4, SATA
R173 * 10m il_short
R163 * 10m il_short
R175 * 10m il_s hort
.
L22 0_04
C 312 *22P_50V_04
3.3VS2,3,6,7, 10,12,13,14,15,17,18,19,20,21,22,23,24,25,26,27,28,30 3.3V3,15,17,18,19,21,22,25,26,28,32,33
SATA HDD & ODD LED
E-SATA
5 4. 9_1 % ne ed s to p la ce d
within 2" of ICH8, 56 Ohm
must be placed within 2" of
2 4. 9_1 % w/ o st ub .
RTC CLEAR
Zo= 50 O? 5%
HDD
Within 500mil
20mils
20mils
<0 .2 in ch es
ICH _ FERR #
HD A_ DO CK _EN #_ R
SA TA_LED #
ICH _ GPIO 5 6
RTC _X1
LAN_ RS TSY NC
SATATXN 1
LPC_D RQ0#
LAN_ RXD 1
LAN_TXD 2
GL AN _C L K
SATA4TXN
RTC RST #
RTC _VB AT_1
LAN_TXD 0
ICH _ GL AN_ C OM P
RTC _X2
<2 in ch es
SB_ T HR MT RIP #
SATA_TXP5
SATA_ LE D#
SATATXN 0
SATA4RXN
SATA4RXP
LAN_ RXD 0
SATATXP 1
HD A_ DO CK_ R S T#
ICH _ DPSLP#
INTR UD ER#
RTC_VBAT1
SRTC RST#
SATA4TXP
ICH_DPRSTP#
ICH_INTVRMEN
ICH _ TP 12
SATARXN 0
SATATXP 0
LAN_TXD 1
SATA_TXN 5
LDR Q1#
LAN_ RXD 2
SATARXP0
HD A_ SDIN 3
SATA_RXP5
SATARXN 1
SATA_RXN 5
SATARXP1
X2
1TJS125DJ4A420P_32.768KH z
14
3 2
R176
332K_1%_06
R 167 56_04
R162 *56_04
ODD
R 352 24.9_1%_04
R166 56_04
R248 * 1K_04
R160
1K _0 4
RT CLA N / GL ANIH DASA TA LP CCP U
U17A
AF82801IBM
RTCX1
C23
RTCX2
C24
IN TVRM EN
B22
IN TRU DER #
C22
GLAN_CLK
E25
LAN _RSTSYN C
C13
LAN _RXD0
F14
LAN _RXD1
G13
LAN _RXD2
D14
LAN_TXD0
D13
LAN_TXD1
D12
LAN_TXD2
E13
H DA_BIT_CLK
AF6
H DA_SY NC
AH4
HDA_RST#
AE7
H DA_SD IN0
AF4
H DA_SD IN1
AG4
H DA_SD IN2
AH3
H DA_SD OU T
AG5
SA TA LED #
AG8
SA TA 0R XN
AJ 16
SA TA 0R XP
AH 16
SA TA 0TXN
AF 17
SA TA 0TXP
AG 17
SA TA 1R XN
AH 13
SA TA 1R XP
AJ 13
SA TA 1TXN
AG 14
SA TA 1TXP
AF 14
SATA_C L KN AH18
SATA_CLKP AJ1 8
S ATA RBIAS# AJ7
SATAR BIAS AH7
FWH0/LAD0 K5
FWH1/LAD1 K4
FWH2/LAD2 L6
FWH3/LAD3 K2
LD R Q 0# J3
LDR Q1#/GPIO 23 J1
FWH 4/LFR AME# K3
A20GATE N7
A20M# AJ27
DPRSTP# AJ2 5
DPS LP# AE23
FE RR# AJ26
CPUPWRGD AD22
IGN NE# AF25
IN IT# AE22
INTR AG2 5
RC IN# L3
SMI# AF2 4
NMI AF23
STPC LK# AH27
THR MTRIP# AG26
RTCRST#
A25
GPIO56
B10
GLAN_COMPO
B27 GLAN_COMPI
B28
H DA_SD IN3
AE5
SA TA4TXN AG12
SATA4RXN AH1 1
SATA4TXP AF1 2
SATA4RXP AJ1 1
TP12 AG2 7
HDA_DOCK_EN#/GPIO33
AG7
HDA_DOCK_RST#/GPIO34
AE8
LAN 100_SLP
A22
SATA5RXN AH9
SATA5RXP AJ9
SA TA5TXN AE10
SATA5TXP AF1 0
SR TCR ST#
F20
C228
1u_6.3V_Y 5V_04
C274 15p_50V_NPO _04
Zdiff = 100 O? 0%
R191
20K_1%_04
R186
10M_04
R174
20K_1%_04
R 164 54.9_1% _04
R2 4 1 10 K_ 0 4
C220
*.1U_16V_04
R192
1M_04
D1 8 R B751V
A C
C273 15p_50V_NPO _04
R169 56_04
R 23 9 * 1 0K _0 4
R263 10K_04
Zd iff= 1 00O? 0%
C223
1u_6.3V_X5R_04
Layout note:
JO PEN 1
*OP EN_10m il-1MM
12
C281
1u_6.3V_X5R_04
D1 9
R B751V
A C
R251
24.9_1%_04
R2 3 4
*1 0 K _ 0 4
R 236 10K_04
R171 *56_04
10mils
VD D3
3.3VS
3.3VS
RTC VCC
3.3VS
1.5VS
3.3VS
1.05VS
RTCVCC
1.05VS
3.3V S
SATA_LED# 27
LPC _AD3 21
LPC_FR AME# 21
LPC _AD0 21
3. 3 V
H_SMI# 3
LPC_AD 1 21
LPC_AD 2 21
H_A20M# 3
H_DPSLP# 3
CLK_SATA 2
CLK_SATA# 2
SA TATXP125
H_ N MI 3
H_ PW RGD 3
H_ ST PC LK # 3
SA TATXN125
H_ IG NN E# 3
H_ IN TR 3
H_DPRSTP# 3,7,30
H_ IN IT # 3
KBC _R ST# 21
PM _TH RM TRIP# 3,7,31
GA 20 2 1
H_FERR# 3
SATARXN125
SATAR XP 125
R4 0 6
*20m il_short_04
C318
0.1u_16V_Y5V_04
AZ_RST#23,25
AZ_BITC LK23,25
AZ_SD IN023
AZ_SYNC23,25
AZ_SDO UT23 , 2 5
AZ_SD IN125
MCH_HDA_BCLK7R 235 33_04
SATATXN025
SATARXN 025
SATAR XP025
SA TATXP025
R259 33_04
MC H_HD A_SYN C7
R244 33_04
MC H_ HD A_ RST#7
R250 33_04
MC H_ HD A_ SDO7
MC H_ H DA _ S D I7
VDD321,22,26,27,28,29,31
J_RTC 1
85205-02701
1
2
Schematic Diagrams

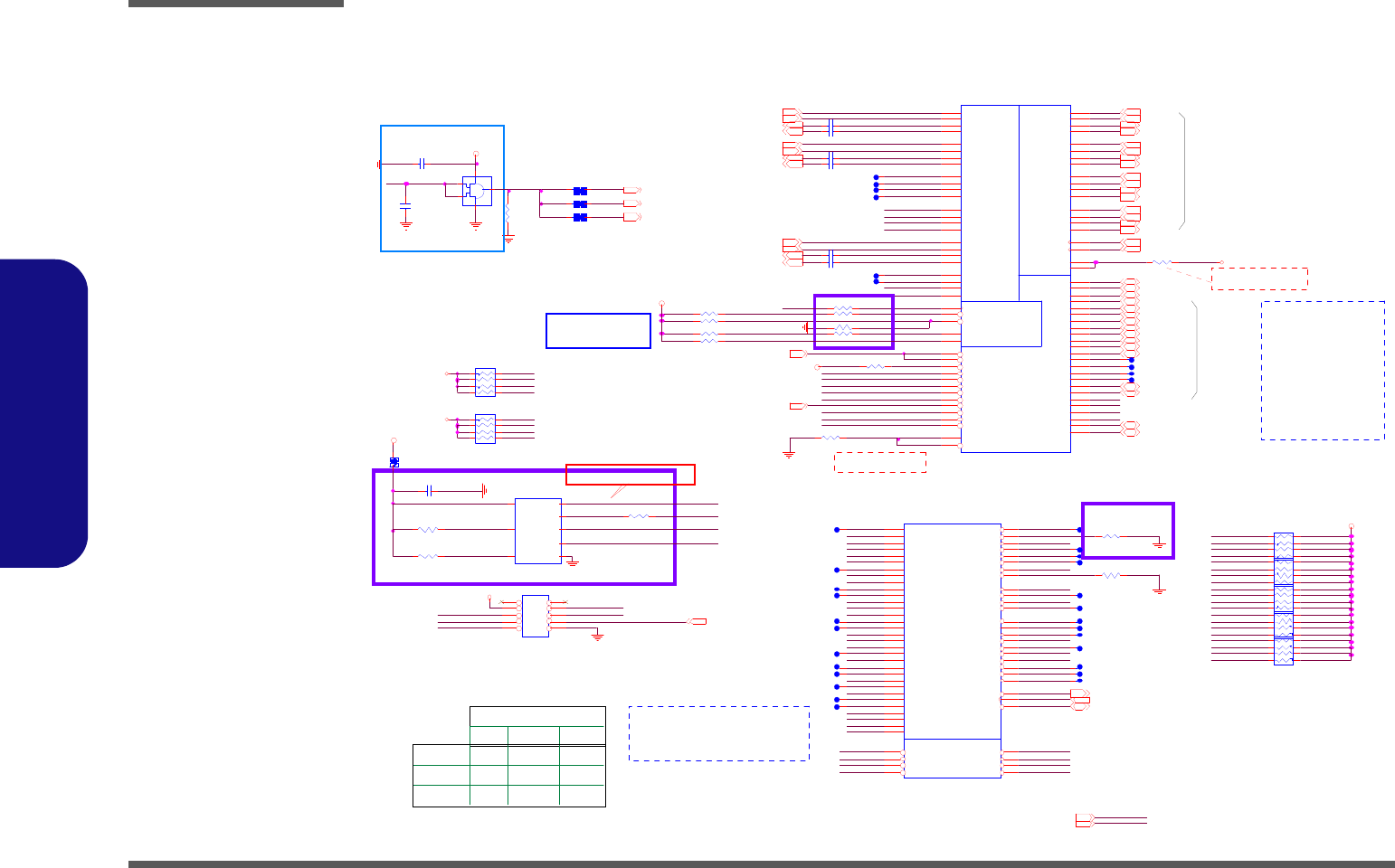

B - 18 ICH9M 2/4, PCI, USB
B.Schematic Diagrams
ICH9M 2/4, PCI, USB
DM I _ TXP 2 7
PC IE_TXP1_WLAN26
PCIE _TXP2 _ NEW _C ARD26
BU F_PL T_R ST# 21 ,2 2
PC IE_TXN 1 _W LAN26 DM I_ T XP 0 7
PLT_RST# 7
DM I _ TXN 0 7
DM I _ TXN 3 7
DM I _ TXN 2 7
DM I _ TXN 1 7
DM I _ TXP 3 7
DM I _ TXP 1 7
OC7#
3.3VS2,3,6,7,10,12,13,14,15,16, 18,19,20,21,22,23,24,25,26,27,28,30
3.3V3,15,16,18,19,21,22,25,26,28,32,33
P CIE_TXN5_CAR D22
PCIE _TXN2_N EW _CAR D26
P CIE_TXP5_C AR D22
R 227 * 10m il_short
PCLK_IC H
PCI_ C /BE#1
PCI_ R ST#
PCI_ C /BE#0
R 213 * 10m il_short
R 219 * 10m il_short
PC I_G NT# 0
P CI_INT# H
C298 * 0.1u_16V_Y5V_04
RN18
8.2K_8P4R _04
8 1
7 2
6
5
3
4
PCI_ G NT# 1
C 514 0.1u_10V_X7R_04
R155 * 15_1%_04
R168 24.9_1% _04
R156 * 15_1%_04 SPIMO SI
C593
*0.01u_16V_X7R _04
PLT_RST#
PCI_ G NT# 3
U SB_PP6
RN22
8.2K_8P4R _04
81
72 6
5
3
4
U8
MC 74V HC 1G 08D FT1G
1
2
5
4
3
PCI_AD 15
PCI_AD 20
PCI_AD 11
PCI_TRDY#
P CI_INT# E
PCI_REQ#3
P CI_PER R#
PCI_AD 18
PCI_AD 13
PCI_AD 0
PCI_AD 27
PCI_AD 19
PCI_AD 16
PCI_AD 6
PCI_AD 7
PCI_AD 17
PCI_AD 25
PCI_AD 23
PCI_AD 30
PCI_AD 29
PCI_AD 5
PCI_AD 28
PCI_AD 8
PCI_AD 10
PCI_AD 26
PCI_AD 3
PCI_AD 21
PCI_AD 1
PCI_AD 2
PCI_AD 4
PCI_AD 12
PCI_AD 22
PCI_AD 14
PCI_AD 24
PCI_AD 31
PCI_AD 9
dG P U _S E LE C T #
PCI_ R EQ#1
PCI_ R EQ#0
PCI_ G NT# 2
PC I_R EQ #3
PCI_ STO P#
PCI_ IR DY #
PCI_IN T#B
PCI_ D EVSEL#
PCI_IN T#C
PCI_ PER R#
PCI_ PAR
PCI_ SER R#
PCI_IN T#D
PCI_IN T#A
PCI_LOC K#
PCI_ TRD Y#
OC4#
R182 * 15_1%_04
R 252 10K_04
R1 5 8 * 1 K _ 04
R267 24_1%_06
U SB_PN 6
C 516 0.1u_10V_X7R_04
OC9#
R158 st uff
R158 u n-stuff
SPI_WP#
J_SPI1
* SPU FZ-10 S3- VB-0-B
12
34
56 78
910
SPI_SO
SPI_CS0#
SP I_S CLK
SP I_S I
3.3VS
SP I_H OLD #
PCI_REQ#0
US B_PP1 1 27
US B_PN11 27
PCI_ FR AME #
OC7#
P CI_ IRD Y#
OC4#
PCIE_TXN2_C
US B_PP0 2 6
US B_PP4 2 6
US B_PN2 25
US B_PN8 26
US B_PP5 2 7
US B_PP8 2 6
US B_PN3 15
US B_PP2 2 5
US B_PN1 26
US B_PP3 1 5
US B_PN5 27
US B_PN4 26
US B_PN0 26
PM E# 21
US B_PP1 2 6
PCI_ IN T#E
PCI_ IN T#F
PCI_ IN T#G
PCI_ IN T#H
P CI_INT# F
PCIE_TXN6_C
PCIE_ TXP6_C
PCIE_R XN 6_C
PCIE_ R XP 6_ C
P CI_SER R#
N/B,IDE,FWH
PC I_G NT# 0
PCIE_TXN5_C
PCIE_ TXP5_CC 511 0.1u_10V_X7R_04
C 510 0.1u_10V_X7R_04
OC6#
NEW CARD,MINI CARD
R158 u n-stuff
Place within 500
mils of ICH
SPI
6/30
R148 *3.3K_04
3. 3 V S
Boot BIOS s elect
R157 *3.3K_04
LPC _R ST# 26
R189 *10K_04
R147 *10K_04
Zo= 55O? 5%
Zdi ff=
90O ? 5%
BUF_PLT_RST#:
PC I_RST# 2 6
USB0: PORT0
USB1: PORT1
USB2: 3G
USB3: Bluetooth
USB4: Mini Card
USB5: CCD
USB6: NC
USB7: NC
USB8: New card
USB9: NC
USB10: NC
USB11: PORT2
SPI_CS#1
PLT_RST#:
SPI_CS 0#
Strap
SPI_*_R = 0.1"~0.5"
SPI_SI
PCI
PCI_ C /BE#2
Place within 500
mils of ICH
Z o= 60 O? 5%
PCI_ C /BE#3
11
10
16 Mb it
01
R264 un-stuff
LAN,Cardbus,KBC
PCIE_TXN1_C
OC11#
FWH(default)
CL K_ PC IE_ ICH 2
DM I _ RXN 1 7
DM I_RXP2 7
PC IE_RXN 1_W LAN26
PC LK_ICH 2
PC IE_RXP2_NEW _C ARD26
DM I _ RXN 3 7
DM I _ RXN 0 7
PC IE_RXP1_WLAN26
DM I_RXP1 7
DM I_RXP0 7
CL K_ PC IE_ ICH # 2
PC IE_RXN2_ N EW _CAR D26
PCIRST#:
DM I_RXP3 7
DM I _ RXN 2 7
U SB_OC #0126
PCIE _R XP5 _C AR D22
PCIE _R XN5_ CAR D22
Z o= 5 5O? 5 %
SPICS 0#
PCI_LOCK#
P CI_INT# D
P CI_INT# B
PCIE_ TXP1_C
3. 3 V
3. 3 V S
1.5VS
P CI_INT# G
U SB_OC #826
R264 un-stuff
P CI_INT# A
PCIE_ TXP2_C
OC5#
NC 1
SHO RT
6/30
PCI_STOP#
O C10#
O C11#
DM I_ CO MP
R2 64 s tu ff
U SB_PP10
U SB_PP9
U SB_PN 9
U SB_PN 10
SPI_CS 1#
SPICL K
dGPU _SELECT#
P CI_FR AME#
PCI_REQ#1
P CI_DE VSEL#
RN21
8.2K_8P4R _04
81 72
6
5
3
4
SPI_SO
SPI_W P# 18
SPI_SC LK
R 242 *1K_04
OC2#
C 515 0.1u_10V_X7R_04
U SB_PN 7
PC I
Interrupt I/F
U1 7 B
AF82801IBM
AD0
D11
AD1
C8
AD2
D9
AD3
E12
AD4
E9
AD5
C9
AD6
E10
AD7
B7
AD8
C7
AD9
C5
AD10
G11
AD11
F8
AD12
F11
AD13
E7
AD14
A3
AD15
D2
AD16
F10
AD17
D5
AD18
D10
AD19
B3
AD20
F7
AD21
C3
AD22
F3
AD23
F4
AD24
C1
AD25
G7
AD26
H7
AD27
D1
AD28
G5
AD29
H6
AD30
G1
AD31
H3
REQ0# F1
GNT0# G4
R EQ1#/G PIO50 B6
GN T1#/G PIO51 A7
R EQ2#/G PIO52 F13
GN T2#/G PIO53 F12
R EQ3#/G PIO54 E6
GN T3#/G PIO55 F6
C/BE0# D8
C/BE1# B4
C/BE2# D6
C/BE3# A5
IRDY# D3
PAR E3
PC IRST# R1
D EVSEL# C6
PER R# E4
PLOC K# C2
SER R# J4
STOP# A4
TRD Y# F5
FRAM E# D7
PLTRST# C14
PCIC L K D4
PM E# R2
PIRQ A#
J5
PIRQ B#
E1
PIRQ C#
J6
PIRQ D#
C4 PIRQH#/GPIO5 G2
PIR QG #/GPI O4 F2
PIRQ F#/GPI O3 K6
PIRQ E# /GPI O2 H4
OC6#
R215
*100K_04
U SB_PP7
R 264 *1K_04
C 513 0.1u_10V_X7R_04
OC10#
PLT_R ST#
RN20
8.2K_8P4R _04
8 1
7 2
6
53
4
PCI-Express
Direct Media Interface
US B
SPI
U17D
AF82801IB M
PER N1
N2 9
PER P1
N2 8
PETN 1
P27
PETP1
P26
PER N2
L29
PER P2
L28
PETN 2
M2 7
PETP2
M2 6
PER N3
J29
PER P3
J28
PETN 3
K27
PETP3
K26
PER N4
G2 9
PER P4
G2 8
PETN 4
H2 7
PETP4
H2 6
PER N5
E29
PER P5
E28
PETN 5
F27
PETP5
F26
PE R N6 /G LA N_ RX N
C2 9
PER P6/GLAN _R XP
C2 8
PETN 6/G LAN_TXN
D2 7
PETP6 /G LAN _TXP
D2 6
DMI0RXN V27
DM I0 RX P V26
DMI0TXN U29
DM I0TXP U28
DMI1RXN Y27
DM I1 RX P Y26
DMI1TXN W29
DM I1TXP W28
DMI2RXN AB27
DM I2 RX P AB26
DMI2TXN AA29
DM I2TXP AA28
DMI3RXN AD27
DM I3 RX P AD26
DMI3TXN AC29
DM I3TXP AC28
DMI_CLKN T26
DM I_ CL K P T25
DMI_ZCOMP AF29
D MI_ IRC OM P AF28
OC 0#/GPIO 59
N4
OC 1#/GPIO 40
N5
OC 2#/GPIO 41
N6
OC 3#/GPIO 42
P6
OC 4#/GPIO 43
M1
OC 5#/GPIO 29
N2
OC 6#/GPIO 30
M4
OC 7#/GPIO 31
M3
US BP0N AC5
U SBP0P AC4
US BP1N AD3
U SBP1P AD2
US BP2N AC1
U SBP2P AC2
US BP3N AA5
U SBP3P AA4
US BP4N AB2
U SBP4P AB3
US BP5N AA1
U SBP5P AA2
US BP6N W5
U SBP6P W4
US BP7N Y3
U SBP7P Y2
US BRBIA S#
AG 1 US BRBIA S
AG 2
SPI_C LK
D2 3
SPI_C S0#
D2 4
SPI_C S1#/G PIO 58 /C L GPIO 6
F23
SPI_M OSI
D2 5
SPI_M ISO
E23
OC 8#/GPIO 44
N3
OC 9#/GPIO 45
N1
U SBP8P W2
US BP8N W1
US BP9N V2
U SBP9P V3
U SBP10N U5
U SBP11N U1
U SBP10P U4
U SBP11P U2
OC 10#/G PIO 46
P5
OC 11#/G PIO 47
P3
RN19
8.2K_8P4R _04
81
72 6
5
3
4
R 181 *15_1%_04
OC3#
SPI_SO_R
SPI_SI
SPI_W P#
R2 2 4
*3.3K_1%_04
U7
*25VF016B-75
CE# 1
SO 2
WP#
3
VSS 4
SI 5
SCK 6
HO L D#
7
VDD
8
SPI_CS0#
3.3VS
SPI_SCLK
SPI_HO LD#
SPI_SO
R2 2 3 *3.3K_1%_04
C 305 *0.1u_16V_Y 5V _04
ICH _U SBR BIAS
RN 2 3
10K _8P4R _04
81
72 6
5
3
4
OC5#
RN 2 4
10K _8P4R _04
81
72 6
5
3
4
3. 3V
OC3#
C5100 cost down
3. 3V
3.3V
P CI_INT# C
OC9#
Sheet 17 of 38
ICH9M 2/4, PCI,
USB
Schematic Diagrams

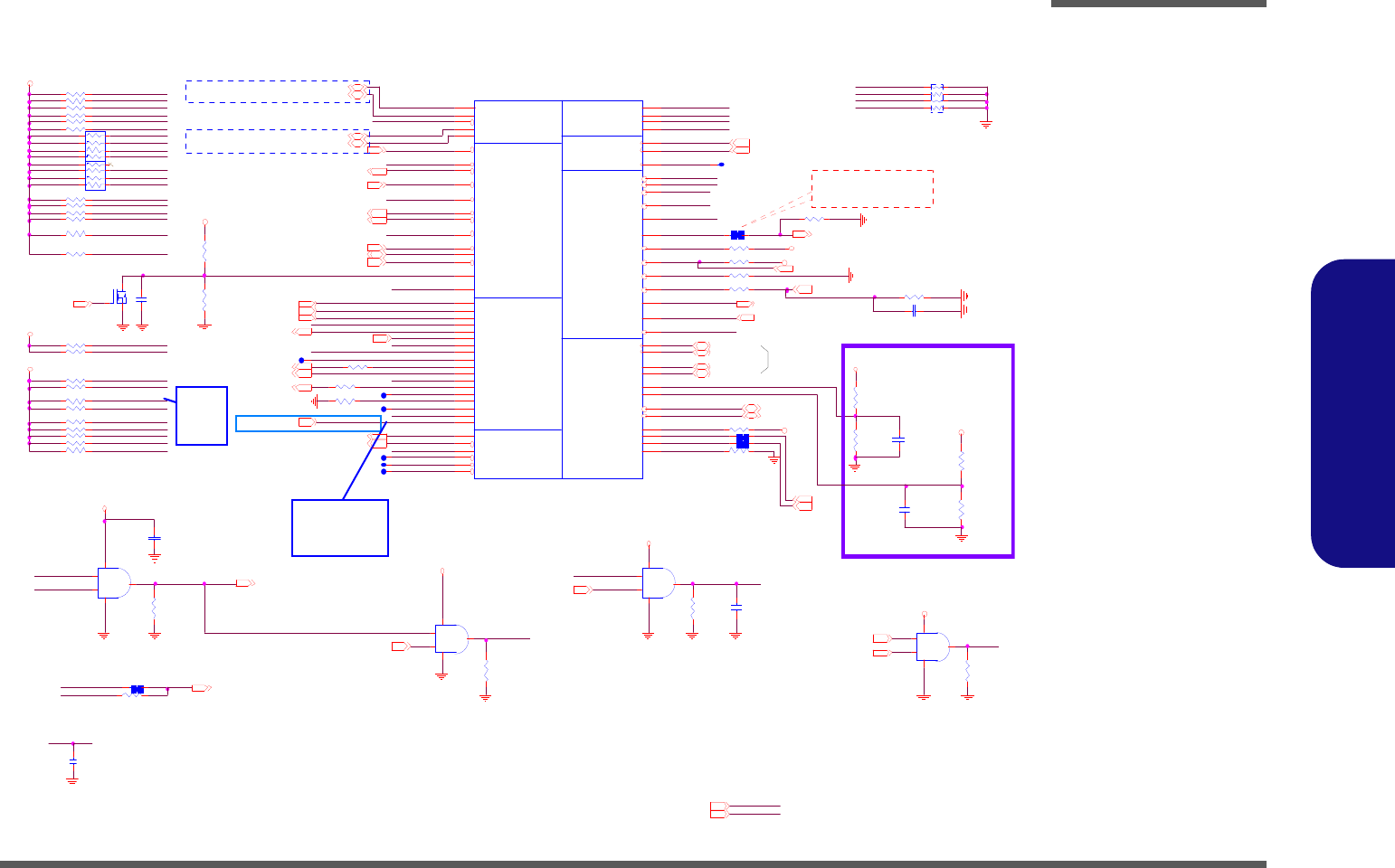

ICH9M 3/4 B - 19
B.Schematic Diagrams
ICH9M 3/4
Sheet 18 of 38
ICH9M 3/4
S US_PW R _ ACK 21
CL_DATA1 26
CL_CLK1 26
CL_RS T#1 26
ICH _ T P8
ICH _ T P3
ICH _ T P10
ICH _ T P9
SY S_PW R OK
R204 100K_04
CL_RS T#1
OD D _ D E T EC T #25
R197 10K_04 SMI #
ICH _ GPIO 1 7
SYS_ PW R O K
C R_ W AKE#
PM_C L KRU N#
SCI #
ICH _ SMBD AT1
ICH _ SMBC L K1
PM_ TH RM #
SB_BL ON
LPC_SIR Q
PCI E_W AKE#
SB_SU SSTAT#
ICH _ SMBC L K0
ICH _ SMBD AT0
R212 10K_04
PM_ STPC PU#
PM_ STPPC I#
R261 8.2K_04
R207 10K_04
R1 8 3 *8 .2 K _ 04
R2 9 4
10K_04
R177 100K_04
MPWROK
RSM RS T#
R225 *10K_04
R199 *10K_04
ICH _ SUS B #
R226 10K_04
R229 2.2K_04
R253 10K_04
RN 16
10K_8P4R_04
81
72 6
5
3
4
R201 10K_04
R208 2.2K_04
RN 17
10K_8P4R_04
81
72
6
5
3
4
C366
* .1U_16V _04
R292
10K_04
R3 0 2
*1 0 0 K _ 04
ICH _ GPIO 4 8
ICH _ GPIO 4 9
6/ 30
IC H_ G P IO2 4
AC PRE SENT
SU S PW R _ ACK
ICH _ GPIO 1 1
DPRSLPVR
IC H_ G PIO9
PC IE_ W AKE#
ICH _ GPIO 1 7
SM I#
CLK_ICH14
CL_RST#1
S4_STATE#
LPC_SIR Q
PM _TH RM #
SU SCLK
CLK_ICH48
R154
3.24K_1%_06
R 214 10K _04
R 221 8.2K_04
R276 *0_04
R202
453_1% _06
R 3 6 6 * 1 0K _0 4
R 193 100K_04
SATA
SM BSY S GP IO
GPIO
GP IO
Clocks
Power MGTController Link
MI SC
U17C
AF82801IBM
SATA0GP /GPIO 21 AH23
SATA1GP /GPIO 19 AF19
SATA4GP /GPIO 36 AE21
SATA5GP /GPIO 37 AD20
SMBCLK
G16
SMBDATA
A13
LIN KAL ER T#/G PIO6 0 /C LG PIO 4
E17
SMLINK0
C17
SMLINK1
B18
S US_STAT# /L PCPD #
R4
S YS_ R ESET#
G19
PMSYNC#/GPIO0
M6
GPIO1
AG 19
GPIO6
AH 21
GPIO7
AG 21
GPIO8
A21
GPIO12
C12
S MBAL ER T#/G PIO 11
A17
GPIO17
AE 18
GPIO18
K1
SCLOCK/GPIO22
AJ 22
S ATACLKR EQ#/G PIO35
L1
STP_PCI#
A14
STP_CPU#
E19
SLOAD/GPIO38
AE 19
SDATAOUT0/GPIO39
AG 22
CLKRUN#
L4
SDATAOUT1/GPIO48
AF 21
W AKE#
E20
SERIRQ
M5
TH RM #
AJ 23
VRMPWRGD
D21
CLK14 H1
CLK48 AF3
SU SCLK P1
SLP_ S3 # C1 6
SLP_ S4 # E16
SLP_ S5 # G1 7
PW R OK G2 0
DPR S L PV R /GP IO 1 6 M2
BATL OW # B1 3
PW RBTN # R3
LAN_R ST# D2 0
RSMRST# D2 2
RI#
F19
S4_STATE#/GPIO 26 C1 0
GPIO27
A9
GPIO28
D19
TP11
A20
CK_PWRGD R5
CL PW R OK R6
SLP_ M # B1 6
GPIO20
AF8
CL_CLK0 F2 4
CL_CLK1 B1 9
CL_D ATA 0 F22
CL_D ATA 1 C1 9
CL_VREF 0 C2 5
CL_VREF 1 A19
CL_RST0# F21
GPIO10/SUS_PWR _ACK C1 8
W OL_ EN/G PIO 9 C2 0
GPIO 1 4/ AC_PR ESEN T C1 1
MEM_LED/GPIO24 A16
S PKR
M7
TP3
B21
CL_RST1# D1 8
GPIO49
AH 24
GPIO13
C21
GPIO57/CLGPIO5
A8
TP10
AJ 21
TP8
AH 20
MCH_SYNC#
AJ 24
TP9
AJ 20
C2 7 9
0.1u_10V_X5R _04
S4_STATE# R233 *0_04
R210
3.24K _1%_06
R274 *100K_04
R153
453_1% _06
C264 100p_50V_N PO _04
R 187 100_04 R184 10K_04
R 194 10K_04
R185
1M _ 04
C219
0.1u_10V_X5R_04
R190 10K_04
ICH _ GPIO 8
ICH _ GPIO 6 0
SB_BLON
ICH _ S MB CL K1
ICH _SMB DAT1
PW R SAVE# _R
PW R_BTN#
LAN _R ST#
IC H_ R SMR ST #
SB_ BA TL O W #
IC H_ SU SB#
GP O2 2
IC H_ SU SC#
ICH _ GPIO 3 8
ICH _ GPIO 3 9
SLP_ S5 #
ICH _ GPIO 2 8
SB_MU TE#
CL_VR EF0
CL_VREF1
dGP U_PR SNT#
SB_G PIO1 9
dGP U_RU NP WRO K
ICH _ T P11
SWI#
ICH _ S MB CL K0
ICH _SMB DAT0
SLP_ M #
SB_PW RO K
PM _STPP CI#
PM _STPC PU #
SB_SU SSTAT#
PM _SY SR ST#
U1 2 B
74LVC 08PW
4
5
6
147
SB_G PIO2 1
PM _C L KRU N#
U12C
74LVC 08PW
9
10
8
147
OD D_ D ET ECT #
MPWROKSC I#
ICH _ GPIO 8
U1 2 A
74LVC 08P W
1
2
3
147
PW R SAVE# _RR275 10K_04
R198 100K_04 OD D_ D E T ECT #
R365 10K_04
ACP RESE NTR230 100K_04 SUS PW R_AC K
R206 100K_04
R 2 7 3 * 1 0m il_s h o rt
R 200 *10m il_short
R 232 *10m il_short
R 209 * 10m il_s hort SU SC # 21 ,32 ,33
R188
10 K _ 0 4
CL_DATA0 7
I CH _SM BC LK 126 I CH _SM BD AT126
CL_CLK0 7
I CH _SM BD AT 02,12,13 I CH _SM BC LK 02,12,13
LPC_SIR Q21
C 589
* 1u_6.3V_X5R _04
CL_RST#0 7
SB _S USSTAT#
Q1 1
MTN7002Z HS3
G
DS
C2 7 2
0.033u_16V_X7R_04
SB_G PIO21
dGPU _PRSN T#
SB_G PIO19
dGPU _RU NPW RO K
C5 4 7
0.1u_16V_Y5V_04
CR _ W AKE#
PCH _B T_EN #26
IC H_SU SC#
SB _P W RO K
ICH _ GPIO 6 0
CLKEN #30
R 195 *0_04
3.3VS
PM_ SY SR ST#
ICH _ GPIO 1 1
SW I#
3.3VS
1.5V_PWRG D33
PCIE _W AKE#22,26
1.5V_PWRG D33
SC I#21
SWI#21
SM I#21
PM _B MBU SY#7
PM _THR M#3
3.3V
3.3V S
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3. 3 V
3.3VS
3.3V
R304
*100K_04
DEL AY _ PW RG D7,30
R217 *10K_04 ICH _ S USB #
Zo= 55O? 5%
SB_MU TE#
R243 *10K_04
P M_ DPR SLPVR 7,30
CLK_PWRGD 2
DDR3, CLK GEN
NEW CARD, MINI CARD
ICH_GPIO57:
Can be used as TPM Physical
Presence for iTPM. Refer to
the CRB Schematics for a
sample implementation.
R203 10K_04 ICH _ GPIO 3 8
CLK_ICH 1 4 2
CLK_ICH 4 8 2
RSMRST# 21
PW R _BTN # 21
0919
8.2-k Pull-up
to Vcc3_3 if
TEMP SENSOR
not used
1.05V S_P WRG D32
CL_V RET0 /1=0. 405V
12mils
For C5100
12mils
SPI_WP#17
MPWROK 7,15,21
U12D
74LVC08PW
12
13 11
147
Zo= 55O? 5%
3.3VS2,3,6,7,10,12,13,14,15,16, 17,19,20,21,22,23,24,25,26,27,28,30
3.3V3,15,16,17,19,21,22,25,26,28,32,33
I t" s fo r in te rn al t es ti ng
purposes only
PCH _BT_E N#
R249 *10K_04
Layout note:
RN 15 10K_8P4R_04
1
2
3
4 5
6
7
8
A C_PRE SENT 2 1
PM _S YSR ST#21
IC H_ SPKR23
PM_ STPC PU#2
MC H_ I CH _ S Y N C #7
PM _STPPCI#2
S B _B LO N15
SU SB# 21,24,26,28,32,33
SB_MUTE#24
P W RSA VE#2
Schematic Diagrams
B - 20 ICH9M 4/4
B.Schematic Diagrams
ICH9M 4/4
Sheet 19 of 38
ICH9M 4/4
VC CG L A N3 _ 3
.
L45 0_04
Layout note:
Layout note:
VCC_DMI
10mils
Place above Caps within 100 mils of ICH on the bottom
side or 140 mils on the top near D28, T28, AD28
20mils
Place within 100mils of
ICH on the bottom side or
140 mils on the top near
pin AE7
VCC LAN3_ 3
Place within 100mils of ICH on the
bottom side or 140 mils on the top
Layout note:
10mils
1.5V/VS: FOR MONTEVINA PLATFORM
GMCH HD_AUDIO USED
CLOSE TO pin AD25
VCCSUS3.3
Place within 100 mils
of pin G4 of ICH9M on
the bottom side of
140mils on the top
Place at MCH edge
20mils
1.5V S_PCIE _I CH
C3 3 0
1u_10V_06
C3 4 0
1u_10V_06
C316
0.1u_16V_Y 5V_04
20mils
20 mils
Place within 100mils
o f IC H on t he bo tt om
side or 140 mils on
the top
10mils
Layout note:
10mils
Layout note:
Place within 100mils of ICH
on the bottom side or 140 mils
on the top near pin F1
Layout note:
Place within 100 mils
of pi n A1 6 an d T 7 of
ICH9M on the bottom
side or 140 mils on
the top side
Layout note:
10mils
10mils
Layout note:
6/ 30
1.5VS
1.5V
VC CLAN 3_3
C311
0.1u_16V_Y 5V_04
20mils
C3 2 0
0.022u_16V _X7R _04
C271 4.7u_6.3V_X5R_06
V5RE F_SUS
C 324 0.1u_16V_Y 5V _04
C227
0. 1u_16V_Y5V_04
C5 0 6
0.01u_16V_X7R _04
+
C2 8 8
100u_6.3V _B _B
C 277 0.1u_16V_Y 5V _04
TP_VC C SUS15_ICH 2
C3 3 1
0. 1u_16V_Y5V_04
R2 5 8
10_04
C3 0 2
0. 1u_16V_Y5V_04
TP_VCCSUS105_ICH1
TP_VCCSUS105_ICH2
TP_VC C SUS15_ICH 1
C230
0.1u_16V_Y 5V_04
V5RE F_ SUS
CORE
VCCA3GP ATXARX USB CORE
PCI
GLAN POWER
VCCP_CORE
VCCPSUSVCCPUSB
U17F
AF82801I BM
V5RE F
A6
V5RE F_SUS
AE1
VC C1_5_B [1]
AA24
VC C1_5_B [2]
AA25
VC C1_5_B [3]
AB24
VC C1_5_B [4]
AB25
VC C1_5_B [5]
AC 24
VC C1_5_B [6]
AC 25
VC C1_5_B [7]
AD 24
VC C1_5_B [8]
AD 25
VC C1_5_B [9]
AE25
VC C1_5_B [10]
AE26
VC C1_5_B [11]
AE27
VC C1_5_B [12]
AE28
VC C1_5_B [13]
AE29
VC C1_5_B [14]
F25
VC C1_5_B [15]
G25
VC C1_5_B [16]
H24
VC C1_5_B [17]
H25
VC C1_5_B [18]
J24
VC C1_5_B [19]
J25
VC C1_5_B [20]
K24
VC C1_5_B [21]
K25
VC C1_5_B [22]
L23
VC C1_5_B [23]
L24
VC C1_5_B [24]
L25
VC C1_5_B [25]
M24
VC C1_5_B [26]
M25
VC C1_5_B [27]
N23
VC C1_5_B [28]
N24
VC C1_5_B [29]
N25
VC C1_5_B [30]
P24
VC C1_5_B [31]
P25
VC C1_5_B [32]
R24
VC C1_5_B [33]
R25
VC C1_5_B [34]
R26
VC C1_5_B [35]
R27
VC C1_5_B [36]
T24
VC C1_5_B [37]
T27
VC C1_5_B [38]
T28
VC C1_5_B [39]
T29
VC C1_5_B [40]
U24
V CC 3_3[1] AG29
VC CD MIPLL R29
VC C1_5_A [1]
AC 16
VC C1_5_A [2]
AD 15
VC C1_5_A [3]
AD 16
VC C1_5_A [4]
AE15
VC C1_5_A [5]
AF15
VC CSATAP LL
AJ 19
V CC 3_3[2] AJ6
VC C1_5_A [9]
AC 11
VC C1_5_A [10]
AD 11
VC CU SBPLL
AJ5
VC CLAN 1_05[1]
A10
VC CLAN 1_05[2]
A11
VCC 1_05[1] A15
VCC 1_05[2] B15
VCC 1_05[3] C15
VCC 1_05[4] D15
VCC 1_05[5] E15
VCC 1_05[6] F15
VCC 1_05[7] L11
VCC 1_05[8] L12
VCC 1_05[9] L14
VC C1_05[10] L16
VC C1_05[11] L17
VC C1_05[12] L18
VC C1_05[13] M11
VC C1_05[14] M18
VC C1_05[15] P11
VC C1_05[16] P18
VC C1_05[17] T11
VC C1_05[18] T18
VC C1_05[19] U11
VC C1_05[20] U18
VC CLAN 3_3[1]
A12
VC CLAN 3_3[2]
B12
VCCHDA AJ4
VCCSUSHDA AJ3
V_CPU_IO[1] AB23
V_CPU_IO[2] AC23
V CC 3_3[9] F9
VCC 3_3[10] G3
VCC 3_3[11] G6
VCC 3_3[12] J2
VCC 3_3[13] J7
VCC 3_3[14] K7
VC CR TC
A23
VCC SU S3_3[1] A18
VCC SU S3_3[2] D16
VCC SU S3_3[3] D17
VCC SU S3_3[4] E22
VCC SU S3_3[6] T1
VCC SU S3_3[7] T2
VCC SU S3_3[8] T3
VCC SU S3_3[9] T4
VCC SU S3_3[10] T5
VCC SU S3_3[11] T6
VCC SU S3_3[12] U6
VCC SU S3_3[13] U7
VCC SU S3_3[14] V6
VCC SU S3_3[15] V7
VCC SU S3_3[16] W6
VCC SU S3_3[17] W7
VC C1_5_A [13]
AG 10
VCC SU S1_05[1] AC8
VCC SU S1_05[2] F17
VC C1_5_A [22]
G9
VC C1_5_A [23]
AC 12
VC C1_5_A [24]
AC 13
VC C1_5_A [25]
AC 14
VC C1_5_A [26]
AA7
VCC SU S3_3[5] AF1
V CC 3_3[8] B9
VC C1_5_A [27]
AB6
VC C1_05[22] V12
VC C1_05[25] V17
VC C1_05[23] V14
VC C1_05[21] V11
VC C1_05[26] V18
VC C1_05[24] V16
VC CG LA N1_5[4]
E27
VC CG LA N1_5[2]
D29
VC CG LA N1_5[3]
E26
VC CG LA N1_5[1]
D28
VC CG LA N3 _ 3
A26
VC CG LA NPL L
A27
V CC 3_3[3] AD19
VCC SU S3_3[18] Y6
VCC SU S1_5[1] AD8
VCC SU S1_5[2] F18
VC C_DM I[2] Y23
VC C_DM I[1] W23
VCCCL1_05 G22
VC CC L3_3[2] B24
VC CC L3_3[1] A24
VC CC L1_5 G23
VC C1_5_B [45]
W24
VC C1_5_B [43]
V25
VC C1_5_B [41]
U25
VC C1_5_B [46]
W25
VC C1_5_B [44]
U23
VC C1_5_B [42]
V24
VC C1_5_B [47]
K23
VC C1_5_B [48]
Y24
VC C1_5_B [49]
Y25
VC C1_5_A [6]
AG 15
VC C1_5_A [7]
AH 15
VC C1_5_A [8]
AJ 15
VC C1_5_A [11]
AE11
VC C1_5_A [12]
AF11
VCC SU S3_3[19] Y7
V CC 3_3[4] AF20
V CC 3_3[5] AG24
V CC 3_3[6] AC20
V CC 3_3[7] AC10
VC C1_5_A [20]
AC 21
VC C1_5_A [21]
G10
VC C1_5_A [19]
AC 19 VC C1_5_A [18]
AC 18
VC C1_5_A [17]
AC 9
VC C1_5_A [16]
AJ 10 VC C1_5_A [15]
AH 10 VC C1_5_A [14]
AG 11
VC C1_5_A [28]
AB7
VC C1_5_A [29]
AC 6
VC C1_5_A [30]
AC 7
VCC SU S3_3[20] T7
.
L43
HC B1005K F-121T20
.
L17
0_04
.
L19
0_04
R2 7 1
10_04
R353
10_04
R237
10_04
R165
10_04
VCCGLANPLL
1.7A
1.7A
1A
10mils
10mils
1.7A
1.7A
1.7A
40mils
30mils
VC CD MIP LL
1.5VS
1. 5V S
3.3V
1.5VS
1. 0 5 V S
5V
3.3VS
1.5V S_PCIE _IC H
1.5VS
3.3V
RTC VCC
3.3V
3.3VS
3.3VS
1.05VS
3.3VS
5VS
1.05VS
1.5V S
3. 3V S
1. 5V S
1.5VS
C232
* 10U _10V_08
C319
0.022u_16V_X7R _04
C2 8 2
0.1u_16V_Y5V_04
VCC SATAPLL
C286
4.7u_6. 3V _X5R _06
C293
0.1u_16V_Y 5V _04
C3 2 6
0.1u_10V_X5R _04
C509
0.1u_16V_Y 5V_04
C229
0. 1u _ 1 6 V _ Y 5 V _ 0 4
D2 3
RB751V
AC
C2 3 1
0.1u_16V_Y5V_04
C226
0.1u_16V_Y 5V_04
+
C2 6 8
*220U_2.5V_B
C3 3 5
0.1u_10V_X5R _04
C 313 0.1u_16V_Y 5V _04
C2 5 1
*1U _6.3V_04
C284
1u_6. 3V _Y 5V_04
C5 0 8
0.1u_16V_Y5V_04
3.3VS2,3,6,7,10,12,13,14,15,16,17, 18,20,21,22,23,24,25, 26,27,28,30
3.3V3, 15,16,17,18,21,22,25, 26,28,32,33
C329
0.1u_16V_Y 5V_04
C5 1 2
10u_10V_Y5V_08
D2 2
RB751V
AC
C3 0 6
0.1u_16V_Y5V_04
C266
22u_6.3V_X5R_08
C3 2 2
0. 1 u _ 1 6V _Y 5 V _ 0 4
U1 7 E
AF828 01IBM
VSS[1]
AA 26
VSS[2]
AA 27
VSS[3]
AA3
VSS[4]
AA6
VSS[5]
AB1
VSS[6]
AA 23
VSS[7]
AB 28
VSS[8]
AB 29
VSS[9]
AB4
VSS[10]
AB5
VSS[11]
AC 17
VSS[12]
AC 26
VSS[13]
AC 27
VSS[14]
AC3
VSS[15]
AD1
VSS[16]
AD 10
VSS[17]
AD 12
VSS[18]
AD 13
VSS[19]
AD 14
VSS[20]
AD 17
VSS[21]
AD 18
VSS[22]
AD 21
VSS[23]
AD 28
VSS[24]
AD 29
VSS[25]
AD4
VSS[26]
AD5
VSS[27]
AD6
VSS[28]
AD7
VSS[29]
AD9
VSS[30]
AE 12
VSS[31]
AE 13
VSS[32]
AE 14
VSS[33]
AE 16
VSS[34]
AE 17
VSS[35]
AE2
VSS[36]
AE 20
VSS[37]
AE 24
VSS[38]
AE3
VSS[39]
AE4
VSS[40]
AE6
VSS[41]
AE9
VSS[42]
AF 13
VSS[43]
AF 16
VSS[44]
AF 18
VSS[45]
AF 22
VSS[46]
AH 26
VSS[47]
AF 26
VSS[48]
AF 27
VSS[49]
AF5
VSS[50]
AF7
VSS[51]
AF9
VSS[52]
AG 13
VSS[53]
AG 16
VSS[54]
AG 18
VSS[55]
AG 20
VSS[56]
AG 23
VSS[57]
AG3
VSS[58]
AG6
VSS[59]
AG9
VSS[60]
AH 12
VSS[61]
AH 14
VSS[62]
AH 17
VSS[63]
AH 19
VSS[64]
AH2
VSS[65]
AH 22
VSS[66]
AH 25
VSS[67]
AH 28
VSS[68]
AH5
VSS[69]
AH8
VSS[70]
AJ12
VSS[71]
AJ14
VSS[72]
AJ17
VSS[73]
AJ8
VSS[74]
B11
VSS[75]
B14
VSS[76]
B17
VSS[77]
B2
VSS[78]
B20
VSS[79]
B23
VSS[80]
B5
VSS[81]
B8
VSS[82]
C26
VSS[83]
C27
VSS[84]
E11
VSS[85]
E14
VSS[86]
E18
VSS[87]
E2
VSS[88]
E21
VSS[89]
E24
VSS[90]
E5
VSS[91]
E8
VSS[92]
F16
VSS[93]
F28
VSS[94]
F29
VSS[95]
G12
VSS[96]
G14
VSS[97]
G18
VSS[99]
G24
VSS[100]
G26
VSS[101]
G27
VSS[102]
G8
VSS[103]
H2
VSS[104]
H23
VSS[105]
H28
VSS[106]
H29
VSS[107] H5
VSS[108] J23
VSS[109] J26
VSS[110] J27
VSS[111] AC 22
VSS[112] K28
VSS[113] K29
VSS[114] L13
VSS[115] L15
VSS[116] L2
VSS[117] L26
VSS[118] L27
VSS[119] L5
VSS[120] L7
VSS[121] M12
VSS[122] M13
VSS[123] M14
VSS[124] M15
VSS[125] M16
VSS[126] M17
VSS[127] M23
VSS[128] M28
VSS[129] M29
VSS[130] N11
VSS[131] N12
VSS[132] N13
VSS[133] N14
VSS[134] N15
VSS[135] N16
VSS[136] N17
VSS[137] N18
VSS[138] N26
VSS[139] N27
VSS[140] P12
VSS[141] P13
VSS[142] P14
VSS[143] P15
VSS[144] P16
VSS[145] P17
VSS[146] P2
VSS[147] P23
VSS[148] P28
VSS[149] P29
VSS[150] P4
VSS[151] P7
VSS[152] R11
VSS[153] R12
VSS[154] R13
VSS[155] R14
VSS[156] R15
VSS[157] R16
VSS[158] R17
VSS[159] R18
VSS[160] R28
VSS[161] T12
VSS[162] T13
VSS[163] T14
VSS[164] T15
VSS[165] T16
VSS[166] T17
VSS[167] T23
VSS[169] U12
VSS[170] U13
VSS[171] U14
VSS[172] U15
VSS[173] U16
VSS[174] U17
VSS[175] AD 23
VSS[176] U26
VSS[177] U27
VSS[178] U3
V SS_NC TF[1] A1
V SS_NC TF[2] A2
V SS_NC TF[3] A2 8
V SS_NC TF[4] A2 9
V SS_NC TF[5] AH 1
V SS_NC TF[6] AH 2 9
V SS_NC TF[7] AJ 1
V SS_NC TF[8] AJ 2
V SS_NC TF[9] AJ 2 8
VSS_NC TF[10] AJ 2 9
VSS_NC TF[11] B1
VSS_NC TF[12] B2 9
VSS[179] V1
VSS[180] V13
VSS[181] V15
VSS[182] V23
VSS[183] V28
VSS[98]
G21
VSS[184] V29
VSS[185] V4
VSS[186] V5
VSS[187] W26
VSS[188] W27
VSS[189] W3
VSS[190] Y1
VSS[191] Y28
VSS[192] Y29
VSS[193] Y4
VSS[194] Y5
VSS[195] AG 28
VSS[196] AH 6
VSS[197] AF2
VSS[168] B26
VSS[198] B25
C303
0.1u_16V_Y5V_04
C2 9 4
0.1u_16V_Y5V_04
6/30
VC C5R EF
C224
0.1u_16V _Y 5V_04
C267
22u_6.3V_X5R _08
C517
0.1u_16V _Y 5V_04
C309
0.1u_16V _Y 5V_04
C2 3 3
2.2u_6.3V_ Y5V_06
C287
1u_6. 3V _Y 5V_04
C3 2 1
0.1u_16V_Y5V_04
C 296
0.1u _16V_Y 5V_04
VCCHDA
C290
10u_10V_Y5V_08
T P_V CC L AN1 0 5 _ ICH
C292
1u_6. 3V _Y 5V_04
C265
* . 1U _ 1 0V _X 7 R _0 4
VCCSUSHDA
C304
0.1u_16V_Y 5V_04
VCC3.3_4
VCCGLAN3_3
.
L20
H CB1005KF-121T20
TP_VC C CL_15
.
L18
HC B1608K F-121T25
C 531 0.1u_16V_Y5V_04
C 533 0.1u_16V_Y5V_04
3.3VS
3.3V
VC CG L A NP LL
C3 0 1
0.1u_16V_Y5V_04
.
L44 0_04
C 2 7 6 0. 1u _ 1 6 V _ Y 5 V _ 0 4TP_VC C CL_105
.
L24 *B KP1005H S121_04
.
L25 *B KP1005H S121_04
VC C5R EF
C323
0.1u_16V_Y 5V _04

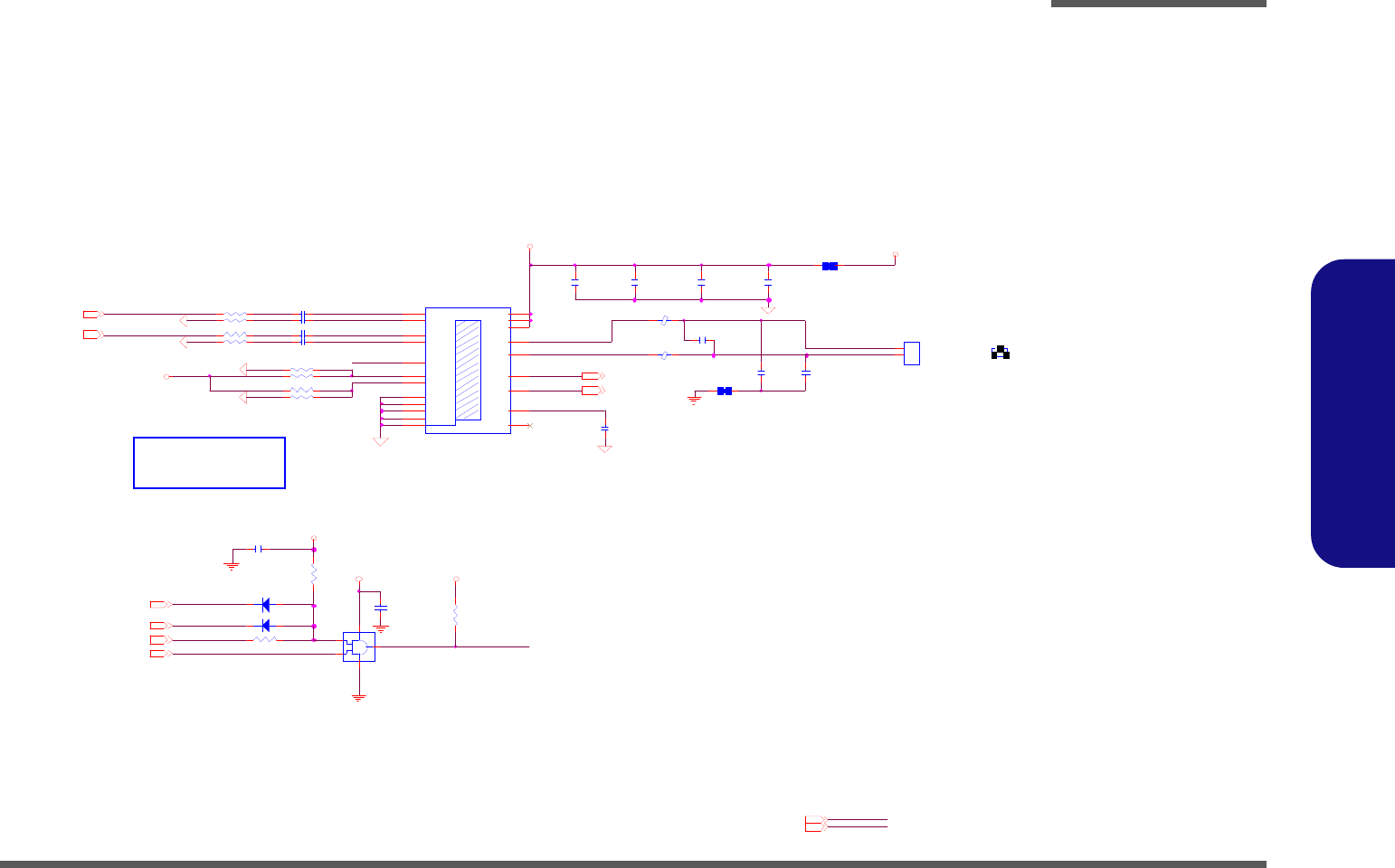

Schematic Diagrams
HDMI B - 21
B.Schematic Diagrams
HDMI
R445 0_04
R438 0_04
HDMI_DDC_DATA
R441 0_04
R55 * 4.7K_04
R41
7.5K_1%_04
R53
1.5K_04
R40
20K_1%_04
R36 1K_04
R54
20K_1%_04
R52 * 0_04
R61 4.7K_04
R59 * 4.7K_04
C48
0.1u_16V_Y5V_04
R37 499_1%_04
R42
20K_1%_04
Q8
MTN7002ZHS3
G
DS
R38 * 4.7K_04
D16
BA V99 R ECTI FI ER
A
C
AC
R39 4.7K_04
C41
0. 1u_16V_Y5V_04
D15
BAV99 RECTIFIER
A
C
AC
C45
0.1u_16V_Y5V_04
R62 * 4.7K_04
U2
PTN3360BBS
IN_D1+
39
IN_D1-
38
IN_D2+
42
IN_D2-
41
IN_D3+
45
IN_D3-
44
IN_D4+
48
IN_D4-
47
SC L
9
SD A
8
HPD
7
OE#
25
DCC_EN#
32
RT_EN#
10
PC 0
3
PC 1
4
R EXT
6
GND[6] 27
QE_2
35 OE_1
34
OUT_D1+ 22
OUT_D1- 23
OUT_D2+ 19
OUT_D2- 20
OUT_D3+ 16
OUT_D3- 17
OUT_D4+ 13
OUT_D4- 14
SCL_SINK28
SD A_S I NK29
HPD_SINK30
VC C[1] 2
VC C[2] 11
VC C[3] 15
VC C[4] 21
VC C[5] 26
VC C[6] 33
VC C[7] 40
VC C[8] 46
GND[1] 1
GND[2] 5
GND[3] 12
GND[4] 18
GND[5] 24
GND[7] 31
GND[8] 36
GND[9] 37
GND[10] 43
C43
0.1u_16V_Y5V_04
C47
0.1u_16V_Y5V_04
D14
BAV99 RECTIFIER
A
C
AC
R60
1.5K_04
3.3VS
3.3VS
5VS
3.3VS
3.3V S
5VS
3.3VS
HDMI B _D2BP6
HDMI B _D0BP6
HDMI_CTRLCLK7
HDMI B _CLKBP6
HDMI B _D1BN6HDMI B _D1B P6
HDMI B _D2BN6
HDMI B _D0BN6
POR TB_ H PD #6
HDMI_CTRLDATA7
HDMI B _CLKBN6
R442 0_04
???
HDMI_DATA0P
HDMI_D0N
HDMI_DATA2N
HDMI_DATA0N
HDMI_D2N
HDMI_D2P HDMI_DATA2P
HDMI_D0P
For ESD
PIN 49=GND
Safty Require
PC 1
CL OSE TO HDM I CO NN.
HDMI
HDMI_CTRLDATA
HDMI_CTRLCLK
DCC_EN#
HDMI_DDC_CLK
HDMI_CLKP
HDMI_CLKN
HDMI_DATA2P
HDMI_DATA0P
HDMI_DATA1P
HDMI_DATA1N
HDMI_DATA0N
HDMI_DATA2N
HDMI_HPD
R443 0_04
3.3VS2,3,6,7,10,12,13, 14, 15, 16,17,18,19,21,22,23,24,25,26,27,28,30 3.3V3,15,16,17,18,19,21,22,25,26,28,32,33
PC1
PC0
R401 1_04
HDMI_CLKP
HDMI_CLKN HDMI_CKN
HDMI_D1N
HDMI_DATA1P
HDMI_CKP
HDMI_DATA1N
HDMI_D1P
5VS
R439 0_04
R444 0_04
L5
*WCM2012F2S- 161T03
1
4
2
3
J_HDMI1
C12817-119A5-L
SH I ELD 2
2
TMDS DATA1+
4
TMDS DATA1-
6
SH I ELD 0
8
TMDS CLOCK+
10 TMDS CLOCK-
12 RE SERVE D
14
SD A
16
+5V
18
TMDS DATA2+ 1
TMDS DATA2- 3
SH I E L D15
TMDS DATA0+ 7
TMDS DATA0- 9
C LK SH IE LD 11
CEC 13
SCL15
DDC/CEC GND 17
HOT PLUG DETE CT19
L7
*WCM2012F2S- 161T03
1
4
2
3
L8
*WCM2012F2S-161T03
1
4
2
3
HDMI CONNECTOR
PIN GND1~4=GND
L6
*WCM2012F2S-161T03
1
4
2
3
C426
22u_6.3V_X5R_08
HDMI_D0N
HDMI_DATA1P
HDMI_CKN
HDMI_D1N
HDMI_CLKN
HDMI_DATA0P
C427
*22u_6.3V_Y5V_08
HDMI_DATA2P
HDMI_CLKP
HDMI_D2P
HDMI_DATA0N
HDMI_D1P HDMI_D2N HDMI_DATA2N
HDMI_DATA1N
HDMI_DDC_CLK
HDMI_DDC_DATA
HDMI_D0P
HDMI_CKP
HDMI_HPD
R440 0_04
DCC_EN#
R323 1_04
PC 0
Sheet 20 of 38
HDMI
Schematic Diagrams
B - 22 KBC-ITE IT8502E
B.Schematic Diagrams
KBC-ITE IT8502E
Sheet 21 of 38
KBC-ITE IT8502E
BAT_ VOLT
THER M_RS T#
CRX0
SM D_VGA_THE RM
SM C_VGA_THE RM
MCH_TSATN_EC
3G_DE T#
C5100 cost down.
X
SM C_ CP U _ TH ERM
3G_DET#
L AN _P CIE_ W AKE#22
PC LK_KBC
RY
R451
* 0_04
KBC _HO LD #
KB C_SPI_SCLK_R
KB C_SPI_SO_R
KBC_SPI_VD D
6/30
WLAN_LED # 26,27
BAT_VO LT_R
KB-SO 4
KB-SO 1 5
KB-SO 1 0
KB-SO 7
KB-SO 8
KB-SO 1
KB-SI 0
KB-SI 1
KB-SI 6
KB-SI 3
KB-SO 0
KB-SO 1 4
KB-SO 6
KB -SO8
KB -SO1
KB -SI0
KB -SO4
KB -SO15
KB-SO 1 2
KB-SI 5
KB-SI 2
KB-SO 1 1
KB-SI 7
8 0 P O R T_ D E T#
KB-SI 4
KB-SO 2
KB-SO 1 3
KB-SO 9
KB-SO 5
KB-SO 3
KB -SO7
KB -SO6
KB -SO10
KB -SO14
KB -SI3
KB -SO0
KB -SI6
KB -SI7
KB -SI1
KB -SO11
KB -SI2
KB -SI5
KB -SO5
KB -SO12
KB -SO3
KB -SI4
KB -SO2
KB -SO13
KB -SO9
C5100, pin76 & 79 swap
SMD_CPU_THERM
SMC_CPU_THERM
THER M_AL ERT#
0V
BAT_ VOLT_ R
BA T_VO LT
PC LK_KBC
PCLK_KBC_R
80CLK
8 0 P O R T_ D E T#
3IN1
U2 6
*EN 25P05-50G CP
CE# 1
SO 2
WP#
3
VS S 4
SI 5
SC K 6
HOL D #
7
VDD
8
KBC_SPI_*_R = 0.1"~0.5"
RX
MO DEL _I D
CU R_ SEN SE_R
16Mbit
CC D_ DE T#
KBC _W RESET#
0_04 FOR IT8512CX/EX
0 .1U _0 4 FO R IT E85 12 -J (I TE 850 2- J W /0 CI R)
EC Cost Down
C4100-DDR3
RY
KB C_SPI_CE#
RX
KBC _FL ASH
VC HG -SEL
LCD _B RIG HTNESS
24
C4100-DDR2
1
X
KB C_SPI_SI
J_KB1
VOLTAGE
3.3 V
KB C_SPI_SO
3IN1
LOW ACTIVE
CK32KE
CK32K
KB C_SPI_SCLK
For C5100
LC D_BRIG HTN ESS
CELL_CONTROL 29
For C5100
SPI ROM Co-layout
R218 10K_04
NC 2
SHO RT
MO DE L _ ID
D29
BAV 99 R ECT IF IER
A
C
AC
C327
0.1u_16V_Y5V_04
C308
15p_50V_NPO _04
C 325 0.1u_16V_Y 5V_04
WLAN_EN26,27
K/B MATRIX
FLASH
LPC
SMBUS
PS/2
PWM
UART
DAC
CLOCK
IT8512E
CIR
ADC
WAKE UP
PWM/COUNTER
LPC/WAKE UP
EXT GPIO
GP INTERRUPT
WAKE UP
GPIO
U9
IT 85 0 2 E-J
WRST#
14
LP C C L K
13
LA D 0
10
LA D 1
9
LA D 2
8
LA D 3
7
LF R A M E #
6
( PD )LPC PD#/WU I6/G PE6 17
SERIR Q
5
ECSM I#/GPD 4( PU )
15 ECSC I#/GPD 3( PU )
23
GA2 0/GPB5
126
KBRST#/GP B6( PU )
4
KSI0/STB# 58
K SI1/A FD# 59
KS I2 /INIT# 60
KSI3/SLIN# 61
KSI4 62
KSI5 63
KSI6 64
KSI7 65
KSO 0/PD0 36
KSO 1/PD1 37
KSO 2/PD2 38
KSO 3/PD3 39
KSO 4/PD4 40
KSO 5/PD5 41
KSO 6/PD6 42
KSO 7/PD7 43
KSO 8/A CK# 44
KS O9 /BUSY 45
K SO10/PE 46
KSO 11/ER R# 51
KSO1 2/SLCT 52
KSO1 3 53
KSO1 4 54
KSO1 5 55
VC C 11
VSTBY 26
VSTB Y 50
VSTBY 92
VSTB Y 114
VSTB Y 127
VSTBY 121
VBAT 3
AVCC 74
PS2CLK0 /GPF0 ( PU )
85
PS2DAT0/GPF1( PU )
86
PS2CLK1 /GPF2 ( PU )
87
( P D )TMR I0/W UI2 /G PC4 120
( P D )TMR I1/W UI3 /G PC6 124
LP CRS T# /W U I4 /GPD 2( P U )
22
( PD )W U I5/G PE5 35
PW RSW /GPE4( PU )
125
RI1 # /W UI0 /G PD0 ( PU )
18
RI2 # /W UI1 /G PD1 ( PU )
21
( PD )R ING #/P W RF AIL # /L PCR ST #/G PB7 112
TXD /GPB1 ( PU )
109 RXD/G PB0( PU )
108
( PD )C TX/G PB2 123
PS2DAT1/GPF3( PU )
88
PS2CLK2 /GPF4 ( PU )
89
PS2DAT2/GPF5( PU )
90 ( PD ) TAC H0/G PD6 47
( PD ) TAC H1/G PD7 48
PW M0/G PA0( PU )
24
PW M1/G PA1( PU )
25
PW M2/G PA2( PU )
28
PW M3/G PA3( PU )
29
PW M4/G PA4( PU )
30
PW M5/G PA5( PU )
31
PW M6/G PA6( PU )
32
PW M7/G PA7( PU )
34
ADC 0/G PI0
66
ADC 1/G PI1
67
ADC 2/G PI2
68
ADC 3/G PI3
69
ADC 4/G PI4
70
ADC 5/G PI5
71
ADC 6/G PI6
72
ADC 7/G PI7
73
VSS
1
VSS
12
VSS
27
VSS
49
VSS
122 VSS
113
AVSS
75
CK32KE 2
CK32K 128
DAC 3/G PJ 3
79 DAC 2/G PJ 2
78 DAC 1/G PJ 1
77 DAC 0/G PJ 0
76
( PD ) EGC S#/G PE2 83
( PD ) EGC LK/G PE3 84
( PD )EG AD/G PE1 82
GIN T/G PD5( PU )
33
L80 L LA T/G PE7( PU )
20
VSS
91
DAC 5/G PJ 5
81 DAC 4/G PJ 4
80
PW UR EQ#/G PC7( PU )
16
( PD )C RX /G PC0 119
( PD )KSO 16 /G PC3 56
( PD )KSO 17 /G PC5 57
( PD )ID0/G PH0 93
( PD )ID1/G PH1 94
( PD )ID2/G PH2 95
( PD )ID3/G PH3 96
( PD )ID4/G PH4 97
( PD )ID5/G PH5 98
( PD )ID6/G PH6 99
( PD )ID7/G PG1 107
SMC LK 0/G PB3
110
SMD AT0/G PB4
111
SMC LK 1/G PC1
115
SMD AT1/G PC2
116
SMC LK 2/G PF6( PU )
117
SMD AT2/G PF7 ( PU )
118
FL FR AME# /G PG2 100
FL AD 0/S CE# 101
FLAD 1/SI 102
FL AD 2/SO 103
FLAD3/G PG6 104
FL CLK/SC K 105
( PD )F LR ST#/W UI7 /T M/G PG0 106
( P D )L80H LAT/G PE0 19
X3 1TJS125D J4A420P_32.768K Hz
14
3 2
R270 4.7K_04
D26 * SCS33 5
A C
R196 10K_04
R265 4.7K_04
J _ KB2
85201-24051
24
23
22
14
12
11
21
8
20
19
6
5
18
4
17
10
9
7
3
2
1
16
15
13
C389
0.1u_16V_Y5V_04
R 282 15_1% _04
C333
1u_10V_06
C586*0.1u_16V_Y5V_04
R245 4.7K_04
C583*0.1u_16V_Y 5V_04
C337
*.1U _16V_04
C317
* .1U_16V _04
R240 *10M_04
U10
25VF016B-75
CE# 1
SO 2
WP#
3
VSS 4
SI 5
SC K 6
HO L D#
7
VDD
8
D21
BAV99 R ECTIFIE R
A
C
AC
C338
0.1u_16V_Y5V_04
R255 1K_04
D20
BAV99 R ECTIFIE R
A
C
AC
C 310 0.1u_16V_Y5V_04
KBC _SPI_SO_ R
KBC _SPI_SCLK_ R
KBC_HOLD#
C 314 *33P_50V_04
R231 *10_04
K BC_FLASH
K BC_SPI_VDD
C328
15p_50V_N PO_04
D24
BAV99 R ECTIFIE R
A
C
AC
KBC _SPI_SI_R
KBC _SPI_CE#_ R
R 246 47_04
C336
10u_10V_Y 5V _08
C299
0.1u_16V_Y 5V_04
R228 *10K_04
.
L2 1
HC B1005KF-121 T2 0
.
L23
0_04
C339
*.1U_16V_04 R262
100K_04
C307
* .1U _16V_04
R205 100_04
J_80DEB UG1
*85205-05001
1
2
3
4
5
R 283 15_1% _04
R268 4.7K_04
C585*0.1u_16V_Y 5V_04
J_KB 1
* 85201- 24051
24
23
22
14
12
11
21
8
20
19
6
5
18
4
17
10
9
7
3
2
1
16
15
13
R 238 *0_04
R 247 47_04
C584*0.1u_16V_Y 5V_04
R211 10K_04
C289
0.1u_16V_Y5V_04
R269 4.7K_04
R216 10K_04
C 357 *33P_50V_04
C 297 *10P_50V_04
C 283 1u_10V_06
C 315 *33P_50V_04
R222 *10K_04
C 358 *33P_50V_04
C300
0.1u_16V_Y5V_04
SM D_BAT
D25
BAV99 R ECTIFIE R
A
C
AC
VDD 3
VDD 3
SM C_BAT
VD D3
VD D3
VD D3
VDD 3
KBC_AGND
3.3VS
KB C_AVDD
VDD 3
VDD3
CP U_ F ANS E N 1 5
LPC_AD216
3.3V
3G _ D E T #25
BKL_EN15
S MD_ C PU_ T HER M3
PME#17
SM I# 18
CPU_FAN15
3G_EN 25
LPC _FRAM E#16
THER M_AL ERT#3
S MC _BAT29
LED _P WR#27
PW R_SW #28
CC D_ EN 2 7
LI D _ S W #15,28
LP C _ S I R Q18
LPC_AD116
BT_ EN15,26,27
WEB_WWW#28
RS MRS T# 1 8
SM D_ CP U _ TH ERM
3G_PWR
TP _ D A TA25
VC ORE _O N 3 0
L ED_ NU M#27
LED_AC IN#27
SW I# 1 8
BT_ DET# 15,26
W EB_ EM AIL#28
S MC_ C PU_ T HER M3S MD _BAT29
LED _B AT_FU LL#27
AC_PRESENT18
W L AN_ D ET# 2 6
BU F_P LT_RST#17,22
SC I# 18
LPC_AD016
KBC_M UTE#24
TP _C LK25
PWR_BTN# 18
KBC _BEEP23
LPC_AD316
AC _IN#29
CH G_ EN 2 9
BAT_D ET29
LED_BAT_CH G#27
KBC _R ST# 16
SU SB# 18,24,26, 28,32,33
BAT_ VOLT29
GA2016
W EB_ AP#28
LED_SCROLL#27
MP W R O K 7 ,15 ,1 8
SU S_P W R_ACK 18
PC LK_KBC2
SU SC# 18,32,33
LED_CAP #27
CC D_ D ET#27
3IN126 80PO RT_DET#26
80CLK26
DD _ ON 2 8,3 1
VC HG- SEL 29
3G_PWR25
PM_SY SRST#18
KBC _S PI_S IKB C_SPI_SI_R
KB C_SPI_CE#_R
80CLK
BAT_ DET
CC D_ D ET#
MODEL_ID
KBC _S PI_S O
KBC _S PI_S CLK
KBC _S PI_C E#
KBC _ W RESET#
SM C_BAT
BAT_ DET
SM D_BAT
Schematic Diagrams
Card Reader/LAN JMB261C B - 23
B.Schematic Diagrams
Card Reader/LAN JMB261C
LA N _ S C L
LA N _ S D A
R448 0_04
ISON
4 IN 1 SOCKET SD/MMC/MS/MS Pro
R461
*28m il_short_06
VDD 3
ML MX 1 -
M LMX0-_R
ML MX 1 +
ML MX 0 -
M LMX1+_R
M LMX0+_R
M LMX1-_R
ML MX 0 +
Pin#2Pin#2
C675
*1 0 u _6 . 3 V _ X 5R _ 06
F or JM C2 51 C
SD_D 1
C6 7 4
*0.1u_16V_Y5V_04
3.3V_LA N
DVDD
DVD D
Pin#33Pin#33
REGLX
(>20mil)
For JMC251/261 only
Switching Regulator
cl os e to PI N3 3
(>20mil)
near Pin#41
DVDD
R429 *1M_04
6-22-25R00-1B4
6-22-25R00-1B5
X4
FSX5L
12
C655
22p_50V_NPO _04
C654
22p_50V_N PO_04
LA N X O U T
LANXIN
VD D316,21,26, 27,28,29,31
IS ON
Pin#7
Pin#52
Pla ce all cap acit ors close d to chip.
The s ubs crip t in each CAP i ncicat es the p in
nu mb er o f JMC251/ JM C2 61 th at shou ld b e
closed to.
Pin#7Pin#55
Pin#43
Reserved
Pin#43
Pin#62
ReservedPin#21Pin#59Pin#59 Pin#2
Pin#13
LAN XIN
SD_C LK
LA N _ M D I N 2
LA N _ M D I N 0
LA N _ M D I N 1
LA N _ M D I P 1
LA N _ M D I P 0
MD IO8
LA N _ M D I P 3
LA N _ M D I P 2
SD _CD #
R417 *1K_04
PC Ie D if fe re nti al
Pa ir s = 10 0 Ohm
R449 0_04
SD _BS
JMC261 C
R450
0_ 0 4
6/ 28
(>20mil)
Pin#31Pin#32Pin#32
(>20mil)
Pin#31
(> 20 mi l)
LAN _SC L
CR_CD1N
LANXO UT
MDIO13
MDIO7
R424
*0_06
(> 20 mi l)
MLMX1-_R
ML MX0 +
ML MX1 -
MLMX0-_R
ML MX1 +
ML MX0 -
ML MX1 + _R
ML MX0 + _R
LP1
*WC M2012F2S-161T03
1
4
2
3
LP2
*WC M2012F2S-161T03
1
4
2
3
LAN _SD A
PCIE _R XN5_CAR D 17
DVD D
PCIE _R XP5_C ARD 1 7
LAN_ PC IE_W AKE#
R 464 10K _04
PC IE_W AKE#18,26 PC IE_W AKE#
D4 5
RB7 5 1V
A C
R452 0_04
MD I O1 0
3.3V_LAN
SD _D0
SDXC _PO W ER
MPD
C656
*0.1u_16V_Y 5V_04
DV DD
MDIO13
G9141
APL5603-12B(no R201,R198)
LAN_LED1
SD _D1
SD _BS
SD _BS
SD _D3
SD _D1
SD _D0
SD _D2
MS_INS#
SD _D3
SD _CLK
SD _D0
SD _CLK
SD _D2
SD _ W P
3.3V_LAN
C6 7 0
*10u_6.3V_X5R _06
R462
*28mil_short_06
R432
12K_1%_04
R414 *4.7K_04
R412 *4.7K_04
6/ 28
TD_CT
C643
*10p_50V_N PO_04
(LQFP 64)
JMC261 C
U11
JMC 261_C
REX T
1
AVDD33
2
XIN
3
XOUT
4
GN D
10
LX 33
AVD D12
7
C PPEN 23
CLKN
5
CLKP
6
AVD D12
13
RXP
8
GND 22
TXN
11
TXP
12
PW R CR 30
RST N 24
W AKEN 27
MP D 28
ISO N 45
LAN_LED2 26
CR _ CD1 N
16
CR _C D0 N 17
RXN
9
MD IO8
51
LAN_LED0 47
MDIO7
15
MDIO6 20
GND 44
MDIO5 41
MD IO4 40
MDIO3 39
VD DIO 43
MDIO2 38
MDIO1 37
MDIO0 36
MD IO9
50 MD I O1 0
49
MDIO11 48
MD I O1 2 19
VDD REG 32
MDIO13
14
MD I O1 4 18
CR _L E D 25
TEST 29
VD DIO 21
GN D 34
VCC 3V 31
FB 12 35
LAN_LED1 46
VDD O 42
VD D
52
VIP_1
53
VIN _1
54
AVD D12
55
VIP_2
56
VIN _2
57
GN D
58
AVD D33
59
VIP_3
60
VIN _3
61
AVD D12
62
VIP_4
63
VIN _4
64
C672
0.1u_16V_Y 5V_04
R433 * 10K_04
R413 22_1% _04
C6 4 8
1u_6 .3 V_ Y5V_04
R 430 *0_06
C651
0.1u_16V_Y5V_04
C646
0.1u_16V_Y5V_04
C666
0.1u_16V_Y5V_04
C663
0.1u_16V_Y5V_04
C647
2.2u_6.3V_X5R_06
C652
10u_6.3V _X5R_08
U2 4
*AT24C02BN
SC L
6
A0 1
A1 2
A2 3
WP 7
SD A
5
VC C
8
GND
4
R421
* 2K_1% _04
C6 5 8
0.1u_16V_Y5V_04
C6 6 2
0.1u_16V_Y5V_04
C665
* 10u_6.3V_X5R_06
.
L62
*0 _ 0 8
C660 0.1u_10V_X7R _04
R431 100K_04
C6 4 4
10u_6. 3V_X5R_08
R 416 10K_04
R422 100K_04
C668
* 0. 1u_10V_X7R_04
C659
0.1u_16V_Y5V_04
R415 *4.7K_04
C671
0.1u_16V_Y5V_04
C669
0.1u_16V_Y5V_04
MD IO9
J_C ARD -RE V1
MD R019-C0-1042
DAT 2 _ S D
P2
VSS_ MS
P21
CD /DA T3 _ S D
P3
CM D_ S D
P4
VSS_ SD
P5
VDD _S D
P6
CL K_ S D
P7
VSS_ SD
P8
DAT 0 _ S D
P9
DAT 1 _ S D
P10
WP_SD
P11
VSS_ MS
P12
VCC _M S
P13
SCLK_ MS
P14
DAT 3 _ MS
P15
INS_ M S
P16
DAT 2 _ MS
P17
SDIO /DAT 0 _ MS
P18
DAT 1 _ MS
P19
BS_ MS
P20
CD _SD
P1
GND P2 3
GND P2 2
R4 1 8
*0_06
C664
0.1u_16V_Y 5V_04
C649 0.1u_16V_Y 5V_04
C653
0.1u_16V_Y5V_04
C650
10u_6.3V _X5R_08
R426
* 1 0K _ 1 % _ 04
MDIO11
C661 0.1u_10V_X7R _04
C673
0.1u_16V_Y5V_04
C6 6 7
0.1u_16V_Y5V_04
REG L X
R4 3 7
*75_1% _04
C6 4 5
0.1u_16V_Y 5V_04
U25
APL5603-12B
IN 1
SET
4GND 2
SH DN # 3
OU T
5
VCC_CARD
3.3V _LAN
SD _CD #
DVD D
DVD D
3.3V _LAN
DVDD
3.3V_LAN
3.3VS
VC C_C ARD
3.3V_LA N
3.3V_LAN
VD D3
3. 3 V S
3.3V_LAN
VC C_ CA RD
VC C_C ARD
3.3VS
DVDD
3.3V_LA N 3. 3 V
DVDD
DVDD
DVD DDVDDDVD D
3.3V
DVD D
VD D3 3.3VS
3.3V
3.3VS2,3,6,7,10,12,13,14,15,16,17,18,19,20,21,23,24,25, 26,27,28,30
BU F_PLT_RS T# 17,21
LAN_PCIE_WAKE# 21
3.3V3,15,16,17,18,19,21,25, 26,28,32,33
SD _D2
PC IE_TXN 5_ C ARD 1 7
PC IE_TXP5_CAR D 17
MS _ I N S #
R446 0_04
LA N _ P C I E _W A K E #
C4100Q use
LAN connector PJS-08SL3B
R453 * 0_04
R463 *4.7K_04
3.3VS 2,3,6,7,10,12,13,14,15,16,17, 18,19,20,21,23,24,25,26,27,28,30
Ca rd R ea de r
Po we r
3.3V 3,15,16,17,18,19,21,25,26,28,32,33
R447 0_04
SD XC_ PO W ER
VD D3 16,21,26,27, 28,29,31
VDD 3
LA N _ M D I N 3
VDD 3
SD_D 3
CR _C D1 N
AVDD 12_62
MP D
RD _ CT
C447
0.1u_16V_Y5V_04
C448
*0.01u_16V_X 7R _04
LAN_MD IN0
LAN_MD IP0
ML M X0 +
ML M X0 -
DC _ NP
DD _ NP
ML M X1 -
ML M X1 +
PJ S-0 8SO 1B
J_RJ1
DD-
8DD+
7
DB-
6
DC-
5DC+
4
DB+
3DA-
2DA+
1s hie ld GND 1
s hie ld GND 2
C454 10 0 0 p_ 2 K V _ X 7R _ 12 _ H 1 2 5
R56
75_1%_04
R5 1
75_1%_04
R57
75_1%_04
R58
75_1%_04
M LMX0-_R
M LMX0+_R
M LMX1+_R
TX_C T
RX_CTRX_CT
M LMX1-_R
L36
P3012
RD+
1
RD-
2RX+ 16
RX- 15
RD_CT
3RX_ CT 14
NC
4NC 12
NC
5
TD_C T
6
TD+
7
NC 13
TX- 9
TD-
8
TX_CT 11
TX + 10
LAN_MD IN1
LAN_MD IP1
SD_CLK
C657
*0.1u_16V_Y 5V_04
CL K_ PCI E_C R 2
C LK_ PCIE_C R# 2
LAN_LED0
SD _ W P
Card Reader Pull High/Low
Resistors
SD_W P
SD_CD #
MS_IN S#
Sheet 22 of 38
Card Reader/LAN
JMB261C
Schematic Diagrams

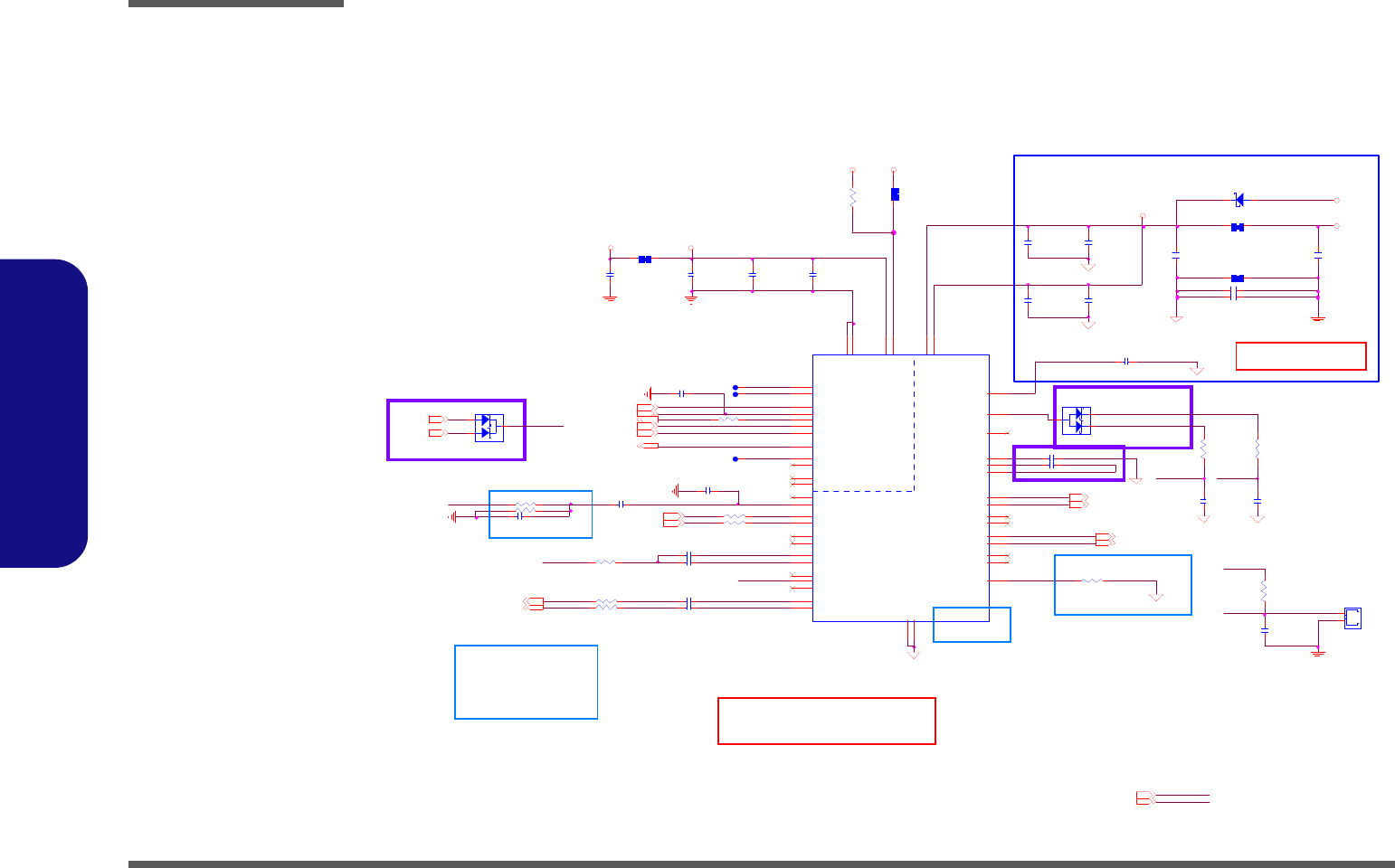

B - 24 Audio Codec VT1812
B.Schematic Diagrams
Audio Codec VT1812
Sheet 23 of 38
Audio Codec
VT1812
CODEC ( VT1812 )
Layout Note:
JDREF
Layout Note:
Very close to Audio Codec
3.3VS2,3,6,7,10,12,13,14,15,16,17,18,19,20,21,22,24,25,26,27,28,30
3.3V3,15,16,17,18,19,21,22,25,26,28,32,33
3.3VS
FRONT-L
FRONT-R
J_INTMIC1
88266-02001
88266-2L
2
1
PC BEEP
R389 * 28mil _short_06
R289
* 0_04
L30 * 28mil _short_06
AZ _ SD I N0_R
MIC2-VREFO
R284 1K_04
C546
*0.1u_10V_X7R_04
C365
0.1u_16V_Y5V_04
C354 4.7u_6.3V_X5R_06
C552 *0.1u_10V_X7R_04
C574
0.1u_16V_Y5V_04
C581 * 0. 1u_50V _Y5V_06
C349 4.7u_6.3V_X5R_06
C556
0.1u_16V _Y5V_04
R71
2.2K _04
C351 4.7u_6.3V_X5R_06
C579
10u_10V _Y 5V_08
R369 5.1K _1%_04
R385 5.1K_1%_04
R377 22_04
R286 75_1%_04
C380
1u_6.3V_Y5V_04
C548 1u_6.3V_Y 5V_04
C578
10u_10V_Y 5V_08
R285 20K_1%_04
D38 * SCS551V-30
AC
C553
*680p_50V_X7R_04
C375
0.1u_16V _Y5V_04
C554
* 680p_ 5 0V_ X7R _ 04
R296 5.1K _1%_ 0 4
C118
330p_50V_X7R_04
C573 2.2u_6.3V_X5R_06
C379
0.1u_16V _Y5V_04
R281 75_1%_04
C555 0.1u_ 16 V_Y 5 V_0 4
R367 10K_04
R376
4.7K _04
C350 4.7u_6.3V_X5R_06
C580 * 0. 1u_50V _Y5V_06
C564 4.7u_25V_X5R_08
C5 100
MIC1-VREFO
C572 *22p_50V_NPO_04
R375
4.7K_04
C569 2.2u_6.3V_X5R_06
C557
10u_10V _Y 5V_08
DIGITAL
ANA LOG
U19
VT1812
DVDD1
GPIO0/DMIC-DATA1/2
2
GPIO1/DMIC-DATA3/4
3
D VSS 1 4
SD ATA- O UT
5
BI T- C L K
6
D VSS2 7
SD ATA- I N
8
DVDD-IO 9
SY NC
10
RE SET#
11
PC BEEP - I N
12
Se ns e A(J D1)
13
LINE2-L
14
LINE2-R
15
MIC2-L
16
MIC2-R
17
LINE1-VREFO
18
MI C 2 - VR EF O
19
LINE2-VREFO
20
MIC1-L
21
MIC1-R
22
LI NE1 - L 23
LINE1-R 24
A VSS1
26
VR EF 27
MIC1-VREF O 28
CBP 29
CBN 30
CP VEE 31
HPOUT-R 32
HPOUT-L 33
Se ns e B(J D2)
34
LOUT1-L 35
LOUT1-R 36
MONO-OUT37
LOUT2-L 39
JDREF 40
LOUT2-R 41
AV SS2
42
NC
43
DMIC -CLK3/4
44
SPD I FO 2
45
DMIC -CLK1/2
46
EAPD
47
SPD I FO 1
48
AVDD238
AVD D125
AUDG
AUDG
AUDG
AU DG
3.3VS
5V
3.3VS_AUD
AUDG
5VS
AU DG
AU DG
AUDG
5VS_AUD
AUDG
MIC1-R27
AZ_ SD O UT16,25
AZ _SDIN016
JD_SENSE _ MIC27
AZ_ S YN C16,25
H EAD PH ONE- L 27
MIC1-L27
H EAD PH ONE- R 27
JD_SENSE27
AZ_RST#16,25
AZ_ BI T C LK16,25
C
A
A
D43
BAT54CWGH
1
23
C
A
A
D44
BAT5 4 AW GH
1
2
3
MIC1-VREFO-L
MIC1-VREFO-R
FRONT-R 24
FRONT-L 24
H EAD PH ONE-L
MIC2-VREFO
C5100 cost down
ICH_SPKR18
KBC _ BEE P21 BEEP
EA PD_MODE24
MIC1-RMIC1-L
H EAD PH ONE-R
INT_MIC
C5100
L28
*20mi l_short_04
C5100 cost down
C5100 cost down
C5 100 cost down
R287
*28mil _short_06
1.5V S
AL C _VR EF
INT_MIC
AL C _G PI O 1
AL C _G PI O 0
MIC1_L
MIC1_R
SP DIFO
MIC2_L
MIC2_R
NEAR CODEC
Codec pin 1 ~ pin 11 and pin 44 ~ pin 48
are Digital signals.
The others are Analog signals.
BEEP
PIN25,PIN38 ? 1? 10uF/.1uF
Schematic Diagrams
Audio AMP B - 25
B.Schematic Diagrams
Audio AMP
Sheet 24 of 38
Audio AMP
C576 1u _6.3V_X5R_04
AMP (TPA6017 or N7010)
C565
*0 .1u_10V _X7R_0 4
SP KO U T R - 2 7
SPKOUTL+
LI N-
R383 100K_04
AU D G
SPKOUTR+
GAIN1
SPK_EN
C577 1u _6.3V_X5R_04
R293 100K_04
T her ma l P ad
U18
TPA601 7A2PWPR
SD#
19
RIN-
17
LIN-
5
BYPASS 10
GND
11
GAIN0
2
ROUT- 14
LOUT- 8
PVDD 6
LOUT+ 4
GND
20
GAIN1
3ROUT+ 18
PVDD 15
E XPOS ED PA D
21
LIN+
9
GND
1
GND
13
NC 12
VDD 16
RIN+
7
1
C559
* 10u_6. 3V_X 5R_06
C359 1u _6.3V_X5R_04
AUDG
SPKOUTL-_R
C353
4.7u_6.3V_X5R_06
SP KO U T R + 2 7
D40 * SCS 355V
AC
C5 63
* 10u _10V_ Y5V_08
SPKOUTL+_R
5VS_REAR
AUDG
5VS
C571
0. 1u_16V_Y 5V_ 04
3. 3VS
J _SPK1
SP K_ EN
FRONT-R23 C372 * 1000p _50V _X7R _04
L27 FCM1005 KF-121T0 3
1 2
3.3VS2, 3,6,7 ,10,12 ,13,14 ,15,1 6,17,1 8,19,2 0,21, 22,23, 25,26, 27,28, 30 3.3V3,15,1 6,17,1 8,19, 21,22, 25,26, 28,32, 33
LI N+
C551
10 u_10V_Y5V_08
KBC_MUTE#21
RI N-
RI N+
SPKOUTR-
AU D G
AUDG
2
C374
180 p_50V_NPO_0 4
R303 * 10mil _sho rt
FRONT-L23
AUDG
SB_MUTE#18
R379 * 100K_ 04
SPKOUTL-
Gain Set tings
GAIN0 GA IN1 AV(i nv) I NPUT IMP EDANCE
0 0 6 dB 90 k
0 1 10 d B 70 k
1 0 15.6 dB 45 k
1 1 21.6 dB 25 k
5VS
J_SPKL1
8 5204-02 001
PCB Foo tpri nt = 8520 4-02R
1
2
3.3 VS
GAIN0 C367
180p_50 V_NPO_04
L26 FCM1005 KF-121T0 3
1 2
R467 0_04
AUDG
C570 *0. 1u_16V _Y5V_04
3.3VS_AUD
C364 1u _6.3V_X5R_04
AMP_BYPASS
R301 * 100K_ 04
R387
* 100K _04
U22
MC74V HC1G08D F T1G
1
2
5
4
3
R386 *0_04
Lo w m ut e!
R382
100K_ 04
R468 0_04
L47 *R0805_short
FRONT -L R465 0_04
FRONT -R
EAPD_MODE23
R466 0_04
D42 * SCS 355V
AC
SUSB#18,21, 26,28, 32,33
Schematic Diagrams
B - 26 HDD, ODD, MDC, TP, Conn, 3G
B.Schematic Diagrams
HDD, ODD, MDC, TP, Conn, 3G
Sheet 25 of 38
HDD, ODD, MDC,
TP, Conn, 3G
3.3V
3G_3.3V
3.3V
20mil
ODD_DETECT# 18
C5 3 0
0.1u_16V_Y 5V_04
R 359 *4.7K_04
C468
* .1U_10V _X7R_04
KEY
J_3G 1
88910-5204M-01
BT_D ATA
3
BT_C HC LK
5
CLKR EQ#
7
GN D0
9
REF C L K-
11
REF C L K+
13
W AKE#
1
GN D1
15
PETn0
23
PETp0
25
GN D2
21
GN D3
27
PERn0
31
PERp0
33
GN D4
29
NC 3
17
NC 4
19
W _D ISABLE# 20
NC 6
37
NC 7
39
NC 8
41
NC 9
43
NC 10
45
NC 11
47
NC 12
49
NC 13
51 LED _WLAN # 44
NC (LE D_ W W A N # ) 42
GND6 18
U IM_ VPP 16
UIM_RESET 14
3.3V_0 2
UIM_CLK 12
UIM_DATA 10
UIM_PWR 8
1.5V_0 6
GND5 4
PER SET# 22
3.3VAU X 24
GND7 26
1.5V_1 28
NC (SMB_ C LK ) 30
NC (SMB_ D ATA ) 32
GND8 34
NC( USB_ D- ) 36
NC (USB _D + ) 38
GND9 40
NC (LED_WPAN # ) 46
1.5V_2 48
GN D1 0 50
3.3V_1 52
GN D1 1
35
(TOP VIEW)
LO CK
OPEN
J_SIM1
C 1770661-1
UIM _ DA TA C7
UIM _ VPP C6
UIM _ GN D C5
UIM_PWR
C1 UIM_RST
C2 UIM_CLK
C3
C5 1 8
*22P_50V_04
C470
0.1u_16V_Y 5V _04
C466
1u_10V_06
C537
*2 2P _5 0 V_ 04
C465
*10u_10V_Y5V_08
C5 3 8
*22P_50V_04
C5 2 9
10u_10V_Y 5V_08
C536
*22P_50V_04
3. 3 V
C2 7 8
0. 1u_16V_Y 5V _04
R354 *10m il_short-N MN P
5VS
R358 *10mil_short-NM NP
A Z_S DO UT16,23
AZ_SYNC16,23
AZ_RST#16,23 AZ_SDIN116
3G_DE T#21
3G _E N 21
MUIM_DATA
P IN G N D1 ~2 = GN D
Close to
connector
SATA HDD
SATARXP0_R
SATARXN 0_R
SATATXP 0_R
SATATXN 0_R
PIN G ND 1~4=G ND
C186
1u_10V_06
C178
47p_50V_N PO_04
C174
47 p _ 50 V _ N P O _ 0 4
R110
10K_04
R118
10K _04
5VS
5VS_TP
TP_DATA 21
TP_CLK 21
AZ_BITCLK 16,23
R356
*28m il_short_06
+
C332
220U_4V_B2_B
+
C280
220U _4V_B2_B
Close to
connector
C483 0.01u_16V_X7R _04
SATATXN 1 16
SATATXP1 16
C485 0.01u_16V_X7R _04
SATARXP1 16
C489 0.01u_16V_X7R _04
SAT ARX N1 1 6
MDC CONN
C487 0.01u_16V_X7R _04
1.5V
R3 5 5
*0_06
J_OD D1
SLS-13P C1B
S1
S2
S3
S4
S5
S6
S7
P1
P2
P3
P4
P5
P6
ODD
C5100 cost down
SATAR XP1_R
C2 6 9
10u_10V_Y5V_08
SATATXP1_R
SATAR XN1_R
SATATXN1_ R
C642
10u_10V_Y5V_08
120mil 120mil
3G
3G POWER
U SB_PN2 17
U SB_PP2 1 7
3G_3.3V
3G _3.3V
3G _3.3V
C641
10u_10V_Y 5V_08
3G_3.3V
20 mil
MU I M_ D A T A
MU IM_ VPP
MU I M_ P W R
MU I M_ R S T
MU IM_CLK
SIM card
R119
* 2 0m i l _s h o r t _ 04
USB_PN 2
USB_PP2
R360 * 0_04
R371 * 0_04AZ_ SY NC
2
TP CONN
L4 6
*HC B1005KF-121T20
R372 * 22_04
1
AZ_SDOUT
C540
* 22P_50V _04
MA Z _ S D OU T
J_MDC
AZ_ R ST#
AZ_ SD IN1
10mil
R370 * 0_04
C535
* 0.1u_16V _Y 5V_04
MA Z _ R S T#
12
R373 * 0_04
11
MA Z _ S D I N1
MA Z _ S Y N C
MAZ_BITCLK
J_MD C1
* 88018- 120G
GN D
1
Azalia_ SD O
3
GN D
5
Azalia_ SY NC
7
Azalia_ SD I
9
Azalia_ R ST#
11 Azalia_BCLK 12
GN D 10
GN D 8
3.3V M ain/aux 6
RESERVED 4
RESERVED 2
W740S
C 41 00 : 6 -2 0- 43 73 0- 12 2 (AL LT OP -C 16 6N 5- 122 05 -L )
C5100: 6-20-43740-022 (1-162-100561)
3.3V3,15,16,17,18,19,21,22,26,28,32,33
3.3VS2,3,6,7,10,12,13, 14,15,16,17,18,19,20,21,22,23,24,26,27,28,30
3G _ P W R21
J_TP1
85201-04051
1
2
3
4
C5 2 5
*.01U_16V_X7R_04
C521
0.1u_16V_Y5V_04
C 543 0.01u_16V_X7R_04
C 534 0.01u_16V_X7R_04
C519
*1U _10V_06
C270
10u_10V_Y 5V _08
R260
100K_04
C 539 0.01u_16V_X7R_04
+
C285
* 100U _6.3V_B2
Q1 3 AO 3 41 5
G
DS
J _ HD D1
1-162-100561
S1
S2
S3
S4
S5
S6
S7
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
C5 2 2
*.1U_10V_X7R _04
C 532 0.01u_16V_X7R_04
C524
*10U_10V_08
3.3VS
5VS
C341
10u_10V_Y5V_08
Q1 2
MTN 7002ZHS3
G
DS
SATATXN0 16
SATATXP0 16
SATAR XN 0 1 6
SATAR XP 0 16
C334
1u_6.3V_Y5V_04
MUIM_RST
MUIM_PWR
M UIM _CLK MUIM_VP PMUIM_VP P
R257
10K_1%_04
R277 *0_08
C342
0.1u_16V_Y5V_04
R256
100K_04
Schematic Diagrams
New Card, USB, Mini PCIE B - 27
B.Schematic Diagrams
New Card, USB, Mini PCIE
Sheet 26 of 38
New Card, USB,
Mini PCIE
R 407 * 0_04
R124 * 0_04
USB PORT
6- 01 -7 410 8- Q6 1
G N D1~4=G ND
20 mil
40 mil
40 mil
R64 * 0_04
M INI_ CAR D_ CL KR EQ#
USB_OC #01
R454 0_04
USB_PP1 _R
USB_PN 1_R
U SB_PN4
U SB_PP4
MINI CARD
NEW CARD
60 mil
Ne w Ca r d F o r C4 1 0 0Q
USB_PN 0_R
USB_PP0 _R
R63 * 0_04
6/ 28
VD D316,21,22,27,28,29,31
80POR T_D ET# 21
80CLK 21
R 3 88 * 1 0K _0 4
R 266 *10mil_short
C528 * 0.1u_16V_Y5V_04
C1 8
0.1u_16V_Y 5V_04
J_USB1
1-284-800281-1
V+
1
GN D1
GND1
DAT A_ L
2
DAT A_ H
3
GN D
4
GND2
GN D2
GND4
GND 4 GN D3
GND3
C587
0.1u_16V_Y 5V_04
C5 5
*.1U _10V_X7R_04
R9 3
*10K_04
3.3V3,15,16,17,18,19,21,22,25,28,32,33
C 376 *.1U_10V _X7R_04
C377 *0.1u_16V_Y5V_04
3.3VS2,3,6,7,10,12,13,14,15,16,17,18,19,20,21,22,23,24,25,27,28,30
R19 10K_04
R8 9
*560K_04
U23
* 74AH C1G08GW
1
2
5
4
3
C1 44
*.1U_10V_X7R_04
L9
*WC M2012F2S-161T03_SH OR T
1
4
2
3
L10 HC B1608KF-121T25
C562 *0.1u_16V_Y5V_04
R410 * 0_04
U21
* P2231NF E2
SYSR ST#
6
SHD N# 20
STBY#
1
3.3VIN
2
3.3VO UT 3
PERS T# 8
NC
4
GN D 7
CPUSB# 9
CPPE# 10
1.5VO UT 11
1.5VIN
12
AU XO UT 15
AUXIN
17
RC LK EN 18
OC #
19
NC
5
NC
13
NC
14
NC
16 GN D 21
R 3 81 * 1 00 K _ 0 4
R 97 10K_04
U4
R T9715BG S
VO UT1 6
VO UT3 8
VIN2
3
VIN1
2VO UT2 7
GND 1
EN#
4
FLG#
5
L15
*WC M2012F2S-161T03_SH OR T
1
4
2
3
R384 10K_04
+
C176
100u_6.3V _B_B
C 561 *.1U_10V _X7R_04
R455 *10K_04
C411
*10U_10V_08
KEY
J_MINI1
88914-5204
BT_D ATA
3
BT_ C HCL K
5
CL KRE Q #
7
GN D0
9
REF C LK-
11
REF C LK+
13
W AKE#
1
GN D1
15
PETn0
23
PETp0
25
GN D2
21
GN D3
27
PERn0
31
PERp0
33
GN D4
29
NC 3
17
NC 4
19
W_D ISABLE# 20
NC 6
37
NC 7
39
NC 8
41
NC 9
43
NC 10
45
NC 11
47
NC 12
49
NC 13
51 LE D _ W LA N # 44
NC(LED_WWAN#) 42
GND 6 18
UIM _VP P 16
UIM _R ESET 14
3.3V_0 2
UIM _C L K 12
UIM _D ATA 10
UIM_PWR 8
1.5V_0 6
GND 5 4
PERSET# 22
3.3VAU X 24
GND 7 26
1.5V_1 28
NC(SMB_CLK) 30
N C(SMB _D ATA) 32
GND 8 34
NC (USB_ D -) 36
NC(USB_D+) 38
GND 9 40
NC(LED_WPAN#) 46
1.5V_2 48
GN D1 0 50
3.3V_1 52
GN D1 1
35
C199
0.1u_16V_Y 5V_04
R 3 80 * 1 0K _0 4
C588
0.1u_16V_Y5V_04
C526 * 0.1u_16V_Y5V_04
R 3 78 * 1 00 K _ 0 4
C4 2 0
0.1u_16V_Y5V_04
C165
10u_10V_Y 5V_08
J_USB2
1-284-800281-1
V+
1
GN D1
GND1
DAT A_ L
2
DAT A_ H
3
GN D
4
GND2
GN D2
GND4
GND 4 GN D3
GND3
R32 *10mil_short
C378 *. 1U _10V_X7R _04
C92
1u_6.3V_Y5V_04
R409 *0_04
J_NEW1
* 130801-02
C PPE#
17
GN D 1
+1.5V
10
GN D 26
GN D 20
GN D 23
C PUSB#
4
REFCLK+
19
REFCLK-
18
PER p0
22
PER n0
21
PETp0
25
PETn0
24
+3.3V
14
+3.3V
15
+3.3VAU X
12
+1.5V
9
PER ST#
13
W AKE#
11
SM B_D ATA
8
SM B_C LK
7
C LKR EQ#
16
RESER VED 5
RESER VED 6
USB_D+
3
USB_D-
2
NC 27
NC 28
C527 * .1U _10V_X7R _04
C520 * 0.1u_16V_Y5V_04
R 272 *10mil_short
R357 10K_04
R44 *10mil_short
+
C89
100u_6.3V _B_B
R33 *10mil_short
R45 *10mil_short
R43 *10mil_short
C523 * .1U _10V_X7R _04
C568 *0.1u_16V_Y5V_04
U SB_V CC35_2US B VCC3 5
NC _3 .3 V S
3.3VS
3.3V
3.3VS
3.3V
NC _3 .3 V
NC _1 .5 V S
1.5VS
3.3V
U SB_V CC35_2
3. 3 V 3.3VS
3.3V
3.3V
3.3V
3.3VS
U SBVCC 35
3. 3 V
3.3V
PCIE_RXN2_NEW_CARD17
U SB_OC#0117
5V
3. 3 V
LPC_RST#17
P C I E _R XP 2_ N E W _C A R D17
PCIE_TXN2_NEW_CAR D17
PC IE_W AKE#18,22
U SB_PP817
PCIE _ TX P2_ N EW _ CARD17
SU SB#18, 21,24, 28,32, 33
U SB_PN817
CLK_ PCIE_NEW _C ARD #2
WLAN_EN 21,27
W L AN _D ET#21
USB_OC#817 NEW C ARD _C LKREQ #2
U SB_P N4 17
U SB_P P4 17
PC I_R ST# 17PCIE_TXN1_WLAN17 P CIE_TXP1_WLAN17
CLK_ PCIE_ NE W _C ARD2
PCIE_ W AKE#18 , 2 2
P CIE_RXP1_WLAN17 P CIE_RXN1_WLAN17
WLAN_CLKR EQ#2
CLK_PCIE_MINI2C LK_ PC IE_ MINI#2
DD_ON#28,31,33
ICH _SM BDAT118 ICH _SM BCL K118
US B_PN 117
US B_PP 117
CL_RST#118
US B_PP 017
US B_PN 017
B T_DE T# 15,21
CL_DATA118 CL_CLK118
PCH _BT_EN#18
BT_E N15,21,27
3I N 1 21
WLAN _LED # 21,27
20 mil
20 mil
20 m i l
40 mil
6/ 28
WLAN _E N
D12
BT_E N
R125 * 0_04
6- 02-09715 -920
60 mil
C4100Q USB connector
use 317DE04PSA3A2C
E NE P2 23 1N F E 2 p in1 ,8 ,9 ,10 ,2 0 h as
i nt ern al ly pu ll ed hi gh ( 110 ~3 30K
ohm)
60 mil
100 mil
PCH _BT_EN#
3.3V
NC_ PE R ST#
LPC_RST#
NC_ C PUSB#LP C _ R S T #
USB_PN8
7/5
PCIE_ W AKE#
USB_PP8
VD D3
NC_ C PP E#
PCIE_TXP 0_NE W _C ARD _R
PCIE_TXN 0_N EW_CAR D_R
NC_RST#
7/5
Schematic Diagrams
B - 28 LED, CCD, Audio Conn
B.Schematic Diagrams
LED, CCD, Audio Conn
SPK_HP#
HEAD PHO NE-R
JD _S ENSE
HEAD PHO NE-L
USB _ PN1 1
USB _ PP1 1
CCD_EN
SATA_LE D#
HDD/CD-ROM
LED
USB _PN 5
BAT CHARGE/FULL LED
CC D_ DET #
USB _PP5
C5100, cost down.
3. 3V S2,3,6,7,10,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,28,30
3. 3V3,15,16,17,18,19,21,22,25,26,28,32,33
LED_SCR OLL#
SCROLL
LOCK
LED
SPKOU TR -
SPKOU TR +
LED_CAP#
CAPS LOCK
LED
LED_NUM#
NUM LOCK
LED
5
40 mil
1
From EC default HI
CCD
J_CCD1
Audio/USB CONN
WLAN/BT LED
VDD 316,21,22,26,28,29,31
LED
For C4100
MIC1 -R
MI C 1 - L
J_ CC D1
85205-05001
1
2
3
4
5
C8
0.1u_16V_Y5V_04
R300
*220_04
R2
220_04
C5
1u_6.3V_Y5V_04
MR 1
100K_04
R298
*220_04
Q4
MTN7002ZH S3
G
DS
R1
220_04
J_TP2
85201-06051
1
2
3
4
5
6
J_ A U D I O 1
87213-1400G
1
2
3
4
5
6
7
8
10
11
12
13
14
9
R6
470_04
Q1
DTC114EUA
CE
B
Q2
*DTC114EUA
CE
B
L1 H CB1005KF-121T20
R 7 330K_04
D3
KP-2012SGC
AC
R4
220_04
D2
KP-2012SG C
AC
R5
220_04
R297
*220_04
D5
KP-2012SGC
AC
D4
KP-2012SG C
AC
R3
220_04
C7
1u_6.3V_Y 5V _04
R299
*220_04
Q3
AO 3409
G
DS
R14
* 100K_04
C 1 0.1u_16V _Y 5V_04
C640
* 0. 1u_10V_X7R _04
SG
Y
D27
* KPB-3025YSG C
1
3
2
4
SG
Y
D28
* KPB-3025YSG C
1
3
2
4
SG
Y
D1
KPB- 302 5Y SGC
1
3
2
4
VDD 3VD D3
5VS 3.3VSVD D3 VDD 3
3.3VS3. 3V S
3.3VS
5V _ C C D
3.3VS
5V 5V_CCD
VDD 3
GND
5V
AU DG
LED _PWR # 21
LED _B AT_CH G#21 LED _BAT_FULL# 21
GN D
BT_ EN15 , 2 1 , 26 W L A N _E N 2 1, 2 6LED _AC IN#21
SATA_ LED # 16LED_NU M# 21
LE D _S C R O L L# 2 1
U SB_PP517
U SB_PN517
LED_CA P# 21
HE ADPH ONE- L23 J D_SEN SE_M IC23
CCD_DET#21
CC D_ EN21
SPKOU TR +24
USB _ PN 1117
SPKOU TR -24
MIC 1 -L23
USB _ PP1 117
MIC 1 -R23
WLAN _LED# 21,26
HE ADPH ONE- R23
J D_SEN SE23
JD _S ENSE_MIC
AC IN/POWER ON LED
LED _BAT_FU LL#
LE D _ B A T _C H G #
LE D _ P W R #
LE D _ A C I N #
For C5100
Sheet 27 of 38
LED, CCD, AUDIO
Conn
Schematic Diagrams
System Power, PWR SW B - 29
B.Schematic Diagrams
System Power, PWR SW
Sheet 28 of 38
SYSTEM POWER,
PWR SW
(3)
(6)
SU SB 32,33
PD7 * SCS14 0P
A C
PR63 *20K_1%_04
PD8 * SCS14 0P
A C
PQ1 4
*2N7002W_A
G
DS
PQ 50
*2N 7002W
G
DS
Q10
*2N7002 G
DS
PC 51
* 0.1u_50V_Y5V_06
PR 14 4
*100_1%_04
3A
3A
PR60 *10K_04
3A
PR64 *1 00K_ 0 4
PR 62 *10 0K_0 4
PQ 13
*AO 3409
G
DS
PQ 15
* 2N 7002W_A
G
DS
Q9
*2N 7002
G
DS
Power Plane
PC 50
*0.1u_50V_Y5V_06
PQ1 6
*2N7002W_A
G
DS
PR 61
* 100K_04
3A
PQ1 2
*D TA114EUA
CE
B
PR65
10K_04
VDD 3
VIN VA VIN1
VIN
DD _O N 21,31
PW R_SW #21
W E B_AP # 21
3A
3A
R149 100K_04MB T N
INST AN T_ O N
M_BTN#
20 mi l
POWER SWITCH CONNECTER
PC58
0.1u_16V_Y5V_04
C21 0.01u_16V_X7R_04
5V,3.3V,5VS,3.3VS,1.5VS
(4 )
DD_ON#DD_ON#
PC56
470p_50V_X7R _04
PC128
0.1u_16V_Y5V_04
PR11 6
1M _0 4
PC163
10u_10V_Y5V_08
PC 131
10u_10V _Y 5V _08
PR 14 6
* 100K_04
PR 66
1M_04
PQ 19
M TN 7002ZHS 3
G
DS
PC 54
0.1u_16V_Y 5V_04
PQ 41
ME 4410AD-G
4
6 2
5
7 3
1
8
C14 0.01u_16V_X7R_04
PC 12 7
2200p_50V_X7R _04
PR 71
*1 0 0 K _0 4
PC52
1000p_50V_X7R_04
SUSB
PQ1 7
ME 4 4 10 A D -G
4
6 2
5
7 3
1
8
PR 67
*100K_04
PR 68
10K _04
PR 69
1M_04
PR117
* 100K_04
PQ3 9
MT N7 0 02 Z H S 3
G
DS
PQ52
ME4410AD -G
4
6 2
5
7 3
1
8
PC53
10u _10V_ Y5 V_0 8
PQ 18
MTN7002ZHS3
G
DS
PC 16 1
0.1u_16V_Y5V_04 PQ 20
MTN 7002ZHS3
G
DS
VD D3 3.3VSSYS15 V
LI D _ S W #
1. 5 VSY S15 V
VD D3
1.5VS
WEB_WWW#
VD D5 5V S
MB T N
3.3VS
SYS15 V
WEB_EMAIL#
3.3V
LID _S W# 15,21
SUSB #18,21,24,26,32,33
J_ S W 2
88486-0801
1
2
3
4
5
6
7
8
VIN R3 0
*47K_04
AP_KEY
J_SW 1
*50500-01041-001L
1
2
3
4
5
6
7
8
9
10
7/6
WEB_WWW# 21
WEB_EMAIL# 21
4A4A
Power Plane
SU SB
R403 *10mil_short
D D_ON # 26,31,33D D_ON # 26,31,33
PQ 44
M E4410AD-G
4
6 2
5
7 3
1
8
PQ2 1
MTN7002ZH S3
G
DS
4A 4A
PR12 2
*100K_04
PC 57
* 2200p_50V_X7R_04
PR 72
1M_04
PC 14 3
2 2 00 p _ 50 V _ X 7R _ 04
PQ 53
M E4410AD-G
4
6 2
5
7 3
1
8
PQ43
MTN7002ZH S3
G
DS
PR70
*1 0 0K _ 0 4
SU SB SUSB
PR 12 6
1M_04
SY S1 5 V VD D3VD D5 5V 3. 3 VS YS15V
(5 )
3. 3 V S
WEB_WWW# M_B TN #
3.3V
(2) (1) (8)
(7 )
SU SB
20 mi l
AP_KEY
Schematic Diagrams
B - 30 AC_In, Charger
B.Schematic Diagrams
AC_In, Charger
9V ~1 2. 6V
Bttery Voltage:
charge Current 3.2A
CTL
PQ58
MT N7 0 02 Z H S 3
G
DS
PR 76
10K_1%_04
PC90
4.7u_25V_X5R _08
PQ5 9
MTN 7002ZHS3
G
DS
PC17
30p_50V_NP O_04
PC169
*0 .1u_ 50V_Y 5 V_06
PC89
4. 7u _ 25 V _ X 5R _ 08
PM BAT2
BTD -05TC1B
1
2
3
4
5
PC 177
0.01u_16V_X7R_04
PC 74 0.1u_16V_Y5V_04
PQ5 5
MT N7 0 0 2Z H S 3
G
DS
PC 10 5
*0 .1u _50V_ Y5V_ 06
PC 17 5
*0 .1u _50 V_ Y5V_ 06
PD3 RB0 5 40S2
AC
PC15
4.7u_25V_X5R _08
PQ2 4
M TN 7002ZHS3
G
DS
PC 19
30p_50V_N PO_04
PR148
*0_04
PR17 2
1.5M _04
PC103
*0 .1u_ 50V_Y 5 V_06
PR 15 2
102K_1%_04
PR23
200K_04
PC88
0.1u_50V_Y 5V_06
PC91
*0 .1u_ 50V_Y 5V_06
PC 20
0.01u_50V_X7R _04
PQ 25
AO 340 9
G
DS
PR87 *15m il_shortPR 103 100K _04
PR 77
130K _1%_04
PC14 1u_10V _06
PC86 1u_10V_06
PR 95
10K_04
PR28
1 K _1 % _ 04
PC168
2200p_50V_X7R_04
PR 14 9
2M_1%_04
PR96 * 10m il_s hort
PC 92
* 0.1u_ 50V_ Y5 V_0 6
PR27
200K_1%_04
PR74
100K_04
PQ2 8A
SP 8K1 0 SFD5TB
7
8
1
2
PR 1
10K_08
PC104
*0.1u_50V_Y 5V_06
P R101 0.02_1%_32
PC93
*0.1u_50V_Y 5V_06
PR 29 * 10m il_short
PC 78 * 22P_50V _04
PR57
200K_04
PC 172
*0 .1u _50 V_ Y5V_ 06
PC170
*0.1u_50V _Y 5V_06
PC 79
0.1u_10V_X7R_04
PR89
300K_1%_04
PQ8
MTN7002ZH S3
G
DS
PC 72
100p_50V_NPO _04
TRERMAL PAD
PU4
MB 3 9A 13 2
VC C
1
-IN C1
2
+INC 1
3
AC IN
4
AC OK
5
-IN E3
6
AD J 1
7
-INE1
9
OUTC1
10
OU T C 2
11
+INC 2
12
-INC 2
13
AD J 2
14
CO MP 2
15
BATT 17
ADJ 3 18
CS 19
RT 20
VRE F 21
GND 22
CT L 1 23
CELLS 25
PGN D 26
OUT-2 27
VB 28
LX 29
OU T-1 30
CB 31
COMP1
8
COMP3
16
VIN 24
CT L 2 32
SG ND 33
PQ5 7
MTN 7002ZHS3
G
DS
PR171
17 . 4 K _ 1% _ 0 4
PC73 0.1u_16V_Y5V_04
PR 58
10K_04
PR153
76. 8K_1% _04
PC 1
0.1u_50V _Y 5V _06
PR 16 8 5. 1_ 0 6
J _ AC-J ACK 1
50932-00301-001
GN D2
GN D1
2
1
PR 90 39.2K_1%_04
PQ5 6
D TA114EUA
C E
B
PL5
TM P C 0 6 03 H - 4R 7M - Z 0 1
PC 77 0.1u_50V_Y5V_06
PR 30 * 10m il_short
PC 2
0.1u_50V _Y 5V_06
PR17 3
1M_04
PC59
0.1u_50V_Y 5V_06
PR73 0.02_1%_32
PL1
H C B 10 0 5K F - 12 1 T 20
PJ 6
1mm
12
PQ 26
MTN7002ZH S3
G
DS
PC954.7u_25V_X5R_08
PR100
60.4K_1%_04
PC174
*0 .1u_ 50V_Y 5 V_06
PR150 0_04
PR 91
1K_1% _04
PR102
49.9K_1%_04
PL3
H C B 10 0 5K F - 12 1 T 20
PM BAT1
* BA05Q 16BC C0I8
1
2
3
4
5
PR98 22K_1% _04
PC 1014.7u_25V _X5R _08
PR59 1M_04 PC75
1000p_50V_X7R_04
PR 31
100K_1%_04
PC21 0.1u_16V_Y5V_04
PC1004.7u_25V_X5R_08
PL2 HCB 1005K F-121T20
PR104
23K _1%_04
PR22
0_04
PQ 28 B
SP8K1 0S FD5TB
4
3
5
6
PQ 27
P20 03EVG
4
62
5
73
1
8
PC18
30p_50V_NPO _04
PQ 3
MTN7002ZH S3
G
DS
PC964.7u_25V_X5R_08
PC82
1000p_50V_X7R_04
PR105
10K_1%_04
PC 17 1
* 0.1u_ 50V_ Y5 V_06
PC87
0. 1u _ 50 V _ Y 5 V _ 0 6
PR 20 *0_04
PQ2 2
P2003EVG
4
6 2
5
7 3
1
8
PR 21 *0_04
PC106
*0 .1u _50 V_ Y5V_ 06
PR107
*10mil_short
PL4
HC B4532KF-800T60
PC16
4.7u_25V_X5R _08
PR75
200K_1%_04
PC173
*0.1u_50V_Y 5V_06
PR170
100K_04
BAT
VIN
V DD3
VA
VA
SGN D5
SGN D5
SGN D5
VA
VA
SGND 5
SG ND 5
VD D3
BAT
VA
SGN D5
SG ND 5
VD D3
VIN
VIN
SGN D5
VD D3
BAT_VO LT 2 1
CHG_EN21
SM D_BAT21
AC_IN # 21
VC HG-SEL 21
BAT_DET21
SM C_BAT21
C EL L_ C ONT R OL21
VDD 316,21,22,26,27,28,31
CEL L S
Charge Voltage 12.6V
Total Power 60W
BAT
BAT
CTL
V L=4 S1 P/1 .5 A
V H=3 S2 P/3 A
CECLM
CEL L S
PR35 = 16.2K for
M760SU (Total Power
Limit: 83W)
VOL T-SEL
VL= 4. 3V
VH= 4. 2V
VO LT-SEL
3. 2A
For C5100
Sheet 29 of 38
AC_In, Charger
Schematic Diagrams
VCORE B - 31
B.Schematic Diagrams
VCORE
Sheet 30 of 38
VCORE
VCORE FOR PENRYN CPU
CL KE N#
20A 4 0A
20A
DRP-
DRP_L1
CS2N
CS1N
DRN1
DCR_DR2
TG2
TG 1
DCR_DR1
DRP_L2
BG2
DRN2
VC _SS
VPN 2
BST2
DPR SL
CL KE N #
DR N1 DR N2
VC OR E_VR EF
CS1 N
DPR SL _ S T P
V-R C2
CS2N
CS2 P
CS1N
ISH
FB-
BST 1
PR38 * 15m il_short
PR44 * 15m il_short
D02
C5100 cost down
PD 12
SK 34 SA
A C
PR7 0_04
PQ 29
ME4894-G
4
62 73
8
5
1
+
PC 12 2
*330u
PR37
17.4K_1%_04
PC 110
* 4.7U _25V _08
PR 10 *0_04
PR 15 100_1%_04
PR 5
47K _04
PC10 9
0.1u_50V_Y5V_06
TRERMAL PAD
PU 2
SC 452
CLKEN#
1
VR EF
2
HYS
3
CLSET
4
VID 6
5
VID 5
6
VID 4
7
VID 3
8
VID 2
9
VID 1
10
VID 0
11
BST2
15
TG 2
16
DR N 2
17
BG2
18
V5_2
19
PSI#
20
FB+
21
FB -
22
DR P- 23
DRP+ 24
SS 25
DA C 26
AG N D 27
VCC A 28
ER RO UT 29
CS2 + 30
CS2- 31
CS1- 32
CS1 + 33
ISH 34
DPRSTP# 35
EN 36
V5_1 37
BG1 38
DR N 1 39
TG 1 40
BST1 41
VIN 1 42
VP N1 43
DPRSL 44
VIN 2
14 VP N2
13 PWRGD
12
GND
45
PR 11
*680_04
PD1
RB0540S2
AC
PR81 10_04
PC64
0. 1u_16V_Y5V_04
P R99 220K_1% _04
PC 4 100p_50V_N PO_04
PRT1
100K_NTC _06_A
12
PR 36
28K _1% _04
PC8 *100P_50V _04
+
PC94
*560u_2.5V_6.6*6.6*5.9
PR 7 8 *15m il_short
PC 71
1u_10V_06
PQ 32
ME4626-G
4
62
73
8
5
1
+
PC123
*330u_2.5V_V_A
PC 13
1000p_50V_X7R _04
PR 11 4
10_06
PC 62 0.01u_16V_X7R_04
PR84 10_04
P C85 100p_50V_NPO _04
PQ 34
ME4626-G
4
62
73
8
5
1
PR94
680_04
PR 88 *0 _ 04 PQ 23
*2N7002W
G
DS
PC65 *100P_50V_04
PC 9
*0 .1 U _ 16 V _ 0 4
PC70
1u_10V_06
PC 11
1u_10V_06
PR106 *10m il_s hort
PR 46
28K _1% _04
PR 3
1K _1% _04
PR42
17.4K_1%_04
P R 9 2 * 1 0m i l _ s ho r t
PR25
130K_1%_04
P R26 33K _1%_04
+
PC 124
330 u_2.5V_V_A
PR113
10_06
PR80
*10K_04
PQ31
ME 46 2 6 -G
4
62
73
8
5
1
PQ1
MTN7002ZHS 3
G
DS
PRT2
100K_N TC_06_A
12
PC 12
1000p_50V_X7R _04
PR24
130K_1%_04
PJ 1
1m m
12
PC 60 15000p_50V _X7R _06
PC6 0.033u_16V_X7R _04
PR17
100_1% _04
PR 14 *0 _ 04
PC115
1000p_50V_X7R_04
PU 3
* 74AH C T1G 02GW
4
53
1
2
PR4 47K_04
PQ35
ME4626-G
4
62
73
8
5
1
PC111
4.7u_25V_X5R_08
PC98
4.7u_25V_X5R _08
PL7
0.5U H_10*10*4.1
PR2 47K_04
PR 93
1K_04
PC 61 1u_10V _06
PR 86 *10m il_shor t
PR 8 3 * 0 _0 4
PL8
0.5U H_10*10*4.1
PC67 *100P_50V_04
PC 3 1500p_50V_04
PC 66
680p_50V_X7R _04
PD 11
SK 34 SA
A C
PC5 0.033u_16V_X7R _04
PC 68
*.022U_16V_X7R_04
PC76 *1 00P_50V _0 4
+
PC 80
* 15u_25V_6. 3* 4.4_C
P C83 1000p_50V _X7R _04
+
PC 119
330u_2.5V_V_A
PC 11 6
1000p_50V_X7R _04
PR 16
7.5K_1%_04
PC 102
0.1u_50V _Y 5V_06
PR79
10_06
+
PC 81
* 15u_25V_6. 3* 4.4_C
PC 63
15000p_50V_X7R _06
PC 69
* .1U_16V_04
P R 1 3 * 1 0m i l _ s ho r t
PR 8
47K _04
+
PC 125
330u_2.5V_V_A
PQ 2
MTN 7002ZH S3
G
DS
PC 7 1000p_50V_X7R _04
PR 97
*15mil_short
PR6
9. 1 K _1 % _ 0 6
P R 1 8 7. 5K _1 % _ 0 4
P R19 *499_1% _04
PQ 30
ME4894-G
4
62 73
8
5
1
PR 82 10K _04
PR 85 *10m il_shor t
+
PC99
*15u_25V_6.3*4.4_C
PC 10
1u_10V _06
P C84 100p_50V_NPO _04
P R12 *10m il_short
PR9
100K_04
PC 97
*4.7U _25V_08
5V
VIN
SGN D 3
SG ND 3
5V
SG ND 3
5V
SGND3
VIN
5V
SGND3
close to IMVP6
VCO RE
SGND3
SGN D 3
VIN
VIN
3. 3 V S
3.3VS
SG ND 3
SGND3
SG ND 3
? C4 ? PR19 Del
VIN
3. 3 V S
H_VID34
VC OR E_ON21
H_VID54
H_VID64
PM_D PR SL PVR7,18
VC C SEN SE4VSS SEN SE4
H_DPRSTP#3,7,16
C LKEN #18
H_VID14
H_VID44
H_VID24
H_VID04
PSI#3
DE LA Y_PW RG D7,18
3.3V3,15,16,17,18,19,21,22,25,26, 28,32,33 3.3VS2,3,6,7,10,12, 13,14,15,16,17,18,19,20,21,22,23,24,25, 26,27,28
PD 2
R B0540S 2
AC
DPR SL
VCO R E_HY S
EN_VC O RE
DAC
VC _SS
DRN1
VCC A
CS2 N
DPR SL_STP
BG 1BG 1BG 1BG 1BG 1
DRP+
DRP-
V-RC1
VPN 1
VCO R E_VRE F
H_VID6
E-R C
H_VID5
H_VID4
H_VID1
H_VID3
H_VID2
H_VID0
EN_VC O RE
VCO R E_CLSET
DRP+
FB+
Schematic Diagrams
B - 32 VDD3, VDD5
B.Schematic Diagrams
VDD3, VDD5
PD13
R B0540S2
AC
PR 129
120K_04
PR140 0_04
PR12 4
20 K _ 1 % _ 04
PC145
100p_50V_N PO_04
PR12 7
13 K _ 0 4
PJ 10
5mm
12
VDD 3
4A
5A
EN_ALL
Rb
SYS3V
Ra
PC 46
4.7u_25V_X5R _08
+
PC44
15 0 u _6 . 3 V _ V _ A
VREG 5
PC141
0.1u_16V_Y 5V_04
PL11
TMP C0603H -4R 7M-Z01
12
PC 47
4.7u_25V_X5R_08
EN _3V
EN _5V
PC 158
4.7u_25V_X5R _08
VR EG3
PC144
1u_10V_06
PC15 9
10u_6.3V _X5R_06
VR EG5
VIN
VR EG 5
DD_ON#
PR128 0_04
DD_ON# 26,28,33
VIN
PR14 1
10 K _ 0 4
PC 48
0.1u_50V_Y 5V_06
VR EG5
PC14 6
100p_50V_N PO_04
+
PC 142
150u_6.3V _V_A
P R 13 2 * 0 _ 04
PR 131
31.6K_1%_06
P R 13 4 0 _0 4
PQ4 8
M TN 7002ZHS 3
G
DS
PC 43
4.7u_25V_X5R _08
DD _ ON21,28
PQ47
MTN 7002ZHS3
G
DS
PC49
4.7u_25V_X5R _08
PC14 9
0 . 1u _ 1 6 V _Y 5 V _ 04
PR 142 100K_0 4
PC160 0.1u_16V_Y 5V_04
PL10
TM PC0603H -4R7M-Z 01
1 2 PJ 1 3
5m m
1 2
+
PC 45
* 15u_25V_6.3*4.4_C
PR 130
20K_1%_06
VDD 5
SY S5V
VIN
VRE G5
VREF
VREF
PC 148
1000p_50V _X7R_04
PC16 2
*.1U _16V_04
PR147
10K_04
PQ4 6
*2 N7 0 0 2W
G
DS
PJ 11
40 m i l
12
PR 145
100K_04
PR 136
*10K_04
PJ14
1mm
12
PQ 51
* 2N 7002W
G
DS
PR14 3
*10K_04
PC 155
* . 1 U _ 1 0V _0 4
PR 135
*100K_04
EN_3 V
PQ 49
*2N 7002W
G
DS
PQ54
MTN7002ZHS3
G
DS
VR EG5
SYS5V
SYS5V
PM_TH RMTR IP# 3,7,16
DD _O N21,28
5V
PC15 2
10u_6.3V_X5R_06
VIN 1
PR139 * 0_04
PR12 3
120K_04
EN _5VEN_3V
PU 7
uP6182
VR EF 3
EN 1 1
VFB1 2
T ON SEL 4
LD O 5
17
LGA TE1 19
P HASE1 20
VFB2 5
U GATE2
10
VC LK
18
BO OT2
9
EN 2 6
VO 2
7
LDO 3
8
PH ASE2
11
LGA TE2
12
EN 0
13
SKIPSEL
14
GND
15
VIN
16
UGATE1 21
BOO T1 22
POK 23
VO1 24
GN D P A D
25
PQ 9
MD S 2 6 58
4
62 5
73
1
8
PC 154
0.1u_16V_Y 5V_04
PC14 7
10 0 0 p _5 0 V _ X 7R _ 04
PR 133 * 10K_04
PR 125 *0_04
P R137 2.2_06
PC 153
1u_10V_06
PR 138
* 680K_1%_04
E N_5V
PC150
2200p_50V_X7R _04
PC151
2200p_50V_X7R _04
PC 157
0.01u_50V_X7R_04
PC 156
0.01u_50V_X7R_04
SYS10 V
SYS15 V
SYS5V
PJ 12
1mm
12
PD16 RB0540S2
A C
PD17 RB0540S2
AC
PD15 RB0540S2
AC
PD14 RB0540S2
A C
PD 5
* RB0540S2
AC
D02
PQ 10
MDS2658
4
62
5
73
1
8
PD 6
*R B 0 54 0 S 2
A C
VD D316 ,2 1 ,2 2,2 6 ,2 7 ,28 ,2 9
PR16 4 0_ 04
PQ 11
MD S2658
4
62
5
73
1
8
PR165 * 0_04
PD 19
* SK34SA
A C
PD18
*SK34 SA
A C
PQ 45
MD S 2 6 58
4
62 5
73
1
8
Sheet 31 of 38
VDD3, VDD5
Schematic Diagrams
1.8V/1.05VS B - 33
B.Schematic Diagrams
1.8V/1.05VS
R34 *10mil_short
PL6
0.5U H_10*10* 4. 1
+
PC 10 8
330u_2. 5V _V_A
PD 20
*S K 3 4 SA
A C
SU SB#18,21,24,26,28,33
PJ2
8mm
1 2
SUSB28,33
Vout=0.75V(1+Ra/Rb)
16A
Ra
Rb
PR34
220K_1%_04
PU5
U P6127
LX 1
BST 2
VCC 3
DL 4
GND
5
RT N
6
N.C
7
N.C
8
FB
9
VO UT
10
PG D
11
EN
12
IL IM 13
N.C 14
N.C 15
DH 16
PAD 17
PR109
* 15m il_s hort
PR110
10K_1%_04
P R115
*100K_04
PC24
4.7u_25V_X5R _08
PC 23
0.1u_50V_Y 5V_06
PC112
1u_10V_06
PC 11 8
0.1u_16V _Y 5V_04
PQ38
MTN7002ZHS3
G
DS
P R111
100K_04
PR108
4.02K_1%_04
PC 114
0.01u_50V_X7R_04
PC27
4. 7u_25V_X5R_08
P C107
100p_50V_NP O_04
PC 22
0.1u_16V_Y5V_04
PD 9
R B0540S 2
AC
PR 112 8.2K_1%_04
PC 117
0.1u_16V_Y 5V_04
PQ33
M E46 26-G
4
62 5
73
1
8
PQ4
* 2N7002W
G
DS
PJ 7
1m m
12
V1.05 1. 05 V S
5V
5V
VIN
1.05V S_PWR G D18
3.3V
PC55
* .1U_10V_X7R _04
3.3V
12/18
PC 167
0.01u_50V_X7R _04
Vout=1.25V(1+Ra/Rb)
PU 6
A X6607-18BA
VIN
1
GN D
2
SHD N #
3
VO UT 5
BY P 4
600mA1A
PC134
*82p_50V _N PO _04
PC140
4.7u_6.3V_X5R_06
PC136
10u_6.3V_X5R_08
PR 12 1
* 4.3K_1%_04
PJ9
1mm
1 2
PC 13 5
0.01u_50V_X7R _04
PQ42
* 2N7002W _A
G
DS
PR 118 100K_04
PC138
0. 1u_16V_Y 5V_04
3.3V
1.8VV1.8
R 405 *0_04
3.3VS2,3,6,7,10,12,13,14,15, 16,17,18,19,20,21,22,23, 24,25,26,27,28,30
3.3V3,15,16,17,18,19, 21,22,25,26,28,33
R 404 *0_04
SUS C#1 8 , 2 1, 33
12/17
PR 11 9
*10K_04
PQ 36
ME 4894-G
4
62 5
73
1
8
SU SB#
PR 32
*10m il_short
Sheet 32 of 38
1.8V/1.05VS
Schematic Diagrams
B - 34 1.5V,0.75VS
B.Schematic Diagrams
1.5V,0.75VS
VTT_MEM
1
H20
MT H3 15 D11 1
3
4
5 6
7
8
9
1
H4
MT H3 15 D11 1
3
4
5 6
7
8
9
H15
H4_7B6_0D3_7
H2 7
C6 7D 67
H2 4
C1 58 D15 8
H1 8
H4_7B6_0D3_7
H9
C276D 186
H10
C276D186
H8
H4_0B6_0D2_8
H21
H4_ 7B6 _0 D3 _7
H17
H3_ 5B5 _0 D2 _2
H2 5
C1 58 D1 58
H6
C67D67 H23
H4_7B6_0D3_7
H1 3
C2 76 D18 6
H2
C 158D158 H22
H 4_7B6_0D3_7
H1
C 158D158 H14
C276D186
H12
H 3_5B5_0D2_2
1
H16
MT H3 15 D11 1
39
PD10
*SK3 4S A
A C
+
PC126
560u_2.5V_6.6*6.6* 5.9
PC28
4.7u_25V_X5R_08
PJ 8
8m m
1 2
PR 50 4 7K _ 04
PR33
20K_1%_04
PQ 40
ME4894-G
4
62 73 8
5
1
PC12 9
4.7u_25V_X5R _08
PC37
1u_10V_06
PQ5
MTN 7002ZHS3
G
DS
PC25
10 u_ 10 V _Y 5V _ 08
PC35
0.068u_10V_X7R_04
PC 133
0.1u_16V_Y5V_04
PC36
0.1u_16V_Y5V_04
PR39 * 15mil_s hort
PR49
*15mil_short
PC 26
1u _1 0V _ 06
PR41
*15 mi l_s ho rt
PC42
100p_50V_NPO_04
PR47
*15mil_short
PR48
10_06
PR54
0_ 04
PC120
4.7u_25V_X5R_08
PR55
10_06
PC121
4.7u_25V_X5R_08
PC 32
1u _1 0V _ 06
PJ 4
3mm
12
PR52
10 0K _ 04
PC29
10 u_ 10 V _Y 5V _ 08
PC 39
0.1u_16V_Y5V_04
PQ 37
M E4626-G
4
62 73 8
5
1
PC 30
1u _1 0V _ 06
PC41
1u_10V_06
PR53
1M_04
PC 13 0
0.1u_50V_Y5V_06
PC 34
* . 1U _1 0V _ 04
PR 40 100K_04
PR51
*10K_1%_04
PR45
10 _0 6
PU1
SC486
VTTEN
11
TON
2
VDDQ S
3
VSSA
4
VCCA
5
FB
6
PGD 7
REF
8
CO MP
9
VTTS
10
EN/PSV
1
VDDP2
12
VDDP2
13
VTT
14
VTT
15
PGN D1 16
PGN D2 17
PGN D1 18
DL 19
VDDP1 20
ILIM 21
LX 22
DH 23
BST 24
PGN D2 25
PR 43
6.8K_1%_04
PC38
1u_10V_06
PR56 10_0 6
PR 35
*100K_04
PQ7
MTN 7002ZHS3
G
DS
PC 33
0.1u_16V_Y5V_04
PC 40
1000p_50V_X7R_04
PC132
0.01u_50V_X7R_04
5V
V1.5
3. 3 V
V1.5
5V
V1 . 5
5V
5V
VIN
PR 166
1 0K _ 1% _0 4
3.3V
VI N
PR16 7
12K_1%_04
PU 8
MC 74VH C1G 08DFT1G
1
24
5
3
1. 5 V
1.5V_PWRG D
SUSC#18,21,32 SM_ PW ROK 7
1.5V_PWRG D 18
DD_ ON#26,28,31
1.5VEN
VTTEN
VSSA
VSSA
Rb
Ra
11A
1.5A
PL9 2.5UH_6.8* 7.3*3.5
1
H5
M TH3 15 D1 11
3
4
5 6
7
8
9
1
H1 9
MT H3 15 D1 11
3
4
5 6
7
8
9
PQ6
*2N 7002W
G
DS
PJ 3
1mm
12
SUSB#18,21,24,26,28,32
R35 *10mil_short
SUSB28,32
0. 7 5V S
PD4
RB0540S2
AC
3. 3 VS2,3,6,7,10,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,30 3. 3 V3,15,16,17,18,19,21,22,25,26,28,32
PC176 *2200p_50V_X7R _06PR169*5.1_06
1
H2 6
MT H3 15 D1 11
3
4
5 6
7
8
9
1
H1 1
M TH 3 15 D 1 11
3
4
5 6
7
8
9
1
H2 9
M TH 3 15 D 1 11
3
4
5 6
7
8
9
M5
M-M AR K1
1
H3
MTH315D111
3
4
5 6
7
8
9
M4
M-MA R K 1
M3
M-M AR K1
M6
M-M AR K1
1
H28
M TH3 15 D1 11
3
4
5 6
7
8
9
M2
M-MA R K 1
M7
M-M AR K1
M8
M-M AR K1
1
H7
MTH315D111
3
4
5 6
7
8
9
M1
M-MA RK 1
Sheet 33 of 38
1.5V,0.75VS
Schematic Diagrams
Click Board B - 35
B.Schematic Diagrams
Click Board
CLED_BAT_CHG#
CLED_PWR#
CLED_ACI N#
CLED_BAT_FULL#
6- 20-9 4A50 -10 4
6-20 -94A 70- 1046- 20-9 4A70 -10 4 6-21 -91A 10- 1066- 21-9 1A10 -10 6 6-21 -91A 00- 1066- 21-9 1A00 -10 6
6- 53-3 050B -2416- 53-3 050B -2416-5 3-30 50B- 2416-5 3-30 50B- 241 6- 53-3 050B -2406- 53-3 050B -2406-5 3-30 50B- 2406-5 3-30 50B- 240 6- 53-3 150B -2456- 53-3 150B -2456-5 3-31 50B- 2456-5 3-31 50B- 245
6- 20-9 4A70 -10 4
6- 20-9 4AA0 -10 4
1
BAT LED
POW ER O N
LED
2
CLED_ACIN#
CLED_B AT_F ULL#
CLED_BAT_CHG#
CLED_PWR#
6- 52-5 5002 -042
6- 52-5 5001 -040
6- 52-5 5002 -04B 6- 52-5 5002 -04 B
6- 52-5 5002 -04 2
6- 52-5 5001 -04 0
CLICK BOARD
CTP BUTTON _RCTPBUTTON_L CT PBU TTO N _RCTP BUTTON _L
LI FT
KE Y
RI GHT
KEY
LI FT
KE Y
1
RI GHT
KEY
3
42
CSW1~ 4
CTP_CLK
CTP_DATA
CTP_DATA
CTPBUTTON_L
CTP_CLK
CTPBUTTON_R
CJ_TP3
85201-06051
1
2
3
4
5
6
CSW1
TJG-533-S-T/R
3
14
2
5
6
CR358
220_04
SG
Y
CD26
RY-SP155HYYG4
1
3
2
4
1
CH1
MTH237D91
2
3
4
5 6
7
8
9
CSW4
* TJG-533-S-T/R
3
14
2
5
6
SG
Y
CD27
R Y- SP1 55 HYYG4
1
3
2
4
1
CH2
MTH237D91
2
3
4
5 6
7
8
9
CC3
* 0.1u_16V _Y5V_04
CR360
220_04
CR359
220_04
CSW3
* TJG-533-S-T/R
3
14
2
5
6
CJ_TP2
85201- 06051
1
2
3
4
5
6
1
CH3
MTH237D91
2
3
4
5 6
7
8
9
1
CH4
MTH237D91
2
3
4
5 6
7
8
9
CC2
0.1u_16V_Y5V_04 CC1
* 0.1u_16V_Y 5V_04
CR361
220_04
CJ_TP1
85201- 04051
1
2
3
4
CSW2
TJ G-533-S -T/ R
3
14
2
5
6
CGND
CGND
CGND CGND
CGND
CGNDCGND
CGNDCGND
CGNDCGNDCGND
CVDD3CVDD3CVDD3CVDD3
C5VS
CGNDCGND
CGND
CGND
CVDD3
CGND
CGND
C5VS
Sheet 34 of 38
Click Board
Schematic Diagrams
B - 36 Audio Board/USB
B.Schematic Diagrams
Audio Board/USB
AMIC 1-R
ASPKO UTR- ASPKO UTR+_ R
ASPKO UTR-_ R
ASPKO UTR+
AHP_SENSE
A HEAD PHON E-R
A SPK_H P#
A HEAD PHON E-L
A USB_PN2
A SPKOU TR +
AMIC1-L
AMIC1-R
A MIC_SEN SE
A SPKOU TR -
AUSB_PP2
A USB_PP2
ASPK_HP#
AHP_SEN SE
AUSB_PN2
1
AUSB_PP2_R
J_SPK1
2
AUSB_PN2_ R
6-21-B49B0-104
6-21-B49C0-104
6-20-43110-102
6-20-43150-102
6-20-53A00-114
AUDIO JACK
BLACK
BL A C K
6-20-B2800-106
6-20-B2800-106
50 mil s
6 -0 2-0 97 15 -92 0
50mils
60 mil
USB PORT
PIN SWAP
HEADPHO NE
TO M/B
MIC IN
AJ_ AU DIO1
87213-1400G
1
2
3
4
5
6
7
8
9
10
11
12
13
14
AC13 0.1u_16V_Y 5V_04
AR 8
*1K_1%_04
AR11 *10mil_short_04
AC5
0. 1u_16V_Y5V_04
1
AH 2
MTH276D111
2
3
4
5 6
7
8
9
AJ _ SPKR1
85204-02001
PC B Footprint = 85204-02R
1
2
C4 5 5
180p_50V_NPO _04
AR10 *10mil_short_04
AC 4
100p_50V_N PO_04
AH1
C 5 9D 59
AC2
100p_50V_NPO _04
AL2 FCM 1005K F-121T03
AL3 FCM 1005K F-121T03
AC9
10u_10V_Y 5V_08
AL5
HCB1608KF -121T25
AC6
0.1u_16V_Y5V_04
R
L
AJ _ HP1
2S J - T 3 51 - S 2 3
2
6
5
3
1
4
AC8
180p_50V_NPO _04
R
L
AJ _ MIC1
2S J - T 3 51 - S 2 3
2
6
5
3
1
4
AU 1
R T9715B GS
VOUT1 6
VOUT3 8
VIN 2
3
VIN 1
2VOUT2 7
GND 1
EN #
4
FLG#
5
AH3
C5 9 D5 9
AC14 0.1u_16V_Y 5V_04
AC7
0.1u_16V_Y 5V_04
AL6 FCM1005KF -121T03
AR3 68_ 04
+
AC 1
100u_6.3V_B_A
AC3
100p_50V_NPO _04
AR 9
*1 K _ 1 %_ 0 4
AC15 0.1u_16V_Y 5V_04
AL4 FCM1005KF -121T03
AL8
FC M1005KF-121T03
1 2AC16 0.1u_16V_Y 5V_04
AL7
FC M1005KF-121T03
1 2
L61
*AW CM2012F2S-161T03
1
4
2
3
AR5 68_ 04
1
AH4
MTH276D111
2
3
4
5 6
7
8
9
AC 11
1 0 0 0p _ 50 V _ X 7R _ 04
AJ_USB1
US0 4 03 6 BCA 08 1
V+
1
GND1
GND 1
DATA_L
2
DATA_H
3
GND
4
GN D2
GN D2
GN D4
GN D4 GND3
GND 3
AR1 *10mil_short_04
AC10
100p_50V_NPO_04
A_U SBVCC
A_USBVC C2A_U SBVC C
A_AUD G
AGN D
AG ND
A_AUD G
A_5V
A_U SBVC C
AG ND AGND
AGN D AG NDAG ND
AG ND
AG ND
AG ND AGNDAGN D
A_AUD G
A_AUD GAGN D
A_5V
A_AU DG
AHEAD PHO NE-L
AHEAD PHO NE-R
AMIC 1-L
AMIC _SENSE
Sheet 35 of 38
Audio Board/USB
Schematic Diagrams
Power Switch & Lid Board B - 37
B.Schematic Diagrams
Power Switch & Lid Board
20 mi l
10 pin & 8 pin co-lay
2 0mi l
SW EB_W W W #
SW EB_EM AIL#
SM _BTN #
SAP_O N SLID_SW #
SAP_O N
SW EB _EM AIL #
SM _B TN #
SLID_ SW #
SW EB _W W W #
6-20-94K10-108
20 mi l
SU1, SU2
2
3
1
LID SWITCH IC
SLI D_ SW #
6-02-00268-LC1
6-02-00248-LC2
SW EB_E MAIL#S W EB_ W W W #SM_ BTN# SAP_O N
SR 5
*4 7K _ 0 4
SWWW_SW1
TJG-533-S-T/R
3
1
4
2
5
6
SR 3
* 100K_1% _04
1
SM H1
MTH237D87
2
3
4
5 6
7
8
9
1
SMH 4
MT H2 3 7D 1 18
2
3
4
5 6
7
8
9
SD3
* HT-150N B-DT
AC
SC5
0.1 u_16V_Y5V_04
S AP_SW 1
TJG-533-S-T/R
3
1
4
2
5
6
SR2
220_04
SC1
*100p_50V_NPO _04
SU1
M H248- ALFA- ESO
VC C
1OU T 2
GND
3
SR4
0_04
1
SMH3
MTH237D 87
2
3
4
5 6
7
8
9
SMH5
H7_0D2_3
SC3
0.1u_16V_Y5V_04
SC 4
0.1u_16V_Y 5V_04
SJ _ SW 2
88486-0801
1
2
3
4
5
6
7
8
SJ _ SW 1
* 50500-01041-001L
1
2
3
4
5
6
7
8
9
10
SD2
*BA V99 R ECTIFIER
C
AC
A
SD 1
HT-150NB-DT
AC
SR1 100K_1%_04
SC 2
0.1u_10V_X7R_04
SC6
0.1u_16V_Y 5V_04
SPW R _ SW 1
TJG-533-S-T/R
3
1
4
2
5
6
SM H2
H 7_0D2_3
SMAIL_ SW 1
TJG-533-S-T/R
3
1
4
2
5
6
SPW R _ SW 2
* TJ G- 53 3 -S -T /R
3
1
4
2
5
6
SMG NDSM GN D SMG NDSM GN D
SMG ND
S_VIN
SM GND
SMG NDSMGN D
SM GN D
S_3.3VS
S_VIN
SMG ND
S_3.3VS
SMG ND
S_3.3V
S_3.3V
SM GN D
S_3.3V
SM GN D
SMGN D
S_3.3V
SMG ND
S_3.3VS
SM GN D
SMG ND SM GND
SM GN D
SM GN DSMG ND SM GNDSM GND
SMG ND
POWER BUTTON
POWER SW & LED & HOT KEY
SMGN D SMGN D
AP_KEY#
3 1
2
WEB_EMAIL#
4
WEB_WWW#
PSW1~8
6-53-3050B-240
6-53-3050B-241
6-53-3150B-245
6-53-3050B-240
6-53-3050B-241
6-53-3150B-245
6-53-3050B-240
6-53-3050B-241
6-53-3150B-245
6-53-3050B-240
6-53-3050B-241
6-53-3150B-245
HOT KEY
SM_ BTN#
POWER BUTTON
PSW1~8
4
3 1
2
6-53-3050B-241
6-53-3150B-245
6-53-3050B-240
Z4301
6-52-56001-022
6-52-56000-020
6-52-56001-028
6-52-56001-023
POWER
SWITCH
LED
20mil
FOR E5128Q
FOR E5128Q FOR E4120Q/E5120Q
FOR E4120Q/E5120Q
6-52-56001-028
6-52-56001-023
6-52-56001-022
6-52-56000-020
Sheet 36 of 38
Power Switch & Lid
Board
Schematic Diagrams
B - 38 External Odd Board
B.Schematic Diagrams
External Odd Board
QJ_ODD1
242001-1
S1
S2
S3
S4
S5
S6
S7
P1
P2
P3
P4
P5
P6
QH2
C67D67
QC1
0.1u_16V_Y 5V_04
QH1
C237D91 QH4
C237D91
QJ _ OD D 2
1-162-100562
S1
S2
S3
S4
S5
S6
S7
P1
P2
P3
P4
P5
P6
QH3
C67D67
QC2
0.1u_16V_Y5V_04
QGND QGND
QGND
QG N D
Q_ 5VS
QGND
QGND
QGND
Q_ 5V S
Q_5VS
QJ _S ATA_ TXP1
PIN
GND1~3=QGND
QJ _S ATA_ O DD _ DA#
QJ _S ATA_ TXN 1
ODD BOARD FOR E5120Q
PI N
GND1~2 =WG ND
QJ _S ATA_ R XP1
QJ _S ATA_ R XN 1
QJ _O D D_ D ETE CT #
6-21-1 4030-0 13
6-21-1 4020-0 13
6-21-1 4010-0 13
6-21-1 3A00-0 13
Sheet 37 of 38
External Odd Board
Schematic Diagrams
Power Sequence V1.0 B - 39
B.Schematic Diagrams
Power Sequence V1.0
CLKEN#
2
1PWR_SW#
DD_ON
C5100 V1.0 POWER ON SEQUENCE
3
2.06ms
3.3V
9
125.34ms
76.2ms
6
6
129.66ms
281.13ms
8
H_PWRGD
CLK_PWRGD
6
14
DELAY_PWRGD
(VRM_PWRGD)
5a
5VS
5b
4b
3
3
3
1.8V
5V
H_CPURST#
7.62ms
PLT_RST#
12
11
2.23ms
1.345ms
7.62ms
97.46ms
2.09ms
SB_PWROK
8-1
4a
1.09ms
1.5V
7.6ms
VCORE_ON
PWR_BTN#
SUSB#
10
1.38ms
7
1.05VS
1.33ms
SUSC#
13
MPWORK
4. 9 4 ms
RSMRST#
5ms
2.8ms
6
6
1.5VS
3.3VS
0.963ms
0.788ms
82.9ms
0.743ms
1.05VS_PWRGD
6
1.382ms
2.32ms
DDR3_DRAMRST#
281.32ms
0.28V
0.42V
Sheet 38 of 38
Power Sequence
V1.0
Schematic Diagrams
B - 40
B.Schematic Diagrams
BIOS Update
C - 1
C:BIOS Update
Appendix C:Updating the FLASH ROM BIOS
To update the FLASH ROM BIOS you must:
• Download the BIOS update from the web site.
• Unzip the files onto a bootable CD/DVD/USB Flash Drive.
• Reboot your computer from an external CD/DVD/USB Flash Drive.
• Use the flash tools to update the flash BIOS using the commands indicated below.
• Restart the computer booting from the HDD and press F2 at startup enter the BIOS.
• Load setup defaults from the BIOS and save the default settings and exit the BIOS to restart the computer.
• After rebooting the computer you may restart the computer again and make any required changes to the default BIOS
settings.
Download the BIOS
1. Go to www.clevo.com.tw and point to E-Services and click E-Channel.
2. Use your user ID and password to access the appropriate download area (BIOS), and download the latest BIOS files
(the BIOS file will be contained in a batch file that may be run directly once unzipped) for your computer model
(see sidebar for important information on BIOS versions).
Unzip the downloaded files to a bootable CD/DVD/ or USB Flash drive
1. Insert a bootable CD/DVD/USB flash drive into the CD/DVD drive/USB port of the computer containing the
downloaded files.
2. Use a tool such as Winzip or Winrar to unzip all the BIOS files and refresh tools to your bootable CD/DVD/USB
flash drive (you may need to create a bootable CD/DVD with the files using a 3rd party software).
Set the computer to boot from the external drive
1. With the bootable CD/DVD/USB flash drive containing the BIOS files in your CD/DVD drive/USB port, restart the
computer and press F2 (in most cases) to enter the BIOS.
2. Use the arrow keys to highlight the Boot menu.
3. Use the “+” and “-” keys to move boot devices up and down the priority order.
4. Make sure that the CD/DVD drive/USB flash drive is set first in the boot priority of the BIOS.
5. Press F10 to save any changes you have made and exit the BIOS to restart the computer.
BIOS Version
Make sure you down-
load the latest correct
version of the BIOS ap-
propriate for the com-
puter model you are
working on.
You should only
download BIOS ver-
sions that are
V1.01.XX or higher as
appropriate for your
computer model.
Note that BIOS versions
are not backward com-
patible and therefore
you may not down-
grade your BIOS to an
older version after up-
grading to a later ver-
sion (e.g if you upgrade
a BIOS to ver 1.01.05,
you MAY NOT then go
back and flash the BIOS
to ver 1.01.04).
BIOS Update
C - 2
C:BIOS Update
Use the flash tools to update the BIOS
1. Make sure you are not loading any memory management programs such as HIMEM by holding the F8 key as you
see the message “Starting MS-DOS”. You will then be prompted to give “Y” or “N” responses to the programs
being loaded by DOS. Choose “N” for any memory management programs.
2. You should now be at the DOS prompt e.g: DISK C:\> (C is the designated drive letter for the CD/DVD drive/USB
flash drive).
3. Type the following command at the DOS prompt:
C:\> Flash.bat
4. The utility will then proceed to flash the BIOS.
5. You should then be prompted to press any key to restart the system or turn the power off, and then on again but
make sure you remove the CD/DVD/USB flash drive from the CD/DVD drive/USB port before the computer
restarts.
Restart the computer (booting from the HDD)
1. With the CD/DVD/USB flash drive removed from the CD/DVD drive/USB port the computer should restart from
the HDD.
2. Press F2 as the computer restarts to enter the BIOS.
3. Use the arrow keys to highlight the Exit menu.
4. Select Load Setup Defaults (or press F9) and select “Yes” to confirm the selection.
5. Press F10 to save any changes you have made and exit the BIOS to restart the computer.
Your computer is now running normally with the updated BIOS
You may now enter the BIOS and make any changes you require to the default settings.
