Clevo M740S, M741S, M745S, M760S, M765S, M766S, M767S Service Manual. Www.s Manuals.com. M740s M741s M745s M760s M765s M766s Manual

User Manual: Notebook Clevo M741S - Service manuals and Schematics, Disassembly / Assembly. Free.

Open the PDF directly: View PDF PDF.
Page Count: 107 [warning: Documents this large are best viewed by clicking the View PDF Link!]

Preface
I
Preface
Notebook Computer
M740S/M741S/M745S/M760S/M765S/M766S/M767S
Service Manual
Preface
II
Preface
Notice
The company reserves the right to revise this publication or to change its contents without notice. Information contained
herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven-
dor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are
they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.
This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or
reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publica-
tion, except for copies kept by the user for backup purposes.
Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of
their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement
of that product or its manufacturer.
Version 1.0
May 2008
Trademarks
Intel, Celeron and Intel Core are trademarks of Advanced Micro Devices, Inc.
Windows® is a registered trademark of Microsoft Corporation.
Other brand and product names are trademarks and./or registered trademarks of their respective companies.
Preface
III
Preface
About this Manual
This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and
inspection of personal computers.
It is organized to allow you to look up basic information for servicing and/or upgrading components of the M740S/
M741S/M745S/M760S/M765S/M766S/M767S series notebook PC.
The following information is included:
Chapter 1, Introduction, provides general information about the location of system elements and their specifications.
Chapter 2, Disassembly, provides step-by-step instructions for disassembling parts and subsystems and how to upgrade
elements of the system.
Appendix A, Part Lists
Appendix B, Schematic Diagrams
Preface
IV
Preface
IMPORTANT SAFETY INSTRUCTIONS
Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock and injury to per-
sons when using any electrical equipment:
1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet
basement or near a swimming pool.
2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of elec-
trical shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity of the leak.
4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may
explode. Check with local codes for possible special disposal instructions.
5. This product is intended to be supplied by a Listed Power Unit (DC Output 19V, 3.42A or 18.5V, 3.5A (65W) mini-
mum AC/DC Adapter).
CAUTION
Always disconnect all telephone lines from the wall outlet before servicing or disassembling this equipment.
TO REDUCE THE RISK OF FIRE, USE ONLY NO. 26 AWG OR LARGER,
TELECOMMUNICATION LINE CORD
This Computer’s Optical Device is a Laser Class 1 Product
Preface
V
Preface
Instructions for Care and Operation
The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:
1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.
2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This
is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.
3. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save
your work. Remember to periodically save your data as data may be lost if the battery is depleted.
Do not expose the computer
to any shock or vibration.
Do not place it on an unstable
surface.
Do not place anything heavy
on the computer.
Do not expose it to excessive
heat or direct sunlight.
Do not leave it in a place
where foreign matter or mois-
ture may affect the system.
Don’t use or store the com-
puter in a humid environment.
Do not place the computer on
any surface which will block
the vents.
Do not turn off the power
until you properly shut down
all programs.
Do not turn off any peripheral
devices when the computer is
on.
Do not disassemble the com-
puter by yourself.
Perform routine maintenance
on your computer.
Preface
VI
Preface
4. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag-
netic fields. These can hinder proper performance and damage your data.
5. Take care when using peripheral devices.
Power Safety
The computer has specific power requirements:
• Only use a power adapter approved for use with this computer.
• Your AC adapter may be designed for international travel but it still requires a steady, uninterrupted power supply. If you are
unsure of your local power specifications, consult your service representative or local power company.
• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety feature; do
not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.
• When you want to unplug the power cord, be sure to disconnect it by the plug head, not by its wire.
• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.
• Before cleaning the computer, make sure it is disconnected from any external power supplies.
Use only approved brands of
peripherals.
Unplug the power cord before
attaching peripheral devices.
Do not plug in the power
cord if you are wet.
Do not use the power cord if
it is broken.
Do not place heavy objects
on the power cord.
Power Safety
Warning
Before you undertake
any upgrade proce-
dures, make sure that
you have turned off the
power, and discon-
nected all peripherals
and cables (including
telephone lines). It is
advisable to also re-
move your battery in
order to prevent acci-
dentally turning the
machine on.
Preface
VII
Preface
Battery Precautions
• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.
• Do not remove any batteries from the computer while it is powered on.
• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the
computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.
• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.
• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service
personnel.
• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries may explode
or leak if exposed to fire, or improperly handled or discarded.
• Keep the battery away from metal appliances.
• Affix tape to the battery contacts before disposing of the battery.
• Do not touch the battery contacts with your hands or metal objects.
Battery Disposal
The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of
its useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal
waste stream. Check with your local solid waste officials for details in your area for recycling options or proper
disposal.
Caution
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommend-
ed by the manufacturer. Discard used battery according to the manufacturer’s instructions.
Preface
VIII
Preface
Related Documents
You may also need to consult the following manual for additional information:
User’s Manual on CD
This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro-
gram. It also describes the installation and operation of the utility programs provided with the notebook PC.
Preface
IX
Preface
Contents
Introduction ..............................................1-1
Overview .........................................................................................1-1
System Specifications ................................. 1-2
External Locator - Top View with LCD Panel Open ......................1-5
External Locator - Front & Right side Views .................................1-6
External Locator - Left Side & Rear View .....................................1-7
External Locator - Bottom View .....................................................1-8
Mainboard Overview - Top (Key Parts) .........................................1-9
Mainboard Overview - Bottom (Key Parts) ..................................1-10
Mainboard Overview - Top (Connectors) .....................................1-11
Mainboard Overview - Bottom (Connectors) ...............................1-12
Disassembly ...............................................2-1
Overview .........................................................................................2-1
Maintenance Tools ..........................................................................2-2
Connections .....................................................................................2-2
Maintenance Precautions .................................................................2-3
Disassembly Steps ...........................................................................2-4
Removing the Battery ......................................................................2-5

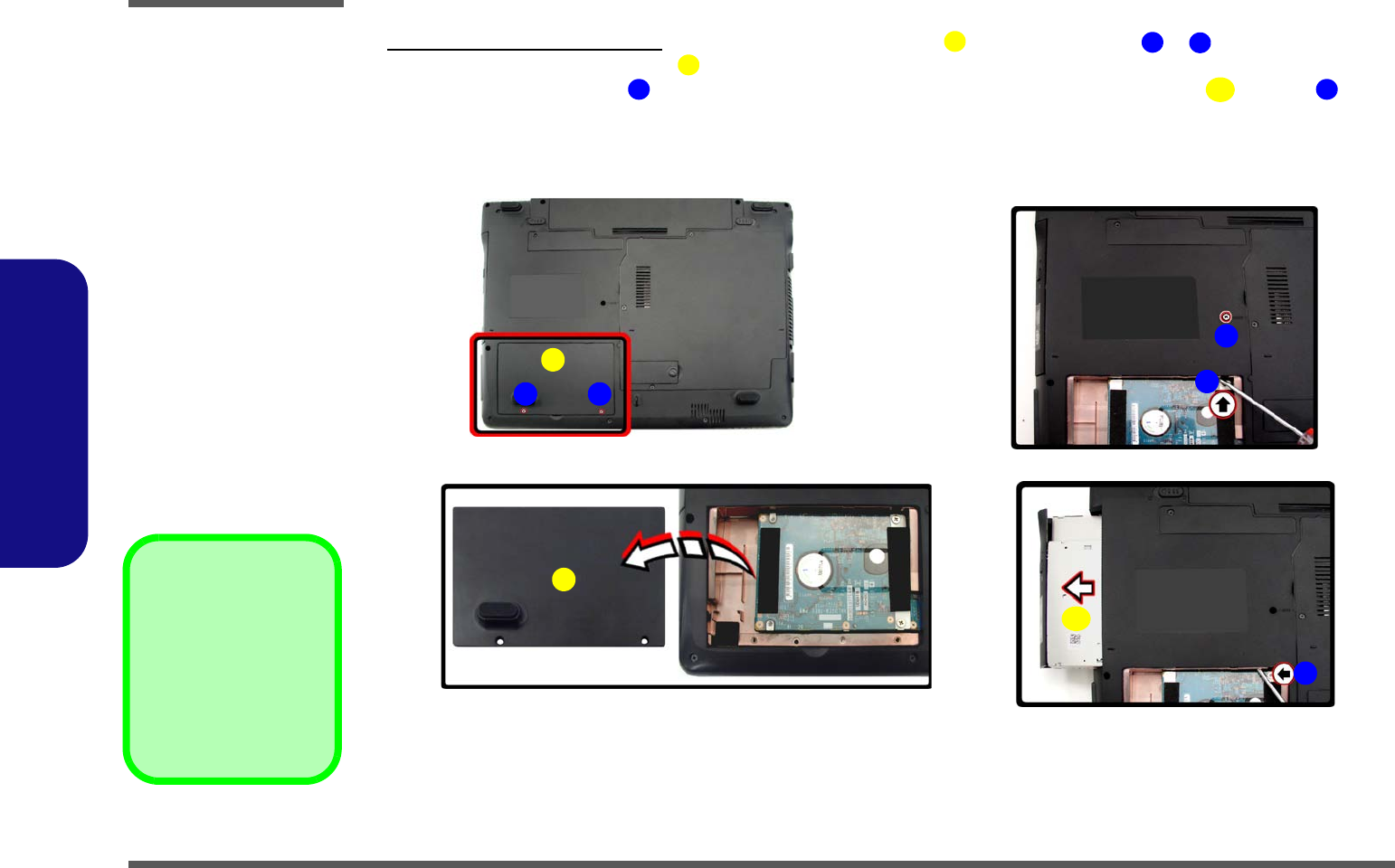

Removing the Hard Disk Drive .......................................................2-6
Removing the Optical (CD/DVD) Device ......................................2-9
Removing the System Memory (RAM) ........................................2-11
Removing the Inverter Board ........................................................2-13

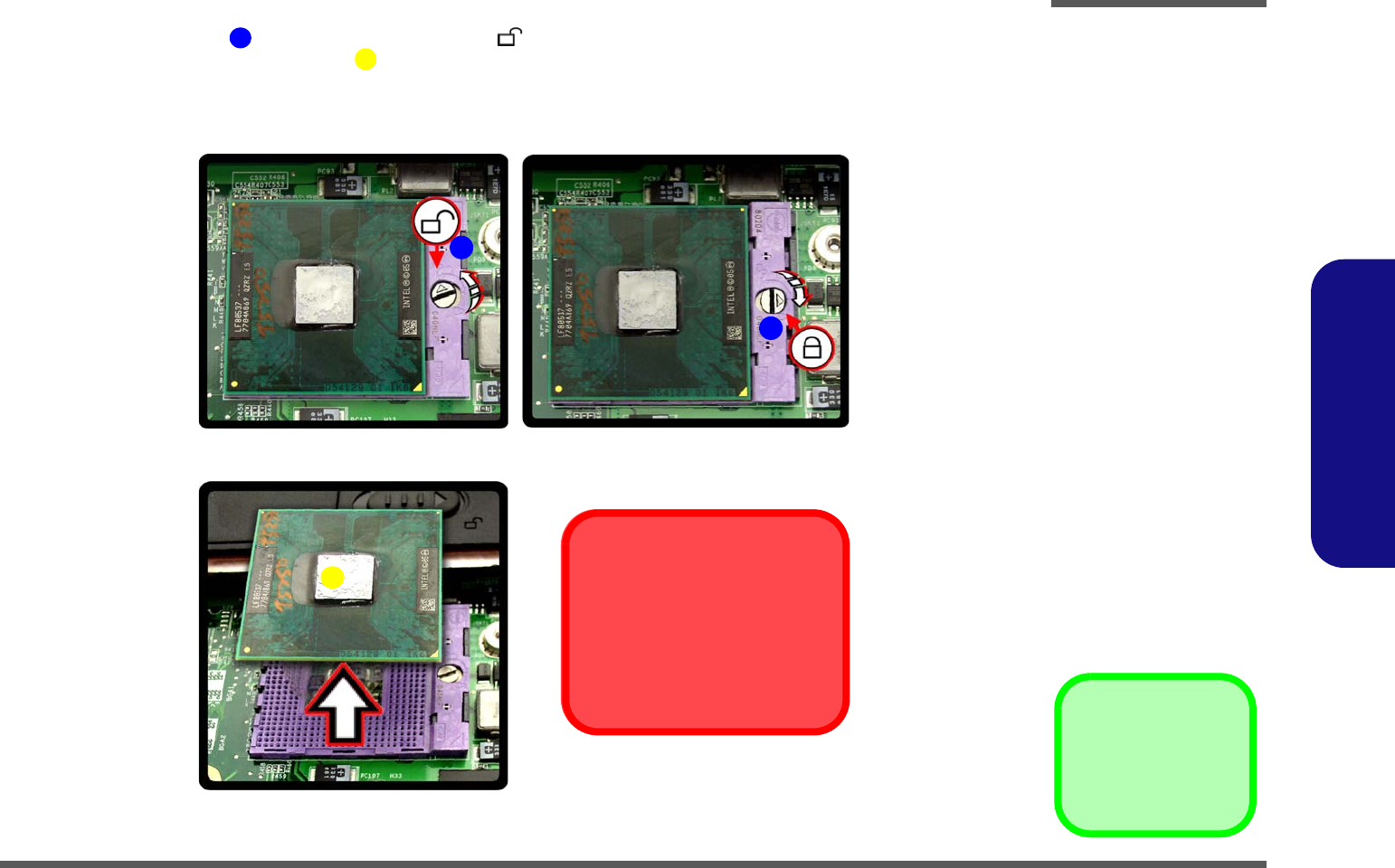

Removing and Installing the Processor .........................................2-14
Removing the Wireless LAN Module ...........................................2-17
Removing the Bluetooth Module ..................................................2-18
Removing the Keyboard ................................................................2-19
Removing the Modem ...................................................................2-20
Part Lists ..................................................A-1
Part List Illustration Location ........................................................A-2

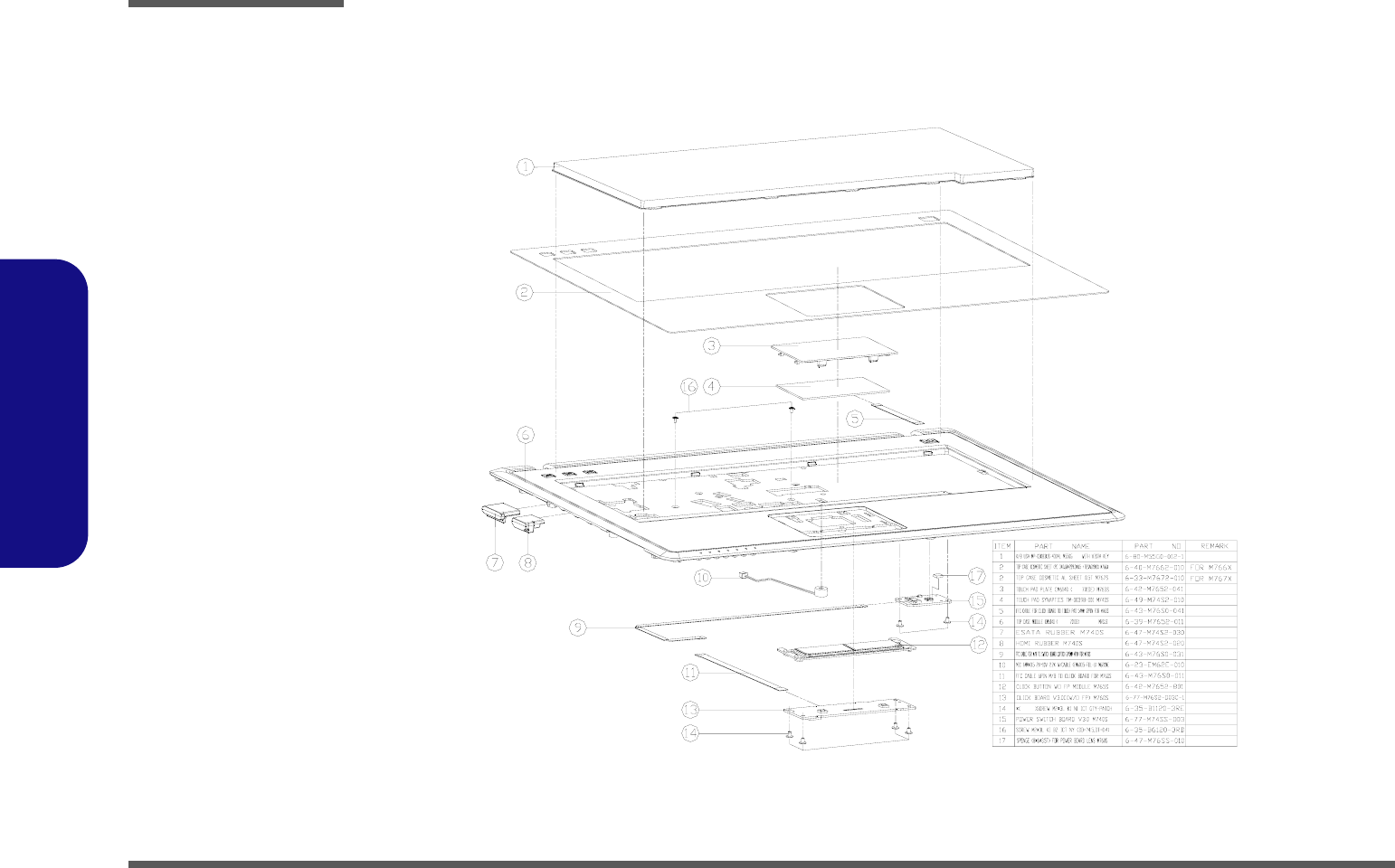

Top without Fingerprint (M740S) ................................................. A-3
Top without Fingerprint (M741S/M745S) .................................... A-4

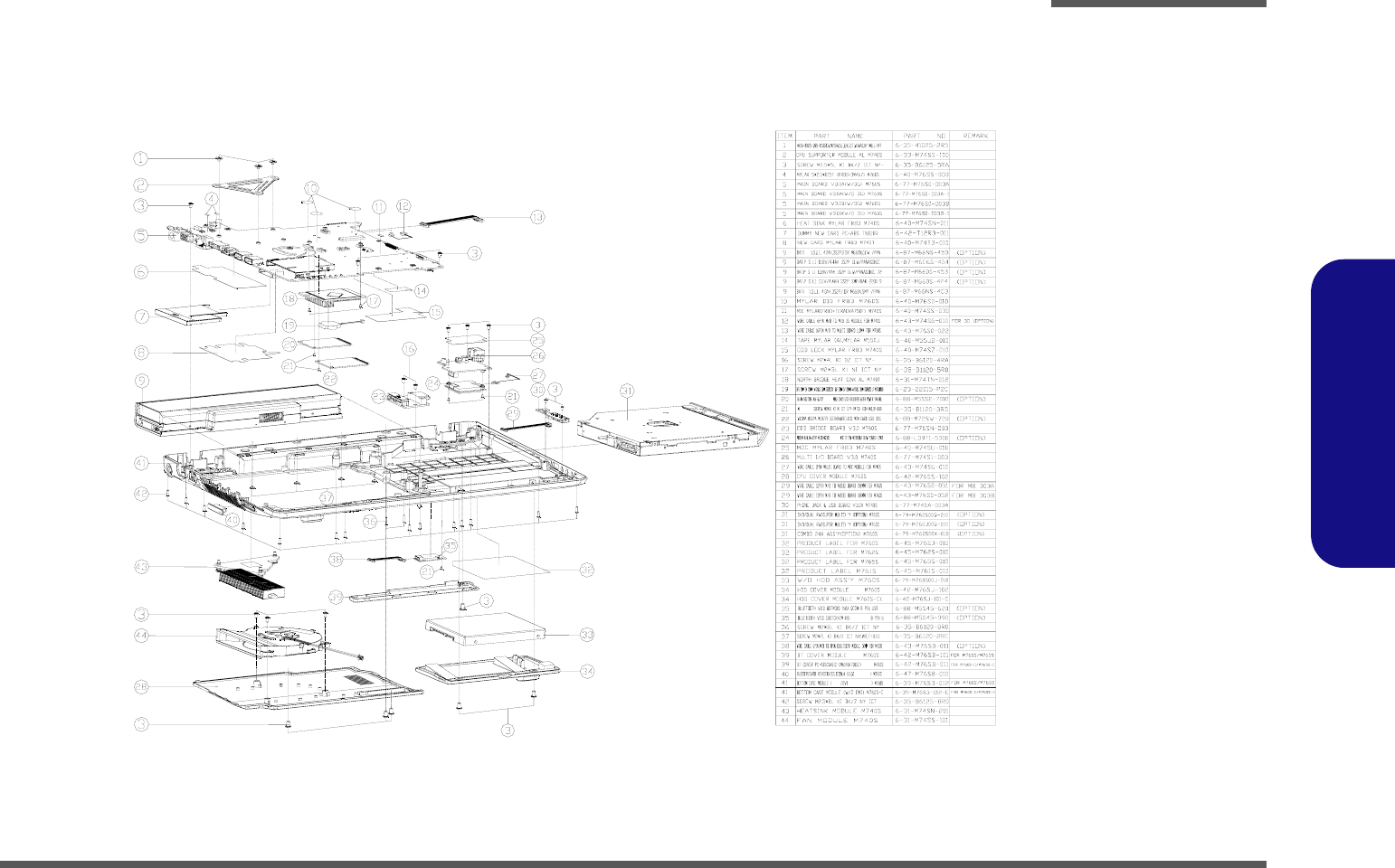

Bottom (M740S/M741S/M745S) .................................................. A-5
LCD (M740S/M741S/M745S) ...................................................... A-6
HDD (M740S/M741S/M745S) ..................................................... A-7
COMBO (M740S/M741S/M745S) ............................................... A-8
DVD-Dual Drive (M740S/M741S/M745S) .................................. A-9
Top without Fingerprint (M760S) ............................................... A-10
Top without Fingerprint (M765S) ............................................... A-11
Top without Fingerprint (M766S/M767S) .................................. A-12
Bottom (M760S/M765S/M766S/M767S) ................................... A-13
LCD (M760S) .............................................................................. A-14
LCD (M765S) .............................................................................. A-15
LCD (M766S/M767S) ................................................................. A-16
HDD (M760S/M765S/M766S/M767S) ....................................... A-17
COMBO (M760S/M765S/M766S/M767S) ................................. A-18
DVD-Dual Drive (M760S/M765S/M766S/M767S) ................... A-19
Schematic Diagrams................................. B-1

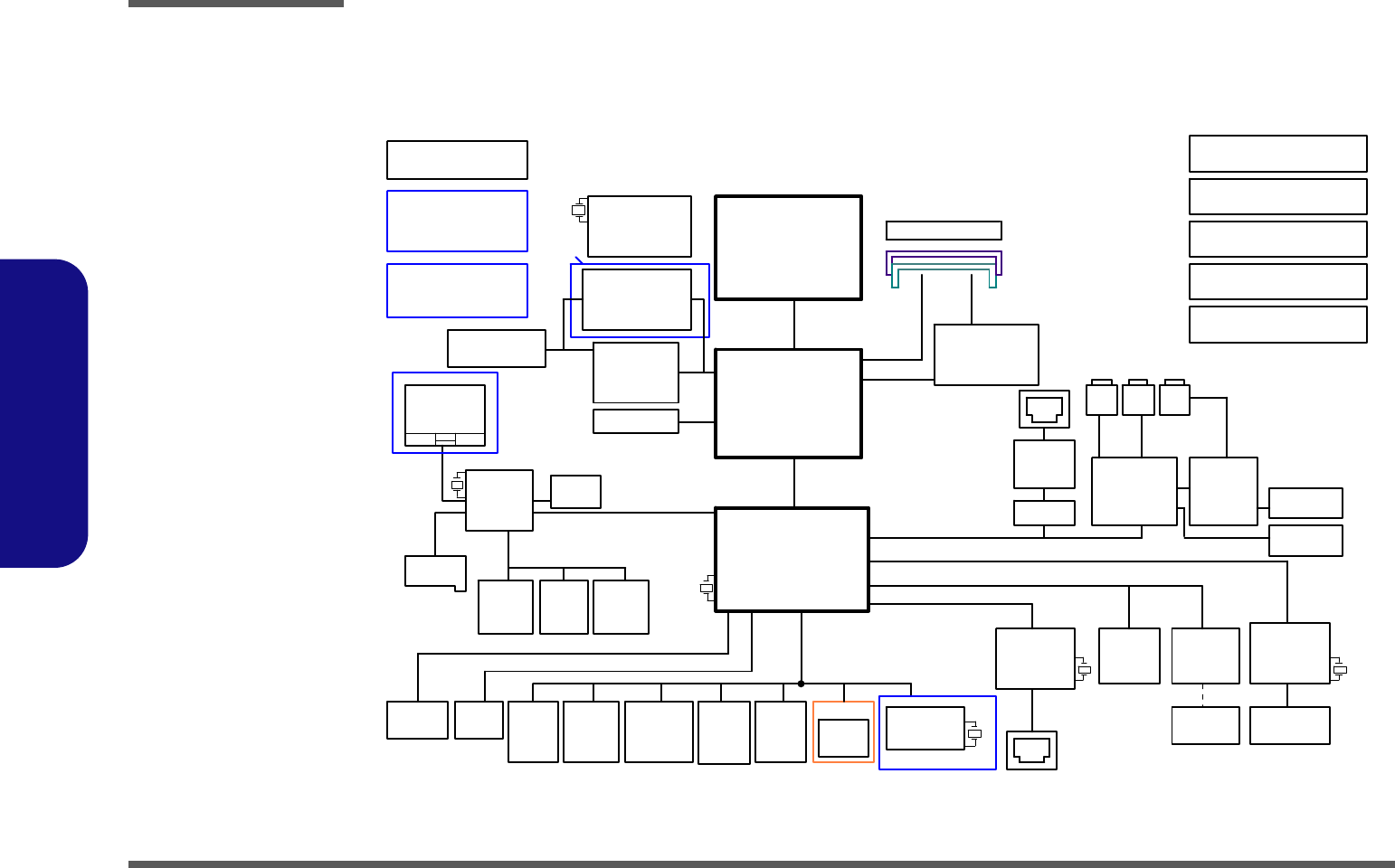

System Block Diagram ...................................................................B-2
Penryn (Socket-P) 1/2 .....................................................................B-3
Penryn (Socket-P) 2/2 .....................................................................B-4
SiSM672 Host, PCIE 1/5 ................................................................B-5
SiSM672 DRAM 2/5 ......................................................................B-6
SiSM672 MuTIOL VGA 3/5 ..........................................................B-7
SiSM672 PWR 4/5 .........................................................................B-8
SiSM672 GND 5/5 .........................................................................B-9
DDRII SO-DIMM - 1 ...................................................................B-10
DDRII SO-DIMM - 2 ...................................................................B-11
SiS307ELV ...................................................................................B-12
Panel, CRT ....................................................................................B-13
Preface
X
Preface
Inverter, Bluetooth, Fan ............................................................... B-14
968 PCI, IDE, MuTIOL, SPI 1/4 ................................................. B-15
968 PCIE, LAN, GPIO 2/4 ........................................................... B-16
968 USB SATA 3/4 ...................................................................... B-17
968 PWR, GND 4/4 ..................................................................... B-18
Clock Generator & Clock Buffer ................................................. B-19
PHY Realtek 8201CL ................................................................... B-20
KBC ITE8512E ............................................................................ B-21
ENE MR510, Card Reader ........................................................... B-22
Audio Codec ALC662 .................................................................. B-23
Audio AMP .................................................................................. B-24
SATA HDD, PWR, LID .............................................................. B-25
Multi I/O, ODD, 3G, Click BD for M74 ...................................... B-26
New Card, Mini PCIE, USB ........................................................ B-27
LED, PC Beep, TP, FP ................................................................. B-28
System/Ext-VGA Power .............................................................. B-29
AC-IN, Charger ............................................................................ B-30
VCORE ........................................................................................ B-31
VDD3, VDD5) ............................................................................. B-32
1.05VS, 1.2V, 1.5V ...................................................................... B-33
1.8V, 0.9VS .................................................................................. B-34
Click BD, Finger BD for M76 ..................................................... B-35
Multi Function Board ................................................................... B-36
Audio Board ................................................................................. B-37
Finger Sensor Board ..................................................................... B-38
Power Switch Board for M74 ....................................................... B-39
External ODD Board for M76 ...................................................... B-40
Power Switch Board for M76 ....................................................... B-41
Introduction
Overview 1 - 1
1.Introduction
Chapter 1: Introduction
Overview
This manual covers the information you need to service or upgrade the M740S/M741S/M745S/M760S/M765S/M766S/
M767S series notebook computer. Information about operating the computer (e.g. getting started, and the Setup utility)
is in the User’s Manual. Information about drivers (e.g. VGA & audio) is also found in User’s Manual. That manual is
shipped with the computer.
Operating systems (e.g. Windows XP, Windows Vista, etc.) have their own manuals as do application software (e.g. word
processing and database programs). If you have questions about those programs, you should consult those manuals.
The M740S/M741S/M745S/M760S/M765S/M766S/M767S series notebook is designed to be upgradeable. See “Disas-
sembly” on page 2 - 1 for a detailed description of the upgrade procedures for each specific component. Please note the
warning and safety information indicated by the “” symbol.
The balance of this chapter reviews the computer’s technical specifications and features.
Introduction
1 - 2 System Specifications
1.Introduction
System Specifications
Feature Specification
Processor Intel® Core™2 Duo Processor
(478-pin) Micro-FC-PGA Package, Socket P
T8100/ T8300
45nm (45 Nanometer) Process Technology
3MB On-die L2 Cache & 800MHz FSB
2.1/ 2.4 GHz
Intel® Core™2 Duo Processor
(478-pin) Micro-FC-PGA Package, Socket P
T9300/ T9500
45nm (45 Nanometer) Process Technology
6MB On-die L2 Cache & 800MHz FSB
2.5/ 2.6 GHz
Intel® Core™2 Duo Processor
(478-pin) Micro-FC-PGA Package, Socket P
T7100/ T7250
65nm (65 Nanometer) Process Technology
2MB On-die L2 Cache & 800MHz FSB
1.80/ 2.0 GHz
Intel® Core™2 Duo Processor
(478-pin) Micro-FC-PGA Package, Socket P
T7300/ T7500/ T7700/ T7800
65nm (65 Nanometer) Process Technology
4MB On-die L2 Cache & 800MHz FSB
2.0/ 2.2/ 2.4/ 2.6 GHz
Intel® Celeron® M Processor
(478-pin) Micro-FCPGA Package, Socket P
530/ 540/ 550/ 560
65nm (65 Nanometer) Process Technology
1MB On-die L2 Cache & 533MHz FSB
1.73/ 1.86/ 2.0/ 2.13 GHz
Core Logic SiS M672 + SiS968 Chipset
LCD M740S/M741S/M745S
14.1" WXGA/ WXGA+ Glare Type TFT LCD
M760S/M765S/M766S/M767S
15.4" WXGA/ WXGA+/ WSXGA+ Glare Type TFT LCD
Video Adapter SIS M672 Integrated Video
High Preference 3D/2D Graphic Accelerator
Shared Memory Architecture (up to 256MB dynamically allocated from system memory where needed)
Supports DirectX 9.0
Supports Vertex Shader 2.0 and Pixel Shader 2.0
Memory 64-bit Wide DDRII (DDR2) Data Channel
Two 200 Pin SO-DIMM Sockets Supporting DDRII (DDR2) 667MHz
Memory Expandable up to 2GB (1024MB/ 2048MB DDRII Modules)
Security Security (Kensington® Type) Lock Slot BIOS Password
BIOS One 8Mb SPI Flash ROM Phoenix™ BIOS
Introduction
System Specifications 1 - 3
1.Introduction
Storage One Changeable 12.7mm(h) PATA Optical Device (CD/DVD) Type Drive (see “Optional” on page 1 - 4) Easy
Changeable 2.5" 9.5 mm (h) SATA (Serial) HDD
Audio High Definition Audio (HDA)
Compliant with Microsoft UAA (Universal Audio
Architecture)
Direct Sound 3D™ Compatible
2 * Built-In Speakers
Built-In Microphone
Keyboard &
Pointing Device
Winkey Keyboard Built-In TouchPad with Scrolling Function
Interface Three USB 2.0 Ports
One Headphone-Out Jack
One Microphone-In Jack
One S/PDIF-Out Jack
One RJ-11 Modem Jack
One RJ-45 LAN Jack
One DC-In Jack
One External Monitor Port
Card Reader Embedded 7-in-1 Card Reader (MS/ MS Pro/ SD/ Mini SD/ MMC/ RS MMC/ MS Duo) Note: MS Duo/ Mini SD/ RS
MMC Cards require a PC adapter
ExpressCard Slot One ExpressCard/34(54) Slot
Communication 10M/100Mb Base-T Ethernet LAN
56K MDC Modem V.90 & V.92 Compliant
3rd Party 802.11b/g Wireless LAN Mini-Card Module with USB interface (Option)
Bluetooth 2.0 + EDR (Enhanced Data Rate) Module (Factory Option)
1.3M (UVC or non UVC) or 2.0M Pixel USB PC Camera Module (Factory Option)
3.5G Module:
UMTS/HSPDA-based 3.5G Module with Mini-Card Interface (Factory Option)
Quad-band GSM/GPRS (850 MHz, 900 MHz, 1800 MHz, 1900 MHz)
UMTS WCDMA FDD (2100 MHz)
Power
Management
Supports ACPI 3.0
Supports Wake on LAN
Supports Wake on USB
Supports Resume from Modem Ring
Power Full Range AC/DC Adapter AC input 100 - 240V, 50 - 60Hz, DC Output 19V, 3.42A OR 18.5V, 3.5A (65 Watts)
Battery 6 Cell Smart Lithium-Ion Battery Pack, 4000mAH OR 4400mAH
9 Cell Smart Lithium-Ion Battery Pack, 7200mAH (Option)
Feature Specification
UMTS Modes
Note that UMTS
modes CAN
NOT be used in
North America.
Introduction
1 - 4 System Specifications
1.Introduction
Environmental
Spec
Temperature
Operating: 5°C - 35°C
Non-Operating: -20°C - 60°C
Relative Humidity
Operating: 20% - 80%
Non-Operating: 10% - 90%
Dimensions
& Weight
M740S/M741S/M745S
336mm (w) * 250mm (d) * 24.8-35.7mm (h)
2.2 kg With 6 Cell Battery & ODD
M760S/M765S/M766S/M767S:
359mm (w) * 268mm (d) * 24.8-37mm (h)
2.5 kg With 6 Cell Battery & ODD
Optional Optical Drive Module Options:
DVD-ROM/CD-RW Combo Drive Module
DVD Dual (Super Multi) Drive Module
3rd Party 802.11b/g Wireless LAN Mini-Card Module with
USB interface
9 Cell Smart Lithium-Ion Battery Pack
1.3M (UVC or non UVC) or 2.0M Pixel USB PC Camera
Module (Factory Option)
Bluetooth 2.0 + EDR (Enhanced Data Rate) Module
(Factory Option)
UMTS/HSPDA-based 3.5G Module with Mini-Card
Interface (Factory Option)
Quad-band GSM/GPRS (850 MHz, 900 MHz, 1800 MHz,
1900 MHz)
UMTS WCDMA FDD (2100 MHz)
Feature Specification
UMTS Modes
Note that UMTS modes CAN NOT be used in
North America.
Introduction
External Locator - Top View with LCD Panel Open 1 - 5
1.Introduction
External Locator - Top View with LCD Panel Open
Figure 1
Top View
1. Optional Built-In
PC Camera
2. LCD
3. Speakers
4. Power Button
5. Hot Key Buttons
6. Keyboard
7. Built-In
Microphone
8. Touchpad &
Buttons
9. LED Indicators
M740S/M741S/M745S M760S/M765S/M766S/M767S
2
5
1
7
8
4
6
33
9
10 10
2
5
1
7
8
4
6
33
9
Introduction
1 - 6 External Locator - Front & Right side Views
1.Introduction
External Locator - Front & Right side Views
Figure 2

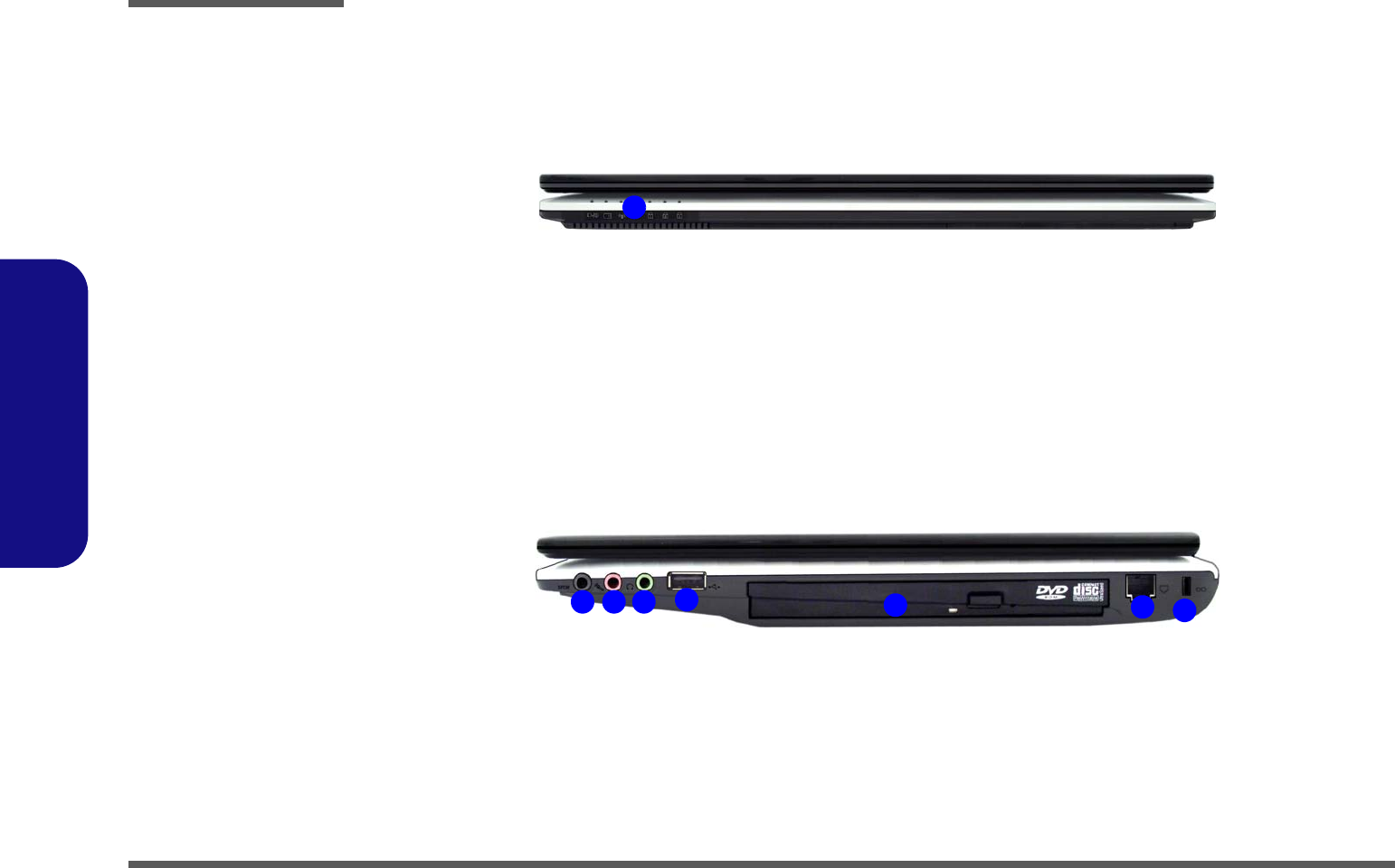

Front Views
1. LED Power &
Communication
Indicators
Figure 3
Right Side Views
1. S/PDIF-Out Jack
2. Microphone-In
Jack
3. Headphone-Out
Jack
4. USB 2.0 Port
5. Optical Device
Drive Bay
6. RJ-11 Phone
Jack
7. Security Lock
Slot
1
15
24
367
Introduction
External Locator - Left Side & Rear View 1 - 7
1.Introduction
External Locator - Left Side & Rear View
Figure 4
Left Side View
1. DC-In Jack
2. External Monitor
Port
3. RJ-45 LAN Jack
4. Vent/Fan Intake/
Outlet
5. 2 * USB 2.0 Ports
6. ExpressCard Slot
7. 7-in-1 Card
Reader
Figure 5
Rear View
1. Battery
1
Introduction
1 - 8 External Locator - Bottom View
1.Introduction
External Locator - Bottom View

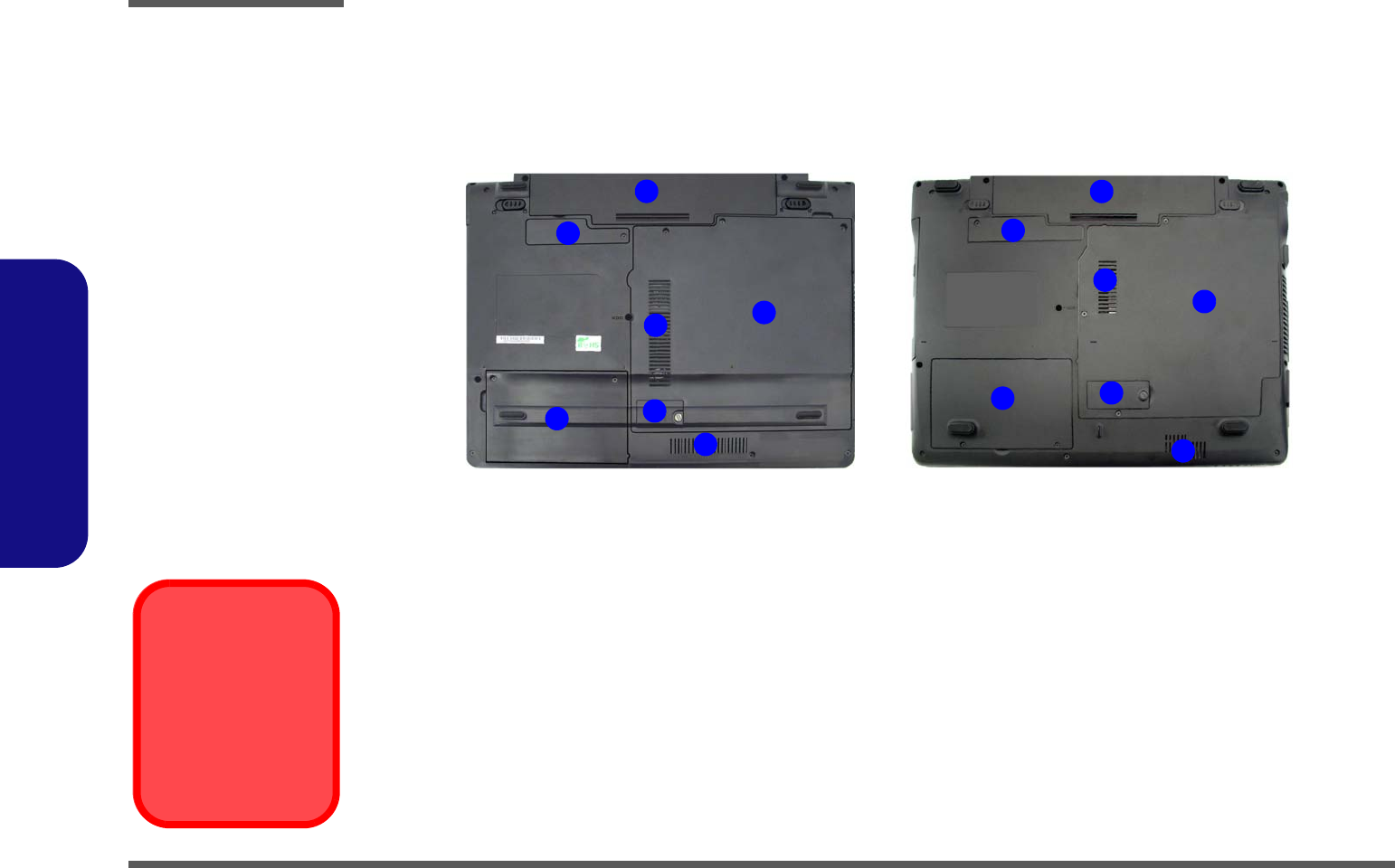

Figure 6
Bottom View
1. Battery
2. Bluetooth
Module Cover
3. RAM & CPU Bay
Cover
4. Vent/Fan Intake/
Outlet
5. Hard Disk Bay
Cover
6. 3.5G USIM Card
Location
Overheating
To prevent your com-
puter from overheating
make sure nothing
blocks the vent/fan in-
takes while the com-
puter is in use.
M740S/M741S/M745S M760S/M765S/M766S/M767S
2
3
1
4
4
56
2
3
1
4
4
56
Introduction
Mainboard Overview - Top (Key Parts) 1 - 9
1.Introduction
Mainboard Overview - Top (Key Parts)

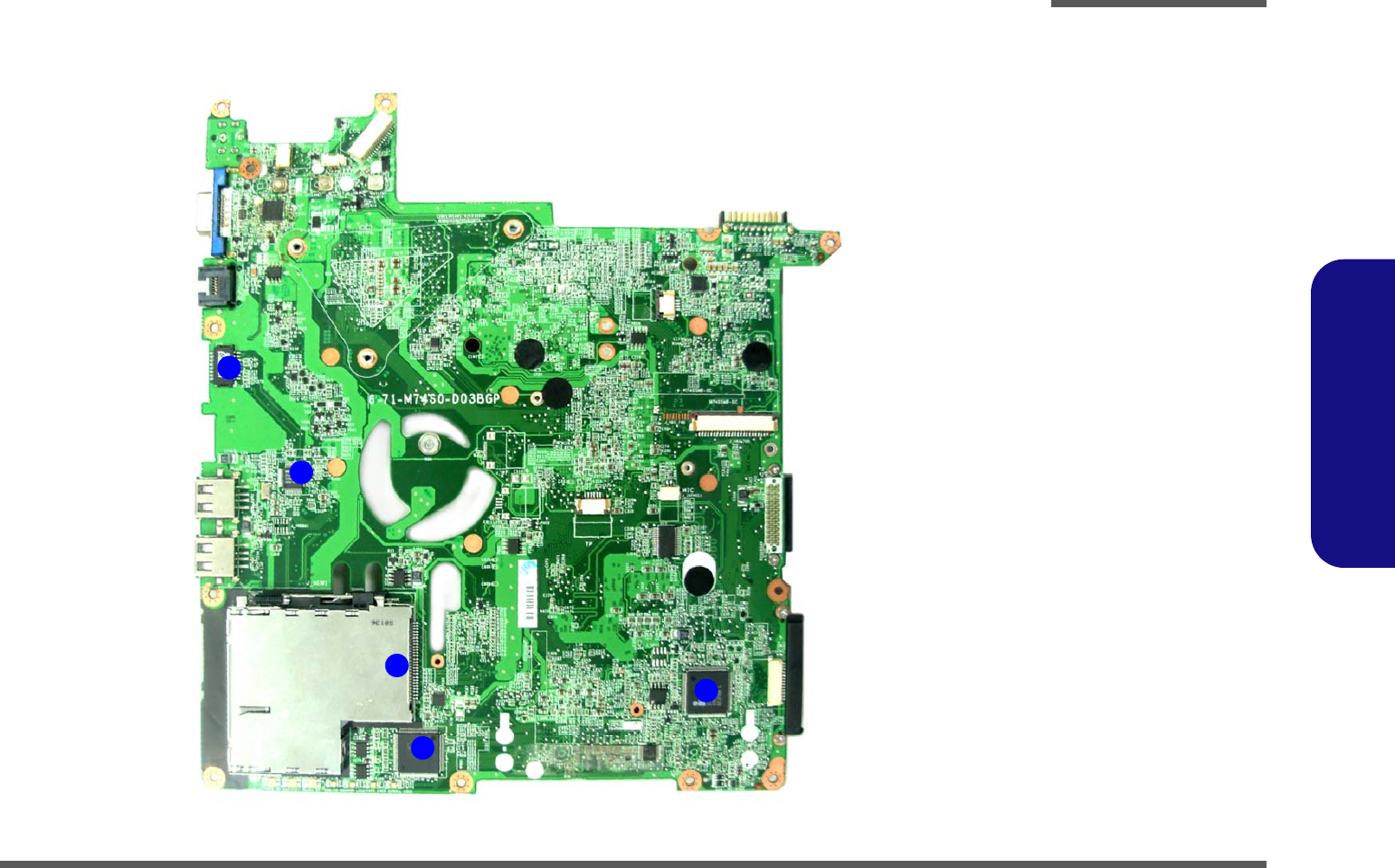

Figure 7
Mainboard Top
Key Parts
1. Transformer
2. RTL8201CL
3. ExpressCard
Connector
4. ENE MR510
5. KBC ITE IT8512E
1
2
3
4
5
Introduction
1 - 10 Mainboard Overview - Bottom (Key Parts)
1.Introduction
Mainboard Overview - Bottom (Key Parts)
1
2
3
45
6
10
7
8
9

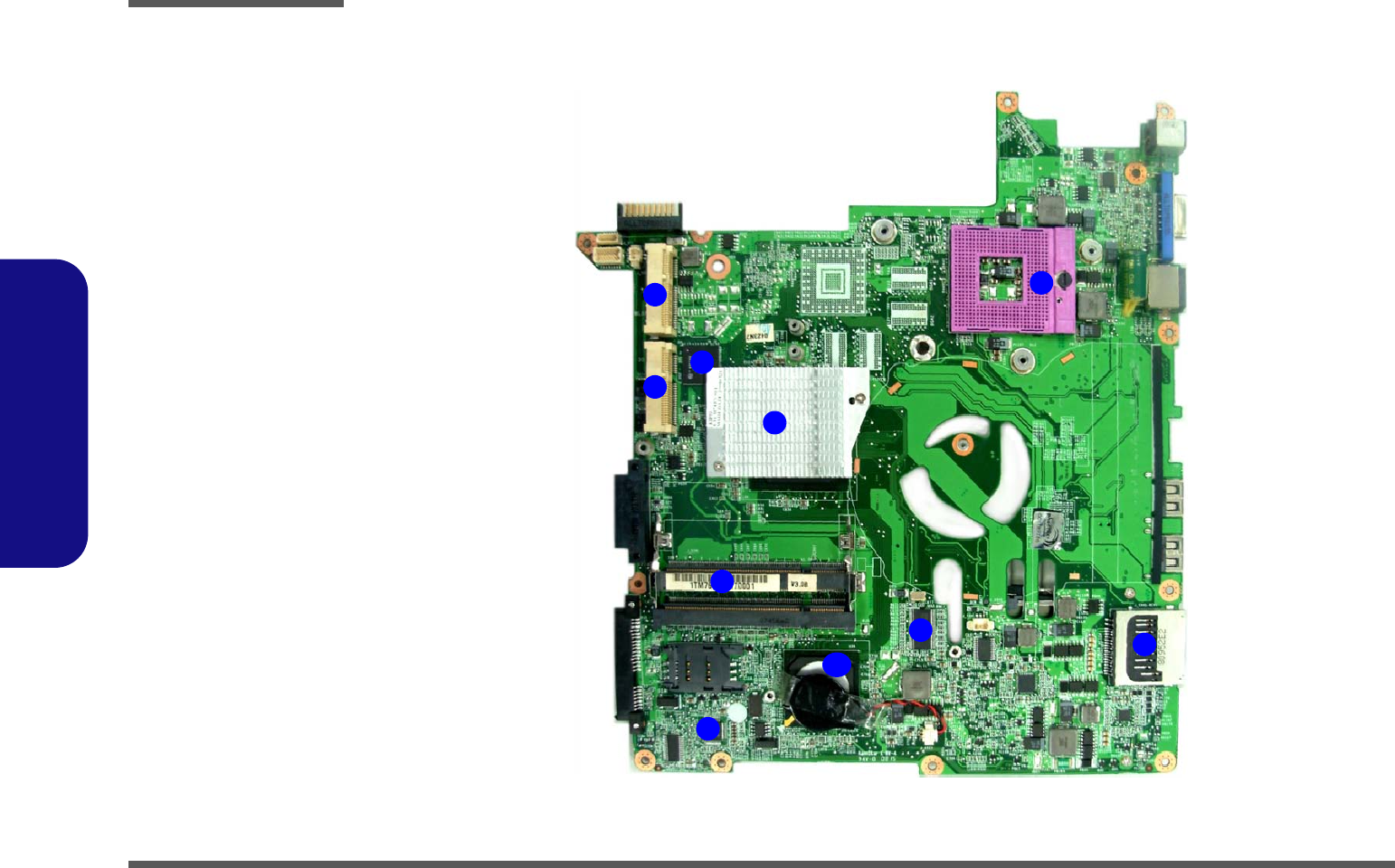

Figure 8
Mainboard Bottom
Key Parts
1. CPU Socket (no
CPU installed)
2. SiSM672
3. Memory Slots
DDR2 SO-DIMM
4. ICS
9LPR600CGLF
5. Card Reader
Socket
6. SiS307ELV
7. Audio Codec
ALC62
8. Mini-Card
Connector (WLAN
Module)
9. Mini-Card
Connector (3G
Module)
10. SiS968
Introduction
Mainboard Overview - Top (Connectors) 1 - 11
1.Introduction
Mainboard Overview - Top (Connectors)

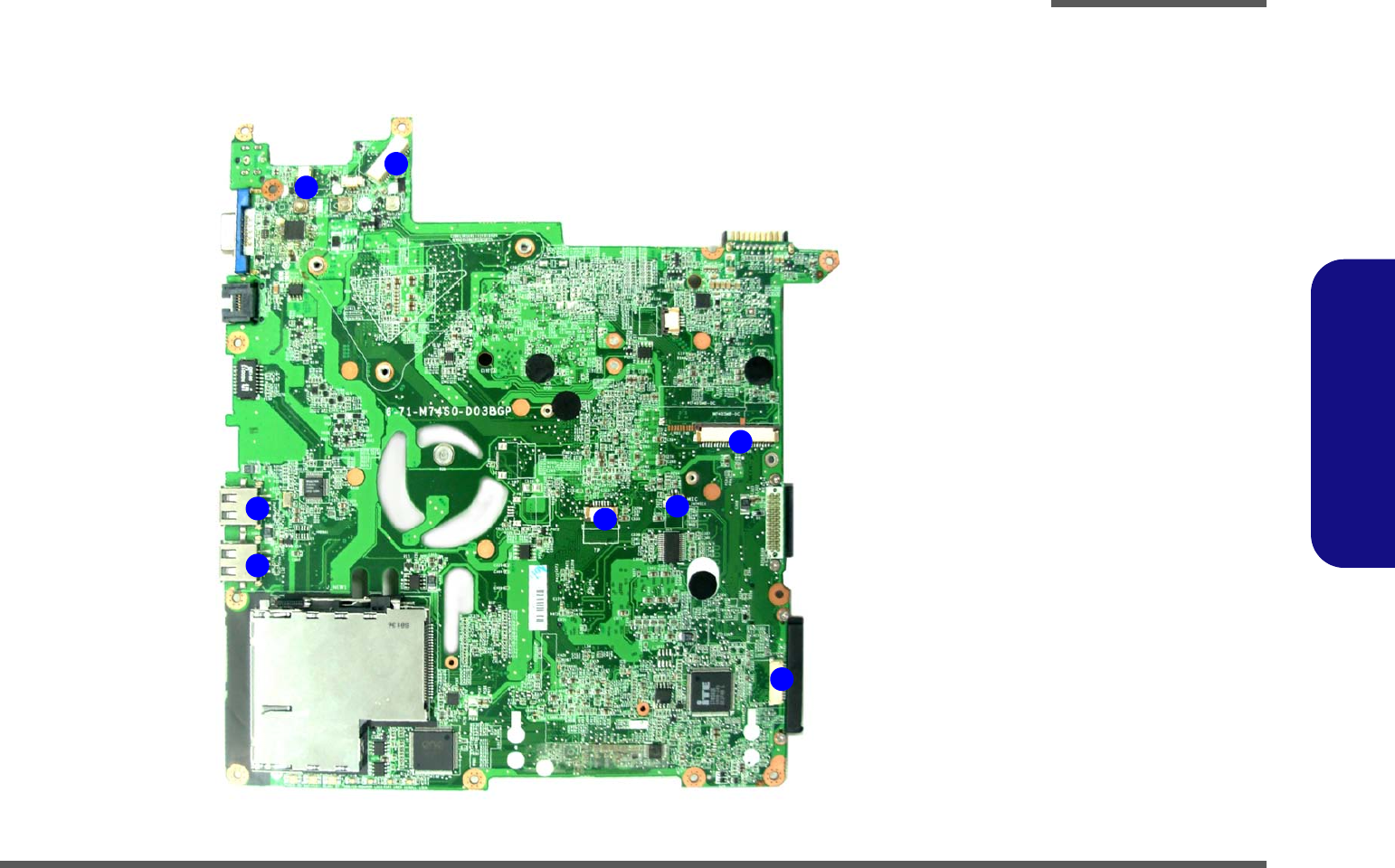

Figure 9
Mainboard Top
Connectors
1. USB Port
2. Inverter
Connector
3. LCD Cable
Connector
4. Keyboard Cable
Connector
5. Audio Board
Connector
6. Microphone
Cable Connector
7. TouchPad Cable
Connector
6
5
7
1
1
4
2
3
Introduction
1 - 12 Mainboard Overview - Bottom (Connectors)
1.Introduction
Mainboard Overview - Bottom (Connectors)

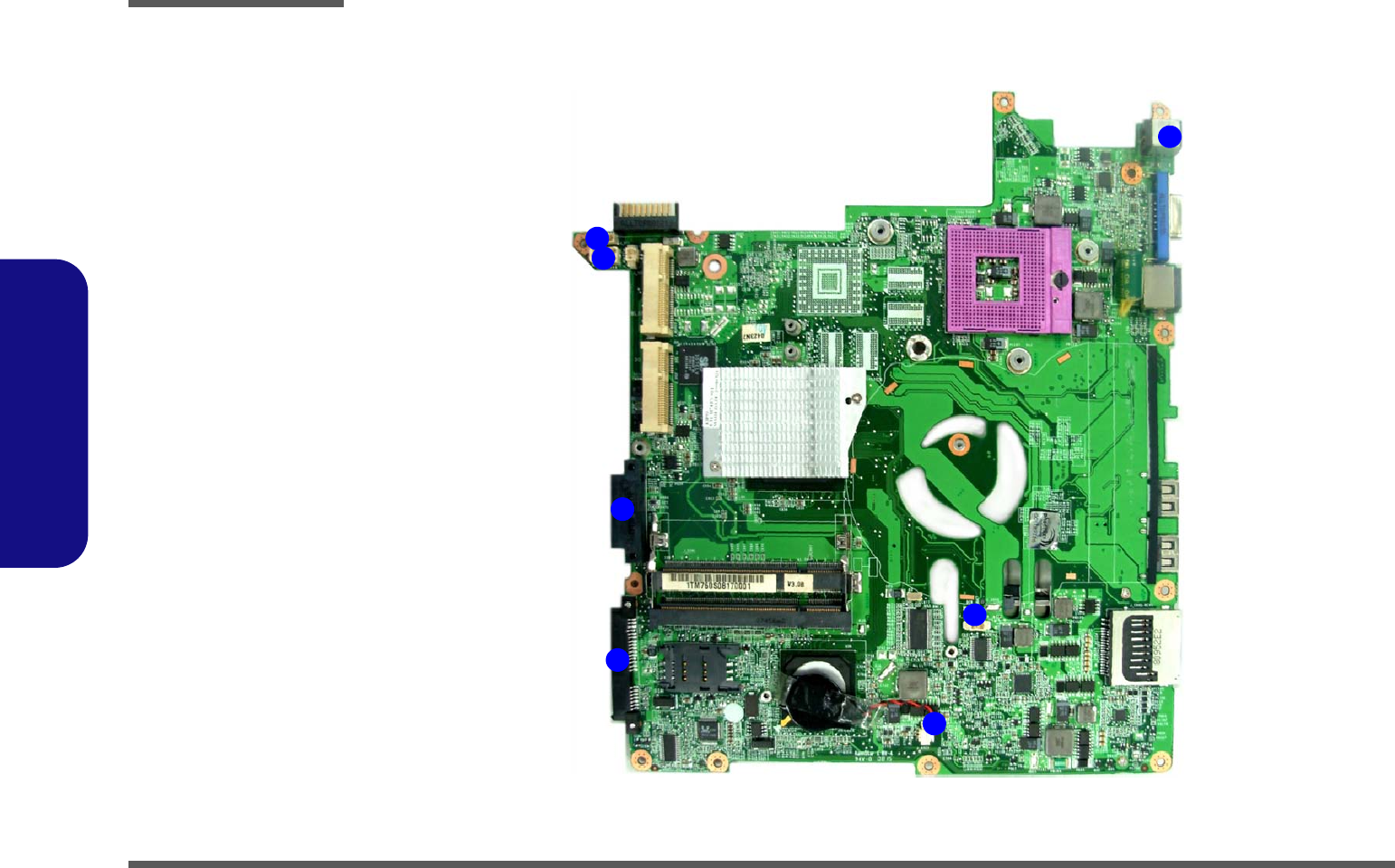

Figure 10
Mainboard Bottom
Connectors
1. BT Cable
Connector
2. Multi Board
Connector
3. CD-ROM
Connector
4. HDD Connector
5. CMOS Bat.
Connector
6. CPU Fan Cable
Connector
7. DC-In Jack
1
2
3
4
5
6
7
Disassembly
Overview 2 - 1
2.Disassembly
Chapter 2: Disassembly
Overview
This chapter provides step-by-step instructions for disassembling the M740S/M741S/M745S/M760S/M765S/M766S/
M767S series notebook’s parts and subsystems. When it comes to reassembly, reverse the procedures (unless otherwise
indicated).
We suggest you completely review any procedure before you take the computer apart.
Procedures such as upgrading/replacing the RAM, optical device and hard disk are included in the User’s Manual but are
repeated here for your convenience.
To make the disassembly process easier each section may have a box in the page margin. Information contained under
the figure # will give a synopsis of the sequence of procedures involved in the disassembly procedure. A box with a
lists the relevant parts you will have after the disassembly process is complete. Note: The parts listed will be for the dis-
assembly procedure listed ONLY, and not any previous disassembly step(s) required. Refer to the part list for the previ-
ous disassembly procedure. The amount of screws you should be left with will be listed here also.
A box with a will also provide any possible helpful information. A box with a contains warnings.
An example of these types of boxes are shown in the sidebar.
Information
Warning
Disassembly
2-2Overview
2.Disassembly
NOTE: All disassembly procedures assume that the system is turned OFF, and disconnected from any power supply (the
battery is removed too).
Maintenance Tools
The following tools are recommended when working on the notebook PC:
• M3 Philips-head screwdriver
• M2.5 Philips-head screwdriver (magnetized)
• M2 Philips-head screwdriver
• Small flat-head screwdriver
• Pair of needle-nose pliers
• Anti-static wrist-strap
Connections
Connections within the computer are one of four types:
Locking collar sockets for ribbon connectors To release these connectors, use a small flat-head screwdriver to
gently pry the locking collar away from its base. When replac-
ing the connection, make sure the connector is oriented in the
same way. The pin1 side is usually not indicated.
Pressure sockets for multi-wire connectors To release this connector type, grasp it at its head and gently
rock it from side to side as you pull it out. Do not pull on the
wires themselves. When replacing the connection, do not try to
force it. The socket only fits one way.
Pressure sockets for ribbon connectors To release these connectors, use a small pair of needle-nose pli-
ers to gently lift the connector away from its socket. When re-
placing the connection, make sure the connector is oriented in
the same way. The pin1 side is usually not indicated.
Board-to-board or multi-pin sockets To separate the boards, gently rock them from side to side as
you pull them apart. If the connection is very tight, use a small
flat-head screwdriver - use just enough force to start.
Disassembly
Overview 2 - 3
2.Disassembly
Maintenance Precautions
The following precautions are a reminder. To avoid personal injury or damage to the computer while performing a re-
moval and/or replacement job, take the following precautions:
1. Don't drop it. Perform your repairs and/or upgrades on a stable surface. If the computer falls, the case and other
components could be damaged.
2. Don't overheat it. Note the proximity of any heating elements. Keep the computer out of direct sunlight.
3. Avoid interference. Note the proximity of any high capacity transformers, electric motors, and other strong mag-
netic fields. These can hinder proper performance and damage components and/or data. You should also monitor
the position of magnetized tools (i.e. screwdrivers).
4. Keep it dry. This is an electrical appliance. If water or any other liquid gets into it, the computer could be badly
damaged.
5. Be careful with power. Avoid accidental shocks, discharges or explosions.
•Before removing or servicing any part from the computer, turn the computer off and detach any power supplies.
•When you want to unplug the power cord or any cable/wire, be sure to disconnect it by the plug head. Do not pull on the wire.
6. Peripherals – Turn off and detach any peripherals.
7. Beware of static discharge. ICs, such as the CPU and main support chips, are vulnerable to static electricity.
Before handling any part in the computer, discharge any static electricity inside the computer. When handling a
printed circuit board, do not use gloves or other materials which allow static electricity buildup. We suggest that
you use an anti-static wrist strap instead.
8. Beware of corrosion. As you perform your job, avoid touching any connector leads. Even the cleanest hands pro-
duce oils which can attract corrosive elements.
9. Keep your work environment clean. Tobacco smoke, dust or other air-born particulate matter is often attracted
to charged surfaces, reducing performance.
10. Keep track of the components. When removing or replacing any part, be careful not to leave small parts, such as
screws, loose inside the computer.
Cleaning
Do not apply cleaner directly to the computer, use a soft clean cloth.
Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer.
Power Safety
Warning
Before you undertake
any upgrade proce-
dures, make sure that
you have turned off the
power, and discon-
nected all peripherals
and cables (including
telephone lines). It is
advisable to also re-
move your battery in
order to prevent acci-
dentally turning the
machine on.
Disassembly
2 - 4 Disassembly Steps
2.Disassembly
Disassembly Steps
The following table lists the disassembly steps, and on which page to find the related information. PLEASE PERFORM
THE DISASSEMBLY STEPS IN THE ORDER INDICATED.
To remove the Battery:
1. Remove the battery page 2 - 5
To remove the HDD:
1. Remove the battery page 2 - 5
2. Remove the HDD page 2 - 6
To remove the Optical Device:
1. Remove the battery page 2 - 5
2. Remove the Optical device page 2 - 9
To remove the System Memory:
1. Remove the battery page 2 - 5
2. Remove the system memory page 2 - 11
To remove the Inverter Board:
1. Remove the battery page 2 - 5
2. Remove the inverter board page 2 - 13
To remove and install a Processor:
1. Remove the battery page 2 - 5
2. Remove the processor page 2 - 14
3. Install the processor page 2 - 16
To remove the Wireless LAN Module:
1. Remove the battery page 2 - 5
2. Remove the wireless LAN page 2 - 17
To remove the Bluetooth Modules:
1. Remove the battery page 2 - 5
2. Remove the Bluetooth page 2 - 18
To remove the Keyboard:
1. Remove the battery page 2 - 5
2. Remove the keyboard page 2 - 19
To remove the Modem:
1. Remove the battery page 2 - 5
2. Remove the HDD page 2 - 6
3. Remove the system memory page 2 - 11
4. Remove the Optical device page 2 - 9
5. Remove the processor page 2 - 14
6. Remove the keyboard page 2 - 19
7. Remove the modem page 2 - 20
Disassembly
Removing the Battery 2 - 5
2.Disassembly
Removing the Battery

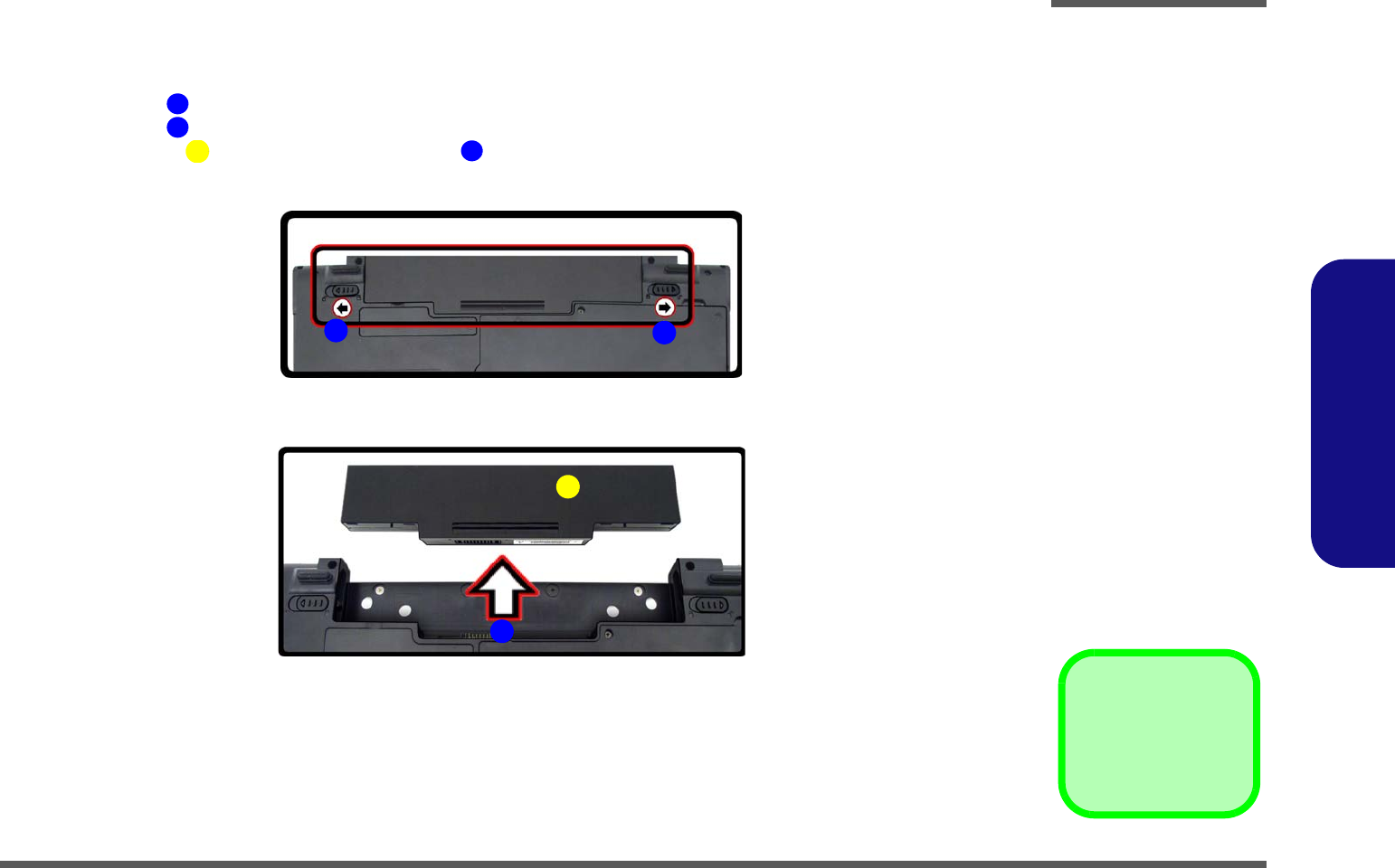

1. Turn the computer off, and turn it over.
2. Slide the latch in the direction of the arrow.
3. Slide the latch in the direction of the arrow, and hold it in place.
4. Slide the battery in the direction of the arrow .
3. Battery
1
2
6
3
4
a.
3
b.
2
4
1
Figure 1
Battery Removal
a. Slide the latch and hold
in place.
b. Slide the battery in the di-
rection of the arrow.
Disassembly
2 - 6 Removing the Hard Disk Drive
2.Disassembly
Removing the Hard Disk Drive
The hard disk drive can be taken out to accommodate other 2.5" serial (SATA) hard disk drives with a height of 9.5mm
(h). Follow your operating system’s installation instructions, and install all necessary drivers and utilities (as outlined in
Chapter 4 of the User’s Manual) when setting up a new hard disk.
Hard Disk Upgrade Process
1. Turn off the computer, and remove the battery (page 2 - 5).
2. Locate the hard disk bay cover and remove screw & .

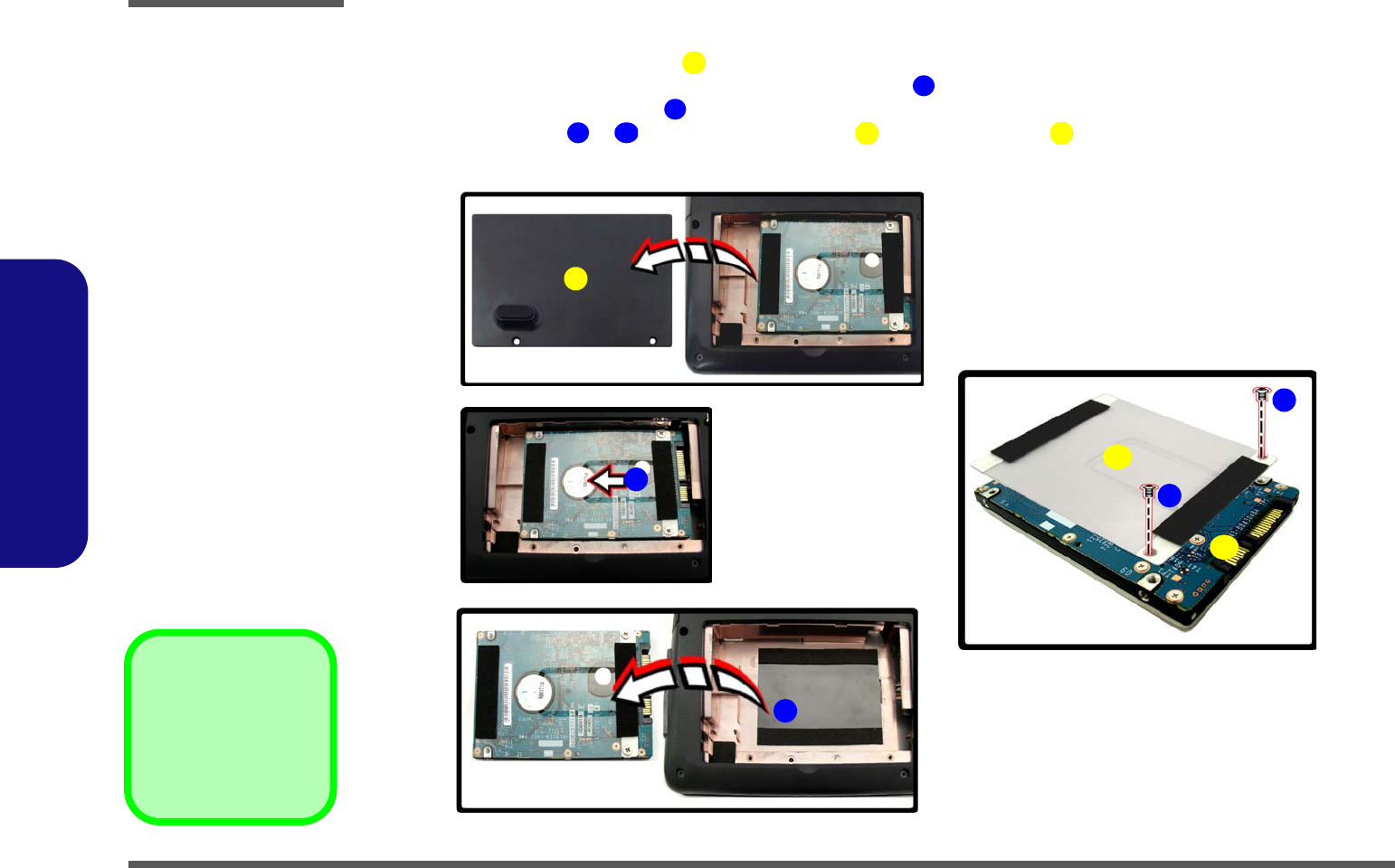

Figure 2
HDD Assembly
Removal
a. Locate the HDD bay
cover and remove the
screw(s).
•2 Screws
1
2
21 21
a.
HDD System Warning
New HDD’s are blank. Before you begin make sure:
You have backed up any data you want to keep from your old HDD.
You have all the CD-ROMs and FDDs required to install your operating system and programs.
If you have access to the internet, download the latest application and hardware driver updates for the operating system you plan
to install. Copy these to a removable medium.
M740S/M741S/M745S M760S/M765S/M766S/M767S
Disassembly
Removing the Hard Disk Drive 2 - 7
2.Disassembly
For M740S/M741S/M745S computers:
3. Remove the hard disk bay cover .
4. Grip the tab and slide the hard disk in the direction of arrow .
5. Lift the hard disk out of the bay .
6. Remove the screw and the adhesive cover from the hard disk .
7. Reverse the process to install a new hard disk (do not forget to replace all the screws and covers).
6
3
4
5
6
6
7
6
8
4
b.
c.
e.
5
6
d.
3
7
8
3. HDD Bay Cover
7. Adhesive Cover
8. HDD
•1 Screw
Figure 3
HDD Assembly
Removal (cont’d.)
b. Remove the HDD bay
cover.
c. Grip the tab and slide the
HDD in the direction of
the arrow.
d. Lift the HDD assembly
out of the bay.
e. Remove the screw and
adhesive cover.
Disassembly
2 - 8 Removing the Hard Disk Drive
2.Disassembly
For M760S/M765S/M766S/M767S computers:
8. Remove the hard disk bay Cover .
9. Grip the tab and slide the hard disk in the direction of arrow .
10. Lift the hard disk out of the bay .
11. Remove the screws & and the adhesive cover from the hard disk .
12. Reverse the process to install a new hard disk (do not forget to replace all the screws and covers).
6
3
4
5
6
7
6
8
6
9
3. HDD Bay Cover
8. Adhesive Covere
9. HDD
•2 Screws
7
6
4
8
9
i.
g.
f.
5
3
h.
Figure 4
HDD Assembly
Removal (cont’d.)
f. Remove the HDD Bay
Cover.
g. Grip the tab and slide the
HDD in the direction of
the arrow.
h. Lift the HDD assembly
out of the bay.
i. Remove the screw and
adhesive cover.
Disassembly
Removing the Optical (CD/DVD) Device 2 - 9
2.Disassembly
Removing the Optical (CD/DVD) Device
1. Turn off the computer, and remove the battery (page 2 - 5).

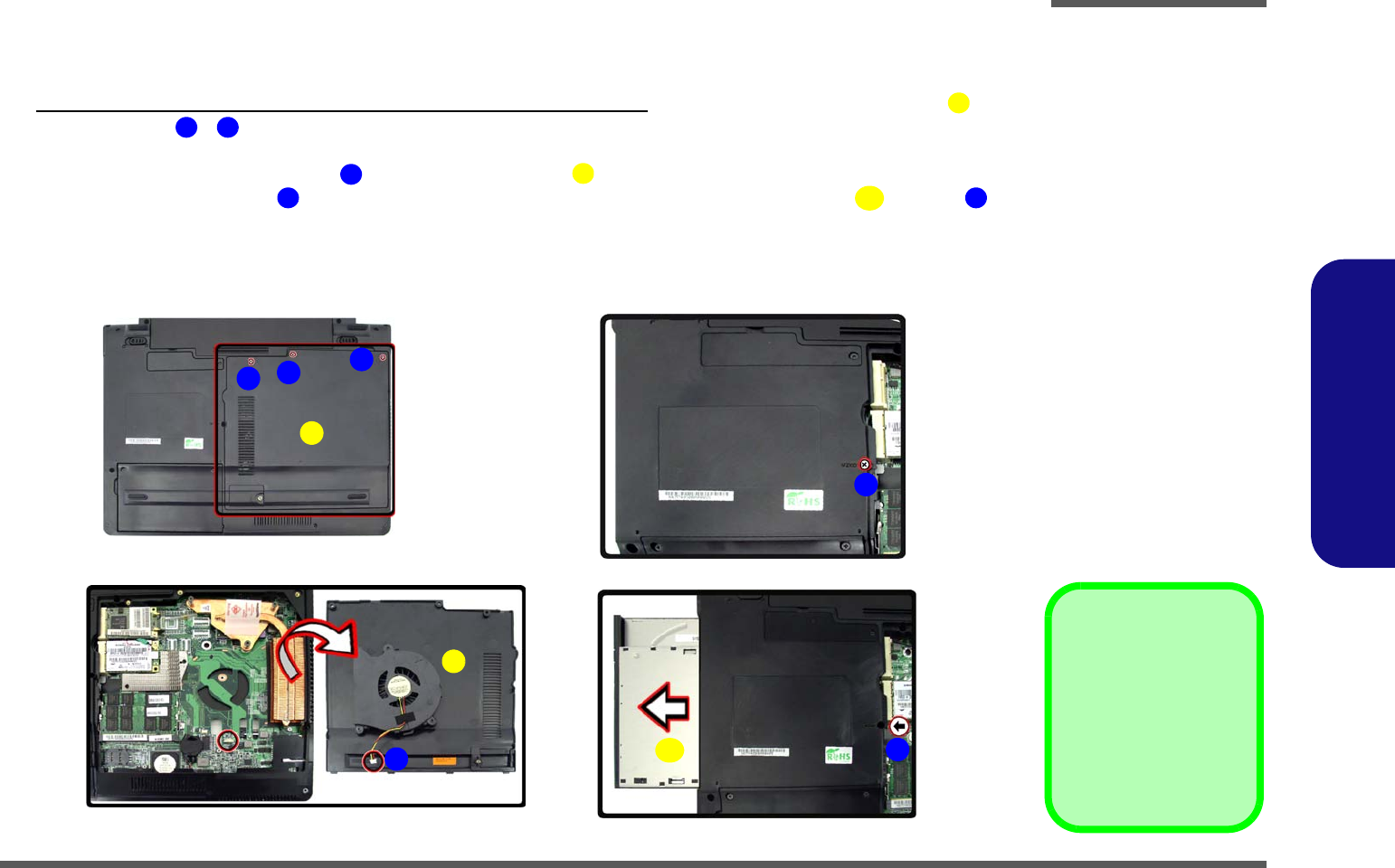

2. M740S/M741S/M745S: (see over for M760S/M765S/M766S/M767S) Locate the component bay cover and
remove screws - .
3. Carefully (a fan and cable are attached to the under side of the cover) lift up the bay cover.
4. Carefully disconnect the fan cable , and remove the cover .
5. Remove the screw at point , and use a screwdriver to carefully push out the optical device at point .
6. Insert the new device and carefully slide it into the computer (the device only fits one way. DO NOT FORCE IT; The
screw holes should line up).
7. Restart the computer to allow it to automatically detect the new device.
Figure 5
Optical Device
Removal
a. Remove the screws.
b. Disconnect the fan cable
and remove the cover.
c. Remove the screw.
d. Push the optical device
out off the computer at
point 7.
1
2
4
5
1
6
8
7
1. Component Bay Cover
8. Optical Device
•4 Screws
5
2
4
3
c.
d.
c.
M740S/M741S/M745S
8
1
1
6
7
a.
b.
Disassembly
2 - 10 Removing the Optical (CD/DVD) Device
2.Disassembly

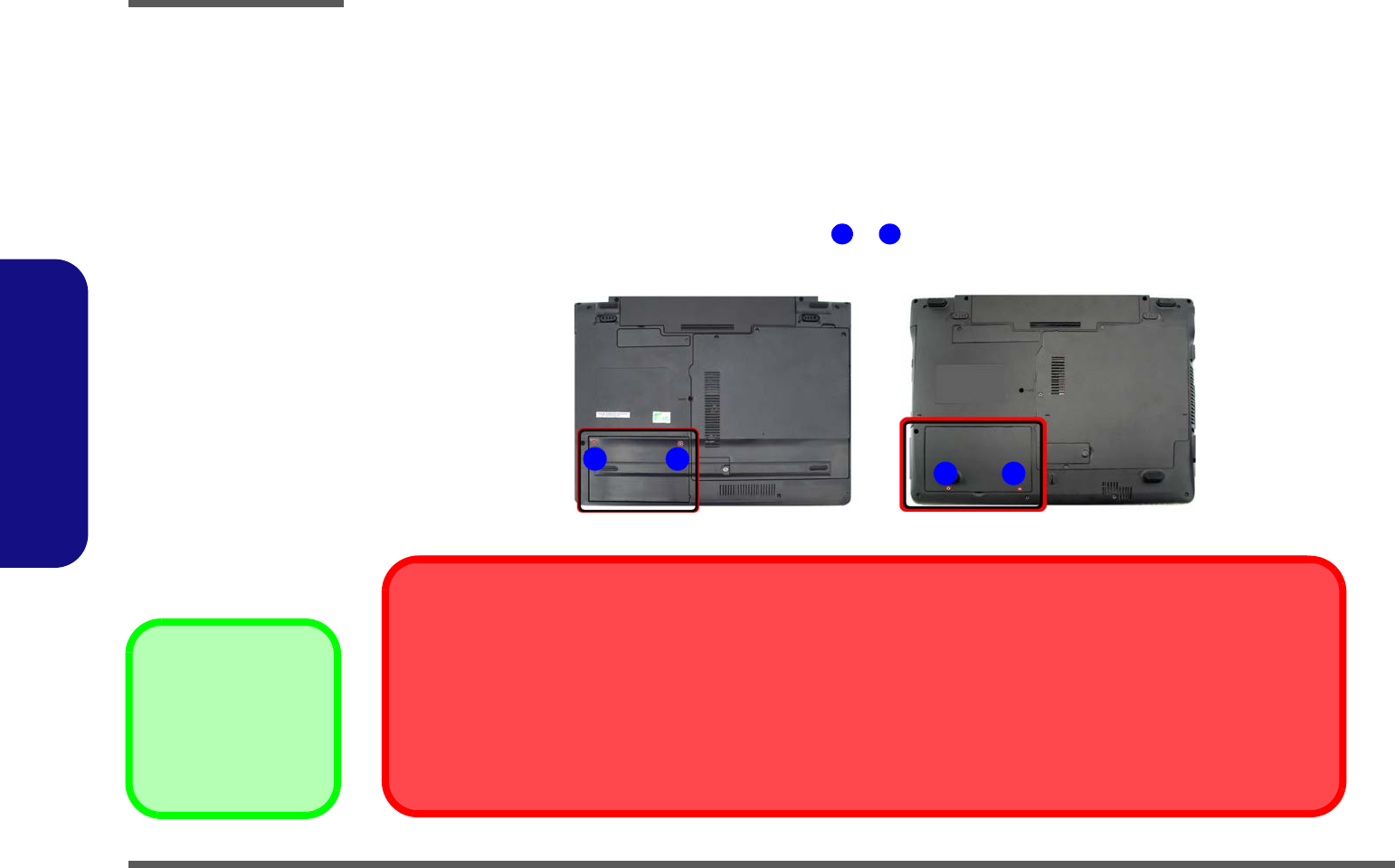

8. M760S/M765S/M766S/M767S: Locate the hard disk bay cover and loosen screws & .
9. Remove the hard disk bay cover .
10. Remove the screw at point , and use a screwdriver to carefully push out the optical device at point .
11. Insert the new device and carefully slide it into the computer (the device only fits one way. DO NOT FORCE IT; The
screw holes should line up).
12. Restart the computer to allow it to automatically detect the new device.
1
2
3
1
6
8
7
1. HDD Bay Cover
8. Optical Device
•3 Screws
6
7
7
32
g.
h.
M760S/M765S/M766S/M767S
8
1
1
e.
f.
Figure 6
Optical Device
Removal (cont’d.)
e. Remove the screws.
f. Remove the cover.
g. Remove the screw.
h. Push the optical device
out off the computer at
point 7.
Disassembly
Removing the System Memory (RAM) 2 - 11
2.Disassembly
Removing the System Memory (RAM)
The computer has two memory sockets for 200 pin Small Outline Dual In-line Memory Modules (SO-DIMM) supporting
DDR2 667MHz. The main memory can be expanded up to 2GB. The SO-DIMM modules supported are 1024MB, and
2048MB and DDRII Modules. The total memory size is automatically detected by the POST routine once you turn on
your computer.
Memory Upgrade Process
1. Turn off the computer, remove the battery (page 2 - 5).

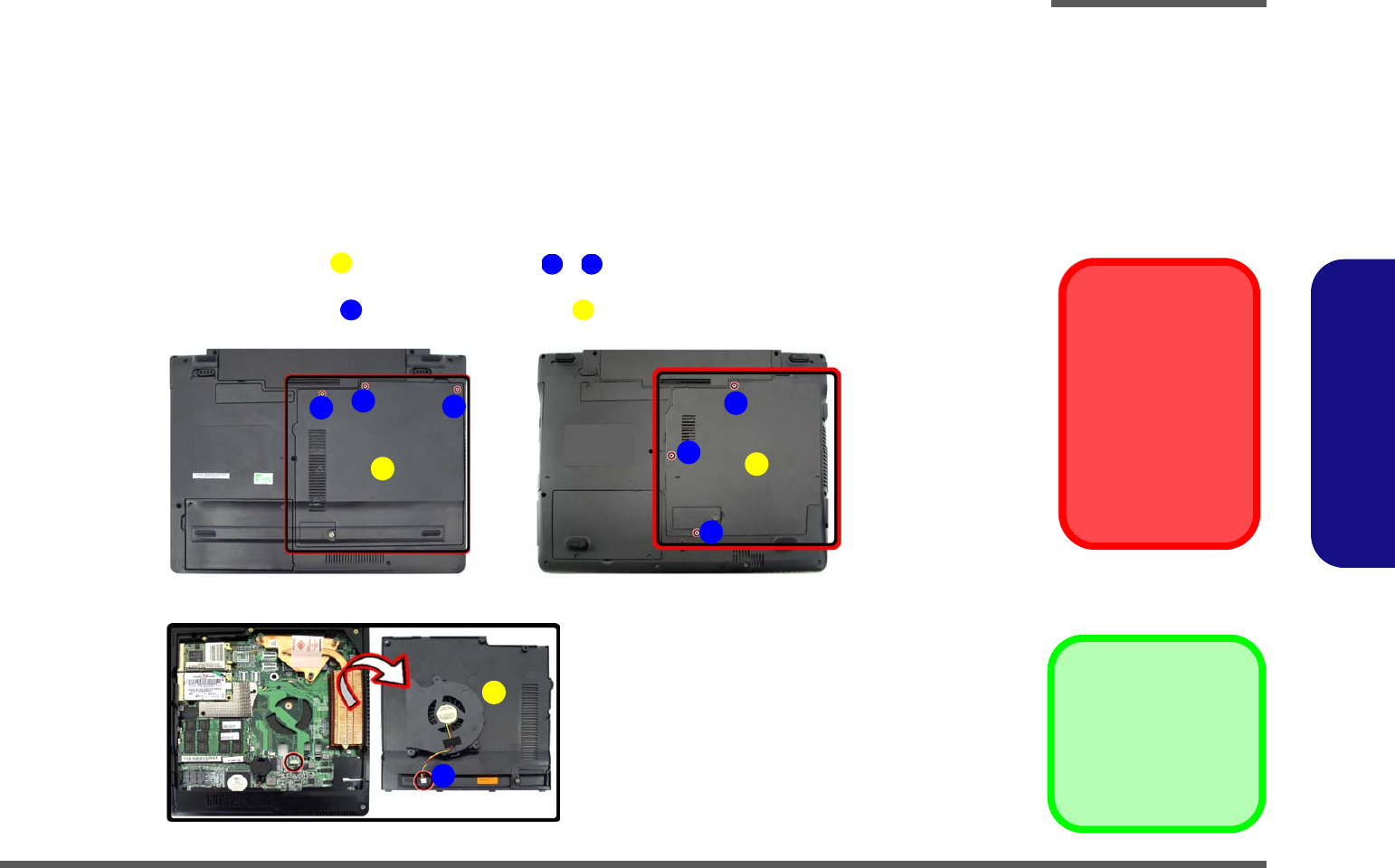

2. Locate the component bay cover , and remove screws - .
3. Carefully (a fan and cable are attached to the under side of the cover) lift up the bay cover.
4. Carefully disconnect the fan cable , and remove the cover .

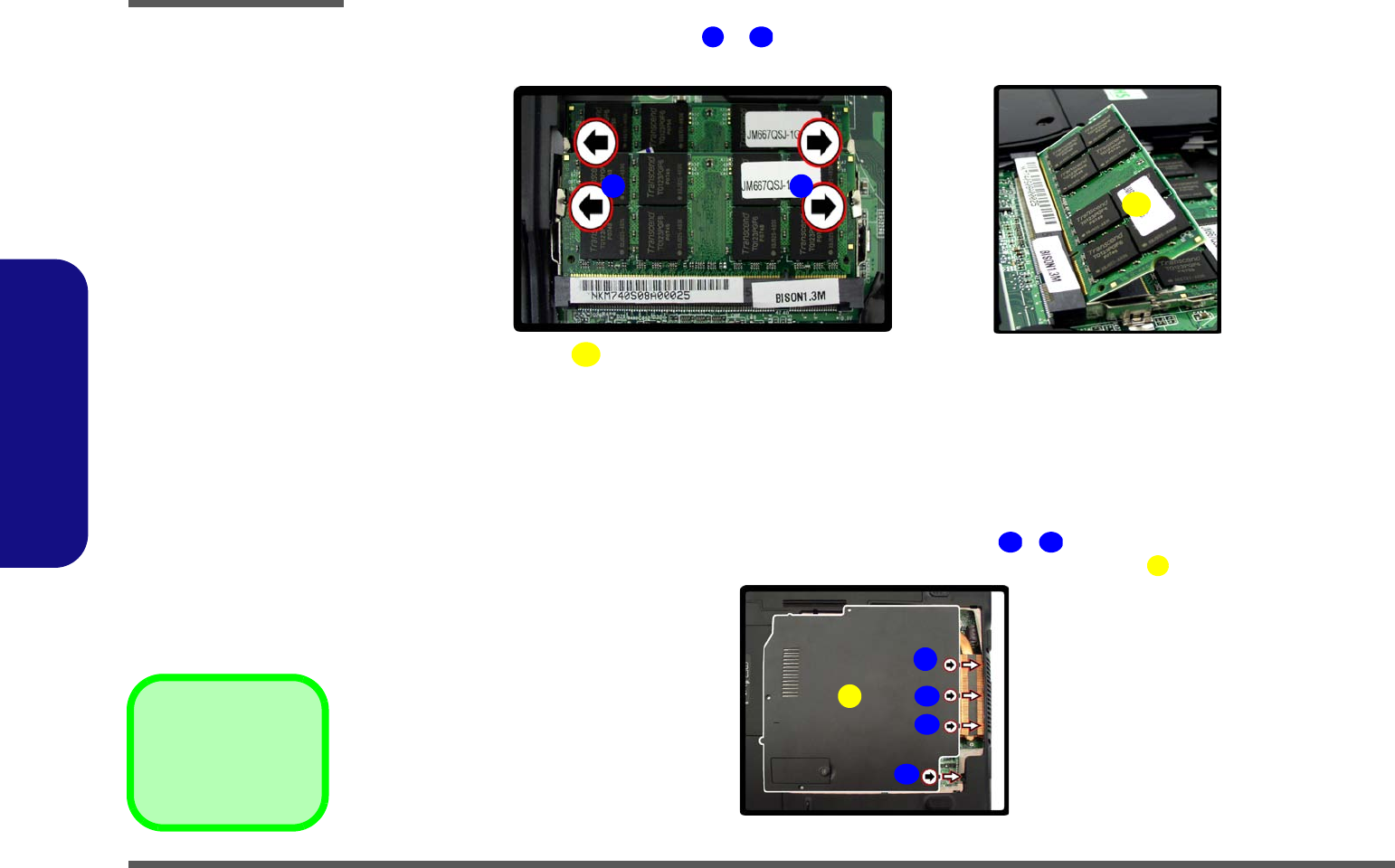

Figure 7
RAM Module
Removal
a. Remove the screws.
b. Remove the cover.
Contact Warning
Be careful not to touch
the metal pins on the
module’s connecting
edge. Even the clean-
est hands have oils
which can attract parti-
cles, and degrade the
module’s perfor-
mance.
1
2
4
5
1
1. Component Bay
Cover
•3 Screws
24
32
3
4
a.
M740S/M741S/M745S
b.
1
1
M760S/M765S/M766S/M767S
5
1
Note:
Only one model is pictured
here, however the compo-
nent locations are the same
for both models.
Disassembly
2 - 12 Removing the System Memory (RAM)
2.Disassembly
5. Gently pull the two release latches ( & ) on the sides of the memory socket in the direction indicated by the
arrows (Figure 8c).
6. The RAM module(s) will pop-up (Figure 8d), and you can then remove it.
7. Pull the latches to release the second module if necessary.
8. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot.
9. The module’s pin alignment will allow it to only fit one way. Make sure the module is seated as far into the slot as it
will go. DO NOT FORCE the module; it should fit without much pressure.
10. Press the module in and down towards the mainboard until the slot levers click into place to secure the module.
11. Replace the bay cover and screws (make sure you reconnect the fan cable before screwing down the bay
cover).
Note for M760S/M765S/M766S/M767S computers that there are four - cover pins which need to be aligned
with slots in the case, to insure a proper cover fit, before screwing down the bay cover .
12. Restart the computer to allow the BIOS to register the new memory configuration as it starts up.
6
7
d.
8
6 7
c.
Figure 8
RAM Module
Removal (cont’d.)
c. Pull the release
latch(es).
d. Remove the module(s).
e. Properly re-insert the
bay cover pins.
8. RAM Module(s)
8
9
12
1
9
e.
10
11
12
1
Disassembly
Removing the Inverter Board 2 - 13
2.Disassembly
Removing the Inverter Board
1. Turn off the computer, and remove the battery (page 2 - 5).
2. Remove any rubber covers, screws - (Figure 9a), then run your finger around the middle of the frame to
carefully unsnap the LCD front panel module from the back.
3. Discharge the remaining system power (see “Inverter Power Warning” below).
4. Remove screw (Figure 9b) from the inverter, and carefully lift the inverter board up slightly.
5. Disconnect cables & (Figure 9c) from the inverter, then remove the inverter (Figure 9d) from the top
case assembly.

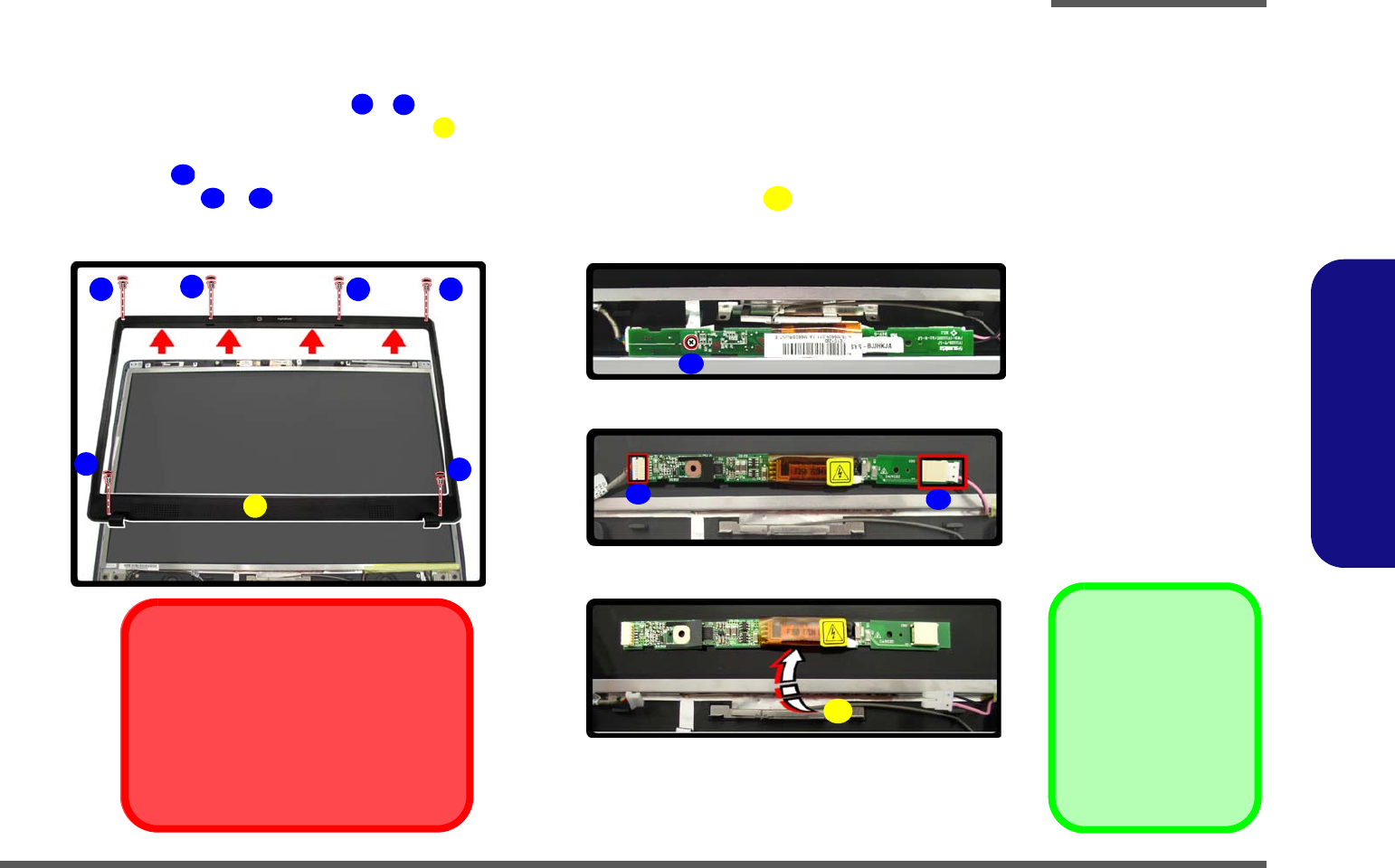

Figure 9
Inverter Board
Removal
a. Remove the 6 screws
and unsnap the LCD
front panel module from
the back.
b. Remove the screw and
discharge the remaining
power from the inverter
board and lift the board
up slightly.
c. Disconnect the cables
from the inverter.
d. Remove the inverter.
1
6
7
8
9
10
11
7. LCD Front Panel
11. Inverter Board
•6 Screws
a. b.
11
Inverter Power Warning
In order to prevent a short circuit when re-
moving the inverter it is necessary to dis-
charge any remaining system power. To do
so, press the computer’s power button for a
few seconds before disconnecting the in-
verter cable.
1
9
2 5
34
6
c.
d.
10
8
7
Disassembly
2 - 14 Removing and Installing the Processor
2.Disassembly
Removing and Installing the Processor
Processor Removal Procedure
1. Turn off the computer, remove the battery (page 2 - 5) and the component bay cover (page 2 - 11).
2. The CPU heat sink will be visible at point on the mainboard.
3. Remove screws - (Figure 10b) from the heat sink in the order indicated.
4. Carefully lift up the heat sink (Figure 10c) off the computer.
1
2
4
5

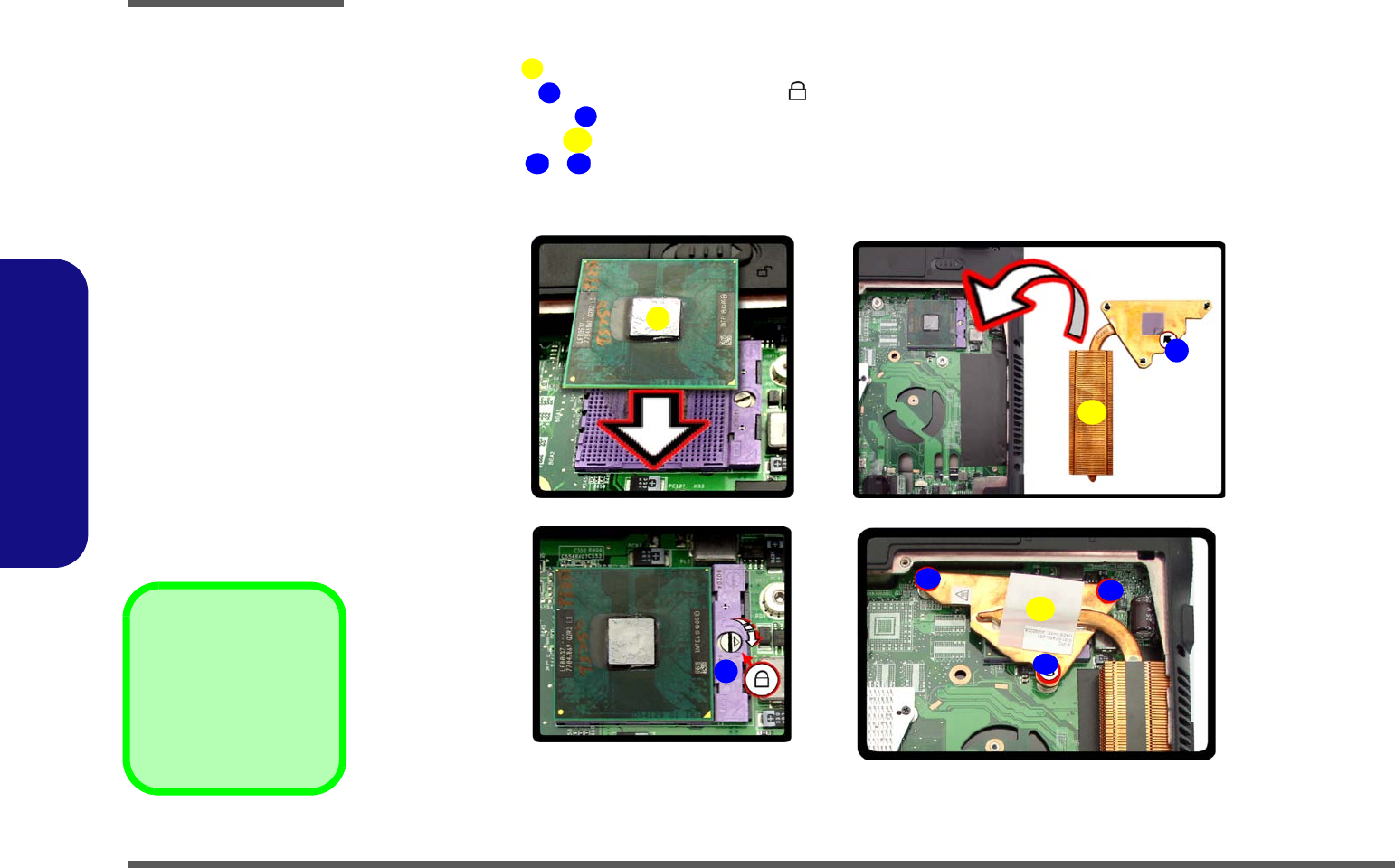

Figure 10
Processor Removal
a. Remove the cover and
Iocate the heat sink.
b. Remove the screws in
the order indicated.
c. Remove the heat sink.
5. Heat Sink
•3 Screws
a.
5
4
3
2
1
b. c.
Note:
Only one model is pictured
here, however the compo-
nent locations are the same
for both models.
Disassembly
Removing and Installing the Processor 2 - 15
2.Disassembly
5. Turn the release latch towards the unlock symbol , to release the CPU (Figure 11a).
6. Carefully (it may be hot) lift the CPU up out of the socket (Figure 11b).
7. See page 2 - 16 for information on inserting a new CPU.
8. When re-inserting the CPU, pay careful attention to the pin alignment, it will fit only one way (DO NOT FORCE IT!).
6
7
Figure 11
Processor Removal
(cont’d)
d. Turn the release latch to
unlock the CPU.
e. Lift the CPU out of the
socket.
Caution
The heat sink, and CPU area in
general, contains parts which are
subject to high temperatures. Al-
low the area time to cool before re-
moving these parts.
6
d.
7
e.
Unlock Lock
6
7. CPU
Disassembly
2 - 16 Removing and Installing the Processor
2.Disassembly
Processor Installation Procedure
1. Insert the CPU , pay careful attention to the pin alignment, it will fit only one way (DO NOT FORCE IT!), and turn
the release latch towards the lock symbol (Figure 12b).
2. Remove the sticker (Figure 12c) from the heat sink.
3. Insert the heat sink as indicated in Figure 12c.
4. Tighten screws - in the order indicated on the label.
5. Replace the component bay cover and tighten the screws (page 2 - 14).
1
2
3
4
5
7
c.
5
4
b.
6
7
d.
2
1
a.
3
4
Figure 12
Processor
Installation
a. Insert the CPU.
b. Turn the release latch to-
wards the lock symbol.
c. Remove the sticker from
the heat sink and insert
the heat sink.
d. Tighten the screws.
1. CPU
4. Heat Sink
•3 Screws
Disassembly
Removing the Wireless LAN Module 2 - 17
2.Disassembly
Removing the Wireless LAN Module
1. Turn off the computer, remove the battery (page 2 - 5) and the component bay cover (page 2 - 11).
2. The Wireless LAN module will be visible at point on the mainboard.
3. Carefully disconnect cables - , then remove screw from the module socket.
4. The Wireless LAN module will pop-up.
5. Lift the Wireless LAN module (Figure 13d) up and off the computer.
Figure 13
Wireless LAN
Module Removal
a. Remove the cover.
b. Disconnect the cable
and remove the screw.
c. The WLAN module will
pop up.
d. Lift the WLAN module
out.
Note: Make sure you
reconnect the antenna
cable to “1” + “2”
socket (Figure b).
1
2
3
4
5
5
4
b.
c.
a.
d.
2
3
5
1
Note:
Only one model is pictured here, however the
component locations are the same for both
models.
5. WLAN Module.
•1 Screw
Disassembly
2 - 18 Removing the Bluetooth Module
2.Disassembly
Removing the Bluetooth Module
1. Turn off the computer, remove the battery (page 2 - 5).
2. Locate the Bluetooth bay cover, and remove the screw and cover .
3. Remove the screw and turn the module over.
4. Carefully separate the Bluetooth module from the connector and disconnect the cable .
5. Lift the Bluetooth module (Figure 14c) up and off the computer.

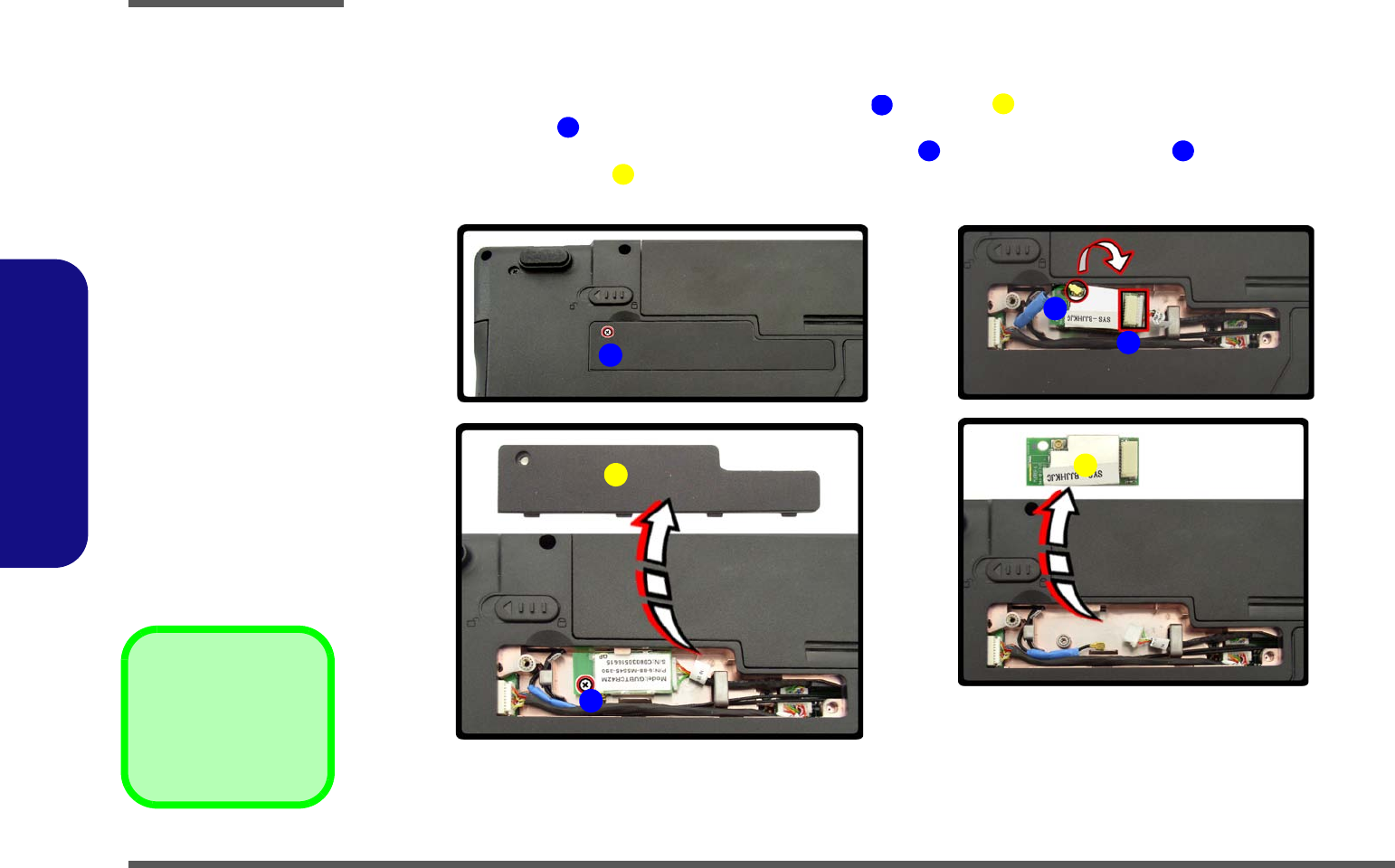

Figure 14
Bluetooth Module
Removal
a. Remove the screw.
b. Lfit the cover and remove
the screw.
c. Disconnect the cable and
the connector.
d. Lift the Bluetooth module
up off the socket.
1
2
3
4
5
6
a.
b.
1
3
4
6
c.
d.
5
2
2. Cover
6. Bluetooth Module
•2 Screws
Disassembly
Removing the Keyboard 2 - 19
2.Disassembly
Removing the Keyboard
1. Turn off the computer, and remove the battery (page 2 - 5).
2. Press the four keyboard latches at the top of the keyboard to elevate the keyboard from its normal position (you
may need to use a small screwdriver to do this).
3. Carefully lift the keyboard up, being careful not to bend the keyboard ribbon cable (Figure 15b).
4. Disconnect the keyboard ribbon cable from the locking collar socket .
5
6
7
Figure 15
Keyboard Removal
a. Press the four latches to
release the keyboard.
b. Lift the keyboard up and
disconnect the cable
from the locking collar.
c. Remove the keyboard.
Re-Inserting the Key-
board
When re-inserting the
keyboard firstly align
the four keyboard tabs
at the bottom of the
keyboard with the slots
in the case.
a. c.
b.
124
6
7
5
5
3
5. Keyboard
Disassembly
2 - 20 Removing the Modem
2.Disassembly
Removing the Modem
1. Turn off the computer, remove the battery (page 2 - 5), HDD (page 2 - 6), component bay cover (page 2 - 11),
optical device (page 2 - 9), CPU (page 2 - 14), bluetooth (page 2 - 18) and keyboard (page 2 - 19).
2. Remove screws - from the bottom case and carefully disconnect the cable from the mainboard (Figure
17a).
3. Turn the computer over, remove screws - and disconnect cables - (Figure 17b).
4. For M760S/M765S/M766S/M767S only - remove screws - (Figure 17c) from the rear of the computer.
1
18
21
22
23
24
26
27
28
• 20 Screws
(M740S/M741S/
M745S)/ 24
Screws (M760S/
M765S/M766S/
M767S)
3
a.
b.
11
22
1
2
46
5789
12
13
10
14
15
16
17
18
23
25
24
1
234
56
78910 11
12
13
14
15
16
17
18
19
M760S/M765S/M766S/M767SM740S/M741S/M745S
26
22 23
24
25
26
c.
27 28
20
2121
Figure 16

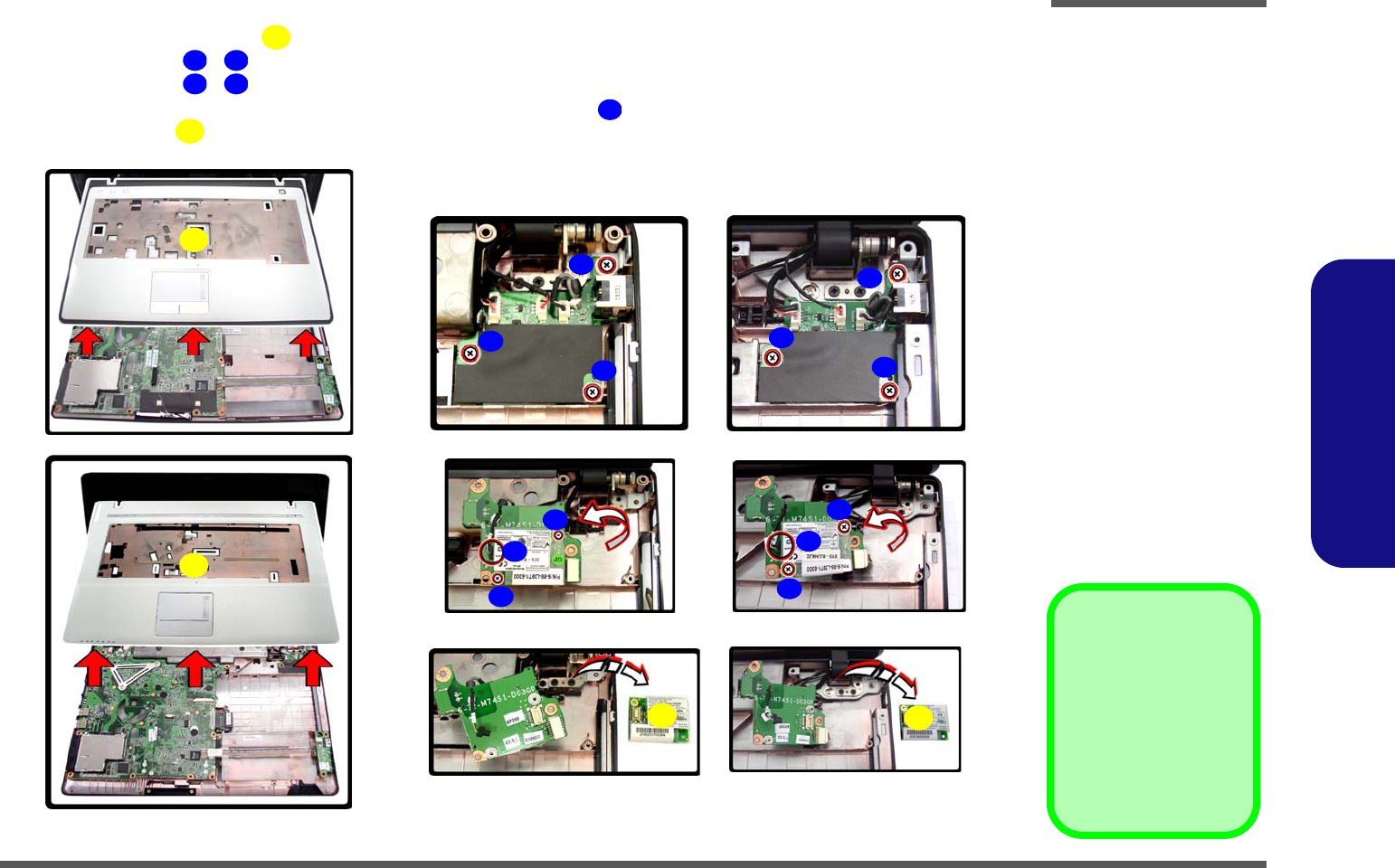

Modem Removal
a. Remove the screws and
diconnect the cable.
b. Turn the computer over,
remove the screws and
disconnect the cable.
c. Remove the screws.
Disassembly
Removing the Modem 2 - 21
2.Disassembly
5. Carefully lift the top case up and off the computer (Figure 17d).
6. Remove screws - (Figure 17e) from the computer.
7. Remove screws - (Figure 17f) from the modem module.
8. Lift the modem up and separate the modem from the connector .
9. Lift the modem off the computer.
27
28
30
31
32
33
34
27. Top Case
34. Modem
• 5 Screws (M740S/
M741S/M745S/
M760S/M765S/
M766S/M767S)
e.
27
34
28
30
29
d.
M740S/M741S/M745S
M760S/M765S/M766S/M767S
f.
g.
27
M760S/M765S/M766S/M767SM740S/M741S/M745S
34
28
30
29
32
31
33
31
32
33
Figure 17
Modem Removal
(cont’d.)
d. Lift the cover off the
computer.
e. Remove the screws.
f. Remove the screws and
disconnect the connec-
tor.
g. Lift the modem out.
Disassembly
2-22
2.Disassembly
Part Lists
A-1
A.Part Lists
Appendix A: Part Lists
This appendix breaks down the M740S/M741S/M745S/M760S/M765S/M766S/M767S series notebook’s construction
into a series of illustrations. The component part numbers are indicated in the tables opposite the drawings.
Note: This section indicates the manufacturer’s part numbers. Your organization may use a different system, so be sure
to cross-check any relevant documentation.
Note: Some assemblies may have parts in common (especially screws). However, the part lists DO NOT indicate the
total number of duplicated parts used.
Note: Be sure to check any update notices. The parts shown in these illustrations are appropriate for the system at the
time of publication. Over the product life, some parts may be improved or re-configured, resulting in new part numbers.
Part Lists
A - 2 Part List Illustration Location
A.Part Lists
Part List Illustration Location
The following table indicates where to find the appropriate part list illustration.
Table A- 1
Part List Illustration
Location
Parts M740S M741S/M745S M760S M765S M766S/M767S
Top without Fingerprint page A - 3 page A - 4 page A - 10 page A - 11 page A - 12
Bottom page A - 5 page A - 13

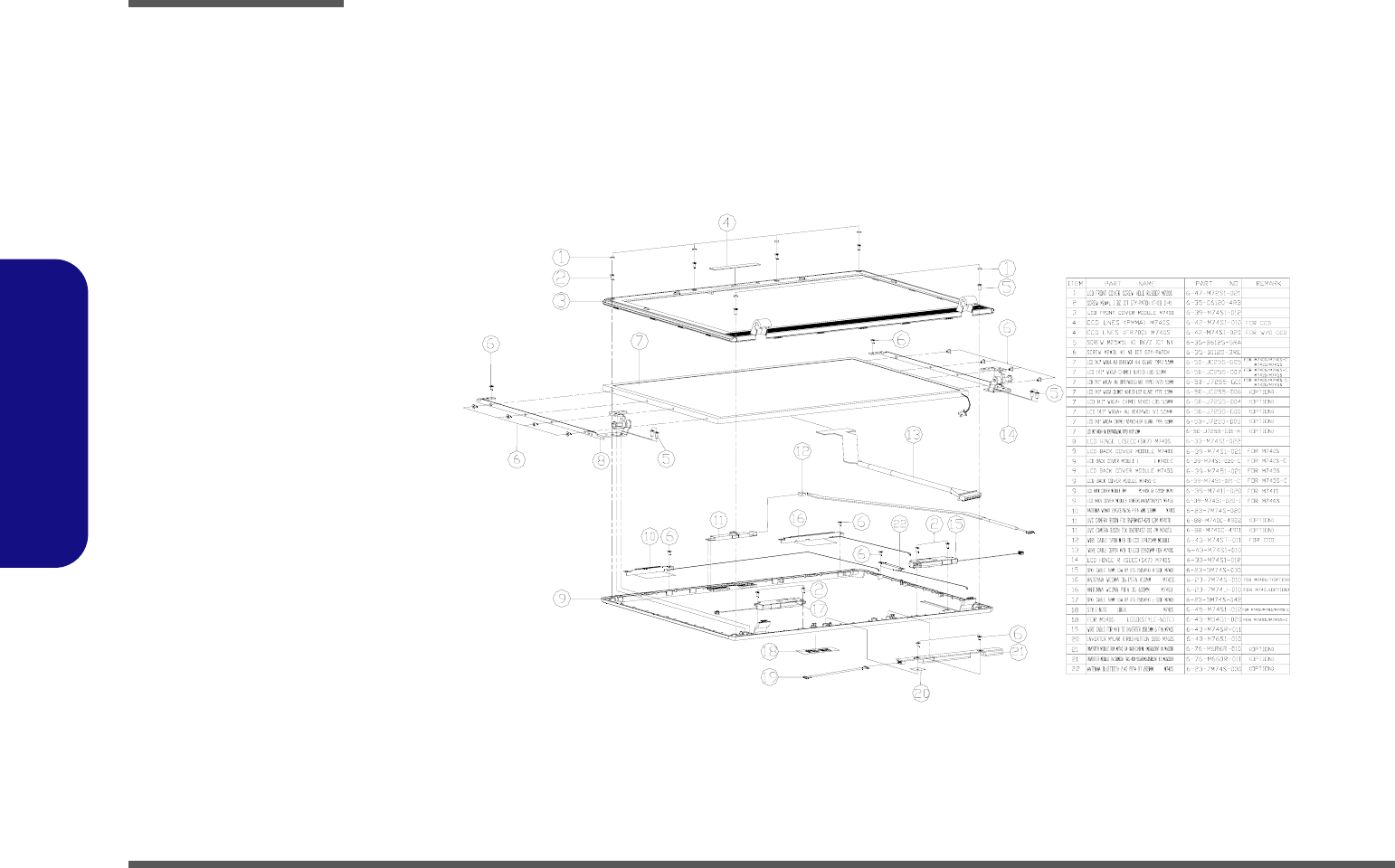

LCD page A - 6 page A - 14 page A - 14 page A - 14
HDD page A - 7 page A - 17
COMBO page A - 8 page A - 18
DVD-Dual Drive page A - 9 page A - 19
Part Lists
Top without Fingerprint (M740S) A - 3
A.Part Lists

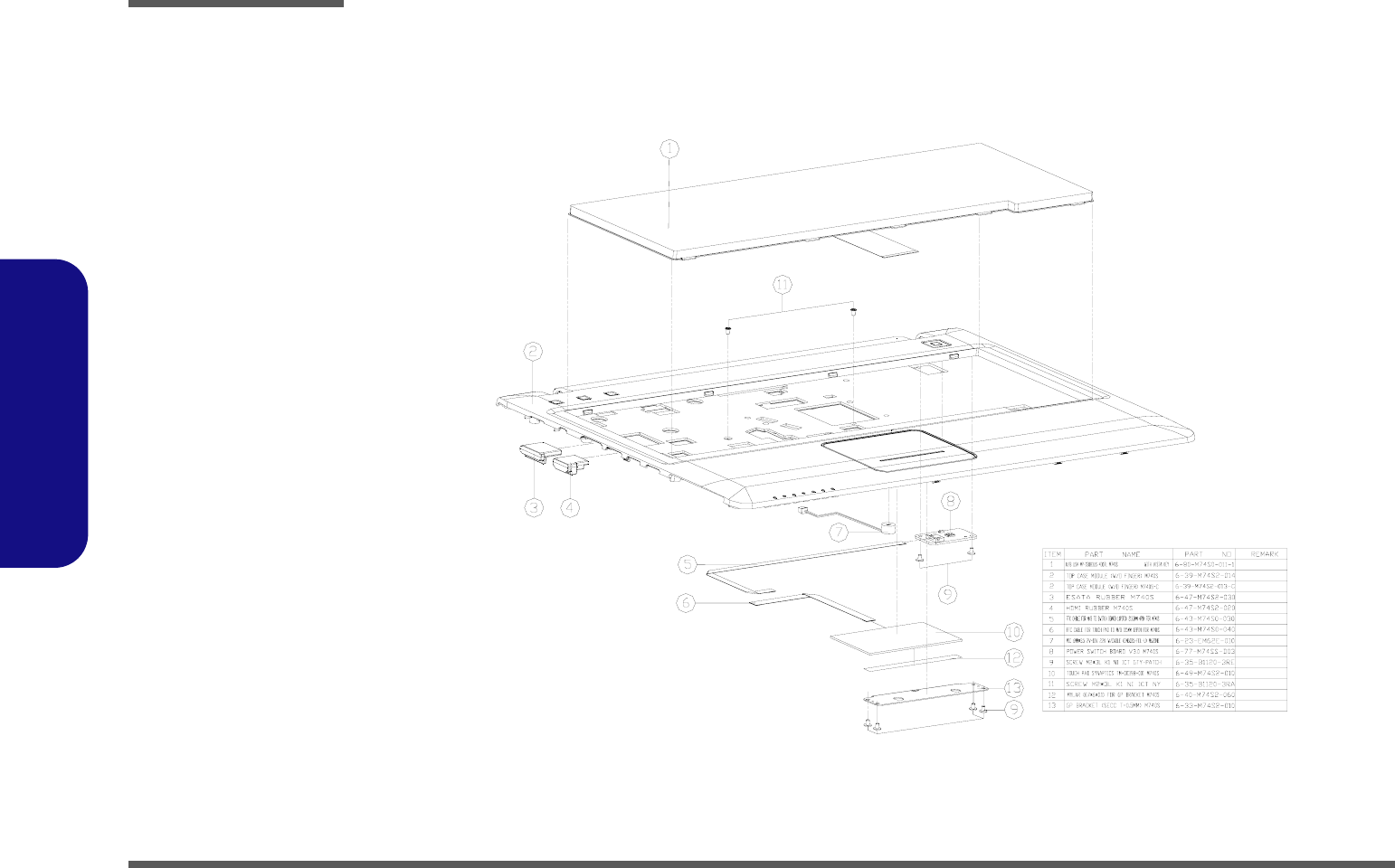

Top without Fingerprint (M740S)
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
白色 (無鉛)
無鉛
無鉛
無鉛
無鉛

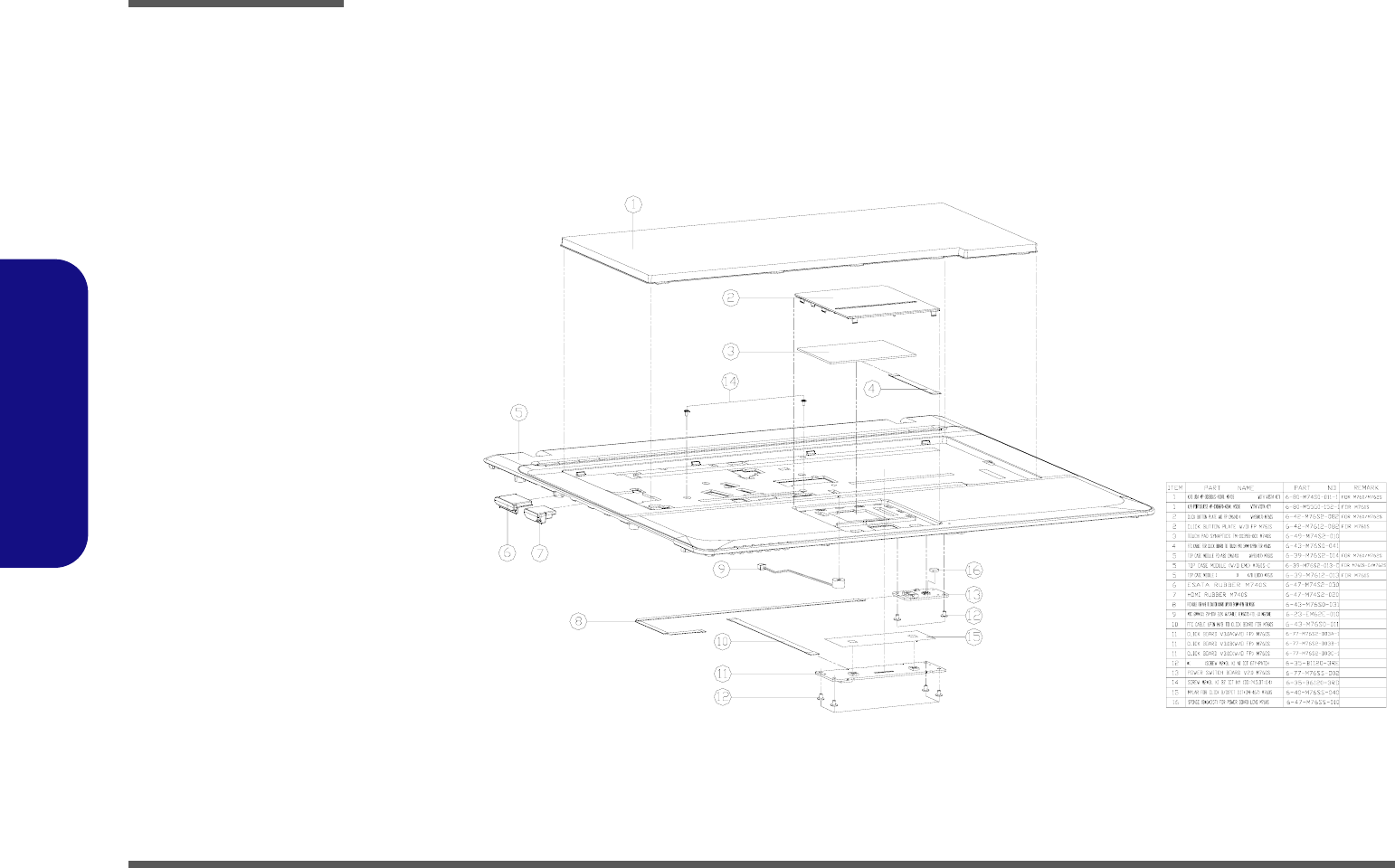

Figure A - 1
Top without
Fingerprint
(M740S)
Part Lists
A - 4 Top without Fingerprint (M741S/M745S)
A.Part Lists
Top without Fingerprint (M741S/M745S)
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
白色 (無鉛)
無鉛
無鉛
無鉛
無鉛
Figure A - 2
Top without
Fingerprint
(M741S/M745S)
Part Lists
Bottom (M740S/M741S/M745S) A - 5
A.Part Lists

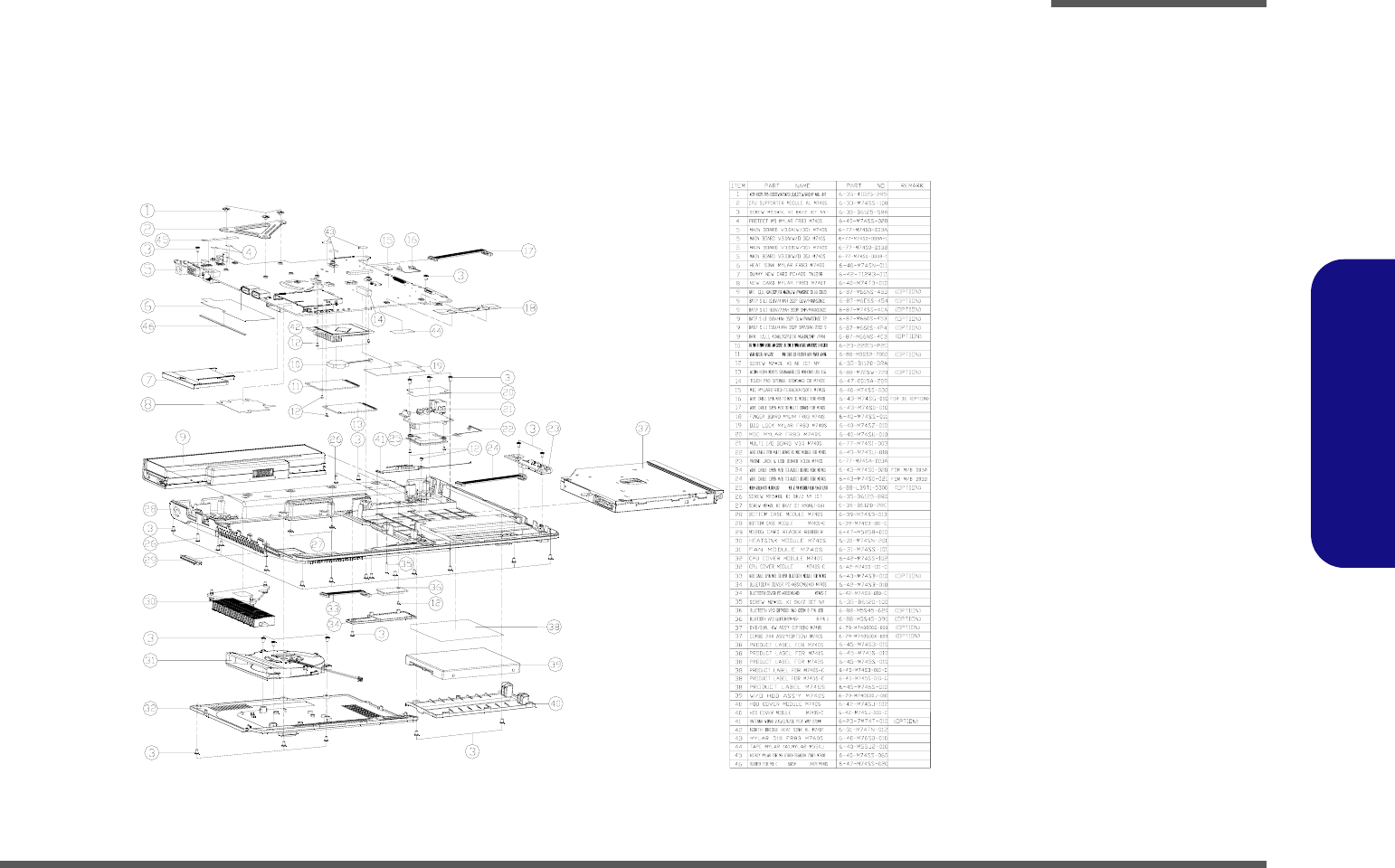

Bottom (M740S/M741S/M745S)
無鉛
無鉛
無鉛
無鉛
凱碩 無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
外 無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
藍天3 互億 無鉛
無鉛
無鉛
海華 無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
外 無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無電鍍 無鉛
無電鍍 無鉛
無電鍍 無鉛
無鉛
無鉛
無鉛
無鉛
無電鍍 無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
道康宁 道康宁 無鉛
無鉛
Figure A - 3
Bottom
(M740S/M741S/
M745S)
Part Lists
A - 6 LCD (M740S/M741S/M745S)
A.Part Lists

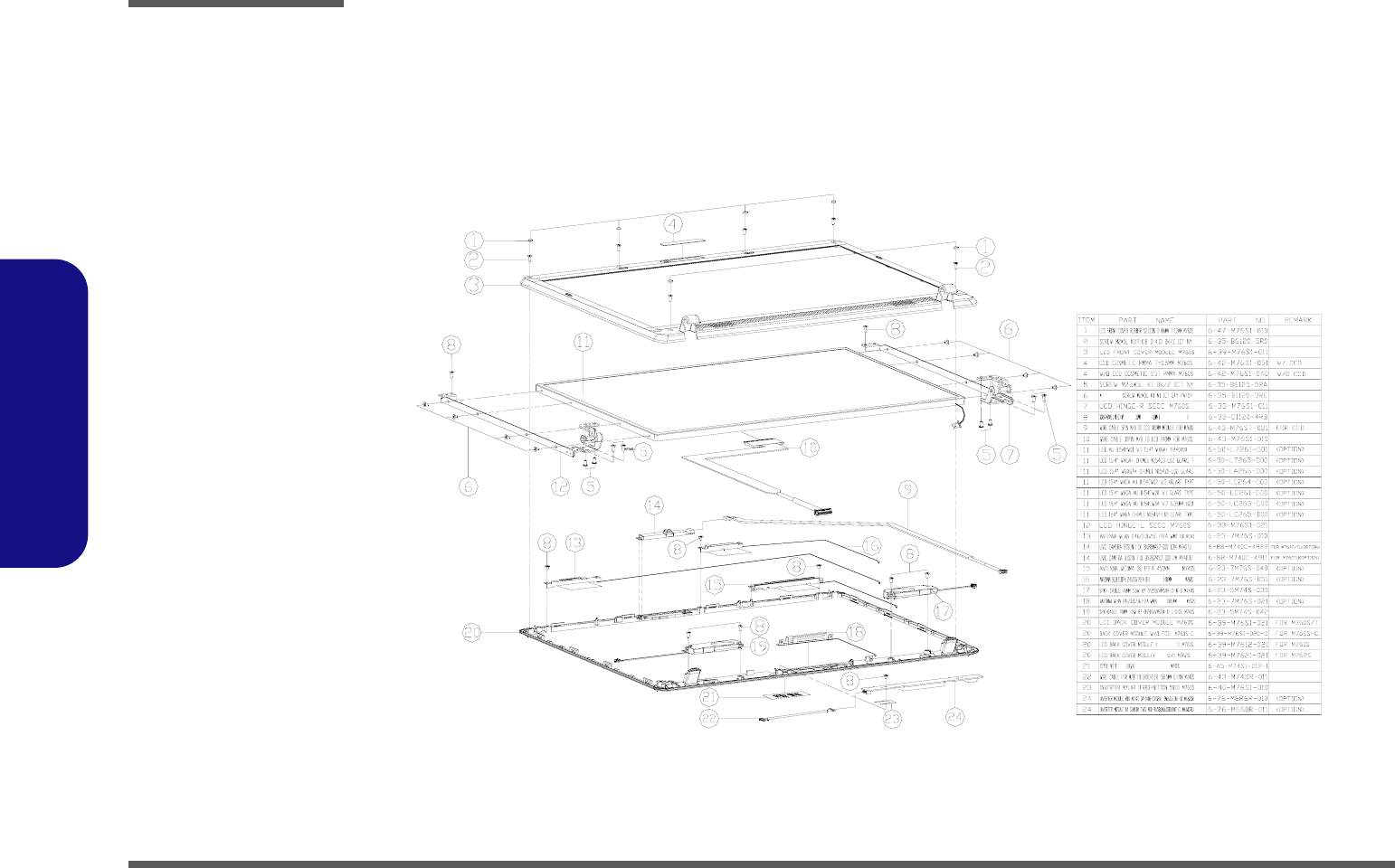

LCD (M740S/M741S/M745S)
無鉛
無鉛
無鉛
精乘 無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
精乘 無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鋁箔 無鉛
無鉛
中性 電鑄薄膜鍍亮鉻） 無鉛
無鉛
無鉛
精乘 無鉛
精乘 無鉛
無鉛
無鋁箔 無鉛
太極 無鉛
中性 無鉛
無鉛
(不需重工高壓線)(無鉛)
Figure A - 4
LCD
(M740S/M741S/
M745S)
Part Lists
HDD (M740S/M741S/M745S) A - 7
A.Part Lists
HDD (M740S/M741S/M745S)
無鉛
(無鉛)
Figure A - 5
HDD
(M740S/M741S/
M745S)
Part Lists
A - 8 COMBO (M740S/M741S/M745S)
A.Part Lists

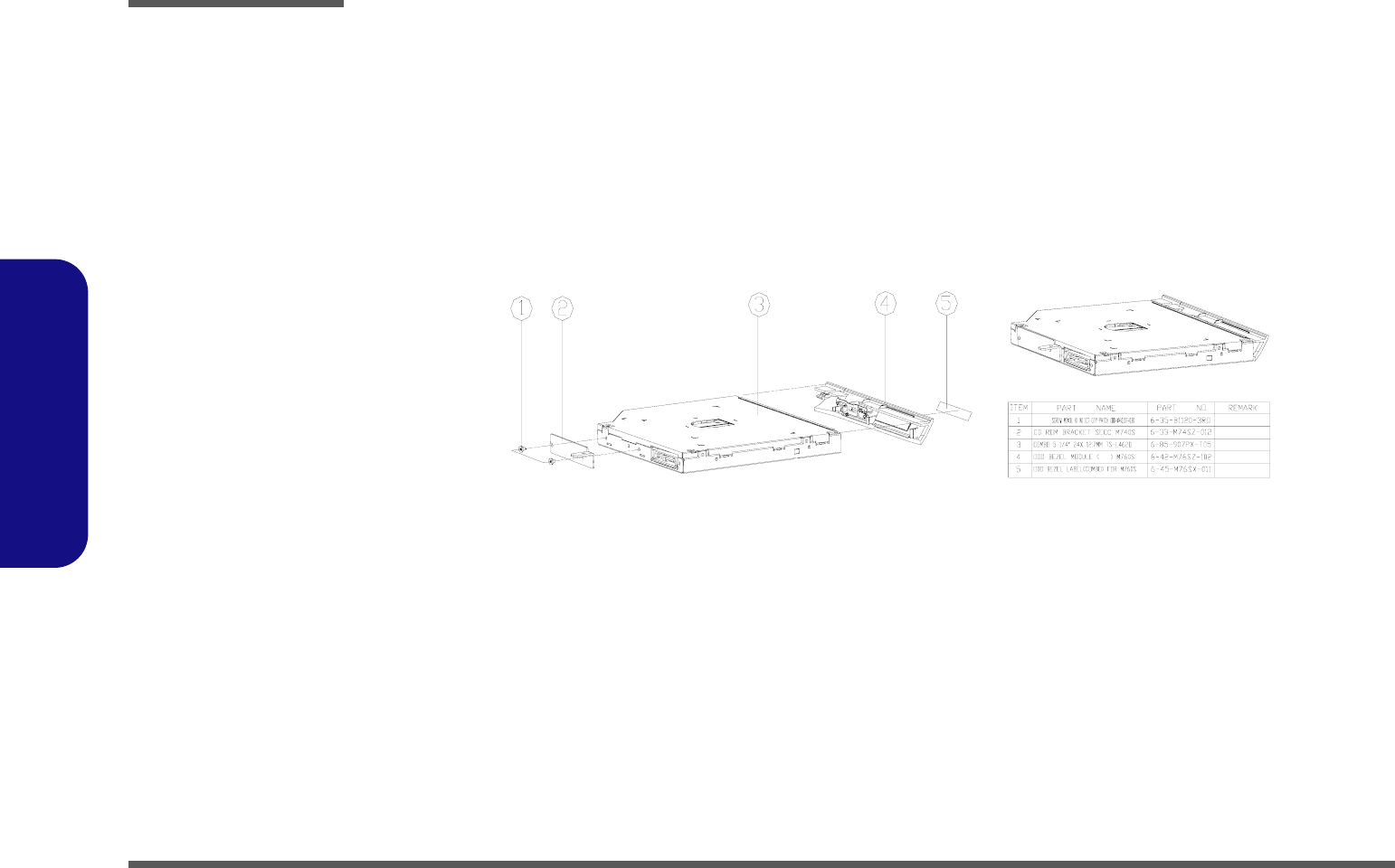

COMBO (M740S/M741S/M745S)
無鉛
*(非耐落) 無鉛
無鉛
無鉛
無鉛
無鉛
Figure A - 6
COMBO
(M740S/M741S/
M745S)
Part Lists
DVD-Dual Drive (M740S/M741S/M745S) A - 9
A.Part Lists
DVD-Dual Drive (M740S/M741S/M745S)
無鉛
*(非耐落) 無鉛
無鉛
無鉛
無鉛
Figure A - 7
DVD-Dual Drive
(M740S/M741S/
M745S)
Part Lists
A - 10 Top without Fingerprint (M760S)
A.Part Lists
Top without Fingerprint (M760S)
無鉛
非耐落 無鉛
無鉛
無鉛
無鉛
白色 (無鉛)
無鉛
無鉛(背膠變更)
白色 無鉛
無鉛
白色 無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
噴藍黑漆 設變 無鉛
無鉛
無鉛
黑色
無鉛
Figure A - 8
Top without
Fingerprint
(M760S)
Part Lists
Top without Fingerprint (M765S) A - 11
A.Part Lists
Top without Fingerprint (M765S)
無鉛
非耐落 無鉛
無鉛
無鉛
無鉛
無鉛
無鉛(背膠變更)
黑色 無鉛
無鉛
黑色 未遮噴 無鉛
無鉛
無鉛
無鉛
黑色 無鉛
無鉛
無鉛
Figure A - 9
Top without
Fingerprint
(M765S)
Part Lists
A - 12 Top without Fingerprint (M766S/M767S)
A.Part Lists
Top without Fingerprint (M766S/M767S)
無鉛
非耐落 無鉛
無鉛
無鉛
無鉛
無鉛
無鉛(背膠變更)
黑色 無鉛
無鉛
黑色 未遮噴 無鉛
無鉛
無鉛
無鉛
黑色 無鉛
無鉛
無鉛
無鉛
無鉛
Figure A - 10
Top without
Fingerprint
(M766S/M767S)
Part Lists
Bottom (M760S/M765S/M766S/M767S) A - 13
A.Part Lists
Bottom (M760S/M765S/M766S/M767S)
無鉛
無鉛
無鉛
無鉛
凱碩 無鉛
無鉛
無鉛
無鉛
無鉛
黑色 後設變咬花 無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
(黑色) 無鉛
無鉛
無鉛
藍天3 互億 無鉛
外 無鉛
無鉛
無鉛
海華 無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
度,黑色 無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
外 無鉛
無鉛
無鉛
無鉛
無鉛
(黑色) 無鉛
無鉛
無鉛
無鉛
非耐落 無鉛
無鉛
無鉛
無鉛
(黑色)(無鉛)
無鉛)
無鉛
無鉛
無鉛
(黑色) 無鉛
無鉛
無鉛
無鉛
Figure A - 11
Bottom
(M760S/M765S/
M766S/M767S)
Part Lists
A - 14 LCD (M760S)
A.Part Lists
LCD (M760S)
無鉛
無鉛
無鉛
精乘 無鉛
無鉛
無鉛
無鉛
頭徑 頭厚 號穴 鍍白鎳 頭 無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
(非耐落) 無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
中性 電鑄薄膜鍍亮鉻） (偉鎮) 無鉛
黑色 惠貿 無鉛
黑色 惠貿 無鉛
無鉛
無鉛
無鉛
無鉛
外噴 無鉛
無鉛
噴藍黑漆 無鉛
Figure A - 12
LCD
(M760S)
Part Lists
LCD (M765S) A - 15
A.Part Lists
LCD (M765S)
無鉛
無鉛
無鉛
精乘 無鉛
無鉛
無鉛
無鉛
頭徑 頭厚 號穴 鍍白鎳 頭 無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
(非耐落) 無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
中性 電鑄薄膜鍍亮鉻） 無鉛
黑色 惠貿 無鉛
黑色 惠貿 無鉛
未遮噴 無鉛
無鉛
Figure A - 13
LCD
(M765S)
Part Lists
A - 16 LCD (M766S/M767S)
A.Part Lists
LCD (M766S/M767S)
無鉛
無鉛
無鉛
精乘 無鉛
無鉛
無鉛
無鉛
頭徑 頭厚 號穴 鍍白鎳 頭 無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
(非耐落) 無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
無鉛
中性 電鑄薄膜鍍亮鉻） (偉鎮)無鉛
黑色 惠貿 無鉛
黑色 惠貿 無鉛
未遮噴 無鉛
無鉛
無鉛
無鉛
Figure A - 14
LCD
(M766S/M767S)
Part Lists
HDD (M760S/M765S/M766S/M767S) A - 17
A.Part Lists
HDD (M760S/M765S/M766S/M767S)
無鉛
(無鉛)
Figure A - 15
HDD
(M760S/M765S/
M766S/M767S)
Part Lists
A - 18 COMBO (M760S/M765S/M766S/M767S)
A.Part Lists
COMBO (M760S/M765S/M766S/M767S)
無鉛
*(非耐落) 無鉛
黑色 無鉛
無鉛
無鉛
Figure A - 16
COMBO
(M760S/M765S/
M766S/M767S)
Part Lists
DVD-Dual Drive (M760S/M765S/M766S/M767S) A - 19
A.Part Lists
DVD-Dual Drive (M760S/M765S/M766S/M767S)
無鉛
*(非耐落) 無鉛
黑色 無鉛
無鉛
無鉛
無鉛
Figure A - 17
DVD-Dual Drive
(M760S/M765S/
M766S/M767S)
Part Lists
A - 20
A.Part Lists
Schematic Diagrams
B-1
B.Schematic Diagrams
Appendix B: Schematic Diagrams
This appendix has circuit diagrams of the M740S/M741S/M745S/M760S/M765S/M766S/M767S notebook’s PCB’s.
The following table indicates where to find the appropriate schematic diagram.
Diagram - Page Diagram - Page Diagram - Page
System Block Diagram - Page B - 2 968 PCIE, LAN, GPIO 2/4 - Page B - 16 AC-IN, Charger - Page B - 30
Penryn (Socket-P) 1/2 - Page B - 3 968 USB SATA 3/4 - Page B - 17 VCORE - Page B - 31
Penryn (Socket-P) 2/2 - Page B - 4 968 PWR, GND 4/4 - Page B - 18 VDD3, VDD5) - Page B - 32
SiSM672 Host, PCIE 1/5 - Page B - 5 Clock Generator & Clock Buffer - Page B - 19 1.05VS, 1.2V, 1.5V - Page B - 33
SiSM672 DRAM 2/5 - Page B - 6 PHY Realtek 8201CL - Page B - 20 1.8V, 0.9VS - Page B - 34
SiSM672 MuTIOL VGA 3/5 - Page B - 7 KBC ITE8512E - Page B - 21 Click BD, Finger BD for M76 - Page B - 35
SiSM672 PWR 4/5 - Page B - 8 ENE MR510, Card Reader - Page B - 22 Multi Function Board - Page B - 36
SiSM672 GND 5/5 - Page B - 9 Audio Codec ALC662 - Page B - 23 Audio Board - Page B - 37
DDRII SO-DIMM - 1 - Page B - 10 Audio AMP - Page B - 24 Power Switch Board for M74 - Page B - 38
DDRII SO-DIMM - 2 - Page B - 11 SATA HDD, PWR, LID - Page B - 25 External ODD Board for M76 - Page B - 39
SiS307ELV - Page B - 12 Multi I/O, ODD, 3G, Click BD for M74 - Page B - 26 Power Switch Board for M76 - Page B - 40
Panel, CRT - Page B - 13 New Card, Mini PCIE, USB - Page B - 27
Inverter, Bluetooth, Fan - Page B - 14 LED, PC Beep, TP, FP - Page B - 28
968 PCI, IDE, MuTIOL, SPI 1/4 - Page B - 15 System/Ext-VGA Power - Page B - 29
Table B - 1
Schematic
Diagrams
Version Note
The schematic dia-
grams in this chapter
are based upon ver-
sion 6-7P-M74S9-
003A. If your main-
board (or other boards)
are a later version,
please check with the
Service Center for up-
dated diagrams (if re-
quired).
Schematic Diagrams
B - 2 System Block Diagram
B.Schematic Diagrams
System Block Diagram
Sheet 1 of 48
System Block
Diagram
Sy na pt ic
SPI
FINGER PRINTER BOARD
28pins SSOP
Intel Penryn
N ew Ca rd
CRT
AUD IO A MP
USB2.0
14 *1 4* 1. 6m m
PCI BUS
32.768 KHz
ICS 9P 93 5
INT . K/ B
SATA HDD,
LID
A C- IN ,CH AR GE R
10 /1 00 M P HY
LCD C ON NEC TO R,
INV ER TE R
24.576
MHz
35*35*2.7mm
PROCESSOR
33 MHz
Memory Termination
IT E 851 2E
EC S MB US
Clo ck B uff er
RTL8201CL
M7 6S U
SM AR T
BA TT ERY
13* 1 3* 1.7 m m
GMAC
PCIE
9.8*6.4*1.2mm
533/667(/800) MHz
MODEM, CCD
H EA DPH ON E
12 MHz
1. 05V S, 1. 5V ,1 .2V
Si S30 7E LV
48pins LQFP
MIC
IN
AZALIA LINK
CA RD RE AD ER
9*9*1.6m m
169balls BGA
667/800 MHz
SPK_R, RJ-11
USB, SPDIF, MIC IN
LP C
17. 1* 8. 1* 1.2 m m
7 IN1
INT MIC
Mu TI OL 1 G
INT SPK
Audio Board
F7 538 3M
128-pin LQFP
VD D3, VD D5 ,3 .3 V,5 V
570balls mBGA
14.318 MHz
SMART
FAN
USB & Phone
Jack B'd
SOC KE T
USB 2
NORTH BRIDGE
HP
OUT
M UL TI I/ O BO AR D
128pins LQFP
56pins TSSOP
SY STE M PO WE R, GPU C OR E
C ol ck Ge ne rat or
32.768KHz
Re al te k
AL C6 62
SiS968
SO CKE T
Mini PCIE
( USB 1)
24pins TSSOP
(Optional)
AZALIA
MDC
MODULE
14 *1 4* 1. 4m m
S OCK ET
(US B0 )
ICS9LPR600
25 MHz
SPDIF
OUT
(U SB 5)
TO UC H PAD
EC
US B6
MR510
810602-1703
(U SB 3)
852balls TEBGA
DDRII
48 pi ns LQ FP
33 MHz
1 7.1 *8.1 *1 .2 mm
GO LAN
En E
U SB4
(USB7)
SiSM672
SO-DIMM0
CC D 3 G CAR D
OD D
27 *2 7* 2. 5m m
LV DS (T V)
479 pin s socket P
Az ali a Co dec
RJ-45
2 3* 23* 2. 5mm
FS B
PA TA -13 3
SO-DIMM1
9* 9* 1. 7m m
MINI PCIE
RJ-11
24 MHz
CLICK BOARD
53 3 bal ls BG A
SOUTH BRIDGE
35*35*2.4mm
(Optional)
CLEVO M740S System Block Diagram
ANPAC
APA2056A
1. 8V, 0. 9V S
100 MHz
NV 9400M-GS
F in ger Pr in t
+V COR E
MDC CON
TH ERM AL
SE NSO R
DDRII
SA TA I/ II 3 .0 Gb /s
Bl ue too th
480 Mbps
EX TE RNA L VGA
Schematic Diagrams
Penryn (Socket-P) 1/2 B - 3
B.Schematic Diagrams

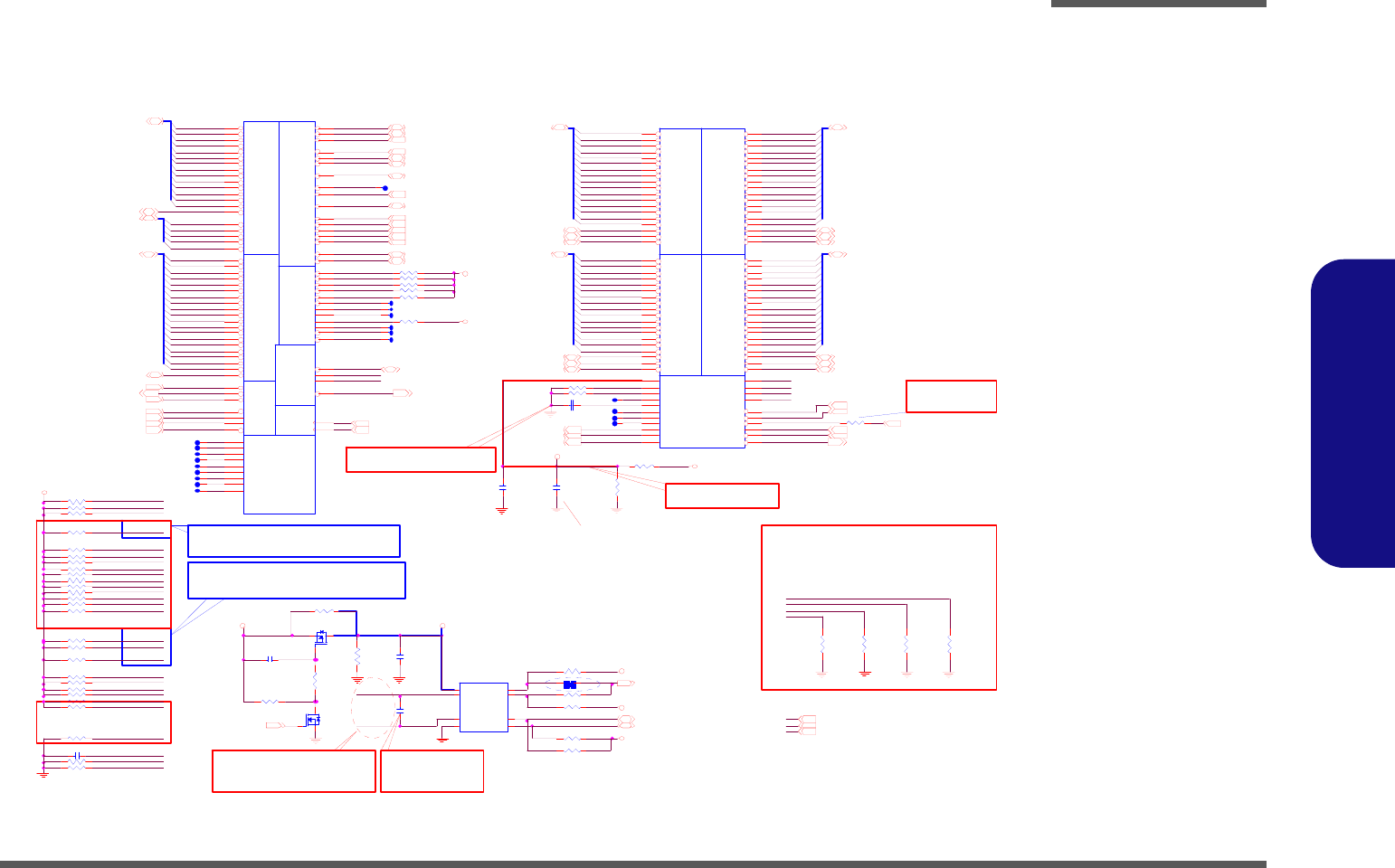

Penryn (Socket-P) 1/2
Sheet 2 of 48
Penryn (Socket-P)
1/2
H_D#[63:0]4
H_ SMI#
H_ D# 3 8
H_ PW RG D
H_ F ER R#
H _D#[63:0] 4
COMP0
H_ TM S
H_ D# 1 9
H_ D# 1 8
Z0214
H_ADS TB# 04
COM P1
H_ T DO
R 1 22 56 _ 0 4
H _ DINV #3 4
COMP3
U7
ASC 752 5
1
2
3
4
5
6
7
8
VD D
D+
D-
TH ERM
GND
ALERT
SD ATA
SC LK
C 1 54 1 0 0P _5 0 V _ 04
Layout Note:
H _STPC LK #22
H_ D# 3 5
CPU_ BSEL 1
R151
*330K_04
H_ D# 2 7
H_ D# 1 0
H_ D# 6
H_ TH RM TR IP#
H_A#33
R 101 51_1%_04
R449
27.4_1% _04
H_DSTBN#2 4
H_PREQ #
R1 55 *0 _ 0 4
R 1 31 56 _ 0 4
H _ DINV #2 4
H_ A# 9
DATA GRP 0 DATA GRP 1
DATA GRP 2DATA GRP 3
MISC
JSKT1B
Pe n ry n
R26
U26
AA1
Y1
E22
F24
J24
J23
H2 2
F26
K22
H2 3
N2 2
K25
P26
R2 3
E26
L23
M2 4
L22
M2 3
P25
P23
P22
T24
R2 4
L25
G2 2
T25
N2 5
Y22
AB24
V24
V26
V23
T22
U25
U23
F23
Y25
W22
Y23
W24
W25
AA23
AA24
AB25
AE24
AD 24
G2 5
AA21
AB22
AB21
AC 26
AD 20
AE22
AF2 3
AC 25
AE21
AD 21
E25
AC 22
AD 23
AF2 2
AC 23
E23
K24
G2 4
AF1
H2 5
N2 4
U22
AC 20
E5
B5
D24
J26
L26
Y26
AE25
H2 6
M2 6
AA26
AF2 4
AD26
AE6
D6
D7
C2 4
B22
B23
C2 1
D2 5
AF2 6
A26
C2 3
C3
CO MP[0 ]
CO MP[1 ]
CO MP[2 ]
CO MP[3 ]
D[0 ]#
D[1 ]#
D[1 0 ]#
D[1 1 ]#
D[1 2 ]#
D[1 3 ]#
D[1 4 ]#
D[1 5 ]#
D[1 6 ]#
D[1 7 ]#
D[1 8 ]#
D[1 9 ]#
D[2 ]#
D[2 0 ]#
D[2 1 ]#
D[2 2 ]#
D[2 3 ]#
D[2 4 ]#
D[2 5 ]#
D[2 6 ]#
D[2 7 ]#
D[2 8 ]#
D[2 9 ]#
D[3 ]#
D[3 0 ]#
D[3 1 ]#
D[32]#
D[33]#
D[34]#
D[35]#
D[36]#
D[37]#
D[38]#
D[39]#
D[4 ]#
D[40]#
D[41]#
D[42]#
D[43]#
D[44]#
D[45]#
D[46]#
D[47]#
D[48]#
D[49]#
D[5 ]#
D[50]#
D[51]#
D[52]#
D[53]#
D[54]#
D[55]#
D[56]#
D[57]#
D[58]#
D[59]#
D[6 ]#
D[60]#
D[61]#
D[62]#
D[63]#
D[7 ]#
D[8 ]#
D[9 ]#
TEST5
DIN V[0 ]#
DIN V[1 ]#
D INV[2 ]#
D INV[3 ]#
DPRSTP#
DPSLP#
DPWR#
DST B N [0]#
DST B N [1]#
DST BN[2 ]#
DST BN[3 ]#
DSTBP[0]#
DSTBP[1]#
DSTBP[2]#
DSTBP[3]#
GT L R EF
PSI#
PW RG OOD
SLP#
TEST3
BSEL [0]
BSEL [1]
BSEL [2]
TEST2
TEST4
TEST6
TEST1
TEST7
Route H_THERMDA and
H_THERMDC on same layer.
10 mil trace on 10 mil spacing.
V_TH ERM
R142 0_06
Close to Thermal IC
3.3V 12,19,20,22,23,24,26,31,32,33,38,39,40
H_A#29
C5 52
.01U_16V_X7R_04
C686 Close to TEST4 (Pin AF26)
H_ DPW R #_ RH_ NM I
H_ DIN V# 04
H_ D# 5 6
H_ IER R#
H_A#11
R156 *10K_04
H_A#31
Z0201
H_ T HER MD A
R 88 56_1%_04
H_ D EF ER# 4
H_ D# 1 1
H_ D# 3 0
R1 2 6 * 1 K _0 4
R 1 57 4 . 7K _0 4
ADM1032 1000p
F75383M 2200p
H_DPRS TP# 6,37
H_ BN R# 4
H_ D# 5
Layout Note:
H_ H IT# 4
H_ IGN NE#22
H_ D# 5 4
H_ D# 4
H_ T DI
H_ BR 0#
Z0223
H_A#21
1.05VS 3,4,6,7,24,39
H_ NM I22
H_ D #1 4
IF US ED D esk to p CPU , H_ CPU RS T# ,H_ PW RG D, H_B RD ,n eed
ad d p ul l hig h re sis to r
H_ H ITM # 4
R 1 18 10 _ 0 4
H_ DST BP # 14
H_PROCHOT# 22
H_ NM I
H_ D# 2 0
H_REQ#4
H_ IERR #
H_ INT R
R 1 32 56 _ 0 4
H_CLK_CPU 25
THER M_ AL ERT# 27
H_ T MS
Z0212
H_ PW RG D
H_A#17
R 1 17 56 _ 0 4
H_ T RD Y# 4
H_INTR22
Z0204
Q1 0
*2N7002W
G
DS
H_ DPW R # 4
H_SMI#22
H_ D# 2 9
CPU_ BSEL 0
H_ D# 2 6
H_A#22
H_A#32
Thermal IC
H_ D# 7
H_ D# 2 1
COM P0
H_D#[63:0]4
H_ DPW R # _R
H_A#25
C180
* .01U _16 V_ X7R _0 4
H_ D STB N# 14
H_CLK_CPU# 25
H_ R S#0 4
C PU_ BSEL 1
H_THERMDA
H_ SM I#
R 1 15 56 _ 0 4
SMC _ CPU_T HER M 2 7
H_REQ#2
R 92 51_1%_04
H _DSTBP# 2 4
H_ D# 1 5
H_A#10
CP U_BSEL225
H_ R S#1 4
H_ D# 4 7
H_DPSLP#
H_ D# 1 7
H_ T RS T#
H_ D# 5 7
C PU_ BSEL 0
H_ PR DY #
H_ D STB N# 04
H_CPUS LP# 22
H_REQ#1
H_ PR OC HOT #
( Si S Re co mma nd at ion 2 00 p)
H_ D# 1
H_A#28
Z0216
H_ INT R
R4 4 1
54.9_1%_04
VDD 3
H_ D# 1 2
H_ IN IT#
R 1 50 1K _0 4
1.05VS
H_DSTBN#3 4
H_AD S# 4
R 1 30 56 _ 0 4
CPU_GRFE=0.7V
H_ BR 0# 4
H_ D# 3
H_ BR0 #
H_ INIT #
H_ DPW R # _R
R 89 56_04
R152
*1 00 K _ 0 4
Layout Note:
H _AD STB# 14
H_PWRGD 4
H_A#35
R 4 60 1K _0 4
H_ D# 4 4
COM P3
R 1 25 56 _ 0 4
R 1 14 56 _ 0 4
H_ D# 5 0
H_STPCLK#
H_ TC K
R1 3 5
*100K_04
R 4 59 1K _0 4
H_ D# 5 9
H_ PW RG D
R120 *0_04
PS I# 3 7
H_A#[35:3]4
H_A#15
R 106 *51_04
H_ D# 2 8
C163
.1U_10V_X7R_04
R 1 27 56 _ 0 4
Layout note:
R 1 13 56 _ 0 4
H_A20M#22
H_ D# 3 2
C554 * .1U_10V_X7R_04
R 116 *330_04
H_ D# 2
H_ A# 8
H_A#19
R406
2K_1%_04
H_ D# 4 8
H_A#18
COMP1
H_A#14
CP U_BSEL125
56_04
H_ D# 8
R74
54.9_1% _04
C164
1000P_50V _04
1. 05 V S
H_ D# 2 5
H_ D# 3 4
H_A#12
H_A#27
H_DPSLP#
1. 0 5 V S
H_ D# 0
H_ C PUR ST#
Z0208
H_ CPU SLP #
Q9
* NDS 352 AP_ NL
G
DS
H_THR MTRIP #
Z0226
H_A#30
H_REQ#0
Z0209
H_ CPU SLP #
Z0215
H_ PR EQ#
R 1 48 15 0 _ 1% _ 0 4
6-14-5603B-11B
CPU_GTLREF
H_A#[35:3]4
SMD _ CPU_T HER M 2 7
R 58 39.2_1% _04
C PU_ BSEL 2
H_ D# 4 9
H_ BP M 1 #
Z0203
H_ D RDY # 4
H_ D# 4 3
R 65 27.4_1% _04
R 1 47 56 _ 0 4
ADDR
GROUP_0
ADDR
GROUP_1
CONTROL
XDP/ITP SIGNALS
H C LK
THERMAL
RESERVED
ICH
JSKT 1 A
Pen ry n
N3
P5
P2
L2
P4
P1
R1
Y2
U5
R3
W6
U4
Y5
U1
R4
T5
T3
W2
W5
Y4
J4
U2
V4
M4
N5
T2
V3
B2
D2
D22
L5
L4
K5
M3
N2
J1
A6
H1
M1
V1
D3
A22
A21
E2
AD4
AD3
AD1
AC4
G5
F1
C2 0
E1
H5
F21
A5
G6
E4
D2 0
C4
B3
C6
B4
H4
AC2
AC1
D2 1
K3
H2
K2
J3
L1
C1
F3
F4
G3
A3
D5
AC5
AA6
AB3
C7
A24
B25
AB5
G2
AB6
W3
AA4
AB2
AA3
F6
A[10]#
A[11]#
A[12]#
A[13]#
A[14]#
A[15]#
A[16]#
A[17]#
A[18]#
A[19]#
A[20]#
A[21]#
A[22]#
A[23]#
A[24]#
A[25]#
A[26]#
A[27]#
A[28]#
A[29]#
A[3]#
A[30]#
A[31]#
R SVD[01 ]
R SVD[02 ]
R SVD[03 ]
R SVD[04 ]
R SVD[05 ]
R SVD[06 ]
R SVD[07 ]
A[4]#
A[5]#
A[6]#
A[7]#
A[8]#
A[9]#
A20M#
AD S#
AD STB[0]#
AD STB[1]#
R SVD[08 ]
BC LK[0]
BC LK[1]
BNR #
BP M [0 ]#
BP M [1 ]#
BP M [2 ]#
BP M [3 ]#
BPR I#
BR0#
DBR #
DBSY #
DEF E R #
DR DY #
FER R#
HIT#
HI TM #
IERR #
IG NN E #
IN IT #
LINT0
LINT1
LOC K#
PR DY #
PREQ #
PRO CH OT#
REQ[0]#
REQ[1]#
REQ[2]#
REQ[3]#
REQ[4]#
R ESET#
R S [0 ]#
R S [1 ]#
R S [2 ]#
SM I#
STPC LK#
TCK
TDI
TDO
THE RMTR IP#
THERM DA
TH ERM DC
TMS
TR D Y #
TR S T #
A[32]#
A[33]#
A[34]#
A[35]#
R SVD[09 ]
H_ TR ST #
H_ D# 3 7
R 66 51_1%_04
H_ PRO CH OT #
Z0210
H_ BP M 3 #
H_ F ERR #
R 1 49 68 _ 0 4
R 108 *51_04
H_ D# 6 3
H_ D# 4 1
H_ D# 5 1
Z0213
H_ DST BP # 04
VD D3 20,23,27,34,35,36,38,40
H_ D# 4 5
R4 5 8 * 1 K _0 4
1.05VS
H_ D# 3 3
H_ A# 4
H_ D# 4 2
H _DPSLP# 6
Z0211
H_ D# 6 0
H_A#13
COMP0, COMP2: 0.5" Max, Zo=27.4 Ohms(20mil)
COMP1, COMP3: 0.5" Max, Zo=55 Ohms(5mil)
Best estimate is 18 mils wide trace for outer
layers and 14 mils wide trace if on internal
layers.
H_ IGN NE#
R 1 58 4 . 7K _0 4
3.3V
H_THERMDC
H_A#16
H_A#23
R 80 54.9_1% _04
THER M_RST#27
H_ TD I
H _DSTBP# 3 4
H_ A2 0M #
VDD 3
H_BPR I# 4
H_ D# 6 2
H_ D# 1 3
H_STPCLK#
H_ T CK
H_REQ#3
R 1 34 56 _ 0 4
0.5" max, Zo= 55 Ohms
H_ DIN V# 14
H_D BSY# 4
H_ BP M 2 #
H_ BP M 0 #
H_A#20
R 119 *56_04
CPU to SB interface
H _D#[63:0] 4
H_ IGN NE#
COM P2
H_ CP U RS T #
H_ A# 7
H_ DBR #
H_ D# 5 3
Z0205
CP U_BSEL025
H_ D# 6 1
H_A20M#
H_ R S#2 4
COMP2
CPU_ BSEL 2
Z0225
Layout Note:
H_ D# 5 8
H_ D# 3 9
H_ D# 9
H_A#34
R1 38 1 0K _ 0 4
H _ TH R M TR I P # 22
If PR OC HO T# is r out ed b etw ee n CPU , IM VP an d MC H,
pu ll- up r esi st or ha s to be 6 8 ohm ? 5 %. If n ot
us e, pu ll -up r es ist or h as to b e 5 6 oh m ? 5 %
If u se d M6 72
th an d el R 3
H_ D# 3 1
H_ A# 6
H_ C PURS T# 4
H_ F ERR #22
H_ D# 4 6
H_ D# 5 2
H_ A# 5
H_ D# 4 0
H_ D# 5 5
R 407 1K_1%_04
H_ L OC K # 4
H_ D# 1 6
Z0202
Z0224
H_ A# 3
H_A#26
R8 5
27.4_1% _04
H _ REQ# [4 :0 ]4
H_ D BR#
I f us ed M6 72 th an
d el R 40 an d add R 42
H_ D# 2 2
H_ D# 2 4
R 100 51_1%_04
H_ IN IT# 2 2
PSI#
H_ T HER MD C
20MIL
H_ D# 3 6
Z0206
Z0207
H_A#24
C553
1U_6.3V_X5R_06
R 57 680_04
V_THERM
R 1 37 * 1 0m i l_ s h or t
H_ D# 2 3
R 73 150_1% _04
Schematic Diagrams
B - 4 Penryn (Socket-P) 2/2
B.Schematic Diagrams

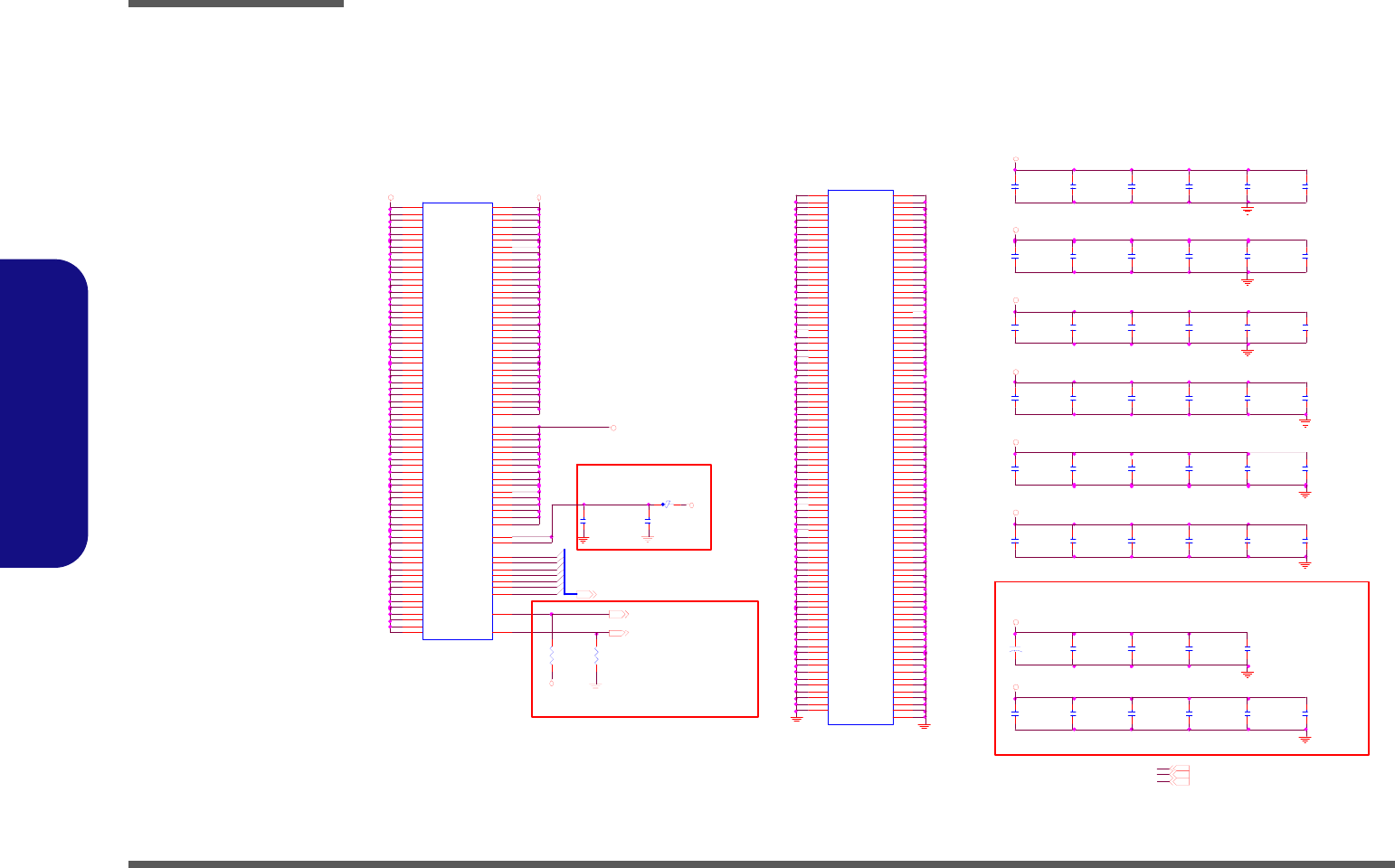

Penryn (Socket-P) 2/2
C141
.1U _10V _X7R_04
C88
1U _6.3V_X5R_06
C5 8 4
1U _ 6 . 3V _X 5 R _0 6
VC OR E
Power Plane
C129
10U_6.3V_X5R _08
VSSSEN SE
C5 6 4
10U _6.3V_X5R_08
H_VID2
C86
.1U_10V_X7R _04
C124
1U_6.3V_X5R _06
C100
1U_6.3V_X5R _06
H _ V I D [ 6 : 0] 37
C161
.01U_16V_X7R _04
VC OR E
C5 1
1U_6.3V_X5R _06
PLACE NEAR CPU
C111
.1U _10V_X7R_04
C95
10U_6.3V_X5R _08
C566
10U _6.3V_X5R_08
C85
.1U_10V_X7R _04
H_VID1
C585
1U _ 6. 3V _X 5 R _ 0 6
Check cap for santa rosa platform
VCC SEN SE 3 7
C577
10U_6.3V_X5R _08
C1 2 6
.1U_10V _X7R _04
1.05VS
C6 2
.1U_10V_X7R _04
C128
1U _6.3V_X5R_06
H_VID3
C582
.1U_10V_X7R _04
C593
10U _6.3V _X5R_08
C159
10U_6.3V_X5R _08
C5 0
10U _6.3V_X5R_08
C4 9
1U _ 6. 3V _X 5 R _ 0 6
H_VID4
C572
.1U _10V_X7R_04
C5 9
10U _6.3V_X5R_08
C581
.1U _10V _X7R_04
+
C5 7 4
15 0 U _4 V _ B 2
VSSSEN SE 3 7
C568
10U _6.3V _X5R_08
VC OR E
VC OR E
R21
100_1%_04
PLACE NEAR CPU
H_VID5
C75
1U_6.3V_X5R _06
C4 6
.1U _10V _X7R_04
1 . 05 V S 2, 4, 6 , 7 , 2 4 , 3 9
C6 8
1U_6.3V_X5R _06
2A
6-07-10611-7C0
VCO RE 37
C67
.1U _10V_X7R _04
Near pin B26
H_VID6
C155
.1U _10V_X7R _04
Route VCCSENSE and
V SS SE NS E tr ac es a t 27 .4
ohms with 50 mils spacing.
Place PU and PD within 1
inch of CPU.
C65
10U_6.3V_X5R _08
L1 2
HC B1608KF-121T25
VC OR E
VC OR E
Layout note:
1.05VS
C580
10U_6.3V_X5R _08
C116
.1U_10V_X7R _04
C6 1
10U _6.3V_X5R_08
1. 5V S
C565
10U _6.3V_X5R_08
C146
10U _6.3V _X5R_08
Layout note:
C594
10U_6.3V_X5R _08
JSKT1C
Pe n ry n
.
A7
A9
A10
A12
A13
A15
A17
A18
A20
B7
B9
B10
B12
B14
B15
B17
B18
B20
C9
C10
C12
C13
C15
C17
C18
D9
D10
D12
D14
D15
D17
D18
E7
E9
E10
E12
E13
E15
E17
E18
E20
F7
F9
F10
F12
F14
F15
F17
F18
F20
AA7
AA9
AA10
AA12
AA13
AA15
AA17
AA18
AA20
AB9
AC 10
AB10
AB12
AB14
AB15
AB17
AB18
AB20
AB7
AC 7
AC 9
AC 12
AC 13
AC 15
AC 17
AC 18
AD 7
AD 9
AD 10
AD 12
AD 14
AD 15
AD 17
AD 18
AE9
AE10
AE12
AE13
AE15
AE17
AE18
AE20
AF9
AF1 0
AF1 2
AF1 4
AF1 5
AF1 7
AF1 8
AF2 0
B26
J6
K6
M6
J21
K21
M2 1
N2 1
N6
R2 1
R6
T21
T6
V21
W21
AF7
AD 6
AF5
AE5
AF4
AE3
AF3
AE2
AE7
C2 6
G2 1
V6
VCC [0 0 1]
VCC [0 0 2]
VCC [0 0 3]
VCC [0 0 4]
VCC [0 0 5]
VCC [0 0 6]
VCC [0 0 7]
VCC [0 0 8]
VCC [0 0 9]
VCC [0 1 0]
VCC [0 1 1]
VCC [0 1 2]
VCC [0 1 3]
VCC [0 1 4]
VCC [0 1 5]
VCC [0 1 6]
VCC [0 1 7]
VCC [0 1 8]
VCC [0 1 9]
VCC [0 2 0]
VCC [0 2 1]
VCC [0 2 2]
VCC [0 2 3]
VCC [0 2 4]
VCC [0 2 5]
VCC [0 2 6]
VCC [0 2 7]
VCC [0 2 8]
VCC [0 2 9]
VCC [0 3 0]
VCC [0 3 1]
VCC [0 3 2]
VCC [0 3 3]
VCC [0 3 4]
VCC [0 3 5]
VCC [0 3 6]
VCC [0 3 7]
VCC [0 3 8]
VCC [0 3 9]
VCC [0 4 0]
VCC [0 4 1]
VCC [0 4 2]
VCC [0 4 3]
VCC [0 4 4]
VCC [0 4 5]
VCC [0 4 6]
VCC [0 4 7]
VCC [0 4 8]
VCC [0 4 9]
VCC [0 5 0]
VCC [0 5 1]
VCC [0 5 2]
VCC [0 5 3]
VCC [0 5 4]
VCC [0 5 5]
VCC [0 5 6]
VCC [0 5 7]
VCC [0 5 8]
VCC [0 5 9]
VCC [0 6 0]
VCC [0 6 1]
VCC [0 6 2]
VCC [0 6 3]
VCC [0 6 4]
VCC [0 6 5]
VCC [0 6 6]
VCC [0 6 7]
VC C[068]
VC C[069]
VC C[070]
VC C[071]
VC C[072]
VC C[073]
VC C[074]
VC C[075]
VC C[076]
VC C[077]
VC C[078]
VC C[079]
VC C[080]
VC C[081]
VC C[082]
VC C[083]
VC C[084]
VC C[085]
VC C[086]
VC C[087]
VC C[088]
VC C[089]
VC C[090]
VC C[091]
VC C[092]
VC C[093]
VC C[094]
VC C[095]
VC C[096]
VC C[097]
VC C[098]
VC C[099]
VC C[100]
VCC A[01]
VCC P[03]
VCC P[04]
VCC P[05]
VCC P[06]
VCC P[07]
VCC P[08]
VCC P[09]
VCC P[10]
VCC P[11]
VCC P[12]
VCC P[13]
VCC P[14]
VCC P[15]
VCC P[16]
VCCSENSE
VID [0]
VID [1]
VID [2]
VID [3]
VID [4]
VID [5]
VID [6]
VSS SENS E
VCC A[02]
VCC P[01]
VCC P[02]
1.05VS
Z 0301
C140
1U_6.3V_X5R _06
C130
.1U_10V_X7R _04
C575
10U_6.3V_X5R _08
130mA
1 . 5V S 6 , 3 3, 3 5
VCORE
C1 1 3
1U _ 6 . 3V _X 5 R _0 6
V CC SENSE
C118
10U_6.3V_X5R _08
J SKT1 D
Penryn
.
P6
AE11
A8
A1 1
A1 4
A1 6
A1 9
A2 3
AF2
B6
B8
B1 1
B1 3
B1 6
B1 9
B2 1
B2 4
C5
C8
C11
C14
C16
C19
C2
C22
C25
D1
D4
D8
D11
D13
D16
D19
D23
D26
E3
E6
E8
E1 1
E1 4
E1 6
E1 9
E2 1
E2 4
F5
F8
F11
F13
F16
F19
F2
F22
F25
G4
G1
G23
G26
H3
H6
H21
H24
J2
J5
J22
J25
K1
K4
K2 3
K2 6
L3
L6
L21
L24
M2
M5
M22
M25
N1
N4
N23
N26
P3 A25
AF21
AF19
AF16
AF13
AF11
AF8
AF6
A2
AE26
AE23
AE19
P21
P24
R2
R5
R22
R25
T1
T4
T23
T26
U3
U6
U21
U24
V2
V5
V22
V25
W1
W4
W23
W26
Y3
Y21
Y24
AA2
AA5
AA8
AA11
AA14
AA16
AA19
AA22
AA25
AB1
AB4
AB8
AB11
AB13
AB16
AB19
AB23
AB26
AC3
AC6
AC8
AC11
AC14
AC16
AC19
AC21
AC24
AD2
AD5
AD8
AD11
AD13
AD16
AD19
AD22
AD25
AE1
AE4
Y6
A4
AE14
AE16
AE8
AF25
VSS [08 2 ]
VSS [14 8 ]
VSS[002]
VSS[003]
VSS[004]
VSS[005]
VSS[006]
VSS[007]
VSS[008]
VSS[009]
VSS[010]
VSS[011]
VSS[012]
VSS[013]
VSS[014]
VSS[015]
VSS[016]
VSS[017]
VSS[018]
VSS[019]
VSS[020]
VSS[021]
VSS[022]
VSS[023]
VSS[024]
VSS[025]
VSS[026]
VSS[027]
VSS[028]
VSS[029]
VSS[030]
VSS[031]
VSS[032]
VSS[033]
VSS[034]
VSS[035]
VSS[036]
VSS[037]
VSS[038]
VSS[039]
VSS[040]
VSS[041]
VSS[042]
VSS[043]
VSS[044]
VSS[045]
VSS[046]
VSS[047]
VSS[048]
VSS[049]
VSS[050]
VSS[051]
VSS[052]
VSS[053]
VSS[054]
VSS[055]
VSS[056]
VSS[057]
VSS[058]
VSS[059]
VSS[060]
VSS[061]
VSS[062]
VSS[063]
VSS[064]
VSS[065]
VSS[066]
VSS[067]
VSS[068]
VSS[069]
VSS[070]
VSS[071]
VSS[072]
VSS[073]
VSS[074]
VSS[075]
VSS[076]
VSS[077]
VSS[078]
VSS[079]
VSS[080]
VSS[081] VSS [162]
VSS [16 1 ]
VSS [16 0 ]
VSS [15 9 ]
VSS [15 8 ]
VSS [15 7 ]
VSS [15 6 ]
VSS [15 5 ]
VSS [15 4 ]
VSS [15 3 ]
VSS [15 2 ]
VSS [15 1 ]
VSS [08 3 ]
VSS [08 4 ]
VSS [08 5 ]
VSS [08 6 ]
VSS [08 7 ]
VSS [08 8 ]
VSS [08 9 ]
VSS [09 0 ]
VSS [09 1 ]
VSS [09 2 ]
VSS [09 3 ]
VSS [09 4 ]
VSS [09 5 ]
VSS [09 6 ]
VSS [09 7 ]
VSS [09 8 ]
VSS [09 9 ]
VSS [10 0 ]
VSS [10 1 ]
VSS [10 2 ]
VSS [10 3 ]
VSS [10 4 ]
VSS [10 5 ]
VSS [10 7 ]
VSS [10 8 ]
VSS [10 9 ]
VSS [11 0 ]
VSS [11 1 ]
VSS [11 2 ]
VSS [11 3 ]
VSS [11 4 ]
VSS [11 5 ]
VSS [11 6 ]
VSS [11 7 ]
VSS [11 8 ]
VSS [11 9 ]
VSS [12 0 ]
VSS [12 1 ]
VSS [12 2 ]
VSS [12 3 ]
VSS [12 4 ]
VSS [12 5 ]
VSS [12 6 ]
VSS [12 7 ]
VSS [12 8 ]
VSS [12 9 ]
VSS [13 0 ]
VSS [13 1 ]
VSS [13 2 ]
VSS [13 3 ]
VSS [13 4 ]
VSS [13 5 ]
VSS [13 6 ]
VSS [13 7 ]
VSS [13 8 ]
VSS [13 9 ]
VSS [14 0 ]
VSS [14 1 ]
VSS [14 2 ]
VSS [14 3 ]
VSS [14 4 ]
VSS [14 5 ]
VSS [14 6 ]
VSS [10 6 ]
VSS[001]
VSS [14 9 ]
VSS [15 0 ]
VSS [14 7 ]
VSS [16 3 ]
H_VID0
C5 8 3
.1U_10V _X7R _04
C123
10U_6.3V_X5R _08
R22
100_1%_04
5/10
VCO RE
C77
.1U _10V_X7R_04
VC OR E
Sheet 3 of 48
Penryn (Socket-P)
2/2
Schematic Diagrams

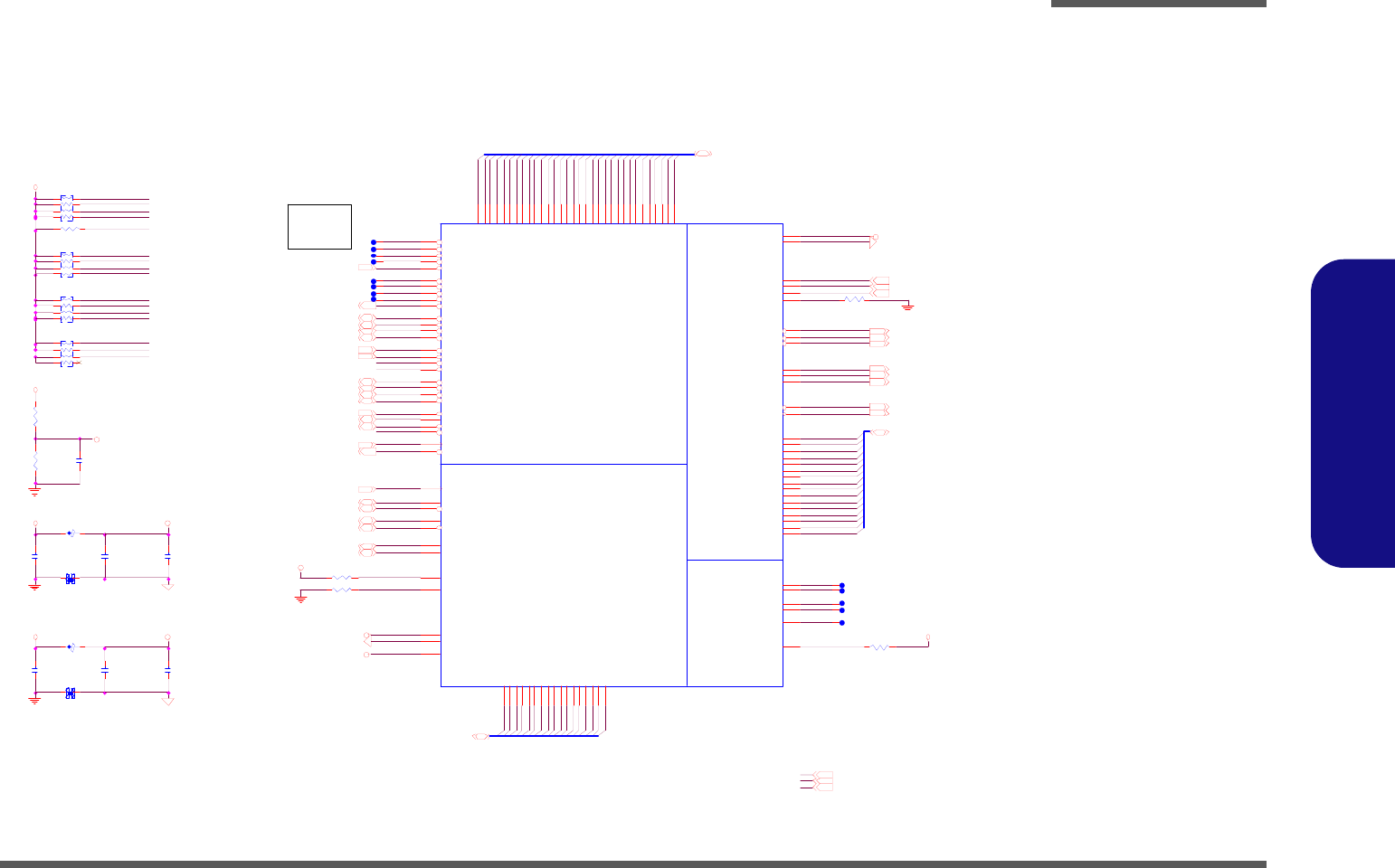

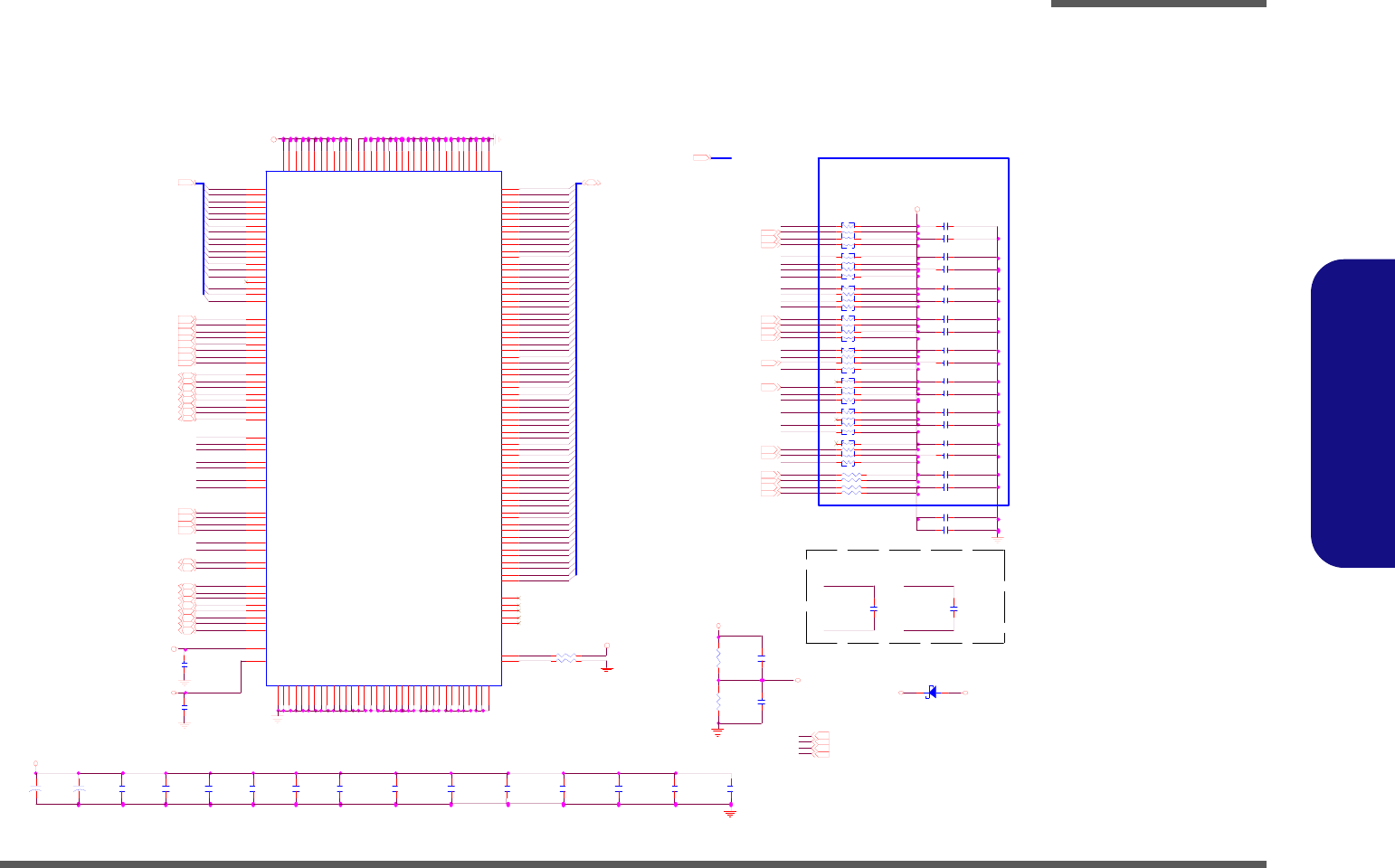

SiSM672 Host, PCIE 1/5 B - 5
B.Schematic Diagrams
SiSM672 Host, PCIE 1/5
PE0 R X5 #12
NB_ G TLR EF
H_BNR#2
H _D#61
H _ DS TB N# 3 2
Z0406
EXTERNAL VGA ( M760SU ) : 0.1U
H_A#29
H _D#59
NB_COMP#
Z0453
H_CLK_NB#25
H_HITM#2
PE0 R X0 #12
PE0 R X612
H _D#53
H _D#27
H_ A# 4
1. 8V S 5,6,7,11,13, 14,15,17,19,21, 22,23,24,25,35
HD VAP 0 1 1
Z04 01
C4XAVDD
Z0413
C619 *.1U _10V_X7R _04
PE0 R X412
HD VBP 1 1 1
C631 *.1U _10V_X7R _04
PE 0TX3 # 1 2
H D VBN 2 1 1
H _D#11
H_D#0
H _D#38
H_A#15
H _D#56
Z0444
H _ DI NV # 3 2
Z0463
PCIE _W AKE #23,33
H _D#32
Z0439
C4XAVSS
PE0 R X012
H_A#23
H_A#11
H_A#19
Z0402
PE0 R X2 #12
H _D#18
H_ R EQ #3
H _D#23
H_ R S# 12
PC IE_C LK _NB# 25
PE 0TX3 1 2
H_D#8
H_ R EQ #1
H_DSTBP#1 2
H_A#26
H _D#30
H _D#40
C264
.01U_16V_X7R_04
PC I_ INT# A6,21,28
Place under M671MX
solder side
H _ DI NV # 1 2
H_ A# 8
Z0452
N C 10 N C _0 4
C624 *.1U _10V_X7R _04
H _D#49
H _D#57
C 1XAVD D
H_ R S# 02
H _D#51
H _D#16
C240
.01U_16V_X7R_04
H_PWRGD2
H _D#25
H_AD S#2
H_A#18
Z0451
C620 *.1U _10V_X7R _04
PE0 R X4 #12
PE 0TX0 # 1 2
PE 0TX6 1 2
Z0409
1.05VS
H_D#7
H_ A# 7
1. 2 V S
H_A#27
Z0405
PE 0TX7 # 1 2
NC2 NC_04
H D VAN 2 1 1
H _D#62
Z0438
C2 3 0
.1U_ 1 0 V_ X7R_ 0 4
H_ L OC K #2
PE0 R X712
H _D#55
H _A DSTB# 12
H _D#28
PE 0TX5 # 1 2
H_ A# 5
C606
.01U _16V_X7R_04
H _D#21
H _D#33
H _ DI NV # 2 2
H_ R EQ #0
H _ DS TB N# 1 2
Z0443
C 598
10U _10V_08
H_D#9
H_A#32
Z0417
H _ DI NV # 0 2
H_ BR 0 #2
PE0 R X512
L18 H CB1005KF-121T20
H _D#12
Z0450
C622 *.1U _10V_X7R _04
C255
.1U_10V_X7R_04
NB_PCREQ#
Z0412
L65 H CB 1005KF-121T20
H_D#4
H _D#50
H _D#52
C260
. 0 1U _ 1 6V _ X7 R _ 04
H _ DR DY #2
H _D#45
H_D#3
C605
.1U_10V_X7R_04
C615 *.1U _10V_X7R _04
C4XAVS S
H_HIT#2Z0410
Z0416
C617 *.1U _10V_X7R _04
C1XAVDD
PE 0TX2 # 1 2
H _D#44
H_A#10
Z0404
C618 *.1U _10V_X7R _04
H_BPRI#2
PE0 R X3 #12
HD VAP 2 1 1
R 178 110_1%_06
Z0411
C616 *.1U _10V_X7R _04
1.05VS
H_D#6
H _D#41
Z0447
PE0 R X6 #12
PE 0TX1 1 2
H _D#43
Z0446
L23
H CB1005KF-121T20
H _D#39
H _A#[35:3]2
H _ CP UR ST #2
PE0 R X312
PE 0TX2 1 2
Host
U32C
SiSM 6 72
R34
E21
P32
B16
C17
A17
B18
F18
G18
P31
N30
P33
L32
P30
P28
F21
K34
M31
K33
M33
M32
L34
N32
N34
M34
T34
R30
R29
R32
P34
U34
AA 34
N29
M30
M28
L30
L29
K28
K31
K30
H31
G34
H32
G32
K32
F34
F33
F32
H28
J30
H30
G29
J29
G30
F30
D33
D34
B32
B33
C34
D31
A32
A31
C31
B30
C30
A30
D28
G28
C29
C28
E28
E27
C27
G26
E26
D26
B26
A26
C26
G22
C24
A25
B24
C25
A24
E23
E25
G24
D22
C22
E22
C23
A23
A22
B22
T32
T28
T31
T33
T30
U32
U30
V34
U29
V33
V32
V28
V31
W34
Y33
W32
V30
W30
Y34
Y28
W29
Y32
Y30
Y31
AA 32
AA 30
AA 29
AB 33
AB 34
AB 32
AC 34
AB 30
AB 31
J32
E32
F27
F23
H33
E31
B28
D24
H34
D32
A28
E24
A21
C21
W24
U24
R24
N24
L21
PC REQ #
NC 2 (D PW R # )
ED RD Y#
C1XAVD D
C1XAVS S
C4XAVD D
C4XAVS S
CP UC L K
CP UC L K#
HTR DY #
BPR I#
BR EQ0#
HL O CK #
DE F E R #
CP UPW RG D
CP UR ST #
RS 0#
RS 1#
RS 2#
DR D Y#
BN R#
DB SY#
HIT #
HIT M #
AD S#
HR EQ 0 #
HR EQ 1 #
HR EQ 2 #
HR EQ 3 #
HR EQ 4 #
HA ST B0 #
HA ST B1 #
HD0#
HD1#
HD2#
HD3#
HD4#
HD5#
HD6#
HD7#
HD8#
HD9#
H D10#
H D11#
H D12#
H D13#
H D14#
H D15#
H D16#
H D17#
H D18#
H D19#
H D20#
H D21#
H D22#
H D23#
H D24#
H D25#
H D26#
H D27#
H D28#
H D29#
H D30#
H D31#
H D32#
H D33#
H D34#
H D35#
H D36#
H D37#
H D38#
H D39#
H D40#
H D41#
H D42#
H D43#
H D44#
H D45#
H D46#
H D47#
H D48#
H D49#
H D50#
H D51#
H D52#
H D53#
H D54#
H D55#
H D56#
H D57#
H D58#
H D59#
H D60#
H D61#
H D62#
H D63#
HA 3#
HA 4#
HA 5#
HA 6#
HA 7#
HA 8#
HA 9#
HA 10 #
HA 11 #
HA 12 #
HA 13 #
HA 14 #
HA 15 #
HA 16 #
HA 17 #
HA 18 #
HA 19 #
HA 20 #
HA 21 #
HA 22 #
HA 23 #
HA 24 #
HA 25 #
HA 26 #
HA 27 #
HA 28 #
HA 29 #
HA 30 #
HA 31 #
HA 32 #
HA 33 #
HA 34 #
HA 35 #
DBI0#
DBI1#
DBI2#
DBI3#
HDSTBN0#
HDSTBN1#
HDSTBN2#
HDSTBN3#
H D STBP0 #
H D STBP1 #
H D STBP2 #
H D STBP3 #
HPCOMP
HN CO M P
HV REF
HV REF
HV REF
HV REF
HV REF
NB_P CIE_1.2VS
PE0 R X212
Z0448
Z0442
R 1 96 * 5 6 _ 04
H _D#60
H _D#42
H D VBN 0 1 1
H_A#21
H _D#46
H_A#34
H _A DSTB# 02
PE 0TX1 # 1 2
Z0403
PE0 R X7 #12
C273
.01U_16V_X7R_04
C627 *.1U _10V_X7R _04Z0449
C210
10U_10V_08
H_ D E FE R #2
H_A#28
H _ DS TB N# 0 2
H_RE Q#[4:0]2
1. 2V S 7 , 3 5
H_A#30
H _D#15
H_A#17
PE 0TX5 1 2
H_ R EQ #4
H_ A# 6
Z0408
H_A#22
1.8VS
H_ D B SY #2
H _D#63
Z0462
HD VAP 1 1 1
H _D#20
H_A#13
H_ R S# 22
H _D#54
C1XAVS S
H_A#31
Z0414
C630 *.1U _10V_X7R _04
R1 9 5
75_1%_04
PCIE
U32D
SiSM 6 7 2
E4
E5
F1
G1
H3
H2
H1
J1
V1
V6
W4
W1
W2
Y1
Y6
AA4
AA 1
AB 1 AB6
AC4
AB 2
AC 1
AD 1
AD6
AE4
AE 1
AE 2
AF 1
AG 1
T2
U1
K1
K2
L1
M1
N1
N2
P1
R1
T1
J6
G6
G4
J4
L6
M4
P6
P4
H6
G5
K6
J5
M6
M5
R6
P5
W6
W5
AA6
AA5
AC6
AC5
AE6
AE5
P7
R7
T7
U7
V7
D7
G16
T5
T4
PER P0
PER N 0
PER P1
PER N 1
PER P2
PER N 2
PER P3
PER N 3
PER N 9
PETP8
PETP9 (H DV BP2)
PER P10
PER N 10
PER P11
PETP10(H DV BP1)
PETP11(H DV BP0)
PER N 11
PER P12 PETP12
PETP13(H DV AP2)
PER N 12
PER P13
PER N 13
PETP14(H DV AP1)
PETP15(H DV AP0)
PER P14
PER N 14
PER P15
PER N 15
PER N 8
PER P9
PER P4
PER N 4
PER P5
PER N 5
PER P6
PER N 6
PER P7
PER N 7
PER P8
PETP2
PETP0
PETP1
PETP3
PETP4
PETP5
PETP6
PETP7
PE TN 0
PE TN 1
PE TN 2
PE TN 3
PE TN 4
PE TN 5
PE TN 6
PE TN 7
PE TN 8
PETN 9 (HD VBN 2)
PE TN 10 (HD VBN 1 )
PE TN 11 (HD VBN 0 )
PETN12
PE TN 13 (HD VAN 2 )
PE TN 14 (HD VAN 1 )
PE TN 15 (HD VAN 0 )
PC IEAVD D
PC IEAVD D
PC IEAVD D
PC IEAVD D
PC IEAVD D
PM E#
IN TX#
REFCLK+
REFCLK-
PE 0TX4 # 1 2
1. 05 V S
H D VAN 0 1 1
H _D#24
H_A#12
Z0415
PE 0TX0 1 2
H _D#36
C629 *.1U _10V_X7R _04
R 183 10_1%_04
H_DSTBP#0 2
H D VAN 1 1 1
Z0441
Z0454
H_D#5
H _D#31
C625 *.1U _10V_X7R _04
C4XAVDD
H_A#25
NB_GTLREF
PE 0TX4 1 2
C623 *.1U _10V_X7R _04
1. 05VS 2,3,6,7,24, 39
H _D#22
H _D#48
H_A#14
1.8VS
H_D#2
PC IE_C LK _NB 25
H _D#13
H_A#16
Z0407
HD VBP 2 1 1
H_ R EQ #2
H _D#29
NB_COMP
C1XAVSS
PE0 R X1 #12
PE 0TX7 1 2
H _D#17
C628 *.1U _10V_X7R _04
INTERNAL VGA( M740S ) : R
H _D#58
H _D#[63:0] 2
H _D#19
H _D#34
H _D#35
Z0455
R1 9 2
150_1%_04
H_DSTBP#3 2
H _D#14
H _ DS TB N# 2 2
H_ A# 9
H_D#1
H_DPW R#2
HD VBP 0 1 1
H _D#47
H _D#26
Z0445
NB_GTLREF=0.7V
PE 0TX6 # 1 2
H_DSTBP#2 2
H D VBN 1 1 1
H_A#35
Z0440
H_A#33
H_ T R DY #2
H_A#20
H _D#37
NB_PCREQ#
77mA
H_CLK_NB25
H_ A# 3
PE0 R X112
H_A#24
C 262
. 1U _10V_X7R _04
C621 *.1U _10V_X7R _04
H _D#10
Sheet 4 of 48
SiSM672 Host,
PCIE 1/5
Schematic Diagrams

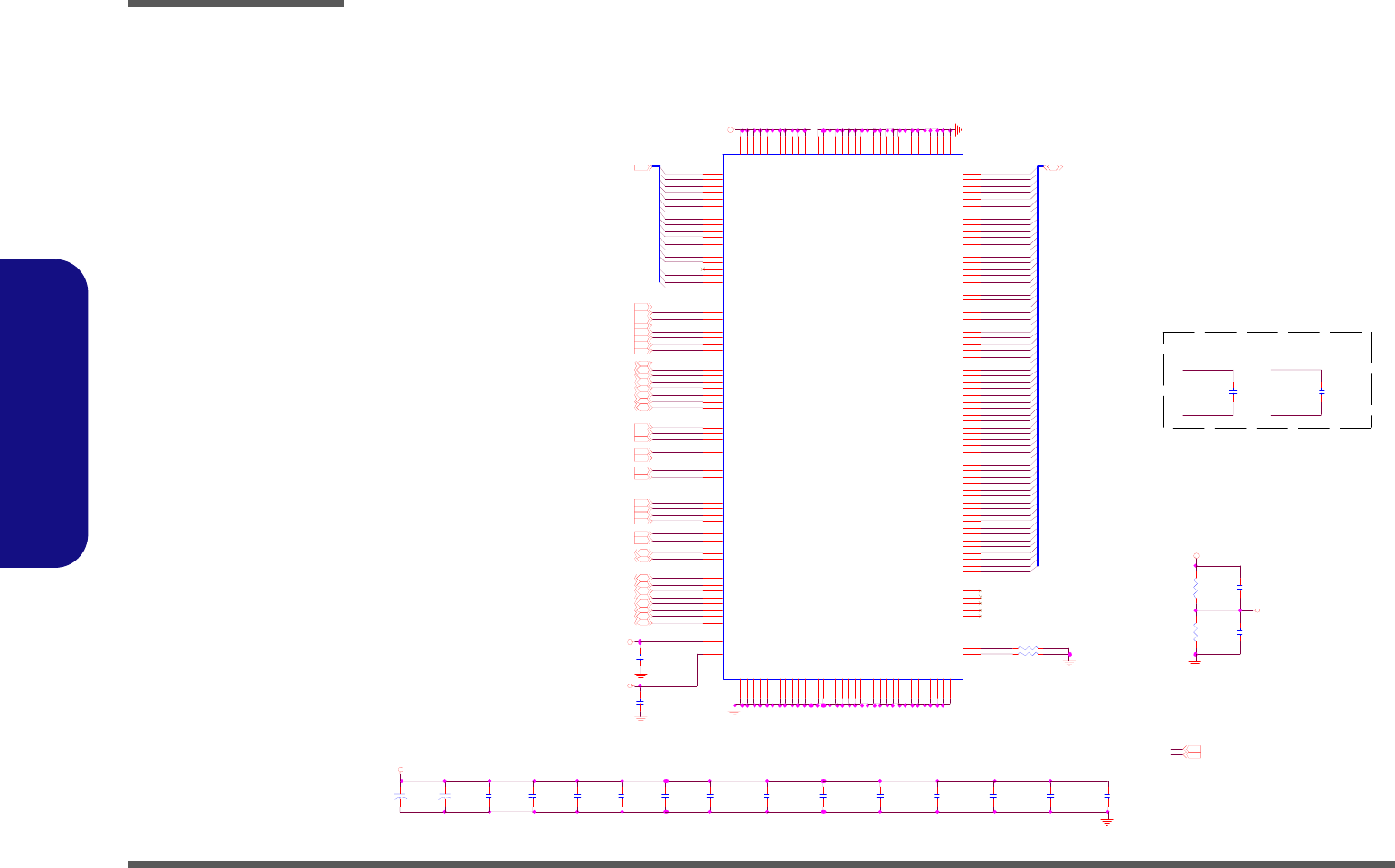

B - 6 SiSM672 DRAM 2/5
B.Schematic Diagrams
SiSM672 DRAM 2/5
D4XAVSS
D1XAVSS
M_D QS 59, 1 0
D 1XAVD D
M_A _DQ36
M_A _DQ25
M_A _DQ6
C 290 * 10P_50V_04
M_WE# 9,10
M_A _DQ14
M_A_A4
M_D QS 79, 1 0
M _OD T1 9,10
M_A _DQ41
M_A _DQ32
M_A _DQ4
R205 36_1% _06
Place close to
M671MX
M_ O C D V R E F _P
M_C OMP_P
M_DDRVREF
M_CKE3 10
M_CKE2 10
M_A _DQ58
M_A _DQ59
M_A_A0
M_ F W D S D CL K OA _D
M_A _DQ11
M_A _DQ42
?? ? ?
M_D QS 69, 1 0
R224 40.2_1% _04
D 1XAV SS
R208
1K_1%_04
M_ D Q S 5 #9,10
C 658
. 1U _10 V_ X7 R_ 0 4
M_ A _ D Q [ 6 3: 0]9,10
M_ A _ D Q [ 6 3: 0]9,10
M_A _DQ13
M_A _DQ44
M_A _DQ0
NC12 NC_04
M_ D Q S 7 #9,10
R211 40.2_1% _04
M_A_A2
M _ A_ A[17: 0] 9,1 0
M _CS2# 10
M_A_A17
C289
.1U _ 10 V_ X7 R_ 04
M_OC DVR EF_N
M_A _DQ63
M_A _DQ19
M_A _DQ10
M_A _DQ51
M_A _DQ31
M_A _DQ49
1. 8 V
M_A _DQ55
M_A _DQ2
M_A_A8
M_A _DQ50
D1XAVDD
M_A _DQ61
M_ D Q S 6 #9,10
M_DM09, 10
M_A _DQ33
M_COMP_P
R220 * 10m il_s hort
M_FW DSD CLKO A_D C 291 * 10P_50V_04
M_ D Q S 0 #9,10
M _CKE1 9,10
M_A _DQ22
1. 8V 7, 9,10,22,23,24,35,39,40
M_A_A10
M_DM19, 10
M_A _DQ28
M _ F W DS DC LK OA_ D _R
M_DM49, 10
M_A _DQ39
DRAM
U32B
SiS M672
AM15
AM17
AM18
AD28
AD30
AD31
AE29
AE30
AE32
AF3 1
AF3 2
AF3 3
AF3 4
AG3 4
AH24
AH32
AH33
AH34
AJ25
AK21
AK25
AK26
AK33
AL25
AL34
AM25
AM26
AM30
AM31
AN24
AN26
AN28
AN32
AP21
AP25
AP26
AP29
AJ30
AH16
AL19
AP24
AM28
AM27
AP27
AP28
AK24
AK19
AL17
AL15
AJ29
AH28
AF2 8
AJ34
AH31
AG3 0
AF3 0
AG3 2
AJ32
AJ31
AK34
AH30
AL32
AM33
AK32
AG2 9
AM34
AL31
AM32
AP32
AP31
AM29
AK30
AK29
AJ27
AK28
AK20
AM20
AM19
AJ19
AN20
AJ21
AP19
AH20
AK18
AJ17
AK17
AP16
AH18
AP18
AN18
AP17
AN16
AK16
AN14
AJ15
AP15
AM16
AK15
AP14
AL13
AM13
AM12
AJ13
AM14
AK14
AN12
AH14
AK13
AP12
AP13
B15
A15
AP10
AP11
AM23
AP22
AJ23
AK12
AH12
AP23
AH22
AM22
AM21
AK22
AP20
AN22
AL21
AN30
AP30
AH26
AK27
B6
AD18
AD23
D QS6A#
D QS5A#
DQM5A
DQM0A
MD1A
MD0A
MD3A
MD7A
MD4A
MD6A
DQS0A
D QS0A#
MD5A
MD2A
MA 0 A
DQS1A
D QS1A#
DQM1A
DDRCOMP
DQM4A
MA 7 A
DD RC OM N
DQS2A
MA 3 A
D QS2A#
MA 2 A
MA 5 A
DQS3A
D QS3A#
MA11A
MA 6 A
MA15A
DQM3A
MA16A
MA 1 A
MA 4 A
MA17A
DQM2A
DQM6A
D QS4A#
MA12A
MA13A
MA14A
MA 8 A
MA 9 A
MA10A
DQS4A
DQS5A
DQS6A
OCDVRE FN
OC DV R E FP
MD8A
MD9A
MD10A
MD11A
MD12A
MD13A
MD14A
MD15A
MD16A
MD17A
MD18A
MD19A
MD20A
MD21A
MD22A
MD23A
MD24A
MD25A
MD26A
MD27A
MD28A
MD29A
MD30A
MD31A
MD32A
MD33A
MD34A
MD35A
MD36A
MD37A
MD38A
MD39A
MD40A
MD41A
MD42A
MD43A
MD44A
MD45A
MD46A
MD47A
MD48A
MD49A
MD50A
MD51A
MD52A
MD53A
MD54A
MD55A
MD56A
MD57A
MD58A
MD59A
MD60A
MD61A
MD62A
MD63A
DQM7A
DQS7A
D QS7A#
D1XAVSS
D1 XA VD D
D4XAVSS
D4 XA VD D
R ASA#
C ASA#
W EA#
FW DS DC LK OA
FWD SDC LKOA#
CS0 A #
CS1 A #
CS2 A #
CS3 A #
ODT0A
ODT1A
ODT2A
ODT3A
C KEA0
C KEA1
C KEA2
C KEA3
S3 AUXSW #
DD RV REF 0
DD RV REF 1
Place under M671MX
solder side
M _CAS# 9,10
M_A _DQ26
NB_S3AU XSW # 31
M_A_A11
L67 H CB1005K F-121T20
M _CKE0 9,10
M_A _DQ16
M_A _DQ9
R206 36_1% _06
R207
1K_1%_04
M_OCDVREF_N=0.969V
M_DM59, 10
M_A _DQ15
M_A _DQ60
M_A _DQ43
M_A _DQ40
C6 5 5
.01U _16V_X7R_04
M_DM39, 10
M_A _DQ7
M_A _DQ1
M_A _DQ48
M_A_A13
C287
.1U _10V_X7R_04
M_ D Q S 4 #9,10
M_A _DQ35
M_A _DQ21
M_OCDVREF_P=0.874V
1.8V S
M_A _DQ47
M_A_A14
M_A _DQ18
M_A_A1
M _CS0# 9,10
M _ F W DS DC LK OA_ D #_ R
M_A _DQ23
M_OD T2 10
M_FW DSD CLKO A_D 25
R219 * 10m il_s hort
R213 36_1% _06
C656
10U_10V _08
M_DDRVREF=0.9V
M_A _DQ34
M_A _DQ20
M_A _DQ8
D4XAVDD M_DQS 19, 1 0
M_OD T3 10
M_A _DQ45
M_A _DQ53
M_ DD RV REF
M_ F W D S D C L K O A _ D # 2 5
D 4XAV SS
M_D QS 49, 1 0
M _OD T0 9,10
M_DM79, 10
M_OC DVR EF_P
M_A _DQ3
M_ D Q S 1 #9,10
M_A _DQ56
M_D QS 39, 1 0
M_D QS 09, 1 0
M_ D Q S 3 #9,10
M_A _DQ30
M_A_A7
M_A _DQ24
M_A_A3
M_A_A15
M_A _DQ38
M_COMP_N
M_A _DQ27
M_A _DQ29
C6 1 2
.01U _16V_X7R_04
1.8V
M _CS1# 9,10
M_A_A5
L64 H CB1005K F-121T20
D 4XAVD D
M_ O C D V R E F _N
M_A _DQ5
M_ F W D S D CL K OA _D #
M_A_A16
1. 8 V
M_A _DQ46
M_DM29, 10
D03
M_A _DQ37
1.8V S
1. 8V S 4,6, 7,11,13,14,15,17,19,21,22,23,24,25,35
NC13 NC_04
M_DM69, 10
M_A_A12
C 611
. 1U _10 V_ X7 R_ 0 4 M_ A _ DQ [ 6 3: 0]9,10
M_A _DQ57
M_A_A6
M_ A _ D Q [ 6 3: 0]9,10
M_A _DQ52
M_C OMP_N
C288
.1U _ 10 V_ X7 R_ 04
1. 8 V
R222 36_1% _06
M_ D Q S 2 #9,10
M _CS3# 10
M_FW DSD CLKO A_D#
M_ A _ D Q [ 6 3: 0]9,10
M_A _DQ12
M_A_A9
M_A _DQ62
C597
10U_10V _08
M_ A _ D Q [ 6 3: 0]9,10
M_ A _ D Q [ 6 3: 0]9,10
M _RAS# 9,10
M_A _DQ54
M_ A _ D Q [ 6 3: 0]9,10
M_D QS 29, 1 0
M_A _DQ17
Sheet 5 of 48
SiSM672 DRAM 2/5
Schematic Diagrams

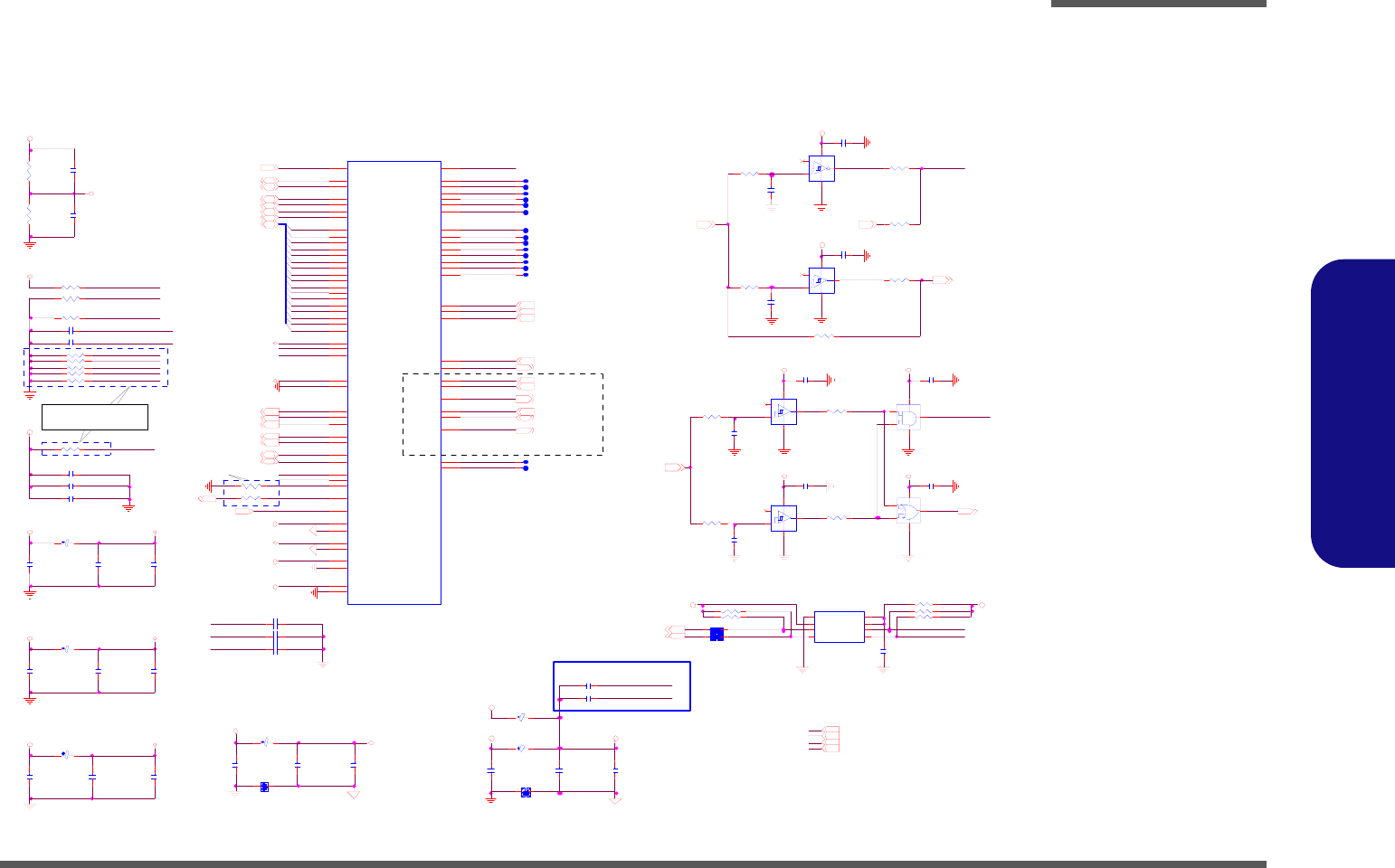

SiSM672 MuTIOL VGA 3/5 B - 7
B.Schematic Diagrams
SiSM672 MuTIOL VGA 3/5
Z_CLK025
C331
.1U _10V_X7R _04
AU X_PW R OK 2 2 ,26
VBC AD 11
ZAD 14
DPR ST P#_ IN V
ECLKAVDD
DAC _GR EEN
C6 0 9
.1U_10V_X7R_04
R162 1K_1%_04
Z_CO MP_N
D AC_ DD CAD AT
Z062 5
R172
33_04
Level Shitt
DAC _ RE D19
DAC_DDCADAT19
Z0618
Z062 2
L17 HC B1005KF-121T20
1.8VS
M7 60 SU ? ? ?
VCOM P
DAC _ RE D
C1 6 9
*100P_50V_04
1. 8V S
3.3VS
ZAD 11
L26 HC B1005KF-121T20
R 468 56_04
DACAVDD2
DAC_DDCACLK19
Z06 24
C245 .1U_16V _04
73mA
ZAD 15
C211
10U_10V_08
AU X_ PW R OK
D ACAVS S1
VAC LK 1 1
M760SU ? ? ?
3.3VS
H_DP SLP#2
DPRSTP#_INV
VBVSY NC 11
Z061 4
VVBW N
U9
P CA9306DC UR
1
2
3
4
8
7
6
5
GND
VR EF1
SC L1
SD A1
EN
VR EF2
SCL2
SD A2
1.05V <=> 3.3V
10mA
1. 8V S
ZSTB_D#021
R177
33_04
ZAD 12
3. 3 V S
Z061 3
DAC _G RE E N19
NB_ T ES TM OD E1
ZSTB_D#121
C 237 .1U_10V_X7R_04
DAC_HSYNC19
C 812 *10P_50V_04
ZSTB_D021
PCI_INT# A4, 21 , 2 8
Z06 19
C2 0 8
10U _10V_08
73mA
Z_C OM P_N
Z0601
H_ DPR S TP #2,37
C223
.01U_16V_X7R_04
VBC LK 1 1
C229
.1U_ 1 0V_ X7 R_ 0 4
1. 5 V S
ZAD 6
6- 01 -74 10 8- Q61
5mA
Z_V REF
3.3VS
R141 *0_04
3.3VS
ZAD 9
VRS ET
R2 1 4
49.9_1%_04
C 236 .1U_10V_X7R_04
R 175 150_1% _04
1.05VS 2,3,4,7,24,39
Z060 8
AG PSTO P# 22
R160 200K_04
U8
74LVC 1G 08G W
1
2
5
4
3
Z4XAVD D
NC 1 1 N C_ 0 4
For SiS VB 307
use only
5m A
Z060 3
R185 *0_04
C1 6 8
.1 U_ 1 0V_ X 7 R_ 04
C LK_14M_671MX25
ZAD 0
ZAD 8
Z0629
R191 *0_04
Z06 23
AU X_PW R OK
R194 *0_04
C227
.01U_16V_X7R_04
R 1 76 * 1 0m i l_ s h or t
R139
33_04
1.5VS 3,33,35
N EAR S IS M67 2
Z06 17
DAC_VSYNC
C 251 *.1U _16V_04
1. 8 V S
C LK_14M_671M X
3. 3V S
C 249 *.1U _16V_04
C329
.01U_16V_X7R_04
1. 8V S
ZAD[16:0]21
NB_ T ES TM OD E2
C526
.1 U_ 1 0V_ X 7 R_ 04
AG PBUSY # 2 2
ZAD 16
R189 *0_04
1. 8V S
ZAD 13
Z060 7
L63 HC B1005KF-121T20
D ACAVS S2
1.8VS 4,5,7,11,13,14,15,17,19,21,22,23,24,25,35
ZAD 5
C244
100P_50V_04
Z060 6ZAD 1
C610
.1U_10V_X7R_04
VBH SYN C 1 1
3. 3 V S
DAC _B L U E19
L1 9
H CB1005KF-121T20
3.3VS 10,11,19,20,21,22,23,24,25,27,28,29,30,31,32,33,34,35,37
H _ DPSL P# _L S
NEA R SI SM6 72
DAC AVSS2
Z060 5
DELAY_PWRGD
M760SU ? ?
R184 *0_04
U26
74LVC1G14GW
1
2
53
4
ASL
U32A
SiSM 672
AM8
AM9
AM1 0
AN8
AN10
AP4
AP5
AP8
AP9
AH10
AL7
AL9
AM7
AK1 0
AM6
AK1 1
AJ11
AP7
AJ 9
AP6
AN6
AK9
AM4
AK6
AK8
AN4
AK7
AL5
AM5
D1 3
C1 2
C1 3
G1 2
F12
D1 1
E12
D1 5
C1 4
C1 5
F11
F13
A12
B12
A13
B13
B10
A11
A9
F15
D1 6
E1 6
F16
D1 7
E1 7
F17
AC32
AD34
AB2 8
AD32
AD33
AE3 4
AC30
AC29
A5
C6
A7
A6
D9
C8
E9
E7
D8
F7
AH2
AG3
B8
G1 4
ZAD 16
ZCM P_N
Z4 XAVDD
ZUR EQ
Z4 XAVSS
ZSTB1
ZSTB1#
ZDR EQ
ZCM P_P
ZCL K
ZSTB0#
ZVR EF
ZSTB0
ZAD 0
ZAD 1
ZAD 2
ZAD 3
ZAD 4
ZAD 5
ZAD 6
ZAD 7
ZAD 8
ZAD 9
ZAD 10
ZAD 11
ZAD 12
ZAD 13
ZAD 14
ZAD 15
RO UT
GO UT
BOU T
VSY NC
HSY NC
VGP IO0
VGP IO1
VCO MP
VRS ET
VVBW N
VOS CI
INTA#
DAC AVDD 1
DAC AVSS1
DAC AVDD 2
DAC AVSS2
DC LKAVDD
DC LKAVSS
ECLKAVD D
EN TEST
TESTM OD E0
TESTM OD E1
TESTM OD E2
TR AP0
TR AP1
TR AP2
TR AP3
TR AP4
TR AP5
TR AP6
TR AP7
TR AP8
TR AP9
TR A P 1 0
AUXOK
PW ROK
PC IRST#
AG PBUSY #
VAC LK
VBC LK
VBCAD
VBHC LK
VBVSY NC
VBHSY NC
NC 0
NC 1
ECLKAVS S
AGPS TO P#
CPU _STP#22
ZAD 4
ZSTB_D121
DAC _ HSYN C
R187 0_04
1. 8V S DAC _ GREE N
ZD REQ21
DAC _ RE D
H _D PSL P# _L SZ062 1
C2 41
.1U_10V _X7R_04
DC LK A VDD
3.3VS
Z062 7
R2 2 1
150_1% _04
Z062 6
Z_CO MP_P
D ACA V DD1
NB _R ST# 11,31
SB_ D PRSL PVR22
Z061 0
C 798 *10P_50V_04
R168
33_04
U1 0
74A HC1G 32GW
4
53
1
2
Z060 2
VVBW N
C239
.1U _10V_X7R _04
R180 121_1% _04
Z_VR EF
C228
.1U _10V_X7R _04
Z060 9
ZAD 7
U1 2
74 L V C 1 G 1 7 G W
1
2
53
4
CPUSTP# 25
C6 0 0
10U _10V_08
R 467 56_04
Z0620
DAC _ B LU E
NB_ E N TE ST
R365
33_04
C3 0 7
.1U_10V_X7R_04
DACAVDD1
C604
.01U_16V_X7R_04
Z_C OM P_P
C608
.1U_10V_X7R_04
VCO MP
U1 1
74 L V C 1 G 1 7 G W
1
2
53
4
NB_ENTEST
R186 *4.7K_04 DAC _V SYN C19
ZAD 10
C224
.1U_10V_X7R_04
N C1 NC_04
PM_DPRSLPVR 37
Z060 4
C242 .1U_16V _04
R 193 4.7K_04
C 797 *10P_50V_04
1.05VS
VBH CL K 1 1
C2 43
.1U_10V _X7R_04
C 246 *.1U _16V_04
C206
.01U_16V_X7R_04
R179
499_1%_04
C3 3 3
10U _10V_08
L62
* HC B1005KF-121T20
C5 1 9
*100P_50V_04
SB_D PRSTP#22
Z061 2
DEL A Y _PW R GD
R161 1K_1%_04
NB_ T ES TM OD E0
R146
33_04
DCLKAVD D
C595
10U_10V_08
Z061 1
Z060 1
C3 0 1
.1U_10V_X7R_04
R352
33_04
Z062 8
U6
74LVC1G17GW
1
2
53
4
D AC_ DD CAC L K
ECLKAVD D
DAC _ B LU E
L61
H CB1005KF -121T20
R 1 73 * 1 0m i l_ s h or t
ZAD 2
R 174 150_1% _04
Z4 XAVD D
ZU REQ21
C LK_14M_671MX
ZAD 3
R364
*33_04
C233
*100P_50V_04
DACAVDD2
D ACA VSS1
DELAY_PWRGD 31,37
Sheet 6 of 48
SiSM672 MuTIOL
VGA 3/5
Schematic Diagrams
B - 8 SiSM672 PWR 4/5
B.Schematic Diagrams
SiSM672 PWR 4/5
C659
1U_10V _06
C286
1U_10V _06
2 024mA
C802
10U_10V _08
C283
1U_10V_ 06
1.2V 35,39
1.2VS
1.2VS 4,35
C662
1U_10V _06
2024mA
1.2V S
C247
.1U_ 10V_X7R_04
1.8V S
80mA
C808
.1U_10V_X7R_04
C267
1U_10V_06
1.2V S
80mA
C275
1U_10V_06
1.2VS
1 .8V 5,9,10,22,23, 24,35,39,40
C261
.1U_10V_X7R_04
1.2VS
1.8V
1 .8VS 4,5,6, 11,13,14,15, 17,19,21,22,23 ,24,25,35
C257
10U_10V _08
C664
10U_10V_08
392mA
392mA
1.8V S
1.8VS
1.8V S
C807
.1 U_10V _X7R_04
C602
10U_10V_08
1.8V S
664mA
C297
1U_10V_06
C311
. 1 U _1 0V_ X7R _ 04
664 mA
876m A
C259
.1U _10V _X7R_04
1.2V
1mA
C278
.1U_1 0V_X7R_04
C284
.1U_10V_X7R_04
1.8V
C274
1U_10V _06
876m A
1 .05VS 2,3,4, 6, 24,39
92mA
1. 2VS
C306
1U_10 V_06
C298
1U_10V _06
C276
1U_10V _06
392mA
C647
. 1 U _ 1 0 V_ X7 R _ 0 4
C253
.1U _10V_X7R_04
C268
10U_10V_08
C653
1U_10V _06
C263
.1U_10V_X7R_04
C234
1U_10V_06
C265
.1U_10V _X7R_04
C272
10U_10V_08
PWR
U32E
Si S M672
AB12
AB13
AC 1 2
AC 1 3
AC 1 4
AC 1 5
AH 6
AH 7
AJ 4
AJ 5
AJ 6
AJ 7
AN 2
AK4
AK5
AL1
AL2
AL3
AL4
AM1
AM2
AM3
AN 3
AN 5
AN 7
AN 9
E8
E10
F9
F10
F8
AB 18
AB 20
P20
P22
R21
T22
U21
V22
M11
N11
P11
R11
T11
U11
V11
W11
Y11
AA11
AB11
D6
G8
N19
N21
W23
Y23
AA23
AB23
AC 2 3
AC 1 8
AC 2 0
AC 1 6
AD 1 6
AD 1 7
AD 1 9
AD 2 0
AD 2 1
AD 2 2
AJ 2 2
AJ 2 4
AL 2 3
AN 2 1
AN 2 3
AN 2 5
AN 2 7
AN 2 9
AA 13
AA 22
AB 14
AB 15
AB 16
AB 22
AF 6
AF 7
AK 3
AG4
AG5
AG6
AG7
R13
AH 3
AH 4
AH 5
AJ 1
AJ 2
AJ 3
AK 1
AK 2
AC 2 2
AC 2 1
AC 1 9
AC 1 7
A1 9
A2 0
B1 9
B2 0
C19
C20
D19
D20
E1 9
E2 0
F1 9
F2 0
G19
G20
L18
L19
L20
M20
M21
M22
M23
N23
P2 3
R23
T23
U23
V2 3
M12
N12
P1 2
R12
T12
U12
V1 2
W12
Y12
AA 12
AP3
M13
M14
M15
M16
M17
M18
M19
N16
N17
N18
N20
R22
N22
N13
P1 3
Y13
Y22
T13
U13
U22
V1 3
W13
W22
C5
B5
AL 2 6
VCC1.8
VCC1.8
VCC1.8
VCC1.8
VCC1.8
VCC1.8
VCC1.8
VCC1.8
VCC1.8
VCC1.8
VCC1.8
VCC1.8
VCC1.8
VCC1.8
VCC1.8
VCC1.8
VCC1.8
VCC1.8
VCC1.8
VCC1.8
VCC1.8
VCC1.8
VCC1.8
VCC1.8
VCC1.8
VCC1.8
VDDVB1.8
VDD1.8
VDDVB1.8
VDD1.8
VDDVB1.8
IVDD
IVDD
PV D DH
PV D DH
PV D DH
PV D DH
PV D DH
PV D DH
VDDPEX
VDDPEX
VDDPEX
VDDPEX
VDDPEX
VDDPEX
VDDPEX
VDDPEX
VDDPEX
VDDPEX
VDDPEX
AU X_ I V D D
AU X1 . 8
PV D DH
PV D DH
VCCM
VCCM
VCCM
VCCM
VCCM
VCCM
VCCM
VCCM
VCCM
VCCM
VCCM
VCCM
VCCM
VCCM
VCCM
VCCM
VCCM
VCCM
VCCM
VCCM
VCCM
VCCM
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVD
D
IVDD
IVDD
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
VTT
V TTP
V TTP
V TTP
V TTP
V TTP
V TTP
V TTP
V TTP
V TTP
V TTP
VCC1.8
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
IVDD
AU X_ I V D D
AU X_ I V D D
VCCM
C300
.1U_10V_X7R_04
392mA
C256
1U_10V_06
C601
.1U_10V_X7R_04
C805
.1 U_10V _X7R_04
C280
10U_1 0V_08
C810
* .1U _10V_X7R _04
C285
.1U_10V_X7R_04
C649
1U_10V _06
C271
. 1 U _ 1 0 V_ X7 R _ 0 4
1.8V S
392mA
C238
.1 U_10V _X7R_04
C294
1U_10V _06
1.05VS
C648
10U_1 0V_08
1.8V
C305
10U_10V _08
C277
10U_10V _08
D02
1. 8V
C661
1U_10V_06
1.05VS
1.8V
C809
*. 1U_10V_X7R_04
1.8V
FOR EMI
C252
. 1U_10V_X7R_04
C603
1U_10V _06
1.8V S
C309
.1U _10V_X7R_04
C806
*.1U_10V _X7R_04
2024 mA
1.8V
C235
1U_10V_06
C250
1U_10 V_06
C258
.1U_10V _X7R_04
2024mA
C266
1U_10V _06
C248
.01U _16V_X7R_04
C254
1U_10V_06
Sheet 7 of 48
SiSM672 PWR 4/5
Schematic Diagrams

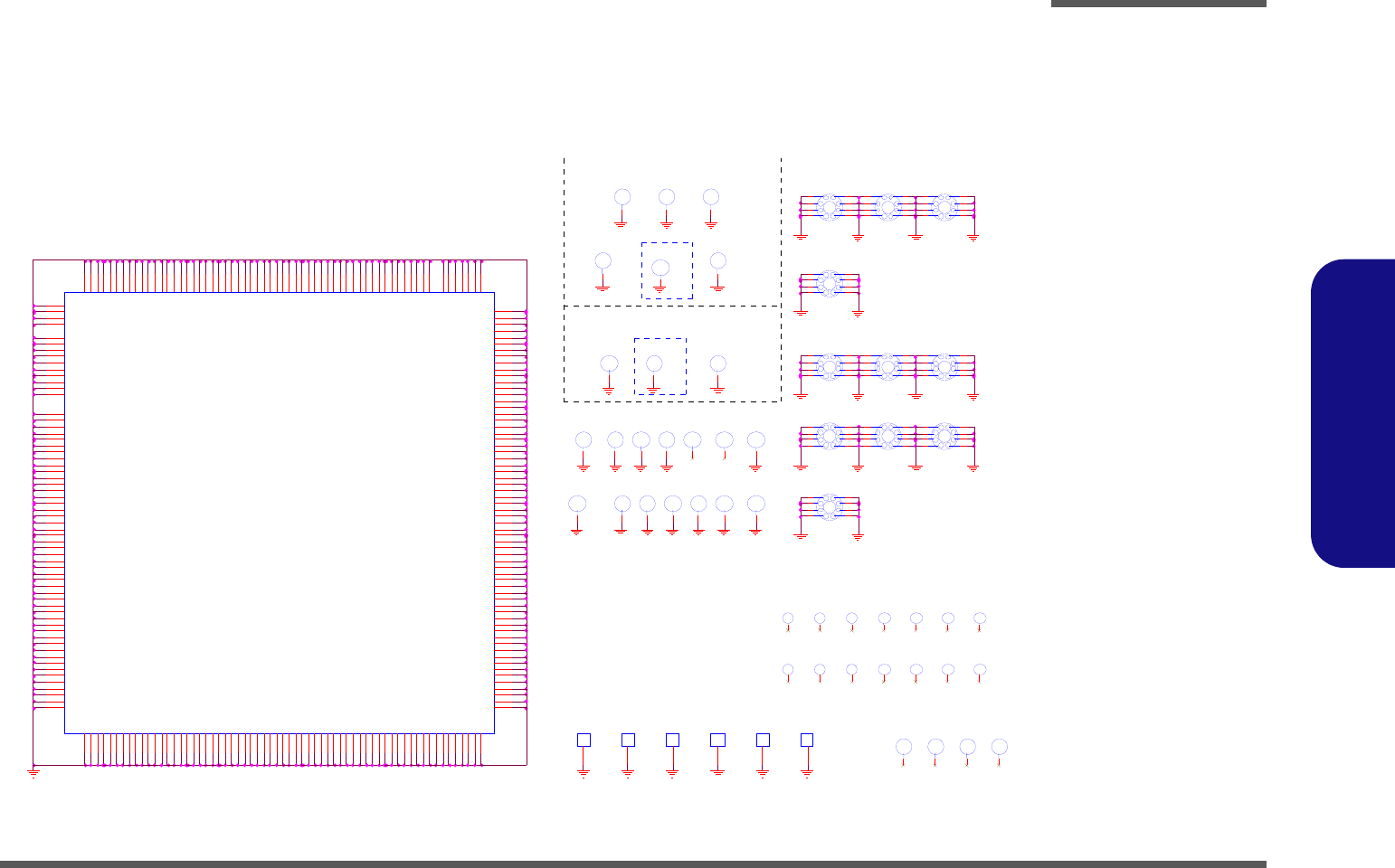

SiSM672 GND 5/5 B - 9
B.Schematic Diagrams
SiSM672 GND 5/5
S5
SMD 1 9 2X7 3 SR
11
1
H19
M TH315D111
2
3
4
5 6
7
8
9
M11
M-MARK1
H2 7
C355B264D 186
M74? ? ?
M1
M-MA RK1
M2
M-MA RK1
H18
C237
H1 5
C2 3 7
S3
SM D192X73SR
11
M1 0
M-M A R K 1
1
H4
M TH315D111
2
3
4
5 6
7
8
9
H1
H4_0
1
H17
M TH315D111
2
3
4
5 6
7
8
9
M7
M-MARK1
H3 4
C256B185D 146
1
H3
MTH 315D 111
2
3
4
5 6
7
8
9
M74? ? ?
H36
C178D79
M5
M-MA RK1
H3 8
C296D 166
M1 2
M-M A R K 1
M6
M-MA RK1
H28
C 355B264D186
M13
M-MA RK1
H30
C217D111
H2
H 4_0
1
H6
M TH315D111
2
3
4
5 6
7
8
9
H22
C 67D67
H2 9
C354B197D 185
1
H2 0
MTH 315D 111
2
3
4
5 6
7
8
9
S7
S MD 192X73SR
1
1
H3 2
C217D111
1
H8
M TH315D111
2
3
4
5 6
7
8
9
? ? 6-34-M52GS-020
M14
M-MARK1
M9
M-MA RK1
H10
C237
? ? 6-34-M52NS-020
H1 4
C237
1
H5
M TH315D111
2
3
4
5 6
7
8
9
S6
SMD 73X136R
11
1
H2 1
MTH 315D 111
2
3
4
5 6
7
8
9
M3
M-MARK1
H31
C 354B197D185
H11
C237
H3 5
C2 5 6 B1 8 5D 1 46
H12
C276B193D185
1
H23
M TH315D111
2
3
4
5 6
7
8
9
S4
SM D192X73SR
11
H3 3
C3 5 5 B2 64 D 1 86
GN D
U3 2 F
SiSM 67 2
A3
B2
B3
B4
AA1 6
AA 17
AA1 8
AA1 9
AA 20
AA2 1
AA31
AA3 3
AB3
AB 4
AB5
AG2
AG31
AG 33
AH 2 9
B2 1
B2 3
B2 5
B2 7
B2 9
B3 1
C1
C2
C3
C4
AB7
AB2 9
AC2
AC 3
AC 31
AC33
AD 2
AD3
AD4
AD 5
AD7
AD 2 9
AE3
AE31
AE3 3
AF2
AF 3
AF4
AF5
AF2 9
AJ 8
AJ10
AJ 1 2
AJ 14
AJ 1 6
AJ 1 8
AJ20
AJ 2 6
AJ 28
AJ 3 3
AK3 1
AL 6
AL 8
AL 1 0
AL12
AL 1 4
AL 16
AL 1 8
AL 2 0
AL 2 8
AL 30
AL 3 3
AN 11
AN13
AN 1 5
AN17
AH1
T29
U2
U3
U4
U5
U6
U14
U15
U16
U17
U18
U19
U20
U31
U33
V2
V3
V4
V5
V1 4
V1 5
V1 6
V1 7
V1 8
V1 9
V2 0
V2 9
AN 33
AN 31
AN 19
W3
W14
W15
W16
W17
W18
W19
W20
W21
W31
W33
Y2
Y3
Y4
Y5
Y7
Y14
Y15
Y16
Y17
Y18
Y19
Y20
Y21
Y29
AA2
AA3
AA1 4
AA1 5
H5
H29
J2
J3
J7
J3 1
J33
K3
K4
K5
K29
L2
L3
L4
L5
L7
L31
L33
M2
M3
M29
N3
N4
N5
N6
N7
N1 4
N15
N3 1
N33
P2
P3
P14
P15
P16
P17
P18
P29
R2
R3
R4
R5
R14
R1 5
R1 6
R17
R1 8
R19
R20
R3 1
R33
T3
T6
T14
T15
T16
T17
T18
T19
T20
G3 1
G33
H4
C9
C1 0
C1 1
C1 6
C1 8
C3 2
C3 3
D1
D2
D3
D4
D5
D1 0
D1 2
D2 1
D2 3
D2 5
D2 7
D2 9
E1
E2
E3
E6
E1 1
E1 3
E1 4
E1 8
E2 9
E3 0
E3 3
F2
F3
F4
F5
F6
F14
F22
F24
F26
F28
G2
G3
G7
G1 0 AB1 7
AB1 9
AB2 1
P1 9
P2 1
T2 1
V2 1
VS S
VS S
VS S
VS S
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VS S
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VSS
VS S
VSS
VSS
VSS
VSS
VS S
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VS S
VSS
VSS
VSS
VSS
VS S
VSS
VSS
VS S
VSS
VSS
VSS
VSS
VS S
VSS
VSS
VSS
VSS
VS S
VSS
VSS
VS S
VSS
VSS
VSS
VS S
VSS
VSS
VSS
VSS
VS S
VSS
VSS
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VSS
VSS
VSS
VSS
VS S
VSS
VSS
VSS
VSS
VS S
VSS
VSS
VSS
VSS
VS S
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VS S
VSS
VSS
VSS
VSS
VS S
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VS S
VSS
VSS
VSS
VSS
VS S
VSS
VSS
VSS
VSS
VS S
VSS
VSS
VS S
VSS
VSS
VSS
VSS
VS S
VSS
VSS
VSS
VSS
VS S
VSS
VSS
VSS
VSS
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S
VS S VS S
VS S
VS S
VS S
VS S
VS S
VS S
1
H7
M TH315D111
2
3
4
5 6
7
8
9
S2
SM D19 2 X73 SR
11
H3 7
C1 7 8D 7 9
H26
C 67D67
H1 6
C3 1 5 D1 1 1
M8
M-M A R K 1
M4
M-M A R K 1
H24
H4_0
H9
C2 3 7
H25
H4_0
H13
C237
Sheet 8 of 48
SiSM672 GND 5/5
Schematic Diagrams
B - 10 DDRII SO-DIMM - 1
B.Schematic Diagrams
DDRII SO-DIMM - 1
Sheet 9 of 48
DDRII SO-DIMM - 1
S_C LK10, 22,25,33
M_ A _ D Q 5 1
M_ DM 15,10
M_ DM 45,10
1. 8 V
M_ CL K_ DD R1 #25 M_ A _ D Q 5 6
M_ DM 65,10
M_DQS3#5,10
M_ A _ D Q 4 7
M_ A _ D Q 6 2
M_DQS55,10
R471
1K_1%_04
M_ A _ D Q 2 2
M_ C A S #
R472
1K_1%_04
C396
10U_10V_08
M_ A_ A1 6
M_ A _ D Q 0
M_ A _ D Q 4 8
M_DQS35,10
M_ W E #
M_ A _ D Q 5 8
M_ A _ D Q 2 5
M_DQS05,10
M_CLK_DDR0#
M_ A _ D Q 1 5
M_ A_ A8
M_ A _ D Q 1 1
J_DIM 1
AS0A421-N2AN-4F
102
101
100
99
98
97
94
92
93
91
105
90
89
107
106
5
7
17
19
4
6
14
16
23
25
35
37
20
22
36
38
43
45
55
57
44
46
56
58
61
63
73
75
62
64
74
76
123
125
135
137
124
126
134
136
141
143
151
153
140
142
152
154
157
159
173
175
158
160
174
176
179
181
189
191
180
182
192
194
112
111
117
96
95
11 8
81
82
87
10 3
88
10 4
149
47
13 3
183
77
12
48
184
78
71
72
121
122
196
193
8
162
150
138
40
28
18
24
41
53
42
54
59
65
60
66
12 7
139
12 8
145
16 5
171
17 2
187
178
190
9
21
33
155
34
132
144
156
168
2
3
15
27
83
120
50
69
163
86
39
198
200
16 1
1
177
199
116
11
29
49
68
129
146
167
186
10
26
52
67
130
147
170
185
84
13
31
51
70
131
148
169
188
85
108
109
113
110
115
79
80
30
164
114
32
166
119
195
197
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12
BA0
BA1
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63
VD D
VDD
VD D
VDD
VD D
VDD
VD D
VDD
VD D
VDD
VD D
VDD
VSS
VSS
VSS
VS S
VSS
VS S
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VS S
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
NC1
NC2
NC3
NC4
N CTEST
A14
VSS
SA0
SA1
VSS
VREF
VS S
VDD SPD
A13
DQ S#0
DQ S#1
DQ S#2
DQ S#3
DQ S#4
DQ S#5
DQ S#6
DQ S#7
DM 0
DM 1
DM 2
DM 3
DM 4
DM 5
DM 6
DM 7
A15
DQ S0
DQ S1
DQ S2
DQ S3
DQ S4
DQ S5
DQ S6
DQ S7
A16/BA 2
RAS#
WE#
CAS#
S0#
S1#
CKE0
CKE1
CK0
CK1
OD T0
CK0 #
CK1 #
OD T1
SDA
SCL
M_ A_ A9
M_ A_ A1 5
M_ A _ D Q 5 0
C365
.1U_10V_X7R _04
M_A_DQ [63:0] 5,10
M_ A_ A0
C360
.1U _ 10 V_ X7 R_04
M_ A _ D Q 2 7
C364
*3.3P_50V_04
M_ CS 0 #
M_ A _ D Q 3 5
M_ A_ A1 7
M_ CL K_ DD R1 #
1.8V
M_ A _ D Q 3
M_ A _ D Q 1 6
M_ CS 1 #
M_DQS1#5,10
M_ A _ D Q 1 9
M_ A _ D Q 1
M_ A _ D Q 8
M_ A _ D Q 6 1
M_ A_ A1 3
M_ DM 75,10
M_ A_ A1 2
C667
.1U_10V_X7R_04
M_ A _ D Q 6 3
M_ R A S #
MV R E F 1
M_ A _ D Q 3 4
Z0901
M _C KE05,10
C395
10U _10V_08
M_ A _ D Q 2 8
M_ DM 25,10
M_CS1#5,10
M_ A_ A3
M_DQS4#5,10
M_ A _ D Q 3 6
M_ A _ D Q 2 1
C359
1U _6.3V_X5R_06
M_CLK_DDR0 M_CLK_DDR1
M_ A _ D Q 3 2
M_ CL K_ DD R0 #
M_ A_ A5
3 .3VS_ SPD 1 0
M_DQS6#5,10
M_ A _ D Q 5 9
C672
.1U_10V_X7R_04
M_ A _ D Q 1 2
M_CLK_DDR1#
+
C397
150U_4V_B2
M_ A _ D Q 3 0
M_ OD T 0
M_CS0#5,10
C304
.1U_10V_X7R_04
C668
.1U _1 0 V_ X7R _ 04
M_ A _ D Q 5 4
M_ C K E 1
C367
10U_10V _08
M_A_A [17:0]5,10
M_ A _ D Q 1 8
1.8V 5,7,10,22,23,24,35,39,40
M_ A _ D Q 1 7
???????!
M_DQS15,10
Z0902
M_ A _ D Q 4
M_ OD T 1
M_ A _ D Q 4 0
M_DQS7#5,10
M_ A_ A4
M_ A _ D Q 2 4
C366
*3 .3P_ 50 V_ 0 4
M_DQS25,10
M_ A _ D Q 2 6
M_ A _ D Q 4 2
M_ A _ D Q 4 3
M_ CL K_ DD R0
M_DQS2#5,10
M_ A _ D Q 6
C392
.1 U_ 1 0 V_ X7 R _0 4
M_ A _ D Q 2 9
M_DQS65,10
M_ A_ A2
+
C712
*150U_4V_B 2
C315
.1U _10V_X7R _04
M_ CL K_ DD R1
M_ A _ D Q 2 3
M_ A _ D Q 9
M_ A _ D Q 5 7
M_ A_ A1 4
M_ A _ D Q 2
M_ A _ D Q 1 3
M _C KE15,10
M_CLK_DDR125
MV R E F 1
SO-DIMM 1
M_DQS5#5,10
M_ A _ D Q 2 0
M_ A _ D Q 1 4
M_ A _ D Q 7
M_ A _ D Q 3 8
M_ A _ D Q 5 2
C303
.1U_10V_X7R_04
M_ A_ A7
R259 10K_04
M_ DM 05,10
M_ DM 55,10
M_DQS75,10
M_DQS45,10
M_ A_ A1
M_ A _ D Q 3 7
M_ODT05,10
M_ A_ A1 0
M_ A _ D Q 5
R258 10K_04
M_ CL K_ DD R0 #25
M _CAS#5,10
M_ A_ A1 1
M_ A_ A6
C671
.1U_10V_X7R_04
M_ C K E 0
M_ A _ D Q 1 0
S_D AT10, 22,25,33
M_ A _ D Q 4 9
M_ A _ D Q 5 5
M _RAS#5,10
M_DQS0#5,10
M_ A _ D Q 3 3
M_ A _ D Q 4 5
M_ W E #5,10
M_ A _ D Q 6 0
M_ A _ D Q 4 6
M_ A _ D Q 5 3
C371
10U_10V_08
M_CLK_DDR025
M_ A _ D Q 4 4
M_ A _ D Q 4 1
3.3VS _SP D
M_ODT15,10
M_ A _ D Q 3 1
C403
. 1U _10V_X7R _04
1.8V
M_ DM 35,10
C368
10U _10V_08
M_ A _ D Q 3 9
Schematic Diagrams
DDRII SO-DIMM - 2 B - 11
B.Schematic Diagrams
DDRII SO-DIMM - 2
Sheet 10 of 48
DDRII SO-DIMM - 2
M_ A _ A 1 6
M_ A _ D Q 60
M_CLK_DDR3#25
M_ A _ D Q 28
M_ C LK _ D DR2 #
M_ A _ D Q 20
M_ A _ D Q 5
M_ A _ D Q 52
M_ D Q S 65,9
M_ OD T 2
M_A_A4
M_ A _ D Q 51
RN 24
8P4R X56_04
1
2
3
45
6
7
8
M_ A _ D Q 9
M_A_A[17:0]5, 9
M_ CL K _ DD R225
C296
10U _10V_08
M_ D Q S 6 #5,9
M_A_A1
M_A_A2
C695 .1U_10V_X7R_04
M_ A _ D Q 53
C383
* 3. 3P_50V_04
R486 10K_04
J_ D I M 2
A S0A421-N2RN -4F
102
101
100
99
98
97
94
92
93
91
105
90
89
107
106
5
7
17
19
4
6
14
16
23
25
35
37
20
22
36
38
43
45
55
57
44
46
56
58
61
63
73
75
62
64
74
76
123
125
135
137
124
126
134
136
141
143
151
153
140
142
152
154
157
159
173
175
158
160
174
176
179
181
189
191
180
182
192
194
11 2
111
117
96
95
118
81
82
87
103
88
104
149
47
133
183
77
12
48
184
78
71
72
121
12 2
196
19 3
8
16 2
150
13 8
40
28
18
24
41
53
42
54
59
65
60
66
127
139
128
145
165
171
172
18 7
178
19 0
9
21
33
15 5
34
13 2
144
15 6
168
2
3
15
27
83
120
50
69
163
86
39
198
200
161
1
177
199
116
11
29
49
68
129
146
167
186
10
26
52
67
130
147
170
185
84
13
31
51
70
131
148
169
188
85
108
109
113
110
115
79
80
30
164
114
32
166
119
195
197
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12
BA0
BA1
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ 10
DQ 11
DQ 12
DQ 13
DQ 14
DQ 15
DQ 16
DQ 17
DQ 18
DQ 19
DQ 20
DQ 21
DQ 22
DQ 23
DQ 24
DQ 25
DQ 26
DQ 27
DQ 28
DQ 29
DQ 30
DQ 31
DQ 32
DQ 33
DQ 34
DQ 35
DQ 36
DQ 37
DQ 38
DQ 39
DQ 40
DQ 41
DQ 42
DQ 43
DQ 44
DQ 45
DQ 46
DQ 47
DQ 48
DQ 49
DQ 50
DQ 51
DQ 52
DQ 53
DQ 54
DQ 55
DQ 56
DQ 57
DQ 58
DQ 59
DQ 60
DQ 61
DQ 62
DQ 63
VDD
VD D
VDD
VD D
VDD
VD D
VDD
VD D
VDD
VDD
VDD
VDD
VSS
VS S
VSS
VS S
VSS
VS S
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VS S
VSS
VS S
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
NC1
NC2
NC3
NC4
NCTEST
A14
VSS
SA0
SA1
VSS
VR EF
VS S
VD DSPD
A13
DQS#0
DQS#1
DQS#2
DQS#3
DQS#4
DQS#5
DQS#6
DQS#7
DM0
DM1
DM2
DM3
DM4
DM5
DM6
DM7
A15
DQS0
DQS1
DQS2
DQS3
DQS4
DQS5
DQS6
DQS7
A16/BA2
RAS#
WE #
CAS#
S0#
S1#
CKE0
CKE1
CK0
CK1
ODT0
CK0#
CK1#
ODT1
SD A
SC L
M_ CL K_ DD R3 #
M_ A _ D Q 56
M_ A _ D Q 6
C6 7 5
.1U _ 10 V_ X7R _ 04
M_ O D T 15,9
M_ A _ D Q 23
M_ A _ A 1
M_A_A10
C321
.1U_10V_X7R_04
M_ C K E 3
R483 56_04
M_ D Q S 3 #5,9
M_ R A S #5,9
R256 56_04
SO-DIMM 2
M_ C K E 05,9
M_ A _ A 8
RN 6
8P4R X56_04
1
2
3
45
6
7
8
M_ A _ D Q 13
M_ A _ D Q 8
1.8V
M_ CL K_ DD R2
M_ A _ D Q 48
1.8V 5,7,9,22,23,24,35,39,40
C685 .1U_10V_X7R_04
C361
10U_10V _08
M_ D Q S 75,9
C362
10U_10V_08
1.8V
3.3VS
M_ A _ D Q 11
R488 10K_04
RN 22
8P4R X56_04
1
2
3
45
6
7
8
M_ D Q S 05,9
M_ CL K_ DD R3
M_ OD T 3
M_ A _ D Q 33
M_ A _ D Q 19
M_ A _ D Q 0
3.3VS_SPD
M_ D Q S 55,9
M_ D M05,9
M_ A _ A 1 2
C387 .1U_10V_X7R_04
M_ A _ D Q 37
C389 .1U_10V_X7R_04
M_ O D T 35
???????!
M_ A _ D Q 62
M_ A _ D Q 41
M_ A _ D Q 38
C357
.1U_10V_X7R_04
C694 .1U_10V_X7R_04
M_ A _ D Q 47
+
C673
150U _4V_B2
M_A_A14
M_ CS 3 #
M_A_A9
C3 7 0
1U_6.3V_X5R_06
RN 23
8P4R X56_04
1
2
3
45
6
7
8
M_ A _ A 1 7
M_ A _ D Q 44
M_ A _ D Q 14
M_ A _ D Q 61
Z1001
M_ A _ A 1 5 M_A_A0
S_C L K9,22,25,33
M_A_A17
La yo ut N ot e:
M_ A _ A 0
M_ A _ D Q 15
M_ A _ D Q 7
C690 10U_10V_08
M_A _D Q[63:0] 5,9
C2 95
.1U _1 0 V_ X7R _0 4
C3 9 3
*3.3P_50V_04
M_ D M35,9
M_ C A S #5,9
M_CLK_DDR3#
M_ A _ D Q 54
1.8V
C3 1 2
.1U_10V_X7R_04
M_ A _ D Q 34
M_ A _ D Q 49 C379 .1U_10V_X7R_04
M_ C S 1#5,9
M_ A _ D Q 3
C683 .1U_10V_X7R_04
M_ D Q S 45,9
M_ A _ D Q 12
RN 8
8P4R X56_04
1
2
3
45
6
7
8
M_ D Q S 35,9
M_A_A5 RN 9
8P4R X56_04
1
2
3
45
6
7
8
M_ O D T 05,9
M_ A _ D Q 27
M_ A _ D Q 43
C698 .1U_10V_X7R_04
M_ A _ D Q 40
M_ A _ D Q 22
0. 9 V S
C666
.1U_10V_X7R_04
M_CLK_DDR2#25
M_ A _ D Q 2
3.3VS_ SPD 9
M_ A _ D Q 50
M_ C S 0#5,9
R255 56_04
3. 3 V S
M_ A _ D Q 63
C686 .1U_10V_X7R_04
Two pieces of 56 ohms must use one
0.1U bypass capacitor.
M_ CS 2 #
M_ A _ D Q 35
C696 .1U_10V_X7R_04M_ A _ D Q 1
MV R E F 2
M_ D M25,9
M_ A _ D Q 58
C681 .1U_10V_X7R_04
M_CLK_DDR3
M_ A _ A 1 0
M_A_A3
R473
1K_1%_04
RN 10
8P4R X56_04
1
2
3
45
6
7
8
M_ A _ D Q 36
M_ A _ D Q 32
M_ A _ A 7
M_A_A8
D 7 SCS55 1 V-30
AC
M_ D Q S 0 #5,9
M_ C S 3#5
M_ A _ A 1 3
M_ C K E 35
M_A_A15
C684 .1U_10V_X7R_04
M_ C A S #
M_ D M45,9
M_ C K E 2
M_ A _ D Q 21
M_ O D T 25
Z1002
M_ A _ D Q 17
M_ A _ D Q 31
M_ A _ D Q 55
M_ D Q S 7 #5,9
M_ A _ D Q 18
M_ A _ D Q 10
R474
1K_1%_04
M_ C K E 25
M_ A _ A 2
S_D AT9,22,25,33
M_ W E #5,9
M_A_A12
M_ W E #
M_ A _ D Q 59
C680 .1U_10V_X7R_04
C3 13
.1U _ 10 V _ X7R _0 4
M_ A _ A 4
M_ D Q S 1 #5,9
M_ D Q S 2 #5,9
M_ A _ A 9
M_A_A6 C382 .1U_10V_X7R_04
C665
.1 U_ 1 0V_ X 7 R_ 0 4
M_ D M15,9
M_ R A S #
M_ CL K _ DD R325
M_ A _ D Q 30
3.3 VS_ SPD
M_A_A16
M_ A _ D Q 29
M_ A _ D Q 26
RN 7
8P4R X56_04
1
2
3
45
6
7
8
M_ A _ D Q 39
M_ A _ D Q 4
C6 7 4
.1U _ 10 V_ X7R _ 04
M_ C K E 15,9
M_ A _ D Q 45
C386 .1U_10V_X7R_04
M_ D M65,9
3.3VS 6,11,19,20,21,22,23,24,25,27,28,29,30,31,32,33,34,35,37
M_ D Q S 5 #5,9
M_ A _ A 3
M_ D Q S 25,9
M_ A _ D Q 57
C369
10U_10V_08
M_ D M55,9
M_ CL K_ DD R2 #
M_ A _ A 6
M_ A _ D Q 24
C697 .1U_10V_X7R_04
C2 8 2
10 U _1 0 V _ 08
M_ A _ A 1 1
M_A_A13
M_ A _ D Q 42
M_A_A11
C3 7 4
.1U_10V_X7R_04
0.9VS 40
M_ D Q S 4 #5,9
M_A_A7
M_ A _ D Q 25
C687 1U_10V_06
M_ D M75,9
+
C3 10
*1 50 U _4 V _ B2
M_ C LK _ D DR2
M_ D Q S 15,9
M_ A _ A 1 4
M_ A _ D Q 46
M_ A _ A 5
C354
.1U_10V_X7 R_ 04
M_ A_ A[17:0 ]5,9
C388 .1U_10V_X7R_04
R257 56_04
MVREF 2
M_ C S 2#5
M_ A _ D Q 16
C682 .1U_10V_X7R_04
Schematic Diagrams

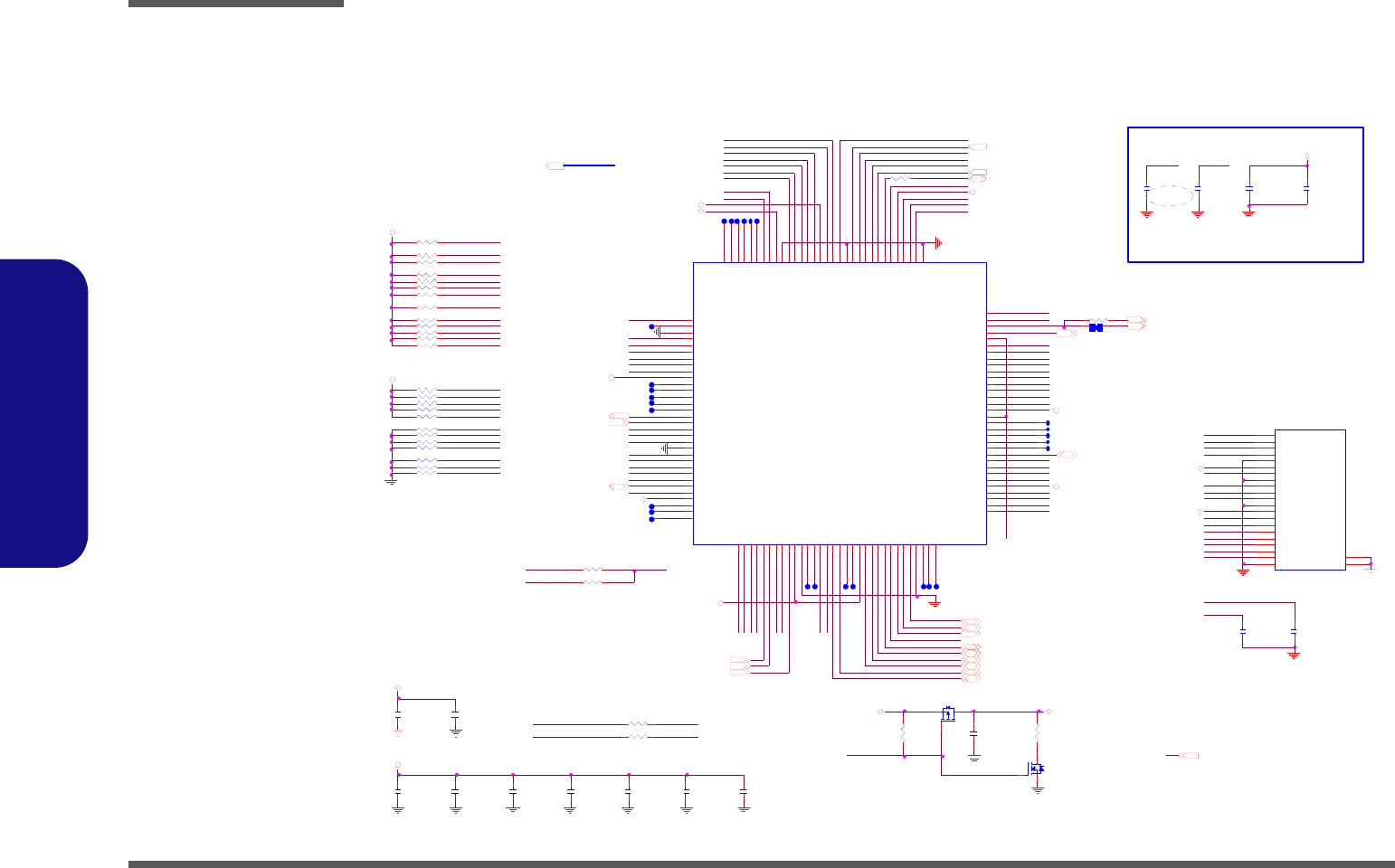

B - 12 SiS307ELV
B.Schematic Diagrams
SiS307ELV
3. 3 V S
C175
. 1U _10V_X7R _04
C188
.1U_10V_X7R_04
C63 3 .1U_ 1 0V_ X7 R_ 0 4
VB_PCI EVDD
LVD S-LC LKN19
LVDS-U 1N
C177
1U _ 6. 3 V _ X 5R _ 06
VB_ PL L 1VD D
VBVSYN C 6
LVDS -L1N19
Z1126
HD VAP2 _ R
VBCAD 6
3 .3V S 6,1 0 ,1 9,2 0 ,2 1,2 2 ,2 3,2 4 ,2 5,2 7 ,2 8,2 9 ,30 ,3 1 ,32 ,3 3 ,34 ,3 5 ,37
VB_ H DVR SET0
L14 H CB1005KF-121T20
C64 5 .1U_ 1 0V_ X7 R_ 0 4
C186
* .1U_10V_X7R _04
LVDS -L2P19
LVDS -L1P19
VB_ DAC VDD
HD VBN0 4
LV D S - U 0 P19
LV D S - U 0 N19
LV D S - U 2 N19
C2 1 9
.1U_10V_X7R_04
P_DD C_ DATA 1 9
Z1131
L22 HCB 1005K F-121T20
VB_ D ACVSS
C64 4 .1U_ 1 0V_ X7 R_ 0 4
C2 15
.01U_16V_X7R_04
1.8VS
1.8VS
Z1102
R1 4 0
6.04K_1% _04
R 166 *10m il_short
3.3VS
HD VBP2 _ R
VBC LK_R
V B_D ACVSS
Z1110
LVDS-LCLKN
C64 3 .1U_ 1 0V_ X7 R_ 0 4
VBHC LK 6
C1 81
*10U _10V_08
C2 2 5
.1U_ 1 0V_ X7 R_04
C63 5 .1U_ 1 0V_ X7 R_ 0 4
V B_L AVD D
VB_ H DVR SET1
Z1106
Z1115
C202
.1U_10 V_ X7R _ 04
C63 6 .1U_ 1 0V_ X7 R_ 0 4
VB_ DAC VDD
VB_ D ACVD D
Z1130
C221
.01U_16V_X7R _04
C1 9 1
.1U_ 1 0V_ X7 R_0 4
3.3V S
LVDS-U 2N
L13 HCB 1005K F-121T20
LVDS-U 1P
L VDS -U CL KN
P_DD C_ CLK 1 9
3.3VS
Z1109
HDV Signals
L VDS -U CL KP
C2 1 7
.1 U_ 10 V _ X7R _ 04
HD VBP1 _ R
LVDS-LCLKP
C214
. 1U _10V_X7R _04
D0 3A
Z1125
VB_VD D3V
C2 0 7
.1U_ 1 0V_ X7 R_04
C63 8 .1U_ 1 0V_ X7 R_ 0 4
L1<=400mils
R 1 64 49 9 _ 1% _ 0 4
HD VAN1 4
Z1105
Z1116
LVD S-LC LKP19
HD VAP1 4
Z1134
Z1129
R154 *20mil_short
VB_LVD SPL LVD D
HD VAP1 _ R
Close to 307 side
C198
10U_10V_08
HD VBP2 4
HD VAN0 _ R
C1 9 6
10U _10V_08
C2 13
10 U _ 1 0 V _0 8
LVDS -L0N19
L VDS -U CL KP19
L VDS -U CL KN19
L15 HC B1608KF-121T25
V B_L VD SPLL VD D
3. 3 V S
LVDS-L1P
Z1108
C63 9 .1U_ 1 0V_ X7 R_ 0 4
C204
10U_10V_08
General I/O Power
307ELV
U3 1
SiS307 EL V
C13
A12
A13
C1 1
C12
A10
A11
C9
C1 0
A8
A9
C7
C8
A6
A7
C5
C6
A4
A5
C3
C4
E5
E6
E7
E8
E9
B3
A2
A3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
D10
D1 1
F12
E13
E12
H1 0
G1 0
G2
H2
H1
G1
G1 3
G1 2
F11
F3
G3
B2
B1
D2
D1
E2
E1
F2
F1
H3
J3
C2
K2
J2
J1
K1
C1
E3
F4
N6
N7
N4
N5
N2
N3
K13
J12
K11
J11
L13
L12
F13
E11
E10
F10
G1 1
L7
L8
L4
L5
L11
L9
L2
L1 0
N1 2
M4
J5
K3
M2
M1 1
M8
J7
L6
M5
M9
J6
N9
L3
N1
M1
M12
N8
K4
N1 0
N1 3
M3
J8
M7
M1 3
J9
L1
M6
N1 1
M10
H4
J4
F5
F6
F7
F8
F9
G5
G6
G7
G8
G9
H5
H6
H7
H8
H9
G4
D1 2
D13
H1 1
H1 2
H1 3
K5
K6
K7
K8
K9
K10
K12
D3
E4
D4
D5
D6
D7
D8
D9
J1 0
EXT SW ING
L X3P//N C5
L X3 N//N C6
LX 2P / / N C 1 1
L X2 N//N C1 2
LX 1 P//N C3
L X1 N//N C4
LX 0 P//N C9
L X0 N//NC 1 0
L XC 1P / /NC1
L XC1 N//N C2
L X C 2P //D XC1 P
L XC2 N//D XC1 N
L X4 P //DX0 P
LX 4N / / D X 0 N
L X5 P //DX1 P
LX 5 N //DX 1 N
L X6 P //DX2 P
LX 6 N //DX 2 N
L X7 P //NC 7
L X7 N//N C8
L VDSPH YVDD //TM DSPH YVDD
L VD SPHYVD D//TM DS PHYVD D
L VDSPH YVDD //TM DSPH YVDD
L VD SPHYVD D//TM DSP HYVD D
LV DSPH YVDD //TMD SPHYV DD
L VDSPLL VDD //TM DSPL L VDD
L VD SPL LVSS //TMD SPL LV SS
L VDSPH YVSS//TM DSP HYVSS
L VD SPHYVSS/ /TMD SPHYV SS
L VDSPH YVSS//TM DSPH YVSS
L VD SPHYVSS//T MD SPHYVS S
LV DSPH YVSS//TM DSPH YVSS
L VDS PHYVSS//TM D SPHYVSS
LVD SPHY VSS//TM DSPH YVSS
L VDSP HYVSS//TM D SPHYVSS
LVD SPHYV SS//TM DSPH YVSS
L VDSPH YVSS//TM DS PHYVSS
LVD SPHYVS S//TM DSPHY VSS
L VDSP HYVD D//TM DSPH Y VDD
LVD SPHY VDD// TMD SPHYVD D
L DID DCC L K //DVID DC CL K
L DIDD CD A T A//DVID DCD A T A
BL_ADJ//DVIHPD
IVD D
VD D33
GP IOA
GP IOB
GP IOC
GP IOD
LCDVDD_EN//GPIOG
BL_ EN//G PIOH
GP IOI
GP IOJ
GP IOK
DACR S ET
DACC OM P
TV D A C R
TV D A C G
TVDAC B
TVCSY NC
GP IOL
GP IOM
GP ION
GP IOO
DAC V DD
CO REPLL VDD
VBR CLK
VBO SCO
CO REPLLVSS
DAC V SS
DAC V SS
DAC V SS
HD VAN2
H DVAP2
HD VAN1
H DVAP1
HD VAN0
H DVAP0
VA CLK
VB CLK
VBHSY NC
VBVSY NC
VBH CAD
VBH CLK
EXTR STN
GPIO F/DVIN TN
PFTE STO
PFTEST1
PFTEST2
HDV RE F C LKN
HD VREFC L KP
HD VRSET0
HD VRSET1
VSS
HDVPLLVSS
HD VP HYVD D
VSS
HD VBN2
VSS
H DVPH YVDD
H DVPH YVDD
VSS
VSS
VSS
HD VP HY V DD
HD VPLL VD D
VS S
VSS
HDVP HYVD D
HD VBP0
H DVPH YVDD
VSS
HD VP HYVD D
VSS
HDVBN 0
HDV P HYVD D
HDV BN1
H DVBP2
VSS
H DVPH YVDD
VSS
VSS
HD VP HYVD D
H DVPH YVDD
VSS
HD VBP1
VSS
IVD D
IVD D
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
IVD D
L VDSPH YVDD //TM DSPH YVDD
LVD SPHYV DD//TM D SPHYVD D
IVD D
IVD D
IVD D
VSS
VSS
VSS
VSS
VSS
VS S
VSS
DAC V SS
DAC V SS
L VDSPH YVSS//TM DSP HYVSS
L VD SPHYVSS //TMD SPHYV SS
L VDSPH YVSS//TM DSPH YVSS
L VD SPHYVSS//T MD SPHYVS S
L VDSPH YVSS//TM DSPH YVSS
L VDS PHYVSS//TM D SPHYVSS
VSS
L1
R461 *10mil_short
C64 1 .1U_ 1 0V_ X7 R_ 0 4
NB_ RS T# 6 ,31
LVDS-L0P
HD VBN1 _ R
C63 4 .1U_ 1 0V_ X7 R_ 0 4
L21 H CB1005KF-121T20
307_BLON20
Z1127
C2 2 6
.1U _ 10 V _ X7R _0 4
HD VAP0 4
L20 H CB1608KF-121T25
LVDS-U 2P
P CIE_CLK_HD V# 25
Z11 14
LVDS-U 0N
HD VBP1 4
Z1104
Z1124
Z1128
C64 6 .1U_ 1 0V_ X7 R_ 0 4
HD VBP0 _ R
VB_ PCIEAVD D
HD VAN0 4
C L K _ 1 4M _3 0 7 E LV 25
LV D S - U 1 N19
HD VBN2 4
LV D S - U 2 P19
HD VAP0 _ R
R144
24K_1%_04
Side-Band
Signals
LVDS-L0N
C189
.1U_10V _X7R_04
V B_L AVD D
1. 8 V S
C1 71
.01U_16V_X7R_04
C1 9 0
.1U_ 1 0V_ X7 R_04
1.8VS
Z1112
HD VBP0 4
HD VAP2 4
LVDS-L1N
C2 0 0
.1U_ 1 0V_ X7 R_04
VACLK 6
HD VBN0 _ R
HD VAN2 _ R
C2 1 6
.1U_ 1 0V_ X7 R_04
C205
.1U_10 V_ X7R _ 04
Z1107
VBR CLK
HD VAN2 4
VB_ PL L 1VD D
VBHSY NC 6
Z1103
LVDS-L2N
R163 *20mil_short
C6 0 7
10U _10V_08
C63 2 .1U_ 1 0V_ X7 R_ 0 4
P CIE_CLK_HD V 25
VBCLK 6
Z1113
C1 8 4
.1 U_ 1 0V _ X7 R_ 04
D03A
VB_PC IEAVDD
HD VBN1 4
Z1117
LV D S - U 1 P19
Z1118
VB_ D ACVSS
LC DVD D_EN19
HD VBN2 _ R
LVDS-U 0P
LVDS -L0P19
C2 20
.1U _10V_X7R _04
R 1 65 12 4 _ 1% _ 0 4
Z1111
C2 0 9
.1U_ 10 V_ X7R _ 04
C1 8 5
.01U_16V_X7R _04
1 .8V S 4,5 ,6 ,7 ,13 ,1 4 ,15 ,1 7 ,19 ,2 1 ,22 ,2 3 ,24 ,2 5 ,35
LVDS-L2P
EXTSW ING
LVDS -L2N19
HD VAN1 _ R
Sheet 11 of 48
SiS307ELV
Schematic Diagrams

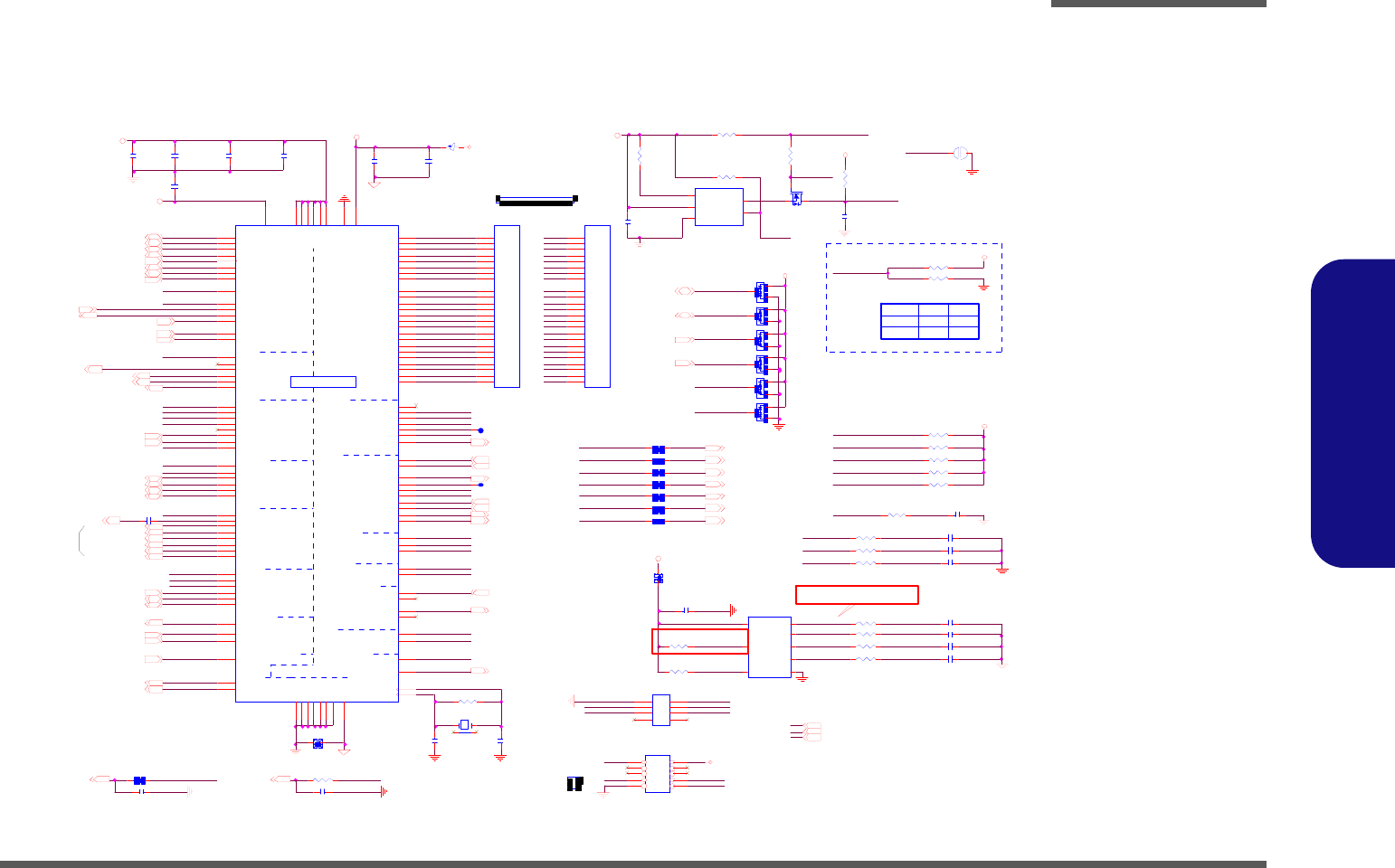

Panel, CRT B - 13
B.Schematic Diagrams
Panel, CRT
3.3V 2,12,20,22,23,24,26,31,32,33,38,39,40
NV_ L V DS-U 2P 1 7
LV D S - L 0N 11
HSY NC
5VS
LVDSLP1
LV D S LP 1
R 416 0_04
CRT _ DD CADAT
LV D S U N 0
LV D S - U 0 N 1 1
DAC_ R E D_ R 5V S
LV D S - L C L K P
R14
75_1%_04
LV D S - L 0N
NV_ LV DS-L 1P
LV D S - L 1P
SYS 15 V
LVDS-UCLKN 11
LVDSLN 2
R 404 1K_04
R 38 0_04
VSY NC
LVDSLCLKN
LVDSLP1
NV_ LV DS-U2N
J_ L C D 1
88107-30001
1 2
3 4
5 6
7 8
910
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
12
34
56
78
910
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
L VDS UC LKP
R 84 0_04
R 415 *0_04
R396
2.2K_04
3.3VS
NV_LVDS-LCLKP 17
HSY NC
NV_ LV DS-U2P
NV_ LV DS-L 1N
DAC_ R ED_ R
D2 5 S C S 75 1 V-40
AC
LV D S U N 2
R3 94
2. 2 K _ 04
R5
200_1%_06
C3
.1 U_ 10 V_ X7 R _0 4
3. 3 V S
RED
LVD SUP0
C2 2
22P_50V_04
LV D S - U 2 P 1 1
CR T_ DD CADA T _ R
M740S/M760S ? 75_1%
M760SU ? 150_1%
LV D S - U 1 P 1 1
CRT_VSYNC
LV D S - U 0 N
R 40 0_04
C15
1000P_50V_04
P_D DC_ D A TA 1 1
LV D S L P 2
R170 0_04
GR EEN
L VD S UCL KN
7/ 13
Modify C4 from 0.1uF change to
0.01uF for LVDS power time.
RED
LVDSCLK
NV_ L V DS-L 2N 1 7
DAC _B L UE_ R
CRT_DDCACLK
U3
SN74AH C1G125D CKR
1
2
5
4
3
P_DDC_CLK
R 49 0_04 LV D S - U 2 N 1 1
DAC_ VSYN C 6
LVD SUP1
NV_ LV DS-L 2N
U2
SN 74AHC 1G 125 DC KR
1
2
5
4
3
R 32 *0_04
DAC_ G REE N_ R
R 403 1K_04
2A
I2C C_ SCL
C9
.01 U_ 16V_X7 R_ 04
R1 2
1M _0 4
R 62 0_04
LV D S - U 0 P
R171 0_04
LVDSLC LKP
R 83 *0_04
R 81 *0_04
LV D S - L 1P 1 1
LV D S - U 2 P
R450 *0_04
R452 *0_04
C549
1000P_50V_04
R 51 *0_04
CR T_VSYN C_R
Q20
SI34 56 BD V-T1 -E3
3
2
1
4
5
6
G
D
D
S
D
D
LVDSLN 0
P_DDC_DATA
R 47 0_04
CP 1
*8 P 4 C X1 0P
1
2
3
4 5
6
7
8
Zo=75 Ohm
R 36 0_04
VGA_ EN AVDD 1 8
DAC_ G REE N_ R
LV D S U N 0
D2 6
BAV9 9
A
C
AC
CP2
*8 P 4 C X 1 0P
1
2
3
4 5
6
7
8
Z1705
CRT_DDCADAT
LV D S LC L K N
R 33 0_04
DAC_ DD CAC LK 6
Z1706
C1 3
.1 U_ 10 V_ X7 R_ 0 4
C 14 .1U_10V_X7R _04
R190 0_04
5VS
NV_ L V DS-U 0N 1 7
V_H SY 1 6
I2C C_ SDA
LV D S - L 1N
LV D S L N 2
LV D S LP 2
NV_ LV DS-UC LK P
R 11 0_04
D24 * BAV99
A
C
AC
R169 0_04
R448 *0_04
R399 2.2K_04
CRT
1.8VS 4,5,6,7,11,13,14,15,17,21,22,23,24,25,35
NV_ L V DS-L 0N 1 7
ED ID_ CLK
LV D S - L C L K P 11
VGA_ DDC DA T A 1 8
LVDSLN1
R 82 0_04
R 60 0_04
LVDSLP2
CP4
*8 P 4 C X 10 P
1
2
3
4 5
6
7
8
3.3VS
CRT _ HS YN C_ R
L VDS UP1
R 419 *0_04
C19
22P_50V_04
LVDS-UCLKP
CR T_ DD CAC L K_ R
LV D S - L 2N 11
R 69 *0_04
C5
.1U_50V_06
R 402 4.7K_04
2A
LV D S - L 1N 11
NV_ LV DS-U0N
P_D DC_ C LK 1 1
LC D V D D _ E N
R 52 0_04
SY S15V
DAC_ HS Y NC 6
R 53 *0_04
Q22
2N7002W
G
D S
LV D S LN 1
Q5
DT C114 EUA
CE
B
Q3
2N7002W
G
DS
R 30 *0_04
R8
390_06
VIN 20,35,36,37,38, 39,40
R400 2.2K_04
LVDSLC LKN
E D I D _C LK
L VD S UN1
L VD S UN0
LV D S LN 2
R 42 0_04
D23 * BAV99
A
C
AC
LV D S - L 0P 1 1
CRT_ DD CADA T_ R
D21 * BAV99
A
C
AC
NV_ L V DS-L 0P 1 7
DAC _G RE EN _R
LV D S - U 2 N
LV D S - L C L K N
R 39 *0_04
VSYN C
R4
200_1%_06
D4
BAV9 9
A
C
AC
LV D S - U 1 N 1 1
LV D S U P 1
LV D S U P 2
C2 4
22 P _ 50 V _ 0 4
Default : M740S/M760S * : M760SU
LV D S LN 0
R23
75_1%_04
R2 9 *0 _ 04
D3
BAV99
A
C
AC
SYS15V 35,38
LVDS-UCLKP 11
Z1703
DD CA CL K
L VD S UN2
R 72 0_04
R 61 *0_04
NV_ L V DS-U 1P 1 7
NV_ L V DS-L 1N 1 7
DAC_ GR EEN 6
LV D S - L C L K N 1 1
L VDS UC LKN
R 401 4.7K_04
J _ CRT 1
C10509-91505-L
8
7
6
5
4
3
2
1
9
10
11
12
13
14
15
GND 2
GND1
R 35 *0_04
R 417 0_04
DAC_ B L UE_ R
R 59 *0_04
D03 A
CR T_VSYN C
NV_LV DS-LCLKN
LV D S - U 1 P
3.3VS
NV_ L V DS-L 1P 1 7
LV D S - L 2P
CRT_VSYNC
C2 1
47 P _ 50 V _ 04
NV_LVDS-LCLKN 17
VGA_ B 16
R 31 0_04
D1 * BAV 99
A
C
AC
DAC_RED_R
LV D S D A T A
R181 0_04
R3
*1 00 K _ 0 4
DAC _R ED 6
C1 7
47P_50V_04
R1 3
1M _0 4
R397 *10m il_short
VGA_ DDC CL K 1 8
CRT_DDCACLK
EDID _D AT
LV D S LP 0
CRT _ HSY NC_ R
5VS 20,29,30,31,32,34,35
VGA_ G 1 6
BL UE
NV_LV DS-LCLKP
C18
47P_50V_04
C6
4.7U _10V_08
DDC ACL K
DAC_ B L UE_ R
LVDSLP0
LVDS-UCLKN
PANEL
Z1707
NV_ LV DS-UC LK N
VGA_ENAVD D
VGA_ R 16
CRT_HSYNC
LV D S - U 1 N
LV D S U P 0
NV_ LV DS-L 0N
Q4
2N7002W
G
DS
DD CADA T
LV D S U C LK P
D2
* SCS751V-40
AC
NV_ LV DS-L 0P
3.3VS
LV D S - U 0 P 1 1
NV_ LV DS-U1N
C550
220P_50V_04
CR T_ HS Y NC
Q21
2N7002W
G
D S
R 41 *0_04
R 48 *0_04
Zo=75 Ohm
1.8VS
LV D S U C LK N
C16 .1U _10V_X7R_04
3.3V
Z1701
LVD SUP2
LVDSDA TA
R2 7
75_1%_04
CR T_ DD CA C LK
ENAVDD
NV_ LV DS-L 2P
NV_ L V DS-U 1N 1 7
CRT_HSYNC
NV_ LV DS-U1P
LVDSLP0
LV D S U N 1
R3 4 *0 _ 04
LCDVD D_EN 11
CRT_ VSYN C_ R
NV_ L V DS-U 0P 1 7
LV D S U N 2
LV D S - L 0P
R443 *0_04
L VD S UCL KP
R 54 0_04
LP2
FCA3216KF4-121 T03
1
2
3
4
6
5
7
8
D22
SC S7 51 V-40
AC
I2 CC _S C L 18
V_VSY 16
LV D S U P 2
LV D S - L 2N
DAC_ DD CAD AT 6
CRT_ DD CACL K _ R
R 10 *0_04
R 46 *0_04
R9
390_06
R 37 *0_04
EN AVDD
LVDSLCLKP
LVDSLN 1
C551
220P_50V_04
CP3
*8 P 4 C X 1 0P
1
2
3
4 5
6
7
8
3.3VS
NV_ L V DS-L 2P 1 7
NV_ L V DS-U CL K P 1 7
DAC _B L UE 6
Z17 04
NV_ LV DS-U0P
R395 *10m il_short
3 . 3V S 6, 1 0 , 11 , 2 0, 2 1 , 2 2, 2 3 , 24 , 2 5, 27 , 2 8, 2 9 , 30 , 3 1 , 32 , 3 3, 3 4 , 35 , 3 7
LV D S LC L K P
CR T_ DD CA D AT
R442 *0_04
GR E E N
LP1
FCA3216KF4-121 T03
1
2
3
4
6
5
7
8
R182 0_04
3.3VS
LV D S C L K
R 71 *0_04
NV_ L V DS-U 2N 1 7
NV_ L V DS-U CL K N 1 7
R 70 0_04
PLVDD
L VDS UN 1
R188 0_04
PLVD D
LV D S - L 2P 1 1
BLUE
DDC ADA T
LVDSLN0
LV D S U P 0
I2 CC _S D A 1 8
ED ID_ DAT

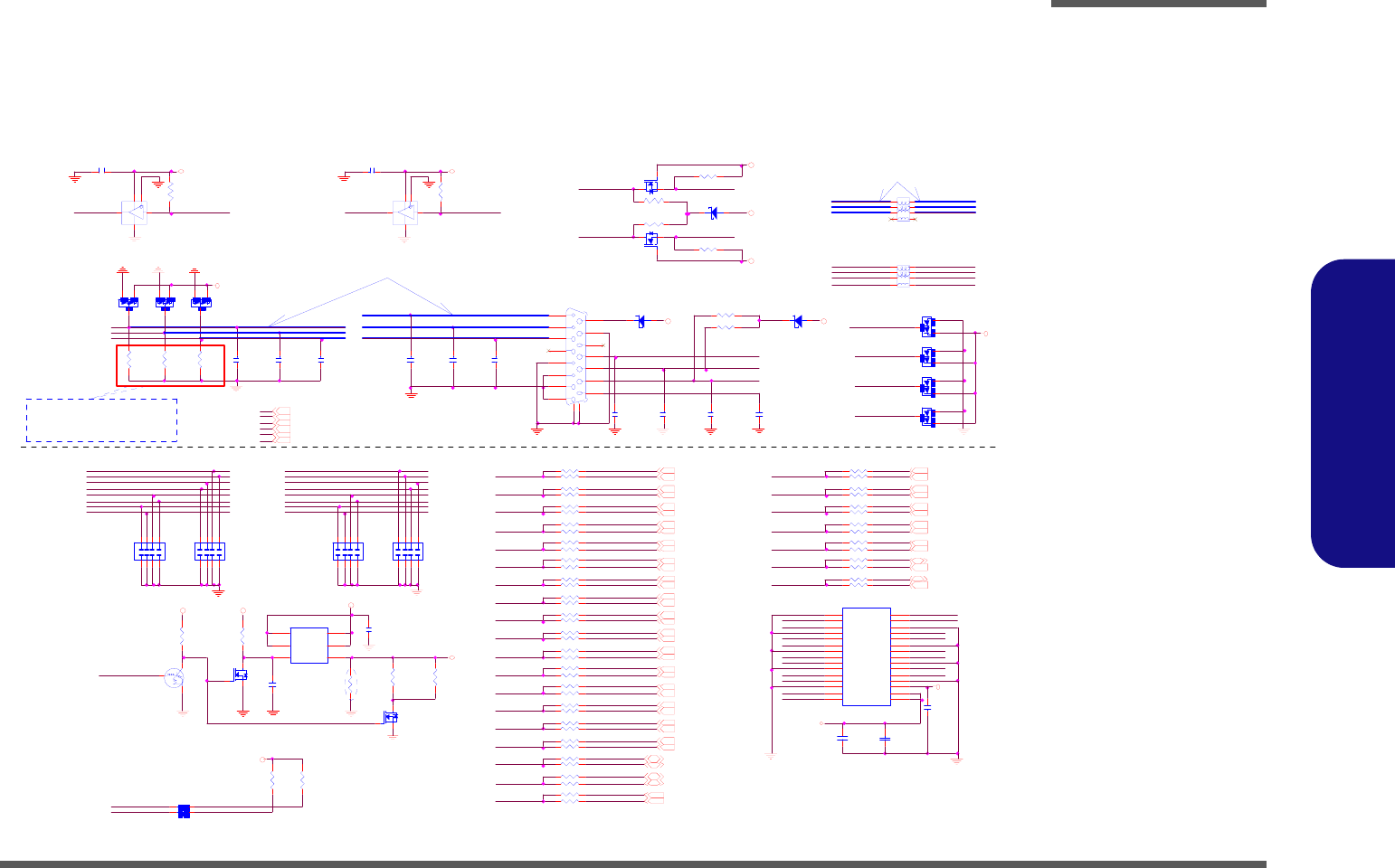

Sheet 12 of 48
Panel, CRT
Schematic Diagrams

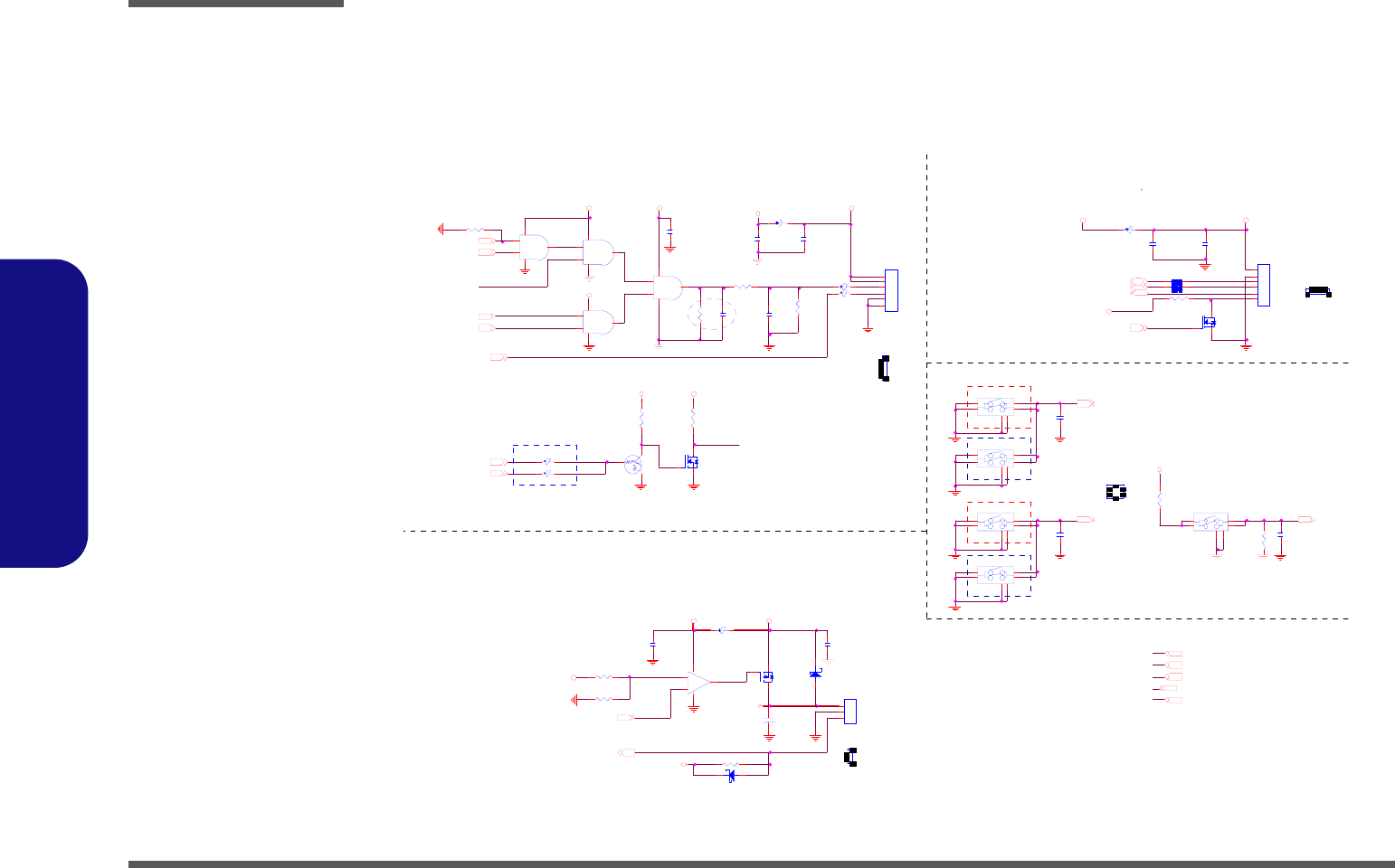

B - 14 Inverter, Bluetooth, Fan
B.Schematic Diagrams
Inverter, Bluetooth, Fan
VDD 3
1
D03A
CPU_ FA N27
Q11
NDS 352AP_N L
G
D S
US B_PN 4_ RZ1808
FAN_DC_VOL
VIN _INV
6
L54 Fo r M76 0SU
5VS
3.3V
L52 F or M74 0S /M7 60S
Q2
2N7002W
G
DS
SW 1
TJ G-5 33-S-T/R
3
1
4
2
5
6
FAN_DC _VOL_R
J_BT1
87212-06G0(M)_L
1
2
3
4
5
6
SB_BLO N22
R24 10K_04
4
WEB_WW W# 27
CPU _FA N SE N27
R2 52
10K_1% _04
R327
100K_04
J_INV1
A P_KEY 40
WEB_WWW#
R7
10K_04
U28B
74LVC08PW
4
5
6
147
3. 3 V
J_INV1
87213-0600G
1
2
3
4
5
6
R2 51
4.99K_1%_06
5VS_ FAN
Z1804
C2 3
.1U _1 0 V_X7R_ 0 4
Z180 2
40 mil
LCD_BRIGHTNESS27
307_BLO N_3V
C358
.1U_ 10 V_ X7R _0 4
1
D6
SCS55 1V-3 0
A C
C4
* 1 00 P _ 50 V _ 0 4
6
INV_BLON
C5 4 7
.1 U_ 50 V _ 0 6
C3 55
10U_10V_08
M74? ?
BT_ DET#27
SB_PWROK22 , 3 1
Bluetooth
3
USB_PN423
IN V_BL ON _R
D 28 SC S551V-30
AC
3VS_ BT
BT_ EN#
R2 6 *1 0 m il _ sh o rt
3
Z1801
SW 4
* TJ G -53 3 -S-T/R
3
1
4
2
5
6
C7
.1U_10V _X7R_04
M74? ?
BT_ EN27,34
Z180 3
BKL_EN27
W EB_EM AIL # 2 7
VIN
R5 65
1M _0 4
Q1
DTC114EUA
CE
B
Q6
2N 7002W
G
DS
L1 0_04
Z1811
L53 HCB1608KF-121T25
MAIL KEY
1
L31
H CB1608KF-800T30
C548
.1U_ 1 0V_ X7R _0 4
SW 5
TJG -533-S-T/R
3
1
4
2
5
6
U2 8A
74LVC08PW
1
2
3
147
J_FAN1
85205-03001_L
1
2
3
5VS 19,29,30,31,32,34,35
Z18 07
C8 0 1
.47U_10V_04
J_BT1
40 MIL
6- 20- 41A 10 -10 6
VIN
Z1809
FAN_DC _VO L
+
C3 6 3
10 0 U_6 .3V_ B2
C10
.1U_ 1 0V_ X7R _ 04
L54
*0 _ 04
SW 3
TJ G-5 33-S-T/R
3
1
4
2
5
6
INTERNET KEY
307_BLON11
R398 100K_04
50 mil
PSW1~8
307_BLON_3V
W EB_ EM AIL#
R386
100K_04
USB_PP423
L2
0_04
SILENT KEY
1
6 -20 -41 A1 0-1 06
3.3V
BT_ EN#
2
Z1810
R564 10K_04
HOT KEY
M76? ?
3.3V 2,12,19,22,23,24,26,31,32,33,38,39, 40
US B_PP4 _ R
L52 0_04
L5
HC B1005KF-121T20
3.3VS 6,10,11,19,21,22,23,24,25,27,28,29,30,31,32,33,34,35,37
R477 4. 7K_04
+
-
U1 6A
GM3 5 8S 8R
3
2
1
84
SW 2
* TJ G -53 3 -S-T/R
3
1
4
2
5
6
3.3V
3.3V
U2 8 D
74LVC08PW
12
13
11
147
R6
10 K _ 04
R2 5 *1 0 m il _ sh o rt
FAN CONTROL
M76? ?
VGA_BKL TE N18
U2 8C
74LVC08PW
9
10
8
147
3.3V
3.3VS
R2
*1 M_ 0 4
C2 5
10U _10V_08
C8
.1U_10V _X7R_04
C2
.1 U_ 5 0V _ 0 6
VD D3 2,23,27,34,35,36,38,40
VIN 35,36,37, 38,39,40
LI D _S W #27 , 3 1
INVERTER CONNECTOR
J_FAN1
Sheet 13 of 48
Inverter, Bluetooth,
Fan
Schematic Diagrams
968 PCI, IDE, MuTIOL, SPI 1/4 B - 15
B.Schematic Diagrams
968 PCI, IDE, MuTIOL, SPI 1/4
PC I_AD[31:0] 28
Z1904
ID E_ PD D1 0
NC17 NC_04
3.3VS
Z1901
IDE_PDA1 32
PCI_AD28
SP I_M OS I
3.3VS
IDE_PDA2 32
PC I_ AD25
PCI_ AD 19
L37 H CB1608K F-121T25
IDE_PDCS3# 32
PCI _SE RR #
PCI_ AD 2 4
ID E_ PD D1
PCI_ C /BE# 328
PCI _PL O CK#
Z1905
PCI _AD 1 5
0:LPC Internal Pull down
1:SPI External Pull up
IDE_PDD[15:0] 32
3.3V 2,12,19,20,22,23,24,26,31,32,33,38,39,40
ZAD 2
PCI_REQ#3
ZAD3
RN 2 9
8P4R X4. 7K_04
1
2
3
45
6
7
8
ZAD1
PCI_ AD 12
PCI_ AD 1 0
SB_PC IRST#12,31
P CI_ INT # A
PC I_A D20
RN 1 4
8P4R X8. 2K_04
1
2
3
4 5
6
7
8
ZA D1 1
PCI_ C /BE# 228
P CI_ INT # C
C462
10U_10V_08
3.3V S 6,10,11,19,20,22,23, 24,25,27,28,29,30,31,32,33,34,35, 37
R2 9 1 56 _ 0 4
PCI_ IN T #B28
ID E_ PD D1 2
IDE _IR Q 32
PCI _AD 8
ID E_ PD D1 1
ZSTB_D#06
C441
.01U _16V_X7R _04
PC I_FRAM E#28
ZAD 7
C770
.1U_10V_X7R _04
PCI _R EQ#4
R286
150_1%_04
Z_CLK125
PCI_REQ#1
ZAD 9
ZDR EQ6
1.8V S 4,5, 6,7,11,13, 14,15,17,19,22,23,24,25,35
ZAD 12
PCI _AD 2 2
ZA D[16:0]6
L73 H CB1608K F-121T25
ZUR EQ6
P CI_ INT # B
NC4 NC_04
R 535 8.2K_04
AVD D_ SZ4 X
PCI _IN T#D
PCI_ AD 3
Z19 07
SP I_C S0 #
PC I_ AD2
ZAD 0
ID E_ PD D2
C769
.01U _16V_X7R _04
PCI_ IN T #A4,6,28
SZVR EF
PCI_ PAR28
PC I_ AD30
PC I_ AD16
ID E_ PD D9
PCI _IN T#C
R307 10K_04
ZAD 5
R2 8 7 56 _ 0 4
PC I_A D29
ID E_ PD D6
PCI _R EQ#0
R290
49.9_1% _04
1.8VS
SZC MP_ N
P CI_F R AME#
PCI_PLOCK#
PC I_A D13
SP I_M ISO
AVSS_ SZ4 X
IDE_PDDREQ 32
P CI_ INT # D
PCI_ AD 1 7
Z1902
PC I_G NT# 028
PC I_ AD4
PCI _R EQ#3
RN 1 5
8P4R X8. 2K_04
1
2
3
4 5
6
7
8
PC I_ AD27
PC I_SER R#28
PCI_REQ#4
PC I_ AD18
6-16-47238-45A
1.8V S
PCI _IN T#A
PC I_ REQ # 028
PC I_I RD Y#28
ZSTB_D06
ID E_A V DD
PC I_ AD0
PCI
MuTIOL
IDESPI
U3 6 A
SiS9 68
H5
J4
J3
K1
K2
J5
K4
K3
L2
K5
L4
L3
M1
M2
L5
M4
P3
R1
R2
P5
R4
R3
T1
T2
T4
T3
U1
U2
T5
U4
U3
V1
H2
H1
G3
G4
G2
J2
J1
H3
H4
G5
L1
M3
N5
R5
F5
F4
F3
G1
N1
N2
M5
N3
P2
P4
N4
P1
V2
D5
AC 2 6
V2 2
V2 3
V2 5
V2 6
AA2 3
AA2 4
AB2 4
AB2 5
AA2 2
AB2 3
AB2 6
AA2 6
Y2 2
Y2 5
Y2 3
W21
Y2 6
W22
W24
W25
U2 1
U24
U2 2
T22
U2 5
T23
T25
T26
AE1 9
AD 18
AC 17
AF1 8
AB1 6
AE1 7
AD 16
AF1 6
AE1 6
AF1 7
AC 16
AD 17
AE1 8
AB1 7
AF1 9
AC 18
AC 21
AB2 1
AD 21
AD 20
AB2 0
AF2 0
AD 19
AC 19
V3
V4
AE2 0
AB1 8
AB1 9
AC 20
AE2 1
AF2 1
AD 22
AF2 2
AE2 2
AF2 3
AD 31
AD30
AD 29
AD28
AD 27
AD26
AD 25
AD24
AD23
AD 22
AD21
AD 20
AD19
AD 18
AD17
AD16
AD 15
AD14
AD 13
AD12
AD 11
AD10
AD9
AD 8
AD7
AD 6
AD5
AD 4
AD3
AD 2
AD 1
AD0
PREQ 4 #
PREQ 3 #
PREQ 2 #
PREQ 1 #
PREQ 0 #
PGN T4#
PGN T3#
PGN T2#
PGN T1#
PGN T0#
C/BE 3#
C/BE 2#
C/BE 1#
C/BE 0#
INTA#
INTB#
INTC #
INTD #
FRAM E#
IRD Y#
TR D Y #
STOP#
SERR #
PAR
DEV S EL #
PL OC K#
PCIC LK
PCIR ST#
ZCLK
ZSTB0
ZSTB0#
ZSTB1
ZSTB1#
ZUR EQ
ZDR EQ
ZCM P_N
ZCM P_P
AVDD _ Z4 X
AVSS_ Z4 X
ZVRE F
ZA D16
ZAD 0
ZAD1
ZA D2
ZAD 3
ZAD4
ZAD 5
ZAD6
ZAD 7
ZAD8
ZA D9
ZAD 10
ZAD11
ZAD 12
ZAD1 3
ZAD 14
ZAD1 5
ID A0
ID A1
ID A2
ID A3
ID A4
ID A5
ID A6
ID A7
ID A8
ID A9
IDA10
IDA11
IDA12
IDA13
IDA14
IDA15
IDEC S A1 #
IDEC S A0 #
ID SAA2
ID SAA1
ID SAA0
IIOR A#
IIO W A#
IDACKA#
AVDD_IDE
AVSS_ ID E
IC HR DY A
IDR E Q A
IIRQA
CBL ID A
SPI_CS0 N
SPI_CS1 N
SPI_DO
SPI _C L K
SPI_D I
SPI_HAR DW ARE_TRA P
AV SS_ SZ4 X
1.8VS
PC I_T RD Y#28
PCI_AD21
ID E_ PD D7
PCI_REQ#0
RN 1 3
8P4R X4. 7K_04
1
2
3
4 5
6
7
8
PCI _FR AM E#
PCI _IR DY #
IDE_ A V DD
PC I_ RE Q# 0
PC I_ GN T# 0
FO R MR 51 0
ZAD 16
ID E_ PD D5
PC I_S TO P#28
C434
.1U_ 1 0 V_ X7R _ 04
PCI_TRDY#
PC I_ AD9
C766
.1U_10V_X7R_04
1.8VS
PC I_ AD11
PCI_AD7
C437
.1U_10V_X7R _04
PCI _R EQ#2
PCI_ AD 1
ID E_ PD D1 3
IDE_ A V SS
ID E_ PD D1 5
ZAD15
SPI_C L K
PC I_ AD23
ZAD8
IDE_PDDACK# 32
SZC MP_ P
P CI_ IRD Y #
ZAD10
IDE_PDIOW# 32
Z1903
PCI_ C /BE# 028
PCI_ AD 26
IDE_PDIOR# 32
SZVR EF
PCI_ D EVSEL #28
ZAD6
ID E_ PD D4
PCI_ C /BE# 128
ZSTB_D16
ZA D4
PCI_ AD 3 1
P CI_DE VSEL#
PCI_STOP#
ID E_ PD D8
PCI _STO P#
ID E_ PD D0
ID E_AVSS
PCI _R EQ#1
PCI _IN T#B
ZAD13
SPI_T RAP
PCI_REQ#2
PCI_AD5
R3 0 5 *4 .7 K_ 0 4
IDE_PDA0 32
PCI _D EVSEL #
ZAD 14
PCI _TR DY #
ZSTB_D#16
PCI_AD14
ID E_ PD D1 4
PCLK_SB25
IDE_PDCS1# 32
PCI_SERR#
AVD D_ SZ4 X
PC I_A D6
IDE_PDIORDY 32
ID E_ PD D3
Sheet 14 of 48
968 PCI, IDE,
MuTIOL, SPI 1/4
Schematic Diagrams

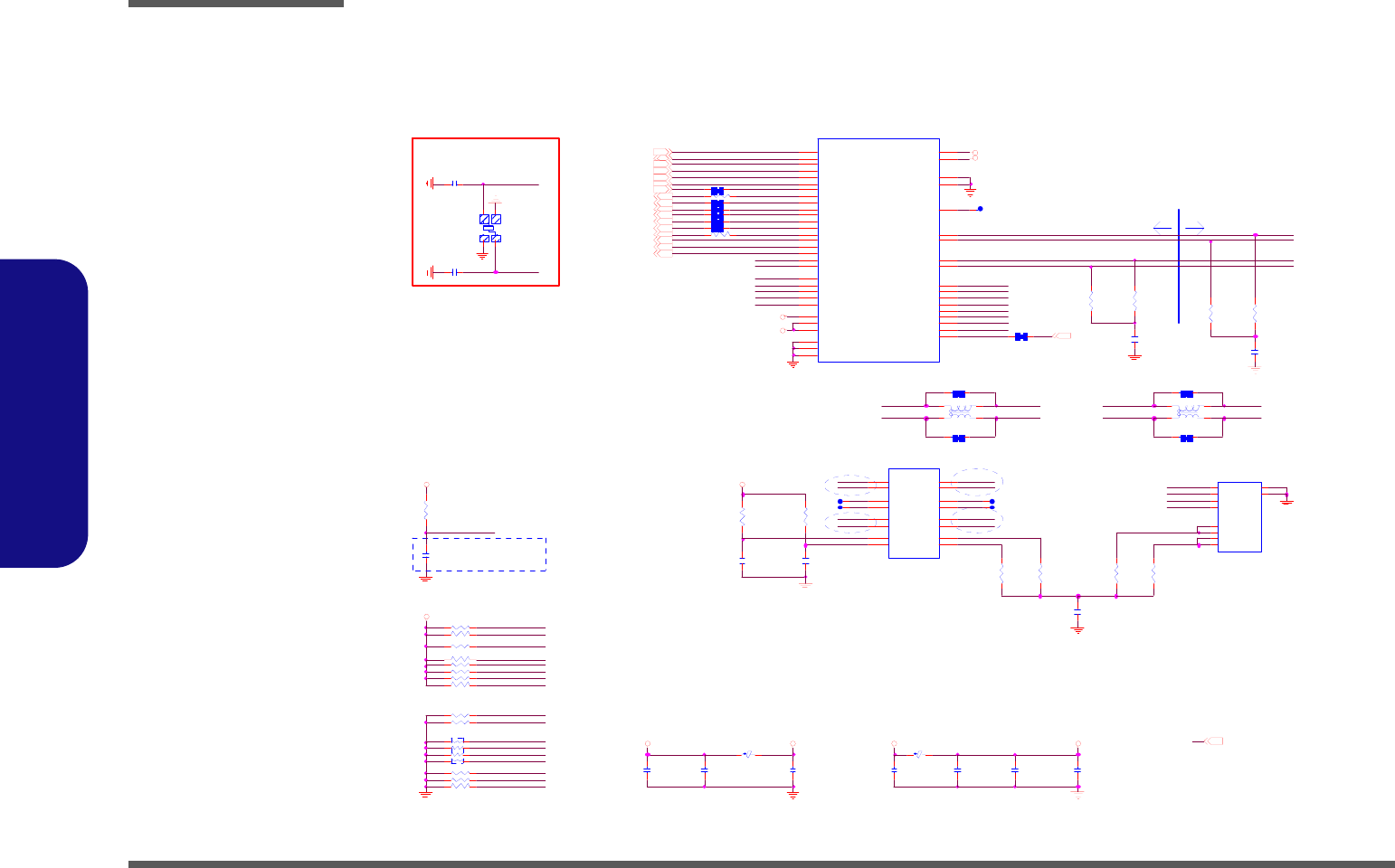

B - 16 968 PCIE, LAN, GPIO 2/4
B.Schematic Diagrams
968 PCIE, LAN, GPIO 2/4
1 .8 VS 4, 5,6 ,7 , 1 1,1 3 ,14 ,1 5 ,17 ,1 9 ,21 ,2 3 ,24 ,2 5 ,35
H_ PRO CH OT#2
R505 56_04
CPU_STP#6
TXD3_PH Y 26
AVD D_PEXTR X
LPC _AD 227
AZ_SD IN029
AU X_ PWR OK 6 ,26
RXD3_PHY 26
SB_ PW RO K
RGMVREF
C7 6 3
.1U_10V_ X7R _ 04
For EMI
3.3V
TXCLK_P HY 26
PM_CLKRUN#
R542
*330K_04
AZ_ BITCLK29,32
AUX_PW RO K6, 2 6
EECS
SB_ PW R OK
C413
.01U_16V_X7R _04
AVSS_PEXTR X
H_SMI#2
Z2013
SB_ KBCR ST #
X5
25MHz
1 2
R 3 54 10 K _ 0 4
PC IE_R X N1 _W L AN 33
R5 41 * 1 0m il_ s h ort
R534 *10mil_short
L42 H CB1005KF-121T20
R 509 *10m il_short
Z2014
P-RSET0
30 mA
V_ L AN
Z2005
PME#
R 3 56 10 K _ 0 4
RGMVREF
GA 2 0 #
R566
*10mil_short
U3 7
C A T 93 C 46 S - 2 6 49 0 T
1
2
3
4
8
7
6
5
CS
SK
DI
DO
VCC
DC
ORG
GND
RN 12 8P 4R X10K_04
1
2
3
4 5
6
7
8
C765 15P_50V_04
SB_ DP RST P#6
PC IE_R XP1_ WL AN 3 3
EEDI
S_CLK
S_DAT
LPC _AD 327
R 3 47 10 K _ 0 4
EESK
AV DD_ GM A CC MP
PME#
PW R_BT N#
R361 * 10m il_short
R520 4.7K_04
RGMCMP_N
AVSS_PEXTRX
Z2009
R 5 18 10 K _ 0 4
H _ INIT #2
L CDID 1
1.8VS
PC IE_RST#12
LPC _AD 027
PC IE_C L K_SB 25
AGPB USY#
PSON #31
RGMCMP_P
VC C_ RT C
PC IE_T XP0 _N EW _CAR D 33
PC IE_R XP0_ NE W _C ARD 33
H_PROCHOT#
R303 * 10K_04
PC IE_T XN1_ W L AN 3 3
L PC_ L DRQ #
C489
.01U_16V_X7R _04
AZ_ R ST#29,30,32
Lane 1
AG PSTOP#6
P-RSET1
R 3 04 49 9 _ 1% _ 0 4
R3 57 *0_ 0 4
R314
*8.2K_04
L PC_ S IRQ27,28
VC C_ RT C 2 3
R540
10M_04
R511
*1M_04
AZ_ SD OUT29,32
GA 2 0 #27 GA2 0 #
R543
*2.2K_04
1.8V 5,7,9,10,23,24,35,39,40
PC IE_T XN0_ NEW _ CAR D 3 3
PCIE_RXN0_NEW_CARD 33
EEDO
C779
* 10U_10V_08
SENTEST
CLKRUN#
Lane 0
3.3VS
SB _D PRSLP VR6
EESK
RTC_CLKI
SB_DPR SLPVR
R321
1 5 0_ 1 % _0 4
EECS
RN 16 8P 4R X10K_04
1
2
3
4 5
6
7
8
R 349 * 10K_04
C422
.1 U_ 1 0V _ X7 R_ 04
TXER_PH Y
D03A
AVD D_PEXTR X
Z2008
LPC_FR AME#27
PM _T HR MT RIP# 3 8
SB_KBCR ST#
Z2016
D38
*SCS751V-40
A C
3. 3 V
PCIE_PRSNT0
C736 22P_50V_04
H_STPCLK#2
PC IE_T XP1 _W L AN 33
GP IO 0
SB_ DPR SLP VR
?????PHY>>1.5V
PM _T HR MTRIP#
AZ_ SY NC29,32
RXD0_PHY 26
PSON #
C518
1U_6.3V_04
L34 H CB1005KF-121T20
H_ F ERR #2
RXD1_PHY 26
Z2012
NC 8 NC _0 4
X6
32.768KHz-200
1 4
32
RXD2_PHY 26
EEDI
PCI-Express X1
1.8VS
AVD D_GM ACC MP
PCIE_PRSNT0
R 5 14 4. 7 K _ 0 4
3.3V
LPC _AD 127
SW I#
H_IGNNE#2
EEDO
LPC_SIRQ
R 3 60 1K _ 0 4
D0 3A
3. 3 V
H_INTR2
RTC_CLKI
AU X_PW R OK
V_L AN
SB_PW ROK20,31
LPC_LDRQ#
SB_THERM#
R504 56_04
NC 3 NC _0 4
3.3V
Z2001
AUX_PW RO K
R 3 62 10 K _ 0 4
SC I#27
SMI#
AV SS_G MAC CM P
3.3VS 6, 10,11,19,20,21,23,24,25,27,28,29,30,31,32,33,34,35,37
PME#27 , 2 8
SB_BLON 20
D03
H_ A2 0 M#2
CO L _PH Y 2 6
Z2007
AGPS TO P#
AZ_SD IN132
CR S_PHY 26
SCI#
Q1 7
*2N7002W
G
DS
R317
1 5 0_ 1 % _0 4
R 3 69 1K _ 0 4
PW R_BT N#
6-22-32R76-0B1,H=2.4
H_CPUSLP#2
R319
* 8.2K_04
SM I# 2 7
Z2011
EXTCLK_PHY
Min i C ard( Wi rele ss L AN)
CLK_14M_96825
SB_SU SC#31
SPKRO UT34
R 5 13 10 K _ 0 4
PC IE_C L K_SB# 2 5
S_D AT 9,10 ,2 5,33
PCIE_ R ST#
PCIE_ R ST#
R 3 53 10 K _ 0 4
GPIO0
SENTEST
H_ NMI2
PC IE_PR SNT0 3 3
S_ DAT
PW R_BT N#27
SMI#
New Card
RXE R _P H Y 2 6
Z2002
3. 3 V
C466
.1U_10V_X7 R_ 0 4
PCI-Express
MD I O_ P H Y 2 6
SB_M UTE#30
RTC_CLKO
AG PBUSY #
PSON #
S_ CLK
R 3 00 4. 7 K _ 0 4
C803
*33P_50V_04
RXDV_PHY 26
TXD0_PH Y 26
D0 3
L CDID 0
Z2003
RT C_ PW R OK23
AGPSTO P#
CPU_S
APIC
LPC
RTC
HD Audio
AC PI /O th er s
GPIO
GMACPCI-Express
MAIN POWERAUX POWER
U3 6 B
SiS96 8
AC23
AE2 6
AD23
AC22
AE2 5
AE2 4
AF2 4
AF2 5
AD24
Y5
AA4
AB2
AB3
AB1
AB4
AA5
F1
E4
D1
D2
W5
Y4
E5
C4
Y3
Y2
B3
Y1
AA2
F2
AA1
E6
A6
E7
C3
A5
D3
B5
C7
B7
D7
B4
D4
F6
C2
C6
C1 2
D1 2
A1 3
B1 3
C1 3
A1 1
C1 0
E1 2
A1 0
C9
B9
A9
E1 0
E1 1
E1 4
E1 3
U5
V5
W4
W3
W2
W1
D6
A4
C1 1
A1 4
C1 4
B1 4
A8
B8
M2 6
M2 5
N2 4
N2 3
K2 6
K2 5
L24
L23
P2 5
P2 6
R2 5
R2 6
P2 2
P2 1
E2
E1
J23
J24
H2 5
H2 6
G2 3
G2 4
F25
F26
D8
F8
E8
A7
B1 1
A1 2
F14
C8
D9
R2 1
R2 3
AB5
AC24
AD25
AE2 3
INIT #
A20 M#
SMI#
INT R
NMI
IGNN E#
FERR #
STPC LK#
CPUS LP # /CP USTOP#
LA D 0
LA D 1
LA D 2
LA D 3
LF R A M E #
LD R Q #
SIRQ
BATO K
PW RO K
RTCVD D
RTCVSS
GPIO2 0
GPIO1 9
HDA_ S D IN0
HDA_ S D IN1
HDA_ S D OUT
HDA_ S Y NC
HDA_ R ESET#
HDA_ B IT _ CL K
OSCI
ENTEST
SPK
PW RBTN#
PME#
PSON #
AUXOK
ACPIL ED
GPIO1 3 /DPR SL PVR
GPIO1 4 /AGP STO P# /S3AU XSW #
SLP_ S3 #
GPIO1 6 /DPR ST P#
GPIO1 7 /GA2 0 #
GPIO1 8 /KBD RST #
GPIO1 2 /CPU ST P#
GPIO1 1 /ST P_ P CI#/A GPST O P #
SLP_ S5 #
GPIO9 /H DA_ SDIN 2
TXE N
TXD0
TXD1
TXD2
TXD3
RXCL K
RXDV
RXE R
RXD0
RXD1
RXD2
RXD3
COL
CR S
MD C
MDI O
GPIO0
GPIO2/THERM#
GPIO3/EXTSMI#
GP IO4 / CL K RU N#
GPIO 5/ PREQ5 #
GPIO6/PGN T5#
GPIO7 /G PW AK#
GPIO8 /R IN G
TXE R
RGMCMP_N
RG MVR EF
RG MC MP_ P
OSC25MHI
OSC25MHO
PR X0 +
PRX0-
PTX0 +
PTX0-
PR X1 +
PRX1-
PTX1 +
PTX1-
PC LK100N
PC LK100P
AVDD_PEXTRX
AVSS_PEXTRX
RSE T 0
RSE T 1
OSC3 2 K HO
OSC3 2 K HI
NC4
NC5
NC6
NC7
NC8
NC9
NC1 0
NC1 1
GPIO2 1
GPIO2 2
GPIO2 3
GPIO2 4
TXCLK
GT X CL K
EXTCLK
AVSS _G MAC CMP1 8
AVDD _G MAC CMP1 8
PCIE PRSNT1
PCIE PRSNT0
G PIO1/LDR Q1#/PC IE_HO TPLU G
PROC HO T#
TH E R M TR I P #
BMBU SY#
CPU _ST P#
Pu t cl ose d to 96 8
V_LAN 24
SB_ KBC RST #27
RXC LK_ PH Y 2 6
Z2010
G T XC LK _P H Y _ R
Z2004
TXD2_PH Y 26
SW I#
RTC_CLKO
R 3 01 12 4 _ 1% _ 0 4
TXEN_PHY 26
Z2006
AUX_ PW RO K
C743 22P_50V_04
A VSS_G MAC CM P
SB_ TH ERM #
Z20 15
R 3 68 10 K _ 0 4
1.8V
AGPBU SY#6
SCI#
LC DID0
EEPROM
C764 .1U_10V_X7R_04
C782 15P_50V_04
3 .3 V 2,1 2 ,1 9,2 0 ,2 3,2 4 ,2 6,3 1 ,3 2,3 3 ,3 8,3 9 ,40
PM_CLKRUN# 27
LC DID1
R 3 23 10 K _ 0 4
Q16
*2 N7 0 0 2W
G
DS
H_ T HRM T RIP#2
C486
.1 U_ 1 0V _ X7 R_ 04
SW I#27
TXD1_PH Y 26
C767 .1U_10V_X7R_04
S_C LK 9,10 ,2 5,33
CPU _STP#
SB_SU SB#31
MD C_ P H Y 2 6
KBC _ AUXPW RO K 2 7
Sheet 15 of 48
968 PCIE, LAN,
GPIO 2/4
Schematic Diagrams

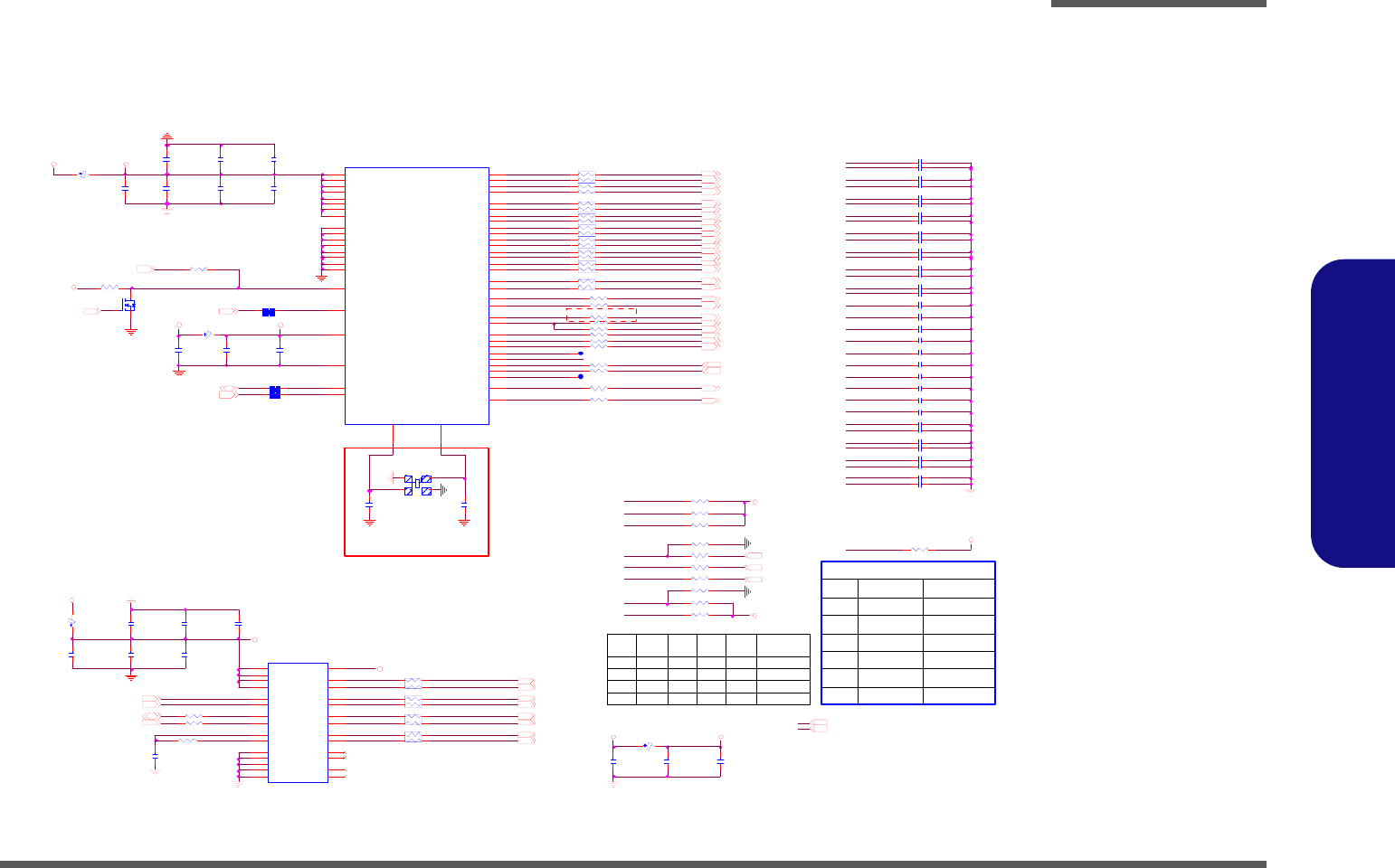

968 USB SATA 3/4 B - 17
B.Schematic Diagrams
968 USB SATA 3/4
AVDD _S ATA PLL 33
SATARXP0
C456
.01U_16V _X7R_04
Z2111
D36 SCS751V-40
A C
US B_P N033
USB _ OC # 1
7/ 18
C775 from 10uF_10V_08 change
to 22uF_6.3V_08 for RTC tim e
issu e .
US B_P N133
C689
. 1U _10 V_ X7R _ 04
C7 5 5
22U_6.3V_X5R_08
NC 7 NC_ 0 4
USB3:
UVD D3 3
R 322 1K_04
L39 H CB1005K F-121T20
C4 3 6
.1 U_ 1 0V _X7 R_ 0 4
3.3VS 6,10, 11,19,20,21,22,24,25,27,28,29,30,31,32,33,34,35,37
USB _O C# 033
US B_O C# 4
US B_O C# 1
USB5:
FINGER PRINTER
US B_P N732
C4 6 1
.1 U_ 1 0 V_X7 R_ 0 4
UVD D3 3
PCIE_W A KE #
6m A
AVSS_SATAPLL33
C500
.01U_16V _X7R_04
USBC MPAV DD18
R302 127_1% _04
L71 H CB1005K F-121T20
USB1:
US B_P N333
USB4:
PORT1
R 537 1K_04
L69 H CB1005K F-121T20
8m A
1.8V
R499 10K_04
R 529 0_04
BLUETOOTH OR 3G
AVD D_SATARX
U SBCM PAVSS3 3
L41 H CB1005K F-121T20
USBPVD D1 8
CL K_ S AT A25
Z210 7
L35 H CB1005K F-121T20
CCD
ISW 0
R 536 1K_04
US B_P N533
C757
1U _6.3V_04
USB
SATA
U3 6 C
SiS 96 8
D26
D25
E24
E23
A20
B20
C19
D19
A18
B18
A23
F21
A24
B24
C23
C22
F20
B2 6
B2 5
D22
C17
D17
A16
B16
A25
C24
AF14
AF15
AC9
AD9
AC8
AD8
AF7
AC 6
AD 6
AF5
AE5
AE8
E2 2
F16
E16
J19
H18
E18
H17
H16
F15
H15
J15
E2 1
E2 0
D21
C21
F17
F19
F22
AA3
B23
C15
D15
AE15
AD 15
A2 2
B2 2
AC 1
AD 1
AF1 2
AE1 2
AC 13
AD 13
AF8
D10
E9
UV0+
UV0-
UV1+
UV1-
UV2+
UV2-
UV3+
UV3-
UV4+
UV4-
OC0#
OC1#
OC2#
OC3#
OC4#
IPB _ OUT 1
USBR EF
AVD D_ U SBPL L1 8
AVSS_ U SBPL L18
IPB _ OUT 0
UV5+
UV5-
UV6+
UV6-
OC6#
OC5#
AV DD _SATAR X
AV SS_ SATARX
AV DD _SAT APL L 3 3
AV DD _SAT APL L 3 3
AV SS_ SATAPL L3 3
AV SS_ SATAPL L3 3
REXT
STX1 +
STX1 -
SR X1+
SRX1-
XI N
TRAP0
UVDD18
UVDD18
UVDD18
UVDD18
UVDD18
UVDD18
UVDD18
UVDD18
UVDD18
UVDD18
AVDD_USBCMP18
AVSS_ USBC MP 18
AVDD_USBCMP33
AVSS_ USBC MP 33
UVDD33
UVDD33
UVDD33
HD ACT
OC7#
UV7+
UV7-
CLK100P
CLK100N
OSC12MHI
OSC12MHO
ISW ITC HO PEN1
ISW ITC HO PEN0
SR X0+
SRX0-
STX0 +
STX0 -
XO U T
ATRAP
PCIEW AKE
284mA
AVSS_SATAPLL33
US B_P P033
MINI CARD
PCIE _W A KE#
RN28
8P4RX10K_04
1
2
3
4 5
6
7
8
C729
.01U_16V _X7R_04
RT C_ P W R OK 2 2
US B_P P234
3.3VS
C4 6 7
.1 U_ 1 0 V_X7 R_ 0 4
NEW CARD
SATATXN 0 31
US B_P P533
NC 9 NC _ 04
US B_O C# 7
UVDD18
C L K_ SAT A#25
Z2110
NC 5 NC _ 04
D 37 SCS751V-40
AC
R528 1K_04
PORT2
3.3V
R497 10K_04
UVDD33
CL K_ 12 M _U S B 2 5
SATA_ LED # 3 2
3.3V
USB2:
C7 5 3
1U _ 6. 3 V _ 0 4
R 296 *10K_04
Z21 12
PORT0
VD D3 2,20, 27,34,35,36,38,40
USB7:
VC C_ RT C 2 2
SOSC 25M HO
NO1
NO_04
USB _ OC # 3
C4 5 3
.1U_10V_X7R_04
AVSS_ SAT ARX
Z210 4
USB0:
VC C_ RT C
USB6:
AV SS_SATARX
US B_P P133
J_RTC1
85204-02001_R
1
2
ISW 1
AVD D_SATAPLL33
VD D3
1.8V
SA TA RXN0 3 1
ZCLK_SEL
US B_P P333
Zo=90 Ohm
1.8VS 4,5,6,7,11,13, 14,15,17,19,21,22,24,25,35
Z210 5
C4 35
.01U _16V_X7R _04
US B_P P732
US B_P P632
ZCLK_SEL
NC 15 NC _04
C771
10U_10V_08
3.3V
C688
.01U_16V _X7R_04
US BCM PAVSS1 8
C465
.01U_16V _X7R_04
SATA_ LED #
8mA
1.8V
PCIE_WAKE # 4,33
41mA
C739 22P _50V_04
SATARE XT
Z210 3
L38 H CB1005K F-121T20
??? ??
US B_P N420
US B_O C# 0
R 53 0 10 K _ 1 % _0 4
USB _ OC # 7
SOSC 25M HI
SATARXN 0
US B_P P420
USB _ OC # 0
Z210 8
UVD D1 8
1.8V 5,7,9,10,22,24,35,39,40
C490
. 1U _10 V_ X7R _ 04
USB P VDD 18
SATAR EXT
D35 SCS751V-40
A C
R 5 08 * 1 0m i l _s h o r t
USB _ OC # 4
3.3V
AVD D_SATARX
US B_P N632
NC 14 NC _04
USBC MPAV SS18
R507 12K_1%_04
8mA
SATATXN 0
MuTIOL Clock Select (ZCLK)
133MHz : Interanl Pull down
66MHz : External Pull up
Z2101
C730
. 1U _10 V_ X7R _ 04
1.8VS
USBC MPAV DD18
US B_P N234
USBPVS S18
SATARXP0 31
284mA
3.3V 2,12,19,20, 22,24,26,31,32,33,38, 39,40
USB _ OC # 5
Z210 2
US B_O C# 5
USBR EF
U SBPVSS1 8
USB _ O C# 2 633
SATATXP0
US B_O C# 3
SATATXP0 3 1
Z210 6
R 316 10K_04
C457
. 01U_16V_X7R _04
Sheet 16 of 48
968 USB SATA 3/4
Schematic Diagrams
B - 18 968 PWR, GND 4/4
B.Schematic Diagrams
968 PWR, GND 4/4
C495
.1U_10V_X7R_04
1. 8V S
1.8V
C768
.1U_10V_X7R_04
C4 7 4
.1U_10V_X7R_04
22mA
1.8VS
3. 3V
C531
1U_10V_06
C443
. 1U _10V_X7R _04
C481
1U_10V_06
C448
10U _10V_08
C5 33
.1U _1 0 V_ X7R _0 4
C511
.1U _10V_X7R _04
1. 8V S
C476
.1U_10V_X7R_04
R 320 0_08
C732
.1U_10V_X7R_04
C733
.1U_10 V_ X7 R_04
C450
.1U_10V _X7R_04
C470
.1U_10V_X7R_04
V_AVD D_SATA
V_AVDD _SBPCIE
V_L AN 22
C497
10U_10V_08
C482
1U_10V_06
V_LAN
C442
.1U_10V_X7R_04
C464
1U _10V_06
C774
10U _10V_08
1.8V 5,7,9,10,22,23,35,39,40
C669
.1U _ 10 V_ X7R _ 04
Power/Ground
U36D
SiS96 8
U26
W26
P18
R18
N18
V17
V16
N9
P9
W18
V15
J18
J17
H19
H9
J9
AA25
R24
L10
L1 1
L12
M10
M11
M12
N1 0
N11
N12
N13
N14
K10
K11
K12
P10
P11
P12
P13
D14
E15
A15
B15
C16
D16
A17
B17
E17
C18
D18
A19
B19
E19
C20
D20
A21
B21
D23
D24
C25
C26
AF3
AF4
AF2
AE11
AE9
AE7
AE3
AE4
AE1
AD 12
AD 3
AD 2
AC 12
K13
K14
K15
L13
L1 4
M13
P14
R10
R11
T10
U10
L15
L1 6
M14
M15
R13
P16
V24
Y24
M9
K9
V10
V11
V12
V14
T8
N8
L9
W17
W16
W15
W14
W13
W12
K8
L8
M8
P8
R8
U8
V8
AA21
AB22
J16
B12
H8
L17
T24
R17
T18
U18
V18
V19
W19
R9
T9
U9
J14
J12
J10
J8
H10
H11
H12
J11
D11
H13
J13
R14
T14
U14
U15
AC 2
AC 3
AC 4
AC 5
M1 7
N1 7
P17
M16
N16
N1 5
F7
E25
E26
F23
F24
G2 5
G26
H2 3
H24
J2 5
J26
K23
K24
L25
L26
G2 2
J22
K22
L22
M23
M24
N2 5
N26
N2 2
P23
P24
K16
K17
V13
K18
L18
L19
M18
M19
N19
H21
J21
K21
L21
M21
N21
M22
H22
AE2
AC 25
AD 26
B10
D13
AF9
AF1 1
R12
T11
T12
T13
U11
U12
U13
AB6
AB7
AB 8
AB 9
AC 10
AC 11
AD 10
AD 11
AE10
AF1 0
V9
W8
W9
W10
W11
U2 3
W23
R22
T21
V21
Y21
T15
P15
T17
R1 5
R16
T16
U16
U1 7
AB13
AB14
AB15
AE13
AC 14
AC 15
AD 14
AF1 3
AE14
AB12
AC 7
AD 7
AD 4
AD 5
AE6
AF6
AB10
AB11
V DDZ
V DDZ
V DDZ
IVDD
V DDZ
IVDD
PVDD
IVDD
IVDD
V DDZ
PVDD
I VDD_ AU X
I VDD_ AU X
O V DD _ AUX
O V DD _ AUX
I VDD_ AU X
V DDZ
V DDZ
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
U SBVSS
U SBVSS
U SBVSS
U SBVSS
U SBVSS
U SBVSS
U SBVSS
U SBVSS
U SBVSS
U SBVSS
U SBVSS
U SBVSS
U SBVSS
U SBVSS
U SBVSS
U SBVSS
U SBVSS
U SBVSS
U SBVSS
U SBVSS
U SBVSS
U SBVSS
AVSS_SATA
AVSS_SATA
AVSS_SATA
AVSS_SATA
AVSS_SATA
AVSS_SATA
AVSS_SATA
AVSS_SATA
AVSS_SATA
AVSS_SATA
AVSS_SATA
AVSS_SATA
AVSS_SATA
U SBVSS
U SBVSS
U SBVSS
U SBVSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
AVSSP EX
V DDZ
V DDZ
IVDD
IVDD
IVDD
IVDD
IVDD
PVDD
PVDD
PVDD
PVDD
OVDD
OVDD
OVDD
OVDD
OVDD
OVDD
OVDD
OVDD
OVDD
OVDD
OVDD
OVDD
OVDD
VTT
VTT
I VDD_ AU X
VSS
O V DD _ AUX
U SBVSS
V DDZ
IVDD
IVDD
V DDZ
V DDZ
V DDZ
V DDZ
IVDD
IVDD
IVDD
IVDD
O V DD _ AUX
I VDD_ AU X
I VDD_ AU X
G MIIV DD_ A U X
G MIIV DD_ A U X
G MIIV DD_ A U X
O V DD _ AUX
VSS
G MIIV DD_ A U X
G MIIV DD_ A U X
VSS
VSS
VSS
VSS
AVSS_SATA
AVSS_SATA
AVSS_SATA
AVSS_SATA
AVSSPEX
AVSSP EX
AVSSPEX
AVSSP EX
AVSSPEX
AVSSPE X
O V DD _ AUX
AVSSPEX
AVSS PEX
AVSSPEX
AVSS PEX
AVSSPEX
AVS SPEX
AVSSPEX
AVS SPEX
AVSSPEX
AV SSPEX
AVSSPEX
AV SSPEX
AVSSPEX
AV SSPEX
AVSSPEX
A VSSPEX
AVSSPEX
A VSSPEX
AVSSPE X
AVSSPEX
AVSSPE X
AVSSPEX
AVSSP EX
AVSSPEX
AVSSP EX
U SBVSS
U SBVSS
IVDD
AVDDPEX
AVDDPEX
AVDDPEX
AVDDPEX
AVDDPEX
AVDDPEX
AVDDPEX
AVDDPEX
AVDDPEX
AVDDPEX
AVDDPEX
AVDDPEX
AVDDPEX
AVDDPEX
AVSS_SATA
VSS
VSS
VSS
VSS
AVSS_SATA
AVSS_SATA
VSS
VSS
VSS
VSS
VSS
VSS
VSS
AVSS_SATA
AVSS_SATA
AVDD_SATA
AVDD_SATA
AVDD_SATA
AVDD_SATA
AVDD_SATA
AVDD_SATA
AVDD_SATA
AVDD_SATA
AVDD_SATA
AVDD_SATA
AVDD_SATA
AVDD_SATA
AVDD_SATA
VSSZ
VSSZ
VSSZ
VSSZ
VSSZ
VSSZ
V SSZ
VSSZ
V SSZ
VSSZ
VS SZ
VSSZ
VS SZ
VSSZ
AVSS_SATA
AVSS_SATA
AVSS_SATA
AVSS_SATA
AVSS_SATA
AVSS_SATA
AVSS_SATA
AVSS_SATA
AVSS_SATA
AVSS_SATA
AVSS_SATA
AVSS_SATA
AVSS_SATA
AVSS_SATA
AVSS_SATA
AVSS_SATA
AVDD_SATA
AVDD_SATA
3.3V
V_A VDD _SAT A
C472
1U_10V _06
C7 2 4
1U_10V_06
C487
.1U_10V_ X7 R_0 4
1.8V
C498
1U _10V_06
V_LAN
C734
10U_10V_08
C491
.01U _16V_X7R _04
C484
.01U_16V _X7R_04
2 .5 V cha ng e to 3. 3V
C494
. 1U _10V_X7R _04
C471
1U _10V_06
3.3VS 6,10,11,19,20,21,22,23,25,27,28,29,30,31,32,33,34, 35,37
C5 2 3
.1U_10V_X7R_04
C455
.01U_16V _X7R_04
C4 5 9
.1U_10V_ X7 R_04
3.3V
3. 3 V S
V_AVDD _SB PCIE
3.3V 2,12,19,20,22,23,26,31,32,33,38,39,40
C428
.1U _ 10 V_ X7R _ 04
1.8VS 4,5,6,7,11,13, 14,15,17,19,21,22,23,25,35
V _AVD D_SATA
1.05VS 2,3,4,6,7,39
C488
1U _10V_06
19 0m A
C449
.01U _16V_X7R _04
1. 8V S
P ut un de r Si S9 68 s ol de r si de
C440
.1U_10 V_ X7 R_04
C460
.1U_10V_X7R_04
3.3VS
15 3m A
C469
.1U_10V_X7R_04
C5 24
.1U _ 10 V_ X7R _0 4
C525
.1U_10V_X7R_04
C6 7 0
.1U_10V_X7R_04
L40 H CB1608KF-121T25
1.05VS
C480
.1U _10V_X7R _04
C4 75
.1U _ 10 V_ X7R _0 4
C7 3 1
1U_10V_06
4mA
C477
.1U_10V_X7R_04
C468
10U_10V_08
C493
.1U_10V_X7R_04
C452
1U _10V_06
C478
. 1U _10V_X7R _04
C463
10U_10V_08
C483
.1U_10 V_ X7 R_04
19mA
1.05V S
C718
.1U_10V_X7R_04
3. 3V S
C4 92
.1U _1 0 V_ X7R _0 4
C496
.1U_10V_ X7 R_0 4
29mA
1. 05 V S
1. 8 V S
V_AVDD _SB PCIE
V_LAN
R 310 0_08
52 2m A
1.8V
Sheet 17 of 48
968 PWR, GND 4/4
Schematic Diagrams
Clock Generator & Clock Buffer B - 19
B.Schematic Diagrams
Clock Generator & Clock Buffer
CLK_ SATA 23
PC IE_CLK_VGA 12
M_ C LK_ D D R 0 9
0
SUSB#12,28,31,33,35,39,40
R260 M760SU ? ? ?
P CIE_CLK_MIN I#_R
R 278 22_04
C411 * 10P_50V _04
Z_C L K1 21
Z2307
3. 3V S
S_DA T9,10,22,33
M_ CL K_ DD R3 #
RN 2 0
4P2RX33_04
1 4
2 3
Q1 2
2N7002W
G
DS
PCIE_C LK_N B#
P CIE_CLK_NB#_R
RN2
4P2RX0_04
1 4
2 3
FB_INA
PCLK_ SB
P CIE_VGA_R #
M_CLK_DDR2
U15
IC S9P 93 5
1
2
3
4
5
6
7
8
9
10
11
12
13
14
28
27
26
25
24
23
22
21
20
19
18
17 16
15
DD RC0
DDRT0
VDD 1.8
DDRT1
DD RC1
GN D
VDD A1.8
GN D
CL K_ INT
CL K_ INC
VDD 1.8
DDRT2
DD RC2
GN D
GN D
DD RC5
DDRT5
VDD 1.8
GN D
DD RC4
DDRT4
VDD 1.8
SDATA
SCLK
FB_IN
FB_OUT DDRT3
DD RC3
0
PCIE_CLK_SB 22
P CIE_CLK_NEW_R
M_ CL K_ DD R2 #
C6 7 6
33P_50V_04
C342
.1U_ 1 0V_ X7 R_ 04
Clock Generator Pin 15
Z_CLK0
M_ CL K_ DD R2
C377 * 10P_50V _04
(LO)Non-STUFF
B SEL 2
PECLKREQ1#
RN 2 1
4P2RX33_04
1 4
2 3
L68 H CB1005KF-121T20
BS EL 0
KBC _ PCL K
PCIE_C LK_M INI#
C384
.1U _10V_X7R_04
1
CLKGEN_FSL1
PCICLK6
H_ CL K_ CP U # 2
CLK_14M_968
C376
.1U _ 10V_ X7R _0 4
PC LK _C ARD
CL K_ 48 M _C ARD
M_CLK_DDR1#_R
C677
33P_50V_04
PCIE_CLK_SB# 22
M_CLK_DDR3#_R
STP_ PC I#
P CIE_VGA_R
C654
10U_10V_08
C349 * 10P_50V _04
M_CLK_DDR2_R
1
R 478 33_04
S_CLK9,10,22,33
Z23 05
CL K_ S AT A#
R 274 10K_04
R 481 33_04
10 0 M Hz
1.8VS
M_ C LK _ D DR 2 # 1 0
C390 * 10P_50V _04
R247 *0_04
RN4
4P2RX0_04
1 4
2 3
RESET#
M_ C LK _ D DR 2 1 0
PCIE_C LK_N B
Z_CLK0
CLK_14M_671M X 6
PCLK_ CAR D
C4 1 4
1U_10V_06
RN 1 8
4P2RX33_04
1 4
2 3
Pin 1
3.3VS
C678 * 10P_50V _04
3.3VS
CPUSTP#6
R268 *2.7K_04
Host Clock
0
CLKGEN_MODE
RN 1 1
4P2RX33_04
1 4
2 3
C LKBU F_ AVDD
CLK_48M_CARD
C404 * 10P_50V _04
PCIE_C LK_M INI
C7 22
10U_10V_08
(HI)PULLl-UP
RN 2 5
4P2RX33_04
1 4
2 3
CL KGE N_ VDD
CL KE N
M_ CL K_ DD R1 #
R4 82 1 0 K_ 04
CPU _ BSEL 0 2
PCLK_SB 21
M_CLK_DDR1#
P CIE_CLK_NB_R
R 267 *10K_04
RN 2 6
4P2RX33_04
1 4
2 3
CPU _ BSEL 1 2
M_ C LK _ D DR 3 # 1 0
C715
10U_10V _08
CPU_STOP#
0
PCIE_CLK_HD V 11
R262 *0_04
L66
H CB1608KF-121T25
Mobile mode
M_CLK_DDR3#
M_ CL K_ DD R1
C341 * 10P_50V _04
STP_PCI#
P CLK_D EBU G_R
Z2301
C4 0 2
.1U _ 10 V _ X7R _ 04
PCIE_CLK_NEW # 33
0
M_CLK_DDR0
C391 * 10P_50V _04
CL K_ S AT A
Z2304
20 0 M Hz
Z_C L K0 6
PCIE_C LK_SB
C LK_SA TA_ R
R475 *1K_04
Status
Z_CLK1
C LK_12M_US B_R
RN5
4P2RX0_04
1 4
2 3
C6 6 0
10U _10V_08
PCICLK5
R261 10K_04
R494 *10m il_short
X3
14.318MH Z
12
34
1
M_ C LK _ D DR 1 # 9
CLK_14M_307ELV 11
C401 * 10P_50V _04
PCI_STOP#Pin 12
1
CPU _ BSEL 2 2
S EL24_48#
M_ CL K_ DD R0
C3 9 8
.1U_ 1 0V_ X7 R_04
C400 * 10P_50V _04
C345 * 10P_50V _04
H_ CL K_ CP U #
CLK_SATA#
C LKGEN _FSL 1
PE CL KREQ 0#
R 264 2.2K _04
C424 * 10P_50V _04
3. 3 V S
H_ CL K_ NB 4
RN 1 9
4P2RX33_04
1 4
2 3
PCICLK3
1
1.8V S
CLKGEN_FSL0
CLKGEN_FS4
M_CLK_DDR1_R
M _F W DSD CLKOA_D #5
C LK_SA TA# _ R
L33
HCB 1005K F-121T20
R 266 *10m il_short
C408 * 10P_50V _04
13 3 M Hz
C3 4 4
10P_50V _04
Place CRYSTAL Within 500
mils of ICS9LPR600
Z _C LK1_R
PE CL KREQ 1#
Z2303
R 487 10K_04
PECLKREQ1#
CLK_12M_USB
C340 * 10P_50V _04
1.8VS 4,5,6,7,11,13,14,15,17,19,21,22,23,24,35
PCIE_CLK_HD V# 11
C418 * 10P_50V _04
MINI_CARD_CLKREQ# 33
Z _C LK0_R
H _ CL K_ NB# _ R
R563 *2.7K_04
C7 0 6
1U _10V_06
M_ C LK_ D D R 1 9
PCIE_C LK_H DV
R 493 33_04
1
CLK_14M _968
C378
.1U _ 10V_ X7R _0 4
P CIE_CLK_SB#_R
Pin 17
CLKBU F _AV DD
C657
.1U_ 1 0V_ X7 R_ 04
M_CLK_DDR3_R
M_CLK_DDR0_R
R485 *0_04
C385 * 10P_50V _04
C407 * 10P_50V _04
NEW_CAR D_CLKR EQ# 33
M_CLK_DDR0#
C381 * 10P_50V _04
F req ue nc y
0
3.3VS
C372 * 10P_50V _04
C394 * 10P_50V _04
Mode
CLK_STOP#
PCLK_CAR D 28
H_ CL K_ CP U
M_CLK_DDR2#
C429 * 10P_50V _04
PCIE_CLK_MIN I 33
PC IE_CLK_VGA# 12
R 476 2.2K _04
0
PCIE_CLK_NB# 4
PECLKREQ0#
Z_CLK1
R 270 33_04C3 80
.01U _16V_X7R_04
C347 * 10P_50V _04
R 491 22_04
CL K_ 48 M_ C A RD 28
FB_OU TA
PCIE_C LK_SB#
H _ CL K_ CPU _R
RN3
4P2RX0_04
1 4
2 3
C3 5 6
.1U_10V _X7R_04
PCIE_CLK_NB 4
CLK_14M _671MX
M_CLK_DDR1
CLK_SATA
M_ CL K_ DD R3
R246 22_04
1
FS 3
C LKGEN _FSL 2
H_ CL K_ NB #
CL K_ 12 M _U SB
C399 * 10P_50V _04
R 260 33_04
0
R271 *0_04
C338 * 10P_50V _04
R 492 33_04
C679 * 10P_50V _04
P CIE_CLK_HD V_R
P CIE_CLK_SB_R
C LKGEN _FSL 0
FS4
M_FWDSD CLKOA_D5
S_C LK9,10,22,33
H _ CL K_ CPU #_ R
C3 5 1
.1U_10V _X7R_04
PECLKREQ0#
H_ CL K_ NB # 4
C416 * 10P_50V _04
0
CLKEN#37
PCIE_C LK_H DV#
C337 * 10P_50V _04
KBC_PC LK
CL KGE N_ MO DE
C346
.1U_ 1 0 V_X7 R_0 4
16 6 M Hz
S_D AT9,10,22,33
P CIE_CLK_HD V#_R
L70 HC B1608KF-121T25
P CIE_CLK_MIN I_R
CLKGEN_FS3
C410 * 10P_50V _04
1
R 269 *10m il_short
CL KB U F _V DD
R248 *0_04
Desktop mode
R 479 2.2K _04
RN 1 7
4P2RX33_04
1 4
2 3
10
3.3V S
M_ C LK _ D DR 3 1 0
Z2302
C375 * 10P_50V _04
C705 * 10P_50V _04
C352
.1 U_ 1 0 V_ X7 R_ 0 4
H _ CL K_ NB_ R
CL K_ 12 M_ U S B 2 3
PCIE_C LK_N EW
C701 * 10P_50V _04
CLKG EN_ VDD A
CLK_14M_968 22
CLK_14M _307ELV
M_CLK_DDR2#_R
C LKGEN _FS3
U33
ICS9LPR600CGLF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
(CL K _ S T OP# )/V T T P W R G D/ PD #
VD DREF
** FSL0/R EF0_2x
*FSL1/R EF1_2x
X1
X2
GN DR E F
GN DP C I
**FSL2/PC ICLK0_2xF
* *FS3/PC ICLK1_2x F
**F S 4/ P C I CL K 2
* (PCI_STOP#)/PC ICLK3
GN DP C I
VD DP CI
** MO D E /P C I CL K 4
(PE CLKREQ 0#)/PC ICLK5
(PE CLKREQ 1#)/PC ICLK6
PC ICL K7
VD DP CI
GN DZ
ZCLK0
ZCLK1
VD DZ
VD D4 8
12MHz
** SEL24_48#/24_48MHz
GN D4 8
*(C PU_STOP#)/R ESET#
VD DCPU
CPU T _L 0 F
CPUC_L0F
GN DC P U
CPU T_L 1
CPUC_L1
VD DA
SA TAC L KT_ L
SATACL KC_L
GN DA
SC LK
SD ATA
PC IET_L 0
PCIEC _L 0
GN DP C I E X
PC IET_L 1
PCIEC _L 1
VD DP CI EX
PC IET_L 2
PCIEC _L 2
PC IET_L 3
PCIEC _L 3
PC IET_L 4 F
PCIEC_L4F
GN DP C I E X
PC IET_L 5 F
PCIEC_L5F
VD DP CI EX
RN 2 7
4P2RX33_04
1 4
2 3
Pin 28
PCIE_CLK_NEW 33
R 265 33_04
VTTOWRGD/PD#
1
H_ CL K_ NB
M_ CL K_ DD R0 #
Z2306
PCIE_C LK_N EW #
CLK_14M_671MX
PC LK _SB
P CIE_CLK_NEW#_R
M_CLK_DDR0#_R
CLK_ SATA # 2 3
H_ CL K_ CP U 2
C LK_14M_307ELV
R 480 2.7K _04
R 263 33_04
3.3VS 6,10,11,19,20,21,22,23,24,27,28,29,30,31,32,33,34,35,37
M_CLK_DDR3
KBC_PCLK 27
PCIE_CLK_MIN I# 33
C373 * 10P_50V _04
M_ C LK _ D DR 0 # 9
C LKGEN _FS4
C704 * 10P_50V _04
Pin 16
CLKGEN_FSL2
C353 * 10P_50V _04
C663
.01U_16V _X7R_04
BSEL1
Sheet 18 of 48
Clock Generator &
Clock Buffer
Schematic Diagrams
B - 20 PHY Realtek 8201CL
B.Schematic Diagrams
PHY Realtek 8201CL
MDI1-
MDIO_PHY
PW FBO U T
MLMX1+
PH Y_ XTAL 1
TXCLK_PHY22
R201 2K_1%_04
DC_NP
TD_CT
LED3
R200
49.9_1%_04
COL_PHY
R239 * 10mil_short
R215 * 10mil_short
R98
75_1%_04
D03A
PW FBO UT
RXD1_PHY22
C317
.1U_10V_X7R_04
LED_TX
C320
.1U_10V_X7R_04
PH Y_ XTAL 2
R204 5. 1K_04
R96
75_1%_04
R212 5. 1K_04
RXD3_PHY22
DUPLEX
TX_C T
PHY Address : 01
R197
49.9_1%_04
RN1 8P4RX10K_04
1
2
3
45
6
7
8
C269
.1U_10V_X7R_04
RXCLK_PHY_R
MLMX1 +
R223 * 10mil_short
TXD2_PHY22
RXD2_PHY22
MLMX0+_R
R199
49.9_1%_ 0 4
R454 *10mil_short
MLMX0-_R
C334
10U_6.3V _X5 R _ 0 8
RXD 1_ PHY_R
C326
10U_6.3V_X5R_08
R159
0_04
MLMX0+
D03A
R90
75_1%_04
MDI1+
MLMX1-_R
RX_ C T
X2
FSX5 M _ 2 5MH Z
12
34
LED2
CLOSE TO TRANSFORMAL
MLMX0-
R97
75_1%_04
PH Y_ XTAL 2
D0 3 A
Z2408
R231 * 10mil_short
R232 5. 1K_04
L59
*WCM2012F2S-161T03
1
4
2
3
LED_TX
LAN_RST#
R228 22_04
RXER_PHY22
R XER _ PH Y
CLOSE TO LAN CHIP
LED4
TXCLK_PHY _R
MII/SINB
S PEED
MDI0-
C218
.01U _16V _X7 R _0 4
MLMX1-_R
CRS_PHY
C66
1000P_2K V_12
PWFBI N
RXER _ PH Y
MLMX1 -
CRS_PHY
MLMX1+_R
Z2405
Close to RTL8201CL
DD_NP
L25
HCB1608KF -121T2 5
LED2
V_LAN _3.3
CRS_P HY22
RPTR
Z2402
PW FBI N
RXD 0_ PHY_R
R227 * 10mil_short
R240 22_04
CLOSE TO
PWFBIN
C319
27P_50V_04
R233 5. 1K_04
RXD 3_ PHY_R
C330
10U_6.3V_X5R_08
MII /SINB
RPTR
MDI0+
LDPS
R225
5.1K_04
MLMX0+
RXD 2_ PHY_R
C194
.01U_16V_X7R_04
U13
RTL8201CL-VD-LF
25
26
6
5
4
3
2
7
22
21
20
19
18
16
1
23
46
47
9
10
12
13
15
8
14
11
17
32
36
48
29
35
45
24
27
34
33
31
30
28
43
40
42
39
38
37
41
44
MD C
MD I O
TXD0
TXD1
TXD2
TXD3
TXEN
TXC
RXDV
RXD0
RXD1
RXD2
RXD3
RXC
COL
CRS
X1
X2
LED0/PHY AD0
LED1/PHY AD1
LED2/PHY AD2
LED3/PHY AD3
LED4/PHY AD4
PWFBI N
DVDD33
DGND0
DGND1
PWFB OUT
AVDD33
DVDD33
AGND
AGND
DGND2
RXER/FXEN
NC1
TPTX+
TPTX-
TPRX+
TPRX-
RTSET
ISOLATE
RPTR
R ESE T B
SP EED
DUPLEX
AN E
LDPS
MII/SNIB/ RTT3
ISOLATE
C1099-108A4
J_RJ45
8
7
6
5
4
3
2
1 GND1
GND2
DD-
DD+
DB-
DC-
DC+
DB+
DA-
DA+ s h i eld
shield
ANE
TXEN_PHY _R
MLMX0-
MDI1-
C279
.1U _10V_X7R_04
R238 5. 1K_04
R455 *10mil_short
Z2404
6-19-21001-026
RXD0_PHY22
MDC_PHY22
TXD3_PHY22
MLMX0+_R
V_LAN_3.3
AN E
COL_PHY22
MLMX1+_R
R209 5. 1K_04
L16
NS0013LF
1
2
16
15
314
412
5
6
7
13
98
11
10
RD+
RD-
RX+
RX-
RD_CTRX_CT
NCNC
NC
TD_CT
TD+
NC
TX-TD-
TX_CT
TX+
MDIO_P HY
C327
27P_50V_04
DUPLEX
3.3V
RXCLK_PHY22
LAN_RTSET
LED4
MDI0+
COL_PHY
L60
*WCM2012F2S-161T03
1
4
2
3
LED1
ISOLATE
LAN_RST#
Z2406
Z2401
PH Y_ XTAL 1
R218 5. 1K_04
R456 *10mil_short
R198
49.9_1%_04
MDI1+
Z2407
Z2403
R202 1. 5K_04
V_LAN_3.3
C332
.1U_10V_X7R_04
R216 * 10mil_short
R453 *10mil_short
V_LAN_3.3
3.3V 2,12,19,20,22, 23,24,31,32,33, 38,39,40
L27 HCB1608KF -121T25
R167
0_04
V_LAN_3.3
PWFBOUT
RXDV_PHY22
LAN_ R TSET
RXD V_PH Y_ R
TXD0_PHY22
MD I O_P HY22
C270
.1U_10V_X7R_04
LED1
R229 *10mi l _s hort
M540JE? ? ?
RD_CT
MDI0-
R203 5. 1K_04
C299
.1U_10V_X7R_04
SPEE D
TXEN_PHY22
TXD1_PHY22
R241 5. 1K_04
D03A
R210 5. 1K_04
AU X_ PWROK 6,22
LED3
LDPS
MLMX1-
MLMX0-_R
R217 5. 1K_04
Sheet 19 of 48
PHY Realtek
8201CL
Schematic Diagrams
KBC ITE8512E B - 21
B.Schematic Diagrams
KBC ITE8512E
3G_DET#
C 501 * 33P_50V_04
J_SPI1
SPNZ-08 S3-B-C -0-P
12
34
56
78
CHG _E N 3 6
KBC_AUXPW RO K 2 2
KB-SI5
KB C_ SPI _ SCL K
J_KB1_74S
85201-24051
24
23
22
14
12
11
21
8
20
19
6
5
18
4
17
10
9
7
3
2
1
16
15
13
VDD 3
SPI_VDD
E C _V G A _ A LE R T#
C479
.1U _1 0 V_X7 R_ 0 4
D34
BA V99
A
C
AC
U2 2
A A T 3 51 0 I G V - 2 . 9 3- C - C - T 1
3
5
2
1
4
MR#
VC C
GND
RESET#
WDI
R 5 0 3 10 K _ 04
KBC_AVDD
LPC_R ST#31,33
C 454 * .1U_16V_04
VDD 3
3G _ D E T #32
R324 15_1%_04
SB_KBC RST# 22
KB C_ SPI _ CE# _ R
KB-SI0
BAT_D ET
9
LPC_SIRQ22,28
KB-SO9
KB-SO15
VD D3
BAT1_ VOL T
80PORT_DET#
KB-SO7W EB_ AP#
F or M7 40S
CH G_ CU RSEN
K B C_ AGND
CCD _E N 3 2
MOD E L _I D
3G _E N
BR IGH TN ESS
R 2 97 4 . 7K _ 0 4
KB-SO9
KBC_SPI_ SO
PJ 7
20m il
1 2
KBC _BEE P34
KB-SO13
J_H8DBG 1
SPUFZ-10 S3-VB-0-B
12
34
56
78
910
KBC_F L ASH
3IN1
CPU _F A N20
LED_BAT_FU LL#34
C4 46
.1U _10V_X7R_04
For M 760 S
KB-SI6
W EB_ EMA IL #20
BAT_VO LT_R
CC D_ DET #
KB-SO1
KBC_SPI_ CE#
R506 4.7K_04
LPC_FRAM E#22
KB C_ RS T #
1
TOTAL_ C UR_R
C4 4 4
.1U _ 10 V _ X7 R_ 0 4
W EB_ EMA IL #
LED_CAP#34
PWR_BTN# 22
CCD _EN
SMC_BAT
KBC_SPI_ SI
KBC_SW I#
TH ERM _AL ERT#2
C741
1U_10V_06
C5 0 2
.1 U_ 1 0V _ X7R _ 04
KBC_G A20 #
D29
* BAV9 9
A
C
AC
PM_CLKRU N#
KBC_SPI_ SO_R
MO D E L _I D
BEEP_ EC
R3 26 1 K_0 4
Z2506
R309 *10m il_short
DD_ ON 3 8
BAT_D ET
3IN 1
KBC _SPI_ SO _R
KB-SO11
KB-SO8
AC_IN#
C504
12P_50V_04
NC 16
NC _0 4
C692 *1U_10V_06
SM D_CPU _TH ERM2
SMD_VG A_THER M
SM D_ VGA_ TH ERM18
SMD _BAT
KBC_PCLK
BKL_ EN
R299 47_04
1
VDD3
3.3V 2,12,19,20,22,23,24,26,31,32,33,38,39,40
WEB_W WW#20
KB-SO14
KB-SI1
2
LPC_AD122
R510 10K_04
KBC _ SPI_SC LK _R
KB-SI7
KBC_R SMRST #
SM D_ BAT36
PM_ CL KRU N# 22
BAT_VO LT _ R
C 499 * 33P_50V_04
KB-SO11
80C LK
SMD_BAT
KBC _W R ESET#
Z2504
KBC_R ST#
SM C_ VGA_ TH ERM18
KB-SO0
TH E R M _R S T#
BT_ DE T# 20
KB-SI1
KBC_SMI#
R334 * 10M_04
KBC_W RESET#
VD D3
3.3VS
WLAN _EN33 , 3 4
KBC_MU TE#
KBC_SUSC # 3 1
BT_ DET#
KBC_SP I_ SCLK
KB-SI2
C 426 1U_10V_06
WD_DISABLE
CCD_DET#
CR X0
R512
100K_04
M74 0S
10 K
LE D _S C R O LL #34
C451 1U _10V_06
N C6 NC_04
BAT_ DET36
CH G_ CUR SEN
WDT_EN
KB-SO1
WLAN _EN
J_KB2_76S
*85201-24051
24
23
22
14
12
11
21
8
20
19
6
5
18
4
17
10
9
7
3
2
1
16
15
13
LCD_BRIGHTNESS20
KB-SI7
CCD_DET#32
CTX1
KBC_SM I#
C445
.1U_ 1 0V_ X7R _0 4
KB-SO7
KB-SO3
D8
* BAV9 9
A
C
AC
R332 4.7K_04
TO TA L _ C U R _ R
X
X
3G _D E T #
VDD 3
TP _ D A TA32,34
GA20# 22
Z25 08
KB-SO8
R 3 08 12 0 K _0 4
WEB0--->AP KEY
WEB1--->EMAILKEY
WEB2--->WWW KEY
KB-SI3
KB-SO14
SMC_VG A_THER M
WEB _WWW#
KB-SI5
J_KB1/J_KB2
VDD 3 2,20,23,34,35,36,38,40
LE D _B A T _ C H G #34
PM E#22 , 2 8
KB-SI6
KBC _SW I#
L ED_ NU M#34
KB-SO0
D33
BA V99
A
C
AC
C425 *1U_10V_06
10 K
3.3VS 6,10,11,19,20,21,22,23,24,25,28,29,30,31,32,33,34,35,37
KB-SO4
KB-SO12
KB-SO15
KB-SO5
J_S PI1 PIN ? ? LV220 JSP IDB G
VD D3
CTX0
THER M_ALER T#
R331 10K_04
LPC_AD222
KBC_SPI_ SI_ R
THERM _RST#2
WLAN_PWR33
SM I# 22
W D_DISABL E
KBC_SPI_*_R = 0.1"~0.5"
LED_PWR #34
BKL _ EN20
TOTAL_CU R
PME #
KBC_SCI#
R325 15_1%_04
RB
10
M76 0SU
VCOR E_ ON 3 7
KBC _ SPI_SI_R
LED_THROTTLE#
R329
10K_04
8Mb it
KB-SO10
KB-SO12
VDD3
BAT_ DET
R312 *10m il_short
R284 *100_04
R 2 8 9 10 K _ 04
KBC_PCLK
X4 32 . 7 6 8 K H z - 2 0 0
14
3 2
KB-SO4
C4 85
.1U _10V_X7R_04
BT_E N20,34
KB-SO2
CPU_ F AN _R
KB-SO2
SW I# 2 2
SMC _ BAT
KB C_ RSM RST #
7/13
ITE8512E pin4 and pin16 swap
for LED driver circuit.
SPI_VDD
R318 *10m il_short
SMC _BAT
R490 *100_04
R333 *10m il_short
VDD3
KBC _P CLK25
SM C_CPU _TH ERM2
KB-SO5
R 2 8 5 10 K _ 04
Z25 09
KB-SI4
KB-SI2
R283 100_04
L36
HC B1005KF-121T20
KB-SI3
KBC_PW R BTN #
???
KB-SO6
Q1 8
2N7002W
G
DS
KBC_AGND
KBC_SP I_ SI
K/B MATRIX
FLASH
LPC
SMBUS
PS/2
PWM
UART
DAC
CLOCK
I T85 12 E
CI R
ADC
WAKE UP
PWM/COUNTER
LPC/WAKE UP
EXT GPIO
GP INTERRUPT
WAKE UP
GPIO
U2 0
IT8512E
14
13
10
9
8
7
6
17
5
15
23
12 6
4
58
59
60
61
62
63
64
65
36
37
38
39
40
41
42
43
44
45
46
51
52
53
54
55
11
26
50
92
114
12 7
121
3
74
85
86
87
120
124
22
35
12 5
18
21
112
10 9
10 8
123
88
89
90
47
48
24
25
28
29
30
31
32
34
66
67
68
69
70
71
72
73
1
12
27
49
122
11 3
75
2
128
79
78
77
76
83
84
82
33
20
91
81
80
16
119
56
57
93
94
95
96
97
98
99
107
11 0
11 1
11 5
11 6
11 7
11 8
100
101
102
103
104
105
106
19
WRST#
LP CCL K
LA D 0
LA D 1
LA D 2
LA D 3
LF R A ME #
( PD )LP C P D# /W UI 6 /GP E 6
SERIR Q
ECSM I#/G PD4 ( PU )
ECSC I#/G PD3( PU )
GA 2 0 / GP B 5
KBRST# /GPB6( PU )
KSI0/STB #
KSI1/AFD #
KSI2/IN IT #
KSI3/SL IN #
KS I4
KS I5
KS I6
KS I7
KSO0 /PD 0
KSO1 /PD 1
KSO2 /PD 2
KSO3 /PD 3
KSO4 /PD 4
KSO5 /PD 5
KSO6 /PD 6
KSO7 /PD 7
KSO8/ACK #
KSO 9/BU SY
KSO 10 /PE
KSO11/ERR #
KSO1 2/SLC T
KSO 1 3
KSO 1 4
KSO 1 5
VCC
VSTBY
VSTBY
VSTBY
VSTBY
VSTBY
VSTB Y
VBAT
AVCC
PS2 CLK0/G PF0( PU )
PS2 DAT0/G PF 1 ( PU )
PS2 CLK1/G PF2( PU )
( PD )TMR I0/W UI2 /GPC 4
( PD )TMR I1/W UI3 /GPC 6
LP CRS T # /W UI4 /GPD 2( P U )
( PD )W UI5 /GP E 5
PW RSW /G PE4 ( PU )
RI1 # /W UI0 /GPD 0( PU )
RI2 # /W UI1 /GPD 1( PU )
( PD )R ING#/PWR FAIL#/LPCR ST#/GPB 7
TXD /GPB1 ( PU )
RXD/G PB0( P U )
( PD )C TX/GPB 2
PS2 DAT1/G PF 3 ( PU )
PS2 CLK2/G PF4( PU )
PS2 DAT2/G PF 5 ( PU )
( PD )T AC H0 /GP D 6
( PD )T AC H1 /GP D 7
PW M0/GPA0( PU )
PW M1/GPA1( PU )
PW M2/GPA2( PU )
PW M3/GPA3( PU )
PW M4/GPA4( PU )
PW M5/GPA5( PU )
PW M6/GPA6( PU )
PW M7/GPA7( PU )
ADC 0/G PI0
ADC 1/G PI1
ADC 2/G PI2
ADC 3/G PI3
ADC 4/G PI4
ADC 5/G PI5
ADC 6/G PI6
ADC 7/G PI7
VSS
VSS
VSS
VSS
VSS
VSS
AVSS
CK32KE
CK32K
DAC 3/G PJ3
DAC 2/G PJ2
DAC 1/G PJ1
DAC 0/G PJ0
( PD )E GCS # /GP E 2
( PD )E GCL K/ GP E 3
( PD )E G AD /GP E 1
GIN T/G PD5 ( P U )
L80LLAT/GPE 7( PU )
VSS
DAC 5/G PJ5
DAC 4/G PJ4
PW UR EQ# /GPC 7( PU )
( PD )C RX/GP C 0
( PD )KSO16 /GPC 3
( PD )KSO17 /GPC 5
( PD )GP H0 /ID 0
( PD )GP H1 /ID 1
( PD )GP H2 /ID 2
( PD )GP H3 /ID 3
( PD )GP H4 /ID 4
( PD )GP H5 /ID 5
( PD )GP H6 /ID 6
( PD )GP G1 /I D 7
SMC LK0 /GPB 3
SMD AT0/GPB 4
SMC LK1 /GPC 1
SMD AT1/GPC 2
SMC LK2 /GPF 6( PU )
SMD AT2 /GPF 7( PU )
FL F R AME#/GPG 2
FLAD0/SCE #
FLAD1/SI
FL AD2 /SO
FLAD3/GPG 6
FL CLK/SCK
( PD )FL RST#/W U I7/GPG0/TM
( PD )L80H LAT/GPE 0
C427
.1U _1 0 V_X7 R_ 0 4
D31
BA V99
A
C
AC
LED_ACIN #34
KB-SO6
BRIGH TNESS
KB C_ PW RB TN#
RA
KBC_M UTE#30
KBC _G A2 0#
LPC_AD322
TP _C LK32,34
Z2511
KB C_ SPI_ CE #
KB-SO3
Z2507
WDT_EN
C 458 .1U _10V_X7R_04
R501 *10K_04
24
TOTAL_C UR
LID_SW #
LPC_AD022
KBC_SUSB# 3 1
80CLK
PW R _SW #
SC I# 22
80 P O R T _D E T#
C473 * 10P_50V_04
R315 *10_04
R311 *10m il_short
RB
LOW ACTIVE
PW R _SW #40
BT_ EN
C 439 * 33P_50V_04
KBC_SP I_ SO
R 306 *10m il_short
BAT1 _VO LT
U21
W25X80VSSIG
1
2
3
4
5
6
7
8
CE#
SO
WP#
VSS
SI
SCK
HO LD #
VDD
R313 *10m il_short
SM C_ BAT36
CH G_CU RS EN_ R
LID_SW #20,31
AC _I N#18 , 3 6
EC_VGA_ALERT#18
W EB_ AP#40
Z25 10
KBC_SPI_CE#_R
KB-SI4
R328
100K_04
BAT1_ VOLT36
CPU_ F AN SE N 2 0
3IN1
C447
.1U_ 1 0 V_X7 R_04
CHG_CURSEN_R
RA
SMD _ BAT
CPU_FAN_R
KB-SI0
C5 0 3
12 P_ 5 0V_ 0 4
KB-SO10
R298 47_04
C7 38
10U_10V_08
KBC_SPI_ SCL K_ R
D30
BA V99
A
C
AC
J_H8DBG1
W LAN _D ET #
KBC_SC I#
R295 *10m il_short
W LAN _DET # 3 3
WLAN_PWR
3G _E N 3 2
KB-SO13
WDT_EN
C 438 * 33P_50V_04
R 2 9 3 10 K _ 04
MO DE L_I D
Sheet 20 of 48
KBC ITE8512E
Schematic Diagrams
B - 22 ENE MR510, Card Reader
B.Schematic Diagrams
ENE MR510, Card Reader
VC C_ CA RD
Z 2611
SM _CD #
PC I_C/BE#321
M F UN C4
3. 3V S
CAR D_ PW R EN#
PC I_A D2 9
Z26 08
C LOS E TO C HI P
SD_C LK
SD _D0
PC I_A D2 4
R 551 100_04
PC I_ PAR 21
CARD_PW REN#
Z261 3
PC I_A D2 7
J _ CAR D-R EV1
MD R019-C0-0010(R ev erse)
P2
P21
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
P16
P17
P18
P19
P20
P1
P23
P22
DAT 2 _ SD
VSS_MS
CD /DAT 3 _ SD
CM D_ S D
VSS_SD
VDD _SD
CL K_ S D
VSS_SD
DAT 0 _ SD
DAT 1 _ SD
WP_SD
VSS_MS
VCC _MS
SCLK_ MS
DAT 3 _ MS
INS_ M S
DAT 2 _ MS
SDIO /DA T0 _ MS
DAT 1 _ MS
BS_MS
CD _S D
GN D
GN D
PC I_ C/BE #2 2 1
SD _D1
Z2616
M FUN C4
MS_INS#
SD_D 1
3.3VS
MS_D3
MS_D0
MS_BS
PC I_AD14
R 5 31 47 K _ 0 4
MS _ D 0
M FUN C5
SD _C MD
3.3VS 6,10,11,19,20,21,22,23,24,25,27,29,30,31,32,33,34, 35,37
C772
10P_ 50 V_ 0 4
SM _CD #
XD SMC E#
MS _ I N S #
Z26 01
Z26 02
PC M_ IDS EL
R550 *100_04
3.3VS
VC C_ C ARD
PC I_PERR #
PC I_AD8
VCC_CARD
PC I_AD11
C5 1 6
.1U_10V_X7R_04
D02
3.3VS
SD _ CM D
PC I_A D21
R523 * 0_04
MS_CLK
Z2618
M FUN C2
PCI_R ST#31, 32,33
M F UN C2
XD_BSY #
3.3V S
SD _D3
R 3 66 47 K _ 0 4
Card Reader Power
M F UN C1
XM DAT4B
Z2620
R 3 45 47 K _ 0 4
Z2625
PC I_AD7
LPC _SIRQ
C773
.1U_10V_X7R_04
MS_D2
PCI _R ST# 31,32,33
PC I_A D2 6
R 3 44 47 K _ 0 4
SD_D 3
R 5 58 47 K _ 0 4
Z2622
CL K_ 4 8 M_ CAR D25
SDC LK
PCI_AD 18
R 3 59 47 K _ 0 4
SD _ W P
SD_C MD
PC I_AD9
C5 1 7
.1U_10V_X7R_04
SD_W P
PC I_ F RAM E# 2 1
MS_BS PC I_C/BE#0 2 1
PC I_ IRD Y# 2 1
M FUN C1
Z2629
R 3 46 47 K _ 0 4
C747
.1U_10V_X7R _04
XD _BS Y#
MS _ D 2
PC M_ IDS EL
Z26 06
Z2624
R 3 43 47 K _ 0 4
SD_D 2
R 3 39 47 K _ 0 4
SD _ CD #
SD _C LK
PC I_AD15
SD _D 3
R 5 27 47 K _ 0 4
S U S B # 12 , 2 5 , 3 1, 3 3 , 3 5, 39 , 4 0
PCI _AD 1 7
Z2614
R 5 59 47 K _ 0 4
3. 3V S
PC I_SERR # 2 1
MS _ C LK
SD _C LK
PC I_AD0
R 5 17 47 K _ 0 4
C7 4 8
.1 U_ 1 0V _X7 R_ 0 4
VCC _CAR D
SD _D2
SD _W P
Z26 04
MS_D1
XDW P #
3.3VS
PM E# 22,2 7
MS _ D 1
PC I_AD6
PC I_AD3
MS _D 2
C7 8 8
.1U _ 10 V_ X7 R_0 4
PC I_A D20
R539 22_04
Z26 05
PCI_AD16
C7 4 6
*.1U _16V_04
MS _ I N S #
Z2619
R 5 56 47 K _ 0 4
PC I_ ST OP# 2 1
PC I_AD10
PC I_AD13
PC I_A D3 0
PC I_AD4
R 3 37 47 K _ 0 4
C781
.1U _1 0 V_ X7R _ 04
PC I_AD12
C544
.1U_10V_X7R_04
VC C_C ARD
M FUN C7
XD SMC E#
R 3 48 47 K _ 0 4
3.3V S
MS _D 0
C775
* 10U _10V_08
PC I_INT#B 2 1
MS C L K
XM DAT4 B
MS_CLK
SD CLK
PCI_AD 22
PCI_AD 20
SD _D 2
PC I_A D2 5
CARD_PW REN#
SD_D 0
MS _ D 3
R 3 40 47 K _ 0 4
R341 *0_04
C5 4 3
18P _50V_04
R 3 55 47 K _ 0 4
3. 3V S
R5 3 8
470_04
PC I_ INT # A 4 ,6,2 1
PC I_A D2 8
PCI _P E RR#
SD _C D#
C789
.1U _1 0 V_ X7R _ 04
VCC _C ARD
LPC_SIR Q 22,27
PC I_ T RDY # 2 1
MS _D 3
Z2623
VCC _C ARD
VCC_CARD
M FUN C6
R5 4 6
100K_04
M F UN C5
Z26 07
Z26 03 PC I_AD5
SD _D 0
Z2627
PC I_A D3 1
Z262 1
30 mil
PC I_ DEVS EL# 2 1
R 5 57 47 K _ 0 4
M F UN C6
Z2610
Q3 0
2N7002W
G
DS
PCI _R EQ# 021
PC I_AD[31 :0]
Z2626
P CI_AD[ 31:0]21
PC I_AD1
Q27
AO 3409
G
DS
SD_C D#
SD_C D#
C7 5 0
.1U _10V_X7R_04
Z2612
PC I_AD1 9
EN EIN T
30 mil
R 3 63 47 K _ 0 4
SD _D 1
MS _D 1
R 5 60 47 K _ 0 4
PCLK_ CAR D25
Z261 5
R387 22_04
PCI_GN T #021 Z2617
PC I_A D23
Z26 09
R 3 50 47 K _ 0 4
PC I_A D23
Near Cardreader CONN
MS_INS#
U2 4
MR 5 10
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
10 2
103
10 4
105
10 6
107
10 8
109
110
111
112
113
114
115
116
117
118
11 9
120
12 1
122
12 3
124
12 5
126
127
128
XS D P W R 3 3 O Z
NC
GN D_ S D
SDD AT2SM CLE
SDD AT3SM DAT4
SDCMDSMALE
SDC LK SMW EO Z
SDD AT0SM DAT7
SDD AT1SM DAT0
VCC _S D
NC
NC
NC
NC
NC
PCIR EQO Z
PCIG NTIZ
PCIAD 31
PCIAD 30
PCIAD 29
VSS
PCIAD 28
PCIAD 27
PCIAD 26
PCIAD 25
PCIAD 24
PCIC BE3Z
PCIID SELI
VCC
NC
NC
NC
PC IAD23
PCIAD 22
PC IAD21
PCIAD 20
PC IRST IZ
PCIC LKI
PC IAD 19
PCIA D18
SD CLKI
VCC
VSS
NC
NC
PC IAD17
PCIAD 16
PC ICBE2Z
PCIFR AM EZ
NC
NC
VC C
PCIIR DYZ
PC ITRD YZ
PCID EVSELZ
PC ISTO PZ
PCIP ERR Z
PC ISER RO Z
PCI PAR
P CIC BE1Z
VSS
NC
NC
NC
PCIAD 15
PCIAD 14
PCIAD 13
PCIAD 12
VC C
PCIAD 11
PCIAD 10
PCIAD9
PCIAD8
PC ICBE 0Z
NC
NC
NC
NC
NC
VSS
VC C
PCIAD7
PCIAD6
PCIAD5
PCIAD4
PCIAD3
PCIAD2
PCIAD1
SMC DIZ
MS I NS I Z
PCIAD0
VSS
RI OU T Z _ P M E OZ
MFUNC0
MS_S MPWR OZ
M SBSO SMD AT1
VSS
XM DAT 7BS MC EOZ
XMDAT4B
XM FUN C1B
VC C
XM FUN C2B
XM FU NC 3 B
XGR STIZ
XM FU NC 4B
XM FUN C5B
XM FU NC 6B
XSUSP END IZ
GND_SD
XM FUN C7B
XM DA T6B SM BSYIZ
XMD AT5 BSM W PO Z
VC C_SD
X MS DAT1BSM D AT6 B
XM SDA T0B SM DAT2 B
X MSD AT2 BSM DA T5B
XM SDA T3B SMD AT3 B
XM SC L KOSM R EOZ
VSS
VC C
XSDW PISM W PD IZ
XSD CD IZ
NC
NC
XPM PW R_VC C
XPM PW R _ O
XPM PW R_ EN IZ
NC
R 3 36 47 K _ 0 4
C535
* .1U _16V_04
XD W P#
MS _ B S
R521 *10mil_short
C7 7 6
.1U _ 10 V _ X7 R_ 0 4
MS C L K
PC I_AD2
Z2628
R 3 51 47 K _ 0 4
R 3 74 47 K _ 0 4
CL OSE T O CH IP
PC I_ C/BE #1 2 1
M F UN C7
R 3 58 47 K _ 0 4
Sheet 21 of 48
ENE MR510,
Card Reader
Schematic Diagrams
Audio Codec ALC662 B - 23
B.Schematic Diagrams
Audio Codec ALC662
R567 1K_04
5V 32,33,34,35,37,38,39,40
Z27 46
Z27 04
R553 22_04
Very close to Audio Codec
Z27 43
MIC 1 -L32
AZ_SDIN022
C 7 5 2 4. 7U _ 6. 3V _0 6
C 7 5 4 4. 7U _ 6. 3V _0 6
C5 3 2
10U _10V _08
L49 HC B1005KF-121T20
Z27 01
INT _ MIC _ R
J_INTMIC1
Layout Note:
R549 22_04
3.3VS 6,10,11,19,20,21,22,23,24,25,27,28,30,31,32,33,34,35, 37
JD_SEN SE_HP
AU DG
AZ_ BITC LK22 , 3 2
SPDI FO18,32
M I C 1-V R E F O -R
Z27 12
AZ_ SD IN0 _ R
C749 1U _10V_06
AUD G
Z27 19
AU DG
Z27 18
D 9 * SCS551V-30
AC
C537
. 1U _ 10 V_ X7 R_ 0 4
C52 1 . 1U _ 10 V_ X7 R_ 0 4
Z27 10
C536
.1U_ 1 0 V_ X7R _ 0 4
R_ H P_O U T_ A
C5 0 9
680P_50V_04
R237
2.2K_04
1
Layout Note:
Z27 09
Z2709
Codec pin 1 ~ pin 11 and pin 47 and pin 48
a re Di gi ta l si gn al s.
The others are Analog signals.
AZ_ R ST# _ R
C 7 5 8 1U _ 1 0V _0 6
R524 75_04
5V S3.3VS
Z27 08
C538
.1U _ 10 V_ X7 R_04
AUD G
Z2724
AZ_ BITC LK _R
C52 0 . 1U _ 10 V_ X7 R_ 0 4
Z27 44
IN T_M IC
Z27 21
C51 4 . 1U _ 10 V_ X7 R_ 0 4
Z2711
5VS 19,20,30,31,32,34,35
MIC2-VR EFO
2
AUD G
R516
2.2K_04
DIGITAL
ANALOG
U3 8
ALC66 2 -GR
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
26
27
28
29
30
31
32
33
34
35
36
37
39
40
41
42
43
44
45
46
47
48
38
25
DVDD1
GP IO 0
GP IO 1
DVSS1
SDATA- OU T
BIT-CLK
DVSS2
SDATA- IN
DVDD2
SYN C
RES E T#
PCBE EP
S e ns e A ( J D 1)
LI N E 2 - L
LI N E 2 - R
MIC 2 -L
MIC 2 -R
CD -L
CD -GN D
CD -R
MIC 1 -L
MIC 1 -R
LIN E1-L
LI N E 1 - R
AVSS1
VREF
MIC1-VR EFO-L
L INE1 -VR EF O -L
MIC2-VR EFO
LI N E 2 - V R E F O
MI C 1- V R E F O -R
DCVOL
S e ns e B ( J D 2)
F R ON T -OU T -L
FRO NT-O UT-R
LINE 1-V REFO -R
S U RR -OU T -L
JD REF
S U R R-O UT -R
A VSS2
CEN-OUT
LF E - O U T
SID ESU RR -OU T-L
SIDESURR-OUT-R
SPDI FI/EAPD
SPDI FO
AVDD2
AVD D1
M I C1 -V R E F O -L
MIC2-VR EFO
MIC1-VREFO-L
Z27 15
R 569 39.2 K_1% _ 04
AU DG
AU D G
Z2733
Z27 02
C5 2 8
1U _10V_06
SPD IFO
R547 10K_04
C 778 * 100P_50V _04
R522
100K_04
JD_SEN SE_MI C_R
C515
680P_50V_04
C7 5 6
*.1U_16V_04
AU DG
MIC 1 -R
AZ_ SY NC _ R
AU DG
C 7 6 2 1U _ 1 0V _0 6
AZ_ SD OU T22 , 3 2
Z27 20
J D _S ENSE _M IC
Z27 03
M I C1 -V R E F O -R
Z27 16
INT _ MIC
C744 10U _10V_08
Layout Note:
Z27 47
C316
680P _50V_04
FRONT-R 30
3.3VS_AUD
AZ_ RST#22,30,32
Z27 45
C 784 22P_50V _04
C 7 7 7 1U _ 1 0V _0 6
5V
R552 33_04
J D _S ENSE
C51 0 . 1U _ 10 V_ X7 R_ 0 4
R525 20K _1%_04
AU DG
R_H P_OU T_A30
AZ_SDOUT_R
C751 1U _10V_06
MIC 1 -R32
J D _S ENSE32
MIC1-L
BEEP34
R519
100K_04
R526 75_04
Z2710
JD _SEN SE_MIC _R
R545 33_04
Z27 23
C512
.1U _1 0 V_ X7 R_04
JD_SEN SE_HP
C7 4 5
.1U _ 1 0V _X 7 R_ 0 4
Z27 11
AU DG
Very close to Audio Codec
Z27 13
J _ IN TM IC 1
88266-02001_R
P C B F o ot pr i n t = 8 8 26 6 - 2 R
2
1
R544 1K_04
C5 0 6
10U _10V_08
R548 33_04
R 568 20K_1%_04
L_HP_OUT_A
U2 3
*G 92 4
1
23
4 5
SH DN #
GN DBYP
OU T VIN
C5 0 8
10U _10V_08
AUD G
Z2725
5VS _AU D
FRONT-L 30
EAP D_MO DE
R5 1 5
2 . 2K _0 4
L43 HC B1005KF- 121T20
AZ_ SY NC22,32
J D _S ENSE _M IC32
Z2708
Z27 22
L_HP _O UT_A30
Z27 17
Sheet 22 of 48
Audio Codec
ALC662
Schematic Diagrams
B - 24 Audio AMP
B.Schematic Diagrams
Audio AMP
Sheet 23 of 48
Audio AMP
R5 3 2
10 0 K _ 0 4
AU DG
C541 4.7u_6.3V_06
6-01-74108-V60
MUTE APM#
R378
10K_04
C794
1u_6.3V _04
5VS_AMP
Z2823
L4 F CM 1005KF -121T03
J _ SPK1
85204-02001
PC B Footprint = 85204-02R
2
1
D10 SCS355V
AC
R376 *10m il_shor t
1
5VS 19,20,29,31,32,34,35
R_HP_OUT_C
R379 *10K_04
C787 1u_6.3V_04
C513 * .1U_10V_X7R _04
Z2803
Z2816
L -> H
6-06-00355-061
AU D G
Z2809
AZ_RST#2 2 , 2 9, 32
C540
1u_6.3V _04
D03A
5VS_AM P
L_OU T-_C
3. 3 V S
R_HP_OUT_A29
Z280 6
SP KOU TR+
KBC_MUTE#
SP KOU TL +
R554 *10K_04
AUDG
Z2802
SP KOU TL -
SPKO U TL +
L46 * 10m il_short
H -> H
Q28
2N 7002W
G
DS
D03A
Z2809
SB_MUTE#22
Z2811
L50 * 10m il_short
C760
1u_6.3V_04
C780
. 1U _16V _04
Default( L = Mute )
C5 3 0
.1U_16V_04
C 799 * 68P _50V_04
AU DG
Z2814
L3 F CM 1005KF -121T03
C522
1u_6.3V_04
SP KOU T R- 3 2
Z280 5
L _ HP _O UT _ C
Z2817
5VS_AM P
5VS
SPK _H P#32
Z2818
R 3 71 * 1 0K _0 4
Z2801
C783
.1U _ 10 V_ X7 R_0 4
C796
* .1U_10V_X7R _04
R5 6 2
100K _04
L -> H
Z2819
R5 7 3
*5 1 0 K _ 04
J_SPK1
L76 H CB1608KF-121T25
L_HP _O UT_A29
AZ_RST#
Z2810
C790 * .1U_10V_X7R _04
C12
180P_50V _04
AUD G
D03A
L45 * 10m il_short
C546
* . 1U _ 1 0V _X 7 R _ 04
C786 1u_6.3V_04
R370 *10m il_shor t
D20 SCS355V
AC
C534
.1 U _1 6 V_ 0 4
C785
* .1U_10V_X7R _04
FRONT-L29
Z2813
SP KOU TR-
Z2804
R377 39K_04
L -> H
HE ADP HO NE- R
C539 4.7u_6.3V_06
SB_MUTE#
AUDIO EARPHONE
IS S UE
KBC_MUTE#27
SP KOU T R+ 3 2
3.3VS 6,10,11,19,20,21,22,23,24, 25,27,28,29,31,32,33,34,35, 37
Z28 20
C761 * .1U_10V_X7R _04
R_HP_OUT_C
C527 * .1U_10V_X7R _04
2
Z280 8
Z28 21
L72
H CB1005KF-121T20
Z2822
L_HP_O UT_C
AU DI OG PI O 0#
HEA DPH ON E-L 3 2
A PA2 056A
U39
APA 20 5 6 A
6
4
19
11
26
13
17
18
15
9
27
25
8
21
22
3
12
14
16
24
5
28
1
20
10
2
7
23
29
L_IN _H P
R_IN_HP
H PVD D
C PVD D
SD#
CPG ND
R_HP_OUT
L_HP_OUT
C PVSS
L_O U T-
AM P_EN #
BYP ASS
L_OU T+
R_OUT-
R_OUT+
R_IN_AMP
CP+
CP-
H PVSS
HP_EN
L_IN _A MP
BEEP
VDD
PV DD
PVD D
GN D
PG N D
PGN D
GN D
HEA DPH ON E-R 3 2
R 5 55 * 1 0K _0 4
L44
HC B1005K F-121T20
F O R EM I
D0 3A
C792
* 10U_10V_08
R3 9 3
100K_04
AUD G
FRONT-R29
C545 *.1U _10V _X7R _04
AU DG
OPMUTE APM#
R_OUT-_C
C11
180P_50V_04
L51 * HC B1005K F-121T20
3.3V 2,12,19,20, 22,23,24,26,31,32,33,38,39,40
Q29
2N 7002W
G
DS
R375 39K_04
AUDG
HE ADP HO NE- L
40mils
C5 4 2
.1U_16V_04
C795
.1U _1 0 V_ X7 R_ 0 4
C 800 * 68P _50V_04
C505 * .1U_10V_X7R _04
C759
1u_6.3V_04
R 372 7.5K_04
C near CP+ and CP-
C791
10U _10V_08
L47 H CB 1005KF-121T20
R_OUT+_C
R533
10 0 K _ 0 4
AUDG
3.3VS
5V 29,32,33,34,35,37,38,39, 40
R561
10K_04
5VS
Z2812
R 373 7.5K_04
C529
.1U_16V_04
L74 * 10m il_short
6-02-02056-AL0
Z2810
L75 * 10m il_short
C 793 .1U _16V_04
D03A
D0 3A
U27
74AH C1G 08G W
1
2
5
4
3
L_OU T+_C
Z280 7
L48 * 10m il_short
SPKO U TL -
5V S
Schematic Diagrams
SATA HDD, PWR, LID B - 25
B.Schematic Diagrams
SATA HDD, PWR, LID
Sheet 24 of 48
SATA HDD, PWR,
LID
3.3V 2,12,19,20,22,23,24,26,32,33,38,39,40
U2 5 A
74LVC08PW
1
2
3
147
POWER GOOD & RESET
SB_PC IRST#12,21
C7 2 6
*.01U_16 V_ X7R _0 4
S3AUXSW#
LID_SW# 20,27
Z2912
R2 94
*10K_04
3. 3 V
M_ B TN #40
R1 10K_04
0
R2 8 2
*10K_04
R3 3 8 33 _ 0 4
U2 5 C
74LVC08PW
9
10
8
147
J_ S W 1
85201-04051_R
1
2
3
4
R273 *10m il_short
1. 5 V _ P W R G D39
1
Z2901
M_ B T N #
R3 3 5 33 _ 0 4
J_SW1
1
3.3V
U2 5 D
74LVC08PW
12
13
11
147
KBC_SUSB # 27
C 740 .01U_16V_X7R _04
U1 9
* 7 4 A H C 1G 08 G W
1
2
5
4
3
SATA HDD
C430
* .1U_16V_04
5VS
Q1 3
*2N7002W
G
DS
S4/S5
POWER SWITCH CONNECTER
1. 8 V _ P W R G D40
D EL AY_PW RG D6,37
1
C 742 .01U_16V_X7R _04
SIS????
?????
Con ne cto r
PSON#22
SA TAR XP0 23
PCI_ RS T# 28 ,3 2 ,33
NB_ RS T# 6,1 1
Z2908
PSU1, PSU2
C4 1 5
*.1U_16V_04
0
3. 3V
PIN GN D1 ~ 2 =G ND
5VS 19,20,29,30, 32,34,35
C699
1 U _1 0 V _0 6
SB_ PW R OK 2 0,22
LID SWITCH IC
C4 2 0
.1U_10V_ X7R _04
LP C_ RS T# 2 7 ,3 3
S0/S1
SATARXN0_ R
3
D0 3A
1
3.3V S 6,10,11,19,20,21,22,23,24,25,27,28,29,30,32,33,34,35,37
Z2903
SA TATXP0 2 3
+
C7 09
10 0U_6.3V_ B2
C 507 * .1U _10V_X7R_04
C7 2 7
*10U_10V_08
Q1 5
*2N7002W
G
DS
R342
100K_04
POWER MANAGMENT
2
3. 3 V
SATATXN 0_ R
R3 67
10 K _ 0 4
R2 7 6
*4 .7 K _0 4
R2 7 2
*4 .7 K _0 4
1
D03 A
Q1 4
*2N7002W
G
DS
C4 2 1
.1U_10V_ X7R _04
4
Z2904
R3 3 0 33 _ 0 4
3.3V
S3
Z291 0
R2 7 7
100K_04
R275 *10m il_short
3.3V
NB_ S 3 AUXS W #5
SA TATXN0 23
R279 *10m il_short
Z2905
Z2902
Z290 7
C7 1 1
10U _10V_08
1 .0 5VS_PW R GD39
SUSB# 12, 25,28,33,35,39,40
LID_SW#
VCORE Power Good delay
3ms and Notice SB
D03 A
3.3V
3. 3 V
C4 0 9
*.1U _16V_04
R2 8 0
*100K_04
J_ HD D1
91907-0220C
S1
S2
S3
S4
S5
S6
S7
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
C710
.1U _10V_X7R_04
D03 A
SATATXP0_ R
Q26
*D TC 11 4 E U A
CE
B
3.3VS
SA TARXN0 23
If ne ed PSO N#
th an use d 1 00 K
an d 0 .1U
KBC_SUSC # 27
Z2911
Z2913
PSON#
For NB control and Level shift
All Power Good and
Notice SB
SB_SUSC# 22
SB_SUSB# 22
SIGNAL
Close to SIS968
D0 3A
C 735 .01U_16V_X7R _04
1
R4 8 9
*0_04
Z2906
C1
.1U _10V_X7R_04
C 737 .01U_16V_X7R _04
3.3V 3. 3V
SATARXP0_R
U1
MH-2 4 8
1 2
3
VCC O UT
GN D
3. 3 V S
Z290 9
U2 5 B
74LVC08PW
4
5
6
147
Schematic Diagrams
B - 26 Multi I/O, ODD, 3G, Click BD for M74
B.Schematic Diagrams
Multi I/O, ODD, 3G, Click BD for M74
Sheet 25 of 48
Multi I/O, ODD, 3G,
Click BD for M74
TP B U T TO N _ L
MU I M_ P W R
MU IM_CLK
IDE_PD A2 21
1
12
U SB_PN7
J_ O D D 1
C 15061-15001-L
12
34
56
78
910
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41 42
43 44
45 46
47 48
49 50
5V 29,33,34,35,37,38,39,40
IDE_PD IOR # 2 1
J D_ SEN SE_ MIC
MU I M_ V P P
VD D3 2,20,23,27,34,35,36,38,40
SATA_LED#23
ID E_ PDD 3
R250 33_04
IDE_ PDA021
MIC1-L
3.3V
Z30 12
J_TP1
87151-1207G
1
2
3
4
5
6
7
8
9
10
11
12
D03 A
SW 6
TJG -533-S-T/R
3
1
4
2
5
6
C2 8 1
.1 U_ 10 V _ X7R _ 04
C232
10U_10V_08
IDE_ P DD 8
Z30 02
C323
.1U_10V _X7R_04
IDE_ P DD 9
SPDIFO18 , 2 9
H EADPH ON E-L
2
J_M ULTI1
87216-1606
12
34
56
78
910
11
13
15
12
14
16
ID E_ PDD 2
TP_DATA
ID E_PDD7
3.3VS 6,10,11,19,20,21,22,23,24,25,27,28,29,30,31,33,34,35,37
PC I_R ST#28 , 3 1 , 33
USB _P P6 2 3
KEY
J_ 3 G 2
88910-5204
3
5
7
9
11
13
1
15
23
25
21
27
31
33
29
17
19
20
37
39
41
43
45
47
49
51
44
42
18
16
14
2
12
10
8
6
4
22
24
26
28
30
32
34
36
38
40
46
48
50
52
35
BT_DATA
B T_CH CLK
C L KREQ #
GND0
REFCLK-
REFCLK+
WAKE#
GND1
PETn0
PETp0
GND2
GND3
PERn0
PERp0
GND4
NC3
NC4
W _ D ISABL E#
NC6
NC7
NC8
NC9
NC10
NC11
NC12
NC13
LED _WLAN #
NC(LED_WWAN#)
GND6
UIM_ VP P
UIM_RESET
3.3V_0
UIM_ C LK
UIM_ D ATA
UIM_PWR
1.5V_0
GND5
PER SET#
3.3VAU X
GND7
1.5V_1
NC (SMB_ C LK)
NC (SMB_D ATA)
GND8
NC (USB_D-)
NC (USB _D +)
GND9
NC(LED_WPAN#)
1.5V_2
GN D1 0
3.3V_1
GND11
H EADPH ON E-L30
H EADPH ON E-R
R234 *10mil_short
C728
* 22P_5 0V_04
TP_DATA 27,34
MULTI I/O CONN
AZ _BITC LK22,29
3G _ USB_PP4
IDE_ P DIO RD Y21
J_3G2
CD_RST#
Z3011
J_AU DIO 1
87213-1200G_R
1
2
3
4
5
6
7
8
9
10
11
12
C3 2 4
.1U_10V_X7R_04
R43 0_04
ID E_ IRQ21
HD_LED#
ID E_ PDD 7
3G_DET#27
IDE_ P DD 1 1
ID E_ PDD 6
MIC1-R
Z30 08
C650
.1U_10V_X7R_04
LIFT
KEY
D0 3A
IDE_PD CS3# 21
IDE_ P DD 1 0
(T OP VI EW )
LOC K
OP EN
J_SIM1
1770661-1
C7
C6
C5C1
C2
C3 UI M_ DA TA
UIM_VPP
UIM_GNDUIM _ P W R
UIM _ RS T
UIM _ CL K
3. 3V
TP_CLK 27,34
IDE_ P DD 1 3
MUIM_D ATA
+
C328
100U _6.3V_B2
AZ_ SD IN1 J D _SEN SE_ MIC29
USB _P N 6 23
SPKOU TR +
Z 3010
IDE_PD DR EQ 2 1
R466
* 10K_04
CLICK BOARD
R470
*10K_04
5V
5V S
Z30 01
C651
.1U_10V_X7R_04
U SB_PP723
TP_SCROLL_DOWN
3.3VS
3G _ USB_PN4
SPDIFO
SPK_ HP#30
C725
*2 2P _5 0 V _ 04
AZ_ RST#22,29,30
ID E_ PDD 5
Layou t?
1. SIM????????(10mil)
2. ???? ???? GND
3. SIM hold ?????GND??
4.SIM CONN ? ? MINI CARD CO NN
R469 * 10K_04
3
I DE_ PDIO W #21
Z30 03
CD_D ASP#
SPKOU TR -
MU I M_ R S T
FOR EMI
C2 3 1
.1U_10V _X7R_04
MUIM_C LK
USB_PN6
SPK_ H P#
C804
47P _50V_04
6- 20 -9 4A2 0- 112
R495 *10mil_short
5VS
CCD _ EN 2 7
C7 2 3
*22P_50V_04
C 652 *.01U_16V_X7R _04
AZ_ SDIN 122
C813
33P_50V_04
CD _DASP#
3. 3V S
IDE_ P DD 1 2
TPBU TTO N_R
D03
5V
IDE_ P DD 1 5
MUIM_R ST
TP_CLK
IDE_ P D D[1 5 :0]21 ID E_P DD[15:0]
TPBU TTO N_ L
U SB_PP7
USB_PP6
Z30 07
D5 SCS7 5 1 V-40
AC
Z3004
CCD _ EN
D0 3A
Z 3009
H EADPH ON E-R30
IDE_PD DAC K# 21
U SB_PN723
Z3013
For M740S
TP B U T TO N _ R
3.3VS
MI C 1- R29 C7 19
* 2 2P _ 5 0 V _0 4
D2 7 S CS7 5 1 V-40
AC
SW 7
TJG -533-S-T/R
3
1
4
2
5
6
1
MI C 1- L29
AZ_ SY NC
AZ_ SYN C22 , 2 9
CCD _ DET #
MU I M_ D A T A
C3 2 5
10U _10V_08
20 mil
3.3V 2,12,19,20,22,23,24,26,31,33,38,39,40
3 G _U SB_ PP4
3 G _U SB_ PN4
R 249 5.6K_04
J_TP2
Z3005
C D_ CA BSEL
SPKO UTR+ 3 0
ID E_PDDIA G#
1
D03
IDE_ PDA121
3G_EN 27
TP _SC RO LL_UP
PIN GND1~GND2=GND
I DE_PDC S1#21
C3 2 2
1U _10V_06
R502 * 10m il_short
+
C6 2 6
220U_4V_V
CC D_ DET # 2 7
AZ_ RS T#
AZ_ SD OUT
2
CSW1~2
4
J D _SEN SE29
IDE_ P DD 1 4
SPKOU TR- 3 0
ID E_ PDD 4
L77
FCM1005KF -102T02
FOR E MI
ODD
HD_ L ED# 3 4
AZ _ SDO UT22 , 2 9
ID E_ PDD 1
5VS 19,20,29,30,31,34,35
R570 F CM1005KF-121T03
MUIM_P WR
RIGHT
KEY
MU I M_ V P P
5V
J D_SEN SE
C814
1000P_50V_04
+
C6 1 4
220U_4V_V
J_3G1
85205-02001_L
2
1
Z3006
ID E_ PDD 0
C1 99
.1U _1 0 V_ X7 R _0 4
3.3VS
MUIM_V PP
R496 *4.7K_04
3G
Schematic Diagrams
New Card, Mini PCIE, USB B - 27
B.Schematic Diagrams
New Card, Mini PCIE, USB
Sheet 26 of 48
New Card,
Mini PCIE, USB
Z3109
C6 40
10U_10V _08
60 mil
USB PORT
20 mil
P C I E _C L K _N E W #25
PC IE_CLK_N EW25
U SB_ PP3_ R
R 500 *100K_04
3.3V
PC IE_TXN0 _ NEW _ CAR D_ R
USB_PN323
C3 50
10U_10V_08
PC I_R ST# 2 8 ,31 ,3 2
UIM_CLK
1.5V S 3,6,35
USB VCC 3 5
PC IE_TXN0_ NEW _ CAR D22
Z3106
USB_PP 5_ R
C6 3 7
.1 U_ 1 0V _ X7R _0 4
+
C3 39
100U_6.3V_B2
C707 .1U _1 0 V_X7 R_04
U SB_VC C35_1
PCIE_RXP0_NEW_CARD22
3.3VS_WLAN
5V 29,32,34,35,37,38,39,40
C6 93 .1 U _1 0 V _X7 R_ 0 4
NEW_CARD_CLKREQ#25
LPC_RST#
P CIE_RXN0_N EW_CARD22
3. 3 V S _ W L A N
C691 .1U _1 0 V_X7 R_04
Q2 5
*2 N7 0 02 W
G
DS
20 mil
LPC_RST#27,31
S_C LK9,10,22,25
U SB_PN 1 23
Z3110
5V
PC IE_W AKE#4,23
R2 4 4
560K_04
3.3V S 6,10,11,19,20,21,22,23,24,25,27,28,29,30,31,32,34,35,37
C343
10U_10V_08
L 2 4 H C B 1 6 08 K F - 1 21 T 2 5
NC _3 .3 VS
3.3V
3.3VS_WLAN
R 484 *10K_04
Z3113
3.3V
USB_PN1
R463
*100K_04
C1 1 7
.1U _ 10 V _ X7 R_ 0 4
40 mil
C335
.1U_ 1 0V_ X7 R_ 04
D03 A
LPC_RST#
U14
R T9701-C PL
1
2
3
4
5
VOU T
GND
VIN
VIN
VOU T
USB_PN 523
Z3102
EN E P22 31 pi n3, 4,1 4, 15, 22
has internally pulled high
( 17 0K ohm S )
U SB_PN 0
USB_PP1
KEY
J_ M I N I 1
88908-5204
3
5
7
9
11
13
1
15
23
25
21
27
31
33
29
17
19
20
37
39
41
43
45
47
49
51
44
42
18
16
14
2
12
10
8
6
4
22
24
26
28
30
32
34
36
38
40
46
48
50
52
35
BT_ DATA
BT_ CH CLK
CLKREQ#
GND0
REFCLK-
REFCLK+
WAKE #
GND1
PETn 0
PETp 0
GND2
GND3
PER n0
PER p0
GND4
NC3
NC4
W _ DISABL E#
NC6
NC7
NC8
NC9
NC10
NC11
NC12
NC13
LE D _ W LA N #
NC(LED _WWAN #)
GND 6
UIM _VPP
UIM _R ESET
3.3V_0
UIM _C LK
UIM _D A TA
UIM_ PW R
1.5V_0
GND 5
PERSET#
3.3VAU X
GND 7
1.5V_1
N C ( S M B _C LK )
N C(SM B_D ATA)
GND 8
NC (US B_ D-)
NC(USB_D+)
GND 9
NC(LED _W PAN #)
1.5V_2
GN D1 0
3.3V_1
GND11
1. 5 V S
NC _R ST#
R4 6 5
*1 00 K _ 04
NEW CARD
WLAN_EN WLAN_EN 27,34
Z3104
USB _ O C# 2623
C700 .1U _1 0 V_X7 R_04
3.3V 2,12,19,20,22,23,24,26,31,32,38,39,40
S_D AT9,10,22,25
U SB_PP 0
C3 4 8
.1U _ 10 V _ X7 R_ 0 4
40 mil
N C_CPPE#
UIM_DATA
J_ N E W 1
13 0 8 01 - 1
17
1
10
26
20
23
4
19
18
22
21
25
24
14
15
12
9
13
11
8
7
16
5
6
3
2
CPPE#
GN D
+1.5V
GN D
GN D
GN D
CPUSB#
REFCLK+
REFCLK-
PERp0
PERn0
PETp0
PETn0
+3.3V
+3.3V
+3.3VAUX
+1.5V
PERST#
WAKE#
SMB_DATA
SMB_CLK
C L KREQ#
RESER VED
RESER VED
USB_D+
USB_D-
C2 9 3
.1 U_ 10 V _ X7 R_ 0 4
R123 *0_04
3. 3V S
PCIE_ TXN 1_ W L AN22
C 7 17 * . 1 U _ 10 V _ X 7R _0 4
C4 3 2 .1U _ 10 V _ X7 R_ 0 4
6 -01 -74 10 8-Q 61
PC IE_TXP0 _N EW _CARD22
SU SB#12,25,28,31,35,39,40
USBVCC35
WLAN_DET#27
PC IE_ RXN1 _W L AN22
R254 * 10m il_short
L32
*WCM2012F2S-161T03
1
4
2
3
3.3VS_WLAN
1.5VS
C7 0 3
.1U_ 1 0V_ X7R _04
NC _C PPE#
Z3105
GN D1 ~ 4 = G ND
R124 *0_04
PCIE_ PRSN T022
P C I E _C LK _ M I N I25
C708 .1U _1 0 V_X7 R_04
USB VCC 3 5
U3 5
74AH C1G08GW
1
2
5
4
3
C7 21 .1 U _1 0 V _X7 R_ 0 4
PC IE_W AKE#
C7 14
10U_10V_08
J_U SB1
USB-04RS1
1
GN D1
2
3
4
GN D2
V+
GN D1
DAT A_ L
DAT A_ H
GN D
GN D2
C7 20 .1 U _1 0 V _X7 R_ 0 4
U SB_VC C35_2
PC IE_R XP1 _ WL AN22
PC IE_TXP 1_ W L AN_R
P C I E _C LK _ M I N I #25
D0 3A
Z3101
NC _1 .5 VS
WLAN _PW R 27
U SB_PP1 23
20 mil
R253 * 10m il_short
R4 64
*3 30 K _ 0 4
UIM_VPP
C702 .1U _1 0 V_X7 R_04
Q2 4
*AO3409
G
D S
MINI_CARD_CLKREQ#25
R2 4 2 *1 0m i l_ s h ort
R4 6 2 0 _0 8
S_DAT 9,10,22,25
Z3112
C6 42
* . 1U _1 0 V _ X7 R _ 0 4
USB _ O C# 023
UIM_PWR
U3 4
P2 23 1 THL FC1
2
3
4
6
5 8
7
9
1
11
14
15
16
17
18
19
20
21
22
23
10
12
13
24 25
SYSR ST#
SH DN #
STB Y#
3. 3 V I N
3.3VIN 3.3VOU T
3.3VOU T
PER ST#
NC
GND
CPU SB #
CP PE #
1.5VOU T
1.5VOU T
1. 5 V I N
1. 5 V I N
AUXOU T
AUXIN
RCLKEN
OC#
NC
NC
NC
NC G ND
???????
3.3VS_W LAN
3.3VS
J_U SB2
USB-04RS1
1
GN D1
2
3
4
GN D2
V+
GN D1
DAT A_ L
DAT A_ H
GN D
GN D2
R2 4 5
10 K _ 0 4
PC IE_T XP0 _N EW _C ARD _R
PC IE_T XN1_W LAN _R
C7 13 .1 U _1 0 V _X7 R_ 0 4
USB_ PP023
C417
.1U _1 0 V_ X7 R_ 0 4
3.3V S_ W L AN
NC _3 .3 V
USB_PP323
L28
*W C M2 0 12 F 2 S-1 61 T 03
1
4
2
3
+
C2 92
100U_6.3V_B2
40 mil
PC IE_W AKE#
U SB_ PN3 _R
1.5VS
D3 2 SC S 7 51 V -4 0
A C
Z3103
C412 .1U _10V_X7R_04
3.3V
MINI CARD
UIM_RST
C3 1 8
.1U _ 10 V _ X7 R_ 0 4
PC IE_T XP1_W L AN22
20 mil
1.5VS
USB_PN 5_ R
R2 4 3 *1 0m i l_ s h ort
60 mil
N C_PERST#
R 498 *100K_04
100 MIL
N C_CPU SB#
USB_ PN023
20 mil
C4 3 1 .1U _ 10 V _ X7 R_ 0 4
L 3 0 H C B 1 6 08 K F - 1 21 T 2 5
C7 16 .1 U _1 0 V _X7 R_ 0 4
S_CLK 9,10,22,25
USB_PP 523
Schematic Diagrams
B - 28 LED, PC Beep, TP, FP
B.Schematic Diagrams
LED, PC Beep, TP, FP
LED _BAT_ CH G#27
Z3209
D1 8
KP-2012SGC
AC
HD_LED# 32
R390
220_04
5V
USB_PP2 23
VDD 3
C423
* 2200P_50V_04
TP_D ATA 27,32
Z321 2
Q32
DT C1 14 E UA
CE
B
5V S
Z3220
3.3VS
6
VD D3
C405
*.1U_16V_04
HDD/CD-ROM
LE D
3.3V S
3.3V S 6,10,11,19,20,21,22,23,24,25,27,28,29,30,31,32,33,35,37
Z3211
Z3218
C314
1U_10V_06
LED_ACIN #27
HD _ LED #
C811
1U_10V_06
6-0 1-7 41 08- Q61
R3 8 8
220_04
NUM LOCK
LE D
KBC_BEEP27
Z320 6
Z320 2
Z3221
D16
KP-2012SG C
AC
1
SCROLL
LOCK
LED
TP_C LK 27,32
LED_SCR OLL# 27
C3 0 2
47P_50V_04
WLAN_EN 27,33
CAPS LOCK
LED
5VS_T P
5V 29,32,33,35,37,38,39,40
SG
Y
D1 3
KPB-30 2 5 YSGC
1
3
2
4
3.3VS
L ED_ P W R# 2 7
SG
Y
D1 2
KPB-302 5YSG C
1
3
2
4
VDD3
Z321 0
J_FP1
LE D _S C R O LL #
C3 3 6
.1 U_ 10 V _ X7 R _0 4
WLAN/BT LED
SPKR OUT22
R236 *20m il_short
C4 3 3
1U _1 0 V _ 06
R389
220_04
VDD 3 2,20,23,27,35,36,38,40
R382
220_04
SG
Y
D11
KP B-30 2 5Y SGC
1
3
2
4
KBC _BEEP_ R
R292 * 10m il_s hort
LED_NU M#
U1 7
* 7 4L V C 1 G 14 G W
1
2
53
4
PC BEEP
R383
220_04
Z3216
AC IN/POWER ON LED
LED_BAT_FULL# 27
LED
3.3V S
R3 8 0
220_04
5VS
R 288 *10K_04
CLICK CONN For M76
BT_EN20,27
J_TP2
* 85201-06051
1
2
3
4
5
6
BAT CHARGE/FULL LED
U1 8
* 7 4 A H C 1G 08 G W
1
2
5
4
3
VDD3
5V S
R3 8 4
470_04
4
3.3VS_F P
R 281 *1M_04
R385
470_04
BEEP 29
Z3217
R230
10K_04
1
5VS 19,20,29,30, 31,32,35
Z3201
R2 2 6
10K_04
3.3VS
FP CONN
C4 1 9
1U _1 0 V _ 06
R235 * 0_06
D 03A
J_F P1
85201-04051_L
1
2
3
4
USB_PN2 23
D15
KP-2012SG C
AC
C406
*.1U _16V_04
D1 7
KP-2012SGC
AC
C308
47P_50V_04
L ED_ CA P #
3. 3 V S
J_TP1
LED_N UM# 27
L ED_ CA P# 2 7
Q3 1
DT C1 14 EU A
CE
B
L2 9
HC B1005KF-121T20
Z3205
R3 8 1
220_04
3.3VS
Z3222
R3 91
220_04
Sheet 27 of 48
LED, PC Beep, TP,
FP
Schematic Diagrams
System/Ext-VGA Power B - 29
B.Schematic Diagrams
System/Ext-VGA Power
NVVDD
PC 10 9
.0 3 3U _1 6 V _ 04
NV_VCCSUSB
PC41
*4 . 7 U _ 25 V _ 0 8
5VS 19,20,29,30,31,32,34
Z3305
1.5A
1.8VS
3.3VS
VDD 3 2,20,23,27,34,36,38,40
PC 44
*1 U_ 10 V _ 0 6
PQ 37
2N7002W
G
DS
5V S
PQ62
2N 70 0 2W
G
DS
PR11 4
100K_04
3A
PC 11 0
10U_10V_08
3.3VS 1.8V
1.8V 5,7,9,10,22,23,24,39,40
+
PC103 *330U _2.5V_D
12
+
PC102 *330U _2.5V_D
12
Vout = 0.75V ( 1 + Ra / Rb )
PU3
*S C 4 1 2A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
LX
BST
VCC
DL
GN D
RTN
N.C
N.C
FB
VO UT
PG D
EN
IL IM
N.C
N.C
DH
PAD
PR 78
100K_04
PD 10
*FM5822
A C
PC 63
.1 U_ 1 6V _0 4
PQ2 6
AO4 468
4
6 2
5
7 3
1
8
SU SB
4A
Z3304
PC 50
* 30P_50V_04
SYS15V 19 ,3 8
P R 67 * 1 0 m i l _s h or t
PR54
100K_04
PL8 * 1.0U_7*7*3.5
1 2
PQ 22
2N7002W
G
DS
PR25 *15mil_short
PC 62
.033U _16V_04
10A
5V 29,32,33,34,37,38,39,40
PR45
*4.87K_1%_06
1.2V
PJ1 2
1m m
12
PQ 15
2N7002W
G
DS
VDD5
1.5VS 3,6,33
PC 57
.01U_50V_X7R _04
PC 73
.01U_50V_X7R _04
SGN D2
1.2VS
SY S15V
Z330 7
PC52
*1 U_ 1 0V _ 0 6
PR 66
1M_04
4A
SY S15 V
PC 56
.1 U_ 1 6V _0 4
PC59
10U _10V_08
5V
V1.1
PC51
*.0 1U _ 50 V _ X7 R_ 0 4
Z3313
Rb
D03
VD D5
SUSB#12,25,28,31,33,39,40
SY S15 V
PR 77
100K_04
SU SB
3A
SG ND 2
Z3314
PR 56
1M_04
PQ35
*A O4 4 74
4
62
73
8
5
1
1.5V 39
PC43
*.1U_25V_X7R_06
PC191
.1U _1 6 V_ 04
PR 11 5
1M_04
PQ2 3
AO4 468
4
6 2
5
7 3
1
8
PR64 *0_04
VIN 20,36,37,38,39,40
Z3302
PR 18 1
100K_04
PQ 25
2N7002W
G
DS
4A
PR80
100K_04
VD D3
PR 79
1M_04
NV_PW R_CL#
SU SB
PC 45
*4.7U_25V_08
SG ND 2
Z3311
PR28 * 4.3K_1%_06
PR 42
*10m il_short
1.2V 7,39
PC64
10U _10V_08
1.5A
Ra
SUSB
PQ5 8
AO4 468
4
6 2
5
7 3
1
8
PR 65
* 1 0 K _1 % _ 06
1.5VS
VIN
SU SB
PR44
* 1 0 K _1 % _ 06
M760US ? ? ?
PR43
*100K_1%_04
SGN D2
Z3309
PC 75
10U_10V_08
NV_ P GO OD
PR190
1M _0 4
Z3301
PQ 11
* 2N 7002W
G
DS
1 . 8V S 4 , 5 , 6, 7, 1 1 , 13 , 1 4, 1 5 , 1 7, 1 9 , 21 , 2 2, 2 3 , 2 4, 2 5
PQ 24
2N 7002W
G
DS
NV_ PGO OD
PR68
100K_04
PC 108
.1 U _1 6 V_0 4
Z330 6
3.3V 2,12,19,20,22,23,24, 26,31,32,33,38,39,40
NVVDD 12,13,18
PD3
*F M 05 4 0-N
AC
Z3310
Z3303
SU SB
PC 19 4
10U_10V_08
PQ3 8
AO4 468
4
6 2
5
7 3
1
8
Ra = 3.6K --> 1.020V
PJ 1
OP E N -8m m
1 2
NV_ V C C
1.2VS,1.5VS,1.8VS,3.3VS,5VS
SY S15 V
PC 10 4 * .1U _1 6 V_04
PC 198
2200P_50V_04
3A
Z3312
4A
PR26
*1 5 mil_ short
SY S15 V
3A
1.5V
3.3VS 6,10,11,19,20,21,22,23,24,25,27,28,29,30,31,32,33,34,37
1.2VS 4,7
PC 74
.1 U _1 6 V_0 4
VDD 5 3 8
PC48
*.1U_25V_X7R _06
PQ1 6
AO4 468
4
6 2
5
7 3
1
8
PQ36
*A O4 4 56
4
62
73
8
5
1
Sheet 28 of 48
System/Ext-VGA
Power
Schematic Diagrams
B - 30 AC-IN, Charger
B.Schematic Diagrams
AC-IN, Charger
V_BAT
BAT
PC 9 7
3 0 P_ 50 V_ 0 4
PC37
.1U_50V_06
SYS5 V
PM BAT1
BAT CO N
1
2
3
4
5
6
7
8
9
PC 304.7U_25V_08
PR24
*10mil_short
PR88
10 K _ 0 8
PQ 3
2N 70 0 2 W
G
DS
Total Power 60W
VA
PR23 100K_04
PR 84
100K_04
Ch arg e Cu rre nt 2. 0A
PR21
200K_1%_04
BAT_ DET27
PR38
10 0 K _ 0. 5 % _ 04
PC96
30 P _ 50 V _ 0 4
PQ1
2N3904
B
E C
PC35
4. 7U _2 5 V _ 08
PC42
.022U_16V_04
Z3412
P L3 HC B1005KF-121T20
PC46
6800P_50V_04
PQ3 4B
S P 8K 10 S F D 5T B
4
3
5
6
Ch arg e Vo lta ge 12 .6 V
Z3413
VIN 20,35,37,38,39,40
PR 31 *10mil_short
BAT
Z3410
Z34 39
P L4 HC B1005KF-121T20
PC23
.1U _5 0 V_ 06
PR 85
20K_1% _04
PC344.7U_25V_08
PF1
7A
PC18
.1 U_ 50 V _ 0 6
PC49 .22U_10V_04
SYS5 V
SG ND5
+I N E 2
Z3423
Z3407
PC22
47P _50V_04
CTL
PC 4 0 .1 U_2 5 V_X7 R_ 0 6
CHG _ EN27
PR83 30m _20
Z3430
PC 15
4.7U_25V _08
PC39
6800P_50V_04
PR1
100K_04
SG ND 5
PD 4 FM05 40 -N
AC
PR51
10K_04
Z3421
A C _I N # 18 , 2 7
SGND5
Z3417
PR34
27K_1%_04
Z3440
PR36 39.2K_1%_04
PQ 4
D TA11 4 EUA
CE
B
PC53 1U_25V_08
PC 47
.1U_50V_06
PR29
10K_1%_04
PC38
. 1U _ 50 V _ 06
P L5 HC B1005KF-121T20
Z3425
PC324.7U _25V_08
Z3420
PR 19
30m_20
VIN
PC28
.1U _ 50 V _ 0 6
PQ3 4 A
SP8K10SFD5TB
7
8
1
2
PR 22
100K_04
Z3404
Z3408
SMC_BAT27
PR20
30K_1%_04
PC 334.7U_25V_08
PR35 = 47K for M760SU
(Total Power Limit: 80W)
PC25
.1 U_ 50 V _ 0 6
PR 15
*15m il_short
SGN D5
VA
Z3431
PD7
UDZ16B
A C
PC76
.1U_50V_06
Z34 38
PR37
113K_1% _04
PR16
6.04K_1% _04
PJ 13
1m m
12
VA
Z34 27
PC 1
.1U_50V_06
PR39
90.9K_1%_04
Z3433
Z3432
PL 6
4.7UH 5.5A 6.8*7.3* 3.5
Z3436
PR50 1M_04
Z3424PR27
100K_1% _04
PQ3 1
AM4 83 5 P
4
62
5
73
1
8
PC 2
.1 U _5 0 V_ 06
PL1
H CB4532KF-800T60
Z3403
SY S5V
Z3422
Z34 37
Z3401
Z3406
Z3426
PQ5
2N7002W
G
DS
PC 26
.1U_50V_06
VDD3
PR 49
2 0 0K _0 4
PR 17
33K_1% _04
BAT1_ VOLT 27
Z3419
SMD_BAT27
Z34 15
Z341 6
Z3405
BAT
PC17
22P_50V_0 4
PC27
.1U _ 50 V _ 0 6
PC36
4. 7 U _2 5 V _0 8
Z3434
CTL
Z3418
PR 32 *10m il_short
PC 16
.1 U_ 50 V _ 0 6
PR87
10K_1% _04
PC19
4.7U_25V_08
VDD3 2,20,23,27,34,35,38,40
Z3435
PR35
22.1K_1%_04
PR82
100K_04
BAT
VIN
PC 21
2200P_50V_04
Z3411
PQ13
2N7002W
G
DS
PQ6
2N7002W
G
DS
9V ~1 2. 6V
PQ 28
SI4835BD Y
4
6 2
5
7 3
1
8
PR 33
* 20 5 K _1 % _ 04
Z34 09
PR14
*15mil_short
J_ D C - J A C K 1
2D C - G 21 3 - B 2 00
GND2
GND1
2
1
GND4
GND3
SGN D5
PR55 * 15m il_short
PC98
30 P_ 5 0V_ 0 4
PR86
20K_04
TRERMAL PAD
PU2
MB 3 9 A 1 19
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
VC C
-IN C1
+IN C1
AC IN
AC OK
CVM
+IN E1
-IN E 1
OUT C 2
+INC 2
-I NC2
+INE2
-IN E 2
FB123
-INE 3
OUTD
CS
RT
VREF
GN D
CTL
XACO K
PG ND
OU T -2
VB
VS
OUT -1
CB
SGN D
PR30
10 K _ 1 % _ 0 4
Bt te ry V ol ta ge :
SYS5 V 3 8
Z3429
Z3428
PC 20
.1U_16V_04
Sheet 29 of 48
AC-IN, Charger
Schematic Diagrams
VCORE B - 31
B.Schematic Diagrams
VCORE
+
PC93
33 0 U _2 . 5 V _ D 3
PQ 32
IR F7832
4
62
73
8
5
1
PR 100 1 00_1% _04
PR11 2
10_06
PD 2
FM 0540-N
AC
PR 40 10 K_0 4
VC OR E_VREF
VC OR E_VREF
PL7
.5 U H
PU4
*74AHC T1G02GW
4
53
1
2
VCOR E FOR P EN RYN CP U
3.3VS
PR93
28K_1%_04
PR 103 220K_1% _04
PM _D PR SL PVR6
CS2 P
3.3VS 6,10,11,19,20,21,22,23,24,25,27,28,29,30,31,32,33,34,35
H_ VID 13
Z350 9
PR7 10_04
5/10
PR10 9
47K_04
DEL A Y _ PW RG D6,31
PR 6
10_06
DPRSL_STP
VPN 1
PD 9
FM 582 2
A C
Z3512
PR 2 * 0 _0 4
H_ VID 23
PR107 47K_04
P R101
7.5K_1% _04
H_V ID2
PC 14
1U_25V_08
3.3VS
DA C
E-R C
PC 87 100P_50V_04
5V 29,32,33,34,35,38,39,40
DR P_ L2
VCORE
VIN
Z350 4
PRT1
100K_N TC _06
12
SG N D3
PC29
4.7U_25V_08
H_ VID 33
H_ VID 53
H_V ID1
PC 95 * 100P_50V_04
PR 13
* 680_04
+
PC100
330U_2.5V_D3
TG 2
PC 55
* .1U_16V_04
3.3VS 6,10,11,19,20,21,22,23,24,25,27,28,29,30,31,32,33,34,35
PC 81
1U_10V_06
PR47 *10m il_short
SG ND 3
SG ND 3
Z3502
P R 10 8 * 1 5 m il _ s h or t
PR 89
10_06
PR3 0_0 4
PR94
17.4K_1%_04
H_DPRSTP#2,6
PC 94 .033U_16V_04
SG ND 3
PC80
1U _25V_08
PC83
.1U _25V _X7R_06
5V
DR N1
PR 48 *0_ 04
PR12 *10m il_short
CS1 N
PQ8
IR F74 1 3Z PBF
4
62
73
8
5
1
DR N1
5V
PC10 5
10 0 0 P _ 5 0V _0 6
Z3507
+
PC 99
15U_25V_D2
PR96
1 3 0K _1 % _ 0 4
+
PC 91
15U _25V _D 2
CLKEN #
PR 98 7.5K_1% _04
H_ VID 03
V-RC1
DCR_DR2
TRERMAL PAD
PU1
SC 45 2
1
2
3
4
5
6
7
8
9
10
11
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
14
13
12
45
C LKEN #
VREF
HYS
C LSET
VID6
VID5
VID4
VID3
VID2
VID1
VID0
BST2
TG 2
DR N2
BG 2
V5 _ 2
PSI#
FB+
FB-
DRP-
DRP+
SS
DAC
AGN D
VC CA
ER RO U T
CS2+
CS2 -
CS1 -
CS1+
ISH
DPRST P#
EN
V5_ 1
BG 1
DR N1
TG 1
BST1
VIN 1
VP N1
DPR SL
VIN 2
VP N2
PW R GD
GND
VIN
PC 6 1 0 0P_ 50 V_ 0 4
? C4 ? PR91 Del
H_ VID 63
H_V ID4
5V
FB-
VC OR E 3
V SSSEN SE3
H_V ID0
SGND3
PR8 10_04
CLKEN #25
H_V ID6
close to IMVP6
Z3510
Z3511
PR 53 *0_04
5V
PC77
4.7U _25V_08
VC_SS
PC 11
1U_10V_06
DCR_DR1
CS1N
DR P+
DR P+
EN_VCORE
PR11
1K _0 4
+
PC 202
680U_25V_10* 16
Z3515
PC84
1000P_50V _04
PS I#2
PC7 1 U_ 1 0V _0 6
PR 105
9.1K_1%_06
PC85 .015U_50V_06
PQ 14
* 2N7002W
G
DS
SG ND 3
BG1
PR 99
100_1% _04
PD8
FM0540-N
AC
PC78
4. 7U _ 25 V _ 0 8
PR113 0_06
PC13
1000P_50V _04
5/10
PC8 .01U _16V _X7R _04
CLKEN #
VC CAH_V ID5
DR P_ L1
CS2 N
Z3501
VPN 2
PR10 6
47K_04
20A
BG1
PC 4 10 0 P_ 50 V_ 0 4
3.3VS
BG2
PR 92 * 10m il_s hort
BS T1
PC3 1500P_50V_04
FB+
Z3508
VIN 20,35,36,38,39, 40
CS2N
CS2N
7/24 Power PR115
from 300K_1%_04
change to
220K_1%_04.
BG1
PR104 47K_04
40A
DR P-
Z3514
PR4
680_04
VIN
Z3503
PD 1
FM 582 2
A C
PQ 2
* IRF7832
4
62
73
8
5
1
DR N1
PR 102 33K_1%_04
PQ12
2N 7002W
G
DS
PC24
4.7U_25V _08
PC 9 1000P_50V_04
PR18 *10m il_short
VC OR E_HY S
VC OR E_CLSET
+
PC10 7
33 0 U _2 . 5 V _ D 3
20A
BG1
PC 79
.1 U _5 0 V_ 0 6
PR11 0
28K_1%_04
PL2
.5 UH
P R95 0_06
PR41
*10K_04
PC12 *100P _50V_04
DR N2
PC 90 * 100P_50V _04
VIN
TG1DPRSL
PR 9 * 10m il_s hort
D03A
BG1
+
PC 10 1
* 330U _2.5V_D 3
DR P-
DR N2
VC_SS
PC 82
1000P_50V_06
PR97
1 3 0K _1 % _ 0 4
PC 92
6 8 0P _5 0 V _ 0 4
SG N D3
SGND3
EN _ VCO RE
PC31
.1U _ 5 0V _0 6
PR 10 *10m il_shortZ3506
Z351 6
PC 5 1000P _50V_04
D0 3A
VCORE _ON27
PC54
*.022U_16V_X7R _04
P C10 * 100P_50V_04
PC89
.015U_50V_06
PQ30
IR F7832
4
62
73
8
5
1
PJ 1 4
1m m
12
DPR SL _ S TP
VCC SEN SE3
DPR SL
V-R C2
PR91 *0_04
PQ 33
* IRF7832
4
62
73
8
5
1
CS1N
PR 52 *0_04
PR46
100K_04
SG ND 3
ISH
PC 88 .033U_16V_04
P R111
17.4K_1%_04 PRT2
100K_NTC _06
12
SGND3
PR5
1K_1%_04
+
PC106
330U_2.5V_D3
+
PC 86
* 330U _2.5V_D 3
PQ 9
2N 7002W
G
DS
PQ29
IR F74 1 3Z PBF
4
62
73
8
5
1
PR 90
* 15m il_sh o rt
H_ VID 43
Z3513
Z350 5
H_V ID3
BST2
Sheet 30 of 48
VCORE
Schematic Diagrams
B - 32 VDD3, VDD5)
B.Schematic Diagrams
VDD3, VDD5)
PQ4 7
AO4468
4
62
5
73
1
8
SY S10 V
V D D 3 2, 2 0 , 2 3, 27 , 3 4 , 35 , 3 6 , 40
Z3605
Rb
Z3601
EN_3 V
PQ5 4
AO4468
4
6 2
5
7 3
1
8
SGN D4
PC20 0
.1U_10V_04
PC 188 *30P_50V_04
INTVCC 2
PC 157
.1U _16V_04
PD18 FM 0540-N
A C
PR 18 0
20K_1%_04
SGN D4
Z3610
PR19 1
10K_04
PR158 10_06
VIN
VIN 20,35,36,37,39,40
SYS5 V
Z3616
PC 181
1000P_50V_04
PR 166 10K_04
Z3629
PC 184
.01U_16V _X7R _04
VIN
Z3604
PC 18 0
2200P_50V_04 DD _O N#
Z3612
PR192
10 0 K _ 0 4
SG ND 4
+
PC 19 6
150U _6.3V_V
Ra
SY S15 V
PQ 27
AO 4468
4
6 2
5
7 3
1
8
PD20 FM 0540-N
A C
PJ 1 0
40m il
12
PQ 60
AO 44 68
4
62
5
73
1
8
SG ND 4
Z3617
PR19 4
8m _25
VDD 5
PD22 FM 0540-N
AC
PQ65
AO 44 68
4
62
5
73
1
8
Ra
SY S5V
PD 23
FM 582 2
A C
Z3607
Z3621
PC19 9
.1 U_ 1 6V_ 0 4
VD D3
PR 160 *0_04
Z36 24
PD 16
FM0540-N
AC
PR 1 69 3.3K_1% _0 4
SGND 4
PR165 *10m il_short
PQ 59
2N 7002W
G
DS
4A
Z3633
Z3627
Z3634
Z3628
DD _O N#
Z3615
SGN D4
VDD 3
8A
PC16 6
2200P_50V_06
PQ 63
2N7002W
G
DS
Z3619
PC14 6
2200P_50V_06
PR187
10 0 K _ 04
PR18 3
63 . 4 K _ 1% _ 0 4
PD 15
FM5822
A C
PD19 FM 0540-N
AC
PC 1 92 22 0 P_ 50 V_ 0 4
VIN1 40
PR 177 *0_04
PQ 64
2N7002W
G
DS
DD_ON27
EN_5 V
PR 184 47K_04PC 190
* 180P_50V_04
5V 29,32,33,34,35,37,39, 40
PC179
10 0 0P _5 0 V _ 04
P R 17 9 1 5K _ 0 4
SGN D4
PR 1 71 10 _ 0 4
PR 19 3
1M_04
DD_ O NH
TK/ SS2
PR 150 *15mil_short
Power Plane
SGN D4
5V
Z36 11
PR 164 *10mil_short
PC16 8
1U _10V_06
PQ 55
DTA1 1 4 EUA
C E
BPC 18 5
.01U_16V_X7R_04
IN TV C C2
INTV CC 2
PC 16 4
.1 U_ 5 0V _0 6
SY S5V
PC15 1
4. 7 U _1 0 V _ 08
4A
PR 16 1
100K_04
PJ 1 5
1m m
12
Z3613
SG ND 4
PC 177
.022U_16V_04
PC 20 1
.01U_50V_X7R_04
PC 163
.1U_25V_X7R_06
PL 1 2
4.7UH 5.5A 6.8* 7.3*3.5
3.3V
VI N2
PJ 11
6mm
1 2
SYS15V
SGN D4
Z362 6
PC 195
4.7U_25V_08
Power Plane
SY S3V
Z3619
Z36 18
PR 185
20K_1% _04
Z362 5
EN _3V
PC 154
.1U _25V_X7R _06
TK/SS2
Z3632
PR 16 7
10m_12
Z3602
PQ 67
2N 7002W
G
DS
PR18 9
10 K _ 0 4
SYS 5V
SGN D4
PC 1 70
.01U_50V _X7R_04
PC19 7
4. 7 U _2 5 V _ 08
3A
VDD 5 35
PR 1 72 10 _ 0 4
PQ 66
2N7002W
G
DS
PC187
* 1000P_50V_04
SY S15V
PN C1 NC_0 4
5V
SG ND 4
Z3603
PD 17
FM 0540-N
AC
3A
VI N1
PM _T H RM TR IP# 22
+
PC 17 2
150U_6. 3V_V
PC 1 67
.01U_50V _X7R_04
Z3614
PR17 4
*0_04
INTVC C2
Z3609
PR16 8
* 1 0K _0 4
PC 18 2
.1 U_ 1 6 V_0 4
DD _O N#39 , 4 0
Z3631
PR175 10_04
PC176
. 0 1 U _ 5 0 V _X 7R _0 4
4A
DD _ONH 40
PL 1 3
2. 5 U H + / - 2 0% _ 1 0* 10 * 4
PU 8
LTC3850
5
10
9
25
15
13
14
1720
18
23
22
1
12
26
21
19
2
6
3
11
16
4
24
8
7
27
28
ITH2
IL IM
RUN2
FR EQ/PLLFLTR
BOO ST2
SW 2
TG2
BG2BG 1
INT V CC
SW 1
TG1
TK /SS1
PG OO D
RUN1
BOOST1
VIN
IT H1
TK /SS2
VFB1
EXTVCC
PGND
VFB2
M ODE /PLL IN
SENSE2+
SEN SE2 -
SEN SE1+
SEN SE1-
SYS 5V 3 6
PR178
200K_04
DD_ O N#
PR173 10_04
PC 186 *100P_50V_04
PIN 29=SGND4
SYS 15V 19,35
PC 134
4.7U_25V _08
PR 18 2
1 0 5K _1 % _ 06
PQ 56
2N7002W
G
DS
EN _5V
PR 17 6
1M_04
PJ8
5m m
12
PC 13 6
.1U_50V _06
5V
3.3V 2,12,19,20,22,23,24,26,31,32,33,39,40
Z3623
PR 81
100K_04
PC 189 220P_50V_04
Rb
VDD 5
Z36 22
PQ4 8
AO4468
4
62
5
73
1
8
PC19 3
4.7U _25V_08
Sheet 31 of 48
VDD3, VDD5
Schematic Diagrams
1.05VS, 1.2V, 1.5V B - 33
B.Schematic Diagrams
1.05VS, 1.2V, 1.5V
V1.2
SGND
Z372 6
PC 1 2 4
4.7U_25V_08
PR63
17 . 4K _1 % _0 4
Vo=0.8 (1+R1/Rg)
5V
Z3706
PR 1 3 0
10 0K _0 4
PC 1 3 2
.1U_2 5V_X7R_ 06
5V
PU6
APL59 13
1
6
3
5
4
2
7
8
9
GND
VCNTL
VOUT
VI N
VOUT
VFB
PO K
EN
VI N
PR17 0 10 0K_0 4
PC 1 6 215 00p _5 0V _0 4
PR15730 0K _1 % _0 4
P R 15 1 1 50 _1 % _0 4
5V
Z3710
PC 1 5 5150 0p _50 V _04
PR 1 39 * 10 m i l_ sh or t
PC 1 1 5
10U _ 10 V_ 08
PC112
. 1 U _16 V _04
6A
PC 1 6 04. 7n _5 0V _0 4
VREF
DD_ON#38 , 40
PQ42
AO4474
4
62
5
73
1
8
PR 1 2 7 1 . 4 K_ 1 % _ 0 4
PR116
19 .6K_1%_06
PC 1 4 447 p_5 0V _0 4
Z3 71 7
VIN
P C 148 6 8p _50 V _04
Vo=0.8 (1+R1/Rg)
SGND
Z3 715
3A
Z3 72 5
Z3739
PL9
2 .5UH +/-2 0%
Z374 1
PC 1 3 7
.1 U_25 V_X7 R_0 6
PC152
22 00 p_5 0V _0 4
PR 1 3 233 K_ 1%_ 04
PC158
1U_10V_06
SGND
Z3729
PC 1 3 9
.1U_1 0V_X5R_04
P C 153
68 p_ 50 V_ 04
5V
VREF
1. 05 VS _ PW R G D31
PC123
4. 7 U _25 V _08
=1.0528V
P R 123 1 0_0 6
PC111
1U_10V_06
PC12 7
4.7 U _2 5V _0 8
PJ3
5m m
1 2
PR12 0
* 1 0m il _s hor t
VI N 20 ,35,36,37,38,40
Z3714
Z3731
PQ39
2N7002W
G
DS
PR154 10_06
1.5V
PQ 4 0 A
SP8 K10SF D5T B
7
8
1
2
=1.208V
Z3737
PC1614.7n_50V_04
V1.05
SGND
Z3732
PC 1 3 1
1U _ 10V _0 6
PR125
*10mil_short
2 V i a
PJ2
3m m
1 2
PR134 73.2K_1%_04
PR133 1.4K_1%_04
Z374 3
P R 11 7 1 0K _0 4
1. 2V 7, 35
Z3707
PC11 7
. 1 U _16 V_ 04
PC1454 7p _50 V_ 04
PQ 4 0 B
SP8K10SFD5TB
4
3
5
6
P R 14 0 * 1 0mi l _sh or t
2 Via
1. 8V
PC12 5
.1 U_50 V_ 06
3.3V
VI N
Z3742
PQ4 6
2N 7 002 W
G
DS
Z3727
P R 15 6 10 K _04
PR1413.24K_1%_04
=0.8(1+5. 1K/10K)
Z3 72 1
PR13810K_1%_04
PJ 1 6
1m m
12
+
PC12 2
220U_4V_D2
1. 5V _P W R GD31
Z3 705
PD 1 2
FM 0 540 - N
AC
=0.8(1+3. 16K/10K)
VREF
Z3 70 3
P R 12 4 * 10 m i l_s ho r t
Z3 70 4
5V
P C 14 7 22 00p _5 0V _0 4
PC61
82 P_ 50 V_ 04
PR13533K_1%_04
Z3722
Z3 716
PU7
NCP52 15
7
5
1
8
3
4
6
2
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
EN1
PGOOD1
FSET
EN2
AG N D
VREF
PGOOD2
VCC
SS 1
SS2
TR E S ET 2
COMP2
INV2
FB2
VDRP2
ILIM2
CS2-/VO2
CS2 +
SW N2
TG2
BST2
VC C P 2
BG2
PGND2
FP W M #
VIN
PGND1
BG 1
VCCP1
BST1
TG 1
SW N 1
CS1 +
CS1 -/VO1
ILIM1
VDRP1
FB 1
INV1
COMP1
TRESET1
Th ermal Pad/AGND
Z3730
PC149
. 1U _ 16 V_ 04
PR 1 4 6
100K_04
Z3709
1.2V
1. 5V 35
PC1591 U _1 0V _0 6
Z3 712
PR11 9
*1 0mi l_ sh ort PC11 8
.1U_ 16 V_ 04
3. 3V 2, 12 , 19, 2 0, 22 , 23, 2 4, 26 , 31, 3 2, 33 , 38, 4 0
PQ45
2N7002W
G
DS
P R 137 30 . 1K _1 % _0 4
PR14 5 5 .1K_1 %_0 4
PR 1 2 6
100 K _04
Z 370 1
SG N D
3. 3V
1. 8V 5, 7, 9 ,10,22,23,24,35,40
PL10
2 .5UH +/-20 %
5V 2 9, 32 , 33, 3 4, 35 , 37 ,38,40
Z3728
PC17 8
. 1U _ 16 V_ 04
Z3 72 0
DD_ON#38, 4 0
Z3733
PR 1 4 210 K_ 1%_ 04
V1.5
PC119.1U_ 16V_0 4
Z3738
PD11
FM5822
A C
PR14930 K_ 1%_ 04
PR12 2
*10mil_short
+
PC1202 20U _ 4V _D 2
Z3724
Z3 71 8
PR15230K_1%_04
PC11 4
10U_10V_08
Z3 73 4
PC128
4. 7 U _25 V _08
Z3708
PC 1 2 6
4. 7U _ 25 V_ 08
PC 1 1 3
10 U _10 V_ 08
PR121
*10mil_short
PC12 1
. 1U _ 50 V_ 06
PQ 4 1
AO4456
4
62
5
73
1
8
5V
1. 8V 5, 7, 9 ,10,22,23,24,35,40
PD 1 4
FM 0 54 0- N
AC
SUSB# 1 2,25 ,28 ,31,33,35,40
P R 14 4 150 _1 % _0 4
Z373 5
P R 15 5 * 1 5m i l _sh or t
1.5A
SG N D
Z3719
Z 370 2
VIN
SGND
Z3711
Z374 0
PR162300K_1%_04
1.5A
PR163 10K_04
Z3 73 6
Z3713
P R 11 8 4 7K _0 4
PC133
.1U_ 25V _ X7R_ 06
1.05VS
PJ4
3m m
12
PQ57
2N7002W
G
DS
1. 05 VS 2, 3, 4 ,6 , 7, 24
Z3723
PC13 8
.1 U_10 V_X5 R_0 4
PC116
.1 U_1 6V_04
Sheet 32 of 48
1.05VS, 1.2V, 1.5V
Schematic Diagrams
B - 34 1.8V, 0.9VS
B.Schematic Diagrams
1.8V, 0.9VS
Sheet 33 of 48
1.8V, 0.9VS
PD 21
FM 5822
A C
PR 129
3.65K_1% _04
PC17 5
4.7U _25V_08
0. 9 V S 1 0
5V
PR128
*1 5 mil_sh o rt
1.8V 5,7,9,10,22,23, 24,35,39
Z3807
PC 16 9
4.7U_10V_08
PQ 52
AO4456
4
62
5
73
1
8
PQ 21
2N7002W
G
DS
VIN 20,35,36,37,38,39
Rb
Z3801
PR60 100K_04
PQ 53
AO4474
4
62
5
73
1
8
+
PC 69
*150U_4V_B2
Z3806
PD6 SC S140P
A C
Z382 3
Z3811
PR 15 9
2.2K_1% _04
PC67
10U _10V_08
PC 140
.1U_16V_04
PJ 1 7
1m m
12
W EB_ AP# 2 7
8A
3.3V 2,12,19,20,22,23,24,26,31,32,33,38,39
PC 135
.1U _25V_X7R _06
PR61
10K_04
PR 153
100K_04
PR 73
10K_1% _04
Z3818
7/24 power PC103 from
220U_4V_D2
change to 470U_2.5V _D3.
A DD P C 19 0 4.7 U_1 0V _0 8.
PC 174
4.7U_25V _08
PR 70
1M_04
DD_ON#38,39
PR 147 47K_04
PQ4 3
2N7002W
G
DS
PC 129
.01U_50V_X7R_04
5/10
PR71
20K _1% _04
PJ 6
8mm
1 2
VIN1 38
VS SA
PC 15 6
10U_10V_08
PW R_SW #27
Z3820
P R58 20K_1% _04
PC58
.1U_50V_06
PR69
*1 5 mil_sh o rt
1.8VEN
VSSA
PC72
1U_10V _06
Q33
2N 7002
G
DS
1.5A
PC 13 0
.1U_16V_04
PR148
10_06
1. 8 V
PQ5 0
2N7002W
G
DS
PC 65
1U_10V_06
5V
PR 72
*15mil_short
PC 165
.1U_16V_04
Z3804
Z3802
Q1 9
2N 7002 G
DS
PR57 10K_04
PC17 1
100P_50V_04
VTTEN
PC70
. 0 68 U _1 0 V _ 04
PJ 5
3m m
12
PL11
2.5UH +/ -20% _10* 10* 4
DD_ O NH 38
3.3V
PQ49
2N 7002W
G
DS
Z38 21
PC 68
4.7U_10V_08
PC150
1U_10V_06
PD5 SC S140P
A C
Z3814
PR 136 47K_04
Z 3809
PC66
1000P_50V_04
PQ17
N DS352AP_NL
G
DS
VIN
Z3812
S USB#12,25, 28,31,33,35,39
Z3810
Z3808
PC 143
1U_10V_06
PR74
100K_04
PR59 100K_04
PQ 18
D TA 114EUA
CE
B
P C183
.1U _50V_06
M_ B T N #31
PD 13
FM 0540-N
AC
PC141
1U _10V_06
5V
AP_K EY 2 0
VIN
+
PC17 3
220U _4V_D2
V1.8
Z3816
PU 5
SC486
11
2
3
4
5
6
7
8
9
10
1
12
13
14
15
16
17
18
19
20
21
22
23
24
25
VTTEN
TO N
VDD QS
VSSA
VCC A
FB
PG D
REF
CO MP
VTTS
EN/PS V
VDD P2
VDD P2
VTT
VTT
PG ND 1
PG ND 2
PG ND 1
DL
V DDP 1
IL IM
LX
DH
BS T
PG ND 2
PR76
10_06
VDD 3
PR62
100K_04
Z3805
Z3813
Z38 19
Ra
VA
VDD 3 2,20,23,27,34,35,36,38
PQ20
2N 7 00 2 W
G
DS
PQ 19
2N7002W
G
DS
V1.8
Z3803
PC 60
.1U_50V_06
VIN
PR75
10_06
V1.8
PC 142
1U_10V_06
5V 29,32,33,34,35,37,38, 39
PR 143 10_06
Z38 17
1.8V_PWRG D 31
5V
VIN
0.9V S
Z3822
Z3815
VIN 1
PC 71
* .1U_10V_04
PR131 * 15m il_short
D0 3
Schematic Diagrams
Click BD, Finger BD for M76 B - 35
B.Schematic Diagrams
Click BD, Finger BD for M76
Sheet 34 of 48
Click BD, Finger BD
for M76
CGND
CTDATA1
1U _1 0V_ 06
Z3907
C TP_ SC ROL L _ UP
CC 1 6
1U_10V_06
CC 8
1U_10V_06
CSW1, CSW2
CJ_FP1
CON24A
1 2
3 4
5 6
7 8
910
11 12
13 14
15 16
17 18
19 20
2221
23 24
CGND
C5V
CTMUXOUT
CTG _F E T
CC7
3 3 P_50 V_ 04
CJ_FP1
CTDA T A2
CR 5 47K_04
TCS4C
CGN D
CG ND
CC 2 3
1U_10V_06
CG ND
CGN D
CR4
*10mil_short
CJ _ TP1
87151-1207G_L
1
2
3
4
5
6
7
8
9
10
11
12
CTMUXOUT
CTUS B_ PN 7
CG ND
CTESD_RIN G
CG ND
CTMOSI
CC1
*47P_50V_06
6-2 0- 94A 20 -11 2
CTMOSI
CJ_TP2
85201-06051_S_R
1
2
3
4
5
6
CG ND
CC9
.1U _10V_X7R_04
CT3.3V
CG ND
CT XIN
CR 9 47K_04
CTGPIO1
CS W 3
*TJ G-5 3 3-S -T/ R
3
1
4
2
5
6
C R12 15_06
Un st uff
CU2
M95128WMN6TP
1
2
3
4
5
6
7
8
CS#
Q
WP #
VSS
S
SC K
HOLD #
VD D
M7 65 XX?
CTGPIO 1
C TU SB_ PP7
C C21 2.2U_6.3V _06
330K_04
CTP _D AT A
Z390 4
CR1
330K_06
CG ND
CH2
C5 5D 5 5
CGND
CTTC_VDD
CT3.3 V
CGND
C TP B UTTO N_ R
CGND
CTTC_VDD
CR3
*330K_04
CC1 9
47 P _ 50 V _ 0 4
M7 60 XX?
D 03 Fo r
M765
CTDV D D1
CTDATA0
1
CH3
MT H2 3 7D 9 1
2
3
4
5 6
7
8
9
CC1 8
47 P_ 50V_ 0 4
CGND
CGN DCG ND
CTPBUTTON_L
TCS4B
1
C TP_ SC ROL L _ DOW N
CTMCS
CTGRID0/SENSE
CTU S B_PP 7
CG ND
CTDATA2
CCS4
S M D 7 5X 2 7 6R
11
CG ND
CG ND
CG ND
CTMISO /MOD E3
CTMCLK
CR16
100K_04
CR 2
100_06
Z3908
CTP BUT T ON_L
10mil
1
TC S4 C
3
CTUSB_PP7 _R
CTXIN
C R 1 5 27 . 4 _1 % _ 04
CC14
.1U_10V _X7R_04
CTMISO/MODE3
CTP _C L K
CTPBUTTON_R
CTTC_VDD
CQ2
BTB1 198 N3
B
EC
CC S2
SMD 75X276R
11
C R 10 47 K _ 04
CG ND
CR 1 3
33_06
CG ND
CC 1 7
.022U _16V_X7R_04
CT3 .3V
CTE SD _R ING
CC 3
.1U_10V_X7R _04
C R 19 10 K _ 0 4
CR 7 330K_04
CCS3
SMD228X276R
11
1
CH 1
MTH 237D91
2
3
4
5 6
7
8
9
CTTC _ VDD
CR11
*1M_04
CC 4
*1U_10V_06
D03
CGND
4
LI F T
KE Y
CT USB _PN 7_ R
CG ND
CTPD_ R EG
CJ_TP2
CTMCLK
CD1
*S C S 55 1 V -3 0
A C
TC S4 B
CS W 1
TJG-533-S-T/R
3
1
4
2
5
6
CC12
.1U_10V_X7R_04
CGND
CTA VD D
C T GPIO0 /IN T
TCS 4B
CTAVDD
CG ND
CR21
100K_04
TC S4 C
CTP _ DAT A
D0 3 For
M7 65
CT3.3V
CGN D
CGND
CTNR ESET
RI G HT
KEY
CSW 4
*T J G -5 33 -S -T / R
3
1
4
2
5
6
TC S4 B
CGND
C TUSB_PP7 _R
CC2
.1U_25 V_X7R _06
1
CH 4
MTH 237D91
2
3
4
5 6
7
8
9
U nst uf f
1
CQ1
NDS 352AP_N L
G
D S
TCS 4C
CTMCS
CGND
1
CH6
MT H2 3 7 D 9 1
2
3
4
5 6
7
8
9
CC 5
1U_10V_06
Unstuff
CG ND
CTT C_ VDD
CTXOUT
CU1
RC LAMP0502B
1
2
3
CU 3
S N 7 4 LV C 1 G 1 23 D C T
8
7
6
54
3
2
1
VCC
Rx/Cx
Cx
QGND
CL R#
B
A#
42
CGN D
C TPD_REG
4 7P_ 50 V_0 6
CG ND
CG ND
CTDA T A1
CJ_TP1
CR 14
*0 _ 06
CC20
1U_10V_06
CGND
Z3906
CTXOUT
CX1
12MH z FUJIC OM FS X-8L
1 2
1
CGND
CG ND
CGN D
CR 2 0
330K_04
Z3905
CTGRID0/SENSE
CC1 3
.1U_1 0V_X7 R_ 04
CC 6
1U_10V_06
12
CTUSB_PN 7
CR6 4 7 K_0 4
CC15
1U_10V _06
C TUSB_PN7 _R
C R 18 27 . 4 _1 % _ 04CJ_FP2
85201-04051_S_R
1
2
3
4
3 3P_ 50 V_0 4
C5V
CGND
CSW 2
TJG -533-S-T/R
3
1
4
2
5
6
CTG_FET
CC 24
.1 U_ 1 0V_ X7 R_ 04
CR 17 1.5 K_ 04
CT DVD D1
CTNRE SET
CTP _ CL K
CGND
CTDA T A0
CTGPIO 0/IN T
Z390 3 CT 3 .3V
C C 1 0 22 P _ 50 V _ 0 4
CGND
Z390 9
CC S1
SMD 2 28X27 6R
11
2 2P_ 50 V_0 4
CG ND
CGND
6
CT3.3V
CH5
C5 5D 5 5
CC2 2
.1U_10V_X7R_04
CSW1~4
CSW3, CSW4
CTMISO/MODE3
CR 8 47K_04
C C 1 1 22 P _ 50 V _ 0 4
Schematic Diagrams
B - 36 Multi Function Board
B.Schematic Diagrams
Multi Function Board
Z4010
MA Z _ S Y N C
MJ _ CCD 1
85 2 0 5- 0 5 00 1 _R
1
2
3
4
5
MC5
1U_6.3V_04
MQ 1
2N7002W
G
DS
M USB_PN1
MA Z _ S D I N 1 _R
M C6 .1U_10V _X7R_04
5
2
MC8
180P_50V_04
RJ-11
MULTI I/O CONN
3
MAZ_BITCLK
MR 7
100K_04
M USB_PP1
MC 1
*22P_50V_04
M CCD _D ET #
MDD -SPKR+
MJ_MODEM1
10mil
1
MH7
M T H3 15 D1 1 1
2
3
4
5 6
7
8
9
MC 9
1U _ 6. 3 V _ 04
RJ-11
MJ_CCD1
M_ 5 V
M_ 5 V
MGN D
ML3 FCM 1005KF-121T03
MGND
MR 1 0_ 0 4
MDC MODULE
MG N D
ML4 FCM 1005KF-121T03
12
MA Z _ R S T #
M USB_PP1
MGND
D03
MGN D
MA Z _ S D O UT
ML1
H CB1005KF-121T20
MH2
C 60D60
MGN DMG ND
MG ND
1
MH8
MT H3 15 D 1 1 1
2
3
4
5 6
7
8
9
MA Z _ RS T# _ R
MA Z _ S D IN 1
M _3.3V
MODEM
MC2
.1U _1 0 V_X7 R_0 4
MGND
Z4002
1
1
MH5
MT H2 5 6D 1 46 -5 P
2
4
5 6
3
Z4012
MR 5 3 3_ 0 4
MGND
Z4004
MR 4 3 3_ 0 4
Z4007
MR8 33 0 K _ 04
MQ2
AO 3409
G
DS
From H8 default HI
?????????
1
Z4011
? ? 2.5mm ? ?
M5 V _C C D
MA Z _ S Y N C_ R
MA Z _ S D O UT
MJ_R J11
C 10121-10204-L
1
2TIP
RI NG
M _3.3V
48 mil
1
MGN D
Z4005
Z4008
2
MG N D
MUSB_PN1
M5 V _C C D
MC C D_ D E T #
MJ _ MO D E M1
85205-02001_L
PCB F ootprint = 85205-02L
2
1
PIN G ND 1~2=M GN D
MGN D
MC 1 0
1U _6 . 3 V _0 4
MR 2 3 3_ 0 4
CCD
MJ_MDC1
MJ_SPK1
MC 7
180P_50V_04
MR6
1 0 0K _0 4
MR 3 2 2_ 0 4
MAZ_SD OUT_R
MC 4
1U _6 . 3 V _ 04
M L2 H CB1005KF-121 T20
MJ _F B 1
88107-16001
12
34
56
78
910
11
13
15
12
14
16
MGND
MA Z _ B I T C L K
MA Z _ S Y N C
1
MH3
MTH256D 111
2
3
4
5 6
7
8
9
MG N D
Z4009
Z4001
11
M_5V
MGN D
MDD-SPK R-
MDD -SPKR-
1
MH 6
MT H2 5 6 D1 46 -5 P
2
4
5 6
3
MDD-SPK R+
MJ _M DC 1
88018-120G
1
3
5
7
9
11 12
10
8
6
4
2
GND
A z al i a _S D O
GND
A z al i a _S Y N C
A z al i a _S D I
A z al i a _R S T# A za l i a_ B C L K
GN D
GN D
3 . 3V M a in / a ux
RES ER VE D
RES ER VE D
SPEAKER CONNECTOR
MGND
MC3
.1U_ 1 0V_ X7R _ 04
Z4006
MAZ_BITCLK_R
MH 1
C52D52
1
MCCD _EN
MA Z _ R S T #
FOR EMI
MG ND
MA Z _ S D IN 1
M L5 BK1608HS121
Z4003
20 MI L
MGN D
MG ND
MGN D
MC C D_ E N
20 MIL
Z4005
MJ_SPK1
85205-03001_L
1
2
3
M L6 BK1608HS121
Sheet 35 of 48
Multi Function
Board
Schematic Diagrams
Audio Board B - 37
B.Schematic Diagrams
Audio Board
Sheet 36 of 48
Audio Board
AC 3
6 8 0P _ 5 0V _ 0 4
BLACK
Z4104
AL3 F CM1005 KF-1 21T03
AGN D
Z4106
A J_ USB1
C 1 07 B 3 - 1 04 0 3- Y
1
GND 1
2
3
4
GN D2
GND3
GN D4
V+
sh ield
DATA_L
DATA_H
GND
shield
s h ield
shield
BLACK
AGN D AGN D
Z4105
AGND
R
L
AJ _ SPDIF1
2SJ-S351-S30
2
6
5
3
1
4
AR8
1K_04
AGND
D03
Z4113
AU1
RT9701-C PL
1
2
3
4
5
VO UT
GND
VIN
VIN
VO UT
AG ND
AUSB_PN4
AG ND
Z410 9
AG ND
AL6 FC M1005KF-121 T 03
Z4110
ASPK_HP#
12/7
AR3 100_06
50 mil
D03
AMIC1-R
AL 7 F C M1 0 05 KF -102 T 0 2
5
AL5
HC B1608K F-121T25
Z4112
AHEAD PHON E-L
AC6
.1U _10 V_X7 R_0 4
AH3
C5 2 D5 2
AG ND
AL1
*W CM2012F2S-161T03
1
4
2
3
AGND
50 mil
A_5V
AR9
1K_04
Z4107
AC8
1 0U _ 10 V _ 08
A_U SBVCC2
AUSB_PP4
AC11
.01U_16V_X7R _04
Z4103
AR5 100_06
USB PORT
AL4 FC M1005KF-121 T 03
AMIC_S ENSE
AMIC1-L
+
AC 1
100U_6.3V_B2
AR1 *1 0 m il_ sho rt
AC5
.1U_10V_X7R _04
AH 1
C52D52
Z4101
ASPDIF O
AUSB_ PN4
AR2 *1 0 m il_ sho rt
AL2 F CM1005 KF-1 21T03
R
L
AJ _ HP1
2SJ-S351-S30
2
5
3
1
4
6
60 mil
AC 9
10U_10V_08
MIC IN
Z4102
AUDIO JACK
AG ND
AH EADPH ONE -L
Z410 8
AMIC _SEN SE
AC7
.1U _10V_X7R_04
BLACK
AH5
C296D 296N
AHEAD PHON E-R
AC2
680P_50V_04
4
AMIC 1-R
2
A_5V
AMIC 1-L
3
ASPK_H P#
1
1
AH2
MTH276D 111
2
3
4
5 6
7
8
9
AG ND
AR 7
220_04
AJ_ FB1
87212-12G0_L
1
2
3
4
5
6
7
8
9
10
11
12
HEADPHONE
A_USBV CC
AU SB_PN4_R
AC 10
6 8 0P _ 5 0V _ 0 4
AH EADPH ONE -R
SPDIF OUT
AUSB_ PP4
1
AH4
MTH276D111
2
3
4
5 6
7
8
9
AHP_SENSE
AU SB_PP4_ R
A_USBVC C
ASPDIF O
6
AC12
1000P_50V_04
AHP_SENSE
R
L
AJ _ MIC 1
2SJ-S351-S30
2
5
3
1
4
6
AGND
AC4
680P_50V_04
Schematic Diagrams
B - 38 Power Switch Board for M74
B.Schematic Diagrams
Power Switch Board for M74
SMGND
SMR1
220_04
SM H 3
C52D 52
SMH 2
C52D52
SMD1
KP C-3216QBC-C
AC
SM _BTN #
SMG N D
SMC 1
*.1U_04
SM_3.3VS
SMGND
1
SMH1
M TH237D87
2
3
4
5 6
7
8
9
SJ_SW1
SM G N D
POWER SW & POWER LED FOR M74
1
SM H 4
MTH 237D 87
2
3
4
5 6
7
8
9
20mil
Z4302
POWER BUTTON
SMGND
D03
20mil
SMH5
C2 37B52D52 N
4
SMGN D
20mil
SM_3.3VS
1
SMGND
SM_BTN#
SM J _ S W 1
85201-04051_L
1
2
3
4
SMS1
C126
11
POWER
SWITCH
LED
SMSW1
TJG-533-S -T/R
3
1
4
2
5
6
SMGND
SM GN D
Z 4301
Sheet 37 of 48
Power Switch
Board for M74
Schematic Diagrams
External ODD Board for M76 B - 39
B.Schematic Diagrams
External ODD Board for M76
Z4406
OC D_ DA SP#
OC 2
1U_ 10V_0 6
PIN GND1~2 =OGND
OIDE_PDD3 OI D E_PDD 3
OH1
C276B197D111
OGND
Z4401
OCD_RST#
OC 4
10U _10 V_ 08
OI D E _P DI O R #
OI D E_PDD 5
OCD_CABSEL
OH 2
C2 76B19 7D1 11
OJ _O DD 1
C1 5078 -100A
12
34
56
78
910
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41 42
43 44
45 46
47 48
49 50
OI D E _PDD 11
OI D E_P DI O W#
OIDE_PDD5
OI D E_PDC S 1#
OI D E_PDD 8
OG ND
OI D E _PDD 12
Z4404
OIDE_PDCS1#
OIDE_PDD7
OGND
OIDE_PDA1
Z4402
OI D E_PDD 15
OC 3
.1U_10V_X7R_04
OI D E_P DD 8
OIDE_PDD2
OI D E_P DD REQ
OI D E_PDA 2
OI D E_PDD 7
P I N GN D1 ~ 2 = OG ND
OI D E_PDA 1
OI D E_PDD 6
OIDE_PDA0
OC1
.1U_10V_X7R_04
Z440 3
OI D E_PDD 9
OI D E_PDD 2
OI D E_PDA 0
Z4401
OG ND
OI D E_PDD 10
Z4403
OI D E _PDD 10
OID E_PDD ACK#
OI D E_PDC S 3#
OIDE_PDDREQ
OH 4
C67 D6 7
OI D E _PDD 15
OI D E_PDD 4
OCD_DASP#
OI D E_P DC S3#
OI D E_P DD 9
OCD_CABSEL
OI D E_PDD 14
OI D E_PDD 13
OI D E_PDD 12
O_5V
O_5V
Z4 406
OH3
C 67D 67
OIDE_PDD1
Z4 404
OI D E_P DA2
Z4405OIDE_IRQ
OIDE_IRQ
OJ_ODD2
C14309-106A
12
34
56
78
910
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41 42
43 44
45 46
47 48
49 50
OIDE_PDD6
OI D E_PDD A C K#
OI D E_PDD 11
OI D E_PDD I A G#
OI D E_PDD 1
Z4 405
O_5V
OGNDOG N D
OI D E_PDI O R DY
OG ND
OI D E_P DD I AG#
OI DE _PD I OR DY
OI D E_P DI O R#
Z4402
OI D E _PDD 13
OC D_R S T#
OIDE_PDD4
OIDE_PDD0
OIDE_PDIOW#
OI D E _PDD 14
OI D E_PDD 0
Sheet 38 of 48
External ODD
Board for M76
Schematic Diagrams
B - 40 Power Switch Board for M76
B.Schematic Diagrams
Power Switch Board for M76
20mil
20mil
SH _ 3. 3 VS
20mil
SH J _ S W 1
85201-04051_L
1
2
3
4
SJ_SW1
SHGND
SHSW1
TJG-533-S -T/R
3
1
4
2
5
6
SH H 3
C52D52
SHGN D
SH G N D
1
SH H 4
MTH 237D 87
2
3
4
5 6
7
8
9
SH_BTN#
20 mil
SH D 1
KP C - 3 21 6Q B C - C
AC
D02
1
SHH2
M TH237D87
2
3
4
5 6
7
8
9
SHR1
220_04
Z4902
POWER
SWITCH
LED
4
SHGND
SH _BTN #
SHGND
SHGND
POWER SW & POWER LED FOR M76
Z4901
POWER BUTTON
1
SHS1
C126
11
SHGND
SHGN D
SH G N D
SH_3.3VS
SHC1
*.1U_04
SHH5
C2 37B52D52 N
SH H 1
C52D 52
Sheet 39 of 48
Power Switch
Board for M76
www.s-manuals.com

Navigation menu
