W170ER
Preface
I
Preface
Notebook Computer
W170ER
Service Manual
Preface
II
Preface
Notice
The company reserves the right to revise this publication or to change its contents without notice. Information contained
herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven-
dor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are
they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.
This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or
reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publica-
tion, except for copies kept by the user for backup purposes.
Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of
their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement
of that product or its manufacturer.
Version 1.0
April 2012
Trademarks
Intel, and Intel Core are trademarks of Intel Corporation.
Windows® is a registered trademark of Microsoft Corporation.
Other brand and product names are trademarks and /or registered trademarks of their respective companies.
Preface
III
Preface
About this Manual
This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and
inspection of personal computers.
It is organized to allow you to look up basic information for servicing and/or upgrading components of the W170ER se-
ries notebook PC.
The following information is included:
Chapter 1, Introduction, provides general information about the location of system elements and their specifications.
Chapter 2, Disassembly, provides step-by-step instructions for disassembling parts and subsystems and how to upgrade
elements of the system.
Appendix A, Part Lists
Appendix B, Schematic Diagrams
Appendix C, Updating the FLASH ROM BIOS
Preface
IV
Preface
IMPORTANT SAFETY INSTRUCTIONS
Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock and injury to per-
sons when using any electrical equipment:
1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet
basement or near a swimming pool.
2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of elec-
trical shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity of the leak.
4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may
explode. Check with local codes for possible special disposal instructions.
5. This product is intended to be supplied by a Listed Power Unit with an AC Input of 100 - 240V, 50 - 60Hz, DC Output
of 19V, 6.3A (120W) minimum AC/DC Adapter.
CAUTION
This Computer’s Optical Device is a Laser Class 1 Product
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired operation.
Preface
V
Preface
Instructions for Care and Operation
The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:
1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.
2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This
is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.
3. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save
your work. Remember to periodically save your data as data may be lost if the battery is depleted.
Do not expose the computer
to any shock or vibration.
Do not place it on an unstable
surface.
Do not place anything heavy
on the computer.
Do not expose it to excessive
heat or direct sunlight.
Do not leave it in a place
where foreign matter or mois-
ture may affect the system.
Don’t use or store the com-
puter in a humid environment.
Do not place the computer on
any surface which will block
the vents.
Do not turn off the power
until you properly shut down
all programs.
Do not turn off any peripheral
devices when the computer is
on.
Do not disassemble the com-
puter by yourself.
Perform routine maintenance
on your computer.
Preface
VI
Preface
4. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag-
netic fields. These can hinder proper performance and damage your data.
5. Take care when using peripheral devices.
Power Safety
The computer has specific power requirements:
• Only use a power adapter approved for use with this computer.
• Your AC adapter may be designed for international travel but it still requires a steady, uninterrupted power supply. If you are
unsure of your local power specifications, consult your service representative or local power company.
• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety feature; do
not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.
• When you want to unplug the power cord, be sure to disconnect it by the plug head, not by its wire.
• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.
• Before cleaning the computer, make sure it is disconnected from any external power supplies.
Use only approved brands of
peripherals.
Unplug the power cord before
attaching peripheral devices.
Do not plug in the power
cord if you are wet.
Do not use the power cord if
it is broken.
Do not place heavy objects
on the power cord.
Power Safety
Warning
Before you undertake
any upgrade proce-
dures, make sure that
you have turned off the
power, and discon-
nected all peripherals
and cables (including
telephone lines and
power cord).
You must also remove
your battery in order to
prevent accidentally
turning the machine
on. Before removing
the battery discon-
nect the AC/DC
adapter from the
computer.
Preface
VII
Preface
Battery Precautions
• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.
• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the
computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.
• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.
• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service
personnel.
• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries may explode
or leak if exposed to fire, or improperly handled or discarded.
• Keep the battery away from metal appliances.
• Affix tape to the battery contacts before disposing of the battery.
• Do not touch the battery contacts with your hands or metal objects.
Battery Guidelines
The following can also apply to any backup batteries you may have.
• If you do not use the battery for an extended period, then remove the battery from the computer for storage.
• Before removing the battery for storage charge it to 60% - 70%.
• Check stored batteries at least every 3 months and charge them to 60% - 70%.
Battery Disposal
The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under var-
ious state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste
officials for details in your area for recycling options or proper disposal.
Caution
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.
Discard used battery according to the manufacturer’s instructions.
Battery Level
Click the battery icon in the taskbar to see the current battery level and charge status. A battery that drops below a level of 10%
will not allow the computer to boot up. Make sure that any battery that drops below 10% is recharged within one week.
Preface
VIII
Preface
Related Documents
You may also need to consult the following manual for additional information:
User’s Manual on CD/DVD
This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro-
gram. It also describes the installation and operation of the utility programs provided with the notebook PC.

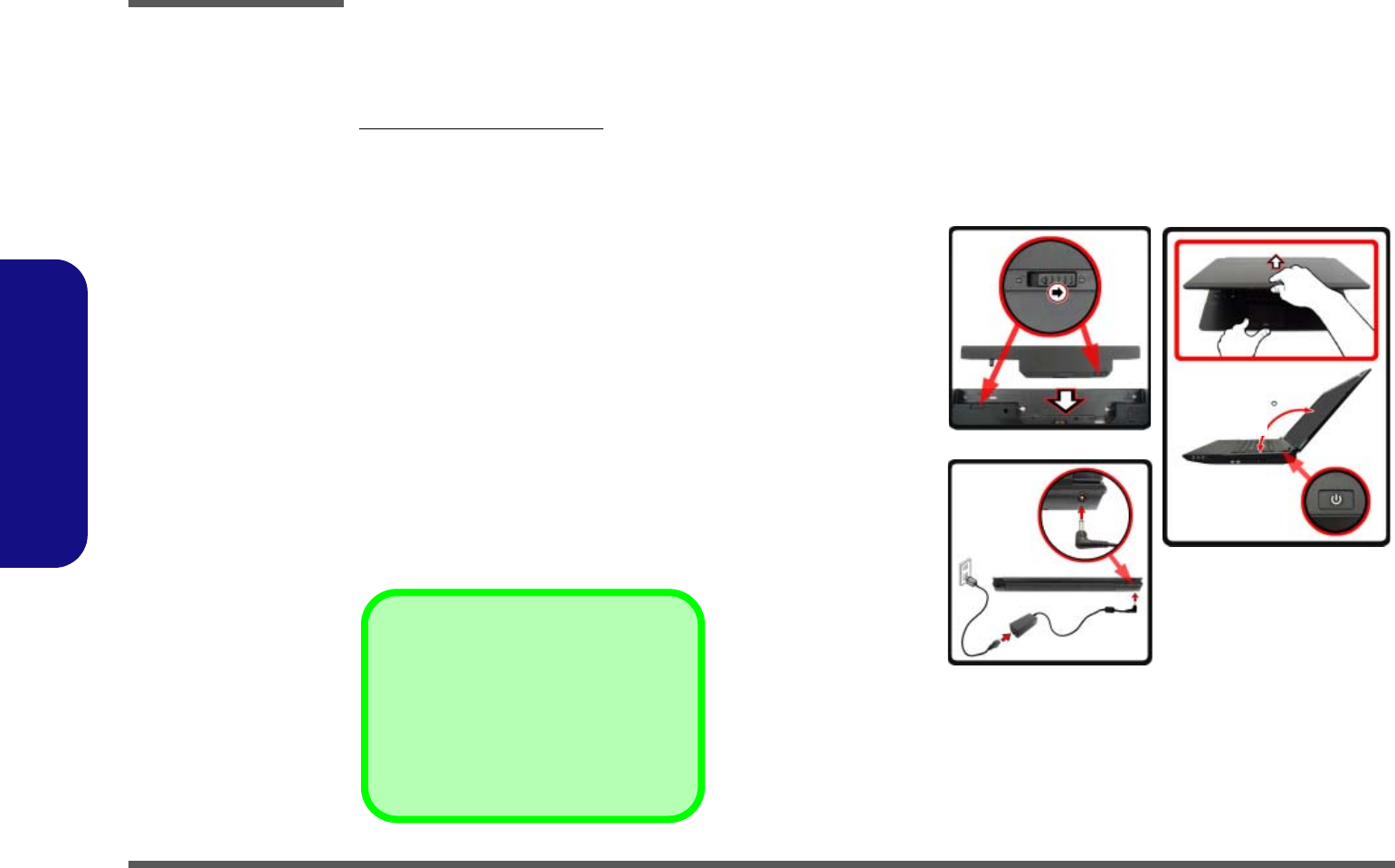

System Startup
1. Remove all packing materials.
2. Place the computer on a stable surface.
3. Insert the battery and make sure it is locked in position.
4. Securely attach any peripherals you want to use with the computer
(e.g. keyboard and mouse) to their ports.
5. Attach the AC/DC adapter to the DC-In jack at the rear of the
computer, then plug the AC power cord into an outlet, and connect
the AC power cord to the AC/DC adapter.
6. Use one hand to raise the
lid/LCD to a comfortable viewing angle
(do
not exceed 130 degrees)
;
use the other hand (as illustrated in
Figure 1) to support the base of the computer (Note: Never lift the
computer by the lid/LCD).
7. Press the power button to turn the computer “on”.
130
Shut Down
Note that you should always shut your com-
puter down by choosing Shut Down from
the Start Menu.
This will help prevent hard disk or system
problems.
Figure 1
Opening the Lid/LCD/
Computer with AC/DC
Adapter Plugged-In
Preface
IX
Preface
Contents
Introduction ..............................................1-1
Overview .........................................................................................1-1
Specifications ..................................................................................1-2

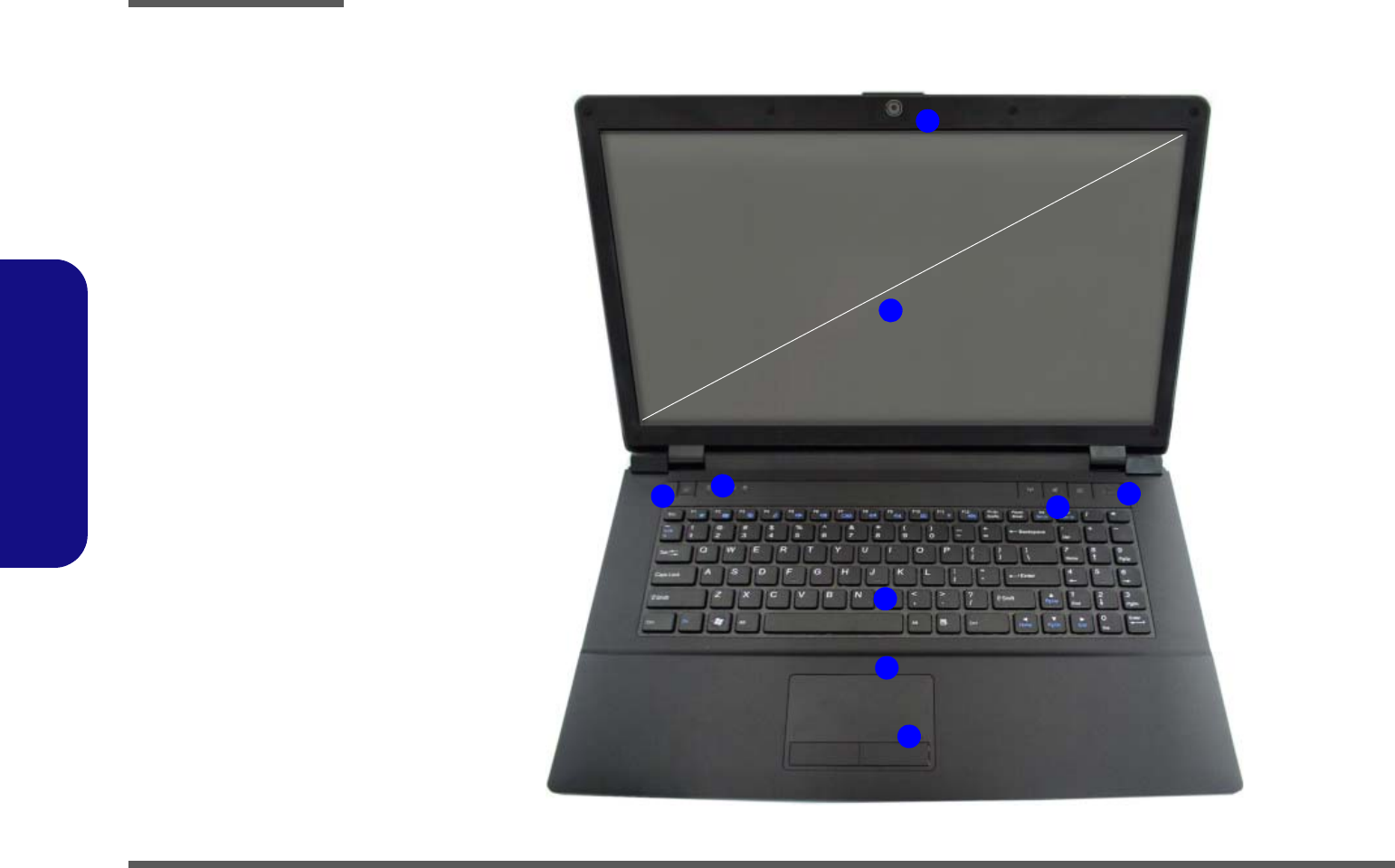

External Locator - Top View with LCD Panel Open ......................1-4
External Locator - Front & Right Side Views .................................1-5

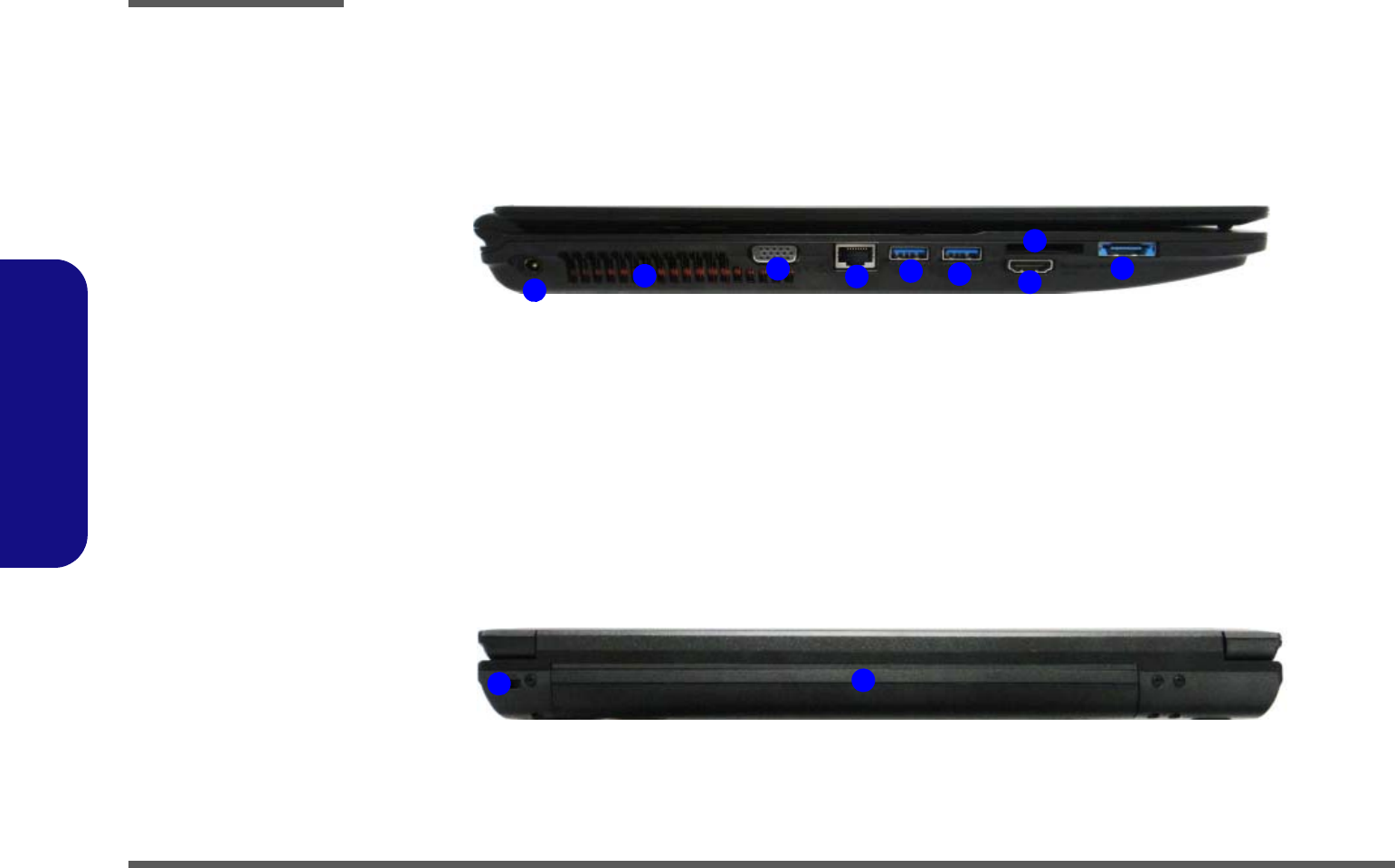

External Locator - Left Side & Rear View .....................................1-6

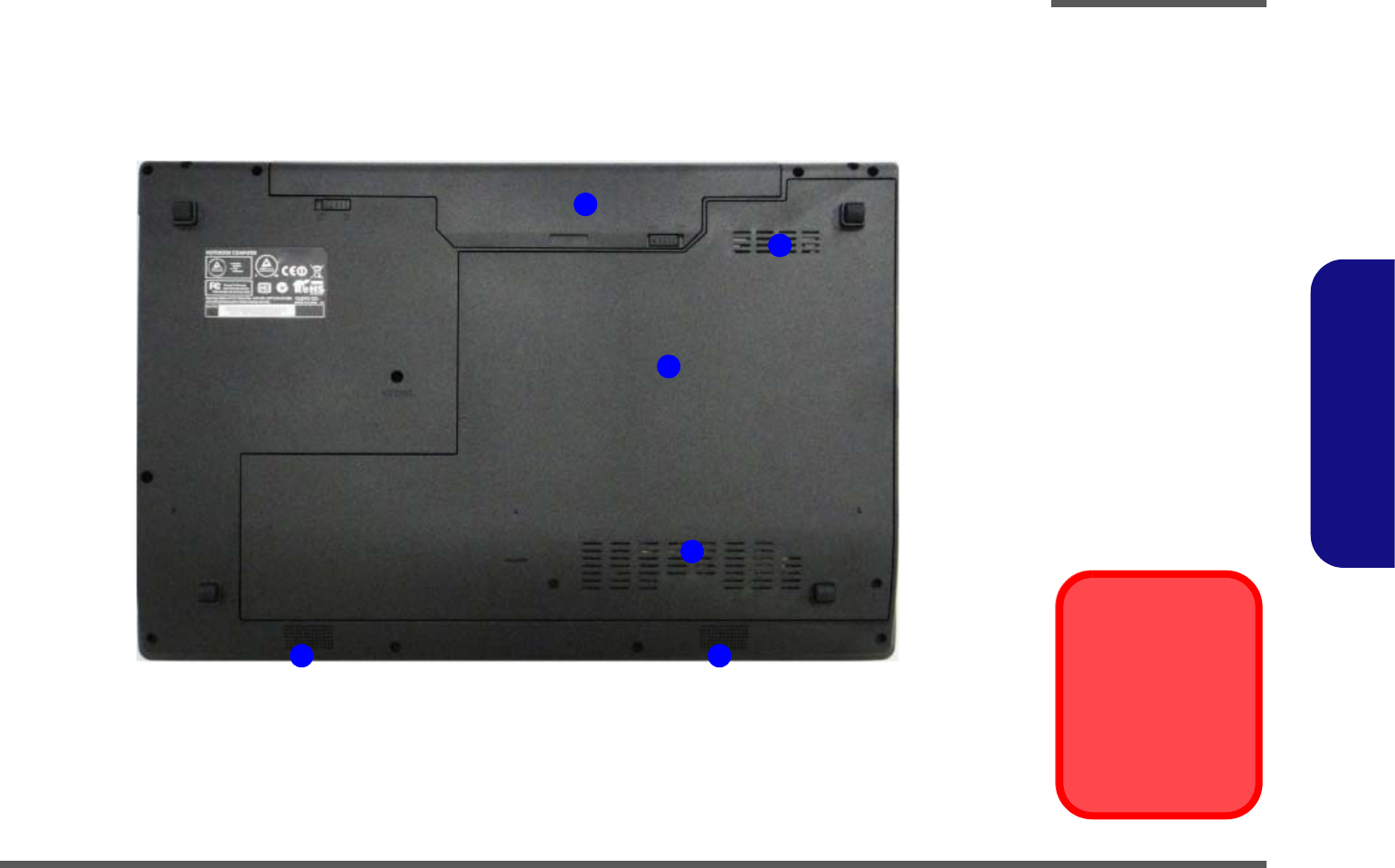

External Locator - Bottom View .....................................................1-7
Mainboard Overview - Top (Key Parts) .........................................1-8

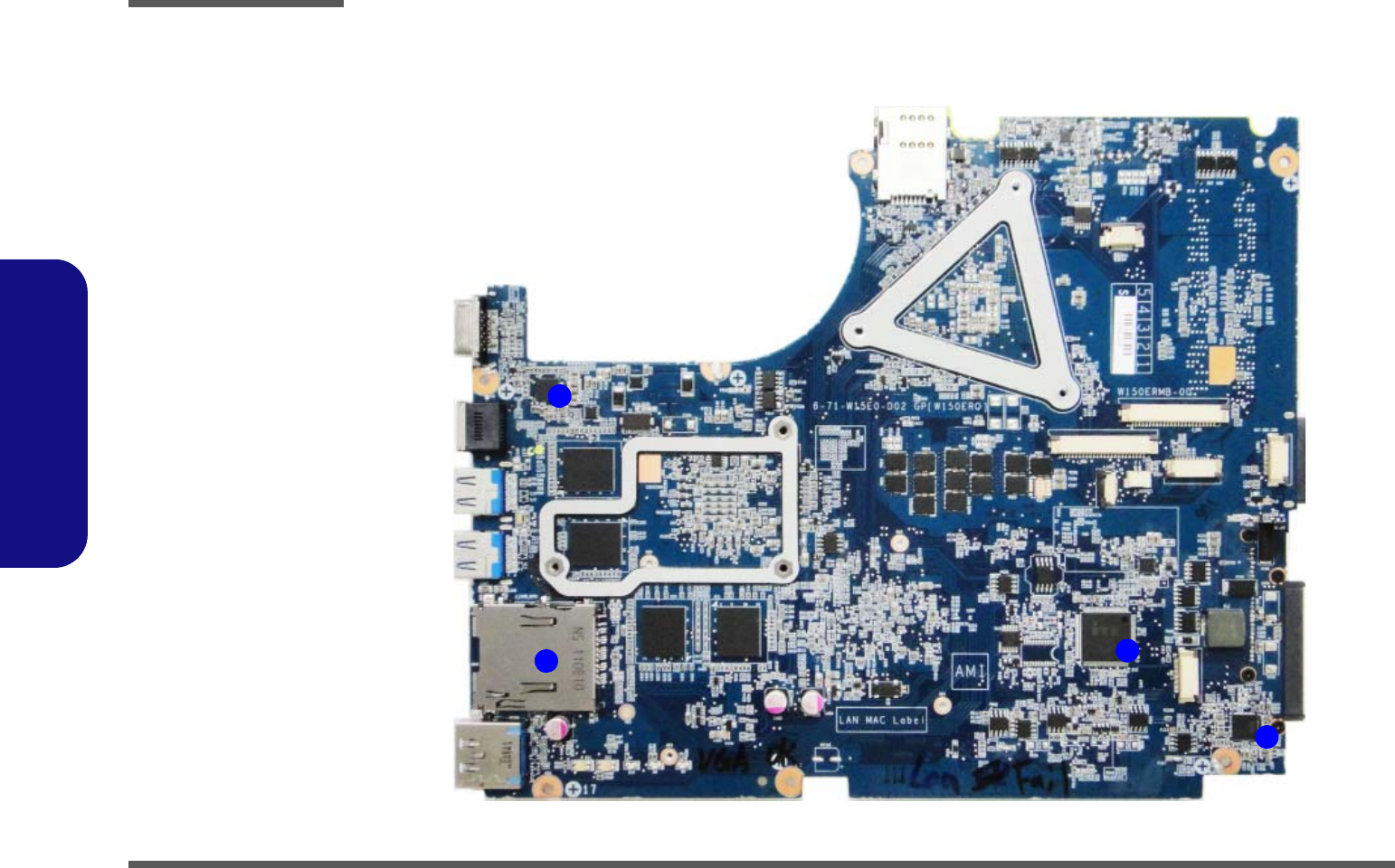

Mainboard Overview - Bottom (Key Parts) ....................................1-9
Mainboard Overview - Top (Connectors) .....................................1-10
Mainboard Overview - Bottom (Connectors) ...............................1-11
Disassembly ...............................................2-1
Overview .........................................................................................2-1
Maintenance Tools ..........................................................................2-2
Connections .....................................................................................2-2
Maintenance Precautions .................................................................2-3
Disassembly Steps ...........................................................................2-4

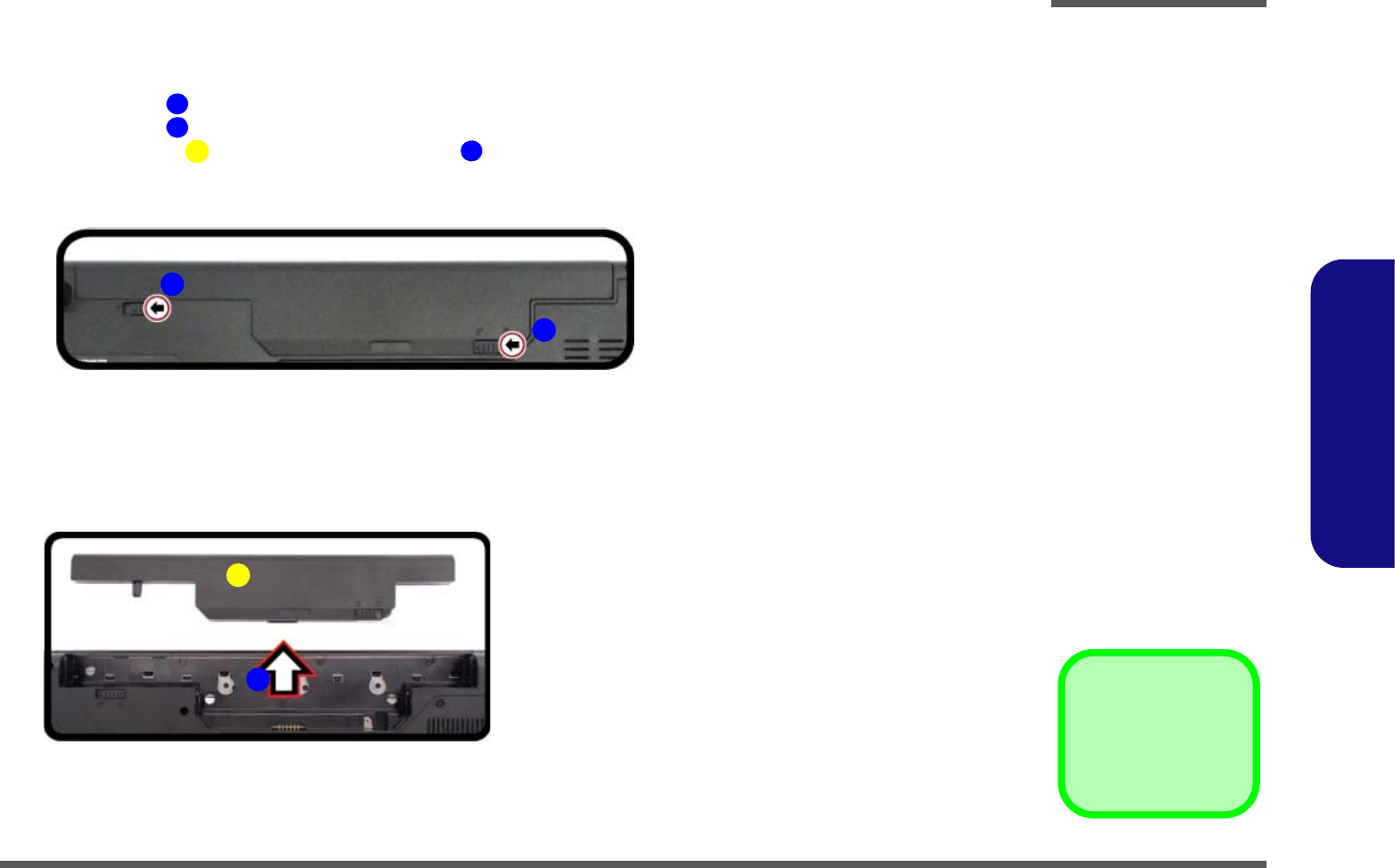

Removing the Battery ......................................................................2-5

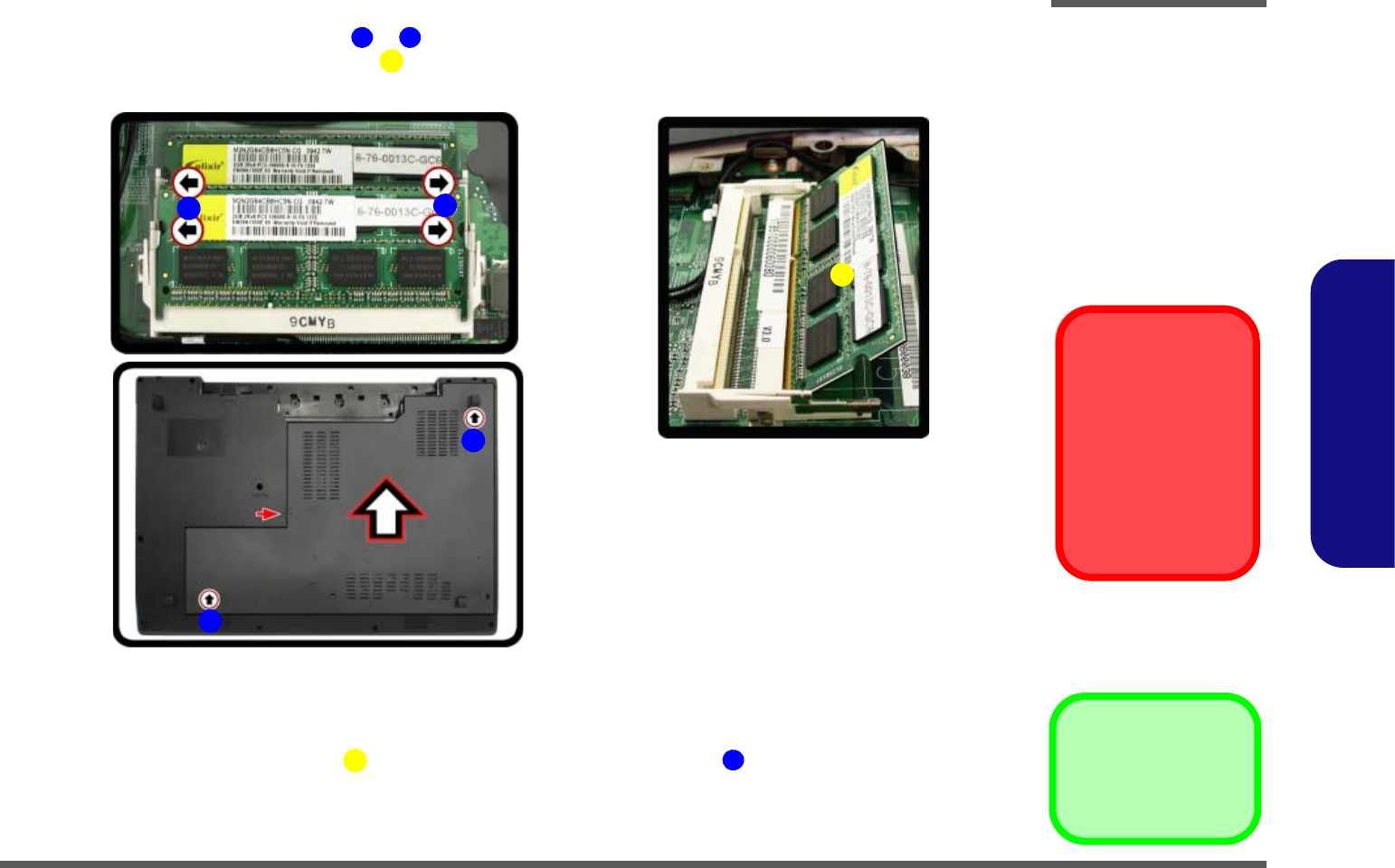

Removing the System Memory (RAM) ..........................................2-6

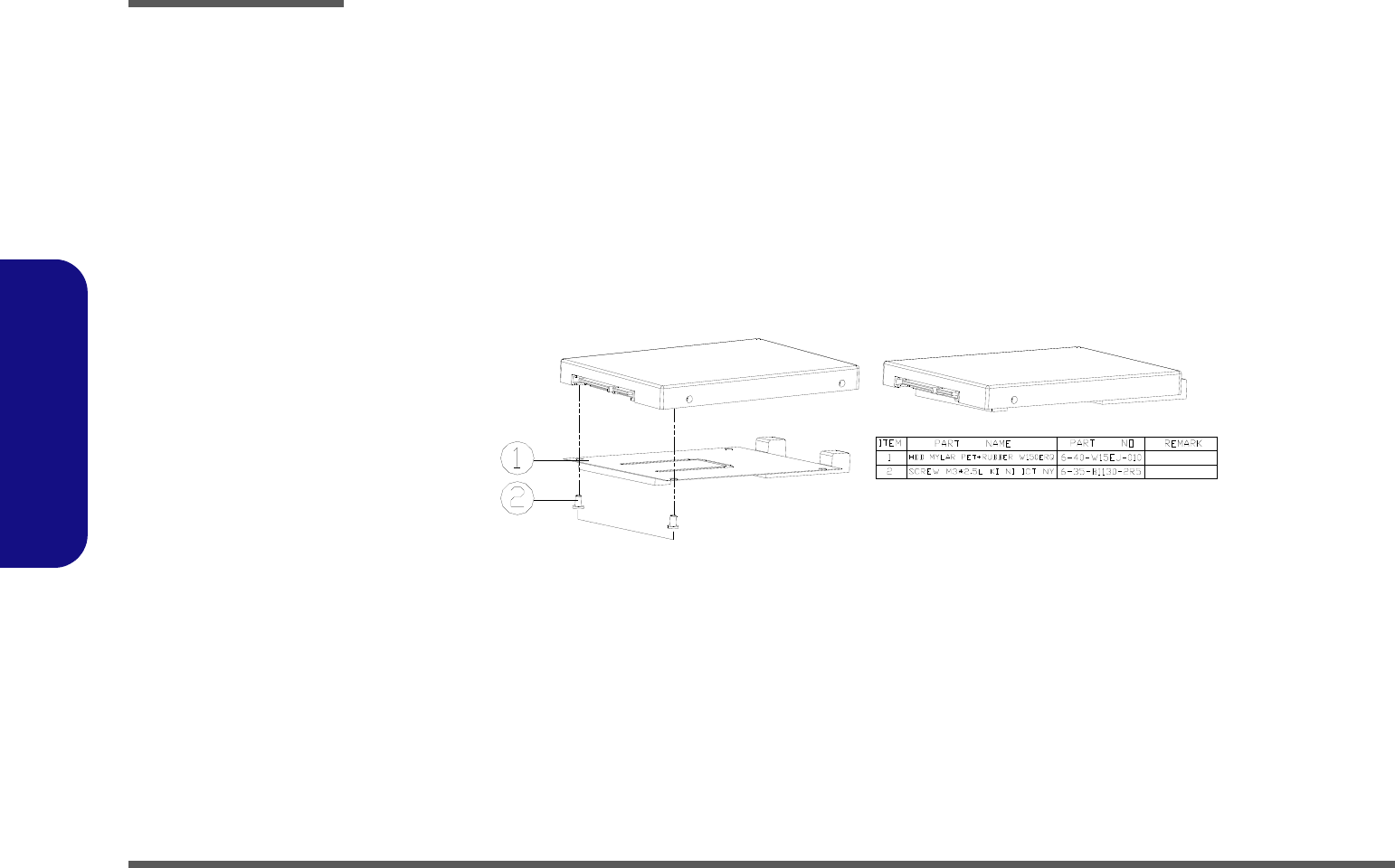

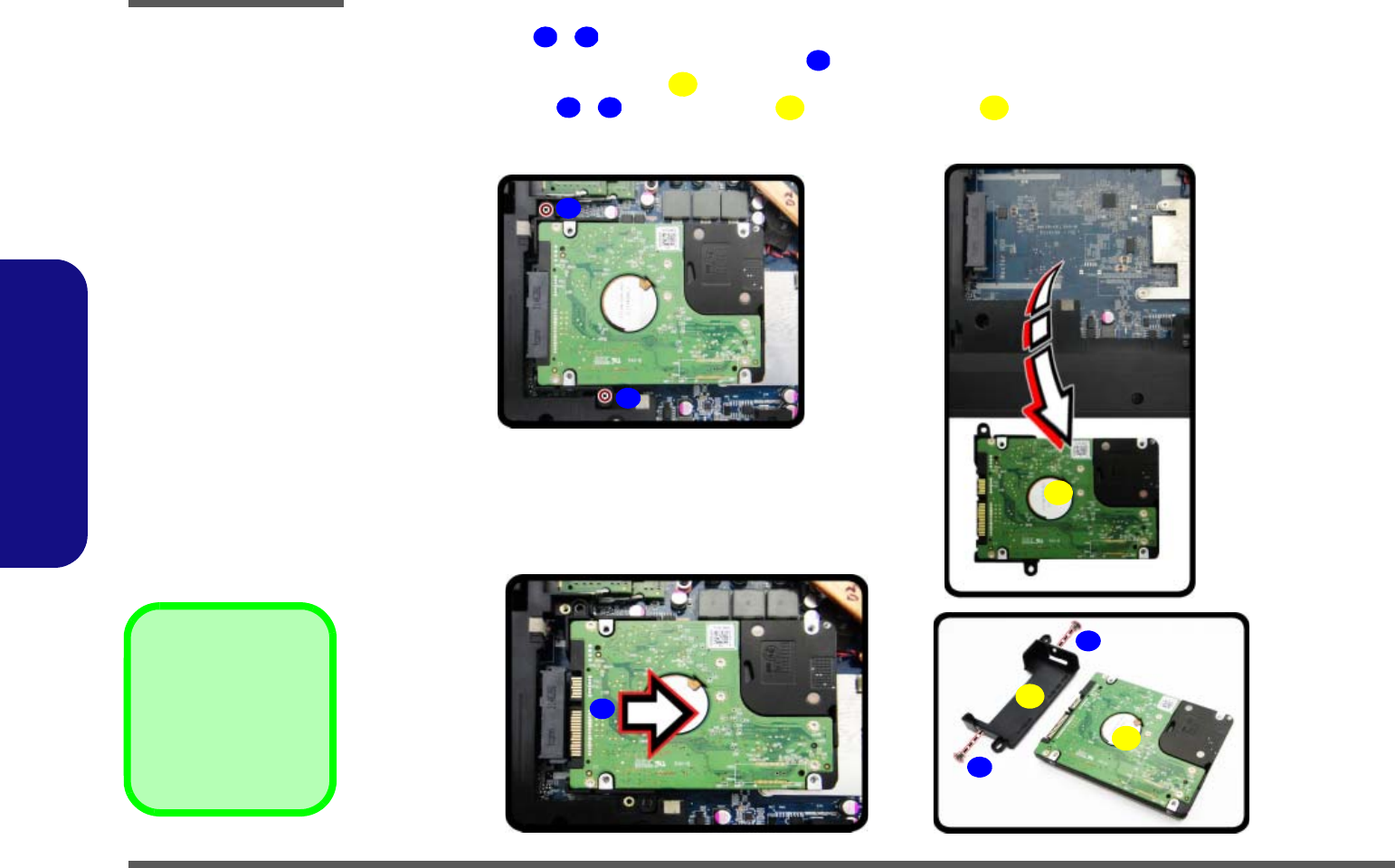

Removing the Hard Disk Drive .......................................................2-8

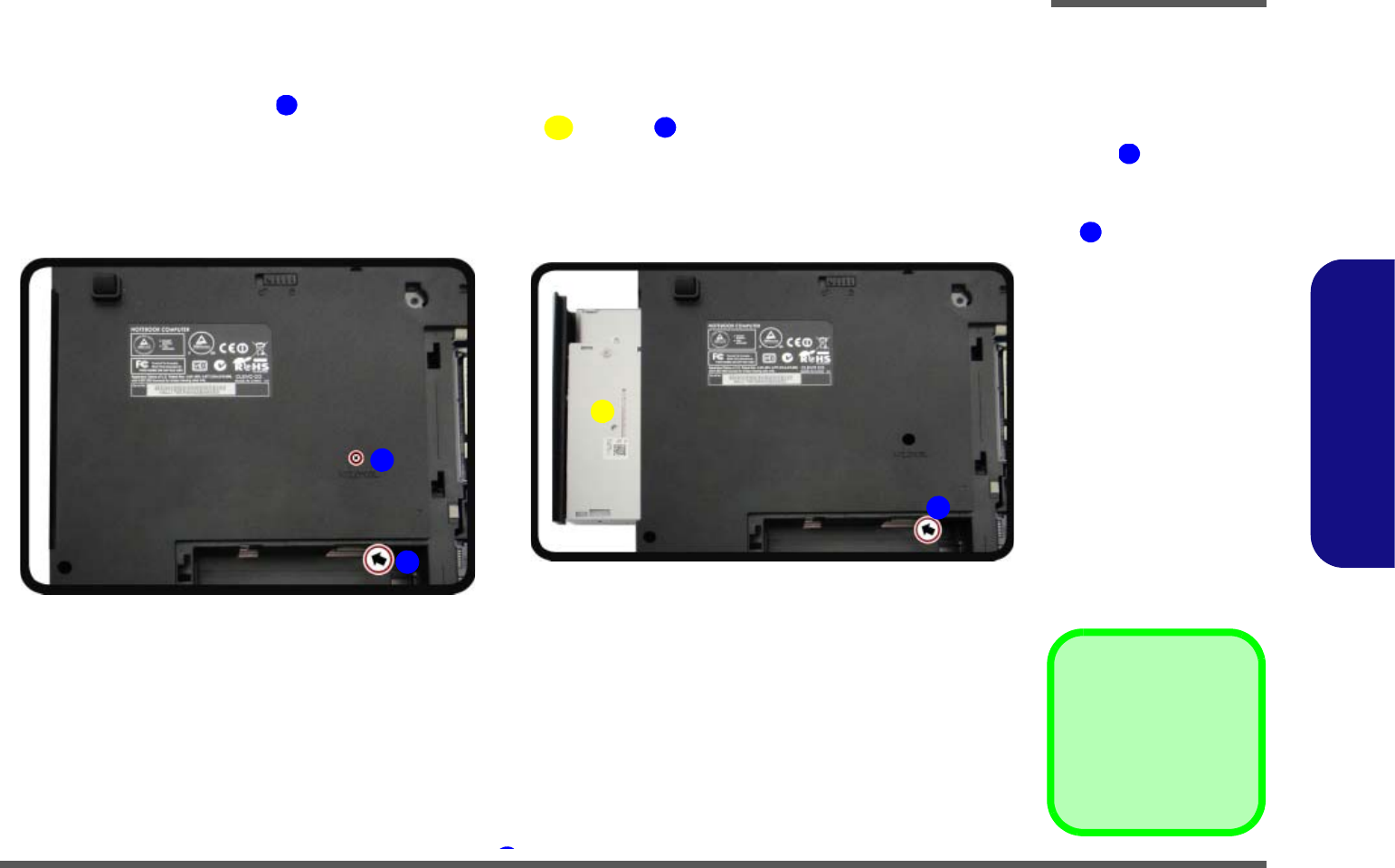

Removing the Optical (CD/DVD) Device ....................................2-11

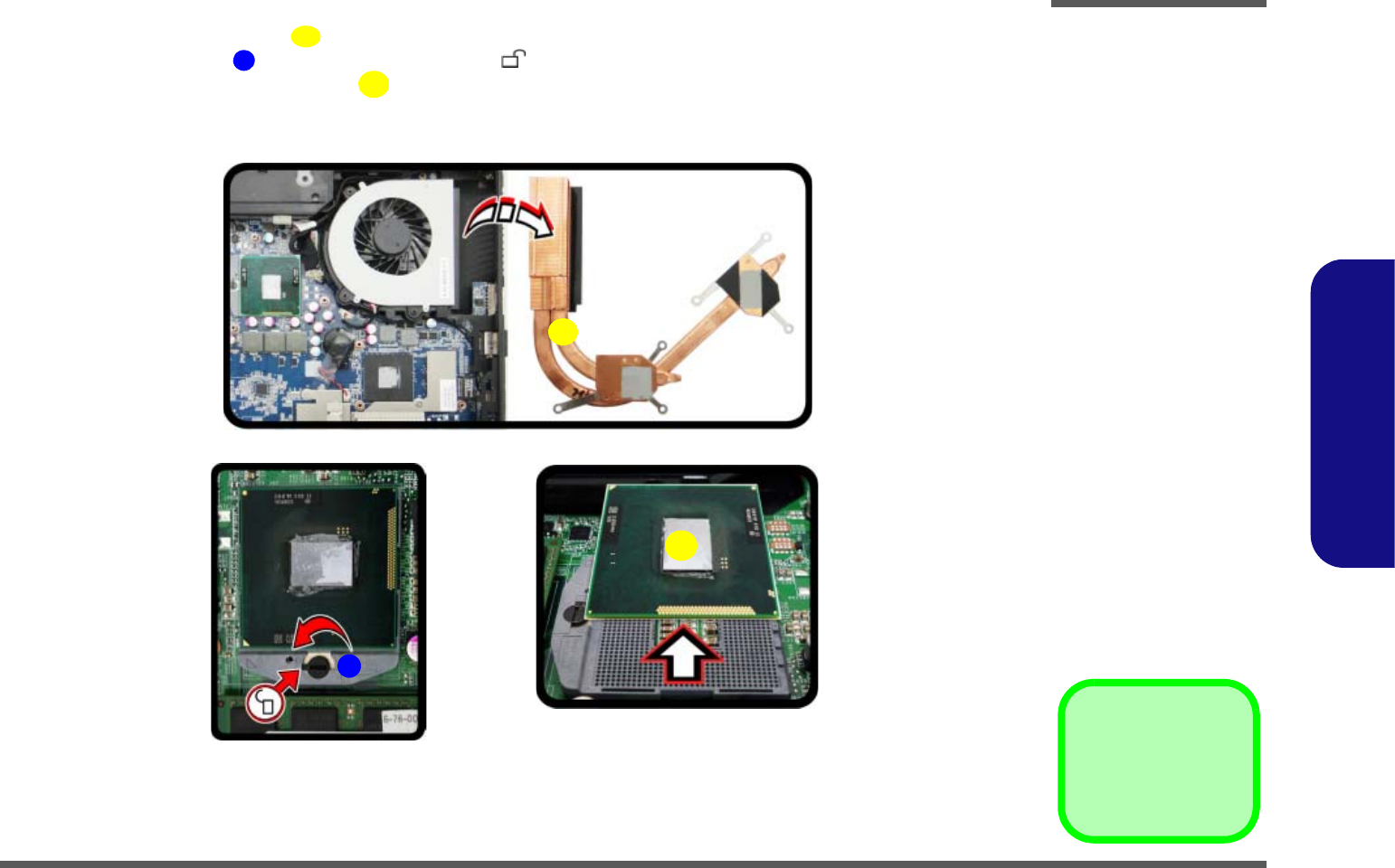

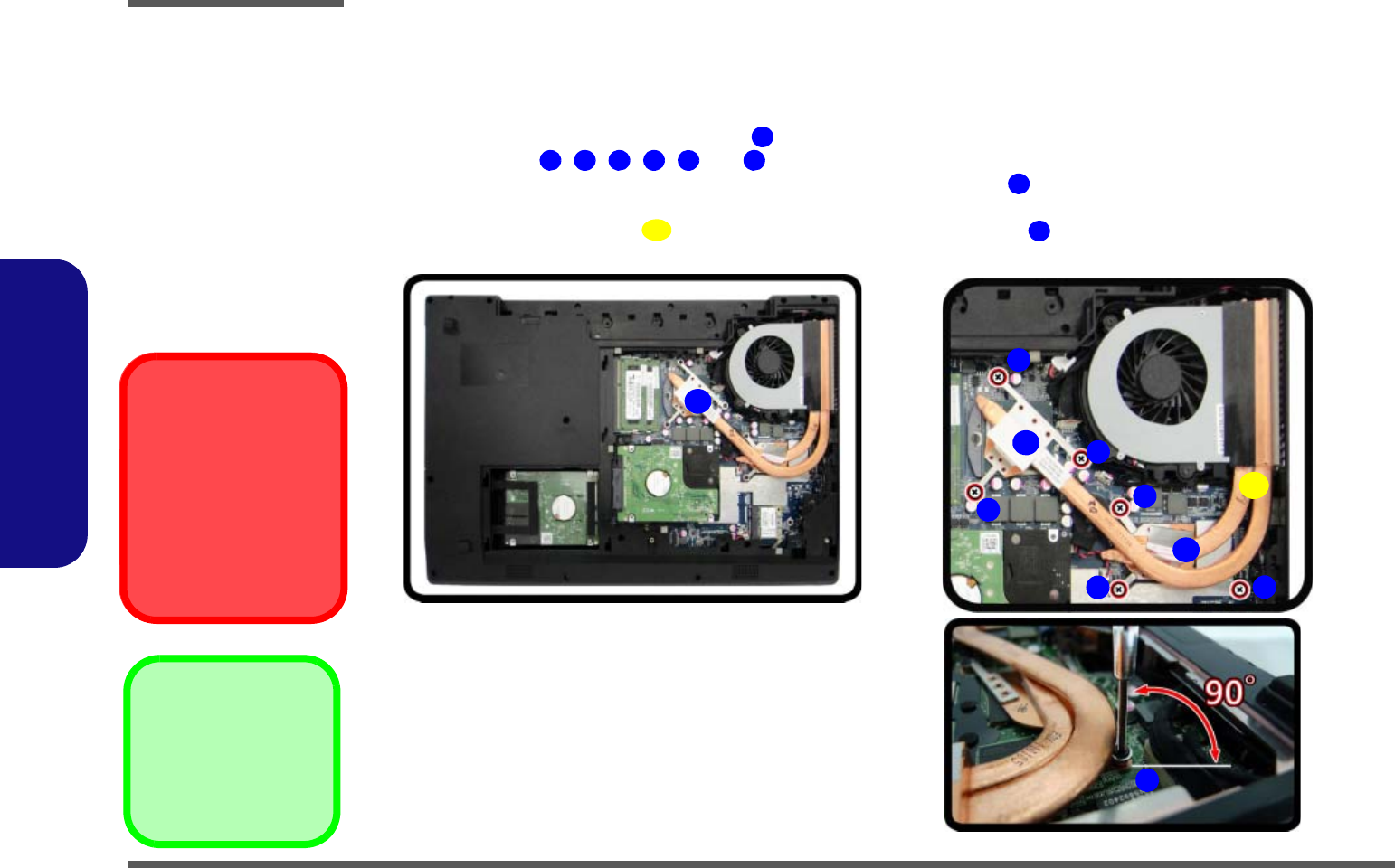

Removing and Installing a Processor ............................................2-12

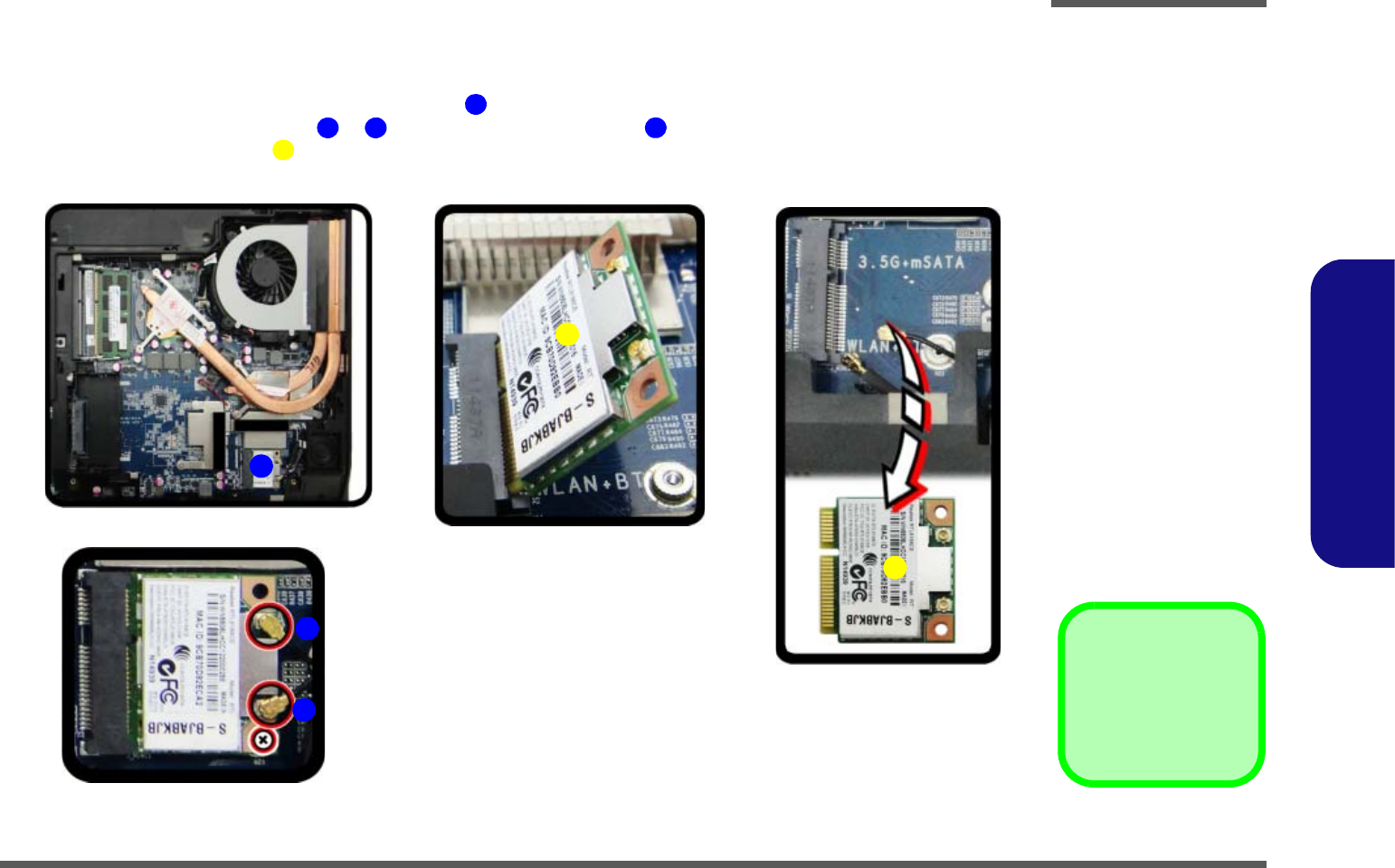

Removing the Wireless LAN Module ...........................................2-15

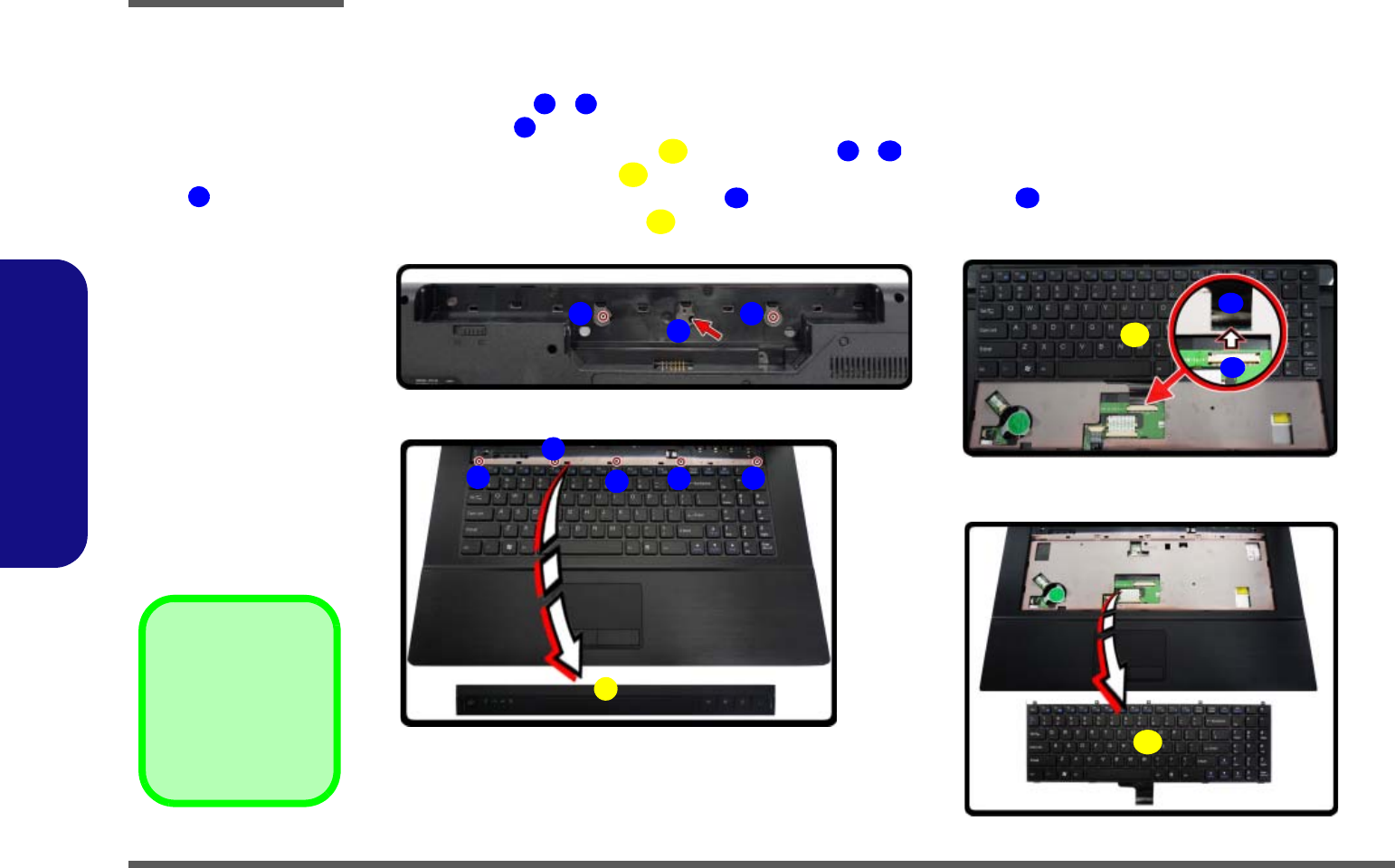

Removing the Keyboard ................................................................2-16
Removing the Mainboard ..............................................................2-17
Part Lists ..................................................A-1
Part List Illustration Location ........................................................A-2
Top .................................................................................................A-3
Bottom ............................................................................................A-4
Combo ............................................................................................ A-5

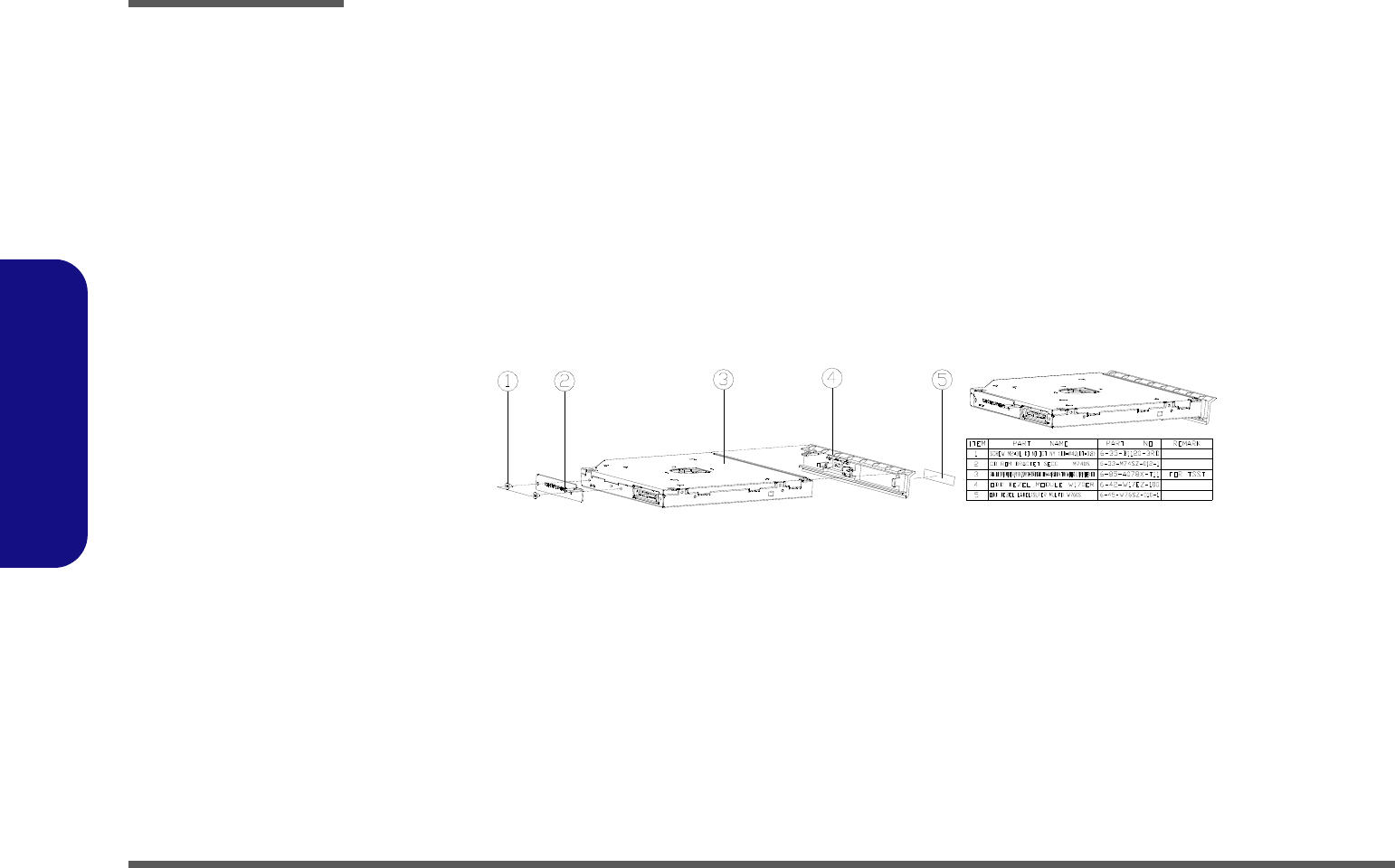

DVD ............................................................................................... A-6

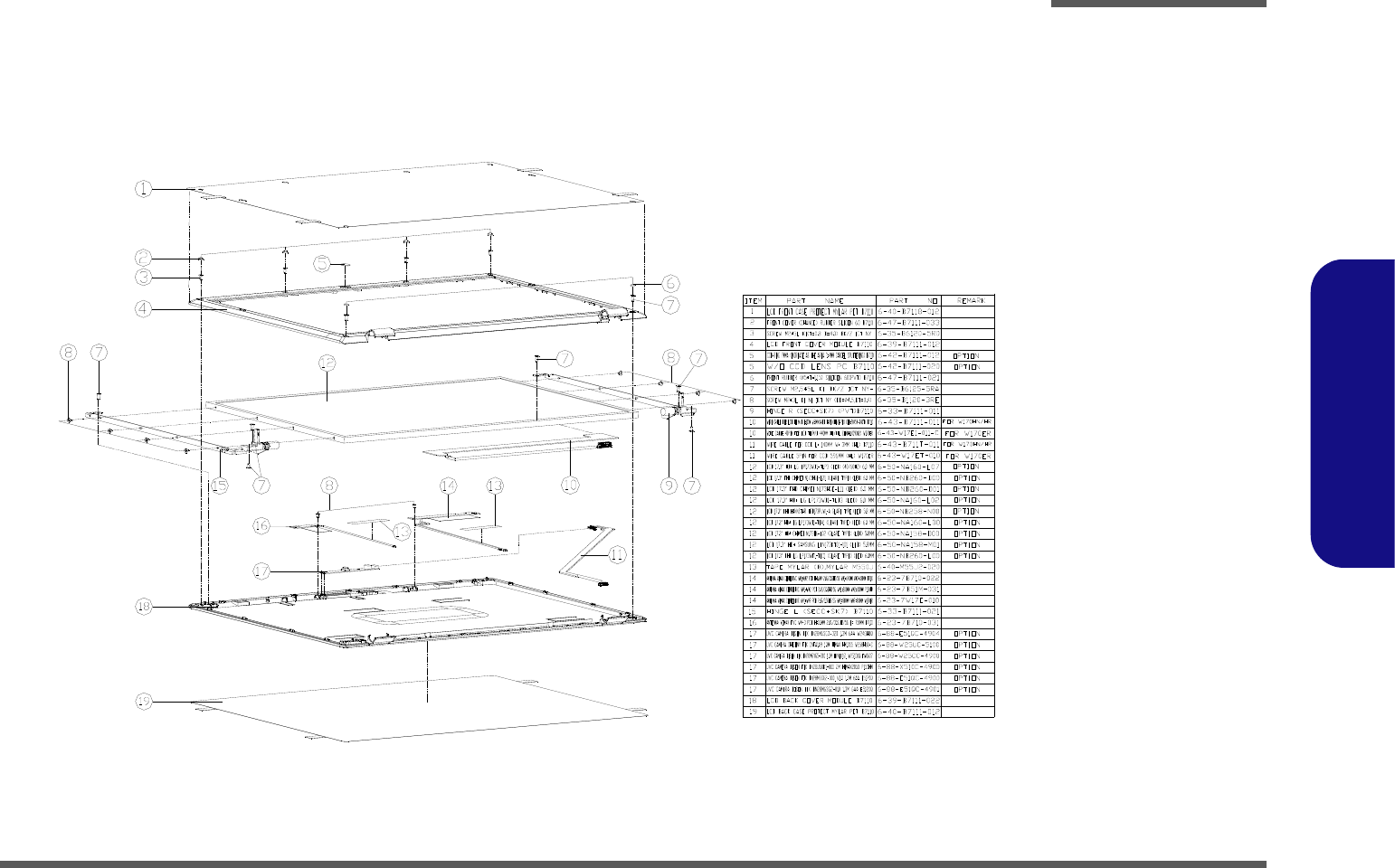

LCD .............................................................................................. A-7
HDD ............................................................................................... A-8

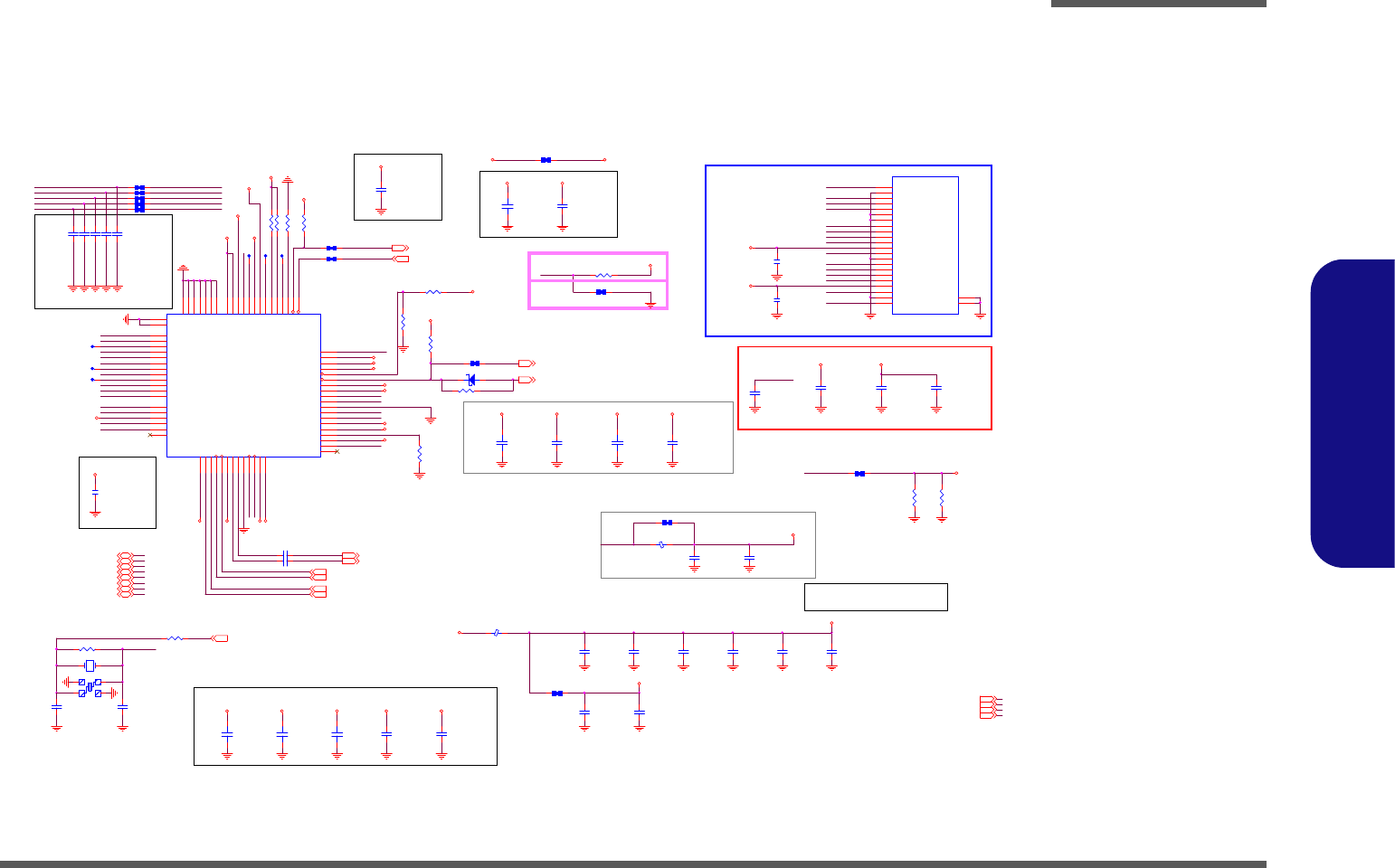

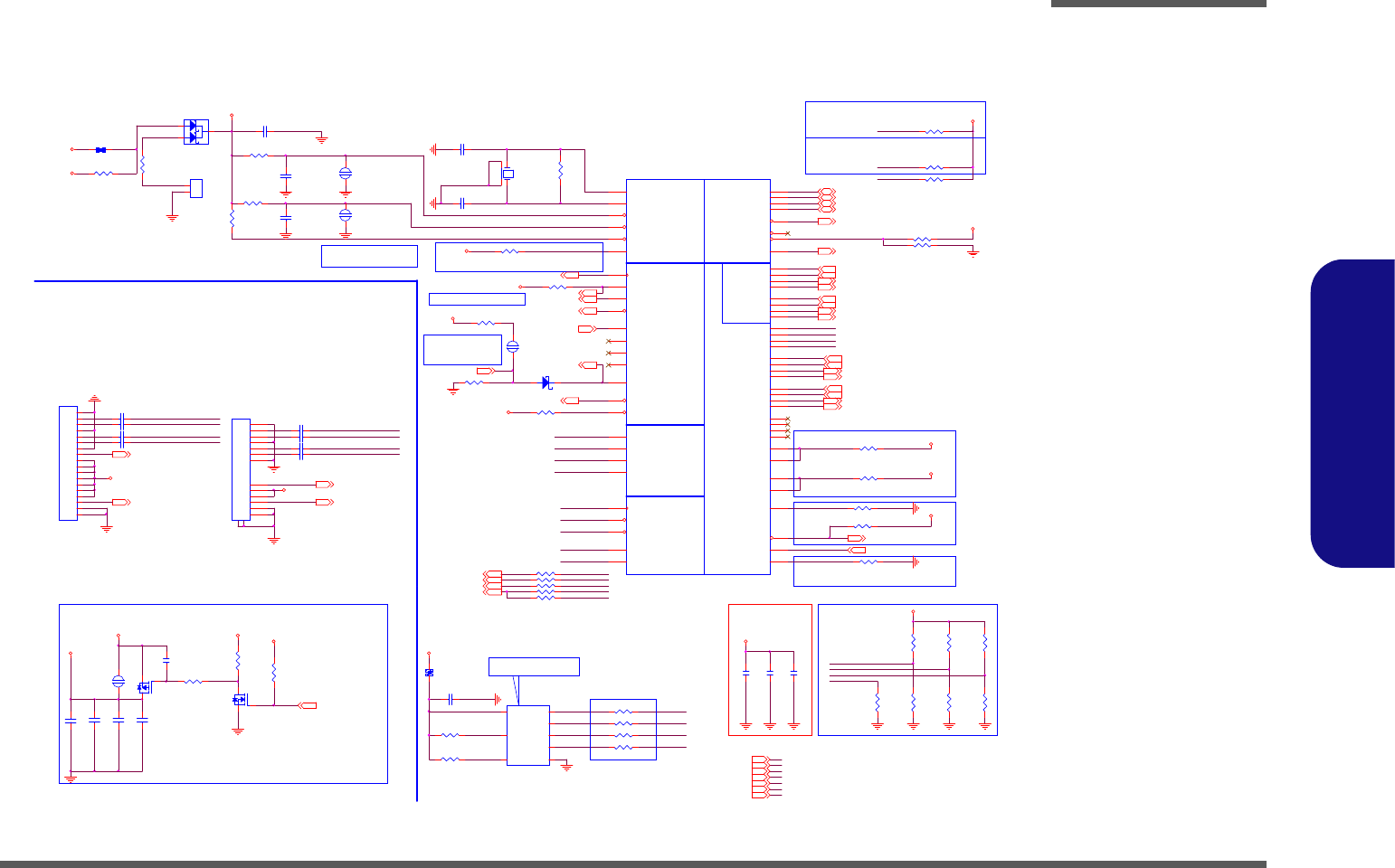

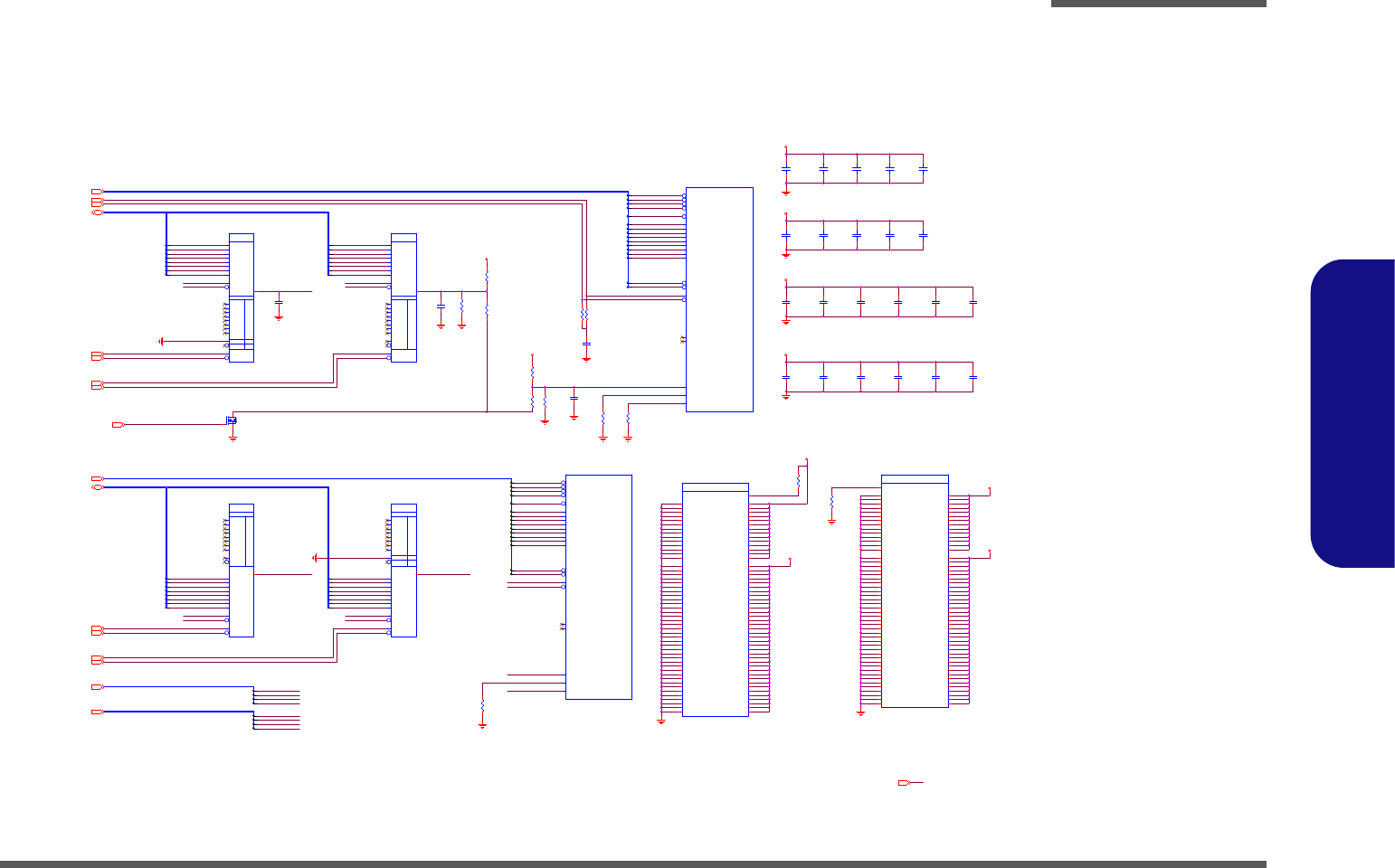

Schematic Diagrams................................. B-1

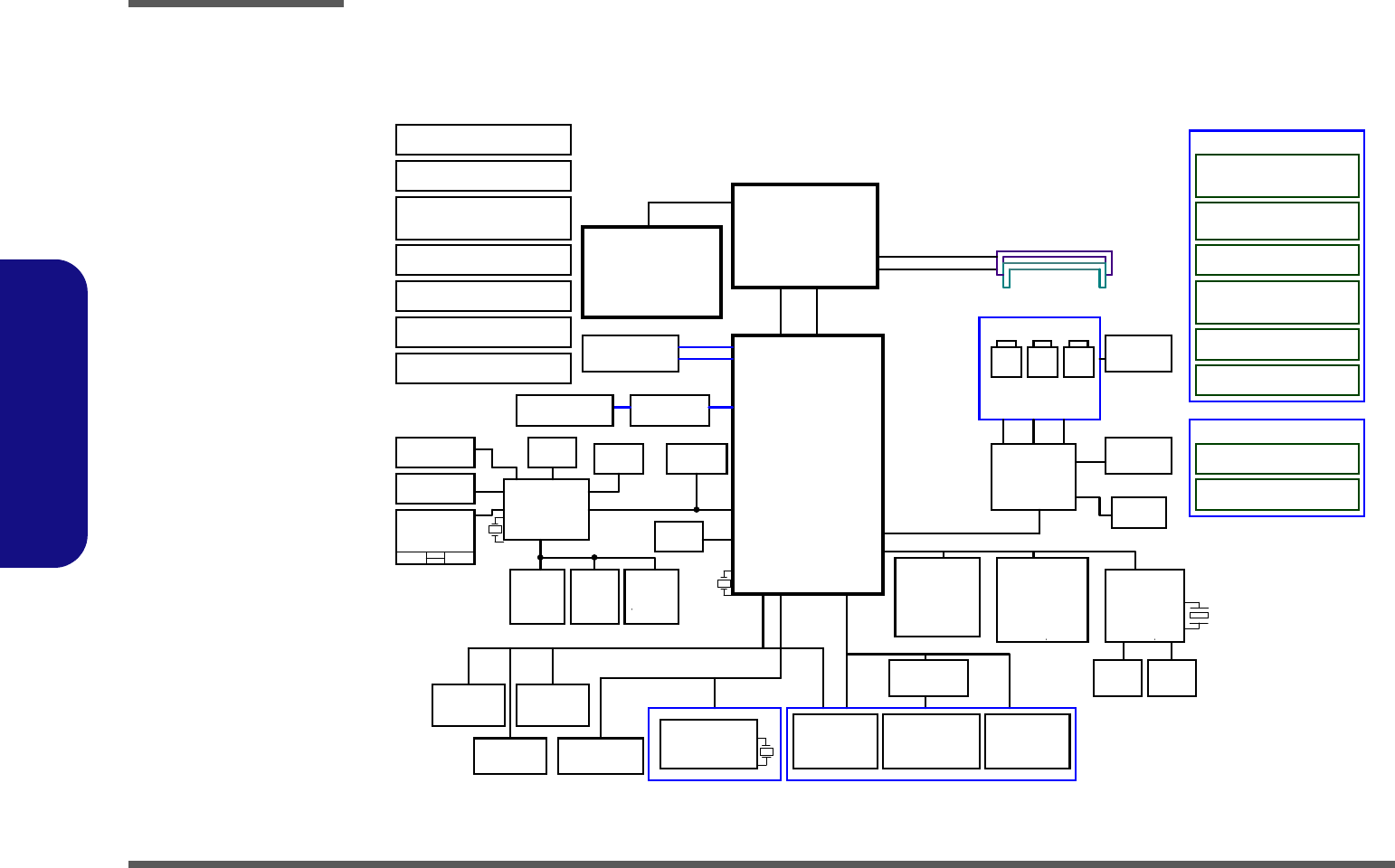

System Block Diagram ...................................................................B-2
Ivy Bridge Processor 1/7 ................................................................B-3
Ivy Bridge Processor 2/7 ................................................................B-4
Ivy Bridge Processor 3/7 ................................................................B-5
Ivy Bridge Processor 4/7 ................................................................B-6
Ivy Bridge Processor 5/7 ................................................................B-7
Ivy Bridge Processor 6/7 ................................................................B-8
Ivy Bridge Processor 7/7 ................................................................B-9
DDR3 SO-DIMM_0 .....................................................................B-10
DDR3 SO-DIMM_1 .....................................................................B-11
Panel, Inverter, CRT .....................................................................B-12
VGA PCI-E Interface ....................................................................B-13
VGA Frame Buffer Interface ........................................................B-14
VGA Frame Buffer A ...................................................................B-15
VGA Frame Buffer A ...................................................................B-16
VGA Frame Buffer B ...................................................................B-17
VGA Frame Buffer B ...................................................................B-18
VGA I/O .......................................................................................B-19
VGA NVVDD Cecoupling ...........................................................B-20
PantherPoint - M 1/9 .....................................................................B-21
PantherPoint - M 2/9 .....................................................................B-22
PantherPoint - M 3/9 .....................................................................B-23
PantherPoint - M 4/9 .....................................................................B-24
PantherPoint - M 5/9 .....................................................................B-25
PantherPoint - M 6/9 .....................................................................B-26
Preface
X
Preface
PantherPoint - M 7/9 .................................................................... B-27
PantherPoint - M 8/9 .................................................................... B-28
PantherPoint - M 9/9 .................................................................... B-29
WLAN, 3G, Mini PCIE ................................................................ B-30
Charge, TP, FP, Multi-Conn ........................................................ B-31
eSATA/USB 3.0 Connector ......................................................... B-32
Card Reader / LAN RTL8411 ...................................................... B-33
SATA HDD, LED, Hotkey, LID SW ........................................... B-34
HDMI, RJ45 ................................................................................. B-35
Audio Codec VT1802P ................................................................ B-36
KBC-ITE IT8518E ....................................................................... B-37
5VS, 3VS, 3.3VM, 1.5VS_CPU .................................................. B-38
VDD3, VDD5 ............................................................................... B-39
Power 0.85VS, 1.8VS .................................................................. B-40
Power 1.5V/0.75V/PEX_VDD .................................................... B-41
Power 1.05VS ............................................................................... B-42
Power V-Core1 ............................................................................. B-43
Power V-Core2 ............................................................................. B-44
VGA NVVDD .............................................................................. B-45
AC_IN, Charger ........................................................................... B-46
W150ERQ Audio Board .............................................................. B-47
W150ERQ Click Board ................................................................ B-48
W150ERQ Fingerprint Board ...................................................... B-49
W170ER LED & VGA SW Board ............................................... B-50
W170ER Power Switch Board ..................................................... B-51

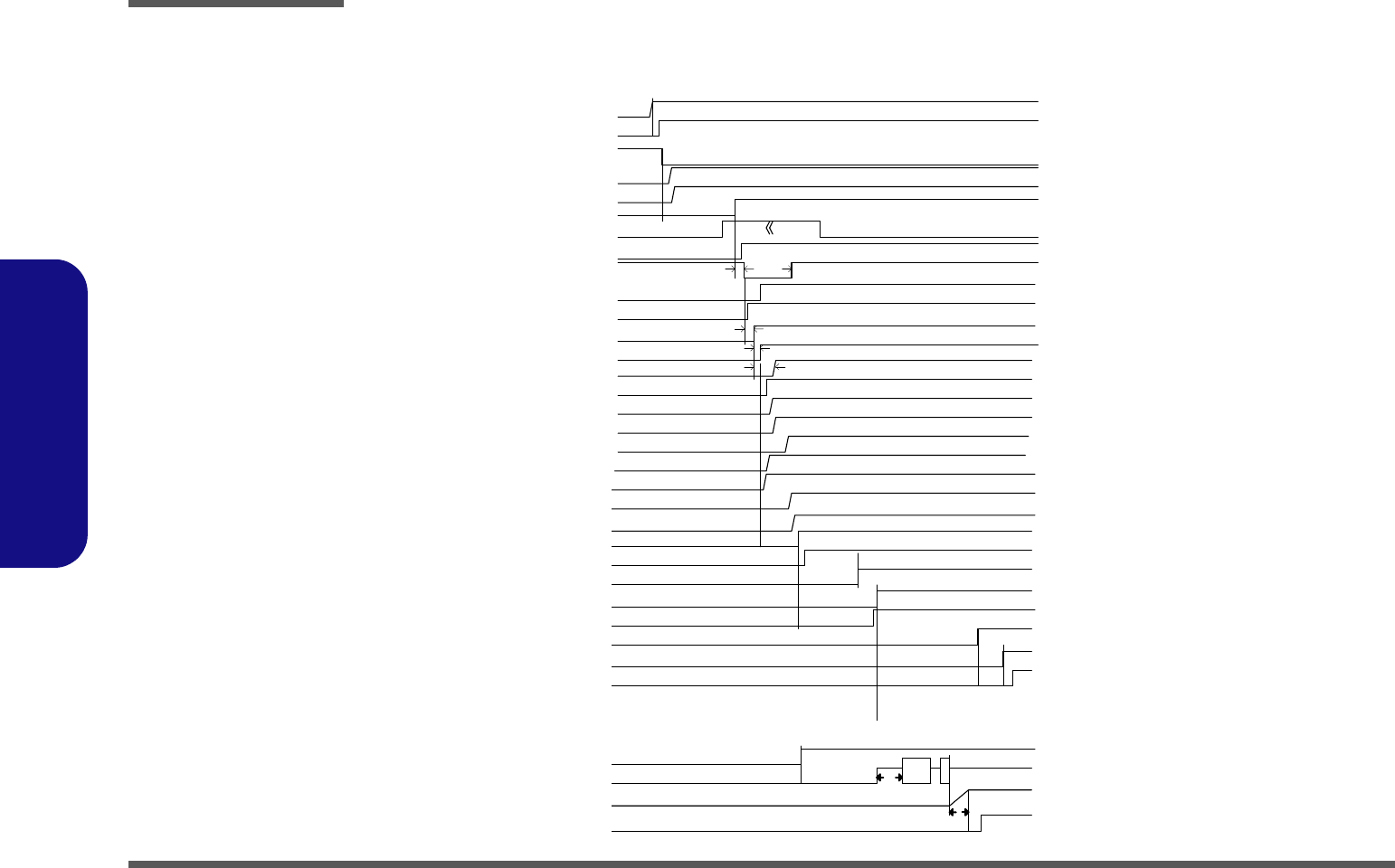

Sequence ....................................................................................... B-52
Updating the FLASH ROM BIOS......... C-1
Download the BIOS ....................................................................... C-1
Unzip the downloaded files to a bootable CD/DVD/ or
USB Flash drive ............................................................................. C-1
Set the computer to boot from the external drive ........................... C-1
Use the flash tools to update the BIOS ...........................................C-2
Restart the computer (booting from the HDD) ...............................C-2
Introduction
Overview 1 - 1
1.Introduction
Chapter 1: Introduction
Overview
This manual covers the information you need to service or upgrade the W170ER series notebook computer. Information
about operating the computer (e.g. getting started, and the Setup utility) is in the User’s Manual. Information about dri-
vers (e.g. VGA & audio) is also found in the User’s Manual. The manual is shipped with the computer.
Operating systems (e.g. Window 7, etc.) have their own manuals as do application softwares (e.g. word processing and
database programs). If you have questions about those programs, you should consult those manuals.
The W170ER series notebook is designed to be upgradeable. See Disassembly on page 2 - 1 for a detailed description
of the upgrade procedures for each specific component. Please take note of the warning and safety information indicated
by the “” symbol.
The balance of this chapter reviews the computer’s technical specifications and features.
Introduction
1 - 2 Specifications
1.Introduction
Specifications
Latest Specification Information
The specifications listed here are correct at the
time of sending them to the press. Certain items
(particularly processor types/speeds) may be
changed, delayed or updated due to the manu-
facturer's release schedule. Check with your
service center for more details.
CPU
The CPU is not a user serviceable part. Ac-
cessing the CPU in any way may violate your
warranty.
Processor Options
Intel® Core™ i7 Processor
i7-3820QM (2.70GHz)
8MB L3 Cache, 22nm, DDR3-1600MHz, TDP 45W
i7-3720QM (2.60GHz), i7-3610QM (2.30GHz)
6MB L3 Cache, 22nm, DDR3-1600MHz, TDP 45W
i7-3520M (2.90GHz)
4MB L3 Cache, 22nm, DDR3-1600MHz, TDP 35W
Intel® Core™ i5 Processor
i5-3360M (2.80GHz), i5-3320M (2.60GHz), i5-3210M
(2.50GHz), i5-3110M (2.40GHz)
3MB L3 Cache, 22nm, DDR3-1600MHz, TDP 35W
Intel® Core™ i7 Processor
i7-2860QM (2.50GHz), i7-2820QM (2.30GHz)
8MB L3 Cache, 32nm, DDR3-1600MHz, TDP 45W
i7-2760QM (2.40GHz), i7-2720QM (2.20GHz)
6MB L3 Cache, 32nm, DDR3-1600MHz, TDP 45W
i7-2670QM (2.20GHz), i7-2650QM (2.10GHz), i7-2630QM
(2.00GHz)
6MB L3 Cache, 32nm, DDR3-1333MHz, TDP 45W
i7-2640M (2.80GHz), i7-2620M (2.70GHz)
4MB L3 Cache, 32nm, DDR3-1333MHz, TDP 35W
Intel® Core™ i5 Processor
i5-2540M (2.60GHz), i5-2520M (2.50GHz),
i5-2450M (2.50GHz), i5-2430M (2.40GHz), i5-2410M
(2.30GHz)
3MB L3 Cache, 32nm, DDR3-1333MHz, TDP 35W
Intel® Core™ i3 Processor
i3-2370M (2.40GHz), i3-2350M (2.30GHz), i3-2330M
(2.20GHz), i3-2310M (2.10GHz)
3MB L3 Cache, 32nm, DDR3-1333MHz, TDP 35W
Core Logic
Intel® HM76 Chipset
BIOS
One 48Mb SPI Flash ROM
AMI BIOS
LCD
17.3" (43.94cm) HD+/ FHD LCD
Video Adapter
Intel® Integrated GPU and NVIDIA® Discrete GPU
Supports NVIDIA® Optimus Technology
Intel Integrated GPU (GPU is Dependent on Processor)
Intel® HD Graphics 3000
Dynamic Frequency (Intel Dynamic Video Memory Technol-
ogy for up to 1.7GB)
Microsoft DirectX®10 Compatible
Intel® HD Graphics 4000
Dynamic Frequency (Intel Dynamic Video Memory Technol-
ogy for up to 1.7GB)
Microsoft DirectX®11 Compatible
NVIDIA Discrete GPU
NVIDIA® GeForce GT 650M
1GB GDDR5 Video RAM
Microsoft DirectX®11 Compatible
Memory
Two 204 Pin SO-DIMM Sockets Supporting DDR3 1333/
1600MHz Memory
Memory Expandable up to 8GB
(The real memory operating frequency depends on the FSB of
the processor.)
Security
BIOS Password
Security (Kensington® Type) Lock Slot
Introduction
Specifications 1 - 3
1.Introduction
Audio
High Definition Audio Compliant Interface
THX TruStudio Pro
2 * Built-In Speakers
Built-In Microphone
Storage
(Factory Option) One Changeable 12.7mm(h) Optical Device
Type Drive (Super Multi Drive Module or Blu-Ray Combo Drive
Module or Blu-Ray Writer Module)
Two Changeable 2.5" 9.5 mm (h) SATA (Serial) HDD
Interface
One USB 2.0 Port
Two USB 3.0 Ports
One eSATA Port (USB 3.0 Port Combined)
One HDMI-Out Port
One Headphone-Out Jack
One Microphone-In Jack
One S/PDIF Out Jack
One RJ-45 LAN Jack
One External Monitor Port
One DC-in Jack
Keyboard
Full-size “WinKey” keyboard (with numeric keypad)
Pointing Device
Built-in Touchpad (scrolling key functionality integrated)
Communication
Built-In Gigabit Ethernet LAN
(Factory Option) 1.3M/2.0M Pixel USB PC Camera Module
WLAN/ Bluetooth Half Mini-Card Modules:
(Factory Option) Intel® Centrino® Ultimate-N 6300 Wireless
LAN (802.11a/g/n)
(Factory Option) Intel® Centrino® Wireless-N 105 Wireless
LAN (802.11b/g/n)
(Factory Option) Intel® Centrino® Advanced-N 6235 Wire-
less LAN (802.11a/g/n) + Bluetooth 4.0
(Factory Option) Intel® Centrino® Wireless-N 2230 Wire-
less LAN (802.11b/g/n) + Bluetooth 4.0
(Factory Option) Third-Party Wireless LAN (802.11b/g/n)
(Factory Option) Third-Party Wireless LAN (802.11b/g/n) +
Bluetooth 4.0
Card Reader
Embedded Multi-in-1 Card Reader
MMC (MultiMedia Card) / RS MMC
SD (Secure Digital) / Mini SD / SDHC/ SDXC
MS (Memory Stick) / MS Pro / MS Duo
Mini Card Slots
Slot 1 for WLAN Module or WLAN and Bluetooth Combo
Module
Environmental Spec
Temperature
Operating: 5°C - 35°C
Non-Operating: -20°C - 60°C
Relative Humidity
Operating: 20% - 80%
Non-Operating: 10% - 90%
Power
Full Range AC/DC Adapter
AC Input: 100 - 240V, 50 - 60Hz
DC Output: 19V, 6.3A (120W)
6 Cell Smart Lithium-Ion Battery Pack, 48.84WH
(Factory Option) 6 Cell Smart Lithium-Ion Battery Pack,
62.16WH
Dimensions & Weight
413mm (w) * 277.5mm (d) * 17.1 - 41.5mm (h)
3.2kg with ODD & 48.84WH Battery
Introduction
1 - 4 External Locator - Top View with LCD Panel Open
1.Introduction
External Locator - Top View with LCD Panel Open
Figure 1
Top View
1. PC Camera
(Optional)
2. LCD
3. Power Button
4. GPU Button
5. LED Indicators
6. Hot Key Buttons
7. Keyboard
8. Built-In
Microphone
9. Touchpad &
Buttons
2
1
9
8
6
7
453
17.3” (43.94cm)
Introduction
External Locator - Front & Right Side Views 1 - 5
1.Introduction

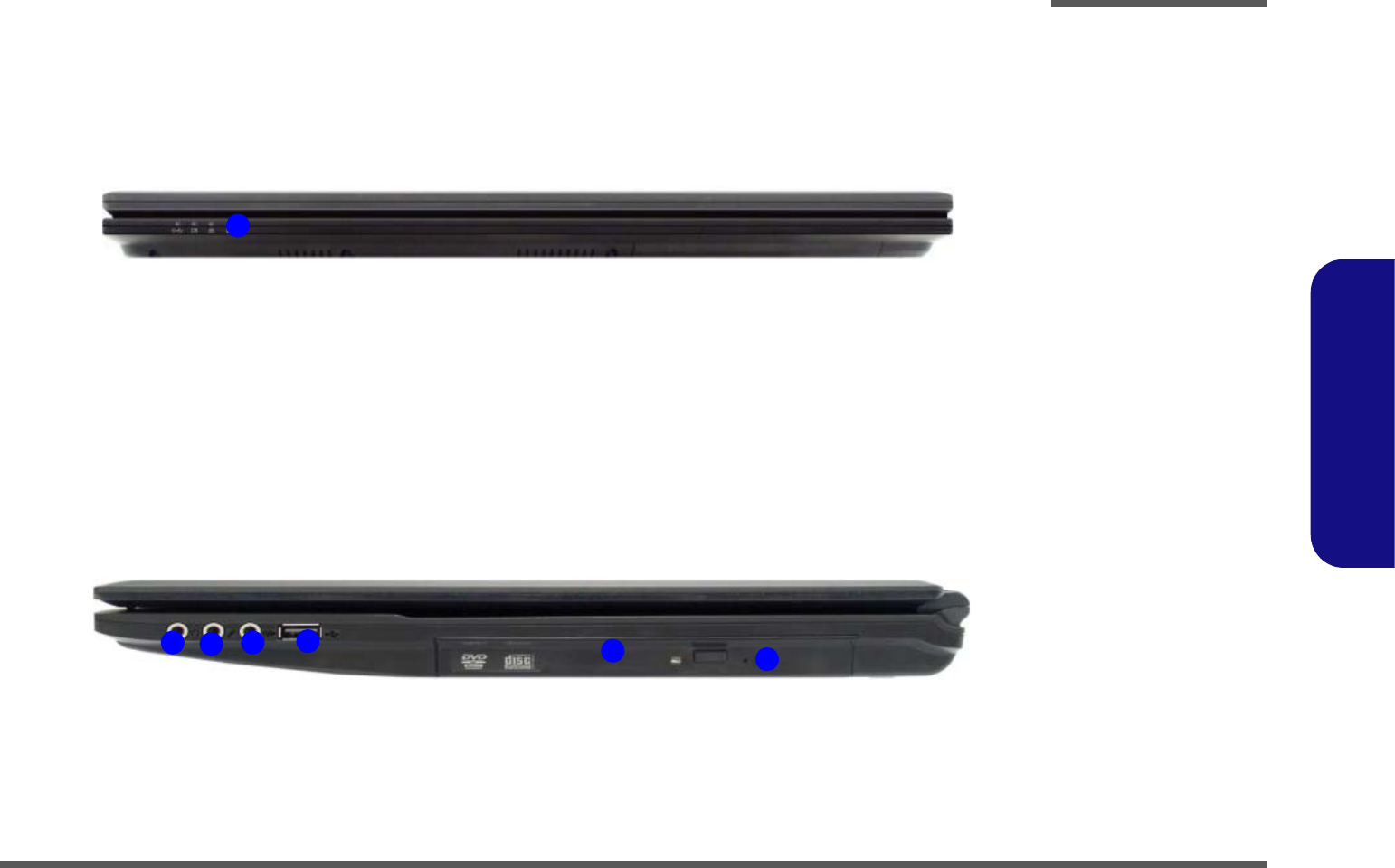

External Locator - Front & Right Side Views
FRONT VIEW
1
RIGHT SIDE VIEW
12356
4
Introduction
1 - 6 External Locator - Left Side & Rear View
1.Introduction
External Locator - Left Side & Rear View
/
LEFT SIDE VIEW
123456
5
7
8
REAR VIEW
2
1
Introduction
External Locator - Bottom View 1 - 7
1.Introduction
External Locator - Bottom View
Overheating
To prevent your com-
puter from overhea-
ting, make sure no-
thing blocks any vent
while the computer is
in use.
2
1
4
3
3
4
Introduction
1 - 8 Mainboard Overview - Top (Key Parts)
1.Introduction

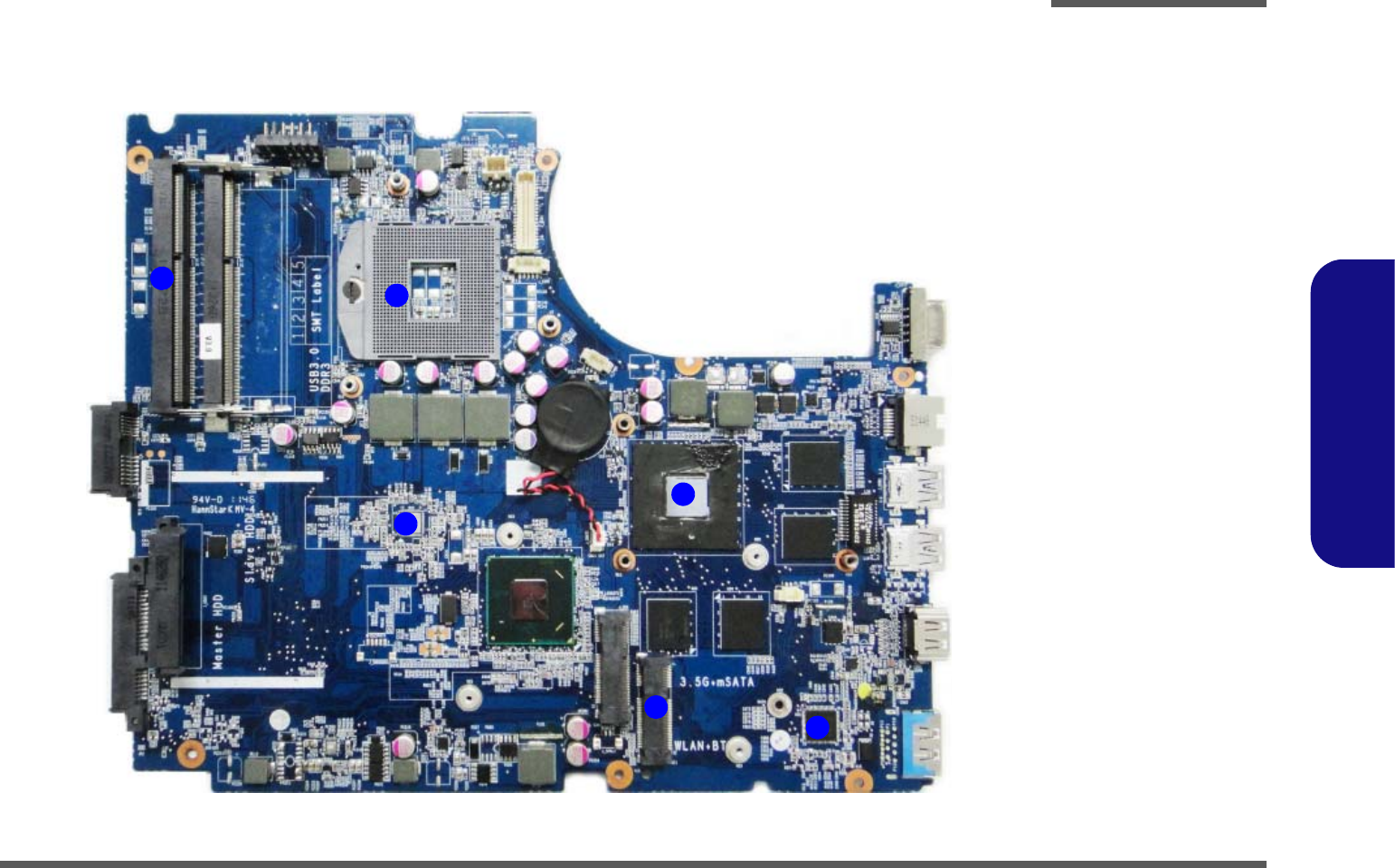

Mainboard Overview - Top (Key Parts)
1
2
3
4
12
3
5
6
4
Introduction
Mainboard Overview - Bottom (Key Parts) 1 - 9
1.Introduction
Mainboard Overview - Bottom (Key Parts)
Introduction
1 - 10 Mainboard Overview - Top (Connectors)
1.Introduction
Mainboard Overview - Top (Connectors)
10
11
9
8
7
1
2
45
6
3
1
Introduction
Mainboard Overview - Bottom (Connectors) 1 - 11
1.Introduction
Mainboard Overview - Bottom (Connectors)
11
1
2
4
5
6
8
3
7
2
11
9
10
Introduction
1 - 12
1.Introduction
Disassembly
Overview 2 - 1
2.Disassembly
Chapter 2: Disassembly
Overview
This chapter provides step-by-step instructions for disassembling the W170ER series notebook’s parts and subsystems.
When it comes to reassembly, reverse the procedures (unless otherwise indicated).
We suggest you completely review any procedure before you take the computer apart.
Procedures such as upgrading/replacing the RAM, optical device and hard disk are included in the User’s Manual but are
repeated here for your convenience.
To make the disassembly process easier each section may have a box in the page margin. Information contained under
the figure # will give a synopsis of the sequence of procedures involved in the disassembly procedure. A box with a
lists the relevant parts you will have after the disassembly process is complete. Note: The parts listed will be for the dis-
assembly procedure listed ONLY, and not any previous disassembly step(s) required. Refer to the part list for the previ-
ous disassembly procedure. The amount of screws you should be left with will be listed here also.
A box with a will also provide any possible helpful information. A box with a contains warnings.
An example of these types of boxes are shown in the sidebar.
Information
Warning
Disassembly
2 - 2 Overview
2.Disassembly
NOTE: All disassembly procedures assume that the system is turned OFF, and disconnected from any power supply (the
battery is removed too).
Maintenance Tools
The following tools are recommended when working on the notebook PC:
• M3 Philips-head screwdriver
• M2.5 Philips-head screwdriver (magnetized)
• M2 Philips-head screwdriver
• Small flat-head screwdriver
• Pair of needle-nose pliers
• Anti-static wrist-strap
Connections
Connections within the computer are one of four types:
Locking collar sockets for ribbon connectors To release these connectors, use a small flat-head screwdriver to
gently pry the locking collar away from its base. When replac-
ing the connection, make sure the connector is oriented in the
same way. The pin1 side is usually not indicated.
Pressure sockets for multi-wire connectors To release this connector type, grasp it at its head and gently
rock it from side to side as you pull it out. Do not pull on the
wires themselves. When replacing the connection, do not try to
force it. The socket only fits one way.
Pressure sockets for ribbon connectors To release these connectors, use a small pair of needle-nose pli-
ers to gently lift the connector away from its socket. When re-
placing the connection, make sure the connector is oriented in
the same way. The pin1 side is usually not indicated.
Board-to-board or multi-pin sockets To separate the boards, gently rock them from side to side as
you pull them apart. If the connection is very tight, use a small
flat-head screwdriver - use just enough force to start.
Disassembly
Overview 2 - 3
2.Disassembly
Maintenance Precautions
The following precautions are a reminder. To avoid personal injury or damage to the computer while performing a re-
moval and/or replacement job, take the following precautions:
1. Don't drop it. Perform your repairs and/or upgrades on a stable surface. If the computer falls, the case and other
components could be damaged.
2. Don't overheat it. Note the proximity of any heating elements. Keep the computer out of direct sunlight.
3. Avoid interference. Note the proximity of any high capacity transformers, electric motors, and other strong mag-
netic fields. These can hinder proper performance and damage components and/or data. You should also monitor
the position of magnetized tools (i.e. screwdrivers).
4. Keep it dry. This is an electrical appliance. If water or any other liquid gets into it, the computer could be badly
damaged.
5. Be careful with power. Avoid accidental shocks, discharges or explosions.
•Before removing or servicing any part from the computer, turn the computer off and detach any power supplies.
•When you want to unplug the power cord or any cable/wire, be sure to disconnect it by the plug head. Do not pull on the wire.
6. Peripherals – Turn off and detach any peripherals.
7. Beware of static discharge. ICs, such as the CPU and main support chips, are vulnerable to static electricity.
Before handling any part in the computer, discharge any static electricity inside the computer. When handling a
printed circuit board, do not use gloves or other materials which allow static electricity buildup. We suggest that
you use an anti-static wrist strap instead.
8. Beware of corrosion. As you perform your job, avoid touching any connector leads. Even the cleanest hands pro-
duce oils which can attract corrosive elements.
9. Keep your work environment clean. Tobacco smoke, dust or other air-born particulate matter is often attracted
to charged surfaces, reducing performance.
10. Keep track of the components. When removing or replacing any part, be careful not to leave small parts, such as
screws, loose inside the computer.
Cleaning
Power Safety
Warning
Before you undertake
any upgrade proce-
dures, make sure that
you have turned off the
power, and discon-
nected all peripherals
and cables (including
telephone lines). It is
advisable to also re-
move your battery in
order to prevent acci-
dentally turning the
machine on.
Do not apply cleaner directly to the computer, use a soft clean cloth.
Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer.
Disassembly
2 - 4 Disassembly Steps
2.Disassembly
Disassembly Steps
The following table lists the disassembly steps, and on which page to find the related information. PLEASE PERFORM
THE DISASSEMBLY STEPS IN THE ORDER INDICATED.
To remove the Battery:
1. Remove the battery page 2 - 5
To remove the System Memory:
1. Remove the battery page 2 - 5
2. Remove the system memory page 2 - 6
To remove the HDD:
1. Remove the battery page 2 - 5
2. Remove the HDD page 2 - 8
To remove the Optical Device:
1. Remove the battery page 2 - 5
2. Remove the Optical device page 2 - 11

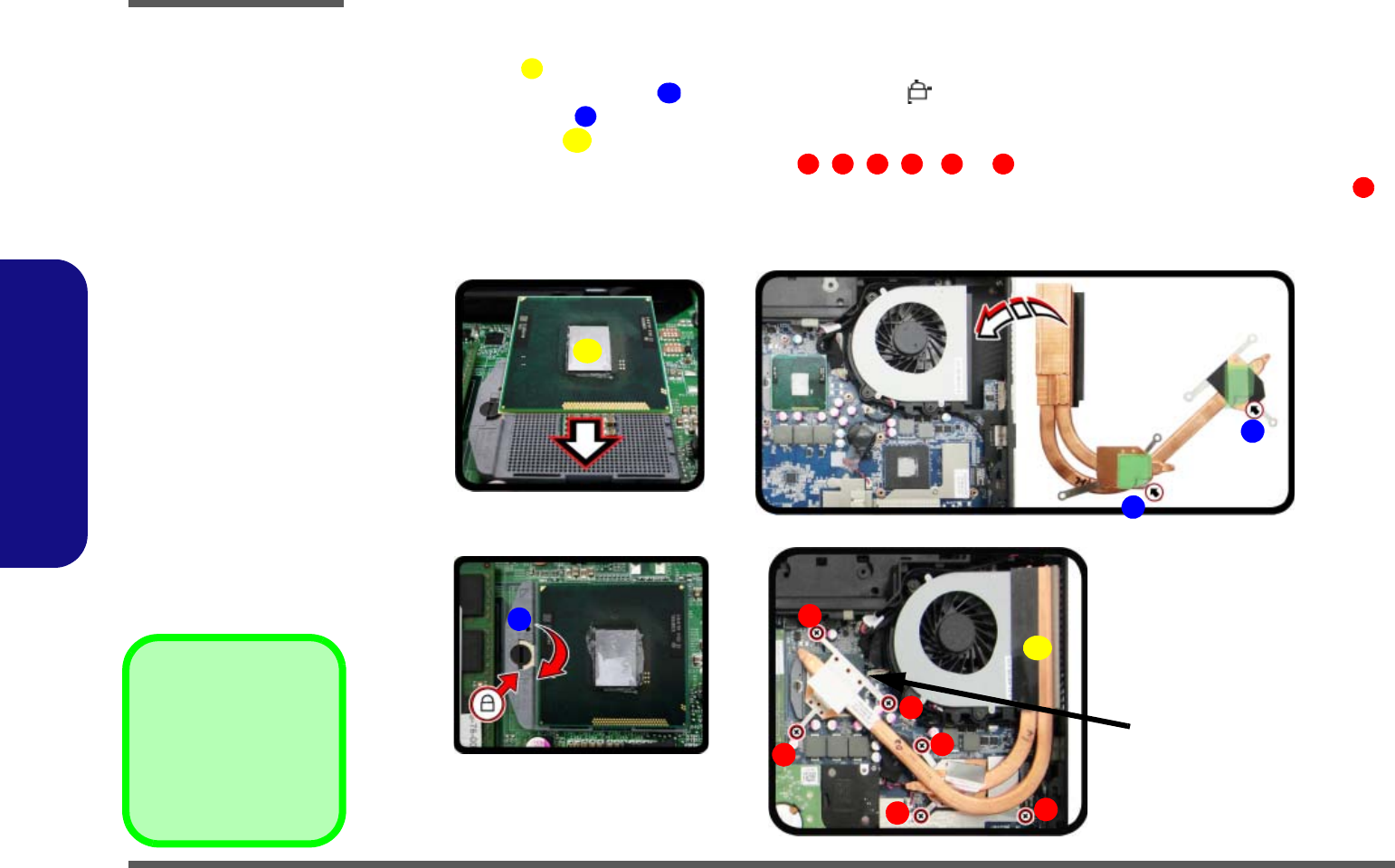

To remove and install a Processor:
1. Remove the battery page 2 - 5
2. Remove the processor page 2 - 12
3. Install the processor page 2 - 14
To remove the Wireless LAN Module:
1. Remove the battery page 2 - 5
2. Remove the WLAN module page 2 - 15
To remove the Keyboard:
1. Remove the battery page 2 - 5
2. Remove the keyboard page 2 - 16

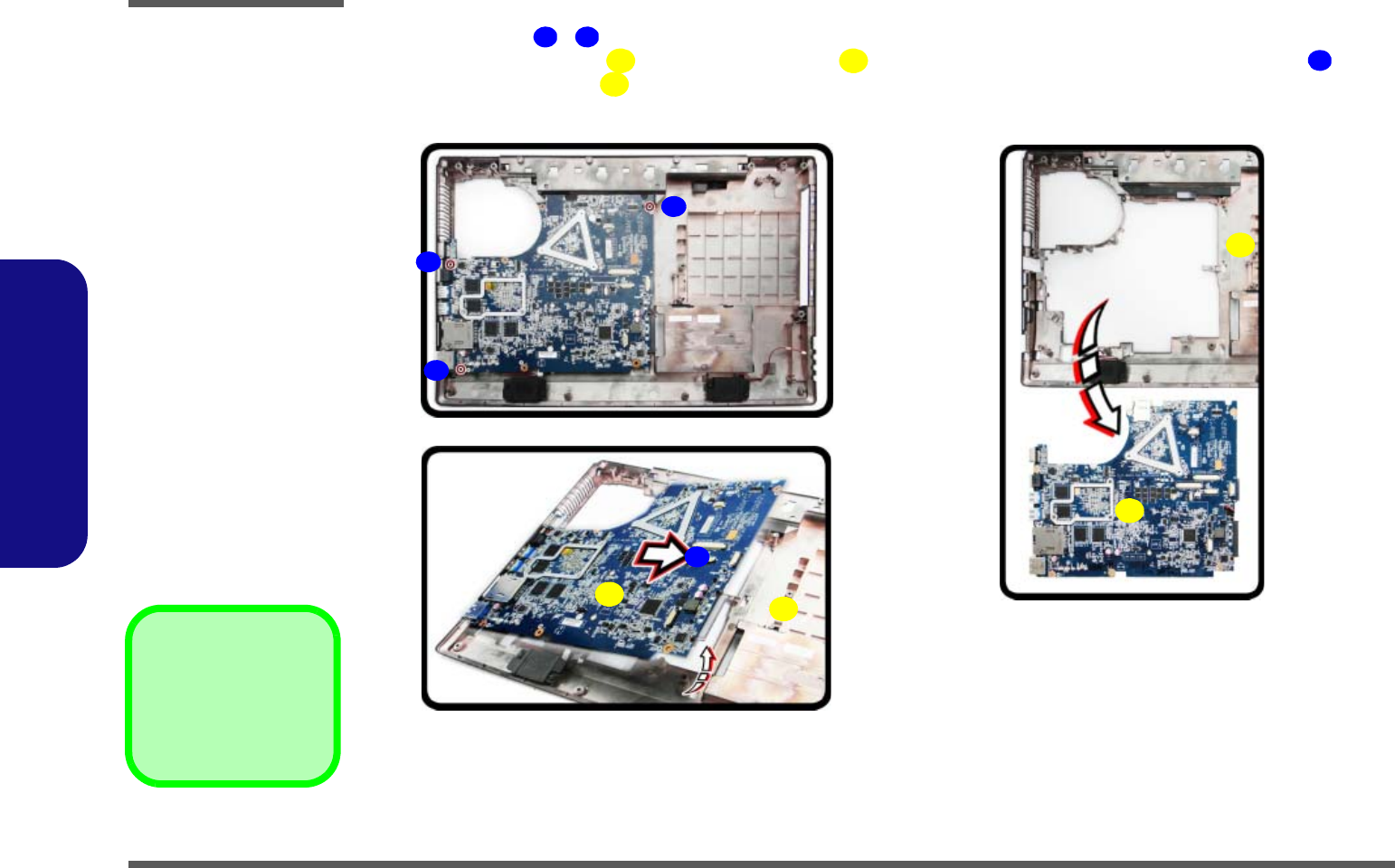

To remove the Mainboard:
1. Remove the battery page 2 - 5
2. Remove the system memory page 2 - 6
3. Remove the HDD page 2 - 8
4. Remove the Optical device page 2 - 11
5. Remove the processor page 2 - 12
6. Remove the WLAN module page 2 - 15
7. Remove the keyboard page 2 - 16
8. Remove the mainboard page 2 - 17
Disassembly
Removing the Battery 2 - 5
2.Disassembly
Removing the Battery
3. Battery
1. Turn the computer off, and turn it over.
2. Slide the latch in the direction of the arrow (Figure 1a).
3. Slide the latch in the direction of the arrow, and hold it in place (Figure 1a).
4. Slide the battery in the direction of the arrow (Figure 1b).
1
2
6
3
4
Figure 1
Battery Removal
a. Slide the latch and hold it
in place.
b. Slide the battery in the di-
rection of the arrow.
a.
b.
3
4
1
2
Disassembly
2 - 6 Removing the System Memory (RAM)
2.Disassembly
Removing the System Memory (RAM)

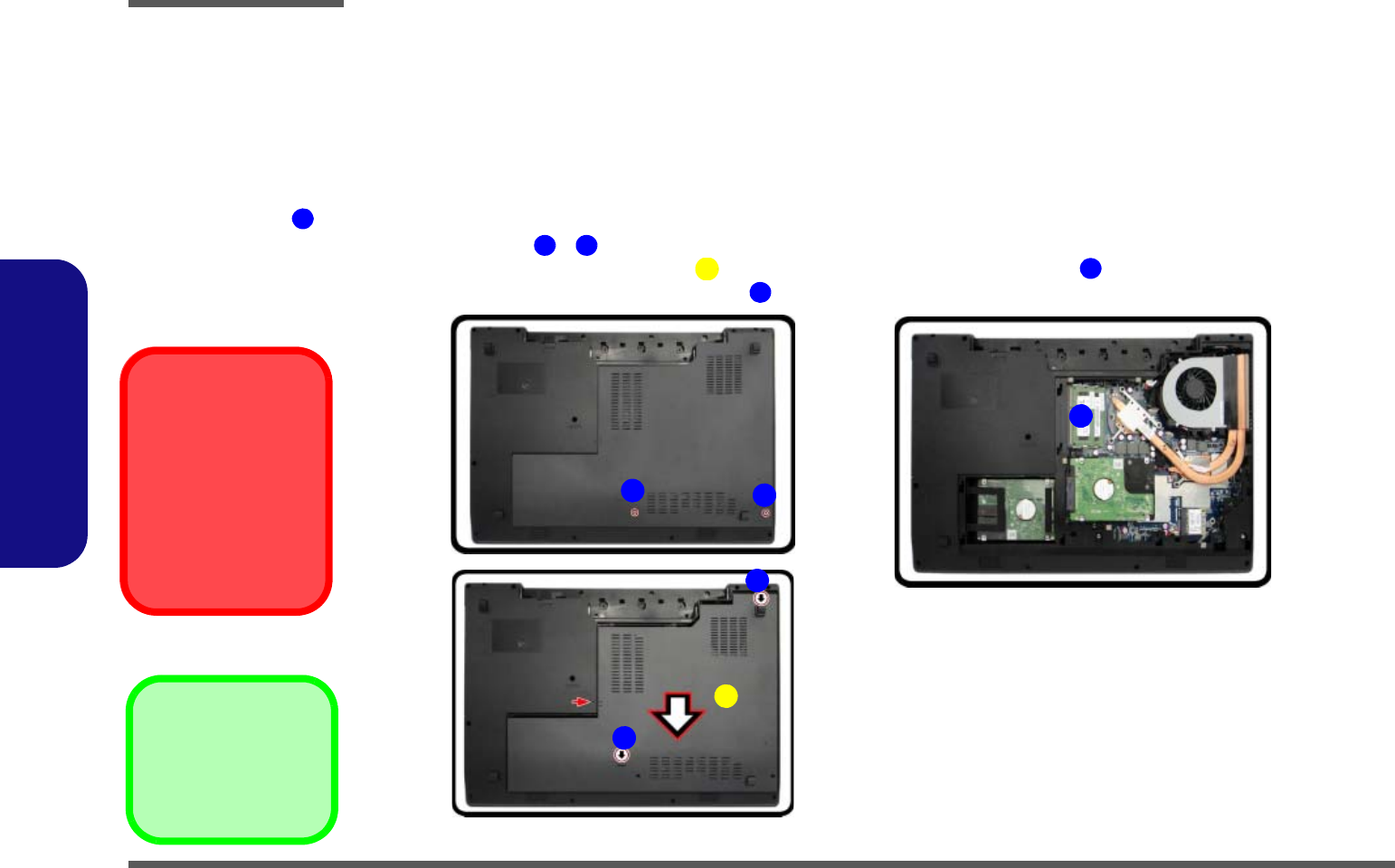

Figure 2
RAM Module
Removal
a. Remove the screws.
b. Slide out the compo-
nent bay cover.
c. The RAM modules will
be visible at point
on the mainboard.
Contact Warning
Be careful not to touch
the metal pins on the
module’s connecting
edge. Even the cleanest
hands have oils which
can attract particles, and
degrade the module’s
performance.
5
The computer has two memory sockets for 200 pin Small Outline Dual In-line Memory Modules (SO-DIMM) supporting
DDRIII (DDR3) Up to 1333/1600MHz. The main memory can be expanded up to 8GB. The SO-DIMM modules sup-
ported are 1024MB and 2048MB DDRIII Modules. The total memory size is automatically detected by the POST rou-
tine once you turn on your computer.
Memory Upgrade Process
3. Component Bay
Cover
•2 Screws
1. Turn off the computer, turn it over and remove the battery (page 2 - 5).
2. Remove screws - from the component bay cover (Figure 2a).
3. Remove the component bay cover (Figure 2b) by sliding the cover at point in the direction of arrow.
4. The RAM modules will be visible at point on the mainboard (Figure 2c).
1
2
6
3
4
5
a.
b.
1
2
4
5
3
4
c.
Disassembly
Removing the System Memory (RAM) 2 - 7
2.Disassembly
5. Gently pull the two release latches ( & ) on the sides of the memory socket in the direction indicated by the
arrows (Figure 2d). The RAM module will pop-up (Figure 3e), and you can then remove it.
6. Pull the latches to release the second module if necessary.
7. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot.
8. The module will only fit one way as defined by its pin alignment. Make sure the module is seated as far into the slot
as it will go. DO NOT FORCE IT; it should fit without much pressure.
9. Press the module in and down towards the mainboard until the slot levers click into place to secure the module.
10. Replace the component bay cover (Figure 3f) by sliding the cover at point in the direction of arrow.
11. Tighten the screws (see page 2 - 6).
12. Restart the computer to allow the BIOS to register the new memory configuration as it starts up.
13. Pull the latches to release the second module if necessary.
7
8
6
9
d. e.
7
8
9
f.
4
4
Figure 3
RAM Module
Removal (cont’d)
d. Pull the release lat-
ches.
e. Remove the module.
f. Slide in the compo-
nent bay cover.
Contact Warning
Be careful not to touch
the metal pins on the
module’s connecting
edge. Even the clean-
est hands have oils
which can attract parti-
cles, and degrade the
module’s performance.
9. RAM Module
6
3
4
Disassembly
2 - 8 Removing the Hard Disk Drive
2.Disassembly
Removing the Hard Disk Drive
The hard disk drive can be taken out to accommodate other 2.5" serial (SATA) hard disk drives with a height of 9.5mm
(h). Follow your operating system’s installation instructions, and install all necessary drivers and utilities (as outlined in
Chapter 4 of the User’s Manual) when setting up a new hard disk.
Hard Disk Upgrade Process

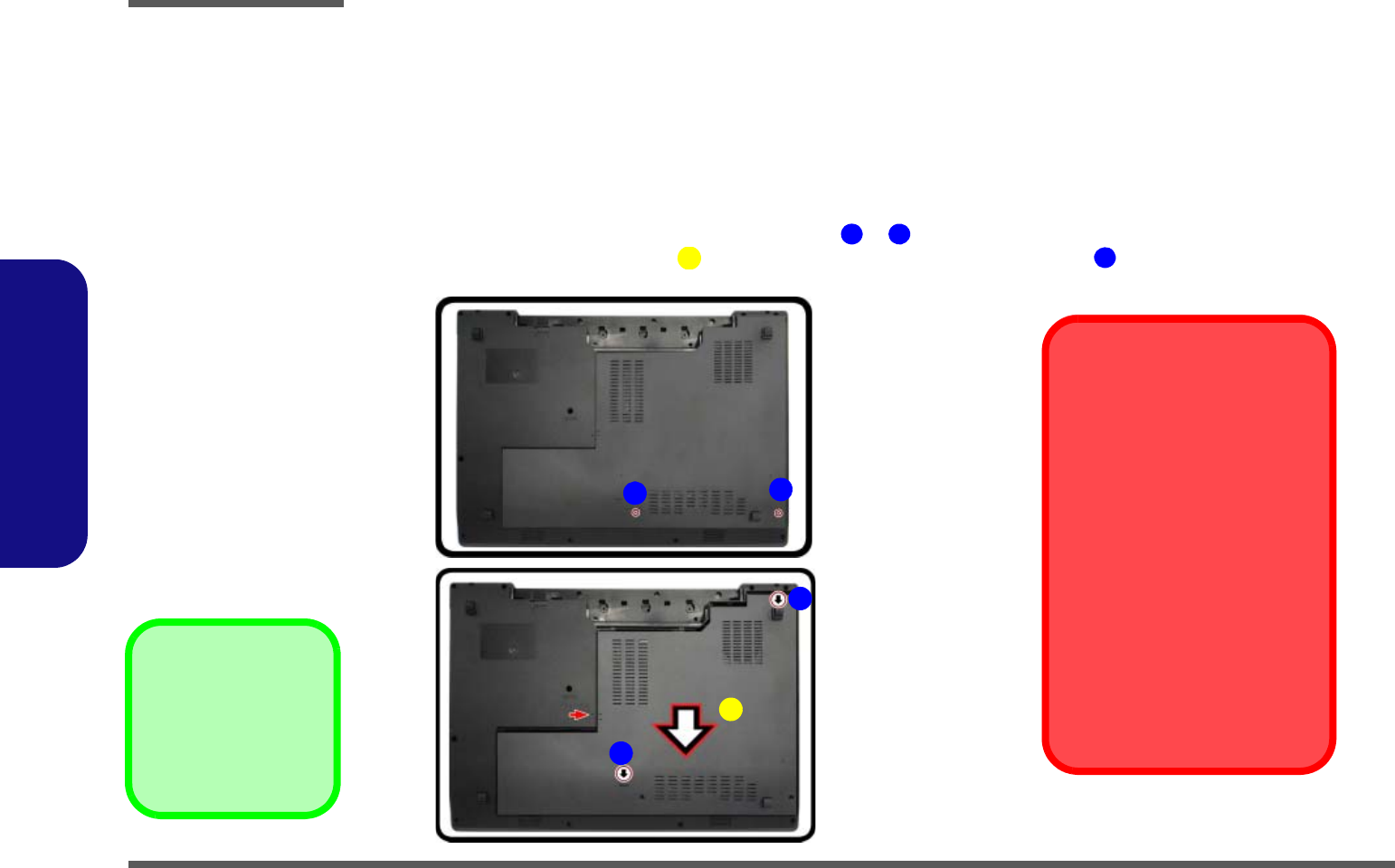

Figure 4
HDD Assembly
Removal
a. Locate the HDD bay cover
and remove the screws.
b. Slide the component bay
cover out.
3. HDD Bay Cover
•2 Screws
1. Turn off the computer, and remove the battery (page 2 - 5).
2. Locate the hard disk bay cover and remove screws & (Figure 4a).
3. Remove the hard disk bay cover (Figure 4b) by sliding the hard disk at point in the direction of arrow.
1
2
6
3
4
2
1
a.
HDD System Warning
New HDD’s are blank. Before you
begin make sure:
You have backed up any data
you want to keep from your old
HDD.
You have all the CD-ROMs and
FDDs required to install your op-
erating system and programs.
If you have access to the internet,
download the latest application
and hardware driver updates for
the operating system you plan to
install. Copy these to a remov-
able medium.
4
4
3
b.
Disassembly
Removing the Hard Disk Drive 2 - 9
2.Disassembly
4. Remove the hard disk bay cover (Figure 5c).
5. Grip the tab and slide the 1st hard disk assembly in the direction of arrow (Figure 5d).
6. Lift the hard disk assembly out of the bay (Figure 5e).
7. Remove the screw - and the mylar cover from the hard disk (Figure 5f).
6
3
4
6
5
6
7
8
11
12
4
c.
d.
6
e.
3
f.
98
7
10
5
3. HDD Bay Cover
5. HDD Assembly
9. Mylar Cover
10. HDD 1
•2 Screws

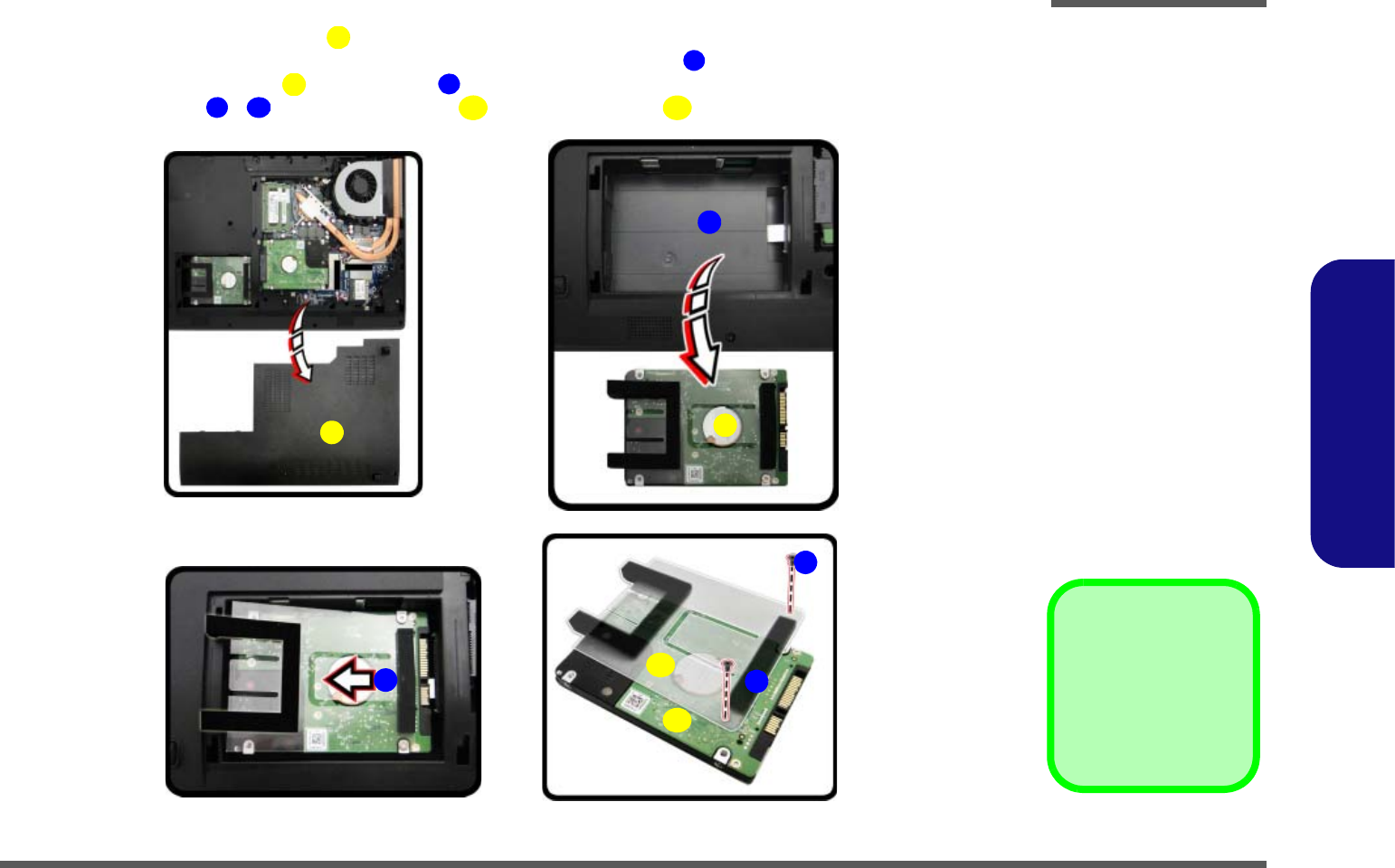

Figure 5
HDD Assembly
Removal (cont’d.)
c. Remove the HDD bay
cover.
d. Grip the tab and slide the
HDD assembly in the di-
rection of the arrow.
e. Lift the HDD assembly
out of the bay.
f. Remove the screws and
mylar cover.
Disassembly
2 - 10 Removing the Hard Disk Drive
2.Disassembly
8. Remove screws - from the 2nd hard disk assembly (Figure 6g).
9. Slide the 2nd hard disk in the direction of arrow (Figure 6h).
10. Lift the 2nd hard disk assembly out of the bay (Figure 6i).
11. Remove the screw - and the casing from the hard disk (Figure 6j).
12. Reverse the process to install a new hard disk (do not forget to replace all the screws and covers).
11
12
13
14
15
16
17
18
g.
h.
i.
j.
18
11
12
13
14
17
15
16
14. 2nd HDD Assembly
17. Casing
18. HDD 2
•4 Screws
Figure 6
HDD Assembly
Removal (cont’d.)
g. Remove the HDD bay
cover.
h. Slide the 2nd HDD as-
sembly in the direction of
the arrow.
i. Lift the HDD assembly
out of the bay.
j. Remove the screws and
casing.
Disassembly
Removing the Optical (CD/DVD) Device 2 - 11
2.Disassembly
Removing the Optical (CD/DVD) Device
Figure 7
Optical Device
Removal
a. Remove the screw at
point .
b. Use a screwdriver to
carefully push out the
optical device at point
.
1
2
1. Turn off the computer, remove the battery (page 2 - 5) and hard disk (page 2 - 8).
2. Remove the screw at point (Figure 7a).
3. Use a screwdriver to carefully push out the optical device at point (Figure 7b).
4. Insert the new device and carefully slide it into the computer (the device only fits one way. DO NOT FORCE IT; The
screw holes should line up).
5. Restart the computer to allow it to automatically detect the new device.
1
3
2
3. Optical Device
•1 Screw
1
b.
3
a.
2
2
Disassembly
2 - 12 Removing and Installing a Processor
2.Disassembly
Removing and Installing a Processor
Processor Removal Procedure
1. Turn off the computer, remove the battery (page 2 - 5) and the component bay cover (page 2 - 6).
2. The CPU heat sink will be visible at point (Figure 8a) on the mainboard.
3. Remove screws , , , , and , the reverse order indicated on the label. *Note: Make sure that the
size of the screwdriver is below 4mm when removing or tighting screw , and its position should be at a 90
degree angle from the mainboard (Figure 8b).
4. Carefully lift up the heat sink off the computer by pulling the two tabs .
A
6
5
4
3
2
1
5
B
D
Figure 8
Processor Removal
a. Remove the cover and
Iocate the heat sink.
b. Remove the screws in
the order indicated.
B. Heat Sink
• 6 Screws
a.
1
2
3
A
b.
5
4
6
5
B
D
D
Caution
The heat sink, and CPU
area in general, contains
parts which are subject to
high temperatures. Allow
the area time to cool be-
fore removing these parts.
Disassembly
Removing and Installing a Processor 2 - 13
2.Disassembly
5. Carefully lift up the heat sink (Figure 9c) off the computer.
6. Turn the release latch towards the unlock symbol , to release the CPU (Figure 9d).
7. Carefully (it may be hot) lift the CPU up out of the socket (Figure 9e).
8. See page 2 - 14 for information on inserting a new CPU.
9. When re-inserting the CPU, pay careful attention to the pin alignment, it will fit only one way (DO NOT FORCE IT!).
B
C
D
Figure 9
Processor Removal
(cont’d)
c. Remove the heat sink.
d. Turn the release latch to
unlock the CPU.
e. Lift the CPU out of the
socket.
d. e.
c.
B
Unlock
D
C
B. Heat Sink
D. CPU
Disassembly
2 - 14 Removing and Installing a Processor
2.Disassembly
Processor Installation Procedure
1. Insert the CPU (Figure 10a), pay careful attention to the pin alignment, it will fit only one way (DO NOT FORCE
IT!), and turn the release latch towards the lock symbol (Figure 10b).
2. Remove the sticker (Figure 10c) from the heat sink.
3. Insert the heat sink as indicated in Figure 10d.
4. Tighten the CPU heat sink screws in the order , , , , & (the order as indicated on the label and
Figure 10d) *Note: Make sure that the size of the screwdriver is below 4mm when removing or tighting screw ,
and its position should be at a 90 degree angle from the mainboard.
5. Replace the component bay cover (don’t forget to replace the fan cable) and tighten the screws (page 2 - 6).
A
B
C
D
1
2
3
4
5
6
5
b.
B
a.
D
1
3
5
Note:
Tighten the screws
in the order as indi-
cated on the label.
C
A
c.
d.
2
4
6
C
Figure 10
Processor
Installation
a. Insert the CPU.
b. Turn the release latch to-
wards the lock symbol.
c. Remove the sticker from
the heat sink and insert
the heat sink.
d. Tighten the screws.
A. CPU
D. Heat Sink
•6 Screws
Disassembly
Removing the Wireless LAN Module 2 - 15
2.Disassembly
Removing the Wireless LAN Module
Figure 11
Wireless LAN
Module Removal
a. Locate the WLAN.
b. Disconnect the cables
and remove the screw.
c. The WLAN module will
pop up.
d. Remove the Wireless
LAN module.
Note: Make sure you
reconnect the antenna
cable to the “1 + 2”
socket (Figure 11b).
1. Turn off the computer, turn it over, and remove the battery (page 2 - 5) and the component bay cover (page 2 - 6).
2. The Wireless LAN module will be visible at point on the mainboard (Figure 11a).
3. Carefully disconnect the cables & , and then remove the screw (Figure 11b).
4. The Wireless LAN module (Figure 11c) will pop-up, and you can remove it from the computer (Figure 11d).
1
2
3
4
5
b.
a.
4
2
3
5
c. d.
5
1
5.Wireless LAN Module
•1 Screw
Disassembly
2 - 16 Removing the Keyboard
2.Disassembly
Removing the Keyboard
1. Turn off the computer and remove the battery (page 2 - 5).
2. Remove screws - from the bottom of the computer and use the Eject Pin Tool to carefully push out the key-
board at point
3. Remove the top cover module and the screws - (Figure 12b).
4. Carefully lift the keyboard up, being careful not to bend the keyboard ribbon cable (Figure 12c).
5. Disconnect the keyboard ribbon cable from the locking collar socket .
6. Carefully lift up the keyboard (Figure 12d) off the computer.
1
2
3
4
5
9
10
11
12
10
a.
b.
1 2
3
8
6
c.
57
d.
10
11
12
10
9
4
Figure 12
Keyboard Removal
a. Remove screws from the
bottom of the computer
and use the Eject Pin Tool
to push out the keyboard at
point .
b. Remove the top cover
module and the screws.
c. Lift the keyboard up and
disconnect the cable from
the locking collar.
d. Remove the keyboard.
3
4. Top cover module
10. Keyboard
•7 Screws
Disassembly
Removing the Mainboard 2 - 17
2.Disassembly
Removing the Mainboard
1. Turn off the computer, and remove the battery (page 2 - 5), RAM (page 2 - 6), HDD (page 2 - 8), optical device
(page 2 - 11), CPU (page 2 - 12), WLAN (page 2 - 15), and keyboard (page 2 - 16).
2. Remove screws - from the bottom case (Figure 13a).
3. Separate the top case and the bottom case at point (Figure 13b) and then slide the top case in the direction of
the arrow .
4. Carefully lift the top case off the computer in the direction of the arrow (Figure 13c) .
1
13
14
15
17
16
a.
13
24
b.
c.
5
6
7
8
9
10
17
11
12
13
14
15
16

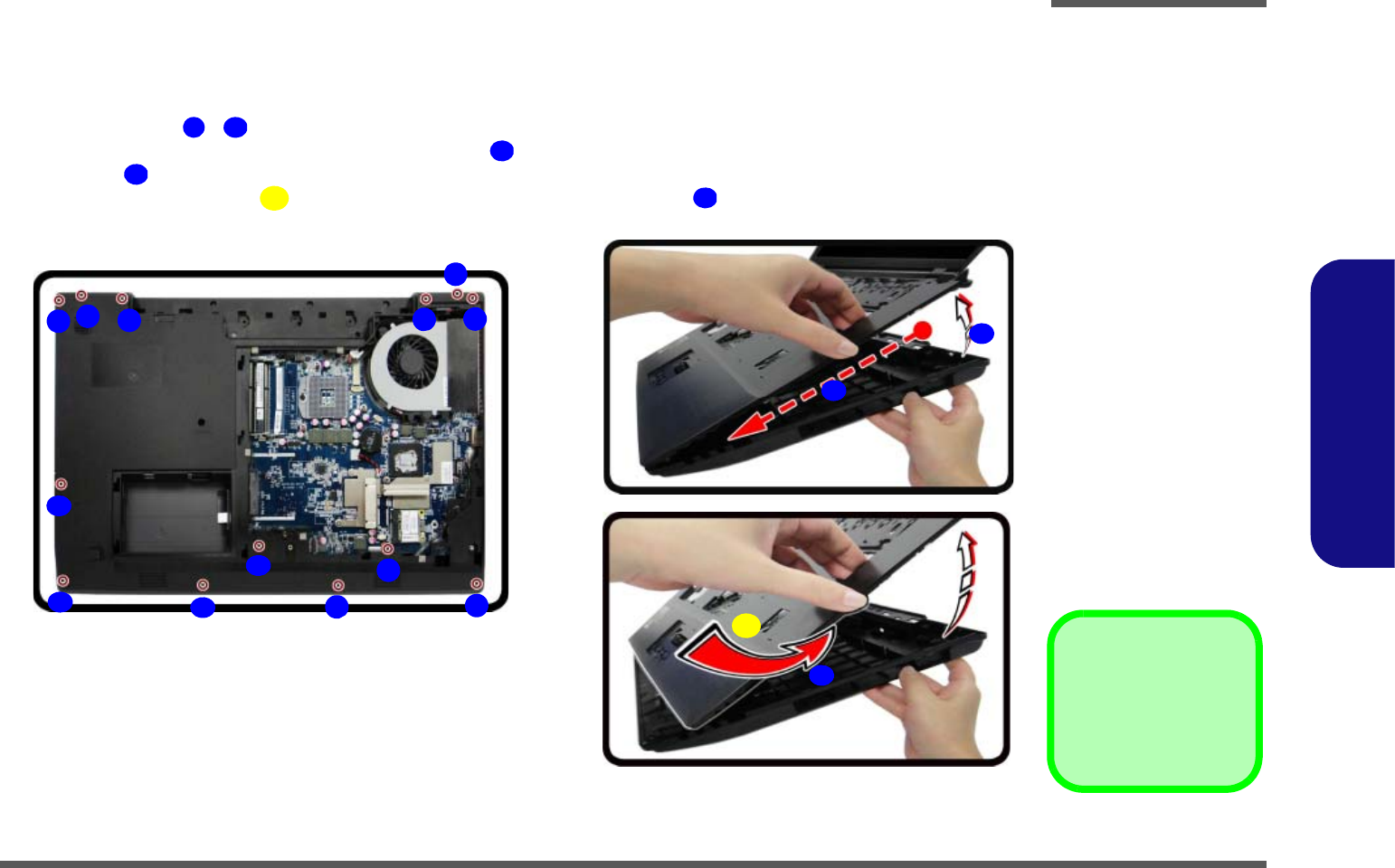

Figure 13
Mainboard Removal
a. Remove the screws.
b. Separate the top and bot-
tom case.
c. Lift the top case off.
17. Top Case
• 13 Screws
Disassembly
2 - 18 Removing the Mainboard
2.Disassembly
5. Remove screws - and disconnect the connectors from the mainboard.
6. Separate the mainboard from the bottom case by lift the mainboard in the direction of the arrow .
7. Remove the mainboard (Figure 14f).
18
20
21
22
23
21
d. f.
21
18
23
21
19
20
22
e.
22
Figure 14
Mainboard Removal
(cont’d.)
d. Remove the screws (dis-
connect the connectors).
e. Separate the mainboard
from the bottom case.
f. Remove the mainboard.
21. Mainboard
22. Bottom Case
•3 Screws
A - 1
A.Part Lists
Appendix A:Part Lists
This appendix breaks down the W170ER series notebook’s construction into a series of illustrations. The component part
numbers are indicated in the tables opposite the drawings.
Note: This section indicates the manufacturer’s part numbers. Your organization may use a different system, so be sure
to cross-check any relevant documentation.
Note: Some assemblies may have parts in common (especially screws). However, the part lists DO NOT indicate the
total number of duplicated parts used.
Note: Be sure to check any update notices. The parts shown in these illustrations are appropriate for the system at the
time of publication. Over the product life, some parts may be improved or re-configured, resulting in new part numbers.
A - 2
A.Part Lists
Part List Illustration Location
The following table indicates where to find the appropriate part list illustration.
Table A - 1
Part List Illustration
Location Part W170ER
Top page A - 3
Bottom page A - 4
Combo page A - 5
DVD page A - 6
LCD page A - 7
HDD page A - 8
Top A - 3

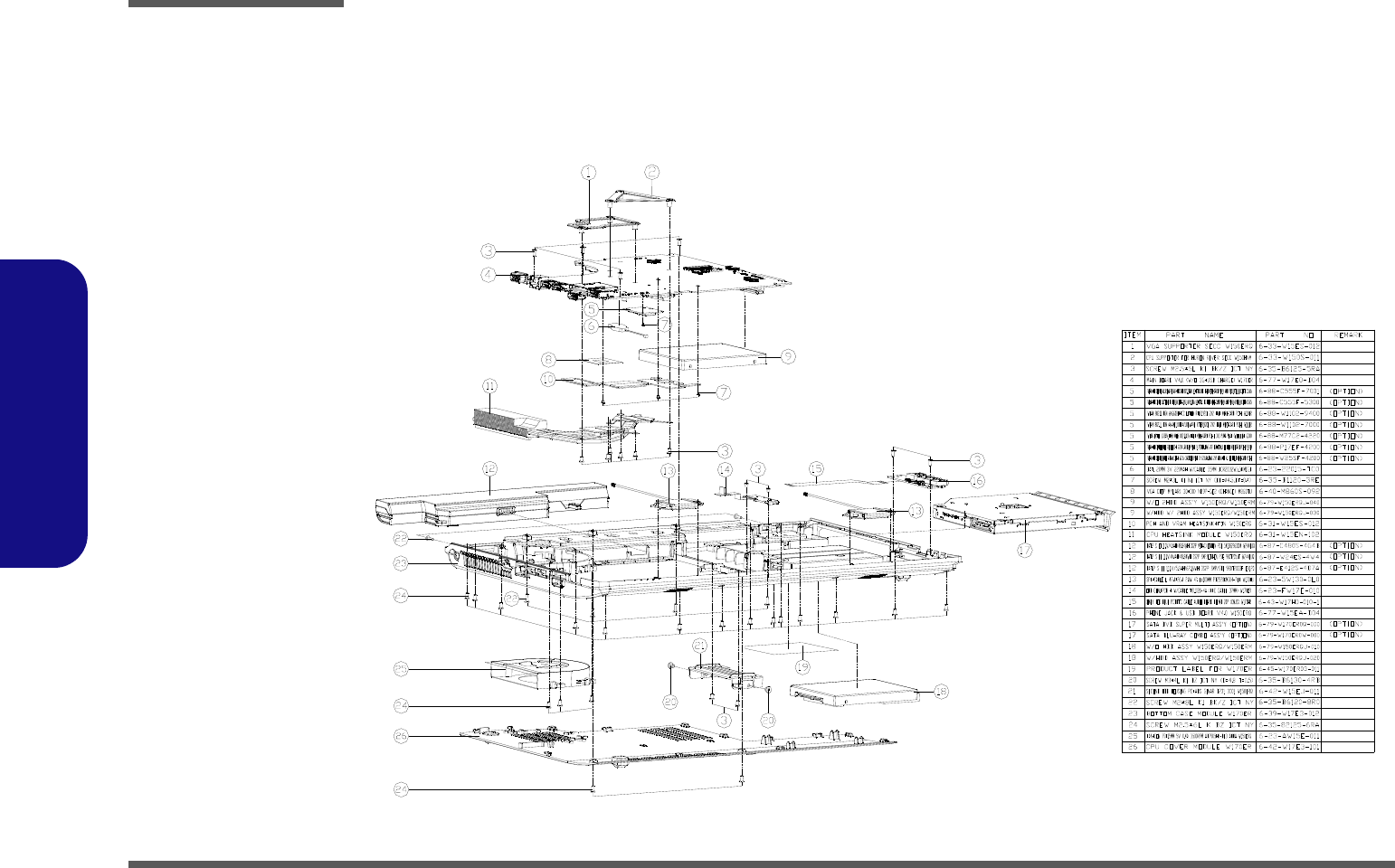

A.Part Lists
Top
黑色
(灰色) (尚盟)
Figure A - 1
Top
A - 4 Bottom
A.Part Lists
Bottom
Figure 2
Bottom
Combo A - 5
A.Part Lists
Combo
Figure A - 3
Combo
(志精)
A - 6 DVD
A.Part Lists
DVD
(志精)
(祥和)
Figure A - 4
DVD
LCD A - 7
A.Part Lists
LCD
Figure A - 5
LCD
A - 8 HDD
A.Part Lists
HDD
Figure A - 6
HDD
Schematic Diagrams
B - 1
B.Schematic Diagrams
Appendix B: Schematic Diagrams
This appendix has circuit diagrams of the W170ER notebook’s PCB’s. The following table indicates where to find the
appropriate schematic diagram.
Diagram - Page Diagram - Page Diagram - Page
System Block Diagram - Page B - 2 VGA NVVDD Cecoupling - Page B - 20 5VS, 3VS, 3.3VM, 1.5VS_CPU - Page B - 38
Ivy Bridge Processor 1/7 - Page B - 3 PantherPoint - M 1/9 - Page B - 21 VDD3, VDD5 - Page B - 39
Ivy Bridge Processor 2/7 - Page B - 4 PantherPoint - M 2/9 - Page B - 22 Power 0.85VS, 1.8VS - Page B - 40
Ivy Bridge Processor 3/7 - Page B - 5 PantherPoint - M 3/9 - Page B - 23 Power 1.5V/0.75V/PEX_VDD - Page B - 41
Ivy Bridge Processor 4/7 - Page B - 6 PantherPoint - M 4/9 - Page B - 24 Power 1.05VS - Page B - 42
Ivy Bridge Processor 5/7 - Page B - 7 PantherPoint - M 5/9 - Page B - 25 Power V-Core1 - Page B - 43
Ivy Bridge Processor 6/7 - Page B - 8 PantherPoint - M 6/9 - Page B - 26 Power V-Core2 - Page B - 44
Ivy Bridge Processor 7/7 - Page B - 9 PantherPoint - M 7/9 - Page B - 27 VGA NVVDD - Page B - 45
DDR3 SO-DIMM_0 - Page B - 10 PantherPoint - M 8/9 - Page B - 28 AC_IN, Charger - Page B - 46
DDR3 SO-DIMM_1 - Page B - 11 PantherPoint - M 9/9 - Page B - 29 W150ERQ Audio Board - Page B - 47
Panel, Inverter, CRT - Page B - 12 WLAN, 3G, Mini PCIE - Page B - 30 W150ERQ Click Board - Page B - 48
VGA PCI-E Interface - Page B - 13 Charge, TP, FP, Multi-Conn - Page B - 31 W150ERQ Fingerprint Board - Page B - 49
VGA Frame Buffer Interface - Page B - 14 eSATA/USB 3.0 Connector - Page B - 32 W170ER LED & VGA SW Board - Page B - 50
VGA Frame Buffer A - Page B - 15 Card Reader / LAN RTL8411 - Page B - 33 W170ER Power Switch Board - Page B - 51

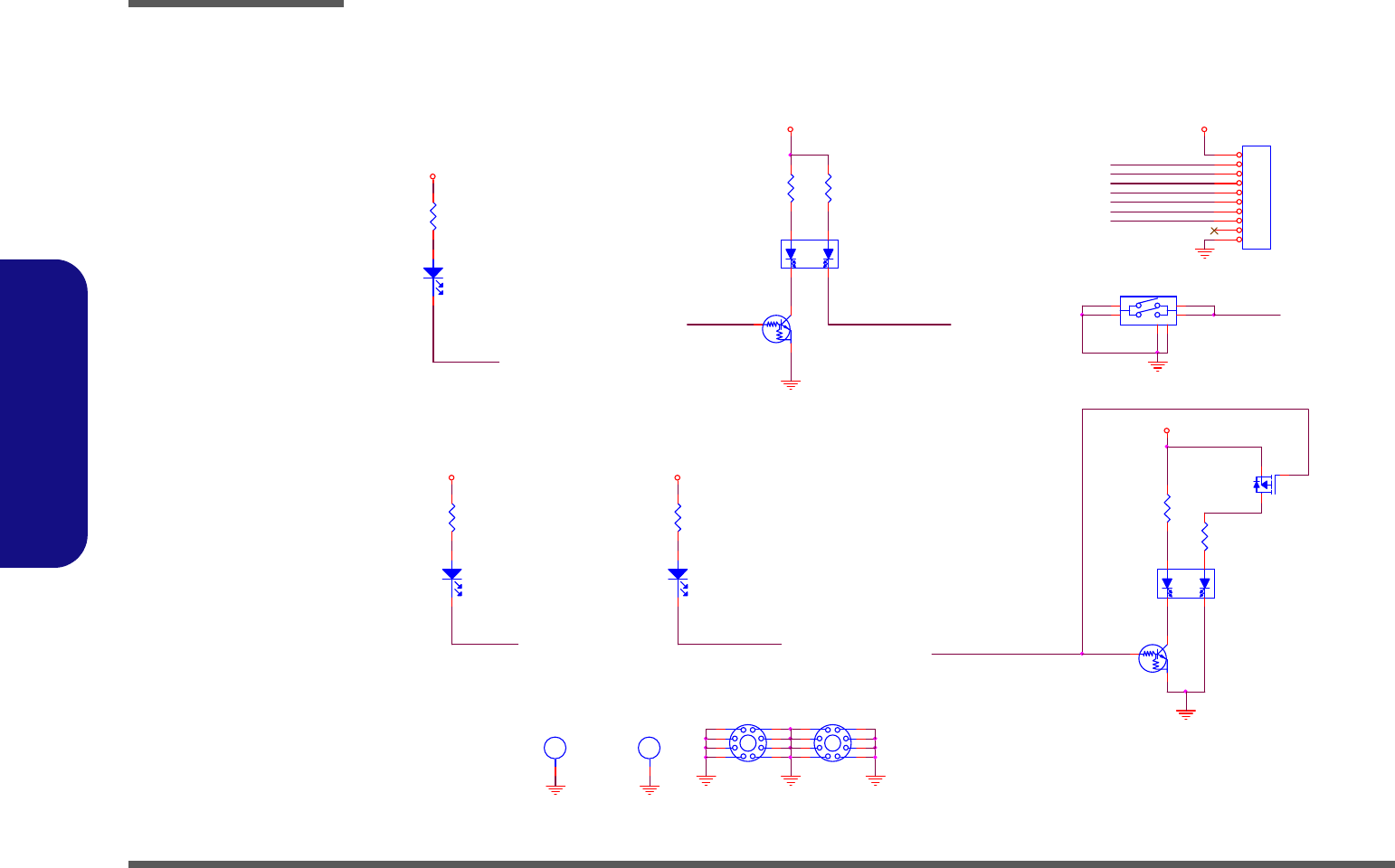

VGA Frame Buffer A - Page B - 16 SATA HDD, LED, Hotkey, LID SW - Page B - 34 Sequence - Page B - 52
VGA Frame Buffer B - Page B - 17 HDMI, RJ45 - Page B - 35
VGA Frame Buffer B - Page B - 18 Audio Codec VT1802P - Page B - 36
VGA I/O - Page B - 19 KBC-ITE IT8518E - Page B - 37
Version Note
The schematic dia-
grams in this chapter
are based upon ver-
sion 6-7P-W17E2-003.
If your mainboard (or
other boards) are a la-
ter version, please
check with the Service
Center for updated di-
agrams (if required).
Schematic Diagrams
B - 2 System Block Diagram
B.Schematic Diagrams
System Block Diagram
TI TPS2540A
5 Gbps
USB3.0
Reserve
USB Charge
W150ERQ/W170ER Chief River System Block Diagram
LCD CONNECTOR <8"
CRT CONNECTOR
GPU NVDIDA N13x NVVDD
BOM:6-77-W15EF-D01
BOM:6-77-W15ES-D01
W170ER BOM:6-77-W15E2-D02-A
W150ER BOM:6-77-W15E2-D02-1
W150ER BOM:6-77-W15E2-D02
SO-DIMM1
PCB:6-71-W17E4-D02
LED & VGA S/W BOARD
BOM:6-77-B5134-103-A
HP
OUT
W170ERQ
BOM:6-77-W17E4-D02
BOM:6-77-W17ES-D03
W170ERQ
<=8"
25x25mm
989 Ball FCBGA
DDRIII
0.5"~5.5"
DDRIII
INT MIC
Ivy Bridge
24 MHz
FDI
MIC
IN
W150ER (INT SPK R)
SO-DIMM2
SMART
BATTERY
LPC
480 Mbps
1"~16"
BIOS
SPI
EC SMBUS
32.768KHz
128pins LQFP
ME
SPI
ITE 8518E/HX
EC
<12"
W83L771AWG
USB2.0
0.5"~11"
SATA I/II/III
32.768 KHz
USB2.0 PORT5
AZALIA LINK
USB2.0 PORT4
FingerPrint
CCD
FINGER PRINTER BOARD
Optional
0.1"~13
33 MHz
THERMAL
SENSOR
14*14*1.6m m
SMART
FAN
SYSTEM SMBUS
PS8171
LEVEL SHIFT
3.0~6.0Gb/s
HDMI Connector
TPM 1.2
Optional
AC-IN
SATA PORT0
PantherPoint
Controller
Hub (PCH)
SPDIF
OUT
SATA PORT1
SATA HDD
SATA ODD
SATA HDD
SLAVEMASTER
SATA PORT2
Azalia Codec
1.8V,0.85VS
1.5V,0.75VS(VTT_MEM)
1.05VS
VCORE,VGFX_CORE
FBVDDQ,PEX_VDD
<15"
5V,3V,5VS,3VS,3V3_RUN
1.5VS1.5VS_CPU
1.05VS_VTT
TOUCH PAD
POWER BOARD
ELAN
CLICK BOARD
6-49-W25A2-011
908 Balls
Nvidia
Fermi N13P-GT
GK107-650-A2
RAM SIZE:1GB
(32MX32)
VDD3,VDD5
DMI*4
W170ER
USB2.0 PORT0
rPGA988B
VGA LED
BOARD INT. K/B
1067/1333/1600 MHz
DDR3 / 1.5V
48MHz
VIA
VT1802P
PROCESSOR
Reserve
Charge Function
SATA PORT4
AUDIO BOARD
PHONE JACK x3, USB x1
W150ERQ
FINGER PRINTER BOARD
CLICK BOARD
PCB:6-71-W15EA-D04
PCB:6-71-W15EF-D01
PCB:6-71-W15E2-D02
6IN1 6-7P-W15E6-003
PCB:6-71-W15E0-D04
W150ER MAIN BOARD
POWER SWITCH BOARD
PCB:6-71-B5134-D03
PCB:6-71-W15ES-D01
LED & VGA S/W BOARD
PCIE
CARD
READER
LAN
<12"
REALTEK
100 MHz
Optional
SOCKET
Mini PCIE
USB2.0 PORT8
SATA PORT3
25
MHz
SOCKET
USB2.0 PORT10
3G/MSATA CARD
RTL8411
WLAN
Mini PCIE
PCIE*8
USB2.0 PORT9
6-7P-W17E2-003
2IN1
AUDIO BOARD
POWER SWITCH BOARD
PCB:6-71-W17ES-D03
RJ-45 7IN1
SOCKET
INT SPKER-L
W150ER
USB3.0USB3.0+ESATA
(USB3.0 PORT1) (USB3.0 PORT3)(USB3.0 PORT2)
USB2.0 PORT2USB2.0 PORT1
USB3.0
W170ERQ BOM:6-77-W17E0-D04
W150ERQ BOM:6-77-W15E0-D04
BOM:6-77-W15EA-D04
W150ERQ BOM:6-77-W15E0-D04-1
INT SPKER-R
W150ER
Schematic Diagrams

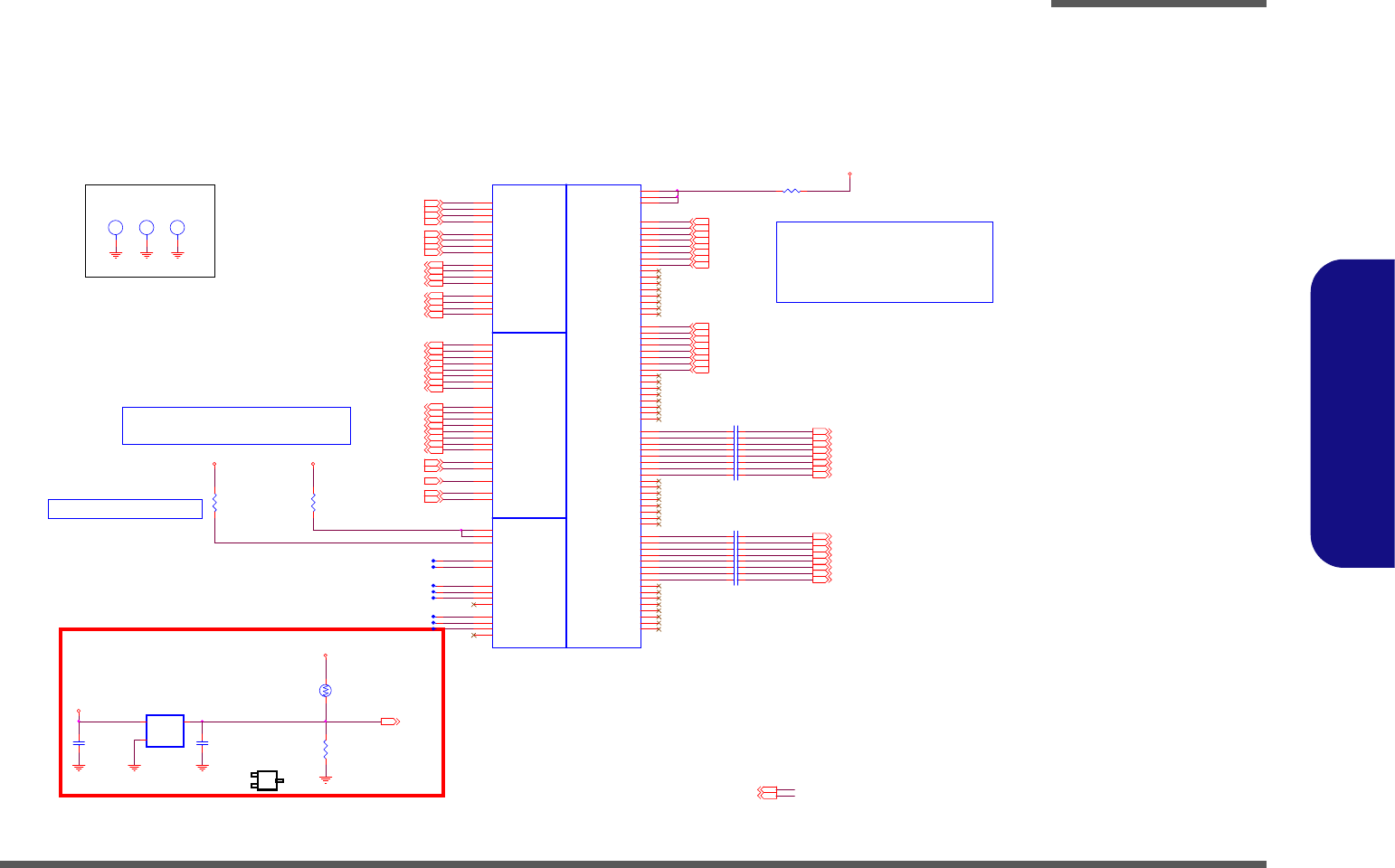

Ivy Bridge Processor 1/7 B - 3
B.Schematic Diagrams
Ivy Bridge Processor 1/7
CPU
EDP _H PD
EDP _C OMPIO
8/30
R327
10K_1%_04
PTH 1
10K_1%_NTC_06
12
3.3V
CAD NOTE: PEG_ICOMPI and RCOMPO signals
should be shorted and routed with
- max length = 500 mils
- typical impedance = 43 mohms
PEG_ICOMPO signals should be routed with
- max length = 500 mils
- typical impedance = 14.5 mohms
EDP HPD Function Disable
EDP_HPD: Pull-up10K- DISABLED HPD
CAD NOTE: DP_COMPIO and ICOMPO signals
should be shorted near balls and routed with
- typical impedance < 25 mohms
PEG_TX#_6
PEG_TX#_2
PEG_TX#_5
PEG_TX#_7
PEG_TX#_3
PEG_TX#_0
PEG_TX#_1
PEG_TX#_4
DP Compensation Signal
PEG_I R C OMP_R
Ivy Bridge Processor 1/7 ( DMI,PEG,FDI )
3
2
1
1:2 (4mils:8mils)
PEG_TX_0
PEG_TX_6
PEG_TX_4
PEG_TX_2
PEG_TX_1
PEG_TX_5
PEG_TX_3
PEG_TX_7
C15 0.22u_10V_X5R_04
C28 0.22u_10V_X5R_04
C31 0.22u_10V_X5R_04
C22 0.22u_10V_X5R_04
C25 0.22u_10V_X5R_04
R308
1K_1%_04
C18 0.22u_10V_X5R_04
C38 0.22u_10V_X5R_04
C19 0.22u_10V_X5R_04
C16 0.22u_10V_X5R_04
C24 0.22u_10V_X5R_04
C41 0.22u_10V_X5R_04
C20 0.22u_10V_X5R_04
C21 0.22u_10V_X5R_04
H6
H8_0D4_4
C29 0.22u_10V_X5R_04
C30 0.22u_10V_X5R_04
PCI EXPRESS* - GRAPHICS
DMI
Intel(R) FDI
eDP
U17A
PZ98821-364B-01F
DMI_RX#[0]
B27
DMI_RX#[1]
B25
DMI_RX#[2]
A25
DMI_RX#[3]
B24
DMI_RX[0]
B28
DMI_RX[1]
B26
DMI_RX[2]
A24
DMI_RX[3]
B23
DMI_TX#[0]
G21
DMI_TX#[1]
E22
DMI_TX#[2]
F21
DMI_TX#[3]
D21
DMI_TX[0]
G22
DMI_TX[1]
D22
DMI_TX[3]
C21 DMI_TX[2]
F20
FDI0_TX#[0]
A21
FDI0_TX#[1]
H19
FDI0_TX#[2]
E19
FDI0_TX#[3]
F18
FDI1_TX#[0]
B21
FDI1_TX#[1]
C20
FDI1_TX#[2]
D18
FDI1_TX#[3]
E17
FDI0_TX[0]
A22
FDI0_TX[1]
G19
FDI0_TX[2]
E20
FDI0_TX[3]
G18
FDI1_TX[0]
B20
FDI1_TX[1]
C19
FDI1_TX[2]
D19
FDI1_TX[3]
F17
FDI0_FSYNC
J18
FDI1_FSYNC
J17
FDI_INT
H20
FDI0_LSYNC
J19
FDI1_LSYNC
H17
PEG_IC OMPI J22
PEG_ICOMPO J21
PEG_RCOMPO H22
PEG_RX#[0] K33
PEG_RX#[1] M35
PEG_RX#[2] L34
PEG_RX#[3] J35
PEG_RX#[4] J32
PEG_RX#[5] H34
PEG_RX#[6] H31
PEG_RX#[7] G33
PEG_RX#[8] G30
PEG_RX#[9] F35
PEG_RX#[10] E34
PEG_RX#[11] E32
PEG_RX#[12] D33
PEG_RX#[13] D31
PEG_RX#[14] B33
PEG_RX#[15] C32
PEG_RX[0] J33
PEG_RX[1] L35
PEG_RX[2] K34
PEG_RX[3] H35
PEG_RX[4] H32
PEG_RX[5] G34
PEG_RX[6] G31
PEG_RX[7] F33
PEG_RX[8] F30
PEG_RX[9] E35
PEG_RX[10] E33
PEG_RX[11] F32
PEG_RX[12] D34
PEG_RX[13] E31
PEG_RX[14] C33
PEG_RX[15] B32
PEG_TX#[0] M29
PEG_TX#[1] M32
PEG_TX#[2] M31
PEG_TX#[3] L32
PEG_TX#[4] L29
PEG_TX#[5] K31
PEG_TX#[6] K28
PEG_TX#[7] J30
PEG_TX#[8] J28
PEG_TX#[9] H29
PEG_TX#[10] G27
PEG_TX#[11] E29
PEG_TX#[12] F27
PEG_TX#[13] D28
PEG_TX#[14] F26
PEG_TX#[15] E25
PEG_TX[0] M28
PEG_TX[1] M33
PEG_TX[2] M30
PEG_TX[3] L31
PEG_TX[4] L28
PEG_TX[5] K30
PEG_TX[6] K27
PEG_TX[7] J29
PEG_TX[8] J27
PEG_TX[9] H28
PEG_TX[10] G28
PEG_TX[11] E28
PEG_TX[12] F28
PEG_TX[13] D27
PEG_TX[14] E26
PEG_TX[15] D25
eDP_AUX
C15
eDP_AUX#
D15
eDP_TX[0]
C17
eDP_TX[1]
F16
eDP_TX[2]
C16
eDP_TX[3]
G15
eDP_TX#[0]
C18
eDP_TX#[1]
E16
eDP_TX#[2]
D16
eDP_TX#[3]
F15
eDP_COMPIO
A18
eDP_HPD
B16 eDP_IC OMPO
A17
H10
H8_0D4_4
C26 0.22u_10V_X5R_04
C543
*0.1u_10V_X7R_04
C544
*0.1u_10V_X7R_04
H7
H8_0D4_4
Q24
*G711ST9U
OUT 1
VCC
2
GND
3
R307
24.9_1%_04
R12 24.9_1%_04
3.3V
1.05VS_VTT 1.05VS_VTT
1.05VS_VTT
DMI_TXP022
DMI_TXP322
DMI_TXP222
DMI_TXP122
DMI_TXN322
DMI_TXN222
DMI_TXN122
DMI_TXN022
DMI_RXN222
DMI_RXN122
DMI_RXN022
DMI_RXP122
DMI_RXP022
DMI_RXN322
FDI_FSYNC022
DMI_RXP322
DMI_RXP222
FDI_LSYNC022
FDI_INT22
FDI_FSYNC122
FDI_TXN222
FDI_TXN122
FDI_TXN022
FDI_LSYNC122
FDI_TXN522
FDI_TXN422
FDI_TXN322
FDI_TXP022
FDI_TXN722
FDI_TXN622
FDI_TXP322
FDI_TXP222
FDI_TXP122
FDI_TXP622
FDI_TXP522
FDI_TXP422
PEG_RX#2 12
TH ER M_VO LT 36
3.3V3,6,11,18,20,21,22,24,25,26,27,29,30,31,35,37,39,40,41
FDI_TXP722
PEG_RX#7 12
PEG_RX#1 12
PEG_RX#4 12
PEG_RX#6 12
PEG_RX#0 12
PEG_RX#3 12
PEG_RX5 12
PEG_RX7 12
PEG_RX#5 12
PEG_RX3 12
PEG_RX2 12
PEG_RX4 12
PEG_TX#3 12
PEG_RX1 12
PEG_RX6 12
PEG_RX0 12
PEG_TX#7 12
PEG_TX#5 12
PEG_TX#2 12
PEG_TX#6 12
PEG_TX#1 12
PEG_TX#0 12
PEG_TX3 12
PEG_TX6 12
PEG_TX#4 12
PEG_TX7 12
PEG_TX4 12
PEG_TX0 12
1.05VS_VTT3,5,25,26,27,37
PEG_TX2 12
PEG_TX5 12
PEG_TX1 12
PEG Compensation Signal
Schematic Diagrams

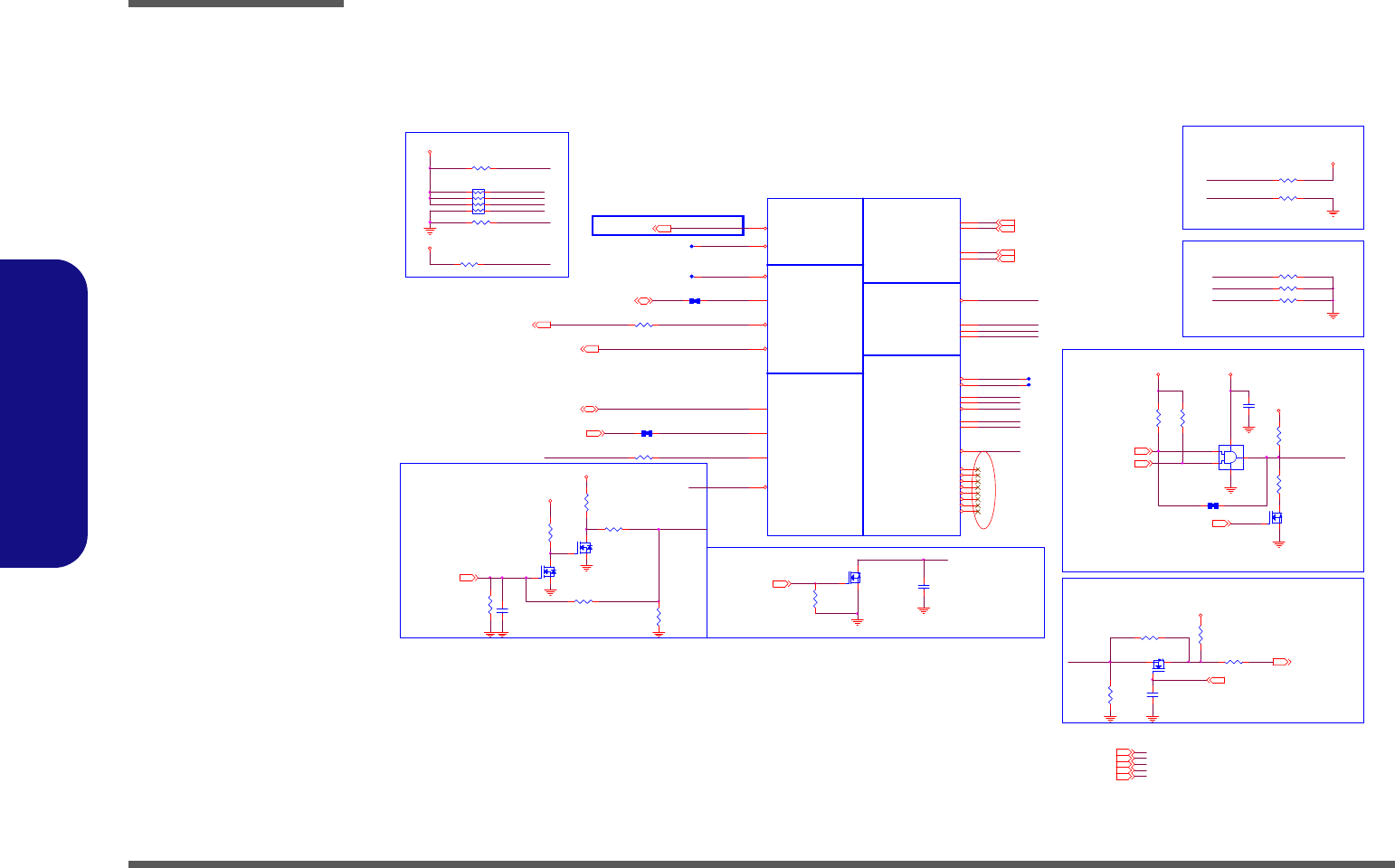

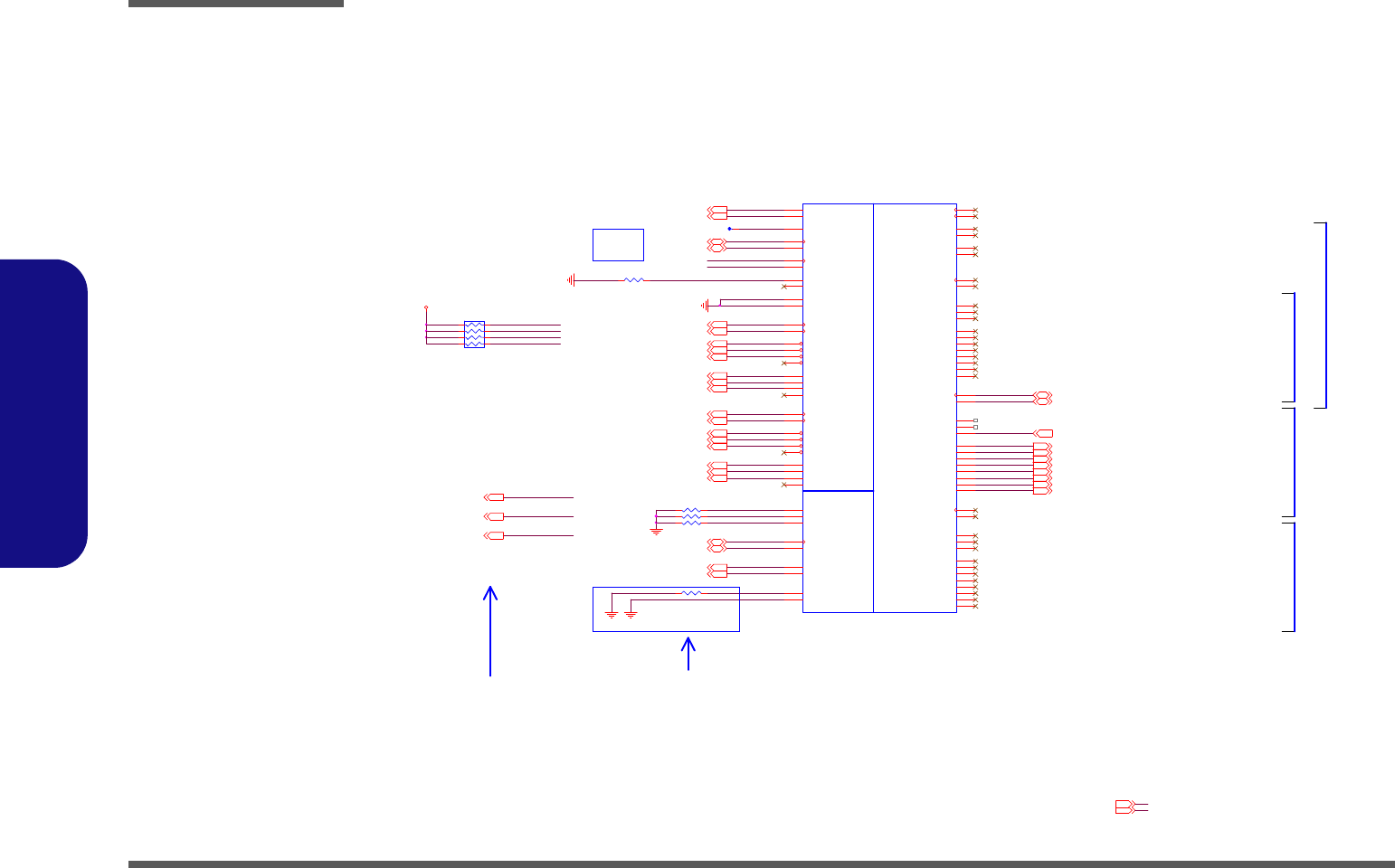

B - 4 Ivy Bridge Processor 2/7
B.Schematic Diagrams

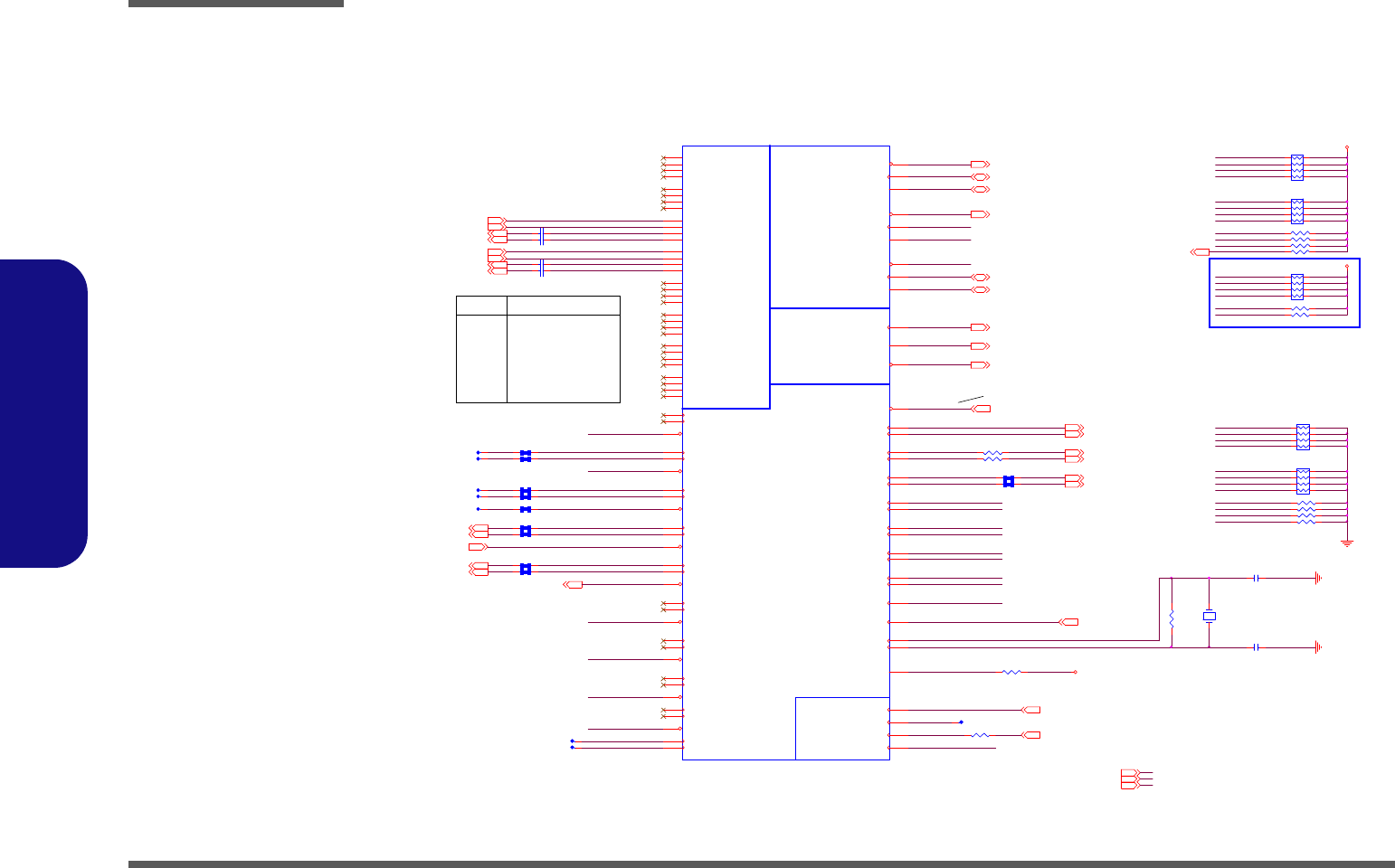

Ivy Bridge Processor 2/7
CLK_DP_P 21
CLK_DP_N 21
H_PROCHOT#42,44
H_THRMTRIP#25
H_PECI21,2 5, 36
H_PM_SYNC22
3.3VS9,10, 11,20, 21, 22, 23,24,25,26, 27,2 9, 30,32, 33,34, 35, 36, 37 ,42,44
PL T_ R S T#24,3 0
H_CPUPWRGD25
DDR3_DRAMRST# 9,10
DRAMRST_CNTRL 6,21
H_SNB_IVB#25
H_PROCHOT#_EC36
SUSB37,39,40,41
1.8V S_PW RGD22,39
PM_DRAM_PWRGD22
1.5V6,9,10,27, 37 ,4 0
H_PROCHOT#
H_CPUPWRGD_R
S3 circuit:- DRAM PWR GOOD logic
CAD N ote: Capacitor need to be placed
close to buffer output pin
TRACE WIDTH 10MIL, LENGTH <500MILS
H_CPUPWRGD_R
Processor Pullups/Pull downs
H_PROCHOT#
BUF_CPU_RST#
H_CATERR#
XD P _ D B R _ R
XDP _ TD I _R
SM_RC OMP_2
SM_RC OMP_1
SM_RC OMP_0
XD P_TR ST#
XD P_ TC L K
VDDPWRGOOD_R
H_PROCHOT#_D
XD P _ TM S
H_PROCHOT#
CPUDRAMRST#
XD P_PR EQ#
XD P _ TD I _ R
XD P _ TD O _ R
R31 *10mil_short
R50 *10mil_short
If PROCHOT# is not used,
then it must be terminated
with a 56-£[ +-5% pull-up
resistor to 1.05VS_VTT .
DDR3 Compensation Signals
BUF_CPU_RST#
SM_RCOMP_1
SM_RCOMP_0
SM_RCOMP_2
XD P_PR DY#
PMSY S_ PWR GD _BUF
2011.10.25
Ivy Bridge Processor 2/7 ( CLK,MISC,JTAG )
Buffered reset to CPU
CPUDRAMRST#
S3 circuit:- DRAM_RST# to memory
should be high during S3
R45
*39_04
R306 * 0_04
C132
47p_50V_NPO_04
R35
75_04
R51
100K_04
R304
1K_04
R49 62_04
Q4
*MTN70 02Z HS3
G
DS
R25 1K_04
S
D
G
Q2B
MTDN7002ZHS6R
5
34
R32 *10mil_short
R28
*750_1%_0 4
R36 43. 2_ 1%_04
R33 10K_04
R57
*200_04
S
D
G
Q2A
MTDN7002ZHS6R
2
61
R37 *1 .5K_1%_04
R58
*100K_04
Q3
MTN7002Z HS3
G
DS
R46 56_1%_04
RN 11 56_8P4R_04
1
2
3
45
6
7
8
R318 200_1%_04
R48 130_1%_04
R34
10K_04
C515
0.047u_10 V_X7R_04
XDP _ TD O_ R
XD P _ D B R _ R
R38
200_1%_04
PU/PD for JTAG signals
XD P _ TR ST #
XDP_PR EQ#
XDP _ TC LK
CLOCKS
MISCTHERMALPWR MANAGEMENT
DDR3
MISC
JTAG & BPM
U17B
PZ98821-364B-0 1F
SM_RCOMP[1] A5
SM_RCOMP[2] A4
SM_DRAMRST# R8
SM_RCOMP[0] AK1
BCLK# A27
BCLK A28
DPLL_R EF_CLK# A15
DPLL_REF_CLK A16
CATERR#
AL33
PECI
AN33
PRO CH OT#
AL32
TH ER MTR I P#
AN32
SM_DRAMPW R OK
V8
RESET#
AR33
PRDY# AP29
PREQ# AP27
TC K AR26
TMS AR27
TRST# AP30
TDI AR28
TDO AP26
DBR# AL35
BPM#[0] AT28
BPM#[1] AR29
BPM#[2] AR30
BPM#[3] AT30
BPM#[4] AP32
BPM#[5] AR31
BPM#[6] AT31
BPM#[7] AR32
PM_SY N C
AM34
SKTOCC#
AN34
PRO C_ SELECT#
C26
UNCOREPWRGOOD
AP33
R305 1K_04
R18 140_1%_0 4
Q22
MTN7002Z HS3
G
DS
C134
68p_50V_NPO_04
R317 25. 5_1%_04
C137
*0.1 u_16V_Y5V_04
PMSY S_PW R GD _BU F
R325* 51_04
R319
4.9 9K_1%_04
R32851_04
U5
*MC74VHC1G08DFT1G
1
2
5
4
3
R44
100K_04
3.3VS
1.5V
1.05V S_VTT
3.3V
1.5VS_CPU
3.3V
XDP _ TMS
1.05V S_VTT
1.05VS_VTT
1.05VS_VTT2,5 ,2 5,26, 27,37
3.3VS
CLK_EXP_N 21
CLK_EXP_P 21
1.5VS_CPU6,37,4 0
3.3V2,6,11,18, 20, 21, 22, 24,25, 26,27 ,2 9,30,31,35,37, 39, 40, 41
M_A_DQ S# 5
M_A_DQ S# 6
M_A_DQ S# 7
M_A_DQ S# 0
M_A_DQ S# 2
M_A_DQ S# 1
M_A_DQ S# 3
M_A_DQ S# 4
M_A_DQ S4
M_A_DQ S5
M_A_DQ S6
M_A_DQ S7
M_A_DQ S0
M_A_DQ S2
M_A_DQ S1
M_A_DQ S3

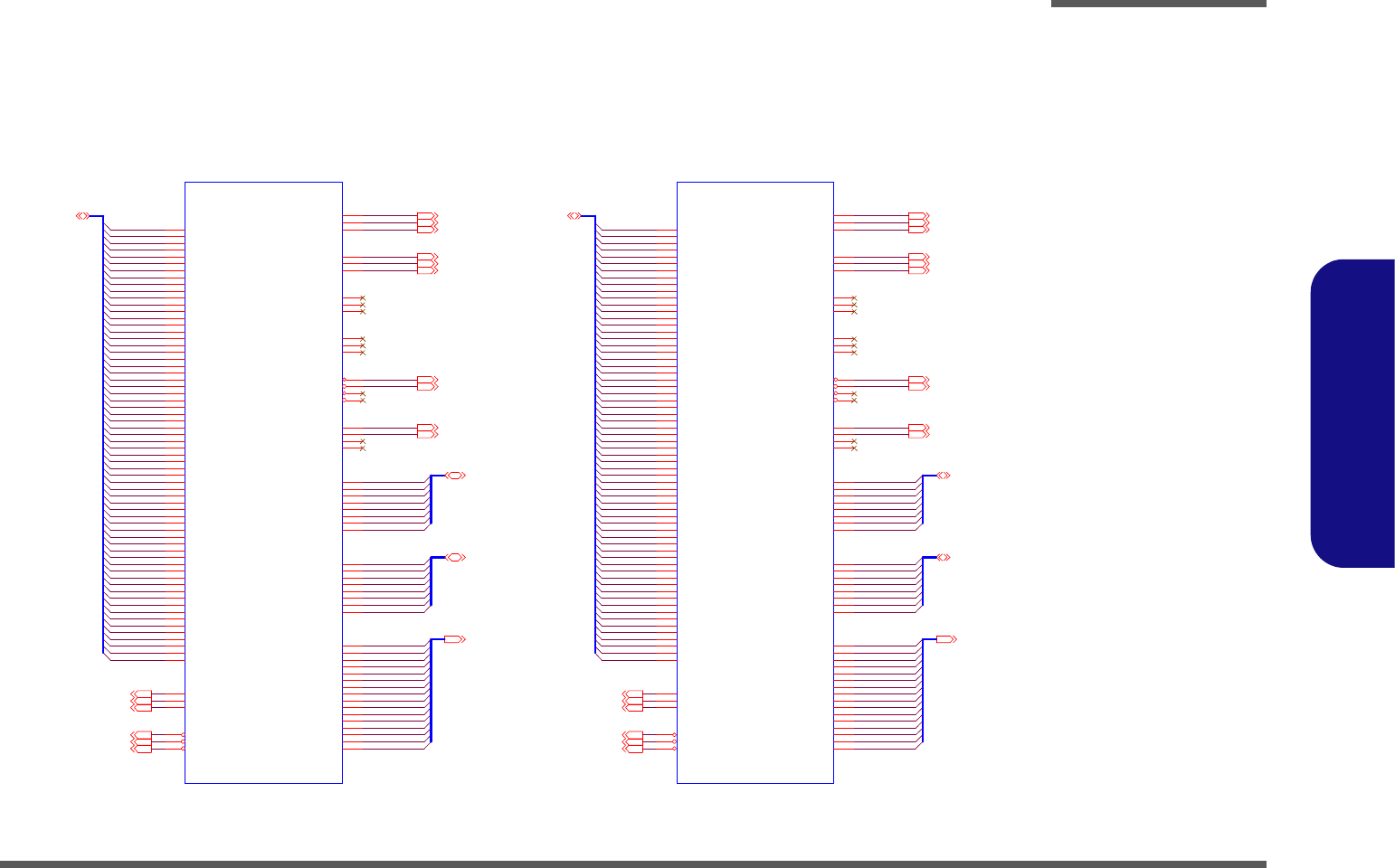

DDR SYSTEM MEMORY B
U17D
PZ98821-364B-01F
SB_BS[0]
AA9
SB_BS[1]
AA7
SB_BS[2]
R6
SB_CAS#
AA10
SB_RAS#
AB8
SB_WE#
AB9
SB_C K[0] AE2
SB_C K[1] AE1
SB_CLK#[0] AD2
SB_CLK#[1] AD1
SB_CKE[0] R9
SB_CKE[1] R10
SB_ODT[0] AE4
SB_ODT[1] AD4
SB_DQS[4] AN6
SB_DQS#[4] AN5
SB_DQS[5] AP8
SB_DQS#[5] AP9
SB_DQS[6] AK11
SB_DQS#[6] AK12
SB_DQS[7] AP14
SB_DQS#[7] AP15
SB_DQS[0] C7
SB_DQS#[0] D7
SB_DQS[1] G3
SB_DQS#[1] F3
SB_DQS[2] J6
SB_DQS#[2] K6
SB_DQS[3] M3
SB_DQS#[3] N3
SB_MA[ 0 ] AA8
SB_MA[ 1 ] T7
SB_MA[ 2 ] R7
SB_MA[ 3 ] T6
SB_MA[ 4 ] T2
SB_MA[ 5 ] T4
SB_MA[ 6 ] T3
SB_MA[ 7 ] R2
SB_MA[ 8 ] T5
SB_MA[ 9 ] R3
SB_MA[10] AB7
SB_MA[11] R1
SB_MA[12] T1
SB_MA[13] AB10
SB_MA[14] R5
SB_MA[15] R4
SB_DQ[0]
C9
SB_DQ[1]
A7
SB_DQ[2]
D10
SB_DQ[3]
C8
SB_DQ[4]
A9
SB_DQ[5]
A8
SB_DQ[6]
D9
SB_DQ[7]
D8
SB_DQ[8]
G4
SB_DQ[9]
F4
SB_DQ[10]
F1
SB_DQ[11]
G1
SB_DQ[12]
G5
SB_DQ[13]
F5
SB_DQ[14]
F2
SB_DQ[15]
G2
SB_DQ[16]
J7
SB_DQ[17]
J8
SB_DQ[18]
K10
SB_DQ[19]
K9
SB_DQ[20]
J9
SB_DQ[21]
J10
SB_DQ[22]
K8
SB_DQ[23]
K7
SB_DQ[24]
M5
SB_DQ[25]
N4
SB_DQ[26]
N2
SB_DQ[27]
N1
SB_DQ[28]
M4
SB_DQ[29]
N5
SB_DQ[30]
M2
SB_DQ[31]
M1
SB_DQ[32]
AM5
SB_DQ[33]
AM6
SB_DQ[34]
AR3
SB_DQ[35]
AP3
SB_DQ[36]
AN3
SB_DQ[37]
AN2
SB_DQ[38]
AN1
SB_DQ[39]
AP2
SB_DQ[40]
AP5
SB_DQ[41]
AN9
SB_DQ[42]
AT5
SB_DQ[43]
AT6
SB_DQ[44]
AP6
SB_DQ[45]
AN8
SB_DQ[46]
AR6
SB_DQ[47]
AR5
SB_DQ[48]
AR9
SB_DQ[49]
AJ11
SB_DQ[50]
AT8
SB_DQ[51]
AT9
SB_DQ[52]
AH11
SB_DQ[53]
AR8
SB_DQ[54]
AJ12
SB_DQ[55]
AH12
SB_DQ[56]
AT11
SB_DQ[57]
AN14
SB_DQ[58]
AR14
SB_DQ[59]
AT14
SB_DQ[60]
AT12
SB_DQ[61]
AN15
SB_DQ[62]
AR15
SB_DQ[63]
AT15
SB_C K[2] AB2
SB_CLK#[2] AA2
SB_CKE[2] T9
SB_C K[3] AA1
SB_CLK#[3] AB1
SB_CKE[3] T10
SB_CS#[0] AD3
SB_CS#[1] AE3
SB_CS#[2] AD6
SB_CS#[3] AE6
SB_ODT[2] AD5
SB_ODT[3] AE5
DDR SYSTEM MEMORY A
U17C
PZ98821-364B-01F
SA_BS[0]
AE10
SA_BS[1]
AF10
SA_BS[2]
V6
SA_CAS#
AE8
SA_RAS#
AD9
SA_WE#
AF9
SA_CK[0] AB6
SA_CK[1] AA5
SA_CLK#[0] AA6
SA_CLK#[1] AB5
SA_CKE[0] V9
SA_CKE[1] V10
SA_C S#[ 0 ] AK3
SA_C S#[ 1 ] AL3
SA_ODT[0] AH 3
SA_ODT[1] AG3
SA_ DQS[ 0 ] D4
SA_DQS#[ 0] C4
SA_ DQS[ 1 ] F6
SA_DQS#[ 1] G6
SA_ DQS[ 2 ] K3
SA_DQS#[ 2] J3
SA_ DQS[ 3 ] N6
SA_DQS#[ 3] M6
SA_ DQS[ 4 ] AL5
SA_DQS#[ 4] AL6
SA_ DQS[ 5 ] AM9
SA_DQS#[ 5] AM8
SA_ DQS[ 6 ] AR 11
SA_DQS#[ 6] AR12
SA_ DQS[ 7 ] AM14
SA_DQS#[ 7] AM15
SA_MA[0] AD 10
SA_MA[1] W1
SA_MA[2] W2
SA_MA[3] W7
SA_MA[4] V3
SA_MA[5] V2
SA_MA[6] W3
SA_MA[7] W6
SA_MA[8] V1
SA_MA[9] W5
SA_MA[10] AD 8
SA_MA[11] V4
SA_MA[12] W4
SA_MA[13] AF 8
SA_MA[14] V5
SA_MA[15] V7
SA_DQ[0]
C5
SA_DQ[1]
D5
SA_DQ[2]
D3
SA_DQ[3]
D2
SA_DQ[4]
D6
SA_DQ[5]
C6
SA_DQ[6]
C2
SA_DQ[7]
C3
SA_DQ[8]
F10
SA_DQ[9]
F8
SA_DQ[10]
G10
SA_DQ[11]
G9
SA_DQ[12]
F9
SA_DQ[13]
F7
SA_DQ[14]
G8
SA_DQ[15]
G7
SA_DQ[16]
K4
SA_DQ[17]
K5
SA_DQ[18]
K1
SA_DQ[19]
J1
SA_DQ[20]
J5
SA_DQ[21]
J4
SA_DQ[22]
J2
SA_DQ[23]
K2
SA_DQ[24]
M8
SA_DQ[25]
N10
SA_DQ[26]
N8
SA_DQ[27]
N7
SA_DQ[28]
M10
SA_DQ[29]
M9
SA_DQ[30]
N9
SA_DQ[31]
M7
SA_DQ[32]
AG6
SA_DQ[33]
AG5
SA_DQ[34]
AK6
SA_DQ[35]
AK5
SA_DQ[36]
AH5
SA_DQ[37]
AH6
SA_DQ[38]
AJ5
SA_DQ[39]
AJ6
SA_DQ[40]
AJ8
SA_DQ[41]
AK8
SA_DQ[42]
AJ9
SA_DQ[43]
AK9
SA_DQ[44]
AH8
SA_DQ[45]
AH9
SA_DQ[46]
AL9
SA_DQ[47]
AL8
SA_DQ[48]
AP11
SA_DQ[49]
AN11
SA_DQ[50]
AL12
SA_DQ[51]
AM12
SA_DQ[52]
AM11
SA_DQ[53]
AL11
SA_DQ[54]
AP12
SA_DQ[55]
AN12
SA_DQ[56]
AJ14
SA_DQ[57]
AH14
SA_DQ[58]
AL15
SA_DQ[59]
AK15
SA_DQ[60]
AL14
SA_DQ[61]
AK14
SA_DQ[62]
AJ15
SA_DQ[63]
AH15
SA_CK[2] AB4
SA_CLK#[2] AA4
SA_CK[3] AB3
SA_CLK#[3] AA3
SA_CKE[2] W9
SA_CKE[3] W10
SA_C S#[ 2 ] AG1
SA_C S#[ 3 ] AH 1
SA_ODT[2] AG2
SA_ODT[3] AH 2
M_B_BS010
M_A_D Q[63: 0]9M_ B_ D Q [ 63 : 0 ]10
M_B_BS210
M_B_BS110
M_A _ A[ 1 5 : 0] 9
M_A_CLK_DDR#1 9
M_A_CLK_DDR1 9
M_A _C KE 1 9
M_A_DQS#[7:0] 9
M_A _C S# 1 9
M_A _C S# 0 9
M_A_CLK_DDR#0 9
M_A_CLK_DDR0 9
M_A _C KE 0 9
M_A_ DQS[ 7: 0] 9
M_A_OD T0 9
M_A_OD T1 9
M_ A_ C A S#9
M_A_BS29
M_A_BS19
M_B _D Q S#[ 7 : 0] 10
M_A_BS09
M_ A_ W E#9
M_ A_ R A S#9M_B_R AS#10
M_B_DQS[7:0] 10
M_B_A[15 :0] 10
M_B_CKE3 10
M_B_C AS#10
M_B_W E#10
M_B_CKE2 10
M_B_CLK_DDR#3 10
M_B_CLK_DDR3 10
M_B_OD T3 10
M_B_CLK_DDR#2 10
M_B_CLK_DDR2 10
M_B_CS#3 10
M_B_CS#2 10
M_B_OD T2 10
M_B _D QS#5
M_B _D QS#4
M_B _D QS#6
M_B _D QS#7
M_B _D QS#0
M_B _D QS#1
M_B _D QS#2
M_B _D QS#3
M_B _A6
M_B _A5
M_B _A0
M_B _A1
M_B _A2
M_B _A3
M_B _A4
M_B _A9
M_B _A10
M_B _A11
M_B _A13
M_B _A12
M_B _A14
M_B _A15
M_B _A7
M_B _A8
M_B _D QS6
M_B _D QS5
M_B _D QS2
M_B _D QS3
M_B _D QS4
M_B _D QS7
M_B _D QS0
M_B _D QS1
M_A_D Q32
M_A_D Q31
M_A_D Q30
M_A_D Q29
M_A_D Q4
M_A_D Q3
M_A_D Q2
M_A_D Q1
M_A_D Q49
M_A_D Q38
M_A_D Q47
M_A_D Q46
M_A_D Q45
M_A_D Q44
M_A_D Q43
M_A_D Q42
M_A_D Q41
M_A_D Q40
M_A_D Q39
M_A_D Q37
M_A_D Q36
M_A_D Q35
M_A_D Q34
M_A_D Q33
M_A_D Q62
M_A_D Q61
M_A_D Q60
M_A_D Q58
M_A_D Q57
M_A_D Q56
M_A_D Q6
M_A_D Q5
M_A_D Q48
M_A_D Q55
M_A_D Q54
M_A_D Q53
M_A_D Q52
M_A_D Q51
M_A_D Q28
M_A_D Q50
M_A_D Q16
M_A_D Q15
M_A_D Q14
M_A_D Q13
M_A_D Q12
M_A_D Q11
M_A_D Q9
M_A_D Q8
M_A_D Q7
M_A_D Q59
M_A_D Q63
M_ B_ D Q 48
M_ B_ D Q 47
M_A_D Q20
M_A_D Q27
M_A_D Q26
M_A_D Q25
M_A_D Q24
M_A_D Q23
M_A_D Q0
M_A_D Q22
M_A_D Q21
M_A_D Q10
M_A_D Q19
M_A_D Q18
M_A_D Q17
M_ B_ D Q 62
M_ B_ D Q 61
M_ B_ D Q 60
M_ B_ D Q 59
M_ B_ D Q 58
M_ B_ D Q 57
M_ B_ D Q 56
M_ B_ D Q 55
M_ B_ D Q 54
M_ B_ D Q 53
M_ B_ D Q 52
M_ B_ D Q 51
M_ B_ D Q 50
M_ B_ D Q 49
M_ B_ D Q 9
M_ B_ D Q 8
M_ B_ D Q 7
M_ B_ D Q 6
M_ B_ D Q 5
M_ B_ D Q 4
M_ B_ D Q 3
M_ B_ D Q 2
M_ B_ D Q 1
M_ B_ D Q 12
M_ B_ D Q 11
M_ B_ D Q 63
M_ B_ D Q 20
M_ B_ D Q 19
M_ B_ D Q 18
M_ B_ D Q 17
M_ B_ D Q 16
M_ B_ D Q 15
M_ B_ D Q 14
M_ B_ D Q 13
M_ B_ D Q 0
M_ B_ D Q 10
M_ B_ D Q 36
M_ B_ D Q 35
M_ B_ D Q 34
M_ B_ D Q 33
M_ B_ D Q 32
M_ B_ D Q 31
M_ B_ D Q 30
M_ B_ D Q 29
M_ B_ D Q 28
M_ B_ D Q 27
M_ B_ D Q 26
M_ B_ D Q 25
M_ B_ D Q 24
M_ B_ D Q 23
M_ B_ D Q 22
M_ B_ D Q 21
M_ B_ D Q 46
M_ B_ D Q 45
M_ B_ D Q 44
M_ B_ D Q 43
M_ B_ D Q 42
M_ B_ D Q 41
M_ B_ D Q 40
M_ B_ D Q 39
M_ B_ D Q 38
M_ B_ D Q 37
Ivy Bridge Processor 3/7 ( DDR3 )
M_A_A9
M_A_A4
M_A_A6
M_A_A5
M_A_A7
M_A_A8
M_A_A1 5
M_A_A0
M_A_A1
M_A_A2
M_A_A3
M_A_A1 0
M_A_A1 2
M_A_A1 1
M_A_A1 3
M_A_A1 4
Schematic Diagrams
Ivy Bridge Processor 3/7 B - 5
B.Schematic Diagrams
Ivy Bridge Processor 3/7

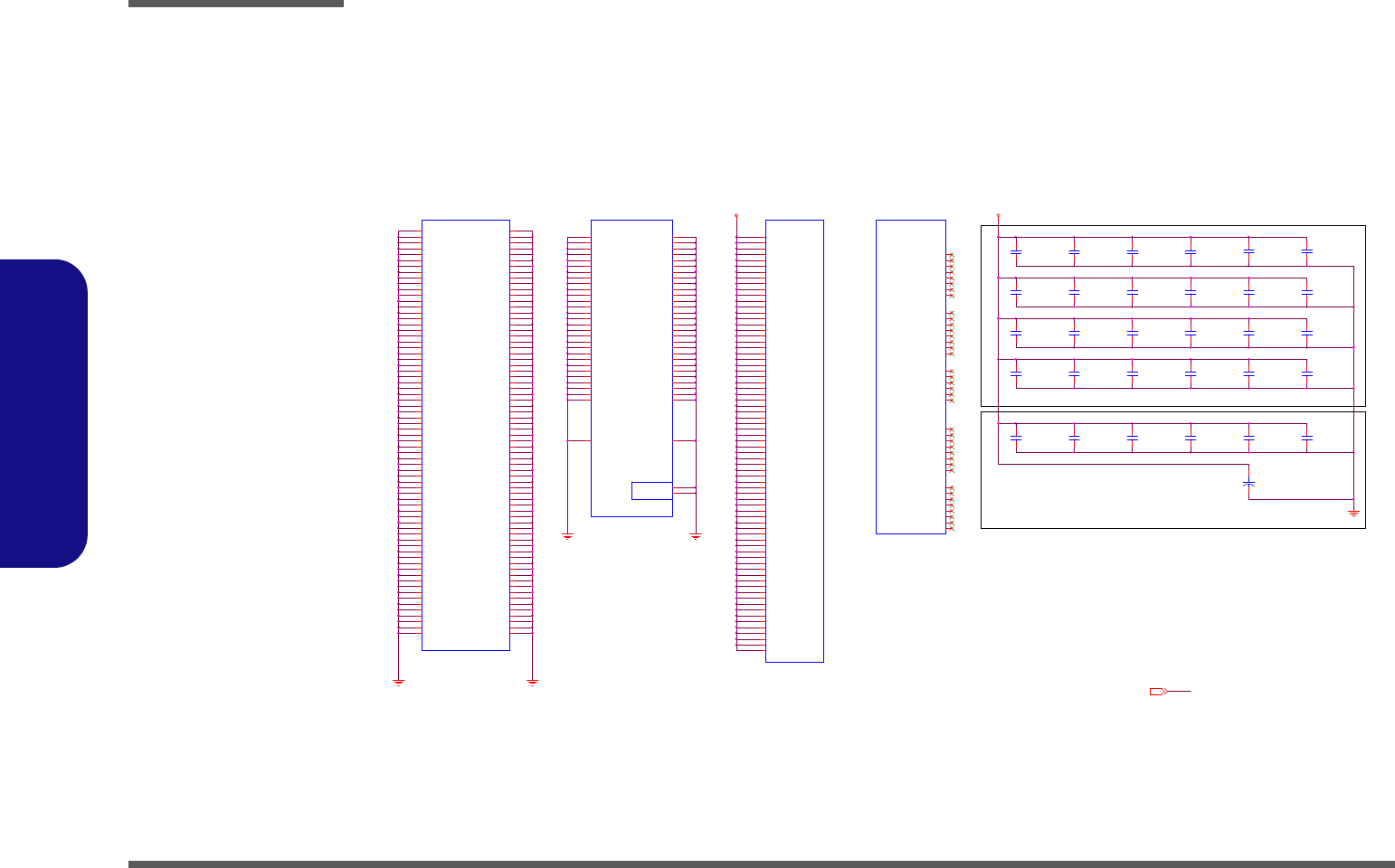

Schematic Diagrams
B - 6 Ivy Bridge Processor 4/7
B.Schematic Diagrams
Ivy Bridge Processor 4/7
Ivy Bridge Processor 4/7 ( POWER )
PROCESSOR CORE POWER PROCESSOR UNCORE POWER
48A
CAD Note: H_CPU_SVIDALRT#_R,H_CPU_SVIDDAT_R
Place the PU resistors close to CPU
H_CPU_SVIDDAT_R
C55
*10u_6.3V_X5R_06
C45
*22u_6.3V_X5R_08
C37
*22u_6.3V_X5R_08
C107
*10u_6.3V_X5R_06
C23
22u_6.3V_X5R_08
C531
10u_6.3V_X5R_06
R41 43.2_1%_04
C68
22u_6.3V_X5R_08
C70
*22u_6.3V_X5R_08
C52
*22u_6.3V_X5R_08
R53 *54.9_1%_04
C106
*22u_6.3V_X5R_08
C90
10u_6.3V_X5R_06
C103
22u_6.3V_X5R_08
R55 130_1%_04
C36
*22u_6.3V_X5R_08
C546
22u_6.3V_X5R_08
C533
10u_6.3V_X5R_06
C82
22u_6.3V_X5R_08
C35
22u_6.3V_X5R_08
C54
22u_6.3V_X5R_08
C64
*22u_6.3V_X5R_08
C48
*22u_6.3V_X5R_08
C27
22u_6.3V_X5R_08
C53
*22u_6.3V_X5R_08
R311
10_04
C96
22u_6.3V_X5R_08
R13 * 15mil_short_06
+
C554
560u_2.5V_6.6*6.6* 5. 9
R310
10_04
C51
*22u_6.3V_X5R_08
C525
22u_6.3V_X5R_08
C61
22u_6.3V_X5R_08
+
C527
*330u_2.5V_V_A
C526
22u_6.3V_X5R_08
C79
*22u_6.3V_X5R_08
C17
*22u_6.3V_X5R_08
C77
*10u_6.3V_X5R_06
C75
10u_6.3V_X5R_06
C551
22u_6.3V_X5R_08
R54 75_04
C72
*10u_6.3V_X5R_06
SVID Signals
CAD Note: H_CPU_SVIDCLK_R
Place the PU
resistors close to VR
C69
*22u_6.3V_X5R_08
POWER
CORE SUPPLY
PEG AND DDR
SENSE LINES SVID
U17F
PZ98821-364B-01F
VCC_SENSE AJ35
VSS_SENSE AJ34
VIDALERT# AJ29
VIDSCLK AJ 30
VID SOUT AJ28
VSS_SENSE_VCCIO A10
VCC 1
AG35
VCC 2
AG34
VCC 3
AG33
VCC 4
AG32
VCC 5
AG31
VCC 6
AG30
VCC 7
AG29
VCC 8
AG28
VCC 9
AG27
VCC 10
AG26
VCC 11
AF35
VCC 12
AF34
VCC 13
AF33
VCC 14
AF32
VCC 15
AF31
VCC 16
AF30
VCC 17
AF29
VCC 18
AF28
VCC 19
AF27
VCC 20
AF26
VCC 21
AD35
VCC 22
AD34
VCC 23
AD33
VCC 24
AD32
VCC 25
AD31
VCC 26
AD30
VCC 27
AD29
VCC 28
AD28
VCC 29
AD27
VCC 30
AD26
VCC 31
AC35
VCC 32
AC34
VCC 33
AC33
VCC 34
AC32
VCC 35
AC31
VCC 36
AC30
VCC 37
AC29
VCC 38
AC28
VCC 39
AC27
VCC 40
AC26
VCC 41
AA35
VCC 42
AA34
VCC 43
AA33
VCC 44
AA32
VCC 45
AA31
VCC 46
AA30
VCC 47
AA29
VCC 48
AA28
VCC 49
AA27
VCC 50
AA26
VCC 51
Y35
VCC 52
Y34
VCC 53
Y33
VCC 54
Y32
VCC 55
Y31
VCC 56
Y30
VCC 57
Y29
VCC 58
Y28
VCC 59
Y27
VCC 60
Y26
VCC 61
V35
VCC 62
V34
VCC 63
V33
VCC 64
V32
VCC 65
V31
VCC 66
V30
VCC 67
V29
VCC 68
V28
VCC 69
V27
VCC 70
V26
VCC 71
U35
VCC 72
U34
VCC 73
U33
VCC 74
U32
VCC 75
U31
VCC 76
U30
VCC 77
U29
VCC 78
U28
VCC 79
U27
VCC 80
U26
VCC 81
R35
VCC 82
R34
VCC 83
R33
VCC 84
R32
VCC 85
R31
VCC 86
R30
VCC 87
R29
VCC 88
R28
VCC 89
R27
VCC 90
R26
VCC 91
P35
VCC 92
P34
VCC 93
P33
VCC 94
P32
VCC 95
P31
VCC 96
P30
VCC 97
P29
VCC 98
P28
VCC 99
P27
VCC100
P26
VCCIO1 AH13
VCCIO12 J11
VCCIO18 G12
VCCIO19 F14
VCCIO20 F13
VCCIO21 F12
VCCIO22 F11
VCCIO23 E14
VCCIO24 E12
VCCIO2 AH10
VCCIO3 AG10
VCCIO4
AC10
VCCIO5 Y10
VCCIO6 U10
VCCIO7 P10
VCCIO8 L10
VCCIO9
J14
VCCIO10 J13
VCCIO11 J12
VCCIO13 H14
VCCIO14
H12
VCCIO15 H11
VCCIO16 G14
VCCIO17 G13
VCCIO25 E11
VCCIO32 C12
VCCIO33 C11
VCCIO34 B14
VCCIO35 B12
VCCIO36 A14
VCCIO37 A13
VCCIO38 A12
VCCIO39 A11
VCCIO26 D14
VCCIO27 D13
VCCIO28 D12
VCCIO29 D11
VCCIO30 C14
VCCIO31 C13
VCCIO_SENSE B10
VCCIO40 J23
C529
22u_6.3V_X5R_08
C532
22u_6.3V_X5R_08
1.05VS_VTT
1. 05VS _VTT
VCORE
1.05VS_VTT
1.05VS_VTT
1.05VS_VTT
VCORE
VCORE_VSS_SENSE 42
1.05VS_VTT2,3, 25,26, 27,37
VCORE42,43
VCORE
H_CPU_SVIDALRT# 42
H_C PU _SVI DD AT 42
H_CPU_SVIDCLK 42
VSSP_SENSE 41
VCCP_SENSE 41
VCORE _VC C_SENSE 42
R40 *10mil_short
R42 *10mil_short
H_CPU_SVIDALRT#
H_CPU_SVIDCLK
H_CPU_SVIDALRT#_R
H_CPU_SVIDCLK_R
H_CPU_SVIDDAT_R
ICCMAX Maximum Processor SV
48
1.05VS_VCCP_F
8.5A

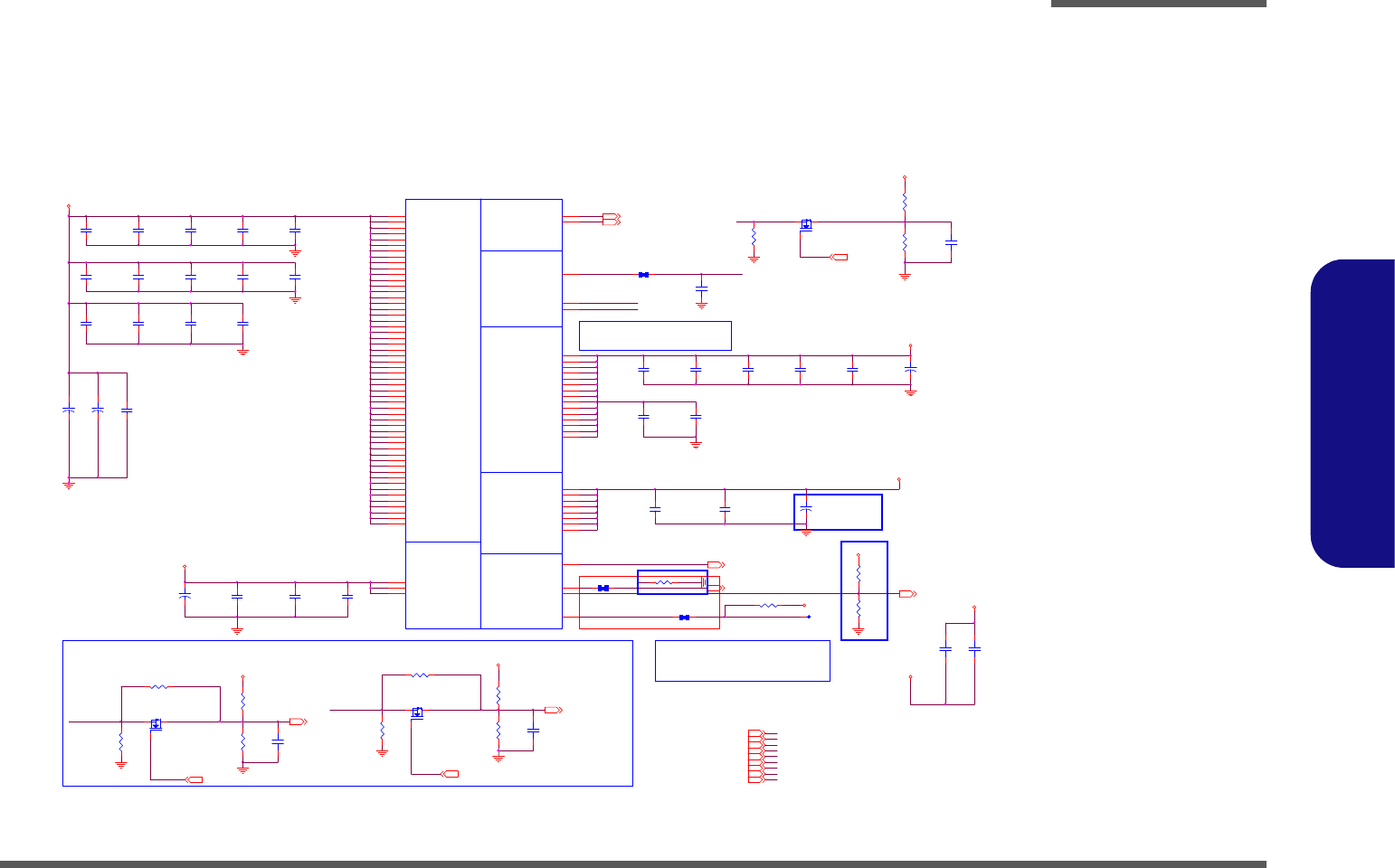

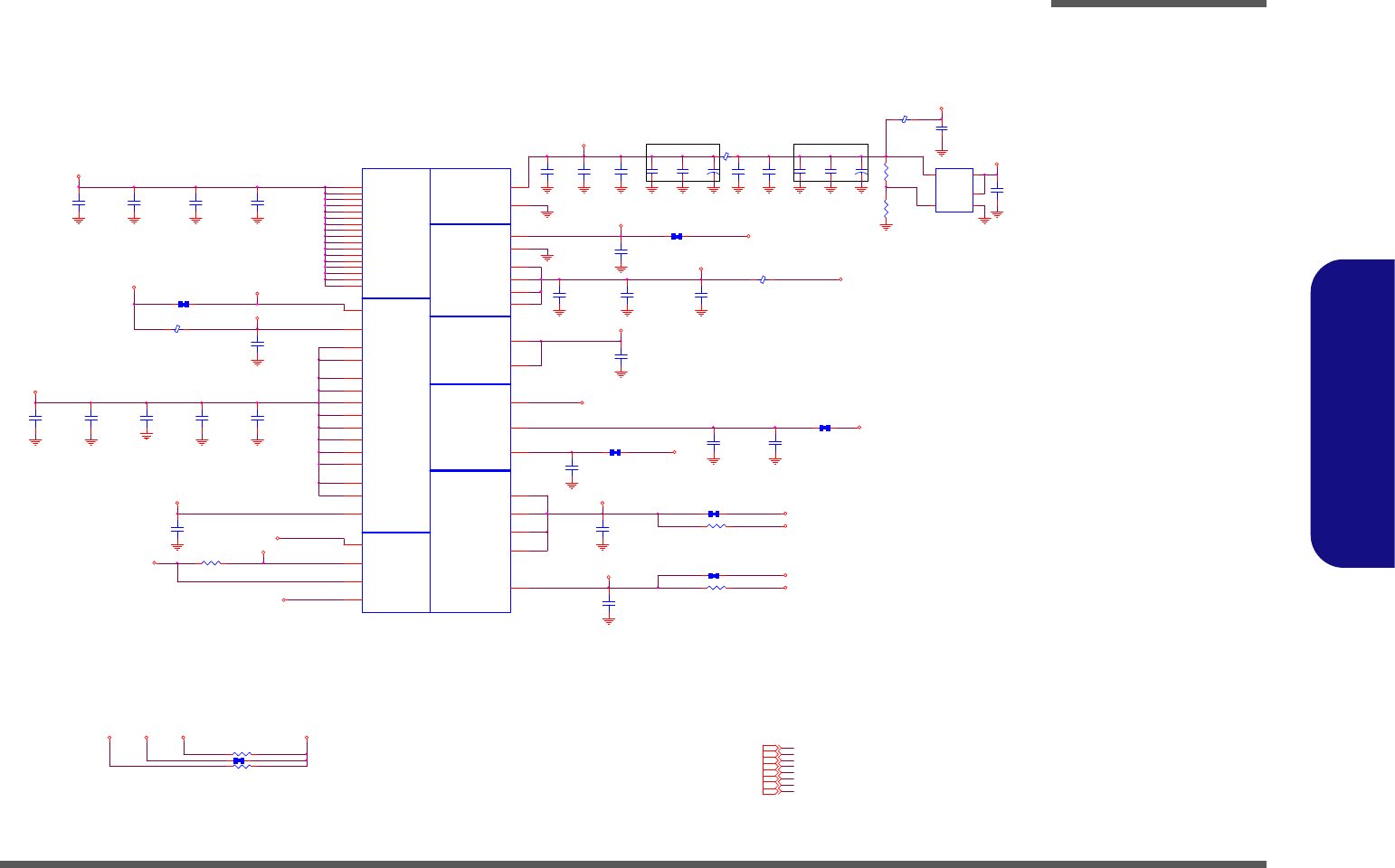

Schematic Diagrams
Ivy Bridge Processor 5/7 B - 7
B.Schematic Diagrams
Ivy Bridge Processor 5/7
Ivy Bridge Processor 5/7 ( GRAPHICS POWER )
VREF_CH _B_DIMM MVREF_DQ_DIM1
R315 *10mil_short
10/22
C519
1u_6.3 V_X5R_04
C524
22u_6.3V_X5R_08
R290
1K_1%_04
R299
*1K_04
C537
*22u_6.3V_X5R_08
C511
0.1u_10V_X5R_04
C523
10u_6.3V_X5R_06
+
C528
*330u_2.5V_V_A
C131
0.1u_10V_X5R_04
Q20
*AO3402L
G
DS
C586
0.1u_10V_X5R_04
R300
1K_1%_04
C99
22u_6.3V_X5R_08
C535
22u_6.3V_X5R_08
C59
22u_6.3V_X5R_08
C516
22u_6.3V_X5R_08
C100
22u_6.3V_X5R_08
C89
*22u_6.3V_X5R_08
C508
0.1u_10V_X5R_04
C536
22u_6.3V_X5R_08
C71
22u_6.3V_X5R_08
C112
22u_6.3V_X5R_08
R316 10K_04
C111
22u_6.3V_X5R_08
On CRB
H_SNB_IVB#_PWRCTRL = low, 1.0V
H_SNB_IVB#_PWRCTRL = high/NC, 1.05V
+
C140
*330u_2.5V_V_A
C42
22u_6.3V_X5R_08
C135
*22u_6.3V_X5R_08
Q1
*AO3402L
G
DS
R309 *10mil_short
+
C139
*330u_2.5V_V_A
R20
*100K_1%_04
C520
1u_6.3V_X5R_04
Q19
*AO3402L
G
DS
C120
*22u_6. 3V_X5R_08
R293 *0_04
C109
22u_6.3V_X5R_08
C93
22u_6.3V_X5R_08
R26
1K_1%_04
C587
0.1u_10V_X5R_04
R313
10K_04
R295 *0_04
R297
*1K_04
C136
*22u_6.3V_X5R_08
R27
1K_1%_04
C534
22u_6.3V_X5R_08
+
C572
560u_2.5V_6.6*6.6*5. 9
R314 10K_04
R292
1K_1%_04
C94
22u_6.3V_X5R_08
R296
1K_1%_04
+
C514
*100u_6.3V_B_A
R312
*10K_04
POWER
GRAPHICS
DDR3 -1.5V RAILS SENSE
LINES
1.8V RAIL
SA RAIL
VREFMISC
U17G
PZ9882 1-364B -01F
SM_VRE F AL1
VSSAXG_SENSE AK34
VAXG_SENSE AK35
VAXG1
AT24
VAXG2
AT23
VAXG3
AT21
VAXG4
AT20
VAXG5
AT18
VAXG6
AT17
VAXG7
AR24
VAXG8
AR23
VAXG9
AR21
VAXG10
AR20
VAXG11
AR18
VAXG12
AR17
VAXG13
AP24
VAXG14
AP23
VAXG15
AP21
VAXG16
AP20
VAXG17
AP18
VAXG18
AP17
VAXG19
AN24
VAXG20
AN23
VAXG21
AN21
VAXG22
AN20
VAXG23
AN18
VAXG24
AN17
VAXG25
AM24
VAXG26
AM23
VAXG27
AM21
VAXG28
AM20
VAXG29
AM18
VAXG30
AM17
VAXG31
AL24
VAXG32
AL23
VAXG33
AL21
VAXG34
AL20
VAXG35
AL18
VAXG36
AL17
VAXG37
AK24
VAXG38
AK23
VAXG39
AK21
VAXG40
AK20
VAXG41
AK18
VAXG42
AK17
VAXG43
AJ24
VAXG44
AJ23
VAXG45
AJ21
VAXG46
AJ20
VAXG47
AJ18
VAXG48
AJ17
VAXG49
AH24
VAXG50
AH23
VAXG51
AH21
VAXG52
AH20
VAXG53
AH18
VAXG54
AH17
VDDQ11 U4
VDDQ12 U1
VDDQ13 P7
VDDQ14 P4
VDDQ15 P1
VDDQ1 AF7
VDDQ2 AF4
VDDQ3 AF1
VDDQ4 AC7
VDDQ5 AC4
VDDQ6 AC1
VDDQ7 Y7
VDDQ8 Y4
VDDQ9 Y1
VDDQ10 U7
VCCPLL1
B6
VCCPLL2
A6
VCCSA1 M2 7
VCCSA2 M2 6
VCCSA3 L26
VCCSA4 J26
VCCSA5 J25
VCCSA6 J24
VCCSA7 H26
VCCSA8 H25
VCC SA_SEN SE H23
VCCSA_VID[1] C24
VCCPLL3
A2 VCCSA_VID[0] C22
SA_DI MM_VRE FDQ B4
SB_DI MM_VRE FDQ D1
VCCIO_SEL A19
1.5VS_CPU
1.5V
VGFX_CORE
1.8VS
1.5VS_C PU
1.5VS_CPU
3.3V
1.05VS
0.85VS
12A
1.5V
1.5V
1.8VS25,26,39
1.5V3, 9,10,27,37, 40
VGFX_COR E42,43
VR1_VSSGT_SENSEA 42
VR1_VCCGT_SENSEA 42
1.5VS_CPU3,37, 40
3.3VS3, 9, 10,11,20,21, 22, 23, 24, 25, 26,27,29,30, 32, 33, 34,35,36,37,42, 44
VCCSA_SENSE 39
SUSB# 22,3 6, 37, 39
0.85VS39
1.05VS21,22,26,27, 37,40,41,42
VCCSA_VID 0 39
1.5VS26, 35,37
MVREF_DQ_DIMMA 9
DR A MRST_ C NTR L 3, 6, 21
VCC SA_ VI D 1 39
3.3V2,3,11,18,20,21,22, 24,25,26,27, 29,30,31,35, 37,39,40,41
MVREF _DQ_DI MMB 10
DRAMRST_CNTRL 3,6,21
R22 *10mil_short
C726
22u_6. 3V_X5R_08
C727
22u_6. 3V_X5R_08
46A
H_SNB_I VB#_PWR CTRL_R H_SNB_IVB#_PWRCTRL
CAD Note: +V_SM_VREF should
have 10 mil trace width
V_SM_VREF
VR EF _C H_ B_D IMM
VR EF _C H_ A_D IMM
1.2A
V_SM_VREF
C700
1u_6.3V_X5R_04
V_SM_VREF _CNT
¾aDIMMºÝÂ\©ñ & TRACE¥[¼e
VREF_CH_A_D I MM MV R EF _D Q _ D I M0
V_SM_VREF_CNT
C728
*22u_6.3V_X5R_08
C729
*22u_6.3V_X5R_08
6A
VCCSA _SEN SE

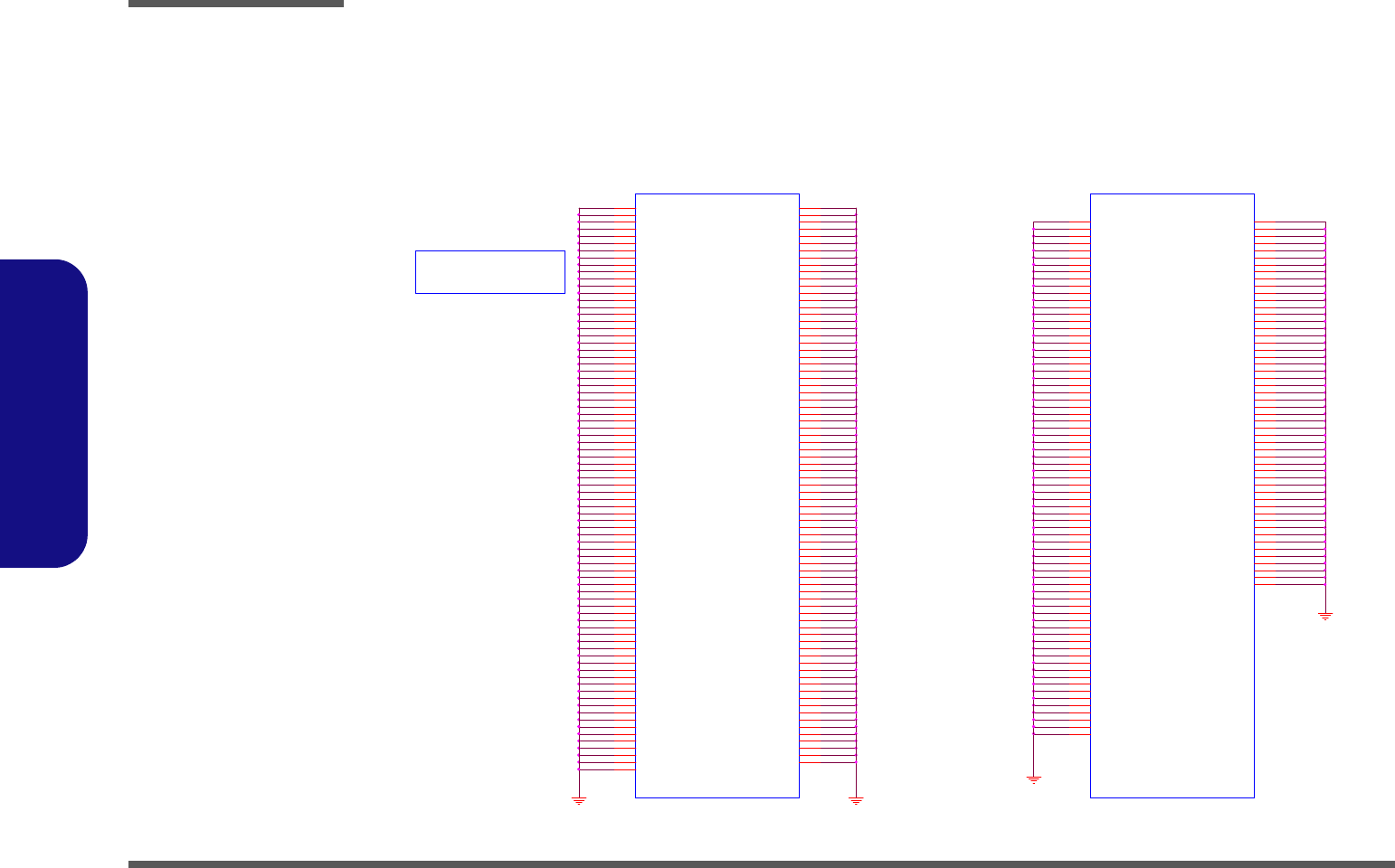

Schematic Diagrams
B - 8 Ivy Bridge Processor 6/7
B.Schematic Diagrams
Ivy Bridge Processor 6/7
Ivy Bridge Processor 6/7 ( GND )
VSS
U17I
PZ98821-364B-01F
VSS161
T35
VSS162
T34
VSS163
T33
VSS164
T32
VSS165
T31
VSS166
T30
VSS167
T29
VSS168
T28
VSS169
T27
VSS170
T26
VSS171
P9
VSS172
P8
VSS173
P6
VSS174
P5
VSS175
P3
VSS176
P2
VSS177
N35
VSS178
N34
VSS179
N33
VSS180
N32
VSS181
N31
VSS182
N30
VSS183
N29
VSS184
N28
VSS185
N27
VSS186
N26
VSS187
M34
VSS188
L33
VSS189
L30
VSS190
L27
VSS191
L9
VSS192
L8
VSS193
L6
VSS194
L5
VSS195
L4
VSS196
L3
VSS197
L2
VSS198
L1
VSS199
K35
VSS200
K32
VSS201
K29
VSS202
K26
VSS203
J34
VSS204
J31
VSS205
H33
VSS206
H30
VSS207
H27
VSS208
H24
VSS209
H21
VSS210
H18
VSS211
H15
VSS212
H13
VSS213
H10
VSS214
H9
VSS215
H8
VSS216
H7
VSS217
H6
VSS218
H5
VSS219
H4
VSS220
H3
VSS221
H2
VSS222
H1
VSS223
G35
VSS224
G32
VSS225
G29
VSS226
G26
VSS227
G23
VSS228
G20
VSS229
G17
VSS230
G11
VSS231
F34
VSS232
F31
VSS233
F29
VSS234 F22
VSS235 F19
VSS236 E30
VSS237 E27
VSS238 E24
VSS239 E21
VSS240 E18
VSS241 E15
VSS242 E13
VSS243 E10
VSS244 E9
VSS245 E8
VSS246 E7
VSS247 E6
VSS248 E5
VSS249 E4
VSS250 E3
VSS251 E2
VSS252 E1
VSS253 D35
VSS254 D32
VSS255 D29
VSS256 D26
VSS257 D20
VSS258 D17
VSS259 C34
VSS260 C31
VSS261 C28
VSS262 C27
VSS263 C25
VSS264 C23
VSS265 C10
VSS266 C1
VSS267 B22
VSS268 B19
VSS269 B17
VSS270 B15
VSS271 B13
VSS272 B11
VSS273 B9
VSS274 B8
VSS275 B7
VSS276 B5
VSS277 B3
VSS278 B2
VSS279 A35
VSS280 A32
VSS281 A29
VSS282 A26
VSS283 A23
VSS284 A20
VSS285 A3
VSS
U17H
PZ98821-364B-01F
VSS1
AT35
VSS2
AT32
VSS3
AT29
VSS4
AT27
VSS5
AT25
VSS6
AT22
VSS7
AT19
VSS8
AT16
VSS9
AT13
VSS10
AT10
VSS11
AT7
VSS12
AT4
VSS13
AT3
VSS14
AR25
VSS15
AR22
VSS16
AR19
VSS17
AR16
VSS18
AR13
VSS19
AR10
VSS20
AR7
VSS21
AR4
VSS22
AR2
VSS23
AP34
VSS24
AP31
VSS25
AP28
VSS26
AP25
VSS27
AP22
VSS28
AP19
VSS29
AP16
VSS30
AP13
VSS31
AP10
VSS32
AP7
VSS33
AP4
VSS34
AP1
VSS35
AN30
VSS36
AN27
VSS37
AN25
VSS38
AN22
VSS39
AN19
VSS40
AN16
VSS41
AN13
VSS42
AN10
VSS43
AN7
VSS44
AN4
VSS45
AM29
VSS46
AM25
VSS47
AM22
VSS48
AM19
VSS49
AM16
VSS50
AM13
VSS51
AM10
VSS52
AM7
VSS53
AM4
VSS54
AM3
VSS55
AM2
VSS56
AM1
VSS57
AL34
VSS58
AL31
VSS59
AL28
VSS60
AL25
VSS61
AL22
VSS62
AL19
VSS63
AL16
VSS64
AL13
VSS65
AL10
VSS66
AL7
VSS67
AL4
VSS68
AL2
VSS69
AK33
VSS70
AK30
VSS71
AK27
VSS72
AK25
VSS73
AK22
VSS74
AK19
VSS75
AK16
VSS76
AK13
VSS77
AK10
VSS78
AK7
VSS79
AK4
VSS80
AJ25
VSS 81 AJ 22
VSS 82 AJ 19
VSS 83 AJ 16
VSS 84 AJ 13
VSS 85 AJ 10
VSS 86 AJ 7
VSS 87 AJ 4
VSS 88 AJ 3
VSS 89 AJ 2
VSS 90 AJ 1
VSS 91 AH 3 5
VSS 92 AH 3 4
VSS 93 AH 3 2
VSS 94 AH 3 0
VSS 95 AH 2 9
VSS 96 AH 2 8
VSS 98 AH 2 5
VSS 99 AH 2 2
VSS 100 AH 19
VSS 101 AH 16
VSS 102 AH 7
VSS 103 AH 4
VSS 104 AG9
VSS 105 AG8
VSS 106 AG4
VSS 107 AF 6
VSS 108 AF 5
VSS 109 AF 3
VSS 110 AF 2
VSS 111 AE35
VSS 112 AE34
VSS 113 AE33
VSS 114 AE32
VSS 115 AE31
VSS 116 AE30
VSS 117 AE29
VSS 118 AE28
VSS 119 AE27
VSS 120 AE26
VSS 121 AE9
VSS 122 AD 7
VSS 123 AC 9
VSS 124 AC 8
VSS 125 AC 6
VSS 126 AC 5
VSS 127 AC 3
VSS 128 AC 2
VSS 129 AB35
VSS 130 AB34
VSS 131 AB33
VSS 132 AB32
VSS 133 AB31
VSS 134 AB30
VSS 135 AB29
VSS 136 AB28
VSS 137 AB27
VSS 138 AB26
VSS 139 Y9
VSS 140 Y8
VSS 141 Y6
VSS 142 Y5
VSS 143 Y3
VSS 144 Y2
VSS 145 W35
VSS 146 W34
VSS 147 W33
VSS 148 W32
VSS 149 W31
VSS 150 W30
VSS 151 W29
VSS 152 W28
VSS 153 W27
VSS 154 W26
VSS 155 U9
VSS 156 U8
VSS 157 U6
VSS 158 U5
VSS 159 U3
VSS 160 U2
CAD Note: 0 ohm resistor
should be placed close
to CPU

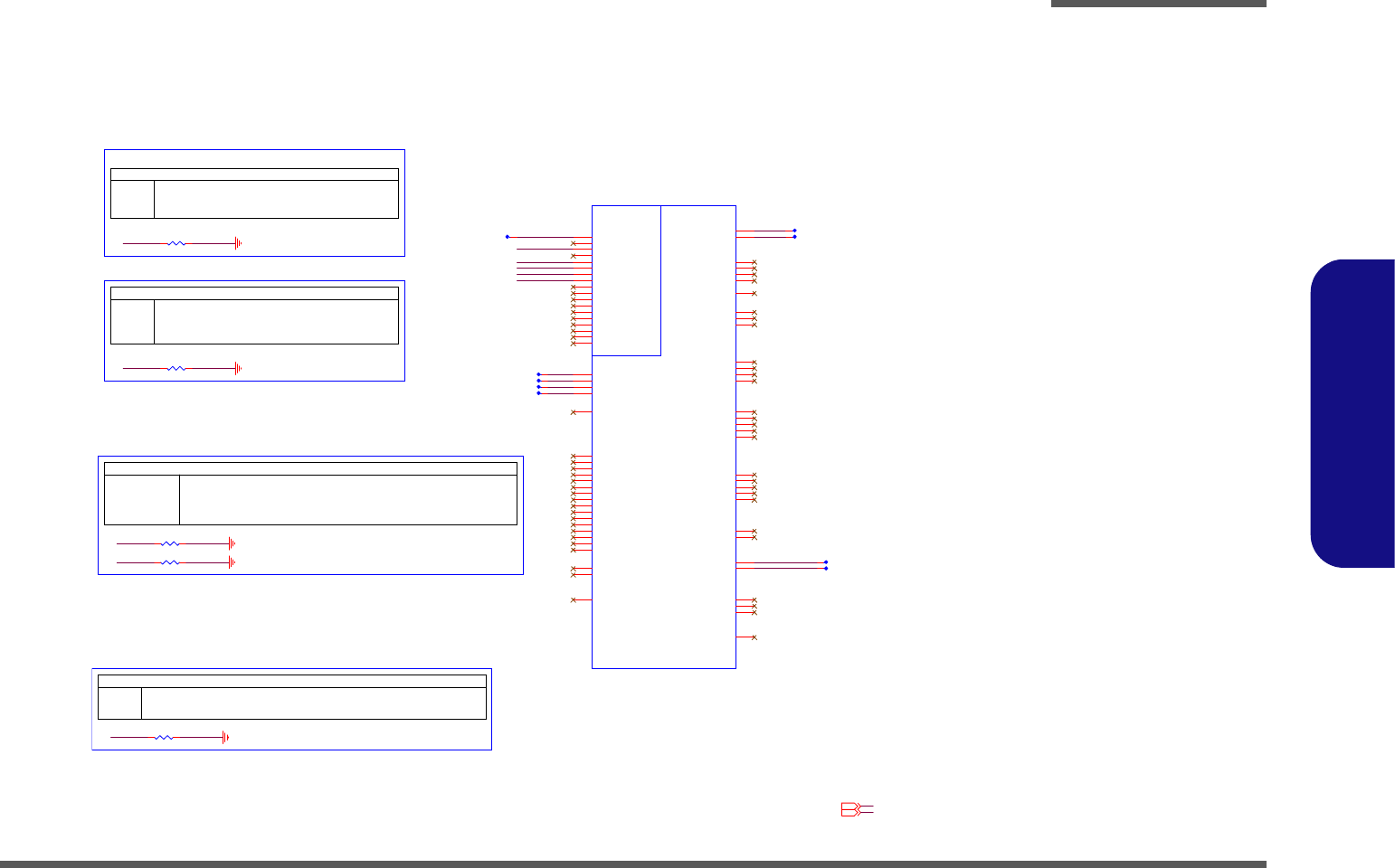

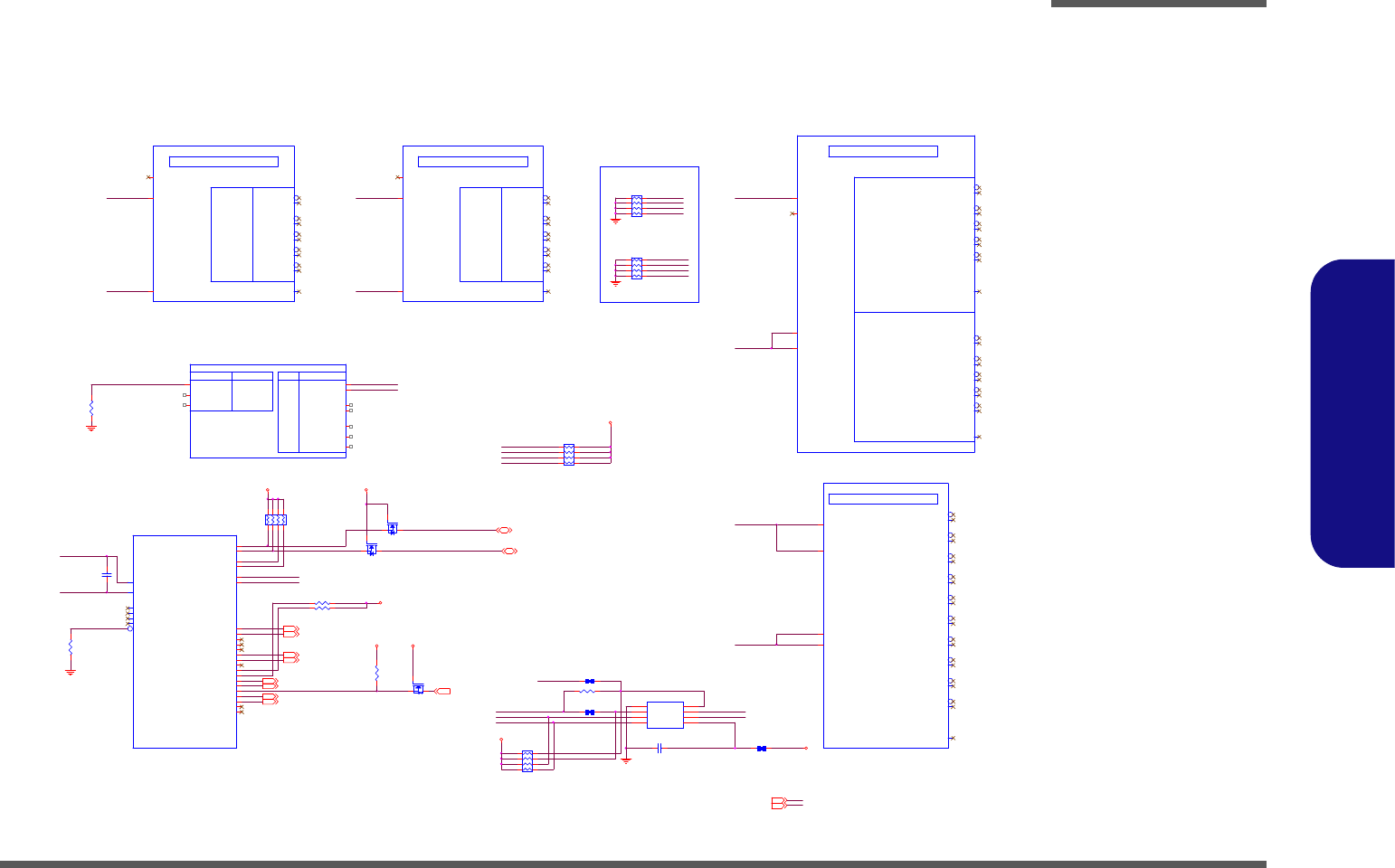

Schematic Diagrams
Ivy Bridge Processor 7/7 B - 9
B.Schematic Diagrams

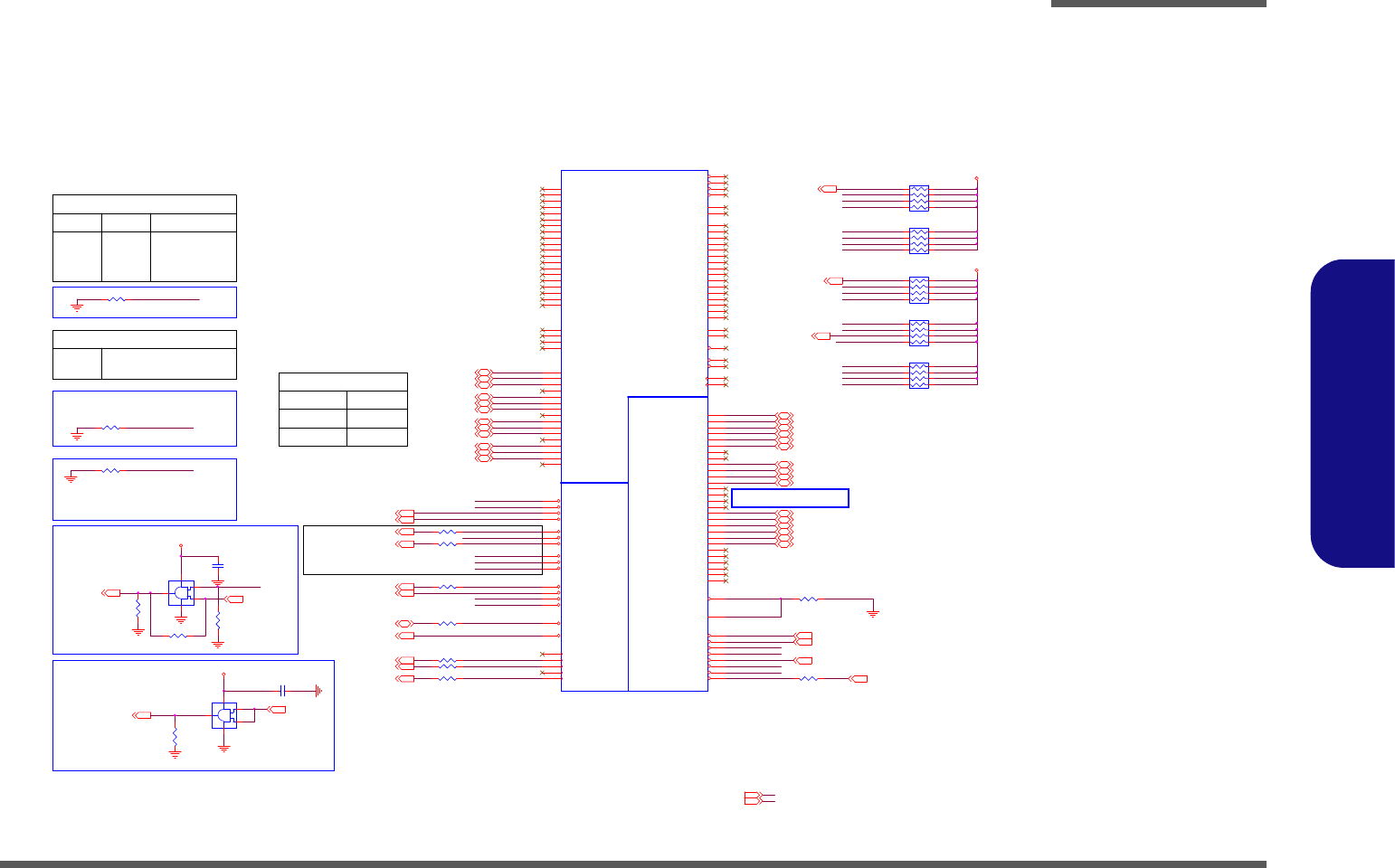

Ivy Bridge Processor 7/7
CFG2
CFG7
PEG DEFER TRAINING
1: (Default) PEG Train immediately following xxRESETB de assertion
0: PEG Wait for BIOS for training
CFG6
CFG5
CFG4
CFG2
11: (Default) x16 - Device 1 functions 1 and 2 disabled
10: x8, x8 - Device 1 function 1 enabled ; function 2 disabled
01: Reserved - (Device 1 function 1 disabled ; function 2 enabled)
00: x8,x4,x4 - Device 1 functions 1 and 2 enabled
CFG[6:5]
PEG Static Lane Reversal - CFG2 is for the 16x
1:(Default) Normal Operation; Lane #
definition matches socket pin map definition
0:Lane Reversed
CFG2
Ivy Bridge Processor 7/7 ( RESERVED )
PCIE Port Bifurcation Straps
CFG4
CFG7
RESERVED
CFG
U17E
PZ98 821-364B-01F
CFG[0]
AK28
CFG[1]
AK29
CFG[2]
AL26
CFG[3]
AL27
CFG[4]
AK26
CFG[5]
AL29
CFG[6]
AL30
CFG[7]
AM31
CFG[8]
AM32
CFG[9]
AM30
CFG[10]
AM28
CFG[11]
AM26
CFG[12]
AN28
CFG[13]
AN31
CFG[14]
AN26
CFG[15]
AM27
CFG[16]
AK31
CFG[17]
AN29
RSVD34 AM33
RSVD35 AJ 27
RSVD38 J16
RSVD_NCTF42 AT34
RSVD39 H16
RSVD40 G16
RSVD_NCTF41 AR35
RSVD_NCTF43 AT33
RSVD_NCTF45 AR34
RSVD_NCTF56 AT2
RSVD_NCTF57 AT1
RSVD_NCTF58 AR1
RSVD_NCTF46 B34
RSVD_NCTF47 A33
RSVD_NCTF48 A34
RSVD_NCTF49 B35
RSVD_NCTF50 C35
RSVD51 AJ 32
RSVD52 AK32
RSVD27
J15
RSVD16
C30 RSVD15
D23
RSVD17
A31
RSVD18
B30
RSVD20
D30 RSVD19
B29
RSVD22
A30 RSVD21
B31
RSVD23
C29
RSVD37 T8
RSVD8
F25
RSVD9
F24
RSVD11
D24
RSVD12
G25
RSVD13
G24
RSVD14
E23
RSVD32 W8
RSVD33 AT26
RSVD_NCTF44 AP35
RSVD10
F23
RSVD5
AJ26
VAXG_VAL_SENSE
AJ31
VSSAXG_VAL_SENSE
AH31
VCC_VAL_SEN SE
AJ33
VSS_VAL_SENSE
AH33
KEY B1
VCC_DIE_SENSE AH27
BCLK_ITP AN 35
BCLK_ITP# AM35
VSS_DIE_SENSE AH 26
RSVD31 AK2
RSVD30 AE7
RSVD29 AG7
RSVD28 L7
RSVD24
J20
RSVD25
B18
CFG7
CFG Straps for Processor
3.3V2,3,6, 11, 18,20,21 , 22, 24, 25,26, 27, 29,30,31, 35, 37,39,40, 41
CFG5
Display Port Presence Strap
1:(Default) Disabled; No Physical Display Port
attached to Embedded Display Port
0:Enabled; An external Display Port device is
connected to the Embedded Display Port
CFG4
R39 *1K_04
R43 * 1K_04
R52 *1K_04
R47 * 1K_04
R56 * 1K_04
1.5V3,6,9,1 0,27, 37,40
CFG0
BCLK_I TP#
BCLK_I TP
CFG6

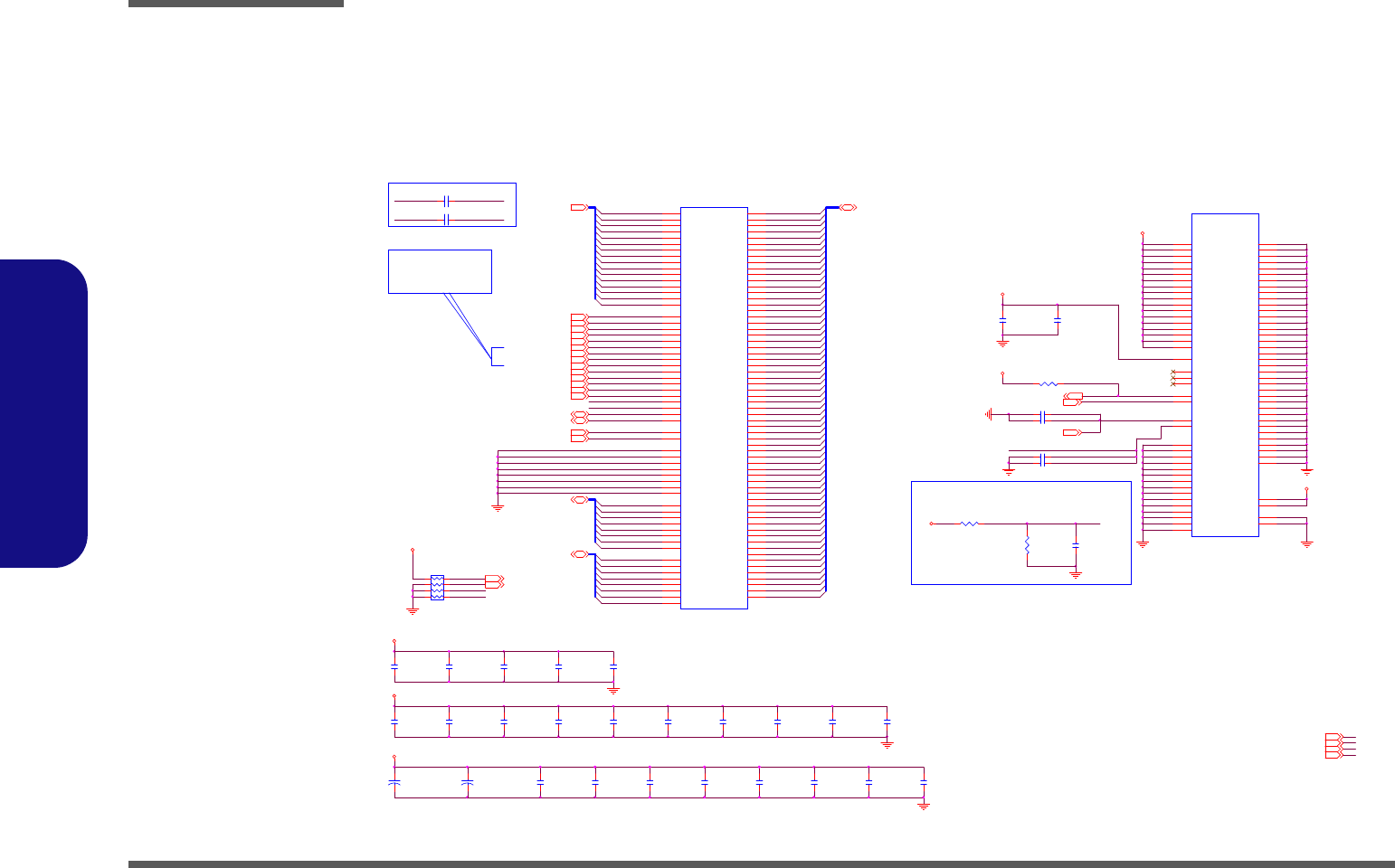

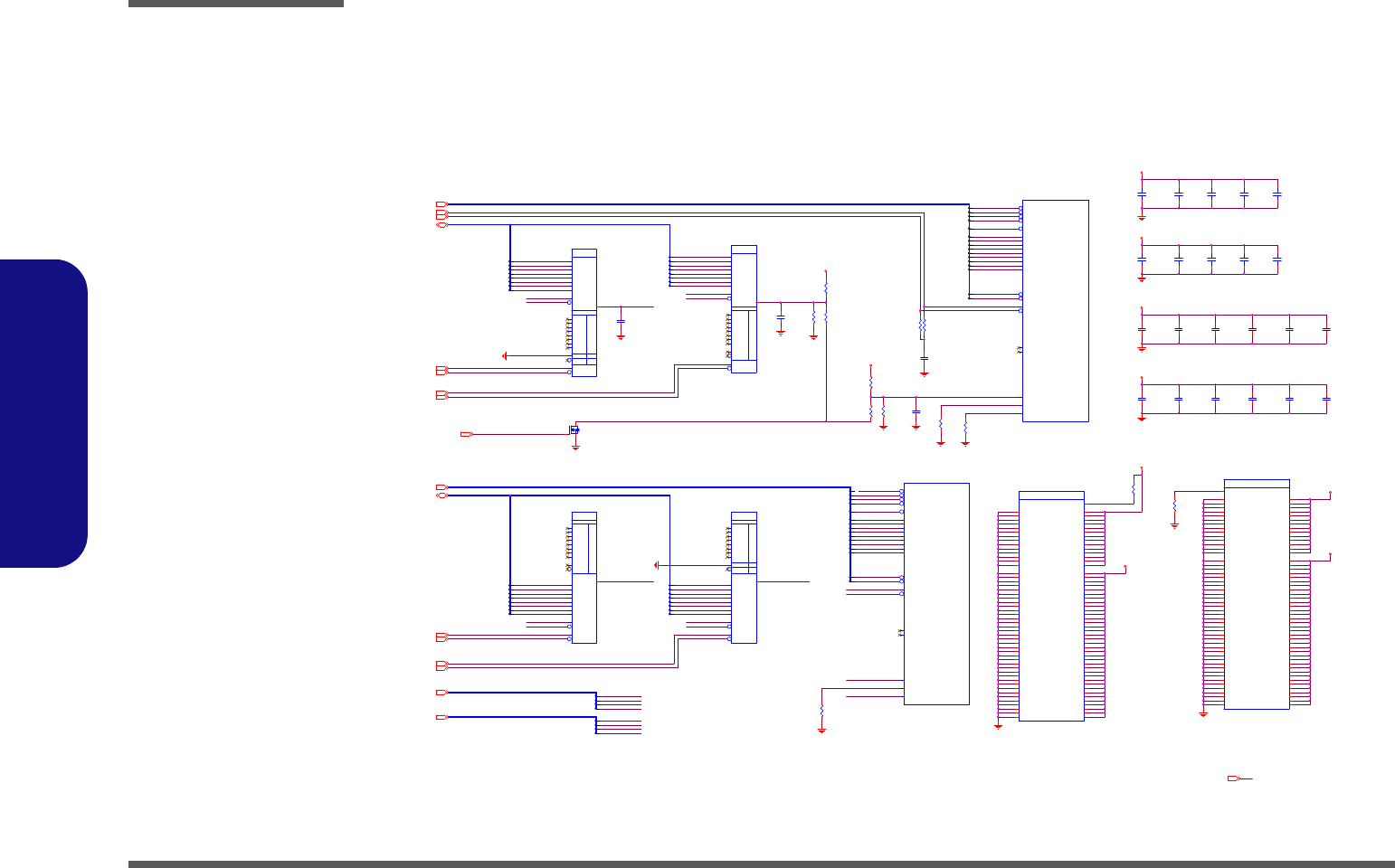

Schematic Diagrams
B - 10 DDR3 SO-DIMM_0
B.Schematic Diagrams
DDR3 SO-DIMM_0
SO-DIMM A
M_A _ D Q3
M_A _ D Q2
M_A _ D Q1
M_A _ D Q3 2
M_A _ D Q3 1
M_A _ D Q3 0
M_A _ D Q2 9
M_A _ D Q4
M_A _ D Q3 9
M_A _ D Q3 7
M_A _ D Q3 6
M_A _ D Q3 5
M_A _ D Q3 4
M_A _ D Q3 3
M_A _ D Q4 4
M_A _ D Q4 3
M_A _ D Q4 2
M_A _ D Q4 1
M_A _ D Q4 0
M_A _ D Q4 9
M_A _ D Q3 8
M_A _ D Q4 7
M_A _ D Q4 6
M_A _ D Q4 5
M_A _ D Q5 4
M_A _ D Q5 3
M_A _ D Q5 2
M_A _ D Q5 1
M_A _ D Q2 8
M_A _ D Q5 0
M_A _ D Q5 6
M_A _ D Q6
M_A _ D Q5
M_A _ D Q4 8
M_A _ D Q5 5
M_A _ D Q6 2
M_A _ D Q6 1
M_A _ D Q6 0
M_A _ D Q5 8
M_A _ D Q5 7
M_A _ D Q1 1
M_A _ D Q9
M_A _ D Q8
M_A _ D Q7
M_A _ D Q5 9
M_A _ D Q6 3
M_A _ D Q1 6
M_A _ D Q1 5
M_A _ D Q1 4
M_A _ D Q1 3
M_A _ D Q1 2
M_A _ D Q2 1
M_A _ D Q1 0
M_A _ D Q1 9
M_A _ D Q1 8
M_A _ D Q1 7
M_A _ D Q2 6
M_A _ D Q2 5
M_A _ D Q2 4
M_A _ D Q2 3
M_A _ D Q0
M_A _ D Q2 2
M_A _ D Q2 0
M_A _ D Q2 7
CHANGE TO STANDARD
SA1_DIM0
SA0_DIM1
SA1_DIM1
SA0_DIM0
CLOSE TO SO-DIMM_0
MVREF_DIM0
20mils
signal/space/signal:
Layout Note:
8 / 4 / 8
+
C522
*330uF _2.5V_9m_6.3*6
JDIMM1B
DDRSK-20401-TR5B
VDD1
75
VDD2
76
VDD3
81
VDD4
82
VDD5
87
VDD6
88
VDD7
93
VDD8
94
VDD9
99
VDD10
100
VDD11
105
VDD12
106
VDDSPD
199
NC1
77
NC2
122
NCTEST
125
VREF_DQ
1
VSS1
2
VSS2
3
VSS3
8
VSS4
9
VSS5
13
VSS6
14
VSS7
19
VSS8
20
VSS9
25
VSS10
26
VSS11
31
VSS12
32
VSS13
37
VSS14
38
VSS15
43
VSS16 44
VSS17 48
VSS18 49
VSS19 54
VSS20 55
VSS21 60
VSS22 61
VSS23 65
VSS24 66
VSS25 71
VSS26 72
VSS27 127
VSS28 128
VSS29 133
VSS30 134
VSS31 138
VSS32 139
VSS33 144
VSS34 145
VSS35 150
VSS36 151
VSS37 155
VSS38 156
VSS39 161
VSS40 162
VSS41 167
VSS42 168
VSS43 172
VSS44 173
VSS45 178
VSS46 179
VSS47 184
VSS48 185
VSS49 189
VSS50 190
VSS51 195
VSS52 196
G2 GND2
G1 GND1
VTT2 204
VTT1 203
VREF_CA
126
RESET#
30 EVENT#
198
VDD13
111
VDD14
112
VDD16
118 VDD15
117
VDD17
123
VDD18
124
C63
0.1u_10V_X5R_04
C43
1u_6.3V_X5R_04
C138
0.1u_10V_X5R_04
C509 1u_6.3V_X5R_04
R19
1K_1%_04
C33
0.1u_10V_X5R_04
C510 0. 1u_10V_X5R_04
C104
1u_6.3V_X5R_04
C571
1u_6.3V_X5R_04
R17 1K_1%_04
C39
10u_6.3V_X5R_06
C58
0.1u_10V_X5R_04
C97
0.1u_10V_X5R_04
C73 * 10p_50V_NPO_04
C57
1u_6.3V_X5R_04
C141
1u_6.3V_X5R_04
C105
0.1u_10V_X5R_04
C81 * 10p_50V_NPO_04
C128
0.1u_10V_X5R_04
C49
1u_6.3V_X5R_04
C83
0.1u_10V_X5R_04
JDIMM1A
DDRSK-20401-TR5B
A0
98
A1
97
A2
96
A3
95
A4
92
A5
91
A6
90
A7
86
A8
89
A9
85
A10/AP
107
A11
84
A12/BC#
83
A13
119
A14
80
A15
78
DQ0 5
DQ1 7
DQ2 15
DQ3 17
DQ4 4
DQ5 6
DQ6 16
DQ7 18
DQ8 21
DQ9 23
DQ10 33
DQ11 35
DQ12 22
DQ13 24
DQ14 34
DQ15 36
DQ16 39
DQ17 41
DQ18 51
DQ19 53
DQ20 40
DQ21 42
DQ22 50
DQ23 52
DQ24 57
DQ25 59
DQ26 67
DQ27 69
DQ28 56
DQ29 58
DQ30 68
DQ31 70
DQ32 129
DQ33 131
DQ34 141
DQ35 143
DQ36 130
DQ37 132
DQ38 140
DQ39 142
DQ40 147
DQ41 149
DQ42 157
DQ43 159
DQ44 146
DQ45 148
DQ46 158
DQ47 160
DQ48 163
DQ49 165
DQ50 175
DQ51 177
DQ52 164
DQ53 166
DQ54 174
DQ55 176
DQ56 181
DQ57 183
DQ58 191
DQ59 193
DQ60 180
DQ61 182
DQ62 192
DQ63 194
BA0
109
BA1
108
RAS#
110
WE#
113
CAS#
115
S0#
114
S1#
121
CKE0
73
CKE1
74
CK0
101
CK0#
103
CK1
102
CK1#
104
SDA
200 SCL
202 SA1
201 SA0
197
DM0
11
DM1
28
DM2
46
DM3
63
DM4
136
DM5
153
DM6
170
DM7
187
DQS0
12
DQS1
29
DQS2
47
DQS3
64
DQS4
137
DQS5
154
DQS6
171
DQS7
188
DQS0#
10
DQS1#
27
DQS2#
45
DQS3#
62
DQS4#
135
DQS5#
152
DQS6#
169
DQS7#
186
ODT0
116
ODT1
120
BA2
79
MV R E F _ D I M 0
C563
1u_6.3V_X5R_04
C47
1u_6.3V_X5R_04
RN1
10K_8P4R_04
1
2
3
4 5
6
7
8
C84
0.1u_10V_X5R_04
C62
0.1u_10V_X5R_04
C125 0. 1u_10V_X5R_04
C574
1u_6.3V_X5R_04
C95
0.1u_10V_X5R_04
R59 10K_04
C569
1u_6.3V_X5R_04
C86
0.1u_10V_X5R_04
C124 1u_6.3V_X5R_04
3.3VS
1.5V
3.3VS
1.5V
VTT_MEM
VTT_MEM
3.3VS
1.5V
M_A _BS14
M_A_CLK_ DD R14
1.5V
DDR3_D RAMRST#3,10
M_A _ OD T14
M_A_R AS #4
M_A_WE#4
M_A_C AS #4
M_A_CLK_ DD R#14
SMB_CLK10,21, 29
VTT_MEM10,40
M_A _ OD T04
M_A _BS04
M_A _C K E 04
M_A_CLK_ DD R04
1.5V3,6,10,27,37,40
M_ A_ D Q[ 63 : 0] 4
M_A _C K E 14
M_A _BS24
M_A _C S # 04
M_A_CLK_ DD R#04
M_A _C S # 14
M_A_DQS#[7:0 ]4
M_A_DQS[7:0 ]4
SMB_DATA10,21,29
TS#_DIMM0_110
+
C530
*330uF_2.5V_9m_6.3*6
SA1_DIM1 10
3.3VS3,10, 11, 20,21,22,23,24,25,26,27, 29,30,32, 33, 34,35,36,37,42,44
M_A_A[ 15:0]4
MVREF_DQ_DIMMA6
1.5VS26,35,37
SA0_DIM1 10
C113
10u_6.3V_X5R_06
MVR EF _D Q_D I MMA
C110
10u_6.3V_X5R_06
C555
10u_6.3V_X5R_06
SA0_DIM0
SA1_DIM0
M_A_CLK_DD R1 M_A_CLK_DDR#1
M_A_CLK_DD R0 M_A_CLK_DDR#0
M_A_A6
M_A_A5
M_A_A7
M_A_A8
M_A_A9
M_A_A0
M_A_A1
M_A_A2
M_A_A3
M_A_A4
M_A_A1 2
M_A_A1 1
M_A_A1 3
M_A_A1 4
M_A_A1 5
M_A_A1 0
M_A_D QS0
M_A_D QS1
M_A_D QS2
M_A_D QS3
M_A_D QS4
M_A_D QS5
M_A_D QS6
M_A_D QS7
M_A_D QS#0
M_A_D QS#1
M_A_D QS#2
M_A_D QS#3
M_A_D QS#4
M_A_D QS#5
M_A_D QS#6
M_A_D QS#7

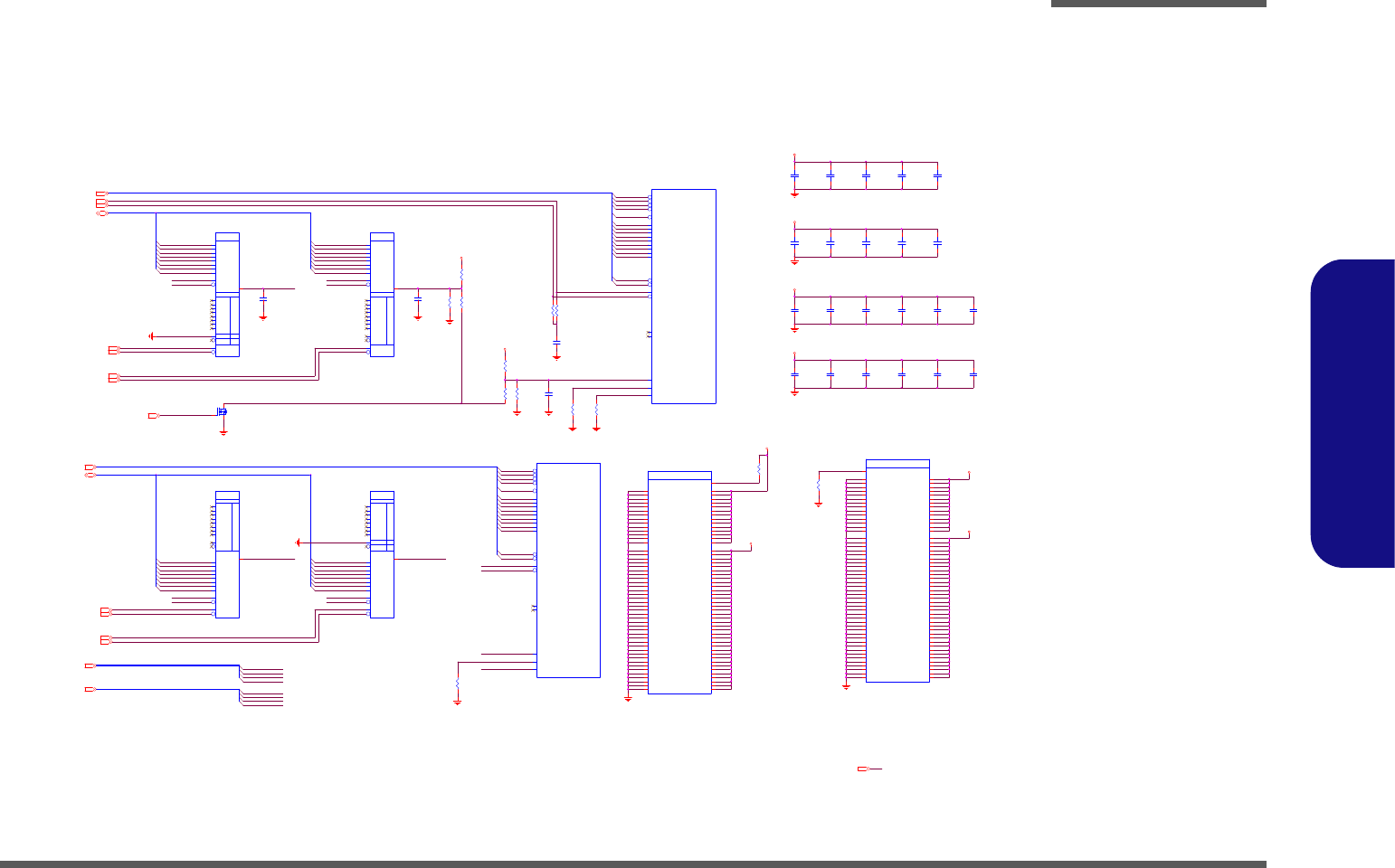

MVR EF _D I M1
CLOSE TO SO-DIMM1
SO-DIMM B
CHANGE TO STANDARD
Layout Note:
M_B_DQ31
M_B_DQ46
M_B_DQ13
M_B_DQ24
M_B_DQ56
M_B_DQ28
M_B_DQ11
M_B_DQ23
M_B_DQ61
M_B_DQ62
M_B_DQ58
M_B_DQ50
M_B_DQ1
M_B_DQ16
M_B_DQ60
M_B_DQ2
M_B_DQ40
M_B_DQ54
M_B_DQ41
M_B_DQ57
M_B_DQ37
M_B_DQ25
M_B_DQ30
M_B_DQ27
M_B_DQ44
M_B_DQ3
M_B_DQ7
M_B_DQ9
M_B_DQ34
M_B_DQ5
M_B_DQ47
M_B_DQ43
M_B_DQ38
M_B_DQ17
M_B_DQ42
M_B_DQ8
M_B_DQ59
M_B_DQ35
M_B_DQ36
8 / 4 / 8
M_B_DQ4
M_B_DQ26
M_B_DQ63
M_B_DQ33
M_B_DQ45
M_B_DQ48
M_B_DQ55
M_B_DQ29
M_B_DQ15
M_B_DQ10
M_B_DQ52
M_B_DQ53
M_B_DQ6
M_B_DQ19
M_B_DQ18
M_B_DQ0
M_B_DQ12
M_B_DQ20
M_B_DQ39
M_B_DQ49
M_B_DQ51
M_B_DQ21
M_B_DQ32
M_B_DQ14
M_B_DQ22
SO-DIMM_1 is placed farther from the GMCH than SO-DIMM_0
MVREF_DQ_DIMMB
M_B _A 4
M_B _A 6
M_B _A 5
M_B _A 13
M_B _A 12
M_B _A 0
M_B _A 1
M_B _A 2
M_B _A 3
M_B _A 7
M_B _A 8
M_B _A 9
M_B _A 10
M_B _A 11
M_B _A 14
20mils
Layout Note:
MV R EF _ D I M1
signal/space/signal:
M_B _A 15
C576
10u_6.3V_X5R_06
M_B _D QS0
M_B _D QS6
M_B _D QS5
M_B _D QS4
M_B _D QS3
M_B _D QS2
M_B _D QS1
M_B _D QS# 3
M_B _D QS# 2
M_B _D QS# 1
M_B _D QS# 0
M_B _D QS7
M_B _D QS# 7
M_B _D QS# 6
M_B _D QS# 5
M_B _D QS# 4
M_B _C LK _D D R 2 M_B_ CL K_DDR # 2
M_B _C LK _D D R 3 M_B_ CL K_DDR # 3
C91
10u_6.3V_X5R_06
C513 0.1u _10V_X5R_04
C115
0.1u_10V_X5R_04
C80
0.1u_10V_X5R _04
C116 0.1u _10V_X5R_04
C7 6 *10p_ 50V_N PO_ 04
R14 1K_1%_04
C548
0.1u_10V_X5R_04
C78
1u_6. 3V_X5R_04
C98
0.1 u_10V_X5R_04
C56
0. 1u_10V_X5R_04
JDIMM2A
DDRSK-20401-TR9D
A0
98
A1
97
A2
96
A3
95
A4
92
A5
91
A6
90
A7
86
A8
89
A9
85
A10/ AP
107
A11
84
A12/ BC #
83
A13
119
A14
80
A15
78
DQ0 5
DQ1 7
DQ2 15
DQ3
17
DQ4 4
DQ5 6
DQ6 16
DQ7 18
DQ8 21
DQ9 23
DQ10 33
DQ11
35
DQ12 22
DQ13 24
DQ14 34
DQ15 36
DQ16 39
DQ17 41
DQ18 51
DQ19 53
DQ20 40
DQ21 42
DQ22 50
DQ23 52
DQ24 57
DQ25 59
DQ26 67
DQ27 69
DQ28 56
DQ29 58
DQ30 68
DQ31 70
DQ32 129
DQ33 131
DQ34 141
DQ35 143
DQ36 130
DQ37 132
DQ38 140
DQ39 142
DQ40 147
DQ41 149
DQ42 157
DQ43 159
DQ44 146
DQ45 148
DQ46
158
DQ47 160
DQ48 163
DQ49 165
DQ50 175
DQ51 177
DQ52 164
DQ53 166
DQ54
174
DQ55 176
DQ56 181
DQ57 183
DQ58 191
DQ59 193
DQ60 180
DQ61 182
DQ62
192
DQ63 194
BA0
109
BA1
108
RAS#
110
WE#
113
CAS#
115
S0#
114
S1#
121
CKE0
73
CKE1
74
CK0
101
CK0#
103
CK1
102
CK1#
104
SDA
200 SCL
202 SA1
201 SA0
197
DM0
11
DM1
28
DM2
46
DM3
63
DM4
136
DM5
153
DM6
170
DM7
187
DQS0
12
DQS1
29
DQS2
47
DQS3
64
DQS4
137
DQS5
154
DQS6
171
DQS7
188
DQS0#
10
DQS1#
27
DQS2#
45
DQS3#
62
DQS4#
135
DQS5#
152
DQS6#
169
DQS7#
186
ODT0
116
ODT1
120
BA2
79
JDIMM2B
DD R SK-20401-TR9D
VDD1
75
VDD2
76
VDD3
81
VDD4
82
VDD5
87
VDD6
88
VDD7
93
VDD8
94
VDD9
99
VDD10
100
VDD11
105
VDD12
106
VDDSPD
199
NC1
77
NC2
122
NCTEST
125
VREF_DQ
1
VSS1
2
VSS2
3
VSS3
8
VSS4
9
VSS5
13
VSS6
14
VSS7
19
VSS8
20
VSS9
25
VSS10
26
VSS11
31
VSS12
32
VSS13
37
VSS14
38
VSS15
43
VSS16 44
VSS17 48
VSS18
49
VSS19 54
VSS20 55
VSS21 60
VSS22 61
VSS23 65
VSS24 66
VSS25 71
VSS26
72
VSS27 127
VSS28 128
VSS29 133
VSS30 134
VSS31 138
VSS32 139
VSS33 144
VSS34 145
VSS35 150
VSS36 151
VSS37 155
VSS38 156
VSS39 161
VSS40 162
VSS41 167
VSS42 168
VSS43 172
VSS44 173
VSS45 178
VSS46 179
VSS47 184
VSS48 185
VSS49 189
VSS50 190
VSS51 195
VSS52 196
G2 GND2
G1
GND1
VTT2 204
VTT1 203
VREF_CA
126
RESET#
30 EVENT#
198
VDD13
111
VDD14
112
VDD16
118 VDD15
117
VDD17
123
VDD18
124
C512 1u_6. 3V_X5R _04
C547
1u_6. 3V_X5R_04
C552
1u_6. 3V_X5R_04
C550
1u_6.3V_X5R_04
C553
1u_6. 3V_X5R_04
C117 1u_6. 3V_X5R _04
C46
1u_6. 3V_X5R_04
C40
1u_6. 3V_X5R_04
C65
0. 1u_10V_X5R_04
C50
1u_6.3V_X5R_04
C85
0.1u_10V_X5R _04
R15
1K_1%_04
C92
0.1u_10V_X5R_04
C66
1u_6. 3V_X5R_04
C74
0.1u _10V_X5R_04
C60
0.1u_10V_X5R_04
C102
0.1u_10V_X5R_04
C32
0.1u_10V_X5R_04
C549
1u_6.3V_X5R_04
C6 7 *10p_ 50V_N PO_ 04
1.5V
1.5V
VTT_MEM
3.3VS
VTT_MEM
1.5V
DDR3_DRAMRST#3,9
1.5V3,6,9,27,37,40
1.5V
SMB_CLK9, 21,29
SMB_DATA9,21,29
VTT_MEM9,40
M_B_A[ 15 :0]4M_B_DQ[63:0] 4
TS#_DIMM0_19
M_B_RAS#4
M_B_BS14
M_B_C LK_ D DR34
M_B _W E #4
M_B_CAS#4
M_B_C LK_ D DR#34
M_B_BS24
M_B_CKE24
M_B_C LK_ D DR24
M_B_BS04
M_B_C LK_ D DR#24
M_B_CS#34
M_B_CKE34
M_ B_O D T24
M_ B_O D T34
M_B_CS#24
3.3VS3,9, 11,20, 21,22,23,24, 25, 26,27,29,30, 32, 33,34,35,36, 37, 42,44
M_B_DQS#[7:0]4
M_B_DQS[ 7:0]4
1.5VS26,35,37
SA1_D I M19
SA0_D I M19
MV R EF _ D Q _D I M MB6
C44
10u_6. 3V_X5R _06
C34
10u_6.3V_X5R_06

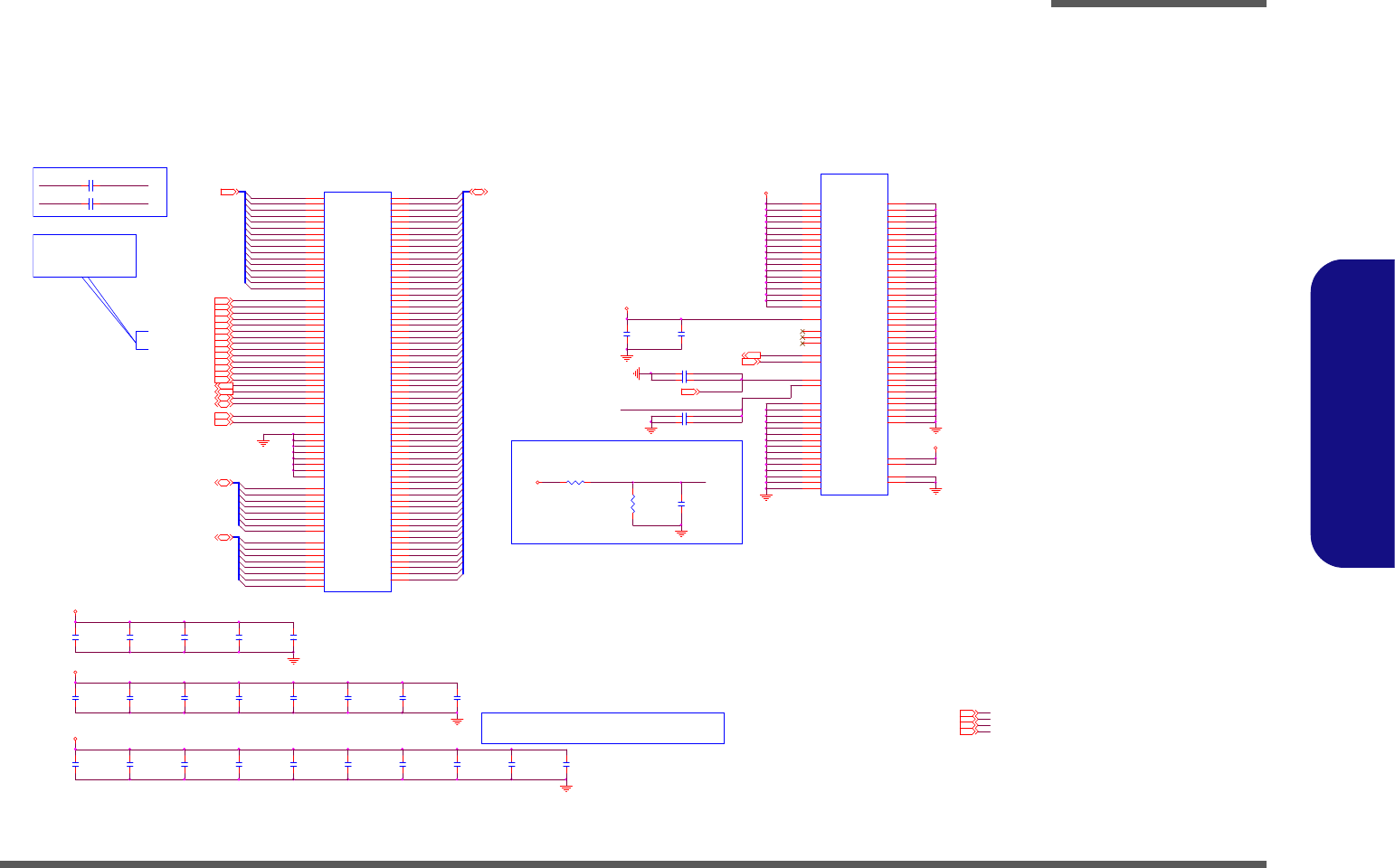

Schematic Diagrams
DDR3 SO-DIMM_1 B - 11
B.Schematic Diagrams
DDR3 SO-DIMM_1

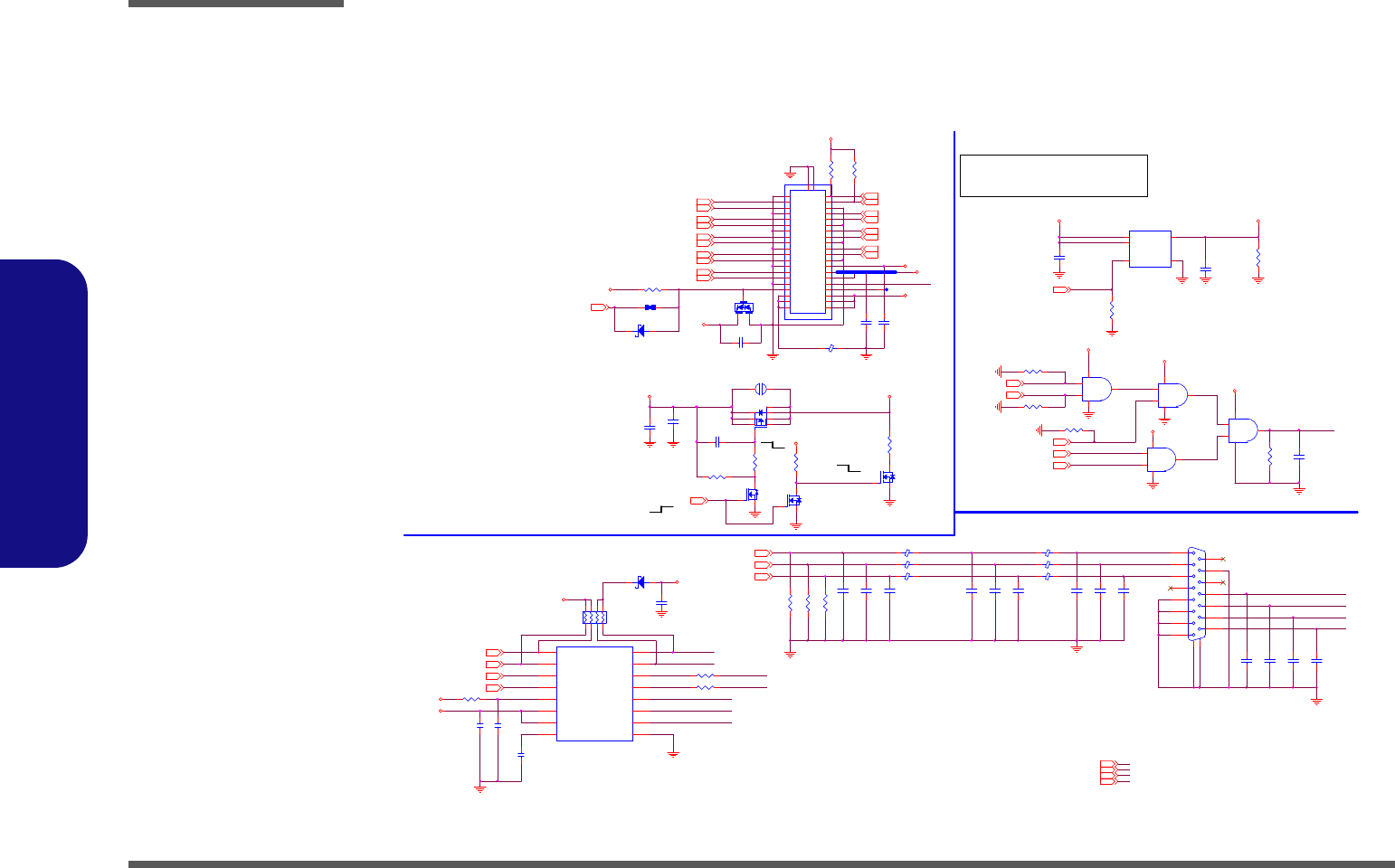

Schematic Diagrams
B - 12 Panel, Inverter, CRT
B.Schematic Diagrams
Panel, Inverter, CRT
.
L1 0_04
A & B ¥ó,¾÷ºØ¶ì®Æªº¨¾¤õµ¥¯Å-n²Å¦XUL 94V-0
´N¥i¥H¤£¥Î¦A´£¨Ñµ¹panelªº¹q·½½u¸ôªº«OÅ@¹qªý
.
L3 FC M1005MF-600T01
.
L5 FC M1005MF-600T01
.
L2 FC M1005MF-600T01
NB_ENAVDD11, 23,36
2A
U2
G5243A
VIN
4
VIN
5
EN
3
VOUT 1
GND 2
RN10
2.2K_8P4R_04
1
2
3
4 5
6
7
8
R10
*100K_04
PLVDD
R294
100K_04
PN:G5243A--6-02-05243-9C0
3.3VS
5VS
R302
2.2K_04
3.3VS
R301
2.2K_04
BLON1
SB_BLON1
LVDS-U0P 23
PANEL CONNECTOR
LVDS-U0N 23
R9 * 10K_04
R2 100K_04
U1B
74LVC08PW
4
5
6
147
R7
100K_04
U1D
74LVC08PW
12
13
11
147
C7
0.1u_10V_X5R_04
U1A
74LVC08PW
1
2
3
147
R1 *100K_04
R3 *100K_04
U1C
74LVC08PW
9
10
8
147
3.3V
3. 3V
3.3V
3.3V
LVDS-L0P23
LVDS-L0N23
LID_SW#30,36
ALL_SY S_PWRGD22,36, 42
BKL_EN36
LVDS-U2N 23
SB_BLON25
LVDS-L2P 23
LVDS-L2N 23
LVDS-U2P 23
BLON23 BLON2
INV_BLON
BRI GHTNESS36
D1
*BAV99 RECTIFIER
A
C
AC
D2 * CDBU00340
AC
R8
*10mil_short
TI
IP4772CZ16 PN:6-02-47721-B60
C8
*0. 1u_16V_Y 5V_04
C517
0.1u_50V_Y5V_06
C518
*0. 22u_50V_Y 5V_06
Q18
*MTN7002ZHS3
G
DS
Q21
*P2003EVG
4
62
5
73
1
8
R291
*10K_04
3.3V
R320 * 100K_04
LVDD_EN#
R321
*1M_04
W150ERQÄÝ©ó94V-0 ¬G¨ú®ø«OÅ@¹qªý
NB_ENAVD D11,23, 36
VIN
R298
*220_06
LEDPL_VI N
S
D
G
Q17B
*MTDN7002ZHS6R
5
3
4
S
D
G
Q17A
*MTDN7002ZHS6R
2
6
1
LED PANEL (LVDS Dual Channel).
C521
0.1u_50V_Y5V_06
D13 RB751S-40C2
AC
LID_SW#1
C706
*10u_6.3V_X5R_06
J_CRT1
DS15146BAC067
8
7
6
5
4
3
2
1
9
10
11
12
13
14
15
GND 2
GND 1
P_GND
INV_BLON
R16
150_1%_04
2A
R24
150_1%_04
R21
150_1%_04
DAC_RED23
DAC _GR EEN23
DAC_BLUE23
LVDS-U1N23
LVDS-U1P23
LVDS-L1N23
LVDS-UC LKN23
LVDS-UC LKP23
LVDS-LCLKP23
LVDS-LCLKN23
LVDS-L1P23
BY P
.
L29
HCB1608KF-121T25
C14
0.1u_16V_Y5V_04
C9
0.1u_16V_Y 5V_04
.
L6 0_04
J_LCD1
87216-4006
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
Gnd 1 GN D1
Gnd 2 GN D2
J_LCD1 TOP¨Ï¥Î,¦]¾÷ºc--°ª°ÝÃD
>100 mil
3.3VS
PLVDD
PLVDD
3.3VS
FGRN
24 mil
DDCLK
FBLUE
HSYNC
LEDPL_VIN
FRED
C87
1000p_50V_X7R_04
C108
220p_50V_NPO_04
C101
220p_50V_NPO_04
C88
1000p_50V_X7R_04
CRT
C119
*10p_50V_NPO_04
C126
*10p_50V_NPO_04
P_DDC_CLK 23
P_DDC_DATA 23
C121
*10p_50V_NPO_04
DDCDATA
VSY NC
C541
0.22u_10V_Y5V_04
C540
0.22u_10V_Y5V_04
R323 33_04
DDCLK
HSYNC
DDCDATA
VSY NC_C
HSYNC_C
C542
0.22u_10V_Y5V_04
R322 33_04
DAC_DDCADATA23
DAC_HSYNC23
DAC_VSYNC23
3.3VS FGRN
DAC_DDCACLK23
FRED
FBLUE
U18
IP4772CZ16
VC C_ SY N C
1
VCC_VIDEO
2
VID EO_1 3
VID EO_2 4
VID EO_3 5
GND 6
VCC_DDC
7
BY P
8
DDC_OUT1 9
DDC_IN1
10
DDC_IN2
11 DDC_OUT2 12
SYNC_IN1
13 SYNC_OUT1 14
SYNC_IN2
15 SYNC_OUT2 16
5VS
VSY NC
C118
22p_50V_NPO_04
C123
22p_50V_NPO_04
C129
22p_50V_NPO_04
C114
10p_50V_NPO_04
C122
10p_50V_NPO_04
C127
10p_50V_NPO_04
3.3V2,3, 6,18, 20,21,22,24,25,26, 27,29, 30, 31,35,37,39,40,41
5VS20,26, 27,29,30, 33,34, 35,37,42,44
VIN37,38, 39,40, 41,42,43,44,45
3.3VS3,9, 10,20, 21,22,23,24,25,26, 27,29, 30,32,33,34,35,36, 37,42,44
NEAR PIN4,5
PANEL POWER
C11
1u_6.3V_X5R_04
BRI GHTNESS_R
C12
1u_6.3V_X5R_04
.
L4 0_04
PJ18
OPEN_2A
12
R324 1_04
3.3V

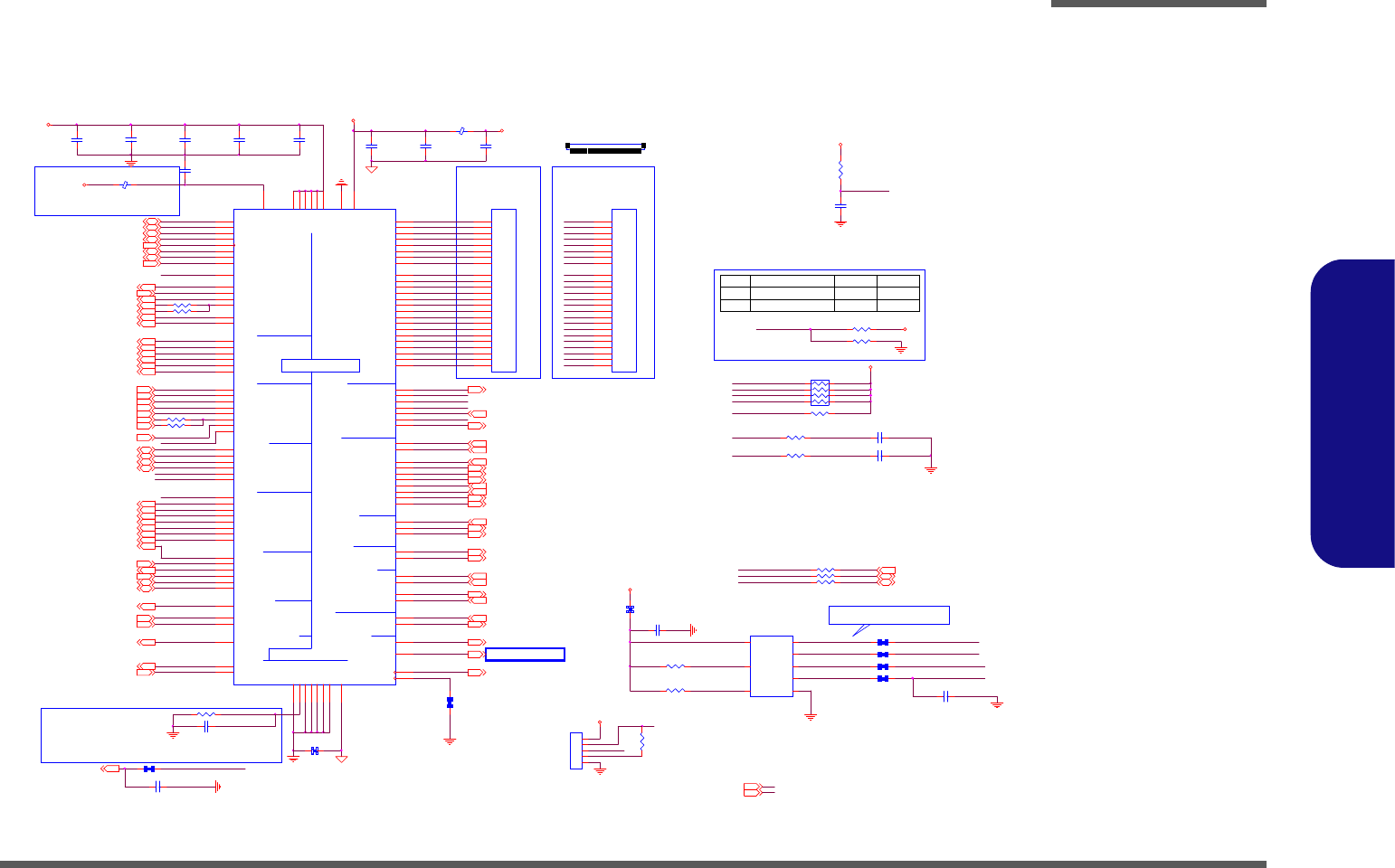

Schematic Diagrams
VGA PCI-E Interface B - 13
B.Schematic Diagrams
VGA PCI-E Interface
PLACE N EAR BGA
Reserve
FSX8 L_ 25 MHz¥Ø «e¦ @¥ ή Æ
SYS1 5V37 ,3 8, 40
210 mA total
PEX_RX6#
PEX_RX2#PEX_RX2#
PEX_RX3#
PEX_RX0#
PEX_RX5#
PEX_RX1#
PEX_RX4#
16mil
PLACE N EAR BALLS
1/19 PCI _EXPRESS
COMMON
BGA_0908_P080_P085_P100_290X290
U21A
GK107- 650-A2
AM27
PEX_RX 15
AN 27
PEX_RX 15
AK25
PEX_T X15
AL25
PEX_T X15
AP27
PEX_RX 14
AP26
PEX_RX 14
AJ24
PEX_T X14
AK24
PEX_T X14
AM26
PEX_RX 13
AN 26
PEX_RX 13
AG23
PEX_T X13
AH 23
PEX_T X13
AM24
PEX_RX 12
AN 24
PEX_RX 12
AJ23
PEX_T X12
AK23
PEX_T X12
AP24
PEX_RX 11
AP23
PEX_RX 11
AK22
PEX_T X11
AL22
PEX_T X11
AM23
PEX_RX 10
AN 23
PEX_RX 10
AJ21
PEX_T X10
AK21
PEX_T X10
AM21
PEX_RX 9
AN 21
PEX_RX 9
AG20
PEX_T X9
AH 20
PEX_T X9
AP21
PEX_RX 8
AP20
PEX_RX 8
AJ20
PEX_T X8
AK20
PEX_T X8
AM20
PEX_RX 7
AN 20
PEX_RX 7
AK19
PEX_T X7
AL19
PEX_T X7
AM18
PEX_RX 6
AN 18
PEX_RX 6
AJ18
PEX_T X6
AK18
PEX_T X6
AP18
PEX_RX 5
AP17
PEX_RX 5
AG17
PEX_T X5
AH 17
PEX_T X5
AM17
PEX_RX 4
AN 17
PEX_RX 4
AJ17
PEX_T X4
AK17
PEX_T X4
AM15
PEX_RX 3
AN 15
PEX_RX 3
AK16
PEX_T X3
AL16
PEX_T X3
AP15
PEX_RX 2
AP14
PEX_RX 2
AJ15
PEX_T X2
AK15
PEX_T X2
AM14
PEX_RX 1
AN 14
PEX_RX 1
AG14
PEX_T X1
AH 14
PEX_T X1
AM12
PEX_RX 0
AN 12
PEX_RX 0
AJ14
PEX_T X0
AK14
PEX_T X0
AK13
PEX_RE FC LK
AL13
PEX_RE FC LK
AK12
PEX_ CL KR EQ
AJ12
PEX_RS T
AJ11
PEX_WAKE
AP29
PEX_TERMP
AK11
TESTMODE
AG26
PEX_PLLVDD
AK26
PEX_TSTC LK_OUT
AJ26
PEX_TSTC LK_OUT
P8
3V3AUX_NC
L5
GND _SENSE
L4
VDD_SENSE
AG12
PEX_S VD D _3 V3
AH12
PEX_PLL_HVDD
AN28
PEX_IOV DD Q
AM28
PEX_IOV DD Q
AL27
PEX_IOV DD Q
AK27
PEX_IOV DD Q
AJ27
PEX_IOV DD Q
AH27
PEX_IOV DD Q
AH26
PEX_IOV DD Q
AH18
PEX_IOV DD Q
AH15
PEX_IOV DD Q
AG25
PEX_IOV DD Q
AG18
PEX_IOV DD Q
AG16
PEX_IOV DD Q
AG15
PEX_IOV DD Q
AG13
PEX_IOV DD Q
AH 25
PEX_I O VD D
AH21
PEX_I O VD D
AG24
PEX_I O VD D
AG22
PEX_I O VD D
AG21
PEX_I O VD D
AG19
PEX_I O VD D
R384
10K_04
3V3 _R UN
18/19 NC/V DD33
U21F
BGA_0908_P080_P085_P100_290X290
COMMON
GK107-650-A2
V32
NC
T8
NC
H31
NC
D26
NC
D23
NC
D20
NC
D19
NC
C15
NC
AL11
NC
AJ5
NC
AJ4
NC
AJ28
NC
AC6
NC
M8
VDD 33
L8
VDD 33
K8
VDD 33
J8
VDD 33
PEX_CLKR EQ#
VGA_ROM_SCLK
R343
10K_04
C260
10u_ 6. 3V_ X5 R_ 06
PEX_CLKREQ#
3V3 _R UN
C166
22u_6.3V_X5R_08
R86 0_04
R478
It leaves as NC for N13P-PES
.
L7 HC B1 00 5KF -1 21T 20
PEX_TERMP
PEX_PLLVDD
PERSTB#24
C178
4.7u_6.3V_X5R_06
C167
22u_6.3V_X5R_08
PLACE NEAR BGA
C195
0. 1u_1 0V_ X7R_ 04
12mil
C176
0.1u_10V_X7R_04
.
L8 HC B1 00 5KF -1 21T 20
PEX_VDD
C254
10u_6 .3 V_X5R _0 6
N13P-GT device ID is 0x0FD1
Chip Part:GK107-650
VGA_STRAP1 R340 PD 34.8K (Notebook)
VGA_STRAP1 R340 PD 5K (Desktop)
6-03-00013-0S3
IC VGA CHIP NVIDIA N13P-GT PS
(GK107-650-A2) 28MN FCBGA 908BALLS
C292
22u_6.3V_X5R_08
VGA_ROM_CS#
PEX_RX4
R362 0_04
PEX_RX6
PEX_RX7
PEX_RX3
PEX_RX7#
PS1_VD D_SEN SE
PS1 _GN D _SEN SE
PEX_RX1
PEX_RX5
PS1_GND_SENSE 44
PEX_RX0
PEX_RX2
PS1_VDD _SEN SE 44
C269
10u_ 6. 3V_ X5 R_ 06
13/19 MISC2
COMMON
BGA_0908_P080_P085_P100_290X290
U21P
GK107-650 -A2
J1
MULT ISTR AP_RE F_GND
J3
ST RAP 4
J5
ST RAP 3
J6
ST RAP 2
J7
ST RAP 1
J2
ST RAP 0
L3
CEC
L2
BUFRST
H4
ROM_SCLK
H7
ROM_SO
H5
ROM_SI
H6
ROM_CS
VGA_PEXCLK
VGA_PEXCLK#
C249
10u_6 .3 V_X5R _0 6
16mil
VGA_STRAP3
VGA_STRAP4
16mil
C203
4. 7u_6 . 3V _X5R _06
PLACE UN DER BALLS
C173
0.1u_16V_Y5V_04
C192
0.1u_16V_Y5V_04
PLACE N EAR BALLS
C175
0.1u_16V_Y5V_04
PLACE NEAR BGA
3V3 _R UN
GPU_TESTMODE
R334 *4.99K_1%_04
PLACE N EAR BGA
R3 35 * 20K _1 %_0 4 R3 36 45. 3K _1% _04
R3 38 4. 99K _1% _04
VGA_STRAP4
VGA_STRAP3
R95*200_1%_04
PEX_TSTCLK_OU T#
C285
22u_6.3V_X5R_08
PEX_TSTCLK_OU T
PLACE NEAR BALLS
C191
1u_6.3V_X5R_04
16mil
PLACE N EAR BALLS
3300 mA total
PLACE N EAR BGA
PLACE N EAR BALLS
H11
H8_0D4_4
H13
H8_0D4_4
GPU
H12
H8_0D4 _4
XT A L _ I N
C214
1u_6.3 V_X5R_04
R66
10K_04
XTA L _ O U T
C2 00 0.22 u_ 10V _X5R _0 4
SNN _3V3AUX
R339 *34.8K_1%_04
Q27
*MTN7002ZHS3
G
D S
C597
22u_6.3V_X5R_08
C2 45 0.22 u_ 10V _X5R _0 4
R3 41 *4 .9 9K_ 1%_ 04
VGA_STRAP0
VGA_STRAP2
M_STRAP_REF0
VGA_STRAP1
C179
0. 1u_1 0V_ X7R_ 04
C2 11 0.22 u_ 10V _X5R _0 4
C198
0. 1u_1 6V_ Y5 V_0 4
R342 45 .3K_1 %_04
C232
4.7u_6.3V_X5R_06
C1 81 0.22 u_ 10V _X5R _0 4
R 64 4 0. 2K _1% _04
C2 22 0.22 u_ 10V _X5R _0 4
R3 47 3 4. 8K_ 1%_ 04
C283
22u_6.3V_X5R_08
C156
18p_50V _NPO_04
C594
4. 7u_6 . 3V_ X5R_ 06
C2 38 0.22 u_ 10V _X5R _0 4
C1 85 0.22 u_ 10V _X5R _0 4
X_OU T BU F F
VGA_ROM_SI
C2 30 0.22 u_ 10V _X5R _0 4
FCM1005KF-600T03
6-19-31001-238
VID _PLLVD D
ROM_SCLK EXT ROM R80 PU 25Kohm
C2 31 0.22 u_ 10V _X5R _0 4
C240
1u_6. 3V_X5R_04
C2 37 0.22 u_ 10V _X5R _0 4
X1 HSX840GA_27MHZ
1 2
C2 13 0.22 u_ 10V _X5R _0 4
R7 8 10K_ 1%_ 04
R73 *30K_1%_04
R87 10K_04
C593
1u_6 .3 V_X5 R _04
R82 *15K_1%_04
R365 2. 49K_1% _04
C2 25 0.22 u_ 10V _X5R _0 4
C2 21 0.22 u_ 10V _X5R _0 4
R81 * 45.3 K_1%_0 4
C1 94 0.22 u_ 10V _X5R _0 4
C247
1u_6.3 V_X5R_04
C2 01 0.22 u_ 10V _X5R _0 4
R80 4.99K_1%_04
R3 40 4. 99K _1% _04
C266
0. 1u _16V _Y 5 V_0 4
R3 48 * 20K _1 %_0 4
C155
18p_50V_NPO_04
R74 10K_1%_04
R356
10K _04
C2 26 0.22 u_ 10V _X5R _0 4
C184
4. 7u_6 .3 V_X5R _0 6
C270
1u_6. 3V_X5R_04
R65
10K _04
PEX_VDD
3V3_R UN
PEX_VDD
3V3_RUN
PEX_VDD
3V3 _R UN
3V3 _R UN
PEG_TX12
PEX_VDD
PEG_TX#72
PEG_TX22
VGA_PEXCLK21
PEG_TX#02
PEG_RX22
3V3 _R UN18 , 37, 44
C193
0.1u_16V_Y5V_04
PEG_TX#22
PEG_TX32
3. 3VS3,9,10,11,20,21,22,23,24,25,26,27,29,30,32,33,34,35,36,37,42,44
PEG_RX72
PEX_VDD13,40
PEG_CLKR EQ#21
PEG_RX12
PEG_TX#52
PEG_TX#12
PEG_RX42
PEG_RX#02
PEG_RX#62
PEG_TX#42
PEG_RX32
PEG_RX62
PEG_TX62
PEG_RX#12
PEG_RX#52
PEG_RX02
PEG_RX52
PEG_RX#72
PEG_RX#22
PEG_TX72
PEG_TX42
PEG_TX52
VGA_PEXCLK#21
PEG_RX#32
PEG_TX02
PEG_RX#42
3. 3V2,3 ,6 ,1 1, 18 ,2 0, 21 ,22 , 24, 25,2 6, 27, 2 9, 30, 3 1, 35 ,3 7, 39 ,4 0, 41
PEG_TX#62
PEG_TX#32
Gen3 R336 PD 45.3Kohm
Gen2 R336 PD 20Kohm
P343
It leaves as NC for N13P-PES
12/19 XTAL_PLL
GF117GF108/GKx
NC
U21O
BGA_0908_P080_P085_P100_290X290
COMMON
GK107-650-A2
H1
XTALSSIN
AD7
VID_PLLVDD
AE8
SP_PLLVDD
AD8
PLLVDD
H2
XTALOUT
J4
XT ALOU T BU F F
H3
XTALIN
ROM_SI Hynix 64Mx16 R347 PD 35Kohm
VGA_ROM_SO
VGA_ROM_SCL K
VGA_ROM_SO
VGA_ROM_SI
X_ S S I NX_ S S I N
VGA_STRAP2
VGA_STRAP1
VGA_STRAP0
N13P-GT GK107-650-A2
R357
*100K_04
150 mA total
C183
4.7u _6.3 V_X5R_06
C244
4. 7u_6 . 3V _X5R _06
SNN_PEXWAKE
Schematic Diagrams

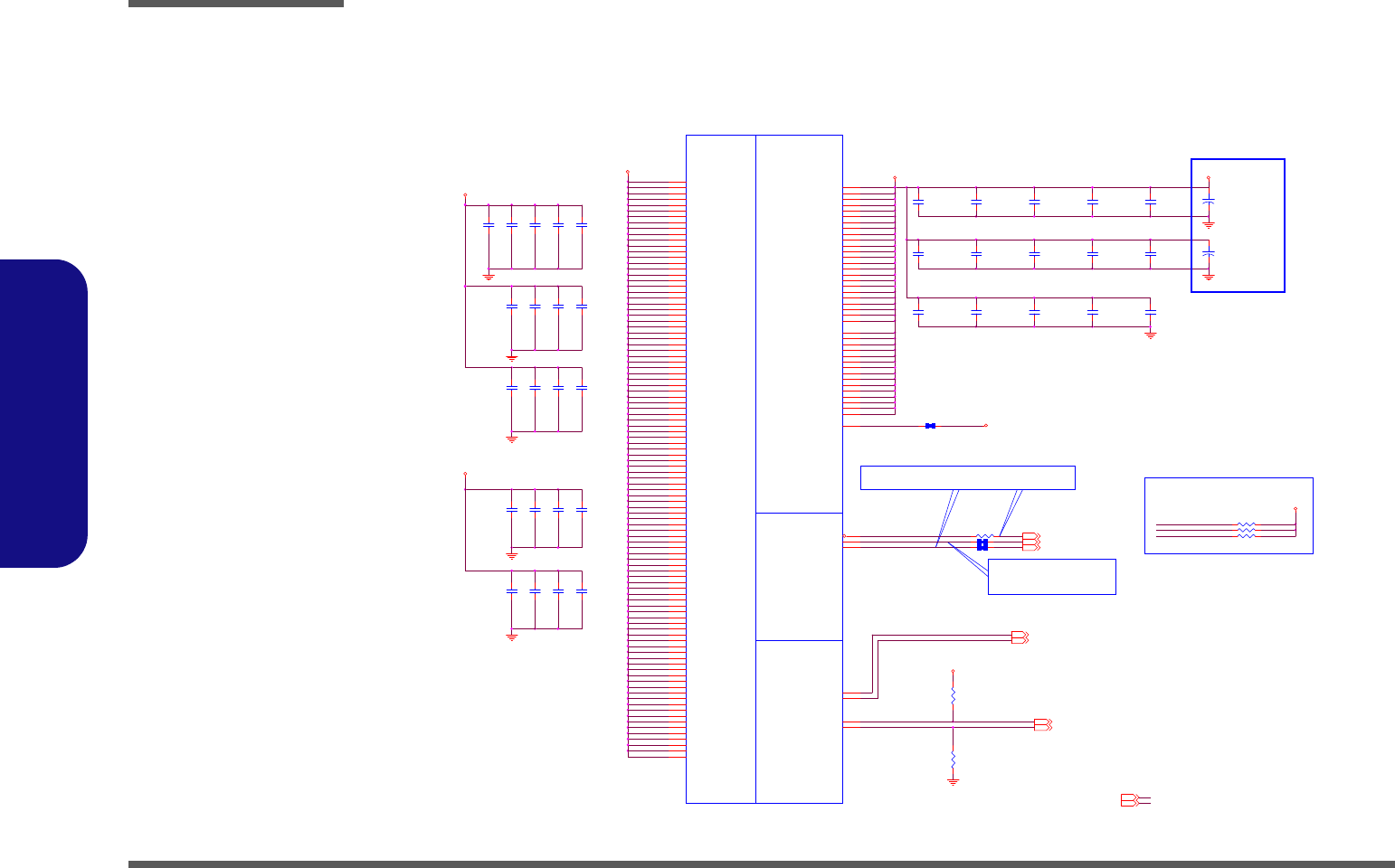

B - 14 VGA Frame Buffer Interface
B.Schematic Diagrams
VGA Frame Buffer Interface
FBA_D11
FBA_D9
FBA_D13
FBA_D12
FBA_D10
FBA_D8
FBA_D7
FBB_D22
FB_VREF_TP
FBB_CMD4
FBB_CMD31
FBB_CMD0
FBB_CMD2
FBB_CMD6
FBB_CMD7
FBB_CMD3
FBB_CMD14
FBB_CMD15
FBB_CMD9
FBB_CMD5
FBB_D18
FBB_CMD17
FBB_CMD13
FBB_CMD8
FBB_CMD12
FBB_CMD11
FBB_CMD10
FBB_CMD23
FBB_CMD21
FBB_CMD22
FBB_CMD18
FBB_CMD20
FBB_CMD28
FBB_CMD26
FBB_CMD25
FBB_CMD19
FBB_CMD16
FBB_CMD1
FBB_CMD24
FBB_CMD29
FBB_CMD30
FBB_CMD27
FBA_D19
FBA_D16
FBA_D20
FBA_D18
FBA_D15
FBA_D14
FBA_D17
FBB_D14
C698
0. 1u _10V _X7R_ 04
FBB_D10
C697
0.1u _10V _X7R_04
FBA_D23
FBA_D37
FBA_D33
FBA_D36
FBA_D38
FBA_D32
FBA_D25
FBA_D26
FBA_D27
FBA_D29
FBA_D41
FBA_D28
FBA_D39
FBA_D22
FBA_D35
FBA_D21
FBA_D30
FBA_D31
FBA_D40
FBA_D24
FBA_D34
FBB_D53
FBB_D57
PLACE UNDER BGA
PLACE CLOSE BGA
FBB_D61
FBB_D6
C264
22u_6. 3V_X5R_ 08
FBA_D59
FBA_D49
FBA_D58
FBA_D54
FBA_D60
FBA_D45
FBA_D55
FBA_D53
FBA_D51
FBA_D57
FBA_D50
FBA_D48
FBA_D43
FBA_D63
FBA_D47
FBA_D44
FBA_D52
FBA_D62
FBA_D61
FBA_D46
FBA_D56
FBA_D42
FBB_DBI7
FBB_DBI4
FBB_DBI5
FBB_DBI0
FBB_D47
FBB_DBI3
FBB_DBI2
FBB_DBI6
FBB_DBI1
.
L12 HCB10 05K F-12 1T20
FBB_D43
FBA_CMD4
FBA_CMD30
FBA_CMD27
FBB_D39
FBA_CMD19
FBA_CMD7
FBA_CMD8
FBA_CMD3
FBA_CMD13
FBA_CMD9
FBA_CMD26
FBA_CMD18
FBA_CMD21
FBA_CMD15
FBA_CMD2
FBB_EDC7
FBB_EDC4
FBB_EDC5
FBA_CMD12
FBA_CMD11
FBA_CMD14
FBA_CMD28
FBB_EDC3
FBB_EDC2
FBB_EDC6
FBB_EDC1
FBB_EDC0
FBA_CMD6
FBA_CMD20
FBA_CMD24
FBA_CMD0
FBA_CMD25
FBA_CMD16
FBA_CMD17
FBA_CMD5
FBA_CMD10
FBA_CMD29
FBA_CMD[31:0]
FBA_CMD23
FBA_CMD1
FBA_CMD22
FBB_D35
C281
1u_6. 3V_ X5R _06
FBB_D4
FBB_D31
FBB_D27
FBB_D23
FBB_D0
FBB_D19
FBA_ DBI [3: 0]
FBB_D15
FBB_EDC[7: 4]
FBB_DBI[7:4]
FBB_D11
FB_CAL_PD_VDDQ
FB_CAL_PU_GND
FB_CAL_TERM_GND
PLACE CLOSE BGA
N13P-GL default NC
N13P-GT connect 10K to GND
C257
0.1u_10V_X7R_04
FBB_D54
FBB_D50
FBB_D58
FBB_D7
FBB_D62
PLACE UNDER BGA
PLACE CLOSE BGA
FBA_D1
FBA_D3
FBA_D4
FBA_D0
FBA_D2
FBA_D5
FBA_D6
FBA_CMD31
3/19 FBB
COMMON
BGA_0908_P080_P085_P100_290X290
U21C
GK107-650- A2
B23
FBB_DQS_R N7
A30
FBB_DQS_R N6
D28
FBB_DQS_R N5
D22
FBB_DQS_R N4
A9
FBB_DQS_R N3
B2
FBB_DQS_R N2
E4
FBB_DQS_R N1
D9
FBB_DQS_R N0
A23
FBB_DQS_WP7
B30
FBB_DQS_WP6
E28
FBB_DQS_WP5
E23
FBB_DQS_WP4
B9
FBB_DQS_WP3
C3
FBB_DQS_WP2
D5
FBB_DQS_WP1
D10
FBB_DQS_WP0
A24
FBB_DQM 7
C30
FBB_DQM 6
F27
FBB_DQM 5
F23
FBB_DQM 4
C9
FBB_DQM 3
A3
FBB_DQM 2
E3
FBB_DQM 1
E11
FBB_DQM 0
C26
FBB_D63
B26
FBB_D62
C24
FBB_D61
B24
FBB_D60
C21
FBB_D59
A21
FBB_D58
C23
FBB_D57
B21
FBB_D56
B29
FBB_D55
C29
FBB_D54
A29
FBB_D53
D29
FBB_D52
B32
FBB_D51
C32
FBB_D50
C31
FBB_D49
A32
FBB_D48
D30
FBB_D47
E30
FBB_D46
F29
FBB_D45
E29
FBB_D44
E27
FBB_D43
G26
FBB_D42
D27
FBB_D41
G27
FBB_D40
F21
FBB_D39
G21
FBB_D38
E21
FBB_D37
D21
FBB_D36
G24
FBB_D35
E24
FBB_D34
G23
FBB_D33
F24
FBB_D32
B8
FBB_D31
C8
FBB_D30
A8
FBB_D29
D8
FBB_D28
B11
FBB_D27
D11
FBB_D26
C11
FBB_D25
A11
FBB_D24
C5
FBB_D23
B5
FBB_D22
C4
FBB_D21
B3
FBB_D20
C1
FBB_D19
D3
FBB_D18
D4
FBB_D17
C2
FBB_D16
F3
FBB_D15
E2
FBB_D14
G4
FBB_D13
F4
FBB_D12
F6
FBB_D11
E6
FBB_D10
F5
FBB_D9
G6
FBB_D8
G12
FBB_D7
F12
FBB_D6
G11
FBB_D5
F11
FBB_D4
F9
FBB_D3
G8
FBB_D2
E9
FBB_D1
G9
FBB_D0
H17
FBB_P LL_A VDD
A27
FBB_WCKB67
A26
FBB_WCKB67
E26
FBB_WCKB45
F26
FBB_WCKB45
B6
FBB_WCKB23
C6
FBB_WCKB23
D7
FBB_WCKB01
D6
FBB_WCKB01
C27
FBB_WCK67
B27
FBB_WCK67
D25
FBB_WCK45
D24
FBB_WCK45
A6
FBB_WCK23
A5
FBB_WCK23
E8
FBB_WCK01
F8
FBB_WCK01
F20
FBB_C LK1
E20
FBB_C LK1
E12
FBB_C LK0
D12
FBB_C LK0
G20
FBB_DEBUG1
G14
FBB_DEBUG0
C20
FBB_CMD_RFU1
C12
FBB_CMD_RFU0
E17
FBB_CMD31
B17
FBB_CMD30
A17
FBB_CMD29
D17
FBB_CMD28
A18
FBB_CMD27
D16
FBB_CMD26
F17
FBB_CMD25
G17
FBB_CMD24
G18
FBB_CMD23
B18
FBB_CMD22
C18
FBB_CMD21
B20
FBB_CMD20
A20
FBB_CMD19
F18
FBB_CMD18
E18
FBB_CMD17
D18
FBB_CMD16
C17
FBB_CMD15
B15
FBB_CMD14
A15
FBB_CMD13
D14
FBB_CMD12
A14
FBB_CMD11
D15
FBB_CMD10
E15
FBB_CMD9
F15
FBB_CMD8
G15
FBB_CMD7
B14
FBB_CMD6
C14
FBB_CMD5
B12
FBB_CMD4
A12
FBB_CMD3
F14
FBB_CMD2
E14
FBB_CMD1
D13
FBB_CMD0
R1 10 *6 0. 4_ 04
C186
10u_6.3V_X5R_06
C275
4. 7u_6. 3V_X5R_06
C223
1u_6. 3V_ X5R _06
FBA_EDC[7:4]
FBA_DPLLAVDD
FBB_EDC[3: 0]
2/19 F BA
COMMON
BGA_090 8_P080 _P085_ P100_29 0X290
U21B
GK107- 650-A2
H26
FB_VREF
AF32
FBA_DQS_RN7
AM34
FBA_DQS_RN6
AK31
FBA_DQS_RN5
AF30
FBA_DQS_RN4
M34
FBA_DQS_RN3
E34
FBA_DQS_RN2
H30
FBA_DQS_RN1
M30
FBA_DQS_RN0
AF33
FBA_DQS_WP7
AN 33
FBA_DQS_WP6
AK30
FBA_DQS_WP5
AE31
FBA_DQS_WP4
M33
FBA_DQS_WP3
E33
FBA_DQS_WP2
G31
FBA_DQS_WP1
M31
FBA_DQS_WP0
AF34
FBA_DQM7
AM32
FBA_DQM6
AL29
FBA_DQM5
AD 31
FBA_DQM4
M32
FBA_DQM3
F34
FBA_DQM2
F31
FBA_DQM1
P30
FBA_DQM0
AG3 3
FBA_D63
AG3 2
FBA_D62
AG3 4
FBA_D61
AF31
FBA_D60
AD 33
FBA_D59
AC 30
FBA_D58
AD 32
FBA_D57
AD 34
FBA_D56
AK32
FBA_D55
AK33
FBA_D54
AL31
FBA_D53
AM33
FBA_D52
AP32
FBA_D51
AP30
FBA_D50
AN 32
FBA_D49
AN 31
FBA_D48
AM30
FBA_D47
AN 29
FBA_D46
AM31
FBA_D45
AM29
FBA_D44
AK28
FBA_D43
AJ 30
FBA_D42
AK29
FBA_D41
AJ 29
FBA_D40
AD 28
FBA_D39
AC 29
FBA_D38
AD 29
FBA_D37
AD 30
FBA_D36
AF28
FBA_D35
AG2 9
FBA_D34
AF29
FBA_D33
AG2 8
FBA_D32
L33
FBA_D31
L32
FBA_D30
L34
FBA_D29
L31
FBA_D28
P33
FBA_D27
P31
FBA_D26
P32
FBA_D25
P34
FBA_D24
H32
FBA_D23
H33
FBA_D22
F32
FBA_D21
F33
FBA_D20
C33
FBA_D19
B33
FBA_D18
D32
FBA_D17
C34
FBA_D16
F30
FBA_D15
E32
FBA_D14
E31
FBA_D13
G29
FBA_D12
H28
FBA_D11
J29
FBA_D10
H29
FBA_D9
J28
FBA_D8
P28
FBA_D7
R29
FBA_D6
P29
FBA_D5
N31
FBA_D4
M28
FBA_D3
L29
FBA_D2
M29
FBA_D1
L28
FBA_D0
U27
FBA_P LL_AVD D
AJ33
FBA_WCKB67
AJ32
FBA_WCKB67
AJ31
FBA_WCKB45
AH31
FBA_WCKB45
J33
FBA_WCKB23
J32
FBA_WCKB23
J31
FBA_WCKB01
J30
FBA_WCKB01
AK34
FBA_W C K67
AJ34
FBA_W C K67
AG31
FBA_W C K45
AG30
FBA_W C K45
J34
FBA_W C K23
H34
FBA_W C K23
L30
FBA_W C K01
K31
FBA_W C K01
AC31
FBA_CLK1
AB31
FBA_CLK1
R31
FBA_CLK0
R30
FBA_CLK0
AC28
FBA_DEBUG1
R28
FBA_DEBUG0
AC32
FBA_CMD_RFU1
R32
FBA_CMD_RFU0
V31
FBA_CMD31
Y33
FBA_CMD30
Y34
FBA_CMD29
Y31
FBA_CMD28
AA34
FBA_CMD27
Y30
FBA_CMD26
W31
FBA_CMD25
Y29
FBA_CMD24
Y28
FBA_CMD23
AA33
FBA_CMD22
AA32
FBA_CMD21
AC33
FBA_CMD20
AC34
FBA_CMD19
AA28
FBA_CMD18
AA29
FBA_CMD17
AA31
FBA_CMD16
Y32
FBA_CMD15
V33
FBA_CMD14
V34
FBA_CMD13
U31
FBA_CMD12
U34
FBA_CMD11
V30
FBA_CMD10
V29
FBA_CMD9
V28
FBA_CMD8
U28
FBA_CMD7
U33
FBA_CMD6
U32
FBA_CMD5
R33
FBA_CMD4
R34
FBA_CMD3
U29
FBA_CMD2
T31
FBA_CMD1
U30
FBA_CMD0
K27
FB_D LL_AVDD
E1
FB_C LAMP
C262
0. 1u_10V_X7R_ 04
C251
4. 7u_6. 3V_X5R_06
R104 40 .2 _1%_04
15/19 FBVDDQ
U21D
BGA _09 08_P 08 0_ P085 _P 100_ 29 0X290
COMMON
GK107-650 -A2
Y27
FBVDDQ
W33
FBVDDQ
W30
FBVDDQ
W27
FBVDDQ
V27
FBVDDQ
T33
FBVDDQ
T30
FBVDDQ
T27
FBVDDQ
R27
FBVDDQ
P27
FBVDDQ
N27
FBVDDQ
M27
FBVDDQ
L27
FBVDDQ
H9
FBVDDQ
H8
FBVDDQ
H24
FBVDDQ
H23
FBVDDQ
H22
FBVDDQ
H21
FBVDDQ
H20
FBVDDQ
H19
FBVDDQ
H18
FBVDDQ
H16
FBVDDQ
H15
FBVDDQ
H14
FBVDDQ
H13
FBVDDQ
H12
FBVDDQ
H11
FBVDDQ
H10
FBVDDQ
E19
FBVDDQ
E16
FBVDDQ
E13
FBVDDQ
B19
FBVDDQ
B16
FBVDDQ
B13
FBVDDQ
AG2 7
FBVDDQ
AF 27
FBVDDQ
AE2 7
FBVDDQ
AD 27
FBVDDQ
AC 27
FBVDDQ
AB3 3
FBVDDQ
AB2 7
FBVDDQ
AA3 0
FBVDDQ
AA2 7
FBVDDQ
H25
FB_C ALTER M_G ND
H27
FB_C AL_PU_GN D
J27
FB_C AL_PD_VD DQ
F2
GND_PROBE
F1
FBVDDQ_PROBE
R103 40 .2 _1%_04
C274
10u_6.3V_X5R_06
C289
0.1u_10V_X7R_04
FBB_D48
R89 *60.4_04
R1 01 *6 0. 4_ 04
C261
22u_6. 3V_X5R_ 08
C219
0. 1u_10V_X7R_ 04
C273
0.1u_ 10V_ X7R _04
FBB_D44
C268
4. 7u_ 6. 3V_X5R _06
FBB_CLK0#
FBB_CLK0
FBB_CLK1
FBB_CLK1#
FBB_D40
C210
4. 7u_ 6. 3V_X5R _06
R92 *60.4_04
R97 60.4_1%_04
FBVDDQ
FBVDDQ
FBV DDQ
FBVDDQ
PEX_VDD
FBB_DBI[3:0]16
FBB_ CLK1 # 17
FBVDDQ
FBVDDQ14,15,16,17,40
FBA_ D[ 31: 0]14
FBB_ CLK0 1 6
FBB_D36
PEX_VDD12 ,4 0
FBB_D[31:0]16
FBB_ CLK1 1 7
FBA_CLK0 14
FBA_CLK1# 15
FBB_ CLK0 # 16
FBA_CMD[31:0] 14,15
FBB_E DC[ 3: 0]16
FBA_CLK0# 14
FBA_CLK1 15
FBA_ D[ 63: 32]15
FBB_D[63:32]17
FBB_CMD[31:0] 16,17
FBB_D5
FBB_WCK23 16
FBB _WC K01# 16
FBB_WCK01 16
FBB _WC K45# 17
FBB_WCK45 17
FBB _WC K23# 16
FBA_WCK67# 15
FBA_WCK67 15 FBB _WC K67# 17
FBB_WCK67 17
FBA_WCK23 14
FBA_WCK01# 14
FBA_WCK01 14
FBA_WCK45# 15
FBA_WCK45 15
FBA_WCK23# 14
FBA_DBI[7:4]15
FBA_DBI[3:0]14
FBA_EDC[3:0]14
FBB_D32
FBB_DBI[7:4]17
FBB_E DC[ 7: 4]17
FBA_EDC[7:4]15 FBA_C LK0
FBA_CLK1
FBA_CLK0#
FBA_CLK1#
FBB_D28
FBB_D1
FBB_D24
FBVDDQ
FBB_D20
FBB_ D[ 63: 32]
FBB_D16
R337 10 K_04
FB_CAL_PU_GND
FB_CAL_PD_VDDQ
FB_CAL_TERM_GND
FBA_ D[ 63: 32]
FBB_D12
FBA_ DBI [7: 4]
FBB_D8
FBB_D55
FBB_D51
FBB_D59
FBB_D63
R230 10K_04
FBC_DEBUG1
R228 10K_04
FBA_CMD13
FBA_CMD29
FBA_RST_L
FBA_RST_H
FBB_CKE_H
R229 10K_04
R231 10K_04
FBA_CMD14
FBA_CKE_L
FBA_CKE_H FBA_CMD30
C233
1u_6. 3V_ X5R _06
C280
1u_6. 3V_ X5R _06
FBB_D[31:0]
FBB_D49
FBA_ D[ 31: 0]
FBB_D45
FBB_D41
FBC_DEBUG0
FBB_D37
FBB_CKE_L
FBB_D33
PLACE NEAR BALLS PLACE N EAR BGA C LOSE TO C APS
FBB_CMD[31:0]
16mil
FBA_DBI5
FBA_DBI0
FBA_DBI2
FBA_DBI6
FBA_DBI1
FBA_DBI7
FBA_DBI4
FBA_EDC6
FBA_EDC2
FBA_EDC3
FBA_EDC5
FBA_DBI3
FBB_D29
FBA_EDC[3:0]
FBA_EDC1
FBA_EDC7
FBA_EDC0
FBA_EDC4
FBB_D2
FBB_D25
FBB_D21
FBB_D17
R360 10 K_04
R355 10 K_04
R90 10K_04
R353 10 K_04
FBB_D13
FBB_RST_L
FBB_RST_H
FBB_CMD13
FBB_CMD29
Frame Buffer Interface
FBB_D9
FBB_D52
FBB_D56
FBB_CMD30
FBB_CMD14
FBB_D60
FBVDD Q
C567
10u_6.3V_X5R_06
PLACE CLOSE BGA
C239
22u_6. 3V_X5R_ 08
C263
22u_6. 3V_X5R_ 08
FBA_DEBUG0
FBA_DEBUG1
FBB_DBI[3:0]
FBB_D46
FBB_D42
FBB_D38
PLACE NEAR BALLS
FBB_D34
R518 0_04
R517 0_0 4
N13P-GL default NC
N13P connect 0.1uf to GND
FBA_DPLLAVDD
N13P-GL default NC
N13P connect 0.1uf to GND
FBA_DPLLAVDD
C246
0.1u_10V_X7R_04
PLACE UNDER BGA
FBB_D30
C437
1u_6. 3V_ X5R _06
C365
4. 7u_6. 3V_X5R_06
FBB_D3
C209
0. 1u_10V_X7R_ 04
C282
10u_6.3V_X5R_06
C265
4. 7u_ 6. 3V_X5R _06
FBVDDQ
C267
22u_6. 3V_X5R_ 08
C279
1u_6. 3V_ X5R _06
FBB_D26
Schematic Diagrams
VGA Frame Buffer A B - 15
B.Schematic Diagrams
VGA Frame Buffer A
FBVDDQ
FBVDDQ
C639
0.1u_10V_X5R_04
C428
0. 1u_10 V_X5R_ 04
C417
0.1u_ 10V_X5R_04
C427
0.1u_10V_X5R_04
C343
0.1 u_1 0V_X5R _04
C424
0.1 u_1 0V_X5R _04
GND
FBVDD Q
FBVDDQ13, 15, 1 6, 17, 40
10 00p _50 V_X7 R_04
FBVDDQ
FBVDDQ
FBVDDQ
FBA_CLK0#
FBA_CLK0
FBA_CLK0_MIDPT
FBA_CMD11
FBA_CMD10
FBA_CMD0
FBA_CMD14
FBA_CMD13
FBA_CMD12
FBA_CMD1
FBA_CMD15
FBA_CMD3
FBA_CMD2
FBA_CMD6
FBA_CMD5
FBA_CMD4
FBA_CMD8
FBA_CMD7
FBA_D13
FBA_D12
FBA_D11
FBA_D10
FBA_D0
FBA_CMD9
FBA_D18
FBA_D17
FBA_D16
FBA_D15
FBA_D14
FBA_D22
FBA_D21
FBA_D20
FBA_D1
FBA_D19
FBA_D28
FBA_D27
FBA_D26
FBA_D25
FBA_D24
FBA_D23
FBA_D30
FBA_D2
FBA_D29
FBA_D4
FBA_D3
FBA_D31
FBA_DBI0
FBA_D9
FBA_D8
FBA_D7
FBA_D6
FBA_D5
FBA_DBI 2
FBA_D BI 2
FBA_D BI 1
FBA_DBI1
FBA_D BI 0
FBA_EDC1
FBA_EDC 0
FBA_EDC0
FBA_DBI 3
FBA_D BI 3
FBA_EDC 3
FBA_EDC 2
FBA_EDC 2
FBA_EDC 1
FBA_SOE0
FBA_SEN0
FBA_SEN0
FBA_EDC 3
FBA_VREFC0
FB A_ SO E1
FB A_ VR EF D _L
FBA_VREFC0
0.4
FBA_VREFD _L
FBA_VREF_FET_L
FBA_VREFD_L
FBA_ZQ1
FBA_ZQ0
FBVDDQ
FBVDDQ
C409
1u_6. 3V _X5R_0 4
NC
x16
NORMAL
NC
NC
NC
NC
NC
NC
NC
x32
NC
GND
COMMO N
BGA170
IN S219 20 247 6
U24D
H5GQ1H 24B FR -T2C
D5
WCK01
D4
WCK01
D13
DBI1
C13
EDC1
F13
DQ15
F11
DQ14
E13
DQ13
E11
DQ12
B13
DQ11
B11
DQ10
A13
DQ9
A11
DQ8
D2
DBI0
C2
EDC0
F2
DQ7
F4
DQ6
E2
DQ5
E4
DQ4
B2
DQ3
B4
DQ2
A2
DQ1
A4
DQ0
A10
VREF D
add 1k t o VDD
Mirrored
COMMO N
BGA170_MIRR
I NS2 19202 563
U10C
H5GQ1H24BFR-T2C
V3
VSSQ
V14
VSSQ
V12
VSSQ
V1
VSSQ
R4
VSSQ
R3
VSSQ
R14
VSSQ
R12
VSSQ
R11
VSSQ
R1
VSSQ
N3
VSSQ
N14
VSSQ
N12
VSSQ
N1
VSSQ
M5
VSSQ
M10
VSSQ
K2
VSSQ
K13
VSSQ
H2
VSSQ
H13
VSSQ
F5
VSSQ
F10
VSSQ
E3
VSSQ
E14
VSSQ
E12
VSSQ
E1
VSSQ
C4
VSSQ
C3
VSSQ
C14
VSSQ
C12
VSSQ
C11
VSSQ
C1
VSSQ
A3
VSSQ
A14
VSSQ
A12
VSSQ
A1
VSSQ
T5
VSS
T10
VSS
P10
VSS
L5
VSS
L10
VSS
K14
VSS
K1
VSS
H14
VSS
H1
VSS
G5
VSS
G10
VSS
D10
VSS
B5
VSS
B10
VSS
T3
VDD Q
T14
VDD Q
T12
VDD Q
T1
VDD Q
P3
VDD Q
P14
VDD Q
P12
VDD Q
P1
VDD Q
N5
VDD Q
N10
VDD Q
M3
VDD Q
M14
VDD Q
M12
VDD Q
M1
VDD Q
L2
VDD Q
L13
VDD Q
K3
VDD Q
K12
VDD Q
H3
VDD Q
H12
VDD Q
G2
VDD Q
G13
VDD Q
F3
VDD Q
F14
VDD Q
F12
VDD Q
F1
VDD Q
E5
VDD Q
E10
VDD Q
D3
VDD Q
D14
VDD Q
D12
VDD Q
D1
VDD Q
B3
VDD Q
B14
VDD Q
B12
VDD Q
B1
VDD Q
R5
VDD
R10
VDD
P11
VDD
L4
VDD
L14
VDD
L11
VDD
L1
VDD
G4
VDD
G14
VDD
G11
VDD
G1
VDD
D11
VDD
C5
VDD
C10
VDD
J1
SOE*/ M F_ VD D
R212
40.2_1%_04
C382
1000p_50V_X7 R_04
C373
1u_6. 3V _X5R_0 4
R196
931_1%_04
C372
0.1u_10V_X5R_04
COM MON
BGA170
I NS 2192 029 54
U24B
H5GQ1H24BFR-T2C
J10
SEN
J13
ZQ
J14
VREFC
V5
NC_RFU _V5
A5
NC_RFU _A5
J11
CLK
J12
CLK
J3
CKE
J2
RESET
J5
RFU _A12
K4
A7_A8
K5
A6_A11
K10
A5_BA1
K11
A4_BA2
H10
A3_BA3
H11
A2_BA0
H5
A1_A9
H4
A0_A10
J4
ABI
G12
CS
L12
WE
L3
CAS
G3
RAS
C317
0.1 u_1 0V_X5R _04
R435
549_1%_04
R227
1K_04
add 1k to VSS
Nor m a l
COM MON
BGA170
I NS 2192 031 69
U24C
H5GQ1H24BFR-T2C
V3
VSSQ
V14
VSSQ
V12
VSSQ
V1
VSSQ
R4
VSSQ
R3
VSSQ
R14
VSSQ
R12
VSSQ
R11
VSSQ
R1
VSSQ
N3
VSSQ
N14
VSSQ
N12
VSSQ
N1
VSSQ
M5
VSSQ
M1 0
VSSQ
K2
VSSQ
K13
VSSQ
H2
VSSQ
H13
VSSQ
F5
VSSQ
F10
VSSQ
E3
VSSQ
E14
VSSQ
E12
VSSQ
E1
VSSQ
C4
VSSQ
C3
VSSQ
C14
VSSQ
C12
VSSQ
C11
VSSQ
C1
VSSQ
A3
VSSQ
A14
VSSQ
A12
VSSQ
A1
VSSQ
T5
VSS
T1 0
VSS
P10
VSS
L5
VSS
L10
VSS
K14
VSS
K1
VSS
H14
VSS
H1
VSS
G5
VSS
G10
VSS
D10
VSS
B5
VSS
B10
VSS
J1
MF_VSS/SOE*
T3
VDD Q
T1 4
VDD Q
T1 2
VDD Q
T1
VDD Q
P3
VDD Q
P14
VDD Q
P12
VDD Q
P1
VDD Q
N5
VDD Q
N10
VDD Q
M3
VDD Q
M14
VDD Q
M12
VDD Q
M1
VDD Q
L2
VDD Q
L13
VDD Q
K3
VDD Q
K12
VDD Q
H3
VDD Q
H12
VDD Q
G2
VDD Q
G13
VDD Q
F3
VDD Q
F14
VDD Q
F12
VDD Q
F1
VDD Q
E5
VDD Q
E10
VDD Q
D3
VDD Q
D14
VDD Q
D12
VDD Q
D1
VDD Q
B3
VDD Q
B14
VDD Q
B12
VDD Q
B1
VDD Q
R5
VDD
R10
VDD
P11
VDD
L4
VDD
L14
VDD
L11
VDD
L1
VDD
G4
VDD
G14
VDD
G11
VDD
G1
VDD
D11
VDD
C5
VDD
C10
VDD
R183
1.33K_1%_04
C411
1u_6. 3V_X5R _04
R436
1.33 K_1%_04
CO MM O N
BG A170 _M I RR
INS 2192 03 550
U10B
H5GQ1H24BFR-T2C
J10
SEN
J13
ZQ
J14
VREF C
V5
NC_RFU _V5
A5
NC_RFU _A5
J11
CLK
J12
CLK
J3
CKE
J2
RESET
J5
RFU_A12
H4
A7_A8
H5
A6_A11
H10
A5_BA1
H11
A4_BA2
K10
A3_BA3
K11
A2_BA0
K5
A1_A9
K4
A0_A10
J4
ABI
L12
CS
G12
WE
G3
CAS
L3
RAS
R188
1K_04
C406
1u_6.3V_X5R_04
C620
0.1u_ 10V_X5R_04
R171
121_1%_04
FBVDDQ
FBA_CMD0
FBA_CMD14
FBA_CMD13
FBA_CMD12
FBA_CMD11
FBA_CMD10
FBA_CMD5
FBA_CMD4
FBA_CMD3
FBA_CMD2
FBA_CMD1
FBA_CMD15
FBA_CMD9
FBA_CMD8
FBA_CMD7
FBA_CMD6
C622
1u_6.3 V_X5R _04
C429
0.1u_10V_X5R_04
C315
1000p_50V_X7R_04
R189
549_1%_04
C342
0.1 u_1 0V_X5R _04
C344
1u_6. 3V_X5R _04
R437
931_1%_04
C624
10u_6.3V_X5R_06
C638
1000p_50V_X7R _04
S
D
G
Q10A
MTDN 700 2Z H S 6R
2
61
NORM AL
x16
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
x32
COM MON
BGA170
I NS 21920 47 57
U24A
H 5GQ1H24 BFR -T2C
P5
WCK 2 3
P4
WCK 2 3
P2
DBI3
R2
EDC3
M2
DQ31
M4
DQ30
N2
DQ29
N4
DQ28
T2
DQ27
T4
DQ26
V2
DQ25
V4
DQ24
P13
DBI2
R13
EDC2
M13
DQ23
M11
DQ22
N13
DQ21
N11
DQ20
T13
DQ19
T11
DQ18
V13
DQ17
V11
DQ16
V10
VREFD
R168
121_1%_04
NC
NC
NC
NC
NC
NC
NC
NC
GND
x32 x16
MIRRO RE D
NC
COM MON
BGA170_MIRR
I NS 21920 50 44
U10A
H 5GQ1H24 BFR -T2C
D5
WCK 2 3
D4
WCK 2 3
D2
DBI3
C2
EDC3
F2
DQ31
F4
DQ30
E2
DQ29
E4
DQ28
B2
DQ27
B4
DQ26
A2
DQ25
A4
DQ24
D13
DBI2
C13
EDC2
F13
DQ23
F11
DQ22
E13
DQ21
E11
DQ20
B13
DQ19
B11
DQ18
A13
DQ17
A11
DQ16
A10
VREFD
C393
10u_6.3V_X5R_06
C640
1u_6.3 V_X5R _04
C319
1u_6.3V_X5R_04
R217
40.2_1%_04
R199
1K_04
C421
0.01u_16V_X7R_04
NC
NC
NC
NC
NC
NC
NC
NC
NC
x16x32
MIRRORE D
NC
COMMO N
BGA170_MIRR
IN S219 20 521 3
U10D
H5GQ1H 24B FR -T2C
P5
WCK01
P4
WCK01
P13
DBI1
R13
EDC1
M1 3
DQ15
M1 1
DQ14
N13
DQ13
N11
DQ12
T1 3
DQ11
T1 1
DQ10
V13
DQ9
V11
DQ8
P2
DBI0
R2
EDC0
M2
DQ7
M4
DQ6
N2
DQ5
N4
DQ4
T2
DQ3
T4
DQ2
V2
DQ1
V4
DQ0
V10
VREF D
C431
0. 1u_10 V_X5R_ 04
GND
GND
GND
GN D
GND
GNDGND
GND
GND
GND
GNDGND
GN D
GND
GND
GND
GND
GND
FBA_WC K2313,14
FBA_WC K23#13,14
FBA_DBI[3:0]13
FBA_WCK2313 , 14
FBA_WCK23#13 ,14
FBA_D[31:0]13, 14
FBA_WCK0113 , 14
FBA_WCK01#13 ,14
FBA_CMD[31:0]13,14, 15
FBA_WC K01#13,14
FBA_EDC[3:0]13
FBA_D[31:0]13,14
FBA_WC K0113,14
FBA_CLK013
FBA_CLK0#13
FBA_CMD[31:0]13,14, 15
GPIO1 0_FB VRE F_AL TV15,16,17,18
FBVDDQ
FBA_VREFD_L
Schematic Diagrams
B - 16 VGA Frame Buffer A
B.Schematic Diagrams
VGA Frame Buffer A
FBVDDQ
FBVDDQ
C320
0.1u_ 10V _X5R_04
C422
0.1u_ 10V _X5R_04
C321
0.1u _10 V_X5R _04
C410
0.1u_10V_X5R_04
C387
0.1u_10V_X5R_04
C 412
0.1 u_1 0V_X5R_0 4
FBVDDQ
GND
FBA_CLK1
FBA_C MD1 7
FBA_CLK1#
FBA_CLK1_MIDPT
FBA_C MD2 0
FBA_C MD1 6
FBA_C MD1 8
FBA_C MD1 9
FBA_C MD2 5
FBA_C MD2 1
FBA_C MD2 2
FBA_C MD2 8
FBA_C MD2 3
FBA_C MD2 4
FBA_C MD3 0
FBA_C MD2 6
FBA_C MD2 7
FBA_C MD3 1
FBA_C MD2 9
FBA_D32
FBA_D33
FBA_D34
FBA_D35
FBA_D36
FBA_D38
FBA_D39
FBA_D40
FBA_D41
FBA_D42
FBA_D44
FBA_D45
FBA_D46
FBA_D47
FBA_D37
FBA_D48
FBA_D49
FBA_D50
FBA_D51
FBA_D52
FBA_D43
FBA_D54
FBA_D55
FBA_D56
FBA_D57
FBA_D58
FBA_D59
FBA_D60
FBA_D61
FBA_D62
FBA_D53
FBA_DBI4
FBA_DBI5
FBA_D63
FBA_EDC4
FBA_D BI 4
FBA_DBI5
FBA_DBI6
FBA_DBI 7
FBA_DBI6
FBA_EDC4
FBA_DBI7
FBA_EDC6
FBA_EDC 6
FBA_SEN2
FBA_SEN2
FBA_EDC5
FBA_EDC5
FBA_VREFC 1
FBA_EDC7
FBA_EDC7
FBA _VR EF D _H
FBA_SOE2
FBA_SOE3
FBA_VREF C1
0. 4
FBA_VREFD_H
FBA_VREFD_H
FBA_VREFD _H
0. 4
FBA_VREF _FET_H
FBA_ZQ3
FBA_ZQ2
C435
0.01u _16 V_X7R _04
C434
1u_6. 3V_ X5R_04
C332
1u_6. 3V _X5R_ 04
S
D
G
Q10B
MTD N 70 02Z H S 6R
5
34
C359
0.1u_10V_X5R_04
R 200
1K_04
NC
NC
NC
NC
NC
NC
NC
NC
GND
x32 x1 6
MIRRO RED
NC
COMMON
BGA170_MIRR
INS 219 88753 1
U25A
H5G Q1H 24BF R- T2C
D5
WC K2 3
D4
WC K2 3
D2
DBI3
C2
EDC 3
F2
DQ31
F4
DQ30
E2
DQ29
E4
DQ28
B2
DQ27
B4
DQ26
A2
DQ25
A4
DQ24
D13
DBI2
C13
EDC 2
F13
DQ23
F11
DQ22
E13
DQ21
E11
DQ20
B13
DQ19
B11
DQ18
A13
DQ17
A11
DQ16
A10
VREF D
C 436
1000p _50V _X7R _04
C322
1000p_ 50V_ X7R _04
C348
1u_6. 3V_ X5R_04
R234
931_1 %_04
R197
549_ 1%_04
R167
121_1 %_04
C401
10u_ 6.3 V_X5R_0 6
FBVDDQ
add 1k to V DD
Mirrored
COMMO N
BGA170_MIRR
IN S21 98 87764
U25C
H5GQ1H24BFR-T2C
V3
VSSQ
V14
VSSQ
V12
VSSQ
V1
VSSQ
R4
VSSQ
R3
VSSQ
R14
VSSQ
R12
VSSQ
R11
VSSQ
R1
VSSQ
N3
VSSQ
N14
VSSQ
N12
VSSQ
N1
VSSQ
M5
VSSQ
M1 0
VSSQ
K2
VSSQ
K13
VSSQ
H2
VSSQ
H13
VSSQ
F5
VSSQ
F10
VSSQ
E3
VSSQ
E14
VSSQ
E12
VSSQ
E1
VSSQ
C4
VSSQ
C3
VSSQ
C14
VSSQ
C12
VSSQ
C11
VSSQ
C1
VSSQ
A3
VSSQ
A14
VSSQ
A12
VSSQ
A1
VSSQ
T5
VSS
T1 0
VSS
P10
VSS
L5
VSS
L10
VSS
K14
VSS
K1
VSS
H14
VSS
H1
VSS
G5
VSS
G10
VSS
D10
VSS
B5
VSS
B10
VSS
T3
VDDQ
T1 4
VDDQ
T1 2
VDDQ
T1
VDDQ
P3
VDDQ
P14
VDDQ
P12
VDDQ
P1
VDDQ
N5
VDDQ
N10
VDDQ
M3
VDDQ
M14
VDDQ
M12
VDDQ
M1
VDDQ
L2
VDDQ
L13
VDDQ
K3
VDDQ
K12
VDDQ
H3
VDDQ
H12
VDDQ
G2
VDDQ
G13
VDDQ
F3
VDDQ
F14
VDDQ
F12
VDDQ
F1
VDDQ
E5
VDDQ
E10
VDDQ
D3
VDDQ
D14
VDDQ
D12
VDDQ
D1
VDDQ
B3
VDDQ
B14
VDDQ
B12
VDDQ
B1
VDDQ
R5
VDD
R10
VDD
P11
VDD
L4
VDD
L14
VDD
L11
VDD
L1
VDD
G4
VDD
G14
VDD
G11
VDD
G1
VDD
D11
VDD
C5
VDD
C10
VDD
J1
SOE* /M F_V DD
R232
40.2_ 1% _04
R236
549_1 %_04
COMMO N
BG A 170 _M IR R
IN S2 198 88276
U25B
H5GQ1H24BFR-T2C
J10
SEN
J13
ZQ
J14
VREF C
V5
NC_RFU_V5
A5
NC_RFU_A5
J11
CLK
J12
CLK
J3
CKE
J2
RESET
J5
RFU_A12
H4
A7_A8
H5
A6_A11
H10
A5_BA 1
H11
A4_BA 2
K10
A3_BA 3
K11
A2_BA 0
K5
A1_A9
K4
A0_A10
J4
ABI
L12
CS
G12
WE
G3
CAS
L3
RAS
add 1 k to VSS
Nor m al
COMMO N
BGA170
INS219888414
U11C
H5GQ1H24BFR-T2C
V3
VSSQ
V14
VSSQ
V12
VSSQ
V1
VSSQ
R4
VSSQ
R3
VSSQ
R14
VSSQ
R12
VSSQ
R11
VSSQ
R1
VSSQ
N3
VSSQ
N14
VSSQ
N12
VSSQ
N1
VSSQ
M5
VSSQ
M1 0
VSSQ
K2
VSSQ
K13
VSSQ
H2
VSSQ
H13
VSSQ
F5
VSSQ
F10
VSSQ
E3
VSSQ
E14
VSSQ
E12
VSSQ
E1
VSSQ
C4
VSSQ
C3
VSSQ
C14
VSSQ
C12
VSSQ
C11
VSSQ
C1
VSSQ
A3
VSSQ
A14
VSSQ
A12
VSSQ
A1
VSSQ
T5
VSS
T1 0
VSS
P10
VSS
L5
VSS
L10
VSS
K14
VSS
K1
VSS
H14
VSS
H1
VSS
G5
VSS
G10
VSS
D10
VSS
B5
VSS
B10
VSS
J1
MF_VSS/SOE*
T3
VDDQ
T1 4
VDDQ
T1 2
VDDQ
T1
VDDQ
P3
VDDQ
P14
VDDQ
P12
VDDQ
P1
VDDQ
N5
VDDQ
N10
VDDQ
M3
VDDQ
M14
VDDQ
M12
VDDQ
M1
VDDQ
L2
VDDQ
L13
VDDQ
K3
VDDQ
K12
VDDQ
H3
VDDQ
H12
VDDQ
G2
VDDQ
G13
VDDQ
F3
VDDQ
F14
VDDQ
F12
VDDQ
F1
VDDQ
E5
VDDQ
E10
VDDQ
D3
VDDQ
D14
VDDQ
D12
VDDQ
D1
VDDQ
B3
VDDQ
B14
VDDQ
B12
VDDQ
B1
VDDQ
R5
VDD
R10
VDD
P11
VDD
L4
VDD
L14
VDD
L11
VDD
L1
VDD
G4
VDD
G14
VDD
G11
VDD
G1
VDD
D11
VDD
C5
VDD
C10
VDD
FBVDDQ
NC
NC
NC
NC
NC
NC
NC
NC
NC
x16x3 2
MIRRORED
NC
COM MO N
BGA170_MIRR
IN S 21 988 89 42
U25D
H5GQ1H24BFR-T2C
P5
WCK01
P4
WCK01
P13
DBI1
R13
EDC1
M1 3
DQ15
M1 1
DQ14
N13
DQ13
N11
DQ12
T1 3
DQ11
T1 1
DQ10
V13
DQ9
V11
DQ8
P2
DBI0
R2
EDC0
M2
DQ7
M4
DQ6
N2
DQ5
N4
DQ4
T2
DQ3
T4
DQ2
V2
DQ1
V4
DQ0
V1 0
VREFD
C407
1u_6. 3V_ X5R_04
C361
0.1u_10V_X5R_04
C358
0.1u _10 V_X5R _04
C425
1u_6. 3V _X5R_ 04
R204
931_ 1%_04
C381
10u_ 6.3 V_X5R_0 6
NC
x16
NORMAL
NC
NC
NC
NC
NC
NC
NC
x32
NC
GND
COM MO N
BGA170
IN S 21 988 91 63
U11D
H5GQ1H24BFR-T2C
D5
WCK01
D4
WCK01
D13
DBI1
C13
EDC1
F13
DQ15
F11
DQ14
E13
DQ13
E11
DQ12
B13
DQ11
B11
DQ10
A13
DQ9
A11
DQ8
D2
DBI0
C2
EDC0
F2
DQ7
F4
DQ6
E2
DQ5
E4
DQ4
B2
DQ3
B4
DQ2
A2
DQ1
A4
DQ0
A1 0
VREFD
C383
0.1u_ 10V _X5R_04
R 170
121_1%_04
C415
1u_6. 3V_ X5R_04
COM MO N
BGA170
IN S219 88 9376
U11B
H5GQ1H24BFR-T2C
J10
SEN
J13
ZQ
J14
VREFC
V5
NC_RFU _V5
A5
NC_RFU _A5
J11
CLK
J12
CLK
J3
CKE
J2
RESET
J5
RFU_A12
K4
A7_A8
K5
A6_A11
K1 0
A5_BA1
K11
A4_BA2
H10
A3_BA3
H11
A2_BA0
H5
A1_A9
H4
A0_A10
J4
ABI
G12
CS
L12
WE
L3
CAS
G3
RAS
FBVDDQ
FBA_CMD20
FBA_CMD16
FBA_CMD17
FBA_CMD25
FBA_CMD21
FBA_CMD22
FBA_CMD18
FBA_CMD19
R193
1.33K_1%_04
R175
1K_04
FBA_CMD26
FBA_CMD27
FBA_CMD28
FBA_CMD23
FBA_CMD24
FBA_CMD31
FBA_CMD29
FBA_CMD30
NORM AL
x16
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
x32
COMMON
BGA170
INS 219 88961 3
U11A
H5G Q1H 24BF R- T2C
P5
WC K2 3
P4
WC K2 3
P2
DBI3
R2
EDC 3
M2
DQ31
M4
DQ30
N2
DQ29
N4
DQ28
T2
DQ27
T4
DQ26
V2
DQ25
V4
DQ24
P13
DBI2
R13
EDC 2
M13
DQ23
M11
DQ22
N13
DQ21
N11
DQ20
T13
DQ19
T11
DQ18
V13
DQ17
V11
DQ16
V10
VREF D
FBVDDQ
R235
1.33K _1% _04
C 362
1u_6 .3V _X5R _04
C 368
1u_6 .3V _X5R _04
C 413
0.1 u_1 0V_X5R_0 4
R233
40.2 _1% _04
C349
0.1u_ 10V _X5R_04
C 392
1000p_50V_X7R_04
R187
1K_04
GND
GND
GND
GND
GND
GN D GND
GND GN D GND
GN D
GND
GND
GND
GND
GN D
GND
GN D
FBA_CLK113
FBA_CMD[31:0]13, 14, 15
FBA_D[ 63:32]13, 15
FBVDDQ1 3, 14, 16, 17, 40
FBA_WC K6713 ,15
FBA_CLK1#13
FBA_D [63:32]13 ,15
FBA_WCK67#13,15
FBA_CMD[ 31:0]13,14 ,15
FBA_WC K67#13, 15
FBA_WCK45#13,15
FBA_WC K4513 ,15
FBA_WC K45#13, 15
GPIO10_FBVREF_ALTV14,16,17,18
FBA_WCK6713,15
FBA_WCK4513,15
FBA_EDC [7:4]13
FBA_DBI [7:4]13
FBVDDQ
FBVDDQ
FBVDDQ
Schematic Diagrams
VGA Frame Buffer B B - 17
B.Schematic Diagrams
VGA Frame Buffer B
FBB_CMD0
FBB_CMD10
FBB_CMD11
FBB_CMD15
FBB_CMD1
FBB_CMD12
FBB_CMD13
FBB_CMD14
FBB_CMD8
FBB_CMD4
FBB_CMD5
FBB_CMD6
FBB_CMD2
FBB_CMD3
FBB_CMD9
FBB_CMD7
C158
1u_6.3V_X5R_04
C146
1u_6.3V_X5R_04
C566
1u_6.3V_X5R_04
C150
10u_6.3V_X5R_06
C151
1u_6.3V_X5R_04
GND
F BVD DQ
R62
121_1%_04
C582
1000p_50V_X7R_04
add 1k to VDD
Mirrored
COMMO N
BGA170_MIRR
IN S2 19 7 65 212
U7C
H5GQ1H24BFR-T2C
V3
VSSQ
V14
VSSQ
V12
VSSQ
V1
VSSQ
R4
VSSQ
R3
VSSQ
R14
VSSQ
R12
VSSQ
R11
VSSQ
R1
VSSQ
N3
VSSQ
N14
VSSQ
N12
VSSQ
N1
VSSQ
M5
VSSQ
M10
VSSQ
K2
VSSQ
K13
VSSQ
H2
VSSQ
H13
VSSQ
F5
VSSQ
F10
VSSQ
E3
VSSQ
E14
VSSQ
E12
VSSQ
E1
VSSQ
C4
VSSQ
C3
VSSQ
C14
VSSQ
C12
VSSQ
C11
VSSQ
C1
VSSQ
A3
VSSQ
A14
VSSQ
A12
VSSQ
A1
VSSQ
T5
VSS
T10
VSS
P10
VSS
L5
VSS
L10
VSS
K14
VSS
K1
VSS
H14
VSS
H1
VSS
G5
VSS
G10
VSS
D10
VSS
B5
VSS
B10
VSS
T3
VDDQ
T14
VDDQ
T12
VDDQ
T1
VDDQ
P3
VDDQ
P14
VDDQ
P12
VDDQ
P1
VDDQ
N5
VDDQ
N10
VDDQ
M3
VDDQ
M14
VDDQ
M12
VDDQ
M1
VDDQ
L2
VDDQ
L13
VDDQ
K3
VDDQ
K12
VDDQ
H3
VDDQ
H12
VDDQ
G2
VDDQ
G13
VDDQ
F3
VDDQ
F14
VDDQ
F12
VDDQ
F1
VDDQ
E5
VDDQ
E10
VDDQ
D3
VDDQ
D14
VDDQ
D12
VDDQ
D1
VDDQ
B3
VDDQ
B14
VDDQ
B12
VDDQ
B1
VDDQ
R5
VDD
R10
VDD
P11
VDD
L4
VDD
L14
VDD
L11
VDD
L1
VDD
G4
VDD
G14
VDD
G11
VDD
G1
VDD
D11
VDD
C5
VDD
C10
VDD
J1
SOE*/MF_VDD
FB B_CL K0
FB B_CL K0#
0.100V
FBB_D10
FBB_D0
FBB_D15
FBB_D14
FBB_D13
FBB_D12
FBB_D11
FBB_D1
FBB_D19
FBB_D18
FBB_D17
FBB_D16
FBB_D25
FBB_D24
FBB_D23
FBB_D22
FBB_D21
FBB_D20
FBB_D2
FBB_D29
FBB_D28
FBB_D27
FBB_D26
FBB_D30
FBB_D5
FBB_D4
FBB_D3
FBB_D31
R61
40.2_1%_04
FBB_D8
FBB_D7
FBB_D6
FBB_DBI2
FBB_DBI1
FBB_DBI0
FBB_DBI0
FBB_D9
C145
1000p_50V_X7R_04
FB B_ED C 0
FBB_DBI3
FBB_DBI2
FBB_DBI1
FBB_EDC2
FBB_EDC1
FB B_ED C 1
FBB_DBI3
FBB_EDC0
C557
0.01u_16V_X7R_04
FBB_EDC2
R330
931_1%_04
FBB_SEN0
FBB_EDC3
FBB_EDC3
FB B_SO E1
FBB_SOE0
FBB_ SEN 0
C558
0.1u_10V_X5R_04
C560
0.1u_10V_X5R_04
FB B_VR EF C0
R63
121_1%_04
FBB_VR EFD_ L
FBB_ VR EFC 0
0.4
C591
0.1u_10V_X5R_04
FBB_ VREF D _L
0.4
FB B_VR EF D _L
C177
1u_6.3V_X5R_04
FBB_VREF_FET_L
FBB_ZQ1
FBB_ZQ0
COMM O N
BGA170_MIRR
INS219766346
U7B
H5GQ1H24BFR-T2C
J10
SEN
J13
ZQ
J14
VREF C
V5
NC_R FU _V5
A5
NC_R FU _A5
J11
CLK
J12
CLK
J3
CKE
J2
RESET
J5
RFU_A12
H4
A7_A8
H5
A6_A11
H10
A5_BA1
H11
A4_BA2
K10
A3_BA3
K11
A2_BA0
K5
A1_A9
K4
A0_A10
J4
ABI
L12
CS
G12
WE
G3
CAS
L3
RAS
C171
1u_6.3V_X5R_04
F BVD DQ
add 1k to V SS
Nor m al
COMMO N
BGA170
INS219766667
U20C
H5GQ1H24BFR -T2C
V3
VSSQ
V14
VSSQ
V12
VSSQ
V1
VSSQ
R4
VSSQ
R3
VSSQ
R14
VSSQ
R12
VSSQ
R11
VSSQ
R1
VSSQ
N3
VSSQ
N14
VSSQ
N12
VSSQ
N1
VSSQ
M5
VSSQ
M10
VSSQ
K2
VSSQ
K13
VSSQ
H2
VSSQ
H13
VSSQ
F5
VSSQ
F10
VSSQ
E3
VSSQ
E14
VSSQ
E12
VSSQ
E1
VSSQ
C4
VSSQ
C3
VSSQ
C14
VSSQ
C12
VSSQ
C11
VSSQ
C1
VSSQ
A3
VSSQ
A14
VSSQ
A12
VSSQ
A1
VSSQ
T5
VSS
T10
VSS
P10
VSS
L5
VSS
L10
VSS
K14
VSS
K1
VSS
H14
VSS
H1
VSS
G5
VSS
G10
VSS
D10
VSS
B5
VSS
B10
VSS
J1
MF_VSS/SOE*
T3
VDDQ
T1 4
VDDQ
T1 2
VDDQ
T1
VDDQ
P3
VDDQ
P14
VDDQ
P12
VDDQ
P1
VDDQ
N5
VDDQ
N10
VDDQ
M3
VDDQ
M14
VDDQ
M12
VDDQ
M1
VDDQ
L2
VDDQ
L13
VDDQ
K3
VDDQ
K12
VDDQ
H3
VDDQ
H12
VDDQ
G2
VDDQ
G13
VDDQ
F3
VDDQ
F14
VDDQ
F12
VDDQ
F1
VDDQ
E5
VDDQ
E10
VDDQ
D3
VDDQ
D14
VDDQ
D12
VDDQ
D1
VDDQ
B3
VDDQ
B14
VDDQ
B12
VDDQ
B1
VDDQ
R5
VDD
R10
VDD
P11
VDD
L4
VDD
L14
VDD
L11
VDD
L1
VDD
G4
VDD
G14
VDD
G11
VDD
G1
VDD
D11
VDD
C5
VDD
C10
VDD
NC
NC
NC
NC
NC
NC
NC
NC
GND
x32 x16
MIRRORED
NC
COM MON
BGA170_MIRR
INS219767316
U7A
H5GQ1H24BFR-T2C
D5
WCK 23
D4
WCK 23
D2
DBI3
C2
EDC3
F2
DQ31
F4
DQ30
E2
DQ29
E4
DQ28
B2
DQ27
B4
DQ26
A2
DQ25
A4
DQ24
D13
DBI2
C13
EDC2
F13
DQ23
F11
DQ22
E13
DQ21
E11
DQ20
B13
DQ19
B11
DQ18
A13
DQ17
A11
DQ16
A10
VREFD
NC
x16
NO RM A L
NC
NC
NC
NC
NC
NC
NC
x32
NC
GND
COM MON
BGA170
INS219767527
U20D
H5GQ1H24BFR-T2C
D5
WC K0 1
D4
WC K0 1
D13
DBI1
C13
ED C 1
F13
DQ15
F11
DQ14
E13
DQ13
E11
DQ12
B13
DQ11
B11
DQ10
A13
DQ9
A11
DQ8
D2
DBI0
C2
ED C 0
F2
DQ7
F4
DQ6
E2
DQ5
E4
DQ4
B2
DQ3
B4
DQ2
A2
DQ1
A4
DQ0
A10
VREFD
R332
931_ 1%_0 4
R84
1K _04
R329
1.33K_1%_04
C149
0.1u_10V_X5R_04
C588
0.1u_10V_X5R_04
C164
1000p_50V_X7R_04
NC
NC
NC
NC
NC
NC
NC
NC
NC
x16x32
MI RRO RED
NC
COM MON
BGA170_MIRR
INS219767804
U7D
H5GQ1H24BFR-T2C
P5
WC K0 1
P4
WC K0 1
P13
DBI1
R13
ED C 1
M13
DQ15
M11
DQ14
N13
DQ13
N11
DQ12
T13
DQ11
T11
DQ10
V13
DQ9
V11
DQ8
P2
DBI0
R2
ED C 0
M2
DQ7
M4
DQ6
N2
DQ5
N4
DQ4
T2
DQ3
T4
DQ2
V2
DQ1
V4
DQ0
V10
VREFD
NORMAL
x1 6
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
x32
COM MON
BGA170
INS219767947
U20A
H5GQ1H24BFR-T2C
P5
WCK 23
P4
WCK 23
P2
DBI3
R2
EDC3
M2
DQ31
M4
DQ30
N2
DQ29
N4
DQ28
T2
DQ27
T4
DQ26
V2
DQ25
V4
DQ24
P13
DBI2
R13
EDC2
M13
DQ23
M11
DQ22
N13
DQ21
N11
DQ20
T13
DQ19
T11
DQ18
V13
DQ17
V11
DQ16
V10
VREFD
R333
1. 33 K_ 1% _0 4
C561
0.1u_10V_X5R_04
R71
1K_04
R60
40.2_1%_04
C562
10u_6.3V_X5R_06
C578
0.1u_10V_X5R_04
C589
0.1u_10V_X5R_04
C153
1u_6.3V_X5R_04
C148
0.1u_10V_X5R_04
R331
549_1%_04
FB VDDQ_MEM Decaps:
6. Frame Buffer Partition B - Lower Half
4x 0603 1.0uF
6x 0402 0.1uF
4x 0 603 1. 0uF
14
15
1x 0805 10uF 1x 0805 10uF
FBVDD Decaps:
8
9
10
11
12
13
3
4
5
6
7
0
3
0
1
2
2
31
0
1
2
3
27
28
29
30
1
22
23
24
25
26
16
17
18
19
20
21
7
6
9
13
14
11
2
1
3
4
12
15
5
0
8
10
7
6
9
13
14
11
2
1
3
4
12
15
5
0
8
10
C580
1u_6.3V_X5R_04
C182
0.1u_10V_X5R_04
COM MON
BGA170
INS219768508
U20B
H5GQ1H24BFR-T2C
J10
SEN
J13
ZQ
J14
VREFC
V5
NC_RFU_V5
A5
NC_RFU_A5
J11
CLK
J12
CLK
J3
CKE
J2
RESET
J5
RFU_A12
K4
A7_A8
K5
A6_A11
K10
A5_BA1
K11
A4_BA2
H10
A3_BA3
H11
A2_BA0
H5
A1_A9
H4
A0_A10
J4
ABI
G12
CS
L12
WE
L3
CAS
G3
RAS
R352
549_ 1%_0 4
R85
1K_04
S
D
G
Q26A
MTDN7002ZHS6R
2
61
C161
0.1u_10V_X5R_04
C154
0.1u_10V_X5R_04
GND
GND
GND
GN DGND
GND
GND
GND
GND
GND
GND
GNDGND
GND
GND
GND
GND
GND
FBB_WCK23#13, 16
FBB_D[31:0]13,16
FBB_WCK01#13, 16
FBB_WCK0113 , 16
FBB_WCK2313 , 16
FBB_D[31:0]13,16
FBB_C LK0#13
FBB_CMD[31:0]13,16,17
FBVDDQ13,14,15,17,40
FBB_CMD[31:0]13,16,17
FBB_C LK013
FBB_WCK0113 , 16
FBB_WCK2313 , 16
FBB_WCK23#13, 16
F BB_ED C [3 : 0]13
GPIO10_FBVREF_ALTV14,15,17,18
FBB_WCK01#13, 16
FBB_DBI[3:0]13
FBVDDQ
FBB_CMD14
FBB_CMD0
FBB_CMD10
FBB_CMD11
FBB_CMD2
FBB_CMD3
FBB_CMD15
FBB_CMD1
FBB_CMD12
FBB_CMD13
FBB_CMD7
FBB_CMD8
FBB_CMD4
FBB_CMD5
FBB_CMD6
FBB_CMD9
FBVDDQ
FBB_VR EFD _L
FBVDDQ
FBVD D Q
F BVD DQ
FBVDDQ
FBVD D Q
F BVD DQ
Schematic Diagrams
B - 18 VGA Frame Buffer B
B.Schematic Diagrams
VGA Frame Buffer B
FBVDDQ
36
37
38
39
32
33
34
35
NC
NC
NC
NC
NC
NC
NC
NC
NC
x16x32
MIRRO RE D
NC
COMMO N
BGA170_MIRR
IN S2 19 84 37 84
U22D
H5GQ1H24BFR-T2C
P5
WCK 0 1
P4
WCK 0 1
P13
DBI1
R13
EDC 1
M1 3
DQ15
M1 1
DQ14
N13
DQ13
N11
DQ12
T1 3
DQ11
T1 1
DQ10
V13
DQ9
V11
DQ8
P2
DBI0
R2
EDC 0
M2
DQ7
M4
DQ6
N2
DQ5
N4
DQ4
T2
DQ3
T4
DQ2
V2
DQ1
V4
DQ0
V10
VREFD
FBVDDQ
NO RM AL
x16
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
x32
COM MON
BGA170
INS219843863
U8A
H 5GQ 1H 24 B F R- T2C
P5
WCK23
P4
WCK23
P2
DBI3
R2
ED C 3
M2
DQ31
M4
DQ30
N2
DQ29
N4
DQ28
T2
DQ27
T4
DQ26
V2
DQ25
V4
DQ24
P13
DBI2
R13
ED C 2
M13
DQ23
M11
DQ22
N13
DQ21
N11
DQ20
T13
DQ19
T11
DQ18
V13
DQ17
V11
DQ16
V10
VREF D
C147
0.1u _10 V_X5R_04
add 1k t o VD D
Mir rored
COMMO N
BGA170_MIRR
INS219843950
U22C
H5 GQ1H 24 BF R -T2 C
V3
VSSQ
V14
VSSQ
V12
VSSQ
V1
VSSQ
R4
VSSQ
R3
VSSQ
R14
VSSQ
R12
VSSQ
R11
VSSQ
R1
VSSQ
N3
VSSQ
N14
VSSQ
N12
VSSQ
N1
VSSQ
M5
VSSQ
M10
VSSQ
K2
VSSQ
K13
VSSQ
H2
VSSQ
H13
VSSQ
F5
VSSQ
F10
VSSQ
E3
VSSQ
E14
VSSQ
E12
VSSQ
E1
VSSQ
C4
VSSQ
C3
VSSQ
C14
VSSQ
C12
VSSQ
C11
VSSQ
C1
VSSQ
A3
VSSQ
A14
VSSQ
A12
VSSQ
A1
VSSQ
T5
VSS
T10
VSS
P10
VSS
L5
VSS
L10
VSS
K14
VSS
K1
VSS
H14
VSS
H1
VSS
G5
VSS
G10
VSS
D10
VSS
B5
VSS
B10
VSS
T3
VDD Q
T14
VDD Q
T12
VDD Q
T1
VDD Q
P3
VDD Q
P14
VDD Q
P12
VDD Q
P1
VDD Q
N5
VDD Q
N10
VDD Q
M3
VDD Q
M14
VDD Q
M12
VDD Q
M1
VDD Q
L2
VDD Q
L13
VDD Q
K3
VDD Q
K12
VDD Q
H3
VDD Q
H12
VDD Q
G2
VDD Q
G13
VDD Q
F3
VDD Q
F14
VDD Q
F12
VDD Q
F1
VDD Q
E5
VDD Q
E10
VDD Q
D3
VDD Q
D14
VDD Q
D12
VDD Q
D1
VDD Q
B3
VDD Q
B14
VDD Q
B12
VDD Q
B1
VDD Q
R5
VDD
R10
VDD
P11
VDD
L4
VDD
L14
VDD
L11
VDD
L1
VDD
G4
VDD
G14
VDD
G11
VDD
G1
VDD
D11
VDD
C5
VDD
C10
VDD
J1
SOE * / MF _ VD D
C568
10u_6.3V_X5R_06
R122
549_1 %_04
R125
121_1%_04
C291
0.1u_10V_X5R_04
R118
40.2_1%_04
C311
10u_6.3V_X5R_06
C323
1u_6.3V_X5R_04
C564
1u_6.3V_X5R_04
C152
0.1u_10V_X5R_04
NC
x16
NOR M A L
NC
NC
NC
NC
NC
NC
NC
x32
NC
GND
COMMO N
BGA170
IN S2 19 84 43 67
U8D
H5GQ1H24BFR-T2C
D5
WCK 0 1
D4
WCK 0 1
D13
DBI1
C13
EDC 1
F13
DQ15
F11
DQ14
E13
DQ13
E11
DQ12
B13
DQ11
B11
DQ10
A13
DQ9
A11
DQ8
D2
DBI0
C2
EDC 0
F2
DQ7
F4
DQ6
E2
DQ5
E4
DQ4
B2
DQ3
B4
DQ2
A2
DQ1
A4
DQ0
A10
VREFD
C295
1u_6.3V_X5R_04
FBVDDQ
FBB_CMD19
FBB_CMD20
FBB_CMD16
FBB_CMD17
FBB_CMD23
FBB_CMD24
FBB_CMD25
FBB_CMD21
FBB_CMD22
FBB_CMD18
R121
1.33 K_1%_ 04
FBB_CMD29
FBB_CMD30
FBB_CMD28
FBB_CMD26
FBB_CMD27
S
D
G
Q26B
MTDN7002ZHS6R
5
34
R88
1K_0 4
FBB_CMD31
R124
121_1%_04
C302
1000p_ 50V_X 7R _04
C559
0.1u_10V_X5R_04
C316
0. 1u _10V _ X5R _0 4
C430
1u_6. 3V_ X5R_04
COMMO N
BGA170_MIRR
IN S2 19 84 47 09
U22B
H5GQ1H24BFR-T2C
J10
SEN
J13
ZQ
J14
VRE F C
V5
NC_R FU_V5
A5
NC_R FU_A5
J11
CLK
J12
CLK
J3
CKE
J2
RESET
J5
RFU_A12
H4
A7_A8
H5
A6_A11
H10
A5_BA1
H11
A4_BA2
K10
A3_BA3
K11
A2_BA0
K5
A1_A9
K4
A0_A10
J4
ABI
L12
CS
G12
WE
G3
CAS
L3
RAS
R107
931_1%_04
R119
40.2 _1%_0 4
R120
931_1 %_04
C286
1000p_50V_X7R_04
R102
549_1%_04
R123
1K_04
C338
1u_6.3V_X5R_04
NC
NC
NC
NC
NC
NC
NC
NC
GND
x32 x16
MI RRORE D
NC
COM MON
BGA170_MIRR
INS219844862
U22A
H 5GQ 1H 24 B F R- T2C
D5
WCK23
D4
WCK23
D2
DBI3
C2
ED C 3
F2
DQ31
F4
DQ30
E2
DQ29
E4
DQ28
B2
DQ27
B4
DQ26
A2
DQ25
A4
DQ24
D13
DBI2
C13
ED C 2
F13
DQ23
F11
DQ22
E13
DQ21
E11
DQ20
B13
DQ19
B11
DQ18
A13
DQ17
A11
DQ16
A10
VREF D
add 1k to VSS
Norm al
COMMO N
BGA170
IN S21 9 84 49 41
U8C
H5GQ1H24BFR-T2C
V3
VSSQ
V14
VSSQ
V12
VSSQ
V1
VSSQ
R4
VSSQ
R3
VSSQ
R14
VSSQ
R12
VSSQ
R11
VSSQ
R1
VSSQ
N3
VSSQ
N14
VSSQ
N12
VSSQ
N1
VSSQ
M5
VSSQ
M1 0
VSSQ
K2
VSSQ
K13
VSSQ
H2
VSSQ
H13
VSSQ
F5
VSSQ
F10
VSSQ
E3
VSSQ
E14
VSSQ
E12
VSSQ
E1
VSSQ
C4
VSSQ
C3
VSSQ
C14
VSSQ
C12
VSSQ
C11
VSSQ
C1
VSSQ
A3
VSSQ
A14
VSSQ
A12
VSSQ
A1
VSSQ
T5
VSS
T10
VSS
P10
VSS
L5
VSS
L10
VSS
K14
VSS
K1
VSS
H14
VSS
H1
VSS
G5
VSS
G10
VSS
D10
VSS
B5
VSS
B10
VSS
J1
MF_VSS/SOE*
T3
VDDQ
T1 4
VDDQ
T1 2
VDDQ
T1
VDDQ
P3
VDDQ
P14
VDDQ
P12
VDDQ
P1
VDDQ
N5
VDDQ
N10
VDDQ
M3
VDDQ
M1 4
VDDQ
M1 2
VDDQ
M1
VDDQ
L2
VDDQ
L13
VDDQ
K3
VDDQ
K12
VDDQ
H3
VDDQ
H12
VDDQ
G2
VDDQ
G13
VDDQ
F3
VDDQ
F14
VDDQ
F12
VDDQ
F1
VDDQ
E5
VDDQ
E10
VDDQ
D3
VDDQ
D14
VDDQ
D12
VDDQ
D1
VDDQ
B3
VDDQ
B14
VDDQ
B12
VDDQ
B1
VDDQ
R5
VDD
R10
VDD
P11
VDD
L4
VDD
L14
VDD
L11
VDD
L1
VDD
G4
VDD
G14
VDD
G11
VDD
G1
VDD
D11
VDD
C5
VDD
C10
VDD
R106
1.33K_1%_04
C570
0.1u_10V_X5R_04
C272
1u_6.3V_X5R_04
COMMO N
BGA170
INS219845280
U8B
H5GQ 1H24 BFR -T2C
J10
SEN
J13
ZQ
J14
VREFC
V5
NC_R FU _V5
A5
NC_R FU _A5
J11
CLK
J12
CLK
J3
CKE
J2
RESET
J5
RFU_A12
K4
A7_A8
K5
A6_A11
K10
A5_BA1
K11
A4_BA2
H10
A3_BA3
H11
A2_BA0
H5
A1_A9
H4
A0_A10
J4
ABI
G12
CS
L12
WE
L3
CAS
G3
RAS
C278
1000 p_ 50 V_ X7 R _04
C259
1u_6. 3V_ X5R_04
R359
1K_04
C303
0.01 u_16 V_X7R_04
C318
1u_6.3V_X5R_04
GND
GND
GND
GND
GND
GND
GND
GND
GND
GNDGN D
GND
GND
GND
GND
GND
GND
GND
FBB_WCK4513, 1 7
GPIO10_FBVREF_ALTV14, 15, 16 , 18
FBB_WCK45#13, 17
FBB_WCK4513, 1 7
FBB_WCK45#13, 17
FBB_CLK1#13
FBB_WCK67#13, 17
FBB_WCK6713, 1 7
FBB_DBI[7:4]13
FBB_C MD[31:0]13,16,17
FBB_CLK113
FBB_D[63:32]13,17
FBB_C MD[31:0]13,16,17
FBB_EDC[7: 4]13
FBB_D[63:32]13,17
4x 0603 1. 0u F
FBB_WCK67#13, 17
FBB_WCK6713, 1 7
1x 0805 10 uF1x 08 05 10uF
FBV DDQ Decaps:
4x 06 03 1.0 uF
6x 04 02 0.1 uF
44
45
46
47
7. Frame Buffer Partition B - Upper Half
FB VDD Decaps:
40
41
42
43
5
6
7
4
63
4
5
6
7
58
59
60
61
62
52
53
54
55
56
57
30
48
49
50
51
20
23
22
25
29
24
26
27
18
17
19
30
28
31
21
16
20
23
22
25
29
24
26
27
18
17
19
28
31
21
16
FBB_CMD18
FBB_CMD19
FBB_CMD20
FBB_CMD16
FBB_CMD17
FBB_CMD27
FBB_CMD23
FBB_CMD24
FBB_CMD25
FBB_CMD21
FBB_CMD22
FBB_CMD31
FBB_CMD29
FBB_CMD30
FBB_CMD28
FBB_CMD26
FBB_CLK1#
FBB_CLK1
FBB_CLK1_MIDPT
0. 1 00V
FBB_D35
FBB_D34
FBB_D33
FBB_D32
FBB_D40
FBB_D39
FBB_D38
FBB_D37
FBB_D36
FBB_D46
FBB_D45
FBB_D44
FBB_D43
FBB_D42
FBB_D41
FBB_D51
FBB_D50
FBB_D49
FBB_D48
FBB_D47
FBB_D56
FBB_D55
FBB_D54
FBB_D53
FBB_D52
FBB_D62
FBB_D61
FBB_D60
FBB_D59
FBB_D58
FBB_D57
FBB_DBI5
FBB_DBI5
FBB_DBI4
FBB_DBI4
FBB_DBI7
FBB_DBI7
FBB_DBI6
FBB_DBI6
FBB_EDC6
FBB_EDC5
FBB_EDC5
FBB_EDC4
FBB_EDC4
FBB_SEN2
FBB_EDC7
FBB_EDC7
FBB_EDC6
FBB_VREFC1
FBB _SOE3
FBB_SOE2
FBB_SEN2
FBB_VREF C1
0.4
0. 4
FBB_VREF D_H
FBB _VR EF D_H
FBB_VREFD_H
FBB_VREFD _H
F BB_VR EF _FE T_H
FBB_ZQ3
FBB_ZQ2
FBVDD Q
FBVDDQ
C277
0.1u_10V_X5R_04
C355
0.1u_10V_X5R_04
C324
0. 1u _10V _ X5R _0 4
C565
0.1u_10V_X5R_04
C432
0.1u _10 V_X5R_04
C157
0.1u_10V_X5R_04
FBVDDQ
GND
FBVDDQ
FBB_D63
FBVDDQ
FBVDDQ
FBVDDQ
FBVDDQ13,14,15,16,40
Schematic Diagrams
VGA I/O B - 19
B.Schematic Diagrams
VGA I/O
NVVDD_CURRENT_LIMIT 36
D02 CHANGE
DS¤è¦V§ó¥¿, §ï¥¿ ¥Ñ3V3_RUN±±¨î
Q36
MTN7002ZH S3
G
DS
²Ä¤@ª©¡A¥ý¹w¯dexternal thermal sensor
IFPC_IOVDD
IFPEF_IOVDD
SMC_VGA_THERM1
V_JTAG_TRST
SMD_VGA_THERM1
I2CC_SDA
I2CC_SCLI2CC_SCL
IFPC _PLLVDD
IFPEF_IOVDD
IFPAB_PLLVDD
R70 *10m il_short
R76 *10m il_short
NV_ D PRSLP# 44
V_GPIO8
I2CB_SCL
I2CB_SDA
IFPEF_PLLVDD
3V3_R U N IFPAB_IOVDD
SNN _A_SCLDACA_VDD
VGA_TH ERMDC
SNN _A_SDA
VGA_TH ERMDA
IFPEF_PLLVDD
I2CX_SCL
I2CX_SDA
TXC
TXC
DVI/HDMI
TXD2
TXD2
TXD1
TXD1
TXD0
TXD0
DP
IFP D
8/19 I FPD
AL L PI NS NC FO R G F1 17
U21L
BGA_0908_P080_P085_P100_290X290
COMMON
GK107-650-A2
AG6
IFPD_IOVDD
AG7
IF PD_ PLLVD D
AN2
IFPD_RSET
M6
GPIO17
AM1
IFPD_L0
AM2
IFPD_L0
AM3
IFPD_L1
AM4
IFPD_L1
AL3
IFPD_L2
AL4
IFPD_L2
AK4
IFPD_L3
AK5
IFPD_L3
AK3
IFPD _AUX
AK2
IFPD _AUX
DPDVI-SL/HDMIDVI-DL
TXD2
TXD2
TXD2
TXD1
TXD0
TXD0
TXD1
I2CZ_SCL
I2CZ_SDA
TXC
TXC
HPD_F
HPD_E
TXC
TXC
TXD0
TXD0
TXD1
TXD1
TXD2
I2CY_SDA
I2CY_SCLI2CY_SCL
I2CY_SDA
TXD2
TXD2
TXD0
TXD0
TXC
TXC
TXD1
TXD1
HPD_E
TXD3
TXD3
TXD4
TXD4
TXD5
TXD5
IFP E
IFP F
9/19 IF PEF
ALL P INS NC FO R GF1 1 7
U21M
BGA_0908_P080_P085_P100_290X290
COMMON
GK107-650-A2
AC8
IFPF_IOVDD
AC7
IFPE_IOVDD
AD6
IFPEF_RSET
AB8
IF PEF_PLLVDD
GPIO19
IFPF_L 0
IFPF_L 0
IFPF_L 1
IFPF_L 1
IFPF_L 2
IFPF_L 2
IFPF_L 3
IFPF_L 3
IFPF_AU X
IFPF_AU X
GPIO18
IFPE_L0
IFPE_L0
IFPE_L1
IFPE_L1
IFPE_L2
IFPE_L2
IFPE_L3
IFPE_L3
IFPE_AU X
IFPE_AU X
S
D
G
Q25A
MTDN 7002ZH S6R
2
61
R79
10K_04
RN12
10K_8P4R_04
1
2
3
4 5
6
7
8
4/19 D ACA
TSEN_ VREF
NC
GF 117GF108/ GKx
NC NC
NC
NC
NC
NC
NC
NC
GF 117 GF108/G Kx
U21N
BGA_0908_P080_P085_P100_290X290
COMMON
GK107-650-A2
AP8
DACA_RSET
AP9
DACA_VREF
AG10
DACA_VDD
AL9
DACA_BLUE
AL10
DACA_GREEN
AK9
DACA_RED
AN9
DACA_VSYNC
AM9
DACA_HSYNC
R5
I2CA_SDA
R4
I2CA _SCL
R344 100K_04
IFPD_IOVDD
ALL P INS NC FO R GF1 1 7
6/19 IFP AB
IFPAB
C OMMO N
BGA_0908_P080_P085_P100_290X290
U21J
GK107-650-A2
AG9
IFPB_IOVDD
AG8
IFPA_IOVDD
AH8
IFPAB_PLLVDD
AJ8
IFPAB_R SET
N4
GPIO14
AK8
IF PB_TXD7
AL8
IF PB_TXD7
AN8
IF PB_TXD6
AM8
IF PB_TXD6
AM7
IF PB_TXD5
AL7
IF PB_TXD5
AP6
IF PB_TXD4
AP5
IF PB_TXD4
AJ9
IFPB_TXC
AH9
IFPB_TXC
AJ6
IF PA_TXD3
AH6
IF PA_TXD3
AL6
IF PA_TXD2
AK6
IF PA_TXD2
AN5
IF PA_TXD1
AM5
IF PA_TXD1
AP3
IF PA_TXD0
AN3
IF PA_TXD0
AM6
IFPA_TXC
AN6
IFPA_TXC
DPDVI/HDMI
I2CW_SCL
I2CW_SDA
TXC
TXC
TXD0
TXD0
TXD1
TXD1
TXD2
TXD2
IFPC
AL L PI NS NC FOR GF117
7/19 I FPC
COMMON
BGA_0908_P080_P085_P100_290X290
U21K
GK107-650-A2
AF6
IFPC_IOVDD
AF7
IFP C _PLLVD D
AF8
IFPC_RSET
P2
GPIO15
AK1
IFPC_L0
AJ1
IFPC_L0
AJ3
IFPC_L1
AJ2
IFPC_L1
AH3
IFPC_L2
AH4
IFPC_L2
AG5
IFPC_L3
AG4
IFPC_L3
AG3
IFPC_AUX
AG2
IFPC_AUX
R69 *10mil_short
SMC_VGA_THERM
11/19 MI SC 1
U21Q
BGA_0908_P080_P085_P100_290X290
COMMO N
GK107-650-A2
AN1 1
JTAG_TRST
AP12
JTAG_TDO
AM11
JTAG_TDI
AP11
JTAG_TMS
AM10
JTAG_TCK
K3
THERMDP
K4
THERMDN
P1
GPIO21
P4
GPIO20
R8
GPIO16
M4
GPIO13
N3
GPIO12
M5
GPIO11
L1
GPIO10
M2
GPIO9
M1
GPIO8
N8
GPIO7
M7
GPIO6
L7
GPIO5
P7
GPIO4
P5
GPIO3
L6
GPIO2
M3
GPIO1
P6
GPIO0
R6
I2CB_SDA
R7
I2CB_SCL
R3
I2CC_SDA
R2
I2CC_SCL
T3
I2CS_SDA
T4
I2CS_SCL
RN14
2.2K_8P4R _04
1
2
3
4 5
6
7
8
R345 100K_04
RN13
10K_8P4R_04
1
2
3
4 5
6
7
8
C163 *0 .1u_16V_Y 5V_04
U6
*G781-1P8U F
SCLK
8SDATA
7ALERT#
6GND
5TH ER M# 4
D- 3
D+ 2
VDD
1
R75 *0_04
S
D
G
Q25B
MTD N7002ZHS6R
5
34
R358
10K_04
C168
1000p_50V_X7R_04
RN3
2.2K_8P4R _04
1
2
3
45
6
7
8
3.3V
3V3_R UN
3. 3V
3V3_RUN
3V3_R UN
SMD_VGA_ THER M 36
3.3V2,3,6, 11,20,21,22, 24,25, 26,27,29, 30,3 1,35,37,39,40,41
3V3_RUN
3V3_RUN
NVVDD_VID4 44
SMC_VGA_THERM 36
3V3_RU N12, 37,44
NVVDD_VID2 44
NVVDD_VID1 44
NVVDD_VID3 44
NVVDD_VID5 44
NVVDD_VID0 44
GPIO10_F BVREF_ALTV 14,15,16,17
IFPD_PLLVD D
SMC_VGA_THERM
SMD_VGA_THERM
V_GPIO9
RN2
2.2K_8P4R_04
1
2
3
4 5
6
7
8
VGA_THERMD A
VGA_THERMD C
VGA_VDD
SMD_VGA_THERM
VGA_THER M_SHDWN _#
VGA_THERM_SHDWN#1
6-02-00781-LD0
IFPC_IOVDD
IFPD_IOVDD
IFPAB_PLLVDD
IFPC _PLLVDD
V_GPIO9
V_GPIO8
I2CB_SCL
I2CB_SDA
SNN_A_SCL
SNN_A_SDA
IFPD _PLLVDD
IFPAB_I OVDD
R346
10K_04
Schematic Diagrams
B - 20 VGA NVVDD Cecoupling
B.Schematic Diagrams
VGA NVVDD Cecoupling
+
C144
*330u_2.5V_V_A
PLACE UNDER CH I P
PLACE NEAR CHIP
C189
0.1u_10V_X5R_04
14/ 19 NVV DD
COMMON
BGA_0 908_P080_P085_P1 00_ 290X290
U21E
GK107-650- A2
Y22
VD D
Y20
VD D
Y18
VD D
Y17
VD D
Y15
VD D
Y13
VD D
W23
VD D
W21
VD D
W19
VD D
W16
VD D
W14
VD D
W12
VD D
V22
VD D
V20
VD D
V18
VD D
V17
VD D
V15
VD D
V13
VD D
U22
VD D
U20
VD D
U18
VD D
U17
VD D
U15
VD D
U13
VD D
T23
VD D
T21
VD D
T19
VD D
T16
VD D
T14
VD D
T12
VD D
R22
VD D
R20
VD D
R18
VD D
R17
VD D
R15
VD D
R13
VD D
P23
VD D
P21
VD D
P19
VD D
P16
VD D
P14
VD D
P12
VD D
N22
VD D
N20
VD D
N18
VD D
N17
VD D
N15
VD D
N13
VD D
M23
VD D
M21
VD D
M19
VD D
M16
VD D
M14
VD D
M12
VD D
AC2 3
VD D
AC2 1
VD D
AC1 9
VD D
AC1 6
VD D
AC1 4
VD D
AC1 2
VD D
AB22
VD D
AB20
VD D
AB18
VD D
AB17
VD D
AB15
VD D
AB13
VD D
AA23
VD D
AA21
VD D
AA19
VD D
AA16
VD D
AA14
VD D
AA12
VD D
C188
0. 1u _10V_X5R _04
C227
4.7u_6.3V_X5R_06
C253
4.7u_6. 3V_X5R_06
C196
0.1u_10V_X5R_04
C229
4.7u_6. 3V_X5R_06
C190
0. 1u_ 10V_ X5R_0 4
C204
0.1u_10V_X5R_04
C220
0.1u_10V_X5R_04
C143
47uF_6.3V_X5R_08
C236
4.7u_6.3V_X5R_06
C212
0.1u_10V_X5R_04
C256
4.7u_6.3V_X5R_06
C217
4.7u_6.3V_X5R_06
C243
4.7u_6.3V_X5R_06
C250
4.7u_6.3V_X5R_06
C241
4.7u_6. 3V_X5R_06
10/19 X VD D
CONFIGURABLE
POWE R
CHAN NELS
COMMON
BGA_0908_P080_P085_P100_290X290
U21H
GK107-650-A2
AA8
XVDD
AA7
XVDD
AA6
XVDD
AA5
XVDD
AA4
XVDD
AA3
XVDD
AA2
XVDD
AA1
XVDD
Y8
XVDD
Y7
XVDD
Y6
XVDD
Y5
XVDD
Y4
XVDD
Y3
XVDD
Y2
XVDD
Y1
XVDD
W8
XVDD
W7
XVDD
W5
XVDD
W4
XVDD
W3
XVDD
W2
XVDD
V8
XVDD
V7
XVDD
V6
XVDD
V5
XVDD
V4
XVDD
V3
XVDD
V2
XVDD
V1
XVDD
U8
XVDD
U7
XVDD
U6
XVDD
U5
XVDD
U4
XVDD
U3
XVDD
U2
XVDD
U1
XVDD
C235
4.7u_6.3V_X5R_06
C218
4.7u_6.3V_X5R_06
C187
0.1u_10V_X5R_04
C142
22u _6. 3V_X5R _08
C252
4.7u_6.3V_X5R_06
C228
4. 7u_ 6. 3V_X5R _06
NC for 4-Lyr cards
17/ 19 G ND_ 2/2
O pt ional CM D GN Ds (2 )
COMMON
BGA_0 908_P080_P085_P1 00_ 290X290
U21I
GK107-650-A2
AG11
GND
T22
GND
T20
GND
T2
GND
T18
GND
T17
GND
T15
GND
T13
GND
R23
GND
R21
GND
R19
GND
R16
GND
R14
GND
R12
GND
P22
GND
P20
GND
P18
GND
P17
GND
P15
GND
P13
GND
N7
GND
N5
GND
N33
GND
N32
GND
N30
GND
N28
GND
N23
GND
N21
GND
N2
GND
N19
GND
W32
GND_OPT
C16
GND_OPT
AH11
GND
Y23
GND
Y21
GND
Y19
GND
Y16
GND
Y14
GND
Y12
GND
W28
GND
W22
GND
W20
GND
W18
GND
W17
GND
W15
GND
W13
GND
V23
GND
V21
GND
V19
GND
V16
GND
V14
GND
V12
GND
U23
GND
U21
GND
U19
GND
U16
GND
U14
GND
U12
GND
T7
GND
T5
GND
T32
GND
T28
GND
C202
4.7u_6. 3V_X5R_06
C234
4.7u_6.3V_X5R_06
C205
4. 7u_ 6. 3V_X5R _06
C224
4.7u_6.3V_X5R_06
C242
4. 7u_ 6. 3V_X5R _06
C215
4.7u_6.3V_X5R_06
C206
4.7u_6.3V_X5R_06
16/ 19 GND _1/2
COMMON
BGA_0908_P080_P085_P100_290X290
U21G
GK107-650-A2
AM22
GND
AM19
GND
AM16
GND
AM13
GND
AL5
GND
AL33
GND
AL32
GND
AL30
GND
AL28
GND
AL26
GND
AL24
GND
AL23
GND
AL21
GND
AL20
GND
AL2
GND
AL18
GND
AL17
GND
AL15
GND
AL14
GND
AL12
GND
AK7
GND
AK10
GND
AJ7
GND
AH7
GND
AH5
GND
AH33
GND
AH32
GND
AH30
GND
AH29
GND
AH28
GND
AH24
GND
AH22
GND
AH2
GND
AH19
GND
AH16
GND
AH13
GND
AA15
GND
AH10
GND
AE7
GND
AE5
GND
AE33
GND
AE32
GND
AE30
GND
AE28
GND
AE2
GND
AC22
GND
AC20
GND
AA13
GND
AC18
GND
AC17
GND
AC15
GND
AC13
GND
AB7
GND
AB5
GND
AB32
GND
AB30
GND
AB28
GND
AB23
GND
A33
GND
AB21
GND
AB2
GND
AB19
GND
AB16
GND
AB14
GND
AB12
GND
AA22
GND
AA20
GND
AA18
GND
AA17
GND
A2
GND
N16
GND
N14
GND
N12
GND
M22
GND
M20
GND
M18
GND
M17
GND
M15
GND
M13
GND
K7
GND
K5
GND
K33
GND
K32
GND
K30
GND
K28
GND
K2
GND
G7
GND
G5
GND
G33
GND
G32
GND
G30
GND
G3
GND
G28
GND
G25
GND
G22
GND
G2
GND
G19
GND
G16
GND
G13
GND
G10
GND
F7
GND
F28
GND
E7
GND
E5
GND
E25
GND
E22
GND
E10
GND
D33
GND
D31
GND
D2
GND
C7
GND
C28
GND
C25
GND
C22
GND
C19
GND
C13
GND
C10
GND
B7
GND
B4
GND
B34
GND
B31
GND
B28
GND
B25
GND
B22
GND
B10
GND
B1
GND
AP33
GND
AP2
GND
AN7
GND
AN4
GND
AN3 4
GND
AN3 0
GND
AN2 5
GND
AN2 2
GND
AN1 9
GND
AN1 6
GND
AN1 3
GND
AN1 0
GND
AN1
GND
AM25
GND
NVVDD44
NVVDD NVVDD
Schematic Diagrams
PantherPoint - M 1/9 B - 21
B.Schematic Diagrams
PantherPoint - M 1/9
SATA HDD2
SATA_ODD_PRSNT# 20,25
SATA_TXN2
SATA_RXN2
SATA_RXP2
SATA_TXP2
Board ID
SATAICOMP
SATA_DET#0
INTVRMEN- Integrated SUS 1.05V VRM Enable
High - Enable Internal VRs /Low - Enable External VRs
Zo=
50£[¡Ó15%
J_ODD1
*87151-1807G
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Flash Descriptor
Security Overide
Low = Disabled-(Default)
High = Enabled
PCH_JTAG_TDO
PCH_JTAG_TCK_BUF
PCH_JTAG_TDI
PCH_J TAG_TMS
SATA_LED#
Closed to U4
Layout Note:
6-03-08265-0S0
iTPM ENABLE/DISABLE
TPM FUNCTION:SPI_SI High Enable
J_CBAT1
CI4402M1VR0-LF
1
2
6-22-32R76-0BG
6-22-32R76-0B2
R531
*10mil_short
BBS_BIT0
M-SATA
SATA3COMP
PantherPoint - M (HDA,JTAG,SATA)
SATA ODD
RBIAS_SATA3
E-SATA HDD
SPI_SI
NO REBOOT STRAP
NO REBOOT STRAP: HDA_SPKR High Enable
RTC_VBAT
SM_INTRUDER#
20mils
RTC CLEAR
20mils
RTC CLEAR
JOPEN 3
*OPEN_10mil-1MM
12
PCH_INTVRMEN
RTC_X1
SPI_SCLK_R
SRTC_RTC#
R523 33_04
PCH_JTAG_TDI
PCH_JTAG_TMS
RTC_X2
JOPEN3
OPEN:SAVE ME RTC REGISTER
SHORT:CLER ME RTC REGISTER
R522 0_04 SPI_CS_0#
J_ODD2
15-044-1A30
S1
S2
S3
S4
S5
S6
S7
P1
P2
P3
P4
P5
P6
GND1
GND2
R519 33_04 SPI_SI_R
R411 33_04 SPI_SO_R
PLL ODVR VOLTAGE: HDA_SYNC
LOW-1.8 V (DEFAULT) HIGH-15V
R551
*0_04
16Mbit
VDD3
+VREG3
ODD Zero Power ODD
§»-P 85205-02701 6-20-41100-002
Ãv¯þ (Ááª÷) CI4402M2VR0-LF 6-20-41130-002
Ãv¯þ (Áá¿ü) CI4402M1VR0-LF 6-20-41140-002
RTC_VBAT_1
BBS_BIT0 - BIOS BOOT STRAP BIT 0
GEN1 56
GEN2 37.4
SATA HDD1
C716
*10u_10V_Y5V_08
SERIRQ
HDA_SPKR
2011.10.25
ME ROM
SPI_CS_0#
SPI_C S0#
SPI_VD D SPI_SI
SPI_WP#
SPI_SO
SPI_SCLK
SPI_* = 1.5"~6.5"
SPI_H OLD #
SPI_CS_0#
SPI_SI_R
SPI_CS_1#
SPI_SO_R
SPI_SCLK_R
Share ROM
SPI_SI_R
SPI_CS_1#
R202 0_04
½Ð¥¿-IÅ|
PIN GND1~4=GND
X4
MC-306_32.76 8KHz
14
3 2
U32
PCT25VF0 16B-75-4I-S2AF
CE# 1
SO 2
WP#
3
VSS 4
SI 5
SCK 6
HOLD#
7
VDD
8
C657
1u_6.3V_X5R_04
R388 *1K_04
NC3
SHORT
JOPEN2
*OPEN_10mil-1MM
12
C577
*2.2u_6.3V_Y5V_06
R147
3.3K _1%_04
C293
0.01u_16V_X7R _04
R521 33_04
R520 *0_04
R208 *10K_04
C699
*0. 1u_16V_Y 5V_04
C504
1u_6. 3V_X5R _04
R206
210_1%_06
SERI RQ
R473
1M_04
R161 49. 9_1%_04
R524 33_04
R148
3.3K _1%_04
R525 33_04
HSPI_SCLK36
3.3VS
SPI_SO_R
R467 *1K_04
HSPI_CE#36
HSPI_MSO36
HSPI_MSI36
R425 330K_04
C648
15p_50V_NPO_04
SPI_SCLK_R
R387 10K_04
R455
20K_1%_04
R165 *1K_04
R366
1K_04
C581
10u_10V_Y5V_08
R195
100_1%_04
R407
210_1%_06
R474
20K_1%_04
R99
*10K_04
R169 10K_04
D19 RB751S-40C 2
A C
R179 *1K_04
R460
10M_04
C248
1u_6. 3V_X5R_04
R404
100_1%_04
C651
15p_50V_NPO_04
C656 1u_6.3V_X5R_04
C357
0.1u_16V_Y5V_04
R444 1K_04
R374 750_1%_04
R471 *910_04
R198 *10K_04
R409
51_04
Q6
MTN7002ZH S3
G
DS
C
A
A
D14
BAT54CS3
1
2
3
C575
*0.1u_16V_Y5 V_04
RTCIHDA
SATA
LPC
SPI JTAG
SATA 6G
U23A
PCH pant her point ES2
RTCX1
A20
RTCX2
C20
INTVRMEN
C17
INTRUDER#
K22
HDA_BCLK
N34
HDA_SYNC
L34
HDA_RST#
K34
HDA_SDIN0
E34
HDA_SDIN1
G34
HDA_SDIN2
C34
HDA_SDO
A36
SATALED# P3
FWH0 / LAD0 C38
FWH1 / LAD1 A38
FWH2 / LAD2 B37
FWH3 / LAD3 C37
LDRQ1# / GPIO23 K36
FWH4 / LFRAME# D36
LDRQ0# E36
RTCRST#
D20
HDA_SDIN3
A34
HDA_DOCK_EN# / GPIO33
C36
HDA_DOCK _RST# / GPIO13
N32
SRTCRST#
G22
SATA0R XN AM3
SATA0RXP AM1
SATA0TXN AP7
SATA0TXP AP5
SATA1R XN AM10
SATA1RXP AM8
SATA1TXN AP11
SATA1TXP AP10
SATA2R XN AD7
SATA2RXP AD5
SATA2TXN AH5
SATA2TXP AH4
SATA3R XN AB8
SATA3RXP AB10
SATA3TXN AF3
SATA3TXP AF1
SATA4R XN Y7
SATA4RXP Y5
SATA4TXN AD3
SATA4TXP AD1
SATA5R XN Y3
SATA5RXP Y1
SATA5TXN AB3
SATA5TXP AB1
SATAICOMPI Y10
SPI_CLK
T3
SPI_CS0#
Y14
SPI_CS1#
T1
SPI_MOSI
V4
SPI_MISO
U3
SATA0GP / GPI O21 V14
SATA1GP / GPI O19 P1
JTAG_TCK
J3
JTAG_TMS
H7
JTAG_TDI
K5
JTAG_TDO
H1
SERIRQ V5
SPKR
T10
SATAI CO MPO Y11
SATA3CO MPI AB13
SATA3R CO MPO AB12
SATA3R BI AS AH1
C650
1u_6.3V_X5R_04
JOPEN 1
*OPEN_10mil-1MM
12
PJ5
*OPEN-2mm
12
R412 10K_04
R96 20K_1%_04
R164 37. 4_1%_04
Q5
MTP3403N3
G
D S
R194
210_1%_06
R207
100_1%_04
R93
100K_04
PCH_JTAG_TDO
RTCVCC
RTCVCC
PCH_JTAG_TCK_BUF
3.3VS
3.3VS
3.3VS
1.0 5S_SA TA3
RTC_RST#
3.3A_1.5A_HDA_I O
3.3A_1.5A_HDA_I O
+V1.05S_VCC _SATA
5VS_ODD
3.3V
3.3V
3.3VS
3.3VS
5VS5VS
HDA_SYNC35
HDA_BITCLK35
HDA_SDIN035
LPC_AD 0 30, 36
HDA_SPKR35
HDA_SDOUT35
HDA_RST#35
LPC_AD 3 30, 36
LPC_AD 2 30, 36
LPC_AD 1 30, 36
VDD329,30, 32, 36,37,38,45
SERIRQ 30,36
LPC_F R AME# 30,36
3.3V2,3,6,11,18,21,22,24,2 5,26 ,27, 29, 30,31, 35,37,39,40, 41
RTCVCC22,27
3.3VS3,9, 10, 11, 21, 22, 23, 24, 25,26,27,29,30,32, 33, 34, 35, 36, 37, 42, 44
LED_IGPU#33
5VS11,26,27,29,30,33, 34, 35, 37, 42, 44
SATA_LE D# 33
3.3A_1.5A_HDA_IO27
SATA_DET#0 25
1.05VS6,21,22, 26,27,37,4 0,4 1,42
ME _W E36
SATA_RXN3 29
SATA_TXP3 29
SATA_TXN3 29
SATA_RXP3 29
SATA_RXP0 33
SATA_RXN0 33
SATA_RXP1 33
SATA_RXN1 33
SATA_TXP0 33
SATA_TXN 0 33
SATA_ODD_PWRGT 25
SATA_TXP1 33
SATA_TXN 1 33
SATATXN4 31
SATARXP4 31
SATARXN4 31
SATATXP4 31
FP->AT13035BAA089
C990326
SATA_TXN2
SATA_RXN2
SATA_RXP2
SATA_TXP2
5VS_ODD
SATA_OD D_D A# 20 ,24
ODD CONN
W150ER
W170ER
C592 0.01u_16V_X7R_04
C584 0.01u_16V_X7R_04
C585 0.01u_16V_X7R_04
C590 0.01u_16V_X7R_04
SATA_RXN2
SATA_RXP2
C170 0. 01u_16V_X7R_04
SATA_TXP2
SATA_TXN2
C174 0. 01u_16V_X7R_04
C197 0. 01u_16V_X7R_04
C207 0. 01u_16V_X7R_04
SATA_ODD_PRSNT# 20,25
5VS_ODD
SATA_ODD_DA# 20,24

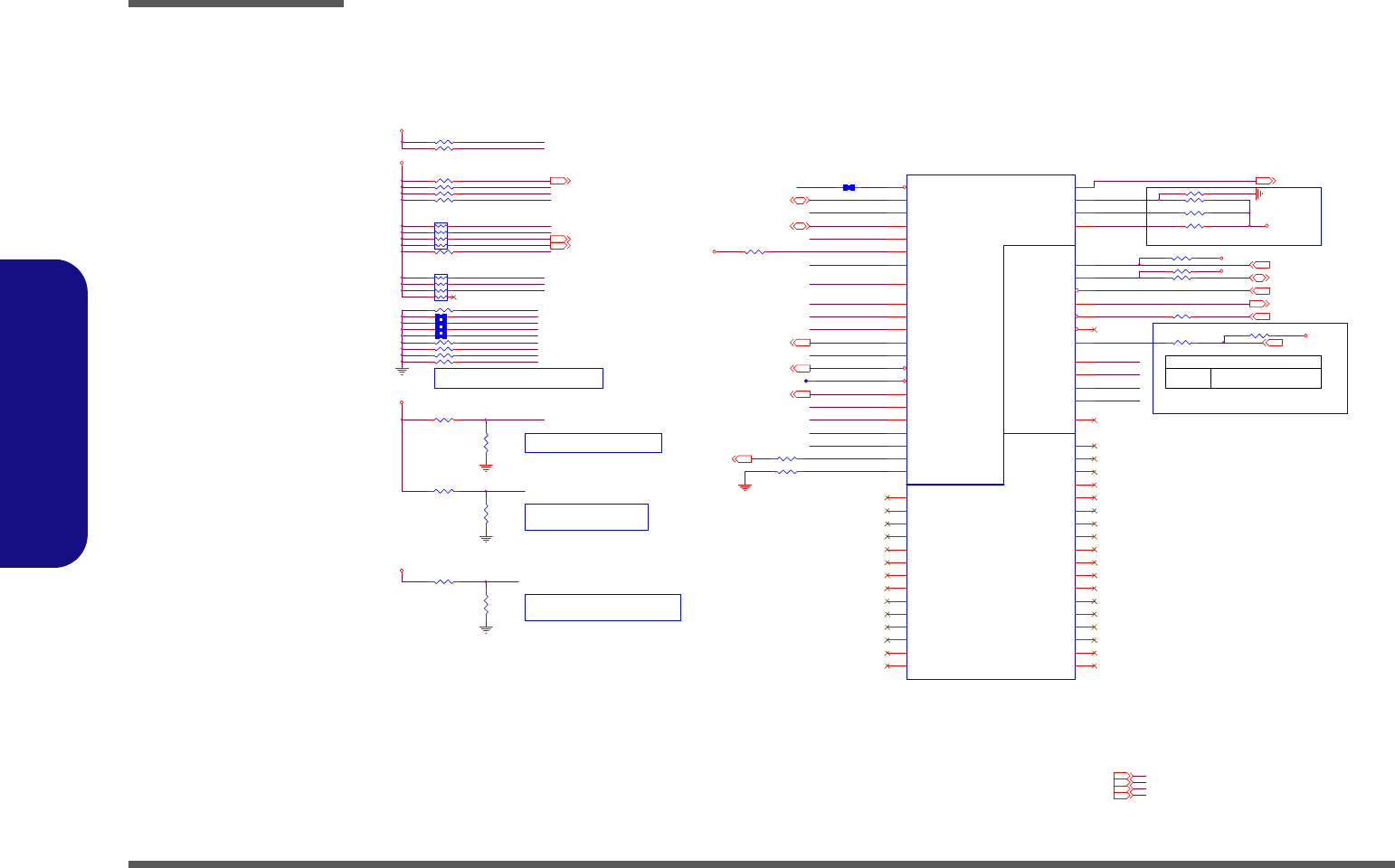

Schematic Diagrams
B - 22 PantherPoint - M 2/9
B.Schematic Diagrams
PantherPoint - M 2/9
CLK_BUF _C KSSC D_P
CLK_BUF _C KSSC D_N
CLK_BUF_DOT96_P
FSX8L_25MHz¥Ø«e¦@¥Î®Æ
PEG_PC IEC LKRQ7#
H_PECI 3,25,36
PCH _XTAL_IN
FLEX_GLAN_CLK 32
PEG_B_C LKRQ#
CLK_BUF_DOT96_P
10K pull-down to
GND
CLK_BUF_DOT96_N
CL_CLK1
CL_DATA1
CL_RST#1
X7
X8 A0 2 50 0 0F G1 H _ 2 5 MH z
1 2
R381 *10mil_short
CLK_PCIE_MINI#29
CLK_PCIE_MINI29
PCIECLKR Q0#
CLK_PC IE_GLAN32
CLK_PCIE_GLAN#32
CLK_PCIE_ICH_N
CLK_PCIE_ICH_P
CLK_BUF_CPY CLK_N
RN15
10K_8P4R_04
1
2
3
45
6
7
8
3.3VS
CLK_PCIE_ICH_P
CLK_PCIE_ICH_N
CLK_BUF_REF14
PEG_C LKREQ#
SMB_DATA
SMB_CLK
C2 97 0.1u _10V _X7R_ 04
C2 98 0.1u _10V _X7R_ 04
PCIE_R XN3_WLAN29
PC IE_TXN 3_WLA N29
PCIE_TXP3_WLAN29
PCIE_R XP3_WLAN29
PCIE_TXP3_C
PCIE_TXN3_C
PCH _GPIO66
RN5
*10K_8P4R_04
1
2
3
45
6
7
8
PCIECLKRQ0#
PCIECLKR Q5#
PCIECLKRQ1#
PCIECLKR Q6#
LAN_CLKREQ# R209 10K_04
33MHz
100MHz
RN18
2.2K_8P4R_04
1
2
3
45
6
7
8
SMB_DATA
SMB_CLK
CLK_PCIE_MINIP
CLK_PC IE_GLANP
CLK_BUF_CPY CLK_P
R449 2.2K_04
SML1DATA
PEG_PC IEC LKRQ7#
R218 2.2K_04
R145 *10mil_short
100MHz
RN21
10K_8P4R_04
1
2
3
45
6
7
8
R372 *10mil_short
R379 *10mil_short
R155 10K_04
R158 10K_04
DRAMRST_CNTRL
PantherPoint - M (PCI-E,SMBUS,CLK)
R380 *10mil_short
Lane 1 X
Lane 2 X
Lane 3 WLAN
Lane 4 GLAN / CARD READER
Lane 5 X
Lane 6 X
Lane 7 X
Lane 8 X
UsagePCI-E x1
RN19
10K_8P4R_04
1
2
3
45
6
7
8
R527 10K_04
R176 *10mil_short
SML1CLK
PCH _BT_EN#
DGPU_PRSNT# R397 *10K_04
XC L K _ R C O M P
PCIECLKR Q6#
90.9-£[ ¡Ó1% pullup to
+VccIO
(1.05V, S0 rail)close to
PCH
C3 00 0.1u _10V _X7R_ 04
C2 99 0.1u _10V _X7R_ 04
PCIE_RXN4_GLAN32
PCIE_TXN4_GLAN32
PCIE_TXP4_GLAN32
PCIE_RXP4_GLAN32
PCIE_TXP4_C
AC_PRESENT22,24,36
PCIE_TXN4_C
AC_PRESENT
CLK_BUF_CKSSCD_N
CLK_BUF_CKSSCD_P
XTA L 2 5 _O U T
XTA L 2 5 _I N
R386
1M_04
VGA_PEXCLK
VGA_PEXCLK#
C623 18p_50V_NPO_04
SML0_CLK
SML0_DATA
R 382 90 .9 _1%_ 04
C621 18p_50V_NPO_04
CLK_BUF_DOT96_N
R140 *10mil_short
R144 *10mil_short
R220 1K_04
3.3V
3.3V2,3,6,11,18,20,22,24,25,26,27,29,30,31,35,37,39,40,41
1.05VS6,22,26,27,37,40,41,42
1. 05V S
SMB_DATA 9,10,29
SMB_CLK 9,10,29
3.3VS3,9,10,11,20,22,23,24,25,26,27,29,30,32,33,34,35,36,37,42,44
WLAN_CLKREQ#29
CLK_PCI_FB 24
LAN_CLKR EQ#24, 32
CLK_DP_P 3
CLK_DP_N 3
CLK_EXP_N 3
CLK_EXP_P 3
PEG_C LKR EQ# 12
VGA_PEXCLK# 12
VGA_PEXCLK 12
CL_CLK1 29
CL_RST#1 29
CL_DATA1 29
SML1DATA 29,36
SML1CLK 29,36
DRAMRST_CNTRL 3,6
R156 *10mil_short
120MHz
R401 *0_04
DGPU_PRSNT#
R395 10K_04
DGPU_PRSNT#
R177 *10K_04
PCIECLKR Q2#
CLK_BUF_CPYCLK_P
CLK_BUF_CPYCLK_N
PCH_CLK_DP_N_R
PCH_CLK_DP_P_R
PCH_BT_EN# 29
PCH _BT_EN#
CLK_BUF_REF14
R363 33_04
D R AMR ST_C N TR L
R361 33_04
CLK_XDP_P
CLK_XDP_N
PEG_C LKREQ#
100MHz
100MHz
CLK_PCIE_MININ
CLK_PC IE_GLANN
R162 *10mil_short
LPD_SPI_INTR#
R160 *10mil_short
SML0_DATA
LPD_SPI_INTR#
SML1CLK
SML1DATA
SML0_CLK
PCI-E*
CLOCKS
FLEX CLOCKS
SMBUSController
Link
U23B
PCH panther point ES2
PERN1
BG34
PERP1
BJ34
PERN2
BE34
PERP2
BF34
PERN3
BG36
PERP3
BJ36
PERN4
BF36
PERP4
BE36
PERN5
BG37
PERP5
BH37
PERN6
BJ38
PERP6
BG38
PERN7
BG40
PERP7
BJ40
PERN8
BE38
PERP8
BC38
PETN1
AV32
PETP1
AU32
PETN2
BB32
PETP2
AY 32
PETN3
AV34
PETP3
AU34
PETN4
AY 34
PETP4
BB34
PETN5
AY 36
PETP5
BB36
PETN6
AU36
PETP6
AV36
PETN7
AY 40
PETP7
BB40
PETN8
AW38
PETP8
AY 38
CLKOUT_PCIE0N
Y40
CLKOUT_PCIE0P
Y39
CLKOUT_PCIE1N
AB49
CLKOUT_PCIE1P
AB47
CLKOUT_PCIE2N
AA48
CLKOUT_PCIE2P
AA47
CLKOUT_PCIE3N
Y37
CLKOUT_PCIE3P
Y36
CLKOUT_PCIE4N
Y43
CLKOUT_PCIE4P
Y45
CLKOUT_PCIE5N
V45
CLKOUT_PCIE5P
V46
CLKIN_GND 1_N BJ30
CLKIN_GND1_P BG30
CLKIN_DMI_N BF18
CLKIN_DMI_P BE18
CLKIN_DOT_96N G24
CLKIN_DOT_96P E24
CLKIN_SATA_N AK7
CLKIN_SATA_P AK5
XTAL25_IN V47
XT A L 2 5 _ O U T V49
REFCLK14IN K45
CLKI N _PCILOOPBACK H45
CLKOU T_PEG_A_N AB37
CLKOUT_PEG_A_P AB38
PEG_A_CLKR Q# / GPIO47 M10
PCIECLKRQ0# / GPIO73
J2
PCIECLKRQ1# / GPIO18
M1
PCIECLKRQ2# / GPIO20
V10
PCIECLKRQ3# / GPIO25
A8
PCIECLKRQ4# / GPIO26
L12
PCIECLKRQ5# / GPIO44
L14
CLKOUTFLEX0 / GPIO64 K43
CLKOUTFLEX1 / GPIO65 F47
CLKOUTFLEX2 / GPIO66 H47
CLKOUTFLEX3 / GPIO67 K49
CLKOUT_DMI_N AV22
CLKOUT_DMI_P AU22
PEG_B_CLKRQ# / GPIO56
E6
CLKOUT_PEG_B_P
AB40 CLKOUT_PEG_B_N
AB42
XC L K _R C O MP Y47
CLKO UT_DP_P AM13
CLKOUT_DP_N AM12
CLKOUT_PCIE6N
V40
CLKOUT_PCIE6P
V42
PCIECLKRQ7# / GPIO46
K12
CLKOUT_PCIE7N
V38
CLKOUT_PCIE7P
V37
CLKOUT_ITPXDP_N
AK14
CLKOUT_ITPXDP_P
AK13
SMBALERT# / GPIO11 E12
SMBCLK H14
SMBDATA C9
SML0ALERT# / GPI O60 A12
SML0CLK C8
SML0DATA G12
SML1ALER T# / PC H H OT# / GPIO74 C13
SML1CLK / GPIO58 E14
SML1DATA / GPIO75 M16
CL_CLK1 M7
CL_DATA1 T11
CL_RST1# P10
PCIECLKRQ6# / GPIO45
T13
PCIECLKR Q2#
LAN_CLKREQ#
PEG_B_C LKRQ#
PCIECLKR Q5#
PCIECLKR Q1#

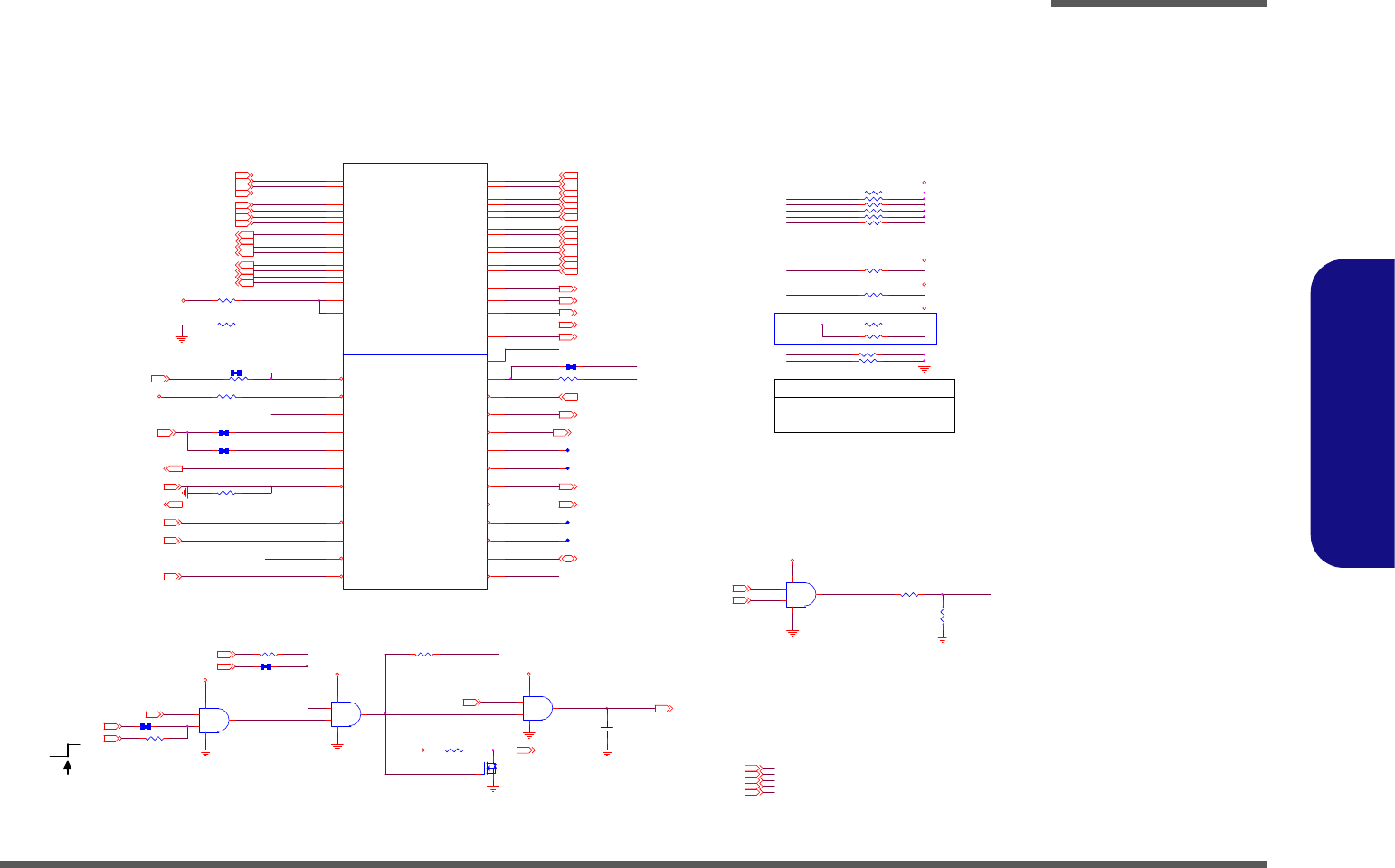

Schematic Diagrams
PantherPoint - M 3/9 B - 23
B.Schematic Diagrams
PantherPoint - M 3/9
DSWODVREN
DMI
FDI
System Power Management
U23C
PCH p ant her point ES2
DMI0RXN
BC24
DMI1RXN
BE20
DMI2RXN
BG18
DMI3RXN
BG20
DMI0RXP
BE24
DMI1RXP
BC20
DMI2RXP
BJ 18
DMI3RXP
BJ 20
DMI0TXN
AW24
DMI1TXN
AW20
DMI2TXN
BB18
DMI3TXN
AV18
DMI0TXP
AY 24
DMI1TXP
AY 20
DMI2TXP
AY 18
DMI3TXP
AU18
DMI_ZCOMP
BJ 24
DMI_IRCOMP
BG25
FDI_RXN0 BJ 14
FDI_RXN1 AY 14
FDI_RXN2 BE1 4
FDI_RXN3 BH 13
FDI_RXN4 BC 12
FDI_RXN5 BJ 12
FDI_RXN6 BG10
FDI_RXN7 BG9
FDI_RXP0 BG14
FDI_RXP1 BB14
FDI_RXP2 BF14
FDI_RXP3 BG13
FDI_RXP4 BE12
FDI_RXP5 BG12
FDI_RXP6 BJ10
FDI_RXP7 BH9
FDI_FSY NC0 AV1 2
FDI_FSY NC1 BC 10
FDI_LSYNC0 AV14
FDI_LSYNC1 BB10
FDI_INT AW16
PMSYNCH AP14
SLP_SUS# G16
SLP_S3# F4
SLP_S4# H4
SLP_S5# / GPIO63 D10
SYS_RESET#
K3
SYS_PWROK
P12
PWRBTN#
E20
RI#
A10
WAKE# B9
SUS_STAT# / GPIO61 G8
SUSCLK / GPIO62 N14
ACPRESENT / GPIO31
H20
BATLOW# / GPIO72
E10
PWROK
L22
CLKRUN# / GPIO32 N3
SUSWARN#/SUSPWRDNACK/GPIO30
K16
RSMRST#
C21
DR AMPWROK
B13
SLP_LAN # / GPI O29 K14
APWROK
L10
DPWROK E22
DMI2RBIAS
BH21
SLP_A# G10
DSWVRMEN A18
SUSACK#
C12
PM_PCH_PWROK_R
R680
DSWODVREN - On Die DSW VR Enable
PM_MPWR OK
PCIE_WAKE#
SWI#
SUS_PWR_ACK
1.05VS_VTT2 ,3, 5, 25, 26,27, 37
ALL_SY S_PW RGD 11, 36, 42
U13C
74LVC 08PW
9
10
8
147
PM_MPWR OK
R461 * 10K_04
PM_PCH _PW RO K22,36
SLP_A#
PM_PCH _PWROK22, 36
R448 *10K_04
PM_SLP_LAN#
R446 10K_04
R219 10K_04
R462 *10mil_short
R548 * 10mil_s hort
DD R _1.05VS_PWRGD
R557 *10mil_short
R558 *10mil_short
R561 *10mil_short
R681
SUS_PW R_ACK
DMI_2R BIAS
C371
*0.1u_10V_X5R_04
DMI_COMP_R
SLP_S5#
PM_CLKR UN #
PCIE_WAKE#
SLP_SUS#
Disabled
PWR_BTN#
SY S_RESET#
0.85VS_PWRGD39
3.3V
SUSCLK
1.05VS_VTT_EN
PantherPoint -M (DMI,FDI,GPIO)
PCH_DPWROK
R410 * 0_04
SWI #
PM_BATLOW#
+VR EG3
PCH_DPWROK R552 *10K_04
PCH_DPWROK R553 *10 0K_04
R556 *0_04
SUSACK#36
R399 1K_04
R428 10K_04
R364 49.9_1%_04
R225 8.2 K_04
R426 330K_04
R427 *330K_04
SUS_PWR_AC K
R418 1K_04
R111 *10K_04
U13B
74LVC08PW
4
5
6
147
1.05VS_PWRGD22, 41
U13A
74LVC0 8PW
1
2
3
147
1.8VS_PWRGD3, 22,39
R221 *10K_04
R367 750_1%_04
1.8VS_PWRGD3,22,39
3.3V
3.3V
R559 *0_04
RTCVCC
1.05VS
3.3VS
3.3V
3.3V
3.3VS3,9,10, 11, 20, 21, 23,24, 25, 26, 27,29,30,32, 33, 34, 35, 36, 37, 42, 44
3.3V2,3,6,11,18,20, 21, 24, 25, 26, 27, 29, 30,31,3 5,37 ,39, 40,41
1.05VS6, 21, 26, 27,37,40,41,42
R560 *0_04
FDI_TXP6 2
FDI_TXP7 2
DDR1.5V_PWRGD40
FDI_TXP2 2
FDI_TXP3 2
FDI_TXP4 2
FDI_TXP5 2
1.05VS_PWRGD22,41
FDI_TXN5 2
FDI_TXP0 2
FDI_TXP1 2
FDI_TXN1 2
FDI_TXN6 2
FDI_TXN0 2
FDI_TXN3 2
FDI_TXN2 2
FDI_TXN7 2
FDI_FSYNC0 2
FDI_INT 2
FDI_TXN4 2
PM_CLKR UN# 30
FD I _LSYN C1 2
FD I _LSYN C0 2
FDI_FSYNC1 2
SUSC# 36,40
SUSB# 6, 36,37,3 9
H_PM_SYNC 3
PWR _BTN#36
AC_PR ESENT21,24, 36
SWI#36
PM_DRAM_PWRGD3
SUS_PWR_ACK36
RSMRST#36
RTCVCC20,27
S4_S TA TE # 30
PCI E_W AKE# 29, 32
DELAY_PWRGD42
DMI_RXN02
DMI_RXP02
DMI_RXN32
DMI_RXN22
DMI_RXN12
DMI_RXP32
DMI_RXP22
DMI_RXP12
DMI_TXN22
DMI_TXN12
DMI_TXN02
DMI_TXP12
DMI_TXP02
DMI_TXN32
DMI_TXP32
DMI_TXP22
Enabled (DEFAULT)
U13D
74LVC 08PW
12
13
11
147
R463 *10mil_short
SY S_PWR OK
PM_SLP_LAN#
RSMRST#RSMRST#_R
R468 1K_0 4
ALL_SY S_PW RGD
DSWODVREN
3.3V R244 10K_04
Q9
MTN7002ZHS3
G
DS
1.05VS_VTT_EN# 37
SUS_PWR_A CK_R
-n±µSUSB# -->§_«h1.05VS_VTT¦bSU SPEND®É¤£·|Ãö¹q
PM_BATLOW#
R457
*10K_04
ON
SY S_PW ROKSY S_ PWR _OK
PWR _BTN#
AC_PR ESENT
PM_CLKRU N# R 392 8.2K_04
3.3VS
Schematic Diagrams
B - 24 PantherPoint - M 4/9
B.Schematic Diagrams
PantherPoint - M 4/9
LVDS
Digital Display Interface
CRT
U23D
PCH panther point ES2
L_BKLTCTL
P45
L_BKLTEN
J47
L_CTRL_CLK
T45
L_CTRL_DATA
P39
L_DDC_CLK
T40
L_DDC_DATA
K47
L_VDD_EN
M45
LVDSA_CLK#
AK39
LVDSA_C LK
AK40
LVDSA_D ATA#0
AN48
LVDSA_D ATA#1
AM47
LVDSA_D ATA#2
AK47
LVDSA_D ATA#3
AJ48
LVDSA_D ATA0
AN47
LVDSA_D ATA1
AM49
LVDSA_D ATA2
AK49
LVDSA_D ATA3
AJ47
LVDSB_CLK#
AF40
LVDSB_C LK
AF39
LVDSB_D ATA#0
AH45
LVDSB_D ATA#1
AH47
LVDSB_D ATA#2
AF49
LVDSB_D ATA#3
AF45
LVDSB_D ATA0
AH43
DDPB_0N AV4 2
DDPB_1N AV4 5
LVD_VREF H
AE48
LVD_VREF L
AE47
DDPD_2N BF42
DDPD_3N BJ 42
DDPB_2N AU 48
DDPB_3N AV4 7
DDPC_0N AY 47
DDPC_1N AY 43
DDPC_2N BA47
DDPC_3N BB47
DDPD_0N BB43
DDPD_1N BF44
DDPB_0P AV40
DDPB_1P AV46
DDPD_2P BE42
DDPD_3P BG42
DDPB_2P AU 47
DDPB_3P AV49
LVDSB_D ATA1
AH49
LVDSB_D ATA2
AF47
LVDSB_D ATA3
AF43
LVD_IBG
AF37
LVD_VBG
AF36
DDPC_1P AY 45
DDPC_0P AY 49
DDPC_2P BA48
DDPC_3P BB49
DDPD_0P BB45
DDPD_1P BE44
CRT_BLUE
N48
CRT_DDC_CLK
T39
CRT_DDC_DATA
M40
CRT_GREEN
P49
CRT_HSYNC
M47
CRT_IRTN
T42
CRT_RED
T49
CRT_VSYN C
M49
DAC_IREF
T43
SDVO_CTRLCLK P38
SDVO_CTRLDATA M39
DDPC_CTRLCLK P46
DDPC_CTRLDATA P42
DDPD_CTRLCLK M43
DDPD_CTRLDATA M36
DDPB_AUXN AT49
DDPC_AUXN AP47
DDPD_AUXN AT45
DDPB_AUXP AT47
DDPC_AUXP AP4 9
DDPD_AUXP AT43
DDPB_HPD AT40
DDPC_HPD AT38
DDPD_HPD BH 41
SDVO_TVCLKINP AP4 5
SD VO _TVC LK IN N AP43
SD VO_ STAL LP AM40
SDVO_STALLN AM42
SDVO_INTP AP40
SDVO_INTN AP3 9
RN16
2.2K_8P4R_04
81
72
6
5
3
4
DAC_BLUE
HDMI_CTRLDATA
DAC_IREF_R
External Graphics (PCH Integrated Graphics Disable)
Connect to GND
3.3VS3,9,10,11,20,21,22,24,25,26,27,29,30,32,33,34,35,36,37,42,44
PantherPoint -M (LVDS,DDI)
HDMIC_CLKCN
HDMIC_CLKCP
PORTC_HPC
HDMI_CTRLDATA
HDMIC_C2CP
HDMIC_C1CP
HDMIC_C1CN
HDMIC_C2CN
HDMI_CTRLCLK
HDMIC_C0CP
HDMIC_C0CN
HDMIC_CLKCP 34
HDMIC_CLKCN 34
HDMIC_C2CP 34
HDMIC_C2CN 34
HDMIC_C1CP 34
HDMIC_C1CN 34
HDMI_C TRL CLK 34
HDMIC_C0CP 34
HDMIC_C0CN 34
HDMI_CTRLDATA 34
DAC_RED
DAC_GREEN DAC_GREEN
DAC_RED
L_CTRL_CLK
Display Port D Display Port C Display Port B
SDVO
PORTC_HPC 34
DAC_BLUE
L_CTRL_DATA
Ver:1.0
pull up 2.2K
R172 150_1%_04
R173 1K_1%_04
R146 2.37K_1%_04
R182 150_1%_04
R185 150_1%_04
5VS11, 20,26,27, 29,30, 33, 34,35,37,42,44
LVD S-L0N11
LVDS-LCLKP11
LVDS-LCLKN11
LVD S-L1P11
LVD S-L0P11
LVD S-L2N11
LVD S-L1N11
P_DDC_DATA11
P_DDC_CLK11
LVD S-L2P11
DAC_HSYNC11
NB_ENAVDD11,36
BLON11
DAC_DDCADATA11
DAC_DDCACLK11
DAC_VSYNC11
DAC_RED11
DAC_GREEN11
LVD S-U2N11
LVD S-U1N11
LVD S-U0N11
LVD S-U0P11
LVD S-U2P11
LVD S-U1P11
DAC_BLUE11
LVD S-UCLKP11
LVD S-UCLKN11
LVDS_I BG
3.3VS
L_CTRL_DATA
L_CTRL_CLK
HDMI_CTRLCLK
Schematic Diagrams
PantherPoint - M 5/9 B - 25
B.Schematic Diagrams
PantherPoint - M 5/9
SCI#25,36
USB 3.0 MAPING USB2.0
SMI#25,36
USB 3.0 P1
INT_PIRQE#
INT_PIRQA#
SATA_OD D_D A#
INT_PIR QE#
USB_OC#23 31
CLK_PCI_FB21 CLK_PCI_FB_R
USB 3.0 PORT0
CCD
3G
INT_PIRQH#
INT_PIRQG#
SATA_ODD_DA#
INT_PIRQE#
RSVD
PCI
USB
U23E
PCH pant her point ES2
RSVD23 AV5
RSVD1 AY 7
RSVD2 AV7
RSVD3 AU3
RSVD4 BG4
RSVD5 AT10
RSVD6 BC8
RSVD7 AU2
RSVD8 AT4
RSVD17 BB5
RSVD18 BB3
RSVD19 BB7
RSVD20 BE8
RSVD21 BD 4
RSVD22 BF6
RSVD9 AT3
RSVD10 AT1
RSVD11 AY 3
RSVD12 AT5
RSVD13 AV3
RSVD14 AV1
RSVD15 BB1
RSVD16 BA3
RSVD25 AT8
RSVD24 AV10
RSVD26 AY 5
RSVD27 BA2
RSVD28 AT12
RSVD29 BF3
PIRQA#
K40
PIRQB#
K38
PIRQC#
H38
PIRQD#
G38
REQ1# / GPIO50
C46
REQ2# / GPIO52
C44
REQ3# / GPIO54
E40
GNT1# / GPIO51
D47
GNT2# / GPIO53
E42
GNT3# / GPIO55
F46
PIRQE# / GPIO2
G42
PIRQF# / GPIO3
G40
PIRQG# / GPIO4
C42
PIRQH# / GPIO5
D44
USBP0N C24
USBP0P A24
USBP1N C25
USBP1P B25
USBP2N C26
USBP2P A26
USBP3N K28
USBP3P H28
USBP4N E28
USBP4P D28
USBP5N C28
USBP5P A28
USBP6N C29
USBP6P B29
USBP7N N28
USBP7P M28
USBP8N L30
USBP8P K30
USBP9N G30
USBP9P E30
USBP10N C30
USBP10P A30
USBP11N L32
USBP11P K32
USBP12N G32
USBP12P E32
USBP13N C32
USBP13P A32
PME#
K10
CLKOUT_PCI0
H49
CLKOUT_PCI1
H43
CLKOUT_PCI2
J48
USBRBIAS# C33
USBRBIAS B33
OC0# / GPIO59 A14
OC1# / GPIO40 K20
OC2# / GPIO41 B17
OC3# / GPIO42 C16
OC4# / GPIO43 L16
OC5# / GPIO9 A16
OC6# / GPIO10 D14
OC7# / GPIO14 C14
CLKOUT_PCI4
H40 CLKOUT_PCI3
K42
PLTRST#
C6
TP1
BG26
TP2
BJ26
TP3
BH25
TP6
AH38
TP7
AH37
TP8
AK43
TP9
AK45
TP16
Y13
TP17
K24
TP18
L24
TP19
AB46
TP20
AB45
TP21
B21
TP22
M20
TP23
AY 16
USB3Rn1
BE28
USB3Rn2
BC30
USB3Rn3
BE32
USB3Rn4
BJ32
USB3Rp1
BC28
USB3Rp2
BE30
USB3Rp3
BF32
USB3Rp4
BG32
USB3Tn1
AV26
USB3Tn2
BB26
USB3Tn3
AU28
USB3Tn4
AY 30
USB3Tp1
AU26
USB3Tp2
AY 26
USB3Tp3
AV28
USB3Tp4
AW30
TP4
BJ16
TP5
BG16
TP15
AM5 TP14
AM4 TP13
AH12 TP12
H3 TP11
N30 TP10
C18
TP24
BG46
CLK_PCI_KBC_R
PCLK_TPM_PCH
R406 *0_04
dGPU_PWR_EN#36,37,40,44
USB_BIAS
USB_OC #23
D_GPU_PWM_SELECT#
USB 3.0 P2
USB 3.0 P3
SMI#
USB3_RX1_N31
SCI#
FINGER
USB_OC #1213
USB 2.0 P0
USB 2.0 P1
USB3_RX2_N31
USB 2.0 P2
USB3_RX3_N31
DGPU_SELECT#
INT_PIRQG#
D_GPU_PWR _EN#
R526 *0_04
INT_PIRQD#
INT_PIRQC#
INT_PIRQB#
INT_PIRQA#
DGPU_HOLD_RST#
MPC Switch Control
MPC OFF -- 0 DEFAULT
MPC ON -- 1
USB_PP8 29
USB_PN8 29
USB 3.0 PORT2
R424 *0_04
dGPU_RST#36
WLAN
USB_PP10 29
USB_PN10 29
INT_PIRQC#25
INT_PIRQD#25
Flash Descriptor security override strap
HIGH = Default
LOW = PCI_GNT#3 swap override
PCI_GNT#3
USB 3.0 PORT1
USB_PP1 30
USB_PN1 30
HM65 NO SUPPORT PORT 6 & 7
R398 22_04
R421 22_04
LAN_CLKREQ#
LAN_CLKREQ#21,32
P LT_ R S T# 3 , 24 , 3 0
USB_OC #14
USB_OC#89 29
USB_OC #67
RN8
10K_8P4R_04
81
72
6
5
3
4
¥¿-IÅ|
USB_OC #1011
USB3_RX3_P31
USB3_RX2_P31
USB3_RX1_P31
INT_PIRQH#
INT_PIR QB#
D_GPU_PWM_SELECT#
PCI _GNT#3
BBS_BIT1
USB_OC #89
USB_OC #45
USB3_TX1_N31
USB3_TX1_P31
USB3_TX3_N31
USB3_TX2_N31
USB3_TX3_P31
USB3_TX2_P31
R429 22.6_1%_06
RN9
10K _8P 4R _04
8 1
7 2
6
5
3
4
U15
MC74VHC1G08DFT2G 1
2
5
4
3
R205 *22_04
R210 *0_04
RN20
10K _8P 4R _04
8 1
7 2
6
5
3
4
R430 *1K_04
C442* 0. 1u _16 V_Y 5V _04
KBC_MUTE#35,36
RN7
10K_8P4R_04
81
72
6
5
3
4
R239
100K_04
R211 *1K_04
RN17
10K_8P4R_04
81
72
6
5
3
4
R215 *1K_04
3.3V
3.3VS
BUF _PL T_RST#29,32,36
3.3V2,3,6,11,18,20,21,22,25,26,27,29,30,31,35,37,39,40,41
3.3V S3,9,10,11,20,21,22,23,25,26,27,29,30,32,33,34,35,36,37,42,44
3.3VS
AC_PRESENT 21,22,36
USB_OC#01 30
PCLK_KBC36
SATA_OD D_DA#20
PLT_RST#3,24,30
PME#32,36
PCLK_TPM30
USB_PN5 30
USB_PN0 31
USB_PP5 30
USB_PP0 31
USB_PP2 31
USB_PN2 31
USB_PP4 30
USB_PN4 30
USB_OC#67
USB_OC#45
USB_OC#23
USB_OC#01
USB_OC#89
BBS_BI T1
USB_OC#1213
USB_OC#14
USB_OC#1011
PCI_GNT#3
R514 *0_04
Understand the RED FONT define
PIN PLT_RST# to Buffer
BBS_BIT1 BBS_BIT0 Boot BIOS Location
0 0 LPC
0 1 Reserved (NAND)
1 0 PCI
1 1 SPI
Boot BIOS Strap
PL T_R ST#
PantherPoint -M (PCI,USB,NVRAM)
C573
1u_6.3V_X5R_04
U19
MC74VHC1G08DFT2G
1
2
5
4
3
R349
100K_04
R350
*0_04
PLT_ R ST# 3 , 24,30
R354
100K_04
dGPU _RST#
D_GPU_PWR _EN#
DGPU_SELECT#
DGPU_HOLD_RST# USB_PP9 29
USB_PN9 29
USB 2.0 PORT3
PERSTB#12
PERSTB#
3.3VS
Schematic Diagrams
B - 26 PantherPoint - M 6/9
B.Schematic Diagrams
PantherPoint - M 6/9
PLACE R464 CLOSE TO THE BRANCHING POINT
( TO CPT and NVRAM CONNECTOR
BIOS_R EC
HPECI_R
DGPU_PWROK
R441 10K_04
SATA_DET#4
EDID_SELECT#
FDI_OVRVLTG
PLL_ODVR_EN
HTHRMTRIP#_R
PLL_ODVR_EN:HIGH- ENABLED[DEFAULT]
LOW - DISABLED
INT_PIRQC# 24
KBC_RST#
R442 10K_04
SATA_DET#4
R375 43K_04
R422 1. 5K_1%_04
H_SN B_IVB# 3
3.3VS
R369 1K_04
R370 2.2K_04 1.8VS
FDI_OVRVLTG
ICC_EN#
SCI#
DGPU_HPD_IN TR#
PLL_ODVR_EN
R408 *10mil_s hort
1.8VS6,26,39
HOST_ALERT#1
TEST_SET_UP
INT_PIRQD#
INT_PIRQC#
CRIT_TEMP_REP#_R
LED_DGPU#33
SMI#
BIOS RECOVERY
DISABLE----HIGH (DEFAULT)
ENABLE-----LOW
SATA_ODD_PWRGT 20
INT_PIRQD# 24
RSVD_USB3_P5#
R562 1. 5K_1%_04
RSVD_TESTMODE
R186
*0_04
RN6
10K_8P4R_04
1
2
3
4 5
6
7
8
R178 10K_04
SATA_DET#0 20
SATA_DET#0
MFG_MODE
R389 43K_04
Huron River PU R423¡BR422 1.5K PD 1.5K
Chief River R423¡BR422¡BR562R PU 100K
SATA_ODD _PWRGT
S_GPI O
CR I T_TEMP_R EP# _R
SATA_ODD_PWRGT
S_GPIO
SATA_ODD _PR SNT#
SATA_DET#4
GFX_CRB_DET
R391 *0_04 SATA_DET#0
R248 *0_04
GFX_CRB_DET
ICC_EN#
R420
*1K_04
R419 *10K_04
RSVD_USB3_P4#
3.3V
R214 1K_04
INTEGRATED Clock Chip Enable
ICC_EN#: HIGH - DISABLED [DEFAULT]
LOW - ENABLED
KBC_RST#
R390 10K_04
PCH_TS_VSS3
PCH_TS_VSS2
PCH_TS_VSS1
PCH_TS_VSS4
R130 * 10mil_short
R134 * 10mil_short
R129 * 10mil_short
R133 * 10mil_short
HOST_ALERT#2
PCH_TS_VSS1
INTERNAL GFX: LOW (DEFAULT)
EXTERNAL GFX:HIGH
PCH_TS_VSS4
PCH_TS_VSS3
PCH_TS_VSS2
CPU/MISC
NCTF
GPIO
U23F
PCH panther point ES2
GPIO27
E16
GPIO28
P8
GPIO24
E8
GPIO57
D6
LAN_PHY_PWR_CTRL / GPIO12
C4
VSS_NCTF_1
A4
VSS_NCTF_2
A44
VSS_NCTF_3
A45
VSS_NCTF_4
A46
VSS_NCTF_5
A5
VSS_NCTF_6
A6
VSS_NCTF_7
B3
VSS_NCTF_8
B47
VSS_NCTF_9
BD1
VSS_NCTF_10
BD49
VSS_NCTF_11
BE1
VSS_NCTF_12
BE49
TACH2 / GPIO6
H36
TACH0 / GPIO17
D40
TACH3 / GPIO7
E38
SATA3GP / GPIO37
M5
SATA5GP / GPIO49 / TEMP_ALERT#
V3
SCLOCK / GPIO22
T5
SLOAD / GPI O38
N2
SDATAOUT0 / GPIO39
M3
SDATAOUT1 / GPIO48
V13
PROC PW R GD AY 11
RCIN# P5
PECI AU 16
THRMTRIP# AY 10
GPIO8
C10
BMBUSY# / GPIO0
T7
GPIO15
G2
TACH1 / GPIO1
A42
SATA2GP / GPIO36
V8
INIT3_3V# T14
STP_PCI# / GPIO34
K1
GPIO35
K4
SATA4GP / GPIO16
U2
VSS_NCTF_32 F49
A20GATE P4
TAC H 4 / GPI O68 C40
TAC H 6 / GPI O70 C41
TAC H 7 / GPI O71 A40
TAC H 5 / GPI O69 B41
VSS_NCTF_17 BH3
VSS_NCTF_18 BH47
VSS_NCTF_19 BJ4
VSS_NCTF_20 BJ44
VSS_NCTF_21 BJ45
VSS_NCTF_22 BJ46
VSS_NCTF_23 BJ5
VSS_NCTF_24 BJ6
VSS_NCTF_25 C2
VSS_NCTF_26 C48
VSS_NCTF_27 D1
VSS_NCTF_28 D49
VSS_NCTF_29 E1
VSS_NCTF_30 E49
VSS_NCTF_31 F1
TS_V SS 4 AK10
TS_V SS 3 AH 10
TS_V SS 2 AK11
TS_V SS 1 AH 8
NC_1 P37
VSS_NCTF_13
BF1
VSS_NCTF_14
BF49
VSS_NCTF_15 BG2
VSS_NCTF_16 BG48
DF_TVS AY 1
HOST_ALERT#1
DGPU_HPD_INTR#
NV_CLE
HOST_ALERT#2
Set to Vss when LOW
Set to Vcc when HIGH
NV_CLE
DMI & FDI Termination Voltage
PCH_MUTE#
PantherPoint - M (GPIO,VSS_NCTF,RSVD)
R396 *10K_04
TEST_SET_UP
RN4
10K_8P4R_04
1
2
3
4 5
6
7
8
R163 * 0_04
R417 10K_04
R394
100K_04
R423 1. 5K_1%_04
R443 *100K_1%_04
R166 200K_04
R117 *0_04
R213 1K_04
R181 10K_04
TEST_D ET
R203 100K_04
R224 100K_04
R115 390_1%_06
R452 *1K_04
R126 *10K_04
3.3VS
3.3V
1.05VS_VTT
3.3VS
3.3VS
3.3V
1.05VS_VTT2,3,5, 26,27,37
3.3V2,3,6,11,18,20,21,22,24,26,27,29,30,31,35,37,39,40, 41
3.3VS3, 9, 10,11, 20,21,22,23,24,26,27,29,30,32,33,34,35,36,37,42,44
H_CPUPWRGD 3
H_PECI 3,21,36
GA20 36
SCI#24,36
H_THRMTRIP# 3
KBC_RST# 36
SMI#24,36
SATA_ODD_PRSNT#20
CRIT_TEMP_REP#36
SB_BLON11
DGPU_PWROK
MF G _MO D E
SATA_ODD_PRSNT#
BIOS_R EC
190mA
160mA
1.05VS
PantherPoint -M (POWER)
1.05VS_VCC APLL_EXP
266mA
R373 *0_04
R371 *10m il_short
42mA
R128 *0_04
3.3VS
1.5VS_1.8VS
R159 * 15mil_short _06
C702
22u_6. 3V_X5R _08
C627
22u_6. 3V_X5R _08
VCCA _DAC3. 3VS
CO-LAY
+
C718
*100u_6.3V_B_A
2.92A
+
C719
*100u_6.3V_B_A
CO-LAY
1.3A
C356
*1u_6.3V_X5R_04
160mA
VCCCLKD MI
R141 *10m il_short
VCCA _DAC3. 3VS
266mA
SET
1mA
R222
*15mil_short_06
1.05VS_VTT2,3,5,25,27,3 7
R116 *0_06
2mA
1.05VS_VC CAPLL_F D I
C632
22u_6. 3V_X5R _08
C701
22u_6. 3V_X5R _08
C341
1u_6.3 V_X5R_04
C391
*1u_6.3V_X5R_04
5VS
U27
*APL5603-33B
IN 1
SET
4GND 2
SHD N # 3
OUT
5
C583
1u_6. 3V_X5R _04
C703
*1u_6. 3V_X5R_08
C715
1u_6. 3V_X5R _04
2.93A
1.05VS
1mA
20mA
POWER
VCC CORE
DMI
VCCIO
CRTLVDS
FDI
DFT / SPI HVCMOS
U23G
PCH panther point ES2
VCCCORE[ 1]
AA23
VCCCORE[ 2]
AC23
VCCCORE[ 3]
AD21
VCCCORE[ 4]
AD23
VCCCORE[ 5]
AF21
VCCCORE[ 6]
AF23
VCCCORE[ 7]
AG21
VCCCORE[ 8]
AG23
VCCCORE[ 9]
AG24
VCC CORE[ 10]
AG26
VCC CORE[ 11]
AG27
VCC CORE[ 12]
AG29
VCC CORE[ 13]
AJ 23
VCC CORE[ 14]
AJ 26
VCC CORE[ 15]
AJ 27
VCC DFTER M[4] AJ17
VCC DFTER M[3] AJ16
VCC IO[17]
AN21
VCC IO[18]
AN26
VCC IO[19]
AN27
VCC IO[20]
AP21
VCC IO[23]
AP26
VCC IO[24]
AT24
VCC IO[15]
AN16
VCC IO[16]
AN17
VCC IO[21]
AP23
VCC IO[22]
AP24
VCCADAC U48
VCCTX_LVDS[1] AM37
VCCTX_LVDS[2] AM38
VCCALVDS AK36
VCCVRM[3] AT16
VCCVRM[2]
AP16
VCCAPLLEXP
BJ 22
Vcc AFDIPLL
BG6
VCC IO[28]
AN19 VCCTX_LVDS[4] AP37
VCCTX_LVDS[3] AP36
VSSADAC U47
VSSALVDS AK37
VCC IO[27]
AP17
VCC3_3[6] V33
VCC3_3[7] V34
VCC 3_3[ 3]
BH29 VCC DF TERM[2] AG17
VCC DFTER M[1] AG16
VCCDMI [1 ] AT20
VCC IO[25]
AN33
VCC IO[26]
AN34
VCC CORE[ 16]
AJ 29
VCC CORE[ 17]
AJ 31
VCC SPI V1
VCCCLKDMI AB36
VCCDMI [2]
AU20
APL5603-33B 6-02-56033-4C0
G9091-330T11UF 6-02-90913-4C0
R127 *10m il_short
.
L42
HCB1608KF-121T25
R113 *15 mil_short_06
C599
0.1u_10V_X5R_04
.
L16 HCB1608KF -121T25
C376
0.1u_10V_X5R_04
R132 *0_04
R403
*23. 7K_1%_04
R143 *15m il_short _06
C598
*10u_6. 3V_X5R_06
R402
*10K_1%_04
C313
0.1u_10V_X5R_04
C596
1u_6. 3V_X5R_04
.
L35 *H CB 1005KF-121T20
C309
0.01u_16V_X7R_04
C305
22u_6. 3V_X5R_08
C379
10u_6. 3V_X5R_06
C335
*1u_6. 3V_X5R_04
C625
0.01u_16V_X7R _04
C626
0.1u_10V_X5R _04
C390
1u_6. 3V_X5R_04
C370
1u_6.3V_X5R_04
C325
0.01u_16V_X7R_04
C294
1u_6.3V_X5R_04
C619
1u_6.3V_X5R_04
R142 *0_04
.
L47
HCB1608KF-121T25
C287
10u_6. 3V_X5R_06
C595
1u_6.3 V_X5R_04
C336
1u_6.3V_X5R_04
C301
1u_6.3V_X5R_04
C367
10u_6. 3V_X5R_06
C630
0.1u_10V_X5R_04
1.5VS 1.5VS_1.8VS
1.05VS_VCC APLL_EXP1
1.05VS
1.05S_VCC _DMI
1.5VS_1.8VS
1.05VS
VCC A_D AC_3 .3VS
3.3VS
1.05VS
1.8VS
1.05VS_VTT
3.3VS
1.8VS_VCC TX_LVD
3.3VS
1.8VS
V_NVRAM_VCCQ3.3VS
3.3VS
3.3V
VCCME3.3V
1.05VS
3.3VS_VCC A_LVD
3.3VS3,9, 10, 11,20,21,22,2 3,24,25,27,29,30, 32, 33, 34,35,36,37, 42, 44
1.05VS6,21,22, 27, 37, 40,41,42
1.8VS
5VS11,20,27, 29, 30, 33,34,35,37, 42, 44
1.5VS_1.8VS27
1.8VS6,25,39
3.3V2,3,6,11,18,2 0,21,22,24,25,27, 29, 30, 31,35,37,39, 40, 41
1.5VS35,37
1.05S_VC C_D MI
60mA
Schematic Diagrams
PantherPoint - M 7/9 B - 27
B.Schematic Diagrams
PantherPoint - M 7/9
Schematic Diagrams
B - 28 PantherPoint - M 8/9
B.Schematic Diagrams
PantherPoint - M 8/9
80mA
1.05VS
VCCAPLL_CPY_PCH
C603
1u_6.3V_X5R_04
PCH _VCCD SW
C334 *1u_6.3V _X5R_04
C397 0.1u_10V_X5R_04
150mA
C306
1u_6. 3V_X5R_04
C351
1u_6.3V_X5R_04
C403
0.1u_10V_X5R_04
C374 *0.1u_10V_X5R_04
C350
1u_6.3V_X5R_04
C600
22u_6.3V_X5R_08
C354
22u_6. 3V_X5R_08
C652
0.1u_10V_ X5R_04
C352
1u_6. 3V_X5R_04
C386 *1u_6.3V_X5R_04
R174 10_1%_04
C375
1u_6.3V_X5R_04
C389
1u_6.3V_X5R_04
C404
1u_6.3V_X5R_04
C645
1u_6.3V_X5R_04
C644
0.1u_1 0V_X5R_04
C369
10u_6.3V_X5R_06
C606
1u_6. 3V_X5R_04
R223 10_1%_04
C394
0.1u_10V_X5R_04
L40
HCB1005KF-121T20
C618
1u_6.3V_X5R_04
C363
0.1u_10V_X5R_04
16mA
C617
1u_6. 3V_X5R_04
C310
0.1u_1 0V_X5R_04
C654
0.1u_10V_X7R_04
C314
22u_6. 3V_X5R_08
C377 0.1u_10V_X5R_04
L39
*H CB1005KF-121T20
C296
0.1u_10V_ X5R_04
D5 RB751S-40C2
AC
R368
*0_04
C604
22u_6.3 V_X5R_08
L41 *H CB1005KF-121T20
C328
1u_6.3V_X5R_04
C288
4.7u_6.3V_X5R_06
C304
1u_6.3V_X5R_04
3.3V
3.3V
5VS_PCH_VCC5REFSUS
3.3VS
5VS
1.05VS_VTT
RTCVCC
1.05VS
3.3A_1.5A_HDA_IO
3.3V
5V
1.05S_SATA3
1.05VS
1.05VS
1.05VS_VCCA_CLK
3.3VS
1.05VS
1.05VS
3.3V
1.05VS
1.05VS
1.5VS_1.8VS
1.05VS
1.05VS_VCCA_B_DPL
1.5VS_1.8VS
1.05VS
1.05VS
1.05VS_VCCA_A_DPL
1.05VS_VTT2,3, 5,25 ,26,37
1.5V3, 6, 9, 10, 37,40
3.3V2,3,6,11, 18,20,21,22,24,25,26,29,30, 31,35,37, 39,40,41
3.3VS3,9,10,11,20, 21,22,23, 24,25,26,29,30,32,33,34,35,36,37,42, 44
RTCVCC20,22
1.5VS_1.8VS26
5VS11,20,26,29,30,33, 34,35,37,42,44
16mA
DCPSUS
D4 RB751S-40C2
AC
<1mA
PantherPoint - M (POWER)
2mA
R405 *10mil_short
1.01A
C605
22u_6.3V_X5R_08
1.01A
.
L38
HCB1608KF-121T25
266mA
97mA
1.05VS_VCCAPLL_SATA3
80mA
3.3VS
1mA
Note: C417 - STUFFED ONLY FOR CPT INTERPOSER;
UNSTUFF FOR CPT
Note: C1289- STUFFED ONLY FOR CPT INTERPOSER;
UNSTUFF FOR CPT
VCCS ST
R472 * 15mil_s hort_06
97mA
L54
HCB1005KF-121T20
C601
22u_6.3V_X5R_08
5V29,30, 31,37,39,40,41
3mA
C602
22u_6.3V_X5R_08
.
L36 *HCB1 608KF -12 1T25
3.3V
1.05VS6,21, 22, 26,37,40,4 1, 42
2.92A
R466 *0_06
3.3V 3.3A_1.5A_HD A_IO1.5V
1.05VS
3.3A_1.5A_HDA_IO20
+VR EG3 R393 *0_04
1mA
R400
*15mil_s hort_06
C380
0.1u_10V_X5R_04
+V3. 3A_VCC AU BG
R30
*15mil_s hort_0 6
+V3.3S_VCCPCORE
C385
0.1u_10V_X5R_04
C353
1u_6.3V_X5R_04
2.92A
VCC3_3
C433
0.1u_10V_X5R_04
VCCRTCEXT
3.3VS
5VA_PCH_VCC5REFSUS
266mA
1.05M_VCCSUS
Min
5V
1.5V
1.43V
1.05V
1.58V
4.75V
1.10V
1.71V
Max
1.89V
1.00V
1.8V
3.47V
5.25V
CougarPoint power supply range
Voltage
3.3V3.14V
.
L18 HCB1608KF-121T25
VCCA_USBSUS
C364
0.1u_10V_X5R_04
.
L37
HC B1608 KF-121T25
POWER
SATA USB
Clock and Miscellaneous
HDA
CPURTC
PCI/GPIO/LPCMISC
U23J
PCH panther point ES2
DCPSUSBYP
V12
VCCASW[ 1]
AA19
VCCASW[ 2]
AA21
VCCASW[ 3]
AA24
VCCASW[ 5]
AA27
VCCASW[ 6]
AA29
VCCSUSHDA P32
VCCSUS3_3[6] P24
VCCIO[34] T26
VCC I O[ 4] AD17
VCCASW[ 7]
AA31
VCCASW[ 8]
AC26
VCCASW[ 9]
AC27
VCCASW[ 10]
AC29
VCCASW[ 11]
AC31
VCCASW[ 12]
AD29
V5REF P34
VCC3_3[4] T34
VCCRTC
A22
VCC SUS3_3[10] V24
VCCSUS3_3[9] V23
VCCSUS3_3[8] T24
VCCSUS3_3[7] T23
VCC I O[ 2] AC16
VCCAD PLLB
BF47
VCCDI FF CLKN[1]
AF33
V5R EF _SUS M26
VCC I O[ 3] AC17
DCPSUS[1]
T17
VCCSSC
AG33
VCCAD PLLA
BD47
VCCVR M[4]
Y49
VCCAC LK
AD49
DCPRTC
N16
VCCASW[ 4]
AA26
VCCDI FF CLKN[2]
AF34
VCCIO[7]
AF17
DCPSST
V16
VCC I O[ 5] AF13
VCCA SW[ 22] T21
VCCA SW[ 23] V21
VCCA SW[ 21] T19
VCC3_3[1] AA16
VCC3_3[8] W16
VCCSUS3_3[2] N20
VCCSUS3_3[3] N22
VCCSUS3_3[4] P20
VCCSUS3_3[5] P22
VCCIO[29] N26
VCCIO[30] P26
VCCIO[31] P28
VCCIO[32] T27
V_PROC_IO
BJ8
VCCIO[33] T29
VCCDI FF CLKN[3]
AG34
VCCASW[ 13]
AD31
VCCASW[ 14]
W21
VCCASW[ 15]
W23
VCCASW[ 16]
W24
VCCASW[ 17]
W26
VCCASW[ 18]
W29
VCCASW[ 19]
W31
VCCASW[ 20]
W33
VCC I O[ 6] AF14
VCCVRM[1] AF11
VCCIO[12] AH13
VCCIO[13] AH14
VCC3_3[2] AJ2
VCCAPLLSATA AK1
DCPSUS[3]
AL24
VCCIO[14]
AL29
DCPSUS[4] AN23
VCCSUS3_3[1] AN24
VCCAPLLDMI2
BH23
DCPSUS[2]
V19
VCCDSW3_3
T16
VCC3_3[5]
T38
C312 *0.1u_ 16V_Y 5V_04
+V1.05S_VCC_SATA
1.05VS
Schematic Diagrams
PantherPoint - M 9/9 B - 29
B.Schematic Diagrams
PantherPoint - M 9/9
H19
H7_5B5_0D 3_7
H21
H7_5B5_0D 3_7
U23H
PCH panth er point ES2
VSS[ 1]
AA17
VSS[ 2]
AA2
VSS[ 3]
AA3
VSS[ 5]
AA34
VSS[ 6]
AB11
VSS[ 7]
AB14
VSS[ 8]
AB39
VSS[ 9]
AB4
VSS[ 10]
AB43
VSS[ 11]
AB5
VSS[ 12]
AB7
VSS[ 13]
AC19
VSS[ 14]
AC2
VSS[ 15]
AC21
VSS[ 16]
AC24
VSS[ 17]
AC33
VSS[ 18]
AC34
VSS[ 19]
AC48
VSS[ 20]
AD10
VSS[ 21]
AD11
VSS[ 22]
AD12
VSS[ 23]
AD13
VSS[ 24]
AD19
VSS[ 25]
AD24
VSS[ 26]
AD26
VSS[ 27]
AD27
VSS[ 28]
AD33
VSS[ 29]
AD34
VSS[ 30]
AD36
VSS[ 31]
AD37
VSS[ 33]
AD39
VSS[ 34]
AD4
VSS[ 35]
AD40
VSS[ 36]
AD42
VSS[ 37]
AD43
VSS[ 38]
AD45
VSS[ 39]
AD46
VSS[ 43]
AF10
VSS[ 44]
AF12
VSS[ 46]
AD16
VSS[ 47]
AF16
VSS[ 48]
AF19
VSS[ 49]
AF24
VSS[ 50]
AF26
VSS[ 51]
AF27
VSS[ 52]
AF29
VSS[ 53]
AF31
VSS[ 54]
AF38
VSS[ 55]
AF4
VSS[ 56]
AF42
VSS[ 57]
AF46
VSS[ 59]
AF7
VSS[ 60]
AF8
VSS[ 61]
AG19
VSS[ 62]
AG2
VSS[ 63]
AG31
VSS[ 64]
AG48
VSS[ 65]
AH11
VSS[ 66]
AH3
VSS[ 67]
AH36
VSS[ 68]
AH39
VSS[ 69]
AH40
VSS[ 70]
AH42
VSS[ 71]
AH46
VSS[ 72]
AH7
VSS[ 73]
AJ19
VSS[ 76]
AJ33
VSS[ 77]
AJ34
VSS[ 78]
AK12
VSS[ 79]
AK3
VSS[80] AK38
VSS[81] AK4
VSS[82] AK42
VSS[83] AK46
VSS[84] AK8
VSS[85] AL16
VSS[86] AL17
VSS[87] AL19
VSS[88] AL2
VSS[89] AL21
VSS[90] AL23
VSS[91] AL26
VSS[92] AL27
VSS[93] AL31
VSS[96] AL48
VSS[97] AM11
VSS[98] AM14
VSS[99] AM36
VSS[100] AM39
VSS[102] AM45
VSS[103] AM46
VSS[104] AM7
VSS[105] AN 2
VSS[106] AN 29
VSS[107] AN 3
VSS[108] AN 31
VSS[109] AP12
VSS[110] AP19
VSS[111] AP28
VSS[112] AP30
VSS[113] AP32
VSS[114] AP38
VSS[116] AP42
VSS[117] AP46
VSS[118] AP8
VSS[119] AR 2
VSS[120] AR 48
VSS[121] AT11
VSS[122] AT13
VSS[123] AT18
VSS[124] AT22
VSS[125] AT26
VSS[126] AT28
VSS[127] AT30
VSS[128] AT32
VSS[131] AT42
VSS[132] AT46
VSS[133] AT7
VSS[134] AU 24
VSS[135] AU 30
VSS[136] AV16
VSS[137] AV20
VSS[138] AV24
VSS[139] AV30
VSS[140] AV38
VSS[141] AV4
VSS[142] AV43
VSS[143] AV8
VSS[144] AW 14
VSS[145] AW 18
VSS[146] AW 2
VSS[147] AW 22
VSS[148] AW 26
VSS[149] AW 28
VSS[150] AW 32
VSS[151] AW 34
VSS[152] AW 36
VSS[153] AW 40
VSS[154] AW 48
VSS[155] AV11
VSS[156] AY 12
VSS[157] AY 22
VSS[158] AY 28
VSS[ 40]
AD8
VSS[ 42]
AE3
VSS[ 45]
AD14
VSS[115] AP4
VSS[ 0]
H5
VSS[ 58]
AF5
VSS[ 32]
AD38
VSS[ 4]
AA33
VSS[ 74]
AJ21
VSS[ 75]
AJ24
VSS[ 41]
AE2
VSS[129] AT34
VSS[130] AT39
VSS[101] AM43
VSS[95] AL34
VSS[94] AL33
Voltage Rail Voltage S0 Iccmax Current (A)
V_CPU_IO 1.05 1 (mA)
V5REF 5 1 (mA)
V5REF_Sus 5 1 (mA)
Vcc3_3 3.3 0.266
VccADAC3 1.05 1 (mA)
VccADPLLA 1.05 0.08
VccADPLLB 1.05 0.08
VccCore 1.05 1.3
VccDMI 1.1 0.042
VccIO 1.05 2.925
VccASW 1.05 1.01
VccSPI 3.3 0.020
VccDSW3_3 3.3 2 (mA)
VccDFTERM 1.8 0.19
VccSus3_3 3.3 0.097
VccSusHDA 3.3 1 (mA)
VccVRM 1.5 0.16
VccClKDMI 1.05 0.02
VccSSC 1.05 0.095
VccDIFFCLKN 1.05 0.055
VccALVDS 3.3 1 (mA)
VccTX_LVDS 1.8 0.06
U23I
PCH panther point ES2
VSS[159]
AY 4
VSS[160]
AY42
VSS[161]
AY46
VSS[162]
AY 8
VSS[163]
B11
VSS[164]
B15
VSS[165]
B19
VSS[166]
B23
VSS[167]
B27
VSS[168]
B31
VSS[169]
B35
VSS[170]
B39
VSS[171]
B7
VSS[173]
BB12
VSS[174]
BB16
VSS[175]
BB20
VSS[176]
BB22
VSS[177]
BB24
VSS[178]
BB28
VSS[179]
BB30
VSS[180]
BB38
VSS[181]
BB4
VSS[182]
BB46
VSS[183]
BC14
VSS[184]
BC18
VSS[185]
BC2
VSS[186]
BC22
VSS[187]
BC26
VSS[188]
BC32
VSS[189]
BC34
VSS[190]
BC36
VSS[191]
BC40
VSS[192]
BC42
VSS[193]
BC48
VSS[194]
BD46
VSS[195]
BD5
VSS[196]
BE22
VSS[197]
BE26
VSS[198]
BE40
VSS[199]
BF10
VSS[200]
BF12
VSS[201]
BF16
VSS[202]
BF20
VSS[203]
BF22
VSS[204]
BF24
VSS[205]
BF26
VSS[206]
BF28
VSS[207]
BD3
VSS[208]
BF30
VSS[209]
BF38
VSS[210]
BF40
VSS[211]
BF8
VSS[212]
BG17
VSS[213]
BG21
VSS[214]
BG33
VSS[215]
BG44
VSS[216]
BG8
VSS[217]
BH11
VSS[218]
BH15
VSS[219]
BH17
VSS[220]
BH19
VSS[222]
BH27
VSS[223]
BH31
VSS[224]
BH33
VSS[225]
BH35
VSS[226]
BH39
VSS[227]
BH43
VSS[228]
BH7
VSS[229]
D3
VSS[230]
D12
VSS[231]
D16
VSS[232]
D18
VSS[233]
D22
VSS[234]
D24
VSS[235]
D26
VSS[236]
D30
VSS[237]
D32
VSS[264] K7
VSS[265] L18
VSS[266] L2
VSS[267] L20
VSS[268] L26
VSS[269] L28
VSS[270] L36
VSS[271] L48
VSS[272] M12
VSS[273] P16
VSS[274] M18
VSS[275] M22
VSS[276] M24
VSS[277] M30
VSS[278] M32
VSS[279] M34
VSS[280] M38
VSS[281] M4
VSS[282] M42
VSS[283] M46
VSS[284] M8
VSS[285] N18
VSS[286] P30
VSS[288] P11
VSS[289] P18
VSS[290] T33
VSS[291] P40
VSS[292] P43
VSS[293] P47
VSS[294] P7
VSS[295] R2
VSS[296] R48
VSS[297] T12
VSS[298] T31
VSS[299] T37
VSS[300] T4
VSS[301] W34
VSS[302] T46
VSS[303] T47
VSS[304] T8
VSS[305] V11
VSS[306] V17
VSS[307] V26
VSS[308] V27
VSS[309] V29
VSS[310] V31
VSS[311] V36
VSS[312] V39
VSS[313] V43
VSS[314] V7
VSS[315] W17
VSS[316] W19
VSS[238]
D34
VSS[239]
D38
VSS[240]
D42
VSS[241]
D8
VSS[242]
E18
VSS[243]
E26
VSS[244]
G18
VSS[245]
G20
VSS[246]
G26
VSS[247]
G28
VSS[248]
G36
VSS[249]
G48
VSS[250]
H12
VSS[251]
H18
VSS[317] W2
VSS[318] W27
VSS[319] W48
VSS[320] Y12
VSS[321] Y38
VSS[322] Y4
VSS[323] Y42
VSS[324] Y46
VSS[325] Y8
VSS[328] BG29
VSS[329] N24
VSS[330] AJ3
VSS[287] N47
VSS[252]
H22
VSS[253]
H24
VSS[254]
H26
VSS[255]
H30
VSS[256]
H32
VSS[257]
H34
VSS[258]
F3
VSS[262] K39
VSS[263] K46
VSS[259] H46
VSS[260] K18
VSS[261] K26
VSS[331] AD47
VSS[333] B43
VSS[334] BE10
VSS[335] BG41
VSS[337] G14
VSS[338] H16
VSS[340] T36
VSS[342] BG22
VSS[343] BG24
VSS[344] C22
VSS[345] AP13
VSS[172]
F45
VSS[221]
H10
VSS[346] M14
VSS[347] AP3
VSS[348] AP1
VSS[349] BE16
VSS[350] BC16
VSS[351] BG28
VSS[352] BJ28
PantherPoint -M (GND)
Schematic Diagrams
B - 30 WLAN, 3G, Mini PCIE
B.Schematic Diagrams
WLAN, 3G, Mini PCIE
R252
10K_04
§»-P 87151-2007G 6-20-94K20-120
Ãv¯þ (Ááª÷) CF20202U0RG-NH 6-20-94K00-020
Ãv¯þ (Áá¿ü) CF20201U0RG-NH 6-20-94K10-020
3G_POWER36
3G_3. 3V
R2 47 100K_04
>120 mil
§»-P 85205-03701 6-2 0-51130-103
Ãv¯þ (Ááª÷) CI4 403M2 VR0-NH 6-20-41110-003
Ãv¯þ (Áá¿ü) CI4 403M1 VR0-NH 6-20-41120-003
BT_EN29,33,36
H22
H7_0B4_0D 2_8
R260 *0_04
3G_EN
BT_EN29, 33,36
MI C 1- R35
5V27, 30 ,31 ,37 ,39, 40, 41
MI C 1- L35
R447 10K_04
¥u¦³MSATA function®ÉPJ43 SHORT¡A¨ä¥L¤£¤W¥ó
C L_R ST#_1
R 258 * 0_0 4
BT_DET# 36
R498 * 0_0 4
MI N I _ 3. 3 V
MI N I _ 3. 3 V
MIN I_3 .3V
MI N I _ 3. 3 V
3.3 V
¥u¦³MSATA function®É¦¹°Ï¬Ò¤£¤W¥ó
USB_PN10 24
WLAN_CLKREQ#21
U SB_P P10 24
CL K_PC IE _MIN I #21
CLK_PCIE_MINI21
WLAN _EN 30 ,36
BT_D ET#
R269
47K_04
MIN I _3.3V
R254
*20K_04
WL AN _DET #36
PC IE_ TXN3 _WLA N21
PC IE _TXP3_W LA N21
PCIE_RXN3_WLAN21
PC IE_ RXP3_W LAN21
PJ11 OPEN _2 A
1 2
60mils 60mils
60mils
C4 39 *0 .01u_16V_X7R_ 04
¹q®e½Ð¾aªñJ_3G1
C4 53 *0 .01u_16V_X7R_ 04
C4 49 *0 .01u_16V_X7R_ 04
1108
C4 56 *0 .01u_16V_X7R_ 04
BT_EN_R
KEY
J_MINI1
88910-5204 M-01
COEX1
3
COEX2
5
CLKREQ#
7
GND0
9
REFCLK-
11
REFCLK+
13
WAKE#
1
GND1
15
PETn0
23
PETp0
25
GND2
21
GND3
27
PERn0
31
PERp0
33
GND4
29
Reserved0
17
Reserved1
19
W_DISABLE# 20
GND12
37
3.3VAUX_3
39
3.3VAUX_4
41
GND13
43
Reserved2
45
Reserved3
47
Reserved4
49
Reserved5
51 LED_WLAN# 44
LED_WWAN# 42
GN D6 18
UIM_VPP 16
UIM_RESET 14
3. 3VAU X_0 2
UIM_CLK 12
UIM_DATA 10
UIM_PWR 8
1.5 V_0 6
GN D5 4
PERSET# 22
3. 3VAU X_1 24
GN D7 26
1.5 V_1 28
SMB_CLK 30
SMB_D ATA 32
GN D8 34
USB_D- 36
USB_D+ 38
GN D9 40
LED_WPAN# 46
1.5 V_2 48
GND10 50
3. 3VAU X_2 52
GND11
35
40 mil
20 mil
WLAN MINI CARD
20 mil
20 mil
S
D
G
Q11B
MTDN7002ZHS6R
5
34
R255
10_06
20 mil
S
D
G
Q11A
MTDN 7002 ZH S6R
2
61
USB_PP924
USB_PN 924
PCIE_ W AKE#
C545
10u_10V_ Y 5V_08
J_FAN1
CI 440 3M1VR0 -N H
1
2
3
3.3VS
5VS_FAN
CPU_FAN 36
CPU_FANSEN36
5VS
FON
5VS_FA N
R3 26 4.7K_04
C133
0. 1u_16 V_Y5V_ 04
U4
NC T3940 S-A
VOUT
3
GND 5
VIN
2FON
1
VSET
4GND 6
GND 8
GND 7
R2 63 *10 mil_s hor t
J_FAN1
1
CPU FAN CONTROL
R 500 *10m il_ sh ort
3
CPU_FAN
R499 *10K_04
3.3V
R259
*10K_04 3.3 VS
C705
*1 0u_6. 3V_X5R_06
R262
*10K_04
MI N I _ PW R_ O N36
MIN I _3.3V
R265 * 100K_04
>60 mil
SHORT¡A¨ä¥L¤£¤W¥ó
S
D
G
Q14B
*MTD N7 002ZH S 6R
5
34
PJ 14 OP EN _2A
1 2
R261
10_06
S
D
G
Q13A
*MTDN7002ZHS6R
2
61
MINI POWER
VDD3
C 476 * 1u_6. 3V_ X5R _04
>120 mil
From H8 default HI
Q15
*AO3415
G
DS
C484
* 10u_1 0V_Y 5V_08
C489
* 0.1 u_16V _Y5V_04
SMB_CLK 9,10,21
SMB_D ATA 9,10, 21
R246 * 10m il_short
R249 * 10m il_short
PC IE_W AK E#22,32
PCH_BT_EN # 21, 29
+
C 463 220u_ 6.3 V_6. 3*6. 3* 4. 2
C398
0.1 u_16V_Y 5V_0 4
C461
0.1 u_16V _Y5V _04
C452
10u_10V_Y 5V_08
C459
0. 1u_1 6V_Y5V_ 04
3G_3. 3V
C384 0.1u _16V_Y 5 V_04
3G_3. 3V
3G_3.3V
GND
GND
3G_3.3V
3G_3.3V
GN D
GND
GND
GN D
GND
GND
3G_EN 36
USB_PN8 24
USB_PP8 24
Port 10
3G_D ET#36
UIM_DATA
UIM_PWR
UIM_VPP
UIM_CLK
UIM_RST
Port 2
3G/MSATA MINI CARD SIM CONN
80CLK 36
UIM_VPPUIM_CLK
UIM_RST
UIM_D UIM_DATA
C6
*22p_50V_NPO_04
R4 4.7K_04
C4
*2 2p_50 V_NPO_04
C3
* 22p_5 0V_NP O_04
C5
* 22p_5 0V_NP O_04
GND
GND
C2
0. 1u_16 V_Y 5V_0 4
GND
R5 *10m il_s ho rt
GND
UIM_C
(TOP VIEW)
J_SIM1
91712-009 0P
UIM_DATA
7
UIM_VPP 4
UIM_GND 2
UIM_PWR
1UIM_RST
3UIM_CLK
5
GN G
GN D 1
UIM_I/O 6
U I M_ MC MD 8
DETECT_SW
9
GND
GND2
GND
GND3
GND
GND4
R6
*10mil_short
Layout®É
1. SIM¤§©Ò¦³«H¸¹½u¥[²Ê(10mil)
2. ©Ò¦³«H¸¹½u¤§¶¡¥[GND
3. SIM hold ¥»Åé¥|©P¥[GND³òÂ
4.SIM CONN ¾aªñ MINI CARD CONN
UIM_PWR
UIM_PWR UIM_DATA
SML1CLK 21,36
SML1DATA 21,36
R3 83 * 0_04
R3 51 * 0_04
R253 *0_04
C L_C LK_1
KEY
J_3G1
88908-520 4M-01
COEX1
3
COEX2
5
CL KR EQ#
7
GN D0
9
REFCLK-
11
REFCLK+
13
WAKE#
1
GN D1
15
PETn0_TXP
23
PETp0_TXN
25
GN D2
21
GN D3
27
PER n0_R XN
31
PER p0_R XP
33
GN D4
29
Reserved0
17
Reserved1
19
W_DISABLE# 20
GN D1 2
37
3.3 VAU X_3
39
3.3 VAU X_4
41
GN D1 3
43
Reserved2
45
Reserved3
47
Reserved4
49
Reserved5
51 LED _W LAN # 44
LED_WWAN# 42
GND6 18
UIM_VPP 16
UIM_RESET 14
3.3VAUX_0 2
UIM_CLK 12
UIM_DATA 10
UIM_PWR 8
1.5V_0 6
GND5 4
PERSET# 22
3.3VAUX_1 24
GND7 26
1.5V_1 28
SMB_CLK 30
SMB_DATA 32
GND8 34
USB_D- 36
USB_D+ 38
GND9 40
LED _W PAN # 46
1.5V_2 48
GND1 0 50
3.3VAUX_2 52
GN D1 1
35
WL AN _LED # 33
3.3V2, 3,6 ,11, 18, 20, 21, 22, 24,2 5,2 6,2 7,3 0,3 1,35, 37, 39, 40, 41
VD D320,30 ,32 ,36,37, 38, 45
3.3 VS3, 9,1 0,1 1,20, 21, 22, 23, 24, 25, 26, 27, 30, 32, 33,34 ,35 ,36 ,37 ,42, 44
BU F _PLT_R ST# 24,32 ,36
3.3V
D02 CHANGE
DEL H10 (3G»É¬W)
3.3VAUX_1
5VS11, 20, 26,2 7,3 0, 33, 34,35, 37, 42 ,44
VDD3
SPDIFO35
AUDG
5V
FOR AUDIO BOARD
C414
1000p_50V _X7R_04
SPKOUTR+_R35
SPKOUTR-_R35
HEADPHONE-L35
JD_SENSE35 SPK_ HP #
HEADPHONE-R35
JD_SENSE_B35
1
JSW1
GND
C480
*180p_50V_N PO_04
J_CN1
CF20201U0RG-NH
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
NC1
NC2
USB_OC#8924
C L_R ST#121 R497 *0_04
Smart Connect Function
C L_D ATA121
R494 *0_04
R495 *0_04
C L_C LK121
3IN1 36
C L_D ATA_1
C681
0.1u_16V_Y5V_ 04
PCH_BT_EN#21, 29
SATA_TXP320
SATA_TXN320
SATA_RXN320
SATA_RXP320
+
C464
220u _6. 3V_6 .3* 6.3 *4. 2
H23
H7_5B5_0D 3_7
3G POWER
3.3V
PCH_BT_EN_#
From H8 default HI
>120 mil
C4 55 1u_6. 3V_X5R_04
Q12
AO3415
G
DS
C 454
0. 1u_16 V_Y5V _04
C450
10u_10V_Y5 V_08
DD_ON#31,37,40
§»-P 85205-05001 6-20-51150-105
Ãv¯þ (Ááª÷) CI4405M2VR0-LF 6-20-51190-105
Ãv¯þ (Áá¿ü) CI4405M1VR0-LF 6-20-511A0-105
§»-P 85201-10051 6-20-94A20-110
Ãv¯þ (Ááª÷) CF20102U0RG-10-NH 6-20-94A10-010
Ãv¯þ (Áá¿ü) CF20101U0RG-10-NH 6-20-94A20-010
D3 *V15AVLC0402
1 2
TPM_P P
CLICK CONN
TPM_B A D D
1A
1A
CCD
48 mil
From KBC default HI
Port 5
XTA L I
TPM30 05
TPM_BA DD
TPM3002
TPM_PP
TPM3001
TPM30 04
TPM3003
XTA L O
R11 *1K_04
C649 *10u _10V_Y 5V_08
Co-lay
C448
*1u_16V_X5R_06
R237
*33_04
C400
*0.1u_16V_Y5V_04
HI: 4E/ 4F H
LOW: 2E/ 2F H
R67
10K_04
HI: ACCESS
LOW: NORMAL ( Internal PD )
TPM_PP
TPM_BADD
C440
*0 .1u_16 V_Y 5V_04
R415 *0_04
C130
1u_6.3V_X5R_04
R190 *10K_04
R23
*100K_04
USBVCC0131
X3 *32.768KHz
14
3 2
C539
0.1u_16V_Y5V_04
J_CCD1
CI4405M1VR0-LF
1
2
3
4
5
C399
*0. 1u_16V_Y5V_04
C451
*10p_50V_NPO_04
C538
2.2u_ 6.3V_X5R_06
C216
*10u_10V_Y 5V_08
C378
*18p_50V_NPO_04
C162
*0.1u_16V_Y 5V _04
J_SW1
CF 20121U0R G-N H
1
2
3
4
5
6
7
8
9
10
11
12
R191 *10K_04
C159
47p_50V_N PO_04
R68
10K_04
U3
G5243A
VIN
4
VIN
5
EN
3
VOUT 1
GND 2
C160
47p_50V_N PO_04
C366
*18p_50V_NPO_04
R180 *10K_04
C441
*0 .1u_16 V_Y 5V_04
TPM
U14
*SLB9635TT
LAD3
17
LAD0
26
LAD1
23
LAD2
20
VDD1 10
XTA L I 13
VDD3 24
VDD2 19
LFR AME#
22
LCLK
21
LRESET#
16
SERIRQ
27
CLKRUN#
15
GND_1 4
GND_2 11
GND_3 18
GND_4 25
GPIO 6
GPIO2 2
XTA L O 14
TESTI
8
TESTBI/BADD
9
PP
7
NC_1
1
NC_2
3
NC_3
12
LPCPD#
28
VSB 5
R434
10K_04
5V_CCD
3.3VS
VDD3
3.3VS
5V
3.3VS
5VS
VDD3
3.3VS
5VS
3/17
3.3V
PCLK_TPM1
LID _SW # 11, 36
5V27,29, 31, 37,39,40, 41
PCLK_TPM
SMD_BAT 36,45
SMC_BAT 36,45
VDD320,29,32, 36,37,38, 45
MU TE _S W # 36
WLAN_SW# 36
M_B TN # 3 7
USB_PN 524
WLAN_EN 29,36
CCD_SW# 36
CCD_EN36
CCD_DET#36
USB_PP524
PLT_R ST#3,24
LPC_AD320, 36
LPC_AD120, 36
3.3V2,3,6, 11, 18,20,21, 22,24, 25,26, 27, 29,31,35,37,39, 40,41
PCLK_TPM24
LPC_FRAME#20,36
LPC_AD220, 36
S4_STATE#22
SERIRQ20,36
LPC_AD020, 36
3.3VS3, 9, 10,11,20,21,22,23,24, 25,26, 27,29,32,33, 34,35,36,37,42,44
PM_CLKRUN#22
VDD537,38
5VS11,20,26, 27,29, 33,34,35,37,42,44
USB_PN4 24
USB_OC# 01 24,30
USB_PP4 24
R440 *40.2K_04
R456
*0_04
R433
*10K_04
CTL1 CTL2 CTL3: 1 1 1-----> Charging downstream port, BC1.2.
CTL1 CTL2 CTL3: 0 x 1-----> Dedicated charging port, auto-detect
CTL1 CTL2 CTL3: 0 0 0-----> Out discharge, power switch Off
R454 *33K_1%_04
Q30
*MTN7002ZHS3
G
DS
R414 *10K_04
VDD5
R432 *10K_04
U28
*TPS2540A
CTL1
6
NC 9
DM_IN 11
DM_O
2
DP_IN 10
IN
1
EN/ D SC
5
DP_O
3
ILIM_SEL
4
CTL2
7
CTL3
8
OUT 12
FAULT# 13
GND 14
ILIM1 15
ILIM0 16
PPAD 17
VDD5
DD_ON36,37,38
AC_IN#36,45
US B_AC _IN
VDD5
M_PQFP16
100 mil 100 mil
5V
R453
*10K_04
R439 *10K_04
VDD5
R431
*0_04
USB_PP124
USB_PN124 US B_PN 1
US B_PP1
USBVCC01
FOR POWER SWITCH BOARD
To South Bridge OC Pin.
3.3VS
C662
10u_10V_Y 5V_08
R416 * 0_04
5V
USB_OC#0124,30
USBVCC01
ÅܧóM-MSOP8¥]¸Ë
50 MIL
C636
0.1u_16V_Y5V_04
C634
0.1u_16V _Y5V_04
U26
SY6 288DC AC
VOUT1 6
VOUT3 8
VIN2
3
VIN1
2VOUT2 7
GND 1
EN#
4
FLG#
5
ÅܧóTPS2540Aª©¥»
SY6288DCAC
APL3518BXITRG
uP7534BRA8-20
J_TP1
CF20101U0R G-10-NH
1
2
3
4
5
6
7
8
9
10
W150ERQÄÝ©ó94V-0 ¬G¨ú®ø«OÅ@¹qªý
A & B ¥ó,¾÷ºØ¶ì®Æªº¨¾¤õµ¥¯Å-n²Å¦XUL 94V-0
´N¥i¥H¤£¥Î¦A´£¨Ñµ¹panelªº¹q·½½u¸ôªº«OÅ@¹qªý
R245
*0_04
§»-P 87151-1207G 6-20-94A20-112
Ãv¯þ (Ááª÷) CF20122U0RG-NH 6-20-94K10-012
Ãv¯þ (Áá¿ü) CF20121U0RG-NH 6-20-94K20-012
TPM Enable
R245 OPEN
USB Charge PORT
TP_CLK 36
TPM 1.2
LPC reset timing:
LPCPD# inactive to LRST# inactive 32~96us
Asserted before entering S3
TP_D A TA 36
R465 0_04
R464 0_04
USB_PN1
USB_PP1 USB_PP1_R
USB_PN1_R
¹s¥ó¸m©ó°T¸¹¤À¤ä³B
USB_PN1_R 31
USB_PP1_R 31
R238 *10K_04
Schematic Diagrams
Charge, TP, FP, Multi-Conn B - 31
B.Schematic Diagrams
Charge, TP, FP, Multi-Conn
Schematic Diagrams
B - 32 eSATA/USB 3.0 Connector
B.Schematic Diagrams
eSATA/USB 3.0 Connector
+
C479
*220u_6.3V_6. 3*6 . 3* 4. 2
C2 71 2 2u_6 . 3V_X5R _08
C5 03 0.01u_16V_X7R_04
U29
SY6288DCAC
VOU T1 6
VOU T3 8
VIN2
3
VIN1
2VOU T2 7
GND 1
EN #
4
FLG#
5
C 208 0 .1u _10V _X7R _04
C628
10u_10V_Y5V_08
C 290 0. 1u_10V_X7R_04
C658
* 0. 1u_ 16V_Y 5V_04
C646
*0.1u_16V_Y5V_04
C663
10u_10V_Y 5V_08
C5 05 0.01u_16V_X7R_04
R4 59 * 0_04
C 284 0. 1u_10V_X7R_04
C478
0.1u_16V_Y5V_04
GNDGND
GND
GND GN D
GND
5V
USBVCC3.0_3
5V
USBVCC3.0_2
USBVCC3.0_2USBVCC3.0_3
USBVCC3.0_3
3.3V
3.3V
USB3_RX2_N24
USB3_TX2_N24
USB3_RX3_P24
USB3_RX2_P24
USB3_RX3_N24
USB3_TX3_P24
USB3_TX2_P24
USB3_TX3_N24
+
C6 07 * 100u_ 6. 3V_B_A
USB_PP224
USB_PP1_R30
USB_PN1_R30
USB_OC#2324,31
USBVCC0130
USB_PN224
USB_OC#2324,31
USB_PP024
USB_PN024
C7 17 2 2u_6 . 3V_X5R _08
L14
* WC M2012 F2 S-1 61T03 -sho rt
1
4
2
3
USB3.0 PORT(PORT2)
C485 0.1u_10V_X7R_04
C488 0.1u_10V_X7R_04
100 MIL
SATA_RXP4_C
SATA_RXN4_C
SATA_TXN4_C
SATA_TXP4_C
CO-LAY
ESATA+USB3.0
100mils
5V27,29,30,31,37,39,40,41
3.3V2,3,6, 11,18, 2 0, 21,22,24, 25 , 26,27,29, 30,3 1, 35,37,39, 40 ,41
L13
*HCB16 08KF-121T25_15mil_short
L9
* HC B 1608KF - 121T2 5_15 mi l_s hort
L24
* HC B 1608KF - 121T25 _15m il _s hort
DD_ON#30,31,37,4 0
C180 22u_6.3V_X5R_08
+
C579 *100u_6.3V_B_A
Diff. trace 90ohm
CLOSE TO CONNECTOR
L10
* WC M2012 F2S -161T 03-s hort
1
4
2
3
8/19
Diff. trace 90ohm
CLOSE TO CONNECTOR
CO-LAY
100 MIL
USB3.0 PORT(PORT3)
SY6288DCAC
APL3518BXITRG
uP7534BRA8-20
USB3.0 PORT(PORT1)
L11
* WC M2012 F2S -161T 03-s hort
1
4
2
3
L28
*WCM2012F2S-161T03-short
1
4
2
3
USB2.0 Charge Function
ÅܧóM-MSOP8¥]¸Ë
USBVCC01
USBVCC3.0_2
Standard-A
J_USB1
317AH09FZTS494CB
VBUS
1
D-
2
D+
3
GND_D
7
SSRX-
5
SSRX+
6
GND
4
SSTX-
8
SSTX+
9SHIEL D GN D 1
SHIEL D GN D 2
ÅܧóM-MSOP8¥]¸Ë
USB POWER SWITCH
USB2.0 PORT(PORT0)
L27
*WCM2012F2S-161T03-short
1
4
2
3
Gen3
USB2.0 PORT(PORT1) Debug
USB2.0 PORT(PORT2)
L26
*WCM2012F2S-161T03-short
1
4
2
3
L25
*WCM2012F2S-161T03-short
1
4
2
3
SATATXP420
USB3_TX1_N24
USB3_TX1_P24
SATATXN420
SATARXN420
USB3_RX1_N24
USB3_RX1_P24
SATARXP420
L15
* WC M2012 F2 S-1 61T03 -sho rt
1
4
2
3
50 MIL
Standard-A
J_USB2
317AH09FZTS494CB
VBUS
1
D-
2
D+
3
GND _D
7
SSRX-
5
SSRX+
6
GND
4
SSTX-
8
SSTX+
9SHIEL D GND 1
SHIEL D GND 2
R469
*10K_04
C637
0.1u_16V_Y5V_04
eSATA
USB2.0
USB3.0
JCOMBO1
EU146-167BRL-TW
VBUS
P1
D-
P2
D+
P3
GND
P4
G1 GND 1
G2 GND 2
G3 GND 3
G4 GND 4
A+
P6
A-
P7
B-
P9
B+
P10
GND
P5
GND
P8
GND
P11
SSRX-
P12
SSRX+
P13
GND
P14
SSTX-
P15
SSTX+
P16
C643
*0.1u_16V_Y5V_04
C641
0.1u_16V_Y 5V_04
DD_ON#30,31,37,40
C4 94 0.01u_16V_X7R_04
PJ27
OPEN_2A
1 2
C477
22u _6.3V_X5R_08
C172 0.1u_16V_Y 5V_04
C 199 0 .1u _10V _X7R _04
C2 76 0. 1u_16V_Y 5V_0 4
C659
*0.1u_16V_Y 5V_04
C169 22u_6.3V_X5R_08
R470
*10K_04
50 MIL
C4 97 0.01u_16V_X7R_04
R4 58 * 0_04
U30
SY6288DCAC
VOUT1 6
VOUT3 8
VIN2
3
VIN1
2VOUT2 7
GND 1
EN #
4
FLG#
5
Schematic Diagrams
Card Reader / LAN RTL8411 B - 33
B.Schematic Diagrams
Card Reader / LAN RTL8411
C487
0.1u _16V_Y 5V_04
EVDD 10
PIN29
EVDD10
ENSW REG
R504 1.5K_1%_04
LDO Mode
C405
*10p_50V_NPO_0 4
SD_CLK/MS_D3
C6 79 *5p _50V_NPO_04
RTL8411 (SWR mode)
The trace length from Lx to Pin 48 (REGOUT) and
fr om Cout1, Cout2 to L x m ust be w ithin 200 m ils.
Please refer to RTL8411 Layout Guide for more detail.
SD _D2
C6 83 *5p _50V_NPO_04
LAN_MDIN034
LAN_MDIP034
LAN_MDIN134
LAN_MDIP134
SD_D0_R
SD_D2_R
R 481 *0_04
DVDD33
C475
*10u_6.3V_ X5R_06
C419 & C424 capacitors must be close to pin side
60mil
C668
0.1u_16V_Y5V_04
60mil
C692
*4.7u_6. 3V_X5R_06
VDD33/18
U31
RTL8411-CG
AVD D33 58
MS_D0/ xD _D1 56
MS_D4/ xD _D0 55
LED0/SPICSB 51
GPO
50
XD_C D # 57
SD_CD#/MS_D5/xD_ALE
54
LED1/SPI SCK 49
DVDD10 52
SD_CMD/MS_D6/xD_D3
21
SD_D3/MS_D2/ xD _D2
22
SD _D2/x D_D 7
23
GND
24
HSIP
25
HSIN
26
RE FC LK_P
27
REFCLK_N
28
EVDD10
29
HSOP
30
HSON
31
REGOUT 48
VDDREG
47
VDDREG 46
ENSWREG_H 45
SDA/ SPI DI 44
LED 3/SPI DO 43
SC L/LED _C R 42
DVDD10 41
LANWAKEB 40
ISOLATEB 38
PERS TB 37
CLKREQB 36
SD _WP/ M S_D1/ xD _WP# 35
MS_BS/x D_C LE
34
AVDD 33 63
R SET 62
AVDD10 61
CKXT AL2
60 CKXTAL1
59
VD D33/ 18
33
GND
65
AVDD33 64
MD I P0 1
MD I N0 2
AVDD10
3
MD I P1 4
MD I N1 5
MD I P2
6
MD I N2
7
AVDD10
8
MD I P3
9
MD I N3
10 AVD D33 11
DVDD33
12
Ca rd_3V3 13
SD _D7/x D_R D Y
14
SD_D6/MS_IN S#/x D_RE#
15
SD _D5/x D_C E#
16
SD _D4/x D_W E#
17
SD_D1/MS_CLK/ xD _D 6
18
SD_D0/MS_D7/ xD _D5
19
SD_CLK/MS_D3/ xD _D 4
20
GND
32
DVDD33 39
VDD33/ 18 53
GND
66
GND 67
GND 68
GND 69
GND
70
GND 71
GND 72
GND 73
SD_D1/MS_C LK_R
Clos e to PIN13
R479 *10m il_sho rt
R484 *10m il_sho rt
SD _CLK/ MS_D3
R492 *10m il_sho rt
R482 *10m il_sho rt
R490 *10m il_sho rt
C682
0.1 u_16V_Y 5V_04
C677 *5p_50V_N PO_04
R501 * 10m il_short
R506 * 10m il_short
R512 * 10mil_sho rt
4 IN 1 SOCKET SD/MMC/MS/MS Pro
C676
0.1u _16V_Y 5V_04
VDD10
PIN3
SD _D3/ MS_D2 SD_D3/MS_D 2_R
C695
0.1u_16V_Y5V_04
R278
* 15mil_s hort_06
R509
*15mil_short_06
R510
*15mil_short_06
C419
4.7u_6.3V_X5R_06
Near Cardreader CONN
C426
0.1u_16V_Y 5V_04
R250
*150_06
R243
*150 _06
VCC_CARD
CARD_3V3
meet falling time
<1ms
C416
0.1u_1 6V_Y 5V_04
DVDD33 rise time must be
controlled between 1mS and 100mS
VCC _CAR D
C667
0.1u_16V_Y 5V_04
VCC_CARD
3.3VS3,9,10,1 1,20, 21,2 2,23,24, 25, 26,27,29,30, 33,34 ,35,36, 37, 42,44
5V27,29,30, 31,37,39,40,41
1.5V3, 6,9, 10,27, 37,40
VD D320,29, 30, 36,37, 38, 45
C689
*4.7u_6.3V_X5R_06
PIN11
Close to PIN12
PIN12 PIN39 PIN58
C6 73 *5p _50V_NPO_04
DVDD33
DVDD33
VDD 10
X8
*HSX321S_25MHZ
1 2
34
C686
0.1u_16V _Y 5V_04
Switching Regulator close to PIN33
(>20mil)
(>20mil)
VDD10
R507 1K_04
C690 0. 1u_10V_X7R_04
PIN63
C684
*4.7u_6. 3V_X5R_06
R280 10K_04
R508 *0_04
FOR S5 WAKE UP ON LAN
TO SB PCH WAKE#.
TO EC8518 PIN123 PME#.
ISOLATEB
LANWAKEB
R478
2.49K_1%_04
.
L53
*SW F 2520CF -4R7M-M
R505
*10K_04
R502
15K_04
C665
*0.1u_16V_Y 5V_04
C 680
27p_50V_N PO_04
C493
1u_6.3V _X5R_04
PIN64
R513 *0_04
C688 0. 1u_10V_X7R_04
R511
10K_04
R277 *1K_04
D22 RB 751S-40C 2
AC
C 691
0. 1u_16V_Y 5V_04
R503 *10mil_ short
C678
27p_50V_N PO_04
R485 1M_04
EVDD10
DVDD33
DVDD33
DVDD33
DVDD33
VDD33/ 18
3.3VS
DVDD33
D3V3
REGOUT
DVDD33
DVDD33
D3V3
DVDD33
VDD10
Crystal 8045 & 3225 Co-lay
EVD D10
XTAL2
The trace length from Cin1,
Cin2 to Pin 46, 47 (VDDREG)
mus t be w ithin 200 m ils.
Please refer to RTL8411 Layout
Guide for m o re detail.
VDD10
XTAL1
VDD 10
VDD 10
VDD10
VD D33/ 18
VDD 10
VDD 10
VDD33/18
C ARD _3V3
VDD 33/18VDD 33/ 18
BU F_PLT_RS T# 24, 29, 36
PCIE_RXP4_GLAN 21
PCIE_RXN4_GLAN 21
PCIE_TXN4 _GLAN 21
PCIE_TXP4_GLAN 21
LAN _CLKR EQ# 21, 24
CLK_PCIE_GLAN # 21
CLK_PCIE_GLAN 2 1
PME# 24,36
PCIE_WAKE# 22, 29
LAN_MD IN 2
LAN_MD IP2
DVDD33
LAN_MD IN 3
LAN_MD IP3
VDD10
SWR Mode
DVDD33
RSE T/AVDD
EVDD10
Close to chip pin18 pin19 pin20 pin22 pin23
DVDD33
VDD33/ 18
VDD 10
XTAL1
XTAL2
LAN _MDIP0
LAN _MDIN 1
LAN _MDIP1
D3V3
VD D10
VD D10
DVDD33
LAN _MDIN 0
REGOUT
D3V3
EN SWR EG
LED2/EED I
XD_CD#
VDD33/18
LED1/EESK
SD_WP/ MS _D1
CLKREQB
PERST B
CARD_3V3
LED0
EEC S
LED3/EED O
SD_D5
MS_I N S #
SD _D3/MS_D 2_R
SD_D4
SD_D7
SD_CD#
SD_D2_R
SD_CMD
SD_D0_R
MS_BS
SD_CLK/MS_D3_R
SD _D1/MS_C LK_R
LAN (RTL8411)
Pin#33 Pin#53
RT L 8411 ESD r eq u es t
Close to PIN13
C669
0.1u_ 16V_Y 5V_04
CAR D_3V3
LAN_MDIP234
LAN_MDIN334
LAN_MDIP334
LAN_MDIN234
C 664
0. 1u_16V_Y 5V_04
C693
*0.1u_16V_Y 5V_04
.
L52
HC B1608KF-121T25
C671
0.1u_ 16V_Y 5V_04
DVDD33
D3V3
VDD3
PIN46
PIN47
SD_CLK/ MS_D3_R
SD _D0
REGOU T
C675 *5p_50V_N PO_04
X9
X8A025000FG1H_25MHz
1 2
DVDD33
C696
*4.7u_6.3V_X5R_06
Close to chip
C496
0.1u_16 V_Y 5V_04
C666
0.1u_16V _Y 5V_04
C674
0.1 u_16V_Y 5V_04
C694
0.1u_ 16V_Y 5V_04
VDD10 VDD 10 VDD10VDD10
SD_C D #
SD_W P/ MS_D1
PIN52PIN8 PIN41
SD_D 3/ MS_D2
VCC_CARD
MS_ B S
SD_W P/ MS_D1
C438
*0.1u_16V_Y 5V_ 04
6/2 modify
PIN61
SD_C LK/ MS_D3
MS_ D 0
SD_D 3/ MS_D2
SD_D 2
VCC_CARD
SD_D 0
C423
*0.1u_16V_Y 5V_ 04
SD_C LK/ MS_D3
SD_D 1/ MS_CLK
SD_D 1/ MS_CLK
MS_ I NS #
SD_C MD
J_CARD_NOR1
72740123113
SD_C/D
P20
MS_ VS S 1
P2
SD_DATA1
P19
SD_DATA0
P18
MS_ VS S 2
P16 SD_VS S2
P17
MS_BS
P15
SD_CLK
P14
MS_ D A TA1
P13
MS_ D A TA0
P12
SD_VD D
P11
MS_ D A TA2
P10
SD_VS S1
P9
MS_I N S
P8
MS_ D A TA3
P7
SD_CMD
P6
MS_ SC LK
P5
MS_ VC C
P4
SD_DATA3
P3
SD_GN D
P21
GND1 P23
GND2 P24
SD_DATA2
P1
SD_WP
P22
Close to chip
FLEX_GLAN_CLK 21
R4 77 * 10mil_s hort
SD _D1/ MS_CLK
Close to chip
MS_ D 0
Schematic Diagrams
B - 34 SATA HDD, LED, Hotkey, LID SW
B.Schematic Diagrams
SATA HDD, LED, Hotkey, LID SW
LED_PW R36
WLAN_LED#29 WLAN_LED #
O PTI MU S _MO D E
LED_AC IN36
SATA_RXP0 20
SATA_RXN0 20
SATA_TXP0 20
SATA_TXN0 20
C661 0.01u_16V_X7R_04
C655 0.01u_16V_X7R_04
C660 0.01u_16V_X7R_04
C653 0.01u_16V_X7R_04
Gen3
J_LED1
88486-1001
1
2
3
4
5
6
7
8
9
10
H9
H6_3D 2_8
W150XX/W170XX LED
CON
W150XX/W170XX
LED_BAT_CHG36
HDD CONNECT2 (SLAVE)
HDD CONNECT1 (MASTER)
+
C345
*330u_6.3V_D_B
R287 220_04
R286 220_04
SG
Y
D11
KPB-3025Y SGC
1
3
2
4
SATA_TXN1 20
SATA_RXP1 20
SATA_RXN1 20
SATA_TXP1 20
PIN GND1~2=GND
C631 0.01u_16V_X7R_04
C629 0.01u_16V_X7R_04
C633 0.01u_16V_X7R_04
C635 0.01u_16V_X7R_04
C396
0.1u_10V_X5R_04
C13
*0.01u_50V_X7R_04
Gen3
C388
1u_6.3V_X5R_04
C10
*10u _10V_Y 5V_08
3.3VS
5VS
LED_I GPU #
3.3VS
LED
AC IN/POWER ON LED
R283
220_04
D10
RY -S P170Y G34-5M
AC
LED_N UM# 36
3.3VS
NUM LOCK
LED
LED_N UM#
H15
H8_0D 2_8
Green Green Green
VDD 320,29,30,32, 36, 37,38, 45
SCROLL
LOCK LED
LED_SCROLL#
R285
220_04
LED_SC ROLL# 36
3.3VS
J_HDD2
15-017-1A31
S1
S2
S3
S4
S5
S6
S7
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
D9
RY -SP170Y G34- 5M
AC
BT_EN
LED_D GPU #
D8
R Y-SP170Y G34-5M
AC
LED_C AP# 36
3.3VS
R284
220_04
LED_C AP#
H16
H8_0D 2_8
CAPS LOCK
LED
H20
H7_5B5_0D3_7
5VS11,20,26, 27, 29,30,34,35,37, 42, 44
SATA_LED#
VGA_SW#
1
H4
MTH8_0D2_8
2
3
4
5 6
7
8
9
R289 220_04
BAT CHARGE/FULL LED
SG
Y
D12
KPB-3025Y SGC
1
3
2
4
R288 220_04
1
H14
MTH8_0D2_8
2
3
4
5 6
7
8
9
M6
M- MAR K
M3
M-MARK
M5
M-MAR K
M1
M-MAR K
M2
M- MAR K
M7
M-MARK
M4
M-MARK
M8
M-MARK
3.3VS3,9,10,11, 20, 21,22,23,24,2 5,26, 27, 29,30,32, 34,35,36, 37,42,44
GNDGND GN D
W150XX/W170XX
H5
H6_3D2_8
H3
C118D 118N
H17
C111D 111N
H18
C111D111N
H1
C111D 111N
H2
C111D111N
+
C418
*330u_6.3V_D_B
J_HDD1
ACES-91907-0220A-H 01
S1
S2
S3
S4
S5
S6
S7
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
GND 1
GND2
C402
0.1u_16V_Y5V_04
5VS
3.3VS
PIN GND1~2=GND
HDD_NC0
HDD_NC2
HDD_NC1
HDD_NC3
LED_I GPU#20
C408
22u_6. 3V_X5R_08
LED_DGPU#25
VGA_SW #36
BT_EN29,36
SATA_LED#20
OPTIMUS_MODE36
C360
22u_6.3V_X5R_08
8 pin ->10 pin add WLAN_LED#
C990713
LED_BAT_F ULL36
Schematic Diagrams
HDMI, RJ45 B - 35
B.Schematic Diagrams
HDMI, RJ45
LAN_MDI P2
LAN_MDI N3
LAN_MDI N2
LAN_MDI N0
LAN_MDI N1
LAN_MDI P1
LAN_MDI P0
LAN_MDI P3
R549 *4.7K_04
DDCBUF
R550 0_04
HDMI_SCL-C
D17
*BAV99 RECTI FI ER
A
C
AC
HDMI_HPD-C
HDMI_SDA-C
D16
*BAV99 R ECTIFIER
A
C
AC
D15
*BAV99 RECTIFI ER
A
C
AC
For ESD
5VS_H DMI
ASMEDIA 1442 PD 0_04
ASMEDIA 1442 NC
R554
2.2K_04
TMDS_DATA2#-R
PS8171_CLKCN
Parade PS8171 *2.2K_1%_04
ASMEDIA 1442 2.2K_1%_04
ASMEDIA 1442 PU 4.7K_04
C612 0.1u_10V_X7R_04
HDMIC_CLKCN23
HDMIC_CLKCP23 C616 0.1u_10V_X7R_04
TMD S_DATA1-R
TMD S_ D A TA2-R
TMDS_DATA0#-R
TMD S_ D A TA0-R
L30
*W CM2012F 2S-161T03-short
1
4
2
3
TMDS_CLOCK#-R
6-03-01442-030 Value:ASM1442
IC HDMI/DVI LEVEL SHIFTER ASM1442 QFN 48PIN (ASMEDIA)
Main 6-21-84020-008
Sec 6-21-84030-008
C704
*10u_6. 3V_X5R_06
HDMI_CTRLDATA23
ASQ1
3.3VS
APD
C608
0.1u_16V_Y 5V_04
HDMIC_C2CN23
HDMIC_C1CP23
PORTC_HPC23
HDMIC_C1CN23
HDMIC_C0CP23
HDMIC_C2CP23
HDMIC_C0CN23
C610 0.1u_10V_X7R_04
C609 4.7K_06
C611 0.1u_10V_X7R_04
R532 3. 3K_1%_04
C613 0.1u_10V_X7R_04
C615 0.1u_10V_X7R_04
C710 0.1u_10V_X7R_04
C709 0.1u_10V_X7R_04
EMI1
APD
TMDS_DATA1#-R
TMDS _DATA1-R
EMI1
C711
0.1u_16V_Y 5V_04
EMI0
ASQ0
C712
0.1u_16V_Y 5V_04
PS8171_CLKCN
R533 100K_04
Parade PS8171 499_1%_04
ASMEDIA 1442 3.3K_1%_04
PIO
PEQ
J_HDMI1
1169-1A001-21U
SHIELD2
2
TMDS DATA1+
4
TMDS DATA1-
6
SHIELD0
8
TMDS CLOCK+
10
TMDS CLOCK-
12
RESERVED
14
SDA
16
+5V
18
TMDS DATA2+ 1
TMDS DATA2- 3
SHIELD 1 5
TMDS DATA0+ 7
TMDS DATA0- 9
CLK SH IELD 11
CEC 13
SCL 15
DDC/CEC GND 17
HOT PLUG DETECT 19
GND
GND 1
GND
GND 2
GND
GND 3
GND
GND4
REXT
DCC_EN#
PEQ
DDCBUF
DCC_EN#
HDMI_HPD-COE#
HDMI_SDA-C
HDMI_SCL-C
TMDS_CLOCK-R
TMDS_CLOCK#-R
R534 *4.7K_04
R536 *0_04
R535 *4.7K_04
R538 *4.7K_04
R537 *4.7K_04
C713
0.1u_16V_Y5V_04
R539 4.7K_04
3.3VS
3.3VS
R541 *4.7K_04
R540 4. 7K_04
R590 *4.7K_04
R599 *4.7K_04
R542 *4.7K_04
R544 *4.7K_04
R543 4.7K_04
R545 *4.7K_04
R546 0_04
PRE
R547 *4.7K_04
R589 4.7K_04
U33
ASM1442
IN_D1+
39
IN_D1-
38
IN_D2+
42
IN_D2-
41
IN_D3+
45
IN_D3-
44
IN_D4+
48
IN_D4-
47
SCL
9
SDA
8
HPD/HPDX
7
OE#
25
DCC_EN#
32
CEXT/RT_EN#
10
PEQ/PC0
3
PIO/PC1
4
REXT
6
EMI0/GND[6]
27
PRE/QE_2
35 DDCBUF/OE_1
34
OUT_D 1+ 22
OUT_D1- 23
OUT_D 2+ 19
OUT_D2- 20
OUT_D 3+ 16
OUT_D3- 17
OUT_D 4+ 13
OUT_D4- 14
SCL_SINK 28
SDA_SIN K 29
HPD_SINK 30
VCC [1] 2
APD/VCC[2]
11
VCC [3] 15
VCC [4] 21
VCC [5] 26
EMI1/VCC[6]
33
VCC [7] 40
VCC [8] 46
ASQ0/GND[1]
1
GND[2] 5
ASQ1/GND[3]
12
GND[4] 18
GND[5] 24
GND[7] 31
GND[8] 36
GND[9] 37
GND [10] 43
GND
49
3.3VS
C714
0.1u_16V_Y5V_04
PIN 49=GND
HDMI_CTRLCLK23
EMI0
PIO
5VS11, 20, 26, 27,29,30,33, 35,37,42,44
HDMI LEVEL SHIFT
TMD S_ DA TA1
LAN_MDI N032
LAN_MDI P032
LAN_MDI P232
LAN_MDI N132
LAN_MDI P132
LAN_MDI N332
LAN_MDI P332
LAN_MDI N232
R385
1_04
HDMI_CEC
HDMI_HPD-C
TMDS_D ATA0
HDMI_SDA-C
HDMI_SCL-C
LAN POART
C258
0.01u_16V_X7R_04
C307
10u_10V_Y5V_08
C308
22u_6. 3V_X5R_08
PI N G ND1 ~ 4 =GND
5VS_HD MI
5VS
HDMI CONNECTOR
L34
NS892402
TCT1
1
2TD1+
3
TD1-
TCT2
4
5TD2+
6
TD2-
TCT3
7
8TD3+
9
TD3-
TCT4
10
11 TD4+
12
TD4-
13
MX4- 14
MX4+
MC T4 15
16
MX3- 17
MX3+
MC T3 18
19
MX2- 20
MX2+
MC T2 21
22
MX1- 23
MX1+
MC T1 24
TMDS_DATA2#-R
TMDS _DATA2-R
TMDS_CLOCK-R
TMDS _DATA0-R
TMDS_DATA0#-R
6-03-08171-030 Value:PS8171
IC HDMI/DVI LEVEL SHIFTER PS8171 QFN 48PIN (PARADE)
TMDS_CLOCK
TMDS_DATA1#
TMDS_C LOCK#
R377
2.2K_04
D18
RB551V-30S2
A C R376
2.2K_04
TMDS_D ATA2
TMDS_D ATA2#
TMDS_D ATA0#
130451-02
J_RJ_1
DD-
8DD+
7
DB-
6
DC-
5DC+
4
DB+
3DA-
2DA+
1shield GND1
shield GND2
Parade PS8171 PD 2.2u_6.3V_Y5V_06
ASMEDIA 1442 PD 4.7K_06
DLMX3-
DLMX4-
DLMX3+LMX3+
LMX2-
LMX3-
R378
*15K_04
DLMX1+
DLMX2+
LMX4-
DLMX1-LMX1-
DLMX4+LMX4+
LMX1+
R555 *4. 7K_04 CEXT
L31
*W CM2012F 2S-161T03-short
1
4
2
3
L32
*W CM2012F 2S-161T03-short
1
4
2
3
GIGA LAN (RTL8411)
L33
*W CM2012F 2S-161T03-short
1
4
2
3
DLMX2-
R91 75_04
R100 75_04
C255
1000p_2KV_X7R_12_H125
R98 75_04
R94 75_04
LMX2+
TMDS_DATA1#-R
L43
*WCM2012F2S-161T03-short
1
4
2
3
L45
*WCM2012F2S-161T03-short
1
4
2
3
NMCT_R
L44
*WCM2012F2S-161T03-s hort
1
4
2
3
NMCT_4
NMCT_2
NMCT_3
L46
*WCM2012F2S-161T03-s hort
1
4
2
3
NMCT_1
CEXT
3.3VS3,9, 10,11,20,21, 22,23, 24,25,26,27, 29,30,32,33, 35,36,37,42,44
Schematic Diagrams
B - 36 Audio Codec VT1802P
B.Schematic Diagrams
Audio Codec VT1802P
Close to PCH
Layout Note:
R72 1K_04
C501 10u_6.3V_X5R _06
C165
330p_50V_X7R_04
C470
0.1 u_16V_Y 5V_04
HDA_SPKR20
JD_SENSE_B 29JD_SENSE 29
KBC_BEEP36
C492 100p_50V_NPO_04
L50
*H CB1005KF-121T20
C685 10u_6.3 V_X5R_06
R282 5.1K_1%_04
DIGITAL ANALOG
U16
VT1802P_A3
DVDD1 1
GPIO0-DMIC-DAT
2
GPIO1-DMIC-CLK
3
PD#
4
SDATA-OU T
5
BIT-CLK
6
DVSS2
7
SDATA-I N
8
DVDD-IO 9
SYN C
10
RESET#
11
PCBEEP
12
Sense A 13
LINE2-L 14
LIN E2-R 15
MIC2-L 16
MI C 2 -R 17
Sense-B 18
JDREF 19
MON O- OU T 20
MIC1-L 21
MI C 1 -R 22
LINE1-L 23
LIN E1-R 24
AVSS1
26
VREF 27
LDO_CAP 28
MIC2-VR EFO 29
MIC 1-VREFO-R 30
MIC1-VREFO-L
31
HP-OUT-L 32
AVSS2
37
OPVEE 34
CBN 35
CBP 36
HP-OUT-R 33
PVDD1 39
SPK-L+
40
SPK-L-
41
PVSS1
42
PVSS2
43
SPK-R+
45 SPK-R-
44
PVDD2 46
SPDIFC2/EAPD
47
SPDIFO
48
AVDD2 38
AVDD1 25
GND
49
C458
*180p_50V_NPO_04
INT_MIC
MI C 2 - VR EF O
HDA_RST#R
C500 10u_6.3V_X5R _06
MIC 2_R
MIC 2_L
DMIC-CLK
DMIC-DAT
R257
*15mil_short_06
AZ_SDOUT_R
AZ _SY NC _R
BEEP_R PCBEEP
AZ_SD IN0_R
C460
*1u_16V_X5R_06
LDO_CAP
SPKOUTL-
SPKOUTL+
MI C2- VR EF O
MI C1- VR EF O-R
OPVEE-ALC269
CBN-AL269
CBP-ALC269
HEAD PHONE-R
C339
*1u_16V_X5R_06
HEAD PHONE-L
MIC 1-R _R
LINE1-R
LINE1-L
C687
*10u_6.3V_X5R_06
MIC 1-L_R
SENSE-B
SPKOUTL+_L
MONO-OUT
LINE2-L
LINE2-R
SPKOUTR+
SPKOUTR-
SPKOUTL+
C468
10u_6. 3V_X5R_06
SPKOUTL-
SPKOUTR +_RSPKOUTR+
SPKOUTR-
MIC1_R
MIC1_L
R77
3.3K_1%_04
R274 4.7K_04
C474
2.2u_6.3V_X5R_06
C647 22p_50V_NPO_04 C498 10u_6.3V_X5R _06
C469
*1u_6.3V_Y 5V_04
C466 2.2u_6.3V_X5R_06
R276 20K_1%_04
MI C 1 _R
R281 75_04
MI C 1 - VR E F O - L
MI C 1 _L
R279 75_04
MI C 1 - VR E F O - R
C457
*180p_50V_NPO_04
C495
0. 1u_16V_Y 5V_0 4
L51 HCB1005KF -121T20
C346
*180p_50V_NPO_04
R273 47K_04
C491 1u_6. 3V_X5R_04
C502 10u_6.3V_X5R _06
R275 39. 2K_1%_04
3.3VS3, 9,10, 11, 20,21,22, 23, 24, 25, 26, 27,29,30, 32, 33,34,36,37 ,42, 44
INT_MIC
5VS1 1,20,26,27, 29, 30,3 3,34,37,42, 44
1.5V3,6,9,10,27, 37,40
C490 0 .1u_16V_Y 5V_ 04
C347
*180p_50V_NPO_04
BEEP
C482
10u_6. 3V_X5R_06
C481
0.1u_16V_Y5V_04
MI C 1- VR EF O -L
KBC_MUTE#24,35, 36
NEAR CODEC
HD A_SDOUT20
HD A_BITCLK20
HDA_SYNC20
Speaker 4 ohm------> 40m ils
Speaker 8 ohm------> 20m ils
2
EMI Require
1
EMI Require
J_INTMIC1
Layout note:
Close to codec
ANALOG DIGITAL
HD A_SDIN020
C465
0.1u _16V_Y 5V_04
C462
10u_6. 3V_X5R_06
Thermal Pad place 9
Via hole.
GND and AUDG space is
60mils ~ 100mils
Speaker wire length less than 8000mils , It don't need LC Filter.
5VS
Layout note:
AZ_RST#
20m s
PD#
3.3VS_AUD
SPKOUTR+,R-,L+,L- Trace width
HEADPH ON E-L 29
HEADPH ON E-R 29
5VS
5VS_AUD 5VS
1.5VS
ALC269 ±µR518
VT1802P ±µR533
R413 22_04
R450 22_04
R445 22_04
R516 22_04
SPKOU TR+_R 29
SPKOU TR-_R 29
1.5VS26,37
R268
*10K_04
J_INTMIC1
CI4302M1HR0-NH
PCB F oot print = CI43-02MXH-R
2
1
SPDIF O29
EAPD _MOD E
VT1802P ±µAUDG
MI C1 -R 2 9
MI C1 -L 29
ALC269 ±µGND
3.3V
Q32
*2N 7002W
G
DS
AUDG
HEADPHONE-L
Q31
*2N7002W
G
DS
R488 *4.7K_04
AUD G
AUDG
HEADPHON E-R
Q33
*AO3415
G
D S
R475
*10K_04
8/27
R476
*10K_04
Headphone Anti-Pop Circuit
R496
*220K_04
C670
*10u_6.3V_X5R_06
SPKOUTL-_L
VREF-ALC 269
SENSE_A
SPKOUTR -_R
PD#
R486
*10K_04
Q34
*BSS138_NL
G
DS
R493 *100K_04
Q35
*2N7002W
G
DS
5VS_AUD
5VS_A UD
HDA_RST#
AZ_RST# For 3.3V
HDA Link De-pop
PD# Control
AZ_RST# For 1.5V
HDA Link De-pop
D6 *RB751S-40C 2
AC
EAPD _MOD E
R483 *10mil_short
3.3V2,3, 6, 11, 18,20,21, 22, 24, 25, 26,27,29 ,30,31,37,39, 40,41
C473
10u_6. 3V_X5R_06
L49
HCB1005KF-121T20
C672
0.1u_16V_Y 5V_04
C472
0. 1u_16V_Y 5V_04
3.3VS_AU D
3.3VS 3.3VS_AUD
AUDG
R480
10K_04
C614 *100p_50V_N PO_04
W150ER SPK2
W170ERQ SPK1
AUD G
3.3VS
C499 *100p_50V_NPO_04
VT1802P L52,C689 ¤£¤W¥ó
ALC269 L52,C689 -n¤W¥ó
JDREF
VT1802P 5.1K_1%_04
VT1802P 10u
C483 * 10u_6.3V _X5R_06
R515
100K_04
3.3VS_AUD
VT1802P
330P
VT1802P
3.3K_04
VT1802P NC PIN
HDA_RST#20
JP2 *10mil_short
C5 07 0. 1u_16V_Y 5V_04
JP1 *10mil_short
C5 06 0. 1u_16V_Y 5V_04
KBC_MUTE#24,35,36
AUD G
PVDD1_2
R489 *0_04
R491 0_04
C467
*0. 1u_16V_Y 5V_0 4
C471
*10u_6.3V_X5R_06
HDA_RST#
CODEC (ALC269 & VT1802P)
R530 1M_04
J_SPKL1
CI 4402M1VR 0-LF
1
2
VT1802P 75_1%_05
VT1802P 4.7K_1%_05
J_SPKL2
CI 4402M1VR 0-LF
1
2
2
J_SPK1
1
D21 R B751S-40C 2
AC
FOR VOLUMN ADJUST
D20 R B751S-40C 2
AC
AZ_BI TCLK_R
R264 4.7K_04
3.3VS_AUD
R267 4.7K_04
R5290_04
R5280_04
Q16 MTN7002ZHS3
G
D S
VT1802P 10u
5VS
R487 *0_04
6-03-01802-030
VT1802P 10u
§»-P 85205-02701 6-20-41100-002
Ãv¯þ (Ááª÷) CI4402M2VR0-LF 6-20-41130-002
Ãv¯þ (Áá¿ü) CI4402M1VR0-LF 6-20-41140-002
PC BEEP
Layout Note:
Very close to
Audio Codec
R266 33_04
§»-P 88266-02001 6-20-63120-102
Ãv¯þ (Ááª÷) CI4302M2HR0-NH 6-20-63100-102
Ãv¯þ (Áá¿ü) CI4302M1HR0-NH 6-20-63150-102
Please Let LC Filter
together and close to
Code c.IF S pe aker
wire length is less
than 8000mils It don't
need the LC Filter.
C
A
A
D7
BAT54CS3
1
2
3
L22
*F CM1608K-121T06_short
L23
*F CM1608K-121T06_short
L19
*F CM1608K-121T06_short
L20
*F CM1608K-121T06_short
AUDG
AUDG
AUDG
AUDG
AUDG
AUD G
Schematic Diagrams
KBC-ITE IT8518E B - 37
B.Schematic Diagrams
KBC-ITE IT8518E
80CLK
J_80DEBUG1
*88266-05001
1
2
3
4
5
VDD 3
3.3VS3, 9,10,11,20,21 ,22,23,24,25,26,2 7,29,30,32,33,34,35,37,42,44
3IN1
80DET#80DET#
3G_DET#
MU TE _S W #
0V
RX
WLAN_SW#30
U9
PCT25VF 032B
CE# 1
SO 2
WP#
3
VSS 4
SI 5
SCK 6
HOLD#
7
VDD
8
0_04 for M760T/TU
BKP1005HS121_04 for M740T/TU
EMI Solution
PWR _BTN#22
SMD_CPU_THERM_R
BAT_DET45
PM_PCH_PWR OK 22
RSMRST# 22
EC_VCC
PCLK _KBC
K/B MATRIX
FLASH
LPC
SMBUS
PS/2
PWM
UART
DAC
CLOCK
IT8518E/HX
CIR
ADC
WAKE UP
PWM/COUNTER
LPC/WAKE UP
EXT GPIO
GP INTERRUPT
WAKE UP
GPIO
U12
IT8518E/HX
WRST#
14
LPCCLK
13
LAD0
10
LAD1
9
LAD2
8
LAD3
7
LFRAME#
6
( PD )LPCPD#/WUI6/GPE6 17
SERI RQ
5
ECSMI#/GPD4( PU )
15 ECSC I#/GPD3( PU )
23
GA20/ GPB5
126
KBRST#/GPB6( PU )
4
KSI0/STB# 58
KSI1/AFD# 59
KSI2/INI T# 60
KSI3/SLIN # 61
KSI4 62
KSI5 63
KSI6 64
KSI7 65
KSO0/PD0 36
KSO1/PD1 37
KSO2/PD2 38
KSO3/PD3 39
KSO4/PD4 40
KSO5/PD5 41
KSO6/PD6 42
KSO7/PD7 43
KSO8/AC K# 44
KSO9/BUSY 45
KSO10/PE 46
KSO11/ERR# 51
KSO12/SLCT 52
KSO13 53
KSO14 54
KSO15 55
VC C 11
VSTBY 26
VSTBY 50
VSTBY 92
VSTBY 114
VSTBY 127
VSTBY 121
VBAT 3
AVCC 74
PS2CLK0/GPF0( PU )
85
PS2D AT0/ GPF1( PU )
86
PS2CLK1/GPF2( PU )
87
( PD )TMRI0/WUI2/GPC4 120
( PD )TMRI1/WUI3/GPC6 124
LPCR ST#/ WUI 4/GPD2( PU )
22
( PD )WUI5/GPE5 35
PWRSW/ GPE4( PU )
125
RI1#/WUI0/GPD0( PU )
18
RI2#/WUI1/GPD1( PU )
21
( PD )RING#/PWRFAIL#/LPCRST#/GPB7 112
TXD/ GPB1( PU )
109 RXD/GPB0( PU )
108
( PD )CTX/GPB2 123
PS2D AT1/ GPF3( PU )
88
PS2CLK2/GPF4( PU )
89
PS2D AT2/ GPF5( PU )
90
( PD )TACH0/GPD6 47
( PD )TACH1/GPD7 48
PWM0/GPA0( PU )
24
PWM1/GPA1( PU )
25
PWM2/GPA2( PU )
28
PWM3/GPA3( PU )
29
PWM4/GPA4( PU )
30
PWM5/GPA5( PU )
31
PWM6/GPA6( PU )
32
PWM7/GPA7( PU )
34
ADC 0/GPI0
66
ADC 1/GPI1
67
ADC 2/GPI2
68
ADC 3/GPI3
69
ADC 4/GPI4
70
ADC 5/GPI5
71
ADC 6/GPI6
72
ADC 7/GPI7
73
VSS
1
VSS
12
VSS
27
VSS
49
VSS
122 VSS
113
AVSS
75
CK32KE 2
CK32K 128
DAC3/GPJ3
79 DAC2/GPJ2
78 GPJ1
77 GPJ0
76
( PD )EGCS#/GPE2 83
( PD )EGCLK/GPE3 84
( PD )EGAD/GPE1 82
GINT/GPD 5( PU )
33
L80LLAT/GPE7( PU )
20
VSS
91
DAC5/GPJ5
81 DAC4/GPJ4
80
PWUREQ#/GPC7( P U )
16
( PD )CRX/GPC0 119
( PD )KSO16/GPC3 56
( PD )KSO17/GPC5 57
( PD )GPH0/ID0 93
( PD )GPH1/ID1 94
( PD )GPH2/ID2 95
( PD )GPH3/ID3 96
( PD )GPH4/ID4 97
( PD )GPH5/ID5 98
( PD )GPH6/ID6 99
( PD )GPG1/ID7 107
SMCLK0/GPB3
110
SMDAT0/GPB4
111
SMCLK1/GPC1
115
SMDAT1/GPC2
116
SMCLK2/GPF6( PU )
117
SMDAT2/GPF 7( PU )
118
FLFRAME#/GPG2 100
FLAD 0/SCE# 101
FLAD1/SI 102
FLAD2/SO 103
FLAD3/GPG6 104
FLCLK/SCK 105
( PD )FLRST#/WU I7/ GPG0/TM 106
( PD )L80HLAT/GPE0 19
BKL_EN 11
BT_EN 29,33
SUS_PWR_ACK 22
WLAN _DET#29
R1540_04
R184 43_1%_04
R138* 0_04
THER M_VOLT2
SMC_CPU_THERM_R
BAT_VOLT45
W170ER
R226
*10mil_short
CCD_SW#30 CCD_SW#
CRIT_TEMP_REP#25
DD_ON 30,37, 38
6-03-08518-0P3
6-04-25032-491
KB-SO1
KB-SO8
KB-SO4
KB-SI0
KB-SO7
KB-SO10
KB-SO6
KB-SO14
KB-SO0
KB-SI3
KB-SI6
KB-SI1
KB-SI7
KB-SO11
KB-SI2
KB-SI5
BIOS/EC ROM
KB-SO12
KB-SO5
KB-SO9
KB-SI4
KB-SO13
KB-SO2
KB-SO3
MU TE _S W #
Board-n¥[
R135 *10K_04
C443
0. 1u_16V_Y 5V_04
CPU_FANSEN 29
C642
1u_6.3V_X5R_04
KBC Connect§ó´«§»-P
0_04 FOR IT8512CX/EX
0.1U_04 FOR ITE8512-J(ITE8502-J W/0 CIR)
EC Cost Down
J_KB1
*85208-24051
24
23
22
14
12
11
21
8
20
19
6
5
18
4
17
10
9
7
3
2
1
16
15
13
6-20-94AF0-124
C330
0.1u_16V_Y5V_04
C395
0.1u_16V_Y5V_04
NC2 SHORT
C333
0.1u_16V_Y5V_04
C447
0. 1u_16V_Y 5V_04
R240
*10_04
C444 0.1u_16V_Y 5V_04
C327
*0. 1u_16V_Y5V_04
C329
10u_10V_Y5V_08
KBC_SPI_SO_R
KBC_SPI_SCLK_R
KBC_H OLD#
C446 *0. 1u_16V_Y5V_04
.
L48 H C B1005KF-121T20
SPI_VDD_1
.
L17
HCB1005KF-121T20
32Mbit
C326
*0.1u_16V_Y5V_04
KBC_F LASH
R451
100K_04
KBC_SPI _SC LK
KBC_SPI_SO
KBC_SPI_C E#_R
KBC_SPI _SI
KBC_SPI_CE#
NVVDD_CURRENT_LIMIT18
dGPU_PWR_EN#
R438 *0_04
R151
4.7K_04
NC1
SHORT
R136 10K_04
C445 *10p_50V_NPO_04
C420
0.1u_16V_Y 5V_04
R131
1K_04
R241 *10mil_short
C337
0.1u_16V_Y5V_04
KBC_AVDD
VDD 3
VDD3
VDD3
VDD3
KBC_AGND
KBC_AGN D
VD D3
SMI#24,25
SCI #24,25
3.3VS
VD D3
SWI# 22
KBC_RST# 25
R2510_04
3G_EN29
CCD_EN 30
VDD 320,29,30,32,37,38,45
ALL_SYS_PW RGD 11, 22, 42
BRI GHTNESS11
SUSB# 6,22,37, 39
SUSC# 22,40
TP_D A TA30
CCD_DET#30
LID_SW#11,30
SERI RQ20, 30
LPC_AD020, 30
SMD_BAT30,45
SMC_BAT30,45
LPC_AD120, 30
LPC_AD220, 30
LED_PWR33
TP_CLK30
LPC_AD320, 30
LPC_FR AME#20,30
LED_BAT_CHG33
LED_CAP#33
LED_BAT_FULL33
LED_NU M#33
BU F _PL T_R ST#24,29,32
KBC_BEEP35
LED_SCR OLL#33
PWR _SW #37
PCLK_KBC24
AC_I N #30, 45
LED_ACIN33
80CLK29
GA2025
PCLK_KBC_R
C331 * 33_50V_N PO_04
BAT_VOLT
PCLK_KBC
KBC_W R ESET#
LCD_BRIGHTNESS
KBC_BEEP
SMD_BAT
80CLK
SMC_BAT
R157 100_04
CCD_DET#
BAT_DET
EC MODULE CHOOSE (FOR DIFFERENCE K/B TYPE)
HSPI_MSI 20
HSPI_MSO 20
HSPI_SCLK 20
HSPI_CE# 20
KBC_SPI_*_R = 0.1"~0.5"
KBC_SPI _CE#
PME# 24,32
MINI_PWR_ON29
VGA_SW# 33
KB-SO8
KB-SO4
KB-SI0
KB-SO14
KB-SO10
KB-SO6
KB-SO7
KB-SO1
KB-SI1
KB-SI7
KB-SI6
KB-SO0
KB-SI3
KB-SO3
KB-SO12
KB-SO5
KB-SI5
KB-SI2
KB-SO11
KB-SO15
KB-SO9
KB-SI4
KB-SO13
KB-SO2
CCD_DET#
LCD_BRIGHTNESS
BAT_VOLT
W150ER
H_PROCHOT#_EC 3
R150 *10mil_short
RN22
10K_8P4R_04
8 1
7 2
6
5
3
4
KBC_SPI_SI_R
R108 *10mil_short
KBC_SPI _SI
R109 *10mil_short
R152 *10mil_short
OPTI MUS_MODE33
J_KB2
85208-24051
24
23
22
14
12
11
21
8
20
19
6
5
18
4
17
10
9
7
3
2
1
16
15
13
TOTA L_C U R45
KBC_SPI _SO
SUSACK# 22
MODEL_ID
CK32K
CK32KE
KBC_SPI _SCLK
BT_DET#29
KB-SO15
R192 *0_04
SMC_CPU_THERM_R
R201 *0_04 SML1CLK 21,29
SML1DATA 21,29
SMD_CPU_THERM_R
ME _W E20
MO D EL _ I D
NB_ENAVDD 11, 23
3IN129
AC_PRESENT21,22,24
W150ERQ
USB_CHARGE_EN 37,38
W170ER
H_PECI 3,21,25
R216
*10K_04
dGPU_PWR_EN# 24,37,40,44
dGPU_RST# 24
dGPU_PWR_EN#
1
CCD_SW#
R303 10K_04
MODEL_ID
3.3VV1.0 R136 10K/ R135 X
VER. VOLTAGE
J_KB1
R136 X /R135 10K
SMC_CPU_THERM_R
3G_DET#29
SMD_VGA_THERM18
SMC_VGA_THERM18 SMD_VGA_THERM
SMC_VGA_THER M
24
KBC_MUTE#24,35
C340 1u_6.3V_X5R_04
WLAN_EN29,30
CPU_FAN29
3G_POWER 29
R242*0_04
EC_VSS
RX
KBC_WRESE T#
MU TE _S W # 30
BAT_RST#45
Schematic Diagrams
B - 38 5VS, 3VS, 3.3VM, 1.5VS_CPU
B.Schematic Diagrams
5VS, 3VS, 3.3VM, 1.5VS_CPU
DD_ON
NM OS
1.5VS_CPU
EMI
1.5VS_EN1
S
D
G
PQ38A
MTDN7002ZHS6R
2
61
S
D
G
PQ38B
MTDN 7002Z HS6R
5
34
10A
NM OS
1.05VS_VTT
1.05VS_VTT_EN1
SUSB
5VS_LO
PJ22 5mm
1 2
NM OS
ON
SUSB
1.5VS
1. 5VS_L O
5VS_EN1
3A
3A
PQ60
MTN 7002ZHS3
G
DS
PQ14B
MTNN 20N 03Q8
6
5
4
PQ14A
MTNN20N03Q8
1
3
7
28
Power Plane
NM OS
Power Plane
3.3VS
5VS
3.3V
5V
ON
R256 100 K_04
ON
NM OS
SU SB
dGPU_PW R_EN
ON
1A
NM OS
PR115
100K_04
ON
NM OS
ON
3.3VS_EN1
ON ON
PC108
0.1u_1 6V_Y 5V_04
PQ11
2N3904
B
E C
PR193
*220 _04
C1
0.1u_50V_Y5V_06
PR114
1M_04
PC105
2200p_50V_X7R_04
PQ58B
MTNN20N03Q8
6
5
4
PC111
*2200p_50V_X7R_04
PR195
100_04
PR119
1M_04
PQ45A
MTNN 20N03Q8
1
3
7
28
PR117
1M_04
S
D
G
PQ44A
MTDN7002ZH S6R
2
61
PR111
220_04
PC106
*0. 1u_16V_Y 5V_04
PC162
*0. 1u_16V_Y 5V_04
PQ57B
MTNN20N03Q8
6
5
4
PQ41A
MTNN 20N 03Q8
1
3
7
28
PR112
100_04
PC101
0.1u_50V _Y 5V_06
PR121 * 10K_04
ON
PC95
0.1u_16V_Y5V_04
PR192
*1M_04
PC160
*4700 p_50V_X7R_04
PQ33B
MTNN 20N 03Q8
6
5
4
PR110
1M_04
R270 1K_04
ON
PQ58A
MTNN 20N 03Q8
1
3
7
28
PQ56
*MTN7002Z HS3
G
DS
PQ35
MTN7002ZHS3
G
DS
PC159
*10u_6.3V_X5R_06
PR123
1M_04
PJ15
40mil
12
PQ57A
MTNN20N 03Q8
1
3
7
28
PR118 1K_04
PU4
P2808B0
VA
1
VIN
2
M_BTN#
3
INSTANT-ON
4GND 5
PWR _SW# 6
DD_ON_LATCH 7
VIN1 8
PC100
2200p_50V_X7R_04
R272 * 100K_04
PQ42B
MTNN 20N03Q8
6
5
4
PQ59A
*MTNN20N03Q8
1
3
7
28
PR 57
1M_04
PC 155
10u_10V _Y5V_0 8
PR38
100K_04
PQ33A
MTNN20N03Q8
1
3
7
28
PC 103
0.1u_5 0V_Y 5V_06
PC102
0.1u_16 V_Y5V_04
PC158
0.1u_1 6V_Y5V_04
PR122
100_04
PJ 13
40mil
12
PQ42A
MTNN2 0N0 3Q8
1
3
7
28 C486
0.1u_50V_Y5V_06
PR126 10 K_04
PR120
10K_04
PR190
100_04
PC107
3300p_50V_X7R_04
PC114
*0. 1u_16V_Y 5V_04 C556
2200p_50V_X7R_04
PR37
10K_04
PR124
100K_04
PC112
0.1 u_50V_Y 5V_06
PC98
6800p_50V_X7R_04
PC 47
1000p_50V_X7R_04
PQ59B
*MTNN20N03Q8
6
5
4
PR189
1M_04
PC94
10u_10V_Y5V_08
PQ45B
MTN N 20N 03Q 8
6
5
4
S
D
G
PQ44B
MTDN 7002Z HS6R
5
34
PC104
10u_10V_Y5V_08
PQ43A
MTNN20N03Q8
1
3
7
28
PJ23
5mm
1 2
PQ41B
MTNN 20N 03Q8
6
5
4
PC50
4.7u_ 6.3V_X5R_0 6
PQ43B
MTNN20N03Q8
6
5
4
PR125
100K_04
R271 100K_04
SYS15V VDD5
3.3VS
SY S15V
SY S15V
5VS
400mA 20A
3.3VSY S15V
VDD5
SYS15V 1.5V
5V
VINVIN
1.5VS
3.3VS_LO
VDD3 VDD3
1.5VS_CPU
SY S1 5V
1.5V
VIN
VD D3 VDD 3
VINVA
VDD 3
3.3V
VIN1
SY S15V 3V3_RU N
1.05VS_VTT
SY S15V
1.05VS
VD D320,2 9,30,32,36, 38, 45
VA45
VDD3
VD D530, 38
SYS15V38,40
VIN11,38, 39, 40,41,42,4 3, 44,45
5V27,29,30,31,39,40, 41
3.3V2, 3, 6,11,18,20, 21, 22, 24,25,26,27 ,29,30,31, 35, 39, 40,41
VI N138
5VS11,20, 26, 27, 29,30,33,34, 35,42,44
1.5V3 ,6, 9, 10, 27 ,40
1.5VS26,35
DD_ON30,36,38
3.3VS3,9,10,11,20, 21, 22,23,24,25, 26, 27, 29,30,32,3 3,34,35,36, 42, 44
1.5VS_CPU3, 6,40
SUSB #6, 22, 36,39
SUSB 3,37, 39, 40, 41DD _ON# 30,31,40
M_BTN#30
1.05VS6, 21, 22,26,27,40,41,42
1. 05VS_ VTT2,3, 5, 25, 26,27,37
SUSB3,37,39,40, 41
USB_CHARGE_EN 36,37,38
PWR _SW# 3 6
1.05VS_VTT2,3,5,25, 26, 27, 37 1.05VS_VTT_EN# 22
3V3_RUN12,18, 44
dGPU_PWR_EN # 24,36,4 0,44
1.05VS_VTT_PWRGD # 39
PJ23 MUST SHORT
1.5VS_CPU _LO
SUSB
1.5VS_CPUEN1
NMOS
ON
3.3V_EN1
ON
DD_ON#
DD_ON#
3V3_RUN
5V_EN1
USB_CHARGE_EN36,37,38
PC218
1u_6. 3V_X5R_04
PR134 *10m il_short
S
D
G
PQ39A
MTDN7002ZHS6R
2
61
PQ37
MTN7 002Z H S 3
G
DS
PR254
*680K_1%_04
PR135
100K_04
PD1 9
*SK34SA
A C
PR263
18. 7K_1%_ 06
PQ40
*MTN7002ZHS3
G
DS
PR1 33 * 0_ 04
PC225 1u_16V_X5R_06
PR116
10K_04
PR132 *10K_04
S
D
G
PQ39B
MTDN7002ZHS6R
5
34
PC224
0. 1u_50V_Y 5 V_06
PC206
0.01u _50V_X7R_04
PR137 *0_06
PC228
100p_50V_NPO_04
+
PC229
220u_6.3V _6.3* 6. 3*4.2
PR262
20K_1%_04
C
A
A
PD14
BAT54SS3 1
2
3
PC226
4.7u_25V_ X5R_08
PQ73
P1203BV
4
62
5
73
1
8
PC213
0.1u _50V_Y 5 V_06
PC223
4.7u_25V_X5R_08
PR113
100K_04
PL11
BCIH P0730-4R 7M
12
PD16
*RB0540S2
AC
PJ16
*5mm
12
PD18
* SK34SA
A C
PC109
2200p_50V_X7R_04
PR258
*0_04
PC99
*0. 1u_10V_X5R_ 04
PD17
*R B0540S2
A C
PD25
CSOD140SH
A C
PR2 53
0_04
PR265
30K_ 1%_06
PR136
100K_04
PL12
BCI H P0730-4R7M
1 2
PR264
13K_1%_06
PC222
4.7u_25V_X5R_08
PJ17
*5mm
1 2
PR1 38
*10m il_ short
PC231
1000p_50V_X7R_04
PC221
1000p_50V_X7R_04
PQ71
P1203BV
4
62
5
73
1
8
PR257
*0_04
PD13
RB0540S2
AC
PJ12
*40mil
12
PQ72
P1203BV
4
62
5
73
1
8
PC113
4.7u_25V_X5R_08
PD26
CSOD140SH
A C
PC227
4.7 u_25V_X5R_08
PC211 1u_25V_Y 5V_08
PC215
0.1 u_16V_Y 5V_0 4
PC204
0.01u_50V_X7R _04
PQ70
P1203BV
4
62
5
73
1
8
C
A
A
PD15
BAT54SS3 1
2
3
PC214
1000p_50 V_X7R_04
PR256 *0_04
PC115
0.1 u_16V_Y 5V_04
PR127
2.2_06
PU9
uP6182
VRE F
3
EN1 1
VFB1 2
TONSEL
4
LDO5
17
LGATE1
19
PHA SE1 20
VFB2
5
UGATE2
10
VCL K
18
BOOT2
9
EN2 6
VO2
7
LDO3
8
PH ASE2
11
LGATE2
12
EN0
13
SKI PSEL
14
GND
15
VIN
16
UGATE1 21
BOOT1 22
POK 23
VO1 24
GND PAD
25
+
PC210
220u_6. 3V_6. 3*6.3*4. 2
PC110
2200p_50V_X7R_04
SY S15 V
SYS5V
VDD3
VREF_VDD
VIN
SYS3V
VIN
VDD 5
SYS10V
SY S5V
+VR EG3
VREG5
VIN1 VREG5
VREF_VDD
VREG5
VREG5
VIN
VDD320,29,30,32,36,37,45
SY S5V
VREG5
SYS15V37,40
VIN137
VDD530,37
USB_CHARGE_EN36 ,37
DD_ON30,36,37
VIN11, 37,39, 40, 41, 42, 43,44,45
AC_I N45
SYS3V45
USB Charge support
LGATE1
EN_ALL
VIN _6182
UG ATE1
VFB2
LGATE2
EN_5V
EN_3V
TONSEL
EN_3V5V
VFB1
PH ASE1
POK_6182
SKI PSEL
EN_3V
UGATE2
EN_5V
BOOT2 BOOT1
PHASE2
DD_ON_EN_VDD
1026
VDD5VDD3
M990125
Ra
Rb
5A
5A
PR255 *10mil_short
PC203
1u_6. 3V_ X5R _04
Schematic Diagrams
VDD3, VDD5 B - 39
B.Schematic Diagrams
VDD3, VDD5
D03
PR145
*10mil_s hort
PR150
*10mil_short
PR28
*10mil_shor t
PR32
*10mil_short
0.85V_ON
1.8VS
PR31 1. 3K_1%_04
PR158 10K _1%_04
PC118 4.7u_25V _X5R_08
PC117 4.7u_25V_X5R _08
PR149 1K_1%_04
PR154 9. 31K_1%_04
PC22
10u_10V_Y 5V_08
PC128 0.01u_16V_X7R_04
PQ46A
ME4932A-G
7
8
1
2
PQ48
MTN7002ZH S3
G
DS
PR144 * 10m il_short
PC138
10u_10V_Y5V_08
PC133
2.2u_6.3V_X5R_06
PL4
BCIHP0730-1R0M
1 2
PR155 22_04
PC137
0.1u_16V_Y5V_04
PR160 9. 31K_1%_04
PR30
12K_1%_04
PR141 10K_04
PC132
2200p_50V_X7R_04
PJ19
*O PEN -2m m
1 2
PC119 0 .1u_50V_Y5V_06
PC29
*0.1u_16V_Y5V_04
PC127
*1u_6 .3V_Y 5V_04
PC134
0.01u_16V_X7R_04
PC126
0.1u_10V_X7R_04
PQ46B
ME4932A-G
4
3
5
6
PR29
10K_04
PR153 10K_1%_04
PR33
1K_1%_04
PR159 12K _1%_04
PC31 82p_50V_NPO_04
PJ1
*O PEN -1m m
12
PD5
RB0540S2
AC
PJ20
*OPEN-5mm
1 2
PJ2
*O PEN -1m m
12
PC28
0. 1u_16V_Y 5V_04
+
PC130
220u_6. 3V_6.3*6.3*4. 2
PR26
100K_04
PQ9
MTN7002ZHS3
G
DS
PR36
100K_04
PR151 10K_1%_04
PC131
47p_50V_NPO_04
PC129
0.022u_16V_X7R_04
PR143 *0_04
PR147
100_04
PR142 100K_1%_04
PU5
UP6122AQKF
BOOT 1
UG 2
POK 3
SS 4
EAP 5
SET3
6
SET2
7
SET1
8
SET0
9
FB
10
COMP
11
VID0
12
VID 1
13
EN/ PSM
14
CSN
15
CSP 16
RT 17
VCC 18
LG 19
PHASE 20
GND 21
PR157 15K _1%_04
PC135
*10u_10V_Y5V_08
0.85VS
PC27
0.1u_50V_Y5V_06
PC30
*1u_6.3V_X5R_04
PR156
*0_04
PC136
0.1u_16V_Y5V_04
PR148 1M_04
PR146 10K_04
PR152 10K_1%_04
PC124 0. 1u_50V_Y5V_06
PR161
100_04
PU6
AX6615ESA
GND
1
VCNTL 6
VOUT 3
VIN
5
VOUT 4
VFB 2
POK
7
EN
8
VIN
9
PR140
33K_1%_04
PJ3
40mil
12
PR35
1.27K_1%_04
0.85VS
VIN
5V
V0. 85
5V
V1. 8
3.3V
3.3V
5V
3.3V
1.8VS
5V
1.8VS_PW RGD POK_6610
0.85VS_PWR GD 22
5V
SUSB3,37,40,41
VCCSA_SENSE 6
VCC SA_V ID16
VCC SA_V ID06
3.3V2, 3, 6,11,18,20,21, 22, 24, 25, 26, 27,29,30,31,35, 37, 40,41
SUSB#6,22, 36, 37
1.8VS_PWR GD3, 22
VFB_6610
0.85VS6
1.8VS6, 25,26
5V27,29, 30,31,37,40,41
1.05VS_VTT_PWRGD#37
VIN11, 37,38,40,41,42, 43, 44,45
EN1. 8VS1
EN1. 8VS
2A
2A
-n²¾¾aªñPIN6¸}
GS7113 6-02-07113-320
AX6610 6-02-06610-320
0.85V_ON
0.675-0.9V
PC125
1u_16V_X5R_06
CSN
CSP
(Set1)(Set2)(Set0)
0.8V
0
(Set3)
CSN
0
0
VCCSA_VID1
1
VCCSA_VID0
1
0.675V0.9V
10
0.725V
1
CSPCSP
6A
10/26
10/26
Schematic Diagrams
B - 40 Power 0.85VS, 1.8VS
B.Schematic Diagrams
Power 0.85VS, 1.8VS
Schematic Diagrams
Power 1.5V/0.75V/PEX_VDD B - 41
B.Schematic Diagrams
Power 1.5V/0.75V/PEX_VDD
VDDQSET
V TTR EF
VBST
VTTSNS
CS
VDD QSNS
VTT DRVH
COMP_VDD
DDR1.5V_PWRGD
SUSB
VTTEN1.5S_CP U_PWRGD
SUSB
LL
DRVL
3.3V_EN_D
1.5S_CPU_PW RGD
PEX_VDD
1.05V@4A
1.05V_PWR_EN
NM OS
dGPU_PWR_EN#_ PEX
ON
250 MIL
FOR S3 REDUCE ¹w¯d
VTT_MEM
16A
1.5V
PR103 * 15m il_short_0 6
PR109 * 15m il_short_0 6
PR108 * 15m il_short_0 6PR2 26 *15mil_s hort_06
PR82
*15 mil_short _06
PR93
*15m il_short _06
PR94
*15 mil_s hort _06
240MIL
FBVDD Q_PWR_EN
NM OS
ON
FB_VDDQ
11A
FBVDDQ
dGPU _PW R_EN #_F BVD DQ
D02 CHANGE
+
PC82
220u_6. 3V_6.3* 6. 3* 4. 2
+
PC235
220u_6. 3V_6.3* 6. 3* 4. 2
PQ32
NTMFS4926N
G
DS
PQ36
NTMFS4935N
G
DS
PQ34
NTMFS493 5N
G
DS
PC73
4.7u_25V_X5R_08
PD10
RB054 0S2
A C
PR1 07 5.36K_1%_0 6
PJ7
40m il
12
PC88
0.1u_1 0V_X7R_04
+
PC196
*330u _2.5V_V_A
PQ31A
MTNN20N03Q8
1
3
7
28
PR95 9. 53K_1%_06
PC234
*0. 1U _10V_X5R_04
PC89
10u_10 V_Y 5V_08
PR9 9 9. 76K_1 %_06
R105
*10K_04
PJ6
OPEN _8A
1 2
PC70
*0. 1U _10V_X5R_04
PJ26
*OPEN_8A
1 2
PC76
10u_10V _Y 5V_08
PR248
1M_04
PC91
0.1u_1 6V_Y 5 V_04
PU3
G5616
VTTG N D
1
VLDOIN
23
VTT
24
VTTS N S
2
GND
3
MOD E
4
VTTR E F
5VCC5 14
PGOOD 13
S5 11
S3 10
VDDQSET
9
VDDQSNS
8
COMP
6
CS 16
PGND 18
DRVL 19
LL 20
DRVH 21
VBST 22
PVCC5 15
CS_GND 17
NC
7
NC
12
GND
25
PR251
*10mil_short
PR106 2. 2_06
PJ10
OPEN _2A
12
PR1 01 *100K_04
S
D
G
PQ65A
MTDN7002ZHS6R
2
61
PR98
1M_04
PR104
100K_04
PC68
10u_10V _Y 5V_08
S
D
G
PQ62A
MTDN7002ZHS6R
2
61
S
D
G
PQ63B
MTDN7002 ZHS6R
5
34
PC79
*10u_ 10V_Y 5V_08
PC87
0.1u_50V_Y5V_06
PC199
0.1u _16V_Y 5V _04
PR 100
*10K_1%_04
PR80
10_04
PQ31B
MTNN20N03Q8
6
5
4
PR102 100K_04
S
D
G
PQ65B
MTDN 7002ZHS6R
5
34
PR84 *0_06
R112
*10K_04
PR247 100K_04
PR250
*5.1_06
Q8
*MTN7002ZH S3
G
DS
PD12
CSOD140SH
A C
Q7
*2N3904
B
E C
PJ25
40m il
12
+
PC96
*220U _4V_D 2_D
PR92 * 10_04
S
D
G
PQ63A
MTDN7002ZHS6R
2
61
PC198
*10 00p_50V_X7R_04
PC75
10u_10V _Y 5V_08
PC71
0.1u _16V_Y 5V _04
PQ30
MTN7002Z HS3
G
DS
PC90
0.1u_16V_Y5V_04
PR105 47K _04
PC78
*1000p_X7R _04
PQ61
*MTN7002ZH S3
G
DS
PR221 * 22_04
PC93 0.1u_10V_X7R_04
PC69
0.1u_16V_Y5V_04
PC84
0.1u_50V_Y5V_06
PQ66
NTMFS4935N
4
6 2
7 3
8
5
1
PC85
*1000 p_X7R _04
PR79 * 10mil_short
PC86
0.1u_10V_X7R_ 04
PR249
100_04
PR83 *0_06
PL2
BCIH1030H C -R56M
1 2
PC200
10u_10V _Y 5V_08
PC92
0.1u _16V_Y 5V _04
PQ64
*MTN7002Z H S3
G
DS
PC80
4.7u_25V_X5R_08
PC197
1800p_50V_X7R_04
PJ9
*OPEN_5A
1 2
5V
VDDQ 5V
VDDQ
5V
5V
5V
1.5V
VDDQ
VIN
3.3V
VTT_ ME M
VTT_MEM
5V
3.3V
3.3V
5V
SYS15V FBVDDQ
1.5VS_CPU
1.5V
1.05VS
SYS15V
DD_ON#30,31, 37
DDR1.5V_PWRGD 22
PEX_VDD
5V27,29, 30, 31, 37,39, 41
SUSB3, 37,39,41
SUSC#22,36
FBVDDQ13,14, 15, 16, 17
SY S15V37, 38
3.3V2,3, 6, 11, 18,20, 21, 22, 24,25,26,27,29,3 0, 31,35,37,39, 41
VTT_ME M9, 10
VIN11,37,38, 39, 41, 42,43,44,45
1.5V3,6,9,10, 27, 37
PEX_VDD12, 13
1.5VS_C PU3, 6, 37
1.05 VS6, 21, 22, 26,27,37,41,42
dGPU_PWR _EN#24,3 6, 37,40, 44
dGPU _PW R_EN # 24,36,37,40, 44
C708
*10u_6. 3V_X5R_06
C707
*10u_ 6.3V_X5R_06
C720
*10u_6. 3V_X5R_06
C724
*10u_6. 3V_X5R_06
FBVDDQ
C722
*10 u_6.3V_X5R_06
C721
*10u_6. 3V_X5R_06
C725
*10u_ 6.3V_X5R_06
C723
*10u_6. 3V_X5R_06
FBVDDQ
PC195
1u_6.3 V_X5R _04
PC97
1u_6. 3V_X5 R_04
MOD E
1A
Schematic Diagrams
B - 42 Power 1.05VS
B.Schematic Diagrams
Power 1.05VS
PC2 07
1u_6. 3V_X5R_04
PR252
*10mil_s hort
1.05VS_PWRGD
DL
VCC_PCH 6A
V1.05M 2A
V1.05_LAN 1A
1.05VS
PJ28*6mil
12
PR130
0_04
+
PC2 01
220u_6. 3V_6.3* 6.3*4.2
PC208
*20p_50V_NPO_04
PQ74
ME4 8 94- G
4
62
73
8
5
1
PC202
0.1u_16V_Y5V_04
PC209
0.01u_50V_X7R_04
+
PC2 30
*15u_25V_6. 3*4.4_C
PC233
4.7u_25V_X5R_08
PQ69
*ME4626-G
4
62
73
8
5
1
PC212
0. 1u_50V _Y 5V_06
PC219
4.7u_25V_X5R_ 08
S
D
G
PQ62B
MTDN7002ZHS6R
5
34
PR261
100K_04
PQ68
ME4 6 26- G
4
62
73
8
5
1
PL10
1.0UH_1 0* 10* 4. 5
1 2
PC205
*15p_50V_NPO_04
PR131 *90. 9K_04
PC 232
0.1u_50V_Y5V_06
+
PC116
*220u_6.3V_6.3*6.3*4.2
PR259 10K_04
PD20
RB0540S2
AC
PR128
40. 2K_1%_04
PJ 31
*OPEN-12mm
1 2
PU8
G5413
LX 1
BST 2
VCC 3
DL 4
GND
5
RTN
6
N.C
7
N.C
8
FB
9
VOUT
10
PGD
11
EN
12
ILIM 13
N.C 14
N.C 15
DH 16
PAD 17
PR129
100K_1%_04
PJ29*6mil 12
PD27
SK34SA
A C
PR260 6.2K_1%_04
PC217
*0.1u_16V_Y5V_04
PC220
0. 1u_50V_Y5V_06
+
PC 216
220u_6. 3V_6.3* 6. 3* 4.2
V1.05 1.05VS
3.3V
5V
5V
VIN
VSSP_SENSE 5
VCCP_SENSE 5
1.05VS_PWR GD22
5V
5V27, 29,30, 31,37,39,40
1.05 VS6,21,22,26,27,37,40,42
1.05VS_VTT2,3,5,25,26,27,37
VIN11, 37,38,39, 40,42, 43,44,45
SUSB3,37,39,40
3.3V2, 3,6, 11,18, 20,21, 22, 24, 25, 26, 27,29, 30,31, 35,37, 39,40
-n²¾¾aªñPIN3¸}
VCCP_SENSE_G5413
21.5A
»Ý©Ô¨ìIC PIN5,6 ªþªñ¤U¦a
FB_1. 05VS_5413
PK3906
1.05 V_ON
ILIM
LX
DH
BST
D02 CHANGE
Schematic Diagrams
Power V-Core1 B - 43
B.Schematic Diagrams
Power V-Core1
PR245
10_1%_04
PR 86 10K _04
PR207
0_04
PR197
2_06
PR2 18
*1.21K_1%_04
PC173 0.1u_10V_X7R_04
PR 231
4.12K_1%_06
PR 219
*24.9KK_1%_04
PC181 1000p_50V_X7R_04
PR23 7
130_1% _04
PR24 4
*15m il_short_06
PC 178 10p_50V_NP O_04
PR22 0
165K_1%_04
PR216
4.3K_1%_04
PC193
4700p_50V_X7R_04
PR 234 1K_ 04
PR208 140K_1%_06
PR181
8.25K_1%_04
PR 85 90. 9K_ 1%_04
PR239
10K_04
PC74
1000p_50V_X7R _04
CSSUMA
PU7
NCP6132AMNR26
TSNSA
46
IOUTA 54
EN
4
VR HOT#
11
SD IO
5
ALER T#
6
ROSC
9
SC LK
7
VR DY A
3
CSCOMP
22
CSP3
25 CSREF
24 CSSUM
23
LGA 41
TRBSTA#
57
PVC C 36
BST2 40
HG2
39
SW2 38
LG2 37
PGN D 35
COMP
18
VSP
14
DROOP
21
FB
17
DIFF
15
CSP1
27
SWA 42
HGA 43
VSPA 59
DIFFA 58
DROOPA 52
FBA 56
COMPA
55
CSREFA 49
CSSUMA 50
CSP2A
48
VR MP
10
VR DY
12
DRVEN
29
VSN
13 LG1 34
SW1 33
VSNA 60
ILIMA 53
EPAD 61
VC C
1
IOUT
19
HG1
32
CSP2
26 CSCOMPA 51
TSNS
28
ILIM
20
TRBST#
16
PWM
30
BST1 31
BSTA
44
CSP1A 47
PW MA 45
VD DBP
2
VBOOT
8
PC 176
0. 047u_1 0V_X7R_ 04
5VS
APGND
5VS
5VS
3.3VS
VIN
3.3VS
1.05VS
5V S
1.05VS
5VS
APGND
APGN D
3.3VS
VCOR E
VGFX_CORE
APGN D APGND
APGND
APGND
APGND
APGND
APGN D
APGN D
APGND
APGND
SW N2 42,4 3
SW N1 42,4 3
CSREF 43
APGN D
APGND
VR 1_VC C GT_SEN SEA6
SW N2 42,4 3
SW N1 42,4 3
SW 1A 43
H_PROCHOT#3,44
VR1_ VSSGT_SEN SEA6
SWN1A 42,43
SW1 43
SW 2 43
LG1A 43
HG1A 43
CSREFA 43
HG1 43
LG1 43
LG2 43
HG2 43
H_CPU_SVIDDAT5
DELAY_PWRGD22
ALL_SY S_PWR GD11,22,36
3.3VS3,9,10, 11,20,21,22,23,24,25,26,27 ,29,30,32,33,34, 35,36, 37,44
H_CPU_SVIDCLK5
H_CPU_SVIDALRT#5
VGFX_CORE6, 43
1.05VS6 ,21, 22, 26, 27,37 ,40, 41
5VS11,2 0,2 6,27 ,29, 30, 33, 34,35 ,37, 44
VC ORE_ VSS_ SENS E5
VI N11,37 ,38 ,39 ,40, 41, 43, 44,45
VC ORE5,43
SWN1 A 42,43
VC ORE_ VCC _S ENSE5
PR212
* 10mi l_s hort
PR 229 * 1 0mil_ sh ort
PR 233 * 1 0mil_ sh ort
PR243 *10 mil_sh ort
PR242 *10 mil_sh ort
TRBSTA#
TR BSTA #
PUT COLSE
TO CPU
SOCKET
PUT COLSE
TO CPU
SOCKET
H_CPU_SVIDCLK
H _CPU _SV I DALR T#
H_CPU_SVIDDAT
DROOP
CSREFA
H_PROCHOT#
CSREF
CSREF
CSSUM
CSREF
H_CPU_SVIDDAT
VR_RDYA
IMONIMON
CSP2
CSCOMP
CSP1A
Option for
1 phase GT
IMONAIMONA
FBA
CSREF
DROOPA
CSP1
H_PROCHOT#
VSN
CSP1A
VR_RDY A
PUT COLSE
TO VGFX
HOT SPOT
TSENSE
C SP3
C SP1
DELAY_PWRGD
C SP2ATSENSETSENSE
PUT COLSE
TO VCORE
Phase 1
Inductor
VSP
TSENSE A
PUT COLSE
TO VCORE
HOT SPOT
H_CPU_SVIDCLK
CSP3
H_CPU_SVIDALRT#
CSP3
VR_EN
CSREFA
CSP2A
C SP2
PUT COLSE
TO GT
Inductor
TSENSEA
VBOOT
CSREF
VCORE_1
CSP1A
VR_EN
CSCOMPA
CSCOMPCSCOMPCSCOMPCSCOMPCSCOMPCSCOMP
DROOP
Option for
2 phase CPU
FBA
TR BS T#
PC164 0.22u_10V_X5R_04
RT6
100K_NTC_0 6_A
1 2
PR 214 1. 65K_1%_06
PC191
33p_50V_NPO _04
PR40
100_04
PR8 8 2_06
PC1 92
1000p_50V_X7R_04
PR225 1K_1%_04
PC18 6
1000p_ 50V_X 7R _04
PR91
*3. 6K _1%_04
PR201
0_04
PR2 22 30K _1%_04
PC 188
1000p_50V_X7R_04
PR 177
75K_1%_04
RT5
100K_ NT C _06_A
1 2
PR 241 1. 21K_1%_04
PR 87
2.43K_1%_ 04
PC 179
2200p_50V_X7R_04
PR223
*1K_1%_04
PR41
100_04
PR210 11.8K_1%_06
PR240 10.7K_1%_04
PR205 47K_1%_04
PR196
2_06
PR206
6.98K_1% _04
PR217
*1K_1%_04
PC 169
1000p_50V_X7R_04
PC18 9
4700p_50V_X7R_0 4
PR213 140K_1%_06
PJ24
*6mil
12
PC171
0.0 47u_10 V_X7R_04
PC168 2.2u_6. 3V_X5R_04
PR191
75K_1%_04
PC 194
680p_50V_X7R_04
PC182
*100p_X7R_04
PC83
0. 01u_50V_X7R_0 4
PC 177
*0 .047u_10V_X7R_ 04
PR2 03 * 4.7K_1%_ 04
PR96
10K_04
PC 185
*680p_X7R_04
PR19 8 19. 6K_1%_04
PC187
33p_50V_NPO_04
PC165 0.22u_10V_X5R_04
DROOP A
PR2 15
*1K_1%_04
PR 97
*75_04
PR224 *1 5mil_06
CSREFA
PR20 2 6.98K_1%_0 4
CSCOMPA
PR 232
49. 9_1% _04
PR235
54.9_1%_04
RT3
100K_NTC_06_A
12
PR211
165K_1%_04
PR246
10K_04
PR194
8.25K_1%_04
PR81 24.3k_1%_04
PC7 7
1000p_50V_X7R_04
PR90
0_04
PR2 09
6.98K_1% _04
PR 204 66. 5K _1%_06
PR2 27
10_1%_04
PR89
51K_1% _04
PR39
100_04
PC8 1 2 .2u _6. 3V_X5R_0 4
PC72 0.1u_10V_X7R_04
PR 230 1K_ 1%_04
PJ 8 * 6mil
1 2
TR BST #
PC183
*3300p_50V_X7R_04
PC175
560p_50V_X7R_04
PC 170
0. 047u_1 0V_X7R_ 04
PR 199
2_06
PC167 0.22 u_10V_X5R_04
PC190
100p_50V_NPO_04
PC16 6 0.1u_10V_X7R_04
PR42
100_04
PR200
*0_04
PC 184
*4700p_X7R_04
PC174
1000p_50V_X7R_04
PC 172
1000p_ 50V_X7R_04
PR236
75_1%_04
RT4
100K _N TC _06_A
1 2
PR 228 * 0_04
PC180 470p_50V_X7R_04
CSREF
PQ25
NTMFS4926N
G
DS
PD22
CSOD140SH
A C
PC65
0.1u_50V_Y5V_06
PQ27
*NTMFS4926N
G
DS
+
PC156
15u_25V_6. 3*4. 4
+
PC143
330uF_2. 5V_9m_6.3*6
PL8
0.36UH_12.9*14*3.8
1 2
PQ24
NTMFS4935N
G
DS
+
PC139
*330u_2.5V_V_A
PR77 *15m il_06
+
PC144
330uF_2. 5V_9m_6.3* 6
PC64
0.1u_50V_Y5V_06
PD23
SK34SA
A C
+
PC161
15u_25V_6.3* 4. 4
PC62
*4.7u_25V_X5R _08
PC63
*4.7u_25V_X5R_08
PQ18
NTMFS4935N
G
DS
PC59
*4.7u_25V_X5R_08
+
PC147 560u_2.5V_6.6*6.6*5. 9
PQ29
NTMFS4935N
G
DS
+
PC146 560u_2.5V_6.6*6. 6*5.9
PR74
10_04
PR73
10_04
PQ28
NTMFS4935N
G
DS
PL9
0.36UH_12.9* 14*3.8
1 2
PR78 *15mil_06
PC60
*4. 7u_25V_X5R_08
PQ20
NTMFS4926N
G
DS
+
PC140
*330u_2. 5V_V_A
+
PC148
330uF_2. 5V_9m_6.3*6
PQ16
NTMFS4935N
G
DS
PR71
10_04
PQ21
NTMFS4926N
G
DS
PD24
SK34SA
A C
LG1
PQ23
NTMFS4935N
G
DS
PL7
0.36UH_12.9*14*3.8
1 2
+
PC142
330uF_2. 5V_9m_6.3* 6
PQ19
NTMFS4926N
G
DS
PC67
4.7u_25V_X5R_08
PQ22
NTMFS4935N
G
DS
PC66
4.7u_25V_X5R_08
PC61
0.1u_50V_Y5V_06
PR76 *15mil_06
PQ17
NTMFS4935N
G
DS
PQ26
NTMFS4926N
G
DS
+
PC151
330uF_2. 5V_9m_6.3*6
VIN
VIN
VCORE
VCORE
VCOR E
SWN1 42
CSREF 42,43
VGFX_CORE
VIN
HG142
SWN 2 42
CSREF 42,43
HG242
LG142
SW142
VIN11, 37,38,39,40,41,42, 44, 45
LG242
SW242
5VS11,20, 26,27,29,30, 33,34,35,37, 42, 44
VGFX_CORE6,42
VCORE5, 42
CSREFA 42
LG1A42
SW1A42
HG1A42
SWN 1A 42
HG1
CSREF
HG2
LG2
VCORE
SW2
VGFX_CORE
SW1
QC 45W CPU
VID1=0.9V
IccMax=94A
Icc_Dyn=66A
Icc_TDC=52A
R_LL=1.9m ohm
OCP~110A
HG1A
CSREFA
LG1A
SW1A
QC 45W GT2
VID1=1.23V
IccMax=25A
Icc_Dyn=37A
Icc_TDC=38A
R_LL=3.9m ohm
OCP~30A
VGFX_CORE
VCORE_2
Schematic Diagrams
B - 44 Power V-Core2
B.Schematic Diagrams
Power V-Core2
PR184
*10mil_short
PR50 *10mil_short
PC58 470p_50V_X7R_04
PR183 20K_1%_04
PR61
1. 2K_1%_04
PC37 *4.7u_25V_X5R_08
PC44
0.2 2u_ 50V_08
PQ52
MTN7002ZHS3 G
DS
PR58
7.32K_1%_04
PR45 1K_1%_04
PC45
*220p_50V_06
PR187
*47K_04
PC54 1000p_50V_X7R _04
PR167 1K_1%_04
PC152
150p_50V_06
PR163 *1K_1%_04
PJ21
*12mm
1 2
PJ4
* 40mi l
1 2
PC 57 470p_50V_X7R_04
PR162 * 1K_1%_04
PR 178 0_04
PC 34 0.1u_50V_Y5V_06
PR169
10K_04
+
PC163 *330uF_25V
PD8
SK34SA
A C
PC51
1200p _50V_X7R_0 4
PR52
10K_04
PC 42 4. 7u_25V_X5R_08
PR53 2_06
RT1
100K_NTC_06_A
12
PR170
2.2K_04
RT2
100K_NTC_06_A
12
PR69
100_1%_04
PC52
470p _50V_X7R_ 04
PC43 0.1u_50V_Y5V_06
PR176
100_1%_06
+
PC153 560u_2. 5V_6.6*6.6*5.9
PR63 80.6K_1%_04
PR188 1 65K_1%_06
+
PC149 15u_25V_6.3*4 .4
PR72 1K_04
PC 38 4.7u_25V_X5R_08
PR54
39.2K_1%_04
PR165 * 1K_1%_04
PQ12
MTN7002Z HS3
G
DS
PC36
1u_1 6V_X5R_06
PR4 6 1K_1%_04
PC35
*2200p_50V_X7R_04
PC39 1000p_50V_X7R_04
PR75
10_06
PQ13
TP CC 8 06 4 -H
4
62
73
8
5
1
PL6
BCIH1040-R36M
PC46
4.7u_25V_X5R_08
PC 56 470p_50V_X7R _04
PQ67
*TPCA8 057-H
G
DS
PC49
0.22u_50V_08
PR60
100_1%_04
PC53
*220p_50V_06
PR185 226 K_1%_06
PQ15
TPC C 80 64 -H
4
62
73
8
5
1
+
PC14 5 *560u_2. 5V_ 6. 6* 6. 6*5.9
PQ55
TPCA 8057-H
G
DS
PR182 226 K_1%_06
PC48
0.01u_16 V_X7R_ 04
PR 48 *1K_1%_ 04
PR62
*5_06
PQ75
*TPCA8057-H
G
DS
PD9
SK34 SA
A C
PR171
10_04
PR 51 0_04
PQ53
TPC C 8 064 -H
4
62
73
8
5
1
PC41
12p_5 0V_NPO_04
PR166 1K_1%_04
PQ51
TPCA 8057-H
G
DS
PR4 9 1K_1%_04
PR179
1.69K_1%_04
PR56
*5_06
PR 164 *1K_ 1%_04
PC 32 0. 1u_50V_Y5V_06
PR 173 0_04
PQ50
TPCA 8057-H
G
DS
PC33 0.1u_50V_Y5V_06
PR180
100_1%_06
PC55 1u_6. 3V _X5R _0 4
PC150
*1 000P_50V _04
PR 44 1K_1%_04
PR186 20K_1%_04
PR17 4
82.5K_1%_04
+
PC157 560u_2.5V_6.6*6.6* 5. 9
PR55
5.1K_1%_04
PR4 3 1K_1%_04
PR64 59 K_1%_04
PU2
NCP3218GMNR2G
EN
1
PWRGD
2
IMON
3
FBRTN
5
FB
6
RT 15
BST2
25
TTSNS
11
CSREF 18
AGND
12
SW2 27
SW1 34
SWFB1 33
LLINE
17
TRD ET#
8
VCC
37
PH1
38
VRTT
10
PH0
39
PVC C 32
DRVH2 26
RAMP 16
BST1 36
VARFR
9
PGN D 30
COMP
7
DPRSLP
40
CLKEN#
4
DRVH1 35
DRVL1
31
SWFB2
28
DRVL2 29
AGND
49
CSCOM P
20
CSSUM 19
IREF 13
RPM
14
ILIM 21
OD3# 22
PWM3 23
SW FB 3 24
PSI#
41
VID6
42
VID5
43
VID 4
44
VID3
45
VID2
46
VID 1
47
VID0
48
PQ49
TPCC 80 64-H
4
62
73
8
5
1
PC154
*1n_50V_04
PL5
BCI H1 040-R 36M
PR65 649 K_1%_04
PQ54
TPC A8057 -H
G
DS
PR70
10_06
PR 47 *1K_1%_0 4
PR68 187K_1 %_06
PR59
2_06
PR67
73.2K_1%_04
PR66
*10mil_short
PC40
150p_50V_06
PR175
*R _04
PR168 * 1K_1%_04
SGND2
PR172
3K_1%_ 04
VIN
SGN D 2
SGND2
SGND2
VIN
5VS
5VS
SGND2
SGND2
5VS
5VS
5VS VIN
3.3VS
SGND2
3.3VS
3V3_RU N
NVVDD
3.3VS
SGN D 2
1.5V3,6,9, 10, 27, 37, 40
3.3V2,3,6,11, 18,2 0, 21, 2 2, 24, 25,26,27, 29,30, 31,35, 37, 39, 40, 41
VIN11, 37, 3 8, 39, 40 ,41, 42,43,45
5VS11, 20, 2 6, 27, 29,30, 33,34,35, 37, 42
VDD320, 29,30,32,36,37, 38, 45
PS1_VDD_SENSE 12
PS1_GND_SENSE 12
NVVDD19
ADP 3212_CSR EF
NVVDD_VID1 18
NVVDD_VID0 18
H_PROCHOT#3, 42
NVVDD_VID4 18
NVVDD_VID3 18
NVVDD_VID2 18
NV_DPRSLP#18
dGPU _P WR _E N #24,36,37,40
NVVDD_VID5 18
3.3VS3,9,10, 11,20, 21,2 2, 23, 2 4, 25, 26,27, 29,30,32, 33,34, 35, 36, 37, 42
ADP3212VR _ON
RSP
HDR2
3V3_R U N12,18,37
ADP3212VR_ON
ADP3212_CSREF
RSN
CS_PH1
TTS N S
HDR1
ADP3212_CSSUM
CS_PH2
TRDET#
TTSNS
TRDE T#
ADP3212_CSCOMP
RT1 close to PL6
NVVDD
BST2
22A
CS_PH2
22A
BST1
RSP
RSN
CS_PH2
ADP3212_CSREF
CS_PH1
CS_PH1
ADP3212_CSCOMP
VID6 VID5 VID4 VID3 VID2 VID1 VID0 Output
0 1 1 1 1 1 1 0.7125V
0 1 1 1 1 1 0 0.7250V
0 1 1 1 1 0 1 0.7375V
0 1 1 1 1 0 0 0.7500V
0 1 1 1 0 1 1 0.7625V
0 1 1 1 0 1 0 0.7750V
0 1 1 1 0 0 0 0.8000V
0 1 1 0 1 1 1 0.8125V
0 1 1 0 1 1 0 0.8250V
0 1 1 0 1 0 1 0.8375V
0 1 1 0 1 0 0 0.8500V
0 1 1 0 0 1 1 0.8625V
0 1 1 0 0 1 0 0.8750V
0 1 1 0 0 0 1 0.8875V
0 1 1 0 0 0 0 0.9000V
0 1 0 1 1 1 1 0.9125V
0 1 0 1 1 1 0 0.9250V
0 1 0 1 1 0 1 0.9375V
0 1 0 1 1 0 0 0.9500V
0 1 0 1 0 1 1 0.9625V
0 1 0 1 0 1 0 0.9750V
VID6 VID5 VID4 VID3 VID2 VID1 VID0 Output
0 0 1 0 1 0 0 1 .2500V
0 0 1 0 1 0 1 1 .2375V
0 0 1 0 1 1 0 1 .2250V
0 0 1 0 1 1 1 1 .2125V
0 0 1 1 0 0 0 1 .2000V
0 0 1 1 0 0 1 1 .1875V
0 0 1 1 0 1 0 1 .1750V
0 0 1 1 0 1 1 1 .1625V
0 0 1 1 1 0 0 1 .1500V
0 0 1 1 1 0 1 1 .1375V
0 0 1 1 1 1 0 1 .1250V
0 0 1 1 1 1 1 1 .1125V
0 1 0 0 0 0 0 1 .1000V
0 1 0 0 0 0 1 1 .0875V
0 1 0 0 0 1 0 1 .0750V
0 1 0 0 0 1 1 1 .0625V
0 1 0 0 1 0 0 1 .0500V
0 1 0 0 1 0 1 1 .0375V
0 1 0 0 1 1 0 1 .0250V
0 1 0 0 0 0 0 1 .1000V
0 1 0 1 0 0 1 0 .9875V
VGA__NVVDD
Schematic Diagrams
VGA NVVDD B - 45
B.Schematic Diagrams
VGA NVVDD
Schematic Diagrams
B - 46 AC_IN, Charger
B.Schematic Diagrams
AC_IN, Charger
-
+
*TL331
PU11
3
1
4
52
PD3 RB0540S2
AC
PC26
4.7u_25V_X5R_08
PC18 *4. 7u_25V_X5R_08
PD1
BAV99 RECTIF I ER
A
C
AC
PC14
1u_6.3V_X5R_04
PC20 * 4.7u_25V_X5R_08
PC7 4. 7u_25V_X5R_08
PR13
100K_04
PR5 10_06
PR2
10_06
PC5
47p_50V_NPO_04
PR34
10K_04
PR271
0_04
PR18 4.7K_04
PC6
4700p_50V_X7R_04
PQ5
ME P4 4 35 Q 8
4
6 2
5
7 3
1
8
PR16 10_06
PQ47A
ME4932A-G
7
8
1
2
PC16 0.1u_50V_Y5V_06
PC120 4.7u_25V_X5R_08
PC13
0.1u_50V_Y 5V_06
PU1
OZ8681
LX
14
LDR
16
BST
12
VAC
1
VDDP
15
IACM
3
VDDA 6
SDA 11
ICHP 5
ICHM 4
COMP 8
HDR 13
BASE
17
SCL 10
IAC 7
IACP
2
ACAV
9
PL3
BCI HP-0730 8R2M
PC2 4. 7u_25V_X5R_08
PC9
*1u_25V_Y5V_08
PL1
HC B4532K-800_18
PD7
ZD5245BS2
AC PC12
0.1u_16V_Y5V_04
IACP
PR19
100K_1%_04
PQ6
ME P4 4 35 Q 8
4
6 2
5
7 3
1
8
PC15
1u_25V_Y 5V_08
PD21
BAV99 RECTIF I ER
A
C
AC
PR1
100_04
PR4
0_04
PQ1
AO3409
G
DS
PR269
*15K_04
PR23 * 470K_04
PR 11 100K_04
PC10
4700p_50V_X7R_04
PD6
BAV99 RECTIF I ER
A
C
AC
PR268
*316K_04
PR17
*15mil_short_06
PQ4
MTN7002ZHS3
G
DS
PD4
MDL914S2
AC
PQ3
MTN7002ZHS3 G
DS
PC17 *4.7u_25V_X5R_08
PR27
0.01_1%_32
PR20
300K_1%_04
PR7 4. 7K_04
PQ10
DTC114EUA
CE
B
PC25
4.7u_25V_X5R_08
PQ2
MTN7002ZHS3
G
DS
PC21 *4. 7u_25V_X5R_08
PR24
10_06
PC1
0.47u_10V_Y5V_04
PR139 10K_04
PR3 10_06
PC8
1000p_50V_X7R_04
JBA TTA1
BTD-05TEAB
1
2
3
4
5
PQ8
MEP4435Q8
4
62
5
73
1
8
SMC_BAT
PC24
4.7u_25V_X5R_08
PC3
*1u_25V_Y5V_08
PR21
60.4K_1%_04
PR10
100K_04
PR270
*0_04
PC236
*0.1u_10V_X5V_04
PC123
30p_50V_NP O_04
V_BAT
VA
VDD3
VA
VIN
VA
SY S3V
VDD3
VA1
VDD320, 29,30, 32,36,37,38
VA1
VDD3
SYS15V37,38, 40
VA37
VIN11, 37,38,39,40, 41,42,43, 44
AC_I N # 30, 36
AC_I N38
SYS3V38
SMC_BAT 30,36
SMD_BAT 30,36
BAT_DET36
BAT_RST#36
BAT_VOLT 36
TOTAL_CUR 36
PR14
*10mil_short
PR15
*10mil_short
PR22
*10mil_s hort
COMP
LDR
AC AV
3S / 2K
2S / 10K / NT1908
BAT DET(BATTERY INTERNAL) :
2S / 5K / NT1912
4S/2800mAH /7.15K
3S/2800mAH / 4.02K
4S / 390
FOR 4S BATTERY USE
PU12_LX
VAC
SMD_BAT
BAT_DET
SMC_BAT
SMC_BAT_R
Reset circuit
BAT_VOLT
PCB Layout notes
1) All pow er traces should be routed on the outer layers
GNDP, VAD, VSYS, LX, VCHG, VBATT
2) Use Kelvin connec tions for R3, R4
(seperate force and measurement tr ac es)
3) R23 and R24 are dummy r esis tors, f or layout purposes only
(serves as single point c onnection betw een GNDP & GNDA)
4) Footprint TO-236 is equivalent to SOT-23
5) Footprint SIP/1P is a single hole axial pad
6) All resisitors, capac itors and semiconductors are SMD
7) Potentiometers, and test points are axial devic es
VDDP
ICHM
ICHP
IAC1
IAC1
IACM
V_BAT
PR8
0.01_1%_32
PC121
30p_50V_NPO_04
PC19 *4.7u_25V_X5R_08
PR6
15K_04
PC122
30p_50V_NPO_04
PC11
0.1u_50V_Y5V_06
J_DC_JACK1
88290-024G
1
2
PC4
1u_6.3V_X5R_04
PD2
BAV99 RECTIF I ER
A
C
AC
PR12
10_06
PR266
*14K_04
¾aªñJBATTA1
PR9
100_04
SMD_BAT_R
PR25
10K_04
PC23
4.7u_25V_X5R_08
PQ47B
ME4932A-G
4
3
5
6
PR267
*1M_04
PQ7
MEP4435Q8
4
62
5
73
1
8
Schematic Diagrams
W150ERQ Audio Board B - 47
B.Schematic Diagrams
W150ERQ Audio Board
AJ_AU D1
CF 20201U0R G-NH
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
NC1
NC2
§»-P 87151-2007G 6-20-94K20-120
Ãv¯þ (Ááª÷) CF20202U0RG-NH 6-20-94K00-020
Ãv¯þ (Áá¿ü) CF20201U0RG-NH 6-20-94K10-020
AHEADPHONE-L_R
AL6
*HCB1608KF-121T25_15mil_short
AH3
C111D111N
AH4
C111D111N
BLACK
BLACK
§»-P 85204-02001 6-20-43150-102
Ãv¯þ (Ááª÷) CI4402M2HR0-NH 6-20-43120-102
Ãv¯þ (Áá¿ü) CI4402M1HR0-NH 6-20-43180-102
AGND
AUSB _PP9
AUSB_PN9 AR5 75_04
AR6 75_04
AUSB_OC#89
1
AH1
MTH7_0D2_8
2
3
4
5 6
7
8
9
AMIC1-R
AUDIO BOARD
ASPDIFO
AHEADPHONE-L
AHEADPHONE-R
A_AUDG
AMIC_SENSE
ASPKOUTR-_R
AHP_SENSE
ASPK_HP#
ASPKOUTR+_R
CO-Ray DIFF USB8P&N·Uµu·U¦n
A_5V
AGND
AGND
AHEAD PH ONE -L
AHEAD PH ONE -R
MI C _P I N 6
AMIC1-R
AMIC1-L
AHP_SENSE
AMIC_SENSE
SPDI F _PI N6
ASPDI F O_R
SPDI F _PI N4
ASPDI FO ASPDIFO-R
AHEADPHONE-L-R
AHEADPH ONE-R-R
USB PORT(PORT9)
SPDI F _PI N5
ASPK_H P#
AHEADPHONE-R_R
HEADPHONE
Layout note:
Headphone°T¸¹½u¼e > 10mils
¶ZÂ÷phone jack¶V»·
½u®|´N¥²·V¼e
R/L¥²¶·¥]ÂÐGND¥B¶¡¶Z¬°3*½u¼e
Re sistor 32 or 33_04
meet WLK Test
VT1802P
75_04
GND
HP-L 3*R/L½u¼e
GND
HP-R
AR4 *0_04
AUSB_OC#89
ASPKOUTR+_R
ASPKOUTR-_R
AMIC1-L
SPDIF OUT
BLACK
60 mil
60 mil
AL7
*WC M2012F2S-161T03-short
1
4
2
3
+
AC2
220u_6.3V_6. 3*6.3*4.2
60 mil
AUSB_PN9_R
AUSB_PP9_R
AUSB_PN9
AC9
0.1u_10V_X5R_04
AJ_USB1
UAR 48-041FN2V
V+
1
GND1
GND1
DATA_L
2
DATA_H
3
GND
4
GND2
GND 2
AUSB_PP9
A_USBVCC2A_USBVCC
AGND
AGND
AGND
AMIC1-L_R
AMIC1-R_R
AC10
0.01u_50V_X7R_04
AL2 FCM1005KF-121T03
AC8
100p_50V_NPO_04
AC6
100p_50V_NPO_04
AC5
100p_50V_NPO_04
AL5 FCM1005KF-121T03
AC1 0.1u_10V_X5R_04
AR3
*1K_04
R
L
AJ_MIC1
2SJ-T351-S23
2
5
3
1
4
6
AC15
*0. 1u_10V_X5R_04
AJ_S PKL1
CI4402M1HR0-N H
1
2
1
AH2
MTH7_0D2_8
2
3
4
5 6
7
8
9
AC18
680p_50V_NPO_04
R
L
AJ_H P1
2SJ-T351-S23
2
5
3
1
4
6
R
L
AJ_SP DI F 1
2SJ-T351-S23
2
6
5
3
1
4
1
AH5
MTH7_0D2_8
2
3
4
5 6
7
8
9
AC16
0.1u_10V_X5R_04
AC17
680p_50V_NPO_04 AC4
100p_50V_NPO_04
AC7 0.1u_10V_X5R_04
AC12
*10u_10V_Y 5V_08
AC3
1000p_50V_X7R_04
AL3 FCM1005KF-102T02
AL1 FCM1005KF-121T03
AL4 FCM1005KF-121T03
AC13 0.1u_10V_X5R_04
AC14
10u_10V_Y 5V_08
AR1
220_04
AC19 0.1u_10V_X5R_04
AR2
*1K_04
AGND
A_AUDGAGND
A_AUDG
A_AUDG
AGND AGNDAGND
AGND
A_5V
AGND
AGNDAGND AGND
AGND
A_USBVCC
AU1
G547E2P81U
VOUT1 6
VOUT3 8
VI N2
3
VI N1
2VOUT2 7
GND 1
EN#
4
FLG#
5
SY6288DCAC
APL3518BXITRG
uP7534BRA8-20
G547E2P81U
ÅܧóM-MSOP8¥]¸Ë
MIC IN
Schematic Diagrams
B - 48 W150ERQ Click Board
B.Schematic Diagrams
W150ERQ Click Board
1
TH1
MTH6_0D2_3_S
2
3
4
5 6
7
8
9
Place Botton
TC 14
0.1u_10V_X7R_04
TCSW4
TJG-533-S-T/R
3
1
4
2
5
6
TBEZEL2
TC1 1u_6.3V_X5R_04
TR6 *4.7K_04
It is strongly recommended that the TESD_GND has
a dedicated connection to the system chassis or
cable shield.
TC 8
1u_16V_X5R_06
TR5 300K_1%_04
§»-P 85201-10051 6-20-94A20-110
Ãv¯þ (Ááª÷) CF20102U0RG-10-NH 6-20-94A10-010
Ãv¯þ (Áá¿ü) CF20101U0RG-10-NH 6-20-94A20-010
TC 3
1u_6.3V_X5R_04
TC12
1u_16V_X5R_06
TU2
RCLAMP0502B
1
2
3
TC 7
0.1u_16V_Y 5V_04
FCR1
*32m il_short
TU1
*M95128WMN6TP
CS#
1Q
2
WP# 3
VSS
4
S
5
SCK
6
HOLD# 7
VDD 8
TR12 27.4_1%_04
TC4
0.1u_16V_Y 5V_04
TR8 47K_04
TR7 *4.7K_04
TC 6
1u_6.3V_X5R_04
TR 14
*32m il_s hort
1
TH2
MTH6_0D2_3_S
2
3
4
5 6
7
8
9
RIGHT
KEY
1
TH4
MTH6_0D2_3_S
2
3
4
5 6
7
8
9
TR13 27.4_1%_04
TCSW 3
TJG-533-S-T/R
3
1
4
2
5
6
TGN D
T3. 3V
TGN DTGN D
TGN D
TGN D
TGN D
TGN D
TGN D
TGND
TGN D
TES D _GN D
TGN D
TGN D
TGN D
TGND
TGND
TAVDD
TESD_GND
TAVDD
TGN D
TGN D
TGN D
T3. 3 V
TGN D
T3. 3 V
TGN D
T+5V S
T3. 3 V
T3. 3V
TGND
4
T3. 3 V
T3. 3V
TGN D
T+5V S
TGN D
TGN D
TGND
TGN D
TGN DTGN D
TGN D
24
TMOSI
W170ER
W150ER
TR3 22K_04
TRD2
*BAV99 REC TIFIER
A
C
AC
TRD1
*BAV99 REC TIFI ER
A
C
AC
TGN DTGN D
TUSB_PP10
T3. 3 VT3. 3 V
TUSB_PN 10
TBDRIVE2
TBEZEL1
TMCS
TUSB_PN 10
TMCLK
TUSB_PN _R
TREF_OSC
TBEZEL2
TUSB_PP_R TUSB_PP10
TJ_TPB1
CF20101U 0RG-10-NH
1
2
3
4
5
6
7
8
9
10
TMOSI
TMISO
T_3.3V
TUSB_PN10
TUSB_PP10
TBDRIVE1
W150ERQ CLICK BOARD
TCSW2
*TJG-533-S-T/R
3
1
4
2
5
6
TCSW 1
*TJG-533-S-T/R
3
1
4
2
5
6
TREG_OUT
TPD _R E G
TNRESET
TXIN
TXOU T
TMI SO
TR1 22K_04
TGTP_ C LK
TGTP_ DA TA
CTPBUTTON_R CTPBUTTON_L
TBD R I VE1
TGTP_ D ATA
TGTP_ C LK
CTPBUTTON_R
CTPBUTTON_L
TL1 *10mil_s hort
TES D _GN D
X6
X3G048000F81H
12
3 4
TR 2
15p_50V_X7R_06 TC 5
15p_50V_X7R_06
TMC LK
TBD R I VE2
TMC S
TPD _R EG
TXI N
TNRESET TUSB _P N_R
TUSB_PP_R
TMOSI
TMI SO
TXOU T
2011.10.25
2011.10.25
TR EG_ OU T TREF _ OSC
TMCLK
24
T3. 3 V
TBEZEL1
CSW1~2
2
1
1
3
23
2
6
2
1
BOTTON VIEW
TJ_FP1
TH 5
H3_0D2_3
TC 13
0.1u_16V_Y 5V_04
TR9 4.7K_04
951206
LIFT
KEY
TH 6
H3_0D2_3
TR 4
1M_04
TOP VIEW
TJ_FPB1
*CON24A
1 2
3 4
5 6
7 8
910
11 12
13 14
15 16
17 18
19 20
2221
23 24 TR11 100_1%_04
TC10
47p_50V_NPO_04
J_FP1
TC2 1u_6.3V_X5R_04
TJ_TP 1
85201-06051
1
2
3
4
5
6
1
TH3
MTH6_0D2_3_S
2
3
4
5 6
7
8
9
48MHZ_30PPM
TC11
47p_50V_NPO_04
TC9 12p_50V_NPO_04
TR10 100_1%_04
FAVDD
W150ERQ FINGERPRINT BOARD
FPJT1
SPNZ-24S2-VB-017-1-R
1 2
3 4
5 6
7 8
910
11 12
13 14
15 16
17 18
19 20
2221
23 24
F3.3V
FGND
FAVDD
FGND
123
FJ1
needs to be design to be short and at low impedance.
TOP VIEW
24
BOTTON VIEW
The TESD_GND trace has to be wide (> 20mil)
6-21-41710-212
24
1
FREF_OSC
23
2
REDThe path be marked in
2
FGND
FTESD_GND
FBDRIVE1
FUSB_PN
F3.3V
FREF_OSC
FPD_REG
FMOSI
FXIN
FNRESET
FBEZEL1
FBEZEL2
FUSB_PP
FXOUT
FBDRIVE2
FREG_OUT
FMISO
FMCS
FMCLK
FBDRIVE2
FBDRIVE1
FREG_OUT
FNRESET
FXIN
F3.3V
FPD_REG
FXOUT
FPU1
TCS5DB6A0
BDRIVE1 B11
BDRIVE2 B10
REF_OSC C11
REG_OUT A10
AVDD C10
MC S
B2
ESD_GND3 C9
MI SO
C6
DVDD1
A1
ESD_GND1 A3
AGND
A8
BEZEL1B A7
BEZEL2B C7
ESD_GND2 C3
MC LK
B3
USB_DN
B1
USB_DP
C1
MOSI
B4
PD_REG
A4
NRESET
A2
DGND1
C4
BEZEL1A A5
BEZEL2A C5
DVDD2
A11
XTA L I N
B6
DGND2
C8
XTA L O U T
A6
ESD_GND4 A9
LED_DRV2 B7
LED_DRV1 B8
NC B9
NC C2
LED_DRV3 B5
FTESD_GND
FBEZEL1
FMOSI
FMCLK FBEZEL2
FMISO
FMCS
FUSB_PP
FUSB_PN
FGND
Schematic Diagrams
W150ERQ Fingerprint Board B - 49
B.Schematic Diagrams
W150ERQ Fingerprint Board
BBL_DGPU/IGPU#
BBL_WLAN_LED#
BBLD2
KP-2012SGC
AC
BBLD3
KP-2012SGC
AC
BBLR4
220_04
BBLJ_LED1
88486-1001
1
2
3
4
5
6
7
8
9
10
BBLH2
H4_5D2_3
R
G
BBLD1
RY-SP195UHYUYG4
1
3
2
4
R
G
BBLD4
RY-SP195UHYUYG4
1
3
2
4
BBLR6
220_04
BBLQ2
AO3409
G
D S
BBLR1
470_04
BBLR7
220_04
BBLQ1
DTC114EUA
CE
B
BBL_SW1
TJG-533-S-T/R
3
1
4
2
5
6
BBLH1
H4_5D2_3
BBLR5
220_04
BBLR2
220_04
BBLD5
KP-2012SGC
AC
BBLQ3
DTC114EUA
CE
B
BBLR3
220_04
BBL_3.3VS
BBLGN D
BBLGND
BBLGND
BBL_3.3VS
BBLGND
BBLGNDBBLGND
BBL_3.3VS
BBL_3.3VS
BBL_3.3VS
BBL_3.3VS
BBL_LED_I GPU# BBL_LED_DGPU#
BBL_LED_DGPU#
BBL_LED_IGPU#
BBL_BT_EN
BBL_SATA_LED#
BBL_BT_EN
BBL_VGA_SW#
BBL_SATA_LED#
BBL_DGPU/IGPU#
BBL_W LAN_LED#
DGPU LED
HDD LED BT &
WLAN
LED
RED
HDD/CD-ROM
LED
Green
IGPU LED
BBL_VGA_SW#
1
BBLH3
H6_0D2_3
2
3
4
5 6
7
8
9
1
BBLH4
H6_0D2_3
2
3
4
5 6
7
8
9
BBLGN D BBLGND BBLGND
Schematic Diagrams
B - 50 W170ER LED & VGA SW Board
B.Schematic Diagrams
W170ER LED & VGA SW Board
Schematic Diagrams
W170ER Power Switch Board B - 51
B.Schematic Diagrams
W170ER Power Switch Board
BBPWRBTN#
BBWEB#2BBPWRBTN# BBWEB#1BBWEB#0
Z3901
BBWEB#2
BBLID_SW#
BBPWRBTN#
BBWEB#1
BBWEB#0
BBD2
*BAV99
C
AC
A
BBD5
*BAV99
C
AC
A
BBSW2
TJG-533-S-T/R
3
14
2
BBD4
*BAV99
C
AC
A
BBC1
*0.01u_16V_04
BBH1
H5_0D2_3
BBU1
MH248-ALFA-ESO
VCC
1OUT 2
GND
3
BBSW4
TJG-533-S-T/R
3
14
2
BBH3
H5_0D2_3
BBC4
0.1u_10V_X7R_04
BBR2
680_06
BBH2
H5_0D2_3
BBC2
*0.1u_16V_04
BBSW1
TJG-533-S-T/R
3
14
2
BBC3
*0.01u_16V_04
BBD1
KP-2012SGC
AC
BBR1 10K_04
BBC5
*0.1u_16V_04
BBD3
*BAV99
C
AC
A
BBSW3
TJG-533-S-T/R
3
14
2
BBDGND
BBVDD3
BBVDD3
BBH_3.3VS
BBVDD3
BBDGND
BBH_3.3VS
BBVDD3
BBDGND
BBDGND
BBVDD3
BBDGND
BBVDD3
BBDGND
BBDGNDBBDGND
BBDGND
BBVDD3BBVDD3
BBDGND
BBDGND
BBDGND
BBDGND
BBVDD3
BBDGNDBBDGND
BBVDD3
BBDGND
BBDGND
BBDGND
BBDGND
§»-P 87151-1207G 6-20-94A20-112
Ãv¯þ CF20122U0RG-NH 6-20-94K10-012
BBJ_SW1
CF20122U0RG-NH
1
2
3
4
5
6
7
8
9
10
11
12
6-7P-W17E2-001
PIN5,6=BDGND
Mute
BBWEB#1 BBWEB#0
POWER
BUTTON
LED
BBWEB#2
CCD
M1
M-MA RK
LID SWITCH IC
WLAN
PIN5,6=BDGND
M2
M-MAR K
PIN5,6=BDGND
M3
M- MAR K
PIN5,6=BDGND
POWER
BOTTOM
M4
M-MARK
BBLID_SW#
M6
M-MAR K
M5
M-MA RK
M7
M- MAR K
M8
M-MARK
BBC6
*1u_10V_Y5V_06
BBDGND
RTCRST#
VCCRTC
5V
3V
PWRBTN#
SLP_S3#
SLP_S4#
DD_ON#
1.5VS
APWROK
1.05VS
PWROK
H_VTTPWRGD(ALL_SYS_PWRGD)
IMVP_VR_EN
CPU SVID BUS
1.8VS(VccPLL)
SPEC MIN 9mS
SPEC MIN 99mS
SPEC MAX 90mS
SPEC MIN 10mS
setVID
SLOW
packet
SPEC MIN 30uS
SPEC MIN 30us
SUS_STATE#
PLT_RST#
PB50/PB70 Huron River POWER SEQUENCE
81.24mS
1.3mS
420uS
91.073mS
31.6mS
734mS
SUS_PWR_DN_ACK 240mS SPEC MAX 200mS
36.47uS
122mS
SPEC Minimum duration of PWRBTN# assertion = 16mS.
PWRBTN# can assert before or after RSMRST#
1.307mS
1.5V
195.3mS
149.4mS
12.3mS
10.5mS
11.5mS
1.785mS
2.0mS
8.7mS
2.35mS
2.15mS
1.8mS
1.2mS
Will never go high later than SLP_S3#SPEC MIN 5msSLP_A#
SPEC MIN 0ms
SPEC MIN 5mS
SLP_S5#
0.85VS
1.05VS_VTT
SPEC MIN 1ms
SPEC MIN 0ms
3.3VS
5VS
SPEC MIN 0mS
DRAMPWROK SPEC MIN 2mS~MAX650ms
SPEC MIN 1mSSYS_PWROK
SPEC MIN 1mS~MAX100ms
SPEC MIN 60uS
SPEC MAX500us
SPEC MIN MAX5ms
A
C
K
SPEC MAX50us
SPEC MIN50us~MAX2000us
VCORE
SPEC MAX5ms
ACPRESENT
RSMRST#
2.17mS
5mS
36mS
MVP_PWRGD (VR_Ready)
IMVP_VR_EN
UNCOREPWRGOOD SPEC MIN 2mS
1.73mS
SPEC MIN 5mS~MAX650ms
Schematic Diagrams
B - 52 Sequence
B.Schematic Diagrams
Sequence
BIOS Update
C - 1
C:BIOS Update
Appendix C:Updating the FLASH ROM BIOS
BIOS Version
Make sure you down-
load the latest correct
version of the BIOS ap-
propriate for the com-
puter model you are
working on.
You should only
download BIOS ver-
sions that are
V1.01.XX or higher as
appropriate for your
computer model.
Note that BIOS versions
are not backward com-
patible and therefore
you may not down-
grade your BIOS to an
older version after up-
grading to a later ver-
sion (e.g if you upgrade
a BIOS to ver 1.01.05,
you MAY NOT then go
back and flash the BIOS
to ver 1.01.04).
To update the FLASH ROM BIOS, you must:
• Download the BIOS update from the web site.
• Unzip the files onto a bootable CD/DVD/USB Flash Drive.
• Reboot your computer from an external CD/DVD/USB Flash Drive.
• Use the flash tools to update the flash BIOS using the commands indicated below.
• Restart the computer booting from the HDD and press F2 at startup enter the BIOS.
• Load setup defaults from the BIOS and save the default settings and exit the BIOS to restart the computer.
• After rebooting the computer you may restart the computer again and make any required changes to the default BIOS
settings.
Download the BIOS
1. Go to www.clevo.com.tw and point to E-Services and click E-Channel.
2. Use your user ID and password to access the appropriate download area (BIOS), and download the latest BIOS files
(the BIOS file will be contained in a batch file that may be run directly once unzipped) for your computer model
(see sidebar for important information on BIOS versions).
Unzip the downloaded files to a bootable CD/DVD/ or USB Flash drive
1. Insert a bootable CD/DVD/USB flash drive into the CD/DVD drive/USB port of the computer containing the
downloaded files.
2. Use a tool such as Winzip or Winrar to unzip all the BIOS files and refresh tools to your bootable CD/DVD/USB
flash drive (you may need to create a bootable CD/DVD with the files using a 3rd party software).
Set the computer to boot from the external drive
1. With the bootable CD/DVD/USB flash drive containing the BIOS files in your CD/DVD drive/USB port, restart the
computer and press F2 (in most cases) to enter the BIOS.
2. Use the arrow keys to highlight the Boot menu.
3. Use the “+” and “-” keys to move boot devices up and down the priority order.
4. Make sure that the CD/DVD drive/USB flash drive is set first in the boot priority of the BIOS.
5. Press F4 to save any changes you have made and exit the BIOS to restart the computer.
BIOS Update
C - 2
C:BIOS Update
Use the flash tools to update the BIOS
1. Make sure you are not loading any memory management programs such as HIMEM by holding the F8 key as you
see the message “Starting MS-DOS”. You will then be prompted to give “Y” or “N” responses to the programs
being loaded by DOS. Choose “N” for any memory management programs.
2. You should now be at the DOS prompt e.g: DISK C:\> (C is the designated drive letter for the CD/DVD drive/USB
flash drive).
3. Type the following command at the DOS prompt:
C:\> Flash.bat
4. The utility will then proceed to flash the BIOS.
5. You should then be prompted to press any key to restart the system or turn the power off, and then on again but
make sure you remove the CD/DVD/USB flash drive from the CD/DVD drive/USB port before the computer
restarts.
Restart the computer (booting from the HDD)
1. With the CD/DVD/USB flash drive removed from the CD/DVD drive/USB port the computer should restart from
the HDD.
2. Press F2 as the computer restarts to enter the BIOS.
3. Use the arrow keys to highlight the Exit menu.
4. Select Load Setup Defaults (or press F3) and select “Ye s ” to confirm the selection.
5. Press F4 to save any changes you have made and exit the BIOS to restart the computer.
Your computer is now running normally with the updated BIOS
You may now enter the BIOS and make any changes you require to the default settings.
www.s-manuals.com

Navigation menu
