Manual

W25CEV / W25CEW

Preface

Notebook Computer

W25CEV / W25CEW

Service Manual

Preface

Notice

The company reserves the right to revise this publication or to change its contents without notice. Information contained

herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven-

dor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are

they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.

This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or

reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publica-

tion, except for copies kept by the user for backup purposes.

Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of

their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement

of that product or its manufacturer.

Version 1.0

October 2012

Trademarks

Intel, Pentium and Intel Core are trademarks of Intel Corporation.

Windows® is a registered trademark of Microsoft Corporation.

Other brand and product names are trademarks and /or registered trademarks of their respective companies.

Preface

III

Preface

About this Manual

This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and

inspection of personal computers.

It is organized to allow you to look up basic information for servicing and/or upgrading components of the W25CEV /

W25CEW series notebook PC.

The following information is included:

Chapter 1, Introduction, provides general information about the location of system elements and their specifications.

Chapter 2, Disassembly, provides step-by-step instructions for disassembling parts and subsystems and how to upgrade

elements of the system.

Appendix A, Part Lists

Appendix B, Schematic Diagrams

Appendix C, Updating the FLASH ROM BIOS

Preface

IMPORTANT SAFETY INSTRUCTIONS

Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock and injury to per-

sons when using any electrical equipment:

1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet

basement or near a swimming pool.

2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of elec-

trical shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak.

4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may

explode. Check with local codes for possible special disposal instructions.

5. This product is intended to be supplied by a Listed Power Unit with an AC Input of 100 - 240V, 50 - 60Hz, DC Output

of 19V, 3.42A or 18.5V, 3.5A (65W) minimum AC/DC Adapter.

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference.

This device must accept any interference received, including interference that may cause undesired operation.

Preface

Instructions for Care and Operation

The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:

1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.

2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This

is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.

3. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save

your work. Remember to periodically save your data as data may be lost if the battery is depleted.

Do not expose the computer

to any shock or vibration. Do not place it on an unstable

surface. Do not place anything heavy

on the computer.

Do not expose it to excessive

heat or direct sunlight. Do not leave it in a place

where foreign matter or mois-

ture may affect the system.

Don’t use or store the com-

puter in a humid environment. Do not place the computer on

any surface which will block

the vents.

Do not turn off the power

until you properly shut down

all programs.

Do not turn off any peripheral

devices when the computer is

on.

Do not disassemble the com-

puter by yourself. Perform routine maintenance

on your computer.

Preface

4. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag-

netic fields. These can hinder proper performance and damage your data.

5. Take care when using peripheral devices.

Power Safety

The computer has specific power requirements:

• Only use a power adapter approved for use with this computer.

• Your AC adapter may be designed for international travel but it still requires a steady, uninterrupted power supply. If you are

unsure of your local power specifications, consult your service representative or local power company.

• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety feature; do

not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.

• When you want to unplug the power cord, be sure to disconnect it by the plug head, not by its wire.

• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.

• Before cleaning the computer, make sure it is disconnected from any external power supplies.

Use only approved brands of

peripherals. Unplug the power cord before

attaching peripheral devices.

Do not plug in the power

cord if you are wet. Do not use the power cord if

it is broken. Do not place heavy objects

on the power cord.



Power Safety

Warning

Before you undertake

any upgrade proce-

dures, make sure that

you have turned off the

power, and discon-

nected all peripherals

and cables (including

telephone lines). It is

advisable to also re-

move your battery in

order to prevent acci-

dentally turning the

machine on.

Preface

VII

Preface

Battery Precautions

• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.

• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the

computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.

• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.

• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service

personnel.

• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries may explode

or leak if exposed to fire, or improperly handled or discarded.

• Keep the battery away from metal appliances.

• Affix tape to the battery contacts before disposing of the battery.

• Do not touch the battery contacts with your hands or metal objects.

Battery Guidelines

The following can also apply to any backup batteries you may have.

• If you do not use the battery for an extended period, then remove the battery from the computer for storage.

• Before removing the battery for storage charge it to 60% - 70%.

• Check stored batteries at least every 3 months and charge them to 60% - 70%.



Battery Disposal

The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under var-

ious state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste

officials for details in your area for recycling options or proper disposal.

Caution

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.

Discard used battery according to the manufacturer’s instructions.

Battery Level

Click the battery icon in the taskbar to see the current battery level and charge status. A battery that drops below a level of 10%

will not allow the computer to boot up. Make sure that any battery that drops below 10% is recharged within one week.

Preface

VIII

Preface

Related Documents

You may also need to consult the following manual for additional information:

User’s Manual on CD/DVD

This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro-

gram. It also describes the installation and operation of the utility programs provided with the notebook PC.

System Startup

1. Remove all packing materials.

2. Place the computer on a stable surface.

3. Insert the battery and make sure it is locked in position.

4. Securely attach any peripherals you want to use with the computer

(e.g. keyboard and mouse) to their ports.

5. Attach the AC/DC adapter to the DC-In jack at the left of the

computer, then plug the AC power cord into an outlet, and connect

the AC power cord to the AC/DC adapter.

6. Use one hand to raise the

lid/LCD to a comfortable viewing angle

(do not exceed 135 degrees)

;

use the other hand (as illustrated in

Figure 1) to support the base of the computer (Note: Never lift the

computer by the lid/LCD).

7. Press the power button to turn the computer “on”.



Shut Down

Note that you should al-

ways shut your com-

puter down by

choosing the Shut

Down command from

the bottom right of the

Start menu in Win-

dows. This will help

prevent hard disk or

system problems.

135º

Figure 1

Opening the Lid/LCD/

Computer with AC/DC

Adapter Plugged-In

Preface

Contents

Introduction ..............................................1-1

Overview .........................................................................................1-1

Specifications ..................................................................................1-2

External Locator - Top View with LCD Panel Open ......................1-4

External Locator - Front & Right Side Views .................................1-5

External Locator - Left Side & Rear View .....................................1-6

External Locator - Bottom View .....................................................1-7

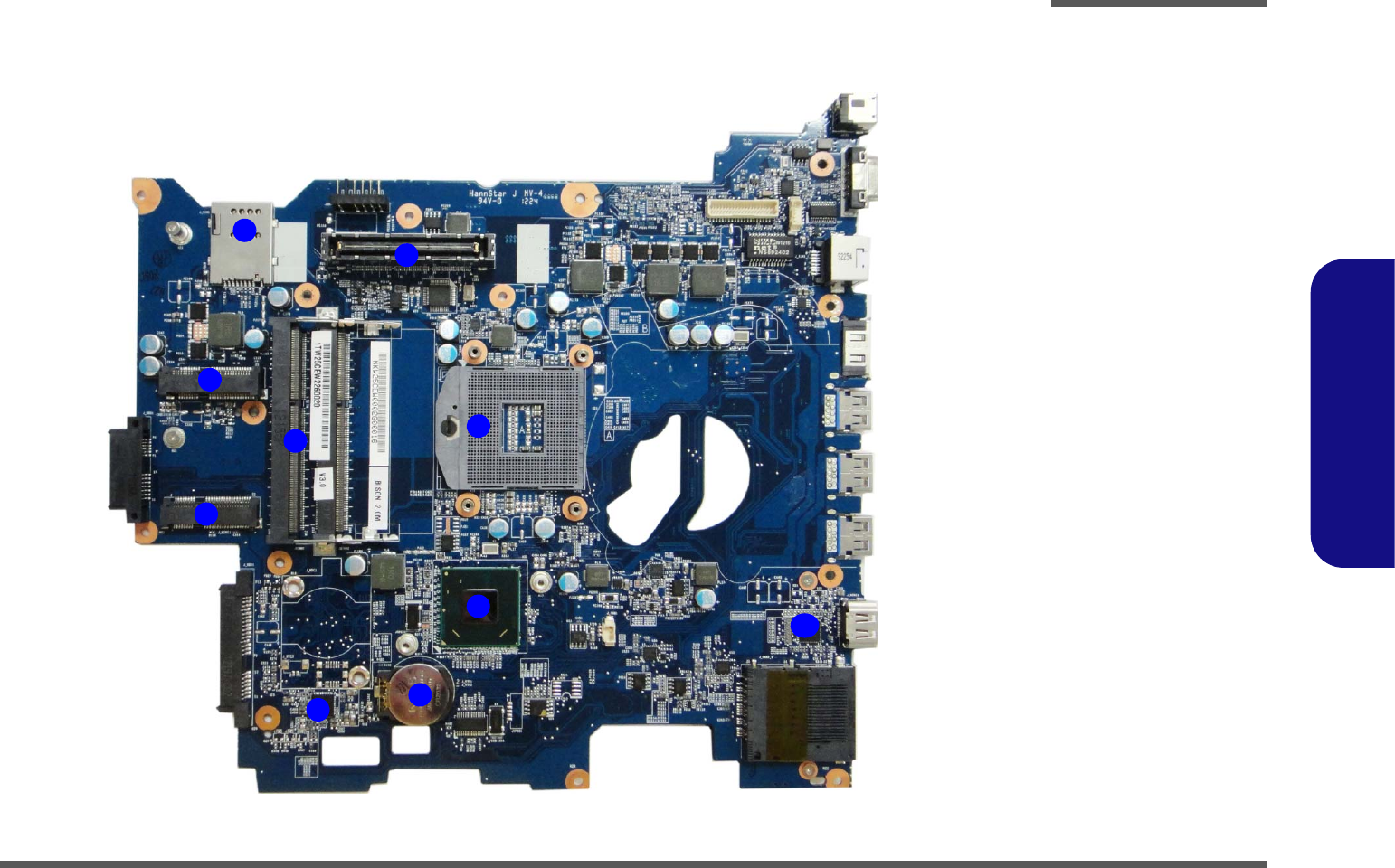

Mainboard Overview - Top (Key Parts) .........................................1-8

Mainboard Overview - Bottom (Key Parts) ....................................1-9

Mainboard Overview - Top (Connectors) .....................................1-10

Mainboard Overview - Bottom (Connectors) ...............................1-11

Disassembly ...............................................2-1

Overview .........................................................................................2-1

Maintenance Tools ..........................................................................2-2

Connections .....................................................................................2-2

Maintenance Precautions .................................................................2-3

Disassembly Steps ...........................................................................2-4

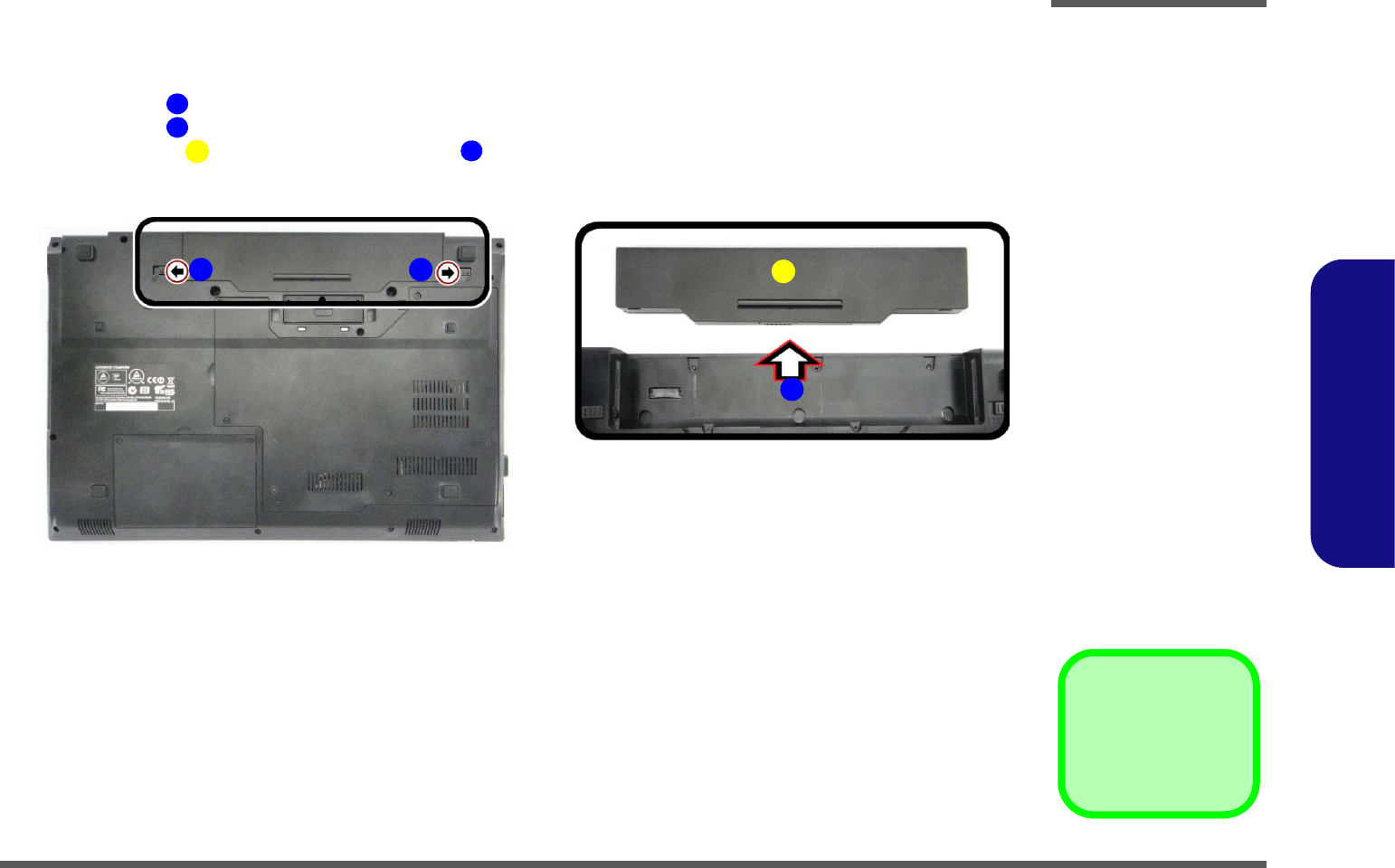

Removing the Battery ......................................................................2-5

Removing and Installing the Hard Disk Drive ................................2-6

Removing the System Memory (RAM) ..........................................2-8

Removing and Installing a Processor ............................................2-10

Removing the 3.75G Module ........................................................2-13

Removing the Wireless LAN Module ...........................................2-14

Removing the Optical Device .......................................................2-15

Removing the Keyboard ................................................................2-16

Removing and Installing the Mainboard .......................................2-17

Removing the LCD .......................................................................2-19

Removing the Speaker ..................................................................2-20

Part Lists ..................................................A-1

Part List Illustration Location ........................................................ A-2

Top ................................................................................................. A-3

Bottom ........................................................................................... A-4

HDD ............................................................................................... A-5

DVD ............................................................................................... A-6

LCD ............................................................................................... A-7

Schematic Diagrams.................................B-1

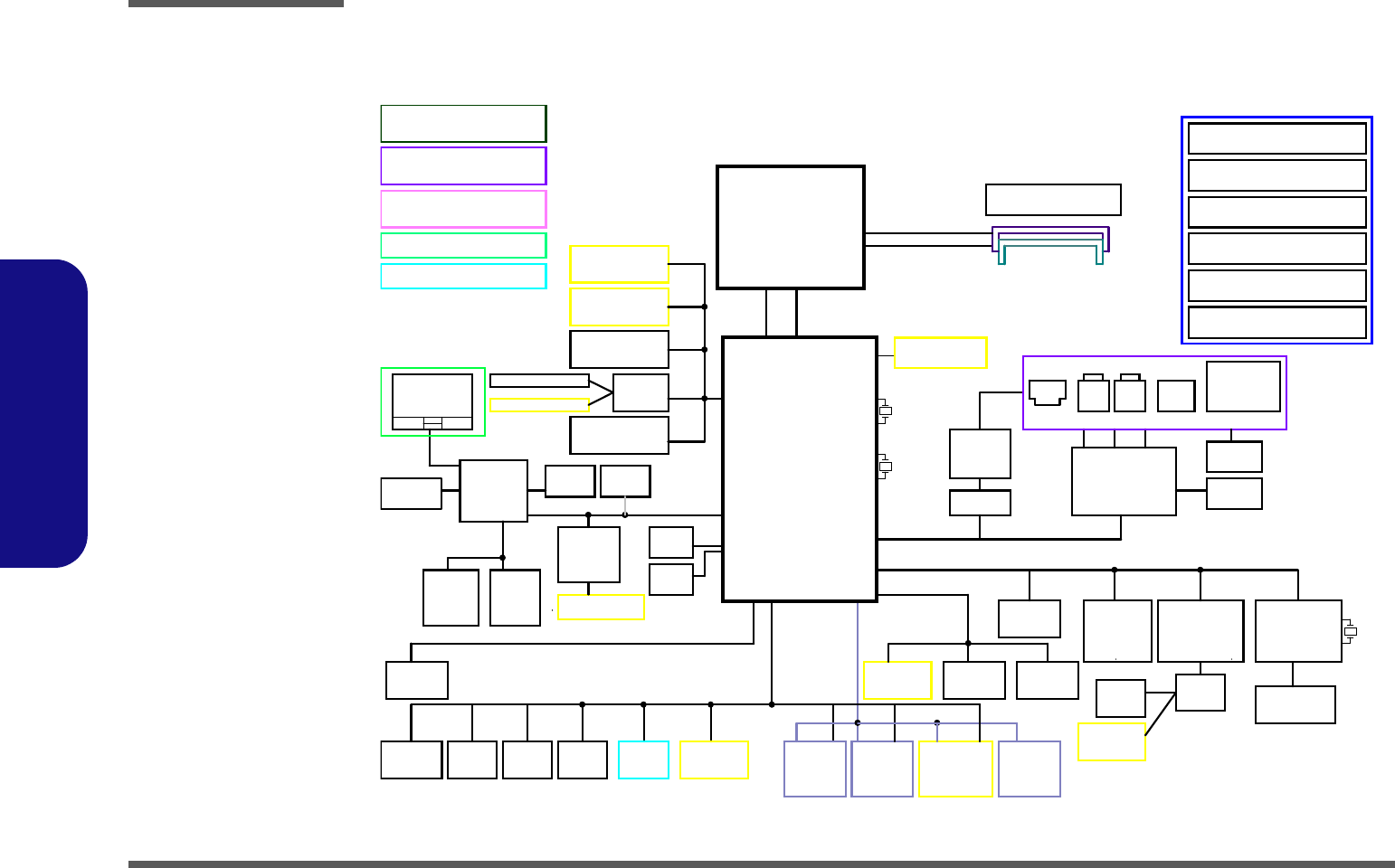

System Block Diagram ...................................................................B-2

Processor 1/7 ...................................................................................B-3

Processor 2/7 ...................................................................................B-4

Processor 3/7 ...................................................................................B-5

Processor 4/7 ...................................................................................B-6

Processor 5/7 ...................................................................................B-7

Processor 6/7 ...................................................................................B-8

Processor 7/7 ...................................................................................B-9

DDR3 SO-DIMM_0 .....................................................................B-10

DDR3 SO-DIMM_1 .....................................................................B-11

LVDS, INVERTER ......................................................................B-12

HDMI ............................................................................................B-13

CRT ...............................................................................................B-14

PCH 1/9 ........................................................................................B-15

PCH 2/9 ........................................................................................B-16

PCH 3/9 ........................................................................................B-17

PCH 4/9 ........................................................................................B-18

PCH 5/9 ........................................................................................B-19

PCH 6/9 ........................................................................................B-20

PCH 7/9 ........................................................................................B-21

PCH 8/9 ........................................................................................B-22

PCH 9/9 ........................................................................................B-23

Intel LAN 82579LM .....................................................................B-24

Preface

LAN Transformer ......................................................................... B-25

Card Reader RTS5229 .................................................................B-26

USB Port, E-SATA ...................................................................... B-27

3G, HDD, ODD ............................................................................ B-28

WLAN, CCD, TPM .....................................................................B-29

KBC-ITE IT8518 ......................................................................... B-30

AUDIO CODEC VT1802P ..........................................................B-31

New Card, MDC ..........................................................................B-32

Fan, TP, Connector .......................................................................B-33

Docking Connector, COM Port .................................................... B-34

System Power ............................................................................... B-35

1.05V Series ................................................................................. B-36

VDD3, VDD5 ............................................................................... B-37

Power 1.5V, 0.75VS, 1.5VS,1.8VS .............................................B-38

POWER 0.85VS ...........................................................................B-39

POWER V_CORE 1 .................................................................... B-40

Power V-CORE / GFX_VCORE ................................................. B-41

AC IN, Charger ............................................................................ B-42

Audio Board / USB_A ................................................................. B-43

Power Switch & LID Switch ........................................................ B-44

CLICK & FINGER BOARD ....................................................... B-45

FINGERPRINT BOARD_G ........................................................ B-46

PWR ON SEQ .............................................................................. B-47

Power Diagram ............................................................................. B-48

Updating the FLASH ROM BIOS......... C-1

Download the BIOS ....................................................................... C-1

Unzip the downloaded files to a bootable CD/DVD/ or

USB Flash drive ............................................................................. C-1

Set the computer to boot from the external drive ........................... C-1

Use the flash tools to update the BIOS ..........................................C-2

Restart the computer (booting from the HDD) .............................. C-2

Introduction

Overview 1 - 1

1.Introduction

Chapter 1: Introduction

Overview

This manual covers the information you need to service or upgrade the W25CEV / W25CEW series notebook computer.

Information about operating the computer (e.g. getting started, and the Setup utility) is in the User’s Manual. Information

about dri-vers (e.g. VGA & audio) is also found in the User’s Manual. The manual is shipped with the computer.

Operating systems (e.g. Windows 7, etc.) have their own manuals as do application softwares (e.g. word processing and

database programs). If you have questions about those programs, you should consult those manuals.

The W25CEV / W25CEW series notebook is designed to be upgradeable. See Disassembly on page 2 - 1 for a detailed

description of the upgrade procedures for each specific component. Please take note of the warning and safety informa-

tion indicated by the “” symbol.

The balance of this chapter reviews the computer’s technical specifications and features.

Introduction

1 - 2 Specifications

1.Introduction

Specifications



Latest Specification Information

The specifications listed here are correct at the

time of sending them to the press. Certain items

(particularly processor types/speeds) may be

changed, delayed or updated due to the manu-

facturer's release schedule. Check with your

service center for more details.



CPU

The CPU is not a user serviceable part. Ac-

cessing the CPU in any way may violate your

warranty.

Processor Options

W25CEW:

Intel® Core™ i7 Processor

i7-3612QM (2.10GHz)

6MB L3 Cache, 22nm, DDR3-1600MHz, TDP 35W

i7-3520M (2.90GHz)

4MB L3 Cache, 22nm, DDR3-1600MHz, TDP 35W

Intel® Core™ i5 Processor

i5-3360M (2.80GHz), i5-3320M (2.60GHz), i5-3210M

(2.50GHz)

3MB L3 Cache, 22nm, DDR3-1600MHz, TDP 35W

Intel® Core™ i3 Processor

i3-3110M (2.40GHz)

3MB L3 Cache, 22nm, DDR3-1600MHz, TDP 35W

Intel® Core™ i7 Processor

i7-2640M (2.80GHz)

4MB L3 Cache, 32nm, DDR3-1333MHz, TDP 35W

Intel® Core™ i5 Processor

i5-2540M (2.60GHz), i5-2520M (2.50GHz),

i5-2450M (2.50GHz), i5-2430M (2.40GHz)

3MB L3 Cache, 32nm, DDR3-1333MHz, TDP 35W

Intel® Core™ i3 Processor

i3-2370M (2.40GHz), i3-2350M (2.30GHz),

3MB L3 Cache, 32nm, DDR3-1333MHz, TDP 35W

Intel® Pentium™ Processor

B980 (2.40GHz), B970 (2.30GHz), B960 (2.20GHz), B950

(2.10GHz)

2MB L3 Cache, 32nm, DDR3-1333MHz, TDP 35W

W25CEV:

Intel® Core™ i7 Processor

i7-3520M (2.90GHz)

4MB L3 Cache, 22nm, DDR3-1600MHz, TDP 35W

Intel® Core™ i5 Processor

i5-3360M (2.80GHz), i5-3320M (2.60GHz)

3MB L3 Cache, 22nm, DDR3-1600MHz, TDP 35W

LCD

15.6" (39.62cm) HD/ HD+

BIOS

AMI BIOS (One 64Mb SPI Flash ROM)

Core Logic

W25CEW:

Intel® HM77 Chipset

W25CEV:

Intel® QM77 Chipset

Memory

Two 204 Pin SO-DIMM Sockets Supporting DDR3 1333/

1600MHz Memory

Memory Expandable up to 8GB

(The real memory operating frequency depends on the FSB

of the processor.)

Video Adapter (W25CEW)

Intel Integrated GPU

(GPU is Dependent on Processor)

Intel® HD Graphics

Dynamic Frequency (Intel Dynamic Video Memory Technol-

ogy for up to 1.7GB)

Microsoft DirectX®10 Compatible

Intel® HD Graphics 3000

Dynamic Frequency (Intel Dynamic Video Memory Technol-

ogy for up to 1.7GB)

Microsoft DirectX®10 Compatible

Intel® HD Graphics 4000

Dynamic Frequency (Intel Dynamic Video Memory Technol-

ogy for up to 1.7GB)

Microsoft DirectX®11 Compatible

Video Adapter (W25CEV)

Intel® HD Graphics 4000

Dynamic Frequency (Intel Dynamic Video Memory Technol-

ogy for up to 1.7GB)

Microsoft DirectX®11 Compatible

Introduction

Specifications 1 - 3

1.Introduction

Storage

(Factory Option) One Changeable 12.7mm(h) Optical

Device Type Drive (Super Multi Drive Module or Blu-Ray

Combo Drive Module)

One Changeable 2.5" 9.5mm (h) SATA HDD

Audio

High Definition Audio Compliant Interface

2 * Built-In Speakers

Built-In Microphone

Security

BIOS Password

Security (Kensington® Type) Lock Slot

Fingerprint Reader

TPM v1.2

Intel vPro (W25CEV only)

Keyboard

Full-size “WinKey” keyboard (with numeric keypad)

Pointing Device

Built-in Touchpad (scrolling key functionality integrated)

Interface

Three USB 3.0 Ports (Including one AC/DC Powered USB

port)

One USB 2.0 Port

One eSATA Port

One HDMI-Out Port

One Headphone-Out Jack

One Microphone-In Jack

One RJ-45 LAN Jack

One External Monitor Port

One ExpressCard/34(54) Slot

One DC-in Jack

One Docking Port

Card Reader

Embedded Multi-in-1 Push-Push Card Reader

MMC (MultiMedia Card) / RS MMC

SD (Secure Digital) / Mini SD / SDHC/ SDXC

MS (Memory Stick) / MS Pro / MS Duo

Mini Card Slots

Slot 1 for WLAN Module or WLAN and Bluetooth Combo

Module

(Factory Option) Slot 2 for 3G Module

Communication

Built-In Gigabit Ethernet LAN

(Factory Option) 2M HD PC Camera Module

(Factory Option) 3G Module (UMTS/HSPA or UMTS/

HSPA+)

WLAN/ Bluetooth Half Mini-Card Modules:

W25CEW:

(Factory Option) Intel® Centrino® Wireless-N 2230 Wire-

less LAN (802.11b/g/n) + Bluetooth 4.0

(Factory Option) Intel® Centrino® Wireless-N 135 Wire-

less LAN (802.11b/g/n) + Bluetooth 4.0

(Factory Option) Third-Party Wireless LAN (802.11b/g/n) +

Bluetooth 4.0

(Factory Option) Third-Party Wireless LAN (802.11b/g/n)

W25CEV:

(Factory Option) Intel® Centrino® Advanced-N 6235 Wire-

less LAN (802.11a/g/n) + Bluetooth 4.0

(Factory Option) Intel® Centrino® Advanced-N 6205 Wire-

less LAN (802.11a/g/n)

Environmental Spec

Temperature

Operating: 5°C - 35°C

Non-Operating: -20°C - 60°C

Relative Humidity

Operating: 20% - 80%

Non-Operating: 10% - 90%

Power

Full Range AC/DC Adapter

AC Input: 100 - 240V, 50 - 60Hz

DC Output: 19V, 3.42A or 18.5V, 3.5A (65W)

6 Cell Smart Lithium-Ion Battery Pack, 62.16WH

Dimensions & Weight

374mm (w) * 256mm (d) * 37.9mm (h)

2.5kg with ODD & 62.16WH Battery

Introduction

1 - 4 External Locator - Top View with LCD Panel Open

1.Introduction

External Locator - Top View with LCD Panel Open

Figure 1

Top View

1. PC Camera

(Optional)

2. LCD

3. Power Button

4. LED Indicators

5. Keyboard

6. Built-In

Microphone

7. Touchpad &

Buttons

8. Fingerprint Reader

Introduction

External Locator - Front & Right Side Views 1 - 5

1.Introduction

External Locator - Front & Right Side Views

Figure 2

Front View

1. LED Indicator

2. WLAN Switch

Figure 3

Right Side View

1. Microphone-In

Jack

2. Headphone-Out

Jack

3. USB 2.0 Port

4. Optical Device

Drive Bay

5. Emergency Eject

Hole

FRONT VIEW

RIGHT SIDE VIEW

1 2 3

Introduction

1 - 6 External Locator - Left Side & Rear View

1.Introduction

External Locator - Left Side & Rear View

Figure 4

Left Side View

1. DC-In Jack

2. External Monitor

Port

3. RJ-45 LAN Jack

4. e-SATA Port Port

5. Vent

6. Powered USB 3.0

Port

7. 2 * USB 3.0 Ports

8. HDMI-Out Port

9. ExpressCard/

54(34) Slot

10. Multi-in-1 Card

Reader

LEFT SIDE VIEW

1234569

7 7 10

Figure 5

Rear View

1. Battery

REAR VIEW

Introduction

External Locator - Bottom View 1 - 7

1.Introduction

External Locator - Bottom View

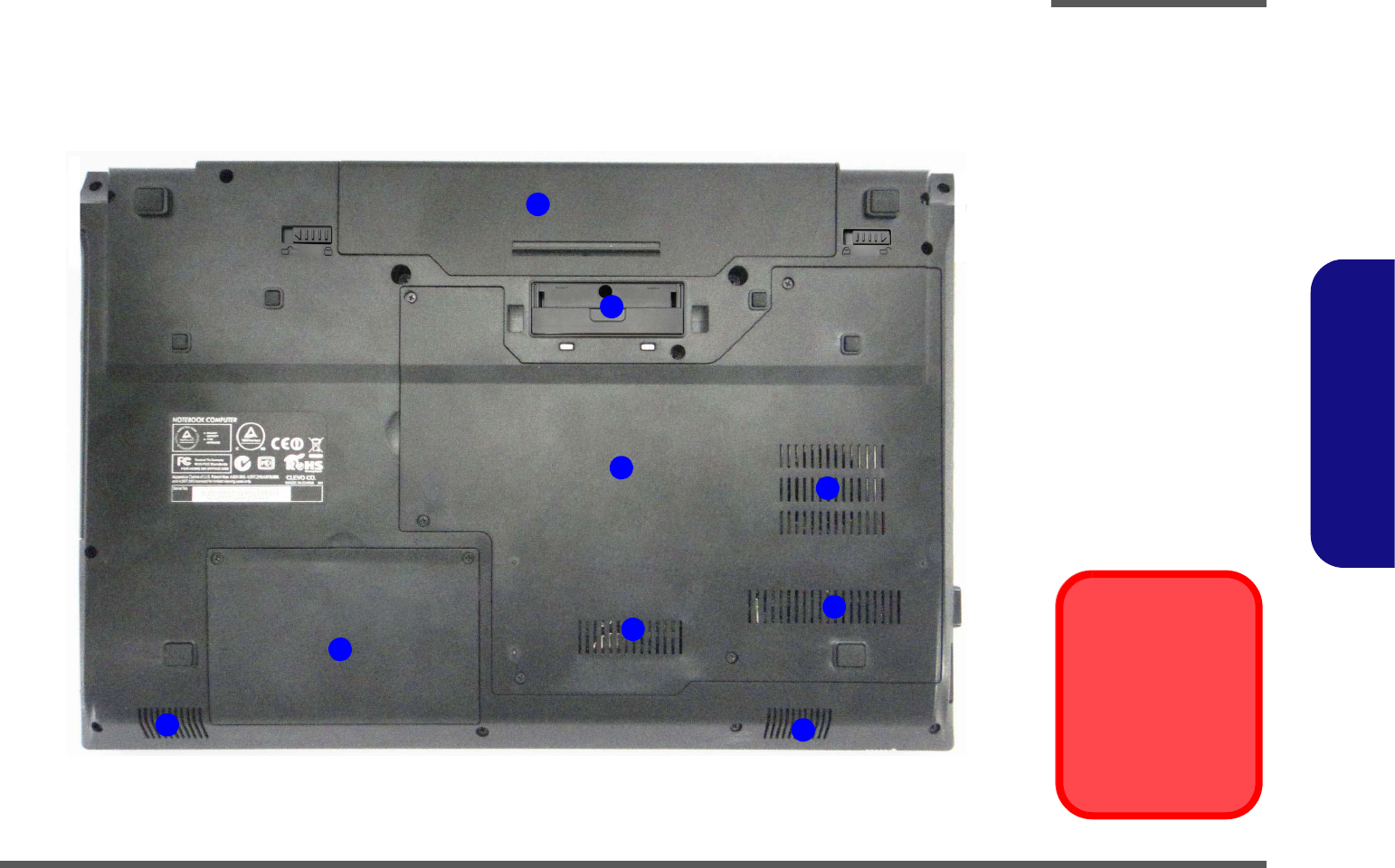

Figure 6

Bottom View

1. Battery

2. Docking Port

3. Vent

4. Component Bay

Cover

5. Hard Disk Bay

Cover

6. Speakers



Overheating

To prevent your com-

puter from overhea-

ting, make sure no-

thing blocks any vent

while the computer is

in use.

Introduction

1 - 8 Mainboard Overview - Top (Key Parts)

1.Introduction

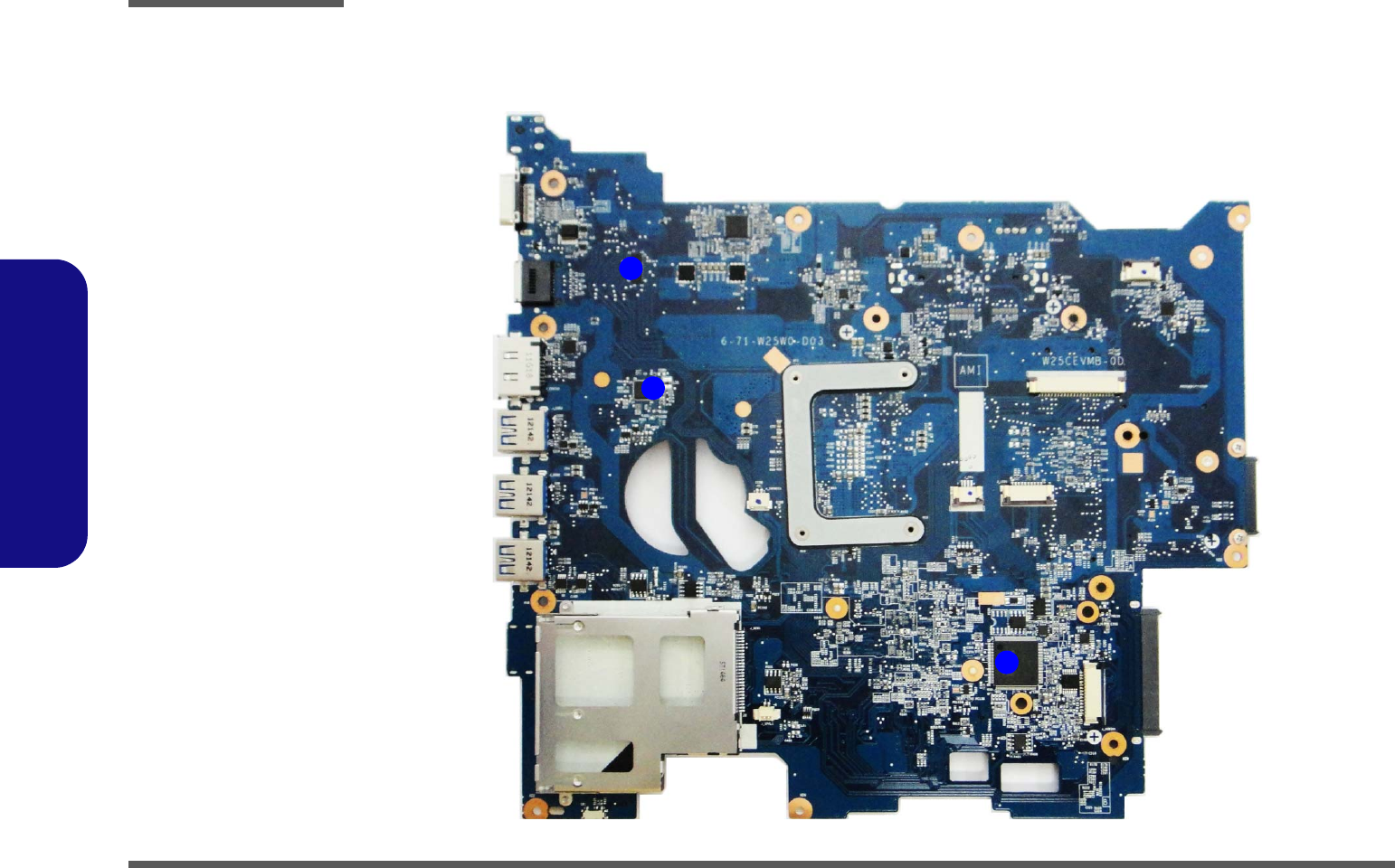

Mainboard Overview - Top (Key Parts)

Figure 7

Mainboard Top

Key Parts

1. PI3L720ZHE

2. TUSB7320

3. ITE IT8518E

Figure 8

Mainboard Bottom

Key Parts

1. CPU Socket (no

CPU installed)

2. Platform Controller

Hub

3. CMOS Battery

4. Audio Codec

VT1802P

5. Memory Slots

DDR3 SO-DIMM

6. Mini-Card

Connector (WLAN

Module)

7. Mini-Card

Connector (3G

Module)

8. SIM LOCK

9. Docking Station

Connector

10. Card Reader

JMB369

Introduction

Mainboard Overview - Bottom (Key Parts) 1 - 9

1.Introduction

Mainboard Overview - Bottom (Key Parts)

Introduction

1 - 10 Mainboard Overview - Top (Connectors)

1.Introduction

Mainboard Overview - Top (Connectors)

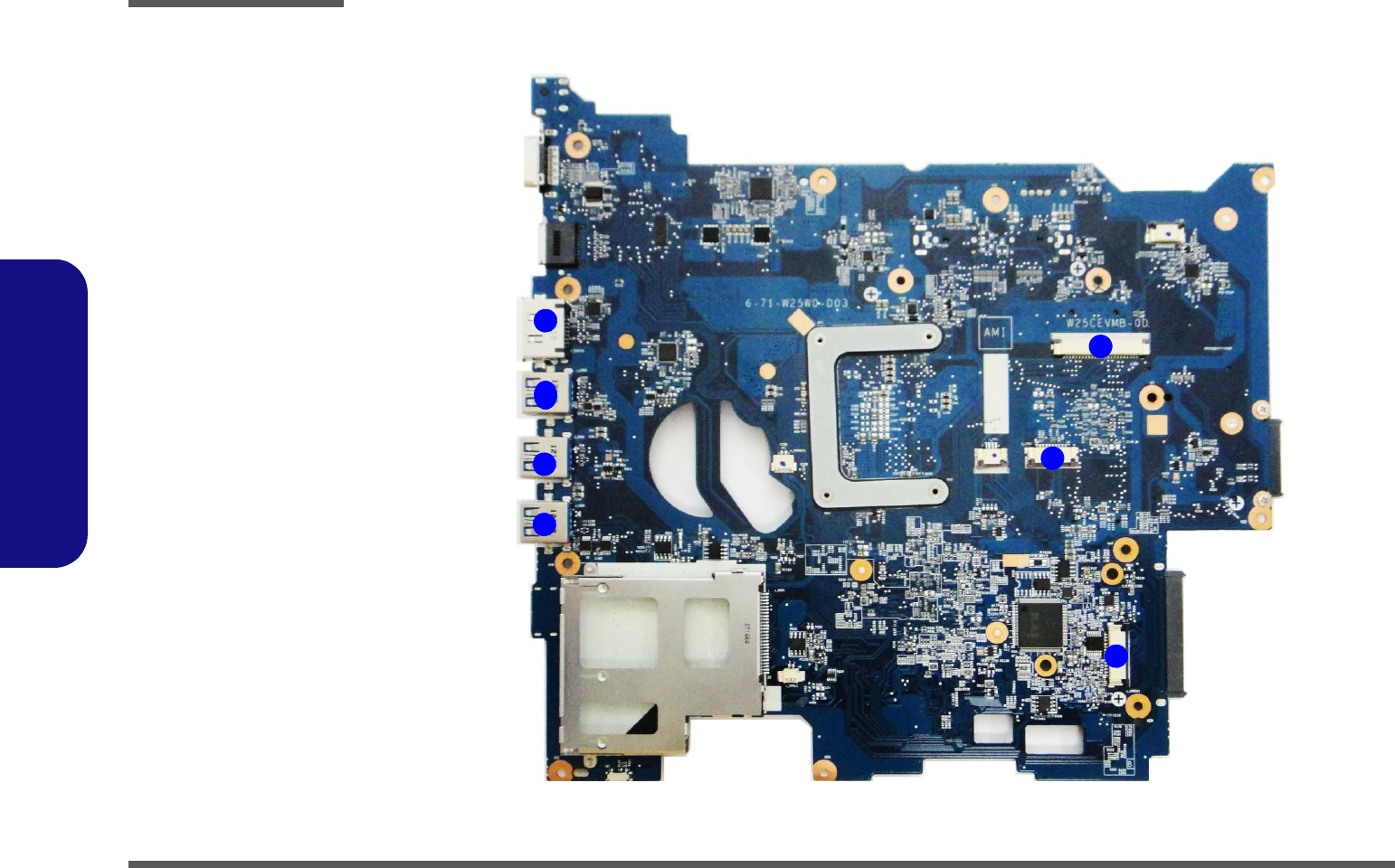

Figure 9

Mainboard Top

Connectors

1. e-SATA Port

2. Powered USB 3.0

Port

3. USB Port 3.0

4. Keyboard Cable

Connector

5. Audio Board

Connector

6. Touchpad Cable

Connector

Introduction

Mainboard Overview - Bottom (Connectors) 1 - 11

1.Introduction

Mainboard Overview - Bottom (Connectors)

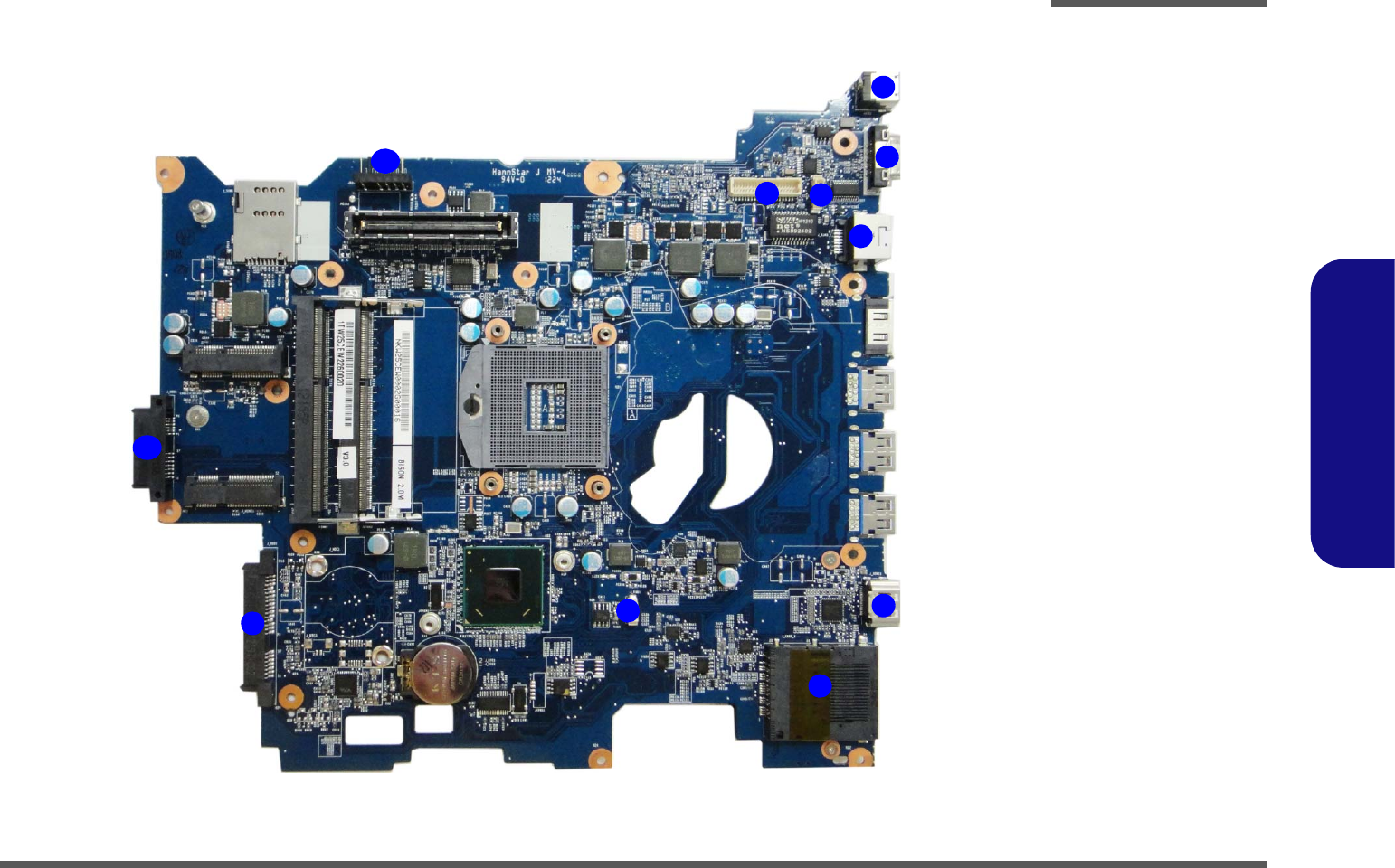

Figure 10

Mainboard Bottom

Connectors

1. HDD Connector

2. Fan Cable

Connector

3. Multi-in-1 Card

Reader

4. HDMI-Out Port

5. RJ-45 LAN Jack

6. External Monitor

Port

7. DC-In Jack

8. Microphone Cable

Connector

9. LVDS Cable

Connector

10. Battery Connector

11. ODD Cable

Connector

124

Introduction

1 - 12

1.Introduction

Disassembly

Overview 2 - 1

2.Disassembly

Chapter 2: Disassembly

Overview

This chapter provides step-by-step instructions for disassembling the W25CEV / W25CEW series notebook’s parts and

subsystems. When it comes to reassembly, reverse the procedures (unless otherwise indicated).

We suggest you completely review any procedure before you take the computer apart.

Procedures such as upgrading/replacing the RAM, optical device and hard disk are included in the User’s Manual but are

repeated here for your convenience.

To make the disassembly process easier each section may have a box in the page margin. Information contained under

the figure # will give a synopsis of the sequence of procedures involved in the disassembly procedure. A box with a 

lists the relevant parts you will have after the disassembly process is complete. Note: The parts listed will be for the dis-

assembly procedure listed ONLY, and not any previous disassembly step(s) required. Refer to the part list for the previ-

ous disassembly procedure. The amount of screws you should be left with will be listed here also.

A box with a  will also provide any possible helpful information. A box with a  contains warnings.

An example of these types of boxes are shown in the sidebar.



Information



Warning

Disassembly

2 - 2 Overview

2.Disassembly

NOTE: All disassembly procedures assume that the system is turned OFF, and disconnected from any power supply (the

battery is removed too).

Maintenance Tools

The following tools are recommended when working on the notebook PC:

• M3 Philips-head screwdriver

• M2.5 Philips-head screwdriver (magnetized)

• M2 Philips-head screwdriver

• Small flat-head screwdriver

• Pair of needle-nose pliers

• Anti-static wrist-strap

Connections

Connections within the computer are one of four types:

Locking collar sockets for ribbon connectors To release these connectors, use a small flat-head screwdriver to

gently pry the locking collar away from its base. When replac-

ing the connection, make sure the connector is oriented in the

same way. The pin1 side is usually not indicated.

Pressure sockets for multi-wire connectors To release this connector type, grasp it at its head and gently

rock it from side to side as you pull it out. Do not pull on the

wires themselves. When replacing the connection, do not try to

force it. The socket only fits one way.

Pressure sockets for ribbon connectors To release these connectors, use a small pair of needle-nose pli-

ers to gently lift the connector away from its socket. When re-

placing the connection, make sure the connector is oriented in

the same way. The pin1 side is usually not indicated.

Board-to-board or multi-pin sockets To separate the boards, gently rock them from side to side as

you pull them apart. If the connection is very tight, use a small

flat-head screwdriver - use just enough force to start.

Disassembly

Overview 2 - 3

2.Disassembly

Maintenance Precautions

The following precautions are a reminder. To avoid personal injury or damage to the computer while performing a re-

moval and/or replacement job, take the following precautions:

1. Don't drop it. Perform your repairs and/or upgrades on a stable surface. If the computer falls, the case and other

components could be damaged.

2. Don't overheat it. Note the proximity of any heating elements. Keep the computer out of direct sunlight.

3. Avoid interference. Note the proximity of any high capacity transformers, electric motors, and other strong mag-

netic fields. These can hinder proper performance and damage components and/or data. You should also monitor

the position of magnetized tools (i.e. screwdrivers).

4. Keep it dry. This is an electrical appliance. If water or any other liquid gets into it, the computer could be badly

damaged.

5. Be careful with power. Avoid accidental shocks, discharges or explosions.

•Before removing or servicing any part from the computer, turn the computer off and detach any power supplies.

•When you want to unplug the power cord or any cable/wire, be sure to disconnect it by the plug head. Do not pull on the wire.

6. Peripherals – Turn off and detach any peripherals.

7. Beware of static discharge. ICs, such as the CPU and main support chips, are vulnerable to static electricity.

Before handling any part in the computer, discharge any static electricity inside the computer. When handling a

printed circuit board, do not use gloves or other materials which allow static electricity buildup. We suggest that

you use an anti-static wrist strap instead.

8. Beware of corrosion. As you perform your job, avoid touching any connector leads. Even the cleanest hands pro-

duce oils which can attract corrosive elements.

9. Keep your work environment clean. Tobacco smoke, dust or other air-born particulate matter is often attracted

to charged surfaces, reducing performance.

10. Keep track of the components. When removing or replacing any part, be careful not to leave small parts, such as

screws, loose inside the computer.

Cleaning



Power Safety

Warning

Before you undertake

any upgrade proce-

dures, make sure that

you have turned off the

power, and discon-

nected all peripherals

and cables (including

telephone lines). It is

advisable to also re-

move your battery in

order to prevent acci-

dentally turning the

machine on.

Do not apply cleaner directly to the computer, use a soft clean cloth.

Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer.

Disassembly

2 - 4 Disassembly Steps

2.Disassembly

Disassembly Steps

The following table lists the disassembly steps, and on which page to find the related information. PLEASE PERFORM

THE DISASSEMBLY STEPS IN THE ORDER INDICATED.

To remove the Battery:

1. Remove the battery page 2 - 5

To remove the HDD:

1. Remove the battery page 2 - 5

2. Remove the HDD page 2 - 6

To remove the System Memory:

1. Remove the battery page 2 - 5

2. Remove the system memory page 2 - 8

To remove and install a Processor:

1. Remove the battery page 2 - 5

2. Remove the processor page 2 - 10

3. Install the processor page 2 - 12

To remove the 3G Module:

1. Remove the battery page 2 - 5

2. Remove the 3G module page 2 - 13

To remove the Wireless LAN Module:

1. Remove the battery page 2 - 5

2. Remove the WLAN module page 2 - 14

To remove the Optical Device:

1. Remove the battery page 2 - 5

2. Remove the ODD page 2 - 15

To remove the Keyboard:

1. Remove the battery page 2 - 5

2. Remove the keyboard page 2 - 16

To remove and install the Mainboard:

1. Remove the battery page 2 - 5

2. Remove the HDD page 2 - 6

3. Remove the system memory page 2 - 8

4. Remove the processor page 2 - 10

5. Remove the ODD page 2 - 15

6. Remove the keyboard page 2 - 16

7. Remove the mainboard page 2 - 17

8. Install the mainboard page 2 - 18

To remove the Speaker:

1. Remove the battery page 2 - 5

2. Remove the HDD page 2 - 6

3. Remove the system memory page 2 - 8

4. Remove the processor page 2 - 10

5. Remove the ODD page 2 - 15

6. Remove the keyboard page 2 - 16

7. Remove the mainboard page 2 - 17

8. Remove the speaker page 2 - 20

Disassembly

Removing the Battery 2 - 5

2.Disassembly

Removing the Battery



3. Battery

1. Turn the computer off, and turn it over.

2. Slide the latch in the direction of the arrow (Figure 1a).

3. Slide the latch in the direction of the arrow, and hold it in place (Figure 1a).

4. Slide the battery in the direction of the arrow (Figure 1b).

Figure 1

Battery Removal

a. Slide the latch and hold it

in place.

b. Slide the battery in the di-

rection of the arrow.

a. b.

Disassembly

2 - 6 Removing and Installing the Hard Disk Drive

2.Disassembly

Removing and Installing the Hard Disk Drive

Hdd Removal Procedure

The hard disk drive can be taken out to accommodate other 2.5" serial (SATA) hard disk drives with a height of 9.5mm

(h). Follow your operating system’s installation instructions, and install all necessary drivers and utilities (as outlined in

Chapter 4 of the User’s Manual) when setting up a new hard disk.

Hard Disk Upgrade Process

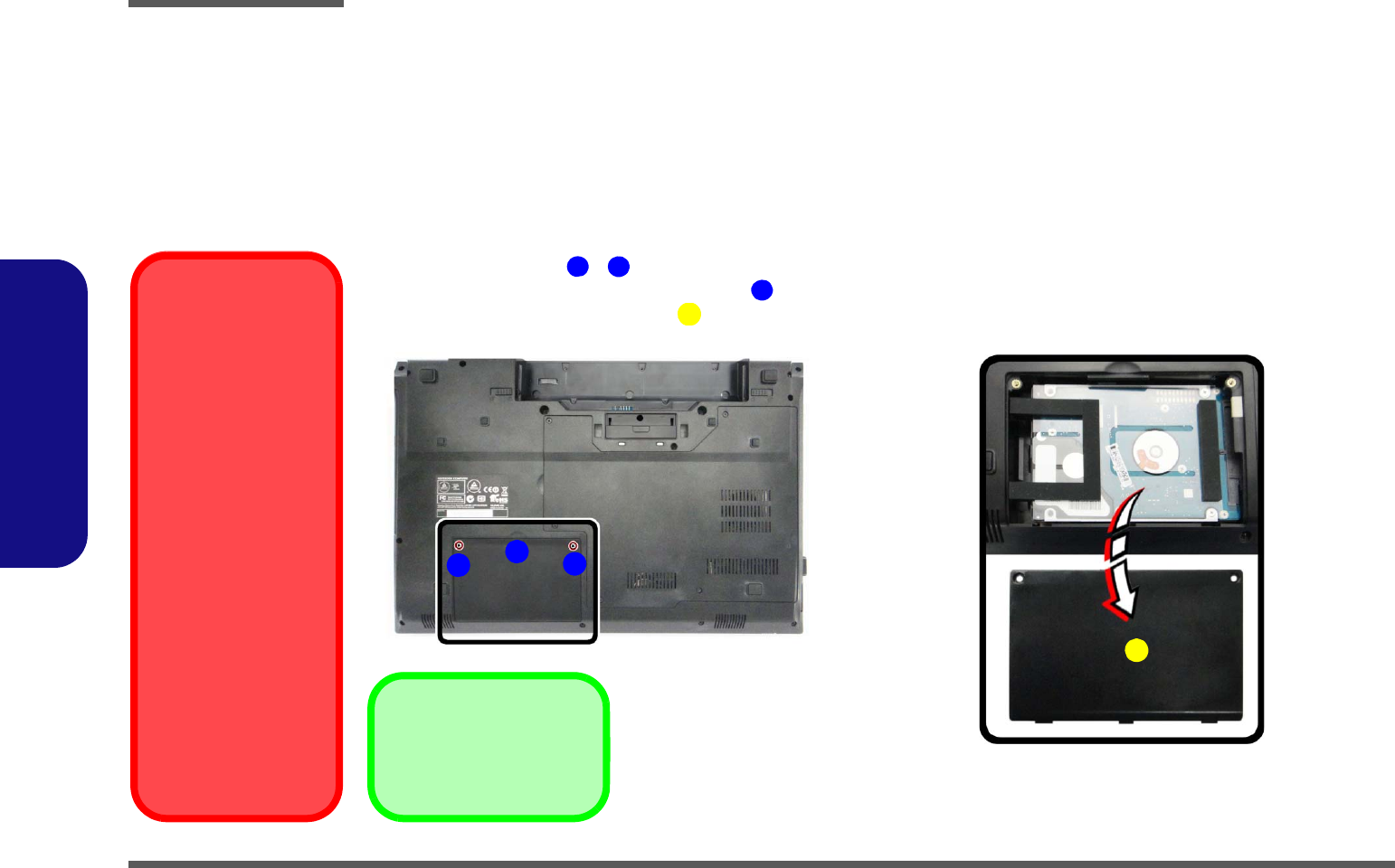

Figure 2

HDD Assembly

Removal

a. Remove the screws.

b. Remove the hard disk

bay cover.



HDD System Warning

New HDD’s are blank.

Before you begin make

sure:

You have backed up

any data you want to

keep from your old

HDD.

You have all the CD-

ROMs and FDDs re-

quired to install your op-

erating system and

programs.

If you have access to

the internet, download

the latest application

and hardware driver up-

dates for the operating

system you plan to in-

stall. Copy these to a re-

movable medium.

1. Turn off the computer, and remove the battery (page 2 - 5).

2. Remove the screws - .

3. Lift the hard disk bay cover up from point .

4. Remove the hard disk bay cover off the computer.

b.a.



4. Hard Disk Bay Cover

•2 Screws

Disassembly

Removing and Installing the Hard Disk Drive 2 - 7

2.Disassembly

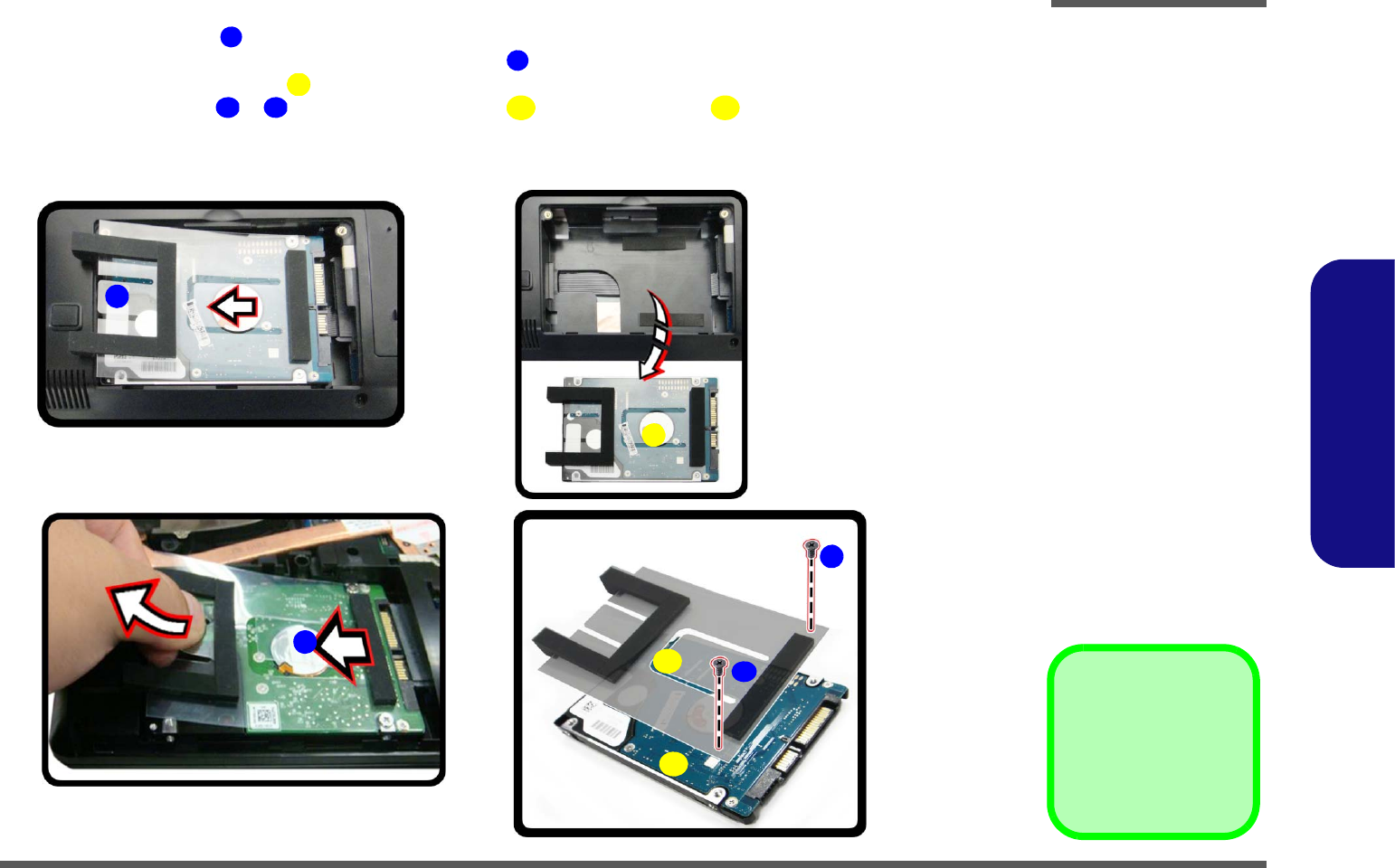

5. Raise the plastic tab .

6. Slide the hard disk assembly in the direction of arrow (Figure 3d).

7. Remove the HDD assembly from the bay.

8. Remove the screws & and the adhesive cover from the hard disk (Figure 3f).

9. Reverse the process to install a new hard disk drive.

10. Replace the hard disk bay cover and screws.

Figure 3

HDD Assembly

Removal (cont’d.)

c. Raise the plastic tab.

d. Grip the tab and slide the

HDD assembly in the di-

rection of the arrow.

e. Lift the HDD assembly

out of the bay.

f. Remove the screws and

mylar cover.



7. HDD Assembly

10. Adhesive Cover

11. HDD

•2 Screws

Disassembly

2 - 8 Removing the System Memory (RAM)

2.Disassembly

Removing the System Memory (RAM)

The computer has two memory sockets for 204 pin Small Outline Dual In-line Memory Modules (SO-DIMM) supporting

DDRIII (DDR3) Up to 1333 MHz. The main memory can be expanded up to 8GB. The SO-DIMM modules supported

are 1024MB and 2048MB DDRIII Modules. The total memory size is automatically detected by the POST routine once

you turn on your computer.

Memory Upgrade Process

1. Turn off the computer, turn it over to remove the battery (page 2 - 5).

2. Locate the component bay cover and remove screws - .

3. Carefully remove the component bay cover .



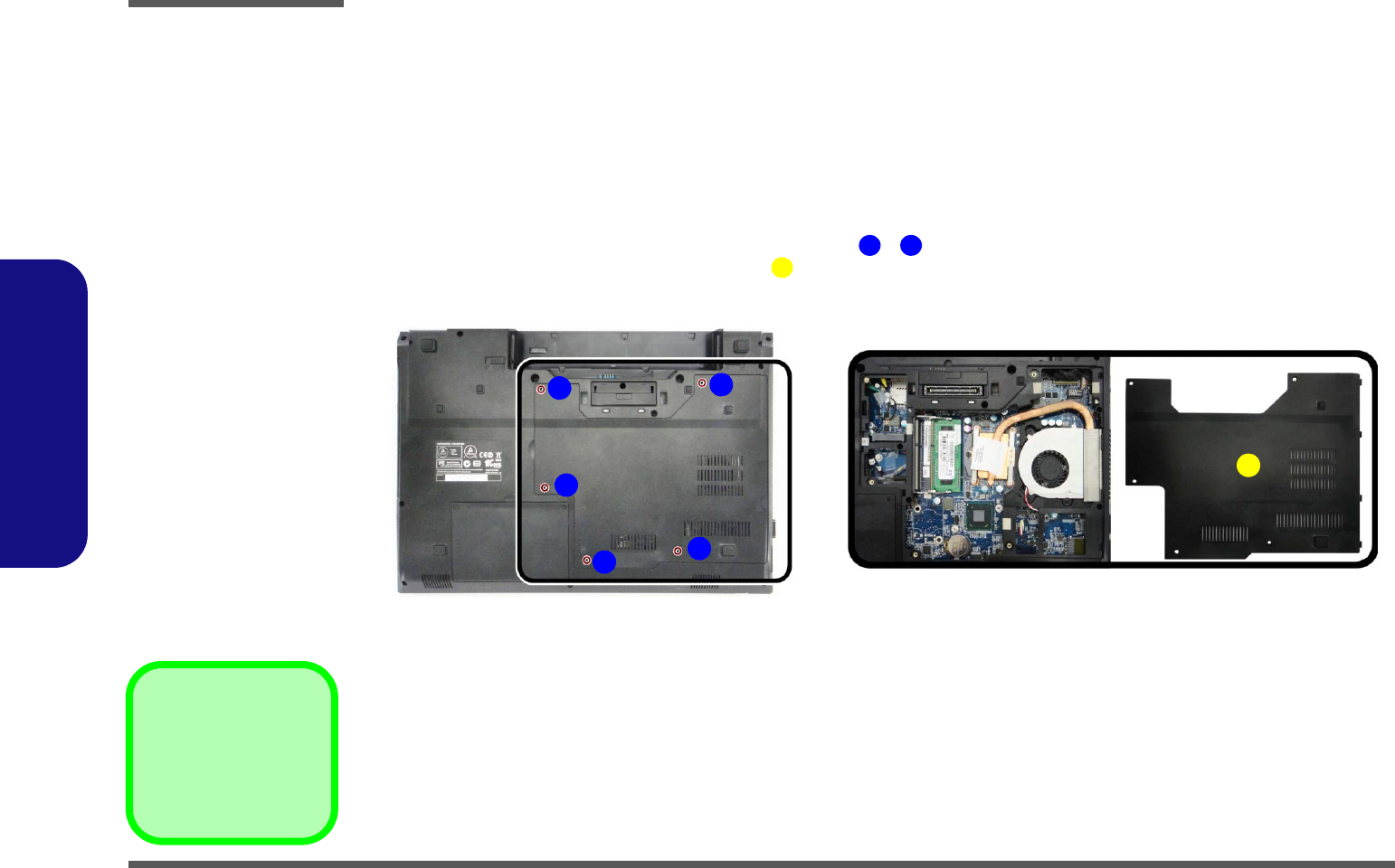

6. Component Bay Cov-

•5 Screws

Figure 4

RAM Module

Removal

a. Remove the screws.

b. Remove the cover.

Disassembly

Removing the System Memory (RAM) 2 - 9

2.Disassembly

4. The RAM modules will be visible at point on the mainboard.

5. Gently pull the two release latches ( & ) on the sides of the memory socket in the direction indicated by the

arrows (Figure 5b). The RAM module will pop-up (Figure 5c), and you can then remove it.

6. Pull the latches to release the second module if necessary.

7. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot.

8. The module will only fit one way as defined by its pin alignment. Make sure the module is seated as far into the slot

as it will go. DO NOT FORCE IT; it should fit without much pressure.

9. Press the module in and down towards the mainboard until the slot levers click into place to secure the module.

10. Replace the component bay cover (see page 2 - 6).

11. Restart the computer to allow the BIOS to register the new memory configuration as it starts up.

d. e.



4. RAM Modules

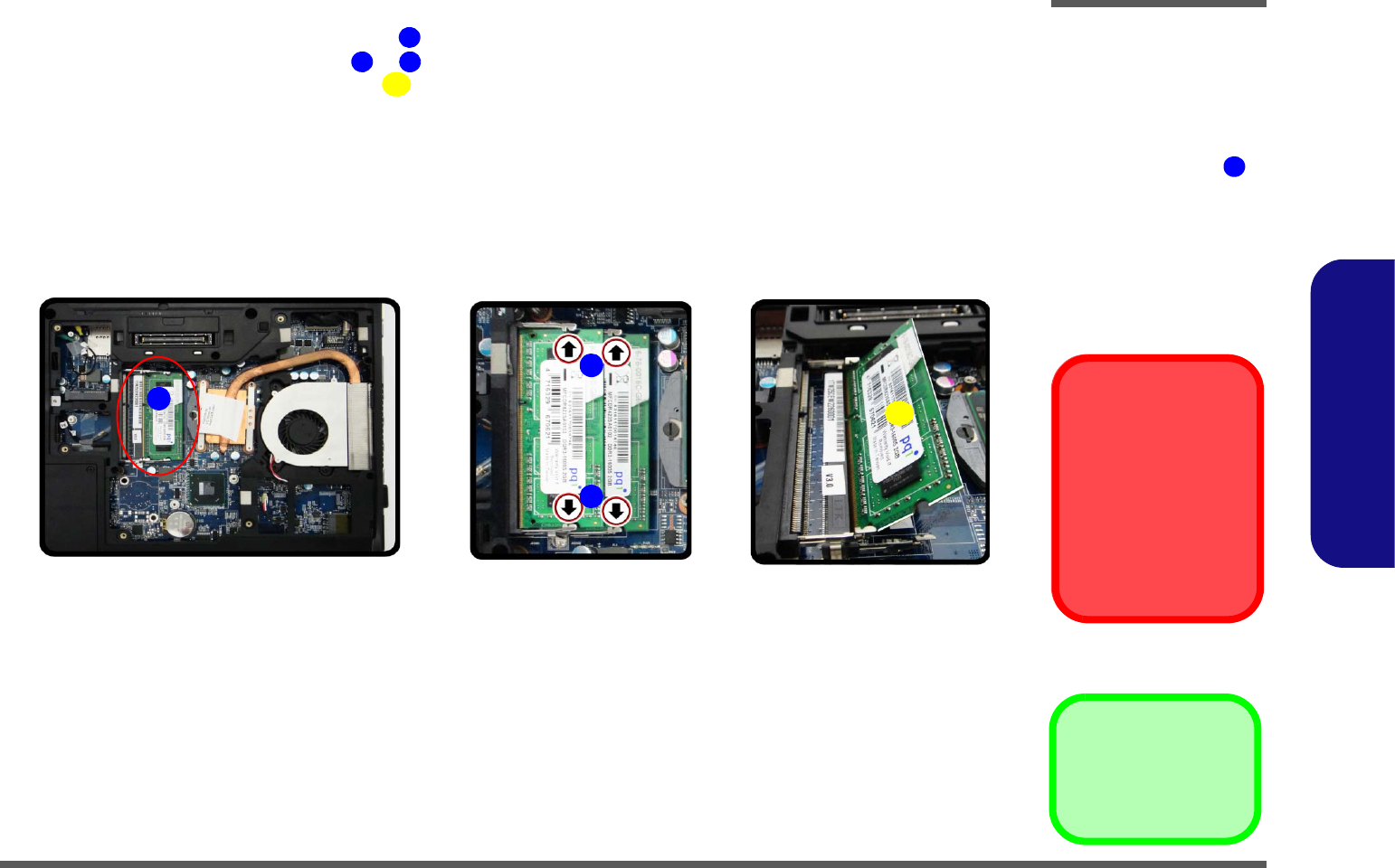

Figure 5

RAM Module

Removal (cont’d)

c. The RAM modules will

be visible at point

on the mainboard.

d. Pull the release lat-

ches.

e. Remove the module.



Contact Warning

Be careful not to touch

the metal pins on the

module’s connecting

edge. Even the cleanest

hands have oils which

can attract particles, and

degrade the module’s

performance.

Disassembly

2 - 10 Removing and Installing a Processor

2.Disassembly

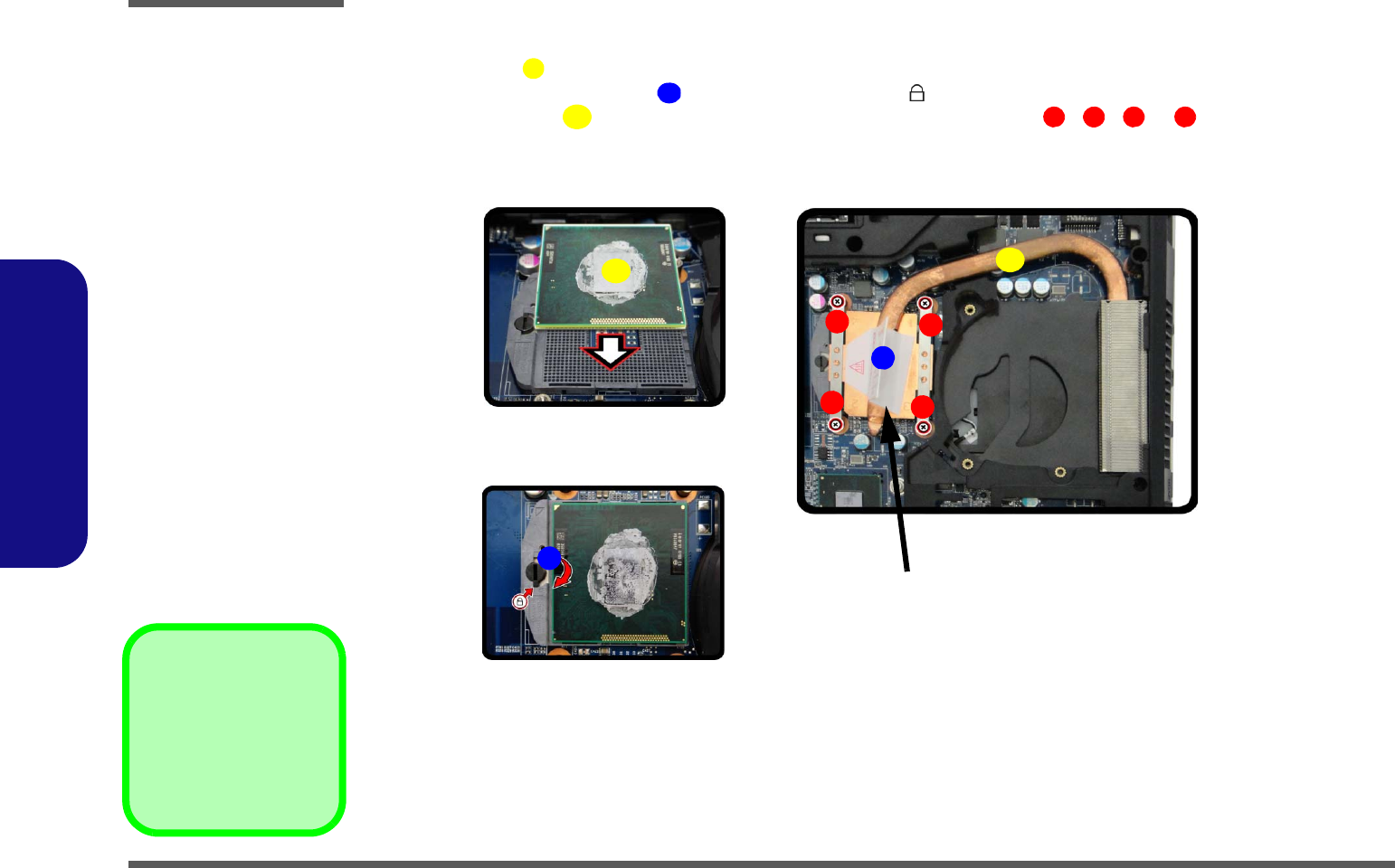

Removing and Installing a Processor

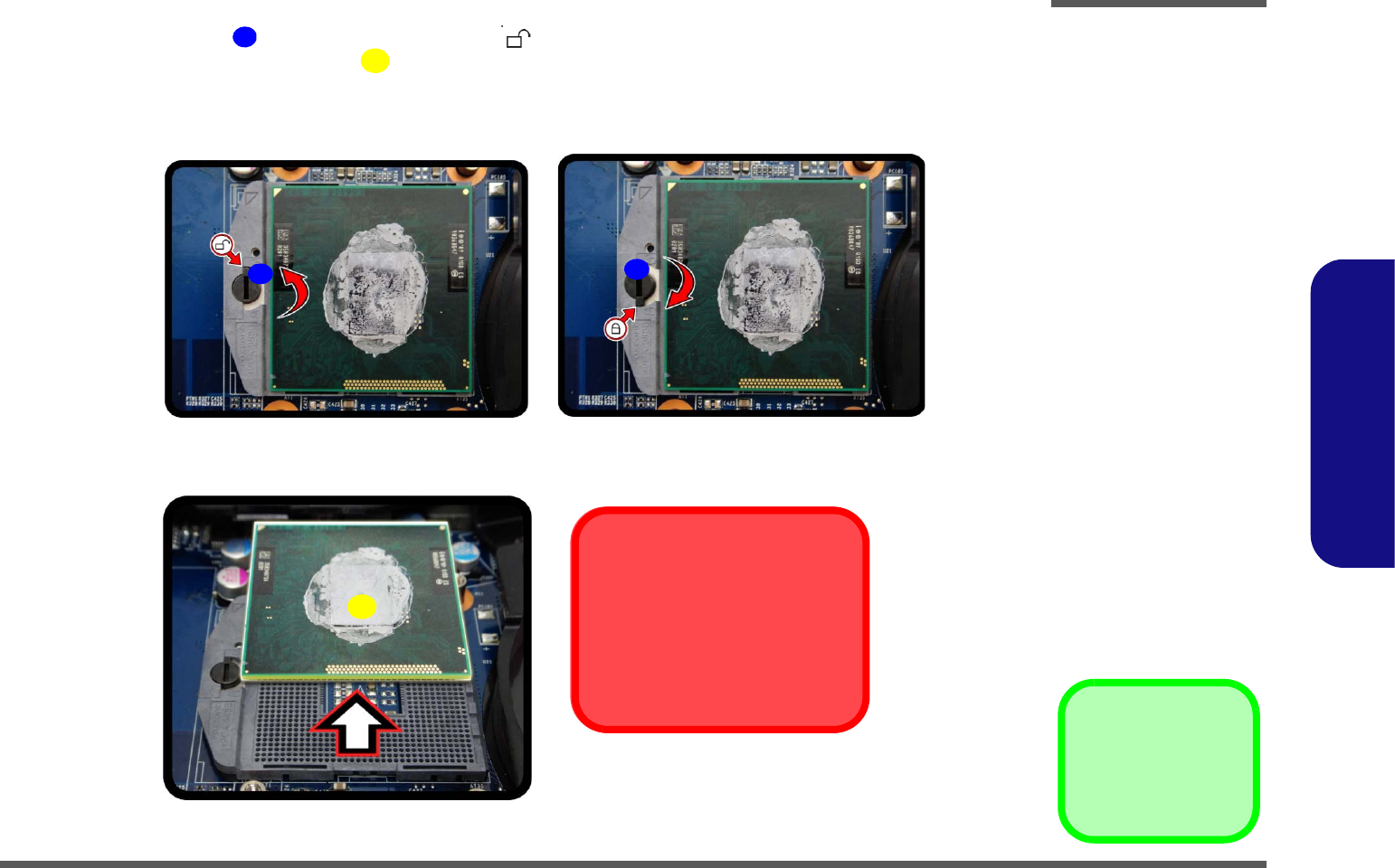

Processor Removal Procedure

1. Turn off the computer, turn it over, and remove the battery (page 2 - 5) and the component bay cover (page 2 - 8).

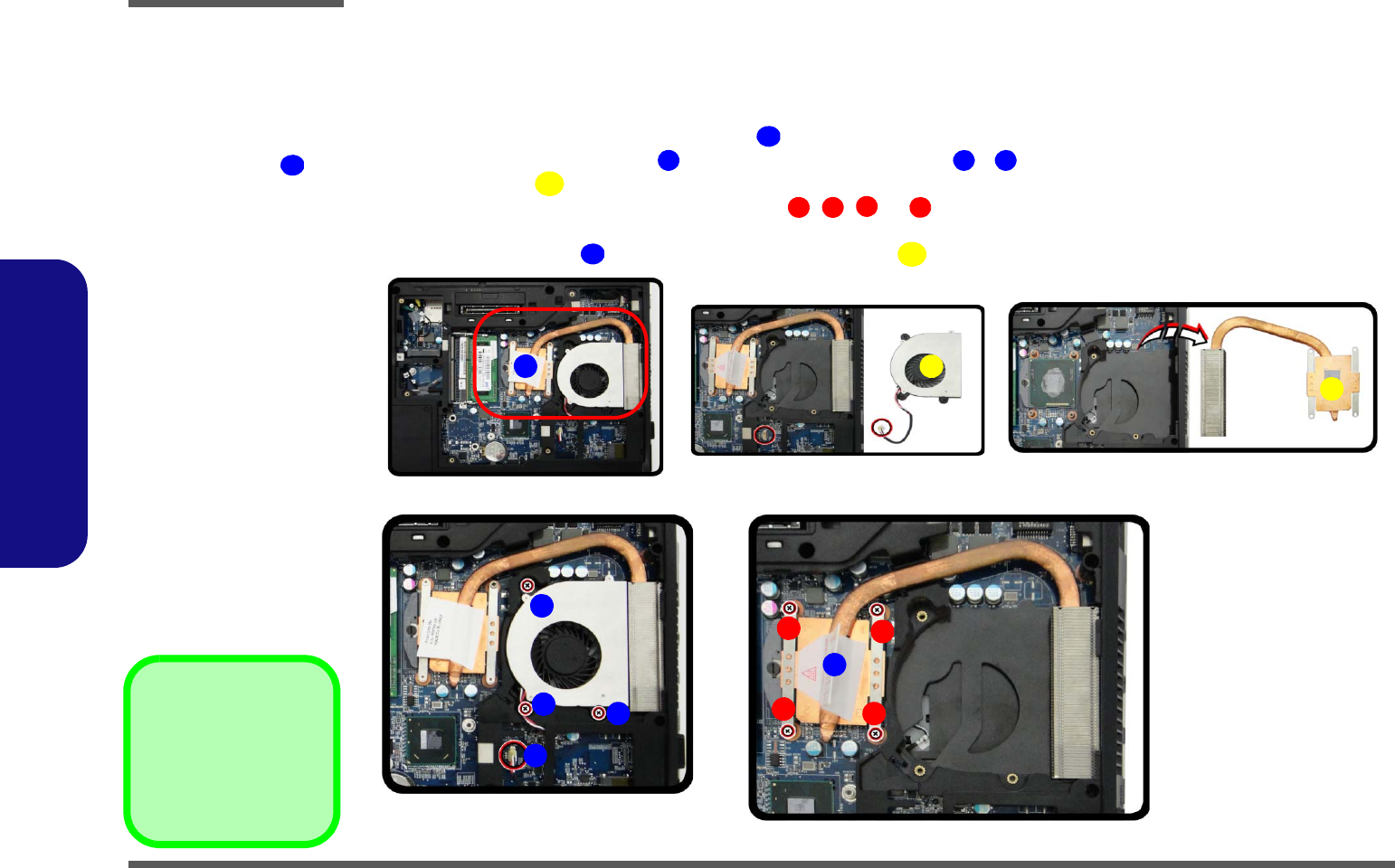

2. The CPU heat sink will be visible at point (Figure 6a).

3. Carefully disconnect the cable , and then remove the screws - (Figure 9b).

4. Remove the fan .

5. Loosen the CPU heat sink screws in the order , , & (the reverse order as indicated on the label Figure

6d).

6. Grip the heat sink tab and carefully raise the heat sink up off the computer (Figure 6e).

Figure 6

Processor Removal

a. The CPU heat sink will

be visible at point .

b. Disconnect the cable

and remove the screws.

c. Remove the fan.

d. Remove the screws from

the CPU heatsink.

e. Grip the heat sink tab

and carefully lift the heat

sink up and off the com-

puter.



F. Fan

6. Heat Sink

•7 Screws

Disassembly

Removing and Installing a Processor 2 - 11

2.Disassembly

7. Turn the release latch towards the unlock symbol to release the CPU (Figure 7d).

8. Carefully (it may be hot) lift the CPU up and out of the socket (Figure 7e).

9. Reverse the process to install a new CPU.

10. When re-inserting the CPU, pay careful attention to the pin alignment, it will fit only one way (DO NOT FORCE IT!).

Figure 7

Processor Removal

(cont’d)

f. Turn the release latch to

unlock the CPU.

g. Lift the CPU out of the

socket.



Caution

The heat sink, and CPU area in

general, contains parts which are

subject to high temperatures. Allow

the area time to cool before remov-

ing these parts.

Unlock Lock



8. CPU

Disassembly

2 - 12 Removing and Installing a Processor

2.Disassembly

Processor Installation Procedure

1. Insert the CPU (Figure 8a), pay careful attention to the pin alignment, it will fit only one way (DO NOT FORCE

IT!), and turn the release latch towards the lock symbol (Figure 8b).

2. Insert the heat sink and tighten the CPU heat sink screws in the order , , & (the order as indi-

cated on the label and Figure 8c).

3. Replace the component bay cover.

Note:

Tighten the screws

in the order as indi-

cated on the label.

Figure 8

Processor

Installation

a. Insert the CPU.

b. Turn the release latch to-

wards the lock symbol.

c. Insert the heat sink and

tighten the screws.



A. CPU

C. Heat Sink

•3 Screws

Disassembly

Removing the 3G Module 2 - 13

2.Disassembly

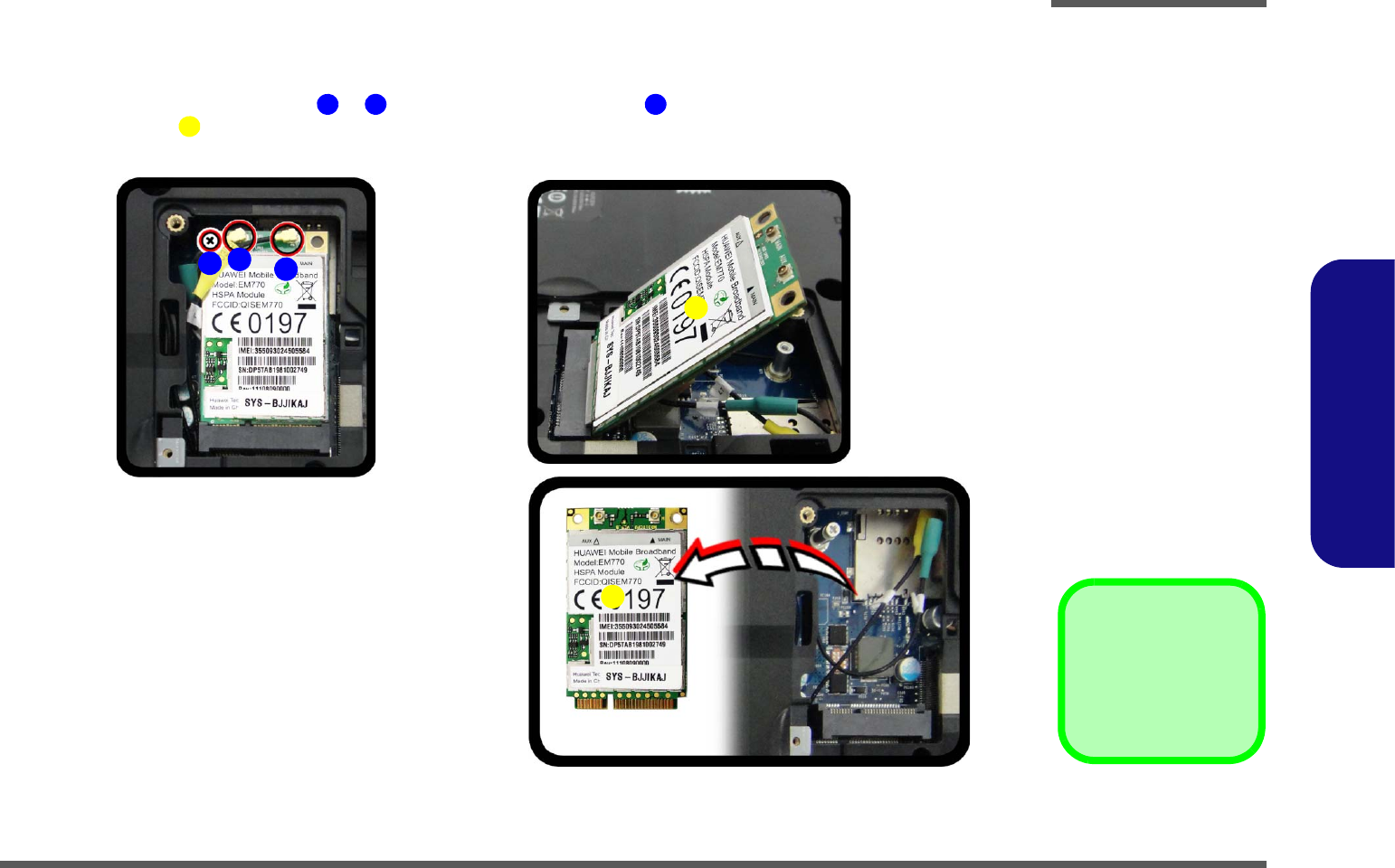

Removing the 3G Module

Figure 9

3G Module Removal

a. Disconnect the cables

and remove the screw.

b. The module will pop-up.

c. Remove the 3G module.

Note: Make sure you

reconnect the antenna

cable to socket.

1. Turn off the computer, turn it over, and remove the battery (page 2 - 5) and the component bay cover (page 2 - 8).

2. Carefully disconnect the cables & , and then remove the screw (Figure 9a).

3. The 3G module will pop-up, and you can remove it from the computer (Figure 9b).



4. 3G Module

•1 Screw

Disassembly

2 - 14 Removing the Wireless LAN Module

2.Disassembly

Removing the Wireless LAN Module

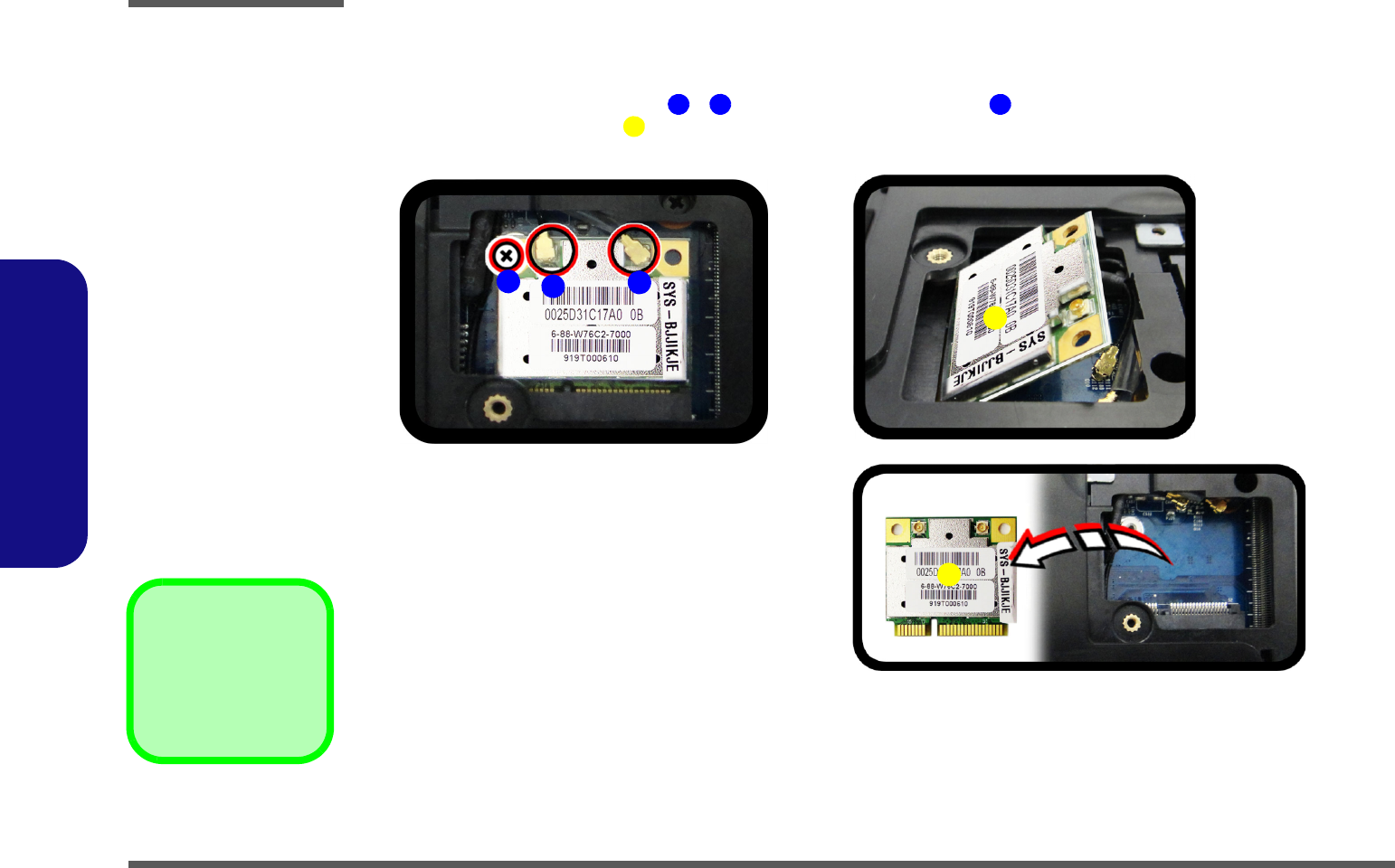

Figure 10

Wireless LAN

Module Removal

a. Disconnect the cables

and remove the screw.

b. The WLAN module will

pop up.

c. Remove the WLAN

module.

Note: Make sure you

reconnect the antenna

cable to the “1 + 2”

socket (Figure 10b).

1. Turn off the computer, turn it over, and remove the battery (page 2 - 5) and the component bay cover (page 2 - 8).

2. Carefully disconnect the cables - , and then remove the screw (Figure 10a).

3. The Wireless LAN module (Figure 10b) will pop-up, and you can remove it from the computer.



4. Wireless LAN Mod-

ule

•1 Screw

Disassembly

Removing the Optical Device 2 - 15

2.Disassembly

Removing the Optical Device

Figure 11

ODD Removal

a. Remove the screw.

b. Push the optical device

out of the computer.

1. Turn off the computer, turn it over, and remove the battery (page 2 - 5) and the component bay cover (page 2 - 8).

2. Remove the screw at point , and use a screwdriver to carefully push out the optical device at point .

3. Push the optical device drive out of the bay and reverse the process to install the new device.



3. Optical Device

•1 Screws

Disassembly

2 - 16 Removing the Keyboard

2.Disassembly

Removing the Keyboard

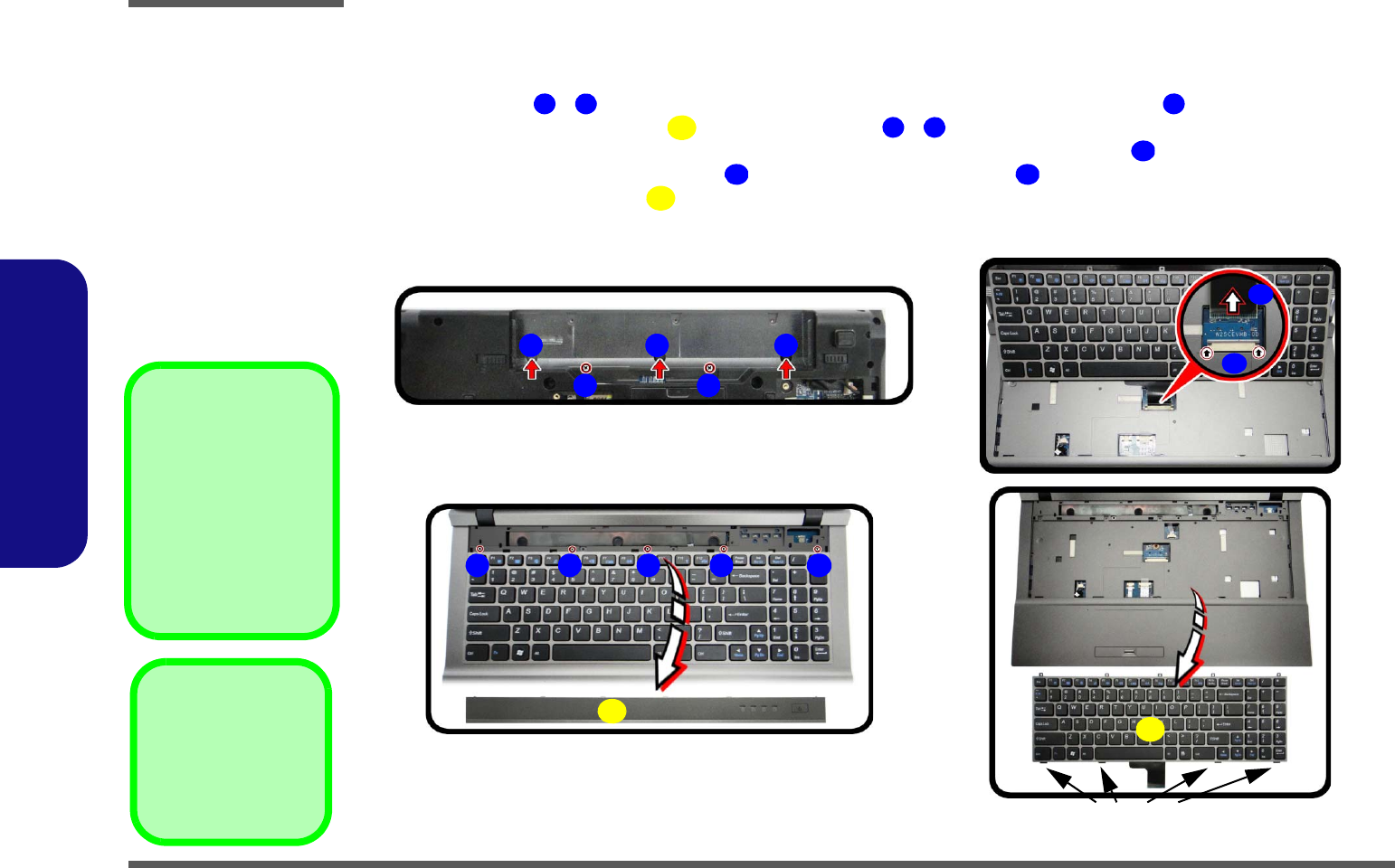

Figure 12

Keyboard Removal

a. Remove screws from the

bottom of the computer.

b. Lift the center cover

module and remove

screws from the key-

board.

c. Carefully lift the key-

board up and disconnect

the keyboard ribbon ca-

ble from the locking col-

lar socket.

d. Remove the keyboard.

1. Turn off the computer, remove the battery (page 2 - 5), and the component bay cover (page 2 - 8).

2. Remove screws - from the bottom of the computer and carefully push out at point .

3. Lift up the center cover module and remove screws - from the keyboard (Figure 12b).

4. Carefully raise the keyboard up, being careful not to bend the keyboard ribbon cable .

5. Disconnect the keyboard ribbon cable from the locking collar socket (Figure 12c).

6. Carefully lift up the keyboard off the computer (Figure 12d).

7. Reverse the process to replace the keyboard (make sure to reconnect the keyboard cable).



Re-Inserting the

Keyboard

When re-inserting the

keyboard firstly align the

four keyboard tabs at the

bottom (Figure 12e) at

the bottom of the key-

board with the slots in the

case.

Keyboard Tabs

5 8

6 7

3 3



4. Center Cover mod-

ule

12. Keyboard

•7 Screws

Disassembly

Removing and Installing the Mainboard 2 - 17

2.Disassembly

Removing and Installing the Mainboard

Mainboard Removal Procedure

1. Turn off the computer, remove the battery (page 2 - 5), HDD (page 2 - 6), RAM (page 2 - 8), CPU (page 2 - 10),

ODD (page 2 - 15), and keyboard (page 2 - 16).

2. Carefully separate the top and bottom case at point and slide along the direction of the arrows & (Figure

13a).

3. Lift the top case from the bottom case of the computer (Figure 13b).

4. Remove screws - (Figure 13c) on the mainboard from the computer.

5. The mainboard (Figure 13d) can be removed from the computer.



4. Top Case Module

8. Mainboard

•3 Screws

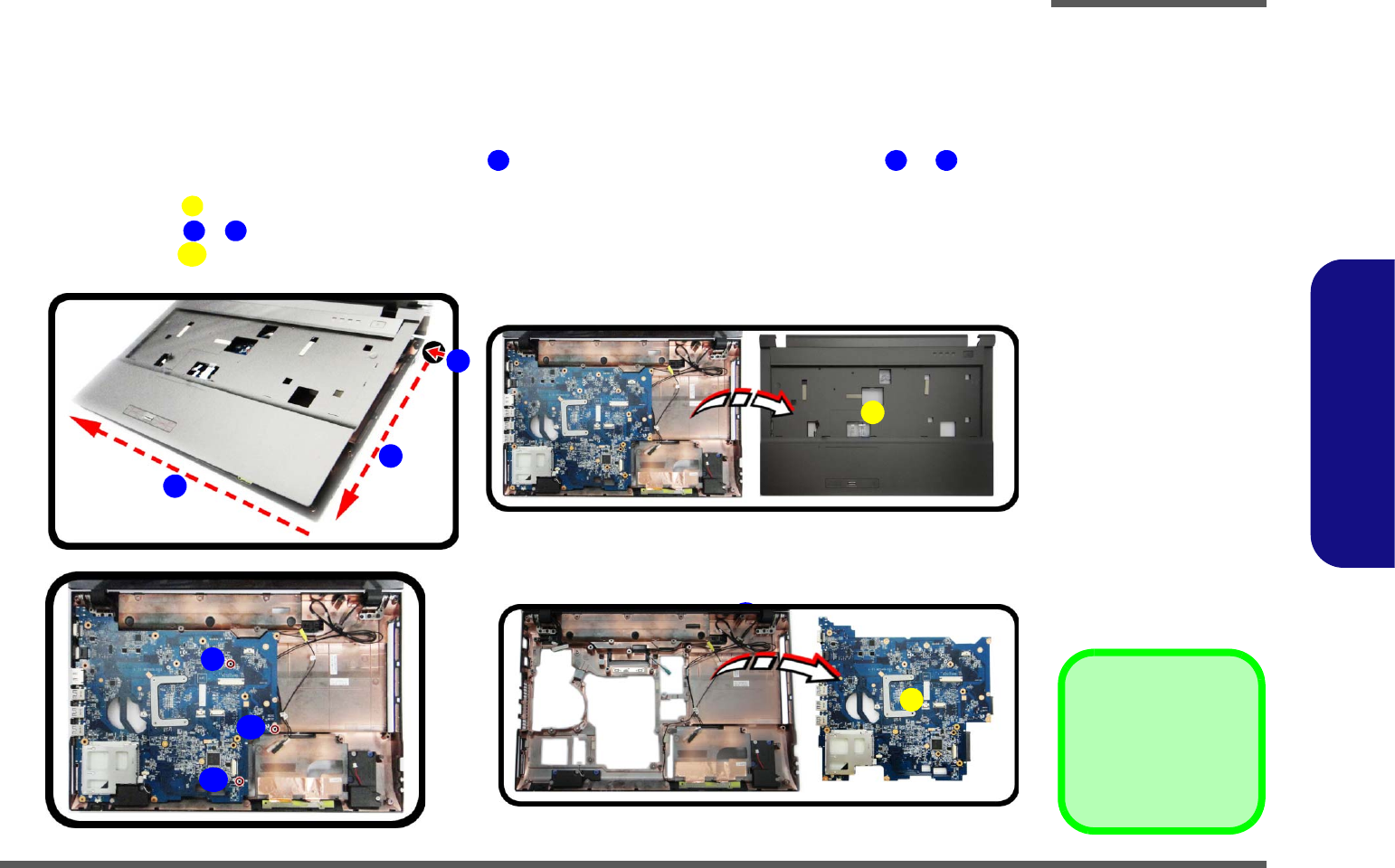

Figure 13

Mainboard Module

Removal

a. Separate the top and

bottom case.

b. Lift the top case.

c. Remove the screws.

d. Remove the mainboard.

Disassembly

2 - 18 Removing and Installing the Mainboard

2.Disassembly

Mainboard Installation Procedure

1. Insert the mainboard by holding it at an angle and making sure that the ports are aligned with the bottom case

(Figure 14a).

2. Tighten the screws - (Figure 14b) on the mainboard.

3. Make sure that the mainboard switch is aligned with the WLAN knob slot (Figure 14c).

4. Replace the keyboard (page 2 - 16), ODD (page 2 - 15), CPU (page 2 - 10), RAM (page 2 - 8), HDD (page 2 - 6),

and battery (page 2 - 5).



1. Mainboard

•3 Screws

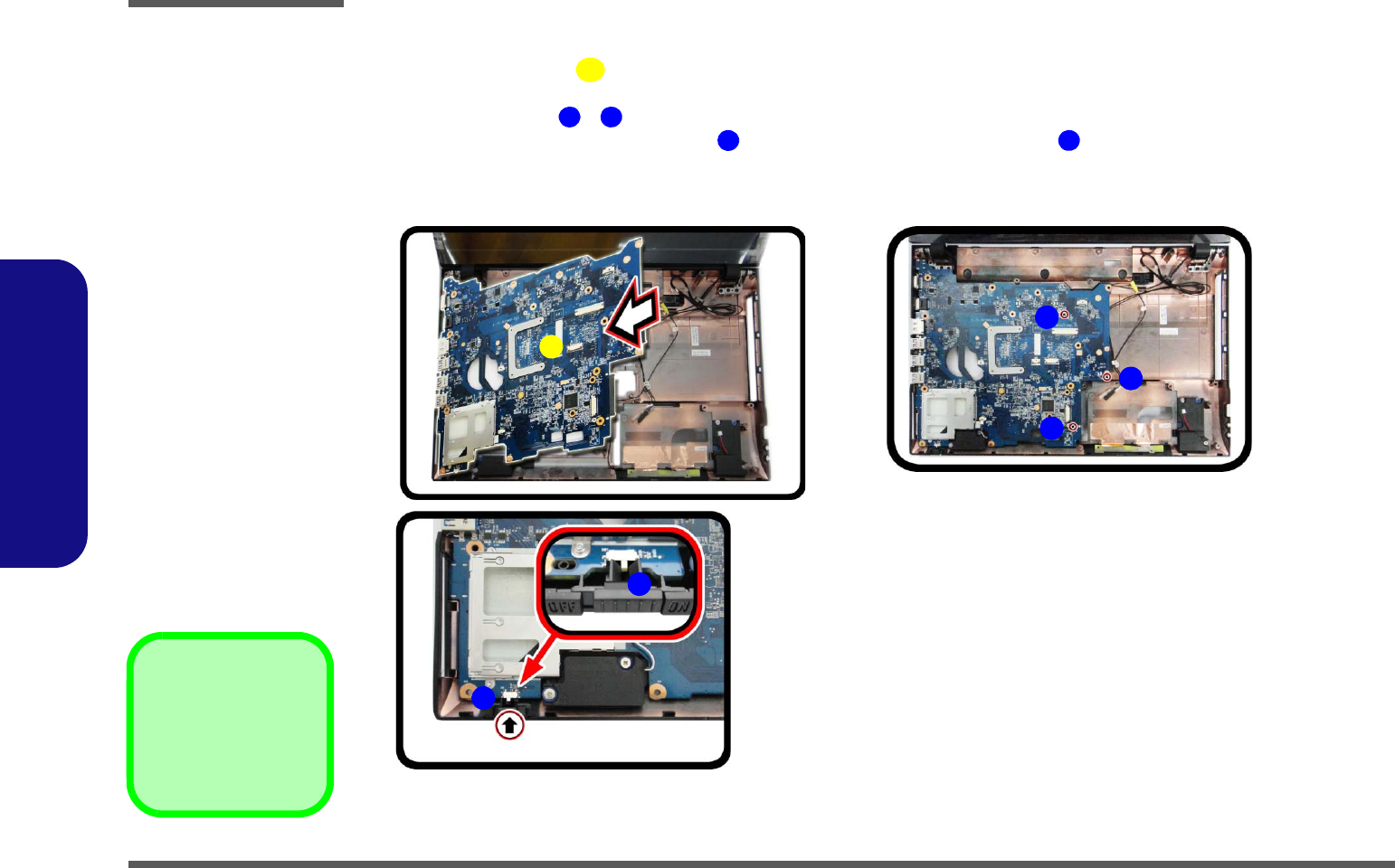

Figure 14

Mainboard Module

Installation

a. Insert the mainboard.

b. Tighten the screws.

c. Align the mainboard

switch with the WLAN

slot.

Disassembly

Removing the LCD 2 - 19

2.Disassembly

Removing the LCD

1. Turn off the computer, remove the battery (page 2 - 5), HDD (page 2 - 6), RAM (page 2 - 8), CPU (page 2 - 10),

and keyboard (page 2 - 16).

2. Carefully remove screws - (Figure 15a).

3. Separate the LCD and bottom case of the computer (Figure 15b).

1 4



5. LCD

6. Bottom Case

•4 Screws

Figure 15

LCD Removal

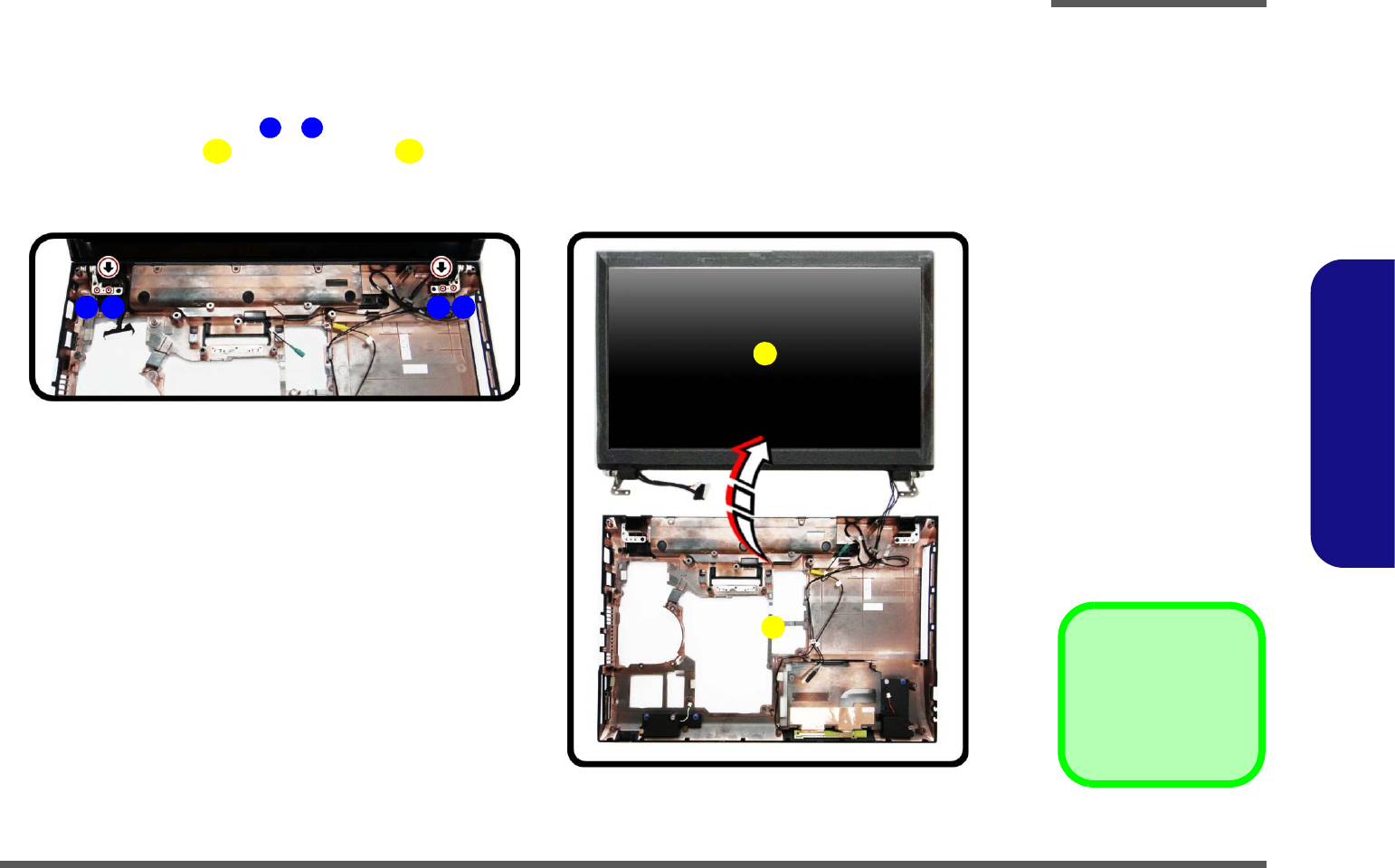

a. Remove the screws.

b. Separate the LCD and

bottom case.

Disassembly

2 - 20 Removing the Speaker

2.Disassembly

Removing the Speaker

Figure 16

Speaker Module

Removal

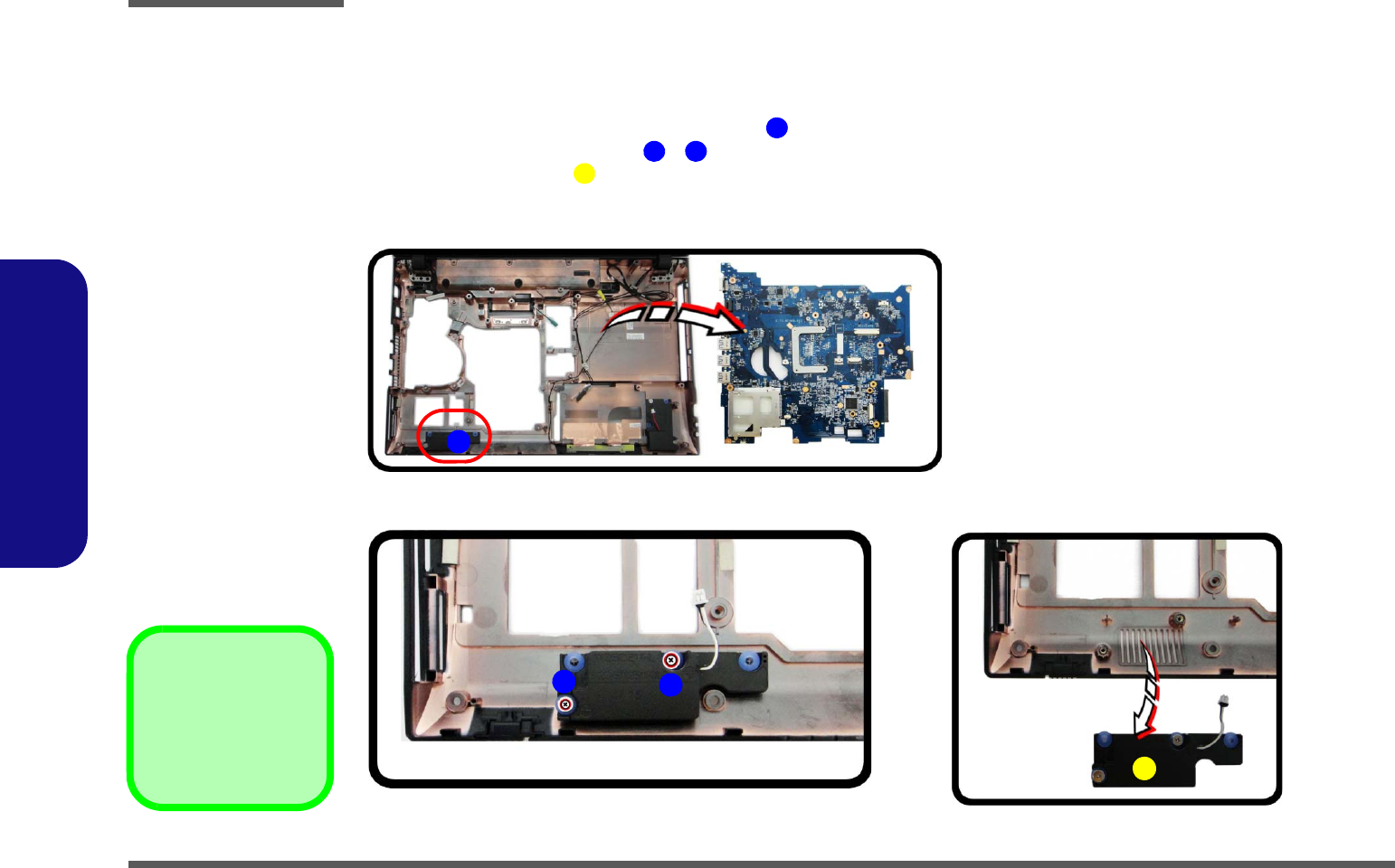

a. Locate the speaker.

b. Remove the screws.

c. Remove the speaker.

1. Turn off the computer, remove the battery (page 2 - 5), component bay cover (page 2 - 8), keyboard (page 2 - 16)

and mainboard (page 2 - 17).

2. The speaker module will be visible at point on the mainboard (Figure 16a).

3. Carefully remove the screws - (Figure 16b).

4. The speaker module (Figure 16c) can be removed from the bottom case.

b. c.



4.Speaker

•2 Screws

A - 1

A.Part Lists

Appendix A:Part Lists

This appendix breaks down the W25CEV / W25CEW series notebook’s construction into a series of illustrations. The

component part numbers are indicated in the tables opposite the drawings.

Note: This section indicates the manufacturer’s part numbers. Your organization may use a different system, so be sure

to cross-check any relevant documentation.

Note: Some assemblies may have parts in common (especially screws). However, the part lists DO NOT indicate the

total number of duplicated parts used.

Note: Be sure to check any update notices. The parts shown in these illustrations are appropriate for the system at the

time of publication. Over the product life, some parts may be improved or re-configured, resulting in new part numbers.

A - 2

A.Part Lists

Part List Illustration Location

The following table indicates where to find the appropriate part list illustration.

Table A - 1

Part List Illustration

Location Part

Top page A - 3

Bottom page A - 4

HDD page A - 5

DVD page A - 6

LCD page A - 7

Top A - 3

A.Part Lists

Top

(灰色) (尚盟)

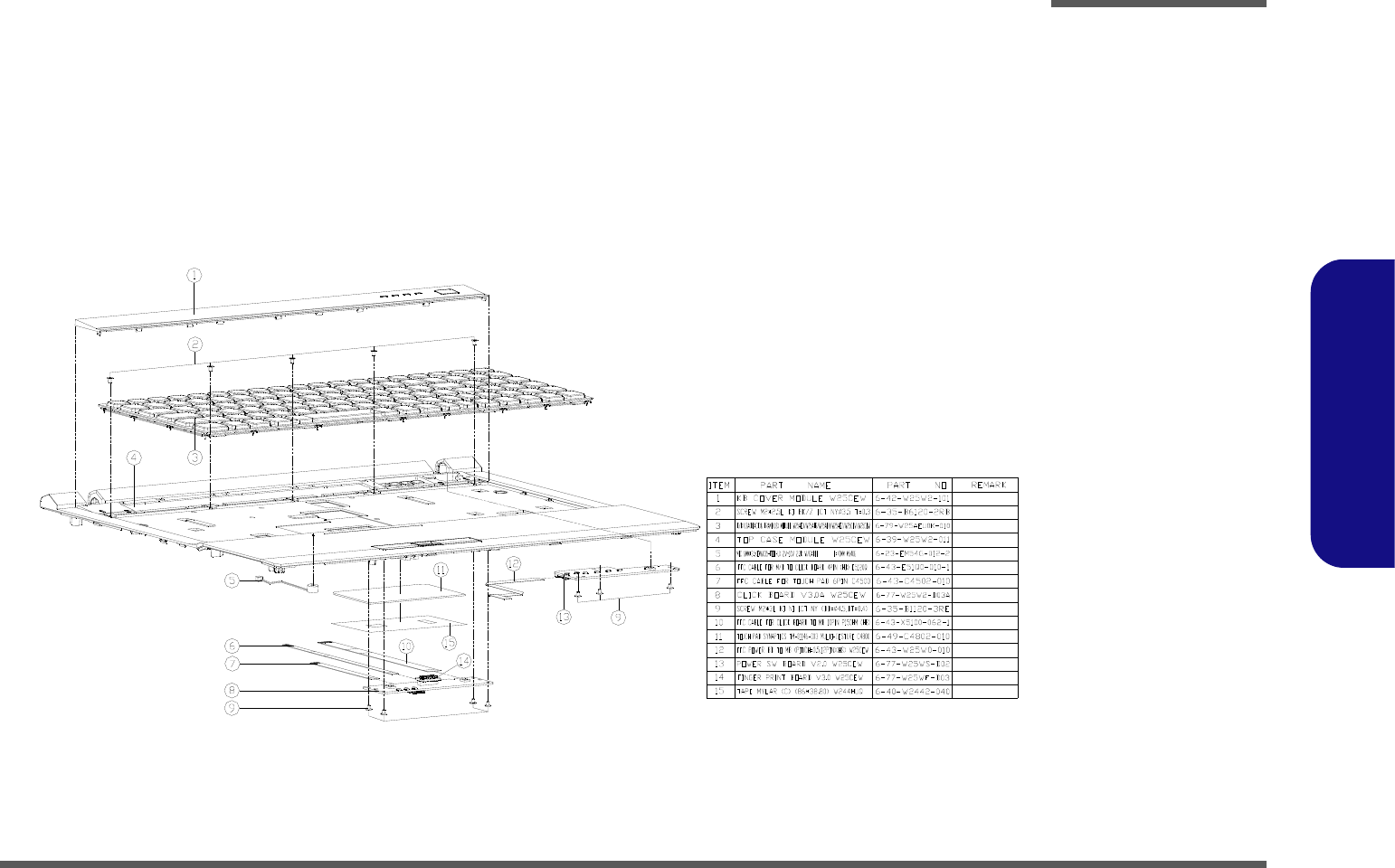

Figure A - 1

Top

A - 4 Bottom

A.Part Lists

Bottom

Figure A - 2

Bottom

(長騰)

非耐落

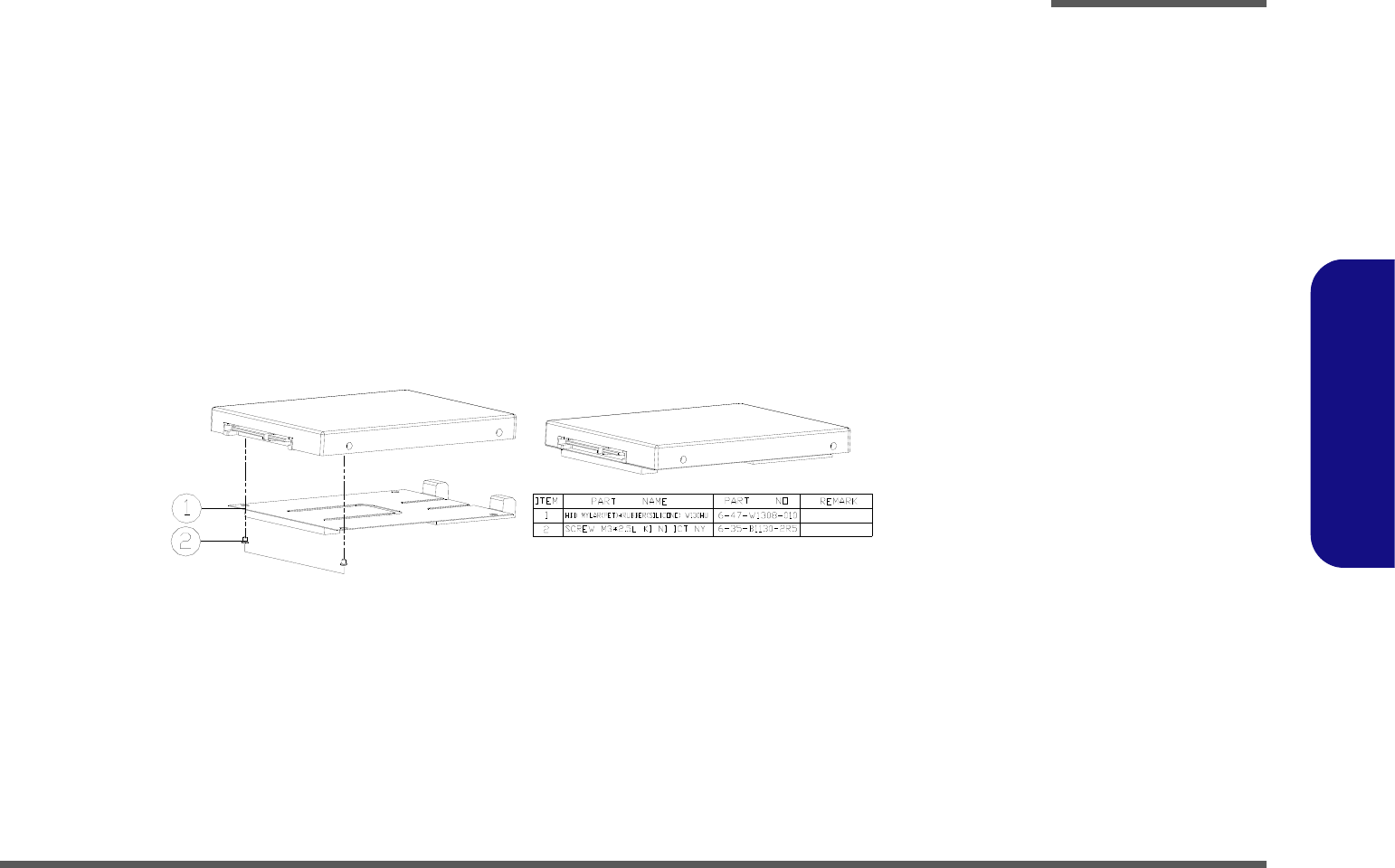

HDD A - 5

A.Part Lists

HDD

Figure A - 3

HDD

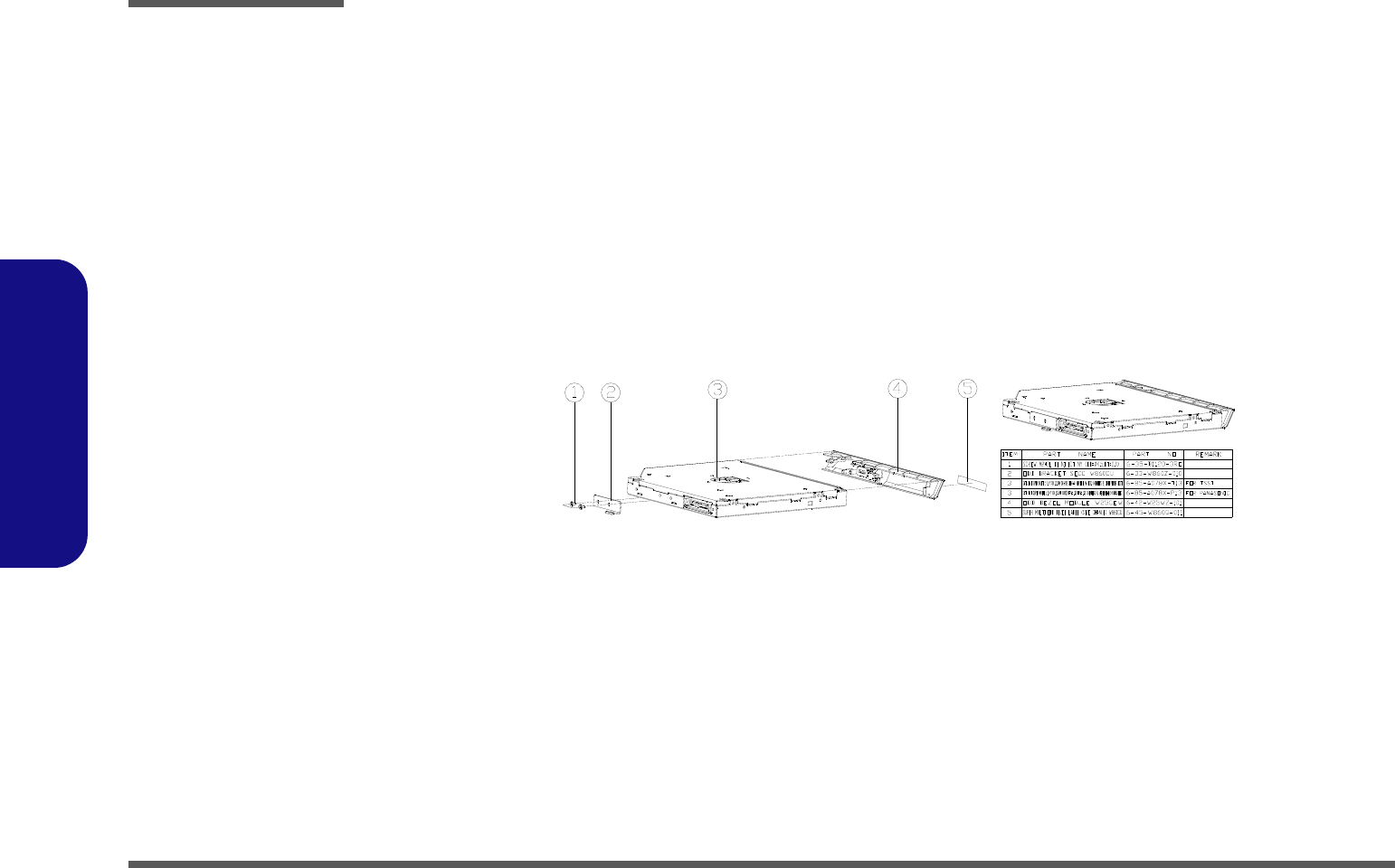

A - 6 DVD

A.Part Lists

DVD

Figure A - 4

DVD

LCD A - 7

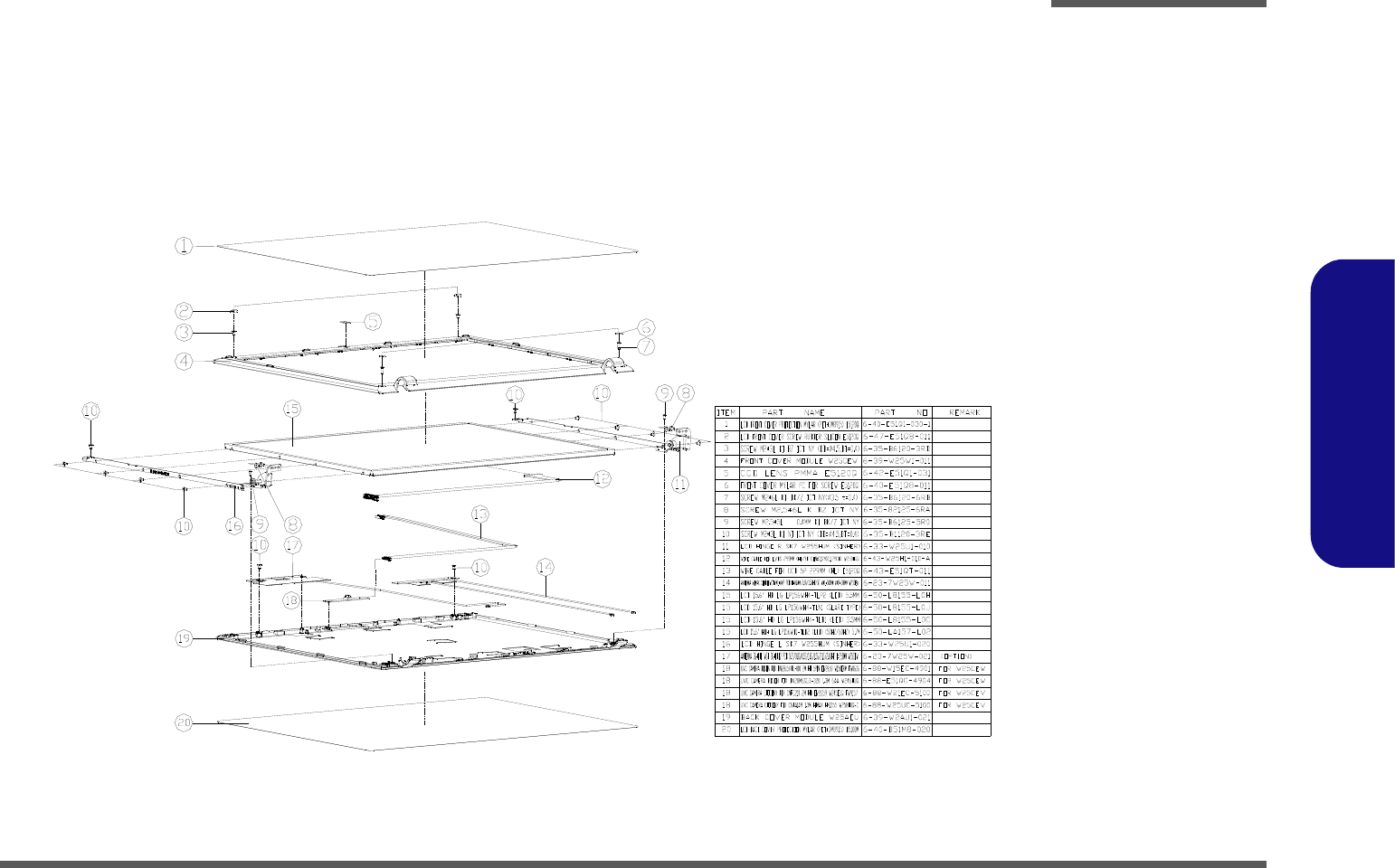

A.Part Lists

LCD

頭厚

Figure A - 5

LCD

A - 8

A.Part Lists

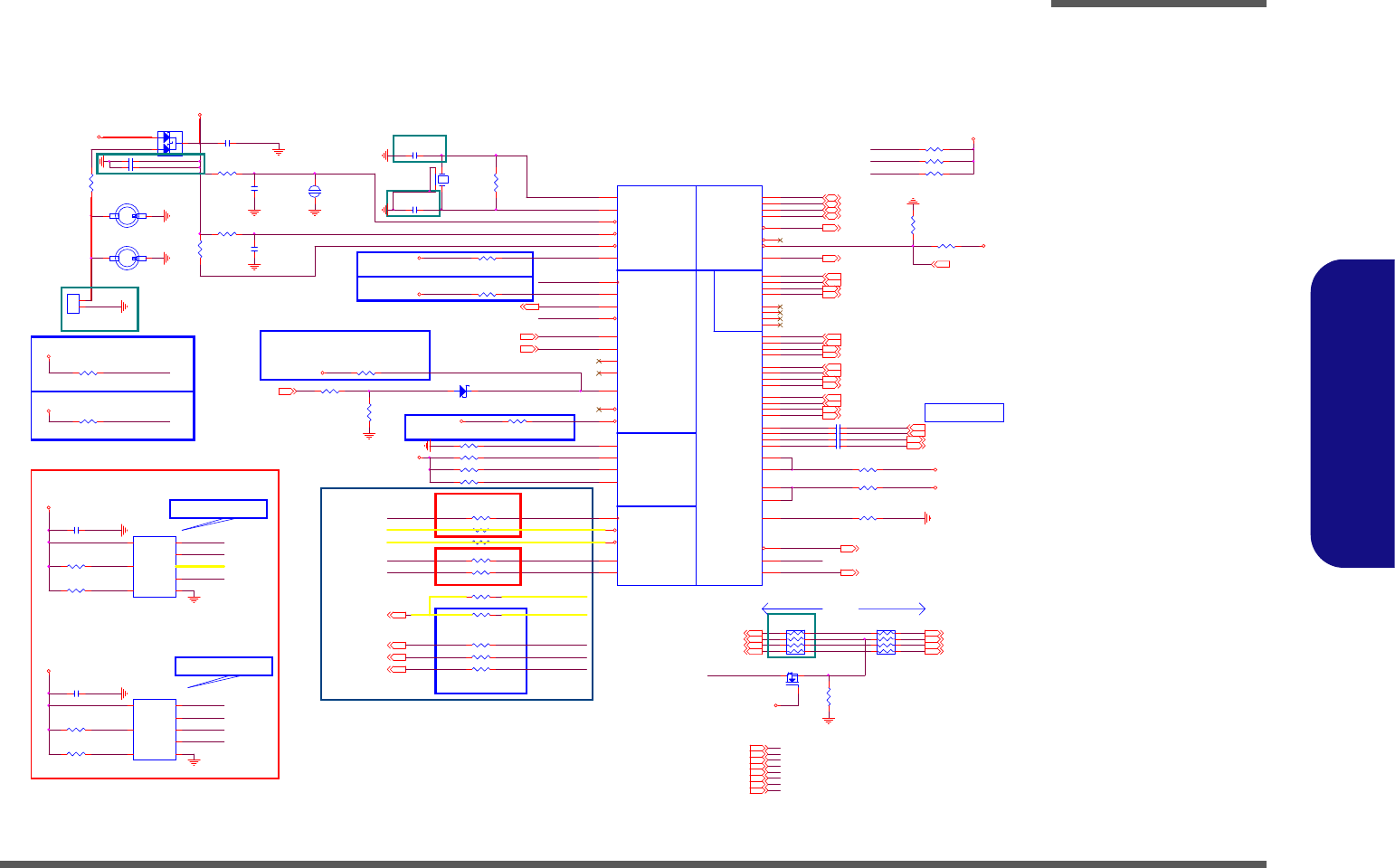

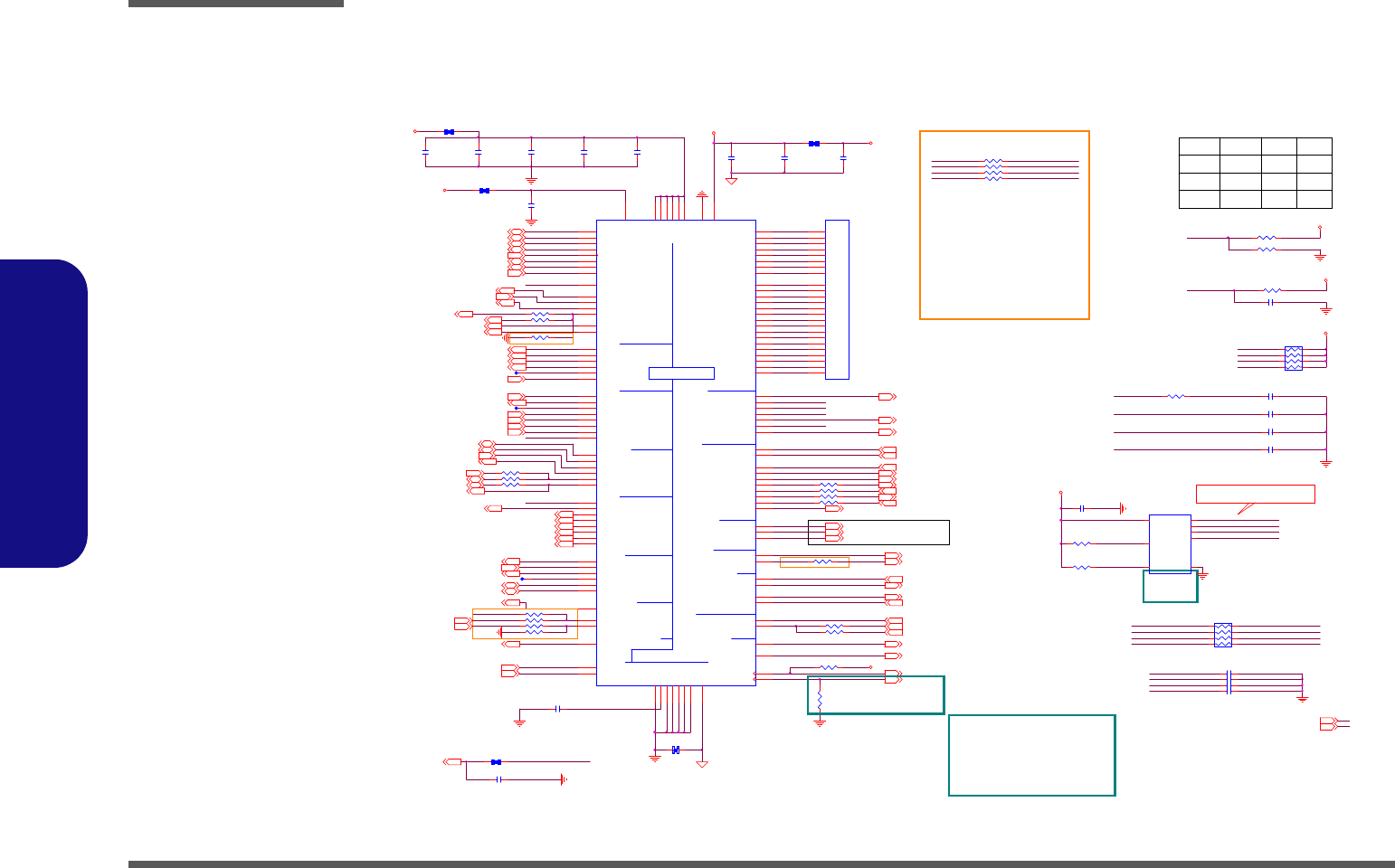

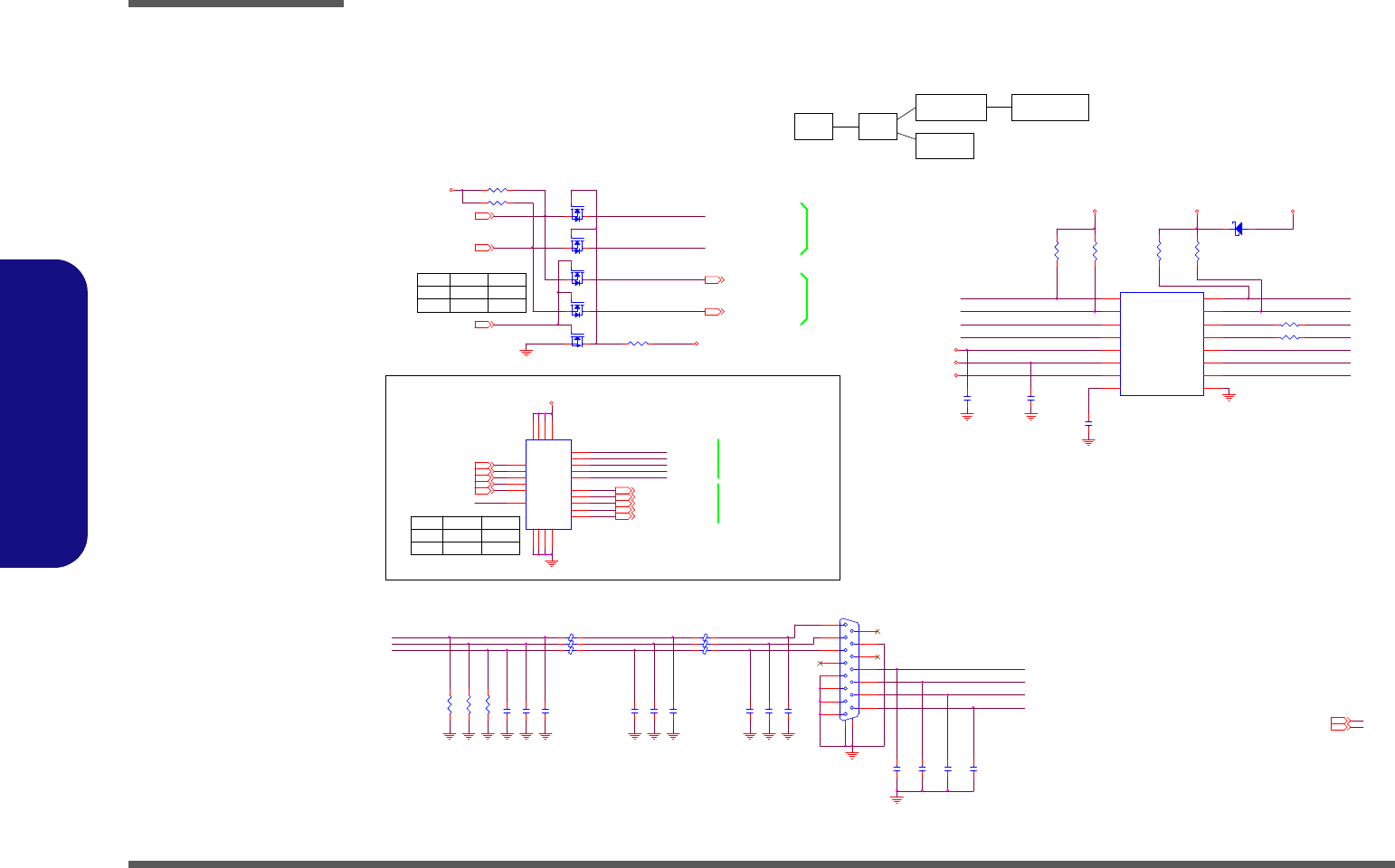

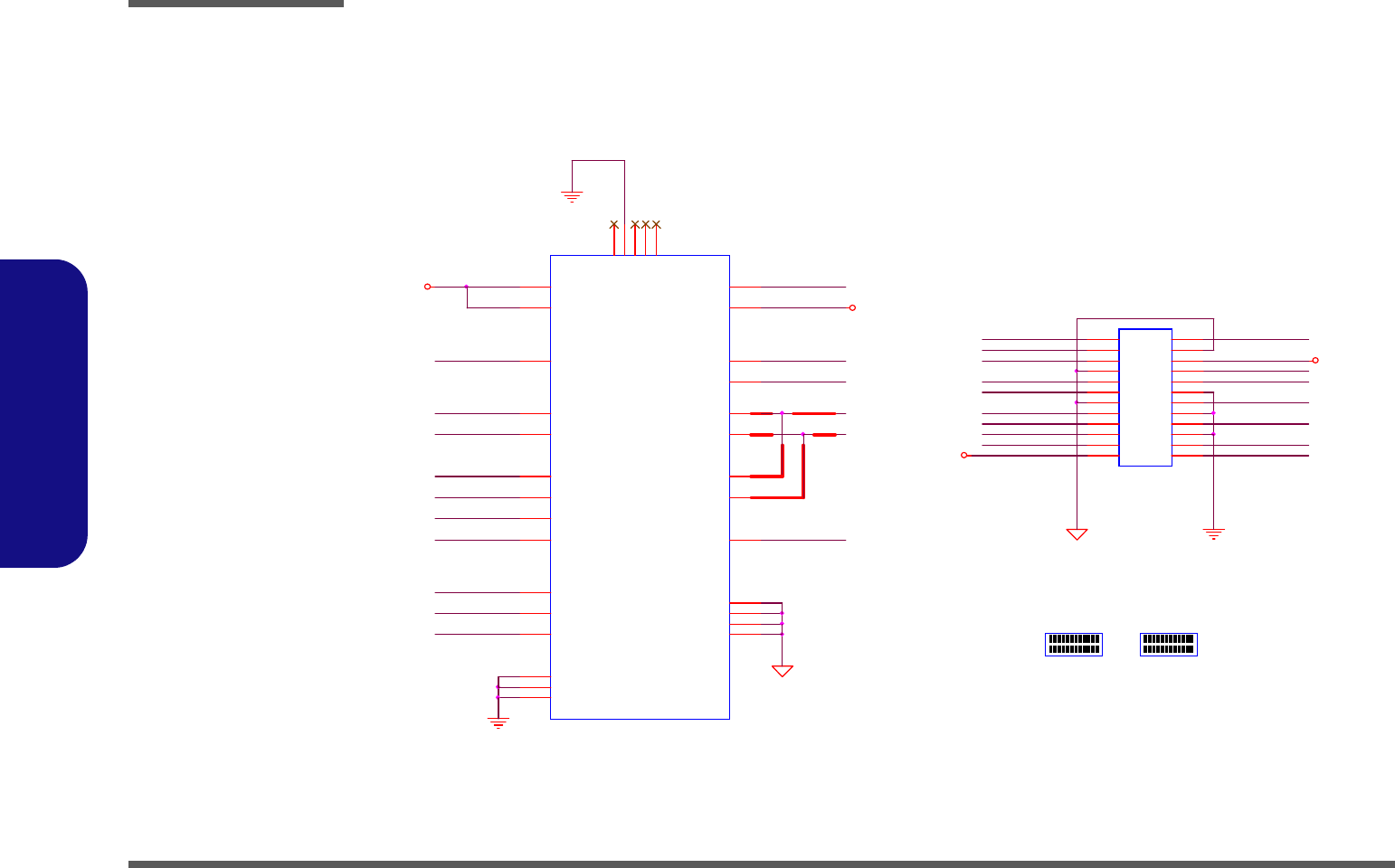

Schematic Diagrams

B - 1

B.Schematic Diagrams

Appendix B: Schematic Diagrams

Table B - 1

SCHEMATIC

DIAGRAMS

This appendix has circuit diagrams of the W25CEV / W25CEW notebook’s PCB’s. The following table indicates where

to find the appropriate schematic diagram.

Diagram - Page Diagram - Page Diagram - Page

System Block Diagram - Page B - 2 PCH 5/9 - Page B - 19 1.05V Series - Page B - 36

Processor 1/7 - Page B - 3 PCH 6/9 - Page B - 20 VDD3, VDD5 - Page B - 37

Processor 2/7 - Page B - 4 PCH 7/9 - Page B - 21 Power 1.5V, 0.75VS, 1.5VS,1.8VS - Page B - 38

Processor 3/7 - Page B - 5 PCH 8/9 - Page B - 22 POWER 0.85VS - Page B - 39

Processor 4/7 - Page B - 6 PCH 9/9 - Page B - 23 POWER V_CORE 1 - Page B - 40

Processor 5/7 - Page B - 7 Intel LAN 82579LM - Page B - 24 Power V-CORE / GFX_VCORE - Page B - 41

Processor 6/7 - Page B - 8 LAN Transformer - Page B - 25 AC IN, Charger - Page B - 42

Processor 7/7 - Page B - 9 Card Reader RTS5229 - Page B - 26 Audio Board / USB_A - Page B - 43

DDR3 SO-DIMM_0 - Page B - 10 USB Port, E-SATA - Page B - 27 Power Switch & LID Switch - Page B - 44

DDR3 SO-DIMM_1 - Page B - 11 3G, HDD, ODD - Page B - 28 CLICK & FINGER BOARD - Page B - 45

LVDS, INVERTER - Page B - 12 WLAN, CCD, TPM - Page B - 29 FINGERPRINT BOARD_G - Page B - 46

HDMI - Page B - 13 KBC-ITE IT8518 - Page B - 30 PWR ON SEQ - Page B - 47

CRT - Page B - 14 AUDIO CODEC VT1802P - Page B - 31 Power Diagram - Page B - 48

PCH 1/9 - Page B - 15 New Card, MDC - Page B - 32

PCH 2/9 - Page B - 16 Fan, TP, Connector - Page B - 33

PCH 3/9 - Page B - 17 Docking Connector, COM Port - Page B - 34

PCH 4/9 - Page B - 18 System Power - Page B - 35



Version Note

The schematic dia-

grams in this chapter

are based upon version

6-7P-W25W5-003. If

your mainboard (or oth-

er boards) are a later

version, please check

with the Service Center

for updated diagrams

(if required).

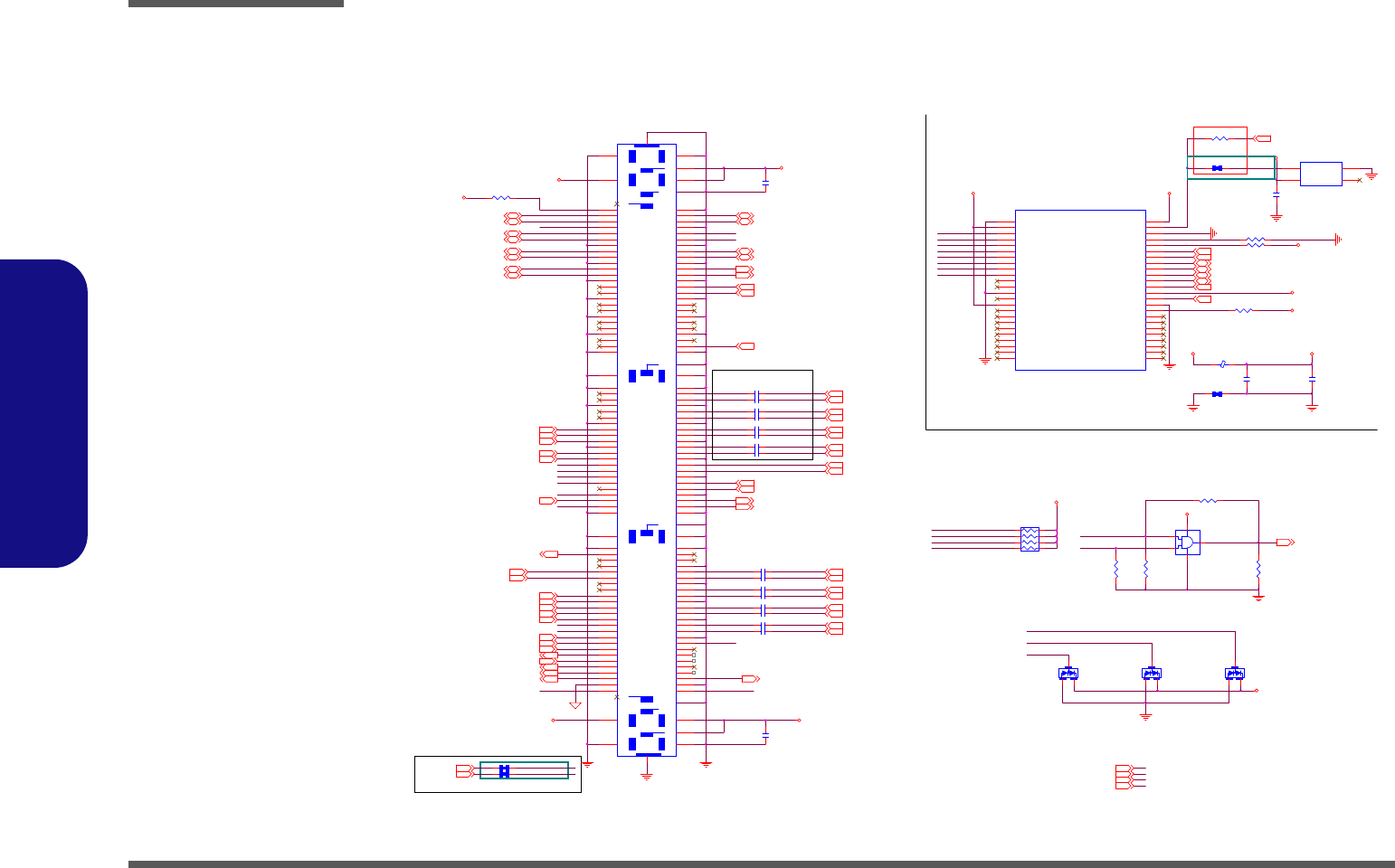

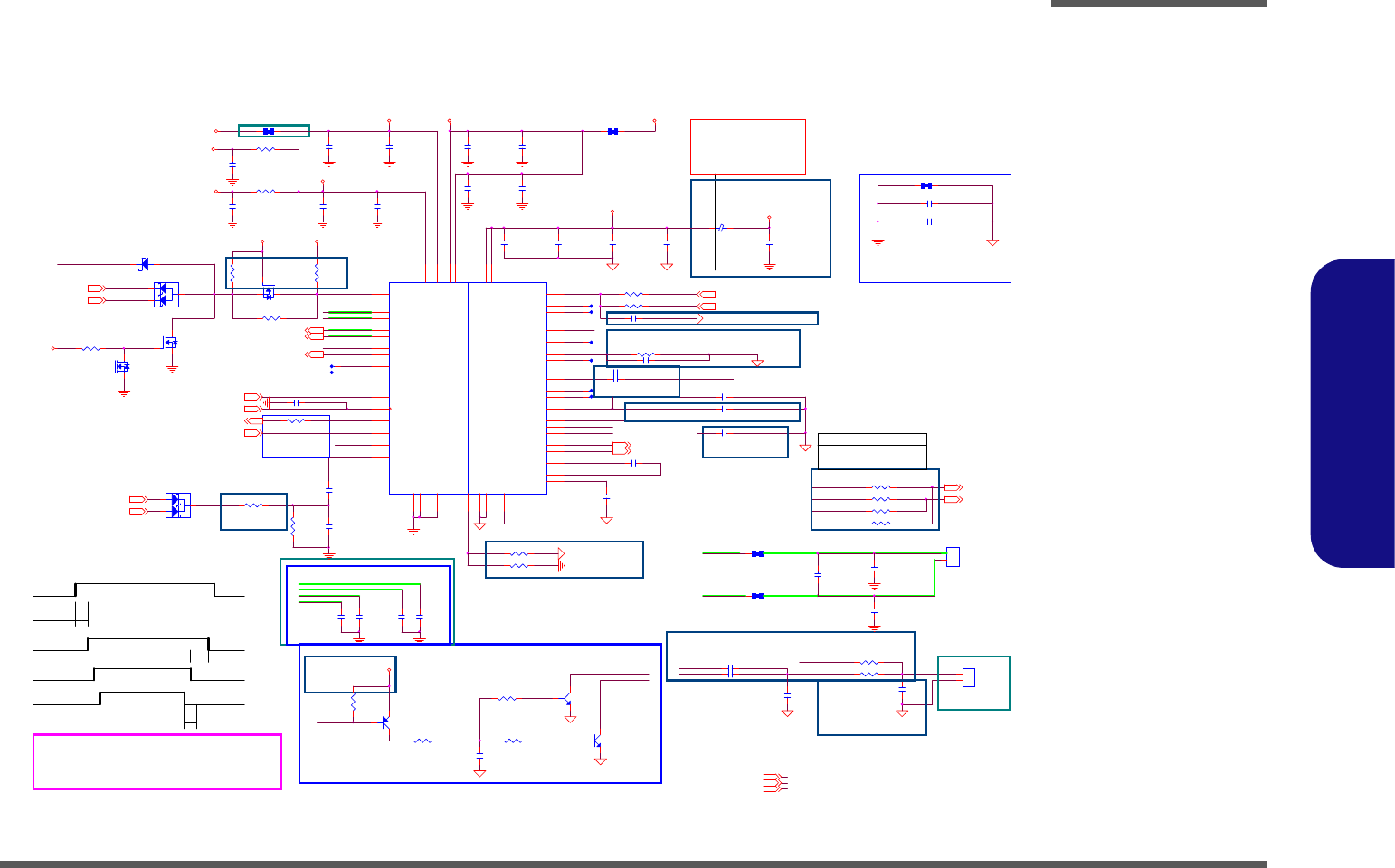

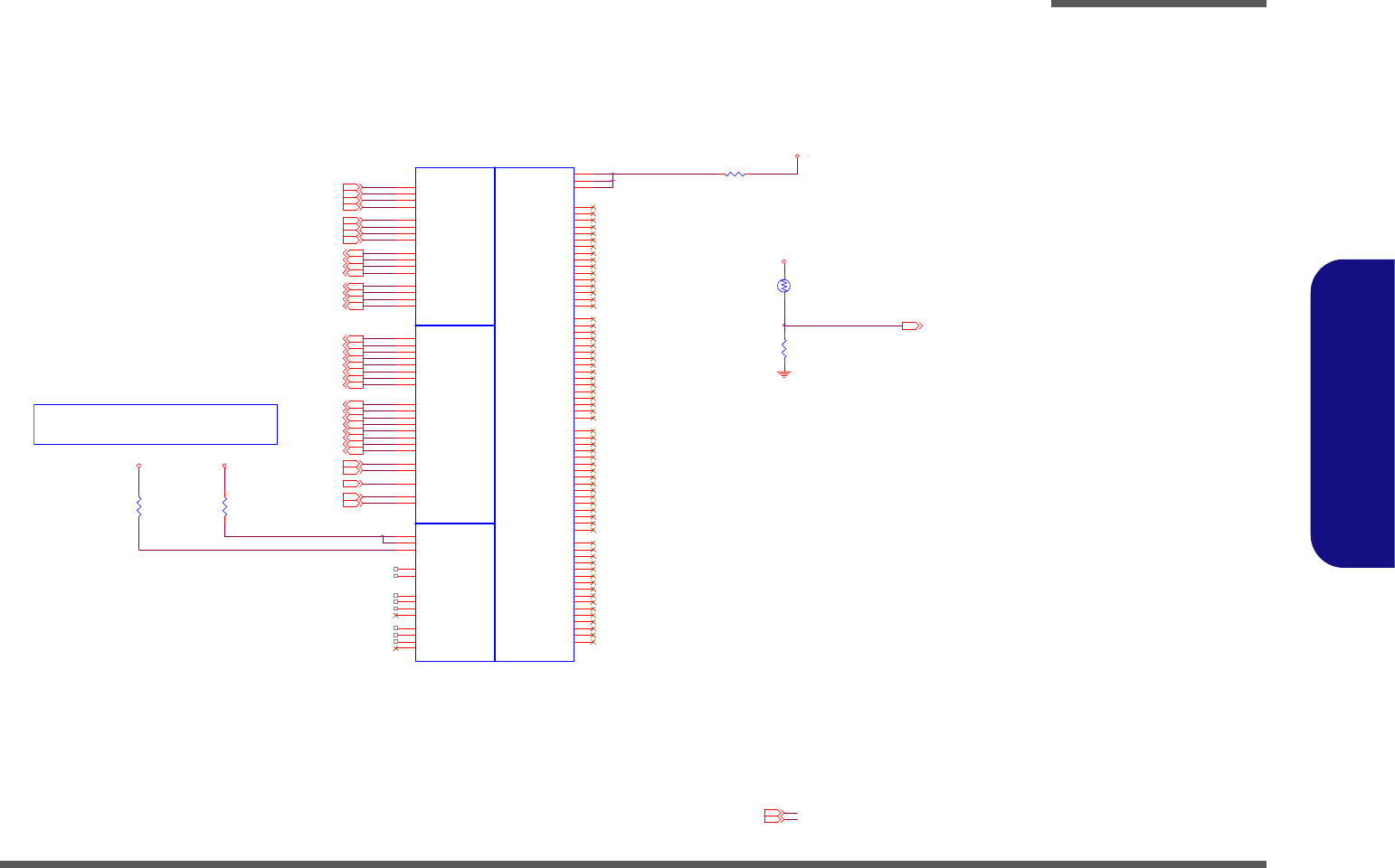

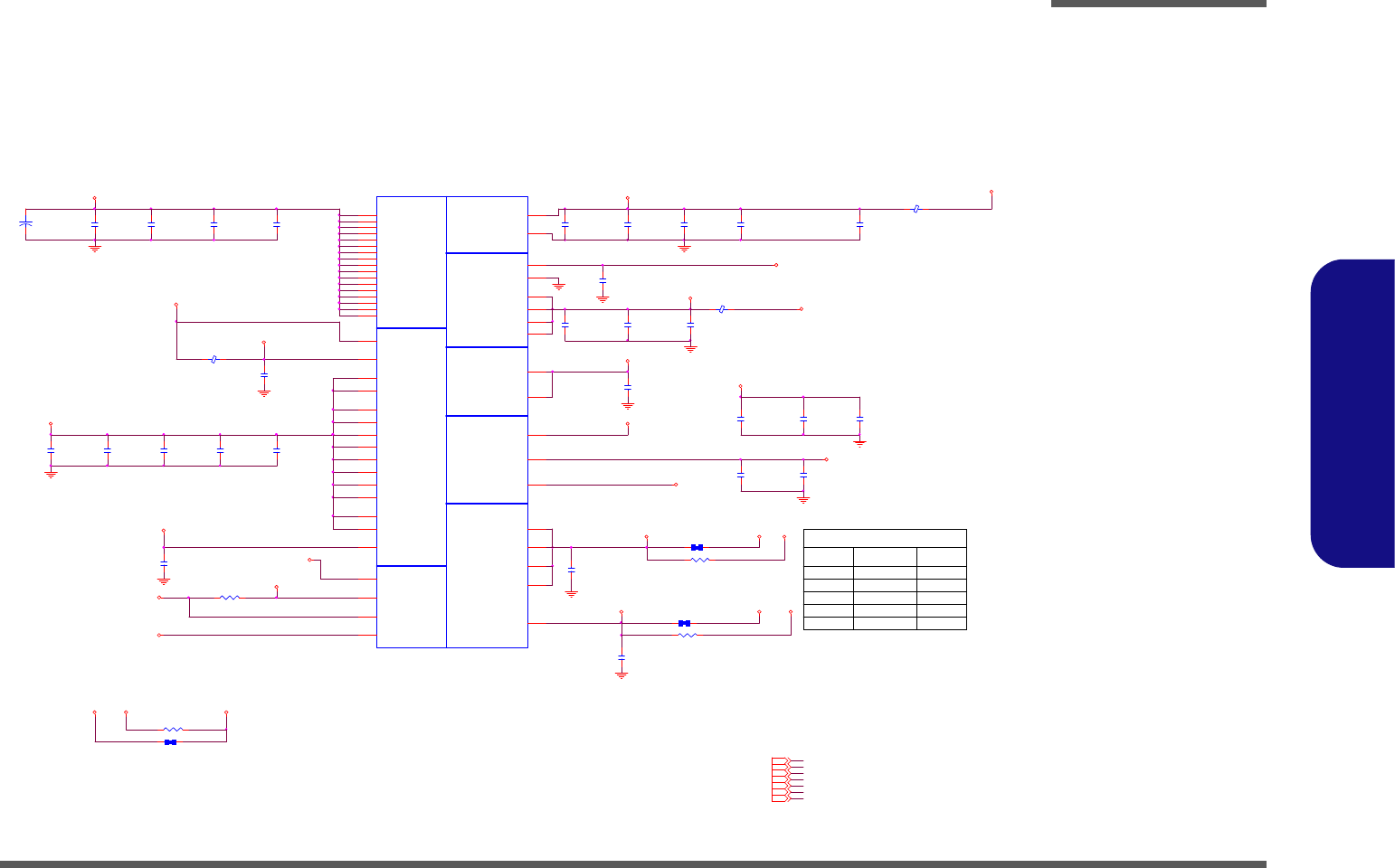

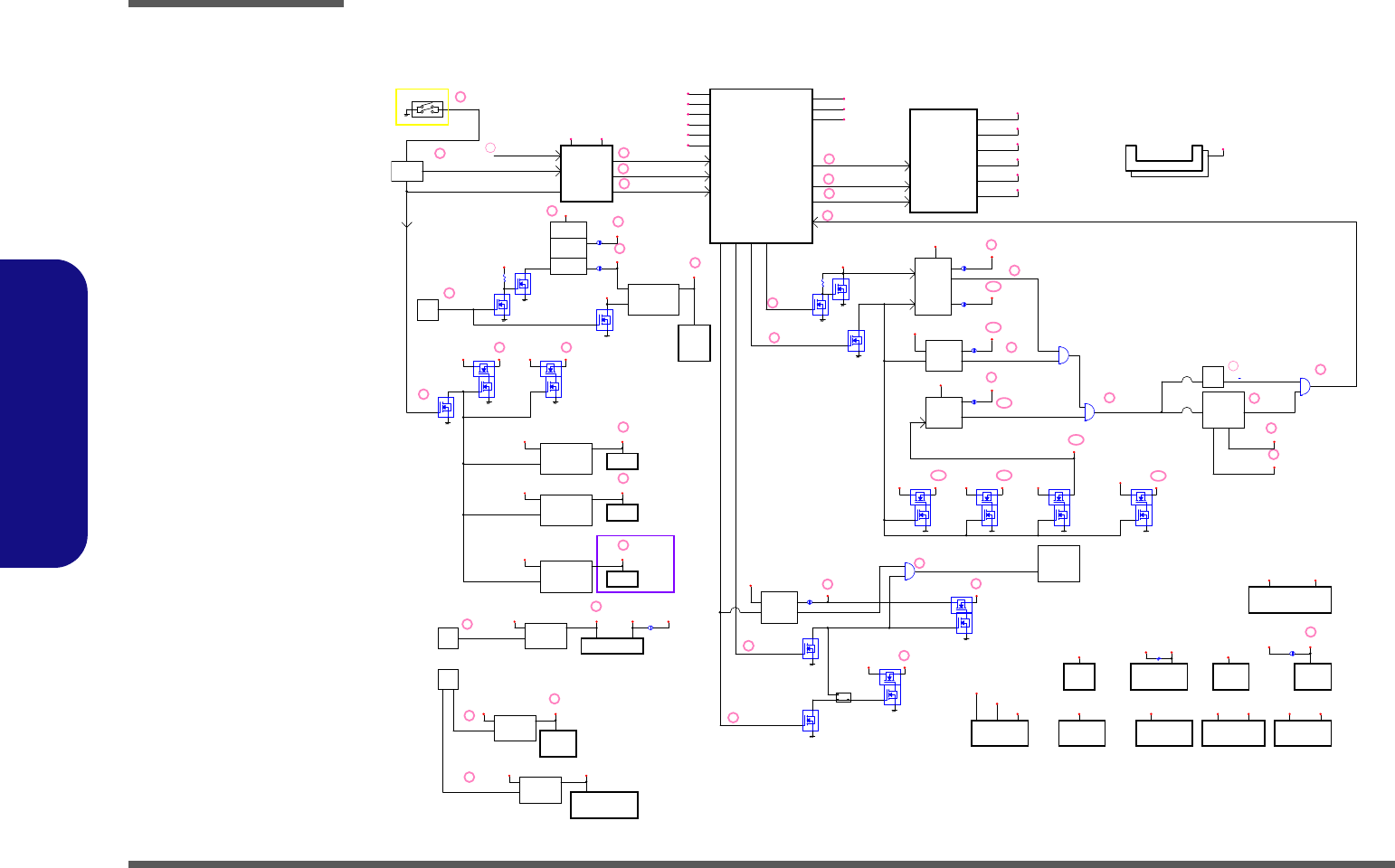

Schematic Diagrams

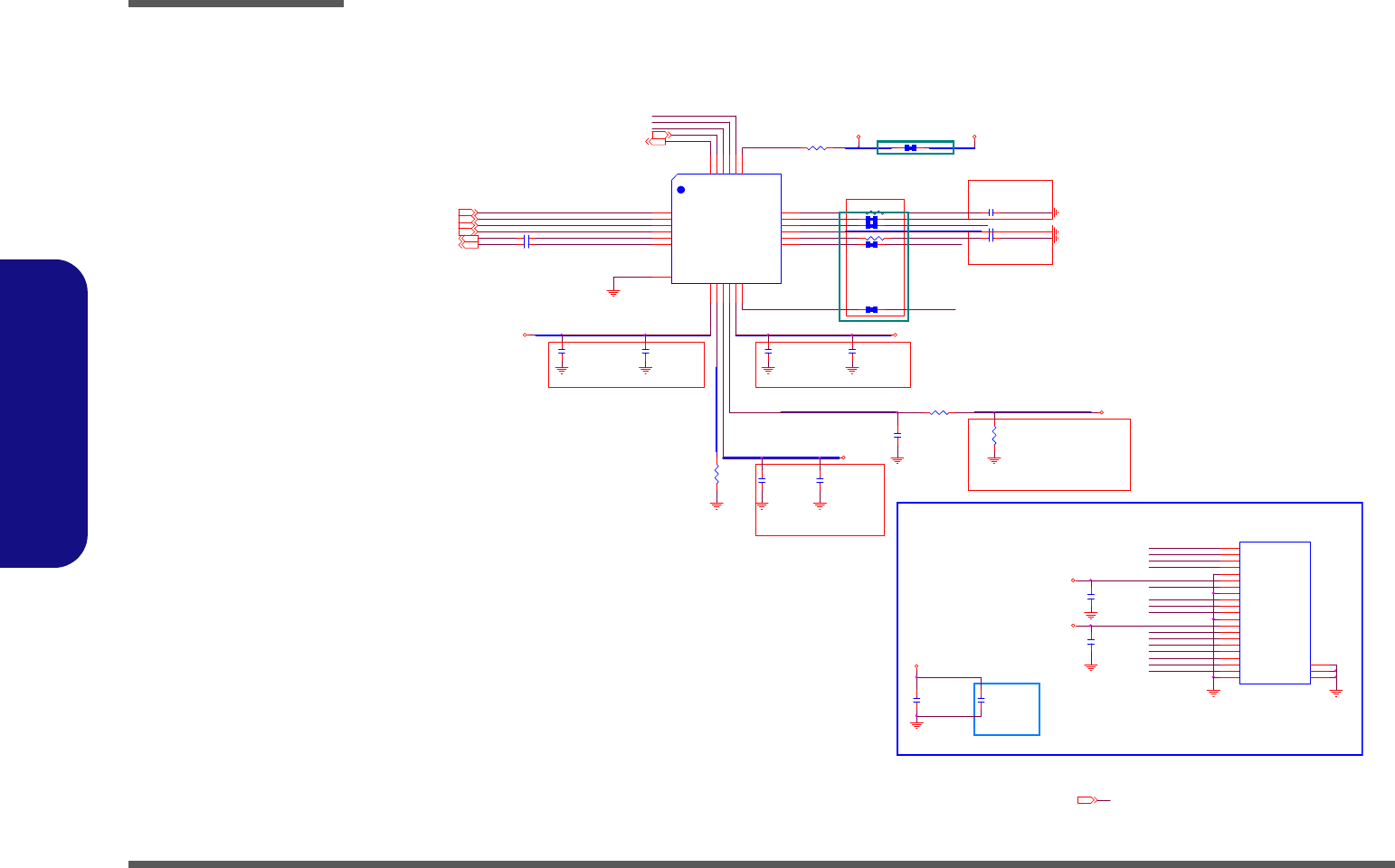

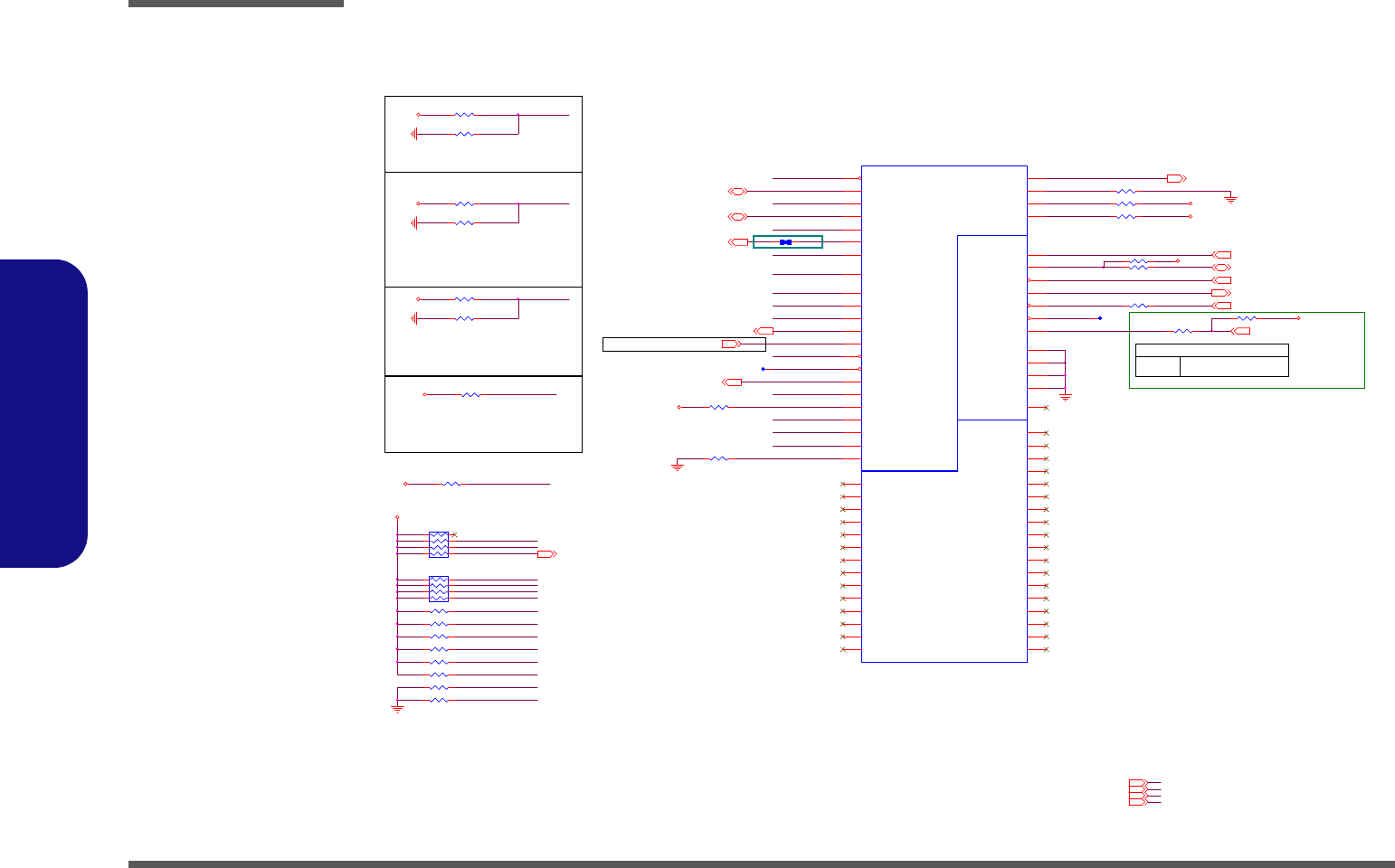

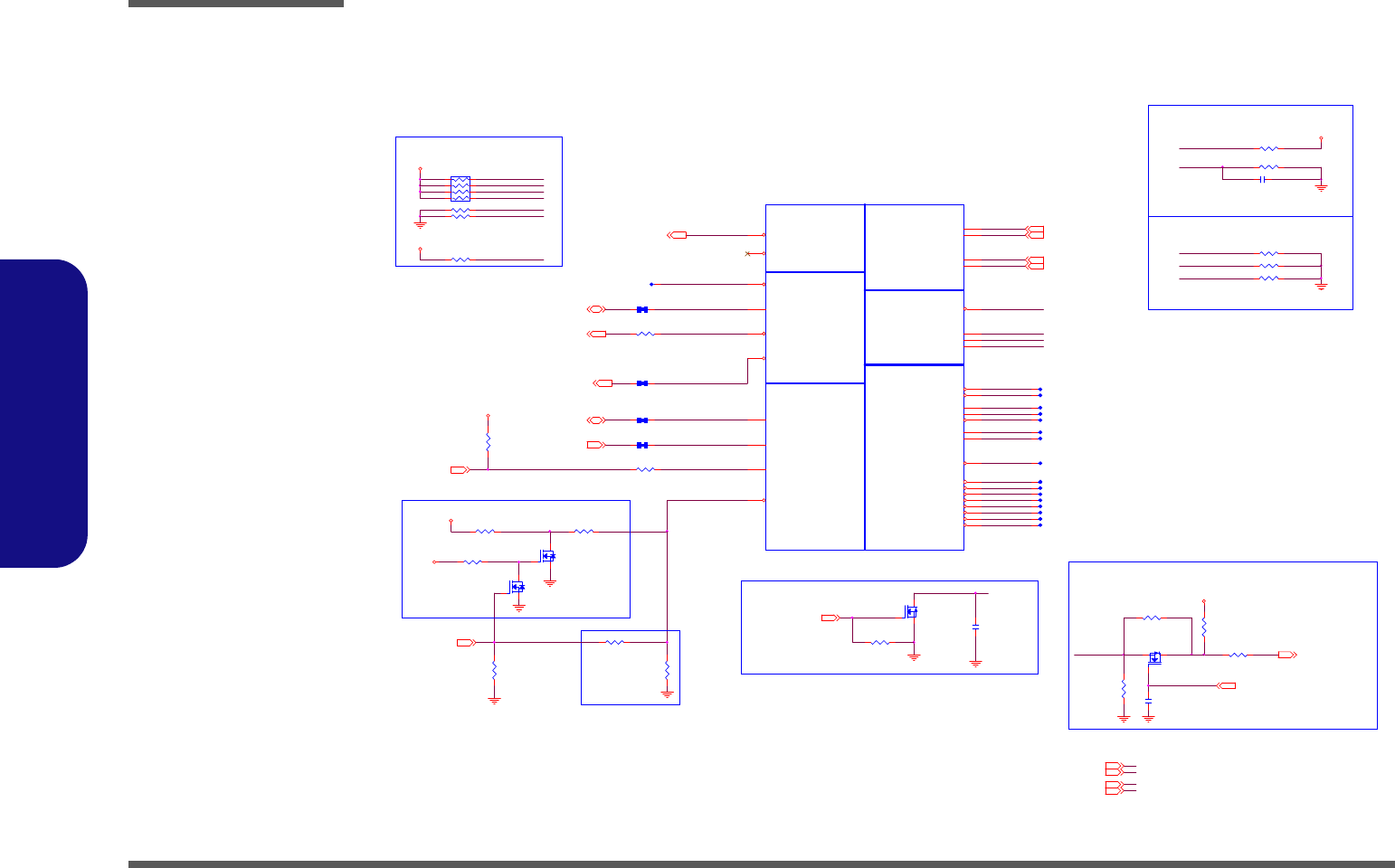

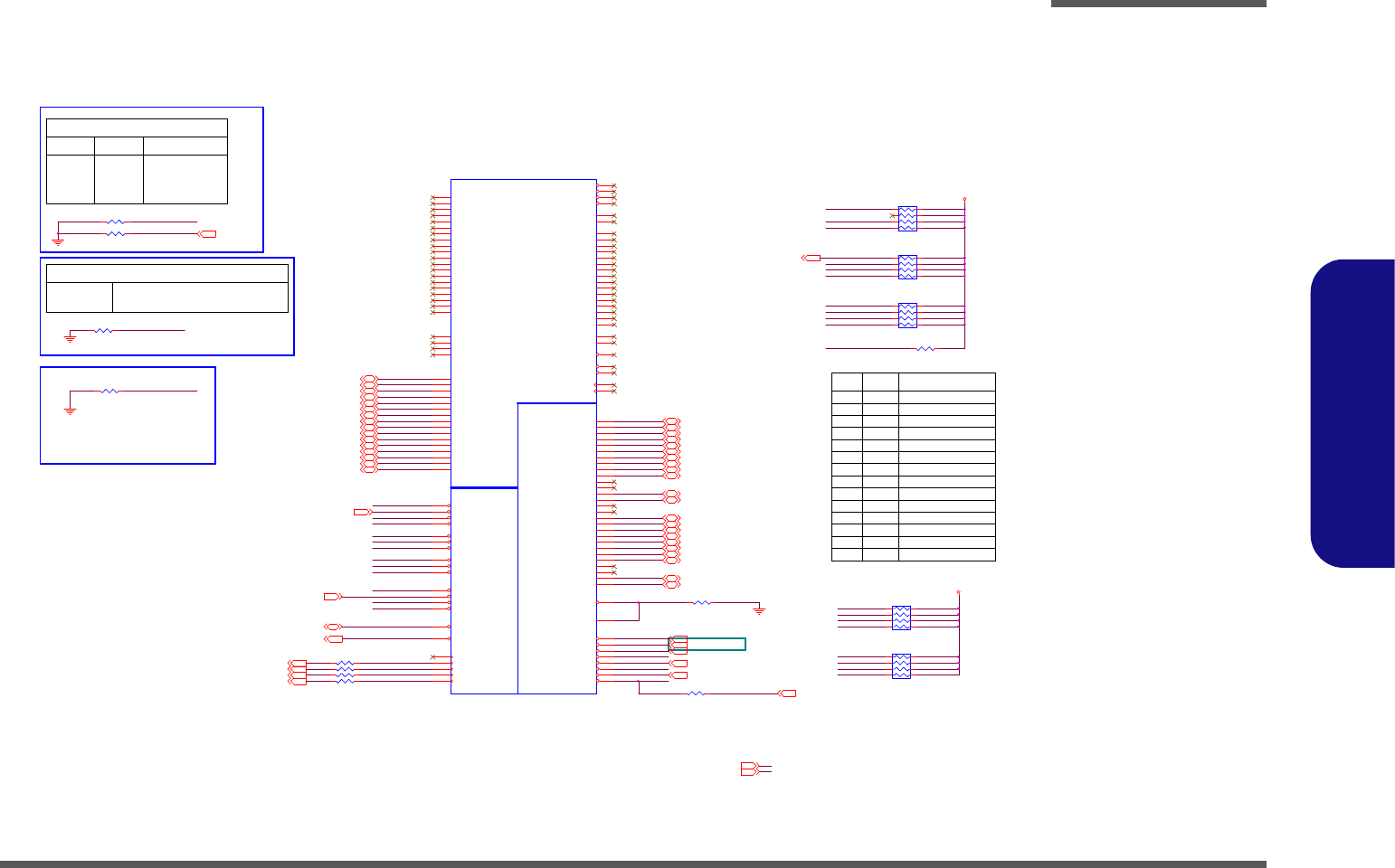

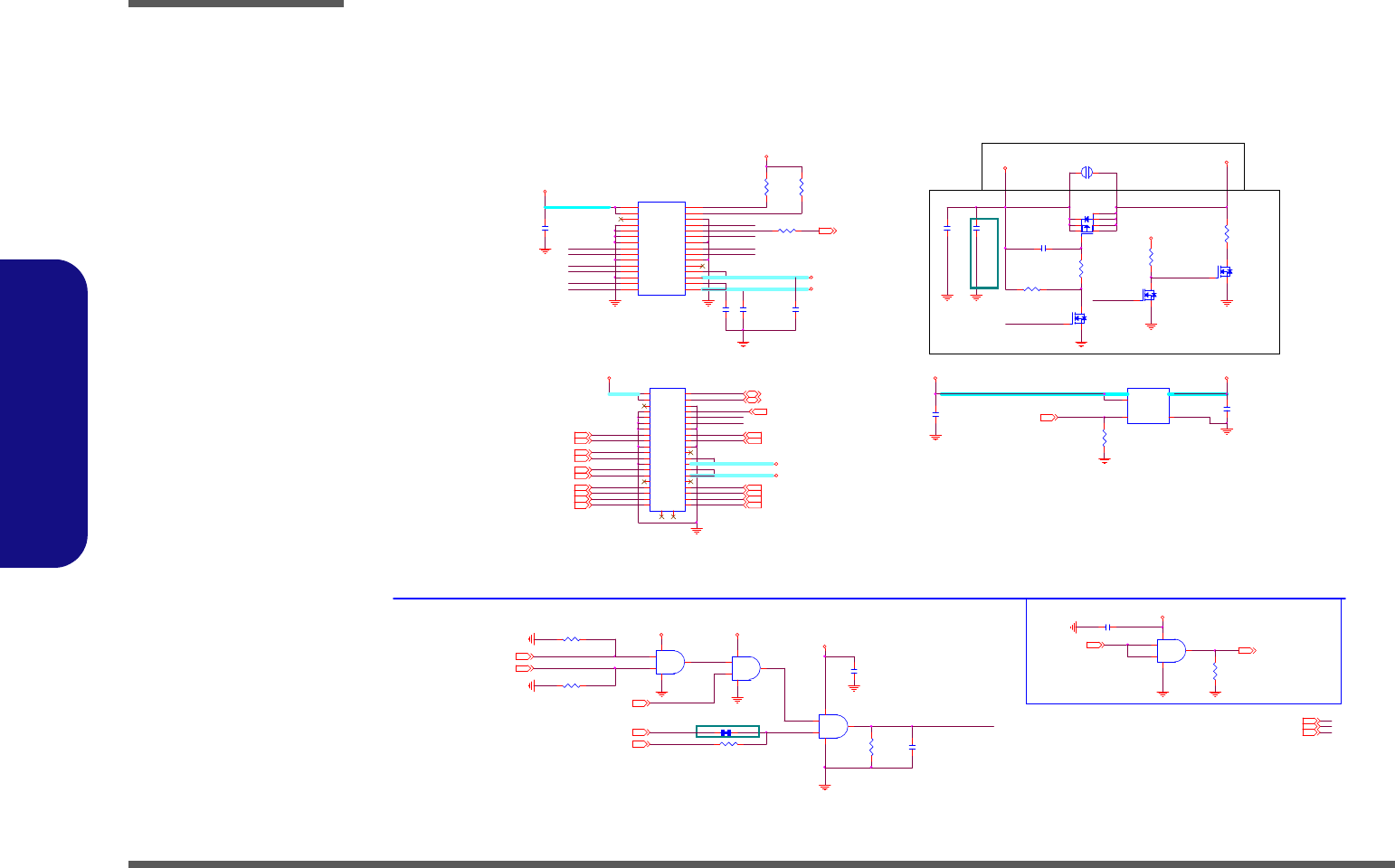

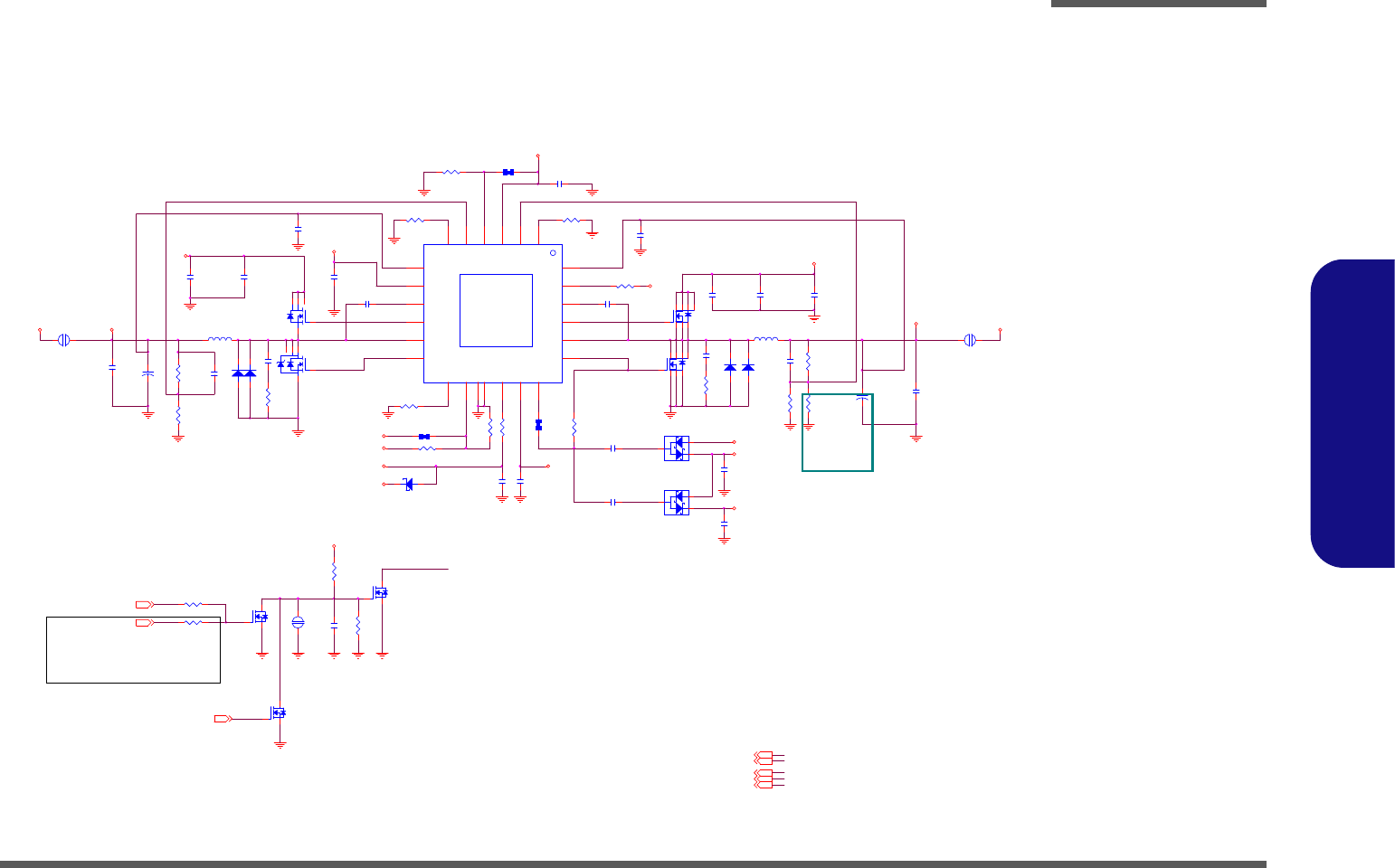

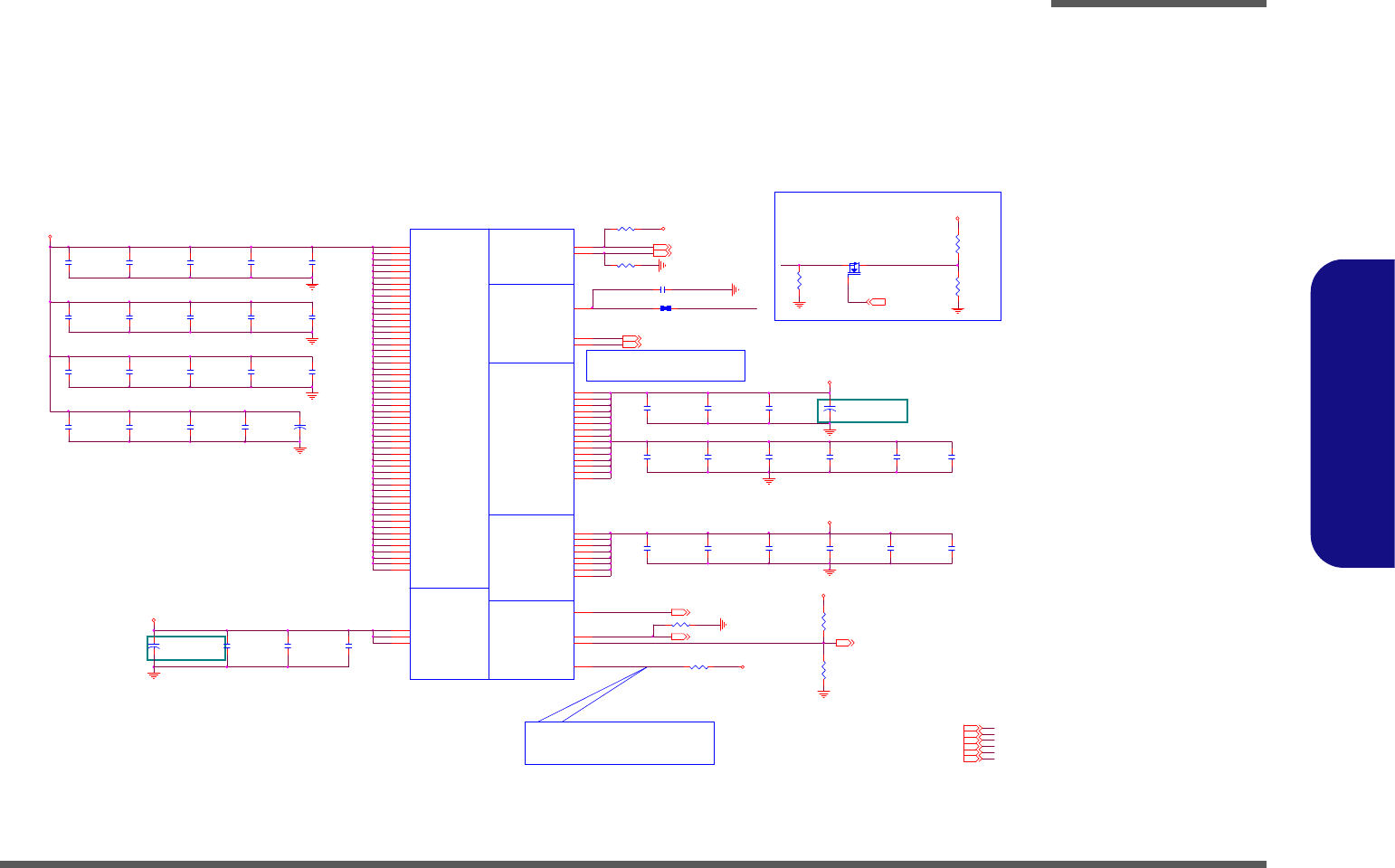

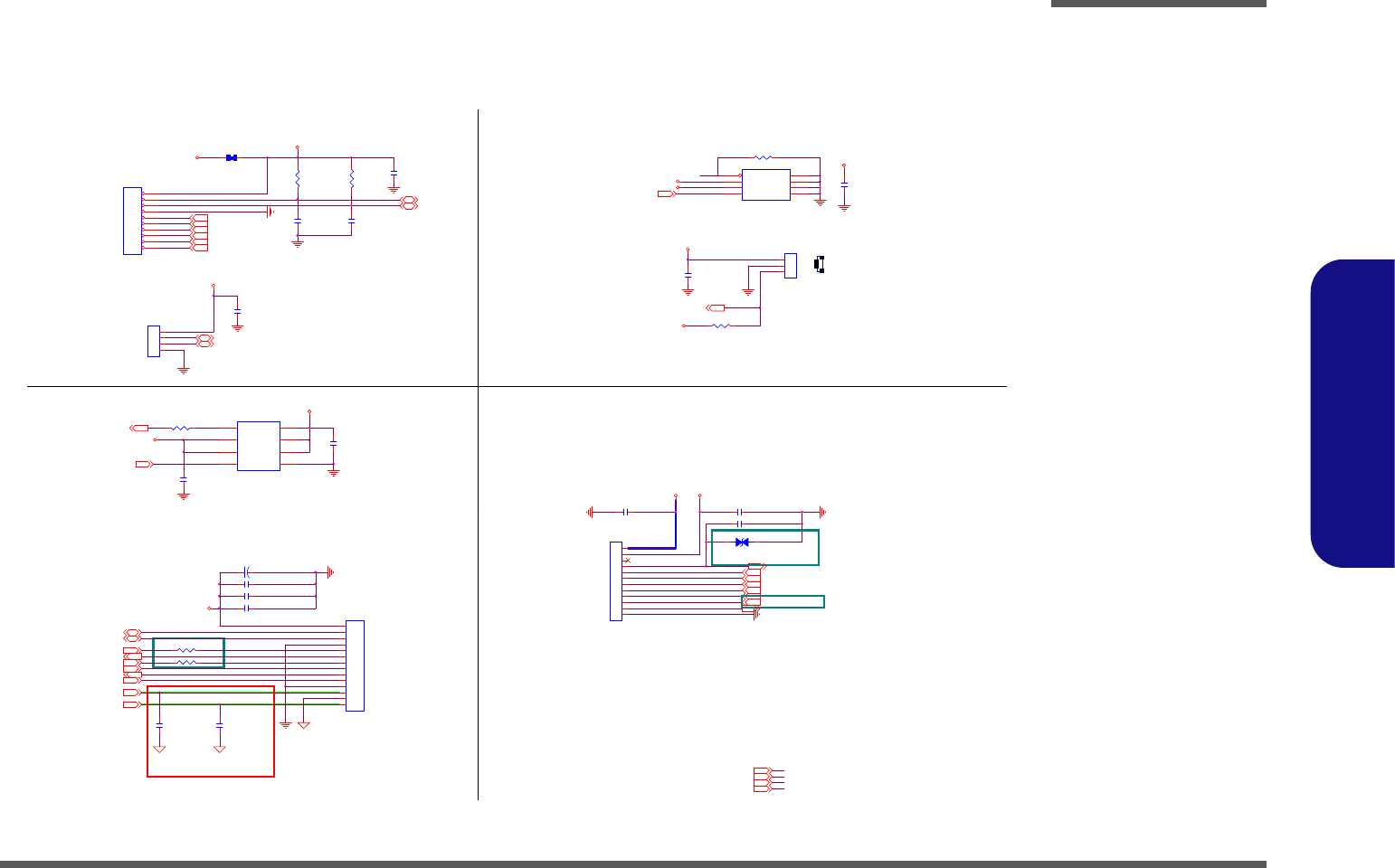

B - 2 System Block Diagram

B.Schematic Diagrams

System Block Diagram

Sheet 1 of 47

System Block

Diagram

ALC269Q-VB2-GR/

VT1802P

Co-layout

ESATA

1~5"

HDMI to Docking

ASM1442

SATA ODD

25 MHz

SATA 2.0

To Docking

J_USB3

port 4port 2

port 0

J_USB1 To Docking

port 2

port 1

J_USB2

port 1 port 3

port 3

DVI to Docking

SMART

FAN

CRT SW

CRT to Docking

1~6"

<10"

3~11"

1"~14"

6.0 Gb/s

3.0 Gb/s

3~10"

port 10

CCD

<10"

<7"

<9"

<3"

<10.5"

RJ-45

<7.9"

LAN SW

To Docking

<2"

<10.5"

FingerPrint

To Docking

port 13

FINGER

port 11

port 8

WLAN

port 4

NEW CARD

port 6

SLB9635TT

PI3V512QE

INT. K/B

USB3.0

100 MHz

7IN1

RTS5229

LAN

non-VPRO:82579V

VPRO:82579LM

<12"

REALTEK

CARD READER

MHz

SOCKET

Mini PCIE

SOCKET

WLAN

OZ8681LN-E AX995SA

SN75LVCP412

SMART

BATTERY

EC SMBUS

IT8709E

COM PORT

NEW CARD

non-VPRO:HM77

VPRO:QM77

POWER SWITCH

Chief River System Block Diagram

LCD CONNECTOR,

<6"

LPC

TOUCH PAD

CRT CONNECTOR

VGFX_CORE

SO-DIMM1

CLICK BOARD

INT SPK R

PCIE

<=8"

DDRIII

480 Mbps

Memory Termination

SPI

0.5"~6.5"

24 MHz

DDRIII

AZALIA

MDC

MODULE

FDI

HDMI

INT SPK L

SO-DIMM0

128pins LQFP

MDC CON

32.768KHz

AZALIA LINK

0.1"~13

BIOS

SPI

SYSTEM SMBUS

ITE 8518E

<6"

CLICK BOARD

SATA HDD

Azalia Codec

0.5"~11"

RJ-11

5V,3V,5VS,3VS,3.3V_M

<5.5"

USB2.0

VDD3,VDD5

DMI*4

SATA 3.0

800/1067 MHz

DDR3 / 1.5V

6-71-W25WS-D02

14*14*1.6mm

33 MHz

POWER SWITCH BOARD

COM PORT to

Docking

SPK_R

PROCESSOR

37.5*37.5 mm

CougarPoint

Platform

Controller

Hub (PCH)

rPGA989B

Ivy/Sandy

Bridge

25x25x0.6 mm

989 Balls FCBGA

TPM

6-71-W25W2-D03

USB2.0+HP+MIC+SPK+RJ11

AUDIO BOARD

6-71-W25W8-D03

MIC

OUT

0.85VS

AUDIO BOARD

BIOS

SPI

1.05V_LAN_M

1.05VS,1.05V_M

1.5V,0.75VS(VTT_MEM)

1.5VS,1.8VS

6-71-W25W0-D03

MAIN BOARD

USB PORT2

port 9

DOCKING CONNECTOR

6-71-W25WF-D03

Schematic Diagrams

Processor 1/7 B - 3

B.Schematic Diagrams

Processor 1/7

Sheet 2 of 47

Processor 1/7

R328

10K_1%_04

PCI EXPRESS* - GRAPHICS

DMI

Intel(R) FDI

eDP

U21A

FOXCONN PZ 98821-362B-01H

DMI_RX#[0]

B27

DMI_RX#[1]

B25

DMI_RX#[2]

A25

DMI_RX#[3]

B24

DMI_RX[0]

B28

DMI_RX[1]

B26

DMI_RX[2]

A24

DMI_RX[3]

B23

DMI_TX#[0]

G21

DMI_TX#[1]

E22

DMI_TX#[2]

F21

DMI_TX#[3]

D21

DMI_TX[0]

G22

DMI_TX[1]

D22

DMI_TX[3]

C21 DMI_TX[2]

F20

FDI0_TX#[0]

A21

FDI0_TX#[1]

H19

FDI0_TX#[2]

E19

FDI0_TX#[3]

F18

FDI1_TX#[0]

B21

FDI1_TX#[1]

C20

FDI1_TX#[2]

D18

FDI1_TX#[3]

E17

FDI0_TX[0]

A22

FDI0_TX[1]

G19

FDI0_TX[2]

E20

FDI0_TX[3]

G18

FDI1_TX[0]

B20

FDI1_TX[1]

C19

FDI1_TX[2]

D19

FDI1_TX[3]

F17

FDI0_FSYNC

J18

FDI1_FSYNC

J17

FDI_INT

H20

FDI0_LSYNC

J19

FDI1_LSYNC

H17

PEG_ICOMPI J22

PEG_ICOMPO J21

PEG_RC OMPO H22

PEG_RX#[0] K33

PEG_RX#[1] M35

PEG_RX#[2] L34

PEG_RX#[3] J35

PEG_RX#[4] J32

PEG_RX#[5] H34

PEG_RX#[6] H31

PEG_RX#[7] G33

PEG_RX#[8] G30

PEG_RX#[9] F35

PEG_RX#[10] E34

PEG_RX#[11] E32

PEG_RX#[12] D33

PEG_RX#[13] D31

PEG_RX#[14] B33

PEG_RX#[15] C32

PEG_RX[0] J33

PEG_RX[1] L35

PEG_RX[2] K34

PEG_RX[3] H35

PEG_RX[4] H32

PEG_RX[5] G34

PEG_RX[6] G31

PEG_RX[7] F33

PEG_RX[8] F30

PEG_RX[9] E35

PEG_RX[10] E33

PEG_RX[11] F32

PEG_RX[12] D34

PEG_RX[13] E31

PEG_RX[14] C33

PEG_RX[15] B32

PEG_TX#[0] M29

PEG_TX#[1] M32

PEG_TX#[2] M31

PEG_TX#[3] L32

PEG_TX#[4] L29

PEG_TX#[5] K31

PEG_TX#[6] K28

PEG_TX#[7] J30

PEG_TX#[8] J28

PEG_TX#[9] H29

PEG_TX#[10] G27

PEG_TX#[11] E29

PEG_TX#[12] F27

PEG_TX#[13] D28

PEG_TX#[14] F26

PEG_TX#[15] E25

PEG_TX[0] M28

PEG_TX[1] M33

PEG_TX[2] M30

PEG_TX[3] L31

PEG_TX[4] L28

PEG_TX[5] K30

PEG_TX[6] K27

PEG_TX[7] J29

PEG_TX[8] J27

PEG_TX[9] H28

PEG_TX[10] G28

PEG_TX[11] E28

PEG_TX[12] F28

PEG_TX[13] D27

PEG_TX[14] E26

PEG_TX[15] D25

eDP_AUX

C15

eDP_AUX#

D15

eDP_TX[0]

C17

eDP_TX[1]

F16

eDP_TX[2]

C16

eDP_TX[3]

G15

eDP_TX#[0]

C18

eDP_TX#[1]

E16

eDP_TX#[2]

D16

eDP_TX#[3]

F15

eDP_COMPIO

A18

eDP_HPD

B16 eDP_ICOMPO

A17

R318

*10K_04

R320 24.9_1%_04

R319

24.9_1%_04

1.05VS

3.3V

1.05VS

EDP_COMP

DM I Sign al Gr ou p

Zdiff = 85 Ohm ¡Ó10% (5 / 5.5

ml)

EDP_HPD#

6-17-10320-731

FDI_LSYNC1[16]

FDI_INT[16]

DMI_TXP0[16]

FDI_FSYNC1[16] FDI_FSYNC0[16]

FDI_LSYNC0[16]

DMI_TXP3[16] DMI_TXP2[16] DMI_TXP1[16]

DMI_TXN0[16]

DMI_TXN2[16] DMI_TXN1[16]

1.05VS[3,5,6,14,15,16,19,20,21,35,38,39] 3.3V[3,6,11,27,28,30,31,33,34,37,38]

DMI_TXN3[16]

Ivy/Sandy Bridge Processor 1/7

( DMI,PEG,FDI )

DP Compensation Signal

PEG_COMP

20 mil

FDI Signal Group

Zdiff = 85 Ohm ¡Ó10% (5 / 5.5

ml)

PTH1

10K_1%_NTC_04

DMI_RXP0[16]

THERM_VOLT [ 29]

DMI_RXP3[16] DMI_RXP2[16] DMI_RXP1[16]

DMI_RXN2[16] DMI_RXN3[16]

DMI_RXN0[16] DMI_RXN1[16]

FDI_TXN0[16]

FDI_TXN5[16]

FDI_TXN1[16]

FDI_TXN4[16] FDI_TXN3[16] FDI_TXN2[16]

FDI_TXP1[16]

FDI_TXN6[16] FDI_TXN7[16]

FDI_TXP2[16]

FDI_TXP0[16]

FDI_TXP5[16] FDI_TXP6[16] FDI_TXP7[16]

FDI_TXP4[16] FDI_TXP3[16]

1:2 (4mil:8mil)

CAD NOTE: DP_COMPIO and ICOMPO signals

should be shorted near balls and routed with

- typical impedance < 25 mohms

Schematic Diagrams

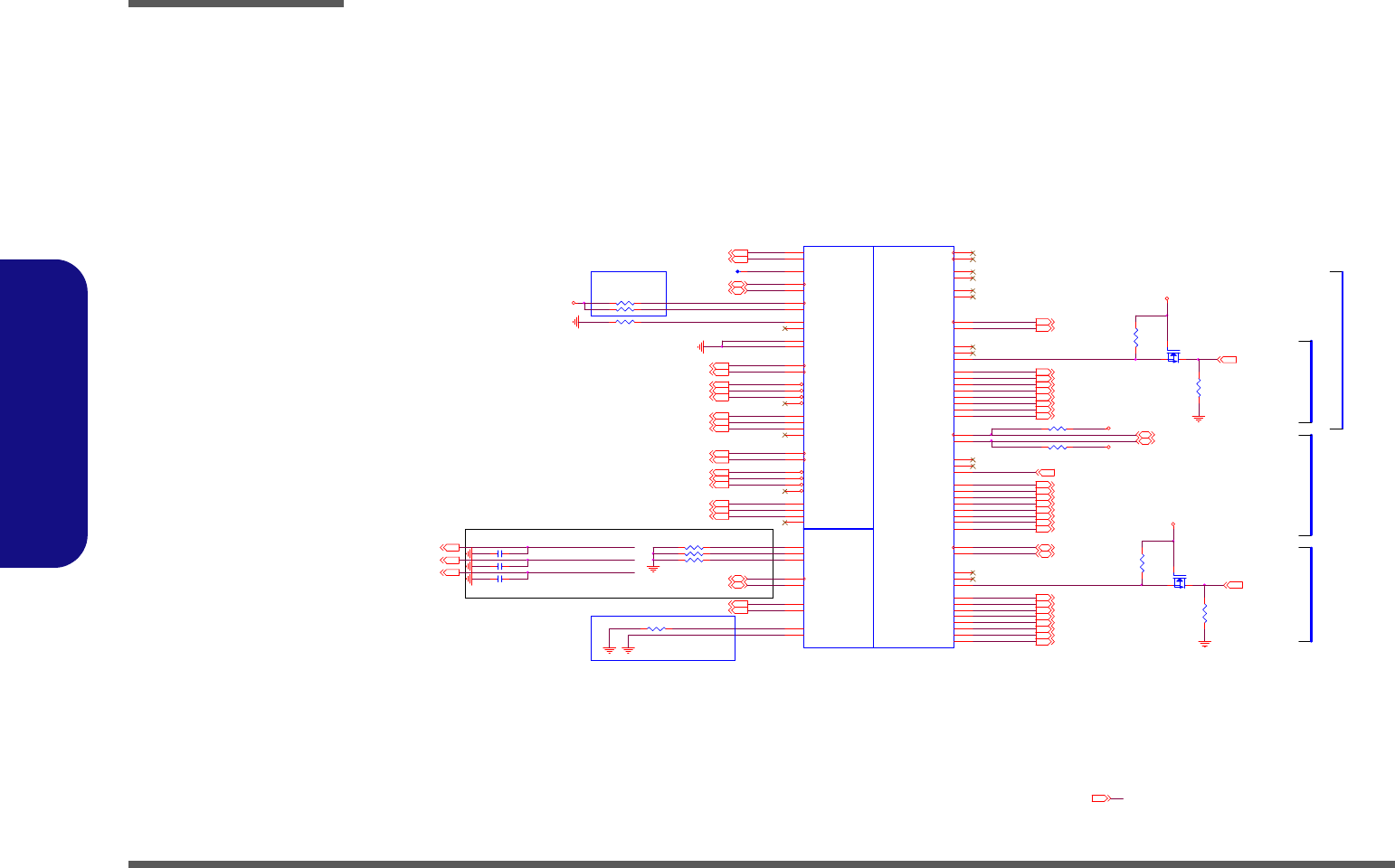

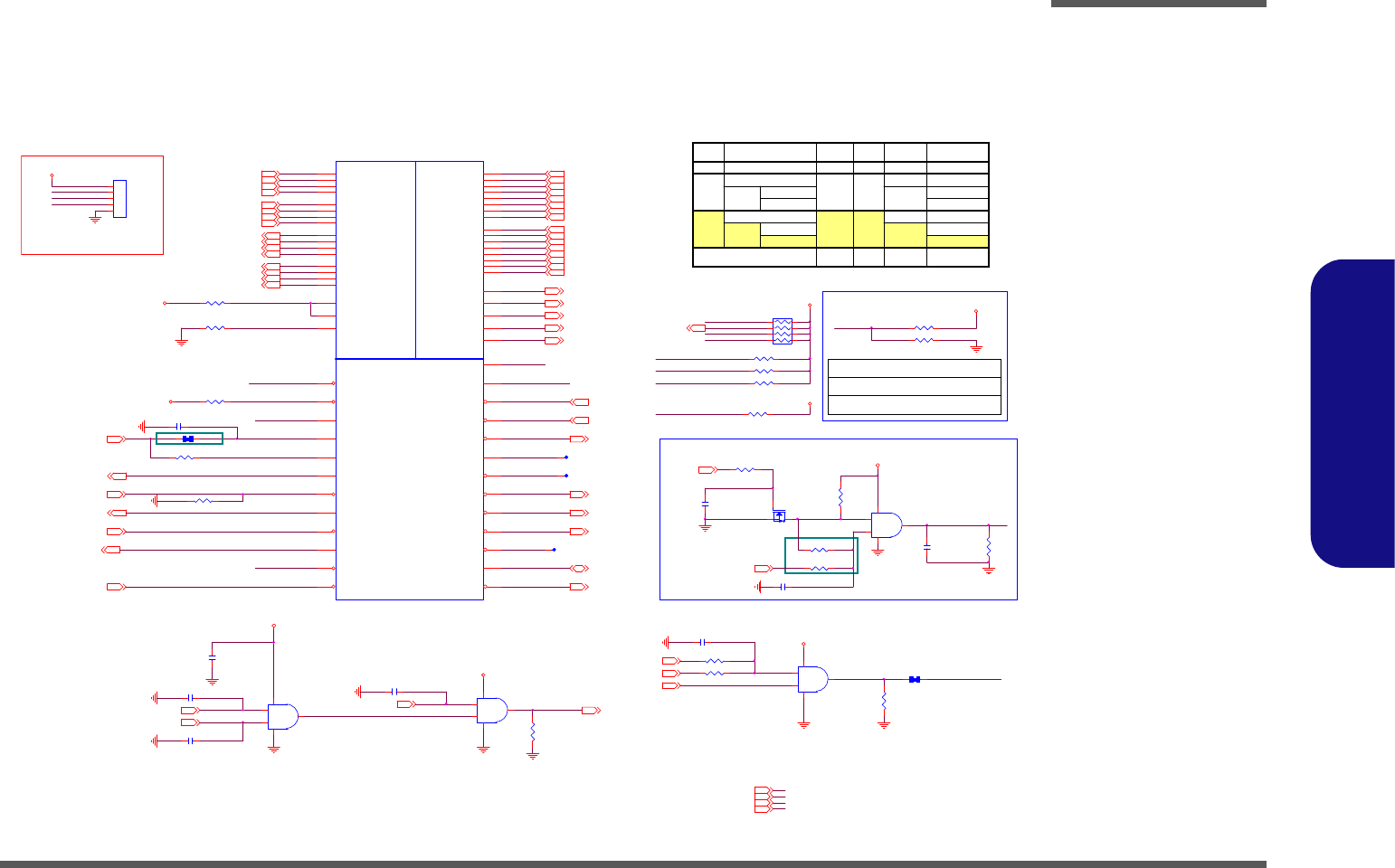

B - 4 Processor 2/7

B.Schematic Diagrams

Processor 2/7

Z0301

R105 56_04

C437 *0.1u_10V_X5R_04

R107 *100K_04

R302

4.99K_1%_04

R338 *43_1%_04

R343 *10mil_04

Q21A

*MTDK5S6R

R100 *1K_04

R303 *0_04

R101 130_1%_04

CLOCKS

MISCTHERMALPWR MANAGEMENT

DDR3

MISC

JTAG & BPM

U21B

FOXCONN PZ98821-362B-01H

SM_RCOMP[1] A5

SM_RCOMP[2] A4

SM_DRAMRST# R8

SM_RCOMP[0] AK1

BCLK# A27

BCLK A28

DPLL_REF _CLK# A15

DPLL_REF_CLK A16

CATERR#

AL33

PECI

AN33

PROCHOT#

AL32

THER MTR I P#

AN32

SM_DRAMPWROK

RESET#

AR33

PR DY # AP29

PREQ# AP27

TCK AR26

TMS AR27

TRS T# AP30

TDI AR28

TDO AP26

DBR# AL35

BPM#[0] AT28

BPM#[1] AR29

BPM#[2] AR30

BPM#[3] AT30

BPM#[4] AP32

BPM#[5] AR31

BPM#[6] AT31

BPM#[7] AR32

PM_SYNC

AM34

SKTOCC#

AN34

PROC_SELECT#

C26

UNCOREPWRGOOD

AP33

R342 *10mil_04

R331 *51_04

R341 *10mil_04

R336 *10mil_04

R305

1K_04

R339 10K_04

R106 62_04

R102

200_1%_04

R327 140_1%_04

C167

47p_50V_NPO_04

C371

0.047u_10V_X7R_04

R334 51_04

R337 *75_1%_04

Q21B

*MTDK5S6R

R314 200_1%_04

R304 1K_04

R315 25.5_1%_04

R344

*100K_04

Q18

2SK3018S3

H_PROCHOT#

CAD Note: Capacitor

need to be placed

close to buffer output pin

H_PM_SYNC[16]

H_PECI[19,29]

R345 *100K_04 Z0302

1.05VS

1.5V

1.05VS

1.5V

3.3V

1.05VS

3.3VS

XD P_ D BR _ R

XD P_ TM S

XD P_ TD O _R

PU/PD for JTAG signals

XD P_ TR S T#

XDP_PREQ#

XD P_ TD I _R

XD P_ TC L K

H_CPUPWRGD_R

Processor Pullups/Pull downs

TRACE WIDTH 10MIL, LENGTH <500MILS

DDR3 Compensation Signals

SM_RCOMP_2

SM_RCOMP_1

SM_RCOMP_0

VDDPWRGOOD_R

XD P _TR ST#

XD P _TC L K

XD P _TMS

XD P _TD I _R

CPUDRAMRST#

H_PROCHOT#_D

H_CATERR#

Buffered reset to CPU

XD P _TD O_ R

XDP_PR EQ#

PM_SYNC_R

If PROCHOT# is not used, then it must

be terminated with a 68-£[ +-5%

pull-up resistor to 1.05VS_VTT .

Ivy/Sandy Bridge Processor 2/7

( CLK,MISC,JTAG )

H_PROCHOT#

SM_RCOMP_2

SM_RCOMP_0

SM_RCOMP_1

CPUDRAMRST#

S3 circuit:- DRAM_RST# to memory

should be high during S3

Z0303

XD P _D B R_ R

XD P _ BP M1 _ R

XD P _ BP M0 _ R

XD P _ BP M6 _ R

XD P _ BP M5 _ R

XD P _ BP M4 _ R

XD P _ BP M3 _ R

XD P _ BP M2 _ R

XD P _ BP M7 _ R

H_PECI_R

DRAMRST_CNTRL [9,10,15]

PLT_RST#[11,18,28]

CLK_EXP_N [15]

CLK_EXP_P [15]

H_PROCHOT_EC[29]

3.3V[2,6,11,27,28, 30, 31, 33,34,37,38]

CLK_DP_P [ 15]

CLK_DP_N [ 15]

3.3VS[9,10,11,12, 13, 14, 15,16,17,18,19, 20,21,25,26,27, 28, 29, 30,31,32,33,34, 39]

H_CPUPWRGD[19]

1.05VS[2,5,6,14,15, 16,19,20,21,35,38, 39]

PM_DR AM_PWR GD[16]

1.5V[6,9,10,21,37]

RN18

*51_8P4R_04

8 1

7 2

H_CPUPWRGD_R

XD P _P R DY #

H_PROCHOT#[39]

H_THRMTRIP#[19]

H_SNB_IVB#[19]

DDR3_DRAMRST# [9,10]

H_THRMTRIP#_R

BUF_CPU_RST#

Normal solution

Cost down solution

R340 2K_1%_04

R335

1K_1%_04

Sheet 3 of 47

Processor 2/7

Clock Signal Group

Zdiff = 85 Ohm ¡Ó10% (5 / 5.5

ml)

Control Signal Group

Zdiff = 40 Ohm ¡Ó10% (MS 7.5/SL 8.5

ml)

Control Signal Group

Zdiff = 40 Ohm ¡Ó10% (MS 7.5/SL 8.5

ml)

Command Signal Group

Zdiff = 40 Ohm ¡Ó10% (MS 7.5/SL 8.5

ml)

Data Signal Group

Zdiff = 50 Ohm ¡Ó10% (MS 5/SL 5.5

ml)

M_A_DQ[63:0][9]

M_A_DQS[7:0] [9]

M_A_DQS#[7:0] [9]

M_B_DQ[63:0][10]

M_B_DQS#[7:0] [10]

M_B_DQS[ 7:0] [10]

M_A_DQS#5

M_A_DQS#6

M_A_DQS#7

M_A_DQS#4

M_A_DQS#1

M_A_DQS#3

M_A_DQS#0

M_A_DQS#2

M_A_DQS0

M_A_DQS7

M_A_DQS5

M_A_DQS6

M_A_DQS4

M_A_DQS2

M_A_DQS1

M_A_DQS3

M_B_DQS#4

M_B_DQS#6

M_B_DQS#5

M_B_DQS#2

M_B_DQS#3

M_B_DQS#0

M_B_DQS#7

M_B_DQS#1

M_B_B6

M_B_B2

M_B_B3

M_B_B4

M_B_B0

M_B_B5

M_B_B13

M_B_B12

M_B_B9

M_B_B10

M_B_B1

M_B_B14

M_B_B15

M_B_B7

M_B_B8

M_B_B11

M_B_DQS3

M_B_DQS4

M_B_DQS2

M_B_DQS6

M_B_DQS5

M_B_DQS0

M_B_DQS7

M_B_DQS1

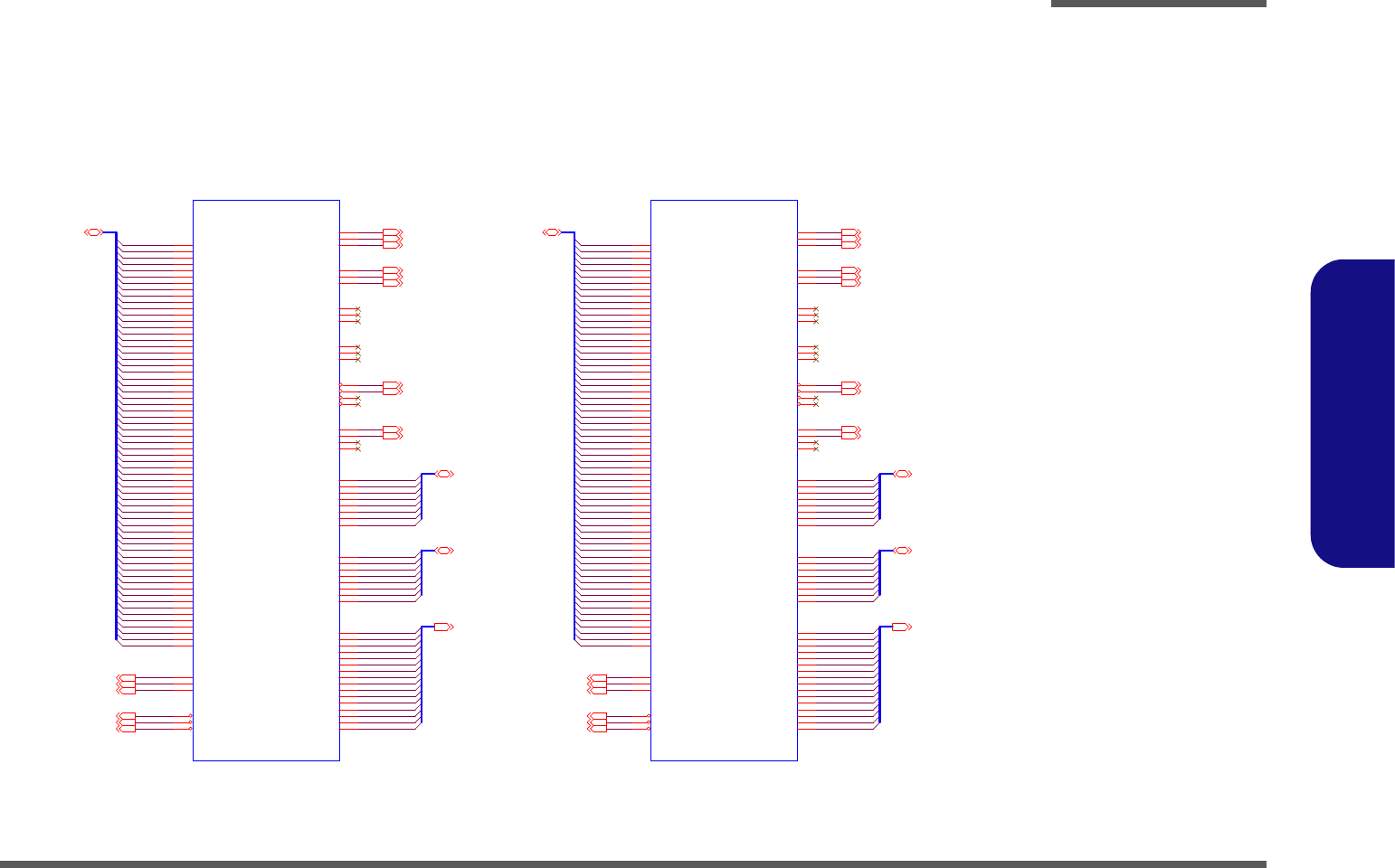

Ivy/Sandy Bridge Processor 3/7 ( DDR3 )

M_A_DQ2

M_A_DQ1

DDR SYSTEM MEMORY B

U21D

FOXCONN PZ98821-362B-01H

SB_BS[0]

AA9

SB_BS[1]

AA7

SB_BS[2]

SB_CAS#

AA10

SB_RAS#

AB8

SB_WE#

AB9

SB_CK[ 0] AE2

SB_CK[ 1] AE1

SB_CLK#[0] AD2

SB_CLK#[1] AD1

SB_CKE[0] R9

SB_CKE[1] R10

SB_ODT[0] AE4

SB_ODT[1] AD4

SB_D QS[4] AN 6

SB_DQS#[4] AN5

SB_D QS[5] AP8

SB_DQS#[5] AP9

SB_D QS[6] AK11

SB_DQS#[6] AK12

SB_D QS[7] AP14

SB_DQS#[7] AP15

SB_D QS[0] C7

SB_DQS#[0] D7

SB_D QS[1] G3

SB_DQS#[1] F3

SB_D QS[2] J6

SB_DQS#[2] K6

SB_D QS[3] M3

SB_DQS#[3] N3

SB_MA[0] AA8

SB_MA[1] T7

SB_MA[2] R7

SB_MA[3] T6

SB_MA[4] T2

SB_MA[5] T4

SB_MA[6] T3

SB_MA[7] R2

SB_MA[8] T5

SB_MA[9] R3

SB_MA[10] AB7

SB_MA[11] R1

SB_MA[12] T1

SB_MA[13] AB10

SB_MA[14] R5

SB_MA[15] R4

SB_DQ[0]

SB_DQ[1]

SB_DQ[2]

D10

SB_DQ[3]

SB_DQ[4]

SB_DQ[5]

SB_DQ[6]

SB_DQ[7]

SB_DQ[8]

SB_DQ[9]

SB_DQ[10]

SB_DQ[11]

SB_DQ[12]

SB_DQ[13]

SB_DQ[14]

SB_DQ[15]

SB_DQ[16]

SB_DQ[17]

SB_DQ[18]

K10

SB_DQ[19]

SB_DQ[20]

SB_DQ[21]

J10

SB_DQ[22]

SB_DQ[23]

SB_DQ[24]

SB_DQ[25]

SB_DQ[26]

SB_DQ[27]

SB_DQ[28]

SB_DQ[29]

SB_DQ[30]

SB_DQ[31]

SB_DQ[32]

AM5

SB_DQ[33]

AM6

SB_DQ[34]

AR3

SB_DQ[35]

AP3

SB_DQ[36]

AN3

SB_DQ[37]

AN2

SB_DQ[38]

AN1

SB_DQ[39]

AP2

SB_DQ[40]

AP5

SB_DQ[41]

AN9

SB_DQ[42]

AT5

SB_DQ[43]

AT6

SB_DQ[44]

AP6

SB_DQ[45]

AN8

SB_DQ[46]

AR6

SB_DQ[47]

AR5

SB_DQ[48]

AR9

SB_DQ[49]

AJ11

SB_DQ[50]

AT8

SB_DQ[51]

AT9

SB_DQ[52]

AH11

SB_DQ[53]

AR8

SB_DQ[54]

AJ12

SB_DQ[55]

AH12

SB_DQ[56]

AT11

SB_DQ[57]

AN14

SB_DQ[58]

AR14

SB_DQ[59]

AT14

SB_DQ[60]

AT12

SB_DQ[61]

AN15

SB_DQ[62]

AR15

SB_DQ[63]

AT15

SB_CK[ 2] AB2

SB_CLK#[2] AA2

SB_CKE[2] T9

SB_CK[ 3] AA1

SB_CLK#[3] AB1

SB_CKE[3] T10

SB_CS#[0] AD3

SB_CS#[1] AE3

SB_CS#[2] AD6

SB_CS#[3] AE6

SB_ODT[2] AD5

SB_ODT[3] AE5

M_A_DQ29

M_A_DQ4

M_A_DQ3

M_A_DQ36

M_A_DQ35

M_A_DQ31

M_A_DQ30

M_A_DQ32

M_A_DQ41

M_A_DQ39

M_A_DQ42

M_A_DQ33

M_A_DQ34

M_A_DQ37

M_A_DQ44

M_A_DQ46

M_A_DQ43

M_A_DQ45

M_A_DQ40

M_A_DQ28

M_A_DQ50

M_A_DQ38

M_A_DQ49

M_A_DQ47

M_A_DQ55

M_A_DQ54

M_A_DQ52

M_A_DQ53

M_A_DQ48

M_A_DQ51

M_A_DQ6

M_A_DQ56

M_A_DQ58

M_A_DQ57

M_A_DQ5

M_A_DQ59

M_A_DQ62

M_A_DQ63

M_A_DQ60

M_A_DQ61

M_A_DQ9

M_A_DQ8

M_A_DQ7

DDR SYSTEM MEMORY A

U21C

FOXCONN PZ98821-362B-01H

SA_BS[0]

AE10

SA_BS[1]

AF10

SA_BS[2]

SA_CAS#

AE8

SA_RAS#

AD9

SA_WE#

AF9

SA_CK[0] AB6

SA_CK[1] AA5

SA_CLK#[0] AA6

SA_CLK#[1] AB5

SA_CKE[0] V9

SA_CKE[1] V10

SA_CS#[ 0] AK3

SA_CS#[ 1] AL3

SA_ODT[0] AH3

SA_ODT[1] AG3

SA_DQS[0] D4

SA_DQS#[0] C4

SA_DQS[1] F6

SA_DQS#[1] G6

SA_DQS[2] K3

SA_DQS#[2] J3

SA_DQS[3] N6

SA_DQS#[3] M6

SA_DQS[4] AL5

SA_DQS#[4] AL6

SA_DQS[5] AM9

SA_DQS#[5] AM8

SA_DQS[6] AR11

SA_DQS#[6] AR12

SA_DQS[7] AM14

SA_DQS#[7] AM15

SA_MA[0] AD10

SA_MA[1] W1

SA_MA[2] W2

SA_MA[3] W7

SA_MA[4] V3

SA_MA[5] V2

SA_MA[6] W3

SA_MA[7] W6

SA_MA[8] V1

SA_MA[9] W5

SA_MA[10] AD8

SA_MA[11] V4

SA_MA[12] W4

SA_MA[13] AF8

SA_MA[14] V5

SA_MA[15] V7

SA_DQ[0]

SA_DQ[1]

SA_DQ[2]

SA_DQ[3]

SA_DQ[4]

SA_DQ[5]

SA_DQ[6]

SA_DQ[7]

SA_DQ[8]

F10

SA_DQ[9]

SA_DQ[10]

G10

SA_DQ[11]

SA_DQ[12]

SA_DQ[13]

SA_DQ[14]

SA_DQ[15]

SA_DQ[16]

SA_DQ[17]

SA_DQ[18]

SA_DQ[19]

SA_DQ[20]

SA_DQ[21]

SA_DQ[22]

SA_DQ[23]

SA_DQ[24]

SA_DQ[25]

N10

SA_DQ[26]

SA_DQ[27]

SA_DQ[28]

M10

SA_DQ[29]

SA_DQ[30]

SA_DQ[31]

SA_DQ[32]

AG6

SA_DQ[33]

AG5

SA_DQ[34]

AK6

SA_DQ[35]

AK5

SA_DQ[36]

AH5

SA_DQ[37]

AH6

SA_DQ[38]

AJ5

SA_DQ[39]

AJ6

SA_DQ[40]

AJ8

SA_DQ[41]

AK8

SA_DQ[42]

AJ9

SA_DQ[43]

AK9

SA_DQ[44]

AH8

SA_DQ[45]

AH9

SA_DQ[46]

AL9

SA_DQ[47]

AL8

SA_DQ[48]

AP11

SA_DQ[49]

AN11

SA_DQ[50]

AL12

SA_DQ[51]

AM12

SA_DQ[52]

AM11

SA_DQ[53]

AL11

SA_DQ[54]

AP12

SA_DQ[55]

AN12

SA_DQ[56]

AJ14

SA_DQ[57]

AH14

SA_DQ[58]

AL15

SA_DQ[59]

AK15

SA_DQ[60]

AL14

SA_DQ[61]

AK14

SA_DQ[62]

AJ15

SA_DQ[63]

AH15

SA_CK[2] AB4

SA_CLK#[2] AA4

SA_CK[3] AB3

SA_CLK#[3] AA3

SA_CKE[2] W9

SA_CKE[3] W10

SA_CS#[ 2] AG1

SA_CS#[ 3] AH1

SA_ODT[2] AG2

SA_ODT[3] AH2

M_A_DQ16

M_A_DQ15

M_A_DQ13

M_A_DQ12

M_A_DQ11

M_A_DQ10

M_A_DQ14

M_A_DQ19

M_A_DQ18

M_A_DQ17

M_A_DQ25

M_A_DQ23

M_A_DQ0

M_A_DQ21

M_A_DQ22

M_A_DQ20

M_A_DQ27

M_A_DQ26

M_A_DQ24

Command Signal Group

Zdiff = 40 Ohm ¡Ó10% (MS 7.5/SL 8.5

ml)

Command Signal Group

Zdiff = 40 Ohm ¡Ó10% (MS 7.5/SL 8.5

ml)

Strobe Signal Group

Zdiff = 85 Ohm ¡Ó10% (5 / 5.5

ml)

M_B_D Q4 9

M_B_D Q5 4

M_B_D Q5 3

M_B_D Q4 8

M_B_D Q4 7

M_B_D Q5 7

M_B_D Q5 6

M_B_D Q5 2

M_B_D Q5 1

M_B_D Q5 0

M_B_D Q6 1

M_B_D Q6 0

M_B_D Q5 8

M_B_D Q5 5

M_B_D Q1 2

M_B_D Q6 2

M_B_D Q1 1

M_B_D Q6 3

M_B_D Q5 9

M_B_D Q5

M_B_D Q4

M_B_D Q2

M_B_D Q1

M_B_D Q3

M_B_D Q9

M_B_D Q8

M_B_D Q7

M_B_D Q6

M_B_D Q1 3

M_B_D Q1 0

M_B_D Q0

M_B_D Q1 6

M_B_D Q1 5

M_B_D Q1 8

M_B_D Q1 7

M_B_D Q1 4

M_B_D Q2 0

M_B_D Q1 9

M_B_D Q2 2

M_B_D Q2 1

M_B_D Q2 3

M_B_D Q2 9

M_B_D Q2 4

M_B_D Q2 6

M_B_D Q2 5

M_B_D Q2 8

M_B_D Q2 7

M_B_D Q3 2

M_B_D Q3 1

M_B_D Q3 4

M_B_D Q3 0

M_B_D Q3 3

M_B_D Q3 8

M_B_D Q3 7

M_B_D Q3 6

M_B_D Q3 5

M_B_D Q3 9

M_B_D Q4 5

M_B_D Q4 4

M_B_D Q4 3

M_B_D Q4 2

M_B_D Q4 1

M_B_D Q4 0

M_B_D Q4 6

M_A_A7

M_A_A4

M_A_A6

M_A_A8

M_A_A9

M_A_A15

M_A_A3

M_A_A0

M_A_A1

M_A_A5

M_A_A11

M_A_A13

M_A_A10

M_A_A12

M_A_A2

M_A_A14

M_A_BS0[9]

M_A_RAS#[9] M_A_CAS#[9]

M_A_BS1[9] M_A_ BS2[9]

M_A_CLK_DDR#1 [9]

M_A_CLK_DDR1 [9]

M_A_W E#[9]

M_A_CKE0 [9]

M_A_CLK_DDR#0 [9]

M_A_CKE1 [9]

M_A_ODT0 [9]

M_A_ODT1 [9]

M_A_CLK_DDR0 [9]

M_A_A[15:0] [9]

M_A_C S#0 [9 ]

M_A_C S#1 [9 ]

M_B_WE#[10]

M_B_BS2[10]

M_B_CAS#[10] M_B_RAS#[10]

M_B_B[15:0] [10]

M_B_BS1[10] M_B_BS0[10]

M_B_CKE1 [10]

M_B_OD T1 [10]

M_B_CLK_DDR#1 [10]

M_B_OD T0 [10]

M_B_CKE0 [10]

M_B_CLK_DDR1 [10]

M_B_CLK_DDR#0 [10]

M_B_CS#1 [ 10]

M_B_CS#0 [ 10]

M_B_CLK_DDR0 [10]

Clock Signal Group

Zdiff = 85 Ohm ¡Ó10% (5 / 5.5

ml)

Strobe Signal Group

Zdiff = 85 Ohm ¡Ó10% (5 / 5.5

ml)

Comm and Signal Group

Zdiff = 40 Ohm ¡Ó10% (MS 7.5/SL 8.5

ml)

Data Signal Group

Zdiff = 50 Ohm ¡Ó10% (MS 5/SL 5.5

ml)

Sheet 4 of 47

Processor 3/7

Schematic Diagrams

Processor 3/7 B - 5

B.Schematic Diagrams

Processor 3/7

Schematic Diagrams

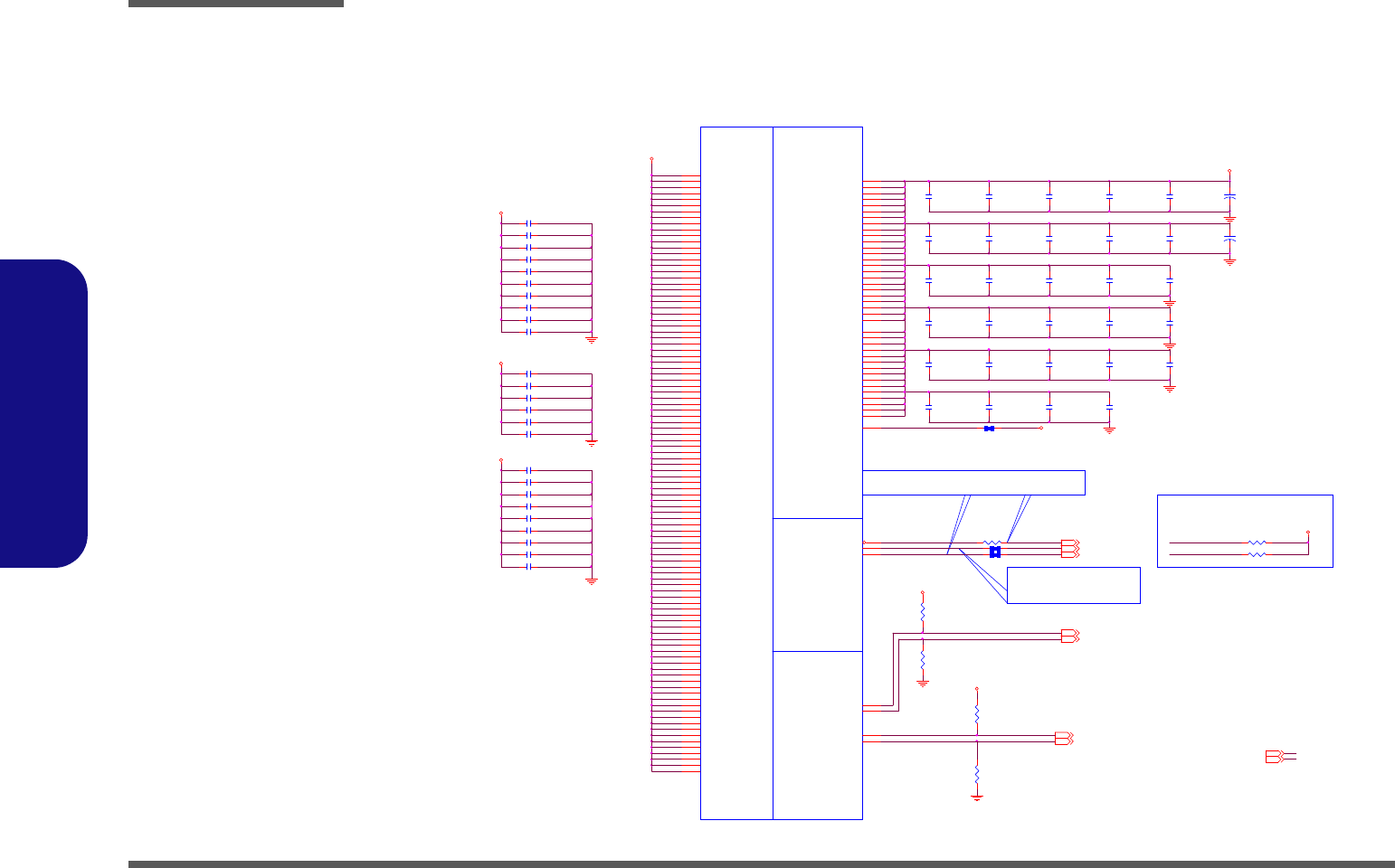

B - 6 Processor 4/7

B.Schematic Diagrams

Processor 4/7

Zdiff = 27.5 Ohm ¡Ó15% (MS 14/SL 16

ml)

SVID Signals

H_CPU_SVIDDAT_R

H_CPU_SVIDALRT#

CAD Note: H_CPU_SVIDALRT#_R,H_CPU_SVIDDAT_R

Place the PU resistors close to CPU

1.05VS

VCORE

1.05VS

VCORE

1.05VS

VCORE

PROCESSOR UNCORE POWER

VCCIO_SENSE

48A

PROCESSOR CORE POWER

8.5A

Ivy/Sandy Bridge Processor 4/7

H_CPU_SVIDALRT#_R

ICCMAX Maximum Processor SV 48

C440

560u_2.5V_6.6*6.6*5.9

+V1.05S_VCCP_F

C63

22u_6.3V_X5R_08

C57

22u_6.3V_X5R_08

C413 22u_6.3V_X5R_08

C76

22u_6.3V_X5R_08

C157

22u_6.3V_X5R_08

C118 *10u_6.3V_X5R_06

R80 *20mil_04

C100 *22u_6.3V_X5R_08

C75 *10u_6.3V_X5R_06

C436

*22u_6.3V_X5R_08

C88 22u_6.3V_X5R_08

R317

*10_04

C105 *10u_6.3V_X5R_06

R316

*10_04

C72 22u_6.3V_X5R_08

C59

22u_6.3V_X5R_08

C417 22u_6.3V_X5R_08

C67

22u_6.3V_X5R_08

C395 22u_6.3V_X5R_08

C434

22u_6.3V_X5R_08

C406 *10u_6.3V_X5R_06

C128 *10u_6.3V_X5R_06

VCORE[40] 1.05VS[2,3,6,14,15,16,19,20,21,35,38,39]

C113 22u_6.3V_X5R_08

C388

22u_6.3V_X5R_08

C82 22u_6.3V_X5R_08

C397 22u_6.3V_X5R_08

C70 22u_6.3V_X5R_08

C132 *22u_6.3V_X5R_08

C402 *10u_6.3V_X5R_06

CAD Note: H_CPU_SVIDCLK_R

Place the PU

resistors close to VR

R87 75_1%_04

C135 *10u_6.3V_X5R_06

C410 *22u_6.3V_X5R_08

C404 22u_6.3V_X5R_08

C79 22u_6.3V_X5R_08

Zdiff = 50 Ohm ¡Ó15% (MS 5/SL 5.5

ml)

R88 130_1%_04

C387

22u_6.3V_X5R_08

C398 22u_6.3V_X5R_08

C428

*22u_6.3V_X5R_08

POWER

CORE SUPPLY

PEG AND DDR

SENSE LINES SVID

U21F

FOXCONN PZ98821-362B-01H

VCC_SENSE AJ35

VSS_SENSE AJ34

VIDALERT# AJ29

VIDSCLK AJ30

VIDSOUT AJ28

VSS_SENSE_VCCIO A10

VCC1

AG35

VCC2

AG34

VCC3

AG33

VCC4

AG32

VCC5

AG31

VCC6

AG30

VCC7

AG29

VCC8

AG28

VCC9

AG27

VCC10

AG26

VCC11

AF35

VCC12

AF34

VCC13

AF33

VCC14

AF32

VCC15

AF31

VCC16

AF30

VCC17

AF29

VCC18

AF28

VCC19

AF27

VCC20

AF26

VCC21

AD35

VCC22

AD34

VCC23

AD33

VCC24

AD32

VCC25

AD31

VCC26

AD30

VCC27

AD29

VCC28

AD28

VCC29

AD27

VCC30

AD26

VCC31

AC35

VCC32

AC34

VCC33

AC33

VCC34

AC32

VCC35

AC31

VCC36

AC30

VCC37

AC29

VCC38

AC28

VCC39

AC27

VCC40

AC26

VCC41

AA35

VCC42

AA34

VCC43

AA33

VCC44

AA32

VCC45

AA31

VCC46

AA30

VCC47

AA29

VCC48

AA28

VCC49

AA27

VCC50

AA26

VCC51

Y35

VCC52

Y34

VCC53

Y33

VCC54

Y32

VCC55

Y31

VCC56

Y30

VCC57

Y29

VCC58

Y28

VCC59

Y27

VCC60

Y26

VCC61

V35

VCC62

V34

VCC63

V33

VCC64

V32

VCC65

V31

VCC66

V30

VCC67

V29

VCC68

V28

VCC69

V27

VCC70

V26

VCC71

U35

VCC72

U34

VCC73

U33

VCC74

U32

VCC75

U31

VCC76

U30

VCC77

U29

VCC78

U28

VCC79

U27

VCC80

U26

VCC81

R35

VCC82

R34

VCC83

R33

VCC84

R32

VCC85

R31

VCC86

R30

VCC87

R29

VCC88

R28

VCC89

R27

VCC90

R26

VCC91

P35

VCC92

P34

VCC93

P33

VCC94

P32

VCC95

P31

VCC96

P30

VCC97

P29

VCC98

P28

VCC99

P27

VCC100

P26

VCCIO1 AH13

VCCIO12 J11

VCCIO18 G12

VCCIO19 F14

VCCIO20 F13

VCCIO21 F12

VCCIO22 F11

VCCIO23 E14

VCCIO24 E12

VCCIO2 AH10

VCCIO3 AG10

VCCIO4 AC10

VCCIO5 Y10

VCCIO6 U10

VCCIO7 P10

VCCIO8 L10

VCCIO9 J14

VCCIO10 J13

VCCIO11 J12

VCCIO13 H14

VCCIO14 H12

VCCIO15 H11

VCCIO16 G14

VCCIO17 G13

VCCIO25 E11

VCCIO32 C12

VCCIO33 C11

VCCIO34 B14

VCCIO35 B12

VCCIO36 A14

VCCIO37 A13

VCCIO38 A12

VCCIO39 A11

VCCIO26 D14

VCCIO27 D13

VCCIO28 D12

VCCIO29 D11

VCCIO30 C14

VCCIO31 C13

VCCIO_SENSE B10

VCCIO40 J23

C424

*22u_6.3V_X5R_08

C400 *10u_6.3V_X5R_06

C89 *10u_6.3V_X5R_06

R86 43_1%_04

C409 *10u_6.3V_X5R_06

C71

*22u_6.3V_X5R_08

C408

*22u_6.3V_X5R_08

C405

*22u_6.3V_X5R_08

C396

*22u_6.3V_X5R_08

C393

*22u_6.3V_X5R_08

C399

*22u_6.3V_X5R_08

C403

*22u_6.3V_X5R_08

C394

*22u_6.3V_X5R_08

C117

*22u_6.3V_X5R_08

C110

*22u_6.3V_X5R_08

C134

*22u_6.3V_X5R_08

C98

*22u_6.3V_X5R_08

C127

*22u_6.3V_X5R_08

C416

*22u_6.3V_X5R_08

C90

*22u_6.3V_X5R_08

C140

*22u_6.3V_X5R_08

C412

*22u_6.3V_X5R_08

H_CPU_SVIDDAT [39]

VCORE_VC C_SENSE [39]

VCORE_VSS_SEN SE [39]

H_CPU_SVIDCLK [39]

H_CPU_SVIDALR T# [39]

VSSIO_SENSE [35]

C439

*220u_6.3V_6.3*6.3*4.2

R85 *20mil_04

R89 *20mil_04

VCCIO_SENSE [35]

H_CPU_SVIDCLK_R

H_CPU_SVIDDAT_R

VSSIO_SENSE

R82

100_04

R81

100_04

Sheet 5 of 47

Processor 4/7

Schematic Diagrams

Processor 5/7 B - 7

B.Schematic Diagrams

Processor 5/7

6-11-3971P-0B0

6-11-3971P-0B1

6-11-3971P-0B2

6-11-3971P-0B0

6-11-3971P-0B1

6-11-3971P-0B2

R83 100_04

On CRB ( Need connect to VRM )

H_SNB_IVB#_PWRCTRL = Low, 1.0V

H_SNB_IVB#_PWRCTRL = High/NC, 1.05V

D03

All VDDQ = 6A

VCCSA_SENSE

All VDDQ = 12A

All VCCPLL = 1.2A

Ivy/Sandy Bridge Processor 5/7 ( GRAPHICS POWER )

All VAXG = 33A

V_SM_VREF

Zdiff = 27.5 Ohm ¡Ó15% (MS 14/SL 16

ml)

VGFX_CORE

1.5V

1.8VS

3.3V

VGFX_CORE

1.05VS

0.85VS

1.5V

C81

22u_6.3V_X5R_08

C106

22u_6. 3V_X5R_08

C93

22u_6.3V_X5R_08

Zdiff = 50 Ohm ¡Ó15% (MS 5/SL 5.5

ml)

C376

390uF_2.5V_10m_6.3*5.8

CAD Note: +V_SM_VREF should

have 10 mil trace width

V_SM_VREF

D03

R321 10K_04

V_SM_VREF_C NT

C435

*22u_6.3V_X5R_08

C373

*22u_6.3V_X5R_08

C430

*22u_6. 3V_X5R_08

C380

*22u_6. 3V_X5R_08

V_SM_VREF_CNT SUSB# [16,26,29,31,33,34,35]

0.85VS[38]

VGFX_CORE[40]

1.8VS[20,37] 1.5V[3,9,10,21,37]

3.3V[2,3,11,27,28,30, 31,33,34,37,38]

1.05VS[2,3,5,14,15,16,19, 20, 21,35,38,39]

C390

22u_6. 3V_X5R_08

R84 100_04

C389

22u_6. 3V_X5R_08

C122

*10u_6.3V_X5R_06

C374

22u_6.3V_X5R_08

C78

*10u_6.3V_X5R_06

C112

*10u_6. 3V_X5R_06

C425 *0.1u_10V_X5R_04

Q20

*AO3402L

C433

22u_6.3V_X5R_08

R322 *10K_04 R324

*10K_04

R330

*100K_1%_04

C92

*10u_6. 3V_X5R_06

C377

22u_6.3V_X5R_08

C426

22u_6.3V_X5R_08

C369

220u_6.3V_6.3*6.3*4.2

R323

*10K_04

20mil

R332

1K_1%_04

20mil

C431

*22u_6.3V_X5R_08

R333 *20mil_04

C156

22u_6.3V_X5R_08

C65

*10u_6. 3V_X5R_06

C66

*10u_6. 3V_X5R_06

VSS_GT_SEN SE [39]

VCC _GT_SENSE [39]

POWER

GRAPHICS

DDR3 -1.5V RAILS SENSE

LINES

1.8V RAIL

SA RAIL

VREFMISC

U21G

FOXCONN PZ98821-362B-01H

SM_VREF AL1

VSSAXG_SENSE AK34

VAXG_SENSE AK35

VAXG1

AT24

VAXG2

AT23

VAXG3

AT21

VAXG4

AT20

VAXG5

AT18

VAXG6

AT17

VAXG7

AR24

VAXG8

AR23

VAXG9

AR21

VAXG10

AR20

VAXG11

AR18

VAXG12

AR17

VAXG13

AP24

VAXG14

AP23

VAXG15

AP21

VAXG16

AP20

VAXG17

AP18

VAXG18

AP17

VAXG19

AN24

VAXG20

AN23

VAXG21

AN21

VAXG22

AN20

VAXG23

AN18

VAXG24

AN17

VAXG25

AM24

VAXG26

AM23

VAXG27

AM21

VAXG28

AM20

VAXG29

AM18

VAXG30

AM17

VAXG31

AL24

VAXG32

AL23

VAXG33

AL21

VAXG34

AL20

VAXG35

AL18

VAXG36

AL17

VAXG37

AK24

VAXG38

AK23

VAXG39

AK21

VAXG40

AK20

VAXG41

AK18

VAXG42

AK17

VAXG43

AJ24

VAXG44

AJ23

VAXG45

AJ21

VAXG46

AJ20

VAXG47

AJ18

VAXG48

AJ17

VAXG49

AH24

VAXG50

AH23

VAXG51

AH21

VAXG52

AH20

VAXG53

AH18

VAXG54

AH17

VDDQ11 U4

VDDQ12 U1

VDDQ13 P7

VDDQ14 P4

VDDQ15 P1

VDDQ1 AF7

VDDQ2 AF4

VDDQ3 AF1

VDDQ4 AC7

VDDQ5 AC4

VDDQ6 AC1

VDDQ7 Y7

VDDQ8 Y4

VDDQ9 Y1

VDDQ10 U7

VCCPLL1

VCCPLL2

VCCSA1 M27

VCCSA2 M26

VCCSA3 L26

VCCSA4 J26

VCCSA5 J25

VCCSA6 J24

VCCSA7 H26

VCCSA8 H25

VCCSA_SENSE H23

VCCSA_VID[1] C24

VCCPLL3

A2 VCCSA_VID[0] C22

SA_DIMM_VREF DQ B4

SB_DIMM_VREF DQ D1

VCCIO_SEL A19

C423

22u_6.3V_X5R_08

C145

22u_6.3V_X5R_08

C54

10u_6. 3V_X5R_06

C392

*10u_6.3V_X5R_06

C385

*22u_6.3V_X5R_08

R329

1K_1%_04

C378

*22u_6. 3V_X5R_08

C379

22u_6.3V_X5R_08

C55

1u_6.3V_X5R_04

C429

22u_6.3V_X5R_08

C432

*22u_6.3V_X5R_08

C381

390uF_2.5V_10m_6.3*5.8

C144

22u_6.3V_X5R_08

C427

22u_6.3V_X5R_08

C56

1u_6.3V_X5R_04

C104

*10u_6. 3V_X5R_06

C391

*10u_6.3V_X5R_06

C96

*10u_6. 3V_X5R_06

VR EF _CH_A_DIMM [9]

VCCSA_VID0 [38]

VCCSA_SENSE [38]

VR EF _CH_B_DIMM [10]

VCCSA_VID 1 [38]

20mil20m il

H_SNB_IVB#_PWRCTRL

Sheet 6 of 47

Processor 5/7

Schematic Diagrams

B - 8 Processor 6/7

B.Schematic Diagrams

Processor 6/7

VSS

U21H

FOXCONN PZ98821-362B-01H

VSS1

AT35

VSS2

AT32

VSS3

AT29

VSS4

AT27

VSS5

AT25

VSS6

AT22

VSS7

AT19

VSS8

AT16

VSS9

AT13

VSS10

AT10

VSS11

AT7

VSS12

AT4

VSS13

AT3

VSS14

AR25

VSS15

AR22

VSS16

AR19

VSS17

AR16

VSS18

AR13

VSS19

AR10

VSS20

AR7

VSS21

AR4

VSS22

AR2

VSS23

AP34

VSS24

AP31

VSS25

AP28

VSS26

AP25

VSS27

AP22

VSS28

AP19

VSS29

AP16

VSS30

AP13

VSS31

AP10

VSS32

AP7

VSS33

AP4

VSS34

AP1

VSS35

AN30

VSS36

AN27

VSS37

AN25

VSS38

AN22

VSS39

AN19

VSS40

AN16

VSS41

AN13

VSS42

AN10

VSS43

AN7

VSS44

AN4

VSS45

AM29

VSS46

AM25

VSS47

AM22

VSS48

AM19

VSS49

AM16

VSS50

AM13

VSS51

AM10

VSS52

AM7

VSS53

AM4

VSS54

AM3

VSS55

AM2

VSS56

AM1

VSS57

AL34

VSS58

AL31

VSS59

AL28

VSS60

AL25

VSS61

AL22

VSS62

AL19

VSS63

AL16

VSS64

AL13

VSS65

AL10

VSS66

AL7

VSS67

AL4

VSS68

AL2

VSS69

AK33

VSS70

AK30

VSS71

AK27

VSS72

AK25

VSS73

AK22

VSS74

AK19

VSS75

AK16

VSS76

AK13

VSS77

AK10

VSS78

AK7

VSS79

AK4

VSS80

AJ25

VSS81 AJ22

VSS82 AJ19

VSS83 AJ16

VSS84 AJ13

VSS85 AJ10

VSS86 AJ7

VSS87 AJ4

VSS88 AJ3

VSS89 AJ2

VSS90 AJ1

VSS91 AH 35

VSS92 AH 34

VSS93 AH 32

VSS94 AH 30

VSS95 AH 29

VSS96 AH 28

VSS98 AH 25

VSS99 AH 22

VSS100 AH19

VSS101 AH16

VSS102 AH7

VSS103 AH4

VSS104 AG9

VSS105 AG8

VSS106 AG4

VSS107 AF6

VSS108 AF5

VSS109 AF3

VSS110 AF2

VSS111 AE35

VSS112 AE34

VSS113 AE33

VSS114 AE32

VSS115 AE31

VSS116 AE30

VSS117 AE29

VSS118 AE28

VSS119 AE27

VSS120 AE26

VSS121 AE9

VSS122 AD7

VSS123 AC9

VSS124 AC8

VSS125 AC6

VSS126 AC5

VSS127 AC3

VSS128 AC2

VSS129 AB35

VSS130 AB34

VSS131 AB33

VSS132 AB32

VSS133 AB31

VSS134 AB30

VSS135 AB29

VSS136 AB28

VSS137 AB27

VSS138 AB26

VSS139 Y9

VSS140 Y8

VSS141 Y6

VSS142 Y5

VSS143 Y3

VSS144 Y2

VSS145 W35

VSS146 W34

VSS147 W33

VSS148 W32

VSS149 W31

VSS150 W30

VSS151 W29

VSS152 W28

VSS153 W27

VSS154 W26

VSS155 U9

VSS156 U8

VSS157 U6

VSS158 U5

VSS159 U3

VSS160 U2

Ivy\Sandy Bridge Processor 6/7 ( GND )

VSS

U21I

FOXCONN PZ98821-362B-01H

VSS161

T35

VSS162

T34

VSS163

T33

VSS164

T32

VSS165

T31

VSS166

T30

VSS167

T29

VSS168

T28

VSS169

T27

VSS170

T26

VSS171

VSS172

VSS173

VSS174

VSS175

VSS176

VSS177

N35

VSS178

N34

VSS179

N33

VSS180

N32

VSS181

N31

VSS182

N30

VSS183

N29

VSS184

N28

VSS185

N27

VSS186

N26

VSS187

M34

VSS188

L33

VSS189

L30

VSS190

L27

VSS191

VSS192

VSS193

VSS194

VSS195

VSS196

VSS197

VSS198

VSS199

K35

VSS200

K32

VSS201

K29

VSS202

K26

VSS203

J34

VSS204

J31

VSS205

H33

VSS206

H30

VSS207

H27

VSS208

H24

VSS209

H21

VSS210

H18

VSS211

H15

VSS212

H13

VSS213

H10

VSS214

VSS215

VSS216

VSS217

VSS218

VSS219

VSS220

VSS221

VSS222

VSS223

G35

VSS224

G32

VSS225

G29

VSS226

G26

VSS227

G23

VSS228

G20

VSS229

G17

VSS230

G11

VSS231

F34

VSS232

F31

VSS233

F29

VSS234 F22

VSS235 F19

VSS236 E30

VSS237 E27

VSS238 E24

VSS239 E21

VSS240 E18

VSS241 E15

VSS242 E13

VSS243 E10

VSS244 E9

VSS245 E8

VSS246 E7

VSS247 E6

VSS248 E5

VSS249 E4

VSS250 E3

VSS251 E2

VSS252 E1

VSS253 D35

VSS254 D32

VSS255 D29

VSS256 D26

VSS257 D20

VSS258 D17

VSS259 C34

VSS260 C31

VSS261 C28

VSS262 C27

VSS263 C25

VSS264 C23

VSS265 C10

VSS266 C1

VSS267 B22

VSS268 B19

VSS269 B17

VSS270 B15

VSS271 B13

VSS272 B11

VSS273 B9

VSS274 B8

VSS275 B7

VSS276 B5

VSS277 B3

VSS278 B2

VSS279 A35

VSS280 A32

VSS281 A29

VSS282 A26

VSS283 A23

VSS284 A20

VSS285 A3

CAD Note: 0 ohm resistor

should be placed close

to CPU

Sheet 7 of 47

Processor 6/7

Schematic Diagrams

Processor 7/7 B - 9

B.Schematic Diagrams

Processor 7/7

R94 *1K_04

R95 *1K_04

R98 *1K_04

R92 *1K_04

R93 *1K_04

CFG6

CFG5

11: (Default) x16 - Device 1 functions 1 and 2 disabled

10: x8, x8 - Device 1 function 1 enabled ; function 2 disabled

01: Reserved - (Device 1 function 1 disabled ; function 2 enabled)

00: x8,x4,x4 - Device 1 functions 1 and 2 enabled

CFG[6:5]

PCIE Port Bifurcation Straps

RESERVED

CFG

U21E

FOXCONN PZ98821-362B-01H

CFG[0]

AK28

CFG[1]

AK29

CFG[2]

AL26

CFG[3]

AL27

CFG[4]

AK26

CFG[5]

AL29

CFG[6]

AL30

CFG[7]

AM31

CFG[8]

AM32

CFG[9]

AM30

CFG[10]

AM28

CFG[11]

AM26

CFG[12]

AN28

CFG[13]

AN31

CFG[14]

AN26

CFG[15]

AM27

CFG[16]

AK31

CFG[17]

AN29

RSVD34 AM33

RSVD35 AJ27

RSVD38 J16

RSVD_NCTF42 AT34

RSVD39 H16

RSVD40 G16

RSVD_NCTF41 AR35

RSVD_NCTF43 AT33

RSVD_NCTF45 AR34

RSVD_NCTF56 AT2

RSVD_NCTF57 AT1

RSVD_NCTF58 AR1

RSVD_NCTF46 B34

RSVD_NCTF47 A33

RSVD_NCTF48 A34

RSVD_NCTF49 B35

RSVD_NCTF50 C35

RSVD51 AJ32

RSVD52 AK32

RSVD27

J15

RSVD16

C30 RSVD15

D23

RSVD17

A31

RSVD18

B30

RSVD20

D30 RSVD19

B29

RSVD22

A30 RSVD21

B31

RSVD23

C29

RSVD37 T8

RSVD8

F25

RSVD9

F24

RSVD11

D24

RSVD12

G25

RSVD13

G24

RSVD14

E23

RSVD32 W8

RSVD33 AT26

RSVD_NCTF44 AP35

RSVD10

F23

RSVD5

AJ26

VAXG_VAL_SENSE

AJ31

VSSAXG_VAL_SENSE

AH31

VCC_VAL_SENSE

AJ33

VSS_VAL_SENSE

AH33

KEY B1

VCC_DIE_SENSE AH27

BCLK_ITP AN35

BCLK_ITP# AM35

VSS_DIE_SENSE AH26

RSVD31 AK2

RSVD30 AE7

RSVD29 AG7

RSVD28 L7

RSVD24

J20

RSVD25

B18

PEG DEFER TRAINING

1: (Default) PEG Train immediately following xxRESETB de assertion

0: PEG Wait for BIOS for training

CFG7

CFG2

CFG4

CFG Straps for Processor

PEG Static Lane Reversal - CFG2 is for the 16x

1:(Default) Normal Operation; Lane #

definition matches socket pin map definition

0:Lane Reversed

Display Port Presence Strap

1:(Default) Disabled; No Physical Display Port

attached to Embedded Display Port

0:Enabled; An external Display Port device is

connected to the Embedded Display Port

CFG4

H_CPU_RSVD1

H_CPU_RSVD4

H_CPU_RSVD3

H_CPU_RSVD2

VSS_DIE_SENSE

VCC_DIE_SENSE

CFG7

CFG4

CFG2

CFG6

CFG0

CFG5

BCLK_ITP

BCLK_ITP#

Ivy/Sandy Bridge Processor 7/7

( RESERVED )

Sheet 8 of 47

Processor 7/7

Schematic Diagrams

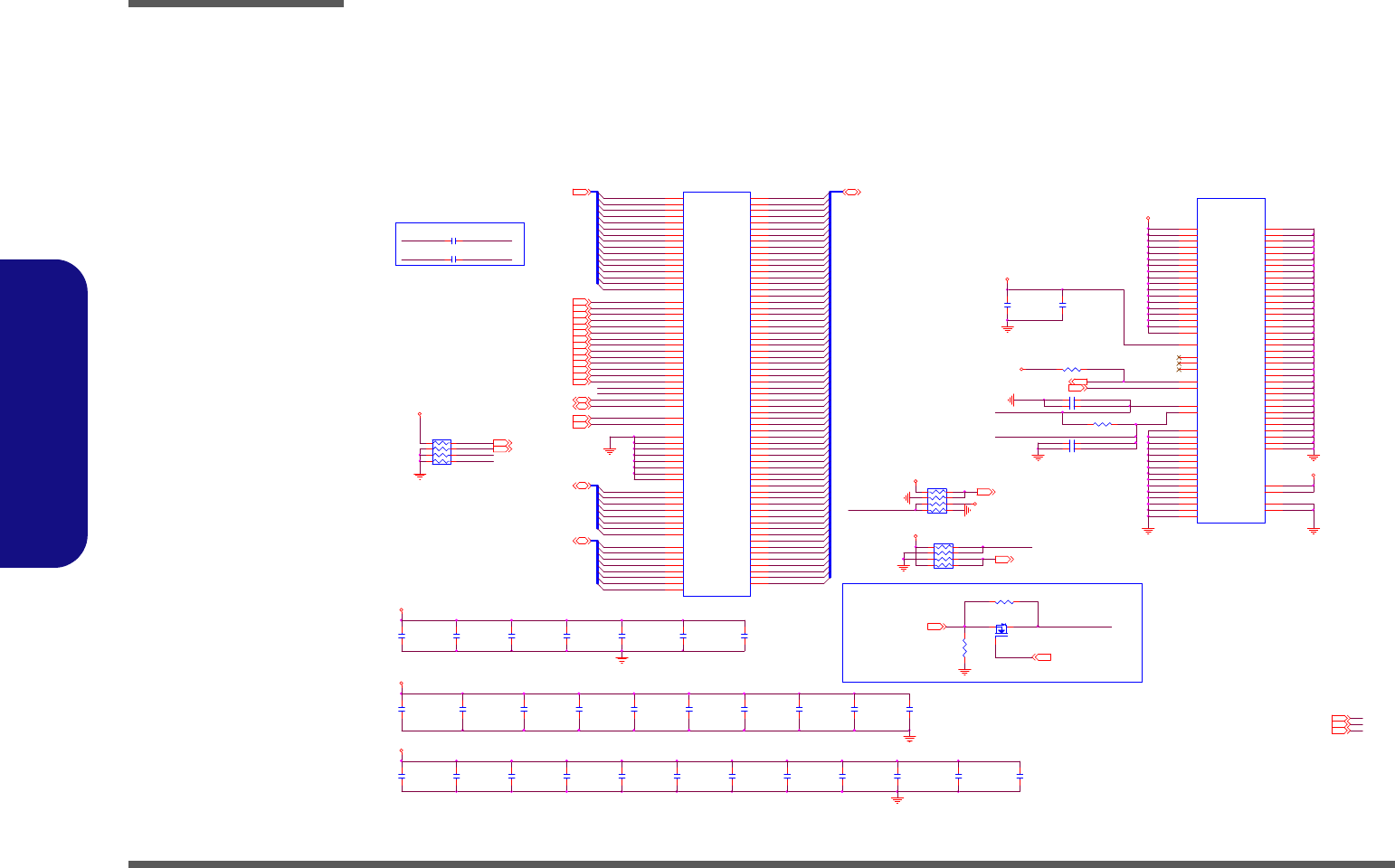

B - 10 DDR3 SO-DIMM_0

B.Schematic Diagrams

DDR3 SO-DIMM_0

MVREF_DQ_D IMMA

R41

*1K_1%_04

RN1

1K_8P4R_04

8 1

7 2

M_A_DQS#[7:0][4]

M_A_DQS[7:0][4]

M_A_DQ[63:0] [4]

SMB_DATA[10,15] SMB_CLK[10,15]

JDIMM2A

DDRSK-20401-TR5B

ddr3_sodimm_204p_std_h52

A10/AP

107

A11

A12/BC#

A13

119

A14

A15

DQ0 5

DQ1 7

DQ2 15

DQ3 17

DQ4 4

DQ5 6

DQ6 16

DQ7 18

DQ8 21

DQ9 23

DQ10 33

DQ11 35

DQ12 22

DQ13 24

DQ14 34

DQ15 36

DQ16 39

DQ17 41

DQ18 51

DQ19 53

DQ20 40

DQ21 42

DQ22 50

DQ23 52

DQ24 57

DQ25 59

DQ26 67

DQ27 69

DQ28 56

DQ29 58

DQ30 68

DQ31 70

DQ32 129

DQ33 131

DQ34 141

DQ35 143

DQ36 130

DQ37 132

DQ38 140

DQ39 142

DQ40 147

DQ41 149

DQ42 157

DQ43 159

DQ44 146

DQ45 148

DQ46 158

DQ47 160

DQ48 163

DQ49 165

DQ50 175

DQ51 177

DQ52 164

DQ53 166

DQ54 174

DQ55 176

DQ56 181

DQ57 183

DQ58 191

DQ59 193

DQ60 180

DQ61 182

DQ62 192

DQ63 194

BA0

109

BA1

108

RAS#

110

WE#

113

CAS#

115

S0#

114

S1#

121

CKE0

CKE1

CK0

101

CK0#

103

CK1

102

CK1#

104

SDA

200 SCL

202 SA1

201 SA0

197

DM0

DM1

DM2

DM3

DM4

136

DM5

153

DM6

170

DM7

187

DQS0

DQS1

DQS2

DQS3

DQS4

137

DQS5

154

DQS6

171

DQS7

188

DQS0#

DQS1#

DQS2#

DQS3#

DQS4#

135

DQS5#

152

DQS6#

169

DQS7#

186

ODT0

116

ODT1

120

BA2

C119

1u_6.3V_X5R_04

C43 1u_6.3V_X5R_04

C44 0.1u_10V_X5R_04

C130

1u_6.3V_X5R_04

C178

*1u_6.3V_X5R_04

C183

10u_6.3V_X5R_06

C181

*1u_6.3V_X5R_04

C137

1u_6.3V_X5R_04

R90 *0_04

C129

0.1u_10V_X5R_04

C97

0.1u_10V_X5R_04

C177

*1u_6.3V_X5R_04

C91

0.1u_10V_X5R_04

C163

1u_6.3V_X5R_04

C83

10u_6.3V_X5R_06

C94

0.1u_10V_X5R_04

C150 1u_6.3V_X5R_04

JDIMM2B

DDR SK-20401-TR5B

ddr3_sodimm_204p_std_h52

VDD1

VDD2

VDD3

VDD4

VDD5

VDD6

VDD7

VDD8

VDD9

VDD10

100

VDD11

105

VDD12

106

VDD SPD

199

NC1

NC2

122

NCTEST

125

VREF _DQ

VSS1

VSS2

VSS3

VSS4

VSS5

VSS6

VSS7

VSS8

VSS9

VSS10

VSS11

VSS12

VSS13

VSS14

VSS15

VSS16 44

VSS17 48

VSS18 49

VSS19 54

VSS20 55

VSS21 60

VSS22 61

VSS23 65

VSS24 66

VSS25 71

VSS26 72

VSS27 127

VSS28 128

VSS29 133

VSS30 134

VSS31 138

VSS32 139

VSS33 144

VSS34 145

VSS35 150

VSS36 151

VSS37 155

VSS38 156

VSS39 161

VSS40 162

VSS41 167

VSS42 168

VSS43 172

VSS44 173

VSS45 178

VSS46 179

VSS47 184

VSS48 185

VSS49 189

VSS50 190

VSS51 195

VSS52 196

G2 GND2

G1 GND1

VTT2 204

VTT1 203

VREF _CA

126

RESET#

30 EVENT#

198

VDD13

111

VDD14

112

VDD16

118 VDD15

117

VDD17

123

VDD18

124

C85

0.1u_10V_X5R_04

C151 0.1u_10V_X5R_04

C182

*1u_6.3V_X5R_04

C107

0.1u_10V_X5R_04

C126

1u_6.3V_X5R_04

R108 *10K_04

C121

0.1u_10V_X5R_04

6-86-24204-009

C136

1u_6.3V_X5R_04

RN3

10K_8P4R_04

81 72 6

C162

0.1u_10V_X5R_04

C84

0.1u_10V_X5R_04

C103

10u_6.3V_X5R_06

R42 *0_04

C141

0.1u_10V_X5R_04

*AO3402L

C133

10u_6.3V_X5R_06

C108

0.1u_10V_X5R_04

3.3VS

VTT_MEM

1.5V

3.3VS

1.5V

VTT_MEM

3.3VS

1.5V

C179

4.7u_6.3V_X5R_06

C180

4.7u_6.3V_X5R_06

Processor

Sandy Bridge/Ivy Bridge Stuff R42

Sandy Bridge Only Unstuf f ed R42

MVREF_DQ_D IMMA

M_A_RAS#[4]

M_A_BS1[4]

M_A_CLK_DDR1[4]

M_A_CAS#[4]

M_A_CLK_DDR#1[4]

M_A_ O DT1[4] M_A_ O D T0[4]

M_A_BS0[4]

M_A_W E#[4]

M_A_BS2[4]

M_A_CKE0[4]

M_A_CLK_DDR0[4]

VTT_MEM[10,37]

M_A_CLK_DDR#0[4]

M_A_CS#1[4]

M_A_CKE1[4]

M_A_A[15:0][4]

M_A_CS#0[4]

3.3VS[3,10,11,12,13,14,15,16,17,18,19,20,21,25,26,27,28,29,30,31,32,33, 34,39]

DRAMRST_CNTRL [3,10,15]

DDR3_DRAMRST#[3,10]

1.5V[3,6,10,21,37]

VREF_CH_A_DIMM[6]

C102

*22u_6.3V_X5R_08

C115 *10p_50V_NPO_04

C114 *10p_50V_NPO_04

C101

*22u_6.3V_X5R_08

C143

*22u_6.3V_X5R_08

C80

*22u_6.3V_X5R_08

SO-DIMM A

H=5.2mm

M_A _D Q2

M_A _D Q1

M_A _D Q3 1

M_A _D Q3 0

M_A _D Q2 9

M_A _D Q4

M_A _D Q3

M_A _D Q3 7

M_A _D Q3 6

M_A _D Q3 5

M_A _D Q3 4

M_A _D Q3 3

M_A _D Q3 2

M_A _D Q4 3

M_A _D Q4 2

M_A _D Q4 1

M_A _D Q4 0

M_A _D Q3 9

M_A _D Q3 8

M_A _D Q4 7

M_A _D Q4 6

M_A _D Q4 5

M_A _D Q4 4

M_A _D Q5 2

M_A _D Q5 1

M_A _D Q2 8

M_A _D Q5 0

M_A _D Q4 9

M_A _D Q5

M_A _D Q4 8

M_A _D Q5 5

M_A _D Q5 4

M_A _D Q5 3

M_A _D Q6 1

M_A _D Q6 0

M_A _D Q5 8

M_A _D Q5 7

M_A _D Q5 6

M_A _D Q6

M_A _D Q8

M_A _D Q7

M_A _D Q5 9

M_A _D Q6 3

M_A _D Q6 2

M_A_C LK_DD R# 1

M_A_CLK_DDR0

M_A_CLK_DDR1

M_A _D Q1 4

M_A _D Q1 3

M_A _D Q1 2

M_A _D Q1 1

M_A _D Q9

M_A_C LK_DD R# 0

M_A _D Q1 7

M_A _D Q1 6

M_A _D Q1 5

M_A _D Q2 1

M_A _D Q1 0

M_A _D Q1 9

M_A _D Q1 8

M_A _D Q2 5

M_A _D Q2 4

M_A _D Q2 3

M_A _D Q0

M_A _D Q2 2

M_A _D Q2 0

M_A _D Q2 7

M_A _D Q2 6

MVREF_DQ_DIMMA

CLOSE TO JDIMM2

MVREF_DIM0

20mils

RN2

1K_8P4R_04

8 1

7 2

SA0_DIM0

SA1_DIM0

MV R EF _ D I M0

M_A_A8

M_A_A9

M_A_A2

M_A_A3

M_A_A4

M_A_A6

M_A_A5

M_A_A7

M_A_A13

M_A_A14

M_A_A15

M_A_A0

M_A_A1

M_A_A10

M_A_A12

M_A_A11

M_A_DQS1

M_A_DQS0

M_A_DQS2

M_A_DQS4

M_A_DQS3

M_A_DQS5

M_A_DQS6

M_A_DQS#1

M_A_DQS#0

M_A_DQS7

M_A_DQS#4

M_A_DQS#3

M_A_DQS#2

M_A_DQS#5

M_A_DQS#7

M_A_DQS#6

SA1_DI M1 [10]

TS#_D IMM0_1[10]

MVREF_DQ_DIMMB [10]

MVREF_D IM1 [10]

SA0_DI M1 [10]

SA1_DI M1

SA0_DI M1

SA1_DI M0

SA0_DI M0

Sheet 9 of 47

DDR3 SO-DIMM_0

CHANGE TO STANDARD

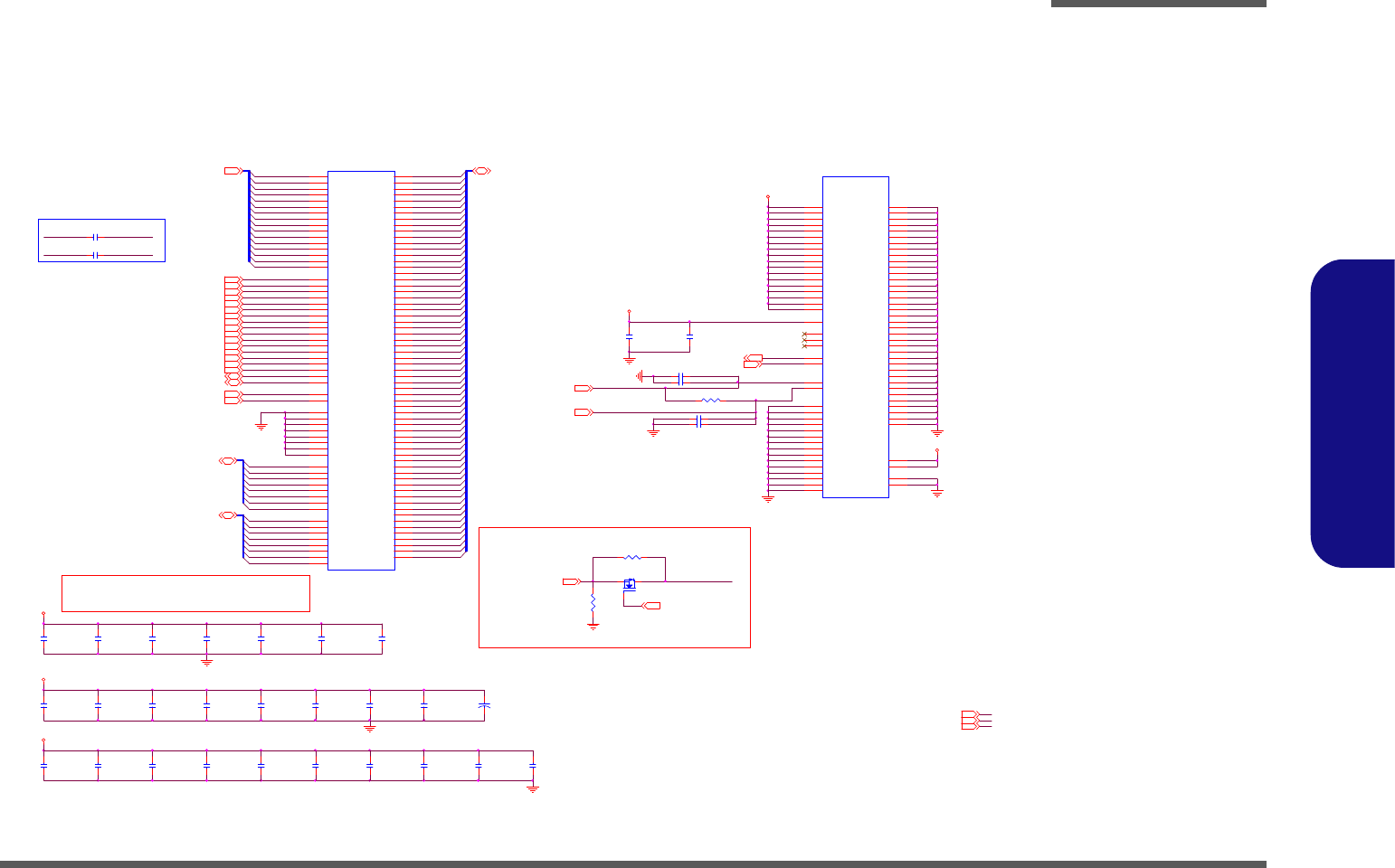

SO-DIMM B

H=9.2mm

M_B_D Q 31

M_B_D Q 46

M_B_D Q 24

M_B_D Q 56

M_B_D Q 28

M_B_D Q 11

M_B_D Q 1

M_B_D Q 16

M_B_D Q 23

M_B_D Q 61

M_B_D Q 13

M_B_D Q 40

M_B_D Q 54

M_B_D Q 62

M_B_D Q 58

M_B_D Q 50

M_B_D Q 41

M_B_D Q 57

M_B_D Q 37

M_B_D Q 60

M_B_D Q 2

M_B_D Q 5

M_B_D Q 25

M_B_D Q 30

M_B_D Q 27

M_B_D Q 44

M_B_D Q 17

M_B_D Q 3

M_B_D Q 7

M_B_D Q 9

M_B_D Q 34

M_B_D Q 59

M_B_D Q 35

M_B_D Q 36

M_B_D Q 47

M_B_D Q 43

M_B_D Q 38

M_B_D Q 63

M_B_D Q 33

M_B_D Q 42

M_B_D Q 8

M_B_D Q 15

M_B_D Q 4

M_B_D Q 26

M_B_D Q 45

M_B_D Q 48

M_B_D Q 55

M_B_D Q 29

M_B_D Q 10

M_B_D Q 52

M_B_D Q 53

M_B_D Q 12

M_B_D Q 6

M_B_D Q 19

M_B_D Q 18

M_B_D Q 0

M_B_D Q 21

M_B_D Q 20

M_B_D Q 39

M_B_D Q 49

M_B_D Q 51

M_B_D Q 14

M_B_D Q 22

M_B_D Q 32

M_B_B5

M_B_B1

M_B_B2

M_B_B3

M_B_B4

M_B_B6

M_B_B9

M_B_B10

M_B_B11

M_B_B13

M_B_B12

M_B_B0

20mils

M_B_B14

M_B_B7

M_B_B8

CLOSE TO JDIMM1

M_B_B15

M_B_DQS2

M_B_DQS1

M_B_DQS0

M_B_DQS7

M_B_DQS6

M_B_DQS5

M_B_DQS4

M_B_DQS3

M_B_DQS#5

M_B_DQS#4

M_B_DQS#3

M_B_DQS#2

M_B_DQS#1

M_B_DQS#0

M_B_DQS#7

M_B_DQS#6

Layout Note:

SO-DIMM_1 is placed farther from the GMCH than SO-DIMM_0

SMB_DATA[9,15]

M_B_DQ[63:0] [4]

M_B_DQS#[7:0][4]

M_ B_ D QS [ 7: 0 ][4]

SMB_CLK[9,15]

1.5V

VTT_MEM

3.3VS

VTT_MEM

1.5V

C123 *10p_50V_NPO_04

M_B_CLK_DDR#1

M_B_CLK_DDR#0

C124 *10p_50V_NPO_04

M_B_CLK_DDR1

M_B_CLK_DDR0

C139

0.1u_10V_X5R_04

C146

0.1u_10V_X5R_04

R38

*1K_1%_04

C149

1u_6.3V_X5R_04

C174

10u_6.3V_X5R_06

C172

*1u_6.3V_X5R_04

*AO3402L

C77

1u_6.3V_X5R_04

R91 *0_04

Proc es s or

Sandy Bridge/Ivy Bridge Stuff R45

Sandy Bridge Only Uns tuf fed R45

JDIMM1B

DD RSK-20401-TR9D

ddr3_sodimm_204p_std_h92

VDD1

VDD2

VDD3

VDD4

VDD5

VDD6

VDD7

VDD8

VDD9

VDD10

100

VDD11

105

VDD12

106

VDDSPD

199

NC1

NC2

122

NCTEST

125

VREF_DQ

VSS1

VSS2

VSS3

VSS4

VSS5

VSS6

VSS7

VSS8

VSS9

VSS10

VSS11

VSS12

VSS13

VSS14

VSS15

VSS16 44

VSS17 48

VSS18 49

VSS19 54

VSS20 55

VSS21 60

VSS22 61

VSS23 65

VSS24 66

VSS25 71

VSS26 72

VSS27 127

VSS28 128

VSS29 133

VSS30 134

VSS31 138

VSS32 139

VSS33 144

VSS34 145

VSS35 150

VSS36 151

VSS37 155

VSS38 156

VSS39 161

VSS40 162

VSS41 167

VSS42 168

VSS43 172

VSS44 173

VSS45 178

VSS46 179

VSS47 184

VSS48 185

VSS49 189

VSS50 190

VSS51 195

VSS52 196

G2 GND2

G1 GND1

VTT2 204

VTT1 203

VREF_CA

126

RESET#

30 EVENT#

198

VDD13

111

VDD14

112

VDD16

118 VDD15

117

VDD17

123

VDD18

124

C86

10u_6.3V_X5R_06

C95

0.1u_10V_X5R_04

C176

*1u_6.3V_X5R_04

C116

0.1u_10V_X5R_04

C148 0.1u_10V_X5R_04

C48 0.1u_10V_X5R_04

C109

10u_6. 3V_X5R_06

C131

10u_6. 3V_X5R_06

C87

0.1u_10V_X5R_04

C73

0.1u_10V_X5R_04

C138

1u_6.3V_X5R_04

C164

0.1u_10V_X5R_04

C47 1u_6.3V_X5R_04

3.3VS[3,9,11,12,13,14,15,16,17,18, 19,20,21,25,26, 27,28,29,30,31,32,33,34,39]

M_B_BS1[4]

M_ B_ C LK _D D R 1[4]

M_B_B [ 1 5:0][4]

VTT_MEM[9,37]

M_B_CAS#[4]

M_B_CLK_DDR#1[4]

M_B_RAS#[4]

M_ B_ C LK _D D R 0[4]

M_B_BS0[4]

M_B_WE#[4]

JDIMM1A

DDRSK-20401-TR9D

ddr3_sodimm_204p_std_h92

A10/AP

107

A11

A12/BC#

A13

119

A14

A15

DQ0 5

DQ1 7

DQ2 15

DQ3 17

DQ4 4

DQ5 6

DQ6 16

DQ7 18

DQ8 21

DQ9 23

DQ10 33

DQ11 35

DQ12 22

DQ13 24

DQ14 34

DQ15 36

DQ16 39

DQ17 41

DQ18 51

DQ19 53

DQ20 40

DQ21 42

DQ22 50

DQ23 52

DQ24 57

DQ25 59

DQ26 67

DQ27 69

DQ28 56

DQ29 58

DQ30 68

DQ31 70

DQ32 129

DQ33 131

DQ34 141

DQ35 143

DQ36 130

DQ37 132

DQ38 140

DQ39 142

DQ40 147

DQ41 149

DQ42 157

DQ43 159

DQ44 146

DQ45 148

DQ46 158

DQ47 160

DQ48 163

DQ49 165

DQ50 175

DQ51 177

DQ52 164

DQ53 166

DQ54 174

DQ55 176

DQ56 181

DQ57 183

DQ58 191

DQ59 193

DQ60 180

DQ61 182

DQ62 192

DQ63 194

BA0

109

BA1

108

RAS#

110

WE#

113

CAS#

115

S0#

114

S1#

121

CKE0

CKE1

CK0

101

CK0#

103

CK1

102

CK1#

104

SDA

200 SCL

202 SA1

201 SA0

197

DM0

DM1

DM2

DM3

DM4

136

DM5

153

DM6

170

DM7

187

DQS0

DQS1

DQS2

DQS3

DQS4

137

DQS5

154

DQS6

171

DQS7

188

DQS0#

DQS1#

DQS2#

DQS3#

DQS4#

135

DQS5#

152

DQS6#

169

DQS7#

186

ODT0

116

ODT1

120

BA2

M_B_CKE1[4]

M_B_BS2[4]

M_B_CKE0[4]

C147 1u_6.3V_X5R_04

M_ B_ C S# 0[4]

M_B_CLK_DDR#0[4]

M_ B_ C S# 1[4]

C175

*1u_6. 3V_X5R_04

SA0_DIM1[9]

1.5V[3,6,9,21,37]

M_B_ODT0[4] M_B_ODT1[4]

C125

0.1u_10V_X5R_04

VREF_CH_B_DIMM[6]

DDR3_DRAMRST#[3,9]

SA1_DIM1[9]

C142

1u_6. 3V_X5R_04

DRAMRST_CNTRL [3,9,15]

MVREF _DIM1[9]

MVREF _DQ_D IMMB[9]

C111

0.1u_10V_X5R_04

C165

1u_6.3V_X5R_04

C99

0.1u_10V_X5R_04

C120

0.1u_10V_X5R_04

R45 *0_04

C171

*1u_6. 3V_X5R_04

C74

1u_6.3V_X5R_04

MVREF _DQ_DIMMB

6-86-24204-023

MVREF_DQ_DIMMB

C386

220u_6.3V_6.3*6.3*4.2

TS#_DI MM0_ 1[9]

C173

*2.2u_6.3V_X5R_06

C184

*2.2u_6.3V_X5R_06

Sheet 10 of 47

DDR3 SO-DIMM_1

Schematic Diagrams

DDR3 SO-DIMM_1 B - 11

B.Schematic Diagrams

DDR3 SO-DIMM_1

Schematic Diagrams

B - 12 LVDS, INVERTER

B.Schematic Diagrams

LVDS, INVERTER

Sheet 11 of 47

LVDS, INVERTER

U15

NCT3522U

M-SOT23-5

VIN

VOUT 1

GND 2

¨¾¤õ§÷½è¨ú®ø

2_06

Z1104

Z1105

IN V_BLON

LVDS-L0N

LVDS-L2N

LVDS-L2P

LVDS-L0P

Board ID_R

P_DDC_DATA

BRI GHTNESS

LVDS-L1P

LVDS-L1N

LVDS-LCLKP

LVDS-LCLKN

P_DDC _C LK

NB_ENAVDD

P_DDC_CLK [17]

P_DDC_DATA [17]

Z1106

R274 *10mil_04

D03

LVDS-L0P

LVDS-L0N

LVDS-L1N

INVERTER CONNECTOR

LVDS-LCLKP

LVDS-LCLKN

LVDS-L1P

Short

LVDS-L2N

INV_BLON

P_DDC_DATA

LVDS-L2P

Z1101

Z1102

BRIGHTNESS

NB_ENAVDD

P_DDC_CLK

NB_ENAVDD#

Z1103

NB_ENAVDD

VLED

3.3VS

VLED

3. 3V S

PLVDD

3.3VS

3.3V

3.3V3.3V

VIN

3.3V

3.3VS PLVDD

3.3V

PJ15

*OPEN-2mm

1 2

Board ID_R

40Pin

¤£¤W¥ó

M:NCT3522U: 6-02-03522-9C0

S:G5243A: 6-02-05243-9C0

AP2821KTR-G1:6-02-02821-9C0

D03

30Pin

C342

1u_6.3V_X5R_04

BKL_EN[29]

BLON[17]

BRIGHTNESS [29]

3.3VS[3,9,10,12,13,14,15,16,17,18,19,20,21,25,26,27,28,29,30,31,32,33,34,39]ALL_SYS_PWRGD[16,29,39]

LID_SW#[29,32]

NB_ENAVDD[17]

VIN[34,35,36,37,38,39,40,41] 3.3V[2,3,6,27,28,30, 31,33,34, 37,38]

LVDS-U1N[17]

LVDS-UCLKN[17] LVDS-UCLKP[17]

PLT_RST#[3,18,28]

LVDS-U1P[17]

C349

*1u_6.3V_X5R_04

Q16

*2SK3018S3

LVDS-L1P[17]

LVDS-L2N [17]

LVDS-L2P [17]

LVDS-L1N[17]

LVDS-LCLKN[17]

LVDS-L0P[17] LVDS-L0N[17]

LVDS-U2P [17]

LVDS-U2N [17]

LVDS-LCLKP[17]

LVDS-U0P [17]

LVDS-U0N [17]

30Pin & 40 Pin Co-layout--LED

PANEL.

¥Î40pin connector®É, -n±N30pin connector¤¤¶¡©T©wpin

pad¿ûªO¶K±¼

C347

4.7u_10V_Y5V_08

R285

*10K_04

U16C

74LVC08PW

10 8

147

C357

*0.1u_50V_Y5V_06

Q15

*MEP4435Q8

62 5

U16A

74LVC08PW

147

R275 *100K_04

C351

0.1u_16V_Y5V_04

R282

*4.7K_06

C354

0.1u_50V_Y5V_06

R283 *100K_04

R277 *100K_04

12/9

J_LCD2

87216-4006

87216-40P_B

6-20-41A10-220

C359

*0.22u_50V_Y5V_06

R15

2.2K_04

Q17B

*MTDK5S6R

R16

2.2K_04

C353

*0.1u_16V_Y5V_04

R280

100K_04

Q17A

*MTDK5S6R

C345 *0.1u_16V_Y5V_04

PIN PLT_RST# to Buffer

R278

*100K_04

J_LCD1

*87216-3006

87126-30-06

6-20-51A00-215

122

344

566

788

910 10

11 12 12

13 14 14

15 16 16

17 18 18

19 20 20

21 22 22

23 24 24

25 26 26

27 28 28

29 30 30

R281 *1K_04

U16B

74LVC08PW

147

C356

0.1u_50V_Y5V_06

C348

0.1u_16V_Y5V_04

C343

*0.1u_16V_Y5V_04

R286

*1M_04

U16D

74LVC08PW

13 11

147

R276

100K_04

IN V_BLON

Board ID [14]

SB_BLON[19] R273 *0_04

BUF_PLT_RST# [23,25,28,29,31,33]

PANEL CONNECTOR

¨¾¤õ§÷½è¨ú®ø

2_06

Sheet 12 of 47

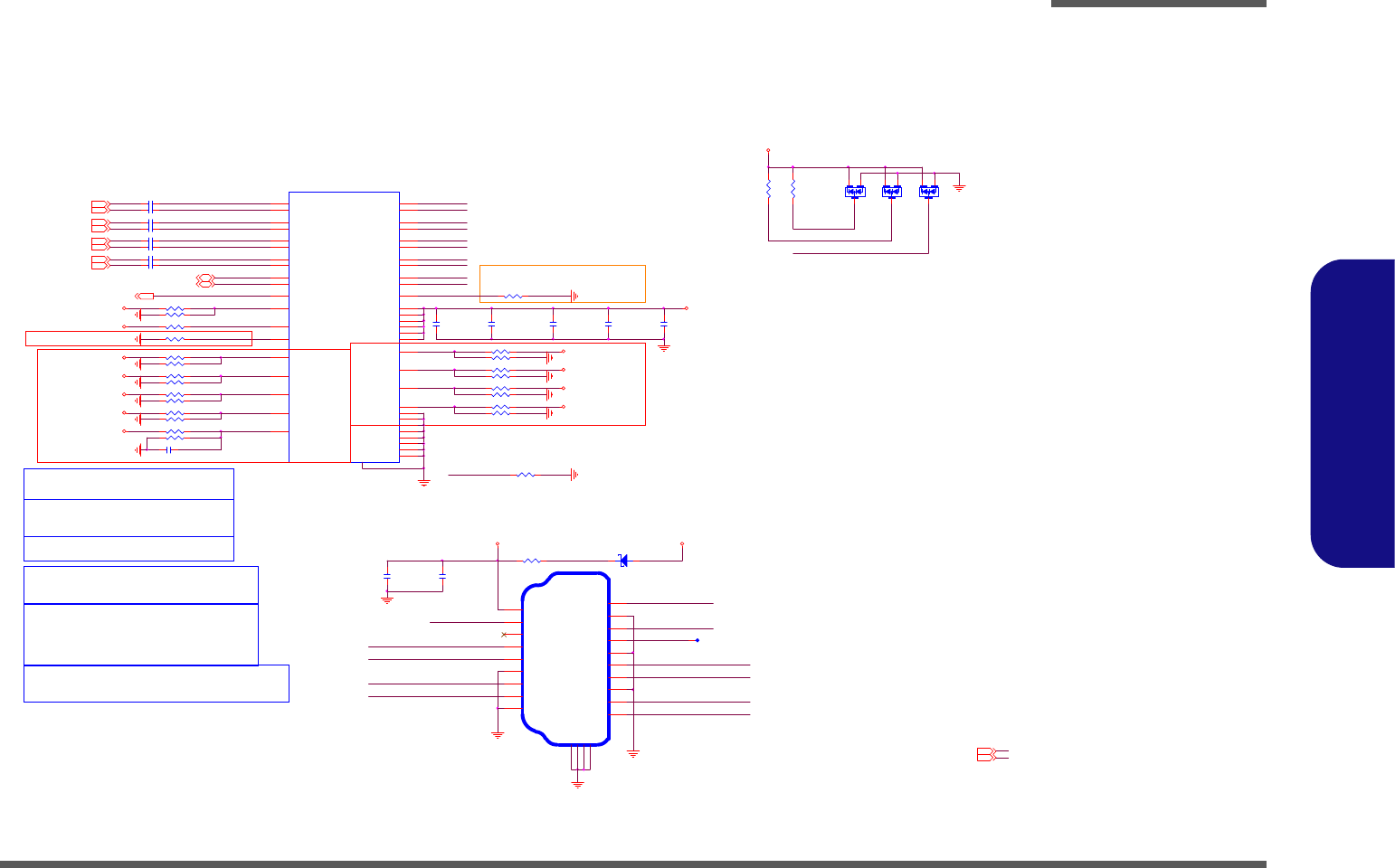

HDMI

Schematic Diagrams

HDMI B - 13

B.Schematic Diagrams

HDMI

C367

0.1u_16V_Y 5V_04

R313 1_04

C36 0.1u_10V_X7R_04

R301 3.4K_1%_04

RD1

*BAV99 RECTIFIER

C41 0.1u_10V_X7R_04

C49

*10u_10V_Y5V_08

R44 *20K_1%_04

R50 *0_04

RD3

*BAV99 RECTIFIER

HDMI PORT

J_HDMI1

1169-1A001-21U

1169-XX001

6-21-14K50-019

1169-1A001-21U

SHI ELD2

TMDS DATA1+

TMDS DATA1-

SHI ELD0

TMDS CLOCK+

TMDS CLOCK-

RESERVED

SDA

+5V

TMDS D ATA2+ 1

TMDS DATA2- 3

SHIELD1 5

TMDS D ATA0+ 7

TMDS DATA0- 9

CLK SHIELD 11

CEC 13

SCL 15

DDC/CEC GND 17

HOT PLUG DETECT 19

GND

GND1

GND

GND2

GND

GND3

GND

GND4

C35 0.1u_10V_X7R_04

ASM1442

QFN48-7X7MM

IN_D1+

IN_D1-

IN_D2+

IN_D2-

IN_D3+

IN_D3-

IN_D4+

IN_D4-

SCL

SDA

HPD/HPDX

OE#

DCC_EN

RT_EN#/CEXT

PC0/PEQ

PC1/PIO

REXT

GND[6]/EMI0 27

CFG/PRE

DDCBUF_EN/DDCBUF

OUT_D1+ 22

OUT_D1- 23

OUT_D2+ 19

OUT_D2- 20

OUT_D3+ 16

OUT_D3- 17

OUT_D4+ 13

OUT_D4- 14

SCL_SINK 28

SDA_SINK 29

HPD_SINK 30

VCC[1] 2

VCC[2]/APD 11

VCC[3] 15

VCC[4] 21

VCC[5] 26

VCC[6]/EMI1 33

VCC[7] 40

VCC[8] 46

GND [1]/ Res erv ed0 1

GND[2] 5

GND [3]/ Res erv ed1 12

GND[4] 18

GND[5] 24

GND[7] 31

GND[8] 36

GND[9] 37

GND[10] 43

GND

R28 *4.7K_04

C368

0.1u_16V_Y5V_04

C38 0.1u_10V_X7R_04

RD2

*BAV99 RECTIFIER

C45

0.1u_16V_Y 5V_04

R297 2.2K_04

HDMIB_CLKBN

HDMI_CTRLDATA[17] HDMI_CTRLCLK[17]

R36 0_04

R308 *4.7K_04

R39 *4.7K_04

R47 *4.7K_04

R46 0_04

APD/VCC

For ASM1442(¥i½ÕÀW¼e)

3.3VS

5VS_HDMI

3.3VS

5VS_HDMI 5VS

EMI1/VCC

EMI0/GND

R307 0_04

R309 *4.7K_04

RS/GND

OE#

PS8101»PPS8171®t²§

HDMIB_D1BN

HDMIB_CLKBN

HDMIB_D0BN

HDMIB_D1BP

HDMIB_D2BP

HDMIB_D2BN

HDMIB_CLKBP

HDMIB_D0BP

HDMIB_DATA1P

HDMIB_DATA0P

HDMIB_EXT1_SCL

HDMIB_DATA1N

HDMIB_DATA0N

PIN 49=GND

HDMI_HPD-C

HDMIB_EXT1_SDA

PS8171 (6-03-08171-030)

HDMIB_CLOCKN

HDMIB_CLOCKP

HDMIB_DATA2P

HDMIB_DATA2N

HDMI_CTRLCLK

HDMI_CTRLDATA

REXT

PS8171 Internal pull down 100K

W/O level shift: 20K_1%_04

PORTC_HPD

For ESD

For PS8171- 499_1%_04

PS8171 4.7K_04

PS8171 *4. 7K_04

ASM1442(6-03-01442-030)

HDMIB_D1BN_C[17]

HDMIB_D2BN_C[17] HDMIB_D2BP_C[17]

HDMIB_CLKBN_C[17]

HDMIB_D0BN_C[17]

5VS[13,14,21,27,30,32,34,39]

HDMIB_CLKBP_C[17]

HDMIB_D0BP_C[17]

HDMIB_D1BP_C[17]

3.3VS[3,9,10,11,13,14,15,16,17,18,19,20,21,25,26,27,28,29,30,31,32,33,34,39]

CEXT/RT_EN#

HDMIB_EXT1_SDA

HDMI_HPD-C

HDMIB_EXT1_SCL

R48 4.7K_04

5VS_HDMI_IN

HDMIB_EXT1_SCL

HDMI_HPD-C

HDMI_CEC

HDMIB_EXT1_SDA

D20 RB551V-30S2

HDMIB_CLOCKP

HDMIB_CLOCKN

HDMIB_DATA1N

HDMIB_DATA1P

HDMIB_DATA0P

HDMIB_DATA0N

HDMIB_DATA2N

HDMIB_DATA2P

R310 0_04

R27 *4.7K_04

R35 *4.7K_04

R32 4.7K_04

R300 4.7K_04

PS8171 *4. 7K_04

PC0/PEQ

PC1/PIO

PS8171 2.2u_6.3V_X5R_04

R49 *4.7K_04

DDCBUF_EN

PRE/CF G

PRE: TMDS output driver pre-emphasis level setting,

3 level CMOS input, internal pull-down at ~ 500k ohm

PRE=LOW: No pre-emphasis

PEQ: TMDS iutput equalization control, 3 level CMOS input,

internal pull-down at ~ 500k ohm

PEQ=LOW: Mid level EQ(Default)

PEQ=High: High level EQ

PEQ=MID: Low level EQ

HPDX: Output level and polarity of HPD is defined by PIO

PIO=LOW: HPD=HPD_SINK@3.3V CMOS output

PIO=High: HPD=HPD_SINK#(inverted HPD)@0.9V

PIO: Internal pull down ~ 500k ohm

EMI0,EMI1: EMI reduction and filter setting, 3 level CMOS input,

EMI1 internal pull-up at ~ 500k ohm

EMI0 internal pull-down at ~ 500k ohm

[EMI1,EMI0]=HL: No EMI reduction

EMI0=High: Increased rise/fall time

MID, Increased rise/fall time,2nd

EMI1=LOW: EMI filter setting 1

MID: Reserved

APD: Automatic power down managementl, 3 level CMOS input,

internal pull-up at ~ 500k ohm

APD=LOW: Automatic power down disable

APD=High: Automatic power down enable

APD=MID: Reserved

PS8101»PPS8171®t²§

PORTC_HPD[17]

DCC_EN#

R51 *4.7K_04

C40 0.1u_10V_X7R_04

C375

0.1u_16V_Y5V_04

C37 0.1u_10V_X7R_04

C382

10u_10V_Y5V_08

C34 0.1u_10V_X7R_04

R31 *4.7K_04

R311

2.2K_04

C370

0.1u_16V_Y 5V_04

R299 *4.7K_04

R312

2.2K_04

C39 0.1u_10V_X7R_04

R29 *4.7K_04

R40 4.7K_04

DDCBUF: DDC Active Buffer enable and setting, 3 level CMOS input,

internal pull-down at ~ 500k ohm

DDCBUF=LOW: No DDC active buffer, passive DDC level shifting

DDCBUF=High: Active DDC bufer enable, setting 1

DDCBUF=MID: Active DDC bufer enable, setting 2

C46 *2.2u_6.3V_X5R_06

Schematic Diagrams

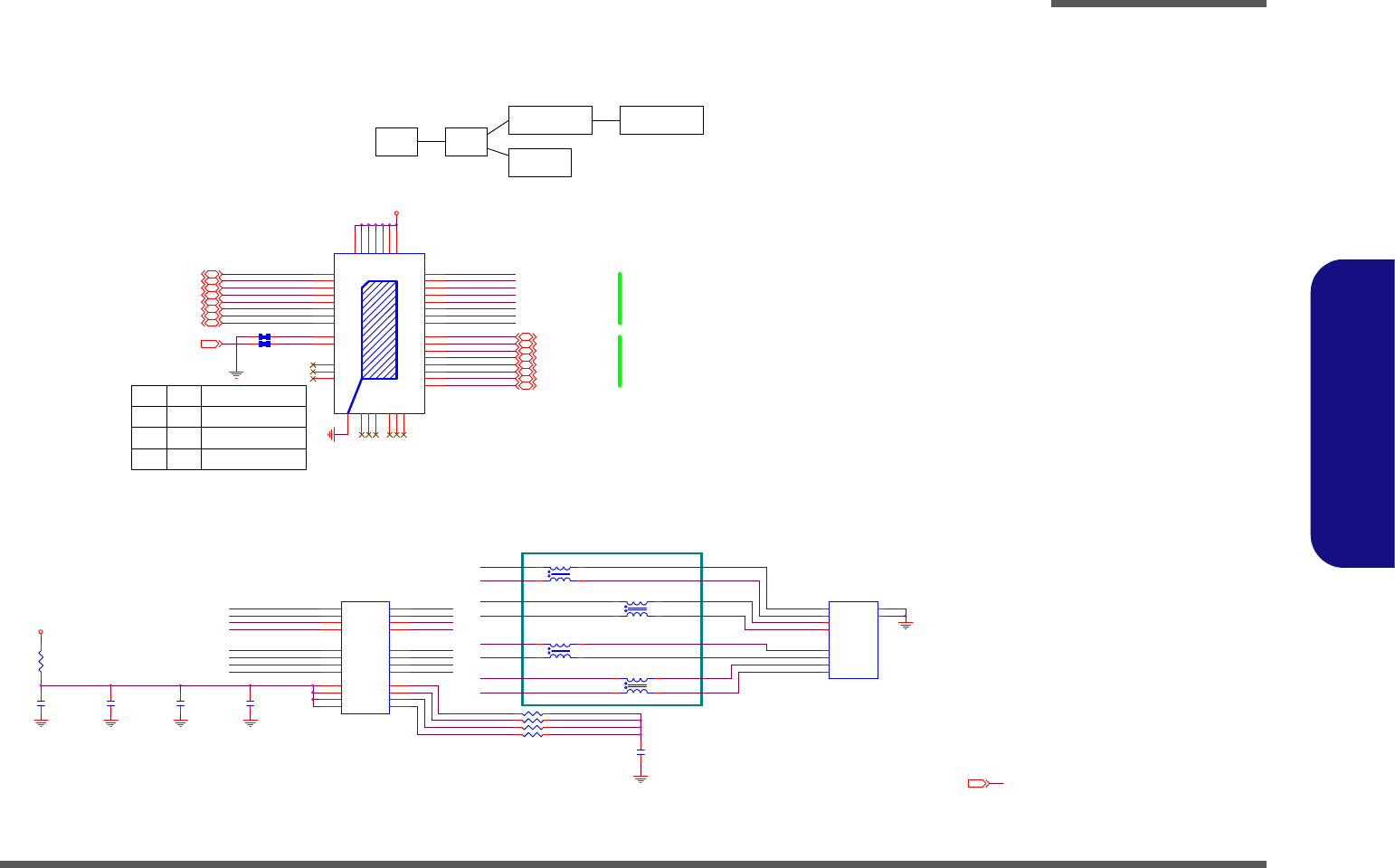

B - 14 CRT

B.Schematic Diagrams

CRT

PCH SW

CRT Conn.TPD7S019

Docking

Q2B

MTD K5S6R

R20 2.2K_04

L2 FCM1005MF-600T01

Q3B

MTD K5S6R

C346 220p_50V_NPO_04

C8 22p_50V_NPO_04

C11

0.1u_16V_Y 5V_04

C3 *10p_50V_NPO_04

R14

2.2K_04

C344 1000p_50V_X7R_04

C7 10p_50V_NPO_04

TPD 7S019

M-TSSOP16

VCC_SYNC

VCC_VIDEO

VIDEO_1 3

VIDEO_2 4

VIDEO_3 5

GND 6

VCC_DDC

BYP

DDC_OUT1 9

DDC_IN1

DDC_IN2

11 DDC_OUT2 12

SYNC_IN1

13 SYNC _OUT1 14

SYNC_IN2

15 SYNC _OUT2 16

C350 220p_50V_NPO_04

R18 2.2K_04

C10

0.1u_16V_Y5V_04

2SK3018S3

R11

2.2K_04

C5 22p_50V_NPO_04

Q2A

MTD K5S6R

R13 150_1%_04

R10 0_04

C9 *10p_50V_NPO_04

L6 FCM1005MF-600T01

U17

PI3V512QE

QSOP24

VDD 1

GND

VDD 4

GND

VDD 9

GND

SEL

E1 13

E0 14

D1 15

C1 16

D0 17

C0 18

VDD 19

GND

B1 21

B0 22

A1 23

A0 24

R21 100K_04

L1 0_04

C12

0.22u_10V_Y 5V_04

C1 10p_50V_NPO_04

J_CRT1

D-sub 15pin

C-108AX15FS

6-20-14X50-015

50005-001-01

GND 2

GND1

C352 1000p_50V_X7R_04

R7 150_1%_04

R9 0_04

R17

2.2K_04

C6 *10p_50V_NPO_04

L5 0_04

Q3A

MTD K5S6R

R12

2.2K_04

L3 0_04

L4 FCM1005MF-600T01

C2 22p_50V_NPO_04

R8 150_1%_04

C4 10p_50V_NPO_04

3.3VS

5VS_CRT 5VS

5VS_C RT

3.3VS

¶·¯d¦b¤À§ÃÂI

DOCKING CRT PORT

INT. CRT PORT

Z1301

DK_DAC_DDCADATA

DK_DAC_DDCACLK

NB_DAC_DDCADATA

NB_DAC_DDCACLK

DK_EN

NB_DAC_DDCACLK

CRT_HSYNC

BLUE

GRN

NB_DAC_VSYNC

NB_DAC_HSYNC HSYNC

VSY NCCRT_VSYNC

Z1305

RED

NB_DAC_DDCADATA

NB_DAC_HSYN C

NB_DAC_VSYNC

DK_EN

NB_DAC_RED

NB_DAC_GREEN

NB_DAC_BLUE

RED

Z1303

Z1302

Z1304

NB_DAC_RED

NB_DAC_BLUE

NB_DAC_GREEN

Zo=

50£[¡Ó15%

DAC_DDCADATA[17]

3.3VS[3,9,10,11,12,14,15,16,17,18,19,20,21,25,26,27,28,29,30,31,32,33,34,39] 5VS[12,14,21,27,30,32,34,39]

DAC_RED[17]

DK_EN[24,29,33]

DAC_DDCACLK[17]

DAC_HSYNC[17]

DAC_GREEN[17] DAC_BLUE[17]

DAC_VSYNC[17]

CRT PORT

HSYNC

DDCLK

GRN

BLUE

VSYNC

DDCDATA

24 mil

6-19-31001-264

DDCDATA

DDCLK

INT. CRT PORT

DOCKING CRT PORT

DOCKINGHI

YN TO N0

SEL

DK_EN OUTPUT

YN TO N1

FUNCTION

NBLOW

DOCKING

OUTPUT

LOW

SEL

DK_EN FUNCTION

YN TO N1

YN TO N0

DK_DAC_DDCADATA [33]

DK_DAC_GREEN [33]

DK_DAC_HSYNC [33]

DK_DAC_DDCACLK [33]

DK_DAC_BLUE [33]

DK_DAC_VSYNC [33]

DK_DAC_RED [33]

D6 RB751S-40C2

Sheet 13 of 47

CRT

Schematic Diagrams

PCH 1/9 B - 15

B.Schematic Diagrams

PCH 1/9

R357

*1K_04

Z1402

C562 *10u_10V_Y5V_08

Zdiff = 50 Ohm ¡Ó10% (5 / 20

mils)

1.05V_LAN_M[21,23,35]

R386 *0_04

R226 *51_04

R387 *0_04 SPI_CS0#_R

R227 *51_04

R228 *51_04

HDA_RST#_R

SRTC_RST#

BIOS+ME ROM

SATA HDD

64Mbit

SPI_WP#

SPI_HOLD#

On Die PLL VR is supplied by 1.5 V f rom VccVRM when

sam pled high.

SATA ODD

LPC_AD2 [28,29,33]

LPC_AD1 [28,29,33]

LPC_AD0 [28,29,33]

LPC_AD3 [28,29,33]

GPI O21

SATA_LED#

Flash Descriptor Security Overide

Low = Disabled-(Default)

High = Enabled

Zo=

50£[¡Ó15%

Z1401

HDA_SDOUT_R

GPIO13 is powered by VccSusHDA

20mil20mil

R399 *0_04

RN21

33_8P4R_04

81 72 6

R174 37.4_1%_04

SPI_CS1#_RSPI_CS1#

C456

15p_50V_NPO_04

RTC_X2

RTC_RST#

SPI_CS0#_R

C497

0.1u_16V_Y 5V_04

PantherPoint - M

(HDA,JTAG,SATA)

SPI_SCLK_R

SPI_SI

R171 49.9_1%_04

NO REBOOT STRAP: HDA_SPKR High Enable

iTPM ENABLE/DISABLE

R401 33_04

TPM FUNCTION:SPI_SI High Enable

HDA_SPKR

R367

10M_04

HDA_SPKR

R396 33_04

R417

4.7K_04

SPI_SI_R

RTC CLEAR

R370

20K_1%_04

R381 750_1%_04

R158

1M_04

SATA_LED#

SPI_SO_R

R398 33_04

R354 10K_04

C454

15p_50V_NPO_04

R197 10K_04

SATAICOMP

SERIRQ

R162

20K_1%_04

J_RTC2

*BHAAA-BAT-063-P01

BHAAA-BAT-063-P01

-2

R360 *1K_04

R135

1M_04

R210 *10K_04

R140 *10K_04

NO REBOOT STRAP

R355

*10K_04

JOPEN1

*OPEN_1mm

R214 *51_04

D22

BAT54CS3

Q11

2SK3018S3

D S

RBIAS_SATA3

U26

MX25L6406EM21-12G

M-SOP8B

CE# 1

SO 2

WP#

VSS 4

SI 5

SCK 6

HOLD#

VDD

R402

1K_04

R373 330K_04

R198 10K_04

RTC_VBAT_1

GPIO21

SPI_SCLK

PCH_INTVRMEN

SM_INTRUDER#

SPI_SO

SPI_SI

SPI_CS0#

R199 *1K_04

SATA3COMP

R133 1K_04

RTC_X1

RTCIHDA

SATA

LPC

SPI JTAG

SATA 6G

U22A

Panther Point-S-QS

RTCX1

A20

RTCX2

C20

INTVRMEN

C17

INTRUDER#

K22

HDA_BCLK

N34

HDA_SYNC

L34

HDA_RST#

K34

HDA_SDIN0

E34

HDA_SDIN1

G34

HDA_SDIN2

C34

HDA_SDO

A36

SATALED# P3

FWH0 / LAD0 C38

FWH1 / LAD1 A38

FWH2 / LAD2 B37

FWH3 / LAD3 C37

LDRQ1# / GPIO23 K36

FWH4 / LFRAME# D36

LDRQ0# E36

RTCRST#

D20

HDA_SDIN3

A34

HDA_DOCK_EN# / GPIO33

C36

HDA_DOCK_RST# / GPIO13

N32

SRTCRST#

G22

SATA0RXN AM3

SATA0RXP AM1

SATA0TXN AP7

SATA0TXP AP5

SATA1RXN AM10

SATA1RXP AM8

SATA1TXN AP11

SATA1TXP AP10

SATA2RXN AD7

SATA2RXP AD5

SATA2TXN AH 5

SATA2TXP AH4

SATA3RXN AB8

SATA3RXP AB10

SATA3TXN AF3

SATA3TXP AF1

SATA4RXN Y7

SATA4RXP Y5

SATA4TXN AD 3

SATA4TXP AD1

SATA5RXN Y3

SATA5RXP Y1

SATA5TXN AB3

SATA5TXP AB1

SATAICOMPI Y10

SPI_CLK

SPI_CS0#

Y14

SPI_CS1#

SPI_MOSI

SPI_MISO

SATA0GP / GPIO21 V14

SATA1GP / GPIO19 P1

JTAG_TCK

JTAG_TMS

JTAG_TDI

JTAG_TDO

SERIRQ V5

SPKR

T10

SATAICOMPO Y11

SATA3COMPI AB13

SATA3RCOMPO AB12

SATA3R BI AS AH1

D21 RB751S-40C2

A C

R412

1K_04

3.3A_1.5A_HDA_IO

VDD3

RTCVCC

3.3V_M

5VS

3.3VS

MC-306_32.768KHz

3 2

1.05VS

RTCVCC

3.3VS

3.3A_1.5A_HDA_IO

3.3V_M

1.05V_LAN_M

3.3VS

R400 0_04

C498 1u_6.3V_X5R_04

R397 *1K_04

HDA_SYNC_L

HDA_SYNC_R

PCH_JTAG_TMS

PCH_JTAG_TCK_BUF

TO DOCK HDD

PCH_JTAG_TDI

PCH_JTAG_TDO

TO EC

SPI_SCLK

SPI_SI

SPI_CS0#

SATA Signal Group

Zdiff = 90 Ohm ¡Ó10% (4 / 5

ml)

BIOS ROM

32Mbit

SPI_* = 1.5"~6.5"

C460

1u_6.3V_X5R_04

C255

1u_6.3V_X5R_04

1. SPI_CLK and SPI_MOSI must be length matched to within 500 mils.

2. SPI_CLK and SPI_CS0# must be length matched to within 500 mils.

3. SPI_CLK must be 20 mils spacing from any other high frequency (>1 GHz) signal. h represents

the dielectric height.

HDA_BITCLK_R

D03

SPI_* = 1.5"~6.5"

DK_SATA_RXP5 [33]

DK_SATA_RXN5 [33]

ME_WE[29]

5VS[12,13,21,27,30,32,34,39]

3.3VS[3,9, 10,11,12,13,15, 16,17,18, 19,20,21,25, 26, 27,28,29,30,31,32,33, 34, 39]

VDD3[15,16,18,19,21,23,28,29,32,33,34,35,36,41]

SATARXP2 [27]

SATARXN2 [ 27]

1.05VS[2,3,5,6,15,16, 19, 20,21,35, 38,39]

3.3A_1. 5A_HD A_IO[21] RTCVCC[16,21]

3.3V_M[20,23,24,34]

SATARXP0 [27]

SATARXN4 [ 26]

SATARXP4 [26]

HDA_SDIN0[30]

SATARXN0 [ 27]

HDA_SDIN1[31]

64M MXIC : 6-04-25640-490 (MX25L6406EM21-12G)

EON : 6-04-25641-490 (EN25Q64-104HIP)

WINBOND: 6-04-02564-490 (W25Q64BVSSIG)

J_RTC1

BHKB7410AP2PT

BAT-KB7410AP2P

-2

Board ID [11]

SATARXN5

SATARXP5

SATATXP5

SATATXN5

SPI_WP#_2

SPI_HOLD#_2

SPI_SI

SPI_SCLK

SPI_SO

SPI_CS1#

D03

U28

*MX25L3206E

M-SOP8B

CE# 1

SO 2

WP#

VSS 4

SI 5

SCK 6

HOLD#

VDD

C468 0.01u_16V_X7R_04

C469 0.01u_16V_X7R_04

R423

*3.3K_1%_04

C470 0.01u_16V_X7R_04

R424

*3.3K_1%_04

RN4

*33_8P4R_04

8 1

7 2

µ¥ªø-n¨D

L1= 1"- 4.5"

L2= 0.5" - 2"

L3= L2 +/- 0.1"

L4= 0.5" - 2"

L5= L4 +/- 0.1"

L6= 1" - 4.5"

L7= 1.5¡¨ - 6.5¡¨

6-07-15034-1A0

C471 0.01u_16V_X7R_04

C515

*0.1u_16V_Y 5V_04

BIOS+ME

SPI_SO

HM70 Disable

Port1,3

W25CEW : non-VPRO:HM77 (6-S03-00771-0S2)

W25CEV : VPRO:QM77 (6-S03-00077-0S0)

eSATA

C563 *10u_6.3V_X5R_06

SATATXP0 [27]

HDA_SPKR[30]

HDA_SYNC [30]

SATATXP2 [27]

SATATXN2 [27]

Use EC (BIOS+ME+EC)

Stuff

HSPI_SCLK[29]

HSPI_MSI[29]

HDA_RST# [30]

HDA_SDOUT [30]

HSPI_MSO[29]

HSPI_CE#[29]

LPC_FRAME# [28,29,33]

SATATXP4 [26]

HDA_BITCLK [30]

BBS_BIT0 [18]

SATATXN0 [27]

SATATXN4 [26]

SERIRQ [28,29,33]

SATA_LED# [32]

D03

R384 *0_04

R385 *0_04

R388 *0_04

SPI_CS1#_R

HDA_SYNC_R

SPI_SCLK_R

SPI_SO_R

SPI_SI_R

Use PCH (BIOS+ME)

Stuff

D03

HDA_SYNC_L

HDA_RST#_R

HDA_BITCLK_R

HDA_SDOUT_R

SATATXN3 [27]

SATATXP3 [27]

SATARXN3 [ 27]

SATARXP3 [27]

mSATA

INTVRMEN- Int egrated SU S 1.05V VRM Enable

High - Enable Internal VRs /Low - Enable External VRs

DK_SATA_TXP5 [33]

DK_SATA_TXN5 [33]

HDA_RST#_MDC[31]

HDA_BITCLK_MDC[31] HDA_SYNC_MDC[31]

PCH HDA

HDA_SDO_MDC[31]

MDC

J_RTC3

*85205-02001

PCB Footprint = 85205-02L

P/N = 6-20-41100-002

CMOS Battery ®Æ¸¹

: 6-23-22015-P0D

6-23-22015-P2C

Board ID

6-86-2B002-002

L2 L1

L3 L1

R356 1K_04

Z1403

Sheet 14 of 47

PCH 1/9

Schematic Diagrams

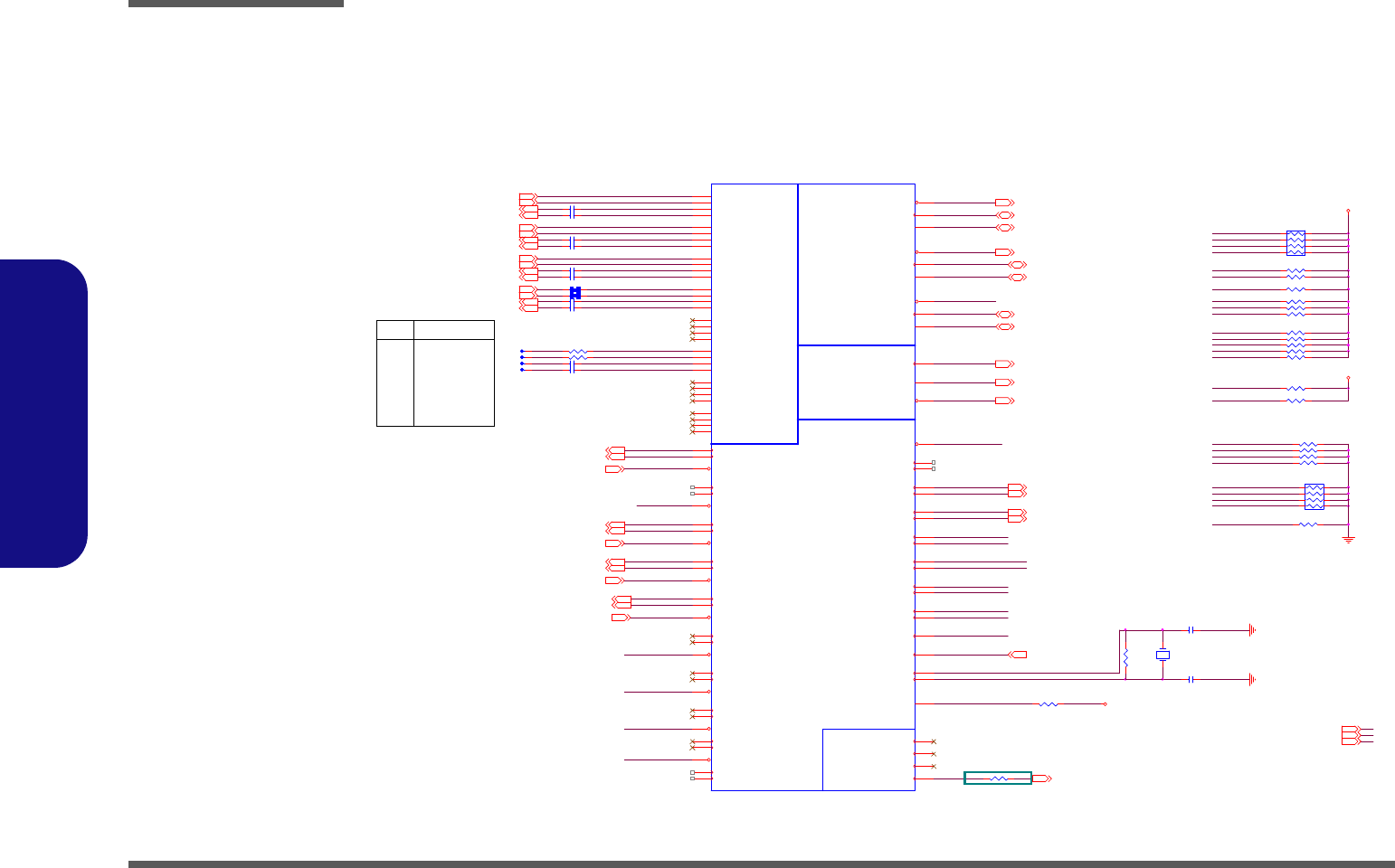

B - 16 PCH 2/9

B.Schematic Diagrams

PCH 2/9

BT_SBD#

PCIE_TXP2_C

PCIE_TXN2_C

PCIE_TXP3_C

PCIE_TXN3_C

SMB_DATA

CLK_BUF_CPYCLK_N

PantherPoint - M (PCI-E,SMBUS,CLK)

SML0_CLK

DRAMRST_CNTRL

SML0_DATA

XTAL25_IN

XTAL25_OUT

SMC_CPU_THERM

CLK_BUF_CPYCLK_P

PCIECLKRQ6#

100MHz

CLK_BUF_DOT96_N

SMD_CPU_THERM

XCLK_RCOMP

LPD_SPI_INTR#

CLK_PC IE_ICH

PCIECLKRQ1#

PCIECLKRQ7#

CLK_PC IE_ICH#

CLK_BU F_CPYCLK_N

CLK_BU F_CPYCLK_P

CLK_BU F_DOT96_P

CLK_BU F_DOT96_N

90.9-£[ ¡Ó1% pullup to

+VccIO

(1.05V, S0 rail)close to PCH

CLK_SATA

CLK_SATA#

CLK_BUF_DOT96_P

33MHz

14.318MHz

96MHz

100MHz

100MHz DMI/BCLK

Only PCIECLKRQ[2:1]# on PCH are core well powered(3.3VS).

All other PCIECLKRQx# are suspend well powered(3.3V).

PEG_B_CLKRQ#

CLK_BU F_REF14

SMB_CLK

DK_PEG_CLKREQ#

JMB_CLKREQ#[25]

120MHz eDP

Clock Signal Group

Zdiff = 90 Ohm ¡Ó10% (4 / 5

ml)

SML0_CLK

SML0_DATA

100MHz

SMC_CPU_THERM [29]

SMB_CLK [9,10]

SMB_DATA [9,10]

SML0_CLK [23,31]

SML0_DATA [23,31]

SMD_CPU_THERM [29]

PCI-E Signal Group

Zdiff = 85 Ohm ¡Ó10% (5 / 5.5

ml)

JMB_CLKREQ#

3.3VS

VDD3

1.05VS

-nµ¥ªø¡Aspace

6-22-25R00-1BV

6-22-25R00-1B4

6-22-25R00-1B5

100MHz

C246 0.1u_10V_X7R_04

R204 *10K_04

FSX5L_25MHZ

NEWCARD_CLKREQ#

R346

1M_04

RN6

10K_8P4R_04

8 1

7 2

C248 0.1u_10V_X7R_04

R203 *10K_04

R232 *10K_04

R159 10K_04

PCI-E*

CLOCKS

FLEX CLOCKS

SMBUSController

Link

U22B

Panther Point-S-QS

PERN1

BG34

PERP1

BJ34

PERN2

BE34

PERP2

BF34

PERN3

BG36

PERP3

BJ36

PERN4

BF36

PERP4

BE36

PERN5

BG37

PERP5

BH37

PERN6

BJ38

PERP6

BG38

PERN7

BG40

PERP7

BJ40

PERN8

BE38

PERP8

BC38

PETN1

AV32

PETP1

AU32

PETN2

BB32

PETP2

AY 32

PETN3

AV34

PETP3

AU34

PETN4

AY 34

PETP4

BB34

PETN5

AY 36

PETP5

BB36

PETN6

AU36

PETP6

AV36

PETN7

AY 40

PETP7

BB40

PETN8

AW38

PETP8

AY 38

CLKOUT_PC IE0N

Y40

CLKOUT_PC IE0P

Y39

CLKOUT_PC IE1N

AB49

CLKOUT_PC IE1P

AB47

CLKOUT_PC IE2N

AA48

CLKOUT_PC IE2P

AA47

CLKOUT_PC IE3N

Y37

CLKOUT_PC IE3P

Y36

CLKOUT_PC IE4N

Y43

CLKOUT_PC IE4P

Y45

CLKOUT_PC IE5N

V45

CLKOUT_PC IE5P

V46

CLKIN_GND1_N BJ30

CLKIN_GND1_P BG30

CLKIN_DMI_N BF18

CLKIN_DMI_P BE18

CLKIN_DOT_96N G24

CLKIN_DOT_96P E24

CLKIN_SATA_N AK7

CLKIN_SATA_P AK5

XTAL25_IN V47

XTAL25_OUT V49

REFCLK14IN K45

CLKIN_PC I LOOPBACK H45

CLKOUT_PEG_A_N AB37

CLKOUT_PEG_A_P AB38

PEG_A_CLKRQ# / GPIO47 M1 0

PCIECLKRQ0# / GPIO73

PCIECLKRQ1# / GPIO18

PCIECLKRQ2# / GPIO20

V10

PCIECLKRQ3# / GPIO25

PCIECLKRQ4# / GPIO26

L12

PCIECLKRQ5# / GPIO44

L14

CLKOUTFLEX0 / GPIO64 K43

CLKOUTFLEX1 / GPIO65 F47

CLKOUTFLEX2 / GPIO66 H47

CLKOUTFLEX3 / GPIO67 K49

CLKOUT_DMI_N AV22

CLKOUT_DMI_P AU22

PEG_B_CLKRQ# / GPIO56

CLKOUT_PEG_B_P

AB40 CLKOUT_PEG_B_N

AB42

XCLK_RCOMP Y47

CLKOUT_DP_P AM13

CLKOUT_DP_N AM12

CLKOUT_PC IE6N

V40

CLKOUT_PC IE6P

V42

PCIECLKRQ7# / GPIO46

K12

CLKOUT_PC IE7N

V38

CLKOUT_PC IE7P

V37

CLKOUT_ITPXDP_N

AK14

CLKOUT_ITPXDP_P

AK13

SMBALERT# / GPIO11 E12

SMBCLK H14

SMBDATA C9

SML0ALERT# / GPIO60 A12

SML0CLK C8

SML0DATA G12

SML1ALERT# / PCHHOT# / GPIO74 C13

SML1CLK / GPIO58 E14

SML1DATA / GPIO75 M16

CL_CLK1 M7

CL_DATA1 T11

CL_RST1# P10

PCIECLKRQ6# / GPIO45

T13

R213 *10K_04

R167 *10K_04

R160 10K_04

R192 10K_04

R191 10K_04

R239 10K_04

R259 *2.2K_04

R233 10K_04

R260 *2.2K_04

C441 22p_50V_NPO_04

RN8

2.2K_8P4R_04

8 1

7 2

PCIECLKRQ1#

R128 10K_04

C443 22p_50V_NPO_04

R347 *22_04

R245 10K_04

R348 90.9_1%_04

R238 1K_04

DK_PEG_CLKREQ#

100MHz

PCIE_RXP1_WLAN[28] PCIE_RXN1_WLAN[28]

PCIE_RXN2_JMB[25] PCIE_RXP2_JMB[25]

WLAN_CLKREQ#[28]

1.05VS[2,3,5,6,14,16,19,20,21,35,38,39]

CLK_PCI_FB [18]

Z1507

PCIE_RXN4_IGLAN[23]

VDD3[14,16,18,19,21,23,28,29,32,33,34,35,36,41]

IGLAN_CLKREQ#[23]

PCIE_RXP4_IGLAN[23]

3.3VS[3,9,10,11,12,13,14,16,17, 18,19,20,21,25,26,27,28,29,30, 31,32,33, 34,39]

JMB_CLKREQ#

R432 10K_04

CLK_PCIE_ICH

CLK_SATA

CLK_SATA#

PEG_B_CLKRQ#

CLK_BUF_REF14

Lane 1 WLAN

Lane 2 CARD READER

Lane 3 NEW CARD

Lane 4 GLAN

Lane 5 X (HM70 Disable)

Lane 6 X (HM70 Disable)

Lane 7 X (HM70 Disable)

Lane 8 X (HM70 Disable)

Usage

PCI-E x1

C520 0.1u_10V_X7R_04 PCIE_TXN1_C

PCIE_TXP1_C

C521 0.1u_10V_X7R_04

PCIE_RXN3_NEW_CARD[31] PCIE_RXP3_NEW_CARD[31]

PCIE_TXP3_NEW_CARD[31] PCIE_TXN3_NEW_CARD[31]

SMB_CLK

SMB_DATA

CLK_PCIE_NEW_C ARD[31] CLK_PCI E_N EW _CARD #[31]

NEWCARD_CLKREQ#[31] NEWCARD_CLKREQ#

C214 *0.1u_10V_X7R_04

PCIE_TXN6_C

PCIE_TXP6_C

C215 *0.1u_10V_X7R_04

R137 *0_04

R134 *0_04 PCIE_RXN6_C R257 *10K_04

PCIECLKRQ5#

PCIE_RXP6_CZ1504

Z1503

Z1506

Z1505

T21

T22

T19

T20

BT_SBD#

Clock Signal Group

Zdiff = 90 Ohm ¡Ó10% (4 / 5

ml)

R156 *20mil_04

R153 *20mil_04 Z1501

Z1502

LPD_SPI_INTR#

PCIE_TXN4_C

PCIE_TXP4_C

PCI ECLKRQ5#

PCI E_TXP1_WLAN[28] PCIE_TXN1_WLAN[28]

HM70 Disable(PCIE5,6,7,8)

PCIE_TXN2_JMB[25] PCIE_TXP2_JMB[25] DRAMRST_CNTRL [3,9,10]

CLK_DP_N [3]

CLK_DP_P [3]

CLK_EXP_P [3]

CLK_PCIE_JMB[25]

CLK_48M_COM [33]

CLK_PCIE_MINI#[28]

CLK_EXP_N [3]

CLK_PC IE_IGLAN#[23]

CLK_PC IE_JMB#[25]

CLK_PC IE_MINI[28]

CLK_PCIE_IGLAN[23]

C238 0.1u_10V_X7R_04

C245 0.1u_10V_X7R_04

D03

SMD_CPU_THERM

SMC_CPU_THERM

DRAMRST_CNTRL

CLK_PCIE_ICH#

CL_RST#1 [28]

CL_DATA1 [28]

BT_SBD# [28]

PCIE_TXP4_IGLAN[23] PCIE_TXN4_IGLAN[23]

CL_CLK1 [28]

C229 0.1u_10V_X7R_04

PCIECLKRQ7#

C226 0.1u_10V_X7R_04

Sheet 15 of 47

Cougar Point M 2/9

Schematic Diagrams

PCH 3/9 B - 17

B.Schematic Diagrams

PCH 3/9

R155 *10mil_04

H_PM_SYNC [3]

APWROK may comp up anytime

brfore PWROK,but not afer

PWROK assertion

VDD3

3.3VS

1.05VS

VDD3

3.3VS

RTCVCC

PM_PCH_PWROK_R

ME-POWROK(iAMT PWROK Logic)

SYS_PWROK

(EC internal PH)

PM_PCH_PWROK[29]

0.85VS_PWRGD[38]

1.05V_LAN_PWRGD[35]

DDR1.5V_PWRGD[37]

DELAY_PWRGD[29,39]

PM_PCH_PWROK[29]

1.8VS_PWR GD[37]

SLP_M[34,35]

DMI_RXP0[2] DMI_RXP1[2]

FDI_TXP7 [2]

DMI_RXN2[2]

DMI_RXP2[2] DMI_RXP3[2]

DMI_RXN3[2]

DMI_RXN0[2] DMI_RXN1[2]

SWI #[29]

PWR _BTN#[ 29]

RSMRST#[29]

FDI_TXP5 [2]

FDI_TXP4 [2]

FDI_TXP6 [2]

FDI_TXP0 [2]

FDI_TXP2 [2]

FDI_TXP3 [2]

FDI_TXP1 [2]

FDI_TXN6 [2]

FDI_TXN1 [2]

FDI_TXN0 [2]

FDI_TXN5 [2]

FDI_TXN2 [2]

FDI_TXN3 [2]

PM_CLKRUN# [28]

FDI_TXN4 [2]

FDI_TXN7 [2]

1.05VS[2,3,5,6,14,15,19,20,21,35,38,39]

3.3VS[3,9,10,11,12,13,14,15,17,18,19,20,21,25,26,27,28,29,30,31,32,33,34,39]

RTCVCC[14,21] VDD3[14,15,18,19,21,23,28,29,32,33,34,35,36,41]

PCI E_WAKE# [28, 31]

EC_VCOR E_PWRGD[29]

R372 330K_04

R221 *10mil_04

R207

*100K_04

C554 *0.1u_10V_X5R_04

U11C

74LVC08PW

10 8

147

R371 *330K_04

U11D

74LVC08PW

13 11

147

U11B

74LVC08PW

147

C555 *0.1u_10V_X5R_04

R200

*100K_04

DMI

FDI

System Power Management

U22C

Panther Point-S-QS

DMI0RXN

BC24

DMI1RXN

BE20

DMI2RXN

BG18

DMI3RXN

BG20

DMI0RXP

BE24

DMI1RXP

BC20

DMI2RXP

BJ18

DMI3RXP

BJ20

DMI0TXN

AW24

DMI1TXN

AW20

DMI2TXN

BB18

DMI3TXN

AV18

DMI0TXP

AY24

DMI1TXP

AY20

DMI2TXP

AY18

DMI3TXP

AU18

DMI_ZCOMP

BJ24

DMI_IRCOMP

BG25

FDI_RXN0 BJ14

FDI_RXN1 AY 14

FDI_RXN2 BE14

FDI_RXN3 BH13

FDI_RXN4 BC12

FDI_RXN5 BJ12

FDI_RXN6 BG10

FDI_RXN7 BG9

FDI_RXP0 BG14

FDI_RXP1 BB14

FDI_RXP2 BF14

FDI_RXP3 BG13

FDI_RXP4 BE12

FDI_RXP5 BG12

FDI_RXP6 BJ10

FDI_RXP7 BH9

FDI_FSYNC0 AV12

FDI_FSYNC1 BC 10

FDI_LSY N C0 AV14

FDI_LSY N C1 BB10

FDI_INT AW16

PMSY NC H AP14

SLP_SUS# G16

SLP_S3# F4

SLP_S4# H4

SLP_S5# / GPIO63 D10

SYS_RESET#

SYS_PWROK

P12

PWRBTN#

E20

RI#

A10

WAKE# B9

SUS_STAT# / GPIO61 G8

SUSCLK / GPIO62 N14

ACPRESENT / GPIO31

H20

BATLOW# / GPIO72

E10

PWROK

L22

CLKRUN# / GPIO32 N3

SUSWARN#/SUSPWRDNACK/GPIO30

K16

RSMRST#

C21

DR AMPWROK

B13

SLP_LAN# / GPIO29 K14

APWROK

L10

DPWROK E22

DMI2RBIAS

BH21

SLP_A# G10

DSWVRMEN A18

SUSACK#

C12

R258 *10K_04

U11A

74LVC08PW

147

C553 *0. 1u_10V_X5R_04

R378 10K_04

C552 *0.1u_10V_X5R_04

R169 750_1%_04

R363 *10K_04

R230 8.2K_04

R190 8.2K_04

C237 *0.1u_16V_Y 5V_04

R166 *10K_04

R364 49.9_1%_04 RN11

10K_8P4R_04

8 1

7 2

USB_OC#1213[18]

JVPRO1

*85205-05R-w25

85205-05R-w25

R225 0_04

R218 *0_04

R201 *0_04

D03

Z1604

POWER STATES

SUSC# PM_SLP_LAN#

SUSB#

Deep S4/S5

SAME THE BIOS ROM SIDE

For vPRO test

w/ WOL_EN

Moff

SLP_M#

Moff

C286 *0.1u_10V_X5R_04

Z1603 SY S_P WR_ OK

DMI_TXP2[2] DMI_TXP3[2]

DMI_TXP0[2]

R470 *0_04

DMI_TXN3[2]

DMI_TXN0[2]

DMI_TXP1[2]

PM_DRAM_PWRGD[3]

DMI_TXN2[2] DMI_TXN1[2]

FDI_FSYNC1 [2]

SUSC# [29,33,37]

SUSB# [6,26,29,31,33,34,35]

FDI_LSY NC1 [2]

FDI_FSYNC0 [2]

FDI_INT [2]

FDI_LSY NC0 [2]

SUS_PWR_ACK[29]

AC_PRESENT[18,29]

PM_SLP_LAN# [34,35]

SLP_M# [34]

SLP_S5#

C289

*0. 1u_16V_Y5V_04

Low: Moff

SUS_PWR_ACK

SY S_R ESET#

AC_PRESENT

DSWODVREN - On Die DSW VR Enable

LOW Disabled

PantherPoint -M (DMI,FDI,GPIO)

PCIE_WAKE#

RSMRST#

HI Enabled (DEFAULT)

PM_CLKRUN#

DSWODVREN

SUSCLK

PM_CLKRUN#

PM_BATLOW#

PM_SLP_LAN#

S4_STATE# [28]

ALL_SYS_PWRGD [11, 29,39]

PCIE_WAKE#

PWR_BTN#

SLP_M#

SLP_SUS#

DMI_COMP_R

SY S_PW ROK

Z1601

SWI#

PM_MPWROK

SLP_M#

SUSC#

SUSB#

RSMRST#

SUS_PWR_ACK

PM_BATLOW#

DMI_2R BIAS

SWI #

C294

*1u_6.3V_X5R_04

PM_SLP_LAN#

Q13

2SK3018S3

PM_MPWROK

R246

100K_04

R469 0_04

R237 470K_04

C321

4700p_50V_X7R_04 Z1602

R193

1M_04

Sheet 16 of 47

PCH 3/9

Schematic Diagrams

B - 18 PCH 4/9

B.Schematic Diagrams

PCH 4/9

HDM I Sig n al Gr o u p

Zdiff = 90 Ohm ¡Ó10% (4 / 5

ml)

Zo=

37.5£[¡Ó15%

Z1703

R349

20K_1%_04

Q23

2SK3018S3

R352

1M_04

R361

20K_1%_04

R362

1M_04 Q24

2SK3018S3

P_DDC_DATA[11]

HDMI_CTRLDATA [12]

P_DDC_CLK[11]

DAC_DDCADATA[13] DAC_DDCACLK[13]

HDMI_CTRLCLK [12]

DK_HD MI_D DCB_C LK [ 33]

DK_HDMI_DDCB_DAT [33]

NEAR PCH

EMI

3.3VS

Ver:1.0

pull up 2.2K

PORTC_HPD [12]

3.3VS[3,9,10,11,12,13,14,15,16,18,19,20,21,25,26,27,28,29,30,31,32,33,34,39]

DK_DVI_HPD [33]

DK_HDMI_HPD [33]

DAC_GREEN

DAC_BLUE

DAC_RED

LVDS_IBG

Z1701

L_CTRL_CLK

L_ CTR L_ DA TA

DAC_IREF

Connect to GND

PantherPoint -M

(LVDS,DDI,CRT)

Display Port D Display Port BDisplay Port C

R138 2.2K_04

C191 *33p_50V_NPO_04

LVDS

Digital Display Interface

CRT

U22D

Panther Point-S-QS

L_BKLTCTL

P45

L_BKLTEN

J47

L_CTRL_CLK

T45

L_CTRL_DATA

P39

L_DDC_CLK

T40

L_DDC_DATA

K47

L_VDD_EN

M45

LVDSA_CLK#

AK39

LVDSA_CLK

AK40

LVDSA_DATA#0

AN48

LVDSA_DATA#1

AM47

LVDSA_DATA#2

AK47

LVDSA_DATA#3

AJ48

LVDSA_DATA0

AN47

LVDSA_DATA1

AM49

LVDSA_DATA2

AK49

LVDSA_DATA3

AJ47

LVDSB_CLK#

AF40

LVDSB_CLK

AF39

LVDSB_DATA#0

AH45

LVDSB_DATA#1

AH47

LVDSB_DATA#2

AF49

LVDSB_DATA#3

AF45

LVDSB_DATA0

AH43

DDPB_0N AV42

DDPB_1N AV45

LVD_VREFH

AE48

LVD_VREFL

AE47

DDPD_2N BF42

DDPD_3N BJ42

DDPB_2N AU48

DDPB_3N AV47

DDPC_0N AY47

DDPC_1N AY43

DDPC_2N BA47

DDPC_3N BB47

DDPD_0N BB43

DDPD_1N BF44

DDPB_0P AV40

DDPB_1P AV46

DDPD_2P BE42

DDPD_3P BG42

DDPB_2P AU47

DDPB_3P AV49

LVDSB_DATA1

AH49

LVDSB_DATA2

AF47

LVDSB_DATA3

AF43

LVD_IBG

AF37

LVD_VBG

AF36

DDPC_1P AY45

DDPC_0P AY49

DDPC_2P BA48

DDPC_3P BB49

DDPD_0P BB45

DDPD_1P BE44

CRT_BLUE

N48

CRT_DD C_CLK

T39

CRT_DD C_DATA

M40

CRT_GREEN

P49

CRT_HSYNC

M47

CRT_IRTN

T42

CRT_RED

T49

CRT_VSYNC

M49

DAC_IREF

T43

SDVO_CTRLCLK P38

SDVO_CTRLDATA M39

DDPC_CTRLCLK P46

DDPC_CTRLDATA P42

DDPD_CTRLCLK M43

DDPD_CTRLDATA M36

DDPB_AUXN AT49

DDPC_AUXN AP47

DDPD_AUXN AT45

DDPB_AUXP AT47

DDPC_AUXP AP49

DDPD_AUXP AT43

DDPB_HPD AT40

DDPC_HPD AT38

DDPD_HPD BH41

SDVO_TVCLKINP AP45

SDVO _TVCLKIN N AP43

SDVO_STALLP AM40

SDVO_STALLN AM42

SDVO_INTP AP40

SDVO_INTN AP39

Z1702

R132 1K_1%_04

R110 2.2K_04

SDVO

R139 2.37K_1%_04

R109 2.2K_04

R130 150_1%_04

R115 150_1%_04

C196 *33p_50V_NPO_04

R114 150_1%_04

R141 2.2K_04

C199 *33p_50V_NPO_04

DVI Signal Group

Zdiff = 90 Ohm ¡Ó10% (4 / 5

ml)

HDMI Sign al Gro up

Zdiff = 90 Ohm ¡Ó10% (4.5 / 6

ml)

NB_ENAVDD[11]

LVDS-LCLKN[11] LVDS-LCLKP[11]

BLON[11]

LVDS-L1P[11]

LVDS-L2N[11]

LVDS-L0N[11] LVDS-L1N[11]

DAC_HSYNC[13]

LVDS-L2P[11]

LVDS-L0P[11]

HDMIB_D0BN_C [12]

HDMIB_D1BP_C [12]

DAC_VSYNC[13]

HDMIB_CLKBP_C [12]

HDMIB_CLKBN_C [12]

HDMIB_D1BN_C [12]

HDMIB_D2BP_C [12]

HDMIB_D2BN_C [12]

HDMIB_D0BP_C [12]

DAC_RED

DAC_GREEN

DAC_BLUE

DK_HDMI_TXN2 [33]

DK_HD MI_TXP0 [33]

DK_HDMI_TXCN [33]

DK_HDMI_TXCP [33]

DK_HD MI_TXP2 [33]

DK_HDMI_TXN1 [33]

DK_HD MI_TXP1 [33]

DK_HDMI_TXN0 [33]

LVDS Signal Group

Zdiff = 90 Ohm ¡Ó10% (4 / 5

ml)

DK_DVI_DDCB_CLK [33]

DK_DVI_TXN1 [33]

DK_DVI_TXN0 [33]

DK_DVI_DDCB_DAT [33]

DK_DVI_TXP2 [33]

DK_DVI_TXCN [33]

DK_DVI_TXP1 [33]

DK_DVI_TXCP [33]

DK_DVI_TXN2 [33]

DK_DVI_TXP0 [33]

LVDS-U0N[11]

DAC_BLUE[13]

DAC_RED[13]

DAC_GREEN[13]

LVDS-U1P[11]

LVDS-U2N[11] LVDS-U1N[11]

LVDS-UCLKN[11]

LVDS-U0P[11]

LVDS-U2P[11]

LVDS-UCLKP[11]

Sheet 17 of 47

PCH 4/9

Sheet 18 of 47

PCH 5/9

Schematic Diagrams

PCH 5/9 B - 19

B.Schematic Diagrams

PCH 5/9

D03

USB_PP8_WLAN [28]

USB_PN8_WLAN [28]

DK_U SB_PP13 [33]

DK_USB_PN 13 [33]

AC_PRESENT [16,29]

Disable

USB_PN9 [32]

PME#[29]

USB_PN1 [26]

USB_PP1 [26]

USB_PP9 [32]

U3RX1#[26]

USB_PP0 [26]

USB_PN0 [26]

U3TX2#[26] U3TX1#[26]

U3RX2#[26]

USB2.0 Sign al Gr oup

Zdiff = 85 Ohm ¡Ó10% (5 / 5.5

ml)

U3RX2[26] U3RX1[26]

U3TX2[26] U3TX1[26]

U3.0TX3_DK[33]

USB_PP11_FP [32]

USB_PN11_FP [32]

U3.0RX3_DK[33]

U3. 0TX3#_DK[33]

U3. 0R X3#_DK[33]

U3TX4#[26]

U3RX4[26]

U3RX4#[26]

USB_PN3 [26]

USB_PP10_CC D [ 28]

U3TX4[26] USB_PP3 [26]

DK_USB_PN 2 [33]

DK_U SB_PP2 [ 33]

USB_PN10_C C D [28]

SMI#[19,29]

CLK_PCI_COM_R

R127 22_04

VDD3

3.3VS

USB3.0 Signal Group

Zdiff = 85 Ohm ¡Ó10% (5 / 5.5

ml)

PCLK_TPM_PCH

USB_BIAS

MPC Switch Control

MPC ON -- 0

MPC OFF -- 1 DEFAULT

INT_PIRQE#

SATA_ODD_DA#

INT_PIRQH#

INT_PIRQG#

INT_PIRQE#

CLK_PCI_KBC_R

PCI_GNT#3

USB 3.0

INT_PIRQA#

CLK_PCI_FB_R

BBS_BIT1 BBS_BIT0 Boot BIOS Location

0 0 LPC

0 1 Reserved (NAND)

1 0 PCI

1 1 SPI

Boot BIOS Strap

INT_PIRQD#

INT_PIRQC#

PCI_GNT#3

DGPU_PWM_SELECT#

BBS_BIT1

DGPU_HOLD_RST#

D_GPU_PWR_EN#

DGPU_SELECT#

LOW = PCI_GNT#3 swap override

PCI_GNT#3

Flash Descriptor security override strap

HIGH = Default

BBS_BIT1

PantherPoint -M (PCI,USB,NVRAM)

USB_OC#45

USB_OC#67

USB_OC#23

USB_OC#01

USB_OC#89

USB_OC#14

USB_OC#1011

SATA_ODD_DA#[27]

3.3VS[3,9,10,11,12,13, 14,15,16, 17,19,20, 21,25,26, 27,28,29,30,31,32,33,34,39]

BBS_BIT0 [14]

USB_OC#89 [32]

USB_OC#01 [26]

VDD3[14,15,16,19,21,23,28,29, 32,33,34,35,36,41]

INT_PIRQB#[19]

J_USB3

USB_PN6_3G [ 27]

USB_PP6_3G [27]

USB_OC#1213 [16]

INT_PIRQD#

DGPU_PWM_SELECT#

SATA_ODD_DA#

DGPU_HOLD_RST#

INT_PIRQA#

DGPU_SELECT#

D_GPU_PWR_EN#

USB_OC#01

INT_PIRQC#

INT_PIRQG#

USB_OC#14

USB_OC#67

USB_OC#23

USB_OC#45

USB_OC#89

USB_OC#1011

INT_PIRQH#

INT_PIRQE#

AC_PRESENT

R261 *0_04

R122 22_04

RN7

10K_8P4R_04

8 1

7 2

R117 22_04

R353 *1K_04

R243 *1K_04

RN12

10K_8P4R_04

8 1

7 2

R129 *10K_04

R125 *1K_04

PCLK_COM[33] CLK_PC I _FB[15]

PLT_RS T#[3,11,28]

PCLK_KBC[29]

RN22

10K_8P4R_04

81 72 6

R126 *1K_04

USB_OC#23 [26]

RN19

10K_8P4R_04

81 72 6

HM70 Disable

USB3.0 Port3,4

RSVD

PCI

USB

U22E

Panther Point-S-QS

RSVD23 AV5

RSVD1 AY7

RSVD2 AV7

RSVD3 AU3

RSVD4 BG4

RSVD5 AT10

RSVD6 BC8

RSVD7 AU2

RSVD8 AT4

RSVD17 BB5

RSVD18 BB3

RSVD19 BB7

RSVD20 BE8

RSVD21 BD4

RSVD22 BF6

RSVD9 AT3

RSVD10 AT1

RSVD11 AY3

RSVD12 AT5

RSVD13 AV3

RSVD14 AV1

RSVD15 BB1

RSVD16 BA3

RSVD25 AT8

RSVD24 AV10

RSVD26 AY5

RSVD27 BA2

RSVD28 AT12

RSVD29 BF3

PIRQA#

K40

PIRQB#

K38

PIRQC#

H38

PIRQD#

G38

REQ1# / GPIO50

C46

REQ2# / GPIO52

C44

REQ3# / GPIO54

E40

GNT1# / GPIO51

D47

GNT2# / GPIO53

E42

GNT3# / GPIO55

F46

PIRQE# / GPIO2

G42

PIRQF# / GPIO3

G40

PIRQG# / GPIO4

C42

PIRQH# / GPIO5

D44

USBP0N C24

USBP0P A24

USBP1N C25

USBP1P B25

USBP2N C26

USBP2P A26

USBP3N K28

USBP3P H28

USBP4N E28

USBP4P D28

USBP5N C28

USBP5P A28

USBP6N C29

USBP6P B29

USBP7N N28

USBP7P M28

USBP8N L30

USBP8P K30

USBP9N G30

USBP9P E30

USBP10N C30

USBP10P A30

USBP11N L32

USBP11P K32

USBP12N G32

USBP12P E32

USBP13N C32

USBP13P A32

PME#

K10

CLKOUT_PCI0

H49

CLKOUT_PCI1

H43

CLKOUT_PCI2

J48

USBRBIAS# C33

USBRBIAS B33

OC0# / GPIO59 A14

OC1# / GPIO40 K20

OC2# / GPIO41 B17

OC3# / GPIO42 C16

OC4# / GPIO43 L16

OC5# / GPIO9 A16

OC6# / GPIO10 D14

OC7# / GPIO14 C14

CLKOUT_PCI4

H40 CLKOUT_PCI3

K42

PLTRST#

TP1

BG26

TP2

BJ26

TP3

BH25

TP6

AH38

TP7

AH37

TP8

AK43

TP9

AK45

TP16

Y13

TP17

K24

TP18

L24

TP19

AB46

TP20

AB45

TP21

B21

TP22

M20

TP23

AY16

USB3Rn1

BE28

USB3Rn2

BC30

USB3Rn3

BE32

USB3Rn4

BJ32

USB3Rp1

BC28

USB3Rp2

BE30

USB3Rp3

BF32

USB3Rp4

BG32

USB3Tn1

AV26

USB3Tn2

BB26

USB3Tn3

AU28

USB3Tn4

AY30

USB3Tp1

AU26

USB3Tp2

AY26

USB3Tp3

AV28

USB3Tp4

AW30

TP4

BJ16

TP5

BG16

TP15

AM5 TP14

AM4 TP13

AH12 TP12

H3 TP11

N30 TP10

C18

TP24

BG46

R118 22_04

R146 22.6_1%_04

USB_PN4_NEWCARD [31]

USB_PP4_NEWCARD [31]

AC_PR ESEN T

PCLK_TPM[28]

HM70

Disable(Port4,5)

HM70,HM75,HM76 No

Support(Port6,7)

HM70 Disable(Port12,13)

USB_OC#45 [31]

RN20

10K_8P4R_04

81 72 6

HM70PORT Function

J_USB1

Disable

WLAN

Docking 3.0 Hub

J_USB2

Finger Print

CCD

USB 2.0 on Audio Board

NEW_CARD

Docking 2.0 Hub

Sheet 19 of 47

PCH 6/9

SATA_ODD_PWRGT

NV_CLE

Z1901

R229 *20mil_04

D03

INTEGRATE CLOCK

DISABLE----HIGH

ENABLE-----LOW

(DEFAULT)

SCI#[29]

SMI#[18,29]

H_PECI [3,29]

BIOS_REC

Low = Intel ME Crypto Transport Layer Security (TLS)

cipher suite w ith no conf identiality

High = Intel ME Crypto TLS cipher suite w ith

conf identiality

SB_BLON[11]

CRIT_TEMP_REP#_R

3.3VS

VDD3

1.05VS

V_NVRAM_VCCQ

VDD3

3.3VS

R209 10K_04 GA20

KBC_RST#

INT_PIRQB# [18]

ICC_EN#

GFX_CRB_DET

SATA_DET#4

SCI#

KBC_RST#

RN9

10K_8P4R_04

81 72 6

TEST_SET_UP

DGPU_HPD_INTR#

3.3VS[3,9,10,11,12,13,14,15,16,17,18,20,21,25,26,27,28,29,30,31,32,33,34,39]

1.05VS[2,3,5,6,14,15,16,20,21,35,38,39]

GA20 [29]

KBC_RST# [29]

H_THRMTRIP# [3]

V_NVRAM_VCCQ[20]

VDD3[14,15,16,18,21,23,28,29,32,33,34,35,36,41]

SLP_ME_CSW_SEV#[29]

GA20

H_SNB_IVB# [3]

SCI#

SATA_ODD_PRSNT#

S_GPIO

DGPU_PWROK

GPIO34

R177 390_04

GPIO34

ICC_EN#

HTHRMTRIP#_R

SATA_ODD_PRSNT#[27]

H_CPUPWRGD [3]

SATA_ODD_PWRGT [27]

BIOS RECOVERY

DISABLE----HIGH (DEFAULT)

ENABLE-----LOW

FDI_OVRVLTG

PCH_MUTE#

TEST_SET_UP

R208 10K_04

R212 100K_04

R188 100K_04

R215 1K_04

R325 2.2K_04

R326 1K_04

R377 *1K_04

R184 *10K_04

R206 10K_04

RN23

10K_8P4R_04

8 1

7 2

PM_LANPHY_EN[23]

R231 *10K_04

R183 *0_04

R123 *10K_04

R350 1.5K_04

R244 1K_04

R217 10K_04

R202 10K_04

R189 100K_04

R216 *1K_04

R187 *1K_04

R136 *10K_04

CPU/MISC

NCTF

GPIO

U22F

Panther Point-S-QS

GPIO27

E16

GPIO28

GPIO24

GPIO57

LAN_PHY_PWR_CTRL / GPIO12

VSS_NCTF_1

VSS_NCTF_2

A44

VSS_NCTF_3

A45

VSS_NCTF_4

A46

VSS_NCTF_5

VSS_NCTF_6

VSS_NCTF_7

VSS_NCTF_8

B47

VSS_NCTF_9

BD1

VSS_NCTF_10

BD49

VSS_NCTF_11

BE1

VSS_NCTF_12

BE49

TAC H 2 / G PI O6

H36

TAC H 0 / G PI O17

D40

TAC H 3 / G PI O7

E38

SATA3GP / GPIO37

SATA5GP / GPIO49 / TEMP_ALERT#

SCLOCK / GPIO22

SLOAD / GPIO38

SDATAOUT0 / GPIO39

SDATAOUT1 / GPIO48

V13

PROCPWRGD AY 11

RCIN# P5

PECI AU 16

THRMTRIP# AY 10

GPIO8

C10

BMBUSY# / GPIO0

GPIO15

TAC H 1 / G PI O1

A42

SATA2GP / GPIO36

INIT3_3V# T14

STP_PCI# / GPIO34

GPIO35

SATA4GP / GPIO16

VSS_NCTF_32 F49

A20GATE P4

TAC H 4 / G PI O68 C40

TAC H 6 / G PI O70 C41

TAC H 7 / G PI O71 A40

TAC H 5 / G PI O69 B41

VSS_NCTF_17 BH3

VSS_NCTF_18 BH47

VSS_NCTF_19 BJ4

VSS_NCTF_20 BJ44

VSS_NCTF_21 BJ45

VSS_NCTF_22 BJ46

VSS_NCTF_23 BJ5

VSS_NCTF_24 BJ6

VSS_NCTF_25 C2

VSS_NCTF_26 C48

VSS_NCTF_27 D1

VSS_NCTF_28 D49

VSS_NCTF_29 E1

VSS_NCTF_30 E49

VSS_NCTF_31 F1

TS_VSS4 AK10

TS_VSS3 AH10

TS_VSS2 AK11

TS_VSS1 AH8

NC_1 P37

VSS_NCTF_13

BF1

VSS_NCTF_14

BF49

VSS_NCTF_15 BG2

VSS_NCTF_16 BG48

DF_TVS AY 1

R205 *10K_04

R186 *0_04

R119 1.5K_04

R351 1.5K_04

CRIT_TEMP_REP#_R

HOST_ALERT#1

SLP_ME_CSW_SEV#

BIOS_REC

SATA_ODD_PWRGT

SLP_ME_CSW_SEV#

Set to Vss when LOW

Set to Vcc when HIGH

NV_CLE

DMI & FDI Termination Voltage

GFX_CRB_DET

GPIO70

HOST_ALERT#1

TEST_DET

FDI_OVRVLTG

GPIO71

DGPU_PWROK

HOST_ALERT#2

S_GPIO

From EC

SATA_DET#4

GPIO69

MFG_MOD E

HPECI_R

PantherPoint - M (GPIO,VSS_NCTF,RSVD)

DGPU_HPD_INTR#

INIT3_3V#

Internal GFX: Low (Default)

External GFX: High

SATA_ODD_PRSNT#

HOST_ALERT#2

Schematic Diagrams

B - 20 PCH 6/9

B.Schematic Diagrams

PCH 6/9

Schematic Diagrams

PCH 7/9 B - 21

B.Schematic Diagrams

PCH 7/9

Sheet 20 of 47

PCH 7/9

C267

0.1u_10V_X5R_04

C232

1u_6.3V_X5R_04

C189

0.1u_10V_X5R_04

C200

1u_6. 3V_X5R_04

C203

1u_6.3V_X5R_04

C223

0.1u_10V_X5R_04

C204

1u_6.3V_X5R_04

POWER

VCC CORE

DMI

VCCIO

CRTLVDS

FDI

DFT / SPI HVCMOS

U22G

Panther Point-S-QS

VCCCORE[1]

AA23

VCCCORE[2]

AC23

VCCCORE[3]

AD21

VCCCORE[4]

AD23

VCCCORE[5]

AF21

VCCCORE[6]

AF23

VCCCORE[7]

AG21

VCCCORE[8]

AG23

VCCCORE[9]

AG24

VCCCORE[10]

AG26

VCCCORE[11]

AG27

VCCCORE[12]

AG29

VCCCORE[13]

AJ23

VCCCORE[14]

AJ26

VCCCORE[15]

AJ27

VCCDFTERM[4] AJ17

VCCDFTERM[3] AJ16

VCCIO[17]

AN21

VCCIO[18]

AN26

VCCIO[19]

AN27

VCCIO[20]

AP21

VCCIO[23]

AP26

VCCIO[24]

AT24

VCCIO[15]

AN16

VCCIO[16]

AN17

VCCIO[21]

AP23

VCCIO[22]

AP24

VCCADAC U48

VCCTX_LVDS[1] AM37

VCCTX_LVDS[2] AM38

VCCALVDS AK36

VCCVRM[3] AT16

VCCVRM[2]

AP16

VCCAPLLEXP

BJ22

VccAFDIPLL

BG6

VCCIO[28]

AN19 VCCTX_LVDS[4] AP37

VCCTX_LVDS[3] AP36

VSSADAC U47

VSSALVDS AK37

VCCIO[27]

AP17

VCC3_3[6] V33

VCC3_3[7] V34

VCC3_3[3]

BH29 VC C DFTERM[2] AG17

VCCDFTERM[1] AG16

VCCDMI[1] AT20

VCCIO[25]

AN33

VCCIO[26]

AN34

VCCCORE[16]

AJ29

VCCCORE[17]

AJ31

VCCSPI V1

VCCCLKDMI AB36

VCCDMI[2]

AU20

C243

1u_6.3V_X5R_04

C216

0.01u_16V_X7R_04

C465

*10u_6.3V_X5R_06

L10

HCB1005KF-121T20

C257

1u_6. 3V_X5R_04

C185

22u_6. 3V_X5R_08

C187

*0.1u_10V_X5R_04

C261

10u_6.3V_X5R_06

L27 HCB1608KF-121T25

C472

0.1u_10V_X5R_04

C459

*10u_6.3V_X5R_06

R124 *0_04

R382 *0_04

C186

10u_6.3V_X5R_06

L28

*HCB1005KF-121T20

C264

0.1u_10V_X5R_04

R383 *20m il_04

C242

10u_6.3V_X5R_06

C253

10u_10V_Y5V_08

C241

1u_6. 3V_X5R_04

R185 *0_04

C249

1u_6.3V_X5R_04

C272

0.1u_10V_X5R_04

C273

0.1u_10V_X5R_04

3.3VSVCCME3.3V

1.05VS

VCCA_DAC_3.3VS

3.3VS1.8VSV_NVRAM_VCCQ

3.3V_M

1.5VS_1.8VS

1.05VS_VCCAPLL_EXP

1.05VS_VCCAPLL_FDI

3.3VS

1.8VS1.5VS

1.05VS

3.3VS

1.05VS

3.3VS

1.8VS_VCCTX_LVD

1.05VS

1.8VS

1.05VS

R380 *20mil_04

Support Intel Wake on Lan

10mA

63mA

R379 *0_04

47mA

1.8VS[6,37] 3.3VS[3,9,10,11,12,13,14, 15,16,17,18, 19,21,25,26,27, 28,29,30,31,32,33, 34,39]

1.5VS[31,37]

V_NVRAM_VCCQ[19]

1.5VS_1.8VS[21]

1.05VS[2,3,5,6,14,15,16,19,21,35,38,39]

3.3V_M[14,23,24,34]

1.5VS_1.8VS

147mA

C438

220u_6.3V_6.3*6.3*4.2

(47mA)

2mA

All VCCORE = 1.73A

All VCCIO = 3.799A

(178mA)

178mA

1.43V 1.58V

4.75V

1.10V

Min

1.5V

Max

1.89V

1.05V

1.8V

3.47V

1.71V

1.00V

CougarPoint power supply range

Voltage

3.3V

40mA

3.14V

5.25V

75mA

(147mA)

1mA

PantherPoint -M (POWER)

C190

0.1u_10V_X5R_04

C201

0.01u_16V_X7R_04

C213

0.01u_16V_X7R_04

C467

1u_6. 3V_X5R_04

R120 *20mil_04

Schematic Diagrams

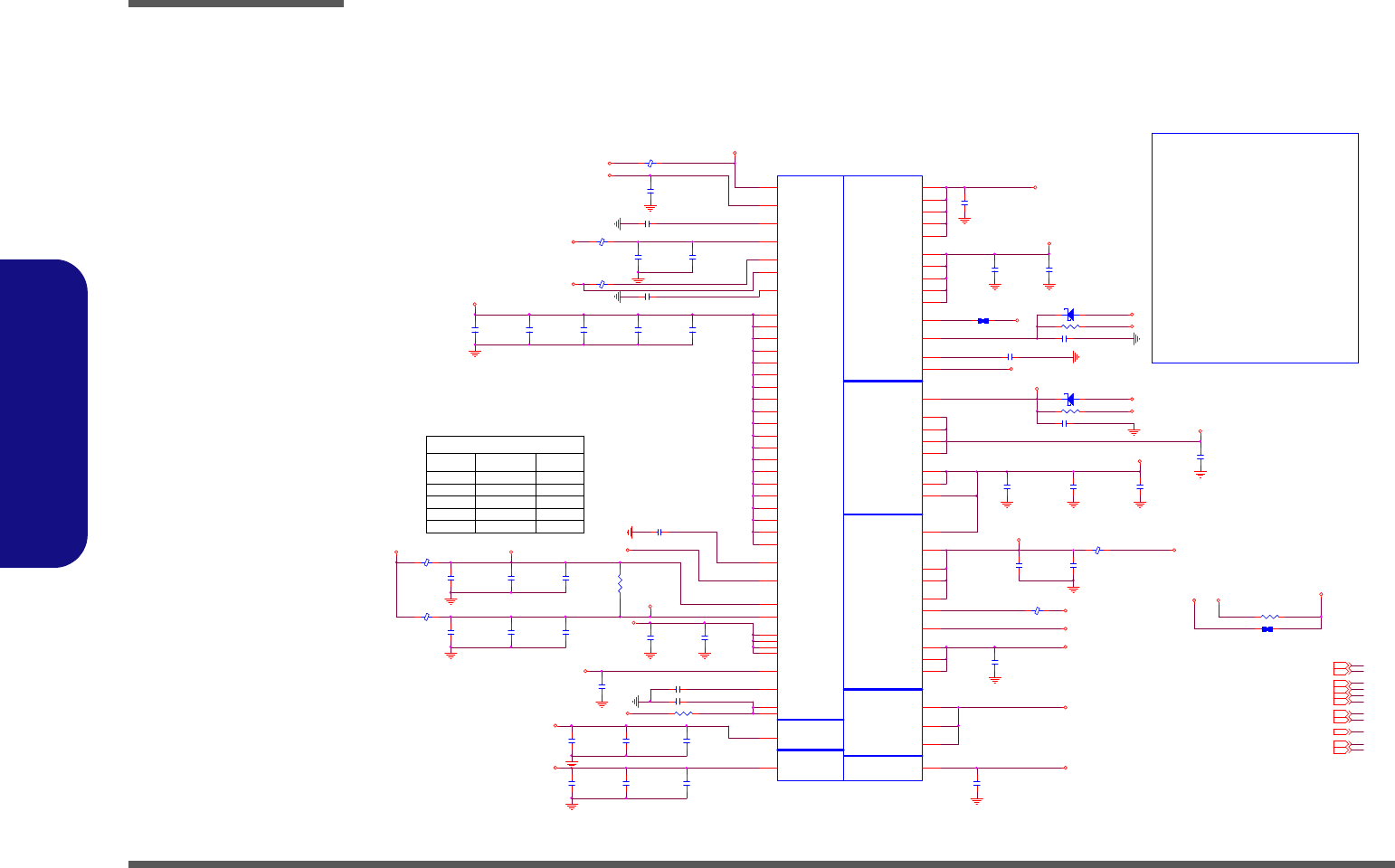

B - 22 PCH 8/9

B.Schematic Diagrams

PCH 8/9

Sheet 21 of 47

PCH 8/9

R116

*0_04

VCCASW:

1.05 V supply for the Active Sleep Well. Provides power to the IntelR ME and

integrated LAN. This plane must be on in S0 and other times the Intel ME or

integrated LAN is used.

C224

1u_6.3V_X5R_04

C195 1u_6.3V_X5R_04

L12 *HCB1005KF-121T20

C233

*0.1u_10V_X5R_04

C209

1u_6.3V_X5R_04

VCCDSW:

3.3 V supply for Deep Sx wells. If platform does not

support Deep Sx then tie to VccSus3_3.

C205

0.1u_10V_X5R_04

L14 HCB1005KF-121T20

C473

4.7u_6.3V_X5R_06

C217

1u_6.3V_X5R_04

V_PROC_IO:

processor I/O voltage. This supply is

used to drive the processor interface

signals.

C258 *1u_6.3V_X5R_04

C252

1u_6.3V_X5R_04

C464

1u_6.3V_X5R_04

1.05VS

3.3A_1.5A_HDA_IO

C256

1u_6.3V_X5R_04

1.05VS

1.5VS_1. 8VS

3.3A_1.5A_HDA_IO

VDD3

RTCVCC

L26

*HC B1005KF-121T20

1.05VS

VDD3

VDD5

3.3VS

5VS

+V1.05S_SATA3

C192

22u_6.3V_X5R_08

1.05V_M

1.05VS_VCCA_CLK

VDD3

1.05VS

+5V_PCH_VCC5REFSUS

VDD3

1.05VS 1.05VS_VCCA_A_DPL

1.05V_M

1.05VS

C206

0.1u_10V_X5R_04

1.5VS_1.8VS

1.05VS

3.3VS

VDD3

1.5V

VDD3

C305

*10u_6. 3V_X5R_06

1.05V_LAN_M

1.05VS

3.3VS

1.1VS_VCCA_B_DPL

C236

0.1u_10V_X5R_04

C193

*22u_6.3V_X5R_08

C228 0.1u_10V_X5R_04

C259

0.1u_10V_X5R_04

C466 *1u_6.3V_X5R_04

VCCSUS3_3:

3.3 V supply for suspend well I/O buffers.

This power is not expected to be

shut off unless the system is unplugged.

C280 *0. 1u_10V_X5R_04

C254

1u_6.3V_X5R_04

C212

0.1u_10V_X5R_04

C445

22u_6.3V_X5R_08

R152 *0_04

L20 HCB1608KF-121T25

C250

0.1u_10V_X5R_04

C251

0.1u_10V_X5R_04

D13 RB751S-40C2

L11 HCB1005KF-121T20

C225

1u_6.3V_X5R_04

C231

*0.1u_10V_X5R_04

R121 10_04

D12 RB751S-40C2

C275

0.1u_10V_X5R_04

C210

1u_6.3V_X5R_04

L29

*HC B1005KF-121T20

C279

*22u_6.3V_X5R_08

C240 *1u_6.3V_X5R_04

C207

10u_6.3V_X5R_06

C239

*22u_6.3V_X5R_08

R154 10_04C222

1u_6.3V_X5R_04

C244

0.1u_10V_X5R_04

C268 0.1u_10V_X5R_04

C202

0.1u_10V_X5R_04

C220

0.1u_10V_X5R_04

L13 HCB1005KF-121T20

POWER

SATA USB

Clock and Miscellaneous

HDA

CPURTC

PCI/GPIO/LPCMISC

U22J

Panther Point-S-QS

DCPSUSBYP

V12

VCC ASW[1]

AA19

VCC ASW[2]

AA21

VCC ASW[3]

AA24

VCC ASW[5]

AA27

VCC ASW[6]

AA29

VCCSUSHD A P32

VCCSUS3_3[6] P24

VCC IO[34] T2 6

VCCIO[4] AD17

VCC ASW[7]

AA31

VCC ASW[8]

AC26

VCC ASW[9]

AC27

VCC ASW[10]

AC29

VCC ASW[11]

AC31

VCC ASW[12]

AD29

V5REF P34

VCC3_3[4] T34

VCC RTC

A22

VCCSUS3_3[10] V24

VCCSUS3_3[9] V23

VCCSUS3_3[8] T24

VCCSUS3_3[7] T23

VCCIO[2] AC16

VCCADPLLB

BF47

VCCDIFFCLKN[1]

AF33

V5REF_SU S M26

VCCIO[3] AC17

DCPSUS[1]

T17

VCC SSC

AG33

VCCADPLLA

BD47

VCCVRM[4]

Y49

VCCACLK

AD49

DCPRTC

N16

VCC ASW[4]

AA26

VCCDIFFCLKN[2]

AF34

VCC IO[7]

AF17

DCPSST

V16

VCCIO[5] AF13

VCCASW[22] T21

VCCASW[23] V21

VCCASW[21] T19

VCC3_3[1] AA16

VCC3_3[8] W16

VCCSUS3_3[2] N20

VCCSUS3_3[3] N22

VCCSUS3_3[4] P20

VCCSUS3_3[5] P22

VCC IO[29] N26

VCC IO[30] P26

VCC IO[31] P28

VCC IO[32] T2 7

V_PR OC _IO

BJ8

VCC IO[33] T2 9

VCCDIFFCLKN[3]

AG34

VCC ASW[13]

AD31

VCC ASW[14]

W21

VCC ASW[15]

W23

VCC ASW[16]

W24

VCC ASW[17]

W26

VCC ASW[18]

W29

VCC ASW[19]

W31

VCC ASW[20]

W33

VCCIO[6] AF14

VCCVRM[1] AF11

VCC IO[12] AH13

VCC IO[13] AH14

VCC3_3[2] AJ2

VCC APLLSATA AK1

DCPSUS[3]

AL24

VCC IO[14]

AL29

DCPSUS[4] AN23

VCCSUS3_3[1] AN24

VCCAPLLDMI2

BH23

DCPSUS[2]

V19

VCC DSW3_3

T16

VCC3_3[5]

T38

C227

0.1u_10V_X5R_04

C218

1u_6.3V_X5R_04

R161

*20mil_04

C277 0.1u_10V_X5R_04

PCH_VCC DSW

DCPSUS

3.3VS[3,9,10,11,12,13,14,15,16,17,18,19,20,25,26,27,28,29,30,31,32,33, 34,39]

RTCVCC[14,16]

3.3A_1.5A_HDA_IO[14]

5VS[12,13,14,27,30,32,34,39]

1.5V[3,6,9,10,37]

1.5VS_1. 8VS[20]

1.05VS[2,3,5,6,14,15,16,19,20,35,38,39]

VDD3[14,15,16,18,19,23,28,29,32,33,34,35,36,41]

1.05V_LAN_M[14,23,35] 1.05V_M[35]

VDD5[26,32,34,35,36]

VCCSST

+V1.05M_VCCSUS

C444

*22u_6.3V_X5R_08

SB SPEC:

VCCASW > VCCVRM

1.05V_M > 1.5VS

95mA

(All VCCIO=3.799A)

1.43V

1.10V

Min

1.5V

1.89V

1.05V

1.58V

4.75V

3.47V

1.71V

Max

474146_PCH EDS v1.8 Update

3.3V

1.00V

1.8V

5.25V

CougarPoint power supply range

Voltage

3.14V

+VCCAPLL_CPY_PCH

VCC3_3

1mA

Z2101

+VCCRTCEXT

75mA

65mA

2mA

75mA

PantherPoint - M (POWER)

Voltage Rail Voltage S0 Iccmax Current (A)

V_PROC_IO 1.05 2(mA)

V5REF 5 1 (mA)

V5REF_Sus 5 1 (mA)

Vcc3_3 3.3 0.178

VccADAC 3.3 0.063

VccADPLLA 1.05 0.075

VccADPLLB 1.05 0.075

VccCore 1.05 1.73

VccDMI 1.1 0.047

VccIO 1.05 3.799

VccASW 1.05 0.803

VccSPI 3.3 0.01

VccDSW3_3 3.3 1 (mA)

VccDFTERM 1.8 2 (mA)

VccSus3_3 3.3 0.065

VccSusHDA 3.3 0.01

VccVRM 1.5 0.147

VccClKDMI 1.05 0.075

VccSSC 1.05 0.095

VccDIFFCLKN 1.05 0.05

VccALVDS 3.3 1 (mA)

VccTX_LVDS 1.8 0.04

1.05VS_VCCAPLL_SATA3

10mA

1mA

(65mA)

All VCCASW=803mA

(178mA)

R374 *0_04

147mA

(178mA)

(All VCCIO=3.799A)

50mA

(803mA)

+VCCA_USBSUS

R148 *20mil_04

+V5A_PCH_VCC5REFSUS

Schematic Diagrams

PCH 9/9 B - 23

B.Schematic Diagrams

PCH 9/9

U22I

Panther Point-S-QS

VSS[159]

AY4

VSS[160]

AY42

VSS[161]

AY46

VSS[162]

AY8

VSS[163]

B11

VSS[164]

B15

VSS[165]

B19

VSS[166]

B23

VSS[167]

B27

VSS[168]

B31

VSS[169]

B35

VSS[170]

B39

VSS[171]

VSS[173]

BB12

VSS[174]

BB16

VSS[175]

BB20

VSS[176]

BB22

VSS[177]

BB24

VSS[178]

BB28

VSS[179]

BB30

VSS[180]

BB38

VSS[181]

BB4

VSS[182]

BB46

VSS[183]

BC14

VSS[184]

BC18

VSS[185]

BC2

VSS[186]

BC22

VSS[187]

BC26

VSS[188]

BC32

VSS[189]

BC34

VSS[190]

BC36

VSS[191]

BC40

VSS[192]

BC42

VSS[193]

BC48

VSS[194]

BD46

VSS[195]

BD5

VSS[196]

BE22

VSS[197]

BE26

VSS[198]

BE40

VSS[199]

BF10

VSS[200]

BF12

VSS[201]

BF16

VSS[202]

BF20

VSS[203]

BF22

VSS[204]

BF24

VSS[205]

BF26

VSS[206]

BF28

VSS[207]

BD3

VSS[208]

BF30

VSS[209]

BF38

VSS[210]

BF40

VSS[211]

BF8

VSS[212]

BG17

VSS[213]

BG21

VSS[214]

BG33

VSS[215]

BG44

VSS[216]

BG8

VSS[217]

BH11

VSS[218]

BH15

VSS[219]

BH17

VSS[220]

BH19

VSS[222]

BH27

VSS[223]

BH31

VSS[224]

BH33

VSS[225]

BH35

VSS[226]

BH39

VSS[227]

BH43

VSS[228]

BH7

VSS[229]

VSS[230]

D12

VSS[231]

D16

VSS[232]

D18

VSS[233]

D22

VSS[234]

D24

VSS[235]

D26

VSS[236]

D30

VSS[237]

D32

VSS[264] K7

VSS[265] L18

VSS[266] L2

VSS[267] L20

VSS[268] L26

VSS[269] L28

VSS[270] L36

VSS[271] L48

VSS[272] M12

VSS[273] P16

VSS[274] M18

VSS[275] M22

VSS[276] M24

VSS[277] M30

VSS[278] M32

VSS[279] M34

VSS[280] M38

VSS[281] M4

VSS[282] M42

VSS[283] M46

VSS[284] M8

VSS[285] N18

VSS[286] P30

VSS[288] P11

VSS[289] P18

VSS[290] T33

VSS[291] P40

VSS[292] P43

VSS[293] P47

VSS[294] P7

VSS[295] R2

VSS[296] R48

VSS[297] T12

VSS[298] T31

VSS[299] T37

VSS[300] T4

VSS[301] W34

VSS[302] T46

VSS[303] T47

VSS[304] T8

VSS[305] V11

VSS[306] V17

VSS[307] V26

VSS[308] V27

VSS[309] V29

VSS[310] V31

VSS[311] V36

VSS[312] V39

VSS[313] V43

VSS[314] V7

VSS[315] W17

VSS[316] W19

VSS[238]

D34

VSS[239]

D38

VSS[240]

D42

VSS[241]

VSS[242]

E18

VSS[243]

E26

VSS[244]

G18

VSS[245]

G20

VSS[246]

G26

VSS[247]

G28

VSS[248]

G36

VSS[249]

G48

VSS[250]

H12

VSS[251]

H18

VSS[317] W2

VSS[318] W27

VSS[319] W48

VSS[320] Y12

VSS[321] Y38

VSS[322] Y4

VSS[323] Y42

VSS[324] Y46

VSS[325] Y8

VSS[328] BG29

VSS[329] N24

VSS[330] AJ3

VSS[287] N47

VSS[252]

H22

VSS[253]

H24

VSS[254]

H26

VSS[255]

H30

VSS[256]

H32

VSS[257]

H34

VSS[258]

VSS[262] K39

VSS[263] K46

VSS[259] H46

VSS[260] K18

VSS[261] K26

VSS[331] AD47

VSS[333] B43

VSS[334] BE10

VSS[335] BG41

VSS[337] G14

VSS[338] H16

VSS[340] T36

VSS[342] BG22

VSS[343] BG24

VSS[344] C22

VSS[345] AP13

VSS[172]

F45

VSS[221]

H10

VSS[346] M14

VSS[347] AP3

VSS[348] AP1

VSS[349] BE16

VSS[350] BC16

VSS[351] BG28

VSS[352] BJ28

U22H

Panther Point-S-QS

VSS[1]

AA17

VSS[2]

AA2

VSS[3]

AA3

VSS[5]

AA34

VSS[6]

AB11

VSS[7]

AB14

VSS[8]

AB39

VSS[9]

AB4

VSS[10]

AB43

VSS[11]

AB5

VSS[12]

AB7

VSS[13]

AC19

VSS[14]

AC2

VSS[15]

AC21

VSS[16]

AC24

VSS[17]

AC33

VSS[18]

AC34

VSS[19]

AC48

VSS[20]

AD10

VSS[21]

AD11

VSS[22]

AD12

VSS[23]

AD13

VSS[24]

AD19

VSS[25]

AD24

VSS[26]

AD26

VSS[27]

AD27

VSS[28]

AD33

VSS[29]

AD34

VSS[30]

AD36

VSS[31]

AD37

VSS[33]

AD39

VSS[34]

AD4

VSS[35]

AD40

VSS[36]

AD42

VSS[37]

AD43

VSS[38]

AD45

VSS[39]

AD46

VSS[43]

AF10

VSS[44]

AF12

VSS[46]

AD16

VSS[47]

AF16

VSS[48]

AF19

VSS[49]

AF24

VSS[50]

AF26

VSS[51]

AF27

VSS[52]

AF29

VSS[53]

AF31

VSS[54]

AF38

VSS[55]

AF4

VSS[56]

AF42

VSS[57]

AF46

VSS[59]

AF7

VSS[60]

AF8

VSS[61]

AG19

VSS[62]

AG2

VSS[63]

AG31

VSS[64]

AG48

VSS[65]

AH11

VSS[66]

AH3

VSS[67]

AH36

VSS[68]

AH39

VSS[69]

AH40

VSS[70]

AH42

VSS[71]

AH46

VSS[72]

AH7

VSS[73]

AJ19

VSS[76]

AJ33

VSS[77]

AJ34

VSS[78]

AK12

VSS[79]

AK3

VSS[80] AK38

VSS[81] AK4

VSS[82] AK42

VSS[83] AK46

VSS[84] AK8

VSS[85] AL16

VSS[86] AL17

VSS[87] AL19

VSS[88] AL2

VSS[89] AL21

VSS[90] AL23

VSS[91] AL26

VSS[92] AL27

VSS[93] AL31

VSS[96] AL48

VSS[97] AM11

VSS[98] AM14

VSS[99] AM36

VSS[100] AM39

VSS[102] AM45

VSS[103] AM46

VSS[104] AM7

VSS[105] AN2

VSS[106] AN29

VSS[107] AN3

VSS[108] AN31

VSS[109] AP12

VSS[110] AP19

VSS[111] AP28

VSS[112] AP30

VSS[113] AP32

VSS[114] AP38

VSS[116] AP42

VSS[117] AP46

VSS[118] AP8

VSS[119] AR2

VSS[120] AR48

VSS[121] AT11

VSS[122] AT13

VSS[123] AT18

VSS[124] AT22

VSS[125] AT26

VSS[126] AT28

VSS[127] AT30

VSS[128] AT32

VSS[131] AT42

VSS[132] AT46

VSS[133] AT7

VSS[134] AU24

VSS[135] AU30

VSS[136] AV16

VSS[137] AV20

VSS[138] AV24

VSS[139] AV30

VSS[140] AV38

VSS[141] AV4

VSS[142] AV43

VSS[143] AV8

VSS[144] AW14

VSS[145] AW18

VSS[146] AW2

VSS[147] AW22

VSS[148] AW26

VSS[149] AW28

VSS[150] AW32

VSS[151] AW34

VSS[152] AW36

VSS[153] AW40

VSS[154] AW48

VSS[155] AV11

VSS[156] AY12

VSS[157] AY22

VSS[158] AY28

VSS[40]

AD8

VSS[42]

AE3

VSS[45]

AD14

VSS[115] AP4

VSS[0]

VSS[58]

AF5

VSS[32]

AD38

VSS[4]

AA33

VSS[74]

AJ21

VSS[75]

AJ24

VSS[41]

AE2

VSS[129] AT34

VSS[130] AT39

VSS[101] AM43

VSS[95] AL34

VSS[94] AL33

PantherPoint -M (GND)

Sheet 22 of 47

PCH 9/9

6-S03-00771-0S2

6-S03-00077-0S0

SB LAN BIOS+ME EC

+V3.3M_LAN_OUT

LAN_MDIP1 [24]

SML0_DATA[15,31] SML0_CLK[15, 31]

LAN_MDIN2 [24]

LAN_MDIP2 [24]

LAN_MDIN1 [24]

LAN_MDIN3 [24]

LAN_MDIP3 [24]

LAN_MDIN0 [24]

LAN_MDIP0 [24]

GIGA LAN (INTEL LAN 82579LM)

VDD3

3.3V_M

VDD3

3.3V_M

1.05V_LAN_M

6-19-11001-001

PCIE

MDI

SMBUS

JTAG LED

82579LM

QFN48_6x6_4mm

RSVD_VCC3P3_1 1

RSVD_VCC3P3_2 2

LAN_D ISABLE_N

VDD3P3_OUT 4

VDD3P3_IN 5

VCT 6

CTRL_1P0 7

VDD1P0_8 8

XTA L _ O U T

XTA L _ I N

VDD1P0_11 11

RBIAS

MDI _ P LU S0 13

MDI_MIN US0 14

VDD3P3_15 15

VDD1P0_16 16

MDI _ P LU S1 17

MDI_MIN US1 18

VDD3P3_19 19

MDI _ P LU S2 20

MDI_MIN US2 21

VDD1P0_22 22

MDI _ P LU S3 23

MDI_MIN US3 24

LED2

LED0

LED1

SMB_CLK

VDD3P3_29 29

TEST_EN

SMB_DATA

JTAG_TDI

JTAG_TMS

33 JTAG_TDO

JTAG_TCK

PE_RST_N

VDD1P0_37 37

PETp

PETn

VDD1P0_40 40

PERp

PERn

VDD1P0_43 43

PE_CLKP

PE_CLKN

VDD1P0_46 46

VDD1P0_47 47

CLK_REQ_N

VSS_EPAD 49

VSS_EPAD

50 VSS_EPAD

51 VSS_EPAD

52 VSS_EPAD

D03

6-04-25640-490

MX25L6406EM21-12G

6-04-25640-490

MX25L6406EM21-12G

PM_LAN PHY_EN[19]

3.3V_M[14,20,24,34] VDD3[14,15,16,18,19,21,28,29,32,33,34, 35,36,41]

1.05V_LAN_M[14,21,35]

20 mil

6-22-25R00-1BV

6-22-25R00-1B4

6-22-25R00-1B5

PCIE_TXN4_IGLAN[15] PCIE_TXP4_IGLAN[15]

6-04-25010-A91

PM25L010C-SCE

BUF_PLT_RST#[11,25,28,29,31,33]

CLK_PCIE_IGLAN#[15] CLK_PCIE_IGLAN[15]

6-04-25010-A91

PM25L010C-SCE

U26

20 mil

R64 *20mil_04

R72 *20mil_04

C560

10u_6.3V_X5R_06

VDD1P0

305mA

94mA

non-VPRO

6-03-82579-031

6-03-82579-030

U22

82579V

82579LM

HM77

QM77

VPRO

C384

27P_50V_NPO_04

R75 *10K_04

C53

0.1u_16V_Y5V_04

R79

10K_04

C61 0.1u_10V_X7R_04

PJ25 *OPEN-1mm

1 2

C52

0.1u_16V_Y5V_04

R74 *10K_04

C50

0.1u_10V_X5R_04

FSX5L_25MHZ

R76 4.7K_04

C60 0.1u_10V_X7R_04

U28

R62

3.01K_1%_04

R73 10K_04

R77 *10K_04

Z2302

Z2301

LAN_JTAG_TMS

LAN_JTAG_TCK

R78 4.7K_04

C62

10u_6.3V_X5R_06

R69

1K_04

C383

27P_50V_NPO_04

Z2306

LAN_JTAG_TDO

LAN_JTAG_TDI

RES_BI AS

LAN_TEST_EN

LAN_XTAL_IN

LAN_XTAL_OUT

PCIE_RXN4_C_GLAN

PCIE_RXP4_C_GLAN

LAN_MDI N 0

LAN_MDI P0

Z2304

+VCT_LAN

LAN_MDI N 3

LAN_MDI P3

LAN_MDI N 2

LAN_MDI P2

LAN_MDI N 1

LAN_MDI P1

Z2305

Keep short &

wide

L33

SWF2520CF-4R7M-M

20 mil

U25

PCIE_RXN4_IGLAN[15]

IGLAN_CLKREQ#[15]

PCIE_RXP4_IGLAN[15]

C51 1u_6. 3V_X5R_04

Schematic Diagrams

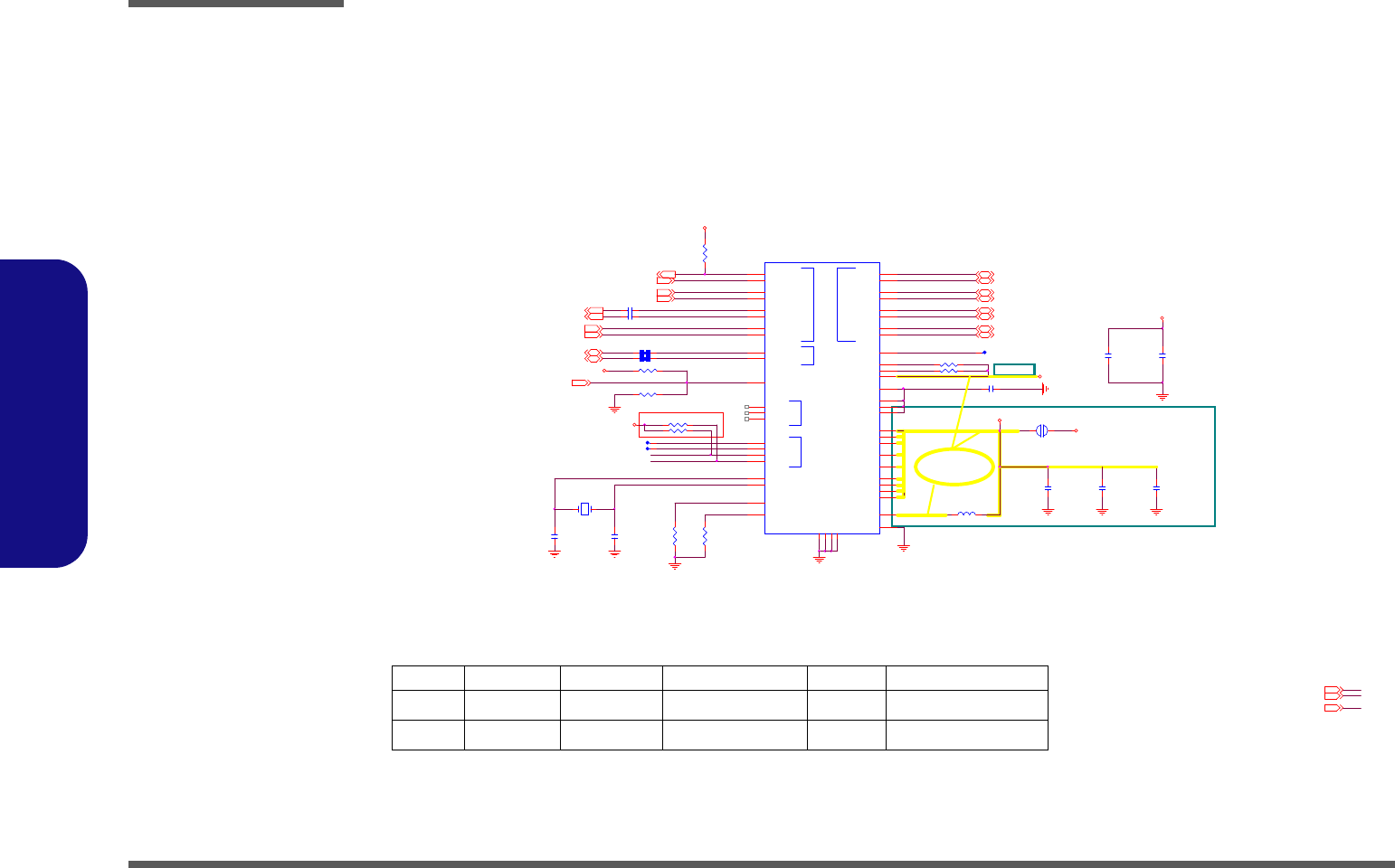

B - 24 Intel LAN 82579LM

B.Schematic Diagrams

Intel LAN 82579LM

Sheet 23 of 47

Intel LAN 82579LM

Schematic Diagrams

LAN Transformer B - 25

B.Schematic Diagrams

LAN Transformer

DK_LAN_MDIO0+ [33]

DK_LAN_MDIO2- [33]

DK_LAN_MDIO1+ [33]

DK_LAN_MDIO0- [33]

DK_LAN_MDIO3+ [33]

DK_LAN_MDIO3- [33]

DK_LAN_MDIO2+ [33]

DK_LAN_MDIO1- [33]

GIGA LAN TRANSFORMER

L22

*WCM2012F2S-SHORT

LAN_MDIP0[23]

LAN_MDIN2[23] LAN_MDIP2[23]

LAN_MDIP3[23]

LAN_MDIN0[23]

LAN_MDIN3[23]

LAN_MDIN1[23] LAN_MDIP1[23]

L21

NS892402 SWAP

LG-2413S

TCT1

TD1+

TD1-

TCT2

TD2+

TD2-

TCT3

TD3+

TD3-

TCT4

TD4+

TD4-

12 MX4- 13

MX4+ 14

MCT4 15

MX3- 16

MX3+ 17

MCT3 18

MX2- 19

MX2+ 20

MCT2 21

MX1- 22

MX1+ 23

MCT1 24

3.3V_M

6-19-21001-042

L23

*WCM2012F2S-SHORT

L24

*WCM2012F2S-SHORT

L25

*WCM2012F2S-SHORT

D03

Ax to Cx ,

LEDAx to LEDCx

FUNCTIONPD

SEL

Hi-Z

©ñ¤¤¶¡

DOCKING RJ45

Ax to Bx ,

LEDAx to LEDBx

NB RJ45

LMX2-

LMX4-

LMX3+

LMX3-

DK_EN[13,29,33]

3.3V_M[14,20,23,34]

LMX3-

LMX2+

DLMX1+

LMX1- DLMX4-

NMCT_4

LMX1+ DLMX3-

DLMX3+

DLMX1-

DLMX4+

LMX4+

DLMX2-

NMCT_R

Z2403

NMCT_2

NMCT_3

NMCT_1

LMX4+

LMX2-

LMX2+

LMX3+

LMX1+

LMX4-

LMX1-

LAN_MDIP0

LAN_MDIP2

LAN_MDIP3

LAN_MDIN 3

LAN_MDIP1

LAN_MDIN 0

LAN_MDIN 1

LAN_MDIN 2

Z2402

NB_LAN_MDIN2

NB_LAN_MDIN3

NB_LAN_MDIP3

NB_LAN_MDIP0

NB_LAN_MDIP2

NB_LAN_MDIN1

NB_LAN_MDIN0

NB_LAN_MDIP1

NB_LAN_MDIN2

NB_LAN_MDIP2

NB_LAN_MDIN3

NB_LAN_MDIP3

Z2401

NB_LAN_MDIN0

NB_LAN_MDIP0

NB_LAN_MDIP1

NB_LAN_MDIN1

DLMX2+

RJ45 Conn.

C360

*0.01u_16V_X7R_04

Docking

LAN

R287 75_1%_04

Transformer

C355

1000p_2KV_X7R_12

R290 75_1%_04

C363

*0.01u_16V_X7R_04

C364

0.01u_16V_X7R_04

R19 *10mil_04

R289 *10mil_04

GND

PERI COM

PI3L720ZHE

TQFN42-ZH

VDD 1

A0+

A0-

VDD 4

A1+

A1-

VDD 8

A2+

A2-

A3+

A3-

SEL

VDD 14

LEDA0

LEDA1

LEDB0

LEDB1

LEDC0

LEDC1

VDD 21

C3- 22

C3+ 23

B3- 24

B3+ 25

C2- 26

C2+ 27

B2- 28

B2+ 29

VDD 30

C1- 31

C1+ 32

B1- 33

B1+ 34

C0- 35

C0+ 36

B0- 37

B0+ 38

VDD 39

LEDC2

LEDB2

LEDA2

GND

R288 75_1%_04

C365

*0.01u_16V_X7R_04

R284 75_1%_04

R291

*0_04

GND

130451-0M

J_RJ45_1

130451-0m

6-21-B4060-008

DD-

8DD+

DB-

DC-

5DC+

DB+

3DA-

2DA+

1shield GND1

shield GND2

Sheet 24 of 47

LAN Transformer

Schematic Diagrams

B - 26 Card Reader RTS5229

B.Schematic Diagrams

Card Reader RTS5229

C517 1u_6.3V_X5R_04

J_CARD_1

MXP019-A0-603X

DAT2_SD

VSS_MS

CD/DAT3_SD

CMD_SD

VSS_SD

VDD_SD

CLK_SD

VSS_SD

DAT0_SD

DAT1_SD

WP_SD

VSS_MS

VCC_MS

SCLK_MS

DAT3_MS

INS_MS

DAT2_MS

SDIO/DAT0_MS

DAT1_MS

BS_MS

CD_SD

GND 23

GND 24

GND 21

SD_D0/MS_D1

C516 *6.8p_50V_NPO_04

VCC_CARD

| CLK - DATA | <= 100mils

LENGTH <2INCH

CLK NEED DOUBLE SPACE THEN OTHER

50ohm +/- 15%

RTS5229

QFN24

U12

RTS5229

qf n24-4x4mm

HSIP

HSIN

REFCLKP

REFCLKN

HSOP

HSON

AV12

RREF

3V3_IN

CARD_3V3

DV12_S

SP1

SP3 14

DV33_18 15

SP4 16

SP5 17

SP6 18

GPI O 19

SP7 20

SD_CD# 21

MS_INS# 22

PERST# 23

CLKREQ# 24

SP2 13

GND

| DATA.x - DATA.y | <= 100mils

Very closed to

Chip Pin

VCC_CARD

6-21-G4010-124

3.3VS_IN

R433 10K_04

¤@©w-n¾aªñsocket,

§_«h³¡¥÷¥d·|»{¤£¨ì

CR1_LEDN

Near Cardreader CONN

RREF

AV12

C326

4.7u_6.3V_X5R_06

3.3VS

VCC_CARD

PCH

PCI-E Signal Group

Zdiff = 85 Ohm

¡Ó10% (5 / 5.5 m l)

40 mil

20 mil 20 mil

20 mil

40 mil 40 mil

Very closed to

Chip Pin

Very closed to

Chip Pin

C518 *6.8p_50V_NPO_04

12 mil

L<200mils

JMB_CLKREQ#[15]

DV12_S

BUF_PLT_RST#[11,23,28,29,31,33]

C519

4.7u_6.3V_X5R_06

3. 3V S[3,9,10,11,12,13,14,15,16,17,18,19,20,21,26,27,28,29,30,31,32,33,34,39]

C304

0.1u_16V_Y5V_04

SP1 SD_D1

SD Card Remove Fall time less than 1 ms

when SD card remove.

Card Reader PowerCard Reader Power

meet falling time

<1ms

40 mil40 mil

6-03-05229-030

C303 0.1u_10V_X7R_04

C292

0.1u_16V_Y5V_04

C308

0.1u_16V_Y5V_04

C293

0.1u_16V_Y5V_04

C301

0.1u_16V_Y5V_04

C285

0.1u_16V_Y5V_04

C287

0.1u_16V_Y5V_04

Very closed to pin11

R176

*150_06

C300 0.1u_10V_X7R_04

Very closed to pin7

C298

10u_6.3V_X5R_06

R223

6.2K_1%_04 C312

10u_6.3V_X5R_06

3.3VS_IN

Very closed to pin 9

R436 *20mil_04

SP6

SP5

SP4

DV33_18

SP3

R435 0_04

R438 0_04

SD_D2/MS_CLK

SD_D3/MS_D3

SD_CMD/MS_D2

SD_CLK/MS_D0

SD_D2/MS_CLK

SD_CMD/MS_D2

SD_CD#

SD_D0/MS_D1

SD_CLK/MS_D0

SD_D3/MS_D3

SD_D2/MS_CLK

SD_D1

SD_WP/MS_BS

SD_D0/MS_D1

SD_CLK/MS_D0

SD_D3/MS_D3

SD_WP/MS_BS

SD_CMD/MS_D2

MS _I N S #

RTS5229

100ohm

+/- 15%

PCIE_RXP2_JMB_R

PCIE_RXN2_JMB_R

R437 *20mil_04

PCIE_TXN2_JMB[15] PCIE_TXP2_JMB[15]

R439 *20mil_04

R440 *20mil_04

CLK_PCIE_JMB[15]

It is recommended that use a guard ground

to isolate SD_CLK trace

CLK_PCIE_JMB#[15]

PCIE_RXN2_JMB[15] PCIE_RXP2_JMB[15]

D03

SD_WP/MS_BS

SD_CD#

MS _I N S #

CARD_3V3 R175 0.2_06

R434 *28mil_06

D03

Sheet 25 of 47

Card Reader

RTS5229

Schematic Diagrams

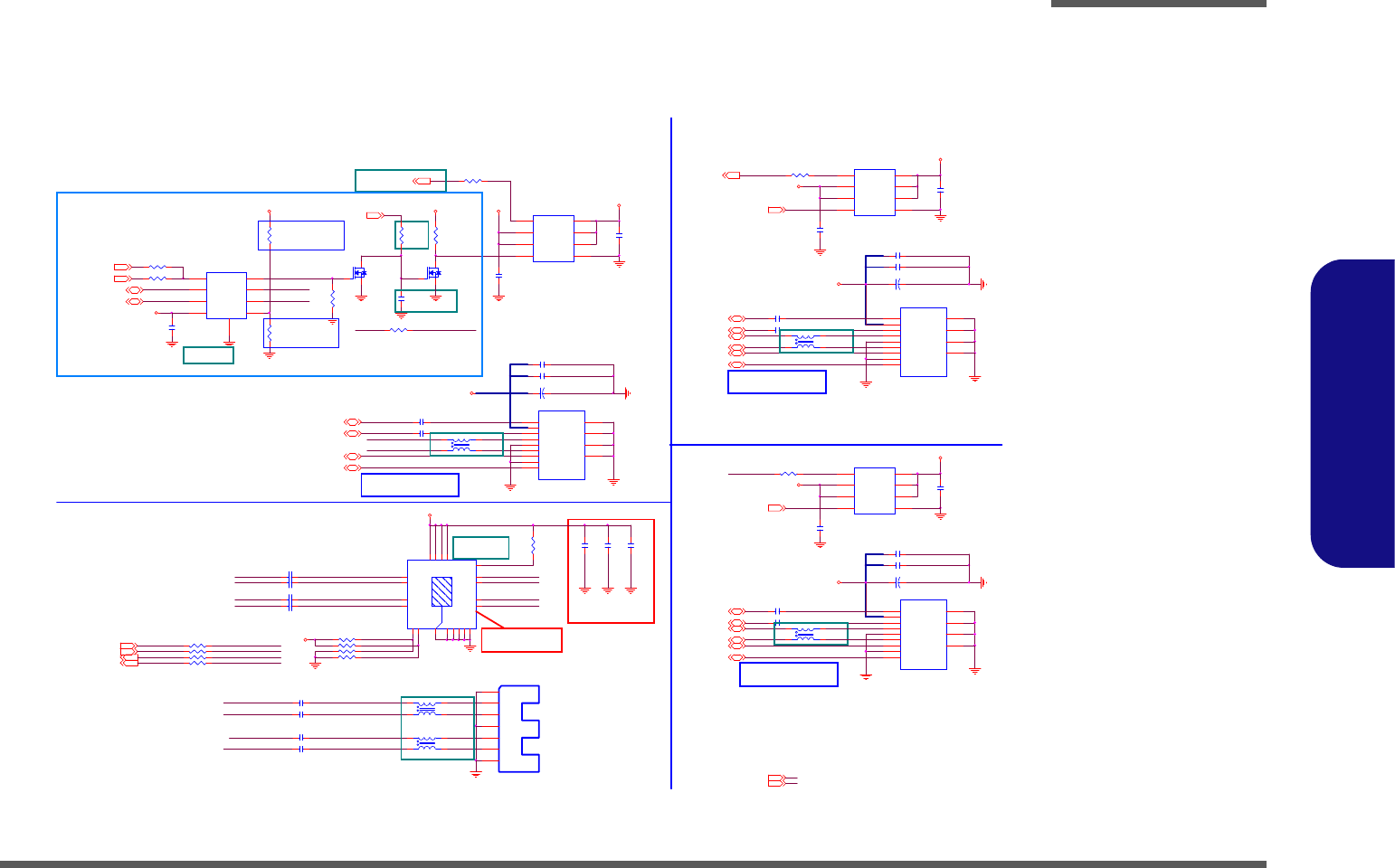

USB Port, E-SATA B - 27

B.Schematic Diagrams

USB Port, E-SATA

J_ESATA1

AT07J36BAA090

SKC129-100A-SP

GND1

TXP

TXN

GND2

RXN

RXP

GND3

SATA_TXP4_R

SATA_TXN4_R

SATA_RXP4_R

R252 4.7K_04

3.3VS[3,9,10,11,12,13,14,15,16,17,18,19,20,21,25,27,28,29,30,31,32,33,34,39]

R411 *0_04

ESATA REDRIVER

C339 0. 01u_16V_X7R_04

R269 *4.7K_04

C338 0. 01u_16V_X7R_04

C333 0. 01u_16V_X7R_04

R394 *0_04

R249

4.7K_04

C341

0.01u_16V_X7R_04

C478

1u_6.3V_X5R_04

C331 0. 01u_16V_X7R_04

VDD5

R389 *0_04

R256 4.7K_04

C340

0.1u_16V_Y5V_04

HOST

DEV I CE

U14

SN75LVCP412ARTJR

QFN20_4MM

VDD 6

RX_0P

RX_0N

GND

VDD 10

TX_1N

TX_1P

VDD 16

GND

RX_1P 11

RX_1N 12

VDD 20

GND

TX_0N 14

TX_0P 15

EN 7

T-PAD

GND

U3RX4#[18]

U3RX4[18]

U3TX4#[18]

U3TX4[18]

U3RX1#[18]

USB_PN1[18]

U3RX2#[18]

U3TX2[18]

U3RX2[18]

U3TX1#[18]

U3TX2#[18]

USB_PP1[18]

USB_PP3[18]

U3RX1[18]

U3TX1[18]

USB_PP0[18]

USB_PN0[18]

USB_PN3[18]

R255 *4.7K_04R403 *0_04

3.3VS

SATATXP4[14]

R142 *0_04

SATATXN4[14] SATARXN4[14] SATARXP4[14]

PRE# USB_DD_ON#

U3TX4#_R

U3TX4_R

C271 0.1u_10V_X7R_04

C265 0.1u_10V_X7R_04

USBVCC2

VDD5

USBVCC2

USBVCC_CH

USBVCC1

VDD5VDD5 VDD5

VDD5

Layout note:

6-02-75412-BQ0

NEAR TO J_ESATA1

SN75LVCP412ARTJR

USB_OC#01[18]

Layout Note:

Closed to CHIP

C161 22u_6.3V_X5R_08

D03

C160 22u_6.3V_X5R_08

Standard-A

J_USB2

C19009-90905-L

USB-C19005

6-21-B4A20-009

VBUS

D-

D+

GND_D

SSRX-

SSRX+

GND

SSTX-

SSTX+

9SHIELD GND1

SHIELD GND2

SHIELD GND3

SHIELD GND4

Standard-A

J_USB3

C19009-90905-L

USB-C19005

6-21-B4A20-009

VBUS

D-

D+

GND_D

SSRX-

SSRX+

GND

SSTX-

SSTX+

9SHIELD GND1

SHIELD GND2

SHIELD GND3

SHIELD GND4

SATA_TXN4_R

SATATXP4

SATA_TXN4

SATA_RXP4 SATA_RXN4_RSATA_RXN4

SATA_TXP4

Z2615

Z2617

Z2616SATA_TXP4_R

SATA_RXP4_R

SATA_RXN4_RSATARXN4

SATATXP4

SATARXP4

SATARXN4

SATARXP4

SATATXN4

C64 22u_6.3V_X5R_08

C58 22u_6.3V_X5R_08

C211

10u_6.3V_X5R_06

C561

0.1u_16V_Y5V_04

VDD5[21,32,34,35,36]

DD_ON[29,34,36]

C208

10u_6.3V_X5R_06

¥Ø«e¨Ï¥Î¦¹®Æ SLG55583VTR : 6-02-

NCT3951Y-H : 6-02-03951-9D0

USB_PP3_RR

SATA_TXP4_C Z2606

SATA_RXP4_CSATA_RXP4_R

USB_PN3_RRUSB_PN3_R

Z2608

SATA_TXN4_R

USB_PP3_R

C278 0.01u_16V_X7R_04

SATA_TXN4_C

SATA_RXN4_C

C290 0.01u_16V_X7R_04

C198

10u_6.3V_X5R_06

SATA_RXN4_R

SATA_TXP4_R

C284 0.01u_16V_X7R_04

L15

*WCM2012F2S-SH ORT

Z2609

L18

*WCM2012F2S-SHORT

3Z2607

L17

*WCM2012F2S-SHORT

C276 0.01u_16V_X7R_04

USB3.0 Max Trace

length < 10"

CLOSE TO CONNECTOR

USBVCC_CH

C230 22u_6.3V_X5R_08

C234 *220u_6.3V_6.3*6.3*4.2

C221 22u_6.3V_X5R_08

100mils

DD_ON#[32,34,37]

USB_CHARGE_EN[29,34,36] DD_ON#[32,34,37]

C69 0.1u_10V_X7R_04

100mils

U3TX1#_R

C197

0.1u_16V_Y5V_04

DD_ON#

CLOSE TO CONNECTOR

2A/90mohm

SY6288DCAC

M-MSOP8

VOUT1 6

VOUT3 8

VIN2

VIN1

2VOUT2 7

GND 1

EN#

FLG#

USB3.0 Max Trace

length < 10"

U3TX1_R

C448 *220u_6.3V_6.3*6.3*4. 2

C166 0.1u_10V_X7R_04

100mils

Z2614

C168 0.1u_10V_X7R_04

CLOSE TO CONNECTOR

Z2605

U3TX2#_R

SY6288DCAC

M-MSOP8

VOUT1 6

VOUT3 8

VIN2

VIN1

2VOUT2 7

GND 1

EN#

FLG#

R113 *0_04

U3TX2_R

DD_ON#

C68 0.1u_10V_X7R_04

*WCM2012F2S-SHORT

C447 *220u_6.3V_6.3*6.3*4. 2

R131 *0_04

USB_OC#01

*WCM2012F2S-SHORT

USB3.0 Max Trace

length < 10"

C194

0.1u_16V_Y5V_04

USB_OC#01

2A/90mohm

USB3.0

R149

100K_04

USB_DD_ON#

USB_PN0_R

SLG55583VTR

TDFN8-2X2MM

PRE# 1

DM 2

DP 3

CDP 4

VCC

TDP

TDM

GND

USB_PP0_R

USB_PN3

C219

0.1u_16V_Y5V_04

PRE#

R144

100K_04

R150

1M_04

Z2602

USB_PP3

R143 *0_04

SY6288DCAC

M-MSOP8

VOUT1 6

VOUT3 8

VIN2

VIN1

2VOUT2 7

GND 1

EN#

FLG#

R151

10K_04

Z2604

USB_PN3_R

R147

*0_04

C247

0.1u_16V_Y5V_04

Q12A

MTDK5S6R

USB_PP3_R

PRE#_R

Q12B

MTDK5S 6R

6-21-14J00-107

Standard-A

J_USB1

C19009-90905-L

USB-C19005

6-21-B4A20-009

VBUS

D-

D+

GND_D

SSRX-

SSRX+

GND

SSTX-

SSTX+

9SHIELD GND1

SHIELD GND2

SHIELD GND3

SHIELD GND4

R471 *0_04

R472 0_04 CB

SUSB#[6,16,29,31,33,34,35]

Stuff for

SLG55583VTR

Stuff for

NCT3951Y-H

100mils

PIN4:

SLG55583V T R: CDP

NCT 395 1Y- H: GND

Default Low

W/ USB CHARGER

USB_OC#23[18]

D03

USB_PN1_R

USB_PP1_R

D03

Sheet 26 of 47

USB Port, E-SATA

Schematic Diagrams

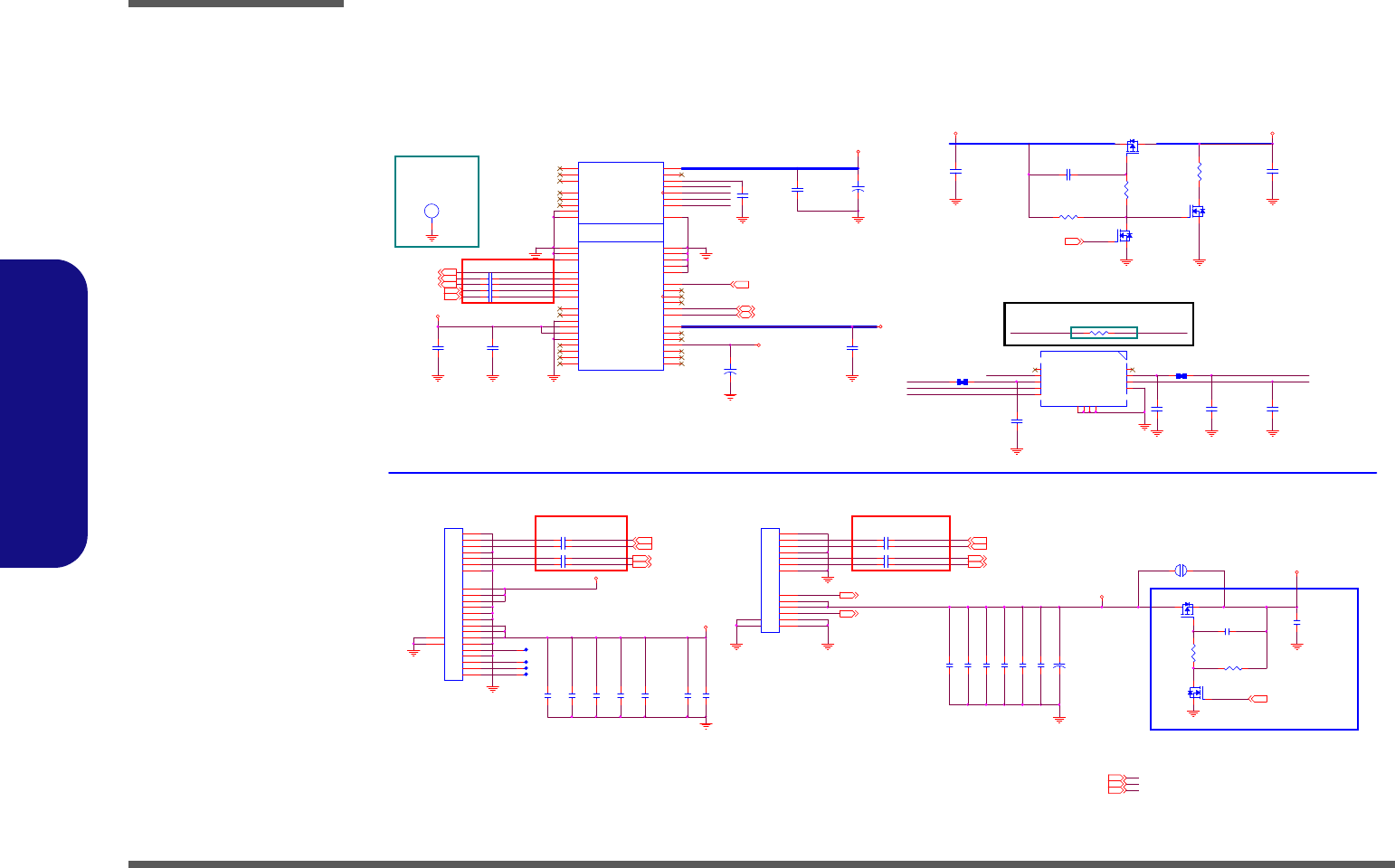

B - 28 3G, HDD, ODD

B.Schematic Diagrams

3G, HDD, ODD

SATA_TXP0

SATA_TXN0

HDD_NC1

HDD_NC2

HDD_NC3

HDD_NC0

Z2708

Z2709

Z2707

Z2706

UIM_RST

C476 0.01u_16V_X7R_04

UIM_DATA

C235 10u_10V_Y5V_08

UIM_VPP

UIM_RST

UIM_PWR

UIM_CLK

60mils

R111 *100K_04

>120 mil

C457 *0.1u_16V_Y5V_04

PJ20 *OPEN-2mm

1 2

C421 0.01u_16V_X7R_04

3G POWER

Z2704

From H8 default HI

>120 mil

C455 0.1u_16V_Y5V_04

C474 0.01u_16V_X7R_04

C422 0.01u_16V_X7R_04

SIM CONN

UIM_D

MINI CARD 3G(Port 6)

UIM_PWR

C475 0.01u_16V_X7R_04

C451 *0.1u_16V_Y5V_04

C411 0.1u_16V_Y5V_04

3.3VS

5VS

5VS_ODD

UIM_DATA

UIM_CLK

SIMLOCK

Z2705

C420 0.01u_16V_X7R_04

C407 10u_10V_Y5V_08

C419 0.01u_16V_X7R_04

C449 *22u_6.3V_X5R_08

J_HDD1

50887-0220A-H01

50887-0220A-XXX

6-20-43790-122

P10

P11

P12

P13

P14

P15

NC2

NC1

C477 0.01u_16V_X7R_04

C415 0.1u_16V_Y5V_04

C462 *22u_6.3V_X5R_08

C450 1u_6.3V_X5R_04

SATA_RXP2

SATA_RXN2

SATA_TXP2

SATA_TXN2

8mil

C401 *22u_6.3V_X5R_08

C418 *22u_6.3V_X5R_08

Q30B

MTDK5S6R

Q30A

MTDK5S6R

Z2703

UIM_C UIM_DATA

UIM_VPP

Layout®É

1. SIM¤§©Ò¦³«H¸¹½u¥[²Ê

(Width: 10mil & Spacing: 10mil)

2. ©Ò¦³«H¸¹½u¤§¶¡¥[GND

3. SIM hold ¥»Åé¥|©P¥[GND³òÂ¶

4. SIM CONN ¾aªñ MINI CARD CONN

UIM_PWR

SATA_RXN0

SATATXP2 [14]

SATATXN0 [14]

SATATXP0 [14]

SATA_ODD_PWRGT [19]

SATATXN2 [14]

SATA_RXP0

1.5A

CLOSE TO J_HDD1 CLOSE TO J_ODD1

SATA ODD

D03

Zero Power ODD¤W¥ó: Q34,Q35,C138,C146,R94,R502

PIN GND1~4=GND

6-21-13000-113

Short

SATA HDD

C532

*220u_6. 3V_6.3*6.3*4.2

UIM_DATA

5VS[12, 13,14,21,30,32,34,39]

3.3VS[3,9,10,11,12,13,14,15,16,17,18,19,20,21,25,26,28,29,30,31,32,33,34,39]

Q22 *MTP3403N3

D S

C549

*22p_50V_NPO_04

C535

0.1u_16V_Y5V_04

R455 *4.7K_04

R456

*10mil_04

(TOP VIEW)

J_SIM1

91712-0090P

UIM_DATA

UIM_VPP 4

UIM_GND 2

UIM_PWR

1UIM_RST

3UIM_CLK

GNG

GND1

UIM_I/O 6

U I M_MC MD 8

DETECT_SW

GND

GND2

GND

GND3

GND

GND4

C550

*22p_50V_NPO_04

R453

20K_1%_04

C542 0.01u_16V_X7R_04

C544

0.1u_16V_Y5V_04

C539

0.1u_16V_Y5V_04

C545

10u_10V_Y5V_08

C540 0.01u_16V_X7R_04

R454 100K_04

C546

0.1u_16V_Y5V_04

C538 1u_6.3V_X5R_04

C543 0.01u_16V_X7R_04

C536

0.1u_16V_Y 5V_04

KEY

J_3G1

88908-5204M-01

88911-52XXA

COEX1

COEX2

CLKREQ#

GND0

REFCLK-

REFCLK+

WAKE#

GND1

PETn0_TXP

PETp0_TXN

GND2

GND3

PERn0_RXN

PERp0_RXP

GND4

Res erv ed0

Res erv ed1

W_DISABLE# 20

GND12

3.3VAUX_3

3.3VAUX_4

GND13

Res erv ed2

Res erv ed3

Res erv ed4

Res erv ed5

51 LED_WLAN# 44

LED_WWAN# 42

GND6 18

UIM_VPP 16

UIM_RESET 14

3.3VAUX_0 2

UIM_CLK 12

UIM_DATA 10

UIM_PWR 8

1.5V_0 6

GND5 4

PERSET# 22

3.3VAUX_1 24

GND7 26

1.5V_1 28

SMB_CLK 30

SMB_DATA 32

GND8 34

USB_D- 36

USB_D+ 38

GND9 40

LED_WPAN# 46

1.5V_2 48

GND10 50

3.3VAUX_2 52

GND11

C537

*1u_6. 3V_X5R_04

R457

*10mil_04

C534

220u_6.3V_6.3*6.3*4.2

C541 0.01u_16V_X7R_04

C547

220u_6.3V_6.3*6.3*4.2

C551

*22p_50V_NPO_04

Q29

MTP3415KN3

C548

*22p_50V_NPO_04

R452

10_06

3G_3.3V

3.3V

3G_DET#[29]

3.3V[2, 3,6,11,28,30,31,33,34,37,38]

USB_PP6_3G [18]

USB_PN6_3G [18]

3G_EN [29]SATARXN3[14] SATARXP3[14]

3G_PWR_EN[29]

SATATXP3[14] SA TATXN3[14]

H21

H7_0D2_8

J_ODD1

C18511-11305-L

C18511-11305

P6GND1

GND2

60mils

D03

6-34-M52NS-020-2

M2*7.5H(3G)

SATA_ODD_PR SNT# [19]

SATA_ODD_DA# [18]

R112

*20K_1%_04

C442

*22u_6.3V_X5R_08

C188

*1u_6.3V_X5R_04

Q10

*2SK3018S3 G

Z2701

6-21-84DA0-226 (H=9.9)

Z2702

C414 1u_6.3V_X5R_04

SATARXP0 [14] SATARXN2 [14]

SATARXP2 [14]

SATARXN0 [14]

CLOSE TO J_3G1

Sheet 27 of 47

3G, HDD, ODD

Schematic Diagrams

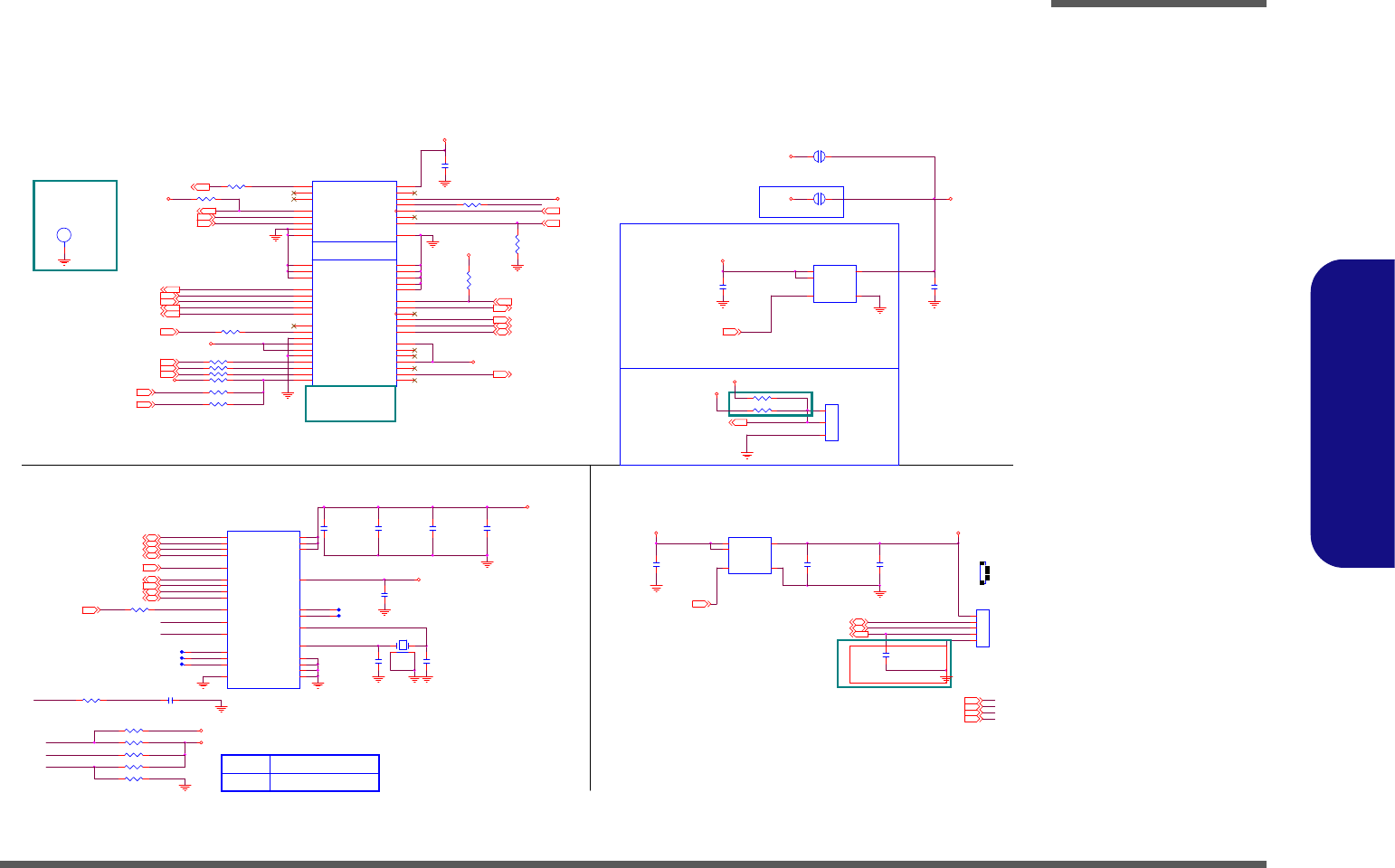

WLAN, CCD, TPM B - 29

B.Schematic Diagrams

WLAN, CCD, TPM

1A1A

6-22-32R76-0BG

6-22-32R76-0B2

USB_PN 8_WLAN [ 18]

USB_PP8_WLAN [18]

R450 20K_1%_04 SW1

SSS-12M90APV-WF

C513

1u_6.3V_X5R_04

C361

1u_6.3V_X5R_04

R451 *20K_1%_04

USB_PN10_CCD[18]

LPC_AD2[14,29,33] LPC_AD3[14,29,33]

LPC_AD1[14,29,33]

USB_PP10_CCD[18]

SERIRQ[14,29,33]

LPC_AD0[14,29,33]

LPC_FRAME#[ 14,29,33]

PM_CLKRUN#[16]

R409 *0_04 S4_STATE#_R

C564

*180p_50V_NPO_04

R407 *10K_04

3.3V

S4_STATE#_R

VDD3

3.3VS

PJ24

*OPEN-2mm

1 2

VDD3

WLAN_3.3V

3.3V

5V_CCD5V

VDD3

WLAN_3.3V

VDD3

WLAN_3.3V

WLAN_3. 3V

WLAN_3.3V

3.3VS

WLAN_3.3V

WLAN_EN_SW[29]

From H8 default HI

CCD_DET#

MJ_CCD1

2~3->ON

1~2->OFF

CCD

D03

XTA L I

TPM 1.2

TPM3005

TPM_BADD

TPM3002

TPM_PP

TPM3001

TPM3004

TPM3003

XTA L O

M:NCT3522U: 6-02-03522-9C0

S:G5243A: 6-02-05243-9C0

AP2821KTR-G1:6-02-02821-9C0

CLOSE TO J_CCD1 EMI

D03

PCLK_TPM[18]

S4_STATE#[16]

PLT_R ST#[3,11,18]

CCD_EN[29]

5V[34,37,38]

3.3V[2,3,6,11,27,30,31,33,34,37,38] 3. 3VS[3,9,10,11,12,13,14,15,16,17,18,19,20,21,25,26,27,29,30,31,32,33,34,39]

PCI E_RXN1_WLAN[15]

CL_DATA1[15]

WLAN_CON_POWER[29]

VDD3[14,15,16,18,19,21,23,29,32,33,34,35,36,41]

PCIE_RXP1_WLAN[15]

CL_RST#1[15]

BT_SBD#[15]

CL_CLK1[15]

BT_EN[29,32]

-¸¯è¼Ò¦¡

LPCPD# inactive to LRST# inactive 32~96us

Ass erted before entering S3

LPC reset timing:

H: 4E/ 4F H Default

L: 2E/ 2F H

H: ACCESS

L: NORM AL ( Int. PD ) De fault

TPM_PP

TPM_BADD

D03

C362

10u_10V_Y5V_08

TPM_PP

TPM_BADD

C318

0.1u_16V_Y5V_04

CLK_PCIE_MINI[15]

80CLK [29]

3IN1 [29]

WLAN_EN [29]

CLK_PCIE_MINI #[15]

6-03-09635-0H3

R165 *10K_04

R170 0_04

(For INTEL SMART CONNECTOR)

WLAN POWER

C309

1u_6.3V_X5R_04

R172 33_04

R168 0_04 Z2803

R195 *0_04

CL_DATA_1

R196

*10K_04

Z2802

20 mil

M:NCT3522U: 6-02-03522-9C0

S:G5243A: 6-02-05243-9C0

AP2821KTR-G1:6-02-02821-9C0

Z2801

R234 10K_04

20 mil

-nµ¥ªø¡I

BUF_PLT_RST#

U13

NCT3522U

M-SOT23-5

VIN

VOUT 1

GND 2

MINI CARD WLAN (Port 8)

BT_SBD#

20 mil

20mil

BT_SBD#

>120mil

CL_RST#_1

KEY

J_MINI1

88910-5204M-01

88911-52XXA

6-21-84D90-226

COEX1

COEX2

CLKREQ#

GND0

REFCLK-

REFCLK+

WAKE#

GND1

PETn0

PETp0

GND2

GND3

PERn0

PERp0

GND4

Res erved0

Res erved1

W_DISABLE# 20

GND12

3.3VAUX_3

3.3VAUX_4

GND13

Res erved2

Res erved3

Res erved4

Res erved5

51 LED_WLAN# 44

LED_WWAN# 42

GND6 18

UIM_VPP 16

UIM_RESET 14

3.3VAUX_0 2

UIM_CLK 12

UIM_DATA 10

UIM_PWR 8

1.5V_0 6

GND5 4

PERSET# 22

3.3VAUX_1 24

GND7 26

1.5V_1 28

SMB_CLK 30

SMB_DATA 32

GND8 34

USB_D- 36

USB_D+ 38

GND9 40

LED_WPAN# 46

1.5V_2 48

GND10 50

3.3VAUX_2 52

GND11

C319

0.1u_16V_Y5V_04

Z2804

R240 *0_04

CL_CLK_1

From H8 default HI

R163 0_04

>120mil

R224 *0_04

R164 *0_04

R395

*20K_1%_04

R427 *10K_04

C512

0.1u_16V_Y5V_04

R408 10K_04

6-34-M56AS-011-1

M2*1.5H(WLAN)

C499

18p_50V_NPO_04

J_CCD1

85205-05001

85205-05R

6-20-51150-105

C509

18p_50V_NPO_04

PCIE_WAKE#[16,31]

WLAN_CLKREQ#[ 15]

C358

0.1u_16V_Y5V_04

C485

0.1u_16V_Y5V_04

MC-306_32.768KHz

3 2

C488

0.1u_16V_Y5V_04 U18

NCT3522U

M-SOT23-5

VIN

VOUT 1

GND 2

PCLK_TPM1PCLK_TPM

TPM

U27

SLB9635TT

TSSOP28-1

LAD3

LAD0

LAD1

LAD2

VDD1 10

XTA L I 13

VDD3 24

VDD2 19

LFRAME#

LCLK

LRESET#

SERIR Q

CLKRUN#

GND_1 4

GND_2 11

GND_3 18

GND_4 25

GPIO 6

GPIO2 2

XTA L O 14

TESTI

TESTBI/BADD

NC_1

NC_2

NC_3

LPCPD#

VSB 5

C487

0.1u_16V_Y5V_04

R410

*33_04

C486 *10p_50V_NPO_04

R428 10K_04

R429 *10K_04

6-21-84D90-226 (H=4)

¨¾¤õ§÷½è¨ú®ø

2_06

WLAN_DET#[29]

CCD_DET#[29]

WLAN_LED# [32]

PCIE_TXN1_WLAN[15] PCIE_TXP1_WLAN[15] BT_DET# [29]

BUF_PLT_RST# [11,23,25,29,31,33]

H31

H7_0D3_7

PJ13

*OPEN-2mm

1 2

Sheet 28 of 47

WLAN, CCD, TPM

Schematic Diagrams

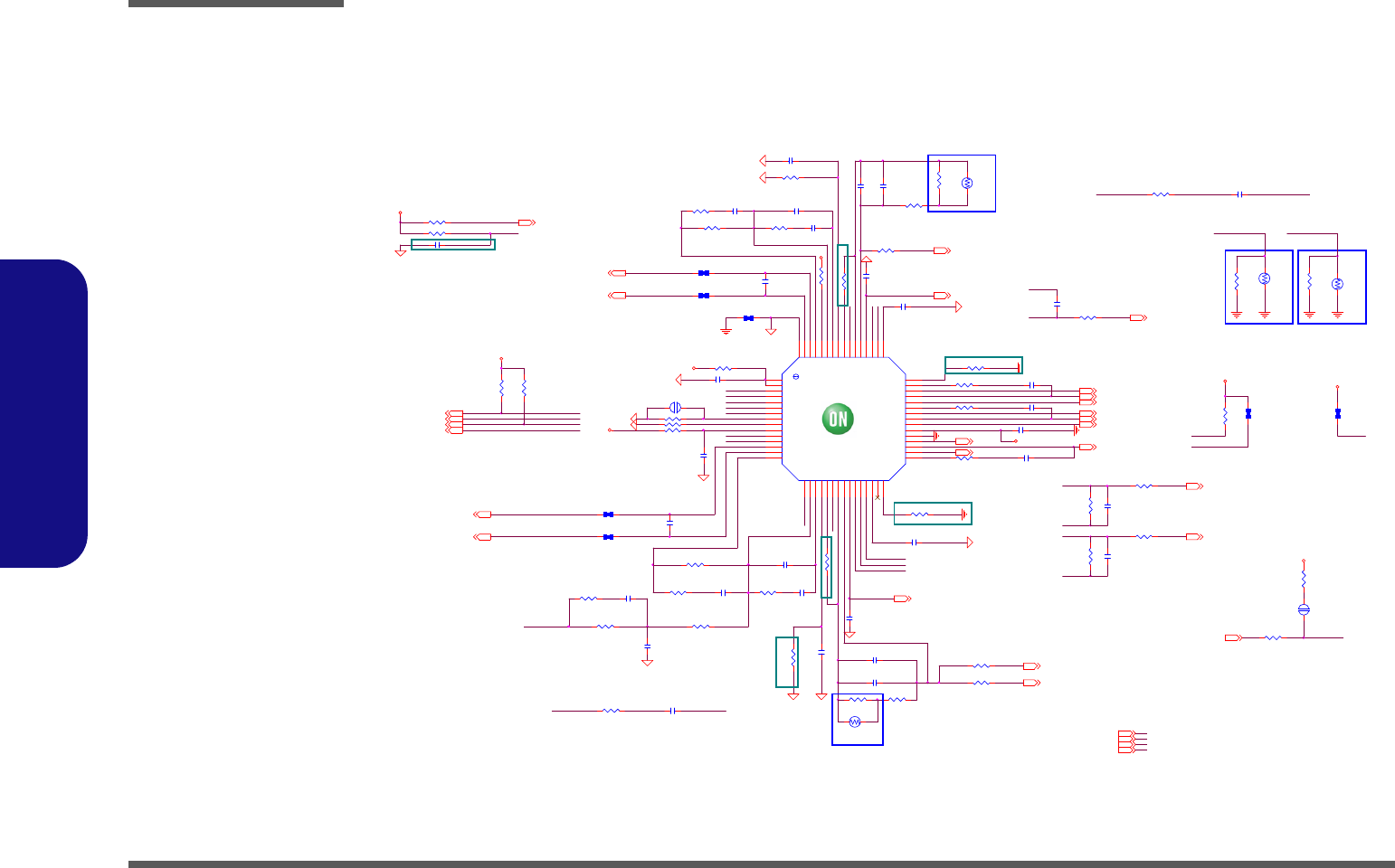

B - 30 KBC-ITE IT8518

B.Schematic Diagrams

KBC-ITE IT8518

KBC_VSTBY

R467 *0_04

R468

3G_EN[27]

R463

X0R460

R459

R178 XR461 0X

R465 0_04

R466 XR465

R463 *0_04

00X

Z2905

Z2906

Z2903

Z2904

R458 *0_04

XR462 0

R460 *0_04

R461 *0_04

R462 *0_04

KBC_RST#

AC_PRESENT

PWR_SW#

LID_SW#

WEB_WWW#

KB-SO15

EC_VCC

Z2902

BAT_DET

CCD_DET#

R466 *0_04

SMD_CPU_THERM[15]

LPC_FR AME#[14,28,33]

LPC_AD0[14,28,33]

TP_D ATA[32]

SMC_CPU_THERM[15]

LPC_AD2[14,28,33] LPC_AD3[14,28,33]

SERIRQ[14,28,33]

LPC_AD1[14,28,33]

SMC_BAT[41]

TP _C LK[32]

L19 *28mil_06

SMD_BAT[41]

L16 *28mil_06

KBC_SPI_SCLK

KB-SI 7

KB-SO6

KB-SO11

KB-SI 3

KB-SI 1

KB-SI 0

KB-SO7

KB-SO4

KB-SO0

KB-SO5

KB-SO10

KB-SO8

KB-SO2

KB-SO3

KBC_SPI_SO

KB-SI 2

VDD3

3.3VS

KBC_AVDD

VDD3

KBC_SPI_SI

KB-SO1

KB-SI 4

KB-SO13

VDD3

KB-SO12

KB-SI 5

KBC_SPI_CE#

KB-SI 6

KB-SO9

KB-SO14

LCD_BRIGHTNESS

Z2909

HIGH ACTIVE

VDD3

R182 100K_04

KBC_WR ESET#

3G_DET#

80CLK

BAT_VOLT

PCLK_KBC

EC_VSS

KBC_W RESET#

LCD_BRIGHTNESS

THERM_VOLT

LID_SW#

MODEL_ID

BAT_DET

CCD_DET#

½ÐEC Pin 78

³]¸m¬°HI enable

AP_KEY #

MODEL_ID

WEB_EMAIL#

WLAN_EN_SW[28]

W25CEW

10K

D03

10K

DEL

J_80DEBUG1

3.3V

Voltage

W25CEV

1.65V

10K

MODEL_ID

10K

C453 1u_6.3V_X5R_04

D03

3IN1

R264 *0_04

D03

H_PECI[3,19]

PME# [18]

H_PROCHOT_EC [3]

DK_DET#[33]

BUF_PLT_RST#[11,23,25,28, 31,33]

BT_DET#[28]

WLAN_DET#[28]

AC_IN#[41]

PCLK_KBC[18]

PWR_SW#[34]

KBC_SPI_CE#

KBC_HOLD#

BAT_DET[41]

KBC_SPI_SCLK

DELAY_PWRGD[16,39]

HSPI_SCLK [14]

HSPI_MSI [14]

KBC_SPI _CE#

KBC_SPI _SCLK

KBC_SPI _SO

KBC_SPI _SI

For Docking

1Mbit

KBC_FLASH

KBC_SPI_SO

KBC_SPI_SI

KBC_SPI_SI_R

KBC_SPI_SO_R

KBC_SPI_*_R = 0.1"~0.5"

KBC_SPI_SCLK_R

KBC_SPI_CE#_R

AC_PRESENT

IT8518E VER:H:

6-03-08518-0P3

VDD3[14,15, 16,18,19,21,23,28,32,33,34, 35,36,41]

ALL_SYS_PWRGD [11,16,39]

CPU_FANSEN [32]

3.3VS[3,9,10,11,12, 13,14,15,16,17, 18,19,20,21,25,26,27,28,30,31,32, 33,34,39]

LID_SW#[11,32] SUS_PWR_ACK [16]

CCD_DET#[28]

TOTAL_CUR[41] TH E RM_ VO LT[2]

VA_EN_EC [33]

SUSB# [6,16,26,31,33,34,35]

SUSC# [16,33,37]

J_KB1

85208-24051

85208-2405X

6-20-94AF0-124

RN10

33_8P4R_04

8 1

7 2

R468 0_04

DK_EN[ 13,24,33]

C274

0.1u_16V_Y 5V_04

R366 *10K_04

R262 *0_04

C314 *33p_50V_NPO_04

C317

10u_10V_Y5V_08 C266

*0.1u_16V_Y5V_04

C313 *33p_50V_NPO_04

R365 10K_04

RN5

10K_8P4R_04

81 72 6

C458

0.1u_16V_Y 5V_04

C297 0.1u_16V_Y5V_04

C302 0.1u_16V_Y 5V_04

R263 43_1%_04

3G_DET#

R179 *0_04

C315 *33p_50V_NPO_04

C310

0.1u_16V_Y5V_04

C320

0.1u_16V_Y5V_04

R194 *10_04

C452 *0.1u_16V_Y5V_04

THERM_VOLT

K/B MATRIX

FLASH

LPC

SMBUS

PS/2

PWM

UART

DAC

CLOCK

IT8518

CIR

ADC

WAKE UP

PWM/COUNTER

LPC/WAKE UP

EXT GPIO

GP INTERRUPT

WAKE UP

GPIO

U10

IT8518E VER:H

QFPS128-04M-60

WRST#

LPCCLK

LAD0

LAD1

LAD2

LAD3

LFRAME#

( PD )LPCPD #/WUI6/GPE6 17

SERIRQ

ECSMI#/GPD4( PU )

15 ECSCI#/GPD3( PU )

GA20/ GPB5

126

KBRST#/GPB6( PU )

KSI0/STB# 58

KSI1/AFD# 59

KSI2/I NIT# 60

KSI3/SLIN# 61

KSI4 62

KSI5 63

KSI6 64

KSI7 65

KSO0/PD0 36

KSO1/PD1 37

KSO2/PD2 38

KSO3/PD3 39

KSO4/PD4 40

KSO5/PD5 41

KSO6/PD6 42

KSO7/PD7 43

KSO8/ACK# 44

KSO9/BUSY 45

KSO10/PE 46

KSO11/ERR# 51

KSO12/SLCT 52

KSO13 53

KSO14 54

KSO15 55

VCC 11

VSTBY 26

VSTBY 50

VSTBY 92

VSTBY 114

VSTBY 127

VSTBY 121

VBAT 3

AVCC 74

PS2CLK0/GPF0( PU )

PS2DAT0/GPF 1( PU )

PS2CLK1/GPF2( PU )

( PD )TMRI0/WUI2/GPC4 120

( PD )TMRI1/WUI3/GPC6 124

LPCRST#/WUI4/GPD2( PU )

( PD )WUI5/GPE5 35

PWRSW/GPE4( PU )

125

RI1#/WUI0/GPD0( PU )

RI2#/WUI1/GPD1( PU )

( PD )RING#/ PWRFAIL#/ LPCR ST#/GPB7 112

TXD/ GPB1( PU )

109 RXD/GPB0( PU )

108

( PD )CTX/GPB2 123

PS2DAT1/GPF 3( PU )

PS2CLK2/GPF4( PU )

PS2DAT2/GPF 5( PU )

( PD )TACH0/GPD6 47

( PD )TACH1/GPD7 48

PWM0/GPA0( PU )

PWM1/GPA1( PU )

PWM2/GPA2( PU )

PWM3/GPA3( PU )

PWM4/GPA4( PU )

PWM5/GPA5( PU )

PWM6/GPA6( PU )

PWM7/GPA7( PU )

ADC0/GPI0

ADC1/GPI1

ADC2/GPI2

ADC3/GPI3

ADC4/GPI4

ADC5/GPI5

ADC6/GPI6

ADC7/GPI7

VSS

122 VSS

113

AVSS

CK32KE 2

CK32K 128

DAC3/GPJ3

79 DAC2/GPJ2

78 GPJ1

77 GPJ0

( PD )EGCS#/GPE2 83

( PD )EGCLK/GPE3 84

( PD )EGAD/GPE1 82

GINT/ GPD5( PU )

L80LLAT/GPE7( PU )

VSS

DAC5/GPJ5

81 DAC4/GPJ4

PWUREQ#/GPC7( PU )

( PD )CRX/GPC0 119

( PD )KSO16/GPC 3 56

( PD )KSO17/GPC 5 57

( PD )GPH0/ ID0 93

( PD )GPH1/ ID1 94

( PD )GPH2/ ID2 95

( PD )GPH3/ ID3 96

( PD )GPH4/ ID4 97

( PD )GPH5/ ID5 98

( PD )GPH6/ ID6 99

( PD )GPG1/ID 7 107

SMCLK0/GPB3

110

SMDAT0/GPB4

111

SMCLK1/GPC1

115

SMDAT1/GPC2

116

SMCLK2/GPF6( PU )

117

SMDAT2/GPF7( PU )

118

FLFRAME#/GPG2 100

FLAD 0/SC E# 101

FLAD1/SI 102

FLAD2/SO 103

FLAD3/GPG6 104

FLCLK/ SCK 105

( PD )FLRST#/WUI7/GPG0/TM 106

( PD )L80HLAT/GPE0 19

AP_KEY#

C316 *33p_50V_NPO_04

Z2901

R459 *0_04

C299

0.1u_16V_Y5V_04

C306

0.1u_16V_Y5V_04

R173 *10mil_04

R178 0_04

C296 *10p_50V_NPO_04

NC1 *NC_04

R241 *0_04

C307

0.1u_16V_Y5V_04

R421 4.7K_04

R211 10K_04

C269

*0.1u_16V_Y 5V_04

R406 1K_04

C295 0.1u_16V_Y 5V_04

PM_PCH_PWROK[16]

AC_PRESENT[16,18]

USB_CHARGE_EN [26,34,36]

EGAD [33]

3IN1[28]

PM_PCH_PWROK [16]

EGCLK [33]

EGCS# [33]

U25

PM25L010C-SCE

M-SO8

CE# 1

SO 2

WP#

VSS 4

SI 5

SCK 6

HOLD#

VDD

PMOSFET_CONTROL# [41]

SLP_ME_CSW_SEV# [19]

WLAN_CON_POWER [28]

C262 *0.1u_10V_X5R_04

RSMRST# [16]

SWI# [16]

BT_EN [28, 32]

CCD _EN [28]

BKL_EN [11]

DD_ON [26,34,36]

80CLK[28]

HSPI_CE# [ 14]

KBC_RST# [19]

HSPI_MSO [14]

6-04-25010-A91

KBC_VSTBY

LED_BTN [32]

3G_PWR_EN [ 27]

3G_DET#[27]

R222

100K_04

KBC_SPI_SCLK_R

KBC_SPI_CE#_R

KBC_SPI_SO_R

KBC_SPI_SI_R

BRIGHTNESS[11]

ME_WE[14]

LED_SCROLL#[32]

LED_CAP#[32]

GA20[ 19]

KBC_BEEP[30]

LED_NUM#[32]

KBC_MUTE#[30]

LED_PWR[32]

SMI#[18,19]

LED_ACIN[32]

LED_BAT_FULL[32]

BAT_VOLT[41]

LED_BAT_CHG[32]

CPU_FAN[32]

PWR_BTN#[16]

SCI#[19]

R247 *33_04

WLAN_EN[28]

EC_VCORE_PWRGD[ 16]

R236 *33_04

R248 *33_04

Z2903

Z2904

Z2905

Z2906

PCLK_KBC PCLK_KBC_R

BAT_VOLT

AC_I N#

R242 0_04

PME#_R

6-16-33038-45A

R235 *28mil_06

R464 0_04

KBC_AGND

Z2907

For ITE8580

ITE8580ITE8518

RN10

U25

KBC_RST#

R464

X33

X0 0XR458

Z2908

Sheet 29 of 47

KBC-ITE IT8518

INT_MIC

Q25 *2SK3018S3

MIC1_L

C558

*180p_50V_NPO_04

HEADPHONE-L

C559

*180p_50V_NPO_04

MIC 1- VR EF O -L

MIC 1_R

MIC 1- VR EF O -R

Z3001

MIC 1_L

ALC269 20K_1%_04

VT1802P 5.1K_1%_04

MIC1_R

R445 0_04

Z3006

3.3VS_AUD

L31 *FCM1608K-121T06_short

L30 *FCM1608K-121T06_short

R418 *28mil_06

C492

*10u_10V_Y5V_08

R419 3.3K_1%_04

C334 22p_50V_NPO_04

R268

4.7K_04

D16 *RB751S-40C2

R425 1K_04

C170 10u_6.3V_X5R_06

C336

100p_50V_NPO_04

C491

*180p_50V_NPO_04

R265 *100K_04 R405 5.1K_1%_04

R254 47K_04

EMI Require

C480

*180p_50V_NPO_04

C169 10u_6.3V_X5R_06

C510 10u_6.3V_X5R_06

C481

0.1u_16V_Y 5V_04

C494 10u_6.3V_X5R_06

R267

*10K_04

C502 0.1u_16V_Y5V_04

C159

*0.022u_16V_X7R_04

C507 2.2u_6.3V_X5R_06

C158

100p_50V_NPO_04

C335

0.1u_16V_Y5V_04

LDO_CAP

C514 0.1u_16V_Y5V_04

C493 10u_6.3V_X5R_06

R422 *28mil_06

DIGITAL ANALOG

U24

VT1802P_A3_CHINA

6-03-01802-032

QFN48_7M

DVDD1 1

GPIO0

GPIO1

PD#

SDATA-OUT

BIT-CLK

DVSS2

SDATA-IN

DVDD-IO 9

SYNC

RESET#

PCBEEP

Sense A 13

LINE2-L 14

LINE2-R 15

MI C 2- L 16

MIC 2-R 17

Sense-B 18

JDREF 19

MO NO - OU T 20

MI C 1- L 21

MIC 1-R 22

LINE1-L 23

LINE1-R 24

AVSS1

VREF 27

LDO_CAP 28

MIC2-VREFO 29

MIC 1-V REFO-R 30

MIC1-VREFO-L

HP-OUT-L 32

AVSS2

OPVEE 34

CBN 35

CBP 36

HP-OUT-R 33

PVDD 1 39

SPK-L+

SPK-L-

PVSS1

PVSS2

SPK-R+

45 SPK-R-

PVDD2 46

SPDIFC2/EAPD

SPDIFO

AVDD2 38

AVDD1 25

GND

C501

0.1u_16V_Y5V_04

C506

2.2u_6.3V_X5R_06

J_SPKL1

85204-02001

85204-02R

6-20-43150-102

C503 0.1u_16V_Y5V_04

C337

10u_10V_Y5V_08

R392 39.2K_1%_04

C508

*10u_10V_Y5V_08

VT1802P Pull up 100K

ALC269 Pull up 220K

L32

*HCB1005KF-121T20

R251 33_04

Headphone Anti-Pop Circuit

C505 *10u_6.3V_X5R_06

C479

10u_10V_Y5V_08

J_INTMIC1

88266-02001

88266-2L

6-20-63120-102

C484

0.1u_16V_Y5V_04

5VS

5VS_AUD

3.3V

3.3VS

C500

22u_6.3V_X5R_08

5VSPVDD1_2DVDD_IO

3.3VS_AUD

3.3VS

5VS

R426 1K_04

R391 20K_1%_04

R103 1K_04

C490 100p_50V_NPO_04

C504

10u_10V_Y5V_08

C332

1u_6.3V_X5R_04

C482

0.1u_16V_Y5V_04

R104 3.3K_1%_04

R420 3.3K_1%_04

C495

0.1u_16V_Y 5V_04

C496

0.1u_16V_Y5V_04

VT1802P±µAUDG

ALC269±µGND

D17

BAT54CS3

Z3007

HDA_RST#

EAPD_MODE

ALC269 4.7K_04

VT1802P 3.3K_1%_04

ALC269 680P

VT1802P 100P

ALC269 4.7u

VT1802P 10u

Close to Codec

40mil

C511

*1u_6.3V_X5R_04

BEEP_R

40mil

ALC269 10u

VT1802P NC

ALC269 2.2u; VT1802P 10u

SPKOUTL-

SPKOUTL+

Close to Codec

AL269 2.2K_04

VT1802P 3.3K_1%_04

6-13-33011-28B

R419 & R420

Layout Note:

Very close to

Audio Codec

For 3.3V HDA Link.

OPVEE-ALC269

CBP-ALC 269

MIC2_R

SPKOUTL- MIC2_L

MI C 1- R_ R

MI C 1- L_ R

SENSE_A

HEADPHONE-R

EAPD_MODE

SPKOUTR-

AZ_RST#

6ms

5VS

6ms

3.3VS_AUD

PD#

20m s

SPEAKER DISABLE

DMIC-DAT

DMIC-CLK

SPKOUTL+

SPKOUTR+

EAPD_MODE

MIC_SENSE [32,33]

HDA_RST#[14]

HDA_SYNC[14]

HDA_SDOUT[14]

HDA_BITCLK[14]

HP_SENSE [32,33]

HDA_SPKR[14]

KBC_BEEP[29]

KBC_MUTE#[29]

3.3VS[3,9,10,11,12,13,14,15,16,17,18,19,20, 21,25,26,27,28,29,31,32,33,34,39] 5VS[12,13,14,21,27,32,34,39] 3.3V[2,3,6,11,27,28,31,33,34,37,38]

Z3003

R393 *20mil_04

Q27

*2N3906

MIC2-VREFO

AZ_SDIN0_R MIC1-VREFO-R

Close to J_INTMIC1

HEADPHONE-L

HEADPHONE-R

CBN-AL269

D03

R404 *0_04

Z3004

R390 0_04

Close to Codec

Q14B

*MTDK5S6R

Q14A

*MTDK5S6R

C489

*0.1u_16V_Y5V_04

R446 *1K_04

C483

*1u_6.3V_X5R_04

D03

R272

100K_04

C531

*10u_6.3V_X5R_06

DIGITALANALOG

Very close to Audio Codec

Layout note:

GND and AUDG space is

60mils ~ 100mils

R448 *1K_04

MON O -OU T

R447 *4.7K_04

ALC269 ¤W¥ó

VT1802P ¤£¤W¥ó

AUDG

AUD G

3.3VS_AUD

AUDG

SPDIFO

VT1802P

ALC269 VB

AUDIO CODEC (2W)

LINE2-L

C556

*180p_50V_NPO_04

LINE2-R C533 100p_50V_NPO_04 AUDG

SENSE-B

SPKOUTL+_L

SPKOUTL-

SPKOUTL+

MI C 2- VR EF O

40mil

LINE1-L

MI C 1- VR EF O -L

LINE1-R

D15

BAT54AS3

VREF-ALC269

Q26

*BTN3904

E C

HDA_RST#

Speaker 4 ohm------> 40mils

SPKOUTR+,R-,L+,L- Trace width

Speaker wire length less than 8000mils , It don't need LC Filter.

Speaker 8 ohm------> 20mils

SPKOUTR+[32] SPKOUTR-[32]

SPDIFO[33]

Q28

*BTN3904

E C

INT_MIC_RMIC2_R

MIC2_L

D03

2nd: 6-03-01802-031

ALC269 4.7u

VT1802P 10u

AUDG

AUDGAUDG

AUDG

AUDGAUDG

AUDG

Z3005

R266

10K_04

PD#

ALC269 5VS

VT1802P 3.3VS_AUD

VT1802P

¤W¥ó100p_50V_NPO_04

VT1802P

¤W¥ó100p_50V_NPO_04

BEEP_CBEEP

HDA_RST#

FOR VOLUMN

ADJUST

JDREF

HEADPHONE-R [32,33]

HDA_SDIN0[14]

MI C 1- L [ 32, 3 3]

MIC1-R [32,33]

HEADPHONE-L [32,33]

R271 0_04

SPKOUTL-_L

R270 *0_04

Z3002

AZ_RST# For 1.5V HDA

Link De-pop

Q53 --¥Î MTDK5S6R

SPKOUTR+

SPKOUTR-

C557

*180p_50V_NPO_04

Sheet 30 of 47

AUDIO CODEC

VT1802P

Schematic Diagrams

AUDIO CODEC VT1802P B - 31

B.Schematic Diagrams

AUDIO CODEC VT1802P

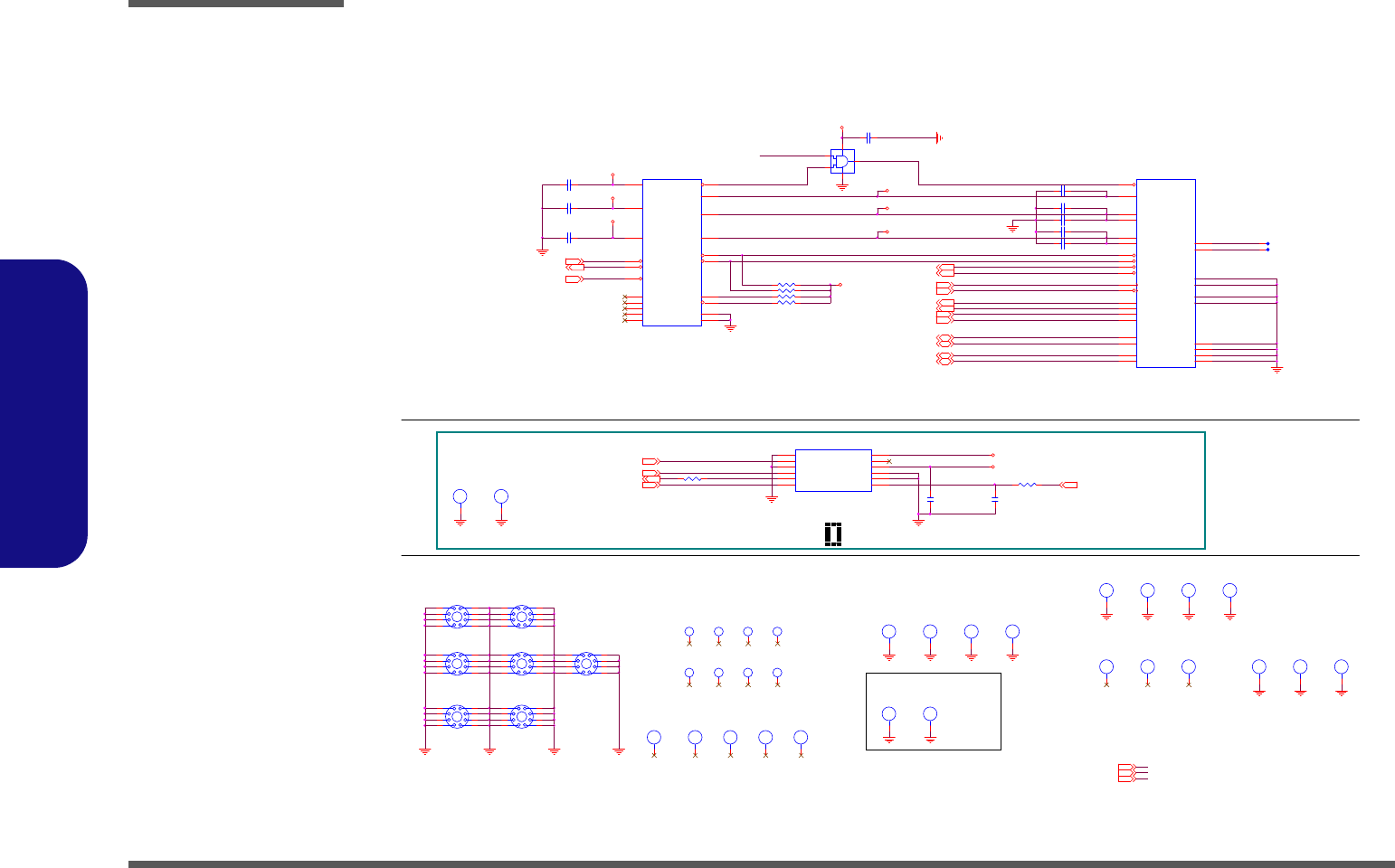

C527 *0.1u_16V_Y5V_04

U29

MC74VHC1G08DFT2G

C525 0.1u_16V_Y5V_04

R443 *10K_04

H30

ODO197X102N

C522 *0.1u_16V_Y5V_04

C529 0.1u_16V_Y5V_04 C528 0. 1u_16V_Y 5V_04

C526 0. 1u_16V_Y 5V_04

C524 0. 1u_16V_Y 5V_04

R442 *100K_04

U30

W83L351Y G

6-02-83351-9Q0

QFN20_4MM

SYSRST#

SHDN# 20

STBY #

3.3VIN

3.3VOUT 3

PERST# 8

GND 7

CPUSB# 9

CPPE# 10

1.5VOUT 11

1.5VIN

AUXOUT 15

AUXIN

RCLKEN 18

OC#

16 GND 21

R441 *100K_04

R444 *10K_04

H33

C315D110

C111D111N

C530 *0.1u_16V_Y5V_04

H27

C111D111N H26

C111D111N

NC_3.3VS

1.5VS

3.3V

NC_3.3V

3.3V

H29

H8_0D2_8

MTH8_0D2_8

5 6

SML0_DATA[15,23] SML0_CLK[ 15,23]

USB_PP4_NEWCARD[18] USB_PN4_NEWCARD[18]

H16

MTH8_0D2_8

5 6

PCIE_RXP3_NEW_CARD[15] PCIE_RXN3_NEW_CARD[ 15]

USB_OC#45[18]

PCIE_TXN3_NEW_CARD[15]

PCIE_WAKE#[16,28]

CLK_PCI E_NEW_CARD[15]

MTH8_0D2_8

5 6

BUF_PLT_RST#[11,23,25,28,29, 33]

CLK_PCIE_NEW_CARD#[15]

SUSB#[6,16,26,29,33,34,35]

PCIE_TXP3_NEW_CARD[15]

H15

MTH8_0D2_8

5 6

NEW CARD_CLKR EQ#[15]

MTH8_0D2_8

5 6

NEW CARD ¬°Á×§K¶KMylar¼W¥[cost

card¤U¤è¦L¥Õº£.

H12

C315D110

J_NEW1

130801-1

13080151-3

CPPE#

GND 1

+1.5V

GND 26

GND 20

GND 23

CPUSB#

REFCLK+

REFCLK-

PERp0

PERn0

PETp0

PETn0

+3.3V

+3.3VAU X

+1.5V

PERST#

WAKE#

SMB_DATA

SMB_CLK

CLKREQ#

RESERVED 5

RESERVED 6

USB_D+

USB_D-

GND1 27

GND2 28

GND3 29

GND4 30

NC_RCLKEN

H22

H8_0D2_8 H24

H8_0D2_8 H25

H8_0D2_8

D03

HDA_BITCLK_MDC [14]

HDA_SDO_MDC[14]

HDA_SYNC_MDC[14]

HDA_RST#_MDC[14]

3.3VS[3,9,10,11,12,13,14,15,16,17,18,19,20,21,25,26,27,28,29,30,32,33,34,39]

1.5VS[20,37] 3. 3V[2,3,6,11,27,28,30,33,34,37,38]

H32

C102D102N

H11

H8_0D4_3

H13

H8_0D4_3 H10

H8_0D4_3

H19

H7_0D2_2 H17

H7_0D2_2

H18

H7_0D3_7 HDA_BITCLK_MDC_R

H20

H7_0D3_7

NC_SHDN#

C102D102N H23

C102D102N

MTH8_0D2_3

5 6

PIN GND1~4 =GND

HDA_SD IN1_R

ÅK¥óGND

10mil

20mil

MDC

12 11

NEW_RESERVED2

NEW_RESERVED1

PCH »É¬W

6-34-M38A0-010-1

NC_CPUSB#

¥ú¾ÇÂI

J_MDC1

NC_PERST#

BUF_PLT_RST#

Á³µ·¤Õ

BUF_PLT_RST# NC_CPPE#

©w¦ì¤Õ

R220 *33_04

NEW CARD(Port 4)

Port 4

NC_1.5VS

Á³µ·¤Õ

36 mil

C523 0.1u_16V_Y5V_04

20 PIN QFN ¥]¸Ë

C325

*0.1u_16V_Y5V_04

3.3V

48 mil

6-01-74108-Q61

48 mil

C324

*22p_50V_NPO_04

-n¯S§Oª`·N¦³¨S¦³±a¨ì¾÷ºcSOCKET!!! Connector: 6-21-G3A40-126 (130801-1)

Socket: 6-21-G3A20-126-S2 (SANTA 131851-R)

6-02-83351-9Q0

3.3VS

3.3V

J_MDC1

*88018-120G

88018-12A

6-20-C2D10-206

GND

Azalia_SDO

GND

Azalia_SYN C

Azalia_SDI

Azalia_RST#

11 Azalia_BCLK 12

GND 10

GND 8

3.3V Main/aux 6

RESERVED 4

RESERVED 2

NC_RST#

HDA_SD IN1[ 14]

M-MAR K1

M- MAR K1

M-MAR K1

M- MAR K1

M-MAR K1

R449 *0_04

M-MARK1

H14

H8_0D4_3

M-MARK1

MTH8_0D2_8

5 6

C111D111N

M-MAR K1

6-34-D90T0-010-1

(MDC)

C315D110

Sheet 31 of 47

New Card, MDC

Schematic Diagrams

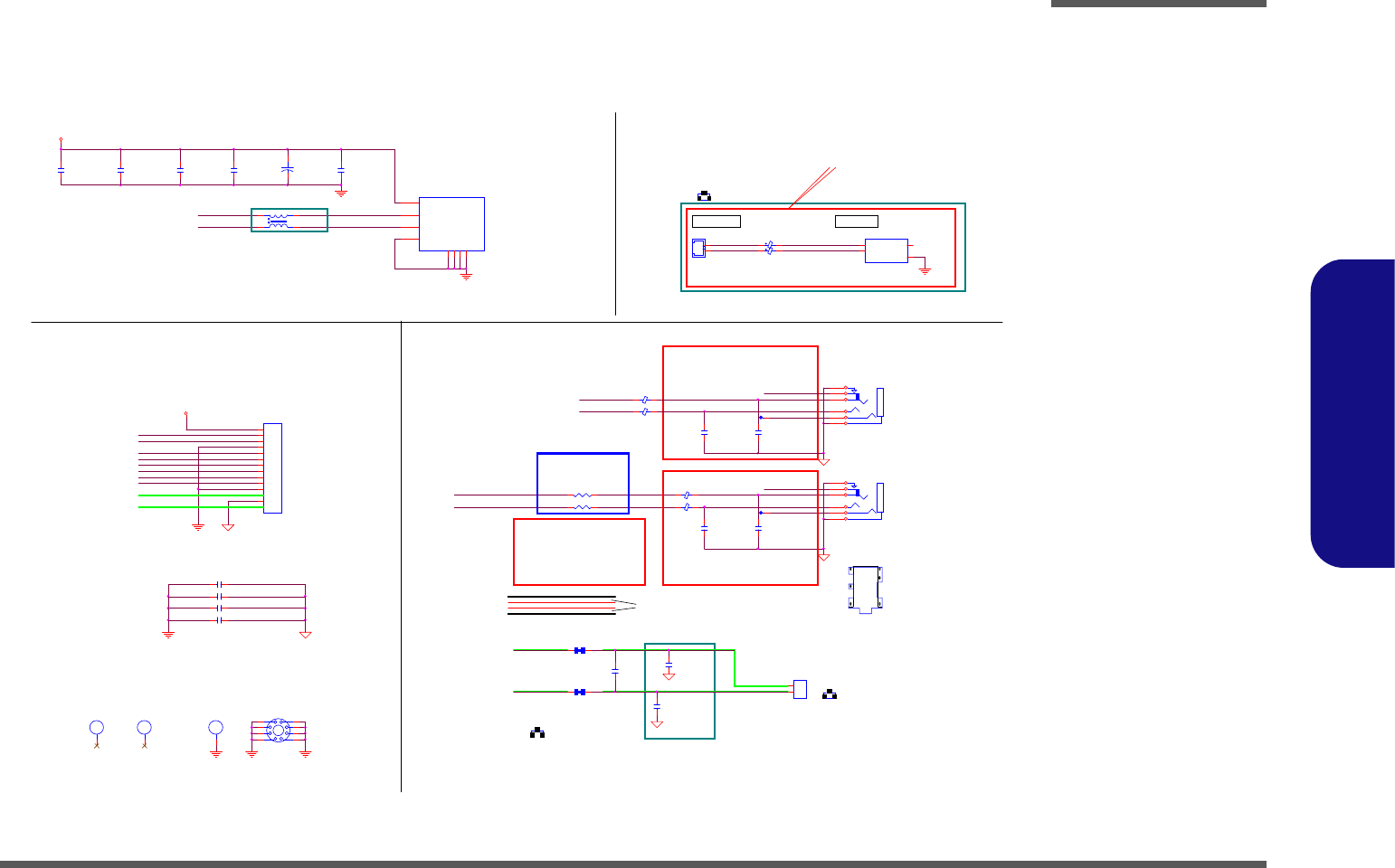

B - 32 New Card, MDC

B.Schematic Diagrams

New Card, MDC

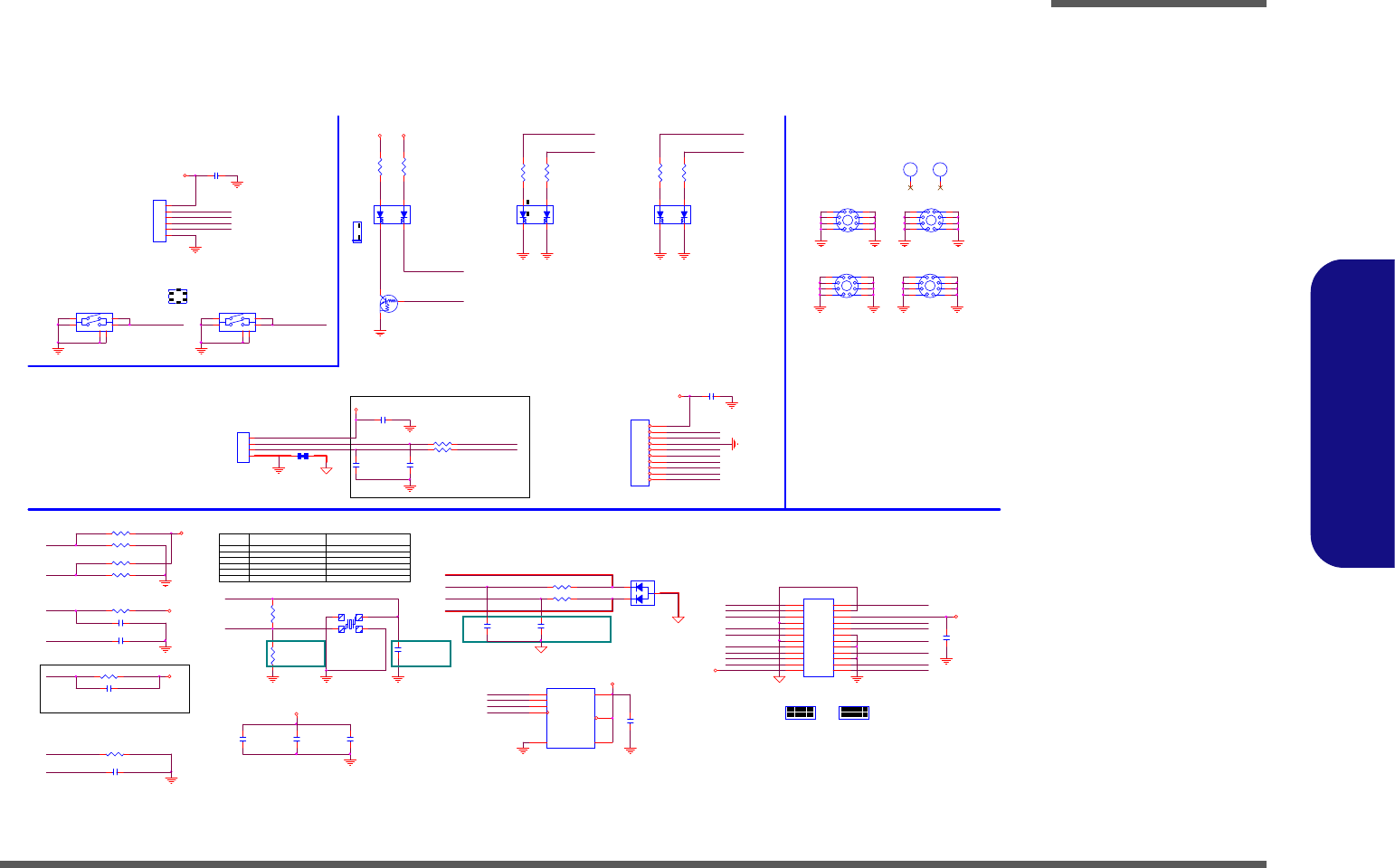

Schematic Diagrams

Fan, TP, Connector B - 33

B.Schematic Diagrams

Fan, TP, Connector

6-20-94A20-112

D03

TP_CLK [29]

TP_DATA [29]

USB_PN11_FP [18]

USB_PP11_FP [18]

EMI Require

D03

6-20-94A50-104

LED_BAT_FULL [29]

LED_BAT_CH G [29]

LED_PWR [29]

LED_ACIN [29]

USB_PN9[18] USB_PP9[18]

5VS

VDD33.3VS

5VS_FAN

5VS_TP

5VS

5VS_FAN

USBVCC_A

VDD5

USBVCC_A

5VS

3.3VS

D03

GND Plane

C270 *22u_6.3V_X5R_08

C446 *220u_6.3V_6.3*6.3*4.2

HEADPHONE-LL

C283 * 0.1u_16V_Y 5V_04

C13 *0.1u_50V_Y5V_06

J_FP1

85201-04051

85201-04L

R97

10K_04

C263 *22u_6.3V_X5R_08

R376 33_04

D11 AVLC18S02015

1 2

C155

47p_50V_NPO_04

R375 33_04

C463

10u_10V_Y5V_08

R99 *28mil_06

C15

*0. 1u_16V_Y5V_04

C154

47p_50V_NPO_04

R96

10K_04

3.3VS

J_FAN1

85205-03701

85205-0300L

6-20-51130-103

C14 *0.1u_16V_Y5V_04

U23

AX995SA

M-SO8

VOUT

GND 5

VIN

2FON

VSET

4GND 6

GND 7

GND 8

R368 4.7K_04

SATA_LED# [14]

LED_NUM# [29]

LED_SCROLL# [29]

LED_CAP# [29]

WLAN_LED# [28]

LED_BTN [29]

C153

1u_6.3V_X5R_04

J_LED1

85201-10051

85201-10X5_L

SPKOUTR-[30]

SPKOUTR+[30]

CPU_FAN[29]

3.3VS[ 3,9,10,11,12,13,14,15,16,17,18, 19,20,21,25,26,27,28,29,30,31, 33,34,39] 5VS[12,13,14,21,27,30, 34,39]

VDD5[21,26,34,35,36] VDD3[14,15,16,18,19,21,23,28,29,33,34,35,36,41]

HEADPHONE-L[30,33]

MIC1-R[30,33]

MI C 1- L[30,33]

DD_ON#[26,34,37]

HEADPHONE-R[30,33]

20mil

BT_EN [28,29]

WLAN_LED# [28]

6-20-94A20-110

2A/90mohm

100mils

C461

1u_6.3V_X5R_04

C260

10u_6.3V_X5R_06

HEADPHONE-RR

40mil

Audio B'd CONN

FAN CONTROL

C152

1u_6.3V_X5R_04

R157 *0_04 Z3201

R369 *0_04

C281

0.1u_16V_Y5V_04

CLICK +FP B'd CONN

SY6288DCAC

M-MSOP8

VOUT1 6

VOUT3 8

VIN2

VIN1

2VOUT2 7

GND 1

EN#

FLG#

FON#

C311

*180p_50V_NPO_04

C323

*180p_50V_NPO_04

POWER SWITCH B'd CONN

M_B TN # [ 33, 3 4]

LID_SW# [11,29]

6-24-30003-008

6-24-30003-006

AUDGAUDG

AUDG

J_AUDIO1

85201-14051-01

85201-14x5_L

6-20-94A00-014

USB_OC#89[18]

CPU_FANSEN[29]

HP_SENSE[30,33]

MIC_SENSE[ 30,33]

JFAN

J_SW1

87151-1207G

87151-12L

80mils

Sheet 32 of 47

Fan, TP, Connector

Schematic Diagrams

B - 34 Docking Connector, COM Port

B.Schematic Diagrams

Docking Connector, COM Port

DK_U SB_PN2 [18]

DK_USB_PP2 [18]

DK_LAN_MDIO3-[24]

DK_U SB_PN13 [ 18]

DK_USB_PP13 [18]

DK_LAN_MDIO2-[24]

DK_LAN_MDIO3+[24]

DK_LAN_MDIO0-[24] DK_LAN_MDIO0+[24]

DK_LAN_MDIO1+[24] DK_LAN_MDIO1-[24]

DK_LAN_MDIO2+[24]

LPC_AD1 [ 14,28, 29]

LPC_AD3 [ 14,28, 29]

LPC_AD0 [ 14,28, 29]

LPC_AD2 [ 14,28, 29]

3.3V

AVCC

3.3V

3.3VS

VDD3

VA VA

VDD3

DK_DVI_DDCB_CLK

EGCS#

EGAD

EGCLK

DK_SENSE

VA_EN

RXD

DK_LAN_MDIO2-

DK_SENSE

RI#

Z3302

Z3301

TXD

Z3308

Z3304

VA_EN

DK_LAN_MDIO0+

DK_LAN_MDIO0-

RTS#

DK_LAN_MDIO3-

CTS#

DK_LAN_MDIO2+

DK_SENSE

Z3305

DK_SENSE

DTR#

DK_LAN_MDIO1-

DK_LAN_MDIO3+

Z3306

Z3303

Z3307

DSR#

DK_LAN_MDIO1+

DCD#

DK_DVI_DDCB_DAT

DK_HDMI_DDCB_DAT

DK_HDMI_DDCB_CLK

DK_DVI_DDCB_CLK

RXD CLKRUN#

Z3309

LPCPD#

LDRQ#

AVSS

TXD

DTR#

CTS#

RTS#

DSR#

DCD#

RI#

Z3311

Z3310

DK_HDMI_DDCB_DAT

DK_HDMI_DDCB_CLK

Z3317

Z3316

Z3315

Z3314

Z3313

Z3312

6-22-48R00-1B4

DK_DVI_TXCP [17]

DK_DVI_TXP1 [17]

DK_SATA_TXN5 [14]

DK_SATA_TXP5 [14]

DK_DVI_TXN0 [17]

DK_DVI_TXCN [17]

DK_DVI_TXN1 [17]

DK_DVI_TXP2 [17]

DK_DVI_TXP0 [17]

DK_DVI_TXN2 [17]

DK_HDMI_TXN1 [17]

DK_HDMI_TXCP [17]

DK_HDMI_TXP1 [17]

DK_HDMI_TXN2 [17]

DK_HDMI_TXN0 [17]

DK_HDMI_TXCN [17]

DK_HDMI_DDCB_DAT [17]

DK_HDMI_TXP2 [17]

DK_HDMI_TXP0 [17]

BUF_PLT_RST# [11, 23,25, 28,29,31]

DK_HDMI_HPD [17]

DK_HDMI_DDCB_CLK [17]

CLK_48M_COM [15]

SERIRQ [14, 28, 29]

LPC_FRAME# [14, 28,29]

PCLK_COM [18]

DK_DAC_HSYNC[13]

HEADPHONE-L[30,32]

EGAD[29]

DK_DAC_BLUE[13]

DK_DVI_DDCB_DAT[17]

EGCLK[29]

DK_DAC_DDCADATA[13] DK_DAC_DDCACLK[13]

EGCS#[29]

DK_DAC_GREEN[13]

M_BTN#[32,34]

DK_DAC_R ED[13]

DK_EN[13,24,29]

SPDIFO[30]

DK_DAC_VSYNC[13]

3.3V[2,3,6,11,27,28,30,31,34,37,38] VDD3[14,15,16,18,19,21,23,28,29,32,34,35,36,41] VA[34,41]

3.3VS[3,9,10,11,12,13,14,15,16,17,18,19,20,21,25,26,27,28,29,30,31,32,34,39]

U3. 0TX3#_DK [ 18]

U3.0TX3_DK [18]

SUSC#[16,29,37]

HEADPHONE-R[30,32]

DK_DVI_DDCB_CLK[17]

SUSB#[6,16, 26,29,31,34,35]

Docking COM PORT

OSC_OUT

USB 2.0 HUB

USB 3.0 HUB

D03

AUDG

R23 *10mil_04

R22 *10mil_04

SUSB#_R

SUSC#_R

C366

1000p_50V_X7R_04

L7 HCB1005KF-121T20

R293

1M_04

*BAV99 RECTIFIER

CAC

C42

0.1u_10V_X7R_04

R298

1M_04

R295

1M_04

U20

IT8709E

LQFP48

CTS# / GPIO26 / ED1

DTR# / GPIO30 / BADDR

10 RI# / GPIO27 / ED0

STB# / GPIO00

FIRRX / GPIO31

FIRTX / GPIO32

FIR R X2(BW)/ GPI O33

14 VCC 36

VSS

PD0 / GPIO01

PD1 / GPIO02

PD2 / GPIO03

PD3 / GPIO04

PD4 / GPIO05

PD5 / GPIO06

LDRQ# 33

PD6 / GPIO07 25

PD7 / GPIO10 26

CLKRUN# / GPIO20 45

INIT# / GPIO11 27

LPCPD# / GPIO17 44

AFD# / GPIO12 28

AVSS 46

AVCC 48

LPCCLK 35

SLIN# / GPIO13 29

LPCRST# 42

SERIRQ 43

ACK # / GPIO14 30

LFRAME# 37

BUSY / GPIO15 31

LAD0 38

PE / GPIO16 32

VSS 34

VCC

LAD1 39

SOUT / WUINTR# / GPIO25

7RTS# / CIR0RX / GPIO24

6SIN / CIR0TX / GPIO23

5DSR# / GPIO22 / CIR1RX

4DCD# / GPIO21 / CIR1TX

3CLKIN 47

VSS

VSTBY

LAD3 41

SLCT / GPIO35

LAD2 40

ERR# / GPIO34

16 R43 4.7K_04

R30

*10mil_04

C17

1000p_50V_X7R_04

RN13

2.2K_8P4R_04

81 72 6

R292 10K_04

OSC1

FCO-536B48000

SCO-536B

OE 1

GND 2

VCC

OUT

R37 4.7K_04

R34 *0_04

R294 *0_04

C372

0.1u_16V_Y 5V_04

C20 0.1u_10V_X7R_04

*BAV99 RECTIFIER

CAC

R33 100_04

*BAV99 RECTIFIER

CAC

U19

MC74VH C 1G0 8DFT2G

M-UMT5

J_DOCK1

WD2F144WB2

6-21-C2K00-272

P3 P3

G1 G1

P1 P1

G3 G3

G7 G7

G9 G9

G10

G5 G5

P6 P5 P5

P7 P7

NC1 NC1

M1 M1

11 11

13 13

15 15

17 17

19 19

21 21

23 23

25 25

27 27

29 29

31 31

33 33

35 35

37 37

39 39

41 41

43 43

45 45

47 47

49 49

51 51

53 53

55 55

57 57

59 59

61 61

63 63

65 65

67 67

69 69

71 71

73 73

75 75

77 77

79 79

81 81

83 83

85 85

87 87

89 89

91 91

93 93

95 95

97 97

99 99

100

101 101

102

103 103

104

105 105

106

107 107

108

109 109

110

111 111

112

113 113

114

115 115

116

117 117

118

119 119

120

121 121

122

123 123

124

125 125

126

127 127

128

129 129

130

131 131

132

133 133

134

135 135

136

137 137

138

139 139

140

141 141

142

143 143

144

NC2 NC2

NC3 NC3

NC4 NC4

AVSS

C to Docking <500mil

R296 *10mi l_04

C16

1000p_50V_X7R_04

C21 0.1u_10V_X7R_04

C18 0.1u_10V_X7R_04

C19 0.1u_10V_X7R_04

C23 0.1u_10V_X7R_04

C22 0.1u_10V_X7R_04

C25 0.1u_10V_X7R_04

C24 0.1u_10V_X7R_04

C27 0.1u_10V_X7R_04

C26 0.1u_10V_X7R_04

C28 0.1u_10V_X7R_04

C29 0.1u_10V_X7R_04

C31 0.1u_10V_X7R_04

C30 0.1u_10V_X7R_04

C33 0.1u_10V_X7R_04

C32 0.1u_10V_X7R_04

DK_SATA_RXP5 [14]

VA_EN_EC [29]

DK_DET# [29]

DK_SATA_RXN5 [14]

HP_SENSE[30,32]

U3.0RX3_DK [18]

U3.0RX3#_DK [18]

MIC_SENSE[30, 32] MIC 1- L[ 30, 32 ] MI C 1- R[30, 32]

DK_DVI_HPD[17]

NEAR OSC1

DOCKINGºÝ°j¸ô

pin2,8,143,144 DOCKINGºÝ°j¸ô

Sheet 33 of 47

Docking

Connector,

COM Port

PR111

*10K_04

3.3VS

5VS_EN1

5VS

NMOS

PR118

*220_04

PQ24

*2SK3018S3

VDD3

3.3VSYS15V VDD3

3.3VS

VDD3

VIN1

VIN

5VVDD5

SY S15 V

VDD3

VIN

SYS15V

SY S1 5V VDD3

VDD5SY S1 5V 5VS

3.3V_M

VDD3 VDD3

Z3405

3.3V_M

NMOS

Power Plane

AC_IN

PQ11

2SK3018S3

PQ13

MTN2604G6

2 4

PR168

390_04

PQ38

2SK3018S3

Z3406

DD_ON#

3.3V

NMOS

Power Plane

DD_ON#

PR143 *1K_04

USB_CHARGE_EN

PR158 *100K_04 DD_ON

PR151

100K_04

PR157 100K_04

PQ34A

MTNN20N03Q8

728

PQ33B

MTDK5S6R

PC118

0.1u_50V_Y5V_06

5V_EN1

PR135 *10K_04

DD_ON "L" TO

"H" FROM EC

PQ21B

MTNN20N03Q8

SUSB

PC124

4700p_50V_X7R_04

3.3VS_EN1

SUSB

PR161

1M_04

PR160

10K_04

NMOS

3.3VS_LO

PU5

P2808B0

M-SO8

VIN

M_BTN #

INSTANT-ON

4GND 5

PWR_SW # 6

DD_ON_LATCH 7

VIN1 8

Z3403

PC87

470p_50V_X7R_04

AC_IN

D03 PC127

0.1u_16V_Y5V_04

D03

PC105

470p_50V_X7R_04

PQ21A

MTNN20N03Q8

M-SO8

728

PR117

4.7K_04

Z3404

PQ35B

MTNN20N03Q8

PQ33A

MTDK5S6R

PR163

390_04

PR152

*100K_04

PR155 10K_04

PC91

0.1u_16V_Y 5V_04

PQ36

2SK3018S3

PC114

0.1u_50V_Y 5V_06

PR159

100K_04

PR164

1M_04

Power Plane

PQ34B

MTNN20N03Q8

PR144 1K_04

PC122

0.1u_50V_Y 5V_06

PR112

1M_04

PC126

2200p_50V_X7R_04

PR156 1K_04

DD_ON#

PC125

10u_10V_Y 5V_08

3.3V_EN1

PJ4

*CV-40mil

PR126

1M_04

PQ35A

MTNN20N03Q8

728

VIN[11,35,36,37,38,39,40,41]

SYS15V[35,36,37]

3.3V[2,3,6,11,27,28,30,31,33,37,38]

5VS[12,13,14,21,27,30,32,39]

USB_CHARGE_EN [26,29,36]

M_BTN #[32,33] SUSB#[6,16,26,29,31,33,35]

VDD3[14,15,16,18,19,21,23,28, 29,32, 33,35, 36,41]

5V[28,37,38]

VDD5[21,26,32,35,36]

VA[33,41]VIN1[36]

3.3VS[3,9,10,11,12,13,14,15,16,17,18,19,20,21,25,26,27,28,29,30,31,32,33,39]

PM_SLP_LAN#[16,35]

3.3V_M[14,20,23,24]

DD_ON[26,29,36]

PJ6

*CV-40mil

SLP_M#[16]

NMOS

SUSB

PJ3

*OPEN-2mm

1 2

DD_ON

PR162

*10K_04

D03

PR165

*10K_04

AC_IN

PQ39A

MTDK5S6R

PQ39B

MTDK5S6R

PWR_SW# [29]

PC85

0.1u_16V_Y5V_04

PC86

470p_50V_X7R_04

SLP_M

3.3VM_EN1

3.3VM_EN

PQ12

*2SK3018S3

PM_SLP_LAN

PR107

1M_04

3. 3VM _LO

PR109 0_04

PR108 *0_04

PR110

*390_04

Z3402

PQ15

2SK3018S3

PQ14

MTN2604G6

M-TSOP-6

2 4

DD_ON# [26,32,37] SUSB [35,37]

SLP_M [ 16,35]

1.5A1.5A

Z3401

USB_CHARGE_EN

PR166

10K_04

PM_SLP_LAN

PR167

10K_04

PC128

*0.1u_16V_Y5V_04

SLP_M

PC129

*0.1u_16V_Y5V_04

Sheet 34 of 47

System Power

Schematic Diagrams

System Power B - 35

B.Schematic Diagrams

System Power

PR138 10K_04

1.05VS

NMOS

PQ30

*MDS1521

62 5

PL8

1.0UH_BCIHP1040-1R0M_11.5*10.2*3

1 2

PC119

47p_50V_NPO_04

PC104 4.7u_25V_X5R_08

PR145 *0_04

PC113

0.1u_16V_Y5V_04

PC190 0.1u_16V_Y5V_04

PR147 *0_04

PC99 4.7u_25V_X5R_08

PC108

*0.01u_16V_X7R_04

PR142 100K_04

PQ27

MDS1526

62 5

PR150

100K_1%_04

PR137 8.2K_1%_04

PC121

20p_50V_NPO_04

PC115

0.01u_16V_X7R_04

PR149

40.2K_1%_04

PQ31

MDS1521

62 5

PD9 *SK34SA

A C

PR124

*5.1_06

PU4

G5413

M-MLPQ 16-3X3MM

LX 1

BST 2

VCC 3

DL 4

GND

RTN

N.C

VOUT

PGD

ILIM 13

N.C 14

N.C 15

DH 16

PAD 17

PC94 0.1u_50V_Y5V_06

PR141 *90.9K_04

PC102

*1000p_50V_X7R_04

PD10

RB0540S2

PC93 0.1u_50V_Y5V_06

PJ7 *OPEN-1mm

1 2

VDD3

1.05V_LAN_M

V1. 05

VIN

VDD5

Z3503

1.05VS

VDD3

1.05V_LAN_M

SY S15V

1.05V_M1.05V_LAN_M

SYS15V

PJ11 *CV-40mil

1 2

PJ22

*OPEN-10mm

1 2

6-15-01521-7B0

D03

PJ21

*OPEN-10mm

1 2

VIN[11,34,36,37,38,39,40,41]

VDD5[21,26,32,34,36]

1.05V_LAN_M[14,21,23]

VDD 3[14,15,16,18,19,21,23,28,29,32,33,34,36,41]

For CV test

1.05VM_EN

1.05VM_LO

PQ41

*2SK3018S3

PC130

470p_50V_X7R_04

SLP_M

PR169

*100_04

PR170

1M_04 PC123

0.1u_16V_Y 5V_04

PQ42

2SK3018S3

PQ37

MTN2604G6

2 4

1.05VS_EN

PR121

*1M_04

NMOS

PR120

*100_04

1.05VS_LO

PC187

0.1u_16V_Y5V_04

PQ22

*2SK3018S3

1.05V_M

PQ23

*2SK3018S3

PQ19

*MDS1521

6 2

7 3

PC97

*2200p_50V_X7R_04

PC189

560u_2.5V_6.6*6.6*5.9

PR148 0_04

SYS15V[34,36,37]

PM_SLP_LAN#[16,34]

SUSB#[6,16,26,29,31,33,34]

SUSB [34,37]

1.05VS[2,3,5,6,14, 15,16,19,20,21,38,39] 1.05V_M[21]

SLP_M[16,34]

Z3501

Z3511

PQ57

*MDS1521

6 2

7 3

PJ8 *OPEN-1mm

1 2

PR146

*20mil_04

6-02-06217-CB0

up6217

PC117

1u_6.3V_X5R_04

Vout

=0.75*(1+R1/R2)

=0.75*(1+40.2K/100K)

=1.0515V

Short

1.05V_LAN_M_EN

18A

Z3510

Z3509

Z3508

1.05V_LAN_M

Z3505

Z3507

VCCIO_SENSE [5]

VSSI O_SENSE [5]

1.05V_LAN_PWRGD[16]

Z3506

Short

Z3504

PC186

*10u_10V_Y 5V_08

PJ12

*OPEN-2mm

1 2

15A

PD8 CSOD140SH

A C

Sheet 35 of 47

1.05V Series

Schematic Diagrams

B - 36 1.05V Series

B.Schematic Diagrams

1.05V Series

PQ59B

EMB17A03V

PQ59A

EMB17A03V

PR127 *20mil_04

DD_ON_EN_VDD

PC196

1u_6.3V_X5R_04

VREG3

VREF

VIN

SYS5V

VREG5

VREF

VREG5

VDD5

VIN

SYS3VVDD3

SYS15V

VREG5

SYS5V

VIN1

SYS10V

Battery Mode VDD5 µLªk Ture off at system off

PD22

RB751S-40C2

VDD3/VDD5

POWER ON:

USB_CHARGE_EN = DDON=HI

POWEROFF CHARGE:

USB_CHARGE_EN = HI

DDON = LO

PR123 *20mil_04

Z3616

ShortShort

Z3620

DD_ON[26,29,34]

USB_CHARGE_EN[26,29,34]

SUPPORT USB CHARGER

2nd: 6-02-5608-CQ0

PR130

13K_1%_04

PJ10

*CV-40mil

PC193

1000p_50V_X7R_04

PC103

4.7u_25V_X5R_08

PR221

120K_04

PC116

2200p_50V_X7R_04

PC198

4.7u_25V_X5R_08

PL10

BCIHP0730-4R7M 4.7UH 5.5A 7.3*6.8*3

1 2

PD5

CSOD140SH

A C

PC197

0.1u_10V_X5R_04

PR128

20K_1%_04

PQ32B

MTD K5S6R

PC200

0.1u_16V_Y5V_04

PC195

220u_6.3V_6.3*6.3*4.2

PC92

0.1u_16V_Y 5V_04

PQ32A

MTDK5S6R

PR140

10K_04

PC120

0.01u_50V_X7R_04

PR125

18.7K_1%_04

PR219

100K_04

PU8

UP6182

VREF 3

EN1 1

VFB1 2

TONSEL 4

LDO5

LGATE1 19

PHASE1 20

VFB2 5

UGATE2

VCLK

BOOT2

EN2 6

VO2

LDO3

PHASE2

LGATE2

EN0

SKIPSEL

GND

VIN

UGATE1 21

BOOT1 22

POK 23

VO1 24

GND PAD

PC96

4.7u_25V_X5R_08

PL9

BCIHP0730-4R7M 4.7UH 5.5A 7.3*6.8*3

PC110

2200p_50V_X7R_04

PC111 0. 1u_10V_X5R_04

PD12

BAT54SS3

M-SOT323D 1

PC107100p_50V_NPO_04

PC194 0.1u_10V_X5R_04

PR139 100K_04

PR132 *0_04

EN_5V

PR223

*0_04

PC112

0.01u_50V_X7R_04

PQ26

P1203BV

62 5

PR220 *0_04

PC95

1000p_50V_X7R_04

PR225

2_06

PD23

*SK34SA

A C

PC100

4.7u_25V_X5R_08

PR131

*0_04

PR119

*1.5M_04

PR122

30K_1%_04

PD4

*SK34SA

A C

PR133

*680K_1%_04

PC101

4.7u_25V_X5R_08

PC192

220u_6.3V_6.3*6.3*4.2

PC191

1000p_50V_X7R_04

PJ5

*OPEN-5mm

1 2

PC98

0.1u_50V_Y5V_06

PJ23

*OPEN-5mm

PR 222 * 10K _04

PD11

BAT54SS3

M-SOT323D 1

PQ25

P1203BV4

62 5

PD24

CSOD140SH

A C

Z3612

Z3601

Z3619

EN_ALL

Z3610

Z3604

VDD5[21,26,32,34,35] VDD3[14,15,16,18,19,21,23,28,29,32,33,34,35,41]

VIN[11,34,35,37,38,39,40,41]

Z3622

Z3607

Z3614

VIN1[34]

SYS15V[34,35,37]

Z3613

Z3606

Z3611

Z3608

Z3602

EN_3V

Z3605

M990125

EN_5V

Z3617

Z3615

VDD5VDD3

PR129

*5.1_06

PC106

*1000p_50V_X7R_04

Z3603

PR154 0_04

PR153 *0_04

D03

6-13-18721-28C

PC199

1u_6.3V_X5R_04

PC109

*1000p_50V_X7R_04

PR134

*5.1_06

Vout

=2*(1+R1/R2)

=2*(1+13K/20K)

=3.3V

Vout

=2*(1+R1/R2)

=2*(1+30K/18.7K)

=5.208V

PC188

1u_6.3V_X5R_04

PR224

*20mil_04

Z3618

PQ60

2SK3018S3

Z3621

AC_IN[41]

Sheet 36 of 47

VDD3, VDD5

Schematic Diagrams

VDD3, VDD5 B - 37

B.Schematic Diagrams

VDD3, VDD5

Schematic Diagrams

B - 38 Power 1.5V, 0.75VS, 1.5VS,1.8VS

B.Schematic Diagrams

Power 1.5V, 0.75VS, 1.5VS,1.8VS

1.8VS_PWRGD

PC88

10u_10V_Y5V_08

1.5VS_LO

PQ17

2SK3018S3

PR115

220_04

200mA

PR116

1M_04

PQ16

2SK3018S3

PQ20

MTN2604G6

2 4

PR114

*10K_04

NMOS

1.5VS_EN

SUSB

PC90

680p_50V_X7R_04

1.5VS

PC89

0.1u_16V_Y5V_04

VDDQ

3.3V

VIN

5V 5V

Vout

=0.8*(1+R1/R2)

=0.8*(1+1.27K/1K)

=1.84V

VTT_MEM

VTT_MEM VDDQ 1.5V

1.8VSV1.8

3.3V

SYS15 V

1.5V 1.5VS

PC162 22u_6.3V_X5R_08

PR91 2_06

D03

PC66

1u_6.3V_X5R_04

VTT_MEM[9,10]

SUSB[34,35]

3.3V[2,3,6,11,27,28,30,31,33,34,38] 5V[28,34,38]

1.5V[3,6,9,10,21]

VIN[11,34,35, 36,38,39,40,41]

1.8VS[6,20]

PC65

1u_6. 3V_X5R_04

PC49

22u_6. 3V_X5R_08

1.5V/0.75VS/1.8VS

PC211

*0.1u_16V_Y5V_04

D03

SUSC#[16, 29,33]

DD_ON#[26,32,34]

SYS15V[ 34, 35,36] 1. 5V[ 3, 6, 9, 10,21] 1.5VS[20,31]

Short

D03

Z3719

Z3709

EN1.8VS

GS7113

6-02-07113-320

1.8VS

-n²¾¾aªñPIN6¸}

SUSB

PC165

220u_6. 3V_6. 3*6.3*4.2

PR90 * 20mil_04

Z3715

PJ17

*OPEN-10mm

1 2

PC168

1u_6.3V_X5R_04

DDR1.5V_PWRGD [16]

VTTEN

Z3704

Z3714

PQ7

MDU1516

ULTRASO-8

Z3703

PQ54

*MDU1512

ULTRASO-8

PQ53

MDU1512

ULTRASO-8

Z3707

SUSB

PR89 6. 19K_1%_06

PR82

0_04

PR78

5.1_06

PD19

RB0540S2

A C

PR136 100K_04

PC60

1000p_50V_X7R_04

Z3710

PR59 *0_04

Z3718

PC53

*1000p_50V_X7R_04

PJ9

*CV-40mil

PC156

*10u_10V_Y 5V_08

PC67

4.7u_25V_X5R_08

PR84 10K_04

PQ58

2SK3018S3

Z3701

Z3702

PC72 0. 1u_16V_Y5V_04

Z3708

Z3711

PC62

4.7u_25V_X5R_08

SUSB

Z3720

PR79 *10K_1%_04

VDDQSET

Z3713

PC163 *10u_10V_Y5V_08

PR204

1K_04

Z3712

16A

PQ6

2SK3018S3

Z3716

VTT_MEM 1.5V

PC75

47p_50V_N PO_04

PC160

10u_10V_Y 5V_08

Z3706

PC50

*10u_10V_Y5V_08

1.8VS_PWRGD[16]

PU3

G5616

VTTGND

VLDOIN

VTT

VTTSNS

GND

MODE

VTTREF

5VCC5 14

PGOOD 13

S5 11

S3 10

VDDQSET

VDDQSNS

COMP

CS 16

PGND 18

DRVL 19

LL 20

DRVH 21

VBST 22

PVCC5 15

CS_GND 17

GND

PC164

*15u_25V_6.3*4.4

PR75 10. 7K_1%_04

PC51

*1000p_50V_X7R_04

PR92

1K_1%_04

Z3705

PR80 10K_1%_04

PD18CSOD 140SH

A C

PU6

GS7113

GND

VCNTL 6

VOUT 3

VIN

VOUT 4

VFB 2

POK

VIN

PC71

0.1u_16V_Y5V_04

PR72

*10_04

PR203 1K_04

PC59

0.1u_16V_Y5V_04

PC55

10u_10V_Y 5V_08

PR88

10K_04

PQ29

*2SK3018S3

PJ18

*OPEN-3mm

1 2

PQ28

2SK3018S3

PC69

0.1u_50V_Y5V_06

PR60 *0_04 PC52

0.1u_10V_X5R_04

PR199 47K_04

PC166

0.1u_16V_Y5V_04

PR113 *22_04

PC68

0.1u_50V_Y5V_06

PL6

1.0U H_BCIHP1040-1R0M_11.5*10. 2* 3

1 2

PC159

*0.1u_16V_Y 5V_04

PR93

1.27K_1%_04

PC73

0.1u_16V_Y5V_04

PJ16

*OPEN-2mm

PQ18

*2SK3018S3

PQ56

2SK3018S3

PC58 0.1u_10V_X5R_04

PC201

2200p_50V_X7R_04

D03

PR70

*20mil_04

PR61 * 20m il_04

PR58 * 20mil_04 PR74

*20mil_04

Z3717

PC169

0.1u_16V_Y5V_04

Sheet 37 of 47

Power 1.5V,

0.75VS, 1.5VS,

1.8VS

Schematic Diagrams

POWER 0.85VS B - 39

B.Schematic Diagrams

POWER 0.85VS

3.3V

0.85VSV0.85

VINVIN

1.05VS

Z3817

EM I

PC79

0.022u_16V_X7R_04

PR208

10K_1%_04

PC172

0.1u_16V_Y5V_04

PR99

10K_1%_04

PR94

10K_04

PR105

100_04

PR212

10K_1%_04

PU7

UP1509PQKF

BOOT 1

UG 2

POK 3

SS 4

EAP 5

SET3

SET2

SET1

SET0

COMP

VID0

VID1

EN/PSM

CSN

CSP 16

RT 17

VCC 18

LG 19

PHASE 20

GND 21 PJ19

*OPEN-5mm

1 2

PQ9

2SK3018S3

PQ8

BTN3904

E C

PR104

22_04

PC78 0.1u_50V_Y5V_06

PC177

0.1u_25V_X7R_06

PR101

100K_04

PR211 33K_1%_04

PD21

RB0540S2

PC83

0.01u_16V_X7R_04

PR216 1.3K_1%_04

PR102

100K_04

PR213

10K_1%_04

PC179 0.01u_50V_X7R_04

PR97

9.31K_1%_04

PR206

100_04

PC82

*0.1u_16V_Y5V_04

PC76 0.1u_50V_Y5V_06

PC80 0.1u_50V_Y5V_06

PR218

1K_1%_04

PC178

47p_50V_NPO_04

PR100

15K_1%_04

PR214 *0_04 PC180

*0.1u_16V_Y5V_04

PL7

BCIHP0730-1R0M 1.0UH 11A 7.3*6.8*3

1 2

PC70 4.7u_25V_X5R_08

PR207

9.31K_1%_04

PC81 0.1u_50V_Y5V_06

PC77 0.1u_50V_Y5V_06

PR209

12K_1%_04

PR98

12K_1%_04

PR215

100K_1%_04

PC74 4.7u_25V_X5R_08

PC176

0.1u_16V_Y5V_04

PR95 10K_04 PJ2

*CV-40mil

VCCSA_VID0[6]

1.05VS[2,3,5,6,14,15,16,19,20,21,35,39]

5V[28,34,37]

VCCSA_VID1[6]

0.85VS[6]

PC184

*220u_6.3V_6.3*6.3*4.2

Z3816

Z3807

Z3806

Z3805

Z3821

Z3826

CSN

Z3811

3.3V[2,3,6,11,27,28,30,31,33,34,37]

VIN[11,34,35,36,37,39,40,41]

PC175 1u_6.3V_X5R_04

Z3819

Z3815Z3803

Z3802

Z3818

Z3801

Z3804

0.8V

0.9V

VCCSA_VID1

Z3809

0.725V

VCCSA_VID0

0.675V

Z3820

CSP

CSN

Z3810

Z3823

Z3812Z3813

Z3814

Z3808

CSPCSP

Short

PR205 0_04

PQ10B

EMB17A03V

PQ10A

EMB17A03V

PC84

*1000p_50V_X7R_04

Z3827

PR103

*5.1_06

Z3822

6-02-01509-CQ0

0.85V_ON

0.85VS_PWRGD [16]

VCC SA_SENSE [6]

EM I

PD25

CSOD140SH

A C

Z3824

0.85V_ON

Z3825

PR96

*20mil_04

PR210

*20mil_04

FOR EMI

PC174

220u_6.3V_6.3*6.3*4.2

PR217

*20mil_04

PR106 *20mil_04

0.85VS

Sheet 38 of 47

POWER 0.85VS

5VS

VIN

1.05VS

5VS

3.3VS

5VS

3.3VS

PC21

0.047u_10V_X7R_04

PC145

1000p_50V_X7R_ 04

PR8

130_1%_04

PR183 39.2K_1%_04

PR198

8.25K_1%_04

PR9 10K_04

PC24 2.2u_6.3V_X5R_06

PJ14 *CV-40mil

1 2

PR182 19.6K_1%_06

PR34

1.6K_1%_04

PR17 1K_1%_04

PC137 2.2u_6.3V_X5R_04

PR39

*0_04

PC10 10p_50V_N PO_04

PR23

10_1%_04

PC147 0.1u_10V_X5R_04

PC4

1000p_50V_X7R_0 4

PC138

4700p_50V_X7R _04

PR6 1K_04

PR30

2.43K_1%_04

PC7

4700p_50V_X7R_04

PC18

1000p_50V_X7R_04

PR51 6.98K_1%_04

PC136

0.01u_50V_X7R_04

PR180 24.3k_1%_04

PR14 10.7K_1%_04

PR5 10K_04

PC14 390p_50V _X7R_04

PR31

165K_1%_04

PC11

2200p_50V_X7R_ 04

PU1

NCP6132AMNR26

QFN60-7X7MMA

TSNSA 46

IOUTA 54

VRH OT#

SDI O

ALERT#

ROSC

SCLK

VRD YA

CSCOMP

CSP3

25 CSREF

24 CSSUM

LGA 41

TRBSTA# 57

PVCC 36

BST2 40

HG2 39

SW2 38

LG2 37

PGND 35

COMP

VSP

DROOP

DIFF

CSP1

SWA 42

HGA 43

VSPA 59

DIFFA 58

DROOPA 52

FBA 56

COMPA 55

CSREFA 49

CSSUMA 50

CSP2A 48

VRMP

VRD Y

DRVEN

VSN

13 LG1 34

SW1 33

VSNA 60

ILIMA 53

EPAD 61

VCC

IOUT

HG1 32

CSP2

26 CSCOMPA 51

TSNS

ILIM

TRBST#

PWM

BST1 31

BSTA 44

CSP1A 47

PWMA 45

VDD BP

VBOOT

PR189

75K_1%_04

PC148

0.047u_10V_X7R_04

PC6

33p_50V_NPO_04

PC139

1000p_50V_X7R_04

RT4

100K_1%_NTC_06

1 2

PR40 66.5K_1%_04

PR47 2_06

PC15

1200p_50V_X7R_04

PR28

4.3K_1%_04

PC146 0.1u_10V_X5R_04

PC8

33p_50V_NPO_04

PR48 2_06

RT2

100K_1%_NTC_06

1 2

PR184 6.98K_1%_04

PJ1

*CV-40mil

PR50 6.98K_1%_04

PR1

100K_04

PR26 11.8K_1%_04

PC13 1200p_50 V_X7R_04

PR32 12.4K_1%_04

PR177 10K_04

PC143 0.1u_10V_X5R_04

PR195

75K_1%_04

PR24 1K_1%_04

PR25 *0_04

PC144

1000p_50V_X7R_ 04

PC134

680p_50V_X7R_04

PC2

1000p_50V_X7R_ 04

PC23 0.22u_10V_X5R_04

RT3

100K_1%_NTC_06

PR179

24K_1%_04

PR21 1.21K_1%_04

PC17

330p_50V_X7R_04

PR49 2_06

PC20

0.047u_10V_X7R_04

PR3 *20m il_04

PR7

54.9_1%_04

PC22 0.22u_10V_X5R_04

PR10 *20m il_04

PR46 137K_1%_04

PR190

8.25K_1%_04

PR172 2_06

PR178 90.9K_1%_04

PR37

165K_1%_04

PC19 0.22u_10V_X5R_04

PR13 *20mil_04

PR12 49.9_1%_04

PR11 *20mil_04

RT1

100K_1%_NT C_06

1 2

PC5

100p_50V_N PO_04

PR45 137K_1%_04

PUT COLSE

TO VCORE

HOT SPOT

PR174

10_1%_04

PC9

1000p_50V_X7R_04

PR22

4.12K_1%_06

PUT COLSE

TO VGFX

HOT SPOT

PR4 0_04

CSSUM

CSREFA

PR41

*20mil_04

CSP3

Z3929

VSN

CSP1

VSP

CSREFA

CSP2

Option for

2 phase

CPU

VR_EN

CSCOMP

H_CPU_SVIDCLK

CSREFADROOPA

CSREF

CSCOMPA

Z3913

Z3908

PR42

*20mil_04

H_CPU_SVIDALRT#

Z3914 Z3934Z3930

Option for

1 phase

DROOP

Z3920

Z3921

Z3922

Z3919

Z3904

CSP1A

Z3931

TSENSE

TSENSEA

CSP3

CSREF

VR_EN

Z3924

Z3932

FBA

Z3927

Z3903

Z3912

TRB ST#

Z3933

APGND

CSP1

H_PROCHOT#

Z3901

APGND

APGND APGN D

APGND

CSP2A

APGND

TSENSEA

H_CPU_SVIDCLK

DROOP

Z3909

Z3926

COMPA

H_CPU_SVIDDAT

Z3907

Z3910

CSREF

TSENSETSENSE

Z3928

Z3923

Z3911

DELAY_PWRGD

Z3925

H_CPU_SVIDALRT#

H_PROCHOT#

CSCOMPCSCOMPCSCOMPCSCOMPCSCOMPCSCOMP

DROOPA

TRBSTA#

CSP2A

IMONA

CSP1A

CSSUM A CSCOMPA

TRBST#

CSP1A

Z3902

IMON

VBOOT

VR _RDY A

1.05VS[2,3,5,6,14,15,16,19,20,21,35,38] 5VS[12,13,14,21,27,30,32,34] 3.3VS[3,9,10,11,12,13,14,15,16,17,18,19,20,21,25,26,27,28,29,30,31,32, 33, 34] VIN[11,34, 35,36,37,38,40, 41]

PR44

*1K_1%_04

PR43

*1K_1%_04

CSP2

D03

PC210 * 0.1u_10V_X5R_04

VR_RDYA

ALL_SYS_PWRGD[11,16,29]

APGND D03

H_CPU_SVIDDAT

PUT COLSE

TO GT

Inductor

PUT COLSE

TO VCORE

Phase 1

Inductor

VCORE_1

DELAY_PWRGD

PR181 *20mil_04

SWN1 [40]

SW1A [ 40]

VSS_GT_SEN SE[6]

SWN2 [40]

SWN1A [40]

SW1 [ 40]

SW2 [40]

LG1A [40]

HG1A [ 40]

CSREFA [40]

LG1 [40]

LG2 [40]

HG2 [40]

H_CPU_SVIDALRT#[5] H_CPU_SVIDDAT[5]

HG1 [40]

VCORE_VCC_SENSE[5]

VCORE_VSS_SENSE[5]

H_CPU_SVIDCLK[5]

SWN1A [40]

H_PROCHOT#[3]

VCC_GT_SEN SE[6]

SWN 2 [40 ]

SWN 1 [40 ]

DELAY_PWRGD [16,29]

CSREF [40]

Sheet 39 of 47

POWER V-CORE 1

Schematic Diagrams

B - 40 POWER V_CORE 1

B.Schematic Diagrams

POWER V_CORE 1

VIN

VCORE

VGFX_CORE

VIN

VCORE

PC161

1000p_50V_X7R_04

Z4003

PR202

5.1_06

PC152

4.7u_25V_X5R_08

PQ48

MDU1512

ULTRASO-8

PC155

4.7u_25V_X5R_08

PR201

10_04

PD20

CSOD140SH

A C

PQ2

MDU1516

ULTRASO-8

PR200

10_04

PC33

4.7u_25V_X5R_08

PC185

*330U_2V_D2

PD17

FM5822

A C

PQ55

MDU 1512

ULTRASO-8

PL3

TMPC1004H-R36M-Z01 0.36UH 31A

tmpc1004h

1 2

PR57 2_06

PC151

0.1u_50V_Y5V_06

PC31

4.7u_25V_X5R_08

PC25

0.1u_50V_Y5V_06

PR192

10_04

PC170

*220u_6.3V_6.3*6.3*4.2

PQ3

MDU1516

ULTRASO-8

PL4

TMPC1004H-R36M-Z01 0.36UH 31A

tmpc1004h

1 2

PC171

220u_6.3V_6.3*6.3*4.2

PQ50

MDU1512

ULTRASO-8

PC32

4.7u_25V_X5R_08

PQ49

MDU1512

ULTRASO-8

PC182

390uF_2.5V_10m_6.3*5.8

PQ51

MDU1516

ULTRASO-8

PC173

560u_2.5V_6.6*6.6*5.9

PC183

390uF_2.5V_10m_6.3*5.8

PC30

4.7u_25V_X5R_08

PC167

*560u_2.5V_6.6*6.6*5.9

PQ47

MDU 1512

ULTRASO-8

PC150

*15u_25V_6.3*4.4

VGFX_CORE[6] VCORE[5] VIN[11,34,35,36,37,38,39,41]

PC181

390uF_2.5V_10m_6.3*5.8

5VS[12, 13,14,21,27,30,32,34,39]

PD15

FM5822

A C

PC154

*15u_25V_6.3*4.4

PC29

0.1u_50V_Y5V_06

PQ52

*MDU1512

ULTRASO-8

HG1_R

PC204

*0.1u_16V_Y 5V_04

6-09-33712-143

PR69 2_06

EM I

LG2[39]

SW2[39]

HG2[39]

LG1[39]

HG1[39]

SW1[39]

LG1A[39]

SW1A[39]

HG1A[39] PR188 0_06

SW1

LG2

SW2

LG1

CSREF

PC212

*0.1u_16V_Y5V_04

CSREF

HG2_R

D03

HG1A_R

CSREFA

LG1A

SW1A

PR194

5.1_06

PC202

1000p_50V_X7R_04

Z4002

PC157

1000p_50V_X7R_04

EM I

D03

PC203

1000p_50V_X7R_04

EM I

VGFX_CORE

D03

VGFX_CORE

VCORE

QC 45W GT2

VID1=1.23V

IccMax=46A

Icc_Dyn=37A

Icc_TDC=38A

R_LL=3.9m ohm

OCP~55A

QC 45W CPU

VID1=0.9V

IccMax=94A

Icc_Dyn=66A

Icc_TDC=52A

R_LL=1.9m ohm

OCP~110A

VCORE

SWN2 [39]

CSREF [39]

CSREFA [39]

SWN1 [39]

CSREF [39]

SWN1A [39]

6-11-3971P-0B0

6-11-3971P-0B1

6-11-3971P-0B2

PL5

TMPC1004H-R36M-Z01 0.36UH 31A

tmpc1004h

1 2

EM I

PR196 *20mil_04

PC153

*330uF_25V

PR197 *20mil_04

PR191 *20mil_04

PC158

1000p_50V_X7R_04

Z4001

PR193

5.1_06

D03 D03

D03

EM I

Sheet 40 of 47

Power V-CORE /

GFX_VCORE

Schematic Diagrams

Power V-CORE / GFX_VCORE B - 41

B.Schematic Diagrams

Power V-CORE / GFX_VCORE

«Ý¥Ó½Ð·s®Æ¸¹

IACP

VIN V_BAT

VDD3

VA1

Z4109

Z4102

PC209

0.1u_16V_Y 5V_04

SMD_BAT [29]

SMC_BAT [29]

D03

PC205

0.1u_16V_Y5V_04

PQ1A

EMB17A03V

PC206

0.1u_16V_Y5V_04

PQ1B

EMB17A03V

COMP_PU12

BAT_DET

Z4103

6-15-32023-7B0

SMD_BAT_R

PR226

*10K_06

LDR

PD13

RB0540S2

VA[33,34]

VIN[11, 34,35, 36,37, 38,39,40]

PC207

*0.1u_16V_Y5V_04

Z4106

PR67

*0_04

PR68

0_04

AC_IN

D03

3S / 2K

2S / 10K / NT1908

BAT DET(BATTERY INTERNAL) :

2S / 5K / NT1912

4S/2800mAH /7.15K

3S/2800mAH / 4.02K

4S / 390

SMD_BAT_R

BAT_DET

SMC_BAT_R

VAC

AC AV

PC28

2200p_50V_X7R_04

PR54

0_06

HDR_R

HDR

VDD3[14,15,16,18,19,21,23,28,29,32,33,34,35,36]

Z4110

BST

SMC_BAT_R

PR63 *20mil_04

EM I

PR52

2_06 Z4111

EM I

D03

Z4105

PR86 *20mil_04

PR87 *20mil_04

VDD P

ICHM

PC47

*1u_25V_Y5V_08

Z4104

VDDA

ICHP

PR56 2.2K_04

PC46

*1u_25V_Y5V_08

PR55 2.2K_04

PR77

24K_1%_04

IAC1

PC208

*0.1u_16V_Y5V_04

IACM

BAT_VOLT [29]

D03

TOTAL_CUR [29]

BAT_DET[29]

AC_IN# [29]

PMOSFET_CONTROL#[29]

PQ43

ME4425

6 2

7 3

PR73

100_04

PR66 *0_04

PC149

*0.1u_16V_Y5V_04

PR16

100K_04

PR53

0.01_1%_32

PD14

*BAV99 RECTIFIER

PQ4

2SK3018S3 G

PC142 4.7u_25V_X5R_08

PR171

10_04

PC1

0.1u_50V_Y5V_06

PC54

1u_10V_Y5V_06

PC56

47p_50V_NPO_04

PR81 10_04

PD1

*BAV99 RECTIFIER

PL2

8.2UH_6.8*7.3*3

PC34

4.7u_25V_X5R_08

Z4107

V_BAT

PQ45

MTP3J15N3

DS Z4108

PC141 4.7u_25V_X5R_08

PC64

1000p_50V_X7R_04

PC140 4.7u_25V_X5R_08

PC38 *4.7u_25V_X5R_08

PC39 0.1u_50V_Y5V_06

PD3 MDL914S2

OZ8681 : 6-02-08681-CQ0

OZ8681LN-E : 6-02-08681-CQ1

PR187

300K_1%_04

PR15

15K_04

PR2

10K_06

PC42

30p_50V_NPO_04

PR83

0_04

PR71

*15mil_06

PR65 10_04

PU2

OZ8681LN-E

LDR

BST

VAC

VDD P

IACM

VDDA 6

SDA 11

ICHP 5

ICHM 4

COMP 8

HDR 13

BASE

SCL 10

IAC 7

IACP

ACAV

PR19 10_04

PR64 10_04

PC45

4700p_50V_X7R_04

PC48

1u_25V_Y5V_08

PR186

100K_04

PC37 *4.7u_25V_X5R_08

PR173

0.01_1%_32

PC57

1u_10V_Y5V_06

PC3

4700p_50V_X7R_04

JBAT1

53035-00571-001

BTD-05TIXGL

6-21-D34XX-XXX

PC61

0.1u_50V_Y5V_06

PC27

4.7u_25V_X5R_08

PC131

*0.1u_50V_Y5V_06

PR62 *470K_04

PR76

10K_04 PD16

*BAV99 RECTIFIER

PC41 4.7u_25V_X5R_08

PC63

0.47u_10V_Y5V_04

PR85

100K_04

PR185

60.4K_1%_04

PC44

30p_50V_NPO_04

PR20 10_04

PC26

4.7u_25V_X5R_08

PC36 4.7u_25V_X5R_08

PQ46

2SK3018S3

PD2

ZD5245BS2

PC35

4.7u_25V_X5R_08

PQ44

ME4425

62 5

PC43

30p_50V_NPO_04

PC132

*0. 1u_50V_Y5V_06

SMART CHARGER

PC40 4.7u_25V_X5R_08

PL1

HCB4532K-800T90

PQ5

DTC114EUA

JACK1

50932-00301-001

2DC-G026-B22

6-20-B3410-003

GND2

GND1

Z4101

¾aªñJBATTA2

AC_IN [36]

Sheet 41 of 47

AC IN, Charger

Schematic Diagrams

B - 42 AC IN, Charger

B.Schematic Diagrams

AC IN, Charger

Schematic Diagrams

Audio Board / USB_A B - 43

B.Schematic Diagrams

Audio Board / USB_A

AMIC1-R

ASPKOUTR+_R

Z4202

Z4201

D03

Z4204

Z4203

PIN GND1=AGND

PIN GND2=MGND

J_SPK1

A_USBVCC

AUSB_PN9

AUSB_PP2_R

AUSB_PP9

AUSB_PN2_R

PHONE_OUT_R

PHONE_OUT_L

MIC 1_OUT_L

MIC 1_OUT_R

RJ-11

AH3

H7_0D2_3

AUSB_PP9

D03

VT1802P Stuff

AC17 *0.1u_16V_Y5V_04

EMI Require

AC1 *0.1u_16V_Y5V_04

AC7

100p_50V_NPO_04

AC6

680p_50V_X7R_04

AL3

FCM1005KF-121T03

AJ_MIC1

2SJ-T351-S23

2SJ-S351-S01-A

6-20-B2800-106

2SJ-T351-S23

Black

AC16

100p_50V_N PO_04

AH4

C102D102N

AC5

680p_50V_X7R_04

AL6

FCM1005KF-121T03

AL7

FCM1005KF-121T03

AMIC_SENSE

AC14

100p_50V_N PO_04

AJ_SPKR1

85204-02001

85204-02R

6-20-43150-102

AC2 0.1u_16V_Y5V_04

AC12

*100u_6.3V_B_B

AR1 33_04

AC10

*22u_6.3V_X5R_08

AJ_USB1

UAR48-041FN2V

KS-001HL-ANBA

6-21-B49E0-104

V+

GND1

DATA_L

DATA_H

GND

GND2

GND4

GND4 GND3

GND3

AC15

100p_50V_NPO_04

AC3

0.1u_16V_Y5V_04

AL5

FCM1005KF-121T03

AC8 0.1u_16V_Y5V_04

AR2 33_04

AH1

MTH315D111

5 6

A_AUDG

AL1 *FCM1608K-121T06_short

AL2 *FCM1608K-121T06_short

AJ_AUDIO1

85201-14051-01

85201-14x5_L

6-20-94A00-014

AJ_MODEM1

*85204-02001

85204-02R

6-20-43150-102

40mil

AHEADPHONE-R

AUDIO JACK

ASPKOUTR+

AMIC1-L NC_MIC1

AMIC_SENSE

PHONE-R

PHONE-L

AHEADPHONE-R

AHEADPHONE-L

AHP_SENSE

ASPKOUTR-

ASPKOUTR+

ASPKOUTR-_R

AH2

C102D102N

80mils

HP-L

GND

EMI Require

VT1802P 33_04

3*R/L½u¼e

GND

Headphone°T¸¹½u¼e > 10mils

¶ZÂ÷phone jack¶V»·

½u®|´N¥²¶·¶V¼e

R/L¥²¶·¥]ÂÐGND¥B¶¡¶Z¬°3*½u¼e

Resistor 32 or 33_04

meet WLK Test

HP-R

Layout note:

6-20-B2800-106

AC9

*22u_6.3V_X5R_08

AC13

22u_6.3V_X5R_08

AC11

22u_6.3V_X5R_08

ASPK_HP#

60 mil

USB PORT

HEADPHONE

AUSB_PN9

AHP_SENSE

AMIC1-R

AC4

*1u_6.3V_X5R_04

AHEADPHONE-L

AGNDAGNDAGND

AGND

AMIC1-L

A_AUDG

ASPKOUTR-

AL4

*WCM2012F2S-SHORT

TO M/B

MODEM

PJMODEM

²bªÅ 2.5mm ¥H¤W

RJ-11

MIC IN

AGND

AJ_RJ1

*C10181-10205-L

C10181-100A

6-21-B4Y00-102

TIP

RING

2MGN D GND1

AGND GND2

AL8 *HCB1608KF-121T25

AL9 *HCB1608KF-121T25

AJ_HP1

2SJ-T351-S23

2SJ-S351-S01-A

6-20-B2800-106

2SJ-T351-S23

Black

EMI Require

40mil

Sheet 42 of 47

Audio Board /

USB_A

Schematic Diagrams

B - 44 Power Switch & LID Switch

B.Schematic Diagrams

Power Switch & LID Switch

POWER SW & LED & HOT KEY

SM_BTN_LED

6-53-3050B-042

POWER BUTTON

PSW1~8

6-52-56000-020

6-52-56001-028

LED P/N

POWER

SWITCH

LED

6-52-56001-023

6-52-56001-022

SM_BTN#

D03

SMH6

T158B91D91 SMH7

T158B118X87D118X87

SLID_SW#

SMH8

C91D91N

SJ_SW2

87151-1207G

87151-12L

12 SC2

0. 1u_10V_X5R_04

SMH2

H7_0D2_3

SR1 100K_04

SC6

*1u_10V_Y5V_06

SMH4

MTH276D118

5 6

SMH5

H7_0D2_3

SD2

*BAV99 RECTIFIER

SPWR_SW1

TJG-532-V-T/R

TC017-BB1J-X160T

SC1

*100p_50V_NPO_04

SU1 MH248-ALFA-ESO

VCC

1OUT 2

GND

SR2

220_04

SD1

HT-150NB-DT

SMGND

S_3.3VS S_VDD3

SMGND

S_VDD3

SMGNDSMGND

S_VDD3

SMGND

SMGNDSMGND

SMGND

SMGND SMGND

S_VDD3

SMGND

SD9

RY-SP170YG34-5M

LED

SCROLL

LOCK

LED

SLED_CAP#

Z4301

NUM

LOCK

LED

CAPS

LOCK

LED

SSATA_LED#

6-52-52001-027

SR7

220_04

6-52-52001-0276-52-52001-027

Z4304

6-52-52001-027

S_3.3VSS_3.3VS

HDD/ODD

LED

Z4303

S_3.3VS

SR8

220_04

S_3.3VS

SLED_SCROLL#

SD7

RY-SP170YG34-5M

SD8

RY-SP170YG34-5M

Z4305

SD6

RY-SP170YG34-5M

Z4302

SR6

220_04

SLED_NUM#

SR5

220_04

LID SWITCH IC

6-02-00268-LC1

6-02-00248-LC2

SU1, SU2

SM_BTN#

SLED_SCROLL#

SWLAN_LED#

SLED_CAP#

SSATA_LED#

SLED_NUM#

SLID_SW#

SQ1

DTC114EUA

Z4306

SM_BTN_LED

20mil

6-20-94A20-112

Sheet 43 of 47

Power Switch &

LID Switch

Schematic Diagrams

CLICK & FINGER BOARD B - 45

B.Schematic Diagrams

CLICK & FINGER BOARD

C5VS

TAVD D

T3. 3V

CTPBUTTON_L CTPBUTTON_R

D03

23 1

TB DR I VE 1

TBEZEL1

TBEZEL2

TC9 1u_6.3V_X5R_04

TC14

*33p_50V_NPO_04

TB DR I VE 2

TESD_GN D

TR5 22K_04

CLED _BAT_FULL

CLED_BAT_FULL

CLED_PWR

CLED_BAT_CHG

CLED_ACIN

CLED_BAT_CHG

Z4404Z4403Z4402

CLED_ACIN

Z4401

TC11 0.1u_16V_Y 5V_04

15p_50V_X7R_04

15p_50V_X7R_04 59K_1%_04

2200p_50V_X7R_04

EMPTY

EMPTY 4.7K_04

22K_04

CTP_DATA

CTP_CLK

CTP_DATA

CTPBUTTON_R

CTPBUTTON_L

CGND

CLED_PWR

TX1

48MHz_HSX321G

FSX3M

3 4

TR12

*32mil_short

CSW1

TJG- 532- V-T/R

TC017-BB1J-X160T

6-53-3050B-042

TC3

3.3p_50V_NPO_04

TR6 *4.7K_04

CSW4

TJG-532-V-T/R

TC017-BB1J-X160T

6-53-3050B-042

CC1

*0.1u_16V_Y5V_04

TC4

0.1u_16V_Y5V_04

TC2

1u_6.3V_X5R_04

CJ_LED1

85201-10051

85201-10X5_L

TR10 100_04

CH4

C95D95

TJ_FP1

*CON24A

1 2

3 4

5 6

7 8

910

11 12

13 14

15 16

17 18

19 20

2221

23 24

CH1

MTH237D 91

5 6

CR4

220_04

CC2

0.1u_16V_Y5V_04

TR9 100_04

TR4 330K_04

CD2

KPB-3025YSGC

CH2

MTH 237D91

5 6

TC10

*0.1u_16V_Y 5V_04

TC5 1u_6.3V_X5R_04

TR7 *4.7K_04

TC8 12p_50V_NPO_04

CH3

O126X94D126X94

CR1

220_04

TU1

RCLAMP0502B

CH6

MTH237D91

5 6

CR3

220_04

CR2

220_04

TC6 1u_6.3V_X5R_04

TR11

1M_04

TR8 4.7K_04

CH5

MTH237D91

5 6

CD1

KPB-3025Y SGC

TR2 47K_04

TU2

*M95128WMN6TP

M-SO8

CS#

WP# 3

VSS

SCK

HOLD# 7

VDD 8

TC1

1u_6.3V_X5R_04

H for internal regulator enable

TMCLK TR3 22K_04

CLICK BOARD

6-20-94A20-110

TMISO

TMCLK

TMOSI

TMCS

CJ_TP1

85201-06051

6-21-91A00-106

85201-06L

CGND CGND

CGND

CGND CGNDCGND

CGNDCGND

CGND

CGND CGND CGNDCGNDCGND

CGND

CGNDCGND

CGND CGND

TREF_OSC

TPD_R EG

TREG_OUT

TMOSI

TNRESET

TMISO

TE SD _GN D

TR1

3.3p_50V_NPO_04

TXIN

To T/P

Z4405

CD3

KPB-3025YSGC

TUSB_PP11_FP_R

CR6

220_04

CBT_EN

CQ1

DTC114EUA

T3. 3V

Z4406

CR5

220_04

T3. 3V

BT/WLAN LED

Z4407 CWLAN_LED#

TUSB_PN11_FP_R TR13 27.4_1%_04

TR14 27.4_1%_04

CGND

TC7

1u_6.3V_X5R_04

CGND

POWER ON

LED

6-52-55002-04E

6-52-55002-042

BAT LED

CSW1~4

LIFT

KEY

TXOUT

RIGHT

KEY

CLOSE TO CJ_MB1

To M/B

TC15

*33p_50V_NPO_04

TC 1 2

47p_50V_NPO_04

TBEZEL2

TC13

47p_50V_NPO_04

TBDRIVE1

TMCLK

CJ_FP1

85201-04051

85201-04L

TMCS TPD _REG

TBDRIVE2

TMOSI

TUSB_PP11_FP

TUSB_PN11_FPTN R ESET

TXIN

TREF _OSCTREG_OUT

TXOU T TMI SO

TBEZEL1

T3. 3V

CGND

231

24 2

W/O CrystalW/ Crystal

TOP VIEWBOTTON VIEW

TESD _GN D

TESD_GND

6-07-3R374-1A0

HSX321G +-30ppm

D03 D03

6-22-48R00-1B2

6-22-48R00-1B3

To M/B

6-20-94A50-104

6-20-94A70-104

6-20-94AA0-104

Ref erence comon design f or

TBDRIVE1/TREF_

OSC=0.7~0.8

CGND

TUSB_PN11_FP

TUSB_PP11_FP

Default

FINGER BOARD

CWLAN_LED#

TR11 EMPTY48MHz_HSX321GTX1

CBT_EN

TR6

TR5

TR1

TC3 1M_04 EMPTY

Sheet 44 of 47

CLICK & FINGER

BOARD

Schematic Diagrams

B - 46 FINGERPRINT BOARD_G

B.Schematic Diagrams

FINGERPRINT BOARD_G

GAVDD

G3.3V

GAVDD

G3.3V

GGND

6-03-00005-0F1

GTESD_GND

GBEZEL2

GU1

TCS5DB6A0

TCS5D-AB

BDRIVE1 B11

BDRIVE2 B10

REF_OSC C11

REG_OUT A10

AVDD C10

MCS

ESD_GND3 C9

MISO

DVDD1

ESD_GND1 A3

AGND

BEZEL1B A7

BEZEL2B C7

ESD_GND2 C3

MCLK

USB_DN

USB_DP

MOSI

PD_REG

NRESET

DGND1

BEZEL1A A5

BEZEL2A C5

DVDD2

A11

XTA LI N

DGND2

XTA LOU T

ESD_GND4 A9

LED_DRV2 B7

LED_DRV1 B8

NC B9

NC C2

LED_DRV3 B5

GJ_FP1

GNRESET

GBDRIVE1

GXIN

GXOUT

BOTTON VIEW

GBDRIVE2

GMISO

GUSB_PN

GBEZEL1

GXOUT

GBDRIVE2

TOP VIEW

GNRESET

GREG_OUT

20mil

GJ_FP1

SPDZ-24-B-017/032-1-R

SPNZ-24S1-X-C-Z

6-21-41720-212

12 34 56 78 910 1112 1314 1516 1718 1920

22 21

2324

GUSB_PP

GXIN

GPD_REG

GREF_OSC

GREG_OUT

GUSB_PP GMCLK

GMCLK

GMISO

G3.3V

GBEZEL1 GMOSI

GBEZEL2

GMCS

GMOSI

GUSB_PN

GPD_REG

GBDRIVE1

Sheet 45 of 47

FINGERPRINT

BOARD_G

Schematic Diagrams

PWR ON SEQ B - 47

B.Schematic Diagrams

PWR ON SEQ

190ms

2.04ms

124ms

t204=36.4us(>30us)

(plug AC-in)

´¡¤JAC-IN¨ì¶}¾÷«e

¶}¾÷«á

173ms

522us(rise=322us)

2.298ms(rise=1.354ms)

1.27ms(697us)

344us(rise=112us)

1.344ms(rise=400us)

348us(rise=259us)

340us(rise=17us)

532us(rise=311us)

4.9ms

3.622ms(rise=1.74ms)

3.34ms

2.29ms(rise=770us)

2.2ms

278us(rise=90us)

W25CEW w/o VPRO PWR ON Timing 2012/5/14

940ms; 960mV 430mV

3.3s

4.9ms

SYS_PWR_OK

DELAY_PWRGD

H_CPUPWRGD

VTT_MEM

10e

10f

PLT_RST#

10b

3.3VS

VGFX_CORE

1.05VS

3.3V

10c

1.8VS

0.85VS_PWRGD

DDR1.5V_PWRGD

PM_DRAM_PWRGD

SUSB#

1.8VS_PWRGD

1.5V

1.5VS

1.05V_M

10d

PM_PCH_PWROK

ALL_SYS_PWRGD

12a

SUSC#

10a

5VS

0.85VS

PM_SLP_LAN#

VCORE

SLP_M#

PWR_BTN#

PM_MPWROK

VDD3

USB_CHARGE_EN

PM_LANPHY_EN

1.05V_LAN_M

VDD5

102ms

PM_LANPHY_EN»PPM_SLP_LAN#¦P¨B

t200b=t201=116.6ms(>10ms)

1c RSMRST#

3.3V_M

DD_ON

(plug AC-in)

USBVCC_CH

434us(rise=169us)

154us(rise=121us)

(U16.13)

(¤WPR110,

PQ12¥i§ïµ½)

1.852ms

3c 1.05V_LAN_PWRGD

0.6Vº| ¹q

(R166.2)

(PJ3.2)

(PR158.1)

(PQ13.4)

(U11.2)

(C62.1)

(R229.2)

(R258.2)

(C234.1)

(R150.1)

(R363.1)

(PJ5)

(PQ21.1)

(PQ35.1)

(PQ34.1)

(PQ35.8)

(C279.1)

(U11.3)

(JVPRO1.4)

(JVPRO1.3)

(JVPRO1.2)

(U11.9)

(C66.1)

(U11.4)

(C54.1)

(C184.2)

(PC88.1)

(C157.1)

(PR159.2)

(U11.5)

(C106.1)

(PQ28.G)

3.68ms

(R341.2)

(R101.1)

(U11.11)

(R225.2)

(C156.1)

(C72.1)

(U11.13)

(U11.8)

1.36ms

4.62ms

321ms

4.004ms(rise=346us)

6.3ms

1.85s

BIOS: 1.00.E2

EC: 1.00.E3

(rise=3.21ms)

(rise=1.68ms)

360us

2.06ms(»PDD_ON¤ñ)

(»PSUSB#¦P¨B)

1.8VS_PWRGD

1.8VS

1.5VS

10a

VTT_MEM

12a

1.05VS

3.3VS

10f

12 0.85VS

10d 5VS

10c

0.85VS_PWRGD

10e

10b

PU6=GS7113

t201=VCCSUS to RSMRST#(>10ms)

t200b=VccDSW3_3 to DPWROK(RSMRST#)(>10ms)

t205=321-1.344=319.656ms(>10ms)

t204=SLP_S4# H to SLP_S3# H

t205=VccCore(1.05VS) to PWROK(PM_PCH_PWROK)(>10ms)

t207=VccASW(1.05V_M) to APWROK(PM_MPWROK)(>1ms)t207=2.2-0.278=1.922ms(>1ms)

t230=APWROK(PM_MPWROK) to PWROK(PM_PCH_PWROK)(>0ms)

t230=321-2.2=318.8ms(>0ms)

PQ37=MTN2604G6

2.51ms

8C Z1602

22 PCLK

stable

t208=2ms(>1ms)

2b Z2601

t209=1.68m s (>1ms)

t208=PWROK(PM_PCH_PWR OK) to PCLK(PCLK_KBC)(>1ms)

420us(rise=212us)

t209= PCLK(PCLK_KBC) to PROCPWRGD(H_CPUPWRGD)(>1ms)

Z1602

SLP_M#

PM_PCH_PWROK

ALL_SYS_PWRGD

PM_MPWROK

1.05V_M

DELAY_PWRGD

VCORE

PM_DRAM_PWRGD

SYS_PWR_OK

PLT_RST#

VGFX_CORE

H_CPUPWRGD

SUSB#

PU3=G5616

U7=SLG55584VTR

PU4=G5413

PQ20=MTN2604G6

PQ19, PQ57=P1203BV

PQ14=MTN2604G6

PQ13=MTN2604G6

Sheet 46 of 47

PWR ON SEQ

Schematic Diagrams

B - 48 Power Diagram

B.Schematic Diagrams

Power Diagram

PQ39

PQ40

PQ33B

PQ33A

PR109

PR108

AC-IN

U20U27

PQ13

PQ14PQ34

NEW CARD

NC_3.3V

NC_3.3VS

NC_1.5VS

PWR SW B'd

Cougar

Point

M_BTN#

CODEC ALC269

5VS

Touch Pad

5VS

SO-DIMM

1.5V

1.05VS_VTT

CPU

VCORE

3.3VS

33A

1.05VS

1.2A

VGFX_CORE

0.85VS

8.5A

12A

1.8VS

SM_DRAMPWROK

PMSYS_PWRGD_BUF

UNCOREPWRGOOD

RESET#

1.5V

2.92A

48A

PLTRST#

PWOCPWRGD

SLP_S4#

SLP_S3#

SYS_PWROK

PWROK

SATA HDD

3.3VS5VS

21 PLT_RST#

H_CPUPWRGD

DRAMPWROK

P2808B0 IT8518

PWR_SW#

ALL_SYS_PWRGD

SYS_PWROK

PWRBTN#

PWR_BTN#

PM_PCH_PWROK

VDD33.3VS

Always

enable

RSMRST#,

DPWROK

5a RSMRST#

uP6182 VDD3

VIN

3.3VS

CardReader

JMC389

VDD3

DD_ON#

EN_5V 2a

VDD5

3.3V

USBVCC_CH

DD_ON

VDD5

U22

PU8

PJ5

PJ23

U12

PU5

SLP_LAN#

SLP_A#

SUSC#

SUSB#

U24

U21

U20

SLP_M

8SLP_M#

PM_SLP_LAN#

VDD3

3.3V_M

PGEN 1.05V_LAN_PWRGD

PU4

VIN

PJ22

1.05V_LAN_M

G5413

VIN

5VS VDD3

PU7

PQ35

uP6122

uP6163

1.5V

10b

10e

SUSB

PQ20

1.5V

10c

VIN

1.8VS

10d

3.3V

PJ19

PU6

PG 1.8VS_PWRGD

PJ18

3.3VS

AX6615

PQ21

PJ17

0.85VS_PWRGD

1.5VS

0.85VS

PU3

VDD5

3.3V_M

Intel 82579LM

(W/ VPRO)

1.05V_LAN_M

1.05V_M

Cougar

Point

APWROK

PM_MPWROK

TPM

SY6288DCAC

PJ20

5VS 5VS_ODD

ODD

AVCC

IT8709E MDC

3.3V

3.3VS 3.3V

DD_ON

1.05V_LAN_M

1.05VS

10a

PQ24

EC USB_CHARGE_EN

1.5VS

3.3VS

eSATA

USB3.0

COMBO

12a

SY6288DCAC

VDD5

USBVCC_A

AUDIO B'd

USBVCC2

VDD5

USB3.0

SY6288DCAC

VDD5

USB2.0

USBVCC1

VDD5

DD_ON#

DDR1.5V_PWRGD

VTT_MEM

PJ16

800mA

50mA

1.05V_M

3.3V_M

RTCVCC

10mA

150mA

250mA

U11A

VDD5

VDD3

1.05VS_VTT

76mA

4 :¶}¾÷

PQ37

10f

PM_PCH_PWROK U11D

PU1

VCORE

SYS_PWROK

VGFX_CORE

NCP6132A

DELAY_PWRGD

U11C 13

ALL_SYS_PWRGD

U11B

CCD_EN

U13

NCT3522U

5V_CCD

U15

CCD

PLVDD

WLAN_3.3V

PJ15

PANEL

WLAN MINI CARD

U18

VLED

3.3VS

NB_ENAVDD

WLAN_CON_POWER

VIN

VDD3

NCT3522U

Sheet 47 of 47

Power Diagram

BIOS Update

C - 1

C:BIOS Update

Appendix C:Updating the FLASH ROM BIOS



BIOS Version

Make sure you down-

load the latest correct

version of the BIOS ap-

propriate for the com-

puter model you are

working on.

You should only

download BIOS ver-

sions that are

V1.01.XX or higher as

appropriate for your

computer model.

Note that BIOS versions

are not backward com-

patible and therefore

you may not down-

grade your BIOS to an

older version after up-

grading to a later ver-

sion (e.g if you upgrade

a BIOS to ver 1.01.05,

you MAY NOT then go

back and flash the BIOS

to ver 1.01.04).

To update the FLASH ROM BIOS you must:

• Download the BIOS update from the web site.

• Unzip the files onto a bootable CD/DVD/USB Flash Drive.

• Reboot your computer from an external CD/DVD/USB Flash Drive.

• Use the flash tools to update the flash BIOS using the commands indicated below.

• Restart the computer booting from the HDD and press F2 at startup enter the BIOS.

• Load setup defaults from the BIOS and save the default settings and exit the BIOS to restart the computer.

• After rebooting the computer you may restart the computer again and make any required changes to the default BIOS

settings.

Download the BIOS

1. Go to www.clevo.com.tw and point to E-Services and click E-Channel.

2. Use your user ID and password to access the appropriate download area (BIOS), and download the latest BIOS files

(the BIOS file will be contained in a batch file that may be run directly once unzipped) for your computer model

(see sidebar for important information on BIOS versions).

Unzip the downloaded files to a bootable CD/DVD/ or USB Flash drive

1. Insert a bootable CD/DVD/USB flash drive into the CD/DVD drive/USB port of the computer containing the

downloaded files.

2. Use a tool such as Winzip or Winrar to unzip all the BIOS files and refresh tools to your bootable CD/DVD/USB

flash drive (you may need to create a bootable CD/DVD with the files using a 3rd party software).

Set the computer to boot from the external drive

1. With the bootable CD/DVD/USB flash drive containing the BIOS files in your CD/DVD drive/USB port, restart the

computer and press F2 (in most cases) to enter the BIOS.

2. Use the arrow keys to highlight the Boot menu.

3. Use the “+” and “-” keys to move boot devices up and down the priority order.

4. Make sure that the CD/DVD drive/USB flash drive is set first in the boot priority of the BIOS.

5. Press F10 to save any changes you have made and exit the BIOS to restart the computer.

BIOS Update

C - 2

C:BIOS Update

Use the flash tools to update the BIOS

1. Make sure you are not loading any memory management programs such as HIMEM by holding the F8 key as you

see the message “Starting MS-DOS”. You will then be prompted to give “Y” or “N” responses to the programs

being loaded by DOS. Choose “N” for any memory management programs.

2. You should now be at the DOS prompt e.g: DISK C:\> (C is the designated drive letter for the CD/DVD drive/USB

flash drive).

3. Type the following command at the DOS prompt:

C:\> Flash.bat

4. The utility will then proceed to flash the BIOS.

5. You should then be prompted to press any key to restart the system or turn the power off, and then on again but

make sure you remove the CD/DVD/USB flash drive from the CD/DVD drive/USB port before the computer

restarts.

Restart the computer (booting from the HDD)

1. With the CD/DVD/USB flash drive removed from the CD/DVD drive/USB port the computer should restart from

the HDD.

2. Press F2 as the computer restarts to enter the BIOS.

3. Use the arrow keys to highlight the Exit menu.

4. Select Load Setup Defaults (or press F9) and select “Yes” to confirm the selection.

5. Press F10 to save any changes you have made and exit the BIOS to restart the computer.

Your computer is now running normally with the updated BIOS

You may now enter the BIOS and make any changes you require to the default settings.

www.s-manuals.com

Clevo W25CEV, W25CEW Service Manual. Www.s Manuals.com. Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
