W270CZQ / W271CZQ

Preface

I

Preface

Notebook Computer

W270CZQ / W271CZQ

Service Manual

Preface

II

Preface

Notice

The company reserves the right to revise this publication or to change its contents without notice. Information contained

herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven-

dor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are

they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.

This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or

reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publica-

tion, except for copies kept by the user for backup purposes.

Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of

their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement

of that product or its manufacturer.

Version 1.0

October 2012

Trademarks

Intel and Celeron are trademarks of Intel Corporation.

Windows® is a registered trademark of Microsoft Corporation.

Other brand and product names are trademarks and /or registered trademarks of their respective companies.

Preface

III

Preface

About this Manual

This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and

inspection of personal computers.

It is organized to allow you to look up basic information for servicing and/or upgrading components of the W270CZQ /

W271CZQ series notebook PC.

The following information is included:

Chapter 1, Introduction, provides general information about the location of system elements and their specifications.

Chapter 2, Disassembly, provides step-by-step instructions for disassembling parts and subsystems and how to upgrade

elements of the system.

Appendix A, Part Lists

Appendix B, Schematic Diagrams

Appendix C, Updating the FLASH ROM BIOS

Preface

IV

Preface

IMPORTANT SAFETY INSTRUCTIONS

Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock and injury to per-

sons when using any electrical equipment:

1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet

basement or near a swimming pool.

2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of elec-

trical shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak.

4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may

explode. Check with local codes for possible special disposal instructions.

5. This product is intended to be supplied by a Listed Power Unit with an AC Input of 100 - 240V, 50 - 60Hz, DC Output

of 19V, 3.42A or 18.5V, 3.5A (65W) minimum AC/DC Adapter.

CAUTION

This Computer’s Optical Device is a Laser Class 1 Product

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference.

This device must accept any interference received, including interference that may cause undesired operation.

Preface

V

Preface

Instructions for Care and Operation

The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:

1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.

2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This

is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.

3. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save

your work. Remember to periodically save your data as data may be lost if the battery is depleted.

Do not expose the computer

to any shock or vibration. Do not place it on an unstable

surface. Do not place anything heavy

on the computer.

Do not expose it to excessive

heat or direct sunlight. Do not leave it in a place

where foreign matter or mois-

ture may affect the system.

Don’t use or store the com-

puter in a humid environment. Do not place the computer on

any surface which will block

the vents.

Do not turn off the power

until you properly shut down

all programs.

Do not turn off any peripheral

devices when the computer is

on.

Do not disassemble the com-

puter by yourself. Perform routine maintenance

on your computer.

Preface

VI

Preface

4. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag-

netic fields. These can hinder proper performance and damage your data.

5. Take care when using peripheral devices.

Power Safety

The computer has specific power requirements:

• Only use a power adapter approved for use with this computer.

• Your AC adapter may be designed for international travel but it still requires a steady, uninterrupted power supply. If you are

unsure of your local power specifications, consult your service representative or local power company.

• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety feature; do

not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.

• When you want to unplug the power cord, be sure to disconnect it by the plug head, not by its wire.

• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.

• Before cleaning the computer, make sure it is disconnected from any external power supplies.

Use only approved brands of

peripherals. Unplug the power cord before

attaching peripheral devices.

Do not plug in the power

cord if you are wet. Do not use the power cord if

it is broken. Do not place heavy objects

on the power cord.



Power Safety

Warning

Before you undertake

any upgrade proce-

dures, make sure that

you have turned off the

power, and discon-

nected all peripherals

and cables (including

telephone lines). It is

advisable to also re-

move your battery in

order to prevent acci-

dentally turning the

machine on.

Preface

VII

Preface

Battery Precautions

• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.

• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the

computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.

• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.

• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service

personnel.

• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries may explode

or leak if exposed to fire, or improperly handled or discarded.

• Keep the battery away from metal appliances.

• Affix tape to the battery contacts before disposing of the battery.

• Do not touch the battery contacts with your hands or metal objects.

Battery Guidelines

The following can also apply to any backup batteries you may have.

• If you do not use the battery for an extended period, then remove the battery from the computer for storage.

• Before removing the battery for storage charge it to 60% - 70%.

• Check stored batteries at least every 3 months and charge them to 60% - 70%.



Battery Disposal

The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under var-

ious state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste

officials for details in your area for recycling options or proper disposal.

Caution

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.

Discard used battery according to the manufacturer’s instructions.

Battery Level

Click the battery icon in the taskbar to see the current battery level and charge status. A battery that drops below a level of 10%

will not allow the computer to boot up. Make sure that any battery that drops below 10% is recharged within one week.

Preface

VIII

Preface

Related Documents

You may also need to consult the following manual for additional information:

User’s Manual on CD/DVD

This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro-

gram. It also describes the installation and operation of the utility programs provided with the notebook PC.

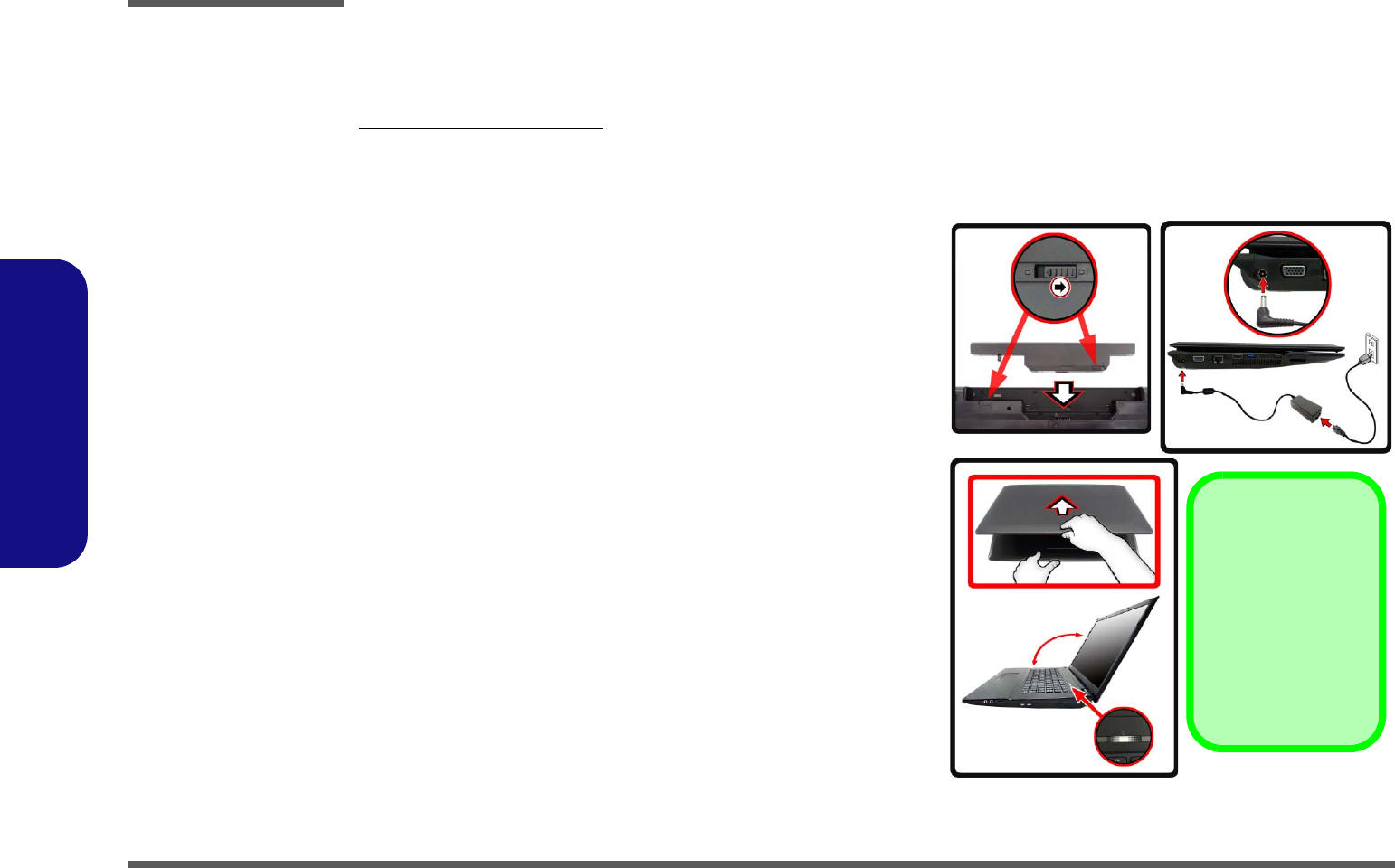

System Startup

1. Remove all packing materials.

2. Place the computer on a stable surface.

3. Insert the battery and make sure it is locked in position.

4. Securely attach any peripherals you want to use with the computer

(e.g. keyboard and mouse) to their ports.

5. Attach the AC/DC adapter to the DC-In jack on the left of the

computer, then plug the AC power cord into an outlet, and connect

the AC power cord to the AC/DC adapter.

6. Use one hand to raise the

lid/LCD to a comfortable viewing angle

(do

not exceed 130 degrees)

;

use the other hand (as illustrated in

Figure 1) to support the base of the computer (Note: Never lift the

computer by the lid/LCD).

7. Press the power button to turn the computer “on”.



Shut Down

Note that you should al-

ways shut your com-

puter down by

choosing Shut Down

from the Start Menu.

This will help prevent

hard disk or system

problems.

130 º

Figure 1

Opening the Lid/LCD/

Computer with AC/DC

Adapter Plugged-In

Preface

IX

Preface

Contents

Introduction ..............................................1-1

Overview .........................................................................................1-1

Specifications ..................................................................................1-2

External Locator - Top View with LCD Panel Open ......................1-4

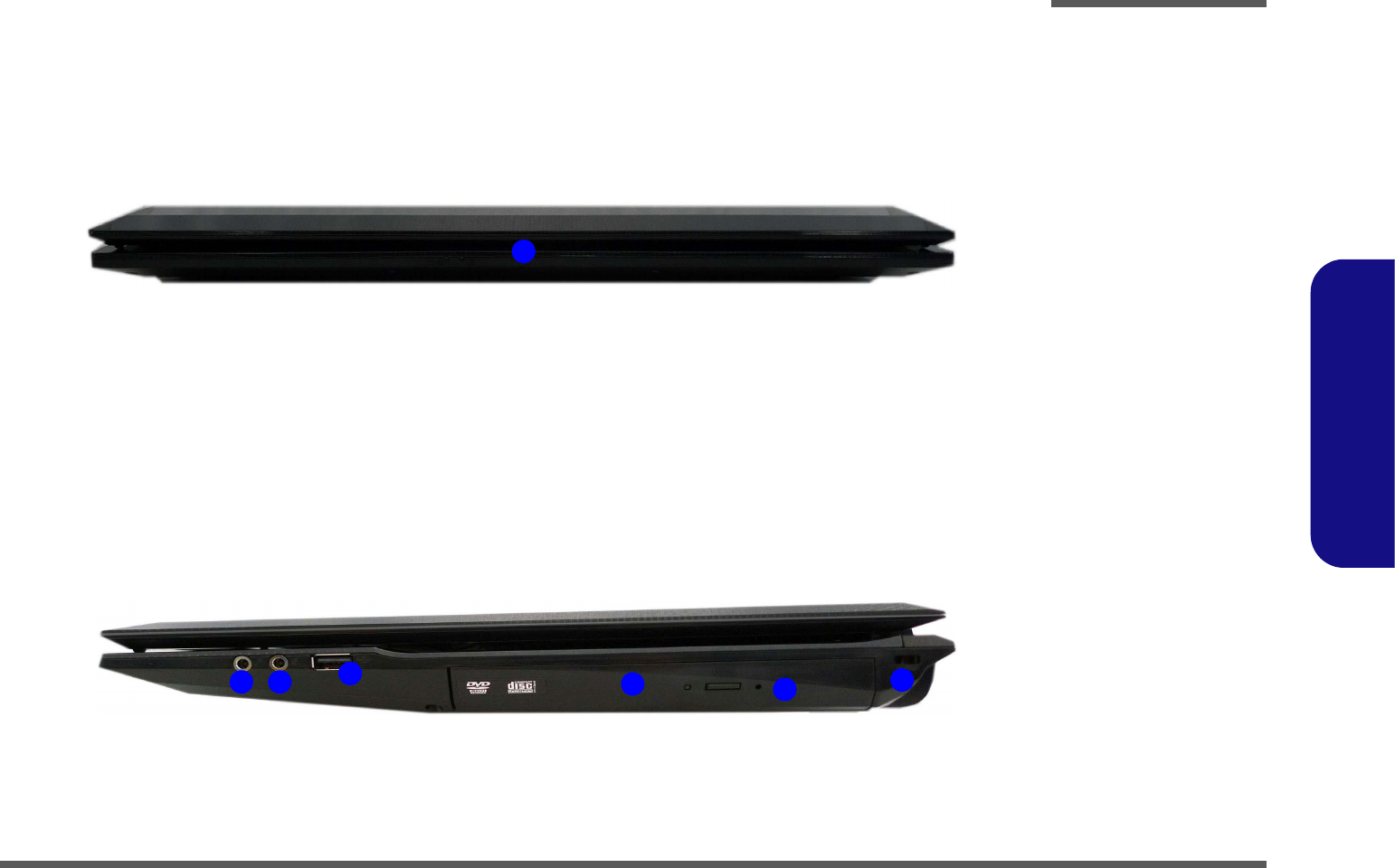

External Locator - Front & Right Side Views .................................1-5

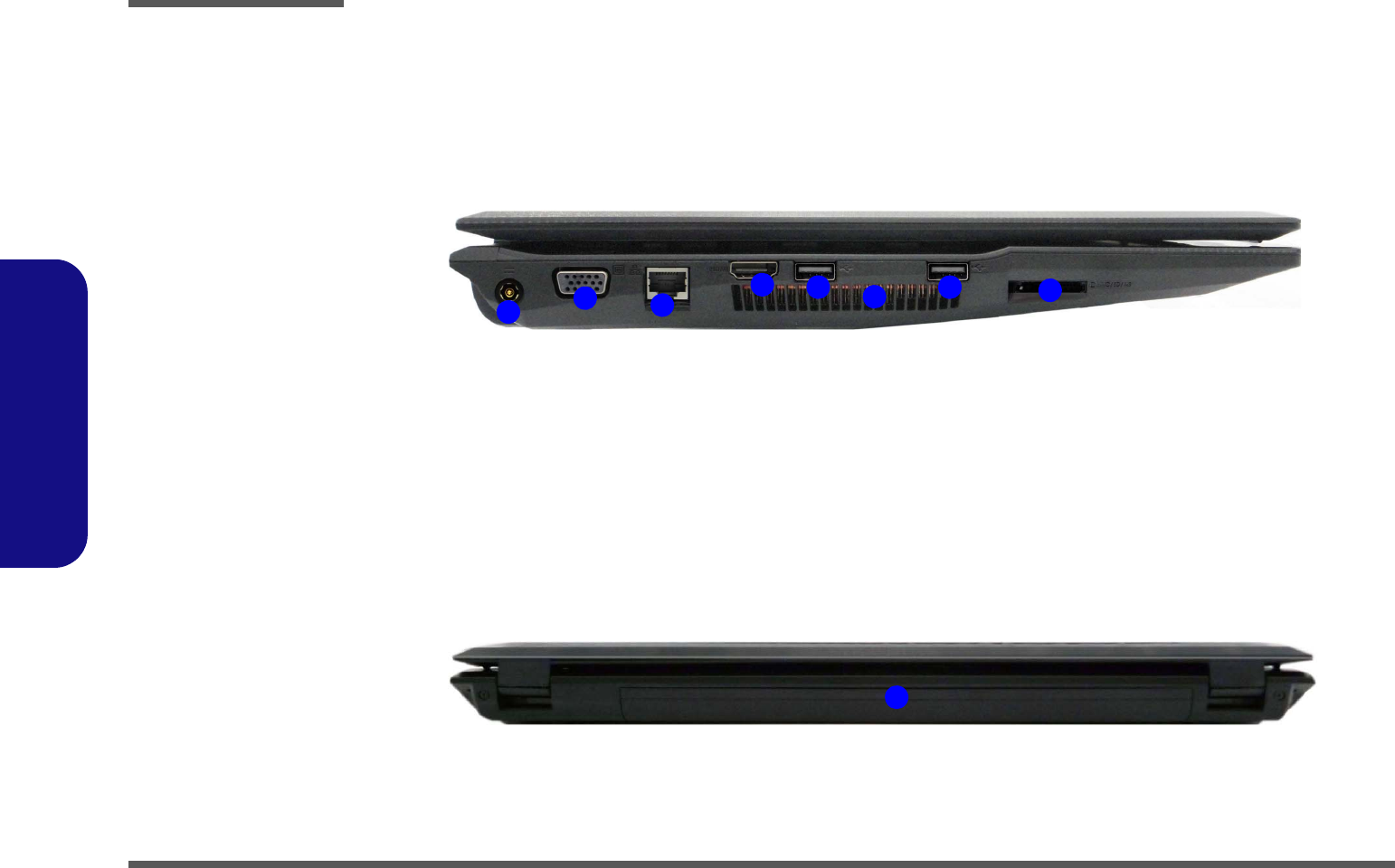

External Locator - Left Side & Rear View .....................................1-6

External Locator - Bottom View .....................................................1-7

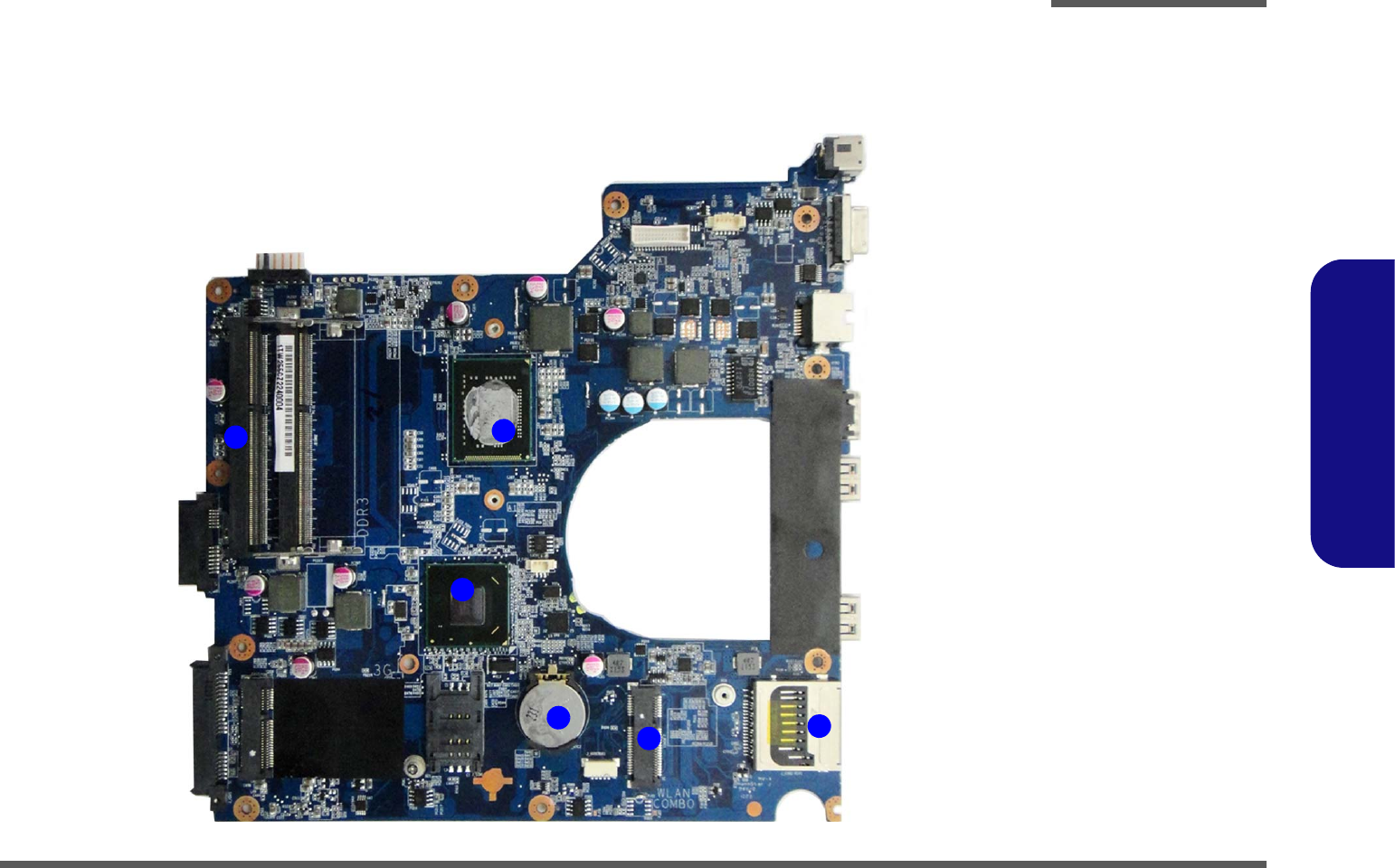

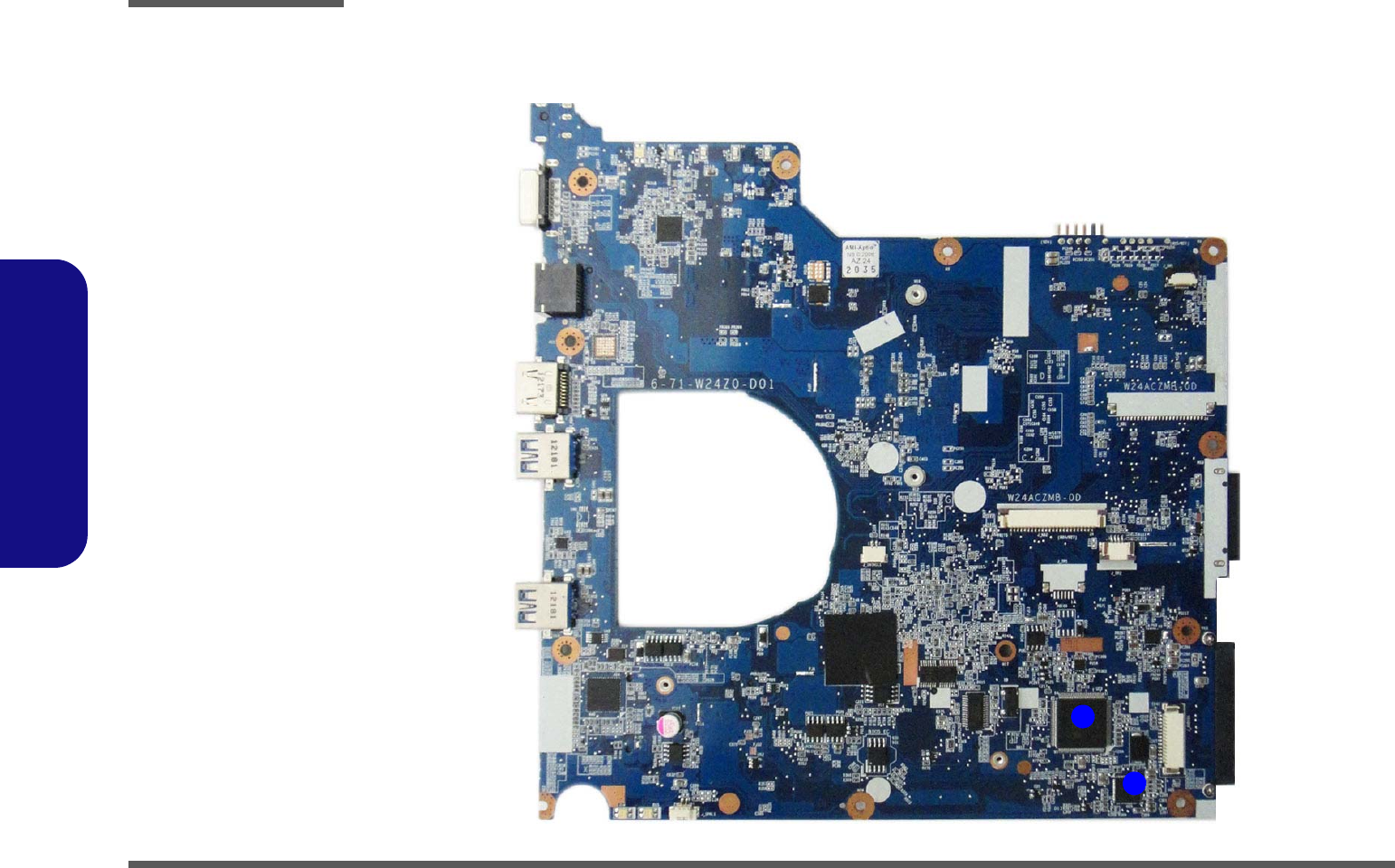

Mainboard Overview - Top (Key Parts) .........................................1-8

Mainboard Overview - Bottom (Key Parts) ....................................1-9

Mainboard Overview - Top (Connectors) .....................................1-10

Mainboard Overview - Bottom (Connectors) ...............................1-11

Disassembly ...............................................2-1

Overview .........................................................................................2-1

Maintenance Tools ..........................................................................2-2

Connections .....................................................................................2-2

Maintenance Precautions .................................................................2-3

Disassembly Steps ...........................................................................2-4

Removing the Battery ......................................................................2-5

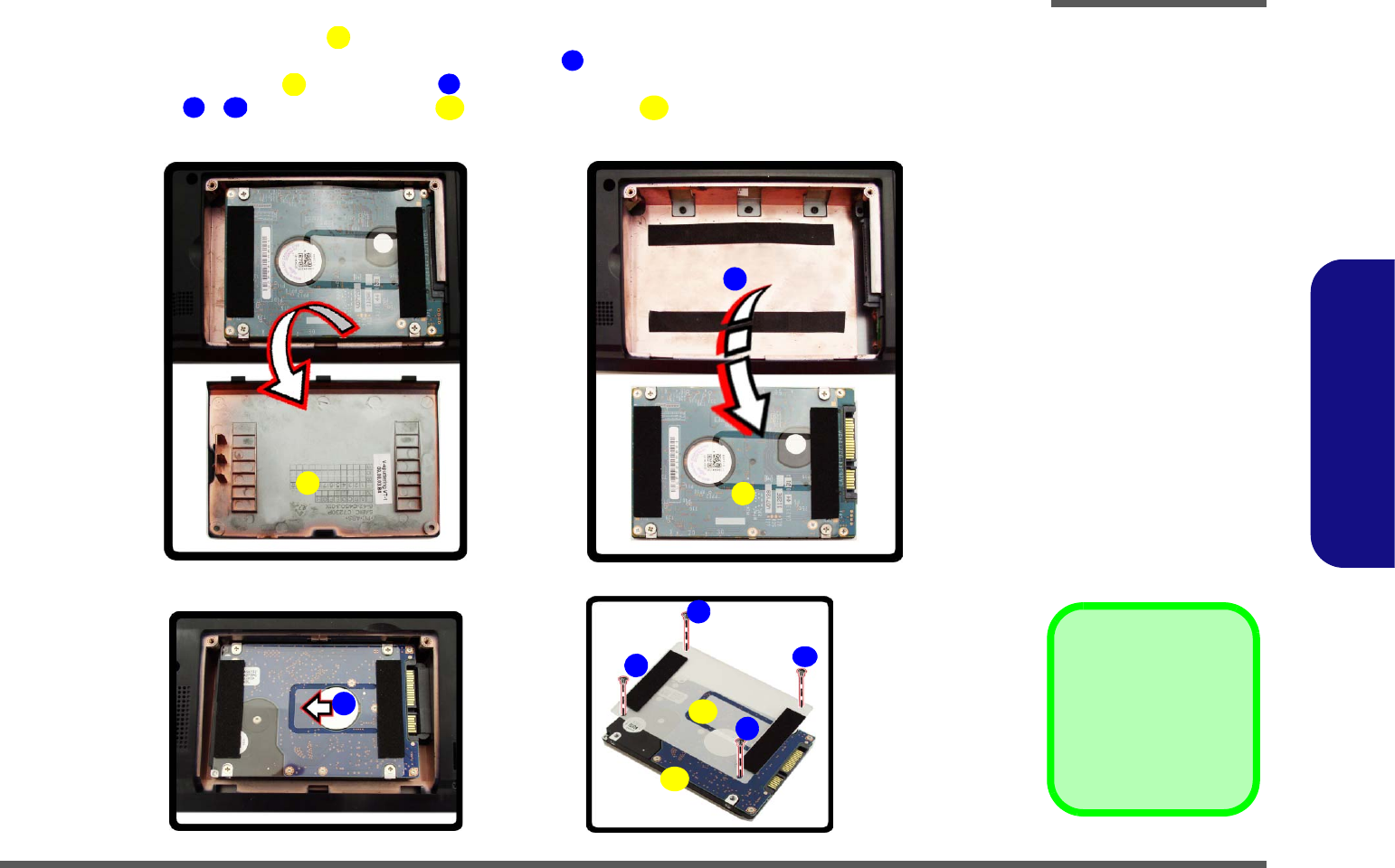

Removing the Hard Disk Drive .......................................................2-6

Removing the Optical (CD/DVD) Device ......................................2-8

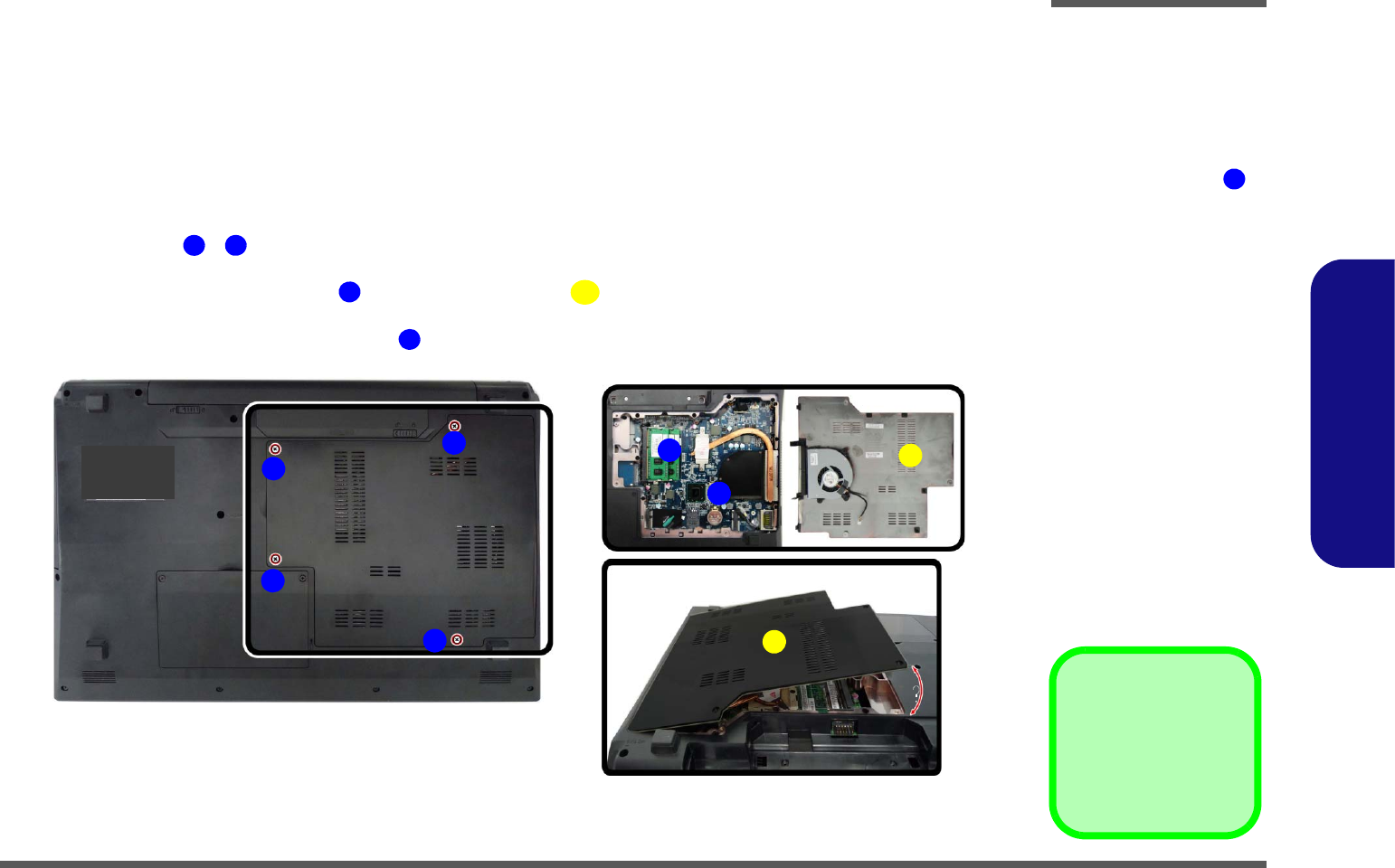

Removing the System Memory (RAM) ..........................................2-9

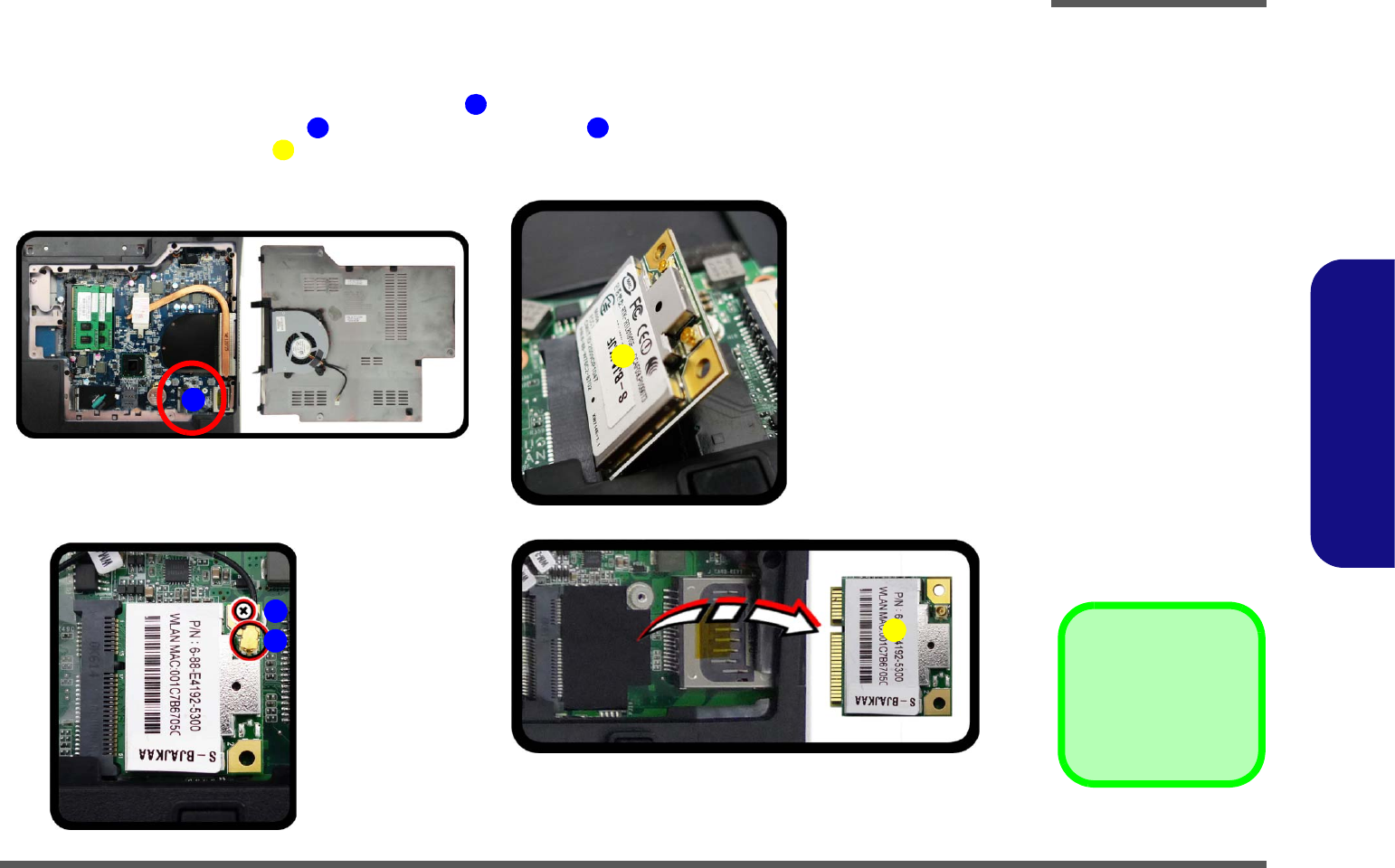

Removing the Wireless LAN Module ...........................................2-11

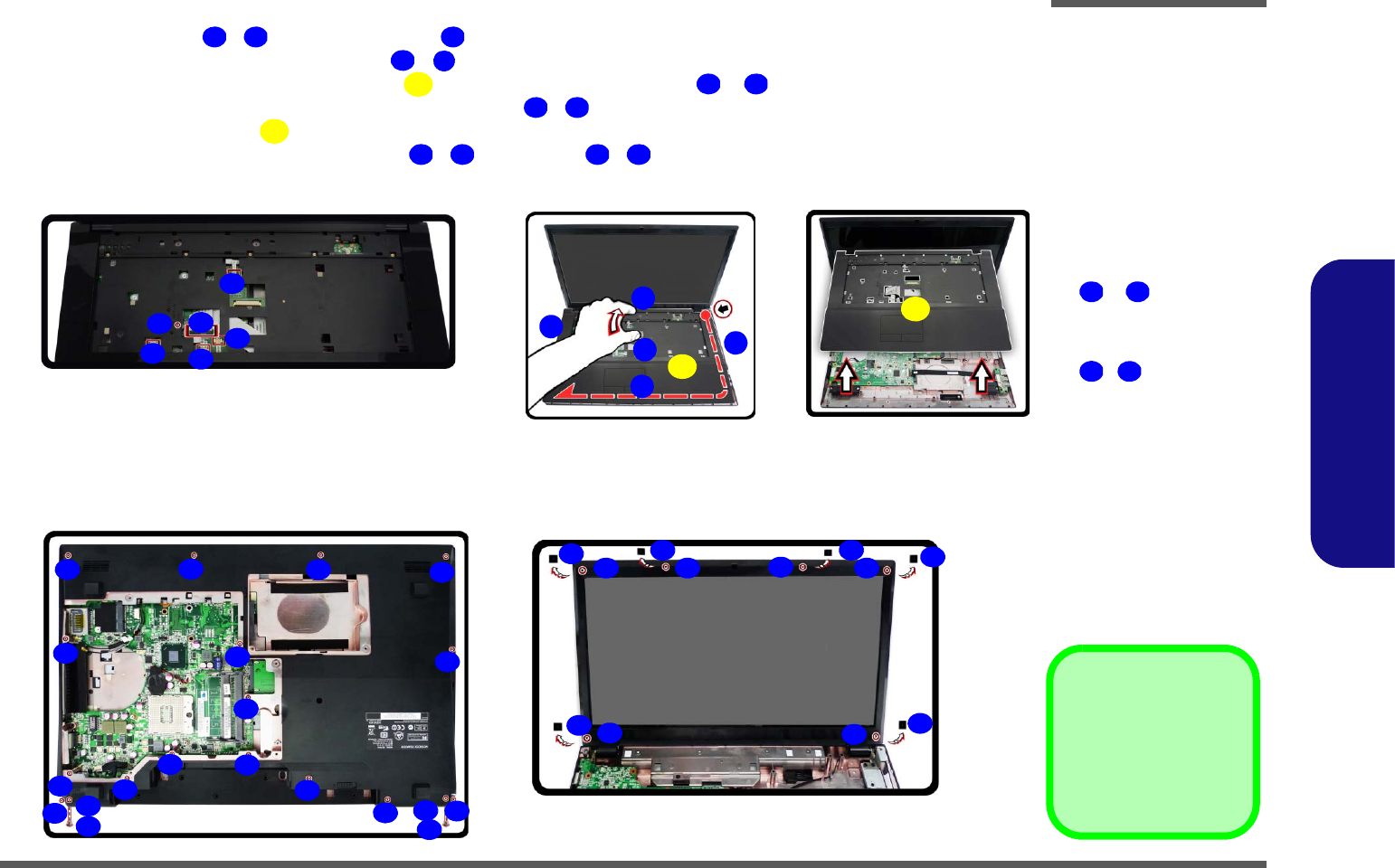

Removing the Keyboard/CCD ......................................................2-12

Part Lists ..................................................A-1

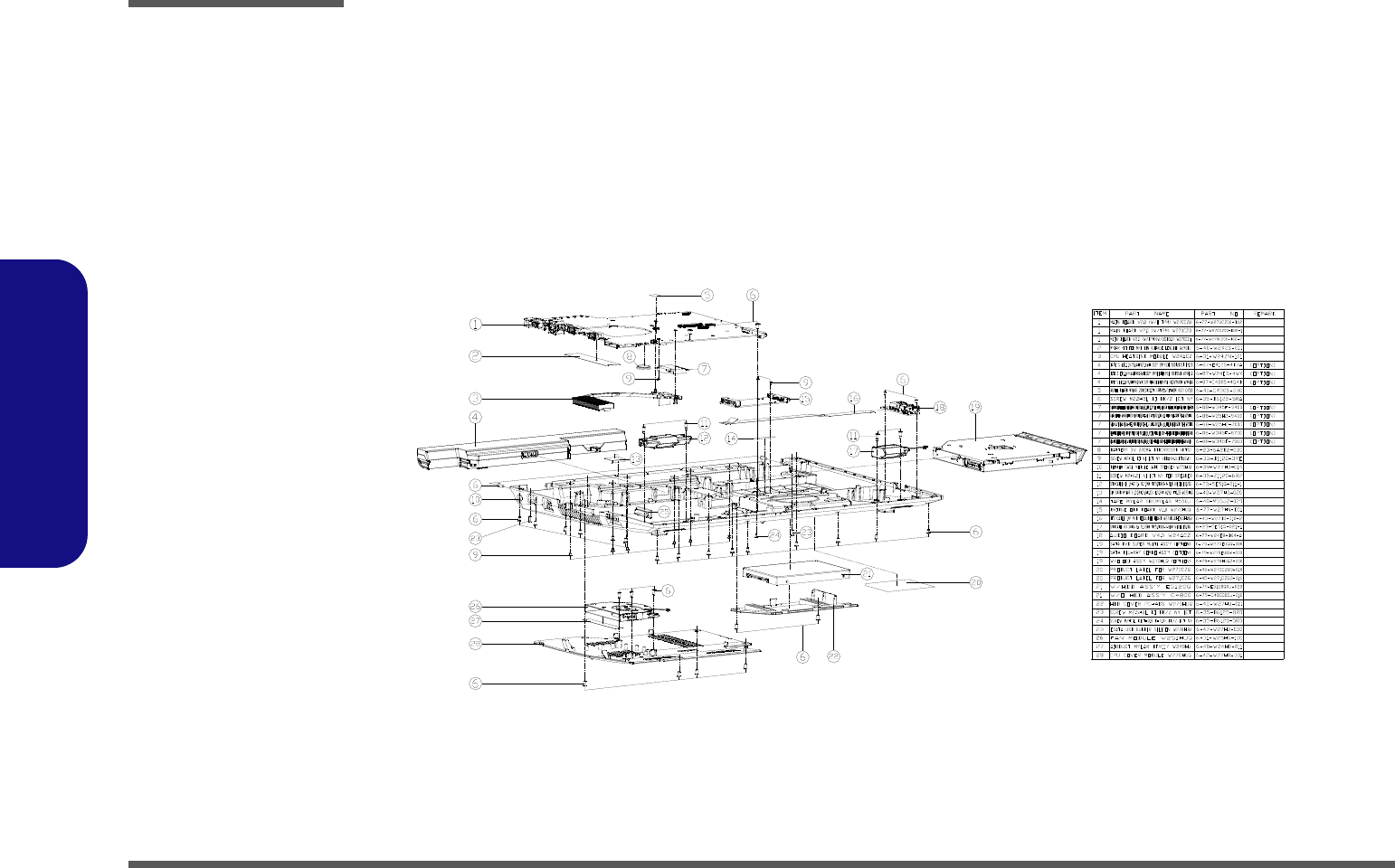

Part List Illustration Location ........................................................A-2

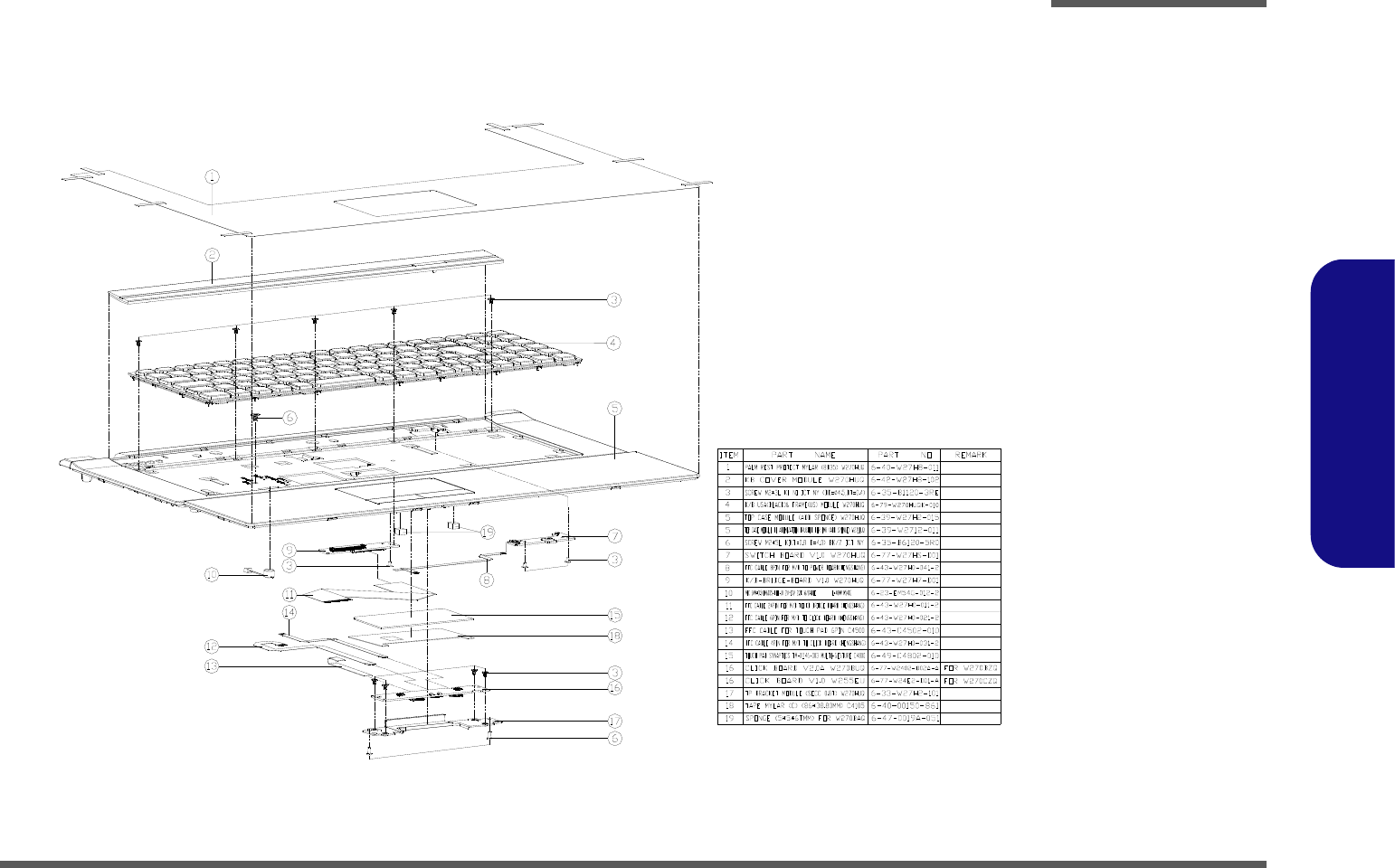

Top .................................................................................................A-3

Bottom ............................................................................................A-4

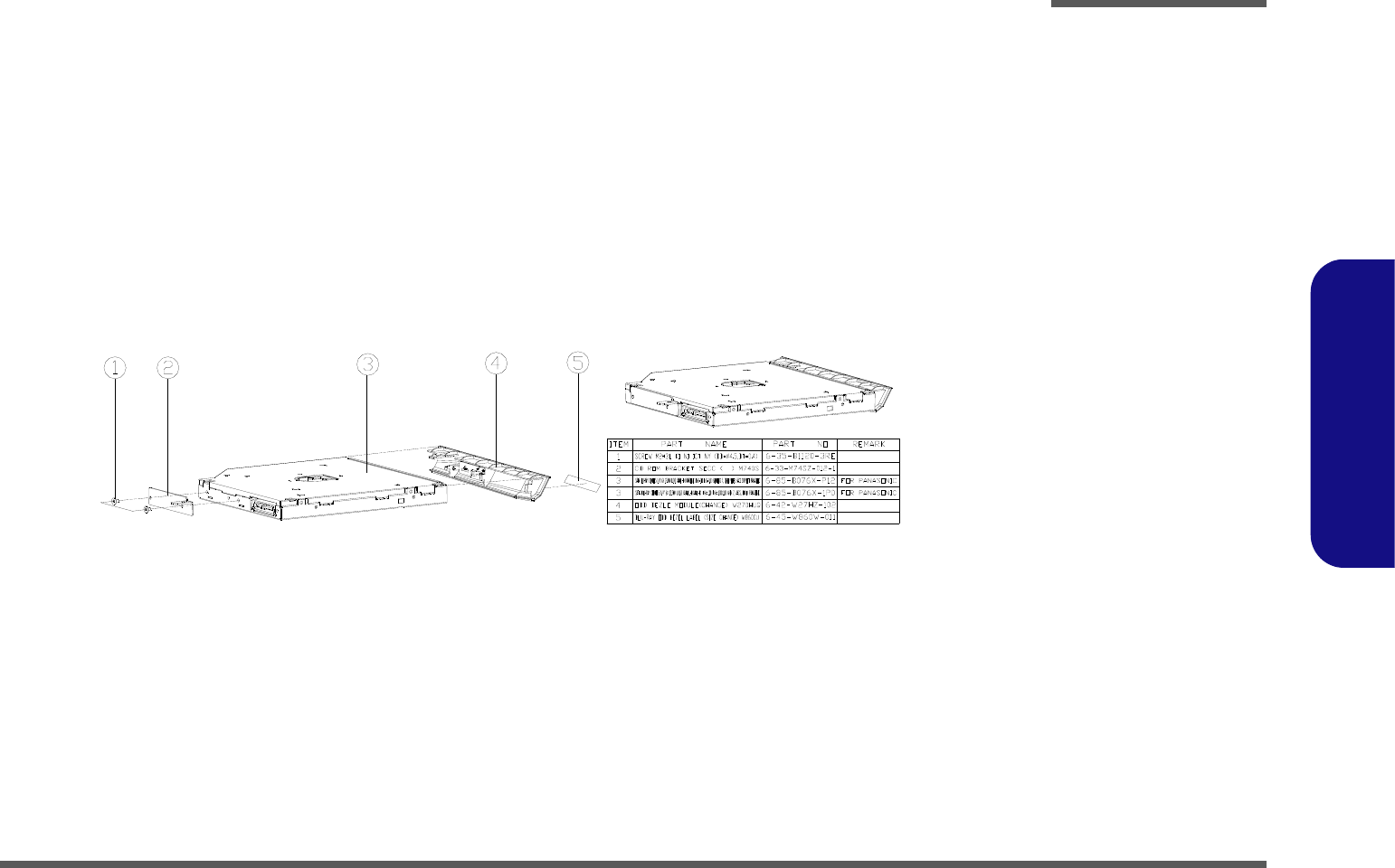

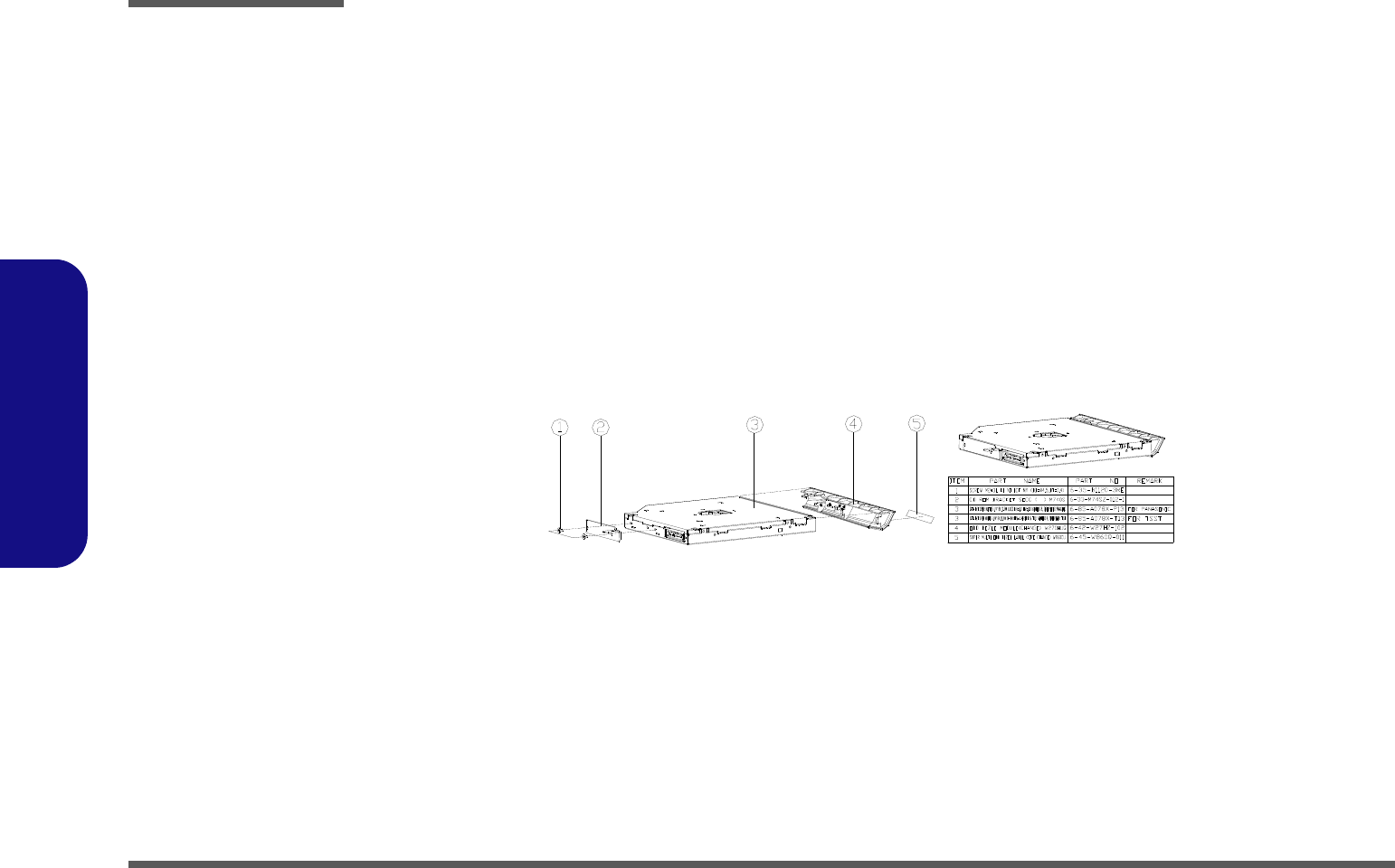

SATA BLU-RAY COMBO ...........................................................A-5

SATA DVD DUAL ........................................................................A-6

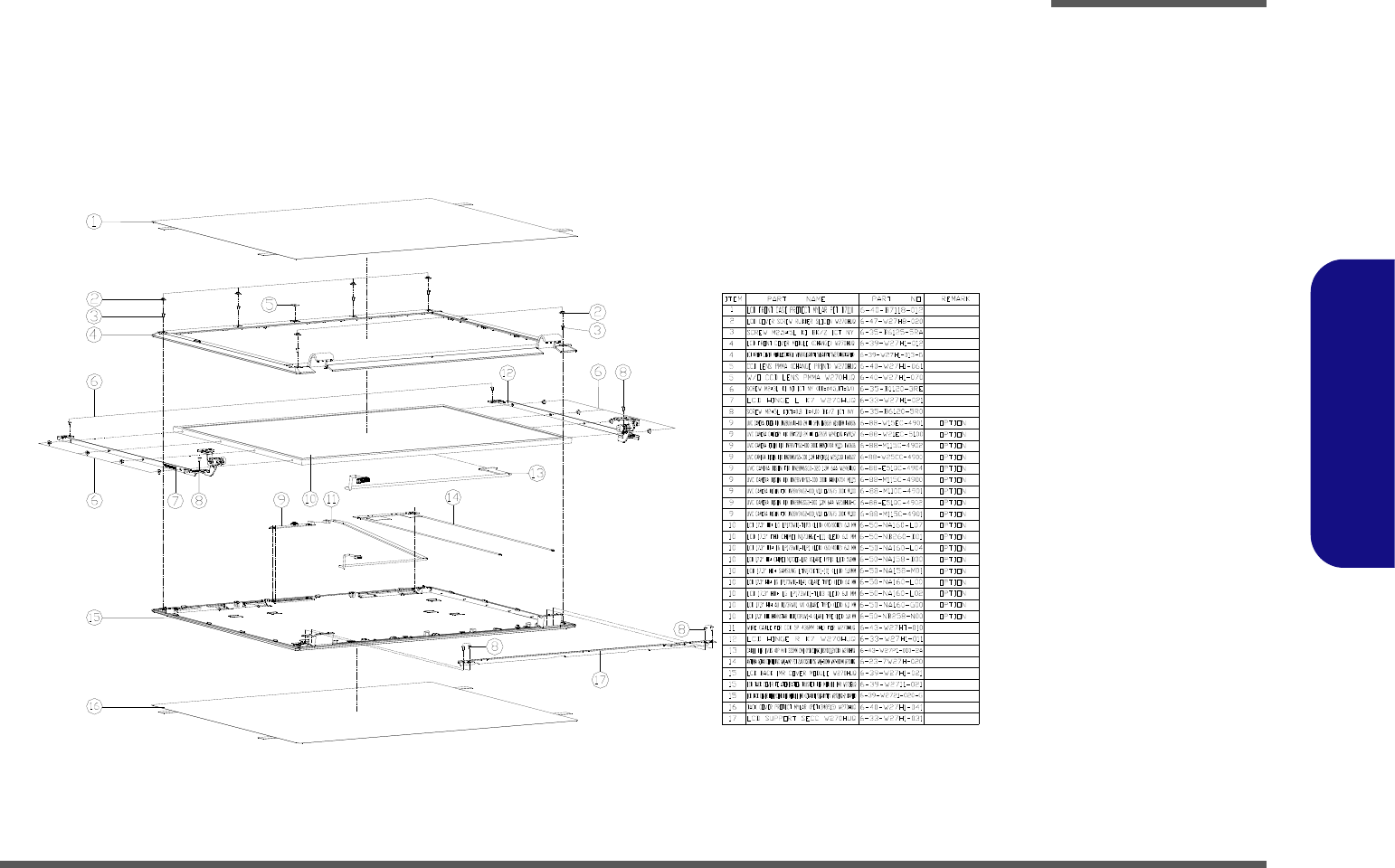

LCD ............................................................................................... A-7

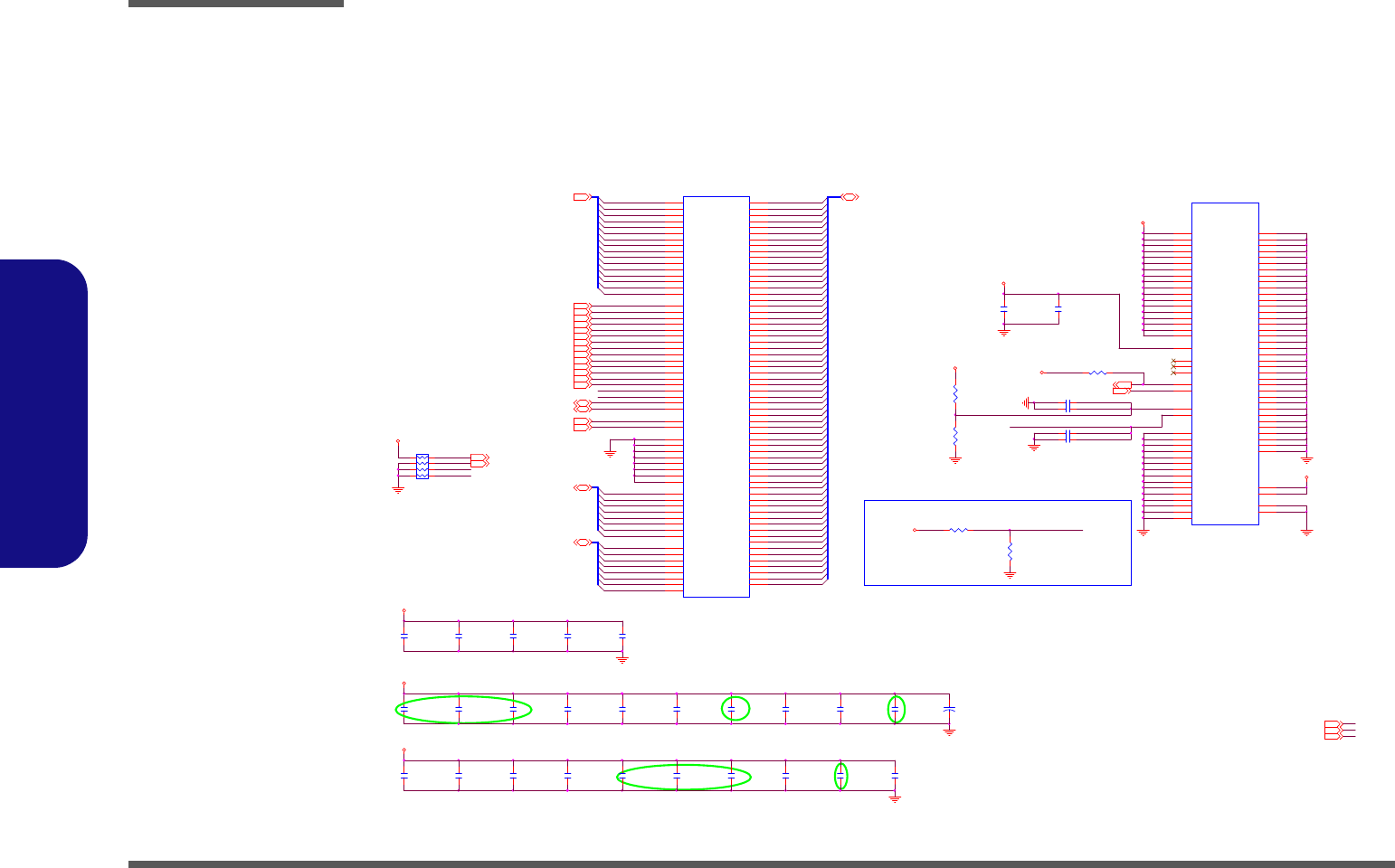

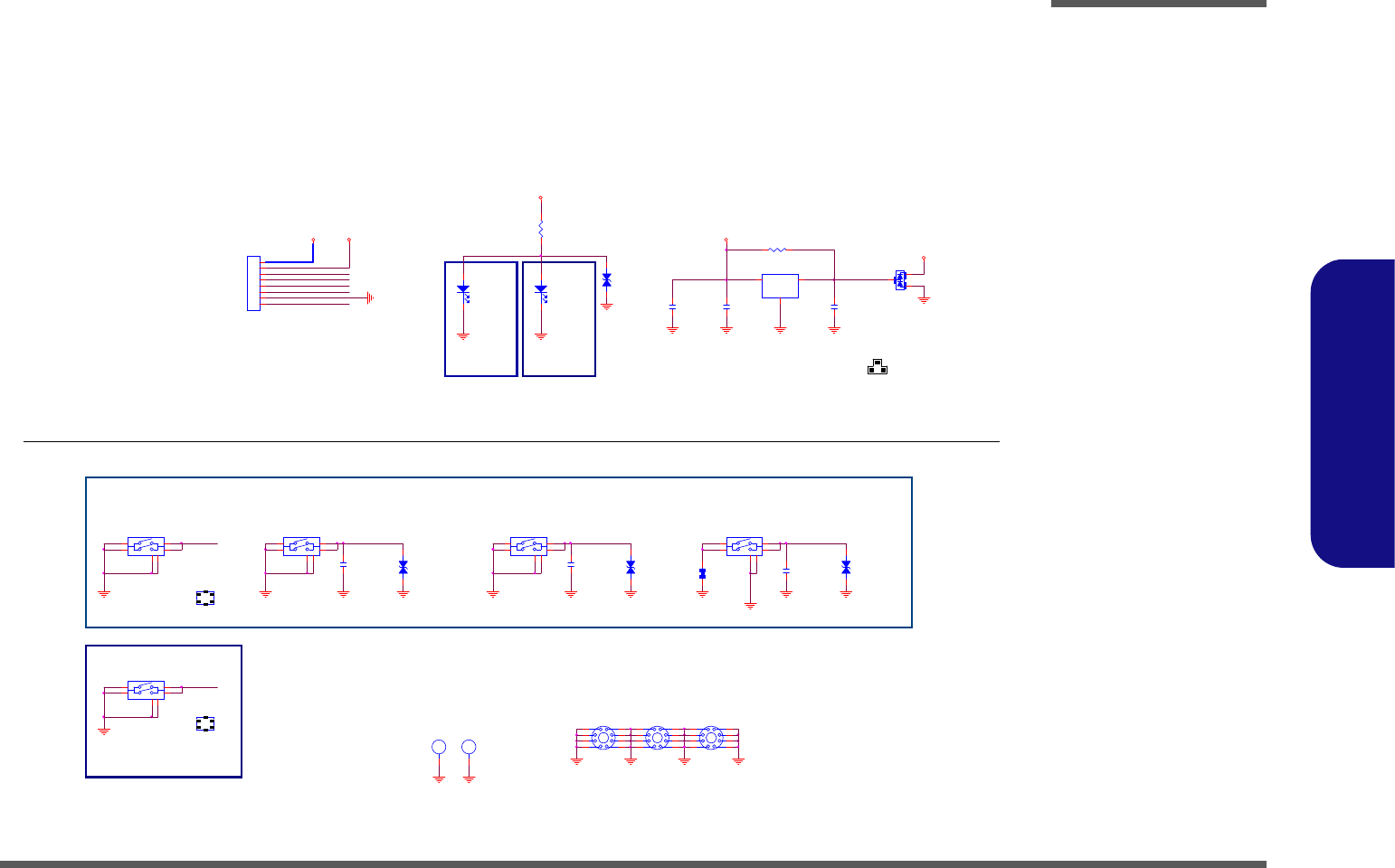

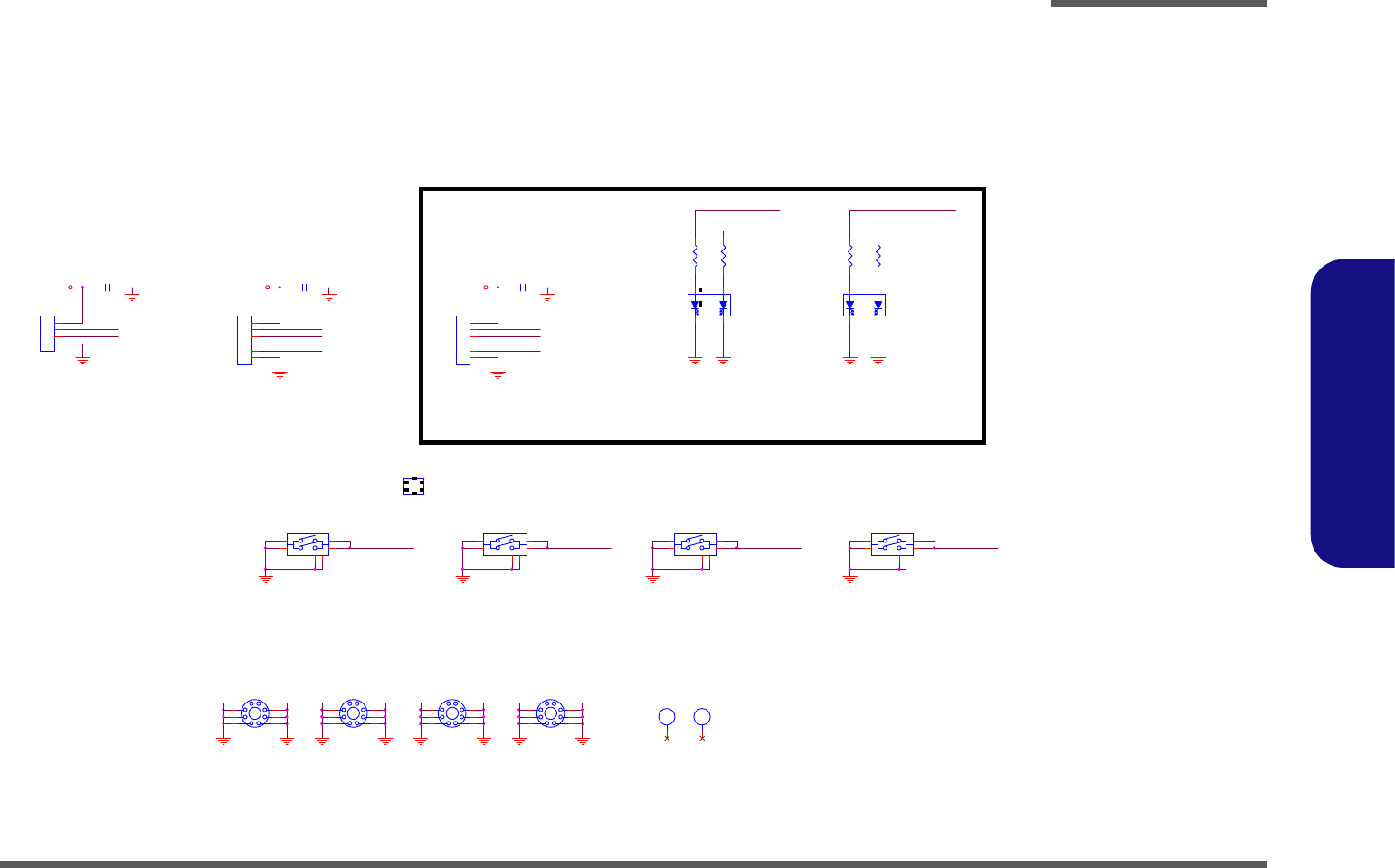

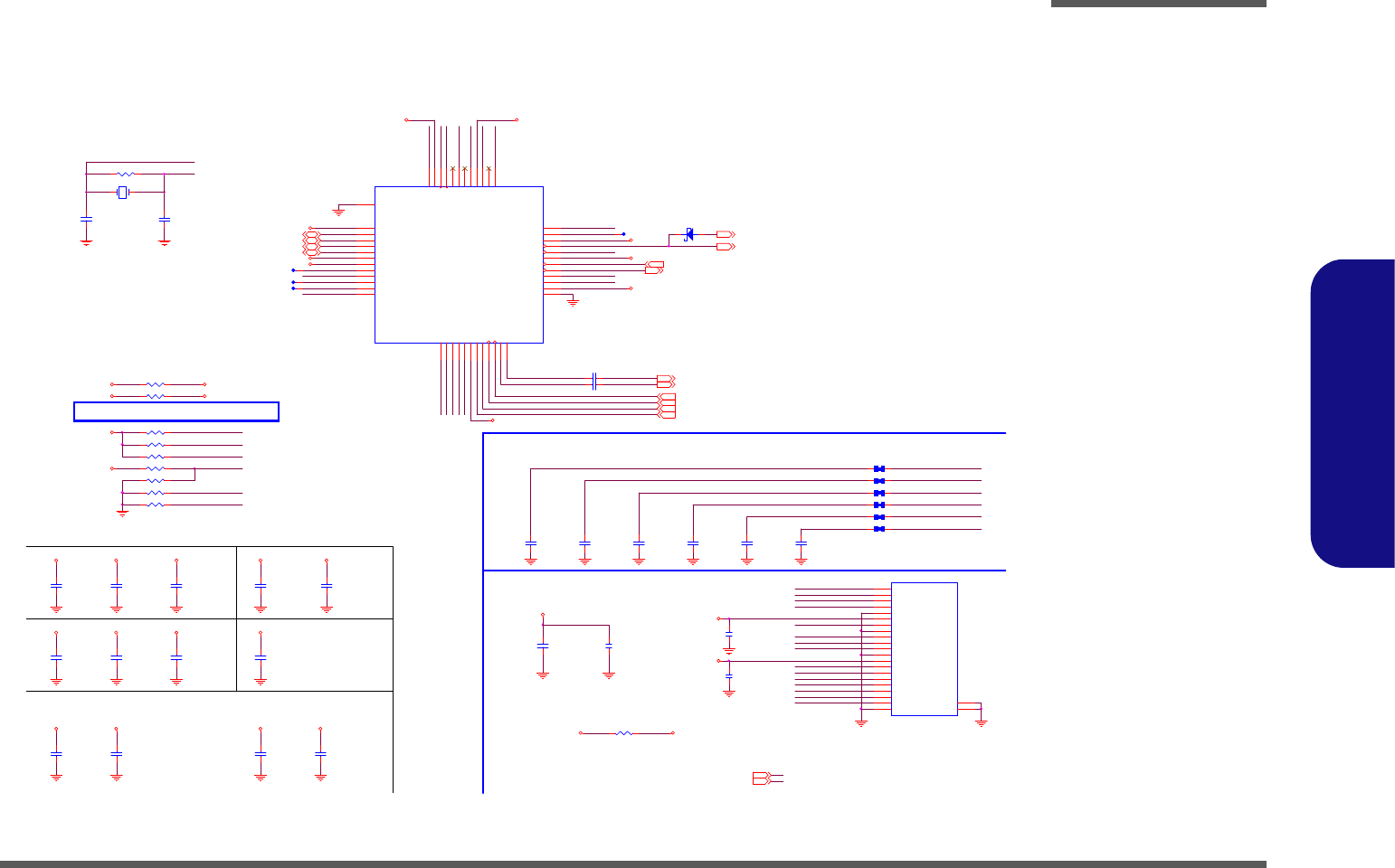

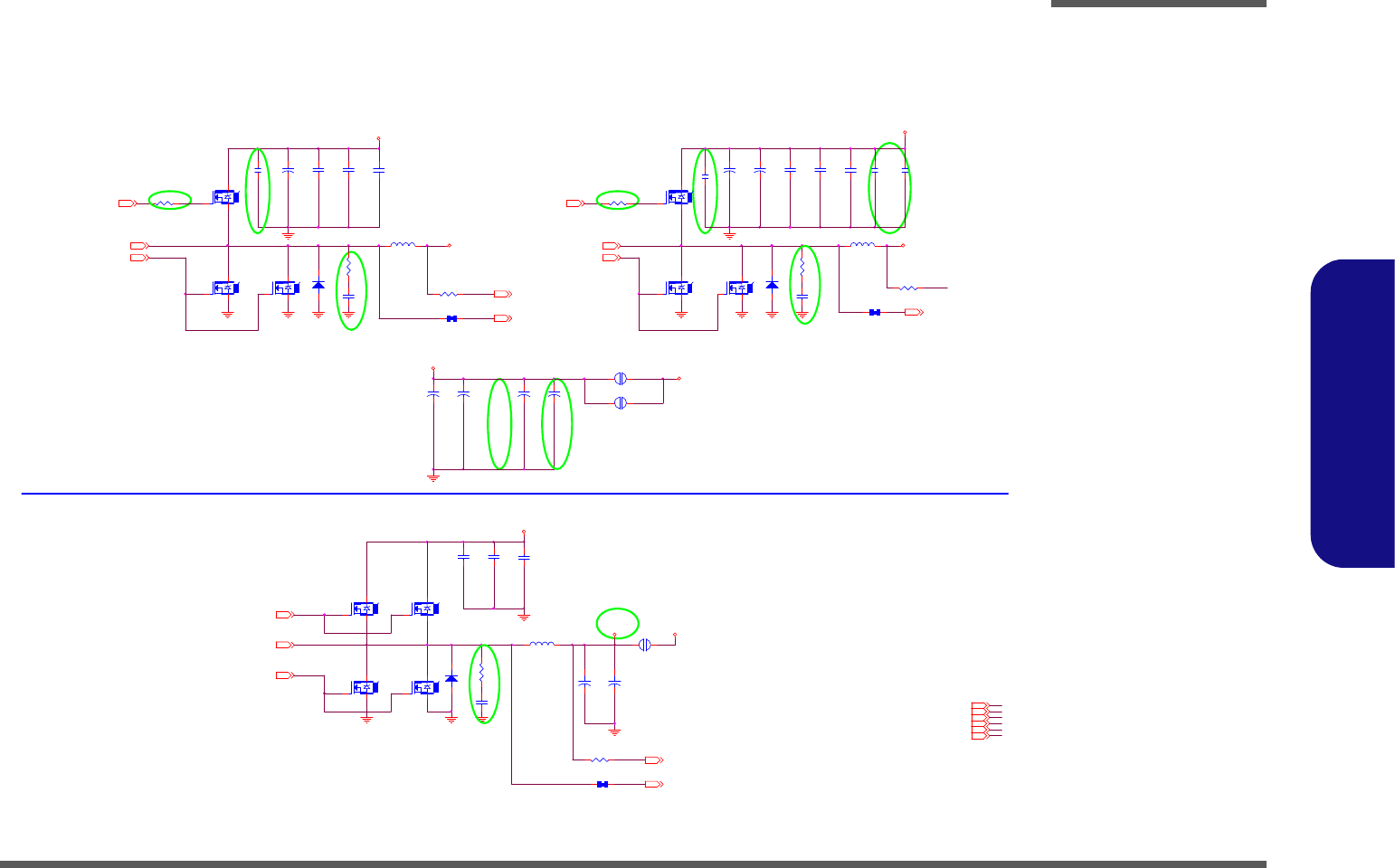

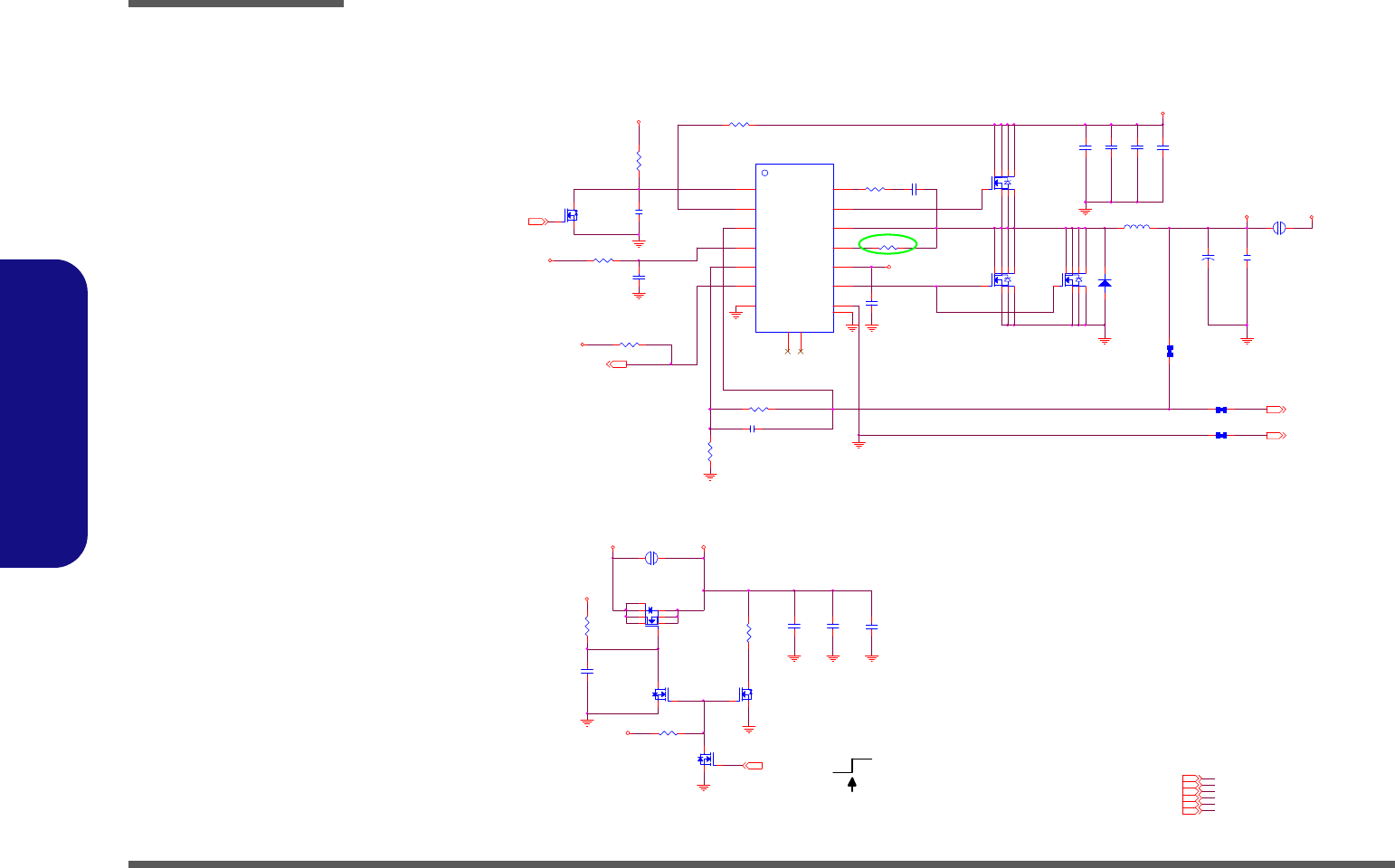

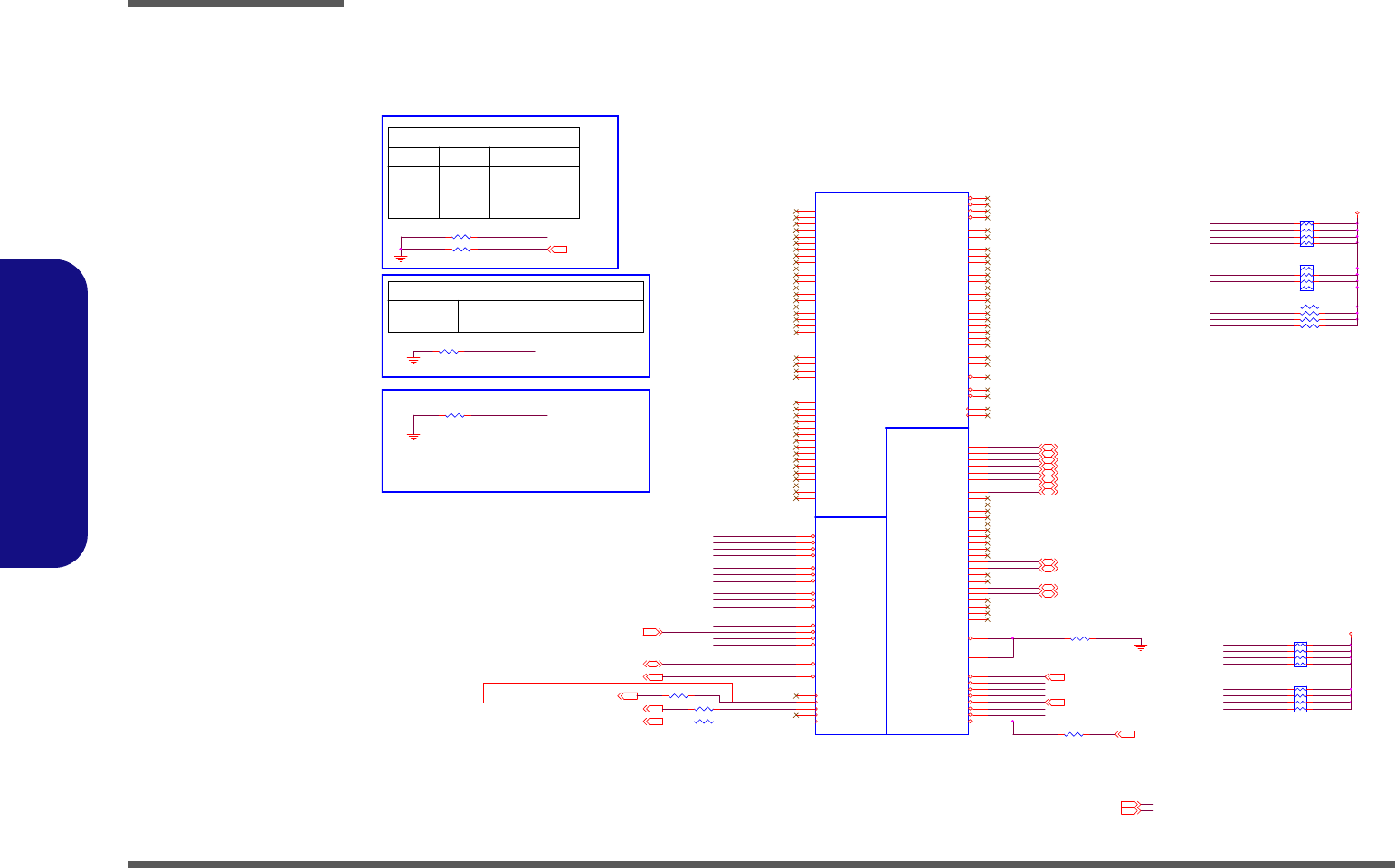

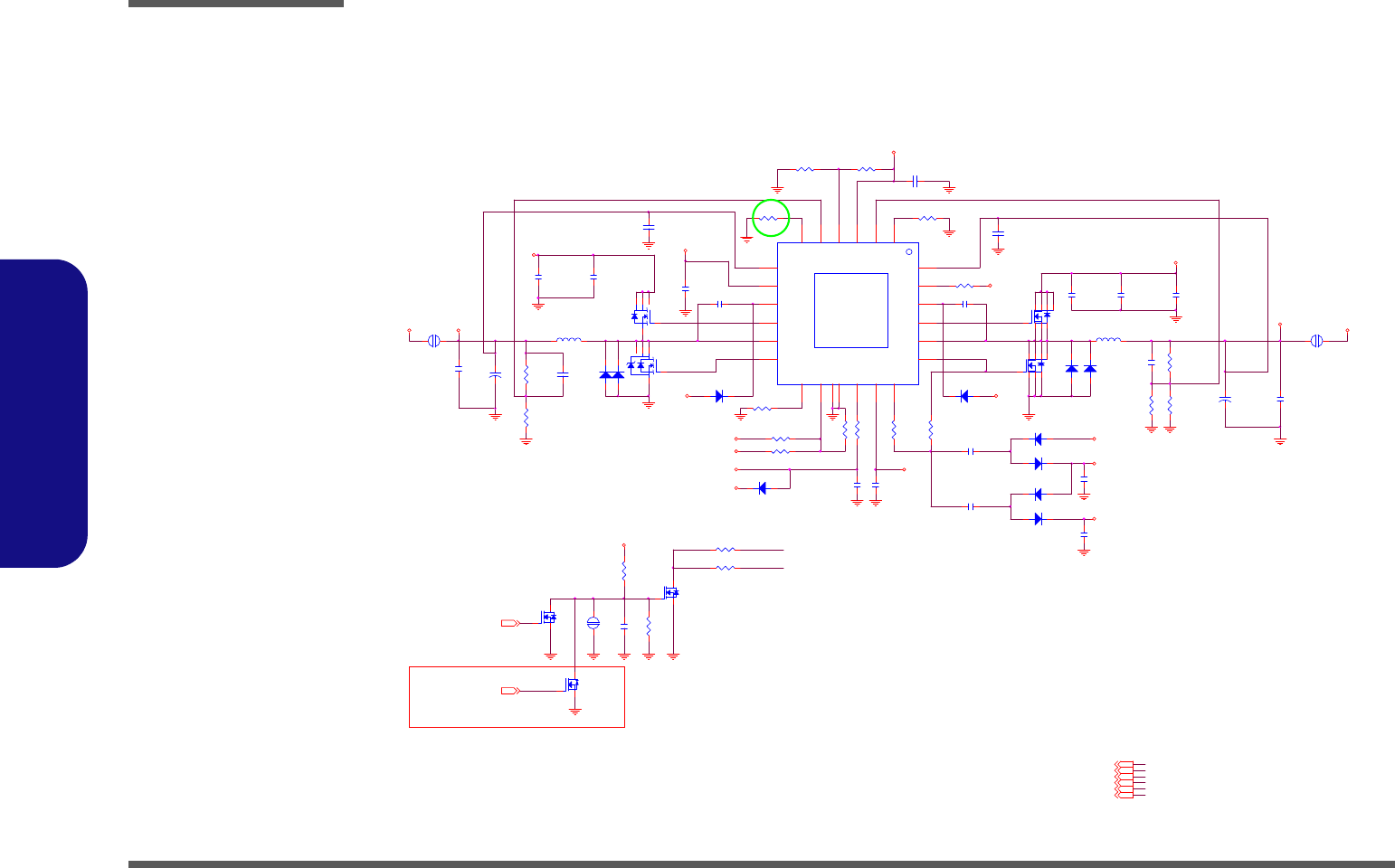

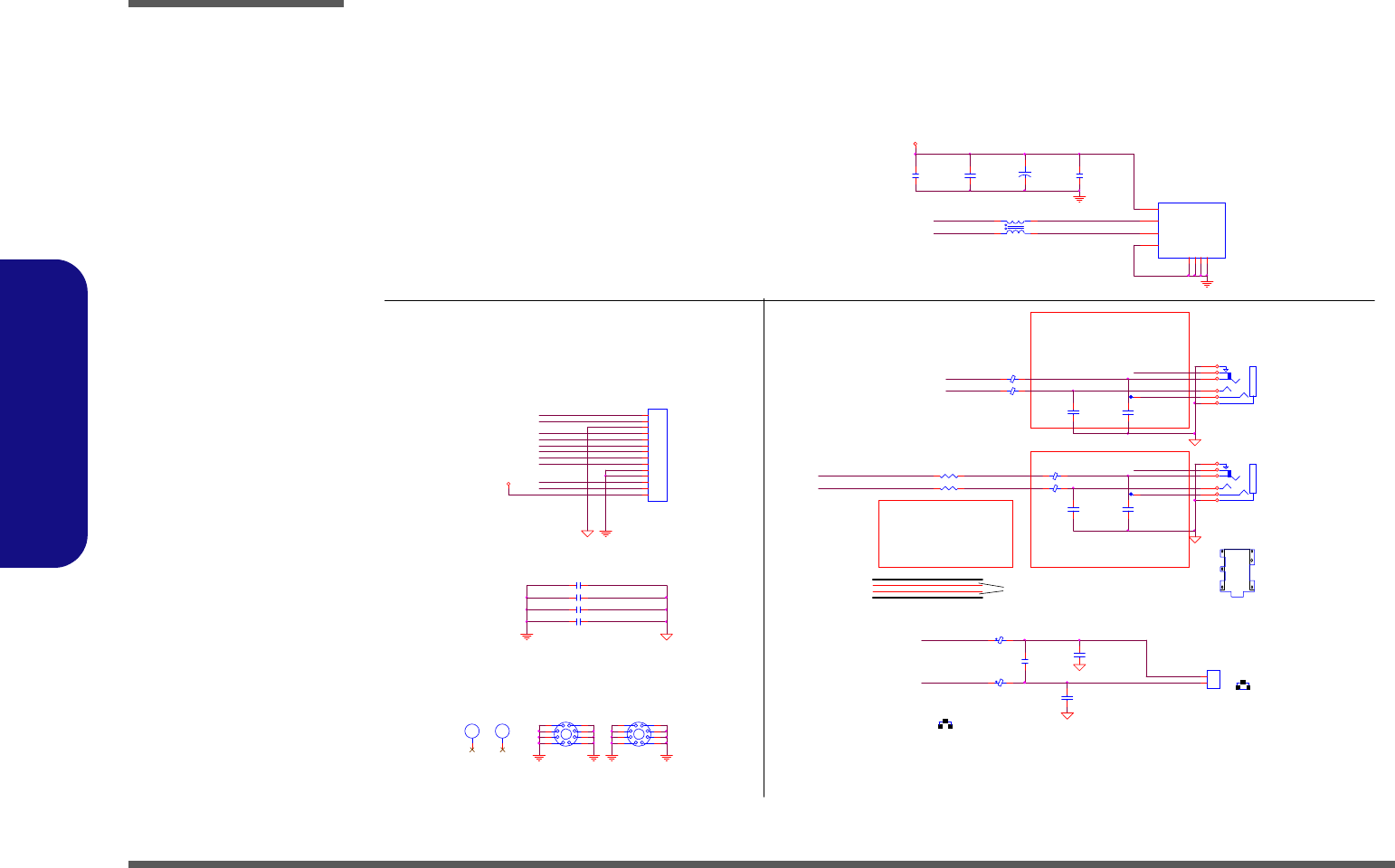

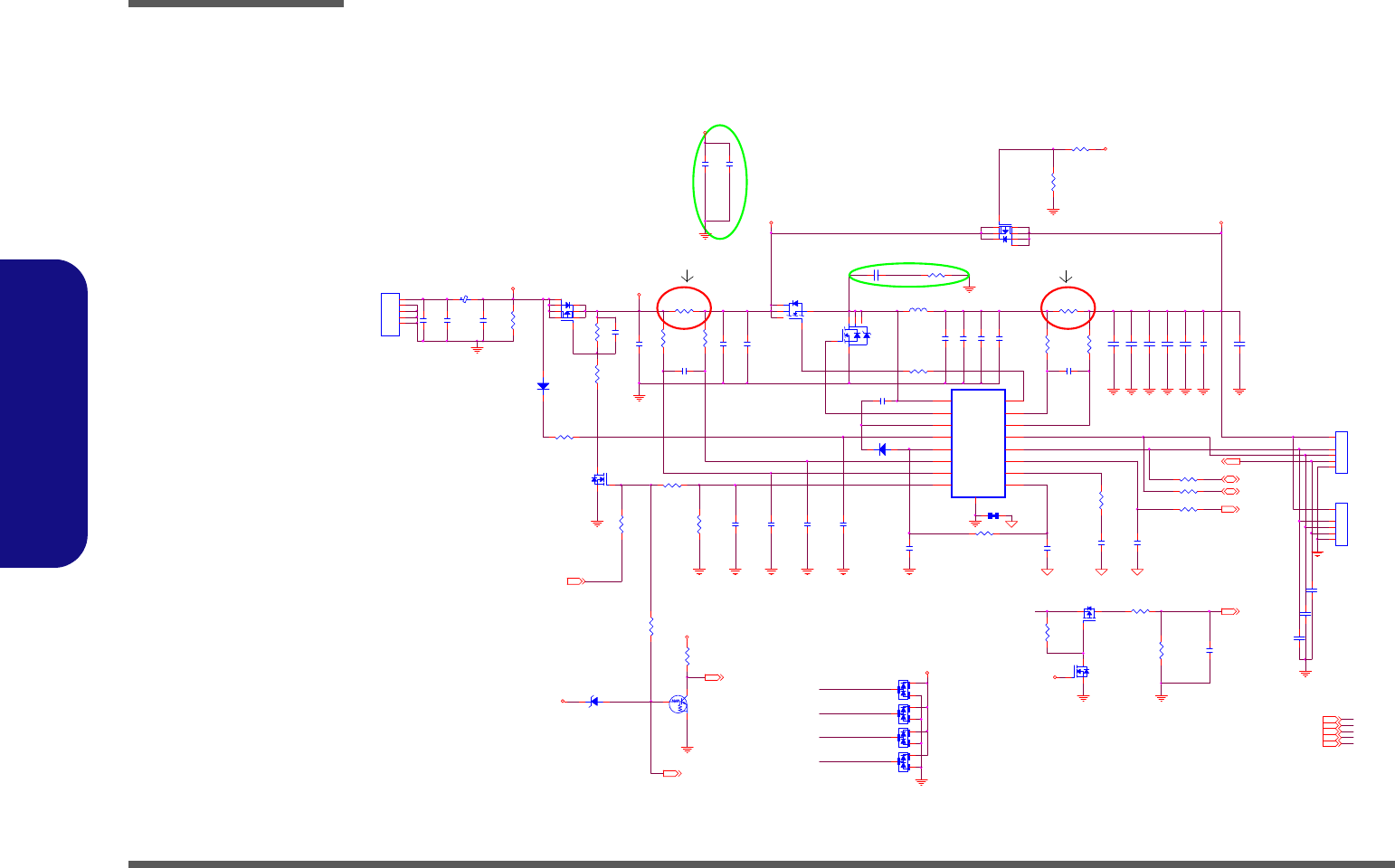

Schematic Diagrams.................................B-1

System Block Diagram ...................................................................B-2

Processor 1/7 ...................................................................................B-3

Processor 2/7 ...................................................................................B-4

Processor 3/7 ...................................................................................B-5

Processor 4/7 ...................................................................................B-6

Processor 5/7 ...................................................................................B-7

Processor 6/7 ...................................................................................B-8

Processor 7/7 ...................................................................................B-9

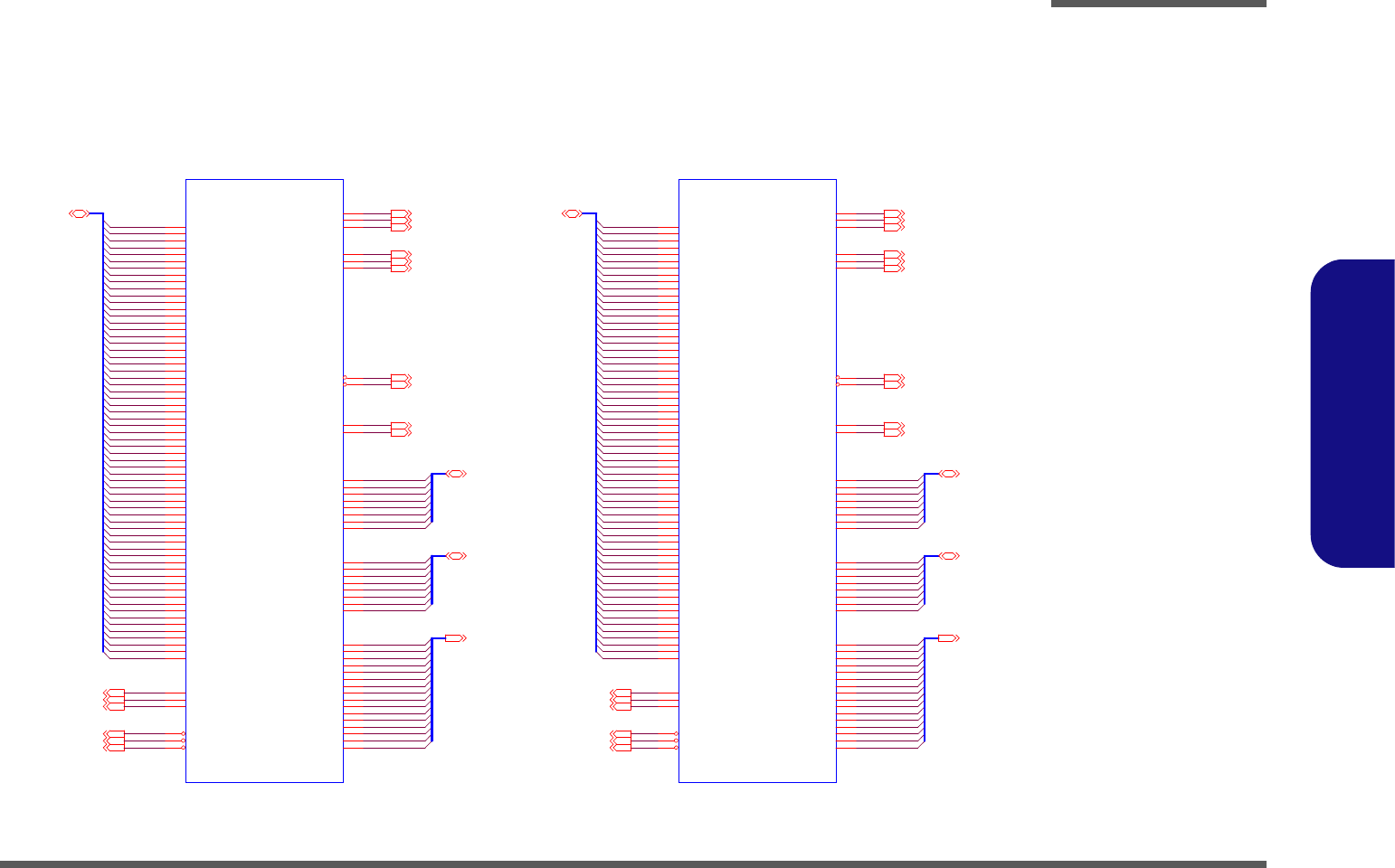

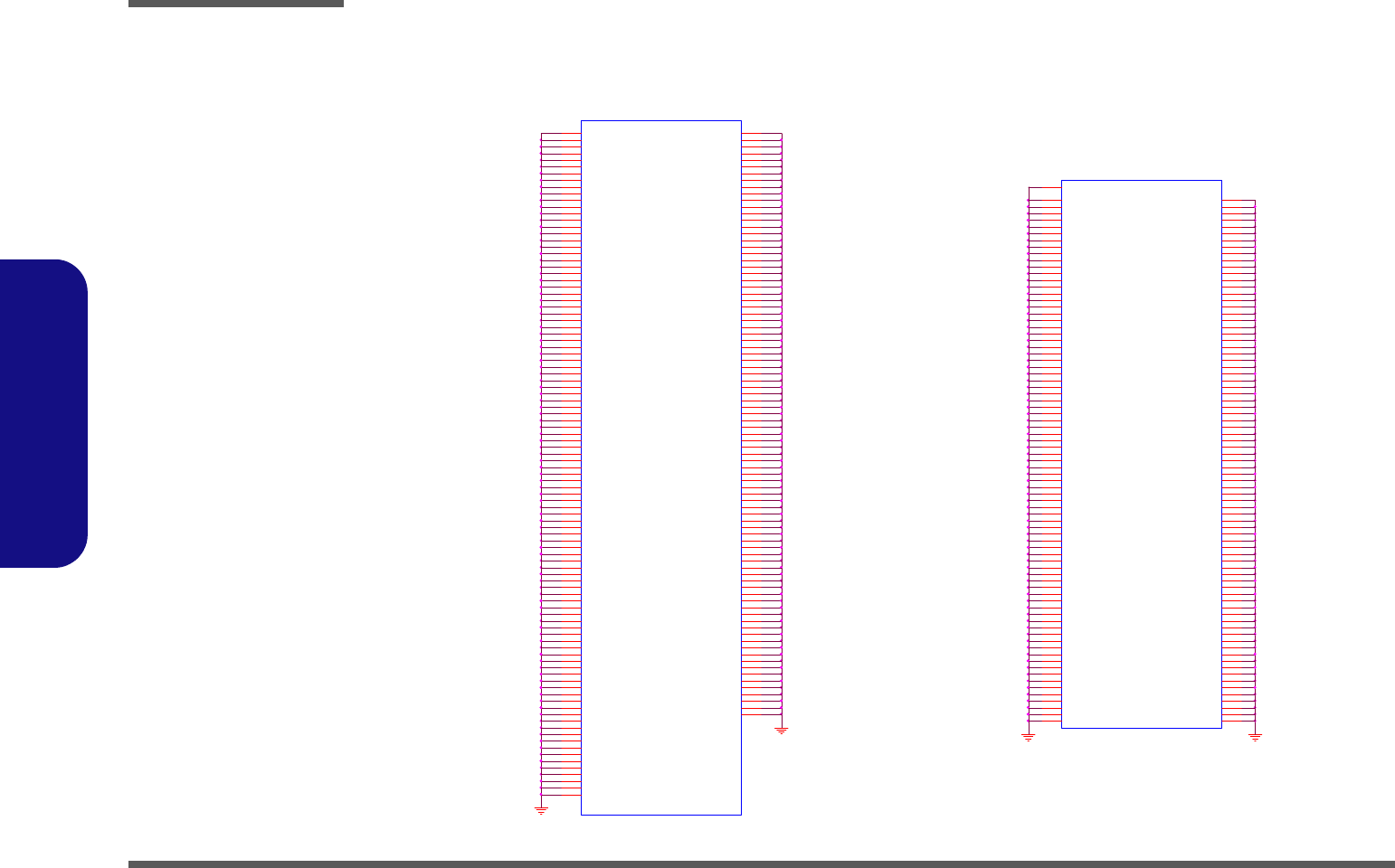

DDR3 SO-DIMM_0 .....................................................................B-10

DDR3 SO-DIMM_1 .....................................................................B-11

LVDS, Inverter .............................................................................B-12

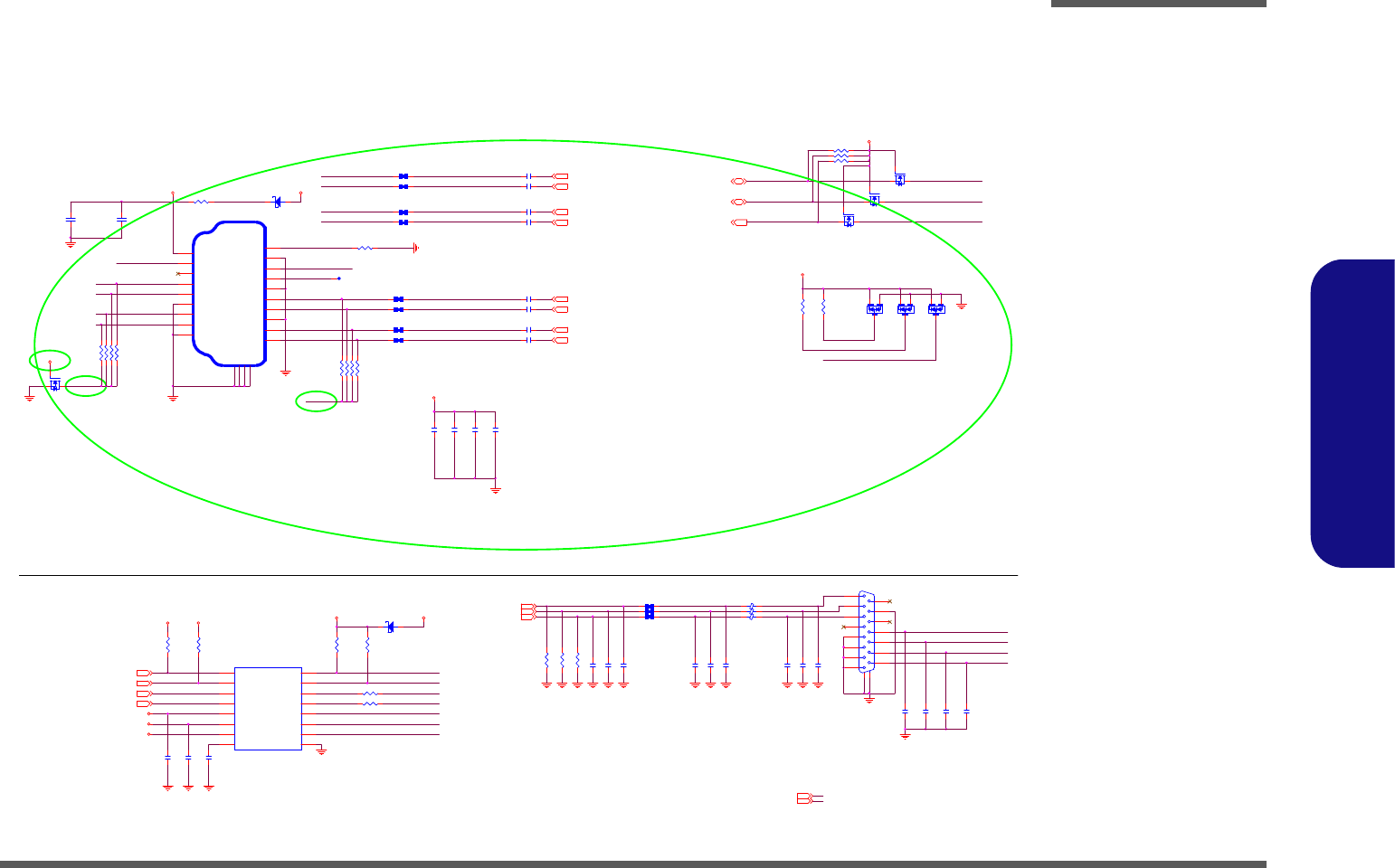

HDMI, CRT ..................................................................................B-13

PantherPoint - M 1/9 .....................................................................B-14

PantherPoint - M 2/9 .....................................................................B-15

PantherPoint - M 3/9 .....................................................................B-16

PantherPoint - M 4/9 .....................................................................B-17

PantherPoint - M 5/9 .....................................................................B-18

PantherPoint - M 6/9 .....................................................................B-19

PantherPoint - M 7/9 .....................................................................B-20

PantherPoint - M 8/9 .....................................................................B-21

PantherPoint - M 9/9 .....................................................................B-22

WLAN, CCD ................................................................................B-23

3G, TPM .......................................................................................B-24

Card Reader, LAN RTL8402 ........................................................B-25

Transformer, SATA HDD, ODD ..................................................B-26

USB 3.0 TI TUSB7320 .................................................................B-27

USB 3.0/USB 2.0/USB Charger ...................................................B-28

KBC-ITE IT8518 ..........................................................................B-29

Preface

X

Preface

LED ..............................................................................................B-30

Audio Codec VT1802P/ALC269 .................................................B-31

Fan, TP, Multi-Conn .................................................................... B-32

System Power ............................................................................... B-33

VDD3, VDD5 ............................................................................... B-34

Power 1.5V/0.75V/1.8VS ............................................................. B-35

Power 1.05VS, VTT_CPU ...........................................................B-36

Power 0.85VS ............................................................................... B-37

Power V-Core1 ............................................................................. B-38

Power V-Core2 ............................................................................. B-39

Smart Charger, AC In ................................................................... B-40

Click Board ..................................................................................B-41

Audio Board/USB ........................................................................B-42

Power Switch & LID Board .........................................................B-43

External ODD Board ....................................................................B-44

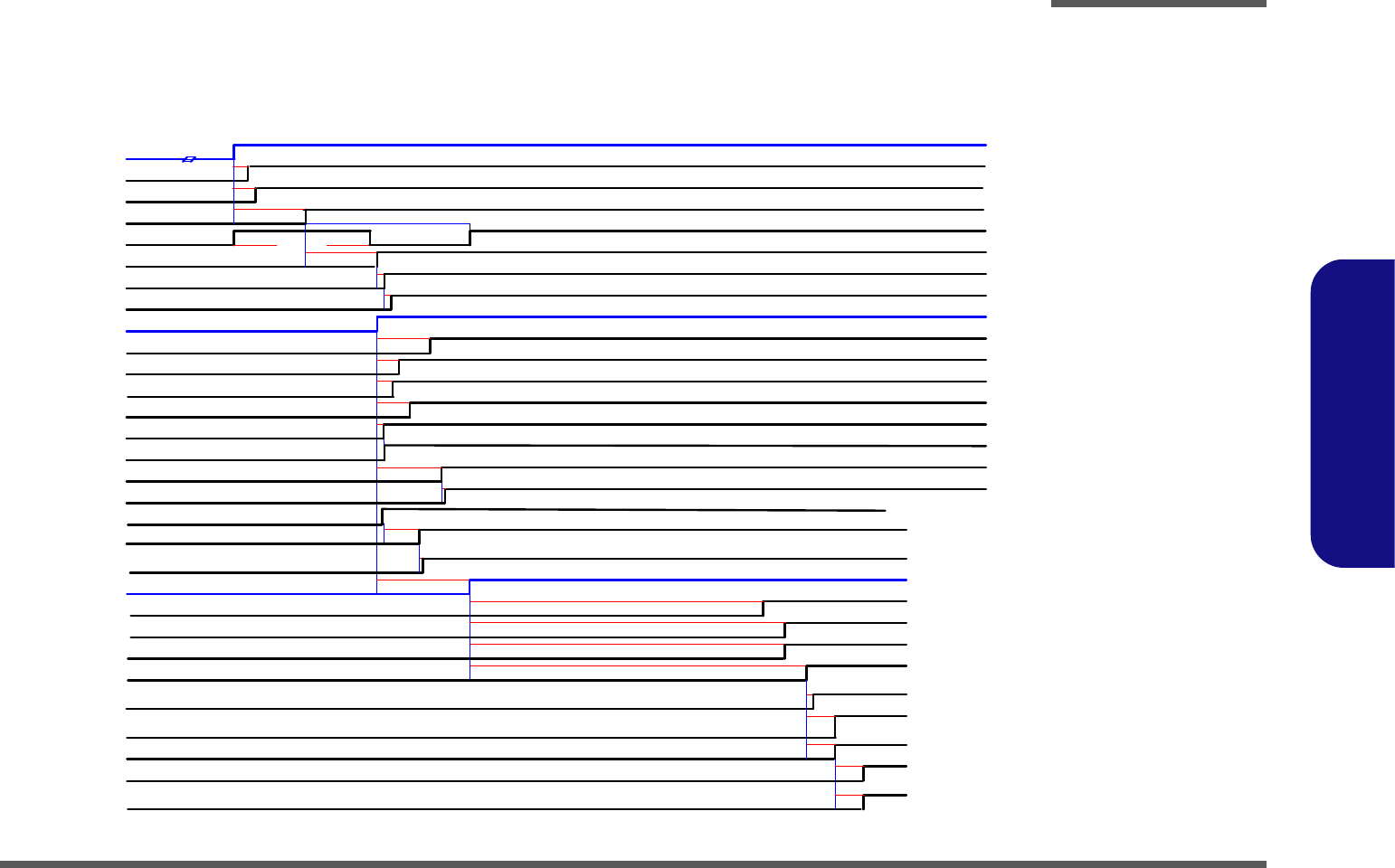

Power Sequence ........................................................................... B-45

Updating the FLASH ROM BIOS......... C-1

Download the BIOS ....................................................................... C-1

Unzip the downloaded files to a bootable CD/DVD/ or

USB Flash drive ............................................................................. C-1

Set the computer to boot from the external drive ........................... C-1

Use the flash tools to update the BIOS ..........................................C-2

Restart the computer (booting from the HDD) .............................. C-2

Introduction

Overview 1 - 1

1.Introduction

Chapter 1: Introduction

Overview

This manual covers the information you need to service or upgrade the W270CZQ / W271CZQ series notebook comput-

er. Information about operating the computer (e.g. getting started, and the Setup utility) is in the User’s Manual. Infor-

mation about dri-vers (e.g. VGA & audio) is also found in the User’s Manual. The manual is shipped with the computer.

Operating systems (e.g. Windows 7, etc.) have their own manuals as do application softwares (e.g. word processing and

database programs). If you have questions about those programs, you should consult those manuals.

The W270CZQ / W271CZQ series notebook is designed to be upgradeable. See Disassembly on page 2 - 1 for a detailed

description of the upgrade procedures for each specific component. Please take note of the warning and safety informa-

tion indicated by the “” symbol.

The balance of this chapter reviews the computer’s technical specifications and features.

Introduction

1 - 2 Specifications

1.Introduction

Specifications



Latest Specification Information

The specifications listed here are correct at the

time of sending them to the press. Certain items

(particularly processor types/speeds) may be

changed, delayed or updated due to the manu-

facturer's release schedule. Check with your

service center for more details.



CPU

The CPU is not a user serviceable part. Ac-

cessing the CPU in any way may violate your

warranty.

Processor

Intel® Celeron® 847 Processor

1.10GHz, 32nm, 2MB L3 Cache, DDR3-1333MHz, TDP:

17W

Intel® Celeron® 877 Processor

1.40GHz, 32nm, 2MB L3 Cache, DDR3-1333MHz, TDP:

17W

Display

17.3" (43.94cm) HD+ / FHD

Core Logic

Intel® NM70 Chipset

Memory

Two 204 Pin SO-DIMM Socket Supporting DDR3 1333/

1600MHz Memory (The real memory operating frequency

depends on the FSB of the processor)

Memory Expandable up to 16GB

BIOS

One 48Mb SPI Flash ROM

AMI BIOS

Video Adapter

Intel® HD Graphics

Dynamic Frequency (Intel Dynamic Video Memory Technol-

ogy for up to 1.7GB)

Microsoft DirectX®10.1 Compatible

Audio

High Definition Audio Compliant Interface

2 * Built-In Speakers

Built-In Microphone

Storage

(Factory Option) One Changeable 12.7mm(h) Super Multi

Optical Device Drive

One Changeable 2.5" 9.5mm (h) SATA HDD

Interface

Three USB 2.0 Ports

One Headphone-Out Jack

One Microphone-In Jack

One External Monitor Port

One HDMI-Out Port

One RJ-45 LAN Jack

One DC-in Jack

Security

Kensington Lock Slot

BIOS Password

Keyboard

Full-size “WinKey” keyboard (with numeric keypad)

Pointing Device

Built-in Touchpad

Communication

10Mb/100Mb Ethernet LAN

(Factory Option) 300K Pixel/2M HD PC Camera Module

WLAN/ Bluetooth Half Mini-Card Modules:

(Factory Option) Intel® Centrino® Wireless-N 105 Wireless

LAN (802.11b/g/n)

(Factory Option) Intel® Centrino® Wireless-N 135 Wireless

LAN (802.11b/g/n) + Bluetooth 3.0

(Factory Option) Third-Party Wireless LAN (802.11b/g/n)

(Factory Option) Third-Party Wireless LAN (802.11b/g/n) +

Bluetooth 4.0

Introduction

Specifications 1 - 3

1.Introduction

Card Reader

Embedded Multi-In-1 Card Reader

MMC (MultiMedia Card) / RS MMC

SD (Secure Digital) / Mini SD

MS (Memory Stick) / MS Pro / MS Duo

Mini Card Slots

Slot 1 for WLAN Module or WLAN and Bluetooth Combo

Module

Power

Full Range AC/DC Adapter

AC Input: 100 - 240V, 50 - 60Hz

DC Output: 19V, 3.42A/18.5V, 3.5A (65W)

Removable 6 Cell Smart Lithium-Ion Battery Pack, 48.84WH

(

Factory Option

)

Removable 6 Cell Smart Lithium-Ion Bat-

tery Pack, 62.16WH

Environmental Spec

Temperature

Operating: 5°C - 35°C

Non-Operating: -20°C - 60°C

Relative Humidity

Operating: 20% - 80%

Non-Operating: 10% - 90%

Dimensions & Weight

413mm (w) * 270mm (d) * 14 - 40.5mm (h)

2.9kg (with 48.84WH Battery and ODD)

Introduction

1 - 4 External Locator - Top View with LCD Panel Open

1.Introduction

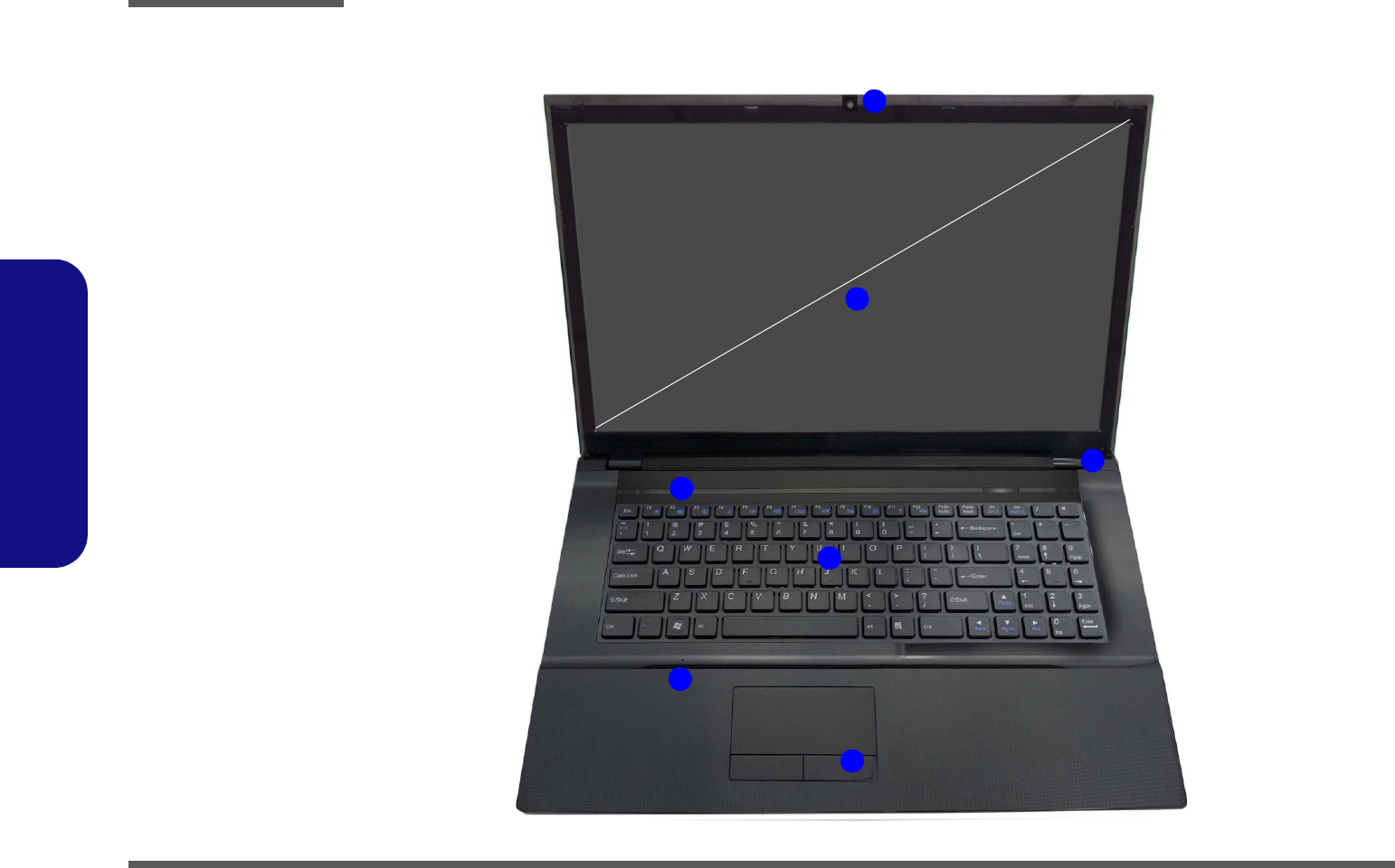

External Locator - Top View with LCD Panel Open

Figure 1

Top View

1. PC Camera

(Optional)

2. LCD

3. Power Button

4. LED Status

Indicators

5. Keyboard

6. Built-In

Microphone

7. Touchpad &

Buttons

4

6

3

5

7

1

2

17.3” (43.94cm)

Introduction

External Locator - Front & Right Side Views 1 - 5

1.Introduction

External Locator - Front & Right Side Views

Figure 2

Front View

1. LED Power

Indicators

Figure 3

Right Side View

1. Microphone-In

Jack

2. Headphone-Out

Jack

3. USB 2.0 Port

4. Optical Device

Drive Bay

5. Emergency Eject

Hole

6. Security Lock

Slot

FRONT VIEW

1

RIGHT SIDE VIEW

1 2 35

46

Introduction

1 - 6 External Locator - Left Side & Rear View

1.Introduction

External Locator - Left Side & Rear View

/

Figure 4

Left Side View

1. DC-In Jack

2. External Monitor

Port

3. RJ-45 LAN Jack

4. HDMI-Out Port

5. USB 2.0 Port

6. Vent

7. Multi-in-1 Card

Reader

LEFT SIDE VIEW

12345

67

5

Figure 5

Rear View

1. Battery

REAR VIEW

1

Introduction

External Locator - Bottom View 1 - 7

1.Introduction

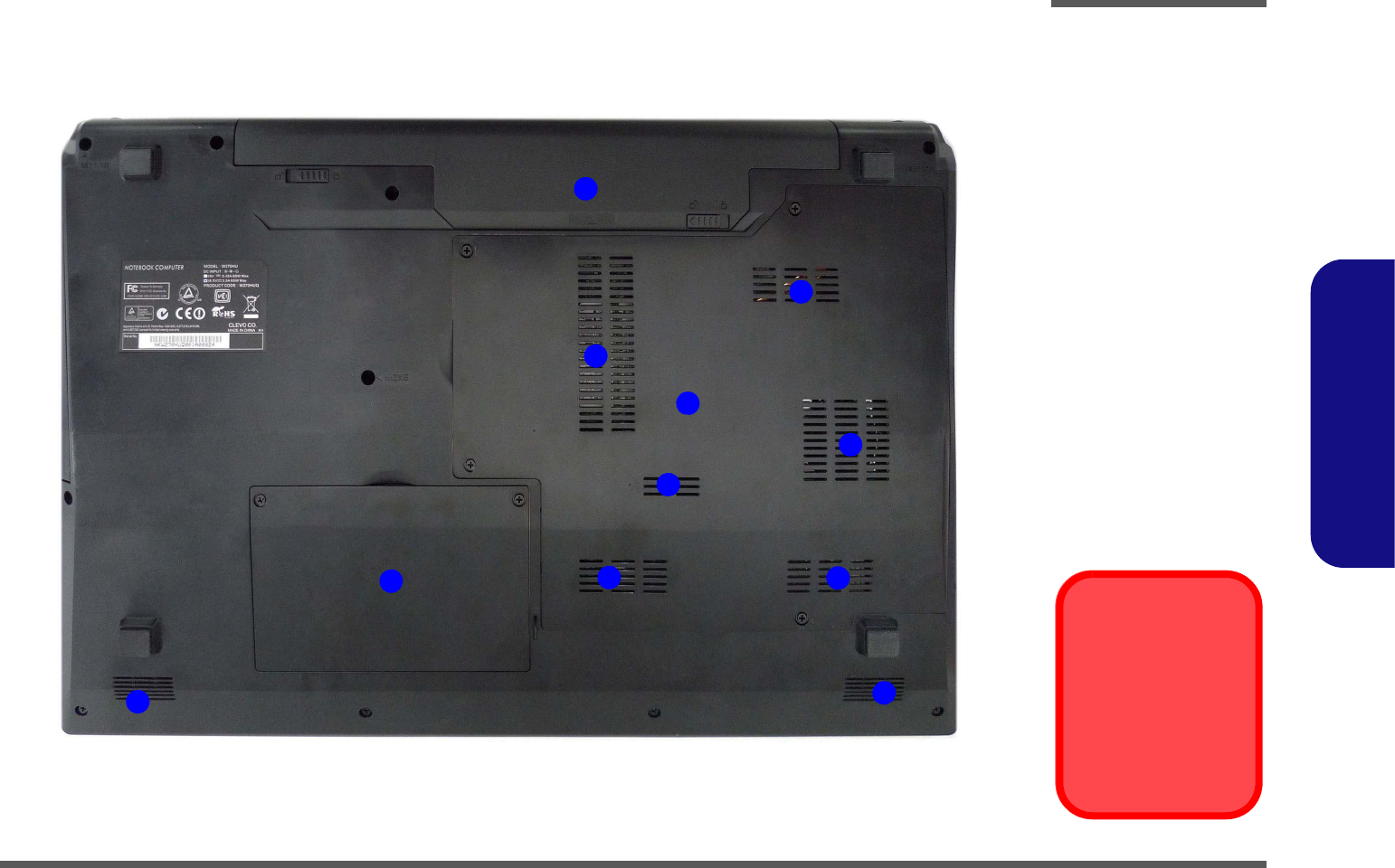

External Locator - Bottom View

Figure 6

Bottom View

1. Battery

2. Component Bay

Cover

3. Vent

4. Hard Disk Bay

Cover

5. Speakers



Overheating

To prevent your com-

puter from overhea-

ting, make sure no-

thing blocks any vent

while the computer is

in use.

2

3

1

43

5

5

3

3

3

3

Introduction

1 - 8 Mainboard Overview - Top (Key Parts)

1.Introduction

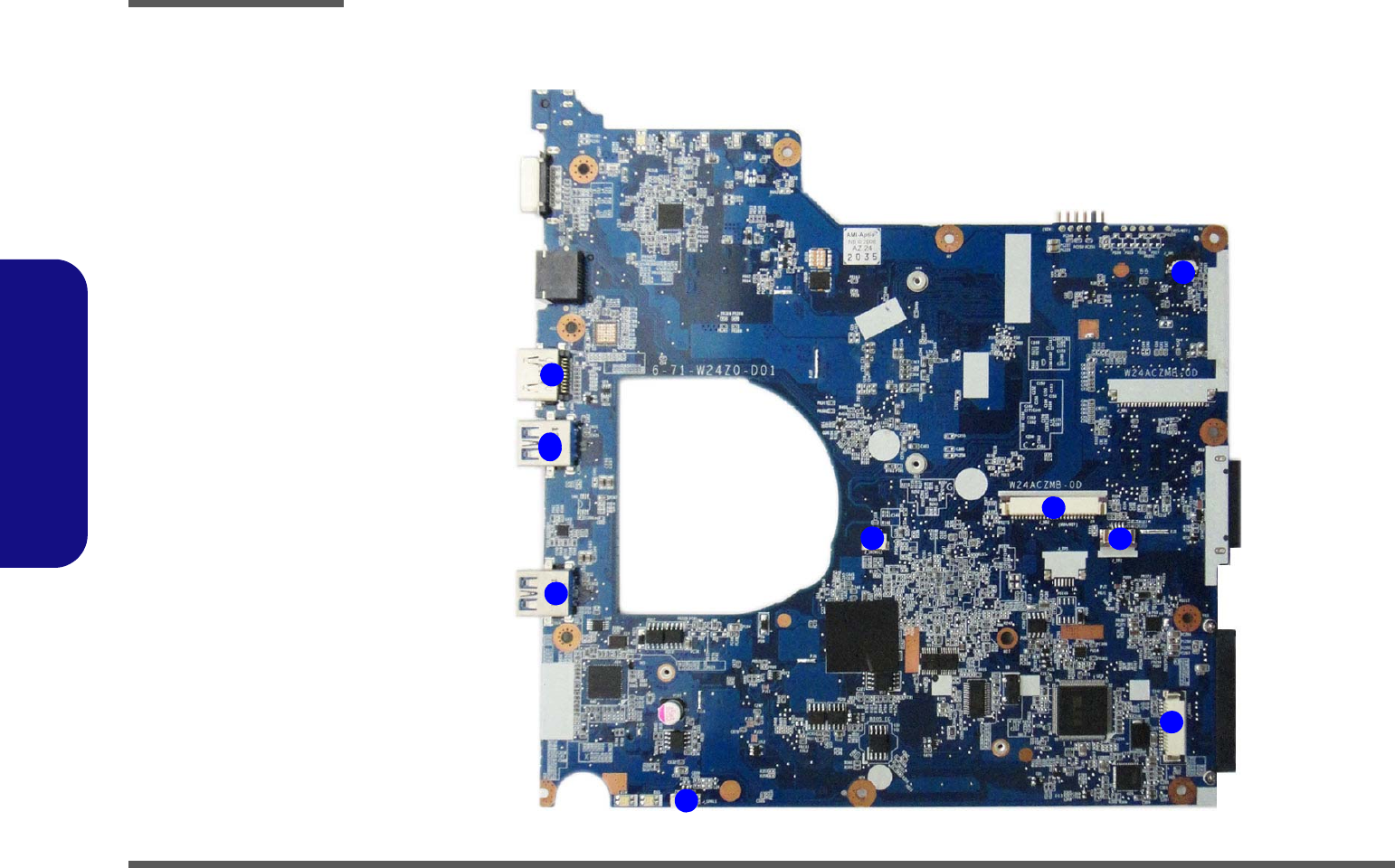

Mainboard Overview - Top (Key Parts)

Figure 7

Mainboard Top

Key Parts

1. ITE 8518E

2. AZALIA Codec

2

1

12

3

456

Figure 8

Mainboard Bottom

Key Parts

1. Memory Slots

DDR3 SO-DIMM

2. CPU Socket (No

CPU installed)

3. Intel PCH

4. CMOS Battery

5. Mini-Card

Connector (WLAN

Module)

6. Card Reader

Socket

Introduction

Mainboard Overview - Bottom (Key Parts) 1 - 9

1.Introduction

Mainboard Overview - Bottom (Key Parts)

Introduction

1 - 10 Mainboard Overview - Top (Connectors)

1.Introduction

Mainboard Overview - Top (Connectors)

Figure 9

Mainboard Top

Connectors

1. HDMI-Out Port

2. USB Port 2.0

3. Speaker Cable

Connector

4. Microphone

Cable Connector

5. Audio Board

Connector

6. TouchPad Cable

Connector 1

7. Keyboard Cable

Connector

8. Switch Board

Cable Connector

1

2

8

2

3

46

7

5

Introduction

Mainboard Overview - Bottom (Connectors) 1 - 11

1.Introduction

Mainboard Overview - Bottom (Connectors)

Figure 10

Mainboard Bottom

Connectors

1. Battery

Connector

2. ODD Connector

3. HDD Connector

4. CPU Fan Cable

Connector

5. RJ-45 LAN Jack

6. External Monitor

Port

7. DC-In Jack

8. CCD Cable

Connector

9. LCD Cable

Connector

1

24

5

6

7

8

9

3

Introduction

1 - 12

1.Introduction

Disassembly

Overview 2 - 1

2.Disassembly

Chapter 2: Disassembly

Overview

This chapter provides step-by-step instructions for disassembling the W270CZQ / W271CZQ series notebook’s parts and

subsystems. When it comes to reassembly, reverse the procedures (unless otherwise indicated).

We suggest you completely review any procedure before you take the computer apart.

Procedures such as upgrading/replacing the RAM, optical device and hard disk are included in the User’s Manual but are

repeated here for your convenience.

To make the disassembly process easier each section may have a box in the page margin. Information contained under

the figure # will give a synopsis of the sequence of procedures involved in the disassembly procedure. A box with a 

lists the relevant parts you will have after the disassembly process is complete. Note: The parts listed will be for the dis-

assembly procedure listed ONLY, and not any previous disassembly step(s) required. Refer to the part list for the previ-

ous disassembly procedure. The amount of screws you should be left with will be listed here also.

A box with a  will also provide any possible helpful information. A box with a  contains warnings.

An example of these types of boxes are shown in the sidebar.



Information



Warning

Disassembly

2 - 2 Overview

2.Disassembly

NOTE: All disassembly procedures assume that the system is turned OFF, and disconnected from any power supply (the

battery is removed too).

Maintenance Tools

The following tools are recommended when working on the notebook PC:

• M3 Philips-head screwdriver

• M2.5 Philips-head screwdriver (magnetized)

• M2 Philips-head screwdriver

• Small flat-head screwdriver

• Pair of needle-nose pliers

• Anti-static wrist-strap

Connections

Connections within the computer are one of four types:

Locking collar sockets for ribbon connectors To release these connectors, use a small flat-head screwdriver to

gently pry the locking collar away from its base. When replac-

ing the connection, make sure the connector is oriented in the

same way. The pin1 side is usually not indicated.

Pressure sockets for multi-wire connectors To release this connector type, grasp it at its head and gently

rock it from side to side as you pull it out. Do not pull on the

wires themselves. When replacing the connection, do not try to

force it. The socket only fits one way.

Pressure sockets for ribbon connectors To release these connectors, use a small pair of needle-nose pli-

ers to gently lift the connector away from its socket. When re-

placing the connection, make sure the connector is oriented in

the same way. The pin1 side is usually not indicated.

Board-to-board or multi-pin sockets To separate the boards, gently rock them from side to side as

you pull them apart. If the connection is very tight, use a small

flat-head screwdriver - use just enough force to start.

Disassembly

Overview 2 - 3

2.Disassembly

Maintenance Precautions

The following precautions are a reminder. To avoid personal injury or damage to the computer while performing a re-

moval and/or replacement job, take the following precautions:

1. Don't drop it. Perform your repairs and/or upgrades on a stable surface. If the computer falls, the case and other

components could be damaged.

2. Don't overheat it. Note the proximity of any heating elements. Keep the computer out of direct sunlight.

3. Avoid interference. Note the proximity of any high capacity transformers, electric motors, and other strong mag-

netic fields. These can hinder proper performance and damage components and/or data. You should also monitor

the position of magnetized tools (i.e. screwdrivers).

4. Keep it dry. This is an electrical appliance. If water or any other liquid gets into it, the computer could be badly

damaged.

5. Be careful with power. Avoid accidental shocks, discharges or explosions.

•Before removing or servicing any part from the computer, turn the computer off and detach any power supplies.

•When you want to unplug the power cord or any cable/wire, be sure to disconnect it by the plug head. Do not pull on the wire.

6. Peripherals – Turn off and detach any peripherals.

7. Beware of static discharge. ICs, such as the CPU and main support chips, are vulnerable to static electricity.

Before handling any part in the computer, discharge any static electricity inside the computer. When handling a

printed circuit board, do not use gloves or other materials which allow static electricity buildup. We suggest that

you use an anti-static wrist strap instead.

8. Beware of corrosion. As you perform your job, avoid touching any connector leads. Even the cleanest hands pro-

duce oils which can attract corrosive elements.

9. Keep your work environment clean. Tobacco smoke, dust or other air-born particulate matter is often attracted

to charged surfaces, reducing performance.

10. Keep track of the components. When removing or replacing any part, be careful not to leave small parts, such as

screws, loose inside the computer.

Cleaning



Power Safety

Warning

Before you undertake

any upgrade proce-

dures, make sure that

you have turned off the

power, and discon-

nected all peripherals

and cables (including

telephone lines). It is

advisable to also re-

move your battery in

order to prevent acci-

dentally turning the

machine on.

Do not apply cleaner directly to the computer, use a soft clean cloth.

Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer.

Disassembly

2 - 4 Disassembly Steps

2.Disassembly

Disassembly Steps

The following table lists the disassembly steps, and on which page to find the related information. PLEASE PERFORM

THE DISASSEMBLY STEPS IN THE ORDER INDICATED.

To remove the Battery:

1. Remove the battery page 2 - 5

To remove the HDD:

1. Remove the battery page 2 - 5

2. Remove the HDD page 2 - 6

To remove the Optical Device:

1. Remove the battery page 2 - 5

2. Remove the Optical device page 2 - 8

To remove the System Memory:

1. Remove the battery page 2 - 5

2. Remove the system memory page 2 - 9

To remove the Wireless LAN Module:

1. Remove the battery page 2 - 5

2. Remove the WLAN module page 2 - 11

To remove the Keyboard and CCD:

1. Remove the battery page 2 - 5

2. Remove the keyboard page 2 - 12

Disassembly

Removing the Battery 2 - 5

2.Disassembly

Removing the Battery



3. Battery

1. Turn the computer off, and turn it over.

2. Slide the latch in the direction of the arrow (Figure 1a).

3. Slide the latch in the direction of the arrow, and hold it in place (Figure 1a).

4. Slide the battery in the direction of the arrow (Figure 1b).

1

2

6

3

4

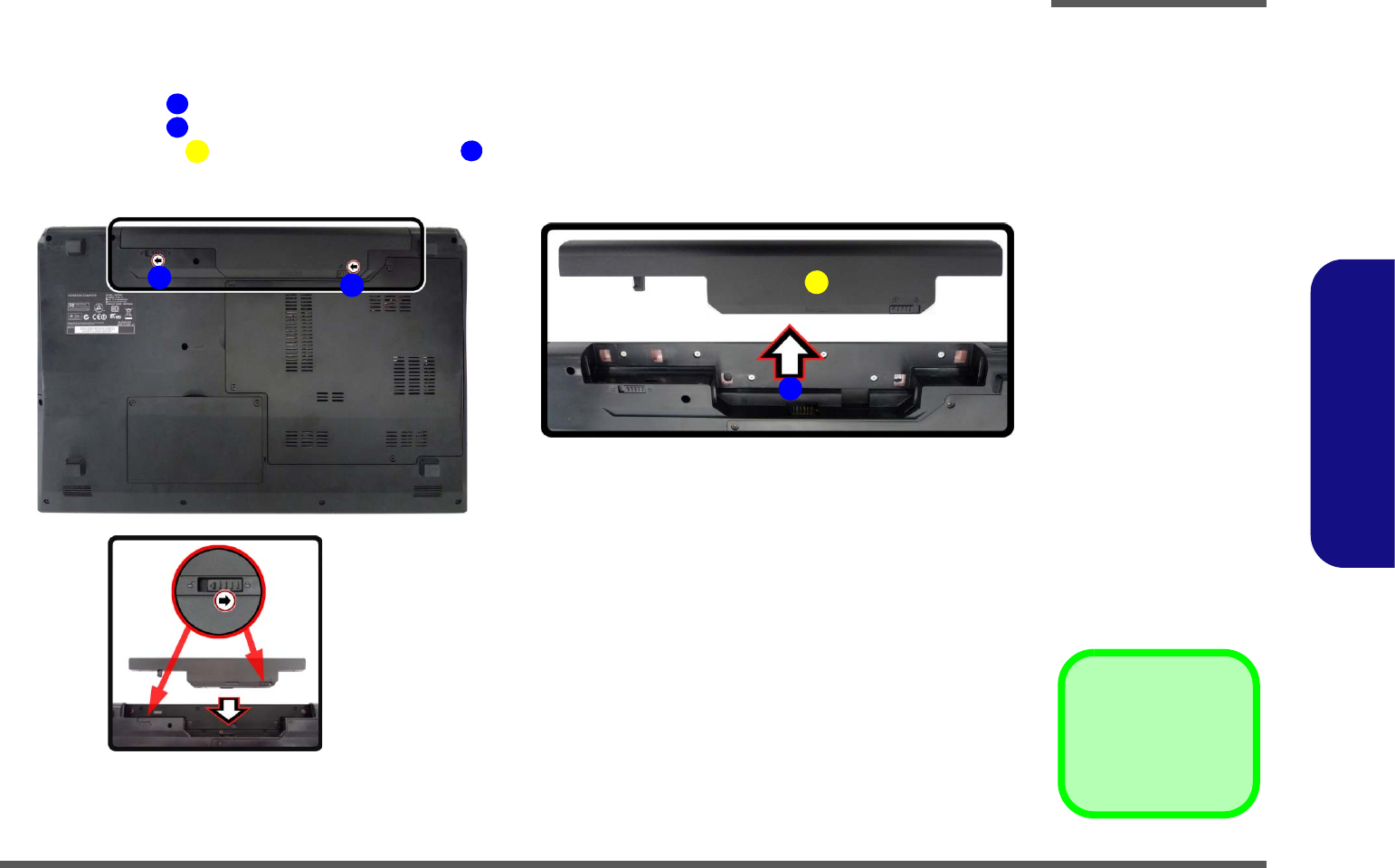

Figure 1

Battery Removal

a. Slide the latch and hold it

in place.

b. Slide the battery in the di-

rection of the arrow.

1

a. b.

3

2

4

Disassembly

2 - 6 Removing the Hard Disk Drive

2.Disassembly

Removing the Hard Disk Drive

The hard disk drive can be taken out to accommodate other 2.5" serial (SATA) hard disk drives with a height of 9.5mm

(h). Follow your operating system’s installation instructions, and install all necessary drivers and utilities (as outlined in

Chapter 4 of the User’s Manual) when setting up a new hard disk.

Hard Disk Upgrade Process

Figure 2

HDD Assembly

Removal

a. Locate the HDD bay cover

and remove the screws.



•2 Screws

1. Turn off the computer, and remove the battery (page 2 - 5).

2. Locate the hard disk bay cover and remove screws & (Figure 2a).

1

2

2

1

a. 

HDD System Warning

New HDD’s are blank. Before you

begin make sure:

You have backed up any data

you want to keep from your old

HDD.

You have all the CD-ROMs and

FDDs required to install your op-

erating system and programs.

If you have access to the internet,

download the latest application

and hardware driver updates for

the operating system you plan to

install. Copy these to a remov-

able medium.

Disassembly

Removing the Hard Disk Drive 2 - 7

2.Disassembly

3. Remove the hard disk bay cover (Figure 3b).

4. Grip the tab and slide the hard disk in the direction of arrow (Figure 3c).

5. Lift the hard disk assembly out of the bay (Figure 3d).

6. Remove screws - and the mylar cover from the hard disk (Figure 3e).

7. Reverse the process to install a new hard disk (do not forget to replace all the screws and covers).

6

3

4

6

5

6

7

10

11

12

4

b.

c.

9

d.

3

e.

11

8

7

12

5

10

6



3. HDD Bay Cover

5. HDD Assembly

11. Mylar Cover

12. HDD

•4 Screws

Figure 3

HDD Assembly

Removal (cont’d.)

b. Remove the HDD bay

cover.

c. Grip the tab and slide the

HDD assembly in the di-

rection of the arrow.

d. Lift the HDD assembly

out of the bay.

e. Remove the screws and

mylar cover.

Disassembly

2 - 8 Removing the Optical (CD/DVD) Device

2.Disassembly

Removing the Optical (CD/DVD) Device

Figure 4

Optical Device

Removal

a. Remove the screw at

point .

b. Use a screwdriver to

carefully push out the

optical device at point

.

1

2

1. Turn off the computer, remove the battery (page 2 - 5) and hard disk (page 2 - 6).

2. Remove the screw at point (Figure 4a).

3. Use a screwdriver to carefully push out the optical device at point (Figure 4b).

4. Insert the new device and carefully slide it into the computer (the device only fits one way. DO NOT FORCE IT; The

screw holes should line up).

5. Restart the computer to allow it to automatically detect the new device.

1

3

2



3. Optical Device

•1 Screw

1

b.

3

a.

2

2

Disassembly

Removing the System Memory (RAM) 2 - 9

2.Disassembly

Removing the System Memory (RAM)

Figure 5

RAM Module

Removal

a. Remove the screws.

b. The RAM modules will

be visible at point

on the mainboard.

7

The computer has two memory sockets for 204 pin Small Outline Dual In-line Memory Modules (SO-DIMM) supporting

DDRIII (DDR3) Up to 1066/1333 MHz. The main memory can be expanded up to 8GB. The SO-DIMM modules sup-

ported are 1024MB and 2048MB DDRIII Modules. The total memory size is automatically detected by the POST rou-

tine once you turn on your computer.

Memory Upgrade Process



6. Component Bay Cov-

er

•4 Screws

1. Turn off the computer, turn it over and remove the battery (page 2 - 5).

2. Remove screws - from the component bay cover (Figure 5a).

3. Carefully (a fan and cable are attached to the under side of the cover) lift up the bay cover.

4. Carefully disconnect the fan cable , and remove the cover (note that you need to raise the bottom cover up

to an angle of around 30° angle).

5. The RAM modules will be visible at point on the mainboard (Figure 5b).

1

4

5

6

7

a.

1

2

3

46

10

5

76

b.

Disassembly

2 - 10 Removing the System Memory (RAM)

2.Disassembly

6. Gently pull the two release latches ( & ) on the sides of the memory socket in the direction indicated by the

arrows (Figure 5c). The RAM module will pop-up (Figure 5d), and you can then remove it.

7. Pull the latches to release the second module if necessary.

8. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot.

9. The module will only fit one way as defined by its pin alignment. Make sure the module is seated as far into the slot

as it will go. DO NOT FORCE IT; it should fit without much pressure.

10. Press the module in and down towards the mainboard until the slot levers click into place to secure the module.

11. Replace the bay cover by inserting it at an angle and aligning the cover pins (Figure 6e).

12. Replace the screws (make sure you reconnect the fan cable before replacing all the screws and screwing

down the bay cover).

13. Restart the computer to allow the BIOS to register the new memory configuration as it starts up.

Figure 6

RAM Module

Removal (cont’d)

c. Pull the release lat-

ches.

d. Remove the module.



Contact Warning

Be careful not to touch

the metal pins on the

module’s connecting

edge. Even the cleanest

hands have oils which

can attract particles, and

degrade the module’s

performance.



10. RAM Module

8

9

10

d.

c.

810

9

e.

10º

Note:

The component bay cover has four

cover pins, and these need to be

aligned with the slots in the case to in-

sure a proper cover fit. Make sure also

that the cover is raised at a 10 degree

angle during removal and installation.

Disassembly

Removing the Wireless LAN Module 2 - 11

2.Disassembly

Removing the Wireless LAN Module

Figure 7

Wireless LAN

Module Removal

a. Locate the WLAN.

b. Disconnect the cable

and remove the screw.

c. The WLAN module will

pop up.

d. Remove the Wireless

LAN module.

Note: Make sure you

reconnect the antenna

cable to the “1 + 2”

socket (Figure 7b).

1. Turn off the computer, turn it over, and remove the battery (page 2 - 5) and the component bay cover (page 2 - 9).

2. The Wireless LAN module will be visible at point on the mainboard (Figure 7a).

3. Carefully disconnect the cable , and then remove the screw (Figure 7b).

4. The Wireless LAN module (Figure 7c) will pop-up, and you can remove it from the computer (Figure 7d).

1

2

3

4

b.

c.

a.

2

3

d.

4

4

1



4.Wireless LAN Module

•1 Screw

Disassembly

2 - 12 Removing the Keyboard/CCD

2.Disassembly

Removing the Keyboard/CCD

Figure 8

Keyboard / CCD

Removal

a. Remove screws from the

bottom of the computer.

b. Turn the computer over,

unsnap up the LED cov-

er module from the cent-

er of the computer.

c. Remove screws from

the keyboard.

d. Carefully lift the key-

board up and disconnect

the keyboard ribbon ca-

ble from the locking col-

lar socket by using a flat-

head screwdriver to pry

the locking collar pins

away from the base.

e. Remove the keyboard.

1. Turn off the computer, and remove the battery (page 2 - 5) and the component bay cover (page 2 - 9).

2. Remove screws - from the bottom of the computer (inside the battery compartment), and then press at point

to unsnap the LED cover module (use the eject pin tool provided to do this Figure 8a).

3. Turn the computer over, unsnap up the LED cover module from the center of the computer (Figure 8b).

4. Remove screws - from the keyboard (Figure 8c).

5. Carefully lift the keyboard up, being careful not to bend the keyboard ribbon cable . Disconnect the key-

board ribbon cable from the locking collar socket by using a flat-head screwdriver to pry the locking collar

pins away from the base (Figure 8d).

6. Carefully lift up the keyboard (Figure 8e) off the computer.

1

6

7

8

9

13

14

15

15

16

17

14



8. LED Cover Module

14. Keyboard

11 Screws

a.

b.

13

2

5

7

6

d.

c. 9

14

10 11 12

4

14

15

17 17

Keyboard Tabs

e.

8

13

16



Re-Inserting the

Keyboard

When re-inserting the

keyboard firstly align the

four keyboard tabs at

the bottom (Figure 8e)

at the bottom of the key-

board with the slots in

the case.

Disassembly

Removing the Keyboard/CCD 2 - 13

2.Disassembly

7. Disconnect cables - and remove screw .

8. Turn the computer over, remove screws - from the bottom case.

9. Turn the computer over, pry the top case off the bottom case at points & simultaneously, then run your

fingers around the inner frame of the top case at points - .

10. Carefully lift the top case up and off the bottom case.

11. Carefully remove the rubber screw covers - and screws - from the front cover.

18

22

23

24

43

44

A

B

C

E

44

45

50

51

56

Figure 9

Keyboard / CCD

Module Removal

f. Disconnect the cables

and remove the screw.

g. Turn the computer over,

remove the screws from

the bottom case.

h. Turn the computer over,

pry the top case off the

bottom case at points

& simultaneous-

ly, then run your fingers

around the inner frame

of the top case at points

- .

i. Carefully lift the top case

up and off the bottom

case.

j. Carefully remove the

rubber screw covers and

screws from the front

cover.

A

B

C

E

i.

f.

g. 48

47

27

24

28

26

29

46

25

30

31

41

35

43

39

49

33

37

45

32

42

36

40

34 38

21

18

20 19

22

23

j.

44

50

51 52 53 54

55

56

h.

A

BC

D

E

44



44. Top Case

•27 Screws

Disassembly

2 - 14 Removing the Keyboard/CCD

2.Disassembly

12. Run your fingers around the inner frame of the LCD panel at the points indicated by the arrows - .

13. Lay the computer down on a flat surface with the top case up forming a 90 degree angle. Push the LCD front

panel upwards before carefully lifting it up.

14. Disconnect cable .

15. Remove the CCD module .

57

60

61

62

63

Figure 10

Keyboard / CCD

Removal

k. Run your fingers around

the inner frame of the

LCD panel at the points

indicated by the arrows.

l. Lay the computer down

on a flat surface with the

top case up forming a 90

degree angle. Push the

LCD front panel upwards

before carefully lifting it

up.

m.Disconnect the cable.

n. Remove the CCD mod-

ule.

n.

m.

63

l.

62

61

k.

57

60 59 58



61. LCD Front Panel

63. CCD Module

A - 1

A.Part Lists

Appendix A:Part Lists

This appendix breaks down the W270CZQ / W271CZQ series notebook’s construction into a series of illustrations. The

component part numbers are indicated in the tables opposite the drawings.

Note: This section indicates the manufacturer’s part numbers. Your organization may use a different system, so be sure

to cross-check any relevant documentation.

Note: Some assemblies may have parts in common (especially screws). However, the part lists DO NOT indicate the

total number of duplicated parts used.

Note: Be sure to check any update notices. The parts shown in these illustrations are appropriate for the system at the

time of publication. Over the product life, some parts may be improved or re-configured, resulting in new part numbers.

A - 2

A.Part Lists

Part List Illustration Location

The following table indicates where to find the appropriate part list illustration.

Table A - 1

Part List Illustration

Location Part W270CZQ / W271CZQ

Top page A - 3

Bottom page A - 4

SATA BLU-RAY COMBO page A - 5

SATA DVD DUAL page A - 6

LCD page A - 7

Top A - 3

A.Part Lists

Top

(灰色) (尚盟)

Figure A - 1

Top

A - 4 Bottom

A.Part Lists

Bottom

Figure A - 2

Bottom

SATA BLU-RAY COMBO A - 5

A.Part Lists

SATA BLU-RAY COMBO

志精

Figure 3

SATA BLU-RAY

COMBO

Figure 4

SATA DVD DUAL

A - 6 SATA DVD DUAL

A.Part Lists

SATA DVD DUAL

志精

LCD A - 7

A.Part Lists

LCD

Figure A - 5

LCD

A - 8

A.Part Lists

Schematic Diagrams

B - 1

B.Schematic Diagrams

Appendix B: Schematic Diagrams

Table B - 1

SCHEMATIC

DIAGRAMS

This appendix has circuit diagrams of the W270CZQ / W271CZQ notebook’s PCB’s. The following table indicates

where to find the appropriate schematic diagram.

Diagram - Page Diagram - Page Diagram - Page

System Block Diagram - Page B - 2 PantherPoint - M 6/9 - Page B - 19 Power 1.05VS, VTT_CPU - Page B - 36

Processor 1/7 - Page B - 3 PantherPoint - M 7/9 - Page B - 20 Power 0.85VS - Page B - 37

Processor 2/7 - Page B - 4 PantherPoint - M 8/9 - Page B - 21 Power V-Core1 - Page B - 38

Processor 3/7 - Page B - 5 PantherPoint - M 9/9 - Page B - 22 Power V-Core2 - Page B - 39

Processor 4/7 - Page B - 6 WLAN, CCD - Page B - 23 Smart Charger, AC In - Page B - 40

Processor 5/7 - Page B - 7 3G, TPM - Page B - 24 Click Board - Page B - 41

Processor 6/7 - Page B - 8 Card Reader, LAN RTL8402 - Page B - 25 Audio Board/USB - Page B - 42

Processor 7/7 - Page B - 9 Transformer, SATA HDD, ODD - Page B - 26 Power Switch & LID Board - Page B - 43

DDR3 SO-DIMM_0 - Page B - 10 USB 3.0 TI TUSB7320 - Page B - 27 External ODD Board - Page B - 44

DDR3 SO-DIMM_1 - Page B - 11 USB 3.0/USB 2.0/USB Charger - Page B - 28 Power Sequence - Page B - 45

LVDS, Inverter - Page B - 12 KBC-ITE IT8518 - Page B - 29

HDMI, CRT - Page B - 13 LED - Page B - 30

PantherPoint - M 1/9 - Page B - 14 Audio Codec VT1802P/ALC269 - Page B - 31

PantherPoint - M 2/9 - Page B - 15 Fan, TP, Multi-Conn - Page B - 32

PantherPoint - M 3/9 - Page B - 16 System Power - Page B - 33

PantherPoint - M 4/9 - Page B - 17 VDD3, VDD5 - Page B - 34

PantherPoint - M 5/9 - Page B - 18 Power 1.5V/0.75V/1.8VS - Page B - 35



Version Note

The schematic dia-

grams in this chapter

are based upon ver-

sion 6-7P-W24Z5-002.

If your mainboard (or

other boards) are a lat-

er version, please

check with the Service

Center for updated di-

agrams (if required).

Schematic Diagrams

B - 2 System Block Diagram

B.Schematic Diagrams

System Block Diagram

Sheet 1 of 44

System Block

Diagram

SATA II 3.0Gb/s

mSATA optional

<6"

SPI

<8"

<15"

SPI ROM

SYSTEM

SHEET 13

LCD CONNECTOR,

HSPI

HDMI

CRT CONNECTOR

EC SPI

SPI

Share ROM

SHEET 28

Chief River System Block Diagram

POWER SWITCH+HOTKEY X 3

TOUCH PAD

0.85VS

LPC

SO-DIMM1

CLICK BOARD

<8"

USB 2.0

Memory Termination

Synaptic

DDR3

0.5"~6.5"

1"~16"

(USB1)

DDR3

FDI

128pins LQFP

32.768KHz

SO-DIMM0

CCD

SYSTEM SMBUS

0.1"~13

ITE 8518E

<6" <6"

INT. K/B

CLICK BOARD

EC

0.5"~11"

5V,3V,5VS,3VS,1.5VS,

1.5VS_CPU

VDD3,VDD5

DMI*4

32.768 KHz

6-71-W24ES-D03

SATA III 6.0Gb/s

1333/1600 MHz

DDR3 / 1.5V

14*14*1.6mm

33 MHz

POWER SWITCH BOARD

810602-1703

(USB5)

PROCESSOR

31*24 mm

PantherPoint

Platform

Controller

Hub (PCH)

25x25x0.6 mm

989 Balls FCBGA

BGA1023

Ivy/Sandy

Bridge

6-71-W24E2-D01

AUDIO

BOARD

TPM

6-71-W25UN-D01

EXT. ODD

EXTERNAL ODD BOARD

6-71-W24E8-D04

USB+EARPHONE+EXT.MIC

AUDIO BOARD

VCORE, VGFX_CORE

1.05VS, VTT_CPU

1.5V,0.75VS(VTT_MEM)

1.8VS

1"~4"

(USB9)

USB3.0

AUDIO BOARD

(USB2)

PCIE

Mini PCIE

SOCKET

WLAN

CARD READER

<12"

25

MHz

9 IN 1

LAN

RJ-45

SOCKET

Realtek

100 MHz

RTL8402(10/100M)

USB3.0 IC

TUSB7320

TI

(Optional)

USB PORT

INT MIC

INT SPK R

Azalia Codec

INT SPK L

ALC269/

VT1802P

Co-layout

MIC

IN

HP

OUT

AZALIA LINK

24 MHz

SMART

CHARGER

THERMAL

RESISTOR

EC SMBUS

SMART

FAN

SATA ODDSATA HDD

(USB9)

(Optional)

Mini PCIE

SOCKET

3G CARD

5 Gbps

480 Mbps

(Optional)

USB3.0 (Ext)

(USB0)

USB PORT USB PORT

Schematic Diagrams

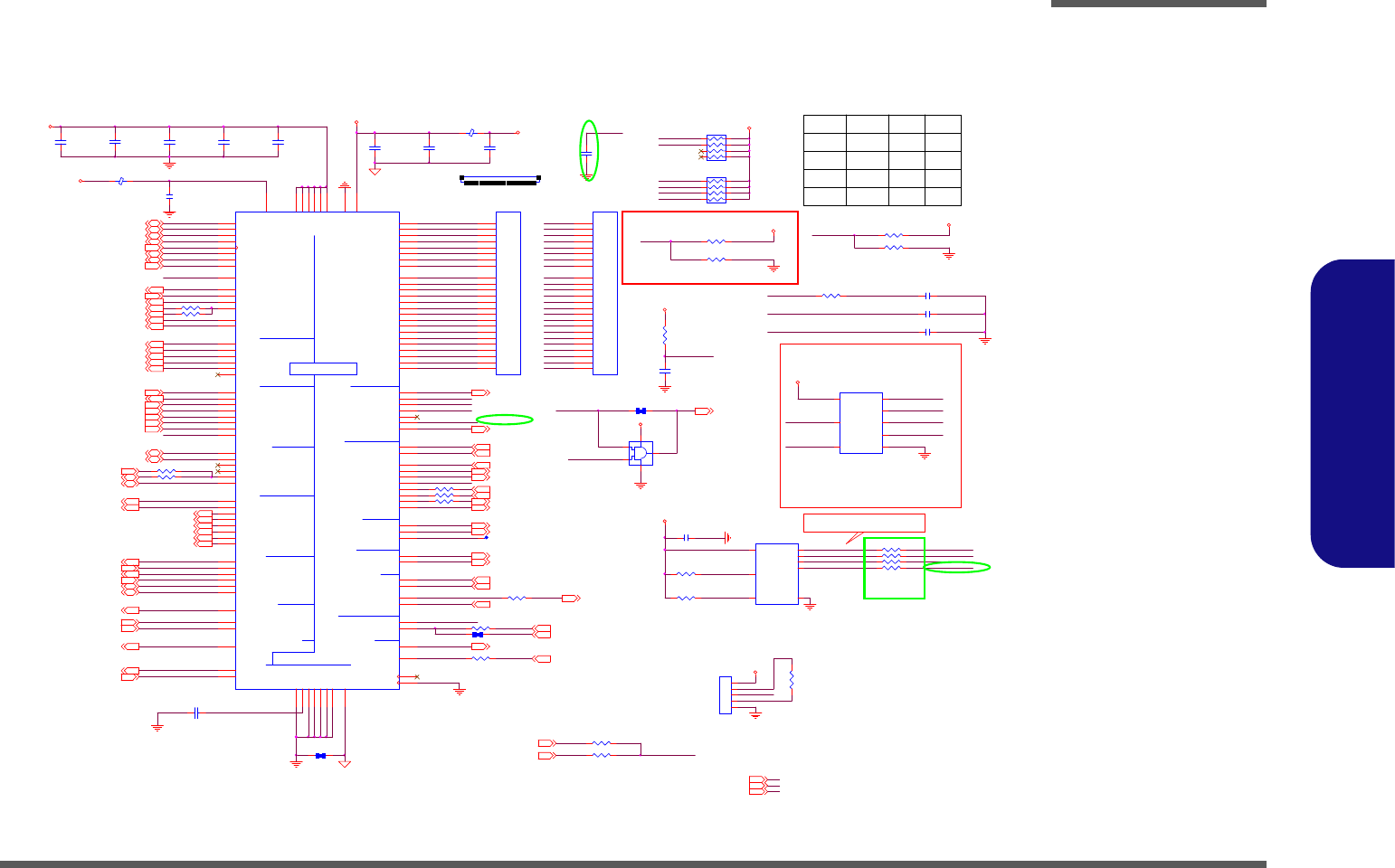

Processor 1/7 B - 3

B.Schematic Diagrams

Processor 1/7

Sheet 2 of 44

Processor 1/7

R762

10K_1%_04

3.3V[3,6, 11,13,14, 15,17,18, 19,20,22,23,26,28,32,34,35, 36] VTT_CPU[3,5,18,19,20,35,36]

PCI EXPRESS* - GRAPHICS

DMI

Intel(R) FDI

eDP

U34A

P31X24_1023B_01B

DMI_RX#[0]

M2

DMI_RX#[1]

P6

DMI_RX#[2]

P1

DMI_RX#[3]

P10

DMI_RX[0]

N3

DMI_RX[1]

P7

DMI_RX[2]

P3

DMI_RX[3]

P11

DMI_TX#[0]

K1

DMI_TX#[1]

M8

DMI_TX#[2]

N4

DMI_TX#[3]

R2

DMI_TX[0]

K3

DMI_TX[1]

M7

DMI_TX[3]

T3 DMI_TX[2]

P4

FDI0_TX#[0]

U7

FDI0_TX#[1]

W11

FDI0_TX#[2]

W1

FDI0_TX#[3]

AA6

FDI1_TX#[0]

W6

FDI1_TX#[1]

V4

FDI1_TX#[2]

Y2

FDI1_TX#[3]

AC9

FDI0_TX[0]

U6

FDI0_TX[1]

W10

FDI0_TX[2]

W3

FDI0_TX[3]

AA7

FDI1_TX[0]

W7

FDI1_TX[1]

T4

FDI1_TX[2]

AA3

FDI1_TX[3]

AC8

FDI0_FSYNC

AA11

FDI1_FSYNC

AC12

FDI_INT

U11

FDI0_LSYNC

AA10

FDI1_LSYNC

AG8

PEG_ICOMPI G3

PEG_ICOMPO G1

PEG_RCOMPO G4

PEG_RX#[0] H22

PEG_RX#[1] J21

PEG_RX#[2] B22

PEG_RX#[3] D21

PEG_RX#[4] A19

PEG_RX#[5] D17

PEG_RX#[6] B14

PEG_RX#[7] D13

PEG_RX#[8] A11

PEG_RX#[9] B10

PEG_RX#[10] G8

PEG_RX#[11] A8

PEG_RX#[12] B6

PEG_RX#[13] H8

PEG_RX#[14] E5

PEG_RX#[15] K7

PEG_RX[0] K22

PEG_RX[1] K19

PEG_RX[2] C21

PEG_RX[3] D19

PEG_RX[4] C19

PEG_RX[5] D16

PEG_RX[6] C13

PEG_RX[7] D12

PEG_RX[8] C11

PEG_RX[9] C9

PEG_RX[10] F8

PEG_RX[11] C8

PEG_RX[12] C5

PEG_RX[13] H6

PEG_RX[14] F6

PEG_RX[15] K6

PEG_TX#[0] G22

PEG_TX#[1] C23

PEG_TX#[2] D23

PEG_TX#[3] F21

PEG_TX#[4] H19

PEG_TX#[5] C17

PEG_TX#[6] K15

PEG_TX#[7] F17

PEG_TX#[8] F14

PEG_TX#[9] A15

PEG_TX#[10] J14

PEG_TX#[11] H13

PEG_TX#[12] M10

PEG_TX#[13] F10

PEG_TX#[14] D9

PEG_TX#[15] J4

PEG_TX[0] F22

PEG_TX[1] A23

PEG_TX[2] D24

PEG_TX[3] E21

PEG_TX[4] G19

PEG_TX[5] B18

PEG_TX[6] K17

PEG_TX[7] G17

PEG_TX[8] E14

PEG_TX[9] C15

PEG_TX[10] K13

PEG_TX[11] G13

PEG_TX[12] K10

PEG_TX[13] G10

PEG_TX[14] D8

PEG_TX[15] K4

eDP_AUX

AF4

eDP_AUX#

AG4

eDP_TX[0]

AC1

eDP_TX[1]

AA4

eDP_TX[2]

AE10

eDP_TX[3]

AE6

eDP_TX#[0]

AC3

eDP_TX#[1]

AC4

eDP_TX#[2]

AE11

eDP_TX#[3]

AE7

eDP_COMPIO

AF3

eDP_HPD#

AG11 eDP_ICOMPO

AD2

EDP_COMP

R389

10K_04

VTT_CPU

EDP_HPD#

3.3V

PLACE NEAR CPU SOCKET

PTH1

10K_1%_NTC_04

12

R390

24.9_1%_04

R63 24.9_1%_04

DMI_RXP1[15] DMI_RXP0[15]

VTT_CPU

VTT_CPU

DMI_RXN1[15]

DMI_RXP3[15] DMI_RXP2[15]

DMI_RXN2[15] DMI_RXN3[15]

DMI_RXN0[15]

DMI_TXP0[15]

FDI_TXN2[15]

FDI_TXN0[15]

FDI_TXN5[15]

FDI_TXN1[15]

FDI_TXN7[15]

FDI_TXN4[15] FDI_TXN3[15]

FDI_TXP5[15]

FDI_TXP1[15]

FDI_TXN6[15]

FDI_TXP3[15] FDI_TXP2[15]

FDI_TXP0[15]

FDI_TXP6[15] FDI_TXP7[15]

FDI_TXP4[15]

FDI_LSYNC0[15] FDI_LSYNC1[15]

FDI_INT[15]

Ivy/Sandy Bridge Processor 1/7

( DMI,PEG,FDI )

FDI_FSYNC1[15] FDI_FSYNC0[15]

DMI_TXP3[15] DMI_TXP2[15] DMI_TXP1[15]

DP Compensation Signal

DMI_TXN1[15]

PEG_COMP

20 mil

DMI_TXN0[15]

DMI_TXN2[15] DMI_TXN3[15]

1:2 (4mils:8mils)

THERM_VOLT [28]

0613 D02

CAD NOTE: DP_COMPIO and ICOMPO signals

should be shorted near balls and routed with

- typical impedance < 25 mohms

Schematic Diagrams

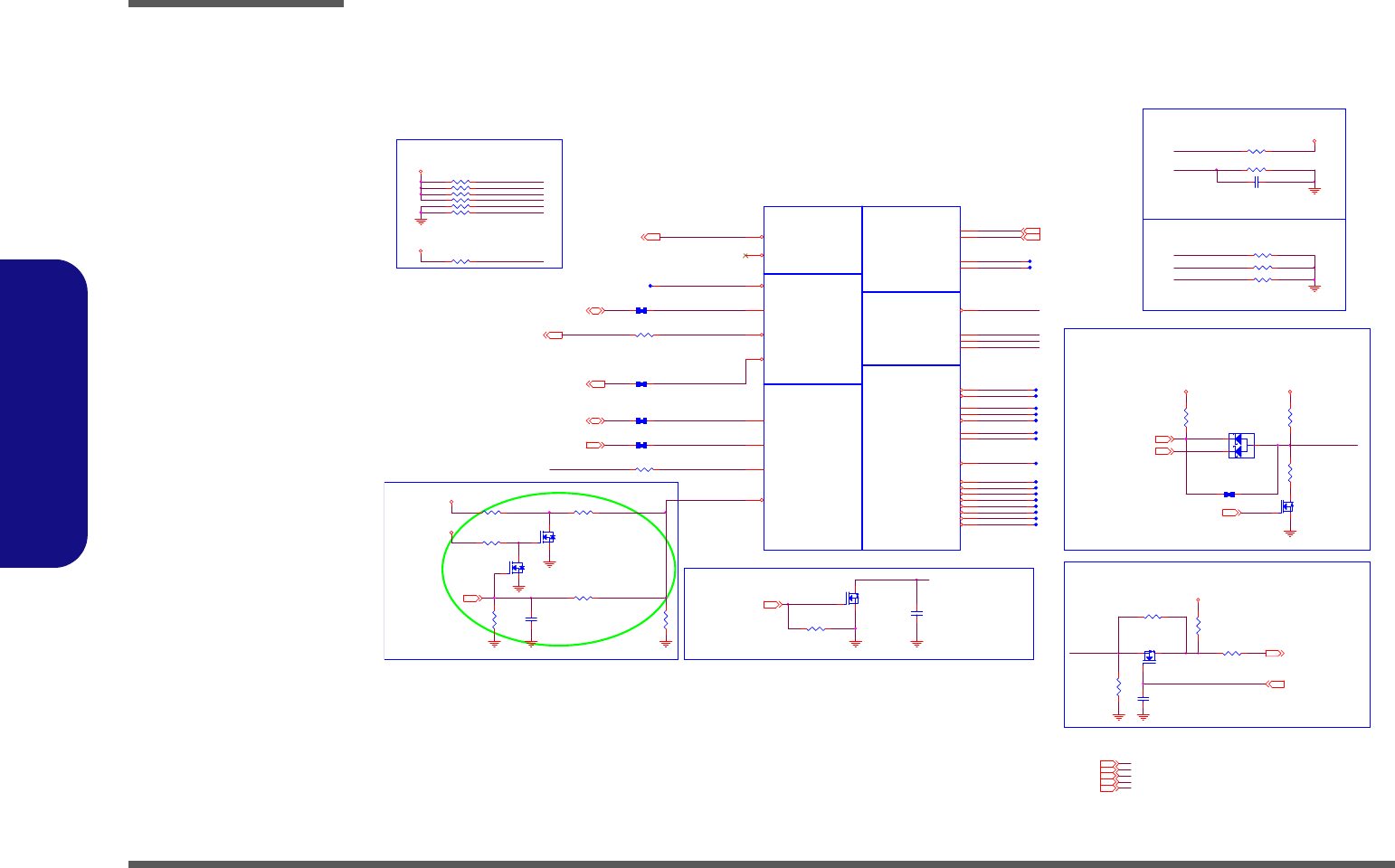

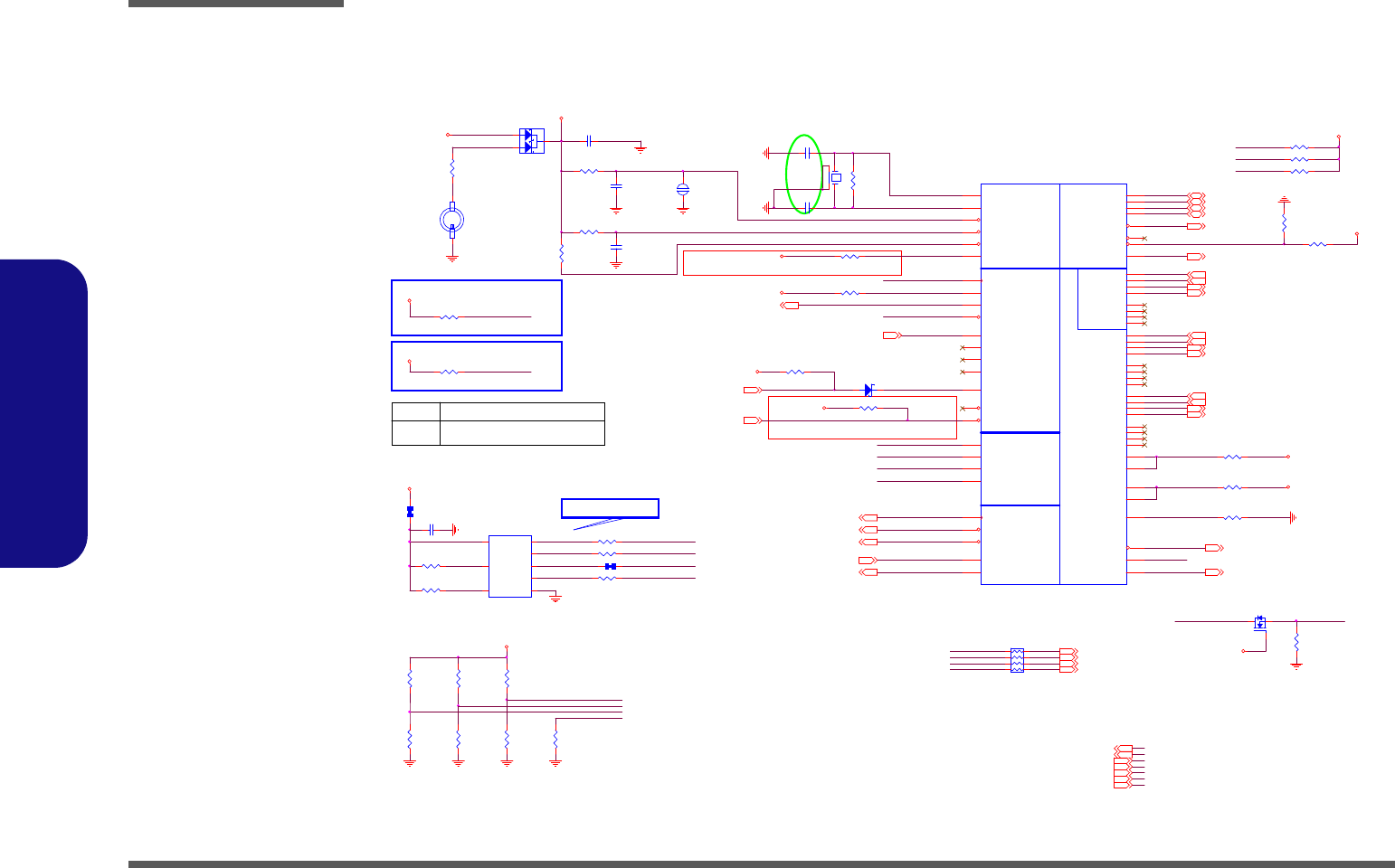

B - 4 Processor 2/7

B.Schematic Diagrams

Processor 2/7

H_PROCHOT#[37]

S

D

G

Q36B

*MTDK5S6R

5

3

4

R91 *100K_04

C22

0.047u_10V_X7R_04

S3 circuit:- DRAM PWRGOOD logic

1.8VS_PWRGD[15,34]

PM_DRAM_PWRGD[15] PMSY S_PWRGD_BUF

R73

*200_1%_04

1.5V_CPU

R57

10K_04

R58

*39_04

SUSB[32,34,35]

Q10

*2SK3018S3

G

DS

3.3V

S

D

G

Q36A

*MTDK5S6R

2

6

1

R530 *10K_04

CLOCKS

MISC

THERMALPWR MANAGEMENT

DDR3

MISC

JTAG & BPM

U34B

P31X24_1023B_01B

SM_RCOMP[1] BE43

SM_RCOMP[2] BG43

SM_DRAMRST# AT30

SM_RCOMP[0] BF44

BCLK# H2

BCLK J3

DPLL_REF_CLK# AG1

DPLL_REF_CLK AG3

CATERR#

C49

PECI

A48

PROCH OT#

C45

THE R MTRI P#

D45

SM_DRAMPWROK

BE45

RESET#

D44

PRDY# N53

PREQ# N55

TC K L56

TMS L55

TRST# J58

TDI M60

TD O L59

DBR# K58

BPM#[0] G58

BPM#[1] E55

BPM#[2] E59

BPM#[3] G55

BPM#[4] G59

BPM#[5] H60

BPM#[6] J59

BPM#[7] J61

PM_SYNC

C48

PROC_SELECT#

F49

UNCOREPWRGOOD

B46

PROC_D ETECT#

C57

R59 *10mil_04

C515

47p_50V_NPO_04

H_PROCHOT#

R60 130_1%_04

CAD Note: Capacitor

need to be placed

close to buffer output pin

H_PROCH OT_EC[28]

Q14

2SK3018S3

G

DS

C

A

A

D20

*BAT54AS3

1

23

PMSYS_PWRGD_BUF

R414 *51_04

R416 *51_04

R108 *51_04

R415 *51_04

R109 *51_04

R95 51_04

3.3VS

VTT_C PU

XDP_DBR_R

R407 *1K_04

XDP _TMS

XDP _TD O_R

PU/PD for JTAG signals

XDP _TR ST#

XDP_PREQ#

XDP _TD I_R

XDP _TC LK

H_CPUPWRGD_R

R106

750_1%_04

R112 1.5K_1%_04

Processor Pullups/Pull downs

TRACE WIDTH 10MIL, LENGTH <500MILS

3.3VS

BUF_CPU_RST#

DDR3 Compensation Signals

SM_RCOMP_2

SM_RCOMP_1

SM_RCOMP_0

C96

*68p_50V_NPO_04

VDDPWRGOOD_R

XDP_TRST#

XDP_TCLK

PLT_RST#[11,17,23]

XDP_TMS

XD P_ TDI _ R

CPUDRAMRST#

H_PROCHOT#_D

H_CATERR#

Buffered reset to CPU

XDP_TDO_R

XD P_ PR EQ #

H_THRMTR IP#[18]

H_SNB_IVB#[18]

R382 25.5_1%_04

R381 200_1%_04

R419 *10mil_04

R412 10K_04

R413 140_1%_04

H_PECI[18,28]

PM_SYNC_R

If PROCHOT# is not used, then it must

be terminated with a 68-£[ +-5%

pull-up resistor to 1.05VS_VTT .

Ivy/Sandy Bridge Processor 2/7

( CLK,MISC,JTAG )

R418 *10mil_04

R410 62_04

VTT_C PU

H_PROCHOT#

SM_RCOMP_2

SM_RCOMP_0

SM_RCOMP_1

CLK_EXP_N [14]

CLK_EXP_P [14]

H_PM_SYNC[15]

H_SNB_IVB#

1.5V[6,9,10,20,32,34] 1. 5V_CPU[5,6,32] VTT_CPU[2,5,18,19,20,35, 36]

3.3V[2,6,11,13,14,15,17,18,19,20, 22,23,26,28,32,34,35,36]

H_CPUPWRGD[18]

Q8

2SK3018S3

G

DS

R46

4.99K_1%_04

CPUDRAMRST#

R47 *0_04

1.5V

R45

1K_04

S3 circuit:- DRAM_RST# to memory

should be high during S3

DRAMRST_CNTRL [14]

DDR3_DRAMRST# [9,10]

R48 1K_04

XDP_DBR_R

R411 *10mil_04

XDP_BPM1_R

XDP_BPM0_R

XDP_BPM6_R

XDP_BPM5_R

XDP_BPM4_R

XDP_BPM3_R

XDP_BPM2_R

XDP_BPM7_R

H_PECI_R

R105 *75_1%_04

R405 56_1%_04

H_CPUPWRGD_R

H_PROCHOT#

0627 D02

R104 *43_1%_04

R531

*100K_04

C585 *0.1u_10V_X7R_04

XD P_ PR D Y #

VTT_C PU

3.3VS[9,10,11,12,13,14,15,16,17,18,19,20,23,24,25,28,29,30,31,32, 37]

R417 *10mil_04 H_THRMTRIP#_R

Sheet 3 of 44

Processor 2/7

DDR SYSTEM MEMORY A

U34C

P31X24_1023B_01B

SA_BS[0]

BD37

SA_BS[1]

BF36

SA_BS[2]

BA28

SA_CAS#

BE39

SA_RAS#

BD39

SA_WE#

AT41

SA_CK[0] AU36

SA_CK[1] AT40

SA_CK#[0] AV36

SA_CK#[1] AU40

SA_CKE[ 0] AY26

SA_CKE[ 1] BB26

SA_CS#[0] BB40

SA_CS#[1] BC41

SA_ODT[0] AY 40

SA_ODT[1] BA41

SA_DQS[0] AJ11

SA_DQS#[0] AL11

SA_DQS[1] AR10

SA_DQS#[1] AR8

SA_DQS[2] AY11

SA_DQS#[2] AV11

SA_DQS[3] AU17

SA_DQS#[3] AT17

SA_DQS[4] AW45

SA_DQS#[4] AV45

SA_DQS[5] AV51

SA_DQS#[5] AY51

SA_DQS[6] AT56

SA_DQS#[6] AT55

SA_DQS[7] AK54

SA_DQS#[7] AK55

SA_MA[0] BG35

SA_MA[1] BB34

SA_MA[2] BE35

SA_MA[3] BD35

SA_MA[4] AT34

SA_MA[5] AU34

SA_MA[6] BB32

SA_MA[7] AT32

SA_MA[8] AY32

SA_MA[9] AV32

SA_MA[10] BE37

SA_MA[11] BA30

SA_MA[12] BC30

SA_MA[13] AW41

SA_MA[14] AY28

SA_MA[15] AU26

SA_DQ[0]

AG6

SA_DQ[1]

AJ6

SA_DQ[2]

AP11

SA_DQ[3]

AL6

SA_DQ[4]

AJ10

SA_DQ[5]

AJ8

SA_DQ[6]

AL8

SA_DQ[7]

AL7

SA_DQ[8]

AR11

SA_DQ[9]

AP6

SA_DQ[ 10]

AU6

SA_DQ[ 11]

AV9

SA_DQ[ 12]

AR6

SA_DQ[ 13]

AP8

SA_DQ[ 14]

AT13

SA_DQ[ 15]

AU13

SA_DQ[ 16]

BC7

SA_DQ[ 17]

BB7

SA_DQ[ 18]

BA13

SA_DQ[ 19]

BB11

SA_DQ[ 20]

BA7

SA_DQ[ 21]

BA9

SA_DQ[ 22]

BB9

SA_DQ[ 23]

AY13

SA_DQ[ 24]

AV14

SA_DQ[ 25]

AR14

SA_DQ[ 26]

AY17

SA_DQ[ 27]

AR19

SA_DQ[ 28]

BA14

SA_DQ[ 29]

AU14

SA_DQ[ 30]

BB14

SA_DQ[ 31]

BB17

SA_DQ[ 32]

BA45

SA_DQ[ 33]

AR43

SA_DQ[ 34]

AW48

SA_DQ[ 35]

BC48

SA_DQ[ 36]

BC45

SA_DQ[ 37]

AR45

SA_DQ[ 38]

AT48

SA_DQ[ 39]

AY48

SA_DQ[ 40]

BA49

SA_DQ[ 41]

AV49

SA_DQ[ 42]

BB51

SA_DQ[ 43]

AY53

SA_DQ[ 44]

BB49

SA_DQ[ 45]

AU49

SA_DQ[ 46]

BA53

SA_DQ[ 47]

BB55

SA_DQ[ 48]

BA55

SA_DQ[ 49]

AV56

SA_DQ[ 50]

AP50

SA_DQ[ 51]

AP53

SA_DQ[ 52]

AV54

SA_DQ[ 53]

AT54

SA_DQ[ 54]

AP56

SA_DQ[ 55]

AP52

SA_DQ[ 56]

AN57

SA_DQ[ 57]

AN53

SA_DQ[ 58]

AG56

SA_DQ[ 59]

AG53

SA_DQ[ 60]

AN55

SA_DQ[ 61]

AN52

SA_DQ[ 62]

AG55

SA_DQ[ 63]

AK56

DDR SYSTEM MEMORY B

U34D

P31X24_1023B_01B

SB_BS[0]

BG39

SB_BS[1]

BD42

SB_BS[2]

AT22

SB_CAS#

AV43

SB_RAS#

BF40

SB_WE#

BD45

SB_CK[0] BA34

SB_CK[1] BA36

SB_CK#[0] AY34

SB_CK#[1] BB36

SB_CKE[0] AR22

SB_CKE[1] BF27

SB_ODT[0] AT43

SB_ODT[1] BG47

SB_DQS[ 4] BE51

SB_DQS#[ 4] BG51

SB_DQS[ 5] BA61

SB_DQS#[ 5] BA59

SB_DQS[ 6] AR59

SB_DQS#[ 6] AT60

SB_DQS[ 7] AK61

SB_DQS#[ 7] AK59

SB_DQS[ 0] AM2

SB_DQS#[ 0] AL3

SB_DQS[ 1] AV1

SB_DQS#[ 1] AV3

SB_DQS[ 2] BE11

SB_DQS#[ 2] BG11

SB_DQS[ 3] BD18

SB_DQS#[ 3] BD17

SB_MA[0] BF32

SB_MA[1] BE33

SB_MA[2] BD33

SB_MA[3] AU30

SB_MA[4] BD30

SB_MA[5] AV30

SB_MA[6] BG30

SB_MA[7] BD29

SB_MA[8] BE30

SB_MA[9] BE28

SB_MA[10] BD43

SB_MA[11] AT28

SB_MA[12] AV28

SB_MA[13] BD46

SB_MA[14] AT26

SB_MA[15] AU22

SB_DQ[0]

AL4

SB_DQ[1]

AL1

SB_DQ[2]

AN3

SB_DQ[3]

AR4

SB_DQ[4]

AK4

SB_DQ[5]

AK3

SB_DQ[6]

AN4

SB_DQ[7]

AR1

SB_DQ[8]

AU4

SB_DQ[9]

AT2

SB_DQ[10]

AV4

SB_DQ[11]

BA4

SB_DQ[12]

AU3

SB_DQ[13]

AR3

SB_DQ[14]

AY2

SB_DQ[15]

BA3

SB_DQ[16]

BE9

SB_DQ[17]

BD9

SB_DQ[18]

BD13

SB_DQ[19]

BF12

SB_DQ[20]

BF8

SB_DQ[21]

BD10

SB_DQ[22]

BD14

SB_DQ[23]

BE13

SB_DQ[24]

BF16

SB_DQ[25]

BE17

SB_DQ[26]

BE18

SB_DQ[27]

BE21

SB_DQ[28]

BE14

SB_DQ[29]

BG14

SB_DQ[30]

BG18

SB_DQ[31]

BF19

SB_DQ[32]

BD50

SB_DQ[33]

BF48

SB_DQ[34]

BD53

SB_DQ[35]

BF52

SB_DQ[36]

BD49

SB_DQ[37]

BE49

SB_DQ[38]

BD54

SB_DQ[39]

BE53

SB_DQ[40]

BF56

SB_DQ[41]

BE57

SB_DQ[42]

BC59

SB_DQ[43]

AY60

SB_DQ[44]

BE54

SB_DQ[45]

BG54

SB_DQ[46]

BA58

SB_DQ[47]

AW59

SB_DQ[48]

AW58

SB_DQ[49]

AU58

SB_DQ[50]

AN61

SB_DQ[51]

AN59

SB_DQ[52]

AU59

SB_DQ[53]

AU61

SB_DQ[54]

AN58

SB_DQ[55]

AR58

SB_DQ[56]

AK58

SB_DQ[57]

AL58

SB_DQ[58]

AG58

SB_DQ[59]

AG59

SB_DQ[60]

AM60

SB_DQ[61]

AL59

SB_DQ[62]

AF61

SB_DQ[63]

AH60

SB_CS#[0] BE41

SB_CS#[1] BE47

M_A_DQS#5

M_A_DQS#6

M_A_DQS#7

M_A_DQS#4

M_A_DQS#1

M_A_DQS#3

M_A_DQS#0

M_A_DQS#2

M_A_DQS0

M_A_DQS7

M_A_DQS5

M_A_DQS6

M_A_DQS4

M_A_DQS2

M_A_DQS1

M_A_DQS3

M_B_D Q[63: 0][10]M_A _D Q[ 63 :0][9]

M_B_DQS#4

M_B_DQS#6

M_B_DQS#5

M_B_DQS#2

M_B_DQS#3

M_B_DQS#0

M_B_DQS#7

M_B_DQS#1

M_B_B6

M_B_B2

M_B_B3

M_B_B4

M_B_B0

M_B_B5

M_B_B13

M_B_B12

M_B_B9

M_B_B10

M_B_B1

M_B_B14

M_B_B15

M_B_B7

M_B_B8

M_B_B11

M_B_DQS3

M_B_DQS4

M_B_DQS2

M_B_DQS6

M_B_DQS5

M_B_DQS0

M_B_DQS7

M_B_DQS1

Ivy/Sandy Bridge Processor 3/7 ( DDR3 )

M_A_BS0[9]

M_A_D QS#[ 7:0] [9]

M_A_CAS#[9]

M_A_BS1[9] M_A_BS2[9]

M_A_CLK_DDR#1 [9]

M_A_CLK_DDR1 [9]

M_A_WE#[9] M_A_RAS#[9]

M_A_CKE0 [9]

M_A_CLK_DDR#0 [9]

M_A_CKE1 [9]

M_A_D QS[ 7: 0] [9]

M_A _O DT1 [ 9]

M_A_CLK_DDR0 [9]

M_A_C S#0 [ 9]

M_A_C S#1 [ 9]

M_A _O DT0 [ 9]

M_A_A[15:0] [9]

M_A_DQ2

M_A_DQ1

M_A_DQ29

M_A_DQ4

M_A_DQ3

M_A_DQ36

M_A_DQ35

M_A_DQ31

M_A_DQ30

M_A_DQ32

M_A_DQ41

M_A_DQ39

M_A_DQ42

M_A_DQ33

M_A_DQ34

M_A_DQ37

M_A_DQ44

M_A_DQ46

M_A_DQ43

M_A_DQ45

M_A_DQ40

M_A_DQ28

M_A_DQ50

M_A_DQ38

M_A_DQ49

M_A_DQ47

M_A_DQ55

M_A_DQ54

M_A_DQ52

M_A_DQ53

M_A_DQ48

M_A_DQ51

M_A_DQ6

M_A_DQ56

M_A_DQ58

M_A_DQ57

M_A_DQ5

M_A_DQ59

M_A_DQ62

M_A_DQ63

M_A_DQ60

M_A_DQ61

M_A_DQ9

M_A_DQ8

M_A_DQ7

M_A_DQ16

M_A_DQ15

M_A_DQ13

M_A_DQ12

M_A_DQ11

M_A_DQ10

M_A_DQ14

M_A_DQ19

M_A_DQ18

M_A_DQ17

M_A_DQ25

M_A_DQ23

M_A_DQ0

M_A_DQ21

M_A_DQ22

M_A_DQ20

M_A_DQ27

M_A_DQ26

M_A_DQ24

M_B_R AS#[10]

M_B_B S2[10]

M_B_C AS#[10]

M_B_B S1[10] M_B_B S0[10]

M_B_WE#[10]

M_B_DQS[7:0] [10]

M_B_DQS#[7: 0] [10]

M_B_B[15:0] [10]

M_B_CKE1 [10]

M_B_OD T1 [10]

M_B_CLK_DDR#1 [10]

M_B_CS#0 [10]

M_B_OD T0 [10]

M_B_CKE0 [10]

M_B_CLK_DDR1 [10]

M_B_CLK_DDR0 [10]

M_B_CLK_DDR#0 [10]

M_B_CS#1 [10]

M_B_D Q49

M_B_D Q54

M_B_D Q53

M_B_D Q48

M_B_D Q47

M_B_D Q57

M_B_D Q56

M_B_D Q52

M_B_D Q51

M_B_D Q50

M_B_D Q61

M_B_D Q60

M_B_D Q58

M_B_D Q55

M_B_D Q12

M_B_D Q62

M_B_D Q11

M_B_D Q63

M_B_D Q59

M_B_D Q5

M_B_D Q4

M_B_D Q2

M_B_D Q1

M_B_D Q3

M_B_D Q9

M_B_D Q8

M_B_D Q7

M_B_D Q6

M_B_D Q13

M_B_D Q10

M_B_D Q0

M_B_D Q16

M_B_D Q15

M_B_D Q18

M_B_D Q17

M_B_D Q14

M_B_D Q20

M_B_D Q19

M_B_D Q22

M_B_D Q21

M_B_D Q23

M_B_D Q29

M_B_D Q24

M_B_D Q26

M_B_D Q25

M_B_D Q28

M_B_D Q27

M_B_D Q32

M_B_D Q31

M_B_D Q34

M_B_D Q30

M_B_D Q33

M_B_D Q38

M_B_D Q37

M_B_D Q36

M_B_D Q35

M_B_D Q39

M_B_D Q45

M_B_D Q44

M_B_D Q43

M_B_D Q42

M_B_D Q41

M_B_D Q40

M_B_D Q46

M_A_A7

M_A_A4

M_A_A6

M_A_A8

M_A_A9

M_A_A15

M_A_A3

M_A_A0

M_A_A1

M_A_A5

M_A_A11

M_A_A13

M_A_A10

M_A_A12

M_A_A2

M_A_A14

Sheet 4 of 44

Processor 3/7

Schematic Diagrams

Processor 3/7 B - 5

B.Schematic Diagrams

Processor 3/7

Schematic Diagrams

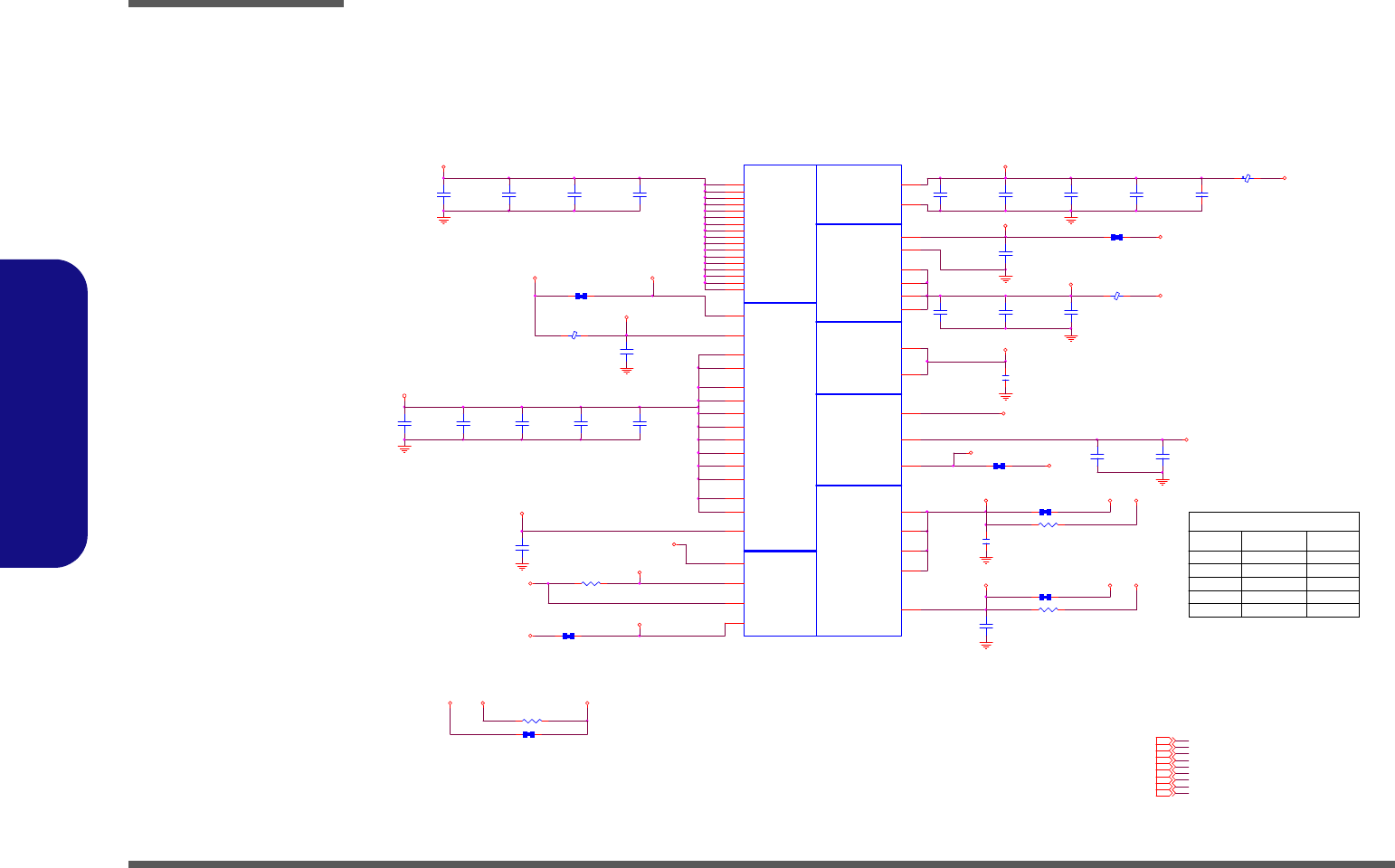

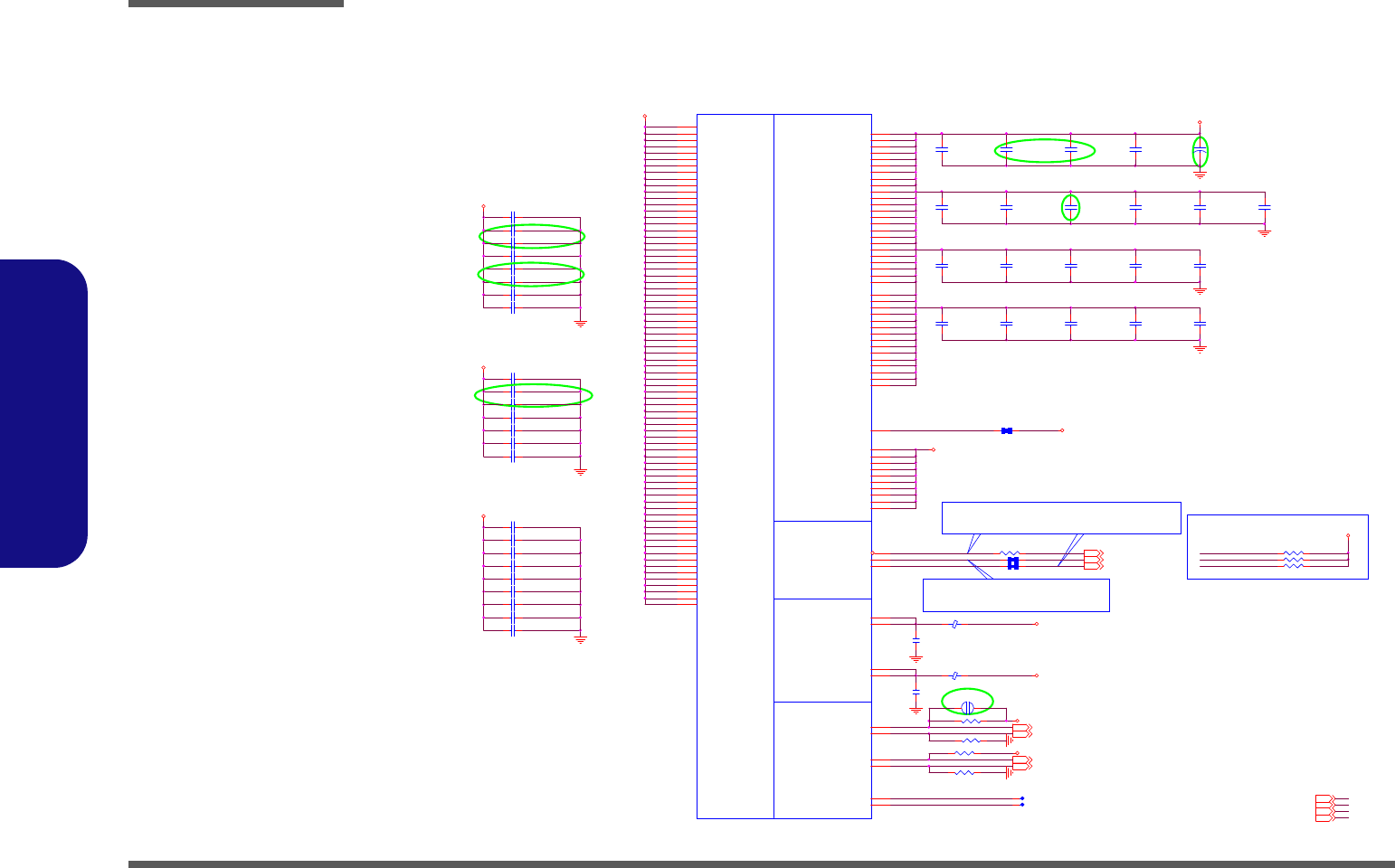

B - 6 Processor 4/7

B.Schematic Diagrams

Processor 4/7

C371 *22u_6.3V_X5R_08

1.5V_CPU

0627 D02

VTT_CPU

VDDQ_SENSE

VSSD_SENSE

VTT_CPU

VCORE_VCC_SENSE [37]

VCORE_VSS_SENSE [37]

VSSIO_SENSE [35]

VCCIO_SENSE [35]

R379 10_04

R383 10_04

C334 22u_6.3V_X5R_08

PR340 100_04

PR347 100_04

C332 *22u_6.3V_X5R_08

R88 *20mil_04

CAD Note: H_CPU_SVIDALRT#_R,H_CPU_SVIDDAT_R

Place the PU resistors close to CPU

R85 *20mil_04 H_CPU_SVIDDAT [37]

H_CPU_SVIDALRT#_R R406 43_1%_04

H_CPU_SVIDDAT_R

1.5V_CPU[3,6,32]

H_CPU_SVIDCLK [37]

H_CPU_SVIDALRT# [37]

H_CPU_SVIDCLK_R

CAD Note: H_CPU_SVIDCLK_R

Place the PU resistors close to VR

C368

10u_6.3V_X5R_06

0627 D02

C695

1u_6.3V_X5R_04

C383

*22u_6.3V_X5R_08

C382

*22u_6.3V_X5R_08

C361

*22u_6.3V_X5R_08

C321

*22u_6.3V_X5R_08

C357

*22u_6.3V_X5R_08

0627 D02

Ivy/Sandy Bridge Processor 4/7

VTT_CPU[2,3,18,19,20,35,36] VCORE[38]

C72 10u_6.3V_X5R_06

C53 10u_6.3V_X5R_06

C56 *10u_6.3V_X5R_06

C66 10u_6.3V_X5R_06

C34 10u_6.3V_X5R_06

C33 10u_6.3V_X5R_06

C74 *10u_6.3V_X5R_06

+

C417

*560u_2.5V_6.6*6.6*5.9

C694

1u_6.3V_X5R_04

C354 *22u_6.3V_X5R_08

0710 D02

VCORE1[38]

C360 22u_6.3V_X5R_08

C336 *22u_6.3V_X5R_08

R62 *20mil_04 VTT_CPU

+V1.05S_VCCP_F

PJ38 *OPEN_1mm

1 2

48A

.

L69 HCB1005KF-121T20

VCORE

0627 D02

C333 *22u_6.3V_X5R_08

C372

10u_6.3V_X5R_06

C367

10u_6.3V_X5R_06

C364

*10u_6.3V_X5R_06

C384

22u_6.3V_X5R_08

C394

*22u_6.3V_X5R_08

C385

*22u_6.3V_X5R_08

C381

22u_6.3V_X5R_08

C358

10u_6.3V_X5R_06

C375

22u_6.3V_X5R_08

C69 *10u_6.3V_X5R_06

C355

*10u_6.3V_X5R_06

POWER

CORE SUPPLY

PEG AND DDR

SENSE LINES SVID

U34F

P31X24_1023B_01B

VCC_SEN SE F43

VSS_SEN SE G43

VIDALERT# A44

VID SCLK B43

VIDSOUT C44

VSS_SENSE_VCC IO AN17

VCC1

N38

VCC2

N34

VCC3

N30

VCC4

N26

VCC5

L40

VCC6

L36

VCC7

L33

VCC8

L28

VCC9

L25

VCC10

K42

VCC11

K39

VCC12

K37

VCC13

K35

VCC14

K34

VCC15

K32

VCC16

K29

VCC17

K27

VCC18

K26

VCC19

J42

VCC20

J40

VCC21

J38

VCC22

J37

VCC23

J35

VCC24

J34

VCC25

J32

VCC26

J29

VCC27

J28

VCC28

J26

VCC29

J25

VCC30

H40

VCC31

H38

VCC32

H37

VCC33

H35

VCC34

H34

VCC35

H32

VCC36

H29

VCC37

H28

VCC38

H26

VCC39

H25

VCC40

G42

VCC41

F42

VCC42

F38

VCC43

F37

VCC44

F34

VCC45

F32

VCC46

F28

VCC47

F26

VCC48

F25

VCC49

E38

VCC50

E37

VCC51

E34

VCC52

E32

VCC53

E28

VCC54

E26

VCC55

D42

VCC56

D39

VCC57

D37

VCC58

D34

VCC59

D32

VCC60

D27

VCC61

C42

VCC62

C39

VCC63

C37

VCC64

C34

VCC65

C32

VCC66

C27

VCC67

C26

VCC68

A42

VCC69

A39

VCC70

A38

VCC71

A35

VCC72

A34

VCC73

A31

VCC74

A29

VCC75

A26

VCCIO1 AN48

VCCIO12 AL26

VCCIO18 AK51

VCCIO19 AK50

VCCIO20 AJ47

VCCIO21 AJ43

VCCIO22 AJ25

VCCIO23 AJ21

VCCIO24 AJ17

VCCIO2 AN45

VCCIO3 AN42

VCCIO4 AN20

VCCIO5 AM47

VCCIO6 AM43

VCCIO7 AM21

VCCIO8 AM17

VCCIO9 AM16

VCCIO10 AL48

VCCIO11 AL45

VCCIO13 AL22

VCCIO14 AL20

VCCIO15 AL16

VCCIO16 AL15

VCCIO17 AL14

VCCIO25 AJ15

VCCIO32 AG17

VCCIO33 AG16

VCCIO34 AG15

VCCIO35 AF46

VCCIO36 AF20

VCCIO37 AF18

VCCIO38 AF16

VCCIO39 AE15

VCCIO26 AJ14

VCCIO27 AG51

VCCIO28 AG50

VCCIO29 AG48

VCCIO30 AG21

VCCIO31 AG20

VCCI O_SEN SE AN16

VCCIO40 AE14

VCCIO41 AD21

VCCIO42 AD18

VCCIO43 AD16

VCCIO44 AC13

VCCIO45 AB20

VCCIO46 AB17

VCCIO47 AA15

VCCIO48 AA14

VCCIO49 W17

VCCIO50 W16

VCCD Q1 AN26

VCCD Q2 AM28

VCCPQE1 AN22

VCCPQE2 AM25

VDDQ_SENSE BC43

VSS_SENSE_VDD Q BA43

R408 75_1%_04

SVID Signals

R86 130_1%_04

VTT_CPU

R89 *54.9_1%_04

H_CPU_SVIDCLK

H_CPU_SVIDALRT#

H_CPU_SVIDDAT_R

VCORE1

C59 *10u_6.3V_X5R_06

PROCESSOR CORE POWER

C337 *22u_6.3V_X5R_08

C351 22u_6.3V_X5R_08

C363 *22u_6.3V_X5R_08

C362 *22u_6.3V_X5R_08

C356 *22u_6.3V_X5R_08

VCORE

ICCMAX Maximum Processor SV 48

C62 *10u_6.3V_X5R_06

C350

10u_6.3V_X5R_06

C346

*10u_6.3V_X5R_06

C365

*10u_6.3V_X5R_06

C366 *22u_6.3V_X5R_08

PROCESSOR UNCORE POWER

C353 22u_6.3V_X5R_08

VCORE

8.5A

VCORE

VTT_CPU

VTT_CPU

C344

10u_6.3V_X5R_06

.

L70 HCB1005KF-121T20

Sheet 5 of 44

Processor 4/7

Schematic Diagrams

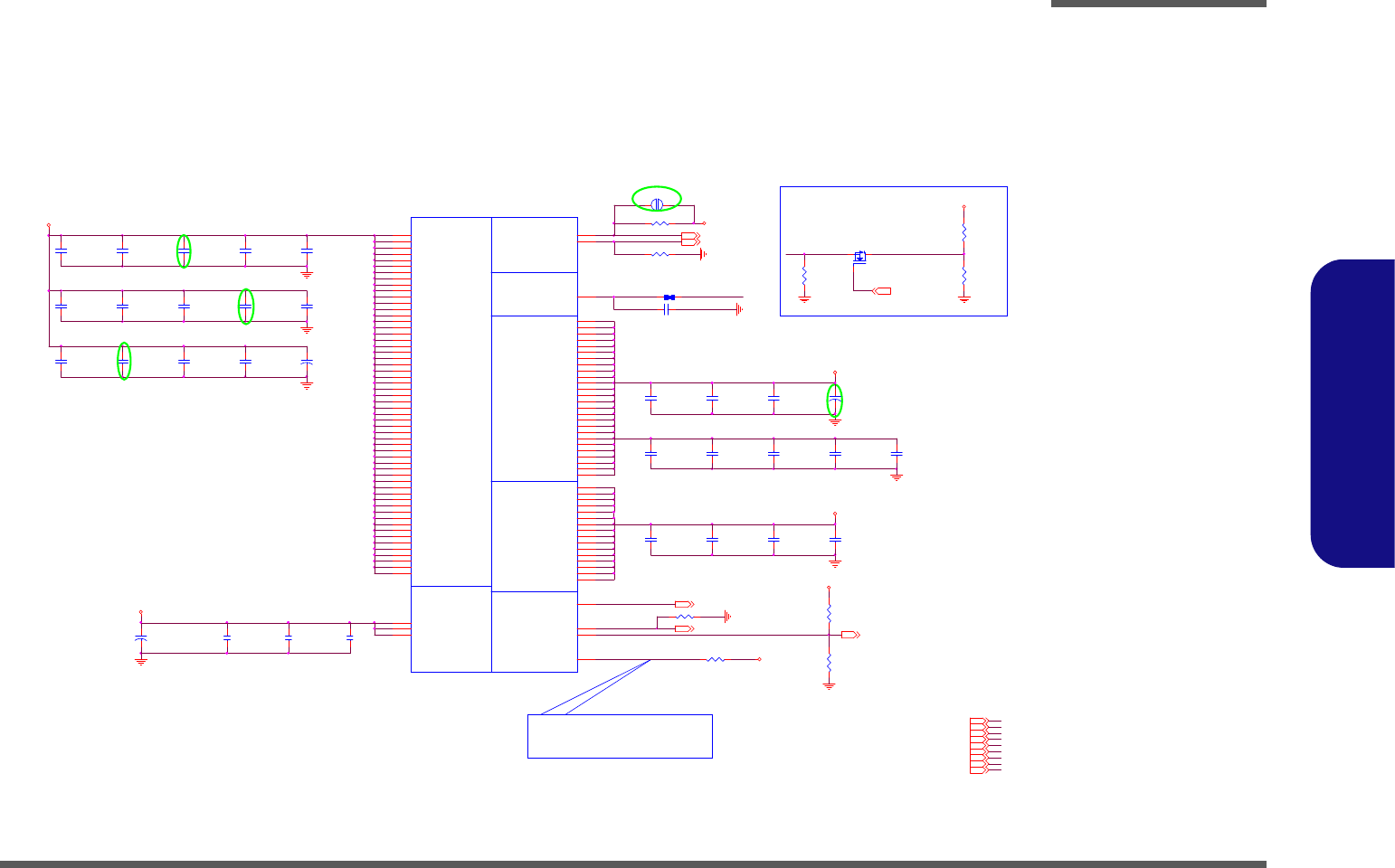

Processor 5/7 B - 7

B.Schematic Diagrams

Processor 5/7

C376

10u_6.3V_X5R_06

C709

*10u_6.3V_X5R_06

C708

*10u_6.3V_X5R_06

+

C458

*390uF _2.5V_10m _6.3*6_m

0627 D02

On CRB ( Need connect to VRM )

H_SNB_IVB#_PWRCTRL = Low, 1.0V

H_SNB_IVB#_PWRCTRL = High/NC, 1.05V

C65

22u_6.3V_X5R_08

C707

*1u_10V_Y5V_06

C317

*10u_6.3V_X5R_08

C60

22u_6.3V_X5R_08

PJ39 *OPEN_1mm

1 2

V_SM_VREF

PR317 100_04

PR322 100_04

VGFX_CORE1

C323

*10u_6.3V_X5R_06

C28

*10u_6. 3V_X5R_06

0.85VS

C388

*22u_6.3V_X5R_08

All VCCSA = 6A

C320

1u_6.3V_X5R_04

C392

*22u_6.3V_X5R_08

VCCSA_SENSE [36]

VCCSA_SENSE

C319

1u_6.3V_X5R_04

VCC_GT_SENSE [37]

VCCSA_VID0 [36]

VSS_GT_SENSE [37]

VCCSA_VID1 [36]

1.5V_CPU

C391

*22u_6.3V_X5R_08

C316

10u_6.3V_X5R_06

R386

*10K_04

R393

*10K_04

C591

10u_6.3V_X5R_06

C387

22u_6.3V_X5R_08

1.8VS

VGFX_CORE

1.5V_CPU

1.5V_CPU[3,5,32]

1.8VS[19,34]

3.3VS[3,9,10,11,12,13,14,15,16,17,18,19,20,23,24,25,28,29,30,31,32,37]

All VDDQ = 5A

All VCCPLL = 1.2A

1.5V[3, 9,10,20,32,34]

VGFX_CORE[38]

1.5VS[19,30,32]

Ivy/Sandy Bridge Processor 5/7 ( GRAPHICS POWER )

All VAXG = 33A

C373

*10u_6.3V_X5R_06

+

C314

560u_2.5V_6.6*6. 6*5.9

0.85VS[36]

C586 *0.1u_10V_X7R_04

V_SM_VREF

C374

10u_6.3V_X5R_06

C386

10u_6.3V_X5R_06

C63

22u_6.3V_X5R_08

R116

*20mil_04

Q15

*AO3402L

G

DS

R119

1K_1%_04

R117

1K_1%_04

1.5V

SUSB# [15, 28,32]

V_SM_VREF_CNT

C67

*22u_6. 3V_X5R_08

C71

*22u_6.3V_X5R_08

V_SM_VREF_CNT

C322

22u_6.3V_X5R_08

+

C400

*390uF_2.5V_10m_6.3*6_m

VGFX_CORE1[38]

R56 *10K_04

POWER

GRAPHICS

DDR3 -1.5V RAILS SENSE

LINES

1.8V RAIL

SA RAIL

VREFMISC

U34G

P31X24_1023B_01B

SM_VREF AY43

VSSAXG_SENSE G45

VAXG_SENSE F45

VAXG1

AE46

VAXG2

AD59

VAXG3

AD58

VAXG4

AD56

VAXG5

AD55

VAXG6

AD53

VAXG7

AD52

VAXG8

AD51

VAXG9

AD50

VAXG10

AD48

VAXG11

AD47

VAXG12

AC61

VAXG13

AB59

VAXG14

AB58

VAXG15

AB56

VAXG16

AB55

VAXG17

AB53

VAXG18

AB52

VAXG19

AB51

VAXG20

AB50

VAXG21

AB47

VAXG22

AA46

VAXG23

Y61

VAXG24

Y48

VAXG25

W61

VAXG26

W56

VAXG27

W55

VAXG28

W53

VAXG29

W52

VAXG30

W51

VAXG31

W50

VAXG32

V59

VAXG33

V58

VAXG34

V56

VAXG35

V55

VAXG36

V53

VAXG37

V52

VAXG38

V51

VAXG39

V50

VAXG40

V48

VAXG41

V47

VAXG42

U46

VAXG43

T61

VAXG44

T59

VAXG45

T58

VAXG46

T48

VAXG47

P61

VAXG48

P56

VAXG49

P55

VAXG50

P53

VAXG51

P52

VAXG52

P51

VAXG53

P50

VAXG54

P48

VDDQ11 AR28

VDDQ12 AR26

VDDQ13 AN38

VDDQ14 AN34

VDDQ15 AN30

VDDQ1 BG33

VDDQ2 BB28

VDDQ3 BA40

VDDQ4 AW26

VDDQ5 AV41

VDDQ6 AR40

VDDQ7 AR36

VDDQ8 AR34

VDDQ9 AR32

VDDQ10 AR30

VCCPLL1

BC4

VCCPLL2

BC1

VCCSA1 W20

VCCSA2 V21

VCCSA3 V18

VCCSA4 V17

VCCSA5 V16

VCCSA6 U15

VCCSA7 R21

VCCSA8 R18

VCCSA_SENSE U10

VCCSA_VID[1] D49

VCCPLL3

BB3 VCCSA_VID[0] D48

VCCIO_SEL BC22

VAXG55

P47

VAXG56

N45

VDDQ16 AM40

VDDQ17 AM36

VDDQ18 AM33

VDDQ19 AL42

VDDQ20 AL38

VDDQ21 AL34

VDDQ22 AL30

VDDQ23 AJ40

VDDQ24 AJ36

VDDQ25 AJ33

VDDQ26 AJ28

VCCSA9 R16

VCCSA10 P20

VCCSA11 P17

VCCSA12 N22

VCCSA13 N20

VCCSA14 N16

VCCSA15 L21

VCCSA16 L17

C58

*22u_6.3V_X5R_08

0627 D02

3.3V[2,3,11,13,14,15,17,18,19,20,22,23,26,28,32,34,35,36]

0627 D02

3.3V

H_SNB_IVB#_PWRCTRL

C377

10u_6.3V_X5R_06

R409 10K_04

0710 D02

C345

10u_6.3V_X5R_06

C318

*10u_6.3V_X5R_08

C706

*1u_10V_Y5V_06

R114

*100K_1%_04

Sheet 6 of 44

Processor 5/7

Schematic Diagrams

B - 8 Processor 6/7

B.Schematic Diagrams

Processor 6/7

Ivy\Sandy Bridge Processor 6/7 ( GND )

VSS

U34H

P31X24_1023B_01B

VSS1

BG53

VSS2

BG49

VSS3

BG45

VSS4

BG41

VSS5

BG37

VSS6

BG28

VSS7

BG24

VSS8

BG21

VSS9

BG17

VSS10

BG13

VSS11

BG9

VSS12

BE5

VSS13

BD56

VSS14

BD52

VSS15

BD48

VSS16

BD44

VSS17

BD40

VSS18

BD36

VSS19

BD32

VSS20

BD27

VSS21

BD23

VSS22

BD19

VSS23

BD16

VSS24

BD12

VSS25

BD8

VSS26

BC57

VSS27

BC13

VSS28

BC5

VSS29

BB53

VSS30

BA51

VSS31

BA48

VSS32

BA32

VSS33

BA26

VSS34

BA21

VSS35

BA17

VSS36

BA11

VSS37

BA1

VSS38

AY58

VSS39

AY55

VSS40

AY49

VSS41

AY45

VSS42

AY41

VSS43

AY36

VSS44

AY30

VSS45

AY19

VSS46

AY14

VSS47

AY9

VSS48

AY4

VSS49

AW61

VSS50

AW43

VSS51

AW13

VSS52

AW7

VSS53

AV55

VSS54

AV48

VSS55

AV40

VSS56

AV34

VSS57

AV22

VSS58

AV21

VSS59

AV17

VSS60

AU51

VSS61

AU32

VSS62

AU28

VSS63

AU11

VSS64

AU7

VSS65

AU1

VSS66

AT58

VSS67

AT52

VSS68

AT45

VSS69

AT36

VSS70

AT19

VSS71

AT14

VSS72

AT4

VSS73

AR61

VSS74

AR48

VSS75

AR41

VSS76

AR21

VSS77

AR17

VSS78

AR13

VSS79

AR7

VSS80

AP55

VSS81 AP51

VSS82 AP10

VSS83 AP7

VSS84 AN54

VSS85 AN50

VSS86 AN47

VSS87 AN43

VSS88 AN40

VSS89 AN36

VSS90 AN33

VSS91 AN28

VSS92 AN25

VSS93 AN21

VSS94 AN1

VSS95 AM58

VSS96 AM48

VSS97 AM45

VSS98 AM42

VSS99 AM38

VSS100 AM34

VSS101 AM30

VSS102 AM26

VSS103 AM22

VSS104 AM20

VSS105 AM13

VSS106 AM4

VSS107 AL61

VSS108 AL47

VSS109 AL43

VSS110 AL40

VSS111 AL36

VSS112 AL33

VSS113 AL28

VSS114 AL25

VSS115 AL21

VSS116 AL17

VSS117 AL13

VSS118 AL10

VSS119 AK52

VSS120 AK1

VSS121 AJ48

VSS122 AJ45

VSS123 AJ42

VSS124 AJ38

VSS125 AJ34

VSS126 AJ30

VSS127 AJ26

VSS128 AJ22

VSS129 AJ20

VSS130 AJ16

VSS131 AJ13

VSS132 AJ7

VSS133 AH58

VSS134 AH4

VSS135 AG61

VSS136 AG52

VSS137 AG47

VSS138 AG18

VSS139 AG14

VSS140 AG10

VSS141 AG7

VSS142 AF59

VSS143 AF58

VSS144 AF56

VSS145 AF55

VSS146 AF53

VSS147 AF52

VSS148 AF51

VSS149 AF50

VSS150 AF48

VSS151 AF47

VSS152 AF21

VSS153 AF17

VSS154 AF1

VSS155 AE13

VSS156 AE8

VSS157 AD61

VSS158 AD20

VSS159 AD17

VSS160 AD4

VSS

U34I

P31X24_1023B_01B

VSS161

AC46

VSS162

AC14

VSS163

AC10

VSS164

AC6

VSS165

AB61

VSS166

AB48

VSS167

AB21

VSS168

AB18

VSS169

AB16

VSS170

AA56

VSS171

AA55

VSS172

AA53

VSS173

AA52

VSS174

AA51

VSS175

AA50

VSS176

AA13

VSS177

AA8

VSS178

AA1

VSS179

Y59

VSS180

Y58

VSS181

Y47

VSS182

Y4

VSS183

W46

VSS184

W21

VSS185

W18

VSS186

W15

VSS187

W13

VSS188

W8

VSS189

V61

VSS190

V20

VSS191

U13

VSS192

U8

VSS193

T56

VSS194

T55

VSS195

T53

VSS196

T52

VSS197

T51

VSS198

T50

VSS199

T47

VSS200

T1

VSS201

R46

VSS202

R20

VSS203

R17

VSS204

R4

VSS205

P59

VSS206

P58

VSS207

P21

VSS208

P18

VSS209

P16

VSS210

P14

VSS211

P9

VSS212

N61

VSS213

N56

VSS214

N52

VSS215

N51

VSS216

N48

VSS217

N47

VSS218

N43

VSS219

N40

VSS220

N36

VSS221

N33

VSS222

N28

VSS223

N25

VSS224

N21

VSS225

N17

VSS226

N1

VSS227

M58

VSS228

M15

VSS229

M11

VSS230

M6

VSS231

M4

VSS232

L61

VSS233

L48

VSS234 L43

VSS235 L38

VSS236 L34

VSS237 L30

VSS238 L26

VSS239 L22

VSS240 L20

VSS241 L16

VSS242 K51

VSS243 K21

VSS244 K11

VSS245 K8

VSS246 J55

VSS247 J49

VSS248 J1

VSS249 H58

VSS250 H53

VSS251 H21

VSS252 H17

VSS253 H14

VSS254 H10

VSS255 H4

VSS256 G61

VSS257 G51

VSS258 G48

VSS259 G6

VSS260 F55

VSS261 F40

VSS262 F35

VSS263 F29

VSS264 F19

VSS265 F15

VSS266 F13

VSS267 E40

VSS268 E35

VSS269 E29

VSS270 E25

VSS271 E3

VSS272 D58

VSS273 D54

VSS274 D50

VSS275 D46

VSS276 D43

VSS277 D40

VSS278 D35

VSS279 D29

VSS280 D26

VSS281 D22

VSS282 D18

VSS283 D14

VSS284 D10

VSS285 D6

VSS286 D4

VSS287 C40

VSS288 C35

VSS289 C29

VSS290 A53

VSS291 A49

VSS292 A45

VSS293 A40

VSS294 A37

VSS295 A33

VSS296 A28

VSS297 A25

VSS298 A21

VSS299 A17

VSS300 A13

VSS301 A9

Sheet 7 of 44

Processor 6/7

Schematic Diagrams

Processor 7/7 B - 9

B.Schematic Diagrams

Processor 7/7

CFG6

CFG5

11: (Default) x16 - Device 1 functions 1 and 2 disabled

10: x8, x8 - Device 1 function 1 enabled ; function 2 disabled

01: Reserved - (Device 1 function 1 disabled ; function 2 enabled)

00: x8,x4,x4 - Device 1 functions 1 and 2 enabled

CFG[6:5]

R92 *1K_04

PCIE Port Bifurcation Straps

R99 *1K_04

CFG0

SA_VR EFDQ

10mil

PEG DEFER TRAINING

1: (Default) PEG Train immediately following xxRESETB de assertion

0: PEG Wait for BIOS for training

CFG7

R93 *1K_04

CFG7

CFG2

CFG2

CFG4

CFG Straps for Processor

PEG Static Lane Reversal - CFG2 is for the 16x

1:(Default) Normal Operation; Lane #

definition matches socket pin map definition

0:Lane Reversed

Display Port Presence Strap

1:(Default) Disabled; No Physical Display Port

attached to Embedded Display Port

0:Enabled; An external Display Port device is

connected to the Embedded Display Port

CFG4

R110 *1K_04

R111 *1K_04

H_CPU_RSVD1

H_CPU_RSVD4

H_CPU_RSVD3

H_CPU_RSVD2

CFG7

CFG4

CFG2

CFG6

CFG5

RESERVED

CFG

U34E

P31X24_1023B_01B

CFG[0]

B50

CFG[1]

C51

CFG[2]

B54

CFG[3]

D53

CFG[4]

A51

CFG[5]

C53

CFG[6]

C55

CFG[7]

H49

CFG[8]

A55

CFG[9]

H51

CFG[10]

K49

CFG[11]

K53

CFG[12]

F53

CFG[13]

G53

CFG[14]

L51

CFG[15]

F51

CFG[16]

D52

CFG[17]

L53

RSVD34

M13

RSVD35

L47

RSVD38

K48

RSVD39

K24

RSVD40

H48

RSVD27

AG13

RSVD16

BA19 RSVD15

BA22

RSVD17

AY22

RSVD18

AY21

RSVD20

AU21 RSVD19

AV19

RSVD22

AT49 RSVD21

AU19

RSVD23

AT21

RSVD37

L42

RSVD8

BE7

RSVD9

BD26

RSVD11

BD22

RSVD12

BD21

RSVD13

BB21

RSVD14

BB19

RSVD32

N42

RSVD33

M14

RSVD10

BD25

RSVD5

BE26

VAXG_VAL_SENSE

H45

VSSAXG_VAL_SENSE

K45

VCC_VAL_SENSE

H43

VSS_VAL_SENSE

K43

VCC_DIE_SENSE F48

BCLK_ITP N59

BCLK_ITP# N58

RSVD31

N50 RSVD30

P13 RSVD29

U14 RSVD28

W14

RSVD24

AM15

RSVD25

AM14

RSVD1

BG26

RSVD2

BG22

RSVD3

BG7

RSVD4

BF23

RSVD6

BE24

RSVD7

BE22

RSVD26

AH2

RSVD36

L45

VSS_NCTF1 BG57

VSS_NCTF2 BG5

VSS_NCTF3 BE58

VSS_NCTF4 BE4

VSS_NCTF5 BD59

VSS_NCTF6 BD3

VSS_NCTF7 BC61

VSS_NCTF8 E61

VSS_NCTF9 E1

VSS_NCTF10 D59

VSS_NCTF11 C58

VSS_NCTF12 C3

VSS_NCTF13 A57

VSS_NCTF14 A5

DC_TEST_A4 A4

DC_TEST_A58 A58

DC_TEST_A59 A59

DC_TEST_A61 A61

DC_TEST_BD1 BD1

DC_TEST_BD61 BD61

DC_TEST_BE1 BE1

DC_TEST_BE3 BE3

DC_TEST_BE59 BE59

DC_TEST_BE61 BE61

DC_TEST_BG1 BG1

DC_TEST_BG3 BG3

DC_TEST_BG4 BG4

DC_TEST_BG58 BG58

DC_TEST_BG59 BG59

DC_TEST_BG61 BG61

DC_TEST_C4 C4

DC_TEST_C59 C59

DC_TEST_C61 C61

DC_TEST_D1 D1

DC_TEST_D3 D3

DC_TEST_D61 D61

SB_VR EFDQ

Ivy/Sandy Bridge Processor 7/7

( RESERVED )

10mil

Sheet 8 of 44

Processor 7/7

Schematic Diagrams

B - 10 DDR3 SO-DIMM_0

B.Schematic Diagrams

DDR3 SO-DIMM_0

C705

22u_6.3V_X5R_08

0627 D02

0627 D02

1.5V

C103

1u_6.3V_X5R_04

C92 1u_6.3V_X5R_04

C61

*1u_6.3V_X5R_04

C55

*10u_6.3V_X5R_06

C84

*1u_6.3V_X5R_04

C64

*10u_10V_Y5V_08

C70

1u_6.3V_X5R_04

C46

*1u_6.3V_X5R_04

C57

*10u_10V_Y 5V_08

C40

*1u_6.3V_X5R_04

C23 0.1u_10V_X5R_04

C111

10u_6.3V_X5R_06

C91 0.1u_10V_X5R_04

0627 D02

+

C347

560u_2.5V_6.6*6. 6* 5. 9

C370

*10u_10V_Y5V_08

MVREF_DQ_D IM0

C47

0.1u_10V_X5R_04

1.5V

C52

*0.1u_10V_X5R_04

C86

0.1u_10V_X5R_04

C50

0.1u_10V_X5R_04

C37

0.1u_10V_X5R_04

C49

*0.1u_10V_X5R_04

C51

*0.1u_10V_X5R_04

C82

0.1u_10V_X5R_04

C48

*0.1u_10V_X5R_04

C68

0.1u_10V_X5R_04

SO-DIMM A

M_A_DQ2

M_A_DQ1

M_A_DQ31

M_A_DQ30

M_A_DQ29

M_A_DQ4

M_A_DQ3

M_A_DQ37

M_A_DQ36

M_A_DQ35

M_A_DQ34

M_A_DQ33

M_A_DQ32

M_A_DQ43

M_A_DQ42

M_A_DQ41

M_A_DQ40

M_A_DQ39

M_A_DQ38

M_A_DQ47

M_A_DQ46

M_A_DQ45

M_A_DQ44

M_A_DQ52

M_A_DQ51

M_A_DQ28

M_A_DQ50

M_A_DQ49

M_A_DQ5

M_A_DQ48

M_A_DQ55

M_A_DQ54

M_A_DQ53

M_A_DQ61

M_A_DQ60

M_A_DQ58

M_A_DQ57

M_A_DQ56

M_A_DQ6

M_A_DQ8

M_A_DQ7

M_A_DQ59

M_A_DQ63

M_A_DQ62

M_A_DQ14

M_A_DQ13

M_A_DQ12

M_A_DQ11

M_A_DQ9

M_A_DQ17

M_A_DQ16

M_A_DQ15

M_A_DQ21

M_A_DQ10

M_A_DQ19

M_A_DQ18

M_A_DQ25

M_A_DQ24

M_A_DQ23

M_A_DQ0

M_A_DQ22

M_A_DQ20

M_A_DQ27

M_A_DQ26

CHANGE TO STANDARD

C106

1u_6.3V_X5R_04

C104

1u_6.3V_X5R_04

VTT_MEM

C105

*1u_6.3V_X5R_04

R124 *10K_04

R103

1K_1%_04

R94 1K_1%_04

CLOSE TO JDIMM2

1.5V MVR E F _C A _D I M0

JDIMM2A

DDRSK-20401-TR5B

A0

98

A1

97

A2

96

A3

95

A4

92

A5

91

A6

90

A7

86

A8

89

A9

85

A10/AP

107

A11

84

A12/BC#

83

A13

119

A14

80

A15

78

DQ0 5

DQ1 7

DQ2 15

DQ3 17

DQ4 4

DQ5 6

DQ6 16

DQ7 18

DQ8 21

DQ9 23

DQ10 33

DQ11 35

DQ12 22

DQ13 24

DQ14 34

DQ15 36

DQ16 39

DQ17 41

DQ18 51

DQ19 53

DQ20 40

DQ21 42

DQ22 50

DQ23 52

DQ24 57

DQ25 59

DQ26 67

DQ27 69

DQ28 56

DQ29 58

DQ30 68

DQ31 70

DQ32 129

DQ33 131

DQ34 141

DQ35 143

DQ36 130

DQ37 132

DQ38 140

DQ39 142

DQ40 147

DQ41 149

DQ42 157

DQ43 159

DQ44 146

DQ45 148

DQ46 158

DQ47 160

DQ48 163

DQ49 165

DQ50 175

DQ51 177

DQ52 164

DQ53 166

DQ54 174

DQ55 176

DQ56 181

DQ57 183

DQ58 191

DQ59 193

DQ60 180

DQ61 182

DQ62 192

DQ63 194

BA0

109

BA1

108

RAS#

110

WE#

113

CAS#

115

S0#

114

S1#

121

CKE0

73

CKE1

74

CK0

101

CK0#

103

CK1

102

CK1#

104

SDA

200 SCL

202 SA1

201 SA0

197

DM0

11

DM1

28

DM2

46

DM3

63

DM4

136

DM5

153

DM6

170

DM7

187

DQS0

12

DQS1

29

DQS2

47

DQS3

64

DQS4

137

DQS5

154

DQS6

171

DQS7

188

DQS0#

10

DQS1#

27

DQS2#

45

DQS3#

62

DQS4#

135

DQS5#

152

DQS6#

169

DQS7#

186

ODT0

116

ODT1

120

BA2

79

C101

1u_6.3V_X5R_04

JDIMM2B

DDRSK-20401-TR5B

VDD1

75

VDD2

76

VDD3

81

VDD4

82

VDD5

87

VDD6

88

VDD7

93

VDD8

94

VDD9

99

VDD10

100

VDD11

105

VDD12

106

VDDSPD

199

NC1

77

NC2

122

NCTEST

125

VREF_DQ

1

VSS1

2

VSS2

3

VSS3

8

VSS4

9

VSS5

13

VSS6

14

VSS7

19

VSS8

20

VSS9

25

VSS10

26

VSS11

31

VSS12

32

VSS13

37

VSS14

38

VSS15

43

VSS16 44

VSS17 48

VSS18 49

VSS19 54

VSS20 55

VSS21 60

VSS22 61

VSS23 65

VSS24 66

VSS25 71

VSS26 72

VSS27 127

VSS28 128

VSS29 133

VSS30 134

VSS31 138

VSS32 139

VSS33 144

VSS34 145

VSS35 150

VSS36 151

VSS37 155

VSS38 156

VSS39 161

VSS40 162

VSS41 167

VSS42 168

VSS43 172

VSS44 173

VSS45 178

VSS46 179

VSS47 184

VSS48 185

VSS49 189

VSS50 190

VSS51 195

VSS52 196

G2 GND2

G1 GND1

VTT2 204

VTT1 203

VREF_CA

126

RESET#

30 EVENT#

198

VDD13

111

VDD14

112

VDD16

118 VDD15

117

VDD17

123

VDD18

124

3.3VS

3.3VS

1.5V

VTT_MEM

M_A_RAS#[4]

M_A_BS1[4]

M_A_CLK_DDR1[4] M_A_CLK_DDR#1[4]

DDR3_DRAMRST#[3,10]

M_A_OD T1[4]

M_A_BS0[4]

M_A_WE#[4]

M_A_CAS#[4]

M_A_CKE0[4]

M_A_CLK_DDR0[4]

VTT_MEM[10, 34]

M_A_OD T0[4]

M_A_DQ[63:0] [4]

M_A_CKE1[4]

M_A_BS2[4]

3.3VS[3,10,11,12, 13,14,15,16, 17,18,19,20, 23,24,25,28, 29, 30,31,32,37]

M_A_CLK_DDR#0[4]

M_A_CS#1[4]

M_A_DQS[7:0][4]

TS#_DI MM0_ 1[10]

M_A_CS#0[4]

M_A_A[ 15:0][4]

M_A_DQS#[7:0][4]

1.5V[3,6,10,20,32,34]

MVREF _CA_DIM0

20mils

SMB_CLK[10,14] SMB_DATA[10,14]

SA0_DIM0

SA1_DIM0

SA1_DI M1 [10]

SA0_DI M1

SA1_DI M1

SA0_DI M0

SA1_DI M0 SA0_DIM1 [10]

RN2

10K_8P4R_04

1

2

3

4 5

6

7

8

3.3VS

M_A_A8

M_A_A9

M_A_A2

M_A_A3

M_A_A4

M_A_A6

M_A_A5

M_A_A7

M_A_A13

M_A_A14

M_A_A15

M_A_A0

M_A_A1

0627 D02

M_A_A10

M_A_A12

M_A_A11

M_A_DQS1

M_A_DQS0

M_A_DQS2

M_A_DQS4

M_A_DQS3

M_A_DQS5

M_A_DQS6

M_A_DQS#1

M_A_DQS#0

M_A_DQS7

M_A_DQS#4

M_A_DQS#3

M_A_DQS#2

M_A_DQS#5

M_A_DQS#7

M_A_DQS#6

C102

0.1u_16V_Y5V_04

0627 D02

C24 1u_6.3V_X5R_04

R38

1K_1%_04

1.5V

R31

1K_1%_04

Sheet 9 of 44

DDR3 SO-DIMM_0

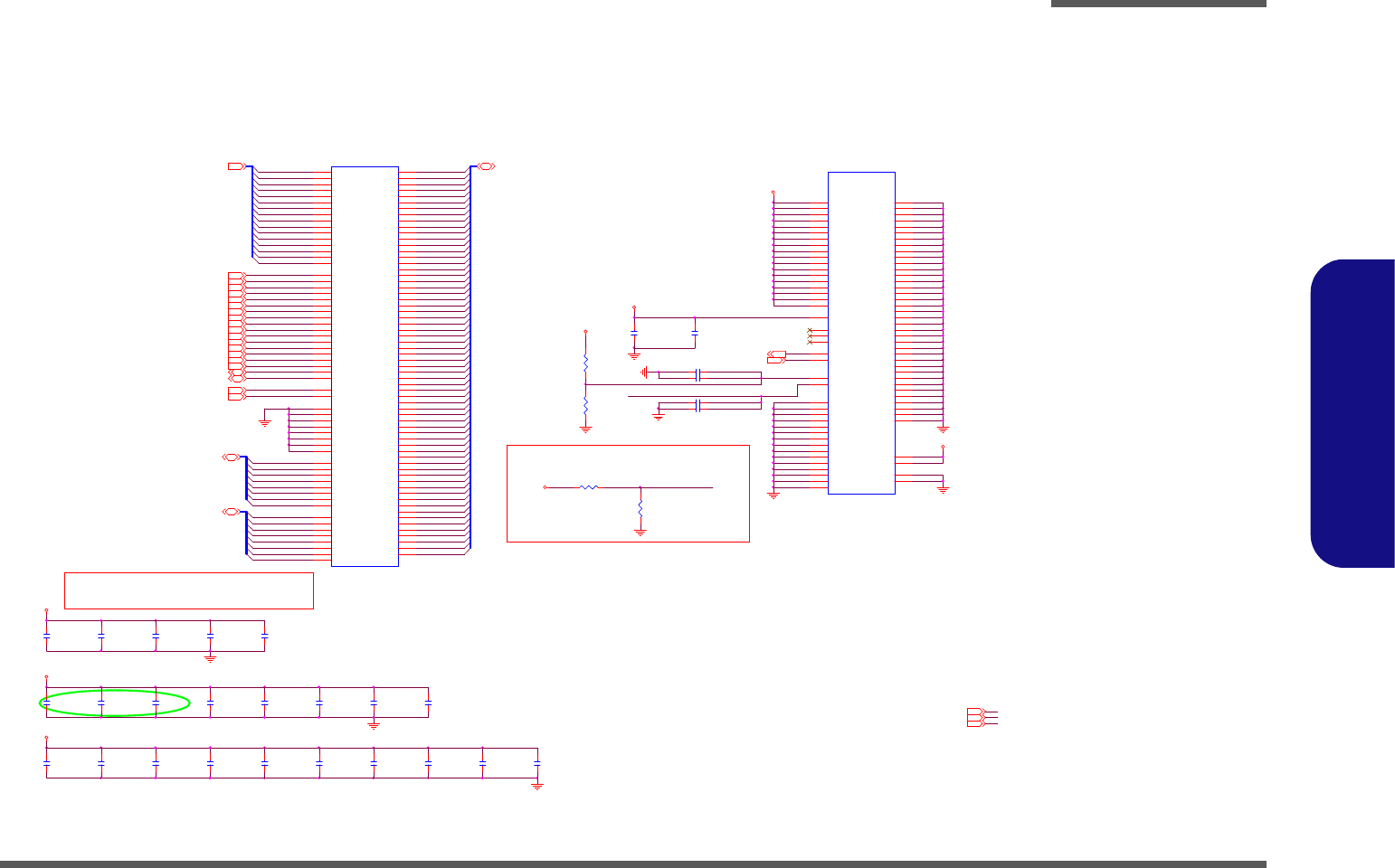

MV RE F _C A_ D I M1

CHANGE TO STANDARD

SO-DIMM B

M_B_D Q31

M_B_D Q46

M_B_D Q24

M_B_D Q56

M_B_D Q28

M_B_D Q11

M_B_D Q1

M_B_D Q16

M_B_D Q23

M_B_D Q61

M_B_D Q13

M_B_D Q40

M_B_D Q54

M_B_D Q62

M_B_D Q58

M_B_D Q50

M_B_D Q41

M_B_D Q57

M_B_D Q37

M_B_D Q60

M_B_D Q2

M_B_D Q5

M_B_D Q25

M_B_D Q30

M_B_D Q27

M_B_D Q44

M_B_D Q17

M_B_D Q3

M_B_D Q7

M_B_D Q9

M_B_D Q34

M_B_D Q59

M_B_D Q35

M_B_D Q36

M_B_D Q47

M_B_D Q43

M_B_D Q38

C25 0.1u_10V_X5R_04

M_B_D Q63

M_B_D Q33

M_B_D Q42

M_B_D Q8

M_B_D Q15

M_B_D Q4

M_B_D Q26

M_B_D Q45

M_B_D Q48

M_B_D Q55

M_B_D Q29

M_B_D Q10

M_B_D Q52

M_B_D Q53

C107

*1u_6.3V_X5R_04

C109

1u_6.3V_X5R_04

M_B_D Q12

C43

0.1u_10V_X5R_04

M_B_D Q6

M_B_D Q19

M_B_D Q18

M_B_D Q0

C108

1u_6.3V_X5R_04

VTT_MEM

M_B_D Q21

M_B_D Q20

M_B_D Q39

M_B_D Q49

M_B_D Q51

M_B_D Q14

M_B_D Q22

M_B_D Q32

M_B_B5

M_B_B1

M_B_B2

M_B_B3

M_B_B4

M_B_B6

M_B_B9

M_B_B10

M_B_B11

M_B_B13

M_B_B12

M_B_B0

20mils

M_B_B14

M_B_B7

M_B_B8

SA1_DI M1

JDIMM1B

DDRSK-20401-TR9D

VDD1

75

VDD2

76

VDD3

81

VDD4

82

VDD5

87

VDD6

88

VDD7

93

VDD8

94

VDD9

99

VDD10

100

VDD11

105

VDD12

106

VDDSPD

199

NC1

77

NC2

122

NCTEST

125

VREF_DQ

1

VSS1

2

VSS2

3

VSS3

8

VSS4

9

VSS5

13

VSS6

14

VSS7

19

VSS8

20

VSS9

25

VSS10

26

VSS11

31

VSS12

32

VSS13

37

VSS14

38

VSS15

43

VSS16 44

VSS17 48

VSS18 49

VSS19 54

VSS20 55

VSS21 60

VSS22 61

VSS23 65

VSS24 66

VSS25 71

VSS26 72

VSS27 127

VSS28 128

VSS29 133

VSS30 134

VSS31 138

VSS32 139

VSS33 144

VSS34 145

VSS35 150

VSS36 151

VSS37 155

VSS38 156

VSS39 161

VSS40 162

VSS41 167

VSS42 168

VSS43 172

VSS44 173

VSS45 178

VSS46 179

VSS47 184

VSS48 185

VSS49 189

VSS50 190

VSS51 195

VSS52 196

G2 GND2

G1 GND1

VTT2 204

VTT1 203

VREF_CA

126

RESET#

30 EVENT#

198

VDD13

111

VDD14

112

VDD16

118 VDD15

117

VDD17

123

VDD18

124

JDIMM1A

DD RSK-20401-TR9D

A0

98

A1

97

A2

96

A3

95

A4

92

A5

91

A6

90

A7

86

A8

89

A9

85

A10/AP

107

A11

84

A12/BC#

83

A13

119

A14

80

A15

78

DQ0 5

DQ1 7

DQ2 15

DQ3 17

DQ4 4

DQ5 6

DQ6 16

DQ7 18

DQ8 21

DQ9 23

DQ10 33

DQ11 35

DQ12 22

DQ13 24

DQ14 34

DQ15 36

DQ16 39

DQ17 41

DQ18 51

DQ19 53

DQ20 40

DQ21 42

DQ22 50

DQ23 52

DQ24 57

DQ25 59

DQ26 67

DQ27 69

DQ28 56

DQ29 58

DQ30 68

DQ31 70

DQ32 129

DQ33 131

DQ34 141

DQ35 143

DQ36 130

DQ37 132

DQ38 140

DQ39 142

DQ40 147

DQ41 149

DQ42 157

DQ43 159

DQ44 146

DQ45 148

DQ46 158

DQ47 160

DQ48 163

DQ49 165

DQ50 175

DQ51 177

DQ52 164

DQ53 166

DQ54 174

DQ55 176

DQ56 181

DQ57 183

DQ58 191

DQ59 193

DQ60 180

DQ61 182

DQ62 192

DQ63 194

BA0

109

BA1

108

RAS#

110

WE#

113

CAS#

115

S0#

114

S1#

121

CKE0

73

CKE1

74

CK0

101

CK0#

103

CK1

102

CK1#

104

SDA

200 SCL

202 SA1

201 SA0

197

DM0

11

DM1

28

DM2

46

DM3

63

DM4

136

DM5

153

DM6

170

DM7

187

DQS0

12

DQS1

29

DQS2

47

DQS3

64

DQS4

137

DQS5

154

DQS6

171

DQS7

188

DQS0#

10

DQS1#

27

DQS2#

45

DQS3#

62

DQS4#

135

DQS5#

152

DQS6#

169

DQS7#

186

ODT0

116

ODT1

120

BA2

79

R98

1K_1%_04

C416

1u_6.3V_X5R_04

R97 1K_1%_04

CLOSE TO JDIMM1

1.5V

M_B_B15

1.5V

VTT_MEM

3.3VS

DDR3_DRAMRST#[3,9]

3.3VS[3,9,11,12,13, 14,15,16,17,18,19, 20,23,24,25,28,29,30,31, 32, 37]

M_B_DQ[63:0] [4]

TS# _D I MM0_ 1[9]

VTT_MEM[9,34]

M_B_BS1[4]

M_B_CLK_DDR1[4]

M_B_ B [ 1 5: 0][4]

SMB_CLK[9,14]SMB_DATA[9,14]

M_B _R AS#[4] M_B _W E #[4]

M_B _C AS#[4]

M_B_CLK_DDR#1[4]

M_B_BS2[4]

M_B_CKE0[4]

M_B_CLK_DDR0[4]

M_B_BS0[4]

M_B_CLK_DDR#0[4]

M_B_C S#1[4]

M_B_CKE1[4]

M_B_ODT0[4] M_B_ODT1[4]

M_B_C S#0[4]

M_B_DQS#[7:0][4]

M_B_DQS[7:0][4]

1.5V[3, 6,9, 20,32,34]

M_B_DQS2

M_B_DQS1

M_B_DQS0

M_B_DQS7

M_B_DQS6

M_B_DQS5

M_B_DQS4

M_B_DQS3

M_B_DQS#5

M_B_DQS#4

M_B_DQS#3

M_B_DQS#2

M_B_DQS#1

M_B_DQS#0

M_B_DQS#7

M_B_DQS#6

Layout Note:

SO-DIMM_1 is placed farther from the GMCH than SO-DIMM_0

C44

1u_6.3V_X5R_04

C39

1u_6.3V_X5R_04

C83

1u_6.3V_X5R_04

1.5V

C76

1u_6. 3V_X5R_04

1.5V

C75

0.1u_10V_X5R_04

SA1_DIM1[9] SA0_DIM1[9]

MV RE F _C A _D I M1

SA0_DI M1

0627 D02

C42

0.1u_10V_X5R_04

C45

0.1u_10V_X5R_04

C88 0.1u_10V_X5R_04

C38

0.1u_10V_X5R_04

R28

1K_1%_04

1.5V C415

0.1u_16V_Y5V_04

C35

0.1u_10V_X5R_04

R29

1K_1%_04

C78

22u_6.3V_X5R_08

C379

*10u_10V_Y 5V_08

C380

*10u_10V_Y5V_08

C85

0.1u_10V_X5R_04

MVREF_D Q_DIM1

C36

0.1u_10V_X5R_04

C73

1u_6.3V_X5R_04

C26 1u_6.3V_X5R_04

C110

1u_6. 3V_X5R_04

C81

0.1u_10V_X5R_04

C89 1u_6.3V_X5R_04

C112

*10u_6.3V_X5R_06

C41

0.1u_10V_X5R_04

Sheet 10 of 44

DDR3 SO-DIMM_1

Schematic Diagrams

DDR3 SO-DIMM_1 B - 11

B.Schematic Diagrams

DDR3 SO-DIMM_1

Schematic Diagrams

B - 12 LVDS, Inverter

B.Schematic Diagrams

LVDS, Inverter

Sheet 11 of 44

LVDS, Inverter

ALL_SYS_PWRGD[15,28,37]

INV_BLON

R280

100K_04

U16B

74LVC08PW

4

56

147

C214

*0.1u_16V_Y5V_04

U16C

74LVC08PW

9

10 8

147

U16A

74LVC08PW

1

23

147

3.3V3.3V

BLON[16]

3.3V

BKL_EN[28]

W24x/W25x HD

R268 *100K_04

BLON

R267 100K_04

BKL_EN

C213

*0.1u_16V_Y5V_04

C673

10u_10V_Y5V_08

EMB_HPD

PJ30 *OPEN_2mm

12

INV_BLON

LVDS-L0N

LVDS-L2P

LVDS-L2N

LVDS-L0P

J_LCD2

87216-3006

1

122

3

344

5

566

7

788

9

910 10

11

11 12 12

13

13 14 14

15

15 16 16

17

17 18 18

19

19 20 20

21

21 22 22

23

23 24 24

25

25 26 26

27

27 28 28

29

29 30 30

VLED

P_DDC_DATA

C520

0.1u_16V_Y5V_04

BRIGHTNESS

LVDS-L1P

LVDS-L1N

2A

LVDS-LCLKP

LVDS-LCLKN

P_DDC_CLK

LVDS-UCLKP

LVDS-UCLKN

R810

100K_04

NB_ENAVDD[16,28]

U53

G5243A

EN

3

VIN

5

VIN/SS

4

VOUT 1

GND 2

NB_ENAVDD

C700

*1u_6.3V_X5R_04

L71

*HCB1608KF-121T25_28mil_short

C699

1u_6.3V_X5R_04

3.3VS_LCD

PLVDD

2A

C519

10u_10V_Y5V_08

LVDS-U0P

LVDS-U0N

J_LCD1

*87216-4006

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

31

33

35

37

39

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

32

34

36

38

40

G1

G1

G2

G2

3.3VS[3,9,10,12,13,14,15,16,17,18,19,20,23,24,25,28,29,30,31,32,37]

BRIGHTNESS [28]

SYS15V[32,33,35]

VIN[32,33,34,35,36,37,38,39] 3.3V[2,3,6,13,14,15,17,18,19,20,22,23,26,28,32,34,35,36]

LVDS-L1N[16] LVDS-L1P[16]

VLED

LVDS-L0P

LVDS-L0N

LVDS-L1N

INVERTER CONNECTOR

LVDS-LCLKP

LVDS-LCLKN

LVDS-L1P

LVDS-L2P [16]

LVDS-L2N [16]

Q63

*2SK3018S3

G

DS

Q47

*MEP4435Q8

4

62 5

73

1

8

LVDS-U2N

LVDS-U1N

LVDS-U1P

S

D

G

Q59B

*MTDK5S6R

5

3

4

2A

LVDS-L2N

INV_BLON

LVDS-U2P

S

D

G

Q59A

*MTDK5S6R

2

6

1

P_DDC_DATA

LVDS-L2P

BRI GHTNESS

NB_ENAVDD

P_DDC_CLK

R653

*10K_04

LVDS-LCLKN[16]

LVDS-L0P[16] LVDS-L0N[16]

R652

*4.7K_06

LVDS-LCLKP[16]

3.3V

NB_ENAVDD#

LVDS-UCLKP

LVDS-UCLKN

C640

*0.22u_50V_Y5V_06

VLED

R654

*1M_04

NB_ENAVDD

R655 *100K_04

VIN

C517

0.1u_50V_Y5V_06

R815 *0_04

P_DDC _DATA [16]

3A

U13

*74AHC1G08GW

1

2

5

4

3

3.3V

U16D

74LVC08PW

12

13 11

147

3.3VS

1A

PLVDD

40Pin

LID_SW#[28,31]

5VS[12,13,20,25,30,31,32,37]

R266 * 100K_04

SB_BLON[18]

PLT_RST#[3,17,23]

3A

C665

*0.1u_50V_Y5V_06

P_DDC_CLK [16]

R245

100K_04

BUF_PLT_RST# [22,24,26,28]

PLT_RST# Buffer

W25x/W27x HD+/FHD

30Pin

R9

2.2K_04

R10

2.2K_04

LVDS-U1N

LVDS-U1P

30 pin & 40 pin co-layout

for LED panel

¥Î40pin connector®É, -n±N30pin connector¤¤¶¡©T©wpin pad¿ûªO¶K±¼

C703

*0.1u_16V_Y5V_04

3.3VS_LCD

3.3V

EMB_HPD

EMB_HPD

LVDS-U0N

LVDS-U0P

C518

0.1u_16V_Y5V_04

R814 0_04

C664

*0.1u_50V_Y5V_06

LVDS-U2P

LVDS-U2N

1A

PLVDD

LVDS-U2N[16] LVDS-U2P[16]

LVDS-U1P[16] LVD S-U0N[16] LVDS-U0P[16]

LVDS-UCLKP[16] LVDS-UCLKN[16]

LVDS-U1N[16]

3.3VS_LCD

PANEL CONNECTOR

2A

3.3VS_LCD

Sheet 12 of 44

HDMI, CRT

Schematic Diagrams

HDMI, CRT B - 13

B.Schematic Diagrams

HDMI, CRT

R820

2.2K_04

HDMI PORT

3.3VS

5VS[13,20,25,30,31,32,37] 3.3VS[3, 9,10,11,13,14,15, 16, 17,1 8,19,20,23 ,24, 25, 28, 29,30,3 1,3 2,37]

R734 *20mil_04

R735 *20mil_04

C349

22u_6. 3V_X5R_08

R821

2.2K_04

C1270.1u _10V_X7R_04 HDMIB_D0BP_C [16]

D26 RB751S-40C2

AC

5VS_CRT 5VS

C711

0.1u_16V_Y5V_04

C712

0.1u_16V_Y5V_04

C713

*0.1u_16V_Y5V_04

C338

0.1u_16V_Y5V_04

3.3VS

S

D

G

Q74A

MTDK5S6R

2

6

1

HD MI_C TRLDATA[16]

HDMI_C TRLCLK[16]

PORTC_HPD[16]

R737 *20mil_04

R736 *20mil_04

C348

*10u_ 6.3V_X5R_08

0713 D02

J_CRT1

108AH 15F ST04A1C C

8

7

6

5

4

3

2

19

10

11

12

13

14

15

GND2

GND1

RED

DDCDATA

DDCLK

VSYNC

HSYNC

GRN

BLUE

C7 1000p_50V_X7R _04

C15 1000p_50V_X7R _04

L4 *10mil_04

C9 220p_50V_N PO_04

C11 220p_50V_NPO_04

C17 *10p_50V_NPO_04

C18 10p_50V _NPO_04

C14 10p_50V_ NPO_04

C13 *10p_50V_NPO_04

C19 10p_50V_NPO_04

C21 *10p_50V_NPO_04

6-19-31001-264

C16 22p_50V_N PO_04

C12 22p_50V_NPO_04

C20 22p_50V_N PO_04

.

L8 FC M1005MF-600T01

.

L5 FC M1005MF-600T01

.

L3 FC M1005MF-600T01

DAC_RED[ 16]

DAC_BLUE[16] D AC_GREEN[ 16]

R14 150_1%_04

R13 150_1%_04

R15 150_1%_04

6-20-14X30-015

R658 1M_04

HDMIB_EXT1_SCL

HDMI_HPD-CPORTC_HPD Q55

2SK3018S3

G

DS

HDMI _CTRLC LK

HDMIB_EXT1_SDA

R656 2.2K_04

3.3VS

R657 2.2K_04

HDMI _CTRLD ATA

L7 *10mil_04

3.3VS

HD MIB_EXT1_SDA

HD MIB_EXT1_SCL

RD1

*BAV99 RECTIFIER

A

C

AC

HDMI_HPD-C

RD3

*BAV99 RECTIFI ER

A

C

AC

RD2

*BAV99 RECTIFIER

A

C

AC

For ESD

R403

2.2K_04

R404

2.2K_04

5VS_HDMI

0606 D02

5VS

5VS

R665680_04 R 666680_04

R663680_04 R 664680_04

TMDS_ DATA1# TMDS_DATA0

Q56

2SK3018S3

G

DS

0606 D02

5VS_HDMI_IN

HDMIB_EXT1_SCL

HDMI_CEC

HDMIB_EXT1_SDA

HDMI_HPD-C

HDMI_INTEL

TMDS_DATA0#

HDMI_INTEL

J_HDMI1

C12817-119A5-L

SHIELD2

2

TMDS DATA1+

4

TMDS DATA1-

6

SHIELD0

8

TMDS CLOCK+

10

TMDS CLOCK-

12

RESER VED

14

SDA

16

+5V

18

TMDS DATA2+ 1

TMD S D ATA2 - 3

SHIELD 1 5

TMDS DATA0+ 7

TMD S D ATA0 - 9

CLK SHIELD 11

CEC 13

SCL 15

DDC/CEC GND 17

HOT PLUG DETECT 19

GND

GND1

GND

GND2

GND

GND3

GND

GND4

0606 D02

HDMIB_DATA0P

TMDS_ DATA1

HDMIB_DATA0N

5VS_HDMI

HDMIB_DATA2N

HDMIB_DATA2P

TMDS_CLOCK#

TMDS_CLOCK

TMDS_DATA2#

R401 1_04

TMDS_DATA2

R661680_0 4 R662680_04

R659680 _04 R660680_04

TMDS_CL OCK

TMDS_CLOCK#

TMDS_DATA1# HDMIB_DATA1N

HDMIB_DATA1P

HDMIB_CLOCKN

HDMIB_CLOCKP

R822

2.2K_04

TMDS_DATA1

R823

2.2K_04

R373 33_04

R372 33_04

CRT PORT

U33

TPD 7S0 19

VCC _SY N C

1

VCC _VIDEO

2

VID EO_1 3

VID EO_2 4

VID EO_3 5

GND 6

VCC _DDC

7

BYP

8

DDC_OUT1 9

DDC_IN1

10

DDC_IN2

11 DDC_OUT2 12

SYNC_I N1

13 SYNC_OUT1 14

SYNC_I N2

15 SYNC_OUT2 16

S

D

G

Q74B

MTDK5S6R

5

3

4

C311

0.22u_10V_Y5V_04

C312

0.22u_10V_Y5V_04

C313

0.22u_10V_Y5V_04

3.3VS

3.3VS

5VS_CRT

CRT_HSYNC

RED

BLUE

GRN

DDCDATA

HSYNC

VSYNCCRT_VSYNC

DAC_VSYNC[ 16]

DAC_HSYNC[16]

DDCLK

DAC_DDCACLK[16]

DAC_DDCADATA[ 16]

R731 * 20m il_04

R730 * 20m il_04

C1250.1u _10V_X7R_04

C1380.1u _10V_X7R_04

C1410.1u _10V_X7R_04

HDMIB_D1BN_C [16]

HDMIB_D2BN_C [16]

HD MIB_D1BP_C [16]

HD MIB_D2BP_C [16]

HDMIB_CLKBN_C [16]

HDMIB_D0BN_C [16]

HD MIB_CLKBP_C [16]

C1370.1u_1 0V_X7R_04

C1240.1u _10V_X7R_04

C1400.1u _10V_X7R_04

C1260.1u _10V_X7R_04

R732 * 20m il_04

D30

RB551V-30S2

AC

R733 * 20m il_04

R55 20 K_1%_04

L6 *10mil_04

Schematic Diagrams

B - 14 PantherPoint - M 1/9

B.Schematic Diagrams

PantherPoint - M 1/9

5VS

J_RTC2

BHKB7410AP2PT

-

2+1

R763 33_04

SPI_* = 1.5"~6.5"

R458

*51_04

SPI_CS1#_R

R765 33_04

HDA_RST#_R

SRTC_RST#

3.3VS

ME ROM

SATA HDD

R294

3.3K_1%_04

HDA_SYNC [30]

HDA_RST# [30]

16Mbit

HDA_SDOUT [30]

HDA_BITCLK [30]

R291

3.3K_1%_04

SPI_WP#

SPI_HOLD#

Flash Descriptor Security Overide

U17

MX25L1606EM2I-12G

PCB Footprint = M-SOP8B

CE# 1

SO 2

WP#

3

VSS 4

SI 5

SCK 6

HOLD#

7

VDD

8

HDA_SDOUT

SATA ODD

VDD3

RTCVCC

HIGH = Enable

LOW = Disable

3.3VS

3.3VS

R445 *10K_04

GPIO21

SATA_LED#

R236

1M_04

R183 10K_04

Zo=

50£[¡Ó15%

RTCVCC

1.05VS

1.05VS

20mil

20mil

20mil

PCH_JTAG_TMS

SPI_CS0#_R

RTC_RST#

RTC_X2

PCH_JTAG_TDI

PantherPoint - M

(HDA,JTAG,SATA)

PCH_JTAG_TDO

SPI_SCLK_R

SPI_SI

NO REBOOT STRAP: HDA_SPKR High Enable

iTPM ENABLE/DISABLE

TPM FUNCTION:SPI_SI High Enable

HDA_SPKR

HDA_SPKR

SPI_SI_R

RTC CLEAR

SATA_LED# [29]

HDA_SPKR[30]

HDA_SDIN0[30]

Q57

2SK3018S3

G

D S

SATA_LED#

R235 330K_04

SPI_SO_R

R476

1K_04

3.3VS

R478

10M_04

R168 10K_04

LPC_AD0 [23,28]

SATAICOMP

SERIRQ

JOPEN1

*OPEN_1mm

12

LPC_AD1 [23,28]

R195 *1K_04

R167 *1K_04

X13

MC-306_32.768KHz

14

3 2

R816

*20mil_04

R172 37.4_1%_04

LPC_AD2 [23,28]

R477

20K_1%_04

R237

20K_1%_04

3.3V[2,3,6,11,14,15,17,18,19,20,22,23,26,28,32,34,35,36]

LPC_AD3 [23,28]

3.3VS[3,9,10,11,12,14,15,16,17,18,19,20,23,24,25,28,29,30,31,32,37]

VDD3[22,23,24,26,28,31,32,33,39]

NO REBOOT STRAP

3.3A_1.5A_HDA_IO[20]

5VS[12,20,25, 30,31,32,37]

LPC_FR AME# [ 23,28]

1.05VS[14,15,19,20,35,37]

SERIRQ [23,28]

SATATXN0 [ 25]

SATAR XP0 [25]

SATAR XN0 [25]

SATATXP0 [25]

RTC_VBAT1

R432 750_1%_04

R171 49.9_1%_04

BBS_BIT0 [17]

RBIAS_SATA3

SPI_SCLK_R[28]

RTC_VBAT_1

C

A

A

D17

BAT54CS3

1

23

SPI_SCLK

GPIO21

PCH_INTVRMEN

SM_INTRUDER#

SPI_SO

SPI_SI

SPI_CS0#

SATA3COMP

PCH_JTAG_TCK_BUF

RTC_X1

HDA_SYNC_L

RTCIHDA

SATA

LPC

SPI JTAG

SATA 6G

U37A

BD82NM70

RTCX1

A20

RTCX2

C20

INTVRMEN

C17

INTRUDER#

K22

HDA_BCLK

N34

HDA_SYNC

L34

HDA_RST#

K34

HDA_SDIN0

E34

HDA_SDIN1

G34

HDA_SDIN2

C34

HDA_SDO

A36

SATALED# P3

FWH0 / LAD0 C38

FWH1 / LAD1 A38

FWH2 / LAD2 B37

FWH3 / LAD3 C37

LDRQ1# / GPIO23 K36

FWH4 / LFRAME# D36

LDRQ0# E36

RTCRST#

D20

HDA_SDIN3

A34

HDA_DOCK_EN# / GPIO33

C36

HDA_DOCK_RST# / GPIO13

N32

SRTCR ST#

G22

SATA0RXN AM3

SATA0RXP AM1

SATA0TXN AP7

SATA0TXP AP5

SATA1RXN AM10

SATA1RXP AM8

SATA1TXN AP11

SATA1TXP AP10

SATA2RXN AD7

SATA2RXP AD5

SATA2TXN AH5

SATA2TXP AH4

SATA3RXN AB8

SATA3RXP AB10

SATA3TXN AF3

SATA3TXP AF1

SATA4RXN Y7

SATA4RXP Y5

SATA4TXN AD3

SATA4TXP AD1

SATA5RXN Y3

SATA5RXP Y1

SATA5TXN AB3

SATA5TXP AB1

SATAIC OMPI Y10

SPI_C LK

T3

SPI_C S0#

Y14

SPI_C S1#

T1

SPI_MOSI

V4

SPI_MI SO

U3

SATA0GP / GPIO21 V14

SATA1GP / GPIO19 P1

JTAG_TCK

J3

JTAG_TMS

H7

JTAG_TDI

K5

JTAG_TDO

H1

SERI RQ V5

SPKR

T10

SATAIC OMPO Y11

SATA3COMPI AB13

SATA3RCOMPO AB12

SATA3RBIAS AH1

R238

*210_1%_04

R209

*100_1%_04

R223

*210_1%_04

R218

*210_1%_04

H DA_ SY NC _R

R211

*100_1%_04

3.3V

R459

*100_1%_04

PCH_JTAG_TMS

PCH_JTAG_TDO

PCH_JTAG_TCK_BUF

PCH_JTAG_TDI

3.3A_1.5A_HD A_IO

C465

1u_6.3V_X5R_04

C206

1u_6.3V_X5R_04

20mil

SPI_CS0#_R

C468

12p_50V_NPO_04

HDA_BI TCLK_R

R538 *10K_04

USB30_SMI#[26]

3.3V

C463

12p_50V_NPO_04

Ext USB3.0¡AGPIO13 = SMI#¡AR538 unstuff

Int USB3.0¡AGPIO13 pull high¡AR538 stuff

0712 D02

SPI_CS0#_R[28]

SPI_SO_R[28]

SPI_SI_R SPI_CS1#_R[28]

R224 1K_04

R670

1M_04

C221

0.1u_16V_Y 5V_04

RTCVCC[15,20]

SATAR XP4 [23]

SATAR XN4 [23]

SATATXP4 [23]

SATATXN4 [ 23]

R229 *10K_04

3.3VS

3.3A_1.5A_HDA_IO R269 *1K_04

SPI_SO_R

R230

*10K_04

BOARD_ID

Flash Descriptor

Security Overide

Low = Disabled-(Default)

High = Enabled

SPI_SI_R[28]

mSATA

R791 *10mil_04

HDA_SYNC_R

RN18

33_8P4R_04

1

2

3

4 5

6

7

8

HDA_SD OUT_R

ME_WE[28]

D12 RB751S-40C2

A C

HDA_SYNC_L

HDA_BITCLK_R

HDA_RST#_R

HDA_SDOUT_R

HM70/NM70 Disable (port 3)

SATAR XP2 [25]

SATAR XN2 [25]

SATATXP2 [25]

SATATXN2 [ 25]

HM70/NM70 Disable (port 1)

INTVRMEN- Integrated SUS 1.05V VRM Enable

High - Internal VRs /Low - External VRs

R764 33_04

SPI_SCLK_R

C466 1u_6.3V_X5R_04

Sheet 13 of 44

PantherPoint - M

1/9

Schematic Diagrams

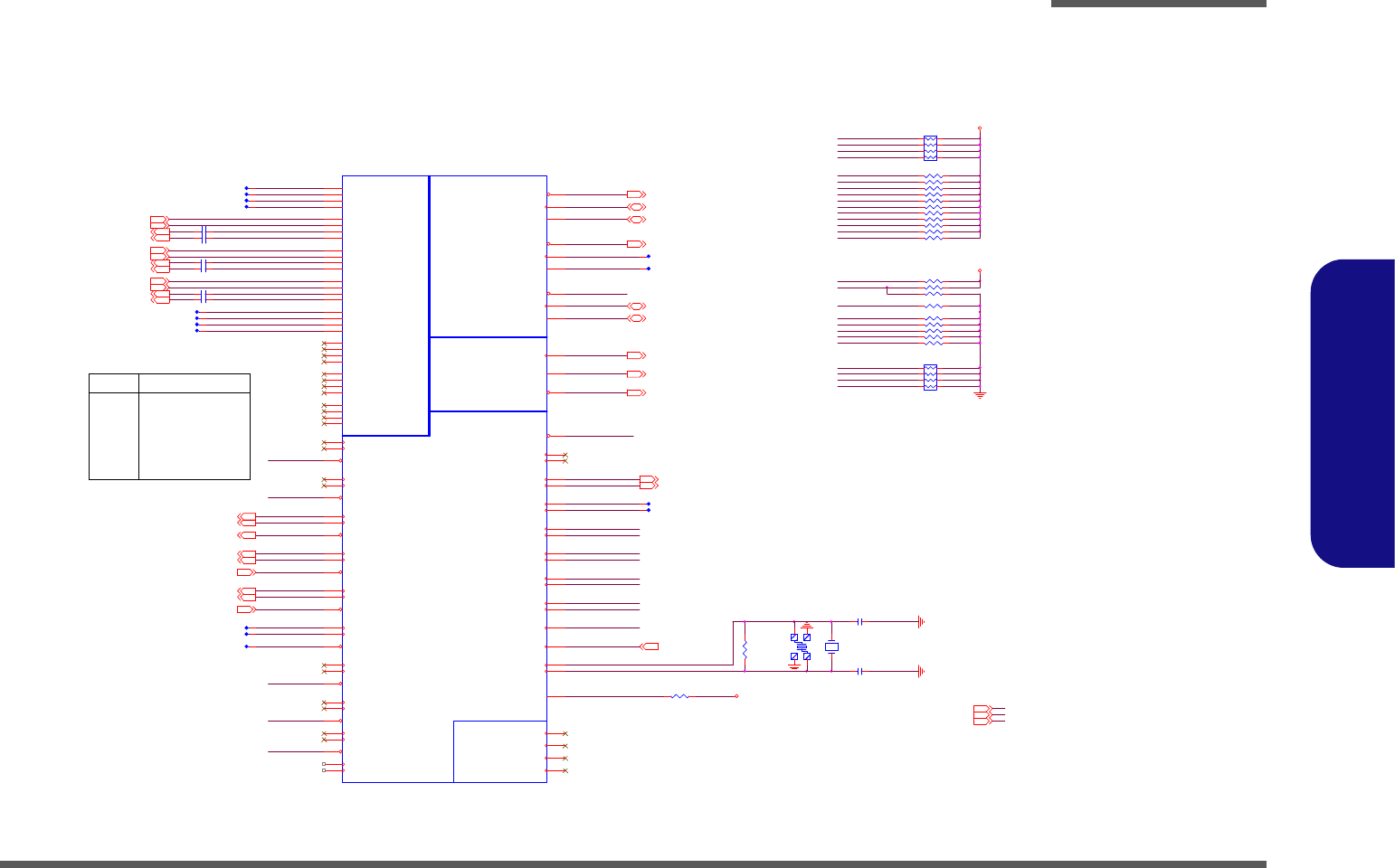

PantherPoint - M 2/9 B - 15

B.Schematic Diagrams

PantherPoint - M 2/9

3G_B_CLKRQ#

BT_SBD#

PCIECLKRQ0#

PCIE_RXN3_WLAN[22]

PCIE_TXN3_WLAN[22]

PCIE_RXN4_GLAN[24]

PCI E_TXP3_WLAN[22]

PCIE_RXP3_WLAN[22]

PCIE_RXP4_GLAN[24]

PCI E_TXP4_GLAN[24] PCIE_TXN4_GLAN[24]

C142 0.1u_10V_X7R_04

PCIE_TXN4_C

PCIE_TXP4_C

C143 0.1u_10V_X7R_04

C130 0.1u_10V_X7R_04

C129 0.1u_10V_X7R_04

PCIE_TXP3_C

PCIE_TXN3_C

SMB_DATA

R438

1M_04

CLK_BUF_CPYCLK_N

CLK_EXP_P [3]

DR AMRST_ CN TRL [ 3]

PantherPoint - M (PCI-E,SMBUS,CLK)

SML0_CLK

DRAMRST_CNTRL

SML0_DATA

1.05VS

XTAL25_IN

T71

CLK_PCI_FB [17]

XTAL25_OUT

T13

T12

T72

SMC_CPU_THERM

CLK_BUF_CPYCLK_P

R169 *10K_04

100MHz

100MHz

3.3VS

CLK_BUF_DOT96_N

SMD_CPU_THERM

XC L K_ R C O MP

LPD_SPI_INTR#

1.05VS[ 13,15,19,20,35,37]

CLK_PCIE_ICH

PCIECLKRQ1#

PCIECLKRQ7#

CLK_PCIE_ICH#

CLK_BUF_CPYCLK_P

CLK_BUF_DOT96_P

CLK_BUF_DOT96_N

CLK_BUF_CPYCLK_N

LAN_CLKREQ#

90.9-£[ ¡Ó1% pullup to

+VccIO

(1.05V, S0 rail)close to

PCH

R437 90.9_1%_04

CLK_SATA

CLK_SATA#

3.3V

CLK_BUF_DOT96_P

33MHz

14.318MHz

96MHz

100MHz

100MHz

Only PCIECLKRQ[2:1]# on PCH are core well powered.

All other PCIECLKRQx# are suspend well powered.

WLAN_CLKREQ#[22]

CLK_EXP_N [3]

PEG_B_CLKRQ#

CLK_PCIE_GLAN#[24]

CLK_PCIE_MINI[22] CLK_PCIE_MINI#[22]

CLK_PCIE_GLAN[24]

CLK_BUF_REF14

PCIE_RXN1

SMB_DATA [9,10]

PCIE_TXP1

PCIE_TXN1

PCIE_RXP1

SMB_CLK [9,10]

SMB_CLK

3.3VS[3,9,10,11,12, 13,15,16,17,18,19,20,23,24,25,28,29,30,31,32,37] 3.3V[2,3,6,11,13,15,17,18,19,20,22,23,26,28,32,34,35,36]

SMC_CPU_THERM [28]

PEG_CLKREQ#

SMD_CPU_THERM [28]

C447 22p_50V_NPO_04

C444 22p_50V_NPO_04

RN9

2.2K_8P4R_04

1

2

3

45

6

7

8

SMB_DATA

SMB_CLK

SML0_CLK

SML0_DATA

R212 *10K_04

PEG_CLKREQ#

X11

FSX5L_25MHZ

12

R541 *10K_04

CLK_PCI E_USB30#[26]

BT_SBD# [22]

PCIECLKRQ2#

PCIECLKRQ2#[26]

CLK_PCIE_USB30[26]

PCI E_TXN2_USB30[26] PCIE_RXP2_USB30[26] PCIE_TXN2_C

PCIE_TXP2_C

PCI E_TXP2_USB30[26]

PCIE_RXN2_USB30[26]

C131 *0.1u_10V_X7R_04

C132 *0.1u_10V_X7R_04 R262 *10K_04

3G_B_CLKRQ#

R742 10K_04

100MHz

PCIECLKRQ0#

R175 *10K_04

PCIECLKRQ1#

PCI-E*

CLOCKS

FLEX CLOCKS

SMBUSController

Link

U37B

BD82NM70

PERN1

BG34

PERP1

BJ34

PERN2

BE34

PERP2

BF34

PERN3

BG36

PERP3

BJ36

PERN4

BF36

PERP4

BE36

PERN5

BG37

PERP5

BH37

PERN6

BJ38

PERP6

BG38

PERN7

BG40

PERP7

BJ40

PERN8

BE38

PERP8

BC38

PETN1

AV32

PETP1

AU32

PETN2

BB32

PETP2

AY32

PETN3

AV34

PETP3

AU34

PETN4

AY34

PETP4

BB34

PETN5

AY36

PETP5

BB36

PETN6

AU36

PETP6

AV36

PETN7

AY40

PETP7

BB40

PETN8

AW38

PETP8

AY38

CLKOUT_PCIE0N

Y40

CLKOUT_PCIE0P

Y39

CLKOUT_PCIE1N

AB49

CLKOUT_PCIE1P

AB47

CLKOUT_PCIE2N

AA48

CLKOUT_PCIE2P

AA47

CLKOUT_PCIE3N

Y37

CLKOUT_PCIE3P

Y36

CLKOUT_PCIE4N

Y43

CLKOUT_PCIE4P

Y45

CLKOUT_PCIE5N

V45

CLKOUT_PCIE5P

V46

CLKIN_GND1_N BJ30

CLKIN_GND1_P BG30

CLKIN_DMI_N BF18

CLKIN_DMI_P BE18

CLKIN_DOT_96N G24

CLKIN_DOT_96P E24

CLKIN_SATA_N AK7

CLKIN_SATA_P AK5

XTAL25_IN V47

XTAL25_OUT V49

REFCLK14IN K45

CLKIN_PCILOOPBAC K H45

CLKOUT_PEG_A_N AB37

CLKOUT_PEG_A_P AB38

PEG_A_CLKRQ# / GPI O47 M10

PCIECLKRQ0# / GPIO73

J2

PCIECLKRQ1# / GPIO18

M1

PCIECLKRQ2# / GPIO20

V10

PCIECLKRQ3# / GPIO25

A8

PCIECLKRQ4# / GPIO26

L12

PCIECLKRQ5# / GPIO44

L14

CLKOUTFLEX0 / GPIO64 K43

CLKOUTFLEX1 / GPIO65 F47

CLKOUTFLEX2 / GPIO66 H47

CLKOUTFLEX3 / GPIO67 K49

CLKOUT_DMI_N AV22

CLKOUT_DMI_P AU22

PEG_B_CLKRQ# / GPIO56

E6

CLKOUT_PEG_B_P

AB40 CLKOUT_PEG_B_N

AB42

XC L K_ R C O MP Y47

CLKOUT_DP_P AM13

CLKOUT_DP_N AM12

CLKOUT_PCIE6N

V40

CLKOUT_PCIE6P

V42

PCIECLKRQ7# / GPIO46

K12

CLKOUT_PCIE7N

V38

CLKOUT_PCIE7P

V37

CLKOUT_ITPXDP_N

AK14

CLKOUT_ITPXDP_P

AK13

SMBALERT# / GPI O11 E12

SMBCLK H14

SMBDATA C9

SML0ALERT# / GPIO60 A12

SML0CLK C8

SML0DATA G12

SML1ALERT# / PCHHOT# / GPIO74 C13

SML1CLK / GPI O58 E14

SML1DATA / GPIO75 M16

CL_CLK1 M7

CL_DATA1 T11

CL_RST1# P10

PCIECLKRQ6# / GPIO45

T13

PEG_CLKREQ#

Lane 1 X

Lane 2 X

Lane 3 WLAN

Lane 4 GLAN / CARD READER

Lane 5 X

Lane 6 X

Lane 7 X

Lane 8 X

UsagePCI-E x1

CLK_PCIE_ICH

100MHz

R481 *10K_04

CLK_SATA

CLK_SATA#

PEG_B_CLKRQ#

CLK_BUF_REF14 R208 10K_04

PCIECLKRQ2#

RN19

10K_8P4R_04

1

2

3

45

6

7

8

LAN_CLKREQ#[24]

R248 10K_04

R250 10K_04

R543 *10K_04

BT_SBD#

LPD_SPI_INTR#

R219 *10K_04

R249 *2.2K_04

R256 *2.2K_04

SMD_CPU_THERM

SMC_CPU_THERM

DRAMRST_CNTRL R482 1K_04

CLK_PCIE_ICH#

CL_RST#1

CL_CLK1

CL_DATA1

CL_CLK1 [22]

CL_RST#1 [22]

CL_DATA1 [22]

LAN_CLKREQ#

R540 *10K_04

X1

*X8A025000FG1H_25MHz

12

3 4

PCIECLKRQ7#

R132 10K_04

R134 10K_04

R240 10K_04

R232 10K_04

Sheet 14 of 44

PantherPoint - M

2/9

Schematic Diagrams

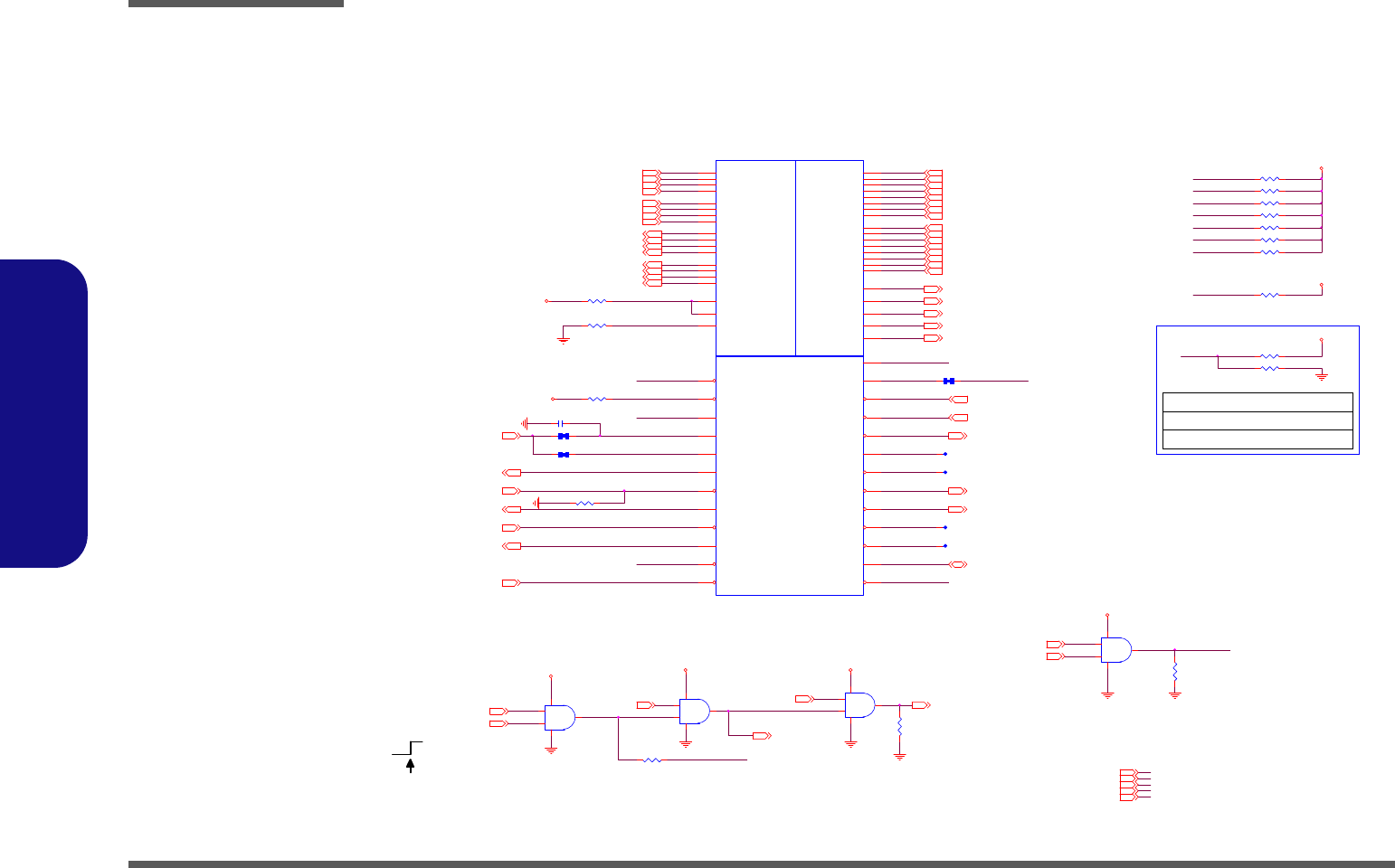

B - 16 PantherPoint - M 3/9

B.Schematic Diagrams

PantherPoint - M 3/9

PM_PCH_PWROK[28]

SUS_PWR_ACK

R261 *10K_04

R278 *10K_04

RSMRST#

SUS_PWR_ACK[28]

SWI#

AC_PRESENT[17,28]

R485 10K_04

PCI E_WAKE# [22,24,26]

R486 10K_04

C589 *0.1u_16V_Y 5V_04

R544 10K_04

3.3V[2,3,6,11, 13, 14,17,18,19,20,22,23, 26,28,32, 34,35,36]

VTT_MEM[9,10,34]

1.05VS[13,14,19, 20,35,37]

3.3VS[3,9,10, 11, 12,13, 14,16,17,18,19,20,23, 24, 25,28,29,30,31,32,37]

RTCVCC[13,20]

PCIE_WAKE#

R270 *10mil_04

DDR_1.05VS_PWRGD

PM_MPWROK

U15B

74LVC08PW

4

56

147

U15C

74LVC08PW

9

10 8

147

U15A

74LVC08PW

1

23

147

3.3V

DDR1.5V_PWRGD[34]

3.3V 3.3V

1.8VS_PWRGD[3,34]

0.85VS_PWRGD[36]

VTT_CPU_EN [35]

-n±µSUSB# -->§_«h1.05VS_VTT¦ bSUSPEND®É¤£·|à ö¹q

1.05VS_PWRGD[35]

R213 *10mil_04

ON

ALL_SYS_PWRGD [11,28,37]

PM_PCH_PWROK[28]

R253

10K_04

U15D

74LVC08PW

12

13 11

147

DELAY_PWRGD[37]

3.3V

DMI

FDI

System Power Management

U37C

BD82NM70

DMI0RXN

BC24

DMI1RXN

BE20

DMI2RXN

BG18

DMI3RXN

BG20

DMI0RXP

BE24

DMI1RXP

BC20

DMI2RXP

BJ18

DMI3RXP

BJ20

DMI0TXN

AW24

DMI1TXN

AW20

DMI2TXN

BB18

DMI3TXN

AV18

DMI0TXP

AY24

DMI1TXP

AY20

DMI2TXP

AY18

DMI3TXP

AU18

DMI_ZCOMP

BJ24

DMI_IRCOMP

BG25

FDI_RXN0 BJ14

FDI_RXN1 AY14

FDI_RXN2 BE14

FDI_RXN3 BH13

FDI_RXN4 BC12

FDI_RXN5 BJ12

FDI_RXN6 BG10

FDI_RXN7 BG9

FDI_RXP0 BG14

FDI_RXP1 BB14

FDI_RXP2 BF14

FDI_RXP3 BG13

FDI_RXP4 BE12

FDI_RXP5 BG12

FDI_RXP6 BJ10

FDI_RXP7 BH9

FDI_FSYNC0 AV12

FDI_FSYNC1 BC10

FDI_LSYNC0 AV14

FDI_LSYNC1 BB10

FDI_INT AW16

PMSY N CH AP14

SLP_SUS# G16

SLP_S3# F4

SLP_S4# H4

SLP_S5# / GPIO63 D10

SYS_RESET#

K3

SYS_PWROK

P12

PWRBTN#

E20

RI#

A10

WAKE# B9

SU S_STAT# / GPIO61 G8

SUSCLK / GPIO62 N14

ACPR ESEN T / GPIO31

H20

BATLOW# / GPIO72

E10

PWROK

L22

CLKRUN# / GPIO32 N3

SUSWARN#/SUSPWRDNACK/GPIO30

K16

RSMRST#

C21

DRAMPWROK

B13

SLP_LAN# / GPIO29 K14

APWR OK

L10

DPWROK E22

DMI2RBIAS

BH21

SLP_A# G10

DSWVRMEN A18

SUSACK#

C12

SYS_PWROK

R483 10K_04

SLP_S5#

AC_PRESENT

R545

10K_04

S4 _STATE # [ 2 3]

SUS_PWR_ACK

SYS_RESET#

FDI_TXP7 [2]

AC_PRESENT

R472 330K_04

R479 *330K_04

DSWODVREN - On Die DSW VR Enable

LOW Disabled

PantherPoint -M (DMI,FDI,GPIO)

R422 750_1%_04

PCIE_WAKE#

HI Enabled (DEFAULT)

PM_CLKRUN#

3.3VS

1.05VS

DSWODVREN

SUSC LK

DPWROK

PM_CLKRUN# R447 8.2K_04

PM_BATLOW#

3.3VS

RTCVCC

3.3V

PM_SLP_LAN#

DMI_RXP1[2]

DMI_RXP3[2]

DMI_RXP0[2]

DMI_RXN1[2] DMI_RXN2[2]

DMI_RXP2[2]

DMI_TXP0[2]

DMI_RXN3[2]

DMI_RXN0[2]

DMI_TXP2[2] DMI_TXP3[2]

DMI_TXN1[2]

DMI_TXN3[2]

DMI_TXN0[2]

DMI_TXP1[2]

DMI_TXN2[2]

H_PM_SYNC [3]

RSMRST#[28]

PWR_BTN#[28]

PM_DRAM_PWRGD[3]

SWI#[28]

PWR_BTN#

PWR_BTN#

SLP_A#

SLP_SUS#

SYS_PWROK

SUSC# [28,34]

SUSB# [6,28,32]

FDI_LSYNC0 [2]

FDI_FSYNC1 [2]

FDI_LSYNC1 [2]

FDI_FSYNC0 [2]

FDI_INT [2]

FDI_TXP4 [2]

FDI_TXP6 [2]

PM_PCH_PWROK_R

FDI_TXP3 [2]

FDI_TXP1 [2]

FDI_TXP5 [2]

FDI_TXN0 [2]

FDI_TXP0 [2]

FDI_TXP2 [2]

FDI_TXN3 [2]

FDI_TXN6 [2]

FDI_TXN1 [2]

FDI_TXN7 [2]

FDI_TXN5 [2]

FDI_TXN2 [2]

FDI_TXN4 [2]

R257 *10mil_04

R453 10K_04

RSMRST#

R246 8.2K_04

SUS_PWR_ACK

R252 *10K_04

R423 49.9_1%_04

R247 *10K_04

PM_BATLOW#

DMI_2RBIAS

SWI# PM_SLP_LAN#

DSWODVREN

DMI_COMP_R

PM_MPWROK

PM_CLKRUN# [23]

Sheet 15 of 44

PantherPoint - M

3/9

Schematic Diagrams

PantherPoint - M 4/9 B - 17

B.Schematic Diagrams

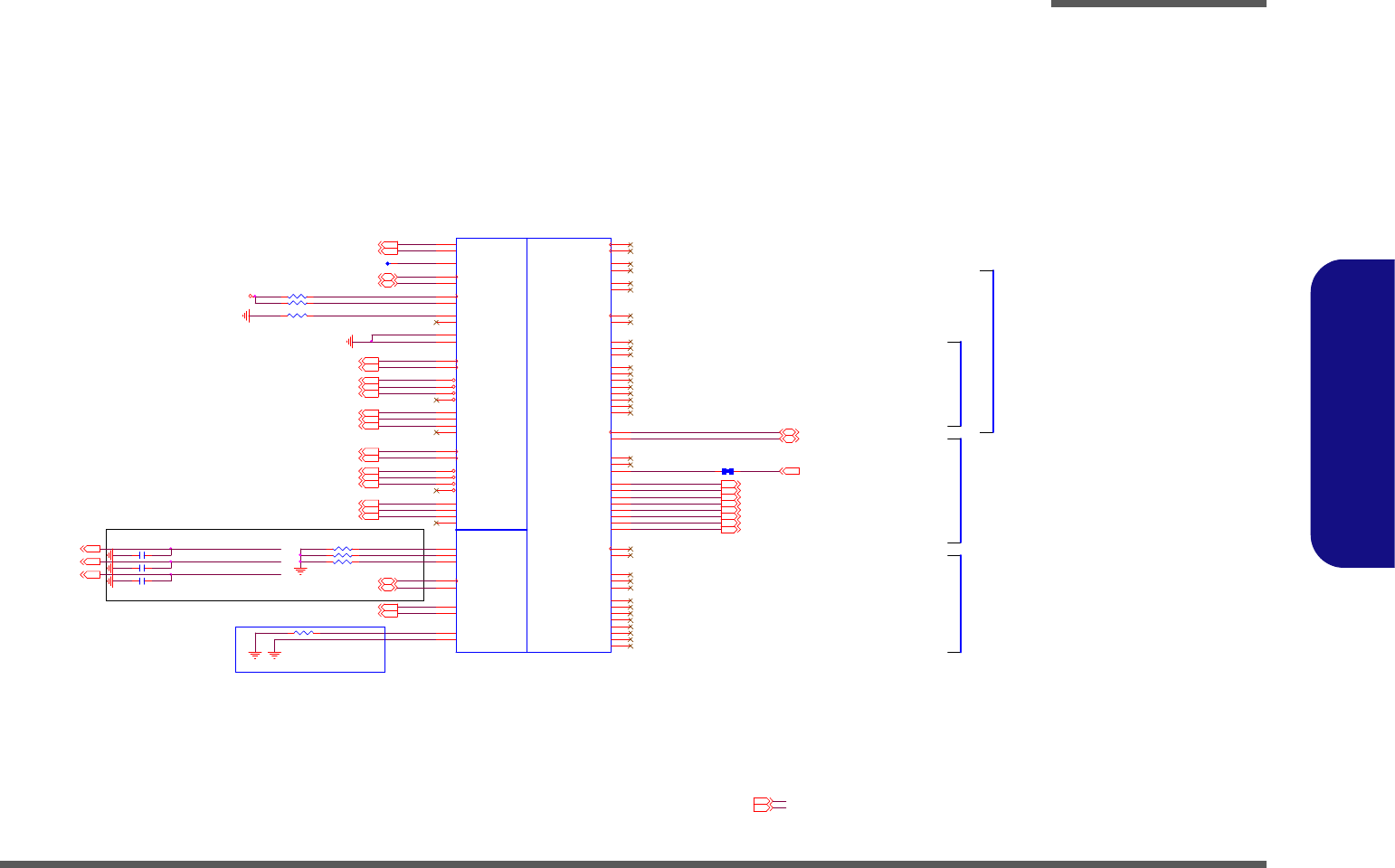

PantherPoint - M 4/9

DAC_BLUE

NEAR PCH

EMI

DAC_RED

DAC_GREEN

C188 *33p_50V_NPO_04

C169 *33p_50V_NPO_04

C196 *33p_50V_NPO_04

DAC_RED[12]

DAC_GREEN[12]

DAC_BLUE[12]

R153 *10mil_04

DAC_GREEN

DAC_BLUE

DAC_RED

LVDS_IBG

L_CTRL_CLK

L_CTRL_DATA

R187 150_1%_04

R192 150_1%_04

5VS[12,13,20,25,30,31,32,37]

R200 150_1%_04

DAC_IREF

PCH _DDPC _H PD

R165 1K_1%_04

R170 2.37K_1%_04

Connect to GND

PantherPoint -M

(LVDS,DDI,CRT)

Display Port D Display Port BDisplay Port C

3.3VS

SDVO

P_DD C_CLK[11]

NB_ENAVDD[11,28]

P_DDC_DATA[11]

HDMI_CTRLDATA [12]

LVDS-LCLKN[11] LVDS-LCLKP[11]

BLON[11]

LVDS-L1N[11]

LVDS-L1P[11]

LVDS-L2N[11]

LVDS-L0N[11]

LVDS-L2P[11]

LVDS-L0P[11]

DAC_DDCADATA[12] DAC_DDCACLK[12]

HDMI_CTRLCLK [12]

DAC_VSYNC[12] DAC_HSYNC[12]

3.3VS[3,9,10,11,12,13,14,15,17,18,19,20,23,24,25,28,29,30,31,32,37]

PORTC_HPD [12]

R163 2.2K_04

R215 2.2K_04

HDMIB_D0BN_C [12]

HDMIB_D1BP_C [12]

HDMIB_D0BP_C [12]

HDMIB_CLKBP_C [12]

HDMIB_CLKBN_C [12]

HDMIB_D1BN_C [12]

HDMIB_D2BP_C [12]

HDMIB_D2BN_C [12]

LVDS-U1P[11]

LVDS-U2N[11] LVDS-U1N[11] LVDS-U0N[11]

LVDS-UCLKN[11]

LVDS-U0P[11]

LVDS-U2P[11]

LVDS-UCLKP[11]

LVDS

Digital Display Interface

CRT

U37D

BD82NM70

L_BKLTCTL

P45

L_BKLTEN

J47

L_CTRL_CLK

T45

L_CTRL_DATA

P39

L_DDC_CLK

T40

L_DDC_DATA

K47

L_VDD_EN

M45

LVDSA_CLK#

AK39

LVDSA_CLK

AK40

LVDSA_DATA#0

AN48

LVDSA_DATA#1

AM47

LVDSA_DATA#2

AK47

LVDSA_DATA#3

AJ48

LVDSA_DATA0

AN47

LVDSA_DATA1

AM49

LVDSA_DATA2

AK49

LVDSA_DATA3

AJ47

LVDSB_CLK#

AF40

LVDSB_CLK

AF39

LVDSB_DATA#0

AH45

LVDSB_DATA#1

AH47

LVDSB_DATA#2

AF49

LVDSB_DATA#3

AF45

LVDSB_DATA0

AH43

DDPB_0N AV42

DDPB_1N AV45

LVD_VREFH

AE48

LVD_VREFL

AE47

DDPD_2N BF42

DDPD_3N BJ42

DDPB_2N AU48

DDPB_3N AV47

DDPC_0N AY47

DDPC_1N AY43

DDPC_2N BA47

DDPC_3N BB47

DDPD_0N BB43

DDPD_1N BF44

DDPB_0P AV40

DDPB_1P AV46

DDPD_2P BE42

DDPD_3P BG42

DDPB_2P AU47

DDPB_3P AV49

LVDSB_DATA1

AH49

LVDSB_DATA2

AF47

LVDSB_DATA3

AF43

LVD_IBG

AF37

LVD_VBG

AF36

DDPC_1P AY45

DDPC_0P AY49

DDPC_2P BA48

DDPC_3P BB49

DDPD_0P BB45

DDPD_1P BE44

CRT_BLUE

N48

CRT_DDC_CLK

T39

CRT_DDC_DATA

M40

CRT_GREEN

P49

CRT_HSYNC

M47

CRT_IRTN

T42

CRT_RED

T49

CRT_VSYNC

M49

DAC_IREF

T43

SDVO_CTRLCLK P38

SDVO_CTRLDATA M39

DDPC_CTRLCLK P46

DDPC_CTRLDATA P42

DDPD_CTRLCLK M43

DDPD_CTRLDATA M36

DDPB_AUXN AT49

DDPC_AUXN AP47

DDPD_AUXN AT45

DDPB_AUXP AT47

DDPC_AUXP AP49

DDPD_AUXP AT43

DDPB_HPD AT40

DDPC_HPD AT38

DDPD_HPD BH41

SDVO_TVCLKIN P AP45

SDVO_TVCLKINN AP43

SDVO_STALLP AM40

SDVO_STALLN AM42

SDVO_INTP AP40

SDVO_IN TN AP39

Sheet 16 of 44

PantherPoint - M

4/9

Schematic Diagrams

B - 18 PantherPoint - M 5/9

B.Schematic Diagrams

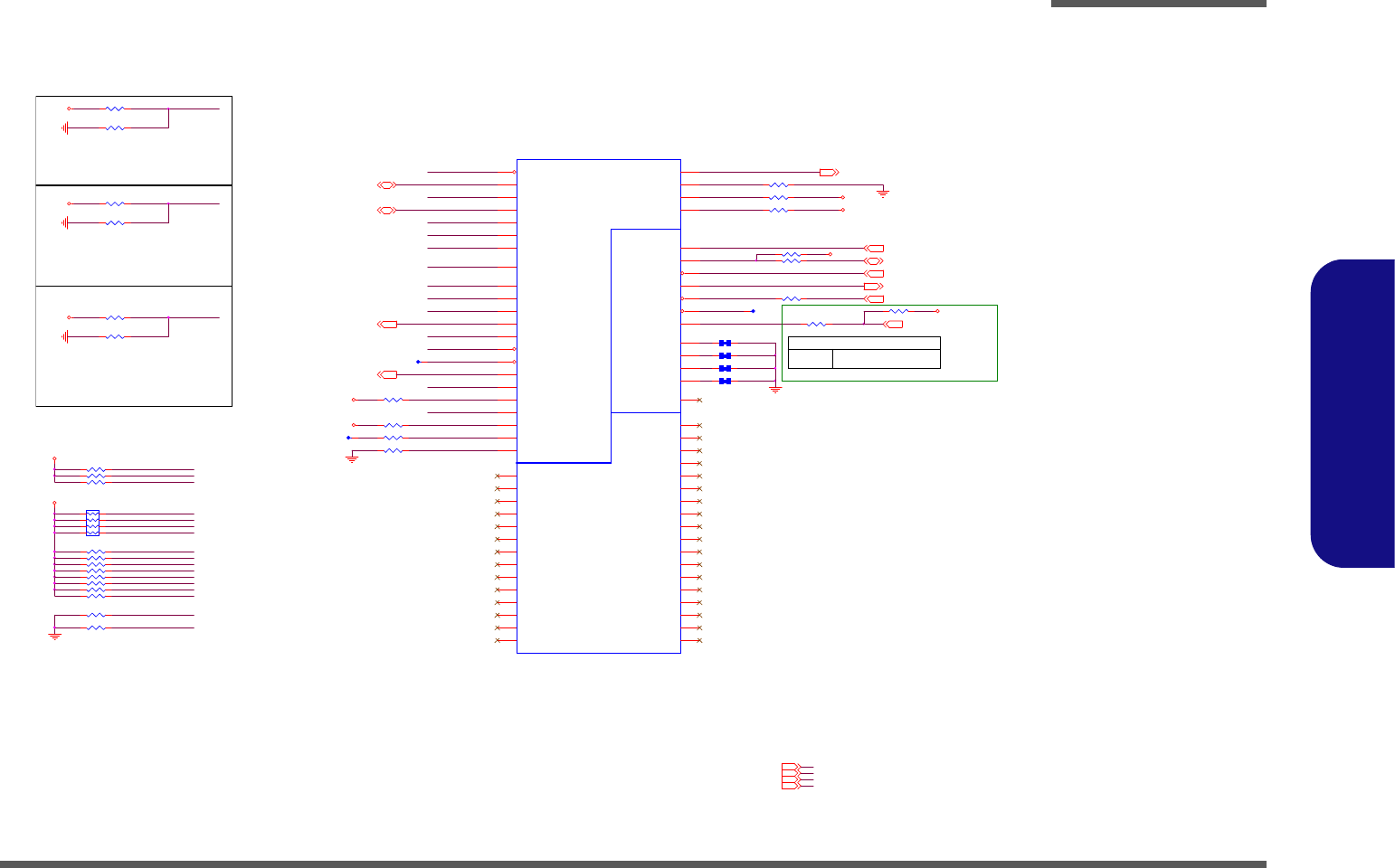

PantherPoint - M 5/9

RN4

10K_8P4R_04

1

2

3

4 5

6

7

8

*

USB_PP1 [27]

USB_PN1 [27]

USB_PN0 [27]

FOR LAYOUT SWAP

RN6

10K_8P4R_04

1

2

3

45

6

7

8

USB_PP0 [27]

PCLK_TPM[23] R214 *22_04

USB_BIAS

R225 *1K_04

R467 22.6_1%_04

MPC Switch Control

MPC ON -- 0

MPC OFF -- 1 DEFAULT

BBS_BIT0 [13]

PLT_RST#[3,11,23]

PME#[28]

INT_PIRQE#

SATA_ODD_DA#

INT_PIRQH#

INT_PIRQG#

INT_PIRQE#

NM70 Disable

CLK_PCI_KBC_R

R260 22_04

PCLK_KBC[28]

CLK_PCI_FB[14]

USB_PP2 [22]

USB_PN2 [22]

PCI_GNT#3

USB_PN9 [31]

3.3V[2,3,6,11,13,14,15,18,19,20,22,23,26,28,32,34,35,36]3.3VS[3,9,10,11,12,13,14,15,16,18,19,20,23,24,25,28,29,30,31,32,37]

USB_PP9 [31]

R243 *1K_04

INT_PIRQA#

R226 *1K_04

AC_PRESENT [15,28]

CLK_PCI_FB_R

R227 22_04

BBS_BIT1 BBS_BIT0 Boot BIOS Location

0 0 LPC

0 1 Reserved (NAND)

1 0 PCI

1 1 SPI

Boot BIOS Strap

INT_PIRQB#

USB PORT2 (AJ_USB1)

INT_PIRQD#

INT_PIRQC#

PCI_GNT#3

R446 *1K_04

DGPU_PWM_SELECT#

BBS_BIT1

DGPU_HOLD_RST#

D_GPU_PWR _EN#

DGPU_SELECT#

WLAN

USB PORT1 (J_USB3_2)

LOW = PCI_GNT#3 swap override

PCI_GNT#3

Flash Descriptor security override strap

HIGH = Default

BBS_BIT1

PantherPoint -M (PCI,USB,NVRAM)

USB_OC#45

USB_OC#01 [27]

USB_OC#67

HM70¡BNM70 Disable (port 5)

USB_OC#23

USB_OC#01

USB_OC#89

USB_OC#14

USB_OC#1011

USB_OC#1213

R228 10K_04

R265 10K_04

RN7

10K_8P4R_04

1

2

3

45

6

7

8

R233 *0_04

W/ TPM

HM70¡BNM70¡BHM75¡BHM76 No support (port 6)

USB_PP3 [22]

USB_PN3 [22]

RSVD

PCI

USB

U37E

BD82NM70

RSVD23 AV5

RSVD1 AY 7

RSVD2 AV7

RSVD3 AU3

RSVD4 BG4

RSVD5 AT10

RSVD6 BC8

RSVD7 AU2

RSVD8 AT4

RSVD17 BB5

RSVD18 BB3

RSVD19 BB7

RSVD20 BE8

RSVD21 BD 4

RSVD22 BF 6

RSVD9 AT3

RSVD10 AT1

RSVD11 AY 3

RSVD12 AT5

RSVD13 AV3

RSVD14 AV1

RSVD15 BB1

RSVD16 BA3

RSVD25 AT8

RSVD24 AV10

RSVD26 AY 5

RSVD27 BA2

RSVD28 AT12

RSVD29 BF 3

PIRQA#

K40

PIRQB#

K38

PIRQC#

H38

PIRQD#

G38

REQ1# / GPIO50

C46

REQ2# / GPIO52

C44

REQ3# / GPIO54

E40

GNT1# / GPIO51

D47

GNT2# / GPIO53

E42

GNT3# / GPIO55

F46

PIRQE# / GPIO2

G42

PIRQF# / GPIO3

G40

PIRQG# / GPIO4

C42

PIRQH# / GPIO5

D44

USBP0N C24

USBP0P A24

USBP1N C25

USBP1P B25

USBP2N C26

USBP2P A26

USBP3N K28

USBP3P H28

USBP4N E28

USBP4P D28

USBP5N C28

USBP5P A28

USBP6N C29

USBP6P B29

USBP7N N28

USBP7P M28

USBP8N L30

USBP8P K30

USBP9N G30

USBP9P E30

USBP10N C30

USBP10P A30

USBP11N L32

USBP11P K32

USBP12N G32

USBP12P E32

USBP13N C32

USBP13P A32

PME#

K10

CLKOUT_PCI0

H49

CLKOUT_PCI1

H43

CLKOUT_PCI2

J48

USBRBIAS# C33

USBRBIAS B33

OC0# / GPIO59 A14

OC1# / GPIO40 K20

OC2# / GPIO41 B17

OC3# / GPIO42 C16

OC4# / GPIO43 L16

OC5# / GPIO9 A16

OC6# / GPIO10 D14

OC7# / GPIO14 C14

CLKOUT_PCI4

H40 CLKOUT_PCI3

K42

PLTRST#

C6

TP1

BG26

TP2

BJ26

TP3

BH25

TP6

AH38

TP7

AH37

TP8

AK43

TP9

AK45

TP16

Y13

TP17

K24

TP18

L24

TP19

AB46

TP20

AB45

TP21

B21

TP22

M20

TP23

AY16

USB3Rn1

BE28

USB3Rn2

BC30

USB3Rn3

BE32

USB3Rn4

BJ32

USB3Rp1

BC28

USB3Rp2

BE30

USB3Rp3

BF32

USB3Rp4

BG32

USB3Tn1

AV26

USB3Tn2

BB26

USB3Tn3

AU28

USB3Tn4

AY30

USB3Tp1

AU26

USB3Tp2

AY26

USB3Tp3

AV28

USB3Tp4

AW30

TP4

BJ16

TP5

BG16

TP15

AM5 TP14

AM4 TP13

AH12 TP12

H3 TP11

N30 TP10

C18

TP24

BG46

INT_PIRQD#

DGPU_PWM_SELECT#

SATA_ODD_DA#

USB_OC#1213

DGPU_SELECT#

INT_PIRQA#

DGPU_HOLD_RST#

D_GPU_PWR_EN#

USB_OC#01

INT_PIRQG#

USB_OC#23

USB_OC#67

USB_OC#45

USB_OC#14

INT_PIRQH#

USB_OC#89

USB_OC#1011

RN5

10K_8P4R_04

1

2

3

4 5

6

7

8

INT_PIRQE#

R241 *10K_04

3.3VS

3.3V

PCLK_TPM_PCH

HM70¡BNM70 Disable (port 4)

USB_PP11 [23]

USB_PN11 [23]

USB PORT0 (J_USB3_1)

3G

HM70¡BNM70 Disable (port 12)

HM70¡BNM70 Disable (port 13)

INT_PIRQC#

INT_PIRQB#

SATA_ODD_DA#[25]

USB_OC#89

R251 10K_04

HM70¡BNM70¡BHM75¡BHM76 No support (port 7)

CCD

Sheet 17 of 44

PantherPoint - M

5/9

Sheet 18 of 44

PantherPoint - M

6/9

Schematic Diagrams

PantherPoint - M 6/9 B - 19

B.Schematic Diagrams

PantherPoint - M 6/9

R166 10K_04

SATA_ODD_PW RGT

R264 10K_04 DGPU_HPD_INTR#

R470 10K_04

NV_CLE H_SNB_IVB# [3]

SATA_ODD_PRSNT#

R484 *10K_04

INTEGRATE CLOCK

DISABLE----HIGH

ENABLE-----LOW (DEFAULT)

3.3VS

CRIT_TEMP_REP#_R

HPECI_R R137 *10K_04 VTT_CPU

R480 *10K_04

VTT_CPU[2,3,5,19,20,35,36]

3.3V

R442 10K_04 SATA_DET#4

R179 10K_04

R181 10K_04 TEST_SET_UP

R430 2.2K_04

R435 *0_04

CPU/MISC

NCTF

GPIO

U37F

BD82NM70

GPI O27

E16

GPI O28

P8

GPI O24

E8

GPI O57

D6

LAN_PHY_PWR_CTRL / GPIO12

C4

VSS_NCTF_1

A4

VSS_NCTF_2

A44

VSS_NCTF_3

A45

VSS_NCTF_4

A46

VSS_NCTF_5

A5

VSS_NCTF_6

A6

VSS_NCTF_7

B3

VSS_NCTF_8

B47

VSS_NCTF_9

BD1

VSS_NCTF_10

BD49

VSS_NCTF_11

BE1

VSS_NCTF_12

BE49

TACH2 / GPIO6

H36

TACH0 / GPIO17

D40

TACH3 / GPIO7

E38

SATA3GP / GPIO37

M5

SATA5GP / GPIO49 / TEMP_ALERT#

V3

SCLOCK / GPIO22

T5

SLOAD / GPIO38

N2

SDATAOUT0 / GPIO39

M3

SDATAOUT1 / GPIO48

V13

PROCPWRGD AY 11

RCIN# P5

PECI AU16

THR MTRIP# AY 10

GPI O8

C10

BMBUSY# / GPIO0

T7

GPI O15

G2

TACH1 / GPIO1

A42

SATA2GP / GPIO36

V8

INIT3_3V# T14

STP_PCI# / GPIO34

K1

GPI O35

K4

SATA4GP / GPIO16

U2

VSS_NCTF_32 F49

A20GATE P4

TACH4 / GPIO68 C40

TACH6 / GPIO70 C41

TACH7 / GPIO71 A40

TACH5 / GPIO69 B41

VSS_NCTF_17 BH3

VSS_NCTF_18 BH47

VSS_NCTF_19 BJ4

VSS_NCTF_20 BJ44

VSS_NCTF_21 BJ45

VSS_NCTF_22 BJ46

VSS_NCTF_23 BJ5

VSS_NCTF_24 BJ6

VSS_NCTF_25 C2

VSS_NCTF_26 C48

VSS_NCTF_27 D1

VSS_NCTF_28 D49

VSS_NCTF_29 E1

VSS_NCTF_30 E49

VSS_NCTF_31 F1

TS_VSS4 AK10

TS_VSS3 AH10

TS_VSS2 AK11

TS_VSS1 AH8

NC_1 P37

VSS_NCTF_13

BF1

VSS_NCTF_14

BF49

VSS_NCTF_15 BG2

VSS_NCTF_16 BG48

DF_TVS AY1

R469 1.5K_1%_04

R474 1.5K_1%_04

R471 1.5K_1%_04

ICC_EN#

GPIO12

GPIO12

R461 *10K_04

R465 1K_04

R254 *1K_04

V_NVRAM_VCCQ[19]

R548 *10mil_04

R547 *10mil_04

R550 *10mil_04

R549 *10mil_04

SMI#[28]

R125 390_04

DGPU_PWROK

R455 *1K_04

GPIO34

SCI#[28]

GPIO34

ICC_EN#

HTHRMTRIP#_R

CRIT_TEMP_REP#_R

R201 100K_04 FDI_OVRVLTG

PCH_MUTE#

V_NVRAM_VCCQ

HOST_ALERT#1

SMI#

PLL_ODVR_EN

BIOS_REC

SCI#

BIOS RECOVERY

DISABLE----HIGH (DEFAULT)

ENABLE-----LOW

KBC_RST#

SATA_ODD_PW RGT

PLL_OD VR_EN

R429 1K_04

3.3VS

3.3V[2,3,6,11,13,14,15,17,19,20,22,23,26,28,32,34,35,36]

Set to Vss when LOW

Set to Vcc when HIGH

NV_CLE

DMI & FDI Termination Voltage

3.3VS[3,9,10,11,12,13,14,15,16,17,19,20,23,24,25,28,29,30,31,32,37]

GFX_CRB_DET

GPIO70

HOST_ALERT#1

TEST_DET

FDI_OVRVLTG

GFX_CRB_DET

R436 10K_04

3.3VS

GPIO71

DGPU_PWROK

HOST_ALERT#2

S_GPIO

S_GPIO

BIOS_REC

R462 1K_04

R194 *1K_04

R222 100K_04

R184 *0_04

R450 100K_04

R180 10K_04

RN8

10K_8P4R_04

1

2

3

4 5

6

7

8

R451 *10K_04

3.3V

3.3VS

3.3VS

SATA_DET#4

PCH_GPIO57

R138 *0_04

MF G_ MO D E

R449 10K_04

3.3VS

KBC_RST#

SMI#

PantherPoint - M (GPIO,VSS_NCTF,RSVD)

DGPU_HPD_INTR#

INIT3_3V#

SATA_ODD_PRSNT#[25]

SB_BLON[11]

3.3VS

Internal GFX: Low (Default)

External GFX: High

KBC_RST# [28]

GA20 [28]

SATA_ODD_PWRGT [25]

SATA_ODD_PRSNT#

SCI#

H_THR MTRI P# [3]

H_CPUPWRGD [3]

H_PECI [3,28]

HOST_ALERT#2

GA20

Sheet 19 of 44

PantherPoint - M

7/9

1.05VS[13,14,15,20,35,37]

R421 *0_04

1.05S_VCC_DMI

C160

0.1u_10V_X5R_04

1.5VS_1.8VS[20]

V_NVRAM_VCCQ[18]

3.3VS_VCCA_LVD

1.05VS_VCCAPLL_EXP

VCCCLKDMI

20mA

3.3VS 3.3VVCCME3.3V

42mA

POWER

VCC CORE

DMI

VCCIO

CRTLVDS

FDI

DFT / SPI HVCMOS

U37G

BD82NM70

VCCCORE[1]

AA23

VCCCORE[2]

AC23

VCCCORE[3]

AD21

VCCCORE[4]

AD23

VCCCORE[5]

AF21

VCCCORE[6]

AF23

VCCCORE[7]

AG21

VCCCORE[8]

AG23

VCCCORE[9]

AG24

VCCCORE[10]

AG26

VCCCORE[11]

AG27

VCCCORE[12]

AG29

VCCCORE[13]

AJ23

VCCCORE[14]

AJ26

VCCCORE[15]

AJ27

VCCDFTERM[4] AJ17

VCCDFTERM[3] AJ16

VCCIO[17]

AN21

VCCIO[18]

AN26

VCCIO[19]

AN27

VCCIO[20]

AP21

VCCIO[23]

AP26

VCCIO[24]

AT24

VCCIO[15]

AN16

VCCIO[16]

AN17

VCCIO[21]

AP23

VCCIO[22]

AP24

VCCADAC U48

VCCTX_LVDS[1] AM37

VCCTX_LVDS[2] AM38

VCCALVDS AK36

VCCVRM[3] AT16

VCCVRM[2]

AP16

VCCAPLLEXP

BJ22

VccAFDIPLL

BG6

VCCIO[28]

AN19 VCCTX_LVDS[4] AP37

VCCTX_LVDS[3] AP36

VSSADAC U47

VSSALVDS AK37

VCCIO[27]

AP17

VCC3_3[6] V33

VCC3_3[7] V34

VCC3_3[3]

BH29 VCCDFTERM[2] AG17

VCCDFTERM[1] AG16

VCCDMI[1] AT20

VCCIO[25]

AN33

VCCIO[26]

AN34

VCCCORE[16]

AJ29

VCCCORE[17]

AJ31

VCC SPI V1

VCCCLKDMI AB36

VCCDMI[2]

AU20

3.3VS

R440 *0_04

160mA

R148 *20mil_04

R164 *20mil_04 1.05VS

1.05VS_VCCAPLL_FDI

C156

0.1u_10V_X5R_04

1.5VS_1.8VS

1.5VS_1.8VS

1.5VS_1.8VS

1.05VS

3.3VS

1.8VS1.5VS

R149 *20mil_04

42mA

190mA

VTT_CPU

All VCCORE = 1.3A

3.3VS

1.8VS_VCCTX_LVD

All VCCIO = 2.92A

266mA

266mA

C451

0.01u_16V_X7R_04

C158

1u_6.3V_X5R_04

C128

10u_6.3V_X5R_06

C457

22u_6.3V_X5R_08

C147

10u_6.3V_X5R_06

C453

10u_6.3V_X5R_06

C151

1u_6.3V_X5R_04

R143 *0_04

C439

22u_6.3V_X5R_08

C171

1u_6.3V_X5R_04

C174

1u_6.3V_X5R_04

C149

1u_6.3V_X5R_04

.

L34

HCB1608KF-121T25

C539

*0.1u_10V_X5R_04

.

L31

*HCB1005KF-121T20

C424

*10u_6.3V_X5R_06

C168

10u_6.3V_X5R_06

C178

1u_6.3V_X5R_04

C446

1u_6.3V_X5R_04

C152

1u_6.3V_X5R_04

C146

1u_6.3V_X5R_04

VTT_CPU

C452

0.1u_10V_X5R_04

C153

0.01u_16V_X7R_04

C150

0.01u_16V_X7R_04

1.43V 1.58V

4.75V

1.10V

Min

5V

1.5V

Max

1.89V

1.05V

1.8V

3.47V

1.71V

1.00V

3.3V[2,3,6,11,13,14,15,17,18,20,22,23,26,28,32,34,35,36]

CougarPoint power supply range

Voltage

3.3V

5VS[12,13,20,25,30,31, 32,37]

60mA

3.14V

5.25V

2mA

160mA

1mA

1mA

R159 *20mil_04

1.05VS

R140 *20mil_04

1.05VS

3.3VS[3,9,10,11,12,13,14,15,16,17,18,20,23,24,25,28,29,30,31,32,37]

1.5VS[ 30,32] 1.8VS[6,34]

PantherPoint -M (POWER)

1.05VS

VTT_CPU[2,3,5,18,20, 35,36]

C144

0.1u_10V_X5R_04

R141 *0_04

VCCA_DAC_3.3VS

1.8VSV_NVRAM_VCCQ 3. 3VS

1.05VS_PCH_VCCDPLL_EXP

C179

0.1u_10V_X5R_04

3.3VS

R152 *20mil_04 1.8VS

R439 *20mil_04

L17

HCB1005KF-121T20

Schematic Diagrams

B - 20 PantherPoint - M 7/9

B.Schematic Diagrams

PantherPoint - M 7/9

Schematic Diagrams

PantherPoint - M 8/9 B - 21

B.Schematic Diagrams

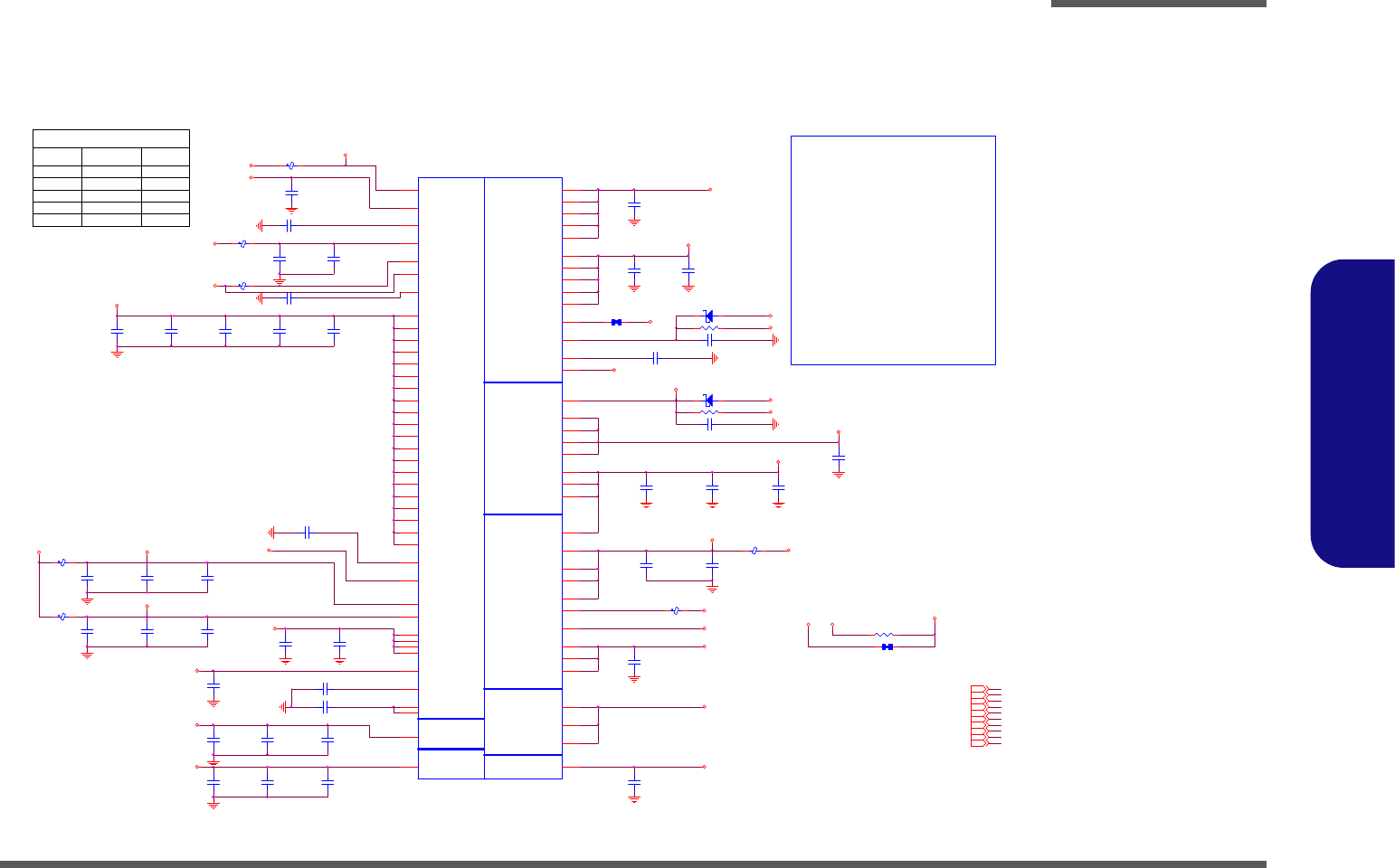

PantherPoint - M 8/9

Sheet 20 of 44

PantherPoint - M

8/9

POWER

SATA USB

Clock and Miscellaneous

HDA

CPURTC

PCI/GPIO/LPCMISC

U37J

BD82NM70

DCPSUSBYP

V12

VCC ASW[1]

AA19

VCC ASW[2]

AA21

VCC ASW[3]

AA24

VCC ASW[5]

AA27

VCC ASW[6]

AA29

VCCSUSHDA P32

VCCSUS3_3[6] P24

VCCIO[34] T26

VCC IO[4] AD17

VCC ASW[7]

AA31

VCC ASW[8]

AC26

VCC ASW[9]

AC27

VCC ASW[10]

AC29

VCC ASW[11]

AC31

VCC ASW[12]

AD29

V5REF P34

VCC3_3[4] T34

VCC RTC

A22

VCCSUS3_3[10] V24

VCCSUS3_3[9] V23

VCCSUS3_3[8] T24

VCCSUS3_3[7] T23

VCC IO[2] AC16

VCCADPLLB

BF47

VCCDIFFCLKN[1]

AF33

V5REF_SUS M26

VCC IO[3] AC17

DCPSUS[1]

T17

VCC SSC

AG33

VCCADPLLA

BD47

VCCVRM[4]

Y49

VCCACLK

AD49

DCPRTC

N16

VCC ASW[4]

AA26

VCCDIFFCLKN[2]

AF34

VCC IO[7]

AF17

DCPSST

V16

VCC IO[5] AF13

VCCASW[22] T21

VCCASW[23] V21

VCCASW[21] T19

VCC3_3[1] AA16

VCC3_3[8] W16

VCCSUS3_3[2] N20

VCCSUS3_3[3] N22

VCCSUS3_3[4] P20

VCCSUS3_3[5] P22

VCCIO[29] N26

VCCIO[30] P26

VCCIO[31] P28

VCCIO[32] T27

V_PR OC _IO

BJ8

VCCIO[33] T29

VCCDIFFCLKN[3]

AG34

VCC ASW[13]

AD31

VCC ASW[14]

W21

VCC ASW[15]

W23

VCC ASW[16]

W24

VCC ASW[17]

W26

VCC ASW[18]

W29

VCC ASW[19]

W31

VCC ASW[20]

W33

VCC IO[6] AF14

VCC VRM[1] AF11

VCCIO[12] AH13

VCCIO[13] AH14

VCC3_3[2] AJ2

VCC APLLSATA AK1

DCPSUS[3]

AL24

VCC IO[14]

AL29

DCPSUS[4] AN23

VCCSUS3_3[1] AN24

VCC APLLD MI2

BH23

DCPSUS[2]

V19

VCC DSW3_3

T16

VCC 3_3[ 5]

T38

3.3A_1. 5A_HDA_IO[13]

.

L15

HCB1608KF-121T25

3.3A_1.5A_HDA_I O

1.05VS

3.3VS

3.3VS

1.05VS

C164

1u_6.3V_X5R_04

1.05VS_VCCA_B_DPL

L16

HCB1005KF-121T20

1.05VS

D10 RB751S-40C2

AC

R196

*20mil_04

D11 RB751S-40C2

AC

R259 *28m il_06

C201 0.1u_10V_X5R_04

1.43V

1.10V

Min

5V

1.5V

1.05VS

1.89V

1.05V

1.58V

4.75V

3.47V

1.71V

Max

3.3V

1.00V

1.8V

L30

*HCB1005KF-121T20

5.25V

CougarPoint power supply range

Voltage

3.14V

1.05VS

C180

0.1u_10V_X5R_04

C193

0.1u_10V_X5R_04

VTT_CPU

RTCVCC

+VCCAPLL_CPY_PCH

3.3VS[3,9,10,11,12,13,14,15,16,17,18,19,23,24,25,28,29,30,31,32,37]

RTCVCC[13,15]

1.5V[3,6,9,10,32,34]

3.3V[2,3,6,11,13,14,15,17,18,19,22,23,26,28,32,34,35,36] 5VS[12,13,25,30,31,32,37]

PCH_VCCDSW

5V[22,26,27,31,32,34,35,36]

DCPSUS

C161 *1u_6.3V_X5R_04

3mA

VCC3_3

3.3V 3.3A_1.5A_HDA_IO

C449

*22u_6.3V_X5R_08

1.5VS_1.8VS

C441

*22u_6.3V_X5R_08

+V1.05S_SATA3

1.05VS

80mA

97mA

1mA

80mA

VTT_CPU[2,3,5,18,19,35,36]

5VS

C173

1u_6.3V_X5R_04

3.3VS

C200

1u_6.3V_X5R_04

5V

1.05VS

3.3V

+5V_PCH_VCC5REFSU S

C163

1u_6.3V_X5R_04

PantherPoint - M (POWER)

Voltage Rail Voltage S0 Iccmax Current (A)

V_CPU_IO 1.05 1 (mA)

V5REF 5 1 (mA)

V5REF_Sus 5 1 (mA)

Vcc3_3 3.3 0.266

VccADAC3 1.05 1 (mA)

VccADPLLA 1.05 0.08

VccADPLLB 1.05 0.08

VccCore 1.05 1.3

VccDMI 1.1 0.042

VccIO 1.05 2.925

VccASW 1.05 1.01

VccSPI 3.3 0.020

VccDSW3_3 3.3 2 (mA)

VccDFTERM 1.8 0.19

VccSus3_3 3.3 0.097

VccSusHDA 3.3 1 (mA)

VccVRM 1.5 0.16

VccClKDMI 1.05 0.02

VccSSC 1.05 0.095

VccDIFFCLKN 1.05 0.055

VccALVDS 3.3 1 (mA)

VccTX_LVDS 1.8 0.06

1.05VS_VCCAPLL_SATA3

1.05VS[13,14,15,19,35,37]

VCC SST

16mA

1.05VS

1mA

1mA

97mA

All VCCASW=1.01A

266mA

16mA

266mA

3.3V

All VCCIO=2.92A

55mA

1.05VS

1.05VS_VCCA_CLK

1.01A

All VCCIO=2.92A

1.05VS

C412

*0.1u_10V_X5R_04

L33

*HCB1005KF-121T20

C184

0.1u_10V_X5R_04

C676

22u_6.3V_X5R_08

C460

1u_6.3V_X5R_04

C187

1u_6.3V_X5R_04

C159

*10u_6.3V_X5R_06

1.05VS

L32

HCB1005KF-121T20

C423

*22u_6.3V_X5R_08

C167

1u_6.3V_X5R_04

+VCCRTCEXT

C438

*22u_6.3V_X5R_08

C183

1u_6.3V_X5R_04

C192

1u_6.3V_X5R_04

C427

0.1u_10V_X5R_04

C413

*0.1u_10V_X5R_04

C403

10u_6.3V_X5R_06

R258 *0_06

C203 0.1u_10V_X5R_04

R242 10_04

1.05VS_VCCA_A_DPL

C204

0.1u_10V_X5R_04

C191 0.1u_10V_X5R_04

L36

*HCB1005KF-121T20

1.05VS

C154 *1u_6.3V_X5R_04

C190 *0.1u_10V_X5R_04

C181

0.1u_10V_X5R_04

C461

0.1u_10V_X5R_04

C176

10u_6.3V_X5R_06

R263 10_04

C194

0.1u_10V_X5R_04

L35

HCB1005KF-121T20

C426

0.1u_10V_X5R_04

C422

22u_6.3V_X5R_08

C462

0.1u_10V_X5R_04

C182 *1u_6.3V_X5R_04

C166

0.1u_10V_X5R_04

+VCCA_USBSUS

C155

1u_6.3V_X5R_04

+V1.05M_VCCSUS

3.3V

C186

1u_6.3V_X5R_04

C197

0.1u_10V_X5R_04

+V5A_PCH_VCC5REFSUS

1.5VS_1.8VS[19]

3.3V

3.3V

1.5VS_1.8VS

1.5V

C202 1u_6.3V_X5R_04

Note: C1289- STUFFED ONLY FOR CPT INTERPOSER;

UNSTUFF FOR CPT

Schematic Diagrams

B - 22 PantherPoint - M 9/9

B.Schematic Diagrams

PantherPoint - M 9/9

Sheet 21 of 44

PantherPoint - M

9/9

U37H

BD82NM70

VSS[1]

AA17

VSS[2]

AA2

VSS[3]

AA3

VSS[5]

AA34

VSS[6]

AB11

VSS[7]

AB14

VSS[8]

AB39

VSS[9]

AB4

VSS[10]

AB43

VSS[11]

AB5

VSS[12]

AB7

VSS[13]

AC19

VSS[14]

AC2

VSS[15]

AC21

VSS[16]

AC24

VSS[17]

AC33

VSS[18]

AC34

VSS[19]

AC48

VSS[20]

AD10

VSS[21]

AD11

VSS[22]

AD12

VSS[23]

AD13

VSS[24]

AD19

VSS[25]

AD24

VSS[26]

AD26

VSS[27]

AD27

VSS[28]

AD33

VSS[29]

AD34

VSS[30]

AD36

VSS[31]

AD37

VSS[33]

AD39

VSS[34]

AD4

VSS[35]

AD40

VSS[36]

AD42

VSS[37]

AD43

VSS[38]

AD45

VSS[39]

AD46

VSS[43]

AF10

VSS[44]

AF12

VSS[46]

AD16

VSS[47]

AF16

VSS[48]

AF19

VSS[49]

AF24

VSS[50]

AF26

VSS[51]

AF27

VSS[52]

AF29

VSS[53]

AF31

VSS[54]

AF38

VSS[55]

AF4

VSS[56]

AF42

VSS[57]

AF46

VSS[59]

AF7

VSS[60]

AF8

VSS[61]

AG19

VSS[62]

AG2

VSS[63]

AG31

VSS[64]

AG48

VSS[65]

AH11

VSS[66]

AH3

VSS[67]

AH36

VSS[68]

AH39

VSS[69]

AH40

VSS[70]

AH42

VSS[71]

AH46

VSS[72]

AH7

VSS[73]

AJ19

VSS[76]

AJ33

VSS[77]

AJ34

VSS[78]

AK12

VSS[79]

AK3

VSS[80] AK38

VSS[81] AK4

VSS[82] AK42

VSS[83] AK46

VSS[84] AK8

VSS[85] AL16

VSS[86] AL17

VSS[87] AL19

VSS[88] AL2

VSS[89] AL21

VSS[90] AL23

VSS[91] AL26

VSS[92] AL27

VSS[93] AL31

VSS[96] AL48

VSS[97] AM11

VSS[98] AM14

VSS[99] AM36

VSS[100] AM39

VSS[102] AM45

VSS[103] AM46

VSS[104] AM7

VSS[105] AN2

VSS[106] AN29

VSS[107] AN3

VSS[108] AN31

VSS[109] AP12

VSS[110] AP19

VSS[111] AP28

VSS[112] AP30

VSS[113] AP32

VSS[114] AP38

VSS[116] AP42

VSS[117] AP46

VSS[118] AP8

VSS[119] AR2

VSS[120] AR48

VSS[121] AT11

VSS[122] AT13

VSS[123] AT18

VSS[124] AT22

VSS[125] AT26

VSS[126] AT28

VSS[127] AT30

VSS[128] AT32

VSS[131] AT42

VSS[132] AT46

VSS[133] AT7

VSS[134] AU24

VSS[135] AU30

VSS[136] AV16

VSS[137] AV20

VSS[138] AV24

VSS[139] AV30

VSS[140] AV38

VSS[141] AV4

VSS[142] AV43

VSS[143] AV8

VSS[144] AW14

VSS[145] AW18

VSS[146] AW2

VSS[147] AW22

VSS[148] AW26

VSS[149] AW28

VSS[150] AW32

VSS[151] AW34

VSS[152] AW36

VSS[153] AW40

VSS[154] AW48

VSS[155] AV11

VSS[156] AY12

VSS[157] AY22

VSS[158] AY28

VSS[40]

AD8

VSS[42]

AE3

VSS[45]

AD14

VSS[115] AP4

VSS[0]

H5

VSS[58]

AF5

VSS[32]

AD38

VSS[4]

AA33

VSS[74]

AJ21

VSS[75]

AJ24

VSS[41]

AE2

VSS[129] AT34

VSS[130] AT39

VSS[101] AM43

VSS[95] AL34

VSS[94] AL33

PantherPoint -M (GND)

U37I

BD82NM70

VSS[159]

AY4

VSS[160]

AY42

VSS[161]

AY46

VSS[162]

AY8

VSS[163]

B11

VSS[164]

B15

VSS[165]

B19

VSS[166]

B23

VSS[167]

B27

VSS[168]

B31

VSS[169]

B35

VSS[170]

B39

VSS[171]

B7

VSS[173]

BB12

VSS[174]

BB16

VSS[175]

BB20

VSS[176]

BB22

VSS[177]

BB24

VSS[178]

BB28

VSS[179]

BB30

VSS[180]

BB38

VSS[181]

BB4

VSS[182]

BB46

VSS[183]

BC14

VSS[184]

BC18

VSS[185]

BC2

VSS[186]

BC22

VSS[187]

BC26

VSS[188]

BC32

VSS[189]

BC34

VSS[190]

BC36

VSS[191]

BC40

VSS[192]

BC42

VSS[193]

BC48

VSS[194]

BD46

VSS[195]

BD5

VSS[196]

BE22

VSS[197]

BE26

VSS[198]

BE40

VSS[199]

BF10

VSS[200]

BF12

VSS[201]

BF16

VSS[202]

BF20

VSS[203]

BF22

VSS[204]

BF24

VSS[205]

BF26

VSS[206]

BF28

VSS[207]

BD3

VSS[208]

BF30

VSS[209]

BF38

VSS[210]

BF40

VSS[211]

BF8

VSS[212]

BG17

VSS[213]

BG21

VSS[214]

BG33

VSS[215]

BG44

VSS[216]

BG8

VSS[217]

BH11

VSS[218]

BH15

VSS[219]

BH17

VSS[220]

BH19

VSS[222]

BH27

VSS[223]

BH31

VSS[224]

BH33

VSS[225]

BH35

VSS[226]

BH39

VSS[227]

BH43

VSS[228]

BH7

VSS[229]

D3

VSS[230]

D12

VSS[231]

D16

VSS[232]

D18

VSS[233]

D22

VSS[234]

D24

VSS[235]

D26

VSS[236]

D30

VSS[237]

D32

VSS[264] K7

VSS[265] L18

VSS[266] L2

VSS[267] L20

VSS[268] L26

VSS[269] L28

VSS[270] L36

VSS[271] L48

VSS[272] M12

VSS[273] P16

VSS[274] M18

VSS[275] M22

VSS[276] M24

VSS[277] M30

VSS[278] M32

VSS[279] M34

VSS[280] M38

VSS[281] M4

VSS[282] M42

VSS[283] M46

VSS[284] M8

VSS[285] N18

VSS[286] P30

VSS[288] P11

VSS[289] P18

VSS[290] T33

VSS[291] P40

VSS[292] P43

VSS[293] P47

VSS[294] P7

VSS[295] R2

VSS[296] R48

VSS[297] T12

VSS[298] T31

VSS[299] T37

VSS[300] T4

VSS[301] W34

VSS[302] T46

VSS[303] T47

VSS[304] T8

VSS[305] V11

VSS[306] V17

VSS[307] V26

VSS[308] V27

VSS[309] V29

VSS[310] V31

VSS[311] V36

VSS[312] V39

VSS[313] V43

VSS[314] V7

VSS[315] W17

VSS[316] W19

VSS[238]

D34

VSS[239]

D38

VSS[240]

D42

VSS[241]

D8

VSS[242]

E18

VSS[243]

E26

VSS[244]

G18

VSS[245]

G20

VSS[246]

G26

VSS[247]

G28

VSS[248]

G36

VSS[249]

G48

VSS[250]

H12

VSS[251]

H18

VSS[317] W2

VSS[318] W27

VSS[319] W48

VSS[320] Y12

VSS[321] Y38

VSS[322] Y4

VSS[323] Y42

VSS[324] Y46

VSS[325] Y8

VSS[328] BG29

VSS[329] N24

VSS[330] AJ3

VSS[287] N47

VSS[252]

H22

VSS[253]

H24

VSS[254]

H26

VSS[255]

H30

VSS[256]

H32

VSS[257]

H34

VSS[258]

F3

VSS[262] K39

VSS[263] K46

VSS[259] H46

VSS[260] K18

VSS[261] K26

VSS[331] AD47

VSS[333] B43

VSS[334] BE10

VSS[335] BG41

VSS[337] G14

VSS[338] H16

VSS[340] T36

VSS[342] BG22

VSS[343] BG24

VSS[344] C22

VSS[345] AP13

VSS[172]

F45

VSS[221]

H10

VSS[346] M14

VSS[347] AP3

VSS[348] AP1

VSS[349] BE16

VSS[350] BC16

VSS[351] BG28

VSS[352] BJ28

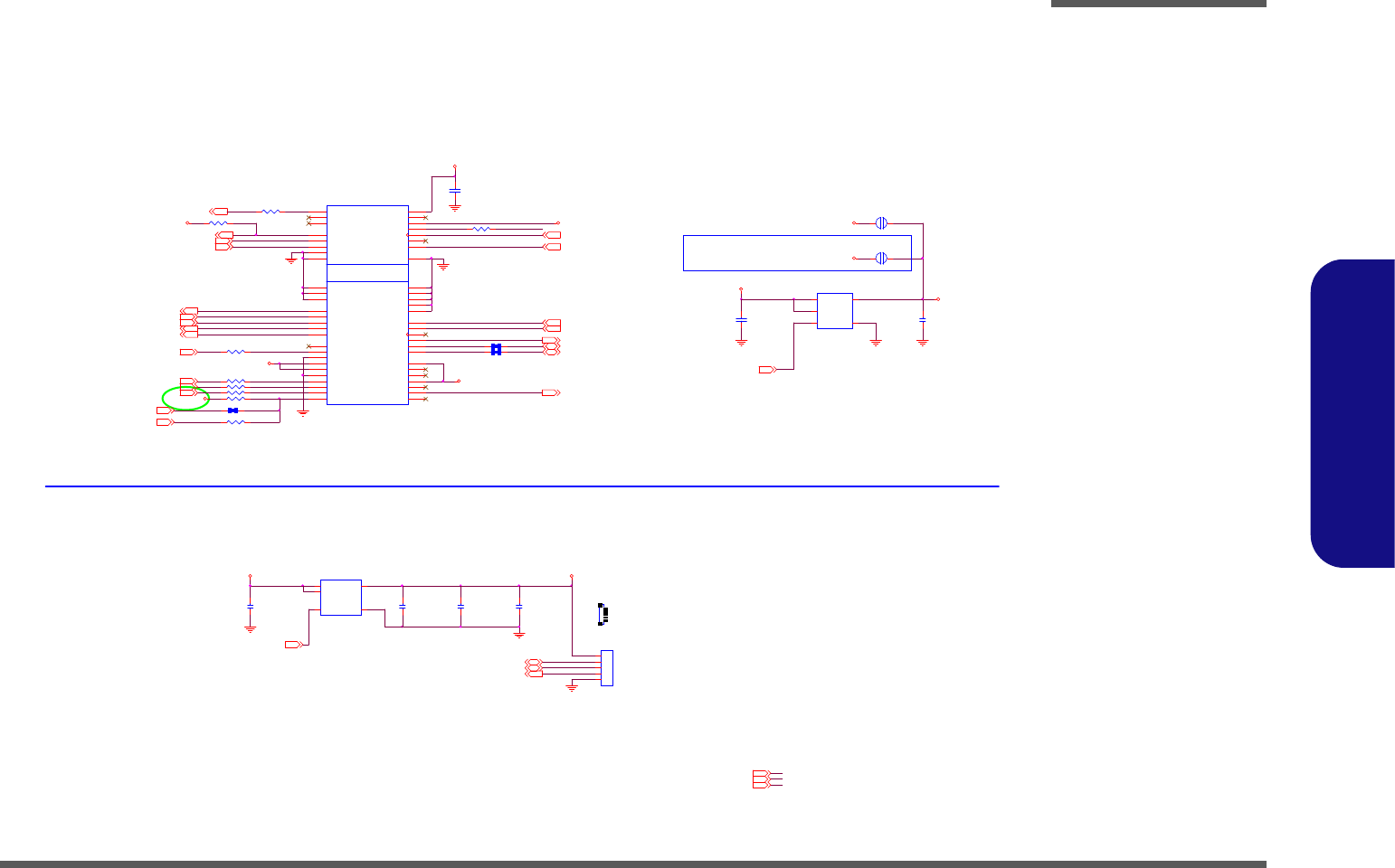

Schematic Diagrams

WLAN, CCD B - 23

B.Schematic Diagrams

WLAN, CCD

VDD3[13,23,24,26,28,31,32,33,39]

USB_PP3[17] USB_PN3[ 17]

C4

1u_6.3V_X5R_04

5V

From EC default HI

48 mil

J_CCD1

85205-05001

1

2

3

4

5

C2

*1u_6.3V_X5R_04

MJ_CCD1

5

CCD

1

5V_CCD

CCD_EN[28]

CCD_DET#[28]

C6

0.1u_16V_Y 5V_04

C5

*1u_6.3V_X5R_04

U41

G5243A

VIN

4

VIN

5

EN

3

VOUT 1

GND 2

PJ32

*OPEN_2mm

12

C679

1u_10V_Y5V_06

>120 mil

WLAN POWER

(FOR INTEL SMART CONNECTOR)

>120 mil

VDD3

C678

0.1u_16V_Y 5V_04

3.3V_WLAN

WLAN_POWER_EN[28]

PJ31

*OPEN_2mm

12

´£¨ÑPIN 2,24,39,41,52

¤£»ÝSUPPORT SMART CONNECTOR ®É,

¥iJUMP SHORT ¤U¤è¹s¥ó¤£¤W¥ó

3.3V

5V[20,26,27,31,32,34,35,36] 3.3V[2,3,6,11,13,14, 15,17,18,19,20,23,26,28, 32,34,35,36]

R501 *10mil_04

0606 D02

M: NCT3522U -- 6-02-03522-9C0

S: G5243A ---- 6-02-05243-9C0

AP2821KTR-G1 6-02-02821-9C0

U52

G5243A

EN

3

VIN

5

VIN/SS

4

VOUT 1

GND 2

PCIE_WAKE#[15,24,26]

BT_SBD#

3IN1 [28]

C472

0.1u_16V_Y5V_04

3.3V_WLAN R499 *10K_04

BT_SBD#[14]

VDD3

R605 *0_04

R552 *0_04

R553 *0_04

CL_RST#1[14]

CL_CLK1[14] C L_DATA1[14] R204 *0_04

R498 *0_04 CL_DATA_1

BT_SBD#

R199 *0_04

CL_RST#_1

R357 *10mil_04

BT_EN[28,29]

BUF_PLT_RST# [11,24,26,28]

3.3V_WLAN

3.3V

CL_CLK_1

CLK_PCIE_MINI[14]CLK_PCIE_MINI#[14] WLAN_CLKREQ#[14]

R490 10K_04

WLAN_DET#[28]

PCIE_RXN3_WLAN[14]

PCIE_TXP3_WLAN[14] PCIE_TXN3_WLAN[14] PCIE_RXP3_WLAN[14]

USB_PP2 [17]

USB_PN2 [17]

3.3V_WLAN

WLAN_EN [28,29]

20 mil

BT_DET# [28]

KEY

J_MINI1

88910-5204M-01

COEX1

3

COEX2

5

CLKREQ#

7

GND0

9

REFCLK-

11

REFCLK+

13

WAKE#

1

GND1

15

PETn0

23

PETp0

25

GND2

21

GND3

27

PERn0

31

PERp0

33

GND4

29

Reserv ed0

17

Reserv ed1

19

W_DISABLE# 20

GND12

37

3.3VAUX_3

39

3.3VAUX_4

41

GND13

43

Reserv ed2

45

Reserv ed3

47

Reserv ed4

49

Reserv ed5

51 LED_WLAN# 44

LED_WWAN# 42

GND6 18

UIM_VPP 16

UIM_RESET 14

3.3VAUX_0 2

UIM_CLK 12

UIM_DATA 10

UIM_PWR 8

1.5V_0 6

GND5 4

PERSET# 22

3.3VAUX_1 24

GND7 26

1.5V_1 28

SMB_CLK 30

SMB_DATA 32

GND8 34

USB_D- 36

USB_D+ 38

GND9 40

LED_WPAN# 46

1.5V_2 48

GND10 50

3.3VAUX_2 52

GND11

35

BT_EN[28,29]

USB_D# R356 *10mil_04

USB_D

3.3V_WLAN

R494 *0_04

WLAN _LED# [29]

80CLK [ 28]

MINI CARD WLAN

VDD3

Sheet 22 of 44

WLAN, CCD

*

*

60mils

UIM_RST

KEY

J_3G1

*88910-5204M-01

COEX1

3

COEX2

5

CLKREQ#

7

GND0

9

REFCLK-

11

REFCLK+

13

WAKE#

1

GND1

15

PETn0

23

PETp0

25

GND2

21

GND3

27

PERn0

31

PERp0

33

GND4

29

Reser v ed0

17

Reser v ed1

19

W_DISABLE# 20

GND12

37

3.3VAUX_3

39

3.3VAUX_4

41

GND13

43

Reser v ed2

45

Reser v ed3

47

Reser v ed4

49

Reser v ed5

51 LED_WLAN# 44

LED_WWAN# 42

GND6 18

UIM_VPP 16

UIM_RESET 14

3.3VAUX_0 2

UIM_CLK 12

UIM_DATA 10

UIM_PWR 8

1.5V_0 6

GND5 4

PERSET# 22

3.3VAUX_1 24

GND7 26

1.5V_1 28

SMB_CLK 30

SMB_DATA 32

GND8 34

USB_D- 36

USB_D+ 38

GND9 40

LED_WPAN# 46

1.5V_2 48

GND10 50

3.3VAUX_2 52

GND11

35

C235

*0.1u_16V_Y5V_04

UIM_DATA

UIM_VPP

UIM_RST

UIM_PWR

3G_3.3V

UIM_CLK

C267

*10u_10V_Y5V_08

3G_3.3V

3G_3.3V

3G_EN [28]

3G_DET#[28]

3G_3.3V

60mils

USB_PP11 [17]

USB_PN11 [17]

R515

*10_06

UIM_DATA

Q33

*2SK3018S3

G

DS

3G_3.3V

Q35

*2SK3018S3

G

DS

>120 mil

R519 *330K_04

3G POWER

From H8 default HI

>120 mil

3.3V

C507

*0.1u_16V_Y5V_04

Q30 *MTP3415KN3

G

DS

C483

*0.1u_16V_Y5V_04

C500

*1u_10V_Y5V_06

C212

*0.1u_16V_Y5V_04

SIM CONN

UIM_CLK

+

C286

*220u_4V_V_A

MINI CARD 3G(Port 6)

+

C287

*220u_6.3V_6.3*6.3*4.2

C470

*22p_50V_NPO_04

C469

*22p_50V_NPO_04

3.3VS[3,9,10,11,12,13,14,15,16,17,18,19, 20,24,25,28,29,30,31,32,37]

C471

*22p_50V_NPO_04

3.3V[2,3,6,11,13,14,15,17,18,19,20,22,26,28,32,34,35,36]

(TOP VIEW)

LOCK

OPEN

J_SIM1

*C1770661-1

UIM_DATA C7

UIM_VPP C6

UIM_GND C5

UIM_PWR

C1 UIM_RST

C2 UIM_CLK

C3

3G_PWR_EN[28]

C242

*0. 1u_16V_Y 5V_04

R503 *4.7K_04

C489

*22p_50V_NPO_04

L: NORMAL ( Int. PD )

SIMLOCK

UIM_VPP

C209

*0.1u_16V_Y5V_04

SATATXN4[13]

*

*

SATATXP4[13]

*

X8

*1TJS125DJ4A420P_32.768KHz

14

3 2

*

XTA LI

C305

*18p_50V_NPO_04

C302

*18p_50V_NPO_04

LPC_AD1[13,28] LPC_AD2[13,28]

PLT_RST#[3,11,17]

LPC_AD3[ 13,28]

SERIRQ[13,28]

LPC_AD0[ 13,28]

PCLK_TPM[17]

LPC_FRAME#[13,28]

PM_CLKRUN#[15]

S4_STATE#[15]

C508

*0.1u_16V_Y 5V_04

C285

*0.1u_16V_Y5V_04

S4_STATE#_R

C294

*0.1u_16V_Y5V_04

TPM3005

C282

*0.1u_16V_Y5V_04

TPM_BADD

TPM3002

TPM

U28

*SLB9635TT

LAD3

17

LAD0

26

LAD1

23

LAD2

20

VDD1 10

XTAL I 13

VDD3 24

VDD2 19

LFRAME#

22

LCLK

21

LRESET#

16

SERIRQ

27

CLKRUN#

15

GND_1 4

GND_2 11

GND_3 18

GND_4 25

GPIO 6

GPIO2 2

XTA LO 14

TESTI

8

TESTBI/BADD

9

PP

7

NC_1

1

NC_2

3

NC_3

12

LPCPD#

28

VSB 5

TPM3001

TPM3004

TPM_PP

TPM3003

*

VDD3

XTA LO

C300

*1u_10V_Y5V_06

R612 *0_04

*

R724 *0_06 3.3VS

R725 *0_06 VDD3

*

*

*

*

TPM 1.2

*

*

L: 2E/ 2F H

H: 4E/ 4F H

LPCPD# inactive to LRST# inactive 32~96us

Asserted before entering S3

LPC reset timing:

*

6-03-09635-0H3 Ver¡G3.17

PCLK_TPM PCLK_TPM1 C292 *10p_50V_NPO_04

R349

*33_04

*

*

C645 *0.01u_16V_X7R_04

C648 *0.01u_16V_X7R_04

C647 *0.01u_16V_X7R_04

C646 *0.01u_16V_X7R_04

*

*

¥´ * ªº¹s¥ó-n¤W¥ó¡A¥]§t¡G

PCLK_TPM¡GR214(P17)

*

*

*

*

De fau lt

R520

*100K_04

SATARXP4[13]

*

R615 *10K_04

S4_STATE#_R

H: ACCESS

TPM_PP

TPM_BADD

R613 *10K_04

TPM_P P

R348 *10K_04

R352 *10K_04

R341 *10K_04

3.3VS

TPM_B ADD

VDD3

W/ 3G¡G

¥´ * ªº¹s¥ó-n¤W¥ó

SATARXN4[13]

UIM_PWR

*

60mils

VDD 3[13,22,24,26,28,31,32,33,39]

*

*

De fau lt

*

*

W/ TPM¡G

Sheet 23 of 44

3G, TPM

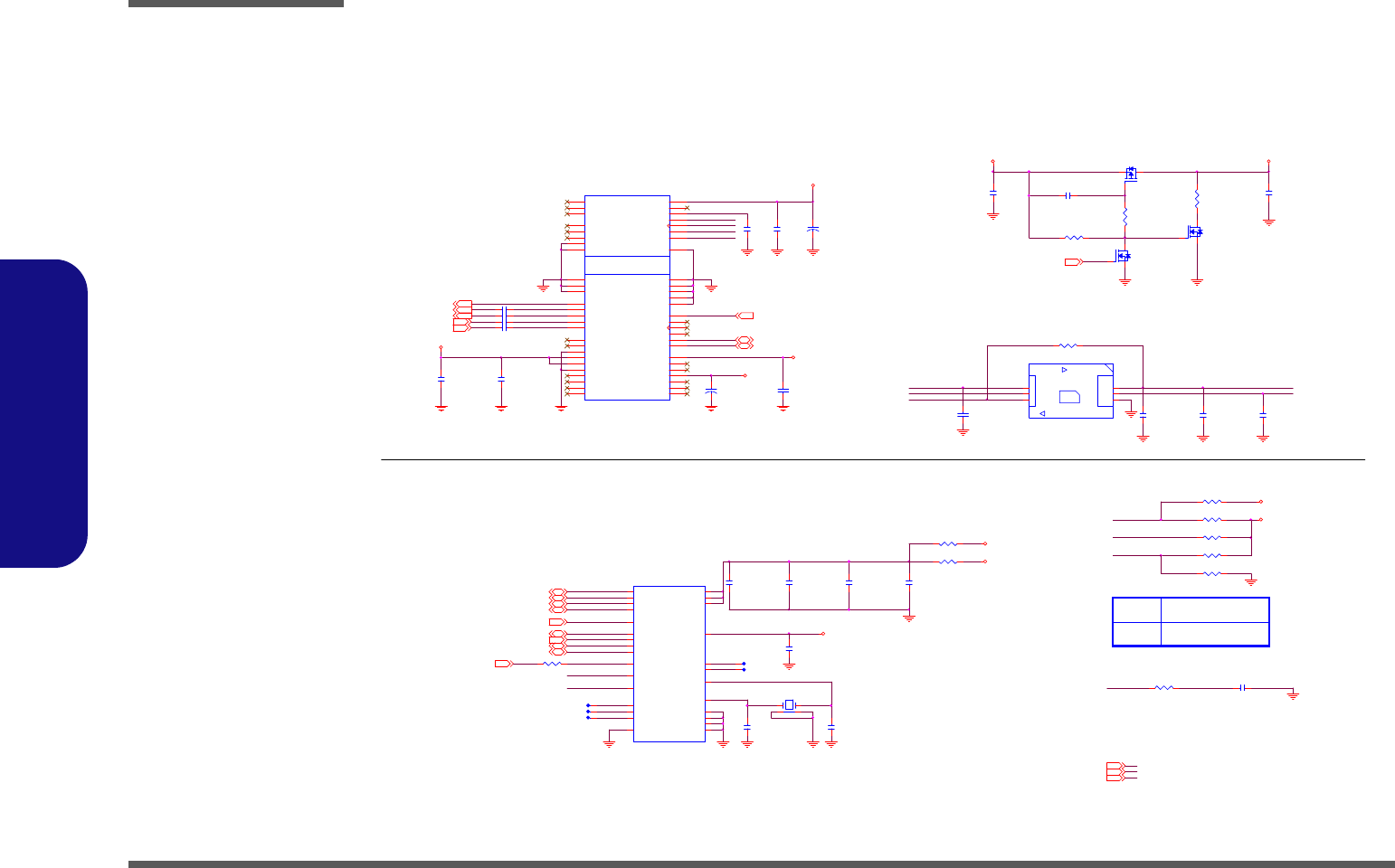

Schematic Diagrams

B - 24 3G, TPM

B.Schematic Diagrams

3G, TPM

Schematic Diagrams

Card Reader, LAN RTL8402 B - 25

B.Schematic Diagrams

Card Reader, LAN RTL8402

C710

*5p_50V_NPO_04

LAN_VDD33

LAN_SPICS#

MS_IN S#

VDD33/18

MS_BS

SD_WP/MS_D1

MS_D0

SDA/ SPIDI

LAN_CLKREQ# [14]

BUF_PLT_RST# [11,22,26,28]

VDD33/ 18

SD_D1/ MS_CLK_R

ISOLATE#

SD_CD#

LED1/ SPISCK

VDD10

REXT_C

LAN_VDD33

EVDD10

LAN_MDIP1[25] LAN_MDIN0[25] LAN_MDIP0[25]

LAN_MDIN1[25]

U49

RTL8402

MS_D0/ xD_D1 43

MS_D4/ xD_D0 42

LED0/SPICSB 39

GPO 38

XD_CD# 44

SD_CD#/MS_D5/xD_ALE 41

LED1/SPISCK 37

DVDD10 47

SD_CMD/MS_D6/xD_D3

15

SD_D3/MS_D2/xD_D2

16

SD_D2/xD_D7

17

GND 25

HSIP

19

HSIN

20

REFCLK_P

21

REFCLK_N

22

EVDD10

18

HSOP

23

HSON

24

SDA/SPIDI 36

SCL/LED_C R 35

DVDD10 34

LANWAKEB 33

ISOLATEB 32

PERSTB 30

CLKREQB 29

SD_WP/MS_D1/xD_WP# 28

MS_BS/xD_CLE 27

RSET 48

CKXTAL2 46

CKXTAL1 45

VDD33/18 26

GND

49

AVDD33

1

MDI P0

2

MDI N 0

3

MDI P1

4

MDI N 1

5

DVDD33

6

Card_3V3

7

SD_D7/xD_RDY

8

SD_D 6/MS_INS#/xD _RE#

9

SD_D5/xD_CE#

10

SD_D4/xD_WE#

11

SD_D 1/MS_CLK/xD_D 6

12

SD_D0/MS_D7/xD_D5

13

SD_CLK/MS_D3/xD_D4

14

DVDD33 31

VDD33/18 40

CARD_3V3 LAN_VDD33

VDD10

LAN_PCIE_WAKE#

LANXTAL1

LANXTAL2

D16 RB751S-40C2

AC

LAN_PCIE_WAKE# [28]

PCIE_WAKE# [15,22,26]

PCIE_RXN_4_GLAN C433 0.1u_10V_X7R_04

PCIE_RXP_4_GLAN C434 0.1u_10V_X7R_04

PCIE_TXP4_GLAN [14]

CLK_PCIE_GLAN [14]

PCIE_RXP4_GLAN [14]

CLK_PCI E_GLAN# [14]

PCIE_TXN4_GLAN [14]

PCIE_RXN4_GLAN [14]

SD_D0_R

SD_CLK/MS_D3_R

SD_CMD _R

SD_D3/MS_D2_R

SD_D2_R

RTL8402

R819 *10mil_04

Pin 31Pin 6

R750 *10mil_04

SD_D3/MS_D2

C454

*5p_50V_NPO_04

C670

*5p_50V_NPO_04

C668

*5p_50V_NPO_04

R751 *10mil_04

SD_D2_R

SD_D3/ MS_D2_R

SD_CLK/MS_D3

SD_D1/MS_CLK

SD_D0_R

C669

*5p_50V_NPO_04

SD_D0

SD_CLK/MS_D3_R

SD_D1/MS_CLK_R

C667

*5p_50V_NPO_04

SD_D2

R753 *10mil_04

R752 *10mil_04

R754 *10mil_04

Close to RTL8402 for SDXC EMI

C701

0.1u_16V_Y5V_04

C478

*4.7u_6.3V_X5R_06

C148

0.1u_16V_Y5V_04

C443

*4.7u_6.3V_X5R_06

C189

0.1u_16V_Y5V_04

C482

0.1u_16V_Y5V_04

C165

0.1u_16V_Y5V_04

C170

*4.7u_6.3V_X5R_06

J_CARD-REV1

MDR019-A0-1072

DAT2_SD

P2

VSS_MS

P21

CD/DAT3_SD

P3

CMD_SD

P4

VSS_SD

P5

VDD_SD

P6

CLK_SD

P7

VSS_SD

P8

DAT0_SD

P9

DAT1_SD

P10

WP_SD

P11

VSS_MS

P12

VCC_MS

P13

SCLK_MS

P14

DAT3_MS

P15

INS_MS

P16

DAT2_MS

P17

SDIO/DAT0_MS

P18

DAT1_MS

P19

BS_MS

P20

CD_SD

P1

GND P23

GND P22

C442

0.1u_16V_Y5V_04

C479

0.1u_16V_Y5V_04

VDD33/18 VDD33/18 VDD33/18 VDD33/18

LAN_VDD33LAN_VDD33

VCC_CARD

VCC_CARD

VCC_CARD

VDD3[13,22,23,26,28,31,32,33,39] 3.3VS[3,9,10,11,12,13,14,15,16,17,18,19,20,23,25,28,29,30,31,32,37]

LAN_PCIE_WAKE#

SDA/SPIDI

LED1/SPISCK

R493 *1.5K_04

R746 *10K_04

R434 10K_04

LAN_VDD33

R749 *0_04 EVDD10

VDD10

R747 0_06

VDD3 LAN_VDD33

LAN_VDD33 Rising Time¡G

1ms ~ 100ms

ISOLATE#

3.3VS

REXT_C

R217 15K_04

R142 2.49K_1%_04

R216 1K_04

LAN_SPICS#

R812 *1K_04

R749 must be removed for RTL8402 application.

C671

0.1u_16V_Y5V_04

C136

1u_6.3V_X5R_04

EVDD 10 EVDD10

Pin 18 Pin 18

C139

0.1u_16V_Y5V_04

C445

0.1u_16V_Y5V_04

C435

0.1u_16V_Y5V_04

VDD10 VDD10 VDD10

Pin 47Pin 34 Pin 47

SD_CMD

VCC_CARD

R813 0.2_06

CARD_3V3

Close to Cardreader CONN

MS_BS

SD_D1/MS_CLK

4 IN 1 SOCKET SD/MMC/MS/MS Pro

SD_CLK/MS_D3

SD_D1/MS_CLK

SD_CMD

MS_I NS#

SD_CLK/MS_D3

SD_D3/MS_D2

SD_WP/MS_D1

C702

1u_6.3V_X5R_04

CARD_3V3

Pin 7

MS_D 0

SD_D0

SD_CD#

SD_WP/MS_D1

SD_D3/MS_D2

SD_D2

Pin 1

C134

0.1u_16V_Y5V_04

LAN_VDD33

6-22-25R00-1B4

6-22-25R00-1B5

LANXTAL2

C432

22p_50V_NPO_04

C431

22p_50V_NPO_04

X10

FSX5L_25MHZ

12

LANXTAL1

R811 1M_04

Pin 40Pin 26 Pin 40

SD_CMD_R

Pin 26

SD UHS Mode Power Supply

Sheet 24 of 44

Card Reader, LAN

RTL8402

Schematic Diagrams

B - 26 Transformer, SATA HDD, ODD

B.Schematic Diagrams

Transformer, SATA HDD, ODD

LMX2+

SATA_TXP0

SATA_TXN0

HDD_NC1

HDD_NC2

HDD_NC3

HDD_NC0

SATA HDD

PIN GND1~2=GND

1A

C208 *22u_6.3V_X5R_08

LMX2-

SATA ODD

0703 D02

W240HU ALLTOP-C166N5-12205-L

W250HU 1-162-100561

¹s¥ó¸m©ó°T¸¹¤À¤ä³B

L25

*WCM2012F2S-SHORT

1

4

2

3

NMCT_4

NMCT_4

DLMX1+LMX1+

DLMX2-

10/100 LAN Transformer

LMX1-

NMCT_R

NMCT_3

NMCT_2

SATA_RXN0

NMCT_1

SATA_RXP0

PJ22

*OPEN_2mm

1 2

C210 22u_6. 3V_X5R_08

C410

0.1u_16V_Y5V_04

C408

1u_6.3V_X5R_04

C475 1u_6.3V_X5R_04

J_ODD1

C18553-11305-L

GND1 S1

A+ S2

A- S3

GND2 S4

B- S5

B+ S6

GND3 S7

DP P1

V_50 P2

V_50_1 P3

MD P4

GND4 P5

GND5 P6

C487 0.01u_16V_X7R_04

J_HDD1

AT22J36BA0057

S1

S2

S3

S4

S5

S6

S7

P1

P2

P3

P4

P5

P6

P7

P8

P9

P10

P11

P12

P13

P14

P15

C430 0.01u_16V_X7R_04

R397 75_1%_04

R394 75_1%_04

PJS-08SL3B

J_RJ1

DD-

8DD+

7

DB-

6

DC-

5DC+

4

DB+

3DA-

2DA+

1shield GND1

shield GND2

C425 0.01u_16V_X7R_04

C341

*0.01u_16V_X7R_04

C473 0.1u_16V_Y5V_04

C485 0.01u_16V_X7R_04

C474 0.1u_16V_Y5V_04

C404

10u_10V_Y5V_08

C342

*0.01u_16V_X7R_04

C54

0.01u_16V_X7R_04

C476 *0.1u_16V_Y5V_04

C335

1000p_2KV_X7R_12

C411

0.1u_16V_Y5V_04

R399 75_1%_04

R402 75_1%_04

C484 0.01u_16V_X7R_04

C486 0.01u_16V_X7R_04

C428 0.01u_16V_X7R_04

C421 0.01u_16V_X7R_04

GND

5VS

5VS_ODD

5VS[ 12,13,20, 30,31, 32,37]

3.3VS[3,9,10,11,12,13,14,15,16,17,18,19,20,23,24,28,29,30,31,32,37]

SATARXN0 [13]

SATARXP0 [13]

SATATXN0 [13]

SATATXP0 [13]

LAN_MDIP1[24]

LAN_MDIN0[24] LAN_MDIP0[24]

LAN_MDIN1[24]

SATA_ODD_DA# [17]

SATA_ODD_PRSNT# [18]

SATARXP2 [13]

SATATXN2 [ 13]

SATATXP2 [13]

SATARXN2 [13]

Q72

MTP3403N3

G

D S

5VS

R766

100K_04

Q73

2SK3018S3

G

DS

C674

0.1u_10V_X5R_04

5VS

R767 100K_04

DLMX1-

NMCT_1

NMCT_3

W240HU PJS-08SL3B

W250HU PJS-08SO1B-1

Zero Power ODD¤W¥ó

3.3VS

SATA_ODD_PWRGT [18]

1.5A

C693

*22u_6.3V_X5R_08

40 mil

L26

*WCM2012F2S-SHORT

1

4

2

3

DLMX2+

NMCT_2

L29

NS0013LF

RD+

1

RD-

2RX+ 16

RX- 15

RD_CT

3RX_CT 14

NC

4

NC 12

NC

5

TD_C T

6

TD+

7

NC 13

TX- 9

TD-

8

TX_CT 11

TX+ 10

Sheet 25 of 44

Transformer, SATA

HDD, ODD

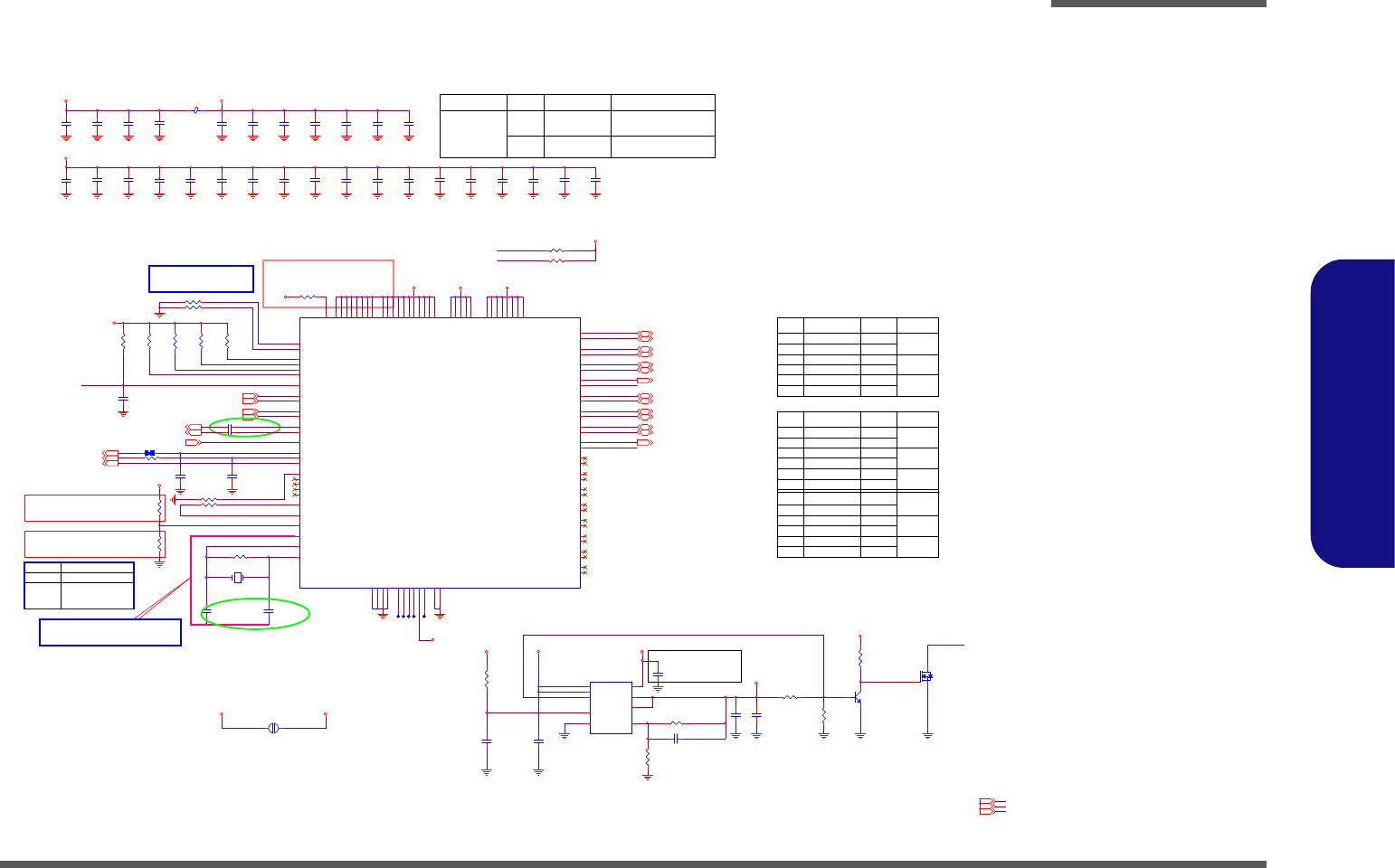

Schematic Diagrams

USB 3.0 TI TUSB7320 B - 27

B.Schematic Diagrams

USB 3.0 TI TUSB7320

0710 D02

U3RX1# [27]

GS7113

6-02-07113-320

AX6615

6-02-06615-320

Freq.

GSDA

PWRON1# [27]

USB3_GRST#

U2DM1 [27]

Note

USB3_OC#2

C622

*0.1u_10V_X5R_04

C615

*0.01u_16V_ X7R_04

C596

*0.01u_16V_X7R_04

C603

*0.01u_16V_X7R_04

R623 *10K_04

C628

*27p_50V_NPO_04

R710 *4.7K_04

C606

*0.1u_16V_Y5V_04

R632 *0_04

C619

*0.1u_16V_Y5V_04

C624

*1000p_50V_X7R_04

C616

*0.01u_16V_X7R_04

C568 *0.1u_10V_X7R_04

C627

*27p_50V_NPO_04

R684 *10K_04

C569 *0.1u_10V_X7R_04

Pull lo w : suppor t D3h ot w ak e up o nly

PJ27

*OPEN_2mm

1 2

R769 *4.7K_04

C599

*0.1u_16V_Y5V_04

R644 *10K_04

C613

*0.01u_16V_X7R_04

C601

*0.1u_16V_Y5V_04

C604

*0.1u_16V_Y5V_04

X14

*24.000MHz / 16pF / + 30ppm

12

C594

*0.1u_16V_Y5V_04

C598

*0.1u_16V_Y5V_04

C614

*0.01u_16V_X7R_04

R627

*4.7K_04

C612

*0.01u_16V_X7R_04

C605

*0.01u_16V_X7R_04

C597

*0.01u_16V_X7R_04

C609

*0.1u_16V_Y5V_04

C633

*0 .1u_ 16V_Y 5V_04

C592

*0.1u_16V_ Y5V_04

R636 *1M_04

C620

*0.1u_16V_Y5V_04

R633

*4.7K_04

R626

*4.7K_04

Pull Hi (R633)

C618

*0.1u_16V_Y5V_04

R635

*4.7K_04

R628

*10K_04

Need to program

Ti's register and

set to 24MHz

TUSB7320

U45

XI

A23

WAKE#

B35

GRST#

A15

PCIE_REFCLKN

B41

PCIE_RXN

A42

SCL

B2

SDA

A2

GPIO0

A49

GPIO1

B46

GPIO2

B47

GPIO3

B48

CLKREQ#

B36

SMI

B3

VSS_OSC

B21

FR EQSEL

B14

R1EXTRTN

B23

R1EXT

A24

VDD11_11 A9

VDD 11_10 A6

VDD11_9 A50

VDD11_8 A4

VDD11_7 A38

VDD11_6 A33

VDD11_5 A31

VDD 11_4 A28

VDD11_2 A12

VDD11_1 A1

VDD 11_3 A16

AUX_DET A52

VDD33_5 A51

VDD 33_4 A47

VDD33_3 A39

VDD33_2 A34

VDD 11_18 B42

VDD33_1 A3

VDD11_19 B44

VDD 11_17 B40

VDD11_16 B37

VDD11_15 B24

VDD11_14 B19

VDD11_13 B17

VDD11_12 B1

XO

A22

NC10

C4 NC9

C3 NC8

C2 NC7

C1

NC1

A14

NC2

A26

NC3

B13

NC4

B29

VDD11_20

B8

NC6

A43

VSS_1

B20

VSS_2

A53

JTAG_RST#

B32

VDDA_3P3_1 A19

PERST#

A40

USB_DM_DN1 B18

USB_SSRXN_DN1 B16

PWRON1# B33

OVERCUR1# A36

USB_SSTXN_DN1 B15

USB_DM_DN2 A13

VDDA_3P3_2 A21

VDDA_3P3_3 A44

VDDA_3P3_4 B11

VDDA_3P3_5 B22

VDDA_3P3_6 B26

VDDA_3P3_7 B4

VDDA_3P3_8 A25

PCIE_REFCLKP

A45

PCIE_RXP

B39

PCIE_TXP

B38 PCIE_TXN

A41

JTAG_TCK

A32

JTAG_TDI

A35

JTAG_TDO

B31

JTAG_TMS

B30

USB_DP_DN1 A20

USB_SSRXP_DN1 A18

USB_SSTXP_DN1 A17

USB_DP_DN2 B12

USB_SSRXP_DN2 B9

USB_SSRXN_DN2 A10

USB_SSTXP_DN2 A11

USB_SSTXN_DN2 B10

PWRON2# B34

OVERCUR2# A37

USB_DM_DN3 A27

USB_DP_DN3 B25

USB_SSRXN_DN3 A29

USB_SSRXP_DN3 B27

USB_SSTXN_DN3 A30

USB_SSTXP_DN3 B28

PWRON3# A46

OVERCUR3# B43

USB_DM_DN4 A5

USB_DP_DN4 B5

USB_SSRXN_DN4 A7

USB_SSRXP_DN4 B6

USB_SSTXN_DN4 A8

USB_SSTXP_DN4 B7

PWRON4# A48

OVERCUR4# B45

R634 *9.09K_1% _06

.

L65

*H CB1608KF-121T25

U2DP2 [27]

U2DM2 [27]

U3RX2# [27]

C607

*0.1u_16V_Y5V_04

U3RX2 [27]

U3TX2 [27]

U3TX2# [27]

R768 *4.7K_04

C595

*0.01u_16V_ X7R_04

C617

*0.01u_16V_X7R_04

C623

*1000p_50V_X7R_04

C608

*0.1u_16V_Y5V_04

C600

*0.1u_16V_ Y5V_04

C602

*0.01u_16V_X7R_04

C611

*0.01u_16V_X7R_04

R726 *10mil_04

R625

*4.7K_04

C593

*0.1u_16V_Y5V_04

R624

*4.7K_04

C610

*0.1u_16V_Y5V_04

3VA_TI3.3V_TI

1.1V_TI

Pull Lo (R635)

3.3V_TI

3.3V_TI

1.1V_TI 3VA_TI

3.3V_TI

3VA_TI

3.3V_TI

1.1V_TI

3.3V_TI

3.3V

PCI E_TXN2_USB30[14] PCIE_TXP2_USB30[14]

CLK_PCI E_U SB30#[14] CLK_PCIE_USB30[14]

BUF_PLT_RST#[11,22,24, 28]

PCIE_RXN2_USB30[14] PCIE_RXP2_USB30[ 14]

Pull high : support D3hot/D3cold wake up

USB30_SMI#[13]

PCI ECLKRQ2#[14]

3.3V[2,3,6,11,13,14,15,17,18,19,20,22,23,28,32,34,35,36]

PCI E_WAKE#[15,22,24]

5V[20,22,27, 31,32,34, 35, 36]

VDD3[13,22,23,24,28,31,32,33,39]

VSS_OSC

USB3_OC#2

R1EXT

USB3_OC#1

R1E XTRTN

PEWAKE#

U2DP1 [27]

2A2A

PWRON2# [27]

U3TX1# [27]

U3TX1 [27]

USB3_OC#1

pin#A39

pin#B4pin#A21 pin#B26pin#A19

pin#A34

pin#B11pin#A44

VSS_OSC as short as possible

500mils

pin#A3

pin#A47 pin#B22

GSCL

TI USB3.0 used 24MHz

crystal or PCH 24MHz

clock output

Ti doesn't check

the register

PCH Clock out/

EXT. Crystal

PLL_FREQ_SEL

Field in the USB

Control Register

Freqsel

48MHz0

Clock

1

RB

RA

2A

Vo=0.8 (1 + RA /RB )

(15nF~48nF)

Need close to Pin6

2A

Q68

*2SK3018S3

G

DS

USB3_GR ST#

3.3V_TI_EN#

R723 *1K_04

R640

*2K_1%_04

R729

*100K_04

R639 *750_1%_04

R722

*100K_04

C634

*0.1u_16V_Y5V_04

U46

*GS7113

GND

1

VCNTL 6

VOUT 3

VIN

5

VOUT 4

VFB 2

POK

7

EN

8

VIN

9

C636 *0.022u_16V_X7R_04

Q66

*BTN3904N3

B

E C

R638

*10K_04

C631

*10u_10V_Y5V_08

C629

*1u_10V_Y5V_06

5V

USB3_POK VDD3

5V

1.1V_TI

3.3V

B41

A45

PCIE_RXP2_USB30

Bondwire

Length(mil)

A41 118

19

Internal Chip Trace Length Mismatch

Diffe rence

(mil)

27

B39

PCIE_TXN2_USB30 112

Ball no NetNam e

85

A42

89B38

PCIE_RXN2_USB30 28

106CLK_PCIE_USB30

PCIE_TXP2_USB30

U3RX1 [27]

A18

B16

104

20

CLK_PCIE_USB30# 87

U2DP2

127U2DM 2

U3RX1#

83

27

93

73

U3RX1

Diffe rence

(mil)

67

20

96

U2DP1

Bondwire

Length(mil)

34

A13

B12

U3T X1 116

NetNam e

U3T X2#

B18 U2DM1

B15

94

Populate Pull dow n, IF I2C

EEPROM not used and Do not

Populate Pullup.

B10

Internal Chip Trace Length Mismatch

A20

91

105

U3RX2B9

A11

Ball no

31

A10

U3T X1#

U3T X2

22

111

A17

U3RX2#

0629 D02

24MHz

Pin B14 Status

(FREQSEL)

TI USB3.0 used 48MHz

crystal or PCH 48MHz

clock output

48MHz

C632

*0. 1u_16 V_ Y 5V _04

pin#B19pin#A9pin#A31pin#A12 pin#B37pin#B1pin#A33 pin#A38pin#A28 pin#A50pin#A1 pin#B42pin#A16 pin#A6 pin#B44pin#B40pin#B17 pin#B24

Sheet 26 of 44

USB 3.0 TI

TUSB7320

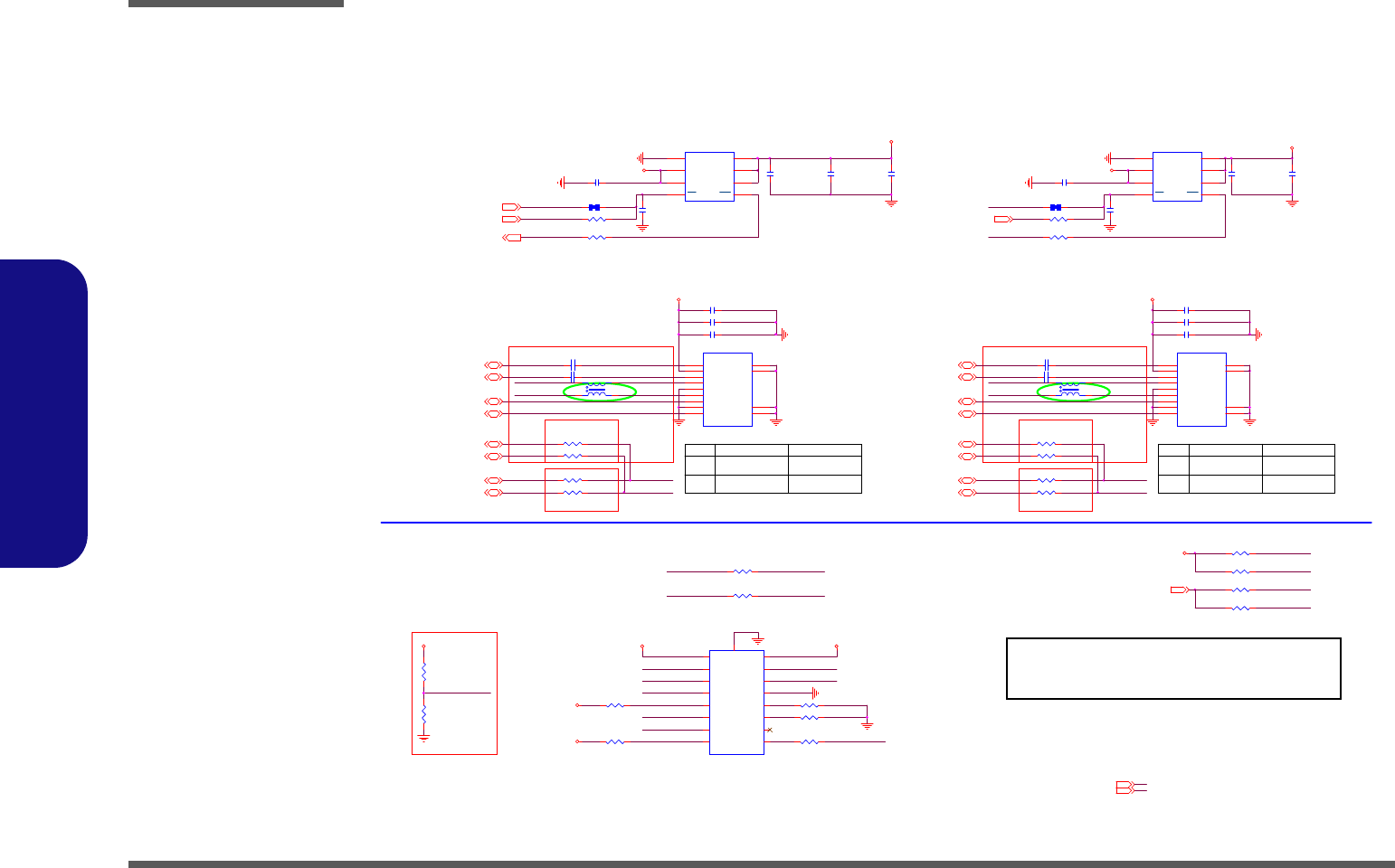

Schematic Diagrams

B - 28 USB 3.0/USB 2.0/USB Charger

B.Schematic Diagrams

USB 3.0/USB 2.0/USB Charger

U40

SY6288DC AC

GND

1

VIN

2

VIN

3

EN

4

VOUT 8

VOUT 7

VOUT 6

FLG 5

*

USB_PP0_A

USB_PN0_A

USB_PP0_C

USB_PN0_C

R557 0_04

R556 0_04

x

x

*

*

USB_PN0_A

80 mil

M_PQFP16

CHG_CTL2

TPS254X_ILIM_SEL

USB_PP0_A

80 mil

USB_OC#01

CHG_CTL1

R561 *33K_1%_04

R563 *40.2K_1%_04

USBVC C_1

R560 *10K_04

R565 *10K_04

U43

*TPS2540A

CTL1

6

NC 9

DM_IN 11

DM_O

2

DP_IN 10

IN

1

EN/D SC

5

DP_O

3

ILIM_SEL

4

CTL2

7

CTL3

8

OUT 12

FAULT# 13

GND 14

ILIM1 15

ILIM0 16

PPAD 17

*

VDD5

VDD5

R566 *0_04

PWRON1#[26]

DD_ON#

R807 *0_04

DD_ON#[31,32,34]

VDD5

R806 *10mil_04

USB_PN0_C

USB_PP0_C

C492

0.1u_16V_Y5V_04

C491

*10u_6.3V_X5R_06

C493

*0.1u_16V_Y5V_04

C501 0.1u_16V_Y5V_04

5V

USBVCC_1

100 MIL

C662

*0.1u_16V_Y 5V_04

0703 D02

USB3_2_EN#

¥´ X ªº¹s¥ó¤£¤W¥ó¡A¥]§t¡G

U40¡BC501(P27)

R771(P28)

U48

SY6288DC AC

GND

1

VIN

2

VIN

3

EN

4

VOUT 8

VOUT 7

VOUT 6

FLG 5

R524 *0_04

*

6-21-B4430-004

*

x

6-21-B4420-004

5V[20,22, 26,31,32,34,35,36]

*

USB_OC#01

USB3_1_EN#

6-21-B4430-004

USB3.0

6-21-B4A20-009 6-21-B4420-004

6-21-B4A30-009

6-21-B4A00-009

W25

W24

USB2.0

C697 22u_6.3V_X5R_08

U2DP1[26]

C625 *0.1u_10V_X7R_04

C162 0.1u_16V_Y5V_04

C626 *0.1u_10V_X7R_04

R193 *0_04

Standard-A

J_USB3_1

C107BF-10405-L

PCB Footprint = USB-C19005

VBUS

1

D-

2

D+

3

GND_D

7

SSRX-

5

SSRX+

6

GND

4

SSTX-

8

SSTX+

9SHIELD GND1

SHIELD GND2

SHIELD GND3

SHIELD GND4

R186 *0_04

R203 0_04

R197 0_04

USB_PP0[17]

USB_PN0[17]

USBVCC_1

6-21-B4A20-009

USB2.0 Diff.

trace 90ohm

TXP0_R

USB_PN0_A_R

USB_PP0_A

USB_PN0_A

PCH USB2.0

USB_PN0_C

TI USB2.0

USB_PP0_A_RUSB_PP0_C

TXN0_R

C696 22u_6.3V_X5R_08

U3TX1[26]

U3RX1[26]

U2DM1[26]

U3TX1#[26]

U3RX1#[26]

L66

*WCM2012F2S-SHORT

1

4

2

3

R689 *0_04

USB3.0 USB2.0

W24

W25

FLG#1USB_OC#01

W/ USB CHARGER¡G

¥´ * ªº¹s¥ó-n¤W¥ó¡A¥]§t¡G

R770(P28)¡B

PQ65¡BPR225¡BPC221¡BPR227(P32)

PQ73(P33)

x

CHG_CTL2

VDD5

CHG_CTL1

CHG_CTL1

CHG_CTL2

R564 *10K_04

R643 *10K_04

DD_ON[28,32,33]

R740 *10K_04

R741 *10K_04

R801

*10K_04

PWRON2#[26] R808 *0_04

VDD5

DD_ON#

TPS254X_ILIM_SEL

R802

*0_04

R809 *10mil_04

WITH USB CHARGER

ILIM_SEL (FOR TPS2543/TPS2540A)

ILIM_SEL=HI , FOR TPS2543

ILIM_SEL=LOW, FOR TPS2540A

C663

*0.1u_16V_Y5V_04

CTL1 CTL2 CTL3: 1 0 1-----> Dedicated charging port, Divider Mode only

CTL1 CTL2 CTL3: 1 1 1-----> Charging downstream port, BC1.2.

CTL1 CTL2 CTL3: 0 x 1-----> Dedicated charging port, auto-detect

CTL1 CTL2 CTL3: 0 0 0-----> Out discharge, power switch Off

5V

C655 0.1u_16V_Y5V_04

USBVCC_2

C654

*0.1u_16V_Y5V_04

C653

0.1u_16V_Y5V_04

100 MIL

C698 22u_6.3V_X5R_08

U3RX2[26]

U2DP2[26]

USB2.0 Diff.

trace 90ohm

U3RX2#[26]

U2DM2[26]

U3TX2[26]

C660 22u_6.3V_X5R_08

U3TX2#[26]

TXP2_R

TXN2_R

USB_PN1_A_R

USB_PP1_A

USB_PN1_A

USB_PN 1_A

USB_PP1_A_R

TI USB2.0

PCH USB2.0

USB_PP1_A

R687 0_04

R688 0_04

R686 *0_04

C649 0.1u_16V_Y5V_04

C651 *0.1u_10V_X7R_04

R685 *0_04

C652 *0.1u_10V_X7R_04

USBVCC_2

USB_PP1[17]

USB_PN 1[17]

Standard-A

J_USB3_2

C107BF-10405-L

PCB Footprint = USB-C19005

VBUS

1

D-

2

D+

3

GND_D

7

SSRX-

5

SSRX+

6

GND

4

SSTX-

8

SSTX+

9SHIELD GND1

SHIELD GND2

SHIELD GND3

SHIELD GND4

6-21-B4A30-009

6-21-B4A00-009

L67

*WCM2012F2S-SHORT

1

4

2

3

0703 D02

VDD5[32,33]

FLG#2

USB_OC#01[17]

USB 3.0/USB2.0

Sheet 27 of 44

USB 3.0/USB 2.0/

USB Charger

Schematic Diagrams

KBC-ITE IT8518 B - 29

B.Schematic Diagrams

KBC-ITE IT8518

C211

0.1u_16V_Y5V_04

W25EU

USB_CHR_DET

R328 *0_04

Voltage

W250EU

VDD3

WEB_EMAIL#[31]

AP_K EY #[31]

KB-SO15

RN11

2.2K_8P4R_04

81 72 6

5

3

4

KB-SI3

KB-SI1

KB-SO11

KB-SO6

KB-SI7

KB-SO15

KB-SO5

KB-SO4

KB-SO7

KB-SO0

KB-SI0

KB-SO13

KB-SI2

KB-SO2

KB-SO3

KB-SO8

KB-SO10

KB-SO14

KB-SO9

KB-SO12

KB-SI4

KB-SO1

KB-SI5

KB-SI6

CCD_DET#

EC_VCC BAT_DET

J_KB1

*85208-24051

24

23

22

14

12

11

21

8

20

19

6

5

18

4

17

10

9

7

3

2

1

16

15

13

KBC_AVDD

VDD3

VDD3

80CLK

J_80DEBUG1

88266-05001

1

2

3

4

5

VDD3

3.3VS

VDD3

80DET#80DET#

3IN1

LED_ACIN[29]

KBC_MUTE#[30]

RN10

10K_8P4R_04

81 72 6

5

3

4

BAT_VOLT[39]

SCI#[18] SMI#[18]

3.3VS[3,9,10,11,12,13,14,15,16,17,18,19,20,23,24,25,29,30,31,32,37]

CPU_FANSEN [31]

VDD3[13,22,23,24,26,31,32,33,39]

SUSB# [6,15,32]

SUSC# [15,34]

ALL_SYS_PWRGD [11,15,37]

0712 D02

CCD_DET#[22]

LID_SW#[11, 31]

PWR_BTN#[15]

THERM_VO LT[2]

R293 *10K_04

BT_EN [22,29]

R292 10K_04

VDD3

KBC_SPI_SCLK_C

KB-SO11

SPI_CS#

KB-SO6

KB-SI7

KB-SI0

KB-SI3

KB-SI1

KB-SO4

KB-SO7

KB-SO0

KB-SO5

KB-SO8

KB-SO10

KB-SO2

KBC_SPI_SO

KB-SO3

KB-SI2

KBC_SPI_SI

KB-SI4

KB-SO1

KB-SO13

KB-SO12

W/O USB CHARGER¡GLow (Default)

KB-SI5

KB-SI6

KB-SO14

KB-SO9

KBC_SPI_CE#

R770 *10K_04

x

K/B MATRIX

FLASH

LPC

SMBUS

PS/2

PWM

UART

DAC

CLOCK

IT8518

CIR

ADC

WAKE UP

PWM/COUNTER

LPC/WAKE UP

EXT GPIO

GP INTERRUPT

WAKE UP

GPIO

U23

IT8518E/HX

WRST#

14

LPCCLK

13

LAD0

10

LAD1

9

LAD2

8

LAD3

7

LFRAME#

6

( PD )LPCPD#/WUI6/GPE6 17

SERIRQ

5

ECSMI#/GPD4( PU )

15 ECSCI#/GPD3( PU )

23

GA20/GPB5

126

KBRST#/GPB6( PU )

4

KSI0/STB# 58

KSI1/AFD# 59

KSI2/INIT# 60

KSI3/SLI N # 61

KSI4 62

KSI5 63

KSI6 64

KSI7 65

KSO0/PD0 36

KSO1/PD1 37

KSO2/PD2 38

KSO3/PD3 39

KSO4/PD4 40

KSO5/PD5 41

KSO6/PD6 42

KSO7/PD7 43

KSO8/ACK# 44

KSO9/BUSY 45

KSO10/PE 46

KSO11/ERR# 51

KSO12/SLCT 52

KSO13 53

KSO14 54

KSO15 55

VCC 11

VSTBY 26

VSTBY 50

VSTBY 92

VSTBY 114

VSTBY 127

VSTBY 121

VBAT 3

AVCC 74

PS2CLK0/ GPF0( PU )

85

PS2DAT0/GPF1( PU )

86

PS2CLK1/ GPF2( PU )

87

( PD )TMRI0/ WUI2/GPC4 120

( PD )TMRI1/ WUI3/GPC6 124

LPCRST#/WU I 4/GPD2( PU )

22

( PD )WUI5/GPE5 35

PWRSW/GPE4( PU )

125

RI1#/WUI0/GPD0( PU )

18

RI2#/WUI1/GPD1( PU )

21

( PD )RING#/PWRFAIL#/LPCRST#/GPB7 112

TXD/GPB1( PU )

109 RXD/GPB0( PU )

108

( PD )CTX/GPB2 123

PS2DAT1/GPF3( PU )

88

PS2CLK2/ GPF4( PU )

89

PS2DAT2/GPF5( PU )

90

( PD )TACH0/GPD6 47

( PD )TACH1/GPD7 48

PWM0/GPA0( PU )

24

PWM1/GPA1( PU )

25

PWM2/GPA2( PU )

28

PWM3/GPA3( PU )

29

PWM4/GPA4( PU )

30

PWM5/GPA5( PU )

31

PWM6/GPA6( PU )

32

PWM7/GPA7( PU )

34

ADC0/GPI0

66

ADC1/GPI1

67

ADC2/GPI2

68

ADC3/GPI3

69

ADC4/GPI4

70

ADC5/GPI5

71

ADC6/GPI6

72

ADC7/GPI7

73

VSS

1

VSS

12

VSS

27

VSS

49

VSS

122 VSS

113

AVSS

75

CK32KE 2

CK32K 128

DAC3/GPJ3

79 DAC2/GPJ2

78 GPJ1

77 GPJ0

76

( PD )EGCS#/GPE2 83

( PD )EGCLK/GPE3 84

( PD )EGAD/GPE1 82

GINT/GPD5( PU )

33

L80LLAT/GPE7( PU )

20

VSS

91

DAC5/GPJ5

81 DAC4/GPJ4

80

PWUREQ#/GPC7( PU )

16

( PD )CRX/GPC 0 119

( PD )KSO16/GPC3 56

( PD )KSO17/GPC5 57

( PD )GPH0/ID0 93

( PD )GPH1/ID1 94

( PD )GPH2/ID2 95

( PD )GPH3/ID3 96

( PD )GPH4/ID4 97

( PD )GPH5/ID5 98

( PD )GPH6/ID6 99

( PD )GPG1/ID7 107

SMCLK0/GPB3

110

SMDAT0/GPB4

111

SMCLK1/GPC1

115

SMDAT1/GPC2

116

SMCLK2/ GPF6( PU )

117

SMDAT2/GPF7( PU )

118

FLFRAME#/GPG2 100

FLAD0/SCE# 101

FLAD1/SI 102

FLAD2/SO 103

FLAD3/GPG6 104

FLCLK/SCK 105

( PD )FLRST#/ WUI7/ GPG0/ TM 106

( PD )L80HLAT/GPE0 19

LOW ACTIVE

3G_PWR_EN [23]

.

L21 HCB1005KF -121T20

MODEL_ID

X

RB

W243EU

RA

3G_DET#

10K

80CLK

RB

RA

.

L19

HCB1005KF-121T20

BAT_VOLT

EC_VSS

PCLK_KBC

KBC_WRESET#

SMD_BAT

MODEL_ID

R299

100K_04

C252

0.1u_16V_Y5V_04

SMC_BAT

HIGH ACTIVE

CCD_DET#

BAT_D ET

3G_EN[23]

J_KB2

85208-24051

24

23

22

14

12

11

21

8

20

19

6

5

18

4

17

10

9

7

3

2

1

16

15

13

KBC_SPI_SI_R

KBC_HOLD#

KBC_SPI_CE#_R

R331 *10mil_04

VDD3

KBC_FLASH

KBC_SPI_SCLK_R

U31

MX25L3206E

PCB Footprint = ACA-SPI-004-T03

CE# 1

SO 2

WP#

3

VSS 4

SI 5

SCK 6

HOLD#

7

VDD

8

Co-lay SPI ROM

KBC_SPI_SO_R

½ÐEC Pin 78

³]¸m¬°HI enable

ME_WE[13]

KBC_AGND

SMD_BAT

KBC_AGND

SMC_BAT

SWI# [15]

KBC_R ST# [18]

DD_ON [27,32,33]

CCD_EN [22]

RSMRST# [15]

It will be removed after PVT phase

3IN1[22]

80CLK[22]

BKL_EN [11]

WLAN_DET#[22]

LPC_AD0[13,23]

TP_DATA[31]

LPC_AD1[13,23] LPC_AD2[13,23]

SERI RQ[13,23]

BUF_PLT_RST#[11,22,24, 26]

LPC_FRAME#[13,23]

SMD_BAT[39] SMC_BAT[39]

SMD_CPU_THERM[14]

TP_CLK[31]

LPC_AD3[13,23]

3G_DET#[23]

PWR_SW#[32]

PCLK_KBC[17]

H_PECI[3,18]

AC_IN#[39]

SMC_CPU_THERM[14]

10K

LED_PWR[29]

BAT_D ET[39]

LED_CAP#[29]

LED_BAT_FULL[29]

LED_NUM#[29]

W24EU/W27EU

WLAN_EN[22,29]

CPU_FAN[31]

LED_BAT_CHG[29]

C264

0.1u_16V_Y5V_04

SPI_SCLK_R [13]

KBC_BEEP[30]

GA20[18]

R772 33_04

BT_DET#[22]

TOTAL_C U R[39]

KBC_WRESET#

LED_SCROLL#[29]

AP_KEY #

MODEL_ID

WEB_WWW#[31]

BRIGHTNESS[11] R774 33_04 SPI_SI_R [13]

C238

0.1u_16V_Y5V_04

W270EU

0626 D02

R336 *0_04

SPI_SO_R [13]

R773 33_04

Share ROM ¥Î¦¹®Æ

NB_ENAVDD [ 11,16]

R326 *0_04

X

R335 *0_04

R355 15_1%_04

R366 47_04

R342 15_1%_04

R359 47_04

R771 10K_04

KBC_SPI_CE#

KBC_H OLD#

KBC_SPI_SC LK_C

W240EU

8Mbit

VDD3

KBC_F LASH

R360 1K_04

R346 4.7K_04

U30

*SST25VF080B SO8

CE# 1

SO 2

WP#

3

VSS 4

SI 5

SCK 6

HOLD#

7

VDD

8KBC_SPI_SO

KBC_SPI_SIKBC_SPI_SI_R

KBC_SPI_SO_R

Dual ROM (4M+2M)

KBC_SPI_*_R = 0.1"~0.5"

KBC_SPI_SCLK_R

KBC_SPI_CE#_R

C288

0.1u_16V_Y5V_04

Single ROM

WLAN_POWER_EN[22]

PME# [17]

USB_CHR_DET

3.3V

PMPCH_PWROK_R

R300*0_04

AC_PRESENT[15,17]

1J_KB1

LAN_PCI E_WAKE# [24]

24

C256

0.1u_16V_Y 5V_04

3.3V

R330 *10mil_04

2.18V

C234

0.1u_16V_Y 5V_04

10K

R606 43_1%_04

5.1K

H_PROCHOT_EC [3]

*

10K

C266

10u_10V_Y5V_08

U50

*74AHC1G08GW

1

2

5

4

3

PM_PCH_PWROK [15]

C250 0.1u_16V_Y5V_04

10K

W/ USB CHARGER¡GHigh

R303*0_04

PM_PCH_PW ROK[15]

3.3V[2,3,6,11,13,14,15,17,18,19,20,22,23,26,32,34,35,36]

3G_DET#

PMPCH_PWROK_R

VDD3

BIOS + EC ROM

C233

*0.1u_16V_Y 5V_04

AP_KEY#

C716

180p_50V_NPO_04

PMOSFET_ CONTROL# [39]

USB_CHARGE_EN [32,33]

PME#_R

VCORE_ON [37]

C222

0. 1u_16V_Y 5V_0 4

R817 *20mil_04

»Ý¾aªñIT8518

R353

10K_04

0626 D02

SUSB#

PCLK_KBC

R793 0_04

C258 0.1u_16V_Y5V_04

SPI_CS#

PCLK_KBC_R

R792 *0_04

R312 *10_04

SPI_C S0#_R[13]

BAT_VOLT

C246 *10p_50V_NPO_04

C217 1u_6.3V_X5R_04

SPI_C S1#_R[13]

AC_IN#

SUS_PWR_ACK [15]

C232

*0.1u_16V_Y5V_04

0V

CCD_DET#

1.65V

Sheet 28 of 44

KBC-ITE IT8518

Schematic Diagrams

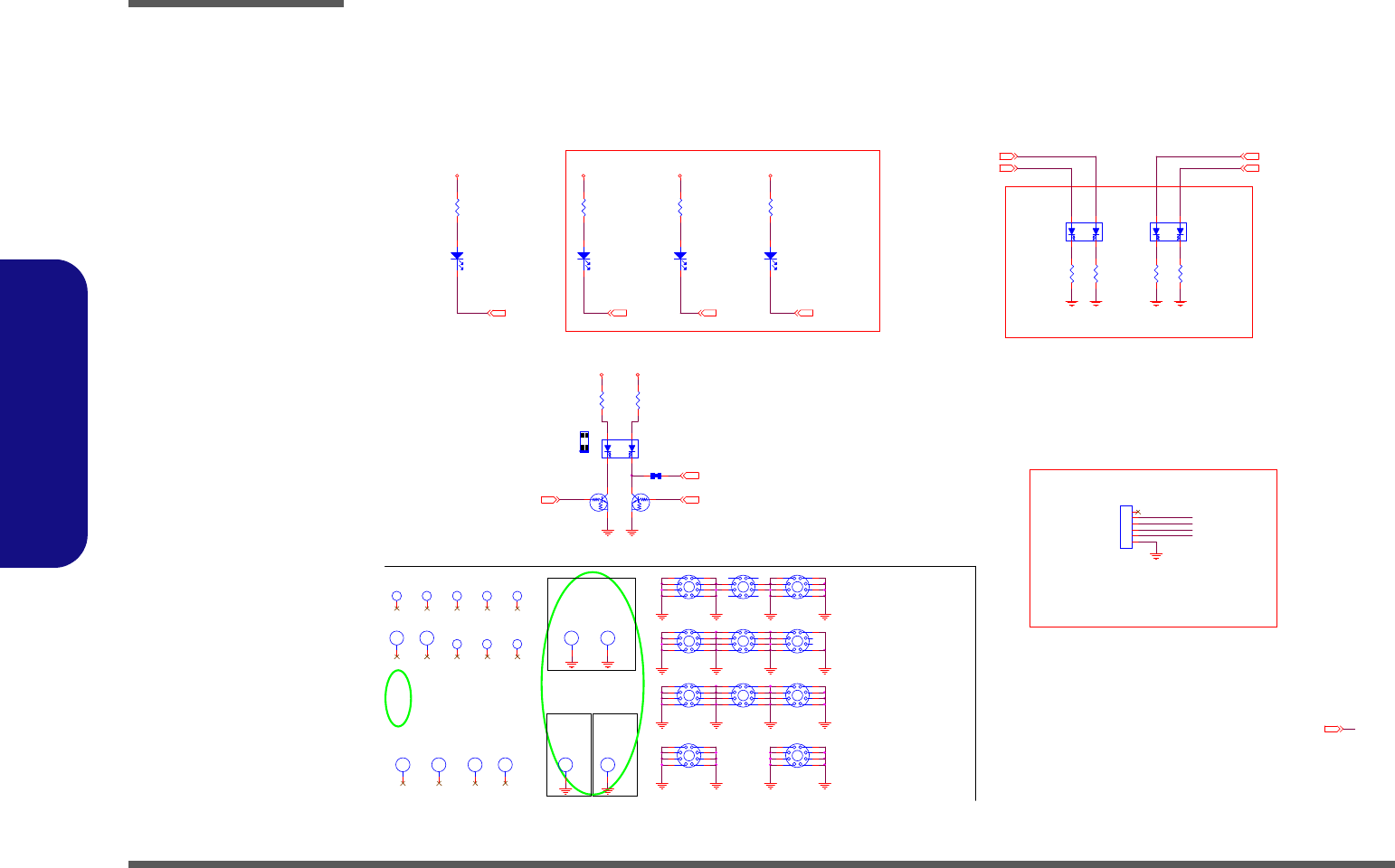

B - 30 LED

B.Schematic Diagrams

LED

1

H13

MTH 3 15 D 11 1

3

4

5 6

92

1

H5

MTH 3 15 D 11 1

3

4

5 6

7

8

92

1

H6

MTH 31 5D 11 1

3

4

5 6

7

8

92

SATA_LED# [13]

1

H24

MTH 31 5D 11 1

3

4 7

8

1

H11

MTH 3 15 D 11 1

3

4

5 6

7

8

92

1

H15

MTH 3 15 D 11 1

3

4

5 6

7

8

92

LED_BAT_CHG

LED_BAT_FULL

LED_BAT_CHG

LED_PWR

LED_ACIN

J_TP1

*85201-06051

1

2

3

4

5

6

LED_PWR

6-52-52001-027 6-52-52001-027 6-52-52001-027

LED_BAT_FULL

0710 D02

SCROLL

LOCK

LED

NUM

LOCK

LED

CAPS

LOCK

LED

D4

RY-SP170YG34-5M

AC

R3

220_04

R5

220_04

D3

RY-SP170YG34-5M

AC

D5

RY-SP170YG34-5M

AC

R4

220_04

3.3VS

LED_NUM# [28]

3.3VS 3.3VS

LED_CAP# [28] LED_SCROLL# [28]

WLAN stud

3G stud

1

H9

MTH 3 15 D 11 1

3

4

5 6

7

8

92

1

H7

MTH 31 5D 11 1

3

4

5 6

7

8

92

1

H25

MTH 3 15 D 11 1

3

4

5 6

7

8

92

1

H22

MTH 3 15 D 11 1

3

4

5 6

7

8

92

1

H16

MTH 3 15 D 11 1

3

4

5 6

7

8

92

For W25xx/W27xx serial

H12

H6_0B5_0D3_7

LED_ACIN[28]

WLAN

LED

BT

LED

LED_PWR[28]

W249¤£¤W¥ó

6-52-52001-027

R362

220_04

R361

220_04

LED

BAT LEDPOWER ON

LED

SG

Y

D15

KPB-3025YSGC

1

3

2

4

H10

H6_0B5_0D3_7

SG

Y

D14

KPB-3025YSGC

1

3

2

4

3.3VS[3,9,10,11,12,13,14,15,16,17,18,19,20,23,24,25,28,30,31,32,37]

HDD/ODD

LED

3.3VS

D2

RY-SP170YG34-5M

AC

R2

220_04

LED_ACIN LED_BAT_FU LL [28]

LED_BAT_CHG [28]

M5

M-MARK1

M8

M-MARK1

M6

M-MARK1 M1

M-MARK1

M3

M-MARK1

M7

M-MAR K1

M2

M-MARK 1

M4

M-MARK1

heatsink stud

For W24xx serial

0626 D02

WLAN_LED# [22]

3

24

1

Q3

*DTC114EUA

CE

B

R6

220_04

SG

Y

D1

KPB-3025YSGC

1

3

2

4

R7

220_04

3.3VS 3.3VS

WLAN_EN [22,28]

R1 *10mil_04

H2

C111D111N

Q1

DTC114EUA

CE

B

H3

C111D111N

BT_EN[22,28]

H4

C111D111N

R363

220_04

H1

C111D111N

H23

C67D67 H8

C67D 67 H19

H6_0B5_0D3_7

H21

H6_0B5_0D3_7

R364

220_04

Sheet 29 of 44

LED

Schematic Diagrams

Audio Codec VT1802P/ALC269 B - 31

B.Schematic Diagrams

Audio Codec VT1802P/ALC269

R529 0_04

MIC1_L

C514 10u_6.3V_X5R_06

MIC 2_L

C511 10u_6.3V_X5R_06

AUDG

MIC 2_R

C502 0.1u_16V_Y5V_04

C503 0.1u_16V_Y5V_04

EMI Require

MIC1-VREFO-L

MIC1_R

R616 *28mil_06

R343 1K_04

MI C 1- R [ 3 1]

MI C 1- L [ 3 1]

R345 3.3K_1%_04

MIC1-VREFO-R

R351 1K_04

R350 3.3K_1%_04

MIC1_L

AL270

C118

VT1802P

680p

100p

MIC1_R

SPKOU TR-[31] SPKOUTR+[31]

VT1802P

C304

AL269

10u

2.2u

AL269

NC

2.2u

VT1802P

C298

R567 *20mil_04

LDO_CAP

PD#

1st¡G6-03-01802-032

R775 100K_04

C498

10u_10V_Y5V_08

C270

0.1u_16V_Y5V_04

C271

0.1u_16V_Y5V_04

C499

10u_10V_Y5V_08

L23

*F CM1608K-121T06_short

PVDD1_2

C590

*0.1u_16V_Y5V_04

HDA_RST#

HEADPHON E-R [31]

L24

*F CM1608K-121T06_short

C281

0.1u_16V_Y 5V_04

C299

0.1u_16V_Y5V_04

C513

10u_10V_Y5V_08

R527 *0_04

C280

10u_10V_Y5V_08

C283

0. 1u_16V_Y 5V_0 4

3.3VS

3.3VS_AUD

DVDD_IO

3.3VS_AUD

1.5VS

BEEP_R

J_SPKL1

2 1

R345 & R350

AL269

3.3K

2.2K

VT1802P

C497

0.1u_16V_Y5V_04

C496

10u_10V_Y5V_08

C304 10u_6.3V_X5R_06

C301 0.1u_16V_Y 5V_04

R523

3.3VS

OPVEE-ALC269

CBP-ALC269

MI C2 _R

MI C2 _L

SPKOUTL-

MI C1 -L _R

MI C 1 -R _ R

3.3VS[3,9, 10, 11,12,13,14,15, 16,17,18,19,20,23, 24, 25,28,29,31, 32,37]

SENSE_A

5VS[12,13,20,25,31,32,37]

1.5VS[ 19,32]

L40 C494

NC

1uAL269

NC

Stuff

VT1802P

EAPD_MODE

2nd¡G6-03-01802-031

DMIC-DAT

R518

DMIC-CLK

NC

VT1802P

R757

NC

100KAL269

SPKOUTL+

C272 2.2u_6.3V_X5R_06

R523 5.1K_1%_04

R369 20K_1%_04

R354 33_04

R368 39.2K_1%_04

Reserved

DIGITAL ANALOG

U29

VT1802P

DVDD1 1

GPIO0

2

GPIO1

3

PD#

4

SDATA-OUT

5

BIT-CLK

6

DVSS2

7

SDATA-IN

8

DVDD-IO 9

SYNC

10

RESET#

11

PCBEEP

12

Sense A 13

LINE2-L 14

LINE2-R 15

MI C 2- L 16

MIC 2-R 17

Sense-B 18

JDREF 19

MONO-OUT 20

MI C 1- L 21

MIC 1-R 22

LINE1-L 23

LINE1-R 24

AVSS1

26

VREF 27

LDO_CAP 28

MI C 2- VR E F O 29

MIC1-VREFO-R 30

MIC1-VREFO-L

31

HP-OUT-L 32

AVSS2

37

OPVEE 34

CBN 35

CBP 36

HP-OUT-R 33

PVDD1 39

SPK-L+

40

SPK-L-

41

PVSS1

42

PVSS2

43

SPK-R+

45 SPK-R-

44

PVDD 2 46

SPDIFC2/EAPD

47

SPDIFO

48

AVDD2 38

AVDD 1 25

GND

49

C279

2.2u_6.3V_X5R_06

C307 10u_6.3V_X5R_06

C306 10u_6.3V_X5R_06

AUDG

AUDG

HDA_BI TCLK[13]

HDA_RST#[13]

HDA_SDIN0[13]

HDA_SYNC[13]

HDA_SD OUT[13]

MI C 2-V R EF O

AZ_SDIN0_R

SPDIFO

MI C 1-V R EF O -R

C512

HEADPHONE-L

HEADPHONE-R

CBN-AL269

VT1802P

R130

AL269

3.3K

4.7K

VT1802P

C512 100p_50V_NPO_04

AUDG

R367

AL269

10K

47K

VT1802P

C704 100p_50V_NPO_04

R365

AL269

5.1K

4.7K

VT1802P

MO N O- OU T

C291 22p_50V_NPO_04

C509

10u_10V_Y5V_08

L40

*H CB1005KF-121T20

1 2

C510

0.1u_16V_Y5V_04

C494

*1u_6.3V_X5R_04

5VS_AUD

VT1802P

ALC269 VB

AUDG

5VS

AUDIO CODEC

LINE2-L

LINE2-R

SENSE-B

SPKOUTL-_L

C293

*1u_6.3V_X5R_04

SPKOUTL-

SPKOUTL+_LSPKOUTL+

C289

*180p_50V_NPO_04

C295

*180p_50V_NPO_04

J_SPKL1

85204-02001

1

2

NC

INT_MIC

100p

MI C 2- VR E F O

1

C118

100p_50V_NPO_04

2

J_INTMIC1

J_INTMIC1

88266-02001

1

2

R130 3.3K_1%_04

R128 1K_04

LINE1-L

3.3VS

AUDG

MIC1-VREFO-L

LINE1-R

VREF-ALC269

PD#

AZ_RST#

20ms

5VS

Speaker 4 ohm------> 40mils

SPKOUTR+,R-,L+,L- Trace width

Speaker wire length less than 8000mils , It don't need LC Filter.

3.3VS_AUD

Speaker 8 ohm------> 20mils

C704

AL269

AL269

100p

NC

VT1802P

MIC_SEN SE [31 ]

C298 *2.2u_6.3V_X5R_06

20K_1%

AUDG

HEADPHON E-L [31]

C

A

A

D31

BAT54AS3

1

23

5.1K_1%

BEEP_CBEEP

C

A

A

D13

BAT54CS3

1

23

C309

1u_6.3V_X5R_04

R365

5.1K_1%_04

R367 10K_04

C308

100p_50V_NPO_04

HDA_RST#

Q27

*BSS138_NL

G

DS

FOR VOLUMN

ADJUST

HDA_SPKR[13]

KBC_BEEP[ 28]

R514 *100K_04 Q32

*2SK3018S3

G

DS

R518

*100K_04

Close to Codec

5VS

5VS

KBC_MUTE#[28]

JDREF

HDA_RST#

R757

*10K_04

5VS

R510 *28mil_06

HP_SENSE [31]

INT_MIC

Codec P/N¡G

Sheet 30 of 44

Audio Codec

VT1802P/ALC269

C641 0.1u_16V_Y5V_04

R713 1K_04

M_BTN#

LID_SW#

WEB_WWW# [28]

LID_SW# [11,28]

WEB_EMAIL# [28]

R712 1K_04

J_AUDIO1

85201-14051-01

1

2

3

4

5

6

7

8

10

11

12

13

14

9

R711 1K_04 AP_KEY# [28]

M_BTN#

J_SW1

88486-0801

1

2

3

4

5

6

7

8

VDD33.3VS

D23

*V15AVLC0402

12

AP_KEY#_R

C547

*0.1u_16V_Y5V_04

LID_SW#

WEB_WWW#_R

20mil

WEB_EMAIL#_R

USB_PP9[17]

MIC_SENSE[30]

HP_SENSE[30]

AUD G

HP_SEN SE

HEADPHONE-R[30] HEAD PHONE-RR

MIC _SENSE

R339 68_04

HEADPHONE-LL

R340 68_04

HEADPHONE-L[30]

SPKOUTR-

SPKOUTR-[30] SPKOUTR+[30]

MIC 1 - R[30]

SPKOUTR+

MIC 1 - L[30]

FON#

C205

1u_10V_Y5V_06

D32

*V15AVLC0603

AC

U38

AX995SA

VOUT

3

GND 5

VIN

2FON

1

VSET

4GND 6

GND 7

GND 8

VCC_USB_P9

80 MIL

WEB_EMAIL#_R

WEB_WWW#_R

C456

10u_6.3V_X5R_06

R202 4.7K_04

J_FAN1

85205-03701

1

2

3

C223 *0.01u_16V_X7R_04

5VS

3.3VS

5VS_FAN

5VS_FAN

5VS

CPU_FAN[28]

VCC_USB_P9

CPU_FANSEN[28]

5V[20,22,26,27,32,34,35,36]

5VS[12,13,20,25,30,32,37] 3.3VS[3,9,10,11,12,13,14,15,16,17,18,19,20,23,24,25,28,29,30,32,37]

80mils

Audio B'd CONN

FAN CONTROL

M_BTN# [32]

R131 *28mil_06

R127

10K_04

C114

47p_50V_NPO_04

C115

47p_50V_NPO_04

C113

1u_6.3V_X5R_04

R129

10K_04

J_TP2

85201-04051

1

2

3

4

5VS

TP_DATA [28]

5VS_TP

CLICK B'd CONN

TP_CLK [28]

USB_PN9[17]

POWER SWITCH B'd CONN

3

JFAN

1

VDD3[13,22,23,24,26,28,32,33,39]

DD_ON#[27,32,34]

C643 0.1u_16V_Y5V_04

5V

U47

SY6288DCAC

GND

1

VIN

2

VIN

3

EN

4

VOUT 8

VOUT 7

VOUT 6

FLG 5

Schematic Diagrams

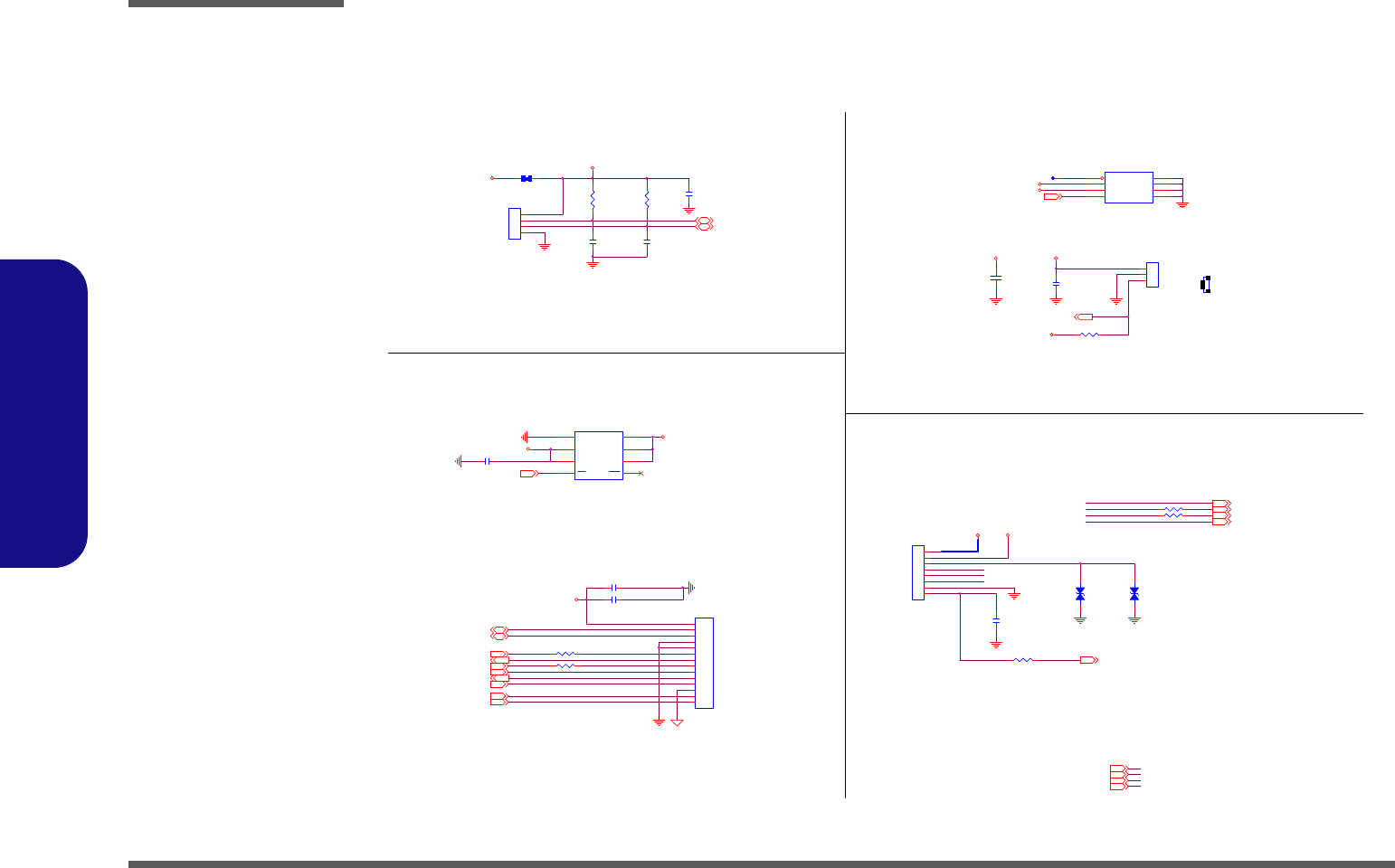

B - 32 Fan, TP, Multi-Conn

B.Schematic Diagrams

Fan, TP, Multi-Conn

Sheet 31 of 44

Fan, TP, Multi-Conn

NMOS

ON

PR72

*220_04

PQ48B

*MTNN20N03Q8

6

5

4

PC46

*2200p_50V_X7R_04

PQ48A

*MTNN20N03Q8

1

3

728

PQ11

*2SK3018S3

G

DS

PR71

*1M_04

SYS15V

1.5V 1.5V_CPU

PJ21 *OPEN _3mm

1 2

*

w/ USB charger

W/o USB charger

PQ89

*2SK3018S3

G

DS

5VS_EN1

5VS

NMOS

VIN

SUSB [3,34,35]

*

PR226 1K_04

C224

0.01u_16V_X7R_04

PR232

*100_04

C225

0.01u_16V_X7R_04

5V_EN1

ON

DD_ON "L" TO

"H" FROM EC

SUSB

PC96

0.1u_16V_Y5V_04

3.3VS_EN1

3.3VS

ON

SUSB

ON

NMOS

ON

3.3VS_LO

PR102

100_04

PQ20B

MTNN20N03Q8

6

5

4

PR109

1M_04

PQ16

2SK3018S3

G

DS

PC94

10u_6.3V_X5R_06

PC89

4700p_50V_X7R_04

PQ20A

MTNN20N03Q8

1

3

728

SYS15V 3.3VS

VDD3

DD_ON

1.5V_CPU

1.5VS_EN

PR233

*100_04

NMOS

ON

3A

5A

1.5VS

Power Plane

3A

5A

3.3V

5V

Power Plane

1.5VS_LO

C505

0.01u_16V_X7R_04

DD_ON#

DD_ON

ON

PR231

*100K_04

ON

3.3V_EN1

W/ USB charger

DD_ON#

PR234 *10K_04

NMOS

PQ90

*2SK3018S3

G

DS

PR227 1K_04

SUSB

5VS[12,13,20,25,30,31,37]

1.5VS[19,30] 3.3V[2,3,6,11,13,14,15,17,18,19,20,22,23,26,28,34,35,36]

*

SYS15V[33,35] VIN[11,33,34,35,36,37,38,39]

PC217

0.1u_16V_Y5V_04

NMOS

C504

0.01u_16V_X7R_04

PQ65B

*MTNN20N03Q8

6

5

4

PC110

0.1u_50V_Y5V_06

SUSB [3,34,35]

PC221

*470p_50V_X7R_04

PR220

100K_04

PJ19

*OPEN_1mm

12

PR225

*1M_04

PR223

1M_04

PC216

10u_6.3V_X5R_06

PQ66A

MTNN20N03Q8

1

3

728

PR221

100K_04

PJ20

*OPEN_1mm

12

PQ21B

MTNN 20N 03Q8

6

5

4

PU7

P2808B0

VA

1

VIN

2

M_BTN #

3

INSTANT-ON

4GND 5

PWR _SW# 6

DD_ON_LATCH 7

VIN1 8

PQ64B

MTNN20N03Q8

6

5

4

PC222

2200p_50V_X7R_04

R371 100K_04

PR218

1M_04

PQ21A

MTNN20N03Q8

1

3

728

PC95

2200p_50V_X7R_04

PQ64A

MTNN20N03Q8

1

3

728

PR224

10K_04

S

D

G

PQ67A

L2N7002DW1T1G

2

6

1

PC2

0.1u_50V_Y5V_06

PR219

100_04

S

D

G

PQ67B

L2N7002DW1T1G

5

3

4

PQ66B

MTNN20N03Q8

6

5

4

PR111

1M_04

PQ63

2SK3018S3

G

DS

PR123 10K_04

PC212

6800p_50V_X7R_04

PC111

0.1u_50V_Y5V_06

PR222

100K_04

PQ65A

*MTNN20N03Q8

1

3

728

3.3V 3.3VS

5V

SYS15V

SYS15V VDD3

VDD5

VDD3

5V

3.3V

1.5V

VDD3

VA

1.5VS

SYS15V

VIN VIN1

VDD3

5VSSYS15V VDD5

DD_ON[27,28,33] SUSB#[6,15,28]

3.3VS[3,9,10,11,12,13,14,15,16,17,18,19,20,23,24,25,28,29,30,31,37]

VDD5[27,33] VDD3[13,22,23,24,26,28,31,33,39]

DD_ON# [27,31,34]

PWR_SW# [28]M_BTN #[31]

USB_CHARGE_EN[28,33]

VIN1[33]

1.5V[3,6,9,10,20,34] 5V[20,22,26,27,31,34,35,36]

1.5V_CPU[3,5,6] VA[39]

*

*

PC219

0.1u_16V_Y5V_04

R604 1K_04

C506

0.01u_16V_X7R_04

DD_ON#

ON

C247

0.01u_16V_X7R_04

PJ15

*OPEN_5mm

12

10A

1.5VS_CPU_LO

PJ15 MUST SHORT

SUSB

1.5VS_CPUEN

Sheet 32 of 44

System Power

Schematic Diagrams

System Power B - 33

B.Schematic Diagrams

System Power

VDD3/VDD5

PC64

4.7u_25V_X5R_08

PC69

2200p_50V_X7R_04

+

PC65

220u_6.3V_6.3* 6.3*4.2

PC72

0.1u_16V_Y5V_04

PC206

0.1u_50V_Y5V_06

PD24

RB751V

AC PC 207

4.7u_25V_X5R_08

PQ12

ME4410AD-G

4

62 5

73

1

8

PR210

0_04

PJ8

*OPEN_5mm

12

PC71 *0.1u_10V_X5R_04

PD7

*RB0540S2

AC

PD22 R B0540S2

AC

PD21

CSOD140SH

A C

PR228

1.5M_04

PD9

*SK34SA

A C

PR84 100K_04

PC199

1u_10V_Y5V_06

PQ13

ME4410AD-G

4

62 5

73

1

8

PC68

2200p_50V_X7R_04

PC210

0.01u_50V_X7R_04

S

D

G

PQ77A

MTDK5S6R

2

6

1

PR90

10K_04

PC205

4.7u_25V_X5R_08

PR214 0_04

PC58

0.1u_16V_Y5V_04

PC62

100p_50V_NPO_04

PQ56B

EMB17A03V

1

2

7

8

9

PR201 *10K_04

PD6

CSOD140SH

A C

PR195 *0_04

PR75

30K_1%_06

PR209

*680K_1%_04

PL9

BCI HP0730-4R7M

1 2

PC208

1u_10 V_Y 5V_06

PR215 * 0_04

PC204 0.1u_10V_X7R_04

PJ11

*OPEN_1mm

12

PC209

0.01u_50V_X7R_04

PR196

19.1K_1%_06

PR194

20K_1%_04

PD8

*RB0540S2

A C

PR76

13K_1%_06

PC203

0.1u_10V_X7R_04

S

D

G

PQ77B

MTDK5S6R

5

3

4

PC195

1u_10V_Y 5V_06

PR197

100K_04 PC198

1000p_50V_X7R_04

PC200

4. 7u_25V_X5R_08

PC61

1000p_50V_X7R_04

PD20 R B0540S2

A C

PD5

*SK34SA

A C

PC74

4.7u_25V_X5R_08

PR 82 0_04

PD19 RB0540S2

AC

PQ73

*2SK3018S3

G

DS

PR198

120K_04

+

PC63

220u_6.3V_6.3* 6. 3* 4. 2

PC201

1000p_50V_X7R_04 PU11

UP6182

VREF 3

EN1 1

VFB1 2

TONSEL 4

LDO5

17

LGATE1 19

PHASE1 20

VFB2 5

UGATE2

10

VCLK

18

BOOT2

9

EN2 6

VO2

7

LDO3

8

PHASE2

11

LGATE2

12

EN0

13

SKIPSEL

14

GND

15

VIN

16

UGATE1 21

BOOT1 22

POK 23

VO1 24

GND PAD

25

PR213

2.2_06

PJ10

*OPEN_5mm

1 2

PD23 R B0540S2

A C

PR211

*0_04

PR212

*0_04

PR 86 * 0_04

PR77 0_04

PQ56A

EMB17A03V

3

4

5

6

10

SYS5V

VDD3

SYS15V

VREF

VDD5

VIN

SYS3V

VIN

VREG3

SYS10V

SYS5V

VREF

VREG5VIN1

VIN

VREG5

VREG5 VREG5

SYS5V

VREG5

SY S1 5V[32,35] VDD5[27,32] VDD3[13,22,23,24,26,28, 31,32,39]

VIN[11,32,34,35,36, 37,3 8, 39]

DD_ON[ 27,28,32]

SYS3V[39] VIN1[32]

USB_CHARGE_EN[28,32]

0710 D02

W/ USB charger

*

PL10

BCIHP0730-4R7M

12

EN_5V

EN_3V

EN_3V5V

EN_ALL

7A

5A

Rb

Ra

EN_3V

M990125

EN_5V

VDD5VDD3

DD_ON_EN_VDD

Sheet 33 of 44

VDD3, VDD5

Schematic Diagrams

B - 34 VDD3, VDD5

B.Schematic Diagrams

VDD3, VDD5

Schematic Diagrams

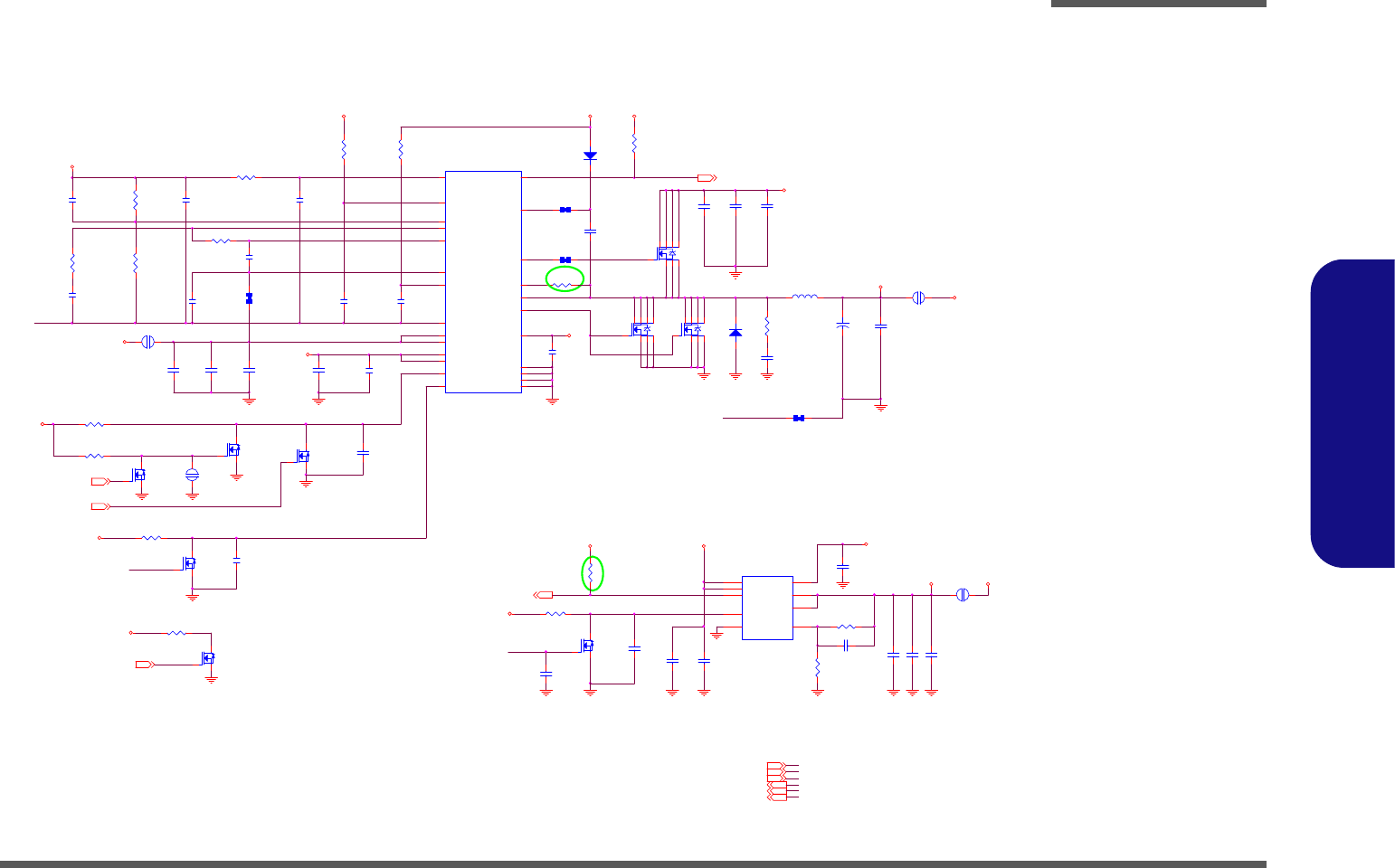

Power 1.5V/0.75V/1.8VS B - 35

B.Schematic Diagrams

Power 1.5V/0.75V/1.8VS

14A

1.5V

5V

DDR1.5V_PWRGD

1.5A

VSSA

SUSB

VTTEN

PC287

1u_10V_Y5V_06

PD33

RB0540S2

AC

PR293

*28mil_06

PQ91

MDS1526

4

62 73 8

5

1

PC278

1000p_50V_X7R_04

PR297 100K_04

PR370 *22_04

PC282

0.1u_16V_Y5V_04

PR290

10_06

PC288

*10u_10V_Y5V_08

PR294

*10mil_04

PQ112

*2SK3018S3

G

DS

PR286

100K_04

PC277

0.068u_10V_04

PR 296 47K_04

PC286

10u_10V_Y5V_08

PR285

10_06

PC272

0.1u_10V_X7R_04

PJ7

*OPEN_1mm

1 2

PR288

0_04

PC289

0.1u_16V_Y5V_04

PQ94

2SK3018S3

G

DS

PR291

10_06

PR287 10_06

PC290

0.1u_16V_Y5V_04

PC270

1u_10V_Y5V_06

PD34CSOD140SH

A C

PC285

10u_10V_Y5V_08

PQ92

MDS1521

4

62 73 8

5

1

PJ36

*OPEN_2mm

12

PC273

0.1u_50V_Y5V_06

PU3

SC486

VTTEN

11

TON

2

VDDQS

3

VSSA

4

VCCA

5

FB

6

PGD 7

REF

8

COMP

9

VTTS

10

EN/PSV

1

VDDP2

12

VDDP2

13

VTT

14

VTT

15

PGND1 16

PGND2 17

PGND1 18

DL 19

VDDP1 20

ILIM 21

LX 22

DH 23

BST 24

PGND2 25

PR 374 100K_04

PR292

*10K_1%_04

PC283

1u_10V_Y5V_06

PJ6

*OPEN_8mm

1 2

PQ93

*MDS1521

4

62 73 8

5

1

PR289

*28mil_06

PC276

*0.1u_10V_X5R_04

PQ95

*2SK3018S3

G

DS

PC279

1u_10V_Y5V_06

PC274

4.7u_25V_X5R_08

PC275

4.7u_25V_X5R_08

PC284

10u_10V_Y5V_08

PQ96

2SK3018S3

G

DS

PR162

6.2K_1%_04

PR284

1M_04

PR295 *28mil_06

PC76

1u_10V_Y5V_06

PC271

1u_10V_Y5V_06

PC269

100P_50V_NPO_04

+

PC280

560u_2.5V_6.6*6.6*5.9

PQ97

2SK3018S3

G

DS

PL13

BCIHP1040-1R0M

1 2

5V

5V

VTT_MEM

5V

VIN

1.5V

VDDQ

VTT_MEM

VIN

VDDQ

3.3V

VDDQ

1.5V[3,6,9,10,20,32]

SUSB[3,32,35]

3.3V[2,3,6,11,13,14,15,17,18,19,20,22,23,26,28,32,35,36] 5V[20,22,26,27,31,32,35,36] VIN[11,32,33,35,36,37,38,39]

VTT_MEM[9,10]

DDR1.5V_PWRGD [15]

SUSC#[15,28]

DD_ON#[27,31,32]

PC291

*2200p_50V_X7R_04

PR372

*5.1_06

PC356

*1000p_X7R_50V_04

0626 D02

SUSB

SUSB

PC100

10u_6.3V_X5R_06

PC97

0.1u_16V_Y5V_04

PR85

1.27K_1%_04

PJ13

*OPEN_3mm

1 2

PU6

GS7113

GND

1

VCNTL 6

VOUT 3

VIN

5

VOUT 4

VFB 2

POK

7

EN

8

VIN

9

PC99 0.1u_16V_Y5V_04

PR106 1K_04

PR112

10K_04

PC81

47p_50V_NPO_04

PC92

0.1u_16V_Y5V_04

PC93

1u_10V_Y5V_06

PQ17

2SK3018S3

G

DS

PR87

1K_1%_04

PC88 10u_6.3V_X5R_06

PC98 10u_6.3V_X5R_06

1.8VSV1.8

5V

3.3V

1.8VS_PWRGD[3,15]

3.3V

5V

1.8VS_PWRGD

EN1.8VS

2A

GS7113

6-02-07113-320

AX6615

6-02-06615-320

1.8VS

-n²¾¾aªñPIN6¸}

3A

1.5VEN

0710 D02

VSSA

Ra

1.5A

Rb

1.8VS[6,19]

Sheet 34 of 44

Power 1.5V/0.75V/

1.8VS

Schematic Diagrams

B - 36 Power 1.05VS, VTT_CPU

B.Schematic Diagrams

Power 1.05VS, VTT_CPU

5V

13A

PC263

*0. 1u_16V_Y5V_04

PQ100

*MDS1521

4

62 73 8

5

1

PQ98

MDS1526

4

62 73 8

5

1

PR216

*10mil_04

PL14

BCI HP1040-1R0M

1 2

PR302 2. 2_04

PR300

0_06

PJ33

*OPEN_5mm

1 2

PC299

1u_6.3V_X5R_04

PC294

4.7u_25V_X5R_08

PC298

0.1u_16V_Y5V_04

PQ99

MDS1521

4

62 73 8

5

1

PQ88

*2SK3018S3

G

DS

PC256

*10u_6. 3V_X5R_06

PJ17

*OPEN_5mm

1 2

PC295

0.1u_50V_Y5V_06

S

D

G

PQ87A

*MTDK5S6R

2

6

1

PR307

10K_1%_04

PC255

*10u_6.3V_X5R_06

PR273

*1M_04

PC292

0.1u_50V_Y5V_06

PR298 820K_1%_06

S

D

G

PQ87B

*MTDK5S6R

5

3

4

PR274

*100_04

PC296

0.1u_10V_X7R_04

PD35CSOD140SH

A C

PC265

*2200p_50V_X7R_04

PQ86

*P1203BV

4

6 2

5

7 3

1

8

PC301 *15p_50V_NPO_04

PC293

4.7u_25V_X5R_08

PR301 3.6K_1%_04

PC300

1u_6.3V_X5R_04

PC87

*0. 1u_16V_Y 5V_04

PR275 *10K_04

PR303 10K_04

PU14 G5602R41U

VOUT

1

EN_PSV

15

TON

16

VCC

2

VFB

3

PGOOD

4

AGND

6

BST 13

DH 12

LX 11

ILIM 10

VDD 9

DL 8

PGND 7

PGND 17

NC

5

NC

14

PQ25

2SK3018S3

G

DS

+

PC297

560u_2.5V_6.6*6.6*5.9

PR304 4.12K_1%_04

SY S15V

3.3V

VTT_ CPU

1.05V

VIN

5V

5V

1.05VS

3.3V

5V[20,22, 26,27,31, 32, 34,36]

1.05V

1.05VS[13, 14, 15,19, 20, 37] 3.3V[2,3, 6,11,13, 14,15,17,18, 19,20,22,23, 26, 28,32,34, 36]

VIN[11,32, 33,34,36, 37, 38,39]

VTT_CPU_EN [15]

VTT_ C PU[2,3,5,18,19,20,36]

SYS15V[32,33]

VSSIO_SENSE [5]

VCCIO_SEN SE [5]

SUSB[3,32,34]

VTT_CPU

ON

NMOS

10A

1.05VS_PWRGD[15]

1.05VS

PR299

100K_04

PR305 *10mil_04

PR306 *10mil_04

0710 D02

Sheet 35 of 44

Power 1.05VS,

VTT_CPU

PR149 0_04

PC40

0.1u_16V_Y5V_04

+

PC168

220u_6.3V_6.3*6.3*4.2

PR173 33K_1%_04

PR137

0_04

PC129

0.022u_16V_X7R_04

PC153 4.7u_25V_X5R_08

PR229

100K_04

PQ36A

EMB17A03V

3

4

5

6

10

PC155 4.7u_25V_X5R_08

PR157

100_04

PC47 0.1u_50V_Y5V_06

PQ10

BTN3904N3

B

E C

PC154 0.1u_50V_Y5V_06

PQ68

2SK3018S3

G

DS

PR62

0_04

PR147

9.31K_1%_04

PC34 0.1u_50V_Y5V_06

PU9

UP1509P

BOOT 1

UG 2

POK 3

SS 4

EAP 5

SET3

6

SET2

7

SET1

8

SET0

9

FB

10

COMP

11

VID0

12

VID1

13

EN/PSM

14

CSN

15

CSP 16

RT 17

VCC 18

LG 19

PHASE 20

GND 21

PD1

RB0540S2

AC

PR55

100K_04

PC25

47p_50V_NPO_04

PC173 0.1u_50V_Y5V_06

PQ36B

EMB17A03V

1

2

7

8

9

PR151

1K_1%_04

PJ5

*OPEN_5mm

1 2

PR65 1.3K_1%_04

PR35

10K_1%_04

PC124

0.01u_16V_X7R_04

PC27 1u_10V_Y5V_06

PR146

10K_1%_04

PR150

22_04 PR63

12K_1%_04

PJ3

*OPEN_1mm

12

PR36

15K_1%_04

PR144

10K_1%_04

PC140

0.1u_16V_Y5V_04

PR56

100K_04

PR34

12K_1%_04

PR155 *0_04

PR64

0_04

PC31

0.1u_16V_Y5V_04

PR158

100K_1%_04

PC197 0.1u_50V_Y5V_06

PC131 0.01u_50V_X7R_04

PC42

*0.1u_16V_Y5V_04

PL4

1.0UH_6.8* 7.3*3.5

1 2

PR148

100_04

PC41

0.1u_25V_X7R_06

PR145

10K_1%_04

PR33

9.31K_1%_04

PR159

10K_04

VIN

5V

V0.85 0.85VS

3.3V

5V5V

VIN

VIN[11,32,33,34,35,37,38,39]

0.85VS[6]

VTT_CPU

VCCSA_VI D 1[6]

VCCSA_VI D 0[6]

5V[20,22,26,27,31,32,34,35]

3.3V[2,3,6,11,13,14,15,17,18,19,20,22,23,26,28,32,34,35]

VCCSA_SENSE [6]

0.85VS_PWRGD [15]

VTT_CPU[2,3,5,18,19,20,35]

PJ40

*OPEN_1mm

12

CSN

0

0.8V

0

POK

0.9V

1

1

VCCSA_VID1

0.725V

VCCSA_VID0

1

0.675V

10

0

CSP

CSN

CSPCSP

6A

D04

2/23

0.85V_ON

0710 D02

0.85V_ON

FOR EMI

0.85VS

Sheet 36 of 44

Power 0.85VS

Schematic Diagrams

Power 0.85VS B - 37

B.Schematic Diagrams

Power 0.85VS

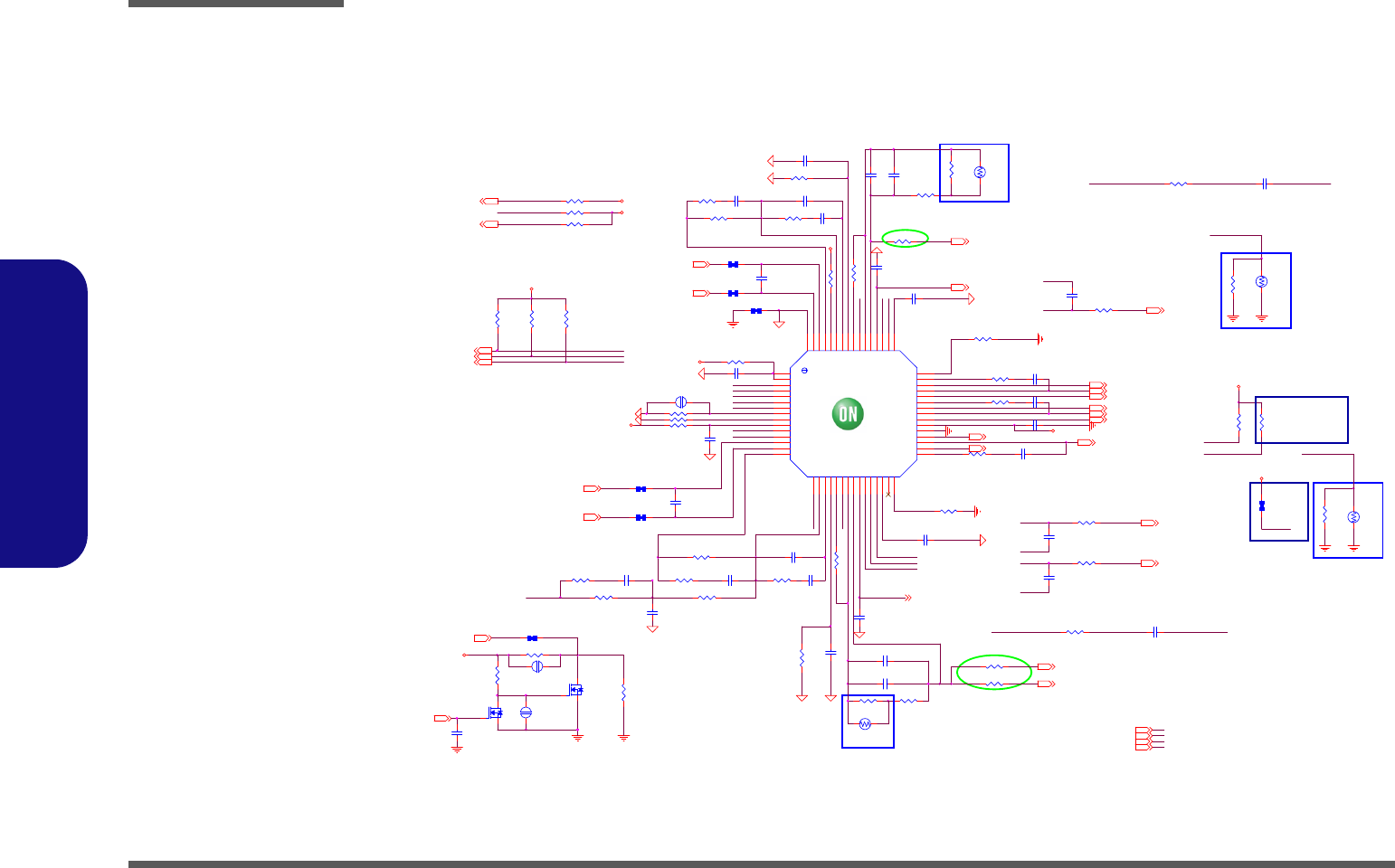

CSSUMA

TRBSTA#

VSS_GT_SENSE[6]

VCC_GT_SENSE[6]

H_CPU_SVIDCLK

H_CPU_SVIDALRT#

0710 D02

DROOP

CSP2

0710 D02

PR339 10K_04

DELAY_PWRGD[15] DELAY_PWRGD

PR314 750_1%_04

PR325 10K_04

H_PROCHOT#[3]

3.3VS

H_PROCHOT# 1.05VS

VR_RDYA

PR363

165K_1%_04

PR359 165K_1%_06

PC318

0.22u_10V_X5R_04

PR324 6.98K_1%_04

PR351

10_1%_04

PR321

8.25K_1%_04

PC303

330p_50V_X7R_04

PC315 0.22u_10V_X5R_04

CSREFA

PC324

680p_50V_X7R_04

PR310

1.65K_1%_06

PR333 10K_04

H_PROCHOT#

PR323 *10mil_04

PR318 *10mil_04

PC332 680p_50V_X7R_04

PC320 0.1u_10V_X7R_04

PR312

165K_1%_04

PC326

4700p_50V_X7R_04

PC312

0.047u_10V_X7R_04

PR345 6.98K_1%_04

CSREF

PR350

49.9_1%_04

PC3 10

1000p_50V_X7R_04

PC308

2200p_50V_X7R_04

PR309

75K_1%_04

CSREF

PR356

2.43K_1%_04

PR336

0_04

CSSUM

PR346 *10mil_04

CSREF

PR343 27.4K_1%_04

PR362

75K_1%_04

PR331

2_06

PC328

1000p_50V_X7R_04

H_CPU_SVIDDAT

PR330

54.9_1%_04

PR344

8.25K_1%_04

PR341

*10mil_ 04

IMON

PR20 6.98K_1%_04

PR3 29

75_1%_04

PC305

1000p_50V_X7R_04

PR371 *10mil_04

PR327 2_06

CSCOMP

PC313 2. 2u_6.3V_X5R_04

PR315

4.3K_1%_04

H_CPU_SVIDDAT

PR326 23.2K_1%_04

PR313 1K_1%_04

CSP1A

PR320 14K_1%_06

PC302 0.1u_10V_X7R_04

PR358

24K_1%_04

PC309

1000p_50V_X7R_04

PJ14 * OPEN_1mm

1 2

PR342 *10mil_04

PR308 24.3k_1%_04

PC316 2.2u_6.3V_X5R_04

Option for

1 phase GT

PC330

1000p_50V_X7R_04

RT2

100K_NT C_06_A

1 2

IMONA

PC325

100p_50V_N PO_04

PR348 7.87K_1%_04

FBA

PR349 1K_1%_04

PR337 1K_04

DROOPA

PC311 0.1u_10V_X7R_04

CSP1

CSP1A

VR_RD Y A

PUT COLSE

TO VGFX

HOT SPOT

RT1

100K_NTC_06_A

1 2

PU1

NCP6132AMNR26

TSNSA 46

IOUTA 54

EN

4

VRH OT#

11

SDIO

5

ALERT#

6

ROSC

9

SCLK

7

VRD Y A

3

CSCOMP

22

CSP3

25 CSREF

24 CSSUM

23

LGA 41

TR BST A# 57

PVC C 36

BST2 40

HG2 39

SW2 38

LG2 37

PGND 35

COMP

18

VSP

14

DROOP

21

FB

17

DIFF

15

CSP1

27

SWA 42

HGA 43

VSPA 59

DIFFA 58

DROOPA 52

FBA 56

COMPA 55

CSREFA 49

CSSUMA 50

CSP2A 48

VRMP

10

VRD Y

12

DRVEN

29

VSN

13 LG1 34

SW1 33

VSNA 60

ILIMA 53

EPAD 61

VCC

1

IOUT

19

HG1 32

CSP2

26 CSCOMPA 51

TSNS

28

ILIM

20

TRBST#

16

PWM

30

BST1 31

BSTA 44

CSP1A 47

PWMA 45

VDD BP

2

VBOOT

8

TSEN SE

PC317

0.01u_50V_X7R_04

PR 334 90.9K_1%_04

CSP3

PR361 165K_1%_06

RT4

100K_NTC_06_A

12

PR338 2_06

CSP1

PC322

33p_50V_NPO_04

VSP

PR353 1.21K_1%_04 PR354 10.7K_1%_04

PR328

130_1%_04

PC307 10p_50V_N PO_04

DELAY_PWRGD

PR311

10_1%_04

PR319 *0_04

CSP2ATSENSETSENSE

PC323

0.047u_10V_X7R_04

PC319

1000p_50V_X7R_04

PUT COLSE

TO VCORE

Phase 1

Inductor

PC304

1200p_50V_X7R_04

PR352

4.12K_1%_04

TSE N SEA

PR332 2_06

PUT COLSE

TO VCORE

HOT SPOT

H_CPU_SVIDCLK

CSP3

H_CPU _SVI DALRT#

PC314 0.22u_10V_X5R_04

PR335

*0_04

PR316 66.5K_1%_06

PC327

1000p_50V_X7R_04

PC329

4700p_50V_X7R_04

RT3

100K_NT C_06_A

1 2

PC306

33p_50V_N PO_04

PC321

0.047u_10V_X7R_04

PC331 1000p_50V_X7R_04

VR_EN

5VS

5VS

APGND

5VS

5VS

CSREF

VIN

1.05VS CSREFA

5VS

APGND

APGND

APGND

APGN D

APGND

APGND

APGN D

APGN D

APGND

APGND

APGND

VSN

APGND

APGND

CSP2A

SWN1 [38]

SWN2 [38]

SWN1 [38]

CSREF [38]

VCORE_VCC _SENSE[5]

VCORE_VSS_SENSE[5]

SWN2 [38]

CSP2

SW2 [38]

SW1A [38]

PUT COLSE

TO GT

Inductor

CSREFA [38]

SWN1A [38]

SW1 [38]

TSENSEA

HG2 [38]

LG1A [38]

HG1A [38]

HG1 [38]

LG1 [38]

LG2 [38]

VBOOT

H_CPU_SVIDCLK[5]

H_CPU_SVIDALRT#[5]

H_CPU_SVIDDAT[5]

1.05VS[13,14,15,19,20,35]

5VS[12,13,20,25,30,31,32] 3.3VS[3,9,10,11,12,13,14,15,16,17,18,19,20,23,24,25,28,29,30, 31,32]

VIN[11,32,33,34,35,36,38,39]

SWN1A [38]

VCORE_1

CSP1A

CSCOMPA

CSCOMPCSCOMPCSCOMPCSCOMPCSCOMPCSCOMP DROOP

Option for

2 phase CPU

DROOPA

PJ4

*OPEN_1mm

12

S

D

G

PQ101B

*MTDK5S6R

5

3

4

S

D

G

PQ101A

*MTDK5S6R

2

6

1

PR355 *10K_04

PR357

*100K_04

PC333

*0.1u_16V_Y5V_04

PJ9

*OPEN_1mm

1 2

PR360

*10K_04

VCORE_ON[28]

3.3VS VR_EN

ALL_SY S_PW RGD[11,15,28]

TRB ST#

PR7 *10mil_04

CSREFACSCOMPA

TR BST #

Sheet 37 of 44

Power V-Core1

Schematic Diagrams

B - 38 Power V-Core1

B.Schematic Diagrams

Power V-Core1

Schematic Diagrams

Power V-Core2 B - 39

B.Schematic Diagrams

Power V-Core2

0712 D02

PC349

2200p_50V_X7R_04

CSREF

R824 2.2_06

BOT SIDE

0712 D02

PC359

1000p_50V_X7R_04

CSREF

0712 D02

+

PC343

390uF_2.5V_10m_6.3*6_m

+

PC342

390uF_2.5V_10m_6.3*6_m

VCORE

+

PC346

*390uF_2.5V_10m_6.3*6_m

+

PC347

390uF_2.5V_10m_6.3*6_m

0712 D02

0712 D02

C715

0.1u_16V_Y5V_04

C714

0.1u_16V_Y5V_04

R825 2.2_06

PR373

2.2_06

PC357

2200p_50V_X7R_04

PJ35

*OPEN_12mm

1 2

VGFX_CORE

PQ109

*MDU1516

G

DS

PD38

CSOD140SH

A C

PR28 *10mil_04

PR163 10_04

PL3 0.36UH_12.9*14*3.8

1 2

+

PC355

*560u_2.5V_6.6*6.6*5.9

PQ108

MDU1516

G

DS

PQ111

MDU1512

G

DS

PC352

4.7u_25V_X5R_08

PC351

4.7u_25V_X5R_08

PQ110

MDU1512

G

DS

PC353

0.1u_50V_Y5V_06

VIN

+

PC354

560u_2.5V_6.6*6.6*5.9

0712 D02

HG1A[37]

VGFX_CORE

PJ34 *OPEN_5mm

12

LG1A[37]

SW1A[37]

SWN1A [37]

CSREFA [37]

HG1A

CSREFA

LG1A

SW1A

0713 D02

TOP SIDE

PQ105

*MDU1512

G

DS

PR367

2.2_06

PQ103

MDU1516

G

DS

PQ106

MDU1512

G

DS

PC335

4.7u_25V_X5R_08

PD36

CSOD140SH

A C

PC336

4.7u_25V_X5R_08

PR366 *10mil_04

+

PC223

*330uF_25V

PC337

0.1u_50V_Y5V_06

PC350

2200p_50V_X7R_04

PD37

CSOD140SH

A C

PC339

4.7u_25V_X5R_08

PQ102

MDU1516

G

DS

+

PC334

*15u_25V_6.3*4.4

PL16

BCIH1040-R36M

1 2

PQ104

MDU1512

G

DS

PR364

10_04

PC340

4.7u_25V_X5R_08

PR368

2.2_06

PC341

0.1u_50V_Y5V_06

+

PC338

*15u_25V_6.3*4.4

PR369 *10mil_04

PL15

BCIH1040-R36M

1 2

PQ107

*MDU1512

G

DS

PR365

10_04

VIN

VCORE1

VIN

CSREF [37]

VCORE1

SWN2 [37]

SWN1 [ 37]

LG2[37]

SW2[37]

LG1[37]

SW1[37]

VGFX_CORE[6] VCORE[5]

VIN[11,32, 33,34,35,36,37,39] 5VS[12,13,20,25, 30,31,32,37]

HG2[37]HG1[37]

VGFX_CORE1

VCORE1

0710 D02

VGFX_CORE1[6] VC ORE1[5]

PC358

1000p_50V_X7R_04

0712 D02

0717 D02

PJ37 *OPEN_8mm

1 2

VGFX_CORE

VCORE_2

Sheet 38 of 44

Power V-Core2

Schematic Diagrams

B - 40 Smart Charger, AC In

B.Schematic Diagrams

Smart Charger, AC In

PC360

*1000p_50V_X7R_04

PR276

0_04

PC361

0.1u_16V_Y5V_04

VDDP

ICHM

LDR

AC AV

IAC1

VAC

SMD_BAT_R

BAT_DETIACM

ICHP

SMC_BAT_R

LX

IACP COMP_PU12

BAT_DET

SMD_BAT

BAT_VOLT

V_BAT

SMC_BAT

PD25

MDL914S2

AC

PR242

0.01_1%_32

PR283

*0_04

PR246 10_06

PR272 0_06

JACK1

DC069HS-2-PA9T-1

GND2

GND1

2

1

3

PR254

*28mil_06

PC237 0.1u_50V_Y5V_06

PC239

4700p_50V_X7R_04

PD30

*BAV99 RECTIFIER

A

C

AC

PR245 10_06

PQ81

2SK3018S3 G

DS

PU12

OZ8681LN-E

LX

14

LDR

16

BST

12

VAC

1

VDDP

15

IACM

3

VDDA 6

SDA 11

ICHP 5

ICHM 4

COMP 8

HDR 13

BASE

17

SCL 10

IAC 7

IACP

2

ACAV

9

PC230

*4.7u_25V_X5R_08

PQ79

MEP4435Q8

4

6 2

5

7 3

1

8

PC266 *4.7u_25V_X5R_08

PR244 10_06

PR250 0_04

PQ80B

EMB17A03V

1

2

7

8

9

PC248

47p_50V_NPO_04

¦^±Â½u¥²¶·¥ÑRsense¨âºÝ©Ô¦^

PC243

*1u_25V_X7R_08

PC261

*0.1u_50V_Y5V_06

PC235 *4.7u_25V_X5R_08

PC262

*0.1u_50V_Y5V_06

PR238

0_04

JBATTA1

*BTD-05TC1B

1

2

3

4

5

PC249

30p_50V_NPO_04

PR281 2.2_06

PQ85

DTC114EUA

CE

B

PQ84

2SK3018S3

G

DS

PC268

2200p_50V_X7R_04

PC228

4.7u_25V_X5R_08

PQ78

MEP4435Q8

4

62 5

73

1

8

PC232 4.7u_25V_X5R_08

PR259

300K_1%_04

PC234 4.7u_25V_X5R_08

PD28

*BAV99 RECTIFIER

A

C

AC

PC233 4.7u_25V_X5R_08

PC252

0.1u_16V_Y5V_04

PD29

*BAV99 RECTIFIER

A

C

AC

PC246

1u_10V_Y5V_06

PC231

*4.7u_25V_X5R_08

PC244

*1u_25V_X7R_08

PR261

60.4K_1%_04

PQ80A

EMB17A03V

3

4

5

6

10

PR257

100_04

PC240

0.1u_50V_Y5V_06

PR240

10K_04

PC238

4700p_50V_X7R_04

PR241

0.01_1%_32

PD26 MDL914S2

AC

JBATTA2

BTD-05TI1G

1

2

3

4

5

PD32

ZD5245BS2

AC

PC247

0.47u_10V_Y5V_04

PR247 10_06

PC224

0.1u_50V_Y5V_06

PQ83

QM3009K

G

DS

PR260

100K_04

PR252

0_04

PR262

10K_04

PC236 4.7u_25V_X5R_08

PC241

1u_25V_Y5V_08

PC225 4.7u_25V_X5R_08

PC226 4.7u_25V_X5R_08

PL11

HCB4532K-800_18

PR251 0_04

PC251

30p_50V_NPO_04

PC227 4.7u_25V_X5R_08

PR239 *470K_04

PR243

100K_04

PC245

1u_10V_Y5V_06

PC229

4.7u_25V_X5R_08

PC250

30p_50V_NPO_04

PR249

10_06

PD27

*BAV99 RECTIFIER

A

C

AC

PR282

0_04

PR253

100K_04

PR248

15K_04

PC242

1000p_50V_X7R_04

PR255 10_06

PL12

BCIHP-0730 8R2M

PC267

0.33u_16V_Y5V_06

VA

V_BAT

VDD3

VA

VIN

VA

SYS3V

VDD3

VA1

VA[32]

VIN[11,32,33,34,35,36,37,38]

VDD3[13,22,23,24,26,28,31,32, 33]

AC_IN# [ 28]

SYS3V[33] SYS15V[32,33,35]

SMD_BAT [28]

BAT_DET[28]

BAT_VOLT [28]

TOTAL_C UR [28]

SMC_BAT [28]

4S / 390

3S / 2K

2S / 10K / NT1908

BAT DET(BATTERY INTERNAL) :

AC_IN

SMART CHARGER

W25EU/W27EU

W24EU

2S / 5K / NT1912

4S/2800mAH /7.15K

3S/2800mAH / 4.02K

¦^±Â½u¥²¶·¥ÑRsense¨âºÝ©Ô¦^

PMOSFET_ CONTROL#[28]

0712 D02

0712 D02 ¾aªñJBATTA

VIN

Sheet 39 of 44

Smart Charger, AC

In

Schematic Diagrams

Click Board B - 41

B.Schematic Diagrams

Click Board

CLED_BAT_FULL

CLED_BAT_CHG

CLED_PWR

CLED_ACIN

CLED_BAT_FULL

6-20-94A50-104

6-21-91A20-1066-21-91A20-106 6-21-91A00-1066-21-91A00-106

6-53-3050B-0426-53-3050B-0426-53-3050B-042

6-20-94A70-104

6-20-94AA0-104

1

6-53-3050B-042

BAT LED

POWER ON

LED

2

CLED_ACIN

6-52-55002-04E

6-52-55002-042

CLED_BAT_CHG

CH6

HO-165X94_5NP

CH5

C95D95

CJ_TP3

*85201-06051

1

2

3

4

5

6

1

CH1

MTH237D91

2

3

4

5 6

7

8

9

CR3

*220_04

CC2

*0.1u_16V_Y5V_04

CSW2

TJG-533-S-T/R

3

14

2

5

6

CC1

0.1u_16V_Y5V_04

CR1

*220_04

CLICK BOARD

CSW3

*TJG-533-S-T/R

3

14

2

5

6

CSW4

*TJG-533-S-T/R

3

14

2

5

6

CC3

*0.1u_16V_Y5V_04

1

CH4

MTH237D91

2

3

4

5 6

7

8

9

CJ_TP2

85201-06051

1

2

3

4

5

6

CJ_TP1

85201-04051

1

2

3

4

CSW1

TJG-533-S-T/R

3

14

2

5

6

SG

Y

CD26

*KPB-3025YSGC

1

3

2

4

CR4

*220_04

1

CH2

MTH237D91

2

3

4

5 6

7

8

9

SG

Y

CD27

*KPB-3025YSGC

1

3

2

4

CR2

*220_04

CGND

CGND

1

CH3

MTH237D91

2

3

4

5 6

7

8

9

CGND

CGND

CGNDCGND

CGND

CGNDCGNDCGNDCGND

C5VS

CGNDCGND

CGND

CGND

CGND

CVDD3

CGND

CGND

C5VS

CGND CGNDCGND CGND

CTPBUTTON_RCTPBUTTON_L CTPBUTTON_RCTPBUTTON_L

RIGHT

KEY

LIFT

KEY

LIFT

KEY

1

RIGHT

KEY

CSW1~4

3

4

6-52-55002-04E

6-52-55002-042

2

CTP_DATACTP_CLK

CTPBUTTON_R

CTP_CLKCTP_DATA

CTPBUTTON_L

CLED_PWR

W240HU ¤£¤W¥ó

W250HU ¤W¥ó

Sheet 40 of 44

Click Board

AMIC1-R

ASPKOUTR+_R

AUSB_PP2

1

J_SPK1

J_SPK1

2

2

AUSB_PN2

6-20-43110-102

6-20-43150-102

1

AUSB_PP2_R

AUSB_PN2_R

AHEADPHONE-R

A_AUD G

AHP_SENSE

AMIC_SENSE

AHEADPHONE-L

AMIC1-L

ASPKOUTR-

ASPKOUTR+

AMIC1-R

EMI Require

6-21-B49C0-104

AC2

0.1u_16V_Y5V_04

AC10

22u_6.3V_X5R_08

AC796

*1u_6.3V_X5R_04

AUDIO JACK

AUSB_PN2

AUSB_PP2

AGND

BLACK

BLACK

PHONE_OUT_R

AMIC1-L NC_MIC1

MIC1_OUT_L

PHONE_OUT_L

MIC1_OUT_R

AMIC_SENSE

PHONE-R

PHONE-L

AHEADPHON E-R

AHEADPHON E-L

AHP_SENSE

ASPKOUTR-

ASPKOUTR+

ASPKOUTR-_R

3

5

2

4

1

6

10/28 Modify value

6-20-B2800-106

HP-L

6-20-B2800-106

GND

EMI Require

VT1802P 33_04

3*R/L½u¼e

GND

Headphone°T¸¹½u¼e > 10mils

¶ZÂ÷phone jack¶V»·

½u®|´N¥²¶·¶V¼e

R/L¥²¶·¥]ÂÐGND¥B¶¡¶Z¬°3*½u¼e

Re sisto r 32 or 33_04

meet WLK Test

HP-R

Layout note:

AJ_AUDIO1

85201-14051-01

1

2

3

4

5

6

7

8

10

11

12

13

14

9

ASPK_HP#

60 mil

USB PORT

AL123

FCM1005KF-121T03

1 2

AJ_USB1

US04036BCA081

V+

1

GND1

GND 1

DATA_L

2

DATA_H

3

GND

4

GND2

GND2

GND4

GND4 GND3

GND3

AC792

*100p_50V_NPO_04

AL124

FCM1005KF-121T03

1 2

R

L

AJ_HP1

2SJ-T351-S23

2

6

5

3

1

4

AL127

*FCM1608K-121T06_short

1

AH2

MTH276D111

2

3

4

5 6

7

8

9

AC794

*100p_50V_NPO_04

AC797

680p_50V_X7R_04

AH3

C59D59

AJ_SPKR1

85204-02001

PCB Footprint = 85204-02R

1

2

AC795

*100p_50V_NPO_04

AR569 33_04

AR570 33_04

AC8 0.1u_16V_Y5V_04

R

L

AJ_MIC1

2SJ-T351-S23

2

6

5

3

1

4

AC7 0.1u_16V_Y5V_04

AC9 0.1u_16V_Y5V_04

AL125

FCM1005KF-121T03

1 2

1

AH4

MTH276D111

2

3

4

5 6

7

8

9

AH1

C59D59

AL128

*FCM1608K-121T06_short

AC6 0.1u_16V_Y5V_04

AC793

*100p_50V_NPO_04

AL126

FCM1005KF-121T03

1 2

AC798

680p_50V_X7R_04

A_USBVCC

AGND

AGND

AGND AGNDAGND

AGND

A_AUDG

A_AUDGAGND

A_AUDG

A_AUDG

A_AUDG

AC5

22u_6.3V_X5R_08

HEADPHONE

AL122

*WCM2012F2S-SHORT

1

4

2

3

A_USBVCC

TO M/B

+

AC1

*100u_6.3V_B_B

ALC269 180_1%_04

MIC IN

Sheet 41 of 44

Audio Board/USB

Schematic Diagrams

B - 42 Audio Board/USB

B.Schematic Diagrams

Audio Board/USB

POWER

SWITCH

LED

POWER BUTTON

FOR W25XX FOR W24XX/

W25XX

20mil

4

PSW1~8

1

2

6-53-3150B-245

3

FOR W258XXQ

6-53-3050B-240

6-53-3050B-241

POWER SW & LED & HOT KEY

HOT KEY

LED P/N

SD4

*V15AVLC0402

12

6-52-56001-022

6-52-56000-020

6-52-56001-028

6-52-56001-023

5/13

SC6

*1u_10V_Y5V_06

FOR W24XX / W25XX

SWEB_WWW#SM_BTN#

SD2

*BAV99 RECTIFIER

A

C

AC

SAP_ONSWEB_EMAIL#

POWER BUTTON WEB_WWW#

PSW1~8

WEB_EMAIL#

4

31

2

6-53-3150B-245

AP_KEY#

6-53-3050B-240

6-53-3050B-241

6-53-3150B-245

6-53-3050B-240

6-53-3050B-241

6-53-3050B-240

6-53-3050B-241

6-53-3150B-245

6-53-3050B-240

6-53-3050B-241

6-53-3150B-245

SD5

*V15AVLC0402

12

SMGND

SD6

*V15AVLC0402

12

SMGND

SD7

*V15AVLC0402

12

SC3

0.1u_16V_Y5V_04

SMAIL_SW1

TJG-533-S-T/R

3

14

2

5

6

SAP_SW1

TJG-533-S-T/R

3

14

2

5

6

SC4

0.1u_16V_Y5V_04 SC5

0.1u_16V_Y5V_04

SWWW_SW1

TJG-5 33-S-T/R

3

14

2

5

6

SMGNDSMGND SMGNDSMGND SMGND

SPWR_SW1

TJG-533-S-T/R

3

14

2

5

6

SMGNDSMGND SMGND

SMGND

SR4

*20mil_04

S_VDD3

SMGND

SMGND

SM_BTN#

SLID_SW#

SAP_ON

SWEB_WWW#

SWEB_EMAIL# SLI D_SW#

SM_BTN#

SMH5

H7_0D2_3

SMH2

H7_0D2_3

1

SMH4

MTH237D118

2

3

4

5 6

7

8

9

1

SMH1

MTH237D87

2

3

4

5 6

7

8

9

SJ_SW2

88486-0801

1

2

3

4

5

6

7

8

SD3

*HT-150NB-DT

AC

SPWR_SW2

*TJG-533-S-T/R

3

14

2

5

6

SC1

*100p_50V_NPO_04

SD1

HT-150NB-DT

AC

SR2

220_04

SC2

0.1u_10V_X5R_04

SR1 100K_04

SU1 MH248-ALFA-ESO

VCC

1OUT 2

GND

3

1

SMH3

MTH237D87

2

3

4

5 6

7

8

9

SMGND

S_3.3VS

SMGND

S_VD D3

SMGND SMGND

S_VDD3

SMGND

SMGND

S_3.3VS

SMGND

SMGND

SMGNDSMGND

SMGNDSMGND SMGND

20mil

SMGND

1

SU1, SU2

2

6-20-94K10-108

3

6-02-00268-LC1

6-02-00248-LC2

LID SWITCH IC

20mil

Sheet 42 of 44

Power Switch & LID

Board

Schematic Diagrams

Power Switch & LID Board B - 43

B.Schematic Diagrams

Power Switch & LID Board

QJ_SATA_TXP1

QJ_SATA_ODD_DA#

QJ_SATA_TXN1

QJ_SATA_RXP1

QJ_SATA_RXN1

QJ_ODD_DETECT#

QH2

C67D67

QH1

C237D91

QC1

0.1u_16V_Y5V_04

QH3

C67D67

QJ_ODD2

1-162-100562

S1

S2

S3

S4

S5

S6

S7

P1

P2

P3

P4

P5

P6

QC2

0.1u_16V_Y5V_04

QH4

C237D91

QGND

QGND QGND

QJ_ODD1

242001-1

S1

S2

S3

S4

S5

S6

S7

P1

P2

P3

P4

P5

P6

Q_5VS

QGND

QGND

Q_5VS

QGND

PIN

GND1~2=WGND

ODD BOARD

PIN

GND1~3=QGND

QGND

Q_5VS

6-21-14030-013

6-21-14020-013

6-21-14010-013

6-21-13A00-013

+

QC3

*220u_6.3V_6.3*6.3*4.2

Sheet 43 of 44

External ODD

Board

Schematic Diagrams

B - 44 External ODD Board

B.Schematic Diagrams

External ODD Board

5.01ms(SUSB# to ALL_SYS_PWRGD)

36.17us(SUSC# to SUSB#)

202.65ms(RSMRST# to PWR_BTN#)

1.07ms

4.34ms

866.1us

1.57ms

1.80us(1.05VS to 1.05VS_PWRGD)

760us

0.85VS_PWRGD

VDDPWRGOOD_R

296.25ms

PM_PCH_PWROK

ALL_SYS_PWRGD

374.29ms

399.78ms

1.84ms

H_CPUPWRGD

5VS

VCORE

707.52us

SYS_PWROK

DELAY_PWRGD

1.88ms

BUF_CPU_RST#

1.89ms

PM_DRAM_PWRGD

0.85VS

373.25ms

PLT_RST#

1.22ms

1.22ms

W2xxCZ-D01 POWER ON SEQUENCE

DD_ON

1.05VS

3.3V

2.12ms

VTT_CPU

1.8VS_PWRGD

121.4ms

5V

2.84ms

112.90ms

2.01ms

SUSB#

PWR_BTN#

1.8VS

1.05VS_PWRGD

1.5V

RSMRST#

91.05ms

SUSC#

1.58ms

3.3VS

VTT_MEM

DDR1.5V_PWRGD

172.09ms

3.19ms

1.33ms

1.73ms

1.5VS

same as 1.05VS

Sheet 44 of 44

Power Sequence

Schematic Diagrams

Power Sequence B - 45

B.Schematic Diagrams

Power Sequence

Schematic Diagrams

B - 46

B.Schematic Diagrams

BIOS Update

C - 1

C:BIOS Update

Appendix C:Updating the FLASH ROM BIOS



BIOS Version

Make sure you down-

load the latest correct

version of the BIOS ap-

propriate for the com-

puter model you are

working on.

You should only

download BIOS ver-

sions that are

V1.01.XX or higher as

appropriate for your

computer model.

Note that BIOS ver-

sions are not backward

compatible and there-

fore you may not

downgrade your

BIOS to an older ver-

sion after upgrading to

a later version (e.g if

you upgrade a BIOS to

ver 1.01.05, you MAY

NOT then go back and

flash the BIOS to ver

1.01.04).

To update the FLASH ROM BIOS, you must:

• Download the BIOS update from the web site.

• Unzip the files onto a bootable CD/DVD/USB Flash Drive.

• Reboot your computer from an external CD/DVD/USB Flash Drive.

• Use the flash tools to update the flash BIOS using the commands indicated below.

• Restart the computer booting from the HDD and press F2 at startup enter the BIOS.

• Load setup defaults from the BIOS and save the default settings and exit the BIOS to restart the computer.

• After rebooting the computer you may restart the computer again and make any required changes to the default BIOS

settings.

Download the BIOS

1. Go to www.clevo.com.tw and point to E-Services and click E-Channel.

2. Use your user ID and password to access the appropriate download area (BIOS), and download the latest BIOS files

(the BIOS file will be contained in a batch file that may be run directly once unzipped) for your computer model

(see sidebar for important information on BIOS versions).

Unzip the downloaded files to a bootable CD/DVD/ or USB Flash drive

1. Insert a bootable CD/DVD/USB flash drive into the CD/DVD drive/USB port of the computer containing the

downloaded files.

2. Use a tool such as Winzip or Winrar to unzip all the BIOS files and refresh tools to your bootable CD/DVD/USB

flash drive (you may need to create a bootable CD/DVD with the files using a 3rd party software).

Set the computer to boot from the external drive

1. With the bootable CD/DVD/USB flash drive containing the BIOS files in your CD/DVD drive/USB port, restart the

computer and press F2 (in most cases) to enter the BIOS.

2. Use the arrow keys to highlight the Boot menu.

3. Use the “+” and “-” keys to move boot devices up and down the priority order.

4. Make sure that the CD/DVD drive/USB flash drive is set first in the boot priority of the BIOS.

5. Press F4 to save any changes you have made and exit the BIOS to restart the computer.

BIOS Update

C - 2

C:BIOS Update

Use the flash tools to update the BIOS

1. Make sure you are not loading any memory management programs such as HIMEM by holding the F8 key as you

see the message “Starting MS-DOS”. You will then be prompted to give “Y” or “N” responses to the programs

being loaded by DOS. Choose “N” for any memory management programs.

2. You should now be at the DOS prompt e.g: DISK C:\> (C is the designated drive letter for the CD/DVD drive/USB

flash drive).

3. Type the following command at the DOS prompt:

C:\> Flash.bat

4. The utility will then proceed to flash the BIOS.

5. You should then be prompted to press any key to restart the system or turn the power off, and then on again but

make sure you remove the CD/DVD/USB flash drive from the CD/DVD drive/USB port before the computer

restarts.

Restart the computer (booting from the HDD)

1. With the CD/DVD/USB flash drive removed from the CD/DVD drive/USB port the computer should restart from

the HDD.

2. Press F2 as the computer restarts to enter the BIOS.

3. Use the arrow keys to highlight the Exit menu.

4. Select Load Setup Defaults (or press F3) and select “Yes” to confirm the selection.

5. Press F4 to save any changes you have made and exit the BIOS to restart the computer.

Your computer is now running normally with the updated BIOS

You may now enter the BIOS and make any changes you require to the default settings.

www.s-manuals.com
