Preface

I

Preface

Notebook Computer

W270ENQ

Service Manual

Preface

II

Preface

Notice

The company reserves the right to revise this publication or to change its contents without notice. Information contained

herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven-

dor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are

they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.

This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or

reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publica-

tion, except for copies kept by the user for backup purposes.

Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of

their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement

of that product or its manufacturer.

Version 1.0

May 2012

Trademarks

Intel, Pentium and Intel Core are trademarks of Intel Corporation.

Windows® is a registered trademark of Microsoft Corporation.

Other brand and product names are trademarks and /or registered trademarks of their respective companies.

Preface

III

Preface

About this Manual

This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and

inspection of personal computers.

It is organized to allow you to look up basic information for servicing and/or upgrading components of the W270ENQ

series notebook PC.

The following information is included:

Chapter 1, Introduction, provides general information about the location of system elements and their specifications.

Chapter 2, Disassembly, provides step-by-step instructions for disassembling parts and subsystems and how to upgrade

elements of the system.

Appendix A, Part Lists

Appendix B, Schematic Diagrams

Appendix C, Updating the FLASH ROM BIOS

Preface

IV

Preface

IMPORTANT SAFETY INSTRUCTIONS

Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock and injury to per-

sons when using any electrical equipment:

1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet

basement or near a swimming pool.

2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of elec-

trical shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak.

4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may

explode. Check with local codes for possible special disposal instructions.

5. This product is intended to be supplied by a Listed Power Unit with an AC Input of 100 - 240V, 50 - 60Hz, DC Output

of 19V, 4.74A (90W) minimum AC/DC Adapter.

CAUTION

This Computer’s Optical Device is a Laser Class 1 Product

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference.

This device must accept any interference received, including interference that may cause undesired operation.

Preface

V

Preface

Instructions for Care and Operation

The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:

1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.

2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This

is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.

3. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save

your work. Remember to periodically save your data as data may be lost if the battery is depleted.

Do not expose the computer

to any shock or vibration.

Do not place it on an unstable

surface.

Do not place anything heavy

on the computer.

Do not expose it to excessive

heat or direct sunlight.

Do not leave it in a place

where foreign matter or mois-

ture may affect the system.

Don’t use or store the com-

puter in a humid environment.

Do not place the computer on

any surface which will block

the vents.

Do not turn off the power

until you properly shut down

all programs.

Do not turn off any peripheral

devices when the computer is

on.

Do not disassemble the com-

puter by yourself.

Perform routine maintenance

on your computer.

Preface

VI

Preface

4. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag-

netic fields. These can hinder proper performance and damage your data.

5. Take care when using peripheral devices.

Power Safety

The computer has specific power requirements:

• Only use a power adapter approved for use with this computer.

• Your AC adapter may be designed for international travel but it still requires a steady, uninterrupted power supply. If you are

unsure of your local power specifications, consult your service representative or local power company.

• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety feature; do

not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.

• When you want to unplug the power cord, be sure to disconnect it by the plug head, not by its wire.

• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.

• Before cleaning the computer, make sure it is disconnected from any external power supplies.

Use only approved brands of

peripherals.

Unplug the power cord before

attaching peripheral devices.

Do not plug in the power

cord if you are wet.

Do not use the power cord if

it is broken.

Do not place heavy objects

on the power cord.



Power Safety

Warning

Before you undertake

any upgrade proce-

dures, make sure that

you have turned off the

power, and discon-

nected all peripherals

and cables (including

telephone lines). It is

advisable to also re-

move your battery in

order to prevent acci-

dentally turning the

machine on.

Preface

VII

Preface

Battery Precautions

• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.

• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the

computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.

• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.

• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service

personnel.

• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries may explode

or leak if exposed to fire, or improperly handled or discarded.

• Keep the battery away from metal appliances.

• Affix tape to the battery contacts before disposing of the battery.

• Do not touch the battery contacts with your hands or metal objects.

Battery Guidelines

The following can also apply to any backup batteries you may have.

• If you do not use the battery for an extended period, then remove the battery from the computer for storage.

• Before removing the battery for storage charge it to 60% - 70%.

• Check stored batteries at least every 3 months and charge them to 60% - 70%.



Battery Disposal

The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under var-

ious state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste

officials for details in your area for recycling options or proper disposal.

Caution

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.

Discard used battery according to the manufacturer’s instructions.

Battery Level

Click the battery icon in the taskbar to see the current battery level and charge status. A battery that drops below a level of 10%

will not allow the computer to boot up. Make sure that any battery that drops below 10% is recharged within one week.

Preface

VIII

Preface

Related Documents

You may also need to consult the following manual for additional information:

User’s Manual on CD/DVD

This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro-

gram. It also describes the installation and operation of the utility programs provided with the notebook PC.

System Startup

1. Remove all packing materials.

2. Place the computer on a stable surface.

3. Insert the battery and make sure it is locked in position.

4. Securely attach any peripherals you want to use with the computer

(e.g. keyboard and mouse) to their ports.

5. Attach the AC/DC adapter to the DC-In jack at the rear of the

computer, then plug the AC power cord into an outlet, and connect

the AC power cord to the AC/DC adapter.

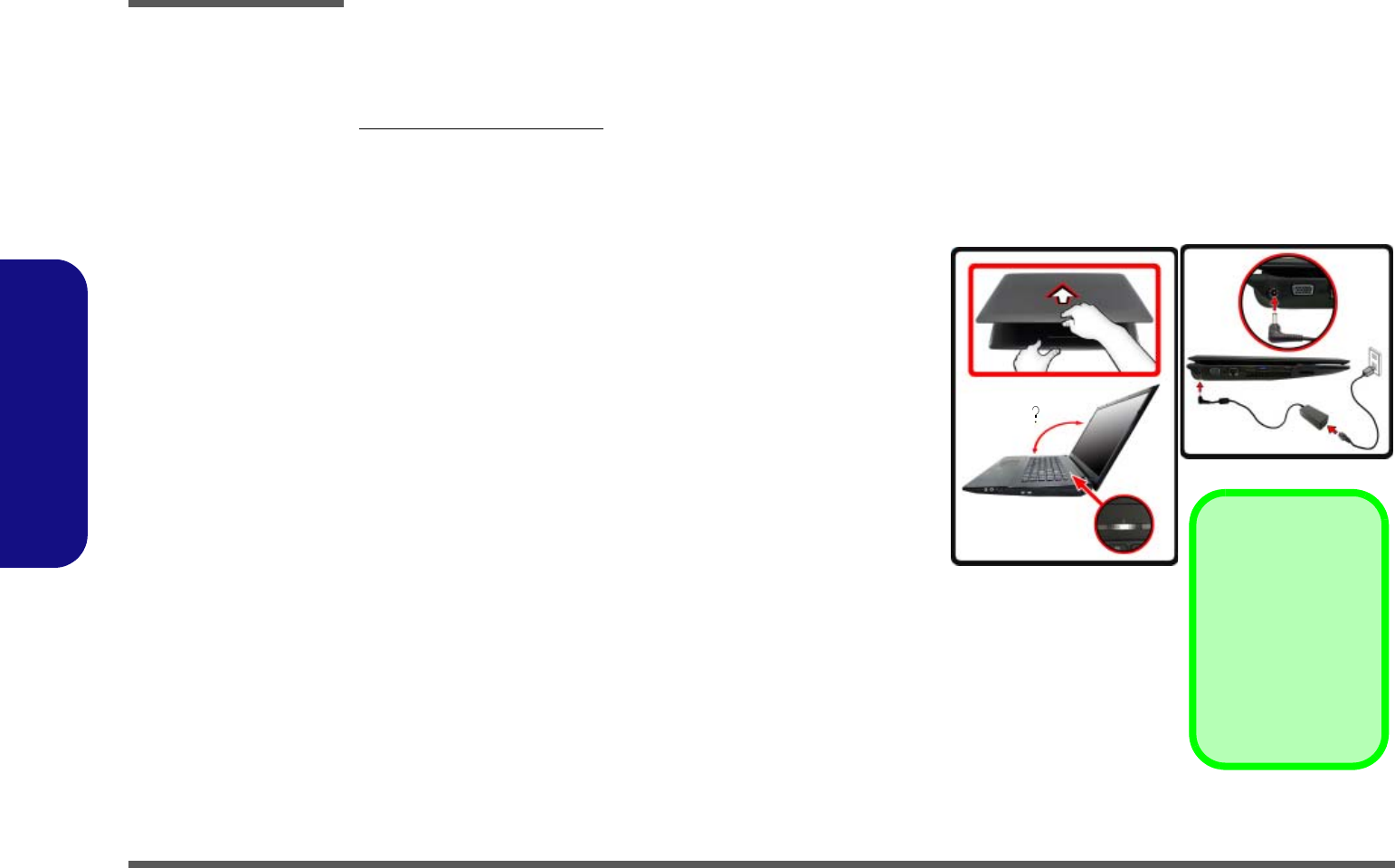

6. Use one hand to raise the

lid/LCD to a comfortable viewing angle

(do

not exceed 130 degrees)

;

use the other hand (as illustrated in Figure

1) to support the base of the computer (Note: Never lift the computer

by the lid/LCD).

7. Press the power button to turn the computer “on”.



Shut Down

Note that you should al-

ways shut your com-

puter down by

choosing Shut Down

from the Start Menu.

This will help prevent

hard disk or system

problems.

130

Figure 1

Opening the Lid/LCD/

Computer with AC/DC

Adapter Plugged-In

Preface

IX

Preface

Contents

Introduction ..............................................1-1

Overview .........................................................................................1-1

Specifications ..................................................................................1-2

External Locator - Top View with LCD Panel Open ......................1-5

External Locator - Front & Right Side Views .................................1-6

External Locator - Left Side & Rear View .....................................1-7

External Locator - Bottom View .....................................................1-8

Mainboard Overview - Top (Key Parts) .........................................1-9

Mainboard Overview - Bottom (Key Parts) ..................................1-10

Mainboard Overview - Top (Connectors) .....................................1-11

Mainboard Overview - Bottom (Connectors) ...............................1-12

Disassembly ...............................................2-1

Overview .........................................................................................2-1

Maintenance Tools ..........................................................................2-2

Connections .....................................................................................2-2

Maintenance Precautions .................................................................2-3

Disassembly Steps ...........................................................................2-4

Removing the Battery ......................................................................2-5

Removing the Hard Disk Drive .......................................................2-6

Removing the Optical (CD/DVD) Device ......................................2-8

Removing the System Memory (RAM) ..........................................2-9

Removing and Installing a Processor ............................................2-11

Removing the Wireless LAN Module ...........................................2-14

Removing the Keyboard ................................................................2-15

Part Lists ..................................................A-1

Part List Illustration Location ........................................................A-2

Top .................................................................................................A-3

Bottom ............................................................................................A-4

SATA BLU RAY COMBO ........................................................... A-5

DVD DUAL ................................................................................... A-6

LCD ............................................................................................... A-7

Schematic Diagrams.................................B-1

System Block Diagram ...................................................................B-2

Processor 1/7-DMI, FDI, PEG ........................................................B-3

Processor 2/7- CLK, MISC .............................................................B-4

Processor 3/7- (DDR3) ...................................................................B-5

Processor 4/7- Power ......................................................................B-6

Processor 5/7- GFX PWR ...............................................................B-7

Processor 6/7- GND ........................................................................B-8

Processor 7/7- RSVD ......................................................................B-9

DDR3 SO-DIMM_0 .....................................................................B-10

DDR3 SO-DIMM_1 .....................................................................B-11

PANEL, INVERTER, CRT ..........................................................B-12

VGA PCI-E Interface ....................................................................B-13

VGA Frame Buffer Interface ........................................................B-14

VGA Frame Buffer A ...................................................................B-15

VGA Frame Buffer C ...................................................................B-16

VGA I/O .......................................................................................B-17

VGA NVVDD Cecoupling ...........................................................B-18

PCH 1/9- RTC, HDA, SATA .......................................................B-19

PCH 2/9- PCIE, SMBUS, CLK ....................................................B-20

PCH 3/9- DMI, FDI, PWRGD .....................................................B-21

PCH 4/9- LVDS, DDI, CRT .........................................................B-22

PCH 4/9- PCI, USB, RSVD .........................................................B-23

PCH 6/9- GPIO, CPU ...................................................................B-24

PCH 7/9- PWR .............................................................................B-25

PCH 8/9 POWER .........................................................................B-26

PCH 9/9- GND .............................................................................B-27

WLAN, 3G, MINI PCIE ...............................................................B-28

Preface

X

Preface

CCD, TPM, MULTI CON ........................................................... B-29

USB3.0 ......................................................................................... B-30

Card Reader (RTL8411) ............................................................... B-31

SATA ODD, LED, USB CHARGE ............................................. B-32

HDMI, RJ45 ................................................................................. B-33

AUDIO CODEC VT1802P .......................................................... B-34

KBC-ITE IT8518E ....................................................................... B-35

5VS, 3VS, 1.5VS CPU ................................................................. B-36

VDD3, VDD5 ............................................................................... B-37

Power 0.85VS, 1.8VS .................................................................. B-38

POWER 1.5V/1.05VS .................................................................. B-39

POWER 1.05V/1.05VS VTT ....................................................... B-40

POWER VCORE1 ....................................................................... B-41

POWER VCORE2 ....................................................................... B-42

Power VGA NVVDD/PEX_VDD ............................................... B-43

AC IN, CHARGER ...................................................................... B-44

AUDIO BOARD .......................................................................... B-45

CLICK BOARD ........................................................................... B-46

W251HPQ POWER SW BOARD ............................................... B-47

W270HU BRIDGE ODD BOARD .............................................. B-48

W270HU POWER SW BOARD ................................................. B-49

Power Diagram ............................................................................. B-50

Power On SEQ ............................................................................. B-51

Updating the FLASH ROM BIOS......... C-1

Introduction

Overview 1 - 1

1.Introduction

Chapter 1: Introduction

Overview

This manual covers the information you need to service or upgrade the W270ENQ series notebook computer. Informa-

tion about operating the computer (e.g. getting started, and the Setup utility) is in the User’s Manual. Information about

dri-vers (e.g. VGA & audio) is also found in the User’s Manual. The manual is shipped with the computer.

Operating systems (e.g. Window 7, etc.) have their own manuals as do application softwares (e.g. word processing and

database programs). If you have questions about those programs, you should consult those manuals.

The W270ENQ series notebook is designed to be upgradeable. See Disassembly on page 2 - 1 for a detailed description

of the upgrade procedures for each specific component. Please take note of the warning and safety information indicated

by the “” symbol.

The balance of this chapter reviews the computer’s technical specifications and features.

Introduction

1 - 2 Specifications

1.Introduction

Specifications



Latest Specification Information

The specifications listed here are correct at the

time of sending them to the press. Certain items

(particularly processor types/speeds) may be

changed, delayed or updated due to the manu-

facturer's release schedule. Check with your

service center for more details.



CPU

The CPU is not a user serviceable part. Ac-

cessing the CPU in any way may violate your

warranty.

Processor

Note all processor packages are rPGA988B

Intel® Core i7-3820QM (2.7GHz)

Quad-Core Mobile Processor

8M L3 Cache, 22nm (22 Nanometer), DDR3-1600MHz,

TDP 45W

Intel® Core i7-3720QM (2.6GHz)

Quad-Core Mobile Processor

6M L3 Cache, 22nm (22 Nanometer), DDR3-1600MHz,

TDP 45W

Intel® Core i7-3610QM (2.3GHz)

Quad-Core Mobile Processor

6M L3 Cache, 22nm (22 Nanometer), DDR3-1600MHz,

TDP 45W

Intel® Core i7-3520M (2.9GHz) Mobile Processor

4M L3 Cache, 22nm (22 Nanometer), DDR3-1600MHz,

TDP 35W

Intel® Core i5-3360M (2.8GHz) Mobile Processor

3M L3 Cache, 22nm (22 Nanometer), DDR3-1600MHz,

TDP 35W

Intel® Core i5-3320M (2.6GHz) Mobile Processor

3M L3 Cache, 22nm (22 Nanometer), DDR3-1600MHz,

TDP 35W

Intel® Core i5-3210M (2.5GHz) Mobile Processor

3M L3 Cache, 22nm (22 Nanometer), DDR3-1600MHz,

TDP 35W

Intel® Core i5-3110M (2.4GHz) Mobile Processor

3M L3 Cache, 22nm (22 Nanometer), DDR3-1600MHz,

TDP 35W

Intel® Core i7-2860QM (2.5GHz)

Quad-Core Mobile Processor

8M L3 Cache, 32nm (32 Nanometer), DDR3-1600MHz,

TDP 45W

Intel® Core i7-2820QM (2.3GHz)

Quad-Core Mobile Processor

8M L3 Cache, 32nm (32 Nanometer), DDR3-1600MHz,

TDP 45W

Intel® Core i7-2760QM (2.4GHz)

Quad-Core Mobile Processor

6M L3 Cache, 32nm (32 Nanometer), DDR3-1600MHz,

TDP 45W

Intel® Core i7-2720QM (2.2GHz)

Quad-Core Mobile Processor

6M L3 Cache, 32nm (32 Nanometer), DDR3-1600MHz,

TDP 45W

Intel® Core i7-2670QM (2.2GHz)

Quad-Core Mobile Processor

6M L3 Cache, 32nm (32 Nanometer), DDR3-1333MHz,

TDP 45W

Intel® Core i7-2630QM (2.0GHz)

Quad-Core Mobile Processor

6M L3 Cache, 32nm (32 Nanometer), DDR3-1333MHz,

TDP 45W

Intel® Core i7-2640M (2.8GHz) Mobile Processor

4M L3 Cache, 32nm (32 Nanometer), DDR3-1333MHz,

TDP 35W

Intel® Core i7-2620M (2.7GHz) Mobile Processor

4M L3 Cache, 32nm (32 Nanometer), DDR3-1333MHz,

TDP 35W

Introduction

Specifications 1 - 3

1.Introduction

Intel® Core i5-2540M (2.6GHz) Mobile Processor

3M L3 Cache, 32nm (32 Nanometer), DDR3-1333MHz,

TDP 35W

Intel® Core i5-2520M (2.5GHz) Mobile Processor

3M L3 Cache, 32nm (32 Nanometer), DDR3-1333MHz,

TDP 35W

Intel® Core i5-2450M (2.5GHz) Mobile Processor

3M L3 Cache, 32nm (32 Nanometer), DDR3-1333MHz,

TDP 35W

Intel® Core i5-2430M (2.4GHz) Mobile Processor

3M L3 Cache, 32nm (32 Nanometer), DDR3-1333MHz,

TDP 35W

Intel® Core i5-2410M (2.3GHz) Mobile Processor

3M L3 Cache, 32nm (32 Nanometer), DDR3-1333MHz,

TDP 35W

Intel® Core i3-2370M (2.4GHz) Mobile Processor

3M L3 Cache, 32nm (32 Nanometer), DDR3-1333MHz,

TDP 35W

Intel® Core i3-2350M (2.3GHz) Mobile Processor

3M L3 Cache, 32nm (32 Nanometer), DDR3-1333MHz,

TDP 35W

Intel® Core i3-2330M (2.2GHz) Mobile Processor

3M L3 Cache, 32nm (32 Nanometer), DDR3-1333MHz,

TDP 35W

Intel® Core i3-2310M (2.1GHz) Mobile Processor

3M L3 Cache, 32nm (32 Nanometer), DDR3-1333MHz,

TDP 35W

Intel® Pentium® B970 (2.3GHz)

2M L3 Cache, 32nm (32 Nanometer), DDR3-1333MHz,

TDP 35W

Intel® Pentium® B960 (2.2GHz)

2M L3 Cache, 32nm (32 Nanometer), DDR3-1333MHz,

TDP 35W

Intel® Pentium® B950 (2.1GHz)

2M L3 Cache, 32nm (32 Nanometer), DDR3-1333MHz,

TDP 35W

Intel® Pentium® B940 (2.0GHz)

2M L3 Cache, 32nm (32 Nanometer), DDR3-1333MHz,

TDP 35W

Core Logic

Mobile Intel® HM76 Express Chipset

Display

17.3” / 43.94cm HD+ (1600 * 900) / FHD (1920 * 1080)

16:9 Backlit Panel

Memory

Dual Channel DDRIII (DDR3)

Two 204 Pin SO-DIMM sockets supporting DDR3

1333MHz/1600MHz (real operational frequency depends

on the FSB of the processor)

Memory Expandable up to 8GB (using 1GB / 2GB / 4GB

SO-DIMM Modules)

Video Controller

Intel® Integrated GPU and NVIDIA® GeForce

GT 630M

Video:

Supports NVIDIA® Optimus Switchable GPU

Technology between iGPU and dGPU

Intel® HD Graphics 4000 / Intel® HD Graphics 3000 /

Intel® HD Graphics

(GPU is Dependent on Processor):

Dynamic Frequency

Intel Dynamic Video Memory Technology for up to 1.7GB

Microsoft DirectX®10 Compatible (for

Intel® HD Graphics

3000 / Intel® HD Graphics)

Microsoft DirectX®11 Compatible (for

Intel® HD Graphics

4000)

NVIDIA

®

GeForce GT 630M Discrete GPU:

1GB DDR3 Video RAM

or

2GB DDR3 Video RAM

Supports PCIe * 8

Microsoft DirectX®11 Compatible

NVIDIA PhysX

™

GeForce CUDA

™

Technology

NVIDIA® Optimus 2012 Technology

BIOS

48Mb SPI Flash ROM

AMI BIOS

Storage

One Changeable 12.7mm(h) Super Multi/Blu-ray Combo

Optical Device Drive with SATA Interface (

Factory

Option

)

One Changeable 2.5" / 9.5 mm (h) HDD with SATA

(Serial) Interface

Introduction

1 - 4 Specifications

1.Introduction

Audio

High Definition Audio Interface

Built-In Microphone

2 * Built-In Speakers

THX TruStudio Pro

Keyboard, Pointing Device & Buttons

Isolated Keyboard with Numeric Keypad

Built-in Touchpad with Multi-Gesture Functionality

Interface

One USB 2.0 Port

Two USB 3.0 Ports

One eSATA Port

One External Monitor Port

One HDMI1.4a Out Port (with HDCP)

One Headphone-Out Jack

One Microphone-In Jack

One RJ-45 LAN Jack

One DC-In Jack

Card Reader

Embedded Multi-In-1 Card Reader

- MMC/ RS MMC

- SD/ Mini SD / SDHC/ SDXC

- MS/ MS Pro/ MS Duo

Note: Some of these cards require PC adapters that are

usually supplied with the cards.

Slots

For Half Size WLAN Combo Module with PCIe and USB

Interface

Communication

Built-In 10/100/1000Mb Base-TX

Ethernet LAN

Intel

®

Centrino

®

Advanced-N 6235

(2*2 802.11 a/g/n) Half

Mini-Card PCIe WLAN & Bluetooth 4.0 Combo Module (

Fac-

tory Option

)

Intel

®

Centrino

®

Wireless-N 2230

(1*2 802.11 b/g/n) Half

Mini-Card PCIe WLAN & Bluetooth 4.0 Combo Module (

Fac-

tory Option

)

Combo WLAN

(802.11b/g/n)

and Bluetooth

v3.0+HS

Half

Mini-Card Module with PCIe Interface (Factory Option)

Combo WLAN

(802.11b/g/n)

and Bluetooth

v4.0+HS

Half

Mini-Card Module with PCIe Interface (Factory Option)

WLAN

802.11b/g/n

Half Mini-Card Module with PCIe

Interface (Factory Option)

1.3M/2.0M Pixel PC Camera Module with USB interface

(Factory Option)

Power Management

Supports Wake on LAN

Supports Wake on USB

Power

Full Range AC/DC Adapter

AC input 100 - 240V, 50 - 60Hz,

DC Output 19V, 4.74A (90 Watts)

Removable 6 Cell Smart Lithium Ion Battery Pack 48.84WH

Removable 6 Cell Smart Lithium Ion Battery Pack 62.16WH

(Factory Option)

Security

Security (Kensington® Type) Lock Slot

BIOS Password

Operating System

Windows® 7 with Service Pack 1

Design Feature

IMR (Injected Molded Resin) LCD Back Covers (For

Some Model Designs)

Environmental Spec

Temperature

Operating: 5°C - 35°C

Non-Operating: -20°C - 60°C

Relative Humidity

Operating: 20% - 80%

Non-Operating: 10% - 90%

Dimensions & Weight

413mm (w) * 270mm (d) * 14 - 40.5mm(h)

3kg with ODD & 48.84WH Battery

Introduction

External Locator - Top View with LCD Panel Open 1 - 5

1.Introduction

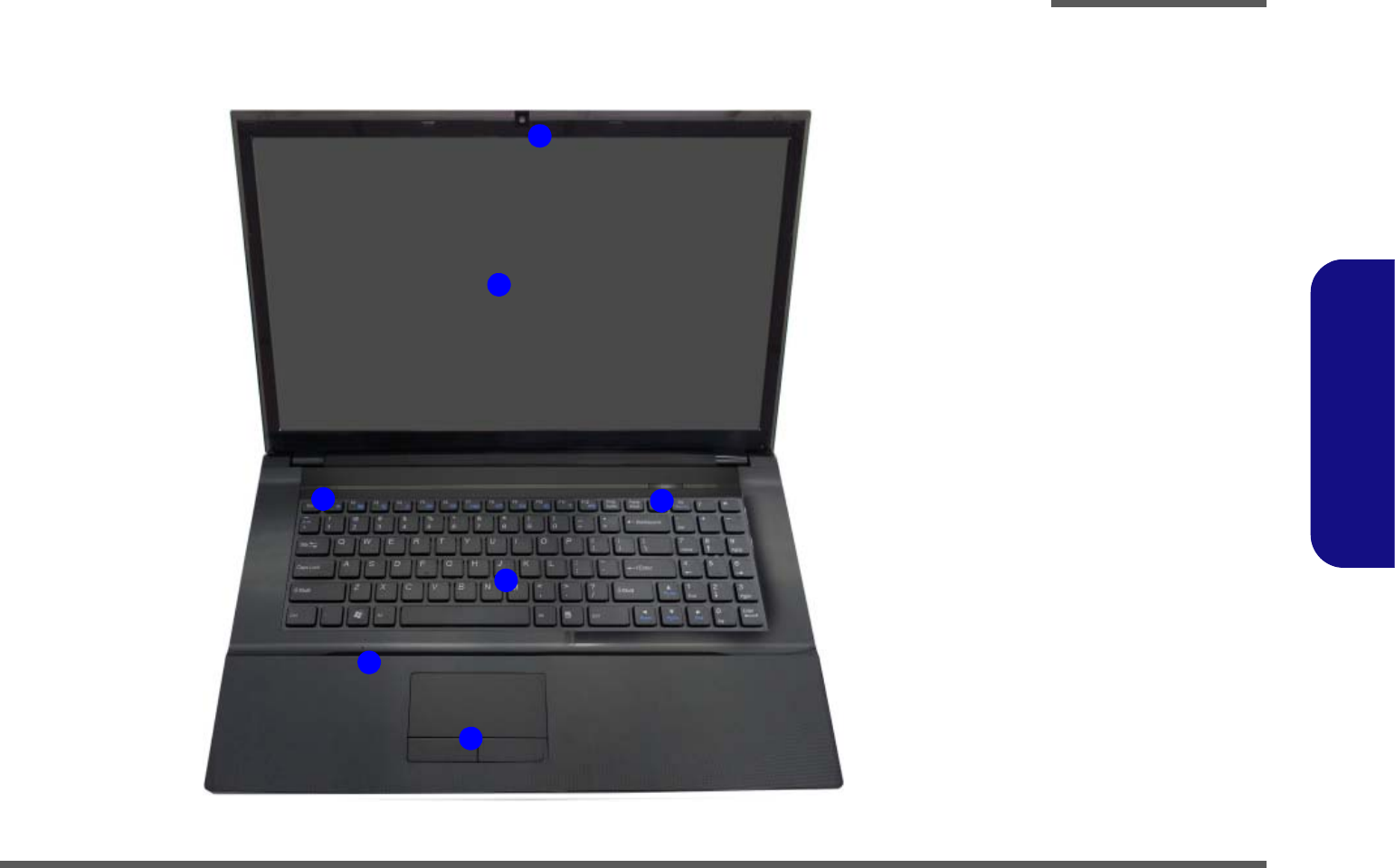

External Locator - Top View with LCD Panel Open

Figure 1

Top View

1. PC Camera

(Optional)

2. LCD

3. Power Button

4. LED Status

Indicators

5. Keyboard

6. Built-In

Microphone

7. Touchpad &

Buttons

5

3

4

6

1

7

2

Introduction

1 - 6 External Locator - Front & Right Side Views

1.Introduction

External Locator - Front & Right Side Views

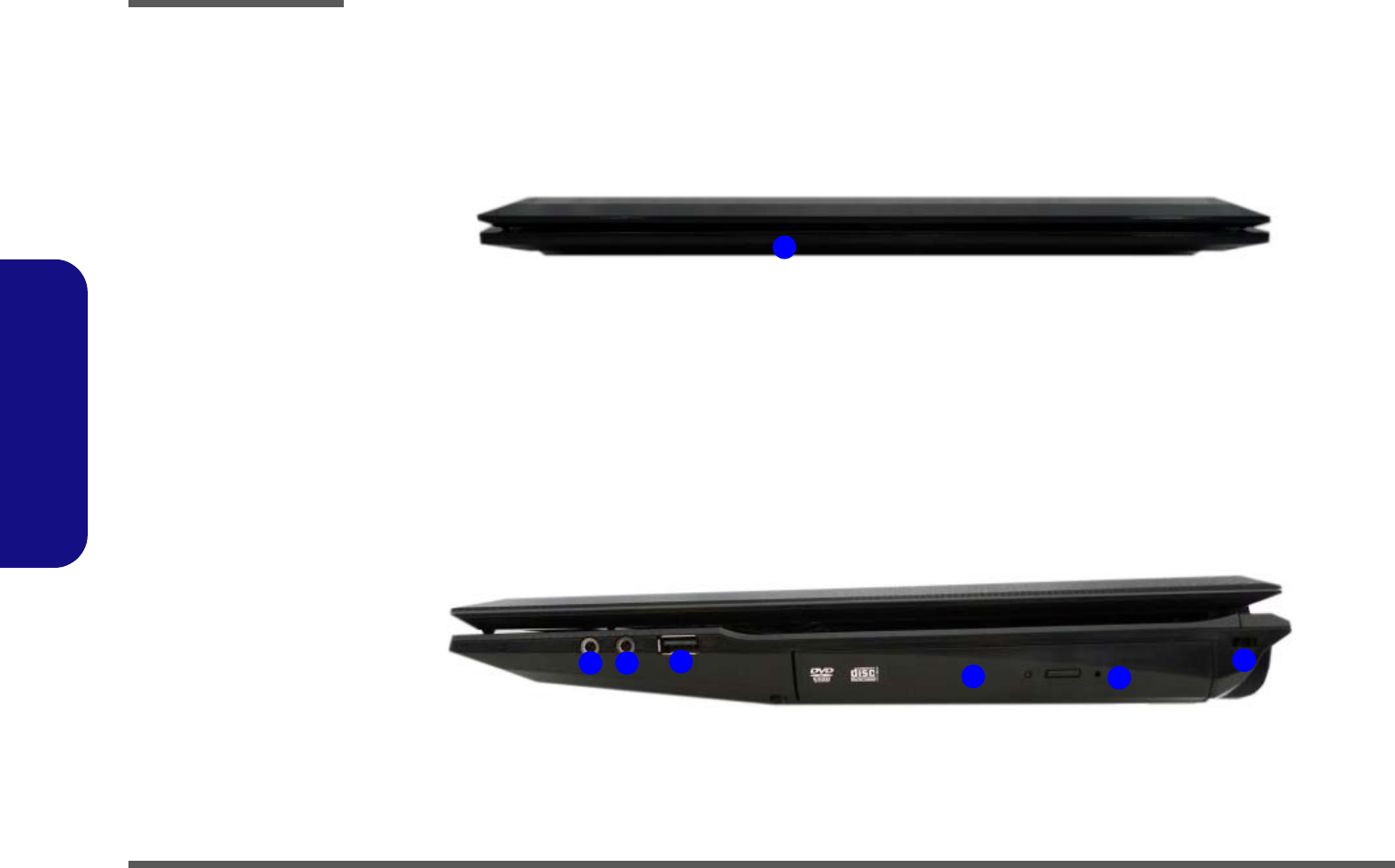

Figure 2

Front View

1. LED Power

Indicator

Figure 3

Right Side View

1. Microphone-In

Jack

2. Headphone-Out

Jack

3. USB 2.0 Port

4. Optical Device

Drive Bay

5. Emergency Eject

Hole

6. Security Lock

Slot

FRONT VIEW

1

RIGHT SIDE VIEW

1 2 35

46

Introduction

External Locator - Left Side & Rear View 1 - 7

1.Introduction

External Locator - Left Side & Rear View

/

Figure 4

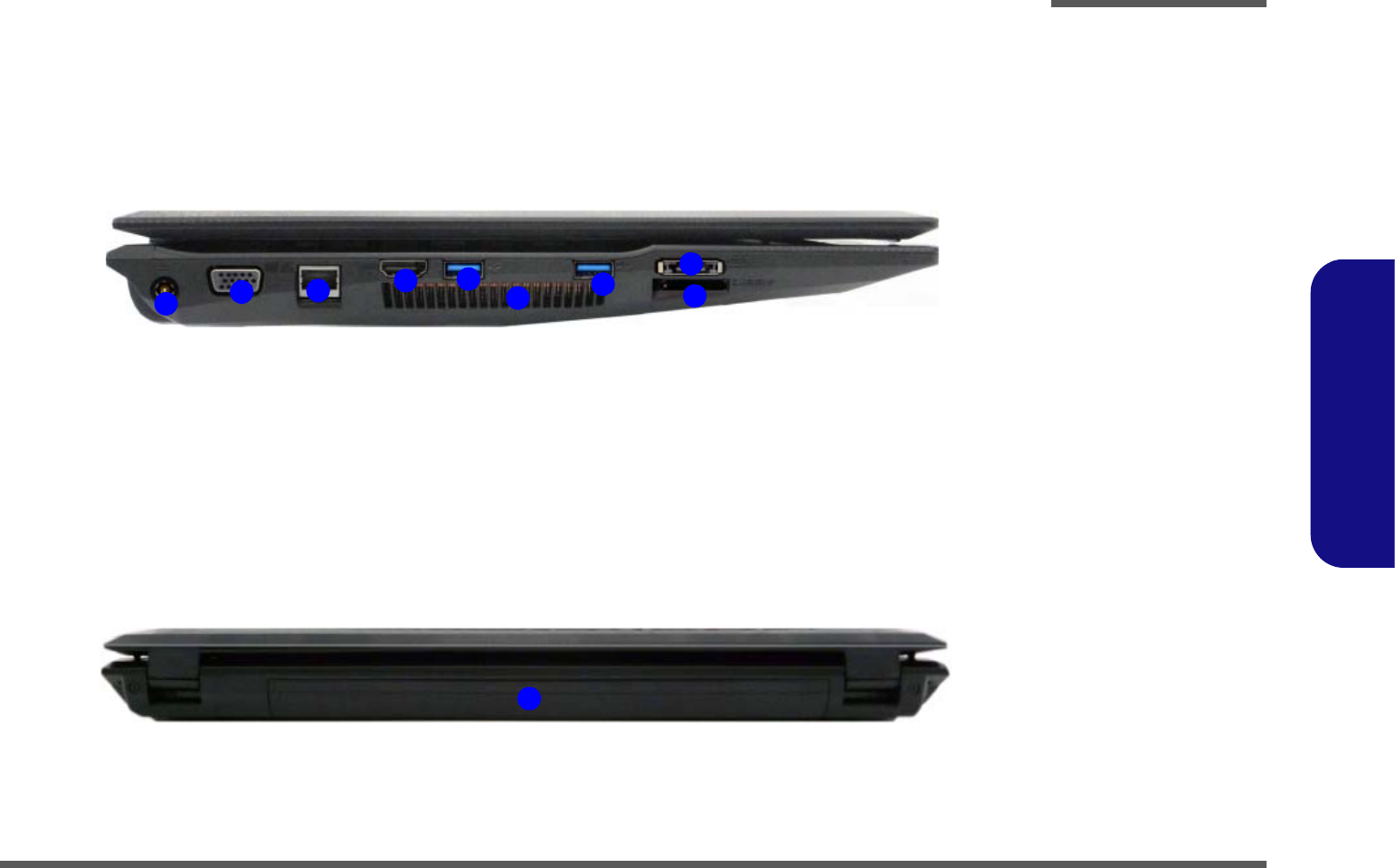

Left Side View

1. DC-In Jack

2. External Monitor

Port

3. RJ-45 LAN Jack

4. HDMI-Out Port

5. USB 3.0 Ports

6. Vent

7. Multi-in-1 Card

Reader

8. e-SATA Port

LEFT SIDE VIEW

12345658

7

Figure 5

Rear View

1. Battery

REAR VIEW

1

Introduction

1 - 8 External Locator - Bottom View

1.Introduction

External Locator - Bottom View

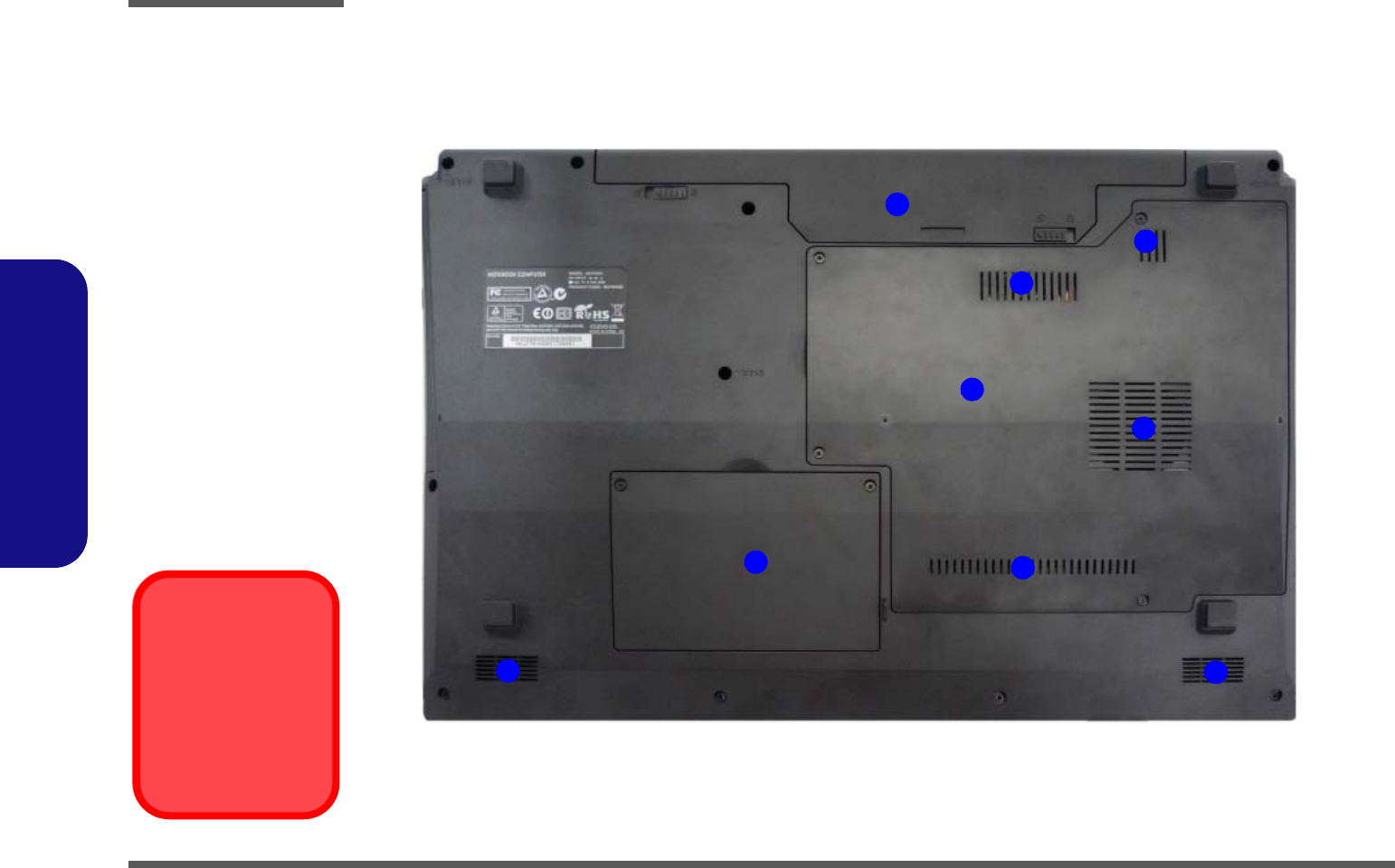

Figure 6

Bottom View

1. Battery

2. Component Bay

Cover

3. Vent

4. Hard Disk Bay

Cover

5. Speakers



Overheating

To prevent your com-

puter from overhea-

ting, make sure no-

thing blocks any vent

while the computer is

in use.

2

1

4

3

3

5

5

3

3

Introduction

Mainboard Overview - Top (Key Parts) 1 - 9

1.Introduction

Mainboard Overview - Top (Key Parts)

Figure 7

Mainboard Top

Key Parts

1. KBC-ITE IT8518

2. VIA VT1802P

3. Realtek RTL8411

1

2

3

1

2

3

6

4

5

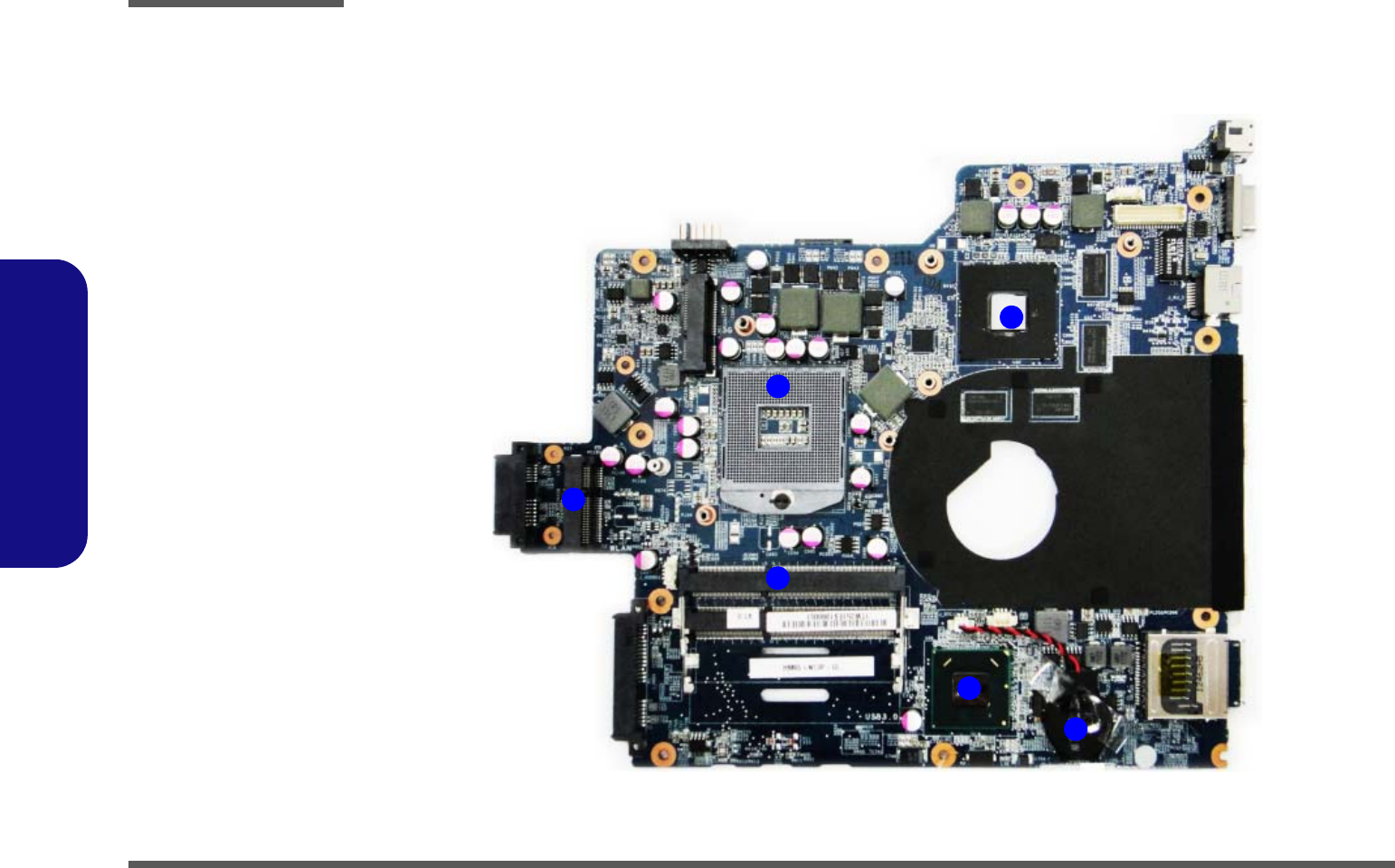

Figure 8

Mainboard Bottom

Key Parts

1. Memory Slots

DDR3 SO-DIMM

2. CMOS Battery

3. Mini-Card

Connector (WLAN

Module)

4. CPU Socket (no

CPU installed)

5. nVIDIA VGA

6. Platform Controller

Hub

Introduction

1 - 10 Mainboard Overview - Bottom (Key Parts)

1.Introduction

Mainboard Overview - Bottom (Key Parts)

Introduction

Mainboard Overview - Top (Connectors) 1 - 11

1.Introduction

Mainboard Overview - Top (Connectors)

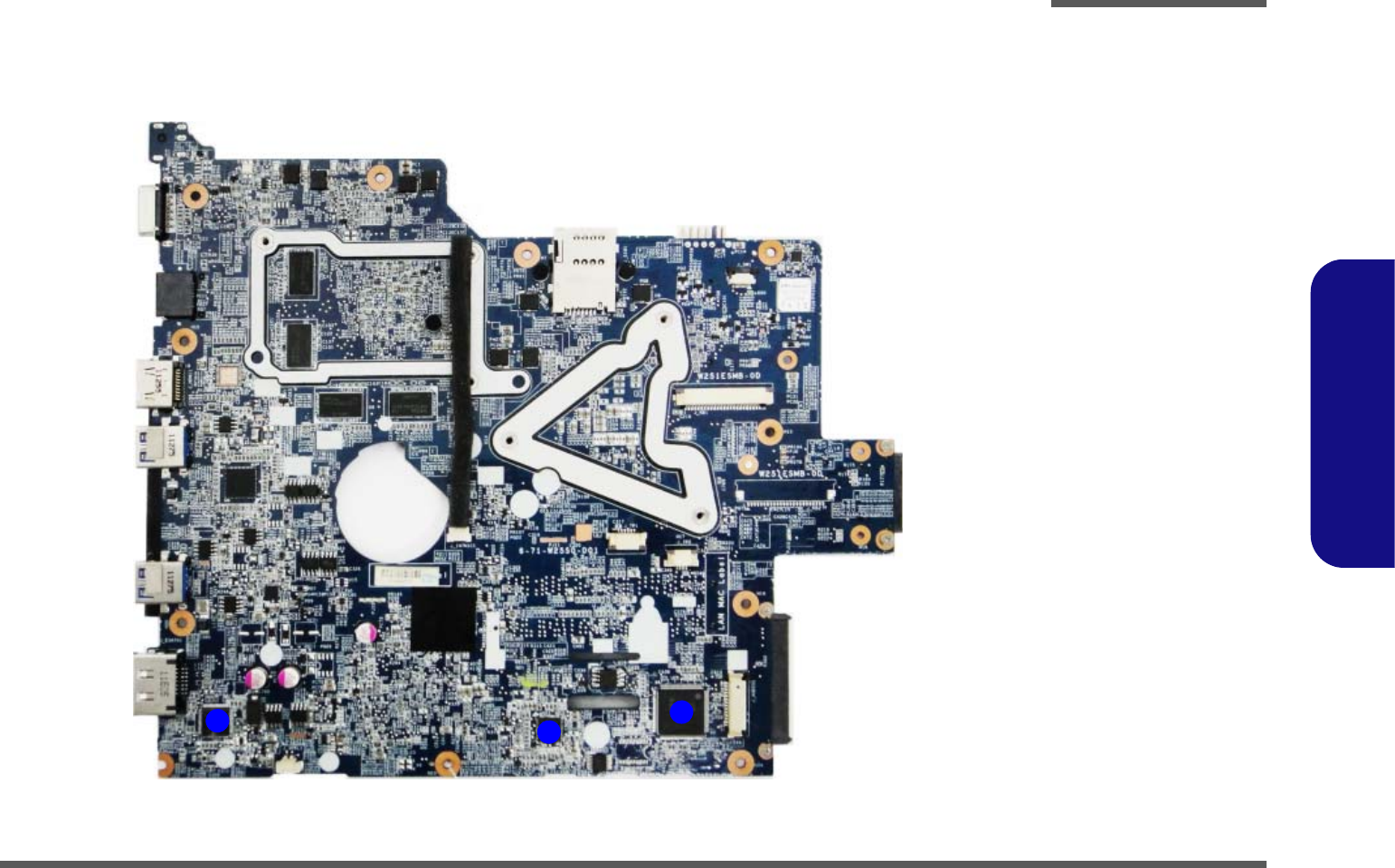

Figure 9

Mainboard Top

Connectors

1. HDMI-Out Port

2. USB Port 3.0

3. eSATA Port

4. Speaker Cable

Connector

5. Microphone

Cable Connector

6. Audio Board

Connector

7. TouchPad Cable

Connector 1

8. TouchPad Cable

Connector 2

9. Keyboard Cable

Connector

10. Switch Board

Cable Connector

7

1

2

8

9

3

5

6

10

2

4

Introduction

1 - 12

1.Introduction

Mainboard Overview - Bottom (Connectors)

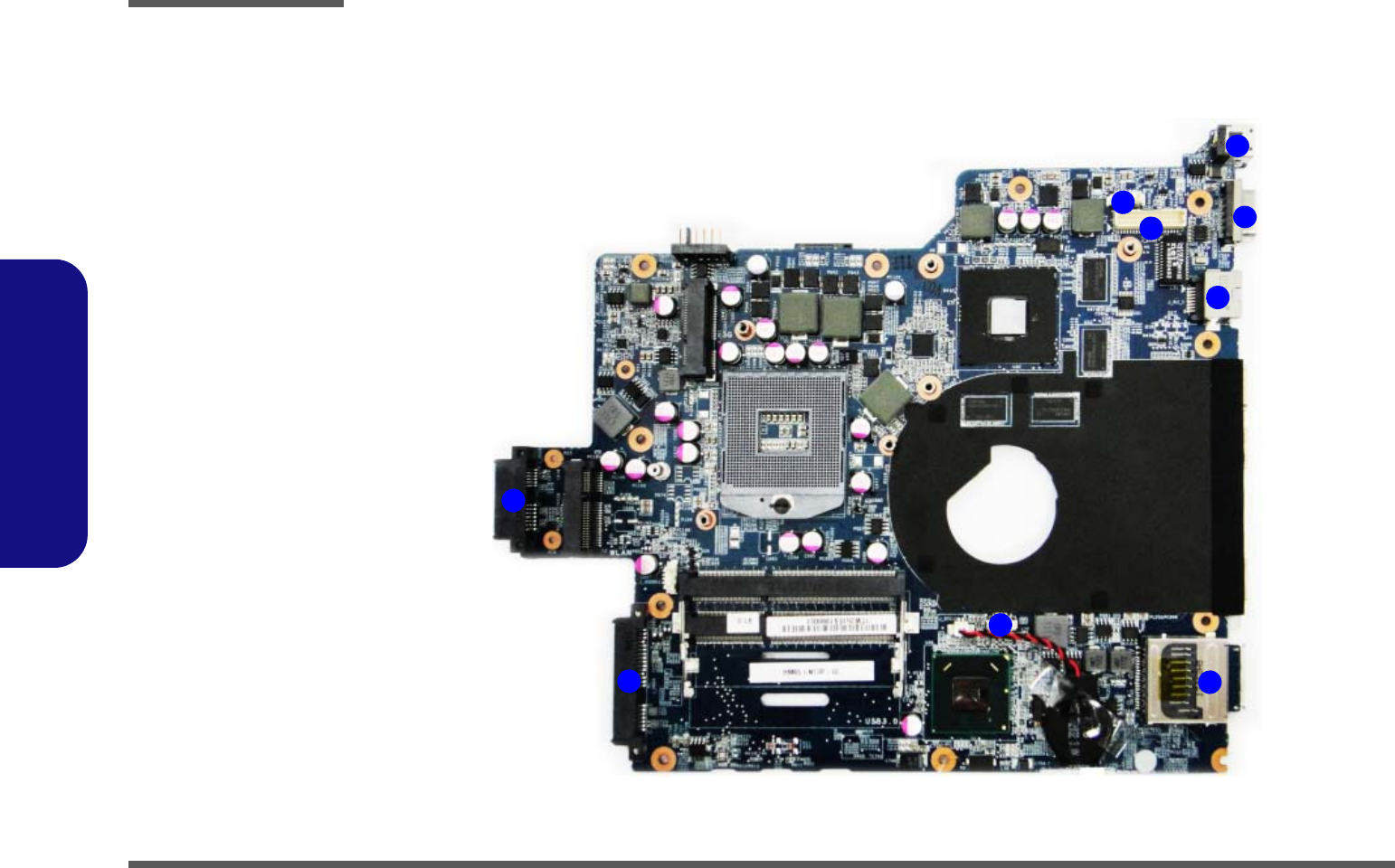

Figure 10

Mainboard Bottom

Connectors

1. ODD Connector

2. HDD Connector

3. CPU Fan Cable

Connector

4. Multi-in-1 Card

Reader

5. RJ-45 LAN Jack

6. External Monitor

Port

7. DC-In Jack

8. CCD Cable

Connector

9. LCD Cable

Connector

1

24

5

6

7

8

9

3

Disassembly

Overview 2 - 1

2.Disassembly

Chapter 2: Disassembly

Overview

This chapter provides step-by-step instructions for disassembling the W270ENQ series notebook’s parts and subsystems.

When it comes to reassembly, reverse the procedures (unless otherwise indicated).

We suggest you completely review any procedure before you take the computer apart.

Procedures such as upgrading/replacing the RAM, optical device and hard disk are included in the User’s Manual but are

repeated here for your convenience.

To make the disassembly process easier each section may have a box in the page margin. Information contained under

the figure # will give a synopsis of the sequence of procedures involved in the disassembly procedure. A box with a 

lists the relevant parts you will have after the disassembly process is complete. Note: The parts listed will be for the dis-

assembly procedure listed ONLY, and not any previous disassembly step(s) required. Refer to the part list for the previ-

ous disassembly procedure. The amount of screws you should be left with will be listed here also.

A box with a  will also provide any possible helpful information. A box with a  contains warnings.

An example of these types of boxes are shown in the sidebar.



Information



Warning

Disassembly

2 - 2 Overview

2.Disassembly

NOTE: All disassembly procedures assume that the system is turned OFF, and disconnected from any power supply (the

battery is removed too).

Maintenance Tools

The following tools are recommended when working on the notebook PC:

• M3 Philips-head screwdriver

• M2.5 Philips-head screwdriver (magnetized)

• M2 Philips-head screwdriver

• Small flat-head screwdriver

• Pair of needle-nose pliers

• Anti-static wrist-strap

Connections

Connections within the computer are one of four types:

Locking collar sockets for ribbon connectors To release these connectors, use a small flat-head screwdriver to

gently pry the locking collar away from its base. When replac-

ing the connection, make sure the connector is oriented in the

same way. The pin1 side is usually not indicated.

Pressure sockets for multi-wire connectors To release this connector type, grasp it at its head and gently

rock it from side to side as you pull it out. Do not pull on the

wires themselves. When replacing the connection, do not try to

force it. The socket only fits one way.

Pressure sockets for ribbon connectors To release these connectors, use a small pair of needle-nose pli-

ers to gently lift the connector away from its socket. When re-

placing the connection, make sure the connector is oriented in

the same way. The pin1 side is usually not indicated.

Board-to-board or multi-pin sockets To separate the boards, gently rock them from side to side as

you pull them apart. If the connection is very tight, use a small

flat-head screwdriver - use just enough force to start.

Disassembly

Overview 2 - 3

2.Disassembly

Maintenance Precautions

The following precautions are a reminder. To avoid personal injury or damage to the computer while performing a re-

moval and/or replacement job, take the following precautions:

1. Don't drop it. Perform your repairs and/or upgrades on a stable surface. If the computer falls, the case and other

components could be damaged.

2. Don't overheat it. Note the proximity of any heating elements. Keep the computer out of direct sunlight.

3. Avoid interference. Note the proximity of any high capacity transformers, electric motors, and other strong mag-

netic fields. These can hinder proper performance and damage components and/or data. You should also monitor

the position of magnetized tools (i.e. screwdrivers).

4. Keep it dry. This is an electrical appliance. If water or any other liquid gets into it, the computer could be badly

damaged.

5. Be careful with power. Avoid accidental shocks, discharges or explosions.

•Before removing or servicing any part from the computer, turn the computer off and detach any power supplies.

•When you want to unplug the power cord or any cable/wire, be sure to disconnect it by the plug head. Do not pull on the wire.

6. Peripherals – Turn off and detach any peripherals.

7. Beware of static discharge. ICs, such as the CPU and main support chips, are vulnerable to static electricity.

Before handling any part in the computer, discharge any static electricity inside the computer. When handling a

printed circuit board, do not use gloves or other materials which allow static electricity buildup. We suggest that

you use an anti-static wrist strap instead.

8. Beware of corrosion. As you perform your job, avoid touching any connector leads. Even the cleanest hands pro-

duce oils which can attract corrosive elements.

9. Keep your work environment clean. Tobacco smoke, dust or other air-born particulate matter is often attracted

to charged surfaces, reducing performance.

10. Keep track of the components. When removing or replacing any part, be careful not to leave small parts, such as

screws, loose inside the computer.

Cleaning



Power Safety

Warning

Before you undertake

any upgrade proce-

dures, make sure that

you have turned off the

power, and discon-

nected all peripherals

and cables (including

telephone lines). It is

advisable to also re-

move your battery in

order to prevent acci-

dentally turning the

machine on.

Do not apply cleaner directly to the computer, use a soft clean cloth.

Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer.

Disassembly

2 - 4 Disassembly Steps

2.Disassembly

Disassembly Steps

The following table lists the disassembly steps, and on which page to find the related information. PLEASE PERFORM

THE DISASSEMBLY STEPS IN THE ORDER INDICATED.

To remove the Battery:

1. Remove the battery page 2 - 5

To remove the HDD:

1. Remove the battery page 2 - 5

2. Remove the HDD page 2 - 6

To remove the Optical Device:

1. Remove the battery page 2 - 5

2. Remove the Optical device page 2 - 8

To remove the System Memory:

1. Remove the battery page 2 - 5

2. Remove the system memory page 2 - 9

To remove and install a Processor:

1. Remove the battery page 2 - 5

2. Remove the processor page 2 - 11

3. Install the processor page 2 - 13

To remove the Wireless LAN Module:

1. Remove the battery page 2 - 5

2. Remove the WLAN module page 2 - 14

To remove the Keyboard:

1. Remove the battery page 2 - 5

2. Remove the keyboard page 2 - 15

Disassembly

Removing the Battery 2 - 5

2.Disassembly

Removing the Battery



3. Battery

1. Turn the computer off, and turn it over.

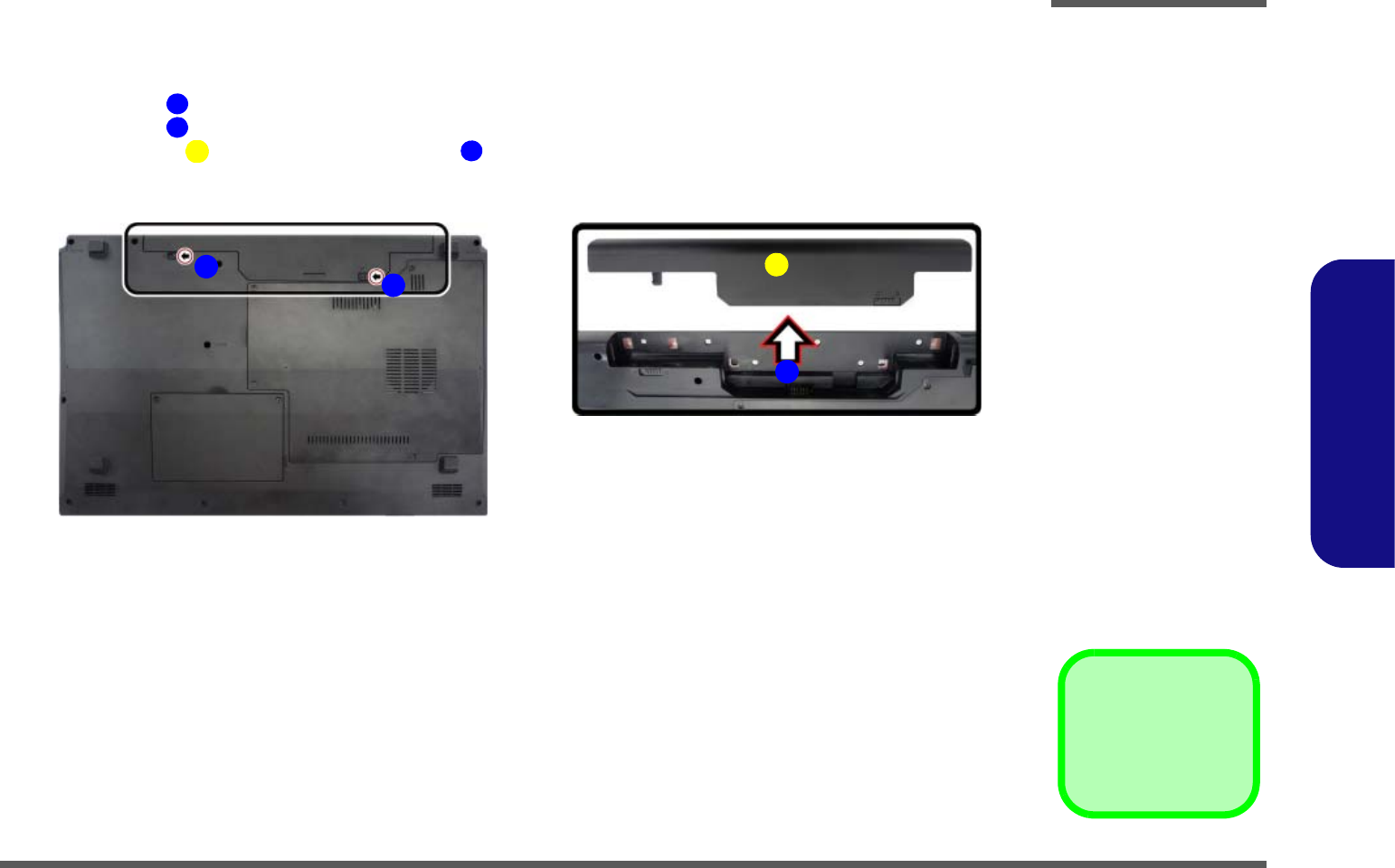

2. Slide the latch in the direction of the arrow (Figure 1a).

3. Slide the latch in the direction of the arrow, and hold it in place (Figure 1a).

4. Slide the battery in the direction of the arrow (Figure 1b).

1

2

6

3

4

Figure 1

Battery Removal

a. Slide the latch and hold it

in place.

b. Slide the battery in the di-

rection of the arrow.

a. b.

13

2

4

Disassembly

2 - 6 Removing the Hard Disk Drive

2.Disassembly

Removing the Hard Disk Drive

The hard disk drive can be taken out to accommodate other 2.5" serial (SATA) hard disk drives with a height of 9.5mm

(h). Follow your operating system’s installation instructions, and install all necessary drivers and utilities (as outlined in

Chapter 4 of the User’s Manual) when setting up a new hard disk.

Hard Disk Upgrade Process

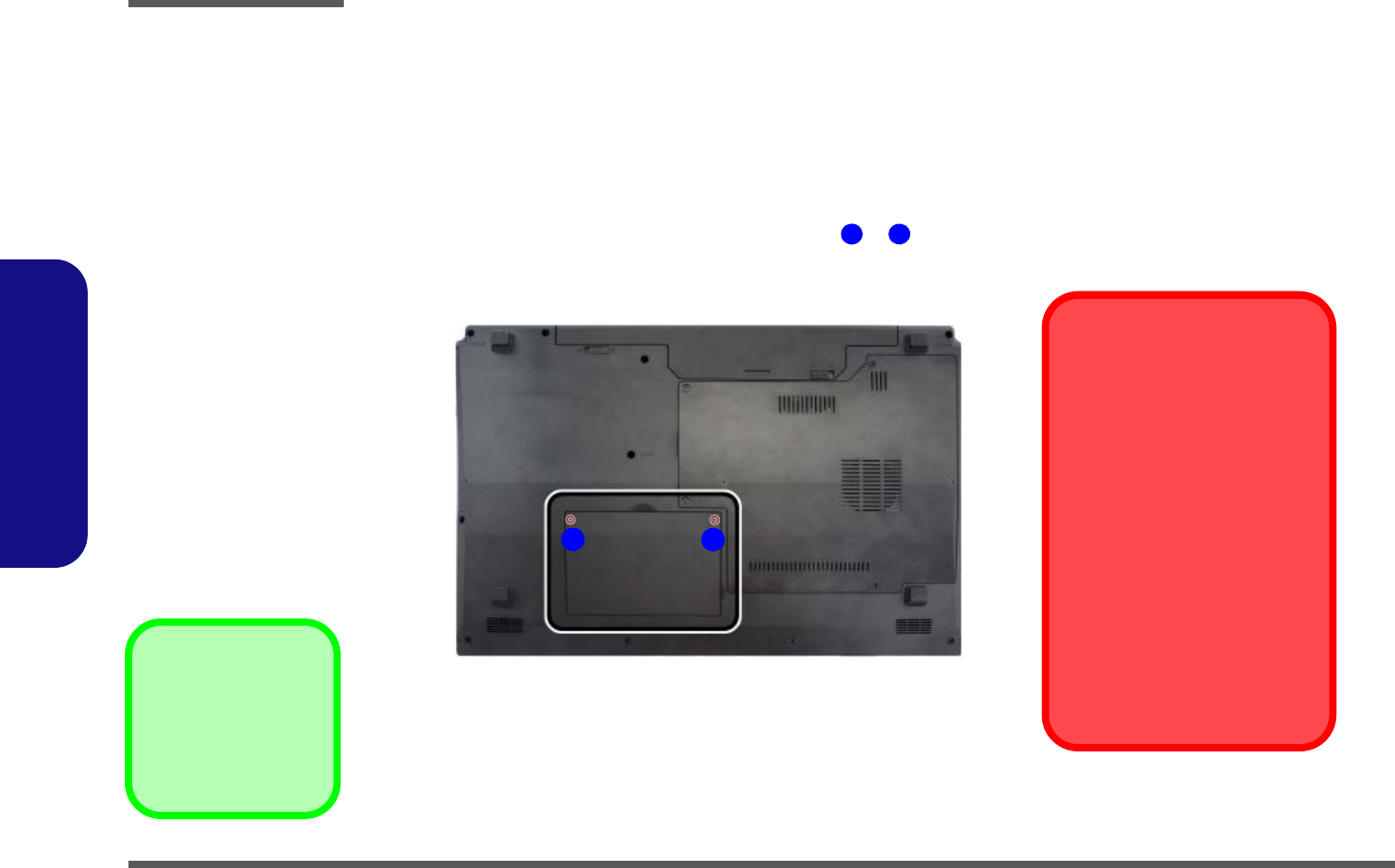

Figure 2

HDD Assembly

Removal

a. Locate the HDD bay cover

and remove the screws.



•2 Screws

1. Turn off the computer, and remove the battery (page 2 - 5).

2. Locate the hard disk bay cover and remove screws & (Figure 2a).

1

2

2

1

a. 

HDD System Warning

New HDD’s are blank. Before you

begin make sure:

You have backed up any data

you want to keep from your old

HDD.

You have all the CD-ROMs and

FDDs required to install your op-

erating system and programs.

If you have access to the internet,

download the latest application

and hardware driver updates for

the operating system you plan to

install. Copy these to a remov-

able medium.

Disassembly

Removing the Hard Disk Drive 2 - 7

2.Disassembly

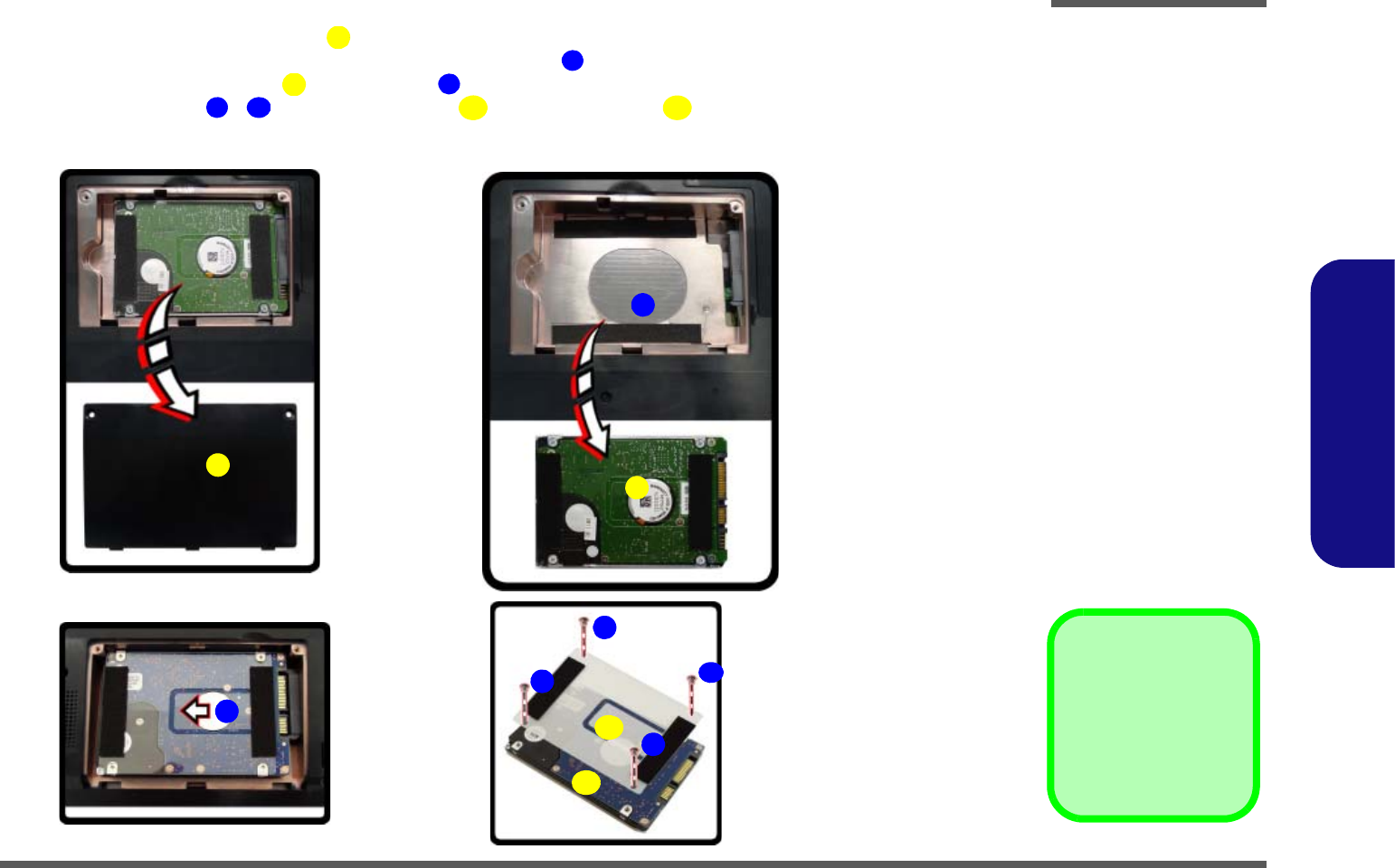

3. Remove the hard disk bay cover (Figure 3b).

4. Grip the tab and slide the hard disk in the direction of arrow (Figure 3c).

5. Lift the hard disk assembly out of the bay (Figure 3d).

6. Remove the screw - and the mylar cover from the hard disk (Figure 3e).

7. Reverse the process to install a new hard disk (do not forget to replace all the screws and covers).

6

3

4

6

5

6

7

10

11

12

4

b.

c.

6

9

d.

3

e.

11

8

7

12

5

10



3. HDD Bay Cover

5. HDD Assembly

11. Mylar Cover

12. HDD

•4 Screws

Figure 3

HDD Assembly

Removal (cont’d.)

b. Remove the HDD bay

cover.

c. Grip the tab and slide the

HDD assembly in the di-

rection of the arrow.

d. Lift the HDD assembly

out of the bay.

e. Remove the screws and

mylar cover.

Disassembly

2 - 8 Removing the Optical (CD/DVD) Device

2.Disassembly

Removing the Optical (CD/DVD) Device

Figure 4

Optical Device

Removal

a. Remove the screw at

point .

b. Use a screwdriver to

carefully push out the

optical device at point

.

1

2

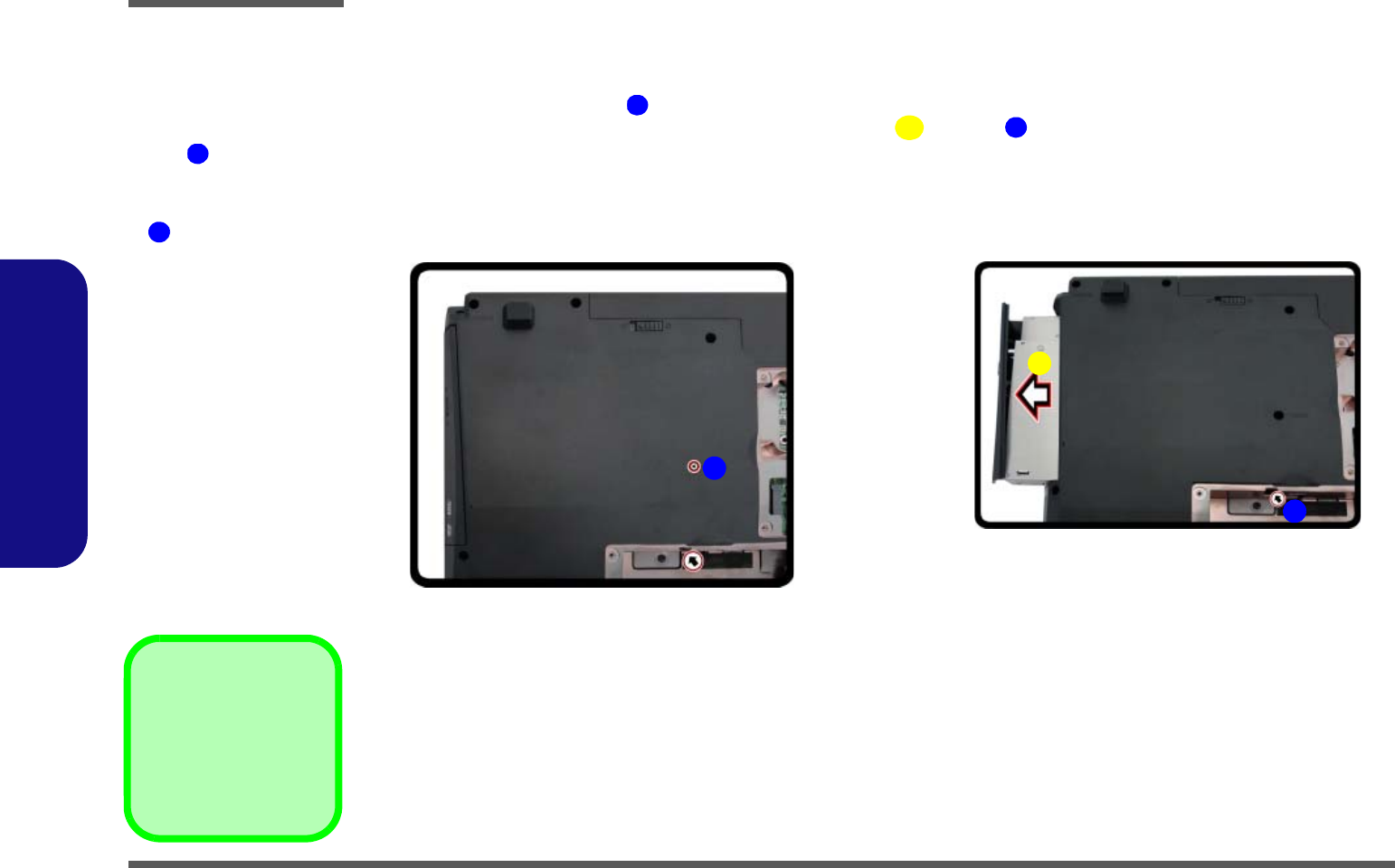

1. Turn off the computer, remove the battery (page 2 - 5) and hard disk (page 2 - 6).

2. Remove the screw at point (Figure 4a).

3. Use a screwdriver to carefully push out the optical device at point (Figure 4b).

4. Insert the new device and carefully slide it into the computer (the device only fits one way. DO NOT FORCE IT; The

screw holes should line up).

5. Replace the hard disk bay cover.

6. Restart the computer to allow it to automatically detect the new device.

1

3

2



3. Optical Device

•1 Screw

1

b.

3

a.

2

Disassembly

Removing the System Memory (RAM) 2 - 9

2.Disassembly

Removing the System Memory (RAM)

Figure 5

RAM Module

Removal

a. Remove the screws

from the component

bay cover.

b. The RAM modules will

be visible at point

on the mainboard.

c. Pull the release lat-

ches.

d. Remove the module.



Contact Warning

Be careful not to touch

the metal pins on the

module’s connecting

edge. Even the cleanest

hands have oils which

can attract particles, and

degrade the module’s

performance.

5

The computer has two memory sockets for 204 pin Small Outline Dual In-line Memory Modules (SO-DIMM) supporting

DDRIII (DDR3) Up to 1066/1333 MHz. The main memory can be expanded up to 8GB. The SO-DIMM modules sup-

ported are 1024MB and 2048MB DDRIII Modules. The total memory size is automatically detected by the POST rou-

tine once you turn on your computer.

Memory Upgrade Process



5. Component Bay

Cover

•4 Screws

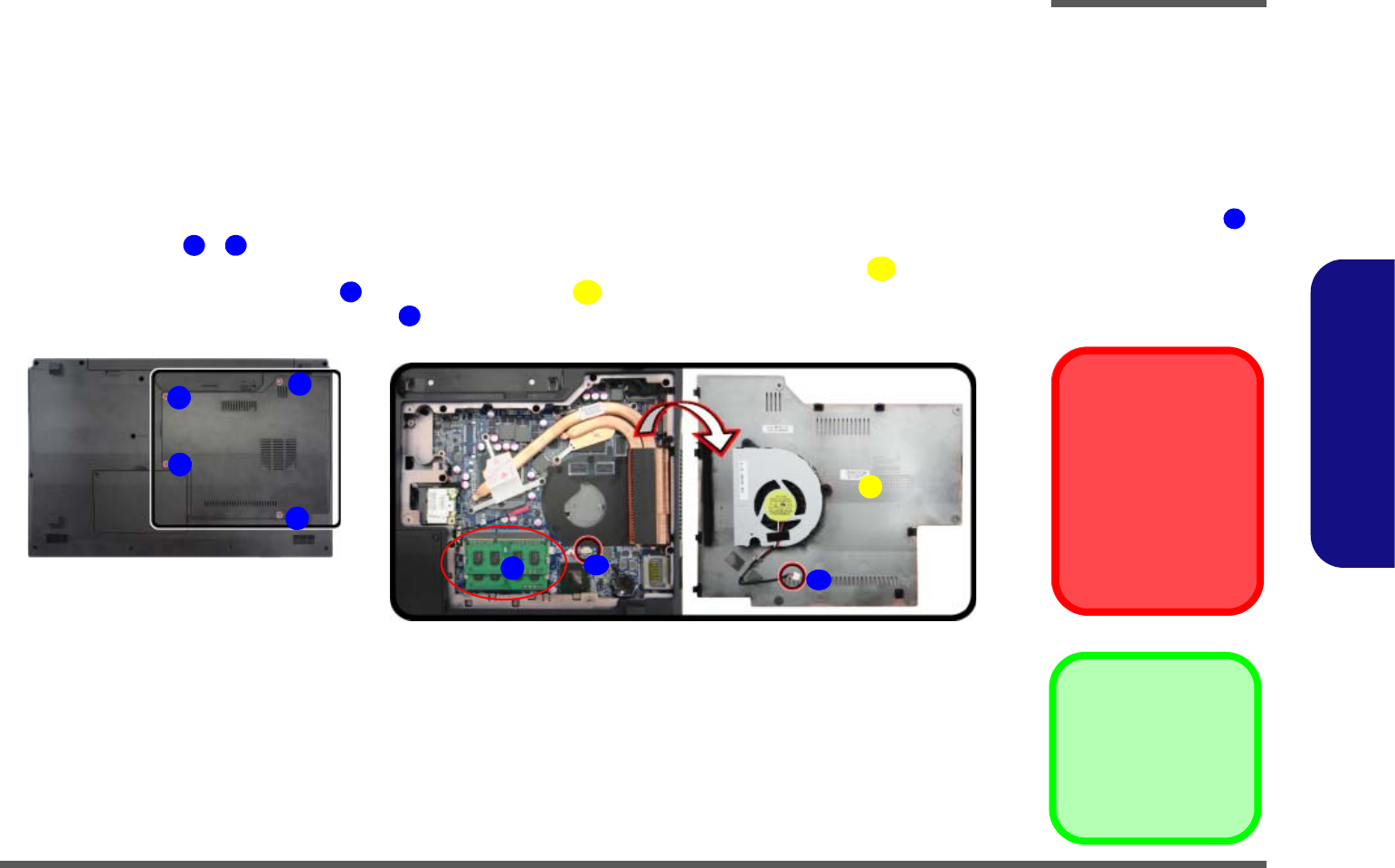

1. Turn off the computer, turn it over and remove the battery (page 2 - 5).

2. Remove screws - from the component bay cover (Figure 5a).

3. Carefully (a fan and cable are attached to the under side of the cover) lift up the bay cover .

4. Carefully disconnect the fan cable , and remove the cover (Figure 5b).

5. The RAM modules will be visible at point on the mainboard.

1

4

5

6

5

7

a. b.

1

2

3

4

6

7

5

6

Disassembly

2 - 10 Removing the System Memory (RAM)

2.Disassembly

6. Gently pull the two release latches ( & ) on the sides of the memory socket in the direction indicated by the

arrows (Figure 6c). The RAM module will pop-up (Figure 6d), and you can then remove it.

7. Pull the latches to release the second module if necessary.

8. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot.

9. The module will only fit one way as defined by its pin alignment. Make sure the module is seated as far into the slot

as it will go. DO NOT FORCE IT; it should fit without much pressure.

10. Press the module in and down towards the mainboard until the slot levers click into place to secure the module.

11. Replace the bay cover (Figure 6e) and the screws (make sure you reconnect the fan cable before screwing

down the bay cover).

12. Restart the computer to allow the BIOS to register the new memory configuration as it starts up.

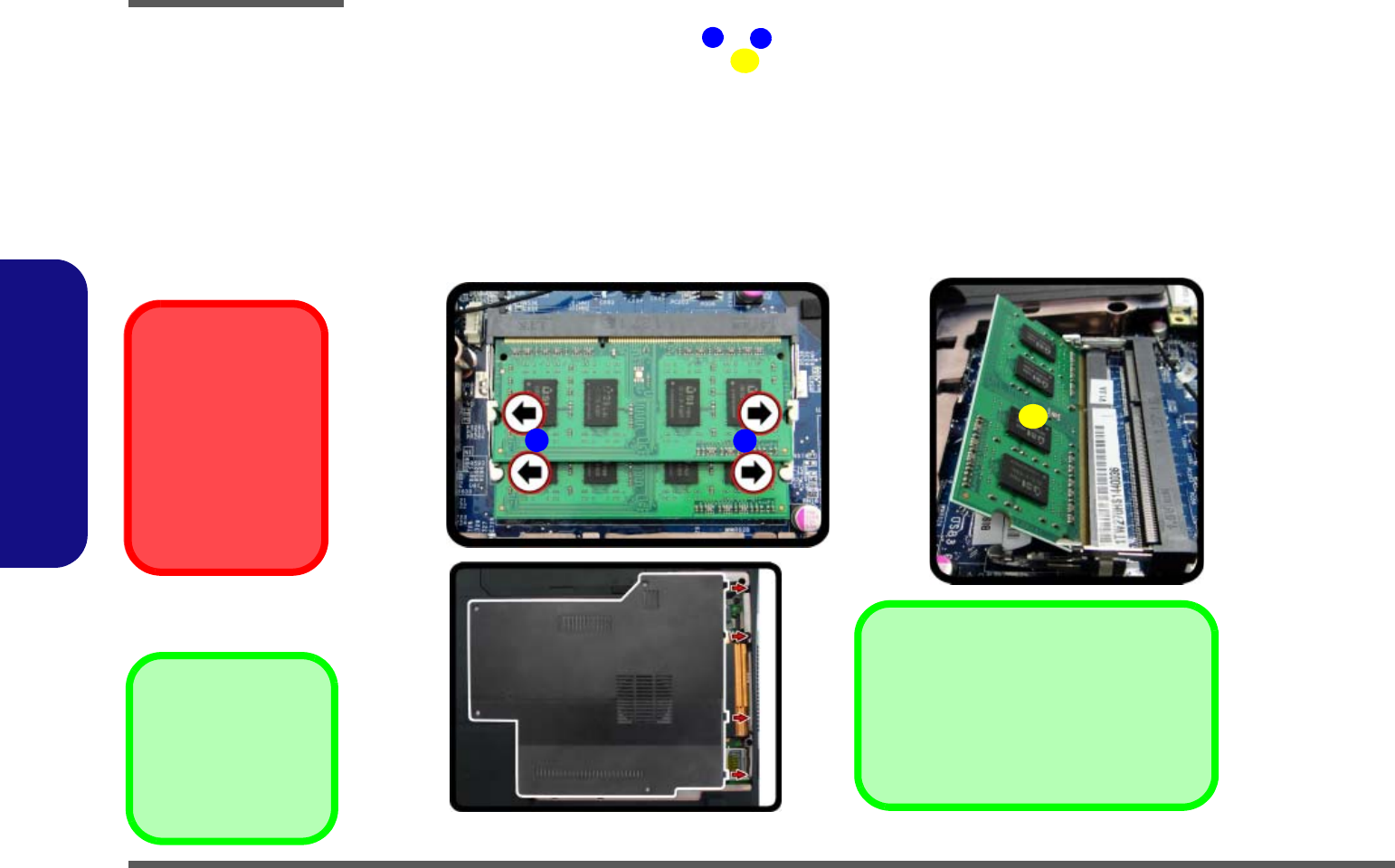

Figure 6

RAM Module

Removal (cont’d)

c. Pull the release lat-

ches.

d. Remove the module.

e. Replace bay cover.



Contact Warning

Be careful not to touch

the metal pins on the

module’s connecting

edge. Even the clean-

est hands have oils

which can attract parti-

cles, and degrade the

module’s performance.

8

9

10

c. d.

9

8

10



Cover Pins

Note that this computer model has four

cover pins. These pins need to be aligned

with slots in the case to insure a proper cov-

er fit, before screwing down the bay cover.

e.



10. RAM

Disassembly

Removing and Installing a Processor 2 - 11

2.Disassembly

Removing and Installing a Processor

Processor Removal Procedure

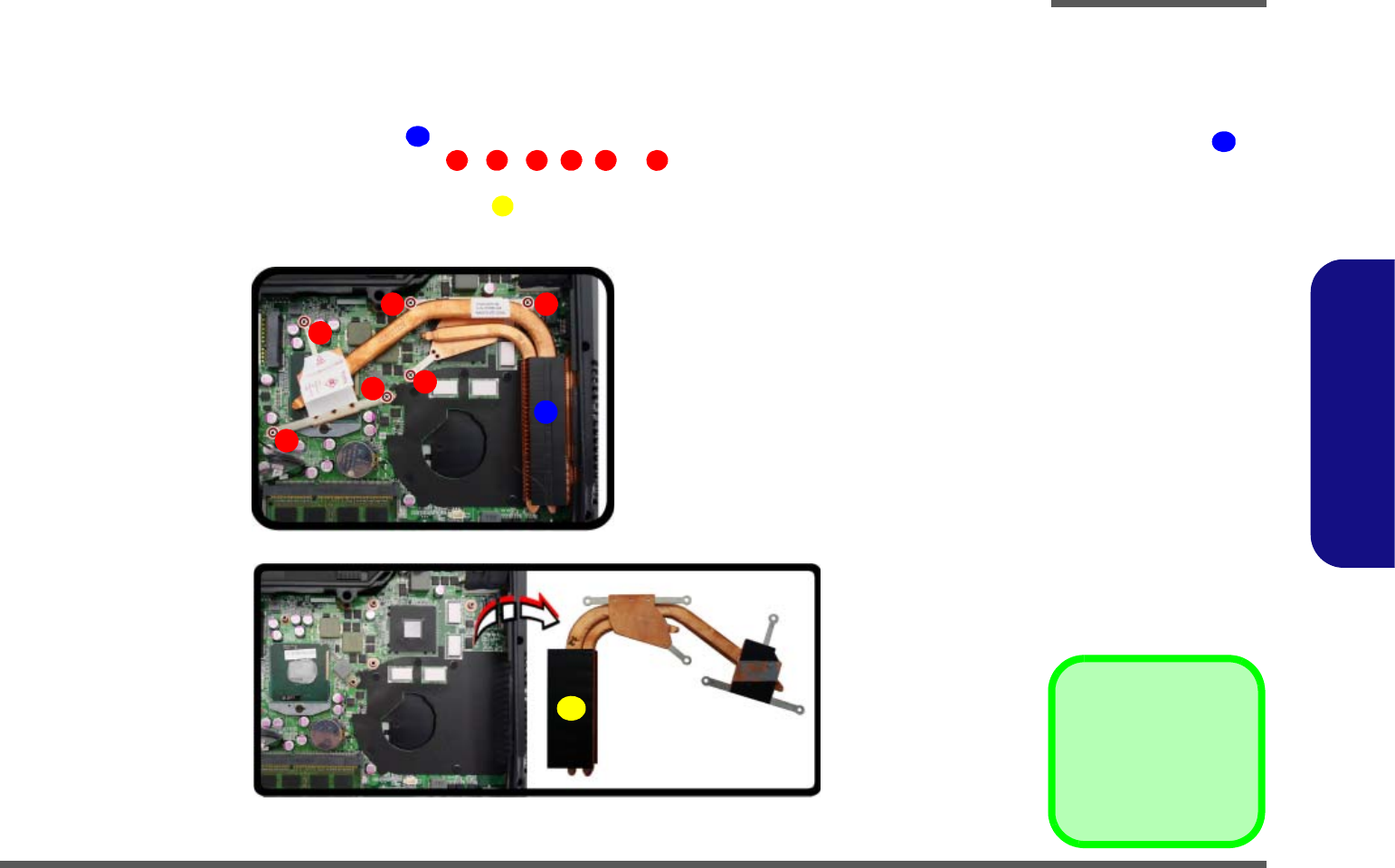

1. Turn off the computer, turn it over, and remove the battery (page 2 - 5) and the component bay cover (page 2 - 9).

2. The CPU heat sink will be visible at point (Figure 7a).

3. Loosen the CPU heat sink screws in the order , , , , & (the reverse order as indicated on the

label Figure 7a).

4. Grip the heat sink tab and carefully lift the heat sink up and off the computer (Figure 7b).

A

6

5

4

3

2

1

7

Figure 7

Processor Removal

a. The CPU heat sink will

be visible at point .

Remove the screws from

the CPU heatsink.

b. Grip the heat sink tab

and carefully lift the heat

sink up and off the com-

puter.

A



7. Heat Sink

•6 Screws

a.

b.

1

2

3

A

7

6 5

4

Disassembly

2 - 12 Removing and Installing a Processor

2.Disassembly

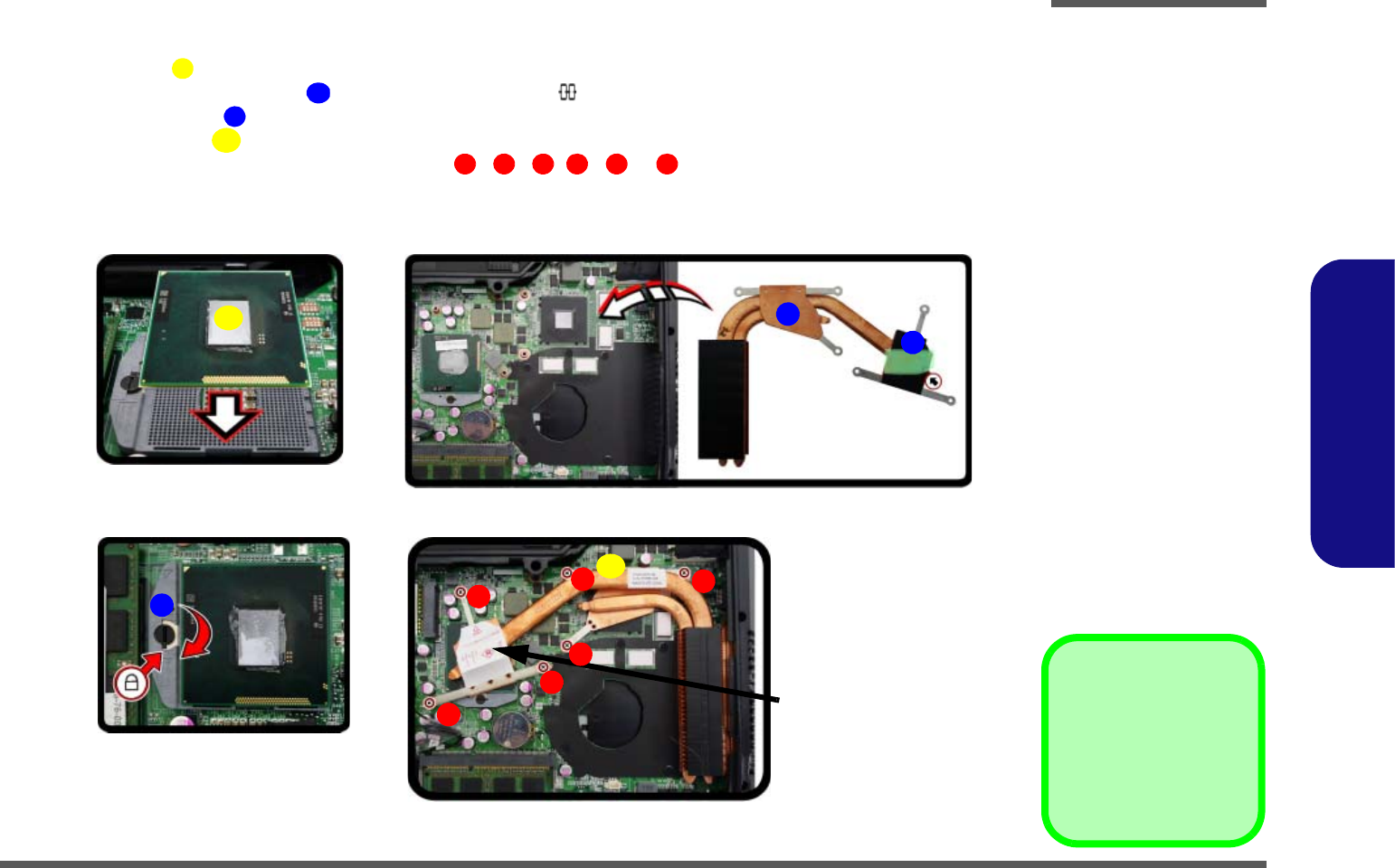

5. Turn the release latch towards the unlock symbol to release the CPU (Figure 8d).

6. Carefully (it may be hot) lift the CPU up and out of the socket (Figure 8e).

7. Reverse the process to install a new CPU.

8. When re-inserting the CPU, pay careful attention to the pin alignment, it will fit only one way (DO NOT FORCE IT!).

5

6

Figure 8

Processor Removal

(cont’d)

c. Turn the release latch to

unlock the CPU.

d. Lift the CPU out of the

socket.

c.

d.



Caution

The heat sink, and CPU area in

general, contains parts which are

subject to high temperatures. Allow

the area time to cool before remov-

ing these parts.

Unlock Lock

5

6

5



6. CPU

Disassembly

Removing and Installing a Processor 2 - 13

2.Disassembly

Processor Installation Procedure

1. Insert the CPU (Figure 9a), pay careful attention to the pin alignment, it will fit only one way (DO NOT FORCE

IT!), and turn the release latch towards the lock symbol (Figure 9b).

2. Remove the sticker (Figure 9c) from the heat sink.

3. Insert the heat sink as indicated in Figure 9d.

4. Tighten the CPU heat sink screws in the order r , , , ,, & (the order as indicated on the label and

Figure 9d).

5. Replace the component bay cover (don’t forget to replace the fan cable) and tighten the screws (page 2 - 9).

A

B

C

D

1

2

3

4

5

3

b.

B

a.

D

Note:

Tighten the screws

in the order as indi-

cated on the label.

C

A

c.

d.

1

2

3

6

5

4

C

Figure 9

Processor

Installation

a. Insert the CPU.

b. Turn the release latch to-

wards the lock symbol.

c. Remove the sticker from

the heat sink and insert

the heat sink.

d. Tighten the screws.



A. CPU

D. Heat Sink

•3 Screws

Disassembly

2 - 14 Removing the Wireless LAN Module

2.Disassembly

Removing the Wireless LAN Module

Figure 10

Wireless LAN

Module Removal

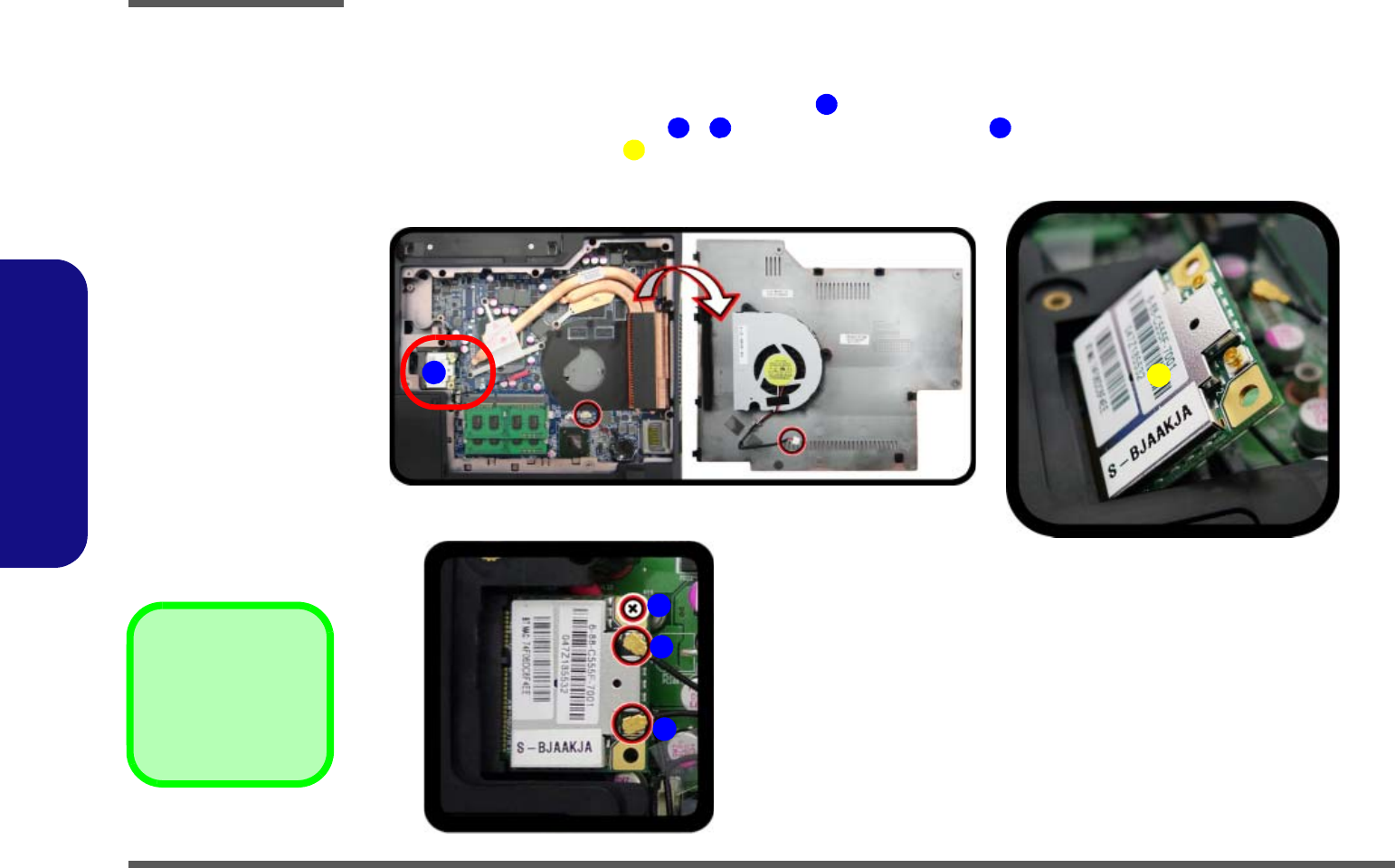

a. Locate the WLAN.

b. Disconnect the cable

and remove the screw.

c. The WLAN module will

pop up.

Note: Make sure you

reconnect the antenna

cable to the “1 + 2”

socket (Figure 10b).

1. Turn off the computer, turn it over, and remove the battery (page 2 - 5) and the component bay cover (page 2 - 9).

2. The Wireless LAN module will be visible at point on the mainboard (Figure 10a).

3. Carefully disconnect the cables - , and then remove the screw (Figure 10b).

4. The Wireless LAN module (Figure 10c) will pop-up, and you can remove it from the computer.

1

2

3

4

4

b.

c.

a.

2

3

4

1

4



4.Wireless LAN Module

•2 Screw

Disassembly

Removing the Keyboard 2 - 15

2.Disassembly

Removing the Keyboard

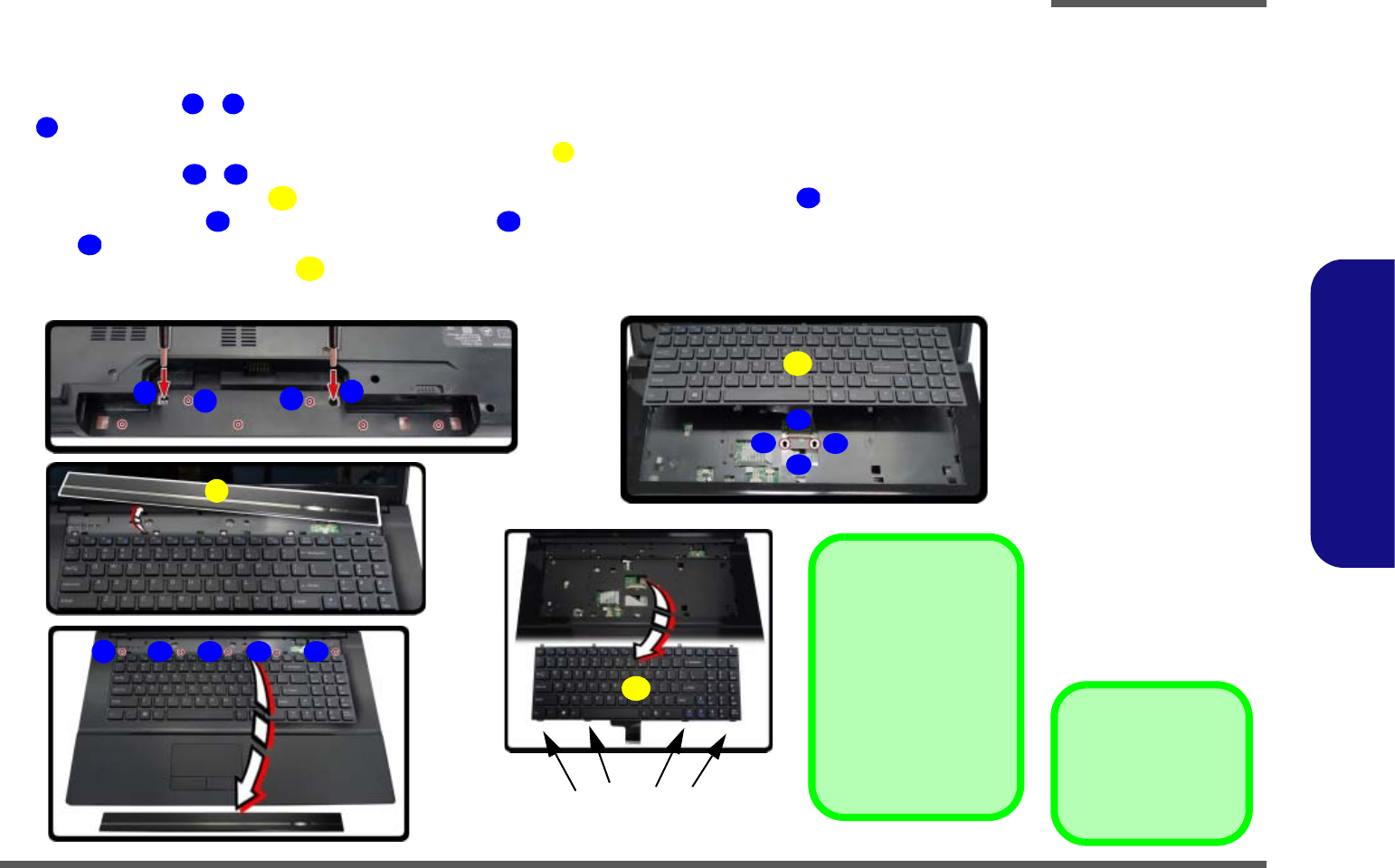

Figure 11

Keyboard Removal

a. Remove screws from the

bottom of the computer.

b. Turn the computer over,

unsnap up the LED cov-

er module from the cent-

er of the computer.

c. Remove screws from

the keyboard.

d. Carefully lift the key-

board up and disconnect

the keyboard ribbon ca-

ble from the locking col-

lar socket by using a flat-

head screwdriver to pry

the locking collar pins

away from the base.

e. Remove the keyboard.

1. Turn off the computer, and remove the battery (page 2 - 5).

2. Remove screws - from the bottom of the computer (inside the battery compartment), and then press at point

to unsnap the LED cover module (use the eject pin tool provided to do this Figure 11a).

3. Turn the computer over, unsnap up the LED cover module from the center of the computer (Figure 11b).

4. Remove screws - from the keyboard (Figure 11c).

5. Carefully lift the keyboard up, being careful not to bend the keyboard ribbon cable . Disconnect the key-

board ribbon cable from the locking collar socket by using a flat-head screwdriver to pry the locking collar

pins away from the base (Figure 11d).

6. Carefully lift up the keyboard (Figure 11d) off the computer.

1

2

3

4

5

9

10

11

11

12

13

10

a.

b.

1

323

d.

c.

5

10

6 7 8

10

11

13 13

Keyboard Tabs

e.

4

9

12



Re-Inserting the

Keyboard

When re-inserting the

keyboard firstly align the

four keyboard tabs at

the bottom (Figure 11e)

at the bottom of the key-

board with the slots in

the case.



4. LED Cover Module

10. Keyboard

•7 Screws

Disassembly

2 - 16

2.Disassembly

A - 1

A.Part Lists

Appendix A:Part Lists

This appendix breaks down the W270ENQ series notebook’s construction into a series of illustrations. The component

part numbers are indicated in the tables opposite the drawings.

Note: This section indicates the manufacturer’s part numbers. Your organization may use a different system, so be sure

to cross-check any relevant documentation.

Note: Some assemblies may have parts in common (especially screws). However, the part lists DO NOT indicate the

total number of duplicated parts used.

Note: Be sure to check any update notices. The parts shown in these illustrations are appropriate for the system at the

time of publication. Over the product life, some parts may be improved or re-configured, resulting in new part numbers.

A - 2

A.Part Lists

Part List Illustration Location

The following table indicates where to find the appropriate part list illustration.

Table A - 1

Part List Illustration

Location Part W270ENQ

Top page A - 3

Bottom page A - 4

SATA BLU RAY COMBO page A - 5

DVD Dual Drive page A - 6

LCD page A - 7

Top A - 3

A.Part Lists

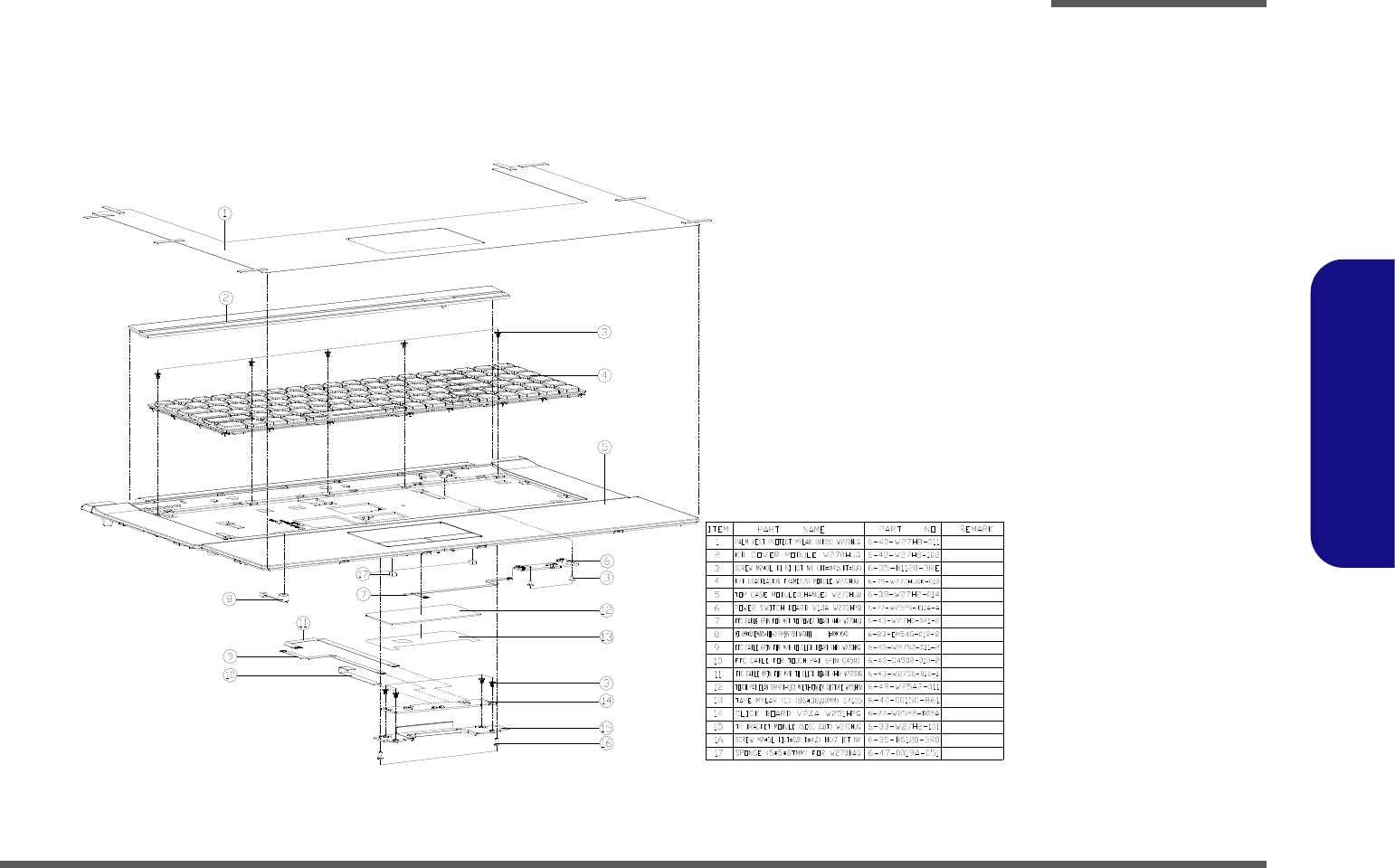

Top

(灰色 ) (尚盟)

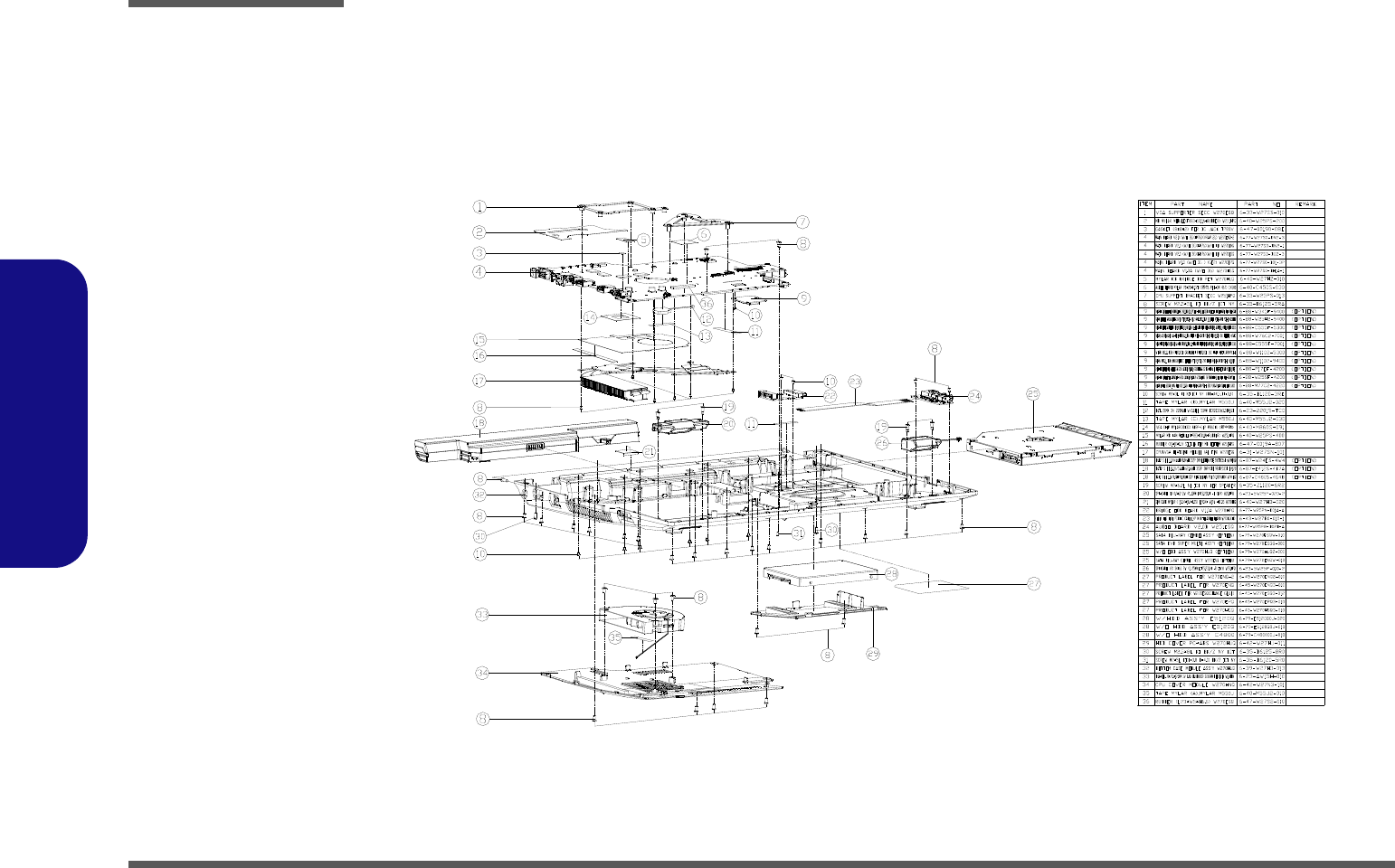

Figure A - 1

Top

A - 4 Bottom

A.Part Lists

Bottom

Figure A - 2

Bottom

SATA BLU RAY COMBO A - 5

A.Part Lists

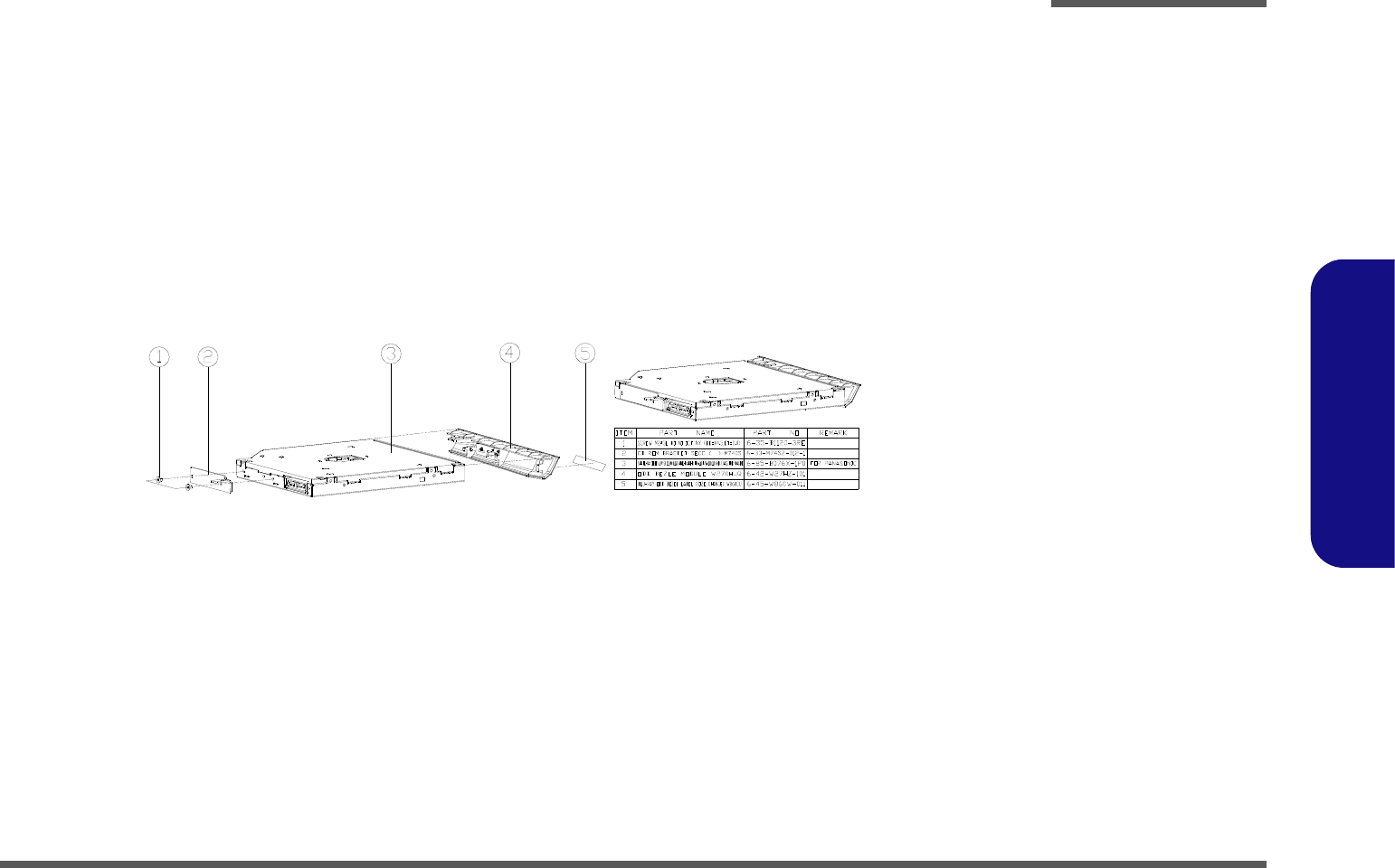

SATA BLU RAY COMBO

志精

Figure A - 3

SATA BLU RAY

COMBO

A - 6 DVD DUAL

A.Part Lists

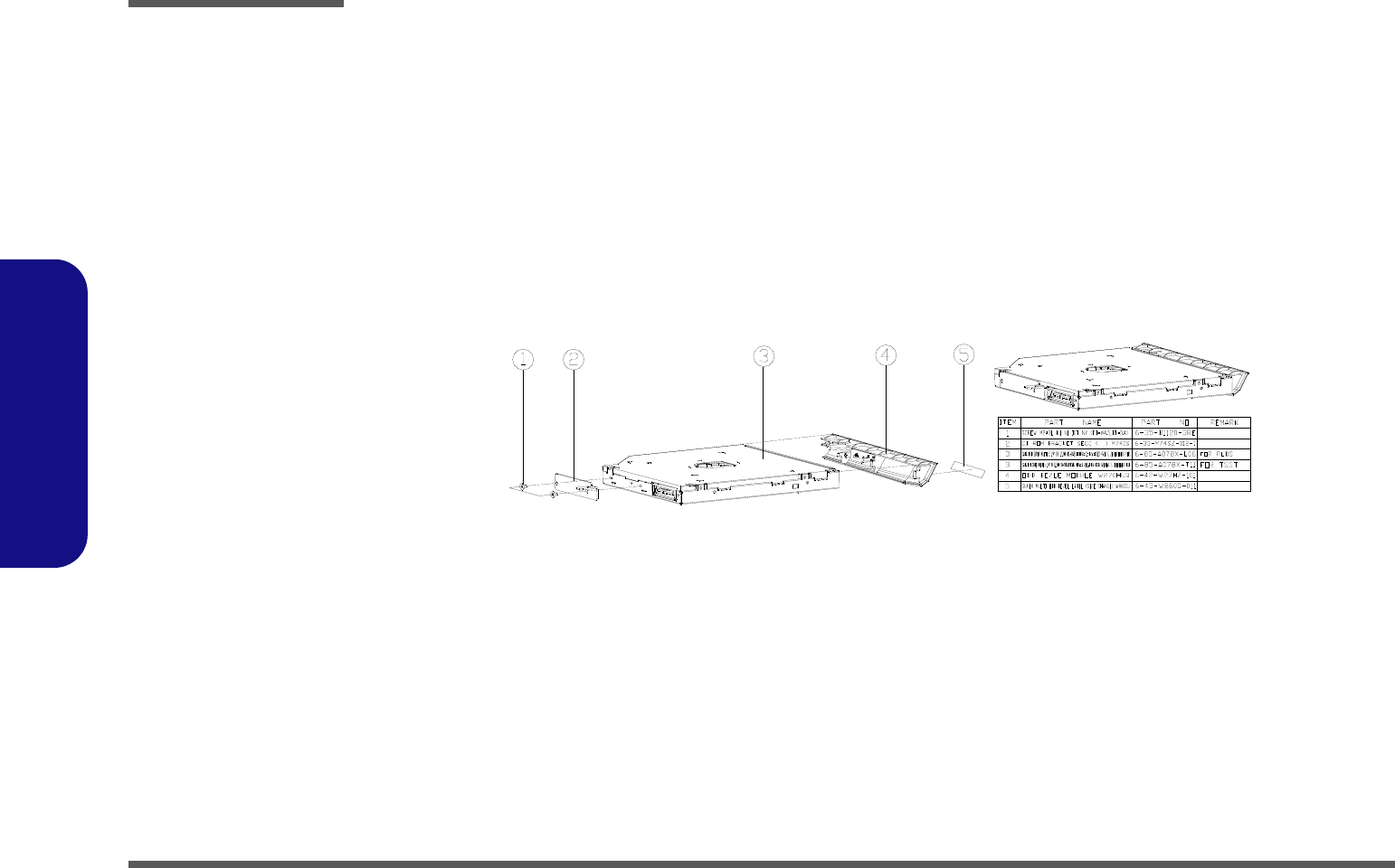

DVD DUAL

Figure A - 4

DVD DUAL

志精

LCD A - 7

A.Part Lists

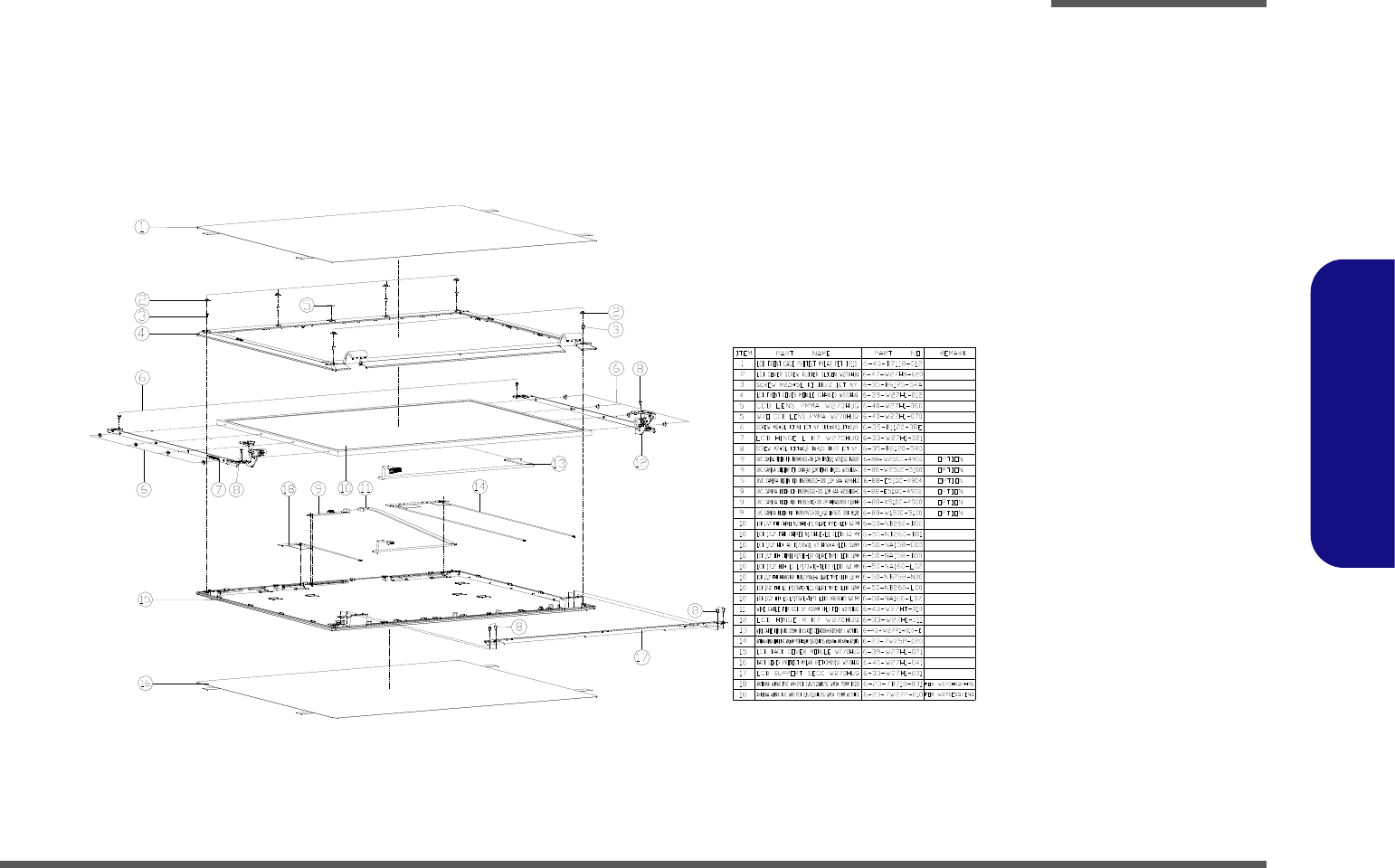

LCD

Figure A - 5

LCD

A - 8

A.Part Lists

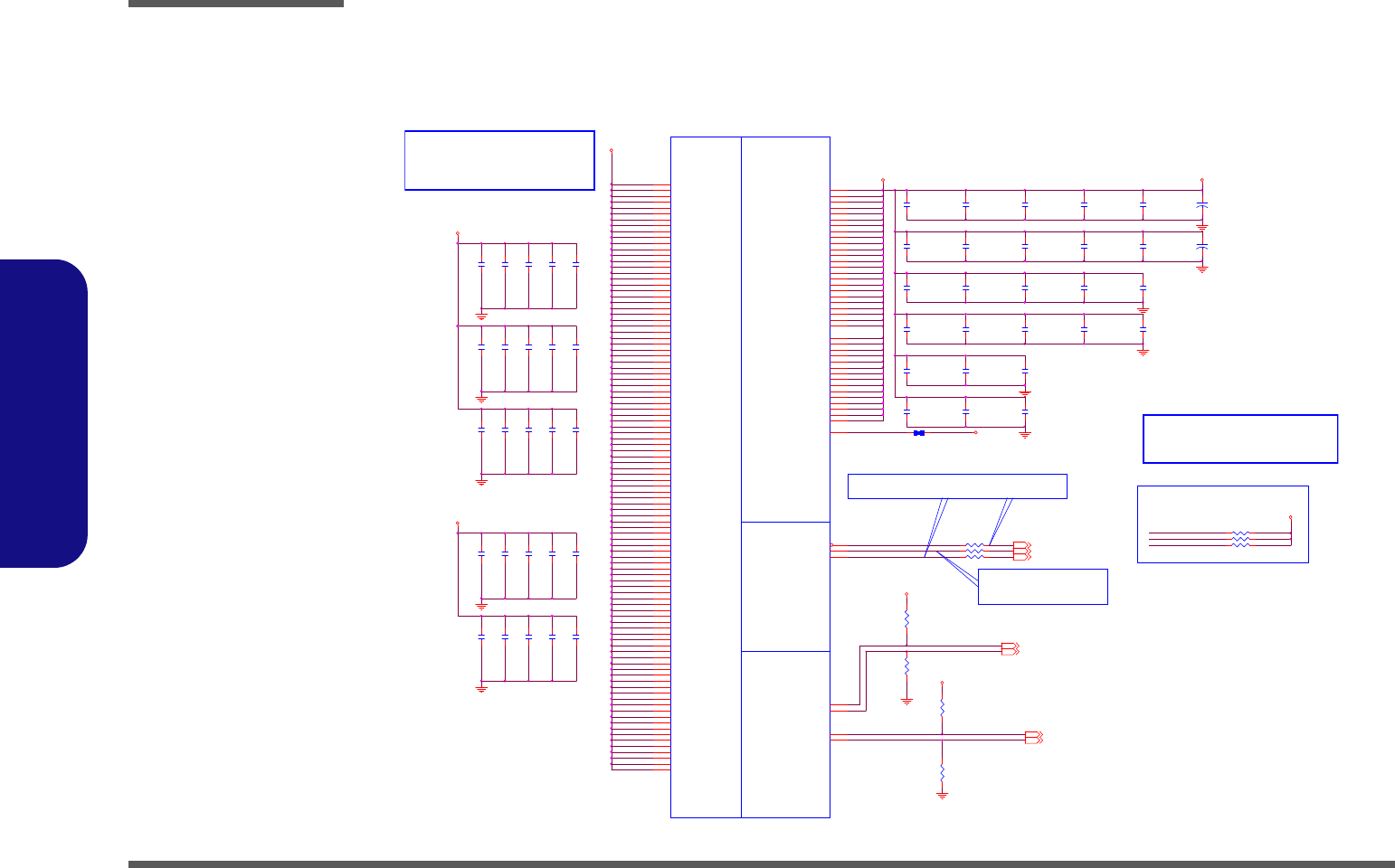

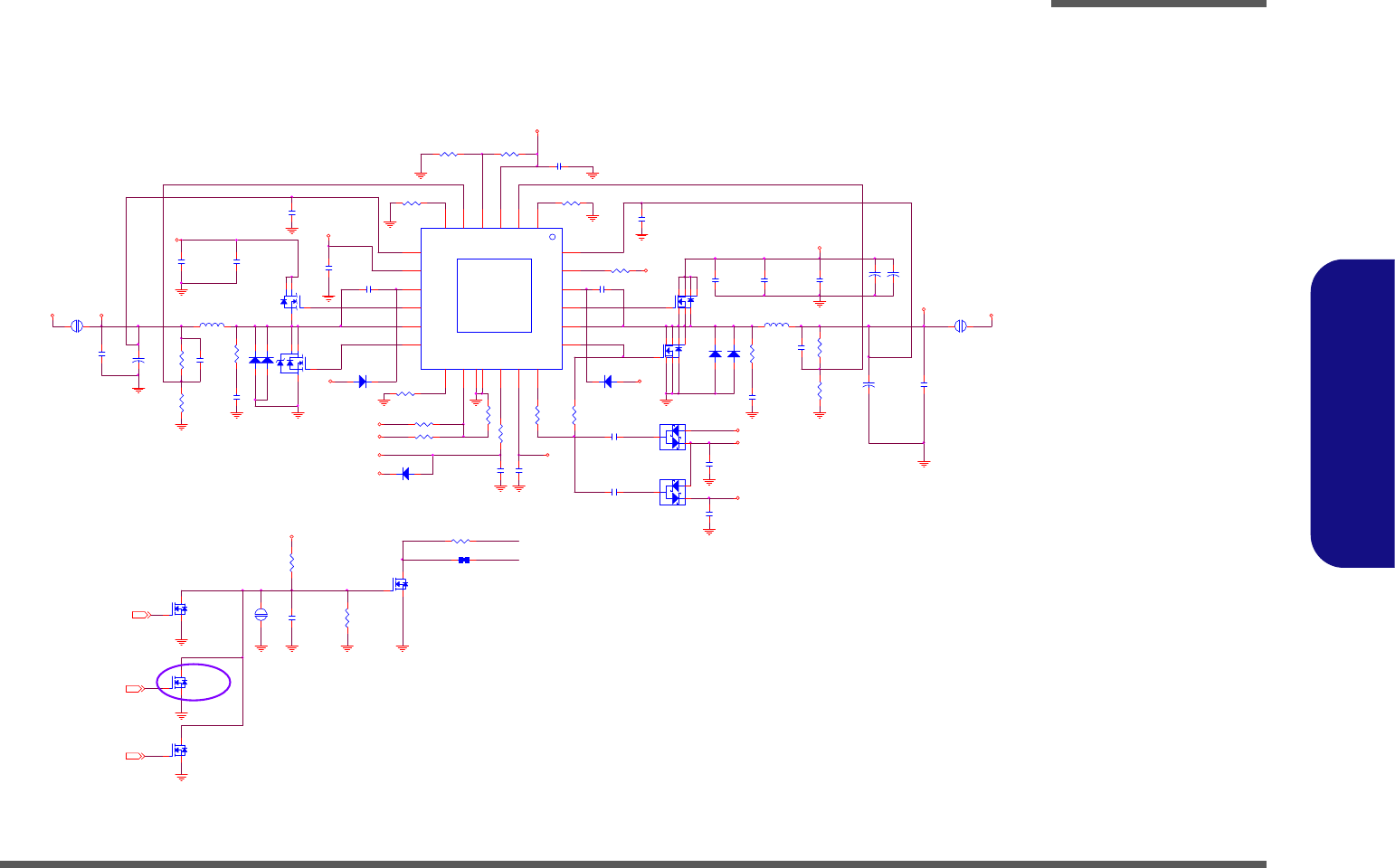

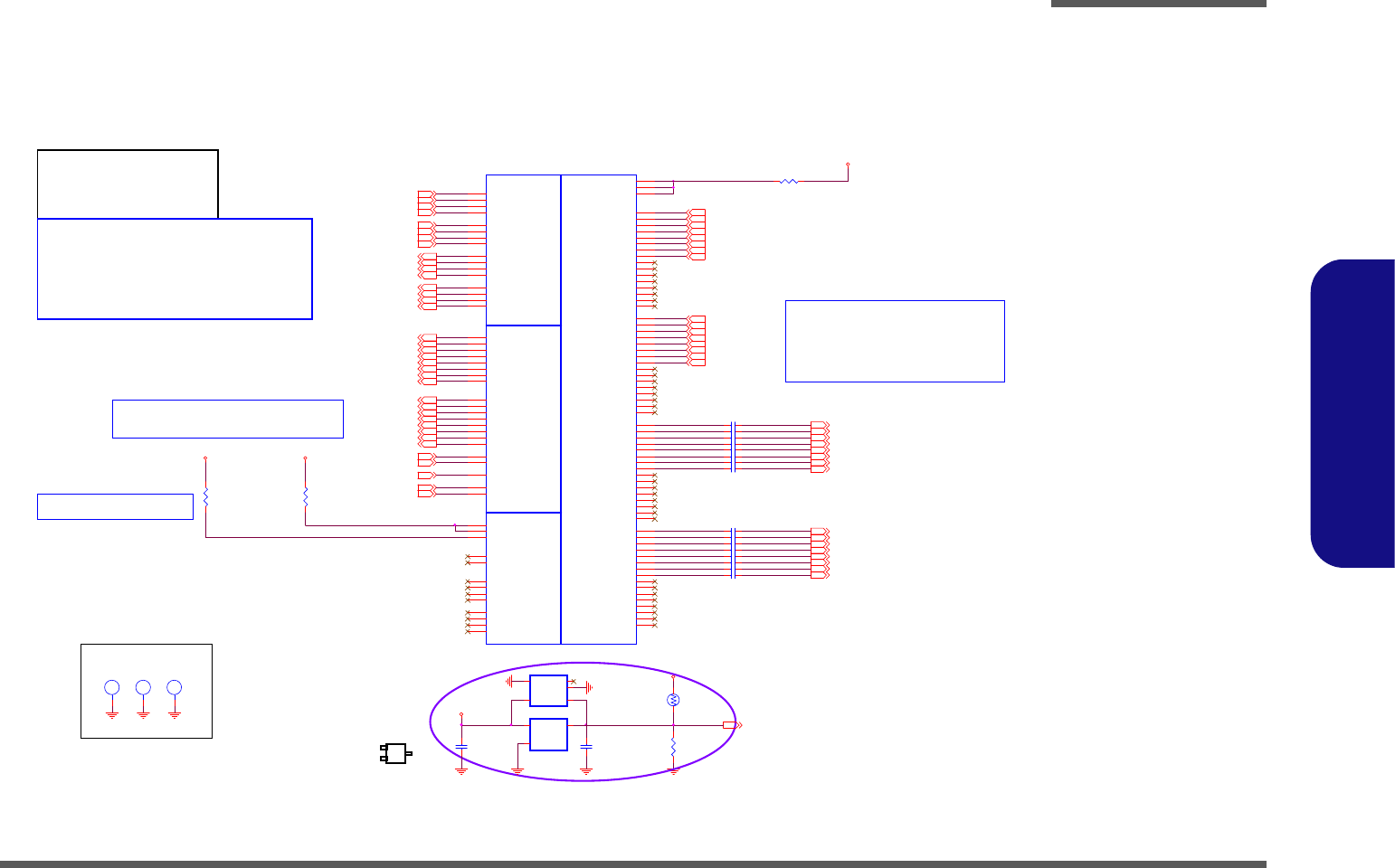

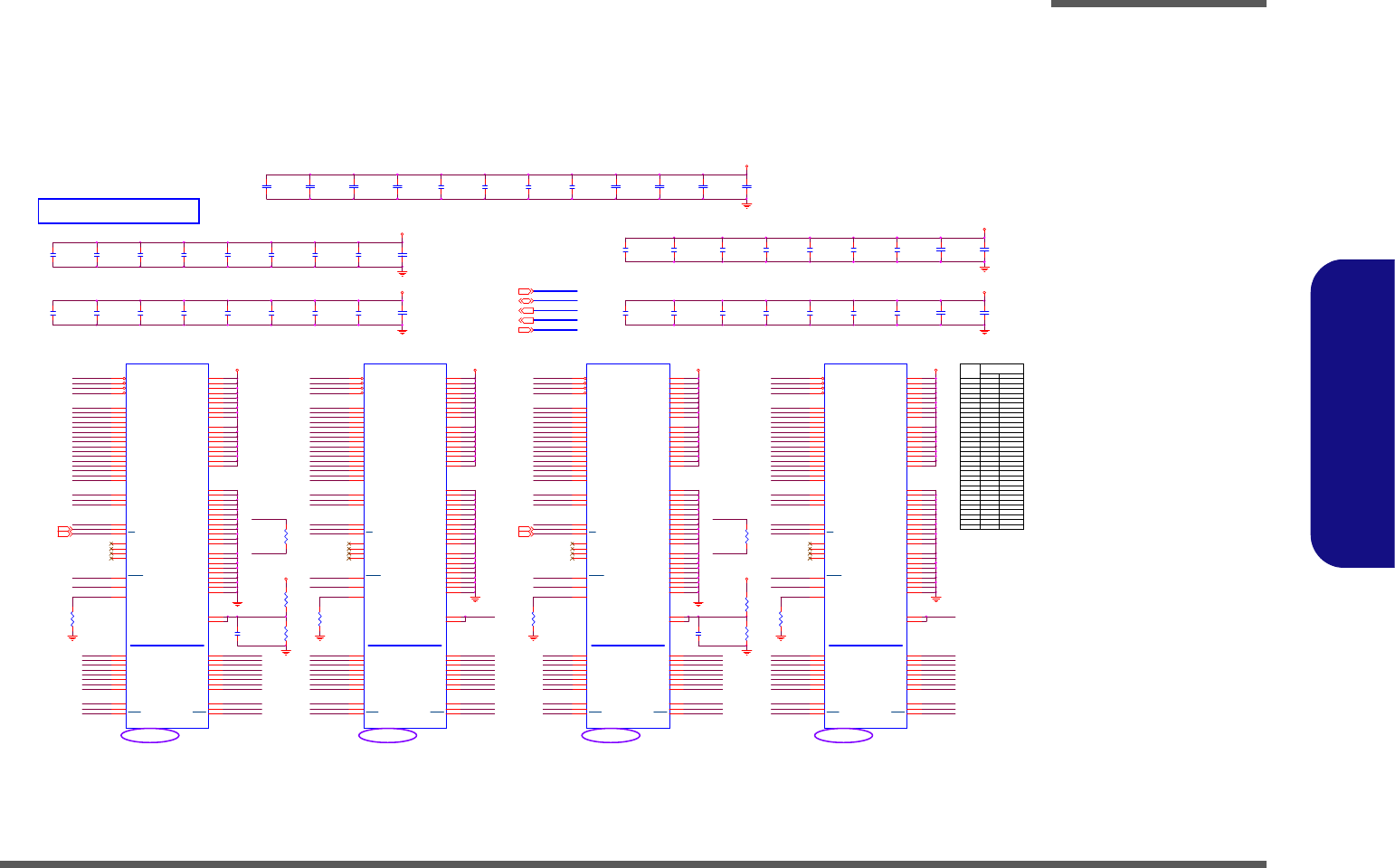

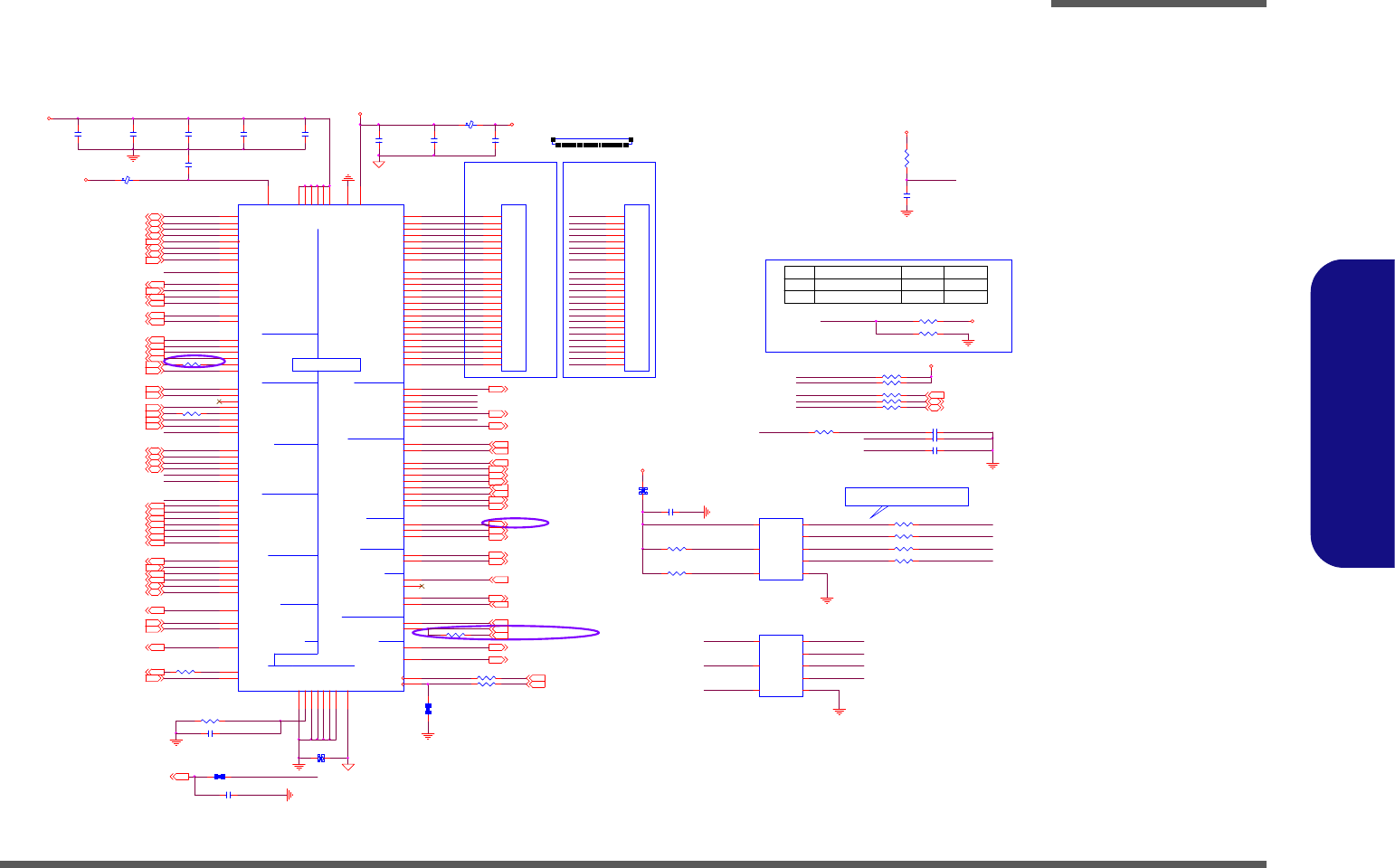

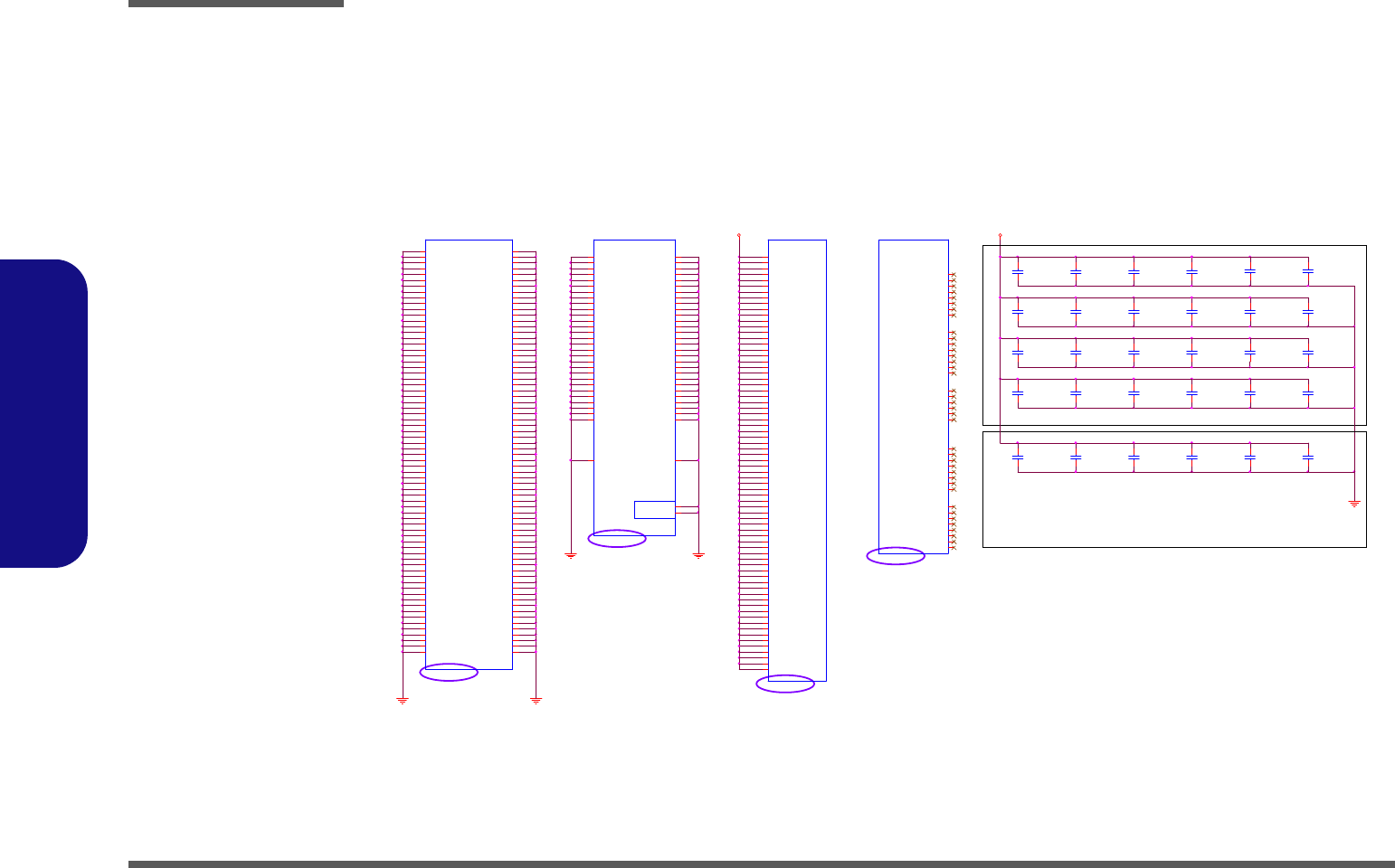

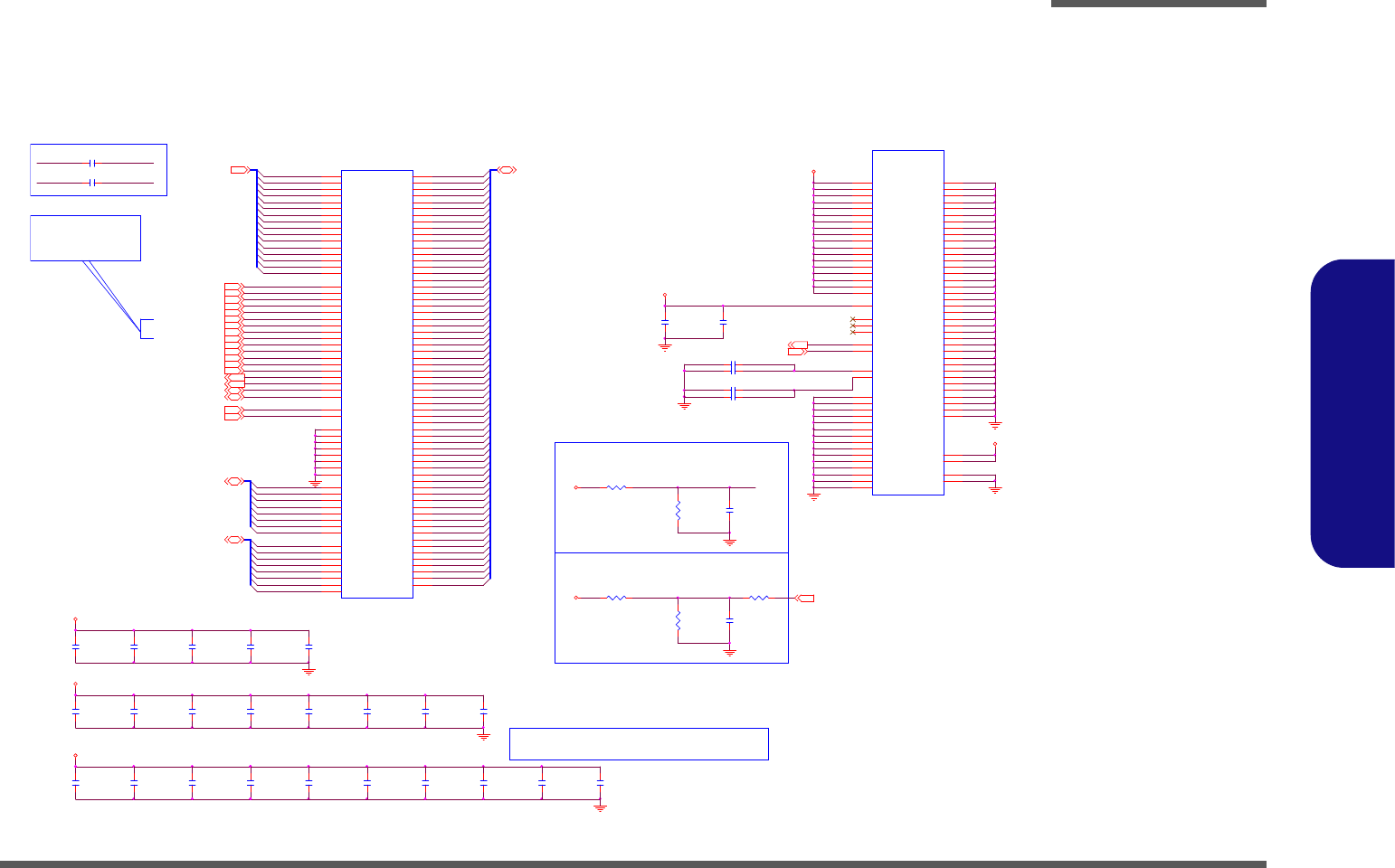

Schematic Diagrams

B - 1

B.Schematic Diagrams

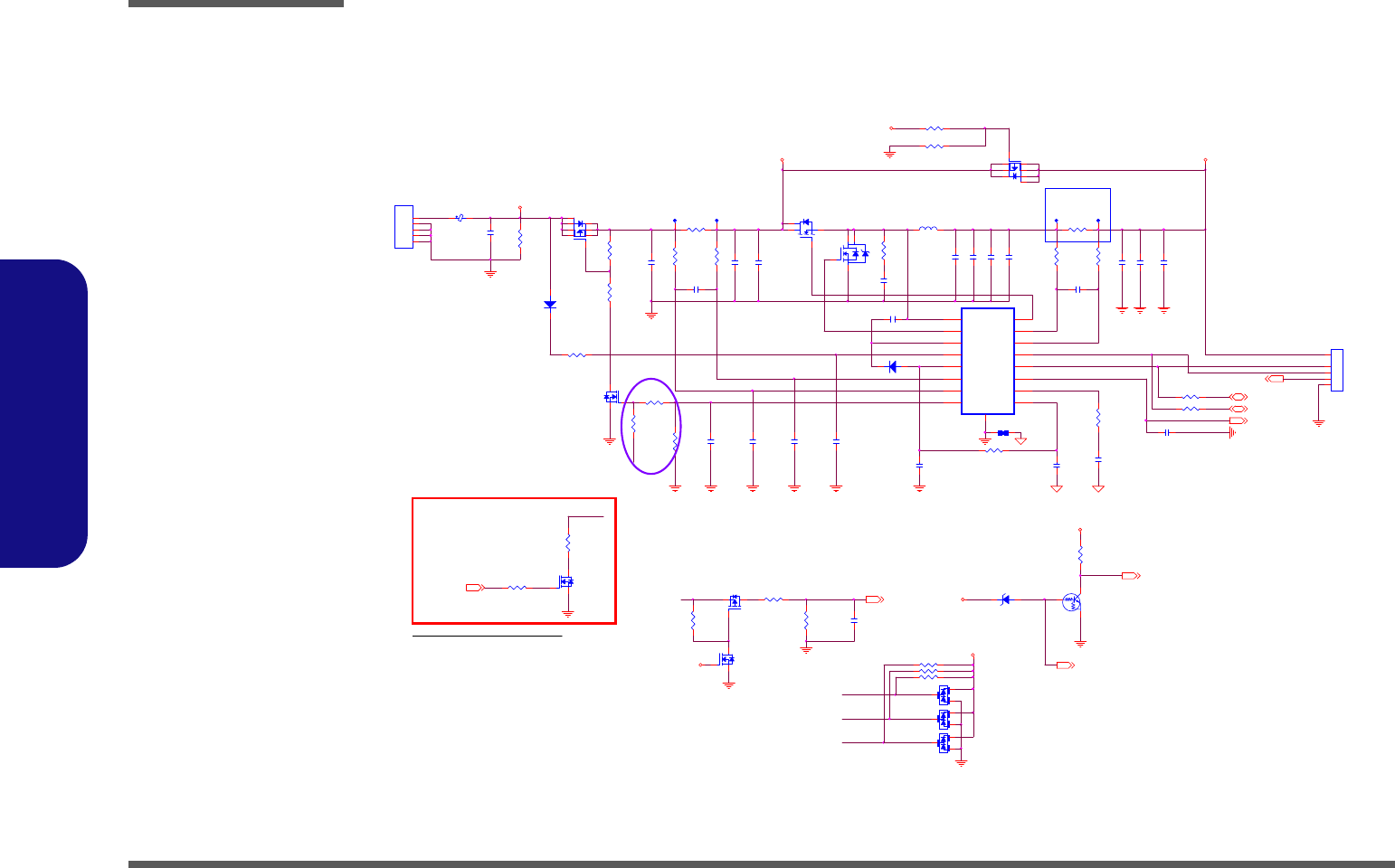

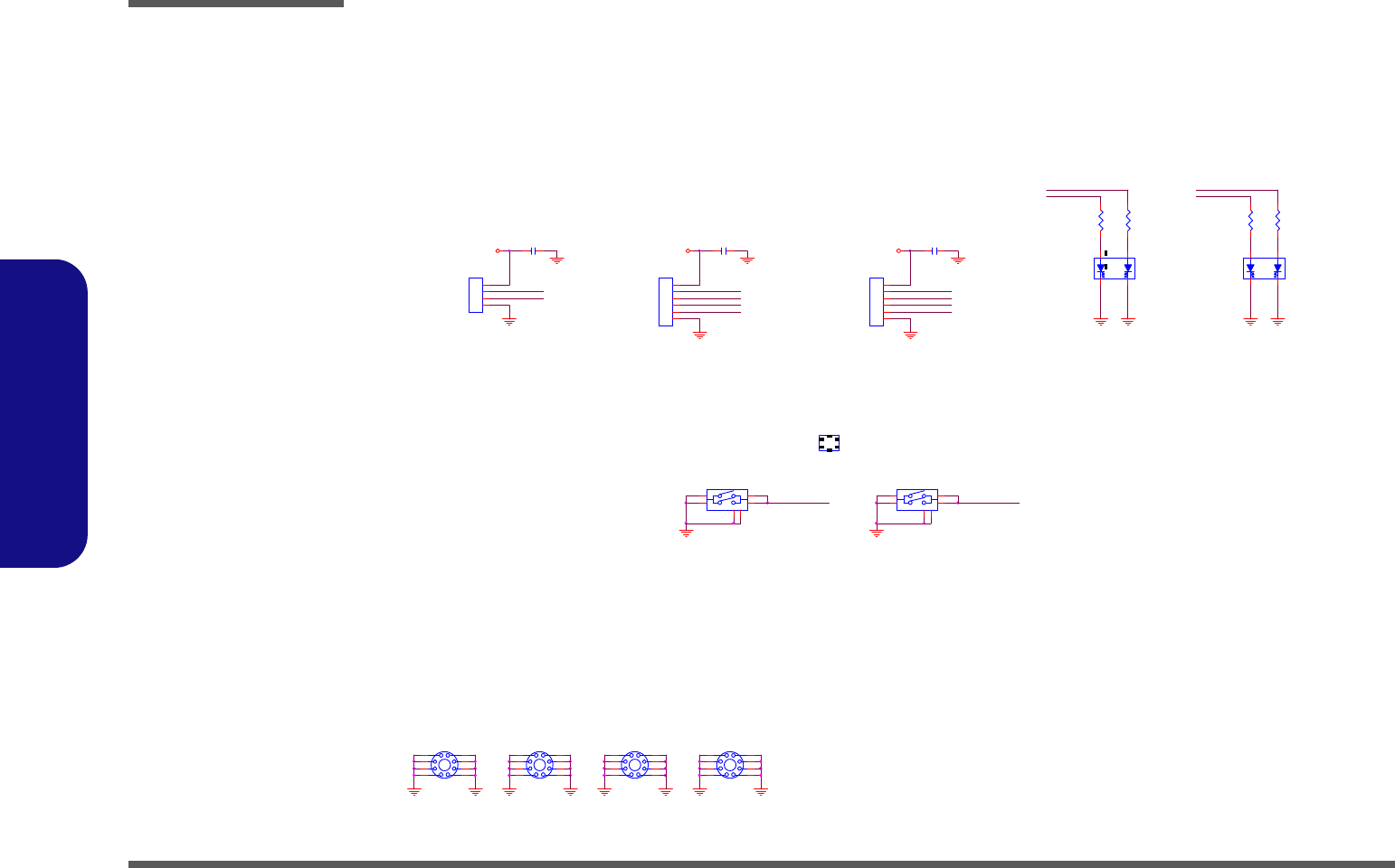

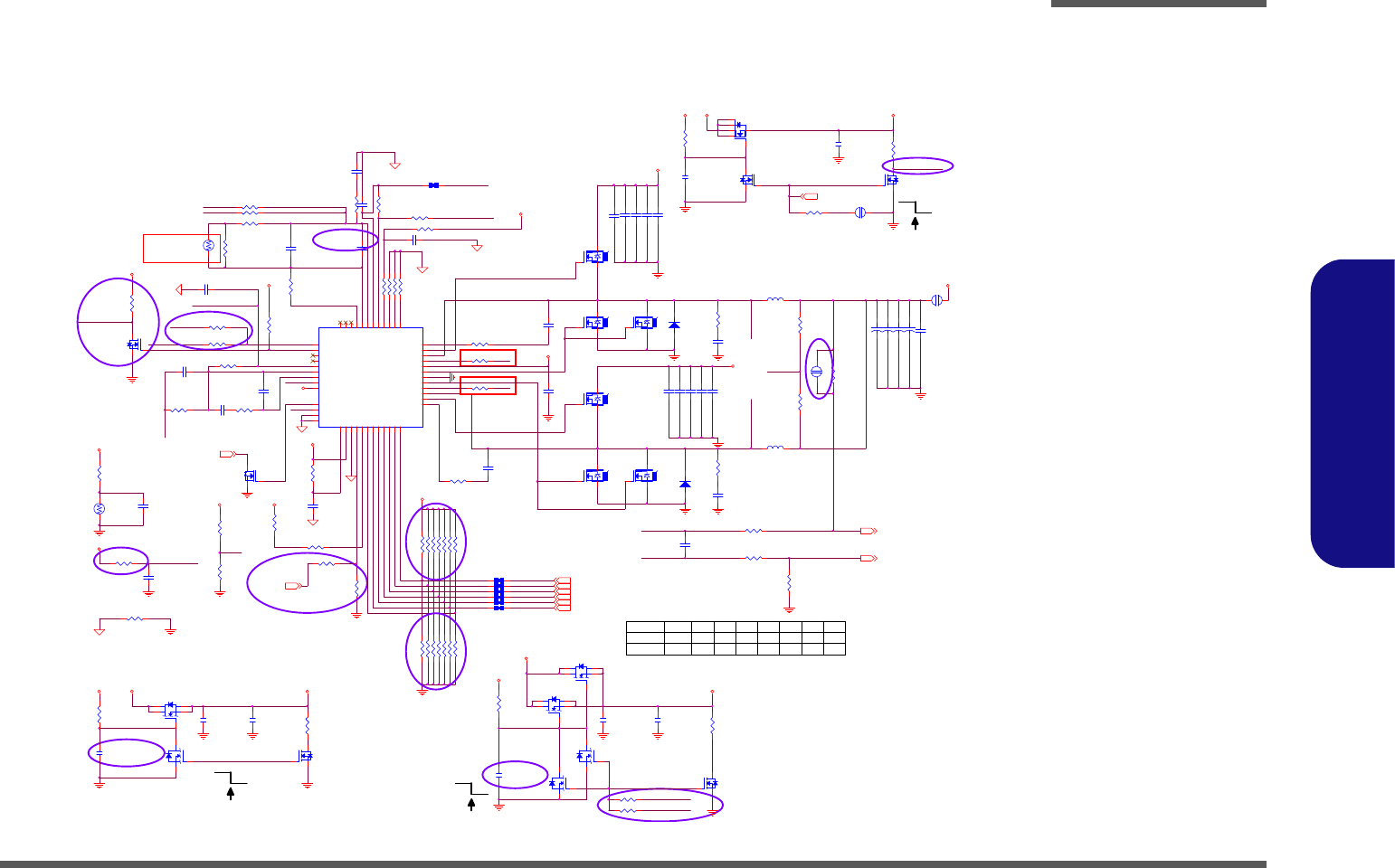

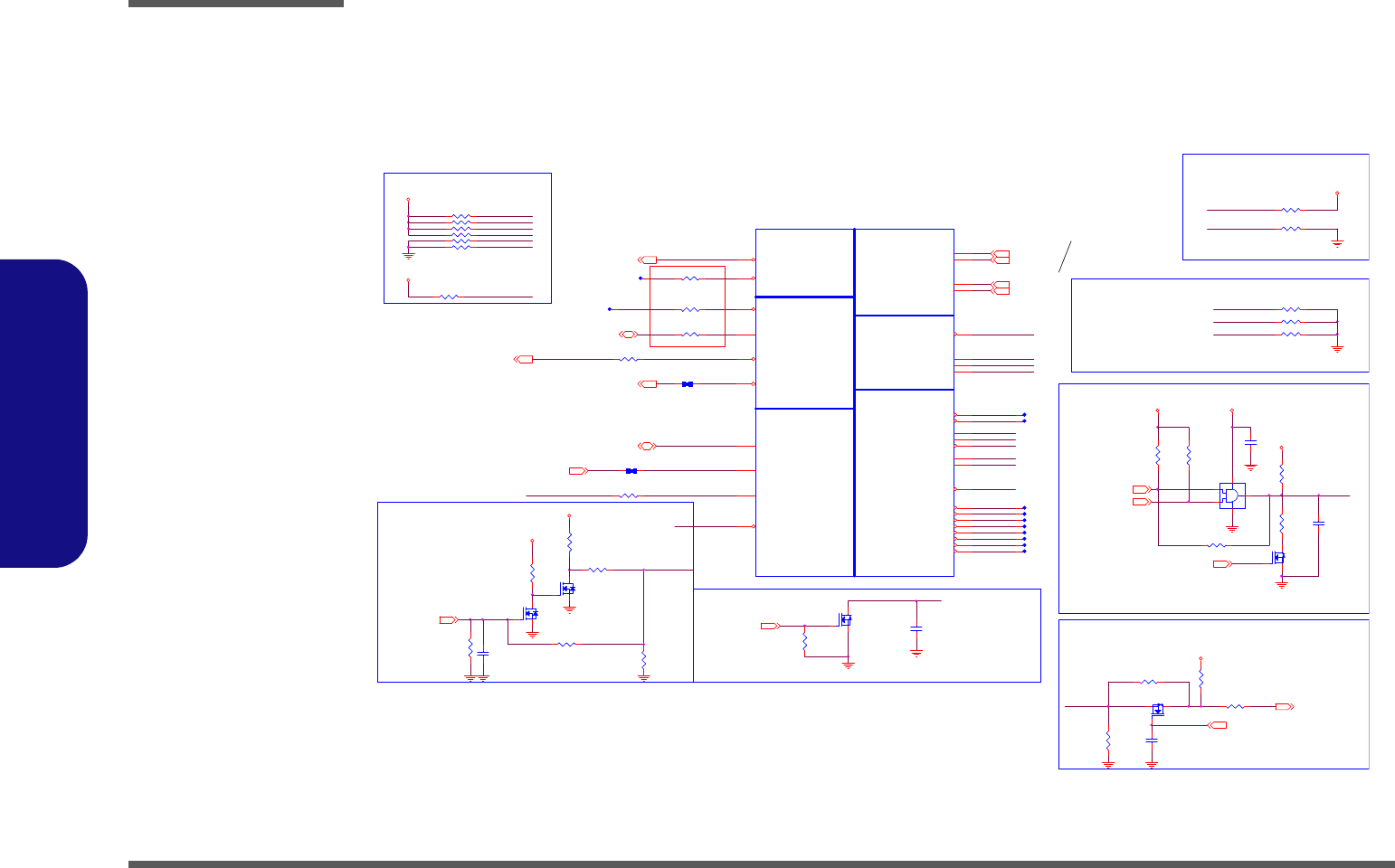

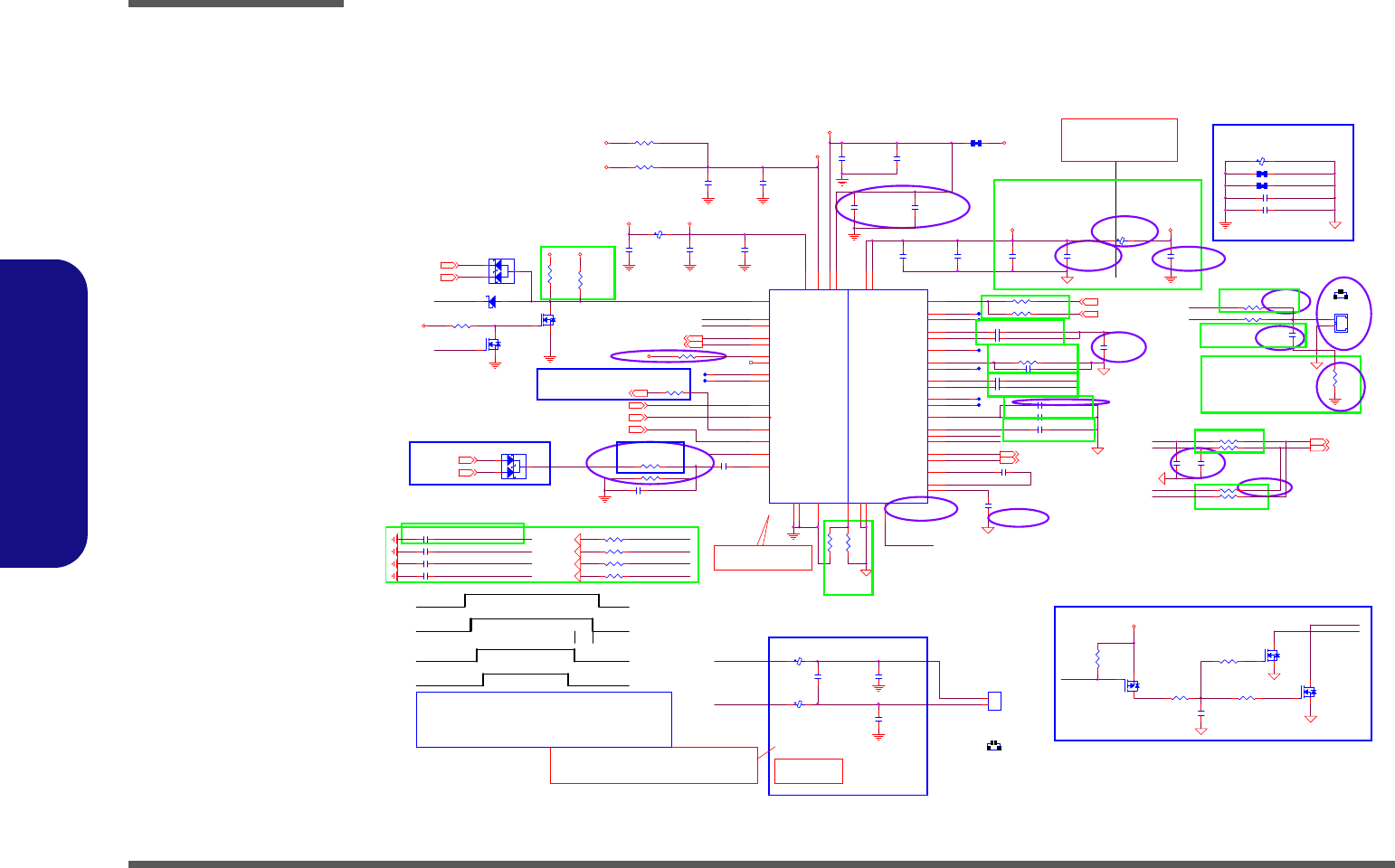

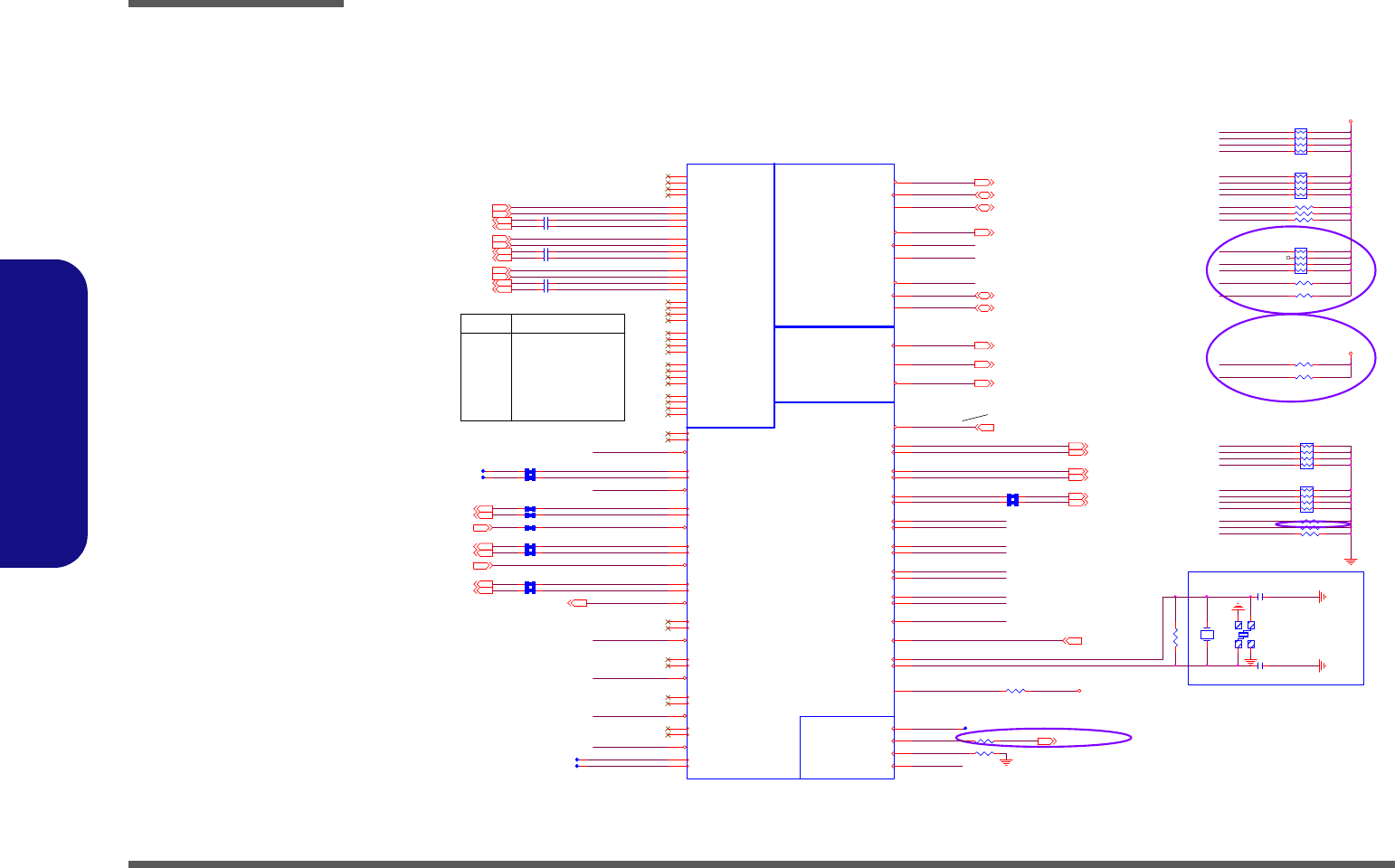

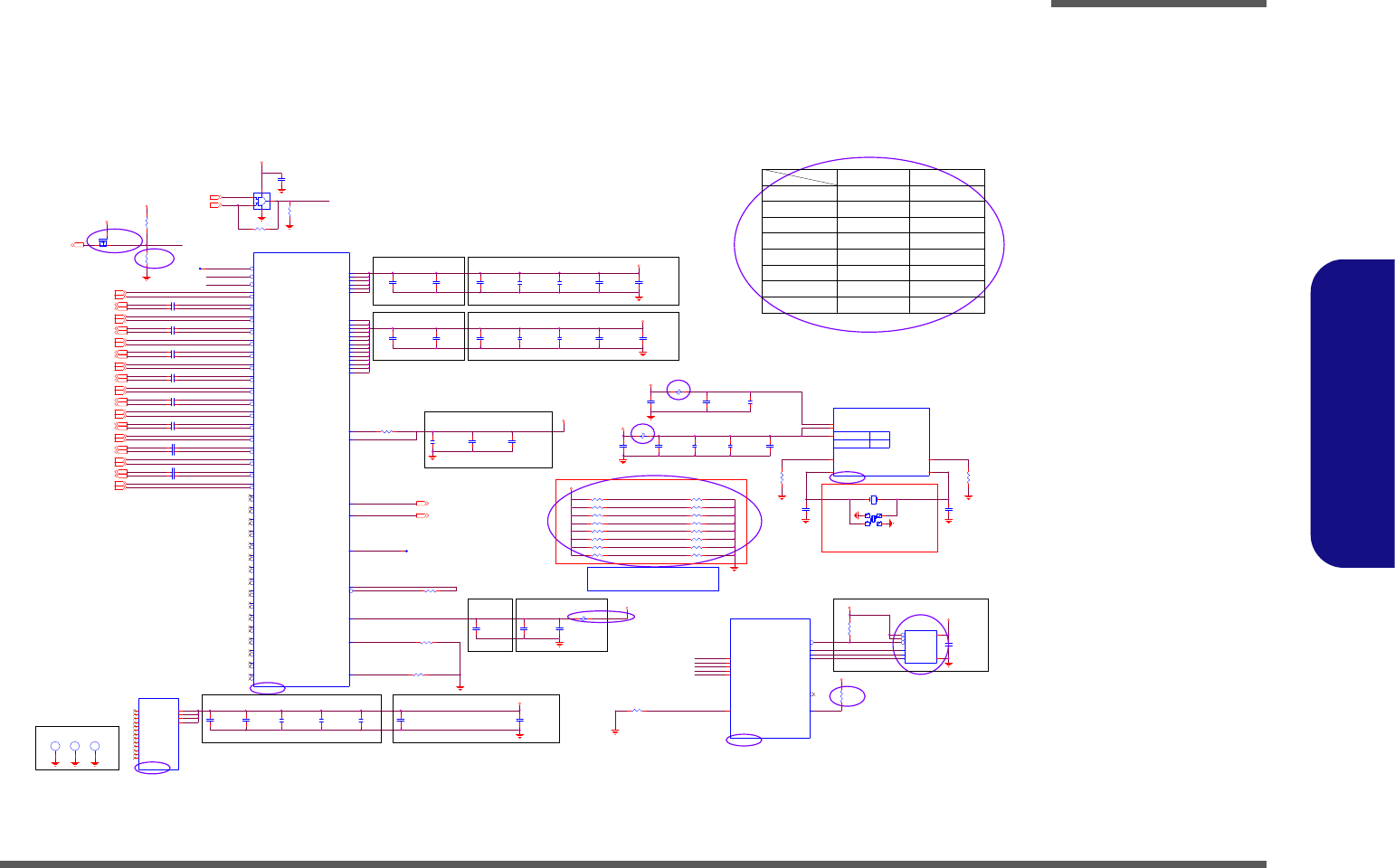

Appendix B: Schematic Diagrams

Table B - 1

SCHEMATIC

DIAGRAMS

This appendix has circuit diagrams of the W270ENQ notebook’s PCB’s. The following table indicates where to find the

appropriate schematic diagram.

Diagram - Page Diagram - Page Diagram - Page

System Block Diagram - Page B - 2 PCH 1/9- RTC, HDA, SATA - Page B - 19 5VS, 3VS, 1.5VS CPU - Page B - 36

Processor 1/7-DMI, FDI, PEG - Page B - 3 PCH 2/9- PCIE, SMBUS, CLK - Page B - 20 VDD3, VDD5 - Page B - 37

Processor 2/7- CLK, MISC - Page B - 4 PCH 3/9- DMI, FDI, PWRGD - Page B - 21 Power 0.85VS, 1.8VS - Page B - 38

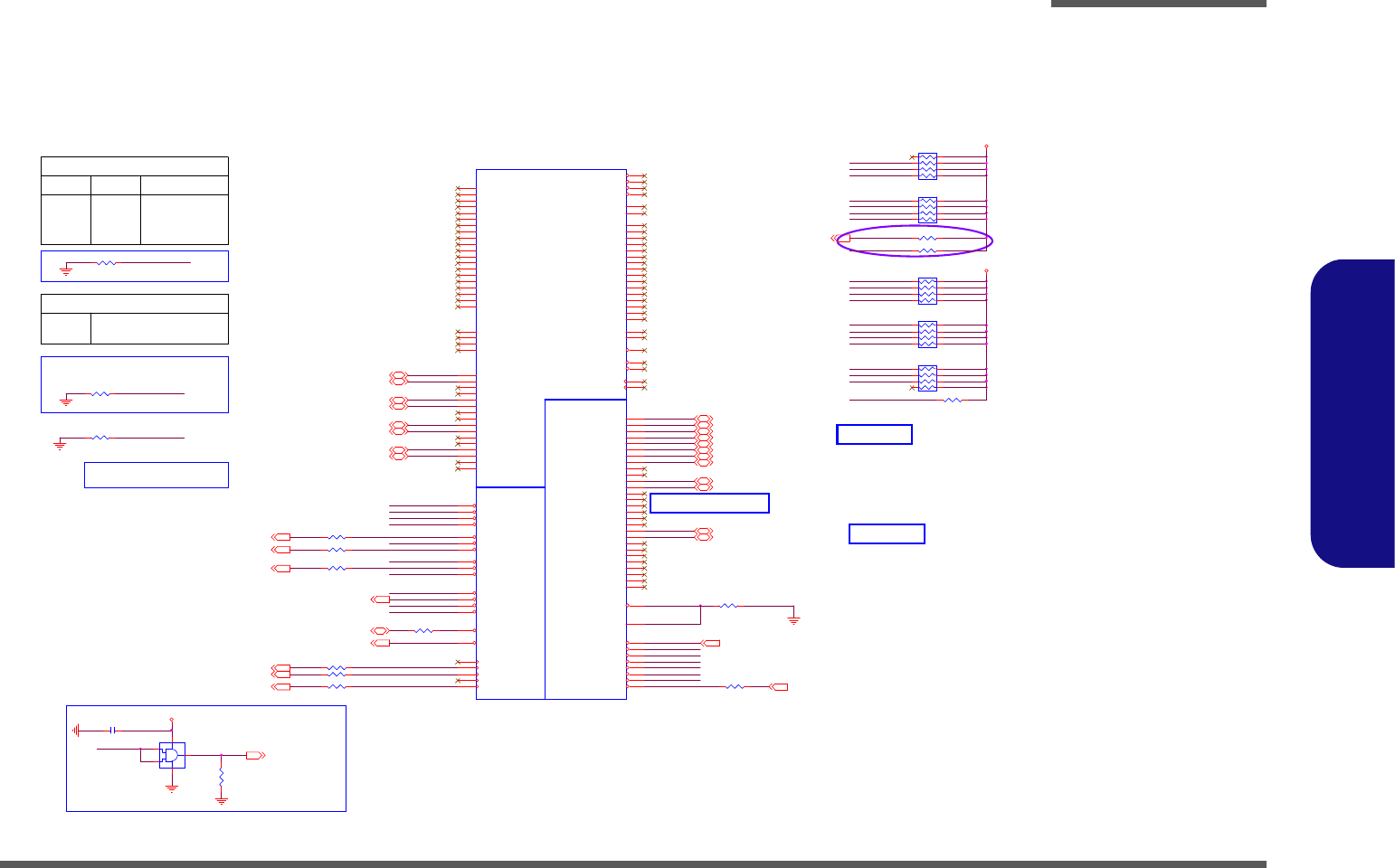

Processor 3/7- (DDR3) - Page B - 5 PCH 4/9- LVDS, DDI, CRT - Page B - 22 POWER 1.5V/1.05VS - Page B - 39

Processor 4/7- Power - Page B - 6 PCH 4/9- PCI, USB, RSVD - Page B - 23 POWER 1.05V/1.05VS VTT - Page B - 40

Processor 5/7- GFX PWR - Page B - 7 PCH 6/9- GPIO, CPU - Page B - 24 POWER VCORE1 - Page B - 41

Processor 6/7- GND - Page B - 8 PCH 7/9- PWR - Page B - 25 POWER VCORE2 - Page B - 42

Processor 7/7- RSVD - Page B - 9 PCH 8/9 POWER - Page B - 26 Power VGA NVVDD/PEX_VDD - Page B - 43

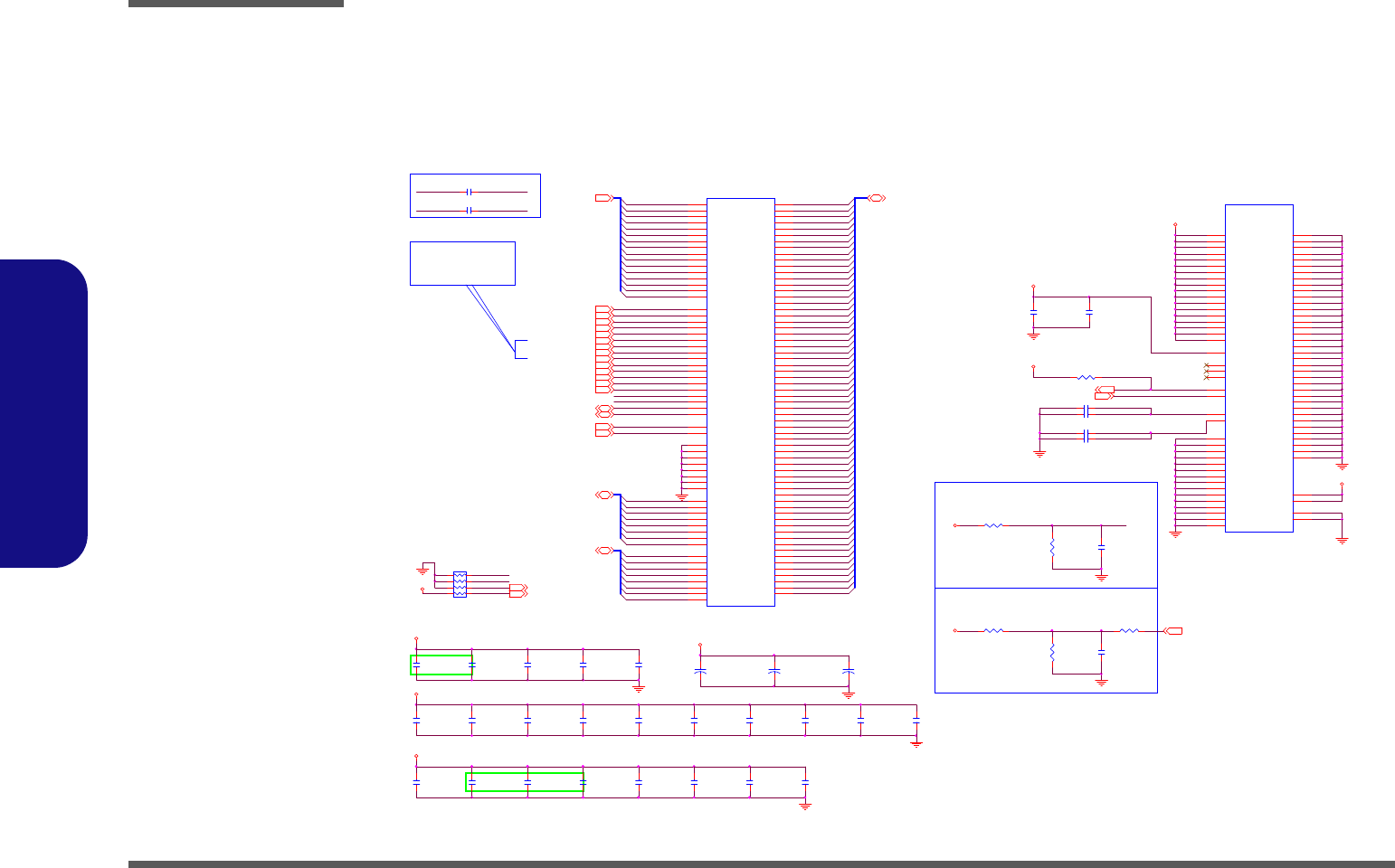

DDR3 SO-DIMM_0 - Page B - 10 PCH 9/9- GND - Page B - 27 AC IN, CHARGER - Page B - 44

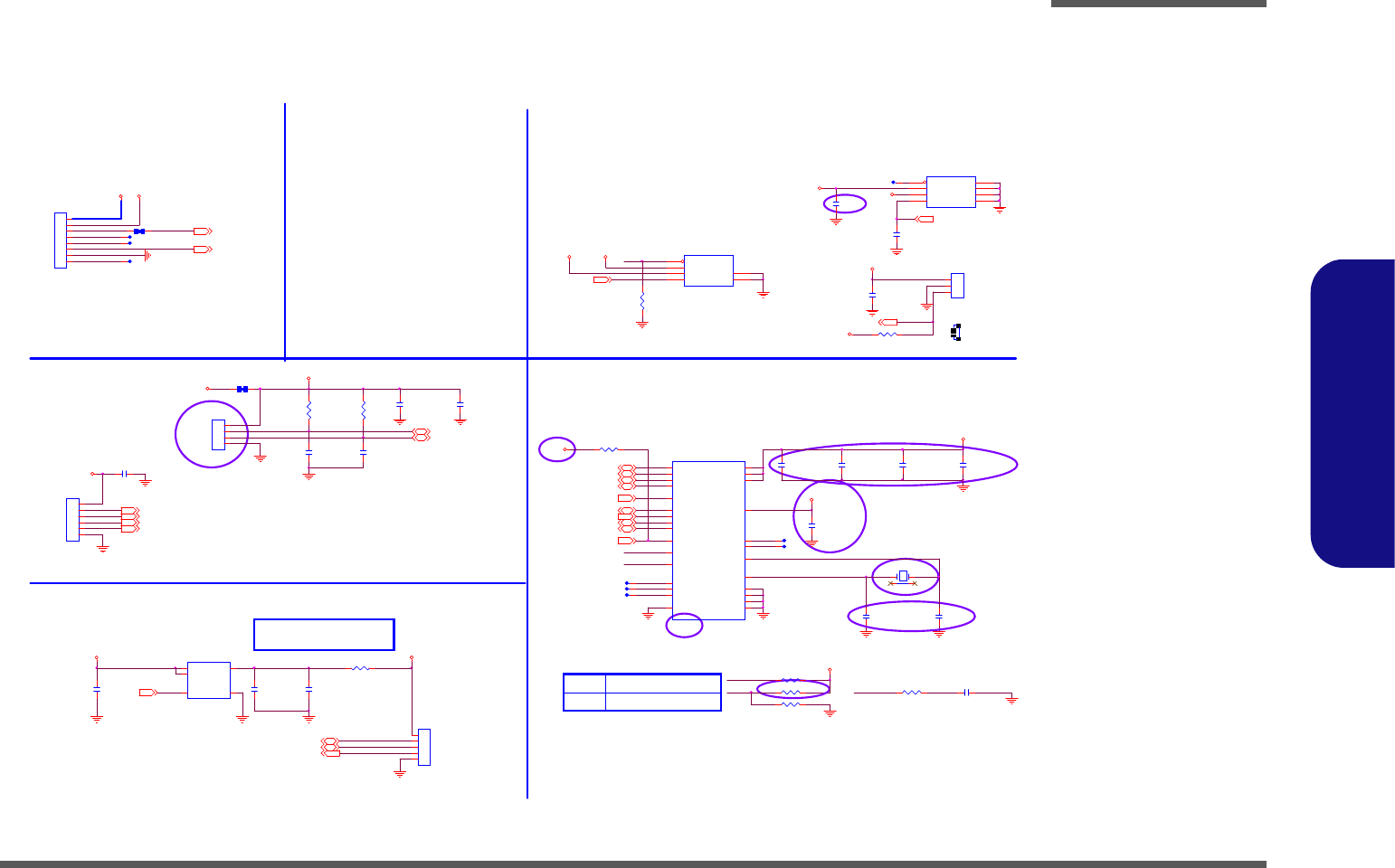

DDR3 SO-DIMM_1 - Page B - 11 WLAN, 3G, MINI PCIE - Page B - 28 AUDIO BOARD - Page B - 45

PANEL, INVERTER, CRT - Page B - 12 CCD, TPM, MULTI CON - Page B - 29 CLICK BOARD - Page B - 46

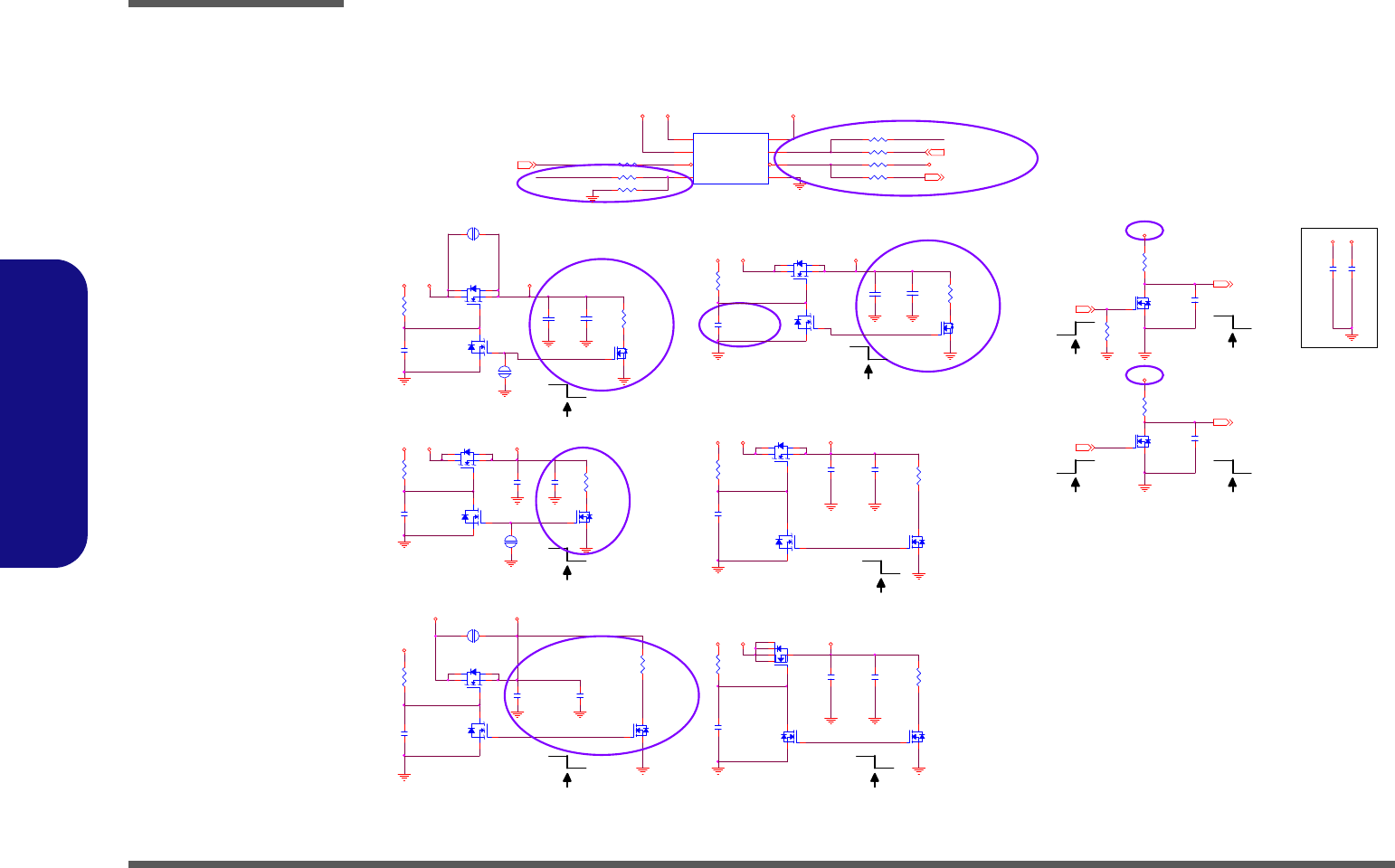

VGA PCI-E Interface - Page B - 13 USB3.0 - Page B - 30 W251HPQ POWER SW BOARD - Page B - 47

VGA Frame Buffer Interface - Page B - 14 Card Reader (RTL8411) - Page B - 31 W270HU BRIDGE ODD BOARD - Page B - 48

VGA Frame Buffer A - Page B - 15 SATA ODD, LED, USB CHARGE - Page B - 32 W270HU POWER SW BOARD - Page B - 49

VGA Frame Buffer C - Page B - 16 HDMI, RJ45 - Page B - 33 Power Diagram - Page B - 50

VGA I/O - Page B - 17 AUDIO CODEC VT1802P - Page B - 34 Power On SEQ - Page B - 51

VGA NVVDD Cecoupling - Page B - 18 KBC-ITE IT8518E - Page B - 35



Version Note

The schematic dia-

grams in this chapter

are based upon ver-

sion 6-7P-W25S6-003.

If your mainboard (or

other boards) are a lat-

er version, please

check with the Service

Center for updated di-

agrams (if required).

Schematic Diagrams

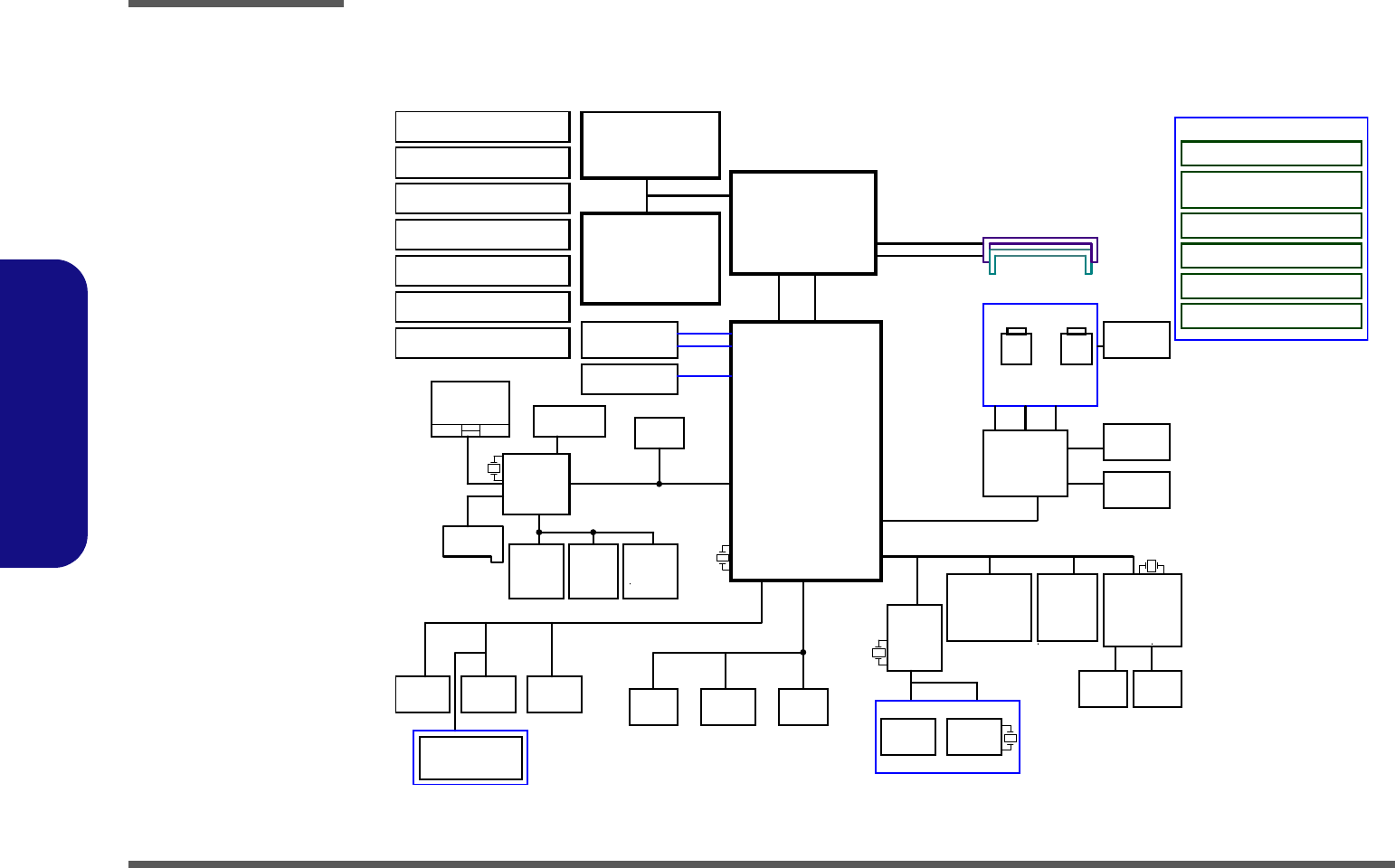

B - 2 System Block Diagram

B.Schematic Diagrams

System Block Diagram

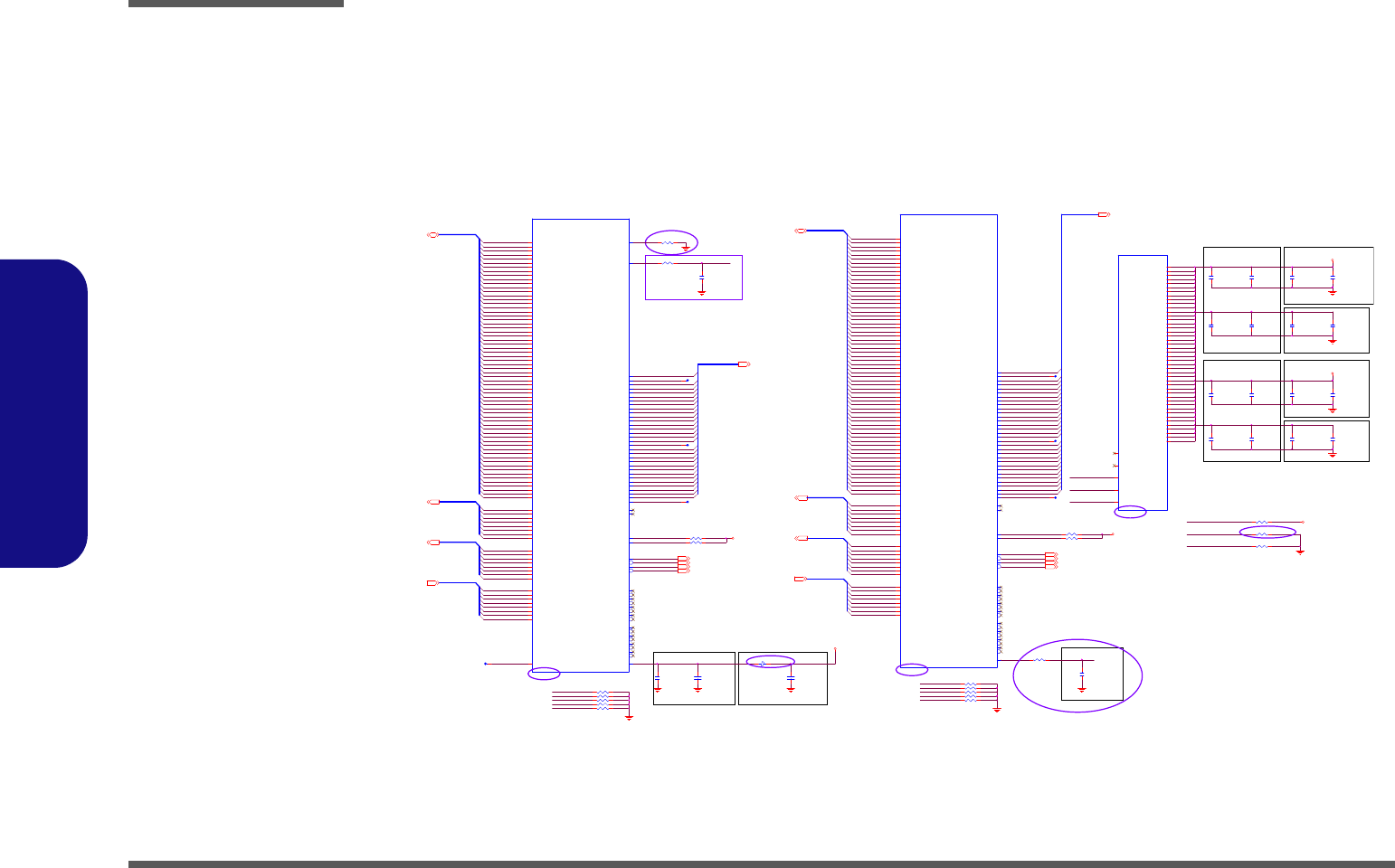

Sheet 1 of 50

System Block

Diagram

W25x/27x ESQ,EPQ

Chief River System Block Diagram

(USB3)

Nvidia

Fermi N13M GE1

RAM SIZE: 1GB

(128Mx16x4pcs)

LCD CONNECTOR <8"

TOUCH PAD

CRT CONNECTOR

LPC

CARD

READER

GPU NVDIDA NVVDD

SMART

BATTERY

HP

OUT

CLICK BOARD

<=8"

PCIE

25x25mm

989 Ball FCBGA

480 Mbps

SENTELIC

Mini PCIE

SOCKET

WLAN

EC/BIOS SPI

0.5"~5.5"

1"~16"

INT MIC

Ivy Bridge

24 MHz

<12"

FDI

MIC

IN

(INT SPK R)

128pins LQFP

32.768KHz

1.05VS_VTT

EC SMBUS AZALIA LINK

0.1"~13

eSATA

SYSTEM SMBUS

SATA ODDSATA HDD

LAN

ITE 8518E

<12"

PantherPoint

Controller

Hub (PCH)

INT. K/B

Azalia Codec

EC

0.5"~11"

<15"

5V,3V,5VS,3VS,1.5VS,

1.8VS,+1.5S_CPU

1.5V,0.75VS(VTT_MEM)

USB2.0

908 Balls

Nvidia

Fermi N13P GL

RAM SIZE: 1GB

(64Mx16x8pcs)

VDD3,VDD5

DMI*4

rPGA989/988

G711ST9U

32.768 KHz

1.8V, PEX_VDD,0.85VS

SATA I/II 3.0Gb/s

1333/1666 MHz

DDR3 / 1.5V

VIA

VT1802P

33 MHz

THERMAL

SENSOR

100 MHz

14*14*1.6mm

PROCESSOR

SMART

FAN

25 MHz

AUDIO BOARD

PHONE JACK x2, USB x1

W251HPQ

6-71-W25P8-D02

6IN1

6-7P-W25P6-001

6-71-W25P0-D02

W251HPQ MAIN BOARD

PCIE*8

W270HU

RTL8411

DDRIII

DDRIII

SO-DIMM2

SO-DIMM1

AUDIO BOARD

RJ-45 7IN1

SOCKET

INT SPKER-L

(USB1)USB PORT

24MHz

USB PORT3USB PORT2

USB2.0/USB3.0

USB3.0

TI

TUSB7320

HDMI Connector

Mini PCIE

SOCKET

3G MSATA CARD

6-71-W25P2-D02

6-71-W25PS-D02

W251HPQ POWER SW B'd

CLICK BOARD

D02A

cost down

W270HU BRIDGE ODD B'd

6-71-W25PN-D01

6-71-W25PS-D11

W270HU POWER SW B'd

(USB2/SATA3)

(Optional)

INT SPKER-R

FBVDDQ

VGFX_CORE

BRIDGE ODD BOARD

Optional

TPM 1.2

(USB0)

USB PORT1 CCD

(USB5)

USB PORT

(USB8)

AC-IN

Schematic Diagrams

Processor 1/7-DMI, FDI, PEG B - 3

B.Schematic Diagrams

Processor 1/7-DMI, FDI, PEG

Sheet 2 of 50

Processor 1/7-DMI,

FDI, PEG

R140 24.9_1%_04

PTH1

10K_1%_NTC_06

12

R654

10K_1%_04

C181 0.22u_10V_X5R_04

C176 0.22u_10V_X5R_04

C159 0.22u_10V_X5R_04

C179 0.22u_10V_X5R_04

C147 0.22u_10V_X5R_04

C157 0.22u_10V_X5R_04

C178 0.22u_10V_X5R_04

C180 0.22u_10V_X5R_04

C190 0.22u_10V_X5R_04

C175 0.22u_10V_X5R_04

C165 0.22u_10V_X5R_04

C174 0.22u_10V_X5R_04

C166 0.22u_10V_X5R_04

C167 0.22u_10V_X5R_04

C168 0.22u_10V_X5R_04

C156 0.22u_10V_X5R_04

3.3V

W/O CPU THERMAL IC®É,

PCB·Å«×¶q´ú¥Î

6-17-10300-730

R508

24.9_1%_04

for ¦@¥Îr3.4_831

R509

1K_1%_04

Ivy Bridge Quad Core 55W

Q28

*TMP20

NC 1

GND 2

VO 3

GND

5

VCC

4

Ivy Bridge Dual Core 35W

PCI EXPRESS* - GRAPHICS

DMI

Intel(R) FDI

eDP

U36A

Iv y Bridge_rPGA_2DPC_Rev 0p61

DMI_RX#[0]

B27

DMI_RX#[1]

B25

DMI_RX#[2]

A25

DMI_RX#[3]

B24

DMI_RX[0]

B28

DMI_RX[1]

B26

DMI_RX[2]

A24

DMI_RX[3]

B23

DMI_TX#[0]

G21

DMI_TX#[1]

E22

DMI_TX#[2]

F21

DMI_TX#[3]

D21

DMI_TX[0]

G22

DMI_TX[1]

D22

DMI_TX[3]

C21 DMI_TX[2]

F20

FDI0_TX#[0]

A21

FDI0_TX#[1]

H19

FDI0_TX#[2]

E19

FDI0_TX#[3]

F18

FDI1_TX#[0]

B21

FDI1_TX#[1]

C20

FDI1_TX#[2]

D18

FDI1_TX#[3]

E17

FDI0_TX[0]

A22

FDI0_TX[1]

G19

FDI0_TX[2]

E20

FDI0_TX[3]

G18

FDI1_TX[0]

B20

FDI1_TX[1]

C19

FDI1_TX[2]

D19

FDI1_TX[3]

F17

FDI0_FSY NC

J18

FDI1_FSY NC

J17

FDI_INT

H20

FD I0_LSY NC

J19

FD I1_LSY NC

H17

PEG _I COMPI J22

PEG_ICOMPO J21

PEG_RCOMPO H22

PEG_RX#[0] K33

PEG_RX#[1] M35

PEG_RX#[2] L34

PEG_RX#[3] J35

PEG_RX#[4] J32

PEG_RX#[5] H34

PEG_RX#[6] H31

PEG_RX#[7] G33

PEG_RX#[8] G30

PEG_RX#[9] F35

PEG _R X#[ 10] E34

PEG _R X#[11] E32

PEG _R X#[12] D33

PEG _R X#[13] D31

PEG _R X#[14] B33

PEG _R X#[15] C32

PEG_RX[0] J33

PEG_RX[1] L35

PEG_RX[2] K34

PEG_RX[3] H35

PEG_RX[4] H32

PEG_RX[5] G34

PEG_RX[6] G31

PEG_RX[7] F33

PEG_RX[8] F30

PEG_RX[9] E35

PEG_RX[10] E33

PEG_RX[11] F32

PEG_RX[12] D34

PEG_RX[13] E31

PEG_RX[14] C33

PEG_RX[15] B32

PEG_TX#[0] M29

PEG_TX#[1] M32

PEG_TX#[2] M31

PEG_TX#[3] L32

PEG_TX#[4] L29

PEG_TX#[5] K31

PEG_TX#[6] K28

PEG_TX#[7] J30

PEG_TX#[8] J28

PEG_TX#[9] H29

PEG_TX#[10] G27

PEG_TX#[11] E29

PEG_TX#[12] F27

PEG_TX#[13] D28

PEG_TX#[14] F26

PEG_TX#[15] E25

PEG_TX[0] M28

PEG_TX[1] M33

PEG_TX[2] M30

PEG_TX[3] L31

PEG_TX[4] L28

PEG_TX[5] K30

PEG_TX[6] K27

PEG_TX[7] J29

PEG_TX[8] J27

PEG_TX[9] H28

PEG_TX[10] G28

PEG_TX[11] E28

PEG_TX[12] F28

PEG_TX[13] D27

PEG_TX[14] E26

PEG_TX[15] D25

eDP_AUX

C15

eDP_AUX#

D15

eDP_TX[0]

C17

eDP_TX[1]

F16

eDP_TX[2]

C16

eDP_TX[3]

G15

eDP_TX#[ 0]

C18

eDP_TX#[ 1]

E16

eDP_TX#[ 2]

D16

eDP_TX#[ 3]

F15

eDP_COMPI O

A18

eDP_HPD

B16 eDP_I COMPO

A17

C682

*0.1u_10V_X7R_04

C686

*0.1u_10V_X7R_04

SC70-5 & SC70-3

Co-lay

Q29

*G711ST9U

OUT 1

VCC

2

GND

3

3.3V

1.05VS_VTT

1.05VS_VTT

1.05VS_VTT

DMI_TXP320

DMI_TXP220

DMI_TXP120 DMI_TXP020

DMI_TXN220 DMI_TXN120

DMI_TXN020

DMI_RXN120 DMI_RXN020

DMI_TXN320

DMI_RXP020

DMI_RXN320 DMI_RXN220

DMI_RXP320 DMI_RXP220 DMI_RXP120

FDI_LSYNC020

FDI_INT20

FDI_FSYNC120 FDI_FSYNC020

FDI_TXN120

FDI_TXN020

FDI_LSYNC120

FDI_TXN420 FDI_TXN320

FDI_TXN220

FDI_TXN720

FDI_TXN620 FDI_TXN520

FDI_TXP220

FDI_TXP120 FDI_TXP020

FDI_TXP620 FDI_TXP520 FDI_TXP420 FDI_TXP320

THERM_VOLT 34

FDI_TXP720

PEG_RX#1 12

PEG_RX#4 12

PEG_RX#2 12

PEG_RX#0 12

PEG_RX#3 12

PEG_RX#7 12

PEG_RX7 12

PEG_RX#5 12

PEG_RX#6 12

PEG_RX2 12

PEG_RX4 12

PEG_RX5 12

PEG_RX6 12

PEG_RX0 12

PEG_RX3 12

PEG_TX#5 12

PEG_TX#2 12

PEG_TX#3 12

PEG_RX1 12

PEG_TX#1 12

PEG_TX#0 12

PEG_TX#7 12

PEG_TX6 12

PEG_TX#4 12

PEG_TX#6 12

PEG_TX4 12

PEG_TX0 12

PEG_TX3 12

PEG_TX5 12

PEG_TX1 12

PEG_TX7 12

PEG_TX2 12

ED P_H PD

ED P_C O MPI O

Ivy Bridge LV/ULV 25/17W

H17

H8_0D4_4 H14

H8_0D4_4

H9

H8_0D4_4

Ivy Bridge Processor 1/7 ( DMI,PEG,FDI )

CPU

CAD NOTE: PEG_ICOMPI and RCOMPO signals

should be shorted and routed with

- max length = 500 mils

- typical impedance = 43 mohms

PEG_ICOMPO signals should be routed with

- max length = 500 mils

- typical impedance = 14.5 mohms

CAD NOTE: DP_COMPIO and ICOMPO signals

should be shorted near balls and routed with

- typical impedance < 25 mohms

EDP HPD Function Disable

EDP_HPD: Pull-up10K- DISABLED HPD

PEG_TX#_7

PEG_TX#_3

PEG_TX#_0

PEG_TX#_1

PEG_TX#_4

PEG_TX#_6

PEG_TX#_2

PEG_TX#_5

DP Compensation Signal

PEG_IRCOMP_R

1:2 (4mils:8mils)

PLACE NEAR U3

20 mil

3

2

1

PEG_TX_6

PEG_TX_4

PEG_TX_2

PEG_TX_1

PEG_TX_5

PEG_TX_3

PEG_TX_7

PEG_TX_0

2012 Ivy DDR3-1600 and DDR3L-1333 Support.

2012 Ivy Bridge Same TDP as Sandy Bridge.

PEG Compensation Signal

2012 Ivy Bridge Socket compatible with Sandy Bridge.

2012 Ivy DX11 Support, 3 Simultaneous Displays.

2012 Ivy PCIe*Gen3.0(PEGX16).

Schematic Diagrams

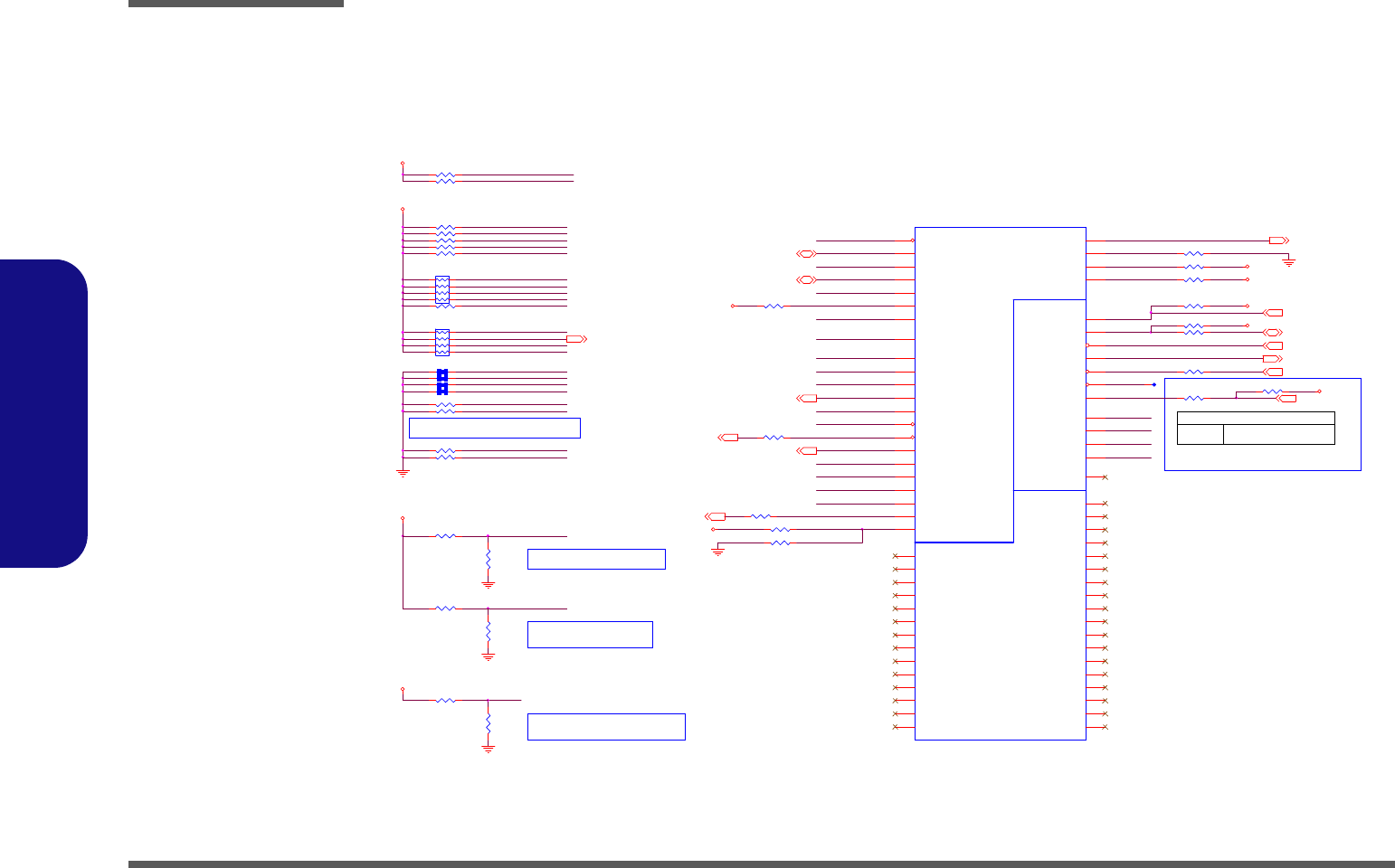

B - 4 Processor 2/7- CLK, MISC

B.Schematic Diagrams

Processor 2/7

PMSYS_PWRGD_BUF

H_PROCHOT#

H_CPUPWRGD_R

CAD Note: Capacitor need to be placed

close to buffer output pin

S3 circuit:- DRAM PWR GOOD logic

H_CPUPWRGD_R R12510K_04

Processor Pullups/Pull downs

TRACE WIDTH 10MIL, LENGTH <500MILS

BUF_CPU_RST#

H_PROCHOT#

R209

*39_04

R282 *0_04

C173

47p_50V_NPO_04

R213

75_04

R281

1K_04

R206

100K_04

R107 1K_04

R517 *10m il_short

R115 62_04

S

D

G

Q17B

MTDN7002ZHS6R

5

34

Q16

*MTN7002Z H S3

G

DS

R211

*750_1%_04

R194

*200_04

S

D

G

Q17A

MTDN7002Z HS6R

2

61

R212 43.2_1%_04

R205 *1. 5K_1%_04

R491 *0_04

Q14

MTN7002ZHS3

G

DS

R116 56_1%_04

R193

*100K_04

R106 *0_04

R207

10K_04

R516 0_04

C707

0.047u_10V_X7R_04

R199 130_1%_04

R200

200_1%_04

CLOCKS

MISCTHERMALPWR MANAGEMENT

DDR3

MISC

JTAG & BPM

U36B

Iv y Bridge_rPGA_2DPC_Rev 0p61

SM_RCOMP[1] A5

SM_RCOMP[2] A4

SM_DRAMRST# R8

SM_RCOMP[0] AK1

BCLK# A27

BCLK A28

DPLL_REF_CLK# A15

DPLL_REF_CLK A16

CATERR#

AL33

PEC I

AN33

PROCHOT#

AL32

TH ER MTR I P #

AN32

SM_DRAMPWROK

V8

RESET#

AR33

PRDY# AP29

PREQ# AP27

TC K AR26

TMS AR27

TR ST# AP30

TDI AR28

TDO AP26

DBR# AL35

BPM#[0] AT28

BPM#[1] AR29

BPM#[2] AR30

BPM#[3] AT30

BPM#[4] AP32

BPM#[5] AR31

BPM#[6] AT31

BPM#[7] AR32

PM_SY NC

AM34

SKTOC C#

AN34

PROC_SELEC T#

C26

UNCOREPWRGOOD

AP33

Q20

MTN7002ZHS3

G

DS R276 1K_04

R208 0_04

C315

68p_50V_NPO_04

C300

*0. 1u_16V_Y5V_04

R496 *51_04

R275

4.99K_1%_04

U11

*MC74VHC1G08DFT1G

1

2

5

4

3

R148

100K_04

1.05VS_VTT

3.3VS

3.3V

1.5V

3.3V

1.5VS_CPU

3.3VS

1.05VS_VTT 1.05VS_VTT

CLK_EXP_N 19

CLK_EXP_P 19

CLK_DP_P 19

CLK_DP_N 19

H_PROCHOT#40,42

H_THRMTRIP#23

H_PECI23, 34

H_PM_SYNC20

PLT_RST#12,22,28

H_CPUPWRGD23

DDR3_DRAMRST# 9,10

DRAMRST_CNTRL 6,19

H_SNB_IVB#23

H_PROCHOT#_EC34

SUSB35,37, 38

1.8VS_PWRGD20,37

PM_DRAM_PWRGD20

XD P _ D B R _ R

SM_RCOMP_2

SM_RCOMP_1

SM_RCOMP_0H_PROCHOT# H_PROCHOT#_D

XD P_ TMS

XD P _ TR S T#

XD P _T C L K

VDDPWRGOOD_R

XDP_PREQ#

XD P_ TD I _R

XD P _ TD O _ R

CPUDRAMRST#

DDR3 Compensation Signals

If PROCHOT# is not used,

then it must be terminated

with a 56-£[ +-5% pull-up

resistor to 1.05VS_VTT .

BUF_CPU_RST#

SM_RCOMP_1

SM_RCOMP_0

XDP_BPM1_R

XDP_BPM0_R

SM_RCOMP_2

XDP_BPM5_R

XDP_BPM4_R

XDP_BPM3_R

XDP_BPM2_R

PMSYS_PWRGD_BUF

XD P_ PR D Y #

XDP_BPM7_R

XDP_BPM6_R

Ivy Bridge Processor 2/7 ( CLK,MISC,JTAG )

Buffered reset to CPU

S3 circuit:- DRAM_RST# to memory

should be high during S3

CPUDRAMRST#

XD P _TD O_ R

XDP_DBR_R

H_CATERR#

XD P _TR S T#

XD P _TMS

H_SNB_IVB#

PU/PD for JTAG signals

XDP_PREQ#

XD P _TD I _ R

XD P _TC L K

C301

*0. 1u_10V_X5R_04

R183 140_1%_04

R521 200_1%_04

R520 25.5_1%_04

R493 *10mil_short

R499 51_04

R503 51_04

R494 51_04

R495 51_04

R498 51_04

CAD NOTE: All DDR_COMP signals

should be routed such that :-

- max length = 500 mils

- trace width = 15mils and

- MB trace impedance < 68 mohms

(worst case resistance)

CAD Note: Use pad sharing method

for following clock resistor placement

- CLK, MISC

Sheet 3 of 50

Processor 2/7-CLK,

MISC

M_ A_D Q S# 7

M_ A_D Q S# 2

M_ A_D Q S# 1

M_ A_D Q S# 3

M_ A_D Q S# 4

M_ A_D Q S# 5

M_ A_D Q S# 6

M_ A_D Q S# 0

M_ A_D Q S4

M_ A_D Q S5

M_ A_D Q S6

M_ A_D Q S7

M_ A_D Q S0

M_ A_D Q S2

M_ A_D Q S1

M_ A_D Q S3

M_B_DQS#5

M_B_DQS#0

M_B_DQS#1

M_B_DQS#2

M_B_DQS#3

M_B_DQS#4

M_B_DQS#6

M_B_A4

M_B_A6

M_B_A5

M_B_DQS#7

M_B_A12

M_B_A0

M_B_A1

M_B_A2

M_B_A3

M_B_A8

M_B_A9

M_B_A10

M_B_A11

M_B_A13

M_B_DQS4

M_B_DQS6

M_B_DQS5

M_B_A14

M_B_A15

M_B_A7

M_B_DQS7

M_B_DQS0

M_B_DQS1

M_B_DQS2

M_B_DQS3

DDR SYSTEM MEMORY B

U36D

Iv y Bridge_rPGA_2DPC_Rev 0p61

SB_BS[0]

AA9

SB_BS[1]

AA7

SB_BS[2]

R6

SB_CAS#

AA10

SB_RAS#

AB8

SB_WE#

AB9

SB_CK[0] AE2

SB_CK[1] AE1

SB_CLK#[0] AD2

SB_CLK#[1] AD1

SB_CKE[0] R9

SB_CKE[1] R10

SB_ODT[0 ] AE4

SB_ODT[1 ] AD4

SB_DQS[4] AN6

SB_DQS#[4] AN5

SB_DQS[5] AP8

SB_DQS#[5] AP9

SB_DQS[6] AK11

SB_DQS#[6] AK12

SB_DQS[7] AP14

SB_DQS#[7] AP15

SB_DQS[0] C7

SB_DQS#[0] D7

SB_DQS[1] G3

SB_DQS#[1] F3

SB_DQS[2] J6

SB_DQS#[2] K6

SB_DQS[3] M3

SB_DQS#[3] N3

SB_MA[0] AA8

SB_MA[1] T7

SB_MA[2] R7

SB_MA[3] T6

SB_MA[4] T2

SB_MA[5] T4

SB_MA[6] T3

SB_MA[7] R2

SB_MA[8] T5

SB_MA[9] R3

SB_MA[10] AB7

SB_MA[11] R1

SB_MA[12] T1

SB_MA[13] AB10

SB_MA[14] R5

SB_MA[15] R4

SB_DQ[0]

C9

SB_DQ[1]

A7

SB_DQ[2]

D10

SB_DQ[3]

C8

SB_DQ[4]

A9

SB_DQ[5]

A8

SB_DQ[6]

D9

SB_DQ[7]

D8

SB_DQ[8]

G4

SB_DQ[9]

F4

SB_DQ[10]

F1

SB_DQ[11]

G1

SB_DQ[12]

G5

SB_DQ[13]

F5

SB_DQ[14]

F2

SB_DQ[15]

G2

SB_DQ[16]

J7

SB_DQ[17]

J8

SB_DQ[18]

K10

SB_DQ[19]

K9

SB_DQ[20]

J9

SB_DQ[21]

J10

SB_DQ[22]

K8

SB_DQ[23]

K7

SB_DQ[24]

M5

SB_DQ[25]

N4

SB_DQ[26]

N2

SB_DQ[27]

N1

SB_DQ[28]

M4

SB_DQ[29]

N5

SB_DQ[30]

M2

SB_DQ[31]

M1

SB_DQ[32]

AM5

SB_DQ[33]

AM6

SB_DQ[34]

AR3

SB_DQ[35]

AP3

SB_DQ[36]

AN3

SB_DQ[37]

AN2

SB_DQ[38]

AN1

SB_DQ[39]

AP2

SB_DQ[40]

AP5

SB_DQ[41]

AN9

SB_DQ[42]

AT5

SB_DQ[43]

AT6

SB_DQ[44]

AP6

SB_DQ[45]

AN8

SB_DQ[46]

AR6

SB_DQ[47]

AR5

SB_DQ[48]

AR9

SB_DQ[49]

AJ11

SB_DQ[50]

AT8

SB_DQ[51]

AT9

SB_DQ[52]

AH11

SB_DQ[53]

AR8

SB_DQ[54]

AJ12

SB_DQ[55]

AH12

SB_DQ[56]

AT11

SB_DQ[57]

AN14

SB_DQ[58]

AR14

SB_DQ[59]

AT14

SB_DQ[60]

AT12

SB_DQ[61]

AN15

SB_DQ[62]

AR15

SB_DQ[63]

AT15

SB_CK[2] AB2

SB_CLK#[2] AA2

SB_CKE[2] T9

SB_CK[3] AA1

SB_CLK#[3] AB1

SB_CKE[3] T10

SB_CS#[0] AD3

SB_CS#[1] AE3

SB_CS#[2] AD6

SB_CS#[3] AE6

SB_ODT[2 ] AD5

SB_ODT[3 ] AE5

M_A_DQ[ 63:0]9

DDR SYSTEM MEMORY A

U36C

Iv y Bridge_rPGA_2DPC_Rev 0p61

SA_BS[0]

AE10

SA_BS[1]

AF10

SA_BS[2]

V6

SA_C AS#

AE8

SA_R AS#

AD9

SA_WE#

AF9

SA_CK[0] AB6

SA_CK[1] AA5

SA_CLK#[0] AA6

SA_CLK#[1] AB5

SA_CKE[0] V9

SA_CKE[1] V10

SA_CS#[0] AK3

SA_CS#[1] AL3

SA_ODT[0] AH3

SA_ODT[1] AG3

SA_DQS[0] D4

SA_DQS#[ 0] C4

SA_DQS[1] F6

SA_DQS#[ 1] G6

SA_DQS[2] K3

SA_DQS#[ 2] J3

SA_DQS[3] N6

SA_DQS#[ 3] M6

SA_DQS[4] AL5

SA_DQS#[ 4] AL6

SA_DQS[5] AM9

SA_DQS#[ 5] AM8

SA_DQS[6] AR11

SA_DQS#[ 6] AR12

SA_DQS[7] AM14

SA_DQS#[ 7] AM15

SA_MA[0] AD10

SA_MA[1] W1

SA_MA[2] W2

SA_MA[3] W7

SA_MA[4] V3

SA_MA[5] V2

SA_MA[6] W3

SA_MA[7] W6

SA_MA[8] V1

SA_MA[9] W5

SA_MA[10] AD8

SA_MA[11] V4

SA_MA[12] W4

SA_MA[13] AF8

SA_MA[14] V5

SA_MA[15] V7

SA_D Q[0]

C5

SA_D Q[1]

D5

SA_D Q[2]

D3

SA_D Q[3]

D2

SA_D Q[4]

D6

SA_D Q[5]

C6

SA_D Q[6]

C2

SA_D Q[7]

C3

SA_D Q[8]

F10

SA_D Q[9]

F8

SA_DQ[10]

G10

SA_DQ[11]

G9

SA_DQ[12]

F9

SA_DQ[13]

F7

SA_DQ[14]

G8

SA_DQ[15]

G7

SA_DQ[16]

K4

SA_DQ[17]

K5

SA_DQ[18]

K1

SA_DQ[19]

J1

SA_DQ[20]

J5

SA_DQ[21]

J4

SA_DQ[22]

J2

SA_DQ[23]

K2

SA_DQ[24]

M8

SA_DQ[25]

N10

SA_DQ[26]

N8

SA_DQ[27]

N7

SA_DQ[28]

M10

SA_DQ[29]

M9

SA_DQ[30]

N9

SA_DQ[31]

M7

SA_DQ[32]

AG6

SA_DQ[33]

AG5

SA_DQ[34]

AK6

SA_DQ[35]

AK5

SA_DQ[36]

AH5

SA_DQ[37]

AH6

SA_DQ[38]

AJ5

SA_DQ[39]

AJ6

SA_DQ[40]

AJ8

SA_DQ[41]

AK8

SA_DQ[42]

AJ9

SA_DQ[43]

AK9

SA_DQ[44]

AH8

SA_DQ[45]

AH9

SA_DQ[46]

AL9

SA_DQ[47]

AL8

SA_DQ[48]

AP11

SA_DQ[49]

AN11

SA_DQ[50]

AL12

SA_DQ[51]

AM12

SA_DQ[52]

AM11

SA_DQ[53]

AL11

SA_DQ[54]

AP12

SA_DQ[55]

AN12

SA_DQ[56]

AJ14

SA_DQ[57]

AH14

SA_DQ[58]

AL15

SA_DQ[59]

AK15

SA_DQ[60]

AL14

SA_DQ[61]

AK14

SA_DQ[62]

AJ15

SA_DQ[63]

AH15

SA_CK[2] AB4

SA_CLK#[2] AA4

SA_CK[3] AB3

SA_CLK#[3] AA3

SA_CKE[2] W9

SA_CKE[3] W10

SA_CS#[2] AG1

SA_CS#[3] AH1

SA_ODT[2] AG2

SA_ODT[3] AH2

M_B_BS010

M_ B_D Q [6 3: 0 ]10

M_B_BS210

M_B_BS110

M_A_CLK_DDR#1 9

M_A_CLK_DDR1 9

M_ A_C K E1 9

M_ A_C S #1 9

M_ A_C S #0 9

M_A_A[15:0] 9

M_A_CLK_DDR#0 9

M_A_CLK_DDR0 9

M_ A_C K E0 9

M_A_DQS#[7:0] 9

M_A_DQS[7:0] 9

M_A_OD T0 9

M_A_OD T1 9

M_A_CAS#9

M_A_BS29M_A_BS19

M_A_BS09

M_A_WE#9M_A_R AS#9

M_B_DQS[7:0] 10

M_B_A[15: 0] 10

M_B_DQS#[7:0] 10

M_B_CKE3 10

M_B_CAS#10

M_B_WE#10

M_B_RAS#10

M_B_CKE2 10

M_B_CLK_DDR#3 10

M_B_CLK_DDR3 10

M_B_ODT3 10

M_B_CLK_DDR#2 10

M_B_CLK_DDR2 10

M_B_CS#3 10

M_B_CS#2 10

M_B_ODT2 10

M_A_DQ 3

M_A_DQ 2

M_A_DQ 1

M_A_DQ 32

M_A_DQ 31

M_A_DQ 30

M_A_DQ 29

M_A_DQ 4

M_A_DQ 37

M_A_DQ 36

M_A_DQ 35

M_A_DQ 34

M_A_DQ 33

M_A_DQ 44

M_A_DQ 43

M_A_DQ 42

M_A_DQ 41

M_A_DQ 40

M_A_DQ 39

M_A_DQ 49

M_A_DQ 38

M_A_DQ 47

M_A_DQ 46

M_A_DQ 45

M_A_DQ 53

M_A_DQ 52

M_A_DQ 51

M_A_DQ 28

M_A_DQ 50

M_A_DQ 56

M_A_DQ 6

M_A_DQ 5

M_A_DQ 48

M_A_DQ 55

M_A_DQ 54

M_A_DQ 62

M_A_DQ 61

M_A_DQ 60

M_A_DQ 58

M_A_DQ 57

M_A_DQ 9

M_A_DQ 8

M_A_DQ 7

M_A_DQ 59

M_A_DQ 63

M_A_DQ 16

M_A_DQ 15

M_A_DQ 14

M_A_DQ 13

M_A_DQ 12

M_A_DQ 11

M_A_DQ 10

M_A_DQ 19

M_A_DQ 18

M_A_DQ 17

M_A_DQ 25

M_A_DQ 24

M_A_DQ 23

M_A_DQ 0

M_A_DQ 22

M_A_DQ 21

M_B_ D Q48

M_B_ D Q47

M_A_DQ 20

M_A_DQ 27

M_A_DQ 26

M_B_ D Q53

M_B_ D Q52

M_B_ D Q51

M_B_ D Q50

M_B_ D Q49

M_B_ D Q58

M_B_ D Q57

M_B_ D Q56

M_B_ D Q55

M_B_ D Q54

M_B_ D Q63

M_B_ D Q62

M_B_ D Q61

M_B_ D Q60

M_B_ D Q59

M_B_ D Q2

M_B_ D Q1

M_B_ D Q12

M_B_ D Q11

M_B_ D Q8

M_B_ D Q7

M_B_ D Q6

M_B_ D Q5

M_B_ D Q4

M_B_ D Q3

M_B_ D Q13

M_B_ D Q0

M_B_ D Q10

M_B_ D Q9

M_B_ D Q19

M_B_ D Q18

M_B_ D Q17

M_B_ D Q16

M_B_ D Q15

M_B_ D Q14

M_B_ D Q24

M_B_ D Q23

M_B_ D Q22

M_B_ D Q21

M_B_ D Q20

M_B_ D Q29

M_B_ D Q28

M_B_ D Q27

M_B_ D Q26

M_B_ D Q25

M_B_ D Q35

M_B_ D Q34

M_B_ D Q33

M_B_ D Q32

M_B_ D Q31

M_B_ D Q30

M_B_ D Q40

M_B_ D Q39

M_B_ D Q38

M_B_ D Q37

M_B_ D Q36

M_B_ D Q45

M_B_ D Q44

M_B_ D Q43

M_B_ D Q42

M_B_ D Q41

Ivy Bridge Processor 3/7 ( DDR3 )

M_B_ D Q46

M_A_A7

M_A_A8

M_A_A9

M_A_A2

M_A_A3

M_A_A4

M_A_A6

M_A_A5

M_A_A11

M_A_A13

M_A_A14

M_A_A15

M_A_A0

M_A_A1

M_A_A10

M_A_A12

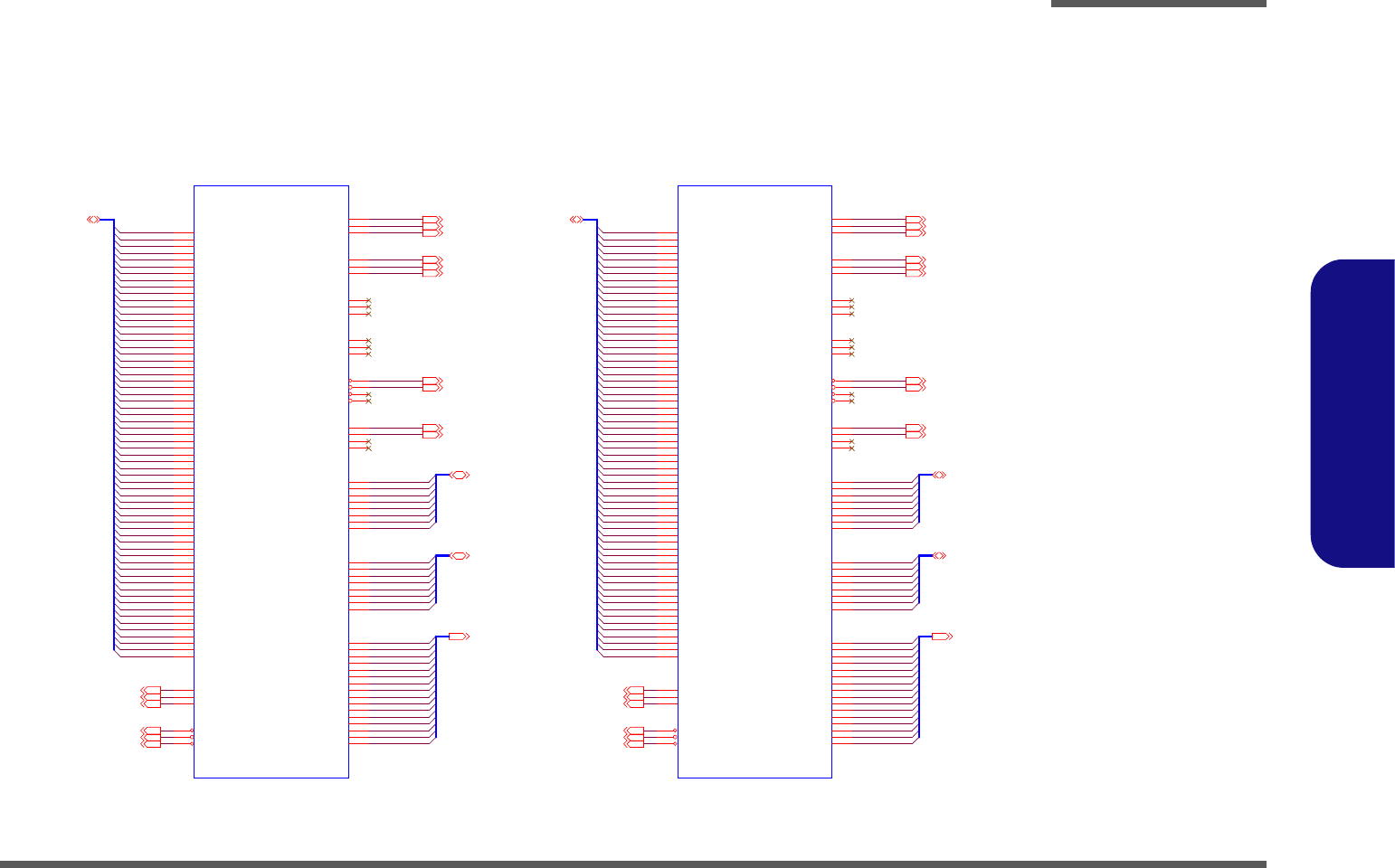

Sheet 4 of 50

Processor 3/7-

(DDR3)

Schematic Diagrams

Processor 3/7- (DDR3) B - 5

B.Schematic Diagrams

Processor 3/7- (DDR3)

Schematic Diagrams

B - 6 Processor 4/7- Power

B.Schematic Diagrams

Processor 4/7- Power

48A

Ivy Bridge Processor 4/7 ( POWER )

PROCESSOR CORE POWER

PROCESSOR UNCORE POWER

CAD Note: H_CPU_SVIDALRT#_R,H_CPU_SVIDDAT_R

Place the PU resistors close to CPU

H_CPU_SVIDDAT_R

SVID Signals

CAD Note: H_CPU_SVIDCLK_R

Place the PU

resistors close to VR

VCORE

H_CPU_SVIDCLK

H_CPU_SVIDALRT#

1.05VS_VTT

R1 20 43. 2_1%_04

PR93

100_04

PR92

100_04

R110 *54.9_1%_04

H_CPU _SVIDALRT#_R R126 130_1%_04

22u_6.3V_X5R_08 * 10Pcs

R1 21 0_04

R518

10_04

R5 10 *15mil_short _06

R1 11 0_04

R519

10_04

R112 75_04

POWER

CORE SUPPLY

PEG AND DDR

SENSE LINES SVID

U36F

Iv y Bridge_rPGA_2DPC_Rev 0p61

VCC_SENSE AJ35

VSS_SENSE AJ34

VIDALERT# AJ29

VIDSC LK AJ30

VIDSOUT AJ28

VSS_SEN SE_VC C I O A10

VCC1

AG35

VCC2

AG34

VCC3

AG33

VCC4

AG32

VCC5

AG31

VCC6

AG30

VCC7

AG29

VCC8

AG28

VCC9

AG27

VCC10

AG26

VCC11

AF35

VCC12

AF34

VCC13

AF33

VCC14

AF32

VCC15

AF31

VCC16

AF30

VCC17

AF29

VCC18

AF28

VCC19

AF27

VCC20

AF26

VCC21

AD35

VCC22

AD34

VCC23

AD33

VCC24

AD32

VCC25

AD31

VCC26

AD30

VCC27

AD29

VCC28

AD28

VCC29

AD27

VCC30

AD26

VCC31

AC35

VCC32

AC34

VCC33

AC33

VCC34

AC32

VCC35

AC31

VCC36

AC30

VCC37

AC29

VCC38

AC28

VCC39

AC27

VCC40

AC26

VCC41

AA35

VCC42

AA34

VCC43

AA33

VCC44

AA32

VCC45

AA31

VCC46

AA30

VCC47

AA29

VCC48

AA28

VCC49

AA27

VCC50

AA26

VCC51

Y35

VCC52

Y34

VCC53

Y33

VCC54

Y32

VCC55

Y31

VCC56

Y30

VCC57

Y29

VCC58

Y28

VCC59

Y27

VCC60

Y26

VCC61

V35

VCC62

V34

VCC63

V33

VCC64

V32

VCC65

V31

VCC66

V30

VCC67

V29

VCC68

V28

VCC69

V27

VCC70

V26

VCC71

U35

VCC72

U34

VCC73

U33

VCC74

U32

VCC75

U31

VCC76

U30

VCC77

U29

VCC78

U28

VCC79

U27

VCC80

U26

VCC81

R35

VCC82

R34

VCC83

R33

VCC84

R32

VCC85

R31

VCC86

R30

VCC87

R29

VCC88

R28

VCC89

R27

VCC90

R26

VCC91

P35

VCC92

P34

VCC93

P33

VCC94

P32

VCC95

P31

VCC96

P30

VCC97

P29

VCC98

P28

VCC99

P27

VCC100

P26

VCCIO1 AH13

VCCIO12 J11

VCCIO18 G12

VCCIO19 F14

VCCIO20 F13

VCCIO21 F12

VCCIO22 F11

VCCIO23 E14

VCCIO24 E12

VCCIO2 AH10

VCCIO3 AG10

VCCIO4 AC10

VCCIO5 Y10

VCCIO6 U10

VCCIO7 P10

VCCIO8 L10

VCCIO9 J14

VCCIO10 J13

VCCIO11 J12

VCCIO13 H14

VCCIO14 H12

VCCIO15 H11

VCCIO16 G14

VCCIO17 G13

VCCIO25 E11

VCCIO32 C12

VCCIO33 C11

VCCIO34 B14

VCCIO35 B12

VCCIO36 A14

VCCIO37 A13

VCCIO38 A12

VCCIO39 A11

VCCIO26 D14

VCCIO27 D13

VCCIO28 D12

VCCIO29 D11

VCCIO30 C14

VCCIO31 C13

VCCIO_SENSE B10

VCCIO40 J23

VCORE

1.05VS_VTT

1.05VS_VTT

1.05VS_VTT

1.05VS_VTT

VCOR E

H_CPU_SVIDCLK 40

VCORE_VSS_SENSE 40

H_CPU_SVIDDAT 40

VCORE_VCC_SENSE 40

H_CPU_SVIDALRT# 40

VCCP_SENSE 38

VSSP_SENSE 38

H_CPU_SVIDCLK_R

ICCMAX Maximum Processor SV

48

C624

22u_6. 3 V_X5R _08

C606

*22u_6.3V_X5R _08

C638

22u_6.3V_X5R_08

H_CPU_SVIDDAT_R

C667

*22 u_6.3V_X5R_08

C251

*22u_6.3V_X5R_08

C206

*10u _6.3V_X5R_06

C604

*22u _6.3V_X5R_08

C671

*22 u_6.3V_X5R_08

C659

22u_6.3V_X5R_08

C194

10u_6.3V_X5R_06

C218

*22u _6.3V_X5R_08

C208

*10u _6.3V_X5R_06

C253

22u_6.3V_X5R_08

C673

*22u_6.3V_X5R_08

C663

*22u_6.3V_X5R_08

C662

*22 u_6.3V_X5R_08

C195

*10u _6.3V_X5R _06

C626

22u_6. 3V_X5 R _08

C632

*22 u_6.3V_X5R_08

+

C658

220u_6.3V_6.3*6. 3*4.2

C188

10u_6. 3V_X5R _06

C217

22u_6. 3 V_X5R _08

560u_2.5V_6.6*6.6*5.9 * 4Pcs

10u_6.3V_X5R_06 * 6Pcs

C664

*22u_6.3V_X5R_08

C258

*22u_6.3V_X5R_08

C625

22u_6.3V_X5R_08

C219

*22u _6.3V_X5R_08

C661

*22u_6.3V_X5R_08

C216

22u_6. 3 V_X5R _08

C627

22u_6. 3V_X5 R _08

C254

*22 u_6.3V_X5R_08

+

C672

220u_6.3V_6.3*6. 3*4.2

C605

*22u_6.3V_X5R _08

C207

*10u _6.3V_X5R _06

C674

22u_6.3V_X5R_08

C189

10u_6.3V_X5R_06

C187

10u_6.3V_X5R_06

C660

22u_6.3V_X5R_08

C639

22u_6.3V_X5R_08

C272

22u_6.3V_X5R_08

C257

*22u_6.3V_X5R_08

C205

10u_6. 3V_X5R _06

C670

22u_6.3V_X5R_08

C665

22u_6.3V_X5R_08

C628

22u_6. 3V_X5 R _08

C204

10u_6. 3V_X5R _06

C666

22u_6.3V_X5R_08

C259

*22 u_6.3V_X5R_08

C629

22u_6. 3V_X5 R _08

VCORE

VCORE

C256

22u_6.3V_X5R_08

C631

22u_6.3V_X5R_08

C255

*22u_6.3V_X5R_08

C252

*22u_6.3V_X5R_08

C668

22u_6.3V_X5R_08

1.05VS_VTT

8.5A

1.05VS_VCCP_F

22u_6.3V_X5R_08 * 15Pcs

8.5A

220u_6.3V_6.3*6.3*4.2 * 2Pcs

Sheet 5 of 50

Processor 4/7-

Power

Schematic Diagrams

Processor 5/7- GFX PWR B - 7

B.Schematic Diagrams

Processor 5/7- GFX PWR

+

C695

220u_6.3V_6.3*6.3*4.2

Ivy Bridge Processor 5/7 ( GRAPHICS POWER )

+

C623

*330U_2. 5V_D2_D

6A

0.85VS

VREF_C H _B_DIMM

10u_6.3V_X5R_06 * 3Pcs

0.85VS

220u_6.3V_6.3*6.3*4.2 * 2Pcs

22u_6.3V_X5R_08 * 14Pcs

10/22

C681

1u_6.3V_X5R_04

VGFX_CORE

C680

1u_6.3V_Y 5V_04

12A

C275

10u_6.3V_X5R_06

C274

10u_6.3V_X5R_06

C271

10u_6.3V_X5R_06

C273

10u_6.3V_X5R_06

C286

10u_6.3V_X5R_06

22u_6.3V_X5R_08 * 1Pcs

C280

10u_6.3V_X5R_06

46A

1.8VS

*100U_6.3V_B2 * 1Pcs

H_SNB_IVB#_PWRCTRL_R

1u_6.3V_X5R_04 * 2Pcs

CAD Note: +V_SM_VREF should

have 10 mil trace width

V_SM_VREF

10u_6.3V_X5R_06 * 6Pcs

VREF_CH_B_DIMM

VREF_CH_A_DIMM

1.5VS_CPU

560u_2.5V_6.6*6.6*5.9 * 1Pcs

1.2A

V_SM_VREF_CNT

V_SM_VREF

¾aDIMMºÝÂ\©ñ & TRACE¥[¼e

VREF_CH_A_DIMM

R531

1K_1%_04 C699

0.1u_10V_X5R_04

R532

*1K_04

Q31

AO3402L

G

DS

C312

0.1u_10V_X5R_04

C319

0.1u_10V_X5R_04

R536

1K_1%_04

1.5VS_CPU

C696

0.1u_10V_X5R_04

R506 100K_1%_04

+

C641

330uF_2.5V_9m_6.3*6

Q15

*AO3402L

G

DS

R507 *10mil_short

R196

*100K_1%_04

+

C677

330uF_2.5V_9m _6.3*6

R533 *0_04

Q30

AO3402L

G

DS

C320

0.1u_10V_X5R_04

R535 * 0_04

R522

*1K_04

R1950_04

R505 0_04

R201

1K_1%_04

R534

1K_1%_04

R501

*10K_04

R537

1K_1%_04

POWER

GRAPHICS

DDR3 -1.5V RAILS SENSE

LINES

1.8V RAIL

SA RAIL

VREFMISC

U36G

Iv y Bridge_rPGA_2DPC_Rev 0p61

SM_VREF AL1

VSSAXG_SEN SE AK34

VAXG_SENSE AK35

VAXG1

AT24

VAXG2

AT23

VAXG3

AT21

VAXG4

AT20

VAXG5

AT18

VAXG6

AT17

VAXG7

AR24

VAXG8

AR23

VAXG9

AR21

VAXG10

AR20

VAXG11

AR18

VAXG12

AR17

VAXG13

AP24

VAXG14

AP23

VAXG15

AP21

VAXG16

AP20

VAXG17

AP18

VAXG18

AP17

VAXG19

AN24

VAXG20

AN23

VAXG21

AN21

VAXG22

AN20

VAXG23

AN18

VAXG24

AN17

VAXG25

AM24

VAXG26

AM23

VAXG27

AM21

VAXG28

AM20

VAXG29

AM18

VAXG30

AM17

VAXG31

AL24

VAXG32

AL23

VAXG33

AL21

VAXG34

AL20

VAXG35

AL18

VAXG36

AL17

VAXG37

AK24

VAXG38

AK23

VAXG39

AK21

VAXG40

AK20

VAXG41

AK18

VAXG42

AK17

VAXG43

AJ24

VAXG44

AJ23

VAXG45

AJ21

VAXG46

AJ20

VAXG47

AJ18

VAXG48

AJ17

VAXG49

AH24

VAXG50

AH23

VAXG51

AH21

VAXG52

AH20

VAXG53

AH18

VAXG54

AH17

VDD Q11 U4

VDD Q12 U1

VDD Q13 P7

VDD Q14 P4

VDD Q15 P1

VDDQ1 AF7

VDDQ2 AF4

VDDQ3 AF1

VDDQ4 AC7

VDDQ5 AC4

VDDQ6 AC1

VDDQ7 Y7

VDDQ8 Y4

VDDQ9 Y1

VDD Q10 U7

VCCPLL1

B6

VCCPLL2

A6

VCCSA1 M27

VCCSA2 M26

VCCSA3 L26

VCCSA4 J26

VCCSA5 J25

VCCSA6 J24

VCCSA7 H26

VCCSA8 H25

VCCSA_SENSE H23

VCCSA_VID[1] C24

VCCPLL3

A2 VCCSA_VID[0] C22

SA_D IMM_VREFDQ B4

SB_D IMM_VREFDQ D1

VCCIO_SEL A19

1.8VS

1.5VS_CPU

VGFX_CORE

1.5VS_CPU

1.5V

3.3V

1.05VS_VTT

1.5V

1.5V

VR1_VCCGT_SENSEA 40

VR1_VSSGT_SENSEA 40

VCCSA_SENSE 37

VCC SA_VI D1 37

VCC SA_VI D0 37

MVREF_D Q_DIMMB 10

DRAMRST_CNTRL 3,19

MVREF _DQ_DI MMA 9

DRAMRST_CNTRL 3,19

VCCSA_SENSE

C213

22u_6.3V_X5R_08

C215

22u_6.3V_X5R_08

C635

22u_6.3V_X5R_08

C241

22u_6.3V_X5R_08

C244

22u_6.3V_X5R_08

C640

22u_6.3V_X5R_08

C224

22u_6.3V_X5R_08

C243

22u_6.3V_X5R_08

C633

22u_6.3V_X5R_08

C642

22u_6.3V_X5R_08

C242

22u_6.3V_X5R_08

C634

22u_6.3V_X5R_08

C214

22u_6.3V_X5R_08

C669

22u_6.3V_X5R_08

+

C692

*100U_6.3V_B2

C683

22u_6.3V_X5R_08 R502

10K_04

C220

10u_6.3V_X5R_06

C210

10u_6.3V_X5R_06

C209

10u_6.3V_X5R_06

R210

1K_1%_04

R223

*10mil_short

V_SM_VREF _CN T

R504

10K_04

H_SNB_IVB#_PW RC TRL 39

SUSB# 20,34, 35

R67

*10K_04

Sheet 6 of 50

Processor 5/7- GFX

PWR

Schematic Diagrams

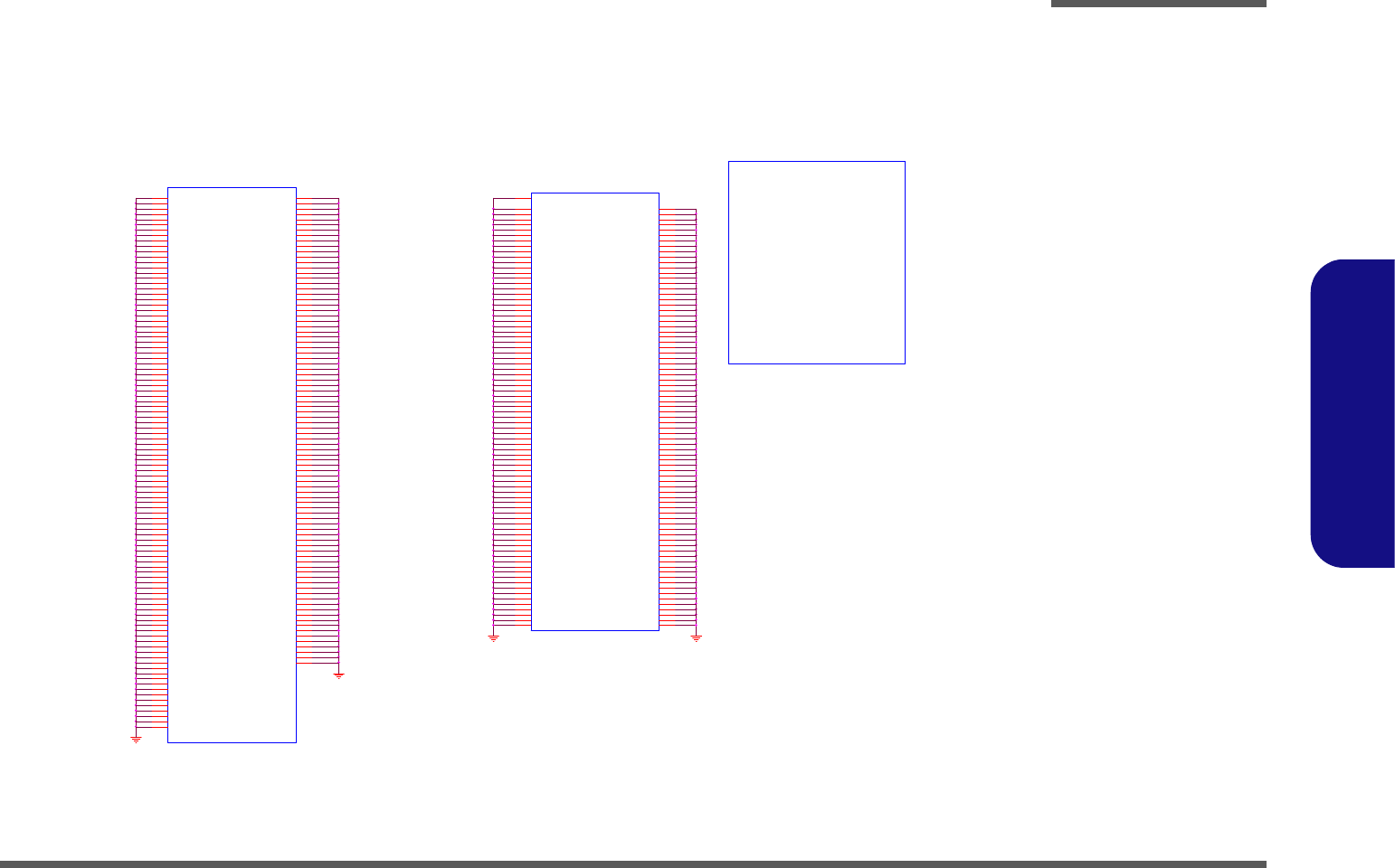

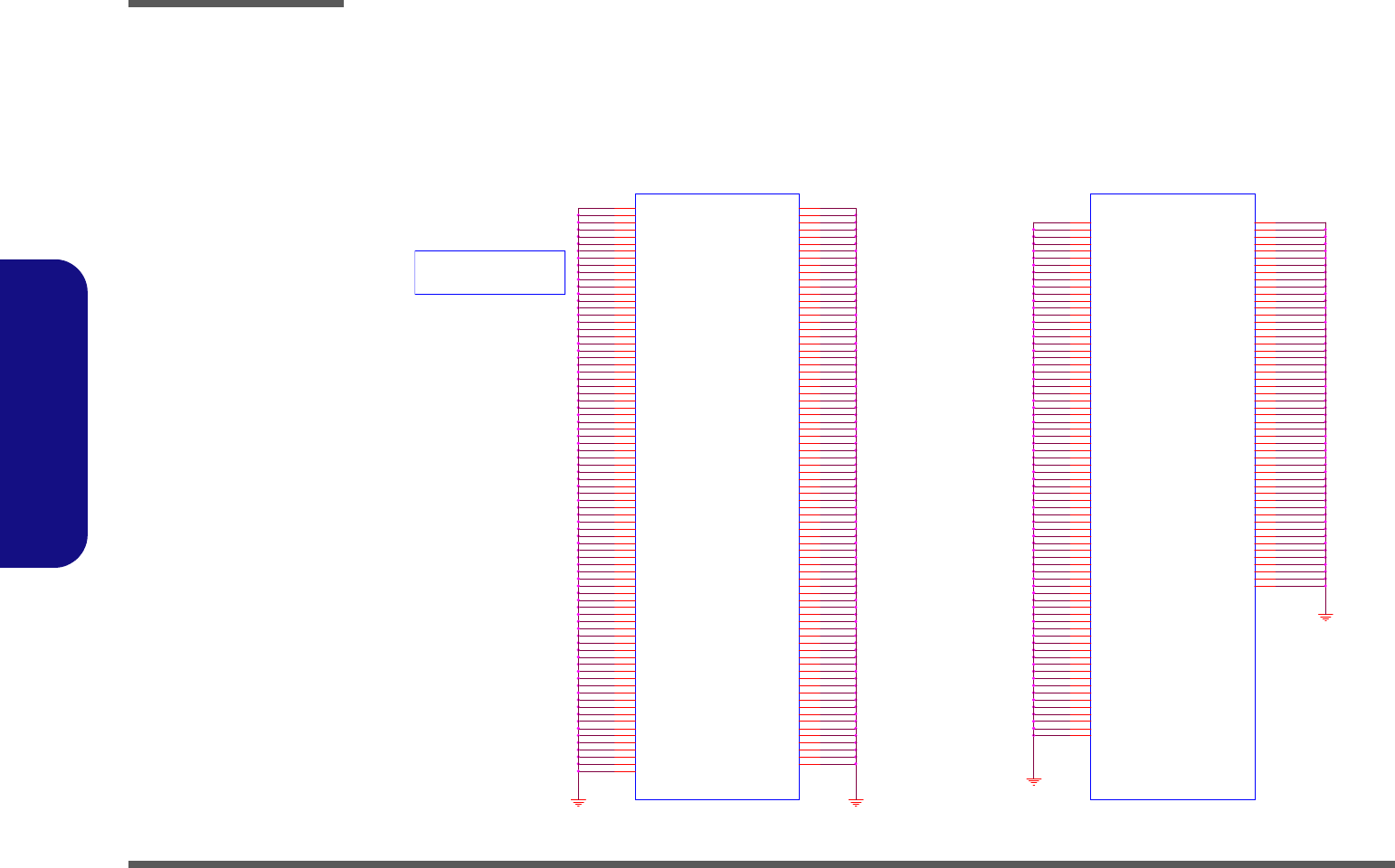

B - 8 Processor 6/7- GND

B.Schematic Diagrams

Processor 6/7- GND

VSS

U36I

Iv y Bridge_rPGA_2DPC_Rev 0p61

VSS161

T35

VSS162

T34

VSS163

T33

VSS164

T32

VSS165

T31

VSS166

T30

VSS167

T29

VSS168

T28

VSS169

T27

VSS170

T26

VSS171

P9

VSS172

P8

VSS173

P6

VSS174

P5

VSS175

P3

VSS176

P2

VSS177

N35

VSS178

N34

VSS179

N33

VSS180

N32

VSS181

N31

VSS182

N30

VSS183

N29

VSS184

N28

VSS185

N27

VSS186

N26

VSS187

M34

VSS188

L33

VSS189

L30

VSS190

L27

VSS191

L9

VSS192

L8

VSS193

L6

VSS194

L5

VSS195

L4

VSS196

L3

VSS197

L2

VSS198

L1

VSS199

K35

VSS200

K32

VSS201

K29

VSS202

K26

VSS203

J34

VSS204

J31

VSS205

H33

VSS206

H30

VSS207

H27

VSS208

H24

VSS209

H21

VSS210

H18

VSS211

H15

VSS212

H13

VSS213

H10

VSS214

H9

VSS215

H8

VSS216

H7

VSS217

H6

VSS218

H5

VSS219

H4

VSS220

H3

VSS221

H2

VSS222

H1

VSS223

G35

VSS224

G32

VSS225

G29

VSS226

G26

VSS227

G23

VSS228

G20

VSS229

G17

VSS230

G11

VSS231

F34

VSS232

F31

VSS233

F29

VSS234 F22

VSS235 F19

VSS236 E30

VSS237 E27

VSS238 E24

VSS239 E21

VSS240 E18

VSS241 E15

VSS242 E13

VSS243 E10

VSS244 E9

VSS245 E8

VSS246 E7

VSS247 E6

VSS248 E5

VSS249 E4

VSS250 E3

VSS251 E2

VSS252 E1

VSS253 D35

VSS254 D32

VSS255 D29

VSS256 D26

VSS257 D20

VSS258 D17

VSS259 C34

VSS260 C31

VSS261 C28

VSS262 C27

VSS263 C25

VSS264 C23

VSS265 C10

VSS266 C1

VSS267 B22

VSS268 B19

VSS269 B17

VSS270 B15

VSS271 B13

VSS272 B11

VSS273 B9

VSS274 B8

VSS275 B7

VSS276 B5

VSS277 B3

VSS278 B2

VSS279 A35

VSS280 A32

VSS281 A29

VSS282 A26

VSS283 A23

VSS284 A20

VSS285 A3

VSS

U36H

Iv y Bridge_rPGA_2DPC_Rev 0p61

VSS1

AT35

VSS2

AT32

VSS3

AT29

VSS4

AT27

VSS5

AT25

VSS6

AT22

VSS7

AT19

VSS8

AT16

VSS9

AT13

VSS10

AT10

VSS11

AT7

VSS12

AT4

VSS13

AT3

VSS14

AR25

VSS15

AR22

VSS16

AR19

VSS17

AR16

VSS18

AR13

VSS19

AR10

VSS20

AR7

VSS21

AR4

VSS22

AR2

VSS23

AP34

VSS24

AP31

VSS25

AP28

VSS26

AP25

VSS27

AP22

VSS28

AP19

VSS29

AP16

VSS30

AP13

VSS31

AP10

VSS32

AP7

VSS33

AP4

VSS34

AP1

VSS35

AN30

VSS36

AN27

VSS37

AN25

VSS38

AN22

VSS39

AN19

VSS40

AN16

VSS41

AN13

VSS42

AN10

VSS43

AN7

VSS44

AN4

VSS45

AM29

VSS46

AM25

VSS47

AM22

VSS48

AM19

VSS49

AM16

VSS50

AM13

VSS51

AM10

VSS52

AM7

VSS53

AM4

VSS54

AM3

VSS55

AM2

VSS56

AM1

VSS57

AL34

VSS58

AL31

VSS59

AL28

VSS60

AL25

VSS61

AL22

VSS62

AL19

VSS63

AL16

VSS64

AL13

VSS65

AL10

VSS66

AL7

VSS67

AL4

VSS68

AL2

VSS69

AK33

VSS70

AK30

VSS71

AK27

VSS72

AK25

VSS73

AK22

VSS74

AK19

VSS75

AK16

VSS76

AK13

VSS77

AK10

VSS78

AK7

VSS79

AK4

VSS80

AJ25

VSS81 AJ22

VSS82 AJ19

VSS83 AJ16

VSS84 AJ13

VSS85 AJ10

VSS86 AJ7

VSS87 AJ4

VSS88 AJ3

VSS89 AJ2

VSS90 AJ1

VSS91 AH35

VSS92 AH34

VSS93 AH32

VSS94 AH30

VSS95 AH29

VSS96 AH28

VSS98 AH25

VSS99 AH22

VSS100 AH19

VSS101 AH16

VSS102 AH7

VSS103 AH4

VSS104 AG9

VSS105 AG8

VSS106 AG4

VSS107 AF6

VSS108 AF5

VSS109 AF3

VSS110 AF2

VSS111 AE35

VSS112 AE34

VSS113 AE33

VSS114 AE32

VSS115 AE31

VSS116 AE30

VSS117 AE29

VSS118 AE28

VSS119 AE27

VSS120 AE26

VSS121 AE9

VSS122 AD7

VSS123 AC9

VSS124 AC8

VSS125 AC6

VSS126 AC5

VSS127 AC3

VSS128 AC2

VSS129 AB35

VSS130 AB34

VSS131 AB33

VSS132 AB32

VSS133 AB31

VSS134 AB30

VSS135 AB29

VSS136 AB28

VSS137 AB27

VSS138 AB26

VSS139 Y9

VSS140 Y8

VSS141 Y6

VSS142 Y5

VSS143 Y3

VSS144 Y2

VSS145 W35

VSS146 W34

VSS147 W33

VSS148 W32

VSS149 W31

VSS150 W30

VSS151 W29

VSS152 W28

VSS153 W27

VSS154 W26

VSS155 U9

VSS156 U8

VSS157 U6

VSS158 U5

VSS159 U3

VSS160 U2

Ivy Bridge Processor 6/7 ( GND )

CAD Note: 0 ohm resistor

should be placed close

to CPU

Sheet 7 of 50

Processor 6/7- GND

Schematic Diagrams

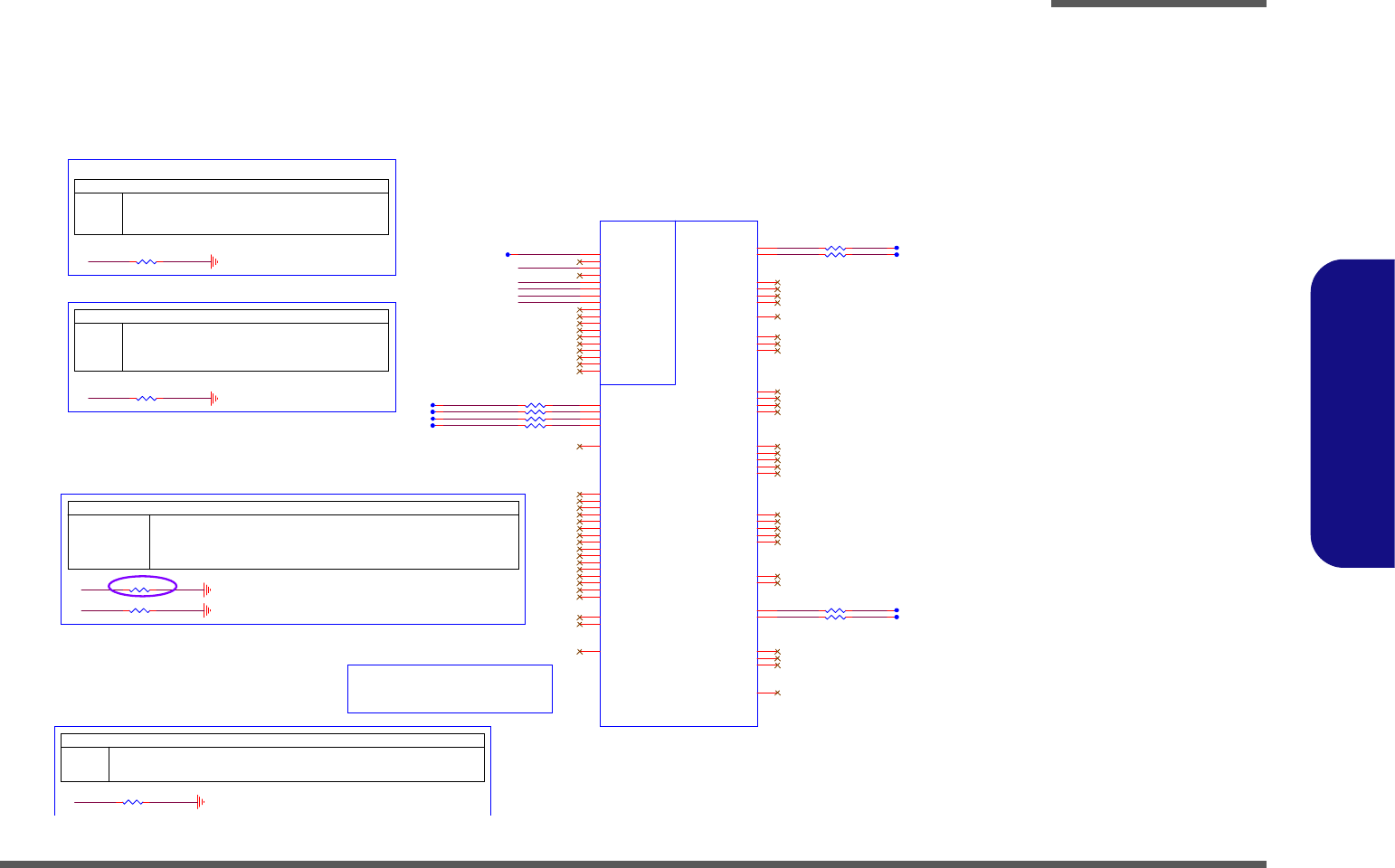

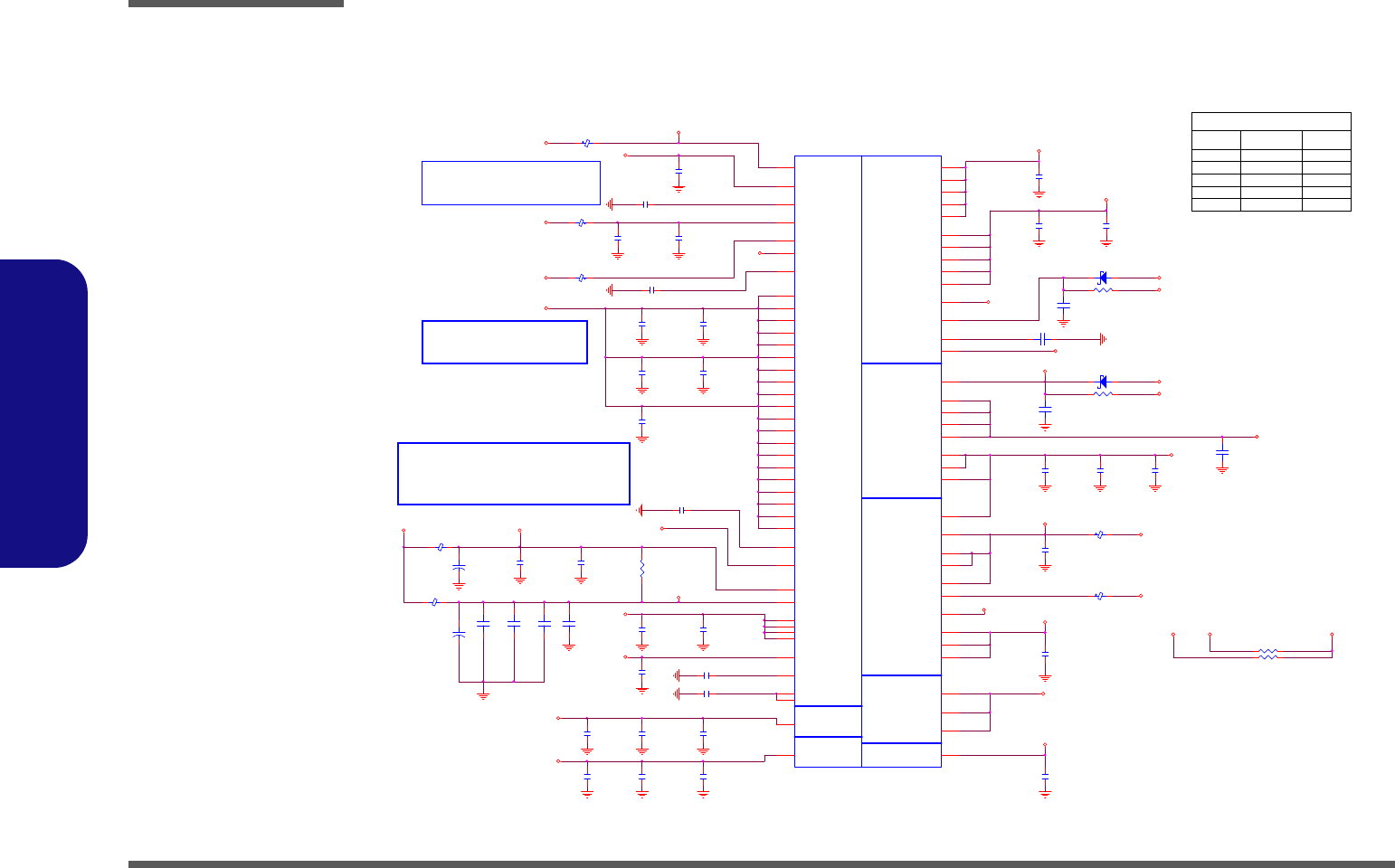

Processor 7/7- RSVD B - 9

B.Schematic Diagrams

Processor 7/7- RSVD

H_CPU_RSVD4

H_CPU_RSVD3

H_CPU_RSVD2

H_CPU_RSVD1

CFG2

R104 0_04

On CRB

H_SNB_IVB#_PWRCTRL = low, 1.0V

H_SNB_IVB#_PWRCTRL = high/NC, 1.05V

1: (Default) PEG Train immediately following xxRESETB de assertion

0: PEG Wait for BIOS for training

CFG7

R114 1K_04

PEG DEFER TRAINING

R108 0_04

R133 0_04

R497 *1K_04

R97 0_04

R105 *1K_04

R124 *1K_04

R99 0_04

RESERVED

CFG

U36E

Iv y Bridge_rPGA_2DPC_Rev 0p61

CFG[0]

AK28

CFG[1]

AK29

CFG[2]

AL26

CFG[3]

AL27

CFG[4]

AK26

CFG[5]

AL29

CFG[6]

AL30

CFG[7]

AM31

CFG[8]

AM32

CFG[9]

AM30

CFG[10]

AM28

CFG[11]

AM26

CFG[12]

AN28

CFG[13]

AN31

CFG[14]

AN26

CFG[15]

AM27

CFG[16]

AK31

CFG[17]

AN29

RSVD34 AM33

RSVD35 AJ27

RSVD38 J16

RSVD_NCTF42 AT34

RSVD39 H16

RSVD40 G16

RSVD_NCTF41 AR35

RSVD_NCTF43 AT33

RSVD_NCTF45 AR34

RSVD_NCTF56 AT2

RSVD_NCTF57 AT1

RSVD_NCTF58 AR1

RSVD_NCTF46 B34

RSVD_NCTF47 A33

RSVD_NCTF48 A34

RSVD_NCTF49 B35

RSVD_NCTF50 C35

RSVD51 AJ32

RSVD52 AK32

RSVD27

J15

RSVD16

C30 RSVD15

D23

RSVD17

A31

RSVD18

B30

RSVD20

D30 RSVD19

B29

RSVD22

A30 RSVD21

B31

RSVD23

C29

RSVD37 T8

RSVD8

F25

RSVD9

F24

RSVD11

D24

RSVD12

G25

RSVD13

G24

RSVD14

E23

RSVD32 W8

RSVD33 AT26

RSVD_NCTF44 AP35

RSVD10

F23

RSVD5

AJ26

VAXG_VAL_SENSE

AJ31

VSSAXG_VAL_SENSE

AH31

VCC_VAL_SENSE

AJ33

VSS_VAL_SENSE

AH33

KEY B1

VCC_DIE_SENSE AH27

BCLK_I TP AN35

BCLK_ITP# AM35

VSS_DIE_SENSE AH26

RSVD31 AK2

RSVD30 AE7

RSVD29 AG7

RSVD28 L7

RSVD24

J20

RSVD25

B18

R113 *1K_04

R98 0_04

R132 0_04

R492 0_04

CFG2

Ivy Bridge Processor 7/7 ( RESERVED )

CFG6

CFG5

CFG4

1:(Default) Normal Operation; Lane #

definition matches socket pin map definition

0:Lane Reversed

CFG2

CFG[6:5]

PEG Static Lane Reversal - CFG2 is for the 16x

PCIE Port Bifurcation Straps

11: (Default) x16 - Device 1 functions 1 and 2 disabled

10: x8, x8 - Device 1 function 1 enabled ; function 2 disabled

01: Reserved - (Device 1 function 1 disabled ; function 2 enabled)

00: x8,x4,x4 - Device 1 functions 1 and 2 enabled

CFG7

CFG4

CFG Straps for Processor

CFG7

CFG4

CFG5

Display Port Presence Strap

1:(Default) Disabled; No Physical Display Port

attached to Embedded Display Port

0:Enabled; An external Display Port device is

connected to the Embedded Display Port

CFG0

CFG6

C100809

Sheet 8 of 50

Processor 7/7-

RSVD

Schematic Diagrams

B - 10 DDR3 SO-DIMM_0

B.Schematic Diagrams

DDR3 SO-DIMM_0

SO-DIMM A

M_A_DQ3

M_A_DQ2

M_A_DQ1

°ª«×5.2H REV

M_A_DQ32

M_A_DQ31

M_A_DQ30

M_A_DQ29

M_A_DQ4

M_A_DQ39

M_A_DQ37

M_A_DQ36

M_A_DQ35

M_A_DQ34

M_A_DQ33

M_A_DQ44

M_A_DQ43

M_A_DQ42

M_A_DQ41

M_A_DQ40

M_A_DQ49

M_A_DQ38

M_A_DQ47

M_A_DQ46

M_A_DQ45

M_A_DQ54

M_A_DQ53

M_A_DQ52

M_A_DQ51

M_A_DQ28

M_A_DQ50

M_A_DQ56

M_A_DQ6

M_A_DQ5

M_A_DQ48

M_A_DQ55

M_A_DQ62

M_A_DQ61

M_A_DQ60

M_A_DQ58

M_A_DQ57

M_A_DQ11

M_A_DQ9

M_A_DQ8

M_A_DQ7

M_A_DQ59

M_A_DQ63

M_A_DQ16

M_A_DQ15

M_A_DQ14

M_A_DQ13

M_A_DQ12

M_A_DQ21

M_A_DQ10

M_A_DQ19

M_A_DQ18

M_A_DQ17

TS#_DIMM0_110

M_A_DQ26

M_A_DQ25

M_A_DQ24

M_A_DQ23

M_A_DQ0

M_A_DQ22

M_A_DQ20

M_A_DQ27

R257 1K_1%_04

CLOSE TO SO-DIMM_0

R258

1K_1%_04

1.5V MV R EF _ DI M0

C383

0.1u_10V_X5R_04

+

C693

*560u_2.5V_6.6*6.6*5.9

+

C694

560u_2.5V_6.6*6. 6* 5.9

MVREF_DQA

20mils

signal/space/signal:

Layout Note:

8 / 4 / 8

R280

1K_1%_04

R273 1K_1%_04

C406

0.1u_10V_X5R_04

3/8 cost down

3/8 cost down

3.3VS

M_A_CLK_DDR14

M_A_ODT14

M_A_R A S#4

M_A_BS14

M_A _W E #4

M_A_C A S#4

M_A_CLK_DDR#14

M_A_ODT04

M_A_BS04

M_A_BS24

M_A_CKE04

M_A_CLK_DDR04M_A_CLK_DDR#04

M_A_CS#14

M_A_CKE14

M_A_A[ 1 5:0 ]4

M_A_CS#04

1.5 V

+

C698

560u_2. 5V_6.6*6. 6* 5.9

CLOSE TO SO-DIMM_0

JD I MM2 B

LINKTEK DDRRK-20401-TP5B

VD D 1

75

VD D 2

76

VD D 3

81

VD D 4

82

VD D 5

87

VD D 6

88

VD D 7

93

VD D 8

94

VD D 9

99

VD D 10

100

VD D 11

105

VD D 12

106

VD D SPD

199

NC1

77

NC2

122

NCTEST

125

VR EF _D Q

1

VSS1

2

VSS2

3

VSS3

8

VSS4

9

VSS5

13

VSS6

14

VSS7

19

VSS8

20

VSS9

25

VSS10

26

VSS11

31

VSS12

32

VSS13

37

VSS14

38

VSS15

43

VSS16 44

VSS17 48

VSS18 49

VSS19 54

VSS20 55

VSS21 60

VSS22 61

VSS23 65

VSS24 66

VSS25 71

VSS26 72

VSS27 127

VSS28 128

VSS29 133

VSS30 134

VSS31 138

VSS32 139

VSS33 144

VSS34 145

VSS35 150

VSS36 151

VSS37 155

VSS38 156

VSS39 161

VSS40 162

VSS41 167

VSS42 168

VSS43 172

VSS44 173

VSS45 178

VSS46 179

VSS47 184

VSS48 185

VSS49 189

VSS50 190

VSS51 195

VSS52 196

G2 GND2

G1 GND1

VTT2 204

VTT1 203

VR EF _C A

126

RESET#

30 EVENT#

198

VD D 13

111

VD D 14

112

VD D 16

118 VD D15

117

VD D 17

123

VD D 18

124

1.5V MV R EF _ DQ A

C398

0.1u_16V_Y5V_04

C344

0.1u_16V_Y5V_04

C371

1u_6. 3V_X5R_04

C404 1u_6.3V_X5R _04

C346

0.1 u_16V_Y 5V_04

C368

1u_6.3V_X5R _04

C405 0.1u_16V_Y5V_04

C329

1u_6.3V_X5R_04

C348

10u_6. 3V_X5R_08

C370

0.1 u_16V_Y 5V _04

C369

0.1u_16V_Y5V_04

C339

1u_6.3V_X5R _04

C399 *10p_50V_NPO_04

C400

1u_6.3V_X5R_04

C367

0. 1u_16V_Y 5V_04

C397 *10p_50V_NPO_04

MVREF_DQA

C340

0. 1u_16V_Y 5V_04

C366

1u_6.3V_X5R_04

JDIMM2A

LIN KTEK DDRRK-20401-TP5B

A0

98

A1

97

A2

96

A3

95

A4

92

A5

91

A6

90

A7

86

A8

89

A9

85

A10/AP

107

A11

84

A12/BC#

83

A13

119

A14

80

A15

78

DQ0 5

DQ1 7

DQ2 15

DQ3 17

DQ4 4

DQ5 6

DQ6 16

DQ7 18

DQ8 21

DQ9 23

DQ10 33

DQ11 35

DQ12 22

DQ13 24

DQ14 34

DQ15 36

DQ16 39

DQ17 41

DQ18 51

DQ19 53

DQ20 40

DQ21 42

DQ22 50

DQ23 52

DQ24 57

DQ25 59

DQ26 67

DQ27 69

DQ28 56

DQ29 58

DQ30 68

DQ31 70

DQ32 129

DQ33 131

DQ34 141

DQ35 143

DQ36 130

DQ37 132

DQ38 140

DQ39 142

DQ40 147

DQ41 149

DQ42 157

DQ43 159

DQ44 146

DQ45 148

DQ46 158

DQ47 160

DQ48 163

DQ49 165

DQ50 175

DQ51 177

DQ52 164

DQ53 166

DQ54 174

DQ55 176

DQ56 181

DQ57 183

DQ58 191

DQ59 193

DQ60 180

DQ61 182

DQ62 192

DQ63 194

BA0

109

BA1

108

RAS#

110

WE#

113

CAS#

115

S0#

114

S1#

121

CKE0

73

CKE1

74

CK0

101

CK0#

103

CK1

102

CK1#

104

SDA

200 SCL

202 SA1

201 SA0

197

DM0

11

DM1

28

DM2

46

DM3

63

DM4

136

DM5

153

DM6

170

DM7

187

DQS0

12

DQS1

29

DQS2

47

DQS3

64

DQS4

137

DQS5

154

DQS6

171

DQS7

188

DQS0#

10

DQS1#

27

DQS2#

45

DQS3#

62

DQS4#

135

DQS5#

152

DQS6#

169

DQS7#

186

ODT0

116

ODT1

120

BA2

79

C356

1u_6.3V_X5R_04

C372

1u_6.3V_X5R_04

RN4

10K_8P4R_04

1

2

3

4 5

6

7

8

C341

0.1u_16V_Y 5V_04

C343

0.1u_16V_Y5V_04

C357

1u_6.3V_X5R_04

C384 0.1u_16V_Y5V_04

C347

0. 1u_16V_Y 5V_04

R252 10K_04

C330

1u_6. 3V_X5R_04

C382 1u_6.3V_X5R _04

C342

0.1u_16V_Y5V_04

SA0_DIM0

SA1_DIM0

M_A_CLK_DDR1 M_ A_C L K_D D R #1

M_A_CLK_DDR0 M_ A_C L K_D D R #0

SMB_DATA10,19

M_A _D Q[ 6 3 :0] 4

SMB_CLK10,19

M_A_D Q S#[ 7 :0 ]4

M_A_DQS[7:0]4

C334

10u_6.3V_X5R_08

DDR3_DRAMRST#3,10

C359

10u_6.3V_X5R_08

C338

10u_6.3V_X5R_06

M_A_A6

M_A_A5

M_A_A7

M_A_A8

M_A_A9

M_A_A0

M_A_A1

M_A_A2

M_A_A3

M_A_A4

M_A_A12

M_A_A11

M_A_A13

M_A_A14

M_A_A15

M_A_A10

M_ A_D QS0

M_ A_D QS1

6-86-24204-005

M_ A_D QS2

M_ A_D QS3

M_ A_D QS4

M_ A_D QS5

M_ A_D QS6

SA1_DIM1 10

SA0_DIM1 10

SA0_DIM0

SA1_DIM0

M_ A_D QS7

M_ A_D QS#0

M_ A_D QS#1

M_ A_D QS#2

M_ A_D QS#3

MVR E F _D Q_ DI M MA 6

M_ A_D QS#4

MVREF_DIM0

M_ A_D QS#5

M_ A_D QS#6

M_ A_D QS#7

R274 *0_04

3.3VS

3.3VS

1.5 V

1.5V

VTT_MEM

VTT_MEM

1.5V

Sheet 9 of 50

DDR3 SO-DIMM_0

3.3VS

1.5V

VTT_MEM

1.5V

1. 5V

VTT_MEM

MVREF_D IM1

M_B _D Q[ 6 3: 0] 4

°ª«×9.2H REV

SA0_DIM19

TS#_DIMM0_19

SA1_DIM19

SO-DIMM B

Layout Note:

M_B_D Q31

M_B_D Q46

M_B_D Q13

M_B_D Q24

M_B_D Q56

M_B_D Q28

M_B_D Q11

M_B_D Q23

M_B_D Q61

M_B_D Q62

M_B_D Q58

M_B_D Q50

M_B_D Q1

M_B_D Q16

M_B_D Q60

M_B_D Q2

M_B_D Q40

M_B_D Q54

M_B_D Q41

M_B_D Q57

M_B_D Q37

M_B_D Q25

M_B_D Q30

M_B_D Q27

M_B_D Q44

M_B_D Q3

M_B_D Q7

M_B_D Q9

M_B_D Q34

M_B_D Q5

M_B_D Q47

M_B_D Q43

M_B_D Q38

M_B_D Q17

M_B_D Q42

M_B_D Q8

M_B_D Q59

M_B_D Q35

M_B_D Q36

8 / 4 / 8

M_B_D Q4

M_B_D Q26

M_B_D Q63

M_B_D Q33

M_B_D Q45

M_B_D Q48

M_B_D Q55

M_B_D Q29

M_B_D Q15

M_B_D Q10

M_B_D Q52

M_B_D Q53

M_B_D Q6

M_B_D Q19

M_B_D Q18

M_B_D Q0

M_B_D Q12

M_B_D Q20

M_B_D Q39

M_B_D Q49

M_B_D Q51

M_B_D Q21

M_B_D Q32

M_B_D Q14

M_B_D Q22

SO-DIMM_1 is placed farther from the GMCH than SO-DIMM_0

MVREF_D QB

M_B_A4

M_B_A6

M_B_A5

M_B_A13

M_B_A12

M_B_A0

M_B_A1

M_B_A2

M_B_A3

M_B_A7

M_B_A8

M_B_A9

M_B_A10

M_B_A11

M_B_A14

20mils

Layout Note:

SA1_DIM1

signal/space/signal:

MVREF_DIM1

CLOSE TO SO-DIMM1

R244

1K_1%_04

R234 1K_1%_04

C337

0.1u_10V_X5R_04

1.5V

M_B_A15

M_B_DQS0

M_B_DQS6

M_B_DQS5

M_B_DQS4

M_B_DQS3

M_B_DQS2

M_B_DQS1

M_B_DQS#3

M_B_DQS#2

M_B_DQS#1

M_B_DQS#0

M_B_DQS7

M_B_DQS#7

M_B_DQS#6

M_B_DQS#5

M_B_DQS#4

M_B_CLK_DDR2 M_B_CLK_DDR#2

M_B_CLK_DDR3 M_B_CLK_DDR#3

C336 0.1u_16V_Y5V_04

C379 0.1u_16V_Y5V_04

C364

0.1u_16V_Y5V_04

C353 *10p_50V_NPO_04

C363

0.1u_16V_Y5V_04

C388

1u_6.3V_X5R_04

C365

0.1u_16V_Y5V_04

C345

0.1u_16V_Y5V_04

M_B_BS14

M_B_C LK_DD R34

M_B_A[15:0]4

M_B_CAS#4

M_B_C LK_DD R#34

M_B_RAS#4

M_B_C LK_DD R24

M_B_BS04

M_B _W E#4

M_B _C S# 34

M_ B_ C KE 34

M_B_BS24

M_ B_ C KE 24

M_B_ODT34

M_B _C S# 24

M_B_C LK_DD R#24

JDIMM1B

DDRRK-20401-TP9D

VDD 1

75

VDD 2

76

VDD 3

81

VDD 4

82

VDD 5

87

VDD 6

88

VDD 7

93

VDD 8

94

VDD 9

99

VDD 10

100

VDD 11

105

VDD 12

106

VDD SPD

199

NC1

77

NC2

122

NCTEST

125

VREF_DQ

1

VSS1

2

VSS2

3

VSS3

8

VSS4

9

VSS5

13

VSS6

14

VSS7

19

VSS8

20

VSS9

25

VSS10

26

VSS11

31

VSS12

32

VSS13

37

VSS14

38

VSS15

43

VSS16 44

VSS17 48

VSS18 49

VSS19 54

VSS20 55

VSS21 60

VSS22 61

VSS23 65

VSS24 66

VSS25 71

VSS26 72

VSS27 127

VSS28 128

VSS29 133

VSS30 134

VSS31 138

VSS32 139

VSS33 144

VSS34 145

VSS35 150

VSS36 151

VSS37 155

VSS38 156

VSS39 161

VSS40 162

VSS41 167

VSS42 168

VSS43 172

VSS44 173

VSS45 178

VSS46 179

VSS47 184

VSS48 185

VSS49 189

VSS50 190

VSS51 195

VSS52 196

G2 GND2

G1 GND1

VTT2 20 4

VTT1 20 3

VREF_CA

126

RESET#

30 EVENT#

198

VDD 13

111

VDD 14

112

VDD 16

118 VDD 15

117

VDD 17

123

VDD 18

124

M_B_ODT24

JDIMM1A

DDRRK-20401-TP9D

A0

98

A1

97

A2

96

A3

95

A4

92

A5

91

A6

90

A7

86

A8

89

A9

85

A10/AP

107

A11

84

A12/BC#

83

A13

119

A14

80

A15

78

DQ0 5

DQ1 7

DQ2 15

DQ3 17

DQ4 4

DQ5 6

DQ6 16

DQ7 18

DQ8 21

DQ9 23

DQ10 33

DQ11 35

DQ12 22

DQ13 24

DQ14 34

DQ15 36

DQ16 39

DQ17 41

DQ18 51

DQ19 53

DQ20 40

DQ21 42

DQ22 50

DQ23 52

DQ24 57

DQ25 59

DQ26 67

DQ27 69

DQ28 56

DQ29 58

DQ30 68

DQ31 70

DQ32 129

DQ33 131

DQ34 141

DQ35 143

DQ36 130

DQ37 132

DQ38 140

DQ39 142

DQ40 147

DQ41 149

DQ42 157

DQ43 159

DQ44 146

DQ45 148

DQ46 158

DQ47 160

DQ48 163

DQ49 165

DQ50 175

DQ51 177

DQ52 164

DQ53 166

DQ54 174

DQ55 176

DQ56 181

DQ57 183

DQ58 191

DQ59 193

DQ60 180

DQ61 182

DQ62 192

DQ63 194

BA0

109

BA1

108

RAS#

110

WE#

113

CAS#

115

S0#

114

S1#

121

CKE0

73

CKE1

74

CK0

101

CK0#

103

CK1

102

CK1#

104

SDA

200 SCL

202 SA1

201 SA0

197

DM0

11

DM1

28

DM2

46

DM3

63

DM4

136

DM5

153

DM6

170

DM7

187

DQS0

12

DQS1

29

DQS2

47

DQS3

64

DQS4

137

DQS5

154

DQS6

171

DQS7

188

DQS0#

10

DQS1#

27

DQS2#

45

DQS3#

62

DQS4#

135

DQS5#

152

DQS6#

169

DQS7#

186

ODT0

116

ODT1

120

BA2

79

C374 1u_6.3V_X5R_04

C362

1u_6.3V_X5R_04

C381

1u_6.3V_X5R_04

C351

1u_6.3V_X5R_04

R245 1K_1%_04

C358

1u_6.3V_X5R_04

C354

0.1u_10V_X5R_04

R253

1K_1%_04

C387

1u_6.3V_X5R_04

R246 *0_04

C335 1u_6.3V_X5R_04

C386

1u_6.3V_X5R_04

C392

1u_6.3V_X5R_04

C389

0.1u_16V_Y 5V_04

C385

0.1u_16V_Y 5V_04

C391

0.1u_16V_Y5V_04

C390

1u_6.3V_X5R_04

C403

0.1u_16V_Y5V_04

C393

0.1u_16V_Y 5V_04

C402

0.1u_16V_Y 5V_04

C352

1u_6.3V_X5R_04

C395

0.1u_16V_Y 5V_04

C360 *10p_50V_NPO_04

SMB_CLK9,19 SMB_DATA9,19

M_B_DQS#[7:0]4

M_B_DQS[7:0]4

DDR3_DRAMRST#3,9

C396

10u_6.3V_X5R_08

C373

10u_6.3V_X5R_08

C394

10u_6.3V_X5R_08

C401

10u_6.3V_X5R_08

CLOSE TO SO-DIMM_1

1.5V MVREF_DQB MVREF_DQ_DIMMB 6

6-86-24204-006

SA0_DIM1

Sheet 10 of 50

DDR3 SO-DIMM_1

Schematic Diagrams

DDR3 SO-DIMM_1 B - 11

B.Schematic Diagrams

DDR3 SO-DIMM_1

Schematic Diagrams

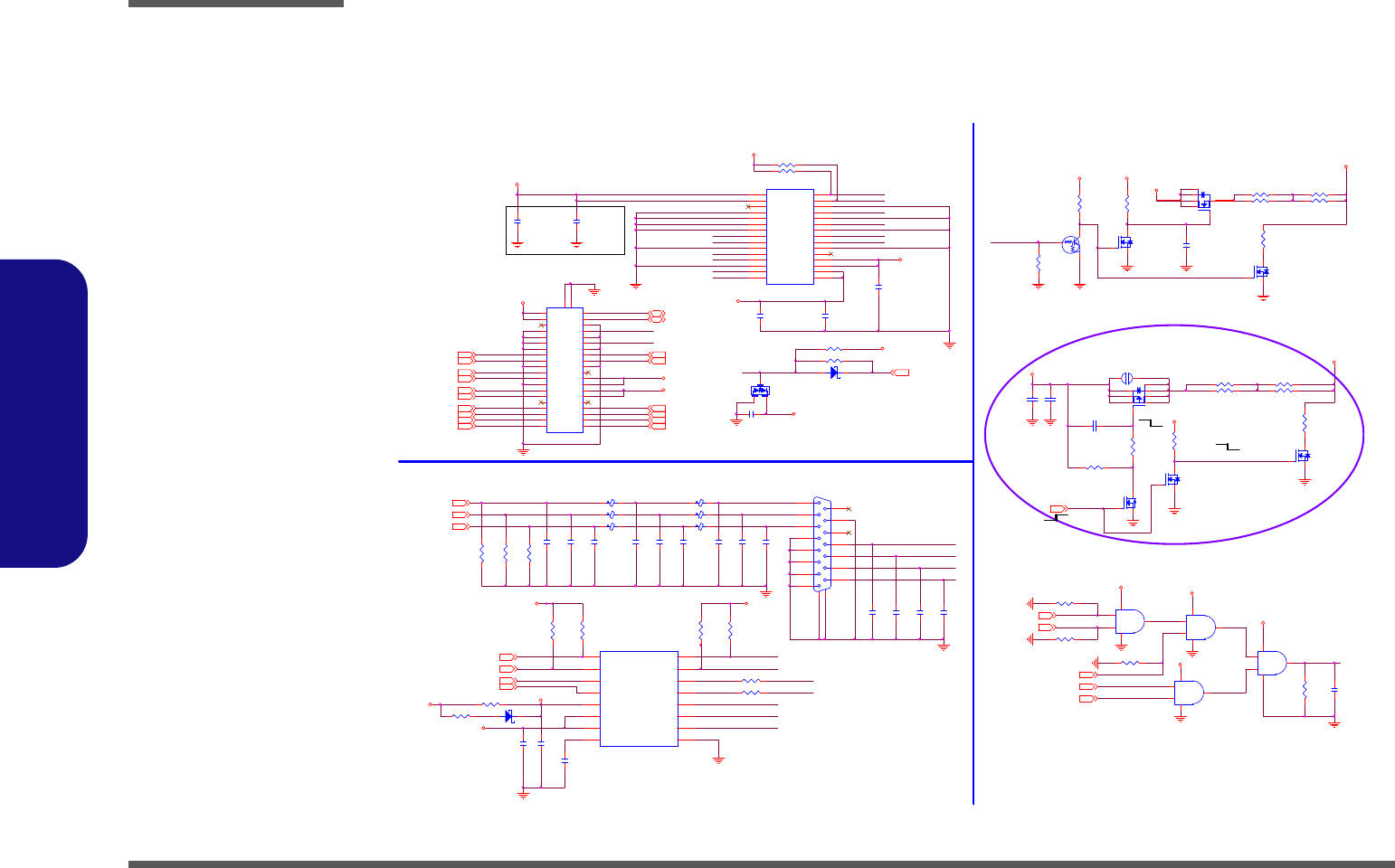

B - 12 PANEL, INVERTER, CRT

B.Schematic Diagrams

PANEL, INVERTER, CRT

Sheet 11 of 50

PANEL, INVERTER,

CRT

S 6-02-07019-B20

D6

*BAV99 RECTIFIER

A

C

AC

R17 *20mil_04 VIN_LCD

BRIGHTNESS_R BR IGHTNESS 34

C15

0.1u_50V_Y5V_06

C11

0.1u_16V_Y5V_04

Q5

MTN2604G6

3

2 4

1

5

6

R16 *10K_04 PLVDD

LVDS-L0P

LVDS-LCLKN

LVDS-L1P

INV_BLON

LVDS-L2N

LVDS-L1N

LVDS-LCLKP

LVDS-L0N

BRIGHTNESS_R

LVDS-L2P

R13 2.2K_04

C16

0.1u_50V_Y5V_06

C14

0.1u_16V_Y5V_04

3.3V

BLON1

J_LCD1

*87216-3006

1

122

3

344

5

566

7

788

9

910 10

11

11 12 12

13

13 14 14

15

15 16 16

17

17 18 18

19

19 20 20

21

21 22 22

23

23 24 24

25

25 26 26

27

27 28 28

29

29 30 30

BLON

C10

4.7u_6. 3V_X5R_06

C19

0.022u_16V_X7R_04

C5

*0. 1u_16V_Y 5V_04

24 mil

BKL_EN

R34

2.2K_04

BLON2

VIN_LCD

LVDS-L2P

P_DDC_CLK

P_DDC_DATA

PLVDD

R27

2.2K_04

BRIGHTNESS_R

INV_BLON

LVDS-L2N

LVDS-LCLKP

LVDS-LCLKN

M 6-02-47721-B60

J_LCD2

87216-4006

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

31

33

35

37

39

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

32

34

36

38

40

Gnd 1 G1

Gnd 2 G2

LVDS-L1N21

5VS

3.3VS

3.3V

3.3V

3.3V

3.3V

5VS_CRT3.3VS

3.3VS

3.3VS

3.3VS

PLVDD

R9

*100K_04

LVDS-L2N 21

LVDS-L2P 21

LVDS-U0P 21

LVDS-U0N 21

3.3VS

VD D3 SY S15V

D7 *RB751S-40C2

A C

INV_BLON

LVDS-UCLKP21

LVDS-UCLKN21

LVDS-U2P 21

LVDS-U2N 21

FRED

FGRN

R440

1M_04

LID_SW#1

S

D

G

Q6A

MTDN7002ZHS6R

2

61

Q4

DTC114EUA

CE

BR23

100_04

NB_ENAVDD#

P_DD C_D ATA 21

P_DD C_C LK 21

R22

1M_04

S

D

G

Q6B

MTDN7002ZHS6R

5

34

BY P

R446

150_1%_04

U31A

74LVC08PW

1

2

3

147

R21 33_04

R442

150_1%_04

R20 33_04

R15 0.2_06R11 0.2_06

R10 0.2_06

NB_ENAVDD

R14 0.2_06

For Sa f e ty LP S.

C9

220p_50V_NPO_04

L28 FCM1005MF-600T01

R38 *1_04

R474 * 100K_04

C13

1000p_50V_X7R_04

C566

6p_50V_NPO_04

LVDS-L1P21

C7

1000p_50V_X7R_04

L30 FCM1005MF-600T01

U31C

74LVC08PW

9

10

8

147

C8

220p_50V_NPO_04

C569

6p_50V_NPO_04

R472 * 100K_04

J_CRT1

108AH15F ST04A1CC

8

7

6

5

4

3

2

1

9

10

11

12

13

14

15

GND2

GND1

C568

6p_50V_NPO_04

C567

6p_50V_NPO_04

R473 100K_04

R12 2.2K_04

C565

6p_50V_NPO_04

L29 FCM1005MF-600T01

U31B

74LVC08PW

4

56

147

U29

TPD7S01 9

VCC _SY NC

1

VCC _VI DEO

2

VIDEO_1 3

VIDEO_2 4

VIDEO_3 5

GND 6

VCC _DDC

7

BYP

8

DDC_OUT1 9

DDC_IN1

10

DDC_IN2

11 DDC_OUT2 12

SYNC_I N1

13 SYN C_OUT1 14

SYNC_I N2

15 SYN C_OUT2 16 C585

*0.1u_16V_Y5V_04

VIN_LCD

C17

6p_50V_NPO_04

C12

6p_50V_NPO_04

C18

6p_50V_NPO_04

C564

0.1u_16V_Y5V_04

U31D

74LVC08PW

12

13 11

147

C575

6p_50V_NPO_04

C23

0.1u_16V_Y5V_04

R467

1M_04

R441

150_1%_04

C26

0.1u_16V_Y5V_04

L2 FCM1005MF-600T01

L4 FCM1005MF-600T01

L3 FCM1005MF-600T01

LVDS-U 1P21 LVDS-U1N21

DDCLK

FBLUE

CRT

HSYNC

HSYNC

VSY NC_C

HSYNC_C

FGRN

FRED

FBLUE

VSYNC

DAC_GREEN

DAC_BLUE

5VS_CRT

DAC_HSYNC21 DAC_VSYNC21

DAC_DDCADATA21

DAC_RED

DAC_BLUE21

DAC_GREEN21

DAC_DDCACLK21

ALL_SY S_PWRGD20,34, 40

BKL_EN34

DAC_RED21

BLON21

LID_SW#28,34

SB_BLON23

LVDS-LCLKP21

LVDS-LCLKN21

D16 RB751S-40C2

A C

For S a f e t y LP S.

R26

2.2K_04

R24 0.2_06R19 0.2_06

R25 0.2_06R18 0.2_06

R461 1_04

ESD+LEVEL SHIFT+BUFFER

LVDS-L0N21

LVDS-L0P21

C3

*0.1u_50V_Y5V_06

C1

*0. 22u_50V_Y 5V_06

Q1

*MTN7002ZHS3

G

DS

Q2

*P2003EVG

4

62

5

73

1

8

3.3V

R8

*10K_04

LVDD_EN#

R1

*1M_04

R2 *100K_04

FOR ¦@¥Îcost down C100726

NB_ENAVDD21,34

VIN

R35

*220_06

S

D

G

Q8B

*MTDN7002ZHS6R

5

3

4

P_DDC_CLK

P_DDC_DATA

S

D

G

Q8A

*MTDN7002Z HS6R

2

6

1

C2

*0.1u_50V_Y5V_06

VSY NC

DDCDATA

DDCLK

DDCDATA

2A

PLVDD

2A

PANEL POWER

PJ33 OPEN_2A

1 2

2A

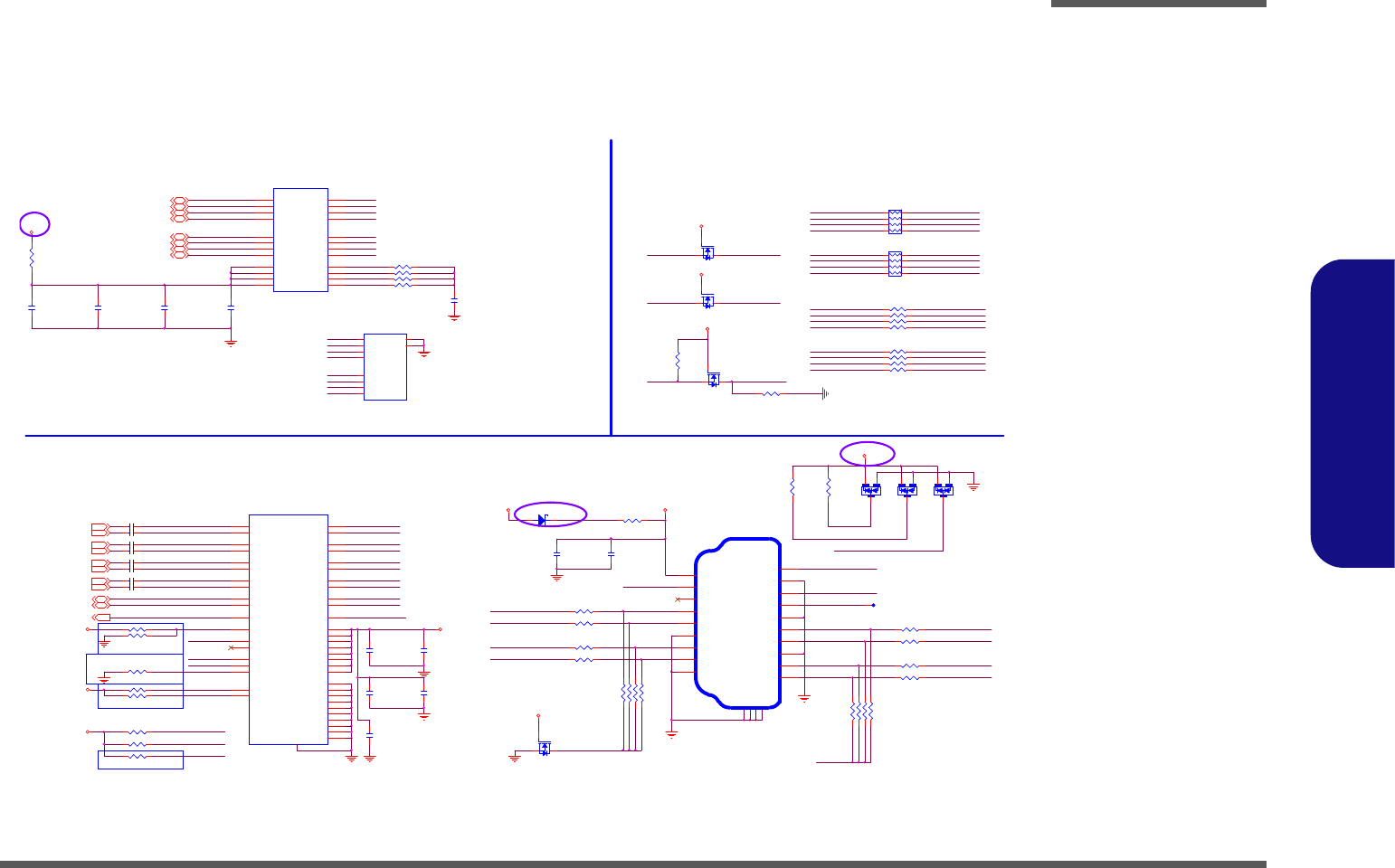

PANEL CONNECTOR (30Pin & 40Pin CO-lay)

¥Î40pin connector®É, -n±N30pin

connector¤¤¶¡©T©wpin pad¿ûªO¶K±¼

CLOSE TO LVDS CONN. PIN

R33

2.2K_04

Sheet 12 of 50

VGA PCI-E

Interface

Schematic Diagrams

VGA PCI-E Interface B - 13

B.Schematic Diagrams

VGA PCI-E Interface

C50

0.1u_10V_X7R_04

C39

4. 7u_6 .3V_X5R _06

C1 00 0.2 2u _10V_ X5R_0 4

.

L5 F C M100 5MF- 300T0 3

R86 200_1%_04

R49

10K_ 04

C49

0. 1u_ 10V_X7R_0 4

R463 34.8K_1%_04

R45 7 *4.9 9K_1 %_04

R4 60 *34. 8K_1 %_04

C100823

SN N_ PEXW AKE

R192

100K_04

R28 15K_1%_04

C6

0. 1u_16 V_Y 5V_ 04

R55

10K_ 04

C143

0. 1u_16 V_Y 5V_ 04

R476 2.49K_1%_04

C100818

R47 * 0_04

C100823

N13P-GL ON

N13M-GE1 OFF

C100818

C100818

.

L6 FC M160 8KF -18 1T05

PEX_VDD

C74

1u_6.3V_X5R_04

C100823

0603 C100824

C100818

C100818

C66 0.2 2u_10V_X5R_04

C68 0.2 2u_10V_X5R_04

C99 0.2 2u_10V_X5R_04

C78 0.2 2u_10V_X5R_04

C89 0.2 2u_10V_X5R_04

C76 0.2 2u_10V_X5R_04

C67 0.2 2u_10V_X5R_04

C98 0.2 2u_10V_X5R_04

C87 0.2 2u_10V_X5R_04

C88 0.2 2u_10V_X5R_04

C86 0.2 2u_10V_X5R_04

C77 0.2 2u_10V_X5R_04

Q9¤W¥ó C1 00718

C40

22u_6 .3V _X5R _08

C42

0.1u_16V_Y5 V_04

C45

0.1u_16V_Y5V_04

C36

0. 1u_16 V_Y 5V_ 04

PLACE NEAR BGA

1/19 PCI_EXPRESS

U32A

N13P-GL

AM27

PEX_RX15

AN27

PEX_RX15

AK25

PEX_TX15

AL25

PEX_TX15

AP27

PEX_RX14

AP26

PEX_RX14

AJ24

PEX_TX14

AK24

PEX_TX14

AM26

PEX_RX13

AN26

PEX_RX13

AG23

PEX_TX13

AH23

PEX_TX13

AM24

PEX_RX12

AN24

PEX_RX12

AJ23

PEX_TX12

AK23

PEX_TX12

AP24

PEX_RX11

AP23

PEX_RX11

AK22

PEX_TX11

AL22

PEX_TX11

AM23

PEX_RX10

AN23

PEX_RX10

AJ21

PEX_TX10

AK21

PEX_TX10

AM21

PEX_RX9

AN21

PEX_RX9

AG20

PEX_TX9

AH20

PEX_TX9

AP21

PEX_RX8

AP20

PEX_RX8

AJ20

PEX_TX8

AK20

PEX_TX8

AM20

PEX_RX7

AN20

PEX_RX7

AK19

PEX_TX7

AL19

PEX_TX7

AM18

PEX_RX6

AN18

PEX_RX6

AJ18

PEX_TX6

AK18

PEX_TX6

AP18

PEX_RX5

AP17

PEX_RX5

AG17

PEX_TX5

AH17

PEX_TX5

AM17

PEX_RX4

AN17

PEX_RX4

AJ17

PEX_TX4

AK17

PEX_TX4

AM15

PEX_RX3

AN15

PEX_RX3

AK16

PEX_TX3

AL16

PEX_TX3

AP15

PEX_RX2

AP14

PEX_RX2

AJ15

PEX_TX2

AK15

PEX_TX2

AM14

PEX_RX1

AN14

PEX_RX1

AG14

PEX_TX1

AH14

PEX_TX1

AM12

PEX_RX0

AN12

PEX_RX0

AJ14

PEX_TX0

AK14

PEX_TX0

AK13

PEX_REFC LK

AL13

PEX_REFC LK

AK12

PEX_CLKREQ

AJ12

PEX_RST

AJ11

PEX_WAKE

AP29

PEX_ TE RM P

AK11

TESTMODE

AG26

PEX_ PLLVD D

AK26

PEX_ TS TC LK_O U T

AJ26

PEX_ TS TC LK_O U T

P8

3V3AUX _NC

L5

GND _SENSE

L4

VDD _S ENS E

AG12

PEX_SVDD_3V3

AH12

PEX_PLL_HVDD

AN28

PEX_IOVDDQ

AM28

PEX_IOVDDQ

AL27

PEX_IOVDDQ

AK27

PEX_IOVDDQ

AJ27

PEX_IOVDDQ

AH27

PEX_IOVDDQ

AH26

PEX_IOVDDQ

AH18

PEX_IOVDDQ

AH15

PEX_IOVDDQ

AG25

PEX_IOVDDQ

AG18

PEX_IOVDDQ

AG16

PEX_IOVDDQ

AG15

PEX_IOVDDQ

AG13

PEX_IOVDDQ

AH25

PEX_IOVD D

AH21

PEX_IOVD D

AG24

PEX_IOVD D

AG22

PEX_IOVD D

AG21

PEX_IOVD D

AG19

PEX_IOVD D

FS X8L_ 25MH z¥Ø «e¦ @¥Î ®Æ

C65

4. 7u_6 .3V _X5R _06

C1 13 0.2 2u _10V_ X5R_0 4

R452

10K_ 04

R43 40.2K_1%_04

R445

10K _04

PEX_VDD

PEX_VDD

3V3_R UN

3V3_RUN

PEX_VDD

3. 3VS

3V3_RUN

3V3_ RU N

3V3_RUN

PEX_VDD

3V3_RUN

3V3_R UN

3V3_RUN

C44

4.7 u_6 .3V_ X5R_ 06

PEG _TX22

VGA_PEXCLK19

PEG _TX12

PEG _TX#02

PEG _R X22

PEG _TX#72

210 mA total

PEG _R X12

PEG _TX#22

PEG _TX32

PEG_CLKREQ#19

PEX_RX6#

PEX_RX2#PEX_RX2#

PEX_RX3#

PEG _R X72

PEX_RX0#

PEX_RX5#

PEX_RX1#

PEX_RX4#

PEG _TX#12

PEG _R X42

PEG _TX#42

PEG _TX#52

PEG _R X#62

16mil

PL T_ R ST#3,22,28

PEG _R X62

PEG _R X#02

PLACE NEAR BALLS

PEG _R X32

PEG _R X#12

PEG _R X#52PEG _R X52

PEG _R X#72

PEG _TX62

PEG _TX42

PEG _R X02

dGP U_R ST#22,34

PEG _R X#32

PEG _R X#22

PEG _TX72

PEG _R X#42

PEG _TX52

VGA_PEXCLK#19

PS1_GND_SENSE 42

PEG _TX#62

PEG _TX#32

PEG _TX02

PS1_VDD_SENSE 42

PER ST B#

PEX_C L KR EQ#

PEX_CLKREQ#

PEX_TE RM P

PEX_P LL VD D

C100823

.

L38 HCB1608KF-121T25

PLACE NEAR BGA

PEG_RX2

PEG_RX#0

PEG_RX#5

PEG_RX3

PEX_RX4PEG_RX4

PEX_RX6

PEG_RX#2

PEX_RX7

PEX_RX3

PEG_RX5

PEG_RX#1

PEX_RX5

PEG_RX0

PEX_RX7#

PEX_RX2

PS1_VDD _SENSE

PS1_GND_SENSE

PEG_RX1 PEX_RX1

PEG_RX#3

VGA_PEXCLK#

VGA_PEXCLK

PEX_RX0

PEG_RX#4

PEG_TX1

PEG_TX#0

PEG_TX0

16mil

PEG_TX#2

PEG_TX2

PEG_TX#1

16mil

PEG_TX3

PLACE N EAR BALLS

PLACE NEAR BALLS

PEG_TX#3

PLACE NEAR BGA

PEG_TX4

PEG_TX6

PEG_TX#5

PEG_TX5

PEG_TX#4

PEG_TX7

PEG_TX#6

PEG_TX#7

GPU_TESTMOD E

C100809

PLACE NEAR BGA

VGA_ STRA P4

VGA_ STRA P3

PEX_TSTCLK_OUT

PEX_TSTCLK_OUT#

12mil

PLACE NE AR BALLS

16mil

2700 mA total

PLACE NEAR BALLS

PLACE NEAR BGA

PLACE N EAR BALLS

GPU

XTA L_ I N

Crystal 8045 & 3225 Co-lay

SNN_ 3V3AUX

XTA L _ OU T

M_STRAP_REF0

VGA_ STRA P1

VGA_ STRA P0

VGA_ STRA P2

6-04-25512-B71

6-04-25512-B70

6-04-25512-B72

6-04-25010-490

BIOS ROM

VGA_ROM_SCLK

VGA_ROM_SI

VGA_ROM_CS#

VGA_ROM_SO

VGA_ STRA P3

VGA_ STRA P4

VID _PLLVDD

X_ O U T B U F F

PERSTB#

C20

18p_50V_NPO_04

C46

0.1u_16V_Y5V_04

C24

18p_50V_N PO_04

ROM_SI samsung 64Mx16 PD 20Kohm

128Mx16 PD 45Kohm

R4 43 *10K_ 1%_04

R4 58 *4. 99K _1% _04

R46 2 *4.9 9K_1 %_04

C1 35 0.2 2u _10V_ X5R_0 4

C83

1u_6. 3 V_X5R_ 04

H5

H8 _0D 4_4

C111

10u_6 .3V _X5R _06

U1

*MX25L5121EMC-20G

1

CS

2

SO

3

WP

4

GND

5

SI

6

SCK

7

HOLD

8

VCC

R4 53 *20K_ 1%_04

X7 HSX840 GA_2 7MH Z

1 2

20K / Low

NC

H6

H8_0D4_4

45.3K / High45.3K / High

45.3K / Low

C52

22u_6.3V_X5R_08

30K / Low30K / Low

C51

0. 1u_10V _X7R_ 04

C85

1u_6. 3 V_X5R_ 04

15K / High15K / Low

C134

1u_6. 3 V_X5R_ 04

10K / High

34.8K / Low34.8K / Low

C131

1u_6.3V_X5R_04

X1

*HSX321S_27MHZ

1 2

34

VGA_ROM_SI

Strap

NC

NC

4.99K / High

VGA_STRAP1

VGA_STRAP0

VGA_ROM_SCLK

VGA_ROM_SO

VGA

R464

10K_ 04

N13M-GE1N13P-GL

VGA_STRAP4

VGA_STRAP3

VGA_STRAP2

C146

10u_6.3 V_X5R_06

NC

R51 10K_04

Q9

MTN7002ZHS3

G

D S

C47

4. 7u_6. 3V _X5R_0 6

C145

1u_6. 3 V_X5R_ 04

C4

4.7u_6.3V_X5R_06

R2 9 *15K_ 1%_04

R4 59 10K_ 1%_0 4

C97

10u_6 .3V _X5R _06

PEG_RX#6

U10

MC74VHC1 G08DFT2G

1

2

5

4

3

PEG_RX#7

PEG_RX6

PEG_RX7

18/19 NC/VDD3 3

U32F

N13P-GL

V32

NC

T8

NC

H31

NC

D26

NC

D23

NC

D20

NC

D19

NC

C15

NC

AL11

NC

AJ5

NC

AJ4

NC

AJ28

NC

AC6

NC

M8

VDD 33

L8

VDD 33

K8

VDD 33

J8

VDD 33

C153

22u_ 6. 3V_X5R_0 8

13/ 19 MI SC2

U32P

N13P-GL

J1

MU LTISTR AP_R EF_GND

J3

STRAP4

J5

STRAP3

J6

STRAP2

J7

STRAP1

J2

STRAP0

L3

CEC

L2

BU FR S T

H4

ROM_SCLK

H7

ROM_SO

H5

ROM_SI

H6

ROM_CS

VGA_ R OM_SI

X_S S I NX_S S I N

VGA_ R OM_SC LK

VGA_ R OM_SO

VGA_ STRA P2

VGA_ STRA P1

VGA_ STRA P0

R4 55 45. 3K_ 1%_0 4

C37

1u_6.3V_X5R_04

C75

10u_6.3 V_X5R_06

R191 *0_04

C570

0.1u_16V_Y 5V_04

C38

0. 1u _16V _Y 5V_ 04

12/19 XTAL_PLL

GF117GF108/GKx

NC

U32O

N13P-GL

H1

XT ALSS IN

AD7

VID _PL LVD D

AE8

SP_ PLLVD D

AD8

PLLVDD

H2

XTALOUT

J4

XTA LOU TB U FF

H3

XT ALIN

C154

22u_6.3 V_X5R_08

DEFAULT N13P-GL

H12

H 8_0D 4_4

R454 *20K_1%_04

R56

10K_ 04

C155

22u_ 6. 3V_X5R_0 8

R30 45. 3K _1% _04

150 mA total

C602

4. 7u_6. 3V _X5R_ 06

C144

1u_6.3V_X5R_04

C43

22u _6. 3V_X5R_08

R3 1 *20K_ 1%_04

R44 4 30K_ 1%_04

C1 12 0.2 2u _10V_ X5R_0 4

C84

4.7u_6.3V_X5R_06

C299

1u_6. 3 V_X5R_ 04

R45 6 *4.9 9K_1 %_04

Schematic Diagrams

B - 14 VGA Frame Buffer Interface

B.Schematic Diagrams

VGA Frame Buffer Interface

FBC_CMD2

FBC_CMD6

FBC_CMD7

FBC_CMD3

FBC_CMD4

FBC_CMD15

FBC_CMD9

FBC_CMD5

FBC_D18

FBC_CMD0

FBC_CMD8

FBC_CMD12

FBC_CMD11

FBC_CMD10

FBC_CMD14

FBC_CMD18

FBC_CMD20

FBC_CMD17

FBC_CMD13

FBC_CMD19

FBC_CMD16

FBC_CMD23

FBC_CMD21

FBC_CMD22

FBC_CMD30

FBC_CMD27

FBC_CMD28

FBC_CMD26

FBC_CMD25

FBA_D16

FBA_D20

FBA_D18

FBC_CMD1

FBC_CMD24

FBC_CMD29

FBC_CMD18

FBA_D15

FBA_D14

FBA_D17

FBA_D19

FBA_D33

FBA_D36

FBC_D10

FBC_D14

FBC_CMD2

PLACE UNDER BGA

FBA_D41

FBA_D28

FBA_D23

FBA_D37

FBA_D32

FBA_D25

FBA_D26

FBA_D27

FBA_D29

FBA_D30

FBA_D31

FBA_D40

FBA_D24

FBA_D38

FBA_D34

FBA_D39

FBA_D22

FBA_D35

FBA_D21

PLACE NEAR BALLS

FBC_D6

FBC_D61

FBC_D57

FBC_D53

PLACE UNDER BGA

FBA_D54

FBA_D60

FBA_D45

FBA_D55

FBA_D63

FBA_D47

FBA_D59

FBA_D49

FBA_D58

FBA_D51

FBA_D57

FBA_D50

FBA_D48

FBA_D43

FBA_D52

FBA_D62

FBA_D61

FBA_D46

FBA_D56

FBA_D53

FBA_D42

FBADQM[7:0]

FBA_D44

FBCDQM7

FBCDQM4

FBCDQM5

FBCDQM0

FBC_D47

FBCDQS_WP3

FBCDQS_WP5

FBCDQM3

FBCDQM2

FBCDQM6

FBCDQM1

FBCDQS_WP7

FBCDQS_WP0

FBCDQS_WP4

FBCDQS_WP6

FBCDQS_WP2

FBCDQS_RN0

FBCDQS_RN1

FBCDQS_RN3

FBCDQS_RN5

FBCDQS_WP1

C100 818

FBCDQS_RN2

FBCDQS_RN4

FBCDQS_RN6

FBCDQS_RN7

FBC_D43

FBA_CMD4

FBA_CMD30

FBA_CMD27

FBA_CMD19

FBA_CMD7

FBA_CMD8

FBA_CMD3

FBA_CMD18

FBA_CMD21

FBA_CMD15

FBA_CMD2

FBC_D39

FBA_CMD28

FBA_CMD13

FBA_CMD9

FBA_CMD26

FBA_CMD16

FBA_CMD12

FBA_CMD11

FBA_CMD14

FBA_CMD20

FBA_CMD24

FBA_CMD0

FBA_CMD25

FBA_CMD17

FBA_CMD5

FBA_CMD10

FBA_CMD29

FBA_CMD6

FBA_CMD[31:0]

FBA_CMD23

FBA_CMD1

FBA_CMD22

FBC_D4

FBADQS_RN[7:0]

FBADQS_WP[7:0]

FBC_D35

FBADQS_WP3

FBADQS_WP1

FBADQS_WP0

FBADQS_WP4

FBADQS_WP6

FBADQS_WP7

FBADQS_RN1

FBC_D31

FBADQS_RN0

FBADQS_WP2

FBADQS_WP5

FBADQS_RN2

FBADQS_RN5

FBADQS_RN4

FBADQS_RN3

FBADQS_RN6

PLACE CLOSE BGA

FBC_D27

FBADQS_RN7

FBA_DPLLAVDD

FBA_RST#

FBC_D19

FBA_CMD5

FBC_D0

FBC_D23

C133

1u_6. 3V_X5R_06

R103 * 60.4_04

R146 10 K_04

FBC_D15

C123

0.1u_10V_X5R_04

FB_CAL_PU_GND

FB_CAL_TERM_GND

FBC_D11

C105

0.1u_1 0V_X5R_04

C108

0.1u_10V_X5R_04

FB_CAL_PD_VDDQ

C142

0.1u_10V_X5R_04

3/19 FB B

U32C

N13P-GL

B23

FBB_D QS_R N 7

A30

FBB_D QS_R N 6

D28

FBB_D QS_R N 5

D22

FBB_D QS_R N 4

A9

FBB_D QS_R N 3

B2

FBB_D QS_R N 2

E4

FBB_D QS_R N 1

D9

FBB_D QS_R N 0

A23

FBB_D QS_WP 7

B30

FBB_D QS_WP 6

E28

FBB_D QS_WP 5

E23

FBB_D QS_WP 4

B9

FBB_D QS_WP 3

C3

FBB_D QS_WP 2

D5

FBB_D QS_WP 1

D10

FBB_D QS_WP 0

A24

FBB_DQM 7

C30

FBB_DQM 6

F27

FBB_DQM 5

F23

FBB_DQM 4

C9

FBB_DQM 3

A3

FBB_DQM 2

E3

FBB_DQM 1

E11

FBB_DQM 0

C26

FBB_D63

B26

FBB_D62

C24

FBB_D61

B24

FBB_D60

C21

FBB_D59

A21

FBB_D58

C23

FBB_D57

B21

FBB_D56

B29

FBB_D55

C29

FBB_D54

A29

FBB_D53

D29

FBB_D52

B32

FBB_D51

C32

FBB_D50

C31

FBB_D49

A32

FBB_D48

D30

FBB_D47

E30

FBB_D46

F29

FBB_D45

E29

FBB_D44

E27

FBB_D43

G26

FBB_D42

D27

FBB_D41

G27

FBB_D40

F21

FBB_D39

G21

FBB_D38

E21

FBB_D37

D21

FBB_D36

G24

FBB_D35

E24

FBB_D34

G23

FBB_D33

F24

FBB_D32

B8

FBB_D31

C8

FBB_D30

A8

FBB_D29

D8

FBB_D28

B11

FBB_D27

D11

FBB_D26

C11

FBB_D25

A11

FBB_D24

C5

FBB_D23

B5

FBB_D22

C4

FBB_D21

B3

FBB_D20

C1

FBB_D19

D3

FBB_D18

D4

FBB_D17

C2

FBB_D16

F3

FBB_D15

E2

FBB_D14

G4

FBB_D13

F4

FBB_D12

F6

FBB_D11

E6

FBB_D10

F5

FBB_D9

G6

FBB_D8

G12

FBB_D7

F12

FBB_D6

G11

FBB_D5

F11

FBB_D4

F9

FBB_D3

G8

FBB_D2

E9

FBB_D1

G9

FBB_D0

H17

FBB_PL L_AVD D

A27

FBB_WC KB67

A26

FBB_WC KB67

E26

FBB_WC KB45

F26

FBB_WC KB45

B6

FBB_WC KB23

C6

FBB_WC KB23

D7

FBB_WC KB01

D6

FBB_WC KB01

C27

FBB_W CK67

B27

FBB_W CK67

D25

FBB_W CK45

D24

FBB_W CK45

A6

FBB_W CK23

A5

FBB_W CK23

E8

FBB_W CK01

F8

FBB_W CK01

F20

FBB_CLK1

E20

FBB_CLK1

E12

FBB_CLK0

D12

FBB_CLK0

G20

FBB_DEBUG1

G14

FBB_DEBUG0

C20

FBB_CMD_RFU1

C12

FBB_CMD_RFU0

E17

FBB_CMD31

B17

FBB_CMD30

A17

FBB_CMD29

D17

FBB_CMD28

A18

FBB_CMD27

D16

FBB_CMD26

F17

FBB_CMD25

G17

FBB_CMD24

G18

FBB_CMD23

B18

FBB_CMD22

C18

FBB_CMD21

B20

FBB_CMD20

A20

FBB_CMD19

F18

FBB_CMD18

E18

FBB_CMD17

D18

FBB_CMD16

C17

FBB_CMD15

B15

FBB_CMD14

A15

FBB_CMD13

D14

FBB_CMD12

A14

FBB_CMD11

D15

FBB_CMD10

E15

FBB_CM D9

F15

FBB_CM D8

G15

FBB_CM D7

B14

FBB_CM D6

C14

FBB_CM D5

B12

FBB_CM D4

A12

FBB_CM D3

F14

FBB_CM D2

E14

FBB_CM D1

D13

FBB_CM D0

R70 40.2_1%_04

R69 51.1_1%_04

R71 40.2_1%_04

FBC_D7

FBC_D58

FBC_D54

FBC_D50

FBB_RST#

FBA_D0

FBA_D2

FBC_CMD5

FBC_D62

FBA_D5

FBA_D6

FBA_D1

FBA_D3

FBA_D4

FBC_CMD3

FBC_CMD19

FBA_CMD31

FBB_CKE_L

FBB_CKE_H

2/19 FBA

U32B

N13P-GL

H26

FB_VREF

AF32

FBA_DQS_RN7

AM34

FBA_DQS_RN6

AK31

FBA_DQS_RN5

AF30

FBA_DQS_RN4

M34

FBA_DQS_RN3

E34

FBA_DQS_RN2

H30

FBA_DQS_RN1

M30

FBA_DQS_RN0

AF33

FBA_DQS_WP7

AN 33

FBA_DQS_WP6

AK30

FBA_DQS_WP5

AE31

FBA_DQS_WP4

M33

FBA_DQS_WP3

E33

FBA_DQS_WP2

G31

FBA_DQS_WP1

M31

FBA_DQS_WP0

AF34

FBA_DQM 7

AM32

FBA_DQM 6

AL29

FBA_DQM 5

AD 31

FBA_DQM 4

M32

FBA_DQM 3

F34

FBA_DQM 2

F31

FBA_DQM 1

P30

FBA_DQM 0

AG3 3

FBA_D63

AG3 2

FBA_D62

AG3 4

FBA_D61

AF31

FBA_D60

AD 33

FBA_D59

AC 30

FBA_D58

AD 32

FBA_D57

AD 34

FBA_D56

AK32

FBA_D55

AK33

FBA_D54

AL31

FBA_D53

AM33

FBA_D52

AP32

FBA_D51

AP30

FBA_D50

AN 32

FBA_D49

AN 31

FBA_D48

AM30

FBA_D47

AN 29

FBA_D46

AM31

FBA_D45

AM29

FBA_D44

AK28

FBA_D43

AJ30

FBA_D42

AK29

FBA_D41

AJ29

FBA_D40

AD 28

FBA_D39

AC 29

FBA_D38

AD 29

FBA_D37

AD 30

FBA_D36

AF28

FBA_D35

AG2 9

FBA_D34

AF29

FBA_D33

AG2 8

FBA_D32

L33

FBA_D31

L32

FBA_D30

L34

FBA_D29

L31

FBA_D28

P33

FBA_D27

P31

FBA_D26

P32

FBA_D25

P34

FBA_D24

H32

FBA_D23

H33

FBA_D22

F32

FBA_D21

F33

FBA_D20

C33

FBA_D19

B33

FBA_D18

D32

FBA_D17

C34

FBA_D16

F30

FBA_D15

E32

FBA_D14

E31

FBA_D13

G29

FBA_D12

H28

FBA_D11

J29

FBA_D10

H29

FBA_D9

J28

FBA_D8

P28

FBA_D7

R29

FBA_D6

P29

FBA_D5

N31

FBA_D4

M28

FBA_D3

L29

FBA_D2

M29

FBA_D1

L28

FBA_D0

U27

FBA_PLL_AVD D

AJ33

FBA_WC KB6 7

AJ32

FBA_WC KB6 7

AJ31

FBA_WC KB4 5

AH31

FBA_WC KB4 5

J33

FBA_WC KB2 3

J32

FBA_WC KB2 3

J31

FBA_WC KB0 1

J30

FBA_WC KB0 1

AK34

FBA_W CK67

AJ34

FBA_W CK67

AG31

FBA_W CK45

AG30

FBA_W CK45

J34

FBA_W CK23

H34

FBA_W CK23

L30

FBA_W CK01

K31

FBA_W CK01

AC31

FBA_CLK1

AB31

FBA_CLK1

R31

FBA_CLK0

R30

FBA_CLK0

AC28

F BA_DE BUG 1

R28

F BA_DE BUG 0

AC32

FBA_CMD_RFU1

R32

FBA_CMD_RFU0

V31

FBA_CM D31

Y33

FBA_CM D30

Y34

FBA_CM D29

Y31

FBA_CM D28

AA34

FBA_CM D27

Y30

FBA_CM D26

W31

FBA_CM D25

Y29

FBA_CM D24

Y28

FBA_CM D23

AA33

FBA_CM D22

AA32

FBA_CM D21

AC33

FBA_CM D20

AC34

FBA_CM D19

AA28

FBA_CM D18

AA29

FBA_CM D17

AA31

FBA_CM D16

Y32

FBA_CM D15

V33

FBA_CM D14

V34

FBA_CM D13

U31

FBA_CM D12

U34

FBA_CM D11

V30

FBA_CM D10

V29

FBA_CM D9

V28

FBA_CM D8

U28

FBA_CM D7

U33

FBA_CM D6

U32

FBA_CM D5

R33

FBA_CM D4

R34

FBA_CM D3

U29

FBA_CM D2

T3 1

FBA_CM D1

U30

FBA_CM D0

K27

FB_DLL_AV DD

E1

FB_CLAMP

FBCDQS_WP[7:0]

FBCDQS_RN[7:0]

FBA_CMD2

C227

10u_6. 3V_X5R_06

R512 10 K_04

FBA_CMD18

C90

*0.1 u_10V _X7R_04

C226

10u_6. 3V_X5R_06

R480 10 K_04

C125

*0.1u_10V_X7R_04

R142 10 K_04

FBC_D48

FBA_CMD3

FBA_CMD19

C279

10u_6. 3V_X5R_06

FBA_CKE_L

FBA_CKE_H

PLACE CLOSE BGA

FBC_D40

FBC_CLK0#

FBC_CLK0

FBC_D44

FBC_CLK1

FBC_CLK1#

15/19 FBVDDQ

U32D

N13P-GL

Y27

FBVDDQ

W33

FBVDDQ

W30

FBVDDQ

W27

FBVDDQ

V27

FBVDDQ

T33

FBVDDQ

T30

FBVDDQ

T27

FBVDDQ

R27

FBVDDQ

P27

FBVDDQ

N27

FBVDDQ

M27

FBVDDQ

L27

FBVDDQ

H9

FBVDDQ

H8

FBVDDQ

H24

FBVDDQ

H23

FBVDDQ

H22

FBVDDQ

H21

FBVDDQ

H20

FBVDDQ

H19

FBVDDQ

H18

FBVDDQ

H16

FBVDDQ

H15

FBVDDQ

H14

FBVDDQ

H13

FBVDDQ

H12

FBVDDQ

H11

FBVDDQ

H10

FBVDDQ

E19

FBVDDQ

E16

FBVDDQ

E13

FBVDDQ

B19

FBVDDQ

B16

FBVDDQ

B13

FBVDDQ

AG27

FBVDDQ

AF27

FBVDDQ

AE27

FBVDDQ

AD27

FBVDDQ

AC27

FBVDDQ

AB33

FBVDDQ

AB27

FBVDDQ

AA30

FBVDDQ

AA27

FBVDDQ

H25

FB_CALTERM_GND

H27

FB_CAL_PU_GND

J27

FB_CAL_PD_VDD Q

F2

GN D_ PR O BE

F1

FBVDDQ_PR OBE

R85 * 0_04

FBC_D5

FBC_D36

R58 * 60. 4_04

FBC_D32

C126

0.1u_1 0V_X7R_04

C612

22u_6. 3V_X5R_08

R102 * 60.4_04

R84 10K_04

C594

10u_6. 3V_X5R_06

R515 10 K_04

FBA_CLK0

FBA_CLK1

FBA_CLK0#

FBA_CLK1#

R61 *0_04

FBC_D28

R471 10 K_04

R465 10 K_04

R54 10K_04

R101 10 K_04

R62 * 60. 4_04

FBVDDQ

FBC_D1

FBVDDQ

FBVDDQ

FBVDDQ

PEX_VDD

FBC_D24

FBC_C LK1# 15

FBVDDQ

FBA_D[63:0]14

FBC_CLK0 15

FBCDQM[7:0]15

FBC_D[63:0]15

FBC_CLK1 15

FBADQM[7:0]14

FBA_CLK1# 14

FBC_C LK0# 15

FBA_CMD[31:0] 14

FBA_CLK1 14

FBA_CLK0 14

FBC D QS_RN [7: 0]15

FBADQS_RN[7:0 ]14

FBADQS_ WP[7:0]14

FBA_CLK0# 14

FBC_CMD[31:0] 15

FB CD QS _WP [ 7:0 ]15

FBC_D20

FBC_D16

FBADQM2

FB_CAL_PU_GND

FB_CAL_PD_VDDQ

FB_CAL_TERM_GND

FBC_D12

FBADQM4

FBADQM1

FBADQM7

FBADQM6

FBADQM3

FBADQM0

FBADQM5

FBC_D8

FBC_D59

FBC_D55

FBC_D51

PLACE UNDER BGA

FBC_DEBUG1

FBC_D63

FBB_ODT_H

FBA_ODT_H

FBC_D[63:0]

FBC_D41

FBC_D45

FBA_D[63:0]

FBC_D49

FBC_D37

FBC_DEBUG0

FBB_ODT_L

FBC_D33

FBC_CMD[31:0]

PLACE N EAR BALLS PLACE N EAR BGA CL OSE TO C APS

16mil

FBC_D29

FBA_DPLLAVDD

FBC_D25

FBC_D2

FBC_D17

FBC_D21

FBA_ODT_L

FBC_D13

Frame Buffer Interface

FBC_D60

FBC_D56

FBC_D52

FBC_D9

FBA_D PLLAVDD

FBA_DEBUG1

FBA_DEBUG0

FBC_D38

FBC_D42

FBC_D46

FBCDQM[7:0]

FBC_D3

FBC_D30

FBC_D34

FBC_D26

C10081 9

C100818

N13P-GL OFF

N13M-GE1 ON

N13P-GL OFF

N13M-GE1 ON

C80

4.7u_6 .3V_X5R_06

C55

1u_6.3V_X5R_04

.

L32 FCM1005MF-300T03

C107

1u_6.3V_X5R_04

C138

4.7u_6 .3V_X5R_06

C100823

C10082 3

R625 * 0_04

C141

0.1u_10V_X5R_04

C139

0.1u_10V_X5R_04

C106

0.1u_10V_X5R_04

C140

0.1u_1 0V_X5R_04

C100818

FBA_D12

FBA_D8

FBA_D7

FBA_D11

FBA_D9

FBA_D13

PLACE UNDER BGA

FBC_CMD31

FB_VREF_TP

FBC_D22

FBA_D10

Sheet 13 of 50

VGA Frame Buffer

Interface

Schematic Diagrams

VGA Frame Buffer A B - 15

B.Schematic Diagrams

VGA Frame Buffer A

C617

0.1u_1 6V_Y 5V_04

C615

0.1u_16V_Y5V_04

C618

0.1u_16V_Y 5V_04

C636

1u_6.3V_X5R_04

C646

0. 1u _16 V_ Y 5V_0 4

C643

1u _6 . 3V_X5R_04

C647

1u_6.3V_X5R_04

FBADQS _WP0

FBADQS _RN 0

FBADQM0

BA2

A4

GF1XX

BA1

CMD3

A4

16mil

<500mil

16mil

<500mil

A12

32..630..31

FBA_CMD2

FBA_ZQ0

FBA_CMD5

A1

BA1

FBA_VREF0

16mil

<500mil

FBA_ZQ1

F BA_VR EF1

FBA_ZQ3

FBA_VREF1

FBA_ZQ2

A1

CMD4

A10

BA0

A12

FBA_CLK1#

CMD5

BA0

FBA_CLK0#

RAS#

A10

WE#

FBADQM7

FBADQS_RN7

FBADQS_WP7

ODT

CMD6

WE#

RAS#

A15

CMD7

A15

CS0#

FBA_CMD5

FBA_CMD18

FBA_CLK1#

FBA_CLK1

FBA_CMD27

FBA_CMD12

FBA_CMD26

FBA_CMD15

FBA_CMD20

FBA_CMD30

FBA_CMD11

FBA_CMD19

FBA_CMD29

FBA_CMD23

FBA_CMD8

FBA_CMD10

FBA_CMD7

FBA_CMD22

FBA_CMD25

FBA_CMD6

FBA_CMD16

FBA_CMD13

FBA_CMD24

FBA_CMD4

FBA_CMD14

FBA_CMD28

FBA_CMD21

FBA_CMD9

CAS#

0.1uF X4 for FBVDDQ one chip VRAM

1.0uF X8

CKE

F BADQS _RN [7: 0]

FBA_CMD[31:0]

F BADQM[ 7:0]

ODT

FBA_CMD12

FBA_CMD26

FBADQS _WP[7:0]

F BA_D[ 63: 0]

CAS#

FBA_CMD3

FBA_CLK0#

FBA_CLK0

FBA_CMD27

CMD8

FBA_CMD11

FBA_CMD30

FBA_CMD20

FBA_CMD15

FBA_CMD23

FBA_CMD8

FBA_CMD10

FBA_CMD7

FBA_CMD6

FBA_CMD0

FBA_CMD13

FBA_CMD24

FBA_CMD29

FBA_CMD12

FBA_CMD28

FBA_CMD21

FBA_CMD9

FBA_CMD22

FBA_CMD25

A13

FBA_CMD27

FBA_CMD26

CMD13

CMD12

CS0#

CKE

CMD15

CMD14

CMD17

CMD16

CMD11

CMD10

CMD9

A8

FBA_VREF0

FBA_CMD5

FBA_CMD18

A13

A14

CMD23

CMD22

CMD21

CMD25

CMD24

CMD19

CMD18

CMD26

A6

SDDR3_BGA96

A14

CMD20

RST

CMD27

A8

A11

RST

CMD30

CMD29

CMD28

A6

A9

F BAD QS_WP6

FBADQM5 FBADQM6

FBADQS_RN5

FBADQS_WP5

C586

1u_6.3V_X5R_04

FBADQS_RN6

C644

1u_6. 3V_X5R _04

C577

1u_6.3V_X5R_04

A9

C607

1u _6 . 3V_X5R_04

C237

1u_6.3V_X5R_04

C584

1u_6. 3V_X5R_04

C580

1u_6.3V_X5R_04

A5

C653

1u_6.3V_X5R_04

FBA_CMD26

FBA_CLK1#

FBA_CLK1

FBA_CMD27

FBA_CMD12

C616

1u_6.3V_X5R_04

FBA_CMD20

FBA_CMD30

FBA_CMD11

FBA_CMD19

FBA_CMD2

FBA_CMD7

FBA_CMD15

FBA_CMD24

FBA_CMD29

FBA_CMD23

FBA_CMD8

FBA_CMD10

C645

1u_6.3V_X5R_04

FBA_CMD16

FBA_CMD13

FBA_CMD5

R141

1.1K_1%_04

FBA_CMD22

FBA_CMD25

FBA_CMD6

R129

243_1%_ 04

R514

160_1%_04

FBA_CMD4

FBA_CMD14

FBA_CMD28

FBA_CMD21

FBA_CMD9

R513

243_1%_04

R147

1.1K_1%_04

C230

0.01u_16V _X7R_04

FBA_CLK0

A11

A7

FBA_CMD4

FBA_CMD14

C596

1u_6.3V_X5R_04

U35

K4W1G1646G-BC11

RAS

J3

CAS

K3

WE

L3

CS

L2

A0

N3

A1

P7

A2

P3

A3

N2

A4

P8

A5

P2

A6

R8

A7

R2

A8

T8

A9

R3

A10

L7

A11

R7

BA0

M2

BA1

N8

NC4

L9

CKE

K9

CK

J7

CK

K7

NC1

J1

NC2

J9

ODT

K1

VDD B2

VDD D9

VDD G7

VDD K2

VDD K8

VDD N1

VDD N9

VDD R1

VDD R9

VD DQ A1

VD DQ C1

VD DQ C9

VD DQ D2

VD DQ E9

VD DQ F1

VSS M1

VSS M9

VSS P1

VSS P9

VSS T1

VSS T9

VSSQ B1

VSSQ B9

VSSQ D1

VSSQ D8

VREFDQ H1

VSS A9

VSS B3

VSS E1

VSS J2

VSS J8

VR EFC A M8

A12

N7

A13

T3

NC3

L1

A14/N C 6

T7

DQL0

E3

DQL1

F7

DQL2

F2

DQL3

F8

DQL4

H3

DQL5

H8

DQL6

G2

DQL7

H7

DMU D3

DQSU C7

DQSU B7

DQU0 D7

DQU1 C3

DQU2 C8

DQU3 C2

DQU4 A7

DQU5 A2

DQU6 B8

DQU7 A3

DML

E7

DQSL

F3

DQSL

G3

VD DQ H2

VD DQ H9

VD DQ A8

VSSQ E2

VSSQ E8

VSSQ F9

VSSQ G1

VSSQ G9

VSS G8

BA2

M3

A15/N C 5

M7

RESET

T2

ZQ

L8

FBA_CMD3

FBA_CLK0#

FBA_CLK0

FBA_CMD15

FBA_CMD20

FBA_CMD30

FBA_CMD11

FBA_CMD24

FBA_CMD29

FBA_CMD23

FBA_CMD8

FBA_CMD10

FBA_CMD7

FBA_CMD22

FBA_CMD25

FBA_CMD6

FBA_CMD0

FBA_CMD13

FBA_CMD4

FBA_CMD14

FBA_CMD28

FBA_CMD21

FBA_CMD9

A7

U34

K4W1G1 646G-BC 1 1

RAS

J3

CAS

K3

WE

L3

CS

L2

A0

N3

A1

P7

A2

P3

A3

N2

A4

P8

A5

P2

A6

R8

A7

R2

A8

T8

A9

R3

A10

L7

A11

R7

BA0

M2

BA1

N8

NC4

L9

CKE

K9

CK

J7

CK

K7

NC1

J1

NC2

J9

ODT

K1

VDD B2

VDD D9

VDD G7

VDD K2

VDD K8

VDD N1

VDD N9

VDD R1

VDD R9

VDDQ A1

VDDQ C1

VDDQ C9

VDDQ D2

VDDQ E9

VDDQ F1

VSS M1

VSS M9

VSS P1

VSS P9

VSS T1

VSS T9

VSSQ B1

VSSQ B9

VSSQ D1

VSSQ D8

VRE FD Q H1

VSS A9

VSS B3

VSS E1

VSS J2

VSS J8

VRE FC A M8

A12

N7

A13

T3

NC3

L1

A14/NC6

T7

DQL0

E3

DQL1

F7

DQL2

F2

DQL3

F8

DQL4

H3

DQL5

H8

DQL6

G2

DQL7

H7

DMU D3

DQSU C7

DQSU B7

DQU0 D7

DQU1 C3

DQU2 C8

DQU3 C2

DQU4 A7

DQU5 A2

DQU6 B8

DQU7 A3

DML

E7

DQSL

F3

DQSL

G3

VDDQ H2

VDDQ H9

VDDQ A8

VSSQ E2

VSSQ E8

VSSQ F9

VSSQ G1

VSSQ G9

VSS G8

BA2

M3

A15/NC5

M7

RESET

T2

ZQ

L8

CMD0

C600

1u_6. 3V_X5R_04

C648

1u_6.3V_X5R_04

A3

U7

K4W1G1646G-BC11

RAS

J3

CAS

K3

WE

L3

CS

L2

A0

N3

A1

P7

A2

P3

A3

N2

A4

P8

A5

P2

A6

R8

A7

R2

A8

T8

A9

R3

A10

L7

A11

R7

BA0

M2

BA1

N8

NC4

L9

CKE

K9

CK

J7

CK

K7

NC1

J1

NC2

J9

ODT

K1

VDD B2

VDD D9

VDD G7

VDD K2

VDD K8

VDD N1

VDD N9

VDD R1

VDD R9

VDDQ A1

VDDQ C1

VDDQ C9

VDDQ D2

VDDQ E9

VDDQ F1

VSS M1

VSS M9

VSS P1

VSS P9

VSS T1

VSS T9

VSSQ B1

VSSQ B9

VSSQ D1

VSSQ D8

VREFDQ H1

VSS A9

VSS B3

VSS E1

VSS J2

VSS J8

VREF C A M8

A12

N7

A13

T3

NC3

L1

A14 / NC6

T7

DQL0

E3

DQL1

F7

DQL2

F2

DQL3

F8

DQL4

H3

DQL5

H8

DQL6

G2

DQL7

H7

DMU D3

DQSU C7

DQSU B7

DQU0 D7

DQU1 C3

DQU2 C8

DQU3 C2

DQU4 A7

DQU5 A2

DQU6 B8

DQU7 A3

DML

E7

DQSL

F3

DQSL

G3

VDDQ H2

VDDQ H9

VDDQ A8

VSSQ E2

VSSQ E8

VSSQ F9

VSSQ G1

VSSQ G9

VSS G8

BA2

M3

A15 / NC5

M7

RESET

T2

ZQ

L8

U6

K4W1G1646G-BC 11

RAS

J3

CAS

K3

WE

L3

CS

L2

A0

N3

A1

P7

A2

P3

A3

N2

A4

P8

A5

P2

A6

R8

A7

R2

A8

T8

A9

R3

A10

L7

A11

R7

BA0

M2

BA1

N8

NC4

L9

CKE

K9

CK

J7

CK

K7

NC1

J1

NC2

J9

ODT

K1

VDD B2

VDD D9

VDD G7

VDD K2

VDD K8

VDD N1

VDD N9

VDD R1

VDD R9

VDDQ A1

VDDQ C1

VDDQ C9

VDDQ D2

VDDQ E9

VDDQ F1

VSS M1

VSS M9

VSS P1

VSS P9

VSS T1

VSS T9

VSSQ B1

VSSQ B9

VSSQ D1

VSSQ D8

VREFDQ H1

VSS A9

VSS B3

VSS E1

VSS J2

VSS J8

VREFCA M8

A12

N7

A13

T3

NC3

L1

A14/NC6

T7

DQL0

E3

DQL1

F7

DQL2

F2

DQL3

F8

DQL4

H3

DQL5

H8

DQL6

G2

DQL7

H7

DMU D3

DQSU C7

DQSU B7

DQU0 D7

DQU1 C3

DQU2 C8

DQU3 C2

DQU4 A7

DQU5 A2

DQU6 B8

DQU7 A3

DML

E7

DQSL

F3

DQSL

G3

VDDQ H2

VDDQ H9

VDDQ A8

VSSQ E2

VSSQ E8

VSSQ F9

VSSQ G1

VSSQ G9

VSS G8

BA2

M3

A15/NC5

M7

R ESET

T2

ZQ

L8

C603

1u_6. 3V_X5R_04

C240

1u_6. 3V_X5R _04

C649

1u_6.3V_X5R_04

C233

1u_6.3V_X5R_04

C650

1u_6.3V_X5R_04

A2

FBVDDQ FBVDDQ

A5

FBVDDQ FBVD D Q

FBVDDQ

FBVDDQ

FBVDDQ

F BVD DQ

FBVDDQ

FBVDDQ

FBA_CLK013 FBA_CLK0#13

FBVDDQ

FBADQS_WP[7 :0]13

FBA_CLK113 FBA_CLK1#13

FBADQS_RN[7:0]13

FBA_CMD[31:0]13

F BA_D[ 63: 0]13

F BADQM[ 7: 0]13

CMD1

A2

BA2

CMD2

A0

A3

16mil

<500mil

A0

Frame Buffer Partition A

FBA_D3

FBA_D0

FBA_D1

FBA_D5

FBA_D7

FBA_D4

FBA_D6

FBA_D2 FBA_D61

FBA_D56

FBA_D63

FBA_D59

FBA_D57

FBA_D60

FBA_D58

FBA_D62 FBA_D47

FBA_D41

FBA_D44

FBA_D43

FBA_D45

FBA_D40

FBA_D42

FBA_D46

FBADQM3

FBADQS_WP3

FBADQS_RN3

FBA_D49

FBA_D52

FBA_D55

FBA_D50

FBA_D51

FBA_D53

FBA_D54

FBA_D48

FBA_D22

FBADQS _WP2

FBA_D16

FBADQS_RN2

FBADQM2

FBA_D19

FBA_D20

FBA_D21

FBA_D23

FBA_D18

FBA_D17

FBAD QS_RN4

FBAD QS_WP4

FBAD QM4

C100818 C1008 18C100818

C620

1u_6 . 3 V_ X5R _ 04

C652

0.1u_16V_Y5V_04

C619

1u_6.3V_X5R_04

C622

0.1u_16V_Y5V_04

C656

0.1u_16V_Y 5V_04

C655

0.1u_ 16V_Y 5V_04

C651

0.1 u_16V_Y 5V _04

C621

1u_6.3V_X5R_04

C100818

FBA_D29

FBA_D26

FBA_D31

FBA_D28

FBA_D24

FBA_D25

FBA_D27

FBA_D30

C229

1u_6.3V_X5R_04

C231

0.1 u_16V_Y 5V _04

C232

0.1u_16V_Y5V_04

C192

0.1u_16V_Y5V_04

C193

1u_6 . 3 V_ X5R _ 04

C654

0.1u_16V_Y 5V_04

C191

1u_6.3V_X5R_04

C122

0.1u_ 16V_Y 5V_04

R144

1.1K_1 %_04

R145

1.1K_1 %_04 R500

243_1%_04

R143

243_1%_04

R511

160_1%_04

C236

0.01u_16V_X7R_04

FBA_CLK1

FBA_D37

FBA_D35

FBA_D36

FBA_D34

FBA_D39

FBA_D33

FBA_D32

FBA_D38

C235

1u _6 . 3V_X5R_04

C238

1u_6.3V_X5R_04

C183

0. 1u _16 V_ Y 5V_0 4

C186

1u_6.3V_X5R_04

C185

0.1u_16V_Y5V_04

C239

0.1u_1 6V_Y 5V_04

C184

0.1u_16V_Y 5V_04

FBA_D14

FBADQM1

FBADQS_WP1

FBADQS_RN1

FBA_D15

FBA_D13

FBA_D11

FBA_D12

FBA_D8

FBA_D9

FBA_D10

Sheet 14 of 50

VGA Frame Buffer

A

Schematic Diagrams

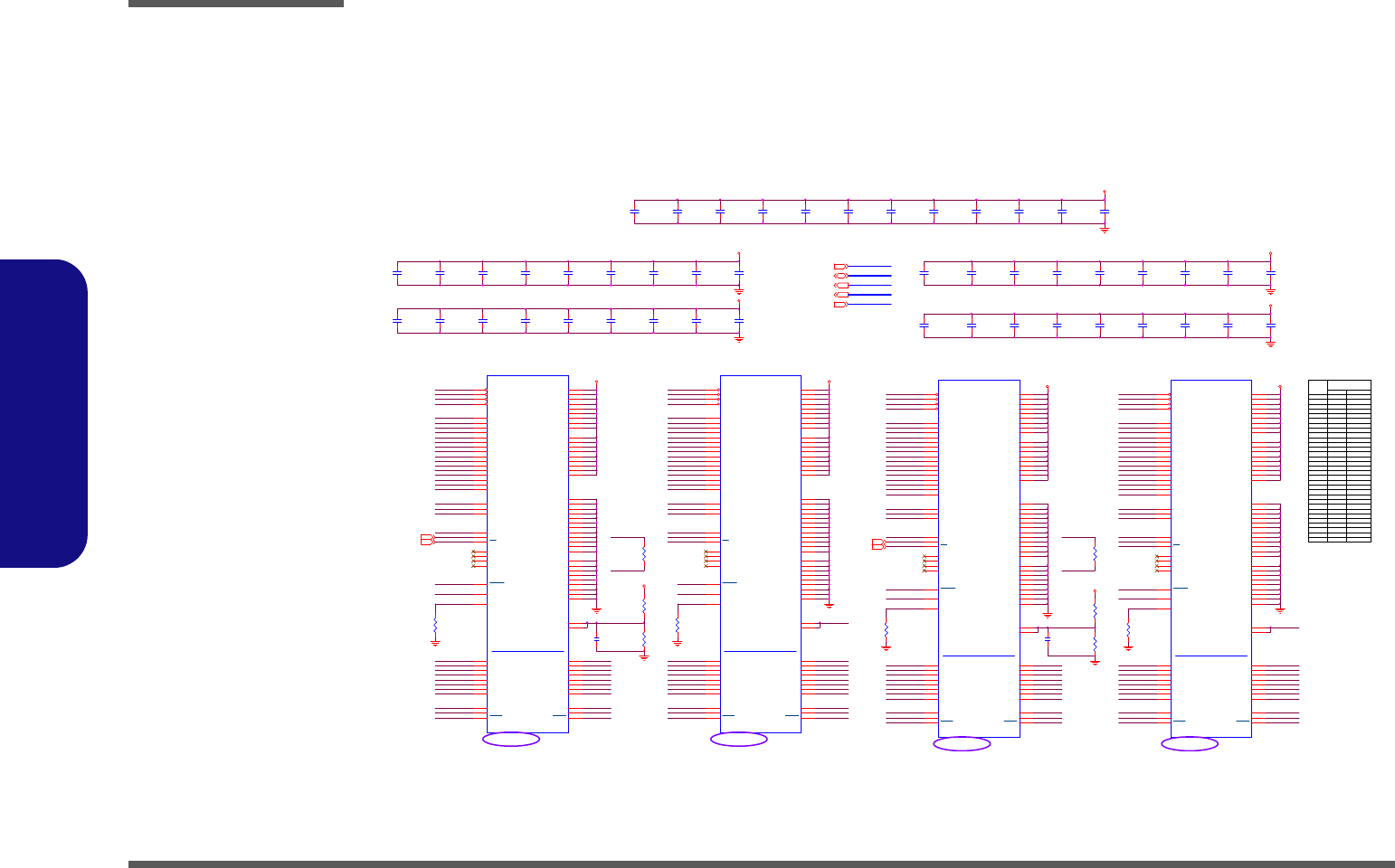

B - 16 VGA Frame Buffer C

B.Schematic Diagrams

VGA Frame Buffer C

FBC_D3

FBC_D2

FBCDQM0

FBC_D7

FBCDQS_WP0

FBCDQS_RN0

FBC_D6

FBC_D1

FBC_D5

FBC_D0

FBC_D4

FBC_VR EF 0FBC_VREF0

FBC _VR EF 1FBC_VREF1

FBCDQS_RN2

FBCDQM2

FBCDQS_WP2

FBCDQS_RN1

FBCDQM1

FBCDQS_WP1

16mil

<500mil

16mil

<500mil

C574

0.1u_10V_X7R_04

C102

0.1u_10V_X7R_04

C103

1u_6.3V_X5R_04

C637

1u_6.3V_X5R_04

FBC_CMD18

FBC_CMD11

FBC_CMD5

FBC_ZQ2

FBC_CMD10

FBC_CMD7

FBC_CMD15

FBC_CMD20

FBC_CMD30

FBC_CMD13

FBC_CMD24

FBC_CMD29

FBC_CMD23

FBC_CMD8

FBC_CMD15

FBC_CMD29

FBC_CMD24

FBC_CMD11

FBC_CMD30

FBC_CMD20

FBC_CMD22

FBC_CMD25

FBC_CMD6

FBC_CMD16

FBC_CMD23

FBC_CMD22

FBC_CMD7

FBC_CMD10

FBC_CMD8

FBC_CMD9

FBC_CMD12

FBC_CMD28

FBC_CMD21

FBC_CMD25

FBC_CMD12

FBC_CMD26

FBC_CMD13

FBC_CMD0

FBC_CMD6

FBCDQS_RN3

FBC_D30

FBCDQM3

FBC_D31

FBC_CLK1

FBC_CMD4

FBC_CMD14

FBC_CMD27

FBC_CMD26

FBC_D28

FBC_D25

FBCDQS_WP3

FBC_D29

FBC_D26

FBC_CLK0#

FBC_CMD3

FBC_CMD9

FBC_CMD21

FBC_CMD28

FBC_D24

FBC_D27

FBC_CLK1#

FBC_CMD19

FBC_CLK1#

FBC_CLK0 FBC_CLK1

FBC_CMD27

FBC_CMD14

FBC_CMD4

FBC_CLK0#

FBC_CMD7

FBC_CMD10

FBC_CMD11

FBC_CLK0

FBC_CMD13

FBC_CMD30

FBC_CMD20

FBC_CMD15

U3

K4W1G1646G-BC11

RAS

J3

CAS

K3

WE

L3

CS

L2

A0

N3

A1

P7

A2

P3

A3

N2

A4

P8

A5

P2

A6

R8

A7

R2

A8

T8

A9

R3

A10

L7

A11

R7

BA0

M2

BA1

N8

NC4

L9

CKE

K9

CK

J7

CK

K7

NC1

J1

NC2

J9

ODT

K1

VDD B2

VDD D9

VDD G7

VDD K2

VDD K8

VDD N1

VDD N9

VDD R1

VDD R9

VDDQ A1

VDDQ C1

VDDQ C9

VDDQ D2

VDDQ E9

VDDQ F1

VSS M1

VSS M9

VSS P1

VSS P9

VSS T1

VSS T9

VSSQ B1

VSSQ B9

VSSQ D1

VSSQ D8

VREF DQ H1

VSS A9

VSS B3

VSS E1

VSS J2

VSS J8

VREFCA M8

A12

N7

A13

T3

NC3

L1

A14/NC6

T7

DQL0

E3

DQL1

F7

DQL2

F2

DQL3

F8

DQL4

H3

DQL5

H8

DQL6

G2

DQL7

H7

DMU D3

DQSU C7

DQSU B7

DQU0 D7

DQU1 C3

DQU2 C8

DQU3 C2

DQU4 A7

DQU5 A2

DQU6 B8

DQU7 A3

DML

E7

DQSL

F3

DQSL

G3

VDDQ H2

VDDQ H9

VDDQ A8

VSSQ E2

VSSQ E8

VSSQ F9

VSSQ G1

VSSQ G9

VSS G8

BA2

M3

A15/NC5

M7

RESET

T2

ZQ

L8

FBC_CMD8

FBC_CMD23

FBC_CMD29

FBC_CMD24

C151

1u_6.3V_X5R_04

FBC_CMD22

FBC_CMD9

FBC_CMD6

FBC_CMD25

FBC_CMD18

FBC_CMD28

FBC_CMD12

FBC_CMD16

FBC_CMD4

FBC_CLK1

FBC_CMD21

FBC_CMD5

FBC_CMD26

FBC_CMD27

FBC_CMD14

C572

1u_6.3V_X5R_04

FBC_CLK1#

FBC_CMD19

C171

1u_6.3V_X5R_04

C576

1u_6.3V_X5R_04

C597

0. 1u_ 10V _X7R _04

FBC_ZQ3

C152

1u_6.3V_X5R_04

C163

1u_6. 3V_X5R _04

FBC_CMD[31:0]

FBC_D[63:0]

FBCDQM[7:0]

C599

1u_6.3V_X5R_04

C609

1u_6.3V_X5R_04

C592

1u_6.3V_X5R_04

C608

1u_6.3V_X5R _04

U30

K4W1G1646G-BC11

RAS

J3

CAS

K3

WE

L3

CS

L2

A0

N3

A1

P7

A2

P3

A3

N2

A4

P8

A5

P2

A6

R8

A7

R2

A8

T8

A9

R3

A10

L7

A11

R7

BA0

M2

BA1

N8

NC4

L9

CKE

K9

CK

J7

CK

K7

NC1

J1

NC2

J9

ODT

K1

VDD B2

VDD D9

VDD G7

VDD K2

VDD K8

VDD N1

VDD N9

VDD R1

VDD R9

VDDQ A1

VDDQ C1

VDDQ C9

VDDQ D2

VDDQ E9

VDDQ F1

VSS M1

VSS M9

VSS P1

VSS P9

VSS T1

VSS T9

VSSQ B1

VSSQ B9

VSSQ D1

VSSQ D8

VREF DQ H1

VSS A9

VSS B3

VSS E1

VSS J2

VSS J8

VREFCA M8

A12

N7

A13

T3

NC3

L1

A14/NC6

T7

DQL0

E3

DQL1

F7

DQL2

F2

DQL3

F8

DQL4

H3

DQL5

H8

DQL6

G2

DQL7

H7

DMU D3

DQSU C7

DQSU B7

DQU0 D7

DQU1 C3

DQU2 C8

DQU3 C2

DQU4 A7

DQU5 A2

DQU6 B8

DQU7 A3

DML

E7

DQSL

F3

DQSL

G3

VDDQ H2

VDDQ H9

VDDQ A8

VSSQ E2

VSSQ E8

VSSQ F9

VSSQ G1

VSSQ G9

VSS G8

BA2

M3

A15/NC5

M7

RESE T

T2

ZQ

L8

C54

0. 1u_ 10V _X7R _04

C121

1u_6.3V_X5R_04

C598

0.1u_10V_X7R_04

C610

0.1u_10V_X7R_04

C137

0.1u_10V_X7R_04

C595

1u_6.3V_X5R_04

C583

0.1u_10V_X7R_04

U4

K4W1G1646G-BC11

RAS

J3

CAS

K3

WE

L3

CS

L2

A0

N3

A1

P7

A2

P3

A3

N2

A4

P8

A5

P2

A6

R8

A7

R2

A8

T8

A9

R3

A10

L7

A11

R7

BA0

M2

BA1

N8

NC4

L9

CKE

K9

CK

J7

CK

K7

NC1

J1

NC2

J9

ODT

K1

VDD B2

VDD D9

VDD G7

VDD K2

VDD K8

VDD N1

VDD N9

VDD R1

VDD R9

VDDQ A1

VDDQ C1

VDDQ C9

VDDQ D2

VDDQ E9

VDDQ F1

VSS M1

VSS M9

VSS P1

VSS P9

VSS T1

VSS T9

VSSQ B1

VSSQ B9

VSSQ D1

VSSQ D8

VRE FDQ H1

VSS A9

VSS B3

VSS E1

VSS J2

VSS J8

VREF CA M8

A12

N7

A13

T3

NC3

L1

A14/NC6

T7

DQL0

E3

DQL1

F7

DQL2

F2

DQL3

F8

DQL4

H3

DQL5

H8

DQL6

G2

DQL7

H7

DMU D3

DQSU C7

DQSU B7

DQU0 D7

DQU1 C3

DQU2 C8

DQU3 C2

DQU4 A7

DQU5 A2

DQU6 B8

DQU7 A3

DML

E7

DQSL

F3

DQSL

G3

VDDQ H2

VDDQ H9

VDDQ A8

VSSQ E2

VSSQ E8

VSSQ F9

VSSQ G1

VSSQ G9

VSS G8

BA2

M3

A15/NC5

M7

RESET

T2

ZQ

L8

C601

0.1u_10V_X7R_04

C613

1u_6.3V_X5R_04

C228

1u_6.3V_X5R _04

C630

1u_6.3V_X5R_04

C70

1u_6.3V_X5R_04

FBC_D39

C234

1u_6.3V_X5R _04

C657

1u_6. 3V_X5R _04

FBC_D36

FBC_D35

FBC_D34

FBC_D38

FBC_D37

FBC_D32

C581

1u_6. 3V_X5R _04

C164

0.1u_10V_X7R_04

FBC_D33

C611

1u_6.3V_X5R_04

C69

0.1u_10V_X7R_04

C53

1u_6.3V_X5R_04

C172

0.1u_10V_X7R_04

C35

1u_6.3V_X5R_04

C31

1u_6.3V_X5R_04

C41

1u_6.3V_X5R_04

C29

1u_6.3V_X5R_04

C71

0.1u_10V_X7R_04

C614

1u_6.3V_X5R_04

C582

0.1u_10V_X7R_04

C590

0.1u_10V_X7R_04

C33

0.1u_10V_X7R_04

C104

1u_6 . 3V_X5R _04

C578

0.1u_10V_X7R_04

C285

1u_6.3V_X5R_04

U33

K4W1G1646G-BC11

RAS

J3

CAS

K3

WE

L3

CS

L2

A0

N3

A1

P7

A2

P3

A3

N2

A4

P8

A5

P2

A6

R8

A7

R2

A8

T8

A9

R3

A10

L7

A11

R7

BA0

M2

BA1

N8

NC4

L9

CKE

K9

CK

J7

CK

K7

NC1

J1

NC2

J9

ODT

K1

VDD B2

VDD D9

VDD G7

VDD K2

VDD K8

VDD N1

VDD N9

VDD R1

VDD R9

VDDQ A1

VDDQ C1

VDDQ C9

VDDQ D2

VDDQ E9

VDDQ F1

VSS M1

VSS M9

VSS P1

VSS P9

VSS T1

VSS T9

VSSQ B1

VSSQ B9

VSSQ D1

VSSQ D8

VREF DQ H1

VSS A9

VSS B3

VSS E1

VSS J2

VSS J8

VREFC A M8

A12

N7

A13

T3

NC3

L1

A14/NC6

T7

DQL0

E3

DQL1

F7

DQL2

F2

DQL3

F8

DQL4

H3

DQL5

H8

DQL6

G2

DQL7

H7

DMU D3

DQSU C7

DQSU B7

DQU0 D7

DQU1 C3

DQU2 C8

DQU3 C2

DQU4 A7

DQU5 A2

DQU6 B8

DQU7 A3

DML

E7

DQSL

F3

DQSL

G3

VDDQ H2

VDDQ H9

VDDQ A8

VSSQ E2

VSSQ E8

VSSQ F9

VSSQ G1

VSSQ G9

VSS G8

BA2

M3

A15/NC5

M7

RESET

T2

ZQ

L8

FBVDDQ

C79

0.1u_10V_X7R_04

FBVDDQ

FBVDDQ

FBVDDQ FBVDDQ

FBVDDQ

FBVDDQ

FBVDDQFBVDDQ

FBC_CLK0#13

FBVDDQ

FBVDDQ

FBC_CLK1#13

FBC_CLK013

FBCDQM[7:0]13

FBC_CLK113

FBC_D[63:0]13

FBC_CMD[31:0]13

FBCDQS_RN[7:0]13

FBCDQS_WP[7:0]13

R477

1.1K_1%_04

R68

243_1%_04

FBCDQS_RN[7:0]

F BC DQS _W P[ 7: 0]

R481

1.1K_1%_04

C136

0. 01u _1 6V_X7R _04

R475

243_1%_04

R96

160_1%_04

FBCDQS_WP6

FBCDQM4 FBCDQM5

FBCDQS_WP7FBCDQS_WP4

FBCDQS_RN5

FBCDQS_WP5

FBCDQM6

FBCDQS_RN4 FBCDQS_RN6

FBCDQM7

FBCDQS_RN7

CMD3

A4

BA2

A4

GF1XX

BA1

32..630..31

A12

CMD4

A1

BA1

A1

CMD5

BA0

A12

BA0

A10 A10

WE#

RAS#

A15

ODT

CMD6

WE#

CKE

CMD7

A15

CS0#

RAS#

CMD8

CAS#

ODT

CAS#

CMD12

CS0#

CKE

A13

CMD15

CMD14

CMD13

CMD17

CMD16

CMD11

CMD10

CMD9

CMD21

A13

A14

A8

CMD24

CMD23

CMD22

CMD26

CMD25

CMD20

CMD19

CMD18

A6

SDDR3_BGA96

A14

CMD28

CMD27

A8

RST

A6

A9

A11

RST

CMD30

CMD29

A7

A11

A7

A5

A9

A2

A5

A2

A3

CMD0

A0

BA2

CMD1

CMD2

A0

A3

FBC_CMD30

FBC_CMD11

FBC_CMD5

FBC_ZQ0

FBC_CMD2

FBC_CMD8

FBC_CMD10

FBC_CMD7

FBC_CMD15

FBC_CMD20

FBC_CMD0

FBC_CMD13

FBC_CMD24

FBC_CMD29

FBC_CMD23

FBC_CMD28

FBC_CMD21

FBC_CMD9

FBC_CMD22

FBC_CMD25

FBC_CMD6

FBC_CMD4

FBC_CMD14

FBC_CMD27

FBC_CMD26

FBC_CMD12

FBC_CMD5

FBC_CMD2

FBC_CMD3

FBC_CLK0#

FBC_CLK0

FBC_ZQ1

Frame Buffer Partition B

16mil

<500mil

16mil

<500mil

FBC_D57

FBC_D58

FBC_D59

FBC_D60

FBC_D62

FBC_D56

FBC_D63

FBC_D61

FBC_D45

FBC_D46

FBC_D43

FBC_D47

FBC_D42

FBC_D44

FBC_D41

FBC_D40

C100818

R48

160_1%_04

R57

243_1%_04

R466

243_1%_04

R468

1.1K_1%_04

R53

1.1K_1%_04

C34

0.01u_16V_X7R_04

C100818

FBC_D53

FBC_D55

FBC_D50

FBC_D54

FBC_D49

FBC_D52

FBC_D48

FBC_D51

C100818 C100818

FBC_D15

FBC_D14

FBC_D9

FBC_D8

FBC_D13

FBC_D10

FBC_D11

FBC_D12

FBC_D17

FBC_D21

FBC_D20

FBC_D18

FBC_D23

FBC_D16

FBC_D19

FBC_D22

Sheet 15 of 50

VGA Frame Buffer

C

Schematic Diagrams

VGA I/O B - 17

B.Schematic Diagrams

VGA I/O

3V3_RUN

²Ä¤@ª©¡A¥ý¹w¯dexternal thermal sensor

V_JTAG_TRST

IFPC_IOVDD

SMD_VGA_TH ERM1

SMC_VGA_TH ERM1

I2CC_SCLI2CC_SCL

IFPC_PLLVD D

IF PAB_PLLVDD

IFPEF _IOVDD

RN14

10K_8P4R_04

1

2

3

4 5

6

7

8

DPDVI-SL/HD M IDVI-DL

TXD2

TXD2

TXD2

TXD1

TXD0

TXD0

TXD1

I2CZ_SCL

I2CZ_SDA

TXC

TXC

HPD_F

HPD_E

TXC

TXC

TXD0

TXD0

TXD1

TXD1

TXD2

I2CY_SDA

I2CY_SCLI2CY_SCL

I2CY_SDA

TXD2

TXD2

TXD0

TXD0

TXC

TXC

TXD1

TXD1

HPD_E

TXD3

TXD3

TXD4

TXD4

TXD5

TXD5

IF P E

IF P F

9/19 IFPEF

ALL PINS NC FOR GF117

U32M

N13P-GL

AC8

IFPF _IOVDD

AC7

IFPE_IOVDD

AD6

IFPEF_R SET

AB8

IFPEF_PLLVD D

GPIO19

IFPF_L0

IFPF_L0

IFPF_L1

IFPF_L1

IFPF_L2

IFPF_L2

IFPF_L3

IFPF_L3

IFPF_AUX

IFPF_AUX

GPIO18

IFPE_L0

IFPE_L0

IFPE_L1

IFPE_L1

IFPE_L2

IFPE_L2

IFPE_L3

IFPE_L3

IFPE_AUX

IFPE_AUX

I2CX_SCL

I2CX_SDA

TXC

TXC

DVI/HDMI

TXD2

TXD2

TXD1

TXD1

TXD0

TXD0

DP

IFPD

8/19 IFPD

ALL PINS NC FOR GF117

U32L

N13P-GL

AG6

IFPD_IOVDD

AG7

IFPD_PLLVD D

AN2

IFPD_R SET

M6

GPIO17

AM1

IFPD _L0

AM2

IFPD _L0

AM3

IFPD _L1

AM4

IFPD _L1

AL3

IFPD _L2

AL4

IFPD _L2

AK4

IFPD _L3

AK5

IFPD _L3

AK3

IFPD _AU X

AK2

IFPD _AU X

ALL PINS NC FOR GF117

6/19 IFPAB

IFPAB

U32J

N13P-GL

AG9

IF PB_IOVD D

AG8

IF PA_IOVD D

AH8

IF PAB_PLLVD D

AJ8

IF PAB_RSET

N4

GPIO14

AK8

IFPB_ TXD7

AL8

IFPB_ TXD7

AN8

IFPB_ TXD6

AM8

IFPB_ TXD6

AM7

IFPB_ TXD5

AL7

IFPB_ TXD5

AP6

IFPB_ TXD4

AP5

IFPB_ TXD4

AJ9

IFPB_TXC

AH9

IFPB_TXC

AJ6

IFPA_ TXD3

AH6

IFPA_ TXD3

AL6

IFPA_ TXD2

AK6

IFPA_ TXD2

AN5

IFPA_ TXD1

AM5

IFPA_ TXD1

AP3

IFPA_ TXD0

AN3

IFPA_ TXD0

AM6

IFPA_TXC

AN6

IFPA_TXC

R451 100K_04

4/19 DACA

TSEN_VREF

NC

GF117GF108/GKx

NC NC

NC

NC

NC

NC

NC

NC

GF117 GF108/GKx

U32N

N13P-GL

AP8

DACA_RSET

AP9

DACA_VREF

AG10

DACA_VDD

AL9

DACA_BLUE

AL10

DACA_GREEN

AK9

DACA_RED

AN9

DAC A_VSYN C

AM9

DAC A_H SYNC

R5

I2CA_SDA

R4

I2CA_SCL

R448

10K_04

DPRSLP 42

DPDVI/HDMI

I2CW_SCL

I2CW_SDA

TXC

TXC

TXD0

TXD0

TXD1

TXD1

TXD2

TXD2

IFPC

ALL PINS NC FOR GF117

7/19 IFPC

U32K

N13P-GL

AF6

IFPC _IOVD D

AF7

IFPC_PLLV DD

AF8

IFPC _RSET

P2

GPIO15

AK1

IFPC _L0

AJ1

IFPC _L0

AJ3

IFPC _L1

AJ2

IFPC _L1

AH3

IFPC _L2

AH4

IFPC _L2

AG5

IFPC _L3

AG4

IFPC _L3

AG3

IFPC_AUX

AG2

IFPC_AUX

R44 2.2K_04

R45 2.2K_04

R36 *10m il_short

11/19 M ISC 1

U32Q

N13P-GL

AN11

JTAG_TRST

AP12

JTAG_TDO

AM11

JTAG_TDI

AP11

JTAG_TMS

AM10

JTAG_TCK

K3

THERMDP

K4

THERMDN

P1

GPIO21

P4

GPIO20

R8

GPIO16

M4

GPIO13

N3

GPIO12

M5

GPIO11

L1

GPIO10

M2

GPIO9

M1

GPIO8

N8

GPIO7

M7

GPIO6

L7

GPIO5

P7

GPIO4

P5

GPIO3

L6

GPIO2

M3

GPIO1

P6

GPIO0

R6

I2CB_SDA

R7

I2CB_SCL

R3

I2CC_SDA

R2

I2CC_SCL

T3

I2CS_SDA

T4

I2CS_SCL

R32 *0_04

RN15

2.2K_8P4R_04

1

2

3

4 5

6

7

8

R449 10K_04

R450 100K_04

RN13

10K_8P4R_04

1

2

3

4 5

6

7

8

R37 *0_04

C21 0.1u_16V_Y5V_04

U2

G781-1P8UF

SCLK

8SDATA

7ALERT#

6GND

5THERM# 4

D- 3

D+ 2

VDD 1

dGPU_PW M_SELEC T#22

C22

1000p_50V_X7R_04

RN1 2.2K_8P4R_04

1

2

3

45

6

7

8

R470

1K_04

3.3V

3.3V

3V3_RUN

3V3_RUN

SMD_VGA_THER M 34

3V3_RUN

3V3_RU N

3V3_RU N

NVVDD_VID3 42

NVVDD_VID4 42

SMC_VGA_THER M 34

NVVDD_VID0 42

NVVDD_VID2 42

NVVDD_VID1 42

NVVDD_VID5 42

SNN_A_SCLDACA_VDD

IF PAB_I OVD D

SNN_A_SDA

SNN _HSY NC

SNN_RED

SNN_BLUE

Test Point

VGA_THERMDA

SNN _VSY NC

VGA_THERMDC

SNN_GREEN

SMC_VGA_THER M

IFPD_IOVDD

IFPEF_PLLVD D

V_GPIO8

IFPD_PLLVDD

VGA_THERMDC

VGA_VDD

SMD_VGA_THER M

VGA_THERMDA

VGA_THERM_SHDWN _#

6-02-00781-LD0

VGA_THERM_SHDWN#1

V_GPIO8

SNN_A_SC L

V_GPIO9

VID¨Ï¥Î6PIN

SNN_A_SD A

C100823

R644 *0_04

R645 *0_04

I2CC_SDA

C100905 for BOM

S

D

G

Q7B

MTDK5S6R

5

34

S

D

G

Q7A

MTDK5S6R

2

61

SMC_VGA_THERM

SMD_VGA_THERM

swap C100825

C100818 C100818

AC_DET 34

C100818

C100826

C100818

C100818

C100818

Q32

MTN7002ZH S3

G

D S

C100824

3V3_RUN

C100824

IFPEF_PLLVDD

IFPD_PLLVD D

IFPEF_IOVDD

IFPAB_PLLVDD

IFPC_PLLVD D

IFPC_IOVDD

IFPD_IOVDD

IFPAB_I OVD D

R46 2.2K_04

R50 2.2K_04

Sheet 16 of 50

VGA I/O

Schematic Diagrams

B - 18 VGA NVVDD Cecoupling

B.Schematic Diagrams

VGA NVVDD Cecoupling

C100818

C100818

C100818

C100818

PLACE UNDER CHI P

PLACE NEAR CHIP

C124

0.1u_10V_X5R_04

C128

0.1u_10V_X5R_04

C72

0.1u_10V_X5R_04

C25

4.7u_6.3V_X5R_06

14/19 NVVDD

U32E

N13P-GL

Y22

VDD

Y20

VDD

Y18

VDD

Y17

VDD

Y15

VDD

Y13

VDD

W23

VDD

W21

VDD

W19

VDD

W16

VDD

W14

VDD

W12

VDD

V22

VDD

V20

VDD

V18

VDD

V17

VDD

V15

VDD

V13

VDD

U22

VDD

U20

VDD

U18

VDD

U17

VDD

U15

VDD

U13

VDD

T23

VDD

T21

VDD

T19

VDD

T16

VDD

T14

VDD

T12

VDD

R22

VDD

R20

VDD

R18

VDD

R17

VDD

R15

VDD

R13

VDD

P23

VDD

P21

VDD

P19

VDD

P16

VDD

P14

VDD

P12

VDD

N22

VDD

N20

VDD

N18

VDD

N17

VDD

N15

VDD

N13

VDD

M23

VDD

M21

VDD

M19

VDD

M16

VDD

M14

VDD

M12

VDD

AC23

VDD

AC21

VDD

AC19

VDD

AC16

VDD

AC14

VDD

AC12

VDD

AB22

VDD

AB20

VDD

AB18

VDD

AB17

VDD

AB15

VDD

AB13

VDD

AA23

VDD

AA21

VDD

AA19

VDD

AA16

VDD

AA14

VDD

AA12

VDD

C129

0.1u_10V_X5R_04

C130

0.1u_10V_X5R_04

C73

4.7u_6.3V_X5R_06

C127

0.1u_10V_X5R_04

C63

4. 7u_ 6.3 V_X5R_0 6

C57

4.7u_6.3V_X5R_06

C109

4. 7u_ 6.3 V_X5R_0 6

C61

47uF_6.3V_X5R_0805

C95

4. 7u_ 6.3 V_X5R_0 6

C59

4.7u_6.3V_X5R_06

C81

0.1u_10V_X5R_04

10/1 9 XV D D

CONFIGURABLE

POWER

CHANNELS

U32H

N13P-GL

AA8

XVD D

AA7

XVD D

AA6

XVD D

AA5

XVD D

AA4

XVD D

AA3

XVD D

AA2

XVD D

AA1

XVD D

Y8

XVD D

Y7

XVD D

Y6

XVD D

Y5

XVD D

Y4

XVD D

Y3

XVD D

Y2

XVD D

Y1

XVD D

W8

XVD D

W7

XVD D

W5

XVD D

W4

XVD D

W3

XVD D

W2

XVD D

V8

XVD D

V7

XVD D

V6

XVD D

V5

XVD D

V4

XVD D

V3

XVD D

V2

XVD D

V1

XVD D

U8

XVD D

U7

XVD D

U6

XVD D

U5

XVD D

U4

XVD D

U3

XVD D

U2

XVD D

U1

XVD D

C93

4.7u_6.3V_X5R_06

C82

4.7u_6.3V_X5R_06

C60

4.7u_6.3V_X5R_06

C62

4.7u_6.3V_X5R_06

C91

0. 1u_ 10V_X5R _04

C132

4.7u_6.3V_X5R_06

NC f or 4-Lyr cards

17/19 GND_2/2

Optional CMD GNDs (2)

U32I

N13P-GL

AG11

GND

T22

GND

T20

GND

T2

GND

T18

GND

T17

GND

T15

GND

T13

GND

R23

GND

R21

GND

R19

GND

R16

GND

R14

GND

R12

GND

P22

GND

P20

GND

P18

GND

P17

GND

P15

GND

P13

GND

N7

GND

N5

GND

N33

GND

N32

GND

N30

GND

N28

GND

N23

GND

N21

GND

N2

GND

N19

GND

W32

GND_OPT

C16

GND_OPT

AH11

GND

Y23

GND

Y21

GND

Y19

GND

Y16

GND

Y14

GND

Y12

GND

W28

GND

W22

GND

W20

GND

W18

GND

W17

GND

W15

GND

W13

GND

V23

GND

V21

GND

V19

GND

V16

GND

V14

GND

V12

GND

U23

GND

U21

GND

U19

GND

U16

GND

U14

GND

U12

GND

T7

GND

T5

GND

T32

GND

T28

GND

C96

4.7u_6.3V_X5R_06

C110

4.7u_6.3V_X5R_06

C571

22u_6.3V_X5R_08

C92

4.7u_6.3V_X5R_06

C48

4.7u_6.3V_X5R_06

C58

4.7u_6.3V_X5R_06

C94

4.7u_6.3V_X5R_06

C56

4.7u_6.3V_X5R_06

C64

4.7u_6.3V_X5R_06

16/ 19 GND _1/2

U32G

N13P-GL

AM22

GND

AM19

GND

AM16

GND

AM13

GND

AL5

GND

AL33

GND

AL32

GND

AL30

GND

AL28

GND

AL26

GND

AL24

GND

AL23

GND

AL21

GND

AL20

GND

AL2

GND

AL18

GND

AL17

GND

AL15

GND

AL14

GND

AL12

GND

AK7

GND

AK10

GND

AJ7

GND

AH7

GND

AH5

GND

AH33

GND

AH32

GND

AH30

GND

AH29

GND

AH28

GND

AH24

GND

AH22

GND

AH2

GND

AH19

GND

AH16

GND

AH13

GND

AA15

GND

AH10

GND

AE7

GND

AE5

GND

AE33

GND

AE32

GND

AE30

GND

AE28

GND

AE2

GND

AC22

GND

AC20

GND

AA13

GND

AC18

GND

AC17

GND

AC15

GND

AC13

GND

AB7

GND

AB5

GND

AB32

GND

AB30

GND

AB28

GND

AB23

GND

A33

GND

AB21

GND

AB2

GND

AB19

GND

AB16

GND

AB14

GND

AB12

GND

AA22

GND

AA20

GND

AA18

GND

AA17

GND

A2

GND

N16

GND

N14

GND

N12

GND

M22

GND

M20

GND

M18

GND

M17

GND

M15

GND

M13

GND

K7

GND

K5

GND

K33

GND

K32

GND

K30

GND

K28

GND

K2

GND

G7

GND

G5

GND

G33

GND

G32

GND

G30

GND

G3

GND

G28

GND

G25

GND

G22

GND

G2

GND

G19

GND

G16

GND

G13

GND

G10

GND

F7

GND

F28

GND

E7

GND

E5

GND

E25

GND

E22

GND

E10

GND

D33

GND

D31

GND

D2

GND

C7

GND

C28

GND

C25

GND

C22

GND

C19

GND

C13

GND

C10

GND

B7

GND

B4

GND

B34

GND

B31

GND

B28

GND

B25

GND

B22

GND

B10

GND

B1

GND

AP33

GND

AP2

GND

AN7

GND

AN4

GND

AN34

GND

AN30

GND

AN25

GND

AN22

GND

AN19

GND

AN16

GND

AN13

GND

AN10

GND

AN1

GND

AM25

GND

NVVDDNVVDD

Sheet 17 of 50

VGA NVVDD

Cecoupling

Sheet 18 of 50

PCH 1/9- RTC, HDA,

SATA

Schematic Diagrams

PCH 1/9- RTC, HDA, SATA B - 19

B.Schematic Diagrams

PCH 1/9- RTC, HDA, SATA

L12

*WCM2012F2S-161T03-s hort

1

4

2

3

3G/MSATA

J_ESATA1

AT07J36BAA101

GND1

1

TXP

2

TXN

3

GND2

4

RXN

5

RXP

6

GND3

7

SATA_RXP0_R

SATA HDD

SPI ROM + HSPI C100830

SATAICOMP

Board ID

JOPEN1

*OPEN_10mil-1MM

1 2

C422

1u_6.3V_X5R_04

R243 *1K_04

R352 10K_04

R371 1K_04

R578

10M_04

R241 33_04 R557 750_1%_04

R334

1M_04

JOPEN2

*OPEN_10mil-1MM

12

L14

*WCM2012F2S-161T03-s hort

1

4

2

3

R560 *1K_04

R263 10K_04

R575 330K_04

ODD_DETECT#

R304 49.9_1%_04

C423

1u_6.3V_X5R_04

INTVRMEN- Integrated SUS 1.05V VRM Enable

High - Enable Internal VRs /Low - Enable External VRs

C446 1u_6.3V_X5R_04 R271 *1K_04

R286 37.4_1%_04

C713

12p_50V_NPO_04

D21 RB751S-40C2

A C

R313

1K_04

SATA_TXP0_R

R351 *10K_04

RTCIHDA

SATA

LPC

SPI JTAG

SATA 6G

U39A

CPT_PPT_Rev_0p5

RTCX1

A20

RTCX2

C20

INTVRMEN

C17

INTRUDER#

K22

HDA_BCLK

N34

HDA_SYNC

L34

HDA_RST#

K34

HDA_SDIN0

E34

HDA_SDIN1

G34

HDA_SDIN2

C34

HDA_SDO

A36

SATALED # P3

FWH0 / LAD0 C38

FWH1 / LAD1 A38

FWH2 / LAD2 B37

FWH3 / LAD3 C37

LDR Q1# / GPIO23 K36

FWH4 / LFRAME# D36

LDRQ0# E36

RTCRST#

D20

HDA_SDIN3

A34

HDA_DOCK_EN# / GPIO33

C36

HDA_DOCK_RST# / GPIO13

N32

SRTCRST#

G22

SATA0RXN AM3

SATA0R XP AM1

SATA0TXN AP7

SATA0TXP AP5

SATA1RXN AM10

SATA1R XP AM8

SATA1TXN AP11

SATA1TXP AP10

SATA2RXN AD 7

SATA2R XP AD5

SATA2TXN AH5

SATA2TXP AH 4

SATA3RXN AB8

SATA3R XP AB10

SATA3TXN AF3

SATA3TXP AF1

SATA4RXN Y7

SATA4R XP Y5

SATA4TXN AD3

SATA4TXP AD 1

SATA5RXN Y3

SATA5R XP Y1

SATA5TXN AB3

SATA5TXP AB1

SATAICOMPI Y10

SPI_CLK

T3

SPI_CS0#

Y14

SPI_CS1#

T1

SPI_MOSI

V4

SPI_MISO

U3

SATA0GP / GPIO21 V14

SATA1GP / GPIO19 P1

JTAG_TCK

J3

JTAG_TMS

H7

JTAG_TDI

K5

JTAG_TDO

H1

SERIRQ V5

SPKR

T10

SATAICOMPO Y11

SATA3COMPI AB13

SATA3RCOMPO AB12

SATA3RBIAS AH1

C100810

X8

MC-306_32. 768KHz

14

3 2

R540 0_04

R539 33_04

SPI_SCLK

R3 *10K_04

C

A

A

D9

BAT54C S3

1

23

C712

12p_50V_NPO_04

R315

20K_1%_04

R182 10K_04

SPI_SO

R242 33_04

R590 *910_04

R370 1K_04

R325

20K_1%_04

Zo=

50£[¡Ó15%

R591 0_04

VDD3

RTCVCC

SPI_C S_0#

Flash Descriptor

Security Overide

Low = Disabled-(Default)

High = Enabled

RTCVCC

3.3VS

3.3VS

3.3VS

1.05VS

3.3A_1.5A_HDA_IO

1.05VS

3.3A_1.5A_HDA_IO

HDA_SDIN033

3.3V

HDA_SPKR33

HDA_RST#33

LPC_AD2 28,34

LPC_AD1 28,34

LPC_AD0 28,34

LPC_AD3 28,34

SERIR Q 28,3 4

LPC_FRAME# 28,34

SATA_LED# 31

ODD_DETECT# 23

ME_WE34

SATA_RXP3 27

SATA_RXN3 27

SATA_LED#

SATA_TXP3 27

SATA_TXN3 27

6-03-08265-0S0

TPM FUNCTION:SPI_SI High Enable

iTPM ENABLE/DISABLE

6-22-32R76-0B2

HDA_SDOUT_R

6-22-32R76-0BG

SATA3COMP

BBS_BIT0

PantherPoint - M (HDA,JTAG,SATA)

E-SATA HDD

SATA ODD

SPI_SI

RBIAS_SATA3

NO REBOOT STRAP

NO REBOOT STRAP: HDA_SPKR High Enable

SPI_C S_1#

SPI_SI_R

RTC_VBAT

SPI_SI

SM_INTRUDER#

20mils

20mils

RTC CLEAR

PCH_INTVRMEN

RTC_X1

RTC_X2

PCH_J TAG_TDI

PCH_J TAG_TMS

SRTC_RTC#

PLL ODVR VOLTAGE: HDA_SYNC

LOW-1.8 V (DEFAULT) HIGH-15V

HDA_BITCLK_R

RTC_VBAT_1

HDA_SYNC_R

BBS_BIT0 - BIOS BOOT STRAP BIT 0

HD A_SPKR

SERI RQ

LED_IGPU#

SERIRQ

RTC_RST#

SPI_SO_R

PCH_J TAG_TCK_BUF

PCH_J TAG_TDO

SATA_RXP2 31

SATA_RXN2 31

SPI_SCLK_R

SATA_TXP2 31

SATA_TXN2 31

USB3.0_SMI#29

SATA_TXP0

SATA_TXN0

SATA_RXN0

SATA_RXP0

R181 *0_04

U17

MX25L3205DM2I-12G

CE# 1

SO 2

WP#

3

VSS 4

SI 5

SCK 6

HOLD#

7

VDD

8

R240

3.3K_1%_04

R538

3.3K_1%_04

NC1

SHORT

C333 0.1u_16V_ Y 5V_04

BIOS ROM

SPI_SI

16Mbit

SPI_SC LK

SPI_C S0#

SPI_VDD

R297

W27W25

R296

SPI_H OLD#

SPI_WP#

SPI_SO

10K

10K X

X

SPI_* = 1.5"~6.5"

3.3VS

3.3VS

5VS

SATA_RXN0

SATA_RXP0

SATA_TXP0

SATA_TXN0

C706

2.2u_6.3V_Y5V_06

C724 0. 01u_16V_X7R_04

+

C697

220u_6. 3V_6.3*6.3*4.2

C723 0. 01u_16V_X7R_04

C722 0. 01u_16V_X7R_04

C705

0.1u_16V_Y5V_04

C721 0. 01u_16V_X7R_04

HDA_BITCLK_R

Close to PCH

Layout Note:

HDA_BITCLK33

HDA_SDOUT33

HDA_SYNC33

Q25

2SK3018S3

G

DS

R559 0_04

R379 33_04

R544 33_04

R543 *0_04

HSPI_SCLK34

HDA_SYNC_R

C514 22p_50V_NPO_04

R542 33_04

R541 33_04

R402 33_04

HSPI_MSO34 HSPI_MSI34

SPI_C S_1#

R365 33_04

HSPI_CE#34

SPI_SC LK_R

SPI_C S_0#

SPI_SI _R

HDA_SDOUT_R

SPI_SO_R

Share ROM

R562

51_04

C292

0.1u_16V_ Y5V_04

R260

210_1%_06

C293

0.01u_16V_X7R_04

R268

100_1%_04

R259

210_1%_06

R267

100_1%_04

R551

210_1%_06

R563

100_1%_04

3.3VS

C291

1u_6.3V_Y5V_04

3.3V

Closed to U4

3.3VS

Layout Note:

PCH_JTAG_TCK_BUF

PCH_JTAG_TDI

PCH_JTAG_TMS

PCH_JTAG_TDO

R633 *0_04

R412 1M_04

SPI ROM + HSPI C100830

R421 *0_04

R411 0_04

del X9 ¨ú®ø32.768 CO-LAY C101004

HDD_NC0

SATA_TXN0_R

PIN GND1~2=GND

HDD_NC3

HDD_NC2

HDD_NC1

J_RTC1

85205-02701

2

1

SPI_CS0#

SATA_RXN0_R

5VS

Gen3

6-21-14704-107

ESATA POART

C408 0.01u_16V_X7R_04

C409 0.01u_16V_X7R_04

C420 0.01u_16V_X7R_04

C439 0.01u_16V_X7R_04

SATA_RXN_4_C

SATA_TXN4_C

SATA_RXP_4_C

SATA_RXN4_C

SATA_RXP4_C

SATA_TXP4_C

SATA_RXP4

SATA_TXN_4_CSATA_TXN4

SATA_RXN4

SATA_TXP_4_CSATA_TXP4

SATA_RXN4

SATA_RXP4

SATA_TXP4

SATA_TXN4

J_HDD1

1-162-100561

S1

S2

S3

S4

S5

S6

S7

P1

P2

P3

P4

P5

P6

P7

P8

P9

P10

P11

P12

P13

P14

P15

GND1

GND2

Sheet 19 of 50

PCH 2/9- PCIE,

SMBUS, CLK

R394 10K_04

3V -> 3VS C100824

3.3VS

TI USB3.0 unused crystal

and used PCH clock output

FLEX_GLAN_CLK 30

R618 *22_04

C479 0.1u_10V_X7R_04

C480 0.1u_10V_X7R_04

C499 0.1u_10V_X7R_04

C498 0.1u_10V_X7R_04

C497 0.1u_10V_X7R_04

C496 0.1u_10V_X7R_04

R410 0_04

PCIE_TXN2_USB30_TI29 PCIE_TXP2_USB30_TI29

PCIE_RXN2_USB30_TI29

PCIE_TXN2_C

PCIE_TXP2_C

PCIE_RXP2_USB30_TI29

DGPU_PRSNT#

R650 10K_04

CLK_PCIE_WLAN27CLK_PCIE_WLAN#27

CLK_PCIE_USB_30_#_TI

CLK_PCIE_USB30#_TI29 CLK_PCIE_USB_30_TI

USB30_CLKREQ#_TI29

CLK_PCIE_USB30_TI29

USB30_CLKREQ#_TI_R

R599 *10mil_short_04

R277 *10mil_short_04

R376 *10mil_short_04

R598 *10mil_short_04

R398 *10mil_short_04

R375 *10mil_short_04

CLK_PCIE_ICH_N

CLK_BUF_CPYCLK_P

R397 *10mil_short_04

CLK_BUF_CPYCLK_N

CLK_PCIE_ICH_P

PEG_B_CLKRQ#

LPD_SPI_IN TR#

BT_SBD#

PEG_PCI ECLKRQ7#

for RLT8411 C100816

R279 *10mil_short_04

R293 *10mil_short_04

PEG_CLKREQ#

100MHz

R647 10K_04

R649 10K_04

USB30_CLKREQ#_TI

PCIEC LKRQ1#

3VS -> 3V C100727

FSX8L_25MHz¥Ø«e¦@¥Î®Æ

CLK_BUF_DOT96_P

PCH_GPI O65

PEG_PCIECLKRQ7#

10K pull-down to

GND

CL_CLK1

CL_DATA1

CLK_BUF_DOT96_N

PCIECLKRQ0#

CL_RST#1

CLK_PCIE_ICH_P

CLK_PCIE_ICH_N

CLK_BUF_REF14

Crystal 8045 & 3225 Co-lay

SMB_DATA

SMB_CLK

PCH_GPI O66

PCIE_TXP3_C

PCIE_TXN3_C

PCIECLKRQ0#

PCIECLKRQ5#

PCIECLKRQ6#

R573 *10K_04

C740 18p_50V_NPO_04

X6

*HSX321S_25MHZ

12

3 4

RN18

10K_8P4R_04

1

2

3

45

6

7

8

LAN_CLKREQ#

R297 2.2K_04

R374 10K_04

PCI-E*

CLOCKS

FLEX CLOCKS

SMBUSController

Link

U39B

CPT_PPT_Rev _0p5

PERN1

BG34

PERP1

BJ34

PERN2

BE34

PERP2

BF34

PERN3

BG36

PERP3

BJ36

PERN4

BF36

PERP4

BE36

PERN5

BG37

PERP5

BH37

PERN6

BJ38

PERP6

BG38

PERN7

BG40

PERP7

BJ40

PERN8

BE38

PERP8

BC38

PETN1

AV32

PETP1

AU32

PETN2

BB32

PETP2

AY32

PETN3

AV34

PETP3

AU34

PETN4

AY34

PETP4

BB34

PETN5

AY36

PETP5

BB36

PETN6

AU36

PETP6

AV36

PETN7

AY40

PETP7

BB40

PETN8

AW38

PETP8

AY38

CLKOUT_PCIE0N

Y40

CLKOUT_PCIE0P

Y39

CLKOUT_PCIE1N

AB49

CLKOUT_PCIE1P

AB47

CLKOUT_PCIE2N

AA48

CLKOUT_PCIE2P

AA47

CLKOUT_PCIE3N

Y37

CLKOUT_PCIE3P

Y36

CLKOUT_PCIE4N

Y43

CLKOUT_PCIE4P

Y45

CLKOUT_PCIE5N

V45

CLKOUT_PCIE5P

V46

CLKIN_GND1_N BJ30

CLKIN_GND1_P BG30

CLKIN_DMI_N BF18

CLKIN_DMI_P BE18

CLKIN_DOT_96N G24

CLKIN_DOT_96P E24

CLKIN_SATA_N AK7

CLKIN_SATA_P AK5

XTAL25_IN V47

XTA L2 5_ O U T V49

REFCLK14IN K45

CLKIN_PCILOOPBACK H45

CLKOUT_PEG_A_N AB3 7

CLKOUT_PEG_A_P AB3 8

PEG_A_CLKRQ# / GPIO47 M10

PCIECLKRQ0# / GPIO73

J2

PCIECLKRQ1# / GPIO18

M1

PCIECLKRQ2# / GPIO20

V10

PCIECLKRQ3# / GPIO25

A8

PCIECLKRQ4# / GPIO26

L12

PCIECLKRQ5# / GPIO44

L14

CLKOUTFLEX0 / GPIO64 K43

CLKOUTFLEX1 / GPIO65 F47

CLKOUTFLEX2 / GPIO66 H47

CLKOUTFLEX3 / GPIO67 K49

CLKOUT_DMI_N AV22

CLKOUT_DMI_P AU22

PEG_B_CLKRQ# / GPIO56

E6

CLKOUT_PEG_B_P

AB40 CLKOUT_PEG_B_N

AB42

XCLK_RCOMP Y47

CLKOUT_DP_P AM13

CLKOUT_DP_N AM12

CLKOUT_PCIE6N

V40

CLKOUT_PCIE6P

V42

PCIECLKRQ7# / GPIO46

K12

CLKOUT_PCIE7N

V38

CLKOUT_PCIE7P

V37

CLKOUT_ITPXDP_N

AK14

CLKOUT_ITPXDP_P

AK13

SMBALERT# / GPIO11 E12

SMBC LK H14

SMBDATA C9

SML0ALERT# / GPIO60 A12

SML0CLK C8

SML0DATA G12

SML1ALERT# / PCHHOT# / GPIO74 C13

SML1CLK / GPIO58 E14

SML1DATA / GPIO75 M16

CL_CLK1 M7

CL_DATA1 T11

CL_RST1# P10

PCIECLKRQ6# / GPIO45

T13

33MHz

R601

1M_04

100MHz

SMB_DATA

SMB_CLK

R600 90.9_1%_04

CLK_PCIE_WLAN_R

RN9

10K_8P4R_04

1

2

3

45

6

7

8

X1 2

X8A025000FG1H_25MHz

12

R571 1K_04

R596 *10mil_short

R285 *10K_04

CLK_PCIE_GLANP

R303 2.2K_04

SMD_CPU_THERM

RN5

10K_8P4R_04

1

2

3

45

6

7

8

RN6

10K_8P4R_04

1

2

3

45

6

7

8

C739 18p_50V_NPO_04

RN7

2.2K_8P4R_04

1

2

3

45

6

7

8

R597 *10mil_short

3.3V

1.05VS

SMB_CLK 9,10

CLK_PCI_FB 22

WLAN_CLKREQ#27

SMB_DATA 9,10

CLK_EXP_N 3

CLK_EXP_P 3

CLK_DP_P 3

CLK_DP_N 3

PEG_CLKREQ# 12

VGA_PEXCLK# 12

VGA_PEXCLK 12

CL_CLK1 27

CL_RST#1 27

CL_DATA1 27

DRAMRST_CNTRL 3,6

SMC_CPU_THERM 34

SMD_CPU_THERM 34

CLK_PC I E_GLA N30CLK_PCIE_GLAN#30

PCIE_TXP3_W LAN27

PCIE_RXP3_WLAN27 PCIE_RXN3_WLAN27

PCIE_TXP4_GLAN30

PCIE_TXN3_W LAN27

100MHz

PCIE_RXP4_GLAN30

PCIE_RXN4_GLAN30

PCIE_TXN4_GLAN30

LAN_CLKREQ#22,30

BT_SBD# 27

CLK_BUF_REF14

PantherPoint - M (PCI-E,SMBUS,CLK)

DRAMRST_CNTRL

Lane 1 X

Lane 2 TI USB 3.0

Lane 3 WLAN

Lane 4 GLAN / CARD READER

Lane 5 X

Lane 6 X

Lane 7 X

Lane 8 X

UsagePCI-E x1

SMC_CPU_THERM

PEG_CLKREQ#

90.9-£[ ¡Ó1% pullup to

+VccIO

(1.05V, S0 rail)close to

PCH

PCIE_TXP4_C

PCIECLKRQ6#

XCLK_RCOMP

XT AL 2 5 _ I N

CLK_BUF_CKSSCD_P

CLK_BUF_CKSSCD_N

PCIE_TXN4_C

XT AL 2 5 _ O U T

VGA_PEXCLK

VGA_PEXCLK#

SML0_DATA

SML0_CLK

120MHz

DGPU_PRSNT#

CLK_BUF_CPYCLK_P

CLK_BUF_CPYCLK_N

BT_SBD#

PCH_CLK_DP_N_R

PCH_CLK_DP_P_R CLK_BUF_DOT96_P

CLK_BUF_CKSSCD_P

CLK_BUF_CKSSCD_N

CLK_XDP_P

CLK_XDP_N

PCH _XTAL_IN

DRAMRST_CNTRL

100MHz

100MHz

CLK_BUF_DOT96_N

CLK_PCIE_GLANN

CLK_PCIE_WLAN#_R

PEG_CLKREQ#

LPD_SPI_INTR#

SMC_CPU_THERM

SMD_CPU_THERM

SML0_CLK

SML0_DATA

PCIECLKRQ5#

LAN_CLKREQ#

PCIECLKRQ1#

PEG_B_C LKRQ#

Schematic Diagrams

B - 20 PCH 2/9- PCIE, SMBUS, CLK

B.Schematic Diagrams

PCH 2/9- PCIE, SMBUS, CLK

Schematic Diagrams

PCH 3/9- DMI, FDI, PWRGD B - 21

B.Schematic Diagrams

PCH 3/9- DMI, FDI, PWRGD

Sheet 20 of 50

PCH 3/9- DMI, FDI,

PWRGD

R316 *10mil_s hort

FOR HPQ C100523

1.05VS_VTT_EN 39

C100824

U18

MC74VHC1G08DFT2G

1

2

5

4

3

1.05VS_VTT_EN

U27D

74LVC08PW

12

13

11

147

RSMRST#

0.85VS_EN 37

0.85VS_EN

R311 0_04

1.05VS_VTT_PWRGD39

C710 *0.1u_10V_X5R_04

3.3V

R680

PM_PCH_PW ROK_R

DSWODVREN

DSWODVREN - On Die DSW VR Enable

PCIE_WAKE#

SUS_PWR_ACK

SWI#

PM_SLP_LAN#

SLP_A#

R681

RSMRST#

SUS_PWRACK

DMI_2RBIAS

SLP_S5#

S4_STATE#

DMI_COMP_R

R579 49. 9_1 %_04

R294 *10mil_short

PM_CLKRUN#

C748

*1u_6.3V_X5R_04

DMI

FDI

System Power Management

U39C

CPT_PPT_R ev _0p5

DMI0RXN

BC24

DMI1RXN

BE20

DMI2RXN

BG18

DMI3RXN

BG20

DMI0RXP

BE24

DMI1RXP

BC20

DMI2RXP

BJ18

DMI3RXP

BJ20

DMI0TXN

AW24

DMI1TXN

AW20

DMI2TXN

BB18

DMI3TXN

AV18

DMI0TXP

AY24

DMI1TXP

AY20

DMI2TXP

AY18

DMI3TXP

AU18

DMI_ZCOMP

BJ24

DMI_IRCOMP

BG25

FDI_RXN0 BJ14

FDI_RXN1 AY14

FDI_RXN2 BE14

FDI_RXN3 BH13

FDI_RXN4 BC12

FDI_RXN5 BJ12

FDI_RXN6 BG10

FDI_RXN7 BG9

FDI_RXP0 BG14

FDI_RXP1 BB14

FDI_RXP2 BF14

FDI_RXP3 BG13

FDI_RXP4 BE12

FDI_RXP5 BG12

FDI_RXP6 BJ10

FDI_RXP7 BH9

FDI_FSYNC0 AV12

FDI_FSYNC1 BC10

FDI_LSYNC0 AV14

FDI_LSYNC1 BB10

FDI_INT AW16

PMSYNCH AP14

SLP_SU S# G16

SLP_S3 # F4

SLP_S4 # H4

SLP_S5# / GPIO63 D10

SYS_RESET#

K3

SY S_PWROK

P12

PWRBTN#

E20

RI#

A10

WAKE# B9

SUS_STAT# / GPIO61 G8

SUSCLK / GPIO62 N14

ACPRESENT / GPIO31

H20

BATLOW# / GPIO72

E10

PWROK

L22

CLKRUN# / GPIO32 N3

SUSWARN#/SUSPWRDNACK/GPIO30

K16

RSMRST#

C21

DRAMPWROK

B13

SLP_LAN# / GPIO29 K14

APWROK

L10

DPWROK E22

DMI2RBIAS

BH21

SLP_A# G10

DSWVRMEN A18

SUSACK#

C12

R314 *10K_04

R302 10K_04

R566 8.2K_04

PCIE_WAKE#

R312 *10mil_short

R570 10K_04

SLP_SUS#

R283 *10K_04

R547 8.2K_04

R576 330K_04

R577 *330K_04

R574 750_1%_04

C747

1u_6.3V_Y 5V_04

R139 10K_04

Disabled

R550 10K_04

R296 1K_04

R326 10K_04

R569 10K_04

3.3VS

3.3V

RTCVCC

1.05VS

3.3VS

3.3V

PWR_BTN#

FDI_TXP5 2

FDI_TXP6 2

FDI_TXP7 2

FDI_TXP2 2

FDI_TXP3 2

FDI_TXP4 2

FDI_TXN5 2

FDI_TXP0 2

FDI_TXP1 2

FDI_TXN1 2

FDI_TXN6 2

FDI_TXN0 2

PM_MPWROK

U27B

74LVC08PW

4

5

6

147

R301 *10K_04

FDI_TXN4 2

FDI_TXN3 2

FDI_TXN2 2

FDI_TXN7 2

U27A

74LVC08PW

1

2

3

147

FDI_FSYNC1 2

FDI_FSYNC0 2

FDI_INT 2

3.3V

1.8VS_PWRGD3,37

DDR1.5V_PWRGD38

PM_CLKRUN# 28

FDI_LSY NC1 2

FDI_LSY NC0 2

3.3V

1.05VS_PWRGD38

SUSC# 34,38

SUSB# 6,34,35

H_PM_SYNC 3

PWR_BTN#34

AC_PRESENT22,34

SWI#34

DD R_1.05VS_PWRGD

R651

0_04

PM_DRAM_PWRGD3

SUS_PWR_ACK34

RSMRST#34

SYS_RESET#

S4_STATE# 28

PCIE_WAKE# 27,29,30

ALL_SYS_PWRGD 11,34,40

0.85VS_PWRGD37

DMI_RXN22

DMI_RXN12

DMI_RXN02

DMI_RXP12DMI_RXP02

DMI_RXN32

DMI_TXN02

DMI_RXP32

DMI_RXP22

DMI_TXN32

DMI_TXN22

DMI_TXN12

DMI_TXP22

DMI_TXP12

DMI_TXP02

PM_PCH_PWROK34

DMI_TXP32

AC_PRESENT

PantherPoint -M (DMI,FDI,GPIO)

SUSCLK

PM_BATLOW#

PM_MPWROK

SWI#

Enabled (DEFAULT)

PM_SLP_LAN #

SYS_PWROK

ALL_SY S_PWR GD

SU S_PW R_AC K

DSWODVREN

-n±µSUSB# -->§_«h1.05VS_VTT¦bSUSPEND®É¤£·|Ãö¹q

PM_BATLOW#

ON

PWR_BTN#

AC_PRESENT

PM_CLKRUN#

R327 0_04

R328

*0_04

C469

*1u_16V_X5R_06

VCORE_PWRGD34 R366 *0_04

From EC pin119

C434

*0. 1u_ 10V_X5R_04

3.3V

DELAY_PWRGD40

PM_PCH_PWROK34

SYS_PWROK

U27C

74LVC 08PW

9

10

8

147

R611 0_04

R381 *10K_04

½Õ¾ã¶}¾÷®É§Ç C100809

½Õ¾ã¶}¾÷®É§Ç C100809

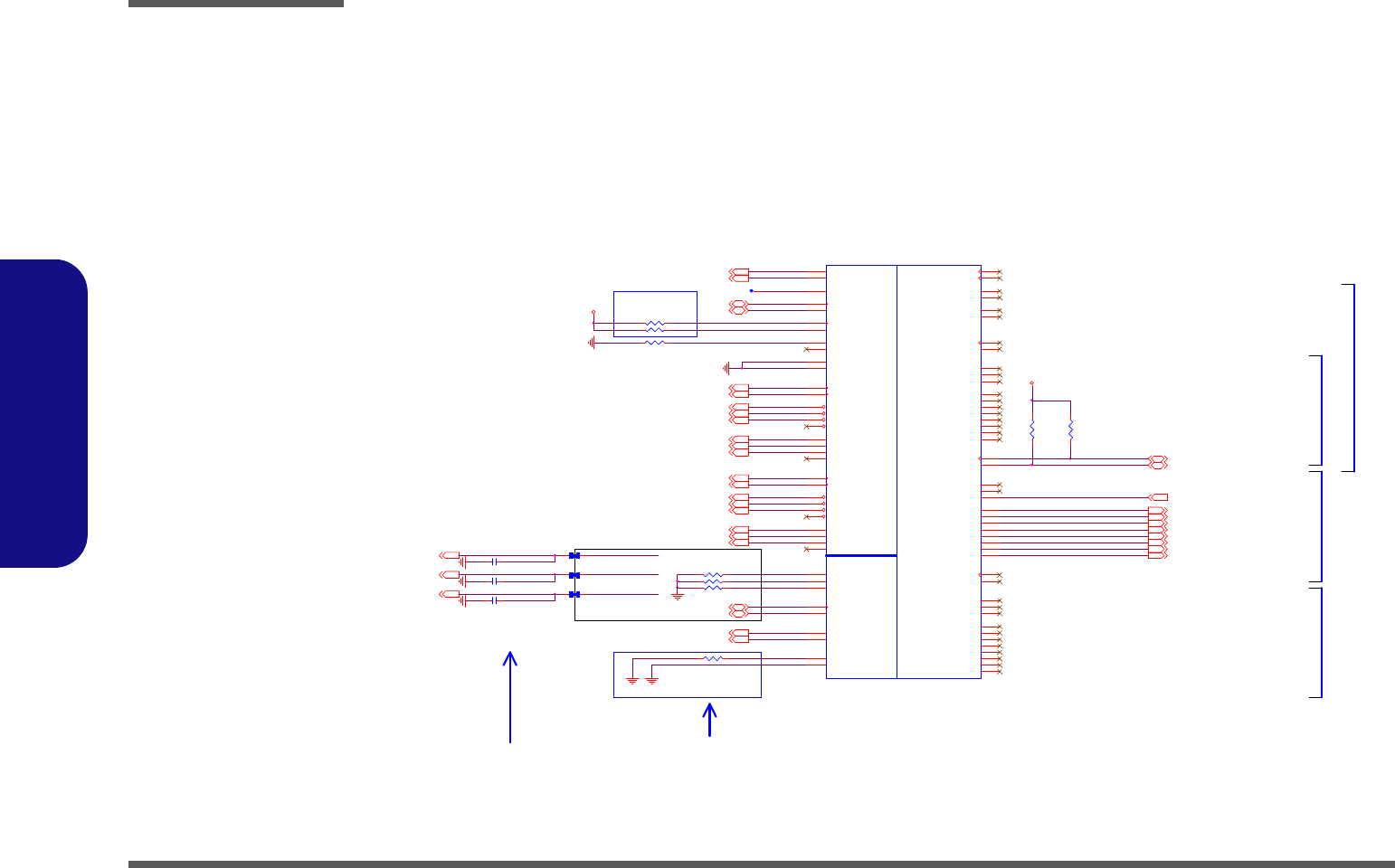

Schematic Diagrams

B - 22 PCH 4/9- LVDS, DDI, CRT

B.Schematic Diagrams

PCH 4/9- LVDS, DDI, CRT

Sheet 21 of 50

PCH 4/9- LVDS,

DDI, CRT

R605 150_1%_04

R602 150_1%_04

R606 150_1%_04

DAC_BLUE_R

DAC_IREF_R

Connect to GND

External Graphics (PCH Integrated Graphics Disable)

PantherPoint -M (LVDS,DDI)

HDMIC_CLKCN

HDMIC_CLKCP

HDMI_HPD

HDMIC_C1CP

HDMIC_C1CN

HDMIC_C2CN

DAC_RED_R

HDMIC_C0CP

HDMIC_C0CN

HDMIC_C2CP

NEAR PCH

DAC_GREEN_R

EMI

DAC_GREEN_R

DAC_RED_R

SDVO

Display Port BDisplay Port CDisplay Port D

DAC_BLUE_R

R607 *15m il_short

R364 2.2K_04

R363 1K_1%_04

R608 *15m il_short

R603 *15m il_short

R395

2.2K_04

C743 *33p_50V_NPO_04

LVDS

Digital Display Interface

CRT

U39D

CPT_PPT_Rev _0p5

L_BKLTCTL

P45

L_BKLTEN

J47

L_CTRL_CLK

T45

L_CTRL_DATA

P39

L_DDC_CLK

T40

L_DDC_DATA

K47

L_VDD_EN

M45

LVDSA_CLK#

AK39

LVDSA_CLK

AK40

LVDSA_DATA#0

AN48

LVDSA_DATA#1

AM47

LVDSA_DATA#2

AK47

LVDSA_DATA#3

AJ48

LVDSA_DATA0

AN47

LVDSA_DATA1

AM49

LVDSA_DATA2

AK49

LVDSA_DATA3

AJ47

LVDSB_CLK#

AF40

LVDSB_CLK

AF39

LVDSB_DATA#0

AH45

LVDSB_DATA#1

AH47

LVDSB_DATA#2

AF49

LVDSB_DATA#3

AF45

LVDSB_DATA0

AH43

DDPB_0N AV42

DDPB_1N AV45

LVD_VREFH

AE48

LVD_VREFL

AE47

DDPD_2N BF42

DDPD_3N BJ42

DDPB_2N AU48

DDPB_3N AV47

DDPC_0N AY47

DDPC_1N AY43

DDPC_2N BA47

DDPC_3N BB47

DDPD_0N BB43

DDPD_1N BF44

DDPB_0P AV40

DDPB_1P AV46

DDPD_2P BE42

DDPD_3P BG42

DDPB_2P AU47

DDPB_3P AV49

LVDSB_DATA1

AH49

LVDSB_DATA2

AF47

LVDSB_DATA3

AF43

LVD_IBG

AF37

LVD_VBG

AF36

DDPC_1P AY45

DDPC_0P AY49

DDPC_2P BA48

DDPC_3P BB49

DDPD_0P BB45

DDPD_1P BE44

CRT_BLUE

N48

CRT_DDC_CLK

T39

CRT_DDC_DATA

M40

CRT_GREEN

P49

CRT_HSYNC

M47

C R T_ I R TN

T42

CRT_RED

T49

CRT_VSYNC

M49

DAC_IREF

T43

SDVO_CTRLCLK P38

SDVO_CTRLDATA M39

DDPC_CTRLCLK P46

DDPC _C TRLDATA P42

DDPD_CTRLCLK M43

DDPD _C TRLDATA M36

DDPB_AUXN AT49

DDPC_AUXN AP47

DDPD_AUXN AT45

DDPB_AUXP AT47

DDPC_AUXP AP49

DDPD_AUXP AT43

DDPB_HPD AT40

DD PC_H PD AT38

DD PD_H PD BH41

SDVO_TVCLKINP AP45

SDVO_TVCLKINN AP43

SDVO_STALLP AM40

SDVO_STALLN AM42

SDVO_INTP AP40

SDVO_INTN AP39

R353 2.2K_04

R396

2.2K_04

C737 *33p_50V_NPO_04

C742 *33p_50V_NPO_04

R354 2.37K_1%_04

3.3VS

LVDS-LCLKP11

LVDS-LCLKN11

3.3VS

LVDS-L2N11

LVDS-L1N11 LVDS-L0N11

LVDS-L2P11 LVDS-L1P11

LVDS-L0P11

BLON11

P_DDC _DATA11

P_DDC _CLK11

D AC_VSY N C11 DAC_HSYNC11

NB_ENAVDD11,34

DAC_RED11

DAC_GREEN11

DAC_DDCADATA11 DAC_DDCACLK11

LVDS-U 2N11

LVDS-U 1N11 LVDS-U0N11

LVDS-U 0P11

LVDS-U 2P11

LVDS-U 1P11

DAC_BLUE11

LVDS-U CLKP11

LVDS-U CLKN11

HDMIC_C1CN 32

HDMIC_CLKCP 32

HDMIC_CLKCN 32

HDMIC_C0CN 32

HDMIC_C2CP 32

HDMIC_C2CN 32

HDMIC_C1CP 32

HDMI_CTRLDATA 32

HDMI_CTRLCLK 32

HDMIC_C0CP 32

HDMI_HPD 32

Ver:1.0

pull up 2.2K

L_CTRL_DATA

L_C TRL_C LK

LVDS_I BG

Schematic Diagrams

PCH 4/9- PCI, USB, RSVD B - 23

B.Schematic Diagrams

PCH 4/9- PCI, USB, RSVD

dGPU_RST#12,34 R589 *0_04

R581 22.6_1%_06

R572 *0_04

C100820

R586 *0_04

dGPU _PWM_SELECT#16

USB PORT0

USB PORT1

R373 *1K_04

R372 *1K_04

R392 *1K_04

R585 22_04

USB3_RX2N29 USB3_RX1N29

R391 22_04

R393 *22_04

USB3_RX2P29 USB3_RX1P29

USB3_TX1N29

USB3_TX2N29

USB3_TX2P29 USB3_TX1P29

R255 *0_04

USB_PN9 31

USB PORT3

USB_PP9 31

LAN_CLKREQ#19,30 R634 *10K_04

LAN_CLKREQ#

INT_PIRQE#

CCD

WLAN

USB PORT0

CLK_PCI_FB_R

3G

INT_PIRQH#

INT_PIRQG#

SATA_ODD_DA#

INT_PIRQE#

INT_PIRQD#

IN T_PIRQE#

CLK_PC I_KBC_R

PCLK_TPM_PCH

USB_BIAS

USB_OC#23

DGPU _PW M_SELEC T#

USB_OC#1213

MPC Switch Control

MPC OFF -- 0 DEFAULT

MPC ON -- 1

INT_PIRQD#

INT_PIRQC#

INT_PIRQB#

INT_PIRQA#

USB1 Port For Debug.

LOW = PCI_GNT#3 swap override

PCI_GNT#3

Flash Descriptor security override strap

USB PORT1

HIGH = Default

USB9 Port For Debug.

HM65 NO SUPPORT PORT 6 & 7

D_GPU_PWR_EN#

DGPU_HOLD_RST#

DGPU _SELEC T#

INT_PIRQH#

USB_OC#14

USB_OC#1011

USB_OC#67

SATA_ODD_DA#

INT_PIRQC#

D_GPU_PWM_SELECT#

PCI_GNT#3

BBS_BIT1

INT_PIRQA#

USB_OC#89

RN19

10K_8P4R_04

81 72 6

5

3

4

R587 *0_04

R362 *10K_04

USB_OC#45

R635 10K_04

RSVD

PCI

USB

U39E

C P T_P PT_ R ev _ 0p 5

RSVD23 AV5

RSVD1 AY7

RSVD2 AV7

RSVD3 AU3

RSVD4 BG4

RSVD5 AT10

RSVD6 BC8

RSVD7 AU2

RSVD8 AT4

RSVD17 BB5

RSVD18 BB3

RSVD19 BB7

RSVD20 BE8

RSVD21 BD4

RSVD22 BF6

RSVD9 AT3

RSVD10 AT1

RSVD11 AY3

RSVD12 AT5

RSVD13 AV3

RSVD14 AV1

RSVD15 BB1

RSVD16 BA3

RSVD25 AT8

RSVD24 AV10

RSVD26 AY5

RSVD27 BA2

RSVD28 AT12

RSVD29 BF3

PIRQA#

K40

PIRQB#

K38

PIRQC#

H38

PIRQD#

G38

REQ1# / GPIO50

C46

REQ2# / GPIO52

C44

REQ3# / GPIO54

E40

GNT1# / GPIO51

D47

GNT2# / GPIO53

E42

GNT3# / GPIO55

F46

PIRQE# / GPIO2

G42

PIRQF# / GPIO3

G40

PIRQG# / GPIO4

C42

PIRQH# / GPIO5

D44

USBP0N C24

USBP0P A24

USBP1N C25

USBP1P B25

USBP2N C26

USBP2P A26

USBP3N K28

USBP3P H28

USBP4N E28

USBP4P D28

USBP5N C28

USBP5P A28

USBP6N C29

USBP6P B29

USBP7N N28

USBP7P M28

USBP8N L30

USBP8P K30

USBP9N G30

USBP9P E30

USBP10N C30

USBP10P A30

USBP11N L32

USBP11P K32

USBP12N G32

USBP12P E32

USBP13N C32

USBP13P A32

PME#

K10

CLKOUT_PCI0

H49

CLKOUT_PCI1

H43

CLKOUT_PCI2

J48

USBRBIAS# C33

USBRBIAS B33

OC0# / GPIO59 A14

OC1# / GPIO40 K20

OC2# / GPIO41 B17

OC3# / GPIO42 C16

OC4# / GPIO43 L16

OC5# / GPIO9 A16

OC6# / GPIO10 D14

OC7# / GPIO14 C14

CLKOUT_PCI4

H40 CLKOUT_PCI3

K42

PLTRST#

C6

TP1

BG26

TP2

BJ26

TP3

BH25

TP6

AH38

TP7

AH37

TP8

AK43

TP9

AK45

TP16

Y13

TP17

K24

TP18

L24

TP19

AB46

TP20

AB45

TP21

B21

TP22

M20

TP23

AY 16

USB3Rn1

BE28

USB3Rn2

BC30

USB3Rn3

BE32

USB3Rn4

BJ32

USB3Rp1

BC28

USB3Rp2

BE30

USB3Rp3

BF32

USB3Rp4

BG32

USB3Tn1

AV26

USB3Tn2

BB26

USB3Tn3

AU28

USB3Tn4

AY 30

USB3Tp1

AU26

USB3Tp2

AY 26

USB3Tp3

AV28

USB3Tp4

AW30

TP4

BJ16

TP5

BG16

TP15

AM5 TP14

AM4 TP13

AH12 TP12

H3 TP11

N30 TP10

C18

TP24

BG46

RN8

10K_8P4R _04

8 1

7 2

6

53

4

RN11

10K_8P4R_04

81 72

6

5

3

4

RN17

10K_8P4R _04

8 1

7 2

6

53

4

RN12

10K_8P4R_04

81 72 6

5

3

4

3.3V

3.3VS

AC_PRESEN T 20,34

USB_OC#01 31

SATA_ODD_DA#31

PLT_RST#3,12,28

PME#34

USB_PN0 29

PCLK_TPM28

PCLK_KBC34

USB_PN2 27

USB_PP5 28

USB_PP0 29

USB_PN5 28

USB_PP3 27

USB_PN3 27

USB_PP2 27

CLK_PCI_FB19

USB_PP1 29

USB_PN1 29

DGPU_PWR_EN#34,42

INT_PIRQB#

INT_PIRQG#

USB_OC#67

USB_OC#45

USB_OC #1213

USB_OC#14

USB_OC#23

USB_OC#01

USB_OC#89

BBS_BIT1

Understand the RED FONT define

PCI_GNT#3

USB_OC #1011

BBS_BIT1 BBS_BIT0 Boot BIOS Location

0 0 LPC

0 1 Reserved (NAND)

1 0 PCI

1 1 SPI

PLT_RST#

Boot BIOS Strap

PantherPoint -M (PCI,USB,NVRAM)

DGPU_HOLD_RST#

D_GPU_PWR_EN#

DGPU_SELECT#

3.3VS

BU F _PLT_RST# 27,29,30, 34

PLT_RST# U38

MC 74 VH C 1 G0 8D F T2 G

1

2

5

4

3

C703 *0.1u_16V_Y 5V_04

R564

100K_04

PIN PLT_RST# to Buffer

USB_OC#01

Sheet 22 of 50

PCH 4/9- PCI, USB,

RSVD

R360 10K_04 DGPU_PWROK

R269 10K_04

ICPPE#34

R265 * 100K_04

BOARD ID

3.3V

R266 100K_04

R278 * 0_04

PLACE R464 CLOSE TO THE BRANCHING POINT

( TO CPT and NVRAM CONNECTOR

BIOS_REC

HPECI_R

FDI_OVRVLTG

EDID_SELEC T#

TEST_SET_UP

HTHRMTRIP#_R

PLL_ODVR_EN

PLL_ODVR_EN:HIGH- ENABLED[DEFAULT]

LOW - DISABLED

SATA_OD D_PWRGT

KBC_RST#

SCI #

SMI#

SATA_DET#4

DGPU_PWROK

FDI_OVRVLTG

ICC_EN#

SCI#

DGPU_HPD_INTR#

HOST_ALERT#1

PLL_ODVR_EN

SATA_ODD_PWRGT

BIOS RECOVERY

DISABLE----HIGH (DEFAULT)

ENABLE-----LOW

LED_DGPU#

SMI#

GPIO71

SB_BLON

CRIT_TEMP_REP#_R

MFG_MOD E

SATA_DET#4

SATA_ODD _PRSN T#

PCH_GPI O57

GFX_CRB_DET

GFX_CRB_DET

GPIO70

ICC_EN#

INTEGRATED Clock Chip Enable

ICC_EN#: HIGH - DISABLED [DEFAULT]

LOW - ENABLED

PCH_TS_VSS4

PCH_TS_VSS3

PCH_TS_VSS2

PCH_TS_VSS1

KBC _RST#

PCH _TS_VSS2

PCH _TS_VSS1

HOST_ALERT#2

INTERNAL GFX: LOW (DEFAULT)

EXTERNAL GFX:HIGH

S_GPIO

HOST_ALERT#1

PCH _TS_VSS4

PCH _TS_VSS3

NV_CLE

DGPU_HPD_I NTR#

S_GPIO

Set to Vss when LOW

Set to Vcc when HIGH

NV_CLE

DMI & FDI Termination Voltage

HOST_ALERT#2 INIT3_3V#

PCH_MUTE#

RN16

10K_8P4R_04

1

2

3

4 5

6

7

8

CRIT_TEMP_REP#_R

PantherPoint - M (GPIO,VSS_NCTF,RSVD)

R580 100K_04

R582 1.5K_1%_04

R583 100K_04

R272 200K_04

TEST_SET_UP

CPU/MISC

NCTF

GPIO

U39F

CPT_ PPT_R ev _0p 5

GPIO27

E16

GPIO28

P8

GPIO24

E8

GPIO57

D6

LAN_PHY_PWR_CTRL / GPIO12

C4

VSS_NCTF_1

A4

VSS_NCTF_2

A44

VSS_NCTF_3

A45

VSS_NCTF_4

A46

VSS_NCTF_5

A5

VSS_NCTF_6

A6

VSS_NCTF_7

B3

VSS_NCTF_8

B47

VSS_NCTF_9

BD1

VSS_NCTF_10

BD49

VSS_NCTF_11

BE1

VSS_NCTF_12

BE49

TACH2 / GPI O6

H36

TACH0 / GPIO17

D40

TACH3 / GPI O7

E38

SATA3GP / GPIO37

M5

SATA5GP / GPIO49 / TEMP_ALERT#

V3

SCLOCK / GPIO22

T5

SLOAD / GPIO38

N2

SDATAOUT0 / GPIO39

M3

SDATAOUT1 / GPIO48

V13

PROCPWRGD AY11

RCIN# P5

PECI AU16

THR MTR IP# AY10

GPIO8

C10

BMBUSY # / GPIO0

T7

GPIO15

G2

TACH1 / GPI O1

A42

SATA2GP / GPIO36

V8

INIT3_3V# T14

STP_PCI# / GPIO34

K1

GPIO35

K4

SATA4GP / GPIO16

U2

VSS_NCTF_32 F49

A20GATE P4

TACH4 / GPIO68 C40

TACH6 / GPIO70 C41

TACH7 / GPIO71 A40

TACH5 / GPIO69 B41

VSS_NCTF_17 BH3

VSS_NCTF_18 BH47

VSS_NCTF_19 BJ4

VSS_NCTF_20 BJ44

VSS_NCTF_21 BJ45

VSS_NCTF_22 BJ46

VSS_NCTF_23 BJ5

VSS_NCTF_24 BJ6

VSS_NCTF_25 C2

VSS_NCTF_26 C48

VSS_NCTF_27 D1

VSS_NCTF_28 D49

VSS_NCTF_29 E1

VSS_NCTF_30 E49

VSS_NCTF_31 F1

TS_VSS4 AK10

TS_VSS3 AH10

TS_VSS2 AK11

TS_VSS1 AH8

NC_1 P37

VSS_NCTF_13

BF1

VSS_NCTF_14

BF49

VSS_NCTF_15 BG2

VSS_NCTF_16 BG48

DF_TVS AY1

RN10

10K_8P4R_04

1

2

3

4 5

6

7

8

3.3V

1.05VS_VTT

3.3VS

3.3VS

3.3VS

3.3VS

3.3V

3.3V

1.8VS

3.3VS

GA20 34

KBC_RST# 34

H_CPUPWRGD 3

H_PECI 3,34

SCI#34

H_THR MTR IP# 3

DGPU_PWROK

SMI#34

SATA_ODD_PRSNT#31

CRI T_TEMP_REP#34

MFG_MOD E

SB_BLON11

SATA_OD D _PWRGT 31

SATA_OD D_PRSNT#

ODD_DETECT# 18

H_SNB_I VB# 3

BIOS_REC

R553 1K_04

R290 390_1%_06

R554 2.2K_04

R251 *10K_04

TEST_DETTEST_D ET

R264 1K_04

R552 1K_04

R390 *10K_04

LED_DGPU#

R548 10K_04

R558 10K_04

R361 1K_04

R250 10K_04 LED_DGPU#

R289 * 10mil_short _04

R287 * 10mil_short _04

R298 * 10mil_short _04

R288 * 10mil_short _04

R284 100K_04

R270 *1K_04

R291 *0_04

R292 *10K_04

R261

*0_04

R549 *10K_04

R561

100K_04

R262 10K_04

R568 *10K_04

R567

1K_04

R565 10K_04

R254 * 0_04

Schematic Diagrams

B - 24 PCH 6/9- GPIO, CPU

B.Schematic Diagrams

PCH 6/9- GPIO, CPU

Sheet 23 of 50

PCH 6/9- GPIO,

CPU

Schematic Diagrams

PCH 7/9- PWR B - 25

B.Schematic Diagrams

PCH 7/9- PWR

R317 *20mil_04

C513

22u_6.3V_X5R_08

C512

0.01u_16V_X7R_04

C495

0.01u_16V_X7R_04

+

C754

100u_6.3V_B_A

C741

10u_6.3V_X5R_06

R335 *15mil_short_06

C736

0.1u_10V_X5R_04

C478

*1u_6.3V_X5R_04

C735

0.01u_16V_X7R_04

C407

1u_6.3V_X5R_04

C433

10u_6.3V_X5R_08

R355 *15m il_short_06

C476

1u_6.3V_X5R_04

C475

1u_6.3V_X5R_04

C457

10u_6.3V_X5R_08

C431

1u_6.3V_X5R_04

C454

1u_6.3V_X5R_04

C494

0.1u_10V_X5R_04

L36 0_06

R409

*10K_1%_04

C537

*1u_6.3V_Y5V_04

C523

0.1u_10V_X5R_04

L37

HCB1608KF-121T25

R408

*23.7K_1%_04

C753

22u_6.3V_X5R_08

U24

*APL5603-33B

IN 1

SET

4GND 2

SHD N# 3

OUT

5

R399 *0_04

R400 *0_04

L24 HCB1608KF-121T25

C451

1u_6.3V_X5R_04

C464

1u_6.3V_X5R_04

C458

10u_6.3V_X5R_08

C448

1u_6.3V_X5R_04

CLOSE TO CHIP C100823

L16 *HCB1005KF-121T20

R336 *15mil_s hort _06

C709

*10u_6.3V_X5R_06

R555 *15mil_short_06

R318 *15mil_short_06

R545 *0_04

POWER

VCC CORE

DMI

VCCIO

CRTLVDS

FDI

DFT / SPI HVCMOS

U39G

CPT_PPT_Rev_0p5

VCCCORE[1]

AA23

VCCCORE[2]

AC23

VCCCORE[3]

AD21

VCCCORE[4]

AD23

VCCCORE[5]

AF21

VCCCORE[6]

AF23

VCCCORE[7]

AG21

VCCCORE[8]

AG23

VCCCORE[9]

AG24

VCCCORE[10]

AG26

VCCCORE[11]

AG27

VCCCORE[12]

AG29

VCCCORE[13]

AJ23

VCCCORE[14]

AJ26

VCCCORE[15]

AJ27

VCCDF TERM[4] AJ17

VCCDF TERM[3] AJ16

VCCIO[17]

AN21

VCCIO[18]

AN26

VCCIO[19]

AN27

VCCIO[20]

AP21

VCCIO[23]

AP26

VCCIO[24]

AT24

VCCIO[15]

AN16

VCCIO[16]

AN17

VCCIO[21]

AP23

VCCIO[22]

AP24

VCCADAC U48

VCCTX_LVDS[1] AM37

VCCTX_LVDS[2] AM38

VCCALVDS AK36

VCCVRM[3] AT16

VCCVRM[2]

AP16

VCCAPLLEXP

BJ22

VccAFDIPLL

BG6

VCCIO[28]

AN19 VCCTX_LVDS[4] AP37

VCCTX_LVDS[3] AP36

VSSADAC U47

VSSALVDS AK37

VCCIO[27]

AP17

VCC3_3[6] V33

VCC3_3[7] V34

VCC3_3[3]

BH29 VCCDF TERM[2] AG17

VCCDF TERM[1] AG16

VCCDMI[1] AT20

VCCIO[25]

AN33

VCCIO[26]

AN34

VCCCORE[16]

AJ29

VCCCORE[17]

AJ31

VCC SPI V1

VCCCLKDMI AB36

VCCDMI[2]

AU20

C465

0.1u_10V_X5R_04

R556 *0_04

1.05VS_VTT

1.5VS 1.5VS_1 .8VS

1.05VS_VCCAPLL_EXP1

1.05VS

1.05S_VCC _D MI

1.5VS_1.8VS

1.05VS

3.3VS

1.05VS

VCCA_DAC_3.3VS

1.8VS_VCCTX_LVD

1.8VS

1.05VS_VTT

3.3VS

VCCME3.3V

3.3VS

1.8VS

V_NVRAM_VCCQ3.3VS

3.3VS

3.3V

3.3VS3.3VS_VCCA_LVD

1.05VS 1.8VS

1.05VS_VCCAPLL_FDI

1.5VS_1.8VS

1.05VS

5VS

1.05VS

1.05VS_VCCAPLL_EXP

160mA

190mA

VCCCLKDMI

42mA

PantherPoint -M (POWER)

266mA

42mA

160mA

1.3A

2.92A

VCCA_DAC3.3VS

266mA

SET

1mA

1.05VS

10u_6.3V_X5R_06 * 1Pcs

2mA

1u_6.3V_X5R_04 * 3Pcs

10u_6.3V_X5R_06 * 1Pcs

2.93A

1u_6.3V_X5R_04 * 4Pcs

1.05VS

APL5603-33B 6-02-56033-4C0

G9091-330T11UF 6-02-90913-4C0

20mA

1mA

C430

0.1u_10V_X5R_04

R546 0_04

R299 *0_06

C702

1u_6.3V_X5R_04

60mA

Sheet 24 of 50

PCH 7/9- PWR

Schematic Diagrams

B - 26 PCH 8/9 POWER

B.Schematic Diagrams

PCH 8/9 POWER

C477

1u_6.3V_X5R_04

C429

1u_6.3V_X5R_04

C455

22u_6.3V_X5R_08

C456

22u_6.3V_X5R_08

C462

1u_6.3V_X5R_04

C473

0.1u_10V_X5R_04

C449

1u_6.3V_X5R_04

C428

0.1u_10V_X5R_04

C474

0.1u_10V_X5R_04

C715

0.1u_10V_X5R_04

L15

HCB1005KF-121T20

C412

1u_6.3V_X5R_04

C426

0.1u_10V_X5R_04

L35

*HC B1005KF-121T20

C424 0.1u_10V_X5R_04

C524

1u_6.3V_X5R_04

C733

22u_6.3V_X5R_08

C411 *0.1u_10V_X5R_04

C414

0.1u_10V_X5R_04

C413

0.1u_10V_X5R_04

C432

4.7u_6.3V_X5R_06

C453

1u_6.3V_X5R_04

C460

0.1u_10V_X5R_04

C461

0.1u_10V_X5R_04

80mA

VCCAPLL_CPY_PCH

PCH_VCCDSW

150mA

16mA

16mA

D10 RB751S-40C2

AC

C717

0.1u_10V_X5R_04

C711

1u_6.3V_X5R_04

C716

0.1u_10V_X5R_04

D11 RB751S-40C2

AC

C734

10u_6.3V_X5R_06

R345 10_1%_04

C493

1u_6.3V_X5R_04

C507

1u_6.3V_X5R_04

L23

HCB1608KF-121T25

.

L22

HCB1608KF-121T25

C731

*22u_6.3V_X5R_08

C471

0.1u_10V_X5R_04

C730

*22u_6.3V_X5R_08

C450 *1u_6.3V_X5R_04

DCPSUS

POWER

SATA USB

Clock and Miscellaneous

HDA

CPURTC

PCI/GPIO/LPCMISC

U39J

CPT_PPT_Rev_0p5

DCPSUSBYP

V12

VCCASW[ 1]

AA19

VCCASW[ 2]

AA21

VCCASW[ 3]

AA24

VCCASW[ 5]

AA27

VCCASW[ 6]

AA29

VCCSUSHDA P32

VCCSUS3_3[6] P24

VCCIO[34] T26

VCCIO[4] AD17

VCCASW[ 7]

AA31

VCCASW[ 8]

AC26

VCCASW[ 9]

AC27

VCCASW[ 10]

AC29

VCCASW[ 11]

AC31

VCCASW[ 12]

AD29

V5REF P34

VCC3_3[4] T34

VCCRTC

A22

VCCSUS3_3[10] V24

VCCSUS3_3[9] V23

VCCSUS3_3[8] T24

VCCSUS3_3[7] T23

VCCIO[2] AC16

VCCADPLLB

BF47

VCCDIFFCLKN[1]

AF33

V5REF_SUS M2 6

VCCIO[3] AC17

DCPSUS[1]

T17

VCCSSC

AG33

VCCADPLLA

BD47

VCCVRM[4]

Y49

VCCACLK

AD49

DCPRTC

N16

VCCASW[ 4]

AA26

VCCDIFFCLKN[2]

AF34

VCCIO[7]

AF17

DCPSST

V16

VCCIO[5] AF13

VCCASW[ 22] T21

VCCASW[ 23] V21

VCCASW[ 21] T19

VCC3_3[1] AA16

VCC3_3[8] W16

VCCSUS3_3[2] N20

VCCSUS3_3[3] N22

VCCSUS3_3[4] P20

VCCSUS3_3[5] P22

VCCIO[29] N26

VCCIO[30] P26

VCCIO[31] P28

VCCIO[32] T27

V_PROC_IO

BJ 8

VCCIO[33] T29

VCCDIFFCLKN[3]

AG34

VCCASW[ 13]

AD31

VCCASW[ 14]

W21

VCCASW[ 15]

W23

VCCASW[ 16]

W24

VCCASW[ 17]

W26

VCCASW[ 18]

W29

VCCASW[ 19]

W31

VCCASW[ 20]

W33

VCCIO[6] AF14

VCCVRM[1] AF11

VCCIO[12] AH13

VCCIO[13] AH14

VCC3_3[2] AJ2

VCCAPLL SATA AK1

DCPSUS[3]

AL24

VCCIO[14]

AL29

DCPSUS[4] AN 23

VCCSUS3_3[1] AN 24

VCCAPLL DMI 2

BH23

DCPSUS[2]

V19

VCCDSW 3_3

T16

VCC3_3[5]

T38

R333 10_1%_04

.

L21

HCB1608KF-121T25

C472

1u_6.3V_X5R_04

C732

22u_6.3V_X5R_08

L33

*HC B1005KF-121T20

C447

1u_6.3V_X5R_04

Note: For CPT/PPT Default

mode:Internal VR C449,C476

unstuffed , External VR mode:

stuff C449,C476

R332 *0_06

R324 0_06

5VS

3.3V

3.3V

5VS_PCH_VCC5REFSUS

3.3VS

1.05VS_VTT

RTCVCC

1.05VS

3.3A_1.5A_HDA_IO

1.05VS

3.3V

5V

3.3VS

1.05VS

1.05VS

1.05S_SATA3

3.3V

1.05VS

1.05VS_VCCA_CLK

1.05VS

1.05VS

1.05VS

1.05VS

1.5VS_1.8VS

1.5VS_1.8VS

1.05VS

1.05VS_VCCA_B_DPL

1.05VS

1.05VS_VC CA_A_DPL

3.3VS

1.05VS

3.3V 3. 3A_1.5A_HDA_I O

3.3V

1.05VS

<1mA

1.5V

PantherPoint - M (POWER)

2mA

1.01A

266mA

1.01A

97mA

1.05VS_VCCAPLL_SATA3

1mA

80mA

+

C725

220u_6.3V_6.3*6.3*4.2

VCCSST

97mA

L34 *HCB1608KF -121T25

C452 *0.1u_16V_Y5V_04

3mA

2.92A

VCC3_3

1mA

2.92A

22u_6.3V_X5R_08 * 2Pcs

1u_6.3V_X5R_04 * 3Pcs

1.05VS

266mA

5VA_PCH_VCC5REFSUS

VCCRTCEXT

+

C749

220u_4V_V_A

220u_6.3V_6.3*6.3*4.2 * 2Pcs

1.05M_VCC SUS

Min

5V

1.5V

1.43V

1.05V

1.58V

4.75V

1.10V

1.71V

Max

1.89V

1.00V

1.8V

3.47V

5.25V

CougarPoint power supply range

Voltage

3.3V3.14V

VCCA_USBSUS

1u_6.3V_X5R_04 * 2Pcs

1.05VS

22u_6.3V_X5R_08 * 2Pcs

R377

*0_04

C525

1u_6.3V_X5R_04

C463

1u_6.3V_X5R_04

C425 *1u_6.3V_X5R_04

C410 0.1u_10V_X5R_04

C427

1u_6.3V_X5R_04

Sheet 25 of 50

PCH 8/9 POWER

Schematic Diagrams

PCH 9/9- GND B - 27

B.Schematic Diagrams

PCH 9/9- GND

Sheet 26 of 50

PCH 9/9- GND

Voltage Rail Voltage S0 Iccmax Current (A)

V_CPU_IO 1.05 1 (mA)

V5REF 5 1 (mA)

V5REF_Sus 5 1 (mA)

Vcc3_3 3.3 0.266

VccADAC3 1.05 1 (mA)

VccADPLLA 1.05 0.08

VccADPLLB 1.05 0.08

VccCore 1.05 1.3

VccDMI 1.1 0.042

VccIO 1.05 2.925

VccASW 1.05 1.01

VccSPI 3.3 0.020

VccDSW3_3 3.3 2 (mA)

VccDFTERM 1.8 0.19

VccSus3_3 3.3 0.097

VccSusHDA 3.3 1 (mA)

VccVRM 1.5 0.16

VccClKDMI 1.05 0.02

VccSSC 1.05 0.095

VccDIFFCLKN 1.05 0.055

VccALVDS 3.3 1 (mA)

VccTX_LVDS 1.8 0.06

U39I

CPT_PPT_Rev_0p5

VSS[159]

AY 4

VSS[160]

AY42

VSS[161]

AY46

VSS[162]

AY 8

VSS[163]

B11

VSS[164]

B15

VSS[165]

B19

VSS[166]

B23

VSS[167]

B27

VSS[168]

B31

VSS[169]

B35

VSS[170]

B39

VSS[171]

B7

VSS[173]

BB12

VSS[174]

BB16

VSS[175]

BB20

VSS[176]

BB22

VSS[177]

BB24

VSS[178]

BB28

VSS[179]

BB30

VSS[180]

BB38

VSS[181]

BB4

VSS[182]

BB46

VSS[183]

BC14

VSS[184]

BC18

VSS[185]

BC 2

VSS[186]

BC22

VSS[187]

BC26

VSS[188]

BC32

VSS[189]

BC34

VSS[190]

BC36

VSS[191]

BC40

VSS[192]

BC42

VSS[193]

BC48

VSS[194]

BD46

VSS[195]

BD 5

VSS[196]

BE22

VSS[197]

BE26

VSS[198]

BE40

VSS[199]

BF10

VSS[200]

BF12

VSS[201]

BF16

VSS[202]

BF20

VSS[203]

BF22

VSS[204]

BF24

VSS[205]

BF26

VSS[206]

BF28

VSS[207]

BD 3

VSS[208]

BF30

VSS[209]

BF38

VSS[210]

BF40

VSS[211]

BF8

VSS[212]

BG17

VSS[213]

BG21

VSS[214]

BG33

VSS[215]

BG44

VSS[216]

BG8

VSS[217]

BH11

VSS[218]

BH15

VSS[219]

BH17

VSS[220]

BH19

VSS[222]

BH27

VSS[223]

BH31

VSS[224]

BH33

VSS[225]

BH35

VSS[226]

BH39

VSS[227]

BH43

VSS[228]

BH 7

VSS[229]

D3

VSS[230]

D12

VSS[231]

D16

VSS[232]

D18

VSS[233]

D22

VSS[234]

D24

VSS[235]

D26

VSS[236]

D30

VSS[237]

D32

VSS[264] K7

VSS[265] L18

VSS[266] L2

VSS[267] L20

VSS[268] L26

VSS[269] L28

VSS[270] L36

VSS[271] L48

VSS[272] M12

VSS[273] P16

VSS[274] M18

VSS[275] M22

VSS[276] M24

VSS[277] M30

VSS[278] M32

VSS[279] M34

VSS[280] M38

VSS[281] M4

VSS[282] M42

VSS[283] M46

VSS[284] M8

VSS[285] N18

VSS[286] P30

VSS[288] P11

VSS[289] P18

VSS[290] T33

VSS[291] P40

VSS[292] P43

VSS[293] P47

VSS[294] P7

VSS[295] R2

VSS[296] R48

VSS[297] T12

VSS[298] T31

VSS[299] T37

VSS[300] T4

VSS[301] W34

VSS[302] T46

VSS[303] T47

VSS[304] T8

VSS[305] V11

VSS[306] V17

VSS[307] V26

VSS[308] V27

VSS[309] V29

VSS[310] V31

VSS[311] V36

VSS[312] V39

VSS[313] V43

VSS[314] V7

VSS[315] W17

VSS[316] W19

VSS[238]

D34

VSS[239]

D38

VSS[240]

D42

VSS[241]

D8

VSS[242]

E18

VSS[243]

E26

VSS[244]

G18

VSS[245]

G20

VSS[246]

G26

VSS[247]

G28

VSS[248]

G36

VSS[249]

G48

VSS[250]

H12

VSS[251]

H18

VSS[317] W2

VSS[318] W27

VSS[319] W48

VSS[320] Y12

VSS[321] Y38

VSS[322] Y4

VSS[323] Y42

VSS[324] Y46

VSS[325] Y8

VSS[328] BG29

VSS[329] N24

VSS[330] AJ3

VSS[287] N47

VSS[252]

H22

VSS[253]

H24

VSS[254]

H26

VSS[255]

H30

VSS[256]

H32

VSS[257]

H34

VSS[258]

F3

VSS[262] K39

VSS[263] K46

VSS[259] H46

VSS[260] K18

VSS[261] K26

VSS[331] AD47

VSS[333] B43

VSS[334] BE10

VSS[335] BG41

VSS[337] G14

VSS[338] H16

VSS[340] T36

VSS[342] BG22

VSS[343] BG24

VSS[344] C22

VSS[345] AP13

VSS[172]

F45

VSS[221]

H10

VSS[346] M14

VSS[347] AP3

VSS[348] AP1

VSS[349] BE16

VSS[350] BC16

VSS[351] BG28

VSS[352] BJ28

U39H

CPT_PPT_R ev _0p5

VSS[1]

AA17

VSS[2]

AA2

VSS[3]

AA3

VSS[5]

AA34

VSS[6]

AB11

VSS[7]

AB14

VSS[8]

AB39

VSS[9]

AB4

VSS[10]

AB43

VSS[11]

AB5

VSS[12]

AB7

VSS[13]

AC19

VSS[14]

AC2

VSS[15]

AC21

VSS[16]

AC24

VSS[17]

AC33

VSS[18]

AC34

VSS[19]

AC48

VSS[20]

AD10

VSS[21]

AD11

VSS[22]

AD12

VSS[23]

AD13

VSS[24]

AD19

VSS[25]

AD24

VSS[26]

AD26

VSS[27]

AD27

VSS[28]

AD33

VSS[29]

AD34

VSS[30]

AD36

VSS[31]

AD37

VSS[33]

AD39

VSS[34]

AD4

VSS[35]

AD40

VSS[36]

AD42

VSS[37]

AD43

VSS[38]

AD45

VSS[39]

AD46

VSS[43]

AF10

VSS[44]

AF12

VSS[46]

AD16

VSS[47]

AF16

VSS[48]

AF19

VSS[49]

AF24

VSS[50]

AF26

VSS[51]

AF27

VSS[52]

AF29

VSS[53]

AF31

VSS[54]

AF38

VSS[55]

AF4

VSS[56]

AF42

VSS[57]

AF46

VSS[59]

AF7

VSS[60]

AF8

VSS[61]

AG19

VSS[62]

AG2

VSS[63]

AG31

VSS[64]

AG48

VSS[65]

AH11

VSS[66]

AH3

VSS[67]

AH36

VSS[68]

AH39

VSS[69]

AH40

VSS[70]

AH42

VSS[71]

AH46

VSS[72]

AH7

VSS[73]

AJ19

VSS[76]

AJ33

VSS[77]

AJ34

VSS[78]

AK12

VSS[79]

AK3

VSS[80] AK38

VSS[81] AK4

VSS[82] AK42

VSS[83] AK46

VSS[84] AK8

VSS[85] AL16

VSS[86] AL17

VSS[87] AL19

VSS[88] AL2

VSS[89] AL21

VSS[90] AL23

VSS[91] AL26

VSS[92] AL27

VSS[93] AL31

VSS[96] AL48

VSS[97] AM11

VSS[98] AM14

VSS[99] AM36

VSS[100] AM39

VSS[102] AM45

VSS[103] AM46

VSS[104] AM7

VSS[105] AN2

VSS[106] AN29

VSS[107] AN3

VSS[108] AN31

VSS[109] AP12

VSS[110] AP19

VSS[111] AP28

VSS[112] AP30

VSS[113] AP32

VSS[114] AP38

VSS[116] AP42

VSS[117] AP46

VSS[118] AP8

VSS[119] AR2

VSS[120] AR48

VSS[121] AT11

VSS[122] AT13

VSS[123] AT18

VSS[124] AT22

VSS[125] AT26

VSS[126] AT28

VSS[127] AT30

VSS[128] AT32

VSS[131] AT42

VSS[132] AT46

VSS[133] AT7

VSS[134] AU24

VSS[135] AU30

VSS[136] AV16

VSS[137] AV20

VSS[138] AV24

VSS[139] AV30

VSS[140] AV38

VSS[141] AV4

VSS[142] AV43

VSS[143] AV8

VSS[144] AW14

VSS[145] AW18

VSS[146] AW2

VSS[147] AW22

VSS[148] AW26

VSS[149] AW28

VSS[150] AW32

VSS[151] AW34

VSS[152] AW36

VSS[153] AW40

VSS[154] AW48

VSS[155] AV11

VSS[156] AY12

VSS[157] AY22

VSS[158] AY28

VSS[40]

AD8

VSS[42]

AE3

VSS[45]

AD14

VSS[115] AP4

VSS[0]

H5

VSS[58]

AF5

VSS[32]

AD38

VSS[4]

AA33

VSS[74]

AJ21

VSS[75]

AJ24

VSS[41]

AE2

VSS[129] AT34

VSS[130] AT39

VSS[101] AM43

VSS[95] AL34

VSS[94] AL33

PantherPoint -M (GND)

Schematic Diagrams

B - 28 WLAN, 3G, MINI PCIE

B.Schematic Diagrams

WLAN, 3G, MINI PCIE

for ¦@¥Îr3.4_831

3G_EN

R185 20K_04

3G_POWER_EN34

R66

10_06

3.3V

R73

20K_1%_04

R74

100K_04

C593

10u_6.3V_X5R_06

R525 *20mil_04

R63 *10mil_short _04

+

C588 220u_6.3V_6.3*6.3*4.2

R220 *0_04

C148

1u_6.3V_Y5V_04

CL_RST#1_R

PCI E_WAKE#20,29,30

WLAN_CLKREQ#19

BT_DET#

3IN1

60mils 60mils

60mils

BT_EN_R

J_80DBG1

85205-04001

1

2

3

4

Bottom

6-34-M52NS-020-2

KEY

J_MINI1

88908-5204M-01

COEX1

3

COEX2

5

CLKREQ#

7

GND0

9

REFCLK-

11

REFCLK+

13

WAKE#

1

GND1

15

PETn0

23

PETp0

25

GND2

21

GND3

27

PERn0

31

PERp0

33

GND4

29

Res erv ed0

17

Res erv ed1

19

W_DI SABLE# 20

GND12

37

3.3VAUX_3

39

3.3VAUX_4

41

GND13

43

Res erv ed2

45

Res erv ed3

47

Res erv ed4

49

Res erv ed5

51 LED_WLAN# 44

LED_WWAN# 42

GND6 18

UIM_VPP 16

UI M_RESET 14

3.3VAUX_0 2

UIM_CLK 12

UIM_DATA 10

UIM_PWR 8

1.5V_0 6

GND5 4

PERSET# 22

3.3VAUX_1 24

GND7 26

1.5V_1 28

SMB_CLK 30

SMB_DATA 32

GND8 34

USB_D- 36

USB_D+ 38

GND9 40

LED_WPAN# 46

1.5V_2 48

GND10 50

3.3VAUX_2 52

GND11

35

C690

*180p_50V_NPO_04

(TOP VIEW)

J_SIM1

91712-0090P

UIM_DATA

7

UIM_VPP 4

UIM_GND 2

UIM_PWR

1UIM_RST

3UIM_CLK

5

GNG

GND1

UIM_I/O 6

U I M_MC MD 8

DETECT_SW

9

GND

GND2

GND

GND3

GND

GND4

R175 10K_04

R523 *0_04

R526

47K_04

R65 *4.7K_04

Bottom

6-34-M52NS-020-2

+

C591

220u_6.3V_6.3*6.3*4.2

WLAN MINI CARD

R64

*10mil_short_04

R524 *10K_04

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

VDD 3

3. 3V S

3G_3.3V

3G_3.3V

3G_3.3V

3G_3.3V

3G_3.3V

C117

*22p_50V_NPO_04

C158

0.1u_16V_Y5V_04

C118

*22p_50V_NPO_04

R176 *0_04

C115

*22p_50V_NPO_04

R527 *10K_04

C587

0.1u_16V_Y5V_04

C770

0.1u_16V_Y 5V_04

C116

*22p_50V_NPO_04

H11

*6-34-M52NS-020-2

KEY

J_3G1

88908-5204M-01

COEX1

3

COEX2

5

CLKREQ#

7

GND0

9

REFCLK-

11

REFCLK+

13

WAKE#

1

GND1

15

PETn0

23

PETp0

25

GND2

21

GND3

27

PERn0

31

PERp0

33

GND4

29

R eserv ed0

17

R eserv ed1

19

W_DI SABLE# 20

GND12

37

3.3VAUX_3

39

3.3VAUX_4

41

GND13

43

R eserv ed2

45

R eserv ed3

47

R eserv ed4

49

R eserv ed5

51 LED_WLAN# 44

LED_WWAN# 42

GND6 18

UIM_VPP 16

UIM_RESET 14

3.3VAUX_0 2

UIM_CLK 12

UIM_DATA 10

UIM_PWR 8

1.5V_0 6

GND5 4

PERSET# 22

3.3VAUX_1 24

GND7 26

1.5V_1 28

SMB_CLK 30

SMB_DATA 32

GND8 34

USB_D- 36

USB_D + 38

GND9 40

LED_WPAN# 46

1.5V_2 48

GND 10 50

3.3VAUX_2 52

GND11

35

C101

0.1u_16V_Y5V_04

R222 *0_04

R529 *0_04

R59 *0_04

C114

0.1u_16V_Y 5V_04

R528 *20mil_04

C177 0.1u_16V_Y 5V_04

R219 *0_04

WLAN_DET#34

PCIE_TXN3_WLAN19 PCIE_TXP3_WLAN19 BT_DET# 34

BT_SBD# 19

3G_DET#34 C 120 0.01u_16V_X7R_04

C700 0.01u_16V_X7R_04

C119 0.01u_16V_X7R_04

C701 0.01u_16V_X7R_04

USB_PN3 22

USB_PP3 22

USB_PN2 22

USB_PP2 22

3G POWER

From EC default HI

3A3A

3G_3.3V

Q10

AO3415

G

DS

UIM_DATA

UIM_PWR

UIM_VPP

UIM_CLK

UIM_RST

Port 2

3G/MSATA MINI CARD

S

D

G

Q11A

MTDN7002ZHS6R

2

61

S

D

G

Q11B

MTDN7002ZHS6R

5

34

CL_D ATA119 CL_RST#119

CL_CLK119

80CLK

UIM_CLK UIM_VPP

UIM_RST

UIM_D UIM_DATA

UIM_C

UIM_PWR

UIM_PWR UIM_DATA

80_DET#

1

H13

MTH8_0D2_8

2

3

4

5 6

7

8

9

1

H19

MTH8_0D2_8

2

3

4

5 6

7

8

9

H2

C111D111N

1

H10

MTH8_0D2_8

2

3

4

5 6

7

8

9

H25

C111D111N

M6

M-MARK M2

M- MAR K

CLK_PCI E_WLAN19CLK_PCIE_WLAN#19

WLAN_EN 34

BUF_PLT_RST# 22,29,30,34

BT_EN31,34

1

H7

MTH8_0D2_8

2

3

4

5 6

7

8

9

80CLK 34

BT_SBD#19

3IN1 34

3G_EN 34

SATA_TXP318 SATA_TXN318

SATA_RXP318 SATA_RXN318

M8

M-MARK H21

C111D111N

1

H8

MTH8_0D2_8

2

3

4

5 6

7

8

9

M5

M-MAR K

R295 *0_04

C149

1u_6.3V_Y5V_04

H=9.9°ª

WAKE#

3. 3V

M7

M-MAR K

40 mil

M1

M- MAR K

CL_CLK1_R

20 mil

20 mil

M3

M-MARK

1

H3

MTH8_0D2_8

2

3

4

5 6

7

8

9

20 mil

Port 3

1

H4

MTH8_0D2_8

2

3

4

5 6

7

8

9

H1

C111D111N

1

H20

MTH8_0D2_8

2

3

4

5 6

7

8

9

M4

M-MAR K

R184 *10mil_short_04

WLAN_LED# 31, 34

3.3VAUX_1

1

H23

MTH8_0D2_8

2

3

4

5 6

7

8

9

GND

GND

GND

GND GND

GND

GND

GND

GND

GND

GND

GND

GNDGND

GND

GND

GND

GND

GNDGND

GND GND

GND

GND

GNDGND GND

80CLK

3IN1

VDD3

SIM CONN

1

H24

MTH8_0D2_8

2

3

4

5 6

7

8

9

Layout®É

1. SIM¤§©Ò¦³«H¸¹½u¥[²Ê(10mil)

2. ©Ò¦³«H¸¹½u¤§¶¡¥[GND

3. SIM hold ¥»Åé¥|©P¥[GND³ò¶

4. SIM CONN ¾aªñ MINI CARD CONN

CL_DATA1_R

BT_EN

PCIE_RXN3_WLAN19 PCIE_RXP3_WLAN19

H=9.9°ª

1

H22

MTH8_0D2_8

2

3

4

5 6

7

8

9

H16

6-34-M52NS-020-2

PCH_BT_EN_#

Sheet 27 of 50

WLAN, 3G, MINI

PCIE

Schematic Diagrams

CCD, TPM, MULTI CON B - 29

B.Schematic Diagrams

CCD, TPM, MULTI CON

04->06 C100824

C378

10u_6.3V_X5R_08

TPM_B ADD

TPM_P P

USB_PP522 USB_PN522

1A

1A

CCD

From EC default HI

Port 5

XTA L I

TPM3005

TPM_B ADD

TPM3002

TPM_P P

TPM3001

TPM3004

TPM3003

XTA L O

6-02-03940-B20

6-02-99011-B20

6-02-00995-B20

CCD_DET#34

LED_BAT_FULL 34

LED_ACIN 34

LED_PWR 34

LED_BAT_CHG 34

HI: 4E/ 4F H

LOW: 2E/ 2F H

C563

2.2u_6.3V_Y5V_06

HI: ACCESS

LOW: NO RM A L ( In t e r nal PD )

TPM_PP

T PM _ BA DD

3.3VS

5VS_F AN

PCLK_TPM1PCLK_TPM

¦]¾÷ºc PIN¸}¦b´«¦^ C100816

CPU_FANSEN34

U15

*AX995B

VOUT

1

GND 5

VIN

3FON#

4

VSET

6GND 2

AX995B(SOT23-6) & APE8872

Co-Layout

PN:APE8874

2nd Source

R239

*0_04

5VS FON#

CPU_FAN34

5VS_F AN

¹w¯dcost down solution

for ¦@¥Î C100820

PCLK_TPM22

PL T_R ST#3,12,22

S4_STATE#20

R610

*33_04

C558

0.1u_16V_Y5V_04

C517

1u_6.3V_Y5V_04

C746

*10p_50V_NPO_04

U28

G5243A

VIN

4

VIN

5

EN

3

VOUT 1

GND 2

C560

0.1u_16V_Y 5V_04

R384 *10K_04

TPM

U26

SLB9635TT

LAD3

17

LAD0

26

LAD1

23

LAD2

20

VDD 1 10

XTA L I 13

VDD 3 24

VDD 2 19

LFRAME#

22

LCLK

21

LRESET#

16

SERIR Q

27

CLKRUN#

15

GND_1 4

GND_2 11

GND_3 18

GND_4 25

GPIO 6

GPIO2 2

XTA L O 14

TESTI

8

TESTBI/BADD

9

PP

7

NC_1

1

NC_2

3

NC_3

12

LPCPD#

28

VSB 5

J_TP2

85201-04051

1

2

3

4

3.3V

WEB_WWW#

6-20-94K10-108

AP_ON

WEB_EMAIL#

3.3VS

MBTN

J_SW1

88486-0801

1

2

3

4

5

6

7

8

R382 *10K_04

C516

15p_50V_NPO_04

C515

15p_50V_NPO_04

R60 *10mil_short_04 M_BTN# 35

LID_SW# 11,34

3.3VS

3.3VS

C561

1u_6.3V_Y 5V_04

del X10 ¨ú®ø32.768 CO-LAY C101004

FFC ¤£¦@¥Î-쥻

C518

0.1u_16V_Y 5V_04

20mil

C562

0.1u_16V_Y5V_04 R383 10K_04

J_CCD1

85205-05001

1

2

3

4

5

6-21-91A00-106

C559

0.1u_16V_Y5V_04

X11 MC-306_32.768KHz

14

3 2

6-20-94A70-104

6-21-91A10-106

CLICK CONN

5V_CCD

3.3V

5VS_FAN

5VS

5V

C350

0.1u_16V_Y 5V_04

FOR POWER SW BOARD

R439 0.2_06

Safty Require 60950-1¦w³W-n¨D,

¥~¨Ñ¹q·½²Å¦XLPS ¡Ø 8A ³]-p.

VDD3

C331

1u_6.3V_Y5V_04

R221

10K_04

TP_ C LK 3 4

TP_ D ATA 34

5VS_TP

J_TP1

85201-06051

1

2

3

4

5

6

C349

*10u_6.3V_X5R_06

C317

*0. 1u_16V_Y 5V_04

C324

47p_50V_NPO_04

R235 *15mil_short _06

R224

10K_04

5VS

C321

47p_50V_NPO_04

GND

GND

LPC_AD318,34

LPC_AD118,34 LPC_AD018,34

LPC_FRAME#18,34

LPC_AD218,34

PM_CLKRUN#20 SERIRQ18,34

J_FAN1

85205-03701

1

2

3

1

C326

1u_10V_Y 5V_06

CPU FAN CONTROL

U14

AX995SA

VOUT

3

GND 5

VIN

2FON

1

VSET

4GND 6

GND 8

GND 7

CPU_FAN

J_FAN1

FON#

R249 4.7K_04

3

TPM 1.2

LPC reset timing:

LPCPD# inactive to LRST# inactive 32~96us

Asserted before entering S3

FOR OPTIMUS FUNCTION

CCD_EN34

CPU_FAN 34

R436 *10K_04

3.3V

Sheet 28 of 50

CCD, TPM, MULTI

CON

Schematic Diagrams

B - 30 USB3.0

B.Schematic Diagrams

USB3.0

SSTX1-

R638 0_04

R636 0_04

SSRX1+

SSR X3-

PJ12

*OPEN-3mm

1 2

VDD3

USBVCC3.0_2

U3TX1#

U3TX2

PJ4

OPEN_2A

12

PJ3

OPEN _ 2A

12

3.3V

USB_PP122 USB_PN122

R236 *0_04

R237 *0_04 USB_PP0+ R156 *0_04 USB_PP1+

USB_PN1-USB_PN0-

R157 *0_04

U3RX1

R174 *0_04

R168 *0_04

TUSB7320

U9

XI

A23

WAKE#

B35

GRST#

A15

PCI E_R EF CLKN

B41

PCI E_R XN

A42

SCL

B2

SDA

A2

GPIO0

A49

GPIO1

B46

GPIO2

B47

GPIO3

B48

CLKR EQ#

B36

SMI

B3

VSS_OSC

B21

FREQSEL

B14

R1EXTRTN

B23

R1EXT

A24

VDD11_11 A9

VDD11_10 A6

VDD 11_9 A50

VDD11_8 A4

VDD 11_7 A38

VDD11_6 A33

VDD 11_5 A31

VDD11_4 A28

VDD 11_2 A12

VDD11_1 A1

VDD11_3 A16

AUX _DET A52

VDD33_5 A51

VDD 33_4 A47

VDD33_3 A39

VDD33_2 A34

VDD11_1 8 B42

VDD 33_1 A3

VDD11_19 B44

VDD11_17 B40

VDD11_16 B37

VDD11_15 B24

VDD11_14 B19

VDD11_1 3 B17

VDD11_12 B1

XO

A22

NC10

C4 NC9

C3 NC8

C2 NC7

C1

NC1

A14

NC2

A26

NC3

B13

NC4

B29

VDD11_20

B8

NC6

A43

VSS_1

B20

VSS_2

A53

JTAG_RST#

B32

VDDA_3P3_1 A19

PER ST#

A40

USB_DM_DN1 B18

USB_SSRXN_DN1 B16

PWRON1# B33

OVERCUR1# A36

US B_SSTXN_DN1 B15

USB_DM_DN2 A13

VDDA_3P3_2 A21

VDDA_3P3_3 A44

VDDA_3P3_4 B11

VDD A_3P3_5 B22

VDDA_3P3_6 B26

VDDA_3P3_7 B4

VDDA_3P3_8 A25

PCI E_R EF CLKP

A45

PCI E_R XP

B39

PCI E_TXP

B38 PCI E_TXN

A41

JTAG_TCK

A32

JTAG_TDI

A35

JTAG_TDO

B31

JTAG_TMS

B30

USB_DP_DN1 A20

USB_SS RXP_DN1 A18

USB_SSTXP_DN1 A17

USB_DP_DN2 B12

USB_SS RXP_DN2 B9

USB_SSRXN_DN2 A10

USB_SSTXP_DN2 A11

US B_SSTXN_DN2 B10

PWRON2# B34

OVERCUR2# A37

USB_DM_DN3 A27

USB_DP_DN3 B25

USB_SSRXN_DN3 A29

USB_SS RXP_DN3 B27

US B_SSTXN_DN3 A30

USB_SSTXP_DN3 B28

PWRON3# A46

OVERCUR3# B43

USB_DM_DN4 A5

USB_DP_DN4 B5

USB_SSRXN_DN4 A7

USB_SS RXP_DN4 B6

US B_SSTXN_DN4 A8

USB_SSTXP_DN4 B7

PWRON4# A48

OVERCUR4# B45

DEFAUL 3.3V PJ3 SHORT

for ¦@¥Î½u¸ô C100810

R637 0_04

C100809

R639 0_04

SSRX1-

for ¦@¥Î½u¸ô C100810

¨Ï¥Î¦¹°Ï¶ô®É, LDO (U8)

§ï¥Î3.3V INPUT

R164 *0_04

C100810

R169 *0_04

R171 *0_04

1.5V

C100810

R170 0_04

R167 0_04

U2DM2

U3RX2#

U2DP2

U3TX2#

U3RX2

U3TX2#

U3TX2

SSTX3+

R173

*R

3.3V_USB3

R152 *0_04

TI_SMI

R150 *0_04

R151 *0_04

R180

*R

R149 *0_04

R1EXTRTN

R1EXT

R233

*100K_04

USB_OC#1

TI_SMI

XO

USB_OC#1

PEWAKE

PCIE_TXP

USB_OC#2

PCIE_TXN

USB_OC#2

R163 0_04

R166 0_04

U3RX1#

U3RX2

C265

22p_50V_NPO_04

R204 10K_04

.

L9 HCB1608KF-121T25

R226 *0_0 4

C250

10u_6.3V_X5R_08

R155

100K_04

C249

0.1u_16V_Y5V_04

C310 *0.1u_16V_Y5V_04

C295

1000p_50V_X7R_04

C266

0.1u_16V_Y5V_04

C304 0.1u_10V_X7R_04

C262

0.1u_16V_Y5V_04

C247

*10u_6.3V_X5R_08

C261

0.1u_10V_X7R_04

C308

0.1u_16V_Y5V_04

C270

0.1u_16V_Y5 V_04

R153

*4.7K_04

C323

10u_6.3V_X5R_08

C211 0.022u_16V_X7R_04

C278

0.1u_16V_Y5V_04

C288

0.01u_16V_X7R_04

C298

0.1u_16V_Y5V_04

C284

0.1u_16V_Y5V_04

C307

0.01u_16V_X7R_04

R188

4.7K_04

R231 0_04

R215

*10K_04

C263

0.01u_16V_X7R_04

C264

22p_50V_NPO_04

C377

10u_6.3V_X5R_08

R203

*4.7K_04

C267

0.1u_16V_Y5V_04

C309

0.01u_16V_X7R_04

R154

4.7K_04

C282

0.01u_16V_X7R_04

C322

0.1u_16V_Y5V_04

R232 *0_04

R178 4.7K_04

R247 *0_04

C281

0.01u_16V_X7R_04

R187

*2.7K_04

R190

*2.7K_04

U16

SY 6288DFAC

VOU T1 6

VOU T3 8

VIN2

3

VIN1

2VOU T2 7

GND 1

EN#

4

FLG#

5

C277

0.01u_16V_X7R_04

D8

*RB751V

A C

C287

0. 01 u _16 V_ X7R _0 4

R227 0_04

U13

SY 6288DFAC

VOU T1 6

VOU T3 8

VIN2

3

VIN1

2VOU T2 7

GND 1

EN#

4

FLG#

5

C289

0.1u_16V_Y5V_04

C314

0.01u_16V_X7R_04

R134

2K_1%_04

R197

*4.7K_04

C269

0.01u_16V_X7R_04

R189

4.7K_04

R159 0_04

R160 0_04

U8

AX6615ESA

GN D

1

VCN TL 6

VOUT 3

VIN

5

VOUT 4

VFB 2

POK

7

EN

8

VIN

9

C305 0.1u_10V_X7R_04

R248

*10K_04

C248

0.1u_16V_Y5V_04

R137 *0_04

for ¦@¥Î½u¸ô C100810

C318

0.1u_16V_Y5V_04

C311

0.1u_16V_Y5 V_04

R165 1M_04

C290

0.1u_16V_Y5V_04

2- WIR E

SERIAL EEPROM

U12

*24C01

A0

1

A1

2

A2

3

GND

4

VCC 8

WP 7

SCL 6

SDA 5

C375

0.1u_16V_Y5V_04

C306

0.01u_16V_X7R_04

C260

10u_6.3V_X5R_08

C303

0.1u_16V_Y5V_04

C296

1000p_50V_X7R_04

C276

0.01u_16V_X7R_04

C297

0.1u_16V_Y5V_04

C302

0.01u_16V_X7R_04

R179 0_04

C223

1u_10V_Y5V_06

C283

0.1u_16V_Y5V_04

R158 9.09K_1%_06

C212

*0.1u_16V_Y5V_04

R202

*4.7K_04

C313

0.1u_16V_Y 5V_04

R135 750_1%_04

R198

*4.7K_04

C268

0.1u_16V_Y5V_04

R136

10K_04

C376

0.1u_16V_Y5V_04

USBVCC2

R216 *0_04

3.3V_USB3

USBVCC 3.0_1

5V

3.3V_USB33.3V_USB3

3VA

GND

GND

3.3V_USB3

3.3V_ USB3

3VA

5V

5V

1.1V

3.3V_ USB3

1.1 V

1.1V

3.3V_USB3

GND

3. 3V _U SB3 3. 3V_U SB3

USBVCC 1

3.3V_USB3

USBVCC2

GN D

3.3V_USB3

3.3V_USB3

1.1V

3.3V_USB3

5V

3.3V_USB3

USBVCC1

1.1V

BU F_PLT_RST#22,27,30,34

DD_ON#31, 3 5, 3 8

DD_ON#31,35,38

pin#A44pin#A21 pin#B4pin#B26pin#B22pin#B11

R161 0_04

R162 0_04

R225 *0_0 4

PWRON2#

USB3.0_SMI#18

USB30_CLKREQ#_TI19

CLK_PCI E_U SB30_TI19

PCIE_RXP2_USB30_TI19

CLK_PCI E_U SB30#_TI19

PCI E_TXN2_US B30_TI19

PCIE_RXN2_USB30_TI19

PCI E_WAKE#20,27,30

PCI E_TXP2 _USB30_TI19

R186 0_04

Ball no

GND

U2DM2

pin#A16

SSTX3-

C325 0. 1u_16V_Y5V_04

SSRX3-

4.

TXP1_R

+

C380 100u_6.3V_B_A

USB_PP0+

pin#B24

B39

U3RX2#

U2DP2

L11

HCB1608KF-121T25

7.

C327 0.1u_10V_X7R_04

U2DP2

B9

PE6_RX_USB3#

Standard-A

J_USB2

C19009-90905-L

VBUS

1

D-

2

D+

3

GND_D

7

SSRX-

5

SSRX+

6

GND

4

SSTX-

8

SSTX+

9SHIELD GND1

SHIELD GND2

SHIELD GND3

SHIELD GND4

B12

6-21-B4A20-009

TXN1_R

Internal Chip Trace Length Mismatch

C328 0.1u_10V_X7R_04

Diff. trace 90ohm

pin#A28

SSRX3+

C361 22u_6.3V_X5R_08

C355 22u_6.3V_X5R_08

USB_PN0-

USB3.0 Layout Guidelines:

pin#B17

CLOSE TO CONNECTOR

PE6_TX_USB3#

SSTX3+

Ball no

GND

GND

93

A11

Internal Chip Trace Length Mismatch

31

A18

27

85

3A

111

U3RX2

pin#A31

-n²¾¾aªñPIN6¸}

118

105

91

U3TX1#

for support D3 could w ake

up

112

R172 0_04

19

A13

pin#A33

89

pin#A3

B10

PE6_TX_USB3

83

A10

Power Trace width=20mils, Spacing=80 mils.

pin#A1

pin#A6

127

20

5.

U2DP1

1 PLL_FREQ_SEL

B38

2A/90mohm

pin#A38

USB3.0 Capacitor 0.1u_10V_X7R_04 Close to Connector.

Bondwire

Length(mil)

73

A42

2A/90mohm

U3TX1

pin#A34

U3TX2#

PCIE_CLK_USB3

Difference(mil)

1.

U3RX1#

6.

USB3.0 Max Trace

length < 4"

PCIe Number of vias 4via hole(Max).

pin#A12

A45

2.

Field in the US B Control

Regist e r

Differential pairs The USB3.0 the total trace skew less than 5 mils.

67

U3RX1

94

PCIe clock Differential impedance 100 ohm.

(15nF~48nF)

pin#A39

pin#A50

PE6_RX_USB3

8.

PCIE_CLK_USB3#

20

PCIe Differential impedance 85 ohm.

IC pad to USB Connector total length < 4"(Max)

B15

VSS_OSC as short as possible

500mils

104

116

Ne tNa m e

USB3.0 Max Trace

length < 4"

B16

pin#A47

Difference(mil)

USB3.0 Differential trace impedance: 90ohm

28

9.

U3TX2

pin#B1

U2DM2

pin#B19 pin#B37

106

pin#B44

PCIe For transmitter and receiver the total trace length: 1"(Min)~~6"(Max).

Freqsel Clock

pin#B42pin#A9

PCIe Differential pairs and pairs spacing 20mils, with Other trace spacing 25mils.

22

0 48MHz

3VA

Refer La yout guide _V94;Page#13,#22

87

10.

2A

96

A41

100 MIL

34

X2

24.000MHz / 16pF / + 30ppm

12

PWRON1#

pin#A19

27

GSDA

B41

pin#B40

3.

Bondwire

Length(mil)

U2DM1

100 MIL

Ne tNa m e

B18

A17

Populate Pulldown, IF I2C

EEPROM not used and Do not

Populate Pullup.

A20

PWRON2#

X3 *48MHz-FSX5M

1 2

34

XI

US B_PP1+

C245 0.1 u_10V_X7R_04

SSR X1-

SSTX1+

US B_PN1 -

SSR X1+

Standard-A

J_USB1

C19009-90905-L

VBUS

1

D-

2

D+

3

GND_D

7

SSRX-

5

SSRX+

6

GND

4

SSTX-

8

SSTX+

9SHIELD GND1

SHIELD GND2

SHIELD GND3

SHIELD GND4

U2DP1

C246 0.1 u_10V_X7R_04

6-21-B4A20-009

GND

C221 0.1u_16V_Y5V_04

CLOSE TO CONNECTOR

SSTX1-

+

C294 100u_6.3V_B_A

TXP0_R

TXN0_R

C225 22u_6.3V_X5R_08

GND

Diff. trace 90ohm

C222 22u_6.3V_X5R_08

GND

L8

HCB1608KF-121T25

U2DM1

PWRON2#

GSCL

U2DM1

PWRON1#

Vout= 0.8*(R127+R125)/R125=1.1V

GRST#

GRST# POK

U2DP1

US B_PP022 U SB_PN022

PORT 1

PORT 1

PORT 1

PORT 2

PORT 2

PORT 2

SMI is Active High.

GPIO0

U3RX1#

VSS_OSC

U3RX1

GPIO2 U3TX1#GPIO1 U3TX1

GPIO3

SSTX1+

SSTX3-

USB3_RX2N22USB3_RX1N22 USB3_RX2P22USB3_RX1P22

USB3_TX2N22USB3_TX1N22 USB3_TX1P22 USB3_TX2P22

U3RX2#

SSR X3+

R138

100K_04

VDD 3

R130 1K_04

1.1V

POK

R131 *100K_04

Q12

2N3904

B

E C

GRST#

Q13

MTN7002ZHS3

G

DS

3.3V_TI_EN#

Q19

*MTN7002ZHS3

G

DS

HIGH ENABLE

Q18

*2N3904

B

E C

1.1V

R229

*100_06

R238 *1K_04

U3TX1

PR111

*1M_04

PQ24A

*MTNN20N03Q8

1

3

728

SY S15V 3.3V

PQ24 B

*MTNN20N03Q8

6

5

4

3.3V_USB3

3A

NM OS

Power Plane

3.3V_TI_EN

PC46

*2200p_50V_X7R_04

¬°¤F¨¾¤î¦pNEC 3.3V ©M1. 05VªºTIMING ¹w¯d

±N3.3V¥[¤@¯ÅÂà´«,¥H 1.5VªºENABLE (SUSC)¨ÓCONTROL

3.3V_USB33.3V

PJ13

OPEN_2A

1 2

USB3.0 POWER SETTING

SYS5V

R228

*100K_04

C332

*0. 1u_16V_Y 5 V_04

C100820

Sheet 29 of 50

USB3.0

FSX8L_25MHz¥Ø«e¦@¥Î®Æ

Remind that R331 using the main power

(S0 power)

6-22-25R00-1B4

6-22-25R00-1B5

REGLX and VDD10 must be shape

SD_D3/MS_D2_R

ISOLATE#

SD_CMD _R

LED1/SPI SCK

REXT_C

LANXT AL2

SDA/ SPIDI

SD_C D #

LAN_PCIE_WAKE#

R308 1.5K_04

R388 2.49K_1%_04

R331 *1K_04

R369 15K_04

R309 10K_04

3.3VS

R310 10K_04

LAN_VDD33

ISOLATE#

R387 0_04

R386 0_06

EVDD10

VDD10

LANXTAL2

LAN_VDD33

SD_CLK/MS_D3_R

MS_D0

VDD3

VDDREG

SD_WP/MS_D1

MS_B S

LED1/SPISCK

PCIE_RXP_4_GLAN

PCIE_RXN_4_GLAN

SDA/SPIDI

SD_D 0_R

SD_D1/MS_CLK_R

MS_ I N S#

SD_D 2_R

LAN_PC I E_WAKE#

SD_D3/MS_D2_R

REXT_C

LANXT AL1

RTL8411

R407

*0_04

Pin 12

R419

0_04

(Shape)

Pin 39

R406

*28mil_06

GND

VIA

C440

*4.7u_6.3V_X5R_06

C760

4.7u_6.3V_X5R_06

LANXTAL1

C441

0.1u_16V _Y 5V_04

C445

0.1u_16V_Y 5V_04

C522

*4.7u_6.3V_X5R_06

C442

0.1u_16 V_Y 5V_04

C490

0.1u_16V_Y5V_04

.

L20

*SWF 2520C F -4R7M-M

C519

0.1u_16V _Y 5V_04

C755

*5p_50V_NPO_04

C511 0.1u_10V_X7R_04

R620 0_04

R615

*150_06

C521

*0.1u_16V_Y5V_04

C546

*4.7u_6.3V_X5R_06

C491

0.1u_16V_Y 5V_04

C506

*5p_50V_NPO_04

C720

0.1u_16V_Y 5V_04

C535

0.1u_16V_Y 5V_04

C532

0.1u_16V _Y 5V_04

C444

0.1u_16V_Y 5V_04

C536

*4.7u_6.3V_X5R_06

D14 R B751S-40C 2

AC

U21

RTL8411

AVDD33 58

MS_D0/xD_D1 56

MS_D4 55

LED0/SPICSB 51

GPO 50

XD_CD# 57

SD_CD#/ MS_D 5 54

LED1/SPISCK 49

DVDD10 52

SD_CMD/MS_D6

21

SD_D3/ MS_D2

22

SD_D2

23

GND

24

HSIP

25

HSIN

26

REFCLK_P

27

REFCLK_N

28

EVDD10

29

HSOP

30

HSON

31

REGOUT 48

VDDR EG 47

VDDR EG 46

ENSWREG_H 45

SDA/SPIDI 44

LED3/SPIDO 43

SCL/LED_CR 42

DVDD10 41

LANWAKEB 40

ISOLATEB 38

PERSTB 37

CLKREQB 36

SD_WP/MS_D1 35

MS_BS 34

AVDD33 63

RSET 62

AVDD10 61

CKXTAL2 60

CKXTAL1 59

VDD 33/18 33

GND 65

AVDD33 64

MD I P0

1

MD I N0

2

AVDD 10

3

MD I P1

4

MD I N1

5

MI D P2

6

MD I N2

7

AVDD 10

8

MD I P3

9

MD I N3

10

AVDD 33

11

DVDD33

12

Card_3V3

13

SD_D 7

14

SD_D6/MS_INS#

15

SD_D 5

16

SD_D4

17

SD_D1/ MS_CLK

18

SD_D0/ MS_D7

19

SD_CLK/ MS_D3

20

GND

32

DVDD33 39

VDD 33/18 53

GND1

66

GND2

67

GND3

68

GND4

69

GND5

70

GND 6

71 GND 7

72 GND 8

73

C757

*5p_50V_NPO_04

C489

0.1u_16V_Y5V_04

C504

1u_6.3V_Y5V_04

J_CARD-REV1

3IN1

DAT2_SD

P2

VSS_MS

P21

CD/ DAT3_SD

P3

CMD_SD

P4

VSS_SD

P5

VDD_SD

P6

CLK_SD

P7

VSS_SD

P8

DAT0_SD

P9

DAT1_SD

P10

WP_SD

P11

VSS_MS

P12

VCC_MS

P13

SCLK_MS

P14

DAT3_MS

P15

INS_MS

P16

DAT2_MS

P17

SDIO/DAT0_MS

P18

DAT1_MS

P19

BS_MS

P20

CD_SD

P1

GND P23

GND P22

C758

*5p_50V_NPO_04

R359 0_04

R614

*150_06

C505 0.1u_10V_X7R_04

C545

0.1u_16V_Y 5V_04

R621 0_04

C756

*5p_50V_NPO_04

C708

0.1u_16V_Y 5V_04

R344 0_04

C533

*0.1u_16V_Y5V_04

R343 0_04

C470

0.1u_16 V_Y 5V_04

C759

0.1u_16V_Y 5V_04

REGLX VDD 10

VDD10

VDD33/18

REGLX

LAN_VDD33

VDD3

EVDD10

VDD10

VDD33/18

LAN_VDD33 LAN_VDD33

LAN_VDD33

VDD10VDD 10

VDD 10

LAN_VDD33 Rising Time¡G

1ms ~ 100ms

VDD10 VDD10VDD10

VDDREG VD DREG

VDD33/18 VDD33/18

VDD10

LAN_VDD33

EVDD 10 EVDD10

VDD10

VDD33/18 VD D33/18

LAN_VDD33LAN_VDD33

LAN_VDD33

LAN_VDD33

VCC_CARDVCC_CARD

LAN_VDD33

VCC_CARD

VCC_CARD

VCC_CARD

LAN_MDIP032

PCIE_WAKE# 20,27,29

VCC_CARD

LAN_MDIN132 LAN_MDIP132

LAN_MDIN032

LAN_MDIP332

LAN_MDIN232 LAN_MDIP232

BUF_PLT_RST# 22,27,29,34

PCIE_TXP4_GLAN 19

CLK_PCIE_GLAN 19

LAN_MDIN332

PCIE_RXP4_GLAN 19

CLK_PCIE_GLAN# 19

PCIE_TXN4_GLAN 19

LAN_PCIE_WAKE# 34

PCIE_RXN4_GLAN 19

Switching Regulator close to pin48

(Shape)

SD_D2

SD_D3/MS_D2

Pin 12

C443

*10u_6.3V_X5R_06

LAN_VDD33

Close to Cardreader CONN

SD_D1/MS_CLK

MS_ B S

SD_D1/MS_CLK

SD_C MD

4 IN 1 SOCKET SD/MMC/MS/MS Pro

MS_ I N S#

SD_C LK/MS_D3

SD_C LK/MS_D3

MS_ D 0

SD_D 0

SD_W P/ MS_D1

SD_D3/MS_D2

SD_D3/MS_D2

SD_D 2

SD_C D#

SD_W P/ MS_D1

Pin 11

LAN_VDD33

C534

0.1u_16V_Y5V_04

VDD3

SD_D0

Pin 61Pin 52Pin 3 Pin 41Pin 8

Pin 63Pin 58

Pin 47Pin 46

Pin 64

Pin 29Pin 29

Pin 33

SD_C LK/MS_D3_R

SD_D1/MS_CLK_R

Pin 53Pin 53Pin 33

SD_CLK/MS_D3

SD_D1/MS_CLK

SWR

mode

LDO

mode

Close to RTL8411 for SDXC EMI

SD_D 0_R

ENSWREG

C503

22p_50V_N PO_04

R307 0_06

SD UHS Mode Power Supply

L37¡BC177¡BC448 must close to Pin 48

SD_D 2_R

X5 FSX-8L_25MHz

1 2

C488

22p_50V_NPO_04

for BOM C100830

SD_CMD

R646 1K_04

R350 *1M_04

3.3V

X4 *HSX321S_25MHZ

1 2

34

R641

10K_04

R640

*10K_04

C100822

LAN_CLKR EQ# 19, 22

C765

*5p_50V_NPO_04

R642 0_04

R619 *0_04

From PCH pin F47

FLEX_GLAN_CLK 19

VDD3

SD_C MD_R

¼t°Ó«Øij C100822

3.3V

Schematic Diagrams

Card Reader (RTL8411) B - 31

B.Schematic Diagrams

Card Reader (RTL8411)

Sheet 30 of 50

Card Reader

(RTL8411)

FSX8L_25MHz¥Ø«e¦@¥Î®Æ

Remind that R331 using the main power

(S0 power)

6-22-25R00-1B4

6-22-25R00-1B5

REGLX and VDD10 must be shape

SD_D3/MS_D2_R

ISOLATE#

SD_CMD _R

LED1/ SPISCK

REXT_C

LANXTAL2

SDA/ SPI DI

SD_CD#

LAN_PCIE_WAKE#

R308 1.5K_04

R388 2.49K_1%_04

R331 *1K_04

R369 15K_04

R309 10K_04

3.3VS

R310 10K_04

LAN_VDD33

ISOLATE#

R387 0_04

R386 0_06

EVDD 10

VDD10

LANXTAL2

LAN_VDD33

SD_CLK/M S_D3_R

MS_D0

VDD3

VDDREG

SD_WP/MS_D1

MS_BS

LED1/SPISCK

PCIE_RXP_4_GLAN

PCIE_RXN_4_GLAN

SDA/SPIDI

SD_D0_R

SD_D1/M S_CLK_R

MS_ I NS #

SD_D2_R

LAN_PCI E_WAKE#

SD_D3/M S_D2_R

REXT_C

LANXTAL1

RTL8411

R407

*0_04

Pin 12

R419

0_04

(Shape)

Pin 39

R406

*28mil_06

GND

VIA

C440

*4.7u_6.3V_X5R_06

C760

4.7u_6.3V_X5R_06

LANXTAL1

C441

0.1u_16V_Y 5V_04

C445

0.1u_16V_Y5V_04

C522

*4.7u_6.3V_X5R_06

C442

0.1u_16V_Y 5V_04

C490

0.1u_16V_Y5V_04

.

L20

*SWF2520CF-4R7M-M

C519

0.1u_16V_Y 5V_04

C755

*5p_50V_N PO_04

C511 0. 1u_10V_X7R_04

R620 0_04

R615

*150_06

C521

*0 .1u_16 V_Y 5V_04

C546

*4.7u_6. 3V_X5R_06

C491

0.1u_16V_Y5V_04

C506

*5p_50V_NPO_04

C720

0.1u_16V_Y5V_04

C535

0.1u_16V_Y5V_04

C532

0.1u_16V_Y 5V_04

C444

0.1u_16V_Y5V_04

C536

*4.7u_6.3V_X5R_06

D14 R B751S-40C2

AC

U21

RTL8411

AVDD33 58

MS_D0/xD_D1 56

MS_D4 55

LED0/SPICSB 51

GPO 50

XD_CD# 57

SD_C D#/ MS_D 5 54

LED1/SPISCK 49

DVDD10 52

SD_CM D/ MS_D6

21

SD_D3/MS_D2

22

SD_D2

23

GND

24

HSIP

25

HSIN

26

REFC LK_P

27

REFC LK_N

28

EVDD 10

29

HSOP

30

HSON

31

REGOUT 48

VDD R EG 47

VDD R EG 46

ENSWREG_H 45

SDA/SPIDI 44

LED3/SPIDO 43

SCL/ LED_C R 42

DVDD10 41

LANWAKEB 40

ISOLATEB 38

PERSTB 37

CLKREQB 36

SD_WP/MS_D1 35

MS_BS 34

AVDD 33 63

RSET 62

AVDD10 61

CKXTAL2 60

CKXTAL1 59

VDD33/18 33

GND 65

AVDD 33 64

MD I P0

1

MD I N0

2

AVDD 10

3

MD I P1

4

MD I N1

5

MI D P2

6

MD I N2

7

AVDD 10

8

MD I P3

9

MD I N3

10

AVDD 33

11

DVDD33

12

Card_3V3

13

SD_D 7

14

SD_D6/MS_IN S#

15

SD_D 5

16

SD_D4

17

SD_D1/MS_CLK

18

SD_D0/MS_D7

19

SD_CLK/MS_D3

20

GND

32

DVDD33 39

VDD33/18 53

GND1

66

GND 2

67

GND 3

68

GND 4

69

GND 5

70

GND 6

71 GND 7

72 GND 8

73

C757

*5p_50V_NPO_04

C489

0.1u_16V_Y5V_04

C504

1u_6.3V_Y5V_04

J_CARD-REV1

3IN1

DAT2_SD

P2

VSS_MS

P21

CD/DAT3_SD

P3

CMD_SD

P4

VSS_SD

P5

VDD_SD

P6

CLK_SD

P7

VSS_SD

P8

DAT0_SD

P9

DAT1_SD

P10

WP_SD

P11

VSS_MS

P12

VCC_MS

P13

SCLK_MS

P14

DAT3_MS

P15

INS_MS

P16

DAT2_MS

P17

SDIO/DAT0_MS

P18

DAT1_MS

P19

BS_MS

P20

CD_SD

P1

GND P23

GND P22

C758

*5p_50V_NPO_04

R359 0_04

R614

*150_06

C505 0. 1u_10V_X7R_04

C545

0.1u_16V_Y5V_04

R621 0_04

C756

*5p_50V_NPO_04

C708

0.1u_16V_Y5V_04

R344 0_04

C533

*0.1u_16V_Y5V_04

R343 0_04

C470

0.1u_16V_Y 5V_04

C759

0.1u_16V_Y5V_04

REGLX VDD10

VDD10

VDD33/ 18

REGLX

LAN_VDD33

VDD3

EVDD10

VDD 10

VDD33/18

LAN_VDD33 LAN_VDD33

LAN_VDD33

VDD10VDD 10

VDD 10

LAN_VDD33 Rising Time¡G

1ms ~ 100ms

VDD10 VDD10VDD 10

VDD REG VDDREG

VDD33/18 VDD33/18

VDD10

LAN_VDD33

EVDD 10 EVDD10

VDD10

VDD33/18 VDD33/18

LAN_VDD33LAN_VDD33

LAN_VDD33

LAN_VDD33

VCC_CARDVC C_CARD

LAN_VDD33

VCC _CARD

VCC_CARD

VCC_CARD

LAN_MDIP032

PCIE_W AKE# 20,27,29

VCC _CARD

LAN_MDIN132

LAN_MDIP132

LAN_MDIN032

LAN_MDIP332

LAN_MDIN232

LAN_MDIP232

BUF_PLT_RST# 22,27,29,34

PCIE_TXP4_GLAN 19

CLK_PCIE_GLAN 19

LAN_MDIN332

PCIE_RXP4_GLAN 19

CLK_PCIE_GLAN# 19

PCIE_TXN4_GLAN 19

LAN_PCIE_WAKE# 34

PCIE_RXN4_GLAN 19

Switching Regulator close to pin48

(Shape)

SD_D2

SD_D3/MS_D2

Pin 12

C443

*10u_6.3V_X5R_06

LAN_VDD33

Close to Cardreader CONN

SD_D1/MS_CLK

MS_ B S

SD_D1/MS_CLK

SD_C MD

4 IN 1 SOCKET SD/MMC/MS/MS Pro

MS_ I N S#

SD_CLK/MS_D3

SD_CLK/MS_D3

MS_ D 0

SD_D 0

SD_WP/ MS_D1

SD_D3/MS_D2

SD_D3/MS_D2

SD_D 2

SD_C D#

SD_WP/ MS_D1

Pin 11

LAN_VDD33

C534

0.1u_16V_Y5V_04

VDD3

SD_D0

Pin 61Pin 52Pin 3 Pin 41Pin 8

Pin 63Pin 58

Pin 47Pin 46

Pin 64

Pin 29Pin 29

Pin 33

SD_CLK/MS_D3_R

SD_D1/MS_CLK_R

Pin 53Pin 53Pin 33

SD_CLK/ MS_D3

SD_D1/MS_CLK

SWR

mode

LDO

mode

Close to RTL8411 for SDXC EMI

SD_D0_R

ENSWREG

C503

22p_50V_NPO_04

R307 0_06

SD UHS Mode Power Supply

L37¡BC177¡BC448 must close to Pin 48

SD_D2_R

X5 FSX-8L_25MHz

1 2

C488

22p_50V_NPO_04

for BOM C100830

SD_CMD

R646 1K_04

R350 *1M_04

3.3V

X4 *HSX321S_25MHZ

1 2

34

R641

10K_04

R640

*10K_04

C100822

LAN_CLKREQ# 19,22

C765

*5p_50V_NPO_04

R642 0_04

R619 *0_04

From PCH pin F47

FLEX_GLAN_CLK 19

VDD3

SD_CMD_R

¼t°Ó«Øij C100822

3.3V

Sheet 31 of 50

SATA ODD, LED,

USB CHARGE

Schematic Diagrams

B - 32 SATA ODD, LED, USB CHARGE

B.Schematic Diagrams

SATA ODD, LED, USB CHARGE

TCT3

TCT4

TCT2

HDMI_SCL-C

HDMI_SDA-C

HDMI_HPD-C

For ESD

D17 RB751S-40C2

A C

HDMI_CTRLDATA21 HDMI_CTRLCLK21

3.3VS

R95 0_04

TMDS_DATA0-R

TMDS_DATA0#-R

TMDS_DATA0-L

TMDS_DATA0#-L

HDMI_HPD-C

¦pªG¦³¤Wlevel shift, R116-n§ï¬°100K

TMDS_DATA1#-L

TMD S_ D ATA1 - L

TMD S_ D ATA2 - L

TMDS_CLOCK#-L

TMDS_DATA2#-L

TMDS_DATA0#-L

TMD S_ C LO C K- L

TMD S_ D ATA0 - L

TMDS_CLOCK#-R

TMDS_DATA1#-R

TMDS_DATA1-R

TMD S_C L OC K-R

TMDS_DATA2#-R

TMDS_DATA2-R

TMDS_DATA0-R

TMDS_DATA0#-R

5VS_HDMI

C100825

OE#

R485 0_04

R94 0_04

5VS_HDMI

5VS

VDD10

3.3VS

HDMI_SDA-CHDMI_CTRLDATA

3.3VS

HDMI_HPD21

R91 0_04

LMX4-

LMX3-

LMX4+

LMX1-

LMX2+

LMX3+

LMX1+

LMX2-

R90 0_04

GIGA LAN (JMC251C)

LAN PORT

for ¦@¥Î C100811

Main 6-21-B4040-008

LAN_MDIP0

LAN_MDIN 0

LAN_MDIN 2

LAN_MDIN 3

LAN_MDIP2

LAN_MDIN030

LAN_MDIP3

LAN_MDIP1

LAN_MDIN 1

LAN_MDIP230 LAN_MDIN 230

LAN_MDIP030

LAN_MDIP130

LAN_MDIP330 LAN_MDIN 330

LAN_MDIN130

5VS_HDMI_IN

TMDS_CLOCK-L

TMDS_DATA0#

TMDS_DATA2

TMDS_DATA2#

HDMI_CEC

HDMI_SDA-C

HDMI_HPD-C

HDMI_SCL-C

TMDS_DATA0

FOR W/O LEVEL SHIFT

TMDS_CLOCK-R

PIN GND1~4=GND

TMDS_DATA1-R

TMDS_DATA0-R

TMDS_DATA0#-R

TMDS_DATA2-R

TMDS_DATA2#-R

SN75DP139 Change 3.9K

R92 0_04

R93 0_04

TMDS_DATA1-L

HDMI CONNECTOR

R89 0_04

R88 0_04

C199 0.1u_10V_X7R_04

C196 0.1u_10V_X7R_04

C197 0.1u_10V_X7R_04

C198 0.1u_10V_X7R_04

C203 0.1u_10V_X7R_04

C201 0.1u_10V_X7R_04

C200 0.1u_10V_X7R_04

C202 0.1u_10V_X7R_04

TMDS_DATA2-L TMDS_DATA2-R

HDMIC _CLKCP_C

HDMIC_CLKCN_C

HDMIC_C2CN_C

HDMIC_C2CP_C

S

D

G

Q27B

MTDK5S6R

5

34

HDMIC_C1CP_C

HDMIC_C1CN_C

HDMIC_C0CP_C

HDMIC_C0CN_C

C150

10u_6.3V_X5R_06

RN2

0_8P4R_04

1

2

3

45

6

7

8

RN3

0_8P4R_04

1

2

3

45

6

7

8

S

D

G

Q26B

MTD K5 S6 R

5

34

S

D

G

Q26A

MTDK5S6R

2

61

HDMIC_C0CP_C

HDMIC_C0CN_C

HDMIC_C1CN_C

HDMIC_C1CP_C

HDMIC_C2CN_C

HDMIC_C2CP_C

HDMIC_CLKCN_C

HDMIC_CLKCP_C

R83680_04

R484 0_04

TMDS_CLOCK#-L

R82680_04

R78680_04 R79680_04

TMD S_C L OC K#

J_HDMI1

C12817-119A5-L

SHIELD2

2

TMD S D ATA1+

4

TMD S D ATA1-

6

SHIELD0

8

TMD S C LOC K+

10

TMD S C LOC K-

12

RESERVED

14

SDA

16

+5V

18

TMDS D ATA2+ 1

TMDS DATA2- 3

SHI ELD1 5

TMDS D ATA0+ 7

TMDS DATA0- 9

CLK SHIELD 11

CEC 13

SCL 15

DDC/CEC GND 17

HOT PLUG DETECT 19

GND

GND 1

GND

GND 2

GND

GND 3

GND

GND 4

R127 *4.7K_04

TMD S_C L OC K

D18

*BAV99 RECTIFIER

A

C

AC

TMD S_D ATA 1#

C32

0.01u_16V_X7R_04

R128 *4.7K_04

TMDS_CLOCK#-R

D19

*BAV99 RECTIFIER

A

C

AC

TMD S_D ATA 1

R42

*0_04

R100 *0_04

C162

*0.1u_16V_Y5V_04

C169

22u_6.3V_X5R_08

R483 0_04

R52 75_04

TMDS_DATA1#-R

LMX3+

LMX3-

U5

*SN75DP139

IN_D1+

39

IN_D1-

38

IN_D2+

42

IN_D2-

41

IN_D3+

45

IN_D3-

44

IN_D4+

48

IN_D4-

47

SCL

9

SDA

8

HPD

7

OE#

25

DCC_EN#

32

RT_EN#

10

PC0

3

PC1

4

REXT

6

GND [6] 27

QE_2

35 OE_1

34

OUT_D1+ 22

OUT_D1- 23

OUT_D2+ 19

OUT_D2- 20

OUT_D3+ 16

OUT_D3- 17

OUT_D4+ 13

OUT_D4- 14

SCL_SINK 28

SDA_SINK 29

HPD_SINK 30

VCC[1] 2

VCC[2] 11

VCC[3] 15

VCC[4] 21

VCC[5] 26

VCC[6] 33

VCC[7] 40

VCC[8] 46

GND [1] 1

GND [2] 5

GND [3] 12

GND [4] 18

GND [5] 24

GND [7] 31

GND [8] 36

GND [9] 37

GND [10] 43

GND

49

LMX1+

LMX4+

LMX1-

LMX4-

LMX2-

LMX2+

R478

2.2K_04

R123 *4.7K_04

R87 1_04

R118 *4.7K_04

TMDS_DATA1#-L

R39 75_04

5VS

R482 0_04

L31

NS892402

TCT1

1

TD1+

2TD1-

3

TCT2

4

TD2+

5TD2-

6

TCT3

7

TD3+

8TD3-

9

TCT4

10

TD4+

11 TD4-

12 MX4- 13

MX4+ 14

MCT4 15

MX3- 16

MX3+ 17

MCT3 18

MX2- 19

MX2+ 20

MCT2 21

MX1- 22

MX1+ 23

MCT1 24

C161

*0.1u_16V_Y5V_04

R80680_04

R41 75_04

R81680_04

R77680_04 R76680_04

R122 *4.7K_04

C170

*0.1u_16V_Y5V_04

C579

1000p_2KV_X7R_12_H125

C28

*0.01u_16V_X7R_04

R40 75_04

HDMIGND

C30

*0.01u_16V_X7R_04

R479

2.2K_04

R109 *4.7K_04

R489 0_04

R117 20K_1%_04

R487 0_04

R488 0_04

C27

*0.01u_16V_X7R_04

R486 0_04

C160

*0.1u_16V_Y5V_04

C182

*0.1u_16V_Y5V_04

R119 *3.9K_04

D20

*BAV99 RECTIFIER

A

C

AC

3.3VS

3.3VS

3.3VS

PJS-08SO1B-1

J_RJ_1

DD-

8DD+

7

DB-

6

DC-

5DC+

4

DB+

3DA-

2DA+

1shield GND1

shield GND2

TMDS_DATA2#-L

HDMI_SCL-CHDMI_CTRLCLK

TMDS_DATA2#-R

HDMI_HPD

R490

1M_04

HDMIGND

TCT1

HDMI_CTRLCLK

PC0

PC1

REXT

PC0

SN75DP139 6-03-75139-030

DCC_EN#

OE_2

3.3VS

OE_1

HDMI_HPD-C

HDMI_CTRLDATA

PC1

DCC_EN#

TMDS_CLOCK#-R

TMDS_DATA1-R

TMDS_DATA1#-R

HDMI_SCL-C

HDMI_SDA-C

TMDS_CLOCK-R

NMCT_R

S

D

G

Q27A

MTDK5S6R

2

61

NMCT_4

NMCT_2

NMCT_3

NMCT_1

¤£¤W¥ó

FOR INTEL GRAPHIC

¤£¤W¥ó

¤£¤W¥ó

PIN 49=GND

HDMIC_CLKCP21

HDMIC_C2CN21 HDMIC_C2CP21

HDMIC_CLKCN21

HDMIC_C0CN21 HDMIC_C0CP21

HDMIC_C1CN21 HDMIC_C1CP21

Sheet 32 of 50

HDMI, RJ45

Schematic Diagrams

HDMI, RJ45 B - 33

B.Schematic Diagrams

HDMI, RJ45

Schematic Diagrams

B - 34 AUDIO CODEC VT1802P

B.Schematic Diagrams

AUDIO CODEC VT1802P

INT_MIC

MI C 2 -V RE F O

MI C 2 _R

MI C 2 _L

DMIC-CLK

DMIC-DAT

HDA_RST#

BEEP_R PCBEEP

AZ_SDIN 0_R LDO_CAP

HEADPHONE-L

MI C 2 -V RE F O

MI C 1 -V RE F O- R

OPVEE-ALC269

CBN-AL269

CBP-ALC269

HEADPHONE-R

HEADPHONE-L

MI C 1 -R _ R

LINE1-R

LINE1-L

MI C 1 -L _R

SENSE-B

MO NO -O U T

LINE2-L

LINE2-RSPKOUTL+

SPKOUTL-

MIC1_R

MIC1_L

BEEP

R627 *1M_04

MIC2_R

MIC2_L

MIC1- L_R

MI C 1- VR E F O- L

R631 *1M_04

MIC1- R_R

R632 *1M_04

R630 *1M_04

AUD G

Very close to Audio Codec

AUD G

C762 22p_50V_NPO_04

FOR VT1802P

AUD G

AUD G

HDA_SDOUT

HDA_SDIN0

HDA_SYNC

HDA_RST#

C764 22p_50V_NPO_04

C763 22p_50V_NPO_04

C761 22p_50V_NPO_04

ANALOG DIGITAL

GND a nd AUDG spa ce is

60mils ~ 100mils

Layout note:

SPKOUTR-_R31 SPKOUTR+_ R31

R653 100K_04

3.3VS_AUD EAPD_MODE

for BOM C100826

C766

0.022u_16V_X7R_04

VT1802P 10u

AUDG

for BOM C100826

for VT1802P C100818

VIA «Øij C100902

VIA «Øij C100902

C768

0.022u_16V_X7R_04

C100825

HEADPHONE-R

ALC269VB L25,C704 -n¤W¥ó

VT1802P L25 ,C704¤£¤W¥ó

MI C 1 _L

VREF-ALC269

SENSE_A

HDA_RST#

AZ_RST# For 3.3V

HDA Link De-pop

PD# Control

AZ_RST# For 1.5V

HDA Link De-pop

C767

0.022u_ 16V_X7R_04

for VT1802P C100818

EAPD_MODE

SPKOUTL-

SPKOUTL+_LSPKOUTL+

2 1

J_SPK1

Layout note:

Close to codec

EMI Require

L17

FCM1005KF-121T03

L18

FCM1005KF-121T03

C459

1000p_50V_X7R_04

LEFT

SPKOUTL-_L

J_SPKL1

85204-02001

1

2

C467

180p_50V_NPO_04

C466

180p_50V_NPO_04

Please Let LC Filter together and close to Codec.IF

Speaker wire length is less than 8000mils It don't

need the LC Filter.

µøLAYOUTª¬ªp, ¦p¤Ó»·¥i¼u©Ê

ÃB¥~¤Á¤@GROUND¦A»PGND³s±µ

For 3.3V HDA Link.

For 1.5V HDA Link.

J_INTMIC1

88266-02001

88266-2L

2

1

20 mil

JDREF

C316

100p_50V_NPO_04

C550 100p_50V_NPO_04

C538

0.1u_16V_Y 5V_04

C557 0.1u_16V_Y5V_04

C501

0.1u_16V_Y5V_04

C530 0.1u_16V_Y5V_04

R429 10K_04

R214 3.3K_1%_04

C509

2.2u_6.3V_X5R_06

L27 *HCB1005KF-121T20

Q21

*NDS352AP

G

D S

VT1802P

100P

VT1802P

3.3K_04

C508 2.2u_6.3V_Y5V_06

R348

*10K_04

R356 *100K_04

C486

0.1u_16V_Y 5V_04

C553

10u_10V_Y5V_08

C549 10u_6.3V_X5R_06

C483

10u_6.3V_X5R_06

C704

*1u_6.3V_Y5V_04

C481

0.1u_16V_Y 5V_04 C540

10u_6.3V_X5R_06

Headphone Anti-Pop Circuit

Speake r 4 ohm------> 40mils

Speake r 8 ohm------> 20mils

AZ_RST#

Speaker wire length less than 8000mils , It don't need LC Filter.

5VS

INT_MIC

R346

*220K_04

C468

*10u_6.3V_X5R_06

PD#

C547 1u_6.3V_X5R_04

SPKOUTR+,R-,L+,L- Trace width

3.3VS_AUD

20m s

R401 *0_06

R422 20K_1%_04

JP2 *10mil_short _04

R347

*10K_04

R349

*10K_04

C548 10u_6.3V_X5R_06

C529 *10u_6.3V_X5R_06

C484

10u_6.3V_X5R_06

C526

10u_6.3V_X5R_06

R378 0_06

C

A

A

D15

BAT54CS3

1

23

C485

0.1u_16V_Y 5V_04

C556 100p_50V_NPO_04

R338

*15mil_short_06

R218 1K_04

C527

0.1u_16V_Y5V_04

C482

10u_6.3V_X5R_06

Q22

*2N7002W

G

DS

R423 39. 2K_1%_04

L25

*HCB1005KF-121T20

L19

HCB1005KF-121T20

C528 0.1u_10V_X7R_04

R424 5. 1K_1%_04

R380 33_04

R337

*4. 7K_04

Q23

*BSS138_NL

G

DS

S

D

G

Q24B

*MTDK5S6R

5

34

C539 10u_6.3V_X5R_06

R652

*0_04

S

D

G

Q24A

*MTDK5S6R

2

61

C500

0.1u_16V_Y 5V_04

C552 10u_6.3V_X5R_06

C551 10u_6.3V_X5R_06

JP1 *10mil_short _04

R430 5. 1K_04

AUDG

AUDG

AUDG

AUDG

VT1802P NC PIN

VT1802P 10u

AUDG

5VS

5VS_AUD 5VS

3.3VS

5VS_AUD

5VS_AUD

3.3VS_AUD

1.5V

3.3VS_AUD

3.3VS

AUDG

AUDG

AUDG

HDA_SPKR18

JD_SENSE_B 31

JD_SENSE 31

KBC_BEEP34

HDA_BITCLK18

HDA_SYNC18

HDA_SDOUT18

HD A_SDIN 018

KBC_MUTE#34

R626

10K_04

HDA_RST#18

PULL HIGH 3.3VS_AUD FOR VT1802P

PULL HIGH 5VS_AUD FOR ALC269VB

3.3VS_AUD

AUDG

CODEC (ALC269 & VT1802P)

FOR VOLUMN

ADJUST

VT1802P±µAUDG

ALC269 ±µ GND

·í½T»{¤£·|Åܧó«á,¥i§ïSHORT¹s¥ó

for VT1802P C100818

C

A

A

D13

BAT54AS3

1

23

PVDD1_2

DVDD_IO

C100825

VT1802P 10u

for BOM C100826

PIN 1,2 change C100930

AUDG

Thermal Pad place 9

Via hole.

R629

0_04

R628

*0_04

Close to Codec

EMI Require

2 1

MI C 1 _R

D12 *RB751S-40C2

AC

VT1802P 5.1K_1%_04

EAPD_MODE

VT1802P 3.3K_1%_04

MI C 1 -V RE F O- R

MI C 1 -V RE F O- L

MIC1-R 31

MIC1-L 31

R431 1K_04

R434 3.3K_1%_04

R433 3.3K_1%_04

R432 1K_04

Close to Codec

HEAD PHON E-L 31

HEAD PHON E-R 31

DIGITAL ANALOG

U23

VT1802P

DVDD1 1

GPIO0-DMIC-DAT

2

GPIO1-DMIC-CLK

3

PD#

4

SDATA-OUT

5

BIT-CLK

6

DVSS2

7

SDATA-I N

8

DVDD-IO 9

SYNC

10

RESET#

11

PCBEEP

12

Sense A 13

LINE2-L 14

LINE2-R 15

MIC 2-L 16

MI C 2- R 17

Sense-B 18

JDREF 19

MO NO -O U T 20

MIC 1-L 21

MI C 1- R 22

LINE1-L 23

LINE1-R 24

AVSS1

26

VREF 27

LDO_CAP 28

MIC2-VR EFO 29

MIC1- VR E F O-R 30

MIC 1-VREFO-L

31

HP-OUT-L 32

AVSS2

37

OPVEE 34

CBN 35

CBP 36

HP-OUT-R 33

PVDD1 39

SPK-L+

40

SPK-L-

41

PVSS1

42

PVSS2

43

SPK-R+

45 SPK-R-

44

PVDD2 46

SPDI FC 2/ EAPD

47

SPDIFO

48

AVDD2 38

AVDD1 25

GND

49

for VT1802P C100818

PD#

for BOM C100826

PC BEEP

Layout Note:

Very close to

Audio Codec

Sheet 33 of 50

AUDIO CODEC

VT1802P

Schematic Diagrams

KBC-ITE IT8518E B - 35

B.Schematic Diagrams

KBC-ITE IT8518E

0V

RX

VCORE_PWRGD 20

3G_DET#

TP_DA TA28

LPC_AD218,28

SERI RQ18,28

LPC_AD018,28

KB-SI2

KB-SO7

KB-SO1

SMD_BAT_R43

SMC_BAT_R43

LPC_AD118,28

KB-SI5

KB-SO8

KB-SO2

KB-SI0

TP_C L K28

LPC_AD318,28

LPC_F RAME#18,28

SMD_CPU_THERM 19

SMD_VGA_THER M16 SMC_VGA_THERM16

SMC_CPU_THERM 19

J_KB2

*85201-24051

24

23

22

14

12

11

21

8

20

19

6

5

18

4

17

10

9

7

3

2

1

16

15

13

KB-SI4

KB-SI7

KB-SO9

KB-SI1

EC_VCC

KB-SO5

KB-SO4

KB-SO6

KB-SO14

KB-SO15

KB-SO3

KB-SO12

KB-SO13

KB-SO0

PCLK_KBC

KB-SO10

KB-SI6

KB-SO11

KB-SI3

FOR W270HUFOR W250HPQ

SWI# 20

KBC_RST# 2380CLK27

3G_EN27

CCD_EN 28

dGPU _PW R _EN#22,42

dGPU_RST# 12,22

AC_PRESENT20,22

DD_ON 31,35,36

PWR _BTN#20

ME _W E18

RSMRST# 20

HSPI_CE# 18

HSPI _MSI 18

PM_PCH_PWROK 20

3IN127

SMI#23

SCI#23

H_PROCHOT#_EC 3

R368 *0_04

R357 43_1%_04

R413 *0_04

J_KB1

85201-24051

24

23

22

14

12

11

21

8

20

19

6

5

18

4

17

10

9

7

3

2

1

16

15

13

C543

1u_6.3V_Y 5V_04

R322 *10K_04

R330 47_04

C487

0. 1u_16V_Y 5V_04

L26 HCB1005KF-121T20

C416

0.1u_16V_Y 5V_04

SMC_CPU _THERM_R

C555 *0.1u_16V_Y5V_04

R339 15_1%_04

R415 *10_04

C541

0.1u_16V_Y 5V_04

K/B MATRIX

FLASH

LPC

SMBUS

PS/2

PWM

UART

DAC

CLOCK

IT8518

CIR

ADC

WAKE UP

PWM/COUNTER

LPC/WAKE UP

EXT GPIO

GP INTERRUPT

WAKE UP

GPIO

U22

IT8518E VER:C

WRST#

14

LPCCLK

13

LAD0

10

LAD1

9

LAD2

8

LAD3

7

LFRAME#

6

( PD )LPCPD#/WUI6/GPE6 17

SERIRQ

5

ECSMI#/GPD4( PU )

15 ECSCI#/GPD3( PU )

23

GA20/GPB5

126

KBRST#/GPB6( PU )

4

KSI0/STB# 58

KSI1/AFD # 59

KSI2/INIT# 60

KSI3/SLIN # 61

KSI4 62

KSI5 63

KSI6 64

KSI7 65

KSO0/PD 0 36

KSO1/PD 1 37

KSO2/PD 2 38

KSO3/PD 3 39

KSO4/PD 4 40

KSO5/PD 5 41

KSO6/PD 6 42

KSO7/PD 7 43

KSO8/ACK# 44

KSO9/BU SY 45

KSO10/PE 46

KSO11/ERR# 51

KSO12/SLCT 52

KSO13 53

KSO14 54

KSO15 55

VCC 11

VSTBY 26

VSTBY 50

VSTBY 92

VSTBY 114

VSTBY 127

VSTBY 121

VBAT 3

AVCC 74

PS2CLK0/ GPF0( PU )

85

PS2DAT0/GPF1( PU )

86

PS2CLK1/ GPF2( PU )

87

( PD )TMRI0/WUI2/GPC4 120

( PD )TMRI1/WUI3/GPC6 124

LPCRST#/WUI4/GPD2( PU )

22

( PD )WUI5/GPE5 35

PWR SW/ GPE4( PU )

125

RI1#/WU I0/GPD0( PU )

18

RI2#/WU I1/GPD1( PU )

21

( PD )RING#/PWRFAIL#/LPCRST#/GPB7 112

TXD/G PB1( P U )

109 RXD/GPB0( PU )

108

( PD )CTX/GPB2 123

PS2DAT1/GPF3( PU )

88

PS2CLK2/ GPF4( PU )

89

PS2DAT2/GPF5( PU )

90

( PD )TACH0/ GPD6 47

( PD )TACH1/ GPD7 48

PWM0/ GPA0( PU )

24

PWM1/ GPA1( PU )

25

PWM2/ GPA2( PU )

28

PWM3/ GPA3( PU )

29

PWM4/ GPA4( PU )

30

PWM5/ GPA5( PU )

31

PWM6/ GPA6( PU )

32

PWM7/ GPA7( PU )

34

ADC0/GPI0

66

ADC1/GPI1

67

ADC2/GPI2

68

ADC3/GPI3

69

ADC4/GPI4

70

ADC5/GPI5

71

ADC6/GPI6

72

ADC7/GPI7

73

VSS

1

VSS

12

VSS

27

VSS

49

VSS

122 VSS

113

AVSS

75

CK32KE 2

CK32K 128

DAC3/GPJ3

79 DAC2/GPJ2

78 GPJ 1

77 GPJ 0

76

( PD )EGCS#/GPE2 83

( PD )EGCLK/GPE3 84

( PD )EGAD/GPE1 82

GIN T/GPD5( PU )

33

L80LLAT/GPE7( PU )

20

VSS

91

DAC5/GPJ5

81 DAC4/GPJ4

80

PWUREQ#/GPC7( PU )

16

( PD )CRX/GPC0 119

( PD )KSO16/GPC3 56

( PD )KSO17/GPC5 57

( PD )GPH0/ID0 93

( PD )GPH1/ID1 94

( PD )GPH2/ID2 95

( PD )GPH3/ID3 96

( PD )GPH4/ID4 97

( PD )GPH5/ID5 98

( PD )GPH6/ID6 99

( PD )GPG1/ID7 107

SMCLK0/GPB3

110

SMDAT0/ GPB4

111

SMCLK1/GPC1

115

SMDAT1/ GPC2

116

SMCLK2/GPF6( PU )

117

SMDAT2/ GPF7( PU )

118

FLFR AME#/ GPG2 100

FLAD0/SCE# 101

FLAD1/ SI 102

FLAD 2/ SO 103

FLAD3/GPG6 104

FLCLK/SCK 105

( PD )FLRST#/WUI 7/ GPG0/TM 106

( PD )L80HLAT/GPE0 19

NC3

SHOR T

L13

HCB1005KF-121T20

C542 0.1u_16V_Y 5V_04

R321 *10K_04

R305 10K_04

C415

*0. 1u_16V_Y 5V_04

C438 1u_6.3V_Y5V_04

R340 47_04

C435 0.1u_ 16V_Y5V _04

R643 *0_04

C544

0.1u_16V_Y5V_04

6-03-08518-0P2

R426 *0_04

NC2 SHORT

C437

*0. 1u_16V_Y 5V_04

C554 *10p_50V_NPO_04

R416

100K_04

R417 *10mil_s hort_04

KB-S O1

KB-S O8

KB-S O4

KB-S I0

R320 4.7K_04

R306 10K_04

KB-S O7

KB-S O10

KB-S O6

C436

0.1u_16V_Y 5V_04

KB-S O14

C502

0.1u_16V_Y 5V_04

KB-S O0

KB-S I3

KB-S I6

U20

PCT25VF032B

CE# 1

SO 2

WP#

3

VSS 4

SI 5

SCK 6

HOLD#

7

VDD

8

HSPI _MSO 18

R358 *0_04

R414 *0_04

R329 15_1%_04

KB-S I1

KB-S I7

R319 1K_04

KB-S O11

KB-S I2

KB-S I5

for RLT8411 C100816

KB-S O12

KB-S O5

KB-S O9

KB-S I4

KB-S O13

KB-S O2

KB-S O3

Board-n¥[

C100818

VDD3

VDD3

VDD3

KBC_AVD D

VDD3 VDD3

VDD3

3.3VS

SMC_CPU _THERM_R

CK32K

R624 0_04 LAN_PCI E_WAKE# 30

SMD_CPU _THERM_R

KBC_SPI _SO_R

KBC_SPI _SC LK_R

KBC_HOLD#

SPI_VDD_1

µL«OÅ@

32Mbit

KBC_FLASH

BRIGHTNESS11

KBC_SPI_SCLK

KBC_SPI_SO

KBC_SPI _C E#_R

KBC_SPI _SI _R KBC_SPI_SI

LED_BAT_FULL28

LED_NUM#31

LED_PWR28 KBC_SPI_CE#

LED_SCROLL#31

LED_BAT_CHG28 LED_CAP#31

6-04-02532-490

6-04-25320-490

KBC_MUTE#33

GA2023

LED_ACIN28

KBC _BEEP33

2'rd

3G_POWER_EN 27

WLAN_EN27

CPU_FAN28

BKL_EN 11

BT_EN 27,31

PCLK_KBC_R

BAT_VOLT

PCLK_KBC

KBC_WR ESET#

LCD_BRIGHTNESS

CCD_DET#

BAT_DET

KBC_AGND

KBC_AGND

EC MODULE CHOOSE (FOR DIFFERENCE K/B TYPE)

C100820

PME# 22

CCD_DET#

KBC_SPI_*_R = 0.1"~0.5"

KBC_SPI _C E#

CHG_RST 43

R323 10_04

3G_DET#27

LCD_BRIGHTNESS

KBC_SPI_CE#_R

KBC_HOLD#

KBC_SPI _SI _R

KBC_FLASH

KBC_SPI _SC LK_R

BAT_VOLT

U19

*MX25L3205DM2I-12G

ACA-SPI-004-T03

CE# 1

SO 2

WP#

3

VSS 4

SI 5

SCK 6

HOLD#

7

VDD

8

SPI_VDD_1

KBC_SPI _SO_R

R425

*10m il_short_04

ALL_SYS_PWRGD 11,20,40

LID_SW#11,28

SUSB# 6,20,35

SUSC # 20, 38

TH ER M_V OL T2

CCD_DET#28

BT_DET#27

BAT_VOLT43 BAT_DET43

HSPI _SCLK 18

CPU_FANSEN 28

WLAN _DET#27 ICPPE# 23

NB_ENAVDD 11,21

SUS_PWR_AC K 20

KBC_SPI _SI

KBC_SPI _SO

MODEL_ID

CK32KE

KBC_SPI _SC LK

KB-S O15

C510

10u_6.3V_X5R_06

MOD EL_ID

SMD_CPU_THERM_R

R300 *0_04

TOTAL_CUR43

Co-lay SPI ROM

1

TOTAL_CUR

MODEL_ID

3.3VV1.0 R163 10K/ R171 X

VER. VOLTAGE

J_KB1

R163 X /R171 10K

WLAN_LED#27,31

SMC_CPU_THERM_R

SMD_VGA_THER M

SMC_VGA_THER M

C418 *1u_6.3V_Y5V_04

AC_DET 16

24

USB_CHARGE_EN 35,36

6-04-25032-491

EC_VSS

RX

BUF _PLT_RST#22,27,29,30

AC_IN#43

PWR_SW#35

PCLK_KBC22

CRIT_TEMP_REP#23

H_PECI 3,23

KBC_WR ESET#

USB_ CHARGE_EN35,36

Sheet 34 of 50

KBC-ITE IT8518E

¹w¯d C100816

¹w¯d C100816

DD_ON

C100810

DD_ON#

VDD3

1.5VS_EN1

VIN1

DD_ON#

VIN VA

for ¦@¥ÎC100816

PR283

100_1%_04

PC239

0.1 u_16V_ Y 5V_04

PC240

10u_10V_Y5V_08

PQ72

MTN7002ZHS3

G

DS

for ¦@¥ÎR3_4_8_12 C100820

S

D

G

PQ26A

MTDK5S6R

2

61

S

D

G

PQ26B

MTDK5S6R

5

34

SUSB

PWR_SW# 34

ON

ON

SUSB

ON

ON

ON

3A

VD D 5SY S1 5V

SY S1 5V VD D 5

3.3VSSYS15V

5VS

1.5V

3.3VSYS15V

5V

SYS15V 1.5VS

VIN VIN

1.5VS_CPU

VDD3

VDD3

VD D 3

VDD3

1.5V

SY S1 5V

for ¦@¥ÎC100816

5V

NM OS

SUSB

SUSB

1.5VS_LO

5VS_EN1

3.3V

Power Plane

PR117 1K_04

NMOS

3A

DD_ON# 29,31,38

PWR_SW#_R

SUSB 3,37,38

ON

5VS

NMOS

PC232

0.1u_16V_Y 5V_04

PC89

0.1u_50V_Y5V_06

PC234

1000p_50V_X7R_04

PR118

100_04

PR273

1M_04

ON

PC78

2200p_50V_X7R_04

PR274

1M_04

PR271

1M_04

PQ31A

MTNN20N03Q8

1

3

728

3.3VS

S

D

G

PQ27A

MTDK5S6R

2

61

PC60

*0.1u_16V_Y5V_04

NMOS

PR131

100_04

PC201

0.1u_16V_Y 5V_04

PR252

1M_04

PQ67A

MTNN20N03Q8

1

3

728

PC203

2200p_50V_X7R_04

PC67

0.1u_16V_Y5V_04

PR146

1M_04

PC202

10u_6.3V_X5R_06

PQ22

MTN7002ZHS3

G

DS

PR147

1M_04

PJ31

*40mil

12

PQ58A

MTNN20N03Q8

1

3

7

28

PC233

3300p_50V_X7R_04

PQ66B

MTNN20N03Q8

6

5

4

PR116 10K_04

PC217

0.1u_16V_Y5V_04

PU3

P2808B0

VA

1

VIN

2

M_BTN#

3

INSTANT-ON

4GND 5

PW R _SW # 6

DD_ON_LATCH 7

VIN1 8

PR272

75_04

PJ16

*40mil

12

PC90

0.1u_50V_Y5V_06

PQ66A

MTNN20N03Q8

1

3

728

PC65

*0.1u_16V_Y5V_04

PR144

100K_04

PC231

4700p_50V_X7R_04

PC66

2200p_50V_X7R_04

PR143

10K_04

PQ31B

MTNN20N03Q8

6

5

4

PQ58B

MTNN 2 0N03Q8

6

5

4

PC68

10u_6.3V_X5R_08

PC218

10u_6. 3V_X5R_06

S

D

G

PQ27B

MTDK5S6R

5

34

PR130 1K_04

PJ11

*OPEN-8mm

1 2

PQ30A

MTNN20N03Q8

1

3

728

PQ67B

MTNN20N03Q8

6

5

4

ON

PQ30B

MTNN20N03Q8

6

5

4

PR139

100K_04

1.5VS

200mA

NMOS

1.5VS_CPU

NM OS

ON

15A

PQ28

MTN2604G6

3

2 4

1

5

6

EMI

DD_ON31,34,36

M_BTN #28

SUSB#6,20,34

PC241

10u_6. 3V_X5R_06

PQ73

2SK3018S3

G

DS

PR284

75_04

ON

3.3VS_EN1

DD_ON#

3.3VS_LO

1.5VS_CPU_LO

SUSB

1.5VS_CPUEN1

DDON_LATCH

3.3V_EN1

PQ68

2SK3018S3

G

DS

PJ17 *OPEN-5mm

1 2

5V_EN1

5A

¹w¯dPJ17¡Acost down 5V MOS

²Ä¤@ª©¤W¥óÅçÃÒ

PR114 100K_04

for ¦@¥ÎR3_4_8_12 C100816

PR282

100_1%_04

PC237

0.1u_16V_Y5V_04

PC238

10u_10V_Y5V_08

PQ71

MTN7002ZHS3

G

DS

W USB Charge ¤W¥ó

WO USB Charge ¤£¤W¥ó

R622 1K_04

USB_CHARGE_EN

R623 100K_04

PR115 *100K_04 USB_CHARGE_EN 34,36

¹w¯d C100816

Sheet 35 of 50

5VS, 3VS, 1.5VS

CPU

Schematic Diagrams

B - 36 5VS, 3VS, 1.5VS CPU

B.Schematic Diagrams

5VS, 3VS, 1.5VS CPU

UGATE2

DD_ON_EN_VDD

VREG5

LGATE1

Support Intel V-Pro Function

5A

EN_ALL

Rb

5A

VFB2

Ra

UGATE1

EN_5V

EN_3V

VIN_6182

LGATE2

TONSEL

EN_3V5V

PHASE1

VFB1

SKIPSEL

5608POK

EN_3V

PR263

*5.1_06

PC212

*220p_50V_NPO_04

VIN

VIN

M990125

EN_5V

BOOT2

VDD3 VDD5

BOOT1

PHASE2

PC210

4.7u_25V_X5R_08

+

PC71

*15u_25V_6. 3* 4.4

PR138

*0_04

+

PC74

220u_6.3V_6. 3*6. 3* 4.2

PC49

1u_10V_Y5V_06

PQ60

P1203BV

4

62 5

73

1

8

PR119 * 0_04

PD8

RB0540S2

A C

PJ29

*OPEN-5mm

12

PR137

*20mil_04

DD_ON31,34,35

AC_IN43

PC69

4.7u_25V_X5R _08

PQ61

P1203BV

4

62 5

73

1

8

PR135

*680K_1%_04

PR136

*0_04

SYS5V

SYS10V

SYS3V

VDD3

SYS15V

PC205

4.7u_25V_X5R_08

VIN

VDD5SY S 5V

VIN1

SYS5V

PU4

G5608

VREF 3

EN1 1

VFB1 2

TONSEL 4

LDO5

17

LGATE1 19

PHASE1 20

VFB2 5

UGATE2

10

VCLK

18

BOOT2

9

EN2 6

VO2

7

LDO3

8

PHASE2

11

LGATE2

12

EN0

13

SKIPSEL

14

GND

15

VIN

16

UGATE1 21

BOOT1 22

POK 23

VO1 24

GND PAD

25

C

A

A

PD9

BAT54SS3 1

2

3

PC54

1u_10V_Y 5V_06

PJ14

*40mil

12

PR141 *20mil_04

PC211

*220p_50V_NPO_04

PC59

2200p_50V_X7R_04

PR132

100K_04

PC206

4. 7u_25V_X5R_08

PR262

*5.1_06

PQ20

*MTN7002ZHS3

G

DS

PD14

*SK34SA

A C

PC51

100p_50V_N PO_04

S

D

G

PQ23A

MTD K5S6 R

2

61

R230 *10mil_short_04

PC209

0.1u_50V_Y5V_06

PD7

RB0540S2

AC

PC64

2200p_50V_X7R_04

PC62

1u_10V_Y5V_06

PR128

30K_1%_06

PC52 1000p_50V_X7R _04

PC55

1000p_50V_X7R_04

PD13

CSOD140SH

A C

+

PC73

220u_6.3V_6. 3*6. 3*4.2

PR133 *10K_04

PC61

0.01u_50V_X7R_04

PC219

0.1u_16V_Y 5V_04

PR121

10K_04

PC63

0.01u_50V_X7R_04

PJ28

*OPEN-5mm

1 2

PC204

4.7u_25V_X5R _08

PR125

20K_1%_04

PD15

CSOD140SH

A C

PR127 *20mil_04

PL12

TMPC 0603H -4R 7M-Z01

12

PC216

0. 1u_16V _Y 5V_04

PR140 *0_04

CA

A

PD11

BAT54SS3 1

2

3

PC47

0.1u_16V_Y 5V_04

PR142

2.2_06

PD10

RB0540S2

AC

PR122

13K_1%_06

PR129

100K_04

PD12

*SK34SA

A C

PC58

0.1u_10V_X7R_04

PR123

18. 7K_1%_06

+

PC70

*15u_25V_6. 3* 4. 4

S

D

G

PQ23B

MTDK5S6R

5

34

PL11

TMPC0603H-4R7M-Z 01

1 2

PR120

100K_04

PC56

1000p_50V_X7R_04

PR126 *0_04

VREF_VDD

VREG3

VREF_VDD

VREG5VREG5

VREG5

VREG5

PC57

0.1u_10V_X7R_04

PQ62B

PD1503YVS

4

3

5

6

PQ62A

PD1503YVS

7

8

1

2

USB_CHARGE_EN34,35

C100808

PQ21

MTN7002ZHS3

G

DS

Sheet 36 of 50

VDD3, VDD5

Schematic Diagrams

VDD3, VDD5 B - 37

B.Schematic Diagrams

VDD3, VDD5

Schematic Diagrams

B - 38 Power 0.85VS, 1.8VS

B.Schematic Diagrams

Power 0.85VS, 1.8VS

PC45

0.1u_16V_Y5V_04

PC128

*1u_6.3V_X5R_04

PR109 1M_04

PQ48

2SK3018S3

G

DS

PU2

AX6615ESA

GND

1

VCNTL 6

VOUT 3

VIN

5

VOUT 4

VFB 2

POK

7

EN

8

VIN

9

PC39

10u_6.3V_X5R_06

PR110 10K_04

PR108 10K_04 PJ9

*OPEN-3mm

1 2

PR113 1.3K_1%_04

PQ11

BTN3904N3

B

E C

5V

1.8VS

V1.8

PR71 10K_04

POK_6610

SUSB3, 35,38

1.8VS_PWRGD

VFB_6610

EN1.8VS

1.05VS_VTT

2A

2A

1.8VS_PWRGD3,20

-n²¾¾aªñPIN6¸}

6-02-06615-320

6-02-07113-320

1.8VS

0.85VS_EN 20

PR188 *0_04

COMP_0.85VS

VCCSA_VID 1

PJ21

*6mil

12

C100824

EN1.8VS1

PC28 0.1u_50V_Y5V_06

PR203

100_04

PR190 *20mil_04

PR202

9.31K_1%_04

3.3V

SS_0.85VS

VCCSA_VID 06VCCSA_VID16

0.8V

1

0.725V

10

0

PC145

*0.1u_10V_X5R_04

0

0

0.675V

0.85VS_PWRGD 20

VCC SA_SENSE 6

0.9V

VCCSA_VID1

SET2_0.85VS

SET1_0.85VS

5V

PR187

10K_04

CSN_0.85VS

SET0 SET2 SET3SET1

VDD3

LG_0.85VS

FB_0.85VS

CSP_0.85VS

RT_0.85VS

0.85V_ON

Vout= 0.8*(PR73+PR72)/PR72=1.84V

CSN_0.85VS

EAP_0.85VS

VCCSA_VID 0

SET3_0.85VS

SET0_0.85VS

0.85VS

5V

3.3V

CSP_0.85VSCSP

0.85V_ON

VIN

0.85VS

V0.85

1

VCCSA_VID0

1

BOOT_0.85VS

6A

PJ1

*40mil

12

PHASE_0.85VS

PC138

0.01u_50V_X7R_04

PR245

10_04

3.3V

PJ2

*40mil

12

PR67

9.31K_1%_04

PR189

22_04

3.3V

PR83

100K_04

PR198

*0_04

5V

+

PC183

220u_6.3V_6.3*6.3*4.2

PC154

0.1u_10V_X7R_04

PR216

*20mil_04

PC29 0. 1u_50V_Y5V_06

PC43 82p_50V_NPO_04

PC153

1u_6.3V_Y5V_04

PR223

12K_1%_04

PQ50B

PD1503YVS

4

3

5

6

PC147

0.022u_16V_X7R_04

PC159 4.7u_25V_X5R _08

PU6

uP6122

BOOT 1

UG 2

POK 3

SS 4

EAP 5

SET3

6

SET2

7

SET1

8

SET0

9

FB

10

COMP

11

VID0

12

VID1

13

EN/PSM

14

CSN

15

CSP 16

RT 17

VCC 18

LG 19

PHASE 20

GND 21

PR191

1K_1%_04

PC129

0.01u_50V_X7R_04

PC152

0.1u_25V_X7R_06

PC146

47p_50V_NPO_04

PD5

RB0540S2

AC

PJ23

*40mil

12

PR200

10.7K_1%_04

PR199

10K_1%_04

PR98

*20mil_04

PR97

*20mil_04

PQ50A

PD1503YVS

7

8

1

2

PR70

15K_1%_04

PC160 4.7u_25V_X5R _08

PL7

TMPC0603H-1R0M-Z01

1 2

PR221

1.3K_1%_04

PR82

33K_1%_04

PC184

0.1u_16V_Y5V_04

PJ24

*OPEN-5mm

1 2

PR68

12K_1%_04 PR201

10K_1%_04

PR75

100K_1%_04

PR222

10K_04

PC38

10u_6. 3V_X5R_06

PR69

9.1K_1%_04

PC42

*1u_6.3V_Y5V_04

PC40

2.2u_6.3V_Y 5V_06

PC37

0. 1u_16V_Y 5V_ 04

PC41

2200p_50V_X7R_04

PQ19

2SK3018S3

G

DS

PR112

1K_1%_04

PR215 100K_04

PC44

*10u_6.3V_X5R_06

PJ20

*40mil

12

R217 *10mil_short_04

Sheet 37 of 50

Power 0.85VS,

1.8VS

Schematic Diagrams

POWER 1.5V/1.05VS B - 39

B.Schematic Diagrams

POWER 1.5V/1.05VS

VIN

V1.05 1.05VS

COMP_VDD

MOD E

PQ32

2SK3018S3

G

DS

PQ12

2SK3018S3

G

DS

PC223

10u_6. 3V_X5R_06

SUSB

CS

15A

5V

VBST

VTTEN

DRVH

PR159 *0_04

PR153 *0_04

+

PC72

220u_6.3V_6.3* 6.3* 4. 2

1.05VS

FB_1.05VS_6127

PL9

TMPC1004H-1R0M-Z01

1 2

PC75

0.1u_50V_Y5V_06

PJ18

*40mil

12

PC225 0.1u_10V_X7R_04

PD17

*SK34SA

A C

PR270

100K _04

PR152 *20mil_04

PU10

G5616

VTTGND

1

VLDOIN

23

VTT

24

VTTSNS

2

GND

3

MODE

4

VTTREF

5VCC5 14

PGOOD 13

S5 11

S3 10

VDDQSET

9

VDDQSNS

8

COMP

6

CS 16

PGND 18

DRVL 19

LL 20

DRVH 21

VBST 22

PVCC5 15

CS_GND 17

NC

7

NC

12

GND

25

S

D

G

PQ33A

MTDK5S6R 2

61

PC135

0.01u_16V_X7R_04

PR276 100K_04

PC79

*1 00 0p _50V_X7R_04

PR220

9.31K_1%_04

PC137

*20p_50V_N PO_04

PR156 *10K_1%_04

PR84 6.2K_1%_04

PR80 *90.9K_04

PR265

*5.1_06

PC76

4.7u_25V_X5R_08

PC222

10u_6. 3V_X5R_06

PC220

4.7u_25V_X5R_08

PC30

4.7u_25V_X5R_08

PR 27 7 47K_04

PC32

0.1u_50V_Y5V_06

PC226

1u_6.3V_Y5V_04

PC185

0.1u_16V_Y5V_04

PC214

*1 00 0p _50V_X7R_04

PQ52

ME4894-G

4

62 73 8

5

1

PJ6

*6mil

12

PR104

0_04

PJ15

*OPEN-8mm

1 2

PC215

0.1u_50V_Y5V_06

PJ30

*OPEN-2mm

12

PD25

SK34SA

A C

PC77 0.1u_10V_X7R_04

PC134

*0.1u_16V_Y5V_04

PC224

10u_6. 3V_X5R_06

15A

1.5V

PU7

G5413

LX 1

BST 2

VCC 3

DL 4

GND

5

RTN

6

N.C

7

N.C

8

FB

9

VOUT

10

PGD

11

EN

12

ILIM 13

N.C 14

N.C 15

DH 16

PAD 17

PC207

0.1u_16V_Y5V_04

+

PC188

220u_6.3V_6.3*6.3* 4. 2

PR148 *28mil_06

PQ70

*MTN7002ZHS3

G

DS

PR266

3.3_06

PR149

*28mil_06

PR150 2. 2_06

PC136

*15p_50V_N PO_04

PR155 100K_04

PQ53

ME4626-G

4

62 73 8

5

1

PR154 *100K_04

PD16

CSOD140SH

A C

PC228

0.1u_16V_Y5V_04

PJ26

*OPEN-8mm

1 2

PR213

*20m il_04

PR269 10K_1%_04

PQ25

*MTN7002ZHS3

G

DS

PC230

1u_6.3V_Y5V_04

PR124 *22_04

VIN

PC221

*1 0u _6 .3V_X5R_06

1.5V

VDDQ

PR151 6.2K_1%_04

3.3V

VTT_MEM

5V

5V

VTT_MEM

5V

PC31

0.1u_50V_Y5V_06

PC208

0.1u_16V_Y5V_04

C100808

PR158 *28mil_06

PR157

*10_04

PR212 10K_04

PC157

0.1u_10V_X7R_04

PR268 10.7K_1%_04

+

PC186

220u_6.3V_6.3*6.3* 4. 2

PC178

4.7u_25V_X5R_08

PR267

0_06

PD6

RB0540S2

AC

PR145

*28mil_06

S

D

G

PQ33B

MTDK5S6R

5

34

PC227

*1000p_50V_X7R_04

PC229

0.1u_16V_Y5V_04

PD18

RB0540S2

A C

PR219

100K_04

PR214

3.74K_1%_04

PC158

1u_6. 3V_ Y 5V_04

LL

VTTREF

VTT

VTTSNS

VDD QSNS

DDR1.5V_PWRGD

1.5S_CPU_PWRGD

SUSB

PQ64

ME4894-G

4

62 73 8

5

1

VD D QSE T

PQ65

ME4626-G

4

62 73 8

5

1

PQ29

*ME4626-G

4

62 73

8

5

1

VDDQ 5V

VDDQ

5V

5V

R1

R2

5V

5V

R2 Vout=(R1/R2+1)*0.75

R1

Vout=(R1/R2+1)*0.75

VTT_MEM

DRVL

PL10

TMPC1004H-1R0M-Z01

1 2

PK3906

1.05V_ON

VC C P_SEN SE_ G54 13

DDR 1.5V_PW RGD 20

LX

DL

1.05VS_PW R GD20 BST

ILIM

DH

1.05VS_PWRGD

S5_6163

DD_ON#29,31,35

SUSB3,35, 37

SUSC#20,34

FOR S3 REDUCE ¹w¯d

PR278 0_04

C100808

VSSP_SENSE 5

VCCP_SENSE 5

PJ7*6mil 12

PC167

*4.7u_25V_X5R_08

PQ54 DEL C100818

»Ý©Ô¨ìIC PIN5,6 ªþªñ¤U¦a

C100808

-n²¾¾aªñPIN3¸}

SUSB

3.3V

5V

Sheet 38 of 50

POWER 1.5V/

1.05VS

Schematic Diagrams

B - 40 POWER 1.05V/1.05VS VTT

B.Schematic Diagrams

POWER 1.05V/1.05VS VTT

PR253

*10K_04

1.05VS_VTT_PWRGD 20

5V

C100824

PQ75

*2N7002W

G

DS

PQ74

*ME4626-G

4

6 2

5

7 3

1

8

C769

*2200p_50V_X7R_04

PR288

*1M_04

PR289

*100K_04

SYS15V V1. 05

1.05VS_VTT

3.3V

C100808

Z3712

Z3713

1A

8A

8A

-n²¾¾aªñPIN1,2¸}

Z3714

LO

HI

1.05VS

1VS

8A

1.05VS_VTT

PC189

4.7u_25V_X5R_08

PU9

*G9330

PGOOD 3

IN

1

GND

2

DRV 6

ADJ 5

EN

4

PC190

4.7u_25V_X5R_08

PC191

4.7u_25V_X5R_08

PR259

*10K_1%_04

PC193

*1u_10V_Y5V_06

PC196

*0.47u_10V_Y5V_04 PC198

*.1U_16V_04

PQ55

*ME4626-G

4

6 2

5

7 3

1

8

PC195

*0.1u_10V_X7R_04

PR257

*560K_1%_04

PR254

*100_04

PR258 *1K_04

PC192

4.7u_25V_X5R_08

PQ56

*MTN7002ZHS3

G

DS

PR256

*10K_1%_04

1.05VS_VTT

5V

V1.05

1.05VS_VTT_EN20

H_SNB_IVB#_PWRCTRL 6

R648

*10K_04

3.3V

1.05VS_VTT_EN#

Q33

*MTN7002ZHS3

G

DS

PC236

*1000p_50V_X7R_04

PJ27

*40mil

12

1.05VS_VTT_EN

PJ34

*8mm

1 2

Sheet 39 of 50

POWER 1.05VS/

1.05VS VTT

Schematic Diagrams

POWER VCORE1 B - 41

B.Schematic Diagrams

POWER VCORE1

PC151

*1u_10V_Y 5V_06

PR102 10K_04

C100808

PR193 127K_1%_06

PC166 0.22u_10V_X5R_04

PR62

8.25K_1%_04

PR217 2_06

PC182

*4700p_50V_X7R _04

PC144 33p_50V_NPO_04

PR204 47K_1%_04

PJ2 2 * 6mil

1 2

PR72 49.9_1%_04 PR 89 * 1K_1% _04

PR240 0_04

PR197 * 1K_1%_04

PC123 1000p_50V_X7R_04

PC1 73 10 p_50V _N PO_04

PC174 2.2u_6.3V _X5R_04

PC150

1000P_50V_X7R_04

PJ5

*6mil

12

PR1 01

*75_ 04

PR225 90.9K _1%_04

PR99

*15m il_sh ort

PR234

*0_04

PR226 2_06

PR9 1

100_04

PC1 31

0.04 7u_ 10V_X7R_0 4

PU8

NCP6132A

TSNSA 46

IOUTA 54

EN

4

VRHOT#

11

SDIO

5

ALERT#

6

ROSC

9

SCLK

7

VR DY A

3

CSCOMP

22

CSP3

25 CSREF

24 CSSUM

23

LGA 41

TRBSTA# 57

PVCC 36

BST2 40

HG2 39

SW2 38

LG2 37

PGND 35

COMP

18

VSP

14

DROOP

21

FB

17

DIFF

15

CSP1

27

SWA 42

HGA 43

VSPA 59

DIFFA 58

DROOPA 52

FBA 56

COMPA 55

CSREFA 49

CSSUMA 50

CSP2A 48

VRMP

10

VRDY

12

DRVEN

29

VSN

13 LG1 34

SW1 33

VSNA 60

ILIMA 53

EPAD 61

VCC

1

IOUT

19

HG1 32

CSP2

26 CSCOMPA 51

TSNS

28

ILIM

20

TRBST#

16

PWM

30

BST1 31

BSTA 44

CSP1A 47

PWMA 45

VDDBP

2

VBOO T

8

PR230 11.8K_1%_0402

PC1 69

0.04 7u_10V_X7R_0 4

PC132 270p_50V_X7R_04

RT3

100K_NT C _06_B

1 2

RT6

100K_NTC _06_B

1 2

PR76 0_04

PR 247 * 1. 21K_1% _04

PC175

1000p_50V _X7R_04

PC176

330P_50V_X7R_04

PR77 10_1%_04

PC1 30

0.04 7u_ 10V_X7R_0 4

PR8 6 *15mil_06

PC179 1000p_50V_X7R_04

PR73 10.7K_1%_04

PR228 19. 6K _1%_04

PC149 0.22u_10V_X5R_04

PC22 100p_50V_NPO_04

PR9 0

100_04

PC172 0.1u_10V_X7R_04

PR78 0_04

PC1 81

33p_50V_NPO_04

PR241 0_04

PC170

1000p_50V _X7R_ 04

PR79 1.21K_1%_04

PC177

2200p_50V_X7R_04

PR233 6.98K_1%_04

PR239

10_1%_04

PR249

8. 25K _1%_04

PR95

75_1%_04

PC1 68 0.1u_10V_X7R_04

RT5

100K_NTC _06_B

1 2

PC1 40 0.1u_10V_X7R_04

PR224 2_06

PC24 680p_50V_X7R _04

PC143

1000p_50V_X7R_04

PR2 08

165K_1%_04

PR81 1K_04

PR238 24K_1% _04

PR211 4.12K_1%_0402

PR227 0_04

PR235 64.9K_1%_06

PR100

10K_04

PR236

*1K_1%_04

PR205 6. 98K_1%_04

PR207

0_04

PR186 0_04

PR87 *0_04

PC156

0.01u_50V_X7R_04

PC142 1200p_50V_X7R _04

PR210

51K_1%_04

PR243 0_0 4

PR246

165K_1%_04

PR206 6. 98K_1%_04

PR244

4.3K_1%_04

RT4

100K_NTC_06_B

12

PC148 2.2u_6. 3 V_X5R_04

PC133 4700p_50V_X7R_04

C100823

PC155 0.22u_10V_X5R_04

PC180

*100p_X7R_ 04

PC33

*68 0p_50V_X7R_04

PC23

4700p_50V_X7R_04

PR194 127K_1%_06

PR20930K_1%_04

PC141

1000p_50V_X7R_04

PR85 10K_04

PR195 *3. 6K_1%_04

PC124 *3300p_50V_X7R_04

PR192

75K_1%_04

PR94

54. 9_1%_04

PR96

130_1%_0 4

PR237 1. 6K_1%_04

PR1 96 2.43K_1%_04

PR103

10K_04

PR231 1K_1%_04

PR218 1K_1%_04

PR248 *24. 9K_1%_04

PR229

0_04

PC171

1200P_50V _X7R_04

PR251

75K_1%_04

PR242 *4.7K_1%_04

PR88 2_06

5VS

3.3VS

5VS

5VS

1.05VS_VTT

5VS

VIN

3.3VS

1.05VS_VTT

VGFX_CORE

5VS

SGND

SWN1 41

CSREF 41

3.3VS

SWN2 41

SWN1 41

SWN2 41

SW1A 41

H_PROCHOT#3,42

VR1_VSSGT_SENSEA6

VR1_VCCGT_SENSEA6SWN1A 41

SW1 41

SW2 41

HG1A 41

CSREFA 41

SWN1A 41

LG2 41

HG2 41

LG1A 41

ALL_SY S_PWRGD11,20,34

HG1 41

LG1 41

H_CPU_SVIDCLK5H_CPU_SVIDALRT#5H_CPU_SVIDDAT5

DELAY_PWRGD20

VCORE_VCC _SENSE5

VCORE_VSS_SENSE5

VBOO T

FBA

PUT COLSE

TO VCORE

HOT SPOT

TSEN SE

DROOPA CSREFA

TRBST#

CSCOMPA

CSP1

IMON

CSP2

CSCOMP

IMONA

TR BS T#

TRBSTA#

VSP

H_CPU_SVIDCLK

PUT COLSE

TO CPU

SOCKET

H_CPU_SVIDDAT

H_CPU_SVIDALRT#

DROOP

CSREFA

H_PROCHOT#

CSREF

CSSUMA

C100819

CSSUM

CSREF

CSREF

H_CPU_SVIDDAT

VR _RD Y A

CSP1A

IMONAIMONA

DROOPA

FBA

Option for

1 phase GT

H_PROCHOT#

VSN

CSP1A

CSP1A

CSP3

VR_RDYA

PUT COLSE

TO VGFX

HOT SPOT

CSCOMPA

CSP1

TSEN SETSEN SE

DELAY_PWRGD

CSP2A

H_CPU_SVIDALRT#

TS EN S EA

H_CPU_SVIDCLK

CSP3

PUT COLSE

TO VCORE

Phase 1

Inductor

CSREFA

TSENSEA

CSP2

CSP2A

PUT COLSE

TO GT

Inductor

VR_EN

CSREF

VR_EN

CSCOMPCSCOMPCSCOMPCSCOMPCSCOMPCSCOMP DROOP

Option for

2 phase CPU

5/24

TRBSTA#

C100808

C100823

C100823

C100823

Sheet 40 of 50

POWER VCORE1

PL8

0.36UH_12.9*14*3.8

1 2

HG1

CSREF

LG1

HG1A

CSREF

HG2

LG2

SW2

LG1A

SW1

QC 45W CPU

VID1=0.9V

IccMax=60A

Icc_Dyn=66A

Icc_TDC=52A

R_LL=1.9m ohm

OCP~70A

SW1A

DCR 1.1mohm

DCR 1.1mohmDCR 1.1mohm

PR63 *15mil_06

PQ10

NTMFS4935N

G

DS

PR64 *15m il_06

PL5

0.36UH_12.9*14*3.8

1 2

+

PC163

330uF_2. 5V_9m_6.3*6

PC111

*4.7u_25V_X5R_08

PQ8

NTMFS4935N

G

DS

PR74

10_04

PD24

CSOD140SH

A C

+

PC122

15u_25V_6.3*4.4

PQ42

NTMFS4926N

G

DS

PQ51

NTMFS4935N

G

DS

+

PC139

330uF_2.5 V_9m _6.3*6

PC27

4.7u_25V_X5R_08

PQ13

NTMFS4926N

G

DS

PC107

*4.7u_25V_X5R _08

PC109

0.1u_50V_Y5V_06

PC110

*4.7u_25V_X5R_08

PQ14

NTMFS4935N

G

DS

PC25

4.7u_25V_X5R_08

PC108

0.1u_50V_Y5V_06

PC106

*4. 7u_25V_X5R_08

PL6

0.36UH_12.9*14*3. 8

1 2

PQ41

NTMFS4926N

G

DS

PQ43

NTMFS4926N

G

DS

+

PC161

330uF_2. 5V_9m_6.3*6

PQ47

NTMFS4935N

G

DS

PQ46

NTMFS4935N

G

DS

PC26

0.1u_50V_Y5V_06

PR66

10_04

PQ49

NTMFS4935N

G

DS

PR232 *15mil_06

PD22

FM5822

A C

+

PC116

15u_25V_6.3*4.4

PD23

FM5822

A C

+

PC165

330u_2.5V_V_A

PR250

10_04

PQ44

NTMFS4935N

G

DS

+

PC162

330uF_2.5 V_9m _6.3*6

+

PC164

330uF_2. 5V_9m_6.3*6

PQ40

NTMFS4926N

G

DS

VIN

VIN

VCORE

VCOREVCORE

VGFX_CORE

VIN

CSREF 40

SWN1 40

CSREF 40

SW140

HG140

SWN2 40

LG1A40

SW1A40

HG1A40

LG140 LG240

SW240

HG240

SWN1A 40

CSREFA 40

30A30A

25A

QC 45W GT2

VID1=1.23V

IccMax=25A

Icc_Dyn=37A

Icc_TDC=38A

R_LL=3.9m ohm

OCP~30A

+

PC187

*330u _2.5V_V_A

Sheet 41 of 50

POWER VCORE2

Schematic Diagrams

B - 42 POWER VCORE2

B.Schematic Diagrams

POWER VCORE2

PR280 *0_04

for BOM C100826

PR281 0_04

C100905 for BOM

PQ3

MTN2604G6

3

2 4

1

5

6

NM OS

1A

dGPU_PWR_EN# 22,34

PR7

1M_04

3.3V

dGPU_PWR_EN

3V3_RU N

PC5

4.7u_6.3V_X5R_06

PC4

2200p_50V_X7R_04

PR163

100_04

SY S15V

S

D

G

PQ35B

MTDK5S6R

5

34

S

D

G

PQ35A

MTDK5S6R

2

61

ON

PS_N VVD D_PGOOD#

3V3_RUN

PR285 0_04

ADP3212VR_ON

PC14.7u_25V_X5R_08

PC920.1u_50V_Y5V_06

ADP3212VR_ON

PR29

10_04

PQ6

*MTN7002ZH S3 G

DS

ON

VDD3

PR36

*10K_04

PC824. 7u_25V_X5R_08

PC874. 7u_25V_X5R_08

ADP3212_CSREF

PC105 0.1u_10V_X7R_04

PS1_VDD_SENSE 12

PR5 100_06

PQ2

NTMFS4935N

G

DS

PR13 215K_1%_06

PR22 0_04

PR54*10mil_short

PR37

1.69K_1%_04

PR15 20K_1%_04

PC11

150p_50V_06

PR16 649K_1%_04

+

PC101 330uF_2.5V_9m_ 6.3* 6

PQ36

NTMFS4935N

G

DS

PJ19

*12mm

1 2

PC99

12p_50V_NPO_04

PC3

*220p_50V_04

PR25 80.6K_1%_04

PR47

100_1%_04

PL2

TMPC1004H -R36M-Z01

PC91

*220p_50V_04

PR174

7.32K_1%_04

PQ1

NTMFS4926N

G

DS

PC100

0.01u_1 6V_X7R_04

PR170 20K_1%_04

PS_NVVDD_PGOOD#

PR9

1.2K_1%_04

PR10 187K_1%_06

PR14 165K_1%_06

PL3

TMPC1004H-R36M-Z01

PC24.7u_25V_X5R_08

PR17

*R_04

PR27

39.2K_1%_04

+

PC102 330uF_2. 5V_9m _6.3*6

PC84

4.7u_25V_X5R_08

PR28

82.5K_1%_04

PR168

10K_04

PC13

*1000P_50V_04

PU5

NCP3218G

EN

1

PWR GD

2

IMON

3

FBRTN

5

FB

6

RT 15

BST2 25

TTSNS

11

CSREF 18

AGND

12

SW2 27

SW1 34

SWFB1 33

LLINE 17

TRDET#

8

VCC

37

PH1

38

VRTT

10

PH0

39

PVCC 32

DRVH2 26

RAMP 16

BST1 36

VARF R

9

PGND 30

COMP

7

DPRSLP

40

CLKEN#

4

DRVH1 35

DRVL1 31

SWFB2 28

DRVL2 29

AGND

49

CSCOMP 20

CSSUM 19

IREF 13

RPM 14

ILIM 21

OD3# 22

PWM 3 23

SWF B3 24

PSI#

41

VID6

42

VID5

43

VID 4

44

VID3

45

VID2

46

VID1

47

VID0

48

PC85

0.22u_50V_08

PR48

100_1%_04

PR50*10mil_short

PR46

10_04

PR171

*10m il_short

PR26 1K_04

PR18

5.1K_1%_04

PR161 2_06

PQ7

MTN7002ZHS3 G

DS

RT1

100K_NTC_06_B

12

PR23

2.2K_04

PC864.7u_25V_X5R_08

PR16 6

*5.1_06

PR49*10mil_short

PC83

0.22u_50V_08

PR11

10_04

PR38 0_04

PR52*10mil_short

PC7

470p_50V_X7R_04

PD20

FM5822

A C

PC95

1200p_50V_X7R_04

PD19

FM5822

A C

PR175

73.2K_1%_04

+

PC103 330uF_2.5V_9m _6.3*6

PC960. 1u_50V_Y5V_06

PC98 1000p_50V_X7R_04

PQ5

NTMFS4935N

G

DS

PR19

3K_1%_04

PC10

*2200p_50V_X7R_04

PQ4

NTMFS4926N

G

DS

PC934. 7u_25V_X5R_08

PC12

150p_50V_06

PC6

*1n_50V_04

PC9 1000p_50V_X7R_04

PQ37

NTMFS4935N

G

DS

PR39 0_04

PR8

*5.1_06

PR167

*47K_04

PR24 59K_1%_04

PR51*10mil_short

PR12 0_04

PR20 *10K_1%_04

RT2

100K_NTC_06_B

12

PR169 0_04

PR53*10mil_short

PC8

1u_16V_X5R_06

PR162

2_06

0

PR164 215K_1%_06

PR21 * 10K_04

0

Voltage

0

N13M-GE1

1

PC97 1u_6.3V_X5R_04

PR6 100_06

0

VID4

0

VID5

0

SGND2

1

VID1

0

VID2

1

VID3

VIN

3V3_RU N

PC884. 7u_25V_X5R_08

0.975V

11

VID0

SGND2

SGND2

0.85V

VID6

5VS

5VS

SGND 2

5VS

VIN

N13P-GL 10

3V3_RU N

SGND2

SGND2

SGND2

5VS

NVVDD

5VS

VIN

SGND 2

3V3_RU N

H_PROCHOT#3,40

NVVDD_VID4 16

NVVDD_VID3 16

NVVDD_VID2 16

NVVDD_VID1 16

NVVDD_VID0 16

NVVDD_VID5 16

PR30 * 1K_1%_04

PS1_GND_SENSE 12

PR40 1K_1%_04

PR34 *1K_1%_04

PR32 1K_1%_04

PR31 * 1K_1%_04

PR44 1K_1%_04

PR41 1K_1%_04

PR35 1K_1%_04

PR42 * 1K_1%_04

PR45 * 1K_1%_04

PR33 1K_1%_04PR43 *1K_1%_04

VGA__NVVDD

3V3_RU N

PR173 * 1K_1%_04PR172 1K_1%_04

+

PC104 * 330u_2.5V_V_A

50A

ADP3212_CSREF

RSN

LX2

dGPU_PWR _EN#

TTSNS

CS_PH1

PC814.7u_25V_X5R_08

HDR1

ADP3212_CSSU M

CS_PH2

TRDET#

TRDET#

TTSN S

RSP

ADP3212_CSCOMP

C100808

NVVDD FOR N13_VGA

BST2

22A

CS_PH2

22A

BST1

C100809

RSN

RSP

HDR2

CS_PH2

CS_PH1

ADP3212_CSREF_R

LX1

ADP3212_CSCOMP

CS_PH1

for BOM C100826

C100809

C100823

PC200

0.1u_16V_Y5V_04

PQ18

2SK3018S3

G

DS

SYS15V 1.05VS

1.05V_PWR_EN

PEX_VDD

NMOS

1.05V@4A

PEX_VDD

250 MIL

dGPU_PWR_EN#

ON

PC194

0.047u_10V_X7R_04

PQ57A

MTNN20 N03Q8

1

3

728

PC199

10u_6.3V_X5R_06 PR107

100_04

PQ57B

MTNN20N03Q8

6

5

4

PR255

1M_04

NCPEN

for BOM C100826

PJ32

*40m il

12

PR279 10K_04

C100809

PJ35

*40mil

12

NCPEN

DPRSLP16

PQ15B

MTNN 20N03Q8

6

5

4

1.5V

SYS15V

FBVDDQ

PQ17

2SK3018S3

G

DS

FBVDDQ

1.5V@6A

NM OS

FBVDDQ

240MIL

FBVDDQ_PW R_EN

PQ16B

MTNN 20N03Q8

6

5

4

PC35

10u_6.3V_X5R_06

PC34

0.022u_1 6V_X7R_04

PR105

1M_04

PR106

100_04

PC36

0.1u_16V_Y 5V_04

PQ15A

MTNN20N03Q8

1

3

728

PQ16A

MTNN20N03Q8

1

3

728

Sheet 42 of 50

Power VGA

NVVDD/PEX_VDD

Schematic Diagrams

Power VGA NVVDD/PEX_VDD B - 43

B.Schematic Diagrams

Power VGA NVVDD/PEX_VDD

PR287

*0_04

SMC_BAT

BAT_DET

SMC_BAT

VAC

LX_CH G

IACM

IACP

AC AV

Reset circuit

PCB Layout notes

V_BAT

1) All pow er traces s hould be routed on the outer layers

GNDP, VAD, VSYS, LX, VCHG, VBATT

2) Use Kelvin connections f or R3, R4

(seperate f orce and meas ur ement traces)

3) R23 and R24 are dummy resistors, for layout purposes only

(ser ves as single point connection betw een GNDP & GNDA)

4) Footprint TO-236 is equivalent to SOT-23

5) Footprint SIP/1P is a single hole axial pad

6) All res isitors, capacitors and semiconductors are SMD

7) Potentiometers , and test points are axial devices

12/06 net-×¥¿

BST_ ICHM

VDDP

ICHP

IAC1

8.2UH_7.3*6.6*2.8MM

PQ59

2SK3018S3

G

DS

¾aªñJBATTA1

PC120

4.7u_25V_X5R_08

C417 47P_50V_NPO_04

PR177

100K_04

PR2

100K_04

PR65 100K_04

PC80

0.1u_50V_Y5V_06

PQ45B

PD1503Y VS

4

3

5

6

PR180

100_04

PU1

OZ8681

LX

14

LDR

16

BST

12

VAC

1

VDD P

15

IACM

3

VDDA 6

SDA 11

ICHP 5

ICHM 4

COMP 8

HDR 13

BASE

17

SCL 10

IAC 7

IACP

2

ACAV

9

PC19

0.047u_10V_X7R_04

PR57 *20mil_04

PR261

300K_1%_04 PD26

ZD5245BS2

AC

PC17 0.1u_50V_Y5V_06

PL4

TMPB0603M-8R2MN-Z 01

PC21

1u_10V_Y5V_06

PQ9

2SK3018S3

G

DS

PC126

*220p_50V_NPO_04

PC14 4.7u_25V_X5R_08

PR178 *20mil_04

PC114

0.4 7u_10V_Y 5V_04

PD4

BAV99N3

A

C

AC

PC127 4.7u_25V_X5R_08

PC117

1u_25V_Y5V_08

PC16

1u_10V_Y5V_06

PQ69

DTC114EUA

CE

B

PR56 10K_04

PD1

MDL914S2

AC

PQ39

MEP4435Q8

4

62 5

73

1

8

PR260

100K_1%_04

PC119

4.7u_25V_X5R_08

PC121

4.7u_25V_X5R _08

PD2

BAV99N3

A

C

AC

PR4 10_06

PC118

4.7u_25V_X5R _08

PQ34

MEP4435Q8

4

6 2

5

7 3

1

8PR181

0.01_1%_32

PC115 4.7u_25V_X5R_08

PQ63

MTP3403N 3

G

DS

PR176

*15mil_short_06

PR3 10_06

PR179 *470K_04

J_DC_J AC K1

50932-00301-001

GND2

GND1

2

1

3

PC20

0.1u_50V_Y5V_06

PR59 4.7K_04

PR275

10K_04

PR182

33_06

PR55

*20mil_04

PR61

100_04

PC113

*1u_25V_08

PR1

15K_04

PC11 2

*1u_25V_08

PR184 10_06

PC18

0.047u_10V_X7R_04

PC125 4.7u_25V_X5R_08

PQ45A

PD1503YVS

7

8

1

2

PR183 10_06

PC94 4.7u_25V_X5R_08

PR58 *20mil_04

PC21 3

0.1u_16V_Y 5V_04

PR185

*5.1_06

PQ38

2SK3018S3 G

DS

PC15

1000P_50V_X7R_04

PR60 4.7K_04

PL1

HC B4532K-800_18 PR165

0.01_1%_32

PD21 RB0540S2

AC

JBATTA1

tBTD-1010009

1

2

3

4

5

PR264

60.4K_1%_04

PD3

BAV99N3

A

C

AC

PR160

10K_04

VIN V_BAT

VDD3

VDD3

VA

VA

VDD3

VA

SMD_BAT_R 34

BAT_DET34

CHG_RST34

TOTAL_CU R 34

SMC_BAT_R 34

AC_IN 36

AC_IN # 34

BAT_VOLT 34

SMC_BAT

BAT_DET

COMP

LDR

SMD_BAT

V_BAT

SMD_BAT

PWR ¹w¯d C100822

PR286 0_04

AC_IN

Sheet 43 of 50

AC IN, CHARGER

Schematic Diagrams

B - 44 AC IN, CHARGER

B.Schematic Diagrams

AC IN, CHARGER

Schematic Diagrams

AUDIO BOARD B - 45

B.Schematic Diagrams

AUDIO BOARD

AMIC1-R

ASPKOU TR-_R

ASPKOU TR+_R

ASPKOUTR-

ASPKOUTR-

ASPKOU TR+

AMIC1-R

AMIC1-L

AHP_SENSE

ASPKOUTR+

ASPK_HP#

AHEADPHONE-R

AUSB_PN1

AMIC_SENSE

AHEADPHONE-L

AUSB_PP1

ASPK_HP#

AUSB_PN1

AHP_SENSE

AUSB_PN1_R

AUSB_PP1 AUSB_PP1_R

AC8

180p_50V_NPO_04

1

AH4

MTH 27 6D 11 1

2

3

4

5 6

7

8

9

AJ_USB1

US04036BCA081

V+

1

GND1

GND 1

DATA_L

2

DATA_H

3

GND

4

GND2

GND2

GND4

GND4 GN D3

GND3

AL9

*WCM2012F2S-SHORT

1

4

2

3

AL5

HCB1608KF-121T25

AJ_SPKR1

85204-02001

85204-02R

1

2

AH1

C59D59

1

AH2

MTH276D111

2

3

4

5 6

7

8

9

AC14 * 0_04

R

L

AJ_MIC1

2SJ-T351-S23

2

6

5

3

1

4

AC4

100p_50V_NPO_04

AC17

180p_50V_NPO_04

R

L

AJ_HP1

2SJ-T351-S23

2

6

5

3

1

4

AC16 * 0_04

AC13 * 0_04

AR3 68_04

AC3

100p_50V_NPO_04

AR9

*1K_04

AR8

*1K_04

AL4 FCM1005KF-121T03

+

AC1

100u_6.3V_B_A

AC15 * 0_04

AC11

1000p_50V_X7R_04

AL3 FCM1005KF-121T03

AC10

100p_50V_N PO_04

AC2

100p_50V_NPO_04

AH3

C59D59

AL8

FCM1005KF-121T03

AL2 FCM1005KF-121T03

AC7

0.1u_16V_Y 5V_04

AL7

FCM1005KF-121T03

A_AUDG

AR5 68_04

AL6 FCM1005KF-121T03

A_USBVCC

A_USBVCC

A_AUDG

A_AUDG

A_USBVCC2

Change footprint

D02A

A_AUDG

A_AUDG

D02A

Change to FPC connector

BLACK

2

TO M/B

BLACK

AUDIO JACK

6-20-43150-102

J_SPK1

6-20-B2800-106

6-20-43110-102

MIC IN

1

60 mil

USB PORT

HEADPHONE

6-21-B49B0-104

6-20-B2800-106

6-21-B49C0-104

Port1

AJ_AUDI O2

85201-14051-01

PCB Footprint = 85201-14X5_L

1

2

3

4

5

6

7

8

9

10

11

12

13

14

AGND

AGND

AGND

AGND AGND AGND

AGND

AGND

cost down¤£¤W¥óD02A

AHEADPHONE-L

AMIC1-L

AHEADPHONE-R

AMIC_SENSE

Sheet 44 of 50

AUDIO BOARD

Schematic Diagrams

B - 46 CLICK BOARD

B.Schematic Diagrams

CLICK BOARD

CC3

*0.1u_16V_Y5V_04

SG

Y

CD26

RY-SP155HYYG4-1

1

3

2

4

CR359

220_04

CR358

220_04

SG

Y

CD27

RY -SP155HY Y G4-1

1

3

2

4

CR361

220_04

CR360

220_04

POWER ON

LED

6-53-3050B-240

E5120Q

6-21-91A10-106

1

RIGHT

KEY

4

6-21-91A00-106

6-21-91A10-106 6-21-91A00-106

6-53-3050B-241

6-20-94A70-104

6-20-94A50-104

CLICK BOARD

LIFT

KEY

6-20-94A70-104

3

6-20-94AA0-104 6-52-55002-04B

6-20-94A70-104

6-53-3050B-240

BAT LED

6-52-55002-04B

2

6-53-3150B-245

6-52-55002-042

6-53-3150B-245

CSW1~4

1

6-53-3050B-241

6-52-55001-040

6-52-55002-042

2

6-52-55001-040

CLED_BAT_FULL

CLED_BAT_CHG

CLED_PWR

CLED_ACIN

CVDD3C5VS

CGND

CGND

CGND

C5VS

CGND

CGND

CGND CGND

CGND

CGND

CGNDCGND

CGND

CGND

CGND

CGNDCGNDCGND

CGND CGND

CGND

CTPBUTTON_RCTPBUTTON_L

CSW2

TJG-532-V-T/R

3

14

2

5

6

CSW1

TJG-532-V-T/R

3

14

2

5

6

1

CH1

MTH237D91

2

3

4

5 6

7

8

9

1

CH2

MTH237D91

2

3

4

5 6

7

8

9

1

CH4

MTH237D91

2

3

4

5 6

7

8

9

1

CH3

MTH237D91

2

3

4

5 6

7

8

9

CTP_CLK

CTP_DATACTP_CLK

CTPBUTTON_R

CTP_DATA

CTPBUTTON_L

CC2

0.1u_16V_Y5V_04

CJ_TP2

85201-06051

1

2

3

4

5

6

CC1

*0.1u_16V_Y5V_04

CJ_TP1

85201-04051

1

2

3

4CLED_BAT_CHG

CLED_PWR

CLED_ACIN

CLED_BAT_FULL

CJ_TP3

85201-06051

1

2

3

4

5

6

Sheet 45 of 50

CLICK BOARD

Schematic Diagrams

W251HPQ POWER SW BOARD B - 47

B.Schematic Diagrams

W251HPQ POWER SW BOARD

SAP_ON

SWEB_EMAIL#

SWEB_WWW#

6-24-30003-006

FOR

W258HPQ/W258HPQ-C

POWER BUTTON

6-53-3050B-241

6-53-3150B-245

VARISTOR

6-24-30003-006

3

2

FOR

W251HPQ/W255HP/W251HPQ-C/W251HNQ/W255HN

1

PSW1~ 2

4

6-53-3050B-240

6-53-3050B-241 6-53-3050B-240

VARISTOR

6-53-3150B-245

POWER BUTTON

SD4

*V15AVLC0402

12

6-52-56001-028

6-52-56001-022

POWER

SWITCH

LED

6-52-56001-028

FOR W251HNQ/W255HN

6-52-56001-023

6-52-56000-020

6-52-56001-022

20mil 20mil

SC7

*0.1u_50V_Y5V_06

FOR

W251HPQ/W255HP/E5125Q

6-52-56000-020

SMH1

H6_0B7_0D2_3

1

SU1, SU2

2

3

LID SWITCH IC

6-02-00268-LC1

6-02-00248-LC2

SLID_SW#

SM_BTN#

SC8

0.1u_50V_Y5V_06

SM_BTN#

SD5

*V15AVLC 0 40 2

12

POWER SW & LED

SMH3

H6_0B7_0D2_3

SD3

*HT-150NB-DT

AC

SU1

MH248-ALFA-ESO

VCC

1OUT 2

GND

3

SC2

0.1u_16V_Y5V_04

SR2

220_04

SMH4

H7_0B6_0D3_0

SD1

HT-150NB-DT

AC

SPW R _ SW 1

*TJG-533-S-T/R

3

14

2

5

6

SC1

*100p_50V_NPO_04

SD2

*BAV99 RECTIFIER

C

AC

A

SC6

0.1u_16V_Y5V_04

SR1 100K_04

SMH5

H6_0B7_0D2_3

SPWR_SW2

TJG-532-V-T/R

3

14

2

5

6

SMH2

H6_0B7_0D2_3

S_3.3VS

S_3.3V

S_3.3V

20mil

SM_BTN#

6-20-94K10-108

SLID_SW#

SMGND

Z4301

SMGNDSMGND SMGND

SMGND

SMGND SMGND

SMGNDSMGND SMGND

SMGNDSMGND

SMGND

SMGND

SMGND

SMGND

SMGND

Change layout ¦ì¸m

D02A

6-52-56001-023

SJ_SW2

88486-0801

1

2

3

4

5

6

7

8

S_3.3VS S_3 .3V

Sheet 46 of 50

W251HPQ POWER

SW BOARD

Schematic Diagrams

B - 48 W270HU BRIDGE ODD BOARD

B.Schematic Diagrams

W270HU BRIDGE ODD BOARD

QJ_ODD2

202001-1

S1

S2

S3

S4

S5

S6

S7

P1

P2

P3

P4

P5

P6

QJ_ODD1

242001-1

S1

S2

S3

S4

S5

S6

S7

P1

P2

P3

P4

P5

P6

Q_SATA_TXP1

Q_SATA_ODD_DA#

ODD BOARD FOR W270HU

Q_SATA_RXP1

Q_SATA_TXN 1

Q_ODD_DETECT#

Q_SATA_RXN1

Q_5VS Q_5VS

Q_5VS

PIN

GND1~3=QGND

6-21-14010-013

PIN

GND1 ~2=WGND

6-21-13010-013(DIP)

QC2

0.1u_16V_Y5V_04

QC3

0.1u_16V_Y 5V_04

QH4

C67D67

QH3

C67D67

QH1

C237D91 QH2

C237D91

QGND

QGND QGND

QGND

QGND

QGND

QGND

+

QC1

*220u_6.3V_6.3*6.3*4.2

M/B ºÝ ODD board ºÝ

Sheet 47 of 50

W270HU BRIDGE

ODD BOARD

Schematic Diagrams

W270HU POWER SW BOARD B - 49

B.Schematic Diagrams

W270HU POWER SW BOARD

WD6

*V15AVLC0402

12

WC4

0.1u_50V_Y5V_06

VARISTOR

6-24-30003-006

W_3.3V

WM_BTN#

WWEB_EMAIL#

WAP_ON

WLID_SW#

6-20-94K10-108

W_3.3VS

WM_BTN#

W_3.3V

WWEB_WWW#

WJ_SW1

88486-0801

1

2

3

4

5

6

7

8

20mil

WMGND WMGND

WMGND

WMGND

WC2

0.1u_16V_Y5V_04

WMGND WMGND WMGND

WMGND

WMGND

WMGND

WMGND

WLID_SW#

WD1

*BAV99 RECTIFIER

C

AC

A

WR1

220_04

WMH5

H7_0D2_3

WU1

MH248-ALFA-ESO

VCC

1OUT 2

GND

3

WC1

0.1u_16V_Y 5V_04

WD3

HT-150NB-DT

AC

WD4

HT-150NB-DT

AC

WR3

220_04

WD5

HT-150NB-DT

AC

WR2

220_04

WR4

220_04

WPWR_SW1

TJG-532-V-T/R

3

1

4

2

5

6

WMH1

C91D91N

WD2

HT-150NB-DT

AC

WC3

*100p_50V_NPO_04

WR5 100K_04

WMH4

H7_0D2_3

WMH2

C91D91N

W_3.3V

1

LU1

2

3

LID SWITCH IC

6-52-56001-022

6-52-56000-020

6-52-56001-028

6-52-56001-023

6-02-00268-LC1

6-02-00248-LC2

POWER SW & LED

POWER

SWITCH

LED

20mil

POWER BUTTON

WSW1

1

2

4

3

20mil

6-53-3150B-245

6-53-3050B-241

20mil 20mil

W_3.3VSW_3.3VS

Sheet 48 of 50

W270HU POWER

SW BOARD

Schematic Diagrams

B - 50 Power Diagram

B.Schematic Diagrams

Power Diagram

PWR SW B'd

UNCOREPWRGOOD

DVDD(1.2V) 3.3VS

CardReader

JMC251C

WLAN MINI CARD

3.3V

0

DD_ON#

USB

PORT1

VDD3

EN

VDD5

3c

DD_ON_EN_VDD

VDD5

0c

EN_5V

3.3V

3a

RT9715BGS

USBVCC01

3

DD_ON

EN

VDD3

0b

USBVCC3.0

USB

PORT0

5V

VIN

USB

PORT3

3b

TPS2540

VIN

5VS

CODEC ALC269

3.3VS

VDD3

1.8VS

3.3V

5VS

18

13b

PG

10

EN

1.05VS_PWRGD

DDR1.5V_PWRGD

1.5VS

uP6127

PGEN

VIN

EN

3.3VS

VDD5

VIN

uP6163

EN

1.5V

5V

3G_3.3V

G5243

3G_POWER 3G MINI CARD

EC

3.3V

CCD

5V_CCD

CCD_EN

?

AX6615

?

1.8VS_PWRGD

?

?

PG

PU6

PQ64

PU4

PQ66

PQ63

PQ65

1.5V

PQ4

PQ24

PQ7

PQ35

SO-DIMM

PU8 PJ1

PJ20

PU10

U18

PJ6

14

PJ26

PJ27

PU7

5b

1.5VS_CPU

5a

1.5V

PJ9

VTT_MEM

6e

PJ7

PU5

PU11

6d

1.05VS

PJ25

PQ57

PU1,PU2

PU3

PU12

U26

U4

U34

U7,U8,U30,U31

Q6

EC

U17

U3,U5,U25,U28

U37

U29

U32

U14

U19

Q30

U1

U22B

U22A

U22D

U22C

U9

U11

VIN

PJ5

uP6122

PQ27A

PG

1.05VS

1.05VS_VTT_EN

0.85VS_PWRGD

EN

EN

PQ27B

6

0.85VS

SUSB#

SUSB 1.05VS_VTT

5V

VCORE

M_BTN#

5SUSC#

CPU

PQ11

1.05VS_VTT

1.8VS

VGFX_CORE

0.85VS

8.5A

12A

1

1.2A

6A

33A

1.05VS

3.3VS

48A

1.5VS

2.92A

1.5VS_CPU

Cougar

Point

3.3V

RTCVCC

1.05VS_VTT

PMSYS_PWRGD_BUF

DRAMPWROK

NB_ENAVDD

5VS_ODD

dGPU_RST# PEXRST#

PEX_VDD

PERSTB#

?

17 3V3_RUN

ODD

23A

PANEL

EN

P0

Mode:

1.5A

0.1A

FBVDDQ

4A

G5243

3.3V

NVVDD

SB

6a

6f

6b

6c

?

8

7

SATA_ODD_PWRGT

13a

9

VIN

GPU

5VS

PLT_RST#

SATA HDD

3.3VS

PLVDD

?

5VS

?

16c

VGA Frame

Buffer c

3V3_RUN

16a

dGPU_PWR_EN#

PS_NVVDD_PGOOD#

1.05VS

16b

VGA Frame

Buffer A

EN

FBVDDQ

PEX_VDD

16

EC

16d

PG

1.5V

uP6122

3.3V NVVDD

PG

NCP6131S

SYS_PWROK

DELAY_PWRGD

SM_DRAMPWROK

NCP5199

VCORE

EN

ALL_SYS_PWRGD

11

VGFX_CORE

PM_PCH_PWROK

NCP5199

RESET#

1.05V

5c

1.5V

3.3V

USB 3.0

uPD720200

GS7113

5V EN

P2808B IT8518

9

PWR_SW#

ALL_SYS_PWRGD

SYS_PWROK

PM_PCH_PWROK

10

VDD33.3VS

2RSMRST#,

DPWROK

4b

4a RSMRST#

PWRBTN#

PWR_BTN#

uP6182 VDD3

0a

VIN

Always

enable

Touch Pad

5VS

PWROK,

APWROK

SYS_PWROK

SLP_S4#SLP_S3#

PLTRST#

PWOCPWRGD

14

H_CPUPWRGD

15 PLT_RST#

12

Sheet 49 of 50

Power Diagram

Schematic Diagrams

Power On SEQ B - 51

B.Schematic Diagrams

Power On SEQ

SUSB#

6

PWR_BTN#

4a

1.5V

3

4b

1.5VS_CPU

5

5V

5a

5b

DD_ON

3b

RSMRST#

3a

1.05V

SUSC#

5b

PMSYS_PWRGD_BUF

5VS

3.3VS

VTT_MEM

1.05VS

17

8

7

0.85VS

1.05VS_VTT

3a

4a

3.3V

SUSC#

DD_ON

2

RSMRST#

PWR_SW# (PU6.6)

4b

5V

(PU4.5)

5

16a

3

PWR_BTN#

(U14.3)

3b

16c

16b

(PQ66.1)

16d

(PQ63.1)

(PQ64.1)

(PQ24.4)

(PQ65.1)

3V3_RUN

TOP

TOP BOT

BOT

ALL_SYS_PWRGD

214ms

1.78s

4.6ms

212.8ms

214ms

1.87ms

FBVDDQ rise time=1.23ms

201ms

FBVDDQ

17

16c

18

16a

PERSTB#

VGFX_CORE

16d

dGPU_PWR_EN#

16b

16

1.026ms

36us

1.05V rise time=2.372ms

1.026ms

5.898ms

H_CPUPWRGD

14

PM_PCH_PWROK

DELAY_PWRGD

12

SYS_PWROK

15

VCORE

PLT_RST#

10

PMSYS_PWRGD_BUF

13a

530ms

11

13b

ALL_SYS_PWRGD

1.05VS_VTT

1.05V

0.85VS

7

8

3.54s

9

1.5V

188ms

4.75ms

1.05VS_VTT rise time=336us

2PWR_SW#

308ms

84ms

(U17.35)

(PQ11.5)

(U17.33)

(¥ÑSVID±±¨î¶}¹qªº®É¶¡)

(¥ÑSVID±±¨î¶}¹qªº®É¶¡)

(PJ5)

(PJ9)

(PQ27.2)

(U9.4)

(PJ25)

(PQ27.5)

(JDIMM2.203)(PJ7)

(PQ4.8)

(C633.1)(PJ6)

(J_MB1.1)

(PQ57.1)(C232.1)

(U27.13)

(C148.1) (PJ20)

(U22.13)

(U22.8)

1.05VS_VTT rise time=672us

5.694ms

(R82)

(U10.4)

(U22.12)

(PC147.1)(C156.1)

(U20.16) (U33.1)

(U22.11)

NVVDD

18

(PQ36.2)(PQ5.G)dGPU_PWR_EN#

FBVDDQ

(Q7.5)

PEX_VDD

(PJ1)

(PQ35.4)

(PQ4.1) (L8.1)

(PC122.1)

(C601.1)(PQ8.1))

(C166.1)

(U44.4)

(C575.1)

6.5ms

(C636.1)

(C644.1)

(L35.2)

SUSB#

6

6a

6b

6d

6e

DELAY_PWRGD

VCORE

13a

13b

99ms

VGFX_CORE

216.2

PM_PCH_PWROK

10

11

SYS_PWROK

H_CPUPWRGD

14

16

PERSTB#

15 PLT_RST#

12

9

1.8VS

2.2ms

1.8VS rise time=442us

6f

166ms

1.5ms

1.31ms

1.05VS rise time=753us

6c 3.3VS

1.8VS

6f

1.5VS

6c

1.34ms

1.05VS rise time=932us

1.05VS

5VS¥¼¶}¾÷«eº|1V

749us

6a

5VS rise time=376us

5VS

6e VTT_MEM

1.3ms

3.3V rise time=960us

5V rise time=1.7ms

2.12ms

3.3V

1.5VS

984us

6b

6d

75us

3V3_RUN

PEX_VDD rise time=652us

PEX_VDD

NVVDD rise time=677us

1.087ms

NVVDD

91.6ms

173ms 123ms

204ms

Sheet 50 of 50

Power On SEQ

Schematic Diagrams

B - 52

B.Schematic Diagrams

BIOS Update

C - 1

C:BIOS Update

Appendix C:Updating the FLASH ROM BIOS



BIOS Version

Make sure you down-

load the latest correct

version of the BIOS ap-

propriate for the com-

puter model you are

working on.

You should only

download BIOS ver-

sions that are

V1.01.XX or higher as

appropriate for your

computer model.

Note that BIOS versions

are not backward com-

patible and therefore

you may not down-

grade your BIOS to an

older version after up-

grading to a later ver-

sion (e.g if you upgrade

a BIOS to ver 1.01.05,

you MAY NOT then go

back and flash the BIOS

to ver 1.01.04).

To update the FLASH ROM BIOS, you must:

• Download the BIOS update from the web site.

• Unzip the files onto a bootable CD/DVD/USB Flash Drive.

• Reboot your computer from an external CD/DVD/USB Flash Drive.

• Use the flash tools to update the flash BIOS using the commands indicated below.

• Restart the computer booting from the HDD and press F2 at startup enter the BIOS.

• Load setup defaults from the BIOS and save the default settings and exit the BIOS to restart the computer.

• After rebooting the computer you may restart the computer again and make any required changes to the default BIOS

settings.

Download the BIOS

1. Go to www.clevo.com.tw and point to E-Services and click E-Channel.

2. Use your user ID and password to access the appropriate download area (BIOS), and download the latest BIOS files

(the BIOS file will be contained in a batch file that may be run directly once unzipped) for your computer model

(see sidebar for important information on BIOS versions).

Unzip the downloaded files to a bootable CD/DVD/ or USB Flash drive

1. Insert a bootable CD/DVD/USB flash drive into the CD/DVD drive/USB port of the computer containing the

downloaded files.

2. Use a tool such as Winzip or Winrar to unzip all the BIOS files and refresh tools to your bootable CD/DVD/USB

flash drive (you may need to create a bootable CD/DVD with the files using a 3rd party software).

Set the computer to boot from the external drive

1. With the bootable CD/DVD/USB flash drive containing the BIOS files in your CD/DVD drive/USB port, restart the

computer and press F2 (in most cases) to enter the BIOS.

2. Use the arrow keys to highlight the Boot menu.

3. Use the “+” and “-” keys to move boot devices up and down the priority order.

4. Make sure that the CD/DVD drive/USB flash drive is set first in the boot priority of the BIOS.

5. Press F4 to save any changes you have made and exit the BIOS to restart the computer.

BIOS Update

C - 2

C:BIOS Update

Use the flash tools to update the BIOS

1. Make sure you are not loading any memory management programs such as HIMEM by holding the F8 key as you

see the message “Starting MS-DOS”. You will then be prompted to give “Y” or “N” responses to the programs

being loaded by DOS. Choose “N” for any memory management programs.

2. You should now be at the DOS prompt e.g: DISK C:\> (C is the designated drive letter for the CD/DVD drive/USB

flash drive).

3. Type the following command at the DOS prompt:

C:\> Flash.bat

4. The utility will then proceed to flash the BIOS.

5. You should then be prompted to press any key to restart the system or turn the power off, and then on again but

make sure you remove the CD/DVD/USB flash drive from the CD/DVD drive/USB port before the computer

restarts.

Restart the computer (booting from the HDD)

1. With the CD/DVD/USB flash drive removed from the CD/DVD drive/USB port the computer should restart from

the HDD.

2. Press F2 as the computer restarts to enter the BIOS.

3. Use the arrow keys to highlight the Exit menu.

4. Select Load Setup Defaults (or press F3) and select “Yes” to confirm the selection.

5. Press F4 to save any changes you have made and exit the BIOS to restart the computer.

Your computer is now running normally with the updated BIOS

You may now enter the BIOS and make any changes you require to the default settings.

www.s-manuals.com
