Preface

Notebook Computer

W350SSQ

Service Manual

Preface

Notice

The company reserves the right to revise this publication or to change its contents without notice. Information contained

herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven-

dor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are

they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.

This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or

reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publica-

tion, except for copies kept by the user for backup purposes.

Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of

their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement

of that product or its manufacturer.

Version 1.0

April 2014

Trademarks

Intel and Intel Core are trademarks of Intel Corporation.

Windows® is a registered trademark of Microsoft Corporation.

Other brand and product names are trademarks and/or registered trademarks of their respective companies.

Preface

III

Preface

About this Manual

This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and

inspection of personal computers.

It is organized to allow you to look up basic information for servicing and/or upgrading components of the W350SSQ

series notebook PC.

The following information is included:

Chapter 1, Introduction, provides general information about the location of system elements and their specifications.

Chapter 2, Disassembly, provides step-by-step instructions for disassembling parts and subsystems and how to upgrade

elements of the system.

Appendix A, Part Lists

Appendix B, Schematic Diagrams

Preface

IMPORTANT SAFETY INSTRUCTIONS

Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock and injury to per-

sons when using any electrical equipment:

1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet

basement or near a swimming pool.

2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of elec-

trical shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak.

4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may

explode. Check with local codes for possible special disposal instructions.

5. This product is intended to be supplied by a Listed Power Unit:

• Full Range AC/DC Adapter - AC Input 100 - 240V, 50 - 60Hz, DC Output 19.5V, 6.15A (120W) minimum.

This Computer’s Optical Device is a Laser Class 1 Product

Preface

Instructions for Care and Operation

The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:

1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.

2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This

is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.

3. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save

your work. Remember to periodically save your data as data may be lost if the battery is depleted.

Do not expose the computer

to any shock or vibration. Do not place it on an unstable

surface. Do not place anything heavy

on the computer.

Do not expose it to excessive

heat or direct sunlight. Do not leave it in a place

where foreign matter or mois-

ture may affect the system.

Don’t use or store the com-

puter in a humid environment. Do not place the computer on

any surface which will block

the vents.

Do not turn off the power

until you properly shut down

all programs.

Do not turn off any peripheral

devices when the computer is

on.

Do not disassemble the com-

puter by yourself. Perform routine maintenance

on your computer.

Preface

4. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag-

netic fields. These can hinder proper performance and damage your data.

5. Take care when using peripheral devices.

Power Safety

The computer has specific power requirements:

• Only use a power adapter approved for use with this computer.

• Your AC adapter may be designed for international travel but it still requires a steady, uninterrupted power supply. If you are

unsure of your local power specifications, consult your service representative or local power company.

• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety feature; do

not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.

• When you want to unplug the power cord, be sure to disconnect it by the plug head, not by its wire.

• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.

• Before cleaning the computer, make sure it is disconnected from any external power supplies.

Use only approved brands of

peripherals. Unplug the power cord before

attaching peripheral devices.

Do not plug in the power

cord if you are wet. Do not use the power cord if

it is broken. Do not place heavy objects

on the power cord.



Power Safety

Warning

Before you undertake

any upgrade proce-

dures, make sure that

you have turned off the

power, and discon-

nected all peripherals

and cables (including

telephone lines). It is

advisable to also re-

move your battery in

order to prevent acci-

dentally turning the

machine on.

Preface

VII

Preface

Battery Precautions

• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.

• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the

computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.

• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.

• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service

personnel.

• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries may explode

or leak if exposed to fire, or improperly handled or discarded.

• Keep the battery away from metal appliances.

• Affix tape to the battery contacts before disposing of the battery.

• Do not touch the battery contacts with your hands or metal objects.

Battery Guidelines

The following can also apply to any backup batteries you may have.

• If you do not use the battery for an extended period, then remove the battery from the computer for storage.

• Before removing the battery for storage charge it to 60% - 70%.

• Check stored batteries at least every 3 months and charge them to 60% - 70%.



Battery Disposal

The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under var-

ious state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste

officials for details in your area for recycling options or proper disposal.

Caution

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.

Discard used battery according to the manufacturer’s instructions.

Battery Level

Click the battery icon in the taskbar to see the current battery level and charge status. A battery that drops below a level of 10%

will not allow the computer to boot up. Make sure that any battery that drops below 10% is recharged within one week.

Preface

VIII

Preface

Related Documents

You may also need to consult the following manual for additional information:

User’s Manual on CD

This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro-

gram. It also describes the installation and operation of the utility programs provided with the notebook PC.

Preface

Contents

Introduction ..............................................1-1

Overview .........................................................................................1-1

System Specifications .....................................................................1-2

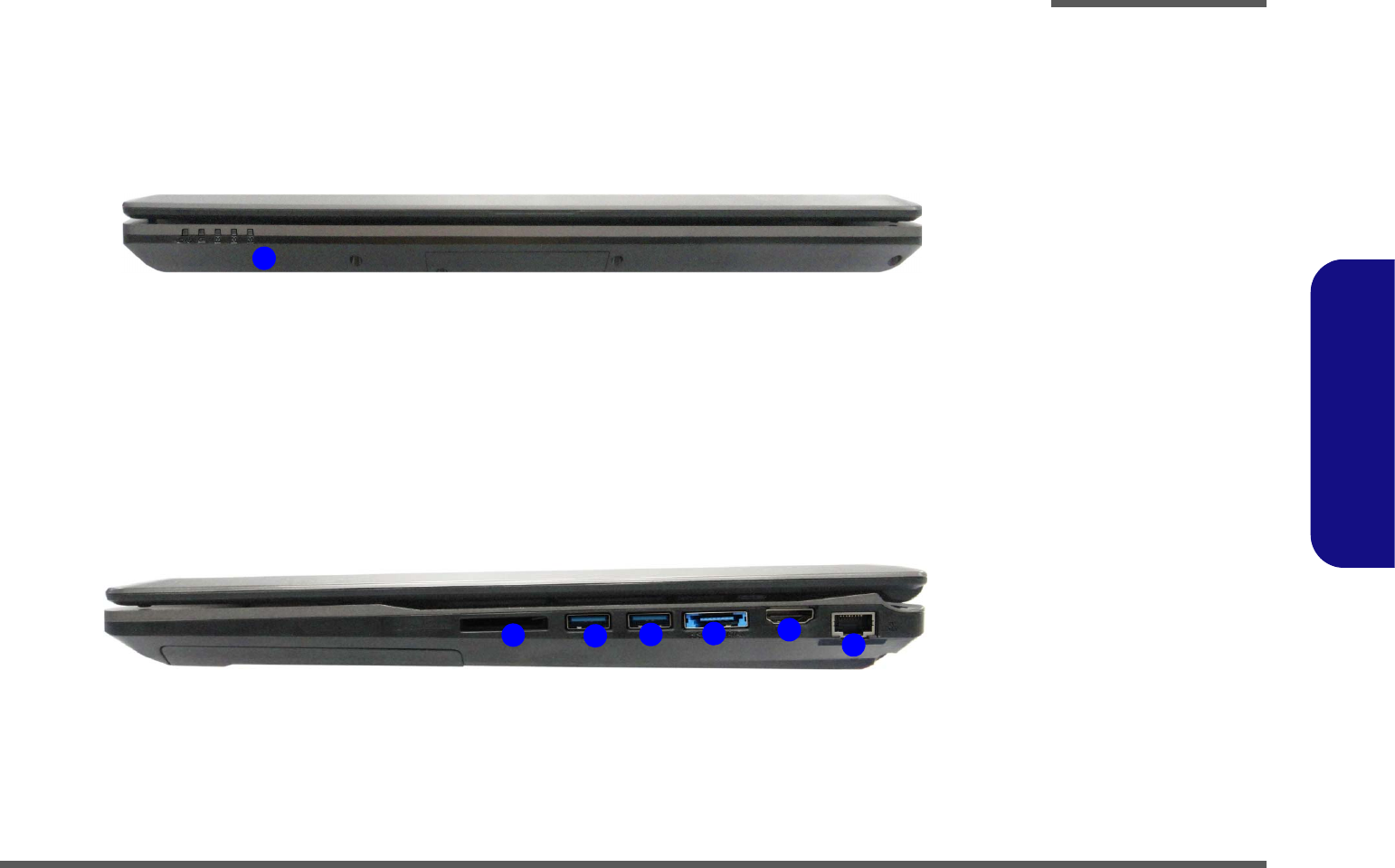

External Locator - Front View with LCD Panel Open ....................1-4

External Locator - Front & Right side Views .................................1-5

External Locator - Left Side & Rear View .....................................1-6

External Locator - Bottom View .....................................................1-7

Mainboard Overview - Top (Key Parts) .........................................1-8

Mainboard Overview - Bottom (Key Parts) ....................................1-9

Mainboard Overview - Top (Connectors) .....................................1-10

Mainboard Overview - Bottom (Connectors) ...............................1-11

Disassembly ...............................................2-1

Overview .........................................................................................2-1

Maintenance Tools ..........................................................................2-2

Connections .....................................................................................2-2

Maintenance Precautions .................................................................2-3

Disassembly Steps ...........................................................................2-4

Removing the Battery ......................................................................2-5

Removing the Optical (CD/DVD) Device ......................................2-6

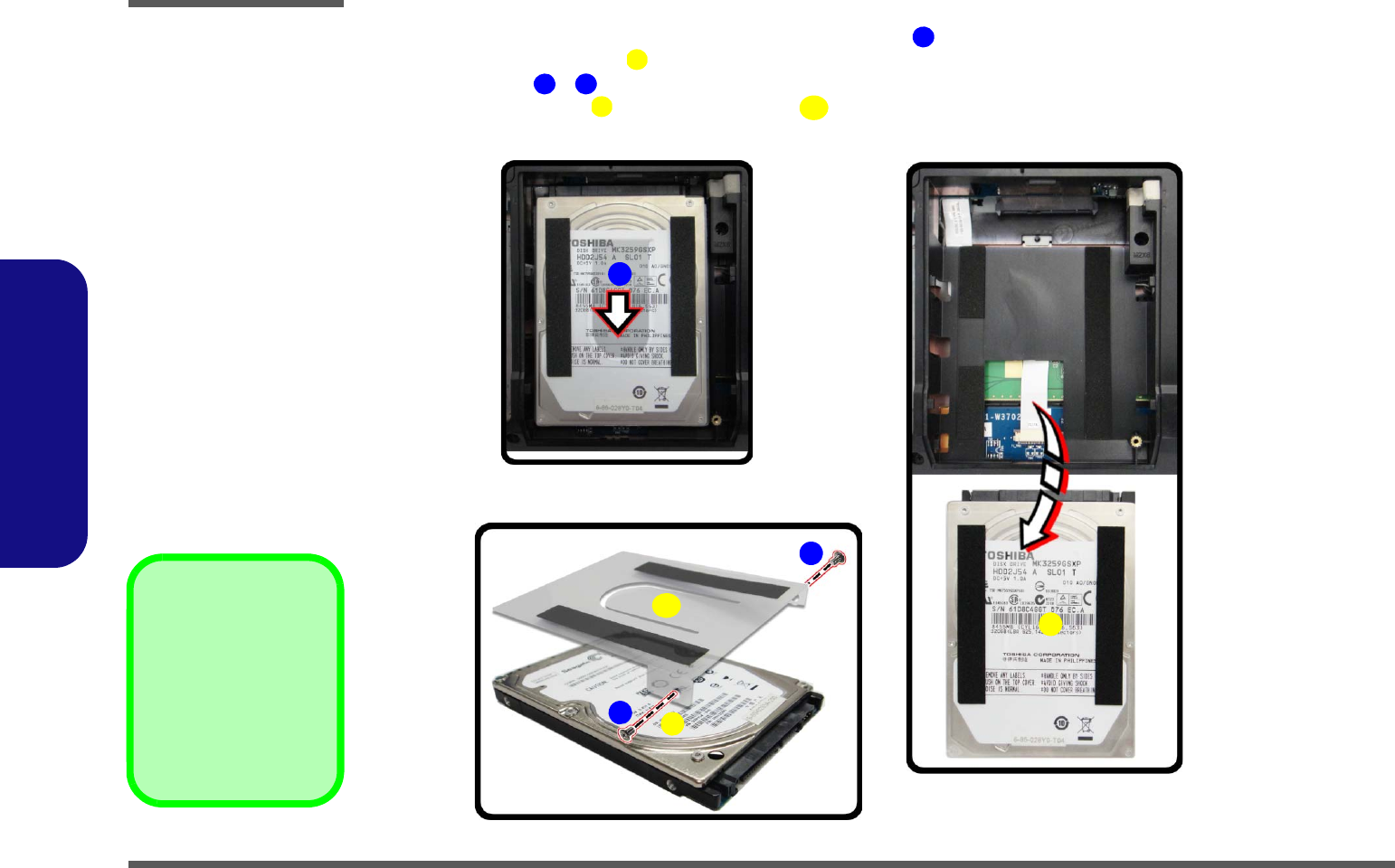

Removing the Hard Disk Drive .......................................................2-7

Removing and Installing the Processor .........................................2-11

Removing the Keyboard ................................................................2-14

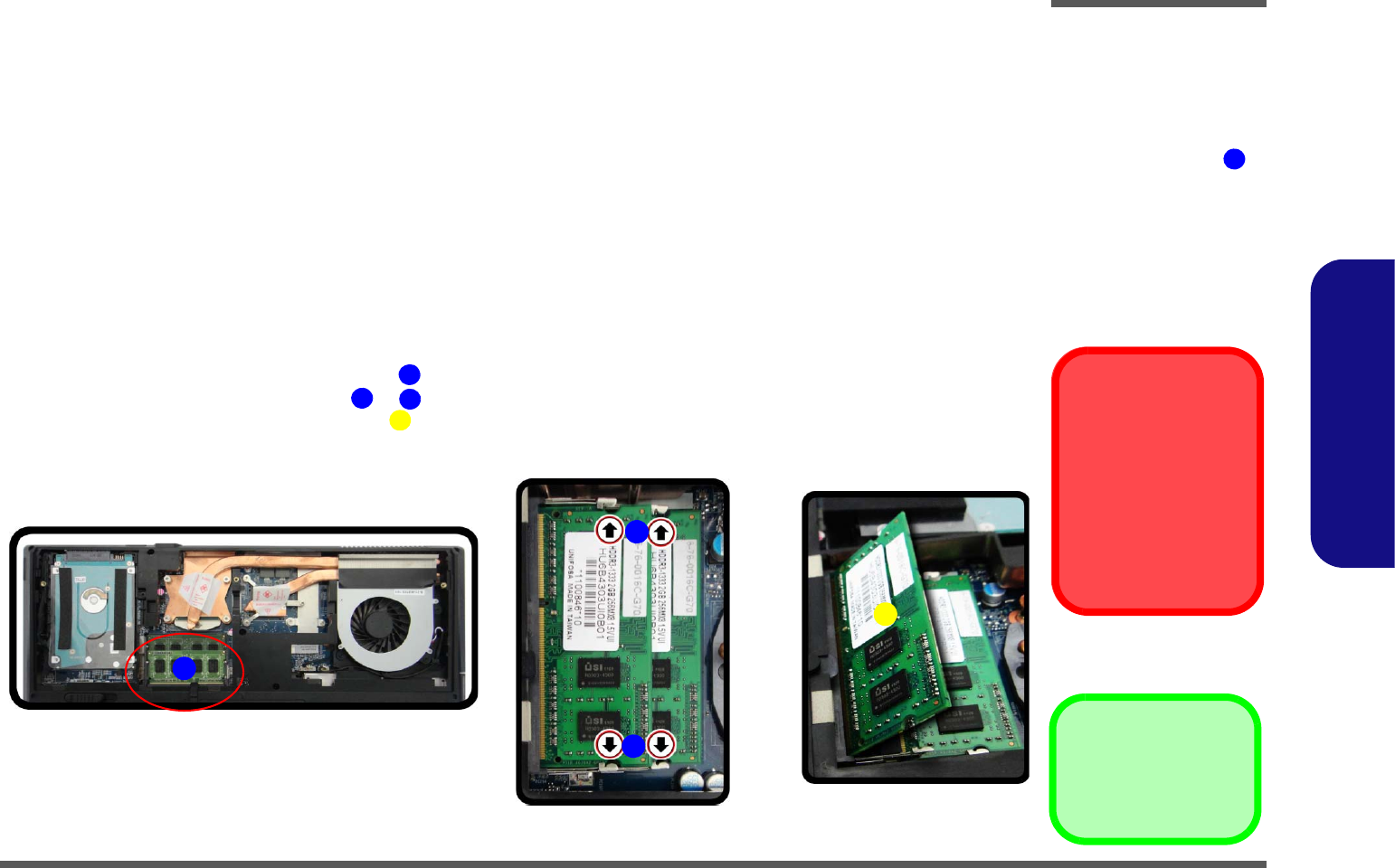

Removing the System Memory (RAM) ........................................2-15

Removing the Hinge Cover ...........................................................2-17

Part Lists ..................................................A-1

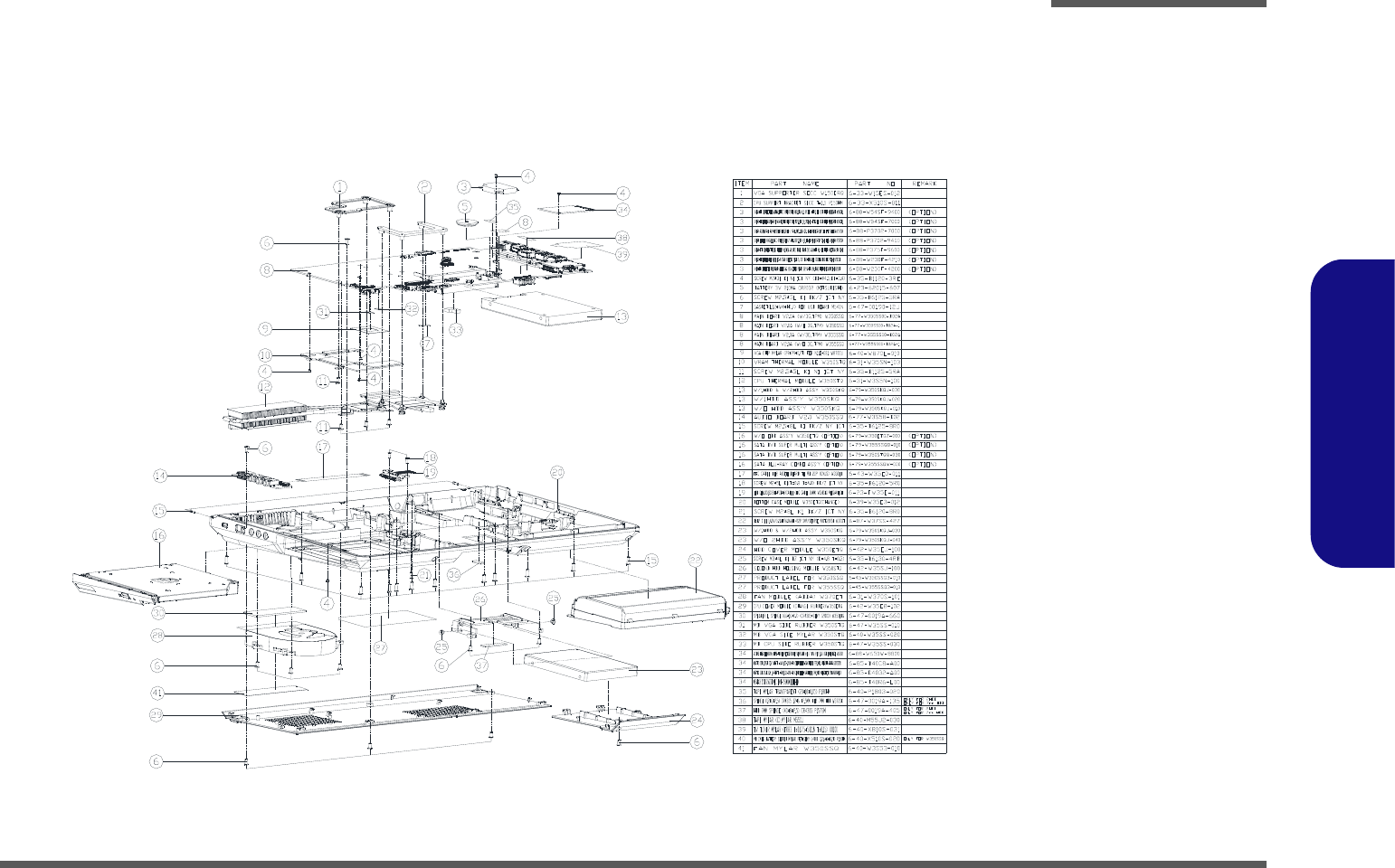

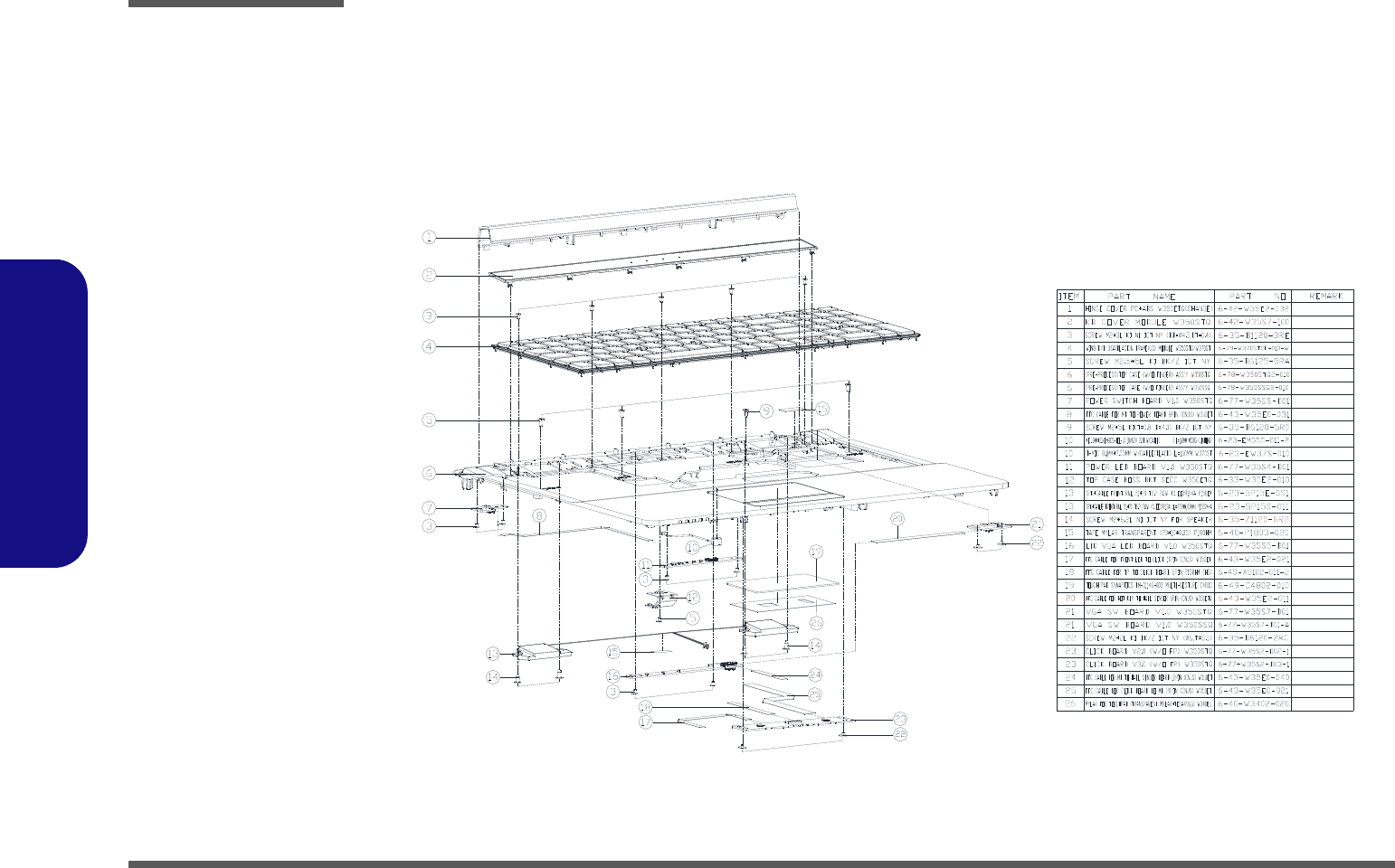

Part List Illustration Location ........................................................A-2

Top with Fingerprint ......................................................................A-3

Top without Fingerprint .................................................................A-4

Bottom ............................................................................................A-5

LCD ............................................................................................... A-6

HDD ............................................................................................... A-7

2nd HDD ........................................................................................ A-8

Combo ............................................................................................ A-9

DVD ............................................................................................. A-10

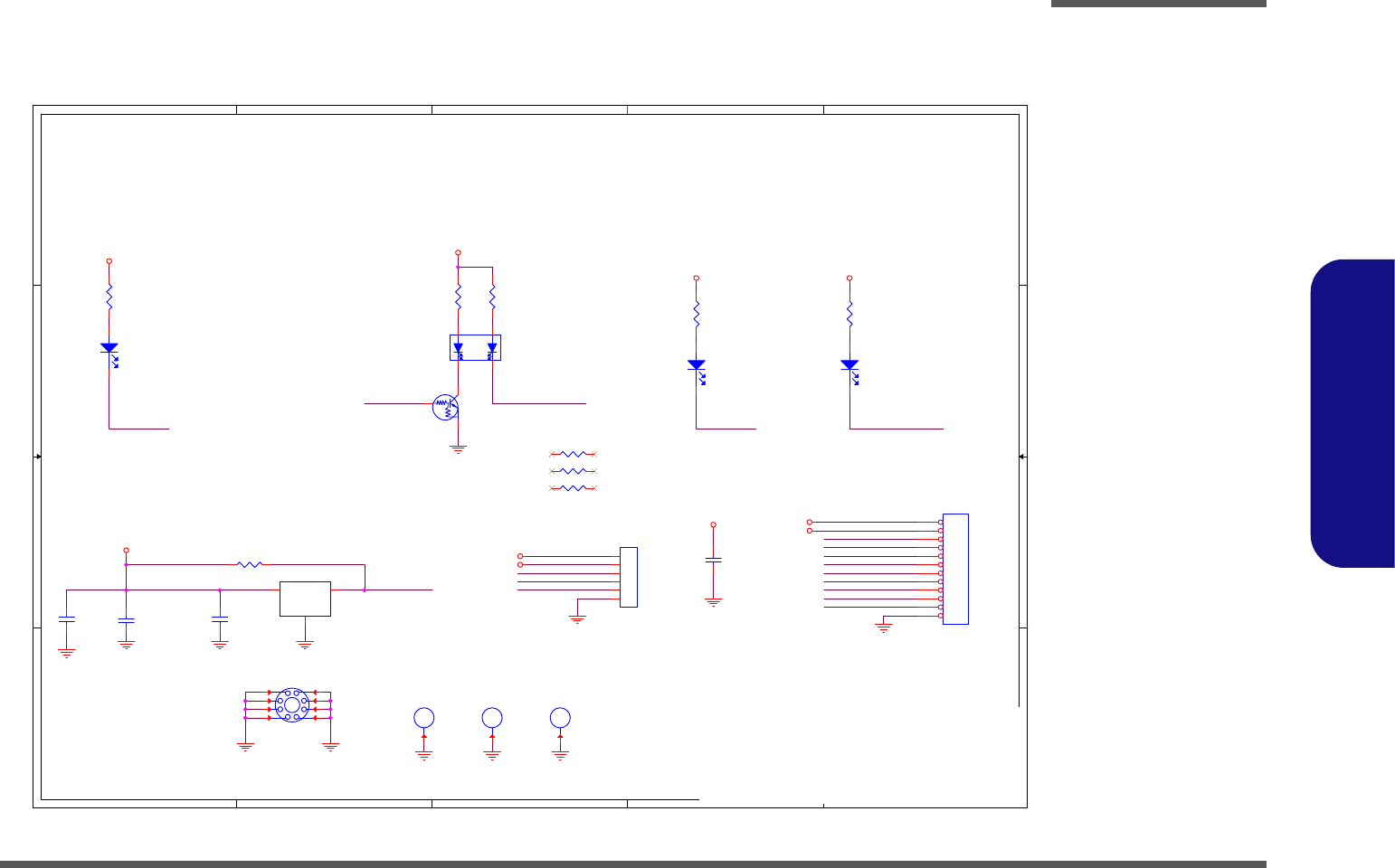

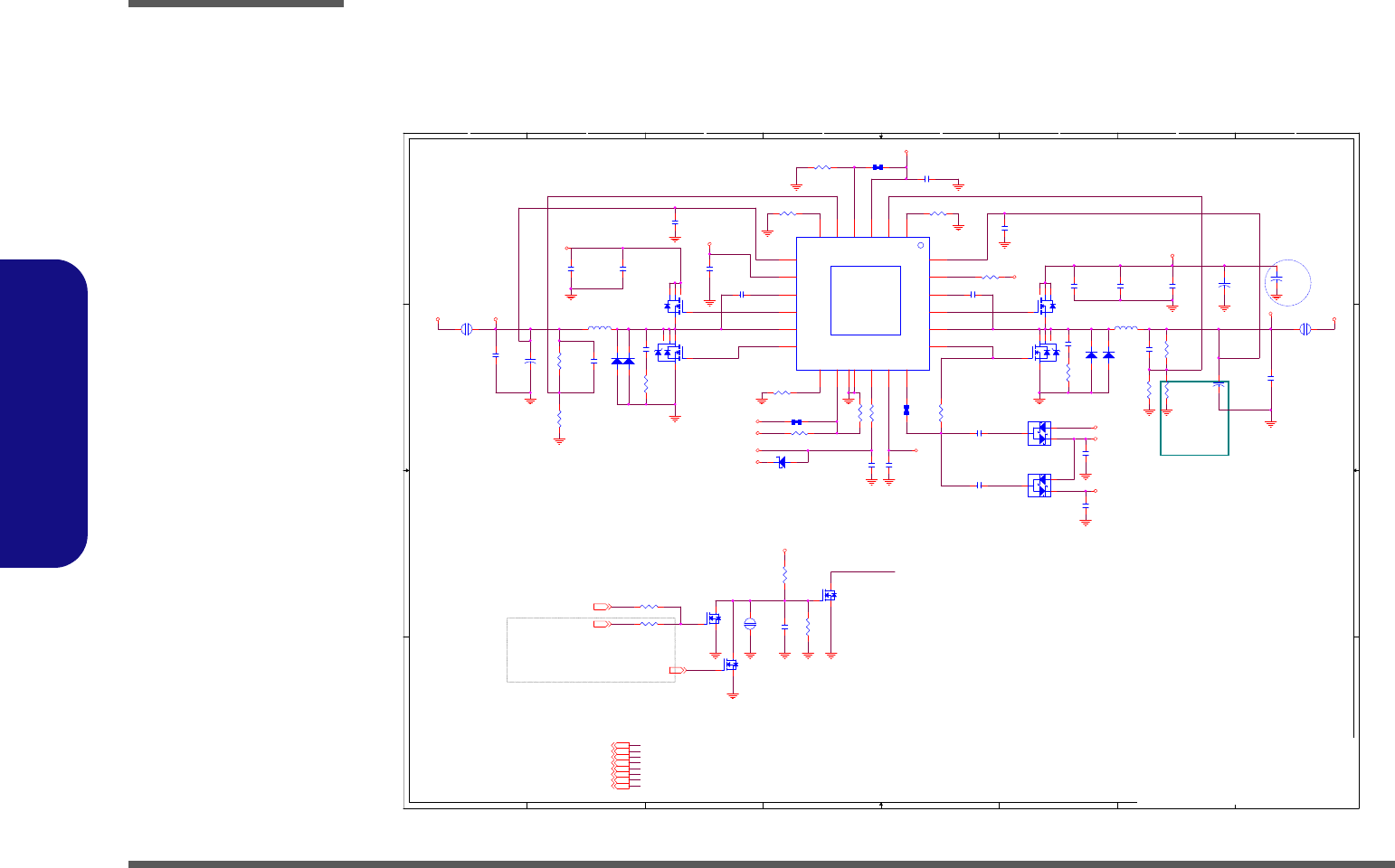

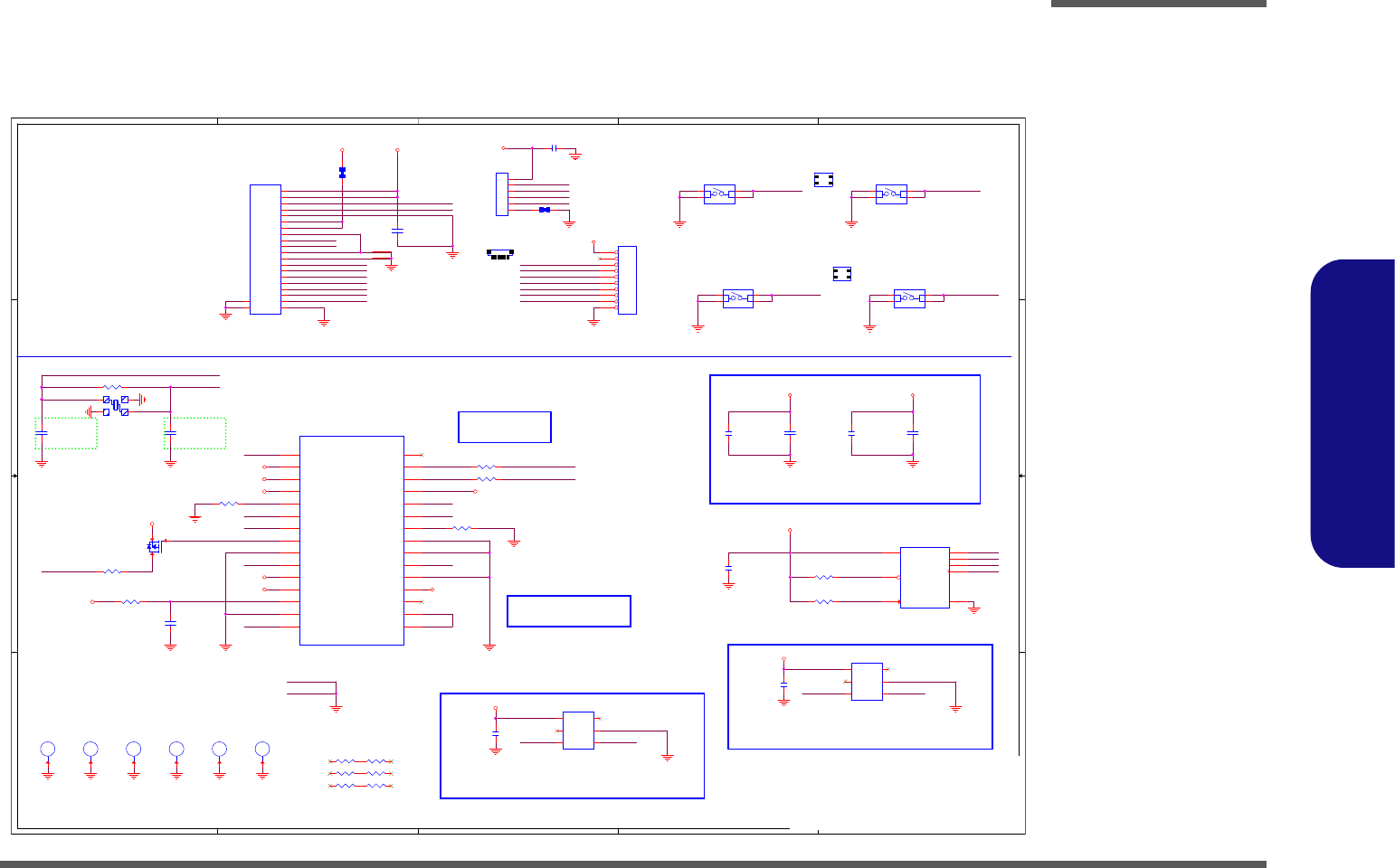

Schematic Diagrams.................................B-1

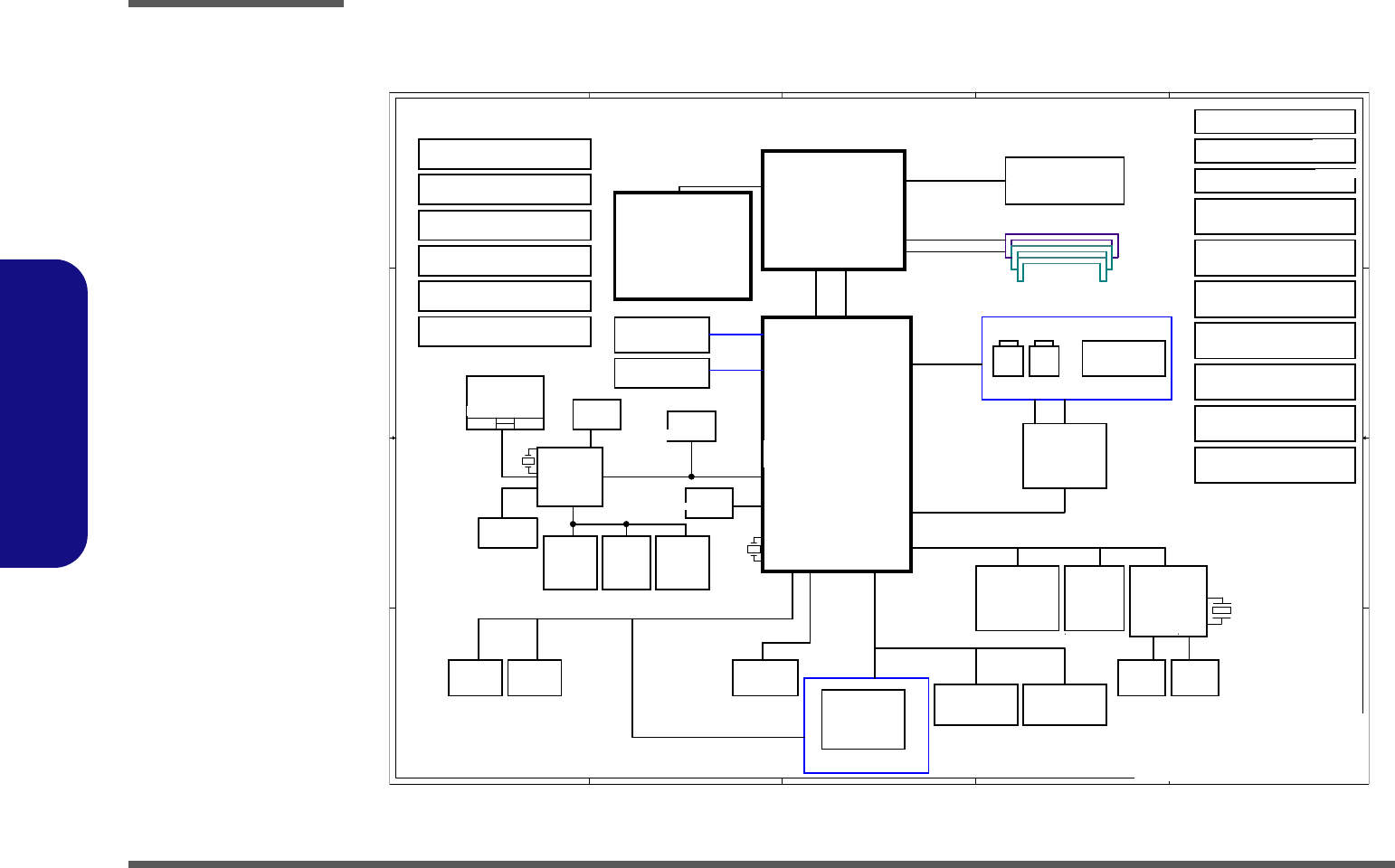

System Block Diagram ...................................................................B-2

Haswell 1/7 ....................................................................................B-3

Haswell 2/7 .....................................................................................B-4

Haswell 3/7 .....................................................................................B-5

Haswell 4/7 .....................................................................................B-6

Haswell 5/7 .....................................................................................B-7

Haswell 6/7 .....................................................................................B-8

Haswell 7/7 ....................................................................................B-9

DDR SO-DIMM A_0 ...................................................................B-10

DDR SO-DIMM B_0 ...................................................................B-11

DDR SO-DIMM A_1 ...................................................................B-12

PS8625 ..........................................................................................B-13

Panel, Inverter, CRT .....................................................................B-14

VGA PCI-E Interface ....................................................................B-15

VGA Frame Buffer Interface ........................................................B-16

VGA Frame Buffer A ...................................................................B-17

VGA Frame Buffer A ...................................................................B-18

VGA Frame Buffer B ...................................................................B-19

VGA Frame Buffer B ...................................................................B-20

VGA I/O .......................................................................................B-21

VGA NVVDD Decoupling ...........................................................B-22

Lynx 1/9 ........................................................................................B-23

Lynx 2/9 ........................................................................................B-24

Lynx 3/9 ........................................................................................B-25

Preface

Lynx 4/9 ....................................................................................... B-26

Lynx 5/9 ....................................................................................... B-27

Lynx 6/9 ....................................................................................... B-28

Lynx 7/9 ....................................................................................... B-29

Lynx 8/9 ....................................................................................... B-30

Lynx 9/9 ....................................................................................... B-31

Mini PCIE, Fan, Audio Con .........................................................B-32

USB Charge, CCD, TPM, Multi-Con ..........................................B-33

ESATA/USB3.0 Connector .........................................................B-34

Card Reader / LAN RTL8411B ...................................................B-35

SATA HDD, VLED CON, LID SW ............................................ B-36

HDMI, RJ45 .................................................................................B-37

Audio Codec VT1802S ................................................................B-38

Audio AMP & Con ......................................................................B-39

KBC ITE IT8587 .......................................................................... B-40

5V, 5VS, 3.3V, 3VS, 3.3VM .......................................................B-41

VDD3, VDD5 ............................................................................... B-42

1.5V or 1.35V / 0.75VS, 1.5VS ...................................................B-43

1.05VS, 1.05V_M, 1.05V_LAN_M ............................................. B-44

Power V-Core ............................................................................... B-45

VGA NVVDD, PEX_VDD .......................................................... B-46

FBVDDQ ..................................................................................... B-47

AC-In, Charger .............................................................................B-48

W370SS/W350SSQ Audio Board ................................................ B-49

W370SS/W35XSSQ Power LED Board ......................................B-50

W370SS/W35XSSQ Click Board ................................................ B-51

W370SS Power Switch Board ...................................................... B-52

W350SSQ Power Switch Board ................................................... B-53

W370SS LID / VGA LED Board ................................................. B-54

W35XSSQ LID / VGA LED Board ............................................. B-55

W350SSQ VGA / WLAN SW Board .......................................... B-56

W355SSQ Power Switch Board ................................................... B-57

W355SSQ VGA / WLAN SW Board ...........................................B-58

POWER SEQUENCE ..................................................................B-59

Updating the FLASH ROM BIOS......... C-1

Introduction

Overview 1 - 1

1.Introduction

Chapter 1: Introduction

Overview

This manual covers the information you need to service or upgrade the W350SSQ series notebook computer. Information

about operating the computer (e.g. getting started, and the Setup utility) is in the User’s Manual. Information about driv-

ers (e.g. VGA & audio) is also found in User’s Manual. That manual is shipped with the computer.

Operating systems (e.g. Windows 8, etc.) have their own manuals as do application software (e.g. word processing and

database programs). If you have questions about those programs, you should consult those manuals.

The W350SSQ series notebook is designed to be upgradeable. See Disassembly on page 2 - 1 for a detailed description

of the upgrade procedures for each specific component. Please note the warning and safety information indicated by the

“” symbol.

The balance of this chapter reviews the computer’s technical specifications and features.

Introduction

1 - 2 System Specifications

1.Introduction

System Specifications

Processor Options

Intel® Core™ i7 Processor

i7-4910MQ (2.90GHz), i7-4900MQ (2.80GHz)

8MB L3 Cache, 22nm, DDR3L-1600MHz, TDP

47W

i7-4810MQ (2.80GHz), i7-4800MQ (2.70GHz),

i7-4700MQ (2.40GHz)

6MB L3 Cache, 22nm, DDR3L-1600MHz, TDP

47W

i7-4610M (3.00GHz), i7-4600M (2.90GHz)

4MB L3 Cache, 22nm, DDR3L-1600MHz, TDP

37W

Intel® Core™ i5 Processor

i5-4340M (2.90GHz), i5-4330M (2.80GHz), i5-

4310M (2.70GHz), i5-4300M (2.60GHz), i5-

4200M (2.50GHz)

3MB L3 Cache, 22nm, DDR3L-1600MHz, TDP

37W

Intel® Core™ i3 Processor

i3-4100M (2.50GHz), i3-4000M (2.40GHz)

3MB L3 Cache, 22nm, DDR3L-1600MHz, TDP

37W

Core Logic

Intel® HM87 Chipset

BIOS

One 48Mb SPI Flash ROM

AMI BIOS

LCD

15.6" (39.62cm) FHD

Video Adapter

Intel® Integrated GPU and NVIDIA® Discrete

GPU

Supports Microsoft Hybrid Graphics

Intel Integrated GPU

Intel® HD Graphics 4600

Dynamic Frequency (Intel Dynamic Video Mem-

ory Technology for up to 1.7GB)

Microsoft DirectX®11 Compatible

NVIDIA Discrete GPU

NVIDIA® GeForce GTX 860M

2GB GDDR5 Video RAM

Microsoft DirectX®11.1 Compatible

Security

BIOS Password

Security (Kensington® Type) Lock Slot

(Factory Option) Fingerprint Reader

Audio

High Definition Audio Compliant Interface

Sound Blaster™ Cinema

2 * Built-In Speakers

Built-In Microphone

Memory

Three 204 Pin SO-DIMM Sockets Supporting

DDR3L 1600MHz Memory

Memory Expandable up to 24GB

(The real memory operating frequency depends

on the FSB of the pro

cessor.)

Note: Three SO-DIMMs are only supported by

Quad-Core CPUs; Dual-Core CPUs support two

SO-DIMMs maximum

Storage

(Factory Option) One 12.7mm(h) Optical Device

Type Drive (Super Multi Drive/Blu-Ray Combo

Drive/Blu-Ray Writer Drive)

(Factory Option) Two Changeable 2.5" (6cm)

9.5/7.0mm (h) SATA (Serial) Hard Disk Drives/

Solid State Drives (SSD) supporting RAID level 0/

(Factory Option) One mSATA Solid State Drive

(SSD)

Keyboard

Full-size “WinKey” keyboard (with numeric key-

pad)

Pointing Device

Built-in Touchpad (scrolling key functionality inte-

grated

Interface

One USB 2.0 Port

Two USB 3.0 Ports

One eSATA Port (USB 3.0 Port Combined)

One HDMI-Out Port

One Headphone-Out Jack

One Microphone-In Jack

One S/PDIF Out Jack

One RJ-45 LAN Jack

One External Monitor Port

One DC-in Jack

Introduction

System Specifications 1 - 3

1.Introduction

Communication

Built-In Gigabit Ethernet LAN

1.0M HD PC Camera Module

(Factory Option) 2.0M FHD PC Camera Module

(Factory Option) 3G Mini-Card Module

WLAN/ Bluetooth Half Mini-Card Modules:

(Factory Option) Intel® Wireless-AC 7260 Wire-

less LAN (802.11a/c) + Bluetooth 4.0

(Factory Option) Intel® Wireless-N 7260 Wire-

less LAN (802.11b/g/n)+ Bluetooth 4.0

(Factory Option) Third-Party Wireless LAN

(802.11b/g/n)

(Factory Option) Third-Party Wireless LAN

(802.11b/g/n) + Bluetooth 4.0

(Factory Option) Third-Party Wireless LAN

(802.11a/b/g/n) + Bluetooth 4.0

Card Reader

Embedded Multi-in-1 Push-Push Card Reader

MMC (MultiMedia Card) / RS MMC

SD (Secure Digital) / Mini SD / SDHC/ SDXC

MS (Memory Stick) / MS Pro / MS Duo

Mini Card Slots

Slot 1 for WLAN Module or WLAN and Blue-

tooth Combo Module

(Factory Option) Slot 2 for 3G Module or

mSATA SSD

Environmental Spec

Temperature

Operating: 5°C - 35°C

Non-Operating: -20°C - 60°C

Relative Humidity

Operating: 20% - 80%

Non-Operating: 10% - 90%

Power

Full Range AC/DC Adapter

AC Input: 100 - 240V, 50 - 60Hz

DC Output: 19.5V, 6.15A (120W)

8 Cell Smart Lithium-Ion Battery Pack, 76.96WH

Dimensions & Weight

374mm (w) * 250mm (d) * 16.3 - 42.7mm (h)

2.7kg with ODD & 76.96WH Battery

Introduction

1 - 4 External Locator - Front View with LCD Panel Open

1.Introduction

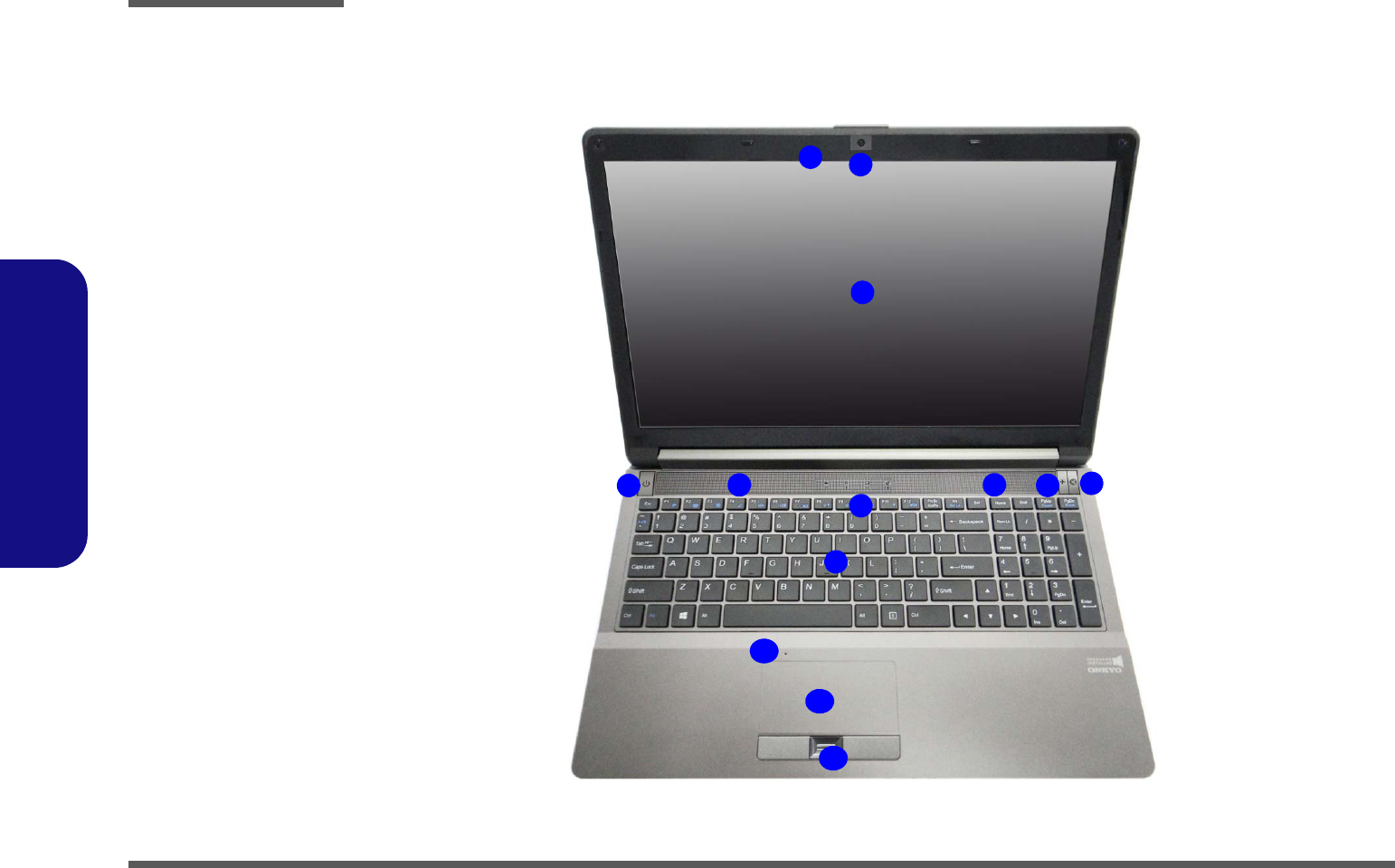

External Locator - Front View with LCD Panel Open

Figure 1

Top View

1. Built-In PC Camera

(Optional)

2. *PC Camera LED

*When the PC

camera is in use, the

LED will be

illuminated in red.

3. LCD

4. Power Button

5. LED Indicators

6. Airplane Mode

Button

7. Control Center

Button

8. Speakers

9. Keyboard

10. Built-In Microphone

11. Touchpad & Buttons

12. Fingerprint Reader

Sensor (Factory

Option)

Introduction

External Locator - Front & Right side Views 1 - 5

1.Introduction

External Locator - Front & Right side Views

Figure 2

Front Views

1. LED Indicators

Figure 3

Right Side Views

1. Multi-in-1 Card

Reader

2. USB 3.0 Ports

3. Combined eSATA/

USB 3.0 Port

4. HDMI-Out Port

5. RJ-45 LAN Jack

245

Introduction

1 - 6 External Locator - Left Side & Rear View

1.Introduction

External Locator - Left Side & Rear View

Figure 4

Left Side View

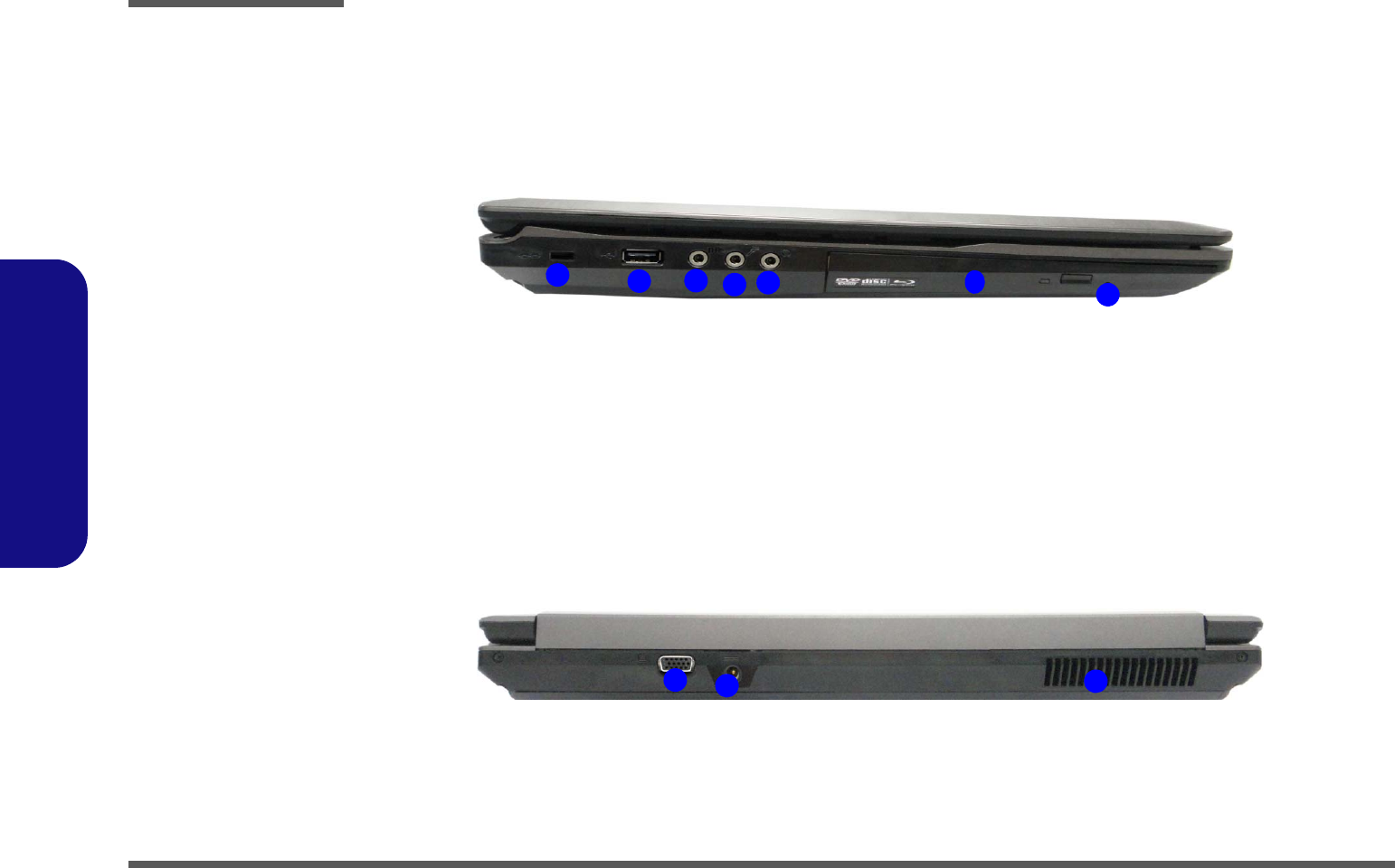

1. Security Lock Slot

2. USB 2.0 Port

3. S/PDIF-Out Jack

4. Microphone-In Jack

5. Headphone-Out Jack

6. Optical Device Drive

Bay

7. Emergency Eject

Hole

1234567

Figure 5

Rear View

1. External Monitor Port

2. DC-In Jack

3. Vent

123

Introduction

External Locator - Bottom View 1 - 7

1.Introduction

External Locator - Bottom View

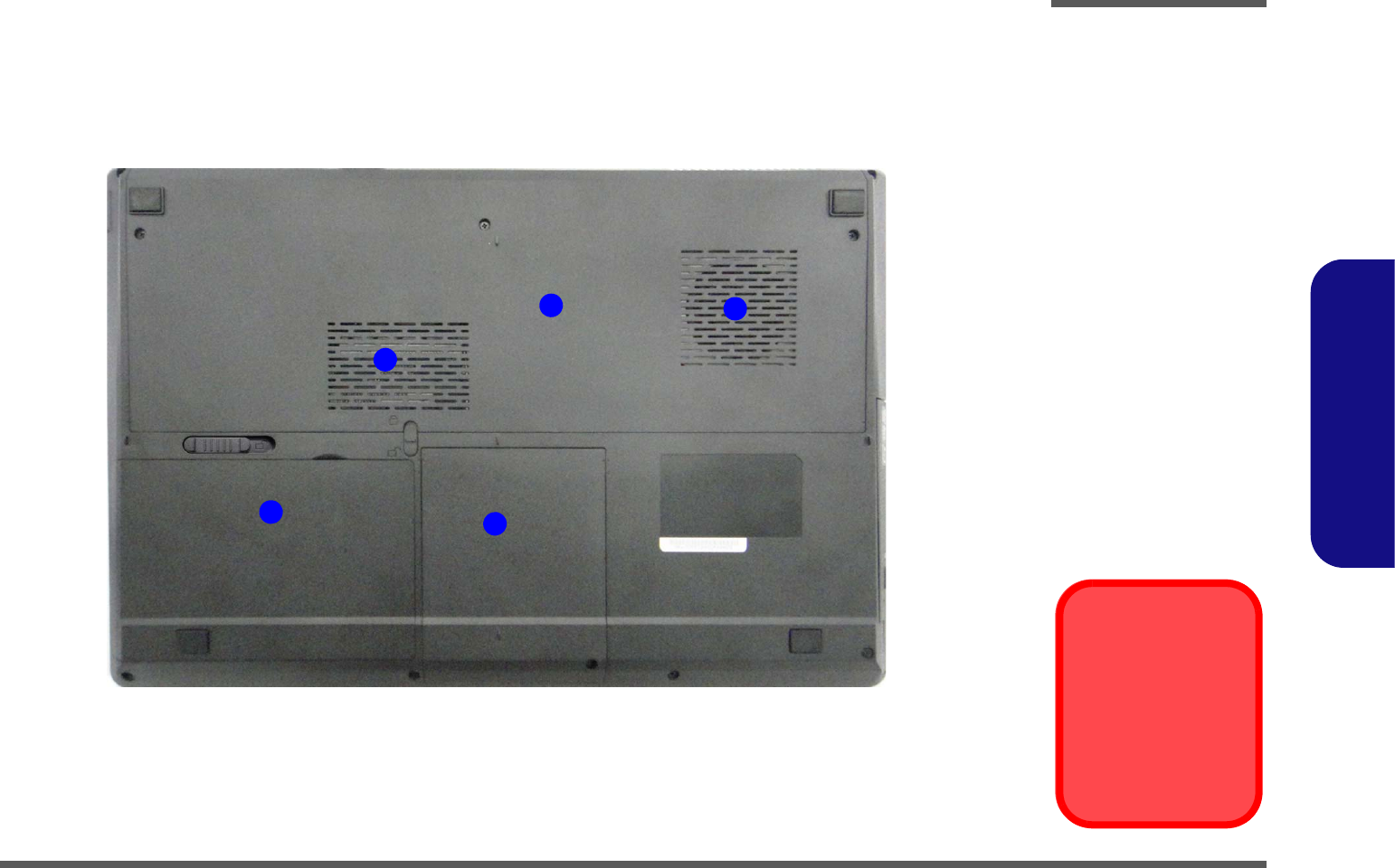

Figure 6

Bottom View

1. Component Bay

Cover

2. Vent

3. Battery

4. HDD Bay



Overheating

To prevent your com-

puter from overheating

make sure nothing

blocks the vent/fan in-

takes while the com-

puter is in use.

Introduction

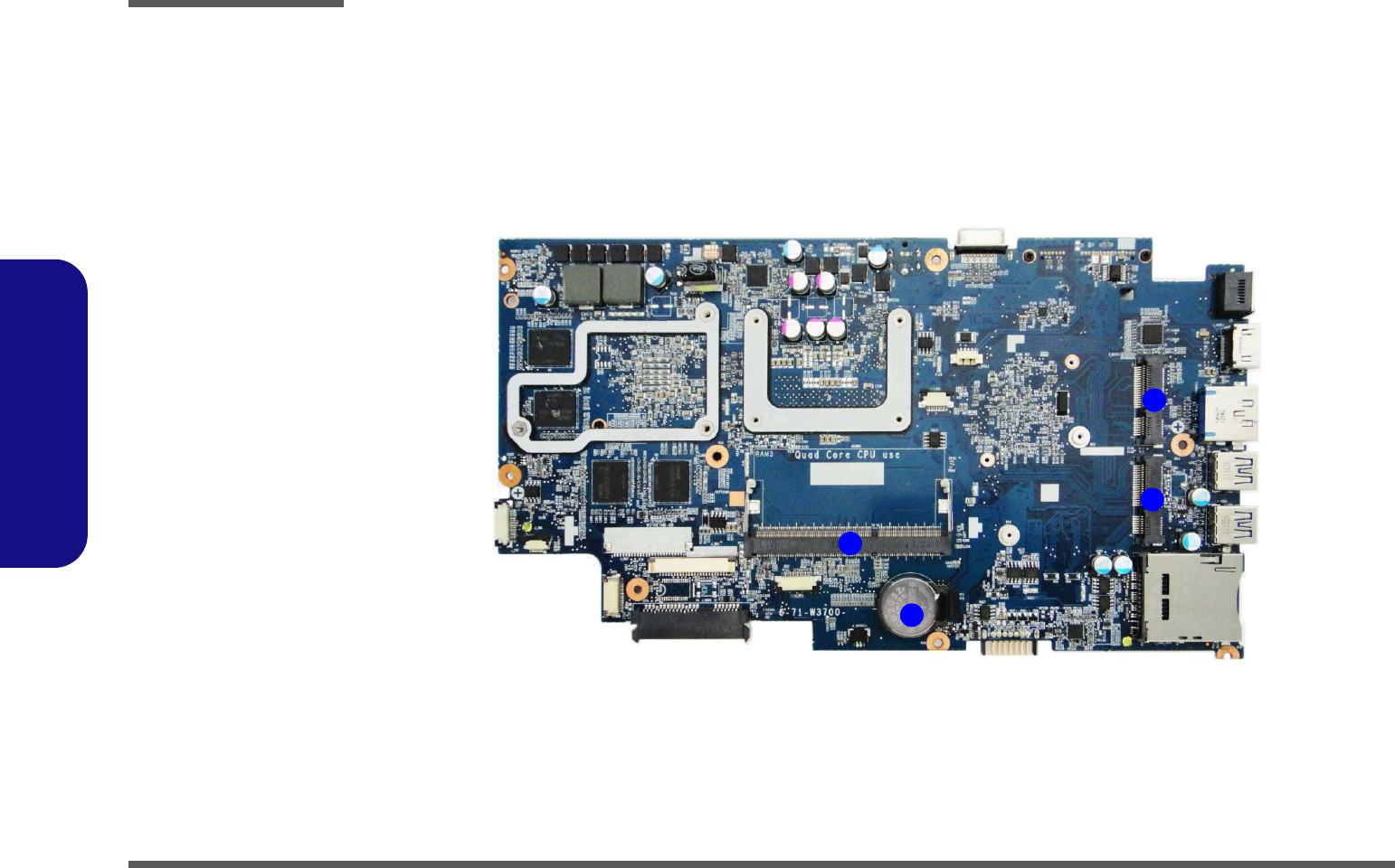

1 - 8 Mainboard Overview - Top (Key Parts)

1.Introduction

Mainboard Overview - Top (Key Parts)

Figure 7

Mainboard Top

Key Parts

1. Memory Slots DDR3L

So-DIMM

2. CMOS Battery

3. Mini-Card Connector

(3G Module)

4. Mini-Card Connector

(WLAN Module)

Introduction

Mainboard Overview - Bottom (Key Parts) 1 - 9

1.Introduction

Mainboard Overview - Bottom (Key Parts)

Figure 8

Mainboard Bottom

Key Parts

1. PantherPoint

Controller

2. CPU Socket

3. Memory Slots

DDR3L So-DIMM

4. NV Graphic

5. KBC

Introduction

1 - 10 Mainboard Overview - Top (Connectors)

1.Introduction

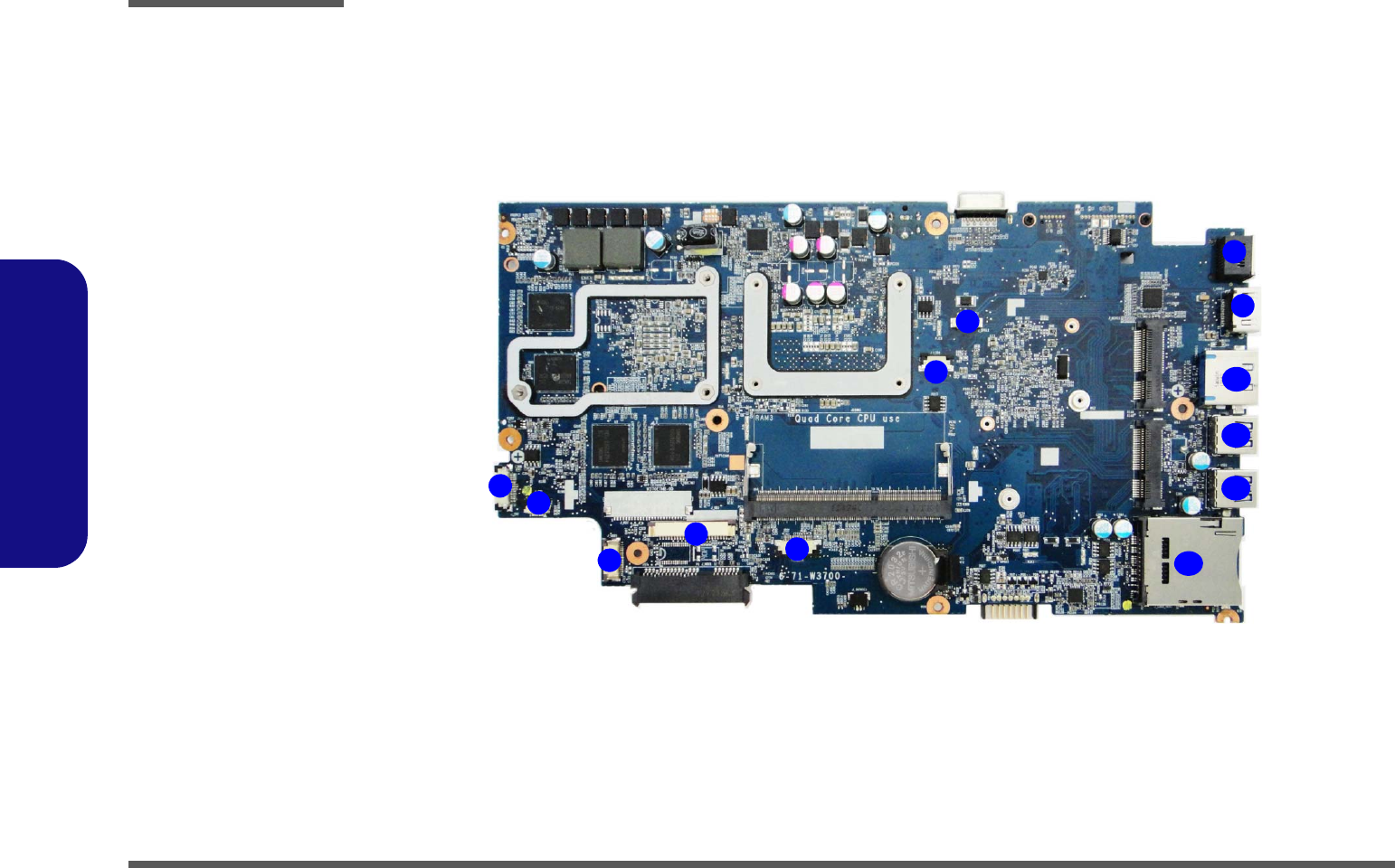

Mainboard Overview - Top (Connectors)

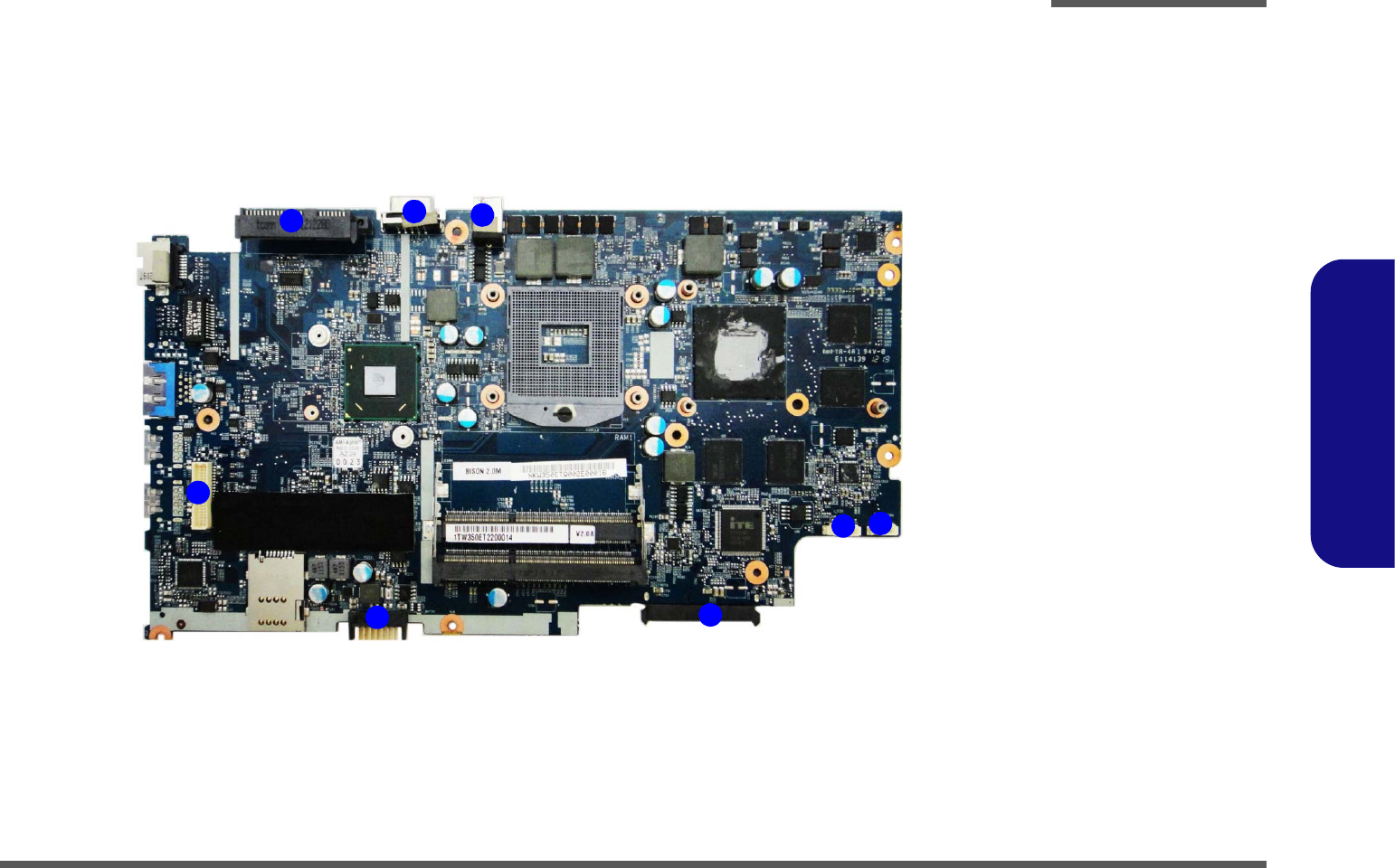

Figure 9

Mainboard Top

Connectors

1. Audio Cable

Connector

2. Power Switch Cable

Connector

3. ODD Cable Connector

4. Keyboard Cable

Connector

5. Click Board Cable

Connector

6. VGA SW Cable

Connector

7. Speaker Cable

Connector

8. RJ-45 LAN Jack

9. HDMI-Out Port

10. eSATA Connector

11. USB 3.0 Ports

12. Multi-in-1 Card Reader

Introduction

Mainboard Overview - Bottom (Connectors) 1 - 11

1.Introduction

Mainboard Overview - Bottom (Connectors)

Figure 10

Mainboard Bottom

Connectors

1. HDD2 Connector

2. External Monitor

Port

3. DC-In Jack

4. Fan Cable

Connector

5. CCD Cable

Connector

6. HDD1 Connector

7. Battery Connector

8. LCD Cable

Connector

Introduction

1-12

1.Introduction

Disassembly

Overview 2 - 1

2.Disassembly

Chapter 2: Disassembly

Overview

This chapter provides step-by-step instructions for disassembling the W350SSQ series notebook’s parts and subsystems.

When it comes to reassembly, reverse the procedures (unless otherwise indicated).

We suggest you completely review any procedure before you take the computer apart.

Procedures such as upgrading/replacing the RAM, optical device and hard disk are included in the User’s Manual but are

repeated here for your convenience.

To make the disassembly process easier each section may have a box in the page margin. Information contained under

the figure # will give a synopsis of the sequence of procedures involved in the disassembly procedure. A box with a 

lists the relevant parts you will have after the disassembly process is complete. Note: The parts listed will be for the dis-

assembly procedure listed ONLY, and not any previous disassembly step(s) required. Refer to the part list for the previ-

ous disassembly procedure. The amount of screws you should be left with will be listed here also.

A box with a  will also provide any possible helpful information. A box with a  contains warnings.

An example of these types of boxes are shown in the sidebar.



Information



Warning

Disassembly

2 - 2 Overview

2.Disassembly

NOTE: All disassembly procedures assume that the system is turned OFF, and disconnected from any power supply (the

battery is removed too).

Maintenance Tools

The following tools are recommended when working on the notebook PC:

• M3 Philips-head screwdriver

• M2.5 Philips-head screwdriver (magnetized)

• M2 Philips-head screwdriver

• Small flat-head screwdriver

• Pair of needle-nose pliers

• Anti-static wrist-strap

Connections

Connections within the computer are one of four types:

Locking collar sockets for ribbon connectors To release these connectors, use a small flat-head screwdriver to

gently pry the locking collar away from its base. When replac-

ing the connection, make sure the connector is oriented in the

same way. The pin1 side is usually not indicated.

Pressure sockets for multi-wire connectors To release this connector type, grasp it at its head and gently

rock it from side to side as you pull it out. Do not pull on the

wires themselves. When replacing the connection, do not try to

force it. The socket only fits one way.

Pressure sockets for ribbon connectors To release these connectors, use a small pair of needle-nose pli-

ers to gently lift the connector away from its socket. When re-

placing the connection, make sure the connector is oriented in

the same way. The pin1 side is usually not indicated.

Board-to-board or multi-pin sockets To separate the boards, gently rock them from side to side as

you pull them apart. If the connection is very tight, use a small

flat-head screwdriver - use just enough force to start.

Disassembly

Overview 2 - 3

2.Disassembly

Maintenance Precautions

The following precautions are a reminder. To avoid personal injury or damage to the computer while performing a re-

moval and/or replacement job, take the following precautions:

1. Don't drop it. Perform your repairs and/or upgrades on a stable surface. If the computer falls, the case and other

components could be damaged.

2. Don't overheat it. Note the proximity of any heating elements. Keep the computer out of direct sunlight.

3. Avoid interference. Note the proximity of any high capacity transformers, electric motors, and other strong mag-

netic fields. These can hinder proper performance and damage components and/or data. You should also monitor

the position of magnetized tools (i.e. screwdrivers).

4. Keep it dry. This is an electrical appliance. If water or any other liquid gets into it, the computer could be badly

damaged.

5. Be careful with power. Avoid accidental shocks, discharges or explosions.

•Before removing or servicing any part from the computer, turn the computer off and detach any power supplies.

•When you want to unplug the power cord or any cable/wire, be sure to disconnect it by the plug head. Do not pull on the wire.

6. Peripherals – Turn off and detach any peripherals.

7. Beware of static discharge. ICs, such as the CPU and main support chips, are vulnerable to static electricity.

Before handling any part in the computer, discharge any static electricity inside the computer. When handling a

printed circuit board, do not use gloves or other materials which allow static electricity buildup. We suggest that

you use an anti-static wrist strap instead.

8. Beware of corrosion. As you perform your job, avoid touching any connector leads. Even the cleanest hands pro-

duce oils which can attract corrosive elements.

9. Keep your work environment clean. Tobacco smoke, dust or other air-born particulate matter is often attracted

to charged surfaces, reducing performance.

10. Keep track of the components. When removing or replacing any part, be careful not to leave small parts, such as

screws, loose inside the computer.

Cleaning

Do not apply cleaner directly to the computer, use a soft clean cloth.

Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer.



Power Safety

Warning

Before you undertake

any upgrade proce-

dures, make sure that

you have turned off the

power, and discon-

nected all peripherals

and cables (including

telephone lines and

power cord). It is advis-

able to also remove

your battery in order to

prevent accidentally

turning the machine

on.

Disassembly

2 - 4 Disassembly Steps

2.Disassembly

Disassembly Steps

The following table lists the disassembly steps, and on which page to find the related information. PLEASE PERFORM

THE DISASSEMBLY STEPS IN THE ORDER INDICATED.

To remove the Battery:

1. Remove the battery page 2 - 5

To remove the Optical Device:

1. Remove the battery page 2 - 5

2. Remove the optical device page 2 - 6

To remove the HDD:

1. Remove the battery page 2 - 5

2. Remove the HDD page 2 - 7

To remove and install the Processor:

1. Remove the battery page 2 - 5

2. Remove the Processor page 2 - 11

3. Install the Processor page 2 - 13

To remove the Keyboard:

1. Remove the battery page 2 - 5

2. Remove the keyboard page 2 - 14

To remove the System Memory:

1. Remove the battery page 2 - 5

2. Remove the system memory page 2 - 15

To remove the Hinge Cover:

1. Remove the battery page 2 - 5

2. Remove the hinge cover page 2 - 17

Disassembly

Removing the Battery 2 - 5

2.Disassembly

Removing the Battery

If you are confident in undertaking upgrade procedures yourself, for safety reasons it is best to remove the battery.

1. Turn the computer off, and turn it over.

2. Slide the latch in the direction of the arrow.

3. Slide the latch in the direction of the arrow and battery will pop-up.

4. Lift the battery up (Figure b) and out of the battery bay.



3. Battery

Figure 1

Battery Removal

a. Slide the latch in the

direction of the arrow.

and slide the latch in

the direction of the arrow

and battery will pop-up.

b. Lift the battery out of the

bay as indicated.

Disassembly

2 - 6 Removing the Optical (CD/DVD) Device

2.Disassembly

Removing the Optical (CD/DVD) Device

1. Turn off the computer, and turn it over and remove the battery (page 2 - 5) and remove the component bay cover

(page 2 - 10).

2. Remove the screw , and use a screwdriver to carefully push out the optical device at point .

3. Reverse the process to install the new device.

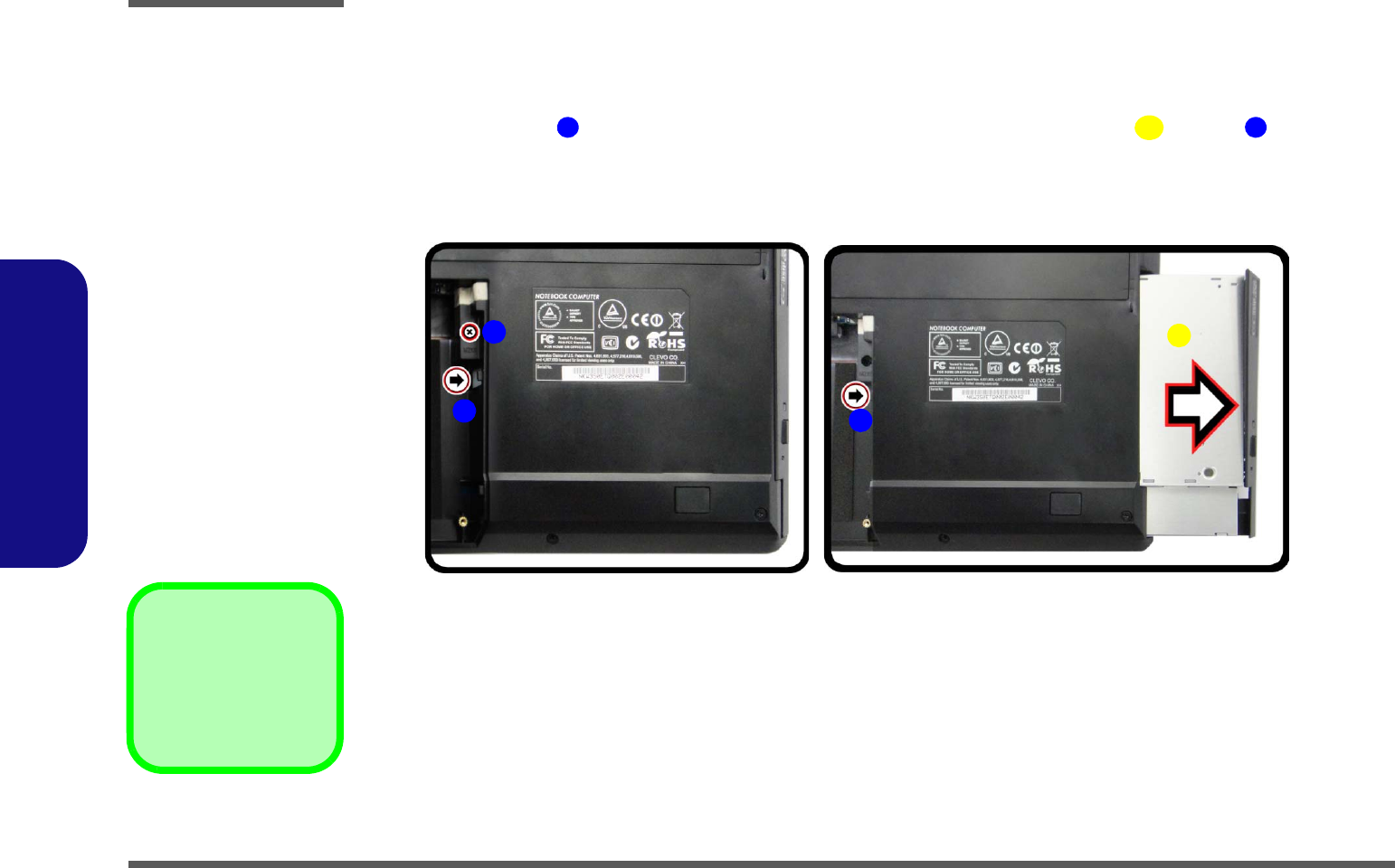

Figure 2

Optical Device

Removal

a. Remove the screw and

push the optical device

out of the computer.



3. Optical Device

•1 Screw

Disassembly

Removing the Hard Disk Drive 2 - 7

2.Disassembly

Removing the Hard Disk Drive

The hard disk drive is mounted in a removable case and can be taken out to accommodate other 2.5" SATA hard disk

drives with a height of 9.5mm or 7mm (h). Follow your operating system’s installation instructions, and install all nec-

essary drivers and utilities (as outlined in Chapter 4 of the User’s Manual) when setting up a new hard disk.

Hard Disk Upgrade Process

1. Turn off the computer, and turn it over and remove the battery (page 2 - 5).

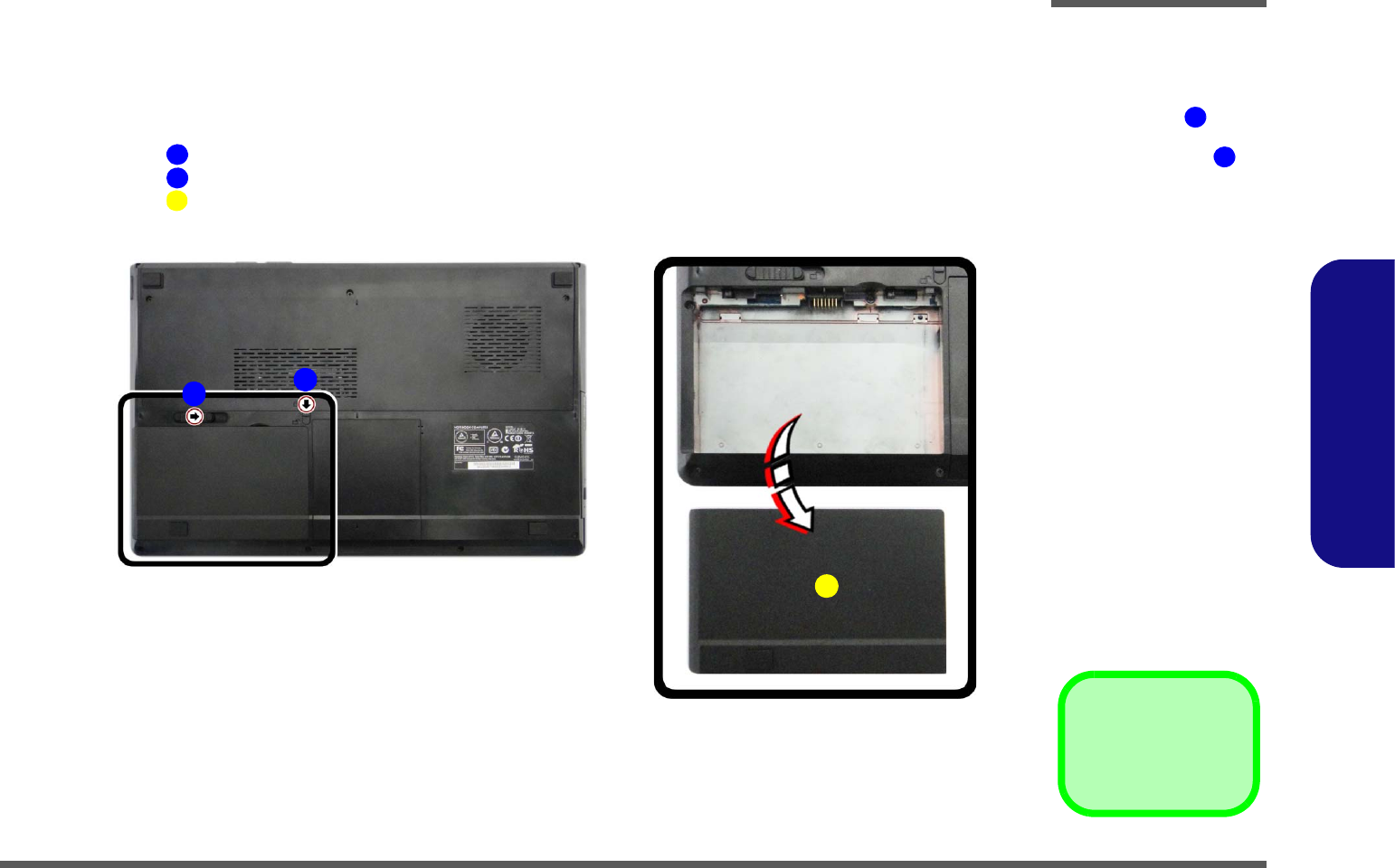

2. Locate the Hard disk bay cover and remove screw .

3. Slide the cover in the direction of the arrow (as illustrated) until the case markers line up.

4. Remove the bay cover .

Figure 3

HDD Assembly

Removal

a. Remove the screw.

b. Remove the cover



4. Hard Disk Bay Cov-

•1 Screw

a. b.

Disassembly

2 - 8 Removing the Hard Disk Drive

2.Disassembly

5. Grip the tab and slide the hard disk in the direction of arrow (Figure 4e).

6. Lift the hard disk assembly out of the computer.

7. Remove screws - .

8. Separate the hard disk and hard disk mylar .

9. Reverse the process to install a new hard disk(s).



9. Hard Disk

10. Hard Disk Mylar

•2 Screws

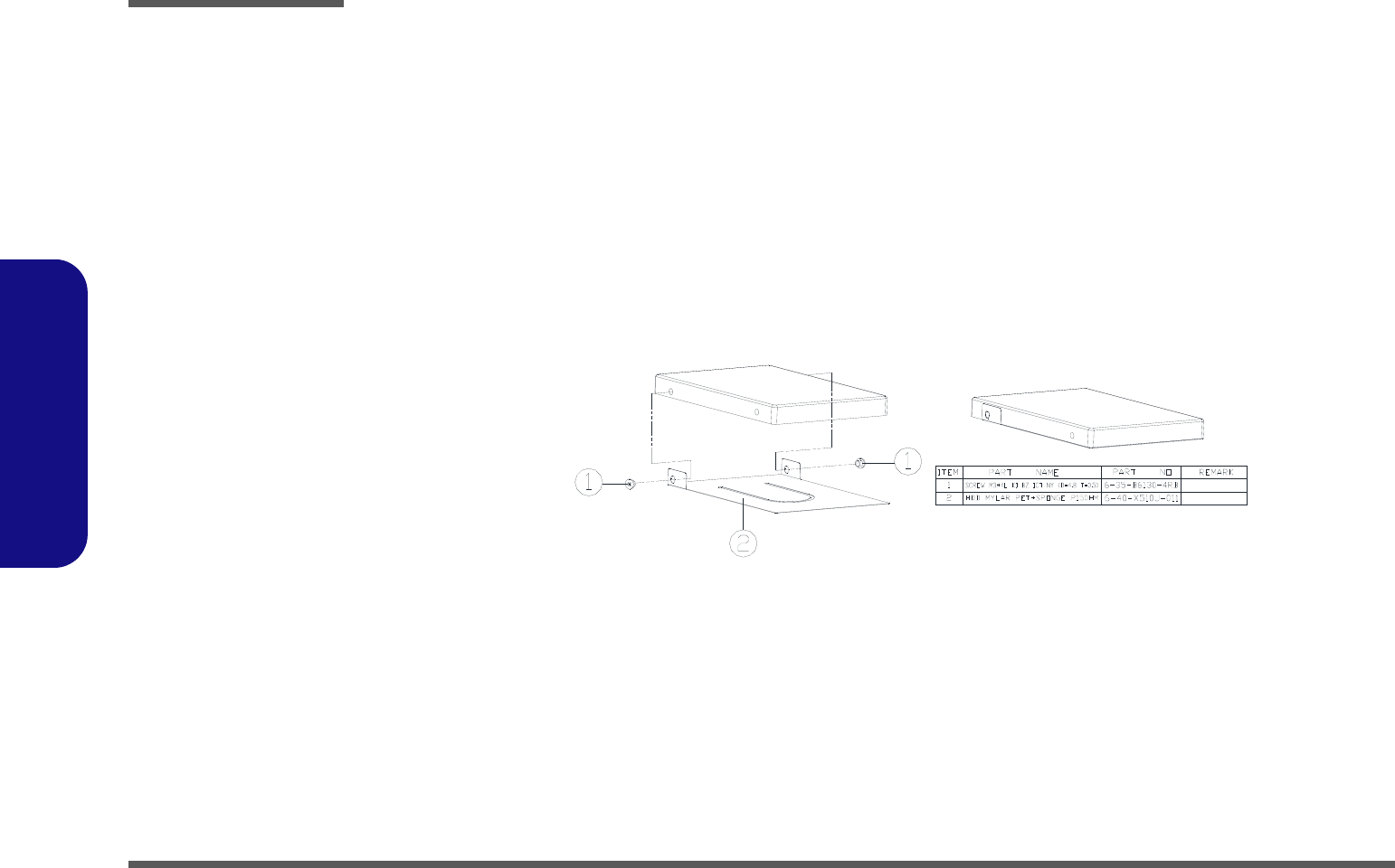

Figure 4

HDD Assembly

Removal (cont’d.)

c. Slide the hard disk as-

sembly out.

d. Lift the hard disk assem-

bly out off the computer.

e. Remove the screws to

release the hard disk

from the mylar.

Disassembly

Removing the Hard Disk Drive 2 - 9

2.Disassembly

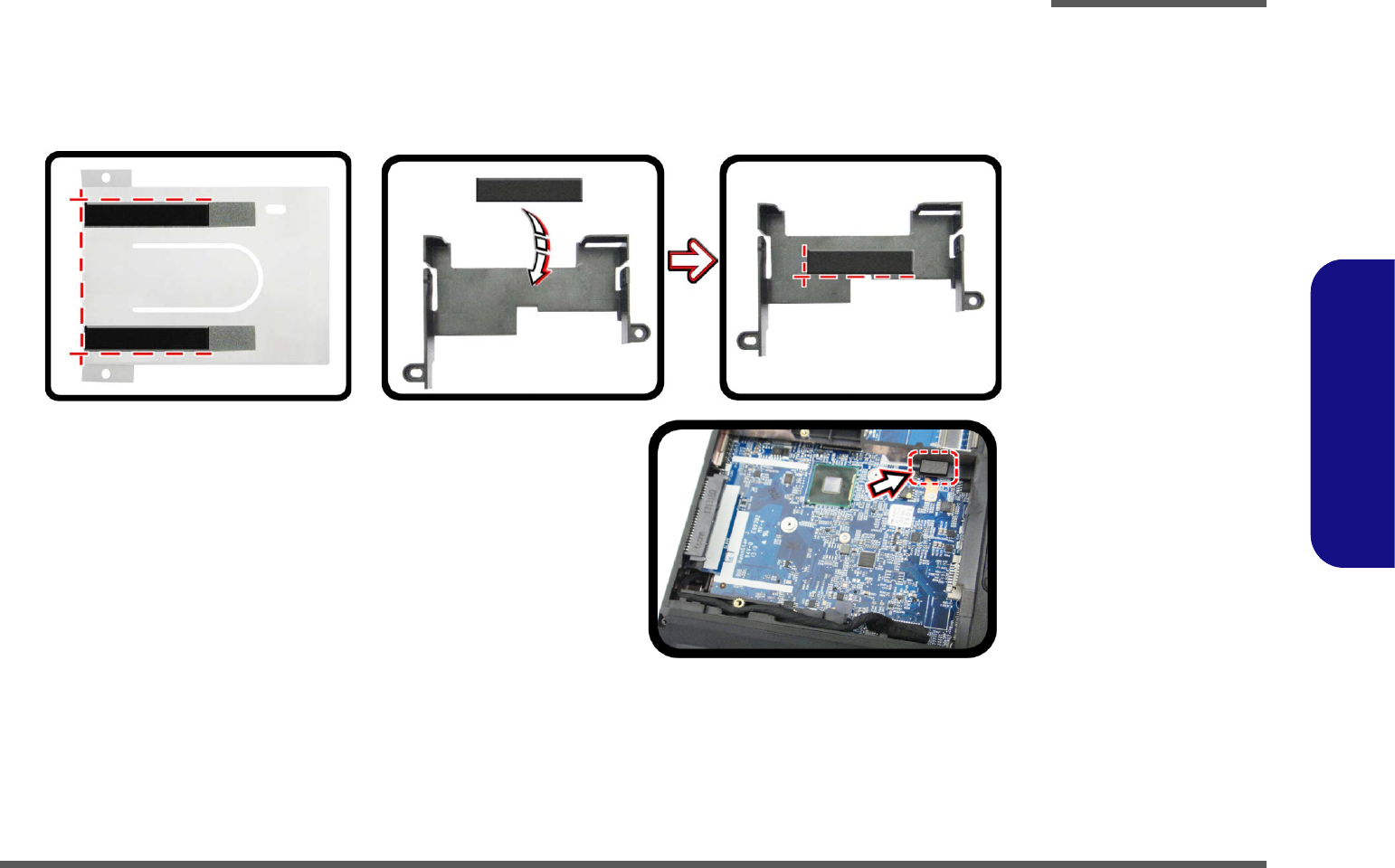

Hard Disk Size Note (Foam Rubber Insert)

Note that the hard disks pictured on the following pages are all 9.5mm(H) hard disk drives. In some cases 7mm(H) hard

disk drives will be installed.

Figure 5

Foam Rubber

Insert for 7mm(H)

HDDs

• If you are replacing a 9.5mm(H) HDD with a

7mm(H) HDD then insert the foam rubber

insert (as shown above).

• If you are replacing a 7mm(H) HDD with a

9.5mm(H) HDD then remove the foam rub-

ber insert.

HDD 1 HDD 2

Disassembly

2 - 10 Removing the Hard Disk Drive

2.Disassembly

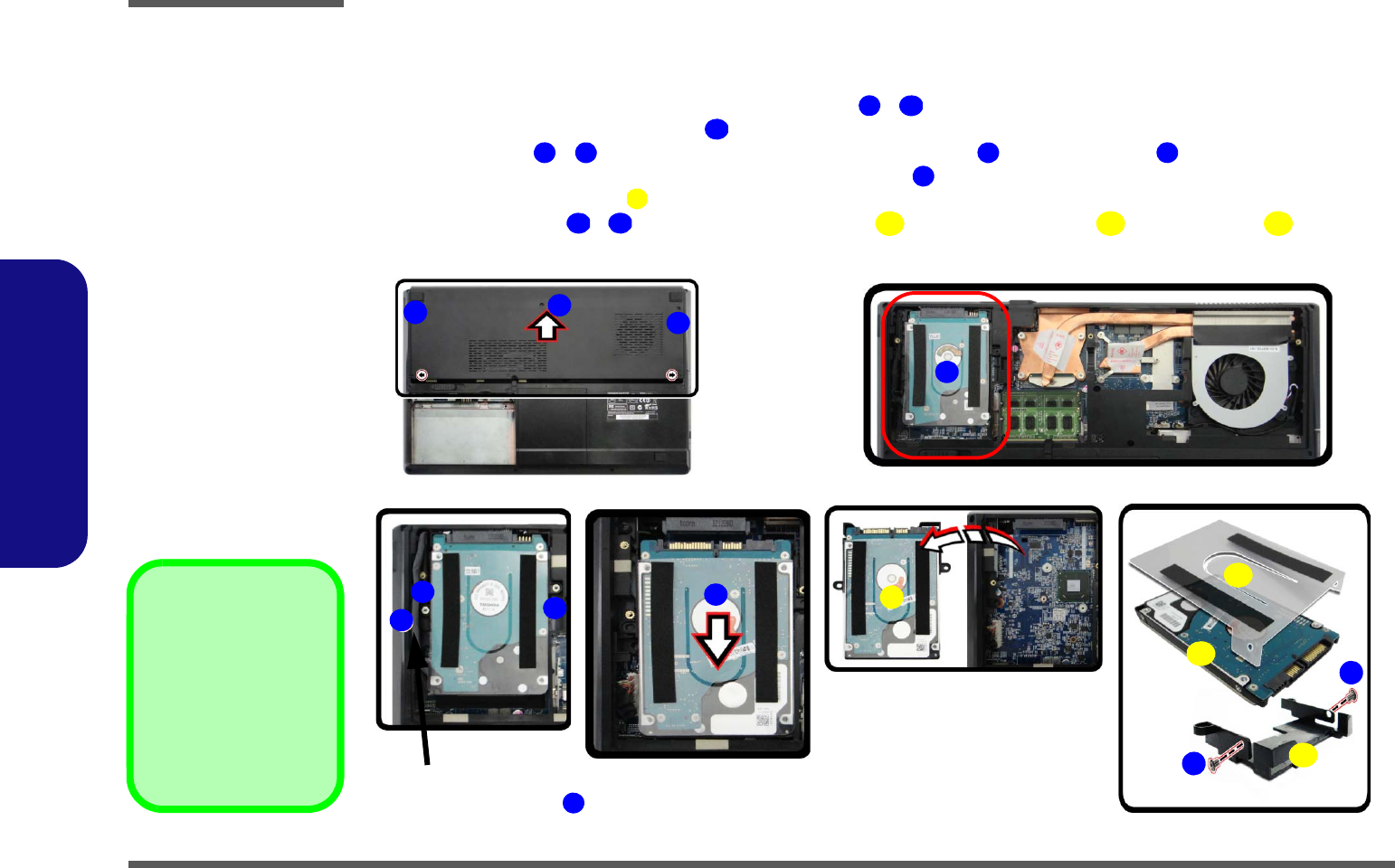

Removing the Hard Disk(s) in the Secondary HDD Bay

1. Turn off the computer, and turn it over and remove the battery.

2. Locate the component bay cover and remove screws - and the cover.

3. The hard disk will be visible at point on the mainboard.

4. Remove screws - (Note that you need to set aside the cable to see the screw ).

5. Grip the tab and slide the hard disk in the direction of arrow (Figure 6e).

6. Lift the hard disk assembly out of the compartment.

7. Remove the screws - to release the hard disk(s) and hard disk mylar from the case .

8. Reverse the process to install any new hard disk(s).

Figure 6

Secondary HDD

Assembly Removal

a. Remove the screws and

cover.

b. Locate the hard disk.

c. Remove the screws.

d. Slide the hard disk as-

sembly out.

e. Lift the hard disk assem-

bly out off the computer.

f. Remove the screws and

separate the HDD(s)

from case.

c. e.

Note:

Re-insert the cable after reinstalling the

hard disk assembly and tightening the screws.



12. Hard Disk

13. Hard Disk Mylar

14. Hard Disk Case

•7 Screws

Disassembly

Removing and Installing the Processor 2 - 11

2.Disassembly

Removing and Installing the Processor

Processor Removal Procedure

1. Turn off the computer, and turn it over, remove the battery (page 2 - 5), and component bay cover (page 2 - 10).

2. The CPU heat sink will be visible at point on the mainboard.

3. Remove screws , , , , , , , the reverse order indicated on the label (Figure 7b).

4. Grip the heat sink tab and carefully lift the heat sink up straight (do not angle it as you lift it) about a cen-

timeter in order to clear the fan unit, and then angle it around 45° to remove it from the computer.



9. CPU Heat Sink

•7 Screws



Caution

The heat sink, and

CPU area in general,

contains parts which

are subject to high

temperatures. Allow

the area time to cool

before removing these

parts.

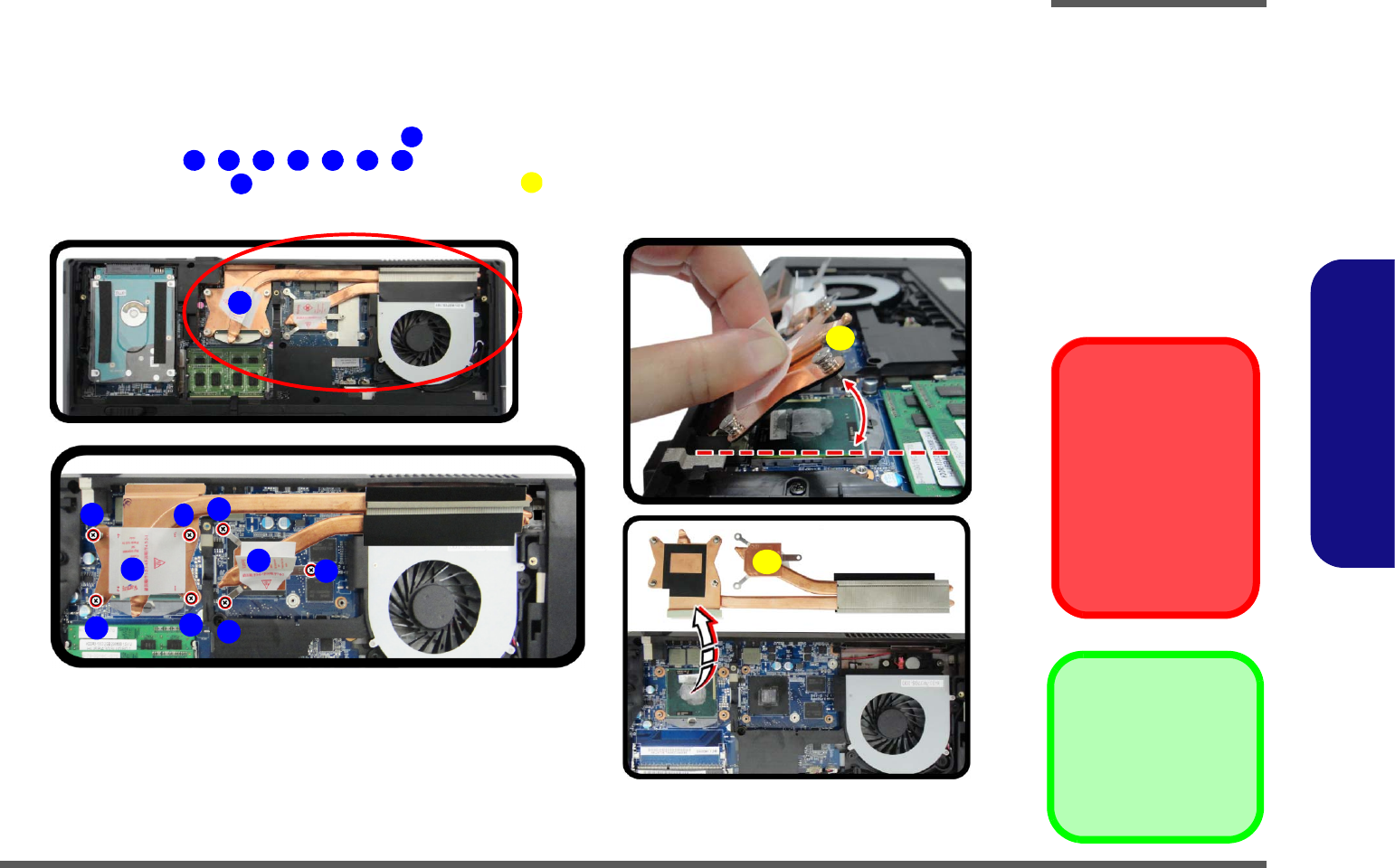

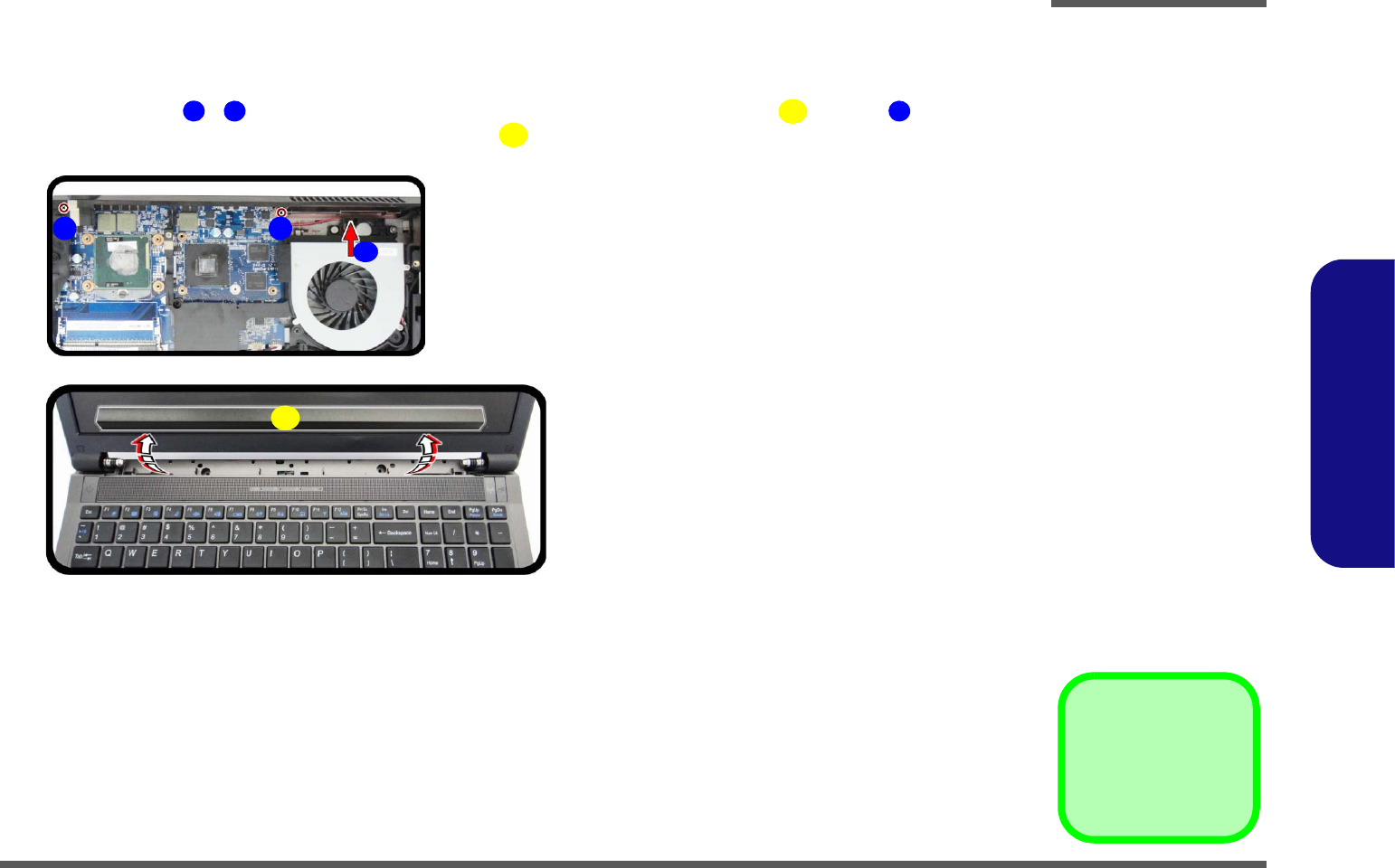

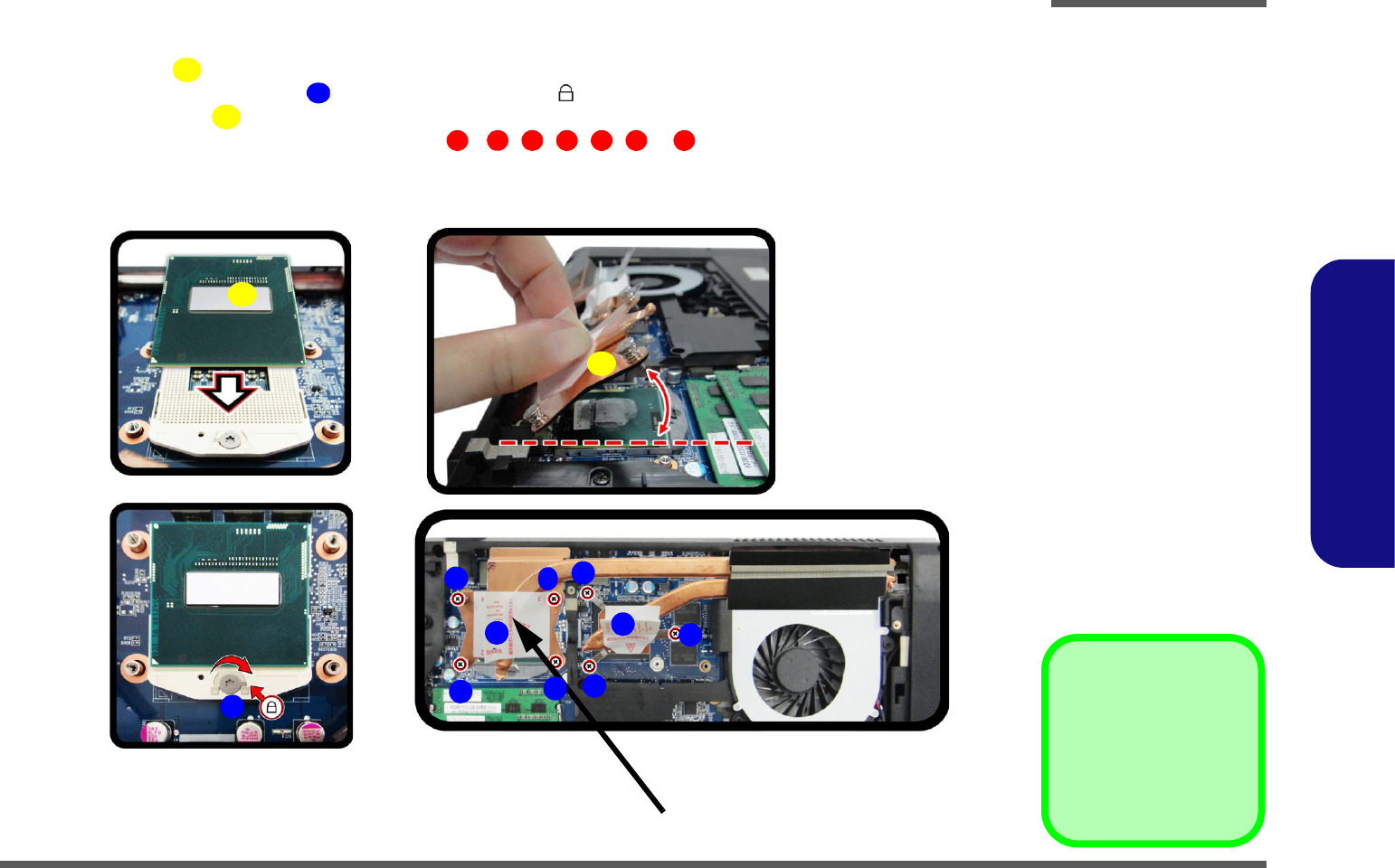

Figure 7

Processor Removal

a. Locate the heat sink.

b. Remove the screws.

c. Grip the heat sink tab and

carefully lift the heat sink

up and off the computer.

45°

Disassembly

2 - 12 Removing and Installing the Processor

2.Disassembly

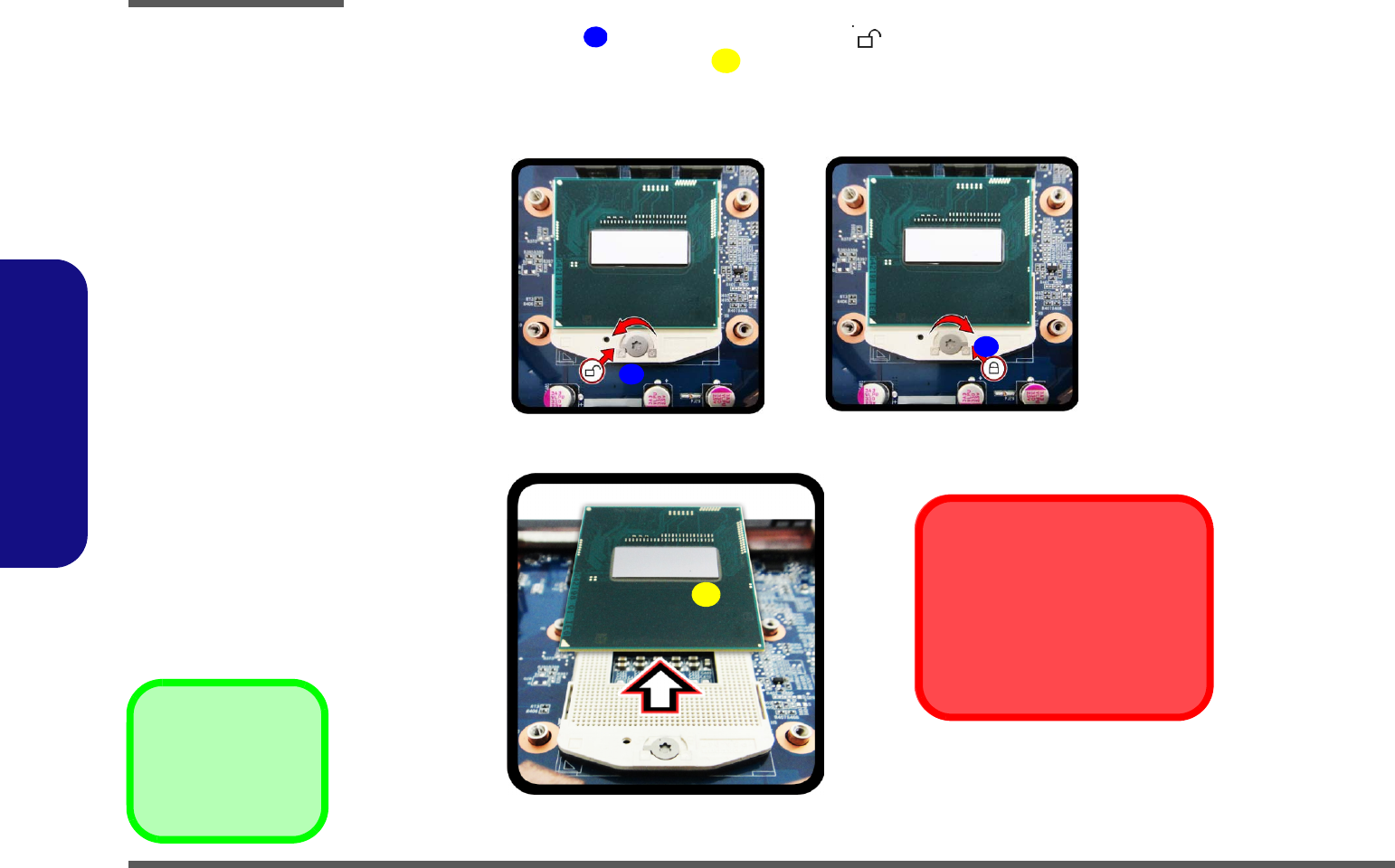

5. Turn the release latch towards the unlock symbol to release the CPU (Figure 8d).

6. Carefully (it may be hot) lift the CPU up and out of the socket (Figure 8e).

7. Reverse the process to install a new CPU.

8. When re-inserting the CPU, pay careful attention to the pin alignment, it will fit only one way (DO NOT FORCE IT!).

Figure 8

Processor Removal

(cont’d)

d. Turn the release latch to

unlock the CPU.

e. Lift the CPU out of the

socket.



Caution

The heat sink, and CPU area in

general, contains parts which are

subject to high temperatures. Allow

the area time to cool before remov-

ing these parts.

Unlock Lock



11. CPU

Disassembly

Removing and Installing the Processor 2 - 13

2.Disassembly

Processor Installation Procedure

1. Insert the CPU (Figure 9a), pay careful attention to the pin alignment, it will fit only one way (DO NOT FORCE

IT!), and turn the release latch towards the lock symbol (Figure 9b).

2. Insert the heat sink at an angle of around 30° as indicated in Figure 9c.

3. Tighten the CPU heat sink screws in the order , , , , , & (the order as indicated on the label

and Figure 9d).

4. Replace the component bay cover.

45°

Note:

Tighten the screws in the order

as indicated on the label.

Figure 9

Processor

Installation

a. Insert the CPU.

b. Turn the release latch to-

wards the lock symbol.

c. Insert the heat sink.

d. Tighten the screws.



A. CPU

C. Heat Sink

•7 Screws

Disassembly

2 - 14 Removing the Keyboard

2.Disassembly

Removing the Keyboard

1. Turn off the computer, and turn it over and remove the battery (page 2 - 5), and component bay cover (page 2 -

10).

2. Use a screwdriver to carefully push out the speakers cover at point .

3. Turn the computer over, unsnap the speaker cover upward from the center of the computer (Figure 10b).

4. Remove screws - from the keyboard (Figure 10c).

5. Carefully lift the keyboard up from point , being careful not to bend the keyboard ribbon cable .

6. Disconnect the keyboard ribbon cable from the locking collar socket by using a flat-head screwdriver to pry

the locking collar pins away from the base (Figure 10d).

7. Carefully lift up the keyboard (Figure 10e) off the computer.

Keyboard Tabs



Re-Inserting the

Keyboard

When re-inserting the

keyboard firstly align the

four keyboard tabs at

the bottom (Figure 10e)

at the bottom of the key-

board with the slots in

the case.

34 5 6 7

Figure 10

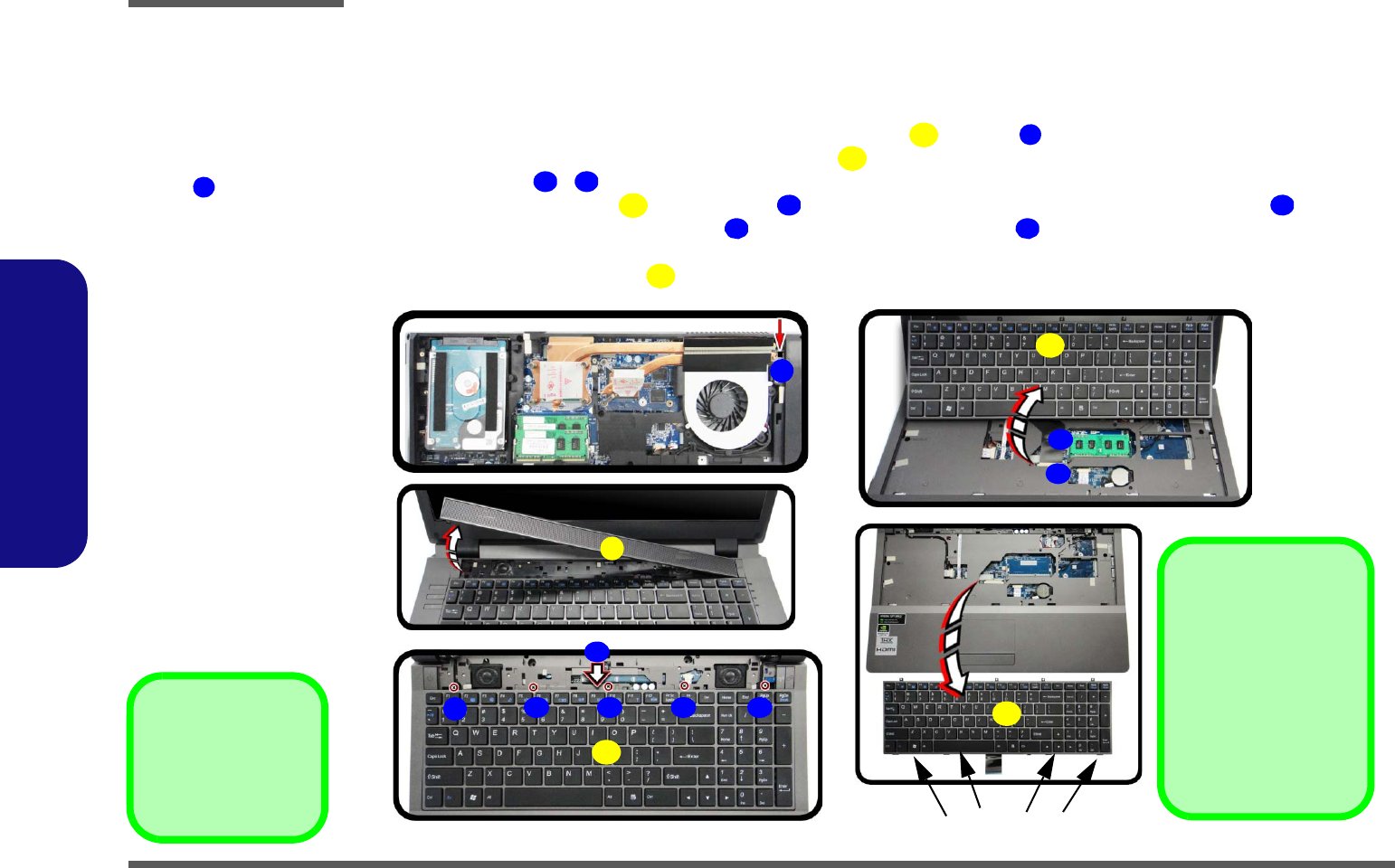

Keyboard Removal

a. Use a screwdriver to

carefully push out the

speakers cover at

point .

b. Turn the computer

over, unsnap the LED

cover module upward

from the center of the

computer.

c. Remove screws from

the keyboard. Careful-

ly lift the keyboard up.

c. Disconnect the key-

board ribbon cable

from the locking collar

socket by using a flat-

head screwdriver to

pry the locking collar

pins away from the

base.

e. Remove the keyboard.



2. Speaker Cover

8. Keyboard

•5 Screws

Disassembly

Removing the System Memory (RAM) 2 - 15

2.Disassembly

Removing the System Memory (RAM)

The computer has three memory sockets for 204 pin Small Outline Dual In-line (SO-DIMM) DDR3L type memory modules.

The total memory size is automatically detected by the POST routine once you turn on your computer.

Note that three SO-DIMMs are only supported by Quad-Core CPUs; Dual-Core CPUs support two SO-DIMMs maxi-

mum.

Two primary memory sockets are located under component bay cover (the bottom case cover), and one secondary

memory sockets are located under the keyboard. If you are installing only two RAM modules then they should be in-

stalled in the primary memory sockets under the component bay cover.

Primary System Memory Upgrade Process

1. Turn off the computer, turn it over and remove the battery (page 2 - 5) and remove the component bay cover

(page 2 - 10).

2. The RAM modules will be visible at point on the mainboard.

3. Gently pull the two release latches ( & ) on the sides of the memory socket in the direction indicated by the

arrows (Figure 11b). The RAM module will pop-up (Figure 11c), and you can then remove it.

4. Pull the latches to release the second module if necessary.

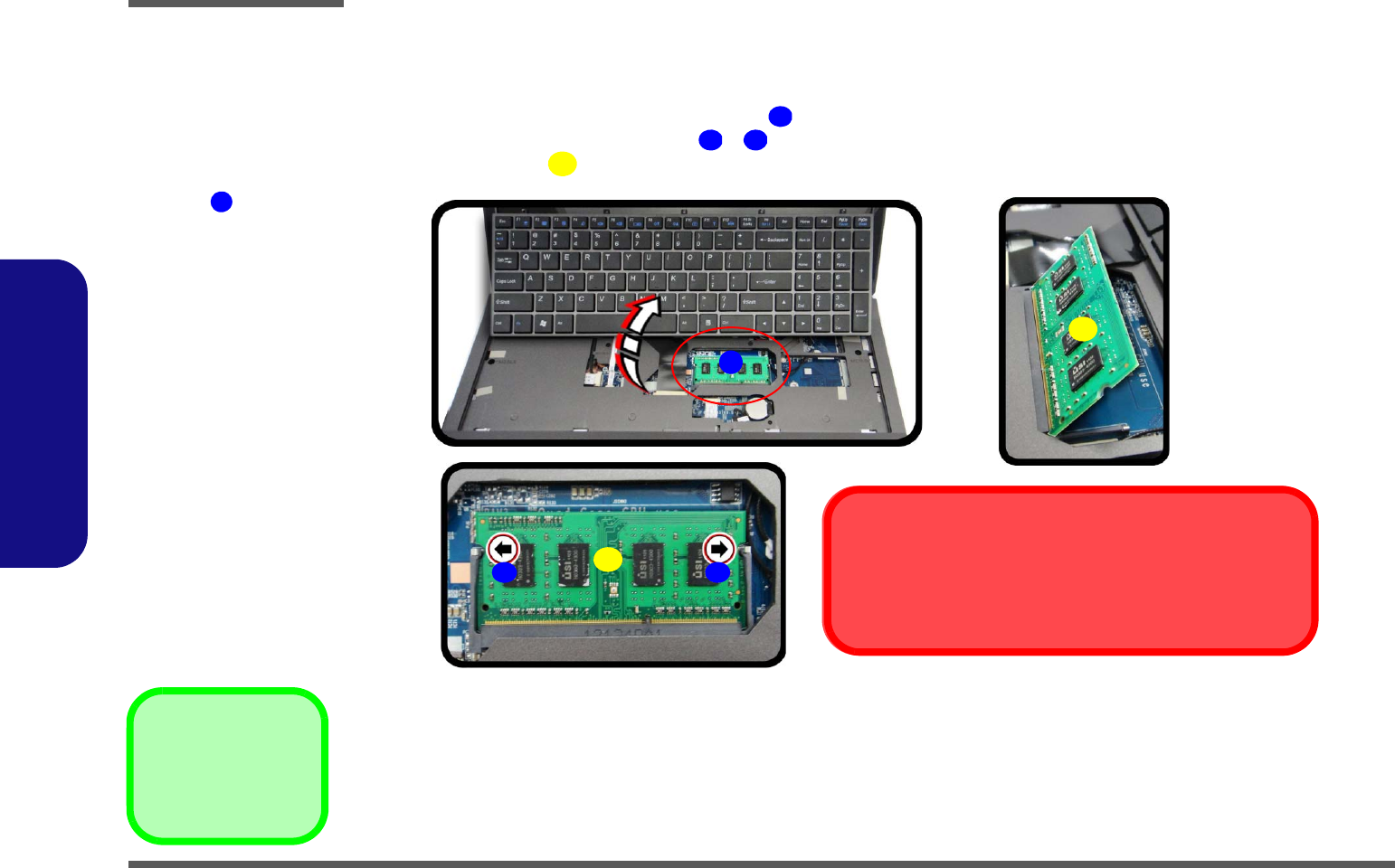

Figure 11

RAM Module

Removal

a. The RAM modules will

be visible at point

on the mainboard.

b. Pull the release lat-

ches.

c. Remove the module.



Contact Warning

Be careful not to touch

the metal pins on the

module’s connecting

edge. Even the cleanest

hands have oils which

can attract particles, and

degrade the module’s

performance.



4. RAM Module

b. c.

Disassembly

2 - 16 Removing the System Memory (RAM)

2.Disassembly

Memory (under Keyboard) Upgrade Process

5. Turn off the computer, turn it over and remove the battery (page 2 - 5), component bay cover (page 2 - 10) and

keyboard (page 2 - 14).

6. The memory sockets will be visible at point (Figure 12d).

7. Gently pull the two release latches ( & ) on the sides of the memory socket(s) in the direction indicated below.

8. The RAM module will pop-up, and you can remove it.

9. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot.

10. The module’s pin alignment will allow it to only fit one way. Make sure the module is seated as far into the slot as it

will go. DO NOT FORCE the module; it should fit without much pressure.

11. Press the module in and down towards the mainboard until the slot levers click into place to secure the module.

12. Replace the bay cover and screws.

13. Restart the computer to allow the BIOS to register the new memory configuration as it starts up.



Contact Warning

Be careful not to touch the metal pins on the module’s connect-

ing edge. Even the cleanest hands have oils which can attract

particles, and degrade the module’s performance.

Figure 12

RAM Module

(under keyboard)

Removal

d. The secondary RAM

modules will be visible

at point .

e. Pull the release lat-

ches.

f. Remove the module.



4 RAM Module

Disassembly

Removing the Hinge Cover 2 - 17

2.Disassembly

Removing the Hinge Cover

1. Turn off the computer, turn it over and remove the battery (page 2 - 5), and component bay cover (page 2 - 10).

2. Remove screws - and use a screwdriver to carefully push out the hinge cover at point .

3. Turn the computer over, carefully lift the hinge cover out of the computer (Figure 13b).

b. 4

Figure 13

Hinge Cover

Removal

a. Remove the screws

and use a screwdriver

to push out the hinge

cover.

b. Turn the computer

over, remove the hinge

cover.



4. Hinge Cover

•2 Screws

Disassembly

2-18

2.Disassembly

Part Lists

A-1

A.Part Lists

Appendix A: Part Lists

This appendix breaks down the W350SSQ series notebook’s construction into a series of illustrations. The component

part numbers are indicated in the tables opposite the drawings.

Note: This section indicates the manufacturer’s part numbers. Your organization may use a different system, so be sure

to cross-check any relevant documentation.

Note: Some assemblies may have parts in common (especially screws). However, the part lists DO NOT indicate the

total number of duplicated parts used.

Note: Be sure to check any update notices. The parts shown in these illustrations are appropriate for the system at the

time of publication. Over the product life, some parts may be improved or re-configured, resulting in new part numbers.

Part Lists

A - 2 Part List Illustration Location

A.Part Lists

Part List Illustration Location

The following table indicates where to find the appropriate part list illustration.

Table A- 1

Part List Illustration

Location

Parts

Top with Fingerprint page A - 3

Top without Fingerprint page A - 4

Bottom page A - 5

LCD page A - 6

HDD page A - 7

2nd HDD page A - 8

Combo page A - 9

DVD page A - 10

Part Lists

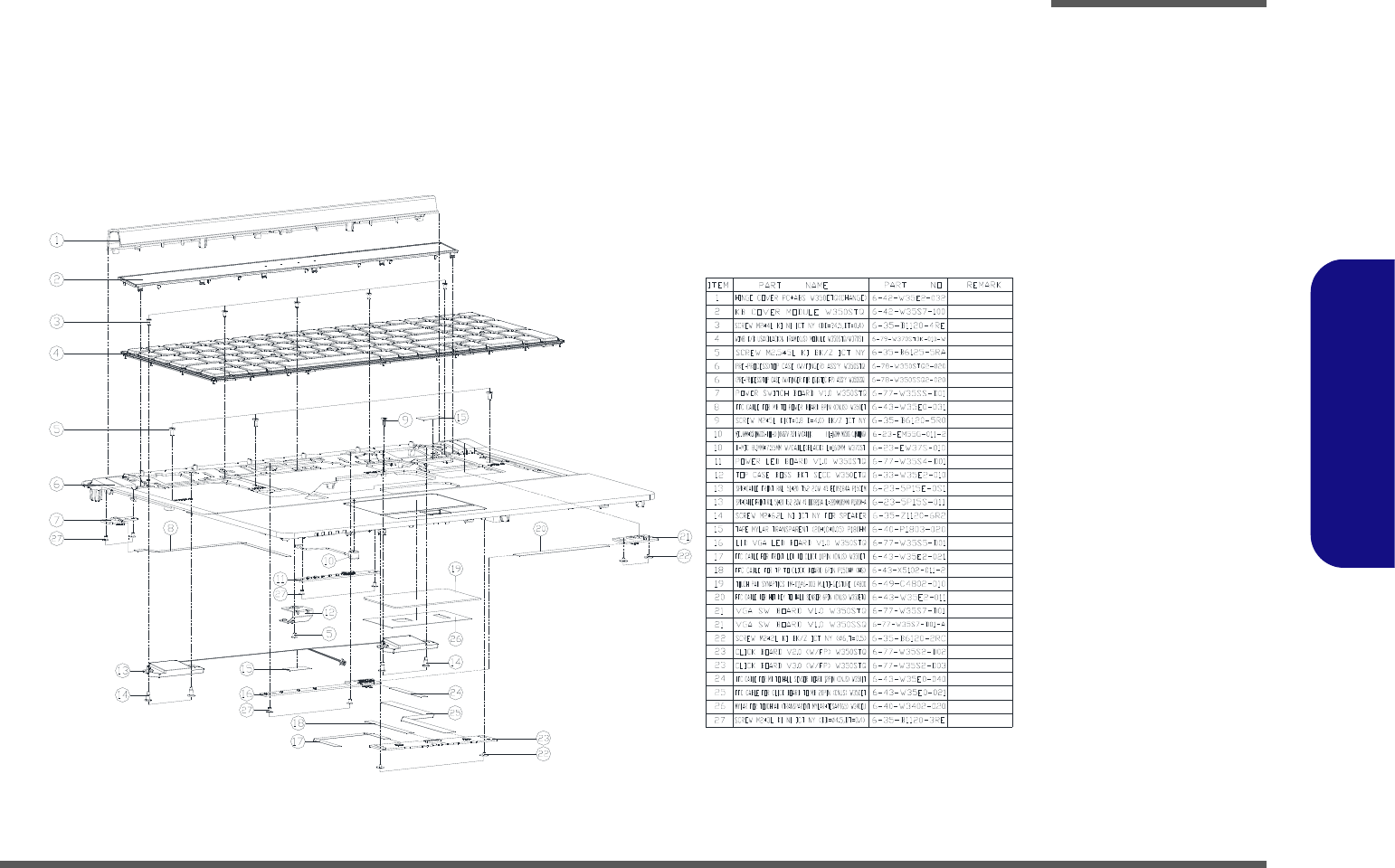

Top with Fingerprint A - 3

A.Part Lists

Top with Fingerprint

灰色

Figure A - 1

Top with

Fingerprint

Part Lists

A - 4 Top without Fingerprint

A.Part Lists

Top without Fingerprint

灰色

Figure A - 2

Top without

Fingerprint

Part Lists

Bottom A - 5

A.Part Lists

Bottom

Figure A - 3

Bottom

Part Lists

A - 6 LCD

A.Part Lists

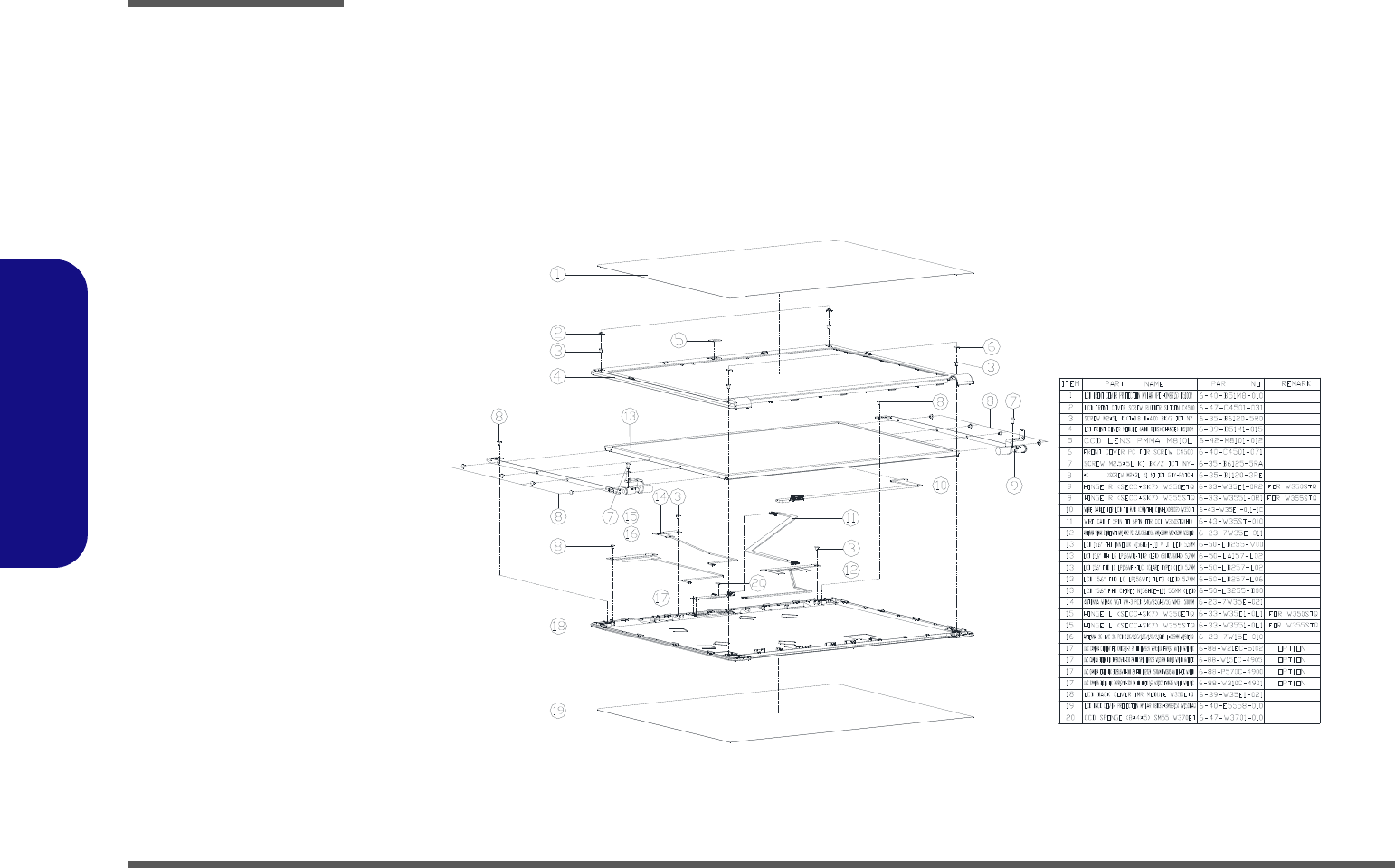

LCD

非耐落

Figure A - 4

LCD

Part Lists

HDD A - 7

A.Part Lists

HDD

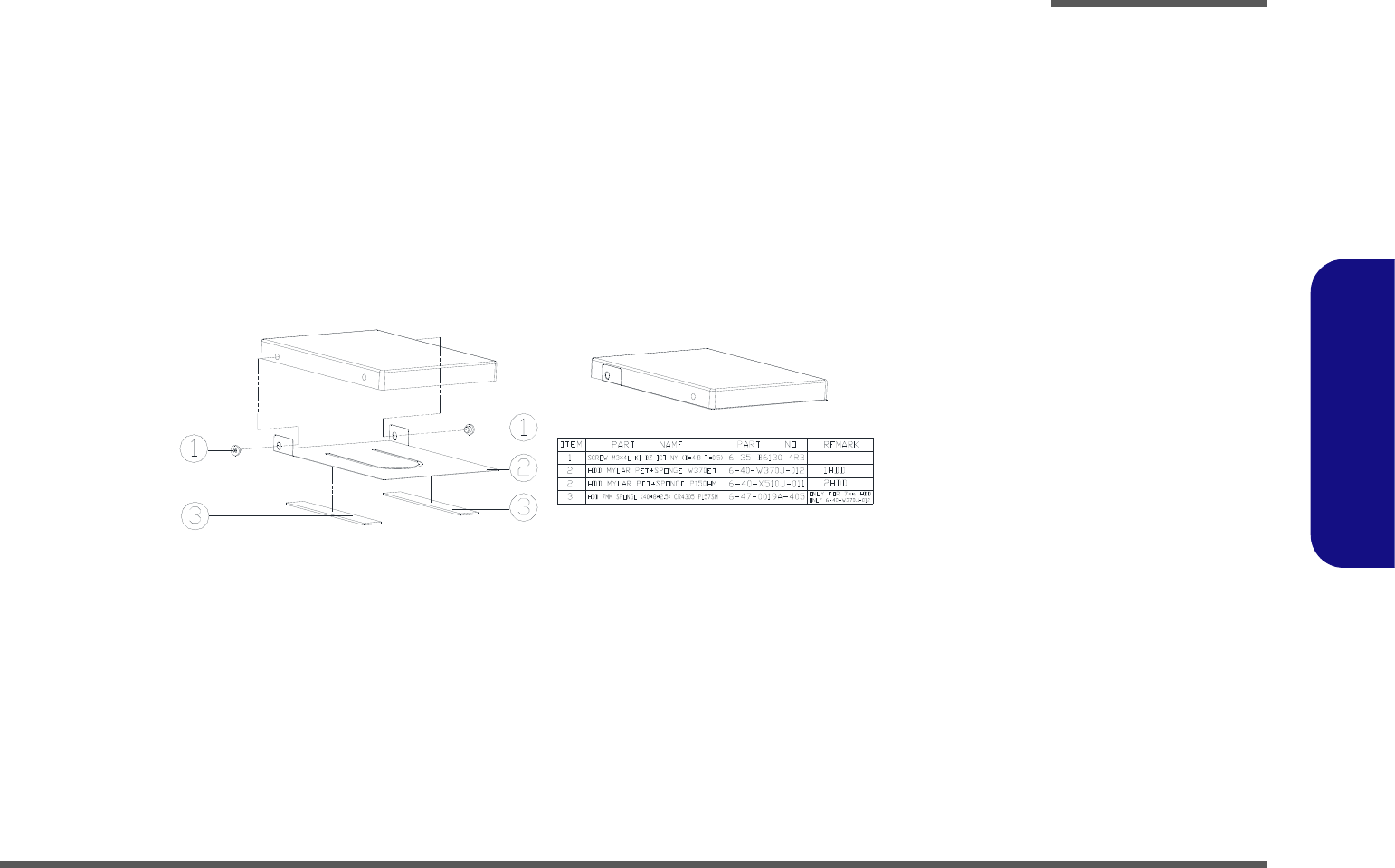

Figure A - 5

HDD

Part Lists

A - 8 2nd HDD

A.Part Lists

2nd HDD

Figure A - 6

2nd HDD

Part Lists

Combo A - 9

A.Part Lists

Combo

Figure A - 7

Combo

Part Lists

A - 10 DVD

A.Part Lists

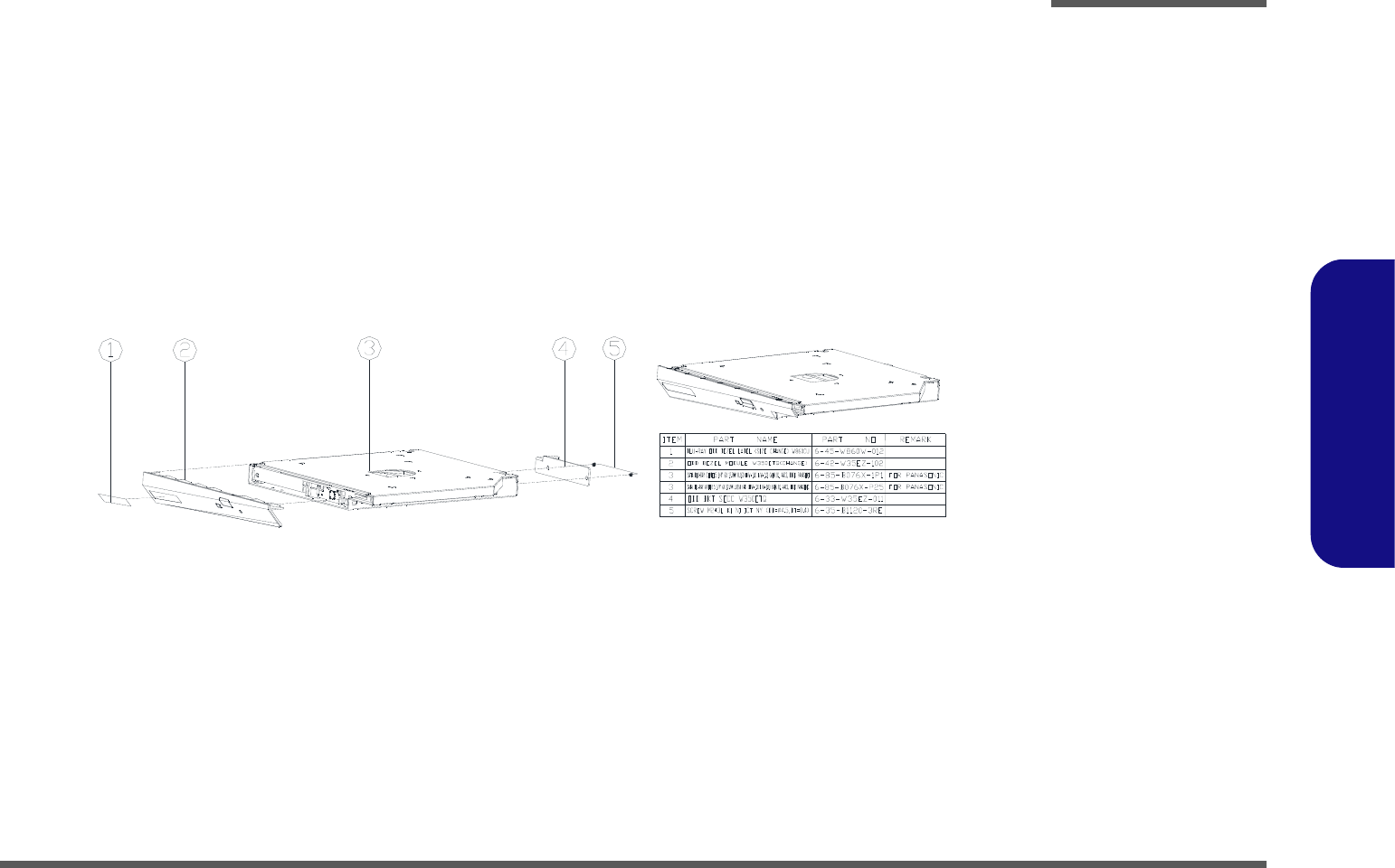

DVD

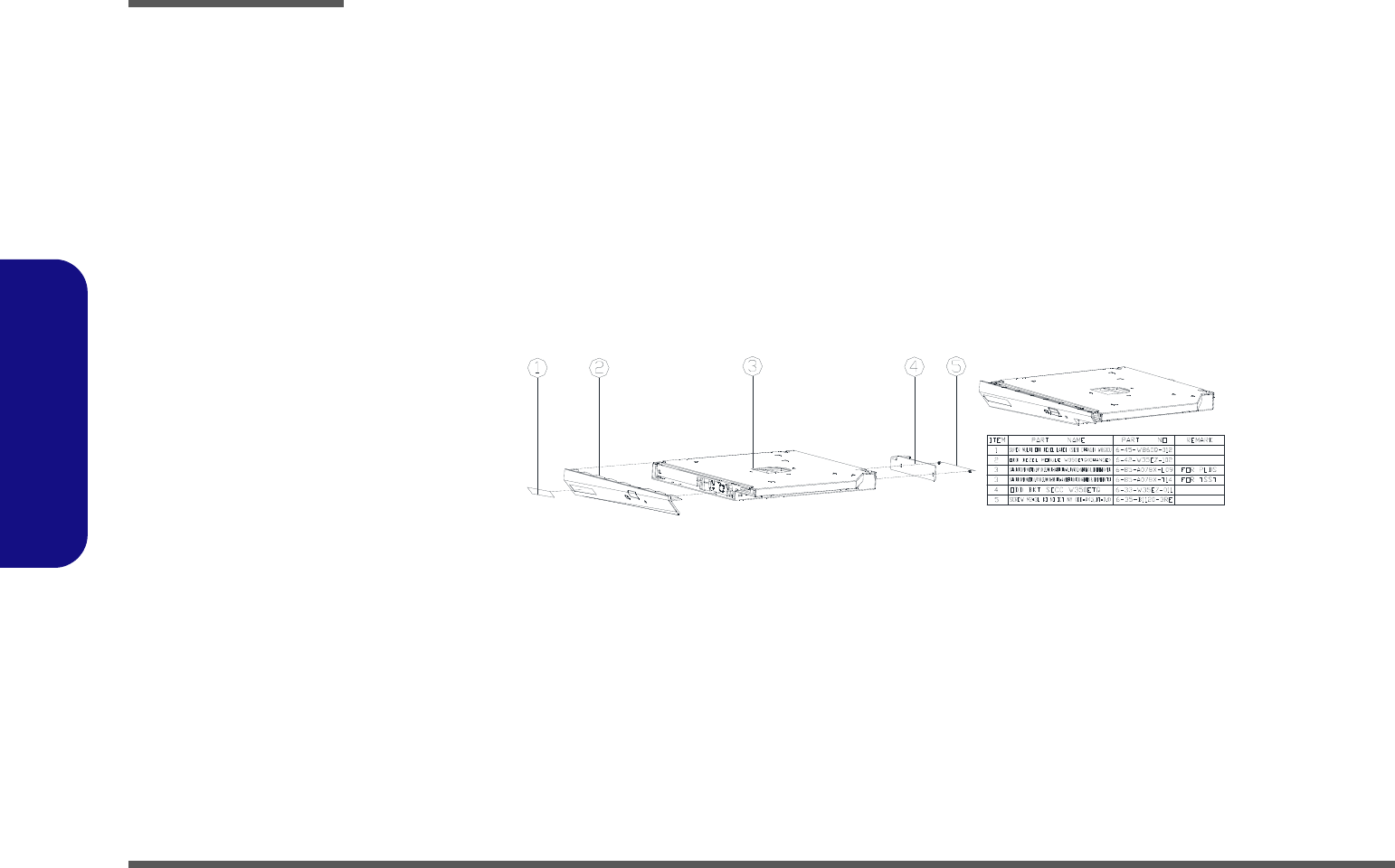

Figure A - 8

DVD

Schematic Diagrams

B-1

B.Schematic Diagrams

Appendix B: Schematic Diagrams

This appendix has circuit diagrams of the W350SSQ notebook’s PCB’s. The following table indicates where to find the

appropriate schematic diagram.

Diagram - Page Diagram - Page Diagram - Page

System Block Diagram - Page B - 2 VGA NVVDD Decoupling - Page B - 22 VDD3, VDD5 - Page B - 42

Haswell 1/7 - Page B - 3 Lynx 1/9 - Page B - 23 1.5V or 1.35V / 0.75VS, 1.5VS - Page B - 43

Haswell 2/7 - Page B - 4 Lynx 2/9 - Page B - 24 1.05VS, 1.05V_M, 1.05V_LAN_M - Page B - 44

Haswell 3/7 - Page B - 5 Lynx 3/9 - Page B - 25 Power V-Core - Page B - 45

Haswell 4/7 - Page B - 6 Lynx 4/9 - Page B - 26 VGA NVVDD, PEX_VDD - Page B - 46

Haswell 5/7 - Page B - 7 Lynx 5/9 - Page B - 27 FBVDDQ - Page B - 47

Haswell 6/7 - Page B - 8 Lynx 6/9 - Page B - 28 AC-In, Charger - Page B - 48

Haswell 7/7 - Page B - 9 Lynx 7/9 - Page B - 29 W370SS/W350SSQ Audio Board - Page B - 49

DDR SO-DIMM A_0 - Page B - 10 Lynx 8/9 - Page B - 30 W370SS/W35XSSQ Power LED Board - Page B -

DDR SO-DIMM B_0 - Page B - 11 Lynx 9/9 - Page B - 31 W370SS/W35XSSQ Click Board - Page B - 51

DDR SO-DIMM A_1 - Page B - 12 Mini PCIE, Fan, Audio Con - Page B - 32 W370SS Power Switch Board - Page B - 52

PS8625 - Page B - 13 USB Charge, CCD, TPM, Multi-Con - Page B - 33 W350SSQ Power Switch Board - Page B - 53

Panel, Inverter, CRT - Page B - 14 ESATA/USB3.0 Connector - Page B - 34 W370SS LID / VGA LED Board - Page B - 54

VGA PCI-E Interface - Page B - 15 Card Reader / LAN RTL8411B - Page B - 35 W35XSSQ LID / VGA LED Board - Page B - 55

VGA Frame Buffer Interface - Page B - 16 SATA HDD, VLED CON, LID SW - Page B - 36 W350SSQ VGA / WLAN SW Board - Page B - 56

VGA Frame Buffer A - Page B - 17 HDMI, RJ45 - Page B - 37 W355SSQ Power Switch Board - Page B - 57

VGA Frame Buffer A - Page B - 18 Audio Codec VT1802S - Page B - 38 W355SSQ VGA / WLAN SW Board - Page B - 58

VGA Frame Buffer B - Page B - 19 Audio AMP & Con - Page B - 39 POWER SEQUENCE - Page B - 59

VGA Frame Buffer B - Page B - 20 KBC ITE IT8587 - Page B - 40

VGA I/O - Page B - 21 5V, 5VS, 3.3V, 3VS, 3.3VM - Page B - 41

Table B - 1

Schematic

Diagrams



Version Note

The schematic dia-

grams in this chapter

are based upon ver-

sion 6-7P-W355B-001.

If your mainboard (or

other boards) are a lat-

er version, please

check with the Service

Center for updated di-

agrams (if required).

Schematic Diagrams

B - 2 System Block Diagram

B.Schematic Diagrams

System Block Diagram

Sheet 1 of 57

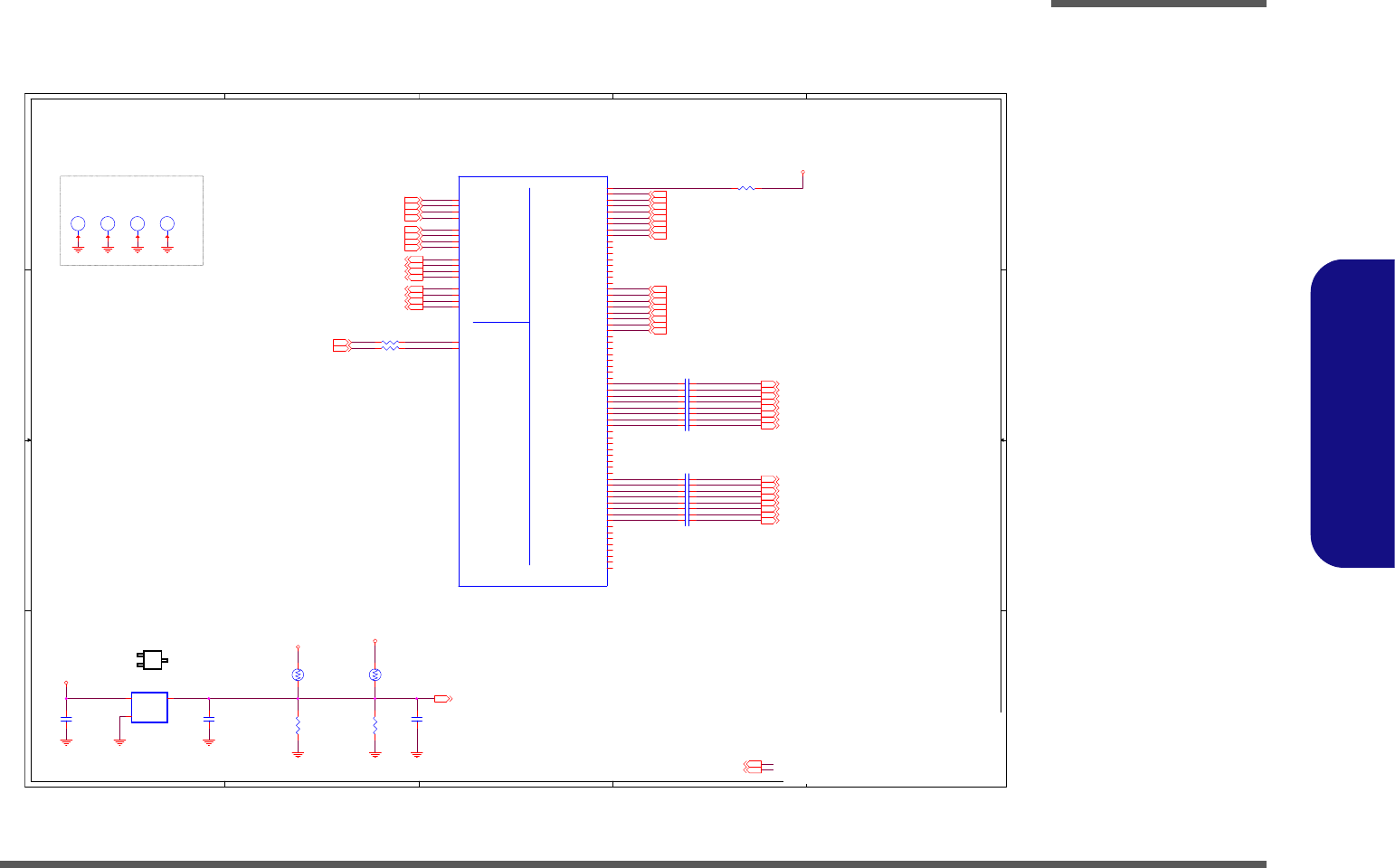

System Block

Diagram

D D

C C

B B

A A

W35xSSQ/W370SS System Block Diagram

(USB10)

CRT CONNECTOR

TOUCH PAD

LPC

SMART

BATTERY

CARD

READER

SO-DIMM

SHEET 45

OUT

CLICK BOARD

SHEET 37

PCIe 5GT/s

FCBGA695 989 Ball

20x20mm

480 Mbps

ELAN

Mini PCIE

SOCKET

WLAN

SHEET 2,3,4,5,6,7,8

SPI

DDRIII

Haswell

24 MHz

SHEET 38

FDI*2

MIC

VIA1802S

SHEET 38

PROCESSOR

SHEET 9,10,11

14*14*1.6mm

128pins LQFP

SHEET 13

100 MHz

THERMAL

SENSOR

33 MHz

SHEET 38

32.768KHz

SMART

FAN

6-49-W25A2-011

SHEET 31

EC SMBUS

AZALIA LINK

SYSTEM SMBUS

LAN

ITE 8587

Lynx Point

Controller

Hub (PCH)

INT. K/B

Azalia Codec

SHEET 32

SHEET 34

USB2.0

SHEET 31

DMI*4

rPGA946B

37.5x37.5mm

32.768 KHz

REALTEK

SHEET 22,23,24,25,26,

27,28,29,30

SHEET 2

SATA III 6Gb/s

DDR3 /1.35

1067/1333/1600 MHz

RTL8411B

SHEET 46

AUDIO BOARD

SHEET 31

(Optional)

(USB8/SATA3)

BIOS

SPI

SHEET 23

Nvidia

Fermi N15p

RAM SIZE2GB

(128X64) DDR5

908 Balls

SHEET

14,15,16,17,18,19,20,21

HDMI Connector

SHEET 36

Optional

SHEET 32

TPM 2.0

AC-IN

(USB5)

SHEET 32

CCD + Mic

SHEET 36 SHEET 34

SOCKET

7IN1

RJ-45SATA ODDSATA HDD

SHEET 22

SHEET 35

PCIe*8

Mini PCIE

SOCKET

3G MSATA CARD

MHz

SHEET 33

USB2.0 PORT1

SHEET 33

USB3.0

5 Gbps

USB3.0 PORT1

USB3.0 PORT2

USB3.0+USB2.0+ESATA

DDR3

PS8625

(EDP TO LVDS)

Power: 1.05V.1.5V,

3.3V,VCORE(VR12.5)

Power:1.5V or 1.35V

SATA 6 port

USB2.0 14 port

USB3.0 6 port(Update 4 to 6)

PCIe 8 port



N15P-GX GT 860M

USB2.0 PORT2

SHEET 12

N14E-GE NVDD,PEX VDD

SHEET 39

5V,3V,5VS,3VS,3.3VM

VCORE

SHEET 43

SHEET 44

eSATA

USB3.0 PORT3

SHEET 33

USB2.0

480 Mbps

2" ~ 6"

3 vias <6"

2 vias <7"

<4.7"

0.1" ~ 13"

3 vias 1" ~ 8"

3 vias 2" ~ 8"

<15"

1.5" ~ 7"

2 vias <8"

3" ~ 14"

3" ~ 10"

<14"

<10"

AUDIO BOARD

6-71-W3S58-D02

SHEET 48

POWERLED BOARD

6-71-W35S4-D01

SHEET 49

CLICK BOARD

6-71-W35S2-D03

SHEET 50

POWER SWITCH BOARD

6-71-W37SS-D01

SHEET 51

POWER SWITCH BOARD

6-71-W35SS-D01

SHEET 52

W370SS

W350SSQ

VGA / WLAN SW BOARD

6-71-W355S-D12

SHEET 57

W355SSQ

SHEET 40

VDD3,VDD5,FBVDDQ

DDR 1.35V,1.5V,0.75VS

SHEET 41

1.5VS

1.05V_LAN_M,1.05V_M

SHEET 42

1.05VS

LID / VGA LED BOARD

6-71-W37S5-D01

SHEET 53

LID / VGA LED BOARD

6-71-W35S5-D01

SHEET 54

W370SS

W35xSSQ

VGA / WLAN SW BOARD

6-71-W35S7-D01

SHEET 55

W350SSQ

POWER SWITCH BOARD

6-71-W355S-D01

SHEET 56

W355SSQ

Title

Size Document Number Rev

Date: Sheet of

6-7P-W3S5B-003

1.0

[01]BLOCK DIAGRAM

158Wednesday, January 15, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-7P-W3S5B-003

1.0

[01]BLOCK DIAGRAM

158Wednesday, January 15, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-7P-W3S5B-003

1.0

[01]BLOCK DIAGRAM

158Wednesday, January 15, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Schematic Diagrams

Haswell 1/7 B - 3

B.Schematic Diagrams

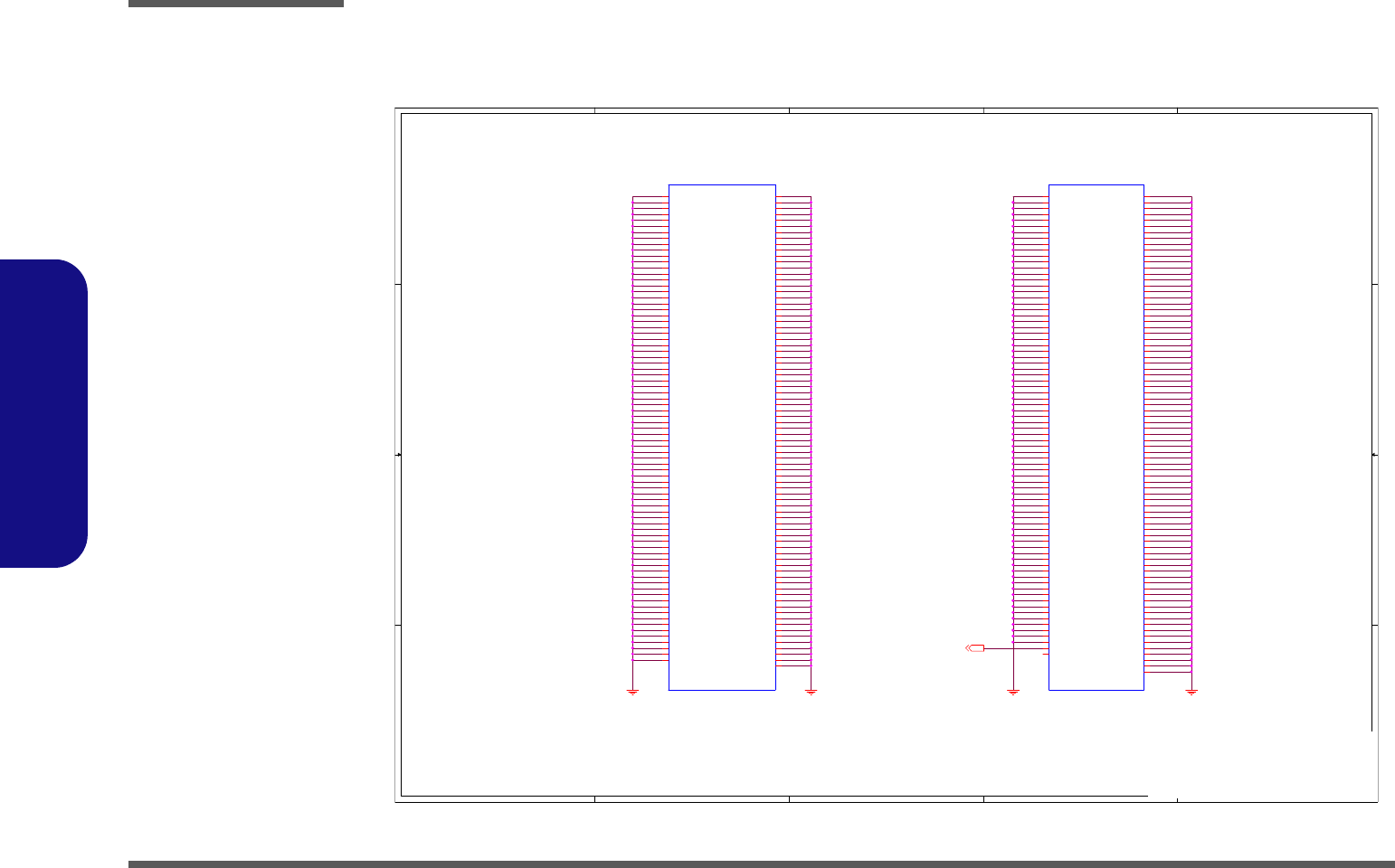

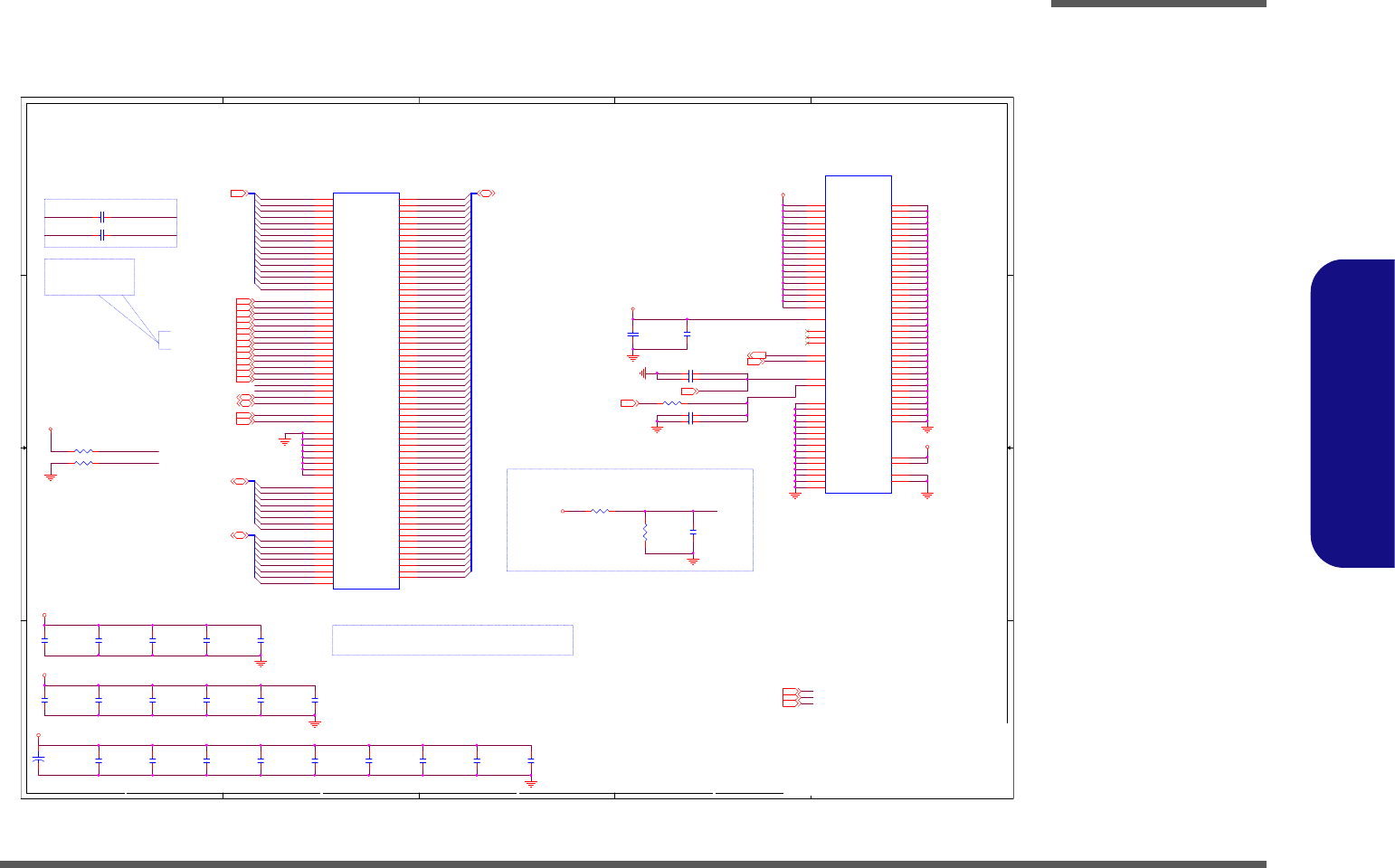

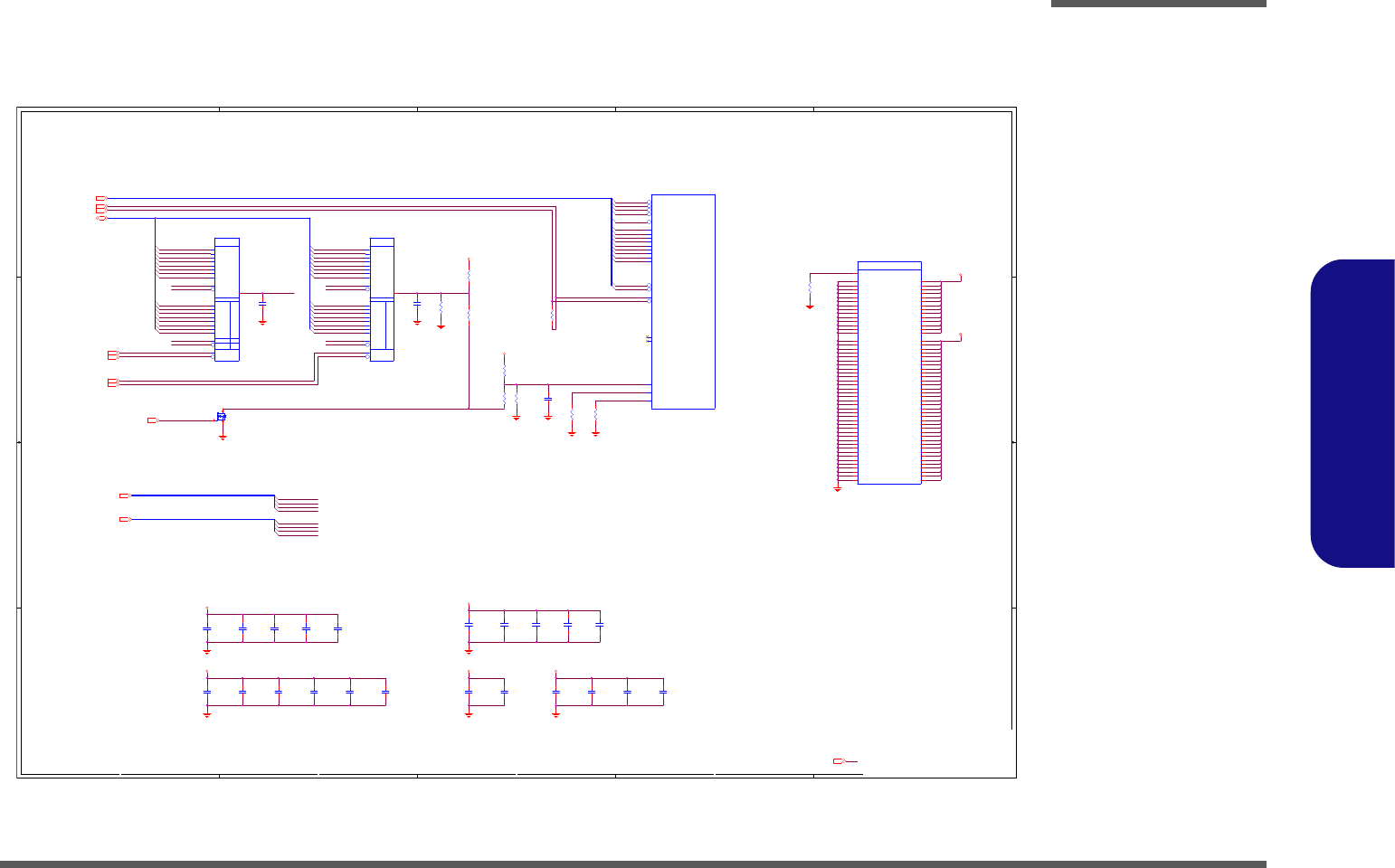

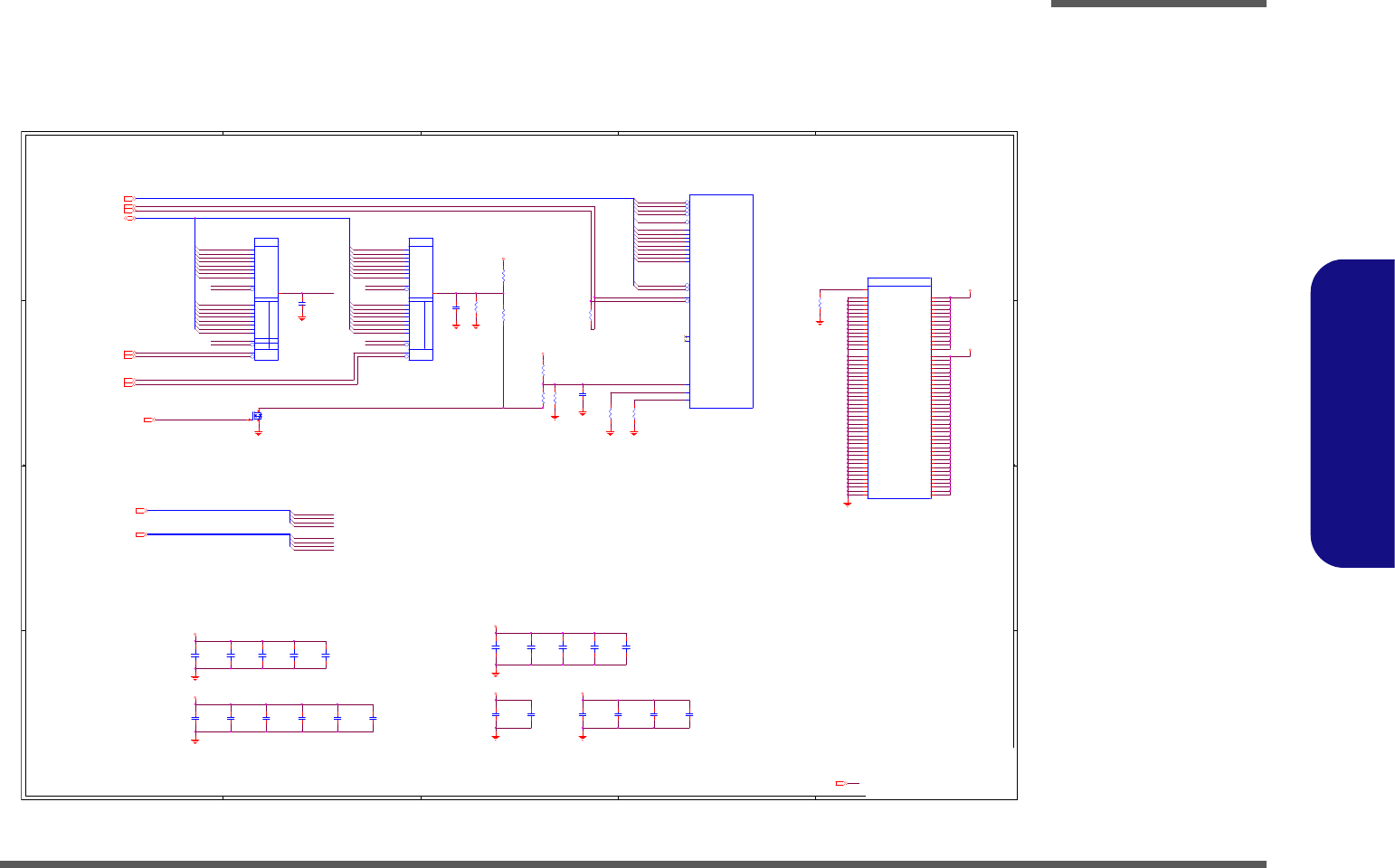

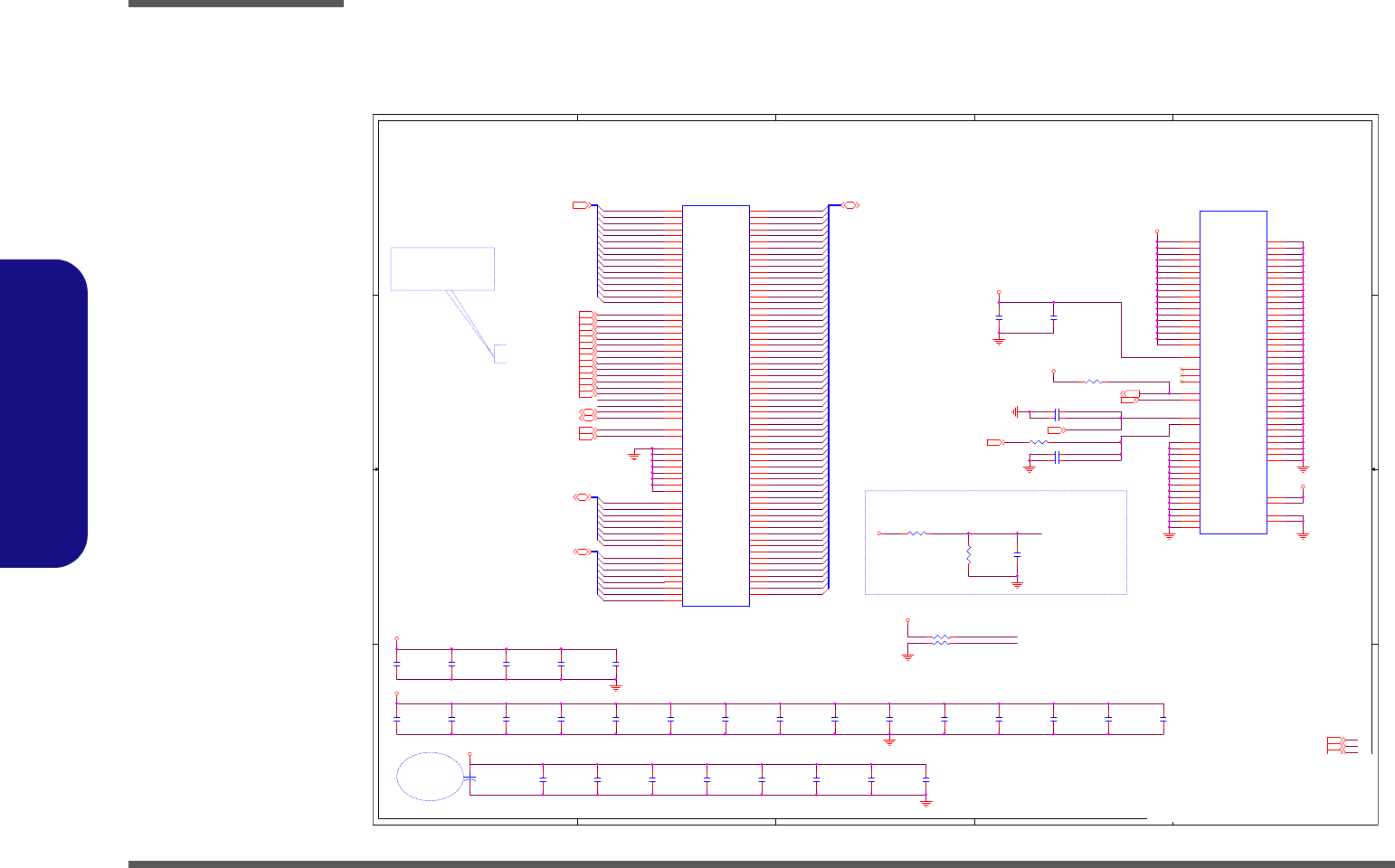

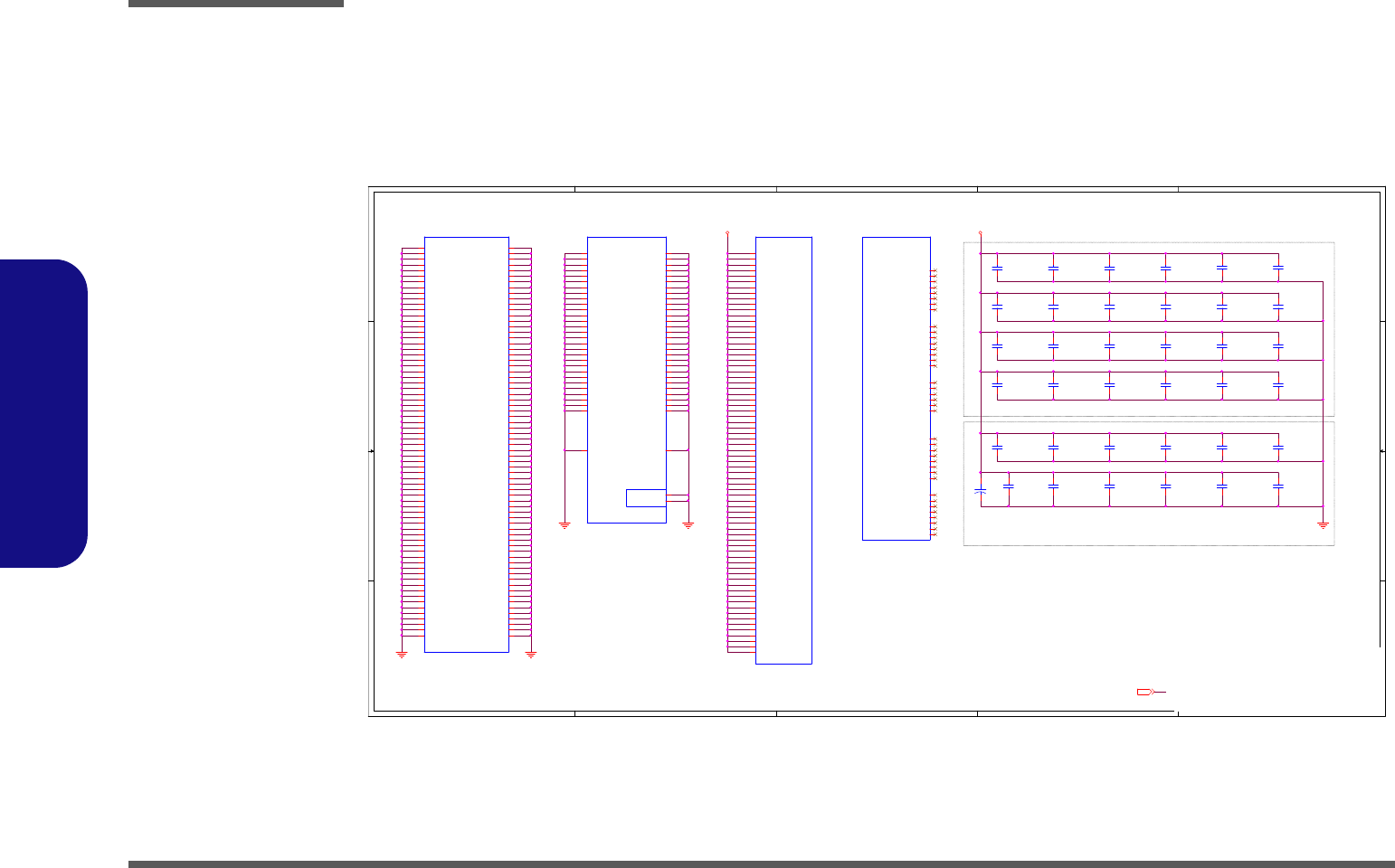

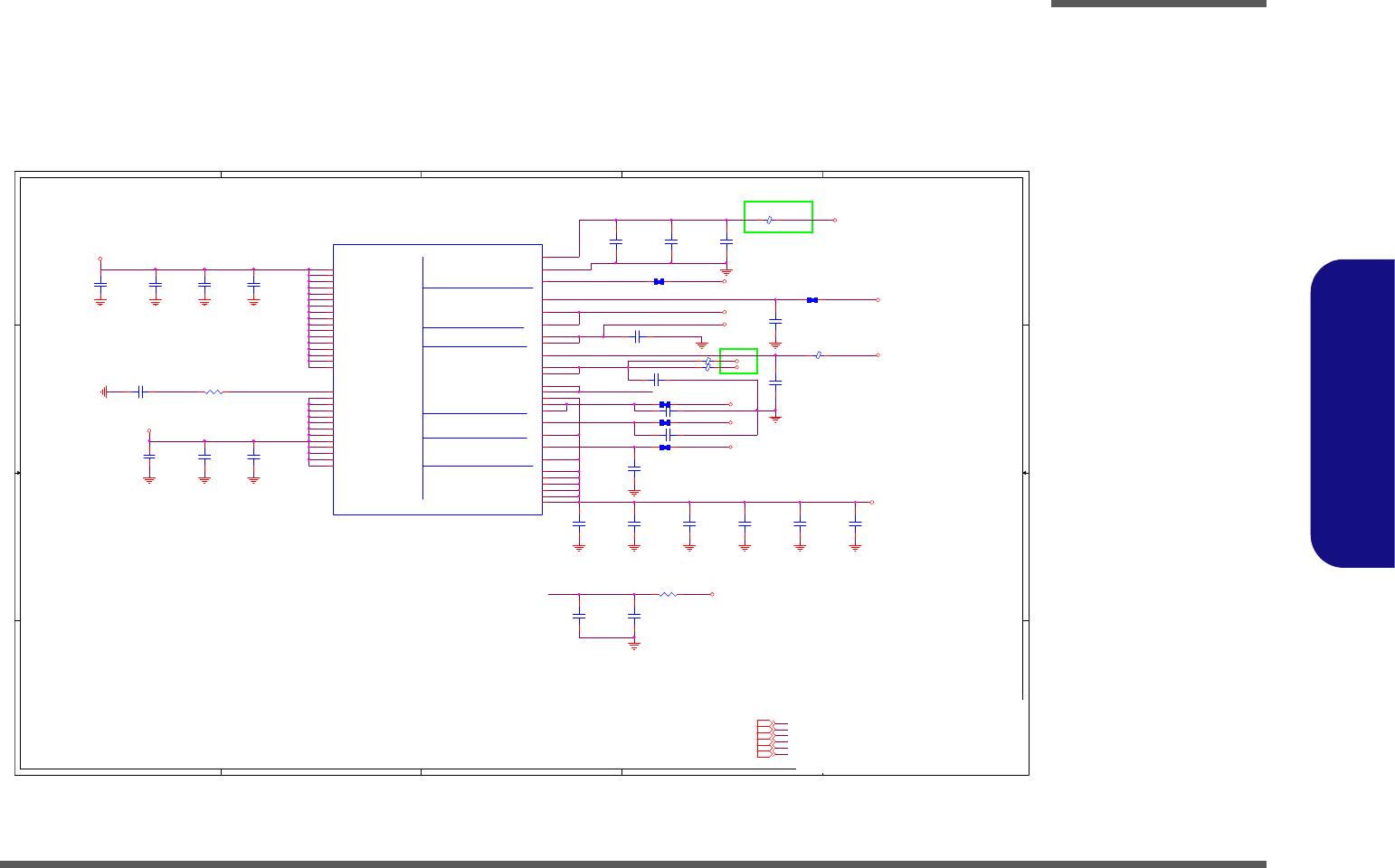

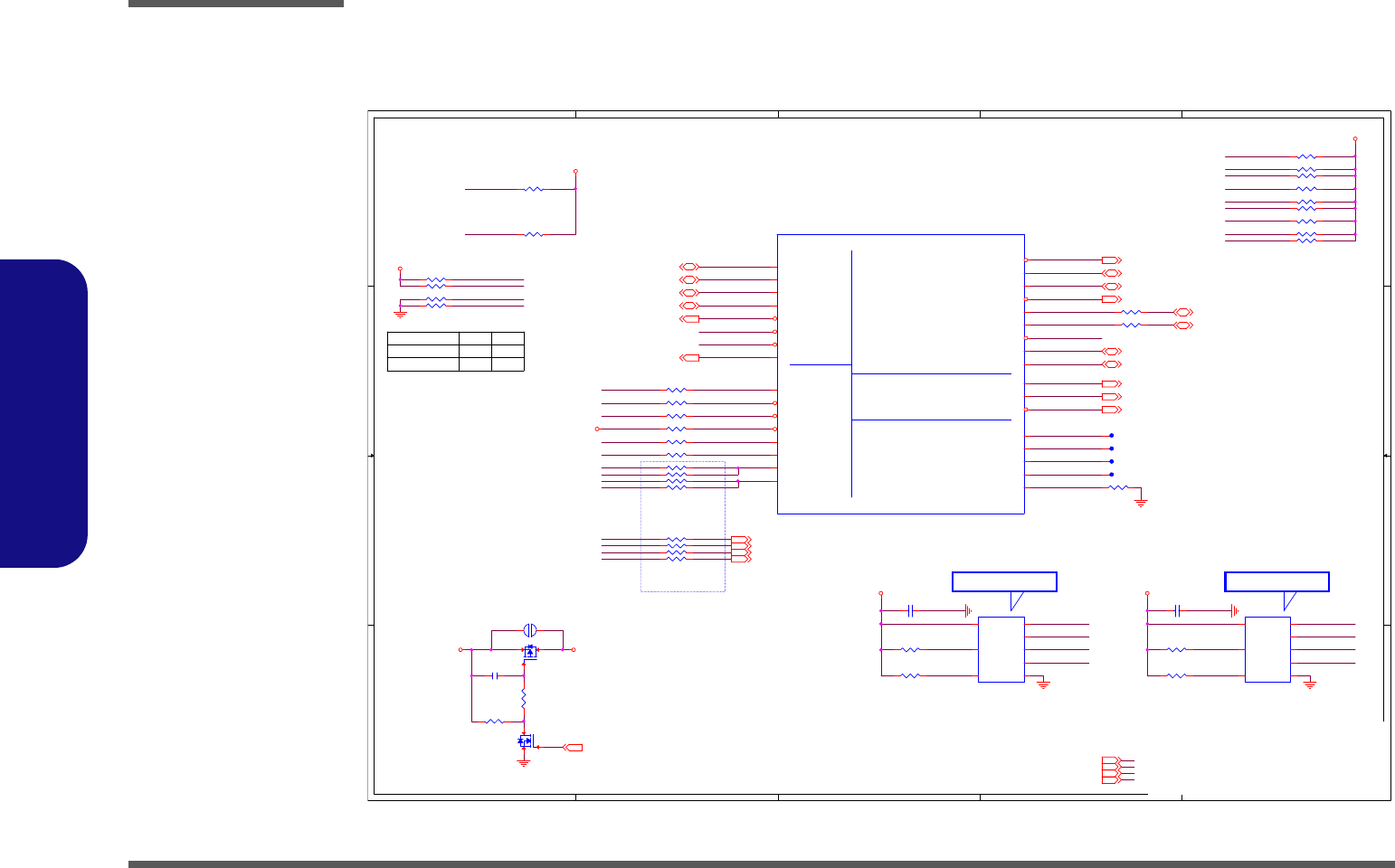

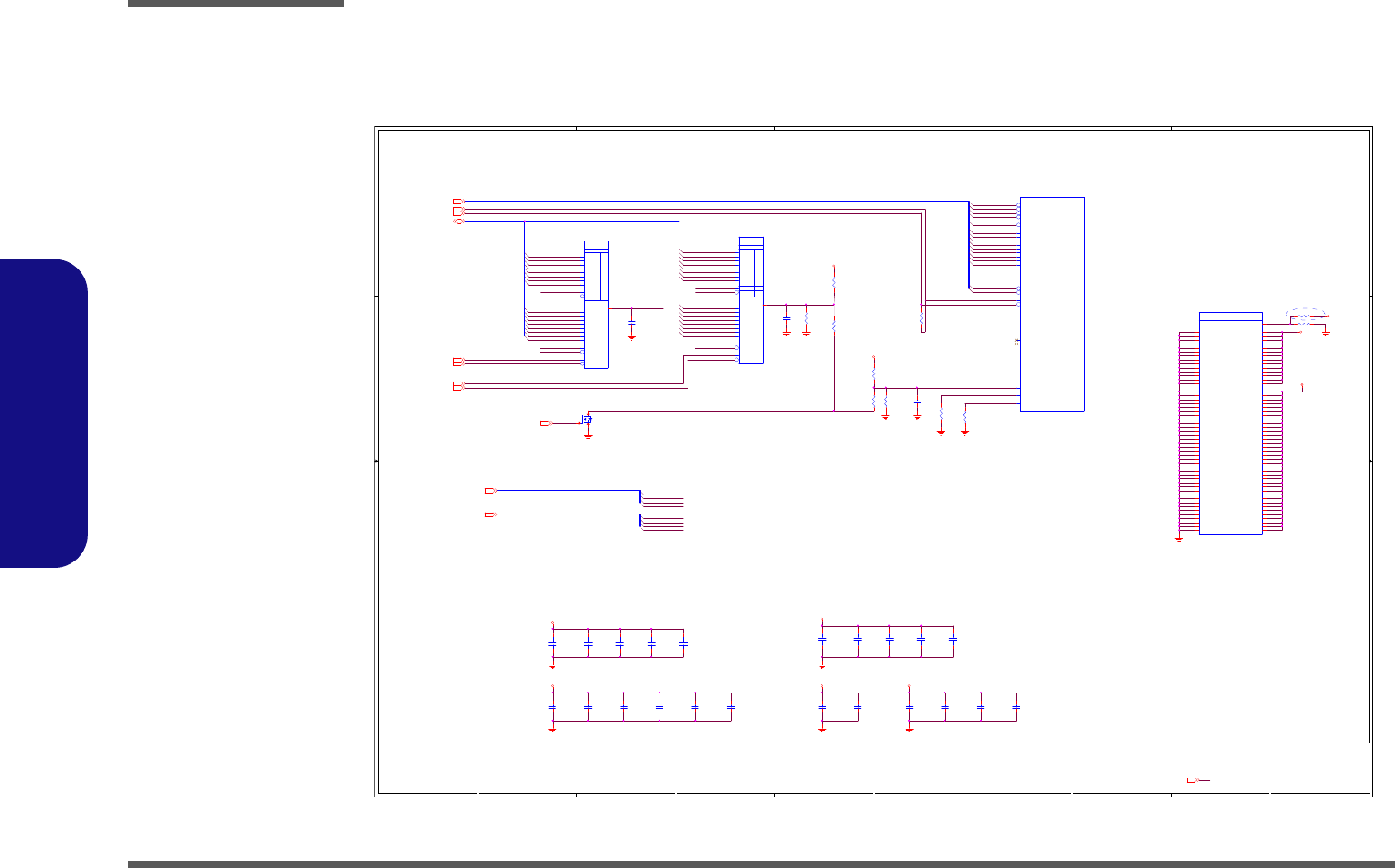

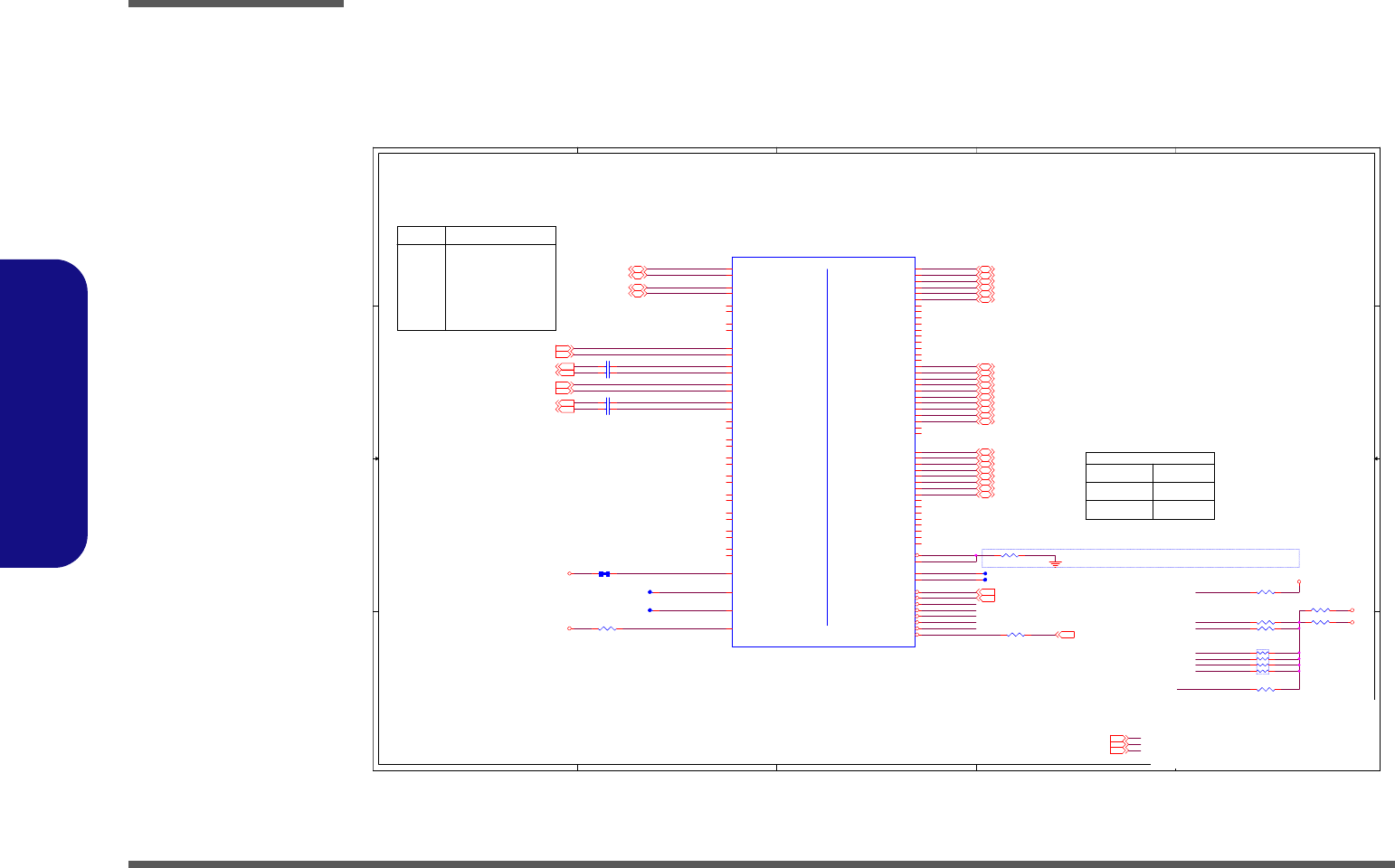

Haswell 1/7

Sheet 2 of 58

Haswell 1/7

D D

C C

B B

A A

Haswell rPGA Processor 1/7 ( DMI,PEG,FDI )

1:2 (4mils:8mils)

Analog Thermal Sensor

PLACE NEAR U15

CPU HOLD

NEAR J_HDD2

PEG_IRCOMP

PEG_TX#_3

PEG_TX#_7

PEG_TX#_5

PEG_TX#_2

PEG_TX#_6

PEG_TX#_4

PEG_TX#_1

PEG_TX#_0

PEG_TX_1

PEG_TX_2

PEG_TX_4

PEG_TX_6

PEG_TX_0

PEG_TX_7

PEG_TX_3

PEG_TX_5

3.3V

+VCCIOA_OUT

3.3V

3.3V3,13,20,22,24,26,27,28,29,30,31,32,33,34,37,40,42,45,46

THERM_VOLT 39

FDI_CSYNC24

FD I_INT24

DMI_TXP024

DMI_TXP124

DMI_TXP224

DMI_TXP324

DMI_TXN024

DMI_TXN124

DMI_TXN224

DMI_TXN324

DMI_RXN024

DMI_RXN124

DMI_RXN224

DMI_RXN324

DMI_RXP024

DMI_RXP124

DMI_RXP224

DMI_RXP324

PEG_RX#2 14

PEG_RX#4 14

PEG_RX#1 14

PEG_RX#7 14

PEG_RX#3 14

PEG_RX#0 14

PEG_RX#6 14

PEG_RX#5 14

PEG_RX7 14

PEG_RX5 14

PEG_RX4 14

PEG_RX2 14

PEG_RX3 14

PEG_RX0 14

PEG_RX6 14

PEG_RX1 14

PEG_TX#3 14

PEG_TX#2 14

PEG_TX#5 14

PEG_TX#7 14

PEG_TX#0 14

PEG_TX#1 14

PEG_TX#6 14

PEG_TX#4 14

PEG_TX6 14

PEG_TX3 14

PEG_TX0 14

PEG_TX4 14

PEG_TX7 14

PEG_TX1 14

PEG_TX5 14

PEG_TX2 14

+VCCIOA_OUT5,6

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[02] Haswell 1/7-DMI/PEG/FDI

258Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[02] Haswell 1/7-DMI/PEG/FDI

258Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[02] Haswell 1/7-DMI/PEG/FDI

258Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

C56 0.22u_10V_X5R_04

DMI FDI

PEG

Haswell rPGA EDS

1 OF 9

U15A

PEG_TXP_15 B24

PEG_TXP_14 C25

PEG_TXP_13 B26

PEG_TXP_12 C27

PEG_TXP_11 B28

PEG_TXP_10 C29

PEG_TXP_9 B30

PEG_TXP_8 C31

PEG_TXP_7 A32

PEG_TXP_6 B33

PEG_TXP_5 H30

PEG_TXP_4 H31

PEG_TXP_3 G32

PEG_TXP_2 H33

PEG_TXP_1 G34

PEG_TXP_0 J35

PEG_TXN_15 A24

PEG_TXN_14 B25

PEG_TXN_13 A26

PEG_TXN_12 B27

PEG_TXN_11 A28

PEG_TXN_10 B29

PEG_TXN_9 A30

PEG_TXN_8 B31

PEG_TXN_7 B32

PEG_TXN_6 C33

PEG_TXN_5 G30

PEG_TXN_4 J31

PEG_TXN_3 H32

PEG_TXN_2 J33

PEG_TXN_1 H34

PEG_TXN_0 H35

PEG_RXP_15 D32

PEG_RXP_14 F33

PEG_RXP_13 E34

PEG_RXP_12 F35

PEG_RXP_11 E30

PEG_RXP_10 F31

PEG_RXP_9 E28

PEG_RXP_8 F29

PEG_RXP_7 K34

PEG_RXP_6 L35

PEG_RXP_5 K32

PEG_RXP_4 L33

PEG_RXP_3 K30

PEG_RXP_2 L31

PEG_RXP_1 L28

PEG_RXP_0 L29

PEG_RXN_15 E32

PEG_RXN_14 E33

PEG_RXN_13 D34

PEG_RXN_12 E35

PEG_RXN_11 D30

PEG_RXN_10 E31

PEG_RXN_9 D28

PEG_RXN_8 E29

PEG_RXN_7 L34

PEG_RXN_6 M35

PEG_RXN_5 L32

PEG_RXN_4 M33

PEG_RXN_3 L30

PEG_RXN_2 M31

PEG_RXN_1 K28

PEG_RXN_0 M29

PEG_RCOMP E23

DISP_INT

J29 FDI_CSYNC

H29

DMI_TXP_3

A18 DMI_TXP_2

B18 DMI_TXP_1

C18 DMI_TXP_0

D17

DMI_TXN_3

A17 DMI_TXN_2

B17 DMI_TXN_1

C17 DMI_TXN_0

D18

DMI_RXP_3

A20 DMI_RXP_2

B20 DMI_RXP_1

C20 DMI_RXP_0

D20

DMI_RXN_3

A21 DMI_RXN_2

B21 DMI_RXN_1

C21 DMI_RXN_0

D21

C32 0.22u_10V_X5R_04

H8_0D4_3

C33 0.22u_10V_X5R_04

C74 0.22u_10V_X5R_04

C64 0.22u_10V_X5R_04

C62 0.22u_10V_X5R_04

PTH1

*TH05-3H103FR

P/N = 6-17-10320-731

*10K_1%_NTC_04

1 2

H8_0D4_3

C45 0.22u_10V_X5R_04

C75 0.22u_10V_X5R_04

H8_0D4_3

C771

0.1u_10V_X5R_04

C635

*0.1u_10V_X5R_04

R308 0_04

C72 0.22u_10V_X5R_04

R286

10K_1%_04

C58 0.22u_10V_X5R_04

Q23

*G711ST9U

OUT 1

VCC

GND

PTH2

TH05-3H103FR

P/N = 6-17-10320-731

10K_1%_NTC_04

1 2

C41 0.22u_10V_X5R_04

R79 24.9_1%_04

C77 0.22u_10V_X5R_04

R547

*10K_1%_04

C38 0.22u_10V_X5R_04

C636

*0.1u_10V_X5R_04

C68 0.22u_10V_X5R_04

R309 0_04

C73 0.22u_10V_X5R_04

C60 0.22u_10V_X5R_04

H10

H8_0D4_3

Schematic Diagrams

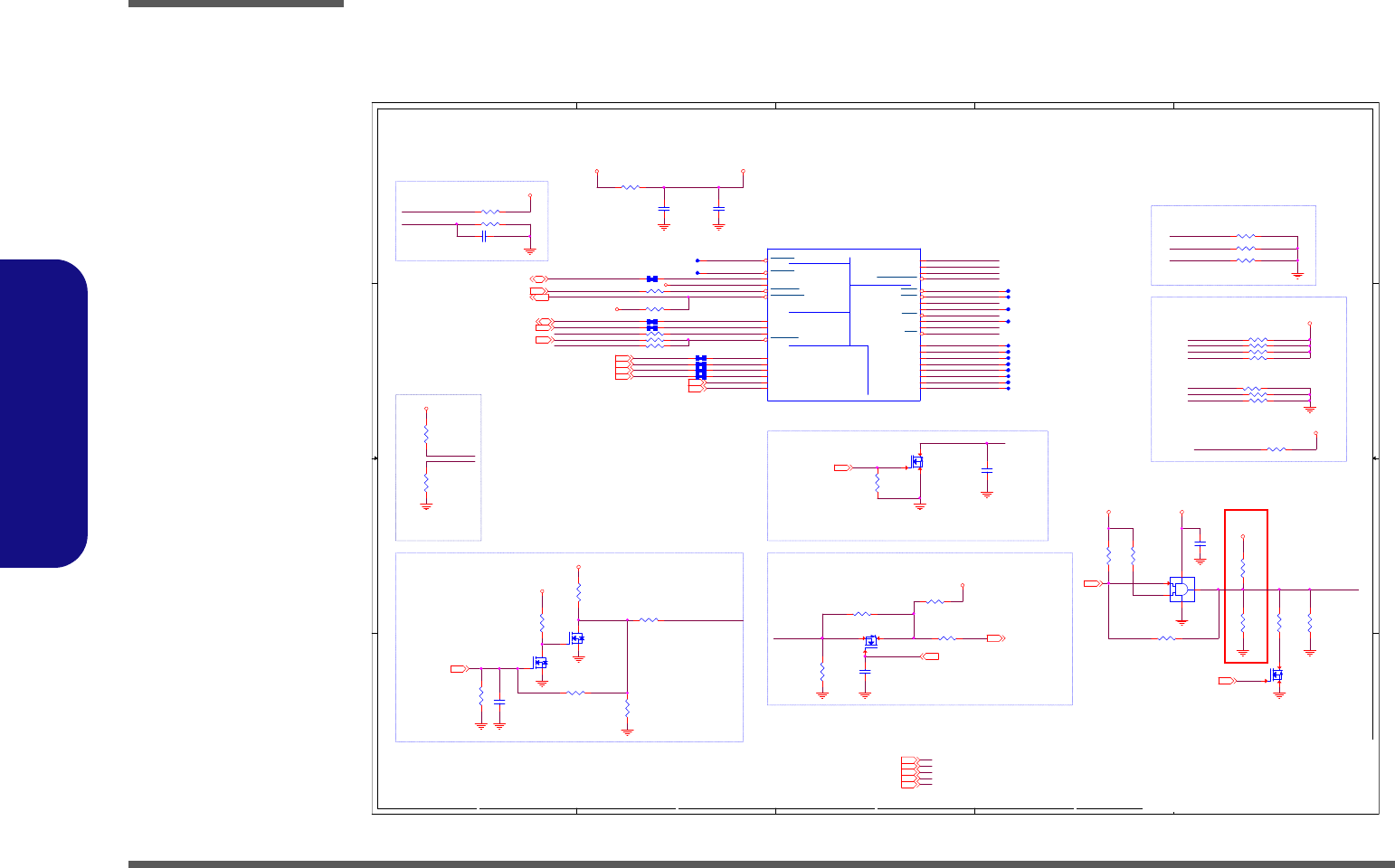

B - 4 Haswell 2/7

B.Schematic Diagrams

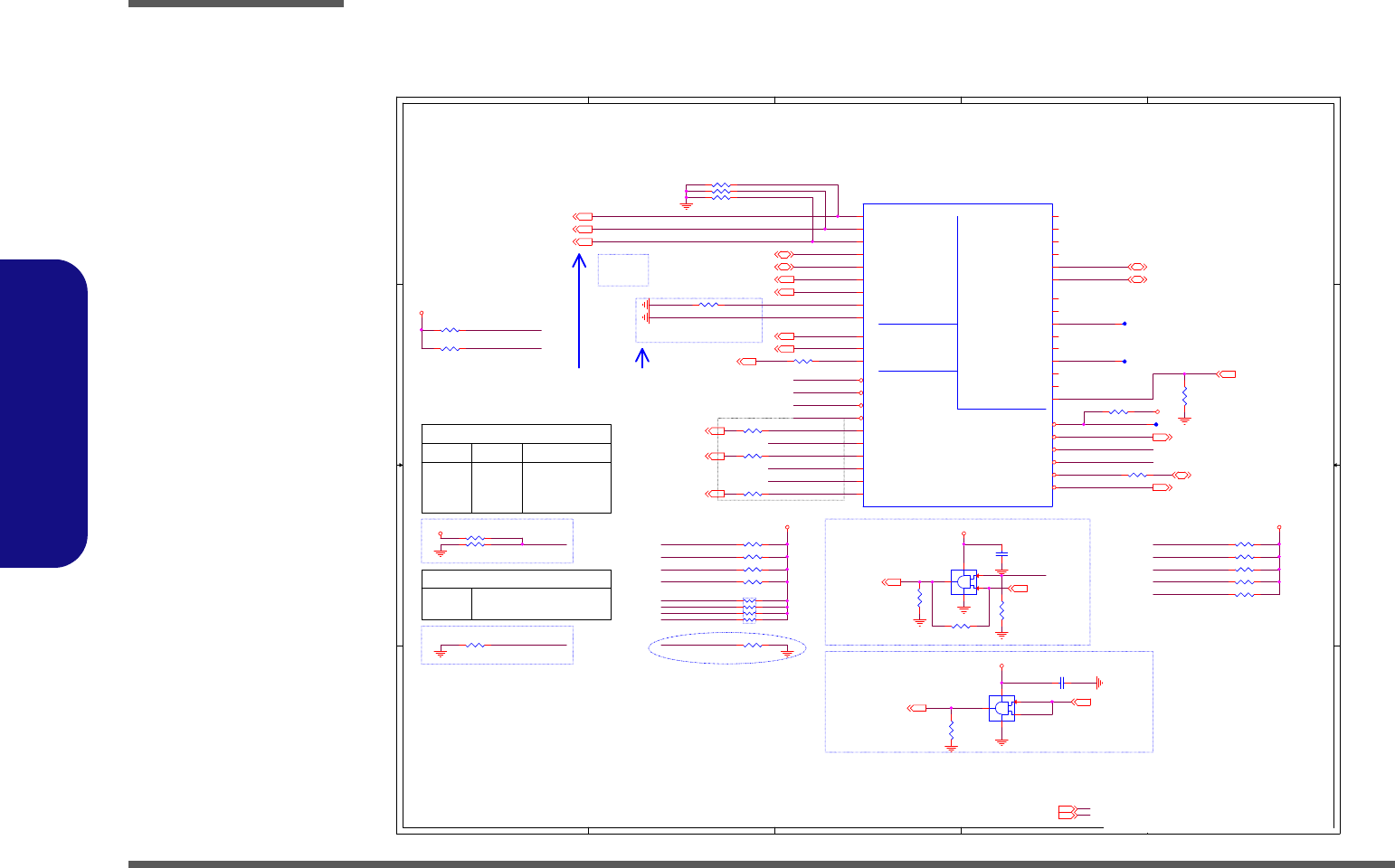

Haswell 2/7

D D

C C

B B

A A

Haswell Processor 2/7 ( CLK,MISC,JTAG )

Buffered reset to CPU S3 circuit:- DRAM_RST# to memory

should be high during S3

CAD Note: Capacitor need to be placed

close to buffer output pin

TRACE WIDTH 10MIL, LENGTH <500MILS

Processor Pullups/Pull downs

If PROCHOT# is not used,

then it must be terminated

with a 56-ȍ +-5% pull-up

resistor to 1.05VS_VTT .

DDR3 Compensation Signals

S3 circuit:- DRAM PWR GOOD lCIRCUIT

SSC CLOCK TERMINATION

STUFF R4R15 & R4R12

ONLY WHEN SSC CLOCK

NOT USED

PU/PD for JTAG signals

BUF_CPU_RST#

CPUDRAMRST#

SKTOCC#

H_CATERR#

H_ PE C I_IS O

H_PROCHOT#_DH_PROCHOT#

H_CPUPWRGD H_CPUPWRGD_R

VDDPWRGOOD_RPMSYS_PWRGD_BUF XDP_DBR_R

XDP_TDO_R

XDP_TDI_R

XDP_TCLK

XDP_TRST#

XDP_TMS

SM_RCOMP_0

SM_RCOMP_1

SM_RCOMP_2

CPUDRAMRST#

XDP_PREQ#

XDP_PRDY#

H_PROCHOT#

SM_RCOMP_0

SM_RCOMP_1

SM_RCOMP_2

PCH_SSC_P

PCH_SSC_N

CPU_RST_N_R

XDP_BPM6

XDP_BPM5

XDP_BPM3

XDP_BPM4

XDP_BPM2

XDP_BPM1

XDP_BPM0

XDP_BPM7

PMSYS_PWRGD_BUF

H_PROCHOT#

H_CPUPWRGD_R

BUF_CPU_RST#

H_THRMTRIP#

XDP_TMS

XDP_TDI_R

XDP_PREQ#

XDP_DBR_R

XDP_TRST#

XDP_TCLK

XDP_TDO_R

3.3VS

1.05V_LAN_M

3.3V3.3V

+VCCIO_OUT

1.05V_LAN_M +VCCST

+VCCST

+VCCIO_OUT

V_VDDQ_DIMM

1.05V_LAN_M

3.3VS

PLT_RST#25,32

DRAMRST_CNTRL 4,23

DDR3_DRAMRST# 9,10,11

H_PROCHOT#_EC39

H_PECI26,39

H_THRMTRIP#26

H_PM_SYNC24

H_CPUPWRGD26

CLK_EXP_P30

CLK_EXP_N30

PM_DRAM_PWRGD24

SUSB36,40,42,43

H_PROCHOT#44

PCH_PLTRST_CPU26

PCH_CK_DP_N30

PCH_CK_DP_P30

PCH_SSC_N30

PCH_SSC_P30

1.05V_LAN_M5,28,29,43,45

3.3V2,13,20,22,24,26,27,28,29,30,31,32,33,34,37,40,42,45,46

3.3VS6,9,10,11,12,13,22,23,24,25,26,28,29,30,31,32,34,35,36,37,39,40,44,45

+VCCIO_OUT5,6

V_VDDQ_DIMM4,5,9,10,11,42

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[03] Haswell 2/7-CLK/MISC

358Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[03] Haswell 2/7-CLK/MISC

358Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[03] Haswell 2/7-CLK/MISC

358Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Haswell rPGA EDS

JTAG

CLOCKTHERMAL

MISC

DDR3

PWR

2 OF 9

U15B

THERMTRIP

AM35

SM_DRAMPWROK

AC10

PLTRSTIN

AT26

SKTOCC

AP32

CATERR

AN32

PECI

AR27

PROCHOT

AM30

DPLL_REF_CLKN

G28

DPLL_REF_CLKP

H28

SSC_DPLL_REF_CLKN

F27

SSC_DPLL_REF_CLKP

E27

BCLKN

D26

BCLKP

E26

SM_RCOMP_0 AP3

SM_RCOMP_1 AR3

SM_RCOMP_2 AP2

SM_DRAMRST AN3

PRDY AR29

PREQ AT29

TCK AM34

TMS AN33

TRST AM33

TDI AM31

TDO AL33

DBR AP33

BPM_N_0 AR30

BPM_N_1 AN31

BPM_N_2 AN29

BPM_N_3 AP31

BPM_N_4 AP30

BPM_N_5 AN28

BPM_N_6 AP29

BPM_N_7 AP28

PWRGOOD

AL34 PM_SYNC

AT28

AK31

MTN7002ZHS3

R12 *10mil_short

R429

*39_04

R507

*1K_04

R36 51_04

R294 *0_04

R346 *10mil_short

C489

*22u_6.3V_X5R_08

R458

*200_04

R344 *51_04

R34 56_1%_04

R307 *10mil_short

R384 *0_04

R433

1K_1%_04

R174 100_1%_04

C558

*0.1u_16V_Y5V_04

R347 *0_04

C539

0.047u_10V_X7R_04

R303

*10K_04

R302 *10mil_short

C40 *0.1u_10V_X5R_04

R527 *1.5K_1%_04

R312 *100_04

R175 100_1%_04

R437

2K_1%_04

R348 0_04 R314 51_04

R13 10K_04

R459

*100K_04

C594

*68p_50V_NPO_04

R33 62_04

R509

*20K_04

Q15

*MTN7002ZHS3

R381 1K_04

R301 *10mil_short

R35 *100_04

R313 51_04

R25 51_04

R300

*10K_04

R264

100K_04

R345 *10mil_short

R231K_04

R526

*100K_04

R24 51_04

C491

*22u_6.3V_X5R_08

Q14

MTN7002ZHS3

R508 *43.2_1%_04

R115 0_04

R173 75_1%_04

R436 0_04

R380 1K_04

Q19B

*MTDN7002ZHS6R

U24

*MC74VHC1G08DFT1G

R511

*10K_04

C398

47p_50V_NPO_04

R306 *10mil_short

R386

4.99K_1%_04

R434

*100K_04

Q19A

*MTDN7002ZHS6R

Sheet 3 of 58

Haswell 2/7

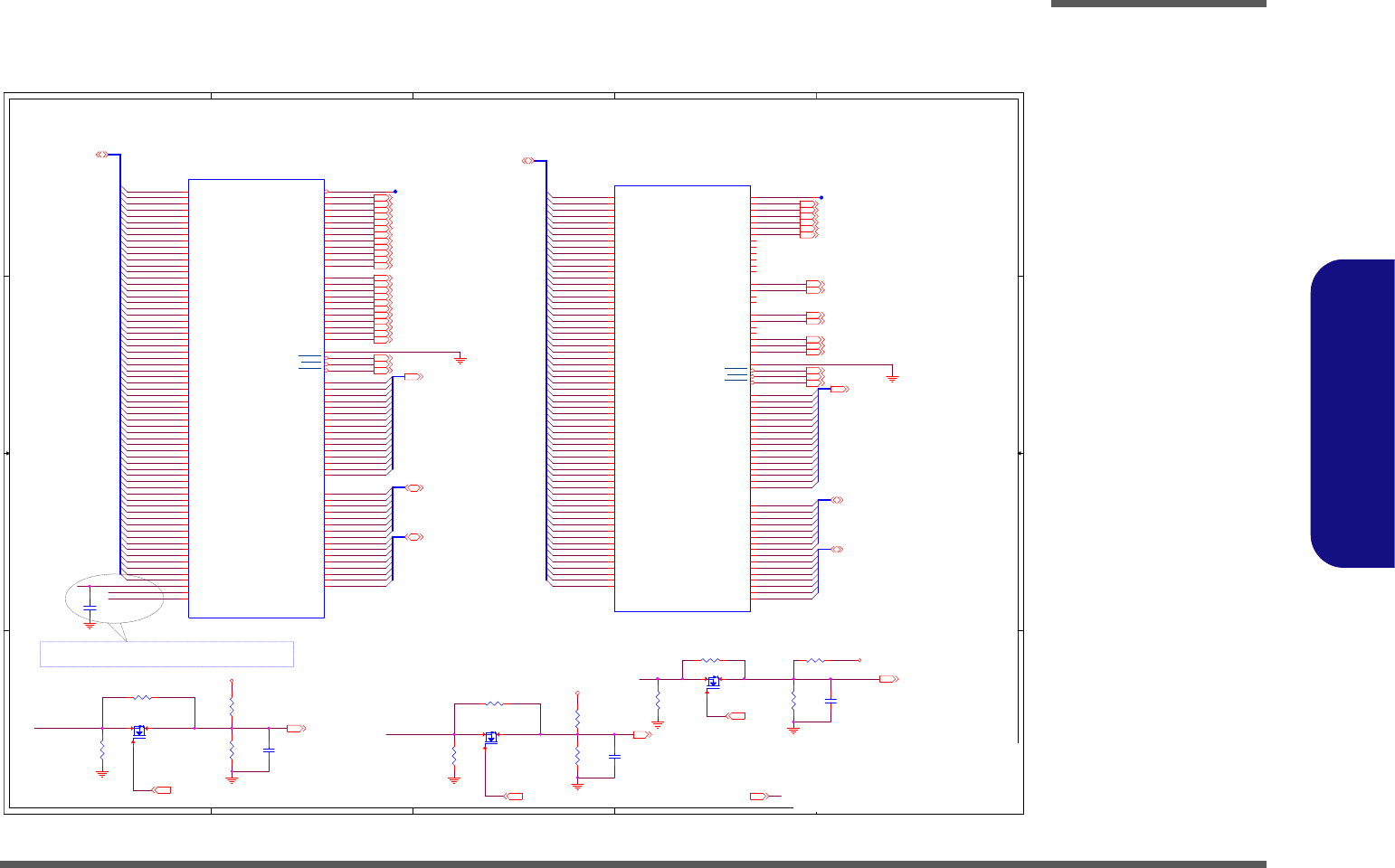

Schematic Diagrams

Haswell 3/7 B - 5

B.Schematic Diagrams

Haswell 3/7

D D

C C

B B

A A

10/22

月

DIMM

䪗㒢㓦

& TRACE

≈⮔

2VIA

6.5 / 6.5 / 16

7 / 12 / 25

2VIA

4.5/ 4.5/ 16

7 / 12 / 25

11.5 / 9 / 16

7 / 12 / 25

2VIA

11.5 / 9 / 16

2VIA

4.5/ 4.5/ 16

7 / 12 / 25

2VIA

6.5 / 6.5 / 16

4.5/ 4.5/ 16

2VIA

7 / 12 / 25

6-86-27988-003 PZ98927-3641-01F

6-86-27988-001 47989-0732

6-86-27988-004 PZ98821-362B-01H

2VIA

11.5 / 9 / 16

3700mils

2VIA

4.5/ 4.5/ 16

7 / 12 / 25

6.5 / 8 / 16

6-86-27988-003 PZ98927-3641-01F

6-86-27988-001 47989-0732

6-86-27988-004 PZ98821-362B-01H

All VREF traces should be at least 20 mils wide

and 20 mils spacing to other singals/planes

+V_DDR_WR_VREF01

+V_DDR_WR_VREF02

V_SM_VREF

M_B_DQS#5

M_B_DQS#6

M_B_DQS#4

M_B_DQS#3

M_B_DQS#2

M_B_DQS#1

M_B_DQS#0

M_B_DQS#7

M_B_DQ47

M_B_DQ48

M_B_DQ49

M_B_DQ50

M_B_DQ51

M_B_DQ52

M_B_DQ53

M_B_DQ54

M_B_DQ55

M_B_DQ56

M_B_DQ57

M_B_DQ58

M_B_DQ59

M_B_DQ60

M_B_DQ61

M_B_DQ62

M_B_DQ63

M_B_DQ11

M_B_DQ12

M_B_DQ1

M_B_DQ2

M_B_DQ3

M_B_DQ4

M_B_DQ5

M_B_DQ6

M_B_DQ7

M_B_DQ8

M_B_DQ9

M_B_DQ10

M_B_DQ0

M_B_DQ13

M_B_DQ14

M_B_DQ15

M_B_DQ16

M_B_DQ17

M_B_DQ18

M_B_DQ19

M_B_DQ20

M_B_DQ21

M_B_DQ22

M_B_DQ23

M_B_DQ24

M_B_DQ25

M_B_DQ26

M_B_DQ27

M_B_DQ28

M_B_DQ29

M_B_DQ30

M_B_DQ31

M_B_DQ32

M_B_DQ33

M_B_DQ34

M_B_DQ35

M_B_DQ36

M_B_DQ37

M_B_DQ38

M_B_DQ39

M_B_DQ40

M_B_DQ41

M_B_DQ42

M_B_DQ43

M_B_DQ44

M_B_DQ45

M_B_DQ46

RSVD_AC7

M_B_A5

M_B_A6

M_B_A4

M_B_A3

M_B_A2

M_B_A1

M_B_A0

M_B_A12

M_B_A13

M_B_A11

M_B_A10

M_B_A9

M_B_A8

M_B_A7

M_B_A15

M_B_A14

+V_DDR_WR_VREF02

M_A_DQS7

M_A_DQS6

M_A_DQS5

M_A_DQS4

M_A_DQS3

M_A_DQS1

M_A_DQS2

M_A_DQS0

M_A_A9

M_A_A8

M_A_A7

M_A_A5

M_A_A6

M_A_A4

M_A_A3

M_A_A2

M_A_A1

M_A_A0

M_A_A15

M_A_A14

M_A_A13

M_A_A11

M_A_A12

M_A_A10

+V_DDR_WR_VREF01

M_A_DQ1

M_A_DQ2

M_A_DQ3

M_A_DQ4

M_A_DQ29

M_A_DQ30

M_A_DQ31

M_A_DQ32

M_A_DQ33

M_A_DQ34

M_A_DQ35

M_A_DQ36

M_A_DQ37

M_A_DQ39

M_A_DQ40

M_A_DQ41

M_A_DQ42

M_A_DQ43

M_A_DQ44

M_A_DQ45

M_A_DQ46

M_A_DQ47

M_A_DQ38

M_A_DQ49

M_A_DQ50

M_A_DQ28

M_A_DQ51

M_A_DQ52

M_A_DQ53

M_A_DQ54

M_A_DQ55

M_A_DQ48

M_A_DQ5

M_A_DQ6

M_A_DQ56

M_A_DQ57

M_A_DQ58

M_A_DQ60

M_A_DQ61

M_A_DQ62

M_A_DQ63

M_A_DQ59

M_A_DQ7

M_A_DQ8

M_A_DQ9

M_A_DQ11

M_A_DQ12

M_A_DQ13

M_A_DQ14

M_A_DQ15

M_A_DQ16

M_A_DQ17

M_A_DQ18

M_A_DQ19

M_A_DQ10

M_A_DQ21

M_A_DQ22

M_A_DQ0

M_A_DQ23

M_A_DQ24

M_A_DQ25

M_A_DQ26

M_A_DQ27

M_A_DQ20

M_A_DQS#7

M_A_DQS#6

M_A_DQS#5

M_A_DQS#4

M_A_DQS#3

M_A_DQS#1

M_A_DQS#2

M_A_DQS#0

V_SM_VREF

RSVD_AG8

M_B_DQS5

M_B_DQS6

M_B_DQS4

M_B_DQS3

M_B_DQS2

M_B_DQS1

M_B_DQS0

M_B_DQS7

V_VDDQ_DIMM

DRAMRST_CNTRL 3,4,23

MVREF_DQ_DIMMA 9,11

V_VDDQ_DIMM3,5,9,10,11,42DRAMRST_CNTRL 3,4,23

MVREF_DQ_DIMMB 10

DRAMRST_CNTRL 3,4,23

+V_VREF_CA_DIMM 9,10,11

M_A_CLK_DDR#2 11

M_A_CLK_DDR2 11

M_B_DQ[63:0]10

M_B_CKE1 10

M_B_CLK_DDR1 10

M_B_CLK_DDR#1 10

M_B_CKE0 10

M_B_CLK_DDR0 10

M_B_CLK_DDR#0 10

M_B_CS#0 10

M_B_CS#1 10

M_B_ODT1 10

M_B_ODT0 10

M_B_DQS[7:0] 10

M_B_DQS#[7:0] 10

M_B_A[15:0] 10

M_B_BS0 10

M_B_BS1 10

M_B_BS2 10

M_B_RAS# 10

M_B_WE# 10

M_B_CAS# 10

M_A_DQS[7:0] 9,11

M_A_DQ[63:0]9,11

M_A_BS1 9,11

M_A_BS2 9,11

M_A_BS0 9,11

M_A_CS#0 9

M_A_CS#1 9

M_A_ODT1 9

M_A_ODT0 9

M_A_CKE1 9

M_A_CLK_DDR1 9

M_A_CLK_DDR#1 9

M_A_A[15:0] 9,11

M_A_CLK_DDR#0 9

M_A_CLK_DDR0 9

M_A_CKE0 9

M_A_DQS#[7:0] 9,11

M_A_CAS# 9,11

M_A_RAS# 9,11

M_A_WE# 9,11

M_A_ODT3 11

M_A_ODT2 11

M_A_CKE2 11

M_A_CKE3 11

M_A_CLK_DDR#3 11

M_A_CLK_DDR3 11

M_A_CS#2 11

M_A_CS#3 11

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[04] Haswell 3/7-DDR3

Custom

458Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[04] Haswell 3/7-DDR3

Custom

458Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[04] Haswell 3/7-DDR3

Custom

458Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Q17

*AO3402L

R448 0_04

Haswell rPGA EDS

3 OF 9

U15C

SB_DIMM_VREFDQ

F13 SA_DIMM_VREFDQ

F16 SM_VREF

AM3 SA_DQ_63

A12 SA_DQ_62

B12 SA_DQ_61

D11 SA_DQ_60

E11 SA_DQ_59

A11 SA_DQ_58

B11 SA_DQ_57

D12 SA_DQ_56

E12 SA_DQ_55

A6 SA_DQ_54

B6 SA_DQ_53

E5 SA_DQ_52

D5 SA_DQ_51

D6 SA_DQ_50

A5 SA_DQ_49

SA_DQ_46

C3 SA_DQ_45

F3 SA_DQ_44

D1 SA_DQ_43

D3 SA_DQ_42

D2 SA_DQ_41

F1 SA_DQ_40

F2 SA_DQ_39

H4 SA_DQ_38

J4 SA_DQ_37

H1 SA_DQ_36

H2 SA_DQ_35

H5 SA_DQ_34

J5 SA_DQ_33

J2 SA_DQ_32

J1 SA_DQ_31

AG2 SA_DQ_30

AG1 SA_DQ_29

AG5 SA_DQ_28

AG4 SA_DQ_27

AF2 SA_DQ_26

AF1 SA_DQ_25

AF5 SA_DQ_24

AF4 SA_DQ_23

AK7 SA_DQ_22

AJ7 SA_DQ_21

AK10 SA_DQ_20

AJ10 SA_DQ_19

AK6 SA_DQ_18

AJ6 SA_DQ_17

AK9 SA_DQ_16

AJ9 SA_DQ_15

AT8 SA_DQ_14

AR8 SA_DQ_13

AT9 SA_DQ_12

AR9 SA_DQ_11

AN8 SA_DQ_10

AM8 SA_DQ_9

AN9 SA_DQ_8

AM9 SA_DQ_7

AM15 SA_DQ_6

AN15 SA_DQ_5

AR14 SA_DQ_4

AT15 SA_DQ_3

AN14 SA_DQ_2

AM14 SA_DQ_1

AT14 SA_DQ_0

AR15

SA_DQS_P_7 C12

SA_DQS_P_6 C6

SA_DQS_P_5 E3

SA_DQS_P_4 H3

SA_DQS_P_3 AG3

SA_DQS_P_2 AK8

SA_DQS_P_1 AP9

SA_DQS_P_0 AP14

SA_DQS_N_7 C11

SA_DQS_N_6 C5

SA_DQS_N_5 E2

SA_DQS_N_4 J3

SA_DQS_N_3 AF3

SA_DQS_N_2 AJ8

SA_DQS_N_1 AP8

SA_DQS_N_0 AP15

SA_MA_9 AC2

SA_MA_8 AD5

SA_MA_7 AC3

SA_MA_6 AD6

SA_MA_5 AC4

SA_MA_4 AC5

SA_MA_3 U9

SA_MA_2 V9

SA_MA_15 AD2

SA_MA_14 AD3

SA_MA_13 V7

SA_MA_12 AD4

SA_MA_11 AC1

SA_MA_10 V6

SA_MA_1 AC6

SA_MA_0 V8

SA_CAS U8

SA_WE U7

SA_RAS U6

SA_BS_2 AD1

SA_ODT_3 L10

SA_ODT_2 L8

SA_ODT_1 L7

SA_ODT_0 M8

SA_CS_N_3 M10

SA_CS_N_2 M9

SA_CS_N_1 L9

SA_CS_N_0 M7

SA_CKE_3 AC8

SA_CK_P_3 V1

SA_CKE_2 AD8

SA_CK_N_2 U2

SA_CKE_1 AC9

SA_CK_P_1 V3

SA_CK_N_1 U3

SA_CKE_0 AD9

SA_CK_P_0 V4

SA_CK_N_0 U4

RSVD_AC7 AC7

SA_DQ_48

B5 SA_DQ_47

SA_BS_1 U5

SA_BS_0 V5

VSS V10

SA_CK_N_3 U1

SA_CK_P_2 V2

Q16

*AO3402L

C312

1u_6.3V_X5R_04

R438 0_04

R435

*1K_04

R196

1K_1%_04

R447

*1K_04

R278

1K_1%_04

C684

0.1u_10V_X7R_04

R195 0_04

C414

0.1u_10V_X7R_04

R194 1K_1%_04

R449

1K_1%_04

R440

1K_1%_04

Haswell rPGA EDS

4 OF 9

U15D

SB_DQ_63

B14 SB_DQ_62

A14 SB_DQ_61

D14 SB_DQ_60

E14 SB_DQ_59

B15 SB_DQ_58

A15 SB_DQ_57

D15 SB_DQ_56

E15 SB_DQ_55

E9 SB_DQ_54

D9 SB_DQ_53

E8 SB_DQ_52

D8 SB_DQ_51

B9 SB_DQ_50

A9 SB_DQ_49

B8 SB_DQ_48

A8 SB_DQ_47

J10 SB_DQ_46

G10 SB_DQ_45

J9 SB_DQ_44

J7 SB_DQ_43

G9 SB_DQ_42

G8 SB_DQ_41

J8 SB_DQ_40

G7 SB_DQ_39

M5 SB_DQ_38

SB_DQ_35

SB_DQ_33

SB_DQ_29

AN1 SB_DQ_28

AM1 SB_DQ_27

AJ2 SB_DQ_26

AJ1 SB_DQ_25

AK4 SB_DQ_24

AJ4 SB_DQ_23

AN6 SB_DQ_22

AN5 SB_DQ_21

AT6 SB_DQ_20

AT5 SB_DQ_19

AM6 SB_DQ_18

AM5 SB_DQ_17

AR6 SB_DQ_16

AR5 SB_DQ_15

AN11 SB_DQ_14

AM12 SB_DQ_13

AR11 SB_DQ_12

AT11 SB_DQ_11

AM11 SB_DQ_10

AN12 SB_DQ_9

AR12 SB_DQ_8

AT12 SB_DQ_7

AN18 SB_DQ_6

AN17 SB_DQ_5

AT17 SB_DQ_4

AR17 SB_DQ_3

AM18 SB_DQ_2

AM17 SB_DQ_1

AT18 SB_DQ_0

AR18

SB_DQS_P_7 C15

SB_DQS_P_6 C9

SB_DQS_P_5 H8

SB_DQS_P_4 M3

SB_DQS_P_3 AK3

SB_DQS_P_2 AP6

SB_DQS_P_1 AP12

SB_DQS_P_0 AP17

SB_DQS_N_7 C14

SB_DQS_N_6 C8

SB_DQS_N_5 H9

SB_DQS_N_4 L3

SB_DQS_N_3 AJ3

SB_DQS_N_2 AP5

SB_DQS_N_1 AP11

SB_DQS_N_0 AP18

SB_MA_15 AG7

SB_MA_14 AA8

SB_MA_13 P9

SB_MA_12 AF7

SB_MA_11 Y9

SB_MA_10 R9

SB_MA_9 AA10

SB_MA_8 Y8

SB_MA_7 AA7

SB_MA_6 Y6

SB_MA_5 AA6

SB_MA_4 Y7

SB_MA_3 AA5

SB_MA_2 Y10

SB_MA_1 Y5

SB_MA_0 R8

SB_CAS P7

SB_WE P6

SB_RAS R6

SB_BS_2 AA9

SB_BS_1 P8

SB_BS_0 R7

SB_ODT_3 P2

SB_ODT_2 R1

SB_ODT_1 R3

SB_ODT_0 R4

SB_CS_N_3 P1

SB_CS_N_2 P3

SB_CS_N_1 R2

SB_CS_N_0 P4

SB_CKE_3 AF9

SB_CK3 AA1

SB_CKN3 Y1

SB_CKE_2 AG9

SB_CK2 AA2

SB_CKN2 Y2

SB_CKE_1 AG10

SB_CK1 AA3

SB_CKN1 Y3

SB_CKE_0 AF10

SB_CK0 AA4

SB_CKN0 Y4

RSVD AG8

SB_DQ_37

M1 SB_DQ_36

SB_DQ_34

SB_DQ_32

VSS R10

SB_DQ_31

AK1 SB_DQ_30

AK2

R170

*1K_04

R628

1K_1%_04

C317

0.1u_10V_X7R_04

Sheet 4 of 58

Haswell 3/7

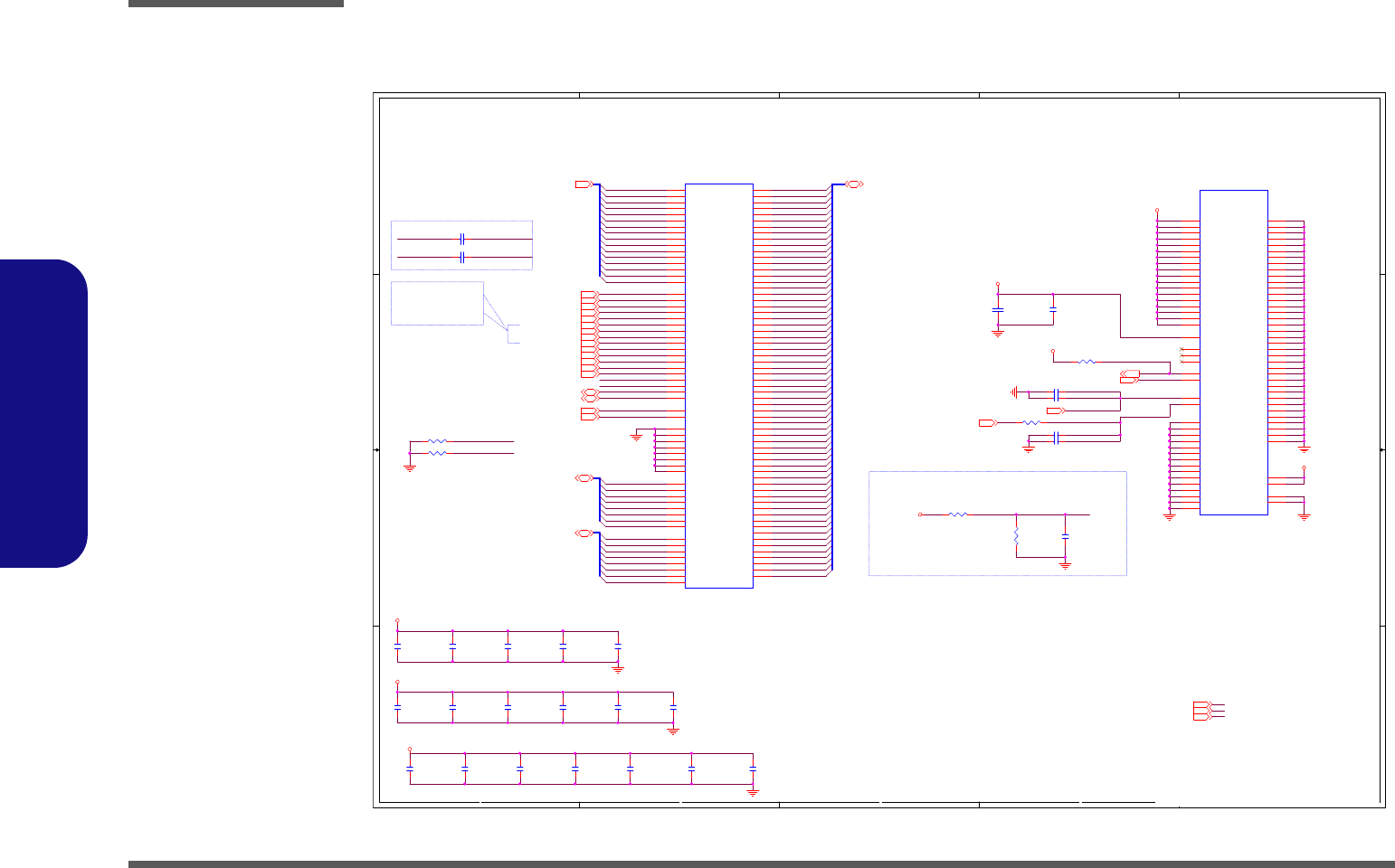

Schematic Diagrams

B - 6 Haswell 4/7

B.Schematic Diagrams

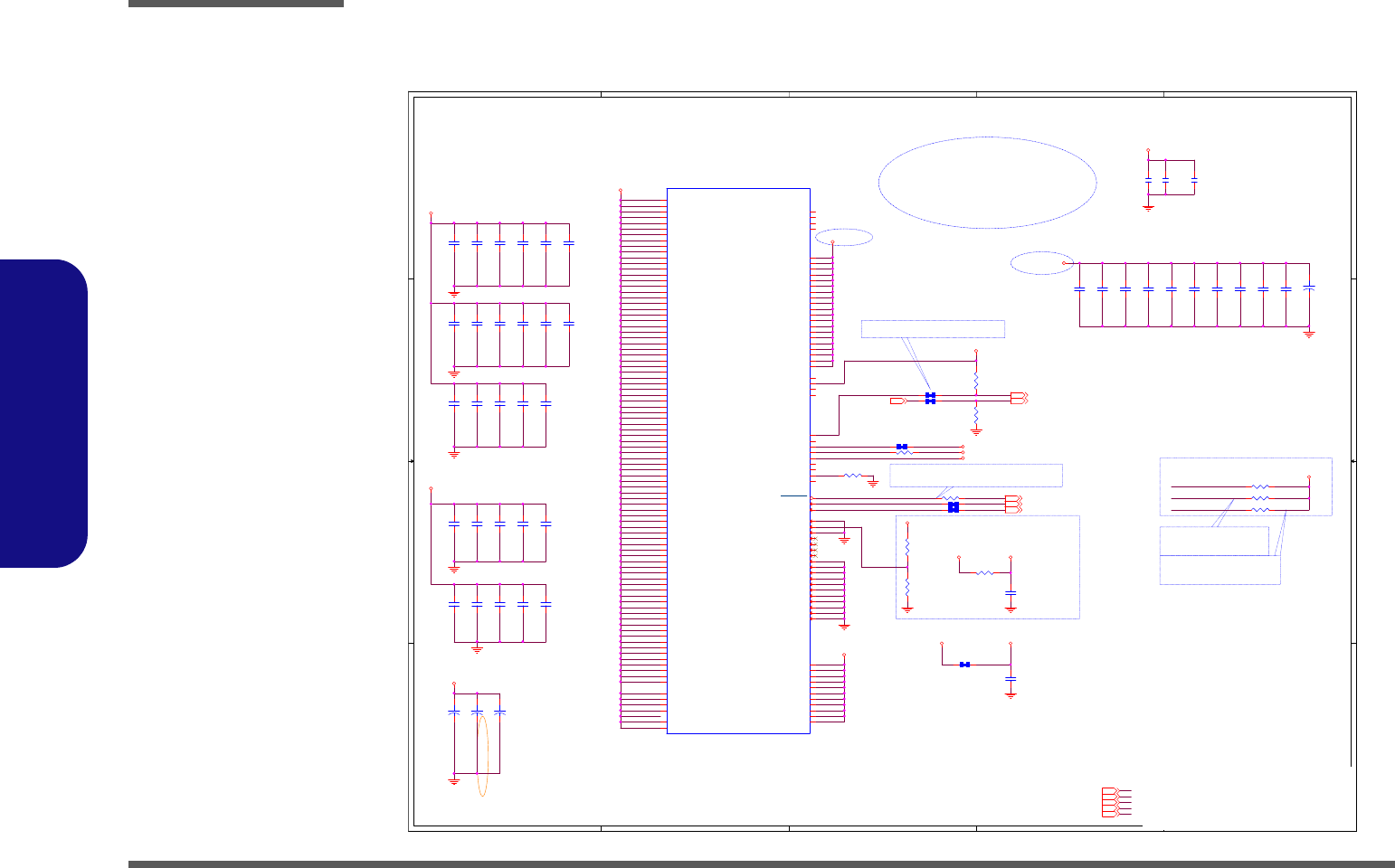

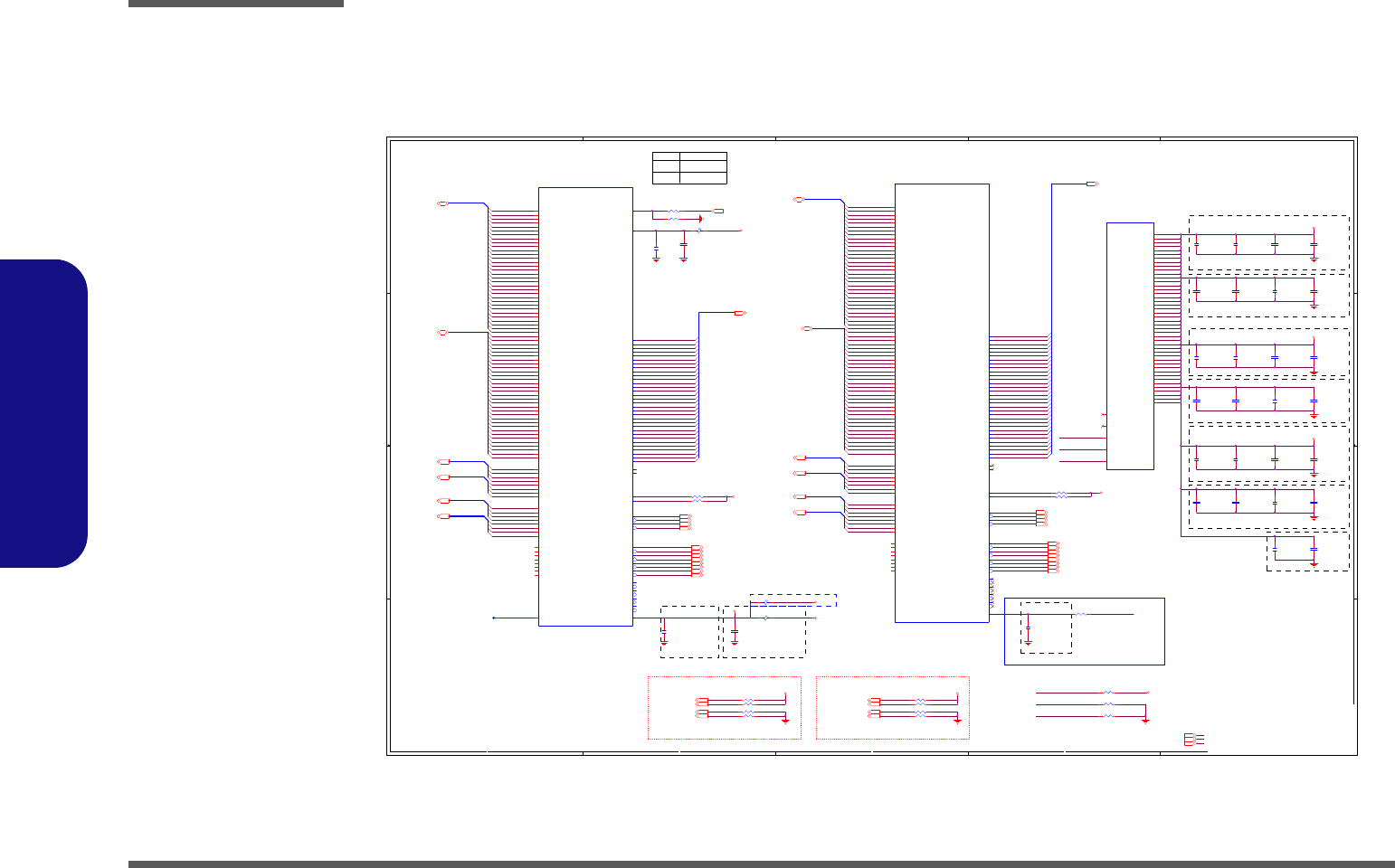

Haswell 4/7

D D

C C

B B

A A

PROCESSOR CORE POWER

Haswell Processor 4/7 ( POWER )

   

ICCMAX Maximum Processor SV 48



CAD Note: H_CPU_SVIDALRT_R_N

Place the PU resistors close to CPU

CAD NOTE: 0 OHM RESISTOR

TO CPU SHOULD BE PLACED CLOSE

RESISTOR STUFFING OPTIONS ARE

PROVIDED FOR TESTING PURPOSES

CAD Note: H_CPU_SVIDCLK_R

Place the PU

resistors close to VR

CAD Note:H_CPU_SVIDCLK

PLACE THE PU RESISTORS

CLOSE TO VR

SVID Signals

4.2A

0.5A

57W: 95A

47W: 85A

EMI Require

1218

PWR_DEBUG_N

+VCCIO_OUT_R

VCC_SENSE_R

+VCCIO2PCH_R

H_CPU_SVIDALRT#

H_CPU_SVIDCLK

H_CPU_SVIDDAT

H_CPU_SVIDALRT_R_N

H_CPU_SVIDCLK_R

H_CPU_SVIDDAT_R

+VCCIN

V_VDDQ_DIMM

+VCCIN

+VCCIO_OUT

+VCCIO2PCH

+VCCIOA_OUT

1.05V_LAN_M +VCCIO_OUT

1.05V_LAN_M +VCCIO2PCH

+VCCIO_OUT

1.05V_LAN_M

+VCCIN

V_VDDQ_DIMM

+VCCIN8,44

H_CPU_SVIDCLK 44

H_CPU_SVIDDAT 44

H_CPU_SVIDALRT# 44

VCORE_VCC_SENSE 44

VCORE_VSS_SENSE 44VSS_SENSE_R7

1.05V_LAN_M3,28,29,43,45

V_VDDQ_DIMM3,4,9,10,11,42

+VCCIOA_OUT2,6

+VCCIO_OUT3,6 Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[05] Haswell 4/7-POWER

Custom

558Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[05] Haswell 4/7-POWER

Custom

558Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[05] Haswell 4/7-POWER

Custom

558Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

C206

10u_6.3V_X5R_06

C137

22u_6.3V_X5R_08

C162

10u_6.3V_X5R_06

C203

22u_6.3V_X5R_08

C71

560u_2.5V_6.6*6.6*5.9

C757

0.1u_10V_X7R_04

C161

*10u_6.3V_X5R_06

C108

22u_6.3V_X5R_08

C222

10u_6.3V_X5R_06

C94

22u_6.3V_X5R_08

C122

22u_6.3V_X5R_08

C512

10u_6.3V_X5R_06

R45 *10mil_short

C201

22u_6.3V_X5R_08

C239

10u_6.3V_X5R_06

C160

*10u_6.3V_X5R_06

C521

22u_6.3V_X5R_08

C198

22u_6.3V_X5R_08

C42

560u_2.5V_6.6*6.6*5.9

R305

*100K_04

C232

10u_6.3V_X5R_06

R298 *15mil_short_06

C200

22u_6.3V_X5R_08

R304

150_04

C246

10u_6.3V_X5R_06

C199

22u_6.3V_X5R_08

C518

22u_6.3V_X5R_08

R55 43.2_1%_04

C515

10u_6.3V_X5R_06

C151

*22u_6.3V_X5R_08

C123

22u_6.3V_X5R_08

C124

22u_6.3V_X5R_08

C121

22u_6.3V_X5R_08

C517

22u_6.3V_X5R_08

C125

22u_6.3V_X5R_08

C522

22u_6.3V_X5R_08

R311

100_04

R299 *15mil_short_06

C90

*22u_6.3V_X5R_08

C114

22u_6.3V_X5R_08

R296

100_04

C307

220u_6.3V_6.3*6.3*4.2

Haswell rPGA EDS

5 OF 9

U15E

VCC Y35

VCC Y34

VCC Y33

VCC Y32

VCC Y31

VCC Y30

VCC Y29

VCC Y28

VCC Y27

VCC Y26

VCC Y25

VCC

W27 VCC

W26

VCC

V26 VCC

V25 VCC

U26 VCC

U25

VCC

T25 VCC

R25 VCC

P25 VCC

N25 VCC

M25 VCC

L25 VCC

K25 VCC

J25 VCC

H25 VCC

G25 VCC

AJ35 VCC

AJ34 VCC

AJ33 VCC

AJ32 VCC

AJ31 VCC

AJ30 VCC

AJ29 VCC

AJ28 VCC

AJ27 VCC

AJ26 VCC

AJ25 VCC

AH34 VCC

AH33 VCC

AH31 VCC

AH30 VCC

AH28 VCC

AH27 VCC

AH25 VCC

AH35 VCC

AH32

VCC

AH29 VCC

AH26 VCC

AG26 VCC

AF35 VCC

AF34 VCC

AF33 VCC

AF32 VCC

AF31 VCC

AF30 VCC

AF29 VCC

AF28 VCC

AF27 VCC

AF26 VCC

AF25 VCC

AE34 VCC

AG34 VCC

AG28 VCC

AE30 VCC

AE28 VCC

AE32 VCC

AE26 VCC

AD35 VCC

AD33 VCC

AD32 VCC

AD30 VCC

AD29 VCC

AD27 VCC

AD26 VCC

AD34 VCC

AC34 VCC

AD31 VCC

AC32 VCC

AD28 VCC

AC30 VCC

AD25 VCC

AC28 VCC

AB35 VCC

AC26 VCC

AB32 VCC

AB34 VCC

AB33 VCC

AB31 VCC

AB30 VCC

AB28 VCC

AB27 VCC

AB25 VCC

AB29 VCC

AB26 VCC

AA32 VCC

AA30 VCC

AA34 VCC

AA28 VCC

AA26

PWR_DEBUG H27

VSS AP35

VIDSOUT AL28

VIDSCLK AM29

VIDALERT AM28

RSVD AL27

RSVD N26

VDDQ W5

VDDQ W11

VDDQ T5

VDDQ T11

VDDQ N11

VDDQ AE8

VDDQ AE5

VDDQ AE2

VDDQ AE11

VDDQ AB8

VDDQ AB5

VDDQ AB2

VDDQ AB11

RSVD V27

RSVD T27

RSVD L27

RSVD K27

VCC

AG32 VCC

AG30

VDDQ AH11

VDDQ K11

VDDQ N8

VDDQ T2

VDDQ T8

VDDQ W2

VDDQ W8

VCC K26

RSVD AK27

RSVD A23

VCOMP_OUT F22

RSVD J27

VSS AP34

VCC_SENSE AL35

VCCIO_OUT AN35

RSVD E17

RSVD_TP AL26

RSVD_TP AR32

RSVD_TP AR35

RSVD_TP AT35

VSS AT34

VSS AL22

VSS AT33

VSS AM21

VSS AM25

VSS AM22

VSS AM20

VSS AM24

VSS AL19

VSS AM23

VSS AT32

RSVD AL13

RSVD AL16

RSVD W32

C165

10u_6.3V_X5R_06

R354 *0_06

C70

330uF_2.5V_12m_6.6*6.6*4.2

C514

10u_6.3V_X5R_06

R365 *15mil_short_06

C770

*100p_50V_NPO_04

C520

*4.7u_6.3V_X5R_06

C109

22u_6.3V_X5R_08

R60 *10mil_short

C163

10u_6.3V_X5R_06

C164

10u_6.3V_X5R_06

R310 0_04

R295

*0_06

R287 *54.9_1%_04

R288 75_04

C756

0.1u_10V_X7R_04

C150

*22u_6.3V_X5R_08

R289 130_1%_04

R297 *15mil_short_06

C488

*4.7u_6.3V_X5R_06

C513

10u_6.3V_X5R_06

Sheet 5 of 58

Haswell 4/7

Schematic Diagrams

Haswell 5/7 B - 7

B.Schematic Diagrams

Haswell 5/7

D D

C C

B B

A A

Haswell Processor 5/7 ( GRAPHICS POWER )

DP_AUXN

DP_AUXP DP_AUXP

DP_AUXN

EDP_UTIL

DP_HPD

+VCCIOA_OUT

3.3VS

+VCCIO_OUT

EDP_TXN_0 12

FDI_TXP1 24

FDI_TXN1 24

FDI_TXP0 24

FDI_TXN0 24

EDP_TXP_1 12

EDP_TXN_1 12

EDP_TXP_0 12

DP_AUXN 12

DP_AUXP 12

HDMIC_CLKCN36

HDMIC_CLKCP36

3.3VS3,9,10,11,12,13,22,23,24,25,26,28,29,30,31,32,34,35,36,37,39,40,44,45

3.3V2,3,13,20,22,24,26,27,28,29,30,31,32,33,34,37,40,42,45,46

+VCCIOA_OUT2,5

+VCCIO_OUT3,5

EDP_HPD12,13

HDMIC_C0CP36

HDMIC_C0CN36

HDMIC_C1CP36

HDMIC_C1CN36

HDMIC_C2CP36

HDMIC_C2CN36

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[06]Haswell 5/7-EDP/HDMI

658Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[06]Haswell 5/7-EDP/HDMI

658Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[06]Haswell 5/7-EDP/HDMI

658Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

eDP

DDI

Haswell rPGA EDS

8 OF 9

U15H

FDI_TXP_1 P32

FDI_TXN_1 N32

FDI_TXP_0 R33

FDI_TXN_0 P33

EDP_RCOMP E24

EDP_TXP_1 P34

EDP_TXP_0 R35

EDP_TXN_1 N34

EDP_TXN_0 P35

EDP_HPD P27

EDP_AUXP N27

EDP_AUXN M27

DDID_TXDP_3

P30 DDID_TXDN_3

N30 DDID_TXDP_2

R31 DDID_TXDN_2

P31 DDID_TXDP_1

P28 DDID_TXDN_1

N28 DDID_TXDP_0

R29 DDID_TXDN_0

P29

DDIC_TXCP_3

V33

DDIC_TXCP_1

V35 DDIC_TXCN_1

U35 DDIC_TXCP_0

U34 DDIC_TXCN_0

T34

DDIB_TXBP_3

V31

DDIB_TXBP_0

U28 DDIB_TXBN_0

T28

DDIC_TXCN_2

U32

DDIC_TXCP_2

T32

DDIC_TXCN_3

U33

DDIB_TXBN_1

T30

DDIB_TXBP_1

U30

DDIB_TXBN_2

U29

DDIB_TXBP_2

V29

DDIB_TXBN_3

U31

EDP_DISP_UTIL R27

R75

*100K_1%_04

R48 *10K_1%_04 R47

*100K_1%_04

R66 24.9_1%_04

Q11

MTN7002ZHS3

R292

10K_1%_04

R44

*100K_1%_04

R291

100K_04

R71

*100K_1%_04

Sheet 6 of 58

Haswell 5/7

Schematic Diagrams

B - 8 Haswell 6/7

B.Schematic Diagrams

Haswell 6/7

D D

C C

B B

A A

Haswell Processor 6/7 ( GND )

VSS_SENSE_R5

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[07] Haswell 6/7-GND

758Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[07] Haswell 6/7-GND

758Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[07] Haswell 6/7-GND

758Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Haswell rPGA EDS

7 OF 9

U15G

RSVD

AK33 VSS_SENSE

AK35

VSS

W4 VSS

W35 VSS

W3 VSS

W10 VSS

W1 VSS

V34 VSS

V32 VSS

V30 VSS

V28 VSS

V11 VSS

U27 VSS

U11 VSS

T9 VSS

T7 VSS

T6 VSS

T4 VSS

T35 VSS

T33 VSS

T31 VSS

T3 VSS

T29 VSS

T10 VSS

T1 VSS

R5 VSS

R34 VSS

R32 VSS

R30 VSS

R28 VSS

R26 VSS

R11 VSS

VSS

P11 VSS

VSS

N6 VSS

VSS

N35 VSS

N33 VSS

N31 VSS

N3 VSS

N29 VSS

N2 VSS

N10 VSS

N1 VSS

M6 VSS

M34 VSS

M32 VSS

M30 VSS

M28 VSS

M26 VSS

M11 VSS

L6 VSS

L26 VSS

L11 VSS

K9 VSS

K8 VSS

K7 VSS

K5 VSS

K4 VSS

K35 VSS

K33 VSS

K31 VSS

K3 VSS

K29 VSS

K2 VSS

K10

VSS K1

VSS J6

VSS J34

VSS J32

VSS J30

VSS H6

VSS H26

VSS H10

VSS G5

VSS G3

VSS G29

VSS G27

VSS G2

VSS G11

VSS G1

VSS F9

VSS F8

VSS F7

VSS F6

VSS F4

VSS F34

VSS F32

VSS F30

VSS F28

VSS F26

VSS F24

VSS F23

VSS F21

VSS F20

VSS F18

VSS F17

VSS F15

VSS F14

VSS F12

VSS F11

VSS F10

VSS E7

VSS E4

VSS E16

VSS E13

VSS E10

VSS E1

VSS D7

VSS D4

VSS D35

VSS D33

VSS D31

VSS D29

VSS D27

VSS D25

VSS D22

VSS D19

VSS D16

VSS D13

VSS D10

VSS C7

VSS C4

VSS C34

VSS C32

VSS C30

VSS C28

VSS C26

VSS C24

VSS C22

VSS C2

VSS C19

VSS C16

VSS C13

VSS C10

VSS C1

VSS B7

VSS

Y11

VSS G33

VSS G31

VSS B34

VSS B4

VSS

P26

VSS

VSS G4

VSS G35

VSS J26

VSS J11

VSS H7

VSS J28

VSS

H11

VSS

AL24

VSS

F19

VSS

T26

Haswell rPGA EDS

6 OF 9

U15F

VSS

B22 VSS

B2 VSS

B19 VSS

B16 VSS

B13 VSS

B10 VSS

AT7 VSS

AT4 VSS

AT30 VSS

AT3 VSS

AT27 VSS

AT24 VSS

AT21 VSS

AT19 VSS

AT16 VSS

AT13 VSS

AT10 VSS

AR7 VSS

AR4 VSS

AR34 VSS

AR31 VSS

AR28 VSS

AR25 VSS

AR22 VSS

AR2 VSS

AR19 VSS

AR16 VSS

AR13

VSS

AP4 VSS

AP19 VSS

AP16

VSS

AP10 VSS

AP1 VSS

AN7 VSS

AN4 VSS

AN34 VSS

AN30 VSS

AN27 VSS

AN24 VSS

AN21 VSS

AN2 VSS

AN19 VSS

AN16 VSS

AN13 VSS

AN10 VSS

AM7 VSS

AM4 VSS

AM32 VSS

E25 VSS

AM19 VSS

AM16 VSS

AM13 VSS

AM10 VSS

AL9 VSS

AL8 VSS

AL7 VSS

AL6 VSS

AL5 VSS

AL4 VSS

AL3 VSS

E22 VSS

AL23 VSS

AL21 VSS

AL20 VSS

AL2 VSS

AL18 VSS

AL17 VSS

AL15 VSS

AL14 VSS

AL12 VSS

AL11 VSS

AL10 VSS

AL1 VSS

AK5 VSS

AK34

VSS E19

VSS AK32

VSS AK30

VSS AK29

VSS AK28

VSS AK26

VSS AK25

VSS AK11

VSS AJ5

VSS AJ11

VSS AH9

VSS AH8

VSS AH7

VSS AH6

VSS AH5

VSS AH4

VSS AG35

VSS AG33

VSS AH3

VSS AG29

VSS AG27

VSS AH2

VSS AH10

VSS AH1

VSS AG6

VSS AE33

VSS AG31

VSS AE31

VSS AG25

VSS AG11

VSS AF8

VSS AF6

VSS AF11

VSS AE9

VSS AE7

VSS AE6

VSS AE4

VSS AE35

VSS AE27

VSS AE10

VSS AE1

VSS AD7

VSS AC35

VSS AC33

VSS AC29

VSS AD11

VSS AC11

VSS AB7

VSS AB6

VSS AB4

VSS AC27

VSS AC25

VSS AB3

VSS AA35

VSS AA33

VSS AB10

VSS AB1

VSS AA29

VSS AA31

VSS AA27

VSS AA25

VSS AA11

VSS A7

VSS A4

VSS A33

VSS A31

VSS A3

VSS A29

VSS A27

VSS A25

VSS A22

VSS A19

VSS A16

VSS A13

VSS A10

VSS

AP13

VSS AC31

VSS AB9

VSS

W25 VSS

AP7

VSS AE3

VSS AE29

VSS AE25

VSS

AR10

Sheet 7 of 58

Haswell 6/7

Schematic Diagrams

Haswell 7/7 B - 9

B.Schematic Diagrams

Haswell 7/7

D D

C C

B B

A A

Haswell Processor 7/7 ( RESERVED )

(Default)

CFG2

1: (DEFAULT)NORMAL OPERATION;

LANE# DEFINITION MATCHES

0: LANE REVERSAL

PCI EXPRESS STATIC LANE REVERSAL FOR ALL PEG PORTS

CFG[6:5]

11: DEVICE1 FUNTION 1, DEVICE 1 FUNCTION2 DISABLED

10: DEVICE1 FUNCTION1 ENABLED DEVICE1 FUNCTION 2 DISABLED

01: DEVICE 1 FUNCTION 1 DISABLED, DEVICE 1 FUNCTION 2 ENABLED

00: DEVICE 1 FUNCTION 1 ENABLED, DEVICE 1 FUNCTION 2 ENABLED

PCIE Port Bifurcation Straps

CFG Straps for Processor

CFG4

1: DISABLED;

NO PHYSICAL DISPLAY PORT ATTACHED

TO EMBEDDED DISPLAY PORT

0: ENABLED; AN EXTERNAL DISPLAY PORT DEVICE

AN EXTERNAL DISPLAY PORT DEVICE IS CONNECTED

TO THE EMBEDDED DISPLAY PORT

DISPLAY PORT PRESENCE STRAP

NOTE:

RESERVE THIS CIRCUIT FOR FUTURE COMPATIBILITY

(Default)

NOTE:

PHYSICAL_DEBUG_ENABLED (DFX PRIVACY)

0 : ENABLED SET DFX ENABLED BIT IN DEBUG INTERFACE MSR

1 : DISABLED

CFG7

DEFENSIVE PULL DOWN SITE

1: (Default) PEG Train immediately following xxRESETB de assertion

0: PEG Wait for BIOS for training

H_CPU_RSVD30

H_CPU_RSVD40

FC_G6

CFG2

CFG4

CFG5

CFG6

CFG3

CFG2

CFG4

CFG5

CFG7

CFG6

CFG_RCOMP

FC_G6

CFG3

CFG7

CFG16

CFG17

CFG18

CFG19

CFG0

CFG1

CFG9

CFG10

CFG8

CFG11

CFG12

CFG13

CFG14

CFG15

+VCCIN

PM_PCH_PWROK 24,39

3.3V2,3,13,20,22,24,26,27,28,29,30,31,32,33,34,37,40,42,45,46

+VCCIN5,44

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[08] Haswell Processor 7/7

Custom

858Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[08] Haswell Processor 7/7

Custom

858Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[08] Haswell Processor 7/7

Custom

858Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

R353 *1K_04

R84 *1K_04

Haswell rPGA EDS

9 OF 9

U15I

RSVD P10

RSVD U10

NC B1

VSS AR26

VSS AP27

RSVD_TP E20

RSVD_TP E21

RSVD A2

RSVD E18

RSVD_TP AR1

RSVD K6

RSVD AM2

RSVD F5

RSVD AM26

RSVD AM27

CFG_19 AP23

CFG_17 AP21

CFG_18 AR23

CFG_16 AR21

CFG_RCOMP AT31

RSVD_TP D23

RSVD_TP D24

RSVD_TP B23

RSVD_TP C23

CFG_15

AP25 CFG_14

AN26 CFG_13

AN25

CFG_9

AT23 CFG_8

AR24 CFG_7

AN23 CFG_6

AT25

RSVD_TP

B35 RSVD_TP

C35

VCC

F25 RSVD

AL29 RSVD

AL30 RSVD

W33

RSVD_TP

A35 RSVD_TP

A34

RSVD

AD10 RSVD_TP

AT2 RSVD_TP

AT1

CFG_12

AP26 CFG_11

AP24 CFG_10

AN20

RSVD_TP

W29

RSVD_TP

W28

TESTLO

G26

RSVD AR33

FC G6

RSVD_TP

AL25

RSVD_TP

W30

RSVD_TP

W31

TESTLO

W34

CFG_0

AT20

CFG_1

AR20

CFG_4

AT22

CFG_5

AN22

CFG_3

AP22 CFG_2

AP20

VSS AL31

VSS AL32

R73 *1K_04

R387

*1K_1%_04

R77 *1K_04

R358 1K_04

R57 49.9_1%_04

R343 49.9_1%_04

R72 *1K_04

R700 *1K_1%_04

R11 49.9_1%_04

R385

*2K_1%_04

Sheet 8 of 58

Haswell 7/7

Schematic Diagrams

B - 10 DDR SO-DIMM A_0

B.Schematic Diagrams

DDR SO-DIMM A_0

D D

C C

B B

A A

SO-DIMM A_0

CLOSE TO SO-DIMM_0

20mils

signal/space/signal:

Layout Note:

85 ohm

CHANGE TO STANDARD

P/N:6-86-24204-030

SA0_A_DIM0

MVREF_DIMA_0

M_A_DQS#3

M_A_DQS1

M_A_DQS2

M_A_DQS#7

M_A_DQS6

M_A_DQS0

M_A_DQS5

M_A_DQS#2

SA1_A_DIM0

M_A_DQS7

M_A_DQS#5

M_A_DQS#6

M_A_DQS#0

M_A_DQS3

M_A_DQS#1

M_A_DQS4

M_A_DQS#4

M_A_DQ1

M_A_DQ2

M_A_DQ3

M_A_DQ4

M_A_DQ29

M_A_DQ30

M_A_DQ31

M_A_DQ32

M_A_DQ33

M_A_DQ34

M_A_DQ35

M_A_DQ36

M_A_DQ37

M_A_DQ39

M_A_DQ40

M_A_DQ41

M_A_DQ42

M_A_DQ43

M_A_DQ44

M_A_DQ45

M_A_DQ46

M_A_DQ47

M_A_DQ38

M_A_DQ49

M_A_DQ50

M_A_DQ28

M_A_DQ51

M_A_DQ52

M_A_DQ53

M_A_DQ54

M_A_DQ55

M_A_DQ48

M_A_DQ5

M_A_DQ6

M_A_DQ56

M_A_DQ57

M_A_DQ58

M_A_DQ60

M_A_DQ61

M_A_DQ62

M_A_DQ63

M_A_DQ59

M_A_DQ7

M_A_DQ8

M_A_DQ9

M_A_DQ11

M_A_DQ12

M_A_DQ13

M_A_DQ14

M_A_DQ15

M_A_DQ16

M_A_DQ17

M_A_DQ18

M_A_DQ19

M_A_DQ10

M_A_DQ21

M_A_DQ22

M_A_DQ0

M_A_DQ23

M_A_DQ24

M_A_DQ25

M_A_DQ26

M_A_DQ27

M_A_DQ20

M_A_A9

M_A_A8

M_A_A7

M_A_A5

M_A_A6

M_A_A4

M_A_A3

M_A_A2

M_A_A1

M_A_A0

M_A_A15

M_A_A14

M_A_A13

M_A_A11

M_A_A12

M_A_A10

MVREF_DIMA_0

MVREF_DQ_DIMMA

M_A_CLK_DDR#1

M_A_CLK_DDR0 M_A_CLK_DDR#0

M_A_CLK_DDR1

SA1_A_DIM0

SA0_A_DIM0

3.3VS

VDDQ_VTT

V_VDDQ_DIMM

M_A_CLK_DDR14

M_A_BS14,11

M_A_RAS#4,11

M_A_ODT14

DDR3_DRAMRST#3,10,11

SMB_CLK10,11,23,38

M_A_CLK_DDR#14

M_A_CAS#4,11

M_A_WE#4,11

M_A_BS04,11

M_A_ODT04

VDDQ_VTT10,11,42

M_A_CLK_DDR04

M_A_CKE04

M_A_BS24,11

M_A_CKE14

M_A_DQ[63:0] 4,11

M_A_CS#14

M_A_CLK_DDR#04

M_A_CS#04

TS#_DIMM0_110,11

SMB_DATA10,11,23,38

M_A_DQS[7:0]4,11

M_A_DQS#[7:0]4,11

M_A_A[15:0]4,11

3.3VS3,6,10,11,12,13,22,23,24,25,26,28,29,30,31,32,34,35,36,37,39,40,44,45

MVREF_DQ_DIMMA4,11

V_VDDQ_DIMM3,4,5,10,11,42

+V_VREF_CA_DIMM4,10,11

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[09] DDR3 SO-DIMM_A_0

958Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[09] DDR3 SO-DIMM_A_0

958Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[09] DDR3 SO-DIMM_A_0

958Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

C435

1u_6.3V_X5R_04

R272

*1K_1%_04

C766

1u_6.3V_X5R_04

C444 0.1u_10V_X5R_04

C410

1u_6.3V_X5R_04

C443

10u_6.3V_X5R_06

C436

1u_6.3V_X5R_04

C456

0.1u_10V_X5R_04

C415 1u_6.3V_X5R_04

R267 10K_04

C411

1u_6.3V_X5R_04

C475

10u_6.3V_X5R_06

C405

1u_6.3V_X5R_04

C630

1u_6.3V_X5R_04

R268 10K_04

C434

*1u_6.3V_X5R_04

C403

1u_6.3V_X5R_04

C311 *10p_50V_NPO_04

JDIMM1B

Oceantek 91-93469-174

VDD1

VDD2

VDD3

VDD4

VDD5

VDD6

VDD7

VDD8

VDD9

VDD10

100

VDD11

105

VDD12

106

VDDSPD

199

NC1

NC2

122

NCTEST

125

VREF_DQ

VSS1

VSS2

VSS3

VSS4

VSS5

VSS6

VSS7

VSS8

VSS9

VSS10

VSS11

VSS12

VSS13

VSS14

VSS15

VSS16 44

VSS17 48

VSS18 49

VSS19 54

VSS20 55

VSS21 60

VSS22 61

VSS23 65

VSS24 66

VSS25 71

VSS26 72

VSS27 127

VSS28 128

VSS29 133

VSS30 134

VSS31 138

VSS32 139

VSS33 144

VSS34 145

VSS35 150

VSS36 151

VSS37 155

VSS38 156

VSS39 161

VSS40 162

VSS41 167

VSS42 168

VSS43 172

VSS44 173

VSS45 178

VSS46 179

VSS47 184

VSS48 185

VSS49 189

VSS50 190

VSS51 195

VSS52 196

G2 GND2

G1 GND1

VTT2 204

VTT1 203

VREF_CA

126

RESET#

30 EVENT#

198

VDD13

111

VDD14

112

VDD16

118 VDD15

117

VDD17

123

VDD18

124

C433

*1u_6.3V_X5R_04

R270 *1K_1%_04

C442

1u_6.3V_X5R_04

R271 10K_04

C453

1u_6.3V_X5R_04

C425

*0.1u_10V_X5R_04

C767

1u_6.3V_X5R_04

C406 0.1u_10V_X5R_04

C316 *10p_50V_NPO_04

R276 0_04

C402

1u_6.3V_X5R_04

C640

1u_6.3V_X5R_04

C480

10u_6.3V_X5R_06

C409 1u_6.3V_X5R_04

C404

10u_6.3V_X5R_06

JDIMM1A

Oceantek 91-93469-174

A10/AP

107

A11

A12/BC#

A13

119

A14

A15

DQ0 5

DQ1 7

DQ2 15

DQ3 17

DQ4 4

DQ5 6

DQ6 16

DQ7 18

DQ8 21

DQ9 23

DQ10 33

DQ11 35

DQ12 22

DQ13 24

DQ14 34

DQ15 36

DQ16 39

DQ17 41

DQ18 51

DQ19 53

DQ20 40

DQ21 42

DQ22 50

DQ23 52

DQ24 57

DQ25 59

DQ26 67

DQ27 69

DQ28 56

DQ29 58

DQ30 68

DQ31 70

DQ32 129

DQ33 131

DQ34 141

DQ35 143

DQ36 130

DQ37 132

DQ38 140

DQ39 142

DQ40 147

DQ41 149

DQ42 157

DQ43 159

DQ44 146

DQ45 148

DQ46 158

DQ47 160

DQ48 163

DQ49 165

DQ50 175

DQ51 177

DQ52 164

DQ53 166

DQ54 174

DQ55 176

DQ56 181

DQ57 183

DQ58 191

DQ59 193

DQ60 180

DQ61 182

DQ62 192

DQ63 194

BA0

109

BA1

108

RAS#

110

WE#

113

CAS#

115

S0#

114

S1#

121

CKE0

CKE1

CK0

101

CK0#

103

CK1

102

CK1#

104

SDA

200 SCL

202 SA1

201 SA0

197

DM0

DM1

DM2

DM3

DM4

136

DM5

153

DM6

170

DM7

187

DQS0

DQS1

DQS2

DQS3

DQS4

137

DQS5

154

DQS6

171

DQS7

188

DQS0#

DQS1#

DQS2#

DQS3#

DQS4#

135

DQS5#

152

DQS6#

169

DQS7#

186

ODT0

116

ODT1

120

BA2

Sheet 9 of 58

DDR SO-DIMM A_0

Schematic Diagrams

DDR SO-DIMM B_0 B - 11

B.Schematic Diagrams

DDR SO-DIMM B_0

D D

C C

B B

A A

SO-DIMM B_0

Layout Note:

8 / 4 / 8

20mils

signal/space/signal:

CHANGE TO STANDARD

CLOSE TO SO-DIMM1

SO-DIMM_1 is placed farther from the GMCH than SO-DIMM_0

Layout Note:

P/N:6-86-24204-031

SA1_B_DIM0

MVREF_DQ_DIMMB

M_B_DQ46

M_B_DQ31

M_B_DQ11

M_B_DQ28

M_B_DQ56

M_B_DQ24

M_B_DQ13

M_B_DQ61

M_B_DQ23

M_B_DQ16

M_B_DQ1

M_B_DQ50

M_B_DQ58

M_B_DQ62

M_B_DQ54

M_B_DQ40

M_B_DQ2

M_B_DQ60

M_B_DQ37

M_B_DQ57

M_B_DQ41

M_B_DQ44

M_B_DQ27

M_B_DQ30

M_B_DQ25

M_B_DQ5

M_B_DQ34

M_B_DQ9

M_B_DQ7

M_B_DQ3

M_B_DQ17

M_B_DQ38

M_B_DQ43

M_B_DQ47

M_B_DQ36

M_B_DQ35

M_B_DQ59

M_B_DQ8

M_B_DQ42

M_B_DQ33

M_B_DQ63

M_B_DQ26

M_B_DQ4

M_B_DQ15

M_B_DQ29

M_B_DQ55

M_B_DQ48

M_B_DQ45

M_B_DQ53

M_B_DQ52

M_B_DQ10

M_B_DQ12

M_B_DQ0

M_B_DQ18

M_B_DQ19

M_B_DQ6

M_B_DQ21

M_B_DQ51

M_B_DQ49

M_B_DQ39

M_B_DQ20

M_B_DQ22

M_B_DQ14

M_B_DQ32

M_B_A5

M_B_A6

M_B_A4

M_B_A3

M_B_A2

M_B_A1

M_B_A0

M_B_A12

M_B_A13

M_B_A11

M_B_A10

M_B_A9

M_B_A8

M_B_A7

M_B_A14

M_B_DQS0

M_B_DQS1

M_B_DQS2

M_B_DQS3

M_B_DQS4

M_B_DQS5

M_B_DQS6

M_B_DQS7

M_B_DQS#0

M_B_DQS#1

M_B_DQS#2

M_B_DQS#3

M_B_DQS#4

M_B_DQS#5

M_B_DQS#6

M_B_DQS#7

M_B_A15

M_B_CLK_DDR0

M_B_CLK_DDR#1M_B_CLK_DDR1

M_B_CLK_DDR#0

MVREF_DIMB_0

SA0_B_DIM0

SA1_B_DIM0

SA0_B_DIM0

3.3VS

VDDQ_VTT

V_VDDQ_DIMM

VDDQ_VTT

V_VDDQ_DIMM

3.3VS

DDR3_DRAMRST#3,9,11

VDDQ_VTT9,11,42

SMB_DATA9,11,23,38

SMB_CLK9,11,23,38

TS#_DIMM0_19,11

M_B_DQ[63:0] 4M_B_A[15:0]4

M_B_CLK_DDR14

M_B_BS14

M_B_RAS#4

M_B_CLK_DDR#14

M_B_CAS#4

M_B_WE#4

M_B_BS04

M_B_CLK_DDR04

M_B_CKE04

M_B_BS24

M_B_CKE14

M_B_CS#14

M_B_CLK_DDR#04

M_B_CS#04

M_B_ODT14

M_B_ODT04

M_B_DQS[7:0]4

M_B_DQS#[7:0]4

3.3VS3,6,9,11,12,13,22,23,24,25,26,28,29,30,31,32,34,35,36,37,39,40,44,45

MVREF_DQ_DIMMB4

V_VDDQ_DIMM3,4,5,9,11,42

+V_VREF_CA_DIMM4,9,11

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[10] DDR3 SO-DIMM_B_0

10 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[10] DDR3 SO-DIMM_B_0

10 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[10] DDR3 SO-DIMM_B_0

10 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

R648

*1K_1%_04

C424

0.1u_10V_X5R_04

C460 *10p_50V_NPO_04

C750

330u_2.5V_6.6*6.6*4.2

C733

1u_6.3V_X5R_04

C731

1u_6.3V_X5R_04

C735

*10u_6.3V_X5R_06

C768

1u_6.3V_X5R_04

C695 0.1u_10V_X5R_04

C692 1u_6.3V_X5R_04

C715

1u_6.3V_X5R_04

C740 0.1u_10V_X5R_04

C477

10u_6.3V_X5R_06

C745

*0.1u_10V_X5R_04

C454

10u_6.3V_X5R_06

C648

1u_6.3V_X5R_04

C713

1u_6.3V_X5R_04

R646 *1K_1%_04

JDIMM2A

91 -93469-172

A10/AP

107

A11

A12/BC#

A13

119

A14

A15

DQ0 5

DQ1 7

DQ2 15

DQ3 17

DQ4 4

DQ5 6

DQ6 16

DQ7 18

DQ8 21

DQ9 23

DQ10 33

DQ11 35

DQ12 22

DQ13 24

DQ14 34

DQ15 36

DQ16 39

DQ17 41

DQ18 51

DQ19 53

DQ20 40

DQ21 42

DQ22 50

DQ23 52

DQ24 57

DQ25 59

DQ26 67

DQ27 69

DQ28 56

DQ29 58

DQ30 68

DQ31 70

DQ32 129

DQ33 131

DQ34 141

DQ35 143

DQ36 130

DQ37 132

DQ38 140

DQ39 142

DQ40 147

DQ41 149

DQ42 157

DQ43 159

DQ44 146

DQ45 148

DQ46 158

DQ47 160

DQ48 163

DQ49 165

DQ50 175

DQ51 177

DQ52 164

DQ53 166

DQ54 174

DQ55 176

DQ56 181

DQ57 183

DQ58 191

DQ59 193

DQ60 180

DQ61 182

DQ62 192

DQ63 194

BA0

109

BA1

108

RAS#

110

WE#

113

CAS#

115

S0#

114

S1#

121

CKE0

CKE1

CK0

101

CK0#

103

CK1

102

CK1#

104

SDA

200 SCL

202 SA1

201 SA0

197

DM0

DM1

DM2

DM3

DM4

136

DM5

153

DM6

170

DM7

187

DQS0

DQS1

DQS2

DQS3

DQS4

137

DQS5

154

DQS6

171

DQS7

188

DQS0#

DQS1#

DQS2#

DQS3#

DQS4#

135

DQS5#

152

DQS6#

169

DQS7#

186

ODT0

116

ODT1

120

BA2

R643 0_04

C462 *10p_50V_NPO_04

C459

10u_6.3V_X5R_06

C437

*1u_6.3V_X5R_04

R274 10K_04

C439

10u_6.3V_X5R_06

C440

10u_6.3V_X5R_06

R275 10K_04

C730

1u_6.3V_X5R_04

C718

1u_6.3V_X5R_04

C769

1u_6.3V_X5R_04

C741 1u_6.3V_X5R_04

JDIMM2B

91 -93469-172

VDD1

VDD2

VDD3

VDD4

VDD5

VDD6

VDD7

VDD8

VDD9

VDD10

100

VDD11

105

VDD12

106

VDDSPD

199

NC1

NC2

122

NCTEST

125

VREF_DQ

VSS1

VSS2

VSS3

VSS4

VSS5

VSS6

VSS7

VSS8

VSS9

VSS10

VSS11

VSS12

VSS13

VSS14

VSS15

VSS16 44

VSS17 48

VSS18 49

VSS19 54

VSS20 55

VSS21 60

VSS22 61

VSS23 65

VSS24 66

VSS25 71

VSS26 72

VSS27 127

VSS28 128

VSS29 133

VSS30 134

VSS31 138

VSS32 139

VSS33 144

VSS34 145

VSS35 150

VSS36 151

VSS37 155

VSS38 156

VSS39 161

VSS40 162

VSS41 167

VSS42 168

VSS43 172

VSS44 173

VSS45 178

VSS46 179

VSS47 184

VSS48 185

VSS49 189

VSS50 190

VSS51 195

VSS52 196

G2 GND2

G1 GND1

VTT2 204

VTT1 203

VREF_CA

126

RESET#

30 EVENT#

198

VDD13

111

VDD14

112

VDD16

118 VDD15

117

VDD17

123

VDD18

124

C413

1u_6.3V_X5R_04

C734

1u_6.3V_X5R_04

C478

10u_6.3V_X5R_06

C445

1u_6.3V_X5R_04

C432

*1u_6.3V_X5R_04

Sheet 10 of 58

DDR SO-DIMM B_0

Schematic Diagrams

B - 12 DDR SO-DIMM A_1

B.Schematic Diagrams

DDR SO-DIMM A_1

D D

C C

B B

A A

SO-DIMM A_1

20mils

signal/space/signal:

Layout Note:

8 / 4 / 8

CHANGE TO STANDARD

CLOSE TO SO-DIMM_1

P/N:6-86-24204-029

1218

SA0_A_DIM1

M_A_DQS#3

M_A_DQS1

M_A_DQS2

M_A_DQS#7

M_A_DQS6

M_A_DQS0

M_A_DQS5

M_A_DQS#2

SA1_A_DIM1

M_A_DQS7

M_A_DQS#5

M_A_DQS#6

M_A_DQS#0

M_A_DQS3

M_A_DQS#1

M_A_DQS4

M_A_DQS#4

M_A_DQ1

M_A_DQ2

M_A_DQ3

M_A_DQ4

M_A_DQ29

M_A_DQ30

M_A_DQ31

M_A_DQ32

M_A_DQ33

M_A_DQ34

M_A_DQ35

M_A_DQ36

M_A_DQ37

M_A_DQ39

M_A_DQ40

M_A_DQ41

M_A_DQ42

M_A_DQ43

M_A_DQ44

M_A_DQ45

M_A_DQ46

M_A_DQ47

M_A_DQ38

M_A_DQ49

M_A_DQ50

M_A_DQ28

M_A_DQ51

M_A_DQ52

M_A_DQ53

M_A_DQ54

M_A_DQ55

M_A_DQ48

M_A_DQ5

M_A_DQ6

M_A_DQ56

M_A_DQ57

M_A_DQ58

M_A_DQ60

M_A_DQ61

M_A_DQ62

M_A_DQ63

M_A_DQ59

M_A_DQ7

M_A_DQ8

M_A_DQ9

M_A_DQ11

M_A_DQ12

M_A_DQ13

M_A_DQ14

M_A_DQ15

M_A_DQ16

M_A_DQ17

M_A_DQ18

M_A_DQ19

M_A_DQ10

M_A_DQ21

M_A_DQ22

M_A_DQ0

M_A_DQ23

M_A_DQ24

M_A_DQ25

M_A_DQ26

M_A_DQ27

M_A_DQ20

M_A_A9

M_A_A8

M_A_A7

M_A_A5

M_A_A6

M_A_A4

M_A_A3

M_A_A2

M_A_A1

M_A_A0

M_A_A15

M_A_A14

M_A_A13

M_A_A11

M_A_A12

M_A_A10

MVREF_DIMA_1

MVREF_DQ_DIMMA

MVREF_DIMA_1

SA0_A_DIM1

SA1_A_DIM1

3.3VS

V_VDDQ_DIMM

VDDQ_VTT

V_VDDQ_DIMM

VDDQ_VTT

3.3VS

M_A_CLK_DDR34

M_A_BS14,9

M_A_RAS#4,9

M_A_ODT34

DDR3_DRAMRST#3,9,10

SMB_CLK9,10,23,38

M_A_CLK_DDR#34

M_A_CAS#4,9

M_A_WE#4,9

M_A_BS04,9

M_A_ODT24

M_A_CLK_DDR24

M_A_CKE24

M_A_BS24,9

M_A_CKE34

M_A_DQ[63:0] 4,9

M_A_CS#34

M_A_CLK_DDR#24

M_A_CS#24

TS#_DIMM0_19,10

SMB_DATA9,10,23,38

M_A_DQS[7:0]4,9

M_A_DQS#[7:0]4,9

M_A_A[15:0]4,9

MVREF_DQ_DIMMA4,9

VDDQ_VTT9,10,42

3.3VS3,6,9,10,12,13,22,23,24,25,26,28,29,30,31,32,34,35,36,37,39,40,44,45

V_VDDQ_DIMM3,4,5,9,10,42

+V_VREF_CA_DIMM4,9,10

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

3.0

[11] DDR3 SO-DIMM_A_1

11 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

3.0

[11] DDR3 SO-DIMM_A_1

11 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

3.0

[11] DDR3 SO-DIMM_A_1

11 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

C719

0.1u_10V_X7R_04

C651

*1u_6.3V_X5R_04

C473

330u_2.5V_6.6*6.6*4.2

C721

0.1u_10V_X7R_04

C448

0.1u_10V_X7R_04

C466

0.1u_10V_X7R_04

C441

1u_6.3V_X5R_04

JDIMM3B

91-93469-179

VDD1

VDD2

VDD3

VDD4

VDD5

VDD6

VDD7

VDD8

VDD9

VDD10

100

VDD11

105

VDD12

106

VDDSPD

199

NC1

NC2

122

NCTEST

125

VREF_DQ

VSS1

VSS2

VSS3

VSS4

VSS5

VSS6

VSS7

VSS8

VSS9

VSS10

VSS11

VSS12

VSS13

VSS14

VSS15

VSS16 44

VSS17 48

VSS18 49

VSS19 54

VSS20 55

VSS21 60

VSS22 61

VSS23 65

VSS24 66

VSS25 71

VSS26 72

VSS27 127

VSS28 128

VSS29 133

VSS30 134

VSS31 138

VSS32 139

VSS33 144

VSS34 145

VSS35 150

VSS36 151

VSS37 155

VSS38 156

VSS39 161

VSS40 162

VSS41 167

VSS42 168

VSS43 172

VSS44 173

VSS45 178

VSS46 179

VSS47 184

VSS48 185

VSS49 189

VSS50 190

VSS51 195

VSS52 196

G2 GND2

G1 GND1

VTT2 204

VTT1 203

VREF_CA

126

RESET#

30 EVENT#

198

VDD13

111

VDD14

112

VDD16

118 VDD15

117

VDD17

123

VDD18

124

C467

0.1u_10V_X7R_04

C450

10u_6.3V_X5R_06

C649

1u_6.3V_X5R_04

C720

0.1u_10V_X7R_04

C407

10u_6.3V_X5R_06

C412

0.1u_10V_X7R_04

C714

0.1u_10V_X7R_04

C463

10u_6.3V_X5R_06

C717

0.1u_10V_X7R_04

C451

1u_6.3V_X5R_04

C446

1u_6.3V_X5R_04

C455

1u_6.3V_X5R_04

C623

*0.1u_10V_X5R_04

R266 10K_04

C624

1u_6.3V_X5R_04

R559

*1K_1%_04

R269 10K_04

C716

0.1u_10V_X7R_04

R273 10K_04

C422

*10u_6.3V_X5R_06

C645

*0.1u_10V_X7R_04

C452 2.2u_6.3V_X5R_06

JDIMM3A

91-93469-179

A10/AP

107

A11

A12/BC#

A13

119

A14

A15

DQ0 5

DQ1 7

DQ2 15

DQ3 17

DQ4 4

DQ5 6

DQ6 16

DQ7 18

DQ8 21

DQ9 23

DQ10 33

DQ11 35

DQ12 22

DQ13 24

DQ14 34

DQ15 36

DQ16 39

DQ17 41

DQ18 51

DQ19 53

DQ20 40

DQ21 42

DQ22 50

DQ23 52

DQ24 57

DQ25 59

DQ26 67

DQ27 69

DQ28 56

DQ29 58

DQ30 68

DQ31 70

DQ32 129

DQ33 131

DQ34 141

DQ35 143

DQ36 130

DQ37 132

DQ38 140

DQ39 142

DQ40 147

DQ41 149

DQ42 157

DQ43 159

DQ44 146

DQ45 148

DQ46 158

DQ47 160

DQ48 163

DQ49 165

DQ50 175

DQ51 177

DQ52 164

DQ53 166

DQ54 174

DQ55 176

DQ56 181

DQ57 183

DQ58 191

DQ59 193

DQ60 180

DQ61 182

DQ62 192

DQ63 194

BA0

109

BA1

108

RAS#

110

WE#

113

CAS#

115

S0#

114

S1#

121

CKE0

CKE1

CK0

101

CK0#

103

CK1

102

CK1#

104

SDA

200 SCL

202 SA1

201 SA0

197

DM0

DM1

DM2

DM3

DM4

136

DM5

153

DM6

170

DM7

187

DQS0

DQS1

DQS2

DQS3

DQS4

137

DQS5

154

DQS6

171

DQS7

188

DQS0#

DQS1#

DQS2#

DQS3#

DQS4#

135

DQS5#

152

DQS6#

169

DQS7#

186

ODT0

116

ODT1

120

BA2

R555 *1K_1%_04

C408

1u_6.3V_X5R_04

C447

1u_6.3V_X5R_04

C737

10u_6.3V_X5R_06

R558 0_04

C423

1u_6.3V_X5R_04

C644 0.1u_10V_X7R_04

C622

0.1u_10V_X7R_04

C449

1u_6.3V_X5R_04

C626

*1u_6.3V_X5R_04

C641 1u_6.3V_X5R_04

C438 0.1u_10V_X7R_04

C625

1u_6.3V_X5R_04

Sheet 11 of 58

DDR SO-DIMM A_1

Schematic Diagrams

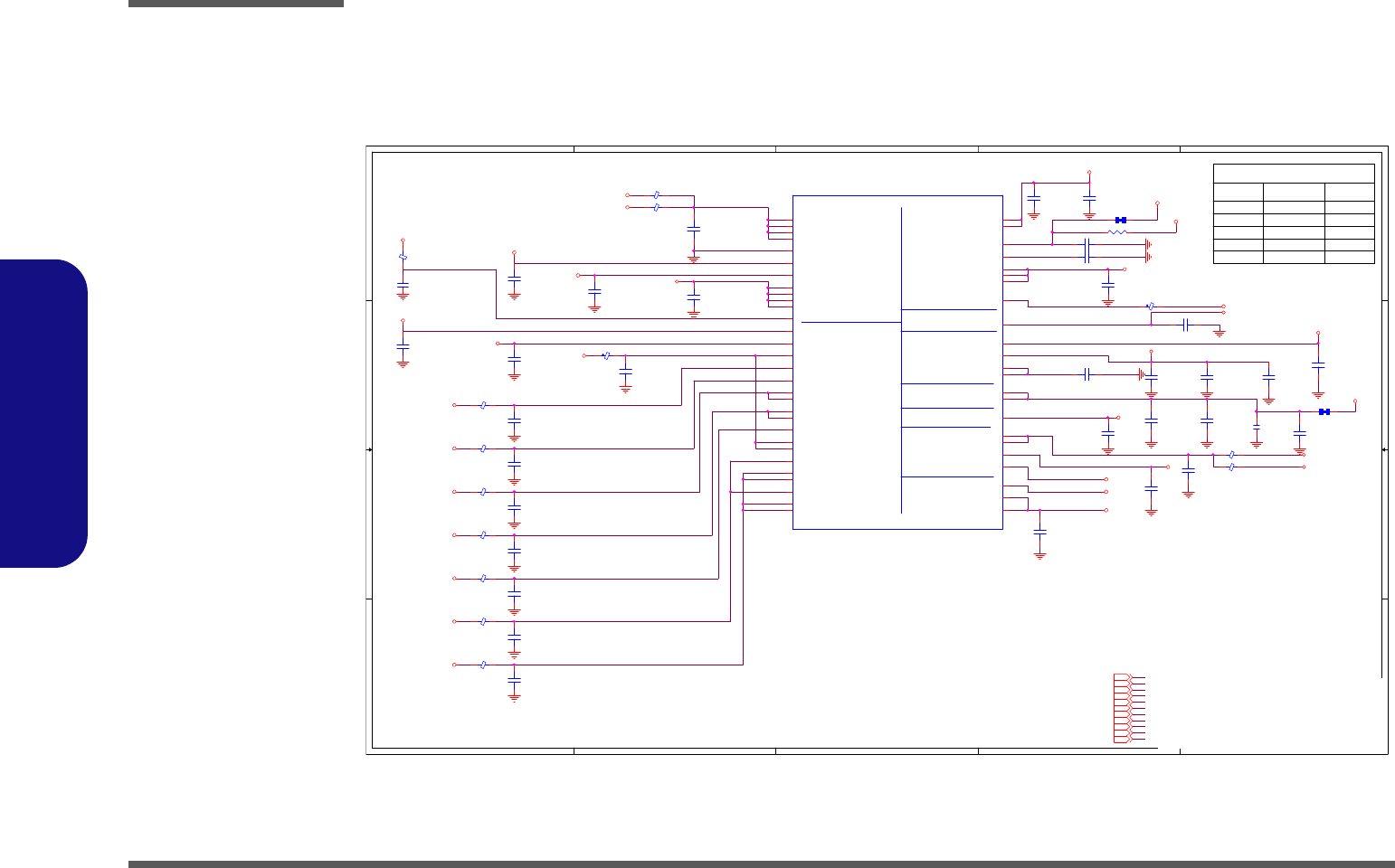

PS8625 B - 13

B.Schematic Diagrams

PS8625

D D

C C

B B

A A

Power On Configuration

RLV_LNK: LVDS single link or dual link selection, internal pull-down ~80K

L: Single link LVDS

H: Dual link LVDS

I2C_ADDR: I2C Slave address selection, internal pull-down ~80K

L: 0x10h~0x1Fh

H: 0x90h~0x9Fh

RLV_CFG: LVDS color depth and data mapping selection, internal pull-down ~80K

L: 8-bit LVDS, VESA mapping

M: 8-bit LVDS, JEIDA mapp ing

H: 6-bit LVDS, both VESA and JEIDA mapping

Noe:

R13: LVDS output swing control

4.99K for default swing, change the value for swing adjust

Note:

The decoupling caps C9, C15, C16, C17, C18, C21

shall be close to the power pins as possible

ϭ͘WůĂĐĞƚŚĞƐǁŝƚĐŚŝŶŐƌĞŐƵůĂƚŽƌŝŶĚƵĐƚŽƌ;>ϯͿĐůŽƐĞƚŽ^tͺKhdWŝŶƐ;WŝŶϭϱ͕WŝŶϭϲͿ͘

Ϯ͘dŚĞ^tͺKhdŽƵƚƉƵƚƚƌĂĐĞƐƐŚŽƵůĚďĞĂƐǁŝĚĞĂƐƉŽƐƐŝďůĞ͘

ϯ͘dŚĞ'EyƉŝŶƐ;WŝŶϭϳ͕WŝŶϭϴͿƐŚŽƵůĚďĞĐŽŶŶĞĐƚĞĚƚŽƚŚĞŵĂŝŶWŐƌŽƵŶĚƉůĂŶĞ͕ǁŝƚŚƚŚĞĚĞǀŝĐĞ'EƉŝŶƐŽĨƚŚĞW^ϴϲϮϱĐŽŶŶĞĐƚĞĚƚŽƐĞƉĂƌĂƚĞ'EŝƐůĂŶĚ;'EͿĨŽƌƚŚĞĚĞǀŝĐĞ͘

dŚĞ'EŝƐůĂŶĚ;'EͿƐŚŽƵůĚďĞĐŽŶŶĞĐƚĞĚƚŽƚŚĞŵĂŝŶ'EƉůĂŶĞ;'EͿǁŝƚŚĂƐŝŶŐůĞͲƉŽŝŶƚĐŽŶŶĞĐƚŝŽŶďǇƵƐĞŽĨĂǁŝĚĞWƚƌĂĐĞ͘

ϰ͘WůĂĐĞƚŚĞϰ͘ϳƵ&ĚĞĐŽƵƉůŝŶŐĂƉĂĐŝƚŽƌ;ϰͿĨŽƌs/KyĐůŽƐĞƚŽs/KyƉŝŶ͘

ϱ͘dŚĞ'EŽĨƚŚĞϰ͘ϳƵ&ĐĂƉĂĐŝƚŽƌ;ϰͿĨŽƌs/KyƐŚŽƵůĚďĞƉůĂĐĞĚĐůŽƐĞƚŽƚŚĞ'EŽĨϰ͘ϳƵ&ĐĂƉĂĐŝƚŽƌ;ϱͿďĞŚŝŶĚ/ŶĚƵĐƚŽƌ͘

ϲ͘WůĂĐĞƚŚĞďĞĂĚ;>ϮͿĨŽƌs/KyĐůŽƐĞƚŽW^ϴϲϮϱ͘

/ŶŝƚŝĂů

ŽĚĞ

WZKD

I2C_CFG = "H"

EEPROM for Initial Code

I2C Address: 0xA0

Suggest minimum 2Kbit

KƉƚŝŽŶĂů

WĂŶĞů

/

WZKD

Panel EDID if there is no EDID on LVDS panel

To LVDS Connector

(Even)

Single link

LVDS (Odd)

Dual link

LVDS

6-03-08625-030

STUFF FOR EDP

For eDP Panel

㓦⛐

U29

側朊

STUFF FOR EDP

1212

FOR LVDS

DAUXn

DAUXp

DRX0p

DRX0n

DRX1p

DRX1n

RLV_LNK/GPIO0 VDDIO

PANEL_VCC_EN VDDIO

VDDIOGND RLV_CFG

VDDIO

LVDS-U1P

LVDS-U1N

LVDS-U0P

LVDS-U0N

P_DDC_DATA

PANEL_VCC_EN

LVDS-UCLKP

LVDS-U2P

LVDS-U2N

DRX0p

LVDS-L1P

LVDS-L1N

LVDS-L0P

LVDS-L0N

RST#

DRX1n

DRX0n

DRX1p

LVDS-L2P

VDDIOX

HPD

PD#

P_DDC_CLK

PANEL_PWM

GND_A

LVDS-LCLKP

VDDIO

VDD12

LVDS-LCLKN

SW_OUT

LVDS-L2N

ENBLT

RLV_CFG

BRIGHTNESS_8625

SMC_VGA_THERM

RLV_LNK/GPIO0

SMD_VGA_THERM

GND_A

RLV_AMP

PS8625_REXT

GND_A

DAUXp

DAUXn

VDDRX

LVDS-UCLKN

VDDIOX VDD123.3VS3.3VS VDDIO VDDRX

RST#

PD#

VDDIO

RLV_LNK/GPIO0

LVDS-L1N

LVDS-L1P

LVDS-L2N

LVDS-L2P

LVDS-LCLKN

LVDS-LCLKP

LVDS-L0N

LVDS-L0P

LVDS-U1N

LVDS-U1P

LVDS-U2N

LVDS-U2P

LVDS-UCLKN

LVDS-UCLKP

LVDS-U0N

LVDS-U0P

P_DDC_CLK

P_DDC_DATA

ENBLT

PANEL_VCC_EN

PANEL_PWM

P_DDC_CLK

P_DDC_DATA

HPD

SW_OUT

BRIGHTNESS_8625

DAUXn

DAUXp

DAUXn_R

DAUXp_R

DRX0p _R

DRX0n_R

DRX1p _R

DRX1n_R

LVDS-U0N

LVDS-U0P

LVDS-U1N

LVDS-U2N

LVDS-U2P

DRX0n

DRX0p

DRX1n

DRX1p

LVDS-U1P

L_BRIGHTNESS_R PANEL_PWM

3.3VS 3.3VS

3.3VS

DP_AUXP6

EDP_TXN_06

EDP_TXN_16

EDP_TXP_16

EDP_TXP_06

DP_AUXN6

3.3V2,3,13,20,22,24,26,27,28,29,30,31,32,33,34,37,40,42,45,46

3.3VS3,6,9,10,11,13,22,23,24,25,26,28,29,30,31,32,34,35,36,37,39,40,44,45

LVDS-LCLKP 13

LVDS-U2P 13

LVDS-LCLKN 13

LVDS-U2N 13

LVDS-L2P 13

LVDS-U1P 13

LVDS-L2N 13

LVDS-U1N 13

LVDS-L0P 13

LVDS-L1P 13

LVDS-L0N 13

LVDS-L1N 13

LVDS-UCLKP 13

LVDS-U0P 13

LVDS-UCLKN 13

LVDS-U0N 13

PANEL_VCC_EN 13

ENBLT 13

PANEL_PWM 13

P_DDC_DATA 13

P_DDC_CLK 13

EDP_HPD6,13

SMD_VGA_THERM20,23,39

SMC_VGA_THERM20,23,39

BRIGHTNESS_EC39

L_BRIGHTNESS_R25

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[12] PS8625(EDP TO LVDS)

Custom

12 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[12] PS8625(EDP TO LVDS)

Custom

12 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[12] PS8625(EDP TO LVDS)

Custom

12 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

C566

4.7u_25V_X5R_08

R665 *0_04

R464 4.7K_04

C579

0.1u_16V_Y5V_04

L55 *15mil_short_06

C562

0.47u_10V_Y5V_04

R765 0_04

R667 *0_04

C841 *0.1u_10V_X7R_04

C600

0.1u_16V_Y5V_04

C30 0.1u_10V_X7R_04

R463 *4.7K_04

C602

0.47u_10V_Y5V_04

R424 *0_04

R666 *0_04

C565

0.1u_16V_Y5V_04

C846 *0.1u_10V_X7R_04

R766 *0_04

L57

HCB1005KF-121T20

R670 *0_04

C845 *0.1u_10V_X7R_04

C585

0.01u_16V_X7R_04

R416 *0_04

R841 *0_04

R668 *0_04

U23

*PM25LD010C-SCE

A0 1

A1 2

A2 3

GND 4

SDA

5SCL

6WP

7VCC

L52

HCB1005KF-121T20

C561

0.01u_16V_X7R_04

C843 *0.1u_10V_X7R_04

C97 0.1u_10V_X7R_04

L56

HCB1005KF-121T20

C844 *0.1u_10V_X7R_04

R460 4.99K_1%_04

R669 *0_04

R461 4.99K_1%_04

C842 *0.1u_10V_X7R_04

R489

10K_04

L51

BCIHP0420TB-2R2M

1 2

C590

1u_6.3V_X5R_04

R502

10K_04

C88 0.1u_10V_X7R_04

C571

1u_6.3V_X5R_04

R537

*4.7K_04

R533

*100K_04

C563

4.7u_25V_X5R_08

C28 0.1u_10V_X7R_04

C29 0.1u_10V_X7R_04

R486 1K_04

C573

2.2u_6.3V_X5R_04

R423 *4.7K_04

R488 *4.7K_04

U29

PS8625

SW_OUT

GNDX

VDD12

TESTMODE

RLV_LNK/GPIO0

RLV_CFG

ENBLT

CSDA/MSDA

CSCL/MSCL

REXT

BLV_AMP

GND

TA1n 42

TA1p 41

TB1n 40

TB1p 39

VDDIO 38

TC1n 37

TC1p 36

TCK1n 35

TCK1p 34

ENPVCC/I2C_ADDR 33

TD1n 32

TD1p 31

DDC_SDA 30

DDC_SCL 29

NC 56

NC 55

TA0n 54

TA0p 53

TB0n 52

TB0p 51

VDDIO 50

TC0n 49

TC0p 48

TCK0n 47

TCK0p 46

PWMI 45

TD0n 44

TD0p 43

DAUXn

DAUXp

GND

DRX0p

DRX0n

VDDRX

DRX1p

DRX1n

RST#

PD#

HPD

PWMO

VDDIOX

Epad

C601

1u_6.3V_X5R_04

R415 *4.7K_04

R462 4.7K_04

C575

0.1u_16V_Y5V_04

U35

*PM25LD010C-SCE

A0 1

A1 2

A2 3

GND 4

SDA

5SCL

6WP

7VCC

C27 0.1u_10V_X7R_04

Sheet 12 of 58

PS8625

Schematic Diagrams

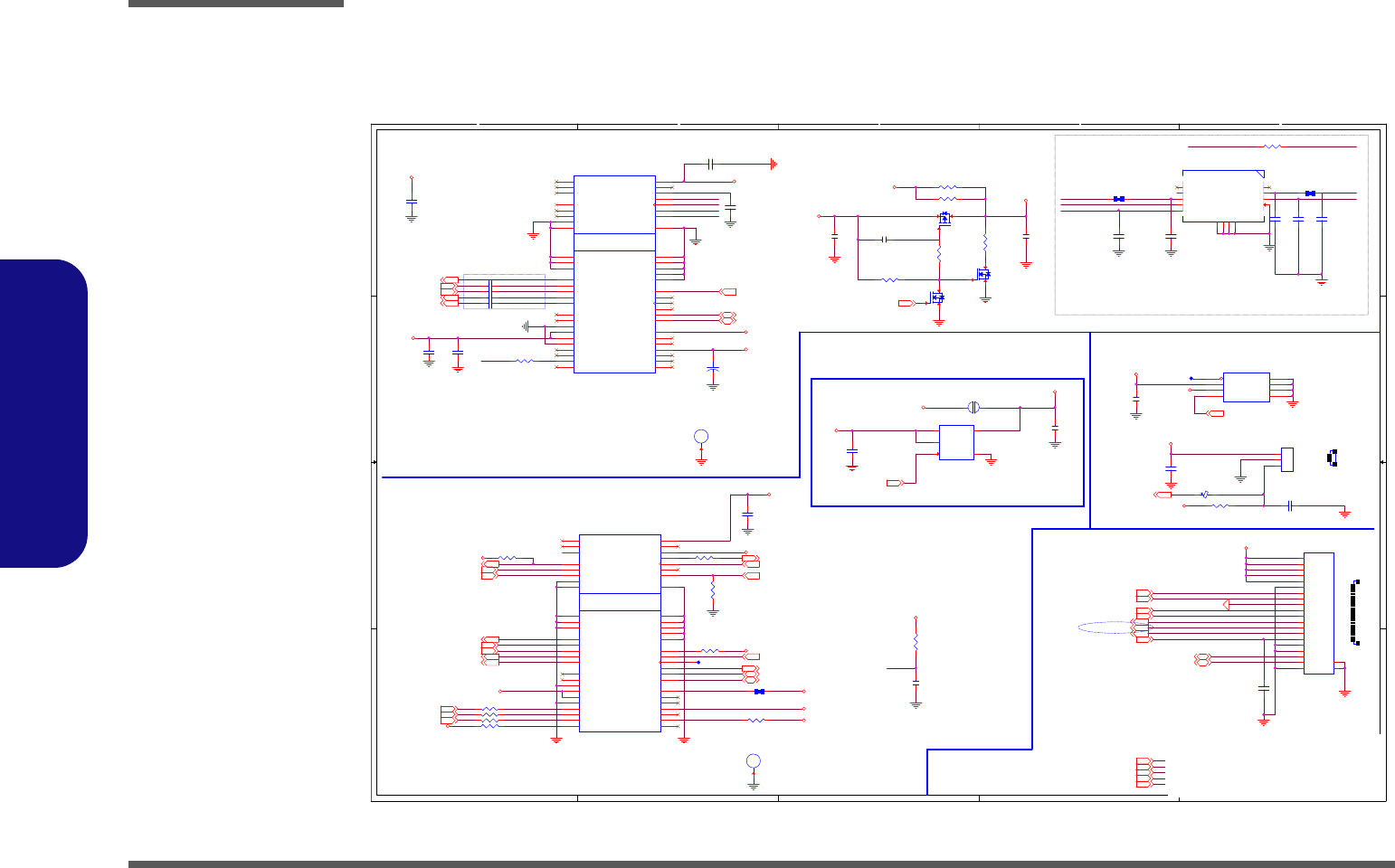

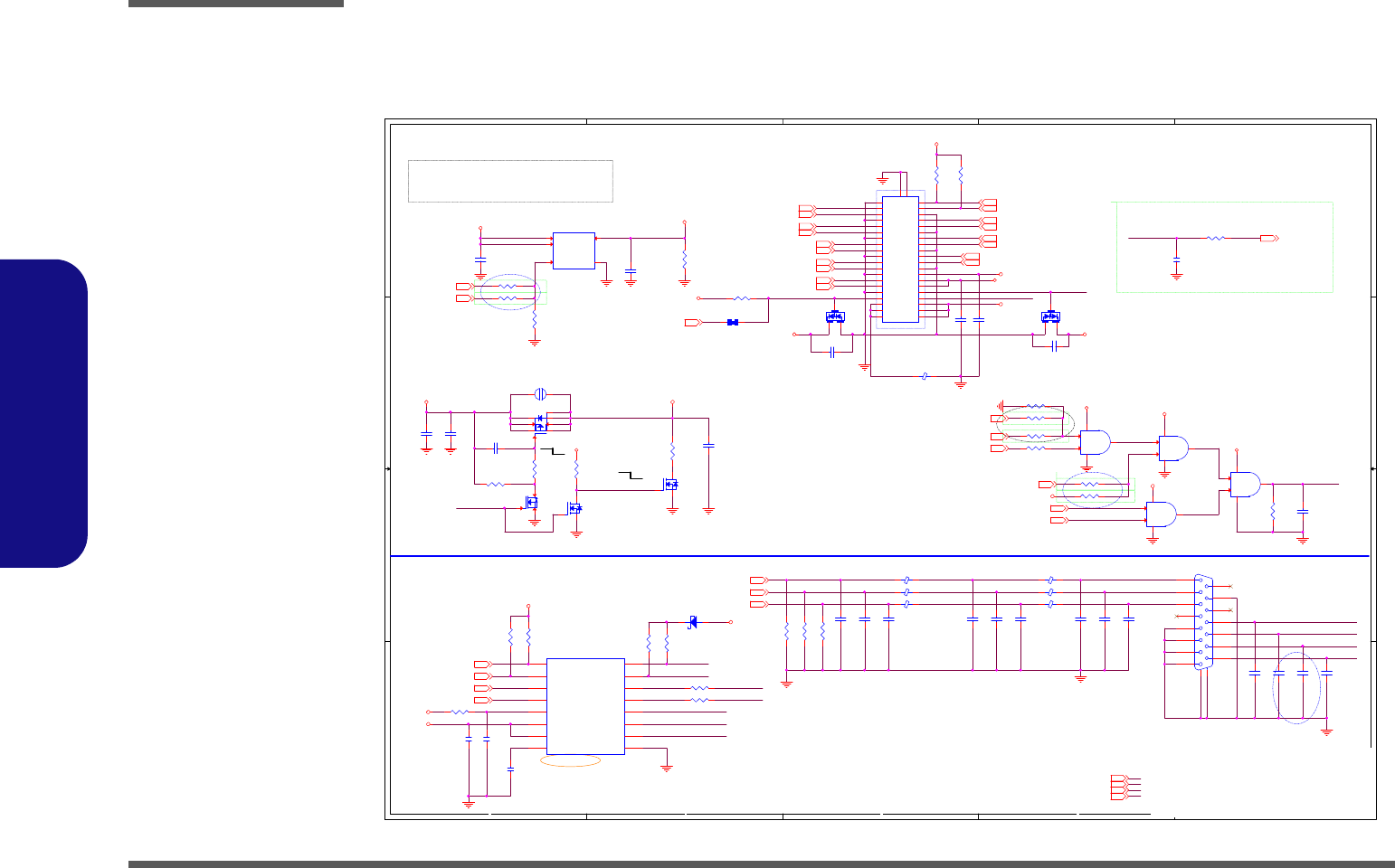

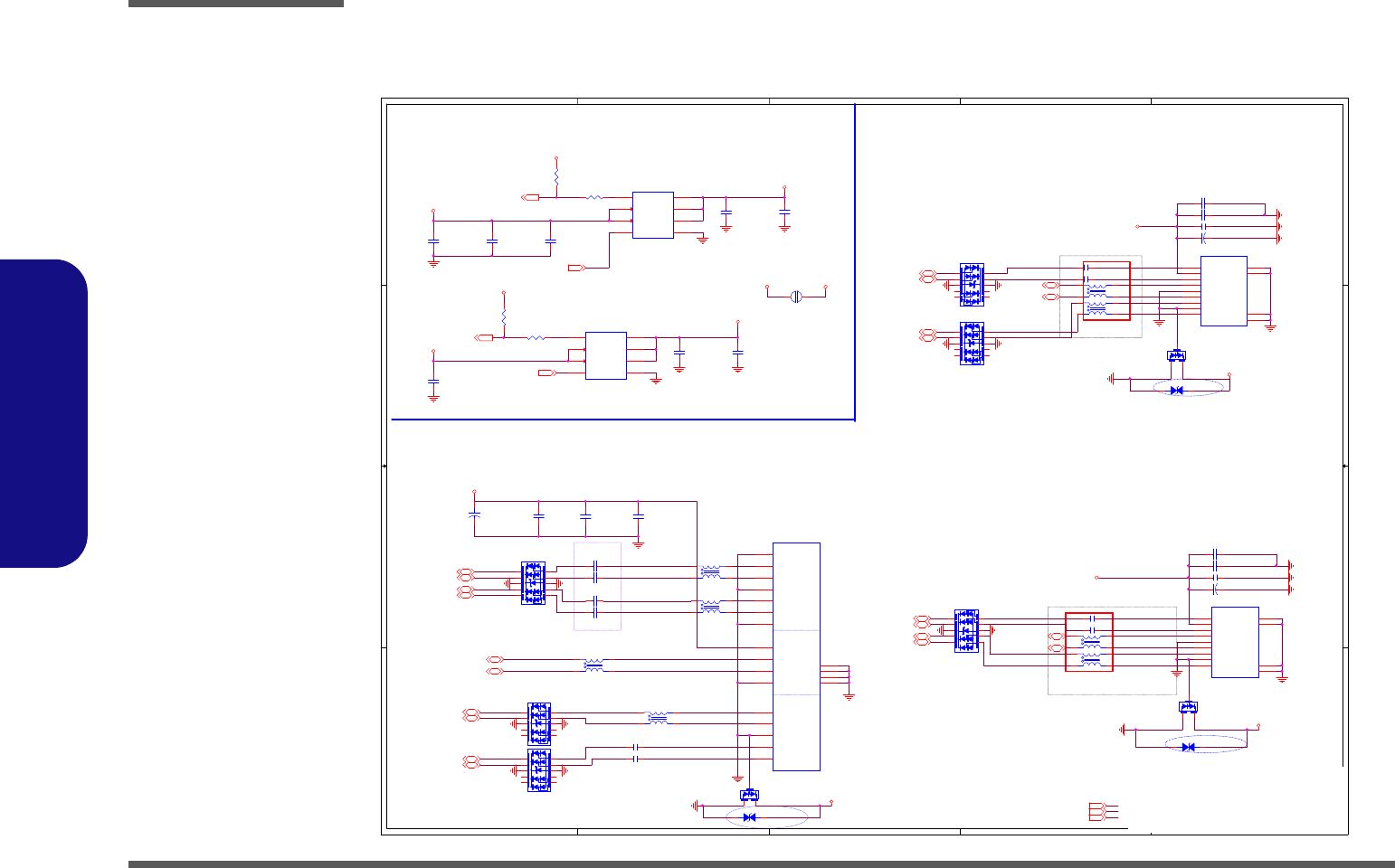

B - 14 Panel, Inverter, CRT

B.Schematic Diagrams

Panel, Inverter, CRT

D D

C C

B B

A A

CRT

IP4772CZ16 PN:6-02-47721-B60

LED PANEL (LVDS Dual Channel).

Q7 PIN

儛旚䂲

PANEL CONNECTOR

6-20-41A10-220

87216-4006

J_LCD1 TOP

ἧ䓐

⚈㨇㥳旸檀⓷柴

PN:G5243A--6-02-05243-9C0

NEAR PIN4,5

PANEL POWER

>100 mil

A & B

ẞ

㨇䧖⟹㕁䘬旚䀓䫱䳂天䫎⎰

UL 94V-0

⯙⎗ẍᶵ䓐ℵ㍸ὃ䴎

panel

䘬暣㸸䶂嶗䘬ᾅ嬟暣旣

W370ET/W350ETQ

Ⱄ㕤

94V-0

㓭⍾㴰ᾅ嬟暣旣

FOR LVDS

FOR EDP

1212

STUFF FOR EDP

FOR LVDS

FOR EDP

1212

FOR LVDS

FOR EDP 1227

0221

FGRN

DDCLK

HSYNC

FBLUE

FRED

DDCDATA

VSYNC

HSYNC

DDCLK

DDCDATA

VSYNC_C

HSYNC_C

FGRN

FBLUE

FRED

VSYNC

BYP

LVDD_EN#

P_GND

BRIGHTNESS_R

PANEL_EN

BLON1

BLON2

INV _B LO N

LID_SW#1

PANEL_EN

INV_BLON

EDP_HPD_L

3.3VS

5VS

3.3VS

5VS

3.3V

VIN LEDPL_VIN

3.3VS

PLVDD

LEDPL_VIN

3.3V

PLVDD

3.3VS

3.3V

DAC_VSYNC25

DAC_HSYNC25

DAC_DDCADATA25

DAC_DDCACLK25

VIN40,41,42,43,44,45,46,47

5VS22,31,32,35,36,37,40,44,45

3.3V2,3,20,22,24,26,27,28,29,30,31,32,33,34,37,40,42,45,46

3.3VS3,6,9,10,11,12,22,23,24,25,26,28,29,30,31,32,34,35,36,37,39,40,44,45

DAC_BLUE25

DAC_GREEN25

DAC_RED25

NB_ENAVDD25,39

LVDS-U0P 12

LVDS-U0N 12

LVDS-L0N12

LVDS-L0P12

LVDS-U2N 12

LVDS-U2P 12

LVDS-L2N 12

LVDS-L2P 12

PANEL_PWM12

LVDS-U1P12

LVDS-U1N12

LVDS-UCLKP12

LVDS-UCLKN12

LVDS-L1N12

LVDS-L1P12

LVDS-LCLKN12

LVDS-LCLKP12

P_DDC_DATA 12

P_DDC_CLK 12

PANEL_VCC_EN12

ALL_SYS_PWRGD24,39,44

LID_SW#35,39

BLON25

SB_BLON26

ENBLT12

BKL_EN39

EDP_HPD 6,12

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

3.0

[13] PANEL,INVERTER,CRT

13 58Friday, February 21, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

3.0

[13] PANEL,INVERTER,CRT

13 58Friday, February 21, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

3.0

[13] PANEL,INVERTER,CRT

13 58Friday, February 21, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

150_1%_04

L3 0_04

R6 33_04

C634

0.1u_16V_Y5V_04

J_CRT1

108AH15DST04A8CC

GND2

GND1

R376 100K_04

MTN7002ZHS3

2.2K_04

150_1%_04

R10 33_04

R664 0_04

C14

47p_50V_NPO_04

R5 1_04

C397

1u_6.3V_X5R_04

R837 *1K_04

C12

1000p_50V_X7R_04

U18C

74LVC08PW

147

R528 *10K_04

2.2K_04

PJ6

OPEN_2A

C15

*10p_50V_NPO_04

D1 RB751S-40C2

C17

1000p_50V_X7R_04

C394

1u_6.3V_X5R_04

R374 *100K_04

P2003EVG

R255 0_04

R677 *0_04

U18D

74LVC08PW

147

C16

47p_50V_NPO_04

2.2K_04

U11

G5243A

VIN

VOUT 1

GND 2

R512 *10mil_short

C351

0.1u_50V_Y5V_06

C359

0.1u_50V_Y5V_06

C11

*10p_50V_NPO_04

R256 *0_04

C13

*10p_50V_NPO_04

R260

*100K_04

J_LCD1

87216-4006

Gnd 1 GND1

Gnd 2 GND2

C847

*0.1u_16V_Y5V_04

U18B

74LVC08PW

147

C21

22p_50V_NPO_04

R389

100K_04

C22

22p_50V_NPO_04

L4 FCM1005MF-600T01

R257

100K_04

C815

0.1u_50V_Y5V_06

R529

220_06

C538

0.1u_10V_X7R_04

TPD7S019

VCC_SYNC

VCC_VIDEO

VIDEO_1 3

VIDEO_2 4

VIDEO_3 5

GND 6

VCC_DDC

BYP

DDC_OUT1 9

DDC_IN1

DDC_IN2

11 DDC_OUT2 12

SYNC_IN1

13 SYNC_OUT1 14

SYNC_IN2

15 SYNC_OUT2 16

L5 FCM1005MF-600T01

R251

10K_04

C25

10p_50V_NPO_04

R589

2.2K_04

Q5B

MTDN7002ZHS6R

D21

*BAV99 RECTIFIER

C780

*0.1u_16V_Y5V_04

L1 0_04

U18A

74LVC08PW

147

L6 FCM1005MF-600T01

C18

0.22u_10V_Y5V_04

C23

10p_50V_NPO_04

C20

22p_50V_NPO_04

L58

HCB1608KF-121T25

R663 0_04

R227 100K_04

R591

2.2K_04

L2 0_04

C19

0.22u_10V_Y5V_04

150_1%_04

C24

10p_50V_NPO_04

D32

*BAV99 RECTIFIER

2.2K_04

C26

0.22u_10V_Y5V_04

C356

0.22u_50V_Y5V_06

Q5A

MTDN7002ZHS6R2

C588

*0.1u_16V_Y5V_04

C619

0.1u_16V_Y5V_04

R377 0_04

R237

1M_04

Sheet 13 of 58

Panel, Inverter,

CRT

Schematic Diagrams

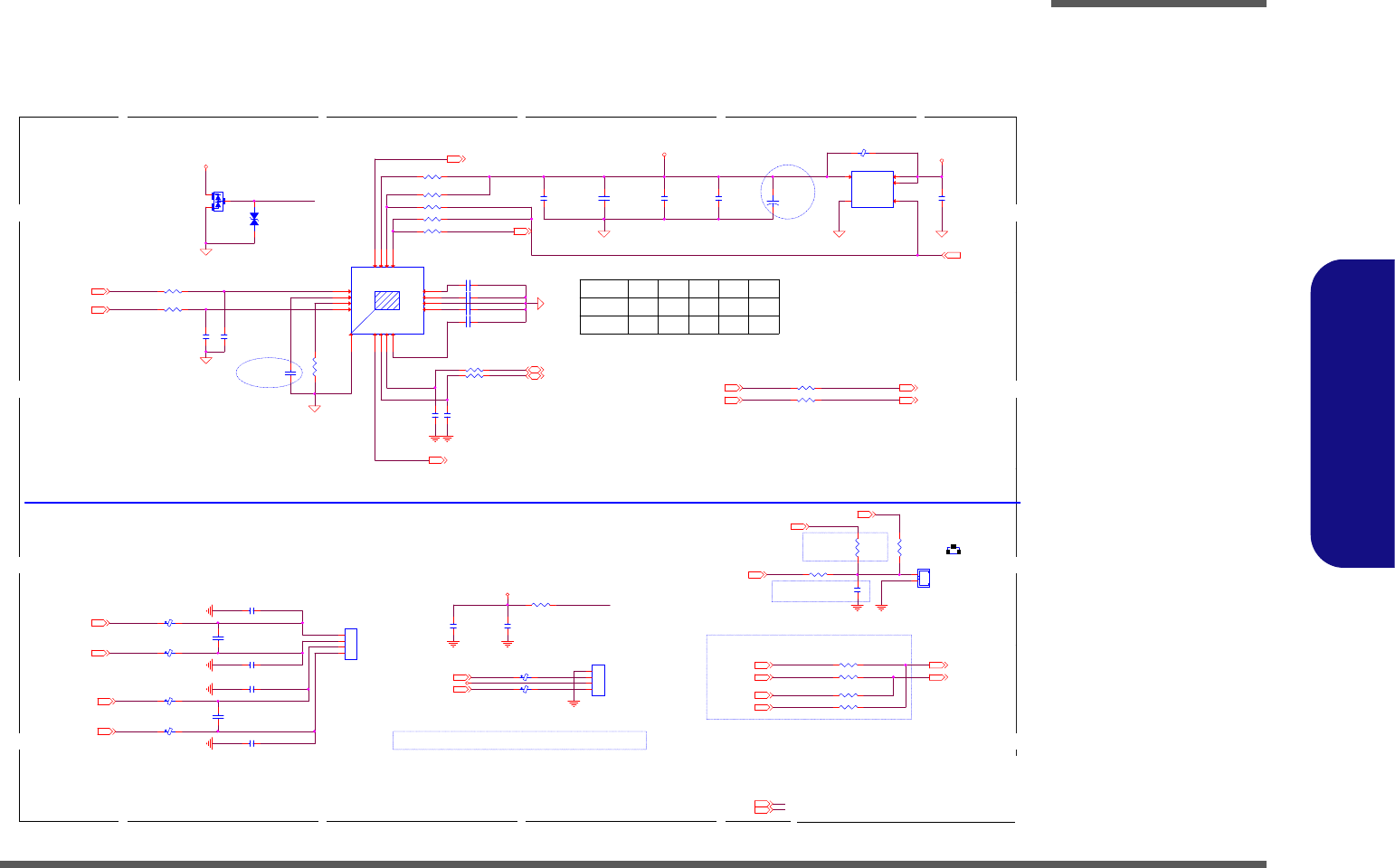

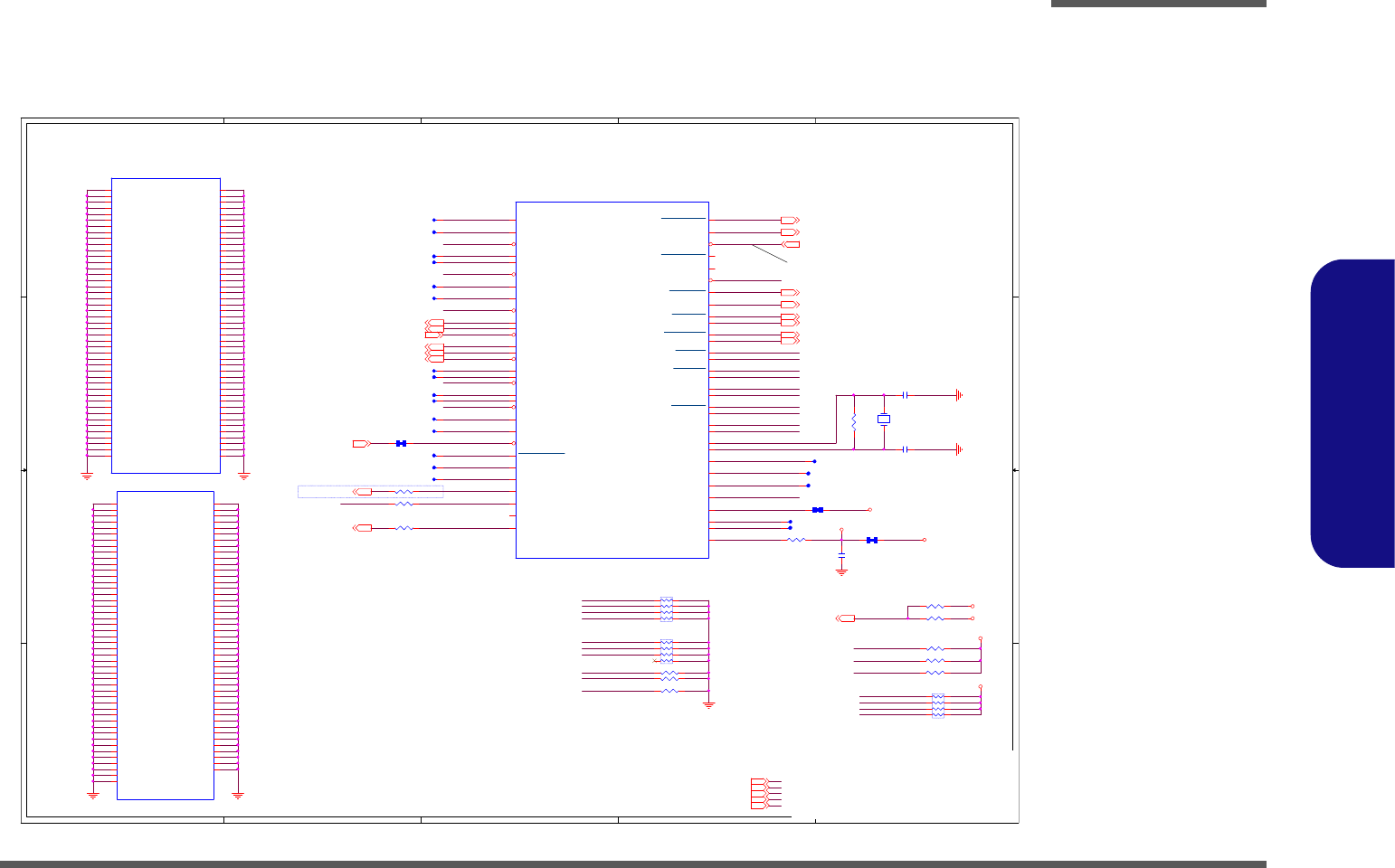

VGA PCI-E Interface B - 15

B.Schematic Diagrams

VGA PCI-E Interface

D D

C C

B B

A A

16mil

PLACE NEAR BALLS

PLACE NEAR BGA

PLACE NEAR BALLS

16mil

PLACE NEAR BALLS

3300 mA total

PLACE NEAR BGA

PLACE NEAR BALLS

16mil

PLACE NEAR BALLS

1u->0.1u C990525

PLACE NEAR BGA

150 mA total

210 mA total

PLACE NEAR BGA

12mil

FCM1005MF-300T03

6-19-31001-268

6-04-25512-B71

6-04-25512-B70

6-04-25512-B72

6-04-25010-490

VBIOS ROM

妋㺷暣

3V3_MISC

0.5MM

16mil

PLACE UNDER BAL LS PLACE NEAR BGA

0.5MM

N15x

R770 R771

N14x 1.0

N15x 2.0 V

N14x

1112

N15P-GX ES sample

N15x GC6 2.0

R335 R775 R776

N14x 1.0

N15x 2.0 VV

1112

N14x GC6 1.0

Reserve

R355 R767

N14x 1.0

N15x 2.0 V

N14x GC6 1.0

N15x GC6 2.0

3.3V

R769 R768

N14x 1.0

N15x 2.0 V

GPU

CLOSE GPU

R777 R774 C819 C820 C821

N14x 1.0

N15x 2.0 V

VVVV

1MM

1112

1119

1206

XTAL_IN

PEX_RX3

PEX_RX2

PEX_RX7#

PEX_RX7

PEX_RX5

X_OUTBUFF

GPU_TESTMODE

VGA_PEXCLK

PEX_RX4

VGA_PEXCLK#

PEX_RX1

PEX_RX6

PEX_RX0

XTAL_OUT

PEX_RX3#

PEX_RX2#PEX_RX2#

PEX_RX6#

PEX_RX4#

PEX_RX1#

PEX_RX5#

PEX_RX0#

X_SSINX_SSIN

VID_PLLVDD

VGA_STRAP2

VGA_STRAP0

VGA_STRAP1

M_STRAP_REF0

PEX_CLKREQ#

PEX_TSTCLK_OUT#

PEX_TSTCLK_OUT

PEX_PLLVDD

PEX_TERMP

PS1_GND_SENSE

PS1_VDD_SENSE

SNN_PEXWAKE

VGA_STRAP4

VGA_STRAP3

VGA_ROM_CS#

VGA_ROM_SCLK

VGA_ROM_SO

VGA_ROM_SI

3V3_MISC_EN_Q3V3_MISC_EN

3V3_MISC_G

VGA_STRAP3

VGA_STRAP4

VGA_ROM_SI

VGA_ROM_SO

VGA_ROM_SCLK

VGA_STRAP0

VGA_STRAP1

VGA_STRAP2

PEX_CLKREQ#

PEX_VDD

3V3_RUN

PEX_VDD

3V3_RUN

3V3_MISC

3V3_RUN

3V3_AON

3V3_AON3V3_RUN

3V3_AON

3V3_RUN

3V3_AON

VDD3

PEG_TX12

VGA_PEXCLK30

PEG_TX22

PEG_TX#72

3V3_RUN15,20,45

PEG_RX22

PEG_TX#02

3.3VS3,6,9,10,11,12,13,22,23,24,25,26,28,29,30,31,32,34,35,36,37,39,40,44,45

PEG_TX32

PEG_TX#22

PEG_RX12

PEX_VDD15,45

PEG_RX72

PEG_RX42

PEG_TX#12

PEG_TX#52

PEG_TX#42

PEG_RX#62

PEG_RX#02

PEG_RX62

PEG_RX32

PEG_RX#52

PEG_RX#12

PEG_TX62

PEG_RX#72

PEG_RX52

PEG_RX02

PEG_TX42

PEG_TX72

PEG_RX#22

PEG_RX#32

VGA_PEXCLK#30

PEG_TX52

3.3V2,3,13,20,22,24,26,27,28,29,30,31,32,33,34,37,40,42,45,46

PEG_RX#42

PEG_TX02

PEG_TX#32

PEG_TX#62

PS1_GND_SENSE 45

PS1_VDD_SENSE 45

SYS15V40,41,43,45

GPU_PWROK 14,26,45,46

SYS_PEX_RST_MON# 20

PEG_CLKREQ#30

GPU_PEX_RST#20

PERSTB#20,25

GPU_PWROK14,26,45,46

VDD320,22,23,24,26,27,28,29,30,31,32,34,35,39,40,41,43,47

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[14] VGA PCI-E Inte rface

Custom

14 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[14] VGA PCI-E Inte rface

Custom

14 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[14] VGA PCI-E Inte rface

Custom

14 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

R83 10K_04

C819

4.7u_6.3V_X5R_06

C138 0.22u_10V_X5R_04

C86

4.7u_6.3V_X5R_06

C106 0.22u_10V_X5R_04

13/19 MISC2

COMMON

BGA_0908_P080_P085_P100_290X290

U17P

N15P-GX-A2

MULTISTRAP_REF_GND

STRAP4

STRAP3

STRAP2

STRAP1

STRAP0

CEC

BUFRST

ROM_SCLK

ROM_SO

ROM_SI

ROM_CS

R341

10K_04

R769 *0_04

C180

4.7u_6.3V_X5R_06

R774 0_04

C492

18p_50V_NPO_04

C92

0.1u_16V_Y5V_04

R355

*10K_04

C127

0.1u_10V_X7R_04

R338 49.9K_1%_04

C230

0.1u_16V_Y5V_04

R777 *0_04

R111200_1%_04

C187 0.22u_10V_X5R_04

R359

*100K_04

C204

10u_6.3V_X5R_06

C217

10u_6.3V_X5R_06

C115

0.1u_16V_Y5V_04

R770

*0_04

R382 0_04

R329 *14.7K_1%_04

R768 0_04

C91

0.1u_16V_Y5V_04

C84

0.1u_16V_Y5V_04

C140 0.22u_10V_X5R_04

C120 0.22u_10V_X5R_04

R284 *1K_04

R18

10K_04

R840

10K_04

R37 *10K_04

R330 20K_1%_04

C196 0.22u_10V_X5R_04

C143

1u_6.3V_X5R_04

C116

0.1u_16V_Y5V_04

C531

1u_6.3V_X5R_04

1/19 PCI_EXPRESS

COMMON

BGA_0908_P080_P085_P100_290X290

U17A

N15P-GX-A2

AM27

PEX_RX15

AN27

PEX_RX15

AK25

PEX_TX15

AL25

PEX_TX15

AP27

PEX_RX14

AP26

PEX_RX14

AJ24

PEX_TX14

AK24

PEX_TX14

AM26

PEX_RX13

AN26

PEX_RX13

AG23

PEX_TX13

AH23

PEX_TX13

AM24

PEX_RX12

AN24

PEX_RX12

AJ23

PEX_TX12

AK23

PEX_TX12

AP24

PEX_RX11

AP23

PEX_RX11

AK22

PEX_TX11

AL22

PEX_TX11

AM23

PEX_RX10

AN23

PEX_RX10

AJ21

PEX_TX10

AK21

PEX_TX10

AM21

PEX_RX9

AN21

PEX_RX9

AG20

PEX_TX9

AH20

PEX_TX9

AP21

PEX_RX8

AP20

PEX_RX8

AJ20

PEX_TX8

AK20

PEX_TX8

AM20

PEX_RX7

AN20

PEX_RX7

AK19

PEX_TX7

AL19

PEX_TX7

AM18

PEX_RX6

AN18

PEX_RX6

AJ18

PEX_TX6

AK18

PEX_TX6

AP18

PEX_RX5

AP17

PEX_RX5

AG17

PEX_TX5

AH17

PEX_TX5

AM17

PEX_RX4

AN17

PEX_RX4

AJ17

PEX_TX4

AK17

PEX_TX4

AM15

PEX_RX3

AN15

PEX_RX3

AK16

PEX_TX3

AL16

PEX_TX3

AP15

PEX_RX2

AP14

PEX_RX2

AJ15

PEX_TX2

AK15

PEX_TX2

AM14

PEX_RX1

AN14

PEX_RX1

AG14

PEX_TX1

AH14

PEX_TX1

AM12

PEX_RX0

AN12

PEX_RX0

AJ14

PEX_TX0

AK14

PEX_TX0

AK13

PEX_REFCLK

AL13

PEX_REFCLK

AK12

PEX_CLKREQ

AJ12

PEX_RST

AJ11

PEX_WAKE

AP29

PEX_TERMP

AK11

TESTMODE

AG26

PEX_PLLVDD

AK26

PEX_TSTCLK_OUT

AJ26

PEX_TSTCLK_OUT

3V3AUX_NC

GND_SENSE

VDD_SENSE

AG12

PEX_SVDD_3V3

AH12

PEX_PLL_HVDD

AN28

PEX_IOVDDQ

AM28

PEX_IOVDDQ

AL27

PEX_IOVDDQ

AK27

PEX_IOVDDQ

AJ27

PEX_IOVDDQ

AH27

PEX_IOVDDQ

AH26

PEX_IOVDDQ

AH18

PEX_IOVDDQ

AH15

PEX_IOVDDQ

AG25

PEX_IOVDDQ

AG18

PEX_IOVDDQ

AG16

PEX_IOVDDQ

AG15

PEX_IOVDDQ

AG13

PEX_IOVDDQ

AH25

PEX_IOVDD

AH21

PEX_IOVDD

AG24

PEX_IOVDD

AG22

PEX_IOVDD

AG21

PEX_IOVDD

AG19

PEX_IOVDD

C167 0.22u_10V_X5R_04

C487

4.7u_6.3V_X5R_06

C533

4.7u_6.3V_X5R_06

R771 0_04

R318 *45.3K_1%_04

C89

22u_6.3V_X5R_08

C104

4.7u_6.3V_X5R_06

C486 *0.1u_10V_X7R_04

C190

1u_6.3V_X5R_04

18/19 NC/V DD33

U17F

BGA_0908_P080_P085_P100_290X290

COMMON

N15P-GX-A2

V32

H31

D26

D23

D20

D19

C15

AL11

AJ5

AJ4

AJ28

AC6

VDD33

C118

0.1u_10V_X7R_04

C243

10u_6.3V_X5R_06

*MTN7002ZHS3

L7 FCM1005MF-300T03

C154 0.22u_10V_X5R_04

C211

10u_6.3V_X5R_06

R20

40.2K_1%_04

R98 4.99K_1%_04

R403 2.49K_1%_04

C240

1u_6.3V_X5R_04

R51 *15K_1%_04

C148 0.22u_10V_X5R_04

R767

10K_04

Q10

*QM3009K

R41

10K_04

C545

22u_6.3V_X5R_08

R293 0_04

C128 0.22u_10V_X5R_04

R339 *4.99K_1%_04

C179 0.22u_10V_X5R_04

R335 *10K_04

R99 *4.99K_1%_04

C103

4.7u_6.3V_X5R_06

R398 *0_06

C185 0.22u_10V_X5R_04

C279

22u_6.3V_X5R_08

R342 *4.99K_1%_04

C80

22u_6.3V_X5R_08

R328 *45.3K_1%_04

C117

1u_6.3V_X5R_04

R81

0_04

C195 0.22u_10V_X5R_04

MX25L5121EMC-20G

GND

SCK

HOLD

VCC

C105

4.7u_6.3V_X5R_06

C493

18p_50V_NPO_04

C194

4.7u_6.3V_X5R_06

R325 *4.99K_1%_04

C821

0.1u_10V_X7R_04

R772 0_04

C537

22u_6.3V_X5R_08

R290

*0_04

C130

*0.1u_16V_Y5V_04

R327 *10K_04

C107

0.1u_10V_X7R_04

C129

1u_16V_X5R_06

H11

H8_0D4_4

12/19 XTAL_PLL

GF117GF108/GKx

U17O

BGA_0908_P080_P085_P100_290X290

COMMON

N15P-GX-A2

XTALSSIN

AD7

VID_PLLVDD

AE8

SP_PLLVDD

AD8

PLLVDD

XTALOUT

XTALOUTBUFF

XTALIN

R324 *4.99K_1%_04

R775 *10K_04

C95

0.1u_10V_X7R_04

C282

22u_6.3V_X5R_08

C126

0.1u_10V_X7R_04

H12

H8_0D4_4

R42 *4.99K_1%_04

C820

1u_16V_X5R_06

C202

1u_6.3V_X5R_04

C169 0.22u_10V_X5R_04

X2 FSX5L27.000000M20FAQ

1 2

C176 0.22u_10V_X5R_04

R773 *0_04

C100

0.1u_10V_X7R_04

C205 0.22u_10V_X5R_04

R776 0_04

R285 *100K_04

FCM1608KF-181T05

H8_0D4_4

R43 4.99k_1%_04

Q13

*MTN7002ZHS3

D S

R58 *4.99K_1%_04

Sheet 14 of 58

VGA PCI-E

Interface

Schematic Diagrams

B - 16 VGA Frame Buffer Interface

B.Schematic Diagrams

VGA Frame Buffer Interface

D D

C C

B B

A A

Frame Buffer Interface

PLACE NEAR BGA CLOSE TO CAPSPLACE NEAR BALLS

16mil

PLA CE UNDER BGA

PLACE CLOSE BGA

PLA CE UNDER BGA

PLACE CLOSE BGA

PLA CE UNDER BGA

PLACE NEAR BALLS

N14E-GE FBA_DPLLAVDD

CMD

Zo=45 ohm

L<2.7"(540ps)

CMD

Zo=45 ohm

L<2.7"(540ps)

CMD

Zo=45 ohm

L<2.7"(540ps)

CMD

Zo=45 ohm

L<2.7"(540ps)

CMD

Zo=45 ohm

L<2.7"(540ps) CMD

Zo=45 ohm

L<2.7"(540ps)

CMD

Zo=80 ohm

L<3"(600ps)

CMD

Zo=80 ohm

L<2.7"(540ps)

N14E-GE FBA_DPLLAVDD

Description

The total trace le ngth measured

from GPU ball to capacitor is

no more than 150 mil

Under GPU

Near GPU

Term

The total trace le ngth measured

from GPU ball to capacitor is no

more th an 850 mil

DDR A DDR B

16mil

6-19-31001-268

1119

FBA_D17

FBA _CMD2

FBA_D47

FBA _CMD29

FBA _CMD15

FBA_D18

FBA_D56

FBA _CMD16

FBA_D24

FBB_D0

FBA _CMD27

FBA_D63

FBA _CMD10

FBA _CMD22

FBA _CMD30

FBA_D2

FBA _CMD3

FBA _CMD1

FBA_D28

FBA _CMD8

FBA _CMD5

FBA _CMD23

FBA _CMD21

FBA_D43

FBA_D40

FBA_D[31:0]

FBA_D7

FBA_D36

FBA _CMD18

FBA_D12

FBA_D31

FBA _CMD25

FBA_D41

FBA_D55

FBA_D48

FBA_D45

FBA_D29

FBA _CMD28

FBA_D42

FBA _CMD4

FBA_D20

FBA_D33

FBA_D6

FBA_D60

FBA_D16

FBA_D50

FBA _CMD0

FBA_D30

FBA_D46

FBA_D57

FBA_D51

FBA_D21

FBA _CMD17

FBA_D54

FBA_D37

FBA_D8

FBB_D[31:0]

FBA _CMD26

FBA_D0

FBA _CMD14

FBA_D58

FBA_D5

FBA_D34

FBA_D13

FBA _CMD[31 :0]

FBA_D61

FBA_D62

FBA _CMD24

FBA_D35

FBA _CMD31

FBA_D9

FBA_D49

FBA_D19

FBA_D52

FBA_D22

FBA _CMD11

FBA _CMD7

FBA _CMD19

FBA _CMD12

FBA_D11

FBA_D23

FB_VREF_TP

FBA_D14

FBA_D27

FBA_D4

FBA_D59

FBA_D26

FBA _CMD9

FBA _CMD20

FBA_D25

FBA_D44

FBA_D10

FBB _DBI[3 :0]

FBA _CMD13

FBA_D32

FBA _CMD6

FBA_D53

FBA_D15

FBA_D38

FBA_D3

FBA_D39

FBA_D1

FBA_CLK1#

FBA_CLK0#

FBA_CLK1

FBA_CLK0

FBA_DEBUG0

FBA_DEBUG1

FBB_EDC[3:0]

FBB_D1

FBB_D2

FBB_D3

FBB_D4

FBB_D5

FBB_D6

FBB_D7

FBB_D8

FBB_D9

FBB_D10

FBB_D11

FBB_D12

FBB_D13

FBB_D14

FBB_D15

FBB_D16

FBB_D17

FBB_D18

FBB_D19

FBB_D20

FBB_D21

FBB_D22

FBB_D23

FBB_D24

FBB_D25

FBB_D26

FBB_D27

FBB_D28

FBB_D29

FBB_D30

FBB_D31

FBB_D32

FBB_D33

FBB_D34

FBB_D35

FBB_D36

FBB_D37

FBB_D38

FBB_D39

FBB_D40

FBB_D41

FBB_D42

FBB_D43

FBB_D44

FBB_D45

FBB_D46

FBB_D47

FBB_D48

FBB_D49

FBB_D50

FBB_D51

FBB_D52

FBB_D53

FBB_D54

FBB_D55

FBB_D56

FBB_D57

FBB_D58

FBB_D59

FBB_D60

FBB_D61

FBB_D62

FBB_D63

FBB_DBI0

FBB_DBI5

FBB_DBI4

FBB_DBI7

FBB_DBI1

FBB_DBI6

FBB_DBI2

FBB_DBI3

FBB_CLK0

FBB_CLK0#

FBB_CLK1#

FBB_CLK1

FBC_ DEBUG0

FBB _CMD31

FBB _CMD4

FBB _CMD3

FBB _CMD7

FBB _CMD6

FBB _CMD2

FBB _CMD0

FBB _CMD5

FBB _CMD9

FBB _CMD15

FBB _CMD14

FBB _CMD10

FBB _CMD11

FBB _CMD12

FBB _CMD8

FBB _CMD13

FBB _CMD17

FBB _CMD20

FBB _CMD18

FBB _CMD22

FBB _CMD21

FBB _CMD23

FBB _CMD16

FBB _CMD19

FBB _CMD25

FBB _CMD26

FBB _CMD28

FBB _CMD27

FBB _CMD30

FBB _CMD29

FBB _CMD24

FBB _CMD1

FBB_CMD[31:0]

FBC_ DEBUG1

FB_CAL_TERM_GND

FB_ CAL_P D_V DDQ

FB_CAL_PU_GND

FB_CAL_TERM_GND

FB_CAL_PU_GND

FB_ CAL_P D_V DDQ

FBB_D[63:32]

FBA_D[63:32]

FBA_DBI0

FBA_DBI5

FBA_DBI4

FBA_DBI7

FBA_DBI1

FBA_DBI6

FBA_DBI2

FBA_DBI3

FBA_EDC5

FBA_EDC3

FBA_EDC2

FBA_EDC6

FBA_EDC4

FBA_EDC0

FBA_EDC7

FBA_EDC1

FBA_EDC[3:0]

FBA _DBI[3 :0]

FBB_EDC5

FBB_EDC4

FBB_EDC7

FBB_EDC0

FBB_EDC1

FBB_EDC6

FBB_EDC2

FBB_EDC3

FBA _DBI[7 :4]

FBA_EDC[7:4]

FBB_EDC[7:4]

FBB _DBI[7 :4]

FB_PLLAVDD

FBA _CMD13

FBA _CMD14

FBA _CMD30

FBA _CMD29

FBB _CMD13

FBB _CMD14

FBB _CMD30

FBB _CMD29

FBV DDQ

FBVDDQ

FBV DDQ

3V3 _RUN

FBVDDQ

FBV DDQ

PEX_VDD

FB_PLLAVDD

FBV DDQ FBV DDQ

PEX_VDD

FBB_CLK1# 19

FBB _DBI[3 :0]18

FBB_CLK0 18

FBA_D[31:0]16

FBV DDQ16,17,18,19,46

FBB_CLK1 19

FBB_D[31:0]18

PEX_VDD14,45

FBA_CMD[31:0] 16,17

FBB_CLK0# 18

FBA_CLK1# 17

FBA_CLK0 16

FBA_CLK1 17

FBA_CLK0# 16

FBB_EDC[3:0]18

FBB_CMD[31:0] 18,19

FBB_D[63:32]19

FBA_D[63:32]17

FBB_WCK01 18

FBB_WCK01# 18

FBB_WCK23 18

FBB_WCK23# 18

FBB_WCK45 19

FBB_WCK45# 19

FBB_WCK67 19

FBB_WCK67# 19FBA_WCK67 17

FBA_WCK67# 17

FBA_WCK01 16

FBA_WCK01# 16

FBA_WCK23 16

FBA_WCK23# 16

FBA_WCK45 17

FBA_WCK45# 17

FBA_EDC[3:0]16

FBA _DBI[3 :0]16

FBA _DBI[7 :4]17

FBA_EDC[7:4]17

FBB_EDC[7:4]19

FBB _DBI[7 :4]19

GPIO_FB_CLAMP 20,39,46

FBA _CMD1416

FBA _CMD3017

FBA _CMD1316

FBA _CMD2917

FBB _CMD1418

FBB _CMD3019

FBB _CMD1318

FBB _CMD2919

3V3 _RUN14,20,45

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[15] VGA Frame Buffer Interface

Custom

15 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[15] VGA Frame Buffer Interface

Custom

15 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[15] VGA Frame Buffer Interface

Custom

15 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

L24 *FCM1005KF-600T03

R118 40.2_1%_04

R126 40.2_1%_04

C320

4.7u_6.3V_X5R_06

R110 *60.4_04

C392

1u_6.3V_X5R_04

R76 10K_04

C288

0.1u_10V_X7R_04

L41 FCM1005MF-300T03

C186

10u_6.3V_X5R_06

C253

4.7u_6.3V_X5R_06

R340 10K_04

R123 *60.4_04

R116 10K_04

R229 10K_04

C502

10u_6.3V_X5R_06

C197

0.1u_10V_X7R_04

R100 0_04

R114 10K_04

C219

22u_6.3V_X5R_08

R228 10K_04

C188

22u_6.3V_X5R_08

15/19 FBVDDQ

U17D

BGA_0908_P080_P085_P100_290X290

COMMON

N15P-GX-A2

Y27

FBVDDQ

W33

FBVDDQ

W30

FBVDDQ

W27

FBVDDQ

V27

FBVDDQ

T33

FBVDDQ

T30

FBVDDQ

T27

FBVDDQ

R27

FBVDDQ

P27

FBVDDQ

N27

FBVDDQ

M27

FBVDDQ

L27

FBVDDQ

H24

FBVDDQ

H23

FBVDDQ

H22

FBVDDQ

H21

FBVDDQ

H20

FBVDDQ

H19

FBVDDQ

H18

FBVDDQ

H16

FBVDDQ

H15

FBVDDQ

H14

FBVDDQ

H13

FBVDDQ

H12

FBVDDQ

H11

FBVDDQ

H10

FBVDDQ

E19

FBVDDQ

E16

FBVDDQ

E13

FBVDDQ

B19

FBVDDQ

B16

FBVDDQ

B13

FBVDDQ

AG27

FBVDDQ

AF27

FBVDDQ

AE27

FBVDDQ

AD27

FBVDDQ

AC27

FBVDDQ

AB33

FBVDDQ

AB27

FBVDDQ

AA30

FBVDDQ

AA27

FBVDDQ

H25

FB_CALTERM_GND

H27

FB_CAL_PU_GND

J27

FB_CAL_PD_VDDQ

GND_PROBE

FBVDDQ_PROBE

C225

0.1u_10V_X7R_04

C231

4.7u_6.3V_X5R_06

R225 10K_04

2/19 FBA

COMMON

BGA_0908_P080_P085_P100_290X290

U17B

N15P-GX-A2

H26

FB_VREF

AF32

FBA_DQS_RN7

AM34

FBA_DQS_RN6

AK31

FBA_DQS_RN5

AF30

FBA_DQS_RN4

M34

FBA_DQS_RN3

E34

FBA_DQS_RN2

H30

FBA_DQS_RN1

M30

FBA_DQS_RN0

AF33

FBA_DQS_WP7

AN33

FBA_DQS_WP6

AK30

FBA_DQS_WP5

AE31

FBA_DQS_WP4

M33

FBA_DQS_WP3

E33

FBA_DQS_WP2

G31

FBA_DQS_WP1

M31

FBA_DQS_WP0

AF34

FBA_DQM7

AM32

FBA_DQM6

AL29

FBA_DQM5

AD31

FBA_DQM4

M32

FBA_DQM3

F34

FBA_DQM2

F31

FBA_DQM1

P30

FBA_DQM0

AG33

FBA_D63

AG32

FBA_D62

AG34

FBA_D61

AF31

FBA_D60

AD33

FBA_D59

AC30

FBA_D58

AD32

FBA_D57

AD34

FBA_D56

AK32

FBA_D55

AK33

FBA_D54

AL31

FBA_D53

AM33

FBA_D52

AP32

FBA_D51

AP30

FBA_D50

AN32

FBA_D49

AN31

FBA_D48

AM30

FBA_D47

AN29

FBA_D46

AM31

FBA_D45

AM29

FBA_D44

AK28

FBA_D43

AJ30

FBA_D42

AK29

FBA_D41

AJ29

FBA_D40

AD28

FBA_D39

AC29

FBA_D38

AD29

FBA_D37

AD30

FBA_D36

AF28

FBA_D35

AG29

FBA_D34

AF29

FBA_D33

AG28

FBA_D32

L33

FBA_D31

L32

FBA_D30

L34

FBA_D29

L31

FBA_D28

P33

FBA_D27

P31

FBA_D26

P32

FBA_D25

P34

FBA_D24

H32

FBA_D23

H33

FBA_D22

F32

FBA_D21

F33

FBA_D20

C33

FBA_D19

B33

FBA_D18

D32

FBA_D17

C34

FBA_D16

F30

FBA_D15

E32

FBA_D14

E31

FBA_D13

G29

FBA_D12

H28

FBA_D11

J29

FBA_D10

H29

FBA_D9

J28

FBA_D8

P28

FBA_D7

R29

FBA_D6

P29

FBA_D5

N31

FBA_D4

M28

FBA_D3

L29

FBA_D2

M29

FBA_D1

L28

FBA_D0

U27

FBA_ PLL _AVDD

AJ33

FBA_WCKB67

AJ32

FBA_WCKB67

AJ31

FBA_WCKB45

AH31

FBA_WCKB45

J33

FBA_WCKB23

J32

FBA_WCKB23

J31

FBA_WCKB01

J30

FBA_WCKB01

AK34

FBA_WCK67

AJ34

FBA_WCK67

AG31

FBA_WCK45

AG30

FBA_WCK45

J34

FBA_WCK23

H34

FBA_WCK23

L30

FBA_WCK01

K31

FBA_WCK01

AC31

FBA_CLK1

AB31

FBA_CLK1

R31

FBA_CLK0

R30

FBA_CLK0

AC28

FBA_DEBUG1

R28

FBA_DEBUG0

AC32

FBA_CMD_RFU1

R32

FBA_CMD_RFU0

V31

FBA_CMD31

Y33

FBA_CMD30

Y34

FBA_CMD29

Y31

FBA_CMD28

AA34

FBA_CMD27

Y30

FBA_CMD26

W31

FBA_CMD25

Y29

FBA_CMD24

Y28

FBA_CMD23

AA33

FBA_CMD22

AA32

FBA_CMD21

AC33

FBA_CMD20

AC34

FBA_CMD19

AA28

FBA_CMD18

AA29

FBA_CMD17

AA31

FBA_CMD16

Y32

FBA_CMD15

V33

FBA_CMD14

V34

FBA_CMD13

U31

FBA_CMD12

U34

FBA_CMD11

V30

FBA_CMD10

V29

FBA_CMD9

V28

FBA_CMD8

U28

FBA_CMD7

U33

FBA_CMD6

U32

FBA_CMD5

R33

FBA_CMD4

R34

FBA_CMD3

U29

FBA_CMD2

T31

FBA_CMD1

U30

FBA_CMD0

K27

FB_DLL_AVDD

FB_CLAMP

C271

22u_6.3V_X5R_08

R80 10K_04

C287

4.7u_6.3V_X5R_06

R139 *60.4_04

C258

10u_6.3V_X5R_06

R224 10K_04

C534

0.1u_10V_X7R_04

R88 *60.4_04

C337

4.7u_6.3V_X5R_06

C152

0.1u_10V_X7R_04

R326 *0_04

C269

1u_6.3V_X5R_04

C216

22u_6.3V_X5R_08

C229

22u_6.3V_X5R_08

C275

10u_6.3V_X5R_06

R112 60.4_1%_04

C208

4.7u_6.3V_X5R_06

L23 FCM1005KF-600T03

C251

0.1u_10V_X7R_04

C139

0.1u_10V_X7R_04

C270

1u_6.3V_X5R_04

C173

0.1u_10V_X7R_04

C226

22u_6.3V_X5R_08

3/19 FBB

COMMON

BGA_0908_P080_P085_P100_290X290

U17C

N15P-GX-A2

B23

FBB_DQS_RN7

A30

FBB_DQS_RN6

D28

FBB_DQS_RN5

D22

FBB_DQS_RN4

FBB_DQS_RN3

FBB_DQS_RN2

FBB_DQS_RN1

FBB_DQS_RN0

A23

FBB_DQS_WP7

B30

FBB_DQS_WP6

E28

FBB_DQS_WP5

E23

FBB_DQS_WP4

FBB_DQS_WP3

FBB_DQS_WP2

FBB_DQS_WP1

D10

FBB_DQS_WP0

A24

FBB_DQM7

C30

FBB_DQM6

F27

FBB_DQM5

F23

FBB_DQM4

FBB_DQM3

FBB_DQM2

FBB_DQM1

E11

FBB_DQM0

C26

FBB_D63

B26

FBB_D62

C24

FBB_D61

B24

FBB_D60

C21

FBB_D59

A21

FBB_D58

C23

FBB_D57

B21

FBB_D56

B29

FBB_D55

C29

FBB_D54

A29

FBB_D53

D29

FBB_D52

B32

FBB_D51

C32

FBB_D50

C31

FBB_D49

A32

FBB_D48

D30

FBB_D47

E30

FBB_D46

F29

FBB_D45

E29

FBB_D44

E27

FBB_D43

G26

FBB_D42

D27

FBB_D41

G27

FBB_D40

F21

FBB_D39

G21

FBB_D38

E21

FBB_D37

D21

FBB_D36

G24

FBB_D35

E24

FBB_D34

G23

FBB_D33

F24

FBB_D32

FBB_D31

FBB_D30

FBB_D29

FBB_D28

B11

FBB_D27

D11

FBB_D26

C11

FBB_D25

A11

FBB_D24

FBB_D23

FBB_D22

FBB_D21

FBB_D20

FBB_D19

FBB_D18

FBB_D17

FBB_D16

FBB_D15

FBB_D14

FBB_D13

FBB_D12

FBB_D11

FBB_D10

FBB_D9

FBB_D8

G12

FBB_D7

F12

FBB_D6

G11

FBB_D5

F11

FBB_D4

FBB_D3

FBB_D2

FBB_D1

FBB_D0

H17

FBB_PLL_AVDD

A27

FBB_WCKB67

A26

FBB_WCKB67

E26

FBB_WCKB45

F26

FBB_WCKB45

FBB_WCKB23

FBB_WCKB01

C27

FBB_WCK67

B27

FBB_WCK67

D25

FBB_WCK45

D24

FBB_WCK45

FBB_WCK23

FBB_WCK01

F20

FBB_CLK1

E20

FBB_CLK1

E12

FBB_CLK0

D12

FBB_CLK0

G20

FBB_DEBUG1

G14

FBB_DEBUG0

C20

FBB_CMD_RFU1

C12

FBB_CMD_RFU0

E17

FBB_CMD31

B17

FBB_CMD30

A17

FBB_CMD29

D17

FBB_CMD28

A18

FBB_CMD27

D16

FBB_CMD26

F17

FBB_CMD25

G17

FBB_CMD24

G18

FBB_CMD23

B18

FBB_CMD22

C18

FBB_CMD21

B20

FBB_CMD20

A20

FBB_CMD19

F18

FBB_CMD18

E18

FBB_CMD17

D18

FBB_CMD16

C17

FBB_CMD15

B15

FBB_CMD14

A15

FBB_CMD13

D14

FBB_CMD12

A14

FBB_CMD11

D15

FBB_CMD10

E15

FBB_CMD9

F15

FBB_CMD8

G15

FBB_CMD7

B14

FBB_CMD6

C14

FBB_CMD5

B12

FBB_CMD4

A12

FBB_CMD3

F14

FBB_CMD2

E14

FBB_CMD1

D13

FBB_CMD0

C234

0.1u_10V_X7R_04

C181

1u_6.3V_X5R_04

C166

1u_6.3V_X5R_04

C267

1u_6.3V_X5R_04

Sheet 15 of 58

VGA Frame Buffer

Interface

Schematic Diagrams

VGA Frame Buffer A B - 17

B.Schematic Diagrams

VGA Frame Buffer A

D D

C C

B B

A A

FBA_D10

FBA_D11

FBA_D12

FBA_D13

FBA_D14

FBA_D15

FBA_D8

FBA_D9

FBA_D24

FBA_D25

FBA_D26

FBA_D27

FBA_D28

FBA_D29

FBA_D30

FBA_D31

FBA_DBI3

FBA_EDC3

FBA_DBI1

FBA_EDC1

FBA _CMD0

FBA _CMD10

FBA _CMD11

FBA _CMD12

FBA _CMD13

FBA _CMD14

FBA _CMD15

FBA _CMD1

FBA _CMD2

FBA _CMD3

FBA _CMD4

FBA _CMD5

FBA _CMD6

FBA _CMD7

FBA _CMD8

FBA _CMD9

FBA_D0 FBA_D16

FBA_D17

FBA_D18

FBA_D19

FBA_D1

FBA_D20

FBA_D21

FBA_D22

FBA_D23

FBA_D2

FBA_D3

FBA_D4

FBA_D5

FBA_D6

FBA_D7

FBA_DBI0

FBA_DBI1

FBA_DBI2

FBA_DBI3

FBA_EDC0

FBA_EDC1

FBA_EDC2

FBA_EDC3

FBA_SEN0

FBA_SOE0

FBA_VREFC0

0.4

FBA_VREFD_L

FBA_VREF_FET_L

FBA_ZQ0

FBA_VREFD_L

GND

GND GND

GND

GND GND

GND

FBV DDQ

GND

FBV DDQ

FBV DDQ FBV DDQ

FBV DDQ15,17,18,19,46

FBA _DBI[3 :0]15

FBA_WCK23#15

FBA_WCK2315

FBA_D[31:0]15

FBA_EDC[3:0]15

FBA_WCK01#15

FBA_CLK015

FBA_WCK0115

FBA_CMD[31:0]15,17

FBA_CLK0#15

GPIO10_FBVREF_ALTV17,18,19,20

Title

Siz e Docu ment Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[16] VGA Frame Buffer A

Custom

16 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Siz e Docu ment Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[16] VGA Frame Buffer A

Custom

16 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Siz e Docu ment Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[16] VGA Frame Buffer A

Custom

16 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

C346

820p_50V_X7R_04

C595

10u_6.3V_X5R_06

C368

1u_6.3V_X5R_04

R231

80.6_1%_04

C321

820p_50V_X7R_04

C627

1u_6.3V_X5R_04

C110

0.1u_10V_X7R_04

R541

*931_1%_04

x16

NORMA L

x32

GND

COMMON

BGA170

INS284406670

U31D

K4G41325FC-HC03

WCK01

D13

DBI1

C13

EDC1

F13

DQ15

F11

DQ14

E13

DQ13

E11

DQ12

B13

DQ11

B11

DQ10

A13

DQ9

A11

DQ8

DBI0

EDC0

DQ7

DQ6

DQ5

DQ4

DQ3

DQ2

DQ1

DQ0

A10

VREF D

C357

10u_6.3V_X5R_06

add 1k to VSS

Normal

COMMON

BGA170

INS284406323

U31C

K4G41325FC-HC03

VSSQ

V14

VSSQ

V12

VSSQ

R14

VSSQ

R12

VSSQ

R11

VSSQ

N14

VSSQ

N12

VSSQ

M10

VSSQ

K13

VSSQ

H13

VSSQ

F10

VSSQ

E14

VSSQ

E12

VSSQ

C14

VSSQ

C12

VSSQ

C11

VSSQ

A14

VSSQ

A12

VSSQ

VSS

T10

VSS

P10

VSS

L10

VSS

K14

VSS

H14

VSS

G10

VSS

D10

VSS

B10

VSS

MF_ VS S / S O E *

VDDQ

T14

VDDQ

T12

VDDQ

P14

VDDQ

P12

VDDQ

N10

VDDQ

M14

VDDQ

M12

VDDQ

L13

VDDQ

K12

VDDQ

H12

VDDQ

G13

VDDQ

F14

VDDQ

F12

VDDQ

E10

VDDQ

D14

VDDQ

D12

VDDQ

B14

VDDQ

B12

VDDQ

VDD

R10

VDD

P11

VDD

L14

VDD

L11

VDD

G14

VDD

G11

VDD

D11

VDD

C10

VDD

C576

0.1u_10V_X7R_04

R226

931_1%_04

C335

0.1u_10V_X7R_04

C385

0.1u_10V_X7R_04

R222

549_1%_04

R220

1.33K_1%_04

C364

1u_6.3V_X5R_04

C383

0.1u_10V_X7R_04

R542

*1.33K_1%_04

C629

820p_50V_X7R_04

C349

1u_6.3V_X5R_04

R543

*549_1%_04

C323

1u_6.3V_X5R_04

R258

1K_04

C386

0.1u_10V_X7R_04

C348

0.1u_10V_X7R_04

Q6A

MTDN7002ZHS6R

C366

1u_6.3V_X5R_04

C587

1u_6.3V_X5R_04

NORMA L

x16

x32

COMMON

BGA170

INS284406830

U31A

K4G41325FC-HC03

WCK23

DBI3

EDC3

DQ31

DQ30

DQ29

DQ28

DQ27

DQ26

DQ25

DQ24

P13

DBI2

R13

EDC2

M13

DQ23

M11

DQ22

N13

DQ21

N11

DQ20

T13

DQ19

T11

DQ18

V13

DQ17

V11

DQ16

V10

VREF D

C628

0.1u_10V_X7R_04

C336

1u_6.3V_X5R_04

C379

0.1u_10V_X7R_04

R216

121_1%_04

C388

0.1u_10V_X7R_04

C331

0.1u_10V_X7R_04

R240

1K_04

COMMON

BGA170

INS284406750

U31B

K4G41325FC-HC03

J10

SEN

J13

J14

VREF C

NC_RFU_V5

NC_RFU_A5

J11

CLK

J12

CLK

CKE

RESET

RFU_A12

A7_A8

A6_A11

K10

A5_BA1

K11

A4_BA2

H10

A3_BA3

H11

A2_BA0

A1_A9

A0_A10

ABI

G12

L12

CAS

RAS

C372

0.1u_10V_X7R_04

Sheet 16 of 58

VGA Frame Buffer

Schematic Diagrams

B - 18 VGA Frame Buffer A

B.Schematic Diagrams

VGA Frame Buffer A

D D

C C

B B

A A

1213

FBA_D52

FBA_D51

FBA_D50

FBA_D49

FBA_D48

FBA_D55

FBA_D54

FBA_D53

FBA_DBI6

FBA _EDC6

FBA_D36

FBA_D35

FBA_D34

FBA_D33

FBA_D32

FBA_D39

FBA_D38

FBA_D37

FBA_DBI4

FBA_EDC4

FBA_D42

FBA_D41

FBA_D40

FBA_D47

FBA_D46

FBA_D45

FBA_D44

FBA_D43

FBA_D58

FBA_D57

FBA_D56

FBA_D62

FBA_D61

FBA_D60

FBA_D59

FBA_D63

FBA_DBI5 FBA_DBI7

FBA_EDC5 FBA_EDC7

FBA _CMD17

FBA _CMD16

FBA _CMD20

FBA _CMD19

FBA _CMD18

FBA _CMD22

FBA _CMD21

FBA _CMD25

FBA _CMD24

FBA _CMD23

FBA _CMD28

FBA _CMD27

FBA _CMD26

FBA _CMD30

FBA _CMD29

FBA _CMD31

FBA_DBI5

FBA_DBI4

FBA_EDC4

FBA_DBI6

FBA_EDC6

FBA_DBI7

FBA_EDC5

FBA_SEN2

FBA_EDC7

FBA_SOE3

FBA_VREFC1

0.4

FBA_VREF_FET_H

FBA_VREFD_H

0.4

FBA_ZQ2

FBA_VREFD_H

GND

GNDGND

GND

GNDGND

FBV DDQ

GND

GND GND

FBV DDQ FBV DDQ

FBV DDQ

FBVDDQ

FBV DDQ15,16,18,19,46

FBA_CLK115

FBA_D[63:32]15

FBA_CLK1#15

FBA_CMD[31:0]15,16

GPIO10_FBVREF_ALTV16,18,19,20

FBA _DBI[7 :4]15

FBA_EDC[7:4]15

FBA_WCK6715

FBA_WCK67#15

FBA_WCK45#15

FBA_WCK4515

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[17] VGA Frame Buffer A

Custom

17 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[17] VGA Frame Buffer A

Custom

17 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[17] VGA Frame Buffer A

Custom

17 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

C361

10u_6.3V_X5R_06

x16x32

MIRRORED

COMMON

BGA170_MIRR

INS284412315

U30D

K4G41325FC-HC03

WCK01

P13

DBI1

R13

EDC1

M13

DQ15

M11

DQ14

N13

DQ13

N11

DQ12

T13

DQ11

T11

DQ10

V13

DQ9

V11

DQ8

DBI0

EDC0

DQ7

DQ6

DQ5

DQ4

DQ3

DQ2

DQ1

DQ0

V10

VREF D

R233 *1 K_0 4

C330

1u_6.3V_X5R_04

R252

*931_1%_04

C390

0.1u_10V_X7R_04

R221

121_1%_04

R244

1.33K_1%_04

C365

1u_6.3V_X5R_04

C373

0.1u_10V_X7R_04

C363

820p_50V_X7R_04

R247

549_1%_04

C393

1u_6.3V_X5R_04

GND

x32 x16

MIRRORED

COMMON

BGA170_MIRR

INS284412235

U30A

K4G41325FC-HC03

WCK23

DBI3

EDC3

DQ31

DQ30

DQ29

DQ28

DQ27

DQ26

DQ25

DQ24

D13

DBI2

C13

EDC2

F13

DQ23

F11

DQ22

E13

DQ21

E11

DQ20

B13

DQ19

B11

DQ18

A13

DQ17

A11

DQ16

A10

VREF D

C325

0.1u_10V_X7R_04

C326

820p_50V_X7R_04

C339

0.1u_10V_X7R_04

COMMON

BGA170_MIRR

INS284412453

U30B

K4G41325FC-HC03

J10

SEN

J13

J14

VREF C

NC_RFU_V5

NC_RFU_A5

J11

CLK

J12

CLK

CKE

RESET

RFU_A12

A7_A8

A6_A11

H10

A5_BA1

H11

A4_BA2

K10

A3_BA3

K11

A2_BA0

A1_A9

A0_A10

ABI

L12

G12

CAS

RAS

C324

0.1u_10V_X7R_04

C384

820p_50V_X7R_04

C338

1u_6.3V_X5R_04

C391

0.1u_10V_X7R_04

C341

0.1u_10V_X7R_04

R249

931_1%_04

C347

1u_6.3V_X5R_04

C344

0.1u_10V_X7R_04

R254

*549_1%_04

C370

1u_6.3V_X5R_04

C342

0.1u_10V_X7R_04

add 1k to VDD

Mirrored

COMMON

BGA170_MIRR

INS284411526

U30C

K4G41325FC-HC03

VSSQ

V14

VSSQ

V12

VSSQ

R14

VSSQ

R12

VSSQ

R11

VSSQ

N14

VSSQ

N12

VSSQ

M10

VSSQ

K13

VSSQ

H13

VSSQ

F10

VSSQ

E14

VSSQ

E12

VSSQ

C14

VSSQ

C12

VSSQ

C11

VSSQ

A14

VSSQ

A12

VSSQ

VSS

T10

VSS

P10

VSS

L10

VSS

K14

VSS

H14

VSS

G10

VSS

D10

VSS

B10

VSS

VDDQ

T14

VDDQ

T12

VDDQ

P14

VDDQ

P12

VDDQ

N10

VDDQ

M14

VDDQ

M12

VDDQ

L13

VDDQ

K12

VDDQ

H12

VDDQ

G13

VDDQ

F14

VDDQ

F12

VDDQ

E10

VDDQ

D14

VDDQ

D12

VDDQ

B14

VDDQ

B12

VDDQ

VDD

R10

VDD

P11

VDD

L14

VDD

L11

VDD

G14

VDD

G11

VDD

D11

VDD

C10

VDD

SOE*/MF_VDD

C367

0.1u_10V_X7R_04

R253

*1.33K_1%_04

C343

1u_6.3V_X5R_04

R843 1K_04

C374

0.1u_10V_X7R_04

Q6B

MTDN7002ZHS6R

C382

1u_6.3V_X5R_04

C354

10u_6.3V_X5R_06

C369

0.1u_10V_X7R_04

R236

80.6_1%_04

R223

1K_04

Sheet 17 of 58

VGA Frame Buffer

Schematic Diagrams

VGA Frame Buffer B B - 19

B.Schematic Diagrams

VGA Frame Buffer B

D D

C C

B B

A A

FBB _CMD11

FBB _CMD10

FBB _CMD0

FBB _CMD14

FBB _CMD13

FBB _CMD12

FBB _CMD1

FBB _CMD15

FBB _CMD3

FBB _CMD2

FBB _CMD6

FBB _CMD5

FBB _CMD4

FBB _CMD8

FBB _CMD7

FBB _CMD9

FBB_D0 FBB_D16

FBB_D17

FBB_D18

FBB_D19

FBB_D1

FBB_D20

FBB_D21

FBB_D22

FBB_D23

FBB_D2

FBB_D3

FBB_D4

FBB_D5

FBB_D6

FBB_D7

FBB_DBI0

FBB_DBI2

FBB_DBI1

FBB_DBI2

FBB_EDC0

FBB_DBI3

FBB_EDC1

FBB_EDC2

FBB_EDC3

FBB_SEN0

FBB_SOE0

FBB_VREFC0

0.4

FBB_VREFD_L

FBB_VREF_FET_L

FBB_ZQ0

FBB_D10

FBB_D11

FBB_D12

FBB_D13

FBB_D14

FBB_D15

FBB_D8

FBB_D9

FBB_DBI1

FBB_EDC1

FBB_D24

FBB_D25

FBB_D26

FBB_D27

FBB_D28

FBB_D29

FBB_D30

FBB_D31

FBB_DBI3

FBB_EDC3

FBB_VREFD_L

GND

GND GND

GND

GND GND

GND

FBV DDQ

GND

FBV DDQ

FBV DDQ FBV DDQ

FBV DDQ15,16,17,19,46

FBB_CLK0#15

FBB_D[31:0]15

FBB_CLK015

FBB _CMD[31 :0]15,19

FBB_WCK23#15

FBB_WCK2315

FBB_WCK0115

FBB_WCK01#15

GPIO10_FBVREF_ALTV16,17,19,20

FBB_EDC[3:0]15

FBB _DBI[3 :0]15

Title

Siz e Docu ment Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[18] VGA Frame Buffer B

Custom

18 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Siz e Docu ment Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[18] VGA Frame Buffer B

Custom

18 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Siz e Docu ment Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[18] VGA Frame Buffer B

Custom

18 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

C510

1u_6.3V_X5R_04

C63

820p_50V_X7R_04

add 1k to VSS

Normal

COMMON

BGA170

INS284418129

U14C

K4G41325FC-HC03

VSSQ

V14

VSSQ

V12

VSSQ

R14

VSSQ

R12

VSSQ

R11

VSSQ

N14

VSSQ

N12

VSSQ

M10

VSSQ

K13

VSSQ

H13

VSSQ

F10

VSSQ

E14

VSSQ

E12

VSSQ

C14

VSSQ

C12

VSSQ

C11

VSSQ

A14

VSSQ

A12

VSSQ

VSS

T10

VSS

P10

VSS

L10

VSS

K14

VSS

H14

VSS

G10

VSS

D10

VSS

B10

VSS

MF_VSS/SOE*

VDDQ

T14

VDDQ

T12

VDDQ

P14

VDDQ

P12

VDDQ

N10

VDDQ

M14

VDDQ

M12

VDDQ

L13

VDDQ

K12

VDDQ

H12

VDDQ

G13

VDDQ

F14

VDDQ

F12

VDDQ

E10

VDDQ

D14

VDDQ

D12

VDDQ

B14

VDDQ

B12

VDDQ

VDD

R10

VDD

P11

VDD

L14

VDD

L11

VDD

G14

VDD

G11

VDD

D11

VDD

C10

VDD

C523

0.1u_10V_X7R_04

C250

1u_6.3V_X5R_04

C55

10u_6.3V_X5R_06

C46

0.1u_10V_X7R_04

R17

121_1%_04

R89

1K_04

C50

0.1u_10V_X7R_04

R315

931_1%_04

C498

10u_6.3V_X5R_06

C507

820p_50V_X7R_04

R331

*1.33K_1%_04

R332

*931_1%_04

C59

1u_6.3V_X5R_04

C494

0.1u_10V_X7R_04

R317

549_1%_04

COMMON

BGA170

INS284417806

U14B

K4G41325FC-HC03

J10

SEN

J13

J14

VREF C

NC_RFU_V5

NC_RFU_A5

J11

CLK

J12

CLK

CKE

RESET

RFU_A12

A7_A8

A6_A11

K10

A5_B A1

K11

A4_B A2

H10

A3_B A3

H11

A2_B A0

A1_A9

A0_A10

ABI

G12

L12

CAS

RAS

R21

80.6_1%_04

R32

*549_1%_04

C53

1u_6.3V_X5R_04

C241

1u_6.3V_X5R_04

R316

1.33K_1%_04

x16

NORMA L

x32

GND

COMMON

BGA170

INS284418019

U14D

K4G41325FC-HC03

WCK01

D13

DBI1

C13

EDC1

F13

DQ15

F11

DQ14

E13

DQ13

E11

DQ12

B13

DQ11

B11

DQ10

A13

DQ9

A11

DQ8

DBI0

EDC0

DQ7

DQ6

DQ5

DQ4

DQ3

DQ2

DQ1

DQ0

A10

VREF D

C536

0.1u_10V_X7R_04

C540

0.1u_10V_X7R_04

C497

0.1u_10V_X7R_04

C532

0.1u_10V_X7R_04

C54

1u_6.3V_X5R_04

Q12A

MTDN7002ZHS6R

C49

820p_50V_X7R_04

C511

0.1u_10V_X7R_04

C52

1u_6.3V_X5R_04

C255

1u_6.3V_X5R_04

C543

0.1u_10V_X7R_04

C519

0.1u_10V_X7R_04

C51

0.1u_10V_X7R_04

NORMA L

x16

x32

COMMON

BGA170

INS284418467

U14A

K4G41325FC-HC03

WCK23

DBI3

EDC3

DQ31

DQ30

DQ29

DQ28

DQ27

DQ26

DQ25

DQ24

P13

DBI2

R13

EDC2

M13

DQ23

M11

DQ22

N13

DQ21

N11

DQ20

T13

DQ19

T11

DQ18

V13

DQ17

V11

DQ16

V10

VREF D

R62

1K_04

Sheet 18 of 58

VGA Frame Buffer

Schematic Diagrams

B - 20 VGA Frame Buffer B

B.Schematic Diagrams

VGA Frame Buffer B

D D

C C

B B

A A

1213

FBB_D40

FBB_D41

FBB_D42

FBB_D43

FBB_D44

FBB_D45

FBB_D46

FBB_D47

FBB_DBI5

FBB_EDC5

FBB _CMD17

FBB _CMD16

FBB _CMD20

FBB _CMD19

FBB _CMD18

FBB _CMD22

FBB _CMD21

FBB _CMD25

FBB _CMD24

FBB _CMD23

FBB _CMD27

FBB _CMD26

FBB _CMD28

FBB _CMD30

FBB _CMD29

FBB _CMD31

FBB_D56

FBB_D57

FBB_D58

FBB_D59

FBB_D60

FBB_D61

FBB_D62

FBB_DBI7

FBB_EDC7

FBB_D63

FBB_D32

FBB_D33

FBB_D34

FBB_D35

FBB_D36

FBB_D37

FBB_D38

FBB_D39

FBB_D48

FBB_D49

FBB_D50

FBB_D51

FBB_D52

FBB_D53

FBB_D54

FBB_D55

FBB_DBI4

FBB_DBI5

FBB_DBI6

FBB_DBI7

FBB _EDC4

FBB _EDC5

FBB _EDC6

FBB_EDC6

FBB _EDC7

FBB_SEN2

FBB_SOE3

FBB_VREFC1

0.4

FBB_VREFD_H

0.4

FBB_VREF_FET_H

FBB_ZQ2

GND

GND GND

GND

FBV DDQ

GND

FBV DDQ

FBV DDQ FBV DDQ

FBVDDQ

FBV DDQ15,16,17,18,46

GPIO10_FBVREF_ALTV16,17,18,20

FBB_WCK4515

FBB_WCK45#15

FBB_CLK1#15

FBB_D[63:32]15

FBB_CLK115

FBB_CMD[31:0]15,18

FBB _DBI[7 :4]15

FBB_EDC[7:4]15

FBB_WCK6715

FBB_WCK67#15

Title

Siz e Docu ment Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[19] VGA Frame Buffer B

Custom

19 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Siz e Docu ment Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[19] VGA Frame Buffer B

Custom

19 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Siz e Docu ment Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[19] VGA Frame Buffer B

Custom

19 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

R371 *1K_04

C318

10u_6.3V_X5R_06

Q12B

MTDN7002ZHS6R

R161

1K_04

C389

0.1u_10V_X7R_04

R166

931_1%_04

C501

10u_6.3V_X5R_06

COMMON

BGA170_MIRR

INS284424754

U20B

K4G41325FC-HC03

J10

SEN

J13

J14

VREF C

NC_R FU_V5

NC_R FU_A5

J11

CLK

J12

CLK

CKE

RESET

RFU_A12

A7_A8

A6_A11

H10

A5_B A1

H11

A4_B A2

K10

A3_B A3

K11

A2_B A0

A1_A9

A0_A10

ABI

L12

G12

CAS

RAS

R169

549_1%_04

C495

0.1u_10V_X7R_04

C506

0.1u_10V_X7R_04

C301

1u_6.3V_X5R_04

C322

1u_6.3V_X5R_04

C47

0.1u_10V_X7R_04

R168

1.33K_1%_04

C496

0.1u_10V_X7R_04

C286

820p_50V_X7R_04

C48

0.1u_10V_X7R_04

R167

121_1%_04

R133

*1.33K_1%_04

R842 1K_04

GND

x32 x16

MIRRORED

COMMON

BGA170_MIRR

INS284423878

U20A

K4G41325FC-HC03

WCK23

DBI3

EDC3

DQ31

DQ30

DQ29

DQ28

DQ27

DQ26

DQ25

DQ24

D13

DBI2

C13

EDC2

F13

DQ23

F11

DQ22

E13

DQ21

E11

DQ20

B13

DQ19

B11

DQ18

A13

DQ17

A11

DQ16

A10

VREF D

C387

1u_6.3V_X5R_04

C499

0.1u_10V_X7R_04

C328

0.1u_10V_X7R_04

C215

1u_6.3V_X5R_04

C295

0.1u_10V_X7R_04

C236

1u_6.3V_X5R_04

C333

0.1u_10V_X7R_04

add 1k to VDD

Mirrored

COMMON

BGA170_MIRR

INS284424858

U20C

K4G41325FC-HC03

VSSQ

V14

VSSQ

V12

VSSQ

R14

VSSQ

R12

VSSQ

R11

VSSQ

N14

VSSQ

N12

VSSQ

M10

VSSQ

K13

VSSQ

H13

VSSQ

F10

VSSQ

E14

VSSQ

E12

VSSQ

C14

VSSQ

C12

VSSQ

C11

VSSQ

A14

VSSQ

A12

VSSQ

VSS

T10

VSS

P10

VSS

L10

VSS

K14

VSS

H14

VSS

G10

VSS

D10

VSS

B10

VSS

VDDQ

T14

VDDQ

T12

VDDQ

P14

VDDQ

P12

VDDQ

N10

VDDQ

M14

VDDQ

M12

VDDQ

L13

VDDQ

K12

VDDQ

H12

VDDQ

G13

VDDQ

F14

VDDQ

F12

VDDQ

E10

VDDQ

D14

VDDQ

D12

VDDQ

B14

VDDQ

B12

VDDQ

VDD

R10

VDD

P11

VDD

L14

VDD

L11

VDD

G14

VDD

G11

VDD

D11

VDD

C10

VDD

SOE*/MF_VDD

R134

*931_1%_04

R164

80.6_1%_04

C500

1u_6.3V_X5R_04

C224

1u_6.3V_X5R_04

C247

0.1u_10V_X7R_04

C261

820p_50V_X7R_04

x16x32

MIRRORED

COMMON

BGA170_MIRR

INS284423719

U20D

K4G41325FC-HC03

WCK01

P13

DBI1

R13

EDC1

M13

DQ15

M11

DQ14

N13

DQ13

N11

DQ12

T13

DQ11

T11

DQ10

V13

DQ9

V11

DQ8

DBI0

EDC0

DQ7

DQ6

DQ5

DQ4

DQ3

DQ2

DQ1

DQ0

V10

VREF D

C309

820p_50V_X7R_04

C327

1u_6.3V_X5R_04

R125

*549_1%_04

C505

0.1u_10V_X7R_04

Sheet 19 of 58

VGA Frame Buffer

Schematic Diagrams

VGA I/O B - 21

B.Schematic Diagrams

VGA I/O

D D

C C

B B

A A

Test Point

6-02-00781-LD0

1025

R788 R789

N14x 1.0

N15x 2.0 V

R782 R783

N14x 1.0

N15x 2.0 V

N15

1119

1121

1216

GC6 2.0

0109

IFPC_PLLVDD

SNN_A_SCL

SNN_A_SDA

IFPD_PLLVDD

VGA_THER M_SHDWN #

SMC_VGA_THERM

SMD_VGA_THERM

VGA_THER M_SHDWN #1

VGA_THER MDA

VGA_THER MDC

VGA_VDD

VGA_THER M_SHDWN _#

DACA_VDD

DACA_VREF

DACA_RSET

SNN_BLUE

SNN_RED

SNN_HSYNC

SNN_GREEN

SNN_VSYNC

I2CB_SCL

I2CB_SDA

I2CC_SDA

I2CC_SCL

SNN_A_SDA

SNN_A_SCL SMD_VGA_THER M1

SMC_VGA_THERM1

NVVDD_PSI

GPIO12_AC_DETECT

GPIO9_ALERT_FAN

GPIO8_OVERT

V_JTAG_TRST

I2CC_SCLI2CC_SCL

I2CC_SDA

VGA_THER MDC

VGA_THER MDA

SMC_VGA_THERM

SMD_VGA_THERM1

SMC_VGA_THERM1

GPU_PEX_RST_HOLD#

GPIO12_AC_DETECT

GPIO9_ALERT_FAN

GPIO8_OVERT

GPIO10_FBVREF_ALTV

GPU_PWR_VID

NVVDD_PSI

GPIO8_OVERT

GPIO9_ALERT_FAN

GPU_PEX_RST

GPIO12_AC_DETECT1

FB_CLAMP_TGL_REQ#

GPU_PEX_RST#

GPU_PEX_RST

GPU_PEX_RST_HOLD#

GPU_PEX_RST#

SMD_VGA_THERM

I2CB_SDA

I2CB_SCL

GPIO0_DEBUG_SR VC

SYS_PEX_RST_MON#

3V3_MAIN_EN

GPU_PEX_RST#

3.3V

3V3_RUN

3V3_RUN 3V3_RUN

3V3_AON

3V3_RUN

3V3_AON VDD3

3V3_AON

3V3_RUN

3V3_AON

3.3V

3V3_AON

3.3V

3V3_AON

3V3_RUN

NVVDD_PSI 45

VDD314,22,23,24,26,27,28,29,30,31,32,34,35,39,40,41,43,47

3.3V2,3,13,22,24,26,27,28,29,30,31,32,33,34,37,40,42,45,46

SMD_VGA_THERM 12,23,39

3V3_RUN14,15,45

SMC_VGA_THERM 12,23,39

GPIO_FB_CLAMP 15,39,46

GPU_PWR_VID 45

GPIO10_FBVREF_ALTV 16,17,18,19

dGPU_GPIO8_OVERT 26,39

d_GPIO9_ALERT_FAN 25,39

GPIO12_AC_DETECT 26,39

1642_DGPU_ON 45,46

SYS_PEX_RST_MON#14

GPU_PEX_RST# 14

GPU_Event# 30

GPIO6_VBOOT_ADJ 39,45

PERSTB# 14,25

3V3_MAIN_EN 20,45,46

GC6_FB_EN 26,46

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[20] VGA I/O

Custom

20 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[20] VGA I/O

Custom

20 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[20] VGA I/O

Custom

20 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

R795 0_04

R789 0_04

R800 *0_04

R698 10K_04

R804 *0_04

DPDVI-SL/HDMIDVI-DL

TXD2

TXD1

TXD0

TXD1

I2CZ_SCL

I2CZ_SDA

TXC

HPD_ F

HPD_ E

TXC

TXD0

TXD1

TXD2

I2CY_SDA

I2CY_SCLI2CY_SCL

I2CY_SDA

TXD2

TXD0

TXC

TXD1

HPD_ E

TXD3

TXD4

TXD5

IFPE

IFPF

9/19 IFPEF

ALL PINS NC FOR GF117

U17M

BGA_0908_P080_P085_P100_290X290

COMMON

N15P-GX-A2

AC8

IFPF_IOVDD

AC7

IFPE_IOVDD

AD6

IFPEF_RSET

AB8

IFPEF_PLLVDD

GPIO19

AE3

IFPF_L0

AE4

IFPF_L0

AF4

IFPF_L1

AF5

IFPF_L1

AD4

IFPF_L2

AD5

IFPF_L2

AG1

IFPF_L3

AF1

IFPF_L3

AF3

IFPF_AUX

AF2

IFPF_AUX

GPIO18

AD2

IFPE_L0

AD3

IFPE_L0

AD1

IFPE_L1

AC1

IFPE_L1

AC2

IFPE_L2

AC3

IFPE_L2

AC4

IFPE_L3

AC5

IFPE_L3

AB3

IFPE_AUX

AB4

IFPE_AUX

R839 0_04

I2CX_SCL

I2CX_SDA

TXC

DVI/HDMI

TXD2

TXD1

TXD0

IFPD

8/19 IFPD

ALL PINS NC FOR GF117

U17L

BGA_0908_P080_P085_P100_290X290

COMMON

N15P-GX-A2

AG6

IFPD_IOVDD

AG7

IFPD_PLLVDD

AN2

IFPD_RSET

GPIO17

AM1

IFPD_L0

AM2

IFPD_L0

AM3

IFPD_L1

AM4

IFPD_L1

AL3

IFPD_L2

AL4

IFPD_L2

AK4

IFPD_L3

AK5

IFPD_L3

AK3

IFPD_AUX

AK2

IFPD_AUX

R711 10K_04

R780 *0_04

R805 10K_04

RN2

2.2K_8P4R_04

4 5

R46 4.7K_04

4/19 DACA

TSEN_VREF

GF117GF108/GKx

NC NC

GF117 GF108/GKx

U17N

BGA_0908_P080_P085_P100_290X290

COMMON

N15P-GX-A2

AP8

DACA_RSET

AP9

DACA_VREF

AG10

DACA_VDD

AL9

DACA_BLUE

AL10

DACA_GREEN

AK9

DACA_RED

AN9

DACA_VSYNC

AM9

DACA_HSYNC

I2CA_SDA

I2CA_SCL

R838 *0_04

R319 100K_04

R798 10K_04

R50 *10K_04

R781 0_04

Q28

*AO3415

D S

Q18

*MTN7002ZHS3

D S

R54 *0_04

R783 0_04

R7842.2K_04

R15 10K_04

R794 *10K_04

Q30

MTN7002ZHS3

R59 *4.7K_04

R337

2.2K_04

U47

MC74VHC1G08DFT2G

R796 *0_04

Q31A

*MTDN7002ZHS6R

R7852.2K_04

R7872.2K_04

R19 10K_04

R38 *10mil_short

R797 *0_04

ALL PINS NC FOR GF117

6/19 IFPAB

IFPAB

COMMON

BGA_0908_P080_P085_P100_290X290

U17J

N15P-GX-A2

AG9

IFPB_IOVDD

AG8

IFPA_IOVDD

AH8

IFPAB_PLLVDD

AJ8

IFPAB_RSET

GPIO14

AK8

IFPB_TXD7

AL8

IFPB_TXD7

AN8

IFPB_TXD6

AM8

IFPB_TXD6

AM7

IFPB_TXD5

AL7

IFPB_TXD5

AP6

IFPB_TXD4

AP5

IFPB_TXD4

AJ9

IFPB_TXC

AH9

IFPB_TXC

AJ6

IFPA_TXD3

AH6

IFPA_TXD3

AL6

IFPA_TXD2

AK6

IFPA_TXD2

AN5

IFPA_TXD1

AM5

IFPA_TXD1

AP3

IFPA_TXD0

AN3

IFPA_TXD0

AM6

IFPA_TXC

AN6

IFPA_TXC

R834 0_04

R7862.2K_04

11/19 MISC1

U17Q

BGA_0908_P080_P085_P100_290X290

COMMON

N15P-GX-A2

AN11

JTAG_TRST

AP12

JTAG_TDO

AM11

JTAG_TDI

AP11

JTAG_TMS

AM10

JTAG_TCK

THERMDP

THERMDN

GPIO21

GPIO20

GPIO16

GPIO13

GPIO12

GPIO11

GPIO10

GPIO9

GPIO8

GPIO7

GPIO6

GPIO5

GPIO4

GPIO3

GPIO2

GPIO1

GPIO0

I2CB_SDA

I2CB_SCL

I2CC_SDA

I2CC_SCL

I2CS_SDA

I2CS_SCL

R790 *0_04

Q33A

MTDN7002ZHS6R

R793 0_04

C81 *0.1u_16V_Y5V_04

DPDVI/HDMI

I2CW_ SCL

I2CW_ SDA

TXC

TXD0

TXD1

TXD2

IFPC

ALL PINS NC FOR GF117

7/19 IFPC

COMMON

BGA_0908_P080_P085_P100_290X290

U17K

N15P-GX-A2

AF6

IFPC_IOVDD

AF7

IFPC_PLLVDD

AF8

IFPC_RSET

GPIO15

AK1

IFPC_L0

AJ1

IFPC_L0

AJ3

IFPC_L1

AJ2

IFPC_L1

AH3

IFPC_L2

AH4

IFPC_L2

AG5

IFPC_L3

AG4

IFPC_L3

AG3

IFPC_AUX

AG2

IFPC_AUX

R699

*10K_04

R799 *0_04

R803 10K_04

R779 0_04

R806 10K_04

Q1A

MTDN7002ZHS6R

R782 *0_04

R40 4.7K_04

Q33B

MTDN7002ZHS6R

R801

*10K_04

R791 *4.7K_04

R333

10K_04

R53 *10mil_short

R361

10K_04

R778 *0_04

R792 *4.7K_04

C85

1000p_50V_X7R_04

Q32

MTN7002ZHS3

R334

10K_04

*G781-1P8UF

SCLK

8SDATA

7ALERT#

6GND

5THERM# 4

D- 3

D+ 2

VDD 1

C822

*0.1u_10V_X5R_04

R788 *0_04

Q1B

MTDN7002ZHS6R

R848 0_04

R802 *0_04

R336

10K_04

Sheet 20 of 58

VGA I/O

Schematic Diagrams

B - 22 VGA NVVDD Decoupling

B.Schematic Diagrams

VGA NVVDD Decoupling

D D

C C

B B

A A

PLACE NEAR CHIP

PLACE UNDER CHIP

NVVDDNVVDD

NVVDD45

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[21] VGA NVVDD Cecoupling

Custom

21 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[21] VGA NVVDD Cecoupling

Custom

21 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[21] VGA NVVDD Cecoupling

Custom

21 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

C210

4.7u_6.3V_X5R_06

NC for 4-Lyr cards

17/19 GND_2/2

Optional CMD GNDs (2)

COMMON

BGA_0908_P080_P085_P100_290X290

U17I

N15P-GX-A2

AG11

GND

T22

GND

T20

GND

T18

GND

T17

GND

T15

GND

T13

GND

R23

GND

R21

GND

R19

GND

R16

GND

R14

GND

R12

GND

P22

GND

P20

GND

P18

GND

P17

GND

P15

GND

P13

GND

N33

GND

N32

GND

N30

GND

N28

GND

N23

GND

N21

GND

N19

GND

W32

GND_OPT

C16

GND_OPT

AH11

GND

Y23

GND

Y21

GND

Y19

GND

Y16

GND

Y14

GND

Y12

GND

W28

GND

W22

GND

W20

GND

W18

GND

W17

GND

W15

GND

W13

GND

V23

GND

V21

GND

V19

GND

V16

GND

V14

GND

V12

GND

U23

GND

U21

GND

U19

GND

U16

GND

U14

GND

U12

GND

T32

GND

T28

GND

C34

22u_6.3V_X5R_08

C146

4.7u_6.3V_X5R_06

C193

4.7u_6.3V_X5R_06

C170

4.7u_6.3V_X5R_06

16/19 GND_1/2

COMMON

BGA_0908_P080_P085_P100_290X290

U17G

N15P-GX-A2

AM22

GND

AM19

GND

AM16

GND

AM13

GND

AL5

GND

AL33

GND

AL32

GND

AL30

GND

AL28

GND

AL26

GND

AL24

GND

AL23

GND

AL21

GND

AL20

GND

AL2

GND

AL18

GND

AL17

GND

AL15

GND

AL14

GND

AL12

GND

AK7

GND

AK10

GND

AJ7

GND

AH7

GND

AH5

GND

AH33

GND

AH32

GND

AH30

GND

AH29

GND

AH28

GND

AH24

GND

AH22

GND

AH2

GND

AH19

GND

AH16

GND

AH13

GND

AA15

GND

AH10

GND

AE7

GND

AE5

GND

AE33

GND

AE32

GND

AE30

GND

AE28

GND

AE2

GND

AC22

GND

AC20

GND

AA13

GND

AC18

GND

AC17

GND

AC15

GND

AC13

GND

AB7

GND

AB5

GND

AB32

GND

AB30

GND

AB28

GND

AB23

GND

A33

GND

AB21

GND

AB2

GND

AB19

GND

AB16

GND

AB14

GND

AB12

GND

AA22

GND

AA20

GND

AA18

GND

AA17

GND

N16

GND

N14

GND

N12

GND

M22

GND

M20

GND

M18

GND

M17

GND

M15

GND

M13

GND

K33

GND

K32

GND

K30

GND

K28

GND

G33

GND

G32

GND

G30

GND

G28

GND

G25

GND

G22

GND

G19

GND

G16

GND

G13

GND

G10

GND

F28

GND

E25

GND

E22

GND

E10

GND

D33

GND

D31

GND

C28

GND

C25

GND

C22

GND

C19

GND

C13

GND

C10

GND

B34

GND

B31

GND

B28

GND

B25

GND

B22

GND

B10

GND

AP33

GND

AP2

GND

AN7

GND

AN4

GND

AN34

GND

AN30

GND

AN25

GND

AN22

GND

AN19

GND

AN16

GND

AN13

GND

AN10

GND

AN1

GND

AM25

GND

C168

4.7u_6.3V_X5R_06

C504

22u_6.3V_X5R_08

C134

1u_6.3V_X5R_04

14/19 NVVDD

COMMON

BGA_0908_P080_P085_P100_290X290

U17E

N15P-GX-A2

Y22

VDD

Y20

VDD

Y18

VDD

Y17

VDD

Y15

VDD

Y13

VDD

W23

VDD

W21

VDD

W19

VDD

W16

VDD

W14

VDD

W12

VDD

V22

VDD

V20

VDD

V18

VDD

V17

VDD

V15

VDD

V13

VDD

U22

VDD

U20

VDD

U18

VDD

U17

VDD

U15

VDD

U13

VDD

T23

VDD

T21

VDD

T19

VDD

T16

VDD

T14

VDD

T12

VDD

R22

VDD

R20

VDD

R18

VDD

R17

VDD

R15

VDD

R13

VDD

P23

VDD

P21

VDD

P19

VDD

P16

VDD

P14

VDD

P12

VDD

N22

VDD

N20

VDD

N18

VDD

N17

VDD

N15

VDD

N13

VDD

M23

VDD

M21

VDD

M19

VDD

M16

VDD

M14

VDD

M12

VDD

AC23

VDD

AC21

VDD

AC19

VDD

AC16

VDD

AC14

VDD

AC12

VDD

AB22

VDD

AB20

VDD

AB18

VDD

AB17

VDD

AB15

VDD

AB13

VDD

AA23

VDD

AA21

VDD

AA19

VDD

AA16

VDD

AA14

VDD

AA12

VDD

C207

4.7u_6.3V_X5R_06

C37

22u_6.3V_X5R_08

C490

330uF_2.5V_12m_6.6*6.6*4.2

C112

1u_6.3V_X5R_04

C213

4.7u_6.3V_X5R_06

C503

22u_6.3V_X5R_08

C182

4.7u_6.3V_X5R_06

C184

4.7u_6.3V_X5R_06

C149

4.7u_6.3V_X5R_06

C39

47uF_6.3V_X5R_08

C119

1u_6.3V_X5R_04

C131

4.7u_6.3V_X5R_06

C218

1u_6.3V_X5R_04

C192

4.7u_6.3V_X5R_06

C209

4.7u_6.3V_X5R_06

C153

1u_6.3V_X5R_04

C147

4.7u_6.3V_X5R_06

C133

4.7u_6.3V_X5R_06

10/19 XVDD

CONFIGURABLE

POWER

CHANNELS

COMMON

BGA_0908_P080_P085_P100_290X290

U17H

N15P-GX-A2

AA8

XVDD

AA7

XVDD

AA6

XVDD

AA5

XVDD

AA4

XVDD

AA3

XVDD

AA2

XVDD

AA1

XVDD

C172

4.7u_6.3V_X5R_06

C113

1u_6.3V_X5R_04

C142

1u_6.3V_X5R_04

C132

4.7u_6.3V_X5R_06

C183

4.7u_6.3V_X5R_06

C171

4.7u_6.3V_X5R_06

C36

22u_6.3V_X5R_08

C111

1u_6.3V_X5R_04

C44

22u_6.3V_X5R_08

C35

22u_6.3V_X5R_08

C191

4.7u_6.3V_X5R_06

Sheet 21 of 58

VGA NVVDD

Decoupling

Schematic Diagrams

Lynx 1/9 B - 23

B.Schematic Diagrams

Lynx 1/9

D D

C C

B B

A A

ĳıŮŪŭŴ

RTC CLEAR

ĳıŮŪŭŴ

Zo= 50ȍ±15%

Lynx Point - M (HDA,JTAG,SATA)

ODD Zero Power ODD

RTC CLEAR

JOPEN1

JOPEN2

CLEAR COMS

CLEAR ME RTC REGISTER

SATA ODD

INTVRMEN- Integrated SUS 1.05V VRM Enable

High - Enable Internal VRs /Low - Enable External VRs

E-SATA HDD

BBS_BIT1 BBS_BIT0 Boot BIOS Location

0 0 LPC (Default)

0 1 Reserved (NAND)

1 0 PCI

1 1 SPI

Boot BIOS Strap

Closed to U4

Layout Note:

Flash Descriptor

Security Overide

Low = Disabled-(Default)

High = Enabled

INTVRMEN - INTEGRATED SUS 1.05V VRM ENABLE

HIGH - ENABLE INTERNAL VR'S

LOW - ENABLE EXTERNAL VR'S

NO REBOOT EMPTY

(DEFAULT)

mSATA

SATA HDD1

SATA HDD2

6-20-92K00-018

ODD CONN

Main Source --6-86-2B002-004-E (footprint BAT-W5000102-001)

Second Source --6-86-2B002-002 (footprint BHAAA-BAT-063-P01)

RTC_RST#

RTC_VBAT

RTC_X1

SRTC_RTC#

RTC_X2

RTC_VBAT_1

PCH_JTAG_TDO

PCH_JTAG_TMS

PCH_JTAG_TDI

SM_INTRUDER#

PCH_INTVRMEN

PCH_JTAG_TMS

PCH_JTAG_TDI

PCH_JTAG_TDO

PCH_JTAG_TCK_BUF

SATA_RXN2

SATA_RXP2

SATA_TXP2

SATA_TXN2

SATAICOMP

HDADOCKEN_N

SATA_DET0_N

SATA_LED#

BBS_BIT0

HDADOCKEN_N

HDA_SDOUT

SATA_RXP2

SATA_RXN2

SATA_TXN2

SATA_TXP2

VDD3

RTCVCC

3.3V

5VS_ODD

VDD3

5VS 5VS

3.3VS

RTCVCC

1.5VS

3.3VS

1.5VS

3.3VS

3.3VA_1.5A_HDA_IO

5VS_ODD

VDD3

3.3V

HDA_SDIN037

HDA_RST#37

HDA_SPKR37

VDD314,20,23,24,26,27, 28,29,30,31,32,34,35,39, 40,41,43,47

3.3VS3,6,9,10,11,12, 13,23,24,25,26,28,29,30, 31,32,34,35,36,37,39,40, 44,45

RTCVCC24,29

3.3V2,3,13,20,24,26, 27,28,29,30,31,32,33,34, 37,40,42,45,46

5VS13,31,32,35,36,37, 40,44,45

SATA_ODD_PWRGT 26

HDA_SYNC37

SATARXN4 33

SATARXP4 33

SATATXN4 33

SATATXP4 33

SATA_LED# 35

HDA_BITCLK37

1.5VS24,27,28,29,30,36,42

3.3VA_1.5A_HDA_IO29

HDA_SDOUT37

ME_W E39

SATA_RXN0 35

SATA_RXP0 35

SATA_TXN0 35

SATA_TXP0 35

SATA_RXN1 35

SATA_RXP1 35

SATA_TXN1 35

SATA_TXP1 35

SATA_ODD_DA# 25

SATA_ODD_PRSNT# 26

SATA_RXN5 31

SATA_RXP5 31

SATA_TXN5 31

SATA_TXP5 31

Titl e

Size Documen t Nu mber Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[22] Lynx 1/9-RTC/HDA/SATA

Custom

22 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Titl e

Size Documen t Nu mber Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[22] Lynx 1/9-RTC/HDA/SATA

Custom

22 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Titl e

Size Documen t Nu mber Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[22] Lynx 1/9-RTC/HDA/SATA

Custom

22 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

R183 10K_04

R160

1K_04

C482

*2.2u_6.3V_X5R_06

R419 330K_04

R428

1M_04

R644 20K_04

C305 1u_6.3V_X5R_04

C315

18p_50V_NPO_04

JOPEN1

*OPEN_10mil-1MM

J_ODD1

87151-1807G

R143 *10mil_sh ort

R400 *10K_04

R396 *1K_04

R392 *10K_04

R172 0_04

Q25

MTP3403N3

D S

C724

*22u_6.3V_X5R_08

R454

100_1%_04

R645

100K_04

C481

*0.1u_16V_Y5V_04

R391 *910_04

R427

20K_1%_04

R649

10K_04

PJ32

*OPEN-2mm

C725

10u_10V_Y5V_08

JTAGRTC AZALIA

SATA

PCH LYNX POINT SUPER SKU ES1

1 OF 11

U19A

TP2 0

AB6

TP2 5

TP9 BA2

TP2 2

C26

RTCX1

SATA_RXN_1 BC10

SATA_RXP_1 BE10

JTAG_TDI

AE2

JTAG_TDO

AD3

JTAG_TMS

AD1

JTAG_TCK

AB3

HDA_SDO

A24

HDA_SDI2

G22

HDA_SDI3

F22

HDA_SDI1

K22

HDA_SDI0

L22

RTCRST#

INTRUDER#

INTVRME N

G10

SRTCRST#

RTCX2

SATA_IREF BD4

SATA0GP/GPIO21 AT1

SATA1GP/GPIO19 AU2

SATALED# AP3

SATA_RCOMP AY5

SATA_TXP5/PETP2 AR15

SATA_RXP5/PERP2 BE14

SATA_TXN5/PETN2 AP15

SATA_RXN5/PERN2 BC14

SATA_TXP4/PETP1 AW15

SATA_TXN4/PETN1 AV15

SATA_RXP4/PERP1 BB13

SATA_RXN4/PERN1 BD13

SATA_TXP_3 AT13

SATA_RXP_3 BE12

SATA_TXN_3 AR13

SATA_RXN_3 BC12

SATA_TXP_2 AW13

SATA_TXN_2 AY13

SATA_RXN_2 BB9

SATA_RXP_2 BD9

SATA_TXP_1 AW10

SATA_TXN_1 AV10

SATA_TXP_0 AY8

SATA_TXN_0 AW8

SATA_RXP_0 BE8

SATA_RXN_0 BC8

HDA_RST#

C24

SPKR

AL10

HDA_SYNC

A22

HDA_BCLK

B25

HDA_DOCK_RST#/GPIO13

C22

DOCKEN#/GPIO33

B17

TP8 BB2

R457

*210_1%_06

T61

R171

20K_1%_04

R450

100_1%_04

R214

*210_1%_06

R197

10M_04

R181 *10K_04

C723

1u_6.3V_X5R_04

C698 0.01u_16V_X7R_04

L46 *HCB1608KF-121T25

R521 *1K_04

BAT54CS3

C319

18p_50V_NPO_04

T55

C688 0.01u_16V_X7R_04

J_CBAT1

W5000102-001

2+1

T62

R176 7.5K_1%_04

R182 *1K_04

R456

*210_1%_06

R414 *330K_04

CM315D_32.768KHZ

L48

HCB1608KF-121T25

C700 0.01u_16V_X7R_04

T99

R206

100_1%_04

C284

0.01u_16V_X7R_04

D18 RB751S-40C2

A C

JOPEN2

*OPEN_10mil-1MM

C732

*22u_6.3V_X5R_08

R383 *1K_04

C304

1u_6.3V_X5R_04

R525 43K_04

C551

1u_6.3V_X5R_04

C694 0.01u_16V_X7R_04

C285

1u_6.3V_X5R_04

Q26

MTN7002ZHS3

R518

51_04

C289

0.1u_10V_X7R_04

Sheet 22 of 58

Lynx 1/9

Schematic Diagrams

B - 24 Lynx 2/9

B.Schematic Diagrams

Lynx 2/9

D D

C C

B B

A A

16Mbit

婳㬋側䔲

Share ROM

Lynx Point - M (LPC,SMBUS,SPI,C-LINK)

iTPM ENABLE/DISABLE

TPM FUNCTION:SPI_SI High Enable

NO REBOOT STRAP: HDA_SPKR High Enable

NO REBOOT STRAP

BIOS ROM

SPI_* = 1.5"~6.5"

32Mbit

ME ROM

SPI_* = 1.5"~6.5"

㚱䘤⃱

keyboard

䃉䘤⃱

keyboard

R121 R127

10K

10KX

SMB_CLK

SMB_DATA

SPI_CS_0#

SPI_CS_1#

SPI_SI_R

SPI_SO_R

SPI_SCLK_R

CL_DATA1

CL_CLK1

CL_RST#1

DRAMRST_CNTRL

SML1_DATA

SML1_CLK

SML0_DATA

SML0_CLK

SPI_SI

SERIRQ

SPI_HOLD#_0

SPI_WP#_0

PCH_TP26

PCH_TP1

PCH_TP2

PCH_TP4

PCH_TP3

PCH_BT_EN#

PCH_GPIO74

PCH_DRQ0_N

PCH_DRQ1_N

PCH_DRQ0_N

PCH_DRQ1_N

SERIRQ

SPI_WP#_1

SPI_HOLD#_1

PCH_SPI_DQ3

SPI_CS1#

SPI_SI

SPI_WP#_0

SPI_HOLD#_0

SPI_SO

SPI_CS0#

SPI_SI

SPI_SO

SPI_WP#_1

SPI_HOLD#_1

PCH_SPI_DQ2

SPI_CS1#

SPI_CS0#

SPI_SI

SPI_SO

SPI_CS_1#

SPI_SI_R

SPI_SO_R

SPI_SCLK_R

SPI_SCLK

SPI_SCLK SPI_SCLK

SMB_CLK

SMB_DATA

PCH_GPIO74

DRAMRST_CNTRL

SML0_CLK

SML0_DATA

SML1_DATA

SML1_CLK

PCH_BT_EN#

3.3VS

3.3V_M 3.3V_M

VDD3

3.3V_M

VDD3 3.3V_M

3.3V2,3,13,20,22,24,26,27,28,29,30,31,32,33,34,37,40,42,45,46

3.3VS3,6,9,10,11,12,13,22,24,25,26,28,29,30,31,32,34,35,36,37,39,40,44,45

SMB_CLK 9,10,11,38

SMB_DATA 9,10,11,38

CL_DATA1 31

CL_RST#1 31

CL_CLK1 31

DRAMRST_CNTRL 3,4

SML1_DATA 39

SML1_CLK 39

LPC_AD032,39

LPC_AD132,39

LPC_AD232,39

LPC_AD332,39

LPC_FRAME#32,39

SERIRQ32,39

HSPI_MSI 39

HSPI_MSO 39

HSPI_SCLK 39

HSPI_CE# 39

SMC_VGA_THERM 12,20,39

SMD_VGA_THERM 12,20,39

VDD314,20,22,24,26,27,28,29,30,31,32,34,35,39,40,41,43,47

PCH_BT_EN# 31

3.3V_M29

GPG2 39 Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[23] Lynx 2/9-LPC/SPI/LPC/SMB

Custom

23 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[23] Lynx 2/9-LPC/SPI/LPC/SMB

Custom

23 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[23] Lynx 2/9-LPC/SPI/LPC/SMB

Custom

23 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

R476 33_04

R561

3.3K_1%_04

T94

Q29

*MTP3403N3

R472 *0_04

R470 *2.2K_04

R562

3.3K_1%_04

PJ17 *OPEN-2mm

1 2

R95

*1M_04

R479 *1K_04

R520 *2.2K_04

R474 2.2K_04

R150 10K_04

C597

0.1u_16V_Y5V_04

R468 10K_04

R473 *0_04

R494 2.2K_04

Q27

*MTN7002ZHS3

R127 10K_04

R418 10K_04

R498 33_04

R97 *100K_04

R204 0_04

U34

GD25B32B

PCB Footprint = M-SOP8B

CE# 1

SO 2

WP#

VSS 4

SI 5

SCK 6

HOLD#

VDD

R162 20_1%_04

C760

*1u_6.3V_X5R_04

R493 2.2K_04

R202 20_1%_04

T95

PCH LYNX POINT SUPER SKU ES1

SMBus

C-Link

Thermal

SPI

LPC

3 OF 11

U19D

SML1ALERT#/PCHHOT#/GPIO74 H6

SPI_IO3

AJ2

SPI_MISO

AH3

SPI_IO2

AJ4

SPI_MOSI

AH1

SPI_CS2#

AJ10

SPI_CS1#

AL7

SPI_CS0#

AJ7

SPI_CLK

AJ11

LDRQ1#/GPIO23

G20

SERIRQ

AL11

LDRQ0#

D21

LFRAME#

B21

LAD_3

C18

LAD_2

A18

LAD_1

C20

LAD_0

A20

TD_IREF AY43

CL_DATA AF10

CL_RST# AF7

CL_CLK AF11

SML1DATA/GPIO75 N11

SML1CLK/GPIO58 K6

SML0DATA R7

SML0CLK U8

SML0ALERT#/GPIO60 N8

SMBDATA U11

SMBCLK R10

SMBALERT#/GPIO11 N7

TP2 BC45

TP4 BE43

TP1 BA45

TP3 BE44

R478 0_04

R469 *2.2K_04

R108 8.2K_1%_04

R496 33_04

R203 0_04

T96

R477 0_04

R497 33_04

R189 1K_04

R530

3.3K_1%_04

R471 2.2K_04

R128 *10K_04

R531

3.3K_1%_04

T97

U33

GD25B16B

PCB Footprint = M-SOP8B

CE# 1

SO 2

WP#

VSS 4

SI 5

SCK 6

HOLD#

VDD

R495 33_04

R185 33_04

R124 *10K_04

C598

0.1u_16V_Y5V_04

R451 33_04

R121 *10K_04

Sheet 23 of 58

Lynx 2/9

Schematic Diagrams

Lynx 3/9 B - 25

B.Schematic Diagrams

Lynx 3/9

D D

C C

B B

A A

Lynx Point -M (DMI,FDI,PWRGD)

R426

DSWODVREN - ON DIE DSW VR ENABLE

R427 Disabled

Enabled (DEFAULT)

PM_BATLOW#

SWI#

SYS_PWROK

SUS_PWR_ACK

AC_PRESENT

PWR_BTN#

DSWODVREN

PCIE_WAKE#

SLP_A#

SUS_STAT#

SLP_S5#

PM_CLKRUN#

SLP_SUS#

SUS_CK

PM_SLP_LAN#

PCH_DPWROK_R

DM I_IR EF

DMI_RCOMP

SYS_RESET#

PM_PCH_PWROK_R

PM_MPWROK

RSMRST#

SUS_PWR_ACK

FD I_IREF

FDI_RCOMP

PCH_TP16

PCH_TP5

PCH_TP15

PCH_TP10

PCH_TP17

PCH_TP13

PCH_TP21

PCH_TP12

PCH_TP7

RSMRST#

PM_MPWROK

PM_PCH_PWROK_R

PCH_PWROK

ALL_SYS_PCH_PWROK_EC SYS_PWROK

+V1.05M_POERGO_AND

PM_BATLOW#

PM_SLP_LAN#

SUS_CK

ALL_SYS_PWRGD

AC_PRESENT

DSWODVREN

PM_CLKRUN#

SWI#

SUS_PWR_ACK

PWR_BTN#

AC_PRESENT

PCIE_WAKE#

PCH_SLP_WLAN_N

1.5VS

3.3VS

1.5VS

VDD3

PWR3V

PWR3V PWR3V

3.3VS

RTCVCC

3.3VS

VDD3

VDD3 3.3V

3.3VS3,6,9,10,11,12,13,22,23,25,26,28,29,30,31,32,34,35,36,37,39,40,44,45

FD I_INT 2

SWI#39

AC_PRESENT39

PWR_BTN#39

FDI_TXN0 6

FDI_TXN1 6

FDI_TXP1 6

FDI_TXP0 6

PM_CLKRUN# 32

H_PM_SYNC 3

SUSB# 39,40,43

SUSC# 39,42

PCIE_WAKE# 34

SUS_STAT# 32

DMI_RXN02

DMI_RXN12

DMI_RXN22

DMI_RXN32

DMI_RXP02

DMI_RXP12

DMI_RXP22

DMI_RXP32

DMI_TXN02

DMI_TXN12

DMI_TXN22

DMI_TXN32

DMI_TXP02

DMI_TXP12

DMI_TXP22

DMI_TXP32

PM_PCH_PWROK8,24,39

PM_DRAM_PWRGD3

RSMRST#39

FDI_CSYNC 2

SLP_A# 40

PM_SLP_LAN# 40,43

1.5VS22,27,28,29,30,36,42

1.05V_LAN_PW RGD43

1.05VM_PWRGD43

PCH1.5VS_PWRGD42

ALL_SYS_PWRGD 13,24,39,44

ALL_SYS_PWRGD13,24,39,44

DELAY_PWRGD44

PM_PCH_PWROK8,24,39

SUS_PWR_ACK39

DDR1.5V_PWRGD42

VDD314,20,22,23,26,27,28,29,30,31,32,34,35,39,40,41,43,47

RTCVCC22,29

3.3V2,3,13,20,22,26,27,28,29,30,31,32,33,34,37,40,42,45,46 Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[24] Lynx 3/9-MDI/FDI/PWRGD

24 58

Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[24] Lynx 3/9-MDI/FDI/PWRGD

24 58

Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[24] Lynx 3/9-MDI/FDI/PWRGD

24 58

Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

R582 *0_04

T44

R701 *0_04

U38B

74LVC08PW

147

T82

U38C

74LVC08PW

147

R466 *10K_04

R583 1K_04

T76

R432 330K_04

R157 *100K_04

R585

10K_04

T43

R152 10K_04

R605 *0_04

R576

*10K_04

R586 100K_04

R109 7.5K_1%_04

R439 10K_04

R192 10K_04

R455 10K_04

R191 *10mil_short

C678

*0.1u_10V_X5R_04

R209 *1K_04

R208 10K_04

T57

U38D

74LVC08PW

147

R467 *10K_04

PCH LYNX POINT SUPER SKU ES1

DMI

Management

FDI

System Power

4 OF 11

U19B

TP21

AB10

TP10 AW44

TP16 AV43

TP12

AW17

TP17 AU42

TP7

AV17

TP5 AY45

TP13 AU44

SUSWARN#/SUSPWRNACK/GPIO30

DMI_IREF

BE16

DMI_RCOMP

AY17

FDI_RCOMP AR44

SLP_WLAN#/GPIO29

DRAMPWROK

APWROK

AB7

PWROK

F10

SYS_RESET#

AM1

DMI_RXP_2

AR17

DMI_RXP_3

AW20

DMI_TXN_0

BD21

DMI_TXN_1

BE20

SLP_LAN# G5

PMSYNCH AY3

SLP_SUS# F1

SLP_A# F3

SLP_S3# H1

SLP_S4# C6

SLP_S5#/GPIO63 Y7

SUSCLK/GPIO62 Y6

SUS_STAT#/GPIO61 U7

CLKRUN# AN7

WAKE# K3

DPWROK L13

FDI_IREF AT45

FDI_CSYNC AL39

FDI_RXP_1 AL36

FDI_RXP_0 AJ36

FDI_RXN_1 AL35

FDI_RXN_0 AJ35

ACPRESENT/GPIO31

SYS_PWROK

AD7

SUSACK#

DMI_TXP_2

BB17

DMI_TXP_0

BB21

DMI_RXP_1

AP20

DMI_RXN_2

AP17

DMI_TXP_3

BC18

DMI_TXP_1

BC20

DMI_TXN_3

BE18 DMI_TXN_2

BD17

DMI_RXP_0

AY22

DMI_RXN_3

AV20

PWRBTN#

RI#

BATLOW#/GPIO72

RSMRST#

FDI_INT AL40

DSWVRMEN C8

DMI_RXN_1

AR20 DMI_RXN_0

AW22

TP15 AV45

T63

T64

R409 *15mil_short_06

R207 *10mil_short

R131 7.5K_1%_04

T59

R503 10K_04

R702 0_04

R198 8.2K_04

R584 *10K_04

T60

R431 *330K_04

R602 *10mil_short

R603 *10mil_short

U38A

74LVC08PW

147

R360 0_04

R147 *10mil_short

R190 8.2K_04

T88

T79

T58

R604 *0_04

R193 10K_04

Sheet 24 of 58

Lynx 3/9

Schematic Diagrams

B - 26 Lynx 4/9

B.Schematic Diagrams

Lynx 4/9

D D

C C

B B

A A

Lynx Point -M (CRT,LVDS,PCI,DISPLAY)

External Graphics (PCH Integrated Graphics Disable)

Connect to GND

Ver:1.0

pull up 2.2K

From DP

PERSTB#

PIN PLT_RST# to Buffer

A16 SWAP OVERRIDE STRAP

STP_A16OVR LOW = A16 SWAP OVERRIDE

HIGH = DEFAULT

BBS_BIT1 BBS_BIT0 Boot BIOS Location

0 0 LPC

0 1 Reserved (NAND)

1 0 PCI

1 1 SPI

Boot BIOS Strap

0110

DAC_IREF_R

BLON

L_BRIGHTNESS_R

INT_PIRQA#

INT_PIRQB#

INT_PIRQC#

INT_PIRQD#

BBS_BIT1

STP_A16OVR

DGPU_PWM_SELECT#

DGPU_HOLD_RST#

DGPU_SELECT#

DGPU_PWR_EN#_R

SATA_ODD_DA#

EXTTS_SNI_DRV0_PCH

EXTTS_SNI_DRV1_PCH

PCI_PME_N

PLT_RST#

PORTC_HPC

STP_A16OVR

dGPU_RST#

DAC_RED

DAC_GREEN

DAC_BLUE

DAC_RED

DAC_GREEN

DAC_BLUE

HDMI_CTRLCLK

HDMI_CTRLDATA

DPD_AUX_N

DPD_AUX_P

BLON

L_BRIGHTNESS_R

DGPU_HOLD_RST#BBS_BIT1 HDMI_CTRLCLK

HDMI_CTRLDATA

EXTTS_SNI_DRV0_PCH

EXTTS_SNI_DRV1_PCH

INT_PIRQB#

INT_PIRQD#

DGPU_SELECT#

DGPU_PWR_EN#_R

DGPU_PW M_SELECT #

SATA_ODD_DA#

TP_RSVD_TESTMODE

INT_PIRQC#

INT_PIRQA#

DGPU_SELECT#

3.3VS

5VS13,22,31,32,35,36,37,40,44,45

3.3VS3,6,9,10,11,12,13,22,23,24,26,28,29,30,31,32,34,35,36,37,39,40,44,45

DAC_GREEN13

DAC_RED13

DAC_BLUE13

DAC_HSYNC13

DAC_VSYNC13

DAC_DDCACLK13

DAC_DDCADATA13

NB_ENAVDD13,39

PME# 34,39

PLT_RST# 3,25,32

SATA_ODD_DA# 22

dGPU_PWR_EN#39,45

dGPU_RST#39

PORTC_HPC 36

PLT_RST# 3,25,32

PERSTB#14,20

HDMI_CTRLCLK 36

HDMI_CTRLDATA 36

PLT_RST# 3,25,32

BUF_PLT_RST#31,34,39

L_BRIGHTNESS_R12

BLON13

d_GPIO9_ALERT_FAN20,39

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[25] Lynx 4/9-CRT/LVDS/PCI

Custom

25 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[25] Lynx 4/9-CRT/LVDS/PCI

Custom

25 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[25] Lynx 4/9-CRT/LVDS/PCI

Custom

25 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

R368 150_1%_04

R410 *10K_04 R91 2.2K_04

R399 *0_04

R137 10K_04

R153 *1K_04

R487

100K_04

R401

100K_04

U21

MC74VHC1G08DFT2G

R417 0_04

R106 *1K_04

R94

*1M_04

R92 2.2K_04

R370 150_1%_04

R421 10K_04

R407 0_04

R369 150_1%_04

R412 10K_04

R140 *10K_04

R148 *10K_04

R404

100K_04

C546

*1u_6.3V_X5R_04

R849 10K_04

U28

MC74VHC1G08DFT2G

R513 *0_04

RN5

8.2K_8P4R_04

PCI

DISPLAY

LVDSCRT

PCH LYNX POINT SUPER SKU ES1

5 OF 11

U19E

EDP_BKLTCTL

N36

VGA_BLUE

T45

DAC_IREF

U40

VGA_IRTN

U39

EDP_BKLTEN

K36

EDP_VDDEN

G36

PIRQA#

H20

PIRQB#

L20

PIRQC#

K17

PIRQD#

M20

GPIO50

A12

GPIO52

B13

GPIO54

C12

GPIO51

C10

GPIO53

A10

GPIO55

AL6

DDPB_CTRLCLK R40

DDPB_CTRLDATA R39

DDPC_CTRLCLK R35

DDPC_CTRLDATA R36

DDPD_CTRLCLK N40

DDPD_CTRLDATA N38

DDPB_ AUXN H45

DDPC_AUXN K43

DDPD_AUXN J42

DDPB_ AUXP H43

DDPC_AUXP K45

DDPD_AUXP J44

DDPB_HPD K40

DDPC_HPD K38

DDPD_HPD H39

PIRQE#/GPIO2 G17

PIRQH#/GPIO5 M15

PME# AD10

PLTRST# Y11

PIRQG#/GPIO4 L15

PIRQF#/GPIO3 F17

VGA_VSYNC

N44

VGA_HSYNC

N42

VGA_DDC_DATA

M45

VGA_DDC_CLK

M43

VGA_RED

V45

VGA_GREEN

U44

R184 *1K_04

R807 *0_04

R144 *10K_04

R93 *1K_04

R662 0_04

R90 649_1%_04

R413 10K_04

C574*0.1u_16V_Y5V_04

R135 10K_04

Sheet 25 of 58

Lynx 4/9

Schematic Diagrams

Lynx 5/9 B - 27

B.Schematic Diagrams

Lynx 5/9

D D

C C

B B

A A

BIOS RECOVERY

DISABLE----HIGH (DEFAULT)

ENABLE-----LOW

Lynx Point - M (GPIO,CPU/MISC,NCTF)

INTERNAL GFX: LOW (DEFAULT)

EXTERNAL GFX:HIGH

SATA2GP/GPIO36 (NET NAME: SATA_ODD_PRSNT_N)&SATA3GP/GPIO37

AFTER PLRST_N DE-ASSERTS).

WEAK INTERNAL PULL-DOWN.(WEAK INTERNAL PULL-DOWN IS DISABLED

(NETNAME: FDI_OVRVLTG) SAMPLED AT RISING EDGE OF PWROK.

RESERVED STRAPS

SV DETECT DEFAULT

1.5V(DEDAULT)

1.35V

PCH_GPIO24 PCH_GPIO46 PCH_GPIO8 DDR VOUT

PLL_ODVR_EN:HIGH- ENABLED[DEFAULT]

LOW - DISABLED

0106

FOR GC6 2.0

DGPU_HPD_INTR#

SCI#

HOST_ALERT#1

CRIT_TEMP_REP#

BIOS_RESP

GFX_CRB_DET

BIOS_REC

GFX_CRB_DET

MFG_MODE

FDI_OVRVLTG

SATA_ODD_PRSNT#

PLL_ODVR_EN

PCH_GPIO24_R

DGPU_PWROK

SATA_DET#4

SMI#

S_GPIO_R

BIOS_REC

PM_LANPHY_ENABLE

LED_IGPU#

DGPU_PWROK

USB3_DET#_P2

USB3_DET#_P3

KBC_RST#

PCH_THRMTRIP_N

SATA_ODD_PW RGT

SV_DET

HPECI_R

S_GPIO

SMI#

SCI#

DGPU_HPD_INTR#

PCH_GPIO8

PCH_GPIO27_R

LED_DGPU#

LED_IGPU#

SATA_ODD_PRSNT#

FDI_OVRVLTGFDI_OVRVLTG

BIOS_RESP

CRIT_TEMP_REP#

SV_DET

PCH_PLTRST_NSATA_DET#4

S_GPIO

PCH_GPIO8

HOST_ALERT#1

KBC_RST#

MFG_MODE

LED_DGPU#

PLL_ODVR_EN

3.3V

3.3VS

VDD3

3.3VS

VDD3

3.3V

VDD3

3.3VS3,6,9,10,11,12,13,22,23,24,25,28,29,30,31,32,34,35,36,37,39,40,44,45

3.3V2,3,13,20,22,24,27,28,29,30,31,32,33,34,37,40,42,45,46

SCI#39

SATA_ODD_PRSNT#22

SMI#39

H_A20GATE 39

H_PECI 3,39

H_CPUPWRGD 3

KBC_RST# 39

H_THRMTRIP# 3

PCH_PLTRST_CPU 3

SATA_ODD_PW RGT22

SMC_WAKE_SCI_EC27

SB_BLON13

VDD314,20,22,23,24,27,28,29,30,31,32,34,35,39,40,41,43,47

CRIT_TEMP_REP#39

LED_DGPU#35

LED_IGPU#35

GPIO12_AC_DETECT20,39

dGPU_GPIO8_OVERT20,39

GC6_FB_EN20,46

GPU_PWROK14,45,46

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[26] Lynx 5/9-GPIO/MISC/NCTF

Custom

26 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[26] Lynx 5/9-GPIO/MISC/NCTF

Custom

26 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[26] Lynx 5/9-GPIO/MISC/NCTF

Custom

26 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

R475 10K_04

R156 1K_04

R505 *10mil_short

R158

*0_04

R522

100K_04

R179 10K_04

R517 100K_04

R211 *10mil_short

R141 10K_04

R155 100_04

R452 10K_04

R480 390_1%_04

R808 0_04

R831 0_04

R178 8.2K_04

R519 10K_04

R515 *1K_04

R138 *10K_04

R180 10K_04

R177 10K_04

R504 *10K_04

R130 100K_04

R514 *10K_04

R200 *10K_04

R492 *10mil_short

R704 10K_04

R406 10K_04

R201 *10K_04

R465 *0_04

R151 10K_04

R844 0_04

R516 *1K_04

R523 *10K_04

R154 *10K_04

R145 100K_04

R703 10K_04

PCH LYNX POINT SUPER SKU ES1

NCTF

CPU/Misc

GPIO

6 OF 11

U19F

TACH6/GPIO70

G13

TACH7/GPIO71

H15

VSS BA1

VSS BC1

VSS N10

VSS A2

VSS BD45

VSS BD2

VSS BD44

VSS BD1

VSS B45

VSS B2

VSS B1

VSS A44

VSS A41

LAN_PHY_PWR_CTRL/GPIO12

K13

GPIO15

AB11

VSS A43

VSS A4

VSS E45

VSS E1

VSS D1

VSS BE3

VSS BE2

TACH4/GPIO68

C16

GPIO57

U12

SDATAOUT1/GPIO48

AN4

GPIO35/NMI#

AP1

GPIO28

AD11

GPIO34

AN6

GPIO27

R11

GPIO24

Y10

SCLOCK/GPIO22

BB4

TACH3/GPIO7

G15

TACH1/GPIO1

F13

PLTRST_PROC# AU4

THRMTRIP# AV1

PROCPWRGD AV3

RCIN# AT6

PECI AY1

SATA5GP/GPIO49

AK3

VSS B44

TACH5/GPIO69

D13

SATA3GP/GPIO37

AK1

SATA2GP/GPIO36

AT3

VSS

A5 VSS

C45 VSS

BE5 VSS

BE41

SDATAOUT0/GPIO39

AM3

SLOAD/GPIO38

AT7

TACH0/GPIO17

C14

SATA4GP/GPIO16

AN2

GPIO8

TACH2/GPIO6

A14

BMBUSY#/GPIO0

AT8

TP14 AN10

R142

100K_04

R524 43K_04

R210 *10K_04

R159 10K_04

R199 200K_04

Sheet 26 of 58

Lynx 5/9

Schematic Diagrams

B - 28 Lynx 6/9

B.Schematic Diagrams

Lynx 6/9

D D

C C

B B

A A

USB 3.0 MAPING USB2.0

USB 3.0 P1

USB 3.0 P2

USB 3.0 P3

USB 2.0 P0

USB 2.0 P1

USB 2.0 P2

USB 3.0 PORT0

USB 3.0 PORT2

WLAN

USB 3.0 PORT1

Lynx Point -M (PCIe,USB)

USBCOMP (R7F11): TIE TRACES TOGETHER CLOSE TO PINS,

WITH LENGTH NO LONGER THAN 450 MILS TO RESISTOR

╖䌐ἧ䓐

USB2.0 PORT

暨䦣军

USB2.0 7 PORT

攳⥳

(

⚈㚫冯

USB3.0

䚠堅⓷柴

)

CCD

USB 2.0 AUDIO PORT2

Lane 1 X

Lane 2 X

Lane 3 WLAN

Lane 4 GLAN / CARD READER

Lane 5 X

Lane 6 X

Lane 7 X

Lane 8 X

PCI-E x1 Usage

CLICK BOARD Finger Print

USB_OC#01

USB_OC#23

PCIE_RCOMP

PCIE_TXN3_C

PCIE_TXP3_C

PCIE_TXP4_C

PCIE_TXN4_C

PCH_TP11

PCIE_IREF

PCH_TP6

USBCOMP

USB_OC#45

USB_OC#67

USB_OC#89

SMC_WAKE_SCI_N

USB_OC#1213

USB_OC#1011

PCH_TP24

PCH_TP23

SMC_WAKE_SCI_N

USB_OC#23

USB_OC#45

USB_OC#01

USB_OC#1011

USB_OC#67

USB_OC#1213

USB_OC#89

1.5VS

3.3V

VDD3

USB_OC#23 33

USB_OC#01 32

USB3_RX1_N 33

USB3_RX2_N 33

USB3_RX1_P 33

USB3_RX2_P 33

USB3_TX1_N 33

USB3_TX2_N 33

USB3_TX1_P 33

USB3_TX2_P 33

PCIE_RXN3_WLAN31

PCIE_RXP3_W LAN31

PCIE_TXP3_W LAN31

PCIE_TXN3_WLAN31

PCIE_TXP4_GLAN34

PCIE_TXN4_GLAN34

PCIE_RXN4_GLAN34

PCIE_RXP4_GLAN34

SMC_WAKE_SCI_EC 26

USB_PN8 31

USB_PP8 31

USB_PN10 31

USB_PP10 31

USB_PN1 32

USB_PP1 32

USB_PN0 33

USB_PP0 33

USB_PN11 32

USB_PP11 32

VDD314,20,22,23,24,26,28,29,30,31,32,34,35,39,40,41,43,47

1.5VS22,24,28,29,30,36,42

3.3V2,3,13,20,22,24,26,28,29,30,31,32,33,34,37,40,42,45,46

USB_PN9 31

USB_PP9 31

USB3_TX3_N33

USB3_TX3_P33

USB3_RX3_P33

USB3_RX3_N33

USB_PN2 33

USB_PP2 33

USB_PN12 32

USB_PP12 32

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[27] Lynx 6/9-PCIe/USB

Custom

27 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[27] Lynx 6/9-PCIe/USB

Custom

27 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[27] Lynx 6/9-PCIe/USB

Custom

27 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

R120 22.6_1%_04

R705 0_04

R212 *0_04

T48

R395 7.5K_1%_04

C177 0.1u_10V_X7R_04

T50

C178 0.1u_10V_X7R_04

R213 10K_04

RN7

10K_8P4R_04

C159 0.1u_10V_X7R_04

T52

C158 0.1u_10V_X7R_04

R188 10K_04

R388 *15mil_short_06

PCH LYNX POINT SUPER SKU ES1

USB

PCIe

9 OF 11

U19I

USB3TP6 BE28

USB3TN6 BD27

USB3RP6 AP29

USB3RN6 AR29

USB3TP5 BC26

USB3TN5 BE26

USB3RP5 AV29

USB3RN5 AW29

PETP1/USB3TP3

BC32

PERP2/USB3RP4

AR31

PETP2/USB3TP4

BB33

USB3TP2 BC24

PETN2/USB3TN4

BD33

PERN2/USB3RN4

AT31

PETN1/USB3TN3

BE32

PERP1/USB3RP3

AY31 PERN1/USB3RN3

AW31

PERN_3

AW33

PERP_3

AY33

PETN_3

BE34

PETN_4

BE36

PERN_5

AW36

PERP_5

AV36

PETN_5

BD37

PERP_6

AW38

PETN_6

BC38

PERN_7

AT40

USB2N13 F24

USB2P13 G24

USB2N12 G26

USB2P12 F26

USB2P11 C28

USB2N11 A28

USB2P10 D29

USB2P9 C30

USB2N10 B29

USB2N9 A30

USB2P8 C32

USB2N8 A32

USB2N7 G29

USB2P7 H29

USB2P6 L31

USB2N6 K31

USB2P5 G31

USB2P4 D33

USB2N5 F31

USB2N4 B33

USB2P3 C34

USB2N3 A34

USB2P2 C36

USB2N2 A36

USB2P1 C38

USB2N1 A38

USB2P0 D37

USB2N0 B37

PETP_8

BD41

PCIE_IREF

BE30

PCIE_RCOMP

BD29

PETP_3

BC34

PERN_4

AT33

PERP_4

AR33

PETP_4

BC36

PETP_5

BB37

PERN_6

AY38

PETP_6

BE38

PERP_7

AT39

PETN_7

BE40

PETP_7

BC40

PERN_8

AN38

PERP_8

AN39

PETN_8

BD42

USB3RN1 AR26

USB3RP1 AP26

USB3TN1 BE24

USB3TP1 BD23

USB3RN2 AW26

USB3RP2 AV26

USB3TN2 BD25

USBRBIAS# K24

USBRBIAS K26

OC0#/GPIO59 P3

OC1#/GPIO40 V1

OC2#/GPIO41 U2

OC3#/GPIO42 P1

OC4#/GPIO43 M3

OC5#/GPIO9 T1

OC6#/GPIO10 N2

OC7#/GPIO14 M1

TP23 L33

TP6

BB29

TP11

BC30

TP24 M33

T51

R491 10K_04

R490 10K_04

R706 *0_04

Sheet 27 of 58

Lynx 6/9

Schematic Diagrams

Lynx 7/9 B - 29

B.Schematic Diagrams

Lynx 7/9

D D

C C

B B

A A

Lynx Point -M (POWER)

1.5A

0.5A

0.6A

0.1A

0.2A

0.15A

0.02A

0.1A

0.3A

0.6A

+PCH_VCCDSW

VCCA_DAC_1_2

V3.3S_ADACBG

VCCA_USBSUS

VCCAPLL_SATA3

VCCAPLL_USB3

VCCAPLL_FDI

VCCAPLL_EXP

V1.05M_VCCSUS

VCCA_USBSUS

1.05VS

1.05V_LAN_M

3.3VS

1.05VS

1.05V_LAN_M

1.5VS

3.3V

1.05VS

1.5VS

3.3VS

1.5VS

1.05V_LAN_M

VDD3

3.3V2,3,13,20,22,24,26,27,29,30,31,32,33,34,37,40,42,45,46

1.05V_LAN_M3,5,29,43,45

1.5VS22,24,27,29,30,36,42

3.3VS3,6,9,10,11,12,13,22,23,24,25,26,29,30,31,32,34,35,36,37,39,40,44,45

VDD314,20,22,23,24,26,27,29,30,31,32,34,35,39,40,41,43,47

1.05VS29,43,44 Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[28] Lynx 7/9-POWER

Custom

28 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[28] Lynx 7/9-POWER

Custom

28 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[28] Lynx 7/9-POWER

Custom

28 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

R129 *0_04

C249

1u_6.3V_X5R_04

C254

1u_6.3V_X5R_04

R146 *15mil_short_06

C276

22u_6.3V_X5R_08

C237 0.1u_10V_X5R_04

PCH LYNX POINT SUPER SKU ES1

Core

PCIe/DMI

VCCMPHY

USB3

HVCM O S

FDI

CRT DAC

SATA

7 OF 11

U19G

VCCVRM AN11

VCC

AE18

VCC

AE22

VCCASW

U20

VCCASW

U22

VCCASW

U24

VCCASW

V22

VCCASW

V24

VCCASW

Y18

VCCASW

Y20

VCCASW

Y22

VCCADAC1_5 P45

VSS P43

VCCADACBG3_3 M31

VCCVRM BB44

VCCIO AN34

VCCIO AN35

VCC3_3_R30 R30

VCC3_3_R32 R32

DCPSUS1 Y12

VCCSUS3_3 AJ30

VCCSUS3_3 AJ32

DCPSUS3 AJ26

DCPSUS3 AJ28

VCCIO AK20

VCCVRM AK26

VCCVRM AK28

VCCIO AK18

VCCVRM BE22

VCCIO AM22

VCCIO AP22

VCCIO AR22

VCCIO AT22

VCCASW

V18

VCCASW

V20

VCCASW

U18 VCCASW

AA18 DCPSUSBYP

U14

VCC

Y26 VCC

AG24 VCC

AG22 VCC

AG20

VCC

AA24

VCC

AA26

VCC

AD20

VCC

AD24 VCC

AD22

VCC

AD26

VCC

AD28

VCCIO AK22

VCCIO AM20

VCCIO AM18

VCC

AG18 VCC

AE26 VCC

AE24

VCC

AE20

C525

10u_6.3V_X5R_06

C264

1u_6.3V_X5R_04

C214

10u_6.3V_X5R_06

R411 5.1_1%_04

C528

0.1u_10V_X5R_04

R86 *15mil_short_06

C570

*0.1u_10V_X5R_04

C274

1u_6.3V_X5R_04

C544 10u_6.3V_X5R_06

C212

1u_6.3V_X5R_04

L45HCB1608KF-121T25

C516

10u_6.3V_X5R_06

C293

1u_6.3V_X5R_04

C280

1u_6.3V_X5R_04

R405 *15mil_short_06

C252

*0.1u_10V_X5R_04

C265

1u_6.3V_X5R_04

C547 1u_6.3V_X5R_04

C221 10u_6.3V_X5R_06

L47*HCB1608KF-121T25

R364 *15mil_short_06

L44

HCB1608KF-121T25

C260

*10u_6.3V_X5R_06

C244 0.1u_10V_X5R_04

C227

1u_6.3V_X5R_04

C300

10u_6.3V_X5R_06

L54

*HCB1608KF-121T25

C273

1u_6.3V_X5R_04

C524

1u_6.3V_X5R_04

R113 *15mil_short_06

C189

10u_6.3V_X5R_06

Sheet 28 of 58

Lynx 7/9

Schematic Diagrams

B - 30 Lynx 8/9

B.Schematic Diagrams

Lynx 8/9

D D

C C

B B

A A

Lynx Point - M (POWER)

1.43V 1.5V

Min

1.10V

4.75V

1.58V

1.05V

1.89V

Max

1.71V

3.47V

1.8V

1.00V

3.3V

Voltage

CougarPoint power supply range

5.25V

3.14V

1.5A

0.15A

0.3A 1.5A

0.5A

0.1A

0.4A

0.3A

0.5A

0.02A

0.3A

0.01A

0.03A

0.03A 1A

0.2A

1.05VS_VCCA_CLK

+V3.3S_VCC_FLEX0

+V3.3S_VCC_FLEX1

+V3.3S_VCC_FLEX23

+V3.3S_VCC_ASEPCI

+VCCCLKF135

+V1.05S_VCCCLKF100

+V1.05S_VCCSSCF100

+VCCSST

+V1.05S_VCCAUX

+VCCRTCEXT

DCPSUS2

VCCIO2PCH

3.3VS

3.3V

1.05V_LAN_M

1.05VS

1.05V_LAN_M

1.05VS

3.3VS

1.05VS

3.3V

3.3VS

1.05V_LAN_M

3.3VA_1.5A_HDA_IO

VDD3

RTCVCC

1.05VM

1.5VS

3.3VS

1.05VS

VCCAXCK_VRM

VDD3

3.3VS

1.05VS

3.3V_M

VDD3

1.05VS

3.3V2,3,13,20,22,24,26,27,28,30,31,32,33,34,37,40,42,45,46

1.05VM43

1.05V_LAN_M3,5,28,43,45

RTCVCC22,24

3.3VS3,6,9,10,11,12,13,22,23,24,25,26,28,30,31,32,34,35,36,37,39,40,44,45

VCCAXCK_VRM30

1.5VS22,24,27,28,30,36,42

VDD314,20,22,23,24,26,27,28,30,31,32,34,35,39,40,41,43,47

3.3VA_1.5A_HDA_IO22

1.05VS28,43,44

3.3V_M23

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[29] Lynx 8/9-POWER

Custom

29 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[29] Lynx 8/9-POWER

Custom

29 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[29] Lynx 8/9-POWER

Custom

29 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

L12 HCB1608KF-121T25

C157

*1u_6.3V_X5R_04 C281

1u_6.3V_X5R_04

C220

1u_6.3V_X5R_04

C555

0.1u_10V_X5R_04

C291

4.7u_6.3V_X5R_06

C308 0.1u_10V_X5R_04

R122 *0_06

C554

1u_6.3V_X5R_04

R117 *15mil_short_06

R136 *15mil_short_06

L50 HCB1608KF-121T25

C302

1u_6.3V_X5R_04

C297 0.1u_10V_X5R_04

C233

1u_6.3V_X5R_04

C296

0.1u_10V_X5R_04

L21 HCB1005KF-121T20

L49 *HCB1608KF-121T25

L19 HCB1608KF-121T25

C292

1u_6.3V_X5R_04

L22 HCB1608KF-121T25

C535 0.1u_10V_X5R_04

C257

1u_6.3V_X5R_04

L17 HCB1005KF-121T20

C268

*0.1u_10V_X5R_04

C242

1u_6.3V_X5R_04

L39 HCB1608KF-121T25

C245

1u_6.3V_X5R_04

C266

0.1u_10V_X5R_04

C278

*0.1u_10V_X5R_04

C299

0.1u_10V_X5R_04

SPI

USB

GPIO/LPC

Azalia

RTC

CPU

Thermal

ICC

PCH LYNX POINT SUPER SKU ES1

8 OF 11

U19H

VCCSUS3_3

R24

VCCVRM

AF34

VCC

AP45

VCC3_3 AK32

VCCASW R18

VCCASW L17

VCC P20

VCC P18

VCCSPI AD12

V_PROC_IO AJ14

V_PROC_IO AJ12

DCPRTC P16

DCPRTC P14

VCCRTC A6

VCCSUS3_3 K8

VCCSUSHDA A26

VCCIO U36

VCC3_3 AG14

VCC3_3 AF12

VCC3_3 AE14

DCPSST AA14

VCCDSW3_3 A16

VCCSUS3_3 R22

VCCSUS3_3 R20

VCCCLK

AE32 VCCCLK

AE30

VCCCLK

AD36

VCCCLK

AG32 VCCCLK

AG30

VCCCLK

AD35

VCCCLK

AA32 VCCCLK

AA30

VCCCLK

AD34

VCCCLK3_3

V32 VCCCLK3_3

U32

VCCCLK3_3

M26 VCCCLK3_3

L26

VCCCLK3_3

L29

VCCCLK3_3

M29

VCCCLK

Y32

VCCIO

V28

VCCIO

V30

VCCIO

U30

VCC3_3

L24

VCCUSBPLL

U35

VSS

M24

VCCSUS3_3

U26 VCCSUS3_3

R28 VCCSUS3_3

R26

VCC3_3 AK30

VCCVRM AW40

DCPSUS2

Y35

VCCIO

Y30

C136

10u_6.3V_X5R_06

C294

1u_6.3V_X5R_04

L40 *HCB1608KF-121T25C248

1u_6.3V_X5R_04

C223

1u_6.3V_X5R_04

L20 HCB1608KF-121T25

L15

*HCB1608KF-121T25

C556

0.1u_10V_X5R_04

C238

1u_6.3V_X5R_04

L13 HCB1608KF-121T25

L14 HCB1608KF-121T25

C256

0.1u_10V_X5R_04

C228

0.01u_16V_X7R_04

C272

0.1u_10V_X5R_04

C259 0.1u_10V_X5R_04

C155

1u_6.3V_X5R_04

C156

1u_6.3V_X5R_04

L18 HCB1608KF-121T25

C298

1u_6.3V_X5R_04

C235

0.1u_10V_X5R_04

Sheet 29 of 58

Lynx 8/9

Schematic Diagrams

Lynx 9/9 B - 31

B.Schematic Diagrams

Lynx 9/9

D D

C C

B B

A A

100MHz

Lynx Point -M (CLK)

100MHz

  

Voltage Rail Voltage S0 Iccmax Current (A)

  

V_CPU_IO 1.05 1 (mA)

  

V5REF 5 1 (mA)

  

V5REF_Sus 5 1 (mA)



Vcc3_3 3.3 0.266

  

VccADAC3 1.05 1 (mA)

  

VccADPLLA 1.05 0.08



VccADPLLB 1.05 0.08

  

VccCore 1.05 1.3



VccDMI 1.1 0.042

 

VccIO 1.05 2.925



VccASW 1.05 1.01

VccSPI 3.3 0.020

VccDSW3_3 3.3 2 (mA)

VccDFTERM 1.8 0.19

VccSus3_3 3.3 0.097

VccSusHDA 3.3 1 (mA)

 

VccVRM 1.5 0.16

VccClKDMI 1.05 0.02

VccSSC 1.05 0.095

VccDIFFCLKN 1.05 0.055

VccALVDS 3.3 1 (mA)

VccTX_LVDS 1.8 0.06

Lynx Point -M (GND)

120MHz

FSX8L_25MHz

䚖⇵ℙ䓐㕁

10K pull-down to

GND

CLKOUT_33MHZ0~4

Breakin 300mils

Breakout 1500mils

STUFF FOR TPM

CLK_BUF_DOT96_P

CLK_BUF_DOT96_N

CK_BUF_EXP_N

CK_BUF_EXP_P

CLK_BUF_REF14

PCH_GPIO46_R

CK_PCH_SRC2_N

PCIECLKRQ0#

CK_PCH_SRC2_P

CK_PCH_SRC1_N

CK_PCH_SRC1_P

PCIECLKRQ6#

PCIE_CK_XDP_N

PCIE_CK_XDP_P

PCH_TP19

LAN_CLKREQ#

PCIECLKRQ5#

PCIECLKRQ1#

CLK_BUF_CKSSCD_N

CLK_BUF_CKSSCD_P

CLK_BUF_CPYCLK_N

CLK_BUF_CPYCLK_P

CLK_PCI_FB

PEGB_CLKRQ_N

XCLK_BIASRE

CLK_BUF_CKSSCD_N

CLK_BUF_CKSSCD_P

CLK_BUF_DOT96_P

CLK_BUF_CPYCLK_N

CK_BUF_EXP_N

CK_BUF_EXP_P

CLK_BUF_CPYCLK_P

CLK_BUF_DOT96_N

CLK_BUF_REF14

PCH_TP18

CK_PCH_SRC0_N

CK_PCH_SRC0_P

PCIECLKRQ2#

CK_PCH_SRC7_P

CK_PCH_SRC7_N

CK_PCH_SRC5_P

CK_PCH_SRC5_N

CK_PCH_SRC6_P

CK_PCH_SRC6_N

TP_CK_PCI_SIO

DGPU_PRSNT_N_R

ICLK_IREF_1P5

TP_CK_FLEX1

TP_CK_FLEX2

DGPU_PRSNT_N_R

FLEX_GLAN_CLK_R

CLK_PCI_FB CLK_PCI_FB_R

PCLK_TPM_PCH

CLK_PCI_KBC_R

PCIECLKRQ5#

XTAL25_IN

XTAL25_OUT

PEG_CLKREQ#

PEGB_CLKRQ_N

PCIECLKRQ2#

PCIECLKRQ1#

PCIECLKRQ6#

PCIECLKRQ0#

LAN_CLKREQ#

PEG_CLKREQ#

1.5VS

VCCAXCK_VRM

1.5VS

VDD3

3.3VS

3.3V

VDD3

VCCAXCK_VRM29

1.5VS22,24,27,28,29,36,42

3.3V2,3,13,20,22,24,26,27,28,29,31,32,33,34,37,40,42,45,46

CLK_PCIE_MINI31

CL K_ PCIE _M INI#31

CLK_PCIE_GLAN#34

CLK_PCIE_GLAN34

WLAN_CLKREQ#31

LAN_CLKREQ#30,34

CLK_EXP_P 3

CLK_EXP_N 3

VGA_PEXCLK 14

VGA_PEXCLK# 14

PCH_CK_DP_N 3

PCH_CK_DP_P 3

PCLK_KBC39

PCLK_TPM32

PCH_SSC_N 3

PCH_SSC_P 3

PEG_CLKREQ# 14

3.3VS3,6,9,10,11,12,13,22,23,24,25,26,28,29,31,32,34,35,36,37,39,40,44,45

LAN_CLKREQ#30,34

VDD314,20,22,23,24,26,27,28,29,31,32,34,35,39,40,41,43,47

GPU_Event#20

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[30] Lynx 9/9-CLK/GND

Custom

30 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[30] Lynx 9/9-CLK/GND

Custom

30 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[30] Lynx 9/9-CLK/GND

Custom

30 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

RN8

10K_8P4R_04

R357 *15mil_short_06

R367 22_1%_04

PCH LYNX POINT SUPER SKU ES1

11 OF 11

U19K

VSS D4

VSS BC16

VSS G2

VSS G38

VSS G44

VSS G8

VSS H10

VSS H13

VSS

AB8

VSS BD31

VSS BD35

VSS BD39

VSS BD7

VSS AV7

VSS F20

VSS F33

VSS

AA16

VSS H36

VSS H26

VSS H17

VSS H22

VSS H24

VSS F29

VSS F15

VSS D25

VSS

AC2

VSS

AB38

VSS

AJ20 VSS

AJ18

VSS

AJ24 VSS

AJ22

VSS K33

VSS K29

VSS K20

VSS K15

VSS K10

VSS H7

VSS H40

VSS H31

VSS AT43

VSS AY36

VSS BD19

VSS BD15

VSS BD11

VSS BA40

VSS B7

VSS B39

VSS B35

VSS B31

VSS B27

VSS B23

VSS B19

VSS

AL2 VSS

AL12 VSS

AK45 VSS

AK43 VSS

AK24 VSS

AK14 VSS

AJ8 VSS

AJ6 VSS

AJ38 VSS

AJ34

VSS

AJ16

VSS

AG16 VSS

AF8 VSS

AF38 VSS

AE28 VSS

AE16 VSS

AD8

VSS

AD16 VSS

AD14 VSS

AC44

VSS

AB34 VSS

AB12 VSS

AA4 VSS

AA28 VSS

AA22 VSS

AA20

VSS

AG44 VSS

AG28 VSS

AG26 VSS

AG2

VSS

AD32 VSS

AD30 VSS

AD18

VSS

BB42 VSS

BC22

VSS BC28

VSS

AD6 VSS

AD40

T36

T46

T47

R74 *15mil_short_06

C509 22p_50V_N PO_04

R366 7.5K_1%_04

PCH LYNX POINT SUPER SKU ES1

CLOCK SIG NAL

2 OF 11

U19C

PCIECLKRQ4#/GPIO26

V3 CLKOUT_PCIE_P_4

AF45

CLKOUT_PCIE_P_5

AE42

PCIECLKRQ5#/GPIO44

AA2

CLKOUT_PCIE_N_6

AB40

CLKOUT_PCIE_P_6

AB39

PCIECLKRQ6#/GPIO45

AE4

CLKOUT_PCIE_N_7

AJ44

CLKOUT_PCIE_P_7

AJ42

CLKOUTFLEX2/GPIO66 F36

CLKIN_SATA BE6

CLKIN_GND AR24

CLKIN_DMI AY24

PCIECLKRQ1#/GPIO18

AF1

CLKOUT_DP AJ40

CLKOUT_DMI AF39

CLKOUT_PCIE_N_0

Y43

CLKOUT_PCIE_P_0

Y45

CLKOUT_PEG_B Y39

CLKOUT_PEG_A AB35

PCIECLKRQ0#/GPIO73

AB1

CLKOUT_PEG_A_P AB36

PEGA_CLKRQ#/GPIO47 AF6

CLKOUT_PEG_B_P Y38

PEGB_CLKRQ#/GPIO56 U4

CLKOUT_PCIE_P_1

AA42

CLKOUT_PCIE_N_2

AB43

CLKOUT_ITPXDP

AH43

XTAL25_IN AM43

XTAL25_OUT AL44

CLKOUTFLEX0/GPIO64 C40

CLKOUTFLEX1/GPIO65 F38

DIFFCLK_BIASREF AN44

ICLK_IREF AM45

CLKOUTFLEX3/GPIO67 F39

CLKIN_33MHZLOOPBACK D17

REFCLK14IN F45

CLKIN_SATA_P BC6

CLKIN_DOT96P G33

CLKIN_DOT96N H33

CLKIN_GND_P AT24

CLKIN_DMI_P AW24

CLKOUT_DP_P AJ39

CLKOUT_DMI_P AF40

CLKOUT_PCIE_N_1

AA44

PCIECLKRQ7#/GPIO46

CLKOUT_ITPXDP_P

AH45

CLKOUT_33MHZ1

E44

CLKOUT_33MHZ0

D44

CLKOUT_33MHZ2

B42

CLKOUT_33MHZ3

F41

CLKOUT_33MHZ4

A40

CLKOUT_PCIE_N_4

AF43

CLKOUT_PCIE_N_3

AD43

CLKOUT_PCIE_P_3

AD45

PCIECLKRQ3#/GPIO25

CLKOUT_PCIE_N5

AE44

CLKOUT_DPNS_P AF36

CLKOUT_DPNS AF35

PCIECLKRQ2#/GPIO20/SMI#

AF3

CLKOUT_PCIE_P_2

AB45

TP19 AD39

TP18 AD38

R707 *100K_04

R422 10K_04

R375 10K_04

FSX5L_25MHZ

R402 22_1%_04

R373 22_1%_04

RN3

10K_8P4R_04

R426 10K_04

C508 22p_50V_N PO_04

R102 10K_04

T45

R356

1M_04

R656 10K_04

RN4

10K_8P4R_04

R186 100K_04

R453 *10K_04

T77

R187 *10mil_short

PCH LYNX POINT SUPER SKU ES1

10 OF 11

U19J

VSS

AV31

VSS

BB25

VSS

AV40

VSS

AV33

VSS

AV13 VSS

D42

VSS

AT36

VSS

AT26 VSS

AT20 VSS

AT17

VSS

AT29

VSS

AV24

VSS N12

VSS N39

VSS N35

VSS N6

VSS P24

VSS P22

VSS P30

VSS P28

VSS P26

VSS P32

VSS R12

VSS R2

VSS R16

VSS R14

VSS R38

VSS R34

VSS R44

VSS T43

VSS R8

VSS U16

VSS U10

VSS U28

VSS U34

VSS U38

VSS U6

VSS U42

VSS V14

VSS V16

VSS V26

VSS W44

VSS W2

VSS V43

VSS Y16

VSS Y14

VSS Y24

VSS Y34

VSS Y28

VSS Y40

VSS Y36

VSS Y8

VSS

AT38

VSS

F43

VSS

AT15 VSS

AT10 VSS

AK16 VSS

AR2 VSS

AP43

VSS

AP24

VSS

AN40 VSS

AN36

VSS

AM30 VSS

AM28

VSS M22

VSS M17

VSS L44

VSS L2

VSS K39

VSS

B15 VSS

B11 VSS

AY7 VSS

AY29 VSS

AY26 VSS

AY20 VSS

AY15 VSS

AY10

VSS

AW2 VSS

AV6

VSS

AP31

VSS

AP13 VSS

AN8

VSS

AM32

VSS

AM26 VSS

AM24 VSS

AM14 VSS

AL8 VSS

AL38 VSS

AL34

VSS

AN42

VSS

AM16

VSS

AV22

C144

10u_6.3V_X5R_06

Sheet 30 of 58

Lynx 9/9

Schematic Diagrams

B - 32 Mini PCIE, Fan, Audio Con

B.Schematic Diagrams

Mini PCIE, Fan, Audio Con

D D

C C

B B

A A

40 mil

20 mil

WLAN MINI CARD

20 mil

SIM CONN

Layout

㗪

1. SIM

ᷳ㇨㚱ᾉ嘇䶂≈䰿

(10mil)

㇨㚱ᾉ嘇䶂ᷳ攻≈

GND

3. SIM hold

㛔橼⚃␐≈

GND

⚵丆

4.SIM CONN

月役

MINI CARD CONN

MSATA MINI CARD mSATA POWER

>120 mil

From H8 default HI

>120 mil

60mils

J_FAN1

CPU FAN CONTROL

CPU_FAN

⎒㚱

MSATA function

㗪

R832 R833

ᶲẞ炻℞Ṿᶵᶲẞ

⎒㚱

MSATA function

㗪㬌⋨䘮ᶵᶲẞ

暣⭡婳月役

J_3G1

FOR AUDIO BOARD

JSW1

MINI POWER

Smart Connect Function

6-20-51130-103

6-86-2B010-001

91712-0090P

6-21-84D90-226 88910-5204M-01

6-21-84D70-226 80003-1021

6-21-84D90-226 88910-5204M-01

6-21-84D70-226 80003-1021

戭㞙

WLAN

戭㞙

6-20-94K20-120

>120 mil

㍍⇘

EC ,

枰冯

䡢娵

M: NCT3522U -- 6-02-03522-9C0

S: G5243A ---- 6-02-05243-9C0

AP2821KTR-G1 6-02-02821-9C0

D02 DEL 3G FUNCTION

1031

3.3VAUX_1

CL_CLK_1

CL_DATA_1

CL_RST#_1

BT_EN

UIM_CLK UIM_VPP

UIM_RST

UIM_DATAUIM_D

UIM_C

UIM_PWR

UIM_DATAUIM_PWR

BT_DET#

UIM_DATA

UIM_VPP

UIM_PWR

UIM_RST

UIM_CLK

3G_EN

FON

3.3V_WLAN

3.3V

3.3V_WLAN

GND

GNDGND

VDD3

3.3V_WLAN

3G_3.3V

GND

3.3V

3G_3.3V

GND

5VS_FAN

3.3VS

5VS

5VS_FAN

AUDG

3.3V_WLAN

3.3V

VDD3

3.3V_WLAN

3.3VS

USB_PN10 27

USB_PP10 27

WLAN_CLKREQ#30

CLK _P CIE _M INI#30

CLK_PCIE_MINI30

WLAN_DET#39

PCIE_TXN3_WLAN27

PCIE_TXP3_WLAN27

PCIE_RXN3_WLAN27

PCIE_RXP3_WLAN27

BUF_PLT_RST# 25,34,39

CL_RST#123

CL_DATA123

CL_CLK123

BT_DET# 39

PCH_BT_EN# 23

80CLK 39

3IN1 39

USB_PP8 27

USB_PN8 27

3G_EN 39

3G_DET#39

3.3V2,3,13,20,22,24,26,27,28,29,30,32,33,34,37,40,42,45,46

3.3VS3,6,9,10,11,12,13,22,23,24,25,26,28,29,30,32,34,35,36,37,39,40,44,45

VDD314,20,22,23,24,26,27,28,29,30,32,34,35,39,40,41,43,47

3G_PWR_EN39

SATA_TXN522

SATA_TXP522

SATA_RXP522

SATA_RXN522

5V32,33,38,40,42,46

CPU_FAN 39

5VS13,22,32,35,36,37,40,44,45

JD_SENSE37

HEADPHONE-L38

JD_SENSE_B37

HEADPHONE-R38

USB_PP927

USB_PN927

MIC1-R38

MIC1-L38

SPDIFO37

MINI_PW R_ON39

HP_AMP_SGND38

CPU_FANSEN39

Tit le

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[31]MINI PCIE, FAN, AUDIO CON

Custom

31 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Tit le

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[31]MINI PCIE, FAN, AUDIO CON

Custom

31 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Tit le

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[31]MINI PCIE, FAN, AUDIO CON

Custom

31 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

J_CN1

87151-2007G

NC1

NC2

R548

10K_04

R596 *10mil_short

C609 0.01u_16V_X7R_04

C378

1000p_50V_X7R_04

R378 *10K_04

C605 0.01u_16V_X7R_04

KEY

J_MINI1

650S52717120M431NO

COEX1

COEX2

CLKREQ#

GND0

REFCLK-

REFCLK+

WAKE#

GND1

PETn0

PETp0

GND2

GND3

PERn0

PERp0

GND4

Reserved0

Reserved1

W_DISABLE# 20

GND12

3.3VAUX_3

3.3VAUX_4

GND13

Reserved2

Reserved3

Reserved4

Reserved5

51 LED_WLAN# 44

LED_W W AN# 42

GND6 18

UIM_VPP 16

UIM_RESET 14

3.3VAUX_0 2

UIM_CLK 12

UIM_DATA 10

UIM_PWR 8

1.5V_0 6

GND5 4

PERSET# 22

3.3VAUX_1 24

GND7 26

1.5V_1 28

SMB_CLK 30

SMB_DATA 32

GND8 34

USB_D- 36

USB_D+ 38

GND9 40

LED_WPAN# 46

1.5V_2 48

GND10 50

3.3VAUX_2 52

GND11

C530

*180p_50V_NPO_04

L43 FCM1005KF-121T03

C599 0.01u_16V_X7R_04

R390 *10mil_short

C552

0.1u_16V_Y5V_04

(TOP VIEW)

J_SIM1

91712-0090P

UIM_DATA

UIM_VPP 4

UIM_GND 2

UIM_PWR

1UIM_RST

3UIM_CLK

GNG

GND1

UIM_I/O 6

UIM_MCMD 8

DETECT_SW

GND

GND2

GND

GND3

GND

GND4

R149 10K_04

U16

NCT3522U

VIN

VIN/SS

VOUT 1

GND 2

R379

47K_04

R597 4.7K_04

R595

*10mil_short

R563 100K_04

R394 10K_04

R833 *0_06

J_FAN1

85205-03701

C668

22p_50V_NPO_04

H17

H7_5B5_0D3_7

Q22B

MTDN7002ZHS6R

C420

*220u_6.3V_6.3*6.3*4.2

C526

0.1u_16V_Y5V_04

KEY

J_3G1

650S52717120M431NO

COEX1

COEX2

CLKREQ#

GND0

REFCLK-

REFCLK+

WAKE#

GND1

PETn0_TXP

PETp0_TXN

GND2

GND3

PERn0_RXN

PERp0_RXP

GND4

Reserved0

Reserved1

W_DISABLE# 20

GND12

3.3VAUX_3

3.3VAUX_4

GND13

Reserved2

Reserved3

Reserved4

Reserved5

51 LED_WLAN# 44

LED_WWAN# 42

GND6 18

UIM_VPP 16

UIM_RESET 14

3.3VAUX_0 2

UIM_CLK 12

UIM_DATA 10

UIM_PWR 8

1.5V_0 6

GND5 4

PERSET# 22

3.3VAUX_1 24

GND7 26

1.5V_1 28

SMB_CLK 30

SMB_DATA 32

GND8 34

USB_D- 36

USB_D+ 38

GND9 40

LED_WPAN# 46

1.5V_2 48

GND10 50

3.3VAUX_2 52

GND11

R85 10K_04

C650

*0.1u_16V_Y5V_04

C666

22p_50V_NPO_04

R832 *0_06

R408

*20K_04

C589

10u_10V_Y5V_08

R420 *0_04

R575 4.7K_04

PJ20 OPEN_2A

C670

22p_50V_NPO_04

R544

10_06

R101 *0_04

C664 *33p_50V_NPO_04

C591

0.1u_16V_Y5V_04

H13

H7_5B5_0D3_7

C375

0.1u_16V_Y5V_04

C669

22p_50V_NPO_04

Q24

AO3415

R107 *0_04

C610

*0.1u_16V_Y5V_04

R104 *0_04

C643 1u_6.3V_X5R_04

U10

NCT3940S-A

VOUT

GND 5

VIN

2FON

VSET

4GND 6

GND 8

GND 7

C380

10u_10V_Y5V_08

C671

0.1u_16V_Y5V_04

R539 *0_04

C657

10u_10V_Y5V_08

C572 *0.1u_16V_Y5V_04

C529

1u_6.3V_X5R_04

Q22A

MTDN7002ZHS6R

C658

0.1u_16V_Y5V_04

C613 0.01u_16V_X7R_04

Sheet 31 of 58

Mini PCIE, FAN,

Audio Con

Schematic Diagrams

USB Charge, CCD, TPM, Multi-Con B - 33

B.Schematic Diagrams

USB Charge, CCD, TPM, Multi-Con

D D

C C

B B

A A

FOR POWER SWITCH BOARD

From KBC default HI

48 mil

CCD

Port 5

TPM 2.0

LPC reset timing:

Asserted before entering S3

LPCPD# inactive to LRST# inactive 32~96us

HI: 4E/ 4F H

LOW: 2E/ 2F H

TPM_BADD

TPM_PP HI: ACCESS

LOW: NORMAL ( Internal PD )

CLICK CONN

A & B

ẞ

㨇䧖⟹㕁䘬旚䀓䫱䳂天䫎⎰

UL 94V-0

⯙⎗ẍᶵ䓐ℵ㍸ὃ䴎

panel

䘬暣㸸䶂嶗䘬ᾅ嬟暣旣

W370ET W350ETQ

Ⱄ㕤

94V-0

㓭⍾㴰ᾅ嬟暣旣

6-20-94K10-108

100 mil100 mil

Co-lay

暞ẞ伖㕤妲嘇↮㓗嗽

To South Bridge OC Pin.

嬲㚜

M-MSOP8

⊭墅

50 MIL

嬲㚜

TPS2540A

䇰㛔

CTL1 CTL2 CTL3: 1 1 1-----> Charging downstream port, BC1.2.

CTL1 CTL2 CTL3: 0 x 1-----> Dedicated charging port, auto-detect

CTL1 CTL2 CTL3: 0 0 0-----> Out discharge, power switch Off

CTL1 CTL2 CTL3: 1 0 1-----> Dedicated charging port, Divider Mode only

R373 ENABLE USB CHANGE

R374,R375,R376 10K WHEN USB CHANGE SET

SY6288DCAC

APL3518BXITRG

uP7534BRA8-20

USB Charge PORT

6-20-94K20-120

6-20-41120-106

0113

WLAN_SW#

TPM_PP

TPM_BADD PCLK_TPM1PCLK_TPM

TPM3005

TPM_BADD

TPM3002

TPM_PP

TPM3001

TPM3003

TPS254X_ILIM_SEL

USB_PP1

USB_PN1

USB_PN1_R

USB_PP1_RUSB_PP1

USB_PN1

CCD_DET#

LED_SCROLL#

LED_CAP#

LED_NUM#

LED_ACIN

LED_PW R

LED_BAT_CHG

WLAN_SW#

TPM_BADDPLT_RST#

TPM3004

TPS254X_ILIM_SEL

VDD3

3.3VS

5V_CCD

3.3VS

VDD3

5VS

3.3VS

3.3VS_FG

5VS

VDD5

3.3V

VDD5

USBVCC01

3.3VS

VDD3

3.3VS

VDD5

3.3VS 3.3VS_FG

5V31,33,38,40,42,46

VDD314,20,22,23,24,26,27,28,29,30,31,34,35,39,40,41,43,47

M_BTN# 40

WLAN_SW# 35,39

MUTE_SW # 39

CCD_SW# 39

USB_PN1127

USB_PP1127

CCD_DET#39

CCD_EN32,39

3.3V2,3,13,20,22,24,26,27,28,29,30,31,33,34,37,40,42,45,46

LPC_AD123,39

LPC_AD323,39

PLT_RST#3,25

LPC_AD223,39

LPC_FRAME#23,39

PCLK_TPM30

LPC_AD023,39

SERIRQ23,39

SUS_STAT#24

PM_CLKRUN#24

3.3VS3,6,9,10,11,12,13,22,23,24,25,26,28,29,30,31,34,35,36,37,39,40,44,45

5VS13,22,31,35,36,37,40,44,45

VDD540,41,43

USBVCC0133

TP_CLK 39

TP_DATA 39

USB_PN12 27

USB_PP12 27

LED_PW R 39

LED_ACIN 39

LED_BAT_FULL 39

LED_BAT_CHG 39

LED_NUM# 39

LED_CAP# 39

LED_SCROLL# 39

DD_ON#33,40,42

USB_OC#01 27,32

USB_PN127

USB_PP127

USB_OC#0127,32

DD_ON39,40,41

USB_PN1_R 33

USB_PP1_R 33

INT _MIC _R38

CCD_EN32,39

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[32]USB charge,CCD,TPM,MULT CON

32 58Monday, January 13, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[32]USB charge,CCD,TPM,MULT CON

32 58Monday, January 13, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[32]USB charge,CCD,TPM,MULT CON

32 58Monday, January 13, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

R613

*33_04

R638 *0_04

R445 *10K_04

C689

0.1u_16V_Y5V_04

C485 0.1u_50V_Y5V_06

C690

1u_6.3V_X5R_04

R441 *10K_04

R444 *10K_04

C334

2.2u_6.3V_X5R_06

C685

*10p_50V_NPO_04

G5243A

VIN

VOUT 1

GND 2

C569 *10u_10V_Y5V_08

R622 0_04

R280

10K_04

C661

*180p_50V_NPO_04

R443 *10K_04

C421

*10u_10V_Y5V_08

R634 *10K_04

R446 *10K_04

C709

0.1u_16V_Y5V_04

TPM

U12

*SLB9655TT_FW4.32

LAD3

LAD0

LAD1

LAD2

VDD1 10

XTALI 13

VDD3 24

VDD2 19

LFRAME#

LCLK

LRESET#

SERIRQ

CLKRUN#

GND_1 4

GND_2 11

GND_3 18

GND_4 25

GPIO 6

GPIO2 2

XTALO 14

TESTI

TESTBI/BADD

NC_1

NC_2

NC_3

LPCPD#

VSB 5

C465

47p_50V_NPO_04

R215 0_04

R658 *0_04

R481 *0_04

C560

0.1u_16V_Y5V_04

C431 *180p_50V_NPO_04

R637 *0_04

R283

10K_04

U43

*G5243A

VIN

VOUT 1

GND 2

R625 *10K_04

R731 0_06

C564

0.1u_16V_Y5V_04

C430 *180p_50V_NPO_04

R659 0_04

R635 *0_04

C468

47p_50V_NPO_04

U26

*TPS2540A

CTL1

NC 9

DM_IN 11

DM_O

DP_IN 10

EN/DSC

DP_O

ILIM_SEL

CTL2

CTL3

OUT 12

FAULT# 13

GND 14

ILIM1 15

ILIM0 16

PPAD 17

C332

1u_6.3V_X5R_04

R500

*10K_04

C426 *180p_50V_NPO_04

J_CCD1

85205-06001

C427 *180p_50V_NPO_04

C801

*1u_6.3V_X5R_04

C662

*180p_50V_NPO_04

C429 *180p_50V_NPO_04

J_SW1

88486-0801

R205 0_04

R250

*10K_04

C416

0.1u_16V_Y5V_04

C417

0.1u_16V_Y5V_04

R733

*100K_04

R281 *0_04

C691

0.1u_16V_Y5V_04

D12 V15AVLC0402

1 2

R442 *10K_04

J_TP1

87151-2007G

NC1

NC2

R484 *10K_04

R282 *10K_04

R697

*0_04

C418

1u_6.3V_X5R_04

C428 *180p_50V_NPO_04

C799

*0.1u_16V_Y5V_04

C340

0.1u_16V_Y5V_04

R630 10K_04

U25

SY6288DCAC

VOUT1 6

VOUT3 8

VIN2

VIN1

2VOUT2 7

GND 1

EN#

FLG#

R636 0_04

C553

10u_10V_Y5V_08

R483

*10K_04

R217

*100K_04

C800

*2.2u_6.3V_X5R_06

C708

0.1u_16V_Y5V_04

C653

180p_50V_NPO_04

R485 *24K_1%_04

R482 *0_04

Sheet 32 of 58

USB Charge, CCD,

TPM, Multi-Con

Schematic Diagrams

B - 34 ESATA/USB3.0 Connector

B.Schematic Diagrams

ESATA/USB3.0 Connector

Sheet 33 of 58

ESATA/USB3.0

Connectior

D D

C C

B B

A A

'LIIWUDFH

RKP

CLOSE TO CONNECTOR

USB3.0 PORT(PORT3)

50 MIL

'LIIWUDFH

RKP

CLOSE TO CONNECTOR

100 MIL

USB2.0 PORT(PORT0)

USB2.0 PORT(PORT1) Debug

USB2.0 PORT(PORT2)

50 MIL

嬲㚜

M-MSOP8

⊭墅

嬲㚜

M-MSOP8

⊭墅

ESATA+USB3.0

100mils

Gen3

SY6288DCAC

APL3518BXITRG

uP7534BRA8-20

USB3.0 PORT(PORT2)

USB2.0 Charge Function

USB3.0 PORT(PORT1)

100 MIL

USB POWER SWITCH

6-21-B4X20-116 EU146-167BRL-TW 4.0

6-21-B4A20-109 3A0090-1SAC-40H

1216

SATA_RXN4_C

SATA_RXP4_C

SATA_TXP4_C

SATA_TXN4_C

GND

USBVCC3.0_3

USBVCC3.0_2

USBVCC3.0_3

USBVCC3.0_3 USBVCC3.0_2

3.3V

USBVCC01

USBVCC3.0_2

GND

USBVCC3.0_2

USBVCC01

USBVCC3.0_3

USB3_RX2_N27

USB3_RX2_P27

USB3_TX2_N27

USB3_TX3_N27

USB3_TX2_P27

USB3_TX3_P27

USB_PN1_R32

USB_PP1_R32

USB_PP227

USB_PN227

USBVCC0132

USB_OC#2327,33

USB_PN027

USB_PP027

SATATXP422

SATATXN422

SATARXN422

SATARXP422

USB3_TX1_P27

USB3_TX1_N27

DD_ON#32,33,40,42

5V31,32,38,40,42,46

3.3V2,3,13,20,22,24,26,27,28,29,30,31,32,34,37,40,42,45,46

USB3_RX1_P27

USB3_RX1_N27

USB3_RX3_P27

USB3_RX3_N27

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[33] ESATA/USB3.0 connector

Custom

33 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[33] ESATA/USB3.0 connector

Custom

33 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[33] ESATA/USB3.0 connector

Custom

33 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

C329

10u_10V_Y5V_08

R430

*10K_04

C761

*22u_6.3V_X5R_08

C548

220u_6.3V_6.3*6.3*4.2

C549

0.1u_16V_Y5V_04

C604 0.1u_16V_Y5V_04

L29

*WCM2012F2S-161T03-short

C603 *22u_6.3V_X5R_08

C263 0.01u_16V_X7R_04

R501 *0_04

L28

*WCM2012F2S-161T03-short

C654 *22u_6.3V_X5R_08

PJ23

OPEN_2A

1 2

*UMD0524P_ Short

C550

*0.1u_16V_Y5V_04

D22

*BAV99 RECTIFIER

*UMD0524P_ Short

C567

*0.1u_16V_Y5V_04

D17

*BAV99 RECTIFIER

C559

*0.1u_16V_Y5V_04

U27

SY6288DCAC

VOUT1 6

VOUT3 8

VIN2

VIN1

2VOUT2 7

GND 1

EN#

FLG#

L26

*WCM2012F2S-161T03-short

C656 0.1u_16V_Y5V_04

eSATA

USB2.0

USB3.0

JCOMBO1

EU146-167CRL-TWD

VBUS

D-

D+

GND

G1 GND1

G2 GND2

G3 GND3

G4 GND4

A+

A-

B-

B+

P10

GND

P11

SSRX-

P12

SSRX+

P13

GND

P14

SSTX-

P15

SSTX+

P16

D16 *GBLC05C

1 2

C277 0.01u_16V_X7R_04

C401 220u_6.3V_6.3*6.3*4.2

C763 *22u_6.3V_X5R_08

C360 0.1u_10V_X7R_04

L25

*WCM2012F2S-161T03-short

R510

*10K_04

C541

*22u_6.3V_X5R_08

C542

10u_10V_Y5V_08

C399 0.1u_10V_X7R_04

L34

*WCM2012F2S-161T03-short

*UMD0524P_ Short

C283 0.01u_16V_X7R_04

C358 0.1u_10V_X7R_04

C306 0.1u_10V_X7R_04

L30

*WCM2012F2S-161T03-short

C557

0.1u_16V_Y5V_04

*UMD0524P_ Short

D26 *GBLC05C

1 2

C303 0.1u_10V_X7R_04

L27

*WCM2012F2S-161T03-short

C371 220u_6.3V_6.3*6.3*4.2

C400 0.1u_10V_X7R_04

C568

0.1u_16V_Y5V_04

Standard-A

J_USB2

C19003-90905-L

VBUS

D-

D+

GND_D

SSRX-

SSRX+

GND

SSTX-

SSTX+

9SHIELD GND1

SHIELD GND2

SHIELD GND3

SHIELD GND4

C376

0.1u_16V_Y5V_04

L33

*WCM2012F2S-161T03-short

D23 *GBLC05C

1 2

D11

*UMD0524P_ Short

R425 *0_04

U22

SY6288DCAC

VOUT1 6

VOUT3 8

VIN2

VIN1

2VOUT2 7

GND 1

EN#

FLG#

C762 *22u_6.3V_X5R_08

Standard-A

J_USB1

C19003-90905-L

VBUS

D-

D+

GND_D

SSRX-

SSRX+

GND

SSTX-

SSTX+

9SHIELD GND1

SHIELD GND2

SHIELD GND3

SHIELD GND4

C290 0.01u_16V_X7R_04

D25

*BAV99 RECTIFIER

*UMD0524P_ Short

Schematic Diagrams

Card Reader / LAN RTL8411B B - 35

B.Schematic Diagrams

Card Reader / LAN RTL8411B

Sheet 34 of 58

Card Reader /

LAN RTL8411B

D D

C C

B B

A A

4 IN 1 SOCKET SD/MMC/MS/MS Pro

LAN (RTL8411)

72740123113

6-21-A4100-124 CM3S-092-H-D

2011/11/30

La Ca Cb

婳ἧ䓐

暣

慷䓊䡢娵

LDO MODE OK

⼴

㓡

SHORT

暞ẞ

慷䓊䡢娵⼴暣旣

㓡

SHORT

暞ẞ

Switching Regulator close to PIN48

(>20mil)

PULL HIGH: SWR Mode

PULL LOW: LDO Mode

LDO Mode㗪: La,Ca,Cb ᶵᶲẞ,Raᶲẞ

PIN13PIN32PIN3 PIN8 PIN46

LAN_CLKREQ# ⛐PCH䪗,

劍⶚Pull hi,R372

⌛⎗ᶵᶲẞ.

TO EC8587 PIN123 LAN_WAKEUP#

TO SB PCH WAKE#.

FOR S5 WAKE UP ON LAN

C292 & C293 capacitors must be close to pin side.

Remind that R109 using the

main power (S0 power).

LAN_CLKREQ#

⤪ᶵἧ䓐⎗㕟攳

㕤

PCH

䪗䚜㍍

PULL DOWN

BIOS pulls high or low to GPO pin,

Pkease refer to LAN/PHY Disable

Application Note.

PIN12

PIN11 PIN32

Pin#27

PIN48

VDD3 meet rising time

>1ms

LDO Mode

PIN20 PIN20

60 mil

PIN35

Pin#27

PIN35

⼭

EMI

䡢娵⬴

㓡

SHORT

崘ℏⰌ.

Close to chip

Near Cardreader CONN

meet falling time

<1ms

6-14-0R23F-01B-1

6-14-0R23F-01B-2

MS_BS/SD_WP#

SD_CD#

SD_CMD/MS_D2

SD_D0/MS_D1

MS_BS/SD_WP#

SD_CLK/MS_D0

SD_D2/MS_CLK

SD_D3/MS_D3

SD_D0/MS_D1

SD_D1

SD_D3/MS_D3

SD_CMD/MS_D2

MS_INS#

SD_D2/MS_CLK

ENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREGENSWREG

LED2

VDD10REGOUT

RTL8411B_HSOP

ISOLATEB

RTL8411B_HSON

LAN_WAKEUP#

ENSWREG

MS_INS#

LAN_MDIP1

CLKREQB

LAN_MDIN1

MS_BS/SD_WP#

REGOUT

SD_CD#

LAN_MDIP2

LAN_MDIN2

LAN_MDIP3

LAN_MDIN3

LED1/GPO

SD_D1_R

SD_CMD/MS_D2_R

SD_CLK/MS_D0_R

SD_D0/MS_D1_R

EECS

RSET

PERSTB

SD_D3/MS_D3_R

LAN_MDIP0

XTAL2

XTAL1

LED_CR

SD_D2/MS_CLK_R

LAN_MDIN0

SD_D3/MS_D3

SD_D1_R

SD_CLK/MS_D0_R SD_CLK/MS_D0

SD_D2/MS_CLK

SD_D1

SD_D0/MS_D1

SD_D3/MS_D3_R

SD_D0/MS_D1_R

SD_D2/MS_CLK_R

SD_CMD/MS_D2_R SD_CMD/MS_D2

CARD_3V3

XTAL2

XTAL1

VCC_CARD

AVDD33

VDD10

VDD10 VDD10 VDD10VDD10 CARD_3V3

AVDD33

VDD10

AVDD33

CARD_3V3

EVDD10

AVDD33

VDD10

REGOUT

D3V3

VDD10

VDD33/18

3.3VS

AVDD33

3.3VS

VDD3

D3V3

3.3V

AVDD33

VDD33/18VDD33/18

VDD10

EVDD10

VCC_CARDVCC_CARD

VCC_CARD

3.3VS3,6,9,10,11,12,13,22,23,24,25,26,28,29,30,31,32,35,36,37,39,40,44,45

5V31,32,33,38,40,42,46

VDD314,20,22,23,24,26,27,28,29,30,31,32,35,39,40,41,43,47

PCIE_WAKE# 24

PCIE_RXN4_GLAN 27

PCIE_RXP4_GLAN 27

CLK_PCIE_GLAN 30

CLK_PCIE_GLAN# 30

PCIE_TXP4_GLAN 27

PCIE_TXN4_GLAN 27

LAN_CLKREQ# 30

BUF_PLT_RST# 25,31,39

PME# 25,39

LAN_MDIP036

LAN_MDIN036

LAN_MDIP136

LAN_MDIN136

LAN_MDIP236

LAN_MDIN236

LAN_MDIP336

LAN_MDIN336

3.3V2,3,13,20,22,24,26,27,28,29,30,31,32,33,37,40,42,45,46

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[34] CARD READER/ LAN RTL8411B

Custom

34 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[34] CARD READER/ LAN RTL8411B

Custom

34 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[34] CARD READER/ LAN RTL8411B

Custom

34 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

R819

15K_04

R654 1M_04

C464

*0.1u_16V_Y5V_04

R828 *15mil_short

R826 *10mil_short

C825

*5p_50V_NPO_04

C705

0.1u_16V_Y5V_04

R642

*150_06

R827 *0_04

T120

C835

*4.7u_6.3V_X5R_06

R830 *15mil_short

T121

R817 10K_04

QFN48

U48

RTL8411B

MDIP0

MDIN0

MDIP1

MDIN1

MDIP2

MDIN2

AVDD10

MDIP3

MDIN3

HV_GIGA

VDD3

REG_OUT 36

VDDREG 35

VDD1 33

ISOLATEBPIN 31

PERSTBPIN 30

CLKREQBPIN 29

MS_BS/SD_WP# 28

DV33_18 27

HSON 26

HSOP 25

HV_GIGA 48

RSET 47

CKXTAL2 45

CKXTAL1 44

MS_CD# 43

SD_CD# 42

LED0 41

LED_CR 40

LANWAKEB 39

LED1/GPO 38

LED2 37

CARD_3V3

SD_D1

SD_D0/MS_D1

SD_CLK/MS_D0

SD_CMD/MS_D2

SD_D3/MS_D3

SD_D2/MS_CLK

VDDTX

HSIP

HSIN

REFCLK_P

REFCLK_N

E_PAD

AVDD10

VD33 32

ENSWREG 34

LV_CEN 46

C836

*0.1u_16V_Y5V_04

C722

*0.1u_16V_Y5V_04

T108

R641 *10mil_short

D36 RB751S-40C2

C823

0.1u_16V_Y5V_04

C832

0.1u_16V_Y5V_04

C834

0.1u_16V_Y5V_04

C754

27p_50V_NPO_04

R599 *15mil_short_06

R825 *10mil_short

R818 1K_04

L74

*SWF2520CF-4R7M-M

L75

*HCB1608KF-121T25

C829

*5p_50V_NPO_04

C755

27p_50V_NPO_04

R619 *10mil_short

C681

1u_6.3V_X5R_04

R829 *15mil_short

R624 0.2_06

R820

*10K_04

C743

0.1u_16V_Y5V_04

R824 *10mil_short

R823 *10mil_short

X5 FSX5L_25MHZ

R816 *1K_04

C474

0.1u_16V_Y5V_04

C686

0.1u_16V_Y5V_04

C828

*5p_50V_NPO_04

C840 0.1u_10V_X7R_04

C826

*5p_50V_NPO_04

R653 *15mil_short_06

C837

*4.7u_6.3V_X5R_06

C831

0.1u_16V_Y5V_04

R614

*150_06

C833

0.1u_16V_Y5V_04

R623 *10mil_short

C457

4.7u_6.3V_X5R_06

R815 2.49K_1%_04

R821 *10mil_short

C672

0.1u_16V_Y5V_04

C710

0.1u_16V_Y5V_04

C830

*4.7u_6.3V_X5R_06

R822 *10mil_short

J_CARD_NOR1

CM3S-092-H-D

SD_C/D

P20

MS_VSS1

SD_DATA1

P19

SD_DATA0

P18

MS_VSS2

P16 SD_VSS2

P17

MS_B S

P15

SD_CLK

P14

MS_DATA1

P13

MS_DATA0

P12

SD_VDD

P11

MS_DATA2

P10

SD_VSS1

MS_INS

MS_DATA3

SD_CMD

MS_S CLK

MS_VC C

SD_DATA3

SD_GND

P21

GND1 P23

GND2 P24

SD_DATA2

SD_WP

P22

C839 0.1u_10V_X7R_04

C824

*5p_50V_NPO_04

C827

*5p_50V_NPO_04

C706

0.1u_16V_Y5V_04

C838

*0.1u_16V_Y5V_04

C699

0.1u_16V_Y5V_04

Schematic Diagrams

B - 36 SATA HDD, VLED CON, LID SW

B.Schematic Diagrams

SATA HDD, VLED CON, LID SW

Sheet 35 of 58

SATA HDD, VLED

CON, LI DSW

D D

C C

B B

A A

PIN GND1~2=GND

Gen3

HDD CONNECT1 (MASTER) HDD CONNECT2 (SLAVE)

PIN GND1~2=GND

Gen3

CO-LAY

W370ST W350STQ LID / VGA LED CON

6-20-94A20-112

LED KEY BOARD

FOR W355STQ FOR W370ST

PCH VGA(NV)

HDD_NC0

HDD_NC3

HDD_NC1

HDD_NC2

VGA_SW#

WLAN_AIRPLANE#

LID_SW#

SATA_LED#

LED_DGPU#

LED_IGPU#

OPTIMUS_MODE

WLAN_SW#

FON-KB

3.3VS

5VS

3.3VS

VDD3

5VS_KB 5VS_KB

5VS 5VS_KB

5VS

5VS_KB

GNDGND

GND GND GND

GND GND GND GND GND GND

VDD314,20,22,23,24,26,27,28,29,30,31,32,34,39,40,41,43,47

5VS13,22,31,32,36,37,40,44,45

3.3VS3,6,9,10,11,12,13,22,23,24,25,26,28,29,30,31,32,34,36,37,39,40,44,45

SATA_RXN0 22

SATA_RXP0 22

SATA_TXN0 22

SATA_TXP0 22

SATA_RXN1 22

SATA_RXP1 22

SATA_TXN1 22

SATA_TXP1 22

WLAN_AIRPLANE#39

LID_SW#13,39

LED_IGPU#26

LED_DGPU#26

VGA_SW#39

SATA_LED#22

OPTIMUS_MODE39

WLAN_SW#32,39 KBLIGHT_ADJ 39

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[35] SATA HDD, VLED CON,LID SW

35 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[35] SATA HDD, VLED CON,LID SW

35 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[35] SATA HDD, VLED CON,LID SW

35 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

*0.01u_16V_X7R_04

M-MARK

C729

22u_6.3V_X5R_08

M-MARK

0.1u_10V_X7R_04

M-MARK

H23

H7_5B5_0D3_7

J_HDD1

50802-0227A-002

P10

P11

P12

P13

P14

P15

GND1

GND2

C758

0.1u_16V_Y5V_04

M-MARK

J_LID1

87151-1207G

M11

M-MARK

C727

22u_6.3V_X5R_08

H7_5B5_0D3_7

M13

M-MARK

C738

0.1u_16V_Y5V_04

C728

22u_6.3V_X5R_08

C472 0.01u_16V_X7R_04

C712

22u_6.3V_X5R_08

U40

NCT3940S-A

VOUT

GND 5

VIN

2FON

VSET

4GND 6

GND 8

GND 7

H22

C111D111N

C471 0.01u_16V_X7R_04

H25

H7_5B5_0D3_7

J_HDD2

15-017-1A30

P10

P11

P12

P13

P14

P15

C111D111N

C759

0.1u_16V_Y5V_04

MTH8_0D2_8

5 6

C470 0.01u_16V_X7R_04

H21

C111D111N

H20

MTH8_0D2_8

5 6

C111D111N

M12

M-MARK

H26

H7_5B5_0D3_7

L64 *HCB1608KF-121T25

J_LEDKB2

50501-0064N

C469 0.01u_16V_X7R_04

H28

C71D71N

H15

MTH8_0D2_8

5 6

M-MARK

C7 0.01u_16V_X7R_04

H14

MTH8_0D2_8

5 6

H24

H7_5B5_0D3_7

H19

MTH8_0D2_8

5 6

H27

C71D71N

M-MARK

C8 0.01u_16V_X7R_04

*100u_6.3V_B_A

M-MARK

*10u_10V_Y5V_08

H16

H8_0D2_8

C9 0.01u_16V_X7R_04

M14

M-MARK

1u_6.3V_X5R_04

C711

*220u_6.3V_6.3*6.3*4.2

M10

M-MARK

MTH8_0D2_8

5 6

H18

H8_0D2_8

J_LEDKB1

*50501-0064N

C10 0.01u_16V_X7R_04

Schematic Diagrams

HDMI, RJ45 B - 37

B.Schematic Diagrams

HDMI, RJ45

Sheet 36 of 58

HDMI, RJ45

D D

C C

B B

A A

HDMI Repeater

SCL/SDA

暨

PULL HIGH (CHECK PCH

䪗

)

Pin#19 Pin#19 Pin#20 Pin#40

LHM

6.5db 9.5db 3db

Pin#11 Pin#37

Pin#12 Pin#31

PIN GND1~4=GND

For ESD

HDMI CONNECTOR ( W/ HDMI Repeater)

Main 6-21-B4050-008

Sec 6-21-B4030-008

Third 6-21-B4000-008

C1934-00

PJS-08SL3B

2011/11/30

GIGA LAN (RTL8411)

LAN POART

0115

0116

HDMI_CLOCKN_C

HDMI_CLOCKP_C

HDMI_DATA2P_C

HDMI_DATA2N_C

HDMI_DATA1P_C

HDMI_DATA1N_C

HDMI_DATA0P_C

HDMI_DATA0N_C

TMDS_DATA2-R

TMDS_DATA2#-R

TMDS_DATA1-R

TMDS_DATA1#-R

TMDS_DATA0#-R

TMDS_DATA0-R

TMDS_CLOCK-R

TMDS_CLOCK#-R

HDMI_SCL-C

HDMI_SDA-C

DCIN_EN

DDCBUF

PRE

ISET

HDMI_HPD-C

CFG

DCIN_EN

DDCBUF

PRE

CFG

ISET

HDMI_HPD

TMDS_DATA0#

TMDS_CLOCK#

HDMI_CEC

TMDS_DATA2

HDMI_SCL-C

HDMI_SDA-C

TMDS_DATA0

TMDS_CLOCK

HDMI_HPD-C

TMDS_DATA1

HDMI_HPD-C

HDMI_SDA-C

HDMI_SCL-C

LMX2+

NMCT_R

NMCT_4

NMCT_3

NMCT_2

NMCT_1

DLMX4-

DLMX3-LMX3-

LMX2-

LMX3+ DLMX3+

LMX4-

DLMX2+

DLMX1+LMX1+

LMX4+ DLMX4+

LMX1- DLMX1-

LAN_MDIN3

LAN_MDIP2

LAN_MDIN0

LAN_MDIN2

LAN_MDIP0

LAN_MDIP1

LAN_MDIN1

LAN_MDIP3

DLMX2-

TMDS_CLOCK#-R

TMDS_CLOCK-R

TMDS_DATA2#

TMDS_DATA2#-R

TMDS_DATA2-R

TMDS_DATA1#-R

TMDS_DATA0-R

TMDS_DATA0#-R

TMDS_DATA1-R

TMDS_DATA1#

3.3VS

1.5VS

3.3VS

1.5VS

3.3VS

1.5VS

3.3VS

1.5VS

HDMI_5VS

HDMI_5VS5VS

5VS13,22,31,32,35,37,40,44,45

3.3VS3,6,9,10,11,12,13,22,23,24,25,26,28,29,30,31,32,34,35,37,39,40,44,45

HDMI_CTRLDATA25

HDMI_CTRLCLK25

PORTC_HPC25

HDMIC_C0CP6

HDMIC_C0CN6

HDMIC_C2CP6

HDMIC_C2CN6

HDMIC_CLKCP6

HDMIC_C1CP6

HDMIC_CLKCN6

HDMIC_C1CN6

LAN_MDIP034

LAN_MDIN034

LAN_MDIP134

LAN_MDIN134

LAN_MDIP234

LAN_MDIN234

LAN_MDIP334

LAN_MDIN334

SUSB3,40,42,43

1.5VS22,24,27,28,29,30,42

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[36] HDMI,RJ45

Custom

36 58Thursday, January 16, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[36] HDMI,RJ45

Custom

36 58Thursday, January 16, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[36] HDMI,RJ45

Custom

36 58Thursday, January 16, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

C793 0.1u_10V_X7R_04

C788

0.1u_10V_X7R_04

R725 *4.7K_04

C796 0.1u_10V_X7R_04

U41

SY6288DCAC

VOUT1 6

VOUT3 8

VIN2

VIN1

2VOUT2 7

GND 1

EN#

FLG#

C787

0.1u_10V_X7R_04

R61 75_04

R728 4.7K_04

C795 0.1u_10V_X7R_04

R39 75_04

R730 *4.7K_04

R742

100_04

D34

*BAV99

L35

*WCM2012F2S-161T03-short

C785

0.01u_16V_X7R_04

C789

0.1u_10V_X7R_04

C797 0.1u_10V_X7R_04

C78

100PF 2KV 1206

R721 4.7K_04

C786

0.01u_16V_X7R_04

R729 4.99K_1%_04

D35

*BAV99

L36

*WCM2012F2S-161T03-short

R87 75_04

L68

*HDMI2012F2SF-900T04-SHORT

C783

0.1u_10V_X7R_04

C798 0.1u_10V_X7R_04

R709

2.2K_04

L37

*WCM2012F2S-161T03-short

C790

0.1u_10V_X7R_04

C527

0.01u_16V_X7R_04

J_HDMI1

1168-1A104-21U

SHIELD2

TMDS DATA1+

TMDS DATA1-

SHIELD0

TMDS CLOCK+

TMDS CLOCK-

RESERVED

SDA

+5V

TMDS DATA2+ 1

TMDS DATA2- 3

SHIELD1 5

TMDS DATA0+ 7

TMDS DATA0- 9

CLK SHIELD 11

CEC 13

SCL 15

DDC/CEC GND 17

HOT PLUG DETECT 19

GND

GND1

GND

GND2

GND

GND3

GND

GND4

C781

22u_6.3V_X5R_08

C784

0.01u_16V_X7R_04

R720 *4.7K_04

R710

2.2K_04

PJS-08SL3B

J_RJ_1

DD-

8DD+

DB-

DC-

5DC+

DB+

3DA-

2DA+

1shield GND1

shield GND2

R744

100_04

L65

*HDMI2012F2SF-900T04-SHORT

C782

22u_6.3V_X5R_08

R713 *20K_04

L38

*WCM2012F2S-161T03-short

R78 75_04

D33

*BAV99

R724 *4.7K_04

R745

100_04

R722 *4.7K_04

R743

100_04

L66

*HDMI2012F2SF-900T04-SHORT

C792 0.1u_10V_X7R_04

R723 *4.7K_04

C791 0.1u_10V_X7R_04

R726 *4.7K_04

L42

NS892402

TCT1

TD1+

TD1-

TCT2

TD2+

TD2-

TCT3

TD3+

TD3-

TCT4

TD4+

TD4-

MX4-

MX4+

MCT4 15

MX3-

MX3+

MCT3 18

MX2-

MX2+

MCT2 21

MX1-

MX1+

MCT1 24

C794 0.1u_10V_X7R_04

L67

*HDMI2012F2SF-900T04-SHORT

U42

PS8401A

GND

PRE

EQ/I2C_ADDR0

REXT

VDDTA

VDDTX

OUT_CKn 21

OUT_CKp 22

CFG/I2C_ADDR1 23

OUT_D0n 24

OUT_D0p 25

OUT_D1n 26

OUT_D1p 27

HPD_SNK 28

SDA_SRC 39

SCL_SRC 38

VDD33 37

PD# 36

GND 35

ISET 34

SDA_SNK 33

SCL_SNK 32

VDDTX 31

OUT_D2p 30

OUT_D2n 29

IN_D2p

IN_D2n

HPD_SRC

IN_D1p

IN_D1n

IN_D0p

IN_D0n

I2C_CTL_EN

IN_CKp

IN_CKn

VDD33

VDDRX

DCIN_EN/SCL_CTL

DDCBUF/SDA_CTL

Epad

VDDRX 40

R727 *4.7K_04

Schematic Diagrams

B - 38 Audio Codec VT1802S

B.Schematic Diagrams

Audio Codec VT1802S

Sheet 37 of 58

Audio Codec

VT1802S

D D

C C

B B

A A

CODEC (VT1802S)

PC BEEP

Very close to

Audio Codec

Layout Note:

Please Let LC Filter

together and close to

Codec.IF Speaker

wire length is less

than 8000mils It don't

need the LC Filter.

Layout Note:

Close to PCH

NEAR CODEC

Speaker 4 ohm------> 40mils

Speaker 8 ohm------> 20mils

EMI Require

ANALOG DIGITAL

5VS

Speaker wire length less than 8000mils , It don't need LC Filter.

GND and AUDG space is

60mils ~ 100mils

AZ_RST#

Layout note:

PD#

20ms

3.3VS_AUD

SPKOUTR+,R-,L+,L- Trace width

AZ_RST# For 1.5V

HDA Link De-pop

VT1802P L50,C317

ᶵᶲẞ

ALC269 L50,C317

天ᶲẞ

VT1802P 5.1K_1%_04

VT1802P 10u

VT1802P NC PIN

FOR VOLUMN ADJUST

VT1802P 10u

VT1802P

㍍

AUDG

ALC269

㍍

GND

NEAR CODEC

EMI Require

VT1802PCE & VT1802S Co-lay VT1802S

Mount:

Remove:

R119,R239,R668,R691,R690,R261

R689,R238,R692,R693,R694

VT1802PCE

Mount:

Remove: R119,R239,R668,R691,R690,R261

R689,R238,R692,R693,R694

0128

MIC2_L

MIC2_R

AZ_SDOUT_R

AZ_SYNC_R

BEEP_R

HDA_BITCLK_C

PCBEEP

LDO_CAP

MIC1-VREFO-R

MIC2-VREFO

CBP-ALC269

CBN-AL269

OPVEE-ALC269

MIC1-R_R

LINE1_L

LINE1_R

SENSE-B

MIC1-L_R

LINE2-R

LINE2-L

SPKOUTL+

SPKOUTR-

SPKOUTR+

SPKOUTL-

MIC1_L

MIC1_R

INT _MIC

BEEP

MIC1-VREFO-L

EAPD_MODE

VREF-ALC269

SENSE_A

JDREF

HDA_RST#

HDA_RST#R

HDA_RST#

CODEC_PD#

AZ_BITCLK_R

HDA_BITCLK_C

HP-OUT_L

HP-OUT_R

DMIC-DAT

DMIC-CLK

SPKOUTR+

SPKOUTR-

SPKOUTL+

SPKOUTL-

DMIC-DAT

DMIC-CLK

MIC1_R

MIC1_L

MIC1-VREFO-L

MIC1-VREFO-R

MIC2-VREFO

INT _MIC

CODEC_PD#

HP_L

HP_R

AZ_SYNC_R

AUDG

5VS5VS_AUD

5VS

5VS_AUD

3.3VS_AUD

AUDG

PVDD1_2

5VS

3.3V

3.3VS_AUD

AUDG

3.3VS

3.3V

3.3VS_AUD

3.3V

JD_SENSE 31

JD_SENSE_B 31

HDA_SPKR22

KBC_BEEP39

3.3VS3,6,9,10,11,12,13,22,23,24,25,26,28,29,30,31,32,34,35,36,39,40,44,45

5VS13,22,31,32,35,36,40,44,45

HDA_SYNC22

HDA_BITCLK22

HDA_SDOUT22

HDA_SDIN022

SPDIFO31

3.3V2,3,13,20,22,24,26,27,28,29,30,31,32,33,34,40,42,45,46

HDA_RST#22

KBC_MUTE#39

1.5VS22,24,27,28,29,30,36,42

5V31,32,33,38,40,42,46

SPKOUTR+ 38

SPKOUTR- 38

SPKOUTL+ 38

SPKOUTL- 38

DMIC-DAT 38

DMIC-CLK 38

MIC1_R 38

MIC1_L 38

MIC1-VREFO-L 38

MIC1-VREFO-R 38

3.3VS_AUD38

MIC2-VREFO 38

INT _MIC 38

CODEC_PD# 38

HP_L 38

HP_R 38

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[37] CODEC VT1802PCE & VT1802S Co-lay

37 58Thursd ay, February 20, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[37] CODEC VT1802PCE & VT1802S Co-lay

37 58Thursd ay, February 20, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[37] CODEC VT1802PCE & VT1802S Co-lay

37 58Thursd ay, February 20, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

R393 22_04

R691 0_04

C606

0.1u_16V_Y5V_04

R535 33_04

C381

0.1u_16V_Y5V_04

R506 100K_04

R397 22_04

C608

10u_6.3V_X5R_06

R545 39.2K_1%_04

C581 *180p_50V_NPO_04

Q21

*2N3904

E C

C580

0.1u_16V_Y5V_04

C352

0.1u_16V_Y5V_04

C607 *10u_6.3V_X5R_06

L71 HCB1005KF-121T20

C596

2.2u_6.3V_X5R_06

R246 1M_04

C350

10u_6.3V_X5R_06

R694 *20K_1%_04

C582 *180p_50V_NPO_04

R688 0_04

C620 10u_6.3V_X5R_06

C592

10u_6.3V_X5R_06

L53

*HCB1005KF-121T20

Q20

*MTN7002ZHS3

R538 4.7K_04

L31 *HCB1005KF-121T20

C578

10u_6.3V_X5R_06

L70 HCB1005KF-121T20

R692 *0_04

C632 10u_6.3V_X5R_06

C633

0.1u_16V_Y5V_04

R243 *100K_04

D9 RB751S-40C2

C577

*10u_6.3V_X5R_06

C611 0.1u_16V_Y5V_04

C262 *47p_50V_NPO_04

R540 47K_04

R242 *0_04

C617

*10u_6.3V_X5R_06

DIGITAL

ANALOG

U32

VT1802S

DVDD1 1

GPIO0-DMIC-DAT

GPIO1-DMIC-CLK

PD#

SDATA-OUT

BIT-CLK

DVSS2

SDATA-IN

DVDD-IO 9

SYNC

RESET#

PCBEEP

Sense A 13

LINE2-L 14

LINE2-R 15

MIC2-L 16

MIC2-R 17

Sense-B 18

JDREF 19

MONO-OUT 20

MIC1-L 21

MIC1-R 22

LINE1-L 23

LINE1-R 24

AVSS1

VREF 27

LDO_CAP 28

MIC2-VREFO 29

MIC1-VREFO-R 30

MIC1-VREFO-L

HP-OUT-L 32

AVSS2

OPVEE 34

CBN 35

CBP 36

HP-OUT-R 33

PVDD1 39

SPK-L+

SPK-L-

PVSS1

PVSS2

SPK-R+

45 SPK-R-

PVDD2 46

SPDIFC2/EAPD

SPDIFO

AVDD2 38

AVDD1 25

GND

JP2 *10mil_short

R238 *22_04

R690

0_04

C593 2.2u_6.3V_X5R_06

C584 *180p_50V_NPO_04

R248 22_04

R239 0_04

R499

*15mil_short_06

R132 22_04

JP1 *10mil_short

R263

*10K_04

D10 RB751S-40C2

C345

*1u_6.3V_X5R_04

C615 1u_6.3V_X5R_04

D24

BAT54CS3

L59

*HCB1005KF-121T20

C586

0.1u_16V_Y5V_04

C612 0.1u_16V_Y5V_04

C583 *180p_50V_NPO_04

R708 *0_04

R230

10K_04

R119 0_04

C614 100p_50V_N PO_04

C377 0.1u_16V_Y5V_04

C631 10u_6.3V_X5R_06

R546 20K_1%_04

C353

*0.1u_16V_Y5V_04

R261 5.1K_1%_04

C817 1u_6.3V_X5R_06

R693

*0_04

C621 10u_6.3V_X5R_06

MTN7002ZHS3

D S

C616 10u_6.3V_X5R_06

R245 0_04

C818 1u_6.3V_X5R_06

C637 100p_50V_N PO_04

L32

HCB1005KF-121T20

C618 100p_50V_N PO_04

Schematic Diagrams

Audio AMP & Con B - 39

B.Schematic Diagrams

Audio AMP & Con

Sheet 38 of 58

Audio AMP & Con

D D

C C

B B

A A

25 mils

6-20-63110-104

DMIC-DAT & DMIC-CLK traces should be at least 5 mils wide

and 10 mils spacing to other singals/planes

VT1802P 1K_04

VT1802P 3.3K_1%_05

J_INTMIC1

VT1802P

3.3K_04

VT1802P

330P

6-20-63120-102

HeadPhone

R763 R764

ᶲẞ

ᶵᶲẞ ᶵᶲẞ

ᶵᶲẞᶵᶲẞ

SV3H612

SV3H615

R757 R758 R759

ᶲẞ

ᶵᶲẞ

ᶲẞ

1216

HP_SDA

HP_SCL

HP_L

HP_R

HP_AMP_SGND

HEADPHONE-L

ROUT+

ROUT-

LOUT+

LOUT-

SPKOUTL+

SPKOUTL-

SPKOUTR+

SPKOUTR-

DMIC-DAT

DMIC-CLK

DMIC-DAT

MIC1_R

MIC1_L

MIC1-VREFO-L

MIC1-VREFO-R

INT _MIC

MIC2-VREFO

HEADPHONE-R

HP_AMP_SGND

HEADPHONE-L

HEADPHONE-R

HP_R

HP_L

AUDG

HP_VDD

AUDG

3.3VS_AUD

AUDG AUDG

AUDG

HP_VDD

SMB_CLK 9,10,11,23

SMB_DATA 9,10,11,23

HP_L37,38

HP_R37,38

SPKOUTR+37

SPKOUTR-37

SPKOUTL+37

SPKOUTL-37

DMIC-CLK37

DMIC-DAT37

MIC1-R 31

MIC1-L 31

INT _MIC _R32

MIC1-VREFO-R37

MIC1-VREFO-L37

MIC1_L37

MIC1_R37

5V31,32,33,40,42,46

3.3VS_AUD37

INT _MIC37

MIC2-VREFO37

CODEC_PD# 37

HEADPHONE-R 31,38

HEADPHONE-L 31,38

HP_AMP_SGND 31

HP_L37,38

HP_R37,38

HEADPHONE-L 31,38

HEADPHONE-R 31,38

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[38] AUDIO AMP & CON

38 58Thursday, February 20, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[38] AUDIO AMP & CON

38 58Thursday, February 20, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[38] AUDIO AMP & CON

38 58Thursday, February 20, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

J_SPKL1

85204-04001

C813

10p_50V_NPO_04

R764 *0_04

C806 0.01u_16V_X7R_04

C848

EEFCX0J221YR

C812

1u_6.3V_X5R_06

L72 HCB1005KF-121T20

L9 HCB1005KF-121T20

C810

2200p_50V_X7R_04

L73 HCB1005KF-121T20

C96

*1u_10V_Y5V_06

R749 470_04

R556 1K_04

R835 *0_04

R759 0_04

R748 470_04

J_INTMIC2

88266-04001

PCB Footp rint = 88266-0400L

C135 180p_50V_N PO_04

R836 *0_04

L11 HCB1005KF-121T20

C809 0.01u_16V_X7R_04

R557 1K_04

R763 *0_04 C802

0.1u_16V_Y5V_04

C145 180p_50V_N PO_04

L69 FCM1005KF-121T03

C87 180p_50V_N PO_04

C803

2.2u_6.3V_X5R_04

J_INTMIC1

*88266-02001

C98 180p_50V_N PO_04

R554 *1K_04

C764

10u_6.3V_X5R_06

C804

0.1u_16V_Y5V_04

L16 HCB1005KF-121T20

C647

*100p_50V_NPO_04

C765

0.1u_16V_Y5V_04

R751 22_1%_04

C805

22u_6.3V_X5R_08

C816

22u_6.3V_X5R_08

R566

*0_04

C814

10p_50V_NPO_04

R758 *0_04

U46

*G5243A

VIN 4

VIN 5

EN 3

VOUT

GND

VSS

U45

SV3H612V

VREF

INR

4REXT

INL

OUTR

SDA

SCL

C2_3DR

C2_3DL 12

C1_3DL 11

PGND 10

C1_SDR 9

OUTL 16

VDD 15

JD 14

SGND 13

PAD

R532 3.3K_1%_04

R752 22_1%_04

L10 HCB1005KF-121T20

D27

*BAV99

R534 3.3K_1%_04

C807 0.01u_16V_X7R_04

R750

*240K_1%_04

R757 0_04

R689 *0_04

C141

*1u_10V_Y5V_06

C808 0.01u_16V_X7R_04

R536

*3.3K_1%_04

D37

*V15AVLC0402

1 2

C811

2200p_50V_X7R_04

Schematic Diagrams

B - 40 KBC ITE IT8587

B.Schematic Diagrams

KBC ITE IT8587

Sheet 39 of 58

KBC ITE IT8587

D D

C C

B B

A A

1J_KB1 24

0_04 for M760T/TU

BKP1005HS121_04 for M740T/TU

EMI Solution

0_04 FOR IT8512CX/EX

0.1U_04 FOR ITE8512-J(ITE8502-J W/0 CIR)

EC Cost Down

W350ST W370ST

KBC Connect

㚜㎃⬷农

6-20-94AF0-124

6-04-25032-491

32Mbit

KBC_SPI_*_R = 0.1"~0.5"

For 8587 Auto load code

IT8587

ᶵᶲẞ炻枸䔁䓐ˤ

NEAR U37

W37xST(new)

EC MODULE CHOOSE (FOR DIFFERENCE K/B TYPE)

R550 3.24K/ R551 10K

W350STQ(old)

W35xSTQ(new)

N/A

R550 23.7K/ R551 10K 1V

2.5V

R550 X/ R551 10K

Board

天≈

W370ST(old)

MODEL_ID

R550 10K/ R551 XV2.0 3.3V

VOLTAGEVER.

R550 6.49K/ R551 10K

modify value

0106

0108

KBC_SPI_SCLK

KB-SI7

KB-SO6

KB-SO11

KB-SI1

KBC_WRESET#

KB-SI3

KB-SI0

KB-SO0

KB-SO7

KB-SO4

EC_VCC

PCLK_KBC

KB-SO5

KB-SO10

KB-SO8

KB-SO3

KBC_SPI_SO

PCLK_KBC_R

KB-SO2

KB-SI2

KB-SO13

KB-SO1

KB-SI4

KBC_SPI_SI

CCD_DET#

KB-SO12

KBC_SPI_CE#

KB-SO9

KB-SO14

KB-SI6

KB-SI5

LCD_BRIGHTNESS

3G_DET#

EC_VSS

BAT_VOLT

PCLK_KBC

KBC_WRESET#

LCD_BRIGHTNESS

KBC_BEEP

80CLK

BAT_DET

CCD_DET#

SMC_CPU_THERM_R

SMC_VGA_THERM

SMD_VGA_THERM

BAT_VOLT

KB-SO15

GPH4

GPH6

GPH5

CCD_SW#

SMD_CPU_THERM_R

MODEL_ID

MUTE_SW #

CCD_SW#

SMC_CPU_THERM_R

SMD_CPU_THERM_R

dGPU_PWR_EN#

KB-SI0

KB-SO4

KB-SO8

KB-SO1

KB-SO7

KB-SO6

KB-SO10

KB-SO14

KB-SI3

KB-SO0

KB-SI6

KB-SI7

KB-SI1

KB-SO11

KB-SI2

KB-SI5

KB-SO5

KB-SO12

KB-SO3

KB-SO2

KB-SO13

KB-SI4

KB-SO9

KB-SO15

KBC_HOLD#

KBC_SPI_SCLK_R

KBC_SPI_SO_R

SPI_VDD_1

KBC_FLASH

KBC_SPI_SI

KBC_SPI_CE#_R

KBC_SPI_SO

KBC_SPI_SCLK

KBC_SPI_CE#

KBC_SPI_SI_R

MUTE_SW #

KBC_SPI_SO

KBC_SPI_SI

KBC_SPI_CE#

KBC_SPI_SCLK

3IN1

80CLK

WLAN_AIRPLANE#

KBC_SPI_SO

KBC_SPI_SI

KBC_SPI_CE#SMD_BAT

SMC_BAT

GA20

MODEL_ID

GPH4

GPH5

GPH6

dGPU_PWR_EN#

VDD3

KBC_AVDD

VDD3

KBC_AGND

3.3VS

VDD3

3.3VS

VDD3

KBC_RST# 26

SWI# 24

CCD_EN 32

GPIO_FB_CLAMP15,20,46

VDD314,20,22,23,24,26,27,28,29,30,31,32,34,35,40,41,43,47

SUSC# 24,42

SUSB# 24,40,43

BRIGHTNESS_EC12

LID_SW#13,35

CCD_DET#32

TP_DATA32

LPC_AD023,32

SERIRQ23,32

LPC_AD223,32

LPC_AD123,32

LPC_FRAME#23,32

LPC_AD323,32

TP_CLK32

LED_PW R32

LED_NUM#32

LED_BAT_FULL32

LED_CAP#32

LED_BAT_CHG32

LED_SCROLL#32

KBC_BEEP37

BUF_PLT_RST#25,31,34

PCLK_KBC30

PWR_SW#40

LED_ACIN32

AC_IN#47

H_A20GATE26

80CLK31

H_PECI 3,26

SMC_VGA_THERM12,20,23

SMD_VGA_THERM12,20,23

THERM_VOLT2

3.3VS3,6,9,10,11,12,13,22,23,24,25,26,28,29,30,31,32,34,35,36,37,40,44,45

BAT_DET47

BAT_VOLT47

AC_PRESENT24

KBC_MUTE#37

CPU_FAN31

KBLIGHT_ADJ35

ME_WE22

BT_DET#31

VGA_SW# 35

PWR_BTN#24

LOT6_CHG 47

BKL_EN 13

CPU_FANSEN 31

DD_ON 32,40,41

RSMRST# 24

CCD_SW#32

3IN131

PME# 25,34

SCI#26

SMI#26

TOTAL_CUR47

3G_DET#31

WLAN_SW#32,35

CRIT_TEMP_REP#26

SML1_DATA 23

SML1_CLK 23

dGPU_RST# 25

dGPU_PWR_EN# 25,45

MINI_PWR_ON31

WLAN_DET#31

H_PROCHOT#_EC3

USB_CHARGE_EN 40,41

PMOSFET_CONTROL# 47

GPIO6_VBOOT_ADJ 20,45

MUTE_SW #32

3G_PW R_EN 31

HSPI_SCLK 23,39

HSPI_MSO 23,39

HSPI_CE# 23,39

HSPI_MSI 23,39

3.3V2,3,13,20,22,24,26,27,28,29,30,31,32,33,34,37,40,42,45,46

WLAN_AIRPLANE# 35

OPTIMUS_MODE 35

SMC_BAT47

SMD_BAT47

SUS_PWR_ACK 24

NB_ENAVDD 13,25

GPG2 23

PM_PCH_PWROK 8,24

ALL_SYS_PWRGD 13,24,44

3G_EN 31

HSPI_CE# 23,39

CHG_JAP 47

HSPI_MSI 23,39

HSPI_SCLK 23,39

HSPI_MSO 23,39

d_GPIO9_ALERT_FAN 20,25

GPIO12_AC_DETECT 20,26

dGPU_GPIO8_OVERT 20,26

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[39] KBC-ITE IT8587

39 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[39] KBC-ITE IT8587

39 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[39] KBC-ITE IT8587

39 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

R592 43_1%_04

R578 47_04

R5520_04

R259 *10K_04

C458

1u_6.3V_X5R_04

R809 *0_04

R579 0_04

R696 0_04

R846 0_04

D30RB751V-40(lision)

A C

C667

0.1u_16V_Y5V_04

R570 0_04

R587 100_04

R810 0_04

L61 HCB1005KF-121T20

C638

0.1u_16V_Y5V_04

C655 *33p_50V_NPO_04

R560 0_04

C696 *0.1u_16V_Y5V_04

R549 *10K_04R553*0_04

R811 *0_04

R581 0_04

R571 10K_04

RN9

2.2K_8P4R_04

R590 100_04

R574

4.7K_04

J_KB2

*85208-24051

R279 *10_04

C697

0.1u_16V_Y5V_04

C395 *33p_50V_NPO_04

R601

10K_04

U36

*PCT25VF032B

CE# 1

SO 2

WP#

VSS 4

SI 5

SCK 6

HOLD#

VDD

NC1

SHORT

R760 0_04

D28RB751V-40(lision)

A C

R812 0_04

L60

HCB1005KF-121T20

R588 *10K_04

K/B MATRIX

FLASH

LPC

SMBUS

PS/2

PWM

UART

DAC

CLOCK

IT8587A

CIR

ADC

WAKE UP

PWM/COUNTER

LPC/WAKE UP

EXT GPIO

GP INTERRUPT

WAKE UP

GPIO

U37

IT8587E/FX

WRST#

LPCCLK

LAD0

LAD1

LAD2

LAD3

LFRAME#

( PD )LPCPD#/WUI6/GPE6 17

SERIRQ

ECSMI#/GPD4( PU )

15 ECSCI#/GPD3( PU )

GA20/GPB5

126

KBRST#/GPB6( PU )

KSI0/STB# 58

KSI1/AFD# 59

KSI2/INIT# 60

KSI3/SLIN# 61

KSI4 62

KSI5 63

KSI6 64

KSI7 65

KSO0/PD0 36

KSO1/PD1 37

KSO2/PD2 38

KSO3/PD3 39

KSO4/PD4 40

KSO5/PD5 41

KSO6/PD6 42

KSO7/PD7 43

KSO8/ACK# 44

KSO9/BUSY 45

KSO10/PE 46

KSO11/ERR# 51

KSO12/SLCT 52

KSO13 53

KSO14 54

KSO15 55

VCC 11

VSTBY 26

VSTBY 50

VSTBY 92

VSTBY 114

VSTBY 127

VSTBY 121

VBAT 3

AVCC 74

PS2CLK0/GPF0( PU )

PS2DAT0/GPF1( PU )

PS2CLK1/GPF2( PU )

( PD )TMRI0/WUI2/GPC4 120

( PD )TMRI1/WUI3/GPC6 124

LPCRST#/WUI4/GPD2( PU )

( PD )WUI5/GPE5 35

PWRSW/GPE4( PU )

125

RI1#/WUI0/GPD0( PU )

RI2#/WUI1/GPD1( PU )

( PD )RING#/PWRFAIL#/LPCRST#/GPB7 112

TXD/GPB1( PU )

109 RXD/GPB0( PU )

108

( PD )CTX/GPB2 123

PS2DAT1/GPF3( PU )

PS2CLK2/GPF4( PU )

PS2DAT2/GPF5( PU )

90 ( PD )TACH0/GPD6 47

( PD )TACH1/GPD7 48

PWM0/GPA0( PU )

PWM1/GPA1( PU )

PWM2/GPA2( PU )

PWM3/GPA3( PU )

PWM4/GPA4( PU )

PWM5/GPA5( PU )

PWM6/GPA6( PU )

PWM7/GPA7( PU )

ADC0/GPI0

ADC1/GPI1

ADC2/GPI2

ADC3/GPI3

ADC4/GPI4

ADC5/GPI5

ADC6/GPI6

ADC7/GPI7

VSS

122 VSS

113

AVSS

CK32KE 2

CK32K 128

DAC3/GPJ3

79 DAC2/GPJ2

78 GPJ1

77 GPJ0

( PD )EGCS#/GPE2 83

( PD )EGCLK/GPE3 84

( PD )EGAD/GPE1 82

GINT/GPD5( PU )

L80LLAT/GPE7( PU )

VSS

DAC5/GPJ5

81 DAC4/GPJ4

PWUREQ#/GPC7( PU )

( PD )CRX/GPC0 119

( PD )KSO16/GPC3 56

( PD )KSO17/GPC5 57

( PD )ID0/GPH0 93

( PD )ID1/GPH1 94

( PD )ID2/GPH2 95

( PD )ID3/GPH3 96

( PD )ID4/GPH4 97

( PD )ID5/GPH5 98

( PD )ID6/GPH6 99

( PD )ID7/GPG1 107

SMCLK0/GPB3

110

SMDAT0/GPB4

111

SMCLK1/GPC1

115

SMDAT1/GPC2

116

SMCLK2/GPF6( PU )

117

SMDAT2/GPF7( PU )

118

FLFRAME#/GPG2 100

FLAD0/SCE# 101

FLAD1/SI 102

FLAD2/SO 103

FLAD3/GPG6 104

FLCLK/SCK 105

( PD )FLRST#/WUI7/TM/GPG0 106

( PD )L80HLAT/GPE0 19

R598 *10K_04

C693 0.1u_16V_Y5V_04

C396 *33p_50V_NPO_04

R569*0_04

J_KB1

85208-24051

D31RB751V-40(lision)

A C

J_80DEBUG1

85205-04001

PCB Footp rint = 85205-0400M

R577 15_1%_04R565

1K_04

R593 *0_04

C639

*0.1u_16V_Y5V_04

R847 *2.2K_04

R761 *0_04 C652 1u_6.3V_X5R_04

R813 *0_04

R564*0_04

C660

0.1u_16V_Y5V_04

R594 *0_04

C646

0.1u_16V_Y5V_04

R6180_04

R679 *1K_04

R568 100_04

C659 *33p_50V_NPO_04

R814 0_04

R617 *0_04

NC2 SHORT

C642

*0.1u_16V_Y5V_04

C461 *10p_50V_NPO_04

R551 10K_04

D29 RB751V-40(lision)

R573 *10K_04

R277

100K_04

R616 *10mil_short

R580 10K_04

R678*10K_04

R567 47_04

C663

10u_10V_Y5V_08

R262 10K_04

C682

0.1u_16V_Y5V_04

C665

0.1u_16V_Y5V_04

R572 15_1%_04

R550 23.7K_04

R695 0_04

R845 0_04

Schematic Diagrams

5V, 5VS, 3.3V, 3VS, 3.3VM B - 41

B.Schematic Diagrams

5V, 5VS, 3.3V, 3VS, 3.3VM

Sheet 40 of 58

5V, 5VS, 3.3V, 3VS,

3.3VM

D D

C C

B B

A A

NMOS

EMI

Power Plane

NMOS

Power Plane

3.3V

5VS

3.3VS

NMOS

ONON

DD_ON# SUSB

DD_ON

SUSB

5VS_LO

5V_EN1

5VS_EN1

SUSB

3.3VS_EN1

3.3VS_LO

3.3V_EN1

DD_ON#

SLP_A

PM_SLP_LAN

3.3VS

VDD5SYS15V 5VS

SYS15V

SYS15V VDD5

SYS15V 3.3V

VIN VIN

VDD3

VIN

VDD3

VA VIN VIN1

VDD3

VIN13,41,42,43,44,45,46,47

SYS15V41,43,45

VDD532,41,43

3.3V2,3,13,20,22,24,26,27,28,29,30,31,32,33,34,37,42,45,46

5V31,32,33,38,42,46

5VS13,22,31,32,35,36,37,44,45

3.3VS3,6,9,10,11,12,13,22,23,24,25,26,28,29,30,31,32,34,35,36,37,39,44,45

SUSB3,36,40,42,43

3V3_RUN14,15,20,45

SUSB 3,36,40,42,43

SUSB#24,39,43

M_BTN#32

PWR_SW# 39

USB_CHARGE_EN 39,40,41

USB_CHARGE_EN39,40,41

DD_ON32,39,41

DD_ON# 32,33,42

SLP_A#24

SLP_A 43

PM_SLP_LAN#24,43

VA47

VIN141

VDD314,20,22,23,24,26,27,28,29,30,31,32,34,35,39,41,43,47

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[40]5V, 5VS,3.3V,3VS,3.3VM

Custom

40 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[40]5V, 5VS,3.3V,3VS,3.3VM

Custom

40 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[40]5V, 5VS,3.3V,3VS,3.3VM

Custom

40 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

PR53

1M_04

PC61

2200p_50V_X7R_04

PQ18A

MTDN7002ZHS6R

PR60

100K_04

PR61

100K_04

R611 *100K_04

PC180

0.1u_50V_Y5V_06

PR206 *10K_04

PC121

0.1u_16V_Y5V_04

PQ18B

MTDN7002ZHS6R

PC52

0.1u_10V_X7R_04

PQ22

MTN7002ZHS3

PR56

100K_04

PC187

0.1u_10V_X7R_04

R615 1K_04

PC58

*0.1u_10V_X5R_04

PC51

10u_10V_Y5V_08

C31

0.1u_50V_Y5V_06

PQ16B

MTNN20N03Q8

PC150

0.1u_10V_X7R_04

PR207 10K_04

PC128

0.1u_16V_Y5V_04

PC181

0.1u_50V_Y5V_06

PR59

10K_04

PQ19B

MTNN20N03Q8

PQ16A

MTNN20N03Q8

PQ20A

MTNN20N03Q8

PC59

*2200p_50V_X7R_04

PR222 10K_04

PQ37A

MTDN7002ZHS6R

PR55

1M_04

PU9

P2808B0

VIN

M_BTN#

INSTANT-ON

4GND 5

PWR_SW# 6

DD_ON_LATCH 7

VIN1 8

PR140

10K_04

PR54

100_04

PQ17A

MTNN20N03Q8

PJ8

40mil

PC54

4700p_50V_X7R_04

PR70

100_04

PQ19A

MTNN20N03Q8

PJ11

40mil

PR146

100K_04

PQ20B

MTNN20N03Q8

C483

0.1u_50V_Y5V_06

R612 100K_04

PQ17B

MTNN20N03Q8

R600 100K_04

PR63

1M_04

PC190

0.1u_50V_Y5V_06

PQ37B

MTDN7002ZHS6R

PC53

3300p_50V_X7R_04

PR62

1M_04

PQ56

MTN7002ZHS3

Schematic Diagrams

B - 42 VDD3, VDD5

B.Schematic Diagrams

VDD3, VDD5

Sheet 41 of 58

VDD3, VDD5

A A

B B

C C

D D

VDD3/VDD5

Short Short

2nd:

6-02-5608-CQ0

M990125

VDD3 VDD5

D03

6-13-18721-28C

Vout

=2*(1+R1/R2)

=2*(1+13K/20K)

=3.3V

Vout

=2*(1+R1/R2)

=2*(1+30K/18.7K)

=5.208V

Battery Mode VDD5

䃉㱽 Ture off at system

off

POWER ON:

USB_CHARGE_EN = DDON=HI

POWEROFF CHARGE:

USB_CHARGE_EN = HI

DDON = LO

SUPPORT USB CHARGER

0227

Z3616

Z3612

Z3601

EN_ALL

Z3619

Z3610

Z3604

Z3614

Z3607

Z3622

Z3613

Z3606

Z3611

Z3608

EN_3V

Z3602

Z3605

EN_5V

Z3615

Z3617

Z3603

Z3618

Z3621

Z3620

EN_5V

DD_ON_EN_VDD

VIN

VREF

VREG3

VREG5

VREF

VREG5

SYS5V

SYS15V

VDD3 SYS3V

VIN

SYS10V

VIN1

VDD5

SYS5V

VREG5

DD_ON32,39,40

USB_CHARGE_EN39,40

AC_IN47

3V3_RUN14,15,20,45

5V31,32,33,38,40,42,46

3.3V2,3,13,20,22,24,26,27,28,29,30,31,32,33,34,37,40,42,45,46

VIN13,40,42,43,44,45,46,47

VDD314,20,22,23,24,26,27,28,29,30,31,32,34,35,39,40,43,47

VDD532,40,43

SYS15V40,43,45

VIN140 Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[41]VDD3,VDD5

41 58Thursday, February 27, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[41]VDD3,VDD5

41 58Thursday, February 27, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[41]VDD3,VDD5

41 58Thursday, February 27, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

PR193

*1.5M_04

PC157

0.1u_10V_X7R_04

PC167

1u_6.3V_X5R_04

PR57

*5.1_06

PQ64A

EMB17A03V

PC169

*1000p_50V_X7R_04

PC56

*1000p_50V_X7R_04

PC166

1000p_50V_X7R_04

PC60

0.1u_10V_X7R_04

PQ59B

MTDK5S6R

PJ9

*OPEN-5mm

PC195

220u_6.3V_6.3*6.3*4.2

PC179

0.1u_50V_Y5V_06

PL13

BCIHP0730-4R7M

1 2

PR187

*0_04

PD6

*SK34SA

A C

PQ61

*2SK3018S3

PR189

*0_04

PC161

0.1u_10V_X5R_04

PR58

*5.1_06

PC172

4.7u_25V_X5R_08

PD17

BAT54SS3

M-SOT323D

PC62

0.1u_10V_X7R_04

PR198

13K F 1/16W SMD0402

PR195 *0_04 PR 194 *20mil_04

PL14

BCIHP0730-4R7M

PR188

*20mil_04

PC178

4.7u_25V_X5R_08

PQ64B

EMB17A03V

PC158

0.01u_50V_X7R_04

PD5

*SK34SA

A C

PJ10

*OPEN-5mm

1 2

PC160

1u_6.3V_X5R_04

PR192

100K_04

PC154

2200p_50V_X7R_04

PD4

CSOD140SH

A C

PD18

RB751S-40C2

PR181 0_04

PQ63B

EMB17A03V

PR191 *10K_04

PR197

100K_04

PR186

10K_04

PQ63A

EMB17A03V

PC165

1000p_50V_X7R_04

PR200

30K_1%_04

PC173

4.7u_25V_X5R_08

PC168100p_50V_NPO_04

PR185 100K_04

PC176

4.7u_25V_X5R_08

C739

EWH1EM221E12OT

PC163 0.1u_10V_X5R_04

PC156

4.7u_25V_X5R_08

PC189

220u_6.3V_6.3*6.3*4.2

PR199

18.7K_1%_04

PJ27

*CV-40mil

PR201 *20mil_04

PU7

UP6182

VREF 3

EN1 1

VFB1 2

TONSEL 4

LDO5

LGATE1 19

PHASE1 20

VFB2 5

UGATE2

VCLK

BOOT2

EN2 6

VO2

LDO3

PHASE2

LGATE2

EN0

SKIPSEL

GND

VIN

UGATE1 21

BOOT1 22

POK 23

VO1 24

GND PAD

PC159

0.01u_50V_X7R_04

PC164

1u_6.3V_X5R_04

PR202 *0_04

PQ59A

MTDK5S6R

PR190

*680K_1%_04

C419

*15u_25V_6.3*4.4

PD3

CSOD140SH

A C

PR196

20K_1%_04

PC153

2200p_50V_X7R_04

PR182 *0_04

PR184

2_06

PC57

*1000p_50V_X7R_04

PD16

BAT54SS3

M-SOT323D

Schematic Diagrams

1.5V or 1.35V / 0.75VS, 1.5VS B - 43

B.Schematic Diagrams

1.5V or 1.35V / 0.75VS, 1.5VS

Sheet 42 of 58

1.5V or 1.35V /

0.75VS, 1.5VS

A A

B B

C C

D D

1.5V or 1.35V/0.75VS

Short

23A

1.5V or 1.35V

IMAX:23A

OCP:25A

VDDQ_VTT

1.5VS

IMAX:6A

1.35V

ICC_MAX_VDDQ=4.2A

Short

1.5VS

EMI

Z3709

Z3715Z3704

VTTEN

Z3714Z3703

SUSB

Z3707

Z3710 Z3718

Z3702

Z3701

Z3708

Z3711

Z3720

Z3713

VDDQSET

Z3712

Z3716

Z3706

Z3705

Z3717

DDR1.5V_PWRGD

VDDQ

VIN

V_VDDQ_DIMMVDDQ

VDDQ_VTT

3.3V

VIN

1.5VS

3.3V

V1.5S

VDDQ

3.3V

VA40,47

VDD314,20,22,23,24,26,27,28,29,30,31,32,34,35,39,40,41,43,47

VIN13,40,41,43,44,45,46,47

SYS15V40,41,43,45

VDD532,40,41,43

3.3V2,3,13,20,22,24,26,27,28,29,30,31,32,33,34,37,40,45,46

5V31,32,33,38,40,46

1.5VS22,24,27,28,29,30,36

5VS13,22,31,32,35,36,37,40,44,45

3V3_RUN14,15,20,45

VDDQ_VTT9,10,11

DD_ON#32,33,40

SUSC#24,39

DDR1.5V_PWRGD 24

SUSB3,36,40,42,43

V_VDDQ_DIMM3,4,5,9,10,11

SUSB3,36,40,42,43

PCH1.5VS_PWR GD24

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[42]DDR1.5Vor1.35V/0.75VS 1.5VS

Custom

42 58Friday, Januar y 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[42]DDR1.5Vor1.35V/0.75VS 1.5VS

Custom

42 58Friday, Januar y 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[42]DDR1.5Vor1.35V/0.75VS 1.5VS

Custom

42 58Friday, Januar y 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

PR49

*20mil_04

PR217 8.2K_1%_04

PR209 *20mil _04

PR87

280K_1%_04

PC37

1u_10V_Y5V_06

PR215

*10_04

PR210 *0_04

PD19CSOD140SH

A C

PC79

1u_10V_Y5V_06

PQ25

2SK3018S3

PR218 10K_1%_04

PC149

330uF_2.5V_12m_6.6*6.6*4.2

PC155

2200p_50V_X7R_04

PC182

0.1u_10V_X5R_04

PQ14

2SK3018S3

PR223 100K_04

PR5

10K_04

PC170

10u_10V_Y5V_08

PC34

560u_2.5V_6.6*6.6*5.9

PR179 0_04

PC174

*10u_10V_Y5V_08

PR95

0_06

PJ1

*OPEN-5mm

1 2

PR177

100K_04

PR183

5.1_06

PQ15

*2SK3018S3

PC45

0.1u_10V_X7R_04

PR7

10K_1%_04

PC20

4.7u_25V_X5R_08

PR1

20K_1%_04

PQ13

MDU1516

ULTRASO-8

PC183

1u_6.3V_X5R_04

PL12

1.0UH_BCIHP1040-1R0M_11.5*10.2*3

1 2

PQ60

MDU1512

ULTRASO-8

PC3

0.1u_50V_Y5V_06

PR81

*10K_04

PC188

*1000p_50V_X7R_04

PR178 0_04

PR88

19.1K_1%_04

PU8

G5616

VTTGND

VLDOIN

VTT

VTTSNS

GND

MODE

VTTREF

5VCC5 14

PGOOD 13

S5 11

S3 10

VDDQSET

VDDQSNS

COMP

CS 16

PGND 18

DRVL 19

LL 20

DRVH 21

VBST 22

PVCC5 15

CS_GND 17

GND

PR212

10K_04

PC80

*4.7u_25V_X5R_08

PR219 47K_04

PC1

*100P_50V_NPO_04

PC25

2200p_50V_X7R_04

PJ30

*CV-40mil

PC50

4.7u_25V_X5R_08

PJ7

*OPEN-2mm

PR214 *20mil _04

PR79

10_06

PR208 2_06

PR50

0_04

PC47

0.1u_50V_Y5V_06

PC184

*1000p_50V_X7R_04

PC94

*4.7u_25V_X5R_08

PR21

2.2_06

PQ65

*2SK3018S3

PQ62

*MDU1512

ULTRASO-8

PR52 *22_04

PR2 10K_04

PC212

22u_6.3V_X5R_06

PC48

4.7u_25V_X5R_08

PQ68

2SK3018S3

PL1

BCIHP0730-1R0M

1 2

PR51 10K_04

PR211 *0_04

PC93

0.1u_50V_Y5V_06

PC171 0.1u_10V_X5R_04

PC186

0.1u_10V_X7R_04

PC55

22u_6.3V_X5R_08

PC6

1u_10V_Y5V_06

PR203 *20mil _04

PC175

*10u_10V_Y5V_08

PR205

*20mil_04

PR204 6.19K_1%_06

PQ57

2N3904

E C

PR44

0_04

PC46

0.1u_10V_X7R_04

PJ5

*OPEN-10mm

1 2

PC17

4.7u_25V_X5R_08

PQ24

MTN7002ZHS3

PR175

100K_04

PC18

0.1u_50V_Y5V_06

PC177

1u_6.3V_X5R_04

PQ67

2SK3018S3

PC185

0.1u_10V_X7R_04

PD20

RB0540S2

A C

PR83

0_06

PR216 *10K_1%_04

PU1

G5310QNIU

VIN 19

AGND

VIN 20

EN_SKIP

BST 22

VCC

TON

24 VIN 18

VDD

3VIN 31

LX 6

PGOOD

ILIM

LX 7

LX 8

LX 9

LX 10

PGND 11

PGND 12

PGND 13

PGND 14

PGND 15

PGND 16

AGND

PGND 4

LX 5

OUT 25

FB 27

NC 21

LX 30

VIN 17

PR176

100_04

PC49

0.1u_50V_Y5V_06

Schematic Diagrams

B - 44 1.05VS, 1.05V_M, 1.05V_LAN_M

B.Schematic Diagrams

1.05VS, 1.05V_M, 1.05V_LAN_M

Sheet 43 of 58

1.05VS,1.05V_M,

1.05V_LAN_M

D D

C C

B B

A A

VTT_SELECT VTT VR Output Voltages

low 1.1 V

high (V1.1S_VTT) 1.05 V

10A

1.05VS

NMOS

1.05VM

18A

For CV test

Short

P/N 6-06-05822-061

Stanley 3/14

NO STUFF

Short

NO STUFF

Short

1.05VS_VTT_EN2

1.05VM_EN

1.05VM_LO

SLP_A

Z3501

1.05V_LAN_M_EN1.05V_LAN_M_EN

1.05V_LAN_PW RGD

1.05V_LAN_M

SYS15V

1.05VS

SYS15V

1.05V_LAN_M 1.05VM

VDD5

VIN

VDD5

VDD3

1.05V_LAN_M

VDD3

V1.05

VDD3

1.05V_LAN_M3,5,28,29,45

VDD532,40,41

VIN13,40,41,42,44,45,46,47

VDD314,20,22,23,24,26,27,28,29,30,31,32,34,35,39,40,41,47

1.05VM29,43

SYS15V40,41,45

5V31,32,33,38,40,42,46

SUSB 3,36,40,42

SLP_A40

1.05V_LAN_PW RGD24

SUSB#24,39,40

PM_SLP_LAN#24,40

1.05VM29,43

1.05VM_PWRGD 24

1.05VS28,29,44

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[43]1.05VS,1.05V_M,1.05V_LAN_M

43 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[43]1.05VS,1.05V_M,1.05V_LAN_M

43 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[43]1.05VS,1.05V_M,1.05V_LAN_M

43 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

PJ14 *OPEN-1mm

1 2

PC122

*0.01u_16V_X7R_04

PR167

*1M_04

PQ53B

*MTDN7002ZHS6R

PJ19

*OPEN-2mm

1 2

PL11

BCIH1030HC-R56M

1 2

PQ38

MDS1526URH

PR142

0_06

PC145

*0.1u_10V_X7R_04

PQ49

*2SK3018S3

C776

22u_6.3V_X5R_08

PR170

*1M_04

PQ40

*MDS1521

PJ18

*OPEN_8A

1 2

PQ47

MDS1521URH

PC141

*470p_50V_X7R_04

PQ53A

*MTDN7002ZHS6R

C777

22u_6.3V_X5R_08

PC129

0.1u_10V_X7R_04

PQ51

*MTN2604G6

2 4

PU6

G5602R41U

VOUT

EN_PSV

TON

VCC

VFB

PGOOD

AGND

BST 13

DH 12

LX 11

ILIM 10

VDD 9

DL 8

PGND 7

PGND 17

PC123

4.7u_25V_X5R_08

PJ21

*OPEN-10mm

1 2

PC135 *15p_50V_NPO_04

PC124

4.7u_25V_X5R_08

C778

*22u_6.3V_X5R_08

PJ15 *CV-40mil

1 2

PQ54

2N3904

E C

PR145

2.2_04

PC136

1u_6.3V_X5R_04

PQ50

*2SK3018S3

PR173

10K_04

C779

*22u_6.3V_X5R_08

PR172

*100_04

PR154

100K_1%_04

PR137 100K_04

PR171

100K_04

PR150

3.6K_1%_04

PC125

0.1u_50V_Y5V_06

PR168

0_04

PC142

0.1u_10V_X7R_04

PC130

1u_6.3V_X5R_04

PQ52

*MDU1512

D S

PR138 820K_1%_06

PR158 44.2K_1%_04

PC126

0.1u_50V_Y5V_06

PC144

*10u_10V_Y5V_08

PD15

FM5822

A C

PR169

*100_04

PC140

330uF_2.5V_12m_6.6*6.6*4.2

PJ13 *OPEN-1mm

1 2

PC143

*2200p_50V_X7R_04

PR159 47K_04

Schematic Diagrams

Power V-Core B - 45

B.Schematic Diagrams

Power V-Core

Sheet 44 of 58

Power V-Core

D D

C C

B B

A A

ASM for 1 phase ASM for 2 phase

PUT COLSE

TO VCORE

HOT SPOT

1.05mohm

ROSC(ohm)

FSW(Hz)

49.9K

34.8K

325K

450K

H_CPU_SVIDALRT#

H_CPU_SVIDCLK

H_CPU_SVIDDAT

PUT COLSE

TO VCORE

Phase 1

Inductor

EMI Require

EMI

SWN1

CSREF

CSP1

CSREF

SWN3CSP3

CSP3 CSP2

TSENSE

VR_HOT#

CSREF

VR_EN

HG3

TSENSE

CSSUM

CSCOMP

SWN1

SWN3

CSP3

CSP1

VR_HOT#

H_CPU_SVIDDAT

H_CPU_SVIDALRT#

H_CPU_SVIDCLK

DELAY_PWRGD

LG1

HG1

SW1

SWN1

LG3

SW3

SWN3

VR_EN

CSP2

5VS 5VS

1.05VS

3.3VS

+VCCIN

5VS

VIN

5VS

1.05VS

+VCCIN

VIN

3.3VS

VIN13,40,41,42,43,45,46,47

3.3VS3,6,9,10,11,12,13,22,23,24,25,26,28,29,30,31,32,34,35,36,37,39,40,45

1.05V_LAN_M3,5,28,29,43,45

5VS13,22,31,32,35,36,37,40,45

+VCCIN5,8

H_PROCHOT#3

DELAY_PWRGD24

ALL_SYS_PWRGD13,24,39

VCORE_VCC_SENSE5

VCORE_VSS_SENSE5

H_CPU_SVIDALRT#5

H_CPU_SVIDDAT5

H_CPU_SVIDCLK5

1.05VS28,29,43

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[44]V-CORE

Custom

44 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[44]V-CORE

Custom

44 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[44]V-CORE

Custom

44 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

PR93 6.98K_1%_04

PR17 0_04

PR111 30.1K_1%_04

PQ9

MDU1516

ULTRASO-8

PC21

470p_50V_X7R_04

PJ2

*CV-40mil

PC213

*100p_50V_NPO_04

PR92

5.1_06

PR16 2.2_04

PC91

0.047u_10V_X7R_04

PC97

2200p_50V_X7R_04

PC102 0.22u_10V_X5R_04

PC27 2.2u_6.3V_X5R_04

PR46

100K_04

PR141

32.4K_1%_04

PC99

2200p_50V_X7R_04

PR94

*20K_04

PC26

470p_50V_X7R_04

PC107

0.01u_50V_X7R_04

PC15

15u_25V_6.3*4.4

PR45 100K_04

PR15

46.4K_1%_06

PC9

0.1u_50V_Y5V_06

PC96

0.047u_10V_X7R_04

PC13

4.7u_25V_X5R_08

PR31 1K_04

PR133 *15mil_06

PQ7

MDU1516

ULTRASO-8

PD11

FM5822

A C

PC201

0.1u_10V_X7R_04

PR43

*10K_04

PR22

6.8K_1%_04

PQ29

MDU1512

ULTRASO-8

PR13

13.3K_1%-04

PR42

54.9_1%_04

PU3

NCP81103MNTXG

VRHOT#

SDIO

ALERT#

ROSC

SCLK

CSCOMP 27

CSP3 24

CSREF 25

CSSUM 26

PVCC 15

BST3 19

HG3 18

SW3 17

LG3 16

PGND 14

COMP

VSP

DIFFOUT

CSP1 22

VRMP

VR_RDY

DRON 21

VSN

LG1 13

SW1 12

VCC

IOUT

HG1 11

CSP2 23

TSENSE

ILIM

PWM2/IMAX 20

BST1 10

VBOOT

GND

PR11

165K_1%_04

PC103

1000p_50V_X7R_04

PQ8

MDU1516

ULTRASO-8

PQ27

MDU1512

ULTRASO-8

PR36 0_04

PQ28

MDU1512

ULTRASO-8

PR112

1K_04

PC33

1000p_50V_X7R_04

PR85 6.98K_1%_04

PL8

BCIH1040-R36M

1 2

PQ6

MDU1516

ULTRASO-8

PR40

130_1%_04

PL9

BCIH1040-R36M

1 2

PC30 0.22u_10V_X5R_04

PR114 *20mil_04

PR108

2K_1%_04

PR144

75K_1%_04

PC28 3900p_50V_X7R_04

PC10

4.7u_25V_X5R_08

PC11

4.7u_25V_X5R_08

PC19 1200p_50V_X7R_04

PR120

45.3K_1%_04

PR39

*75_1%_04

PC32

EWH1EM221E12OT

PR41

*75_1%_04

PR33 0_04

PC23

10p_50V_NPO_04

PR139

10_04

PR129

2.2_06

PR14

*2K_1%_04

PR37 2_06

PC12

0.1u_50V_Y5V_06

PR132

10_04

PQ30

MDU1512

ULTRASO-8

PR105 2_06

PC41

EWH1EM221E12OT

PR9 150K_1%_06

PC214

100p_50V_NPO_04

PC43

330uF_2.5V_12m_6.6*6.6*4.2

PR24 1K_04

PR38

0_04

PR121

34.8K_1%_04

PR27

49.9_1%_04

PC114

2.2u_6.3V_X5R_04

PR122 *15mil_06

RT2

100K_1%_NTC_06

1 2

PR86

*20K_04

PR10 150K_1%_06

PC38

330uF_2.5V_12m_6.6*6.6*4.2

PD12

FM5822

A C

PR32

2.2_04

PC14

4.7u_25V_X5R_08

RT3 100K_1%_NTC_06

PC119

0.1u_10V_X7R_04

PC105

0.1u_10V_X7R_04

PR91

5.1_06

Schematic Diagrams

B - 46 VGA NVVDD, PEX_VDD

B.Schematic Diagrams

VGA NVVDD, PEX_VDD

Sheet 45 of 58

VGA NVVDD,

PEX_VDD

D D

C C

B B

A A

[45] N14E-GE,NVVDD,PEX_VDD

NMOS

3V3_RUN

VGA__NVVDD

35A

NVVDD FOR VGA

18A

PEX_VDD

1.05V@4A

NMOS

250 MIL

EMI

N14x GC6 1.0

N15x GC6 2.0

NMOS

3V3_AON

N15x GC6 2.0

1112

N15x GC6 2.0

1227

N15x GC6 2.0

1216

N14x GC6 1.01119

N14x GC6 1.0

0107

0110

VIN_GPU

UP1462_FBDRTN

1642_DGPU_ON

GPU_PWROK

PVCC_UPI_1642UP1462_FBDRTN

GPU_HOT#

UGATE2_UPI_1642

PVCC_UPI_1642

HDR1_UPI_1642

UP1462_REFIN

UP1462_VREF

NV_VDD

3V3RUN_PWR_EN

UP1462_FBDRTN

UP1462_REFIN

NV_VDD

UP1462_VREF

BST2_UPI

PEXVDD_PWR_EN

UGATE2_UPI_1642

LX2_UPI_1642

LX1_UPI_1642

GPU_3V3_MAIN_EN#

3V3AON_PWR_EN

3V3_MAIN_EN#

GPU_3V3_MAIN_EN#

GPU_3V3_EN#

3V3_MAIN_EN#

3V3_RUN

VIN_GPU

NVVDD

3V3_RUN

5VS

VIN

3.3VS3.3VS

VIN

3.3VS

3.3V

3V3_RUN

SYS15V

SYS15V 1.05V_LAN_M

PEX_VDD

3.3V

3V3_AON

SYS15V

3.3V

NVVDD_PSI 20

PS1_VDD_SENSE14

PS1_GND_SENSE14

GPU_PWR_VID20

dGPU_PWR_EN# 25,39,45

GPIO6_VBOOT_ADJ20,39

dGPU_PWR_EN# 25,39,45

1.05V_LAN_M3,5,28,29,43

1.5VS22,24,27,28,29,30,36,42

3.3V2,3,13,20,22,24,26,27,28,29,30,31,32,33,34,37,40,42,46

5VS13,22,31,32,35,36,37,40,44

VIN13,40,41,42,43,44,46,47

NVVDD21

3.3VS3,6,9,10,11,12,13,22,23,24,25,26,28,29,30,31,32,34,35,36,37,39,40,44

3V3_RUN14,15,20

SYS15V40,41,43

FBVDDQ15,16,17,18,19,46

PEX_VDD14,15

1642_DGPU_ON 20,46

3V3_MAIN_EN20,45,46

GPU_PWROK 14,26,46

3V3_MAIN_EN20,45,46

dGPU_PWR_EN#25,39,45

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

Custom

45 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

Custom

45 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

Custom

45 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

PC108

*0.01u_50V_X7R_04

PC117

0.22u_50V_08 PJ3

*OPEN-10mm

1 2

PR100

14K_1%_04

PJ12

*5mm

1 2

PC36 330uF_2.5V_12m_6.6*6.6*4.2

PQ11

*2SK3018S3

PR12

5.1_06

PR103

2.2_04

PC139

4.7u_6.3V_X5R_06

PQ88A

MTDN7002ZHS6R

PR110

0_04

PR174

1M_04

PR26

10K_1%_04

PQ55

MDU1512

6 2

7 3

PQ1

CSD87350Q5D

PC22

1u_16V_X5R_06

PR29

18K_1%_04

PC112

1u_6.3V_X5R_04

PC39 330uF_2.5V_12m_6.6*6.6*4.2

PR165

1M_04

PQ88B

MTDN7002ZHS6R

PQ48A

MTNN20N03Q8

PC820.1u_50V_Y5V_06

PD2

FM5822

A C

PR48

10_04

PC104

33p_50V_NPO_04

PR102

15.8K_1%_04

PR136

10K_04

PC217

4.7u_6.3V_X5R_06

PR119

20K_1%_04

PC16

15u_25V_6.3*4.4

PR162

100_04

PC95

*0.1u_10V_X5R_04

PD1

FM5822

A C

PC120

0.1u_10V_X7R_04

PJ34 OPEN_2A

1 2

PC904.7u_25V_X5R_08

PR511 *0_04

PC146

0.1u_10V_X7R_04

PR28 *10K_04

PR35 *1.05K_1%_04

PR127

2K_1%_04

PR19

*0_04

PR99 10K_04

PC2150.1u_50V_Y5V_06

PR107

0_04

PR34

100K_1%_06

PQ41

MTN7002ZHS3

PC101

0.22u_50V_Y5V_06

PQ2

CSD87350Q5D

PR502 *0_04

PR30

5.1K_1%_04

PQ3

CSD87350Q5D

PQ4

CSD87350Q5D

PR20

*1K_1%_04

PC5

2200p_50V_X7R_04

PJ22 OPEN_2A

1 2

PR512 0_04

PC29

*0.01u_16V_X7R_04

PR124 2.2_04

PQ86

MTN7002ZHS3

PR507 *0_04

PC98

4700p_50V_X7R_04

PQ36

MTN7002ZHS3

PC35

EWH1EM221E12OT

PC134 330uF_2.5V_12m_6.6*6.6*4.2

PC118

*47p_50V_NPO_04

PC834.7u_25V_X5R_08

PC40 0.1u_10V_X7R_04

PC854.7u_25V_X5R_08

PR135

*0_04

PR113

82K_1%_04

PR109

2.2_04

PR101

5.1_06

PJ4

40mil

PC216

0.1u_10V_X7R_04

PR18

5.6K_1%_04

PC100

*0.01u_16V_X7R_04

PR98

10K_04

PC894.7u_25V_X5R_08

PR106

0_04

PC92

2200p_50V_X7R_04

PR126 20K_1%_04

RT1

100K_NTC_06_A

PR25

*1K_04

PU5

UP1642P

REFIN

VREF

TON

COMP

EN 3

VID 5

GND/PWM3 22

PVCC 21

PSI 4

LGATE2 20

PHASE1 24

GND

FBDRTN

LGATE1 23

REFADJ 6

BOOST1 1

UGATE1 2

TSNS/ISEN3

TALERT/ISNE2

DSBL/ISNE1

PGOOD

UGATE2

BOOT2

PHASE2 19

PR505 0_04

PQ12B

MTDN7002ZHS6R

PQ87

MDS1521URH

6 2

7 3

PL4

BCIH1338HC-R22M

1 2

PQ12A

MTDN7002ZHS6R

PR104

1K_1%_04

PR504 0_04

PR125

0_04 PR131 0_04

PR123 2.2_04

PR500

1M_04

PR164 100_04

PR134

*10K_04

PC148

4700p_50V_X7R_04

PR499 10K_04

PQ10

2SK3018S3

PR160

100_04

PC874.7u_25V_X5R_08

PL3

BCIH1338HC-R22M

1 2

PC218

*100p_50V_X7R_04

PQ48B

MTNN20N03Q8

PC106

0.1u_10V_X5R_04

PC116

2700p_50V_X7R_04

PR503 0_04

PC133 330uF_2.5V_12m_6.6*6.6*4.2

PR128

*1K_04

PC138

1000p_50V_X7R_04

PC844.7u_25V_X5R_08

PC147

10u_10V_Y5V_08

PC864.7u_25V_X5R_08

PC44

*0.1U_10V_X5R_04

PC810.1u_50V_Y5V_06

PR501

100_04

PR97 2.2_04

PR116

0_04

PC884.7u_25V_X5R_08

Schematic Diagrams

FBVDDQ B - 47

B.Schematic Diagrams

FBVDDQ

Sheet 46 of 58

FBVDDQ

D D

C C

B B

A A

Short

18A

P/N 6-06-05822-061

Stanley 3/14

1.35VS

IMAX:18A

FOR GDDR3 1.35VS

1112 GC6 2.0

N15x 1216

GC6 2.01227

FBVDDQ

FBVDDQ_S

VIN

3.3V

GPIO_FB_CLAMP15,20,39

5V31,32,33,38,40,42

3.3V2,3,13,20,22,24,26,27,28,29,30,31,32,33,34,37,40,42,45

VIN13,40,41,42,43,44,45,47

FBVDDQ15,16,17,18,19

1642_DGPU_ON20,45

3V3_MAIN_EN20,45

GC6_FB_EN20,26

GPU_PWROK14,26,45

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[46]FBVDDQ

46 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[46]FBVDDQ

46 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[46]FBVDDQ

46 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

PR237

3.6K_1%_04

PR486

0_04

PR238

100K_1%_04

PL16 1.0UH_10*10*4.5

1 2

PR239

0_04

C772

22u_6.3V_X5R_08

PR506 *0_04

PC210

0.1u_10V_X7R_04

PR240 820K_1%_06

PC211 *15p_50V_NPO_04

PC202

0.1u_50V_Y5V_06

PD21

FM5822

A C

PR510 0_04

PR241 10K_04

PQ72

MDV1526

C773

22u_6.3V_X5R_08

PR147

0_06

PC205

4.7u_25V_X5R_08

U13

74AHC1G32GW

GND

Vcc 5

PR23

5.1_06

PC203

*0.01u_16V_X7R_04

PR489 *0_04

C774

*22u_6.3V_X5R_08

PR245 0_04

PC206

1u_6.3V_X5R_04 PC7

220p_50V_NPO_04

PQ79

*MTN7002ZHS3

PR508 0_04

PR242 100K_04

PC209 330uF_2.5V_12m_6.6*6.6*4.2

PJ16

*OPEN-5mm

1 2

C775

*22u_6.3V_X5R_08

PC207

0.1u_50V_Y5V_06

PU10

G5602R41U

VOUT

EN_PSV

TON

VCC

VFB

PGOOD

AGND

BST 13

DH 12

LX 11

ILIM 10

VDD 9

DL 8

PGND 7

PGND 17

PC208

1u_6.3V_X5R_04

PR236

2.2_04

PQ80

MDU1512

ULTRASO-8

PR509 *0_04

PC204

4.7u_25V_X5R_08

PR243 84.5K

Schematic Diagrams

B - 48 AC-In, Charger

B.Schematic Diagrams

AC-In, Charger

Sheet 47 of 58

AC-In, Charger

D D

C C

B B

A A

OZ8681 : 6-02-08681-CQ0

OZ8681LN-E : 6-02-08681-CQ1

月役

JBATTA2

6-15-32023-7B0

BAT DET(BATTERY INTERNAL) :

2S / 10K / NT1908

3S / 2K

4S / 390

3S/2800mAH / 4.02K

4S/2800mAH /7.15K

2S / 5K / NT1912

EMI

SMART CHARGER

6-20-B3470-103 2DC-G213-B49

6-20-B34A0-103 JK06045BAF289

HI---Battery in Charge

Low---Battery remove no charge

EC GPIO PD pin

R709,R710

月役

PU4

㒢㓦

EC GPIO (PD) pin; Hi --

Pmosfet open;

Low----Pmosfet turn on

Short

1216

IAC M

V_BAT

Z4107Z4107

Z4108

VA1

V_BATV_BAT

IAC P COMP_PU12

LDR

Z4106

Z4109

AC_INAC_IN

VAC

AC AV

HDR_R

HDR

BST

Z4110

Z4111

VDDPVDDP

Z4105

ICHM

SMC_BAT_R

VDDA_OZ

Z4104Z4104

ICHP

IAC 1

Z4101

Z4103

Z4102

BAT_DET

SMD_BAT_R

SMC_BAT_R

BAT_DET

SMD_BAT_R

SMC_BAT_R

BAT_VOLT

SMD_BAT_R

VDD3

VIN

VDD3

VJACK VA

VJACK

BAT_VOLT 39

BAT_DET39

TOTAL_CUR 39

SMD_BAT 39

AC_IN# 39

PMOSFET_CONTROL#39

SMC_BAT 39

AC_IN 41

VDD314,20,22,23,24,26,27,28,29,30,31,32,34,35,39,40,41,43

VIN13,40,41,42,43,44,45,46

VA40

SYS15V40,41,43,45

LOT6_CHG39

CHG_JAP39

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[47] ACIN,CHARGER(Smart Charge)

Custom

47 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[47] ACIN,CHARGER(Smart Charge)

Custom

47 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S50-D02A

1.0

[47] ACIN,CHARGER(Smart Charge)

Custom

47 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

PR74 10K_04

PR498

*100K_04

PR66 *20mil_04

PR75

100K_04

PR72 1.5K_04

PR117 10_04

PR67 *20mil_04

PC77

*1u_25V_Y5V_08

PR118 10_04

PR69 100K_04

PL18

PD25

RB0540S2

A C

PC131

0.1u_50V_Y5V_06

PR73 1.5K_04

PD10 MDL914S2

PD13

RB0540S2

A C

PR149

*470K_04

PR495

*20K_1%_04

PR231 10_04

PC67 *4.7u_25V_X5R_08

PR233

0.01_1%_32

PR230 10_04

PQ82

MTN7002ZHS3

PD9

BAV99 RECTIFIER

PR497

*10K_04

PQ71B

EMB17A03V

PC198

4.7u_25V_X5R_08

PR490 330_04

PC72

30p_50V_NPO_04

PC192

4.7u_25V_X5R_08

J_DC-JACK1

2DC-G213-B49

GND2

GND1

GND4

GND3

PC70

30p_50V_NPO_04

PR71

0_04

PR491 330_04

PR65

300K_1%_04

PD28

*ZD5245BS2

A C

PC197

4.7u_25V_X5R_08

PR76

24K_1%_04

PC76

1u_25V_Y5V_08

PR493

*100K_04

PD7

BAV99 RECTIFIER

PC71

30p_50V_NPO_04

PD26

*PDZ6.5B

A C

PC63

*0.1u_16V_Y5V_04

PC66 *4.7u_25V_X5R_08

PR228 *20mil_04

PR143

100K_04

PC65

1000p_50V_X7R_04

PR166 0_04

PD8

BAV99 RECTIFIER

PC68

0.47u_10V_Y5V_04

PQ85

*MTN7002ZHS3

PR130

0.01_1%_32

PR78

100_04

PC115

*0.1u_50V_Y5V_06

J_BATTA1

C144KR-107A8-L

PC199 4.7u_25V_X5R_08

PR483 *0_06

PC111 4.7u_25V_X5R_08

PQ44

DTC114EUA

PC69

0.1u_50V_Y5V_06

PQ45

2SK3018S3

PC73

47p_50V_NPO_04

PQ83

*EMB20P03V

PC194

2200p_50V_X7R_04

PQ23

2SK3018S3

PR68

100K_04

PR161

47K_04

PQ21

MTP3J15N3

PU4

OZ8681-E

LDR

BST

VAC

VDDP

IACM

VDDA 6

SDA 11

ICHP 5

ICHM 4

COMP 8

HDR 13

BASE

SCL 10

IAC 7

IACP

ACAV

PR148

15K_04

PR77 10_04

PC110

*0.1u_50V_Y5V_06

PR234

0_06

PR232

2_06

PD22

*RB0540S2

A C

PC191

4.7u_25V_X5R_08

PR115

20K_04

PC75

1u_16V_X5R_06

PR163

*0_04

PR484

300K_1%_04

PR492

*100K_04

PC113 4.7u_25V_X5R_08

PR494

*10K_04

PL15

8.2UH_6.8*7.3*3

PQ70

ME4425

PC74

1u_16V_X5R_06

PQ5

ME4425

6 2

7 3

PR229

470K_04

PR64

60.4K_1%_04

PD23

RB0540S2

A C

PC64 4.7u_25V_X5R_08

PQ35

ME4425

6 2

7 3

PL5 HCB1005KF-121T20

PC200 4.7u_25V_X5R_08

PQ84

*2N3904

E C

PL7 HCB1005KF-121T20

PD14

ZD5245BS2

PC196 0.1u_50V_Y5V_06

PC127 4.7u_25V_X5R_08

PD27

*PDZ6.5B

A C

PJ33

*OPEN-3mm

PQ81

MTN3403

PQ73

ME4425

PR155

10_04

PL6 HCB1005KF-121T20

PC78

*1u_25V_Y5V_08

PR235

*15mil_06

PQ71A

EMB17A03V

PD24

RB0540S2

A C

PL17

PC109

4700p_50V_X7R_04

PC193

4700p_50V_X7R_04

PR496

*20K_1%_04

PR485

100K_1%_04

Schematic Diagrams

W370SS/W350SSQ Audio Board B - 49

B.Schematic Diagrams

W370SS/W350SSQ Audio Board

Sheet 48 of 58

W370SS/W35XSSQ

Audio Board

D D

C C

B B

A A

HEADPHONE

MIC IN

BLACK

SPDIF OUT

BLACK

60 mil

Headphone妲嘇䶂⮔ > 10mils

嶅暊phone jack崲怈

䶂⼹⯙⽭枰崲⮔

R/L⽭枰⊭央GNDᶼ攻嶅䁢3*䶂⮔

Layout note:

Resistor 32 or 33_04

meet WLK Test

VT1802P

75_04

GND

3*R/L

䶂⮔

HP-L GND

HP-R

USB PORT(PORT9)

60 mil

AUDIO BOARD

CO-Ray

DIFF USB8P&Nグ䞕グ⤥

嬲㚜

M-MSOP8

⊭墅

Main 6-21-B49C0-104 US04036BCA081

Second 6-21-B49E0-104 UAR48-041FN2V

Third 6-21-B49D0-104 317DE04PSA7A2C

6-20-B2800-106 2SJ-T351-S23

6-02-06288-921

6-02-54728-920

6-02-03518-921

6-02-75348-921

6-19-31001-245

6-19-31001-271

6-19-31001-246

6-19-31001-261

6-11-22711-AB7

6-11-22711-0B0

6-11-22711-AB8

6-20-94K20-120

1216

SV3H612

SV3H615

AR7 AR8

ᶵᶲẞ

ᶵᶲẞᶲẞ

ᶲẞ

AR9 AR10

ᶵᶲẞ

ᶵᶲẞᶲẞ ᶲẞ

AC18 AC19

ᶵᶲẞ

ᶲẞ ᶲẞ

AMIC_SENSE

AHP_SENSE

AHEADPHONE-R_R

AMIC1-L

AMIC1-R

MIC_PIN6

AHEADPHONE-R-R

AHEADPHONE-L-R

ASPDIFO-RASPDIFO

SPDIF_PIN 4

ASPDIFO_R

SPDIF_PIN 6

SPDIF_PIN 5

AMIC1-R_R

AMIC1-L_R

AHEADPHONE-L_R

AUSB_PN9_R

AUSB_PP9_R

AUSB_PN9

AUSB_PP9

AMIC_SENSE

AHEADPHONE-R

AHEADPHONE-L

AUSB_PP9

AHP_SENSE

AUSB_PN9

AMIC1-R

AMIC1-L

ASPDIFO

AHP_AMP_SGND

AHEADPHONE-R

AHEADPHONE-L

AHP_AMP_SGND

AGND

A_AUDG

AGND AGND

AGND

A_5V

A_USBVCC

AGND

A_USBVCC

A_USBVCC2

AGND

A_5V

AGND

A_AUDG

AGND

A_AUDG

A_5V

A_AUDG

AGND A_AUDG

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S58-D02

1.0

[48] W370SS/W35xSSQ AUDIO BOARD

48 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S58-D02

1.0

[48] W370SS/W35xSSQ AUDIO BOARD

48 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W3S58-D02

1.0

[48] W370SS/W35xSSQ AUDIO BOARD

48 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

AC4

100p_50V_NPO_04

AD1

*BAV99

AR2

*1K_04

6AR *0_04 AD2

V15AVLC0402

1 2

AJ_AUD1

87151-2007G

NC1

NC2

AC17

22u_6.3V_X5R_08

AR9 0_04

AL5 FCM1005KF-102T02

AH2

MTH7_0D2_8

5 6

AL4 FCM1005KF-121T03

AR7 *0_04

AU1

SY6288DCAC

VOUT1 6

VOUT3 8

VIN2

VIN1

2VOUT2 7

GND 1

EN#

FLG#

AC11

10u_10V_Y5V_08

AR10 0_04

AJ_MIC1

2SJ-T351-S23

AR3

220_04

AC13

*0.1u_10V_X5R_04

AC10

0.01u_50V_X7R_04

AL3 FCM1005KF-121T03

AC1

100p_50V_NPO_04

AC19 *470u_6.3V_ESR35M

AJ_SPDIF1

2SJ-T351-S23

AL7 *WCM2012F2S-161T03-short

AC2

100p_50V_NPO_04

AC14

0.1u_10V_X7R_04

AC12

*22u_6.3V_X5R_08

AJ_USB1

US04036BCA081

V+

GND1

DATA_L

DATA_H

GND

GND2

1AR *0_04

AH4

H7_0D2_8

AC18 *470u_6.3V_ESR35M

AH1

C87D87N

AL2 FCM1005KF-121T03

AR1

*1K_04

AC15

220u_6.3V_6.3*6.3*4.2

2AR *0_04

AC7 0.1u_10V_X7R_04

AR5 75_04

AC3

1000p_50V_X7R_04

AR8 0_04

AL1 FCM1005KF-121T03

AC8 0.1u_10V_X7R_04

AC5

100p_50V_NPO_04

AC16

0.1u_10V_X7R_04

3AR *0_04

AC9 0.1u_10V_X7R_04

AH3

C87D87N

4AR *0_04

AJ_HP1

2SJ-T351-S23

AC6 0.1u_10V_X7R_04

AR6 75_04

5AR *0_04

AR4 *10K_04

Schematic Diagrams

B - 50 W370SS/W35XSSQ Power LED Board

B.Schematic Diagrams

W370SS/W35XSSQ Power LED Board

Sheet 49 of 58

W370SS/W35XSSQ

Power LED Board

D D

C C

B B

A A

W370SS/W35xSSQ POWERLED BOARD

LED

NUM LOCK

LED

Green Yellow

SCROLL

LOCK LED

CAPS LOCK

LED

AC IN/POWER ON LED

BAT CHARGE/FULL LED

6-20-94K30-110

6-52-52001-027

Green Yellow Green Yellow

6-52-55002-04E

1206

L_LED_NUM# L_LED_SCROLL#L_LED_CAP#

L_LED_PW R

L_LED_BAT_CHG

L_LED_ACIN

L_LED_BAT_FULL

L_LED_BAT_CHG

L_LED_SCROLL#

L_LED_ACIN

L_LED_CAP#

L_LED_NUM#

L_LED_PW R

L3.3VS L3.3VSL3.3VS

L3.3VS

LGND

LGNDLGND LGNDLGND

Title

Size Document Number Rev

Date: Sheet of

6-71-W35S4-D01

1.0

[49] W370SS/W35xSSQ POWERLED BOARD

49 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W35S4-D01

1.0

[49] W370SS/W35xSSQ POWERLED BOARD

49 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W35S4-D01

1.0

[49] W370SS/W35xSSQ POWERLED BOARD

49 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

LH4

MTH6_0D2_3

5 6

LR4 220_04

LJ_LED1

*88486-1001

LD4

RY-SP155HYYG4-1

LR5 220_04

LH3

C71D71N

LR1

220_04

2LR *0_04

LH2

C71D71N

LD1

RY-SP170YG34-5M

1LR *0_04

3LR *0_04

LD2

RY-SP170YG34-5M

LR7 220_04

LR3

220_04

LR2

220_04

LD5

RY-SP155HYYG4-1

LR6 220_04

LD3

RY-SP170YG34-5M

LH1

MTH6_0D2_3

5 6

Schematic Diagrams

W370SS/W35XSSQ Click Board B - 51

B.Schematic Diagrams

W370SS/W35XSSQ Click Board

Sheet 50 of 58

W370SS/W35XSSQ

Click Board

D D

C C

B B

A A

It is strongly recommended that the TESD_GND has

a dedicated connection to the system chassis or

cable shield.

W35xSSQ & W370SS CLICK BOARD

6-21-91A00-106

⬷农

TJ_FP1

RIGHT

KEY

CSW1~2

LIFT

KEY

6-20-94K30-110

⬷农

6-20-94K20-120

RIGHT

KEY

CSW1~2

LIFT

KEY

W370SS/W355SSQ

W350SSQ

FOR ESD,

月役

Finger Printer

㒢㓦

⃰ᶲẞ

嬻

EMI

䡢娵㗗⏎⎗䦣昌

W35xSSQ FINGERPRINT

NOTE: MODE

MODE=HIGH (NC) , USB MODE

MODE=LOW , SPI MODE

NOTE: CLK_SEL

CLK_SEL=HIGH (NC) , FREQ=12MHz Crystal

CLK_SEL=LOW , FREQ=48MHz OSC

CLOSE TO SENSOR POWER PIN

FOR ESD,

月役

FFC CONNECTOR

㒢㓦

⃰ᶲẞ

嬻

EMI

䡢娵㗗⏎⎗䦣昌

CTPBUTTON_L

TGTP_CLK

TGTP_DATA

CTPBUTTON_R

CTPBUTTON_LCTPBUTTON_R

TUSB_PP10

TUSB_PN10

T_LED_BAT_FULL

T_LED_BAT_CHG

T_LED_SCROLL#

T_LED_ACIN

T_LED_CAP#

T_LED_NUM#

T_LED_PWR

T_LED_BAT_FULL

T_LED_BAT_CHG

T_LED_ACIN

T_LED_CAP#

T_LED_NUM#

T_LED_SCROLL#

T_LED_PW R

TGTP_CLK

TGTP_DATA

CTPBUTTON_LCTPBUTTON_R

T_EGNDT_SGND

T_RST_N

TUSB_PP1

T_EGND

T_XINT_XOUT

T_SGND

T_EGND

T_SGND

TUSB_PP1

TUSB_PN1

TMCS

TMCK

TMOSI TMISO

T_XOUT

T_XIN

TUSB_PP10

TUSB_PN10

TUSB_PN10TUSB_PP10

TMCS

TMCK

TMISO

TMOSI

T_WP#

T_HOLD#

T3.3VS

TGND

T+5VS T+5VS

TGND TGND TGND

TGND

T3.3VS

TGND

TGND TGND

TGND

T3.3VS

TGNDTGND

T3.3VS

T3.3VS T3.3VS

T3.3VS

TGND

T2.5V

T3.3VS

TGND

T3.3VS

TGND

TGND TGND TGND TGNDTGND TGND

TGND

T3.3VS

TGND

T2.5V

TGND

T3.3VS

Title

Size Document Number Rev

Date: Sheet of

6-71-W35S2-D03

2.0

[50] W370SS/W35xSSQ CLICK BOARD

50 58W ednesday, January 15, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W35S2-D03

2.0

[50] W370SS/W35xSSQ CLICK BOARD

50 58W ednesday, January 15, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W35S2-D03

2.0

[50] W370SS/W35xSSQ CLICK BOARD

50 58W ednesday, January 15, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

TR6 10K_04

TC3

0.1u_10V_X7R_04

TJ_LED1

88486-1001

TJ_TP1

85201-06051

1TR1 *0_04

TC13

0.1u_16V_Y5V_04

TU4

CM1293A-02SO

NC 1

VN 2

CH1 3

CH2

TR7 1.5K_04

TQ1

AO3415

D S

TC9

0.1u_10V_X7R_04

TC2

15p_50V_NPO_04

TCSW4

*T4BJB10-Q-T/R

TR4 10K_04

TR13 *10K_04

TJ_TPB1

87151-2007G

NC1

NC2

TCSW3

*T4BJB10-Q-T/R

4TR1 *0_04

TU1

ES603-LGA30

SPI_CS 26

SPI_MISO 25

AVSS 20

DN 28

UVDD 27

SPI_MOSI

EGND_2 17

UVSS

EGND

AVDD_1 19

RESETN

LED2 24

DVSS_1 23

CLK_SEL 18

SPI_CLK

VDDIO

LED1

DISCON

DVDD

RVDD

DVSS

AVSS_1 22

XI 21

AVDD

SGND

DVDD_1

EGND_1 16

MODE 30

DP 29

TR3 1M_04

3TR1 *0_04

TCSW1

T4BJB10-Q-T/R

TX1

HSX321G_12Mhz

3 4

TR8 47K_04

TC8

*0.1u_16V_X5R_04

TCSW2

T4BJB10-Q-T/R

TH5

H4_0D2_2

TH3

H4_0D2_2

TCR1

*32mil_short

TR1 0_1%_04

TL1 *10mil_short

5TR1 *0_04

TU2

*M95128WMN6TP

CS# 1

WP#

VSS 4

SCK 6

HOLD#

VDD

TC10

0.1u_10V_X7R_04

2TR1 *0_04

TR12 *10K_04

TU3

*CM1293A-02SO

NC 1

VN 2

CH1 3

CH2

TH6

H4_0D2_2

TH4

H4_0D2_2

TC5

0.1u_10V_X7R_04

TC7

1u_6.3V_X5R_04

TH1

H8_0D5_5

TC12

0.1u_16V_Y5V_04

TC6

4.7u_6.3V_X5R_06

TC1

15p_50V_NPO_04

6TR1 *0_04

TC4

4.7u_6.3V_X5R_06

TH2

H8_0D5_5

TR2 0_1%_04

Schematic Diagrams

B - 52 W370SS Power Switch Board

B.Schematic Diagrams

W370SS Power Switch Board

Sheet 51 of 58

W370SS Power

Switch Board

D D

C C

B B

A A

Wlan CCD

PIN5,6=BDGND

Mute

POWER

BUTTON

LED

PIN5,6=BDGND

POWER

BOTTOM

M100126

W370SS POWER SWITCH BOARD

WHITE

6-52-57301-020

6-52-57001-022

6-20-94K10-108

⬷农

PIN5,6=BDGND PIN5,6=BDGND

BWEB#0BWEB#1 BWEB#2 BPWRBTN#

BPWRBTN#

BWEB#0

BWEB#1

BWEB#2

BWEB#1 BWEB#2BWEB#0

BH_PINA

BPWRBTN#

BVDD3 BH_3.3VS

BVDD3BVDD3

BDGND

BVDD3

BDGND

BH_3.3VS

BVDD3

BDGND

BDGND BDGND

BDGND

BVDD3

BDGND

BVDD3 BVDD3

BDGND

BVDD3

BDGND

BDGNDBDGND

BDGND

Title

Size Document Number Rev

Date: Sheet of

6-71-W37SS-D01

1.0

[51] W370SS POWER SWITCH BOARD

51 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W37SS-D01

1.0

[51] W370SS POWER SWITCH BOARD

51 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W37SS-D01

1.0

[51] W370SS POWER SWITCH BOARD

51 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

BH3

H6_0D2_3

2BR *0_04

BC5

0.01u_50V_X7R_04

BC1

*0.1u_16V_Y5V_04

BD2

*BAV99

3BR *0_04

1BR *0_04

BD3

*BAV99

BH1

MTH6_0D2_3

5 6

BC2

*0.1u_16V_Y5V_04

BSW3

SFNQRMP2125T

BJ_SW1

88486-0801

BH2

C87D87N

BC3

*0.01u_50V_X7R_04

BSW4

SFNQRMP2125T

BSW1

SFNQRMP2125T

BR1

680_06

BD1

RY-SP150DBW71-5A

BSW2

SFNQRMP2125T

BC4

*0.01u_50V_X7R_04

BD4

*BAV99

BH4

C87D87N

BD5

*BAV99

Schematic Diagrams

W350SSQ Power Switch Board B - 53

B.Schematic Diagrams

W350SSQ Power Switch Board

Sheet 52 of 58

W350SSQ Power

Switch Board

D D

C C

B B

A A

PIN5,6=B5PGND

POWER

BUTTON

LED

POWER

BOTTOM

M100126

W350SSQ POWER SWITCH BOARD

WHITE

6-52-57301-020

6-52-57001-022

6-20-94K10-108

⬷农

B5PPWRBTN#

B5PVDD3B5PB_3.3VS

B5PB_3.3VS

B5PVDD3

B5PGND

B5PVDD3

B5PGND

B5PGNDB5PGNDB5PGND B5PGND

Title

Size Document Number Rev

Date: Sheet of

6-71-W35SS-D01

1.0

[52] W350SSQ POWER SWITCH BOARD

52 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W35SS-D01

1.0

[52] W350SSQ POWER SWITCH BOARD

52 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W35SS-D01

1.0

[52] W350SSQ POWER SWITCH BOARD

52 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

B5PH1

MTH6_0D2_3

5 6

B5PH3

MTH6_0D2_3

5 6

B5PH2

C87D87N

B5PR1

680_06

B5PD1

RY-SP150DBW71-5A

B5PC1

0.01u_50V_X7R_04

B5PH4

C87D87N

2BPR *0_04

B5PC2

*0.1u_16V_Y5V_04

B5PJ_SW1

88486-0801

3BPR *0_04

1BPR *0_04

B5PSW1

SFNQRMP2125T

B5PD5

*BAV99

Schematic Diagrams

B - 54 W370SS LID / VGA LED Board

B.Schematic Diagrams

W370SS LID / VGA LED Board

Sheet 53 of 58

W370SS LID / VGA

LED Board

D D

C C

B B

A A

HDD/CD-ROM

LED

IGPU LED DGPU LED

BT&WLAN LEDHDD LED

Green Yellow

add WLAN_LED#

C990713

WHITE

VGA LED

6-52-57001-021-1

6-52-57001-021

6-15-0C114-1B0

6-15-0C114-1B3

Yellow/Green

6-52-55001-041

6-52-51001-0216-52-52001-028

VGA SWITCH & LED

RED

6-53-3150B-245 TJG-533-S-T/R

6-53-3050B-241 SFKQRMP2125T

Yellow/Green

FOR W370ET

6-02-00248-LC2

6-02-03661-LC1

W370SS LID & VGA LED SW BOARD

6-20-94A20-112

BL_BT_EN

BL_LED_DGPU#BL_LED_IGPU#

BL_SATA_LED#

BL_WLAN_LED#

BL_OPTIMUS_MODE

BL_VGA_SW#

BL_HLID_SW#

BL_VGA_SW#

BL_WLAN_LED#

BL_HLID_SW#

BL_BT_EN

BL_SATA_LED#

BL_LED_DGPU#

BL_LED_IGPU#

BL_OPTIMUS_MODE

BL_3.3VS

BLGND

BL_3.3VS

BLGND

BL_3.3VS

BLGND

BL_3.3VS

BLGND

BL_3.3VS

BLGND

BL_VDD3

BL_3.3VS

BL_VDD3

BLGND

BL_VDD3

BLGND

Title

Size Document Number Rev

Date: Sheet of

6-71-W37S5-D01

1.0

[53] W370SS LID / VGA LED BOARD

53 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W37S5-D01

1.0

[53] W370SS LID / VGA LED BOARD

53 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W37S5-D01

1.0

[53] W370SS LID / VGA LED BOARD

53 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

BLH3

MTH6_0D2_3

5 6

3BLR *0_04

BLQ52

*DTC114EUA

1BLR *0_04

BLR3

220_04

BLR6 10K_04

BLD3

RY-SP170UHY24-5m

BLD2

RY-SP172DBW71-5M

BLR1

220_04

BL_SWVGA1

SFNQRMP2125T

BLR2

220_04

BLJ_LID1

87151-1207G

BLC5

*10u_6.3V_X5R_06

BLL53

*RY-SP195UHYUYG4

BLC6

*10u_6.3V_X5R_06

BLR4

220_04

BLC3

*1u_6.3V_X5R_04

BLD4

RY-SP170UYG24-5M

BLQ1

DTC114EUA

BLR472

*220_04

B5LH5

H6_0D2_3

BLR200

*470_04

BLU2

MH248-ALFA-ESO

VCC

1OUT 2

GND

BLD1

RY-SP195UHYUYG4

BLR5

220_04

BLC4

0.1u_16V_Y5V_04

BLH1

H4_0D2_2 2BLR *0_04

BLQ29

*QM3009K

D S

Schematic Diagrams

W35XSSQ LID / VGA LED Board B - 55

B.Schematic Diagrams

W35XSSQ LID / VGA LED Board

Sheet 54 of 58

W35XSSQ LID /

VGA LED Board

D D

C C

B B

A A

HDD/CD-ROM

LED IGPU LED DGPU LED

BT&WLAN LEDHDD LED

Green Yellow

add WLAN_LED#

C990713

WHITE

VGA LED

6-52-57001-021-1

6-52-57001-021

Yellow/Green

6-52-55001-041

6-52-51001-0216-52-52001-028

6-02-00248-LC2

6-02-03661-LC1

FOR W350ET

LID SWITCH IC

W35xSSQ LID & VGA LED BOARD

6-20-94A20-112

V5L_BT_EN

V5L_LED_DGPU#V5L_LED_IGPU#V5L_SATA_LED#

V5L_WLAN_LED#

V5L_HLID_SW#

V5L_WLAN_LED#

V5L_BT_EN

V5L_SATA_LED#

V5L_LED_DGPU#

V5L_LED_IGPU#

V5L_WEB#0

V5L_VGA_SW#

V5L_OPTIMUS_MODE

V5L_HLID_SW#

V5L_VGA_SW#

V5L_OPTIMUS_MODE

V5L_WEB#0

V5L_3.3VS

B5LGND

V5L_3.3VS

V5L_3.3VSV5L_3.3VS

V5L_VDD3

V5L_3.3VS

V5L_VDD3

B5LGND

V5L_3.3VS

V5L_VDD3

B5LGND

B5LGND B5LGND B5LGND

B5LGND B5LGND

B5LGND B5LGNDB5LGND

V5L_VDD3

B5LGND

Title

Size Document Number Rev

Date: Sheet of

6-71-W35S5-D01

1.0

[54] W35xSSQ LID/VGA LED BOARD

54 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W35S5-D01

1.0

[54] W35xSSQ LID/VGA LED BOARD

54 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W35S5-D01

1.0

[54] W35xSSQ LID/VGA LED BOARD

54 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

V5LR6 10K_04

V5LH3

MTH6_0D2_3

5 6

V5LH2

H4_0D2_2

V5LD2

RY-SP172DBW71-5M

V5L_JVGASW1

85201-06051

V5LC4

*10u_6.3V_X5R_06

V5LC2

0.1u_16V_Y5V_04

V5LC3

*10u_6.3V_X5R_06

2VLR *0_04

V5LR4

220_04

V5LD3

RY-SP170UHY24-5m

V5LH1

H4_0D2_2

3VLR *0_04

V5LR1

220_04

1VLR *0_04

V5LU1

MH248-ALFA-ESO

VCC

1OUT 2

GND

V5L_JLID1

87151-1207G

V5LH4

H6_0D2_3

V5LD1

RY-SP195UHYUYG4

V5LR3

470_04 V5LR5

220_04

V5LD4

RY-SP170UYG24-5M

V5LC1

*1u_6.3V_X5R_04

V5LQ1

DTC114EUA

V5LR2

220_04

Schematic Diagrams

B - 56 W350SSQ VGA / WLAN SW Board

B.Schematic Diagrams

W350SSQ VGA / WLAN SW Board

Sheet 55 of 58

W350SSQ VGA /

WLAN SW Board

D D

C C

B B

A A

VGA SWITCH & LED

RED

Yellow/Green

WWW

PIN5,6=B5GND

W350SSQ VGA & WWW SW BOARD

PIN5,6=B5GND

B5_VGA_SW#B5_OPTIMUS_MODE

B5WEB#0

B5_VGA_SW#

B5_OPTIMUS_MODE

B5WEB#0

B5_3.3VS

B5GND

B5_VDD3

B5GND

B5_3.3VS

B5_VDD3

B5GNDB5GND

Title

Size Document Number Rev

Date: Sheet of

6-71-W35S7-D01

1.0

[55] W350SSQ VGA/WLAN SW BOARD

55 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W35S7-D01

1.0

[55] W350SSQ VGA/WLAN SW BOARD

55 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W35S7-D01

1.0

[55] W350SSQ VGA/WLAN SW BOARD

55 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

B5H3

H5_1B8_6D5_0

B5_WLANSW1

SFNQRMP2125T

B5_SWVGA1

SFNQRMP2125T

B5H2

C87D87N

B5H4

C87D87N

B5L1

*RY-SP195UHYUYG4

B5R1

*470_04

B5Q1

*QM3009K

D S

B5H1

H5_1B8_6D5_0

B5R200

*470_04

B5_JVGASW1

85201-06051

B5Q2

*DTC114EUA

2BSR *0_04

B5D1

*BAV99

1BSR *0_04

Schematic Diagrams

W355SSQ Power Switch Board B - 57

B.Schematic Diagrams

W355SSQ Power Switch Board

Sheet 56 of 58

W355SSQ Power

Switch Board

D D

C C

B B

A A

PIN5,6=P5PGND

POWER

BUTTON

LED

POWER

BOTTOM

M100126

W355SSQ POWER SWITCH BOARD

WHITE

6-52-57301-020

6-52-57001-022

6-20-94K10-108

⬷农

P5PPWRBTN#

P5PVDD3P5PB_3.3VS

P5PB_3.3VS

P5PVDD3

P5PGND

P5PVDD3

P5PGND

P5PGNDP5PGNDP5PGND P5PGND

Title

Size Document Number Rev

Date: Sheet of

6-71-W355S-D01

1.0

[56] W355SSQ POWER SWITCH BOARD

56 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W355S-D01

1.0

[56] W355SSQ POWER SWITCH BOARD

56 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W355S-D01

1.0

[56] W355SSQ POWER SWITCH BOARD

56 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

P5PSW1

SFNQRMP2125T

P5PH3

MTH6_0D2_3

5 6

P5PC1

0.01u_50V_X7R_04

P5PH2

C87D87N

2PPR *0_04

P5PR1

680_06

1PPR *0_04

P5PD1

RY-SP150DBW71-5A

P5PD5

*BAV99

P5PH4

C87D87N

4PPR *0_04

P5PC2

*0.1u_16V_Y5V_04

5PPR *0_04

P5PJ_SW1

88486-0801

P5PH1

MTH6_0D2_3

5 6

Schematic Diagrams

B - 58 W355SSQ VGA / WLAN SW Board

B.Schematic Diagrams

W355SSQ VGA / WLAN SW Board

Sheet 57 of 58

W355SSQ VGA /

WLAN SW Board

D D

C C

B B

A A

VGA SWITCH & LED

RED

Yellow/Green

WWW

PIN5,6=S5GND

W355SSQ VGA & WWW SW BOARD

PIN5,6=S5GND

S5_VGA_SW#

S5_OPTIMUS_MODE

S5WEB#0

S5_VGA_SW#

S5_OPTIMUS_MODE

S5WEB#0

S5_OPTIMUS_MODES5_VGA_SW#

S5_3.3VS

S5GND

S5_VDD3

S5GND

S5_3.3VS

S5_VDD3

S5GNDS5GND

S5_VDD3S5_VDD3

Title

Size Document Number Rev

Date: Sheet of

6-71-W355S-D12

1.0

[57] W355SSQ VGA/WLAN SW BOARD

57 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W355S-D12

1.0

[57] W355SSQ VGA/WLAN SW BOARD

57 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

6-71-W355S-D12

1.0

[57] W355SSQ VGA/WLAN SW BOARD

57 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

S5R1

*470_04

3SSR *0_04

5SSR *0_04

S5Q1

*QM3009K

D S

S5D2

*BAV99

S5H1

H5_5B8_6D5_5

S5_SWVGA1

SFNQRMP2125T

S5D3

*BAV99

S5R2

*470_04

S5H2

C87D87N

S5Q2

*DTC114EUA

6SSR *0_04

2SSR *0_04

S5H4

C87D87N 1SSR *0_04

S5_SWVGA2

SFNQRMP2125T

4SSR *0_04

S5D1

*BAV99

S5H3

H5_5B8_6D5_5

S5L1

*RY-SP195UHYUYG4

S5_JVGASW1

85201-06051

S5_WLANSW1

SFNQRMP2125T

Schematic Diagrams

POWER SEQUENCE B - 59

B.Schematic Diagrams

POWER SEQUENCE

Sheet 58 of 58

POWER

SEQUENCE

D D

C C

B B

A A

3.3V

DD_ON

PM_PWRBTN#

2.71ms

1.98ms

33.45ms

173.05ms

RSMRST

VDDQ

SUSC#

SUSB#

DDR1.5V_PWRGD

5VS

3.3VS

1.5VS

1.83ms

1.87ms

441.32us

399.3us

VDDQ_VTT

3.3V_M

591.4ns

PM_SLP_LAN#

1.05V_LAN_PWRGD

1.48ms

1.05VS

1.43ms

SLP_A#

1.05V_M

6.65ms

6.69ms

ALL_SYS_PWRGD

+VCCIN

DELAY_PWRGD

1.46ms

1.05V_LAN_M

189.87ms

474.1us

2.11ms

34.18us

1.91ms

2.57ms189.92ms

冯

SUSB#

⎴㬍

3.99ms

PM_DRAM_PWRGD

119.71ms

129.1ms

H_CPUPWRGD

125.74ms

VCCIO_OUT

PM_PCH_PWROK

SYS_PWROK

PLT_RST#

74.22ms

73.85ms

134.97ms

Title

Size Document Number Rev

Date: Sheet of

1.0

[58] POWER SEQUENCE

58 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

1.0

[58] POWER SEQUENCE

58 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Title

Size Document Number Rev

Date: Sheet of

1.0

[58] POWER SEQUENCE

58 58Friday, January 10, 2014

ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/

Schematic Diagrams

B - 60

B.Schematic Diagrams

BIOS Update

C-1

C:BIOS Update

Appendix C:Updating the FLASH ROM BIOS

To update the FLASH ROM BIOS you must:

• Download the BIOS update from the web site.

• Unzip the files onto a bootable CD/DVD/USB Flash Drive.

• Reboot your computer from an external CD/DVD/USB Flash Drive.

• Use the flash tools to update the flash BIOS using the commands indicated below.

• Restart the computer booting from the HDD and press F2 at startup enter the BIOS.

• Load setup from the BIOS - Legacy Mode (UEFI disabled) and save the settings and exit the BIOS to restart the

computer.

• After rebooting the computer you may restart the computer again and make any required changes to the default BIOS

settings.

Download the BIOS

1. Go to www.clevo.com.tw and point to E-Services and click E-Channel.

2. Use your user ID and password to access the appropriate download area (BIOS), and download the latest BIOS files

(the BIOS file will be contained in a batch file that may be run directly once unzipped) for your computer model

(see sidebar for important information on BIOS versions).

Unzip the downloaded files to a bootable CD/DVD/ or USB Flash drive

1. Insert a bootable CD/DVD/USB flash drive into the CD/DVD drive/USB port of the computer containing the

downloaded files.

2. Use a tool such as Winzip or Winrar to unzip all the BIOS files and refresh tools to your bootable CD/DVD/USB

flash drive (you may need to create a bootable CD/DVD with the files using a 3rd party software).

Set the computer to boot from the external drive

1. With the bootable CD/DVD/USB flash drive containing the BIOS files in your CD/DVD drive/USB port, restart the

computer and press F2 (in most cases) to enter the BIOS.

2. Use the arrow keys to highlight the Boot menu.

3. Use the “+” and “-” keys to move boot devices up and down the priority order.

4. Make sure that the CD/DVD drive/USB flash drive is set first in the boot priority of the BIOS.

5. Press F4 to save any changes you have made and exit the BIOS to restart the computer.



BIOS Version

Make sure you down-

load the latest correct

version of the BIOS ap-

propriate for the com-

puter model you are

working on.

You should only

download BIOS ver-

sions that are

V1.00.XX or higher as

appropriate for your

computer model.

Note that BIOS versions

are not backward com-

patible and therefore

you may not down-

grade your BIOS to an

older version after up-

grading to a later ver-

sion (e.g if you upgrade

a BIOS to ver 1.01.05,

you MAY NOT then go

back and flash the BIOS

to ver 1.01.04).

BIOS Update

C - 2

C:BIOS Update

Use the flash tools to update the BIOS

1. Make sure you are not loading any memory management programs such as HIMEM by holding the F8 key as you

see the message “Starting MS-DOS”. You will then be prompted to give “Y” or “N” responses to the programs

being loaded by DOS. Choose “N” for any memory management programs.

2. You should now be at the DOS prompt e.g: DISK C:\> (C is the designated drive letter for the CD/DVD drive/USB

flash drive).

3. Type the following command at the DOS prompt:

C:\> Flash.bat

4. The utility will then proceed to flash the BIOS.

5. You should then be prompted to press any key to restart the system or turn the power off, and then on again but

make sure you remove the CD/DVD/USB flash drive from the CD/DVD drive/USB port before the computer

restarts.

Restart the computer (booting from the HDD)

1. With the CD/DVD/USB flash drive removed from the CD/DVD drive/USB port the computer should restart from

the HDD.

2. Press F2 as the computer restarts to enter the BIOS.

3. Use the arrow keys to highlight the Exit menu.

4. Select Load Setup Defaults (or press F3) and select “Yes” to confirm the selection.

5. Press F4 to save any changes you have made and exit the BIOS to restart the computer.

Your computer is now running normally with the updated BIOS

You may now enter the BIOS and make any changes you require to the default settings.

www.s-manuals.com

Clevo W350SSQ Service Manual. Www.s Manuals.com. Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
