Sensing Capabilities . . . . . . . . . . . . 3
Combustible & Oxygen Leak
Detection......................4
Thermal Conductivity (TCD) . . . . . . 5
Electrochemical, Paramagnetic &
Zirconium Oxygen . . . . . . . . . . . . . . 6
Cost-effective & Portable Oxygen . 7
Flame Ionization Detection (FID) . . 8
Moisture / O2 Analysis Systems. . . 9
NIR & UV Analyzers / Systems . . . 10
Oil in Water & TOC Analyzers . . . . 11
Infrared Analyzers / Systems . . . . 12
Stack Emissions & Combustion
Efficiency.....................13
Liquid Analytics . . . . . . . . . . . . . . . 14
Custom Design Solutions . . . . . . . 15
Quality Policy Table of Contents
© 2006 Teledyne Analytical Instruments, A Teledyne Technologies Company.
All rights reserved. Printed in the USA. 09/06LD
TAI has over 15 sensing technologies to continuously monitor a wide variety
of process gas and liquid parameters. This broad sensing technology-reach
allows TAI to cater to a myriad of applications within the industrial, medical and
automotive markets.
Our standard product range is routinely extended by developing turnkey system
solutions tailored to a client’s exact needs. The expertise and flexibility to
design and manufacture proven, cost-effective sample preconditioning systems
as well as co-bundling multiple analyzers into a single packaged solution is a
core competency within TAI that serves to effectively differentiate us from our
competition.
FID
TCD
TDLAS
Infrared
UV / VIS
Fiber Optics
Capacitance
Polargraphic
Near Infrared
Fluorescence
Paramagnetic
Catalytic Bead
Electrochemical
Zirconium Oxide
Chemiluminescence
O2
H2
N2
He
Ar
OIL
TOC
NOX
H20v
Total Sulfides
Hydrocarbons
CO, CO2, CH4
CL2, SO2, H2S
pH, Conductivity
Dissolved Oxygen
TAI Sensing
Technologies Measured
Parameters
TAI’s feature-rich, standard analyzer platform -- which provides
the operator with user-programmable ranges, auto or fixed ranging,
automatic calibration and bi-directional serial interface -- allows TAI to
maximize its economies of scale where PCBs, power supplies and
housings are concerned. This streamlined manufacturing capability
results in quick deliveries and competitive product pricing -- not to
mention the ease in field commissioning and servicing.
TAI’s product diversity, global approvals and well established distribution
network provides our clients with the assurance that we can continue to
deliver the proper solution for their challenging application requirements.
SenSorS
Sensing Capabilities
Sensing Capabilities
Teledyne Analytical Instruments
3
Combustible & Oxygen Leak Detection
Combustible & Oxygen Leak Detection
Teledyne Analytical Instruments
SerieS 1000
SerieS 3220
The Model 3220 Multichannel Percent Oxygen Monitoring System monitors oxygen levels at one
or more locations. The system is designed to easily add channels for in-field upgrades, and is field-
programmable to meet the needs of specific process or ambient O2 deficiency applications. Oxygen
probes with maintenance free sensors can be mounted up to a mile away from the control unit. No
zero gas is required. Numerous remote sensor probe configurations are available including designs
suitable for hazardous areas.
Applications: Process monitoring; Life support; Area monitoring; Controlled environments; Inert gas
blanketing
Combustibles
Multipoint O2
4
1223A
Panel mount
1220 Multipoint Combustibles (4 to 64 points)
1223A Multipoint Combustibles (1 to 3) - Panel
1223B Multipoint Combustibles (1 to 3) - Wall

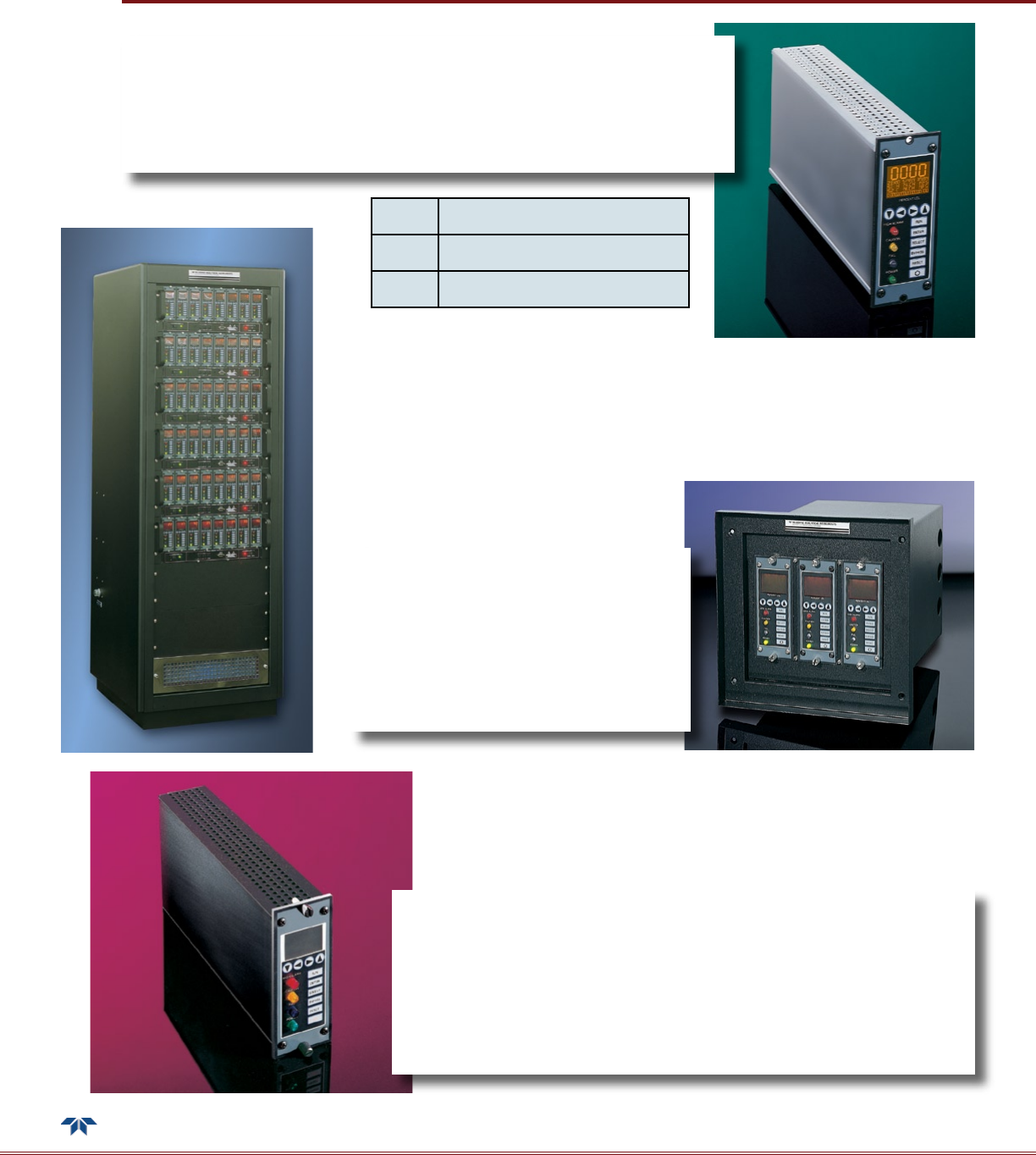

The Model 1220 is designed to monitor large industrial plants for flammable gases and vapors to detect
and warn of leaks before explosive concentrations of materials can accumulate, providing personnel and
equipment safety. In addition, the 1220 can activate a ventilation or sprinkler system or shut down process
equipment. The system is composed of a central control station plus remote detectors. The microprocessor-
based module is programmable by the user to customize the system’s functions, and provides one man
calibration capability. It is also easy to add channels for infield upgrades. As few as one or as many as 128
detectors located over a mile away can be connected to one system.
The Model 1223A & B LEL Flammable Gas Detection
System is designed for those applications where a
smaller, more focused area requires continuous safety
detection -- for example, within a battery room, cylinder
filling station, or gas station. The 1223 is composed of up
to three independent control units. TAI can combine both
the 3220 O2 and 1220 Combustibles Channel Modules
into a Model 1223 – which can be provided in either a
flush panel (A) or wall mount (B) configuration.
SerieS 2000
Thermal Conductivity (TCD)
Thermal Conductivity (TCD)
The Series 2000 TCD Analyzers are designed to continuously monitor the concentration, or purity, of a desired
gas in a mixture of background gases (i.e., 70-100% H2 in HCs). Thermal conductivity is a property of gases
relating to their ability to conduct heat. The detector (TCD) used responds to changes in the component of
interest by comparing the sample gas with a reference gas - which is either sealed or flowing. The TCD can be
applied in various wetted parts for both corrosive and non-corrosive gas streams. Features include 110 pre-
programmed combinations of gases, built-in digital linearization, and the ability to reconfigure the analyzer in the
field to detect a new parameter.
Applications: Air separation; Turbine generators; H2 purity in HC Recycle Streams; Annealing furnaces
2000A - Panel Mount
2010 - Split version
Thermal
Conductivity
2750 - Portable Turbine
Generator analyzer
2020 - Fully explosion
proof version
Teledyne Analytical Instruments
2000XTC
ATEX Approved I/S TCD Xmtr
2000A Panel mount
2000B Wall mount
2010A Split - Panel mount control unit
2010B Split - Wall mount control unit
2020 Fully explosion proof
2000XTC Low cost TCD transmitter
2750 Portable TCD analyzer
SerieS 2200
2220 - General purpose
version
2220 Hydrogen area monitor / Leak detector
2230 Explosion proof hydrogen analyzer
2240 Portable hydrogen leak detector
2240 - Portable
hydrogen leak detector
Hydrogen
Monitoring

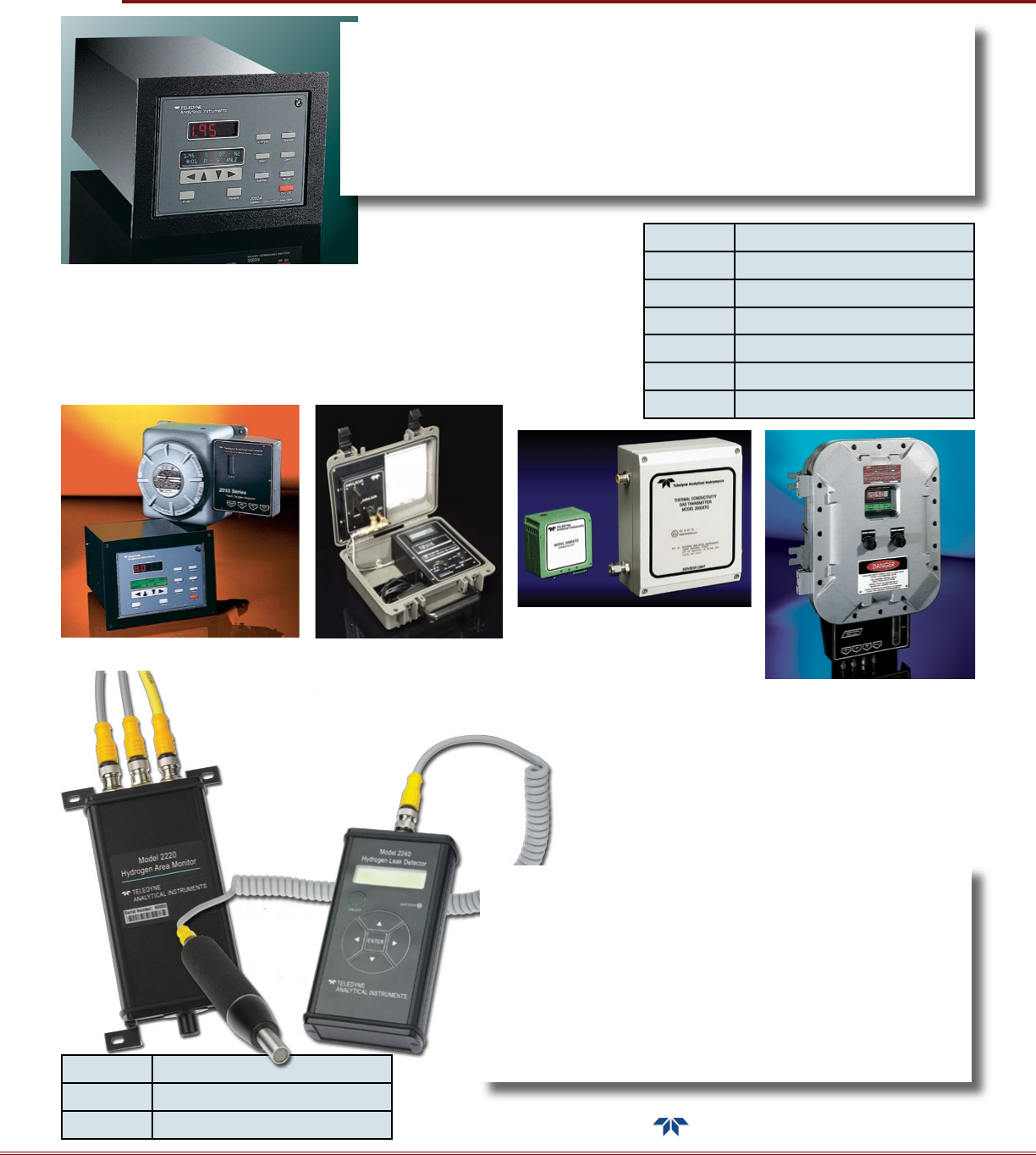

The Series 2200 utilizes a palladium-based, H2 specific sensor for monitoring
hydrogen on a spot-checking, ambient leak detection or process basis. The dynamic
range capabilities of the Series 2200 H2 sensor allows the operator to monitor for
either trace levels -- for early warning of an impending, potentially hazardous leak -- to
100% when qualifying for H2 purity.
Applications: Hydrogen cooled generator leak detection; Nuclear waste monitoring;
Hydrogen degassing monitoring in battery storage facilities; Power station off-gas
monitoring; Process hydrogen monitoring of recycle gas streams; Hydrogen leak
detection of fuel cell power generation devices; Monitoring hydrogen generated via
electrolysis; Hydrogen Reformers and HYCO plants
5
Electrochemical, Paramagnetic & Zirconium Oxygen

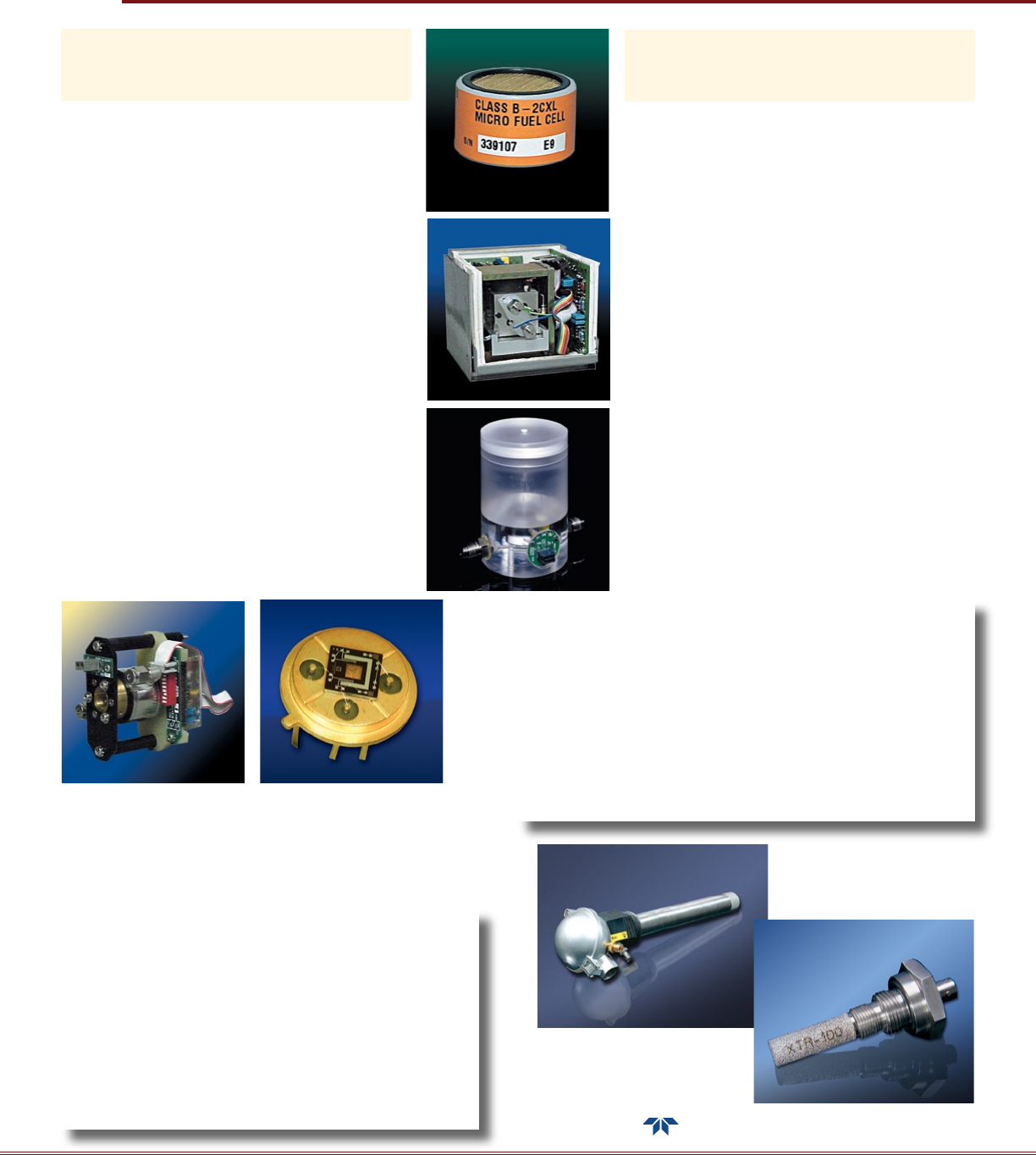

Series 3000M Paramagnetic Oxygen Analyzers offer superior performance for percent oxygen analysis due to the
advanced, maintenance free, paramagnetic O2 sensor design. The 3000M provides the operator with long-life, fast
response oxygen sensing capability in both inert and corrosive CO2 gas streams. Properly maintained paramagnetic
sensors last for years with little or no attention making them ideal for critical measurements.
Applications: Challenging petrochemical, steel and cement applications; O2 purity analysis and emissions monitoring
Electrochemical, Paramagnetic & Zirconium Oxygen
Teledyne Analytical Instruments
SerieS 3000
Paramagnetic
Fuel Cell - Percent & Trace
“A” - Panel Mount
“B” - Wall Mount
“10” - Split version (USA)
Series 3000T & 3000P Trace and Percent Oxygen Analyzers utilize Teledyne’s advanced Micro-fuel Cell (MFC)
electrochemical oxygen sensors. Teledyne’s MFCs provide users with an easy-to-use, disposable, no maintenance
O2 sensor design that can be freely applied in inert gas streams as well as in pure or gas mixtures containing H2,
hydrocarbons and CO2 for accurate O2 detection from 0-1 ppm up to 0-100%.
Applications: Air separation; Petrochemical; Steel and heat treating; Glove boxes; N2 blanketing
“20” - Fully Ex-proof version
“C” - Split Version EU Cenelec Probe
3000MA Panel mount
3000MB Wall mount
3010MA Oxygen purity panel
3020M Fully explosion proof
3000PA Panel mount
3000PB Wall mount
3010PA Split - Panel mount control unit
3010PAC Panel mnt control unit (analysis unit CENELEC)
3010PB Split - Wall mount control unit
3010PBC Wall mount control unit (analysis unit CENELEC)
3020P Full explosion proof
3000TA-XL Panel mount (0-1 ppm O2)
3000ZA-XL Panel mount (0-5 ppm O2) - ZrO2 type
3000TA Panel mount (0-10 ppm and above)
3000TB Wall mount
3010TA Split - Panel mount control unit
3010TB Split - Wall mount control unit
3010TAC Split - I/S Cenelec, Panel mount control unit
3010TBC Split - I/S Cenelec, Wall mount control unit
3020T Fully explosion proof
“A” - Panel mount
“B” - Wall mount
“C” - CENELEC (EU)
“T” - Trace
“P” - Percent
“M” - Paramagnetic
“Z” - Zirconium
6
Cost-Effective & Portable Oxygen
Cost-Effective & Portable Oxygen
Low Cost, Highly Flexible Oxygen Analyzer: The 3190 Trace and 3290 Percent O2 Analyzer platforms offer ease-
of-use and the essential analyzer requirements in a compact design. The flexibility of this platform allows TAI to mate
the 3190 or 3290 controllers with fuel cell, ZrO2 or paramagnetic sensing technologies. The units can be purchased
either as stand-alone units or on a high volume OEM, private label basis. Various configurations are available with
either AC or DC powered options.
If interested in a value-added configuration -- with cal gas selector valve, flow control, and 19” rack or wall mounting
-- TAI offers the Series 3300 turn-key solution.
Applications: Nitrogen generators; Nitrogen blanketing / pneumatic conveyors (with sample system and enclosure)
Teledyne Analytical Instruments
SerieS 3300
Low Cost
Oxygen
Portable
Oxygen
Model 3190 and 3290
Series 3300

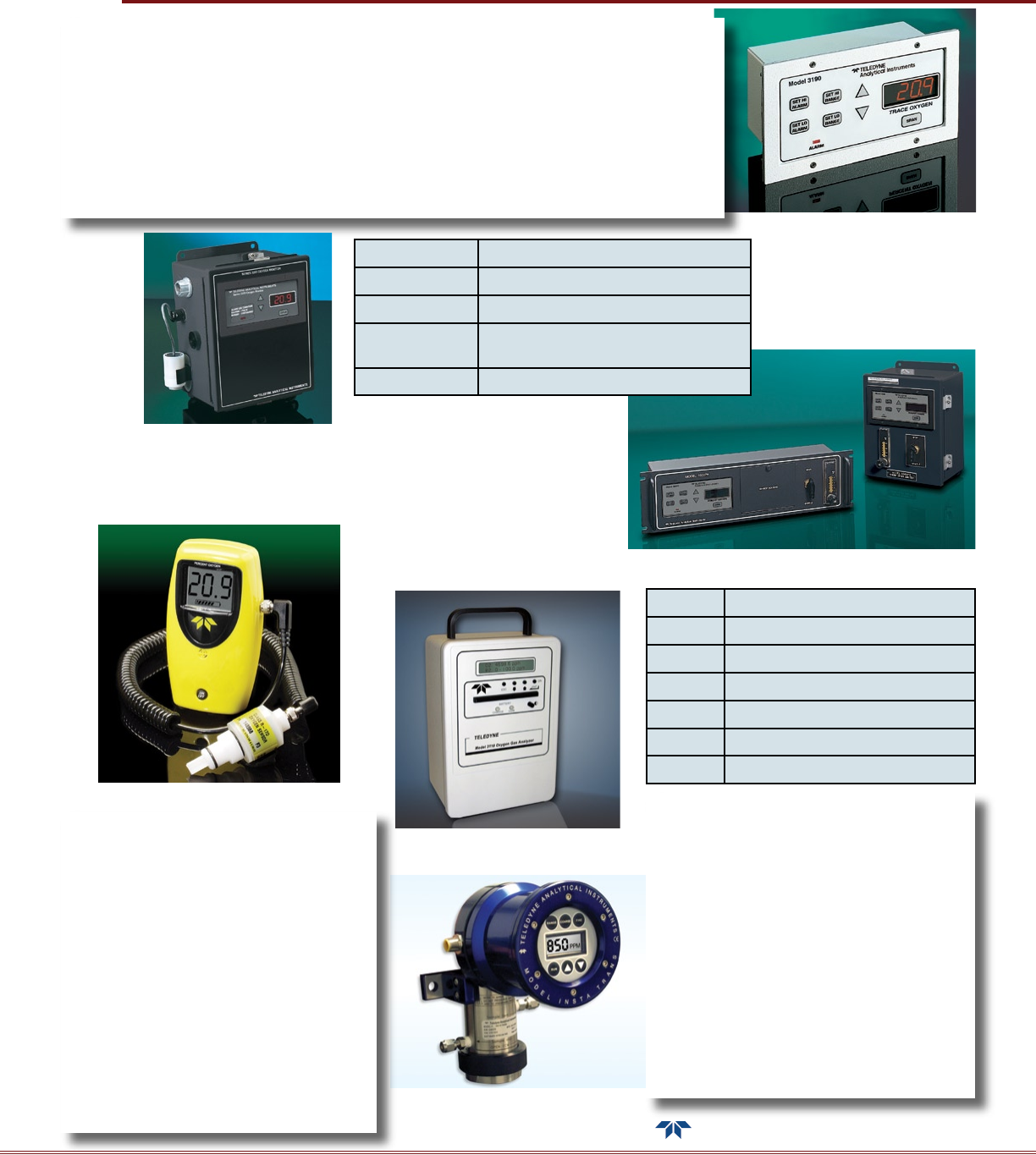

Portable Oxygen Analysis: The 3110 and 311XL
series provide high accuracy and fast response, and
are FM approved intrinsically safe (I, 1, B C D). The
3110 offers two user selectable ranges between 0-10
ppm and 0-25%. The 311XL and 311TCXL (BASEEFA)
provide analysis in decade steps ranging from 0-2 to
0-10,000 ppm full scale.
The 320P portable flue gas analyzer series is ideal
for spot checking the oxygen content of flue gas
from a boiler, firebox, furnace, or other combustion
process. Three ranges are provided and calibration is
accomplished with ambient air.
Applications: Cryogenic gas delivery certification; Spot
checking storage tanks; Welding; Diving; Weather
balloons; Combustion efficiency monitoring
Insta Trans Oxygen Transmitter
GB300 Portable Oxygen Analysis
Series 3110
Portable Oxygen Analysis
Oxygen Transmitter: The Insta Trans is a two-wire,
loop-powered 4-20 mA oxygen transmitter packaged
within a weather proof NEMA 4 housing. Insta Trans
can instantly transform from ppm to percent analysis by
changing the sensor and resetting the range scale on
the function keypad. The operator can ensure changes
have been made via the range indication continuously
shown on the built-in meter. No other electrical or
resistor changes are required. The Insta Trans has six
user selectable ranges from 0-10 ppm to 0-25%. This
unit is suitable for use in non-hazardous and Division 2
environments in its standard configuration or for Division
1 / Zone 0 areas with optional intrinsic safety barriers.
Applications: Petrochemical; Natural gas transmission;
Any O2 application where 24V loop power is desired
3190Z Panel mount - PPM / Zirconium oxide
3290Z Panel mount - percent / Zirconium oxide
3190P Portable - PPM
3300MA / TA / PA
/ ZA
Rack mount Paramagnetic / Trace / Percent /
Zirconium Oxide
3350 3290 in a NEMA-4 wall mount enclosure
3110 Portable O2 - FM Approved
311TC Portable O2 - Trace CENELEC
311XL Portable O2 - (0-2 ppm)
311PC Portable O2 - Percent CENELEC
320P Portable O2 - Percent with pump
320PD Portable O2 - Percent with pump / digital
GB300 Portable O2 - Percent no pump
Model
3350
7
Flame Ionization Detection (FID)
Flame Ionization Detection (FID)
Teledyne Analytical Instruments
SerieS 4000
4030 Heated THC Analyzer
Applications:
• Monitoring THCs for emissions compliance purposes
• Detecting THCs found in a high temperature wet-process
gas to confirm the efficiency of incinerators, scrubbers, carbon
adsorbers and catalytic oxidation units to remove THCs prior
to release to the atmosphere
4060 Benzene (or BTX) Analyzer
Applications:
• Monitoring the benzene (or BTX) content found in purified CO2 used within the food &
beverage industry
• Detecting the benzene (or BTX) content found within the ambient air (i.e., fence-line
monitoring) for environmental compliance purposes
Process Gas
Chromatographs
4020 Total Hydrocarbon analyzer
4030 Total Hydrocarbon analyzer heated for emissions
4040 Methane / Non-Methane analyzer for ambient and process applications
4060 Benzene analyzer for ambient, food & beverage, and process applications; and
Acetylene measurement in air separation plants
4080 Total Hydrocarbon in Water analysis system
8
4080 THC in Water Analyzer
Applications:
• Detecting the THC content found in cooling tower water for environmental compliance
purposes. The FID approach can detect both aliphatic and aromatic hydrocarbon content.

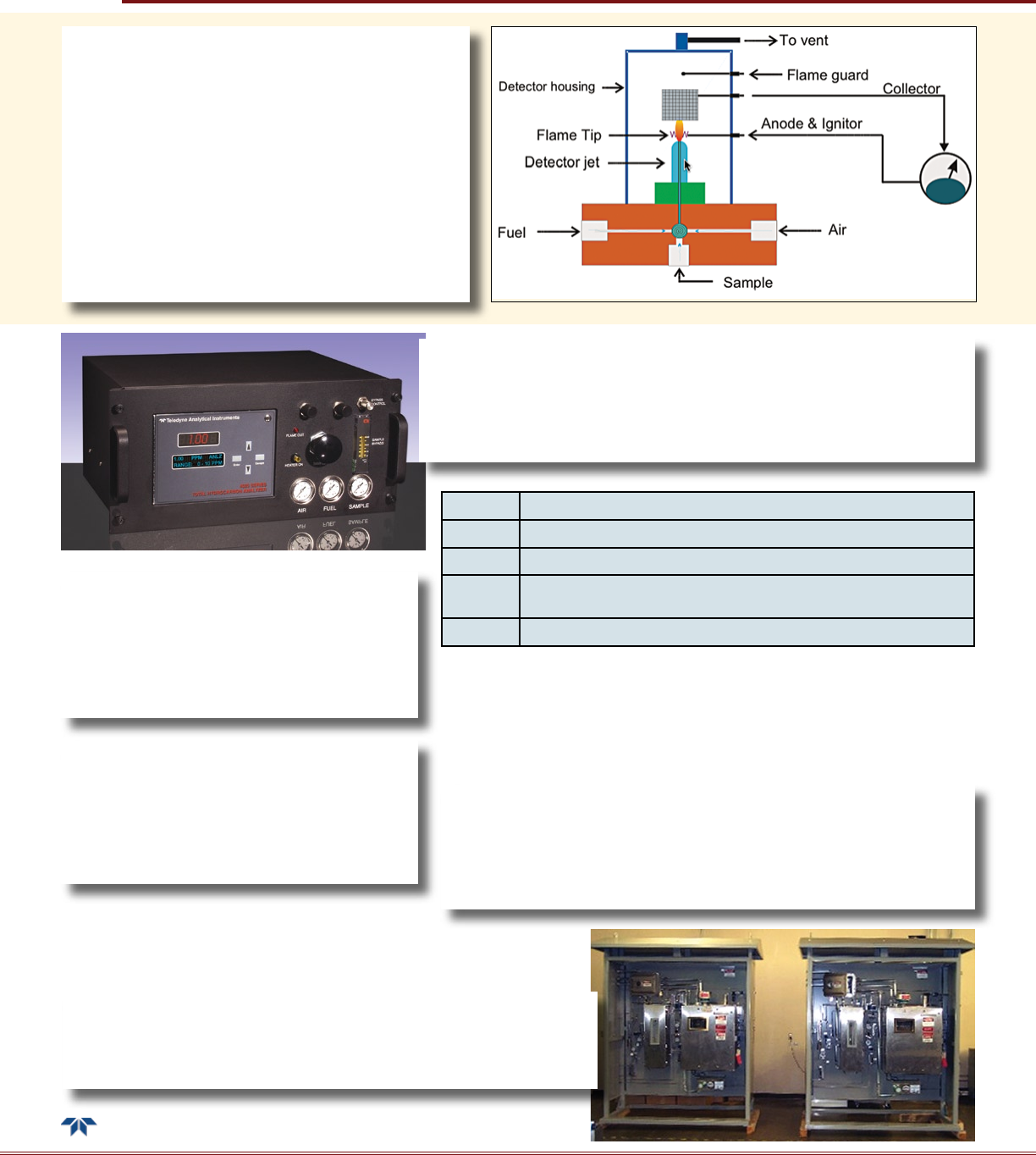

The Series 4000 FID platform is highly flexible. In its most basic
configuration - the Model 4020 - Teledyne provides a continuous
analysis of the total hydrocarbon (THC) impurities found in bulk gases
(N2, H2, O2, He, Ar, CO2) manufactured by the air separation industry.
We can also apply this same configuration, in tandem with a sample
stripper system, to detect the THC content found in cooling tower water
/ heat exchanger condensate within a power plant.
By placing a packed column upstream of the FID, in conjunction with
the added valving and temperature control capabilities, TAI is also
capable of speciating various compounds (i.e., methane, benzene,
acetaldehyde, etc.) within a gas stream. TAI has developed specific
analyzers with these capabilities.
4020 THC Analyzer
Applications:
• Monitoring the total hydrocarbon (THC) impurities found in bulk gases which are used in the
manufacturing of microcircuits
• Gas purity certification
• Detecting THC in CO2 used within the food & beverage industry
4040 Methane / Non-Methane Analyzer
Applications:
• The ambient detection and speciation of methane and non-
methane THCs found in the atmosphere for environmental
control and reporting purposes
• Gas certification applications within the air separation
industry
Moisture / O2 Analysis Systems
Moisture / O2 Analysis Systems
Teledyne Analytical Instruments
8800A Flush mount DIN enclosure with connections made
via a pluggable screw terminal block
8800B Wall mount N4X (IP65) enclosure with connections
made via 3 bottom watertight fittings
8800P
Portable battery operated design available in a
Standard Version, I/O Version, and I/S
Version (I/S version suitable for hazardous areas)
8800T Low-cost, loop powered 4-20 mA transmitter design
with built-in LCD display
8800NG Moisture system for natural gas
The Series 8800 Trace Moisture Analyzers detect moisture from -100º C to ambient
dewpoint levels of +20º C on either a continuous or spot checking basis. The user
can select the moisture analysis readout to be displayed as Deg C, Deg F, ppm -
- and for natural gas applications -- in lbs of H2O/million cft or g/m3. The moisture
sensor employs unique Hyper Thin Film (HTF)™ technology which offers structural
improvements in Al2O3 sensor design. These structural changes provide increased
sensitivity, greater stability, and a quicker response time. The 8800 Series can be
applied to detect moisture on either gas or liquid phase applications.
Applications: Air separation; Glove boxes; Heat treating furnaces; Dryers; Polyethylene
plants
8800NG System

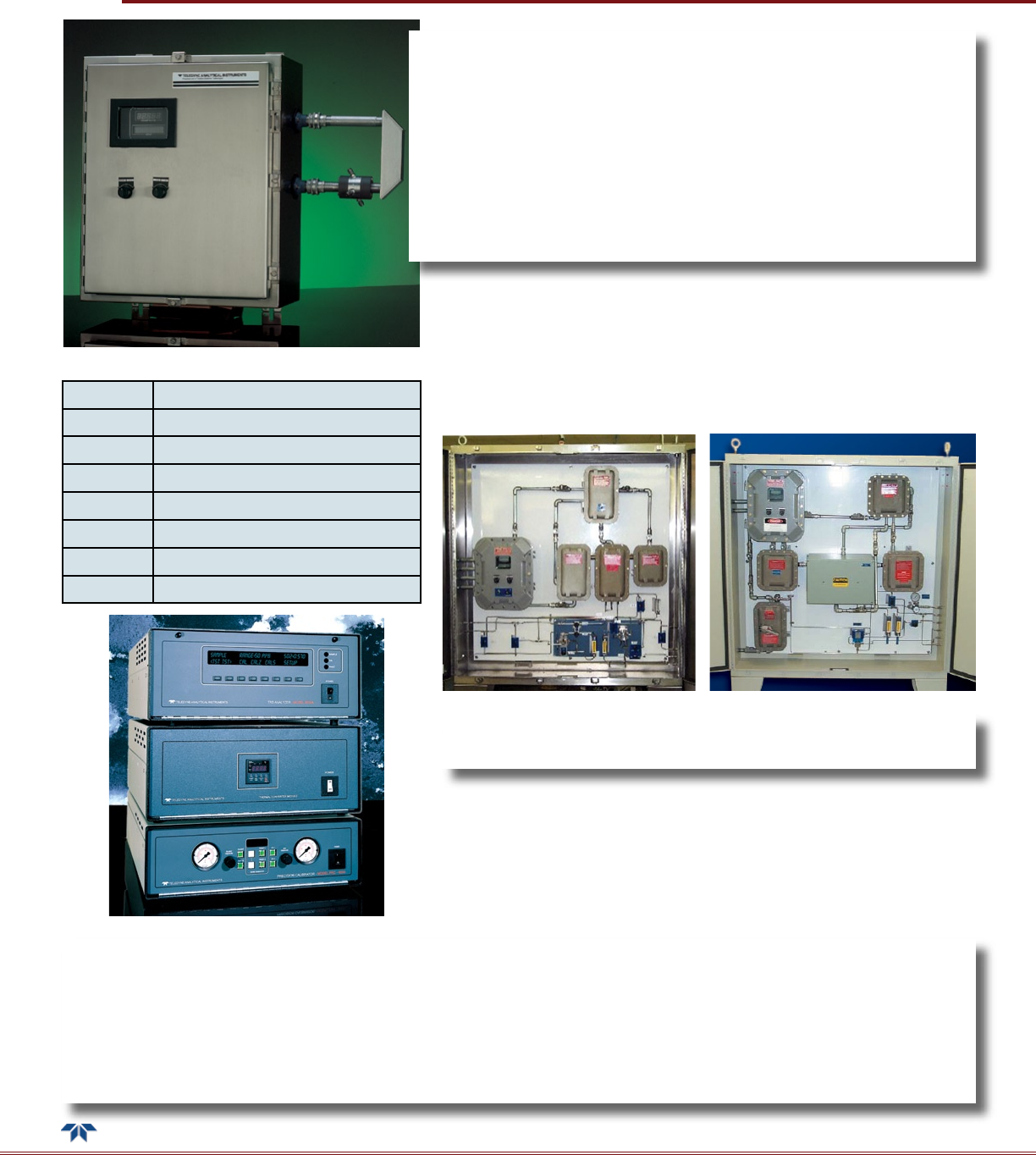

The OT-3 Oxygen Analysis System is a compact, fully
integrated solution for the continuous analysis of ppm levels
of O2 found in natural gas. The OT-3 O2 Transmitter comes
with (2) x ppm O2 analysis ranges and is suitable for use
in Class I, Division 2, Group B, C and D hazardous areas when used in conjunction
with a non-incendive power source. The OT-3 is provided
with a regulator, coalescing filter, flow
control and calibration valving, all within a
NEMA-4 weatherproof enclosure. TAI can
also provide AC powered systems and an
optional on-board heater for installations in
cold environments (OT-3H).
Applications: O2 in natural gas gathered from
low pressure coal-bed methane (CBM) wells
Trace Moisture
SerieS 8800
The 8800NG is specifically designed
to detect H2Ov found in natural gas.
TAI’s unique system solution includes
on-board calibration capability to
periodically ensure that the moisture
sensor is accurately responding to a
known calibration standard. This affirms
proper analysis of the moisture content
found in the natural gas stream.
OT-3 & OT-3H O2 System for Natural Gas
9
The Oxygen Snitch is a compact,
low cost alternative to the standard
oxygen analyzer. In many natural gas processes, the user simply needs to be
advised if the oxygen content has moved beyond specific parameters. Complex
sample systems and large instruments with electronics and LCD displays are not
always required. Teledyne’s solution is a softball-sized devise that provides the customer
with a desired output signal. The unit consists of a sensor block which measures oxygen using
Teledyne’s own sensor technology. It then provides the customer with a voltage, current, or alarm
contact, signaling an oxygen reading or alarm condition.
Natural
Gas
NIR & UV Analyzers / Systems
NIR & UV Analyzers / Systems
Teledyne Analytical Instruments
SerieS 5000
Near Infrared Photometers
5000B & 6000B Design
5000 Series Near Infrared (NIR) Photometer
The Series 5000 NIR Photometer utilizes a chopper stabilized single sample cell, dual wavelength
design to continuously monitor water and organic compounds (in the liquid phase) that have distinct
absorbance peaks within the NIR region of the light spectrum. In addition to providing inherent
stability, this design provides automatic compensation for the background components with an
absorbance overlapping that of the component of interest. The Series 5000 is set apart from other
commercially available NIR analyzers by its unique sample cell pre-heater design that ensures
stable performance over a wide temperature range. The Series 5000 is available in either general
purpose or hazardous configurations.
Applications: PPM or percent level detection of H2O in organics / solvents in petrochemical plants
(EDC/VCM, HOAC, MCB, etc.)
5000B Wall mount NIR - folded optics
5020 Fully explosion proof NIR
6000B Wall mount UV
6020 Fully explosion proof UV
6200 Total sulphides analyzer
6400 Fluorescent SO2 analyzer
6600 Oil in Water analyzer system
6650 Oil in Water analyzer, fluorescence probe
5020 NIR - Fully explosion proof 6020 UV - Fully explosion proof
6000 Ultraviolet Photometer Series
The 6000 Series of microprocessor controlled ultraviolet photometers
provides continuous on-line detection of selected gases or liquids that absorb in the UV / VIS region. The field proven single source, dual wavelength optical
design allows for compensation of turbidity, source lamp aging or window coatings, thereby producing a high degree of stability. General purpose, non-hazardous
configurations as well as totally explosion proof versions (6020) for use in Class I, Division 1, Groups B, C & D are available. The 6000 Series is normally applied to
detect H2S, SO2, CL2 as well as Phenol-in-Water and the color of refinery oils on a Saybolt, ASTM or APHA basis.
Applications best suited for: Petrochemical; Refining; Emissions; Pulp & Paper; Food & Beverage; Electrostatic precipitators
SerieS 6000
UV, VIS & Fluorescence
Photometers
6200A UV Fluorescence Total Sulphides Analyzer
Note: Virtually all photometers are made to order and typically have value added elements
incorporated into the design.
10
SerieS 6600
Teledyne Analytical Instruments
11
SerieS 6700
Oil in Water
TOC Analyzers
The Series 6700 covers a complete range of Total Organic Carbon (TOC) Analyzers capable
of addressing a wide variety of industrial applications for process and environmental compliance
purposes. Depending on the application, TAI can provide an recommendation as to which
technique would be best suited to continuously detect TOC within your process.
UV / Heated Persulfate Combustion Ozone Promoted Ultrapure
Each configuration is available with an advanced Microsoft Windows-based computer with touch
screen control. The robust and reliable Infrared CO2 analyzer is the heart of each design. It
provides specific, interference-free CO2 detection, has no moving parts, and is extremely easy to
access and service, as required. Depending on your specific needs, TAI is capable of providing a
complete turn-key system solution suitable for use in hazardous, outdoor environments.
Applications: Boiler feedwater; Cooling water; Wastewater; River water; Pharmaceuticals; Process control
Oil in Water & TOC Analyzers
Oil in Water & TOC Analyzers

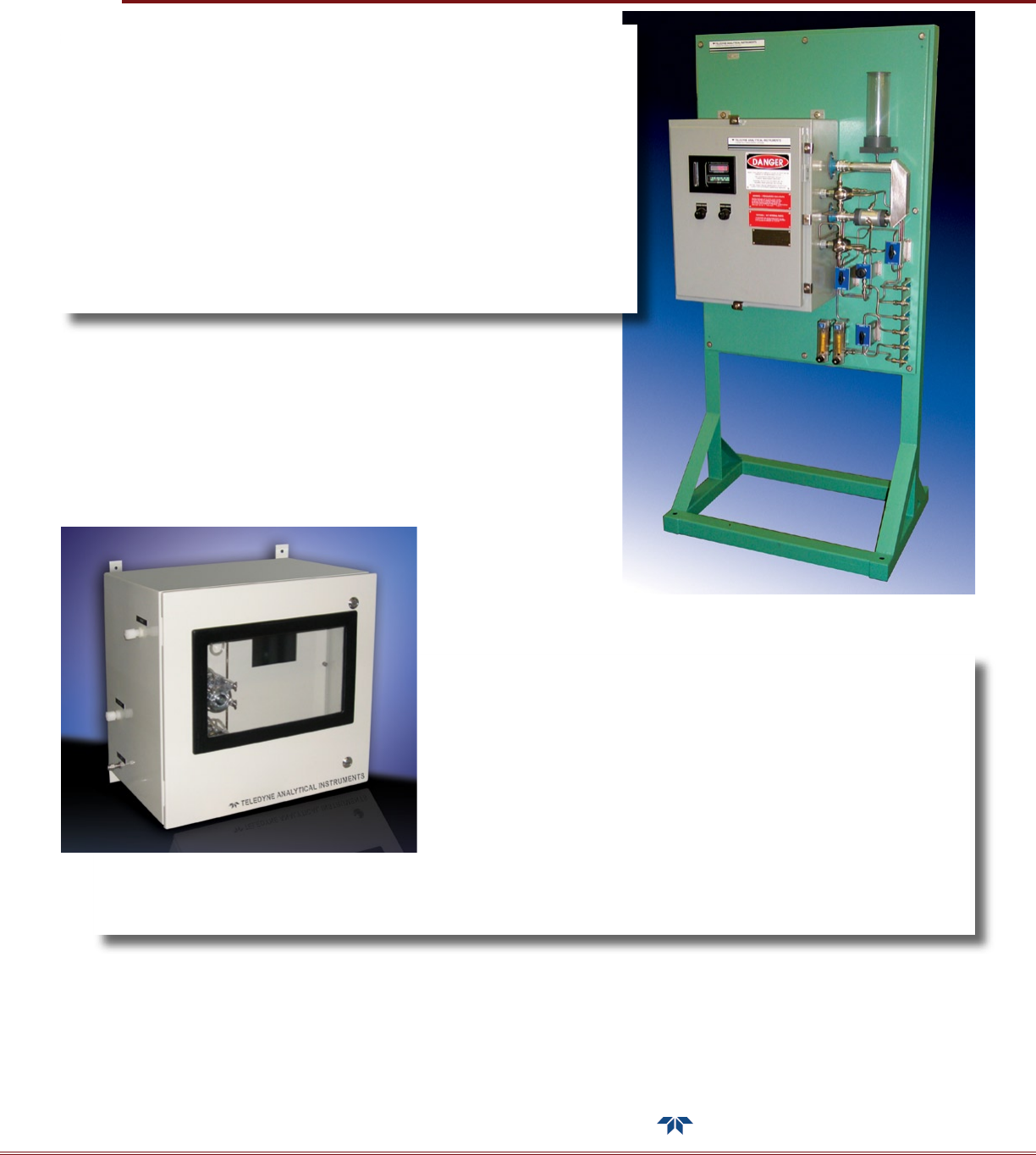

6600 Oil in Water Analysis System
The 6600 utilizes the ultraviolet absorption principle to detect and continuously measure oil
concentration in water with a reproducibility that exceeds standard laboratory techniques.
• Typical ranges of 0-5 to 0-200 ppm Oil (higher ranges available – contact factory)
• Compact, folded optic packaging with approved purged designs for use in hazardous areas
• Automatic self-cleaning sample cell design suitable for high sample pressure and temperature
applications
• Field-proven, value-added sample system designs available; configuration is based upon
intended application use
Applications: Oil in boiler return condensate; Refinery run-ogf, Waste water treatment plant;
Oil in Produced Water analysis on an offshore oil rig; Ship ballast discharge for environmental
compliance; Cooling tower water / heat exchangers
6600 Oil-in-Water Analysis System
Infrared Analyzers / Systems
Infrared Analyzers / Systems
Teledyne Analytical Instruments
SerieS 7000
Infrared Photometers
Teledyne’s 7300 series of Non-Dispersive Infrared
(NDIR) gas analyzers features fast response, high
accuracy, sensitivity, stability, and excellent linearity.
The analyzers offer cost competitive measurement
solutions due in part to the uniquely designed and
patented IR detector. The heart of these microprocessor-based units is a temperature compensated, hermetically
sealed, steady state thermopile detector integrated into an IR photometric bench. This design eliminates the traditional motor driven chopper wheel, signal
conditioning circuitry, and complex optics resulting in a compact and rugged analyzer.
Applications: Chemical and petrochemical processes; Combustion and flue gas processes; Pulp & Paper; Vapor recovery systems; Enhanced oil recovery; Food;
Agriculture; Medical; Metals; Ceramics and heat treating atmospheres; Landfill gas power stations; Emissions testing (part of the mobile stations); Carbon dioxide
scrubber efficiency; CO / CO2 monitoring in oxyhydrochlorination process in EDC manufacturing
The GFC-7000 Gas Filter Correlation Analyzer detects CO2 on an ultra-low range from 0-100 ppb
to 0-100 ppm. The sensitivity is achieved via a multiple optical pass sample (white) cell. Advanced
electronics provide extensive self-diagnostic capabilities, and built-in data acquisition provides the
means to log multiple calibration and operational parameters. The modular construction makes
service, when required, a simple operation.
Applications: Air separation; Medical grade air and O2
7300A Panel mount
7300B Wall mount
7320 Fully explosion proof
7500 Rack mount - CO2, CO, CH4, SO2, O2
7500B Wall mount - CO2, CO, CH4, SO2, O2
7600 Rack mount - NO, CO2, CO, CH4, SO2, O2
7600B Wall mount - NO, CO2, CO, CH4, SO2, O2
GFC-7000 Rack mount - trace CO2
GFC-7001 Rack mount - trace CO
GFC-7002 Rack mount - NO2
12

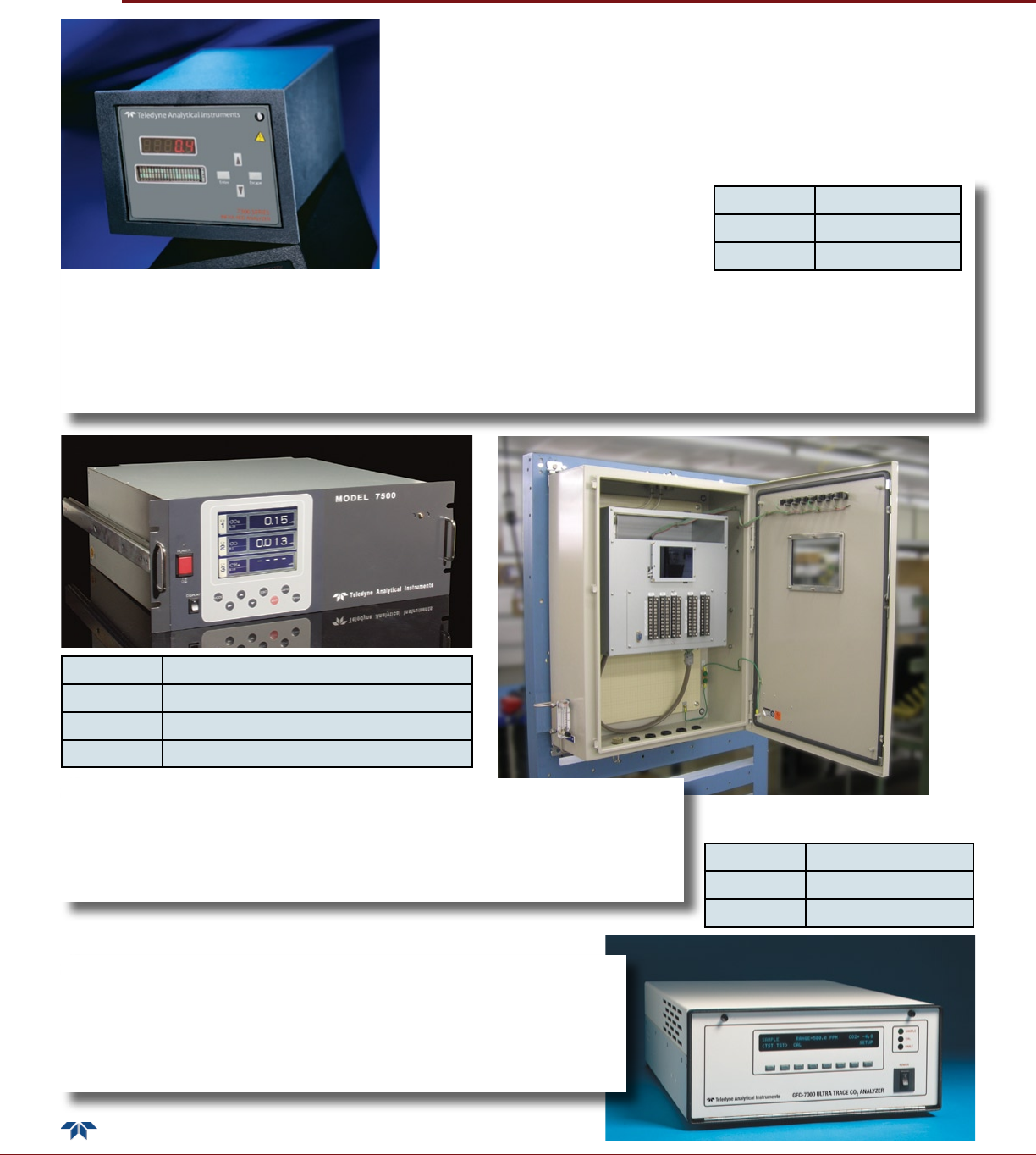

The Series 7500 IR Gas Analyzer can detect up to three individual IR absorbing components (i.e., CO, CO2,
CH4, SO2) on a continuous basis. As either a 19” rack mount or NEMA-4 wall mount enclosure, the 7500 can
also be supplied with an oxygen sensor, making a four in one, cost-effective design. The NEMA-4 enclosure
can be X or Z-purged to satisfy hazardous area installation requirements. The Series 7600 Infrared (IR) Gas
Analyzer is capable of detecting up to four individual IR absorbing components (i.e., NO, SO2, CO2, CO, and
CH4) on a continuous basis.
Stack Emissions & Combustion Efciency
Stack Emissions & Combustion Efciency
Teledyne Analytical Instruments
SerieS 9000
The Series 9110 utilizes the chemiluminescence
method for continuous detection of NO / NO2 / NOx
for either the 0-50 ppb to 0-20 ppm (Model 9110A) or
0-5 ppm to 0-5000 ppm (Model 9110AH) range.
Applications: Continuous emissions monitoring
(CEMs); Selective catalytic reduction of NOx; Air
separation (medical grade gases)
The CEA-9001 and PEM-9002 digital ue gas analyzers, suited for inspecting and
servicing small to industrial sized heater installations, are used for safety-relevant
technical inspections of CO emission concentrations in gas combustion plants.
The 9060 Zirconium Oxide Flue Gas Oxygen Analyzer provides reliable in-situ oxygen monitoring by combining our
proven zirconium oxide sensor technology with a microprocessor based controller in a compact NEMA-4 housing.
Applications: Boiler / combustion efficiency; Stack gas / emissions monitoring; Process heater furnaces (ethylene plants)
13
The LGA-3500 is an in-situ, cross stack Tunable Laser Diode Array Spectrometer (TLDAS) capable
of detecting a number of compounds, such as O2, CO, CO2, within a combustion process. The LGA-
3500 provides an instantaneous response to process
changes, has no moving parts, no cross interference
from other gases, and eliminates the need for a costly
extractive sample preconditioning system. The rugged
design and air purge applied on the optical windows of the
laser transmitter and receiver units makes the LGA-3500
easy to maintain and leads to a low cost of ownership.
Configurations suitable for hazardous areas are also
available.
Applications: Combustion optimization; Challenging
process applications within Steel and Petrochemical
plants
LGA-3500
Liquid Analytics
Liquid Analytics
Teledyne Analytical Instruments
Photo-X
pH, Conductivity,
Dissolved O2, Specific Ion
Photo-X Series: Fiber Optic Based UV/VIS & NIR Transmitters
TAI offers an application specific family of fiber optic-based photometric transmitters that
provide unique, in-situ solutions to challenging process problems.
By offering in-situ Front Surface Probes in SS and
Hastelloy-C -- capable of contending with high sample
temperatures and pressures -- we can determine the
fluorescence or spectral reflectance from the surface
of a liquid, solid, paste or slurry. The fiber optic probe
is intrinsically safe and we can package the Photo-X
Transmitter in a purged enclosure for installation in
hazardous areas.
The Photo-X product offering allows us to extend
our application reach within the petrochemical,
pharmaceutical and food & beverage markets.
UV Applications: Oil-in-Water analysis; Clean in Place
(CIP) validation; Protein purification, Viable cell growth
(NADH); Rouging in Water / Water for Injection (WFI)
NIR Applications: Optical density of fermentation; Water in Solvents; Scale formation
SerieS LXt
Photometric
Transmitters
SP-2 Retractable and SP-1 Immersion Probe Design

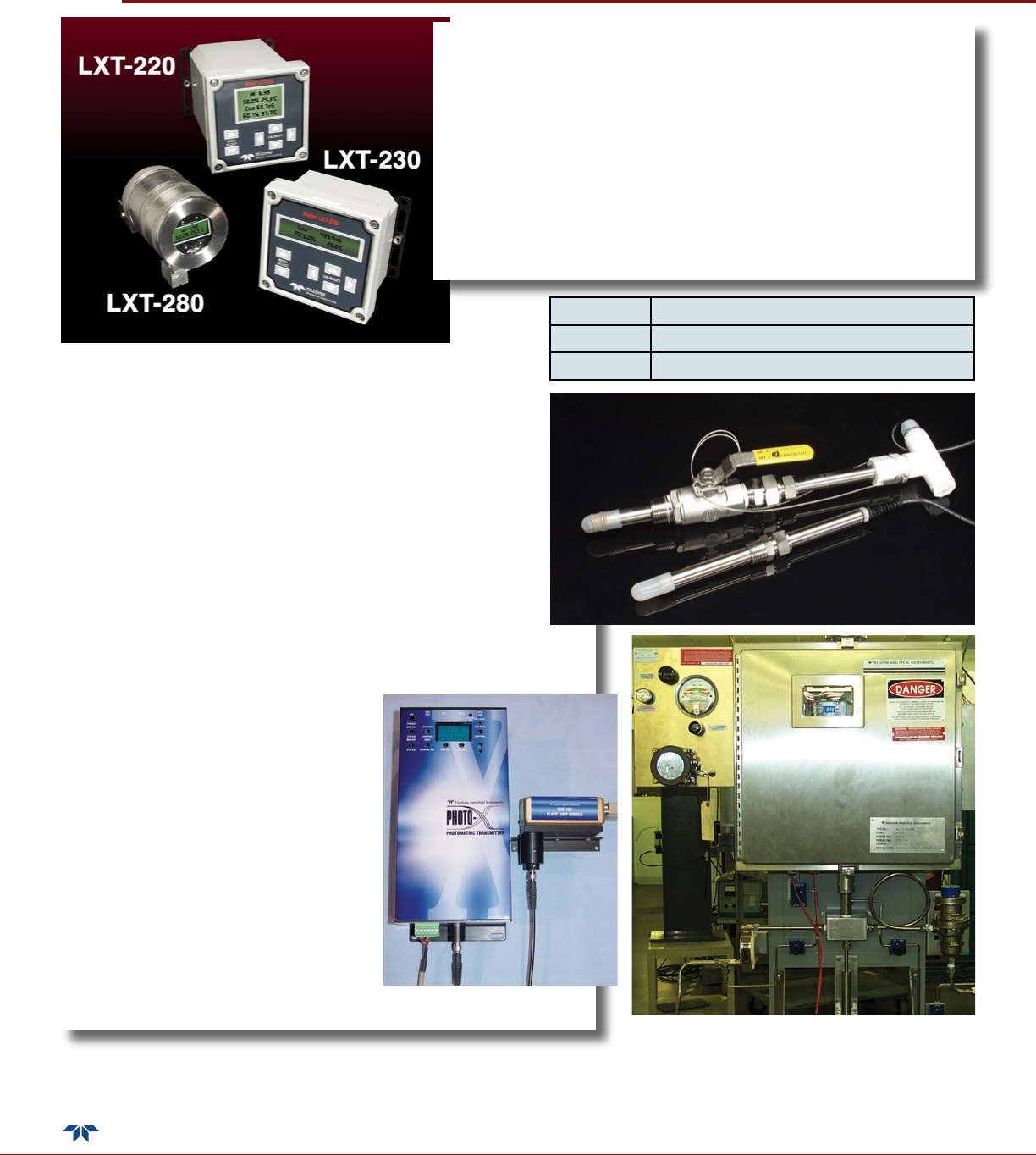

The Series LXT is comprised of microprocessor based, loop powered process transmitters
designed to provide liquid measurement and control in its simplest form. The units are provided
in watertight NEMA-4X and NEMA-7C (LXT-280 only) configurations which can be panel,
universal or hand-rail mounted in the field.
Applications:
Power Industry - Heat exchanger leaks; Condensate monitoring; Cooling tower H2O
control; Boiler feedwater control
Pulp & Paper - Demineralizer; Digester; Bleach plant; Recovery & Waste Water
Water Treatment - Influent monitoring; Reverse Osmosis & Desalinization plants
Food & Beverage - pH in fermentation process; DO in carbonated beverages
Pharmaceutical - Clean-in-Place (CIP) conductivity
LXT-220 AC powered, feature-rich controller, NEMA-4X
LXT-230 DC powered transmitter, NEMA-4X
LXT-280 DC powered transmitter, CSA / FM approved
14
Custom Design Solutions
Custom Design Solutions
Teledyne Analytical Instruments
SyStemS
Made to Order
Custom Systems
Teledyne provides turn-key solutions
for a wide variety of complex, custom
process monitoring applications.
For over 50 years we has assisted
customers with special monitoring
needs. Drawing on our process
expertise, our team of seasoned
experts creates systems that offer
reliability and performance our
customers can rely on.
The development of a custom
system involves evaluating chemical
samples, process conditions,
environmental requirements,
and hazardous classifications. In
addition, systems must often meet
international standards that require special knowledge. This work is done at no charge to
the customer.
Teledyne also participates in joint cooperative efforts with end users, manufacturers and
agencies to provide solutions to problems that no individual company can solve. Many
Teledyne developments are shared with the scientific community to propel the analytical
industry forward and better serve the scientific community. Whatever the application,
Teledyne will endeavor to create a custom system specific to the application.

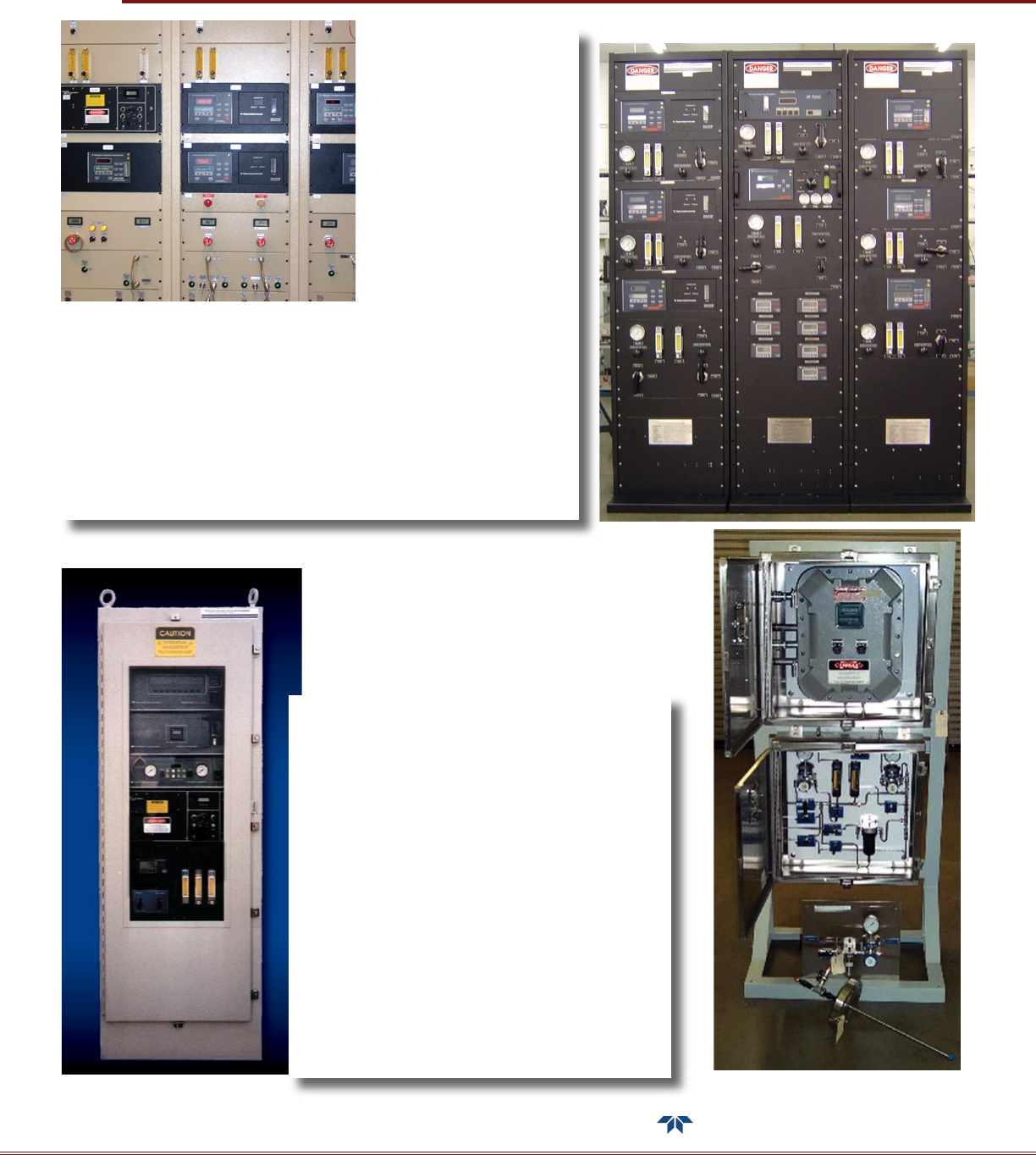

IR Systems for Offshore Platforms
Medical gas racks per US and European
Pharmacopiea regulations
The CDQC System can incorporate any combination of the
following analyzers to ensure the CO2 product used in food and
beverage processes meets industry standards:
• Trace levels of Total Sulphides as SO2 via UV Fluorescence
(0-50 ppb to 0-20 ppm)
• Trace levels of Total Hydrocarbons via FID
(0-1 ppm to 0-1000 ppm)
• Trace levels of Moisture via Al2O3 sensor (–100ºC to + 20ºC)
• Trace levels of Oxygen via Micro-fuel Cell sensor
(0-10 ppm to 0-1%)
• CO2 Purity Analysis via NDIR (98-100%)
The analyzers can be mounted in either a NEMA-12 or NEMA-
4/4X system enclosure with dual door access to facilitate analyzer
/ sample system adjustments. The system can be designed for
either stationary installation or with casters allowing the system
to be easily moved to various points in the plant. If required, the
system can be winterized allowing the system to be mounted in an
outdoor environment.
Carbon Dioxide Quality Control (CDQC) System for detecting total sulphides, total
hydrocarbons, and trace moisture in pure CO2 for the beverage industry
15
Teledyne Analytical Instruments
16830 Chestnut Street • City of Industry, California 91748 • USA
TEL: 626-934-1500 • 888-789-8168 • FAX: 626-934-1651
www.teledyne-ai.com • ask_tai@teledyne.com
INDUSTRIES SERVED
Petroleum
Chemical
Power generation
Semiconductor
Steel
Cement
Air liquefaction / separation
Pharmaceutical
Pulp & Paper
Oil and gas
Fertilizers and pesticides
Coal products
Stone, clay, glass and ceramics
Metals and metal processing
Waste treatment
Transportation
Instrumentation and control
Emissions control
Government
Rubber and plastic
Food and beverage
Heater and boiler servicing
Heat treating
Gas and water utilities
Mining
Aerospace
Electronics
Medical
Automotive
Military
Nuclear
Diving
CERTIFICATIONS EARNED
ISO-9001
ISO-13485
CENELEC
ATEX
BASEEFA
FM
GOST
UL
CSA
Certifications for specific instruments available
upon request. Specifications for systems are
also available by contacting TAI or a local
representative.
TAI Representative:
