Compal LA 9912P Schematics. Www.s Manuals.com. R1.0 Schematics

User Manual: Motherboard Compal LA-9912P VAWGA/VAWGB - Schematics. Free.

Open the PDF directly: View PDF .
Page Count: 38

A

A

B

B

C

C

D

D

E

E

1 1

2 2

3 3

4 4

AMD 25W APU With Jaguar Core and Integrated Yangtze FCH + ATI Sun

VAWGA/B Schematics Document

LA-9912P REV: 1.0

Compal Confidential

2013-04-01

AMD "Kabini" Platform

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

COVER PAGE

B

1 37Monday, April 01, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

COVER PAGE

B

1 37Monday, April 01, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

COVER PAGE

B

1 37Monday, April 01, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

A

A

B

B

C

C

D

D

E

E

1 1

2 2

3 3

4 4

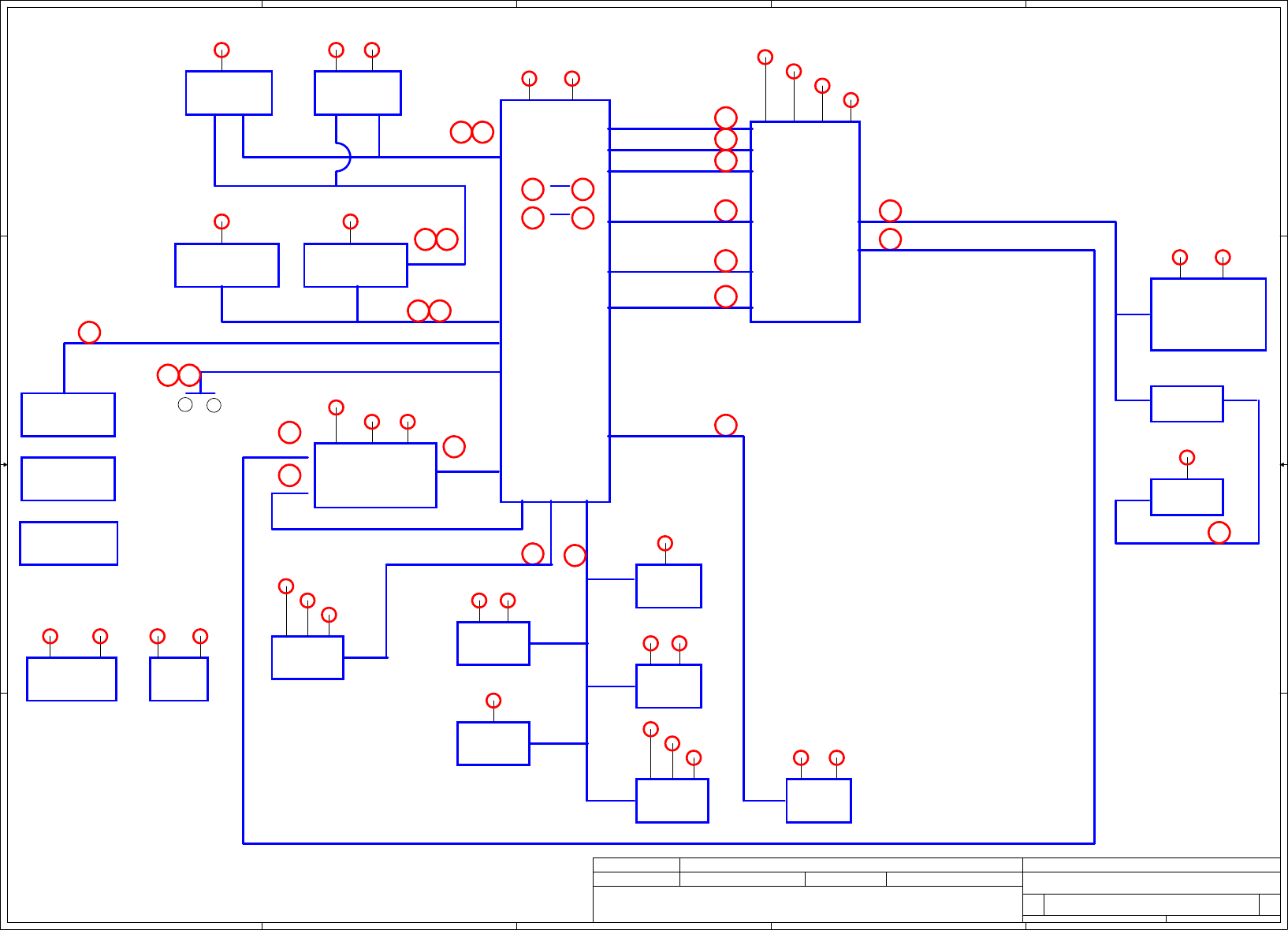

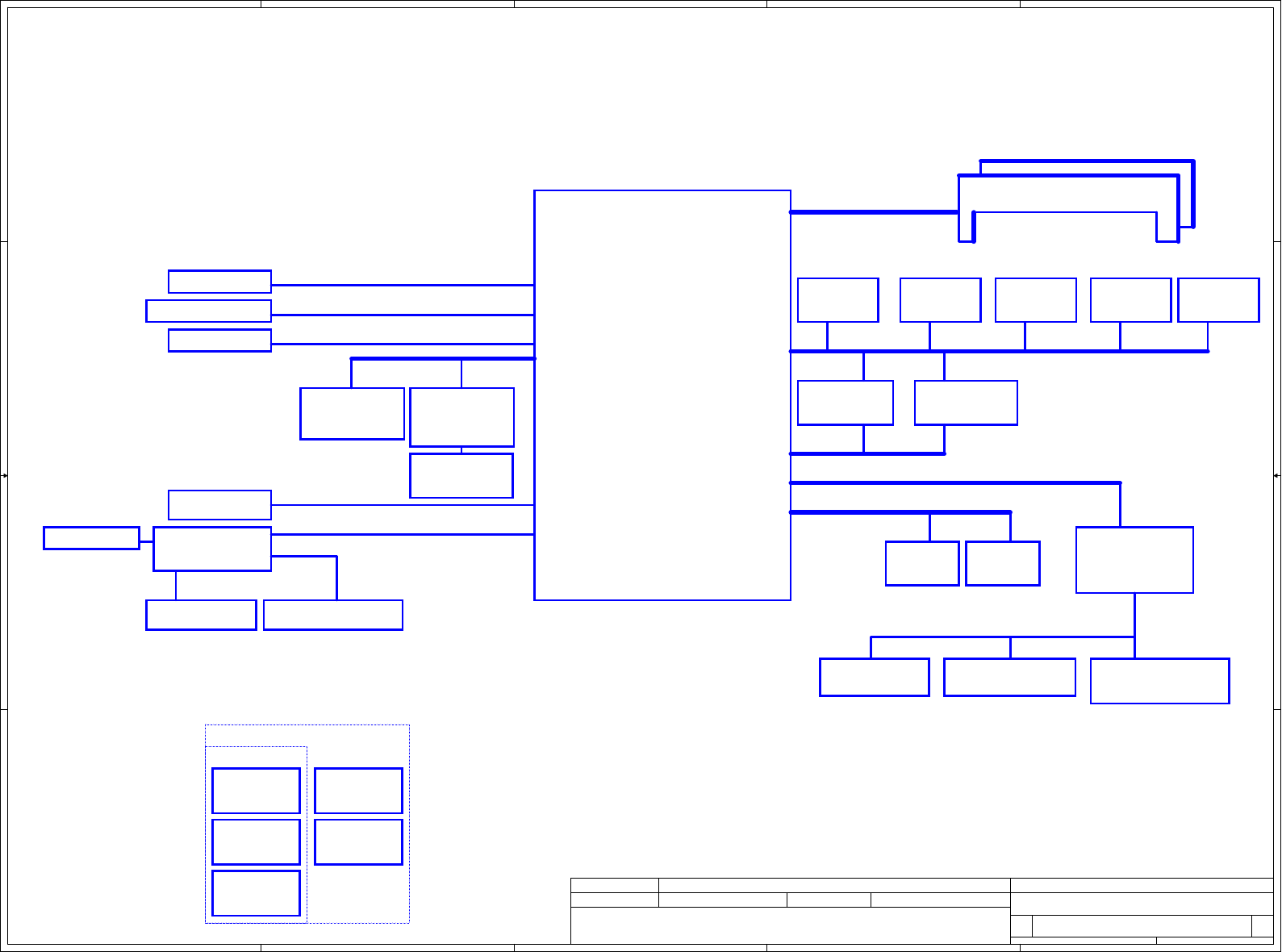

Compal Confidential

HD Audio

Model Name : VAWGA/B

Port 0

USB3.0

ODD

Conn.

Port 1

AMD Kabini

Gen3

AMD FT3 APU

BGA 769-balls

Jaguar Core

Single Channel BANK 0, 1, 2

204pin DDRIII-SO-DIMM X2

1.5V DDRIII 1600MHz

Memory BUS(DDR3)

P.8~P.9

HDMI Conn.

P11

DP0

DP1

MINI Card

(WLAN/BT)

P16

GPP1GPP2

Transformer

RJ45

P15

LAN

Atheros

AR8162/8172

HDD

Conn.

CRT Conn.

P12

Touch Pad

Int.KBD

P.18

P.20

P.20

ENE

KBC9012 Audio

Conexant

CX20757

P.5

BIOS (4M)

LVDS Conn.

P10

P14

P.4~P.7

P.13 P.13 P.21

PS2

Integrated Yangtze FCH

DAC

GFX

GPP

SPI

LPC

USB

SATA

HDA

MB

3.0 Conn. LP1

P.17

Port 0

MB

3.0 Conn. LP2

P.17

Port 1

USB

Port 8 Port 9

USB2.0

CMOS

Camera

P.11

Port 3

WLAN

BT Combo

P.16

Port 5

Card

Reader

P.20

Port 4

S/B

2.0 Conn.

P.17

Port 0

page 20

IO/B

page 20

Power/B

page 17

USB/B

LS9633P

LS9631P

LS9632P

page 13

ODD/B

page 20

LED/B

LS9634P

LS9635P

14"

15"

Sub-borad

page 21

Int. Speaker Conn.

page 21

Int. MIC

page 21

Audio Combo Jacks

HP & MIC

Thermal Sensor

P.19

Touch

Screen

P.16

Port 1

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

BLOCK DIAGRAMS

B

2 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

BLOCK DIAGRAMS

B

2 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

BLOCK DIAGRAMS

B

2 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

A

A

B

B

C

C

D

D

E

E

1 1

2 2

3 3

4 4

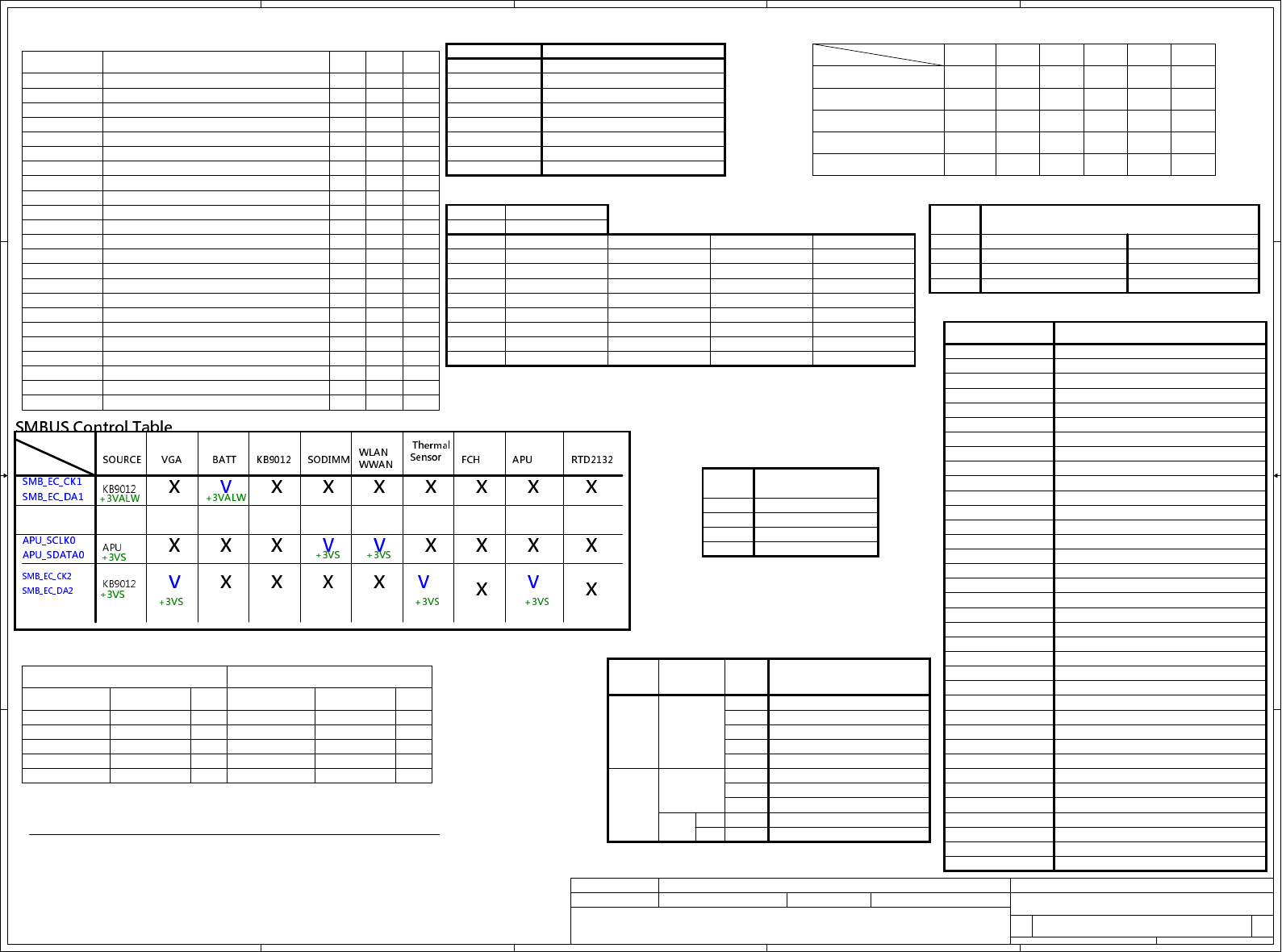

APU

SM Bus address

Device Address

Device Address

HEX

EC SM Bus1 address EC SM Bus2 address

Smart Battery

0001 011X b

16H

+APU_CORE_NB ON OFF OFFVoltage for On-die VGA of APU

+APU_CORE

Voltage Rails

VIN

B+

S0 S3 S5

ON OFF

ON ON ON

ONONON

Power Plane Description

OFF

Adapter power supply (19V)

AC or battery power rail for power circuit.

Core voltage for APU

+VGA_CORE OFFOFFON0.95-1.2V switched power rail

ONON OFF

0.75V switched power rail for DDR terminator

ON OFF OFF

3.3V switched power rail for VGA

STATE SIGNAL

Full ON

S1(Power On Suspend)

LOW

S3 (Suspend to RAM)

S4 (Suspend to Disk)

S5 (Soft OFF) LOW

SLP_S3# SLP_S5# +VALW +V +VS Clock

Vcc 3.3V +/- 5%

100K +/- 5%R1562

Board ID

R1564 V min

0

1

2

3

0

8.2K +/- 5%

0 V

0.216 V 0.250 V 0.289 V

0.436 V

0.712 V

0.503 V

0.819 V

0.538 V

0.875 V

AD_BID

V typ

AD_BID

V

AD_BID

max

18K +/- 5%

33K +/- 5%

56K +/- 5%

100K +/- 5%

200K +/- 5%

3.300 V

0 V 0 V

4

5

6

7NC

1.036 V

1.453 V 1.650 V 1.759 V

1.935 V

2.500 V

2.200 V

3.300 V

2.341 V

1.185 V 1.264 V

Board ID / SKU ID Table for AD channel

ON

ON

ON

ON

ON

ON

ON ON

ON

ON

ON

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

LOW

LOW

HIGH

HIGH HIGH

HIGHHIGH

HIGH

HIGH

+RTC_APU

+1.8VS

+5VS

+3VS

+5VALW

+3VALW

+VSB ON ON

ONON

ON

ON

OFF OFF

ON OFF OFF

ON

OFF

OFF

OFF

ON

OFFON

ON

ON

OFF

ON

OFF

ON

RTC power

3.3V always on power rail

3.3V switched power rail

5V always on power rail

5V switched power rail

VSB always on power rail

+3VGS

OFFON OFF+1.5VS

+1.5V

ON OFF OFF

ON OFFON

+0.95VS

+1.8VALW

ON OFF OFF

ON OFF OFF

+0.95VALW

ON ON*ON

2

3

4

5

6

7

PCB Revision

BOARD ID Table

Board ID

0

1

Device Address HEX

Thermal Sensor

1001 101X b

9AH

EVT

SB-TSI (APU)

1001 100X b

98H

+VDDCI OFF0.95-1.2V switched power rail ON OFF

VGA Internal Thermal

1000 001X b

82H

+1.8VGS

+1.5VGS

+0.95VGS

1.8V always on power rail

0.95V switched power rail

0.95V always on power rail

1.8V switched power rail

1.5V power rail for APU and DDR

1.5V switched power rail

+0.75VS ON OFFOFF

1.8V switched power rail for VGA

1.5V switched power rail for VGA

0.95V switched power rail for VGA

DDR DIMM1

1010 000Xb

DDR DIMM2

1010 001Xb

A2H

HEX

A0H

Lenovo Thermal Sensor

THERMAL@

EMIUSB2RU@

CardReadear EMI pop

EMIUSB2RP@

EMICU@

EMICP@

USB2R@

Right USB2.0 port component

2

3

1

0

USB OC MAPPING

USB PortOC#

HDMI part

DevicePort

LAN LDO mode

LDO@

USB20 port0

3

LAN

2

1

0

APU PCIE PORT LIST

WLAN

8162@

Ateros AR8172 LAN Chip

Ateros AR8162 LAN Chip

8172@

USB20 port1,2,8,9

LAN Switching mode

SWR@

Gastube

EMIGASP@

X4 ES2 BGA APU

X4@

X5 ES2 BGA APU

X5@

MARS@

SUN PRO GPU (R3 compal part)

SUN@

CardReader

MARS XT GPU (R1 compal part)

@

ME part

Unpop

ME@

HDMI@

Common VGA circuit

PX@

CMOS Camera part

CMOS@

USB 2.0 USB 3.0

Camera

LEFT USB (for colay)

3 External

USB Port

Port

2

1

0

7

6

5

4

3

9

8

USB Port Table

BOM Structure BTO Item

WLAN/BT Combo

BOM Structure Table

0

XHCI 1

LEFT USB (for colay)

RIGHT USB

LEFT USB3.0

LEFT USB3.0

USB30 port0,1

for 14" componect

14@

for 15" componect

15@

ZODD@

Zero Power ODD part

Touch Screen

TS@

Touch Screen

EMIP@

EMI pop component

EMI Un pop component

EMIU@

ESDP@

ESD pop component

ESD Un pop component

ESDU@

Right USB2.0 port EMI pop

Right USB2.0 port EMI un pop

CardReader EMI Un pop

UMA part

UMA@

X2@

X2 ES2 BGA APU

E1@

A6@

E2@

A4@

A6 R3 BGA APU

E1 R3 BGA APU

A4 R3 BGA APU

E2 R3 BGA APU

E1PC@

E1 PC BGA APU

DVT

PVT

MP

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

NOTES LIST

B

3 37Monday, April 01, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

NOTES LIST

B

3 37Monday, April 01, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

NOTES LIST

B

3 37Monday, April 01, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

A

A

B

B

C

C

D

D

E

E

1 1

2 2

3 3

4 4

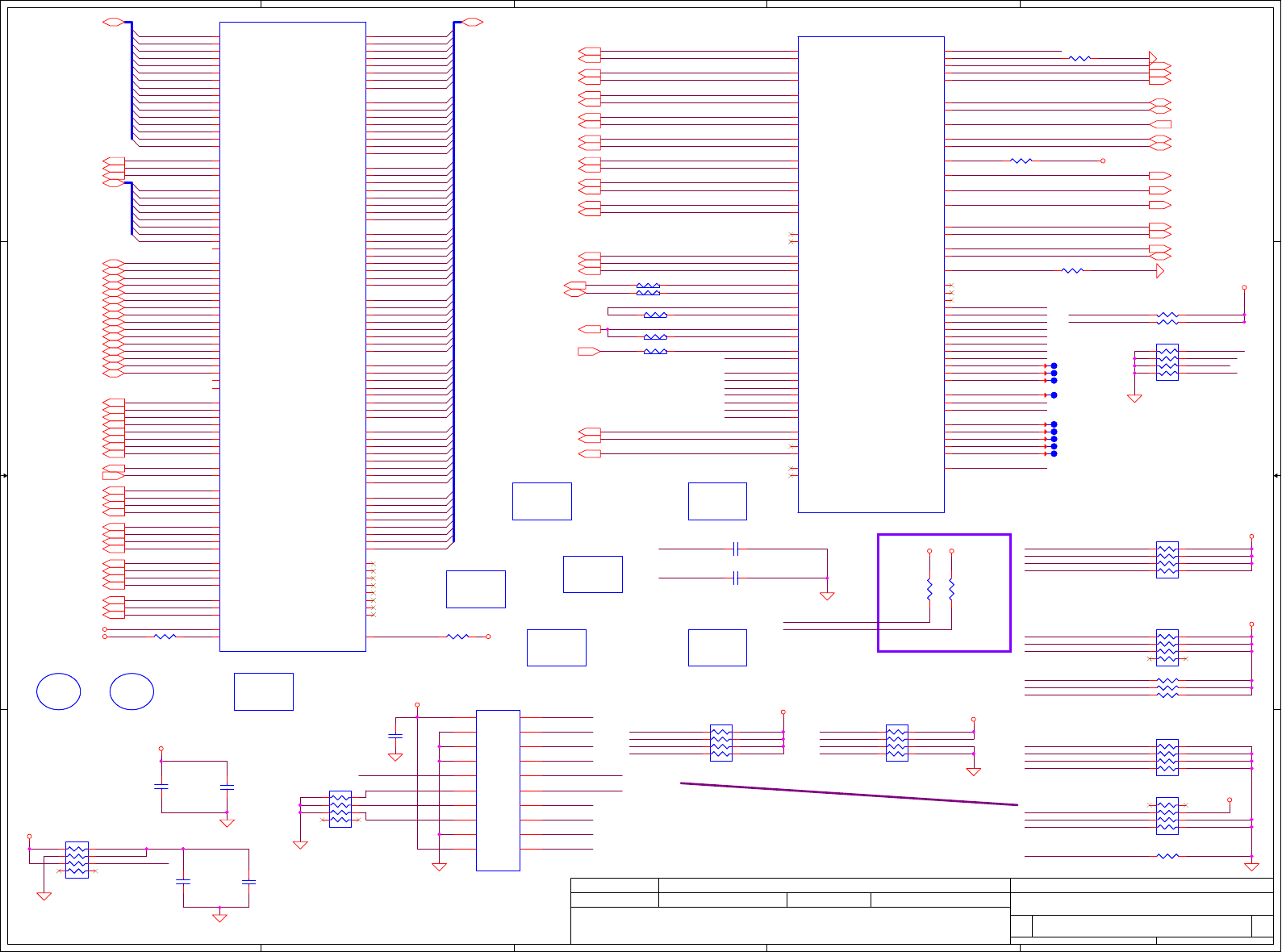

PD

MEMORY VREF

PU +1.8VS

PU +3VS

HDT+ PU +1.8VS + PD

HDMI

LVDS

CRT

HDMI & LVDS should be reverse in KABINI:

APU TX0 to Connector TX2 ; APU TX1 to Connector TX1

APU TX2 to Connector TX0 ; APU TX3 to Connector CLK

RP11, RP6 will @ when MP

For HDMI Need

CRT_HSYNC

DAC_ZVSS

APU_BP0

APU_BP1

APU_BP2

APU_BP3

APU_ALERT#

APU_TDI

APU_TMS

APU_TCK

APU_TRST#

APU_BPCLK_H

APU_BPCLK_L

APU_SCLK

APU_CLKINT

DP_STEREOSYNC

APU_SVC

APU_SVT

APU_SVD

APU_SID

APU_SIC

LDT_RST#

APU_RST#

APU_TDO

LDT_PWRGD

APU_PWRGD

APU_DBRDY

APU_DBREQ#

APU_PLLTEST1

APU_PLLTEST0

DP_150_ZVSS

DP_2K_ZVSS

APU_PROCHOT#

DDRAB_SMA15

DDRAB_SMA12

DDRAB_SMA14

DDRAB_SMA13

DDRAB_SMA11

DDRAB_SMA10

DDRAB_SMA6

DDRAB_SMA1

DDRAB_SMA7

DDRAB_SMA2

DDRAB_SMA3

DDRAB_SMA8

DDRAB_SMA5

DDRAB_SMA4

DDRAB_SMA9

DDRAB_SMA0

DDRAB_SDM6

DDRAB_SDM3

DDRAB_SDM5

DDRAB_SDM4

DDRAB_SDM2

DDRAB_SDM1

DDRAB_SDM7

DDRAB_SDM0

MEM_MAB_EVENT#

APU_BPCLK_L

APU_BPCLK_H

APU_RST#

APU_PWRGD

DDRAB_SDQ19

DDRAB_SDQ60

DDRAB_SDQ59

DDRAB_SDQ61

DDRAB_SDQ29

DDRAB_SDQ28

DDRAB_SDQ40

DDRAB_SDQ13

DDRAB_SDQ3

DDRAB_SDQ0

DDRAB_SDQ4

DDRAB_SDQ36

DDRAB_SDQ34

DDRAB_SDQ15

DDRAB_SDQ46

DDRAB_SDQ39

DDRAB_SDQ43

DDRAB_SDQ47

DDRAB_SDQ53

DDRAB_SDQ8

DDRAB_SDQ6

DDRAB_SDQ5

DDRAB_SDQ54

DDRAB_SDQ24

DDRAB_SDQ33

DDRAB_SDQ31

DDRAB_SDQ12

DDRAB_SDQ50

DDRAB_SDQ9

DDRAB_SDQ51

DDRAB_SDQ26

DDRAB_SDQ42

DDRAB_SDQ62

DDRAB_SDQ63

DDRAB_SDQ7

DDRAB_SDQ48

DDRAB_SDQ44

DDRAB_SDQ1

DDRAB_SDQ32

DDRAB_SDQ25

DDRAB_SDQ58

DDRAB_SDQ27

DDRAB_SDQ38

DDRAB_SDQ2

DDRAB_SDQ55

DDRAB_SDQ11

DDRAB_SDQ30

DDRAB_SDQ49

DDRAB_SDQ14

DDRAB_SDQ10

DDRAB_SDQ41

DDRAB_SDQ57

DDRAB_SDQ45

DDRAB_SDQ52

DDRAB_SDQ37

DDRAB_SDQ35

DDRAB_SDQ23

DDRAB_SDQ21

DDRAB_SDQ22

DDRAB_SDQ20

DDRAB_SDQ56

DDRAB_SDQ18

DDRAB_SDQ16

DDRAB_SDQ17

M_ZVDDIO

APU_TDI

APU_TCK

APU_TMS

APU_PWRGD

APU_RST#

APU_DBREQ#

APU_DBRDY

APU_TRST#

APU_TDO

APU_PLLTEST1

APU_PLLTEST0

DAC_RED

DAC_GRN

DAC_BLU

DP_150_ZVSS

MEM_MAB_EVENT#

+MEM_VREF

APU_SCLK

APU_CLKINT

APU_SVC

APU_SVT

APU_SVD

APU_PLLTEST0

APU_PLLTEST1

DP_STEREOSYNC

CRT_HSYNC

APU_SCLK

APU_CLKINT

APU_TRST#

APU_PWRGD

APU_RST#

EDID_CLK

EDID_DATA

APU_TDI

APU_TCK

APU_TMS

APU_DBREQ#

APU_BP0

APU_BP1

APU_BP2

APU_BP3

APU_PROCHOT#

APU_SIC

APU_SID

APU_ALERT#

CRT_HSYNC <12>

CRT_VSYNC <12>

CRT_DDC_CLK <12>

CRT_DDC_DATA <12>

APU_INVT_PWM <11>

APU_ENVDD <11>

HDMI_DET <10>

DAC_BLU <12>

DAC_GRN <12>

DAC_RED <12>

DDRB_SCS0#

<9>

DDRB_SCS1#

<9>

DDRAB_SDQS0

<8,9>

DDRAB_SDQS0#

<8,9>

DDRAB_SDQS1

<8,9>

DDRAB_SDQS1#

<8,9>

DDRAB_SDQS2

<8,9>

DDRAB_SDQS2#

<8,9>

DDRAB_SDQS3

<8,9>

DDRAB_SDQS3#

<8,9>

DDRAB_SDQS4

<8,9>

DDRAB_SDQS4#

<8,9>

DDRAB_SDQS5

<8,9>

DDRAB_SDQS5#

<8,9>

DDRAB_SDQS6

<8,9>

DDRAB_SDQS6#

<8,9>

DDRAB_SDQS7

<8,9>

DDRAB_SDQS7#

<8,9>

DDRA_CLK0

<8>

DDRA_CLK0#

<8>

DDRA_CKE0

<8>

DDRA_CKE1

<8>

DDRA_ODT0

<8>

DDRA_ODT1

<8>

DDRA_SCS0#

<8>

DDRA_SCS1#

<8>

DDRAB_SRAS#

<8,9>

DDRAB_SCAS#

<8,9>

DDRAB_SWE#

<8,9>

MEM_MAB_RST#

<8,9>

MEM_MAB_EVENT#

<8,9>

DDRA_CLK1

<8>

DDRA_CLK1#

<8>

DDRAB_SMA[15..0]

<8,9>

DDRAB_SDM[7..0]

<8,9>

DDRAB_SBS0#

<8,9>

DDRAB_SBS1#

<8,9>

DDRAB_SBS2#

<8,9>

DDRB_CLK0

<9>

DDRB_CLK0#

<9>

DDRB_CLK1

<9>

DDRB_CLK1#

<9>

DDRB_CKE0

<9>

DDRB_CKE1

<9>

DDRB_ODT0

<9>

DDRB_ODT1

<9>

ENBKL <18>

APU_SVD

<29>

APU_SVT

<29>

APU_SVC

<29>

EC_SMB_DA2

<18,19>

EC_SMB_CK2

<18,19>

APU_VDD_RUN_FB_L

<29>

DP2_TXP0

<10>

DP2_TXN0

<10>

DP2_TXN1

<10>

DP2_TXP1

<10>

DP2_TXN2

<10>

DP2_TXP2

<10>

DP2_TXN3

<10>

DP2_TXP3

<10>

HDMI_CLK <10,12>

HDMI_DATA <10,12>

DDRAB_SDQ[63..0] <8,9>

EDID_DATA <11>

EDID_CLK <11>

LVDS_A1#

<11>

LVDS_A1

<11>

LVDS_ACLK#

<11>

LVDS_ACLK

<11>

APU_PWRGD

<29>

H_PROCHOT#

<18,24,29,6>

APU_VDD_SEN

<29>

APU_VDDNB_SEN

<29>

LVDS_A0

<11>

LVDS_A0#

<11>

LVDS_A2#

<11>

LVDS_A2

<11>

+VREF_DQ

+MEM_VREF

+3VS

+VREF_DQ

+1.5V

+1.8VS

+3VS

+1.5V

+1.8VS

+1.8VS

+1.8VS

+1.8VS +3VS

+1.8VS

+3VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

FT3 DDR3/DISP/MISC//HDT+

Custom

4 37Monday, April 01, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

FT3 DDR3/DISP/MISC//HDT+

Custom

4 37Monday, April 01, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

FT3 DDR3/DISP/MISC//HDT+

Custom

4 37Monday, April 01, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

R897 100K_0402_5%R897 100K_0402_5%

1 2

C163

0.1U_0402_16V7K

C163

0.1U_0402_16V7K

1

2

C1270 100P_0402_50V8J

ESDU@

C1270 100P_0402_50V8J

ESDU@

1 2

R400 2K_0402_1%R400 2K_0402_1%

1 2

R124 0_0402_5%@R124 0_0402_5%@

1 2

R80 300_0402_5%R80 300_0402_5%

1 2

ZZZ

LA9912P

DAZ0Y600201

14@

ZZZ

LA9912P

DAZ0Y600201

14@

T46T46

T41T41

JHDT2

SAMTE_ASP-136446-07-B@

JHDT2

SAMTE_ASP-136446-07-B@

1

1

3

3

5

5

7

7

9

9

11

11

13

13

15

15

17

17

19

19

22

44

66

88

10 10

12 12

14 14

16 16

18 18

20 20

RP5

1K_0804_8P4R_5%

@RP5

1K_0804_8P4R_5%

@

1 8

2 7

3 6

4 5

T47T47

C337

1U_0402_6.3V6K

C337

1U_0402_6.3V6K

1

2

R113

1K_0402_5%

R113

1K_0402_5%

1 2

T40T40

R256 4.7K_0402_5%R256 4.7K_0402_5%

12

UAPU

X2 ES2 KABINI ZMA5B078J2360 1.65G BGA CPU

X2@UAPU

X2 ES2 KABINI ZMA5B078J2360 1.65G BGA CPU

X2@

T45T45

UAPU

E1 PR KABINI EM2100ICJ23HM 1G BGA769P APU

E1@UAPU

E1 PR KABINI EM2100ICJ23HM 1G BGA769P APU

E1@

RP3

1K_0804_8P4R_5%

@RP3

1K_0804_8P4R_5%

@

1 8

2 7

3 6

4 5

C164

0.1U_0402_16V7K

@

C164

0.1U_0402_16V7K

@

1

2

UAPU

A6 PR KABINI AM5200IAJ44HM 2G BGA769P APU

A6@UAPU

A6 PR KABINI AM5200IAJ44HM 2G BGA769P APU

A6@

RP4

1K_0804_8P4R_5%

RP4

1K_0804_8P4R_5%

1 8

2 7

3 6

4 5

T43T43

R74

39.2_0402_1%

R74

39.2_0402_1%

1 2

T39T39

C195

0.1U_0402_16V7K

ESDP@ C195

0.1U_0402_16V7K

ESDP@

1

2

ZZZ

LA9912P

DAZ0Y700201

15@

ZZZ

LA9912P

DAZ0Y700201

15@

RP7

1K_0804_8P4R_5%

@RP7

1K_0804_8P4R_5%

@

1 8

2 7

3 6

4 5

R120 0_0402_5%@R120 0_0402_5%@

1 2

C1273 100P_0402_50V8J

ESDU@

C1273 100P_0402_50V8J

ESDU@

1 2

UAPU

E1 PC 2M101082J2361 1G BGA 769P

E1PC@UAPU

E1 PC 2M101082J2361 1G BGA 769P

E1PC@

R18 511_0402_1%R18 511_0402_1%

1 2

R118 0_0402_5%@R118 0_0402_5%@

1 2

T42T42

UAPU

A4 PR KABINI AM5000IBJ44HM 1.5G BGA 769P APU

A4@UAPU

A4 PR KABINI AM5000IBJ44HM 1.5G BGA 769P APU

A4@

UAPU

X5 ES2 ZM201079J4460 2G BGA 769P

X5@UAPU

X5 ES2 ZM201079J4460 2G BGA 769P

X5@

R576 0_0402_5%@R576 0_0402_5%@

1 2

R255 4.7K_0402_5%R255 4.7K_0402_5%

12

RP8

1K_0804_8P4R_5%

RP8

1K_0804_8P4R_5%

1 8

2 7

3 6

4 5

R117 0_0402_5%@R117 0_0402_5%@

1 2

RP2

1K_0804_8P4R_1%

RP2

1K_0804_8P4R_1%

1 8

2 7

3 6

4 5

R114

1K_0402_5%

R114

1K_0402_5%

1 2

R416 499_0402_1%R416 499_0402_1%

1 2

UAPU

E2 PR KABINI EM3000IBJ23HM 1.65G BGA 769P APU

E2@UAPU

E2 PR KABINI EM3000IBJ23HM 1.65G BGA 769P APU

E2@

RP11

10K_0804_8P4R_5%

@RP11

10K_0804_8P4R_5%

@

1 8

2 7

3 6

4 5

FT3 REV 0.51

DISPLAY/SVI2/JTAG/TEST

UAPUC

FT3_BGA769

X4@

FT3 REV 0.51

DISPLAY/SVI2/JTAG/TEST

UAPUC

FT3_BGA769

X4@

AU33

VDD_095_FB_L

AV33

VDD_095_FB_H

E23

VSS_SENSE

E25

VDDIO_MEM_S_SENSE

G23

VDDCR_CPU_SENSE

D23

VDDCR_NB_SENSE

A25

DBREQ_L

B25

DBRDY

G27

TRST_L

D33

TMS

D35

TCK

D31

TDO

D29

TDI

B18

ALERT_L

A22

PROCHOT_L

A19

LDT_PWROK

B19

APU_PWROK

A20

LDT_RST_L

B20

APU_RST_L

B21

SID

B22

SIC

E29

SVD

D27

SVC

G31

SVT

H15

DISP_CLKIN_L

K15

DISP_CLKIN_H

B7

LTDP0_TXN3

A7

LTDP0_TXP3

B6

LTDP0_TXN2

A6

LTDP0_TXP2

B5

LTDP0_TXN1

A5

LTDP0_TXP1

B4

LTDP0_TXN0

A4

LTDP0_TXP0

B12

TDP1_TXN3

A12

TDP1_TXP3

B11

TDP1_TXN2

A11

TDP1_TXP2

B10

TDP1_TXN1

A10

TDP1_TXP1

B9

TDP1_TXN0

A9

TDP1_TXP0

E21

HDMI_EN/DP_STEREOSYNC

AP29

TMON_CAL

N32

M_ANALOGOUT

R32

M_ANALOGIN

AJ8

USB_ATEST1

AJ10

USB_ATEST0

H25

GIO_TSTDTM0_CLKINIT

H21

GIO_TSTDTM0_SERIALCLK

A29

FREE_2

E33

M_TEST

AU35

PLLCHRZ_L

AV35

PLLCHRZ_H

A24

BYPASSCLK_L

B24

BYPASSCLK_H

A28

PLLTEST0

B28

PLLTEST1

B26

BP3

A26

BP2

B27

BP1

A27

BP0

D25

DIECRACKMON

H29

THERMDC

H27

THERMDA

A16

DAC_ZVSS

D21

DAC_SDA

D19

DAC_SCL

E19

DAC_VSYNC

G19

DAC_HSYNC

B15

DAC_BLUE

A14

DAC_GREEN

B14

DAC_RED

H17

LTDP0_HPD

E15

LTDP0_AUXN

D15

LTDP0_AUXP

H19

TDP1_HPD

E17

TDP1_AUXN

D17

TDP1_AUXP

A18

DP_VARY_BL

A17

DP_DIGON

B17

DP_BLON

A21

DP_2K_ZVSS

B16

DP_150_ZVSS

T44T44

RP23

150_0804_8P4R_1%

RP23

150_0804_8P4R_1%

18

27

36

45

R127 0_0402_5%@R127 0_0402_5%@

1 2

RP6

1K_0804_8P4R_5%

RP6

1K_0804_8P4R_5%

1 8

2 7

3 6

4 5

C342

1U_0402_6.3V6K

@

C342

1U_0402_6.3V6K

@

1

2

R82 300_0402_5%R82 300_0402_5%

1 2

FT3 REV 0.51

MEMORY

UAPUA

FT3_BGA769

X4@

FT3 REV 0.51

MEMORY

UAPUA

FT3_BGA769

X4@

AC38

M_VREFDQ

AD40

M_VREF

AL35

M_WE_L

AL34

M_CAS_L

AJ37

M_RAS_L

AN35

M1_CS_L1

AL38

M1_CS_L0

AR38

M0_CS_L1

AJ34

M0_CS_L0

AR37

M1_ODT1

AN37

M1_ODT0

AU38

M0_ODT1

AN38

M0_ODT0

J34

M1_CKE1

J37

M1_CKE0

J38

M0_CKE1

L34

M0_CKE0

AE34

M_EVENT_L

G38

M_RESET_L

AA38

M_CLK_L3

AA37

M_CLK_H3

AE37

M_CLK_L2

AE38

M_CLK_H2

AA32

M_CLK_L1

AA34

M_CLK_H1

AC34

M_CLK_L0

AC35

M_CLK_H0

Y41

M_DQS_L8

AA40

M_DQS_H8

BA34

M_DQS_L7

AY33

M_DQS_H7

AY41

M_DQS_L6

BA40

M_DQS_H6

AP40

M_DQS_L5

AP41

M_DQS_H5

AH40

M_DQS_L4

AH41

M_DQS_H4

P40

M_DQS_L3

P41

M_DQS_H3

H40

M_DQS_L2

H41

M_DQS_H2

A40

M_DQS_L1

B40

M_DQS_H1

A33

M_DQS_L0

B33

M_DQS_H0

Y40

M_DM8

AY34

M_DM7

AY40

M_DM6

AN41

M_DM5

AG40

M_DM4

N41

M_DM3

G40

M_DM2

B38

M_DM1

B32

M_DM0

N34

M_BANK2

AG35

M_BANK1

AJ38

M_BANK0

L35

M_ADD15

L38

M_ADD14

AN34

M_ADD13

N37

M_ADD12

R34

M_ADD11

AG34

M_ADD10

N38

M_ADD9

R38

M_ADD8

R35

M_ADD7

U34

M_ADD6

U37

M_ADD5

U38

M_ADD4

W34

M_ADD3

W38

M_ADD2

W35

M_ADD1

AG38

M_ADD0

AD41

M_ZVDDIO_MEM_S

AB41

M_CHECK7

AA41

M_CHECK6

V40

M_CHECK5

U41

M_CHECK4

AC40

M_CHECK3

AB40

M_CHECK2

W40

M_CHECK1

V41

M_CHECK0

AY32

M_DATA63

BA33

M_DATA62

AY36

M_DATA61

BA37

M_DATA60

AY31

M_DATA59

BA32

M_DATA58

AY35

M_DATA57

BA36

M_DATA56

AY38

M_DATA55

AY39

M_DATA54

AV40

M_DATA53

AU41

M_DATA52

AY37

M_DATA51

BA38

M_DATA50

AW40

M_DATA49

AV41

M_DATA48

AT40

M_DATA47

AR40

M_DATA46

AM40

M_DATA45

AL40

M_DATA44

AU40

M_DATA43

AT41

M_DATA42

AN40

M_DATA41

AM41

M_DATA40

AJ41

M_DATA39

AJ40

M_DATA38

AE41

M_DATA37

AE40

M_DATA36

AK41

M_DATA35

AK40

M_DATA34

AF41

M_DATA33

AF40

M_DATA32

T40

M_DATA31

R40

M_DATA30

M40

M_DATA29

L40

M_DATA28

U40

M_DATA27

T41

M_DATA26

N40

M_DATA25

M41

M_DATA24

J41

M_DATA23

J40

M_DATA22

E41

M_DATA21

E40

M_DATA20

K41

M_DATA19

K40

M_DATA18

F41

M_DATA17

F40

M_DATA16

C40

M_DATA15

B41

M_DATA14

A37

M_DATA13

B36

M_DATA12

D41

M_DATA11

D40

M_DATA10

A38

M_DATA9

B37

M_DATA8

B34

M_DATA7

A34

M_DATA6

A30

M_DATA5

B29

M_DATA4

A36

M_DATA3

B35

M_DATA2

A32

M_DATA1

B30

M_DATA0

R19 511_0402_1%R19 511_0402_1%

1 2

A

A

B

B

C

C

D

D

E

E

1 1

2 2

3 3

4 4

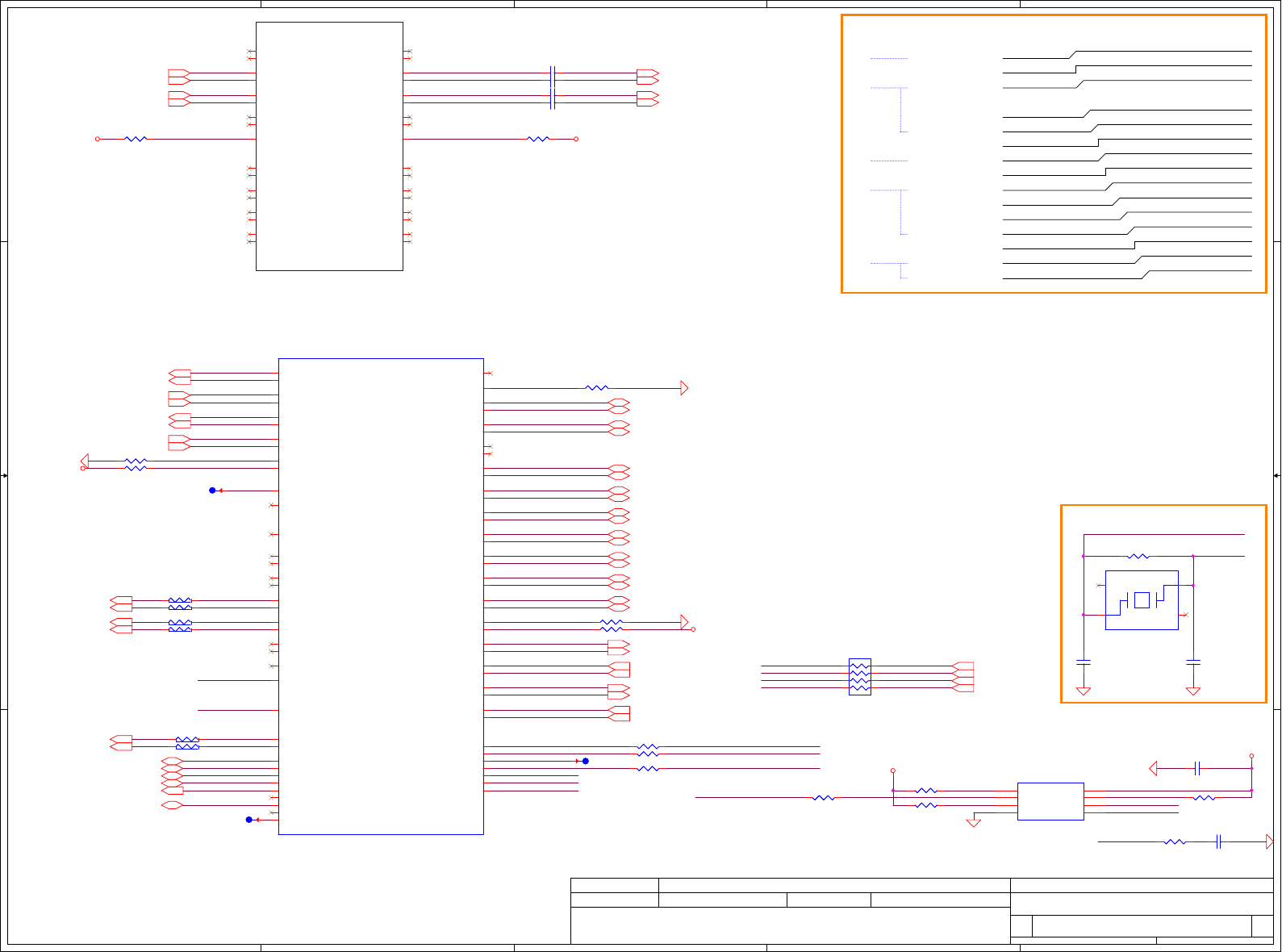

LANLAN

MB USB3.0 port0

HDD

ODD

LAN

WLAN

48MHz CRYSTAL

APU POWER SEQUENCE

+3VALW/+5VALW

+1.8VALW

+0.95VALW

+RTC

+3VS

+1.8VS

+1.5V

+1.5VS

+0.95VS

+APU_CORE

+APU_CORE_NB

EC_ON

SYSON

VR_ON

SUSP#

G-A

G-B

G-C

G-D

G-E

MB USB3.0 port1

Right USB port

CAMERA

CardReader

WLAN/BT combo

USB2.0 LP1

USB2.0 LP2

WLAN WLAN

R103 R104 for EMI

Touch Screen

R109,R110,R111 close to APU

R108 close to ROM

APU->EC->ROM must route as

Daisy Chain for Share ROM quality

(RP12 was request to added for the recoverable solution

as original method--backup)

4MB SPI ROM

(Current Share mode)

PCIE_ATX_DRX_P1

PCIE_ATX_DRX_N1

USBSS_ZVSS

USBSS_ZVDD

APU_SPI_CS1#

APU_SPI_AOSI

APU_SPI_AISO

APU_SPI_WP#

APU_SPI_HOLD#

SATA_ZVSS

SATA_ZVDD

USB_ZVSS

48M_X1

48M_X2

48M_X1

48M_X2

P_TX_ZVDD_095 P_RX_ZVDD_095

PCIE_ATX_DRX_N2

PCIE_ATX_DRX_P2

APU_SPI_CLK

GPP_CLK1P

GPP_CLK1N

GPP_CLK2P

GPP_CLK2N

APU_SPI_AISO_U

APU_SPI_CLK_U

APU_SPI_CS1#_U

APU_SPI_AOSI_U

APU_SPI_AISO

APU_SPI_CLK_U

APU_SPI_CS1#_U

APU_SPI_AOSI_U

APU_SPI_AISO

APU_SPI_CLK_U

APU_SPI_AOSI_U

APU_SPI_HOLD#

APU_SPI_CS1#_U

APU_SPI_WP#

EC_SPI_CS1#

EC_SPI_AOSI

EC_SPI_CLK

EC_SPI_AISO

APU_SPI_CLK_U

PCIE_DTX_C_ARX_P1

<14>

PCIE_DTX_C_ARX_N1

<14>

PCIE_ATX_C_DRX_P1 <14>

PCIE_ATX_C_DRX_N1 <14>

USB30_P8 <17>

USB30_N8 <17>

USB30_MRX_DTX_N0<17>

USB30_MRX_DTX_P0<17>

USB30_MTX_C_DRX_N0

<17>

USB30_MTX_C_DRX_P0

<17>

SATA_ATX_DRX_P0

<13>

SATA_ATX_DRX_N0

<13>

SATA_DTX_C_ARX_P0

<13>

SATA_DTX_C_ARX_N0

<13>

SATA_DTX_C_ARX_P1

<13>

SATA_ATX_DRX_P1

<13>

SATA_DTX_C_ARX_N1

<13>

SATA_ATX_DRX_N1

<13>

USB30_MRX_DTX_N1<17>

USB30_MRX_DTX_P1<17>

USB30_MTX_C_DRX_N1

<17>

USB30_MTX_C_DRX_P1

<17>

USB30_P9 <17>

USB30_N9 <17>

LPC_CLK0_EC

<18,6>

LPC_CLK1

<6>

LPC_AD0

<18>

LPC_AD1

<18>

LPC_AD2

<18>

LPC_AD3

<18>

SERIRQ

<18>

LPC_FRAME#

<18,6>

USB20_P0 <17>

USB20_N0 <17>

USB20_N3 <11>

USB20_P3 <11>

USB20_P4 <20>

USB20_N4 <20>

USB20_P5 <16>

USB20_N5 <16>

USB20_P6 <17>

USB20_N6 <17>

USB20_P7 <17>

USB20_N7 <17>

PCIE_DTX_C_ARX_P2

<16>

PCIE_DTX_C_ARX_N2

<16>

PCIE_ATX_C_DRX_P2 <16>

PCIE_ATX_C_DRX_N2 <16>

USB20_P1 <16>

USB20_N1 <16>

CLK_PCIE_LAN

<14>

CLK_PCIE_LAN#

<14>

CLK_PCIE_WLAN

<16>

CLK_PCIE_WLAN#

<16>

EC_SPI_CS1# <18>

EC_SPI_AOSI <18>

EC_SPI_CLK <18>

EC_SPI_AISO <18>

+0.95VS_APU_GFX+0.95VS_APU_GFX

+0.95VALW

+0.95VS

+3VALW

+3VALW

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

FT3 PCIE/SATA/CLK/USB/SPI

Custom

5 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

FT3 PCIE/SATA/CLK/USB/SPI

Custom

5 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

FT3 PCIE/SATA/CLK/USB/SPI

Custom

5 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

C635

0.1U_0402_16V4Z

@

C635

0.1U_0402_16V4Z

@

12

R73

1K_0402_1%

R73

1K_0402_1%

12

C794

6P_0402_50V8

C794

6P_0402_50V8

12

R103 0_0402_5%@R103 0_0402_5%@

1 2

C18 0.1U_0402_16V7KC18 0.1U_0402_16V7K

1 2

R90 1K_0402_1%R90 1K_0402_1%

12

U56

W25Q32FVSSIG SOIC 8P SPI ROM

U56

W25Q32FVSSIG SOIC 8P SPI ROM

CS#

1

SO/SIO1

2

WP#

3

GND

4

VCC 8

HOLD# 7

SCLK 6

SI/SIO0 5

R108 33_0402_5%R108 33_0402_5%

1 2

C795

6P_0402_50V8

C795

6P_0402_50V8

12

Y20

48MHZ_8PF_X3S048000D81H-W

Y20

48MHZ_8PF_X3S048000D81H-W

11

2

2

3

344

T51T51

R104 0_0402_5%@R104 0_0402_5%@

1 2

R614

10K_0402_5%

R614

10K_0402_5%

1 2

R96 1K_0402_1%R96 1K_0402_1%

12

T48T48

R119

0_0402_5%

@R119

0_0402_5%

@

1 2

R116

0_0402_5%

@R116

0_0402_5%

@

1 2

R616

10K_0402_5%

R616

10K_0402_5%

1 2

T50T50

FT3 REV 0.51

CLK/SATA/USB/SPI/LPC

UAPUE

FT3_BGA769X4@

FT3 REV 0.51

CLK/SATA/USB/SPI/LPC

UAPUE

FT3_BGA769X4@

AV2

LPC_PD_L/GEVENT5_L/SPI_TPM_CS_L

AP25

LPC_CLKRUN_L

AV29

SERIRQ/GPIO48

AP1

LDRQ0_L

AP2

LFRAME_L

AR1

LAD3

AR2

LAD2

AT1

LAD1

AT2

LAD0

AW2

LPCCLK1

AY2

LPCCLK0

N1

X48M_X2

N2

X48M_X1

AP13

X14M_25M_48M_OSC

AA4

GPP_CLK3N

AA5

GPP_CLK3P

AC5

GPP_CLK2N

AC4

GPP_CLK2P

AE5

GPP_CLK1N

AE4

GPP_CLK1P

AC10

GPP_CLK0N

AC8

GPP_CLK0P

U5

GFX_CLKN

U4

GFX_CLKP

BA12

SATA_X2

AY12

SATA_X1

BA30

SATA_ACT_L/GPIO67

AP19

SATA_ZVDD_095

AR19

SATA_ZVSS

BA17

SATA_RX1P

AY17

SATA_RX1N

BA19

SATA_TX1N

AY19

SATA_TX1P

AY16

SATA_RX0P

BA16

SATA_RX0N

AY14

SATA_TX0N

BA14

SATA_TX0P

AU9

SPI_WP_L/GPIO161

AU11

SPI_HOLD_L/GEVENT9_L

AR7

SPI_DI/GPIO164

AR11

SPI_DO/GPIO163

AR4

SPI_CS2_L/GPIO166

AW9

SPI_CS1_L/GPIO165

AU7

SPI_CLK/GPIO162

W2

USB_SS_1RXN

W1

USB_SS_1RXP

R2

USB_SS_1TXN

R1

USB_SS_1TXP

V1

USB_SS_0RXN

V2

USB_SS_0RXP

T1

USB_SS_0TXN

T2

USB_SS_0TXP

AE8

USB_SS_ZVDD_095_USB3_DUAL

AE10

USB_SS_ZVSS

AA2

USB_HSD9N

AA1

USB_HSD9P

AB2

USB_HSD8N

AB1

USB_HSD8P

AC2

USB_HSD7N

AC1

USB_HSD7P

AD2

USB_HSD6N

AD1

USB_HSD6P

AE2

USB_HSD5N

AE1

USB_HSD5P

AF2

USB_HSD4N

AF1

USB_HSD4P

AG2

USB_HSD3N

AG1

USB_HSD3P

AG8

USB_HSD2N

AG7

USB_HSD2P

AJ5

USB_HSD1N

AJ4

USB_HSD1P

AL5

USB_HSD0N

AL4

USB_HSD0P

AG4

USB_ZVSS

W4

USBCLK/14M_25M_48M_OSC

R126

0_0402_5%

@R126

0_0402_5%

@

1 2

R641 11.8K_0402_1%R641 11.8K_0402_1%

1 2

R110 33_0402_5%R110 33_0402_5%

1 2

R125

0_0402_5%

@R125

0_0402_5%

@

1 2

R645 1K_0402_1%R645 1K_0402_1%

1 2

FT3 REV 0.51

PCIE

UAPUB

FT3_BGA769

X4@

FT3 REV 0.51

PCIE

UAPUB

FT3_BGA769

X4@

E7

P_GFX_RXN3

D7

P_GFX_RXP3

G4

P_GFX_RXN2

G5

P_GFX_RXP2

J4

P_GFX_RXN1

J5

P_GFX_RXP1

L4

P_GFX_RXN0

L5

P_GFX_RXP0

W8

P_TX_ZVDD_095

N8

P_GPP_RXN3

N10

P_GPP_RXP3

N4

P_GPP_RXN2

N5

P_GPP_RXP2

R4

P_GPP_RXN1

R5

P_GPP_RXP1

R8

P_GPP_RXN0

R10

P_GPP_RXP0

D1

P_GFX_TXN3

D2

P_GFX_TXP3

E1

P_GFX_TXN2

E2

P_GFX_TXP2

F1

P_GFX_TXN1

F2

P_GFX_TXP1

G1

P_GFX_TXN0

G2

P_GFX_TXP0

W7

P_RX_ZVDD_095

H1

P_GPP_TXN3

H2

P_GPP_TXP3

J1

P_GPP_TXN2

J2

P_GPP_TXP2

K1

P_GPP_TXN1

K2

P_GPP_TXP1

L1

P_GPP_TXN0

L2

P_GPP_TXP0

R111 33_0402_5%R111 33_0402_5%

1 2

R644 1K_0402_1%R644 1K_0402_1%

1 2

RP12

0_0804_8P4R_5%

RP12

0_0804_8P4R_5%

1 8

2 7

3 6

4 5

R938

1M_0402_5%

R938

1M_0402_5%

C636

10P_0402_50V8J

EMIU@C636

10P_0402_50V8J

EMIU@

1 2

R109 33_0402_5%R109 33_0402_5%

1 2

C19 0.1U_0402_16V7KC19 0.1U_0402_16V7K

1 2

R404

1.69K_0402_1%

R404

1.69K_0402_1%

1 2

C20 0.1U_0402_16V7KC20 0.1U_0402_16V7K

1 2

R617

10_0402_5%

EMIU@R617

10_0402_5%

EMIU@

1 2

C17 0.1U_0402_16V7KC17 0.1U_0402_16V7K

1 2

R615

10K_0402_5%

R615

10K_0402_5%

1 2

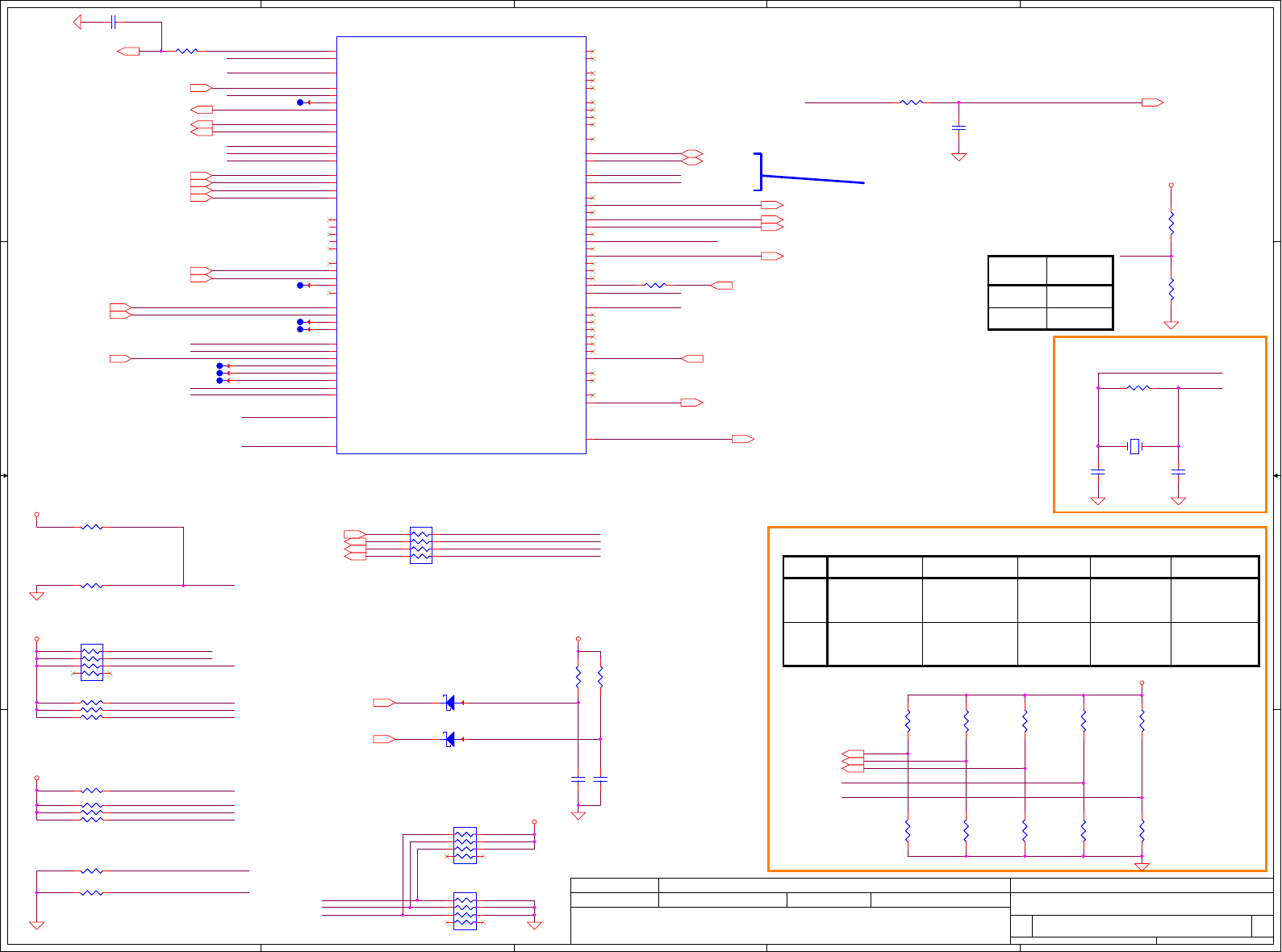

A

A

B

B

C

C

D

D

E

E

1 1

2 2

3 3

4 4

H

L

LPC_FRAME# LPC_CLK0_EC LPC_CLK1 GEVENT2_L

BOOT FAIL TIMER

ENABLED

BOOT FAIL TIMER

DISABLED

(DEFAULT)

CLKGEN

ENABLE

(DEFAULT)

CLKGEN

DISABLED

SPI ROM

(DEFAULT)

LPC ROM

1.8V SPI ROM

3.3V SPI ROM

(DEFAULT)

STRAPS OF APU

PD

PU +3VS

PU +3VALW

PU +3VALW + PD

32.768KMHz CRYSTAL

RTC_CLK

NORMAL POWR

UP/RESET TIMING

(DEFAULT)

FAST POWER

UP/RESET TIMING

FOR SIMULATION

EC_RSMRST# , POWER_GOOD

follow CRB

(APU side 1.8V power rail)

Must connected to 10 ms RC delay

circuit on +1.8-V S5 power rail.

PU +3VALW + PD

UMA

0 PX5.5

Board_ID1 Function

1

If use as SMBUS :

Pulled-up to VDD_33(port0) , VDD_33_ALW(port1) with a resistor of:

Qty: 1; Value: 2.2 KΩ; Tol: 5%

If no use :

Pulled-up to VDD_33(port0) , VDD_33_ALW(port1) with a resistor of:

Qty: 1; Value: 10 KΩ; Tol: 5%

EC_RSMRST#_R

APU_PCIE_RST#_BUF

APU_PCIE_WAKE#

TEST2

TEST0

HDA_BITCLK

HDA_SYNC

HDA_SDIN0

HDA_SDOUT

HDA_RST#

HDA_SDIN2

HDA_SDIN3

32K_X2

32K_X1

EC_LID_OUT#

APU_SCLK0

APU_SDATA0

APU_SCLK0

APU_SDATA0

LAN_CLKREQ#

WLAN_CLKREQ#

HDA_BITCLK

HDA_SDIN0

GEVENT2#

APU_GPIO174

HDA_SDIN1

APU_PCIE_WAKE#

EC_LID_OUT#

GEVENT2#

USB_OC1#

USB_OC0#

APU_GPIO174

APU_PCIE_RST#_BUF

32K_X1

32K_X2

RTC_CLK

EC_RSMRST#_R

CS_JTAG_TMS_TEST1

TEST0

CS_JTAG_TMS_TEST1

TEST2

LPC_RST_A#

APU_SCLK1

APU_SDATA1

APU_SCLK1

APU_SDATA1

LAN_CLKREQ#

WLAN_CLKREQ#

Board_ID1

Board_ID1

PWR_GOOD_APU

PWR_GOOD_APU

HDA_BITCLK

HDA_SDOUT

HDA_SYNC

HDA_RST#

SLP_S3#

<18>

SLP_S5#

<18>

PBTN_OUT#

<18>

APU_PCIE_WAKE#

<16>

GATEA20

<18>

EC_SMI#

<18>

EC_SCI#

<18>

KBRST#

<18>

HDA_SDIN0

<21>

LPC_RST#

<18>

RTC_CLK <18>

EC_LID_OUT# <18>

APU_SPKR <21>

APU_SDATA0 <16,8,9>

APU_SCLK0 <16,8,9>

H_PROCHOT# <18,24,29,4>

LPC_FRAME#

<18,5>

LPC_CLK0_EC

<18,5>

LPC_CLK1

<5>

USB_OC1#

<17>

APU_PCIE_RST# <14,16>

USB_OC0#

<17>

EC_RSMRST#

<18>

BT_DISABLE# <16>

BT_OFF# <16>

ODD_EN <13>

LAN_CLKREQ#

<14>

WLAN_CLKREQ#

<16>

WL_OFF# <16>

SYS_PWRGD_EC

<18>

HDA_SYNC_AUDIO

<21>

HDA_RST#_AUDIO

<21>

HDA_SDOUT_AUDIO

<21>

HDA_BITCLK_AUDIO

<21>

+3VALW

+3VALW

+3VS

+3VALW

+3VALW

+3VS

+1.8VALW

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

FT3 GPIO/AZ/MISC

Custom

6 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

FT3 GPIO/AZ/MISC

Custom

6 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

FT3 GPIO/AZ/MISC

Custom

6 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

R903

2K_0402_5%

@

R903

2K_0402_5%

@

12

R927

2K_0402_5%

@

R927

2K_0402_5%

@

12

R621 8.2K_0402_5%@R621 8.2K_0402_5%@

1 2

RP14

10K_0804_8P4R_5%

RP14

10K_0804_8P4R_5%

1 8

2 7

3 6

4 5

R674 2.2K_0402_5%R674 2.2K_0402_5%

1 2

C912

150P_0402_50V8J

C912

150P_0402_50V8J

1

2

C212

1U_0402_6.3V6K

C212

1U_0402_6.3V6K

1

2

R673 2.2K_0402_5%R673 2.2K_0402_5%

1 2

C682

22P_0402_50V8J

C682

22P_0402_50V8J

1

2

T53T53

T54T54

RP13

33_0804_8P4R_5%

RP13

33_0804_8P4R_5%

1 8

2 7

3 6

4 5

T36T36

R345

47K_0402_5%

R345

47K_0402_5%

1 2

R912

10K_0402_5%

PX@ R912

10K_0402_5%

PX@

12

C686

18P_0402_50V8J

C686

18P_0402_50V8J

1

2

R914

20M_0402_5%

R914

20M_0402_5%

1 2

R929

2.2K_0402_5%

R929

2.2K_0402_5%

12

RP9

1K_0804_8P4R_5%

@RP9

1K_0804_8P4R_5%

@

1 8

2 7

3 6

4 5

R907

33_0402_5%

R907

33_0402_5%

1 2

R691 10K_0402_5%@R691 10K_0402_5%@

1 2

R928

10K_0402_5%

@

R928

10K_0402_5%

@

12

D3

RB751V-40TE17_SOD323-2

D3

RB751V-40TE17_SOD323-2

1 2

T52T52

C615

150P_0402_50V8J

C615

150P_0402_50V8J

1 2

R651 100K_0402_5%R651 100K_0402_5%

1 2

R950

2.2K_0402_5%

@

R950

2.2K_0402_5%

@

12

R686 10K_0402_5%R686 10K_0402_5%

1 2

R656 100K_0402_5%@R656 100K_0402_5%@

1 2

R650 100K_0402_5%R650 100K_0402_5%

1 2

R602

33_0402_5%

R602

33_0402_5%

1 2

RP10

15K_0804_8P4R_5%

@RP10

15K_0804_8P4R_5%

@

1 8

2 7

3 6

4 5

T55T55

R688 10K_0402_5%@R688 10K_0402_5%@

1 2

Y3

32.768KHZ_12.5P_1TJF125DP1A000D

Y3

32.768KHZ_12.5P_1TJF125DP1A000D

1 2

R685

10K_0402_5%

R685

10K_0402_5%

1 2

R904

10K_0402_5%

@

R904

10K_0402_5%

@

12

D5

RB751V-40TE17_SOD323-2

D5

RB751V-40TE17_SOD323-2

1 2

R684 10K_0402_5%@R684 10K_0402_5%@

1 2

R661 0_0402_5%@R661 0_0402_5%@

1 2

T56T56

R925

10K_0402_5%

R925

10K_0402_5%

12

R902

10K_0402_5%

R902

10K_0402_5%

12

C209

1U_0402_6.3V6K

C209

1U_0402_6.3V6K 1

2

R911

10K_0402_5%

UMA@ R911

10K_0402_5%

UMA@

12

R622 8.2K_0402_5%@R622 8.2K_0402_5%@

1 2

R949

10K_0402_5%

R949

10K_0402_5%

12

FT3 REV 0.51

ACPI/SD/AZ/GPIO/RTC/MISC

UAPUD

FT3_BGA769

X4@

FT3 REV 0.51

ACPI/SD/AZ/GPIO/RTC/MISC

UAPUD

FT3_BGA769

X4@

AJ1

X32K_X2

AJ2

X32K_X1

AL1

AZ_RST_L

AM2

AZ_SYNC

AL2

AZ_SDIN3/GPIO170

AM1

AZ_SDIN2/GPIO169

AK1

AZ_SDIN1/GPIO168

AK2

AZ_SDIN0/GPIO167

AN1

AZ_SDOUT

AN2

AZ_BITCLK

AY1

USB_OC3_L/TDO/GEVENT15_L

AV1

USB_OC2_L/TCK/GEVENT14_L

AW1

USB_OC1_L/TDI/GEVENT13_L

AY8

USB_OC0_L/SPI_TPM_CS_L/TRST_L/GEVENT12_L

AY29

CLK_REQG_L/GPIO65/OSCIN

AV27

CLK_REQ3_L/SATA_IS1_L/SATA_ZP1_L/GPIO63

AR27

CLK_REQ2_L/GPIO62

AW29

CLK_REQ1_L/GPIO61

AU29

CLK_REQ0_L/SATA_IS0_L/SATA_ZP0_L/GPIO60

AV15

IR_LED_L/LLB_L/GPIO184

BA10

IR_RX1/GEVENT20_L

BA9

IR_TX1/GEVENT6_L

AV13

IR_TX0/GEVENT21_L

AP15

AC_PRES/IR_RX0/GEVENT16_L

AL7

LPC_SMI_L/GEVENT23_L

AN5

LPC_PME_L/GEVENT3_L

AR31

GA20IN/GEVENT0_L

AR23

KBRST_L

AY6

TEST2

AY10

TEST1/TMS

AU13

TEST0

BA5

SLP_S5_L

AY3

SLP_S3_L

AW11

WAKE_L/GEVENT8_L

AY7

SYS_RESET_L/GEVENT19_L

AM19

PWR_GOOD

BA8

PWR_BTN_L

AY5

RSMRST_L

AY9

PCIE_RST_L

AY4

LPC_RST_L

AV11

RTCCLK

AU31

FANIN0/GPIO56

AV31

FANOUT0/GPIO52

AP23

GENINT2_L/GPIO33

BA29

GENINT1_L/GPIO32

BA6

GEVENT22_L

AU17

BLINK/GEVENT18_L

AN8

GEVENT17_L

AP11

GEVENT11_L

AP17

GEVENT10_L

AR15

GEVENT7_L

BA4

GEVENT4_L

AV17

GEVENT2_L

BA3

GPIO174

AM21

GPIO71

AV21

GPIO70

AY26

GPIO69

AU21

GPIO68

BA27

SPKR/GPIO66

AY27

GPIO64

AV19

GPIO59

BA26

GPIO58

AP21

GPIO57

AV23

GPIO55

BA28

GPIO51

AY28

GPIO50

AP27

GPIO49

BA11

SDA1/GPIO228

AY11

SCL1/GPIO227

AV25

SDA0/GPIO47

AU25

SCL0/GPIO43

AY25

SD_LED/GPIO45

BA24

SD_DATA3/GPIO80

AY24

SD_DATA2/GPIO79

AY21

SD_DATA1/GPIO78

BA22

SD_DATA0/GPIO77

BA20

SD_WP/GPIO76

AY20

SD_CD/GPIO75

AY23

SD_CMD/GPIO74

AY22

SD_CLK/GPIO73

BA23

SD_PWR_CTRL

R926

2K_0402_5%

R926

2K_0402_5%

12

T57T57

A

A

B

B

C

C

D

D

E

E

1 1

2 2

3 3

4 4

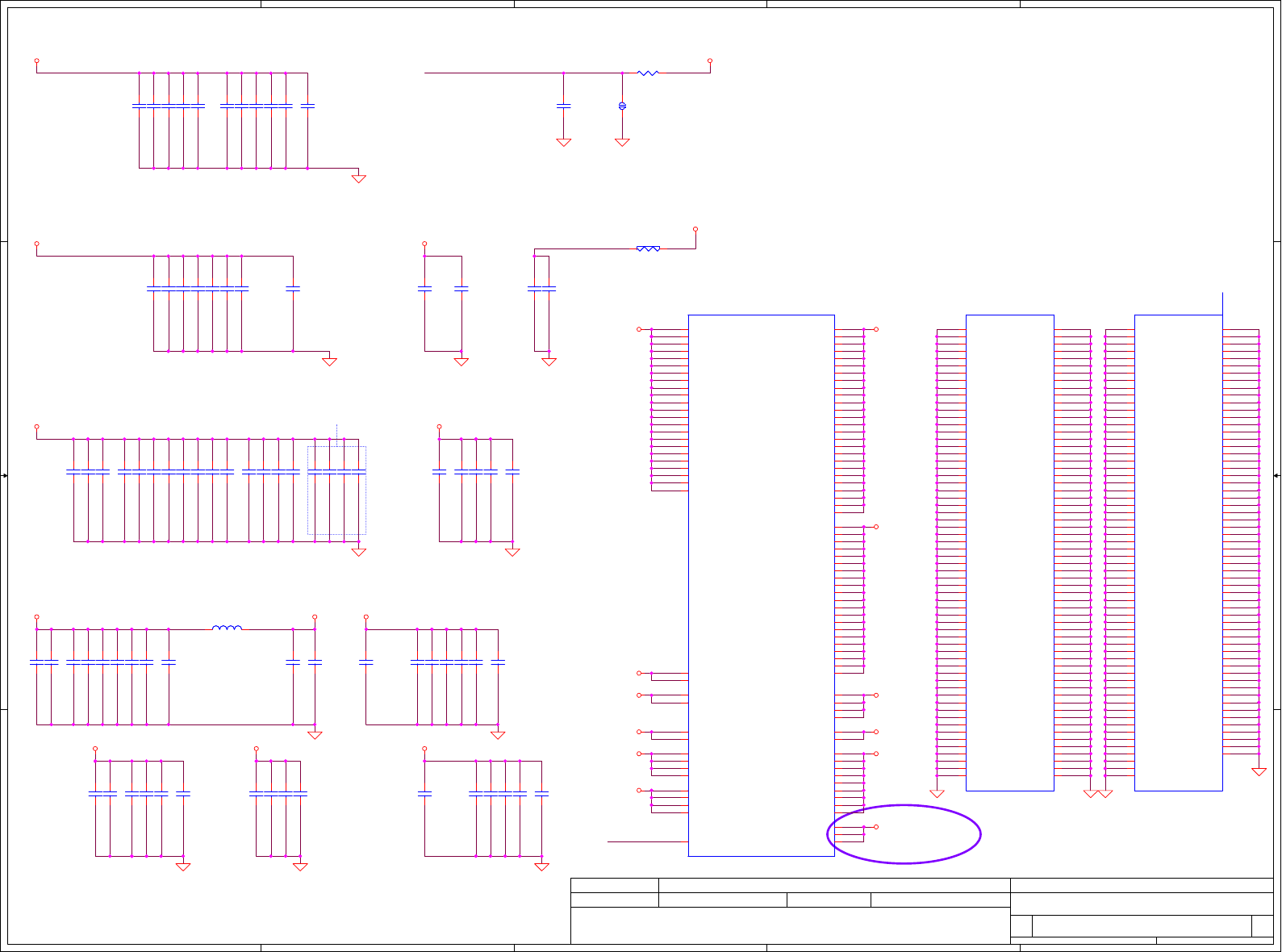

+0.95VALW/+0.95VS OF APU

INTEGRATED GPU POWER OF APU +3VALW/+3VS OF APU

CORE POWER OF APU

+1.5V/+1.5VS OF APU

+1.8VALW/+1.8VS OF APU

PLANE SPLIT

RTC OF APU

Need OPEN

W=20mils

VDDIO_MEM_S

VDDIO_AZ_ALW

(Could be S0 or S5 power rail)

VDD_095_GFX

VDD_095

VDD_095_USB3_DUAL VDD_095_ALW VDD_18_ALW

VDD_18

VDD_33_ALWVDD_33

VDDCR_CPU

VDDCR_NB

VDDBT_RTC_G

for Clear CMOS

+RTCBATT_R

+RTCBATT_R

+3VALW_APU

+APU_CORE_NB

+0.95VS +0.95VS_APU_GFX

+0.95VALW +0.95VALW

+APU_CORE_NB

+1.8VS

+3VS

+0.95VS

+0.95VS_APU_GFX

+0.95VALW

+0.95VALW

+3VALW_APU

+1.8VALW

+1.5VS

+1.5V +APU_CORE

+3VS

+APU_CORE

+1.5VS+1.5V

+1.8VS

+1.8VALW

+RTCBATT

+3VALW

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

FT3 PWR/GND

Custom

7 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

FT3 PWR/GND

Custom

7 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

FT3 PWR/GND

Custom

7 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

C201 1U_0402_6.3V6KC201 1U_0402_6.3V6K

1

2

C194 1U_0402_6.3V6KC194 1U_0402_6.3V6K

1

2

C205 1U_0402_6.3V6KC205 1U_0402_6.3V6K

1

2

C259 180P_0402_50V8JC259 180P_0402_50V8J

1

2

C197 180P_0402_50V8JC197 180P_0402_50V8J

1

2

C923 0.1U_0402_16V7KC923 0.1U_0402_16V7K

1

2

C220 1U_0402_6.3V6KC220 1U_0402_6.3V6K

1

2

C202 1U_0402_6.3V6KC202 1U_0402_6.3V6K

1

2

C232 180P_0402_50V8JC232 180P_0402_50V8J

1

2

C934 10U_0603_6.3V6MC934 10U_0603_6.3V6M

1

2

C206 1U_0402_6.3V6KC206 1U_0402_6.3V6K

1

2

C184 1U_0402_6.3V6KC184 1U_0402_6.3V6K

1

2

C927 0.1U_0402_16V7KC927 0.1U_0402_16V7K

1

2

L22

FBMA-L11-201209-121LMA50T_0805

L22

FBMA-L11-201209-121LMA50T_0805

12

C935 10U_0603_6.3V6MC935 10U_0603_6.3V6M

1

2

C258 180P_0402_50V8JC258 180P_0402_50V8J

1

2

C179 1U_0402_6.3V6KC179 1U_0402_6.3V6K

1

2

C250 1U_0402_6.3V6KC250 1U_0402_6.3V6K

1

2

C928 0.1U_0402_16V7KC928 0.1U_0402_16V7K

1

2

C219 1U_0402_6.3V6KC219 1U_0402_6.3V6K

1

2

FT3 REV 0.51

POWER

UAPUF

FT3_BGA769

X4@

FT3 REV 0.51

POWER

UAPUF

FT3_BGA769

X4@

AN4

VDDBT_RTC_G

AJ13

VDD_095_ALW_4

AJ11

VDD_095_ALW_3

AE13

VDD_095_ALW_2

AE11

VDD_095_ALW_1

AW5

VDD_095_USB3_DUAL_4

AV7

VDD_095_USB3_DUAL_3

AU4

VDD_095_USB3_DUAL_2

AR5

VDD_095_USB3_DUAL_1

AM13

VDD_33_ALW_2

AL13

VDD_33_ALW_1

B2

VDD_18_ALW_2

B1

VDD_18_ALW_1

AL11

VDDIO_AZ_ALW_2

AL10

VDDIO_AZ_ALW_1

AR35

VDDIO_MEM_S_23

AL37

VDDIO_MEM_S_22

AL32

VDDIO_MEM_S_21

AJ35

VDDIO_MEM_S_20

AG37

VDDIO_MEM_S_19

AG32

VDDIO_MEM_S_18

AE35

VDDIO_MEM_S_17

AE31

VDDIO_MEM_S_16

AC37

VDDIO_MEM_S_15

AC32

VDDIO_MEM_S_14

AA35

VDDIO_MEM_S_13

AA31

VDDIO_MEM_S_12

W37

VDDIO_MEM_S_11

W32

VDDIO_MEM_S_10

W31

VDDIO_MEM_S_9

U35

VDDIO_MEM_S_8

U32

VDDIO_MEM_S_7

R37

VDDIO_MEM_S_6

R31

VDDIO_MEM_S_5

N35

VDDIO_MEM_S_4

L37

VDDIO_MEM_S_3

L32

VDDIO_MEM_S_2

J35

VDDIO_MEM_S_1

AA10

VDD_095_GFX_3

W10

VDD_095_GFX_2

U10

VDD_095_GFX_1

AM25

VDD_095_9

AM23

VDD_095_8

AL27

VDD_095_7

AL23

VDD_095_6

AL21

VDD_095_5

AJ27

VDD_095_4

AJ21

VDD_095_3

AG27

VDD_095_2

AG23

VDD_095_1

AM17

VDD_33_2

AM15

VDD_33_1

C3

VDD_18_4

B3

VDD_18_3

A3

VDD_18_2

A2

VDD_18_1

AG21

VDDCR_NB_21

AG17

VDDCR_NB_20

AE19

VDDCR_NB_19

AE17

VDDCR_NB_18

AE15

VDDCR_NB_17

AC17

VDDCR_NB_16

AC13

VDDCR_NB_15

AA17

VDDCR_NB_14

AA13

VDDCR_NB_13

W17

VDDCR_NB_12

W13

VDDCR_NB_11

U17

VDDCR_NB_10

U13

VDDCR_NB_9

R17

VDDCR_NB_8

R13

VDDCR_NB_7

R11

VDDCR_NB_6

N17

VDDCR_NB_5

N13

VDDCR_NB_4

N11

VDDCR_NB_3

L17

VDDCR_NB_2

L13

VDDCR_NB_1

AE27

VDDCR_CPU_26

AE23

VDDCR_CPU_25

AE21

VDDCR_CPU_24

AC27

VDDCR_CPU_23

AC23

VDDCR_CPU_22

AC21

VDDCR_CPU_21

AA27

VDDCR_CPU_20

AA23

VDDCR_CPU_19

AA21

VDDCR_CPU_18

W27

VDDCR_CPU_17

W23

VDDCR_CPU_16

W21

VDDCR_CPU_15

U27

VDDCR_CPU_14

U23

VDDCR_CPU_13

U21

VDDCR_CPU_12

R27

VDDCR_CPU_11

R23

VDDCR_CPU_10

R21

VDDCR_CPU_9

N27

VDDCR_CPU_8

N23

VDDCR_CPU_7

N21

VDDCR_CPU_6

L29

VDDCR_CPU_5

L27

VDDCR_CPU_4

L25

VDDCR_CPU_3

L23

VDDCR_CPU_2

L21

VDDCR_CPU_1

C244 1U_0402_6.3V6KC244 1U_0402_6.3V6K

1

2

FT3 REV 0.51

GND

UAPUG

FT3_BGA769

X4@

FT3 REV 0.51

GND

UAPUG

FT3_BGA769

X4@

H31

VSS_62

H23

VSS_61

H13

VSS_60

H11

VSS_59

G41

VSS_58

G39

VSS_57

G37

VSS_56

G35

VSS_55

G29

VSS_54

G25

VSS_53

G21

VSS_52

G17

VSS_51

G15

VSS_50

G13

VSS_49

G11

VSS_48

G7

VSS_47

G3

VSS_46

E39

VSS_45

E38

VSS_44

E35

VSS_43

E31

VSS_42

E27

VSS_41

E13

VSS_40

E11

VSS_39

E9

VSS_38

E4

VSS_37

E3

VSS_36

D13

VSS_35

D11

VSS_34

D9

VSS_33

C41

VSS_32

C39

VSS_31

C37

VSS_30

C35

VSS_29

C33

VSS_28

C31

VSS_27

C29

VSS_26

C27

VSS_25

C25

VSS_24

C23

VSS_23

C21

VSS_22

C19

VSS_21

C17

VSS_20

C15

VSS_19

C13

VSS_18

C11

VSS_17

C9

VSS_16

C7

VSS_15

C5

VSS_14

C2

VSS_13

C1

VSS_12

B39

VSS_11

B31

VSS_10

B23

VSS_9

B13

VSS_8

B8

VSS_7

A39

VSS_6

A35

VSS_5

A31

VSS_4

A23

VSS_3

A13

VSS_2

A8

VSS_1

W25

VSS_124

W19

VSS_123

W15

VSS_122

W11

VSS_121

W5

VSS_120

W3

VSS_119

U39

VSS_118

U31

VSS_117

U29

VSS_116

U25

VSS_115

U19

VSS_114

U15

VSS_113

U11

VSS_112

U8

VSS_111

U7

VSS_110

U3

VSS_109

U2

VSS_108

U1

VSS_107

R41

VSS_106

R39

VSS_105

R29

VSS_104

R25

VSS_103

R19

VSS_102

R15

VSS_101

R7

VSS_100

R3

VSS_99

P2

VSS_98

P1

VSS_97

N39

VSS_96

N31

VSS_95

N29

VSS_94

N25

VSS_93

N19

VSS_92

N15

VSS_91

N7

VSS_90

N3

VSS_89

M2

VSS_88

M1

VSS_87

L41

VSS_86

L39

VSS_85

L31

VSS_84

L19

VSS_83

L15

VSS_82

L11

VSS_81

L10

VSS_80

L8

VSS_79

L7

VSS_78

L3

VSS_77

K31

VSS_76

K29

VSS_75

K27

VSS_74

K25

VSS_73

K23

VSS_72

K21

VSS_71

K19

VSS_70

K17

VSS_69

K13

VSS_68

K11

VSS_67

J39

VSS_66

J8

VSS_65

J7

VSS_64

J3

VSS_63

C186 1U_0402_6.3V6KC186 1U_0402_6.3V6K

1

2

C245 180P_0402_50V8JC245 180P_0402_50V8J

1

2

C933 10U_0603_6.3V6MC933 10U_0603_6.3V6M

1

2

C931 0.1U_0402_16V7KC931 0.1U_0402_16V7K

1

2

C230 180P_0402_50V8JC230 180P_0402_50V8J

1

2

C246 1U_0402_6.3V6KC246 1U_0402_6.3V6K

1

2

C236 1U_0402_6.3V6KC236 1U_0402_6.3V6K

1

2

C187 1U_0402_6.3V6KC187 1U_0402_6.3V6K

1

2

C161 4.7U_0603_6.3V6KC161 4.7U_0603_6.3V6K

1

2

C253 1U_0402_6.3V6KC253 1U_0402_6.3V6K

1

2

C932 0.1U_0402_16V7KC932 0.1U_0402_16V7K

1

2

FT3 REV 0.51

GND

UAPUH

FT3_BGA769

X4@

FT3 REV 0.51

GND

UAPUH

FT3_BGA769

X4@

AL29

VSS_186

AL25

VSS_185

AL19

VSS_184

AL17

VSS_183

AL15

VSS_182

AL8

VSS_181

AL3

VSS_180

AJ39

VSS_179

AJ32

VSS_178

AJ31

VSS_177

AJ29

VSS_176

AJ25

VSS_175

AJ23

VSS_174

AJ19

VSS_173

AJ17

VSS_172

AJ15

VSS_171

AJ7

VSS_170

AJ3

VSS_169

AH2

VSS_168

AH1

VSS_167

AG41

VSS_166

AG39

VSS_165

AG31

VSS_164

AG29

VSS_163

AG25

VSS_162

AG19

VSS_161

AG15

VSS_160

AG13

VSS_159

AG11

VSS_158

AG10

VSS_157

AG5

VSS_156

AG3

VSS_155

AE39

VSS_154

AE32

VSS_153

AE29

VSS_152

AE25

VSS_151

AE7

VSS_150

AE3

VSS_149

AC41

VSS_148

AC39

VSS_147

AC31

VSS_146

AC29

VSS_145

AC25

VSS_144

AC19

VSS_143

AC15

VSS_142

AC11

VSS_141

AC7

VSS_140

AC3

VSS_139

AA39

VSS_138

AA29

VSS_137

AA25

VSS_136

AA19

VSS_135

AA15

VSS_134

AA11

VSS_133

AA8

VSS_132

AA7

VSS_131

AA3

VSS_130

Y2

VSS_129

Y1

VSS_128

W41

VSS_127

W39

VSS_126

W29

VSS_125

AM29

PSEN

AL31

VBURN

A15

VSSBG_DAC

BA39

VSS_242

BA35

VSS_241

BA31

VSS_240

BA25

VSS_239

BA21

VSS_238

BA18

VSS_237

BA15

VSS_236

BA13

VSS_235

BA7

VSS_234

BA2

VSS_233

AY30

VSS_232

AY18

VSS_231

AY15

VSS_230

AY13

VSS_229

AW41

VSS_228

AW39

VSS_227

AW37

VSS_226

AW35

VSS_225

AW33

VSS_224

AW31

VSS_223

AW27

VSS_222

AW25

VSS_221

AW23

VSS_220

AW21

VSS_219

AW19

VSS_218

AW17

VSS_217

AW15

VSS_216

AW13

VSS_215

AW7

VSS_214

AW3

VSS_213

AV9

VSS_212

AU39

VSS_211

AU27

VSS_210

AU23

VSS_209

AU19

VSS_208

AU15

VSS_207

AU3

VSS_206

AU2

VSS_205

AU1

VSS_204

AR41

VSS_203

AR39

VSS_202

AR29

VSS_201

AR25

VSS_200

AR21

VSS_199

AR17

VSS_198

AR13

VSS_197

AR3

VSS_196

AP31

VSS_195

AN39

VSS_194

AN7

VSS_193

AN3

VSS_192

AM31

VSS_191

AM27

VSS_190

AM11

VSS_189

AL41

VSS_188

AL39

VSS_187

C180 1U_0402_6.3V6KC180 1U_0402_6.3V6K

1

2

C248 1U_0402_6.3V6KC248 1U_0402_6.3V6K

1

2

C190 180P_0402_50V8JC190 180P_0402_50V8J

1

2

C237 1U_0402_6.3V6KC237 1U_0402_6.3V6K

1

2

C231 180P_0402_50V8JC231 180P_0402_50V8J

1

2

C207 180P_0402_50V8J

@

C207 180P_0402_50V8J

@

1

2

C257 180P_0402_50V8JC257 180P_0402_50V8J

1

2

C188 1U_0402_6.3V6KC188 1U_0402_6.3V6K

1

2

C252 1U_0402_6.3V6KC252 1U_0402_6.3V6K

1

2

R93 10K_0402_5%R93 10K_0402_5%

1 2

R582 0_0603_5%

@

R582 0_0603_5%

@

12

C214 1U_0402_6.3V6KC214 1U_0402_6.3V6K

1

2

C181 1U_0402_6.3V6KC181 1U_0402_6.3V6K

1

2

C930 0.1U_0402_16V7KC930 0.1U_0402_16V7K

1

2

C238 1U_0402_6.3V6KC238 1U_0402_6.3V6K

1

2

C189 1U_0402_6.3V6KC189 1U_0402_6.3V6K

1

2

C166

0.22U_0402_10V6K

C166

0.22U_0402_10V6K

1

2

C182 1U_0402_6.3V6K

@

C182 1U_0402_6.3V6K

@

1

2

C216 1U_0402_6.3V6KC216 1U_0402_6.3V6K

1

2

C949 10U_0603_6.3V6M

@

C949 10U_0603_6.3V6M

@

1

2

C924 10U_0603_6.3V6MC924 10U_0603_6.3V6M

1

2

C239 1U_0402_6.3V6KC239 1U_0402_6.3V6K

1

2

C208 180P_0402_50V8J

@

C208 180P_0402_50V8J

@

1

2

C221 1U_0402_6.3V6K

@

C221 1U_0402_6.3V6K

@

1

2

C183 1U_0402_6.3V6KC183 1U_0402_6.3V6K

1

2

CLRP1

SHORT PADS

J@CLRP1

SHORT PADS

J@

12

C254 1U_0402_6.3V6KC254 1U_0402_6.3V6K

1

2

C198 1U_0402_6.3V6KC198 1U_0402_6.3V6K

1

2

C240 1U_0402_6.3V6KC240 1U_0402_6.3V6K

1

2

C211 180P_0402_50V8JC211 180P_0402_50V8J

1

2

C222 1U_0402_6.3V6KC222 1U_0402_6.3V6K

1

2

C191 1U_0402_6.3V6KC191 1U_0402_6.3V6K

1

2

C199 1U_0402_6.3V6K

@

C199 1U_0402_6.3V6K

@

1

2

C925 10U_0603_6.3V6MC925 10U_0603_6.3V6M

1

2

C256 1U_0402_6.3V6K

@

C256 1U_0402_6.3V6K

@

1

2

C213 180P_0402_50V8JC213 180P_0402_50V8J

1

2

C192 1U_0402_6.3V6KC192 1U_0402_6.3V6K

1

2

C210 180P_0402_50V8JC210 180P_0402_50V8J

1

2

C938 10U_0603_6.3V6MC938 10U_0603_6.3V6M

1

2

C218 180P_0402_50V8JC218 180P_0402_50V8J

1

2

C203 1U_0402_6.3V6KC203 1U_0402_6.3V6K

1

2

C926 0.1U_0402_16V7KC926 0.1U_0402_16V7K

1

2

C200 1U_0402_6.3V6KC200 1U_0402_6.3V6K

1

2

C193 1U_0402_6.3V6KC193 1U_0402_6.3V6K

1

2

C255 1U_0402_6.3V6KC255 1U_0402_6.3V6K

1

2

C249 1U_0402_6.3V6KC249 1U_0402_6.3V6K

1

2

C204 1U_0402_6.3V6K

@

C204 1U_0402_6.3V6K

@

1

2

C233 180P_0402_50V8JC233 180P_0402_50V8J

1

2

C937 10U_0603_6.3V6MC937 10U_0603_6.3V6M

1

2

C160 4.7U_0603_6.3V6KC160 4.7U_0603_6.3V6K

1

2

C260 1U_0402_6.3V6KC260 1U_0402_6.3V6K

1

2

C936 10U_0603_6.3V6MC936 10U_0603_6.3V6M

1

2

C217 1U_0402_6.3V6K

@

C217 1U_0402_6.3V6K

@

1

2

C929 0.1U_0402_16V7K

@

C929 0.1U_0402_16V7K

@

1

2

A

A

B

B

C

C

D

D

E

E

1 1

2 2

3 3

4 4

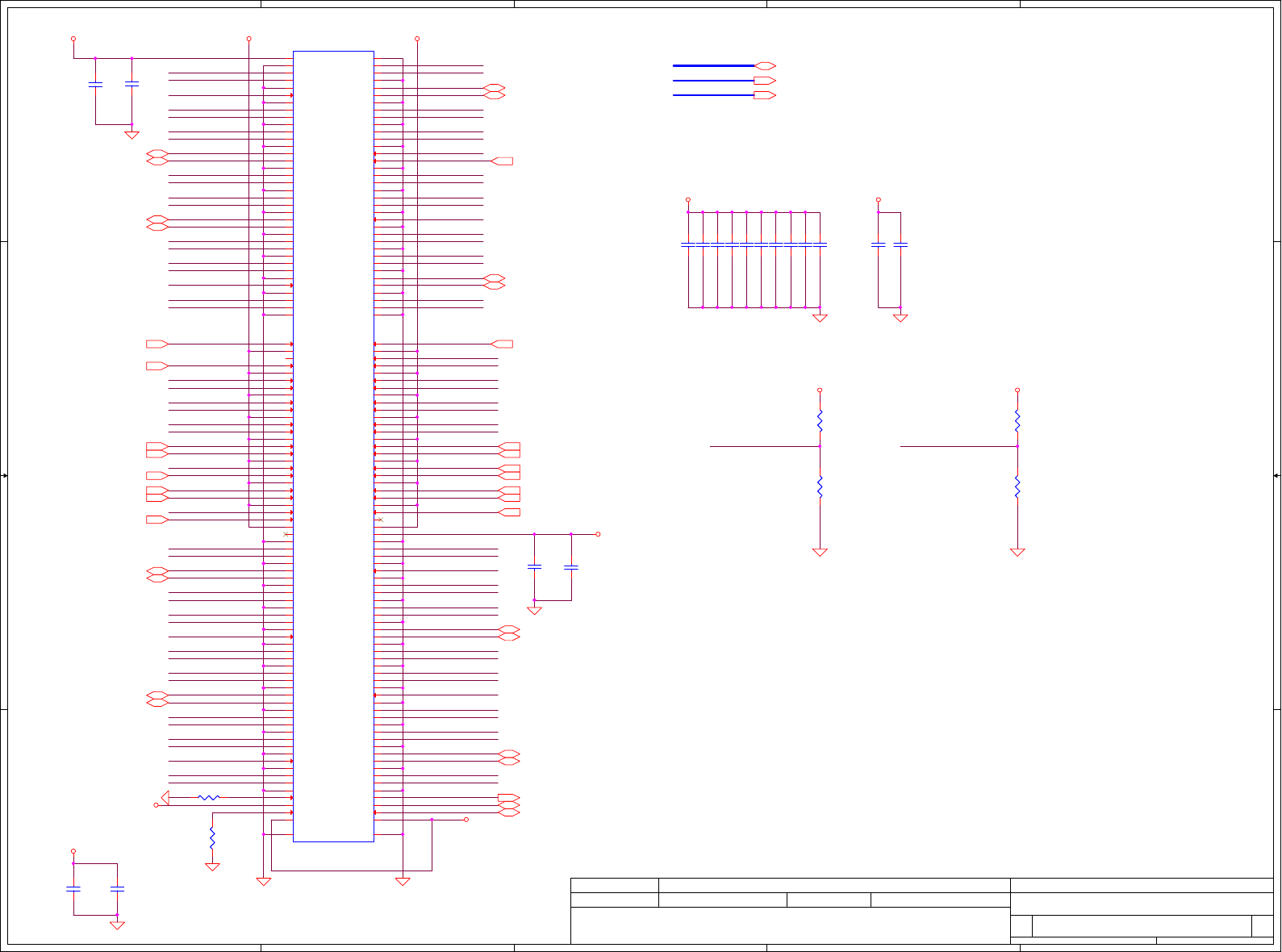

DIMM_A H:8mm

<Address: 00>

15mil

15mil

+1.5V/+0.75VS OF DIMM1

VREF for DIMM1,2

DDRAB_SDQ36

DDRAB_SDQ63

DDRAB_SDQ26

DDRAB_SDQS6

DDRAB_SDQ2

DDRAB_SDQ5

DDRAB_SDQ22

DDRAB_SDQ25

DDRAB_SDQ35

DDRAB_SMA12

DDRAB_SDQ14

DDRAB_SDQS0#

DDRAB_SDQS4

DDRAB_SDM6

DDRAB_SDQ42

DDRA_CKE1

DDRAB_SDQ27

DDRAB_SMA15

DDRAB_SDQ31

DDRA_CKE0

DDRAB_SDQ12

DDRAB_SDQ59

DDRAB_SMA3

DDRAB_SDQ6

DDRA_SCS1#

DDRAB_SDQ39

DDRAB_SBS1#

DDRAB_SWE#

DDRAB_SMA7

DDRAB_SDQS0

DDRAB_SMA0

DDRAB_SDM2

DDRAB_SDQS7

DDRAB_SDM1

DDRAB_SDQ57

DDRAB_SDQ46

DDRAB_SDQ0

DDRAB_SDQ28

DDRAB_SDM0

DDRAB_SDQS5#

DDRAB_SDQ51

DDRAB_SDQ19

DDRAB_SDM4

DDRAB_SDQ4

DDRAB_SDQ30

DDRAB_SDQS2

DDRAB_SDQ44

DDRAB_SRAS#

DDRAB_SDQ33

DDRAB_SDQ58

DDRAB_SDM5

DDRAB_SDQS3

DDRAB_SMA8

DDRA_SCS0#

DDRAB_SDQ10

DDRAB_SMA6

DDRAB_SMA10

DDRAB_SDQ3

MEM_MAB_RST#

DDRAB_SDQS7#

DDRAB_SDQS6#

DDRAB_SDQ1

DDRAB_SDQ40

DDRAB_SMA9

DDRAB_SDQ16

DDRAB_SDQ29

DDRAB_SDQS4#

DDRAB_SDQ52

DDRAB_SDM3

DDRAB_SDQS5

DDRAB_SDQ54

DDRAB_SDQ49

DDRAB_SBS2#

DDRAB_SDQ45

DDRAB_SDQ9

DDRAB_SDM7

DDRAB_SMA1

DDRAB_SDQ7

DDRAB_SDQ13

DDRAB_SDQ20

DDRAB_SDQ60

DDRAB_SBS0#

DDRAB_SCAS# DDRA_ODT0

DDRAB_SDQ37

DDRAB_SMA5

DDRAB_SDQS1#

DDRAB_SMA14

DDRAB_SDQ55

DDRAB_SMA4

DDRAB_SDQ21

DDRAB_SDQ62

DDRAB_SDQ24

DDRAB_SDQ15

DDRAB_SDQ56

DDRAB_SDQ23

DDRAB_SDQ53

DDRAB_SDQ47

DDRA_ODT1

DDRAB_SDQ18

DDRAB_SDQ43

DDRAB_SDQ34

DDRA_CLK1

DDRA_CLK1#

DDRAB_SDQ48

DDRAB_SDQS2#

DDRAB_SDQ11

DDRAB_SDQ38

DDRA_CLK0

DDRA_CLK0#

DDRAB_SDQ32

DDRAB_SDQS3#

DDRAB_SMA13

DDRAB_SMA11

DDRAB_SDQ50

DDRAB_SDQ8

DDRAB_SDQS1

DDRAB_SDQ61

DDRAB_SMA2

DDRAB_SDQ41

DDRAB_SDQ17

DDRAB_SDQ[0..63]

DDRAB_SDM[0..7]

DDRAB_SMA[0..15]

+VREF_CA

MEM_MAB_EVENT#

+VREF_DQ

DDRA_CKE0

<4>

DDRA_SCS1#

<4>

DDRAB_SBS1# <4,9>

DDRAB_SWE#

<4,9>

DDRAB_SRAS# <4,9>

DDRA_SCS0# <4>

MEM_MAB_RST# <4,9>

DDRAB_SBS2#

<4,9>

DDRAB_SBS0#

<4,9>

DDRAB_SCAS#

<4,9> DDRA_ODT0 <4>

DDRA_ODT1 <4>

DDRA_CLK1# <4>

DDRA_CLK1 <4>

DDRA_CLK0

<4>

DDRA_CLK0#

<4>

DDRA_CKE1 <4>

APU_SDATA0 <16,6,9>

APU_SCLK0 <16,6,9>

DDRAB_SDQS3 <4,9>

DDRAB_SDQS0 <4,9>

DDRAB_SDQS3# <4,9>

DDRAB_SDQS0# <4,9>

DDRAB_SDQS5 <4,9>

DDRAB_SDQS5# <4,9>

DDRAB_SDQS7 <4,9>

DDRAB_SDQS7# <4,9>

DDRAB_SDQS1#

<4,9>

DDRAB_SDQS1

<4,9>

DDRAB_SDQS2#

<4,9>

DDRAB_SDQS2

<4,9>

DDRAB_SDQS4#

<4,9>

DDRAB_SDQS4

<4,9>

DDRAB_SDQS6#

<4,9>

DDRAB_SDQS6

<4,9>

DDRAB_SDQ[0..63] <4,9>

DDRAB_SDM[0..7] <4,9>

MEM_MAB_EVENT# <4,9>

DDRAB_SMA[0..15] <4,9>

+0.75VS

+3VS

+1.5V +1.5V+VREF_DQ

+VREF_CA

+3VS

+1.5V +1.5V

+1.5V +0.75VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

DDR3 SODIMM-I Socket

Custom

8 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

DDR3 SODIMM-I Socket

Custom

8 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

DDR3 SODIMM-I Socket

Custom

8 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

C115 0.1U_0402_16V4ZC115 0.1U_0402_16V4Z

1

2

C116 0.1U_0402_16V4Z

@

C116 0.1U_0402_16V4Z

@

1

2

C120 0.1U_0402_16V4Z

@

C120 0.1U_0402_16V4Z

@

1

2

C121 0.1U_0402_16V4Z

@

C121 0.1U_0402_16V4Z

@

1

2

R66

1K_0402_1%

R66

1K_0402_1%

1 2

C134

1000P_0402_50V7K

C134

1000P_0402_50V7K

1

2

C122 0.1U_0402_16V4ZC122 0.1U_0402_16V4Z

1

2

C167

0.1U_0402_16V4Z

C167

0.1U_0402_16V4Z

1

2

C123 0.1U_0402_16V4Z

@

C123 0.1U_0402_16V4Z

@

1

2

R69 10K_0402_5%R69 10K_0402_5%

1 2

R67

20K_0402_1%

R67

20K_0402_1%

1 2

C176

0.1U_0402_16V4Z

C176

0.1U_0402_16V4Z

1

2

JDIMM1

FOX_AS0A626-U8SN-7F

ME@

JDIMM1

FOX_AS0A626-U8SN-7F

ME@

VREF_DQ

1VSS1 2

VSS2

3DQ4 4

DQ0

5DQ5 6

DQ1

7VSS3 8

VSS4

9DQS#0 10

DM0

11 DQS0 12

VSS5

13 VSS6 14

DQ2

15 DQ6 16

DQ3

17 DQ7 18

VSS7

19 VSS8 20

DQ8

21 DQ12 22

DQ9

23 DQ13 24

VSS9

25 VSS10 26

DQS#1

27 DM1 28

DQS1

29 RESET# 30

VSS11

31 VSS12 32

DQ10

33 DQ14 34

DQ11

35 DQ15 36

VSS13

37 VSS14 38

DQ16

39 DQ20 40

DQ17

41 DQ21 42

VSS15

43 VSS16 44

DQS#2

45 DM2 46

DQS2

47 VSS17 48

VSS18

49 DQ22 50

DQ18

51 DQ23 52

DQ19

53 VSS19 54

VSS20

55 DQ28 56

DQ24

57 DQ29 58

DQ25

59 VSS21 60

VSS22

61 DQS#3 62

DM3

63 DQS3 64

VSS23

65 VSS24 66

DQ26

67 DQ30 68

DQ27

69 DQ31 70

VSS25

71 VSS26 72

A12/BC#

83 A11 84

A9

85 A7 86

VDD5

87 VDD6 88

A8

89 A6 90

CKE0

73 CKE1 74

VDD1

75 VDD2 76

NC1

77 A15 78

BA2

79 A14 80

VDD3

81 VDD4 82

A5

91 A4 92

VDD7

93 VDD8 94

A3

95 A2 96

A1

97 A0 98

VDD9

99 VDD10 100

CK0

101 CK1 102

CK0#

103 CK1# 104

VDD11

105 VDD12 106

A10/AP

107 BA1 108

BA0

109 RAS# 110

VDD13

111 VDD14 112

WE#

113 S0# 114

CAS#

115 ODT0 116

VDD15

117 VDD16 118

A13

119 ODT1 120

S1#

121 NC2 122

VDD17

123 VDD18 124

NCTEST

125 VREF_CA 126

VSS27

127 VSS28 128

DQ32

129 DQ36 130

DQ33

131 DQ37 132

VSS29

133 VSS30 134

DQS#4

135 DM4 136

DQS4

137 VSS31 138

VSS32

139 DQ38 140

DQ34

141 DQ39 142

DQ35

143 VSS33 144

VSS34

145 DQ44 146

DQ40

147 DQ45 148

DQ41

149 VSS35 150

VSS36

151 DQS#5 152

DM5

153 DQS5 154

VSS37

155 VSS38 156

DQ42

157 DQ46 158

DQ43

159 DQ47 160

VSS39

161 VSS40 162

DQ48

163 DQ52 164

DQ49

165 DQ53 166

VSS41

167 VSS42 168

DQS#6

169 DM6 170

DQS6

171 VSS43 172

VSS44

173 DQ54 174

DQ50

175 DQ55 176

DQ51

177 VSS45 178

VSS46

179 DQ60 180

DQ56

181 DQ61 182

DQ57

183 VSS47 184

VSS48

185 DQS#7 186

DM7

187 DQS7 188

VSS49

189 VSS50 190

DQ58

191 DQ62 192

DQ59

193 DQ63 194

VSS51

195 VSS52 196

SA0

197 EVENT# 198

VDDSPD

199 SDA 200

SA1

201 SCL 202

VTT1

203 VTT2 204

G1

205 G2 206

R65

20K_0402_1%

R65

20K_0402_1%

1 2

C126 0.1U_0402_16V4ZC126 0.1U_0402_16V4Z

1

2

C142

1000P_0402_50V7K

C142

1000P_0402_50V7K

1

2

C136

0.1U_0402_16V4Z

C136

0.1U_0402_16V4Z

1

2

C127 4.7U_0603_6.3V6KC127 4.7U_0603_6.3V6K

1

2

C135

2.2U_0603_6.3V6K

C135

2.2U_0603_6.3V6K

1

2

C117 0.1U_0402_16V4ZC117 0.1U_0402_16V4Z

1

2

C114 0.1U_0402_16V4Z

@

C114 0.1U_0402_16V4Z

@

1

2

R68

1K_0402_1%

R68

1K_0402_1%

1 2

C118 0.1U_0402_16V4ZC118 0.1U_0402_16V4Z

1

2

R70

10K_0402_5%

R70

10K_0402_5%

12

C119 0.1U_0402_16V4Z

@

C119 0.1U_0402_16V4Z

@

1

2

A

A

B

B

C

C

D

D

E

E

1 1

2 2

3 3

4 4

DIMM_B H:4mm

<Address: 10>

15mil

15mil

+1.5V/+0.75VS OF DIMM2

DDRAB_SDQS6

DDRAB_SDQ26

DDRAB_SDQ63

DDRAB_SDQ36

DDRAB_SDQ35

DDRAB_SDQ25

DDRAB_SDQ22

DDRAB_SDQ5

DDRAB_SDQ2

DDRAB_SDQS0#

DDRAB_SDQ14

DDRAB_SMA12

DDRB_CKE1

DDRAB_SDQ42

DDRAB_SDM6

DDRAB_SDQS4

DDRAB_SMA15

DDRAB_SDQ27

DDRAB_SDQ12

DDRB_CKE0

DDRAB_SDQ31

DDRAB_SMA3

DDRAB_SDQ59

DDRAB_SBS1#

DDRAB_SDQ39

DDRB_SCS1#

DDRAB_SDQ6

DDRAB_SDQS0

DDRAB_SMA7

DDRAB_SWE#

DDRAB_SMA0

DDRAB_SDM2

DDRAB_SDQ0

DDRAB_SDQ46

DDRAB_SDQ57

DDRAB_SDM1

DDRAB_SDQS7

DDRAB_SDM0

DDRAB_SDQ28

DDRAB_SDM4

DDRAB_SDQ19

DDRAB_SDQ51

DDRAB_SDQS5#

DDRAB_SDQS2

DDRAB_SDQ30

DDRAB_SDQ4

DDRAB_SDQ33

DDRAB_SRAS#

DDRAB_SDQ44

DDRAB_SDQS3

DDRAB_SDM5

DDRAB_SDQ58

DDRAB_SMA8

DDRB_SCS0#

DDRAB_SMA10

DDRAB_SMA6

DDRAB_SDQ10

DDRAB_SDQS6#

DDRAB_SDQS7#

MEM_MAB_RST#

DDRAB_SDQ3

DDRAB_SDQ16

DDRAB_SMA9

DDRAB_SDQ1

DDRAB_SDQS4#

DDRAB_SDQ29

DDRAB_SDQ49

DDRAB_SDQ54

DDRAB_SDQS5

DDRAB_SDM3

DDRAB_SDQ9

DDRAB_SDQ45

DDRAB_SBS2#

DDRAB_SDQ20

DDRAB_SDQ13

DDRAB_SDQ7

DDRAB_SMA1

DDRAB_SDM7

DDRAB_SBS0#

DDRAB_SDQ60

DDRAB_SDQ37

DDRB_ODT0DDRAB_SCAS#

DDRAB_SDQ55

DDRAB_SMA14

DDRAB_SDQS1#

DDRAB_SMA5

DDRAB_SDQ21

DDRAB_SMA4

DDRAB_SDQ62

DDRAB_SDQ15

DDRAB_SDQ24

DDRAB_SDQ47

DDRAB_SDQ53

DDRAB_SDQ23

DDRAB_SDQ56

DDRAB_SDQ43

DDRAB_SDQ18

DDRB_ODT1

DDRB_CLK1#

DDRB_CLK1

DDRAB_SDQ34

DDRAB_SDQS2#

DDRAB_SDQ48

DDRB_CLK0#

DDRB_CLK0

DDRAB_SDQ11

DDRAB_SDQ50

DDRAB_SMA11

DDRAB_SMA13

DDRAB_SDQS3#

DDRAB_SDQ32

DDRAB_SMA2

DDRAB_SDQ61

DDRAB_SDQS1

DDRAB_SDQ8

DDRAB_SDQ17

DDRAB_SDQ41

DDRAB_SDQ40

DDRAB_SDQ38

DDRAB_SDQ52

DDRAB_SDQ[0..63]

DDRAB_SDM[0..7]

DDRAB_SMA[0..15]

MEM_MAB_EVENT#

DDRB_SCS1#

<4>

DDRB_CKE0

<4>

DDRB_SCS0# <4>

DDRAB_SRAS# <4,8>

DDRAB_SWE#

<4,8>

DDRAB_SBS1# <4,8>

DDRAB_SCAS#

<4,8>

DDRAB_SBS0#

<4,8>

DDRAB_SBS2#

<4,8>

MEM_MAB_RST# <4,8>

DDRB_CLK1 <4>

DDRB_CLK1# <4>

DDRB_ODT1 <4>

DDRB_ODT0 <4>

DDRB_CKE1 <4>

DDRB_CLK0#

<4> DDRB_CLK0

<4>

DDRAB_SDQS2

<4,8>

DDRAB_SDQS2#

<4,8>

DDRAB_SDQS4

<4,8>

DDRAB_SDQS4#

<4,8>

DDRAB_SDQS6

<4,8>

DDRAB_SDQS6#

<4,8>

DDRAB_SDQS0# <4,8>

DDRAB_SDQS0 <4,8>

DDRAB_SDQS3# <4,8>

DDRAB_SDQS3 <4,8>

DDRAB_SDQS5 <4,8>

DDRAB_SDQS5# <4,8>

DDRAB_SDQS7 <4,8>

DDRAB_SDQS7# <4,8>

APU_SDATA0 <16,6,8>

APU_SCLK0 <16,6,8>

DDRAB_SDQS1#

<4,8>

DDRAB_SDQS1

<4,8>

DDRAB_SDQ[0..63] <4,8>

DDRAB_SDM[0..7] <4,8>

DDRAB_SMA[0..15] <4,8>

MEM_MAB_EVENT# <4,8>

+0.75VS

+1.5V+1.5V

+3VS

+VREF_DQ

+VREF_CA

+1.5V+1.5V +0.75VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

DDR3 SODIMM-II Socket

Custom

9 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

DDR3 SODIMM-II Socket

Custom

9 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

DDR3 SODIMM-II Socket

Custom

9 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

C139

1000P_0402_50V7K

C139

1000P_0402_50V7K

1

2

C177

0.1U_0402_16V4Z

C177

0.1U_0402_16V4Z

1

2

C143

1000P_0402_50V7K

C143

1000P_0402_50V7K

1

2

JDIMM2

FOX_AS0A626-U4SN-7F

ME@

JDIMM2

FOX_AS0A626-U4SN-7F

ME@

VREF_DQ

1VSS1 2

VSS2

3DQ4 4

DQ0

5DQ5 6

DQ1

7VSS3 8

VSS4

9DQS#0 10

DM0

11 DQS0 12

VSS5

13 VSS6 14

DQ2

15 DQ6 16

DQ3

17 DQ7 18

VSS7

19 VSS8 20

DQ8

21 DQ12 22

DQ9

23 DQ13 24

VSS9

25 VSS10 26

DQS#1

27 DM1 28

DQS1

29 RESET# 30

VSS11

31 VSS12 32

DQ10

33 DQ14 34

DQ11

35 DQ15 36

VSS13

37 VSS14 38

DQ16

39 DQ20 40

DQ17

41 DQ21 42

VSS15

43 VSS16 44

DQS#2

45 DM2 46

DQS2

47 VSS17 48

VSS18

49 DQ22 50

DQ18

51 DQ23 52

DQ19

53 VSS19 54

VSS20

55 DQ28 56

DQ24

57 DQ29 58

DQ25

59 VSS21 60

VSS22

61 DQS#3 62

DM3

63 DQS3 64

VSS23

65 VSS24 66

DQ26

67 DQ30 68

DQ27

69 DQ31 70

VSS25

71 VSS26 72

A12/BC#

83 A11 84

A9

85 A7 86

VDD5

87 VDD6 88

A8

89 A6 90

CKE0

73 CKE1 74

VDD1

75 VDD2 76

NC1

77 A15 78

BA2

79 A14 80

VDD3

81 VDD4 82

A5

91 A4 92

VDD7

93 VDD8 94

A3

95 A2 96

A1

97 A0 98

VDD9

99 VDD10 100

CK0

101 CK1 102

CK0#

103 CK1# 104

VDD11

105 VDD12 106

A10/AP

107 BA1 108

BA0

109 RAS# 110

VDD13

111 VDD14 112

WE#

113 S0# 114

CAS#

115 ODT0 116

VDD15

117 VDD16 118

A13

119 ODT1 120

S1#

121 NC2 122

VDD17

123 VDD18 124

NCTEST

125 VREF_CA 126

VSS27

127 VSS28 128

DQ32

129 DQ36 130

DQ33

131 DQ37 132

VSS29

133 VSS30 134

DQS#4

135 DM4 136

DQS4

137 VSS31 138

VSS32

139 DQ38 140

DQ34

141 DQ39 142

DQ35

143 VSS33 144

VSS34

145 DQ44 146

DQ40

147 DQ45 148

DQ41

149 VSS35 150

VSS36

151 DQS#5 152

DM5

153 DQS5 154

VSS37

155 VSS38 156

DQ42

157 DQ46 158

DQ43

159 DQ47 160

VSS39

161 VSS40 162

DQ48

163 DQ52 164

DQ49

165 DQ53 166

VSS41

167 VSS42 168

DQS#6

169 DM6 170

DQS6

171 VSS43 172

VSS44

173 DQ54 174

DQ50

175 DQ55 176

DQ51

177 VSS45 178

VSS46

179 DQ60 180

DQ56

181 DQ61 182

DQ57

183 VSS47 184

VSS48

185 DQS#7 186

DM7

187 DQS7 188

VSS49

189 VSS50 190

DQ58

191 DQ62 192

DQ59

193 DQ63 194

VSS51

195 VSS52 196

SA0

197 EVENT# 198

VDDSPD

199 SDA 200

SA1

201 SCL 202

VTT1

203 VTT2 204

G1

205 G2 206

C132 0.1U_0402_16V4ZC132 0.1U_0402_16V4Z

1

2

C133 0.1U_0402_16V4Z

@

C133 0.1U_0402_16V4Z

@

1

2

C162 0.1U_0402_16V4ZC162 0.1U_0402_16V4Z

1

2

C155 0.1U_0402_16V4ZC155 0.1U_0402_16V4Z

1

2

C165 0.1U_0402_16V4ZC165 0.1U_0402_16V4Z

1

2

C158 4.7U_0603_6.3V6KC158 4.7U_0603_6.3V6K

1

2

C175 0.1U_0402_16V4ZC175 0.1U_0402_16V4Z

1

2

R72 10K_0402_5%R72 10K_0402_5%

1 2

R71 10K_0402_5%R71 10K_0402_5%

1 2

C168 0.1U_0402_16V4Z

@

C168 0.1U_0402_16V4Z

@

1

2

+

C644

220U_6.3V_M

+

C644

220U_6.3V_M

1

2

C169 0.1U_0402_16V4Z

@

C169 0.1U_0402_16V4Z

@

1

2

C170 0.1U_0402_16V4ZC170 0.1U_0402_16V4Z

1

2

C171 0.1U_0402_16V4ZC171 0.1U_0402_16V4Z

1

2

C172 0.1U_0402_16V4Z

@

C172 0.1U_0402_16V4Z

@

1

2

C174

0.1U_0402_16V4Z

C174

0.1U_0402_16V4Z

1

2

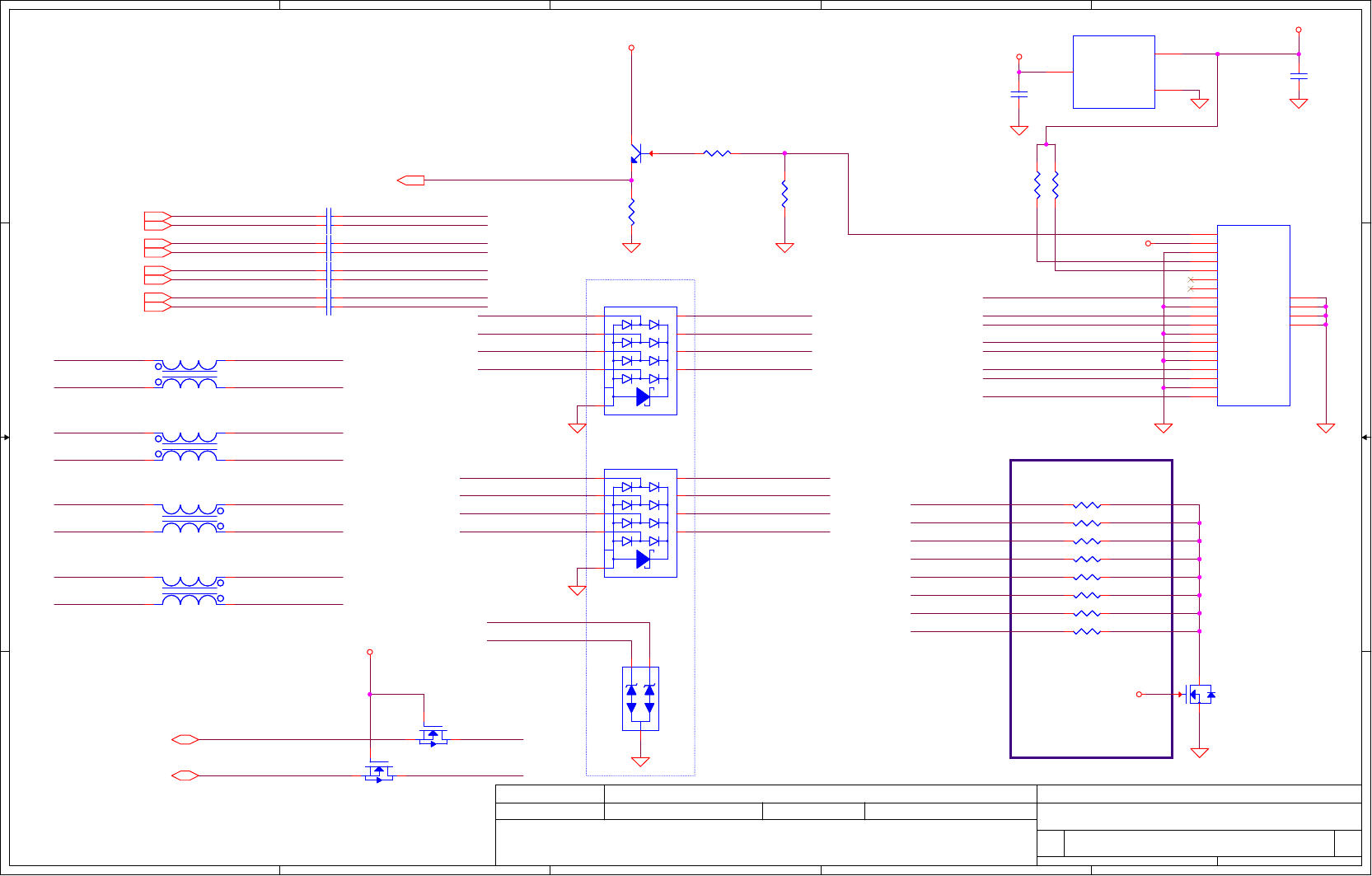

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

Close to HDMI connector

W=40mils

HDMI CLK DATA Pull high

in Page 22 for 8P4R

HDMICLK_R

HDMI_CLK+_CONN

HDMI_CLK-_CONN

HDMI_TX1+_CONN

HDMI_DET_R

HDMI_TX1-_CONN

HDMI_TX0+_CONN

HDMI_TX0-_CONN

HDMI_TX2+_CONN

HDMI_TX2-_CONN

HDMIDAT_R

DP2_TXP0

DP2_TXN0

DP2_TXP1

DP2_TXN1

DP2_TXP2

DP2_TXN2

DP2_TXP3

DP2_TXN3

HDMI_TX2P

HDMI_TX2N

HDMI_TX1P

HDMI_TX1N

HDMI_TX0P

HDMI_TX0N

HDMI_CLKP

HDMI_CLKN

HDMI_TX1+_CONN

HDMI_CLK+_CONN

HDMI_CLK-_CONN

HDMI_TX2+_CONN

HDMI_TX0+_CONN

HDMI_TX1-_CONN

HDMI_TX0-_CONN

HDMI_TX2-_CONN

HDMI_TX1P

HDMI_TX2N

HDMI_TX1N

HDMI_CLKN

HDMI_TX2P

HDMI_TX0P

HDMI_TX0N

HDMI_CLKP

HDMIDAT_R

HDMICLK_R

HDMICLK_R

HDMIDAT_R

HDMI_TX2-_CONN

HDMI_CLK+_CONN

HDMI_TX0+_CONN

HDMI_CLK-_CONN

HDMI_TX0-_CONN

HDMI_TX1+_CONN

HDMI_TX2+_CONN

HDMI_TX1-_CONN

HDMI_TX2-_CONN

HDMI_TX2+_CONN

HDMI_TX1-_CONN

HDMI_TX1+_CONN

HDMI_TX2-_CONN

HDMI_TX2+_CONN

HDMI_TX1-_CONN

HDMI_TX1+_CONN

HDMI_CLK

HDMI_DATA

HDMI_TX0+_CONN

HDMI_TX0-_CONN

HDMI_CLK-_CONN

HDMI_CLK+_CONN

HDMI_TX0-_CONN

HDMI_TX0+_CONN

HDMI_CLK-_CONN

HDMI_CLK+_CONN

HDMI_DET<4>

HDMI_DATA<12,4>

HDMI_CLK<12,4>

DP2_TXP0

<4>

DP2_TXN0

<4>

DP2_TXP1

<4>

DP2_TXN1

<4>

DP2_TXP2

<4>

DP2_TXN2

<4>

DP2_TXP3

<4>

DP2_TXN3

<4>

+3VS

+5V_Display

+3VS

+3VS

+5VS

+5V_Display

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

HDMI CONN

B

10 37Monday, April 01, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

HDMI CONN

B

10 37Monday, April 01, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

HDMI CONN

B

10 37Monday, April 01, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

C543

0.1U_0402_16V7K

C543

0.1U_0402_16V7K

1

2

C51 0.1U_0402_16V7KHDMI@C51 0.1U_0402_16V7KHDMI@ 1 2

R435 499_0402_1%HDMI@R435 499_0402_1%HDMI@

1 2

R432 499_0402_1%HDMI@R432 499_0402_1%HDMI@

1 2

C55 0.1U_0402_16V7KHDMI@C55 0.1U_0402_16V7KHDMI@ 1 2

R436 499_0402_1%HDMI@R436 499_0402_1%HDMI@

1 2

R894

200K_0402_5%

@

R894

200K_0402_5%

@

1 2

R434

150K_0402_5%

HDMI@

R434

150K_0402_5%

HDMI@

1 2

D1

TVWDF1004AD0_DFN9

ESDU@D1

TVWDF1004AD0_DFN9

ESDU@

4

5

1

6

2

7

9

8

3

E

B

C

Q87

MMBT3904_NL_SOT23-3

HDMI@

E

B

C

Q87

MMBT3904_NL_SOT23-3

HDMI@

2

3 1

Q75A

DMN66D0LDW-7_SOT363-6

HDMI@

Q75A

DMN66D0LDW-7_SOT363-6

HDMI@

61

2

R1470

2.2K_0402_5%

HDMI@ R1470

2.2K_0402_5%

HDMI@

1 2

C52 0.1U_0402_16V7KHDMI@C52 0.1U_0402_16V7KHDMI@ 1 2

R439 499_0402_1%HDMI@R439 499_0402_1%HDMI@

1 2

R898

100K_0402_5%

HDMI@

R898

100K_0402_5%

HDMI@

12

D2

TVWDF1004AD0_DFN9

ESDU@

D2

TVWDF1004AD0_DFN9

ESDU@

4

5

1

6

2

7

9

8

3

JHDMI1

SUYIN_100042GR019M23DZL

ME@

JHDMI1

SUYIN_100042GR019M23DZL

ME@

D2+

1D2_shield

2D2-

3D1+

4D1_shield

5D1-

6D0+

7D0_shield

8D0-

9CK+

10 CK_shield

11 CK-

12 CEC

13 Reserved

14 SCL

15 SDA

16 DDC/CEC_GND

17 +5V

18 HP_DET

19

G1 20

G2 21

G3 22

G4 23

Q75B

DMN66D0LDW-7_SOT363-6

HDMI@

Q75B

DMN66D0LDW-7_SOT363-6

HDMI@

3

5

4

L39

WCM-2012HS-900T

EMIP@ L39

WCM-2012HS-900T

EMIP@

11

44

3

3

2

2

C53 0.1U_0402_16V7KHDMI@C53 0.1U_0402_16V7KHDMI@ 1 2

R440 499_0402_1%HDMI@R440 499_0402_1%HDMI@

1 2

R1471

2.2K_0402_5%

HDMI@R1471

2.2K_0402_5%

HDMI@

1 2

C57 0.1U_0402_16V7KHDMI@C57 0.1U_0402_16V7KHDMI@ 1 2

R441 499_0402_1%HDMI@R441 499_0402_1%HDMI@

1 2

U73

AP2330W-7_SC59-3

U73

AP2330W-7_SC59-3

GND 2

OUT 3

IN

1

L40

WCM-2012HS-900T

EMIP@ L40

WCM-2012HS-900T

EMIP@

11

44

3

3

2

2

C5888 0.1U_0402_16V7KHDMI@C5888 0.1U_0402_16V7KHDMI@ 1 2

R442 499_0402_1%HDMI@R442 499_0402_1%HDMI@

1 2

C544

0.1U_0402_16V7K

C544

0.1U_0402_16V7K

1

2

L31

WCM-2012HS-900T

EMIP@L31

WCM-2012HS-900T

EMIP@

1

1

4

433

22

D69

L30ESDL5V0C3-2_SOT23-3

ESDU@

D69

L30ESDL5V0C3-2_SOT23-3

ESDU@

1

2

3

C54 0.1U_0402_16V7KHDMI@C54 0.1U_0402_16V7KHDMI@ 1 2

R433 499_0402_1%HDMI@R433 499_0402_1%HDMI@

1 2

L30

WCM-2012HS-900T

EMIP@L30

WCM-2012HS-900T

EMIP@

1

1

4

433

22

G

D

S

Q76

2N7002K_SOT23-3

HDMI@

G

D

S

Q76

2N7002K_SOT23-3

HDMI@

2

13

C56 0.1U_0402_16V7KHDMI@C56 0.1U_0402_16V7KHDMI@ 1 2

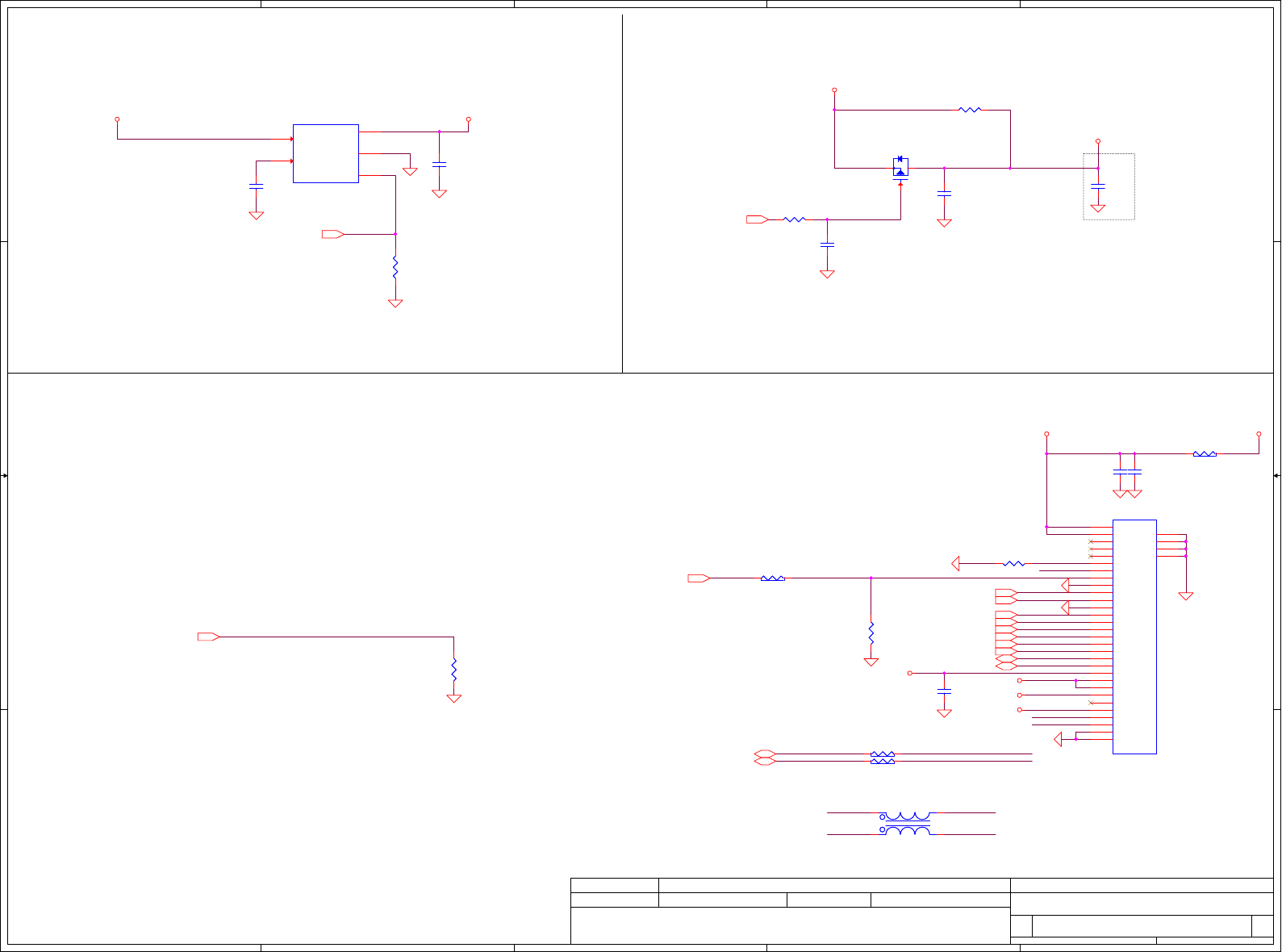

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

Use APU control for WIN8 Add for protect BKOFF# damage

LCD POWER CIRCUIT

10U

(40 MIL)(40 MIL)

CMOS Camera

R02

CMOS

VGA LCD/PANEL BD. Conn.

(60 MIL)

W=60mils

W=60mils

USB20_N3_R

USB20_P3_R

INVT_PWM

BKOFF#

BKOFF#

+LCDVDD_CONN

USB20_P3

USB20_N3

USB20_N3

USB20_P3

USB20_P3_R

USB20_N3_R

USB20_P3_R

USB20_N3_R

CMOS_ON#

<18>

APU_INVT_PWM

<4>

EDID_DATA

<4>

EDID_CLK

<4>

LVDS_A0

<4>

LVDS_A0#

<4>

LVDS_A1

<4>

LVDS_A1#

<4>

LVDS_A2

<4>

LVDS_A2#

<4>

LVDS_ACLK

<4>

LVDS_ACLK#

<4>

APU_ENVDD

<4>

USB20_P3

<5>

USB20_N3

<5>

BKOFF#

<18>

+3VS

+3VS_CMOS

B++LEDVDD

+3VS

+LCDVDD_CONN

+3VS

+3VS_CMOS

+3VS +LCDVDD_CONN

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

LVDS CONN / Camera

B

11 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

LVDS CONN / Camera

B

11 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

LVDS CONN / Camera

B

11 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

R696

0_0402_5%

@R696

0_0402_5%

@12

R1463 0_0402_5%@R1463 0_0402_5%@

1 2

R652

100K_0402_5%

R652

100K_0402_5%

1 2

G

D

S

Q70

PMV65XP_SOT23-3

CMOS@

G

D

S

Q70

PMV65XP_SOT23-3

CMOS@

2

13

R695

0_0402_5%

@R695

0_0402_5%

@12

R694 0_0402_5%

@

R694 0_0402_5%

@

12

C1152

0.1U_0402_16V4Z

CMOS@

C1152

0.1U_0402_16V4Z

CMOS@

1

2

R813 0_0805_5%

@

R813 0_0805_5%

@

1 2

C16

1500P_0402_50V7K

C16

1500P_0402_50V7K

1

2

R826

100K_0402_5%

R826

100K_0402_5%

12

L58

WCM-2012-900T_4P

EMIU@L58

WCM-2012-900T_4P

EMIU@

1

1

4

433

22

C1159

4.7U_0805_25V6-K

C1159

4.7U_0805_25V6-K

1

2

R899

10K_0402_5%

R899

10K_0402_5%

12

C1158

680P_0402_50V7K

EMIU@

C1158

680P_0402_50V7K

EMIU@

1

2

C522

4.7U_0603_6.3V6K

C522

4.7U_0603_6.3V6K

1

2

JLVDS1

ACES_88341-3001 ME@

JLVDS1

ACES_88341-3001 ME@

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

12

12

13

13

14

14

15

15

16

16

17

17

18

18

19

19

20

20

21

21

22

22

23

23

24

24

25

25

26

26

27

27

28

28

29

29

30

30

G1 31

G2 32

G3 33

G4 34

C1155

0.1U_0402_16V4Z

CMOS@C1155

0.1U_0402_16V4Z

CMOS@

1

2

U72

APL3512ABI-TRG_SOT23-5

U72

APL3512ABI-TRG_SOT23-5

VIN

5

SS

4

VOUT 1

EN 3

GND 2

R1458

150K_0402_5%

CMOS@R1458

150K_0402_5%

CMOS@

R1466 0_0402_5%R1466 0_0402_5%

1 2

C1160

680P_0402_50V7K

EMIU@C1160

680P_0402_50V7K

EMIU@

1

2

C1153

10U_0603_6.3V6M

@

C1153

10U_0603_6.3V6M

@

1

2

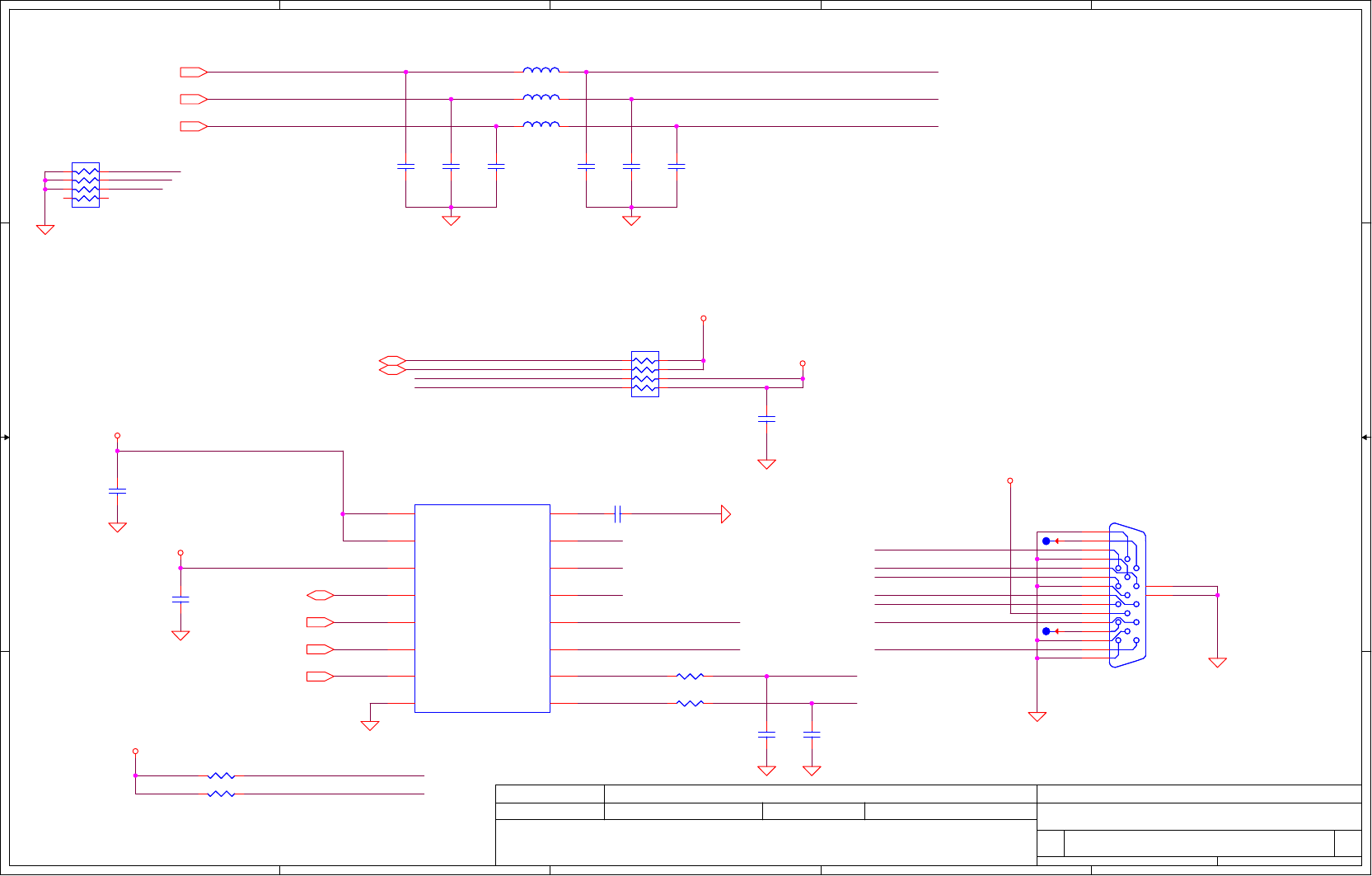

A

A

B

B

C

C

D

D

E

E

1 1

2 2

3 3

4 4

R106 R107 for EMI

CRT_DDC_CLK_CONN

RED

GREEN

JVGA_HS

JVGA_VS

DAC_RED

DAC_BLU

DAC_GRN

BLUE

CRT_DDC_DAT_CONN

GREEN

BLUE

RED

DAC_RED

DAC_GRN

DAC_BLU

RED

GREEN

BLUE

CRT_DDC_DAT_CONN

CRT_DDC_CLK_CONN

JVGA_VS_U

JVGA_HS_U

JVGA_VS

JVGA_HS

CRT_DDC_CLK_CONN

CRT_DDC_DAT_CONN

HDMI_CLK

HDMI_DATA

CRT_DDC_DATA

CRT_DDC_CLK

CRT_DDC_DATA

<4>

DAC_RED

<4>

DAC_GRN

<4>

DAC_BLU

<4>

CRT_DDC_CLK

<4>

CRT_VSYNC

<4>

CRT_HSYNC

<4>

HDMI_DATA<10,4>

HDMI_CLK<10,4>

+5V_Display

+5VS

+3VS

+5V_Display

+3VS

+3VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

CRT CONN

B

12 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

CRT CONN

B

12 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

CRT CONN

B

12 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

C529

0.1U_0402_16V7K

C529

0.1U_0402_16V7K

1

2

C1106

6P_0402_50V8

C1106

6P_0402_50V8

12

C411

10P_0402_50V8J

@

C411

10P_0402_50V8J

@1

2

L37

FCM1608CF-121T03 0603

EMIP@

L37

FCM1608CF-121T03 0603

EMIP@ 1 2

T49T49

C1107

6P_0402_50V8

C1107

6P_0402_50V8

12

R106 22_0402_5%EMIP@R106 22_0402_5%EMIP@

1 2

C412

10P_0402_50V8J

@

C412

10P_0402_50V8J

@1

2

T58T58

R107 22_0402_5%EMIP@R107 22_0402_5%EMIP@

1 2

RP22

150_0804_8P4R_1%

RP22

150_0804_8P4R_1%

18

27

36

45

C600

1000P_0402_50V7K

ESDP@ C600

1000P_0402_50V7K

ESDP@

1

2

RP1

4.7K_8P4R_5%

RP1

4.7K_8P4R_5%

1 8

2 7

3 6

4 5

C1094

6P_0402_50V8

C1094

6P_0402_50V8

12

C1103

6P_0402_50V8

C1103

6P_0402_50V8

12

R693 4.7K_0402_5%R693 4.7K_0402_5%

1 2

C537

0.1U_0402_16V7K

C537

0.1U_0402_16V7K

1

2

R697 4.7K_0402_5%R697 4.7K_0402_5%

1 2

C1104

6P_0402_50V8

C1104

6P_0402_50V8

12

L38

FCM1608CF-121T03 0603

EMIP@

L38

FCM1608CF-121T03 0603

EMIP@ 1 2

U10

TPD7S019-15DBQR_SSOP16

U10

TPD7S019-15DBQR_SSOP16

SYNC_IN2

15

VCC_DDC

7

SYNC_IN1

13

SYNC_OUT1 14

DDC_OUT1 9

VIDEO3 5

SYNC_OUT2 16

DDC_IN2

11

VIDEO1 3

VCC_SYNC

1

DDC_IN1

10

VIDEO2 4

DDC_OUT2 12

BYP 8

VCC_VIDEO

2

GND

6

C1105

6P_0402_50V8

C1105

6P_0402_50V8

12

L36

FCM1608CF-121T03 0603

EMIP@

L36

FCM1608CF-121T03 0603

EMIP@ 1 2

C23 0.22U_0402_10V6KC23 0.22U_0402_10V6K

1 2

G

G

JCRT1

CONTE_80431-5K1-152

ME@

G

G

JCRT1

CONTE_80431-5K1-152

ME@

6

11

1

7

12

2

8

13

3

9

14

4

10

15

5

16

17

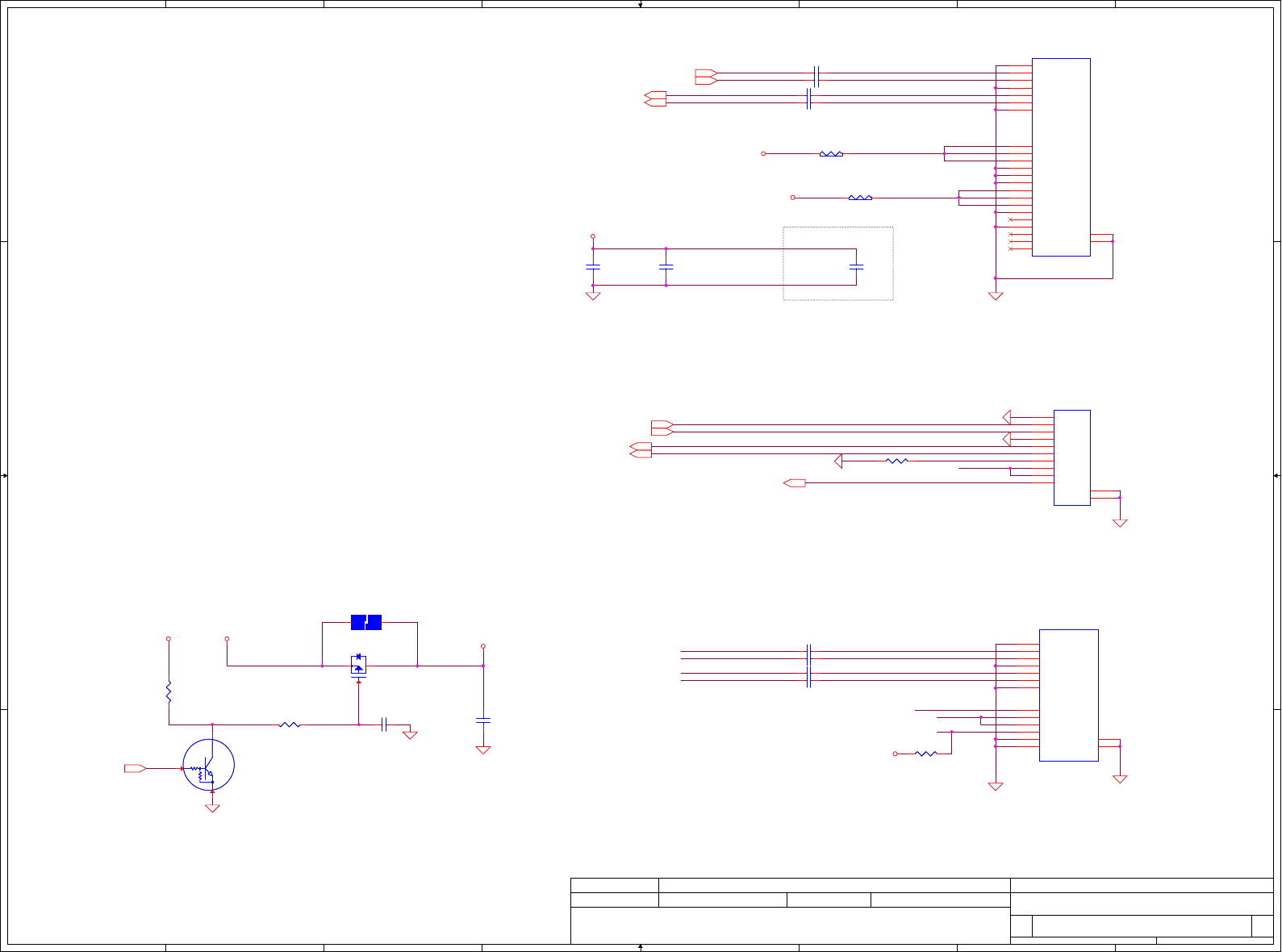

A

A

B

B

C

C

D

D

E

E

F

F

G

G

H

H

1 1

2 2

3 3

4 4

Co-lay

10U

FOR 14"

FOR 15"

R02

SATA ODD Conn.

R02

R02

SATA ODD FFC Conn.

SATA HDD Conn.

ODD Power Control

Need OPEN

CAP in Small Board

ODD_DETECT#

ODD_DA#

SATA_DTX_C_ARX_N1

SATA_DTX_C_ARX_P1

+5V_ODD

SATA_ATX_DRX_P1

SATA_ATX_DRX_N1

SATA_DTX_C_ARX_P0

SATA_DTX_ARX_N0SATA_DTX_C_ARX_N0

SATA_DTX_ARX_P0

SATA_ATX_C_DRX_P0

SATA_ATX_C_DRX_N0

SATA_DTX_C_ARX_N1

SATA_DTX_C_ARX_P1 SATA_DTX_ARX_P1_14

SATA_DTX_ARX_N1_14

SATA_ATX_C_DRX_N1_14

SATA_ATX_C_DRX_P1_14

ODD_DETECT#

+5V_ODD

SATA_ATX_DRX_N1

ODD_DA#

SATA_ATX_DRX_P1

+3V_HDD

+5V_HDD

SATA_ATX_DRX_P1<5>

SATA_ATX_DRX_N1<5>

SATA_ATX_DRX_P0<5>

SATA_ATX_DRX_N0<5>

ODD_DA#

<18>

ODD_EN

<6>

SATA_DTX_C_ARX_N0

<5>

SATA_DTX_C_ARX_P0

<5>

SATA_DTX_C_ARX_N1

<5>

SATA_DTX_C_ARX_P1

<5>

+5V_HDD

+5VS

+3VS

+5V_ODD

+5VS

+5VALW

+3VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

HDD/ODD/FAN/SCREW

B

13 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

HDD/ODD/FAN/SCREW

B

13 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

HDD/ODD/FAN/SCREW

B

13 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

C602

10U_0603_6.3V6M

C602

10U_0603_6.3V6M

1

2

J6

JUMP_43X79

J@ J6

JUMP_43X79

J@

1

122

C641

10U_0603_6.3V6M

C641

10U_0603_6.3V6M

1

2

Q91

DTC124EKAT146_SC59-3

ZODD@

Q91

DTC124EKAT146_SC59-3

ZODD@

IN

2

OUT 1

GND

3

C597 0.01U_0402_25V7KC597 0.01U_0402_25V7K

1 2

C642

0.1U_0402_16V4Z

ZODD@

C642

0.1U_0402_16V4Z

ZODD@

1 2

JHDD1

SUYIN_127043FB022G278ZR

JHDD1

SUYIN_127043FB022G278ZR

GND

1

RX+

2

RX-

3

GND

4

TX-

5

TX+

6

GND

7

3.3V

8

3.3V

9

3.3V

10

GND

11

GND

12

GND

13

5V

14

5V

15

5V

16

GND

17

Reserved

18

GND

19

12V

20

12V

21

12V

22

GND 23

GND 24

C613 0.01U_0402_25V7K14@C613 0.01U_0402_25V7K14@ 1 2

R551 0_0805_5%

@

R551 0_0805_5%

@

1 2

C1370.01U_0402_25V7K C1370.01U_0402_25V7K 12

C619 0.01U_0402_25V7K14@C619 0.01U_0402_25V7K14@ 1 2

JODD1

ALLTO_C18518-11305-L

ME@

JODD1

ALLTO_C18518-11305-L

ME@

GND

1

A+

2

A-

3

GND

4

B-

5

B+

6

GND

7

DP

8

+5V

9

+5V

10

MD

11

GND

12

GND

13 GND 14

GND 15

C598

1000P_0402_50V7K

EMIP@ C598

1000P_0402_50V7K

EMIP@

1

2

C596 0.01U_0402_25V7KC596 0.01U_0402_25V7K

1 2

R555

10K_0402_5%

ZODD@

R555

10K_0402_5%

ZODD@

1 2

JODD2

HB_A051020-SAHR21

ME@

JODD2

HB_A051020-SAHR21

ME@

1

1

2

2

3

3

4

4

5

5

6

6

GND 11

GND 12

7

7

8

8

9

9

10

10

C1380.01U_0402_25V7K C1380.01U_0402_25V7K 12

C599

0.1U_0402_16V4Z

C599

0.1U_0402_16V4Z

1

2

R710 0_0402_5%ZODD@R710 0_0402_5%ZODD@

1 2

C616 0.01U_0402_25V7K14@C616 0.01U_0402_25V7K14@ 1 2

C614 0.01U_0402_25V7K14@C614 0.01U_0402_25V7K14@ 1 2

R1110

200K_0402_5%

ZODD@

R1110

200K_0402_5%

ZODD@

1 2

R550 0_0805_5%

@

R550 0_0805_5%

@

1 2

G

D

S

Q90

LP2301ALT1G_SOT23-3ZODD@

G

D

S

Q90

LP2301ALT1G_SOT23-3ZODD@

2

13

R930

10K_0402_5%

ZODD@ R930

10K_0402_5%

ZODD@

12

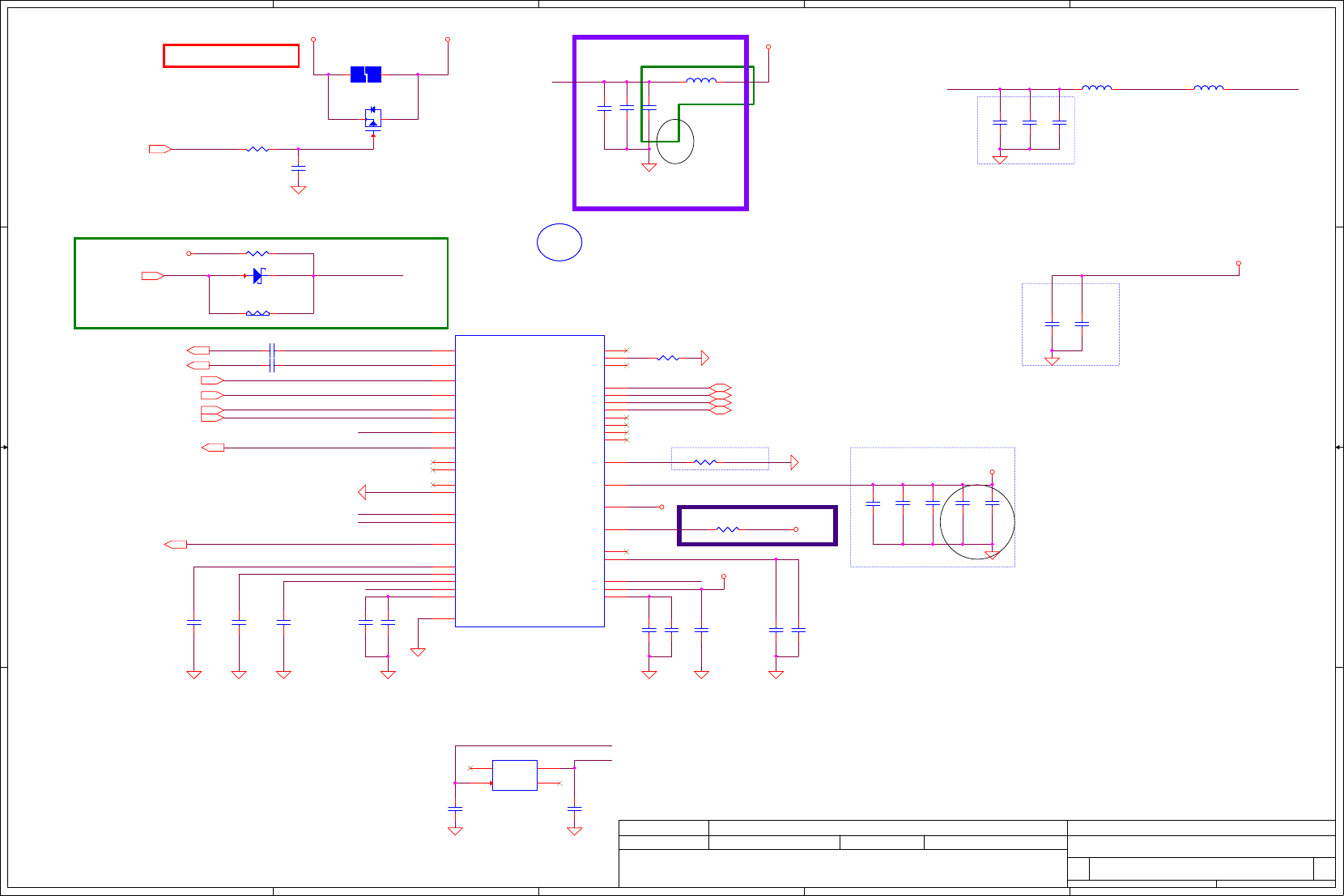

A

A

B

B

C

C

D

D

E

E

1 1

2 2

3 3

4 4

Layout Notice : Place as close

chip as possible.

Close to

Pin40

Note: Place Close to LAN chip

LL1 DCR< 0.15 ohm

Rate current > 1A

Near

Pin37

Place Close to Chip

Near

Pin9 Near

Pin22

Place close to Pin16

Near

Pin6

Place Close to PIN1

Near

Pin13

Near

Pin19

Near

Pin31

Place close to Pin34

LAN Chip Vendor recommand reserve the

PU resistor close LAN chip

AMD recommand reserve Diode

Place Close to PIN1

Close together

10U

mount RL12 if use LDO modue

10U

LAN_PWR_ON#

LAN_PERST#

+1.1_AVDDL

PCIE_DTX_ARX_N1

PCIE_DTX_ARX_P1

+LX_R +LX

MDI1+

MDI0+

MDI0-

MDI1-

LAN_XTALI

LAN_XTALO

LAN_PERST#

+3V_LAN

+LX

+1.1_AVDDL_L

LAN_RBIAS

+1.1_AVDDL

+2.7_AVDDH

+1.1_AVDDL

+1.1_AVDDL

+LX_R+1.1_AVDDL+1.1_AVDDL_L

+LX_R

+3V_LAN

+2.7_AVDDH

LAN_XTALO

+1.7_VDDCT

LAN_XTALI

APU_PCIE_RST#

<6>

CLK_PCIE_LAN

<5>

CLK_PCIE_LAN#

<5>

PCIE_ATX_C_DRX_P1

<5>

PCIE_ATX_C_DRX_N1

<5>

MDI1+ <15>

MDI0- <15>

MDI0+ <15>

MDI1- <15>

LAN_PWR_ON#

<18>

PCIE_DTX_C_ARX_N1

<5>

PCIE_DTX_C_ARX_P1

<5>

LAN_WAKE#

<18>

LAN_CLKREQ#

<6>

+3V_LAN

+LX

+LX

+3V_LAN

+3V_LAN

+2.7_AVDDH

+3V_LAN

+3VALW

+3V_LAN

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

LAN-AR8151

Custom

14 37

Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

VAWGA/GB

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

LAN-AR8151

Custom

14 37

Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

VAWGA/GB

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

LAN-AR8151

Custom

14 37

Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

VAWGA/GB

CL22

0.1U_0402_16V7K

CL22

0.1U_0402_16V7K

1

2

CL3

10U_0603_6.3V6M

SWR@

CL3

10U_0603_6.3V6M

SWR@

1

2

CL20

1U_0402_6.3V4Z

CL20

1U_0402_6.3V4Z

1

2

RL4 4.7K_0402_5%@RL4 4.7K_0402_5%@

1 2

RL3

10K_0402_5%

@

RL3

10K_0402_5%

@

12

CL29

15P_0402_50V8J

CL29

15P_0402_50V8J

1

2

CL17

0.1U_0402_16V7K

CL17

0.1U_0402_16V7K

1

2

CL24

0.1U_0402_16V7K

CL24

0.1U_0402_16V7K

1

2

CL19

0.1U_0402_16V7K

CL19

0.1U_0402_16V7K

1

2

CL12

1000P_0402_50V7K

CL12

1000P_0402_50V7K

1 2

CL14

1U_0402_6.3V4Z

CL14

1U_0402_6.3V4Z

1

2

CL10

0.1U_0402_16V7K

CL10

0.1U_0402_16V7K

1

2

CL2

0.1U_0402_16V7K

SWR@

CL2

0.1U_0402_16V7K

SWR@

1

2

D4

RB751V-40TE17_SOD323-2

@D4

RB751V-40TE17_SOD323-2

@

12

CL5

1U_0402_6.3V4Z

CL5

1U_0402_6.3V4Z

1

2

LL3

FBMA-L11160808601LMA10T_2P

SWR@LL3

FBMA-L11160808601LMA10T_2P

SWR@

1 2

LL1

4.7UH_SIA4012-4R7M_20%

SWR@LL1

4.7UH_SIA4012-4R7M_20%

SWR@

1 2

RL12 10K_0402_5%

LDO@

RL12 10K_0402_5%

LDO@

12

UL1

AR8172-AL3A-R

8172@UL1

AR8172-AL3A-R

8172@

LL2

FBMA-L11160808601LMA10T_2P

LL2

FBMA-L11160808601LMA10T_2P

1 2

J10

JUMP_43X79

J@

J10

JUMP_43X79

J@

1

122

CL9 0.1U_0402_16V7KCL9 0.1U_0402_16V7K

1 2

RL8 2.37K_0402_1%RL8 2.37K_0402_1%

1 2

CL15

10U_0603_6.3V6M

CL15

10U_0603_6.3V6M

1

2

CL25

0.1U_0402_16V7K

CL25

0.1U_0402_16V7K

1

2

G

D

S

QL1

PMV65XP_SOT23-3~D

@

G

D

S

QL1

PMV65XP_SOT23-3~D

@

2

13

CL26

1U_0402_6.3V4Z

CL26

1U_0402_6.3V4Z

1

2

CL6

4.7U_0603_6.3V6K

CL6

4.7U_0603_6.3V6K

1

2

CL13

0.1U_0402_16V7K

CL13

0.1U_0402_16V7K

1

2

R577 0_0402_5%

@

R577 0_0402_5%

@

1 2

CL18

0.1U_0402_16V7K

CL18

0.1U_0402_16V7K

1

2

CL21

0.1U_0402_16V7K

CL21

0.1U_0402_16V7K

1

2

Atheros

AR8151/AR8161

UL1

AR8162-AL3A-R_QFN40_5X5

8162@

Atheros

AR8151/AR8161

UL1

AR8162-AL3A-R_QFN40_5X5

8162@

RX_P

35

VDD33 1

TX_P

30

TX_N

29

RX_N

36

TRXP0 11

TRXN0 12

TRXP1 14

TRXN1 15

RBIAS 10

LX 40

LED_0 38

LED_1 39

NC

28

TESTMODE

27

SMCLK

25

SMDATA

26

WAKE#

3

PERST#

2

LED_2 23

REFCLK_P

33 REFCLK_N

32

AVDDL

31

AVDDL

34

AVDDL_REG/AVDDL

6AVDDH 22

AVDDH_REG 9

DVDDL/PPS 24

DVDDL_REG/DVDDL 37

VDDCT/ISOLAN 5

CLKREQ#

4

GND

41

XTLO

7

XTLI

8

AVDDH/AVDD33 16

TRXP2 17

TRXN2 18

AVDDL

19

TRXP3 20

TRXN3 21

AVDDL

13

CL28

15P_0402_50V8J

CL28

15P_0402_50V8J

1

2

CL16

10U_0603_6.3V6M

CL16

10U_0603_6.3V6M

1

2

CL1

1000P_0402_50V7K

SWR@

CL1

1000P_0402_50V7K

SWR@

CL23

1U_0402_6.3V4Z

CL23

1U_0402_6.3V4Z

1

2

CL11 0.1U_0402_16V7KCL11 0.1U_0402_16V7K

1 2

CL8

1U_0402_6.3V4Z

CL8

1U_0402_6.3V4Z

1

2

CL7

0.1U_0402_16V7K

@

CL7

0.1U_0402_16V7K

@

1

2

RL10 30K_0402_5%RL10 30K_0402_5%

1 2

CL4

0.1U_0402_16V7K

CL4

0.1U_0402_16V7K

1

2

YL1

25MHZ_20PF_FSX3M-25.M20FDO

YL1

25MHZ_20PF_FSX3M-25.M20FDO

NC

4

OSC

1

OSC 3

NC 2

A

A

B

B

C

C

D

D

E

E

1 1

2 2

3 3

4 4

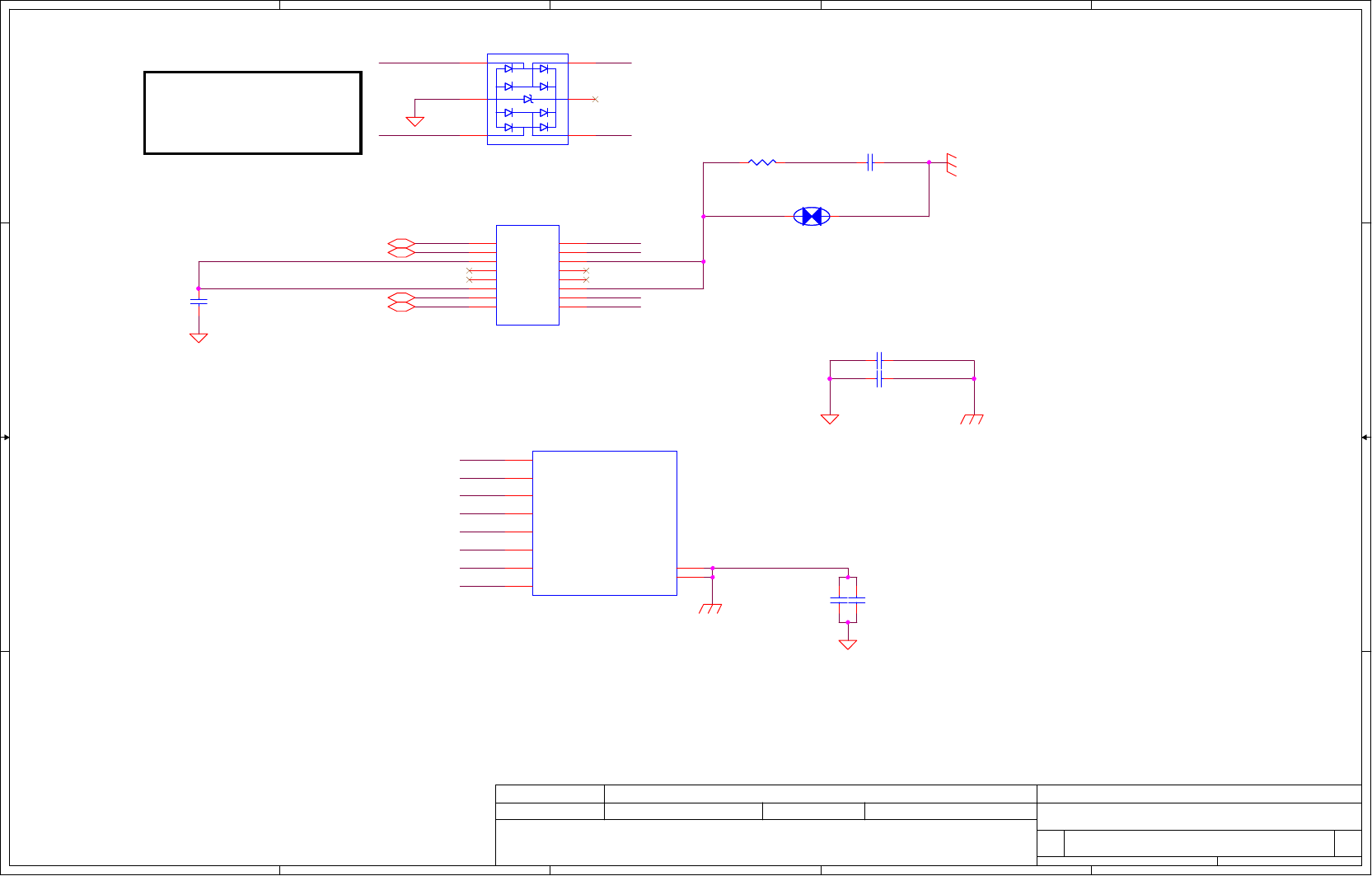

Place Close to TL1

Reserve gas tube for EMI go rural solution

DL1

1'S PN:SC300001G00

2'S PN:SC300002E00

Place Close to TL1

MDI0+

MDI0-

MDI1-

MDI1+

MDO1-

MDO1+

MDO0+

MDO0-

MCT

MCT

MDI1+ MDI0+

MDI0- MDI1-

MDO1-

MDO1+

MDO0-

MDO0+

MCT

MCT

MCT

MCT

MDI0+

<14>

MDI0-

<14>

MDI1+

<14>

MDI1-

<14>

CHASSIS1_GND

CHASSIS1_GND

CHASSIS1_GND

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

LAN_Transformer

B

15 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

VAWGA/GB

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

LAN_Transformer

B

15 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

VAWGA/GB

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

LAN_Transformer

B

15 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

VAWGA/GB

CL31

0.01U_0402_25V7K

EMIP@ CL31

0.01U_0402_25V7K

EMIP@

1

2

RL14

75_0805_5%

EMIP@

RL14

75_0805_5%

EMIP@

1 2

CL30

10P_0603_50V

EMIP@

CL30

10P_0603_50V

EMIP@

1 2

CL63 0.1U_0603_50V7K

EMIP@

CL63 0.1U_0603_50V7K

EMIP@

1 2

JLAN1

SANTA_130456-121

ME@

JLAN1

SANTA_130456-121

ME@

PR1-

2

PR1+

1

PR2+

3

PR3+

4

PR3-

5

PR2-

6

PR4+

7

PR4-

8

GND 9

GND 10

C178

0.1U_0402_16V7K

ESDP@C178

0.1U_0402_16V7K

ESDP@

1

2

TL1

MHPC_NS681612A

TL1

MHPC_NS681612A

TD+

1

TD-

2

CT

3

CT

6

RD+

7

RD-

8RX- 9

RX+ 10

CT 11

CT 14

TX- 15

TX+ 16

NC

4

NC

5NC 13

NC 12

C173

0.1U_0402_16V7K

ESDP@ C173

0.1U_0402_16V7K

ESDP@

1

2

DL1

AZC099-04S.R7G_SOT23-6

ESDU@

DL1

AZC099-04S.R7G_SOT23-6

ESDU@

I/O4 6

VDD 5

I/O3 4

I/O2

3

GND

2

I/O1

1

DLL1

BS4200N-C-LV_SMB-F2

EMIGASP@

DLL1

BS4200N-C-LV_SMB-F2

EMIGASP@

12

CL61 0.1U_0603_50V7K

EMIP@

CL61 0.1U_0603_50V7K

EMIP@

1 2

A

A

B

B

C

C

D

D

E

E

1 1

2 2

3 3

4 4

For EC to detect

debug card insert.

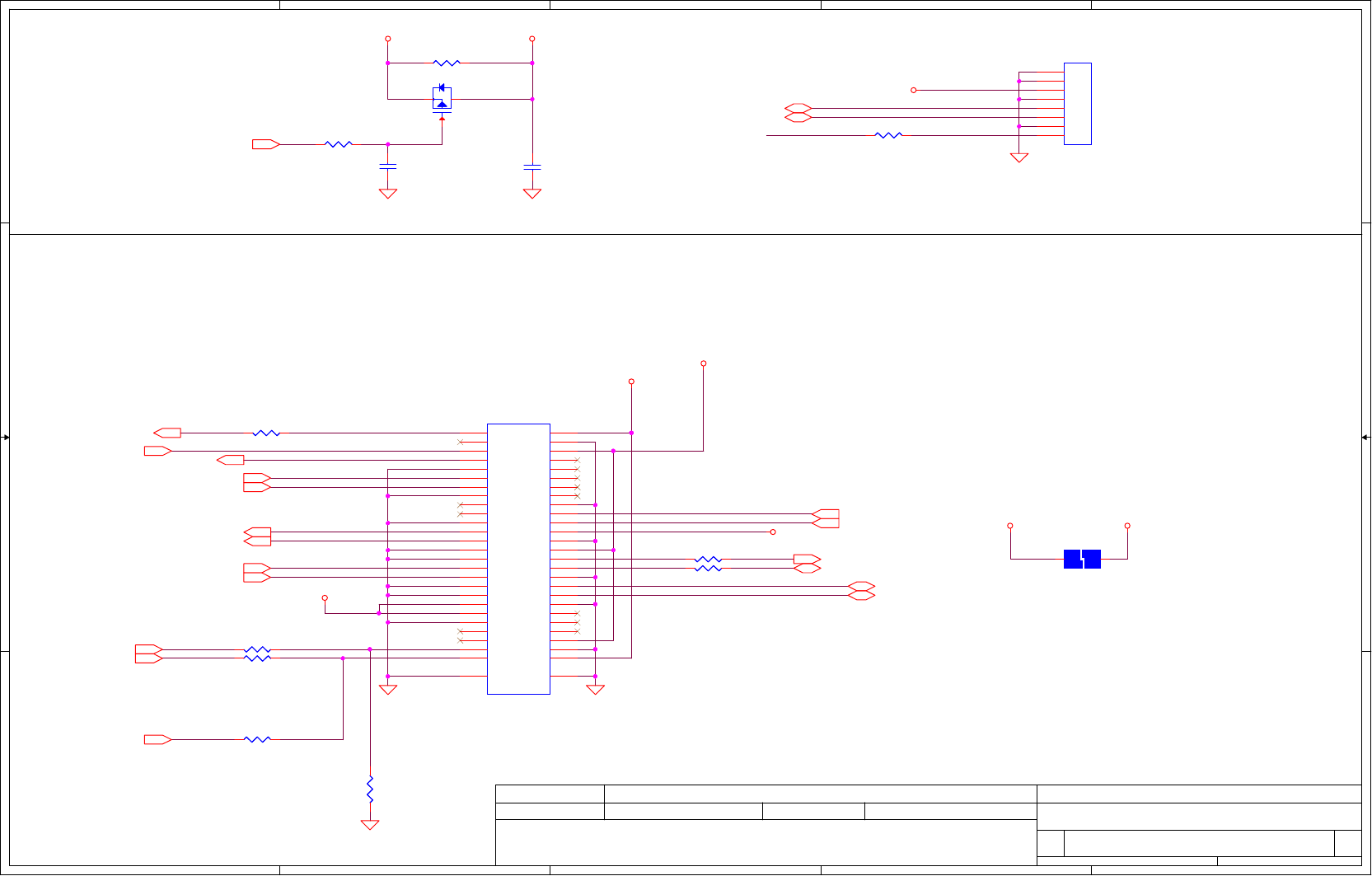

Mini-Express Card(WLAN/WiMAX)

BT_OFF#_R

EC_TX

WLAN_CLKREQ#

APU_PCIE_RST#

EC_RX

USB20_P5

USB20_N5

APU_SDATA0_W

APU_SCLK0_W

TS_RST#EC_TS_ON#

APU_PCIE_WLAN_WAKE#

BT_OFF#

<6>

WL_OFF# <6>

EC_TX

<18>

EC_RX

<18>

APU_SCLK0 <6,8,9>

APU_SDATA0 <6,8,9>

PCIE_ATX_C_DRX_N2

<5>

PCIE_ATX_C_DRX_P2

<5>

PCIE_DTX_C_ARX_N2

<5>

PCIE_DTX_C_ARX_P2

<5>

CLK_PCIE_WLAN#

<5>

CLK_PCIE_WLAN

<5>

BT_DISABLE#

<6>

APU_PCIE_RST# <6>

USB20_P5 <5>

USB20_N5 <5>

WLAN_CLKREQ#

<6>

USB20_P1

<5>

USB20_N1

<5>

EC_TS_ON#

<18>

APU_PCIE_WAKE#

<6>

+3VS_WLAN

+3VS_WLAN

+1.5VS

+3VS_WLAN

+3VS_WLAN+3VS

+3VS +3VS_TS

+3VS_TS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

MINI1 CARD (WLAN) / MINI2 CARD (Option)

B

16 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

MINI1 CARD (WLAN) / MINI2 CARD (Option)

B

16 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

MINI1 CARD (WLAN) / MINI2 CARD (Option)

B

16 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

R5583 0_0402_5%

TS@

R5583 0_0402_5%

TS@

1 2

R5581 100K_0402_5%

@

R5581 100K_0402_5%

@

1 2

R1500 0_0402_5%@R1500 0_0402_5%@

1 2

R1520 1K_0402_5%R1520 1K_0402_5%

1 2

JWLN1

BELLW_80003-8041

ME@

JWLN1

BELLW_80003-8041

ME@

1

1

3

3

5

5

7

7

9

9

11

11

13

13

15

15

17

17

19

19

21

21

23

23

25

25

27

27

29

29

31

31

33

33

35

35

37

37

39

39

41

41

43

43

45

45

47

47

49

49

51

51

GND1

53

22

44

66

88

10 10

12 12

14 14

16 16

18 18

20 20

22 22

24 24

26 26

28 28

30 30

32 32

34 34

36 36

38 38

40 40

42 42

44 44

46 46

48 48

50 50

52 52

GND2 54

R726 0_0402_5%TS@R726 0_0402_5%TS@

1 2

C1322

0.1U_0402_16V4Z

TS@

C1322

0.1U_0402_16V4Z

TS@

1

2

R1499

100_0402_1%

R1499

100_0402_1%

1 2

G

D

S

Q156

PMV65XP_SOT23-3~D

@

G

D

S

Q156

PMV65XP_SOT23-3~D

@

2

13

R1497 0_0402_5%@R1497 0_0402_5%@

1 2

JTS1

ACES_50208-00601-P01

ME@

JTS1

ACES_50208-00601-P01

ME@

1

12

23

34

45

56

6GND

7GND

8

R1498

100_0402_1%

R1498

100_0402_1%

1 2

R1501

100K_0402_5%

R1501

100K_0402_5%

1 2

R1496 0_0402_5%@R1496 0_0402_5%@

1 2

J7

JUMP_43X79

J@

J7

JUMP_43X79

J@

1

122

C1331

0.1U_0402_16V4Z

@

C1331

0.1U_0402_16V4Z

@

1

2

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

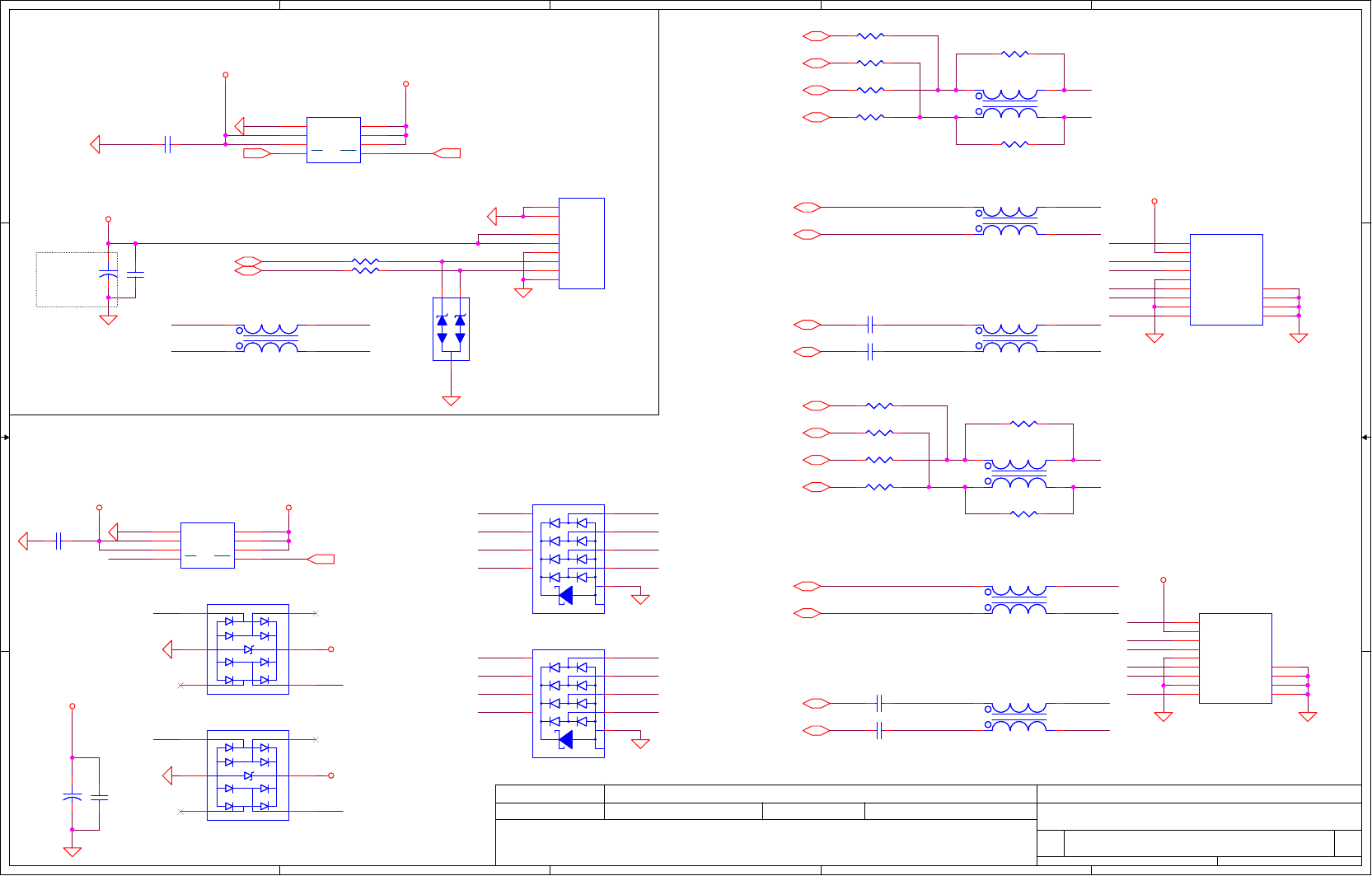

W=80mils

2A/Active Low

R02

W=80mils LP2 Port1

Colay with USB2.0 only

LP1 Port0

W=80mils

R02

RIGHT USB PORT X1

W=80mils

Right Ext.USB Conn.

6.3Φ * 5.9

SF000001500

Colay with USB2.0 only

U2DN0

U2DP0

U3TXDN0

U3TXDP0

U3TXDN1

U3TXDP1

U3RXDP0

U3RXDP1U3RXDP1

U3RXDP0

U3RXDN1 U3RXDN1

U3RXDN0U3RXDN0

U3TXDP1

U3TXDN1

U2DP1

U2DN1

U3TXDN0

U3TXDP0

USB_ON#

U3TXDN1

U3RXDN1

U2DP1

U3RXDP1

U2DN1

U3TXDN1

U3TXDP1

U3TXDP1_L

U3TXDN1_L

U3TXDP1

U2DN1

U2DP1

U2DN0

U3TXDP0_L

U3TXDN0_L U3TXDN0

U2DP0

U3RXDP0

U3TXDP0

U3RXDN0

U2DP0

U3RXDP0

U2DN0

U3TXDN0

U3TXDP0+USB_VCCB

USB20_N0

USB20_P0

USB20_N0_C

USB20_P0_C

U2DN0_L

U2DP0_L

U2DN1_L

U2DP1_L

U3RXDN0

U3RXDN1

U3RXDP1

USB20_N0_C

USB20_P0_C

USB_OC1# <6>

USB30_P9

<5>

USB30_N9

<5>

USB30_P8

<5>

USB30_N8

<5>

USB_ON#

<18> USB_OC0# <6>

USB20_P6

<5>

USB20_N6

<5>

USB20_P7

<5>

USB20_N7

<5>

USB30_MTX_C_DRX_P0

<5>

USB30_MTX_C_DRX_N0

<5>

USB30_MRX_DTX_N0

<5>

USB30_MRX_DTX_P0

<5>

USB30_MTX_C_DRX_N1

<5>

USB30_MTX_C_DRX_P1

<5>

USB30_MRX_DTX_N1

<5>

USB30_MRX_DTX_P1

<5>

USB20_P0

<5>

USB20_N0

<5>

+USB3_VCCA

+5VALW

+5VALW

+5VALW +USB3_VCCA

+USB3_VCCA

+USB3_VCCA

+5VALW

+USB_VCCB

+USB_VCCB

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

USB2.0 / USB3.0 / BT

B

17 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

USB2.0 / USB3.0 / BT

B

17 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

USB2.0 / USB3.0 / BT

B

17 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

L55

WCM-2012-900T_4P

EMIP@

L55

WCM-2012-900T_4P

EMIP@

1

1

4

433

22

JUSB3

ACES_88058-060N

ME@JUSB3

ACES_88058-060N

ME@

1

12

23

34

45

56

6

GND

7GND

8

C713 0.1U_0402_16V4Z

USB2R@

C713 0.1U_0402_16V4Z

USB2R@

12

R728

0_0402_5%

EMIU@

R728

0_0402_5%

EMIU@

1 2

8

7

6 5

4

3

2

1

9

10

D27

YSCLAMP0524P_SLP2510P8-10-9

ESDU@

8

7

6 5

4

3

2

1

9

10

D27

YSCLAMP0524P_SLP2510P8-10-9

ESDU@

4

5

1

6

2

7

3

9

8

JUSB1

TAITW_PUBAU1-09FNLSCNN4H0

ME@

JUSB1

TAITW_PUBAU1-09FNLSCNN4H0

ME@

VBUS

1

SSTX-

8

D+

3

GND 11

D-

2GND 10

GND 13

GND

4

SSTX+

9

SSRX-

5

GND

7

SSRX+

6

GND 12

U36

G547I2P81U_MSOP8

USB2R@

U36

G547I2P81U_MSOP8

USB2R@

FLG 5

VIN

3VOUT 6

GND

1

EN

4

VOUT 7

VIN

2VOUT 8

R567

0_0402_5%

@R567

0_0402_5%

@

1 2

L53

WCM-2012HS-900T

EMIP@

L53

WCM-2012HS-900T

EMIP@

1

1

4

433

22

R572

0_0402_5%

R572

0_0402_5%

1 2

D22

AZC099-04S.R7G_SOT23-6

ESDU@

D22

AZC099-04S.R7G_SOT23-6

ESDU@

I/O4 6

VDD 5

I/O3 4

I/O2

3

GND

2

I/O1

1

L49

WCM-2012HS-900T

EMIP@L49

WCM-2012HS-900T

EMIP@

1

1

4

433

22

R574

0_0402_5%

R574

0_0402_5%

1 2

R573

0_0402_5%

R573

0_0402_5%

1 2

L51

WCM-2012-900T_4P

EMIP@

L51

WCM-2012-900T_4P

EMIP@

1

1

4

433

22

C857

0.1U_0402_16V7K

C857

0.1U_0402_16V7K

1 2

U35

G547I2P81U_MSOP8

U35

G547I2P81U_MSOP8

FLG 5

VIN

3VOUT 6

GND

1

EN

4

VOUT 7

VIN

2VOUT 8

R575

0_0402_5%

R575

0_0402_5%

1 2

C735

470P_0402_50V7K

C735

470P_0402_50V7K

1

2

R569

0_0402_5%

@R569

0_0402_5%

@

1 2

R562

0_0402_5%

EMIU@

R562

0_0402_5%

EMIU@

1 2

L54

WCM-2012HS-900T

EMIP@

L54

WCM-2012HS-900T

EMIP@

1

1

4

433

22

8

7

6 5

4

3

2

1

9

10

D30

YSCLAMP0524P_SLP2510P8-10-9

ESDU@

8

7

6 5

4

3

2

1

9

10

D30

YSCLAMP0524P_SLP2510P8-10-9

ESDU@

4

5

1

6

2

7

3

9

8

R566

0_0402_5%

EMIU@

R566

0_0402_5%

EMIU@

1 2

+

C736

220U_6.3V_M

SF000002Y00

+

C736

220U_6.3V_M

SF000002Y00

1

2

L66 WCM-2012-900T_4P

EMIUSB2RP@

L66 WCM-2012-900T_4P

EMIUSB2RP@

1

1

4

433

22

R721

0_0402_5%

EMIU@

R721

0_0402_5%

EMIU@

1 2

R570

0_0402_5%

@R570

0_0402_5%

@

1 2

C715

470P_0402_50V7K

USB2R@

C715

470P_0402_50V7K

USB2R@

1

2

JUSB2

TAITW_PUBAU1-09FNLSCNN4H0

ME@

JUSB2

TAITW_PUBAU1-09FNLSCNN4H0

ME@

VBUS

1

SSTX-

8

D+

3

GND 11

D-

2GND 10

GND 13

GND

4

SSTX+

9

SSRX-

5

GND

7

SSRX+

6

GND 12

R896 0_0402_5%

EMIUSB2RU@

R896 0_0402_5%

EMIUSB2RU@

12

+

C714

220U_6.3V_M

USB2R@

+

C714

220U_6.3V_M

USB2R@

1

2

L50

WCM-2012HS-900T

EMIP@

L50

WCM-2012HS-900T

EMIP@

1

1

4

433

22

C858

0.1U_0402_16V7K

C858

0.1U_0402_16V7K

1 2

D34

AZC099-04S.R7G_SOT23-6

ESDU@

D34

AZC099-04S.R7G_SOT23-6

ESDU@

I/O4 6

VDD 5

I/O3 4

I/O2

3

GND

2

I/O1

1

R900 0_0402_5%

EMIUSB2RU@

R900 0_0402_5%

EMIUSB2RU@

12

C856

0.1U_0402_16V7K

C856

0.1U_0402_16V7K

1 2

R571

0_0402_5%

@R571

0_0402_5%

@

1 2

C859

0.1U_0402_16V7K

C859

0.1U_0402_16V7K

1 2

C704

0.1U_0402_16V4Z

C704

0.1U_0402_16V4Z

1 2

D25

PJDLC05_SOT23-3

ESDU@D25

PJDLC05_SOT23-3

ESDU@

2

3

1

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

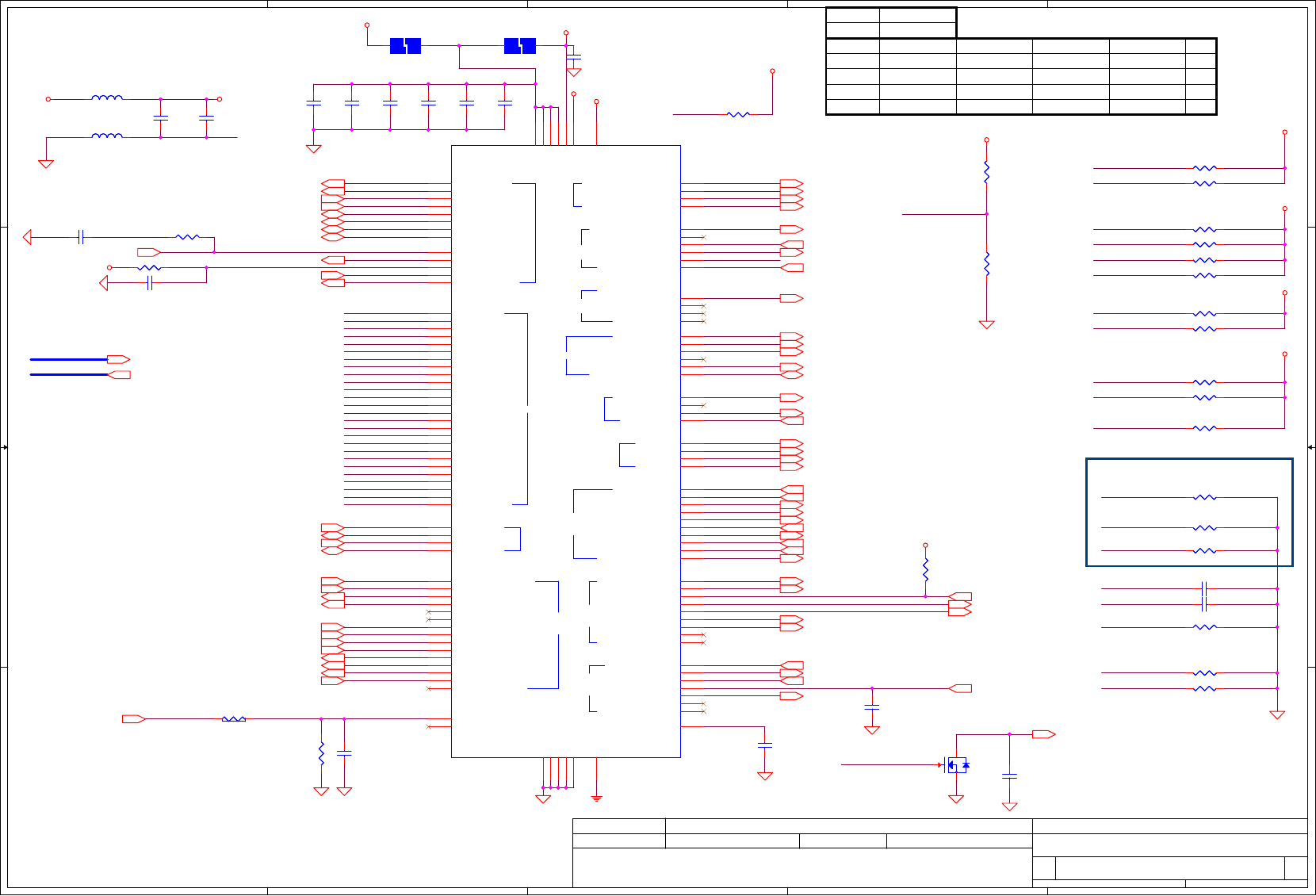

20mil

Pull high in APU side

Pull high in ODD side

MP

EVT

DVT

Vcc

3.3V +/- 5%

100K +/- 5%

PVT

MP

8.2K +/- 5%

0 V

0.216 V 0.250 V 0.289 V

0.436 V

0

1

2

3

0

R1562

Board ID

R1564 V

min

0 V 0 V

AD_BID

max

18K +/- 5%

33K +/- 5%

AD_BID

V

typ

AD_BID

V

0.712 V

0.503 V

0.819 V

0.538 V

0.875 V

For share ROM need

KSI1

KSI6

KSI5

KSI7

KSO1

KSO0

KSO2

KSO4

KSO3

KSO5

KSO6

KSO7

KSO8

KSO12

KSO10

KSO13

KSO11

KSO9

KSO15

KSO14

KSI2

KSI0

KSI3

KSI4

LPC_AD0

LPC_AD1

SERIRQ

LPC_AD3

LPC_AD2

LPC_FRAME#

LPC_RST#

LPC_CLK0_EC

TP_DATA

TP_CLK

EC_SMB_DA2

EC_SMB_CK1

EC_SMB_DA1

EC_SMB_CK2

BKOFF#

EC_SMI#

LAN_PWR_ON#

EC_SCI#

EC_LID_OUT#

SLP_S3#

SLP_S5#

VR_ON

SYSON

GATEA20

KBRST#

BATT_TEMP

EC_RSMRST#

EC_RST#

EC_TACH

KSO16

KSO17

ADP_I

ON/OFF

EC_MUTE#

SUSP#

EC_ON

NTC_V

ACIN

APU_IMON

KSI[0..7]

KSO[0..17]

PBTN_OUT#

ECAGND

CMOS_ON#

ODD_DA#

ADP_ID_CLOSE

LAN_WAKE#

EC_TX

EC_RX

NOVO#

PROCHOT

Turbo_V

CAPS_LED#

BATT_CHG_LED#

BATT_LOW_LED#

USB_ON#

BRDID

BRDID

EC_TACH

USB_ON#

EC_FAN_PWM

EC_SMB_CK1

EC_SMB_DA1

BATT_TEMP

ACIN

ACIN

BATT_LEN#

+V18R

PWR_LED#

ENBKL

TP_DATA

TP_CLK

ENBKL

EC_SPI_AOSI

EC_SPI_AISO

EC_SPI_CLK

EC_SPI_CS1#

095VS_PWR_EN

ADP_90

ADP_65

ADP_ID

ADP_135

VGATE

ACOFF

EC_FAN_PWM

BEEP#

EC_TS_ON#

XCLKO

095_18ALW_PWR_EN

095_18ALW_PWR_EN

EC_RSMRST#

EC_SMB_CK2

EC_SMB_DA2

095VS_PWR_ENSYS_PWRGD_EC

+3V_EC

LID_SW#

LAN_WAKE#

LID_SW#

EC_MUTE#

SYS_PWRGD_EC

LPC_FRAME#

<5,6>

LPC_AD2

<5>

LPC_AD0

<5>

LPC_AD3

<5>

LPC_AD1

<5>

SERIRQ

<5>

LPC_CLK0_EC

<5,6>

TP_DATA <20>

EC_SMB_CK2

<19,4>

EC_SMB_DA2

<19,4>

EC_SMB_CK1

<24,25>

LAN_PWR_ON# <14>

EC_SMI#

<6>

EC_SCI#

<6>

VR_ON <29>

SYSON <22,27>

KBRST#

<6> GATEA20

<6>

BATT_TEMP <24>

EC_TACH

<19>

ADP_I <24,25>

EC_MUTE# <21>

NOVO#<20>

EC_RX

<16>

EC_TX

<16>

KSI[0..7] <20>

KSO[0..17] <20>

MAINPWON <26>

EC_ON <26>

NTC_V <24>

TP_CLK <20>

APU_IMON <29>

EC_RSMRST# <6>

EC_LID_OUT# <6>

BKOFF# <11>

PBTN_OUT# <6>

ACIN <25>

ON/OFF <20>

LID_SW# <20>

SUSP# <22,27>

CMOS_ON#

<11>

ODD_DA#

<13>

ADP_ID_CLOSE

<23>

LAN_WAKE#

<14>

H_PROCHOT# <24,29,4,6>

PROCHOT <24>

Turbo_V <24>

BATT_CHG_LED# <20>

BATT_LOW_LED# <20>

CAPS_LED# <20>

USB_ON# <17>

BATT_LEN#

<24>

LPC_RST#

<6>

PWR_LED# <20>

ENBKL <4>

SLP_S3#

<6>

SLP_S5#

<6>

ADP_65 <24>

ADP_ID <23>

ADP_90 <24>

ADP_135 <24>

VGATE <29>

EC_FAN_PWM <19>

ACOFF <25>

BEEP# <21>

EC_SMB_DA1

<24,25>

EC_TS_ON# <16>

RTC_CLK

<6>

095_18ALW_PWR_EN <27,28>

095VS_PWR_EN <22>

EC_SPI_AISO <5>

EC_SPI_AOSI <5>

EC_SPI_CLK <5>

EC_SPI_CS1# <5>

SYS_PWRGD_EC

<6>

+3V_EC

+EC_VCCA

+EC_VCCA+3V_EC

+3V_EC

+3VLP

+3VLP

+3VALW

+3VS

+5VALW

+3V_EC

+5VS

ECAGND

+3VALW

+3VALW

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

EC ENE KB930/9012

Custom

18 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

EC ENE KB930/9012

Custom

18 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

EC ENE KB930/9012

Custom

18 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

L43

FBM-11-160808-601-T_0603

L43

FBM-11-160808-601-T_0603

1 2

R1564

0_0402_5%

R1564

0_0402_5%

12

C1266 100P_0402_50V8JC1266 100P_0402_50V8J

1 2

C1257

0.1U_0402_16V4Z

@

C1257

0.1U_0402_16V4Z

@

1

2

G

D

S

Q82

2N7002H_SOT23-3

G

D

S

Q82

2N7002H_SOT23-3

2

13

R1562

100K_0402_5%

@

R1562

100K_0402_5%

@

12

R207 100K_0402_5%R207 100K_0402_5%

1 2

C1261

1000P_0402_50V7K

C1261

1000P_0402_50V7K

1

2

C1269

47P_0402_50V8J

C1269

47P_0402_50V8J

1

2

J11

JUMP_43X79

J@

J11

JUMP_43X79

J@

1

122

LPC & MISC

Int. K/B

Matrix

SM Bus

GPIO

GPIO

AD Input

PWM Output

DA Output

PS2 Interface

SPI Device Interface

SPI Flash ROM

GPO

GPI

U44

KB9012QF-A3_LQFP128_14X14

Part Number = SA00004OB30

LPC & MISC

Int. K/B

Matrix

SM Bus

GPIO

GPIO

AD Input

PWM Output

DA Output

PS2 Interface

SPI Device Interface

SPI Flash ROM

GPO

GPI

U44

KB9012QF-A3_LQFP128_14X14

Part Number = SA00004OB30

GATEA20/GPIO00

1

KBRST#/GPIO01

2

SERIRQ

3

LPC_FRAME#

4

LPC_AD3

5

PM_SLP_S3#/GPIO04

6

LPC_AD2

7

LPC_AD1

8

EC_VDD/VCC 9

LPC_AD0

10

GND/GND

11

CLK_PCI_EC

12

PCIRST#/GPIO05

13

PM_SLP_S5#/GPIO07

14

EC_SMI#/GPIO08

15

GPIO0A

16

GPIO0B

17

GPIO0C

18

GPIO0D

19

EC_SCII#/GPIO0E

20

GPIO0F 21

EC_VDD/VCC 22

BEEP#/GPIO10 23

GND/GND

24

EC_INVT_PWM/GPIO11

25

GPIO12 26

ACOFF/GPIO13 27

FAN_SPEED1/GPIO14

28

EC_PME#/GPIO15

29

EC_TX/GPIO16

30

EC_RX/GPIO17

31

PCH_PWROK/GPIO18

32

EC_VDD/VCC 33

SUSP_LED#/GPIO19

34

GND/GND

35

NUM_LED#/GPIO1A

36

EC_RST#

37

GPIO1D

38

KSO0/GPIO20

39

KSO1/GPIO21

40

KSO2/GPIO22

41

KSO3/GPIO23

42

KSO4/GPIO24

43

KSO5/GPIO25

44

KSO6/GPIO26

45

KSO7/GPIO27

46

KSO8/GPIO28

47

KSO9/GPIO29

48

KSO10/GPIO2A

49

KSO11/GPIO2B

50

KSO12/GPIO2C

51

KSO13/GPIO2D

52

KSO14/GPIO2E

53

KSO15/GPIO2F

54

KSI0/GPIO30

55

KSI1/GPIO31

56

KSI2/GPIO32

57

KSI3/GPIO33

58

KSI4/GPIO34

59

KSI5/GPIO35

60

KSI6/GPIO36

61

KSI7/GPIO37

62

BATT_TEMP/AD0/GPIO38 63

AD1/GPIO39 64

ADP_I/AD2/GPIO3A 65

AD3/GPIO3B 66

EC_VDD/AVCC 67

DAC_BRIG/GPIO3C 68

AGND/AGND

69

EN_DFAN1/GPIO3D 70

IREF/GPIO3E 71

CHGVADJ/GPIO3F 72

ENBKL/AD6/GPIO40 73

PECI_KB930/AD7/GPIO41 74

AD4/GPIO42 75

IMON/AD5/GPIO43 76

EC_SMB_CK1/GPIO44

77

EC_SMB_DA1/GPIO45

78

EC_SMB_CK2/GPIO46

79

EC_SMB_DA2/GPIO47

80

KSO16/GPIO48

81

KSO17/GPIO49

82

EC_MUTE#/GPIO4A 83

USB_EN#/GPIO4B 84

CAP_INT#/GPIO4C 85

EAPD/GPIO4D 86

TP_CLK/GPIO4E 87

TP_DATA/GPIO4F 88

FSTCHG/GPIO50 89

BATT_CHG_LED#/GPIO52 90

CAPS_LED#/GPIO53 91

PWR_LED#/GPIO54 92

BATT_LOW_LED#/GPIO55 93

GND/GND

94

SYSON/GPIO56 95

EC_VDD/VCC 96

CPU1.5V_S3_GATE/GPXIOA00 97

WOL_EN/GPXIOA01 98

ME_EN/GPXIOA02 99

EC_RSMRST#/GPXIOA03 100

EC_LID_OUT#/GPXIOA04 101

PROCHOT_IN/GPXIOA05 102

H_PROCHOT#_EC/GPXIOA06 103

VCOUT0_PH/GPXIOA07 104

BKOFF#/GPXIOA08 105

PBTN_OUT#/GPXIOA09 106

PCH_APWROK/GPXIOA10 107

SA_PGOOD/GPXIOA11 108

VCIN0_PH/GPXIOD00 109

AC_IN/GPXIOD01 110

EC_VDD0 111

EC_ON/GPXIOD02 112

GND0

113

ON/OFF/GPXIOD03 114

LID_SW#/GPXIOD04 115

SUSP#/GPXIOD05 116

GPXIOD06 117

PECI_KB9012/GPXIOD07 118

SPIDI/GPIO5B 119

SPIDO/GPIO5C 120

VR_ON/GPIO57 121

XCLKI/GPIO5D

122

XCLKO/GPIO5E

123 V18R 124

EC_VDD/VCC 125

SPICLK/GPIO58 126

PM_SLP_S4#/GPIO59 127

SPICS#/GPIO5A 128

C1256

0.1U_0402_16V4Z

C1256

0.1U_0402_16V4Z

1

2

R1573 4.7K_0402_5%

@

R1573 4.7K_0402_5%

@

1 2

J12

JUMP_43X79

J@

J12

JUMP_43X79

J@

1

122

R343

47K_0402_5%

@

R343

47K_0402_5%

@

12

R208 100K_0402_5%R208 100K_0402_5%

1 2

C1254

100P_0402_50V8J

C1254

100P_0402_50V8J

1

2

R1574 2.2K_0402_5%R1574 2.2K_0402_5%

1 2

C1258

0.1U_0402_16V4Z

@

C1258

0.1U_0402_16V4Z

@

1

2

R1566 10K_0402_5%R1566 10K_0402_5%

1 2

R1587

100K_0402_5%

@

R1587

100K_0402_5%

@

12

C819 0.1U_0402_16V4ZC819 0.1U_0402_16V4Z

12

R1577 2.2K_0402_5%R1577 2.2K_0402_5%

1 2

R818 47K_0402_5%R818 47K_0402_5%

12

C1259

1000P_0402_50V7K

C1259

1000P_0402_50V7K

1

2

C601

1000P_0402_50V7K

ESDP@ C601

1000P_0402_50V7K

ESDP@

1

2

C1271

20P_0402_50V8

@C1271

20P_0402_50V8

@

12

R1560

10_0402_5%

EMIU@

R1560

10_0402_5%

EMIU@ 12

R1578 2.2K_0402_5%@R1578 2.2K_0402_5%@

1 2

R1575 100K_0402_5%R1575 100K_0402_5%

1 2

C1262

0.1U_0402_16V4Z

C1262

0.1U_0402_16V4Z

1

2

C823

4.7U_0603_6.3V6K

C823

4.7U_0603_6.3V6K

1

2

R1561 10K_0402_5%@R1561 10K_0402_5%@

1 2

C1263 22P_0402_50V8J

EMIU@

C1263 22P_0402_50V8J

EMIU@

12

R1579 2.2K_0402_5%@R1579 2.2K_0402_5%@

1 2

R836 0_0402_5%@R836 0_0402_5%@

1 2

R1576 100K_0402_5%R1576 100K_0402_5%

1 2

L44

FBM-11-160808-601-T_0603

L44

FBM-11-160808-601-T_0603

1 2

R1565 10K_0402_5%R1565 10K_0402_5%

1 2

C1265 100P_0402_50V8JC1265 100P_0402_50V8J

1 2

R1266

10K_0402_5%

R1266

10K_0402_5%

1 2

R206 100K_0402_5%R206 100K_0402_5%

1 2

C1260

1000P_0402_50V7K

C1260

1000P_0402_50V7K

1

2

R344 47K_0402_5%R344 47K_0402_5%

1 2

C1255

0.1U_0402_16V4Z

C1255

0.1U_0402_16V4Z

1

2

R1570 4.7K_0402_5%R1570 4.7K_0402_5%

1 2

R1581 10K_0402_5%R1581 10K_0402_5%

1 2

R1568 4.7K_0402_5%R1568 4.7K_0402_5%

1 2

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

FAN1 Conn

10U

REMOTE1,2+/-:

Trace width/space:10/10 mil

Trace length:<8"

Address is 1001100xb

SMSC thermal sensor

placed near APU

F

R

HDD

C

CPU

2P8 * 9 pcd

D

A

E

M/B M/B

+5VS_FAN

EC_SMB_CK2

REMOTE1+ EC_SMB_DA2

REMOTE1-

EC_FAN_PWM<18>

EC_SMB_CK2 <18,4>

EC_SMB_DA2 <18,4>

EC_TACH

<18>

+5VS

+3VS

+3VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

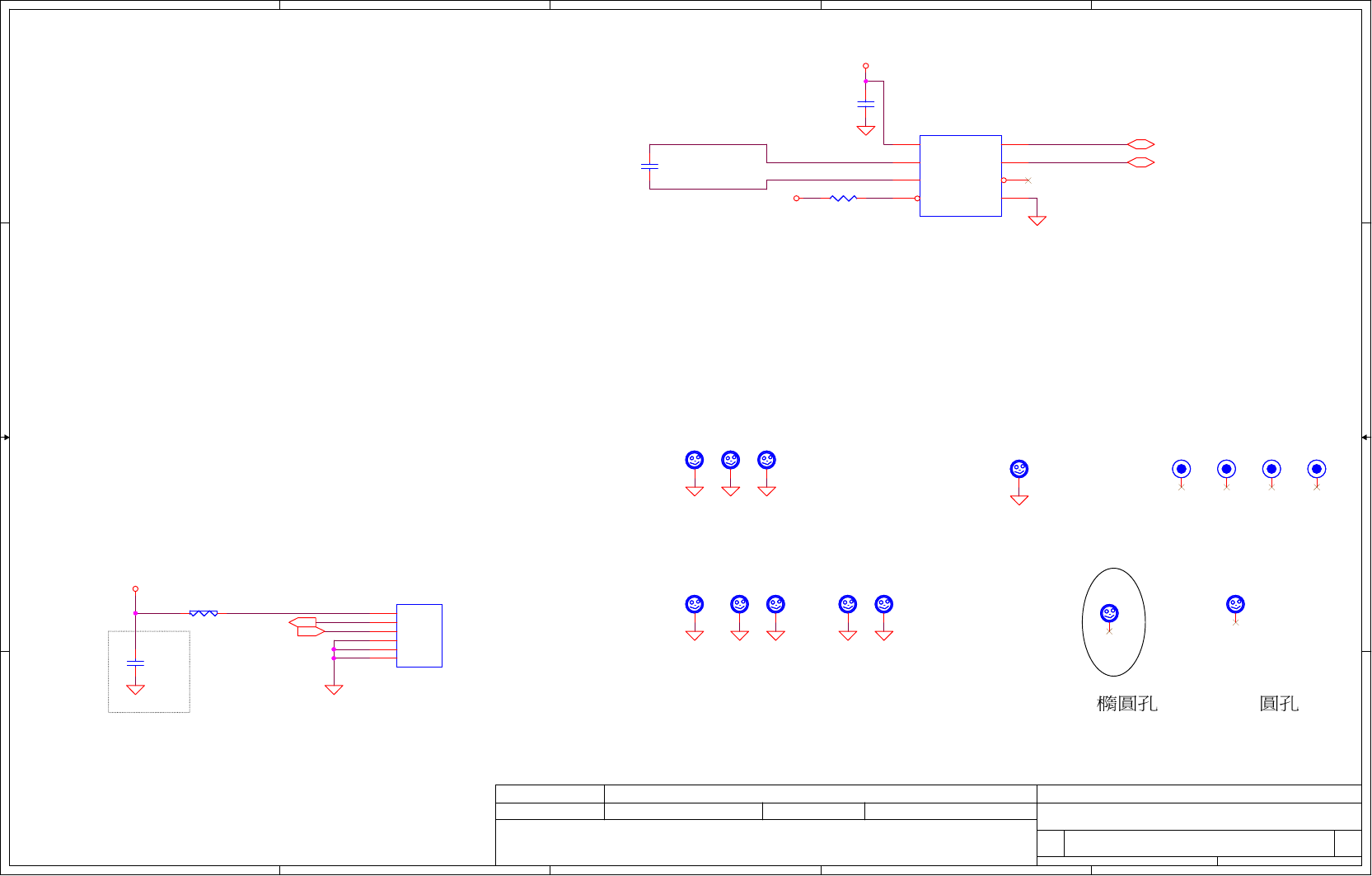

Fintek-Thermal IC/FAN/screw

B

19 37Thursday, March 28, 2013

2011/06/15 2012/07/11

Compal Electronics,Ltd.

VAWGA/GB

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

Fintek-Thermal IC/FAN/screw

B

19 37Thursday, March 28, 2013

2011/06/15 2012/07/11

Compal Electronics,Ltd.

VAWGA/GB

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

Fintek-Thermal IC/FAN/screw

B

19 37Thursday, March 28, 2013

2011/06/15 2012/07/11

Compal Electronics,Ltd.

VAWGA/GB

FD4FD4

1

C591

10U_0603_6.3V6M

C591

10U_0603_6.3V6M

1

2

H6

HOLEA

H_2P8

H6

HOLEA

H_2P8

1

H18

HOLEA

H_2P8

H18

HOLEA

H_2P8

1

R581 0_0603_5%

@

R581 0_0603_5%

@

12

C587

2200P_0402_50V7K

@C587

2200P_0402_50V7K

@

1

2

FD3FD3

1

H17

HOLEA

H_3P0N

H17

HOLEA

H_3P0N

1

H3

HOLEA

H_3P8

H3

HOLEA

H_3P8

1

C329

0.1U_0402_16V4Z

@

C329

0.1U_0402_16V4Z

@1

2

H2

HOLEA

H_3P8

H2

HOLEA

H_3P8

1

JFAN1

ACES_85205-04001

ME@

JFAN1

ACES_85205-04001

ME@

1

1

2

2

3

3

G5

5

G6

6

4

4

H11

HOLEA

H_2P8

H11

HOLEA

H_2P8

1

R335

4.7K_0402_5%

@

R335

4.7K_0402_5%

@

1 2

H10

HOLEA

H_2P8

H10

HOLEA

H_2P8

1

FD2FD2

1

H1

HOLEA

H_3P8

H1

HOLEA

H_3P8

1

H8

HOLEA

H_2P8

H8

HOLEA

H_2P8

1

U9

EMC1402-2-ACZL-TR MSOP 8P

THERMAL@U9

EMC1402-2-ACZL-TR MSOP 8P

THERMAL@

VDD

1

ALERT# 6

THERM#

4GND 5

D+

2

D-

3

SCLK 8

SDATA 7

FD1FD1

1

H7

HOLEA

H_2P8

H7

HOLEA

H_2P8

1

H16

HOLEA

H_2P5X3P5N

H16

HOLEA

H_2P5X3P5N

1

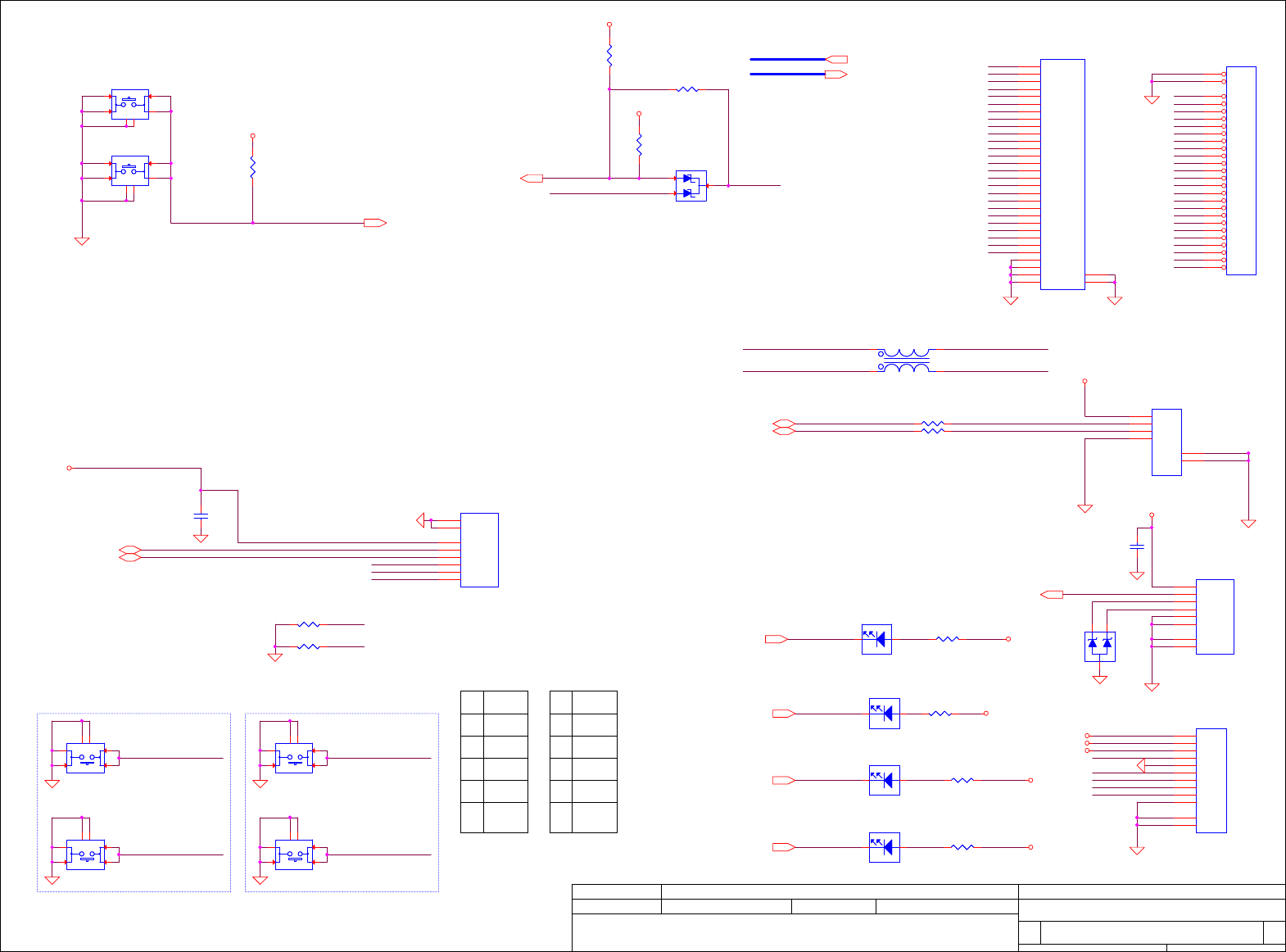

1

2

3

4

5

6

VCC

CLK

DAT

GND

L

R

1

2

3

4

5

6

VCC

CLK

DAT

GND

L

R

14"15/17"

L R

KSO8

KSO7

KSO4

KSI0

KSO1

KSO5

KSI4

KSI6

KSI1

KSO15

KSO10

KSO11

KSO14

KSO13

KSO12

KSO3

KSO6

KSO2

KSI3

KSI2

KSO0

KSI5

KSO9

KSI7

KSI[0..7]

KSO[0..17]

KSO6

KSI2

KSI3

KSO5

KSO1

KSO2

KSO4

KSO7

KSO8

KSO15

KSI1

KSI7

KSI6

KSO9

KSI4

KSI5

KSO0

KSO3

KSO12

KSO13

KSO14

KSO11

KSO10

KSO17

KSO16

KSI0

USB20_N4

USB20_P4

USB20_N4_R

USB20_P4_R

USB20_N4

USB20_P4

USB20_N4_R

USB20_P4_R

NOVO_BTN#

ON/OFF

CAPS_LED#

CAPS_LED#

LID_SW#

PWR_LED#

BATT_LOW_LED#

BATT_CHG_LED#

BATT_LOW_LED#

BATT_CHG_LED#

TP_3

TP_1

TP_2

TP_1

TP_CLK

TP_DATA

TP_3

ON/OFF

NOVO_BTN#

ON/OFF

PWR_LED#

NOVO#

TP_3

TP_2 TP_1

TP_2

KSO[0..17] <18>

KSI[0..7] <18>

USB20_P4

<5>

USB20_N4

<5>

CAPS_LED#<18>

BATT_CHG_LED#<18>

BATT_LOW_LED#<18>

TP_CLK

<18>

TP_DATA

<18>

ON/OFF <18>

PWR_LED#<18>

NOVO#

<18>

LID_SW#

<18>

+3VS

+3VALW

+5VS

+5VALW

+3VALW

+5VS

+5VALW

+3VALW

+5VS

+3VLP

+3VALW

+5VALW

+3VLP

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

BIOS, I/O Port & K/B CONN/TP CONN/PBTN

B

20 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

BIOS, I/O Port & K/B CONN/TP CONN/PBTN

B

20 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

BIOS, I/O Port & K/B CONN/TP CONN/PBTN

B

20 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

SW7

TJG-533-V-T/R_6P

15@SW7

TJG-533-V-T/R_6P

15@

3

2

1

4

5

6

R303

649_0402_1%

14@

R303

649_0402_1%

14@

12

LED5

19-213A-T1D-CP2Q2HY-3T_WHITE

14@LED5

19-213A-T1D-CP2Q2HY-3T_WHITE

14@

21

R687 0_0402_5%EMICU@R687 0_0402_5%EMICU@

12

R623

649_0402_1%

14@

R623

649_0402_1%

14@

12

R629

0_0402_5%

14@R629

0_0402_5%

14@

12

R692 0_0402_5%EMICU@R692 0_0402_5%EMICU@

12

R643

100K_0402_5%@

R643

100K_0402_5%@

1 2

JCR1

CVILU_CF06041H0RB-NH

ME@

JCR1

CVILU_CF06041H0RB-NH

ME@

1

1

2

2

3

3

4

4

GND 5

GND 6

R764

470_0402_5%

14@

R764

470_0402_5%

14@

12

JKB1

ACES_88514-3001

ME@JKB1

ACES_88514-3001

ME@

GND 31

GND 32

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

12

12

13

13

14

14

15

15

16

16

17

17

18

18

19

19

20

20

21

21

22

22

23

23

24

24

25

25

26

26

27

27

28

28

29

29

30

30

JTP1

ACES_88058-060N

ME@JTP1

ACES_88058-060N

ME@

1

12

23

34

45

56

6

GND

7GND

8

LED1

19-213A-T1D-CP2Q2HY-3T_WHITE

14@

LED1

19-213A-T1D-CP2Q2HY-3T_WHITE

14@

21

R628

0_0402_5%

15@

R628

0_0402_5%

15@

12

LED2

HT-191UD5_AMBER

14@LED2

HT-191UD5_AMBER

14@

21

R630

0_0402_5%

@

R630

0_0402_5%

@

12

JPWRB1

ACES_88058-060N

ME@

JPWRB1

ACES_88058-060N

ME@

1

1

2

2

3

3

4

4

5

5

6

6

GND

7

GND

8

SW4

TJG-533-V-T/R_6P

14@SW4

TJG-533-V-T/R_6P

14@

3

2

1

4

5

6

R701

100K_0402_5%

R701

100K_0402_5%

1 2

R642

100K_0402_5%

R642

100K_0402_5%

1 2

SW5

TJG-533-V-T/R_6P

14@SW5

TJG-533-V-T/R_6P

14@

3

2

1

4

5

6

JLED1

HB_A091020-SAHR21

ME@

JLED1

HB_A091020-SAHR21

ME@

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

GND

11

GND

12

SWP0SMT1-05_4P @SWP0SMT1-05_4P @

3

2

1

4

5

6

D24

PJSOT24C 3P C/A SOT-23

ESDP@

D24

PJSOT24C 3P C/A SOT-23

ESDP@

2

3

1

LED6

19-213A-T1D-CP2Q2HY-3T_WHITE

14@

LED6

19-213A-T1D-CP2Q2HY-3T_WHITE

14@

21

C185

0.1U_0402_16V7K

ESDP@ C185

0.1U_0402_16V7K

ESDP@

1

2

D26

DAN202UT106_SC70-3

D26

DAN202UT106_SC70-3

2

3

1

SW6

TJG-533-V-T/R_6P

15@SW6

TJG-533-V-T/R_6P

15@

3

2

1

4

5

6

L67 WCM-2012-900T_4P

EMICP@

L67 WCM-2012-900T_4P

EMICP@

1

1

4

433

22

C696

0.1U_0402_16V4Z

C696

0.1U_0402_16V4Z

JKB2

ACES_88514-2401

ME@JKB2

ACES_88514-2401

ME@

1

12

23

34

45

56

67

78

89

910

10 11

11 12

12 13

13 14

14 15

15 16

16 17

17 18

18 19

19 20

20 21

21 22

22 23

23 24

24

GND1

25 GND2

26

R765

649_0402_1%

14@

R765

649_0402_1%

14@

12

SWP1SMT1-05_4P @SWP1SMT1-05_4P @

3

2

1

4

5

6

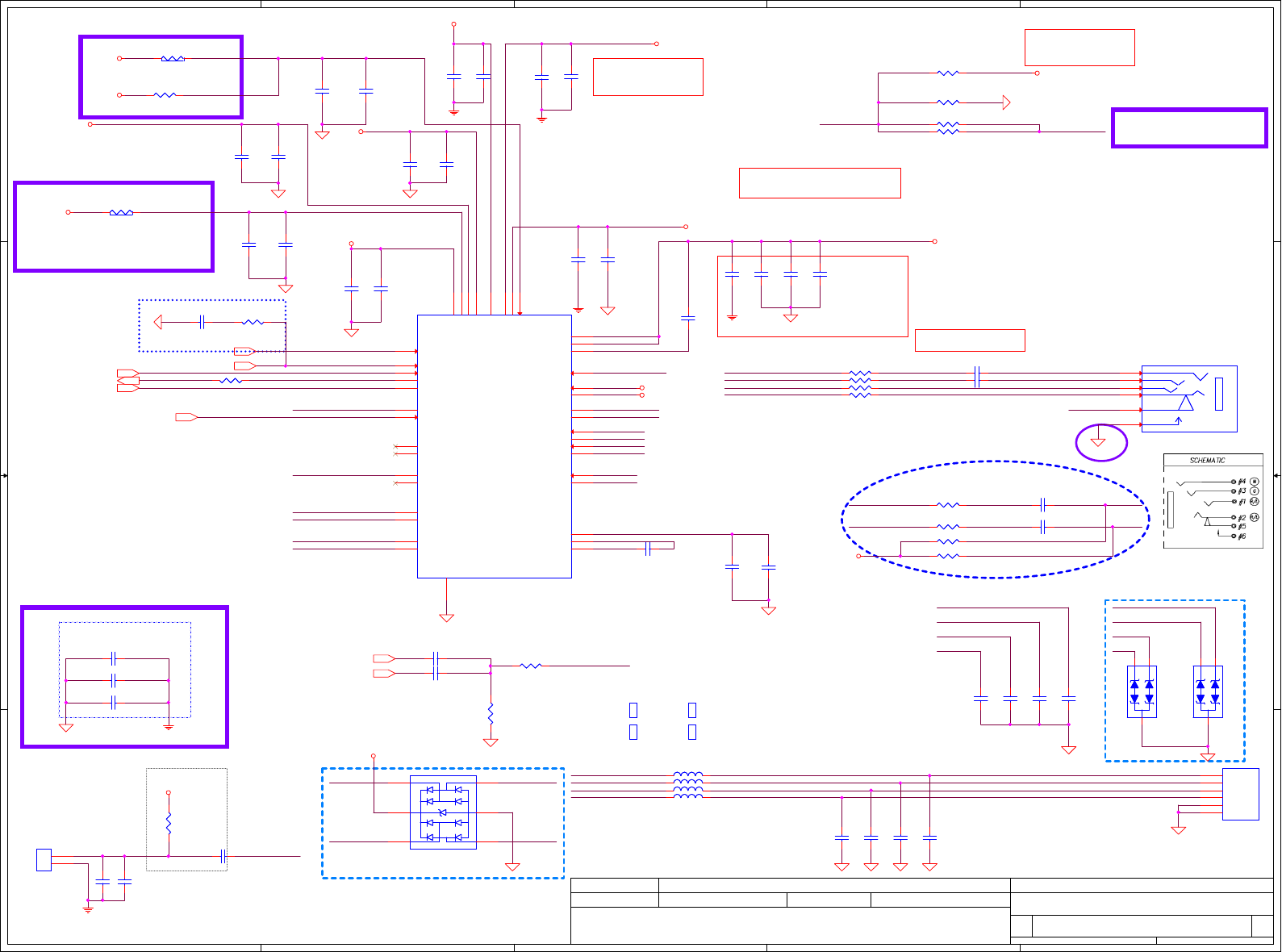

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

using wide copper bridge

under codec (100 mils or more)

Internal analog MIC

External MIC

Internal SPEAKER

AVDD_3.3 pinis output of

internal LDO. NOT connect

to external supply.

Layout Note:Path from +5VS to LPWR_5.0

RPWR_5.0 must be very low

resistance (<0.01 ohms)

Please bypass caps very close to device.

10 mils

Universal Jack

CA3 vendor suggest

change to 2.2U

CA30 vendor suggest

change to 2.2U

Should be same supply rail as used for

PCH HDA bus controller section

PC Beep

ICH Beep

EC Beep

Place colose to Codec chip

CA41 vendor suggest

change to 1U

vendor suggest

change to 1000p

LA1~LA4 vendor suggest mount 0 ohm first~

Bead reserve for EMI if needed

wide 30MIL

mount RA6 on the Jack Sense circuit

to configure Port-C for mono MIC.

Sense resistors must be

connected same power

that is used for VAUX_3.3

Don't support LINE_IN function

RA7 could be @

For EMI

ESD

ESD

For Universal jack

HGNDA, HGNDB 80mils

Combo Jack

(Normal Open)

Headphone

SPK_L2+

SPK_R1-

SPK_R2+

SPK_L1-

PC_BEEP

HDA_BITCLK_AUDIO

HDA_RST#_AUDIO

HP_L

HP_R

APPLE_MIC

NOKIA_MIC

JSENSE

HDA_SDOUT_AUDIO

HDA_SYNC_AUDIO

HGNDA

HGNDB

MICB_L

MICB_R

MIC_IN

PC_BEEP

GNDA

MIC_INMIC_IN_C

SPK_R1-_CONN

SPK_R2+_CONN

SPK_L1-_CONN

SPK_L2+_CONNSPK_L2+

SPK_R2+

SPK_L1-

SPK_R1-

HGNDA

HGNDB

HPOUT_R

HPOUT_L

PLUG_IN

JSENSE

HDA_SDIN0_R

SPK_L1-_CONN

SPK_L2+_CONNSPK_R1-_CONN

SPK_R2+_CONN

HGNDA

HGNDB

HPOUT_R

HPOUT_L

MICB_L HP_L

MICB_R HP_R

HP_L HPOUT_L

HPOUT_RHP_R

NOKIA_MIC HGNDA

APPLE_MIC HGNDB

PLUG_IN

+AVDD_HP

EC_MUTE#

<18>

HDA_RST#_AUDIO

<6>

HDA_SDIN0

<6>

HDA_SYNC_AUDIO

<6>

HDA_SDOUT_AUDIO

<6>

HDA_BITCLK_AUDIO

<6>

BEEP#<18>

APU_SPKR<6>

+MICBIASB

+LDO_OUT_3.3V

+5VS

+5VS

+MICBIASC

+3VS

+1.5VS

+LDO_1.8V

+3VS

+VREF_1V65

+MICBIASC

+3VS

+5VS

+MICBIASB

+3VLP

+3VALW

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

CX20751 Codec

Custom

21 37Thursday, March 28, 2013

2011/06/15 2012/07/11

Compal Electronics, Inc.

VAWGA/GB

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

CX20751 Codec

Custom

21 37Thursday, March 28, 2013

2011/06/15 2012/07/11

Compal Electronics, Inc.

VAWGA/GB

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

CX20751 Codec

Custom

21 37Thursday, March 28, 2013

2011/06/15 2012/07/11

Compal Electronics, Inc.

VAWGA/GB

CA42

0.1U_0402_16V7K

@

CA42

0.1U_0402_16V7K

@

1

2

CA31

100P_0402_50V8J

CA31

100P_0402_50V8J

12

CA45 0.1U_0402_16V7KCA45 0.1U_0402_16V7K

1 2

LA4 FBMA-L11-160808-121LMT_0603EMIU@LA4 FBMA-L11-160808-121LMT_0603EMIU@

1 2

CA6

4.7U_0603_6.3V6K

@

CA6

4.7U_0603_6.3V6K

@

1

2

CA39

1000P_0402_50V7K

EMIP@

CA39

1000P_0402_50V7K

EMIP@

1

2

CA41 1U_0603_10V6KCA41 1U_0603_10V6K

1 2

RA16 100_0402_1%EMIP@RA16 100_0402_1%EMIP@

1 2

CA16

4.7U_0603_6.3V6K

@

CA16

4.7U_0603_6.3V6K

@

1

2

RA17 100_0402_1%RA17 100_0402_1%

1 2

CA37 0.1U_0402_16V7KCA37 0.1U_0402_16V7K

1 2

CA3

2.2U_0603_6.3V6K

CA3

2.2U_0603_6.3V6K

1

2

CA33

100P_0402_50V8J

CA33

100P_0402_50V8J

12

CA38

1000P_0402_50V7K

EMIP@

CA38

1000P_0402_50V7K

EMIP@

1

2

CA18

4.7U_0603_6.3V6K

@

CA18

4.7U_0603_6.3V6K

@

1

2

LA1 FBMA-L11-160808-121LMT_0603EMIU@LA1 FBMA-L11-160808-121LMT_0603EMIU@

1 2

CA44

0.1U_0402_16V7K

@

CA44

0.1U_0402_16V7K

@

1

2

RA11 0_0402_5%@RA11 0_0402_5%@

1 2

RA22

10K_0402_5%

@RA22

10K_0402_5%

@

12

CA30

2.2U_0603_6.3V6K

CA30

2.2U_0603_6.3V6K

1

2

CA26

0.1U_0402_16V7K

CA26

0.1U_0402_16V7K

1

2

CA34

100P_0402_50V8J

CA34

100P_0402_50V8J

12

RA21

33_0402_5%

EMIU@

RA21

33_0402_5%

EMIU@

1 2

CA43

1000P_0402_50V7K

EMIP@

CA43

1000P_0402_50V7K

EMIP@

1

2

RA23

2.2K_0402_5%

RA23

2.2K_0402_5%

12

CA5

0.1U_0402_16V7K

CA5

0.1U_0402_16V7K

1

2

CA64 0.1U_0603_50V7K

EMIU@

CA64 0.1U_0603_50V7K

EMIU@

1 2

CA35

0.1U_0402_16V7K

CA35

0.1U_0402_16V7K

1

2

JHP1

SINGA_2SJ2352-000131F

ME@

JHP1

SINGA_2SJ2352-000131F

ME@

4

3

2

5

6

1

CA36

2.2U_0402_6.3V6M

CA36

2.2U_0402_6.3V6M

1 2

CA32

100P_0402_50V8J

CA32

100P_0402_50V8J

12

CA7

22P_0402_50V8J

EMIU@

CA7

22P_0402_50V8J

EMIU@

CA22

4.7U_0603_6.3V6K

@

CA22

4.7U_0603_6.3V6K

@

1

2

LA2

0_0603_5%

EMIP@

LA2

0_0603_5%

EMIP@

MIC1

WM-64PCY_2P

45@

MIC1

WM-64PCY_2P

45@

1

2

RA18 100_0402_1%RA18 100_0402_1%

1 2

CA25

0.1U_0402_16V7K

CA25

0.1U_0402_16V7K

1

2

RA9 33_0402_5%RA9 33_0402_5%

1 2

CA66 0.1U_0603_50V7K

EMIU@

CA66 0.1U_0603_50V7K

EMIU@

1 2

CA46

2.2U_0402_6.3V6M

CA46

2.2U_0402_6.3V6M

1 2

DA1

AZ5125-02S.R7G_SOT23-3

ESDP@

DA1

AZ5125-02S.R7G_SOT23-3

ESDP@

2

3

1

LA3 FBMA-L11-160808-121LMT_0603EMIU@LA3 FBMA-L11-160808-121LMT_0603EMIU@

1 2

CA65 0.1U_0603_50V7K

EMIU@

CA65 0.1U_0603_50V7K

EMIU@

1 2

RA7 20K_0402_1%RA7 20K_0402_1%

1 2

RA4 0_0402_5%@RA4 0_0402_5%@

1 2

UA1

CX20751-11Z_QFN40

UA1

CX20751-11Z_QFN40

DMIC_DAT/GPIO1

1

VDDO_3.3 2

FILT_1.8 3

SDATA_OUT

4

BIT_CLK

5

SDATA_IN

6

VDD_IO 7

SYNC

8

RESET#

9

PC_BEEP

10

CLASS-D_REF 11

LEFT+

12

LPWR_5.0 13

LEFT-

14

RIGHT-

15

RPWR_5.0 16

RIGHT+

17

DVDD_3.3 18

FLY_P 19

FLY_N 20

AVEE 21

PORTA_L 22

PORTA_R 23

AVDD_HP 24

HGNDA 25

HGNDB 26

AVDD_3.3 27

AVDD_5V 28

VREF_1.65V 29

PORTD_A_MIC 30

PORTD_B_MIC 31

PORTB_L_LINE 32

PORTB_R_LINE 33

MICBIASB 34

MICBIASC 35

MUSIC_REQ/GPIO0/PORTC_L_MIC

36

GPIO1/PORTC_R_MIC

37

JSENSE 38

SPKR_MUTE#

39

DMIC_CLK / MUSIC_REQ/GPIO0

40

GND

41

CA15

1U_0603_10V6K

CA15

1U_0603_10V6K

1

2

CA40

1000P_0402_50V7K

EMIP@

CA40

1000P_0402_50V7K

EMIP@

1

2

DA2

AZ5125-02S.R7G_SOT23-3

ESDP@

DA2

AZ5125-02S.R7G_SOT23-3

ESDP@

2

3

1

CA2

0.1U_0402_16V7K

CA2

0.1U_0402_16V7K

1

2

CA28 2.2U_0402_6.3V6MCA28 2.2U_0402_6.3V6M

1 2

LA4

0_0603_5%

EMIP@

LA4

0_0603_5%

EMIP@

RA13 15_0402_5%EMIP@RA13 15_0402_5%EMIP@

1 2

RA5 5.11K_0402_1%RA5 5.11K_0402_1%

1 2

LA1

0_0603_5%

EMIP@

LA1

0_0603_5%

EMIP@

RA19 3K_0402_5%RA19 3K_0402_5%

1 2

CA27 2.2U_0402_6.3V6MCA27 2.2U_0402_6.3V6M

1 2

CA17

0.1U_0402_16V7K

CA17

0.1U_0402_16V7K

1

2

CA10

0.1U_0402_16V7K

@

CA10

0.1U_0402_16V7K

@

1

2

RA6 10K_0402_1%RA6 10K_0402_1%

1 2

DA3

AZC099-04S.R7G_SOT23-6

ESDU@

DA3

AZC099-04S.R7G_SOT23-6

ESDU@

I/O4

6

VDD

5

I/O3

4

I/O2 3

GND 2

I/O1 1

CA19

0.1U_0402_16V7K

CA19

0.1U_0402_16V7K

1

2

CA9

0.1U_0402_16V7K

CA9

0.1U_0402_16V7K

1

2

RA20 3K_0402_5%RA20 3K_0402_5%

1 2

RA14 15_0402_5%EMIP@RA14 15_0402_5%EMIP@

1 2

RA8 39.2K_0402_1%RA8 39.2K_0402_1%

1 2

CA24

4.7U_0603_6.3V6K

CA24

4.7U_0603_6.3V6K

1

2

CA23

4.7U_0603_6.3V6K

CA23

4.7U_0603_6.3V6K

1

2

CA29 1U_0603_10V6KCA29 1U_0603_10V6K

1 2

LA3

0_0603_5%

EMIP@

LA3

0_0603_5%

EMIP@

CA1

1U_0603_10V6K

CA1

1U_0603_10V6K

1

2

RA10 0_0402_5%

@

RA10 0_0402_5%

@

1 2

JSPK1

ME@

ACES_85205-04001

JSPK1

ME@

ACES_85205-04001

1

1

2

2

3

3

G5

5

G6

6

4

4

LA2 FBMA-L11-160808-121LMT_0603EMIU@LA2 FBMA-L11-160808-121LMT_0603EMIU@

1 2

CA21

0.1U_0402_16V7K

CA21

0.1U_0402_16V7K

1

2

RA12 100_0402_1%EMIP@RA12 100_0402_1%EMIP@

1 2

CA8

1U_0603_10V6K

@

CA8

1U_0603_10V6K

@

1

2

CA20

0.1U_0402_16V7K

CA20

0.1U_0402_16V7K

1

2

CA4

0.1U_0402_16V7K

CA4

0.1U_0402_16V7K

1

2

RA492

33_0402_5%

RA492

33_0402_5%

1 2

A

A

B

B

C

C

D

D

E

E

1 1

2 2

3 3

4 4

VIN 5V and 3.3V (VBIAS=5V),IMAX(per channel)=6A,Rds=18mohm

+5VALW TO +5VS

+3VALW TO +3VS

Load switch

+1.5V to +1.5VS Vgs=-4.5V,Id=-2.8A,Rds=110mohm

VIN 1.8V and 0.95V (VBIAS=5V),IMAX(per channel)=6A,Rds=18mohm

+1.8VALW TO +1.8VS

+0.95VALW TO +0.95VS

Load switch

SUSP

SYSON#

SUSPSYSON#

+3VS_LS

SUSP#

SUSP#

+5VS_LS

1.5VS_GATE

SUSP

SUSP#

SYSON

+0.95VS_LS

SUSP#

+1.8VS_LS

095VS_PWR_EN

1.5VS_GATE_R

SUSP#

<18,27>

SYSON

<18,27>

095VS_PWR_EN

<18>

+RTCBATT_3V

+5VALW

+1.5V +0.75VS

+5VALW

+3VALW

+5VS

+3VS

VL

+1.5V +1.5VS

+5VALW

+1.8VALW

+0.95VALW

+1.8VS

+0.95VS

VL

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

DC Interface

B

22 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

DC Interface

B

22 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/GB

1.0

DC Interface

B

22 37Thursday, March 28, 2013

2012/04/22 2015/04/22

Compal Electronics, Inc.

C9 330P_0402_50V7K

@

C9 330P_0402_50V7K

@

1 2

C469

10U_0603_6.3V6M

@

C469

10U_0603_6.3V6M

@

1

2

Q101

DTC124EKAT146_SC59-3

Q101

DTC124EKAT146_SC59-3

IN

2

OUT 1

GND

3

J5V

PAD-OPEN 4x4m

J@

J5V

PAD-OPEN 4x4m

J@

1 2

R339

0_0402_5%

@

R339

0_0402_5%

@

1 2

G

D

S

Q95

2N7002K_SOT23-3

@

G

D

S

Q95

2N7002K_SOT23-3

@

2

13

Q20

LP2301ALT1G_SOT23-3

Q20

LP2301ALT1G_SOT23-3

2

3 1

C11

1U_0402_6.3V6K

@C11

1U_0402_6.3V6K

@1

2

U35P

TPS22966DPUR_SON14_2X3

U35P

TPS22966DPUR_SON14_2X3

GND 11

VIN2

6

VBIAS

4

ON2

5

VOUT2 9

VIN2

7

CT1 12

VOUT1 14

VOUT2 8

VOUT1 13

VIN1

2

ON1

3

VIN1

1

CT2 10

GPAD 15

R1638

100K_0402_5%

@

R1638

100K_0402_5%

@

12

C470

10U_0603_6.3V6M

C470

10U_0603_6.3V6M

1

2

C25

0.1U_0402_10V7K

@C25

0.1U_0402_10V7K

@

1

2

C24

1U_0402_6.3V6K

@

C24

1U_0402_6.3V6K

@1

2

J3V

PAD-OPEN 4x4m

J@

J3V

PAD-OPEN 4x4m

J@

1 2

R337

100K_0402_5%

R337

100K_0402_5%

12

G

D

S

Q93

2N7002K_SOT23-3

@

G

D

S

Q93

2N7002K_SOT23-3

@

2

13

R1461

220_0603_5%

R1461

220_0603_5%

12

C14

0.1U_0402_10V7K

@C14

0.1U_0402_10V7K

@

1

2

Q102

DTC124EKAT146_SC59-3

@

Q102

DTC124EKAT146_SC59-3

@

IN

2

OUT 1

GND

3

R1627

470_0603_5%

@

R1627

470_0603_5%

@

12

C21 180P_0402_50V8J

@

C21 180P_0402_50V8J

@

1 2

C13

0.1U_0402_10V7K

@C13

0.1U_0402_10V7K

@

1

2

U1895P

TPS22966DPUR_SON14_2X3

U1895P

TPS22966DPUR_SON14_2X3

GND 11

VIN2

6

VBIAS

4

ON2

5

VOUT2 9

VIN2

7

CT1 12

VOUT1 14

VOUT2 8

VOUT1 13

VIN1

2

ON1

3

VIN1

1

CT2 10

GPAD 15

R1636

100K_0402_5%

R1636

100K_0402_5%

1 2

J18V

PAD-OPEN 4x4m

J@

J18V

PAD-OPEN 4x4m

J@

1 2

R1639

100K_0402_5%

@R1639

100K_0402_5%

@

12

R1629

470_0603_5%

@

R1629

470_0603_5%

@

12

C15 330P_0402_50V7K

@

C15 330P_0402_50V7K

@

1 2

C22

1U_0402_6.3V6K

@C22

1U_0402_6.3V6K

@1

2

G

D

S

Q23

2N7002K_SOT23-3

G

D

S

Q23

2N7002K_SOT23-3

2

13

C462

0.1U_0402_25V6

C462

0.1U_0402_25V6

1

2

R1640

100K_0402_5%

R1640

100K_0402_5%

12

C26

0.1U_0402_10V7K

@C26

0.1U_0402_10V7K

@

1

2

J95V

PAD-OPEN 4x4m

J@

J95V

PAD-OPEN 4x4m

J@

1 2

G

D

S

Q26

2N7002K_SOT23-3

G

D

S

Q26

2N7002K_SOT23-3

2

13

C10 180P_0402_50V8J

@

C10 180P_0402_50V8J

@

1 2

C12

1U_0402_6.3V6K

@

C12

1U_0402_6.3V6K

@1

2

C463

1U_0603_10V6K

C463

1U_0603_10V6K

1

2

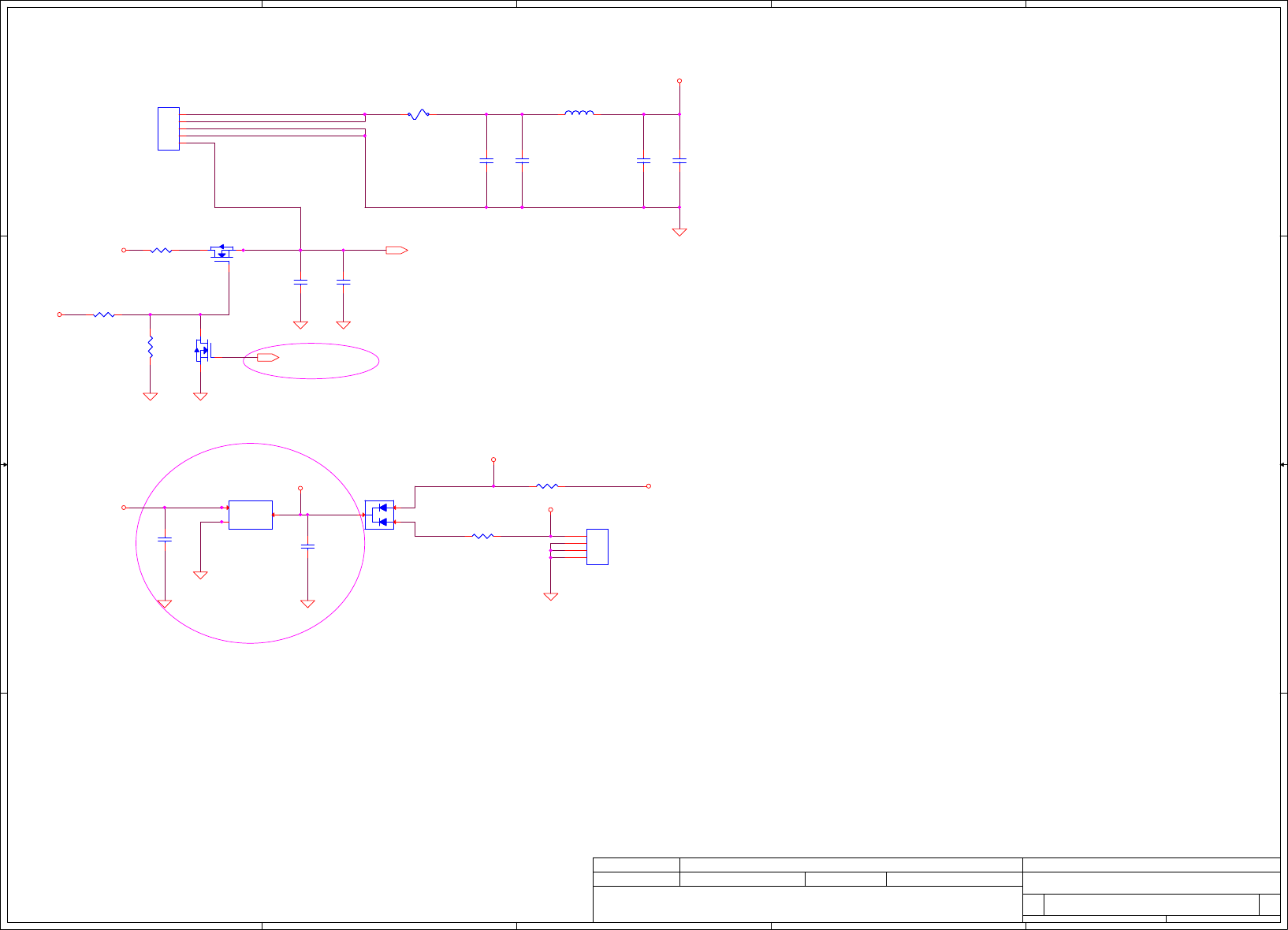

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

Compal Electronics, Inc.

VAWGA/B

RTC Battery

Need use+3.3V transfer to +1.5V LDO to APU side for Kaibini

APDIN1

+RTCBATT_3V

APDIN

ADP_ID_CLOSE <18>

ADP_ID <18>

VIN

+CHGRTC

+RTCBATT

+3VLP

+CHGRTC_R

+RTCBATT_3V

+3VALW

VIN

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

PWR-DCIN / RTC Battery

Custom

23 37Thursday, March 28, 2013

2011/06/15 2012/07/11

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

PWR-DCIN / RTC Battery

Custom

23 37Thursday, March 28, 2013

2011/06/15 2012/07/11

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

PWR-DCIN / RTC Battery

Custom

23 37Thursday, March 28, 2013

2011/06/15 2012/07/11

PR101

1K_0603_5%

PR101

1K_0603_5%

1 2

PC108

0.1U_0402_16V7K

PC108

0.1U_0402_16V7K

12

PC109

680P_0603_50VK

PC109

680P_0603_50VK

12

JRTC1

ACES_50271-0020N-001

@JRTC1

ACES_50271-0020N-001

@

1

1

2

2

GND

3

GND

4

PC104

1000P_0402_50V7K

PC104

1000P_0402_50V7K

12

PQ102B

2N7002KDW-2N_SOT363-6

PQ102B

2N7002KDW-2N_SOT363-6

34

5

PQ102A

2N7002KDW-2N_SOT363-6

PQ102A

2N7002KDW-2N_SOT363-6

6 1

2

PR104

100K_0402_1%

PR104

100K_0402_1%

12

PC110

680P_0603_50VK

PC110

680P_0603_50VK

12

PL101

SMB3025500YA_2P

PL101

SMB3025500YA_2P

1 2

PC101

1000P_0402_50V7K

PC101

1000P_0402_50V7K

12

PC111

0.1U_0603_25V7K

PC111

0.1U_0603_25V7K

12

JDCIN1

ACES_50312-00541-001

@

JDCIN1

ACES_50312-00541-001

@

11

33

44

55

22

PR102

750_0402_1%

PR102

750_0402_1%

12

PR105

100K_0402_1%

PR105

100K_0402_1%

12

PR103

1K_0603_5%

PR103

1K_0603_5%

1 2

PC103

100P_0402_50V8J

PC103

100P_0402_50V8J

12

PC102

100P_0402_50V8J

PC102

100P_0402_50V8J

12

PD101

S SCH DIO BAS40CW SOT-323

PD101

S SCH DIO BAS40CW SOT-323

2

3

1

PU102

AP2138N-1.5TRG1_SOT23-3

PU102

AP2138N-1.5TRG1_SOT23-3

Vin 1

Vout

3

GND

2

PF101

7A_24VDC_429007.WRML

PF101

7A_24VDC_429007.WRML

21

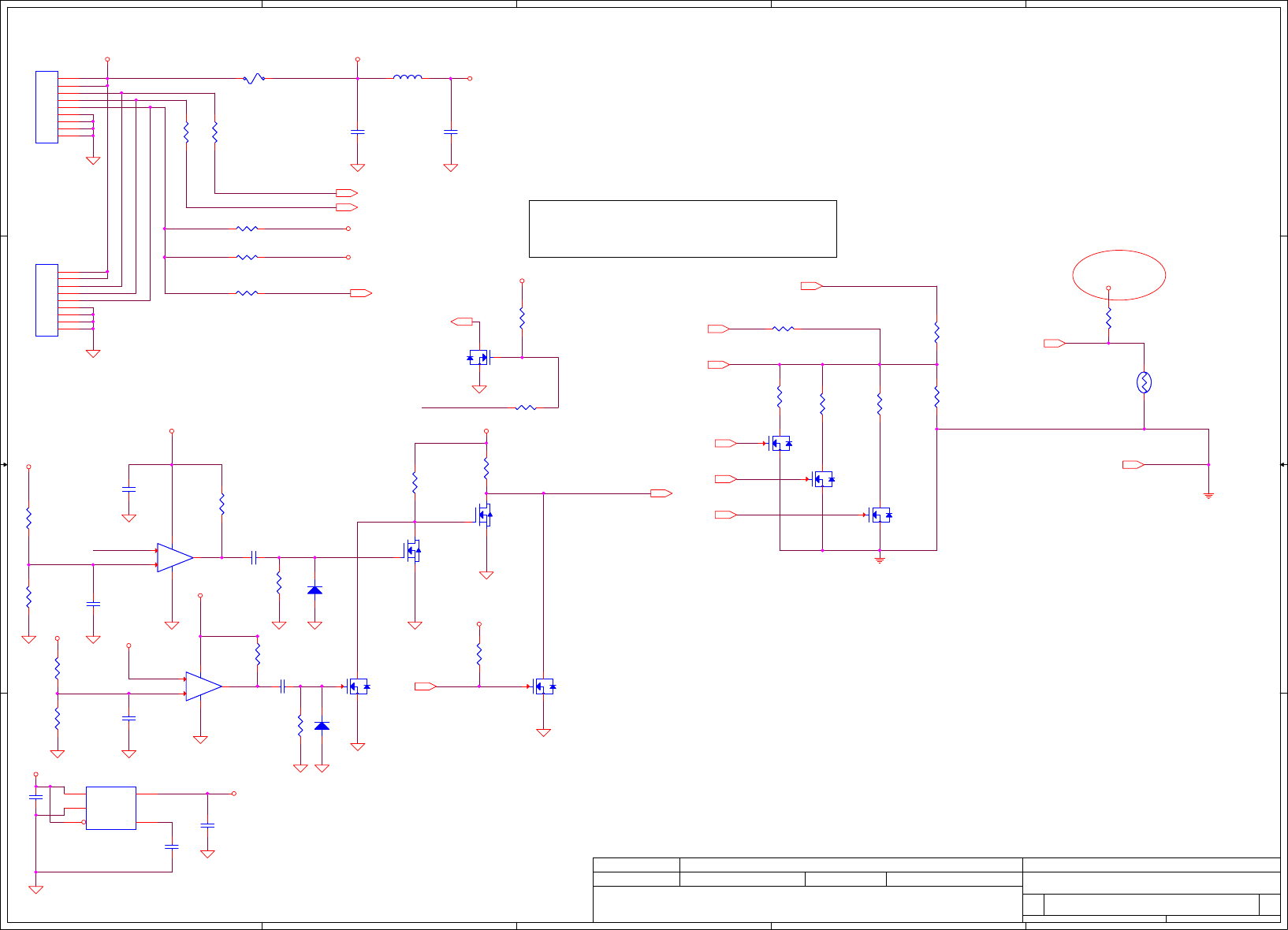

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

Compal Electronics, Inc.

A/D

VAWGA/B

CPU thermal protection at 93 +-3 degree C

Recovery at 56 +-3 degree C

PH201 under CPU botten side : 90W(DIS) : 6.65K 100W active 90W recovery

65W(UMA): 1.65K 70W active 65W recovery

20120314

Change to +EC_VCCA from +3VLP

EC_SMDA

ADP_OCP_1

EC_SMCA

BATT_TEMP

BATT_OUT

PROCHOT

BATT_TEMP <18>

EC_SMB_DA1 <18>

EC_SMB_CK1 <18>

NTC_V

<18>

H_PROCHOT#

<18,29,4,6>

ADP_I

<18,25>

BATT_LEN#

<18>

ECAGND

<18>

BATT_OUT <25>

Turbo_V

<18>

ADP_65

<18>

ADP_90

<18>

ADP_135

<18>

PROCHOT

<18>

BATT+

VMB

+3VLP

VMB2

+EC_VCCA

+3VS

ECAGND

VL

VL

+3VALW

+3VLP

ECAGND

+5VALW

VMB

+3V_LDO

+3V_LDO

VL

+3VALW

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

PWR-BATTERY CONN/OTP

Custom

24 37Thursday, March 28, 2013

2011/06/15 2012/07/11

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

PWR-BATTERY CONN/OTP

Custom

24 37Thursday, March 28, 2013

2011/06/15 2012/07/11

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

PWR-BATTERY CONN/OTP

Custom

24 37Thursday, March 28, 2013

2011/06/15 2012/07/11

PR205

1.5M_0402_5%

PR205

1.5M_0402_5%

1 2

PC202

0.01U_0402_25V7K

PC202

0.01U_0402_25V7K

12

PR206

6.49K_0402_1%

PR206

6.49K_0402_1%

1 2

PR204

100_0402_1%

PR204

100_0402_1%

12

PR221

8.45K_0402_1%

PR221

8.45K_0402_1%

1 2

PC201

1000P_0402_50V7K

PC201

1000P_0402_50V7K

12

PC208

0.068U_0402_16V7K

PC208

0.068U_0402_16V7K

1 2

G

D

S

PQ207

2N7002KW_SOT323-3

G

D

S

PQ207

2N7002KW_SOT323-3

2

13

G

D

S

PQ208

2N7002KW_SOT323-3

G

D

S

PQ208

2N7002KW_SOT323-3

2

13

PU201A

AS393MTR-E1 SO 8P OP

PU201A

AS393MTR-E1 SO 8P OP

+

3

-

2O1

P8

G

4

PR225

25.5K_0402_1%

PR225

25.5K_0402_1%

1 2

PR207

10K_0402_5%

PR207

10K_0402_5%

1 2

PR226

12.7K_0402_1%

PR226

12.7K_0402_1%

12

PR229

10K_0402_1%

@PR229

10K_0402_1%

@

1 2

PR217

100K_0402_1%

@PR217

100K_0402_1%

@

1 2

PR227

9.31K_0402_1%

PR227

9.31K_0402_1%

1 2

PF201

12A_65V_451012MRL

PF201

12A_65V_451012MRL

21

PR202

75K_0402_1%

PR202

75K_0402_1%

1 2

G

D

S

PQ201

2N7002KW_SOT323-3

@

G

D

S

PQ201

2N7002KW_SOT323-3

@2

13

PR216

0_0402_5%

@

PR216

0_0402_5%

@

1 2

G

D

S

PQ205

2N7002KW_SOT323-3

G

D

S

PQ205

2N7002KW_SOT323-3

2

13

PQ202B

2N7002KDW-2N_SOT363-6

PQ202B

2N7002KDW-2N_SOT363-6

34

5

PU202

G9191-330T1U_SOT23-5

@PU202

G9191-330T1U_SOT23-5

@

IN

1

GND

2

SHDN#

3BYP 4

OUT 5

PU201B

AS393MTR-E1 SO 8P OP

PU201B

AS393MTR-E1 SO 8P OP

+

5

-

6O7

P8

G

4

PC213

100P_0402_50V8J

@PC213

100P_0402_50V8J

@

12

PH201

100K_0402_1%_TSM0B104F4251RZ

PH201

100K_0402_1%_TSM0B104F4251RZ

12

G

D

S

PQ209

2N7002KW_SOT323-3

@

G

D

S

PQ209

2N7002KW_SOT323-3

@

2

13

PR211

100K_0402_1%

PR211

100K_0402_1%

1 2

PC214

4.7U_0402_6.3V6M

@PC214

4.7U_0402_6.3V6M

@

12

PL201

SMB3025500YA_2P

PL201

SMB3025500YA_2P

1 2

PR222

100K_0402_1%

PR222

100K_0402_1%

1 2

PC212

22U_0603_6.3V6M

@PC212

22U_0603_6.3V6M

@

12

PD203

1N4148WS-7-F_SOD323-2

@

PD203

1N4148WS-7-F_SOD323-2

@

12

PR214

100K_0402_1%

PR214

100K_0402_1%

1 2

PR220

100K_0402_1%

PR220

100K_0402_1%

1 2

PR213

100K_0402_1%

PR213

100K_0402_1%

1 2

PR201

100_0402_1%

PR201

100_0402_1%

12

PC203

0.01U_0402_25V7K

PC203

0.01U_0402_25V7K

12

PR208

75K_0402_1%

@PR208

75K_0402_1%

@

1 2

PR210

47K_0402_1%

PR210

47K_0402_1%

12

JBATT1

SUYIN_200082GR007M229ZR

@

JBATT1

SUYIN_200082GR007M229ZR

@

11

33

44

55

66

22

77

GND 8

GND 9

PC210

0.068U_0402_16V7K~N

@PC210

0.068U_0402_16V7K~N

@

1 2

PR228

5.9K_0402_1%

PR228

5.9K_0402_1%

1 2

PQ202A

2N7002KDW-2N_SOT363-6

PQ202A

2N7002KDW-2N_SOT363-6

61

2

PD201

1N4148WS-7-F_SOD323-2

PD201

1N4148WS-7-F_SOD323-2

12

PC207

100P_0402_50V8J

PC207

100P_0402_50V8J

12

PR209

6.49K_0402_1%

@PR209

6.49K_0402_1%

@

1 2

PR215

100K_0402_1%

@

PR215

100K_0402_1%

@

1 2

PR218

47K_0402_1%

@PR218

47K_0402_1%

@

12

PR223

1.5M_0402_5%

@PR223

1.5M_0402_5%

@

1 2

G

D

S

PQ206

2N7002KW_SOT323-3

G

D

S

PQ206

2N7002KW_SOT323-3

2

13

JBATT2

SUYIN_200082GR007M229ZR

@

JBATT2

SUYIN_200082GR007M229ZR

@

11

33

44

55

66

22

77

GND 8

GND 9

PC211

1U_0402_16V6K

@PC211

1U_0402_16V6K

@

12

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

PWR-CHARGER

VAWGA/B

24737_SN

P2-1

SRP

CHG

DISCHG_G-1

PACIN

ACP

DISCHG_G

DL_CHG

ACN

P2-2

SRN

ACOFF-1

PACIN

DH_CHG

BST_CHG

LX_CHG

VIN

PACIN

BQ24737VCC

BQ24737VDD

ACPRN

ACPRN

BATT_OUT

ACOFF-1

ACOFF <18>

EC_SMB_DA1

<18>

EC_SMB_CK1

<18>

ADP_I

<18,24>

ACIN <18>

BATT_OUT <24>

VIN

P2

P3

VIN

BATT+

B+

CHG_B+

+3VALW

BQ24737VDD

P2

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

25 37Thursday, March 28, 2013

Compal Electronics, Inc.

2012/07/112011/06/15

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

25 37Thursday, March 28, 2013

Compal Electronics, Inc.

2012/07/112011/06/15

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

25 37Thursday, March 28, 2013

Compal Electronics, Inc.

2012/07/112011/06/15

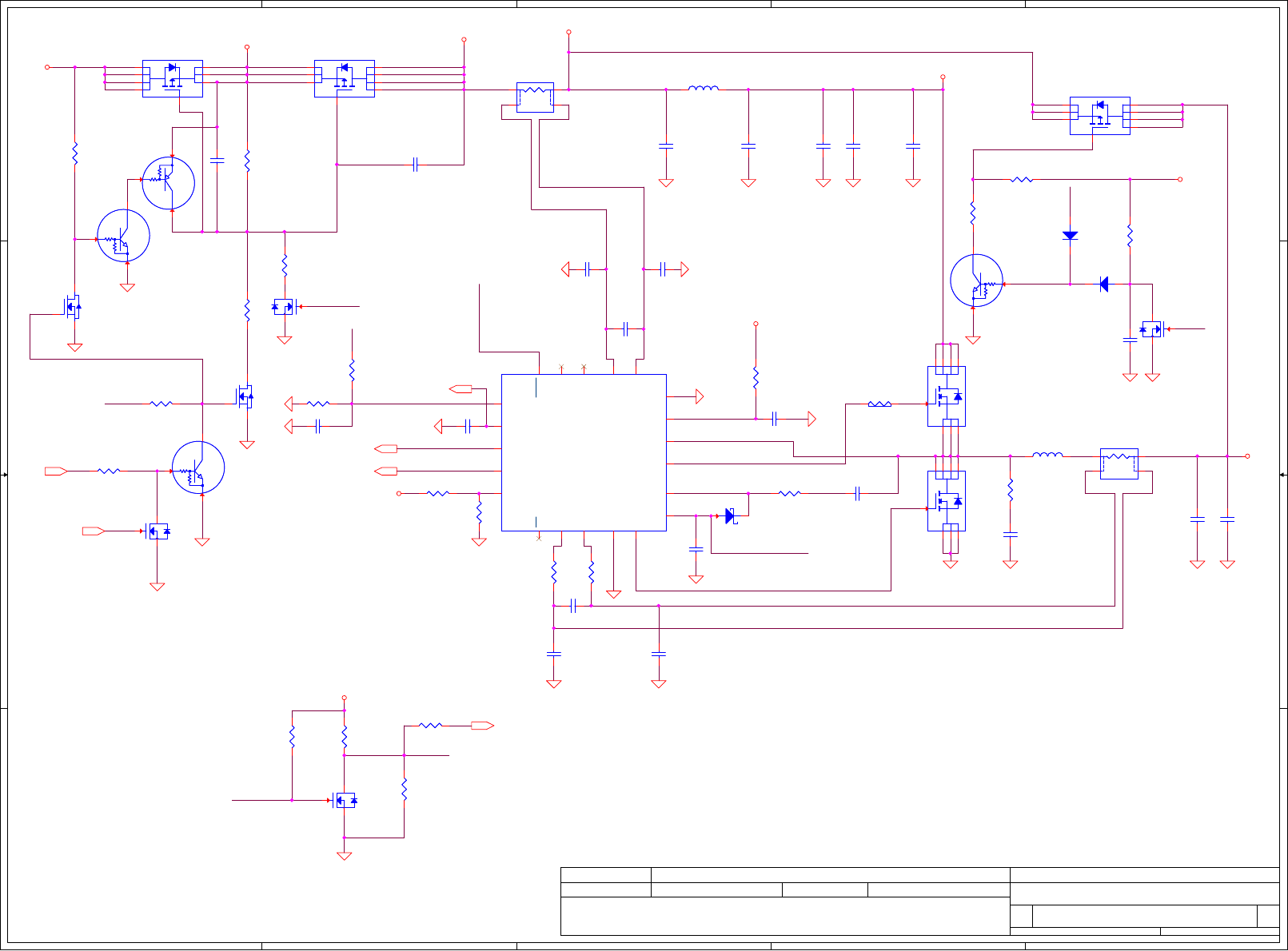

PC304

100P_0402_50V8J

PC304

100P_0402_50V8J

1 2

PR319

10_1206_5%

PR319

10_1206_5%

1 2

PR323

4.7_1206_5%

@

PR323

4.7_1206_5%

@

12

PC322

10U_0805_25V6K

PC322

10U_0805_25V6K

12

PR307

47K_0402_1%

PR307

47K_0402_1%

12

PR301

0.01_1206_1%

PR301

0.01_1206_1%

1

3

4

2

PR324

0.01_1206_1%

PR324

0.01_1206_1%

1

3

4

2

PD301

RB751V-40_SOD323-2

PD301

RB751V-40_SOD323-2

12

PR308

64.9K_0402_1%

PR308

64.9K_0402_1%

1 2

PC324

0.1U_0402_25V6

PC324

0.1U_0402_25V6

12

PL302

10UH_PCMB104T-100MS_6A_20%

PL302

10UH_PCMB104T-100MS_6A_20%

1 2

G

D

S

PQ308

2N7002KW _SOT323-3

G

D

S

PQ308

2N7002KW _SOT323-3

2

13

PC302

0.1U_0603_25V7K

PC302

0.1U_0603_25V7K

12

PR312

12K_0402_1%

PR312

12K_0402_1%

12

PQ303

DTC115EUA_SC70-3

PQ303

DTC115EUA_SC70-3

2

13

PR314

10K_0402_1%

PR314

10K_0402_1%

1 2

PC313

10U_0805_25V6K@

PC313

10U_0805_25V6K@

1 2

PQ304

DTA144EUA_SC70-3

PQ304

DTA144EUA_SC70-3

2

1 3

PR302

47K_0402_5%

PR302

47K_0402_5%

12

PD302

1SS355_SOD323-2

PD302

1SS355_SOD323-2

1 2

PR306

20K_0402_1%

PR306

20K_0402_1%

12

PR317

6.8_0402_5%

PR317

6.8_0402_5%

12

PQ309

MDS1525URH 1N SO8

PQ309

MDS1525URH 1N SO8

4

6

1

2

3

5

7

8

PC320

680P_0603_50V7K

@

PC320

680P_0603_50V7K

@

12

PU301

BQ24727RGRR_VQFN20_3P5X3P5

PU301

BQ24727RGRR_VQFN20_3P5X3P5

ACOK 5

ACN 1

SDA

8

IOUT

7

PHASE 19

LODRV

15

SRN

12

BM

11

REGN 16

ACDET

6

ACP 2

CMPOUT 3

CMPIN 4

GND

14

SRP

13

BTST 17

HIDRV 18

VCC 20

TP 21

SCL

9

ILIM

10

PC306

0.1U_0402_25V6

PC306

0.1U_0402_25V6

12

PR315

316K_0402_1%

PR315

316K_0402_1%

1 2

PC311

0.1U_0402_25V6

PC311

0.1U_0402_25V6

12

G

D

S

PQ314

2N7002KW _SOT323-3

G

D

S

PQ314

2N7002KW _SOT323-3

2

13

PQ305

DTC115EUA_SC70-3

PQ305

DTC115EUA_SC70-3

2

13

PQ307A

2N7002KDW -2N_SOT363-6

PQ307A

2N7002KDW -2N_SOT363-6

61

2

PR305

150K_0402_1%

PR305

150K_0402_1%

12

PR309

392K_0402_1%

PR309

392K_0402_1%

12

PR316

100K_0402_1%

PR316

100K_0402_1%

12

PQ312

AO4407AL_SO8

PQ312

AO4407AL_SO8

3 6

5

7

8

2

4

1

PR320

2.2_0603_5%

PR320

2.2_0603_5%

1 2

PR303

47K_0402_1%

PR303

47K_0402_1%

1 2

PC319

2200P_0402_50V7K

PC319

2200P_0402_50V7K

1 2

PC308

0.1U_0402_25V6

PC308

0.1U_0402_25V6

12

PQ307B

2N7002KDW-2N_SOT363-6

PQ307B

2N7002KDW-2N_SOT363-6

34

5

G

D

S

PQ313

2N7002KW _SOT323-3

G

D

S

PQ313

2N7002KW _SOT323-3

2

13

PQ311

DTC115EUA_SC70-3

PQ311

DTC115EUA_SC70-3

2

13

PQ302

AO4423L_SO8

PQ302

AO4423L_SO8

3 6

5

7

8

2

4

1

PC310

10U_0805_25V6K@

PC310

10U_0805_25V6K@

1 2

PR321

47K_0402_1%

PR321

47K_0402_1%

1 2

PR318

10_0402_5%

PR318

10_0402_5%

12

PC317

0.047U_0603_16V7K

PC317

0.047U_0603_16V7K

12

PC314

1U_0603_25V6K

PC314

1U_0603_25V6K

1 2

PC316

10U_0805_25V6K

PC316

10U_0805_25V6K

1 2

PR322

200K_0402_1%

PR322

200K_0402_1%

1 2

PR311

0_0402_5%

PR311

0_0402_5%

1 2

PC312

1U_0603_25V6K

PC312

1U_0603_25V6K

12

G

D

S

PQ306

2N7002KW _SOT323-3

G

D

S

PQ306

2N7002KW _SOT323-3

2

13

PR325

200K_0402_1%

PR325

200K_0402_1%

1 2

PC309

0.1U_0402_25V6

@PC309

0.1U_0402_25V6

@

12

PL301

1UH_PCMB061H-1R0MS_7A_20%

PL301

1UH_PCMB061H-1R0MS_7A_20%

1 2

PC303

0.1U_0402_25V6

PC303

0.1U_0402_25V6

1 2

PD303

1SS355_SOD323-2

PD303

1SS355_SOD323-2

1 2

PC323

10U_0805_25V6K

PC323

10U_0805_25V6K

12

PR304

200K_0402_1%

PR304

200K_0402_1%

12

PC307

0.1U_0402_25V6

PC307

0.1U_0402_25V6

1 2

PR310

10K_0402_1%

PR310

10K_0402_1%

12

PQ310

MDS1521URH 1N SO8

PQ310

MDS1521URH 1N SO8

4

6

1

2

3

5

7

8

PR313

10K_0402_1%

PR313

10K_0402_1%

1 2

PC301

5600P_0402_25V7K

PC301

5600P_0402_25V7K

1 2

PC305

0.1U_0402_25V6

PC305

0.1U_0402_25V6

12

PQ301

AO4407AL_SO8

PQ301

AO4407AL_SO8

36

5

7

8

2

4

1

PC315

10U_0805_25V6K

PC315

10U_0805_25V6K

1 2

A

A

B

B

C

C

D

D

E

E

1 1

2 2

3 3

4 4

Compal Electronics, Inc.

VAWGA/GB

5V_VIN

3V_SN

BST_5V

3V5V_EN

5V_SN

3V5V_EN_R

BST_3V

LX_3V

3V_VIN

5V_VCC

LX_5V

3V5V_EN

EC_ON

MAINPWON

3V5V_EN3V5V_EN_R

ENLDO_3V5V

ENLDO_3V5V

SPOK<27>

EC_ON

<18>

MAINPWON

<18>

VL

+5VALWP

+3VLP

+3VALWP

B+

+5VALW

+3VALWP +3VALW

+5VALWP

B+

B+

+3VALWP

+3VLP

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

PWR-3VALWP/5VALWP

Custom

26 37Thursday, March 28, 2013

2011/06/15 2012/07/11

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

PWR-3VALWP/5VALWP

Custom

26 37Thursday, March 28, 2013

2011/06/15 2012/07/11

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

PWR-3VALWP/5VALWP

Custom

26 37Thursday, March 28, 2013

2011/06/15 2012/07/11

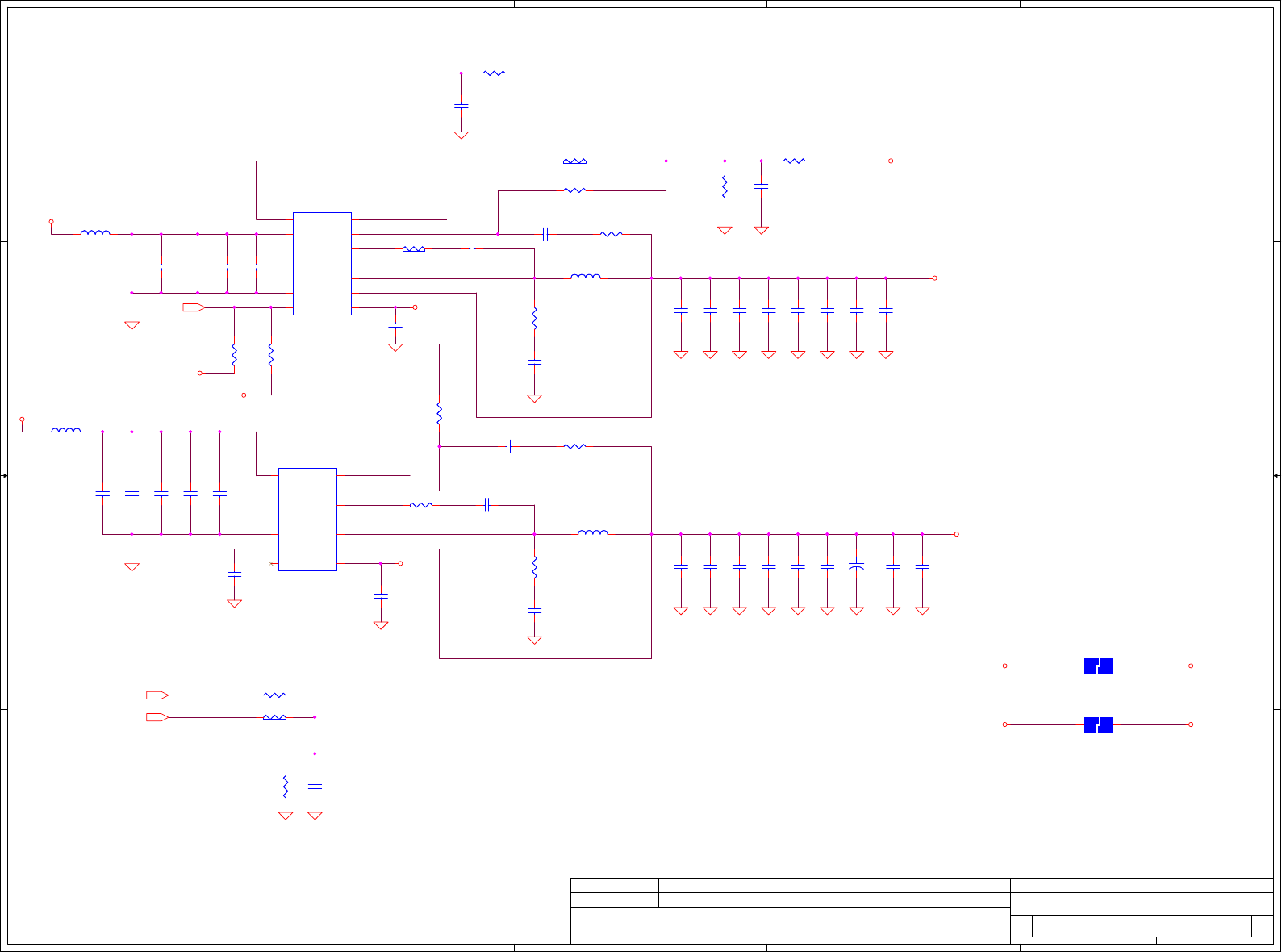

PL402

1.5UH_PCMC063T-1R5MN_9A_20%

PL402

1.5UH_PCMC063T-1R5MN_9A_20%

1 2

PR412

0_0402_5%

@

PR412

0_0402_5%

@

12

PC409

22U_0805_6.3V6M

PC409

22U_0805_6.3V6M

12

PR409

1M_0402_1%

PR409

1M_0402_1%

12

PC436

6800P_0402_25V7K

PC436

6800P_0402_25V7K

1 2

PC415

680P_0603_50V7K

@PC415

680P_0603_50V7K

@

12

PC416

10U_0805_25V6K

PC416

10U_0805_25V6K

12

PC408

22U_0805_6.3V6M

PC408

22U_0805_6.3V6M

12

PC402

0.1U_0603_25V7K

PC402

0.1U_0603_25V7K

1 2

PR411

10K_0402_1%

PR411

10K_0402_1%

12

PR414

0_0402_5%

PR414

0_0402_5%

1 2

PC414

4.7U_0603_6.3V6M

PC414

4.7U_0603_6.3V6M

12

PC406

10U_0805_25V6K

@

PC406

10U_0805_25V6K

@

12

PC429

680P_0603_50V7K

@PC429

680P_0603_50V7K

@

12

PC437

470P_0402_50V8J

@

PC437

470P_0402_50V8J

@

12

PC405

10U_0805_25V6K

PC405

10U_0805_25V6K

12

PL403

HCB2012KF-121T50_0805

PL403

HCB2012KF-121T50_0805

1 2

PR416

1K_0402_5%

PR416

1K_0402_5%

12

PR413

1K_0402_5%

PR413

1K_0402_5%

12

PJ402

JUMP_43X118

@PJ402

JUMP_43X118

@

1

122

PC430

4.7U_0603_6.3V6M

PC430

4.7U_0603_6.3V6M

12

PR415

0_0402_5%

@PR415

0_0402_5%

@

12

PC404

2200P_0402_50V7K

PC404

2200P_0402_50V7K

12

PR406

4.7_1206_5%

@PR406

4.7_1206_5%

@

12

PC417

2200P_0402_50V7K

PC417

2200P_0402_50V7K

12

PC407

1U_0603_25V6K

PC407

1U_0603_25V6K

12

PC403

0.1U_0402_25V6

@

PC403

0.1U_0402_25V6

@

12

PR407

2.2K_0402_5%

PR407

2.2K_0402_5%

12

PC438

470P_0402_50V8J

@

PC438

470P_0402_50V8J

@

12

PC418

0.1U_0402_25V6

@

PC418

0.1U_0402_25V6

@

12

PC423

22U_0805_6.3V6M

PC423

22U_0805_6.3V6M

12

PC424

22U_0805_6.3V6M

PC424

22U_0805_6.3V6M

12

PL401

HCB2012KF-121T50_0805

PL401

HCB2012KF-121T50_0805

1 2

PC427

22U_0805_6.3V6M

@PC427

22U_0805_6.3V6M

@

12

PR403

150K_0402_1%

PR403

150K_0402_1%

12

PU401

SY8208BQNC_QFN10_3X3

PU401

SY8208BQNC_QFN10_3X3

LX 10

IN

7

OUT 4

PG

2LDO 5

IN

8

GND

9

EN1 1

BS 6

EN2 3

PR404

4.7_1206_5%

@PR404

4.7_1206_5%

@

12

PC401

68P_0402_50V8J

@

PC401

68P_0402_50V8J

@

12

PR401

0_0402_5%

PR401

0_0402_5%

1 2

PC435

470P_0402_50V8J

@

PC435

470P_0402_50V8J

@

12

PC432

0.047U_0402_25V6

PC432

0.047U_0402_25V6

12

+

PC433

150U_D2_6.3VY_R15M

@

+

PC433

150U_D2_6.3VY_R15M

@

1

2

PC411

22U_0805_6.3V6M

PC411

22U_0805_6.3V6M

12

PC426

22U_0805_6.3V6M

PC426

22U_0805_6.3V6M

12

PC420

10U_0805_25V6K

PC420

10U_0805_25V6K

12

PC431

4.7U_0402_6.3V6M

PC431

4.7U_0402_6.3V6M

12

PC412

22U_0805_6.3V6M

@PC412

22U_0805_6.3V6M

@

12

PC419

68P_0402_50V8J

@

PC419

68P_0402_50V8J

@

12

PC421

0.1U_0603_25V7K

PC421

0.1U_0603_25V7K

1 2

PC434

470P_0402_50V8J

@

PC434

470P_0402_50V8J

@

12

PR402

499K_0402_1%

PR402

499K_0402_1%

12

PJ401

JUMP_43X118

@PJ401

JUMP_43X118

@

1

122

PC439

0.01U_0402_25V7K

PC439

0.01U_0402_25V7K

1 2

PC425

22U_0805_6.3V6M

PC425

22U_0805_6.3V6M

12

PC413

22U_0805_6.3V6M

@PC413

22U_0805_6.3V6M

@

12

PR410

100K_0402_1%

@

PR410

100K_0402_1%

@

12

PR417

100K_0402_1%

PR417

100K_0402_1%

12

PU402

SY8208CQNC_QFN10_3X3

PU402

SY8208CQNC_QFN10_3X3

LX 10

IN

8

LDO 7

PG

2

EN2 3

OUT 4

VCC

5

GND

9

EN1 1

BS 6

PR408

0_0402_5%

PR408

0_0402_5%

1 2

PL404

1.5UH_PCMC063T-1R5MN_9A_20%

PL404

1.5UH_PCMC063T-1R5MN_9A_20%

1 2

PR405

0_0402_5%

PR405

0_0402_5%

1 2

PC422

4.7U_0603_6.3V6M

PC422

4.7U_0603_6.3V6M

12

PC410

22U_0805_6.3V6M

PC410

22U_0805_6.3V6M

12

PC428

22U_0805_6.3V6M

@PC428

22U_0805_6.3V6M

@

12

A

A

B

B

C

C

D

D

1 1

2 2

3 3

4 4

Compal Electronics, Inc.

VAWGA/GB

Off Off

STATE S3 S5 1.5VP VTT_REFP 0.75VSP

S0

S3

S4/S5

Hi Hi

HiLo

Lo Lo

On

On

On

On

On

Off

(Hi-Z)

Note: S3 - sleep ; S5 - power off

Off

+1.5VP

OCP min 20A

OVP min 1.65V

FB=0.6Volt

S3_1.5V

BST_1.5V BST_1.5V-1

LX_1.5V

S5_1.5V

1.5V_B+

1.5V_B+

PGOOD_1.5V

LG_1.5V

1.8VSP_VIN

1.8VSP_FB

EN_1.8VSP

1.8VSP_LX

UG_1.5VUG_1.5V

EN_1.8VSP

SUSP# <18,22>

SYSON <18,22>

SPOK

<26,28>

095_18ALW_PWR_EN

<18>

+1.5VP

B+

+5VALW

+3VALW

+1.5VP

+VTT_REFP

+0.75VSP

+1.5VP

+1.5VP +1.5V

+0.75VS+0.75VSP

+1.8VALW+1.8VALW P

+1.8VALWP

+3VALW

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

PWR-+1.5VP/+1.8VALWP

Custom

27 37Thursday, March 28, 2013

2011/06/15 2012/07/11

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

PWR-+1.5VP/+1.8VALWP

Custom

27 37Thursday, March 28, 2013

2011/06/15 2012/07/11

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

PWR-+1.5VP/+1.8VALWP

Custom

27 37Thursday, March 28, 2013

2011/06/15 2012/07/11

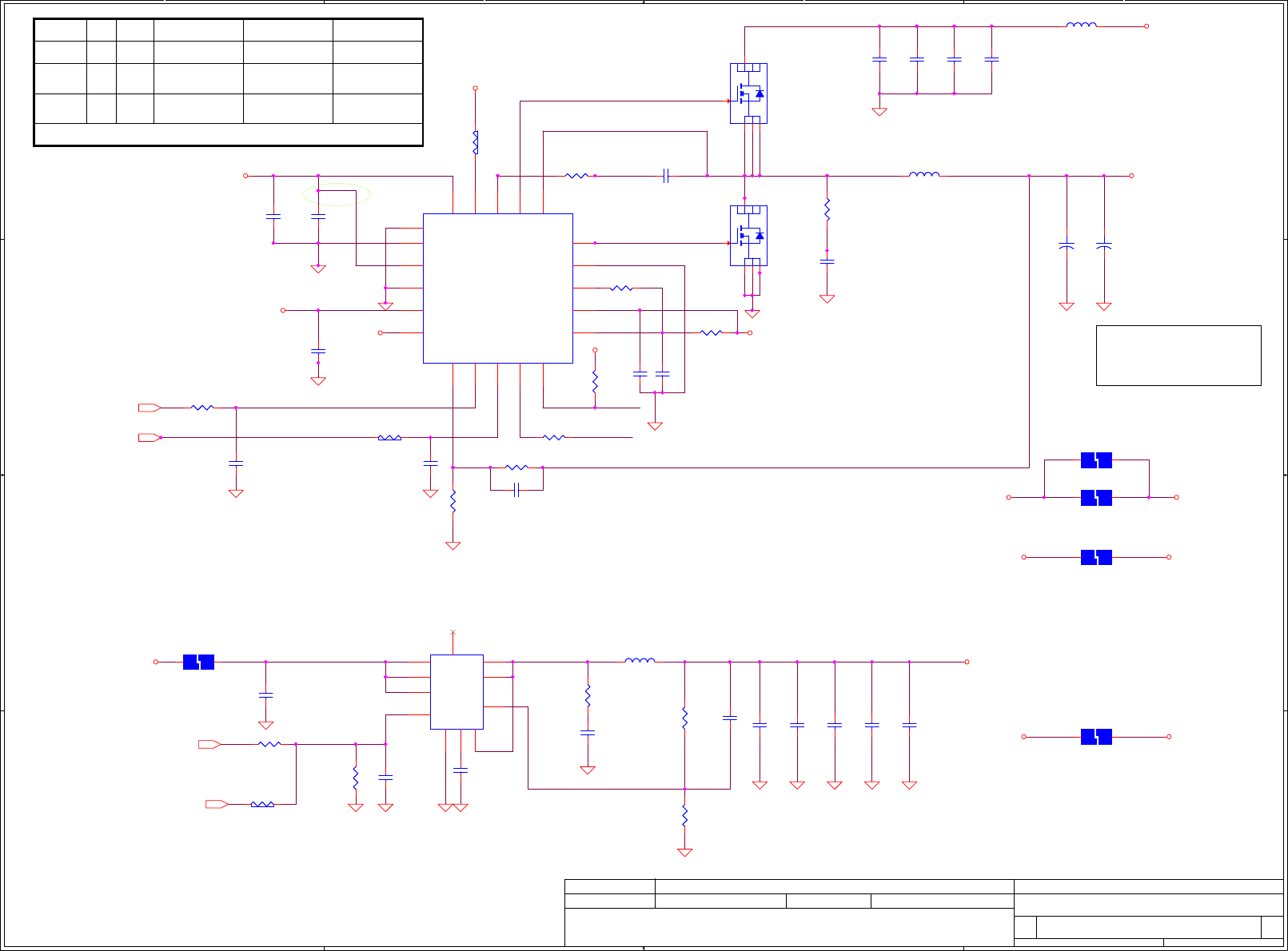

PR507

5.6K_0402_1%

PR507

5.6K_0402_1%

12

PR502

49.9K_0402_1%

PR502

49.9K_0402_1%

1 2

PR504

1M_0402_5%

PR504

1M_0402_5%

1 2

PC516

2200P_0402_50V7K

@

PC516

2200P_0402_50V7K

@

12

PC513

2200P_0402_50V7K

PC513

2200P_0402_50V7K

12

PR503

0_0402_5%

PR503

0_0402_5%

1 2

PR511

6.65K_0402_1%

PR511

6.65K_0402_1%

12

PU502

SY8033BDBC_DFN10_3X3

PU502

SY8033BDBC_DFN10_3X3

EN

5

PG 4

LX 3

FB 6

SVIN

8

TP

11

LX 2

PVIN

10

NC

7

PVIN

9

NC

1

PQ501

MDU1516URH_POWERDFN56-8-5

PQ501

MDU1516URH_POWERDFN56-8-5

4

5

1

2

3

PL503

1UH_PH041H-1R0MS_3.2A_20%

PL503

1UH_PH041H-1R0MS_3.2A_20%

1 2

PC525

68P_0402_50V8J

PC525

68P_0402_50V8J

12

+

PC521

330U_2.5V_M

+

PC521

330U_2.5V_M

1

2

PC511

1U_0603_10V6K

PC511

1U_0603_10V6K

12

PC506

0.033U_0402_16V7K

PC506

0.033U_0402_16V7K

12

PR513

10K_0402_1%

PR513

10K_0402_1%

12

PC515

22U_0805_6.3VAM

PC515

22U_0805_6.3VAM

12

PC520

4.7U_0805_25V6-K

@

PC520

4.7U_0805_25V6-K

@

12

PC502

22U_0805_6.3VAM

PC502

22U_0805_6.3VAM

12

PC509

0.1U_0402_25V6

@

PC509

0.1U_0402_25V6

@

12

PR611

0_0402_5%

PR611

0_0402_5%

1 2

PR516

0_0402_5%

@PR516

0_0402_5%

@

1 2

PR509

887K_0402_1%

PR509

887K_0402_1%

12

PJ506

JUMP_43X79

@

PJ506

JUMP_43X79

@

11

2

2

PQ502

MDU1511RH_POWERDFN56-8-5

PQ502

MDU1511RH_POWERDFN56-8-5

4

5

1

2

3

PJ507

JUMP_43X79@

PJ507

JUMP_43X79@

11

2

2

PR510

10K_0402_5%

@

PR510

10K_0402_5%

@

12

PC524

0.1U_0402_10V7K

@

PC524

0.1U_0402_10V7K

@

12

PJ502

JUMP_43X79@

PJ502

JUMP_43X79@

11

2

2

PU501

RT8207MZQW _W QFN20_3X3

PU501

RT8207MZQW _W QFN20_3X3

VTTSNS

2

FB

6

S5

8

PGOOD

10

VDDP 12

PHASE 16

BOOT 18

VTTREF

4

PGND 14

VTTGND

1

GND

3

VDDQ

5

S3

7

TON

9

VDD 11

CS 13

LGATE 15

UGATE 17

VTT 20

VLDOIN 19

PAD

21

PC507

0.1U_0402_10V7K

@PC507

0.1U_0402_10V7K

@

12

PC503

0.1U_0402_16V6K

PC503

0.1U_0402_16V6K

12

PL501

1UH_PCMB104T-1R0MH_18A_20%

PL501

1UH_PCMB104T-1R0MH_18A_20%

12

PJ504

JUMP_43X118@

PJ504

JUMP_43X118@

11

2

2

PC501

10U_0805_25V6K

PC501

10U_0805_25V6K

12

PR506

5.76K_0402_1%

PR506

5.76K_0402_1%

12

PR514

5.1_0603_5%

PR514

5.1_0603_5%

12

PR508

4.7_1206_5%

@

PR508

4.7_1206_5%

@

12

PR512

20K_0402_1%

PR512

20K_0402_1%

12

PR515

4.7_1206_5%

@

PR515

4.7_1206_5%

@

12

PC512

0.1U_0603_25V7K

PC512

0.1U_0603_25V7K

1 2

PC505

10U_0805_25V6K

PC505

10U_0805_25V6K

12

PC526

68P_0402_50V8J

@PC526

68P_0402_50V8J

@

1 2

PC504

10U_0805_25V6K

PC504

10U_0805_25V6K

12

PC519

0.1U_0402_25V6

@

PC519

0.1U_0402_25V6

@

12

PJ505

JUMP_43X118@

PJ505

JUMP_43X118@

11

2

2

PC510

1U_0603_10V6K

PC510

1U_0603_10V6K

12

PC514

22U_0805_6.3VAM

PC514

22U_0805_6.3VAM

12

PC523

680P_0603_50V7K

@

PC523

680P_0603_50V7K

@

12

PR505

0_0402_5%

PR505

0_0402_5%

1 2

PR501

2.2_0603_5%

PR501

2.2_0603_5%

1 2

+

PC522

220U_6.3V_M

@

+

PC522

220U_6.3V_M

@

1

2

PC518

68P_0402_50V8J

@

PC518

68P_0402_50V8J

@

12

PC508

0.1U_0402_16V7K

@PC508

0.1U_0402_16V7K

@

12

PL502

HCB2012KF-121T50_0805

PL502

HCB2012KF-121T50_0805

1 2

PC517

680P_0603_50V7K

@

PC517

680P_0603_50V7K

@

12

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

Compal Electronics, Inc.

VAWGA/B

VFB=0.7V

+0.95VALWP OCP(min)=15.6A

PR605 reserve

BST_0.95V-1

0.95V_FB

LX_0.95V

DH_0.95V

DL_0.95V

0.95V_EN

0.95V_TRIP

BST_0.95V

0.95V_RF

0.95V_B+

SPOK<27>

095_18ALW_PWR_EN

<18>

+5VALW

B+

+0.95VALWP

+0.95VALW+0.95VALWP

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

PWR-+0.95VALWP

C

28 37Thursday, March 28, 2013

2011/06/15 2012/07/11

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

PWR-+0.95VALWP

C

28 37Thursday, March 28, 2013

2011/06/15 2012/07/11

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

PWR-+0.95VALWP

C

28 37Thursday, March 28, 2013

2011/06/15 2012/07/11

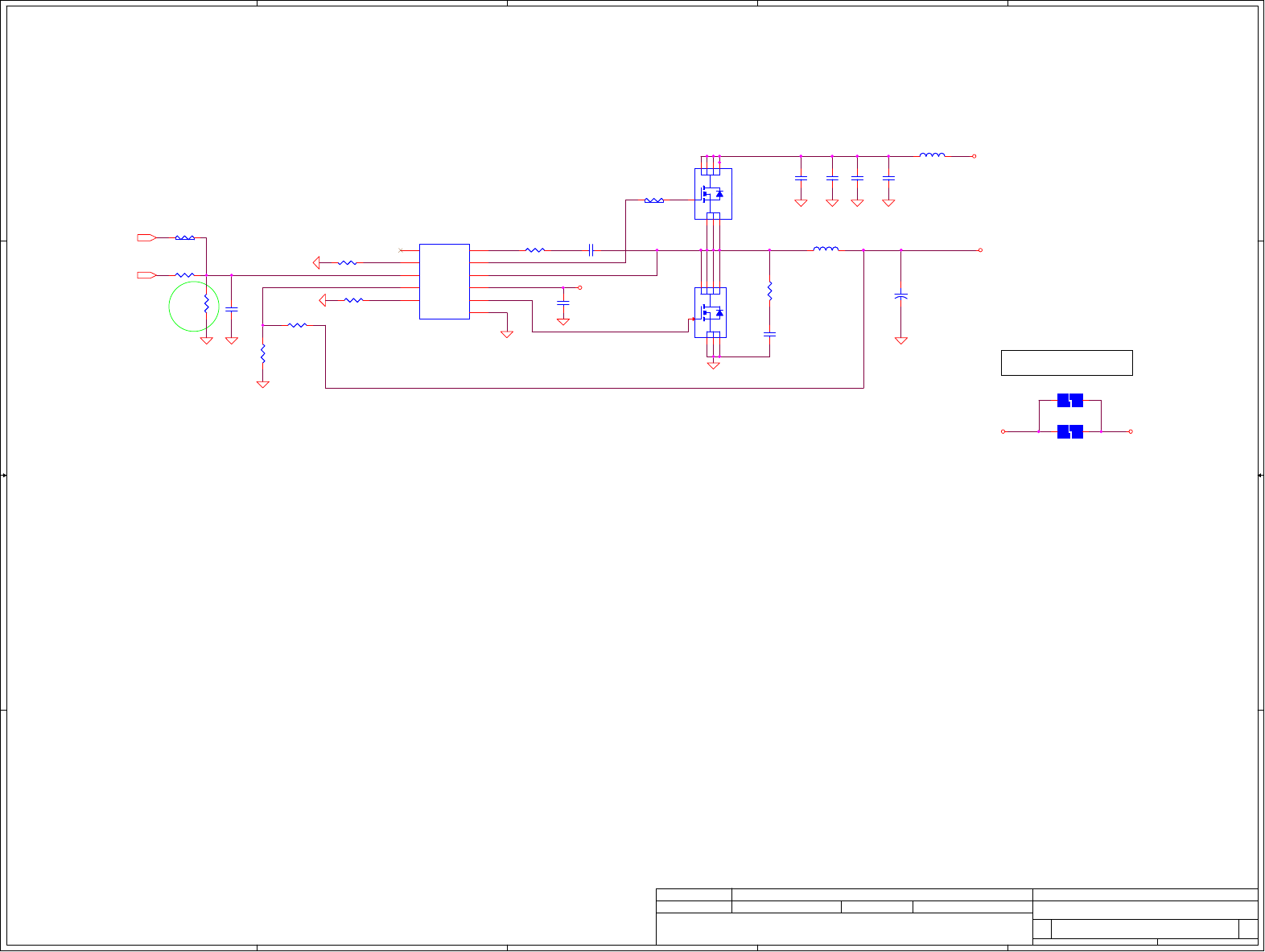

PJ603

JUMP_43X118@

PJ603

JUMP_43X118@

11

2

2

PQ602

MDS1521URH 1N SO8

PQ602

MDS1521URH 1N SO8

4

7

8

6

5

1

2

3

PC606

0.22U_0603_16V7K

PC606

0.22U_0603_16V7K

1 2

PR602

2.2_0603_5%

PR602

2.2_0603_5%

1 2

PL601

HCB2012KF-121T50_0805

PL601

HCB2012KF-121T50_0805

1 2

PC608

1U_0603_10V6K

PC608

1U_0603_10V6K

12

PR603

40.2K_0402_1%

PR603

40.2K_0402_1%

12

PJ602

JUMP_43X118@

PJ602

JUMP_43X118@

11

2

2

PC605

2200P_0402_50V7K

PC605

2200P_0402_50V7K

12

+

PC607

220U_6.3V_M

+

PC607

220U_6.3V_M

1

2

PC601

.1U_0402_16V7K

@PC601

.1U_0402_16V7K

@

12

PR610

0_0402_5%

PR610

0_0402_5%

1 2

PR604

4.7_1206_5%

@

PR604

4.7_1206_5%

@

12

PC604

0.1U_0402_25V6

@

PC604

0.1U_0402_25V6

@

12

PC609

680P_0603_50V7K

@

PC609

680P_0603_50V7K

@

12

PR606

470K_0402_1%

PR606

470K_0402_1%

1 2

PL661

1UH_PCMC063T-1R0MN_12A_20%

PL661

1UH_PCMC063T-1R0MN_12A_20%

1 2

PC602

10U_0805_25V6K

PC602

10U_0805_25V6K

12

PR601

0_0402_5%

@PR601

0_0402_5%

@

1 2

PU601

TPS51212DSCR_SON10_3X3

PU601

TPS51212DSCR_SON10_3X3

EN

3

TRIP

2

V5IN 7

DRVH 9

SW 8

DRVL 6

VBST 10

RF

5

VFB

4

PGOOD

1

TP 11

PR608

10K_0402_1%

PR608

10K_0402_1%

12

PC603

10U_0805_25V6K

PC603

10U_0805_25V6K

12

PR605

47K_0402_5%

@PR605

47K_0402_5%

@

1 2

PR607

3.48K_0402_1%

PR607

3.48K_0402_1%

1 2

PR609

0_0402_5%

PR609

0_0402_5%

1 2

PQ601

MDS1525URH 1N SO8

PQ601

MDS1525URH 1N SO8

3

5

2

4

1

6

7

8

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

SH00000N900 (DCR 1.1+-5%)

2011/10/21

NTC near NB_CORE H/S mos

2011/10/21

NTC near CPU_CORE H/S mos

2011/10/21

NTC near phase 1 choke

2011/10/21

NTC near phase 1 choke

2012/10/30

Load Line:VDD-->4m

VDDNB-->4.0m

SH00000GH00 (DCR 1.25+-7%)

LGATE1

PHASE1

UGATE1

BOOT_NB1

UGATE_NB1

PHASE_NB1

LGATE_NB1

VSUMN_NB

VSUMP_NB

PWROK

SVD

SVC

ENABLE

SVT

VDDIO

ISEN2

VSUM+

VSUM-

BOOT1

VSUMP_NB

VSUMN_NB

BOOT_NB1

BOOT1

VSUM+

VSUM-

UGATE1

ISEN1

UGATE_NB1

LGATE_NB1

PHASE_NB1

PHASE1

LGATE1

APU_SVD

<4>

APU_PW RGD

<4>

VR_ON

<18>

APU_SVC

<4>

APU_SVT

<4>

VGATE <18>

H_PROCHOT#

<18,24,4,6>

APU_VDDNB_SEN

<4>

APU_VDD_RUN_FB_L <4>

APU_VDD_SEN <4>

APU_IMON

+5VS

+5VALW

+3VS

+APU_CORE

CPU_B+

B+

+APU_CORE_NB

+3VS

+APU_CORE

CPU_B+

+APU_CORE_NB

+1.8VS

+1.5VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

APU_CORE/APU_CORE_NB

Custom

29 37Thursday, March 28, 2013

2011/07/08 2015/07/08

Compal Electronics, Inc.

VAWGA/B

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

APU_CORE/APU_CORE_NB

Custom

29 37Thursday, March 28, 2013

2011/07/08 2015/07/08

Compal Electronics, Inc.

VAWGA/B

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

APU_CORE/APU_CORE_NB

Custom

29 37Thursday, March 28, 2013

2011/07/08 2015/07/08

Compal Electronics, Inc.

VAWGA/B

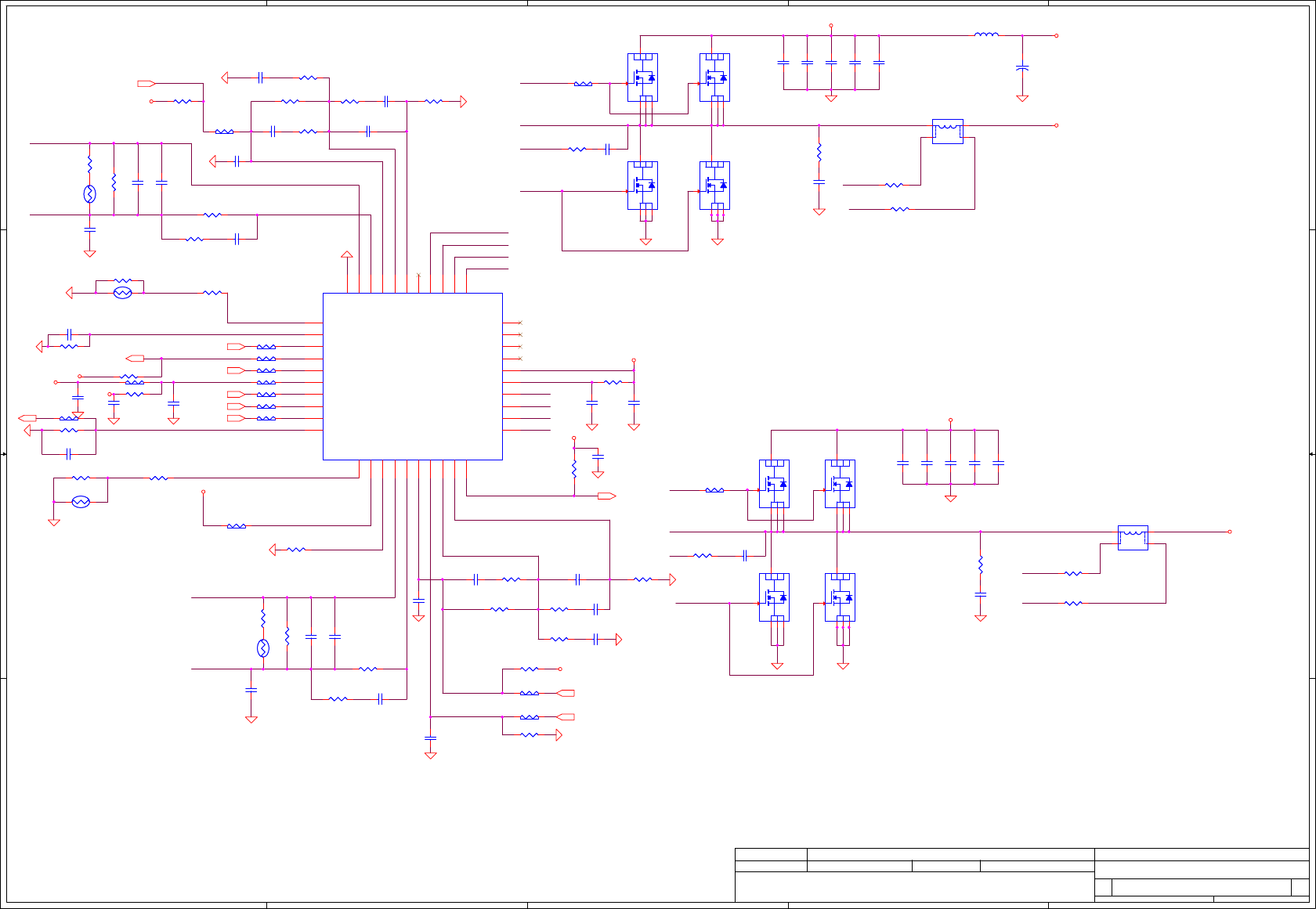

PR934

10K_0402_1%

PR934

10K_0402_1%

12

PR903

1.54K_0402_1%

PR903

1.54K_0402_1%

12

PC1034

1000P_0402_50V7K

PC1034

1000P_0402_50V7K

12

PR908

2.2_0603_1%

PR908

2.2_0603_1%

12

PH902

470K_0402_5%_TSM0B474J4702RE

PH902

470K_0402_5%_TSM0B474J4702RE

12

PC1041

0.1U_0603_50V7K

PC1041

0.1U_0603_50V7K

12

PR925 0_0402_5%PR925 0_0402_5%

1 2

PR918 0_0402_5%PR918 0_0402_5%

1 2

PR951

0_0402_5%

PR951

0_0402_5%

1 2

PH904

10K_0402_5%_ERTJ0ER103J

PH904

10K_0402_5%_ERTJ0ER103J

12

PQ904

MDU1511RH_POWERDFN56-8-5

PQ904

MDU1511RH_POWERDFN56-8-5

4

5

1

2

3

PR948

100_0402_1%

@PR948

100_0402_1%

@

12

PC1053

0.22U_0603_25V7K

PC1053

0.22U_0603_25V7K

12

PC1047

1000P_0402_50V7K

PC1047

1000P_0402_50V7K

1 2

PC1056

330P_0402_50V7K

@

PC1056

330P_0402_50V7K

@

1 2

PR922100K_0402_1% @PR922100K_0402_1% @

12

PC1049

10U_0805_25V6K

PC1049

10U_0805_25V6K

12

PR947

0_0402_5%

PR947

0_0402_5%

1 2

PC1062

0.1U_0603_50V7K

PC1062

0.1U_0603_50V7K

12

PC1032

2200P_0402_50V7K

PC1032

2200P_0402_50V7K

12

PR921 0_0402_5%PR921 0_0402_5%

1 2

PC1035

47P_0402_50V8J

PC1035

47P_0402_50V8J

12

PQ907

MDU1516URH_POWERDFN56-8-5

PQ907

MDU1516URH_POWERDFN56-8-5

4

5

1

2

3

PQ906

MDU1511RH_POWERDFN56-8-5

PQ906

MDU1511RH_POWERDFN56-8-5

4

5

1

2

3

PC1036

0.22U_0603_25V7K

PC1036

0.22U_0603_25V7K

12

PC1037

0.01U_0402_50V7K

PC1037

0.01U_0402_50V7K

12

PU901

ISL62771HRTZ-T_TQFN40_5X5

PU901

ISL62771HRTZ-T_TQFN40_5X5

IMON_NB

2

SVC

3

NTC_NB

1

VR_HOT_L

4

SVD

5

SVT

7

RTN

17

ISUMN

15

ISEN1

13

COMP

19

ISUMP

14

ISEN2

12

NTC

11

IMON

10

VDDIO

6

PWROK

9

FB

18

PGOOD

20

VSEN

16

ENABLE

8

BOOT1 21

UGATE1 22

PHASE1 23

LGATE1 24

VDD 25

VDDP 26

LGATE2 27

PHASE2 28

UGATE2 29

BOOT2 30

BOOT_NB 31

UGATE_NB 32

PHASE_NB 33

LGATE_NB 34

PGOOD_NB 35

COMP_NB 36

FB_NB 37

VSEN_NB 38

ISUMN_NB 39

ISUMP_NB 40

TP 41

PC1063

820P_0402_50V7K

@PC1063

820P_0402_50V7K

@

12

PL901

HCB2012KF-121T50_0805

PL901

HCB2012KF-121T50_0805

1 2

PR953

0_0402_5%

PR953

0_0402_5%

1 2

PR941

1_0402_1%

PR941

1_0402_1%

12

PC1033

150P_0402_50V8J

PC1033

150P_0402_50V8J

12

PR912

3.65K_0402_1%

PR912

3.65K_0402_1%

12

PR932

0_0402_5%

PR932

0_0402_5%

1 2

PR924

1_0603_5%

PR924

1_0603_5%

12

PC901

330P_0402_50V7K

PC901

330P_0402_50V7K

12

PR929

100K_0402_1%

PR929

100K_0402_1%

12

PL903

0.36UH_FDUE1030D-H-R36M=P3_32A_20%

PL903

0.36UH_FDUE1030D-H-R36M=P3_32A_20%

1

3

4

2

PC1057

680P_0603_50V7K

@PC1057

680P_0603_50V7K

@

12

PC1044

0.1U_0402_25V6

PC1044

0.1U_0402_25V6

1 2

PR920 0_0402_5%PR920 0_0402_5%

1 2

PR904

267K_0402_1%

PR904

267K_0402_1%

12

PR942

2.61K_0402_1%

PR942

2.61K_0402_1%

12

PC1061

330P_0402_50V7K

PC1061

330P_0402_50V7K

12

PC1051

0.1U_0402_25V5K

@

PC1051

0.1U_0402_25V5K

@

12

PC1059

0.01U_0402_50V7K

PC1059

0.01U_0402_50V7K

1 2

PQ901

MDU1516URH_POWERDFN56-8-5

PQ901

MDU1516URH_POWERDFN56-8-5

4

5

1

2

3

PQ903

MDU1516URH_POWERDFN56-8-5

PQ903

MDU1516URH_POWERDFN56-8-5

4

5

1

2

3

PR915

100_0402_1%

@PR915

100_0402_1%

@

12

PC1052

2200P_0402_50V7K

PC1052

2200P_0402_50V7K

12

PR911

11K_0402_1%

PR911

11K_0402_1%

1 2

PR902

10_0402_5%

PR902

10_0402_5%

12

PC1055

47P_0402_50V8J

PC1055

47P_0402_50V8J

12

PR943

11K_0402_1%

PR943

11K_0402_1%

1 2

PR952

0_0402_5%

@PR952

0_0402_5%

@

12

PC1045

1U_0603_25V6K

PC1045

1U_0603_25V6K

12

PC1038

0.022U_0402_25V7K

PC1038

0.022U_0402_25V7K

1 2

PC1058

150P_0402_50V8J

PC1058

150P_0402_50V8J

12

PC1054

1000P_0402_50V7K

PC1054

1000P_0402_50V7K

12

PR913

324_0402_1%

PR913

324_0402_1%

12

PR950

10_0402_5%

PR950

10_0402_5%

12

PR930 27.4K_0402_1%PR930 27.4K_0402_1%

12

PR923 0_0402_5%PR923 0_0402_5%

1 2

PR919 133K_0402_1%PR919 133K_0402_1%

12

PR933

2.2_0603_1%

PR933

2.2_0603_1%

12

PR944

2K_0402_1%

PR944

2K_0402_1%

12

PR926 0_0402_5%PR926 0_0402_5%

1 2

PC1050

10U_0805_25V6K

PC1050

10U_0805_25V6K

12

PR931

20K_0402_1%

PR931

20K_0402_1%

1 2

PC1048

10U_0805_25V6K

PC1048

10U_0805_25V6K

12

PR909

2.61K_0402_1%

PR909

2.61K_0402_1%

12

PH903

470K_0402_5%_TSM0B474J4702RE

PH903

470K_0402_5%_TSM0B474J4702RE

12

PC1027

10U_0805_25V6K

PC1027

10U_0805_25V6K

12

PR914

1_0402_1%

PR914

1_0402_1%

12

PR927 0_0402_5%PR927 0_0402_5%

1 2

PC6602 1000P_0402_50V7KPC6602 1000P_0402_50V7K

1

2

PC1030

0.1U_0402_25V5K

@

PC1030

0.1U_0402_25V5K

@

12

+

PC1031

220U_25V_M

+

PC1031

220U_25V_M

1

2

PR936

3.65K_0402_1%

PR936

3.65K_0402_1%

12

PC1073

0.1U_0402_25V6

PC1073

0.1U_0402_25V6

1 2

PL902

0.36UH_VMPI1004AR-R36M-Z03_30A_20%

PL902

0.36UH_VMPI1004AR-R36M-Z03_30A_20%

1

3

4

2

PH901

10K_0402_5%_ERTJ0ER103J

PH901

10K_0402_5%_ERTJ0ER103J

12

PR955

0_0402_5%

PR955

0_0402_5%

1 2

PR907

499_0402_1%

PR907

499_0402_1%

12

PR910

4.7_1206_5%

@PR910

4.7_1206_5%

@

12

PQ902

MDU1511RH_POWERDFN56-8-5

PQ902

MDU1511RH_POWERDFN56-8-5

4

5

1

2

3

PR945

487_0402_1%

PR945

487_0402_1%

12

PR916 27.4K_0402_1%PR916 27.4K_0402_1%

12

PR928

133K_0402_1%

PR928

133K_0402_1%

1 2

PR906

0_0402_5%

PR906

0_0402_5%

1 2

PC1042

220P_0402_50V7K

@PC1042

220P_0402_50V7K

@

12

PR938

32.4K_0402_1%

@PR938

32.4K_0402_1%

@

12

PC1029

10U_0805_25V6K

PC1029

10U_0805_25V6K

12

PR946

10_0402_5%

PR946

10_0402_5%

12

PC6601

1000P_0402_50V7K

PC6601

1000P_0402_50V7K

1

2

PC1046

1U_0603_25V6K

PC1046

1U_0603_25V6K

12

PC1028

10U_0805_25V6K

PC1028

10U_0805_25V6K

12

PC1043

1000P_0402_50V7K

PC1043

1000P_0402_50V7K

12

PR935

4.7_1206_5%

@PR935

4.7_1206_5%

@

12

PC1039

0.15U_0603_16V7K

PC1039

0.15U_0603_16V7K

1 2

PC1064

0.01U_0402_50V7K

PC1064

0.01U_0402_50V7K

1 2

PR939

1.54K_0402_1%

PR939

1.54K_0402_1%

12

PR954

0_0402_5%

PR954

0_0402_5%

1 2

PC1060

0.15U_0603_16V7K

PC1060

0.15U_0603_16V7K

1 2

PC1040

680P_0603_50V7K

@PC1040

680P_0603_50V7K

@

12

PR905

41.2K_0402_1%

@PR905

41.2K_0402_1%

@

12

PR940

267K_0402_1%

PR940

267K_0402_1%

12

PR917

20K_0402_1%

PR917

20K_0402_1%

12

PQ908

MDU1511RH_POWERDFN56-8-5

PQ908

MDU1511RH_POWERDFN56-8-5

4

5

1

2

3

PR901

2K_0402_1%

PR901

2K_0402_1%

12

PR937

499_0402_1%

PR937

499_0402_1%

12

PR949

0_0402_5%

PR949

0_0402_5%

1 2

PQ905

MDU1516URH_POWERDFN56-8-5

PQ905

MDU1516URH_POWERDFN56-8-5

4

5

1

2

3

A

A

B

B

C

C

D

D

E

E

1 1

2 2

3 3

4 4

10U_0603 *3 10U_0603 * 4

+APU_CORE +APU_CORE_NB

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/B

1.0

PWR-PROCESSOR DECOUPLING

Custom

30 37Thursday, March 28, 2013

2011/07/08 2015/07/08

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/B

1.0

PWR-PROCESSOR DECOUPLING

Custom

30 37Thursday, March 28, 2013

2011/07/08 2015/07/08

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

VAWGA/B

1.0

PWR-PROCESSOR DECOUPLING

Custom

30 37Thursday, March 28, 2013

2011/07/08 2015/07/08

Compal Electronics, Inc.

PC101010U_0603_6.3V6M PC101010U_0603_6.3V6M

12

PC106522U_0603_6.3V6M

@

PC106522U_0603_6.3V6M

@

12

PC1019

0.01U_0402_25V7K~N

@

PC1019

0.01U_0402_25V7K~N

@

12

PC106722U_0603_6.3V6M PC106722U_0603_6.3V6M

12

PC100722U_0603_6.3V6MPC100722U_0603_6.3V6M

12

PC100322U_0603_6.3V6M PC100322U_0603_6.3V6M

12

PC101610U_0603_6.3V6M

@

PC101610U_0603_6.3V6M

@

12

+

PC1024

330U_D2_2V_Y

+

PC1024

330U_D2_2V_Y

1

2

PC107222U_0603_6.3V6M PC107222U_0603_6.3V6M

12

+

PC1026

330U_D2_2V_Y

@

+

PC1026

330U_D2_2V_Y

@

1

2

PC101310U_0603_6.3V6M PC101310U_0603_6.3V6M

12

PC100822U_0603_6.3V6MPC100822U_0603_6.3V6M

12

PC1020

0.1U_0402_25V7K~N

@

PC1020

0.1U_0402_25V7K~N

@

12

PC106622U_0603_6.3V6M

@

PC106622U_0603_6.3V6M

@

12

+

PC1022

330U_D2_2V_Y

+

PC1022

330U_D2_2V_Y

1

2

PC100622U_0603_6.3V6MPC100622U_0603_6.3V6M

12

PC101410U_0603_6.3V6M PC101410U_0603_6.3V6M

12

PC101510U_0603_6.3V6M

@

PC101510U_0603_6.3V6M

@

12

PC101110U_0603_6.3V6M

@

PC101110U_0603_6.3V6M

@

12

PC100522U_0603_6.3V6MPC100522U_0603_6.3V6M

12

PC100422U_0603_6.3V6M PC100422U_0603_6.3V6M

12

PC1017

0.01U_0402_25V7K~N

@

PC1017

0.01U_0402_25V7K~N

@

12

PC100910U_0603_6.3V6M PC100910U_0603_6.3V6M

12

+

PC1023

330U_D2_2V_Y

+

PC1023

330U_D2_2V_Y

1

2

PC1018

0.1U_0402_25V7K~N

@

PC1018

0.1U_0402_25V7K~N

@

12

PC107122U_0603_6.3V6M PC107122U_0603_6.3V6M

12

PC100122U_0603_6.3V6M PC100122U_0603_6.3V6M

12

PC106822U_0603_6.3V6M PC106822U_0603_6.3V6M

12

PC107022U_0603_6.3V6M

@

PC107022U_0603_6.3V6M

@

12

+

PC1025

330U_D2_2V_Y

+

PC1025

330U_D2_2V_Y

1

2

+

PC1021

330U_D2_2V_Y

+

PC1021

330U_D2_2V_Y

1

2

PC106922U_0603_6.3V6M

@

PC106922U_0603_6.3V6M

@

12

PC100222U_0603_6.3V6M PC100222U_0603_6.3V6M

12

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

13

Version change list (P.I.R. List) Page 1 of 1

for PWR

Reason for change PG# Modify List Date PhaseItem

1

2

3

4

5

6

8

14

7

11

10

17

9

15

16

C38-G series Chief River Schematic

12

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

PIR (PWR)

Custom

31 37Thursday, March 28, 2013

2011/06/15 2012/07/11

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

PIR (PWR)

Custom

31 37Thursday, March 28, 2013

2011/06/15 2012/07/11

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

PIR (PWR)

Custom

31 37Thursday, March 28, 2013

2011/06/15 2012/07/11

Compal Electronics, Inc.

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

13

Version change list (P.I.R. List) Page 1 of 1

for PWR

Reason for change PG# Modify List Date PhaseItem

1

2

3

4

5

6

8

14

7

11

10

17

9

15

16

C38-G series Chief River Schematic

12

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

PIR (PWR)

Custom

32 37Thursday, March 28, 2013

2011/06/15 2012/07/11

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

PIR (PWR)

Custom

32 37Thursday, March 28, 2013

2011/06/15 2012/07/11

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

PIR (PWR)

Custom

32 37Thursday, March 28, 2013

2011/06/15 2012/07/11

Compal Electronics, Inc.

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

13

Version change list (P.I.R. List) Page 1 of 1

for HW

Reason for change PG# Modify List Date PhaseItem

1

2

3

4

5

6

8

14

7

11

10

17

9

C38-G series Chief River Schematic

12

For share rom 18 Change SYS_PWRGD_EC from pin 86 to pin 32 12/17 DVT

12/17 DVT18 Add R207

12/17 DVT

For 095VS_PWR_EN pull down

For VBIAS first raise up 22 Change U1895V, U35P, U1895P VBIAS from +5VALW to VL

DVT12/18Change JUSB3 pin defineFor follow VIWGP design 17

12/21 DVTFor Audio Precision 21 Change CA36, CA46 from 1U to 2.2U

For SYS_PWRGD_EC pull down 18 Add R208 12/24 DVT

For share rom 18 Change R1575, R1576 to 100K 12/24 DVT

DVT12/24Add J11, J12 and modify +3VALW to +3V_ECFor reserve EC +3VL 18

05

For share ROM 05 modify ROM net-name & resistor value 12/24 DVT

12 modify R106, R107 to 22ohm 12/24 DVTFor common VIWGP design

For power S3 reduction 18 Change EC_INVT_PWM to ADP_ID_CLOSE 12/25 DVT

For common VIWGP design 13 Change JODD1 symbol 12/27 DVT

DVT12/27Add R150016For reserve wake on wlan function

For 1.5VS discharge 22 Change R339 to 0ohm, mount Q23 & R1461 12/29 DVT

For AMD suggest 4 Change R576 to 0ohm 12/29 DVT

15

For +3VALW APU Power Consumption 7 Add R582 01/03 DVT

16

For ESD request 12

18

29

Add C600, C601, PC6601, PC6602 01/03 DVT

For no support DC wake & LID function

18

18 Pull high only SMB & RST use +3V_EC, other use +3VALW 01/04 DVT

19

For reserve cost down experiment 20 Add R630, R643 01/04 DVT

20

For Common VIWGP 20 Change SW4,SW5,SW6,SW7 footprint 01/04 DVT

@RA22

21

For instant plug/unplug AC has beep sound 21 01/04 DVT

22

For Crystal Capactance fine tune 5

6Modify C794,C795,C682,C686 value 01/09 DVT

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

PIR (PWR)

Custom

33 37Thursday, March 28, 2013

2011/06/15 2012/07/11

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

PIR (PWR)

Custom

33 37Thursday, March 28, 2013

2011/06/15 2012/07/11

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

PIR (PWR)

Custom

33 37Thursday, March 28, 2013

2011/06/15 2012/07/11

Compal Electronics, Inc.

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

13

Version change list (P.I.R. List) Page 1 of 1

for HW

Reason for change PG# Modify List Date PhaseItem

1

2

3

4

5

6

8

14

7

11

10

17

9

15

16

C38-G series Chief River Schematic

12

PVT

18

19

20

21

22

23

For EMI request 20 Change L67 to EMICP@, Change R692,R687 to EMICU@ 02/02

For Share ROM recoverable solution as

original method

05 Add RP12 02/02 PVT

For ZiZi noise 21 Change AVDD_HP from +3VS to +3VLP 02/02 PVT

For follow KABINI latest CRB 04 @ R576,C164,C342 02/02 PVT

For APU control PWM only 11 Delete R1465 02/02 PVT

For Corret Net-name to prevet confuse 04

11

Change TL_INVT_PWM, TL_ENVDD to APU_INVT_PWM, APU_ENVDD 02/02 PVT

For Reserve DDC CLK DATA pull high 12 Add R693, R697 02/02 PVT

For Common Intel project 13 Reserve R551 02/02 PVT

For Common Intel project 20 Change R623,R765,R303 to 620ohm 02/02 PVT

For reduce BOM 21 Delete RA3, and Change RA4 to short-pad 02/05 PVT

For reduce BOM 16 Change R1498,R1499 from 0 ohm to 100 ohm 02/05 PVT

For reduce BOM 11 Change R1463 from 0 ohm to short-pad 02/06 PVT

For better audio precision performance 21 Change CA27,CA28 from 1U to 2.2U 02/08 PVT

For reduce BOM & layout concern 07 Delete C195 02/16 PVT

For test point request 12 Add T49, T58 on JCRT1 02/18 PVT

For ESD request 15 Add C173, C178 02/18 PVT

For reduce BOM 05 Change R116, R119, R125, R126 to short-pad 02/18 PVT

For Crystal timming 06 Change C682 from 18P to 22P 02/20 PVT

For ESD request 20 Change D24 from ESDU@ to ESDP@, Part number from SCA00000E00

to SCA00001G00

02/23

02/23

PVT

For EMI request 11

17

20

Change L58,L51,L55,L66,L67 from SM070000K00 to SM070000Z00 PVT

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

PIR (PWR)

Custom

34 37Thursday, March 28, 2013

2011/06/15 2012/07/11

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

PIR (PWR)

Custom

34 37Thursday, March 28, 2013

2011/06/15 2012/07/11

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

PIR (PWR)

Custom

34 37Thursday, March 28, 2013

2011/06/15 2012/07/11

Compal Electronics, Inc.

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

13

Version change list (P.I.R. List) Page 1 of 1

for PWR

Reason for change PG# Modify List Date PhaseItem

1

2

3

4

5

6

8

14

7

11

10

17

9

15

16

C38-G series Chief River Schematic

12

For Common Intel project 20 Change R623,R765,R303 to 649ohm 03/05 PreMP

For Reduce BOM 05 Change R103, R104 to short-pad 03/11 PreMP

For Reduce BOM 11 Change R696, R695, R813 to short-pad 03/11 PreMP

For Reduce BOM 13 Change R550 to short-pad 03/11 PreMP

For Reduce BOM 18 Change R1564 to short-pad 03/11 PreMP

For Reduce BOM 19 Change R581 to short-pad 03/11 PreMP

For Reduce BOM 21 Change RA11 to short-pad 03/11 PreMP

For Reduce BOM 22 Change R339 to short-pad 03/11 PreMP

For Reduce BOM 07 Change R582 to short-pad 03/11 PreMP

For ESD require 20 Add C185 03/25 PreMP

For Module Design 12 Change R693, R697 from 10k to 4.7k 03/25 PreMP

For ESD require PreMP03/26Add C19504

PreMP03/26@ RP1104For Reduce BOM

For Board ID 18 @ R1562 and change R1564 to 0ohm 03/28 PreMP

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

PIR (PWR)

Custom

35 37Thursday, March 28, 2013

2011/06/15 2012/07/11

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

PIR (PWR)

Custom

35 37Thursday, March 28, 2013

2011/06/15 2012/07/11

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

PIR (PWR)

Custom

35 37Thursday, March 28, 2013

2011/06/15 2012/07/11

Compal Electronics, Inc.

A

A

B

B

C

C

D

D

E

E

1 1

2 2

3 3

4 4

B+

+5VALW

+3VLP

+EC_VCCA

+3VS

+1.5VS

+APU_CORE_NB

+APU_CORE

+3VALW

+3V_LAN

+VL

+0.75VS

+1.5V

+1.8VALW

PU401

SY8208BQKC

EC_ON

PU402

SY8208CQKC

EC_ON

P-CHANNEL

PMV65XP

LAN_PWR_ON#

U35P

TPS22966DPUR

SUSP#

PU502

SY8033BDBC

SPOK

+1.8VS

SUSP#

U1895P

TPS22966DPUR

U35P

TPS22966DPUR

SUSP#

+5VS

PU501

RT8207MZQW

SUSP# / SYSON

P-CHANNEL

LP2301ALT1G

SUSP#

+0.95VALW

PU601

TPS51212DSCR

SPOK

+0.95VS

SUSP#

U1895P

TPS22966DPUR

PU901

ISL62771HRTZ

+VSB

PQ204

TP0610K

SPOK

VR_ON

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

VAWGA/GB

1.0

Power Map

Custom

36 37Thursday, March 28, 2013

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

VAWGA/GB

1.0

Power Map

Custom

36 37Thursday, March 28, 2013

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

VAWGA/GB

1.0

Power Map

Custom

36 37Thursday, March 28, 2013

Compal Electronics, Inc.

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

Compal Electronics, Inc.

U35P

+5VS

V

U35P

+3VS

V

Q20

+1.5VS

V

APU

ON/OFF

VIN BATT+

SLP_S3# / SLP_S5#

SYS_PWRGD_EC

V

1B

SUSP#

U1895P

+1.8VS

U1895P

+0.95VS

PU501

+0.75VS

COMPAL CONFIDENTIAL

PCB NAME:

REVISION:

MODEL NAME:

2011/11/23

DATE:

EC

AC MODE

VIN

BATT MODE

BATT+

PU301

B+

PU502

+1.8VALW

PU601

+0.95VALW

V

EC_RSMRST#

ACIN

SPOK

VR_ON

15

APU_PWRGD PU901

+APU_CORE /

+APU_CORE_NB

VGATE

13

14

V

4A

15 APU_PWRGD

V

PU401

+3VALW/+3VLP

PU402

+5VALW / VL

EC_ON

B+B+

+3VLP +3VALW

B++3VALW

12

V V

+3VALW / +1.8VALW / +1.5VALW / +0.95VALW

+3VS / +1.8VS / +1.5VS / +0.95VS

+APU_CORE / +APU_CORE_NB

+RTCBATT

+CHGRTC_R +3VLP

PU102

+RTCBATT

RTC Battery

+CHGRTC_R

B+

+3VALW

+1.8VALW

+0.95VALW

+5VALW

+3VALW

+1.5V

B++5VALW

2A 2B

3A 3B

4A

3B

VV

5

5

LAN

WLAN / WiMAX

Mini-Express Card

APU_PCIE_RST#

+3V_LAN

+3VS +1.5VS

VV

VV

9

VV

V

16LPC_RST#

LAN_PERST#

D4

Diode

V

VV

095_18ALW_PWR_EN

V

095VS_PWR_EN

+5VALW

1A

3A 3B

PBTN_OUT#

B+

+3VALW

8

PU501

+1.5V

SYSON

V

+5VS / +3VS / +1.8VS

+5VALW

+5VALW

+5VALW

17

V

10KBRST#

7

6

5

V V

11

18

+5VALW

V

+5VALW

V V

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

Power sequence

Custom

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

Power sequence

Custom

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

1.0

Power sequence

Custom

www.s-manuals.com
