Compal Electronics, Inc.

Dell / Compal Confidential

X76@ : 76 level

46@ : 46 level

@ : Nopop component

CONN@ : Connector component

XDP@ : XDP function

UMA@ : Only for UMA

DIS@ : Only for Discrete

VENUS@ : VENUS Pro,VENUS XT

VENUSXT@ : VENUS XT

VENUSPRO@ : VENUS Pro

@VENUS@ : VENUS nopop component

EMI@ : EMI parts

@EMI@ : Reserve EMI parts

ESD@ : ESD parts

RF@ : RF parts

Intel Shark Bay ULT

OAK Mainstream2

UMA/DIS AMD Venus XT

2013-05-17 Rev: 1.0

Schematic Document

MODEL NAME : VBW11

PROJECT CODE : ANRVBW0100

PCB NO : DA8000WN000 LA-9984P M/B

DA40001FP00 LS-9102P USB/B

DA40001FR00 LS-9104P ODD/B

DA40001G400 LS-9105P POWER BUTTON/B

DA40001FQ00 LS-9106P TP BUTTON/B

BOM config

UMA : UMA@,EMI@,ESD@,RF@,XDP@

DIS VENUS : VENUS@,VENUSXT@,DIS@,EMI@,ESD@,RF@,XDP@

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

Cover Page

Custom

1 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

Cover Page

Custom

1 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

Cover Page

Custom

1 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

ZZZ1

PCB VBW11 LA9984P/LS9102P/LS9104P/LS9105P/LS9106P

R1@

DA8000WN000

ZZZ1

PCB VBW11 LA9984P/LS9102P/LS9104P/LS9105P/LS9106P

R1@

DA8000WN000

1 1

2 2

3 3

4 4

RTL8106E

Port 2

Card Reader

RTS5179/5170

Port 10

USB 3.0 Conn. 2

Daughter board

64M

PS/2

8GB Max

PEG 2.0 x4

BANK 0, 1, 2, 3, 4 ,5 ,6 ,7

DDRIII-DIMM X2

1.35V DDR3 1600 MHz

P.42

P.25

USB 3.0 Conn. 1

Digital Camera

Mini Card

Port 11

Port 8

P.41

P.26

LPC Bus

P.40P.27

ENE KBC

KB9012

Int.KBD

P.27

Touch Pad

USB2.0

Port 0,1

Port 0

Audio Codec

ALC3223 Int. Speaker R / L

Headphone Jack / Mic. Jack combo

HD Audio

Port 1,2

USB 2.0 Conn. 3

P.24

USB 3.0

Port 2,3

PCI-E

P.21

Port 1

SPI

Ethernet

RJ45

Intel

Haswell

Processor

15W DC

BGA1168

Intel

Lynx Point-LP

SPI ROM

P.9 P6~16

P.22

Dual Channel

Memory Bus (DDR3L)

SATA HDD Conn.

P.42

33MHz

SATA3.0

USB 2.0 Conn. 4

P.23

Half

Mini Card

WLAN/BT4.0

P.26

LVDS Conn.

HDMI Conn. HDMI

P.41

P.20

Port 1

Digital Mic.

P.27

Fan Control CPU XDP

Conn.

P.6

SATA ODD Conn.

Venus Pro(HD8850M)2GB GDDR5 (128Mx16x8pcs)

P.22

P.21

P.17~18

(With Digital MIC)

WLAN (Half)

P.41

Touch Screen

Port 9

P.23

3 in 1 Socket

RTD2136R

P.19

LVDS eDP

SMBus

P.34 P.35

128M*16

GDDR5*8

P.36

P.37

AMD

Venus Pro , 25W

P.28~33

64bit

128M*16

GDDR5*8

128M*16

GDDR5*8

128M*16

GDDR5*8

(OAK 15" only)

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

LA-9984P

1.0

2 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

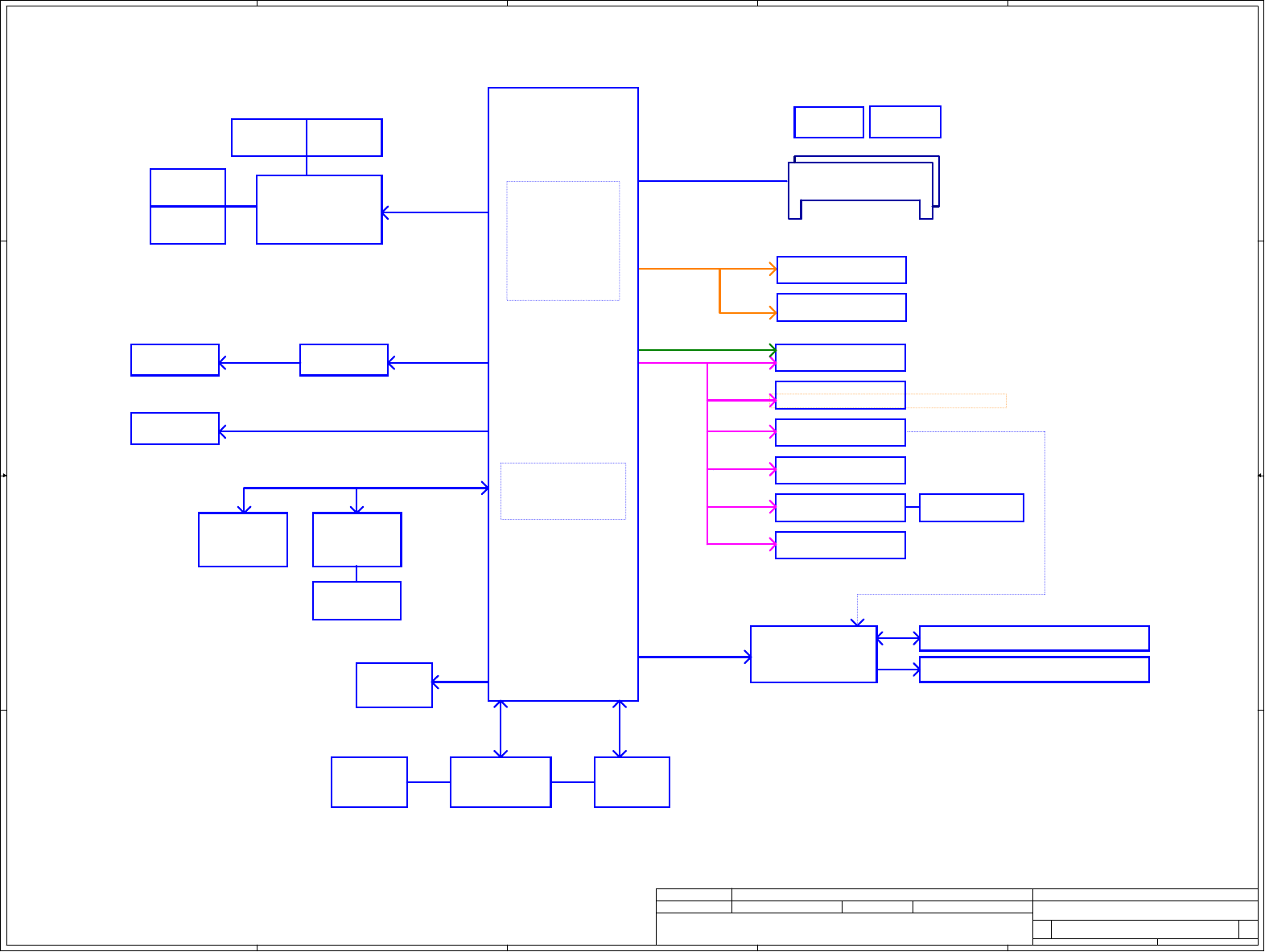

Block diagram

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

LA-9984P

1.0

2 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

Block diagram

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

LA-9984P

1.0

2 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

Block diagram

1 1

2 2

3 3

4 4

Compal Confidential

Project Code : VAW10 / VAW11

File Name : LA-9983P / LA-9984P

USB

RJ-45

HDMI

JRTC

2 pin

Led1

Led2

Led3

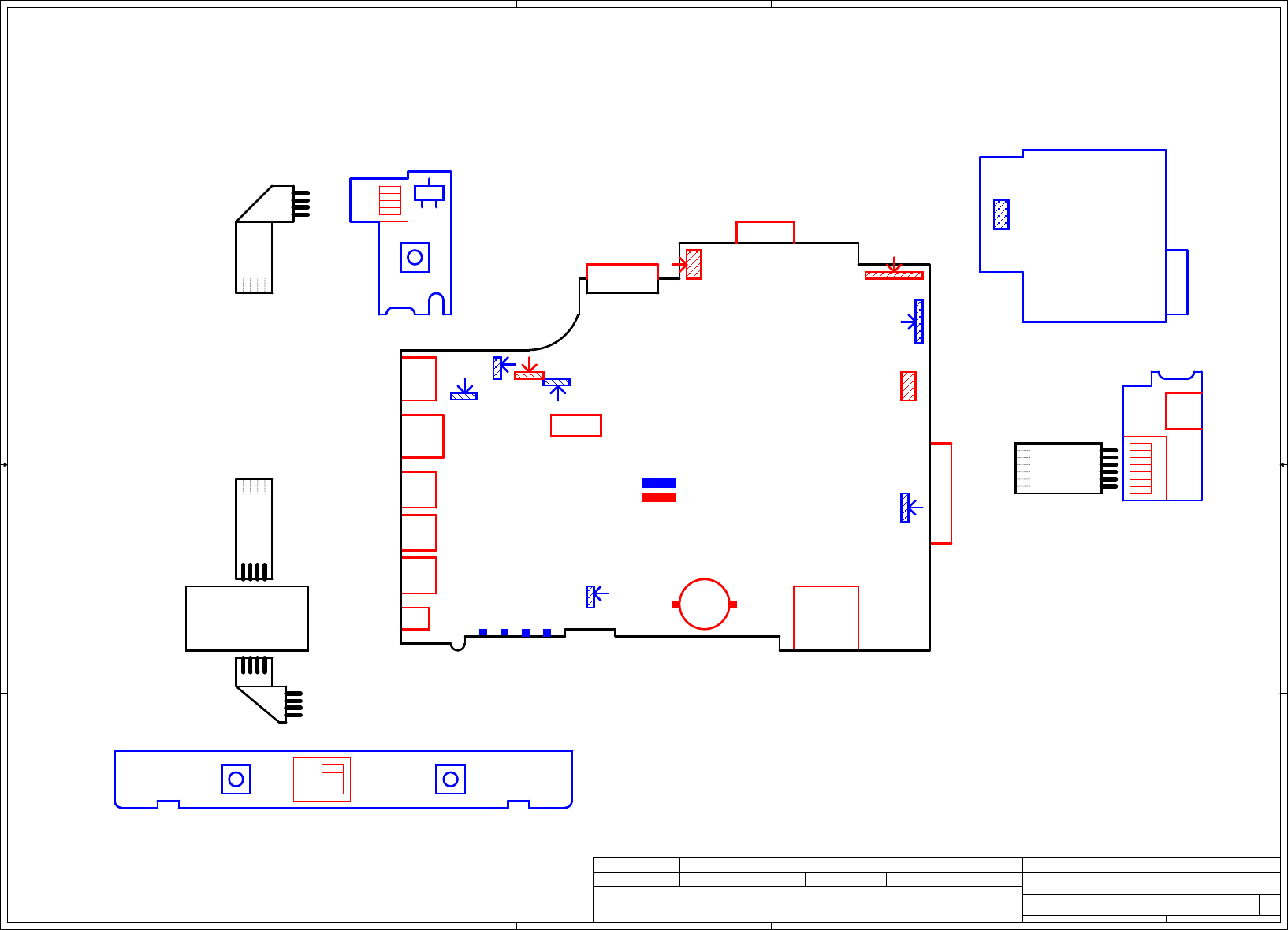

Led4

LA-9984P M/B

MINI Card

Battery

JMINI

PBATT

JHDD

Card

Reader

JREAD

JHDMI

JLAN

JUSB1

JUSB2

JUSB3

JHP

40 pin

JLVDS

JDB

8 pin

Bottom Side

Top Side

8 pin

Hot Bar

LS-9102P (USB/B)

USB

JUSB4

8 pin

USB-DB FFC

JKB

30 pin

SW2 SW3

LS-9106P (TP-BTN/B)

TP-Module

4 pin

TP-BTN FFC

6 pin

TP-MB FFC

4 pin

JPWR

6 pin

JTP

JFAN

3 pin

XDP

JXDP

(OAK 17")

JBTB2

12 pin

JODD

LS-9104P (ODD/B)

JBTB1

12 pin

JSPK

4 pin

RTC

5 pin

PJPDC

4 pin

JKBBL

LA-9983P M/B

4 pin

PWR-BTN FFC

SW1

(SN100004Y00)

4 pin

Hot Bar

Lid

LS-9105P (PWR/B)

UE5

(SA00003VQ00)

4 pin

Hot Bar

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

LA-9984P

1.0

3 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

DB block diagram

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

LA-9984P

1.0

3 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

DB block diagram

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

LA-9984P

1.0

3 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

DB block diagram

1 1

WLAN

mini card

SMBCLK

SMBDATA

ULT

DDR3LVGA

Link

XDP

ULT

Charger

EC_SMB_CK2

EC_SMB_DA2

SOURCE

KB9012

SMBUS Control Table

SML0CLK

SML0DATA

ULT

EC_SMB_CK1

EC_SMB_DA1

KB9012

RTD2136S

USB2.0

Port0

ULT

Touch Screen Panel

MINI Card (WLAN)

PCI EXPRESS

10/100 LAN

PEG (N14P)

10/100 LAN

CLKOUT_PCIE0

CLOCK SIGNAL

CLKOUT_PCIE1

CLKOUT_PCIE2

CLKOUT_PCIE3

CLKOUT_PCIE4

Vcc 3.3V +/- 1%

100K +/- 1%Ra

Rb V min

0 0.000V

0.347V

0.423V 0.430V

0.550V

0.360V

0.438V

AD_BID

V typ

AD_BID

max

15K +/- 1%

20K +/- 1%

27K +/- 1%

33K +/- 1%

43K +/- 1%

1.200V

0.000V 0.300V

756K +/- 1%

0.541V

0.691V

0.819V

0.713V

0.807V

0.978V 0.992V

1.185V

0.831V

0.702V

0.559V

Board ID Table for AD channel

0x00 - 0x0B

EC AD3

0x0C - 0x1C

0x1D - 0x26

0x27 - 0x30

0x31 - 0x3B

0x3C - 0x46

0x47 - 0x54

0x55 - 0x64

12K +/- 1%

1.169V

1.006V

0.354V

USB connector 3

USB connector 2

USB connector 4 (DB)

USB connector 1

MINI Card (WLAN)

Card Reader

Camera

Lane 1

Lane 2

Lane 3

Lane 4

Lane 5

Lane 6

HDD

ODD

SATA0

SATA1

SATA2

SATA3

SATA

Port1

Port2

Port3

Port4

USB3.0

Port1

Port2

Port3

Port4

Port5

Port6

Port7

USB connector 2

USB connector 1

CLKOUT_PCIE5

MINI Card (WLAN)

dGPU

BATT

SML1CLK

SML1DATA

Touch pad

75K +/- 1% 1.398V

1.634V

1.849V 1.865V

2.031V

1.667V

1.881V130K +/- 1%

160K +/- 1%

200K +/- 1%

240K +/- 1%

270K +/- 1%

2.544V

1.414V 1.430V

15 330K +/- 1%

2.015V

2.185V

2.329V

2.215V

2.316V

2.395V 2.408V

2.533V

2.343V

2.200V

2.046V

0x65 - 0x76

0x77 - 0x87

0x88 - 0x96

0x97 - 0xA3

0xA4 - 0xAD

0xAE - 0xB7

0xB8 - 0xC0

0xC1 - 0xC9

100K +/- 1%

2.521V

2.421V

1.650V

430K +/- 1%

560K +/- 1%

750K +/- 1%

3.300V

19 NC

2.667V

2.800V

2.687V

2.791V

2.905V 2.912V

3.300V

2.808V

2.677V 0xCA - 0xD3

0xD4 - 0xDC

0xDD - 0xE6

0xE7 - 0xFF3.000V

2.919V

Board ID

Board ID TABLE

SSI&A02

PCB Revision

SSI&A02

UMA Sun XT VenusPro VenusXT

SSI&A02

A01

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

LA-9984P

1.0

4 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

Notes List

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

LA-9984P

1.0

4 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

Notes List

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

LA-9984P

1.0

4 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

Notes List

D D

C C

B B

A A

MCH

Shark bay

SMBUS Address [0x9a]

MEM_SMBDATA

MEM_SMBCLK

AH1

AP2

+3.3V_ALW_PCH

2.2K

DDR_XDP_WLAN_TP_SMBDAT

DDR_XDP_WLAN_TP_SMBCLK

10K

+3VS

10K

DIMMA

SMBUS Address [A4]

DIMMB

SMBUS Address [A0]

SMBUS Address [TBD]

XDP1

SMBUS Address [TBD]

JMINI

DDR_XDP_SMBDAT_R1

DDR_XDP_SMBCLK_R1

SMBUS Address [TBD]

JTP

200

202

200

202

KBC

KB9012A4

0 ohm

AN1

AK1

+3.3V_ALW_PCH

SML0CLK

SML0DATA

AN1

AK1

+3.3V_ALW_PCH

2.2K

SML1_SMBCLK

SML1_SMBDATA

N-MOS

EC_SMB_CK2

EC_SMB_DA2

+3VALW

2.2K

UV28

0 ohm

LVDS

Translator

0 ohm

CSCL

CSDA

CIICSCL

CIICSDA

N-MOS

+3VALW

2.2K

EC_SMB_CK1

EC_SMB_DA1

100 ohm

100 ohm PD1

6 5

BATT

BAT_ALERT

BATT_PRS

PBATT1 CONN

SDA

SCL

POWERPU701 Charger

0 ohm

SMBUS Address [0x16]

SMBUS Address [0x12]

SMBUS Address [TBD]

80 EC_SMB_DA2

EC_SMB_CK2

2.2K

+3VS_VGA

2.2K

VGA_SMB_CK2

VGA_SMB_DA2 T3

UV28 GPU SMBUS Address [0xXX]

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

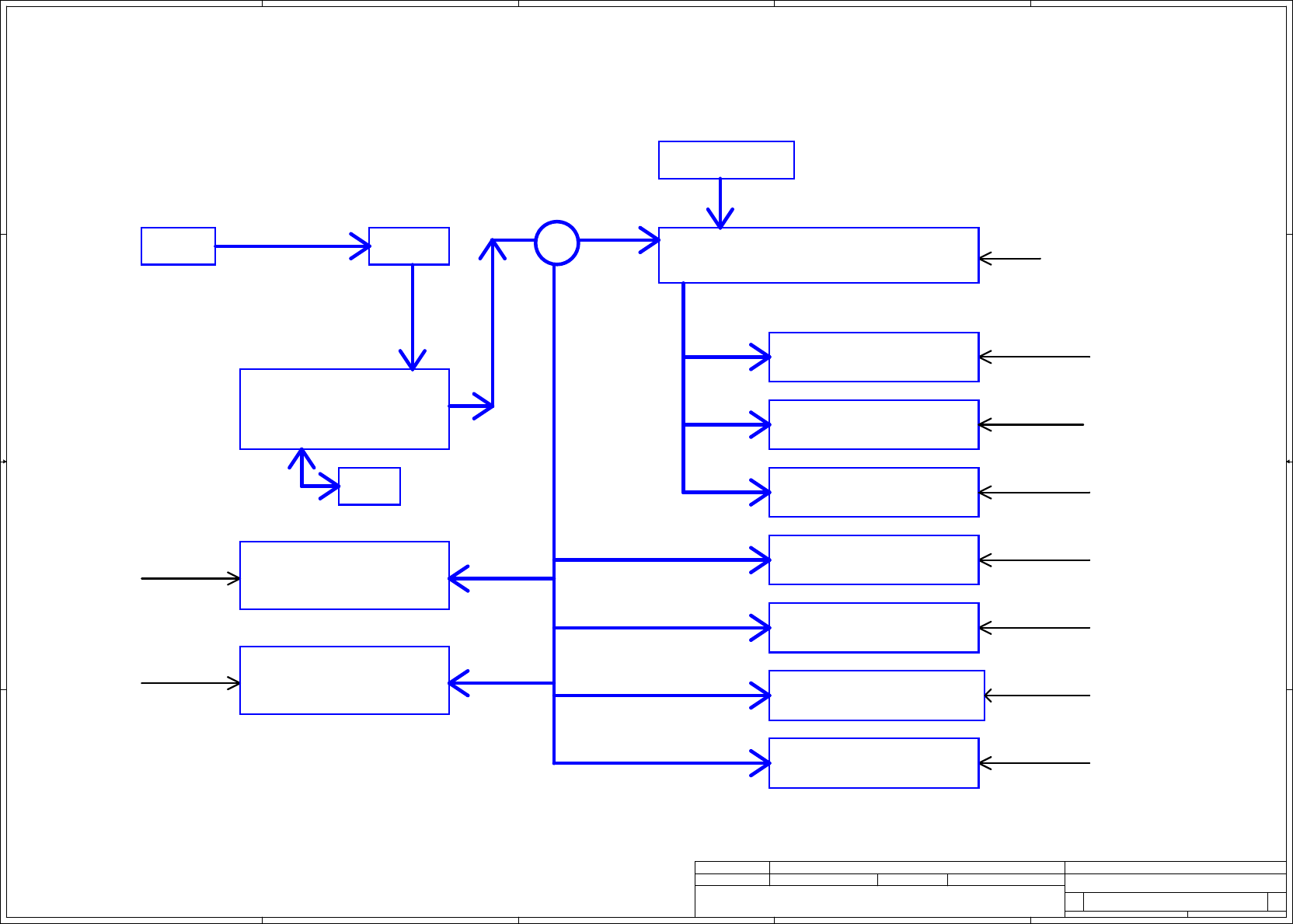

SMBus block diagram

5 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

SMBus block diagram

5 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

SMBus block diagram

5 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

D D

C C

B B

A A

reference Shark Bay ULT Validation Customer Debug Port

Implementation Requirement Rev 1.0

CAD Note:

Trace width=12~15 mil, Spcing=20 mils

Max trace length= 500 mil

CAD Note:

Avoid stub in the PWRGD path

while placing resistors RC115

DDR3 COMPENSATION SIGNALS

Place near JXDP1.47

Place near JXDP1

PU/PD for JTAG signals

i5-4200U-15W-GT2-MP

i3-4010U-15W-GT2-MP

i7-4500U-15W-GT2-MP

ESD solution

Place CC29

close to UC4

Place CC30

close to RC51.1

Place CC35

on BOT

COMPENSATION PU FOR eDP

CAD Note:Trace width=20 mils ,Spacing=25mil,

Max length=100 mils.

PECI_EC

CFG3_R

H_PROCHOT#

H_PROCHOT#_R

RUNPWROK

TRST#_XDP XDP_TRST#

XDP_TMS

XDP_TDI

XDP_TDOPCH_JTAG_TDO

H_CPUPW RGD

SYS_PW ROK_XDP

H_CPUPW RGD

CPU_DETECT#

H_CPUPW RGD H_VCCST_PW RGD_XDP

H_CATERR#

SM_RCOMP1

SM_RCOMP2

SM_RCOMP0

H_CATERR#

SM_RCOMP1

SM_RCOMP2

SM_RCOMP0

TRST#_XDP

TDO_XDP

TDI_XDP

TMS_XDP

CFG8

CFG9

CFG15

CFG14

CFG18

CFG17

CFG16

CFG2

SYS_PW ROK

CFG10

CFG11CFG3

CFG3

XDP_OBS1_R

XDP_OBS0_R

CFG13

CFG12

CFG19

CFD_PWRBTN#_XDP

XDP_TCLK

XDP_PRDY#

XDP_PREQ#

XDP_RST#_R

DDR_XDP_SMBCLK_R1

DDR_XDP_SMBDAT_R1

CPU_PW R_DEBUG#_R PLT_RST#

CFG0

CFG1

CFG4

CFG7

CFG6

CFG5

SYS_PW ROK_XDP

XDP_PREQ#

XDP_TCK

XDP_TMS

XDP_TRST#

XDP_TDI

XDP_TDO

PCH_JTAG_RST#

XDP_TDI

XDP_TMS

XDP_PREQ#

CLK_XDP

CLK_XDP#

XDP_PRDY#

XDP_OBS1_R

XDP_OBS0_R

XDP_TRST#

XDP_TCK

PCH_JTAG_TCK

XDP_DBRESET#

TDO_XDP

PCH_JTAG_RST#

PCH_JTAG_TCK

PCH_JTAG_TDO TDI_XDP_R

XDP_TCLK

XDP_DBRESET#

TDO_XDP

XDP_TDO

SYS_RESET#

TDO_XDP

TDI_XDP TDI_XDP_R

TMS_XDP

XDP_TRST#

XDP_TCLK

RUNPWROK

PLT_RST#

DDR3_DRAMRST#_CPU

EDP_DISP_UTIL

EDP_CPU_AUX

EDP_CPU_LANE_P1

EDP_CPU_LANE_N1

EDP_COMP

EDP_CPU_AUX#

EDP_CPU_LANE_N0

EDP_CPU_LANE_P0

DDI1_LANE_N3

DDI1_LANE_P0

DDI1_LANE_N0

DDI1_LANE_N2

DDI1_LANE_N1

DDI1_LANE_P3

DDI1_LANE_P2

DDI1_LANE_P1

RUNPWROK<30>

PCH_JTAG_TMS<8>

PCH_JTAG_TDI<8>

PCH_JTAG_TDO<8>

H_PROCHOT#<30,36>

PECI_EC<30>

DDR3_DRAMRST#_CPU<17>

DDR_PG_CTRL<17>

CPU_DETECT#<30>

CFG17 <16>

CFG16 <16>

CFG8 <16>

CFG9 <16>

CFG10 <16>

CFG11 <16>

CFG19 <16>

CFG18 <16>

CFG12 <16>

CFG13 <16>

CFG14 <16>

CFG15 <16>

CFG0<16>

DDR_XDP_W LAN_TP_SMBDAT<17,18,19,26,27,9>

DDR_XDP_W LAN_TP_SMBCLK<17,18,19,26,27,9>

CPU_PW R_DEBUG#<13>

CFG1<16>

CFG2<16>

CFG3<16>

CFG4<16>

CFG5<16>

CFG6<16>

CFG7<16>

PBTN_OUT#<10,30>

PCH_JTAG_RST# <8>

CLK_CPU_ITP# <9>

CLK_CPU_ITP <9>

PLT_RST# <10,21,26,30,48>

PCH_JTAG_JTAGX<8>

SYS_RESET# <10>

SYS_PW ROK<10,30>

PCH_JTAG_TCK<8>

EDP_CPU_LANE_N1 <19>

EDP_CPU_LANE_P1 <19>

DDI1_LANE_N0<20>

EDP_CPU_AUX# <19>

DDI1_LANE_P0<20>

DDI1_LANE_N1<20>

DDI1_LANE_P1<20>

DDI1_LANE_N2<20>

DDI1_LANE_P2<20>

DDI1_LANE_N3<20>

DDI1_LANE_P3<20>

EDP_CPU_AUX <19>

EDP_CPU_LANE_N0 <19>

EDP_CPU_LANE_P0 <19>

EDP_BIA_PW M <10,19>

+1.05VS

+3VS

+3VALW _PCH

+1.05VS+1.05VS

+1.05VS

+3VS

+VCCIOA_OUT

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

6 55Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MCP(1,2/19) eDP,XDP,MISC

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

6 55Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MCP(1,2/19) eDP,XDP,MISC

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

6 55Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MCP(1,2/19) eDP,XDP,MISC

CC30

0.047U_0402_16V4Z

ESD@CC30

0.047U_0402_16V4Z

ESD@

UC1

CL8064701478202 SR16Q C1 1.7G BGA

4010Ui3G2R1@

SA00006SX1L

UC1

CL8064701478202 SR16Q C1 1.7G BGA

4010Ui3G2R1@

SA00006SX1L

R2341

0_0402_5%

R2341

0_0402_5%

1 2

RC140 0_0402_5%XDP@RC140 0_0402_5%XDP@

1 2

UC1

CL8064701477702 SR170 C1 1.6G A31!

4200Ui5G2R3@

SA00006SM3L

UC1

CL8064701477702 SR170 C1 1.6G A31!

4200Ui5G2R3@

SA00006SM3L

RC72

0_0402_5%

RC72

0_0402_5%

1 2

RC52 0_0402_5%XDP@RC52 0_0402_5%XDP@

1 2

CC13

0.1U_0402_10V7K

CC13

0.1U_0402_10V7K

RC139 0_0402_5%XDP@RC139 0_0402_5%XDP@

1 2

RC70100_0402_1% RC70100_0402_1%

CC15

0.1U_0402_10V7K

XDP@

CC15

0.1U_0402_10V7K

XDP@

RP46

0_8P4R_5%

XDP@

RP46

0_8P4R_5%

XDP@

1 8

2 7

3 6

4 5

HASWELL_MCP_E

DDI EDP

Rev1p2

1 OF 19

UC1A

HASWELL_MCP_E

DDI EDP

Rev1p2

1 OF 19

UC1A

EDP_DISP_UTIL A43

EDP_RCOMP D20

DDI2_TXP3

B53 DDI2_TXN3

A53 DDI2_TXP2

B50 DDI2_TXN2

C49

DDI2_TXN1

C53

DDI2_TXN0

C51

DDI2_TXP0

C50

DDI2_TXP1

B54

DDI1_TXP3

B57

EDP_AUXN A45

EDP_AUXP B45

EDP_TXP3 B49

EDP_TXN3 A49

EDP_TXP2 C46

EDP_TXN2 C47

EDP_TXP1 B47

EDP_TXN1 A47

EDP_TXN0 C45

EDP_TXP0 B46

DDI1_TXN3

A57 DDI1_TXP2

A55 DDI1_TXN2

B55 DDI1_TXP1

C58 DDI1_TXN1

B58 DDI1_TXP0

C55 DDI1_TXN0

C54

T115@T115@

CC27

100P_0402_50V8J

ESD@

CC27

100P_0402_50V8J

ESD@

JXDP1

SAMTE_BSH-030-01-L-D-A

CONN@

JXDP1

SAMTE_BSH-030-01-L-D-A

CONN@

GND0

OBSFN_A0

OBSFN_A1

GND2

OBSDATA_A0

OBSDATA_A1

GND4

OBSDATA_A2

OBSDATA_A3

GND6

OBSFN_B0

OBSFN_B1

GND8

OBSDATA_B0

OBSDATA_B1

GND10

OBSDATA_B2

OBSDATA_B3

GND12

PWRGOOD/HOOK0

HOOK1

VCC_OBS_AB

HOOK2

HOOK3

GND14

SDA

SCL

TCK1

TCK0

GND16

GND1 2

OBSFN_C0 4

OBSFN_C1 6

GND3 8

OBSDATA_C0 10

OBSDATA_C1 12

GND5 14

OBSDATA_C2 16

OBSDATA_C3 18

GND7 20

OBSFN_D0 22

OBSFN_D1 24

GND9 26

OBSDATA_D0 28

OBSDATA_D1 30

GND11 32

OBSDATA_D2 34

OBSDATA_D3 36

GND13 38

ITPCLK/HOOK4 40

ITPCLK#/HOOK5 42

VCC_OBS_CD 44

RESET#/HOOK6 46

DBR#/HOOK7 48

GND15 50

TD0 52

TRST# 54

TDI 56

TMS 58

GND17 60

RC66

10K_0402_5%

RC66

10K_0402_5%

MISC

JTAG

DDR3

PWR

THERMAL

HASWELL_MCP_E

Rev1p2

2 OF 19

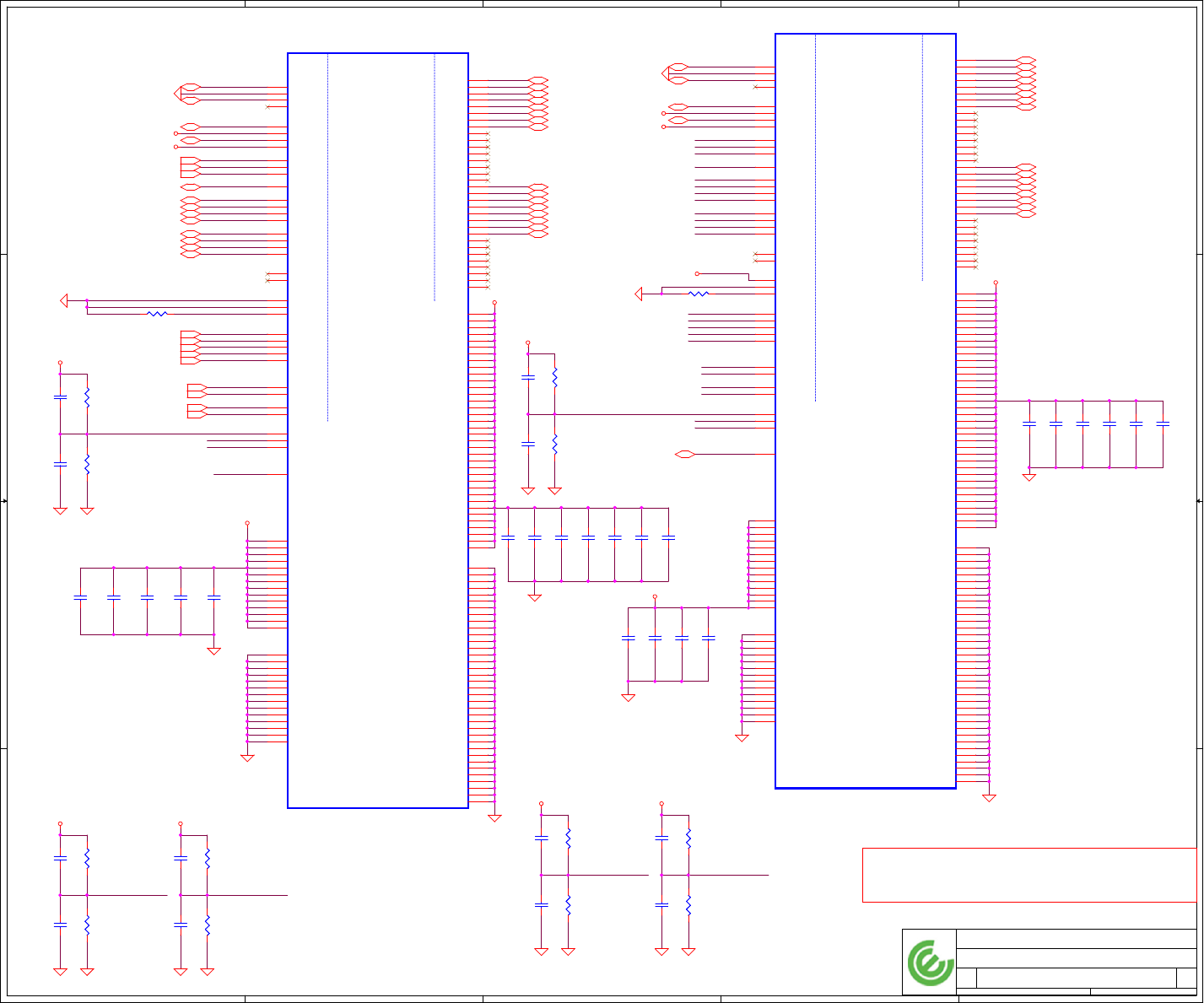

UC1B

MISC

JTAG

DDR3

PWR

THERMAL

HASWELL_MCP_E

Rev1p2

2 OF 19

UC1B

PREQ K62

PRDY J62

PROC_TCK E60

PROC_TRST E59

PROCHOT

K63

PROCPWRGD

C61

CATERR

K61

PECI

N62

PROC_DETECT

D61

PROC_TMS E61

PROC_TDI F63

PROC_TDO F62

BPM#0 J60

BPM#2 H61

BPM#1 H60

BPM#3 H62

BPM#7 J61

SM_RCOMP0

AU60

SM_RCOMP1

AV60

SM_RCOMP2

AU61

SM_PG_CNTL1

AV61

BPM#6 K60

BPM#5 H63

BPM#4 K59

SM_DRAMRST

AV15

RC570_0402_1%

RP45

51_8P4R_5%

RP45

51_8P4R_5%

1 8

2 7

3 6

4 5

RC60 62_0402_5%RC60 62_0402_5%

1 2

T112@T112@

RC26

0_0402_1%

RC26

0_0402_1%

1 2

RC45 0_0402_1%

1 2

CC16

0.1U_0402_10V7K

ESD@

CC16

0.1U_0402_10V7K

ESD@

CC35

0.047U_0402_16V4Z

ESD@CC35

0.047U_0402_16V4Z

ESD@

RC56 1K_0402_5%

XDP@

RC56 1K_0402_5%

XDP@

1 2

RC51

1K_0402_5%

XDP@

RC51

1K_0402_5%

XDP@

T116@T116@

CC29

0.1U_0402_10V7K

ESD@CC29

0.1U_0402_10V7K

ESD@

RC630_0402_5% XDP@ RC630_0402_5% XDP@

T111@T111@

RC68200_0402_1% RC68200_0402_1%

UC4

74CBTLV3126BQ_DHVQFN14_2P5X3

@UC4

74CBTLV3126BQ_DHVQFN14_2P5X3

1OE

21B 3

2OE

52B 6

GND 7

3B 8

3OE

4B 11

4OE

VCC

GND PAD 15

RC58 49.9_0402_1%@RC58 49.9_0402_1%@

1 2

RC49 0_0402_5%XDP@RC49 0_0402_5%XDP@

1 2

RC64

1K_0402_5%

RC64

1K_0402_5%

1 2

RC362

1K_0402_1%

RC362

1K_0402_1%

RC141 0_0402_1%@RC141 0_0402_1%@

1 2

RC620_0402_5% XDP@ RC620_0402_5% XDP@

UC1

CL8064701477702 SR170 C1 1.6G BGA

4200Ui5G2R1@

SA00006SM2L

UC1

CL8064701477702 SR170 C1 1.6G BGA

4200Ui5G2R1@

SA00006SM2L

RC650_0402_5% XDP@ RC650_0402_5% XDP@

RC50 0_0402_5%XDP@RC50 0_0402_5%XDP@

1 2

UC1

CL8064701477202 SR16Z C1 1.8G A31!

4500Ui7G2R3@

SA00006SL2L

UC1

CL8064701477202 SR16Z C1 1.8G A31!

4500Ui7G2R3@

SA00006SL2L

RC67 56_0402_5%RC67 56_0402_5%

1 2

T114@T114@

RC590_0402_1%

1 2

CC14

0.1U_0402_10V7K

XDP@

CC14

0.1U_0402_10V7K

XDP@

T113@T113@

RC46 0_0402_1%

1 2

RC48 1K_0402_5%XDP@RC48 1K_0402_5%XDP@

1 2

RC69120_0402_1% RC69120_0402_1%

RC7124.9_0402_1%~D RC7124.9_0402_1%~D

UC1

CL8064701478202 SR16Q C1 1.7G A31!

4010Ui3G2R3@

SA00006SX2L

UC1

CL8064701478202 SR16Q C1 1.7G A31!

4010Ui3G2R3@

SA00006SX2L

UC1

CL8064701477202 SR16Z C1 1.8G BGA

4500Ui7G2R1@

SA00006SL1L

UC1

CL8064701477202 SR16Z C1 1.8G BGA

4500Ui7G2R1@

SA00006SL1L

RP44

51_8P4R_5%

@RP44

51_8P4R_5%

1 8

2 7

3 6

4 5

RC43 0_0402_1%

1 2

CC17

0.1U_0402_10V7K

CC17

0.1U_0402_10V7K

1 2

RC44 0_0402_1%

1 2

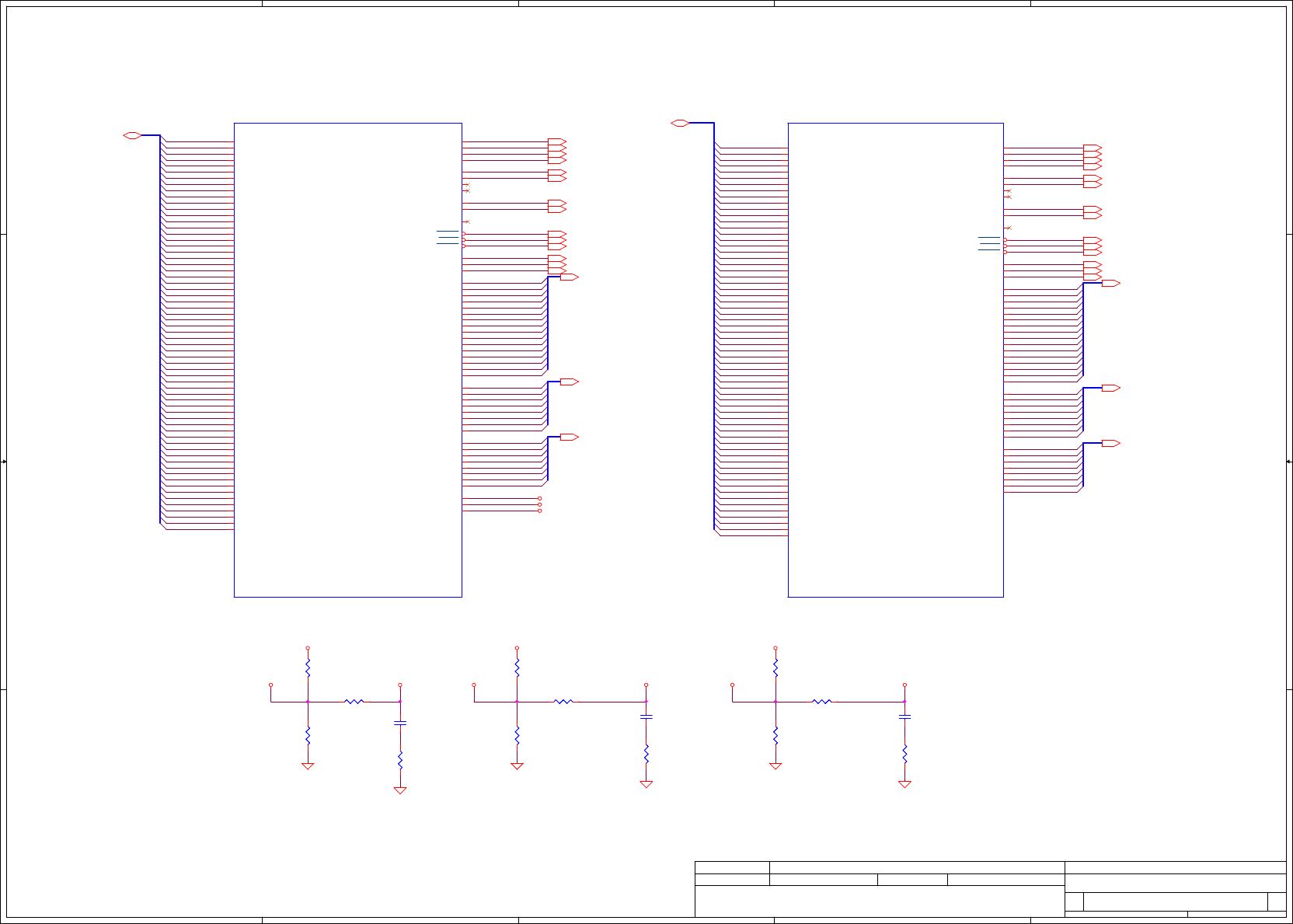

D D

C C

B B

A A

change 22nF change 22nF change 22nF

confirm by intel request PDG P141

DDR_CKE2_DIMMBDDR_CKE1_DIMMA

DDR_A_DQS7

DDR_A_DQS1

DDR_A_DQS2

DDR_A_DQS5

DDR_A_DQS3

DDR_A_DQS4

DDR_A_DQS0

DDR_A_DQS6

DDR_A_DQS#5

DDR_A_DQS#7

DDR_A_DQS#2

DDR_A_DQS#1

DDR_A_DQS#0

DDR_A_DQS#3

DDR_A_DQS#4

DDR_A_DQS#6

DDR_B_BS2

DDR_B_BS0

DDR_B_BS1

DDR_CKE3_DIMMB

DDR_B_D29

DDR_B_D59

DDR_B_D50

DDR_B_D49

DDR_B_D13

DDR_B_D19

DDR_B_D14

DDR_B_D3

DDR_B_D55

DDR_B_D47

DDR_B_D52

DDR_B_D44

DDR_B_D41

DDR_B_D8

DDR_B_D5

DDR_B_D56

DDR_B_D48

DDR_B_D38

DDR_B_D35

DDR_B_D26

DDR_B_D25

DDR_B_D4

DDR_B_D63

DDR_B_D34

DDR_B_D32

DDR_B_D10

DDR_B_D17

DDR_B_D51

DDR_B_D40

DDR_B_D36

DDR_B_D31

DDR_B_D21

DDR_B_D20

DDR_B_D15

DDR_B_D7

DDR_B_D62

DDR_B_D46

DDR_B_D42

DDR_B_D18

DDR_B_D12

DDR_B_D1

DDR_B_D53

DDR_B_D37

DDR_B_D22

DDR_B_D57

DDR_B_D27

DDR_B_D54

DDR_B_D45

DDR_B_D39

DDR_B_D30

DDR_B_D9

DDR_B_D60

DDR_B_D58

DDR_B_D33

DDR_B_D0

DDR_B_D61

DDR_B_D43

DDR_B_D28

DDR_B_D23

DDR_B_D24

DDR_B_D16

DDR_B_D6

DDR_B_D2

DDR_B_D11

DDR_A_MA0

DDR_A_MA1

DDR_A_MA3

DDR_A_MA7

DDR_A_MA8

DDR_A_MA13

DDR_A_MA2

DDR_A_MA14

DDR_A_MA5

DDR_A_MA10

DDR_A_MA4

DDR_A_MA11

DDR_A_MA9

DDR_A_MA6

DDR_A_MA12

DDR_CS1_DIMMA#

DDR_CS0_DIMMA#

DDR_A_MA15

DDR_B_CAS#

DDR_B_RAS#

DDR_B_WE#

DDR_A_BS0

DDR_A_BS1

DDR_A_BS2

DDR_B_DQS3

DDR_B_DQS2

DDR_B_DQS7

DDR_B_DQS4

DDR_B_DQS1

DDR_B_DQS5

DDR_B_DQS6

DDR_B_DQS0

M_CLK_DDR0

M_CLK_DDR#0

M_CLK_DDR1

M_CLK_DDR#1

M_CLK_DDR3

M_CLK_DDR#3

M_CLK_DDR#2

M_CLK_DDR2

DDR_B_MA10

DDR_B_MA9

DDR_B_MA14

DDR_B_MA5

DDR_B_MA13

DDR_B_MA11

DDR_B_MA7

DDR_B_MA2

DDR_B_MA0

DDR_B_MA6

DDR_B_MA1

DDR_B_MA12

DDR_B_MA4

DDR_B_MA8

DDR_B_MA3

DDR_B_MA15

DDR_A_RAS#

DDR_A_WE#

DDR_A_CAS#

DDR_A_D27

DDR_A_D35

DDR_A_D56

DDR_A_D23

DDR_A_D53

DDR_A_D47

DDR_A_D49

DDR_A_D29

DDR_A_D42

DDR_A_D61

DDR_A_D30

DDR_A_D36

DDR_A_D57

DDR_A_D59

DDR_A_D24

DDR_A_D48

DDR_A_D50

DDR_A_D28

DDR_A_D43

DDR_A_D62

DDR_A_D31

DDR_A_D37

DDR_A_D39

DDR_A_D58

DDR_A_D25

DDR_A_D33

DDR_A_D54

DDR_A_D51

DDR_A_D44

DDR_A_D46

DDR_A_D32

DDR_A_D38

DDR_A_D40

DDR_A_D26

DDR_A_D34

DDR_A_D55

DDR_A_D52

DDR_A_D45

DDR_A_D63

DDR_A_D41

DDR_A_D60

DDR_A_D0

DDR_A_D1

DDR_A_D2

DDR_A_D3

DDR_A_D4

DDR_A_D5

DDR_A_D6

DDR_A_D9

DDR_A_D18

DDR_A_D14

DDR_A_D8

DDR_A_D17

DDR_CS2_DIMMB#

DDR_CS3_DIMMB#

DDR_A_D13

DDR_A_D22

DDR_A_D21

DDR_A_D7

DDR_A_D16

DDR_A_D12

DDR_A_D20

DDR_A_D10

DDR_A_D15

DDR_A_D11

DDR_A_D19

DDR_CKE0_DIMMA

DDR_B_DQS#3

DDR_B_DQS#6

DDR_B_DQS#1

DDR_B_DQS#2

DDR_B_DQS#0

DDR_B_DQS#5

DDR_B_DQS#7

DDR_B_DQS#4

DDR_A_BS2 <17>

DDR_A_D[0..63]<17>

DDR_A_DQS[0..7] <17>

DDR_A_DQS#[0..7] <17>

DDR_A_MA[0..15] <17>

DDR_A_WE# <17>

DDR_A_CAS# <17>

DDR_A_BS0 <17>

DDR_A_BS1 <17>

DDR_A_RAS# <17>

M_CLK_DDR#0 <17>

M_CLK_DDR0 <17>

M_CLK_DDR#1 <17>

DDR_CKE0_DIMMA <17>

DDR_CKE1_DIMMA <17>

M_CLK_DDR1 <17>

DDR_CS0_DIMMA# <17>

DDR_CS1_DIMMA# <17>

DDR_B_D[0..63]<18>

DDR_B_DQS[0..7] <18>

DDR_B_DQS#[0..7] <18>

DDR_B_MA[0..15] <18>

DDR_B_BS1 <18>

DDR_CS2_DIMMB# <18>

DDR_CS3_DIMMB# <18>

DDR_B_BS2 <18>

DDR_B_RAS# <18>

M_CLK_DDR#2 <18>

M_CLK_DDR2 <18>

M_CLK_DDR#3 <18>

DDR_CKE2_DIMMB <18>

DDR_CKE3_DIMMB <18>

M_CLK_DDR3 <18>

DDR_B_WE# <18>

DDR_B_CAS# <18>

DDR_B_BS0 <18>

+SM_VREF_CA

+SM_VREF_DQ0

+SM_VREF_DQ1

+1.35V

+SM_VREF_CA +SM_VREF_DQ1

+1.35V

+SM_VREF_DQ0

+1.35V

+SM_VREF_DQ0_DIMM1+SM_VREF_CA_DIMM +SM_VREF_DQ1_DIMM2

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

7 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MCP(3,4/19) DDR3

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

7 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MCP(3,4/19) DDR3

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

7 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MCP(3,4/19) DDR3

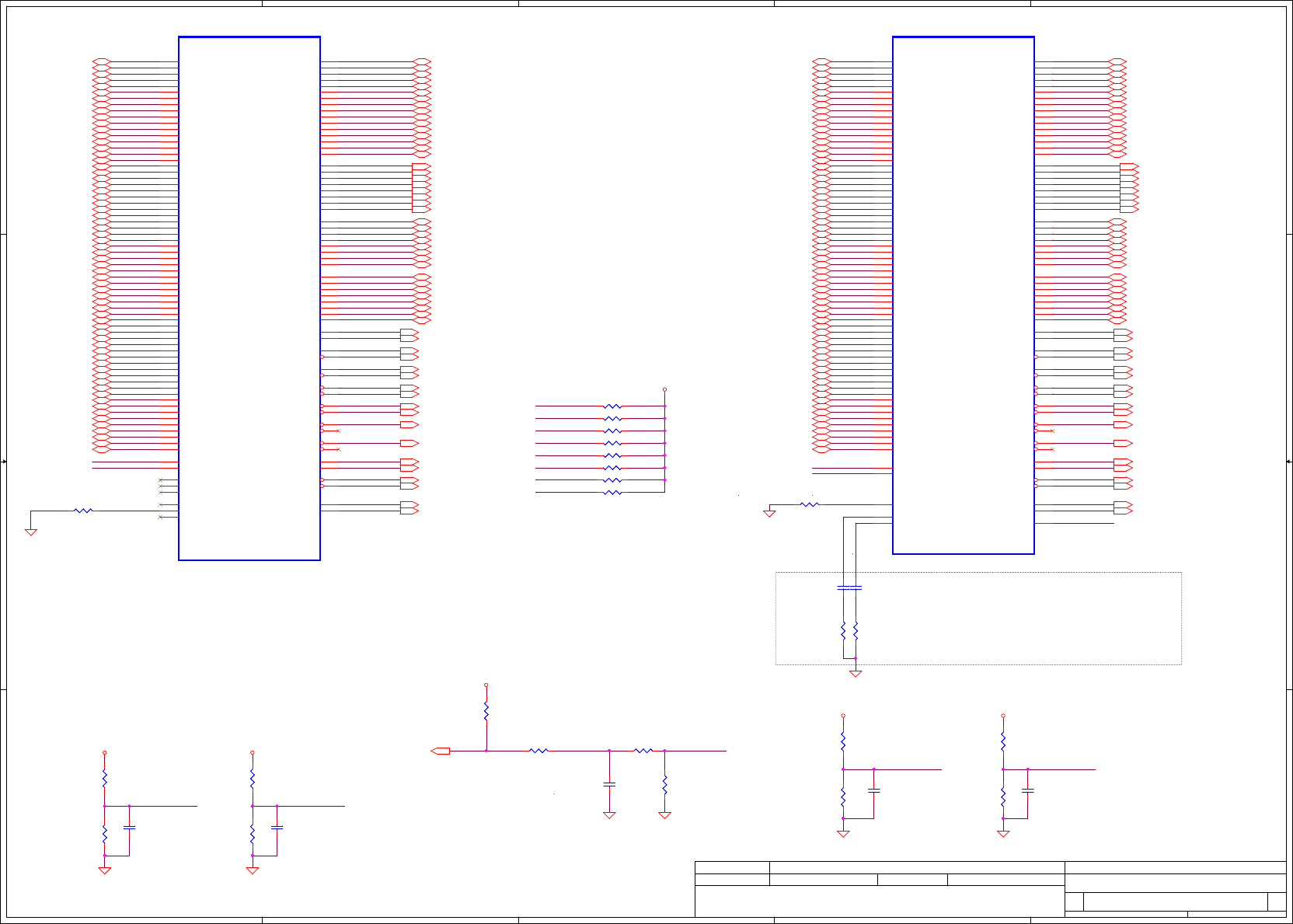

CC9

0.022U_0402_16V7K

CC9

0.022U_0402_16V7K

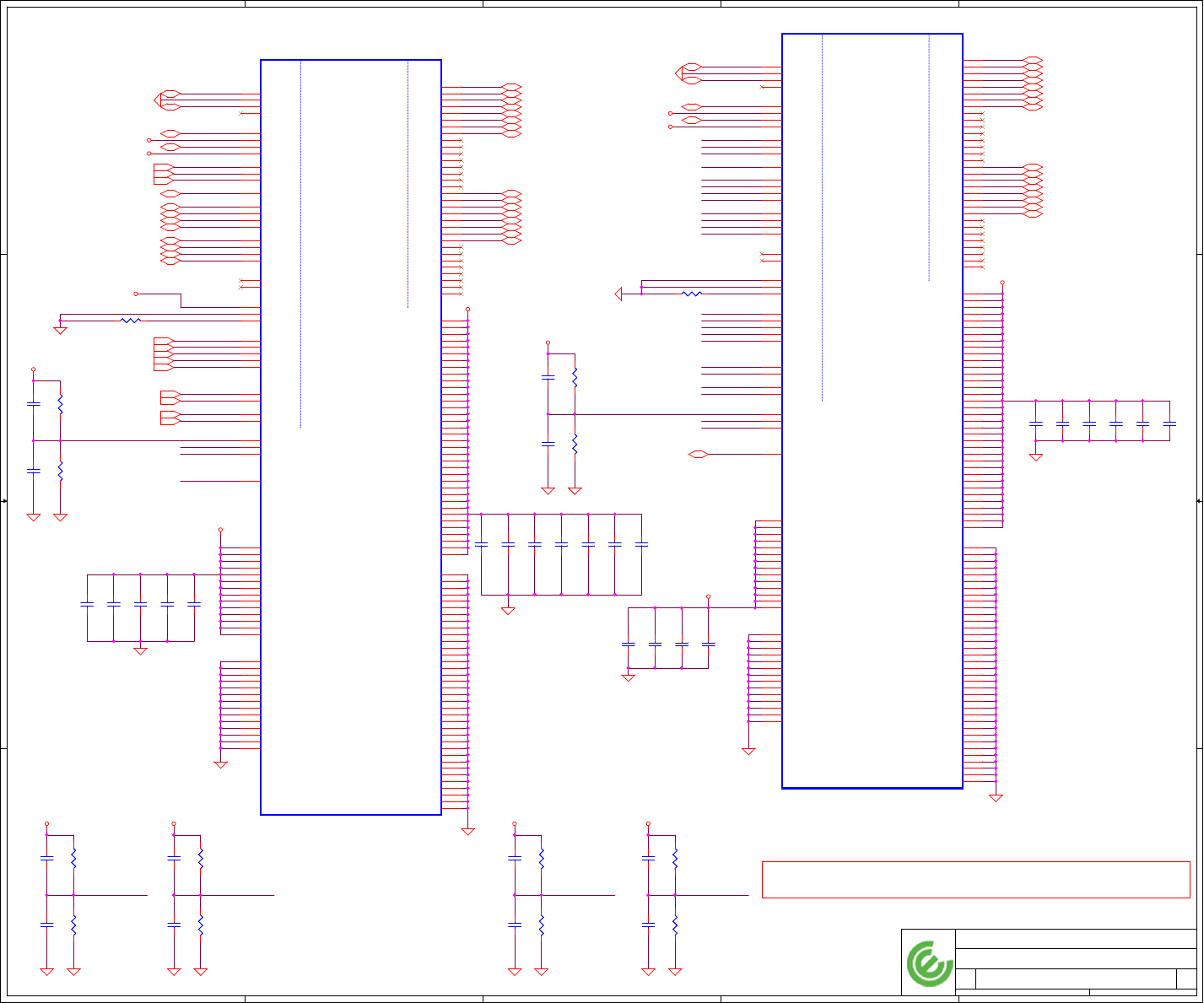

DDR CHANNEL B

HASWELL_MCP_E

Rev1p2

4 OF 19

UC1D

DDR CHANNEL B

HASWELL_MCP_E

Rev1p2

4 OF 19

UC1D

SB_DQSP4 AV22

SB_DQSP5 AW18

SB_DQSP6 AM21

SB_DQSP3 AM25

SB_DQSP7 AM18

SB_DQSP2 AM28

SB_DQSN7 AN18

SB_DQSP0 AV30

SB_DQSP1 AW26

SB_DQSN6 AN21

SB_DQSN2 AN28

SB_DQSN3 AN25

SB_DQSN4 AW22

SB_DQSN5 AV18

SB_DQSN1 AV26

SB_DQSN0 AW30

SB_MA14 AR46

SB_MA15 AP46

SB_MA13 AK33

SB_MA9 AU46

SB_MA10 AK36

SB_MA11 AV47

SB_MA8 AY47

SB_MA12 AU47

SB_MA4 AR45

SB_MA5 AP45

SB_MA6 AW46

SB_MA3 AR42

SB_MA7 AY46

SB_MA2 AP42

SB_MA0 AP40

SB_MA1 AR40

SB_BA2 AU49

SB_W E AK35

SB_CAS AM33

SB_BA0 AL35

SB_BA1 AM36

SB_RAS AM35

SB_CS#1 AK32

SB_ODT0 AL32

SB_CS#0 AM32

SB_CKE1 AU50

SB_CKE2 AW49

SB_CKE3 AV50

SB_CKE0 AY49

SB_CK#1 AK38

SB_CK1 AL38

SB_CK0 AN38

SB_CK#0 AM38

SB_DQ61

AM20

SB_DQ63

AP18 SB_DQ62

AR18

SB_DQ57

AR20 SB_DQ56

AN20

SB_DQ58

AK18

SB_DQ59

AL18

SB_DQ60

AK20

SB_DQ51

AM22

SB_DQ52

AN22

SB_DQ53

AP21

SB_DQ54

AK21

SB_DQ55

AK22

SB_DQ46

AV17

SB_DQ47

AU17

SB_DQ48

AR21

SB_DQ49

AR22

SB_DQ50

AL21

SB_DQ45

AU19

SB_DQ41

AW19

SB_DQ42

AY17

SB_DQ43

AW17

SB_DQ44

AV19

SB_DQ40

AY19

SB_DQ36

AV23

SB_DQ37

AU23

SB_DQ38

AV21

SB_DQ39

AU21

SB_DQ35

AW21

SB_DQ31

AL25

SB_DQ32

AY23

SB_DQ33

AW23

SB_DQ30

AK25

SB_DQ34

AY21

SB_DQ26

AR25 SB_DQ25

AR26

SB_DQ27

AP25

SB_DQ28

AK26

SB_DQ29

AM26

SB_DQ20

AR29

SB_DQ21

AN29

SB_DQ22

AR28

SB_DQ23

AP28

SB_DQ24

AN26

SB_DQ15

AU25

SB_DQ16

AM29

SB_DQ17

AK29

SB_DQ18

AL28

SB_DQ19

AK28

SB_DQ10

AY25

SB_DQ11

AW25

SB_DQ13

AU27

SB_DQ5

AU31

SB_DQ6

AV29

SB_DQ7

AU29

SB_DQ8

AY27

SB_DQ9

AW27

SB_DQ0

AY31

SB_DQ1

AW31

SB_DQ2

AY29

SB_DQ3

AW29

SB_DQ4

AV31

SB_DQ14

AV25

SB_DQ12

AV27

RC15

1.82K_0402_1%

RC15

1.82K_0402_1%

CC8

0.022U_0402_16V7K

CC8

0.022U_0402_16V7K

RC23

24.9_0402_1%~D

RC23

24.9_0402_1%~D

RC20

1.82K_0402_1%

RC20

1.82K_0402_1%

RC16

1.82K_0402_1%

RC16

1.82K_0402_1%

RC22

1.82K_0402_1%

RC22

1.82K_0402_1%

RC18

2.2_0402_1%

RC18

2.2_0402_1%

1 2

RC19

2.2_0402_1%

RC19

2.2_0402_1%

1 2

RC14

1.82K_0402_1%

RC14

1.82K_0402_1%

RC17

2.2_0402_1%

RC17

2.2_0402_1%

1 2

RC25

24.9_0402_1%~D

RC25

24.9_0402_1%~D

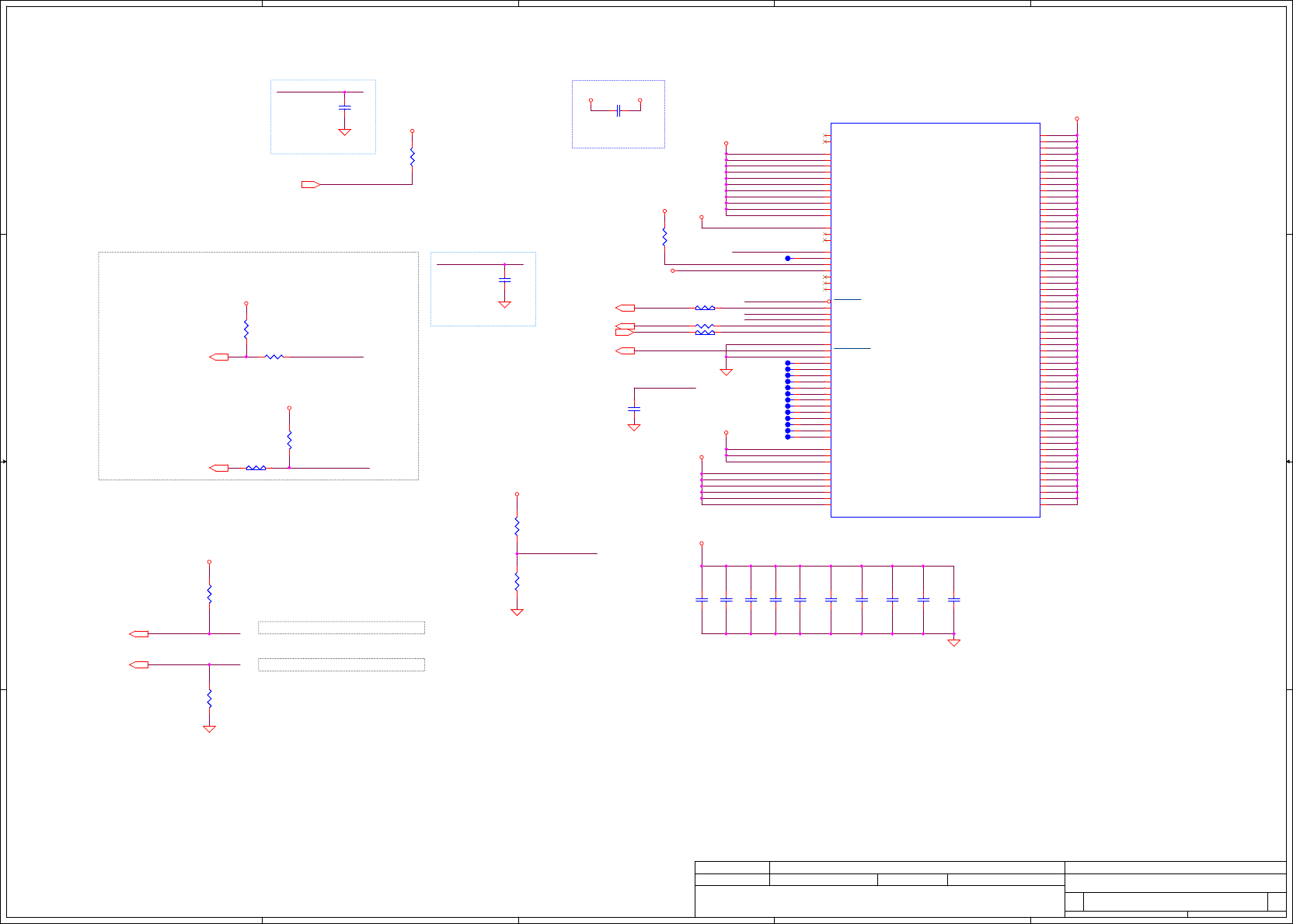

DDR CHANNEL A

HASWELL_MCP_E

Rev1p2

3 OF 19

UC1C

DDR CHANNEL A

HASWELL_MCP_E

Rev1p2

3 OF 19

UC1C

SA_DQ25

AR55

SA_DQ28

AL55

SA_CLK1 AY36

SA_CLK#1 AW36

SA_CLK0 AV37

SA_CLK#0 AU37

SA_DQ0

AH63

SA_DQ1

AH62

SA_DQ2

AK63

SA_DQ3

AK62

SA_DQ4

AH61

SA_DQ5

AH60

SA_DQ6

AK61

SA_DQ7

AK60

SA_DQ8

AM63

SA_DQ9

AM62

SA_DQ10

AP63

SA_DQ11

AP62

SA_DQ12

AM61

SA_DQ13

AM60

SA_DQ14

AP61

SA_DQ16

AP58

SA_DQ17

AR58

SA_DQ18

AM57

SA_DQ19

AK57

SA_DQ20

AL58

SA_DQ21

AK58

SA_DQ22

AR57

SA_DQ23

AN57

SA_DQ24

AP55

SA_DQ27

AK54 SA_DQ26

AM54

SA_DQ29

AK55

SA_DQ30

AR54

SA_DQ31

AN54

SA_DQ32

AY58

SA_DQ33

AW58

SA_DQ34

AY56

SA_DQ35

AW56

SA_DQ36

AV58

SA_DQ37

AU58

SA_DQ38

AV56

SA_DQ39

AU56

SA_DQ40

AY54

SA_DQ41

AW54

SA_DQ42

AY52

SA_DQ43

AW52

SA_DQ44

AV54

SA_DQ45

AU54

SA_DQ46

AV52

SA_DQ47

AU52

SA_DQ48

AK40

SA_DQ49

AK42

SA_DQ50

AM43

SA_DQ51

AM45

SA_DQ52

AK45

SA_DQ53

AK43

SA_DQ54

AM40

SA_DQ55

AM42

SA_DQ56

AM46

SA_DQ57

AK46

SA_DQ58

AM49

SA_DQ59

AK49

SA_DQ60

AM48

SA_DQ61

AK48

SA_DQ62

AM51

SA_DQ63

AK51

SA_DQ15

AP60

SA_CKE2 AY42

SA_CKE1 AW43

SA_CKE0 AU43

SA_CKE3 AY43

SA_CS#1 AR32

SA_CS#0 AP33

SA_ODT0 AP32

SA_RAS AY34

SA_CAS AU34

SA_WE AW34

SA_BA0 AU35

SA_BA1 AV35

SA_BA2 AY41

SA_MA1 AY37

SA_MA0 AU36

SA_MA2 AR38

SA_MA3 AP36

SA_MA4 AU39

SA_MA5 AR36

SA_MA7 AW39

SA_MA6 AV40

SA_MA9 AU40

SA_MA8 AY39

SA_MA11 AW41

SA_MA12 AU41

SA_MA10 AP35

SA_MA14 AV42

SA_MA13 AR35

SA_MA15 AU42

SA_DQSN0 AJ61

SA_DQSN2 AM58

SA_DQSN1 AN62

SA_DQSN3 AM55

SA_DQSN5 AV53

SA_DQSN4 AV57

SA_DQSN7 AL48

SA_DQSN6 AL43

SA_DQSP1 AN61

SA_DQSP0 AJ62

SA_DQSP4 AW57

SA_DQSP3 AN55

SA_DQSP2 AN58

SA_DQSP6 AL42

SA_DQSP5 AW53

SA_DQSP7 AL49

SM_VREF_CA AP49

SM_VREF_DQ1 AP51

SM_VREF_DQ0 AR51

RC21

1.82K_0402_1%

RC21

1.82K_0402_1%

RC24

24.9_0402_1%~D

RC24

24.9_0402_1%~D

CC10

0.022U_0402_16V7K

CC10

0.022U_0402_16V7K

D D

C C

B B

A A

LOW = DESABLED (DEFAULT)

HIGH = ENABLED

FLASH DESCRIPTOR SECURITY OVERRIDE

High - Enable Internal VRs

Low - Enable External VRs

INTVRMEN - INTEGRATED SUS 1.05V VRM

ENABLE

CMOS setting

Shunt Clear CMOS

Keep CMOS

TPM setting

Shunt Clear ME RTC Registers

Keep ME RTC Registers

ME_CLR1

Open

CMOS_CLR1

Open

SATA HDD

SATA ODD

RTC Battery

W=20mils

CMOS place near DIMM

PCH Rx side need use strap pin to update PCIE +/-

within 500 mils

SATA Impedance Compensation

CAD note:

Place the resistor within 500 mils of the PCH. Avoid

routing next to clock pins.

reference FFRD sch 0.5

W=20mils

HDA for Codec

EMI depop location

For GCLK

PCH_AZ_SDOUT

PCH_INTVRMEN

INTRUDER#

PCH_RTCX2

PCH_JTAG_TMS

PCH_JTAG_TDI

PCH_JTAG_TDO

PCH_RTCX1

PCH_JTAG_RST#

PCH_INTVRMEN

SRTCRST#

PCH_RTCRST#

PCH_AZ_BITCLK

PCH_AZ_SYNC

PCH_AZ_RST#

PCH_AZ_CODEC_SDIN0

PCH_AZ_SDOUT

PCH_GPIO37

PCH_JTAG_TCK

PCH_JTAG_JTAGX

PCH_GPIO37

PCH_GPIO35

ODD_DETECT#

SATA_ACT#

SATA_RCOMP

SATA_IREF

PCH_JTAG_TCK

PCH_JTAG_JTAGX

PCH_JTAG_TDI

PCH_JTAG_TDO

PCH_JTAG_TMS

ODD_DETECT#

PCH_GPIO35

EC_SMI#

PCH_AZ_RST#

PCH_AZ_SYNC

PCH_AZ_SDOUT

PCH_AZ_BITCLK

PCH_RTCX1

ME_EN<30>

PCH_AZ_CODEC_SDIN0<22>

PCH_JTAG_TCK<6>

PCH_JTAG_TDI<6>

PCH_JTAG_TDO<6>

PCH_JTAG_TMS<6>

EC_SMI# <30>

SATA_PRX_DTX_P0_C <32>

SATA_PTX_DRX_N0_C <32>

SATA_PTX_DRX_P0_C <32>

SATA_PRX_DTX_N0_C <32>

SATA_PRX_DTX_P1_C <32>

SATA_PTX_DRX_N1_C <32>

SATA_PTX_DRX_P1_C <32>

SATA_PRX_DTX_N1_C <32>

SATA_ACT# <26>

PCH_JTAG_JTAGX<6>

PCH_JTAG_RST#<6>

ODD_DETECT# <32>

PCH_AZ_CODEC_RST#<22>

PCH_AZ_CODEC_SYNC<22>

PCH_AZ_CODEC_SDOUT<22>

PCH_AZ_CODEC_BITCLK<22>

PCH_RTCX1<29>

+RTCVCC

+3VS

+RTCVCC

+3VS

+1.05VS_ASATA3PLL

+1.05VS

+CHGRTC

+RTCBATT

+RTCVCC

+3VLP

+CHGRTC

+3VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

8 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MCP(5/19) RTC,SATA,HDA,JTAG

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

8 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MCP(5/19) RTC,SATA,HDA,JTAG

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

8 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MCP(5/19) RTC,SATA,HDA,JTAG

RP48

51_8P4R_5%

RP48

51_8P4R_5%

1 8

2 7

3 6

4 5

R2356 33_0402_5%EMI@ R2356 33_0402_5%EMI@

1 2

RC8 1K_0402_5%RC8 1K_0402_5%

1 2

CC3 1U_0402_6.3V6KCC3 1U_0402_6.3V6K

1 2

RC135 51_0402_1%

RC130 1K_0402_1%

YC1

32.768KHZ_12.5PF_Q13FC1350000

XTAL@

YC1

32.768KHZ_12.5PF_Q13FC1350000

XTAL@

R2357 33_0402_5%EMI@ R2357 33_0402_5%EMI@

1 2

JP12

JUMP_43X39

JP12

JUMP_43X39

CC26

1U_0603_10V6K

CC26

1U_0603_10V6K

RC2

330K_0402_1%

RC2

330K_0402_1%

SATAAUDIO

RTC

JTAG

HASWELL_MCP_E

Rev1p2

5 OF 19

UC1E

SATAAUDIO

RTC

JTAG

HASWELL_MCP_E

Rev1p2

5 OF 19

UC1E

INTVRMEN

AV7

SRTCRST

AV6

RTCRST

AU7

RTCX1

AW5

SATA_RN0/PERN6_L3 J5

SATA_RP0/PERP6_L3 H5

SATA_TN0/PETN6_L3 B15

SATA_TP0/PETP6_L3 A15

SATA_RP1/PERP6_L2 H8

SATA_RN1/PERN6_L2 J8

SATA_TN1/PETN6_L2 A17

SATA_TP1/PETP6_L2 B17

SATA_RP2/PERP6_L1 H6

SATA_RN2/PERN6_L1 J6

SATA_TN2/PETN6_L1 B14

SATA_TP2/PETP6_L1 C15

SATA_RN3/PERN6_L0 F5

SATA_RP3/PERP6_L0 E5

SATA_TN3/PETN6_L0 C17

SATA_TP3/PETP6_L0 D17

SATA0GP/GPIO34 V1

SATA1GP/GPIO35 U1

SATA2GP/GPIO36 V6

SATA3GP/GPIO37 AC1

SATA_IREF A12

SATA_RCOMP C12

INTRUDER

AU6 RTCX2

AY5

JTAGX

AE63

SATALED U3

I2S1_SCLK

AY8

RSVD

AV2

RSVD

AL11

RSVD

AC4

HDA_BCLK/I2S0_SCLK

AW8

HDA_SYNC/I2S0_SFRM

AV11

HDA_RST/I2S_MCLK

AU8

HDA_SDI0/I2S0_RXD

AY10

HDA_SDO/I2S0_TXD

AU11 HDA_SDI1/I2S1_RXD

AU12

HDA_DOCK_EN/I2S1_TXD

AW10

HDA_DOCK_RST/I2S1_SFRM

AV10

PCH_TRST

AU62

PCH_TCK

AE62

PCH_TDI

AD61

PCH_TDO

AE61

PCH_TMS

AD62 RSVD K10

RSVD L11

RC5 20K_0402_5%RC5 20K_0402_5%

1 2

ME1 SHORT PADS~D

122

R2358 33_0402_5%EMI@ R2358 33_0402_5%EMI@

1 2

CC5

27P_0402_50V8J

@EMI@

CC5

27P_0402_50V8J

@EMI@

RC126 0_0603_1%@RC126 0_0603_1%@

1 2

RC131 3.01K_0402_1%RC131 3.01K_0402_1%

1 2

RC1

330K_0402_1%

RC1

330K_0402_1%

CC4 1U_0402_6.3V6K

1 2

CC1

15P_0402_50V8J

XTAL@

CC1

15P_0402_50V8J

XTAL@

1 2

CC2

15P_0402_50V8J

XTAL@CC2

15P_0402_50V8J

XTAL@

1 2

RC3 1K_0402_5%@RC3 1K_0402_5%@

1 2

RP37

10K_8P4R_5%

RP37

10K_8P4R_5%

1 8

2 7

3 6

4 5

RC4

10M_0402_5%

XTAL@

RC4

10M_0402_5%

XTAL@

CMOS1 SHORT PADS~D

122

RC6 20K_0402_5%RC6 20K_0402_5%

1 2

RC10

1K_0402_5%

RC10

1K_0402_5%

1 2

RC107

10K_0402_5%

RC107

10K_0402_5%

1 2

R2359 33_0402_5%EMI@ R2359 33_0402_5%EMI@

1 2

RC7 1M_0402_5%RC7 1M_0402_5%

1 2

DC1

BAT54CW_SOT323-3

DC1

BAT54CW_SOT323-3

D D

C C

B B

A A

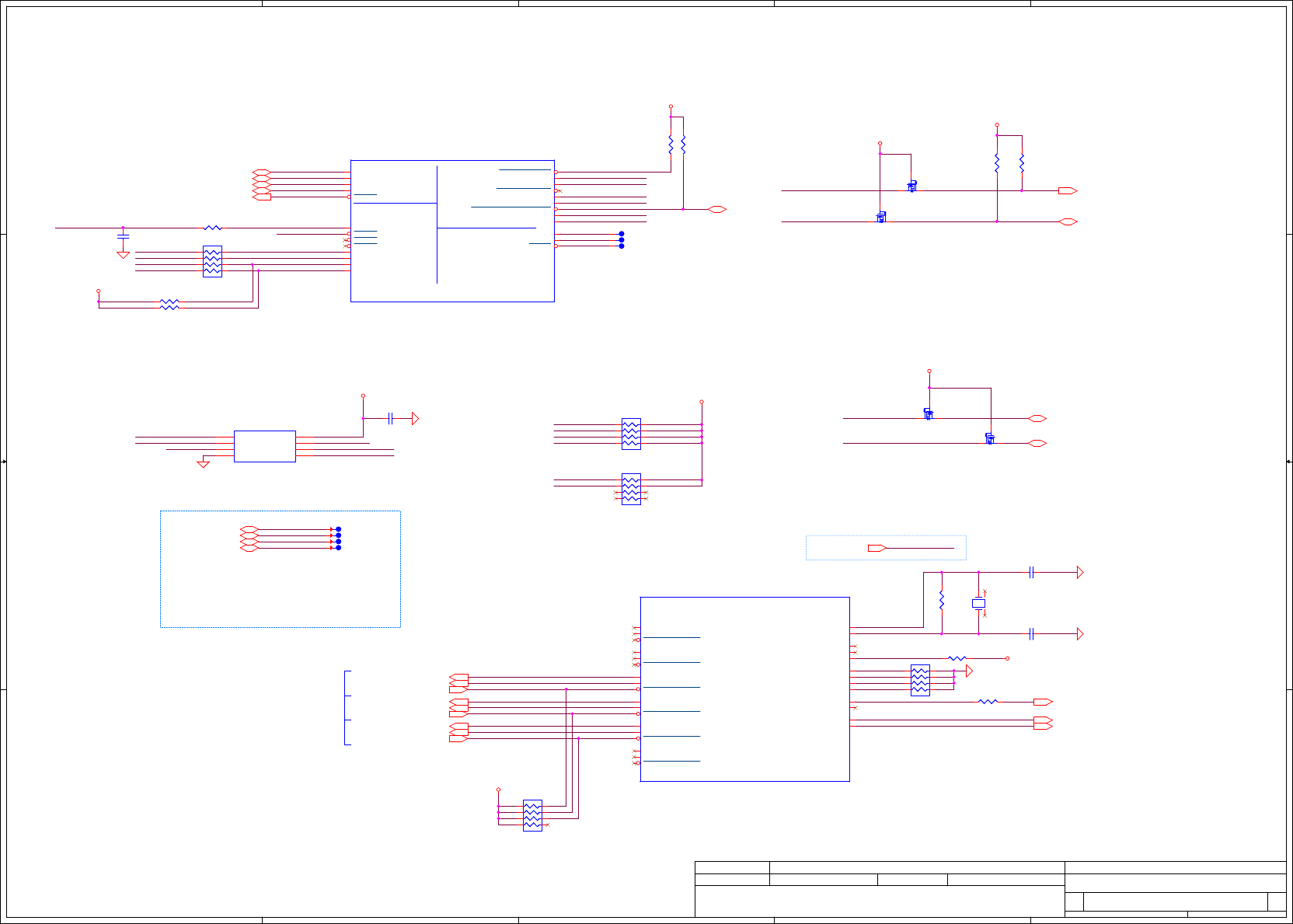

SPI ROM ( 8MByte )

EMI

MEM Bus : DDR/XDP/WLAN/TP

SML1 Bus : EC/Sensors

PN : SA000046400 ,64M,EN25Q64-104HIP

10/100 LAN ------->

dGPU--->

WLAN(Mini Card)--->

Place T183, T184, T185, T186 close to

PCH_SPI_MOSI_1

PCH_SPI_MISO_1

PCH_SPI_CLK_R

PCH_SPI_CS0#

near U2302

For GCLK

MEM_SMBDATA

MEM_SMBCLKLPC_LAD3

LPC_LAD1

LPC_LFRAME#

LPC_LAD2

LPC_LAD0

XTAL24_OUT

SML0CLK

SML0DATA

SML1_SMBCLK

SML1_SMBDATA

MEM_SMBCLK

MEM_SMBDATA

PCH_SMB_ALERT#

XTAL24_IN

SML1_SMBCLK

SML1_SMBDATA

CLK_BIASREF

PCH_SPI_CLKPCH_SPI_CLK_R

PCH_SPI_MOSI_1

PCH_SPI_MISO_1

PCH_SPI_WP1#

PCH_SPI_HOLD1#

PCH_SPI_MOSI

PCH_SPI_MISO

PCH_SPI_CS0#

PCH_SPI_WP#

PCH_SPI_HOLD#

PCH_SPI_MISO_1

PCH_SPI_MOSI_1

PCH_SPI_HOLD1#

PCH_SPI_CLK_R

PCH_SPI_CS0#

PCH_SPI_WP1#

MEM_SMBCLK

MEM_SMBDATA

SML1_SMBCLK

SML1_SMBDATA

PCH_HOT#

CLKOUT_LPC0

SML0CLK

SML0DATA

CLK_PCIE_LAN#

CLK_PCIE_LAN

CLK_PEG_VGA#

CLK_PEG_VGA

CLK_PCIE_WLAN#

CLK_PCIE_WLAN

EC_SPI_MISO_1

EC_SPI_MOSI_1

EC_SPI_CS0#

EC_SPI_CLK_R

XTAL24_IN

LPC_LAD0<30>

LPC_LAD1<30>

LPC_LAD2<30>

LPC_LAD3<30>

LPC_LFRAME#<30>

DDR_XDP_WLAN_TP_SMBDAT <17,18,19,26,27,6>

DDR_XDP_WLAN_TP_SMBCLK <17,18,19,26,27,6>

EC_SMB_CK2 <19,30,49>

EC_SMB_DA2 <19,30,49>

PCH_HOT# <30>

CLK_PCI_LPC <30>

CLK_CPU_ITP# <6>

CLK_CPU_ITP <6>

CLK_PCIE_LAN<21>

CLK_PCIE_LAN#<21>

LAN_CLKREQ#<21>

CLK_PCIE_WLAN<26>

CLK_PCIE_WLAN#<26>

WLAN_CLKREQ#<26>

CLK_PEG_VGA<48>

CLK_PEG_VGA#<48>

PEG_CLKREQ#<49>

EC_SPI_MISO_1<30>

EC_SPI_MOSI_1<30>

EC_SPI_CS0#<30>

EC_SPI_CLK_R<30>

XTAL24_IN<29>

+3VS

+1.05VS_AXCK_LCPLL

+3VS

+3VALW_PCH

+3VS

+3VALW_PCH

+3VS

+3VALW_PCH

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

9 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MCP(6,7/19) CLK,SMB,SPI,LPC

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

9 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MCP(6,7/19) CLK,SMB,SPI,LPC

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

9 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MCP(6,7/19) CLK,SMB,SPI,LPC

QH1B

DMN66D0LDW-7_SOT363-6

QH1B

DMN66D0LDW-7_SOT363-6

QC1A

DMN66D0LDW-7_SOT363-6

QC1A

DMN66D0LDW-7_SOT363-6

3 4

C2327

0.1U_0402_10V7K

C2327

0.1U_0402_10V7K

1 2

R2333

15_0402_1%

EMI@

R2333

15_0402_1%

EMI@

1 2

R2331

10K_0402_5%

R2331

10K_0402_5%

T97@T97@

R2332

10K_0402_5%

R2332

10K_0402_5%

R2336

22_0402_5%

EMI@

R2336

22_0402_5%

EMI@

T186PAD~D @T186PAD~D @

RC12

1M_0402_5%

XTAL@

RC12

1M_0402_5%

XTAL@

1 2

SPI C-LINK

SMBUS

LPC

HASWELL_MCP_E

Rev1p2

7 OF 19

UC1G

SPI C-LINK

SMBUS

LPC

HASWELL_MCP_E

Rev1p2

7 OF 19

UC1G

LAD0

AU14

LAD1

AW12

LAD2

AY12

LAD3

AW11

LFRAME

AV12

SPI_CS0

Y7 SPI_CLK

AA3

SPI_CS1

SPI_CS2

AC2

SPI_MOSI

AA2

SPI_MISO

AA4

SPI_IO2

SPI_IO3

AF1

SMBALERT/GPIO11 AN2

SMBCLK AP2

SML0ALERT/GPIO60 AL2

SMBDATA AH1

SML0CLK AN1

SML0DATA AK1

SML1ALERT/PCHHOT/GPIO73 AU4

SML1DATA/GPIO74 AH3

SML1CLK/GPIO75 AU3

CL_CLK AF2

CL_DATA AD2

CL_RST AF4

RP49

1K_0804_8P4R_5%

RP49

1K_0804_8P4R_5%

1 8

2 7

3 6

4 5

R2334 1K_0402_1%R2334 1K_0402_1%

1 2

R2335 1K_0402_1% R2335 1K_0402_1%

1 2

HASWELL_MCP_E

CLOCK

SIGNALS

Rev1p2

6 OF 19

UC1F

HASWELL_MCP_E

CLOCK

SIGNALS

Rev1p2

6 OF 19

UC1F

PCIECLKRQ0/GPIO18

CLKOUT_PCIE_N1

B41

CLKOUT_PCIE_P1

A41

PCIECLKRQ1/GPIO19

CLKOUT_ITPXDP_P A35

CLKOUT_ITPXDP_N B35

CLKOUT_LPC_1 AP15

CLKOUT_LPC_0 AN15

XTAL24_OUT B25

XTAL24_IN A25

PCIECLKRQ5/GPIO23

T2 CLKOUT_PCIE_P5

A37 CLKOUT_PCIE_N5

B37

PCIECLKRQ4/GPIO22

CLKOUT_PCIE_N4

A39

CLKOUT_PCIE_P4

B39

PCIECLKRQ3/GPIO21

N1 CLKOUT_PCIE_P3

C37 CLKOUT_PCIE_N3

B38

PCIECLKRQ2/GPIO20

AD1

CLKOUT_PCIE_N2

C41

CLKOUT_PCIE_P2

B42

CLKOUT_PCIE_P0

C42 CLKOUT_PCIE_N0

C43

DIFFCLK_BIASREF C26

RSVD K21

RSVD M21

TESTLOW _C35 C35

TESTLOW _C34 C34

TESTLOW _AK8 AK8

TESTLOW _AL8 AL8

CC7

15P_0402_50V8J

XTAL@

CC7

15P_0402_50V8J

XTAL@

RP39

15_8P4R_5%

RP39

15_8P4R_5%

1 8

2 7

3 6

4 5

U2302

64M EN25Q64-104HIP SOP 8P

U2302

64M EN25Q64-104HIP SOP 8P

CS#

DO(IO1)

WP#(IO2)

GND

VCC 8

HOLD#(IO3) 7

CLK 6

DI(IO0) 5

R2330

10K_0402_5%

R2330

10K_0402_5%

RP40

2.2K_0804_8P4R_5%

RP40

2.2K_0804_8P4R_5%

1 8

2 7

3 6

4 5

C2326

68P_0402_50V8J

@EMI@

C2326

68P_0402_50V8J

@EMI@

YC2

24MHZ_12PF_X3G024000DC1H

XTAL@

YC2

24MHZ_12PF_X3G024000DC1H

XTAL@

RP41 10K_8P4R_5%RP41 10K_8P4R_5%

1 8

2 7

3 6

4 5

T185PAD~D @T185PAD~D @

T99@T99@

QC1B

DMN66D0LDW-7_SOT363-6

QC1B

DMN66D0LDW-7_SOT363-6

6 1

R2329

10K_0402_5%

R2329

10K_0402_5%

RC13

3.01K_0402_1%

RC13

3.01K_0402_1%

1 2

CC6

15P_0402_50V8J

XTAL@

CC6

15P_0402_50V8J

XTAL@

QH1A

DMN66D0LDW-7_SOT363-6

QH1A

DMN66D0LDW-7_SOT363-6

T184PAD~D @T184PAD~D @

T183PAD~D @T183PAD~D @

T98@T98@

RP42

10K_8P4R_5%

RP42

10K_8P4R_5%

1 8

2 7

3 6

4 5

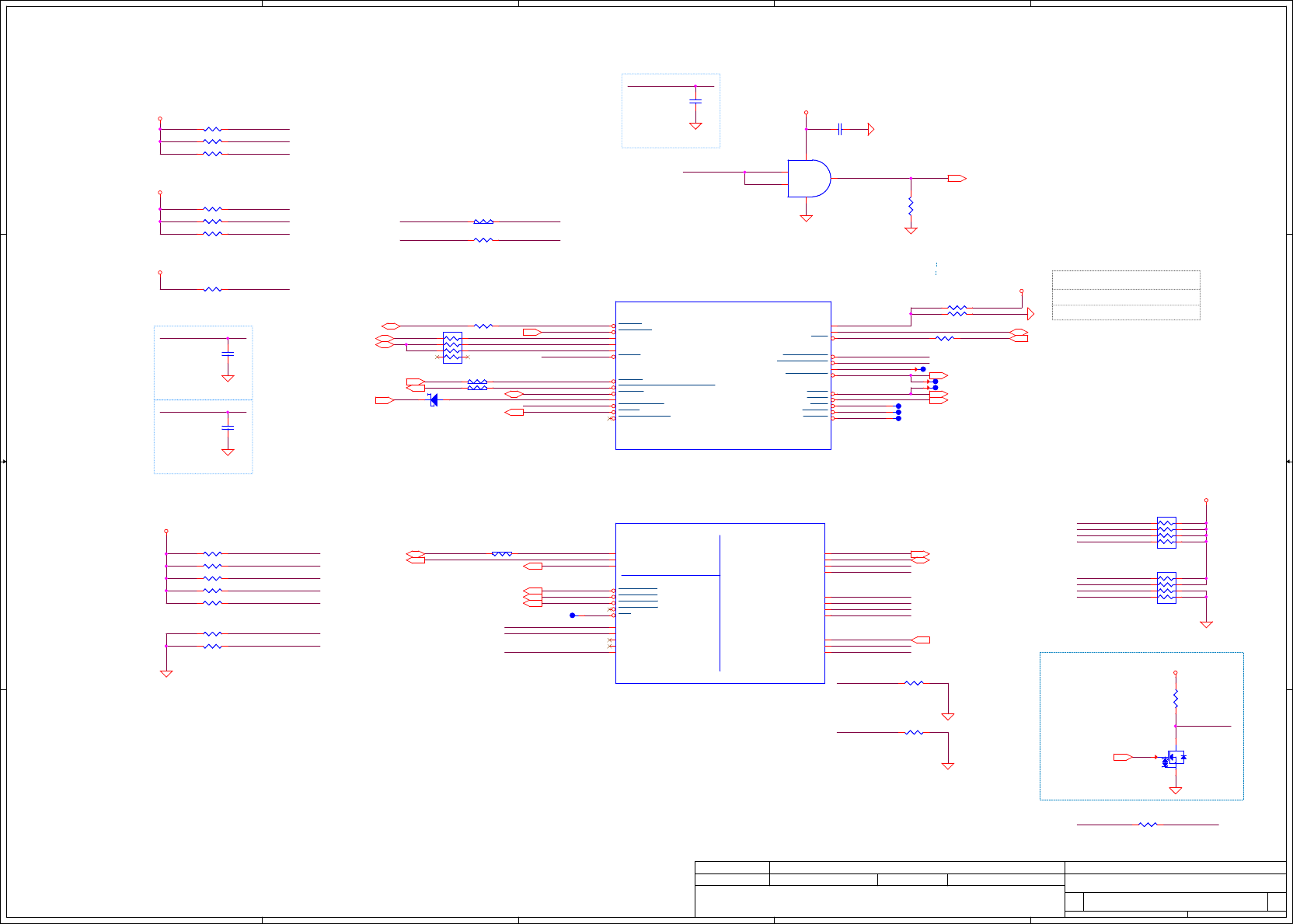

D D

C C

B B

A A

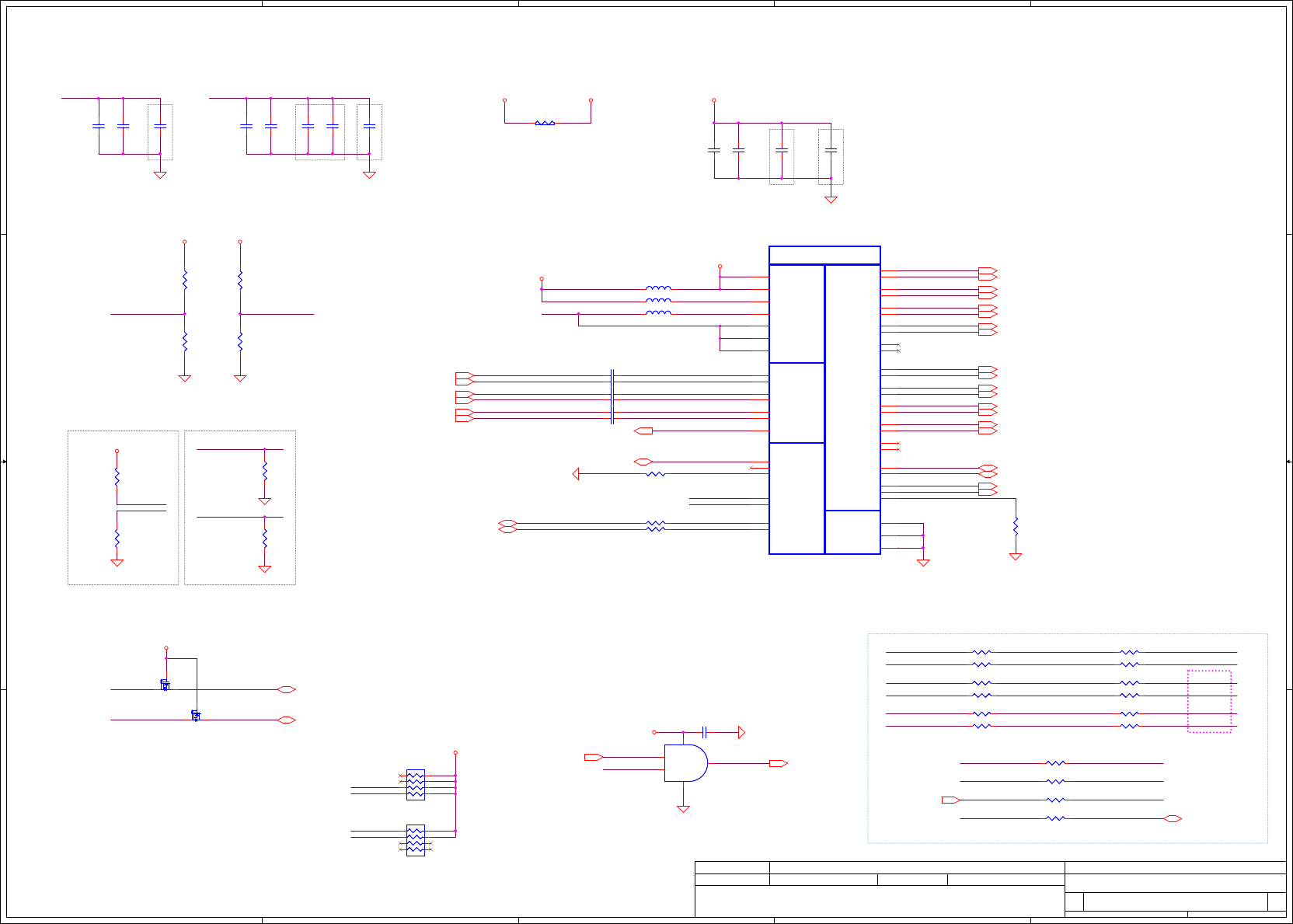

HIGH = ENABLED (DEFAULT)

LOW = DISABLED

DSWODVREN - ON DIE DSW VR ENABLE

PCH_BATLOW# Need pull high to VCCDSW3_3

(If no deep Sx , connect to VCCSUS3_3)

Note: SUSACK# and SUSWARN# can be tied together if

EC does not want to involve in the handshake mechanism

for the Deep Sleep state entry and exit

CAN be NC ,if not support Deep Sx DPWROK: Tired toghter with RSMRST#

that do not support Deep Sx

DSWODVREN - On Die DSW VR Enable

H Enable(DEFAULT)

L Disable

eDP HPD INVERSION

Reserve for eDP

symbol OK

Place CC31

on BOT

Place CC33

close to UC3.1 & UC3.2

Place CC34

close to RP50.2&RP50.3

PCH_DPWROK

ME_SUS_PWR_ACK_R SUSACK#

PCH_BATLOW#

PBTN_OUT#

AC_PRESENT

SYS_RESET#

CLKRUN#

SYS_PWROK_R

CLKRUN#

SUS_STAT#/LPCPD#

PCH_PWROK_R

AC_PRESENT

SUS_STAT#/LPCPD#

SIO_SLP_S4#

PM_APWROK_R

SUSCLK

SIO_SLP_S3#

SIO_SLP_S5#

PCH_BATLOW#

PCH_PLTRST#

ME_SUS_PWR_ACK

SUSACK#

PCIE_WAKE#_R

PCH_DPWROK

SIO_SLP_S0#

DSWODVREN

SYS_PWROK

PLT_RST#

PCIE_WAKE#PCIE_WAKE#_R

CPU_DPB_CTRLDAT

CPU_DPB_CTRLCLK

CPU_DPC_CTRLDAT

CPU_DPC_CTRLCLK

CPU_DPC_AUX#

CPU_DPB_AUX#

DGPU_PWROK

DGPU_HOLD_RST#

DPC_HPD

PXS_PWREN

DGPU_HOLD_RST#

CPU_DPB_CTRLCLK

CPU_DPB_CTRLDAT

CODEC_IRQ

EDP_BIA_PWM

EDP_BKLCTLEDP_BIA_PWM

CPU_DPC_CTRLCLK

CPU_DPC_CTRLDAT

CPU_DPB_AUX#

ENVDD_PCH

CPU_DPC_AUX

CPU_DPB_AUX

DPB_HPD

CPU_DPC_AUX#

PANEL_BKLEN

ENVDD_PCH

TOUCHPAD_INTR#

CPU_DPC_AUX

CPU_DPB_AUX

CPU_EDP_HPD#

TOUCH_RST_N_GYRO_INT1

CODEC_IRQ

TOUCHPAD_INTR#

DGPU_PWROK

CPU_EDP_HPD#

DPC_HPD

CPU_EDP_HPD#EDP_CPU_HPD

CPU_EDP_HPD#

SUSACK# SUSACK#_R

PCH_PLTRST#

PCH_RSMRST#_R

ME_SUS_PWR_ACK_R

SYS_PWROK

PCH_PLTRST#

PCH_PWROK

PLT_RST# <21,26,30,48,6>

SIO_SLP_S0#<30>

SIO_SLP_S4# <30>

SIO_SLP_S3# <30>

ACIN<30,36,37,49>

EC_RSMRST#<30>

ME_SUS_PWR_ACK<30>

SIO_SLP_S5# <30>

PCH_PWROK<30>

SYS_RESET#<6>

SYS_PWROK<30,6>

PBTN_OUT#<30,6>

PCH_DPWROK <30>

PCIE_WAKE# <21,30>

DPB_HPD <20>

CPU_DPB_CTRLDAT <20>

CPU_DPB_CTRLCLK <20>

DGPU_HOLD_RST#<48>

PANEL_BKLEN<30>

EDP_BIA_PWM<19,6>

ENVDD_PCH<19,30>

PXS_PWREN<11,39,43,44,50>

DGPU_PWROK<30,44>

SUSACK#<30>

EDP_CPU_HPD<19>

+3VALW_PCH

+3VS

+3VALW_PCH

+RTCVCC

+3VS

+VCCIOA_OUT

+3VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

10 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MCP(8,9/19) DDI,EDP,GPIO

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

10 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MCP(8,9/19) DDI,EDP,GPIO

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

10 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MCP(8,9/19) DDI,EDP,GPIO

RC73 10K_0402_5%RC73 10K_0402_5%

1 2

RP51

100K_8P4R_5%

RP51

100K_8P4R_5%

1 8

2 7

3 6

4 5

CC34

0.047U_0402_16V4Z

ESD@CC34

0.047U_0402_16V4Z

ESD@

RC42 0_0402_1%@RC42 0_0402_1%@

1 2

T103 PAD~D@T103 PAD~D@

RP50

0_8P4R_5%

RP50

0_8P4R_5%

1 8

2 7

3 6

4 5

RC76 10K_0402_5%RC76 10K_0402_5%

1 2

RC87 100K_0402_5%@RC87 100K_0402_5%@

1 2

T107@T107@

DH1 RB751V-40_SOD323-2DH1 RB751V-40_SOD323-2

1 2

RC35 0_0402_5%@RC35 0_0402_5%@

1 2

RC29 10K_0402_5%@RC29 10K_0402_5%@

1 2

RC31 8.2K_0402_5%RC31 8.2K_0402_5%

1 2

RC89

100K_0402_5%

RC89

100K_0402_5%

1 2

RC37 0_0402_5%@RC37 0_0402_5%@

1 2

RC28 10K_0402_5%@RC28 10K_0402_5%@

1 2

RC74 10K_0402_5%RC74 10K_0402_5%

1 2

RC36 8.2K_0402_5%RC36 8.2K_0402_5%

1 2

R159

100K_0402_5%

R159

100K_0402_5%

T117 @T117 @

RC75 10K_0402_5%

1 2

RP52

2.2K_8P4R_5%

RP52

2.2K_8P4R_5%

1 8

2 7

3 6

4 5

RC33 0_0402_1%

1 2

CC11

0.1U_0402_10V7K

@CC11

0.1U_0402_10V7K

1 2

R2337 330K_0402_5%R2337 330K_0402_5%

1 2

CC33

0.047U_0402_16V4Z

ESD@CC33

0.047U_0402_16V4Z

ESD@

T104 PAD~D @

T102 PAD~D@T102 PAD~D@

RC105

0_0402_5%

RC105

0_0402_5%

1 2

SYSTEM POWER MANAGEMENT

HASWELL_MCP_E

Rev1p2

8 OF 19

UC1H

SYSTEM POWER MANAGEMENT

HASWELL_MCP_E

Rev1p2

8 OF 19

UC1H

SUSACK

AK2

PLTRST

AG7

PCH_PWROK

AY7 SYS_PWROK

AG2 SYS_RESET

AC3

APWROK

AB5

RSMRST

AW6

ACPRESENT/GPIO31

AJ8

BATLOW /GPIO72

AN4

PWRBTN

AL7 SUSW ARN/SUSPW RDNACK/GPIO30

AV4

SLP_S0

AF3

SLP_W LAN/GPIO29

AM5

DPWROK AV5

DSWVRMEN AW7

WAKE AJ5

SUS_STAT/GPIO61 AG4

CLKRUN/GPIO32 V5

SUSCLK/GPIO62 AE6

SLP_S4 AJ6

SLP_S5/GPIO63 AP5

SLP_S3 AT4

SLP_LAN AJ7

SLP_SUS AP4

SLP_A AL5

RC84

100K_0402_5%

RC84

100K_0402_5%

RC88 1K_0402_1%@RC88 1K_0402_1%@

UC3

MC74VHC1G08DFT2G_SC70-5

UC3

MC74VHC1G08DFT2G_SC70-5

IN1

IN2

2OUT 4

VCC 5

GND

CC31

0.047U_0402_16V4Z

ESD@CC31

0.047U_0402_16V4Z

ESD@

RC78

10K_0402_5%

@RC78

10K_0402_5%

RC27 10K_0402_5%RC27 10K_0402_5%

1 2

QC3

2N7002K_SOT23-3

QC3

2N7002K_SOT23-3

DISPLAY

GPIO

eDP SIDEBAND

HASWELL_MCP_E

Rev1p2

9 OF 19

UC1I

DISPLAY

GPIO

eDP SIDEBAND

HASWELL_MCP_E

Rev1p2

9 OF 19

UC1I

EDP_BKLCTL

DDPB_AUXN C5

DDPC_HPD A8

EDP_HPD D6

DDPB_HPD C8

DDPC_CTRLDATA D11

DDPC_CTRLCLK D9

DDPB_CTRLDATA C9

DDPB_CTRLCLK B9

PIRQA/GPIO77

PIRQB/GPIO78

PIRQC/GPIO79

PIRQD/GPIO80

PME

AD4

GPIO55

GPIO52

GPIO54

GPIO51

GPIO53

EDP_BKLEN

DDPB_AUXP B5

DDPC_AUXP A6

DDPC_AUXN B6

EDP_VDDEN

RC41 0_0402_1%@RC41 0_0402_1%@

1 2

RC34 10K_0402_5%RC34 10K_0402_5%

1 2

RC32 10K_0402_5%RC32 10K_0402_5%

1 2

RC81

0_0402_1%

RC81

0_0402_1%

T105@T105@

R2338 330K_0402_5%@R2338 330K_0402_5%@

1 2

RC97

0_0402_5%

RC97

0_0402_5%

1 2

RC77 10K_0402_5%RC77 10K_0402_5%

1 2

T106@T106@

D D

C C

B B

A A

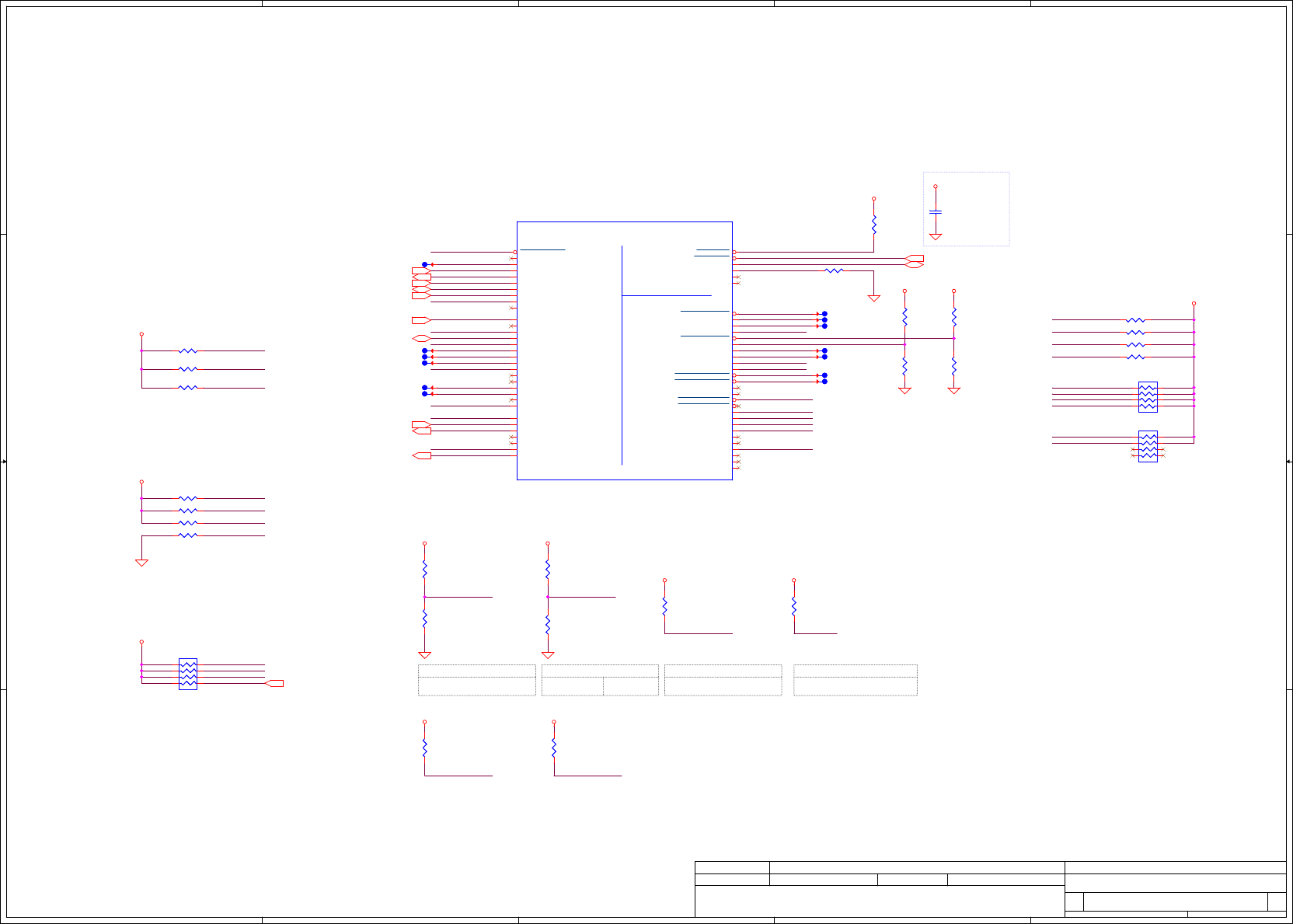

HIGH

LOW(DEFAULT)

NO REBOOT STRAP

HIGH

LOW(DEFAULT)

BOOT BIOS STRAP BIT BBS

LPC

SPI

HIGH

LOW(DEFAULT)

TLS CONFIDENTIALITY

HIGH depop RC288 (DEFAULT)

LOW pop RC288

TOP-BLOCK SWAP OVERRIDE

GPIO66 GPIO86 GPIO15 GPIO81

GPIO15 NOT Used

"KB_DET#" for OAK 17 only

ESD solution

Close to R2346

PCH_AUDIO_EN

LCD_CBL_DET#

I2C1_SDA_TCH_PAD

I2C1_SCL_TCH_PAD

SERIRQ

KB_DET#

PCH_GPIO44

HDA_SPKR

I2C0_SDA

I2C0_SCL

BBS_BIT

PCH_OPI_COMP

PCH_GPIO66

SLATE_MODE_R

HOST_ALERT1_R_N

SIO_EXT_SCI#

KB_RST#

PCH_AUDIO_EN

PCH_GPIO9

PCH_GPIO66

CPPE#

CPUSB#

CPPE#

CPUSB#

PCH_GPIO46

PCH_GPIO44

PCH_GPIO48

PCH_GPIO49

TOUCH_PANEL_INTR#

SERIRQ

PCH_GPIO14

PCH_GPIO46

PCH_GPIO9

BBS_BIT

SIO_EXT_SCI#

HDA_SPKR

BT_ON#

DEVSLP0

H_THERMTRIP#

I2C0_SCL

I2C0_SDA

I2C1_SCL_TCH_PAD

I2C1_SDA_TCH_PAD

KB_RST#

TOUCH_PANEL_INTR#

ODD_DA#

BT_ON#

WL_OFF#

EC_SCI#

WL_OFF#

PXS_PWREN

EC_LID_OUT#

ODD_EN#

ODD_DA#

HDD_DET#

KB_DET#

HOST_ALERT1_R_N

DGPU_PRSNT#

Project_ID

PCH_GPIO25

PCH_GPIO47

PCH_GPIO85

PCH_GPIO84

PCH_GPIO83

PCH_GPIO89

PCH_GPIO90

PCH_GPIO93

PCH_GPIO94

PCH_GPIO12

DEVSLP0

SERIRQ <30>

HDA_SPKR<22>

KB_RST# <30>

BT_ON#<26>

EC_SCI#<30>

WL_OFF#<26>

PXS_PWREN <10,39,43,44,50>

EC_LID_OUT#<30>

ODD_EN#<32>

ODD_DA#<32>

HDD_DET#<32>

KB_DET#<32>

DEVSLP0<32>

+3VS

+3VALW_PCH

+1.05VS

+3VS

+3VALW_PCH

+3VS

+3VALW_PCH

+3VS +3VS

+3VALW_PCH

+3VS

+3VS+3VS

+1.05VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

11 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MCP(10/19) GPIO,LPIO,MISC

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

11 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MCP(10/19) GPIO,LPIO,MISC

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

11 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MCP(10/19) GPIO,LPIO,MISC

RC123

1K_0402_5%

RC123

1K_0402_5%

RC110 10K_0402_5%RC110 10K_0402_5%

RC104 10K_0402_5%RC104 10K_0402_5%

R2346

1K_0402_5%

R2346

1K_0402_5%

T178PAD~D @T178PAD~D @

RP43

10K_8P4R_5%

RP43

10K_8P4R_5%

RC119

10K_0402_5%

RC119

10K_0402_5%

T174 PAD~D@T174 PAD~D@

T179PAD~D @T179PAD~D @

RC98 100K_0402_5%RC98 100K_0402_5%

RC113

10K_0402_5%

VENUS@

RC113

10K_0402_5%

VENUS@

RC116 10K_0402_5%RC116 10K_0402_5%

RC99

10K_0402_5%

DIS@

RC99

10K_0402_5%

DIS@

RC122

1K_0402_5%

RC122

1K_0402_5%

LPIO

GPIO

CPU/

HASWELL_MCP_E

MISC

Rev1p2

10 OF 19

UC1J

LPIO

GPIO

CPU/

HASWELL_MCP_E

MISC

Rev1p2

10 OF 19

UC1J

GPIO56

AG6

GPIO57

AP1

GPIO27

AN5

GPIO28

AD7

GPIO26

AN3

SDIO_D1/GPIO67 E4

SDIO_D2/GPIO68 C3

SDIO_D3/GPIO69 E2

SDIO_D0/GPIO66 D3

SDIO_CLK/GPIO64 E3

SDIO_CMD/GPIO65 F4

I2C1_SCL/GPIO7 F1

I2C1_SDA/GPIO6 G4

I2C0_SCL/GPIO5 F3

I2C0_SDA/GPIO4 F2

UART1_RST/GPIO2 J3

UART1_CTS/GPIO3 J4

UART1_RXD/GPIO0 K4

UART1_TXD/GPIO1 G2

UART0_CTS/GPIO94 G1

UART0_TXD/GPIO92 K3

UART0_RTS/GPIO93 J2

UART0_RXD/GPIO91 J1

GSPI1_MISO/GPIO89 N7

GSPI_MOSI/GPIO90 K2

GSPI1_CLK/GPIO88 L5

GSPI1_CS/GPIO87 R7

GSPI0_MOSI/GPIO86 L8

GSPI0_CLK/GPIO84 L6

GSPI0_MISO/GPIO85 N6

GSPI0_CS/GPIO83 R6

RCIN/GPIO82 V4

THERMTRIP D60

DEVSLP2/GPIO39

SPKR/GPIO81

DEVSLP1/GPIO38

L2 SDIO_POW ER_EN/GPIO70

C4 DEVSLP0/GPIO33

GPIO9

AM3

GPIO10

AM2

GPIO45

AG5

GPIO46

AG3

GPIO14

AH4

GPIO25

AM4

GPIO13

AT3 HSIOPC/GPIO71

Y2 GPIO50

P3 GPIO49

GPIO47

AB6

GPIO48

GPIO59

AT5

GPIO16

GPIO17

GPIO15

AD6

GPIO8

AU2

GPIO24

AD5

BMBUSY/GPIO76

GPIO44

AK4

GPIO58

AL4

LAN_PHY_PWR_CTRL/GPIO12

AM7 SERIRQ T4

PCH_OPI_RCOMP AW15

RSVD AF20

RSVD AB21

RC11 10K_0402_5%RC11 10K_0402_5%

RC108100K_0402_5% RC108100K_0402_5%

RC124

10K_0402_5%

RC124

10K_0402_5%

RP54

8.2K_8P4R_5%

RP54

8.2K_8P4R_5%

T181PAD~D @T181PAD~D @

T126 PAD~D@T126 PAD~D@

RC111100K_0402_5% RC111100K_0402_5%

RC112

10K_0402_5%

SUN@

RC112

10K_0402_5%

SUN@

RC101

49.9_0402_1%

RC101

49.9_0402_1%

1 2

RC118

1K_0402_5%

RC118

1K_0402_5%

T175PAD~D @T175PAD~D @

T180PAD~D @T180PAD~D @

T127 PAD~D@T127 PAD~D@

RC121

1K_0402_5%

RC121

1K_0402_5%

T124 PAD~D@T124 PAD~D@

CC28

100P_0402_50V8J

ESD@

CC28

100P_0402_50V8J

ESD@

RC10210K_0402_5% RC10210K_0402_5%

RP53

2.2K_0804_8P4R_5%

RP53

2.2K_0804_8P4R_5%

1 8

2 7

3 6

4 5

T177PAD~D @T177PAD~D @

RC125

10K_0402_5%

RC125

10K_0402_5%

T125 PAD~D@T125 PAD~D@

RC100

10K_0402_5%

UMA@

RC100

10K_0402_5%

UMA@

T176PAD~D @T176PAD~D @

RC103 10K_0402_5%RC103 10K_0402_5%

RC120

1K_0402_5%

RC120

1K_0402_5%

RC10610K_0402_5% RC10610K_0402_5%

T182 PAD~D@T182 PAD~D@

RC9 100K_0402_5%RC9 100K_0402_5%

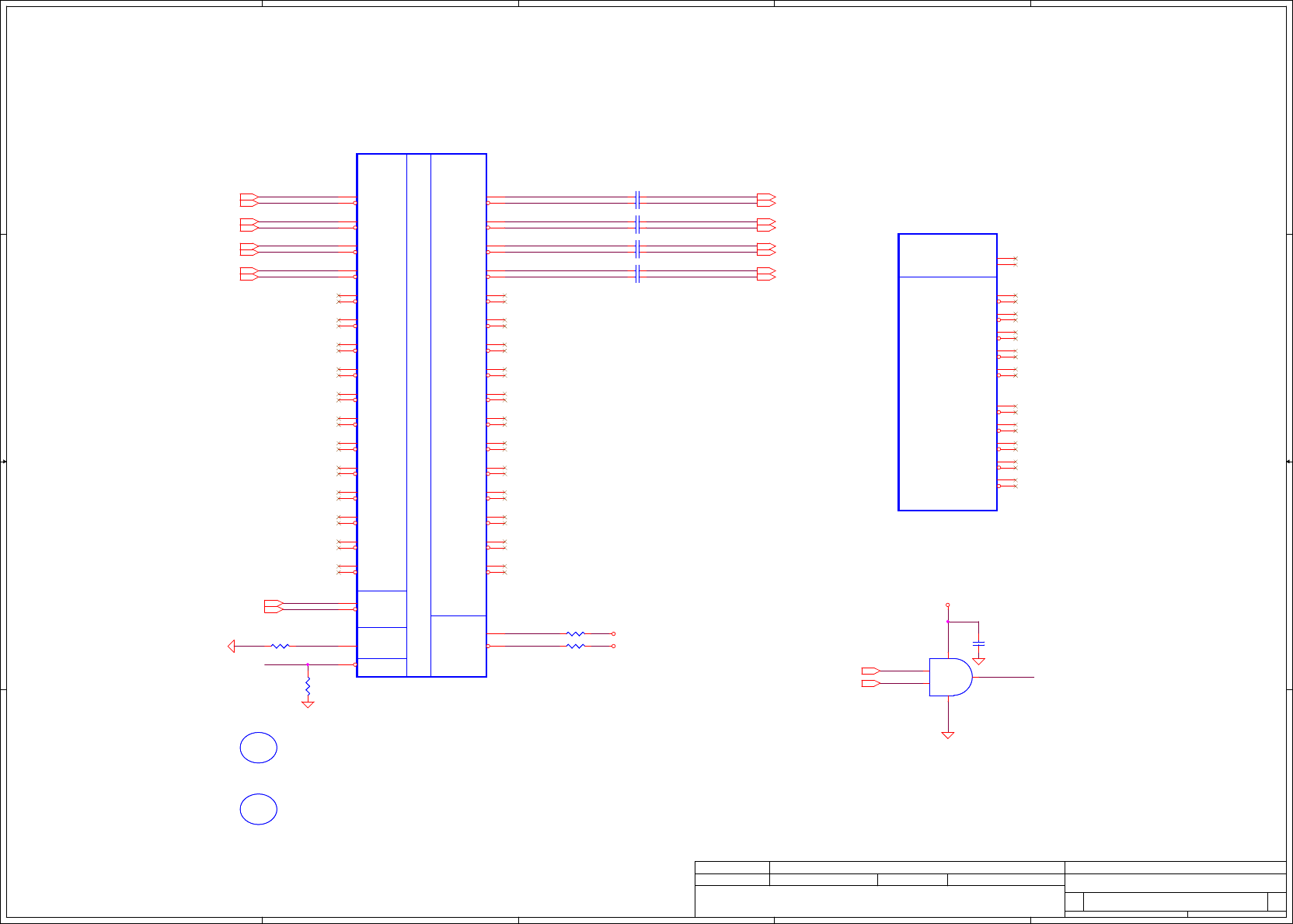

D D

C C

B B

A A

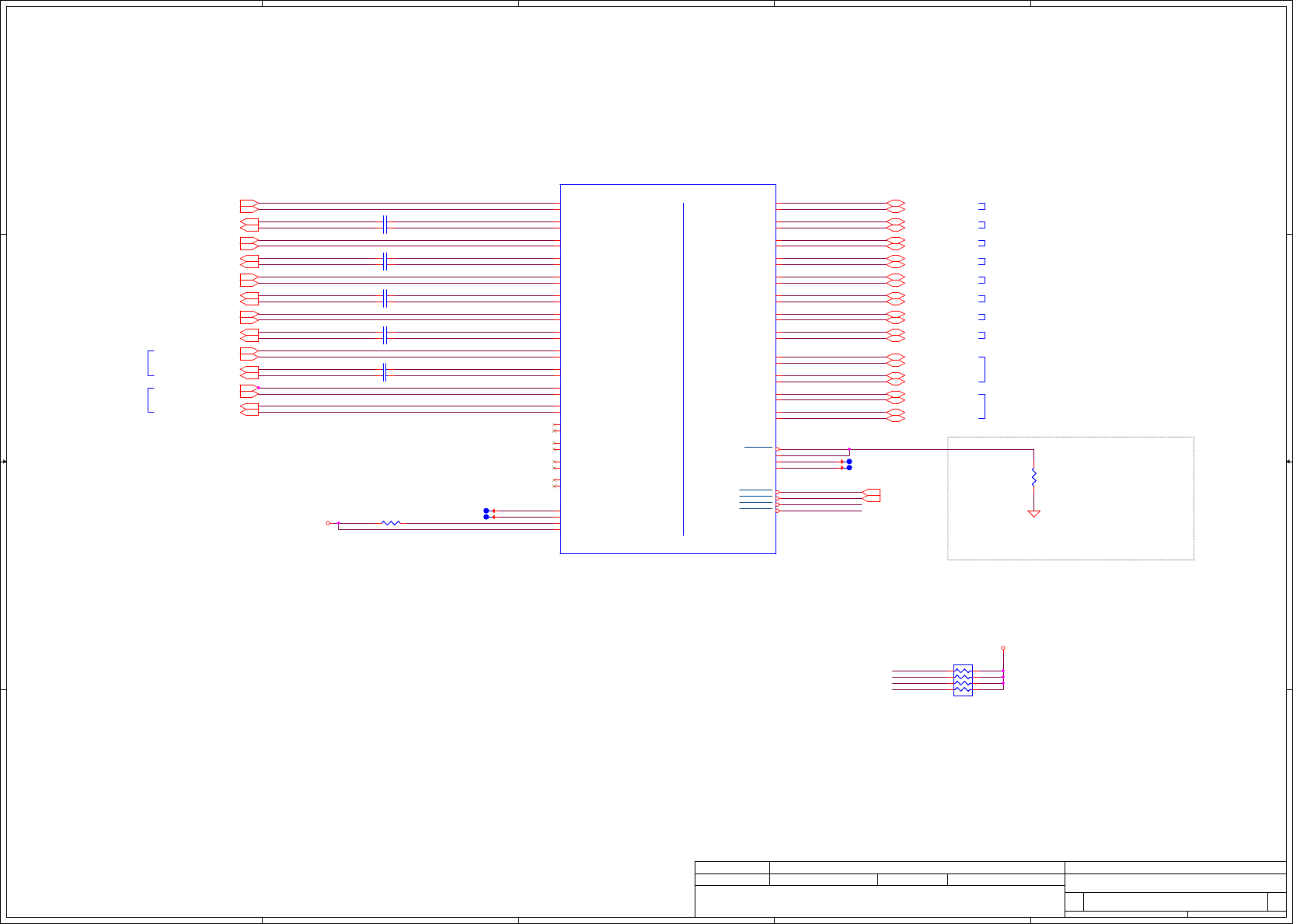

WLAN (Mini Card)

10/100 LAN

CAD NOTE:

Route single-end 50-ohms and max 500-mils length.

Avoid routing next to clock pins or under stitching capacitors.

Recommended minimum spacing to other signal traces is 15 mils.

USB Conn JUSB2

USB Conn JUSB1

USB Conn JUSB3

USB Conn 4 (DB)

Mini Card (WLAN)

Card Reader

Camera

USB Conn JUSB2

USB Conn JUSB1

Touch screen panel "USB20_TOUCH_N5/USB20_TOUCH_P5"

for OAK 15 only

USB_OC0#

USB_OC2#

USB_OC3#

PCIE_PTX_WLANRX_N4

PCIE_PRX_WLANTX_P4

PCIE_PRX_WLANTX_N4

PCIE_PTX_WLANRX_P4

USB20_JUSB3_N2

USB20_JUSB3_P2

USB20_USBDB_P3

USB20_USBDB_N3

USB20_MINI1_P4

USB20_MINI1_N4

USB20_CAM_P7

USB20_CAM_N7

USB20_CR_N6

USB20_CR_P6

USB20_JUSB1_P1

USB20_JUSB1_N1

USB_OC0#

USB_OC1#

USB_OC2#

USB3RN2_JUSB1

USB3RP2_JUSB1

USB3TN2_JUSB1

USB3TP2_JUSB1

USB3RN1_JUSB2

USB3RP1_JUSB2

USB3TN1_JUSB2

USB3TP1_JUSB2

PCH_PCIE_RCOMP

PCIE_PRX_LANTX_P3

PCIE_PRX_LANTX_N3

USB_OC1#

USB20_JUSB2_N0

USB20_JUSB2_P0

USB_OC3#

USBRBIAS

PEG_CTX_GRX_C_N0

PEG_CRX_GTX_N3

PEG_CRX_GTX_P3

PEG_CRX_GTX_N0

PEG_CTX_GRX_C_N1PEG_CTX_GRX_N1

PEG_CTX_GRX_C_P1PEG_CTX_GRX_P1

PEG_CTX_GRX_C_N2PEG_CTX_GRX_N2

PEG_CTX_GRX_C_P2PEG_CTX_GRX_P2

PEG_CRX_GTX_N1

PEG_CRX_GTX_P1

PEG_CRX_GTX_P0

PEG_CTX_GRX_C_P0

PEG_CTX_GRX_C_N3PEG_CTX_GRX_N3

PEG_CTX_GRX_C_P3PEG_CTX_GRX_P3

PEG_CRX_GTX_N2

PEG_CRX_GTX_P2

PEG_CTX_GRX_P0

PCIE_PTX_LANRX_N3

PCIE_PTX_LANRX_P3

PCIE_PTX_LANRX_N3_C

PCIE_PTX_LANRX_P3_C

USB20_TOUCH_P5

USB20_TOUCH_N5

PEG_CTX_GRX_N0

PCIE_PRX_LANTX_N3<21>

PCIE_PRX_LANTX_P3<21>

PCIE_PRX_WLANTX_N4<26>

PCIE_PRX_WLANTX_P4<26>

PCIE_PTX_WLANRX_N4<26>

PCIE_PTX_WLANRX_P4<26>

USB_OC0# <24>

USB20_JUSB2_N0 <24>

USB20_JUSB2_P0 <24>

USB20_JUSB1_N1 <24>

USB20_JUSB1_P1 <24>

USB20_JUSB3_N2 <25>

USB20_JUSB3_P2 <25>

USB20_USBDB_N3 <25>

USB20_USBDB_P3 <25>

USB20_MINI1_N4 <26>

USB20_MINI1_P4 <26>

USB20_CR_N6 <23>

USB20_CR_P6 <23>

USB20_CAM_N7 <31>

USB20_CAM_P7 <31>

USB3RN1_JUSB2 <24>

USB3TN1_JUSB2 <24>

USB3TN2_JUSB1 <24>

USB3RP1_JUSB2 <24>

USB3RP2_JUSB1 <24>

USB3TP2_JUSB1 <24>

USB3TP1_JUSB2 <24>

USB3RN2_JUSB1 <24>

USB_OC1# <25>

PEG_CRX_GTX_N3<48>

PEG_CRX_GTX_P3<48>

PEG_CTX_GRX_N0<48>

PEG_CTX_GRX_P0<48>

PEG_CRX_GTX_N0<48>

PEG_CTX_GRX_N1<48>

PEG_CTX_GRX_P1<48>

PEG_CTX_GRX_N2<48>

PEG_CTX_GRX_P2<48>

PEG_CRX_GTX_N1<48>

PEG_CRX_GTX_P1<48>

PEG_CTX_GRX_N3<48>

PEG_CTX_GRX_P3<48>

PEG_CRX_GTX_N2<48>

PEG_CRX_GTX_P2<48>

PEG_CRX_GTX_P0<48>

PCIE_PTX_LANRX_N3<21>

PCIE_PTX_LANRX_P3<21>

USB20_TOUCH_N5

USB20_TOUCH_P5

+1.05VS_AUSB3PLL

+3VALW_PCH

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

12 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MCP(11/19) PCIE,USB

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

12 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MCP(11/19) PCIE,USB

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

12 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MCP(11/19) PCIE,USB

CC22 0.1U_0402_10V7KDIS@ CC22 0.1U_0402_10V7KDIS@

RC90

22.6_0402_1%~D

RC90

22.6_0402_1%~D

CC23 0.1U_0402_10V7KDIS@ CC23 0.1U_0402_10V7KDIS@

T121PAD~D@T121PAD~D@

CC24 0.1U_0402_10V7KDIS@ CC24 0.1U_0402_10V7KDIS@

RP55

10K_8P4R_5%

RP55

10K_8P4R_5%

1 8

2 7

3 6

4 5

RC91

3.01K_0402_1%

RC91

3.01K_0402_1%

1 2

CC32 0.1U_0402_10V7KCC32 0.1U_0402_10V7K

1 2

T119PAD~D @T119PAD~D @

T118PAD~D @T118PAD~D @

CC20 0.1U_0402_10V7KDIS@ CC20 0.1U_0402_10V7KDIS@

PCIe

USB

HASWELL_MCP_E

Rev1p2

11 OF 19

UC1K

PCIe

USB

HASWELL_MCP_E

Rev1p2

11 OF 19

UC1K

PETP5_L2

C21

PERP5_L0

E10

PERN5_L1

PETN5_L3

B22

PETP5_L3

A21

PERP3

F11

PETN3

C29

PETN1/USB3TN3

C30

OC3/GPIO43 AV3

OC2/GPIO42 AH2

OC1/GPIO41 AT1

OC0/GPIO40 AL3

PCIE_RCOMP

A27

PCIE_IREF

B27

PERN5_L0

F10

PERN5_L2

H10

PERP5_L2

G10

PETN5_L2

B21

PERP5_L3

F6 PERN5_L3

PETP3

B30

PERN4

F13

PERP4

G13

PETP4

A29 PETN4

B29

PERP1/USB3RP3

F17

PETP1/USB3TP3

C31

PERN2/USB3RN4

F15

PETN2/USB3TN4

B31

PERP2/USB3RP4

G15

USB2N0 AN8

USB2N1 AR7

USB2N2 AR8

USB2P2 AP8

USB2N3 AR10

USB2P3 AT10

USB2N4 AM15

USB2P4 AL15

USB2P6 AN11

USB2N5 AM13

USB2P5 AN13

USB2N6 AP11

USB2P7 AP13

USB2N7 AR13

USB3TN2 B33

USB3TP2 A33

USB3RP2 F18

USB3RN2 E18

USB3TN1 C33

USB3TP1 B34

USB3RP1 H20

USB3RN1 G20

PETP5_L1

A23 PETN5_L1

B23

PERP5_L1

USBRBIAS AJ11

USBRBIAS AJ10

PETP5_L0

C22 PETN5_L0

C23

PERN3

G11

USB2P0 AM8

USB2P1 AT7

PERN1/USB3RN3

G17

PETP2/USB3TP4

A31

RSVD

E15

RSVD

E13

RSVD AN10

RSVD AM10

CC19 0.1U_0402_10V7KDIS@ CC19 0.1U_0402_10V7KDIS@

CC25 0.1U_0402_10V7KDIS@ CC25 0.1U_0402_10V7KDIS@

CC21 0.1U_0402_10V7KDIS@ CC21 0.1U_0402_10V7KDIS@

CC40 0.1U_0402_10V7KCC40 0.1U_0402_10V7K

1 2

T120PAD~D@T120PAD~D@

CC18 0.1U_0402_10V7KDIS@ CC18 0.1U_0402_10V7KDIS@

D D

C C

B B

A A

SVID DATA

Define EC OD pin, need double confirm.

SVID ALERT

Place the PU

resistors close to CPU

Place the PU

resistors close to CPU

CAD Note: PD resistor on HW side

CAD Note: PU resistor on HW side

R253

INTEL Check list , XDP use only

+1.35V : 470UF/2V/7343 *2 (PWR)

10UF/6.3V/0603 * 6

2.2UF/6.3V/0402 * 4

VDDQ DECOUPLING

SVID_DAT need to pull-up double side

( PWR_VR & CPU )

ESD solution

Place C80

close to R250.1

Place C79

between R286 and UC1

H_CPU_SVIDCLK

VCCST_PG_EC

+VCCIO_OUT_R

VCCST_PG_EC

VR12.5_VR_ON_R

CPU_PWR_DEBUG#

H_CPU_SVIDALRT#

H_CPU_SVIDDATA

VCCSENSE

H_CPU_SVIDALRT#

H_CPU_SVIDDATA

CPU_PWR_DEBUG#

VSSSENSE

VCCSENSE

H_CPU_SVIDCLK

VR_READY_R

VR_ON

VCCST_PG_EC

VCCST_PG_EC<30>

VR_SVID_CLK<42>

VR_ON<30,42>

VR_SVID_ALRT#<42>

VSSSENSE<15,42>

VCCSENSE<42>

H_VR_READY<42>

VR_SVID_DAT<42>

CPU_PWR_DEBUG#<6>

+1.05VS

+CPU_CORE

+VCCIOA_OUT

+CPU_CORE

+1.35V

+CPU_CORE

+1.35V

+VCCIO_OUT

+1.05VS

+CPU_CORE

+1.05VS

+CPU_CORE +1.35V

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

13 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MCP(12/19) Power

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

13 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MCP(12/19) Power

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

13 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MCP(12/19) Power

R2510_0402_1% @R2510_0402_1% @

1 2

T50 @T50 @

C80

0.1U_0402_10V7K

ESD@C80

0.1U_0402_10V7K

ESD@

R253

150_0402_1%

R253

150_0402_1%

1 2

T45 @T45 @

T51 @T51 @

T41 @T41 @

T39 @T39 @

T42 @T42 @

HSW ULT POWER

HASWELL_MCP_E

Rev1p2

12 OF 19

UC1L

HSW ULT POWER

HASWELL_MCP_E

Rev1p2

12 OF 19

UC1L

VCCST

AE22

VCCST

AE23

VCC

AB57

VCC

AD57

VCC K23

VCC C44

VCC C40

VCC C36

VCC C52

VCC C48

VCC E25

VCC E23

VCC C56

VCC E29

VCC E27

VCC E35

VCC E33

VCC E31

VCC E39

VCC E37

VCC E45

VCC E43

VCC E41

VCC E49

VCC E47

VCC E55

VCC E53

VCC E51

VCC E57

VCC F24

VCC F36

VCC F32

VCC F28

VCC F40

VCC F44

VCC F48

VCC F56

VCC F52

VCC G23

VCC G25

VCC G27

VCC G31

VCC G29

VCC G33

VCC G35

VCC G37

VCC G41

VCC G39

VCC G43

VCC G47

VCC G45

VCC G53

VCC G51

VCC G49

VCC G57

VCC G55

VCC J23

VCC H23

VCC K57

VCC L22

VCC P57

VCC M57

VCC M23

VCC U57

VCC W57

VCC

AG57

VCC

C32 VCC

C28 VCC

C24

RSVD

L59

RSVD

J58

VDDQ

AH26

VDDQ

AJ31

VDDQ

AJ33

VDDQ

AJ37

VDDQ

AN33

VDDQ

AP43

VDDQ

AR48

VIDSCLK

N63

VIDSOUT

L63

VR_EN

F60

RSVD_TP

P60 VSS

P62 PW R_DEBUG

H59 VSS

D63

VR_READY

C59

VCCST_PWRGD

B59

VIDALERT

L62

RSVD

AE59 RSVD

AA23

VCC_SENSE

E63

RSVD

N58

VDDQ

AY50

RSVD_TP

P61

VCCST

AC22

RSVD_TP

N59

RSVD

T59

RSVD

AD60

RSVD

AD59

RSVD

AE60

RSVD

AC59

RSVD

AG58

RSVD

V59 RSVD

U59

RSVD

AA59

RSVD_TP

N61

VDDQ

AY35

VDDQ

AY40

VDDQ

AY44

VCC

F59

RSVD

AC58

RSVD

AB23

RSVD

AD23 VCCIOA_OUT

E20 VCCIO_OUT

A59

C74

10U_0603_6.3V6M

C74

10U_0603_6.3V6M

R255

10K_0402_5%

R255

10K_0402_5%

1 2

R252

75_0402_5%

R252

75_0402_5%

C41

10U_0603_6.3V6M

C41

10U_0603_6.3V6M

C79

220P_0402_50V8J

ESD@C79

220P_0402_50V8J

ESD@

T38 @T38 @

T43 @T43 @

C35

2.2U_0402_6.3V6M

C35

2.2U_0402_6.3V6M

T44 @T44 @

R254

43_0402_1%

R254

43_0402_1%

T46 @T46 @

R286

10K_0402_5%

R286

10K_0402_5%

100_0402_1%

C72

10U_0603_6.3V6M

C72

10U_0603_6.3V6M

R256

130_0402_1%

R256

130_0402_1%

T47 @T47 @

C38

2.2U_0402_6.3V6M

C38

2.2U_0402_6.3V6M

C40

22U_0603_6.3V6M

ESD@

C40

22U_0603_6.3V6M

ESD@

1 2

C37

2.2U_0402_6.3V6M

C37

2.2U_0402_6.3V6M

C5212

68P_0402_50V8J

RF@

C5212

68P_0402_50V8J

RF@

T49 @T49 @

T48 @T48 @

R2500_0402_5% R2500_0402_5%

1 2

C39

10U_0603_6.3V6M

C39

10U_0603_6.3V6M

C45

10U_0603_6.3V6M

C45

10U_0603_6.3V6M

C36

2.2U_0402_6.3V6M

C36

2.2U_0402_6.3V6M

T40 @T40 @

R245

0_0603_5%

@R245

0_0603_5%

1 2

R2480_0402_1% @R2480_0402_1% @

1 2

C42

10U_0603_6.3V6M

C42

10U_0603_6.3V6M

R257

0_0402_1%

R257

0_0402_1%

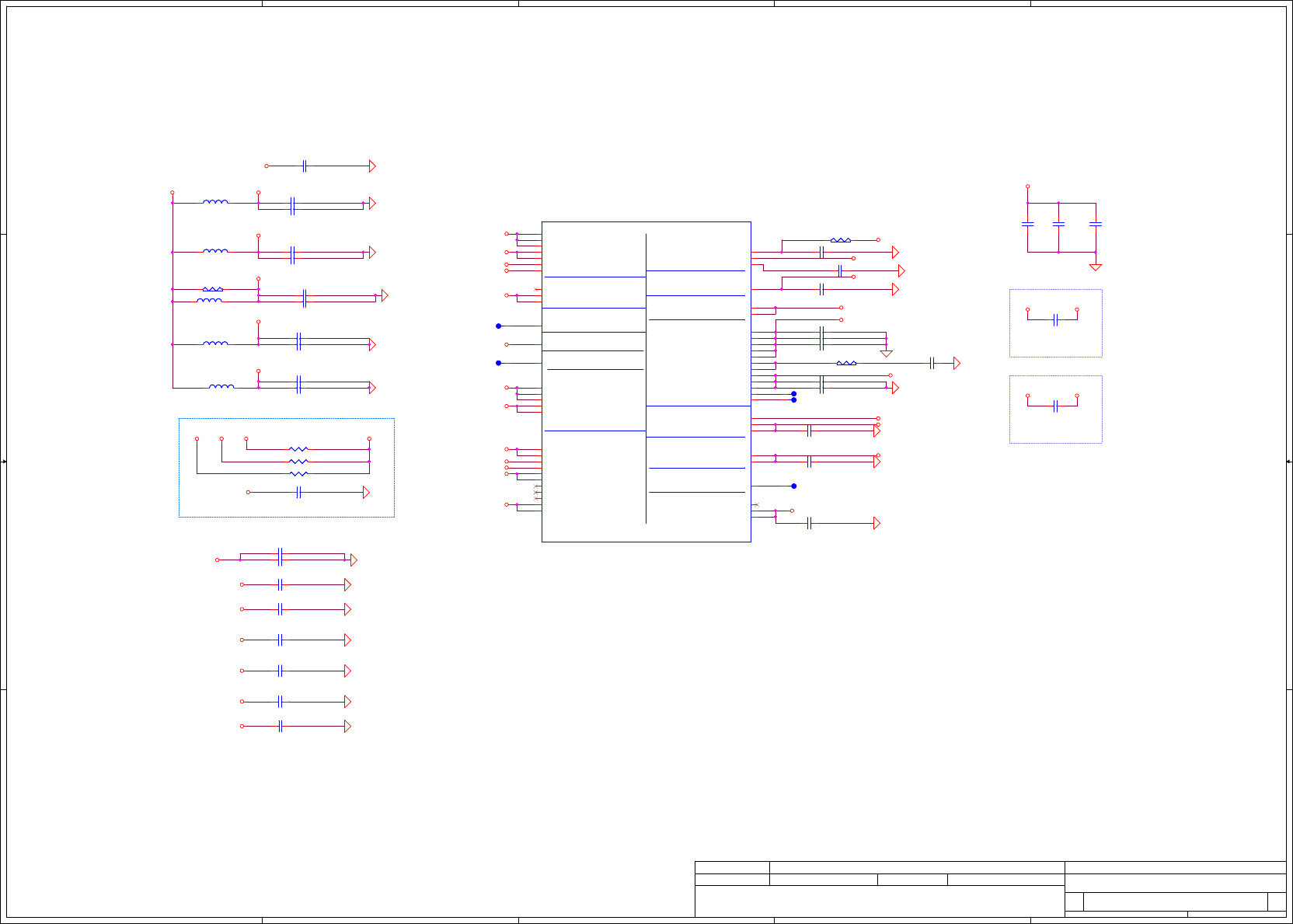

D D

C C

B B

A A

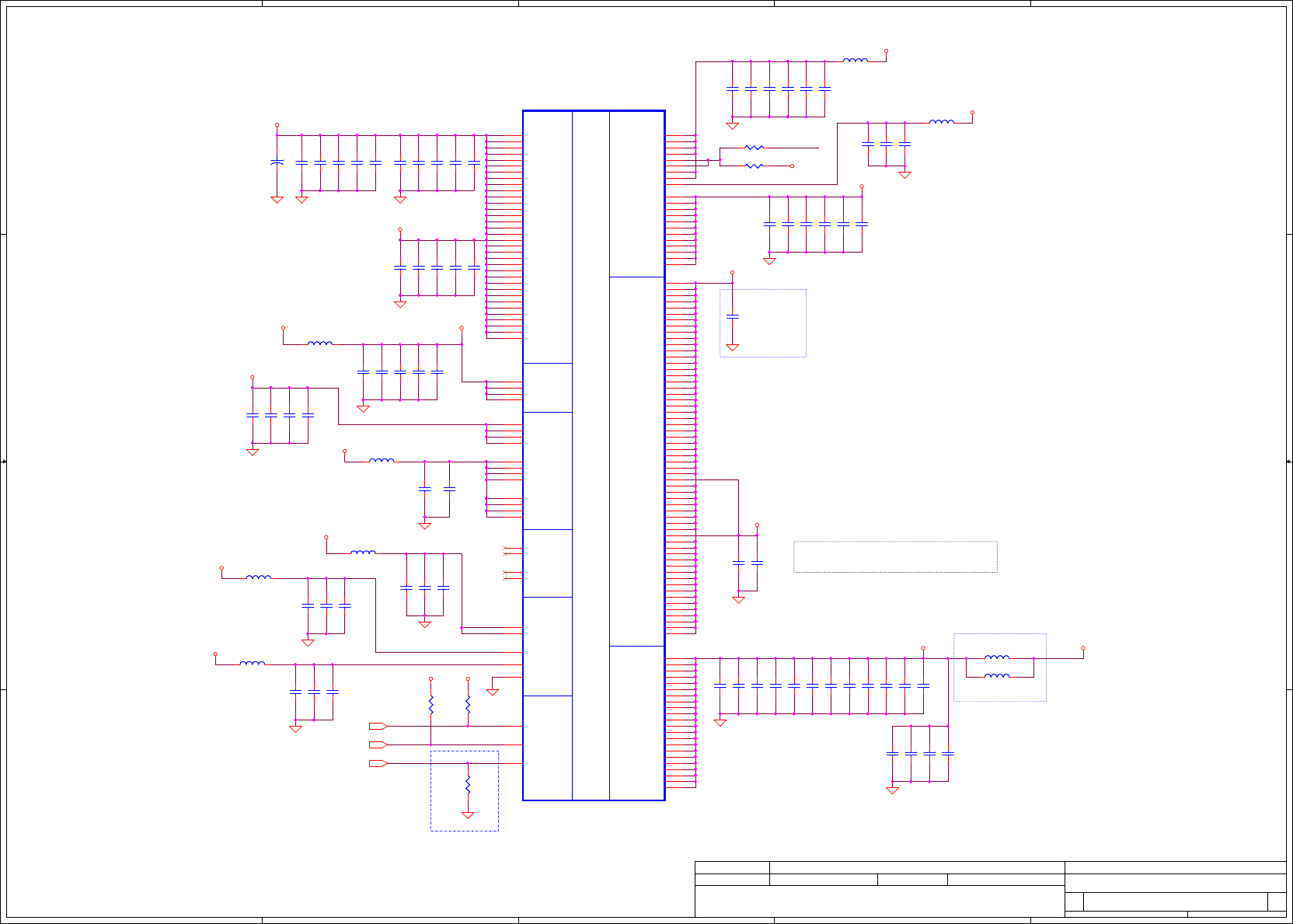

Close to N8

Close to AC9/AA9/AE20/AE21

Close to V8

Close to J17

Close to R21

Close to AH14

Close to AH10

Close to K9,M9

Reserve for HDA issue, C77 close to AH14

ESD solution

+PCH_VCCDSW

+VCCRTCEXT

+PCH_VCCDSW_R

+3VS

+1.05VS

+1.05VS_AUSB3PLL

+1.05VS_ASATA3PLL

+1.05VS_APLLOPI

+1.05VS

+3VALW_PCH

+3VS

+1.05VS_AXCK_DCB

+1.05VS_AXCK_LCPLL

+1.05VS

+1.5VS

+RTCVCC

+3VS

+1.05VS

+3VS

+1.05VS

+3VALW_PCH

+3VS

+1.05VS

+1.05VS_AXCK_DCB

+1.05VS_AXCK_LCPLL

+3VALW_PCH

+1.05VS +1.05VS_AUSB3PLL

+1.05VS_ASATA3PLL

+1.05VS_APLLOPI

+VCCHDA

+3VALW_PCH

+1.05VS

+1.5VS +3VS

+VCCHDA

+VCCHDA+3VALW_PCH

+1.05VS +3VS

+1.35V+1.05VS

+RTCVCC

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

14 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MCP(13/19) Power

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

14 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MCP(13/19) Power

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

14 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MCP(13/19) Power

C50 1U_0402_6.3V6KC50 1U_0402_6.3V6K

1 2

RC129 0_0402_5%@RC129 0_0402_5%@

1 2

C67 1U_0402_6.3V6KC67 1U_0402_6.3V6K

1 2

T56 @T56 @

2.2UH_LQM2MPN2R2NG0L_30%

1 2

C73 1U_0402_6.3V6KC73 1U_0402_6.3V6K

1 2

AXALIA/HDA

VRM/USB2/AZALIA

GPIO/LCC

THERMAL SENSOR

HASWELL_MCP_E

mPHY

OPI

CORE

USB2

LPT LP POWER

USB3

SDIO/PLSS

SUS OSCILLATOR

RTC

SPI

Rev1p2

13 OF 19

UC1M

AXALIA/HDA

VRM/USB2/AZALIA

GPIO/LCC

THERMAL SENSOR

HASWELL_MCP_E

mPHY

OPI

CORE

USB2

LPT LP POWER

USB3

SDIO/PLSS

SUS OSCILLATOR

RTC

SPI

Rev1p2

13 OF 19

UC1M

VCCHSIO

VCC1_05

RSVD

Y20

DCPSUS2

AH13

VCCAPLL

W21

DCPSUS3

J13

VCCSUS3_3

AC9

VCCSUS3_3

AA9

VCCUSB3PLL

B18

VCCSATA3PLL

B11

VCCDSW 3_3

AH10

VCCSDIO U8

VCCSDIO T9

VCC3_3 K14

VCC3_3 K16

VCCASW AG13

VCCASW AG14

VCCSPI Y8

DCPRTC AE7

VCCRTC AG10

VCCSUS3_3 AH11

VCCCLK

J18

VCCACLKPLL

A20 VCCCLK

K19

VCCCLK

J17

RSVD

M20

VCCCLK

T21 VCCCLK

R21

VCCSUS3_3

AE20

VCCSUS3_3

AE21

VCCAPLL

AA21

VCCASW AG8

VCCASW AF9

VCCASW AE9

VCC1_05 AE8

VCC1_05 H15

VCC1_05 H11

VCC1_05 J11

VCC3_3

W9 VCC3_3

DCPSUS4 AB8

RSVD AC20

VCC1_05 AG16

VCC1_05 AG17

RSVD

V21

RSVD

K18

VCCHSIO

L10

VCC1_05 AF22

DCPSUSBYP AG19

DCPSUSBYP AG20

DCPSUS1 AD10

DCPSUS1 AD8

VCCTS1_5 J15

VCCHDA

AH14

R2640_0603_1% @R2640_0603_1% @

C54

1U_0402_6.3V6K

C54

1U_0402_6.3V6K

C76 1U_0402_6.3V6KC76 1U_0402_6.3V6K

1 2

C43

22U_0603_6.3V6M

ESD@

C43

22U_0603_6.3V6M

ESD@

1 2

T53 @T53 @

C77 0.1U_0402_10V7KC77 0.1U_0402_10V7K

1 2

C84 100U_1206_6.3V6M C84 100U_1206_6.3V6M

1 2

C64

1U_0402_6.3V6K

C64

1U_0402_6.3V6K

1 2

C55

0.1U_0402_10V7K

C55

0.1U_0402_10V7K

T55 @T55 @

C78 22U_0603_6.3V6MC78 22U_0603_6.3V6M

1 2

C66 22U_0603_6.3V6M@C66 22U_0603_6.3V6M@

1 2

C57 1U_0402_6.3V6K@C57 1U_0402_6.3V6K@

1 2

C81 0.1U_0402_10V7K

1 2

C83 1U_0402_6.3V6KC83 1U_0402_6.3V6K

1 2

C70 100U_1206_6.3V6M@C70 100U_1206_6.3V6M@

1 2

T59 @T59 @

C53 1U_0402_6.3V6KC53 1U_0402_6.3V6K

1 2

C65 100U_1206_6.3V6M C65 100U_1206_6.3V6M

1 2

2.2UH_LQM2MPN2R2NG0L_30%

1 2

C52 0.1U_0402_10V7KC52 0.1U_0402_10V7K

1 2

RC128 0_0402_5%@RC128 0_0402_5%@

1 2

C69 1U_0402_6.3V6KC69 1U_0402_6.3V6K

1 2

C44

22U_0603_6.3V6M

ESD@

C44

22U_0603_6.3V6M

ESD@

1 2

C51 1U_0402_6.3V6KC51 1U_0402_6.3V6K

1 2

C68 0.1U_0402_10V7K@C68 0.1U_0402_10V7K@

1 2

R267

0_0805_1%

R267

0_0805_1%

1 2

RC127 0_0402_5%RC127 0_0402_5%

1 2

2.2UH_LQM2MPN2R2NG0L_30%

1 2

C61 1U_0402_6.3V6KC61 1U_0402_6.3V6K

1 2

C82 22U_0603_6.3V6MC82 22U_0603_6.3V6M

1 2

2.2UH_LQM2MPN2R2NG0L_30%

1 2

C75 0.1U_0402_10V7KC75 0.1U_0402_10V7K

C58 1U_0402_6.3V6KC58 1U_0402_6.3V6K

1 2

C59 100U_1206_6.3V6M C59 100U_1206_6.3V6M

1 2

C87 1U_0402_6.3V6KC87 1U_0402_6.3V6K

1 2

C71 0.1U_0402_10V7KC71 0.1U_0402_10V7K

1 2

C86 100U_1206_6.3V6M C86 100U_1206_6.3V6M

1 2

C56

0.1U_0402_10V7K

C56

0.1U_0402_10V7K

C63 1U_0402_6.3V6KC63 1U_0402_6.3V6K

1 2

C85 1U_0402_6.3V6KC85 1U_0402_6.3V6K

1 2

2.2UH_LQM2MPN2R2NG0L_30%

@L3

2.2UH_LQM2MPN2R2NG0L_30%

1 2

C88 1U_0402_6.3V6K

1 2

R265 0_0402_1%

1 2

C60 10U_0603_6.3V6M C60 10U_0603_6.3V6M

1 2

T58 @T58 @

C62 1U_0402_6.3V6KC62 1U_0402_6.3V6K

1 2

D D

C C

B B

A A

CAD Note: RC163 SHOULD BE PLACED CLOSE TO CPU

VSSSENSE <13,42>

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

15 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MCP(14,15,16/19) VSS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

15 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MCP(14,15,16/19) VSS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

15 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MCP(14,15,16/19) VSS

HASWELL_MCP_E

Rev1p2

16 OF 19

UC1P

HASWELL_MCP_E

Rev1p2

16 OF 19

UC1P

VSS

D49

VSS V3

VSS V7

VSS W20

VSS W22

VSS_SENSE E62

VSS V23

VSS AH46

VSS V58

VSS J10

VSS

D33

VSS L7

VSS H57

VSS

D41

VSS

D42

VSS

H13 VSS

VSS

G5 VSS

VSS

G18 VSS

F61 VSS

F58 VSS

F54

VSS

F46

VSS

F26 VSS

F20

VSS

E11 VSS

D8 VSS

D62

VSS

D57 VSS

D55 VSS

D54 VSS

D53 VSS

D51 VSS

D50 VSS

VSS

D47 VSS

D46 VSS

D45 VSS

D43

VSS

D34

VSS

D35

VSS

D37

VSS

D38

VSS

D39

VSS

G22

VSS

F30

VSS

E17

VSS

F34

VSS

F42

VSS AH16

VSS

F50

VSS

F38

VSS H17

VSS J22

VSS J59

VSS J63

VSS K1

VSS K12

VSS L13

VSS L15

VSS L17

VSS L18

VSS L20

VSS L58

VSS L61

VSS M22

VSS N10

VSS N3

VSS P59

VSS P63

VSS R10

VSS R8

VSS R22

VSS T1

VSS T58

VSS U20

VSS U61

VSS U22

VSS U9

VSS V10

VSS Y10

VSS Y59

VSS Y63

VSS

D59

HASWELL_MCP_E

Rev1p2

15 OF 19

UC1O

HASWELL_MCP_E

Rev1p2

15 OF 19

UC1O

VSS

AU28

VSS C14

VSS C11

VSS AW60

VSS AW40

VSS AW16

VSS AV8

VSS AV59

VSS

AP22

VSS

AV34

VSS D31

VSS D30

VSS D29

VSS D21

VSS D2

VSS D18

VSS D14

VSS D12

VSS C57

VSS C39

VSS C38

VSS C27

VSS C25

VSS C20

VSS C18

VSS B60

VSS B56

VSS B52

VSS B48

VSS B44

VSS B40

VSS B4

VSS B36

VSS B32

VSS B28

VSS B26

VSS B24

VSS B20

VSS AY6

VSS AY59

VSS AY57

VSS AY53

VSS AY51

VSS AY4

VSS AY33

VSS AY30

VSS AY26

VSS AY24

VSS AY22

VSS AY18

VSS AY16

VSS AY11

VSS AW59

VSS AW51

VSS AW50

VSS AW47

VSS AW44

VSS AW42

VSS AW4

VSS AW37

VSS AW35

VSS AW33

VSS AW24

VSS

AV51 VSS

AV49 VSS

AV46 VSS

AV43 VSS

AV41 VSS

AV39 VSS

AV36

VSS

AV14 VSS

AU59 VSS

AU57

VSS

AU53 VSS

AU51

VSS

AU30

VSS

AU26 VSS

AU24 VSS

AU22 VSS

AU20 VSS

AU18 VSS

AU16 VSS

AU1 VSS

AT63 VSS

AT62 VSS

AT61 VSS

AT49 VSS

AT46 VSS

AT43 VSS

AT42 VSS

AT40 VSS

AT37 VSS

AT35 VSS

AT13 VSS

AR52 VSS

AR5 VSS

AR49 VSS

AR43 VSS

AR39 VSS

AR33 VSS

AR31 VSS

AR23 VSS

AR17 VSS

AR15

VSS

AP57 VSS

AP54 VSS

AP52 VSS

AP48 VSS

AP39

VSS

AP31

VSS

AP29 VSS

AP26 VSS

AP23

VSS

AP38

VSS

AP3

VSS

AV55

VSS D23

VSS D25

VSS D27

VSS D26

VSS

AU55

VSS

AU33

VSS

AR11

VSS

AV20

VSS

AV28

VSS

AV33

VSS

AV24

VSS

AV16

RC163

100_0402_1%

RC163

100_0402_1%

HASWELL_MCP_E

Rev1p2

14 OF 19

UC1N

HASWELL_MCP_E

Rev1p2

14 OF 19

UC1N

VSS

AH34

VSS

AH36

VSS AJ39

VSS AJ41

VSS AJ35

VSS AJ47

VSS AJ54

VSS

AF15

VSS

AF18

VSS AP20

VSS AP17

VSS AN7

VSS AN63

VSS AN60

VSS AN52

VSS AN51

VSS AN48

VSS AN46

VSS AN45

VSS AN43

VSS AN42

VSS AN39

VSS AN36

VSS AN35

VSS AN32

VSS AN31

VSS AN17

VSS AM52

VSS AM31

VSS AM23

VSS AM17

VSS AL61

VSS AL60

VSS AL57

VSS AL54

VSS AL52

VSS AL46

VSS AL45

VSS AL40

VSS AL39

VSS AL36

VSS AL33

VSS AL31

VSS AL29

VSS AL26

VSS AL23

VSS AL22

VSS AL20

VSS AL17

VSS AL13

VSS AL10

VSS AK52

VSS AK3

VSS AK23

VSS AJ63

VSS AJ60

VSS AJ58

VSS AJ56

VSS AJ52

VSS AJ50

VSS AJ45

VSS AJ43

VSS

AJ29 VSS

AJ27 VSS

AJ25 VSS

AJ23 VSS

AJ14 VSS

AJ13 VSS

AH57 VSS

AH55 VSS

AH53

VSS

AH42 VSS

AH40

VSS

AH32 VSS

AH30 VSS

AH28 VSS

AH24 VSS

AH22 VSS

AH20 VSS

AH19 VSS

AH17 VSS

AG63 VSS

AG62 VSS

AG61 VSS

AG60 VSS

AG23 VSS

AG21 VSS

AG11 VSS

AG1

VSS

AF17

VSS

AF14 VSS

AF12 VSS

AF11 VSS

AE58 VSS

AE5 VSS

AE10 VSS

AD63 VSS

AD3 VSS

AD21 VSS

AC61 VSS

AB7 VSS

AB22 VSS

AB20 VSS

AB10 VSS

AA58 VSS

AA1 VSS

A56 VSS

A52 VSS

A48 VSS

A44 VSS

A40 VSS

A36 VSS

A32

VSS

A24 VSS

A18 VSS

A14 VSS

A11

VSS

A28

VSS AL51

VSS AM1

VSS AN23

VSS AN40

VSS AN49

VSS AP10

VSS

AH38

VSS

AH51 VSS

AH49 VSS

AH44

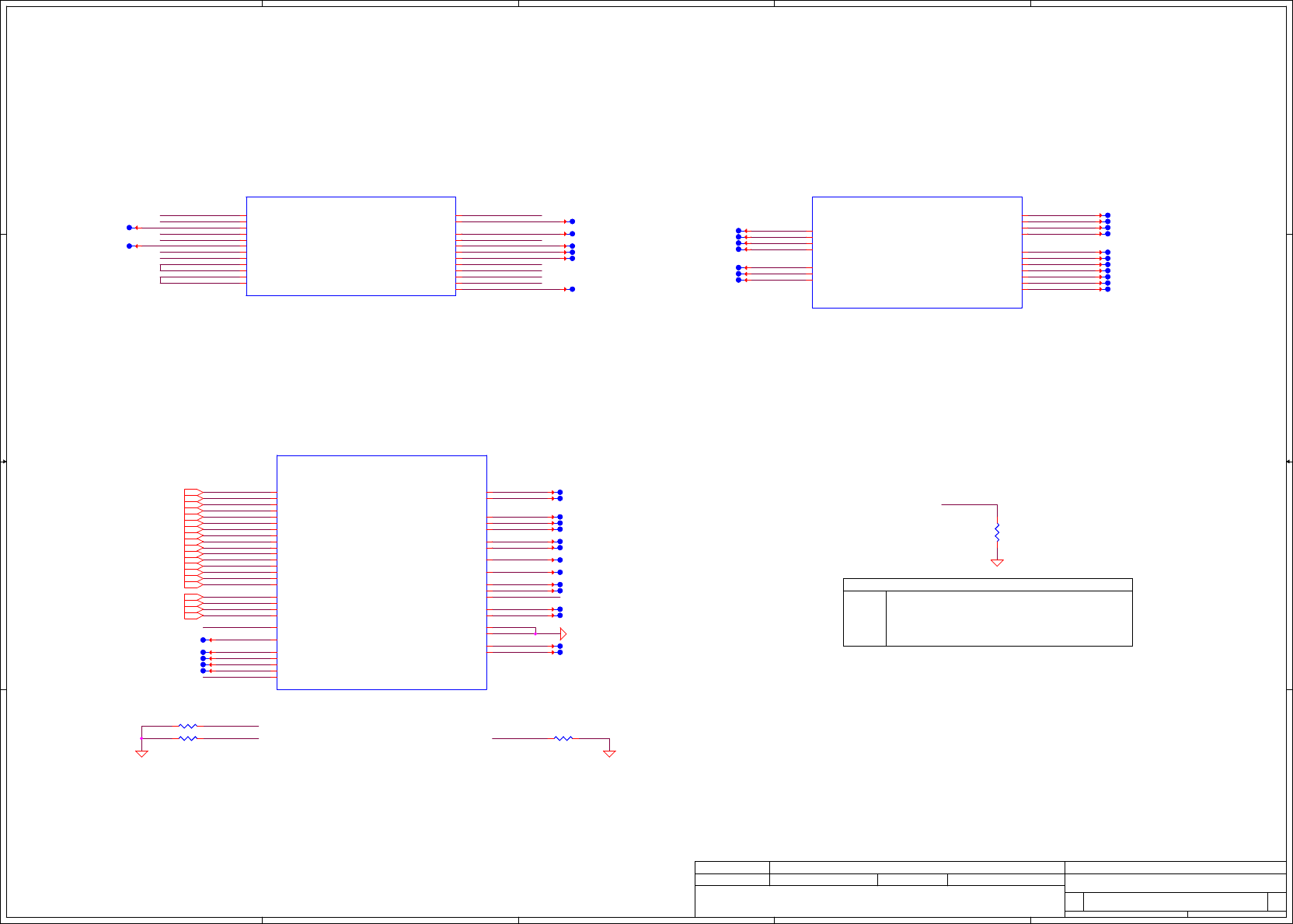

D D

C C

B B

A A

CFG4

1: Disabled; No Physical Display Port

attached to Embedded Display Port

0: Enabled; An external Display Port device is

connected to the Embedded Display Port

Display Port Presence Strap

CFG STRAPS for CPU

CFG16

CFG19

CFG2

CFG0

CFG4

CFG5

CFG6

CFG7

TDI_IREF

CFG_RCOMP

CFG18

CFG17

CFG4

PROC_OPI_RCOMP

CFG1

PROC_OPI_RCOMP

CFG3

CFG8

CFG9

CFG10

CFG11

CFG12

CFG13

CFG14

CFG15

DC_TEST_A3_B3

DC_TEST_AY3_AW3

DC_TEST_A61_B61

DC_TEST_AY3_AW3

DC_TEST_A61_B61

DC_TEST_AY60

DC_TEST_AY61_AW61

DC_TEST_AW 63

TP_DC_TEST_B2

DC_TEST_AY61_AW61

DC_TEST_A60

DC_TEST_A62

DC_TEST_AV1

DC_TEST_AW 1

DC_TEST_B62_B63

DC_TEST_AY62_AW62

DC_TEST_C1_C2 DC_TEST_AY62_AW62

DC_TEST_AY2_AW2

DC_TEST_A4

DC_TEST_A3_B3

DC_TEST_AY2_AW2

RSVD_R23

RSVD_U10

RSVD_T23

RSVD_N23

RSVD_AY14

RSVD_AL1

RSVD_AM11

RSVD_AP7

RSVD_AU10

RSVD_AU15

RSVD_AW14

RSVD_AV44

RSVD_D15

RSVD_F22

RSVD_J21

RSVD_H22

RSVD_AT2

RSVD_AU44

CFG0<6>

CFG1<6>

CFG2<6>

CFG3<6>

CFG4<6>

CFG5<6>

CFG6<6>

CFG7<6>

CFG8<6>

CFG9<6>

CFG10<6>

CFG11<6>

CFG12<6>

CFG13<6>

CFG14<6>

CFG15<6>

CFG16<6>

CFG18<6>

CFG17<6>

CFG19<6>

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

16 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MCP(17,18,19/19) CFG,RSVD

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

16 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MCP(17,18,19/19) CFG,RSVD

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

16 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MCP(17,18,19/19) CFG,RSVD

T152PAD~D @T152PAD~D @

RC138

1K_0402_1%

RC138

1K_0402_1%

RC132 49.9_0402_1%RC132 49.9_0402_1%

T156PAD~D @T156PAD~D @

T142PAD~D @

T165PAD~D@T165PAD~D@

RC133 8.2K_0402_1%RC133 8.2K_0402_1%

1 2

T146PAD~D @T146PAD~D @

T153PAD~D @T153PAD~D @

T140 PAD~D

@T140 PAD~D

T134 PAD~D

@T134 PAD~D

T147PAD~D @T147PAD~D @

T171PAD~D @T171PAD~D @T135 PAD~D

@T135 PAD~D

T168PAD~D @T168PAD~D @

T167PAD~D@T167PAD~D@

RC13449.9_0402_1% RC13449.9_0402_1%

1 2

T131PAD~D @

T170PAD~D @T170PAD~D @

T133PAD~D @

T136PAD~D @

T151PAD~D @T151PAD~D @

T145PAD~D @

HASWELL_MCP_E

Rev1p2

17 OF 19

UC1Q

HASWELL_MCP_E

Rev1p2

17 OF 19

UC1Q

DAISY_CHAIN_NCTF_AW62 AW62

DAISY_CHAIN_NCTF_AW63 AW63

DAISY_CHAIN_NCTF_AW61 AW61

DAISY_CHAIN_NCTF_AW3 AW3

DAISY_CHAIN_NCTF_AW2 AW2

DAISY_CHAIN_NCTF_A62 A62

DAISY_CHAIN_NCTF_AV1 AV1

DAISY_CHAIN_NCTF_AW1 AW1

DAISY_CHAIN_NCTF_A60 A60

DAISY_CHAIN_NCTF_A61 A61

DAISY_CHAIN_NCTF_A4 A4

DAISY_CHAIN_NCTF_A3 A3

DAISY_CHAIN_NCTF_C2

C2 DAISY_CHAIN_NCTF_C1

C1 DAISY_CHAIN_NCTF_B63

B63 DAISY_CHAIN_NCTF_B62

B62

DAISY_CHAIN_NCTF_B2

DAISY_CHAIN_NCTF_B3

DAISY_CHAIN_NCTF_B61

B61

DAISY_CHAIN_NCTF_AY61

AY61

DAISY_CHAIN_NCTF_AY62

AY62

DAISY_CHAIN_NCTF_AY3

AY3

DAISY_CHAIN_NCTF_AY60

AY60

DAISY_CHAIN_NCTF_AY2

AY2

T159PAD~D@T159PAD~D@

T172PAD~D @T172PAD~D @

T149PAD~D @T149PAD~D @

T130PAD~D @

HASWELL_MCP_E

Rev1p2

18 OF 19

UC1R

HASWELL_MCP_E

Rev1p2

18 OF 19

UC1R

RSVD AP7

RSVD U10

RSVD AL1

RSVD AM11

RSVD AU10

RSVD AU15

RSVD R23

RSVD N23

RSVD T23

RSVD

J21 RSVD

H22 RSVD

F22

RSVD

D15 RSVD

AV44 RSVD

AU44 RSVD

AT2

RSVD AW14

RSVD AY14

T173PAD~D @T173PAD~D @

T132 PAD~D

@T132 PAD~D

T163PAD~D@T163PAD~D@

T128 PAD~D

@T128 PAD~D

T143 PAD~D

@T143 PAD~D

T141PAD~D @

T150PAD~D @T150PAD~D @

T138 PAD~D

@T138 PAD~D

T154PAD~D @T154PAD~D @

T129PAD~D @

T160PAD~D @T160PAD~D @

T137PAD~D @

T161PAD~D@T161PAD~D@

T157PAD~D @T157PAD~D @

T166PAD~D@T166PAD~D@

T139PAD~D @

T164PAD~D@T164PAD~D@

T162PAD~D @T162PAD~D @

T169PAD~D @T169PAD~D @

RESERVED

HASWELL_MCP_E

Rev1p2

19 OF 19

UC1S

RESERVED

HASWELL_MCP_E

Rev1p2

19 OF 19

UC1S

CFG17

AA61 CFG18

U63

CFG7

Y60

CFG11

U60

CFG12

T63

RSVD_TP AU63

RSVD_TP C63

RSVD_TP C62

RSVD_TP L60

RSVD_TP B51

RSVD_TP A51

CFG10

V60 CFG9

V61 CFG8

V62

CFG6

Y61

RSVD

RSVD B43

RSVD N60

RSVD Y22

RSVD W23

RSVD D58

RSVD AV62

RSVD_TP AV63

VSS N21

VSS P22

CFG_RCOMP

V63

CFG19

U62

CFG13

T62

RSVD R20

RSVD P20

PROC_OPI_RCOMP AY15

TD_IREF

B12

RSVD

J20

RSVD

H18

CFG5

Y62 CFG4

AA60 CFG3

AA63 CFG2

AC63 CFG1

AC62 CFG0

AC60

CFG16

AA62

CFG15

T60 CFG14

T61

T148PAD~D @T148PAD~D @

T158PAD~D @T158PAD~D @

T144PAD~D @

T155PAD~D @T155PAD~D @

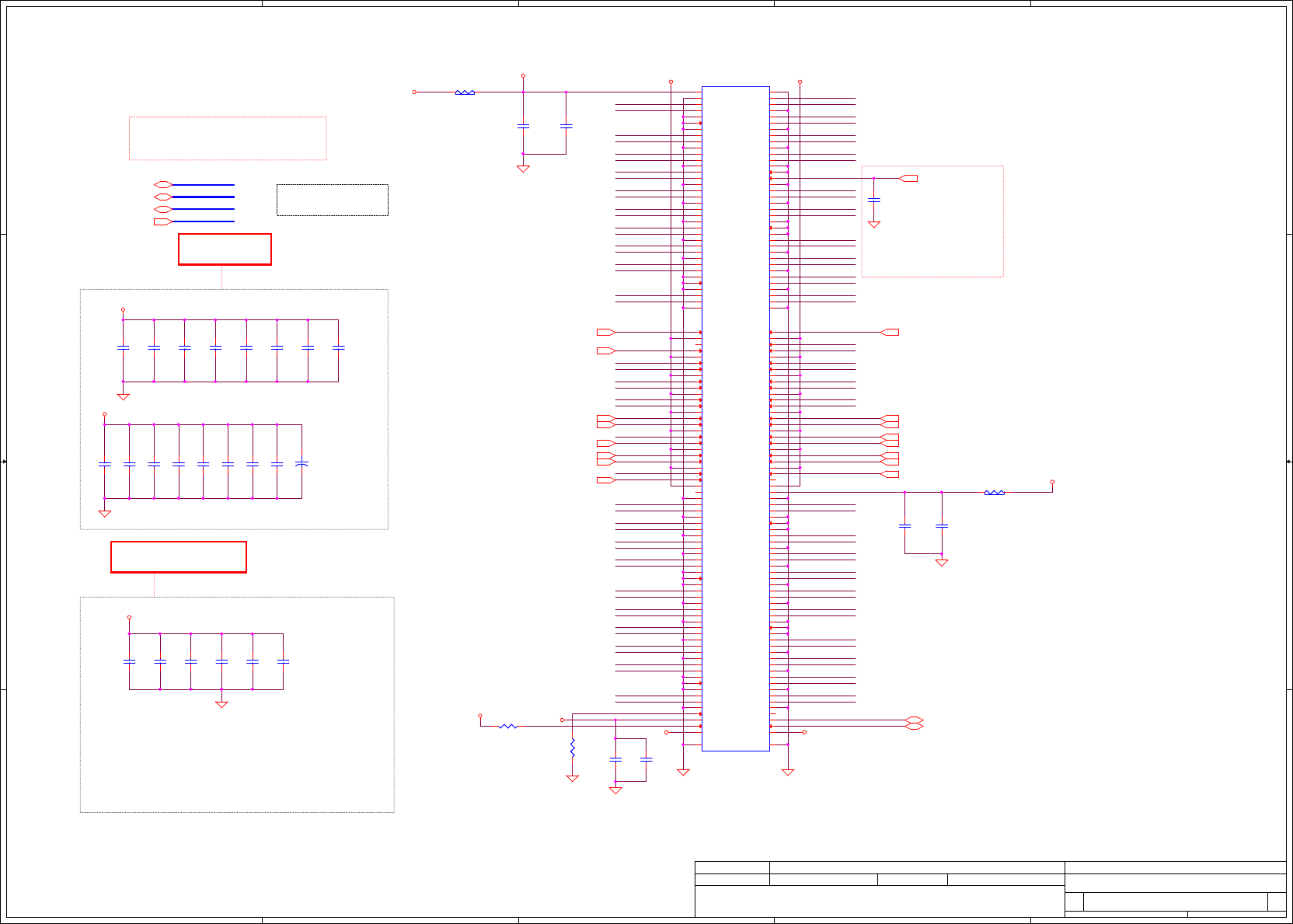

D D

C C

B B

A A

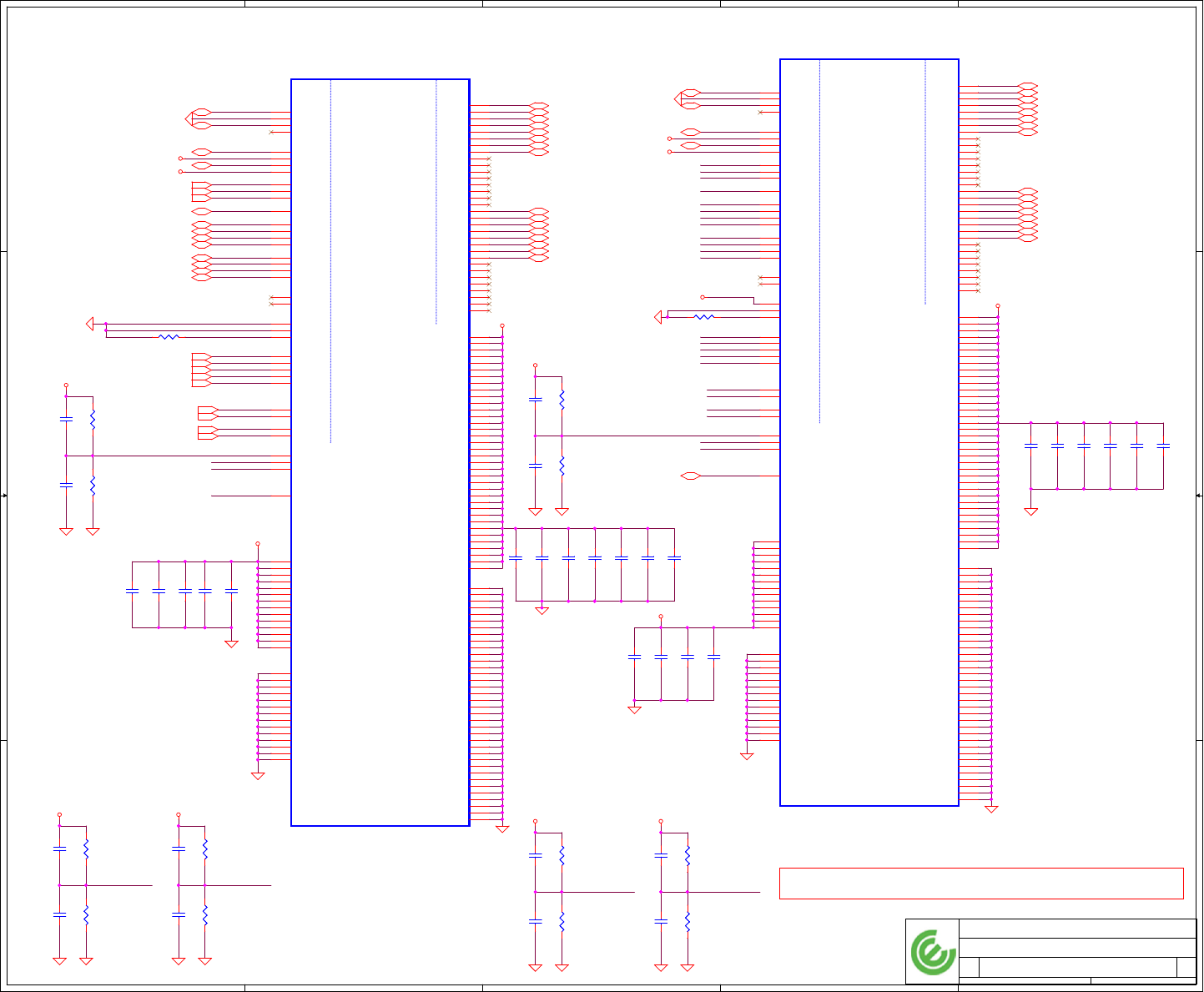

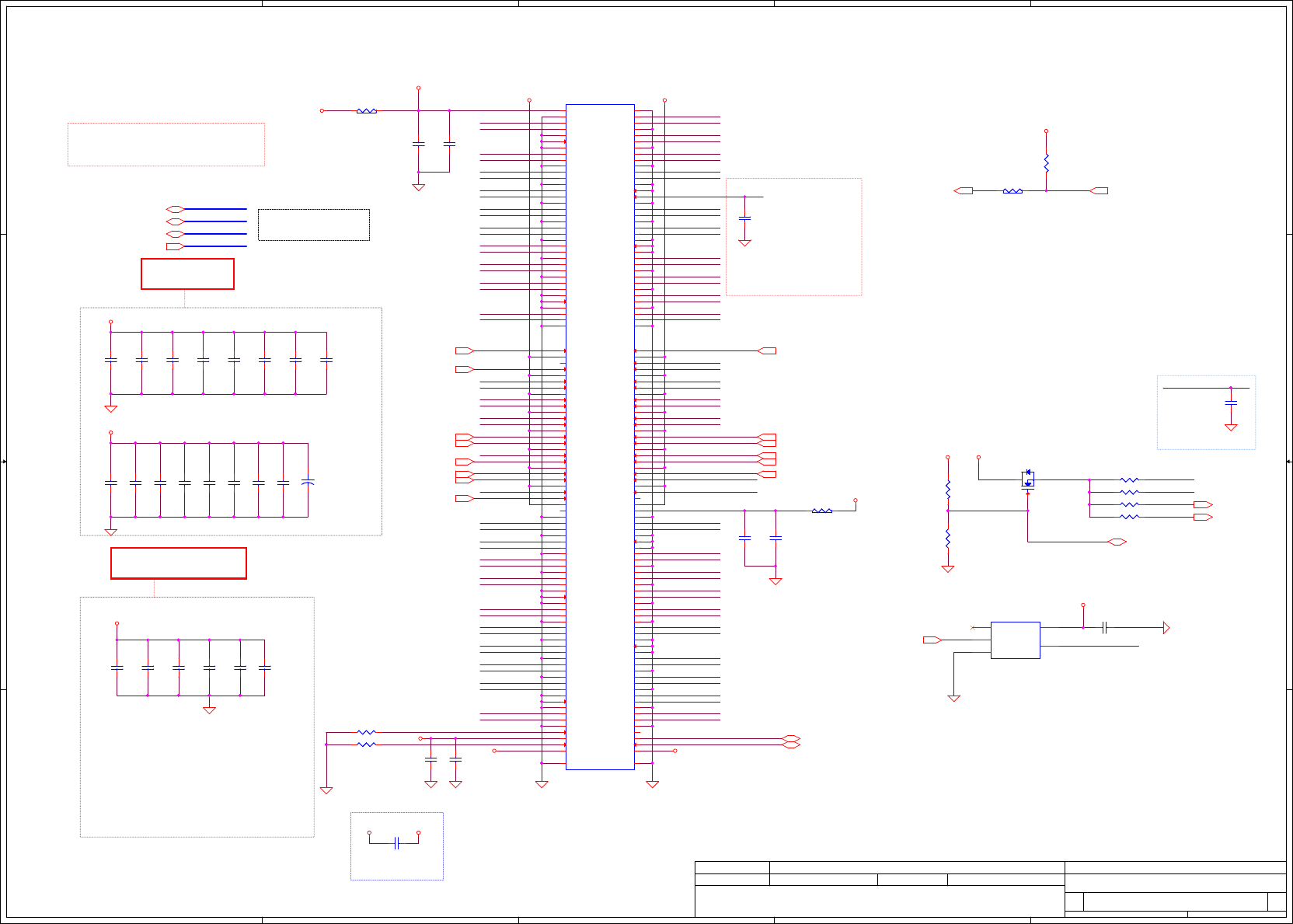

Layout Note:

Place near JDIMM1

Layout Note:

Place near JDIMM1.203,204

All VREF traces should

have 10 mil trace width

DDR3L SODIMM ODT GENERATION

Note:

Check voltage tolerance of

VREF_DQ at the DIMM socket

Populate RD1, De-Populate RD7 for Intel DDR3

VREFDQ multiple methods M1

Populate RD7, De-Populate RD1 for Intel DDR3

VREFDQ multiple methods M3

H=4mm

2-3A to 1 DIMMs/channel

CAD NOTE

PLACE THE CAP NEAR TO

DIMM RESET PIN

ESD solution

Place CC31

between QD2 and R2349

0.675V_DDR_VTT_ON

DDR3_DRAMRST#

DDR_A_D13

DDR_A_D8

DDR_A_D14

DDR_A_D10

DDR_A_D9

DDR_A_D12

DDR_A_D15

DDR_A_D11

DDR_A_D29

DDR_A_D30

DDR_A_D31

DDR_A_D43

DDR_A_D47

DDR_A_D40

DDR_A_D49

DDR_A_D48

DDR_A_D52

DDR_A_D53

DDR_A_D0

DDR_A_D2

DDR_A_D6

DDR_A_D5

DDR_A_D4

DDR_A_D21

DDR_A_D20

DDR_A_D17

DDR_A_D16

DDR_A_D19

DDR_A_D22

DDR_A_D33

DDR_A_D34

DDR_A_D38

DDR_A_D37

DDR_A_D32

DDR_A_D39

DDR_A_D62

DDR_A_D58

DDR_A_D60

DDR_A_D61

DDR_A_D63

DDR_A_D59

DDR_A_D56

DDR_A_MA2

DDR_A_MA0DDR_A_MA1

DDR_A_MA3

DDR_A_MA4DDR_A_MA5

DDR_A_MA6DDR_A_MA8

DDR_A_MA7DDR_A_MA9

DDR_A_MA10

DDR_A_MA11DDR_A_MA12

DDR_A_MA13

DDR_A_MA14

DDR_A_DQS1

DDR_A_DQS3

DDR_A_DQS5

DDR_A_DQS6

DDR_A_DQS0

DDR_A_DQS2

DDR_A_DQS4

DDR_A_DQS7

DDR_A_DQS#1

DDR_A_DQS#3

DDR_A_DQS#5

DDR_A_DQS#6

DDR_A_DQS#0

DDR_A_DQS#2

DDR_A_DQS#4

DDR_A_DQS#7

DDR_A_BS0

DDR_A_BS1

DDR_A_BS2

DDR_CS1_DIMMA#

DDR_CS0_DIMMA#

M_CLK_DDR0

M_CLK_DDR#0

M_CLK_DDR1

M_CLK_DDR#1

DDR_CKE0_DIMMA DDR_CKE1_DIMMA

DDR_A_CAS#

DDR_A_RAS#

DDR_A_WE#

M_ODT0

M_ODT1

DDR_A_D57

DDR_A_MA15

DDR_A_D46

DDR_A_D55

DDR_A_D41

DDR_A_D28 DDR_A_D24

DDR_A_D45DDR_A_D44

DDR_A_D50

DDR_A_D54

DDR_A_D51

DDR_A_D27

DDR_A_D26

DDR_A_D25

DDR_A_D42

DDR_A_D7

DDR_A_D35

DDR_A_D1

DDR_A_D3

DDR_A_D23

DDR_A_D18

DDR_A_D36

0.675V_DDR_VTT_ON

M_ODT0

M_ODT1

M_ODT

DDR_A_DQS#[0..7]<7>

DDR_A_D[0..63]<7>

DDR_A_DQS[0..7]<7>

DDR_A_MA[0..15]<7>

DDR_A_BS2<7>

DDR_CKE0_DIMMA<7>

M_CLK_DDR0<7>

M_CLK_DDR#0<7>

DDR_A_WE#<7>

DDR_A_CAS#<7>

DDR_A_BS0<7>

DDR_CS1_DIMMA#<7>

DDR_XDP_WLAN_TP_SMBCLK <18,19,26,27,6,9>

DDR_XDP_WLAN_TP_SMBDAT <18,19,26,27,6,9>

DDR_PG_CTRL<6>

M_ODT2 <18>

M_ODT3 <18>

DDR3_DRAMRST#<18> DDR3_DRAMRST#_CPU <6>

DDR_CKE1_DIMMA <7>

M_CLK_DDR#1 <7>

M_CLK_DDR1 <7>

DDR_A_RAS# <7>

DDR_A_BS1 <7>

DDR_CS0_DIMMA# <7>

0.675V_DDR_VTT_ON <41>

+0.675VS

+1.35V

+1.35V+1.35V

+3VS

+0.675VS

+DIMM1_VREF_DQ

+5VALW +1.35V

+0.675VS

+SM_VREF_CA_DIMM

+1.35V

+SM_VREF_DQ0_DIMM1

+1.35V

+3VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

17 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

DDRIII DIMMA

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

17 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

DDRIII DIMMA

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

17 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

DDRIII DIMMA

CD6

1U_0402_6.3V6K

CD6

1U_0402_6.3V6K

CD11

1U_0402_6.3V6K

CD11

1U_0402_6.3V6K

RD5

0_0402_1%

RD5

0_0402_1%

1 2

CD31

0.1U_0402_10V7K

CD31

0.1U_0402_10V7K

R2348 66.5_0402_1%R2348 66.5_0402_1%

1 2

CD16

10U_0603_6.3V6M

CD16

10U_0603_6.3V6M

CD1

2.2U_0402_6.3V6M

CD1

2.2U_0402_6.3V6M

CD23

0.1U_0402_10V7K

CD23

0.1U_0402_10V7K

1 2

CD17

10U_0603_6.3V6M

CD17

10U_0603_6.3V6M

CD24

0.1U_0402_10V7K

CD24

0.1U_0402_10V7K

CD15

330U_D3_2.5VY_R6M

CD15

330U_D3_2.5VY_R6M

CD27

0.1U_0402_10V7K

CD27

0.1U_0402_10V7K

CD18

10U_0603_6.3V6M

CD18

10U_0603_6.3V6M

R2347

220K_0402_5%~D

R2347

220K_0402_5%~D

RD3

470_0402_5%

RD3

470_0402_5%

R2349 66.5_0402_1%R2349 66.5_0402_1%

1 2

CD8

1U_0402_6.3V6K

CD8

1U_0402_6.3V6K

RD6 10K_0402_5%RD6 10K_0402_5%

1 2

RD1

0_0402_1%

RD1

0_0402_1%

1 2

CD21

2.2U_0402_6.3V6M

CD21

2.2U_0402_6.3V6M

CD9

1U_0402_6.3V6K

CD9

1U_0402_6.3V6K

CD30

2.2U_0402_6.3V6M

CD30

2.2U_0402_6.3V6M

CD5

1U_0402_6.3V6K

CD5

1U_0402_6.3V6K

CD14

10U_0603_6.3V6M

CD14

10U_0603_6.3V6M

CD4

1U_0402_6.3V6K

CD4

1U_0402_6.3V6K

CD19

10U_0603_6.3V6M

CD19

10U_0603_6.3V6M

CD64

0.1U_0402_10V7K

ESD@CD64

0.1U_0402_10V7K

ESD@

CD26

0.1U_0402_10V7K

CD26

0.1U_0402_10V7K

CD22

0.1U_0402_10V7K

CD22

0.1U_0402_10V7K

R2350 66.5_0402_1%R2350 66.5_0402_1%

1 2

CD20

10U_0603_6.3V6M

CD20

10U_0603_6.3V6M

CD13

10U_0603_6.3V6M

CD13

10U_0603_6.3V6M

RD4

0_0402_1%

RD4

0_0402_1%

1 2

RD7 10K_0402_5%RD7 10K_0402_5%

1 2

CD10

1U_0402_6.3V6K

CD10

1U_0402_6.3V6K

CD2

0.1U_0402_10V7K

CD2

0.1U_0402_10V7K

CD25

0.1U_0402_10V7K

CD25

0.1U_0402_10V7K

R2352 66.5_0402_1%R2352 66.5_0402_1%

1 2

CD3

0.1U_0402_10V7K

ESD@

CD3

0.1U_0402_10V7K

ESD@

CD7

1U_0402_6.3V6K

CD7

1U_0402_6.3V6K

CD28

10U_0603_6.3V6M

CD28

10U_0603_6.3V6M

R2351

2M_0402_5%

R2351

2M_0402_5%

1 2

JDIMM1

LCN_DAN06-K4406-0102

CONN@

JDIMM1

LCN_DAN06-K4406-0102

CONN@

VREF_DQ

1VSS1 2

VSS2

3DQ4 4

DQ0

5DQ5 6

DQ1

7VSS3 8

VSS4

9DQS#0 10

DM0

11 DQS0 12

VSS5

13 VSS6 14

DQ2

15 DQ6 16

DQ3

17 DQ7 18

VSS7

19 VSS8 20

DQ8

21 DQ12 22

DQ9

23 DQ13 24

VSS9

25 VSS10 26

DQS#1

27 DM1 28

DQS1

29 RESET# 30

VSS11

31 VSS12 32

DQ10

33 DQ14 34

DQ11

35 DQ15 36

VSS13

37 VSS14 38

DQ16

39 DQ20 40

DQ17

41 DQ21 42

VSS15

43 VSS16 44

DQS#2

45 DM2 46

DQS2

47 VSS17 48

VSS18

49 DQ22 50

DQ18

51 DQ23 52

DQ19

53 VSS19 54

VSS20

55 DQ28 56

DQ24

57 DQ29 58

DQ25

59 VSS21 60

VSS22

61 DQS#3 62

DM3

63 DQS3 64

VSS23

65 VSS24 66

DQ26

67 DQ30 68

DQ27

69 DQ31 70

VSS25

71 VSS26 72

A12/BC#

83 A11 84

85 A7 86

VDD5

87 VDD6 88

89 A6 90

CKE0

73 CKE1 74

VDD1

75 VDD2 76

NC1

77 A15 78

BA2

79 A14 80

VDD3

81 VDD4 82

91 A4 92

VDD7

93 VDD8 94

95 A2 96

97 A0 98

VDD9

99 VDD10 100

CK0

101 CK1 102

CK0#

103 CK1# 104

VDD11

105 VDD12 106

A10/AP

107 BA1 108

BA0

109 RAS# 110

VDD13

111 VDD14 112

WE#

113 S0# 114

CAS#

115 ODT0 116

VDD15

117 VDD16 118

A13

119 ODT1 120

S1#

121 NC2 122

VDD17

123 VDD18 124

NCTEST

125 VREF_CA 126

VSS27

127 VSS28 128

DQ32

129 DQ36 130

DQ33

131 DQ37 132

VSS29

133 VSS30 134

DQS#4

135 DM4 136

DQS4

137 VSS31 138

VSS32

139 DQ38 140

DQ34

141 DQ39 142

DQ35

143 VSS33 144

VSS34

145 DQ44 146

DQ40

147 DQ45 148

DQ41

149 VSS35 150

VSS36

151 DQS#5 152

DM5

153 DQS5 154

VSS37

155 VSS38 156

DQ42

157 DQ46 158

DQ43

159 DQ47 160

VSS39

161 VSS40 162

DQ48

163 DQ52 164

DQ49

165 DQ53 166

VSS41

167 VSS42 168

DQS#6

169 DM6 170

DQS6

171 VSS43 172

VSS44

173 DQ54 174

DQ50

175 DQ55 176

DQ51

177 VSS45 178

VSS46

179 DQ60 180

DQ56

181 DQ61 182

DQ57

183 VSS47 184

VSS48

185 DQS#7 186

DM7

187 DQS7 188

VSS49

189 VSS50 190

DQ58

191 DQ62 192

DQ59

193 DQ63 194

VSS51

195 VSS52 196

SA0

197 EVENT# 198

VDDSPD

199 SDA 200

SA1

201 SCL 202

VTT1

203 VTT2 204

205 G2 206

QD2

BSS138-G_SOT23-3

QD2

BSS138-G_SOT23-3

1 3

CD62

22U_0603_6.3V6M

ESD@

CD62

22U_0603_6.3V6M

ESD@

1 2

U2303

74AUP1G07GW_TSSOP5

U2303

74AUP1G07GW_TSSOP5

GND

1VCC 5

CD12

10U_0603_6.3V6M

CD12

10U_0603_6.3V6M

CD29

10U_0603_6.3V6M

CD29

10U_0603_6.3V6M

D D

C C

B B

A A

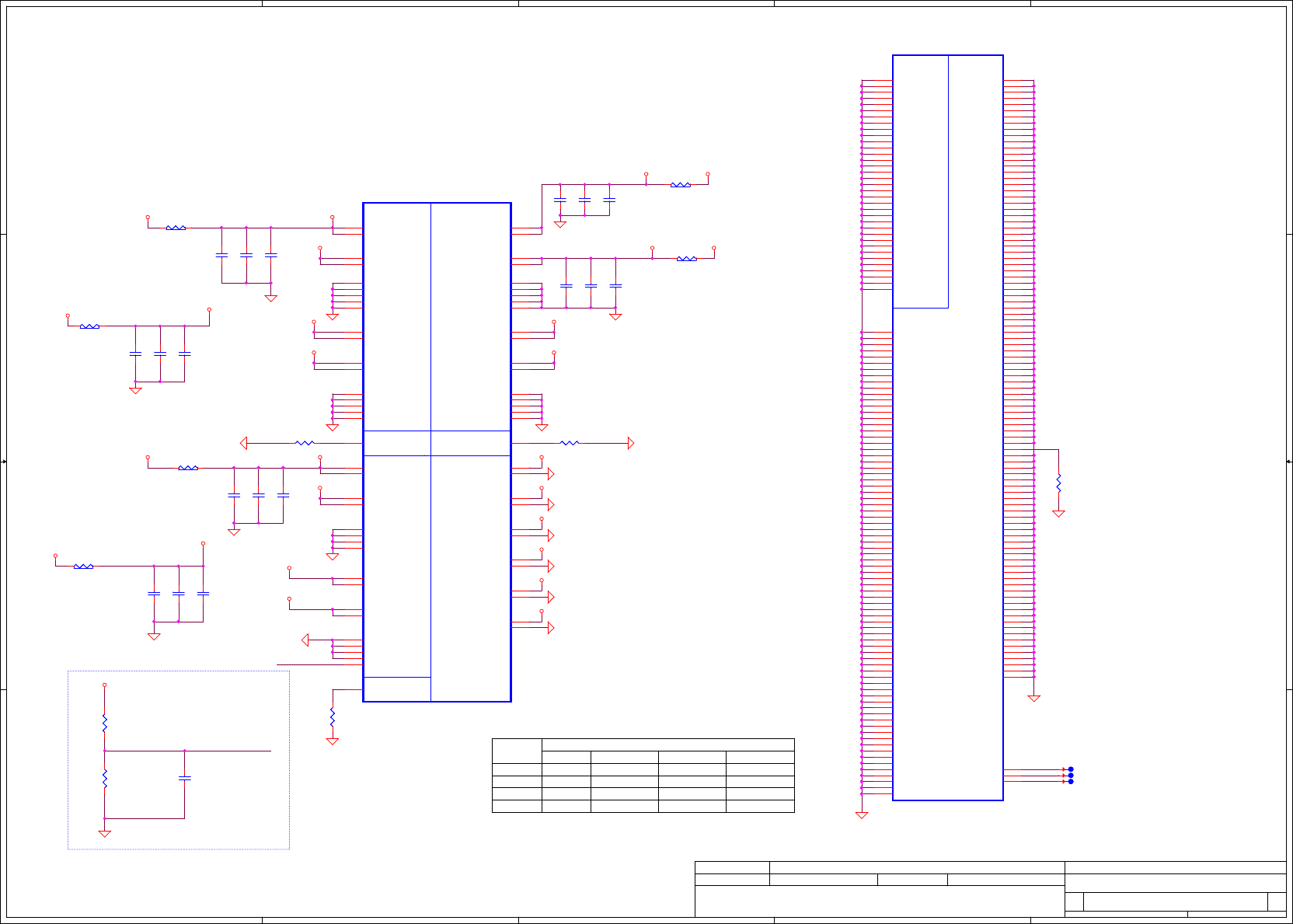

Layout Note:

Place near JDIMM2

Layout Note:

Place near JDIMM2.203,204

All VREF traces should

have 10 mil trace width

Note:

Check voltage tolerance of

VREF_DQ at the DIMM socket

Populate RD4, De-Populate RD8 for Intel DDR3

VREFDQ multiple methods M1

Populate RD8, De-Populate RD4 for Intel DDR3

VREFDQ multiple methods M3

2-3A to 1 DIMMs/channel

H=4mm

CAD NOTE

PLACE THE CAP NEAR TO

DIMM RESET PIN

DDR_B_MA7

DDR_B_D37

M_ODT2

DDR_B_MA14

DDR_B_D0

DDR_B_D5

DDR_B_MA6

DDR_B_D16

DDR_B_D34

DDR_B_D32

DDR_B_D19

DDR_CKE3_DIMMB

DDR_B_MA4

DDR_B_D17

DDR_B_D2

DDR_B_BS1

DDR_B_D38

DDR_B_D18

M_ODT3

M_CLK_DDR3

DDR_B_RAS#

M_CLK_DDR#3

DDR_B_MA2

DDR_B_DQS#2

DDR_B_MA11

DDR_B_D51

DDR_B_D6

DDR_B_MA0

DDR_B_DQS2

DDR_CS2_DIMMB#

DDR_B_MA15

DDR_B_D55

DDR_B_DQS#6

DDR_B_DQS6

DDR_B_D54

DDR_B_D50

DDR3_DRAMRST#

DDR_CKE2_DIMMB

DDR_B_D48

DDR_B_D53

DDR_B_BS2

DDR_B_MA12

DDR_B_MA9

DDR_B_MA8

DDR_B_MA5

DDR_B_MA3

DDR_B_MA1

M_CLK_DDR2

M_CLK_DDR#2

DDR_B_MA10

DDR_B_BS0

DDR_B_WE#

DDR_B_CAS#

DDR_B_MA13

DDR_CS3_DIMMB#

DDR_B_D4

DDR_B_D1

DDR_B_DQS#0

DDR_B_DQS0

DDR_B_D3

DDR_B_D7

DDR_B_D21

DDR_B_D20

DDR_B_D22

DDR_B_D23

DDR_B_D36

DDR_B_D33

DDR_B_DQS#4

DDR_B_DQS4

DDR_B_D35

DDR_B_D39

DDR_B_D52

DDR_B_D49

DDR_B_D47

DDR_B_D42

DDR_B_D45

DDR_B_D58

DDR_B_D28

DDR_B_DQS#5

DDR_B_D43

DDR_B_D44

DDR_B_D56

DDR_B_DQS#7

DDR_B_D9

DDR_B_DQS3

DDR_B_D29

DDR_B_D30

DDR_B_DQS7

DDR_B_D15

DDR_B_D13

DDR_B_D26

DDR_B_DQS#3

DDR_B_D31

DDR_B_D10

DDR_B_D8

DDR_B_D61

DDR_B_DQS5

DDR_B_D12

DDR_B_D27

DDR_B_D57

DDR_B_D14

DDR_B_D60

DDR_B_D63

DDR_B_D25

DDR_B_DQS#1

DDR_B_D40

DDR_B_D46

DDR_B_D59

DDR_B_D11

DDR_B_D62

DDR_B_D41

DDR_B_D24

DDR_B_DQS1

DDR3_DRAMRST# <17>

DDR_CKE3_DIMMB <7>

M_CLK_DDR3 <7>

M_CLK_DDR#3 <7>

DDR_B_RAS# <7>

DDR_B_BS1 <7>

M_ODT2 <17>

DDR_CS2_DIMMB# <7>

M_ODT3 <17>

DDR_CS3_DIMMB#<7>

DDR_XDP_WLAN_TP_SMBDAT <17,19,26,27,6,9>

DDR_XDP_WLAN_TP_SMBCLK <17,19,26,27,6,9>

DDR_B_CAS#<7>

DDR_B_WE#<7>

DDR_B_BS0<7>

M_CLK_DDR#2<7>

M_CLK_DDR2<7>

DDR_B_BS2<7>

DDR_CKE2_DIMMB<7>

DDR_B_DQS[0..7]<7>

DDR_B_MA[0..15]<7>

DDR_B_DQS#[0..7]<7>

DDR_B_D[0..63]<7>

+1.35V

+1.35V +1.35V

+1.35V

+0.675VS

+DIMM2_VREF_DQ

+SM_VREF_DQ1_DIMM2

+3VS

+0.675VS +0.675VS

+SM_VREF_CA_DIMM

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

18 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

DDRIII DIMMB

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

18 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

DDRIII DIMMB

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

18 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

DDRIII DIMMB

RD12 10K_0402_5%RD12 10K_0402_5%

CD46

10U_0603_6.3V6M

CD46

10U_0603_6.3V6M

RD8

0_0402_1%

RD8

0_0402_1%

1 2

CD60

2.2U_0402_6.3V6M

CD60

2.2U_0402_6.3V6M

RD10

0_0402_1%

RD10

0_0402_1%

1 2

CD39

1U_0402_6.3V6K

CD39

1U_0402_6.3V6K

CD35

1U_0402_6.3V6K

CD35

1U_0402_6.3V6K

CD33

0.1U_0402_10V7K

CD33

0.1U_0402_10V7K

RD13

10K_0402_5%

RD13

10K_0402_5%

CD44

10U_0603_6.3V6M

CD44

10U_0603_6.3V6M

CD42

1U_0402_6.3V6K

CD42

1U_0402_6.3V6K

CD43

10U_0603_6.3V6M

CD43

10U_0603_6.3V6M

CD61

0.1U_0402_10V7K

CD61

0.1U_0402_10V7K

CD32

2.2U_0402_6.3V6M

CD32

2.2U_0402_6.3V6M

CD37

1U_0402_6.3V6K

CD37

1U_0402_6.3V6K

CD34

0.1U_0402_10V7K

ESD@

CD34

0.1U_0402_10V7K

ESD@

CD36

1U_0402_6.3V6K

CD36

1U_0402_6.3V6K

CD47

10U_0603_6.3V6M

CD47

10U_0603_6.3V6M

CD40

1U_0402_6.3V6K

CD40

1U_0402_6.3V6K

CD58

10U_0603_6.3V6M

CD58

10U_0603_6.3V6M

CD53

0.1U_0402_10V7K

CD53

0.1U_0402_10V7K

CD56

0.1U_0402_10V7K

CD56

0.1U_0402_10V7K

CD52

2.2U_0402_6.3V6M

CD52

2.2U_0402_6.3V6M

CD41

1U_0402_6.3V6K

CD41

1U_0402_6.3V6K

CD51

330U_D3_2.5VY_R6M

CD51

330U_D3_2.5VY_R6M

CD49

10U_0603_6.3V6M

CD49

10U_0603_6.3V6M

CD54

0.1U_0402_10V7K

CD54

0.1U_0402_10V7K

CD50

10U_0603_6.3V6M

CD50

10U_0603_6.3V6M

JDIMM2

LCN_DAN06-K4406-0102

CONN@

JDIMM2

LCN_DAN06-K4406-0102

CONN@

VREF_DQ

1VSS1 2

VSS2

3DQ4 4

DQ0

5DQ5 6

DQ1

7VSS3 8

VSS4

9DQS#0 10

DM0

11 DQS0 12

VSS5

13 VSS6 14

DQ2

15 DQ6 16

DQ3

17 DQ7 18

VSS7

19 VSS8 20

DQ8

21 DQ12 22

DQ9

23 DQ13 24

VSS9

25 VSS10 26

DQS#1

27 DM1 28

DQS1

29 RESET# 30

VSS11

31 VSS12 32

DQ10

33 DQ14 34

DQ11

35 DQ15 36

VSS13

37 VSS14 38

DQ16

39 DQ20 40

DQ17

41 DQ21 42

VSS15

43 VSS16 44

DQS#2

45 DM2 46

DQS2

47 VSS17 48

VSS18

49 DQ22 50

DQ18

51 DQ23 52

DQ19

53 VSS19 54

VSS20

55 DQ28 56

DQ24

57 DQ29 58

DQ25

59 VSS21 60

VSS22

61 DQS#3 62

DM3

63 DQS3 64

VSS23

65 VSS24 66

DQ26

67 DQ30 68

DQ27

69 DQ31 70

VSS25

71 VSS26 72

A12/BC#

83 A11 84

85 A7 86

VDD5

87 VDD6 88

89 A6 90

CKE0

73 CKE1 74

VDD1

75 VDD2 76

NC1

77 A15 78

BA2

79 A14 80

VDD3

81 VDD4 82

91 A4 92

VDD7

93 VDD8 94

95 A2 96

97 A0 98

VDD9

99 VDD10 100

CK0

101 CK1 102

CK0#

103 CK1# 104

VDD11

105 VDD12 106

A10/AP

107 BA1 108

BA0

109 RAS# 110

VDD13

111 VDD14 112

WE#

113 S0# 114

CAS#

115 ODT0 116

VDD15

117 VDD16 118

A13

119 ODT1 120

S1#

121 NC2 122

VDD17

123 VDD18 124

NCTEST

125 VREF_CA 126

VSS27

127 VSS28 128

DQ32

129 DQ36 130

DQ33

131 DQ37 132

VSS29

133 VSS30 134

DQS#4

135 DM4 136

DQS4

137 VSS31 138

VSS32

139 DQ38 140

DQ34

141 DQ39 142

DQ35

143 VSS33 144

VSS34

145 DQ44 146

DQ40

147 DQ45 148

DQ41

149 VSS35 150

VSS36

151 DQS#5 152

DM5

153 DQS5 154

VSS37

155 VSS38 156

DQ42

157 DQ46 158

DQ43

159 DQ47 160

VSS39

161 VSS40 162

DQ48

163 DQ52 164

DQ49

165 DQ53 166

VSS41

167 VSS42 168

DQS#6

169 DM6 170

DQS6

171 VSS43 172

VSS44

173 DQ54 174

DQ50

175 DQ55 176

DQ51

177 VSS45 178

VSS46

179 DQ60 180

DQ56

181 DQ61 182

DQ57

183 VSS47 184

VSS48

185 DQS#7 186

DM7

187 DQS7 188

VSS49

189 VSS50 190

DQ58

191 DQ62 192

DQ59

193 DQ63 194

VSS51

195 VSS52 196

SA0

197 EVENT# 198

VDDSPD

199 SDA 200

SA1

201 SCL 202

VTT1

203 VTT2 204

205 G2 206

CD57

0.1U_0402_10V7K

CD57

0.1U_0402_10V7K

CD55

0.1U_0402_10V7K

CD55

0.1U_0402_10V7K

CD45

10U_0603_6.3V6M

CD45

10U_0603_6.3V6M

CD38

1U_0402_6.3V6K

CD38

1U_0402_6.3V6K

CD59

10U_0603_6.3V6M

CD59

10U_0603_6.3V6M

CD48

10U_0603_6.3V6M

CD48

10U_0603_6.3V6M

D D

C C

B B

A A

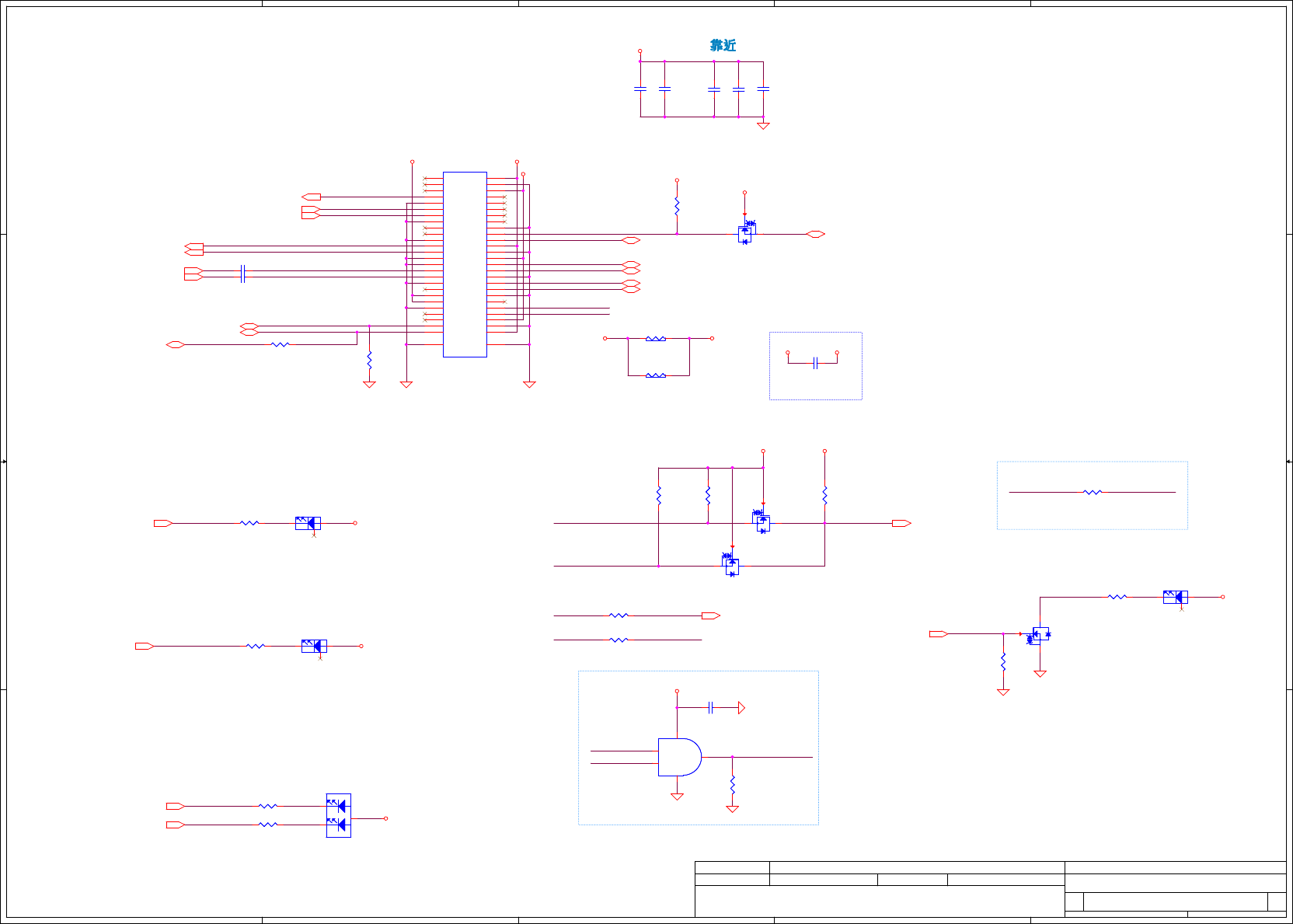

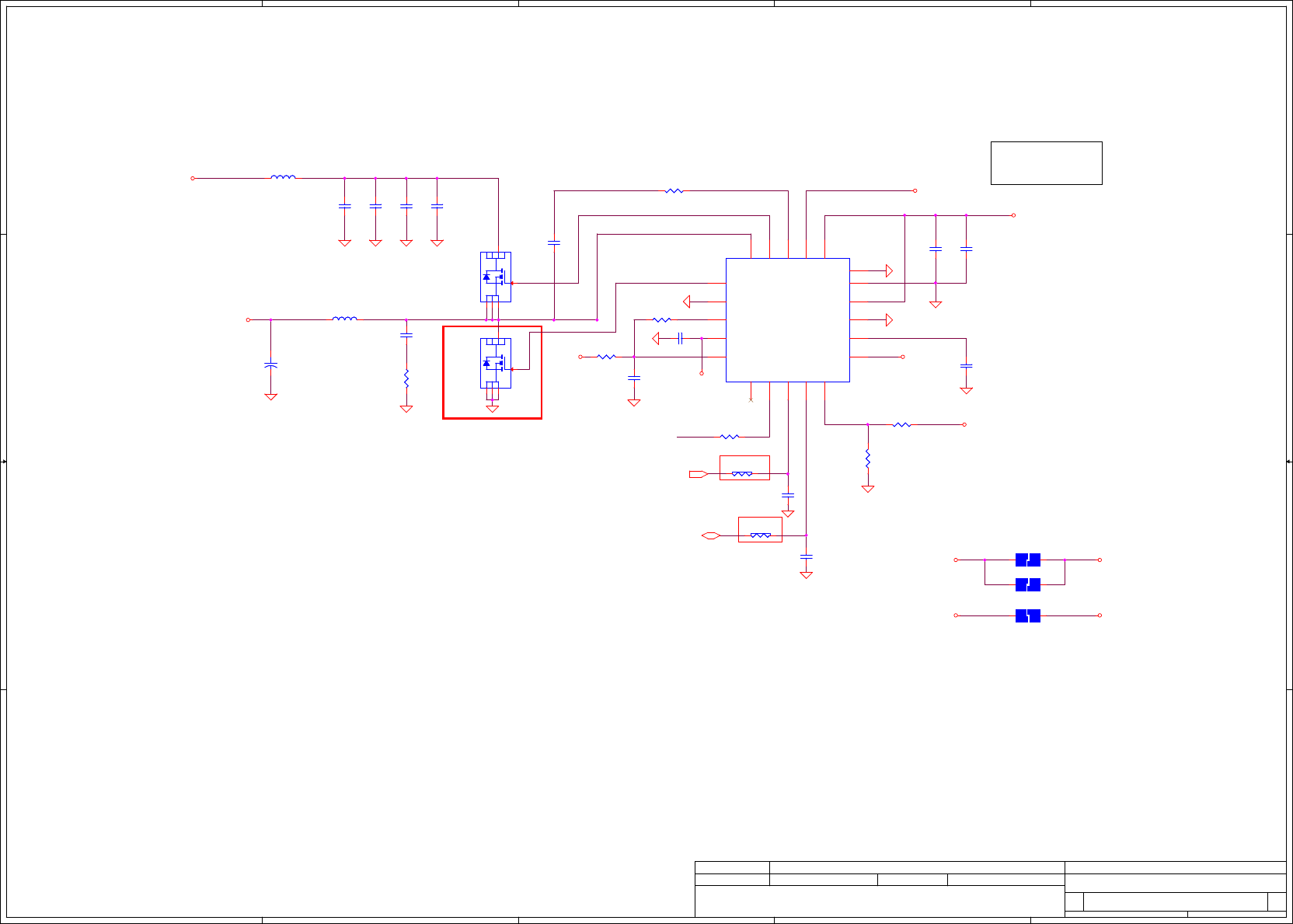

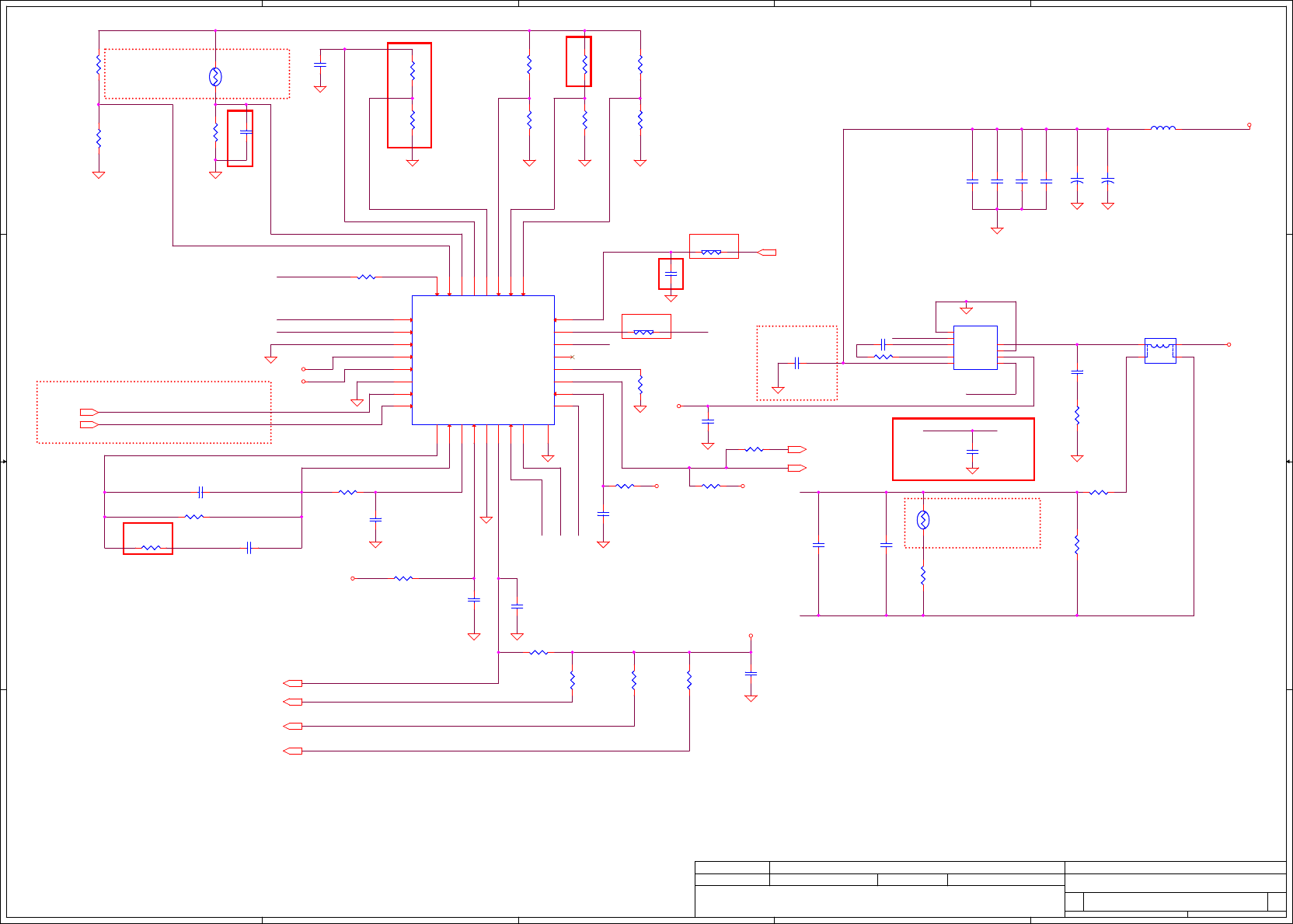

60 mils

40 mils

Close to 11 pin Close to 43 pin

30mil30mil

Close to 18 pin Close to 22 pinClose to 5 pin

RTD2136S : SA00004NW10

RTD2136R : SA000067100

EEPROMEEPROM

ROMLESSROMLESS

Close to 15 pin

AUX termination

Vendor advise reserve it

For eDP co-layout

Close to UX4

Across to UX4.19 & UX4.21

Close to UX2

for layout smoothly,

will swap NET on cable

LVDS_A0+

LVDS_BCLK+

LVDS_BCLK-

LVDS_B0+

LVDS_B0-

LVDS_B2+

LVDS_ACLK+

LVDS_ACLK-

LVDS_A0-

LVDS_A1+

LVDS_A1-

LVDS_A2+

LVDS_A2-

LVDS_B1+

LVDS_B1-

LVDS_B2-

EC_SMB_CK2

EC_SMB_DA2CSDA

CSCL

EDP_CPU_LANE_P1

EDP_CPU_LANE_N1

EDP_CPU_LANE_P0

EDP_CPU_LANE_N0

EDP_CPU_AUX

EDP_CPU_AUX#

CPU_EDP_P0_C

CPU_EDP_N0_C

CPU_EDP_P1_C

CPU_EDP_N1_C

CPU_EDP_AUX_C

CPU_EDP_AUX#_C

EDP_BIA_PWM

DDR_XDP_WLAN_TP_SMBDAT

MIIC_SCL

CSDA

+SWR_V12

TL_BKOFF#_R

EDP_CPU_HPD

EDID_CLK

EDID_DATA

TL_INVT_PWM

+AVCC33

+DVCC33

DDR_XDP_WLAN_TP_SMBCLK

MIIC_SDA

+SW_LX

CSCL

TL_ENVDD

+SWR_V12

+AVCC33 +DVCC33

MIIC_SCLMIIC_SDA

EDP_CPU_AUX#

EDP_CPU_AUX

EDP_CPU_HPD

EDP_BIA_PWM

CSCL

EDID_DATA

EDID_CLK

CSDA

TL_BKOFF#_R

CPU_EDP_N0_C

CPU_EDP_P1_C

EDP_N0 LVDS_B1+

EDP_P1 LVDS_B2-

CPU_EDP_P0_C EDP_P0 LVDS_B1-

CPU_EDP_N1_C EDP_N1 LVDS_B2+

CPU_EDP_AUX_C

CPU_EDP_AUX#_C

LVDS_B0+

LVDS_B0-

EDP_AUX

EDP_AUX#

EDP_HPD_PANEL

EDP_BIA_PWM TL_INVT_PWM

TL_ENVDD

EDP_CPU_HPD

TL_BKOFF#BKOFF#

ENVDD_PCH

EDP_CPU_HPD<10>

EC_SMB_DA2 <30,49,9>

LVDS_ACLK+ <31>

LVDS_ACLK- <31>

LVDS_A0- <31>

LVDS_A0+ <31>

LVDS_A1- <31>

LVDS_A1+ <31>

LVDS_A2- <31>

LVDS_A2+ <31>

LVDS_B2- <31>

LVDS_B2+ <31>

LVDS_BCLK- <31>

LVDS_B0- <31>

LVDS_B0+ <31>

LVDS_BCLK+ <31>

LVDS_B1- <31>

LVDS_B1+ <31>

TL_INVT_PWM <31>

TL_ENVDD <31>

EDP_CPU_LANE_P0<6>

EDP_CPU_LANE_N0<6>

EDP_CPU_LANE_P1<6>

EDP_CPU_LANE_N1<6>

EDP_CPU_AUX<6>

EDP_CPU_AUX#<6>

EDID_CLK <31>

EDID_DATA <31>

EC_SMB_CK2 <30,49,9>

EDP_BIA_PWM<10,6>

DDR_XDP_WLAN_TP_SMBDAT<17,18,26,27,6,9>

DDR_XDP_WLAN_TP_SMBCLK<17,18,26,27,6,9>

BKOFF#<30>

TL_BKOFF# <31>

EDP_HPD_PANEL <31>

ENVDD_PCH<10,30>

+3VS_RT

+DVCC33

+3VS_RT+3VS +SWR_V12

+3VS_RT+3VS_RT

+3VS_RT

+DVCC33

+3VS_RT

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

19 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

eDP to LVDS converter

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

19 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

eDP to LVDS converter

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

19 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

eDP to LVDS converter

RX44 0_0402_5%eDP@RX44 0_0402_5%eDP@

1 2

RX31 0_0402_5%@RX31 0_0402_5%@

1 2

CX34

0.1U_0402_10V7K

LVDS@CX34

0.1U_0402_10V7K

LVDS@

UX2

MC74VHC1G08DFT2G_SC70-5

LVDS@UX2

MC74VHC1G08DFT2G_SC70-5

LVDS@

IN1

IN2

2OUT 4

VCC 5

GND

CX33

0.1U_0402_10V7K

LVDS@CX33

0.1U_0402_10V7K

LVDS@

RX47 0_0402_5%eDP@RX47 0_0402_5%eDP@

1 2

RX168

4.7K_0402_5%

RX168

4.7K_0402_5%

CX31

0.1U_0402_10V7K

LVDS@CX31

0.1U_0402_10V7K

LVDS@

RX37 0_0402_5%eDP@RX37 0_0402_5%eDP@

1 2

RX46 0_0402_5%eDP@RX46 0_0402_5%eDP@

1 2

RX25

100K_0402_5%

RX25

100K_0402_5%

LX9

4.7UH_PG031B-4R7MS_1.1A_20%

LVDS@ LX9

4.7UH_PG031B-4R7MS_1.1A_20%

LVDS@

1 2

CX10

0.1U_0402_10V7K

LVDS@CX10

0.1U_0402_10V7K

LVDS@

1 2

RX169

4.7K_0402_5%

LVDS@

RX169

4.7K_0402_5%

LVDS@

RTD2136R

PWR

LVDSGND

OTHERS

UX4

RTD2136R-CG_QFN48_6x6

LVDS@

RTD2136R

PWR DP

LVDSGND

OTHERS

UX4

RTD2136R-CG_QFN48_6x6

LVDS@

TXOC- 36

TXOC+ 35

TXO3- 34

TXO3+ 33

TXO2- 38

TXO2+ 37

TXO1- 40

TXO1+ 39

TXO0- 42

TXO0+ 41

TXEC- 26

TXEC+ 25

TXE0- 32

TXE0+ 31

TXE1- 30

TXE1+ 29

TXE2- 28

TXE2+ 27

TXE3- 24

TXE3+ 23

DP_V33

LANE0P

LANE0N

LANE1P

LANE1N

AUX-CH_P

AUX-CH_N

DP_HPD

DP_GND 6

PWMIN

PANEL_VCC 20

PWMOUT 19

BL_EN 44

CIICSCL1

CIICSDA1

MODE_CFG1

MODE_CFG0

MIICSCL1 46

MIICSDA1 45

DP_V12

VCCK

SWR_VCCK

GND 16

SWR_LX

SWR_VDD

PVCC

TESTMODE

DP_REXT

PAD 49

LX8

FBMA-L11-201209-221LMA30T_0805

LVDS@ LX8

FBMA-L11-201209-221LMA30T_0805

LVDS@

RX35

100K_0402_5%

@RX35

100K_0402_5%

RX30

100K_0402_5%

RX30

100K_0402_5%

QX6A

DMN66D0LDW-7_SOT363-6

LVDS@

QX6A

DMN66D0LDW-7_SOT363-6

LVDS@

RX6 0_0402_5%@RX6 0_0402_5%@

1 2

CX38 0.1U_0402_10V7KCX38 0.1U_0402_10V7K

1 2

RX50 0_0402_5%eDP@RX50 0_0402_5%eDP@

1 2

CX46 0.1U_0402_10V7KCX46 0.1U_0402_10V7K

1 2

RX36

100K_0402_5%

@RX36

100K_0402_5%

RX40 0_0402_5%eDP@RX40 0_0402_5%eDP@

1 2

RX41 0_0402_5%eDP@RX41 0_0402_5%eDP@

1 2

RX43 0_0402_5%eDP@RX43 0_0402_5%eDP@

1 2

CX40

0.1U_0402_10V7K

LVDS@CX40

0.1U_0402_10V7K

LVDS@

RX4

0_0805_1%

RX4

0_0805_1%

1 2

RX171

4.7K_0402_5%

RX171

4.7K_0402_5%

RX49 0_0402_5%eDP@RX49 0_0402_5%eDP@

1 2

RX48 0_0402_5%eDP@RX48 0_0402_5%eDP@

1 2

CX42 0.1U_0402_10V7KCX42 0.1U_0402_10V7K

1 2

RX38 0_0402_5%eDP@RX38 0_0402_5%eDP@

1 2

RX52 0_0402_5%eDP@RX52 0_0402_5%eDP@

1 2

RP57

2.2K_8P4R_5%

@RP57

2.2K_8P4R_5%

1 8

2 7

3 6

4 5

CX44 0.1U_0402_10V7KCX44 0.1U_0402_10V7K

1 2

CX41

0.1U_0402_10V7K

LVDS@CX41

0.1U_0402_10V7K

LVDS@

CX32

0.1U_0402_10V7K

LVDS@CX32

0.1U_0402_10V7K

LVDS@

CX37

0.1U_0402_10V7K

LVDS@CX37

0.1U_0402_10V7K

LVDS@

RX170

4.7K_0402_5%

LVDS@

RX170

4.7K_0402_5%

LVDS@

RX33

100K_0402_5%

LVDS@RX33

100K_0402_5%

LVDS@

CX45

10U_0603_6.3V6M

LVDS@CX45

10U_0603_6.3V6M

LVDS@

CX36

22U_0805_6.3V6M

LVDS@CX36

22U_0805_6.3V6M

LVDS@

RX39 0_0402_5%eDP@RX39 0_0402_5%eDP@

1 2

RX45 0_0402_5%eDP@RX45 0_0402_5%eDP@

1 2

RX51 0_0402_5%eDP@RX51 0_0402_5%eDP@

1 2

RX42 0_0402_5%eDP@RX42 0_0402_5%eDP@

1 2

QX6B

DMN66D0LDW-7_SOT363-6

LVDS@

QX6B

DMN66D0LDW-7_SOT363-6

LVDS@

RX5 12K_0402_1%

LVDS@

RX5 12K_0402_1%

LVDS@

1 2

CX43 0.1U_0402_10V7KCX43 0.1U_0402_10V7K

1 2

RP56

2.2K_8P4R_5%

LVDS@RP56

2.2K_8P4R_5%

LVDS@

1 8

2 7

3 6

4 5

CX47

0.1U_0402_10V7K

LVDS@CX47

0.1U_0402_10V7K

LVDS@

CX35

10U_0603_6.3V6M

LVDS@CX35

10U_0603_6.3V6M

LVDS@

LX7

FBMA-L11-201209-221LMA30T_0805

LVDS@ LX7

FBMA-L11-201209-221LMA30T_0805

LVDS@

CX48

22U_0805_6.3V6M

LVDS@CX48

22U_0805_6.3V6M

LVDS@

CX39 0.1U_0402_10V7KCX39 0.1U_0402_10V7K

1 2

D D

C C

B B

A A

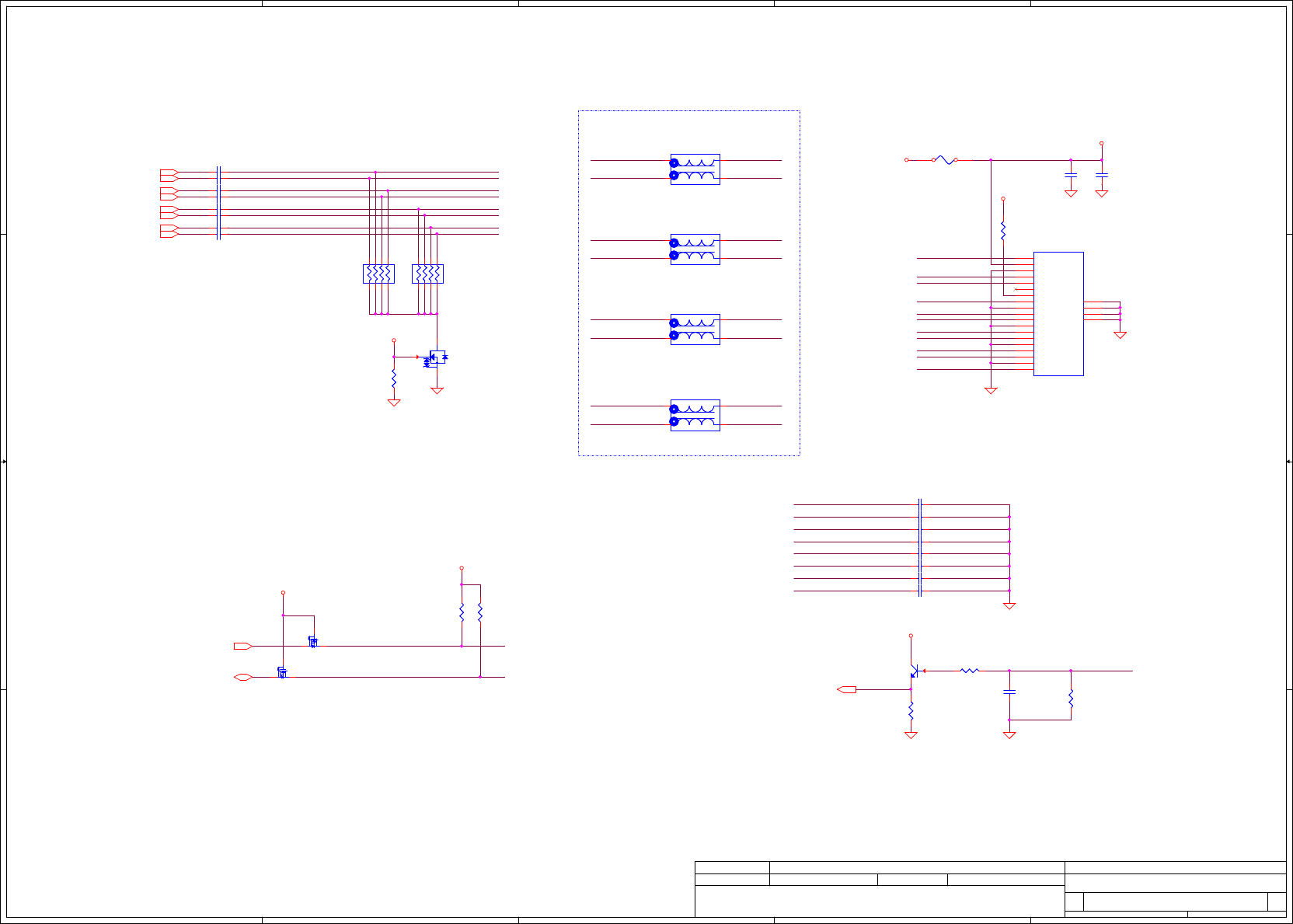

W=40mils

Place close to JHDMI1

TMDS_TXCP

TMDS_L_TX0P

TMDS_L_TX1N

TMDS_L_TX0N

TMDS_L_TX1P

TMDS_L_TXCP

TMDS_TXCN TMDS_L_TXCN

TMDS_TX0N

TMDS_TX1P

TMDS_TX1N

TMDS_TX0P

CPU_DPB_CTRLDAT_R

CPU_DPB_CTRLCLK_R

TMDS_L_TX1N

TMDS_L_TX1P

TMDS_L_TX0P

TMDS_L_TX2N

TMDS_L_TX2P

TMDS_L_TX0N

TMDS_L_TXCN

TMDS_L_TXCP

HDMI_HPLUG

TMDS_TX1N

TMDS_TX2P

TMDS_TX2N

TMDS_TX1P

TMDS_L_TX1N

TMDS_L_TX1P

TMDS_L_TX0P

TMDS_L_TX2N

TMDS_L_TX2P

TMDS_L_TX0N

TMDS_L_TXCN

TMDS_L_TXCP

TMDS_TX2N

TMDS_TX2P TMDS_L_TX2P

TMDS_L_TX2N

CPU_DPB_CTRLCLK_R

CPU_DPB_CTRLDAT_R

TMDS_TXCN

TMDS_TXCP

TMDS_TX0P

TMDS_TX0N

HDMI_HPLUG

CPU_DPB_CTRLCLK<10>

CPU_DPB_CTRLDAT<10>

DPB_HPD<10>

DDI1_LANE_N3<6>

DDI1_LANE_P3<6>

DDI1_LANE_N2<6>

DDI1_LANE_P2<6>

DDI1_LANE_P1<6>

DDI1_LANE_N1<6>

DDI1_LANE_P0<6>

DDI1_LANE_N0<6>

+VDISPLAY_VCC

+3VS

+5VS

+3VS

+5VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

HDMI

20 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

HDMI

20 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

HDMI

20 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

CX12 0.1U_0402_10V7KCX12 0.1U_0402_10V7K

CX23 3.3P_0402_50V8C@EMI@ CX23 3.3P_0402_50V8C@EMI@

1 2

QX4A

DMN66D0LDW-7_SOT363-6

QX4A

DMN66D0LDW-7_SOT363-6

LX4

WCM-2012HS-900T_4P

EMI@LX4

WCM-2012HS-900T_4P

EMI@

122

FX1

1.5A_6V_1206L150PR~D

FX1

1.5A_6V_1206L150PR~D

CX22

10U_0603_6.3V6M

CX22

10U_0603_6.3V6M

CX29 3.3P_0402_50V8C@EMI@ CX29 3.3P_0402_50V8C@EMI@

1 2

RX12

10K_0402_5%

RX12

10K_0402_5%

RX34

20K_0402_5%

RX34

20K_0402_5%

CX14 0.1U_0402_10V7KCX14 0.1U_0402_10V7K

CX28 3.3P_0402_50V8C@EMI@ CX28 3.3P_0402_50V8C@EMI@

1 2

LX2

WCM-2012HS-900T_4P

EMI@LX2

WCM-2012HS-900T_4P

EMI@

122

LX3

WCM-2012HS-900T_4P

EMI@LX3

WCM-2012HS-900T_4P

EMI@

122

CX20

220P_0402_50V8J

CX20

220P_0402_50V8J

CX18 0.1U_0402_10V7KCX18 0.1U_0402_10V7K

QX3

2N7002K_SOT23-3

QX3

2N7002K_SOT23-3

CX27 3.3P_0402_50V8C@EMI@ CX27 3.3P_0402_50V8C@EMI@

1 2

RX14

100K_0402_5%

RX14

100K_0402_5%

RX15

150K_0402_5%

RX15

150K_0402_5%

1 2

RP58

680_8P4R_5%

RP58

680_8P4R_5%

RP59

680_8P4R_5%

RP59

680_8P4R_5%

CX24 3.3P_0402_50V8C@EMI@ CX24 3.3P_0402_50V8C@EMI@

1 2

CX21

0.1U_0402_16V7K

CX21

0.1U_0402_16V7K

LX5

WCM-2012HS-900T_4P

EMI@LX5

WCM-2012HS-900T_4P

EMI@

122

RX17

2.2K_0402_5%

RX17

2.2K_0402_5%

1 2

CX16 0.1U_0402_10V7KCX16 0.1U_0402_10V7K

QX4B

DMN66D0LDW-7_SOT363-6

QX4B

DMN66D0LDW-7_SOT363-6

RX16

2.2K_0402_5%

RX16

2.2K_0402_5%

1 2

CX26 3.3P_0402_50V8C@EMI@ CX26 3.3P_0402_50V8C@EMI@

1 2

RX13

100K_0402_5%

RX13

100K_0402_5%

CX19 0.1U_0402_10V7KCX19 0.1U_0402_10V7K

CX30 3.3P_0402_50V8C@EMI@ CX30 3.3P_0402_50V8C@EMI@

1 2

CX15 0.1U_0402_10V7KCX15 0.1U_0402_10V7K

JHDMI

LOTES_ABA-HDM-022-K01

CONN@

JHDMI

LOTES_ABA-HDM-022-K01

CONN@

D2+

1D2_shield

2D2-

3D1+

4D1_shield

5D1-

6D0+

7D0_shield

8D0-

9CK+

10 CK_shield

11 CK-

12 CEC

13 Reserved

14 SCL

15 SDA

16 DDC/CEC_GND

17 +5V

18 HP_DET

GND 20

GND 21

GND 22

GND 23

QX5

MMBT3904_NL_SOT23-3

QX5

MMBT3904_NL_SOT23-3

3 1

CX17 0.1U_0402_10V7KCX17 0.1U_0402_10V7K

CX13 0.1U_0402_10V7KCX13 0.1U_0402_10V7K

CX25 3.3P_0402_50V8C@EMI@ CX25 3.3P_0402_50V8C@EMI@

1 2

D D

C C

B B

A A

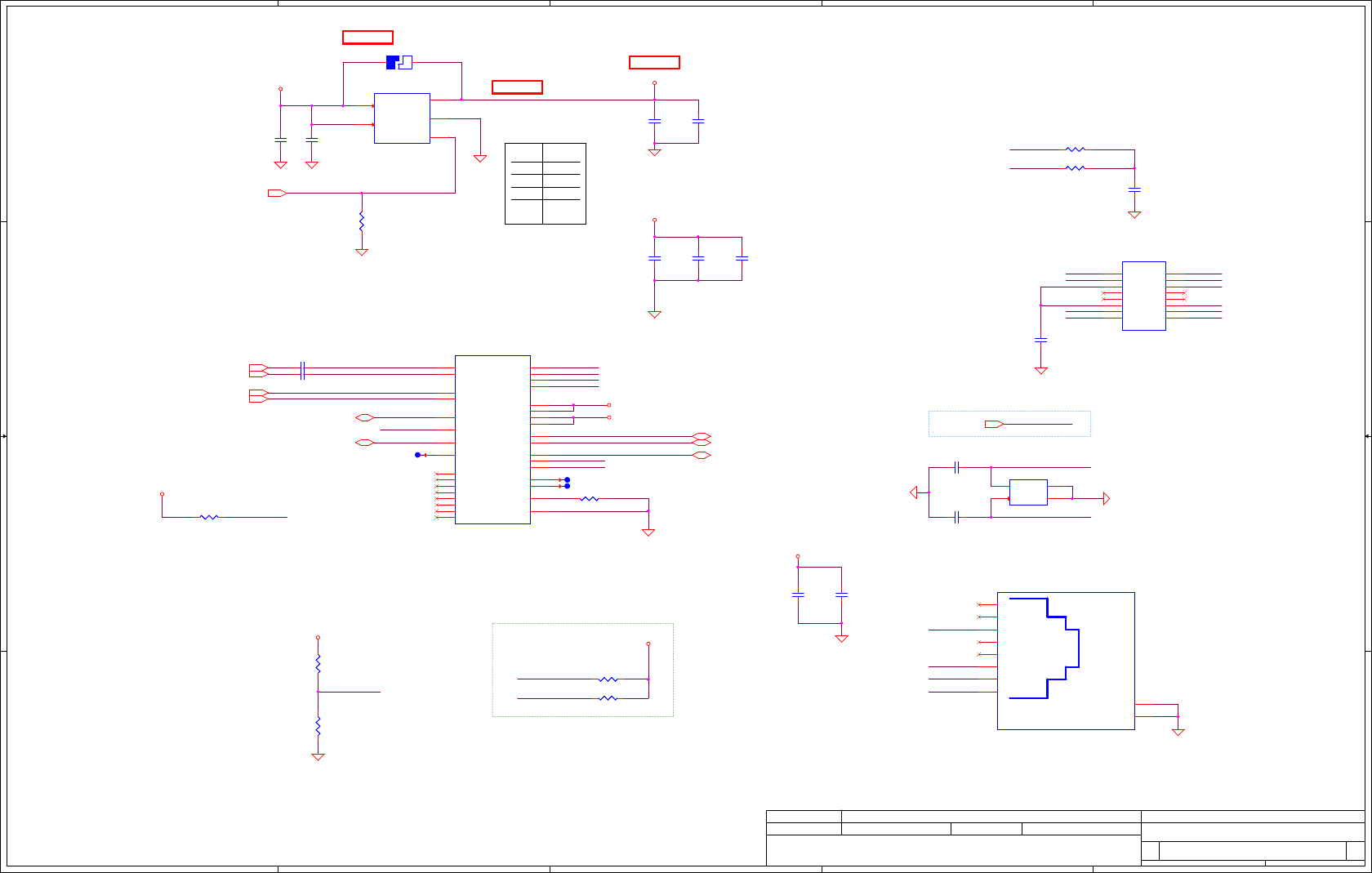

1.5A

Reserve 10K pull LAN_IO

W=20mils

These caps close to Pin 8,30

For 8106E pop capacitor close to pin 8,30

These caps close to Pin 23,32

For 8106E pop the capacitor close pin 23,32

Place close to TCT pin

+LAN_IO rising time : >1ms and <100ms

W=40mils

CL30, CL31 close to UL1 Pin 17, 18

For GCLK

Change CPN to SP050007J00 only

Need CIS symbol

APL3512 PIN 4 tire to VIN

W=40mils

Css

1nF

10nF

SS table

0.1uF

Tss

1mS

10mS

100mS

1mS

Open or

tied to

VIN

XTLO

XTLI

ISOLATEB

PCIE_W AKE#

PCIE_W AKE# XTLO

XTLI

ISOLATEB

LAN_CLKREQ#

WOL_EN

MCT1

MCT0

MCT1

MDO1+

MDO1-

MDI0-

MDI0+

MDO0-

MDO0+

MDI1+

MDI1-

MCT0

MDO0-

MDO1+

MDO1-

MDO0+

PCIE_PTX_LANRX_P3

PCIE_PTX_LANRX_N3

MDI1-

MDI1+

MDI0-

MDI0+PCIE_PRX_LANTX_P3_C

PCIE_PRX_LANTX_N3_C

XTLI

WOL_EN

PLT_RST#<10,26,30,48,6>

PCIE_W AKE#<10,30>

PCIE_PTX_LANRX_P3<12>

PCIE_PTX_LANRX_N3<12>

CLK_PCIE_LAN <9>

CLK_PCIE_LAN# <9>

LAN_CLKREQ# <9>

PCIE_PRX_LANTX_P3<12>

PCIE_PRX_LANTX_N3<12>

XTLI<29>

WOL_EN<30>

+LAN_VDD

+LAN_IO

+LAN_VDD

+LAN_IO

+3VS

+LAN_IO

+3VALW

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

LA-9984P

1.0

21 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

LAN RTL8106E

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

LA-9984P

1.0

21 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

LAN RTL8106E

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

LA-9984P

1.0

21 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

LAN RTL8106E

CL33

10P_1206_2KV8J

EMI@

CL33

10P_1206_2KV8J

EMI@

UL2

APL3512ABI-TRG_SOT23-5

UL2

APL3512ABI-TRG_SOT23-5

VIN

VOUT 1

EN 3

GND 2

CL15

0.1U_0402_10V7K

CL15

0.1U_0402_10V7K

RL20

75_0603_5%

RL20

75_0603_5%

1 2

RL19

75_0603_5%

RL19

75_0603_5%

1 2

CL37

10P_0402_50V8J

XTAL@

CL37

10P_0402_50V8J

XTAL@

1 2

CL22

0.1U_0402_10V7K

CL22

0.1U_0402_10V7K

T95 PAD~D@T95 PAD~D@

UL1

RTL8106E-CG_QFN32_4X4

UL1

RTL8106E-CG_QFN32_4X4

MDIP0 1

MDIP1 4

MDIN0 2

MDIN1 5

AVDD10 8

AVDD10 30

AVDD33 32

DVDD33 23

REFCLK_P 15

REFCLK_N 16

CLKREQB 12

CKXTAL1 28

CKXTAL2 29

LED0 27

LED1 25

RSET 31

GND 33

HSOP

HSON

HSIP

HSIN

PERSTB

ISOLATEB

LANWAKEB

GPO

CL31 0.1U_0402_10V7KCL31 0.1U_0402_10V7K

1 2

JP3

2MM

@JP3

2MM

2 1

CL30 0.1U_0402_10V7KCL30 0.1U_0402_10V7K

1 2

TL1

X'FORM_ NS0014

TL1

X'FORM_ NS0014

RD+

RD-

TD+

TD-

8TX- 9

TX+ 10

CT 11

CT 14

RX- 15

RX+ 16

5NC 13

NC 12

CL35

1U_0402_6.3V6K

CL35

1U_0402_6.3V6K

CL34

0.1U_0402_10V7K

CL34

0.1U_0402_10V7K

JLAN

SANTA_130456-311

CONN@

JLAN

SANTA_130456-311

CONN@

PR1-

PR1+

PR2+

PR3+

PR3-

PR2-

PR4+

PR4-

SHLD2 10

SHLD1 9

YL2

25MHZ_10PF_7V25000014

XTAL@YL2

25MHZ_10PF_7V25000014

XTAL@

OSC

GND 2

GND 4

T96PAD~D @T96PAD~D @

RL37 10K_0402_5%

1 2

CL26

0.1U_0402_10V7K

CL26

0.1U_0402_10V7K

CL20

0.1U_0402_10V7K

CL20

0.1U_0402_10V7K

CL36

10P_0402_50V8J

XTAL@

CL36

10P_0402_50V8J

XTAL@

1 2

RL33

1K_0402_5%

RL33

1K_0402_5%

CL41

0.01U_0402_16V7K

CL41

0.01U_0402_16V7K

CL39

1U_0402_6.3V6K

CL39

1U_0402_6.3V6K

RL34

10K_0402_5%

RL34

10K_0402_5%

1 2

RL31 2.49K_0402_1%RL31 2.49K_0402_1%

CL38

0.1U_0603_25V7K

CL38

0.1U_0603_25V7K

T94 PAD~D@T94 PAD~D@

RL35

15K_0402_5%

RL35

15K_0402_5%

1 2

RL27

100K_0402_5%

RL27

100K_0402_5%

1 2

CL19

0.1U_0402_10V7K

CL19

0.1U_0402_10V7K

RL38 10K_0402_5%

1 2

D D

C C

B B

A A

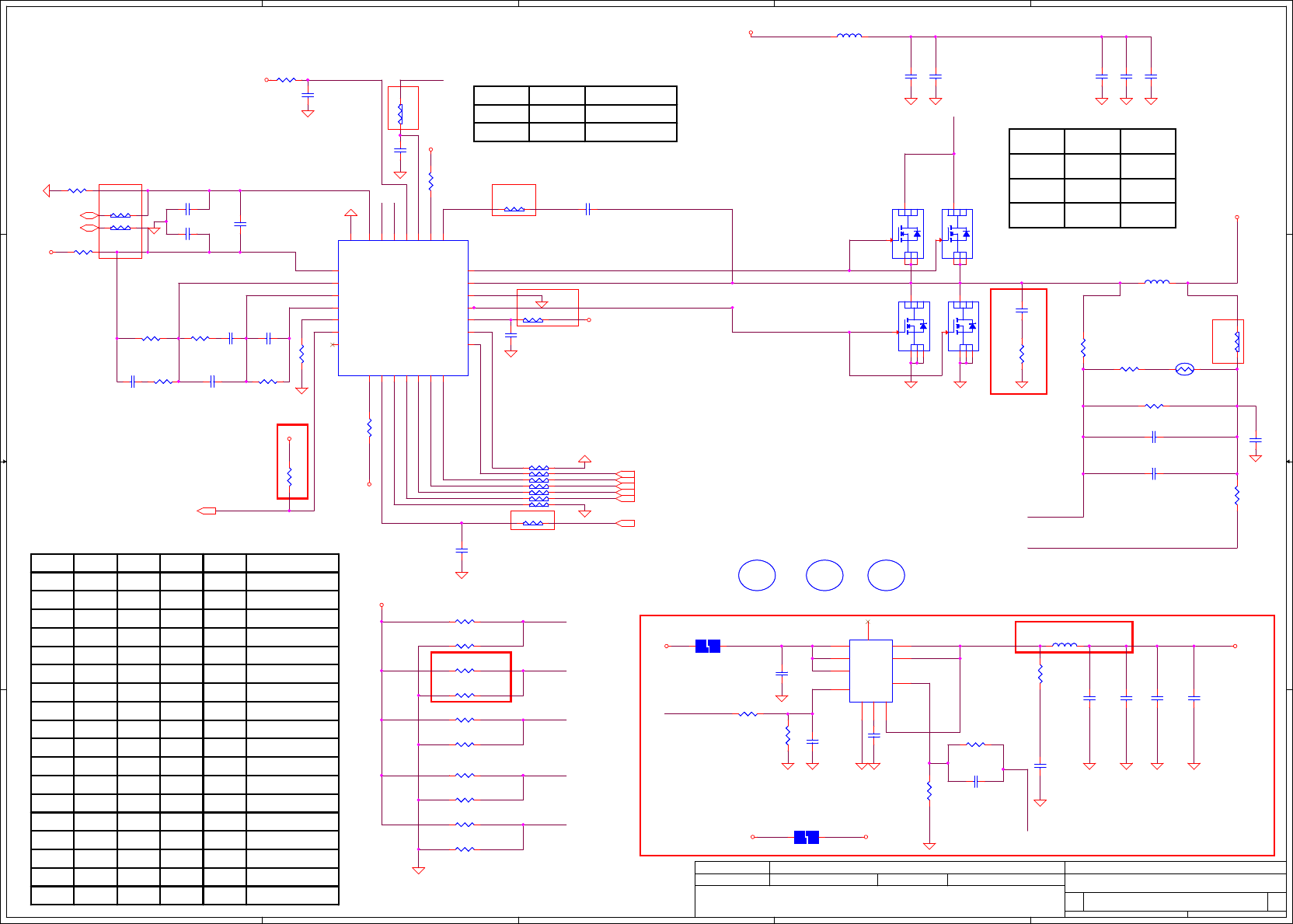

CA53, CA55 change Value

from 10U_0603_6.3V6M~D to

4.7U_0603_6.3V6K

GNDA GND

40mil

CA71, CA51 place close to Pin 26

CA57,CA58 close

to UA1 pin1

Place on the moat between GND & GNDA.

iPhone and Nokia type Combo Jack

Trace width for SPK-L+/SPK-L-/SPK-R+/SPK-R-

Speaker 4 ohm : 40mil

Speaker 8 ohm : 20mil

Reserve for cancel Delay circutis

RA51, RA33 place close to UA1

JACK_PLUG Delay circutis

PC Beep

MCU Beep

EC Beep

close to Codec

Close to UA1

Pin11,13,14,16

Reserve for HDA issue

SM01000BV00

need CIS symbol

AUD_HP_OUT_L_CN

AUD_HP_OUT_R_CN

JACK_PLUG#

JACK_SENSE#

JACK_PLUG#

RING2_R

MIC_IN_R

JACK_PLUG#

MIC_IN

RING2

MIC1-L

EC_MUTE#

MIC_CLK_C

MIC_CLK

Line1-VREFO-R

Line1-VREFO-L

MIC_IN

AUD_HP_OUT_R_CN

HPOUT-L AUD_HP_OUT_L_CN

MIC_IN_R

RING2_R

HPOUT-R

+MIC2-VREFO

JACK_SENSE#

LINE1-L

LINE1-R

LINE1-L

Line-IN-R

Line-IN-L

PC_BEEP

INT-SPK-R-

INT-SPK-R+

INT-SPK-L-

INT-SPK-L+

HPOUT-L

HPOUT-R

Line1-VREFO-L

Line1-VREFO-R

RING2

MIC_IN

PCH_AZ_CODEC_RST#

SPK_R1-_CONN

SPK_L1-_CONN

SPK_R2+_CONN

SPK_L2+_CONN

MIC_IN

JACK_SENSE#

PCH_AZ_CODEC_BITCLK

INT-SPK-L-

INT-SPK-L+

INT-SPK-R-

INT-SPK-R+

Line-IN-L

Line-IN-R

MIC_CLK_C

EC_MUTE# <30>

BEEP#<30>

MIC_DATA <31>

MIC_CLK <31>

PCH_AZ_CODEC_SDOUT<8>

PCH_AZ_CODEC_BITCLK<8>

PCH_AZ_CODEC_SYNC<8>

PCH_AZ_CODEC_RST#<8>

PCH_AZ_CODEC_SDIN0<8>

HDA_SPKR<11>

+3VS +3VS

+MIC2-VREFO

+5V_PVDD+5V_PVDD +5VA

+3VS

+CODEC_AVDD2

+3VS +CODEC_AVDD2+1.5VS

+5VA

+5VS+5V_PVDD

+5VS

+RTCVCC

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

22 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

Audio Codec ALC3223

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

22 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

Audio Codec ALC3223

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

22 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

Audio Codec ALC3223

RA166

4.7K_0402_5%

RA166

4.7K_0402_5%

CA59

4.7U_0603_6.3V6K

CA59

4.7U_0603_6.3V6K

RA5

470K_0402_5%

RA5

470K_0402_5%

RA84

10K_0402_5%

RA84

10K_0402_5%

CA54

0.1U_0402_16V7K

CA54

0.1U_0402_16V7K

CA53

4.7U_0603_6.3V6K

CA53

4.7U_0603_6.3V6K

LA7 FBMA-L10-160808-800LMT_2P

EMI@

LA7 FBMA-L10-160808-800LMT_2P

EMI@

CA74 10U_0603_6.3V6MCA74 10U_0603_6.3V6M

1 2

CA30

1000P_0402_50V7K

EMI@ CA30

1000P_0402_50V7K

EMI@

RA32 0_0603_1%@RA32 0_0603_1%@

1 2

RA1

100K_0402_5%

RA1

100K_0402_5%

LA6 0_0603_5%EMI@ LA6 0_0603_5%EMI@

1 2

RA19

10K_0402_5%

RA19

10K_0402_5%

CA2

10U_0603_6.3V6M

CA2

10U_0603_6.3V6M

RA8 0_0402_5%RA8 0_0402_5%

1 2

CA57

4.7U_0603_6.3V6K

CA57

4.7U_0603_6.3V6K

UA1

ALC3223-CG_MQFN48_6X6~D

UA1

ALC3223-CG_MQFN48_6X6~D

AVSS1

AVDD1

LDO1-CAP

VREF

MIC2-VREFO

29 MIC1-VREFO-R

30 MIC1-VREFO-L

HPOUT-L(PORT-I-L) 32

HPOUT-R(PORT-I-R) 33

PVDD1

AVDD2

LDO2-CAP

AVSS2

CBP

CPVDD

CBN

CPVEE

SPK-OUT-L+ 42

SPK-OUT-L- 43

SPK-OUT-R- 44

SPK-OUT-R+ 45

PVDD2

PDB 47

LINE2-L(PORT-E-L) 24

LINE2-R(PORT-E-R) 23

LINE1-L(PORT-C-L) 22

LINE1-R(PORT-C-R) 21

MIC1-R(PORT-B-R) 20

MIC1-L(PORT-B-L) 19

MIC2-R(PORT-F-R) 18

MIC2-L(PORT-F-L) 17

MONO-OUT 16

JDREF

SENSE B 14

SENSE A 13

SPDIF-OUT/GPIO2 48

PCBEEP 12

RESETB

11 SYNC

DVDD-IO

SDATA-IN

LDO3-CAP

DVDD

GPIO0/DMIC-DATA 2

GPIO1/DMIC-CLK 3

DVSS

BCLK

6SDATA-OUT

Thermal PAD

CA38

100P_0402_50V8J

EMI@CA38

100P_0402_50V8J

EMI@

DA12

AZ5125-02S.R7G_SOT23-3

ESD@

DA12

AZ5125-02S.R7G_SOT23-3

ESD@

CA62 10U_0603_6.3V6MCA62 10U_0603_6.3V6M

1 2

QA6B

DMN66D0LDW-7_SOT363-6

QA6B

DMN66D0LDW-7_SOT363-6

RA82 1K_0402_1%RA82 1K_0402_1%

1 2

RA29 0_0603_1%@RA29 0_0603_1%@

1 2

CA67

4.7U_0603_6.3V6K

CA67

4.7U_0603_6.3V6K

1 2

RV59

0_0603_1%@

RV59

0_0603_1%@

JSPK

E&T_3703-Q04N-11R

CONN@

JSPK

E&T_3703-Q04N-11R

CONN@

4GND 5

GND 6

RA81 10K_0402_5%@RA81 10K_0402_5%@

CA55

4.7U_0603_6.3V6K

CA55

4.7U_0603_6.3V6K

DA8

BAT54C-7-F_SOT23-3

DA8

BAT54C-7-F_SOT23-3

CA29

1000P_0402_50V7K

EMI@ CA29

1000P_0402_50V7K

EMI@

CA60

0.1U_0402_16V7K

CA60

0.1U_0402_16V7K

QA5A

DMN66D0LDW-7_SOT363-6

QA5A

DMN66D0LDW-7_SOT363-6

R2355

0_0402_5%

@EMI@

R2355

0_0402_5%

@EMI@

1 2

CA40

100P_0402_50V8J

EMI@CA40

100P_0402_50V8J

EMI@

QA6A

DMN66D0LDW-7_SOT363-6

QA6A

DMN66D0LDW-7_SOT363-6

QA5B

DMN66D0LDW-7_SOT363-6

QA5B

DMN66D0LDW-7_SOT363-6

RA130 22_0402_5%RA130 22_0402_5%

1 2

LA5 0_0603_5%EMI@ LA5 0_0603_5%EMI@

1 2

RA53 2.2K_0402_5%RA53 2.2K_0402_5%

RA6 10K_0402_5%

1 2

LA8 FBMA-L10-160808-800LMT_2P

EMI@

LA8 FBMA-L10-160808-800LMT_2P

EMI@

CA33

100P_0402_50V8J

EMI@CA33

100P_0402_50V8J

EMI@

CA39

100P_0402_50V8J

EMI@CA39

100P_0402_50V8J

EMI@

RA4 0_0402_1%@RA4 0_0402_1%@

1 2

CA25 1U_0402_6.3V6KCA25 1U_0402_6.3V6K

1 2

RA55

8.2_0402_1%

RA55

8.2_0402_1%

1 2

DA10

AZ5125-02S.R7G_SOT23-3

ESD@

DA10

AZ5125-02S.R7G_SOT23-3

ESD@

RA56

8.2_0402_1%

RA56

8.2_0402_1%

1 2

JHP

SINGA_2SJ3080-000111F

CONN@

JHP

SINGA_2SJ3080-000111F

CONN@

RA153 20K_0402_1%RA153 20K_0402_1%

1 2

LA4 0_0603_5%EMI@ LA4 0_0603_5%EMI@

1 2

CA65

0.1U_0402_16V7K

CA65

0.1U_0402_16V7K

1 2

CA24 1U_0402_6.3V6KCA24 1U_0402_6.3V6K

1 2

CA1

10U_0603_6.3V6M

CA1

10U_0603_6.3V6M

CA58

0.1U_0402_16V7K

CA58

0.1U_0402_16V7K

RA83

10K_0402_5%

RA83

10K_0402_5%

RA3

10K_0402_5%

RA3

10K_0402_5%

1 2

LA3 0_0603_5%EMI@ LA3 0_0603_5%EMI@

1 2

RA31 0_0603_1%@RA31 0_0603_1%@

1 2

RA7 10K_0402_5%RA7 10K_0402_5%

1 2

RA30 0_0603_1%@RA30 0_0603_1%@

1 2

CA32

1000P_0402_50V7K

EMI@ CA32

1000P_0402_50V7K

EMI@

RA1109 2.2K_0402_5%RA1109 2.2K_0402_5%

RV54

0_0603_1%@

RV54

0_0603_1%@

LA10 FBMA-L10-160808-800LMT_2P

EMI@

LA10 FBMA-L10-160808-800LMT_2P

EMI@

RA165

4.7K_0402_5%

RA165

4.7K_0402_5%

CA51

0.1U_0402_16V7K

CA51

0.1U_0402_16V7K

CA21

22P_0402_50V8J

@EMI@

CA21

22P_0402_50V8J

@EMI@

CA23 2.2U_0603_6.3V6KCA23 2.2U_0603_6.3V6K

1 2

CA56

0.1U_0402_16V7K

CA56

0.1U_0402_16V7K

CA71

4.7U_0603_6.3V6K

CA71

4.7U_0603_6.3V6K

RA79

1K_0402_1%

RA79

1K_0402_1%

1 2

RA9 0_0402_5%@RA9 0_0402_5%@

1 2

LA1

BLM15BB221SN1D_2P

EMI@LA1

BLM15BB221SN1D_2P

EMI@

1 2

LA9 FBMA-L10-160808-800LMT_2P

EMI@

LA9 FBMA-L10-160808-800LMT_2P

EMI@

RA51 39.2K_0402_1%RA51 39.2K_0402_1%

1 2

RA2

100K_0402_5%

RA2

100K_0402_5%

CA61

4.7U_0603_6.3V6K

CA61

4.7U_0603_6.3V6K

RA80 1K_0402_1%RA80 1K_0402_1%

1 2

CA68

4.7U_0603_6.3V6K

CA68

4.7U_0603_6.3V6K

1 2

CA69 100P_0402_50V8J@CA69 100P_0402_50V8J@

1 2

CA63 10U_0603_6.3V6MCA63 10U_0603_6.3V6M

1 2

CA31

1000P_0402_50V7K

EMI@ CA31

1000P_0402_50V7K

EMI@

CA22

22P_0402_50V8J

@EMI@

CA22

22P_0402_50V8J

@EMI@

CA64 10U_0603_6.3V6MCA64 10U_0603_6.3V6M

1 2

D D

C C

B B

A A

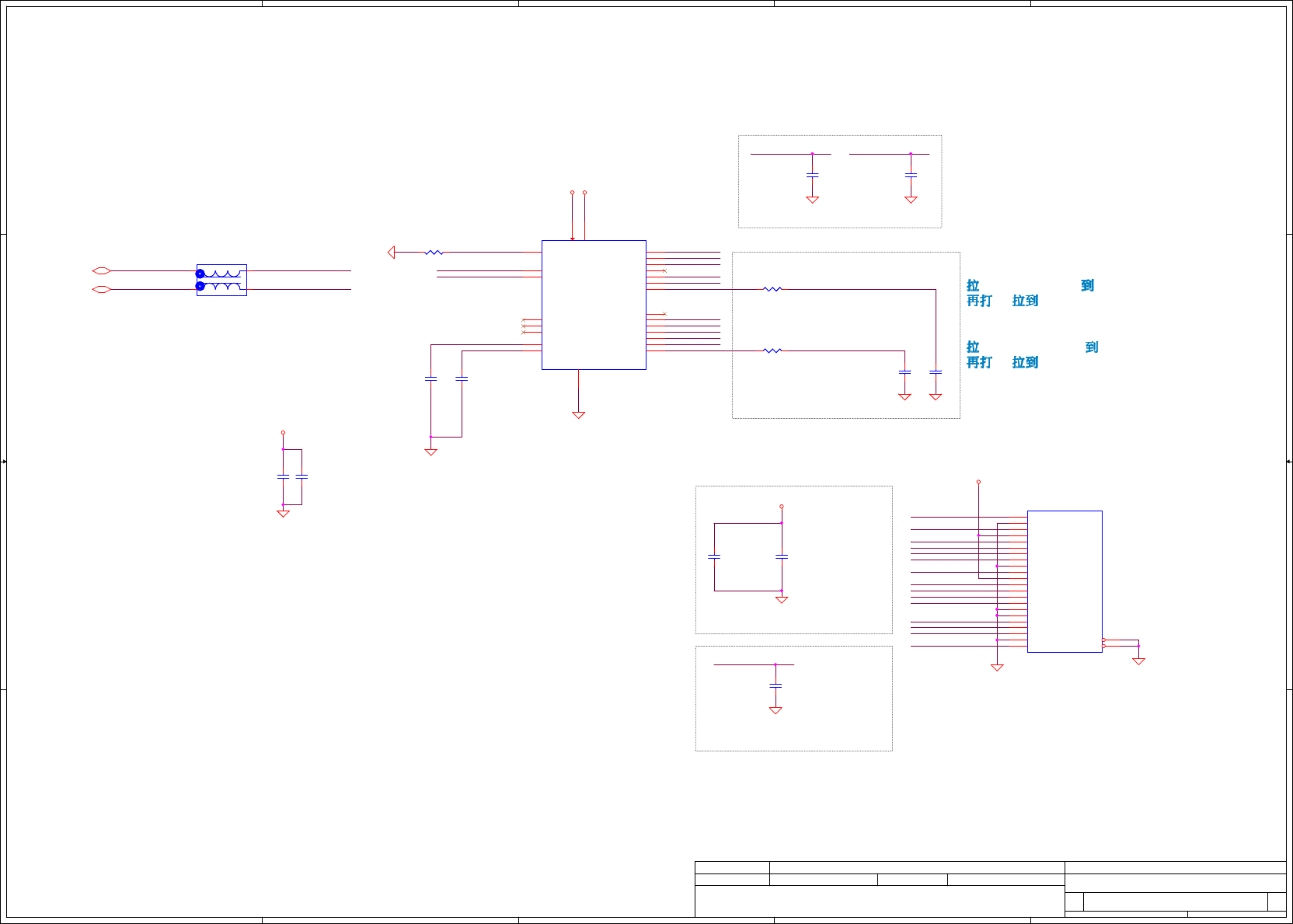

close to chip side

Trace width:40mil

MS_D2_SD_CLK Conn pin 13 SD_CLK

Via pin 10 MS_D2

MS_CLK_SD_WP Conn pin 5 MS_CLK

Via pin 20 SD_W

Close to JREAD

For EMI request.

Place close to JREAD

For EMI request. Place close to UR1

SD_D1

SD_D0

MS_CLK_SD_WP

MS_BS

MS_D2_SD_CLK

MS_D1_SD_D3

MS_D0

MS_D2_SD_CLK

MS_INS#

MS_D3

SD_CMD

MS_CLK_SD_WP

MS_D1_SD_D3

SD_D2

SD_CD#

USB20_CR_P6 USB20_CR_P6_R

USB20_CR_N6_RUSB20_CR_N6

MS_BS

SD_D2

MS_D1_SD_D3

SD_CMD

MS_D0

MS_D2_SD_CLK_R MS_D2_SD_CLK

SD_CD#

MS_D3

SD_D0

SD_D1

MS_INS#

MS_CLK_SD_WP_R MS_CLK_SD_WPV18

RREF

USB20_CR_P6_R

USB20_CR_N6_R

SD_CMD

SD_CD# MS_INS#

USB20_CR_P6<12>

USB20_CR_N6<12>

+VCC_3IN1

+3VS

+VCC_3IN1

+VCC_3IN1+3VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

23 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

Card Reader RTS5179

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

23 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

Card Reader RTS5179

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

23 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

Card Reader RTS5179

LR2

WCM-2012HS-900T_4P

EMI@

LR2

WCM-2012HS-900T_4P

EMI@

122

RR3

22_0402_5%

EMI@

RR3

22_0402_5%

EMI@

1 2

JREAD

T-SOL_143-2300302602_RV

CONN@

JREAD

T-SOL_143-2300302602_RV

CONN@

SD-CD

20 SD-DAT1

19 SD-DAT0 MMC-DAT

MS-VSS2

SD-VSS MMC-VSS2

MS-BS

MS-DATA1

SD-CLK MMC-CLK

MS-DATA0

12 SD-VDD MMC-VDD

11 MS-DATA2

10 SD-VSS MMC-VSS1

9MS-INS

8MS-DATA3

MS-SCLK

5MS-VCC

4SD-CD/DAT3 MMC-RSV

SD-CMD MMC-CMD

SD-DAT2

MS-VSS1

SD-GND

21 GND1 23

GND2 24

SD-WP(SW)

CR3

1U_0402_6.3V6K

CR3

1U_0402_6.3V6K

CR10

22P_0402_50V8J

EMI@CR10

22P_0402_50V8J

EMI@

CR8

4.7U_0603_6.3V6K

CR8

4.7U_0603_6.3V6K

RR2

22_0402_5%

EMI@

RR2

22_0402_5%

EMI@

1 2

CR9

22P_0402_50V8J

EMI@CR9

22P_0402_50V8J

EMI@

CR5

5P_0402_50V8C

EMI@

CR5

5P_0402_50V8C

EMI@

CR1

0.1U_0402_10V7K

CR1

0.1U_0402_10V7K

CR2

4.7U_0603_6.3V6K

CR2

4.7U_0603_6.3V6K

CR4

1U_0402_6.3V6K

CR4

1U_0402_6.3V6K

RR1 6.19K_0402_1%RR1 6.19K_0402_1%

CR7

0.1U_0402_10V7K

CR7

0.1U_0402_10V7K

CR11

22P_0402_50V8J

EMI@CR11

22P_0402_50V8J

EMI@

CR6

5P_0402_50V8C

EMI@

CR6

5P_0402_50V8C

EMI@

RTS5179-GR_QFN24

UR1

RTS5179-GR_QFN24_4X4

RTS5179-GR_QFN24

UR1

RTS5179-GR_QFN24_4X4

RREF

3V3_IN 4

CARD_3V3 5

V18

XD_CD#

SDREG

XD_D7

Thermal pad

GPIO0

SP14 22

SP13 21

SP12 20

SP11 19

SP10 18

SP9 16

SP8 15

SP7 14

SP6 13

SP5 12

SP4 11

SP3 10

SP2 9

SP1 8

D D

C C

B B

A A

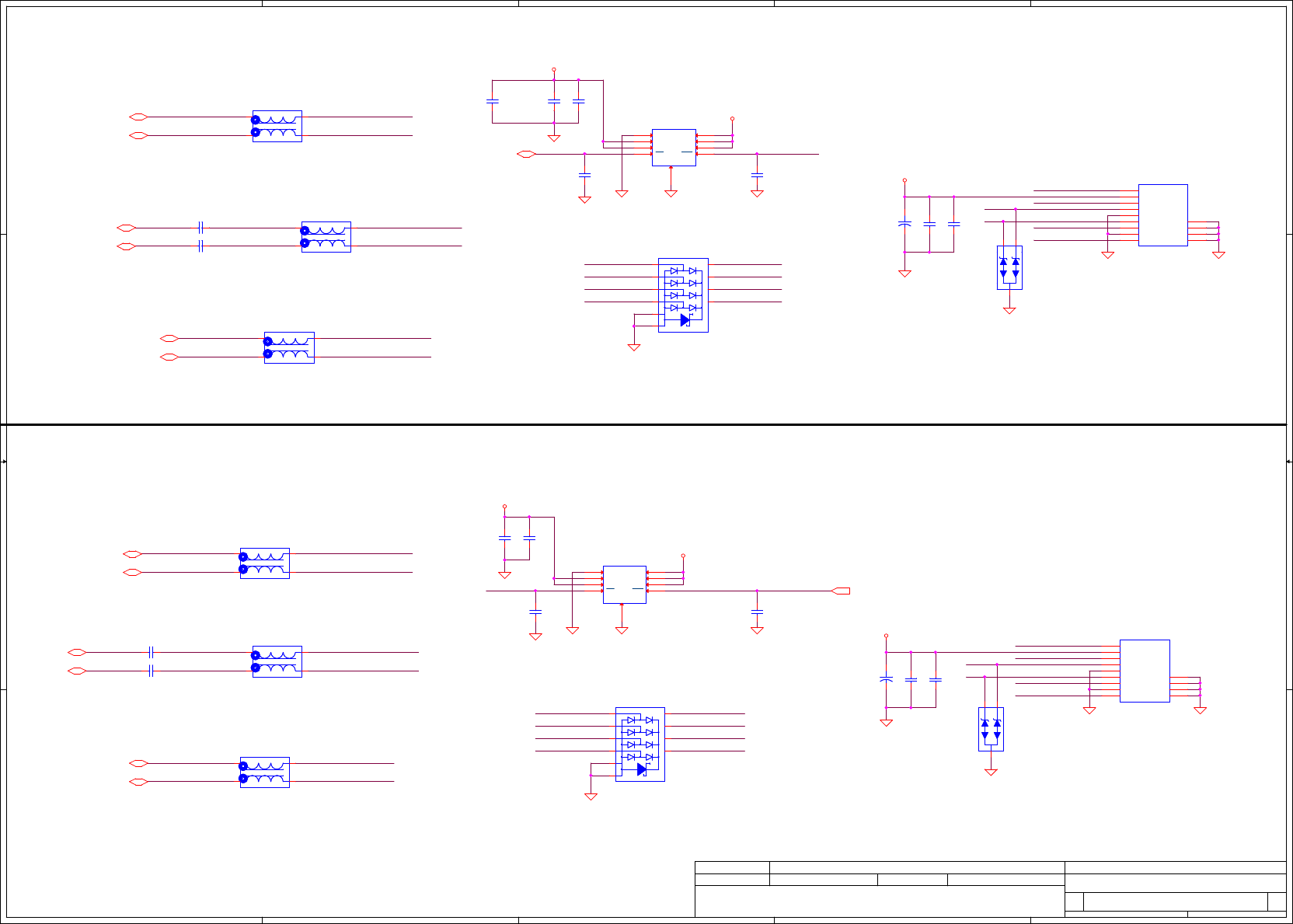

2.0A

USB connector1

USB20 port1

USB30 port2

USB connector2

USB20 port0

USB30 port1

80mil

USB20_JUSB1_P1_R

USB20_JUSB1_N1_R

USB_OC0#USB_EN#

USB3RP2_JUSB1

USB3RN2_JUSB1

USB3RP1_JUSB2_RUSB3RP1_JUSB2

USB3RN1_JUSB2_RUSB3RN1_JUSB2

USB_EN# USB_OC0#

USB20_JUSB2_P0_R

USB20_JUSB2_N0_R

USB3TN2_JUSB1_C

USB3TP2_JUSB1_C USB3TP2_JUSB1_R

USB3TN2_JUSB1_R

USB20_JUSB1_N1_RUSB20_JUSB1_N1

USB20_JUSB1_P1_R

USB3TN2_JUSB1

USB3TP2_JUSB1

USB20_JUSB1_P1

USB3TP2_JUSB1_R

USB3RP2_JUSB1_R

USB3RN2_JUSB1_R

USB3TN2_JUSB1_RUSB3TN2_JUSB1_R

USB3TP2_JUSB1_R

USB3RN2_JUSB1_R

USB3RP2_JUSB1_R

USB3TN2_JUSB1_R

USB3TP2_JUSB1_R

USB3RN2_JUSB1_R

USB3RP1_JUSB2_R

USB3TN1_JUSB2_R

USB3TP1_JUSB2_R

USB3RN1_JUSB2_R

USB20_JUSB2_N0_RUSB20_JUSB2_N0

USB20_JUSB2_P0

USB3TN1_JUSB2_C

USB3TP1_JUSB2_C USB3TP1_JUSB2_R

USB3TN1_JUSB2_RUSB3TN1_JUSB2

USB3TP1_JUSB2

USB20_JUSB2_P0_R

USB3RP1_JUSB2_R

USB3TP1_JUSB2_R

USB3RN1_JUSB2_R

USB3TN1_JUSB2_R

USB3TP1_JUSB2_R

USB3RP1_JUSB2_R

USB3TN1_JUSB2_R

USB3RN1_JUSB2_R

USB3RP2_JUSB1_R

USB3RN2_JUSB1_R

USB_EN#<25,30>

USB20_JUSB1_P1<12>

USB20_JUSB1_N1<12>

USB20_JUSB2_P0<12>

USB20_JUSB2_N0<12>

USB3RN1_JUSB2<12>

USB3TN1_JUSB2<12>

USB3TN2_JUSB1<12>

USB3RP1_JUSB2<12>

USB3RP2_JUSB1<12>

USB3TP2_JUSB1<12>

USB3TP1_JUSB2<12>

USB3RN2_JUSB1<12>

USB_OC0# <12>

+5V_USB_PWR1

+5VALW

+5V_USB_PWR2

+5VALW

+5V_USB_PWR2

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

24 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

USB3.0

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

24 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

USB3.0

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

24 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

USB3.0

LI6

DLW21SN670HQ2L_4P

EMI@LI6

DLW21SN670HQ2L_4P

EMI@

1 2

CI12

4.7U_0805_10V4Z

CI12

4.7U_0805_10V4Z

DI1

IP4292CZ10-TBR_XSON10_2.5X1~D

ESD@

DI1

IP4292CZ10-TBR_XSON10_2.5X1~D

ESD@

LI2

WCM-2012HS-900T_4P

EMI@

LI2

WCM-2012HS-900T_4P

EMI@

122

CI13

0.1U_0402_16V7K

CI13

0.1U_0402_16V7K

CI6

4.7U_0805_10V4Z

CI6

4.7U_0805_10V4Z

CI2

0.1U_0402_16V7K

CI2

0.1U_0402_16V7K

CI15

0.1U_0402_16V7K

CI15

0.1U_0402_16V7K

CI3 0.1U_0402_10V7KCI3 0.1U_0402_10V7K

CI18

47U_0805_6.3V4Z

CI18

47U_0805_6.3V4Z

CI26

0.1U_0402_16V7K

CI26

0.1U_0402_16V7K

UI2

AP2301MPG-13_MSOP8

UI2

AP2301MPG-13_MSOP8

FLG 5

VIN

3VOUT 6

GND

VOUT 7

VIN

2VOUT 8

EPAD

LI5

WCM-2012HS-900T_4P

EMI@

LI5

WCM-2012HS-900T_4P

EMI@

122

CI7

0.1U_0402_16V7K

CI7

0.1U_0402_16V7K

LI1

DLW21SN670HQ2L_4P

EMI@LI1

DLW21SN670HQ2L_4P

EMI@

1 2

JUSB1

ACON_TARA4-9K1311

CONN@

JUSB1

ACON_TARA4-9K1311

CONN@

SSTX-

SSTX+

GND 10

GND 11

VBUS

D+

D-

GND

SSRX-

SSRX+

GND

GND 13

GND 12

CI40

10U_0603_6.3V6M

CI40

10U_0603_6.3V6M

CI8

220U_6.3V_M

CI8

220U_6.3V_M

LI4

DLW21SN670HQ2L_4P

EMI@LI4

DLW21SN670HQ2L_4P

EMI@

1 2

JUSB2

ACON_TARA4-9K1311

CONN@JUSB2

ACON_TARA4-9K1311

CONN@

SSTX-

SSTX+

GND 10

GND 11

VBUS

D+

D-

GND

SSRX-

SSRX+

GND

GND 13

GND 12

CI43

10U_0603_6.3V6M

CI43

10U_0603_6.3V6M

LI3

DLW21SN670HQ2L_4P

EMI@LI3

DLW21SN670HQ2L_4P

EMI@

1 2

DI2

L30ESDL5V0C3-2_SOT23-3

ESD@

DI2

L30ESDL5V0C3-2_SOT23-3

ESD@

CI11 0.1U_0402_10V7KCI11 0.1U_0402_10V7K

CI9

0.1U_0402_16V7K

CI9

0.1U_0402_16V7K

CI4 0.1U_0402_10V7KCI4 0.1U_0402_10V7K

CI10 0.1U_0402_10V7KCI10 0.1U_0402_10V7K

UI3

AP2301MPG-13_MSOP8

UI3

AP2301MPG-13_MSOP8

FLG 5

VIN

3VOUT 6

GND

VOUT 7

VIN

2VOUT 8

EPAD

CI14

0.1U_0402_16V7K

CI14

0.1U_0402_16V7K

DI5

L30ESDL5V0C3-2_SOT23-3

ESD@

DI5

L30ESDL5V0C3-2_SOT23-3

ESD@

CI17

0.1U_0402_16V7K

CI17

0.1U_0402_16V7K

DI4

IP4292CZ10-TBR_XSON10_2.5X1~D

ESD@

DI4

IP4292CZ10-TBR_XSON10_2.5X1~D

ESD@

CI1

220U_6.3V_M

CI1

220U_6.3V_M

D D

C C

B B

A A

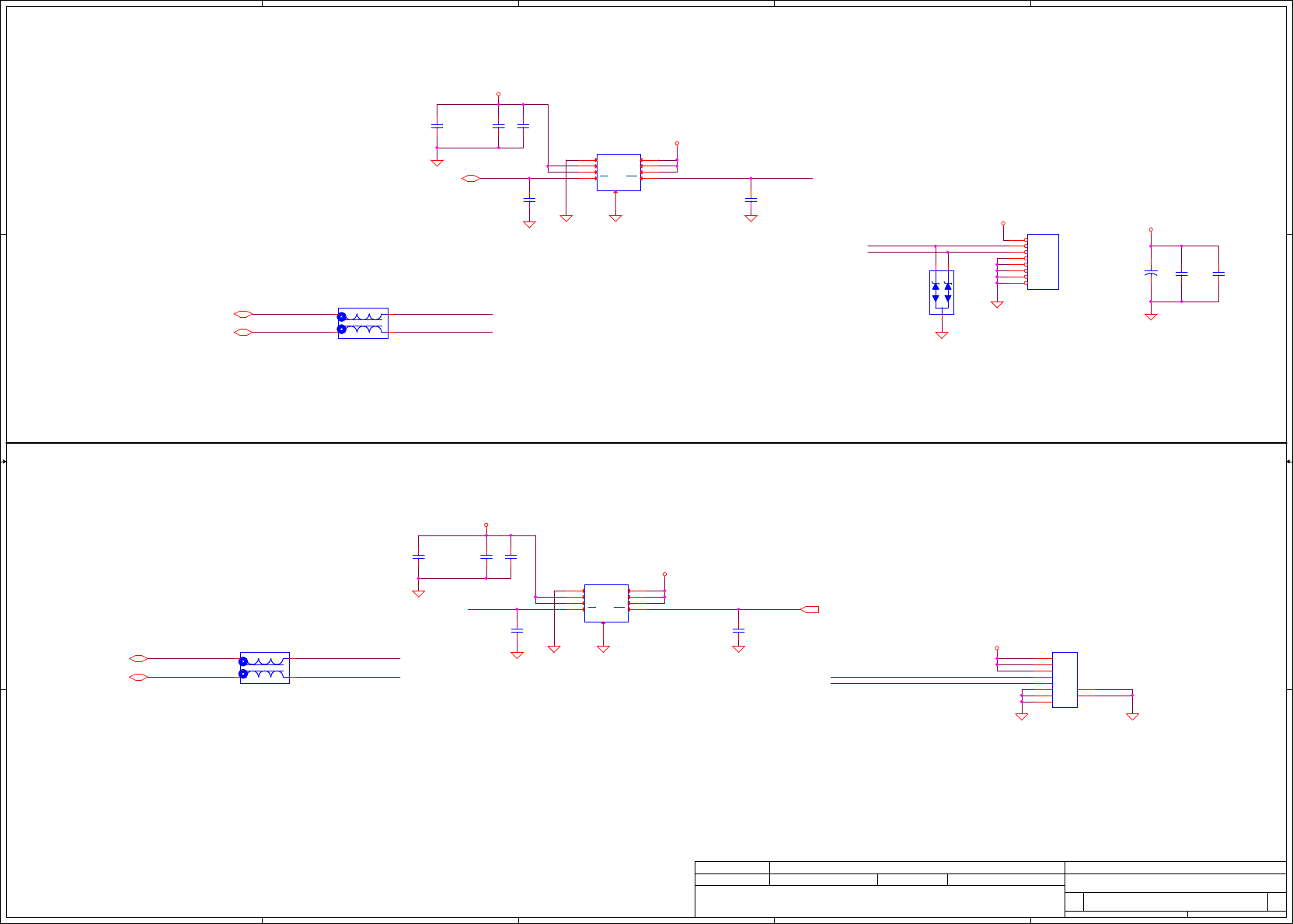

80mil

2.0A

80mil

2.0A

USB connector3

USB20 port2

USB connector4

USB20 port3

Place close to JUSB3

SP01001AA00

SP01001EX00

Main:

2nd:

Change CONN symbol for DFB

USB20_JUSB3_P2_R

USB20_JUSB3_N2_R

USB_OC1#USB_EN#

USB20_USBDB_P3_R

USB20_USBDB_N3_RUSB20_USBDB_N3

USB20_USBDB_P3

USB_OC1#USB_EN#

USB20_JUSB3_N2_R

USB20_JUSB3_P2_R

USB20_USBDB_N3_R

USB20_USBDB_P3_R

USB20_JUSB3_P2

USB20_JUSB3_N2

USB_EN#<24,30>

USB20_USBDB_P3<12>

USB20_USBDB_N3<12>

USB_OC1# <12>

USB20_JUSB3_P2<12>

USB20_JUSB3_N2<12>

+5V_USB_PWR3

+5VALW

+5V_USB_PWR4

+5VALW

+5V_USB_PWR3

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

25 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MB to USB2.0 DB

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

25 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MB to USB2.0 DB

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

25 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

MB to USB2.0 DB

CI23

4.7U_0805_10V4Z

CI23

4.7U_0805_10V4Z

CI19

0.1U_0402_16V7K

CI19

0.1U_0402_16V7K

CI24

0.1U_0402_16V7K

CI24

0.1U_0402_16V7K

CI27

47U_0805_6.3V4Z

CI27

47U_0805_6.3V4Z

CI22

0.1U_0402_16V7K

CI22

0.1U_0402_16V7K

CI25

0.1U_0402_16V7K

CI25

0.1U_0402_16V7K

UI4

AP2301MPG-13_MSOP8

UI4

AP2301MPG-13_MSOP8

FLG 5

VIN

3VOUT 6

GND

VOUT 7

VIN

2VOUT 8

EPAD

CI21

47U_0805_6.3V4Z

CI21

47U_0805_6.3V4Z

CI16

0.1U_0402_16V7K

CI16

0.1U_0402_16V7K

LI10

WCM-2012HS-900T_4P

EMI@

LI10

WCM-2012HS-900T_4P

EMI@

122

CI32

0.1U_0402_16V7K

CI32

0.1U_0402_16V7K

CI30

0.1U_0402_16V7K

CI30

0.1U_0402_16V7K

DI7

L30ESDL5V0C3-2_SOT23-3

ESD@

DI7

L30ESDL5V0C3-2_SOT23-3

ESD@

LI7

WCM-2012HS-900T_4P

EMI@

LI7

WCM-2012HS-900T_4P

EMI@

122

UI5

AP2301MPG-13_MSOP8

UI5

AP2301MPG-13_MSOP8

FLG 5

VIN

3VOUT 6

GND

VOUT 7

VIN

2VOUT 8

EPAD

CI31

4.7U_0805_10V4Z

CI31

4.7U_0805_10V4Z

CI20

220U_6.3V_M

CI20

220U_6.3V_M

CI44

10U_0603_6.3V6M

CI44

10U_0603_6.3V6M

JUSB3

ACON_UARBG-4K1926

CONN@

JUSB3

ACON_UARBG-4K1926

CONN@

VBUS

D-

D+

GND

JDB

JESS_UCNR2210M008-0

CONN@

JDB

JESS_UCNR2210M008-0

CONN@

G1 9

G2 10

D D

C C

B B

A A

Mini WLAN/WIMAX H=6.7

10mils, All pins

CC47 wlan connector

HDD LED

ESD solution

Battery LED

Power LED

Reserve for WLAN module LED control

Wireless LED

Reserve for WLAN module modified

BT_ON#

DDR_XDP_WLAN_TP_SMBCLK

DDR_XDP_WLAN_TP_SMBDAT

CLK_PCIE_WLAN#

CLK_PCIE_WLAN

WLAN_CLKREQ#

WL_OFF#WLAN_RADIO_DIS#_R

USB20_MINI1_N4

USB20_MINI1_P4

EC_TX

EC_RX

PCIE_PTX_WLANRX_P4_C

PCIE_PTX_WLANRX_N4_C

PLT_RST#

WL_LED#

BT_LED#

SATA_ACT#

BATT_CHG_LED#

BATT_LOW _LED#

WL_BT_LED#_ECBT_LED#

WL_BT_LED#_EC2

WL_BT_LED#_EC

WL_BT_LED#

WL_BT_LED#_EC WL_BT_LED#

WL_BT_LED

BT_LED#

WL_LED#

WL_BT_LED#_EC

BT_LED#

WL_LED#

DDR_XDP_WLAN_TP_SMBCLK <17,18,19,27,6,9>

DDR_XDP_WLAN_TP_SMBDAT <17,18,19,27,6,9>

CLK_PCIE_WLAN#<9>

CLK_PCIE_WLAN<9>

WLAN_CLKREQ#<9>

EC_TX<30>

EC_RX<30>

BT_ON#<11>

PLT_RST# <10,21,30,48,6>

USB20_MINI1_N4 <12>

USB20_MINI1_P4 <12>

PCIE_PTX_WLANRX_N4<12>

PCIE_PRX_WLANTX_N4<12>

PCIE_PTX_WLANRX_P4<12>

PCIE_PRX_WLANTX_P4<12>

WL_OFF# <11>

SATA_ACT#<8>

BATT_CHG_LED#<30>

BATT_LOW _LED#<30>

PWR_PWM_LED#<30>

WL_BT_LED#_EC2 <30>

WL_BT_LED#_EC <30>

WL_BT_LED<30>

+3V_WLAN

+1.5VS

+3V_WLAN

+3VS

+3V_WLAN+3VS

+3V_WLAN

+5VS

+3VS +CPU_CORE

+5VALW

+5VALW+3VS

+3VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

26 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

Mini Card/LED

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

26 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

Mini Card/LED

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

26 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

Mini Card/LED

CM48

0.1U_0402_10V7K

CM48

0.1U_0402_10V7K

CM46

0.1U_0402_10V7K

CM46

0.1U_0402_10V7K

CM44 0.1U_0402_10V7KCM44 0.1U_0402_10V7K

1 2

LED2

12-21C-T3D-CM2P1B18X-2C_WHITE

LED2

12-21C-T3D-CM2P1B18X-2C_WHITE

1 2

RD47

100K_0402_5%

RD47

100K_0402_5%

RD15

390_0402_5%

RD15

390_0402_5%

1 2

RD52

100K_0402_5%

@RD52

100K_0402_5%

RD14

390_0402_5%

RD14

390_0402_5%

1 2

QD18

2N7002K_SOT23-3

QD18

2N7002K_SOT23-3

RD18

680_0402_1%

RD18

680_0402_1%

1 2

RD48

0_0402_5%

RD48

0_0402_5%

1 2

RM110

10K_0402_5%

RM110

10K_0402_5%

RM11

100K_0402_5%

RM11

100K_0402_5%

1 2

QM30

2N7002K_SOT23-3

QM30

2N7002K_SOT23-3

1 3

RD17

390_0402_5%

RD17

390_0402_5%

1 2

RD45

100K_0402_5%

RD45

100K_0402_5%

UD1

MC74VHC1G08DFT2G_SC70-5

@UD1

MC74VHC1G08DFT2G_SC70-5

IN1

IN2

2OUT 4

VCC 5

GND

RD16

680_0402_1%

RD16

680_0402_1%

1 2

CM40

0.047U_0402_16V4Z

CM40

0.047U_0402_16V4Z

RM25

0_0805_1%

RM25

0_0805_1%

1 2

CM47

0.1U_0402_10V7K

@CM47

0.1U_0402_10V7K

CM49 0.1U_0402_10V7KCM49 0.1U_0402_10V7K

1 2

CM45

22U_0603_6.3V6M

ESD@

CM45

22U_0603_6.3V6M

ESD@

1 2

CM43

4.7U_0603_6.3V6K

CM43

4.7U_0603_6.3V6K

QD19

2N7002K_SOT23-3

QD19

2N7002K_SOT23-3

CD63

0.1U_0402_10V7K

@CD63

0.1U_0402_10V7K

1 2

RD50

100K_0402_5%

RD50

100K_0402_5%

RD49

0_0402_5%

RD49

0_0402_5%

1 2

RM13 1K_0402_1%RM13 1K_0402_1%

QD20

2N7002K_SOT23-3

QD20

2N7002K_SOT23-3

JMINI

CONCR_525B01BE17A

CONN@

JMINI

CONCR_525B01BE17A

CONN@

GND1

10 10

12 12

14 14

16 16

18 18

20 20

22 22

24 24

26 26

28 28

30 30

32 32

34 34

36 36

38 38

40 40

42 42

44 44

46 46

48 48

50 50

52 52

GND2 54

White

Amber

LED3

HT-210UD5-BP5_AMBER-WHITE

White

Amber

LED3

HT-210UD5-BP5_AMBER-WHITE

RD51

0_0402_5%

RD51

0_0402_5%

1 2

LED4

12-21C-T3D-CM2P1B18X-2C_WHITE

LED4

12-21C-T3D-CM2P1B18X-2C_WHITE

1 2

RD46

100K_0402_5%

@RD46

100K_0402_5%

RM26

0_0805_1%

RM26

0_0805_1%

1 2

LED1

12-21C-T3D-CM2P1B18X-2C_WHITE

LED1

12-21C-T3D-CM2P1B18X-2C_WHITE

1 2

D D

C C

B B

A A

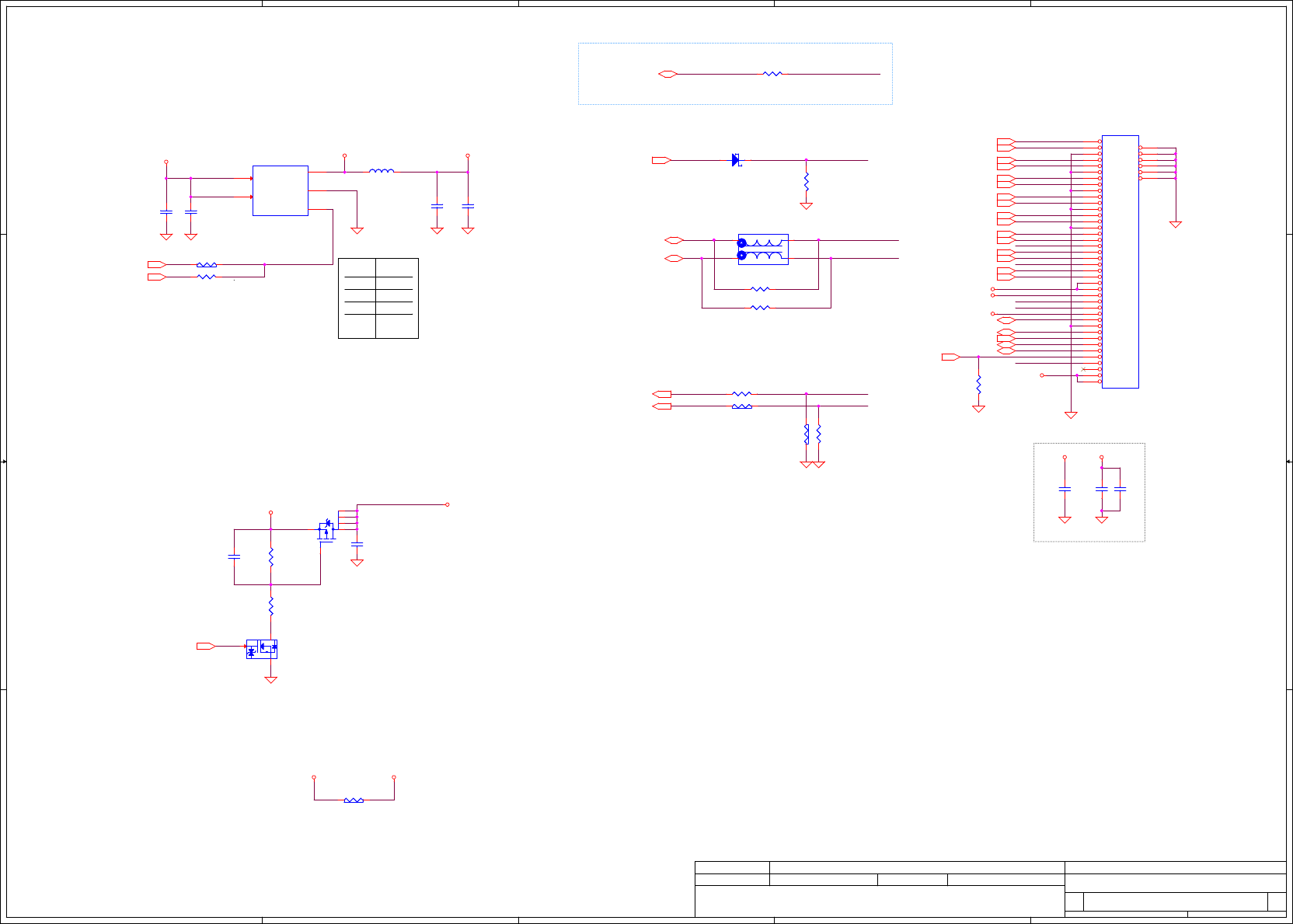

40mil

Power ON Circuit

ON/OFF switch

POWER/B

INT_KBD Connector

Touch pad

FAN Control circuit

TOP Side

Bottom Side

Pop only before MP

SP01000R910

SP01001BG00

Main:

2nd:

Change CONN symbol for DFB

TP_CLK

TP_DATA

KSO[0..16]

KSI[0..7]

EN_DFAN1

ON/OFFBTN#

KB_CAPS_PWR

KSI0

KSI1

KSI4

KSI2

KSI3

KSI5

KSI6

KSI7

KSO16

KSO2

KSO4

KSO3

KSO1

KSO0

KSO8

KSO7

KSO6

KSO5

KSO9

KSO10

KSO13

KSO12

KSO11

KSO14

KSO15

LID_SW#

DDR_XDP_WLAN_TP_SMBCLK

DDR_XDP_WLAN_TP_SMBDAT

TP_CLK<30>

TP_DATA<30>

ON/OFFBTN# <30>

KSO[0..16]<30>

KSI[0..7]<30>

FAN_SPEED1<30>

EN_DFAN1<30>

CAPS_LED<30>

LID_SW#<30>

DDR_XDP_WLAN_TP_SMBDAT<17,18,19,26,6,9>

DDR_XDP_WLAN_TP_SMBCLK<17,18,19,26,6,9>

+3VS

+FAN_POWER

+3VS

+5VS

+FAN_POWER

+3VLP

+5VS

+3VALW

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

FAN/TP/PWR SW

27 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

FAN/TP/PWR SW

27 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

FAN/TP/PWR SW

27 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

JPWR

HB_A090420-SAHR21

CONN@

JPWR

HB_A090420-SAHR21

CONN@

GND 5

GND 6

CE23

1000P_0402_50V7K

CE23

1000P_0402_50V7K

RE60

240_0402_1%

RE60

240_0402_1%

1 2

SW1

SMT1-05-A_4P

SW1

SMT1-05-A_4P

RE49

100K_0402_5%

RE49

100K_0402_5%

1 2

JFAN

ACES_85204-0300N

CONN@

JFAN

ACES_85204-0300N

CONN@

GND

CE24

0.01U_0402_16V7K

CE24

0.01U_0402_16V7K

UE3

APE8873M SOP 8P

UE3

APE8873M SOP 8P

VEN

VIN

GND 5

GND 6

GND 8

VSET

GND 7

CE20

0.1U_0402_16V7K

CE20

0.1U_0402_16V7K

CE25

2.2U_0603_6.3V6K

CE25

2.2U_0603_6.3V6K

1 2

RE50

10K_0402_5%

RE50

10K_0402_5%

CE22

2.2U_0603_6.3V6K

CE22

2.2U_0603_6.3V6K

JKB

HB_A823020-SBHR21

CONN@JKB

HB_A823020-SBHR21

CONN@

11 12

12 13

13 14

19 20

26 27

27 28

28 29

29 30

GND 31

GND 32

JTP

PS_HPF10052-06M000R

CONN@

JTP

PS_HPF10052-06M000R

CONN@

6G1 7

G2 8

SW2

SMT1-05-A_4P

SW2

SMT1-05-A_4P

1 1

2 2

3 3

4 4

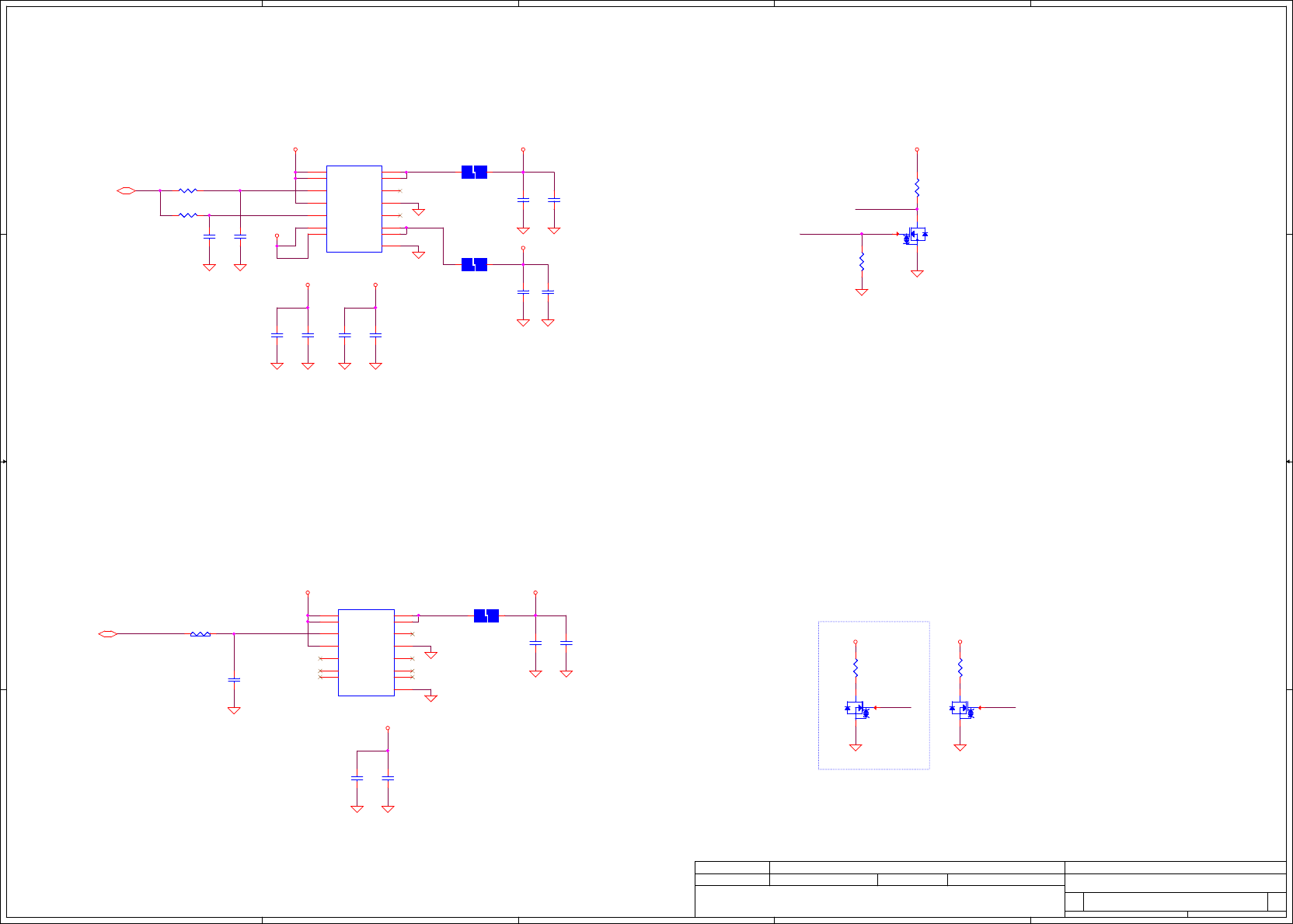

+5VS and +3VS switch

For Intel S3 Power Reduction

10mil

+3VALW_PCH switch

SHORT DEFAULT

SUSP

SUSP#

5VS

5VS_GATE

3VS_GATE

3VS

SUSP SUSP

+3VALW_PCH_GATE

3VALW_PCH

PCH_PWR_EN

SUSP#<30,39,40>

PCH_PWR_EN<30>

+5VALW

+3VALW

+5VS

+3VS

+0.675VS +1.05VS

+3VALW

+3VALW_PCH

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

28 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

DC/DC Interface

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

28 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

DC/DC Interface

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

28 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

DC/DC Interface

R2315

470_0603_5%

R2315

470_0603_5%

C2313

10U_0603_6.3V6M

C2313

10U_0603_6.3V6M

C2314

0.01U_0603_25V7K

C2314

0.01U_0603_25V7K

C2310

10U_0805_10V4Z

C2310

10U_0805_10V4Z

R416

0_0402_1%

R416

0_0402_1%

1 2

J513

JUMP_43X79@

J513

JUMP_43X79@

C2309

0.01U_0603_25V7K

C2309

0.01U_0603_25V7K

C2308

10U_0603_6.3V6M

C2308

10U_0603_6.3V6M

R10

100K_0402_5%

R10

100K_0402_5%

C2311

10U_0603_6.3V6M

C2311

10U_0603_6.3V6M

R2318

470K_0402_5%

R2318

470K_0402_5%

1 2

2N7002K_SOT23-3

R2314

22_0603_5%

R2314

22_0603_5%

C2306

10U_0603_6.3V6M

C2306

10U_0603_6.3V6M

U2301

TPS22966DPUR_SON14_2X3

U2301

TPS22966DPUR_SON14_2X3

GND 11

VIN2

VBIAS

ON2

VOUT2 9

VIN2

CT1 12

VOUT1 14

VOUT2 8

VOUT1 13

VIN1

ON1

VIN1

CT2 10

GPAD 15

C2323

10U_0603_6.3V6M

C2323

10U_0603_6.3V6M

Q2308

2N7002K_SOT23-3

Q2308

2N7002K_SOT23-3

J510

JUMP_43X79@

J510

JUMP_43X79@

R2313

82K_0402_5%

R2313

82K_0402_5%

1 2

R16

100K_0402_5%

R16

100K_0402_5%

J511

JUMP_43X79@

J511

JUMP_43X79@

C2305

10U_0603_6.3V6M

C2305

10U_0603_6.3V6M

C2312

10U_0603_6.3V6M

C2312

10U_0603_6.3V6M

C2318

10U_0603_6.3V6M

C2318

10U_0603_6.3V6M

C2307

10U_0805_10V4Z

C2307

10U_0805_10V4Z

C2322

0.01U_0603_25V7K

C2322

0.01U_0603_25V7K

C2316

10U_0603_6.3V6M

C2316

10U_0603_6.3V6M

C2324

10U_0603_6.3V6M

C2324

10U_0603_6.3V6M

U2304

TPS22966DPUR_SON14_2X3

U2304

TPS22966DPUR_SON14_2X3

GND 11

VIN2

VBIAS

ON2

VOUT2 9

VIN2

CT1 12

VOUT1 14

VOUT2 8

VOUT1 13

VIN1

ON1

VIN1

CT2 10

GPAD 15

Q2307

2N7002K_SOT23-3

Q2307

2N7002K_SOT23-3

D D

C C

B B

A A

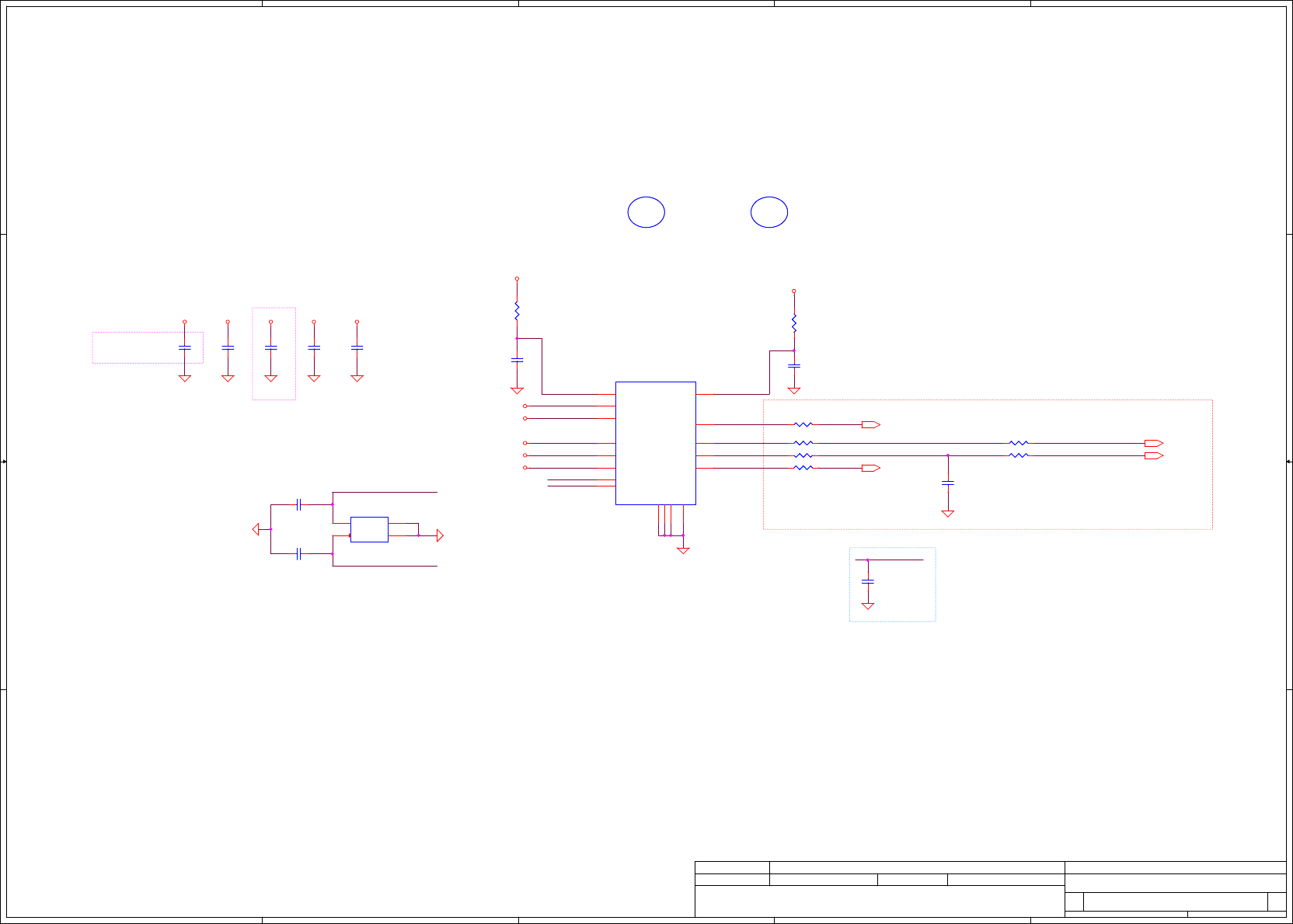

SLG3NB3374V is for DIS by output 24M*1,25M*1, 27M*1, 32K*1

SLG3NB3375V is for UMA by output 24M81, 25M*1, 32K*1

CPU_RTC 32.768k(P.8)

Place RG3 close to YC1

VGA 27M(P.29)

Place RG7 close to YV1

LAN 25M(P.21)

Place RG8 close to YL2

CPU_CLK 24M(P.9)

Place RG6 close to YC2

RG3, RG7,RG8, RG6 0ohm_0402

for isolated CLK tail

Depop if GCLK

with UMA

Place close

to UG1.8

Reserve CG11 for vendor

Place close to RG4

PCH_RTCX1_R

LAN_X1_R

PCH_X1_R

CLK_X2

CLK_X1

RTC_VOUT

VGA_X1_R

CLK_X1

CLK_X2

GCLK_VRTC

XTALIN_R

XTLI_R

XTALIN_R

XTAL24_IN <9>

XTLI <21>

PCH_RTCX1 <8>

XTALIN <49>

+3VLP

+1.05VS

+1.8VGS

+LAN_IO

+RTCBATT

+RTCVCC

+3VALW

+3VLP+1.05VS+1.8VGS +LAN_IO +3VALW

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

GCLK

57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

GCLK

57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

GCLK

57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

CG5

22U_0805_6.3V6M

GCLK@

CG5

22U_0805_6.3V6M

GCLK@

CG11

5P_0402_50V8C

CG11

5P_0402_50V8C

CG8

15P_0402_50V8J

GCLK@CG8

15P_0402_50V8J

GCLK@

RG7 0_0402_5%

GCLKDIS@

RG7 0_0402_5%

GCLKDIS@

1 2

YG1

25MHZ_10PF_7V25000014

GCLK@YG1

25MHZ_10PF_7V25000014

GCLK@

OSC

GND 2

GND 4

CG10

0.1U_0402_10V7K

GCLK@

CG10

0.1U_0402_10V7K

GCLK@

CG3

0.1U_0402_10V7K

GCLK@

CG3

0.1U_0402_10V7K

GCLK@

RG4 10_0402_1%

GCLKDIS@

RG4 10_0402_1%

GCLKDIS@

1 2

RG8 0_0402_5%GCLK@RG8 0_0402_5%GCLK@

1 2

UG2

SLG3NB244VTR TQFN 16P CLK GEN

GCLKDIS@UG2

SLG3NB244VTR TQFN 16P CLK GEN

GCLKDIS@

RG5 33_0402_5%

GCLK@

RG5 33_0402_5%

GCLK@

1 2

RG6 0_0402_5%

GCLK@

RG6 0_0402_5%

GCLK@

1 2

UG1

SLG3NB274VTR_TQFN16_2X3

UG1

SLG3NB274VTR_TQFN16_2X3

XTAL_IN

VDD

VDDIO_25M_B

GND1

25MHz_B 5

25MHz_A 6

GND2

VDDIO_25M_A

32kHz 9

VBAT

VDDIO_27M

11 27MHz 12

GND3

VDD_RTC_OUT 14

+V3.3A

XTAL_OUT

GND4

CG4

0.1U_0402_10V7K

GCLK@

CG4

0.1U_0402_10V7K

GCLK@

CG2

0.1U_0402_10V7K

GCLK@

CG2

0.1U_0402_10V7K

GCLK@

RG1

330_0402_5%

GCLK@RG1

330_0402_5%

GCLK@

CG9

12P_0402_50V8J~D

GCLK@CG9

12P_0402_50V8J~D

GCLK@

CG7

5P_0402_50V8C

GCLK@

CG7

5P_0402_50V8C

GCLK@

RG3

0_0402_5%

GCLK@

RG3

0_0402_5%

GCLK@

1 2

RG2

0_0402_5%

@RG2

0_0402_5%

UG1

SLG3NB244VTR TQFN 16P CLK GEN

GCLKUMA@UG1

SLG3NB244VTR TQFN 16P CLK GEN

GCLKUMA@

CG6

2.2U_0603_6.3V6K

GCLK@

CG6

2.2U_0603_6.3V6K

GCLK@

CG1

0.1U_0402_10V7K

GCLKDIS@

CG1

0.1U_0402_10V7K

GCLKDIS@

D D

C C

B B

A A

Compal Electronics, Inc.

Venus DIS@

UMA UMA@

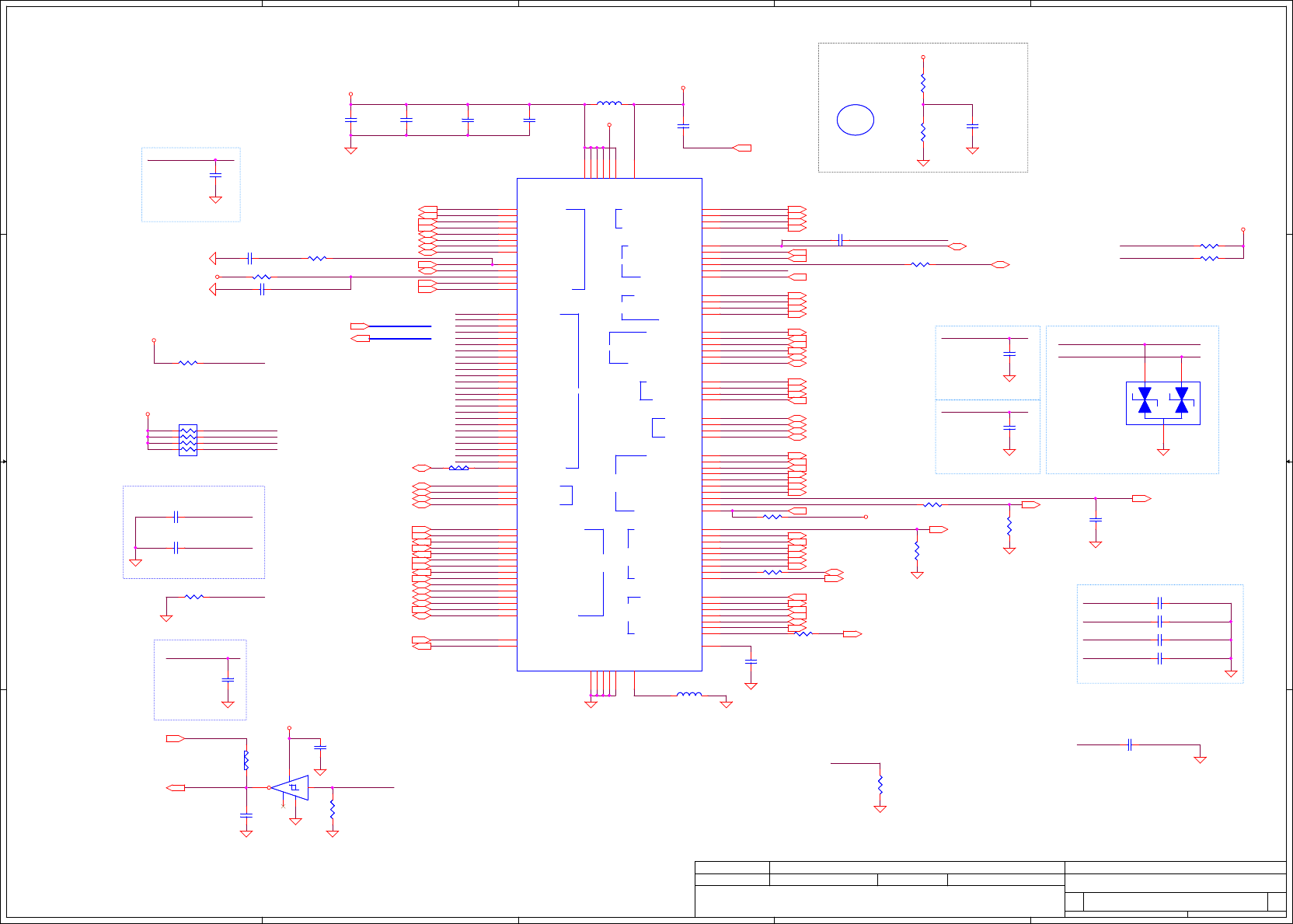

KB9012A3 change to

KB9012A4 SA00004OB30

ME_FWP PCH has internal 20K PD.

(suspend power rail)

Board ID

Please close to EC

Reserve for ESD

20mil

"TOUCH_RST" for OAK 15 only

"KB_LED_PWM" for OAK 17 only

Place CE30,CE31,CE32,CE33 close to UE1

Place DE1 close to UE1

Place CE34

between DE1 and RE12

Place CE35

between DE1 and UE1

Place CC30

close to RC51.1

SD034330380 330K_0402_1%

100K_0402_1%SD034100380

43K_0402_1%SD034430280

27K_0402_1%SD034100300

12K_0402_1%SD034120280

SD028000080 0_0402_5%

240K_0402_1%SD000001B80

270K_0402_1%SD00000G280

75K_0402_1%SD034750280

SD034560280 56K_0402_1%

160K_0402_1%

430K_0402_1%SD028430380

SD034160380

SD034130380 130K_0402_1%

SD034200380 200K_0402_1%

KSO[0..16]

KSI[0..7]

ECAGND

KSI1

KSO9

BKOFF#

KSI7

FAN_SPEED1

LPC_LAD1

KSI3

KSO4

PLT_RST#

+3VALW

+V18R

KSO8

KSO2

EC_SMI#

SUSP#

KSO16

EN_DFAN1

BATT_TEMP

KSI0

KSO1

SERIRQ

EC_RST#

LPC_LAD2

ECAGND

KSO14

KB_RST#

ADP_I

KSI4

EC_SCI#

LPC_LAD3

VCOUT0_PH#

KSO15

KSO10

KSO0

ACOFF

LPC_LAD0

LPC_LFRAME#

KSO13

KSI2

KSO11

KSO3

KSI6

BEEP#

+EC_VCCA

KSO12

KSI5

KSO7

EC_TX

BATT_CHG_LED#

KSO6

KSO5

EC_RX

WL_BT_LED#_EC2

PWR_PWM_LED#

CAPS_LED

BATT_LOW _LED#

PECI_KB9012

VCOUT1_PH

SIO_SLP_S3#

SIO_SLP_S5# EC_LID_OUT#

H_PROCHOT#

ACIN

ON/OFFBTN#

PBTN_OUT#

VCOUT1_PH

EC_SMB_DA1

EC_SMB_CK1

EC_ENVDD

PCIE_WAKE#

PCH_PWROK

ME_EN

PS_ID

65W/90W#

EN_INVPWR

LCD_TEST

WOL_EN

EC_SMB_DA2

EC_ON

EC_MUTE#

PANEL_BKLEN

CE_EN

DBC_EN

PCH_PWROK

SIO_SLP_S5#

SIO_SLP_S3#

FAN_SPEED1

LID_SW#

IMVP_PWRGD

LID_SW#

AD_BID0

ME_EN

ME_SUS_PWR_ACK

RUNPWROK

EC_SMB_CK2

TP_CLK

TP_DATA

VCIN1_PH

EC_SMB_DA2

EC_SMB_DA1

EC_SMB_CK2

EC_SMB_CK1

DGPU_PWROK

ENVDD_PCH

VCCST_PG_EC

SUSACK#

ECAGND

SIO_SLP_S0#

ACIN

TOUCH_RST

+1.05V_PGOOD

CLK_PCI_LPC

SYSON

AD_BID0

USB_EN#

SIO_SLP_S4#

ACIN_65W

CPU_DETECT#

SYS_PWROK

VCIN0_PH

PCH_HOT#

VR_HOT#

EC_RSMRST#

EC_SPI_MISO_1

EC_SPI_MOSI_1

EC_SPI_CS0#

EC_SPI_CLK_R

KB_LED_PWM

LID_SW#

PCH_PWROK

SYS_PWROK

CPU_DETECT#

VR_ON

VCCST_PG_EC

VR_ON_EC VR_ON

VR_ON

ERP_LOT6

WL_BT_LED#_EC

WL_BT_LED

VCCST_PG_EC

PLT_RST#

TP_DATA

TP_CLK

KSI[0..7]<27>

KSO[0..16]<27>

LPC_LFRAME#<9>

LPC_LAD2<9>

LPC_LAD0<9>

LPC_LAD3<9>

LPC_LAD1<9>

SERIRQ<11>

BEEP# <22>

EC_SMI#<8>

KB_RST#<11>

FAN_SPEED1<27>

ADP_I <36,37>

EC_RSMRST# <10>

SYSON <41>

CLK_PCI_LPC<9>

EN_DFAN1 <27>

BATT_CHG_LED# <26>

EC_SCI#<11>

CAPS_LED <27>

BATT_LOW _LED# <26>

H_PROCHOT#<36,6>

SIO_SLP_S3#<10>

SIO_SLP_S5#<10> EC_LID_OUT# <11>

BKOFF# <19>

EC_TX<26>

EC_RX<26>

PBTN_OUT# <10,6>

VCIN1_PH <36>

EC_SMB_DA1<36,37>

EC_SMB_CK1<36,37>

VCOUT0_PH# <38>

ACOFF <37>

EC_ENVDD <31>

PWR_PWM_LED# <26>

ME_EN <8>

PS_ID<36>

65W#/90W <36>

EN_INVPWR <31>

LCD_TEST <31>

WOL_EN <21>

WL_BT_LED#_EC2 <26>

PCH_PWROK<10>

BATT_TEMP <36,37>

ON/OFFBTN# <27>

ACIN <10,36,37,49>

EC_ON <38>

PLT_RST#<10,21,26,48,6>

EC_MUTE# <22>

EC_SMB_DA2<19,49,9>

EC_SMB_CK2<19,49,9>

CE_EN<31>

DBC_EN<31>

IMVP_PWRGD <42>

PECI_EC <6>

ME_SUS_PWR_ACK<10>

RUNPWROK<6>

PCIE_WAKE#<10,21>

LID_SW# <27>

TP_CLK <27>

TP_DATA <27>

VCOUT1_PH <36>

DGPU_PWROK<10,44>

ENVDD_PCH<10,19>

VCCST_PG_EC<13>

SUSACK# <10>

SUSP# <28,39,40>

ECAGND <36>

SIO_SLP_S0# <10>

TOUCH_RST

+1.05V_PGOOD<40>

PANEL_BKLEN <10>

VR_ON <13,42>

USB_EN# <24,25>

SIO_SLP_S4# <10>

PCH_PWR_EN <28>

PCH_DPWROK<10>

ACIN_65W <49>

CPU_DETECT# <6>

SYS_PWROK <10,6>

VCIN0_PH <36>

PCH_HOT# <9>

VR_HOT#<42>

EC_SPI_MISO_1 <9>

EC_SPI_MOSI_1 <9>

EC_SPI_CS0# <9>

EC_SPI_CLK_R <9>

KB_LED_PWM <32>

ERP_LOT6 <36>

WL_BT_LED#_EC <26>

WL_BT_LED<26>

+3VALW

+3VS

+3VALW

+3VLP

+3VALW

+EC_VCCA

+3VALW

+3VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

EC ENE-KB9012

30 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

EC ENE-KB9012

30 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

EC ENE-KB9012

30 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

CE36

0.047U_0402_16V4Z

ESD@CE36

0.047U_0402_16V4Z

ESD@

CE7

0.1U_0402_10V7K

CE7

0.1U_0402_10V7K

CE32 0.1U_0402_10V7K

ESD@

CE32 0.1U_0402_10V7K

ESD@

1 2

CE28

0.1U_0402_10V7K

ESD@CE28

0.1U_0402_10V7K

ESD@

CE18

100P_0402_50V8J

CE18

100P_0402_50V8J

CE29

220P_0402_50V8J

CE29

220P_0402_50V8J

RE18

10K_0402_5%

RE18

10K_0402_5%

RE5

330K_0402_1%

DIS@

SD034330380

RE5

330K_0402_1%

DIS@

SD034330380

CE11 0.1U_0402_10V7KCE11 0.1U_0402_10V7K

CE8

0.1U_0402_10V7K

CE8

0.1U_0402_10V7K

RE3

100K_0402_1%

RE3

100K_0402_1%

1 2

LPC & MISC

Int. K/B

Matrix

SM Bus

GPIO

AD Input

PWM Output

DA Output

PS2 Interface

SPI Device Interface

SPI Flash ROM

GPO

GPI

UE1

KB9012QF-A4_LQFP128_14X14

LPC & MISC

Int. K/B

Matrix

SM Bus

GPIO

AD Input

PWM Output

DA Output

PS2 Interface

SPI Device Interface

SPI Flash ROM

GPO

GPI

UE1

KB9012QF-A4_LQFP128_14X14

GATEA20/GPIO00

KBRST#/GPIO01

SERIRQ

LPC_FRAME#

LPC_AD3

PM_SLP_S3#/GPIO04

LPC_AD2

LPC_AD1

EC_VDD/VCC 9

LPC_AD0

GND/GND

CLK_PCI_EC

PCIRST#/GPIO05

PM_SLP_S5#/GPIO07

EC_SMI#/GPIO08

GPIO0A

GPIO0B

GPIO0C

GPIO0D

EC_SCII#/GPIO0E

GPIO0F 21

EC_VDD/VCC 22

BEEP#/GPIO10 23

GND/GND

EC_INVT_PWM/GPIO11

GPIO12 26

ACOFF/GPIO13 27

FAN_SPEED1/GPIO14

EC_PME#/GPIO15

EC_TX/GPIO16

EC_RX/GPIO17

PCH_PWROK/GPIO18

EC_VDD/VCC 33

SUSP_LED#/GPIO19

GND/GND

NUM_LED#/GPIO1A

EC_RST#

GPIO1D

KSO0/GPIO20

KSO1/GPIO21

KSO2/GPIO22

KSO3/GPIO23

KSO4/GPIO24

KSO5/GPIO25

KSO6/GPIO26

KSO7/GPIO27

KSO8/GPIO28

KSO9/GPIO29

KSO10/GPIO2A

KSO11/GPIO2B

KSO12/GPIO2C

KSO13/GPIO2D

KSO14/GPIO2E

KSO15/GPIO2F

KSI0/GPIO30

KSI1/GPIO31

KSI2/GPIO32

KSI3/GPIO33

KSI4/GPIO34

KSI5/GPIO35

KSI6/GPIO36

KSI7/GPIO37

BATT_TEMP/GPIO38 63

GPIO39 64

ADP_I/GPIO3A 65

GPIO3B 66

EC_VDD/AVCC 67

DAC_BRIG/GPIO3C 68

AGND/AGND

EN_DFAN1/GPIO3D 70

IREF/GPIO3E 71

CHGVADJ/GPIO3F 72

ENBKL/GPIO40 73

PECI_KB930/GPIO41 74

GPIO42 75

IMON/GPIO43 76

EC_SMB_CK1/GPIO44

EC_SMB_DA1/GPIO45

EC_SMB_CK2/GPIO46

EC_SMB_DA2/GPIO47

KSO16/GPIO48

KSO17/GPIO49

EC_MUTE#/GPIO4A 83

USB_EN#/GPIO4B 84

CAP_INT#/GPIO4C 85

EAPD/GPIO4D 86

TP_CLK/GPIO4E 87

TP_DATA/GPIO4F 88

FSTCHG/GPIO50 89

BATT_CHG_LED#/GPIO52 90

CAPS_LED#/GPIO53 91

PWR_LED#/GPIO54 92

BATT_LOW_LED#/GPIO55 93

GND/GND

SYSON/GPIO56 95

EC_VDD/VCC 96

CPU1.5V_S3_GATE/GPXIOA00 97

WOL_EN/GPXIOA01 98

ME_EN/GPXIOA02 99

EC_RSMRST#/GPXIOA03 100

EC_LID_OUT#/GPXIOA04 101

PROCHOT_IN/GPXIOA05 102

H_PROCHOT#_EC/GPXIOA06 103

VCOUT0_PH/GPXIOA07 104

BKOFF#/GPXIOA08 105

PBTN_OUT#/GPXIOA09 106

PCH_APWROK/GPXIOA10 107

SA_PGOOD/GPXIOA11 108

VCIN0_PH/GPXIOD00 109

AC_IN/GPXIOD01 110

EC_VDD0 111

EC_ON/GPXIOD02 112

GND0

113

ON/OFF/GPXIOD03 114

LID_SW#/GPXIOD04 115

SUSP#/GPXIOD05 116

GPXIOD06 117

PECI_KB9012/GPXIOD07 118

SPIDI/GPIO5B 119

SPIDO/GPIO5C 120

VR_ON/GPIO57 121

XCLKI/GPIO5D

122

XCLKO/GPIO5E

123 V18R 124

EC_VDD/VCC 125

SPICLK/GPIO58 126

PM_SLP_S4#/GPIO59 127

SPICS#/GPIO5A 128

RE2

10K_0402_5%

RE2

10K_0402_5%

1 2

CE26

0.1U_0402_10V7K

CE26

0.1U_0402_10V7K

CE15

0.1U_0402_10V7K

CE15

0.1U_0402_10V7K

LE2

FBMA-L11-160808-800LMT_0603

LE2

FBMA-L11-160808-800LMT_0603

RE36 43_0402_1%RE36 43_0402_1%

CE9 100P_0402_50V8JCE9 100P_0402_50V8J

CE12

0.1U_0402_10V7K

@EMI@

CE12

0.1U_0402_10V7K

@EMI@

CE19

47P_0402_50V8J

CE19

47P_0402_50V8J

CE1

0.1U_0402_10V7K

CE1

0.1U_0402_10V7K

RE43

43_0402_1%

RE43

43_0402_1%

1 2

CE27

0.1U_0402_10V7K

ESD@CE27

0.1U_0402_10V7K

ESD@

RE12 0_0402_5%

1 2

RE8 47K_0402_5%RE8 47K_0402_5%

RE104.7K_0402_5% RE104.7K_0402_5%

RE47

100K_0402_5%

RE47

100K_0402_5%

1 2

CE31 0.1U_0402_10V7K

ESD@

CE31 0.1U_0402_10V7K

ESD@

1 2

RE44

0_0402_1%

RE44

0_0402_1%

CE35

220P_0402_50V8J

ESD@CE35

220P_0402_50V8J

ESD@

CE5

1000P_0402_50V7K

@EMI@

CE5

1000P_0402_50V7K

@EMI@

LE1

FBMA-L11-160808-800LMT_0603

EMI@

LE1

FBMA-L11-160808-800LMT_0603

EMI@

1 2

RE94.7K_0402_5% RE94.7K_0402_5%

R2354

0_0402_5%

@EMI@

R2354

0_0402_5%

@EMI@

1 2

RP36

2.2K_0804_8P4R_5%

RP36

2.2K_0804_8P4R_5%

CE6

1000P_0402_50V7K

@EMI@

CE6

1000P_0402_50V7K

@EMI@

CE30 0.1U_0402_10V7K

ESD@

CE30 0.1U_0402_10V7K

ESD@

1 2

UE2

SN74LVC1G06DCKR_SC70-5

UE2

SN74LVC1G06DCKR_SC70-5

4A2

RE11 100K_0402_5%RE11 100K_0402_5%

1 2

RE1

10K_0402_5%

RE1

10K_0402_5%

1 2

RE37 0_0402_1%

1 2

DE1

@ESD@

L03ESDL5V0CG3-2_SOT-523-3

DE1

@ESD@

L03ESDL5V0CG3-2_SOT-523-3

CE16

4.7U_0805_10V4Z

CE16

4.7U_0805_10V4Z

RE7

0_0402_5%

RE7

0_0402_5%

RE326

1K_0402_5%

RE326

1K_0402_5%

CE2

0.1U_0402_10V7K

CE2

0.1U_0402_10V7K

RE71 10K_0402_5%RE71 10K_0402_5%

1 2

CE33 0.1U_0402_10V7K

ESD@

CE33 0.1U_0402_10V7K

ESD@

1 2

CE34

0.1U_0402_10V7K

ESD@CE34

0.1U_0402_10V7K

ESD@

RE5

200K_0402_1%

UMA@

RE5

200K_0402_1%

UMA@

1 2

D D

C C

B B

A A

60mil

LCD PWR CTRL LVDS Connector

LCD backlight PWR CTRL

Webcam PWR CTRL

CE_EN_R only for reserve.

W=60mils

Place close to JLVDS

W=60mils

SS table

Css

1nF

10nF

0.1uF

Tss

1mS

10mS

100mS

1mS

Open or

tied to

VIN

Close to JLVDS

For eDP co-layout

60mil

W=60mils

APL3512 PIN 4 tire to VIN

PWR_SRC_ON

USB20_CAM_N7_R

USB20_CAM_P7_R

DISPOFF#

CE_EN

DBC_EN DBC_EN_R

CE_EN_R

DBC_EN_R

LVDS_B1+

LVDS_B1-

LVDS_A0-

LVDS_B0-

LVDS_ACLK+

LVDS_B0+

LVDS_A2+

LVDS_BCLK+

LVDS_ACLK-

LVDS_A0+

LVDS_A2-

LVDS_BCLK-

LVDS_A1-

LVDS_A1+

LVDS_B2-

LVDS_B2+

LCD_TEST

MIC_CLK

MIC_DATA

USB20_CAM_N7_R

USB20_CAM_P7_R

DISPOFF#

CE_EN_R

ENVDD_R

EDP_HPD_PANEL CE_EN_R

+INV_PWR_SRC

USB20_CAM_N7<12>

USB20_CAM_P7<12>

TL_BKOFF#<19>

MIC_CLK<22>

MIC_DATA<22>

CE_EN<30>

DBC_EN<30>

LVDS_B0+<19>

LVDS_B0-<19>

LVDS_A2+<19>

LVDS_A0+<19>

LVDS_A2-<19>

LVDS_ACLK+<19>

LVDS_A0-<19>

LVDS_A1+<19>

LVDS_A1-<19>

LVDS_BCLK+<19>

LVDS_BCLK-<19>

LVDS_ACLK-<19>

LVDS_B2+<19>

LVDS_B2-<19>

LVDS_B1+<19>

LVDS_B1-<19>

LCD_TEST<30>

EDID_CLK<19>

EDID_DATA<19>

TL_INVT_PWM<19>

TL_ENVDD<19>

EC_ENVDD<30>

EDP_HPD_PANEL<19>

EN_INVPWR<30>

B+

+LCDVDD_CONN

+3VS

+INV_PWR_SRC

+3VS_CAM

+LCDVDD+3VS

+3VS +3VS_CAM

+LCDVDD_CONN+LCDVDD

+INV_PWR_SRC

+3VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

31 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

LVDS/webcam

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

31 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

LVDS/webcam

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

31 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

LVDS/webcam

CX4

1000P_0402_50V7K

CX4

1000P_0402_50V7K

QX2

SI3457CDV-T1-GE3_TSOP6

QX2

SI3457CDV-T1-GE3_TSOP6

QX1

2N7002KW_SOT323-3

QX1

2N7002KW_SOT323-3

RX23

0_0402_5%

RX23

0_0402_5%

RX20

0_0402_1%

RX20

0_0402_1%

CX11

0.1U_0402_16V4Z

CX11

0.1U_0402_16V4Z

RX19

0_0402_1%

RX19

0_0402_1%

1 2

RX22 0_0402_5%

@EMI@

RX22 0_0402_5%

@EMI@

1 2

LX1

FBMA-L11-201209-221LMA30T_0805

LX1

FBMA-L11-201209-221LMA30T_0805

1 2

RX53 0_0402_5%

eDP@

RX53 0_0402_5%

eDP@

1 2

CX2

0.1U_0402_16V7K

CX2

0.1U_0402_16V7K

RX18

0_0402_5%

RX18

0_0402_5%

1 2

RX9

10K_0402_5%

RX9

10K_0402_5%

CX1

0.1U_0402_16V7K

CX1

0.1U_0402_16V7K

CX5

0.1U_0603_50V_X7R

CX5

0.1U_0603_50V_X7R

DX1

RB751V-40_SOD323-2

DX1

RB751V-40_SOD323-2

LX6

WCM-2012HS-900T_4P

EMI@

LX6

WCM-2012HS-900T_4P

EMI@

122

RX7 0_0402_1%

UX1

APL3512ABI-TRG_SOT23-5

UX1

APL3512ABI-TRG_SOT23-5

VIN

VOUT 1

EN 3

GND 2

JLVDS

CONN@

STARC_107K40-000001-G2

JLVDS

CONN@

STARC_107K40-000001-G2

G1 41

G2 42

G3 43

G4 44

G5 45

G6 46

CX7

4.7U_0805_10V4Z

CX7

4.7U_0805_10V4Z

RX26

100K_0402_5%

RX26

100K_0402_5%

CX9

0.1U_0402_10V7K

@CX9

0.1U_0402_10V7K

RX8 0_0402_5%@RX8 0_0402_5%@

RX21 0_0402_5%

@EMI@

RX21 0_0402_5%

@EMI@

1 2

RX3

100K_0402_5%

RX3

100K_0402_5%

CX3

10U_0805_10V6K

CX3

10U_0805_10V6K

RX2

100K_0402_5%

RX2

100K_0402_5%

CX8

4.7U_0805_10V4Z

CX8

4.7U_0805_10V4Z

RX27

0_0603_1%

RX27

0_0603_1%

1 2

1 1

2 2

3 3

4 4

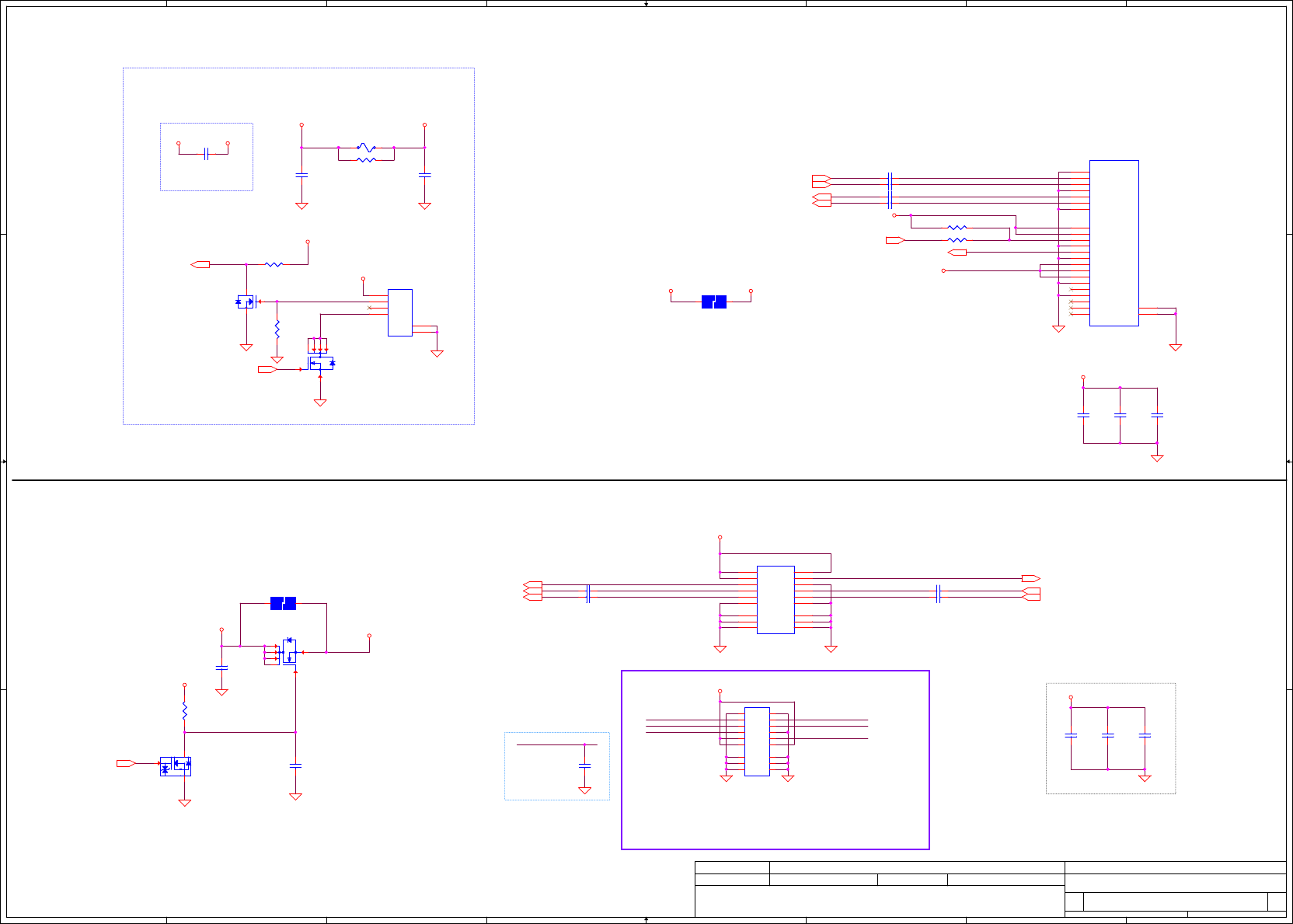

+5V_HDD Source

SATA HDD Connector

ODD Power Control

ODD BTB Connector

SP02000WP00

( 2nd connector co-layout with JBTB1 Main )

SHORT DEFAULT

20mil

* Key Board Back Light

OAK 17 only

Place CS17 close to JBTB

20mil

ESD solution

ODD_EN

SATA_PRX_DTX_P0

SATA_PRX_DTX_N0

SATA_PTX_DRX_P0

HDD_DET#

SATA_PTX_DRX_N0

KB_BL_PWM

SATA_PTX_DRX_P1

SATA_PTX_DRX_N1

SATA_PRX_DTX_N1

ODD_DETECT#

SATA_PRX_DTX_P1

ODD_DA#

SATA_PRX_DTX_P1

ODD_DA#

SATA_PRX_DTX_N1

ODD_DETECT#

SATA_PTX_DRX_N1

SATA_PTX_DRX_P1

ODD_DA#

JHDD_P10

HDD_DET#<11>

SATA_PTX_DRX_P0_C<8>

SATA_PTX_DRX_N0_C<8>

SATA_PRX_DTX_P0_C<8>

SATA_PRX_DTX_N0_C<8>

KB_DET#<11>

KB_LED_PWM<30>

ODD_DA#<11>

SATA_PRX_DTX_P1_C<8>

SATA_PRX_DTX_N1_C<8>

ODD_DETECT# <8>

SATA_PTX_DRX_N1_C <8>

SATA_PTX_DRX_P1_C <8>

ODD_EN#<11>

DEVSLP0<11>

+5VS

B+

+5VS_ODD

+5V_HDD

+5V_HDD +5VS

+5V_HDD

+3VS

+5VS_KBL

+5VS_ODD

+3VS

+5VS +5VS_KBL

+5VS +3VALW

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

HDD/ODD/KB-BL

32 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

HDD/ODD/KB-BL

32 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

HDD/ODD/KB-BL

32 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

CS15 0.01U_0402_16V7KCS15 0.01U_0402_16V7K

QE4

2N7002BKW_SOT323-3~D

KBBL@

QE4

2N7002BKW_SOT323-3~D

KBBL@

RS8 0_0402_5%@RS8 0_0402_5%@

1 2

CE58

22U_0603_6.3V6M

ESD@

CE58

22U_0603_6.3V6M

ESD@

1 2

RS6

470K_0402_5%

RS6

470K_0402_5%

1 2

CS13

1U_0402_6.3V6K

CS13

1U_0402_6.3V6K

JBTB1

E&T_1133-Q12C-01R

CONN@

JBTB1

E&T_1133-Q12C-01R

CONN@

GND 16

GND 17

GND 18

10 10

12 12

GND

CS10

1000P_0402_50V7K

CS10

1000P_0402_50V7K

RE68

10K_0402_5%

RE68

10K_0402_5%

1 2

RE59

0_0805_5%

RE59

0_0805_5%

1 2

CS9 0.01U_0402_16V7KCS9 0.01U_0402_16V7K

1 2

CS6

0.1U_0402_25V6K

CS6

0.1U_0402_25V6K

CS17

0.1U_0402_25V6K

ESD@

CS17

0.1U_0402_25V6K

ESD@

QS2

SI3456BDV-T1-E3 1N TSOP6

QS2

SI3456BDV-T1-E3 1N TSOP6

CE56

1U_0603_10V6K

KBBL@

CE56

1U_0603_10V6K

KBBL@

QE5

SI3456BDV-T1-E3 1N TSOP6

KBBL@

QE5

SI3456BDV-T1-E3 1N TSOP6

KBBL@

4 5

CS106 0.01U_0402_16V7KCS106 0.01U_0402_16V7K

FE1

0.75A_24V_1812L075-24DR~OK

KBBL@FE1

0.75A_24V_1812L075-24DR~OK

KBBL@

JP7

JUMP_43X79

@JP7

JUMP_43X79

122

JBTB

ACES_50100-0127N-001

CONN@

JBTB

ACES_50100-0127N-001

CONN@

122

344

566

788

910 10

11 12 12

13 G2 14

15 G4 16

17 G6 18

CS5

1000P_0402_50V7K

CS5

1000P_0402_50V7K

CS105 0.01U_0402_16V7KCS105 0.01U_0402_16V7K

CE57

10U_0603_6.3V6M

KBBL@

CE57

10U_0603_6.3V6M

KBBL@

CS108 0.01U_0402_16V7KCS108 0.01U_0402_16V7K

QS3

2N7002KW_SOT323-3

QS3

2N7002KW_SOT323-3

JKBBL

HB_A090420-SAHR21

CONN@

JKBBL

HB_A090420-SAHR21

CONN@

GND 5

GND 6

10U_0805_10V6K

CS12

10U_0805_10V6K

CS12

CS11

0.1U_0402_25V6K

CS11

0.1U_0402_25V6K

CS14 0.01U_0402_16V7KCS14 0.01U_0402_16V7K

CS7

10U_0805_10V6K

CS7

10U_0805_10V6K

JHDD

SANTA_194301-1

CONN@

JHDD

SANTA_194301-1

CONN@

GND

A+

A-

GND

B-

B+

GND

V33

GND

Reserved

GND

V12

22 GND 23

GND 24

JP13

JUMP_43X79

JP13

JUMP_43X79

122

RS7 0_0402_5%RS7 0_0402_5%

1 2

CS16

0.1U_0603_50V_X7R

CS16

0.1U_0603_50V_X7R

CS109 0.01U_0402_16V7KCS109 0.01U_0402_16V7K

CS8 0.01U_0402_16V7KCS8 0.01U_0402_16V7K

1 2

RE58

100K_0402_5%

KBBL@

RE58

100K_0402_5%

KBBL@

D D

C C

B B

A A

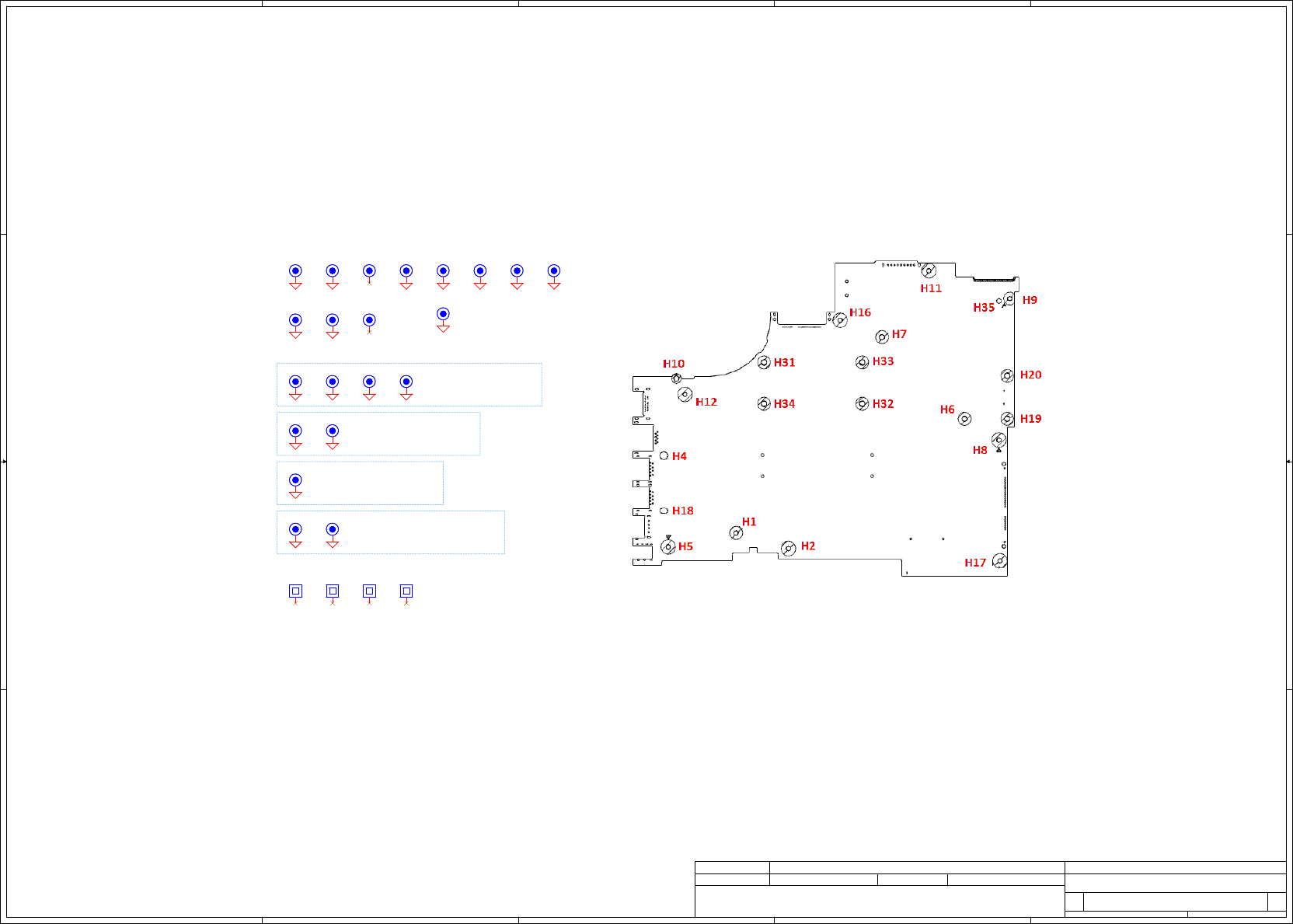

CPU bracket

VGA stand-off

FAN stand-off

ODD-DB stand-off

Screw Hole

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

33 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

Screw Hole

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

33 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

Screw Hole

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

33 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

Screw Hole

H20

H_3P5

H20

H_3P5

H17

H_2P8

H17

H_2P8

H34

H_3P7

H34

H_3P7

H16

H_2P8

H16

H_2P8

H31

H_3P7

H31

H_3P7

FD4

FIDUCIAL@

FD4

FIDUCIAL@

H_2P8

H33

H_3P7

H33

H_3P7

H18

H_5P0X3P0N

H18

H_5P0X3P0N

H_5P0N

H32

H_3P7

H32

H_3P7

FD2

FIDUCIAL@

FD2

FIDUCIAL@

H_2P8

H_3P3

FD1

FIDUCAL@

FD1

FIDUCAL@

H_2P8

H35

H_3P0

H35

H_3P0

H_3P3

FD3

FIDUCAL@

FD3

FIDUCAL@

H11

H_2P8

H11

H_2P8

H10

H_3P3

H10

H_3P3

H_2P8

H19

H_3P5

H19

H_3P5

H12

H_2P8

H12

H_2P8

D D

C C

B B

A A

HW2012/04/27

34 Card Reader

0.2

P age 1

P age 1Page 1

P age 1

Solu tio n D escription

Solu tio n D escriptionSolu tio n D escription

Solu tio n D escription R ev .

R ev .R ev .

R ev.P ag e#

P ag e#P a ge#

P a ge # T it le

T it leT itle

T it le

V ersion C hange L ist ( P . I. R . L ist )

V ersion C hange L ist ( P . I. R . L ist )V ersion C hange L ist ( P . I. R . L ist )

V ersion C hange L ist ( P . I. R . L ist )

Item

ItemItem

Item Issu e D escriptio n

Issu e D escriptio nIssue D escriptio n

Issu e D escriptio nD ate

D ateD ate

D ate R eq uest

R eq uestR equ est

R eq uest

O w n er

O w n erO w n er

O w n er

The Card reader USB signal is incorrect. SWAP UR1 USB signal P/N

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

HW-PIR Page.1

34 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

HW-PIR Page.1

34 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

HW-PIR Page.1

34 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

D D

C C

B B

A A

P age 2

P age 2Page 2

P age 2

Solu tio n D escription

Solu tio n D escriptionSolu tio n D escription

Solu tio n D escription R ev .

R ev .R ev .

R ev.P ag e#

P ag e#P a ge#

P a ge # T it le

T it leT itle

T it le

V ersion C hange L ist ( P . I. R . L ist )

V ersion C hange L ist ( P . I. R . L ist )V ersion C hange L ist ( P . I. R . L ist )

V ersion C hange L ist ( P . I. R . L ist )

Item

ItemItem

Item Issu e D escriptio n

Issu e D escriptio nIssue D escriptio n

Issu e D escriptio nD ate

D ateD ate

D ate R eq uest

R eq uestR equ est

R eq uest

O w n er

O w n erO w n er

O w n er

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

HW-PIR Page.2

35 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

HW-PIR Page.2

35 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

HW-PIR Page.2

35 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

1 1

2 2

3 3

4 4

SMART

SMARTSMART

SMART

Battery:

Battery:Battery:

Battery:

01.GND1

01.GND101.GND1

01.GND1

02.GND2

02.GND202.GND2

02.GND2

03.BAT_ALERT

03.BAT_ALERT03.BAT_ALERT

03.BAT_ALERT

04.SYS_PRES

04.SYS_PRES04.SYS_PRES

04.SYS_PRES

05.BATT_PRS

05.BATT_PRS05.BATT_PRS

05.BATT_PRS

06.DAT_SMB

06.DAT_SMB06.DAT_SMB

06.DAT_SMB

07.CLK_SMB

07.CLK_SMB07.CLK_SMB

07.CLK_SMB

08.BATT1+

08.BATT1+08.BATT1+

08.BATT1+

09.BATT2+

09.BATT2+09.BATT2+

09.BATT2+

Battery protection:

asserts H_PROCHOT# when adaptor is

unplugged, keep low for 10ms

till SW PROCHOT# is issued by EC

Adapter protection:

if battery removed, adaptor only,

then trigger the H_PROCHOT#,

keep @ in BOM since battery can not

be removed by end user

Other component (37.1)

ADP_I(with selector) Delay adaptor OC H_PROCHOT#

2ms while hybrid power

transition

PH1 under CPU bottem side :

CPU thermal protection at 93 +/- 3 degree C

Erp lot6 Circuit

BATT+

BATT++

PSID

H_PROCHOT#

BATT_PRS

ADPIN PSID-3

PSID-1

PSID-2

H_PROCHOT#

SYS_PRES

BAT_ALERT

DAT_SMB

CLK_SMB

BATT_PRS

H_PROCHOT# <30,6>

VCOUT1_PH <30>

65W#/90W <30>

VCIN0_PH<30>

ECAGND<30>

VCIN1_PH<30>

ADP_I<30,37>

ACIN <10,30,37,49>

BATT_TEMP <30,37>

EC_SMB_CK1 <30,37>

EC_SMB_DA1 <30,37>

PS_ID <30>

ERP_LOT6 <30>

VIN

+5VALW

+3VALW

BATT++BATT+

+EC_VCCA

+3VALW

VIN

+RTCBATT

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

0.4

36 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Compal Electronics, Inc.

PWR_DCIN/BATT CONN/OTP

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

0.4

36 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Compal Electronics, Inc.

PWR_DCIN/BATT CONN/OTP

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

0.4

36 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Compal Electronics, Inc.

PWR_DCIN/BATT CONN/OTP

PC5

0.1U_0402_25V6

@PC5

0.1U_0402_25V6

PR28

10K_0402_1%

PR28

10K_0402_1%

PC13

.1U_0402_16V7K@

PC13

.1U_0402_16V7K@

1 2

PH1

100K_0402_1%_TSM0B104F4251RZ

PH1

100K_0402_1%_TSM0B104F4251RZ

PL3

SMB3025500YA_2P

EMI@

PL3

SMB3025500YA_2P

EMI@

1 2

PQ4

2N7002W-T/R7_SOT323-3

PQ4

2N7002W-T/R7_SOT323-3

PR10

1M_0402_1%

PR10

1M_0402_1%

1 2

JRTC

LOTES_AAA-BAT-054-K01

CONN@

JRTC

LOTES_AAA-BAT-054-K01

CONN@

PC15

0.01U_0402_25V7K

PC15

0.01U_0402_25V7K

PL4

C8B BPH 853025_2P

EMI@ PL4

C8B BPH 853025_2P

EMI@

1 2

PR15

100_0402_5%

PR15

100_0402_5%

1 2

PC16

.1U_0402_16V7K

PC16

.1U_0402_16V7K

1 2

PQ5

MMST3904-7-F_SOT323~D

PSID@

PQ5

MMST3904-7-F_SOT323~D

PSID@

3 1

PR16

10K_0402_1%

PR16

10K_0402_1%

1 2

PQ1A

L2N7002DW1T1G_SC88-6

PQ1A

L2N7002DW1T1G_SC88-6

PR31

1M_0402_1%

PR31

1M_0402_1%

1 2

PR24

12.1K_0402_1%

PR24

12.1K_0402_1%

1 2

PQ1B

L2N7002DW1T1G_SC88-6

PQ1B

L2N7002DW1T1G_SC88-6

PD2

TVNST52302AB0_SOT523-3

@EMI@

PD2

TVNST52302AB0_SOT523-3

@EMI@

PR8

10K_0402_1%

PSID@

PR8

10K_0402_1%

PSID@

PC3

1000P_0402_50V7K

EMI@ PC3

1000P_0402_50V7K

EMI@

PD3

TVNST52302AB0_SOT523-3

@EMI@

PD3

TVNST52302AB0_SOT523-3

@EMI@

PR26

499K_0402_1%

PR26

499K_0402_1%

1 2

PL2

C8B BPH 853025_2P

EMI@

PL2

C8B BPH 853025_2P

EMI@

1 2

PJPDC

ACES_50299-00501-003

CONN@

PJPDC

ACES_50299-00501-003

CONN@

GND 6

GND 7

PC2

100P_0402_50V8J

EMI@ PC2

100P_0402_50V8J

EMI@

PR2

10K_0402_1%

PR2

10K_0402_1%

PC4

100P_0402_50V8J

EMI@ PC4

100P_0402_50V8J

EMI@

PQ2B

L2N7002DW1T1G_SC88-6

PQ2B

L2N7002DW1T1G_SC88-6

PQ3B

L2N7002DW1T1G_SC88-6

PQ3B

L2N7002DW1T1G_SC88-6

PR6

100K_0402_1%

PSID@

PR6

100K_0402_1%

PSID@

1 2

PR29

100K_0402_1%

PR29

100K_0402_1%

PBATT

SUYIN_200028MR009G502ZL

CONN@

PBATT

SUYIN_200028MR009G502ZL

CONN@

GND 10

GND 11

PR27

392K_0402_1%

PR27

392K_0402_1%

1 2

PR9

15K_0402_1%

PSID@

PR9

15K_0402_1%

PSID@

1 2

PL1

C8B BPH 853025_2P

EMI@PL1

C8B BPH 853025_2P

EMI@

1 2

PC14

.1U_0402_16V7K

PC14

.1U_0402_16V7K

1 2

PQ2A

L2N7002DW1T1G_SC88-6

PQ2A

L2N7002DW1T1G_SC88-6

PR4

33_0402_5%

PSID@PR4

33_0402_5%

PSID@

1 2

PR3

2.2K_0402_5%

PSID@PR3

2.2K_0402_5%

PSID@

PC8

1000P_0402_50V7K

EMI@ PC8

1000P_0402_50V7K

EMI@

PR30

160K_0402_1%

PR30

160K_0402_1%

1 2

PR33

1M_0402_1%

PR33

1M_0402_1%

1 2

PR20

100_0402_5%

PR20

100_0402_5%

1 2

PR7

1M_0402_1%

PR7

1M_0402_1%

1 2

PR32

100K_0402_1%

PR32

100K_0402_1%

PD1

AZC099-04S.R7G_SOT23

EMI@

PD1

AZC099-04S.R7G_SOT23

EMI@

V I/O 1

V I/O 3

V I/O

Ground 2

V BUS

PQ3A

L2N7002DW1T1G_SC88-6

PQ3A

L2N7002DW1T1G_SC88-6

PR5

3.3K_1206_5%~D

PR5

3.3K_1206_5%~D

PR18

100_0402_5%

PR18

100_0402_5%

1 2

PR1

200K_0402_1%

@PR1

200K_0402_1%

PR23

150K_0402_1%

PR23

150K_0402_1%

1 2

PQ6

FDV301N_G 1N SOT23-3

PSID@

PQ6

FDV301N_G 1N SOT23-3

PSID@

1 3

PC1

1000P_0402_50V7K

EMI@ PC1

1000P_0402_50V7K

EMI@

PC7

0.01U_0402_25V7K

EMI@ PC7

0.01U_0402_25V7K

EMI@

1 1

2 2

3 3

4 4

For DT Mode

Iada=0~3.33A(65W)

3S2P : CV = 13.3V CC: 1.54A

4S1P: CV = 17.7V CC: 1.1A

ADP_I = 40*Iadapter*Rsense

Iada=0~4.62A(90W)

Near PL701

for LEARN mode disable

(pulse)

PC720 Close EC pin

DL_CHG

ACDET

CSIN

CSIP

BST

LX_CHG

VCC

REGN

ACIN

ACDRV

CMSRC

REGN

BST_CHGA

/BATDRV

DH_CHG

REGN

EC_SMB_DA1<30,36>

EC_SMB_CK1<30,36>

ACIN <10,30,36,49>

ADP_I<30,36>

ACOFF<30>

BATT_TEMP<30,36>

VIN

+VCHGR

B+

CHG_B+

VIN

BATT+

+VCHGR

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

0.4

37 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Compal Electronics, Inc.

PWR_CHARGER

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

0.4

37 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Compal Electronics, Inc.

PWR_CHARGER

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

0.4

37 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Compal Electronics, Inc.

PWR_CHARGER

PC705

2200P_0402_25V7K

EMI@PC705

2200P_0402_25V7K

EMI@

PR702

0.01_1206_1%

PR702

0.01_1206_1%

PQ705

SIRA14DP-T1GE3_POWERPAK-SO8-5

PQ705

SIRA14DP-T1GE3_POWERPAK-SO8-5

PR705

10_1206_5%

PR705

10_1206_5%

1 2

PC706

0.1U_0603_25V7K

@EMI@PC706

0.1U_0603_25V7K

@EMI@

PR721

4.02K_0402_1%

PR721

4.02K_0402_1%

1 2

PQ704

MDU1516URH_POWERDFN56-8-5

PQ704

MDU1516URH_POWERDFN56-8-5

PR723

324K_0402_1%

PR723

324K_0402_1%

1 2

PC707

1U_0603_25V6K

PC707

1U_0603_25V6K

1 2

PR712

158K_0402_1%

PR712

158K_0402_1%

PD701

BAT54HT1G_SOD323-2~D

PD701

BAT54HT1G_SOD323-2~D

PR722

4.7_1206_5%

@EMI@

PR722

4.7_1206_5%

@EMI@

PC718

10U_0805_25V5K~D

PC718

10U_0805_25V5K~D

1 2

PC714

10U_0805_25V5K~D

PC714

10U_0805_25V5K~D

1 2

PR713

10K_0402_1%

PR713

10K_0402_1%

PR715 0_0402_5%~D@PR715 0_0402_5%~D@

1 2

PR717

0_0402_5%~D

PR717

0_0402_5%~D

1 2

PC721

0.047U_0603_25V7K

PC721

0.047U_0603_25V7K

1 2

PC708

0.1U_0402_25V6

PC708

0.1U_0402_25V6

1 2

PC701

0.1U_0603_25V7K

PC701

0.1U_0603_25V7K

PC713

10U_0805_25V5K~D

PC713

10U_0805_25V5K~D

PR708 0_0402_5%~D@PR708 0_0402_5%~D@

1 2

PQ708

2N7002KW_SOT323-3

PQ708

2N7002KW_SOT323-3

PR711

49.9K_0402_1%

PR711

49.9K_0402_1%

1 2

PU701

BQ24717

PU701

BQ24717

PHASE 19

SRN 12

LODRV 15

SCL

IOUT

ACP 2

VCC

CMSRC

ACDET

SDA

ACDRV

ACOK

BTST 17

HIDRV 18

REGN 16

ACN 1

/BATDRV 11

SRP 13

GND 14

CELL

PR701

4.7_0402_1%

PR701

4.7_0402_1%

PR707

100K_0402_1%

PR707

100K_0402_1%

PC719

0.1U_0402_25V6

PC719

0.1U_0402_25V6

1 2

PR724

100K_0402_1%

PR724

100K_0402_1%

1 2

PR710 0_0402_5%~D@PR710 0_0402_5%~D@

1 2

PC722

0.1U_0402_25V6

PC722

0.1U_0402_25V6

1 2

PC704

10U_0805_25V6K

PC704

10U_0805_25V6K

PQ702

AO4407AL_SO8

PQ702

AO4407AL_SO8

3 6

PR704

0_0402_5%~D

PR704

0_0402_5%~D

1 2

PC712

10U_0805_25V5K~D

PC712

10U_0805_25V5K~D

PC724

100U_25V_M

PC724

100U_25V_M

PC711

0.01UF_0402_25V7K

PC711

0.01UF_0402_25V7K

1 2

PC720

100P_0402_50V8J

PC720

100P_0402_50V8J

1 2

PR720

3.3K_1206_5%~D

PR720

3.3K_1206_5%~D

PC703

10U_0805_25V6K

PC703

10U_0805_25V6K

PL702

1UH_PCMB053T-1R0MS_7A_20%

EMI@

PL702

1UH_PCMB053T-1R0MS_7A_20%

EMI@

1 2

PQ706

2N7002KW_SOT323-3

PQ706

2N7002KW_SOT323-3

PC715

680P_0402_50V7K

@EMI@

PC715

680P_0402_50V7K

@EMI@

PR706

4.02K_0402_1%

PR706

4.02K_0402_1%

CSD87312Q3E_SON8-4

PQ701

CSD87312Q3E_SON8-4

PQ701

1D2 3

2S4

PR714 0_0402_5%~D@PR714 0_0402_5%~D@

1 2

PC717

0.1U_0402_25V6

PC717

0.1U_0402_25V6

1 2

PQ703

MDU1516URH_POWERDFN56-8-5

PQ703

MDU1516URH_POWERDFN56-8-5

PR709

2.2_0603_5%

PR709

2.2_0603_5%

1 2

PC702

0.1U_0402_25V6

PC702

0.1U_0402_25V6

1 2

PC716

10U_0805_25V5K~D

PC716

10U_0805_25V5K~D

PR703

4.02K_0402_1%

PR703

4.02K_0402_1%

PC710

1U_0603_25V6K

PC710

1U_0603_25V6K

PR716

0.01_1206_1%

PR716

0.01_1206_1%

PL701

2.2UH_FDVE1040-H-2R2M-P3_14.2A_20%

PL701

2.2UH_FDVE1040-H-2R2M-P3_14.2A_20%

1 2

PC723

0.01U_0402_25V7K

PC723

0.01U_0402_25V7K

PC709

1U_0603_10V6K

PC709

1U_0603_10V6K

1 2

1 1

2 2

3 3

4 4

3VALWP

TDC 5.95A

Peak Current 8.5A

OCP current 10.2A

TYP MAX

H/S Rds(on): 22mohm , 30mohm

L/S Rds(on):10.8mohm ,13.6mohm

5VALWP

TDC 5.96A

Peak Current 8.51A

OCP current 10.2A

TYP MAX

H/S Rds(on):22mohm , 30mohm

L/S Rds(on):10.8mohm , 13.6mohm

Change to 4.7u for TPS51285

VFB=2V

ESR=17m ohm

VFB=2V

POK need pull high, it

will pull high on VS

transfer circuit

Output capacitor ESR need follow

below equation to make sure feed back

loop stability

ESR=20mV*L*fsw/2V

Place PD101 close to PU100

5V_EN

3V_EN

CS1

BST_5V

LX_5V

FB_5V

UG_5V

BST_3V

LG_5V

5V_EN

CS2

FB_3V

3/5V_B+

LX_3V

UG_3V

LG_3V

3/5V_B+

3V_EN

5V_EN

VCOUT0_PH#<30>

EC_ON<30>

+5VALWP

+3VALW +5VALW

+3VALWP

+5VALWP

+3VALWP

B+

+5VALWP

+3VLP

3/5V_B+

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

0.4

38 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Compal Electronics, Inc.

PWR_3.3VALWP/5VALWP

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

0.4

38 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Compal Electronics, Inc.

PWR_3.3VALWP/5VALWP

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

0.4

38 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Compal Electronics, Inc.

PWR_3.3VALWP/5VALWP

PR113

4.7_1206_5%

@EMI@ PR113

4.7_1206_5%

@EMI@

PC110

0.1U_0402_10V7K

PC110

0.1U_0402_10V7K

1 2

PC101

220U_6.3V_M

PC101

220U_6.3V_M

PC115

10U_0805_25V6K

PC115

10U_0805_25V6K

PR102

2.2K_0402_5%

PR102

2.2K_0402_5%

1 2

PC112

10U_0805_25V6K

PC112

10U_0805_25V6K

PR105

84.5K_0402_1%

PR105

84.5K_0402_1%

1 2

PR107

10K_0402_1%

PR107

10K_0402_1%

1 2

PR100 0_0402_5%~D@PR100 0_0402_5%~D@

1 2

TPS51225CRUKR_QFN20_3X3

PU100

TPS51225CRUKR_QFN20_3X3

PU100

CS1 1

VFB1 2

VREG3 3

VFB2 4

CS2 5

EN2

PGOOD

SW2

VBST2

DRVH2

DRVL2

VIN

VREG5

VO1

DRVL1

DRVH1 16

VBST1 17

SW1 18

VCLK 19

EN1 20

PAD 21

PC107

220U_6.3V_M

PC107

220U_6.3V_M

PC109

1U_0603_10V6K

PC109

1U_0603_10V6K

1 2

PC100

4.7U_0603_6.3V6K

PC100

4.7U_0603_6.3V6K

PR114

200_0402_5%

@PR114

200_0402_5%

1 2

PR112

4.7_1206_5%

@EMI@ PR112

4.7_1206_5%

@EMI@

PJP101

PAD-OPEN 4x4m

@PJP101

PAD-OPEN 4x4m

1 2

PC111

680P_0603_50V8J

@EMI@ PC111

680P_0603_50V8J

@EMI@

PD101

EMI@

L03ESDL5V0CG3-2_SOT-523-3

PD101

EMI@

L03ESDL5V0CG3-2_SOT-523-3

PL101

2.2UH_PCMB063T-2R2MS_8A_20%

PL101

2.2UH_PCMB063T-2R2MS_8A_20%

1 2

PR111

2.2_0402_5%

PR111

2.2_0402_5%

1 2

PR109

6.49K_0402_1%

PR109

6.49K_0402_1%

1 2

PR108

90.9K_0402_1%

PR108

90.9K_0402_1%

PC102

100P_0402_50V8J

@PC102

100P_0402_50V8J

1 2

PR101 0_0402_5%~D@PR101 0_0402_5%~D@

1 2

PR106

10K_0402_1%

PR106

10K_0402_1%

1 2

PC103

680P_0603_50V8J

@EMI@ PC103

680P_0603_50V8J

@EMI@

PL100

2.2UH_PCMB063T-2R2MS_8A_20%

PL100

2.2UH_PCMB063T-2R2MS_8A_20%

PR104

15K_0402_1%

PR104

15K_0402_1%

1 2

PC108

100P_0402_50V8J

@PC108

100P_0402_50V8J

1 2

PQ102

MDV1525URH 1N PDFN33-8

PQ102

MDV1525URH 1N PDFN33-8

3 5

PC105

1U_0603_25V6K

@PC105

1U_0603_25V6K

PC106

1U_0603_10V6K

PC106

1U_0603_10V6K

PC113

0.1U_0402_25V6

@EMI@ PC113

0.1U_0402_25V6

@EMI@

PJP100

PAD-OPEN 4x4m

@PJP100

PAD-OPEN 4x4m

1 2

PC104

0.1U_0402_10V7K

PC104

0.1U_0402_10V7K

1 2

PJP102

PAD-OPEN 4x4m

@PJP102

PAD-OPEN 4x4m

1 2

PR103

2.2_0402_5%

PR103

2.2_0402_5%

1 2

PJP103

PAD-OPEN 4x4m

@PJP103

PAD-OPEN 4x4m

1 2

PQ104

MDV1525URH 1N PDFN33-8

PQ104

MDV1525URH 1N PDFN33-8

3 5

PL102

1UH_PCMB053T-1R0MS_7A_20%

EMI@

PL102

1UH_PCMB053T-1R0MS_7A_20%

EMI@

1 2

PC114

2200P_0402_50V7K

EMI@ PC114

2200P_0402_50V7K

EMI@

PQ101

MDV1528URH 1N PDFN33-8

PQ101

MDV1528URH 1N PDFN33-8

3 5

PQ103

MDV1528URH 1N PDFN33-8

PQ103

MDV1528URH 1N PDFN33-8

3 5

1 1

2 2

3 3

4 4

Note:Iload(max)=3A

FB=0.6V

Note:Iload(max)=2.5A

Rup

Rdown

Note:Iload(max)=3A

FB=0.6V

Note:Iload(max)=2.5A

Rup

Rdown

SUSP#

FB_1.5VSP

LX_1.5VSP

+1.5VSP_ON

PXS_PWREN

FB_1.8VSP

LX_1.8VSP

+1.8VSP_ON

SUSP# <28,30,40>

PXS_PWREN <10,11,43,44,50>

+3VALW

+1.5VSP +1.5VS

+1.5VSP

+3VALW

+1.8VSP +1.8VS

+1.8VSP

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

0.4

39 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Compal Electronics, Inc.

PWR_1.5VSP / 1.8VSP

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

0.4

39 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Compal Electronics, Inc.

PWR_1.5VSP / 1.8VSP

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

0.4

39 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Compal Electronics, Inc.

PWR_1.5VSP / 1.8VSP

PC602

22U_0805_6.3VAM

VGA@ PC602

22U_0805_6.3VAM

VGA@

PJP401

JUMP_43X79

PJP401

JUMP_43X79

122

PC600

22U_0805_6.3VAM

VGA@ PC600

22U_0805_6.3VAM

VGA@

PU400

SY8003DFC_DFN8_2X2

PU400

SY8003DFC_DFN8_2X2

NC 5

PGND

LX 6

EN 7

SGND 8

PGND 9

PL600

1UH_PH041H-1R0MS_3.8A_20%

VGA@

PL600

1UH_PH041H-1R0MS_3.8A_20%

VGA@

1 2

PR601

0_0402_5%~D

@PR601

0_0402_5%~D

1 2

PC405

22U_0805_6.3VAM

PC405

22U_0805_6.3VAM

PU600

SY8003DFC_DFN8_2X2

VGA@

PU600

SY8003DFC_DFN8_2X2

VGA@

NC 5

PGND

LX 6

EN 7

SGND 8

PGND 9

PC404

68P_0402_50V8J

PC404

68P_0402_50V8J

PR404

1M_0402_5%

PR404

1M_0402_5%

PC601

680P_0402_50V7K

@EMI@ PC601

680P_0402_50V7K

@EMI@

PJP600

JUMP_43X79

@PJP600

JUMP_43X79

122

PR603

20K_0402_1%

VGA@

PR603

20K_0402_1%

VGA@

PC403

0.1U_0402_16V7K

PC403

0.1U_0402_16V7K

PJP400

JUMP_43X79

@PJP400

JUMP_43X79

122

PC400

22U_0805_6.3VAM

PC400

22U_0805_6.3VAM

PR403

15K_0402_1%

PR403

15K_0402_1%

PC603

0.1U_0402_16V7K

PC603

0.1U_0402_16V7K

PR602

10K_0402_1%

VGA@

PR602

10K_0402_1%

VGA@

PC604

68P_0402_50V8J

VGA@

PC604

68P_0402_50V8J

VGA@

PC401

680P_0402_50V7K

@EMI@ PC401

680P_0402_50V7K

@EMI@

PR604

1M_0402_5%

VGA@PR604

1M_0402_5%

VGA@

PR605

4.7_0603_5%

@EMI@ PR605

4.7_0603_5%

@EMI@

PR401

0_0402_5%~D

@PR401

0_0402_5%~D

1 2

PC402

22U_0805_6.3VAM

PC402

22U_0805_6.3VAM

PJP601

JUMP_43X79

PJP601

JUMP_43X79

122

PR405

4.7_0603_5%

@EMI@ PR405

4.7_0603_5%

@EMI@

PR402

10K_0402_1%

PR402

10K_0402_1%

PL400

1UH_PH041H-1R0MS_3.8A_20%

PL400

1UH_PH041H-1R0MS_3.8A_20%

1 2

PC605

22U_0805_6.3VAM

VGA@

PC605

22U_0805_6.3VAM

VGA@

D D

C C

B B

A A

Compal Electronics, Inc.

FB = 0.6V

The current limit is set to 6A, 8A or 12A when this pin

is pull low, floating or pull high

EN pin don't floating

If have pull down resistor at HW side, pls delete PR301

Pin 7 BYP is for CS.

Common NB can delete +3VALW and PC313

Rup

Rdown

Vout=0.6V* (1+Rup/Rdown)

Vout=1.05V

VFB=0.6V

+1.05VSP

TDC 5A

Peak Current 6.6A

OCP current 8A

SNB_1.05V

B+_1.05V

LX_1.05V

ILMT_1.05V

ILMT_1.05V LDO_3V

BST_1.05V

+1.05V_PGOOD

SUSP# <28,30,39>

+1.05V_PGOOD<30>

+3VALW

B+

+1.05VSP

LDO_3V

+1.05VSP

+1.05VS

+3VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

0.4

PWR_+VCCIO

40 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

0.4

PWR_+VCCIO

40 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

0.4

PWR_+VCCIO

40 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

PR308

10K_0402_5%

PR308

10K_0402_5%

1 2

PC309

47U_0805_6.3V6M

PC309

47U_0805_6.3V6M

PR301

1M_0402_1%

PR301

1M_0402_1%

PR300

0_0402_5%~D

@PR300

0_0402_5%~D

1 2

PC313

4.7U_0603_6.3V6K

PC313

4.7U_0603_6.3V6K

PL302

SUPPRE_ FBMA-L11-453215-800LMA90T_1812

EMI@ PL302

SUPPRE_ FBMA-L11-453215-800LMA90T_1812

EMI@

1 2

PC311

22U_0805_6.3VAM

PC311

22U_0805_6.3VAM

PC305

10U_0805_25V6K

PC305

10U_0805_25V6K

PR305

15K_0402_1%

PR305

15K_0402_1%

PC310

22U_0805_6.3VAM

PC310

22U_0805_6.3VAM

PR303

0_0603_1%

@PR303

0_0603_1%

1 2

PR307

20K_0402_1%

PR307

20K_0402_1%

PC301

680P_0603_50V7K

@EMI@ PC301

680P_0603_50V7K

@EMI@

1 2

PC303

2200P_0402_50V7K

EMI@ PC303

2200P_0402_50V7K

EMI@

PR304

0_0402_5%

@PR304

0_0402_5%

PC312

4.7U_0603_6.3V6K

PC312

4.7U_0603_6.3V6K

PC306

10U_0805_25V6K

PC306

10U_0805_25V6K

PL301

1UH_PCMB063T-1R0MS_12A_20%

PL301

1UH_PCMB063T-1R0MS_12A_20%

1 2

PJP300

JUMP_43X118

@PJP300

JUMP_43X118

122

PC302

0.1U_0603_25V7K

PC302

0.1U_0603_25V7K

1 2

PR302

4.7_1206_5%

@EMI@ PR302

4.7_1206_5%

@EMI@

1 2

PC308

47U_0805_6.3V6M

PC308

47U_0805_6.3V6M

PC307

330P_0402_50V7K

PC307

330P_0402_50V7K

PU300

SY8206DQNC_QFN10_3X3

PU300

SY8206DQNC_QFN10_3X3

BYP 7

ILMT

LX 10

FB 4

LDO 5

GND

EN 1

BS 6

PC300

0.22U_0402_10V6K

@PC300

0.22U_0402_10V6K

PC304

0.1U_0402_25V6

@EMI@ PC304

0.1U_0402_25V6

@EMI@

PR306

0_0402_5%

@PR306

0_0402_5%

D D

C C

B B

A A

1.35VP

TDC 6A

Peak Current 8A

OCP current 10A

0.675Volt +/- 5%

TDC 0.7A

Peak Current 1A

DL_1.35V

TON_1.35V

BOOT_1.35V

1.35V_B+

DH_1.35V

SW_1.35V

CS_1.35V

BST_1.35V

VDD_1.35V

FB_1.35V

VTTREF_1.35V

EN_1.35V

EN_0.675VSP

SYSON<30>

0.675V_DDR_VTT_ON<17>

B+

+1.35VP

+5VALW

+1.35VP

+0.675VSP

+1.35VP

+1.35VP +1.35V

+0.675VSP +0.675VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

0.4

41 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Compal Electronics, Inc.

PWR_+1.35VP/0.675VSP

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

0.4

41 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Compal Electronics, Inc.

PWR_+1.35VP/0.675VSP

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

0.4

41 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Compal Electronics, Inc.

PWR_+1.35VP/0.675VSP

PC205

10U_0805_6.3V6K

PC205

10U_0805_6.3V6K

PJP200

JUMP_43X118

@PJP200

JUMP_43X118

122

PJP201

JUMP_43X118

@PJP201

JUMP_43X118

122

PR208

1M_0402_1%

PR208

1M_0402_1%

1 2

PC206

10U_0805_25V6K

PC206

10U_0805_25V6K

PQ201

AON7506

PQ201

AON7506

PC203

0.1U_0402_10V7K

@PC203

0.1U_0402_10V7K

PJP203

JUMP_43X39

@PJP203

JUMP_43X39

PR200

2.2_0603_5%

PR200

2.2_0603_5%

1 2

PC209

1U_0603_10V6K

PC209

1U_0603_10V6K

PC210

0.033U_0402_16V7K

PC210

0.033U_0402_16V7K

PC208

0.1U_0402_25V6

@EMI@ PC208

0.1U_0402_25V6

@EMI@

PC211

10U_0805_6.3V6K

PC211

10U_0805_6.3V6K

PC201

2200P_0402_50V7K

EMI@ PC201

2200P_0402_50V7K

EMI@

PC202

0.1U_0402_10V7K

@PC202

0.1U_0402_10V7K

PR205

11.8K_0402_1%

PR205

11.8K_0402_1%

1 2

PR207

54.9K_0402_1%

PR207

54.9K_0402_1%

1 2

PR206

5.1_0603_5%

PR206

5.1_0603_5%

1 2

PC213

330U_2.5V_M

PC213

330U_2.5V_M

PQ200

AON7408L

PQ200

AON7408L

PL200

1UH_PCMB063T-1R0MS_12A_20%

PL200

1UH_PCMB063T-1R0MS_12A_20%

1 2

PC200

0.1U_0603_25V7K

PC200

0.1U_0603_25V7K

PU200

RT8207MZQW_WQFN20_3X3

PU200

RT8207MZQW_WQFN20_3X3

VTTSNS 2

PGOOD

VDDP

PHASE 16

BOOT 18

VTTREF 4

PGND

VTTGND 1

GND 3

VDDQ 5

TON

VDD

LGATE

UGATE 17

VTT 20

VLDOIN 19

PAD 21

PC207

680P_0402_50V7K

@EMI@ PC207

680P_0402_50V7K

@EMI@

PR201

0_0402_5%~D

@PR201

0_0402_5%~D

1 2

PL201

SUPPRE_ FBMA-L11-453215-800LMA90T_1812

EMI@

PL201

SUPPRE_ FBMA-L11-453215-800LMA90T_1812

EMI@

1 2

PR202

0_0402_5%~D

@PR202

0_0402_5%~D

1 2

PC212

10U_0805_25V6K

PC212

10U_0805_25V6K

PR204

68.1K_0402_1%

PR204

68.1K_0402_1%

PC204

1U_0603_10V6K

PC204

1U_0603_10V6K

1 2

PR203

4.7_1206_5%

@EMI@ PR203

4.7_1206_5%

@EMI@

D D

C C

B B

A A

CPU_CORE

TDC 10A

Peak Current 32A

OCP current 40A

Load line -2mV/A

B value:4250K

Near PU502.

B value:3435K

Near PL502.

TI recommend 1nF

EMI Part (47.1)

Check are there a pair 100Ω

at HW side and close to CPU.

Place PC523

close to PR540

+VCC_PWR_SRC

SW_CPU2PWM1

VR_SVID_DAT

VR_SVID_ALRT#

VR_SVID_CLK

VREF_CPU

COMP_CPU

DROOP_CPU

V5A_CPU

CSN1_CPU

CSP1_CPU

+VCC_PWR_SRC VBAT_CPU

O-USR

F-IMAX

B-RAMPOCP_CPU

IMON_CPU

VREF_CPU

THERM_CPU

SLEWA_CPU

CSN1_CPU

CSP1_CPU

PWM1

SKIP#1

SKIP#

VR_ENABLE

SKIP#1

IMVP_PWRGD

VR_ON <13,30>

VR_SVID_ALRT#<13>

VR_SVID_DAT<13>

VR_SVID_CLK<13>

VSSSENSE<13,15>

VCCSENSE<13>

H_VR_READY <13>

VR_HOT#<30>

IMVP_PWRGD <30>

+CPU_CORE

B+

+3VS

+1.05VS

+3VS

+5VS

+3VS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

0.4

42 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Compal Electronics, Inc.

PWR_VCORE

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

0.4

42 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Compal Electronics, Inc.

PWR_VCORE

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

0.4

42 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Compal Electronics, Inc.

PWR_VCORE

PH502

100K_0402_1%_TSM0B104F4251RZ

PH502

100K_0402_1%_TSM0B104F4251RZ

PC502

1000P_0402_50V7K

PC502

1000P_0402_50V7K

1 2

PC507

0.33U_0402_10V6K

PC507

0.33U_0402_10V6K

PR519

10_0603_1%

PR519

10_0603_1%

1 2

PR509

150K_0402_1%

PR509

150K_0402_1%

1 2

PC521

2200P_0402_25V7K

EMI@PC521

2200P_0402_25V7K

EMI@

PC520

680P_0402_50V7K

@EMI@ PC520

680P_0402_50V7K

@EMI@

PC504

1U_0402_6.3V6K

PC504

1U_0402_6.3V6K

PC515

100U_25V_M

PC515

100U_25V_M

PC523

0.1U_0402_10V7K

EMI@PC523

0.1U_0402_10V7K

EMI@

PL502

0.22UH_PCMB104T-R22MS_35A_20%

PL502

0.22UH_PCMB104T-R22MS_35A_20%

PR533

56_0402_1%

PR533

56_0402_1%

1 2

PC509

1000P_0402_50V7K

PC509

1000P_0402_50V7K

PC510

0.082U_0402_16V7K

PC510

0.082U_0402_16V7K

1 2

PC517

10U_0805_25V6K

PC517

10U_0805_25V6K

PC512

.1U_0402_16V7K

PC512

.1U_0402_16V7K

PR518

2.32K_0402_1%

PR518

2.32K_0402_1%

1 2

PR505

75K_0402_1%

PR505

75K_0402_1%

1 2

PC513

390P_0402_50V7K

@PC513

390P_0402_50V7K

PR507

75_0402_1%

PR507

75_0402_1%

1 2

PR502

9.31K_0402_1%

PR502

9.31K_0402_1%

1 2

PU502

CSD97374CQ4M_SON8_3P5X4P5

PU502

CSD97374CQ4M_SON8_3P5X4P5

PGND1 3

VDD 2

SKIP# 1

VSW 4

PWM

VIN

BOOT

BOOT_R

PGND2

PR514

75_0402_1%

PR514

75_0402_1%

1 2

PR531

3.65K_0402_1%

PR531

3.65K_0402_1%

PR512

10K_0402_5%~D

PR512

10K_0402_5%~D

1 2

PC518

10U_0805_25V6K

PC518

10U_0805_25V6K

PC508

4700P_0603_50V7K

PC508

4700P_0603_50V7K

1 2

PC501 0.1U_0402_25V6

1 2

PL501

SUPPRE_ FBMA-L11-453215-800LMA90T_1812

EMI@PL501

SUPPRE_ FBMA-L11-453215-800LMA90T_1812

EMI@

1 2

PR506

150K_0402_1%

PR506

150K_0402_1%

1 2

PR530

130_0402_1%

PR530

130_0402_1%

PC506

47P_0402_50V8J

PC506

47P_0402_50V8J

1 2

PR522

0_0402_5%~D

@PR522

0_0402_5%~D

1 2

PR529

5.76K_0402_1%

PR529

5.76K_0402_1%

PC516

100U_25V_M

PC516

100U_25V_M

PC522

0.1U_0402_10V7K

EMI@PC522

0.1U_0402_10V7K

EMI@

PR503

75K_0402_1%

PR503

75K_0402_1%

1 2

PR526

54.9_0402_1%

PR526

54.9_0402_1%

PR532

10K_0402_1%

PR532

10K_0402_1%

1 2

PR535

0_0402_5%~D

@PR535

0_0402_5%~D

1 2

PR536 2.2_0603_5%

PR516

1_0603_5%

PR516

1_0603_5%

PR528

75_0402_5%

PR528

75_0402_5%

PC503

1U_0603_10V6K

PC503

1U_0603_10V6K

PC511

0.082U_0402_16V7K

PC511

0.082U_0402_16V7K

1 2

PU501

TPS51622RSM_QFN32_4X4

PU501

TPS51622RSM_QFN32_4X4

SLEWA 15

VBAT 16

THERM 14

GFB

PU3

COMP

VCLK

V5A

DROOP

ALERT#

VFB

N/C

PAD

GND

PGOOD 3

VR_HOT#

VREF

VDIO 1

VDD 2

N/C 4

PWM2 5

PWM1 6

SKIP# 7

VR_ON 8

IMON 13

OCP-I 12

B-RAMP 11

F-IMAX 10

O-USR 9

CSP2

CSP1

CSN2

CSN1

PR524

10K_0402_1%~D

PR524

10K_0402_1%~D

PR504

499K_0402_1%

PR504

499K_0402_1%

1 2

PH501

10K_0402_1%_TSM0A103F34D1RZ

PH501

10K_0402_1%_TSM0A103F34D1RZ

PC514

1500P_0402_50V7K

PC514

1500P_0402_50V7K

1 2

PR510

75_0402_1%

PR510

75_0402_1%

PR534

4.7_1206_5%

@EMI@ PR534

4.7_1206_5%

@EMI@

PR517

16.5K_0402_1%

PR517

16.5K_0402_1%

PR515

3.01K_0402_1%

PR515

3.01K_0402_1%

PR513

39K_0402_5%

PR513

39K_0402_5%

1 2

PR501

523K_0402_1%

PR501

523K_0402_1%

1 2

PR508

10K_0402_5%~D

PR508

10K_0402_5%~D

1 2

PC505

1U_0603_10V6K

PC505

1U_0603_10V6K

PC519

0.1U_0402_25V6

@EMI@PC519

0.1U_0402_25V6

@EMI@

PR540

0_0402_5%

@PR540

0_0402_5%

D D

C C

B B

A A

TDC=9A

Peak Current=13A

OCP=16A

+VDDCIP

TDC 7A

Peak Current 13A

OCP current 16A

FB = 0.6V

The current limit is set to 8A, 12A or 16A when this pin

is pull low, floating or pull high

Pin 7 BYP is for CS.

Common NB can delete +3VALW and PC1205

Vout=0.6V* (1+Rup/Rdown)

Vout=0.9V

VFB=0.6V

Rup

Rdown

Low 0.9V

0.95VHigh

VDDCI_VID (GPIO_6)

BST_+1.2VSP

SW _+1.2VSP

UG_+1.2VSP

LG_+1.2VSP

PXS_PWREN

TRIP_+1.2VSP

EN_+1.2VSP

FB_+1.2VSP

RF_+1.2VSP

+1.2VSP_B+

SNB_VDDCI

B+_VDDCI

PXS_PWREN

LX_VDDCI

ILMT_VDDCI

ILMT_VDDCI LDO_3V_VDDCI

BST_VDDCI

VDDCI_SEN <52>

PXS_PW REN <10,11,39,44,50>

GPU_GPIO6 <49>

B+

+5VALW

+1.35VGPUP

+1.35VGPUP +1.35VS_VGA

+3VS

+3VALW

B+

+VDDCIP

LDO_3V_VDDCI

+VDDCIP +VDDCI

+3VGS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

LA-9984P

0.4

43 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Compal Electronics, Inc.

PWR_+1.35VGPU/VDDCIP

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

LA-9984P

0.4

43 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Compal Electronics, Inc.

PWR_+1.35VGPU/VDDCIP

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date

Deciphered Date

LA-9984P

0.4

43 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Compal Electronics, Inc.

PWR_+1.35VGPU/VDDCIP

PC1202

10U_0805_25V6K

VENUS@ PC1202

10U_0805_25V6K

VENUS@

PR1203

0_0402_5%

VENUS@

PR1203

0_0402_5%

VENUS@

PL1200

1UH_PCMB063T-1R0MS_12A_20%

VENUS@ PL1200

1UH_PCMB063T-1R0MS_12A_20%

VENUS@

1 2

PC1203

0.1U_0402_25V6

@EMI@ PC1203

0.1U_0402_25V6

@EMI@

PC1108

330U_2.5V_M

VGA@

PC1108

330U_2.5V_M

VGA@

PR1214

100K_0402_5%

@PR1214

100K_0402_5%

PC1210

0.1U_0603_25V7K

VENUS@

PC1210

0.1U_0603_25V7K

VENUS@

1 2

PC1200

0.22U_0402_10V6K

@PC1200

0.22U_0402_10V6K

PC1104

0.1U_0402_16V7K

@PC1104

0.1U_0402_16V7K

PC1206

22U_0805_6.3VAM

VENUS@

PC1206

22U_0805_6.3VAM

VENUS@

PC1101

2200P_0402_50V7K

VGA@_EMI@ PC1101

2200P_0402_50V7K

VGA@_EMI@

PC1102

10U_0805_25V6K

VGA@ PC1102

10U_0805_25V6K

VGA@

PQ1201

2N7002W -T/R7_SOT323-3

VENUS@

PQ1201

2N7002W -T/R7_SOT323-3

VENUS@

PJP1100

JUMP_43X118

@PJP1100

JUMP_43X118

122

PC1212

680P_0603_50V7K

@EMI@ PC1212

680P_0603_50V7K

@EMI@

1 2

PU1200

SY8208DQNC_QFN10_3X3

VENUS@

PU1200

SY8208DQNC_QFN10_3X3

VENUS@

BYP 7

ILMT

LX 10

FB 4

LDO 5

GND

EN 1

BS 6

PC1204

10U_0805_25V6K

VENUS@ PC1204

10U_0805_25V6K

VENUS@

PR1212

10K_0402_5%

VENUS@PR1212

10K_0402_5%

VENUS@

PC1207

47U_0805_6.3V6M

VENUS@ PC1207

47U_0805_6.3V6M

VENUS@

PC1214

4700P_0402_25V7K

@PC1214

4700P_0402_25V7K

PR1204

20K_0402_1%

VENUS@

PR1204

20K_0402_1%

VENUS@

PL1201

SUPPRE_ FBMA-L11-453215-800LMA90T_1812

VENUS@_EMI@ PL1201

SUPPRE_ FBMA-L11-453215-800LMA90T_1812

VENUS@_EMI@

1 2

PJP1200

JUMP_43X118

@PJP1200

JUMP_43X118

122

PC1211

47U_0805_6.3V6M

VENUS@ PC1211

47U_0805_6.3V6M

VENUS@

PR1210

0_0402_5%~D

@PR1210

0_0402_5%~D

1 2

PC1213

4.7U_0603_6.3V6K

VENUS@

PC1213

4.7U_0603_6.3V6K

VENUS@

PR1103

0_0402_5%~D

@PR1103

0_0402_5%~D

1 2

PL1101

1UH_PCMB063T-1R0MS_12A_20%

VGA@ PL1101

1UH_PCMB063T-1R0MS_12A_20%

VGA@

1 2

PR1202

0_0402_5%

@PR1202

0_0402_5%

PC1209

2200P_0402_50V7K

VENUS@_EMI@ PC1209

2200P_0402_50V7K

VENUS@_EMI@

PC1205

4.7U_0603_6.3V6K

VENUS@ PC1205

4.7U_0603_6.3V6K

VENUS@

PQ1101

AON7506

VGA@

PQ1101

AON7506

VGA@

PR1208

10_0402_5%

VENUS@

PR1208

10_0402_5%

VENUS@

PC1103

0.1U_0603_25V7K

VGA@

PC1103

0.1U_0603_25V7K

VGA@

1 2

PC1106

680P_0402_50V7K

@EMI@PC1106

680P_0402_50V7K

@EMI@

PR1105

470K_0402_1%

VGA@PR1105

470K_0402_1%

VGA@

PJP1101

JUMP_43X118

@PJP1101

JUMP_43X118

122

PL1100

HCB2012KF-121T50_0805

VGA@_EMI@ PL1100

HCB2012KF-121T50_0805

VGA@_EMI@

1 2

PR1104

4.7_1206_5%

@EMI@PR1104

4.7_1206_5%

@EMI@

PC1105

1U_0603_10V6K

VGA@

PC1105

1U_0603_10V6K

VGA@

PR1207

4.7_1206_5%

@EMI@ PR1207

4.7_1206_5%

@EMI@

1 2

PR1107

9.09K_0402_1%

VGA@PR1107

9.09K_0402_1%

VGA@

1 2

PR1201

1M_0402_1%

VENUS@

PR1201

1M_0402_1%

VENUS@

PR1209

10K_0402_1%

VENUS@ PR1209

10K_0402_1%

VENUS@

1 2

PU1100

TPS51212DSCR_SON10_3X3

VGA@PU1100

TPS51212DSCR_SON10_3X3

VGA@

TRIP

V5IN 7

DRVH 9

SW 8

DRVL 6

VBST 10

TST

VFB

PGOOD

TP 11

PR1213

10K_0402_5%

VENUS@PR1213

10K_0402_5%

VENUS@

PR1110

100K_0402_5%

PR1110

100K_0402_5%

PR1211

120K_0402_1%

VENUS@PR1211

120K_0402_1%

VENUS@

1 2

PC1201

22U_0805_6.3VAM

VENUS@ PC1201

22U_0805_6.3VAM

VENUS@

PR1206

0_0402_5%~D

@PR1206

0_0402_5%~D

1 2

PR1200

0_0603_1%

@PR1200

0_0603_1%

1 2

PR1101

2.2_0603_5%

VGA@

PR1101

2.2_0603_5%

VGA@

1 2

PC1100

0.1U_0402_25V6

@EMI@ PC1100

0.1U_0402_25V6

@EMI@

PR1102

154K_0402_1%

VGA@PR1102

154K_0402_1%

VGA@

1 2

PQ1100

AON7408L

VGA@

PQ1100

AON7408L

VGA@

PR1108

10K_0402_1%

VGA@PR1108

10K_0402_1%

VGA@

D D

C C

B B

A A

VGA_CORE

Frequency 300kHz

TDC 23A(25W)/33A(32W)

Peak Current 30A(25W)/47A(32W)

OCP current 36A(25W)/56A(32W)

TYP MAX

H/S Rds(on) :12.2mohm , 15mohm

L/S Rds(on) :2.75mohm , 3.5mohm

Choke DCR 1.1mohm(Typ)/1.3mohm(Max)

Load line : -1.5mV/A

+VGA_PCIE

TDC 3A

Peak Current 4.2A

OCP current 6A

01 11 0.8V

0.825V

0.85V

0.875V

0.9V

0.925V

0.95V

0.975V

1111 0

1 0

011

001

0 0

1.025V

1.05V

1.075V

1.1V

1.125V

1111

111 0

111 00

000 11

111 00

000 11

11 000

00001

11110

1 1 1 10 0.775V

Initial voltage:0.85V(Venus)

0.9V(Sun)

25W 32W

PR813

PR821

PR825

909

97.6K

976

1.4K

143K

1.5K

GPU_VID5

(GPIO_10)

GPU_VID4

(GPIO_14)

GPU_VID3

(GPIO_15)

GPU_VID2

(GPIO_16)

GPU_VID1

(GPIO_20) Core Voltage Level

1.15V

1.175V

1.2V

01110

01101

1 10 0 0

SUN XT VENUS PRO/XT

Load line

PR824

No need Need

pop un-pop

Vout=0.95V

GPU_B+

LX_PCIE

+VGA_PCIEP

EN_PCIE

FB_PCIE

PCIE_B+

PXS_PWREN

SNUB_PCIE

GPU_B+

BST_VGA_CORE

GFX_FB-1

GFX_FB-2

62881_FB62881_FB

62881_VW62881_VW

62881_COMP62881_COMP

62881_RBIAS

62881_VID0

62881_VR_ON

62881_VID1

62881_VID2

62881_VID3

62881_VID4

62881_VID5

62881_VID6

SW_VGA_CORE

62881_VIN

GPU_B+62881_VDD

ISUM-

ISUM+

62881_VCCP

UG_VGA_CORE

ISUM-2

ISUM-

ISUM-1

ISUM+

GPU_VID1

GPU_VID2

GPU_VID3

GPU_VID4

GPU_VID5

VCCSENSE_VGA<52>

DGPU_PWROK<10,30>

PXS_PWREN <10,11,39,43,50>

GPU_VID1 <49>

GPU_VID2 <49>

GPU_VID3 <49>

GPU_VID4 <49>

GPU_VID5 <49>

VSSSENSE_VGA<52>

+VGA_CORE

B+

+VGA_PCIEP +VGA_PCIE

+VGA_PCIEP

+3VALW

+5VALW

+VGA_CORE

+3VS

+3VGS

+5VALW

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

0.4

44 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Compal Electronics, Inc.

PWR_VGA_CORE/PCIE

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

0.4

44 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Compal Electronics, Inc.

PWR_VGA_CORE/PCIE

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

0.4

44 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Compal Electronics, Inc.

PWR_VGA_CORE/PCIE

PR815

47K_0402_1%

VGA@ PR815

47K_0402_1%

VGA@

PR8100_0402_5%~D @PR8100_0402_5%~D @

PR846

0_0402_5%~D

@PR846

0_0402_5%~D

PL802

0.36UH_MMD-12CE-R36M-M1L_34A_20%

VGA@ PL802

0.36UH_MMD-12CE-R36M-M1L_34A_20%

VGA@

1 2

PR835

10K_0402_1%

@PR835

10K_0402_1%

1 2

PR840

10K_0402_1%

@PR840

10K_0402_1%

1 2

PC1307

0.1U_0402_10V7K

VGA@PC1307

0.1U_0402_10V7K

VGA@

PC869

0.1U_0402_10V7K

VGA@ PC869

0.1U_0402_10V7K

VGA@

PJP1301

JUMP_43X79

PJP1301

JUMP_43X79

PR822

1_0603_5%

VGA@ PR822

1_0603_5%

VGA@

PR829

3.65K_0402_1%

VGA@PR829

3.65K_0402_1%

VGA@

PC816

1000P_0402_50V7K

VGA@PC816

1000P_0402_50V7K

VGA@

1 2

PC819

0.15U_0402_10V6K

VGA@PC819

0.15U_0402_10V6K

VGA@

1 2

PR825

1.5K_0402_1%

32W@PR825

1.5K_0402_1%

32W@

PC1304

680P_0402_50V7K

@EMI@ PC1304

680P_0402_50V7K

@EMI@

PC817

1000P_0402_50V7K

VGA@ PC817

1000P_0402_50V7K

VGA@

PC807

0.1U_0603_25V7K

VGA@PC807

0.1U_0603_25V7K

VGA@

1 2

PR823

0_0603_1%

PR823

0_0603_1%

1 2

PR8060_0402_5%~D @PR8060_0402_5%~D @

PR834

10K_0402_1%

SUN@PR834

10K_0402_1%

SUN@

1 2

PL800

FBMA-L11-453215-800LMA90T_1812

VGA@_EMI@PL800

FBMA-L11-453215-800LMA90T_1812

VGA@_EMI@

1 2

PC813

330P_0402_50V7K

@PC813

330P_0402_50V7K

1 2

PC1301

22U_0805_6.3VAM

VGA@

PC1301

22U_0805_6.3VAM

VGA@

PC1308

22U_0805_6.3VAM

VGA@ PC1308

22U_0805_6.3VAM

VGA@

PR816

2.61K_0402_1%

VGA@

PR816

2.61K_0402_1%

VGA@

1 2

PC1305

22U_0805_6.3VAM

VGA@ PC1305

22U_0805_6.3VAM

VGA@

PR1301

10K_0402_1%

VGA@ PR1301

10K_0402_1%

VGA@

PR837

10K_0402_1%

VGA@PR837

10K_0402_1%

VGA@

1 2

PR808

10K_0402_1%

@PR808

10K_0402_1%

PC809

330P_0402_50V7K

@PC809

330P_0402_50V7K

PR1302

5.9K_0402_1%

VGA@PR1302

5.9K_0402_1%

VGA@

PR825

976_0402_1%

25W@ PR825

976_0402_1%

25W@

1 2

PR8090_0402_5%~D @PR8090_0402_5%~D @

PR8120_0402_5%~D @PR8120_0402_5%~D @

PC1303

22U_0805_6.3VAM

VGA@ PC1303

22U_0805_6.3VAM

VGA@

PR805

4.7_1206_5%

@EMI@ PR805

4.7_1206_5%

@EMI@

PR824

0_0402_5%

LL@

PR824

0_0402_5%

LL@

PR827

11K_0402_1%

VGA@PR827

11K_0402_1%

VGA@

1 2

PC804

10U_0805_25V6K

VGA@

PC804

10U_0805_25V6K

VGA@

PQ801

MDU1511RH 1N POWERDFN56

VGA@

PQ801

MDU1511RH 1N POWERDFN56

VGA@

PC831

0.1U_0402_25V6K~D

@EMI@

PC831

0.1U_0402_25V6K~D

@EMI@

PR818

715_0402_1%

VGA@PR818

715_0402_1%

VGA@

PC810

0.22U_0603_25V7K

VGA@ PC810

0.22U_0603_25V7K

VGA@

PR8030_0402_5%~D @PR8030_0402_5%~D @

PR839

10K_0402_1%

VGA@PR839

10K_0402_1%

VGA@

1 2

PC818

1000P_0402_50V7K

VGA@PC818

1000P_0402_50V7K

VGA@

PR836

10K_0402_1%

VGA@PR836

10K_0402_1%

VGA@

1 2

PC1306

22P_0402_50V8J

VGA@ PC1306

22P_0402_50V8J

VGA@

PR826

10K_0402_1%

VENUS@PR826

10K_0402_1%

VENUS@

1 2

PQ800

MDU1516URH 1N POWERDFN56-8

32W@

PQ800

MDU1516URH 1N POWERDFN56-8

32W@

PR830

0_0402_5%~D

PR830

0_0402_5%~D

PR842

1K_0402_1%

VGA@PR842

1K_0402_1%

VGA@

PR813

1.4K_0402_1%

32W@PR813

1.4K_0402_1%

32W@

PR814 0_0603_1%@PR814 0_0603_1%@

1 2

PR838

10K_0402_1%

@PR838

10K_0402_1%

1 2

PR845

0_0402_5%~D

@PR845

0_0402_5%~D

PC814

56P_0402_50V8

VGA@ PC814

56P_0402_50V8

VGA@

1 2

PR813

909_0402_1%

25W@PR813

909_0402_1%

25W@

PR1300

200K_0402_5%

VGA@ PR1300

200K_0402_5%

VGA@

1 2

PR8070_0402_5%~D @PR8070_0402_5%~D @

PR819

10K_0402_1%

VGA@PR819

10K_0402_1%

VGA@

1 2

PR817

8.06K_0402_1%

VGA@PR817

8.06K_0402_1%

VGA@

PC815

680P_0603_50V7K

@EMI@ PC815

680P_0603_50V7K

@EMI@

PJP1300

JUMP_43X79

PJP1300

JUMP_43X79

PR8040_0402_5%~D @PR8040_0402_5%~D @

PC803

2.2U_0603_6.3V6K

VGA@PC803

2.2U_0603_6.3V6K

VGA@

PC811

1U_0603_10V6K

VGA@PC811

1U_0603_10V6K

VGA@

PR821

97.6K_0402_1%

25W@PR821

97.6K_0402_1%

25W@

1 2

PR828

10K_0402_1%

@PR828

10K_0402_1%

1 2

PR833

10_0402_5%

PR833

10_0402_5%

PR1304

47K_0402_5%

@PR1304

47K_0402_5%

PC1302

0.1U_0402_10V7K

VGA@ PC1302

0.1U_0402_10V7K

VGA@

PC805

10U_0805_25V6K

VGA@

PC805

10U_0805_25V6K

VGA@

PC821

.1U_0402_16V7K

VGA@

PC821

.1U_0402_16V7K

VGA@

1 2

PC832

2200P_0402_50V7K~D

VGA@_EMI@

PC832

2200P_0402_50V7K~D

VGA@_EMI@

PL1300

0.47UH_PCMB063T-R47MS_18A_20%

VGA@ PL1300

0.47UH_PCMB063T-R47MS_18A_20%

VGA@

1 2

PR802

0_0603_1%

@PR802

0_0603_1%

1 2

PR8110_0402_5%~D @PR8110_0402_5%~D @

PR1303

4.7_1206_5%

@EMI@ PR1303

4.7_1206_5%

@EMI@

PQ803

MDU1516URH 1N POWERDFN56-8

VGA@

PQ803

MDU1516URH 1N POWERDFN56-8

VGA@

PU1300

SY8036LDBC_DFN10_3x3

VGA@

PU1300

SY8036LDBC_DFN10_3x3

VGA@

PG 4

LX 3

FB 6

SVIN

LX 2

PVIN

PR820

10_0402_5%

PR820

10_0402_5%

PC1300

22U_0805_6.3VAM

VGA@ PC1300

22U_0805_6.3VAM

VGA@

PU800

ISL62881CHRTZ-T_QFN28_4X4

VGA@PU800

ISL62881CHRTZ-T_QFN28_4X4

VGA@

CLK_EN#

PGOOD

ISUM+ 10

ISUM 9

VID5

VID1 21

LGATE 18

VSSP 17

VID2

UGATE 15

RTN 8

RBIAS

COMP

VID0 20

VCCP 19

VID3

VID4

VID6

VR_ON

DPRSLPVR

VSEN

VDD 11

VIN 12

IMON 13

BOOT 14

PHASE 16

AGND 29

PC808

10U_0805_25V6K

VGA@

PC808

10U_0805_25V6K

VGA@

PC820

0.033U_0402_16V7K

VGA@PC820

0.033U_0402_16V7K

VGA@

1 2

PH800

10KB_0402_5%_ERTJ0ER103J

VGA@PH800

10KB_0402_5%_ERTJ0ER103J

VGA@

1 2

PR821

143K_0402_1%

32W@PR821

143K_0402_1%

32W@

PC806

390P_0402_50V7K

VGA@ PC806

390P_0402_50V7K

VGA@

1 2

PQ802

MDU1511RH 1N POWERDFN56

VGA@

PQ802

MDU1511RH 1N POWERDFN56

VGA@

D D

C C

B B

A A

+CPU_CORE

+VGA_CORE

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

0.4

45 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Compal Electronics, Inc.

PWR_PROCESSOR DECOUPLING

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

0.4

45 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Compal Electronics, Inc.

PWR_PROCESSOR DECOUPLING

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

0.4

45 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Compal Electronics, Inc.

PWR_PROCESSOR DECOUPLING

PC870

10U_0603_6.3V6MVGA@

PC870

10U_0603_6.3V6MVGA@

PC921

22U_0805_6.3V6M

PC921

22U_0805_6.3V6M

PC920

22U_0805_6.3V6M

PC920

22U_0805_6.3V6M

PC844

1U_0402_6.3V6KVGA@

PC844

1U_0402_6.3V6KVGA@

PC835

10U_0603_6.3V6MVGA@

PC835

10U_0603_6.3V6MVGA@

PC909

22U_0805_6.3V6M

PC909

22U_0805_6.3V6M

PC860

1U_0402_6.3V6KVGA@

PC860

1U_0402_6.3V6KVGA@

PC846

1U_0402_6.3V6KVGA@

PC846

1U_0402_6.3V6KVGA@

PC923

22U_0805_6.3V6M

PC923

22U_0805_6.3V6M

PC852

1U_0402_6.3V6KVGA@

PC852

1U_0402_6.3V6KVGA@

PC871

1U_0402_6.3V6KVGA@

PC871

1U_0402_6.3V6KVGA@

PC839

330U_D2_2V_Y

25W@PC839

330U_D2_2V_Y

25W@

PC918

22U_0805_6.3V6M

PC918

22U_0805_6.3V6M

PC912

22U_0805_6.3V6M

PC912

22U_0805_6.3V6M

PC848

1U_0402_6.3V6KVGA@

PC848

1U_0402_6.3V6KVGA@

PC865

1U_0402_6.3V6KVGA@

PC865

1U_0402_6.3V6KVGA@

PC906

22U_0805_6.3V6M

PC906

22U_0805_6.3V6M

PC904

22U_0805_6.3V6M

PC904

22U_0805_6.3V6M

PC908

22U_0805_6.3V6M

PC908

22U_0805_6.3V6M

PC841

1U_0402_6.3V6KVGA@

PC841

1U_0402_6.3V6KVGA@

PC910

22U_0805_6.3V6M

PC910

22U_0805_6.3V6M

PC836

330U_D2_2V_Y

25W@PC836

330U_D2_2V_Y

25W@

PC917

22U_0805_6.3V6M

PC917

22U_0805_6.3V6M

PC857

1U_0402_6.3V6KVGA@

PC857

1U_0402_6.3V6KVGA@

PC858

1U_0402_6.3V6KVGA@

PC858

1U_0402_6.3V6KVGA@

PC907

22U_0805_6.3V6M

PC907

22U_0805_6.3V6M

PC873

1U_0402_6.3V6KVGA@

PC873

1U_0402_6.3V6KVGA@

PC914

22U_0805_6.3V6M

PC914

22U_0805_6.3V6M

PC845

1U_0402_6.3V6KVGA@

PC845

1U_0402_6.3V6KVGA@

PC866

1U_0402_6.3V6KVGA@

PC866

1U_0402_6.3V6KVGA@

PC922

22U_0805_6.3V6M

PC922

22U_0805_6.3V6M

PC836

470U_D2_2VM_R4.5M~D

32W@

PC836

470U_D2_2VM_R4.5M~D

32W@

PC851

1U_0402_6.3V6KVGA@

PC851

1U_0402_6.3V6KVGA@

PC853

1U_0402_6.3V6KVGA@

PC853

1U_0402_6.3V6KVGA@

PC903

22U_0805_6.3V6M

PC903

22U_0805_6.3V6M

PC837

330U_D2_2V_Y

25W@PC837

330U_D2_2V_Y

25W@

PC902

22U_0805_6.3V6M

PC902

22U_0805_6.3V6M

PC849

1U_0402_6.3V6KVGA@

PC849

1U_0402_6.3V6KVGA@

PC915

22U_0805_6.3V6M

PC915

22U_0805_6.3V6M

PC837

470U_D2_2VM_R4.5M~D

32W@

PC837

470U_D2_2VM_R4.5M~D

32W@

PC855

1U_0402_6.3V6KVGA@

PC855

1U_0402_6.3V6KVGA@

PC868

10U_0603_6.3V6MVGA@

PC868

10U_0603_6.3V6MVGA@

PC872

1U_0402_6.3V6KVGA@

PC872

1U_0402_6.3V6KVGA@

PC901

22U_0805_6.3V6M

PC901

22U_0805_6.3V6M

PC840

1U_0402_6.3V6KVGA@

PC840

1U_0402_6.3V6KVGA@

PC919

22U_0805_6.3V6M

PC919

22U_0805_6.3V6M

PC864

1U_0402_6.3V6KVGA@

PC864

1U_0402_6.3V6KVGA@

PC842

1U_0402_6.3V6KVGA@

PC842

1U_0402_6.3V6KVGA@

PC850

1U_0402_6.3V6KVGA@

PC850

1U_0402_6.3V6KVGA@

PC861

1U_0402_6.3V6KVGA@

PC861

1U_0402_6.3V6KVGA@

PC839

470U_D2_2VM_R4.5M~D

32W@

PC839

470U_D2_2VM_R4.5M~D

32W@

PC916

22U_0805_6.3V6M

PC916

22U_0805_6.3V6M

PC911

22U_0805_6.3V6M

PC911

22U_0805_6.3V6M

PC856

1U_0402_6.3V6KVGA@

PC856

1U_0402_6.3V6KVGA@

PC913

22U_0805_6.3V6M

PC913

22U_0805_6.3V6M

PC863

1U_0402_6.3V6KVGA@

PC863

1U_0402_6.3V6KVGA@

PC854

1U_0402_6.3V6KVGA@

PC854

1U_0402_6.3V6KVGA@

PC905

22U_0805_6.3V6M

PC905

22U_0805_6.3V6M

PC838

470U_D2_2VM_R4.5M~D

32W@

PC838

470U_D2_2VM_R4.5M~D

32W@

PC843

1U_0402_6.3V6KVGA@

PC843

1U_0402_6.3V6KVGA@

PC867

10U_0603_6.3V6MVGA@

PC867

10U_0603_6.3V6MVGA@

PC838

330U_D2_2V_Y

25W@PC838

330U_D2_2V_Y

25W@

PC847

1U_0402_6.3V6KVGA@

PC847

1U_0402_6.3V6KVGA@

PC859

1U_0402_6.3V6KVGA@

PC859

1U_0402_6.3V6KVGA@

PC862

1U_0402_6.3V6KVGA@

PC862

1U_0402_6.3V6KVGA@

D D

C C

B B

A A

+1.8VSP: TDC:2.5A

SY8003DFC

PXS_PWREN

Page 48

+VCCIO: TDC:5A

SY8206DQNC

Page 49

SUSP#

+3VALW

Page 50

+1.35VP/+0.675VSP: TDC:6A/0.7A

RT8207MZQW

B+

EC_ON

DC IN

+3VALWP: TDC:5.4A

+5VALWP: TDC:5.6A

TPS51225CRUKR

Power block

CHARGER

CC:0A~1A(4cell) or 2.1A(6cell)

CV:17.7V(4cell) / 13.3V(6cell)

BQ24717

SYSON

VR_ON

+CPU_CORE

TDC: 14A

TPS51622RSM

+1.5VSP: TDC:2.5A

SY8003DFC

Page 48

Page 47

Page 46

Input

Switch

Page 51

CPU OTP

Turn Off

Page 45

Page 46

Battery

SUSP#

+VGA_CORE

TDC: 23A / 33A

ISL62881CHRTZ-T

PXS_PWREN

Page 53

PXS_PWREN

+VGA_PCIEP: TDC:3A

SY8036LDBC

Page 53

PXS_PWREN

Page 52

+VDDCIP: TDC:7A

SY8208DQNC

+1.35VGPUP: TDC:9A

TPS51212DSCR

PXS_PWREN

Page 52

+3VALW

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

0.4

46 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Compal Electronics, Inc.

PWR_POWER BLOCK DIAGRAM

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

0.4

46 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Compal Electronics, Inc.

PWR_POWER BLOCK DIAGRAM

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

0.4

46 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Compal Electronics, Inc.

PWR_POWER BLOCK DIAGRAM

D D

C C

B B

A A

P age 1

P age 1Page 1

P age 1

Solu tio n D escription

Solu tio n D escriptionSolu tio n D escription

Solu tio n D escription R ev .

R ev .R ev .

R ev.P ag e#

P ag e#P a ge#

P a ge # T it le

T it leT it le

T it le

V ersion C hange L ist ( P . I. R . L ist )

V ersion C hange L ist ( P . I. R . L ist )V ersion C hange L ist ( P . I. R . L ist )

V ersion C hange L ist ( P . I. R . L ist )

Item

ItemItem

Item Issu e D escriptio n

Issu e D escriptio nIssue D escriptio n

Issu e D escriptio nD ate

D ateD ate

D ate R eq uest

R eq uestR equ est

R eq uest

O w n er

O w n erO w n er

O w n er

1 37 CHARGER 13/01/30 Morris adjust design parameter from vendor recommend delete PD702

change PC712 to unpop

change PQ704 to unpop

change PC707 from 0.1uF_0402 to 1uF_0603

change PC720 from 0.1uF to 100pF

change PC711 from 1000pF to 0.01uF

change PQ705 from SB00000SD00 to SB00000WY00

2 42 VCORE 13/01/30 Morris adjust design parameter from vendor recommend change PC509 from 0.1uF to 1000pF

change PR529 from 3.83K to 5.76K

change PR504 from 523K to 499K

3 36 DCIN/BATT CONN/OTP 13/01/30 Morris change from ESD request change PD1 from SC300002E00 to SC300001G00

0.3

4 38 3.3VALWP/5VALWP 13/02/01 Morris add ESD diode from ESD request add PD101(SCA00002A00) 0.3

5 42 VCORE 13/02/21 Morris adjust design parameter from fine tune result change PR501 from 422K to 523K

change PR503 from 56K to 75K

6 44 VGA_CORE/PCIE 13/02/21 Morris

0.3

0.3unpop from EE request unpop PR808

7 44 VGA_CORE/PCIE 13/03/05 Morris adjust output voltage from vender request 0.3unpop PR826 and pop PR834 (only for Sun XT)

8 13/03/28 Morris37

CHARGER

3.3VALWP/5VALWP

1.5VSP/1.8VSP

+VCCIO

+1.35VP/0.675VSP

VCORE

verify function ok, so delete 0 ohm to short unpop PR100,PR101,PR201,PR202,PR300,PR303,PR401,PR522,PR535,

PR704,PR708,PR710,PR714,PR715,PR717

0.4

369 DCIN/BATT CONN/OTP 13/04/09 Morris design change for solve issue unpop PR1 and PC5

41 +1.35VP/0.675VSP10

+1.35VGPU/VDDCI43

13/04/09 Morris part shortage issue change PQ201 and PQ1101 from SB00000T600 to SB000010A00

11 1.5VSP/1.8VSP39

43 +1.35VGPU/VDDCI

44 VGA_CORE/PCIE

13/04/09 verify function ok, so delete 0 ohm to short unpop PR601,PR802,PR803,PR814,PR823,PR830,PR845,PR846,

PR1103,PR1200,PR1206,PR1210

12 43 +1.35VGPU/VDDCI 13/04/09

Morris

Morris unpop VDDCI parts from vendor recommend and EEverify ok only for Sun XT unpop PL1200,PL1201,PU1200,PQ1201,PR1201,PR1203,PR1204,PR1208,PR1209,

PR1211,PR1212,PR1213,PC1201,PC1202,PC1204,PC1205,PC1206,PC1207,

PC1209,PC1210,PC1211,PC1213 (only for Sun XT)

0.4

Morris44 VGA_CORE/PCIE 13/04/12 change PL1300 from SH00000GQ00 to SH00000PK00

36 DCIN/BATT CONN/OTP 13/04/12

part shortage issue13

Morris customer request add PR2 10Kohm14

0.4

15 42 VCORE 13/04/15 Morris EMI request pop PC522 and add PC523 0.1uF 0.4

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

0.4

47 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Compal Electronics, Inc.

PWR-PIR

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

0.4

47 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Compal Electronics, Inc.

PWR-PIR

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

0.4

47 57Wednesday, May 22, 2013

2013/05/21 2014/05/01

Compal Electronics, Inc.

PWR-PIR

D D

C C

B B

A A

THAMES XT M2

Place CV326 Close to UV13

LVDS Interface

GFX PCIE LANE REVERSAL

Thames

RV198, 1.27K_0402_1% pull-down

RV203, 2K_0402_1% pull-up

PWR need to Modify +VGA_PCIE

CLK_PEG_VGA

PEG_CTX_GRX_P3

PEG_CTX_GRX_N3

PEG_CTX_GRX_P2

PEG_CTX_GRX_N2

PEG_CTX_GRX_P1

PEG_CTX_GRX_N1

PEG_CTX_GRX_P0

PEG_CTX_GRX_N0

PCIE_CRX_C_GTX_P1

PCIE_CRX_C_GTX_N1 PEG_CRX_GTX_N1

PEG_CRX_GTX_P1

PCIE_CRX_C_GTX_P0

PCIE_CRX_C_GTX_N0

PEG_CRX_GTX_P0

PEG_CRX_GTX_N0

PCIE_CRX_C_GTX_P3

PCIE_CRX_C_GTX_N3 PEG_CRX_GTX_N3

PEG_CRX_GTX_P3

PCIE_CRX_C_GTX_P2

PCIE_CRX_C_GTX_N2

PEG_CRX_GTX_P2

PEG_CRX_GTX_N2

CLK_PEG_VGA#

GPU_RST#

PEG_CTX_GRX_P0<12>

PEG_CTX_GRX_N0<12>

PEG_CTX_GRX_P1<12>

PEG_CTX_GRX_N1<12>

PEG_CTX_GRX_P2<12>

PEG_CTX_GRX_N2<12>

PEG_CTX_GRX_P3<12>

PEG_CTX_GRX_N3<12>

PEG_CRX_GTX_P1 <12>

PEG_CRX_GTX_N1 <12>

PEG_CRX_GTX_P2 <12>

PEG_CRX_GTX_N2 <12>

PEG_CRX_GTX_P3 <12>

PEG_CRX_GTX_N3 <12>

PEG_CRX_GTX_P0 <12>

PEG_CRX_GTX_N0 <12>

CLK_PEG_VGA<9>

CLK_PEG_VGA#<9>

DGPU_HOLD_RST#<10>

PLT_RST#<10,21,26,30,6>

+VGA_PCIE

+3VGS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

1.0

ATI_Venus Pro_M2_PCIE/LVDS

48 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

LA-9984P

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

1.0

ATI_Venus Pro_M2_PCIE/LVDS

48 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

LA-9984P

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

1.0

ATI_Venus Pro_M2_PCIE/LVDS

48 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

LA-9984P

CV450.1U_0402_10V7K DIS@CV450.1U_0402_10V7K DIS@

CV470.1U_0402_10V7K DIS@CV470.1U_0402_10V7K DIS@

UV1

216-0846000 A1 VENUS XT M2 FCBGA 962P 0FD

VENUSXT@

SA00006KW0L

UV1

216-0846000 A1 VENUS XT M2 FCBGA 962P 0FD

VENUSXT@

SA00006KW0L

UV13

MC74VHC1G08DFT2G_SC70-5

DIS@

UV13

MC74VHC1G08DFT2G_SC70-5

DIS@

IN1

IN2

2OUT 4

VCC 5

GND

CV440.1U_0402_10V7K DIS@CV440.1U_0402_10V7K DIS@

RV64 1K_0402_5%

DIS@

RV64 1K_0402_5%

DIS@

1 2

RV203

1K_0402_1%

DIS@

RV203

1K_0402_1%

DIS@

1 2

CV500.1U_0402_10V7K DIS@CV500.1U_0402_10V7K DIS@

CV480.1U_0402_10V7K DIS@CV480.1U_0402_10V7K DIS@

LVTMDP

LVDS CONTROL

UV1G

216-0833000-A11-THAMES-XT-M2_FCBGA962~D

LVTMDP

LVDS CONTROL

UV1G

216-0833000-A11-THAMES-XT-M2_FCBGA962~D

DIGON AJ27

TXCLK_LN_DPE3N AR34

TXCLK_LP_DPE3P AP34

TXCLK_UN_DPF3N AL36

TXCLK_UP_DPF3P AK35

TXOUT_L0N_DPE2N AU35

TXOUT_L0P_DPE2P AW37

TXOUT_L1N_DPE1N AU39

TXOUT_L1P_DPE1P AR37

TXOUT_L2N_DPE0N AR35

TXOUT_L2P_DPE0P AP35

TXOUT_L3N AP37

TXOUT_L3P AN36

TXOUT_U0N_DPF2N AK37

TXOUT_U0P_DPF2P AJ38

TXOUT_U1N_DPF1N AJ36

TXOUT_U1P_DPF1P AH35

TXOUT_U2N_DPF0N AH37

TXOUT_U2P_DPF0P AG38

TXOUT_U3N AG36

TXOUT_U3P AF35

VARY_BL AK27

PCI EXPRESS INTERFACE

CLOCK

CALIBRATION

UV1A

216-0833000-A11-THAMES-XT-M2_FCBGA962~D

PCI EXPRESS INTERFACE

CLOCK

CALIBRATION

UV1A

216-0833000-A11-THAMES-XT-M2_FCBGA962~D

PWRGOOD

AH16 PCIE_CALRN Y29

PCIE_CALRP Y30

PCIE_REFCLKN

AA36 PCIE_REFCLKP

AB35

PCIE_RX0N

Y37 PCIE_RX0P

AA38

PCIE_RX10N

K37 PCIE_RX10P

L38

PCIE_RX11N

J36 PCIE_RX11P

K35

PCIE_RX12N

H37 PCIE_RX12P

J38

PCIE_RX13N

G36 PCIE_RX13P

H35

PCIE_RX14N

F37 PCIE_RX14P

G38

PCIE_RX15N

E37 PCIE_RX15P

F35

PCIE_RX1N

W36 PCIE_RX1P

Y35

PCIE_RX2N

V37 PCIE_RX2P

W38

PCIE_RX3N

U36 PCIE_RX3P

V35

PCIE_RX4N

T37 PCIE_RX4P

U38

PCIE_RX5N

R36 PCIE_RX5P

T35

PCIE_RX6N

P37 PCIE_RX6P

R38

PCIE_RX7N

N36 PCIE_RX7P

P35

PCIE_RX8N

M37 PCIE_RX8P

N38

PCIE_RX9N

L36 PCIE_RX9P

M35

PERSTB

AA30

PCIE_TX0N Y32

PCIE_TX0P Y33

PCIE_TX10N L32

PCIE_TX10P L33

PCIE_TX11N L29

PCIE_TX11P L30

PCIE_TX12N K32

PCIE_TX12P K33

PCIE_TX13N J32

PCIE_TX13P J33

PCIE_TX14N K29

PCIE_TX14P K30

PCIE_TX15N H32

PCIE_TX15P H33

PCIE_TX1N W 32

PCIE_TX1P W 33

PCIE_TX2N U32

PCIE_TX2P U33

PCIE_TX3N U29

PCIE_TX3P U30

PCIE_TX4N T32

PCIE_TX4P T33

PCIE_TX5N T29

PCIE_TX5P T30

PCIE_TX6N P32

PCIE_TX6P P33

PCIE_TX7N P29

PCIE_TX7P P30

PCIE_TX8N N32

PCIE_TX8P N33

PCIE_TX9N N29

PCIE_TX9P N30

CV490.1U_0402_10V7K DIS@CV490.1U_0402_10V7K DIS@

UV1

216-0846009 A1 VENUS PRO M2 FCBGA 962P 0FD

VENUSPRO@

SA00006MW0L

UV1

216-0846009 A1 VENUS PRO M2 FCBGA 962P 0FD

VENUSPRO@

SA00006MW0L

RV66

100K_0402_5%

DIS@

RV66

100K_0402_5%

DIS@

RV198

1.69K_0402_1%

DIS@

RV198

1.69K_0402_1%

DIS@

1 2

CV460.1U_0402_10V7K DIS@CV460.1U_0402_10V7K DIS@

CV430.1U_0402_10V7K DIS@CV430.1U_0402_10V7K DIS@

CV326

0.1U_0402_25V6K

DIS@

CV326

0.1U_0402_25V6K

DIS@

D D

C C

B B

A A

AUD[1] AUD[0]

0 0 No audio function

0 1 Audio for DisplayPort and HDMI if dongle is detected

1 0 Audio for DisplayPort only

1 1 Audio for both DisplayPort and HDMI

HSYNCAUD[1]

ALLOW FOR PULLUP PADS FOR THESE STRAPS AND IF THESE

GPIOS ARE USED, THEY MUST NOT CONFLICT DURING RESET

ENABLE EXTERNAL BIOS ROM

GPIO0 PCIE FULL TX OUTPUT SWINGTX_PWRS_ENB

GPIO1TX_DEEMPH_EN PCIE TRANSMITTER DE-EMPHASIS

GPIO9 VGA ENABLEDBIF_VGA DIS

VIP_DEVICE_STRAP_ENA V2SYNC IGNORE VIP DEVICE STRAPS

GPIO_22_ROMCSB

GPIO2

STRAPS

Advertises PCIE speed

when compliance test

DESCRIPTION OF DEFAULT SETTINGSPIN

GPIO[13:11]ROMIDCFG(2:0)

RECOMMENDED

SETTINGS

RSVD

SERIAL ROM TYPE OR MEMORY APERTURE SIZE SELECT

CONFIGURATION STRAPS

BIOS_ROM_EN

VSYNCAUD[0]

H2SYNC

GPIO8

GPIO21

GENERICC

XXX

H2SYNC GENERICC

AMD RESERVED CONFIGURATION STRAPS

ALLOW FOR PULLUP PADS FOR THESE STRAPS BUT DO NOT INSTALL

RESISTOR. IF THESE GPIOS ARE USED, THEY MUST KEEP "LOW" AND

NOT CONFLICT DURING RESET

RECOMMENDED SETTINGS

0= DO NOT INSTALL RESISTOR

1 = INSTALL 10K RESISTOR

X = DESIGN DEPENDANT

NA = NOT APPLICABLE

0.60 V level, Please

VREFG Divider ans

cap close to ASIC

XTALIN

Voltage Swing: 1.8 V

GPIO21 GPIO2

GPIO8

RSVD

RESERVED

RSVD

RESERVED

RSVD

(1.8V@100mA VDD1DI)

(1.8V@65mA AVDD)

(1.8V@20mA TSVDD)

0: 50% swing

1: Full swing

0: disable

1: enable

0: disable

1: enable

0: 2.5GT/s

1: 5GT/s

Closed to GPU

20mil

10mil

(75mA)

(125mA)

(5mA)

65mA

100mA

Add 12/6 for MLPS

0.95V@Venus

TX_PWRS_ENB GPIO0 Transmitter Power Saving Enable

0: 50% Tx output swing for mobile mode

1: full Tx output swing (Default setting for Desktop)

GPIO1TX_DEEMPH_EN PCI Express Transmitter De-emphasis Enable

0: Tx de-emphasis diabled for mobile mode

1: Tx de-emphasis enabled (Defailt setting for desktop)

128Mx16bits

(64Mx32bits)

GDDR5

H5GQ2H24AFR-T2C

128Mx16bits

(64Mx32bits)

GDDR5

K4G20325FD-FC04

1 0 1

1 1

4.75k NC

NC 4.75k

8.45k

SUN MLPs

PS_3

Hynix

Samsung

Micron

RV241 RV242 Bits [3:1]

000

001

111

K4W2G1646E-BY11

MT41K128M16JT-107G:K

H5TC2G63FFR-11C

128MX16bits

DDR3

RV85 PU

chg to @

128MX16bits

DDR3

128MX16bits

DDR3

VENUS MLPs

PS_3 used default

For GCLK

GPU_GPIO0

GPU_GPIO1

GPU_GPIO2

GPU_GPIO9

GPU_GPIO12

GPU_GPIO13

GPU_GPIO11

GPU_VID3

GPIO25_TDI

GPIO24_TRSTB

GPIO26_TCK

GPIO27_TMS

GPIO28_TDO

XTALIN

AC_BATT

XTALOUT

+DPLL_VDDC

+DPLL_PVDD

VRAM_ID0

VRAM_ID1

VRAM_ID2

+AVDD

+VDD1DI

+TSVDD

GPU_VID1

GPIO24_TRSTB

GPIO25_TDI

GPIO26_TCK

GPIO27_TMS

+VREFG_GPU

VGA_CLKREQ#_R

VGA_SMB_DA2

VGA_SMB_CK2

+DPLL_PVDD

+DPLL_VDDC

GPU_GPIO8

GENLK_CLK

GENLK_VSYNC

GPIO21_BBEN

GPU_VID2

VGA_SMB_CK2_R

GPU_GPIO0

GPU_GPIO2

GPU_GPIO1

GPU_GPIO9

GPU_GPIO13

GPU_GPIO12

GPU_GPIO11

GPU_GPIO8

GPU_THERMAL_D+ VGA_SMB_DA2

THM_ALERT#

VGA_SMB_CK2

GPU_THERMAL_D+

GPU_THERMAL_D-

THM_ALERT#

VGA_CLKREQ#_R

PS_1

PS_2

PS_3

TS_FDO

PS_1 PS_2 PS_3

DPLL_PVSS

+DPLL_PVDD

VGA_SMB_DA2

VGA_SMB_CK2

GPU_VID5

VGA_SMB_DA2_R

PACIN#

AC_BATT

DPLL_PVSS

XTALINXTALOUT

AC_BATT

GPU_THERMAL_D-

GPU_VGA_R

GPU_VGA_G

GPU_VGA_B

GPU_VGA_HSYNC

GPU_VGA_VSYNC

GPU_VGA_DDCCLK

GPU_VGA_DDCDAT

GPU_GPIO6

GPU_VID4

VRAM_ID1

VRAM_ID0

VRAM_ID2

XTALIN

GPU_VID3<44>

GPU_VID1<44>

PEG_CLKREQ#<9>

GPU_VID2<44>

GPU_VID5<44>

ACIN<10,30,36,37>

ACIN_65W<30>

EC_SMB_DA2 <19,30,9>

EC_SMB_CK2 <19,30,9>

GPU_GPIO6<43>

GPU_VID4<44>

XTALIN<29>

+1.8VGS

+3VGS

+1.8VGS

+VGA_PCIE

+3VGS

+1.8VGS

+3VGS

+1.8VGS +1.8VGS

+3VGS

+1.8VGS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

1.0

ATI_Venus Pro_M2_Main_MSIC

49 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

LA-9984P

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

1.0

ATI_Venus Pro_M2_Main_MSIC

49 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

LA-9984P

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

1.0

ATI_Venus Pro_M2_Main_MSIC

49 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

LA-9984P

T85T85

RV98

4.7K_0402_5%

VENUS@

RV98

4.7K_0402_5%

VENUS@

1 2

T86T86

RP60

10K_8P4R_5%

RP60

10K_8P4R_5%

1 8

2 7

3 6

4 5

CV80

10U_0603_6.3V6M

VENUS@ CV80

10U_0603_6.3V6M

VENUS@

CV92

1U_0402_6.3V6K

DIS@ CV92

1U_0402_6.3V6K

DIS@

YV1

27MHZ_10PF_7V27000050

XTALDIS@YV1

27MHZ_10PF_7V27000050

XTALDIS@

GND

311

GND

CV78

0.1U_0402_10V7K

VENUS@ CV78

0.1U_0402_10V7K

VENUS@

RV251

0_0402_5%

RV251

0_0402_5%

1 2

RV84 499_0402_1%

VENUS@

RV84 499_0402_1%

VENUS@

1 2

RV8310K_0402_5% @RV8310K_0402_5% @

1 2

RV8210K_0402_5% @RV8210K_0402_5% @

1 2

LV15

BLM15BD121SN1D_0402

DIS@LV15

BLM15BD121SN1D_0402

DIS@

RV97

1M_0402_5%

XTALDIS@RV97

1M_0402_5%

XTALDIS@

CV83

1U_0402_6.3V6K

DIS@ CV83

1U_0402_6.3V6K

DIS@

RV90

10K_0402_5%

DIS@

RV90

10K_0402_5%

DIS@

RV95 249_0402_1%

VENUS@

RV95 249_0402_1%

VENUS@

T88T88

RV71 10K_0402_5%X76@RV71 10K_0402_5%X76@

1 2

CV331

0.68U_0402_10V

VENUS@

CV331

0.68U_0402_10V

VENUS@

CV94

10P_0402_50V8J

XTALDIS@

CV94

10P_0402_50V8J

XTALDIS@

QV14B

DMN66D0LDW-7_SOT363-6

DIS@

QV14B

DMN66D0LDW-7_SOT363-6

DIS@

LV14

BLM15BD121SN1D_0402

DIS@LV14

BLM15BD121SN1D_0402

DIS@

CV86

10U_0603_6.3V6M

DIS@ CV86

10U_0603_6.3V6M

DIS@

DPA

DPB

DPC

DPD

MUTI GFX

I2C

GENERAL PURPOSE I/O

DAC1

DAC2

DDC/AUX

THERMAL

PLL/CLOCK

UV1B

216-0833000-A11-THAMES-XT-M2_FCBGA962~D

DPA

DPB

DPC

DPD

MUTI GFX

I2C

GENERAL PURPOSE I/O

DAC1

DAC2

DDC/AUX

THERMAL

PLL/CLOCK

UV1B

216-0833000-A11-THAMES-XT-M2_FCBGA962~D

DMINUS

AG29

DPLL_PVDD

AM32

DPLL_PVSS

AN32

DPLL_VDDC

AN31

DPLUS

AF29

DVPCLK

AR1

DVPCNTL_0

AP8

DVPCNTL_1

AW8

DVPCNTL_2

AR3

DVPCNTL_MVP_0

AR8

DVPCNTL_MVP_1

AU8

DVPDATA_0

AU1

DVPDATA_1

AU3

DVPDATA_10

AV7

DVPDATA_11

AN7

DVPDATA_12

AV9

DVPDATA_13

AT9

DVPDATA_14

AR10

DVPDATA_15

AW10

DVPDATA_16

AU10

DVPDATA_17

AP10

DVPDATA_18

AV11

DVPDATA_19

AT11

DVPDATA_2

AW3

DVPDATA_20

AR12

DVPDATA_21

AW12

DVPDATA_22

AU12

DVPDATA_23

AP12

DVPDATA_3

AP6

DVPDATA_4

AW5

DVPDATA_5

AU5

DVPDATA_6

AR6

DVPDATA_7

AW6

DVPDATA_8

AU6

DVPDATA_9

AT7

GENERICA

AJ19

GENERICB

AK19

GENERICC

AJ20

GENERICD

AK20

GENERICE_HPD4

AJ24

GENERICF_HPD5

AH26

GENERICG_HPD6

AH24

GPIO_0

AH20

GPIO_1

AH18

GPIO_10_ROMSCK

AJ16

GPIO_11

AK16

GPIO_12

AL16

GPIO_13

AM16

GPIO_14_HPD2

AM14

GPIO_15_PWRCNTL_0

AM13

GPIO_16

AK14

GPIO_17_THERMAL_INT

AG30

GPIO_18_HPD3

AN14

GPIO_19_CTF

AM17

GPIO_2

AN16

GPIO_20_PWRCNTL_1

AL13

GPIO_21_BB_EN

AJ14

GPIO_22_ROMCSB

AK13

GPIO_23_CLKREQB

AN13

GPIO_3_SMBDATA

AH23

GPIO_4_SMBCLK

AJ23

GPIO_5_AC_BATT

AH17

GPIO_6

AJ17

GPIO_7_BLON

AK17

GPIO_8_ROMSO

AJ13

GPIO_9_ROMSI

AH15

H2SYNC/GENLK_CLK AD29

HPD1

AK24

HSYNC AC36

JTAG_TCK

AK23 JTAG_TDI

AN23

JTAG_TDO

AM24 JTAG_TMS

AL24

JTAG_TRSTB

AM23

DDCDATA_AUX7N AK29

DDCCLK_AUX7P AK30

TS_FDO

AK32

TSVDD

AJ32

TSVSS

AJ33

VREFG

AH13

VSS1DI AC34

VSS2DI/NC AG32

XTALIN

AV33

XTALOUT

AU34

A2VDD/NC AG33

A2VDDQ/NC AD33

A2VSSQ/TSVSSQ AF33

AUX1N AL27

AUX1P AM27

AUX2N AM20

AUX2P AN20

AVDD AD34

AVSSQ AE34

BAF37

B2/NC AF30

B2B/NC AF31

BB AE38

C/NC AC32

COMP/NC AF32

DDC1CLK AM26

DDC1DATA AN26

DDC2CLK AM19

DDC2DATA AL19

DDC6CLK AJ30

DDC6DATA AJ31

DDCDATA_AUX3N AM30

DDCCLK_AUX3P AL30

DDCDATA_AUX4N AM29

DDCCLK_AUX4P AL29

DDCDATA_AUX5N AM21

DDCCLK_AUX5P AN21

GAE36

G2/NC AD30

G2B/NC AD31

GB AD35

RAD39

R2/NC AC30

R2B/NC AC31

R2SET/NC AA29

RB AD37

RSET AB34

SCL

AK26

SDA

AJ26

TX0M_DPA2N AR24

TX0M_DPC2N AR14

TX0P_DPA2P AT25

TX0P_DPC2P AT15

TX1M_DPA1N AV25

TX1M_DPC1N AV15

TX1P_DPA1P AU26

TX1P_DPC1P AU16

TX2M_DPA0N AR26

TX2M_DPC0N AR16

TX2P_DPA0P AT27

TX2P_DPC0P AT17

TX3M_DPB2N AU30

TX3M_DPD2N AR20

TX3P_DPB2P AV31

TX3P_DPD2P AT21

TX4M_DPB1N AT31

TX4M_DPD1N AV21

TX4P_DPB1P AR32

TX4P_DPD1P AU22

TX5M_DPB0N AU32

TX5M_DPD0N AR22

TX5P_DPB0P AT33

TX5P_DPD0P AT23

TXCAM_DPA3N AV23

TXCAP_DPA3P AU24

TXCBM_DPB3N AT29

TXCBP_DPB3P AR30

TXCCM_DPC3N AV13

TXCCP_DPC3P AU14

TXCDM_DPD3N AT19

TXCDP_DPD3P AU20

V2SYNC/GENLK_VSYNC AC29

VDD1DI AC33

VDD2DI/NC AG31

VSYNC AC38

Y/NC AD32

TS_A/NC

AL31

XO_IN

AW34

XO_IN2

AW35

SWAPLOCKA

AJ21

SWAPLOCKB

AK21

RV69 10K_0402_5%X76@RV69 10K_0402_5%X76@

1 2

RV236

10K_0402_5%

DIS@

RV236

10K_0402_5%

DIS@

RV96

4.7K_0402_5%

VENUS@

RV96

4.7K_0402_5%

VENUS@

1 2

CV93

0.1U_0402_10V7K

DIS@ CV93

0.1U_0402_10V7K

DIS@

CV91

10U_0603_6.3V6M

DIS@ CV91

10U_0603_6.3V6M

DIS@

LV16

BLM15BD121SN1D_0402

DIS@

LV16

BLM15BD121SN1D_0402

DIS@

1 2

RV237

8.45K_0402_1%

RV237

8.45K_0402_1%

RV238

4.75K_0402_1%

VENUS@

RV238

4.75K_0402_1%

VENUS@

RV70 10K_0402_5%@RV70 10K_0402_5%@

1 2

CV79

1U_0402_6.3V6K

VENUS@ CV79

1U_0402_6.3V6K

VENUS@

CV82

10U_0603_6.3V6M

DIS@ CV82

10U_0603_6.3V6M

DIS@

RV8110K_0402_5% @RV8110K_0402_5% @

1 2

CV76

1U_0402_6.3V6K

VENUS@ CV76

1U_0402_6.3V6K

VENUS@

RV250

0_0402_5%

RV250

0_0402_5%

1 2

CV329

0.68U_0402_10V

CV329

0.68U_0402_10V

RV67 10K_0402_5%X76@RV67 10K_0402_5%X76@

1 2

RV246

0_0402_5%@

RV246

0_0402_5%@

1 2

RV242

4.75K_0402_1%

VENUS@

RV242

4.75K_0402_1%

VENUS@

CV85

0.1U_0402_10V7K

VENUS@

CV85

0.1U_0402_10V7K

VENUS@

T89T89

RV239

10K_0402_1%

RV239

10K_0402_1%

RV7510K_0402_5% @RV7510K_0402_5% @

1 2

CV87

1U_0402_6.3V6K

DIS@ CV87

1U_0402_6.3V6K

DIS@

CV89

2200P_0402_50V7K

VENUS@

CV89

2200P_0402_50V7K

VENUS@

RV854.7K_0402_5%

DIS@

RV854.7K_0402_5%

DIS@

1 2

CV77

10U_0603_6.3V6M

VENUS@ CV77

10U_0603_6.3V6M

VENUS@

QV15A

DMN66D0LDW-7_SOT363-6

DIS@

QV15A

DMN66D0LDW-7_SOT363-6

DIS@

RV247

0_0402_5%@

RV247

0_0402_5%@

1 2

RV74

4.7K_0402_5%

DIS@

RV74

4.7K_0402_5%

DIS@

RV207 0_0402_5%

SUN@

RV207 0_0402_5%

SUN@

1 2

T87T87

RV248

0_0402_1%

RV248

0_0402_1%

1 2

T80T80

RV89 10K_0402_5%@RV89 10K_0402_5%@

1 2

RV68 10K_0402_5%@RV68 10K_0402_5%@

1 2

RV235

10K_0402_5%

RV235

10K_0402_5%

T79T79

CV81 0.1U_0402_10V7K

VENUS@

CV81 0.1U_0402_10V7K

VENUS@

QV14A

DMN66D0LDW-7_SOT363-6

DIS@

QV14A

DMN66D0LDW-7_SOT363-6

DIS@

QV15B

DMN66D0LDW-7_SOT363-6

DIS@

QV15B

DMN66D0LDW-7_SOT363-6

DIS@

RV7610K_0402_5% @RV7610K_0402_5% @

1 2

T78T78

T81T81

RV91

10K_0402_5%

DIS@

RV91

10K_0402_5%

DIS@

RP47

10K_8P4R_5%

RP47

10K_8P4R_5%

1 8

2 7

3 6

4 5

CV84

0.1U_0402_10V7K

DIS@ CV84

0.1U_0402_10V7K

DIS@

T91T91

RV241

8.45K_0402_1%

RV241

8.45K_0402_1%

LV13

BLM15BD121SN1D_0402

VENUS@

LV13

BLM15BD121SN1D_0402

VENUS@

1 2

RV252

0_0402_5%

RV252

0_0402_5%

1 2

UV14

EMC1402-2-ACZL-TR_MSOP8

VENUS@

UV14

EMC1402-2-ACZL-TR_MSOP8

VENUS@

VDD

ALERT# 6

THERM#

4GND 5

D+

D-

SCLK 8

SDATA 7

CV88

0.1U_0402_10V7K

DIS@ CV88

0.1U_0402_10V7K

DIS@

CV333

0.68U_0402_10V

CV333

0.68U_0402_10V

RV199

2.2K_0402_5%

RV199

2.2K_0402_5%

RV93 499_0402_1%

VENUS@

RV93 499_0402_1%

VENUS@

RV240

4.75K_0402_1%

VENUS@

RV240

4.75K_0402_1%

VENUS@

CV75

0.1U_0402_10V7K

VENUS@ CV75

0.1U_0402_10V7K

VENUS@

RV73

10K_0402_5%

RV73

10K_0402_5%

QV28

2N7002K_SOT23-3

QV28

2N7002K_SOT23-3

1 3

T90T90

CV95

10P_0402_50V8J

XTALDIS@

CV95

10P_0402_50V8J

XTALDIS@

LV12

BLM15BD121SN1D_0402

VENUS@

LV12

BLM15BD121SN1D_0402

VENUS@

1 2

D D

C C

B B

A A

PX_MODE=1 for Normal Operation

PX_MODE=0 for BACO mode to shut down power rails expcept VDDR3,PCIE_VDDC and 1.8V rail

Power seguence of Sun XT,Venus Pro,Venus XT

+3VGS

+VGA_CORE

+VDDCI(+VGA_PCIE)

+1.35V_MEM_GFX

+1.0VGS

+1.8VGS

<20ms

PX4.0 +VGA_CORE,VDDCI,+1.5VGS ON

PX4.0 +3VGS, +1.0VGS,+1.8VGS OFF

PX5.0 +3VGS,+VGA_CORE,VDDCI,+1.5VGV,+1.0VGS,+1.8VGS OFF

Note:

60mil

for PX5.0

60mil

+3VS TO +3VGS

+1.8VS TO +1.8VGS

+1.35VS_VGA TO +1.35V_MEM_GFX

Switch circuits in BACO desingns for Thames/Seymour only

55mA@1.0V, in BACO mode

SHORT DEFAULT

for PX4.0 and PX5.0

PXS_PWREN

PXS_PWREN#

PXS_PWREN<10,11,39,43,44>

+1.35VS_VGA +1.35V_MEM_GFX

+3VS +3VGS

+5VALW

+1.8VS +1.8VGS

+VGA_CORE+VGA_PCIE +BIF_VDDC

+3VGS

+3VALW

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

ATI_Venus Pro_M2_BACO POWER

50 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

ATI_Venus Pro_M2_BACO POWER

50 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

LA-9984P

1.0

ATI_Venus Pro_M2_BACO POWER

50 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

JP9

2MM

@JP9

2MM

2 1

CV101

10U_0603_6.3V6M

DIS@

CV101

10U_0603_6.3V6M

DIS@

RV109

100K_0402_5%

DIS@

RV109

100K_0402_5%

DIS@

RV234 0_0603_5%

SUN@

RV234 0_0603_5%

SUN@

1 2

CV103

0.1U_0603_25V7K

DIS@

CV103

0.1U_0603_25V7K

DIS@

J92MM

2 1

QV22

AP2301GN-HF_SOT23-3

DIS@QV22

AP2301GN-HF_SOT23-3

DIS@

3 1

QV24

2N7002K_SOT23-3

DIS@

QV24

2N7002K_SOT23-3

DIS@

RV103 0_0805_5%

VENUS@

RV103 0_0805_5%

VENUS@

1 2

CV97

22U_0805_6.3V6MDIS@

CV97

22U_0805_6.3V6MDIS@

CV102

1U_0603_10V6K

DIS@

CV102

1U_0603_10V6K

DIS@

JP8

2MM

@JP8

2MM

2 1

RV108

1K_0402_5%

DIS@

RV108

1K_0402_5%

DIS@

1 2

RV105

20K_0402_5%

RV105

20K_0402_5%

QV25

2N7002K_SOT23-3

DIS@

QV25

2N7002K_SOT23-3

DIS@

RV107

20K_0402_5%

DIS@

RV107

20K_0402_5%

DIS@

D D

C C

B B

A A

130mA

110mA

20mA

1.8V@300mA DPAB_VDD18)

(1.0V@220mA DPAB_VDD10)

1.8V@300mA DPCD_VDD18)

1.0V@220mA DPCD_VDD10)

1.8V@300mA DPEF_VDD18)

1.0V@240mA DPEF_VDD10)

(30mA)

(220mA)

(330mA)

Thames/Seymour Only

Do not install for Heathrow/Mars Pro

PS_0 Should be tied to GND on Thames/Seymour

(220mA)

(30mA)

(330mA)

20mil

20mA

10mil

20mil

0.95V@Venus

PS0:

PS1:

PS2:

PS3:

11001

11000

00000

11000

MLPS Bit AMD recommended setting

RV243=8.45K

RV237=NC

RV239=NC

RV241=NC

RV201=2K CV335=NC

RV238=4.75K CV329=NC

RV240=4.75K CV331=0.68u

RV242=4.75K CV333=NC

R_PU R_PD Cstrap

+DPCD_VDD18

+DPEF_VDD10

MECH#1

MECH#2

MECH#3

+DPAB_VDD18

+DPAB_VDD10

+DPEF_VDD18

+DPCD_VDD10

PS_0

+1.8VGS

+VGA_PCIE

+DPEF_VDD10

+VGA_PCIE

+1.8VGS

+DPAB_VDD18

+DPAB_VDD10

+DPAB_VDD18

+DPCD_VDD18

+DPEF_VDD18

+DPCD_VDD10

+DPCD_VDD18

+DPCD_VDD10

+DPEF_VDD10

+DPEF_VDD18

+DPEF_VDD10

+1.8VGS +DPEF_VDD18

+VGA_PCIE +DPCD_VDD10

+DPAB_VDD18

+DPAB_VDD10

+1.8VGS

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

1.0

ATI_Venus Pro_M2_PWR_GND

51 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

LA-9984P

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

1.0

ATI_Venus Pro_M2_PWR_GND

51 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

LA-9984P

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

1.0

ATI_Venus Pro_M2_PWR_GND

51 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

LA-9984P

CV110

10U_0603_6.3V6M

VENUS@ CV110

10U_0603_6.3V6M

VENUS@

CV121

1U_0402_6.3V6K

VENUS@ CV121

1U_0402_6.3V6K

VENUS@

CV112

1U_0402_6.3V6K

CV112

1U_0402_6.3V6K

T82 PADT82 PAD

GND

UV1F

216-0833000-A11-THAMES-XT-M2_FCBGA962~D

GND

UV1F

216-0833000-A11-THAMES-XT-M2_FCBGA962~D

PCIE_VSS#1

AB39

PCIE_VSS#10

J31

PCIE_VSS#11

J34

PCIE_VSS#12

K31

PCIE_VSS#13

K34

PCIE_VSS#14

K39

PCIE_VSS#15

L31

PCIE_VSS#16

L34

PCIE_VSS#17

M34

PCIE_VSS#18

M39

PCIE_VSS#19

N31

PCIE_VSS#2

E39

PCIE_VSS#20

N34

PCIE_VSS#21

P31

PCIE_VSS#22

P34

PCIE_VSS#23

P39

PCIE_VSS#24

R34

PCIE_VSS#25

T31

PCIE_VSS#26

T34

PCIE_VSS#27

T39

PCIE_VSS#28

U31

PCIE_VSS#29

U34

PCIE_VSS#3

F34

PCIE_VSS#30

V34

PCIE_VSS#31

V39

PCIE_VSS#32

W31

PCIE_VSS#33

W34

PCIE_VSS#34

Y34

PCIE_VSS#35

Y39

PCIE_VSS#4

F39

PCIE_VSS#5

G33

PCIE_VSS#6

G34

PCIE_VSS#7

H31

PCIE_VSS#8

H34

PCIE_VSS#9

H39

VSS_MECH#1 A39

VSS_MECH#2 AW1

VSS_MECH#3 AW39

GND#1 A3

GND#10 AA6

GND#98 F13

GND#100

F15

GND#101

F17

GND#102

F19

GND#103

F21

GND#104

F23

GND#105

F25

GND#106

F27

GND#107

F29

GND#108

F31

GND#11 AB12

GND#109

F33

GND#110

GND#111

GND#112

GND#113

GND#114

GND#115

GND#116

J27

GND#117

GND#118

GND#12 AB15

GND#119

K14

GND#120

GND#121

L11

GND#122

L17

GND#123

GND#124

L22

GND#125

L24

GND#126

GND#127

M17

GND#128

M22

GND#13 AB17

GND#129

M24

GND#130

N16

GND#131

N18

GND#132

GND#133

N21

GND#134

N23

GND#135

N26

GND#136

GND#137

R15

GND#138

R17

GND#14 AB20

GND#139

GND#140

R20

GND#141

R22

GND#142

R24

GND#143

R27

GND#144

GND#145

T11

GND#146

T13

GND#147

T16

GND#148

T18

GND#15 AB22

GND#149

T21

GND#150

T23

GND#151

T26

GND#153

U15

GND#154

U17

GND#155

GND#156

U20

GND#157

U22

GND#158

U24

GND#159

U27

GND#16 AB24

GND#160

GND#161

V11

GND#163

V16

GND#164

V18

GND#165

V21

GND#166

V23

GND#167

V26

GND#168

GND#169

GND#170

Y15

GND#17 AB27

GND#171

Y17

GND#172

Y20

GND#173

Y22

GND#174

Y24

GND#175

Y27

GND#18 AC11

GND#19 AC13

GND#2 A37

GND#20 AC16

GND#21 AC18

GND#22 AC2

GND#23 AC21

GND#24 AC23

GND#25 AC26

GND#26 AC28

GND#27 AC6

GND#28 AD15

GND#29 AD17

GND#3 AA16

GND#30 AD20

GND#31 AD22

GND#32 AD24

GND#33 AD27

GND#34 AD9

GND#35 AE2

GND#36 AE6

GND#37 AF10

GND#38 AF16

GND#39 AF18

GND#4 AA18

GND#40 AF21

GND#41 AG17

GND#42 AG2

GND#43 AG20

GND#44 AG22

GND#45 AG6

GND#46 AG9

GND#47 AH21

GND#48 AJ10

GND#5 AA2

GND#49 AJ11

GND#50 AJ2

GND#51 AJ28

GND#52 AJ6

GND#53 AK11

GND#54 AK31

GND#55 AK7

GND#56 AL11

GND#57 AL14

GND#58 AL17

GND#6 AA21

GND#59 AL2

GND#60 AL20

GND/PX_EN#61 AL21

GND#62 AL23

GND#63 AL26

GND#64 AL32

GND#65 AL6

GND#66 AL8

GND#67 AM11

GND#68 AM31

GND#7 AA23

GND#69 AM9

GND#70 AN11

GND#71 AN2

GND#72 AN30

GND#73 AN6

GND#74 AN8

GND#75 AP11

GND#76 AP7

GND#77 AP9

GND#78 AR5

GND#8 AA26

GND#79 B11

GND#80 B13

GND#81 B15

GND#82 B17

GND#83 B19

GND#84 B21

GND#85 B23

GND#86 B25

GND#87 B27

GND#9 AA28

GND#88 B29

GND#89 B31

GND#90 B33

GND#91 B7

GND#92 B9

GND#93 C1

GND#94 C39

GND#95 E35

GND#96 E5

GND#97 F11

GND#152

U13

GND#162

V13

RV119

0_0402_1%

@VENUS@

RV119

0_0402_1%

@VENUS@

1 2

CV111

10U_0603_6.3V6M

CV111

10U_0603_6.3V6M

RV121

0_0402_1%

@VENUS@

RV121

0_0402_1%

@VENUS@

1 2

CV115

1U_0402_6.3V6K

VENUS@ CV115

1U_0402_6.3V6K

VENUS@

T83 PADT83 PAD

RV201

VENUS@

2K_0402_1%

RV201

VENUS@

2K_0402_1%

RV126

0_0402_1%

@VENUS@

RV126

0_0402_1%

@VENUS@

1 2

CV117

10U_0603_6.3V6M

@CV117

10U_0603_6.3V6M

CV125

0.1U_0402_10V7K

@CV125

0.1U_0402_10V7K

DP PLL POWER

DP A/B POWER

DP C/D POWER

DP E/F POWER

UV1H

216-0833000-A11-THAMES-XT-M2_FCBGA962~D

DP PLL POWER

DP A/B POWER

DP C/D POWER

DP E/F POWER

UV1H

216-0833000-A11-THAMES-XT-M2_FCBGA962~D

DPAB_VDD18/DPA_PVDD AU28

DP_VSSR/DPA_PVSS AV27

DPAB/DPA_VDD10#1 AP31

DPAB/DPA_VDD10#2 AP32

DPAB/DPA_VDD18#1 AN24

DPAB/DPA_VDD18#2 AP24

DP/DPA_VSSR#1 AN27

DP/DPA_VSSR#2 AP27

DP/DPA_VSSR#3 AP28

DP/DPA_VSSR#4 AW24

DP/DPA_VSSR#5 AW26

DPAB_CALR AW28

DPAB_VDD18/DPB_PVDD AV29

DP_VSSR/DPB_PVSS AR28

DPAB/DPB_VDD10#1 AN33

DPAB/DPB_VDD10#2 AP33

DPAB/DPB_VDD18#1 AP25

DPAB/DPB_VDD18#2 AP26

DP/DPB_VSSR#1 AN29

DP/DPB_VSSR#2 AP29

DP/DPB_VSSR#3 AP30

DP/DPB_VSSR#4 AW30

DP/DPB_VSSR#5 AW32

DPCD_VDD18/DPC_PVDD AU18

DP_VSSR/DPC_PVSS AV17

DPCD/DPC_VDD10#1

AP13

DPCD/DPC_VDD10#2

AT13

DPCD/DPC_VDD18#1

AP20

DPCD/DPC_VDD18#2

AP21

DP/DPC_VSSR#1

AN17

DP/DPC_VSSR#2

AP16

DP/DPC_VSSR#3

AP17

DP/DPC_VSSR#4

AW14

DP/DPC_VSSR#5

AW16

DPCD_CALR

AW18

DPCD_VDD18/DPD_PVDD AV19

DP_VSSR/DPD_PVSS AR18

DPCD/DPD_VDD10#1

AP14

DPCD/DPD_VDD10#2

AP15

DPCD/DPD_VDD18#1

AP22

DPCD/DPD_VDD18#2

AP23

DP/DPD_VSSR#1

AN19

DP/DPD_VSSR#2

AP18

DP/DPD_VSSR#3

AP19

DP/DPD_VSSR#4

AW20

DP/DPD_VSSR#5

AW22

DPEF_VDD18/DPE_PVDD AM37

DP_VSSR/DPE_PVSS AN38

DPEF/DPE_VDD10#1

AL33

DPEF/DPE_VDD10#2

AM33

DPEF/DPE_VDD18#1

AH34

DPEF/DPE_VDD18#2

AJ34

DP/DPE_VSSR#1

AN34

DP/DPE_VSSR#2

AP39

DP/DPE_VSSR#3

AR39

DP/DPE_VSSR#4

AU37

DPEF_CALR

AM39

DPEF_VDD18/DPF_PVDD AL38

DP_VSSR/DPF_PVSS AM35

DPEF/DPF_VDD10#1

AK33

DPEF/DPF_VDD10#2

AK34

DPEF/DPF_VDD18#1

AF34

DPEF/DPF_VDD18#2

AG34

DP/DPF_VSSR#1

AF39

DP/DPF_VSSR#2

AH39

DP/DPF_VSSR#3

AK39

DP/DPF_VSSR#4

AL34

DP/DPF_VSSR#5

AM34

T84 PADT84 PAD

RV124

0_0402_1%

@VENUS@

RV124

0_0402_1%

@VENUS@

1 2

CV123

10U_0603_6.3V6M

@CV123

10U_0603_6.3V6M

CV109

1U_0402_6.3V6K

VENUS@ CV109

1U_0402_6.3V6K

VENUS@

CV335

0.68U_0402_10V

CV335

0.68U_0402_10V

RV122150_0402_1% DIS@ RV122150_0402_1% DIS@

CV114

0.1U_0402_10V7K

VENUS@ CV114

0.1U_0402_10V7K

VENUS@

CV118

1U_0402_6.3V6K

@CV118

1U_0402_6.3V6K

CV116

10U_0603_6.3V6M

VENUS@ CV116

10U_0603_6.3V6M

VENUS@

RV243

8.45K_0402_1%

VENUS@

RV243

8.45K_0402_1%

VENUS@

CV108

0.1U_0402_10V7K

VENUS@ CV108

0.1U_0402_10V7K

VENUS@

RV120

0_0402_1%

RV120

0_0402_1%

1 2

CV120

10U_0603_6.3V6M

VENUS@ CV120

10U_0603_6.3V6M

VENUS@

CV113

0.1U_0402_10V7K

CV113

0.1U_0402_10V7K

RV123

150_0402_1%

VENUS@

RV123

150_0402_1%

VENUS@

1 2

CV122

0.1U_0402_10V7K

VENUS@ CV122

0.1U_0402_10V7K

VENUS@

RV118

0_0402_1%

RV118

0_0402_1%

1 2

RV127

150_0402_1%

VENUS@

RV127

150_0402_1%

VENUS@

CV124

1U_0402_6.3V6K

@CV124

1U_0402_6.3V6K

RV125

4.7K_0402_5%

RV125

4.7K_0402_5%

CV119

0.1U_0402_10V7K

@CV119

0.1U_0402_10V7K

D D

C C

B B

A A

For GDDR5 MVDDQ = 1.35V

(M97, Broadway and Madison: 1.8V@150mA MPV18)

(1.8V@75mA SPV18)

(120mA SPV10)

(1.8V@110mA VDD_CT)

(1.8V@504mA PCIE_VDDR)

For non-BACO designs, connect BIF_VDDC to VDDC.

For BACO designs - see BACO reference schematics

(GDDR3/DDR3 1.12V@4A VDDCI)

For Madison, Park, Capilano, Robson, Seymour and Whistler, VDDCI and VDDC can share one common regulator

(GDDR5 1.12V@16A VDDCI)

VDDCI and VDDC should have seperate regulators with a merge option on PCB

55mA

(1.7)A

(50mA)

(60mA)

(150mA)

(50mA)

(100mA)

40mA

(440mA)

10mil

20mil

10mil

20mil

10mil

20mil

40mil

0.95V@Venus

(PCIe 2.0 => 1.8V@50mA PCIE_PVDD)

(SUN)(VENUS)

(PCIe 3.0 => 1.8V@80mA PCIE_PVDD)

(PCIe 2.0 => +0.95V@1920mA PCIE_VDDC)

(SUN)

(PCIe 3.0 => +0.95V@2.5A PCIE_VDDC)

(VENUS)

(20.5A)

ESD solution

+PCIE_PVDD

+VDDR4

+PCIE_VDDR

+MPV18

+SPV18

+SPV10

VCCSENSE_VGA

VDDCI_SEN

VSSSENSE_VGA

+PCIE_VDDR

VCCSENSE_VGA<44>

VDDCI_SEN<43>

VSSSENSE_VGA<44>

+1.8VGS

+VDDCI

+1.8VGS +VDDC_CT

+VGA_PCIE

+1.35V_MEM_GFX

+1.8VGS

+3VGS

+1.8VGS

+BIF_VDDC

+1.35V_MEM_GFX

+1.8VGS

+VGA_CORE+VDDCI

+BIF_VDDC

+VGA_CORE

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

1.0

ATI_Venus Pro_M2_Power

52 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

LA-9984P

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

1.0

ATI_Venus Pro_M2_Power

52 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

LA-9984P

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

1.0

ATI_Venus Pro_M2_Power

52 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

LA-9984P

LV25

BLM15BD121SN1D_0402

@LV25

BLM15BD121SN1D_0402

1 2

CV146

1U_0402_6.3V6K

DIS@ CV146

1U_0402_6.3V6K

DIS@

CV142

1U_0402_6.3V6K

DIS@ CV142

1U_0402_6.3V6K

DIS@

CV127

0.1U_0402_10V7K

@CV127

0.1U_0402_10V7K

CV217

0.1U_0402_10V7K

DIS@ CV217

0.1U_0402_10V7K

DIS@

CV151

10U_0603_6.3V6M

DIS@ CV151

10U_0603_6.3V6M

DIS@

CV207

1U_0402_6.3V6K

DIS@ CV207

1U_0402_6.3V6K

DIS@

CV322

10U_0603_6.3V6M

DIS@ CV322

10U_0603_6.3V6M

DIS@

RV244 0_0402_5%

1 2

CV194

0.1U_0402_10V7K

VENUS@ CV194

0.1U_0402_10V7K

VENUS@

CV206

1U_0402_6.3V6K

DIS@ CV206

1U_0402_6.3V6K

DIS@

CV200

10U_0603_6.3V6M

DIS@ CV200

10U_0603_6.3V6M

DIS@

LV21

MCK1608471YZF 0603

DIS@LV21

MCK1608471YZF 0603

DIS@

1 2

LV19

BLM15BD121SN1D_0402

DIS@ LV19

BLM15BD121SN1D_0402

DIS@

1 2

CV170

10U_0603_6.3V6M

DIS@ CV170

10U_0603_6.3V6M

DIS@

CV139

10U_0603_6.3V6M

DIS@ CV139

10U_0603_6.3V6M

DIS@

CV145

1U_0402_6.3V6K

DIS@ CV145

1U_0402_6.3V6K

DIS@

CV140

10U_0603_6.3V6M

DIS@ CV140

10U_0603_6.3V6M

DIS@

RV202

10_0402_1%

DIS@

RV202

10_0402_1%

DIS@

CV150

1U_0402_6.3V6K

DIS@ CV150

1U_0402_6.3V6K

DIS@

RV215

10_0402_1%

DIS@

RV215

10_0402_1%

DIS@

CV323

10U_0603_6.3V6M

DIS@ CV323

10U_0603_6.3V6M

DIS@

CV129

1U_0402_6.3V6K

@CV129

1U_0402_6.3V6K

CV197

10U_0603_6.3V6M

DIS@ CV197

10U_0603_6.3V6M

DIS@

CV213

10U_0603_6.3V6M

DIS@ CV213

10U_0603_6.3V6M

DIS@

CV128

1U_0402_6.3V6K

@CV128

1U_0402_6.3V6K

CV138

10U_0603_6.3V6M

DIS@ CV138

10U_0603_6.3V6M

DIS@

CV196

1U_0402_6.3V6K

DIS@ CV196

1U_0402_6.3V6K

DIS@

CV126

0.1U_0402_10V7K

@CV126

0.1U_0402_10V7K

CV215

10U_0603_6.3V6M

DIS@ CV215

10U_0603_6.3V6M

DIS@

LV26

BLM15BD121SN1D_0402

@LV26

BLM15BD121SN1D_0402

1 2

CV147

1U_0402_6.3V6K

DIS@ CV147

1U_0402_6.3V6K

DIS@

LV20

BLM15BD121SN1D_0402

VENUS@

LV20

BLM15BD121SN1D_0402

VENUS@

1 2

CV153

0.1U_0402_10V7K

DIS@ CV153

0.1U_0402_10V7K

DIS@

CV141

1U_0402_6.3V6K

DIS@ CV141

1U_0402_6.3V6K

DIS@

CV193

1U_0402_6.3V6K

VENUS@ CV193

1U_0402_6.3V6K

VENUS@

CV195

1U_0402_6.3V6K

DIS@ CV195

1U_0402_6.3V6K

DIS@

CV205

1U_0402_6.3V6K

DIS@ CV205

1U_0402_6.3V6K

DIS@

CV325

1U_0402_6.3V6K

DIS@ CV325

1U_0402_6.3V6K

DIS@

CV190

1U_0402_6.3V6K

DIS@ CV190

1U_0402_6.3V6K

DIS@

CV211

1U_0402_6.3V6K

DIS@ CV211

1U_0402_6.3V6K

DIS@

CV212

1U_0402_6.3V6K

DIS@ CV212

1U_0402_6.3V6K

DIS@

CV202

0.1U_0402_10V7K

DIS@ CV202

0.1U_0402_10V7K

DIS@

CV199

0.1U_0402_10V7K

DIS@ CV199

0.1U_0402_10V7K

DIS@

CV204

1U_0402_6.3V6K

DIS@ CV204

1U_0402_6.3V6K

DIS@

CV132

0.1U_0402_10V7K

DIS@ CV132

0.1U_0402_10V7K

DIS@

LV23

MCK1608471YZF 0603

DIS@LV23

MCK1608471YZF 0603

DIS@

1 2

CV137

10U_0603_6.3V6M

DIS@ CV137

10U_0603_6.3V6M

DIS@

CV171

1U_0402_6.3V6K

DIS@ CV171

1U_0402_6.3V6K

DIS@

LV18

MBK1608121YZF_0603

DIS@ LV18

MBK1608121YZF_0603

DIS@

CV208

1U_0402_6.3V6K

DIS@ CV208

1U_0402_6.3V6K

DIS@

CV154

0.1U_0402_10V7K

DIS@ CV154

0.1U_0402_10V7K

DIS@

POWER

PLL

PCIE

CORE

MEM I/O

I/O

LEVEL

TRANSLATION

ISOLATED

CORE I/O

VOLTAGE

SENESE

UV1E

216-0833000-A11-THAMES-XT-M2_FCBGA962~D

POWER

PLL

PCIE

CORE

MEM I/O

I/O

LEVEL

TRANSLATION

ISOLATED

CORE I/O

VOLTAGE

SENESE

UV1E

216-0833000-A11-THAMES-XT-M2_FCBGA962~D

PCIE_VDDR/PCIE_PVDD AB37

MPV18#1

MPV18#2

SPV18

AM10

PCIE_VDDC#1 G30

PCIE_VDDC#10 R28

PCIE_VDDC#11 T28

PCIE_VDDC#12 U28

PCIE_VDDC#2 G31

PCIE_VDDC#3 H29

PCIE_VDDC#4 H30

PCIE_VDDC#5 J29

PCIE_VDDC#6 J30

PCIE_VDDC#7 L28

PCIE_VDDC#8 M28

PCIE_VDDC#9 N28

PCIE_VDDR#1 AA31

PCIE_VDDR#2 AA32

PCIE_VDDR#3 AA33

PCIE_VDDR#4 AA34

PCIE_VDDR#5 V28

PCIE_VDDR#6 W29

PCIE_VDDR#7 W30

PCIE_VDDR#8 Y31

SPV10

AN9

SPVSS

AN10

VDDR1#1

AC7

VDDR1#10

G17

VDDR1#11

G20

VDDR1#12

G23

VDDR1#13

G26

VDDR1#14

G29

VDDR1#15

H10

VDDR1#16

VDDR1#17

VDDR1#18

K11

VDDR1#19

K13

VDDR1#2

AD11

VDDR1#20

VDDR1#21

L12

VDDR1#22

L16

VDDR1#23

L21

VDDR1#24

L23

VDDR1#25

L26

VDDR1#26

VDDR1#27

M11

VDDR1#28

N11

VDDR1#29

VDDR1#3

AF7

VDDR1#30

R11

VDDR1#31

U11

VDDR1#32

VDDR1#33

Y11

VDDR1#34

VDDR1#4

AG10

VDDR1#5

AJ7

VDDR1#6

AK8

VDDR1#7

AL9

VDDR1#8

G11

VDDR1#9

G14

VDDR3#1

AF23

VDDR3#2

AF24

VDDR3#3

AG23

VDDR3#4

AG24

VDDR4#4

AF13

VDDR4#5

AF15

VDDR4#7

AG13

VDDR4#8

AG15

VDDR4#1

AD12

VDDR4#2

AF11

VDDR4#3

AF12

VDDR4#6

AG11

NC_VDDRHA

M20

NC_VDDRHB

V12

NC_VSSRHA

M21

NC_VSSRHB

U12

VDD_CT#1

AF26

VDD_CT#2

AF27

VDD_CT#3

AG26

VDD_CT#4

AG27

VDDC#1 AA15

VDDC#9 AB21

VDDC#10 AB23

VDDC#11 AB26

VDDC#12 AB28

VDDCI#3 AC12

VDDCI#4 AC15

VDDC#13 AC17

VDDC#14 AC20

VDDC#15 AC22

VDDC#16 AC24

VDDC#2 AA17

VDDC#17 AC27

VDDCI#5 AD13

VDDCI#6 AD16

VDDC#18 AD18

VDDC#19 AD21

VDDC#20 AD23

VDDC#21 AD26

VDDC#22 AF17

VDDC#23 AF20

VDDC#24 AF22

VDDC#3 AA20

VDDC#25 AG16

VDDC#26 AG18

VDDC#27 AG21

VDDC#28 AH22

VDDCI#8 M16

VDDCI#9 M18

VDDCI#10 M23

VDDC#31 M26

VDDCI#12 N15

VDDCI#13 N17

VDDC#4 AA22

VDDCI#14 N20

VDDCI#15 N22

VDDC#32 N24

VDDC/BIF_VDDC#33 N27

VDDCI#17 R13

VDDCI#18 R16

VDDC#34 R18

VDDC#35 R21

VDDC#36 R23

VDDC#37 R26

VDDC#5 AA24

VDDCI#20 T15

VDDC#38 T17

VDDC#39 T20

VDDC#40 T22

VDDC#41 T24

VDDC/BIF_VDDC#42 T27

VDDC#43 U16

VDDC#44 U18

VDDC#45 U21

VDDC#46 U23

VDDC#6 AA27

VDDC#47 U26

VDDCI#21 V15

VDDC#48 V17

VDDC#49 V20

VDDC#50 V22

VDDC#51 V24

VDDC#52 V27

VDDC#53 Y16

VDDC#54 Y18

VDDC#55 Y21

VDDCI#2 AB13

VDDC#56 Y23

VDDC#57 Y26

VDDC#58 Y28

VDDC#7 AB16

VDDC#8 AB18

VDDCI#7 M15

VDDCI#11 N13

VDDCI#16 R12

VDDCI#19 T12

VDDCI#1 AA13

VDDCI#22 Y13

VDDC#29 AH27

VDDC#30 AH28

FB_VDDC

AF28

FB_VDDCI

AG28

FB_GND

AH29

CV155

0.1U_0402_10V7K

DIS@ CV155

0.1U_0402_10V7K

DIS@

CV210

1U_0402_6.3V6K

DIS@ CV210

1U_0402_6.3V6K

DIS@

CV174

0.1U_0402_10V7K

DIS@ CV174

0.1U_0402_10V7K

DIS@

CV130

1U_0402_6.3V6K

@CV130

1U_0402_6.3V6K

CV327

330U_D2_2.5V_R6M

ESD@

CV327

330U_D2_2.5V_R6M

ESD@

CV143

1U_0402_6.3V6K

DIS@ CV143

1U_0402_6.3V6K

DIS@

RV204

10_0402_1%DIS@

RV204

10_0402_1%DIS@

CV172

1U_0402_6.3V6K

DIS@ CV172

1U_0402_6.3V6K

DIS@

CV136

10U_0603_6.3V6M

DIS@ CV136

10U_0603_6.3V6M

DIS@

CV324

10U_0603_6.3V6M

DIS@ CV324

10U_0603_6.3V6M

DIS@

CV135

220U_B2_2.5VM_R35

CV135

220U_B2_2.5VM_R35

CV198

1U_0402_6.3V6K

DIS@ CV198

1U_0402_6.3V6K

DIS@

CV214

22U_0603_6.3V6M

DIS@ CV214

22U_0603_6.3V6M

DIS@

CV173

1U_0402_6.3V6K

DIS@ CV173

1U_0402_6.3V6K

DIS@

CV152

0.1U_0402_10V7K

DIS@ CV152

0.1U_0402_10V7K

DIS@

CV203

1U_0402_6.3V6K

DIS@ CV203

1U_0402_6.3V6K

DIS@

CV134

10U_0603_6.3V6M

DIS@ CV134

10U_0603_6.3V6M

DIS@

CV144

1U_0402_6.3V6K

DIS@ CV144

1U_0402_6.3V6K

DIS@

LV17

MBK1608121YZF_0603

@LV17

MBK1608121YZF_0603

CV149

1U_0402_6.3V6K

DIS@ CV149

1U_0402_6.3V6K

DIS@

CV188

1U_0402_6.3V6K

DIS@ CV188

1U_0402_6.3V6K

DIS@

CV216

1U_0402_6.3V6K

DIS@ CV216

1U_0402_6.3V6K

DIS@

CV148

1U_0402_6.3V6K

DIS@ CV148

1U_0402_6.3V6K

DIS@

CV133

1U_0402_6.3V6K

DIS@ CV133

1U_0402_6.3V6K

DIS@

CV131

10U_0603_6.3V6M

@CV131

10U_0603_6.3V6M

LV22

BLM15BD121SN1D_0402

DIS@LV22

BLM15BD121SN1D_0402

DIS@

1 2

RV245 0_0402_5%

1 2

CV189

1U_0402_6.3V6K

DIS@ CV189

1U_0402_6.3V6K

DIS@

CV201

1U_0402_6.3V6K

DIS@ CV201

1U_0402_6.3V6K

DIS@

CV209

1U_0402_6.3V6K

DIS@ CV209

1U_0402_6.3V6K

DIS@

CV187

10U_0603_6.3V6M

DIS@ CV187

10U_0603_6.3V6M

DIS@

CV156

0.1U_0402_10V7K

DIS@ CV156

0.1U_0402_10V7K

DIS@

D D

C C

B B

A A

route 50ohms single-ended/100ohms diff

and keep short

Debug only, for clock observation, if not needed, DNI

5mil 5mil

GDDR5 CMD Mapping Table

<0..31> <32..63> Memory

CMD12 CMD28 RAS#

CMD15 CMD31 CAS#

CMD5 CMD21 WE#

CMD0 CMD16 CS#

CMD8 CMD24 ABI#

CMD10 CMD26 A0_A10

CMD11 CMD27 A1_A9

CMD2 CMD18 A2_BA0

CMD1 CMD17 A3_BA3

CMD3 CMD19 A4_BA2

CMD4 CMD20 A5_BA1

CMD7 CMD23 A6_A11

CMD6 CMD22 A7_A8

CMD9 CMD25 A12_FRU

CMD14 CMD30 CKE#

CMD13 CMD29 RESET#

This basic topology should be used for DRAM_RST for DDR3/GDDR5.These

Capacitors and Resistor values are an example only. The Series R and

|| Cap values will depend on the DRAM load and will have to be

calculated for different Memory ,DRAM Load and board to pass Reset

Signal Spec.

Place all these components very close to GPU (Within

25mm) and keep all component close to each Other (within

5mm) except Rser2

+VDD_MEM15_REFSA

+VDD_MEM15_REFSB

+VDD_MEM15_REFDA

+VDD_MEM15_REFDB

CASA0#

CASA1#

CASB0#

CASB1#

CKEA0

CKEA1

CKEB0

CKEB1

CLKA0

CLKA0#

CLKA1

CLKA1#

CLKB0

CLKB0#

CLKB1

CLKB1#

CSA0#_0

CSA1#_0

CSB0#_0

CSB1#_0

DRAM_RST#_R

MAA0_8

MAA1_8

ADBIA0

ADBIA1

ADBIB0

ADBIB1

RASA0#

RASA1#

RASB0#

RASB1#

TESTEN

WEA0#

WEA1#

WEB0#

WEB1#

MAB0_8

MAB1_8

DQA0_22

DQA0_21

DQA0_20

DQA0_6

DQA0_7

DQA0_9

DQA0_8

DQA0_12

DQA0_4

DQA0_14

DQA0_13

DQA0_15

DQA0_11

DQA0_10

DQA0_5

DQA0_29

DQA0_28

DQA0_17

DQA0_25

DQA0_16

DQA1_4

DQA0_24

DQA0_27

DQA0_31

DQA0_23

DQA0_19

DQA0_30

DQA0_18

DQA0_26

DQA1_20

DQA1_6

DQA1_7

DQA1_11

DQA1_3

DQA1_14

DQA1_5

DQA1_10

DQA1_2

DQA1_13

DQA1_9

DQA1_1

DQA1_8

DQA1_12

DQA1_0

DQA1_31

DQA1_21

DQA1_27

DQA1_30

DQA1_26

DQA1_17

DQA1_29

DQA1_25

DQA1_19

DQA1_28

DQA1_24

DQA1_22

DQA1_18

DQA1_16

DQA1_23

DQA0_0

DQA0_2

DQA0_1

DQA0_3

DQA1_15

MAA1_6

MAA1_7

MAA1_5

MAA0_0

MAA0_1

MAA1_2

MAA1_3

MAA1_4

MAA0_2

MAA0_3

MAA0_4

MAA0_5

MAA0_6

MAA0_7

MAA1_0

MAA1_1

WCKA0B_0

WCKA0_1

WCKA0_0

WCKA0B_1

WCKA1_0

WCKA1B_0

WCKA1_1

WCKA1B_1

EDCA0_0

EDCA0_1

EDCA0_2

EDCA0_3

EDCA1_0

EDCA1_1

EDCA1_2

EDCA1_3

DDBIA0_0

DDBIA0_1

DDBIA0_2

DDBIA0_3

DDBIA1_0

DDBIA1_1

DDBIA1_2

DDBIA1_3

DQB0_22

DQB0_21

DQB0_20

DQB0_6

DQB0_7

DQB0_9

DQB0_8

DQB0_12

DQB0_4

DQB0_14

DQB0_13

DQB0_15

DQB0_11

DQB0_10

DQB0_5

DQB0_29

DQB0_28

DQB0_17

DQB0_25

DQB0_16

DQB1_4

DQB0_24

DQB0_27

DQB0_31

DQB0_23

DQB0_19

DQB0_30

DQB0_18

DQB0_26

DQB1_20

DQB1_6

DQB1_7

DQB1_11

DQB1_3

DQB1_14

DQB1_5

DQB1_10

DQB1_2

DQB1_13

DQB1_9

DQB1_1

DQB1_8

DQB1_12

DQB1_0

DQB1_31

DQB1_21

DQB1_27

DQB1_30

DQB1_26

DQB1_17

DQB1_29

DQB1_25

DQB1_19

DQB1_28

DQB1_24

DQB1_22

DQB1_18

DQB1_16

DQB1_23

DQB0_0

DQB0_2

DQB0_1

DQB0_3

DQB1_15

MAB1_6

MAB1_7

MAB1_5

MAB0_0

MAB0_1

MAB1_2

MAB1_3

MAB1_4

MAB0_2

MAB0_3

MAB0_4

MAB0_5

MAB0_6

MAB0_7

MAB1_0

MAB1_1

WCKB0B_0

WCKB0_1

WCKB0_0

WCKB0B_1

WCKB1_0

WCKB1B_0

WCKB1_1

WCKB1B_1

EDCB0_1

EDCB0_0

EDCB0_2

EDCB0_3

EDCB1_0

EDCB1_1

EDCB1_2

EDCB1_3

DDBIB0_0

DDBIB0_1

DDBIB0_2

DDBIB0_3

DDBIB1_0

DDBIB1_1

DDBIB1_2

DDBIB1_3

CLKA0

CLKA0#

CLKA1

CLKA1#

CLKB0

CLKB0#

CLKB1

CLKB1#

CLKB1 <57>

CLKB0 <56>

RASB0# <56>

CKEB0 <56>

CLKB1# <57>

CLKB0# <56>

CSB0#_0 <56>

WEB0# <56>

CASB0# <56>

CKEB1 <57>

CSB1#_0 <57>

RASB1# <57>

ADBIB1 <57>

ADBIB0 <56>

WEB1# <57>

CASB1# <57>

DRAM_RST#<54,55,56,57>

CLKA1 <55>

CLKA0 <54>

RASA0# <54>

CLKA1# <55>

CLKA0# <54>

CSA0#_0 <54>

WEA0# <54>

CASA0# <54>

CSA1#_0 <55>

RASA1# <55>

ADBIA1 <55>

ADBIA0 <54>

WEA1# <55>

CASA1# <55>

MAA0_8 <54>

MAA1_8 <55>

CKEA0 <54>

CKEA1 <55>

MAB0_8 <56>

MAB1_8 <57>

WCKA0_0 <54>

WCKA0B_0 <54>

WCKA0_1 <54>

WCKA0B_1 <54>

WCKA1_0 <55>

WCKA1B_0 <55>

WCKA1_1 <55>

WCKA1B_1 <55>

WCKB0_0 <56>

WCKB0B_0 <56>

WCKB0_1 <56>

WCKB0B_1 <56>

WCKB1_0 <57>

WCKB1B_0 <57>

WCKB1_1 <57>

WCKB1B_1 <57>

MAA0_1 <54>

MAA0_2 <54>

MAA0_6 <54>

MAA0_7 <54>

MAA0_0 <54>

MAA0_3 <54>

MAA0_4 <54>

MAA0_5 <54>

MAA1_1 <55>

MAA1_2 <55>

MAA1_6 <55>

MAA1_7 <55>

MAA1_0 <55>

MAA1_3 <55>

MAA1_4 <55>

MAA1_5 <55>

EDCA0_1 <54>

EDCA0_2 <54>

EDCA1_2 <55>

EDCA1_3 <55>

EDCA0_0 <54>

EDCA0_3 <54>

EDCA1_0 <55>

EDCA1_1 <55>

DDBIA0_1 <54>

DDBIA0_2 <54>

DDBIA1_2 <55>

DDBIA1_3 <55>

DDBIA0_0 <54>

DDBIA0_3 <54>

DDBIA1_0 <55>

DDBIA1_1 <55>

EDCB0_1 <56>

EDCB0_2 <56>

EDCB1_2 <57>

EDCB1_3 <57>

EDCB0_0 <56>

EDCB0_3 <56>

EDCB1_0 <57>

EDCB1_1 <57>

DDBIB0_1 <56>

DDBIB0_2 <56>

DDBIB1_2 <57>

DDBIB1_3 <57>

DDBIB0_0 <56>

DDBIB0_3 <56>

DDBIB1_0 <57>

DDBIB1_1 <57>

MAB0_1 <56>

MAB0_2 <56>

MAB0_6 <56>

MAB0_7 <56>

MAB0_0 <56>

MAB0_3 <56>

MAB0_4 <56>

MAB0_5 <56>

MAB1_1 <57>

MAB1_2 <57>

MAB1_6 <57>

MAB1_7 <57>

MAB1_0 <57>

MAB1_3 <57>

MAB1_4 <57>

MAB1_5 <57>

DQB0_0<56>

DQB0_1<56>

DQB0_2<56>

DQB0_3<56>

DQB0_4<56>

DQB0_5<56>

DQB0_6<56>

DQB0_7<56>

DQB0_8<56>

DQB0_9<56>

DQB0_10<56>

DQB0_11<56>

DQB0_12<56>

DQB0_13<56>

DQB0_14<56>

DQB0_15<56>

DQB0_16<56>

DQB0_17<56>

DQB0_18<56>

DQB0_19<56>

DQB0_20<56>

DQB0_21<56>

DQB0_22<56>

DQB0_23<56>

DQB0_24<56>

DQB0_25<56>

DQB0_26<56>

DQB0_27<56>

DQB0_28<56>

DQB0_29<56>

DQB0_30<56>

DQB0_31<56>

DQB1_16<57>

DQB1_17<57>

DQB1_18<57>

DQB1_19<57>

DQB1_20<57>

DQB1_21<57>

DQB1_22<57>

DQB1_23<57>

DQB1_24<57>

DQB1_25<57>

DQB1_26<57>

DQB1_27<57>

DQB1_28<57>

DQB1_29<57>

DQB1_30<57>

DQB1_31<57>

DQB1_0<57>

DQB1_1<57>

DQB1_2<57>

DQB1_3<57>

DQB1_4<57>

DQB1_5<57>

DQB1_6<57>

DQB1_7<57>

DQB1_8<57>

DQB1_9<57>

DQB1_10<57>

DQB1_11<57>

DQB1_12<57>

DQB1_13<57>

DQB1_14<57>

DQB1_15<57>

DQA0_16<54>

DQA0_17<54>

DQA0_18<54>

DQA0_19<54>

DQA0_20<54>

DQA0_21<54>

DQA0_22<54>

DQA0_23<54>

DQA0_24<54>

DQA0_25<54>

DQA0_26<54>

DQA0_27<54>

DQA0_28<54>

DQA0_29<54>

DQA0_30<54>

DQA0_31<54>

DQA1_16<55>

DQA1_17<55>

DQA1_18<55>

DQA1_19<55>

DQA1_20<55>

DQA1_21<55>

DQA1_22<55>

DQA1_23<55>

DQA1_24<55>

DQA1_25<55>

DQA1_26<55>

DQA1_27<55>

DQA1_28<55>

DQA1_29<55>

DQA1_30<55>

DQA1_31<55>

DQA1_0<55>

DQA1_1<55>

DQA1_2<55>

DQA1_3<55>

DQA1_4<55>

DQA1_5<55>

DQA1_6<55>

DQA1_7<55>

DQA1_8<55>

DQA1_9<55>

DQA1_10<55>

DQA1_11<55>

DQA1_12<55>

DQA1_13<55>

DQA1_14<55>

DQA1_15<55>

DQA0_0<54>

DQA0_1<54>

DQA0_2<54>

DQA0_3<54>

DQA0_4<54>

DQA0_5<54>

DQA0_6<54>

DQA0_7<54>

DQA0_8<54>

DQA0_9<54>

DQA0_10<54>

DQA0_11<54>

DQA0_12<54>

DQA0_13<54>

DQA0_14<54>

DQA0_15<54>

+1.35V_MEM_GFX +1.35V_MEM_GFX

+1.35V_MEM_GFX

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

1.0

ATI_Venus Pro_M2_MEM IF

53 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

LA-9984P

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

1.0

ATI_Venus Pro_M2_MEM IF

53 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

LA-9984P

Title

Size Document Number Rev

Date: Sheet of

Security Classification

Compal Secret Data

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

Issued Date Deciphered Date

1.0

ATI_Venus Pro_M2_MEM IF

53 57Wednesday, May 22, 2013

2013/05/17 2014/06/01

Compal Electronics, Inc.

LA-9984P

RV137

51.1_0402_1%

RV137

51.1_0402_1%

RV46120_0402_1% RV46120_0402_1%

RV142

40.2_0402_1%

DIS@

RV142

40.2_0402_1%

DIS@

RV136

51.1_0402_1%

RV136

51.1_0402_1%

CV220

0.1U_0402_10V7K

DIS@

CV220

0.1U_0402_10V7K

DIS@

RV149

100_0402_1%

DIS@

RV149

100_0402_1%

DIS@

RV133

5.11K_0402_1%

DIS@

RV133

5.11K_0402_1%

DIS@

1 2

MEMORY INTERFACE B

DDR2

GDDR5/GDDR3

DDR3

DDR2

GDDR3/GDDR5

DDR3

GDDR5

GDDR5/DDR2/GDDR3

UV1D

216-0833000-A11-THAMES-XT-M2_FCBGA962~D

MEMORY INTERFACE B

DDR2

GDDR5/GDDR3

DDR3

DDR2

GDDR3/GDDR5

DDR3

GDDR5

GDDR5/DDR2/GDDR3

UV1D

216-0833000-A11-THAMES-XT-M2_FCBGA962~D

DQB0_0/DQB_0

DQB0_1/DQB_1

DQB0_10/DQB_10

DQB0_11/DQB_11

DQB0_12/DQB_12

DQB0_13/DQB_13

DQB0_14/DQB_14

DQB0_15/DQB_15

DQB0_16/DQB_16

DQB0_17/DQB_17

DQB0_18/DQB_18

DQB0_19/DQB_19

DQB0_2/DQB_2

DQB0_20/DQB_20

DQB0_21/DQB_21

DQB0_22/DQB_22

DQB0_23/DQB_23

DQB0_24/DQB_24

DQB0_25/DQB_25

DQB0_26/DQB_26

DQB0_27/DQB_27

DQB0_28/DQB_28

DQB0_29/DQB_29

DQB0_3/DQB_3

DQB0_30/DQB_30

DQB0_31/DQB_31

DQB1_0/DQB_32

AA4

DQB1_1/DQB_33

AB6

DQB1_2/DQB_34

AB1

DQB1_3/DQB_35

AB3

DQB1_4/DQB_36

AD6

DQB1_5/DQB_37

AD1

DQB1_6/DQB_38

AD3

DQB1_7/DQB_39

AD5

DQB0_4/DQB_4

DQB1_8/DQB_40

AF1

DQB1_9/DQB_41

AF3

DQB1_10/DQB_42

AF6

DQB1_11/DQB_43

AG4

DQB1_12/DQB_44

AH5

DQB1_13/DQB_45

AH6

DQB1_14/DQB_46

AJ4

DQB1_15/DQB_47

AK3

DQB1_16/DQB_48

AF8

DQB1_17/DQB_49

AF9

DQB0_5/DQB_5

DQB1_18/DQB_50

AG8

DQB1_19/DQB_51

AG7

DQB1_20/DQB_52

AK9

DQB1_21/DQB_53

AL7

DQB1_22/DQB_54

AM8

DQB1_23/DQB_55

AM7

DQB1_24/DQB_56

AK1

DQB1_25/DQB_57

AL4

DQB1_26/DQB_58

AM6

DQB1_27/DQB_59

AM1

DQB0_6/DQB_6

DQB1_28/DQB_60

AN4

DQB1_29/DQB_61

AP3

DQB1_30/DQB_62

AP1

DQB1_31/DQB_63

AP5

DQB0_7/DQB_7

DQB0_8/DQB_8

DQB0_9/DQB_9

MVREFDB

Y12

MVREFSB

AA12

TESTEN

AD28

CASB0B W 10

CASB1B AA10

CKEB0 U10

CKEB1 AA11

CLKB0 L9

CLKB0B L8

CLKB1 AD8

CLKB1B AD7

CLKTESTA

AK10

CLKTESTB

AL10

CSB0B_0 P10

CSB0B_1 L10

CSB1B_0 AD10

CSB1B_1 AC10

WCKB0_0/DQMB_0 H3

WCKB0B_0/DQMB_1 H1

WCKB0_1/DQMB_2 T3

WCKB0B_1/DQMB_3 T5

WCKB1_0/DQMB_4 AE4

WCKB1B_0/DQMB_5 AF5

WCKB1_1/DQMB_6 AK6

WCKB1B_1/DQMB_7 AK5

DRAM_RST AH11

MAB0_0/MAB_0 P8

MAB0_1/MAB_1 T9

MAB1_2/MAB_10 AC8

MAB1_3/MAB_11 AC9

MAB1_4/MAB_12 AA7

MAB1_5/BA2 AA8

MAB1_6/BA0 Y8

MAB1_7/BA1 AA9

MAB0_2/MAB_2 P9

MAB0_3/MAB_3 N7

MAB0_4/MAB_4 N8

MAB0_5/MAB_5 N9

MAB0_6/MAB_6 U9

MAB0_7/MAB_7 U8

MAB1_0/MAB_8 Y9

MAB1_1/MAB_9 W9

ADBIB0/ODTB0 T7

ADBIB1/ODTB1 W7

RASB0B T10

RASB1B Y10

EDCB0_0/QSB_0/RDQSB_0 F6

EDCB0_1/QSB_1/RDQSB_1 K3

EDCB0_2/QSB_2/RDQSB_2 P3

EDCB0_3/QSB_3/RDQSB_3 V5

EDCB1_0/QSB_4/RDQSB_4 AB5

EDCB1_1/QSB_5/RDQSB_5 AH1

EDCB1_2/QSB_6/RDQSB_6 AJ9

EDCB1_3/QSB_7/RDQSB_7 AM5

DDBIB0_0/QSB_0B/WDQSB_0 G7

DDBIB0_1/QSB_1B/WDQSB_1 K1

DDBIB0_2/QSB_2B/WDQSB_2 P1

DDBIB0_3/QSB_3B/WDQSB_3 W4

DDBIB1_0/QSB_4B/WDQSB_4 AC4

DDBIB1_1/QSB_5B/WDQSB_5 AH3

DDBIB1_2/QSB_6B/WDQSB_6 AJ8

DDBIB1_3/QSB_7B/WDQSB_7 AM3

WEB0B N10

WEB1B AB11

MAB0_8 T8

MAB1_8 W 8

RV138

4.7K_0402_5%

RV138

4.7K_0402_5%

RV49120_0402_1% RV49120_0402_1%

MEMORY INTERFACE A

DDR2

GDDR3/GDDR5

DDR3

GDDR5/DDR2/GDDR3

DDR2

GDDR5/GDDR3

DDR3

GDDR5

UV1C

216-0833000-A11-THAMES-XT-M2_FCBGA962~D

MEMORY INTERFACE A

DDR2

GDDR3/GDDR5

DDR3

GDDR5/DDR2/GDDR3

DDR2

GDDR5/GDDR3

DDR3

GDDR5

UV1C

216-0833000-A11-THAMES-XT-M2_FCBGA962~D

DQA0_0/DQA_0

C37

DQA0_1/DQA_1

C35

DQA0_10/DQA_10

C30

DQA0_11/DQA_11

A30

DQA0_12/DQA_12

F28

DQA0_13/DQA_13

C28

DQA0_14/DQA_14

A28

DQA0_15/DQA_15

E28

DQA0_16/DQA_16

D27

DQA0_17/DQA_17

F26

DQA0_18/DQA_18

C26

DQA0_19/DQA_19

A26

DQA0_2/DQA_2

A35

DQA0_20/DQA_20

F24

DQA0_21/DQA_21

C24

DQA0_22/DQA_22

A24

DQA0_23/DQA_23

E24

DQA0_24/DQA_24

C22

DQA0_25/DQA_25

A22

DQA0_26/DQA_26

F22

DQA0_27/DQA_27

D21

DQA0_28/DQA_28

A20

DQA0_29/DQA_29

F20

DQA0_3/DQA_3

E34

DQA0_30/DQA_30

D19

DQA0_31/DQA_31

E18

DQA1_0/DQA_32

C18

DQA1_1/DQA_33

A18

DQA1_2/DQA_34

F18

DQA1_3/DQA_35

D17

DQA1_4/DQA_36

A16

DQA1_5/DQA_37

F16

DQA1_6/DQA_38

D15

DQA1_7/DQA_39

E14

DQA0_4/DQA_4

G32

DQA1_8/DQA_40

F14

DQA1_9/DQA_41

D13

DQA1_10/DQA_42

F12

DQA1_11/DQA_43

A12

DQA1_12/DQA_44

D11

DQA1_13/DQA_45

F10

DQA1_14/DQA_46

A10

DQA1_15/DQA_47

C10

DQA1_16/DQA_48

G13

DQA1_17/DQA_49

H13

DQA0_5/DQA_5

D33

DQA1_18/DQA_50

J13

DQA1_19/DQA_51

H11

DQA1_20/DQA_52

G10

DQA1_21/DQA_53

DQA1_22/DQA_54

DQA1_23/DQA_55

K10

DQA1_24/DQA_56

DQA1_25/DQA_57

DQA1_26/DQA_58

DQA1_27/DQA_59

DQA0_6/DQA_6

F32

DQA1_28/DQA_60

DQA1_29/DQA_61

DQA1_30/DQA_62

DQA1_31/DQA_63

DQA0_7/DQA_7

E32

DQA0_8/DQA_8

D31

DQA0_9/DQA_9

F30

MEM_CALRP1

M12

MVREFDA

L18

MVREFSA

L20

MEM_CALRN0

L27

MEM_CALRN1

N12

MEM_CALRN2

AG12

MEM_CALRP0

M27

MEM_CALRP2

AH12

CASA0B K20

CASA1B K17

CKEA0 K21

CKEA1 J20

CLKA0 H27

CLKA0B G27

CLKA1 J14

CLKA1B H14

CSA0B_0 K24

CSA0B_1 K27

CSA1B_0 M13

CSA1B_1 K16

WCKA0_0/DQMA_0 A32

WCKA0B_0/DQMA_1 C32

WCKA0_1/DQMA_2 D23

WCKA0B_1/DQMA_3 E22

WCKA1_0/DQMA_4 C14

WCKA1B_0/DQMA_5 A14

WCKA1_1/DQMA_6 E10

WCKA1B_1/DQMA_7 D9

MAA0_0/MAA_0 G24

MAA0_1/MAA_1 J23

MAA1_2/MAA_10 L13

MAA1_3/MAA_11 G16

MAA1_4/MAA_12 J16

MAA1_5/MAA_13_BA2 H16

MAA1_6/MAA_14_BA0 J17

MAA1_7/MAA_A15_BA1 H17

MAA0_2/MAA_2 H24

MAA0_3/MAA_3 J24

MAA0_4/MAA_4 H26

MAA0_5/MAA_5 J26

MAA0_6/MAA_6 H21

MAA0_7/MAA_7 G21

MAA1_0/MAA_8 H19

MAA1_1/MAA_9 H20

ADBIA0/ODTA0 J21

ADBIA1/ODTA1 G19

RASA0B K23

RASA1B K19

EDCA0_0/QSA_0/RDQSA_0 C34

EDCA0_1/QSA_1/RDQSA_1 D29

EDCA0_2/QSA_2/RDQSA_2 D25

EDCA0_3/QSA_3/RDQSA_3 E20

EDCA1_0/QSA_4/RDQSA_4 E16

EDCA1_1/QSA_5/RDQSA_5 E12

EDCA1_2/QSA_6/RDQSA_6 J10

EDCA1_3/QSA_7/RDQSA_7 D7

MAA0_8 H23

MAA1_8 J19

DDBIA0_0/QSA_0B/WDQSA_0 A34

DDBIA0_1/QSA_1B/WDQSA_1 E30

DDBIA0_2/QSA_2B/WDQSA_2 E26

DDBIA0_3/QSA_3B/WDQSA_3 C20

DDBIA1_0/QSA_4B/WDQSA_4 C16

DDBIA1_1/QSA_5B/WDQSA_5 C12

DDBIA1_2/QSA_6B/WDQSA_6 J11

DDBIA1_3/QSA_7B/WDQSA_7 F8

WEA0B K26

WEA1B L15

CV224

0.1U_0402_10V7K

DIS@

CV224

0.1U_0402_10V7K

DIS@

CV222

120P_0402_50V9

DIS@

CV222

120P_0402_50V9

DIS@

RV47120_0402_1% RV47120_0402_1%

RV140

40.2_0402_1%

DIS@

RV140

40.2_0402_1%

DIS@

RV45120_0402_1% RV45120_0402_1%

RV147

100_0402_1%

DIS@

RV147

100_0402_1%

DIS@

RV143

51.1_0402_1%

DIS@

RV143

51.1_0402_1%

DIS@

1 2

RV42120_0402_1% RV42120_0402_1%

CV221

0.1U_0402_10V7K

DIS@

CV221

0.1U_0402_10V7K

DIS@

RV144

10_0402_1%

DIS@

RV144

10_0402_1%

DIS@

1 2

RV141

40.2_0402_1%

DIS@

RV141

40.2_0402_1%

DIS@

CV219

0.1U_0402_10V7K

CV219

0.1U_0402_10V7K

RV139

40.2_0402_1%

DIS@

RV139

40.2_0402_1%

DIS@

RV146

100_0402_1%

DIS@

RV146

100_0402_1%

DIS@

RV148

100_0402_1%

DIS@

RV148

100_0402_1%

DIS@

RV48120_0402_1% RV48120_0402_1%

RV43120_0402_1% RV43120_0402_1%

CV223

0.1U_0402_10V7K

DIS@

CV223

0.1U_0402_10V7K

DIS@

RV145

4.99K_0402_1%

DIS@

RV145

4.99K_0402_1%

DIS@

1 2

RV44120_0402_1% RV44120_0402_1%

RV206 DIS@ 120_0402_1%RV206 DIS@ 120_0402_1%

1 2

CV218

0.1U_0402_10V7K

CV218

0.1U_0402_10V7K

D D

C C

B B

A A

Memory Partition A - Lower 16 bits

64X32 GDDR5

NORMAL

DELL CONFIDENTIAL/PROPRIETARY

MIRROR

PROPRIETARY NOTE:

THIS SHEET OF ENGINEERING DRAWING AND SPECIFICATIONS CONTAINS CONFIDENTIAL

TRADE SECRET AND OTHER PROPRIETARY INFORMATION OF DELL INC. ("DELL") THIS DOCUMENT MAY NOT

BE TRANSFERRED OR COPIED WITHOUT THE EXPRESS WRITTEN AUTHORIZATION OF DELL. IN ADDITION,

NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS WAY BE USED BY OR DISCLOSED TO ANY THIRD

PARTY WITHOUT DELL'S EXPRESS WRITTEN CONSENT.

A_1

A_3

A_2

A_0

CKEA0

CLKA0#

CLKA0

RASA0#

CSA0#_0

CASA0#

WEA0#

VREFD1_1

VREFC1

DRAM_RST#

CKEA0

DRAM_RST#

ADBIA0

CLKA0#

CLKA0

MAA0_0

MAA0_1

MAA0_2

MAA0_3

MAA0_4

MAA0_6

MAA0_5

MAA0_7

MAA0_8

EDCA0_3

EDCA0_1

DDBIA0_1

DDBIA0_3

WCKA0B_0

WCKA0_0

WCKA0_1

WCKA0B_1

WCKA0_1

WCKA0_0

WCKA0B_0

WCKA0B_1

VREFD1_2

DQA0_8

DQA0_9

DQA0_10

DQA0_14

DQA0_11

DQA0_15

DQA0_12

DQA0_13

MAA0_0

MAA0_1

MAA0_3

MAA0_2

MAA0_5

MAA0_4

MAA0_6

MAA0_7

VREFD1_2VREFC1

EDCA0_0

EDCA0_2

RASA0#

CASA0#

CSA0#_0

WEA0#

VREFD2_1

VREFD2_2

VREFC2

VREFC2 VREFD2_2

ADBIA0

DDBIA0_2

DDBIA0_0

DQA0_25

DQA0_24

DQA0_26

DQA0_27

DQA0_28

DQA0_31

DQA0_29

DQA0_30

DQA0_23

DQA0_22

DQA0_21

DQA0_16

DQA0_18

DQA0_17

DQA0_19

DQA0_20

DQA0_4

DQA0_6

DQA0_7

DQA0_5

DQA0_3

DQA0_2

DQA0_0

DQA0_1

CLKA0#<53>

CLKA0<53>

CKEA0<53>

ADBIA0<53>

RASA0#<53>

CSA0#_0<53>

CASA0#<53>

WEA0#<53>

WCKA0B_0<53>

WCKA0_0<53>

WCKA0B_1<53>

WCKA0_1<53>

DRAM_RST#<53,55,56,57>

EDCA0_1<53>

EDCA0_3<53>

DDBIA0_1<53>

DDBIA0_3<53>

EDCA0_2<53>

EDCA0_0<53>

DDBIA0_2<53>

DDBIA0_0<53>

MAA0_8<53>

MAA0_7<53>

MAA0_6<53>

MAA0_5<53>

MAA0_4<53>

MAA0_3<53>

MAA0_2<53>

MAA0_1<53>

MAA0_0<53>

DQA0_13 <53>

DQA0_12 <53>

DQA0_15 <53>

DQA0_14 <53>

DQA0_11 <53>

DQA0_10 <53>

DQA0_8 <53>

DQA0_9 <53>

DQA0_29 <53>

DQA0_31 <53>

DQA0_24 <53>

DQA0_25 <53>

DQA0_30 <53>

DQA0_28 <53>

DQA0_27 <53>

DQA0_26 <53>

DQA0_17 <53>

DQA0_18 <53>

DQA0_20 <53>

DQA0_23 <53>

DQA0_19 <53>

DQA0_16 <53>

DQA0_21 <53>

DQA0_22 <53>

DQA0_2 <53>

DQA0_1 <53>

DQA0_4 <53>

DQA0_6 <53>

DQA0_0 <53>

DQA0_3 <53>

DQA0_5 <53>

DQA0_7 <53>

+1.35V_MEM_GFX

+1.35V_MEM_GFX+1.35V_MEM_GFX

+1.35V_MEM_GFX

+1.35V_MEM_GFX +1.35V_MEM_GFX

+1.35V_MEM_GFX

Title

Size Document Number Rev

Date: Sheet of

LA-9984P

1.0

VRAM_A Lower_UV4,UV5

54 57Wednesday, May 22, 2013

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

LA-9984P

1.0

VRAM_A Lower_UV4,UV5

54 57Wednesday, May 22, 2013

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

LA-9984P

1.0

VRAM_A Lower_UV4,UV5

54 57Wednesday, May 22, 2013

Compal Electronics, Inc.

CV61

0.1U_0402_10V7K

DIS@CV61

0.1U_0402_10V7K

DIS@

CV42

10U_0603_6.3V6M

DIS@CV42

10U_0603_6.3V6M

DIS@

CV373

1U_0402_6.3V6K

DIS@CV373

1U_0402_6.3V6K

DIS@

RV36

5.49K_0402_1%

DIS@RV36

5.49K_0402_1%

DIS@

RV185

2.37K_0402_1%

DIS@RV185

2.37K_0402_1%

DIS@

RV29

5.49K_0402_1%

DIS@RV29

5.49K_0402_1%

DIS@

CV69

0.1U_0402_10V7K

DIS@CV69

0.1U_0402_10V7K

DIS@

CV397

1U_0402_6.3V6K

DIS@CV397

1U_0402_6.3V6K

DIS@

CV400

1U_0402_6.3V6K

DIS@CV400

1U_0402_6.3V6K

DIS@

170-BALL

SGRAM GDDR5

MF=0 MF=1 MF=0MF=1

UV4

K4G20325FC-HC05_FBGA170~D

DIS@

170-BALL

SGRAM GDDR5

MF=0 MF=1 MF=0MF=1

UV4

K4G20325FC-HC05_FBGA170~D

DIS@

WE# CS#

L12

CS# WE#

G12

CAS# RAS#

RAS# CAS#

CKE#

J12

CK#

J11

VPP/NC

EDC0 EDC3

EDC1 EDC2

C13

DQ24 DQ0 A4

DQ25 DQ1 A2

DQ26 DQ2 B4

DQ27 DQ3 B2

DQ28 DQ4 E4

DQ29 DQ5 E2

DQ30 DQ6 F4

DQ31 DQ7 F2

VSSQ E1

VSS

T10

VSS

L10

VSS

P10

VREFD

A10

VDD

D11 VDD

R10

VDDQ B1

VDDQ D1

VDDQ F1

VDDQ M1

VREFD

U10

VDDQ T1

J13

RESET#

WCK01 WCK23

WCK23# WCK01#

WCK23 WCK01

VSSQ A1

VSSQ C1

VSSQ N1

VSSQ R1

WCK01# WCK23#

VSSQ U1

VPP/NC

VDDQ G2

VSSQ H2

VSSQ K2

VDDQ L2

VDDQ B3

VSSQ A3

VSS

G10

VDD

C10

ABI#

VDD

VSS

D10

VDD

DQ17 DQ9 A13

DQ18 DQ10 B11

DQ19 DQ11 B13

DQ20 DQ12 E11

DQ21 DQ13 E13

DQ22 DQ14 F11

DQ23 DQ15 F13

DQ16 DQ8 A11

EDC2 EDC1

R13

BA2/A4 BA0/A2

K11

VDD

L4 VDD

G4 VDD

L1 VDD

VSS

B10 VSS

T5 VSS

L5 VSS

G5 VSS

B5 VSS

K1 VSS

VDDQ P1

BA3/A3 BA1/A5

H10

BA0/A2 BA2/A4

H11

BA1/A5 BA3/A3

K10

VDDQ D3

VDDQ F3

VDDQ H3

VDDQ K3

VDDQ M3

VDDQ P3

VDDQ T3

VDDQ E5

VDDQ N5

VDDQ E10

VDDQ N10

VDDQ B12

VDDQ D12

VDDQ F12

VDDQ H12

VDDQ K12

VDDQ M12

VDDQ P12

VDDQ T12

VDDQ G13

VDDQ L13

VDDQ B14

VDDQ D14

VDDQ F14

VDDQ M14

VDDQ P14

VSSQ C3

VSSQ E3

VSSQ N3

VSSQ R3

VSSQ U3

VSSQ C4

VSSQ R4

VSSQ F5

VSSQ M5

VSSQ F10

VSSQ M10

VSSQ C11

VSSQ R11

VSSQ A12

VSSQ C12

VSSQ E12

VSSQ N12

VSSQ R12

VSSQ U12

VSSQ H13

VSSQ K13

VSSQ A14

VSSQ C14

VSSQ E14

VSSQ N14

VSSQ R14

VSSQ U14

VDDQ T14

VDD

G11

VDD

L11

VDD

P11

VDD

G14

VDD

L14

VSS

H14

VSS

K14

DQ8 DQ16 U11

DQ9 DQ17 U13

DQ10 DQ18 T11

DQ11 DQ19 T13

DQ12 DQ20 N11

DQ13 DQ21 N13

DQ14 DQ22 M11

DQ15 DQ23 M13

DQ0 DQ24 U4

DQ1 DQ25 U2

DQ2 DQ26 T4

DQ3 DQ27 T2

DQ4 DQ28 N4

DQ5 DQ29 N2

DQ6 DQ30 M4

DQ7 DQ31 M2

EDC3 EDC0

DBI0# DBI3#

DBI1# DBI2#

D13

DBI2# DBI1#

P13

DBI3# DBI0#

VREFC

J14

SEN

J10 MF

A8/A7 A10/A0

A9/A1 A11/A6

A10/A0 A8/A7

A11/A6 A9/A1

A12/RFU/NC

CV60

0.1U_0402_10V7K

DIS@CV60

0.1U_0402_10V7K

DIS@

RV186

5.49K_0402_1%

DIS@RV186

5.49K_0402_1%

DIS@

CV374

1U_0402_6.3V6K

DIS@CV374

1U_0402_6.3V6K

DIS@

CV70

0.1U_0402_10V7K

DIS@CV70

0.1U_0402_10V7K

DIS@

CV380

1U_0402_6.3V6K

DIS@CV380

1U_0402_6.3V6K

DIS@

CV399

1U_0402_6.3V6K

DIS@CV399

1U_0402_6.3V6K

DIS@

CV72

0.1U_0402_10V7K

DIS@CV72

0.1U_0402_10V7K

DIS@

CV378

0.1U_0402_10V7K

DIS@CV378

0.1U_0402_10V7K

DIS@

CV71

0.1U_0402_10V7K

DIS@CV71

0.1U_0402_10V7K

DIS@

170-BALL

SGRAM GDDR5

MF=0 MF=1 MF=0MF=1

UV5

K4G20325FC-HC05_FBGA170~D

DIS@

170-BALL

SGRAM GDDR5

MF=0 MF=1 MF=0MF=1

UV5

K4G20325FC-HC05_FBGA170~D

DIS@

WE# CS#

L12

CS# WE#

G12

CAS# RAS#

RAS# CAS#

CKE#

J12

CK#

J11

VPP/NC

EDC0 EDC3

EDC1 EDC2

C13

DQ24 DQ0 A4

DQ25 DQ1 A2

DQ26 DQ2 B4

DQ27 DQ3 B2

DQ28 DQ4 E4

DQ29 DQ5 E2

DQ30 DQ6 F4

DQ31 DQ7 F2

VSSQ E1

VSS

T10

VSS

L10

VSS

P10

VREFD

A10

VDD

D11 VDD

R10

VDDQ B1

VDDQ D1

VDDQ F1

VDDQ M1

VREFD

U10

VDDQ T1

J13

RESET#

WCK01 WCK23

WCK23# WCK01#

WCK23 WCK01

VSSQ A1

VSSQ C1

VSSQ N1

VSSQ R1

WCK01# WCK23#

VSSQ U1

VPP/NC

VDDQ G2

VSSQ H2

VSSQ K2

VDDQ L2

VDDQ B3

VSSQ A3

VSS

G10

VDD

C10

ABI#

VDD

VSS

D10

VDD

DQ17 DQ9 A13

DQ18 DQ10 B11

DQ19 DQ11 B13

DQ20 DQ12 E11

DQ21 DQ13 E13

DQ22 DQ14 F11

DQ23 DQ15 F13

DQ16 DQ8 A11

EDC2 EDC1

R13

BA2/A4 BA0/A2

K11

VDD

L4 VDD

G4 VDD

L1 VDD

VSS

B10 VSS

T5 VSS

L5 VSS

G5 VSS

B5 VSS

K1 VSS

VDDQ P1

BA3/A3 BA1/A5

H10

BA0/A2 BA2/A4

H11

BA1/A5 BA3/A3

K10

VDDQ D3

VDDQ F3

VDDQ H3

VDDQ K3

VDDQ M3

VDDQ P3

VDDQ T3

VDDQ E5

VDDQ N5

VDDQ E10

VDDQ N10

VDDQ B12

VDDQ D12

VDDQ F12

VDDQ H12

VDDQ K12

VDDQ M12

VDDQ P12

VDDQ T12

VDDQ G13

VDDQ L13

VDDQ B14

VDDQ D14

VDDQ F14

VDDQ M14

VDDQ P14

VSSQ C3

VSSQ E3

VSSQ N3

VSSQ R3

VSSQ U3

VSSQ C4

VSSQ R4

VSSQ F5

VSSQ M5

VSSQ F10

VSSQ M10

VSSQ C11

VSSQ R11

VSSQ A12

VSSQ C12

VSSQ E12

VSSQ N12

VSSQ R12

VSSQ U12

VSSQ H13

VSSQ K13

VSSQ A14

VSSQ C14

VSSQ E14

VSSQ N14

VSSQ R14

VSSQ U14

VDDQ T14

VDD

G11

VDD

L11

VDD

P11

VDD

G14

VDD

L14

VSS

H14

VSS

K14

DQ8 DQ16 U11

DQ9 DQ17 U13

DQ10 DQ18 T11

DQ11 DQ19 T13

DQ12 DQ20 N11

DQ13 DQ21 N13

DQ14 DQ22 M11

DQ15 DQ23 M13

DQ0 DQ24 U4

DQ1 DQ25 U2

DQ2 DQ26 T4

DQ3 DQ27 T2

DQ4 DQ28 N4

DQ5 DQ29 N2

DQ6 DQ30 M4

DQ7 DQ31 M2

EDC3 EDC0

DBI0# DBI3#

DBI1# DBI2#

D13

DBI2# DBI1#

P13

DBI3# DBI0#

VREFC

J14

SEN

J10 MF

A8/A7 A10/A0

A9/A1 A11/A6

A10/A0 A8/A7

A11/A6 A9/A1

A12/RFU/NC

RV181

5.49K_0402_1%

DIS@RV181

5.49K_0402_1%

DIS@

CV395

1U_0402_6.3V6K

DIS@CV395

1U_0402_6.3V6K

DIS@

CV396

1U_0402_6.3V6K

DIS@CV396

1U_0402_6.3V6K

DIS@

CV393

1U_0402_6.3V6K

DIS@CV393

1U_0402_6.3V6K

DIS@

CV330

1U_0402_6.3V6K

DIS@CV330

1U_0402_6.3V6K

DIS@

CV14

1U_0402_6.3V6K

DIS@

CV14

1U_0402_6.3V6K

DIS@

CV9

1U_0402_6.3V6K

DIS@

CV9

1U_0402_6.3V6K

DIS@

CV372

1U_0402_6.3V6K

DIS@CV372

1U_0402_6.3V6K

DIS@

CV328

1U_0402_6.3V6K

DIS@CV328

1U_0402_6.3V6K

DIS@

RV37

2.37K_0402_1%

DIS@RV37

2.37K_0402_1%

DIS@

RV183

2.37K_0402_1%

DIS@RV183

2.37K_0402_1%

DIS@

CV15

1U_0402_6.3V6K

DIS@

CV15

1U_0402_6.3V6K

DIS@

CV73

0.1U_0402_10V7K

DIS@CV73

0.1U_0402_10V7K

DIS@

CV16

0.1U_0402_10V7K

DIS@CV16

0.1U_0402_10V7K

DIS@

CV41

10U_0603_6.3V6M

DIS@CV41

10U_0603_6.3V6M

DIS@

CV398

1U_0402_6.3V6K

DIS@CV398

1U_0402_6.3V6K

DIS@

CV17

0.1U_0402_10V7K

DIS@CV17

0.1U_0402_10V7K

DIS@

CV394

1U_0402_6.3V6K

DIS@CV394

1U_0402_6.3V6K

DIS@

RV184

5.49K_0402_1%

DIS@RV184

5.49K_0402_1%

DIS@

CV8

1U_0402_6.3V6K

DIS@

CV8

1U_0402_6.3V6K

DIS@

RV28

2.37K_0402_1%

DIS@RV28

2.37K_0402_1%

DIS@

RV26 121_0402_1%DIS@ RV26 121_0402_1%DIS@

1 2

RV34

5.49K_0402_1%

DIS@RV34

5.49K_0402_1%

DIS@

CV375

0.1U_0402_10V7K

DIS@CV375

0.1U_0402_10V7K

DIS@

RV35

2.37K_0402_1%

DIS@RV35

2.37K_0402_1%

DIS@

RV25

121_0402_1%

DIS@ RV25

121_0402_1%

DIS@

1 2

RV38

2.37K_0402_1%

DIS@RV38

2.37K_0402_1%

DIS@

CV59

0.1U_0402_10V7K

DIS@

CV59

0.1U_0402_10V7K

DIS@

CV388

1U_0402_6.3V6K

DIS@CV388

1U_0402_6.3V6K

DIS@

CV387

1U_0402_6.3V6K

DIS@CV387

1U_0402_6.3V6K

DIS@

D D

C C

B B

A A

Memory Partition A - Upper 16 bits

MIRROR

DELL CONFIDENTIAL/PROPRIETARY

NORMAL

PROPRIETARY NOTE:

THIS SHEET OF ENGINEERING DRAWING AND SPECIFICATIONS CONTAINS CONFIDENTIAL

TRADE SECRET AND OTHER PROPRIETARY INFORMATION OF DELL INC. ("DELL") THIS DOCUMENT MAY NOT

BE TRANSFERRED OR COPIED WITHOUT THE EXPRESS WRITTEN AUTHORIZATION OF DELL. IN ADDITION,

NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS WAY BE USED BY OR DISCLOSED TO ANY THIRD

PARTY WITHOUT DELL'S EXPRESS WRITTEN CONSENT.

A_2

A_0

A_1

A_3

CSA1#_0

MAA1_3

CKEA1

ADBIA1

MAA1_6

MAA1_2

CLKA1#

CLKA1

WEA1#

MAA1_7

DRAM_RST#

RASA1#

MAA1_8

CKEA1

DRAM_RST#

ADBIA1

CASA1#

CLKA1#

CLKA1

MAA1_1

MAA1_8

MAA1_0

MAA1_4

MAA1_5

DDBIA1_0

DDBIA1_2

WCKA1_0

WCKA1B_0

WCKA1_1

WCKA1B_1

DQA1_5

DQA1_7

DQA1_6

DQA1_3

DQA1_4

DQA1_2

DQA1_1

DQA1_0

DQA1_21

DQA1_22

DQA1_23

DQA1_20

DQA1_17

DQA1_16

DQA1_18

DQA1_19

DQA1_25

DQA1_27

DQA1_26

DQA1_24

DQA1_28

DQA1_30

DQA1_29

DQA1_31

DQA1_9

DQA1_8

DQA1_10

DQA1_11

DQA1_15

DQA1_14

DQA1_13

DQA1_12

MAA1_7

MAA1_6

MAA1_5

MAA1_4

MAA1_3

MAA1_2

MAA1_1

MAA1_0

EDCA1_2

EDCA1_0

EDCA1_1

EDCA1_3

DDBIA1_1

DDBIA1_3

CASA1#

RASA1#

VREFD3_1

VREFD3_2 VREFC3

VREFD3_2

VREFC3

WCKA1B_0

WCKA1_0

WCKA1_1

WCKA1B_1

CSA1#_0

WEA1#

VREFD4_1

VREFD4_2

VREFC4

VREFC4VREFD4_2

CLKA1#<53>

CLKA1<53>

CKEA1<53>

ADBIA1<53>

WCKA1_0<53>

CASA1#<53>

WEA1#<53>

RASA1#<53>

CSA1#_0<53>

WCKA1B_1<53>

WCKA1_1<53>

WCKA1B_0<53>

DQA1_18 <53>

DQA1_16 <53>

DQA1_22 <53>

DQA1_21 <53>

DQA1_19 <53>

DQA1_17 <53>

DQA1_20 <53>

DQA1_23 <53>

EDCA1_2<53>

EDCA1_0<53>

DDBIA1_2<53>

DDBIA1_0<53>

MAA1_8<53>

MAA1_0<53>

MAA1_1<53>

MAA1_3<53>

MAA1_2<53>

MAA1_5<53>

MAA1_4<53>

MAA1_6<53>

MAA1_7<53>

EDCA1_1<53>

EDCA1_3<53>

DDBIA1_1<53>

DDBIA1_3<53>

DRAM_RST#<53,54,56,57>

DQA1_1 <53>

DQA1_2 <53>

DQA1_7 <53>

DQA1_5 <53>

DQA1_0 <53>

DQA1_4 <53>

DQA1_3 <53>

DQA1_6 <53>

DQA1_29 <53>

DQA1_30 <53>

DQA1_27 <53>

DQA1_25 <53>

DQA1_31 <53>

DQA1_28 <53>

DQA1_24 <53>

DQA1_26 <53>

DQA1_12 <53>

DQA1_13 <53>

DQA1_8 <53>

DQA1_9 <53>

DQA1_14 <53>

DQA1_15 <53>

DQA1_11 <53>

DQA1_10 <53>

+1.35V_MEM_GFX

+1.35V_MEM_GFX +1.35V_MEM_GFX

+1.35V_MEM_GFX

+1.35V_MEM_GFX+1.35V_MEM_GFX

+1.35V_MEM_GFX

Title

Size Document Number Rev

Date: Sheet of

LA-9984P

1.0

MARX-VRAM_A Upper_UV3,UV6

55 57Wednesday, May 22, 2013

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

LA-9984P

1.0

MARX-VRAM_A Upper_UV3,UV6

55 57Wednesday, May 22, 2013

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

LA-9984P

1.0

MARX-VRAM_A Upper_UV3,UV6

55 57Wednesday, May 22, 2013

Compal Electronics, Inc.

CV354

1U_0402_6.3V6K

DIS@CV354

1U_0402_6.3V6K

DIS@

RV41

5.49K_0402_1%

DIS@RV41

5.49K_0402_1%

DIS@

RV39

5.49K_0402_1%

DIS@RV39

5.49K_0402_1%

DIS@

CV349

1U_0402_6.3V6K

DIS@CV349

1U_0402_6.3V6K

DIS@

CV351

1U_0402_6.3V6K

DIS@CV351

1U_0402_6.3V6K

DIS@

CV10

1U_0402_6.3V6K

DIS@

CV10

1U_0402_6.3V6K

DIS@

CV332

1U_0402_6.3V6K

DIS@CV332

1U_0402_6.3V6K

DIS@

RV195

2.37K_0402_1%

DIS@RV195

2.37K_0402_1%

DIS@

RV30

121_0402_1%

DIS@RV30

121_0402_1%

DIS@

1 2

CV1

10U_0603_6.3V6M

DIS@CV1

10U_0603_6.3V6M

DIS@

CV352

1U_0402_6.3V6K

DIS@CV352

1U_0402_6.3V6K

DIS@

CV401

1U_0402_6.3V6K

DIS@CV401

1U_0402_6.3V6K

DIS@

CV63

0.1U_0402_10V7K

DIS@CV63

0.1U_0402_10V7K

DIS@

RV193

2.37K_0402_1%

DIS@RV193

2.37K_0402_1%

DIS@

CV369

0.1U_0402_10V7K

DIS@CV369

0.1U_0402_10V7K

DIS@

RV196

5.49K_0402_1%

DIS@RV196

5.49K_0402_1%

DIS@

CV355

1U_0402_6.3V6K

DIS@CV355

1U_0402_6.3V6K

DIS@

CV67

1U_0402_6.3V6K

DIS@

CV67

1U_0402_6.3V6K

DIS@

RV33

5.49K_0402_1%

DIS@RV33

5.49K_0402_1%

DIS@

CV11

1U_0402_6.3V6K

DIS@

CV11

1U_0402_6.3V6K

DIS@

RV194

5.49K_0402_1%

DIS@RV194

5.49K_0402_1%

DIS@

CV3

10U_0603_6.3V6M

DIS@CV3

10U_0603_6.3V6M

DIS@

CV64

0.1U_0402_10V7K

DIS@CV64

0.1U_0402_10V7K

DIS@

CV370

0.1U_0402_10V7K

DIS@CV370

0.1U_0402_10V7K

DIS@

170-BALL

SGRAM GDDR5

MF=0 MF=1 MF=0MF=1

UV3

K4G20325FC-HC05_FBGA170~D

DIS@

170-BALL

SGRAM GDDR5

MF=0 MF=1 MF=0MF=1

UV3

K4G20325FC-HC05_FBGA170~D

DIS@

WE# CS#

L12

CS# WE#

G12

CAS# RAS#

RAS# CAS#

CKE#

J12

CK#

J11

VPP/NC

EDC0 EDC3

EDC1 EDC2

C13

DQ24 DQ0 A4

DQ25 DQ1 A2

DQ26 DQ2 B4

DQ27 DQ3 B2

DQ28 DQ4 E4

DQ29 DQ5 E2

DQ30 DQ6 F4

DQ31 DQ7 F2

VSSQ E1

VSS

T10

VSS

L10

VSS

P10

VREFD

A10

VDD

D11 VDD

R10

VDDQ B1

VDDQ D1

VDDQ F1

VDDQ M1

VREFD

U10

VDDQ T1

J13

RESET#

WCK01 WCK23

WCK23# WCK01#

WCK23 WCK01

VSSQ A1

VSSQ C1

VSSQ N1

VSSQ R1

WCK01# WCK23#

VSSQ U1

VPP/NC

VDDQ G2

VSSQ H2

VSSQ K2

VDDQ L2

VDDQ B3

VSSQ A3

VSS

G10

VDD

C10

ABI#

VDD

VSS

D10

VDD

DQ17 DQ9 A13

DQ18 DQ10 B11

DQ19 DQ11 B13

DQ20 DQ12 E11

DQ21 DQ13 E13

DQ22 DQ14 F11

DQ23 DQ15 F13

DQ16 DQ8 A11

EDC2 EDC1

R13

BA2/A4 BA0/A2

K11

VDD

L4 VDD

G4 VDD

L1 VDD

VSS

B10 VSS

T5 VSS

L5 VSS

G5 VSS

B5 VSS

K1 VSS

VDDQ P1

BA3/A3 BA1/A5

H10

BA0/A2 BA2/A4

H11

BA1/A5 BA3/A3

K10

VDDQ D3

VDDQ F3

VDDQ H3

VDDQ K3

VDDQ M3

VDDQ P3

VDDQ T3

VDDQ E5

VDDQ N5

VDDQ E10

VDDQ N10

VDDQ B12

VDDQ D12

VDDQ F12

VDDQ H12

VDDQ K12

VDDQ M12

VDDQ P12

VDDQ T12

VDDQ G13

VDDQ L13

VDDQ B14

VDDQ D14

VDDQ F14

VDDQ M14

VDDQ P14

VSSQ C3

VSSQ E3

VSSQ N3

VSSQ R3

VSSQ U3

VSSQ C4

VSSQ R4

VSSQ F5

VSSQ M5

VSSQ F10

VSSQ M10

VSSQ C11

VSSQ R11

VSSQ A12

VSSQ C12

VSSQ E12

VSSQ N12

VSSQ R12

VSSQ U12

VSSQ H13

VSSQ K13

VSSQ A14

VSSQ C14

VSSQ E14

VSSQ N14

VSSQ R14

VSSQ U14

VDDQ T14

VDD

G11

VDD

L11

VDD

P11

VDD

G14

VDD

L14

VSS

H14

VSS

K14

DQ8 DQ16 U11

DQ9 DQ17 U13

DQ10 DQ18 T11

DQ11 DQ19 T13

DQ12 DQ20 N11

DQ13 DQ21 N13

DQ14 DQ22 M11

DQ15 DQ23 M13

DQ0 DQ24 U4

DQ1 DQ25 U2

DQ2 DQ26 T4

DQ3 DQ27 T2

DQ4 DQ28 N4

DQ5 DQ29 N2

DQ6 DQ30 M4

DQ7 DQ31 M2

EDC3 EDC0

DBI0# DBI3#

DBI1# DBI2#

D13

DBI2# DBI1#

P13

DBI3# DBI0#

VREFC

J14

SEN

J10 MF

A8/A7 A10/A0

A9/A1 A11/A6

A10/A0 A8/A7

A11/A6 A9/A1

A12/RFU/NC

RV197

2.37K_0402_1%

DIS@RV197

2.37K_0402_1%

DIS@

CV379

0.1U_0402_10V7K

DIS@CV379

0.1U_0402_10V7K

DIS@

RV31 121_0402_1%DIS@ RV31 121_0402_1%DIS@

1 2

CV66

1U_0402_6.3V6K

DIS@

CV66

1U_0402_6.3V6K

DIS@

CV383

1U_0402_6.3V6K

DIS@

CV383

1U_0402_6.3V6K

DIS@

CV390

1U_0402_6.3V6K

DIS@CV390

1U_0402_6.3V6K

DIS@

CV65

0.1U_0402_10V7K

DIS@CV65

0.1U_0402_10V7K

DIS@

CV377

0.1U_0402_10V7K

DIS@CV377

0.1U_0402_10V7K

DIS@

CV68

0.1U_0402_10V7K

DIS@CV68

0.1U_0402_10V7K

DIS@

CV382

1U_0402_6.3V6K

DIS@

CV382

1U_0402_6.3V6K

DIS@

CV389

1U_0402_6.3V6K

DIS@CV389

1U_0402_6.3V6K

DIS@

CV381

1U_0402_6.3V6K

DIS@

CV381

1U_0402_6.3V6K

DIS@

CV368

0.1U_0402_10V7K

DIS@CV368

0.1U_0402_10V7K

DIS@

RV191

2.37K_0402_1%

DIS@RV191

2.37K_0402_1%

DIS@

CV356

1U_0402_6.3V6K

DIS@CV356

1U_0402_6.3V6K

DIS@

CV371

0.1U_0402_10V7K

DIS@CV371

0.1U_0402_10V7K

DIS@

RV32

2.37K_0402_1%

DIS@RV32

2.37K_0402_1%

DIS@

CV350

1U_0402_6.3V6K

DIS@CV350

1U_0402_6.3V6K

DIS@

CV376

1U_0402_6.3V6K

DIS@

CV376

1U_0402_6.3V6K

DIS@

RV192

5.49K_0402_1%

DIS@RV192

5.49K_0402_1%

DIS@

CV62

0.1U_0402_10V7K

DIS@CV62

0.1U_0402_10V7K

DIS@

RV40

2.37K_0402_1%

DIS@RV40

2.37K_0402_1%

DIS@

170-BALL

SGRAM GDDR5

MF=0 MF=1 MF=0MF=1

UV6

K4G20325FC-HC05_FBGA170~D

DIS@

170-BALL

SGRAM GDDR5

MF=0 MF=1 MF=0MF=1

UV6

K4G20325FC-HC05_FBGA170~D

DIS@

WE# CS#

L12

CS# WE#

G12

CAS# RAS#

RAS# CAS#

CKE#

J12

CK#

J11

VPP/NC

EDC0 EDC3

EDC1 EDC2

C13

DQ24 DQ0 A4

DQ25 DQ1 A2

DQ26 DQ2 B4

DQ27 DQ3 B2

DQ28 DQ4 E4

DQ29 DQ5 E2

DQ30 DQ6 F4

DQ31 DQ7 F2

VSSQ E1

VSS

T10

VSS

L10

VSS

P10

VREFD

A10

VDD

D11 VDD

R10

VDDQ B1

VDDQ D1

VDDQ F1

VDDQ M1

VREFD

U10

VDDQ T1

J13

RESET#

WCK01 WCK23

WCK23# WCK01#

WCK23 WCK01

VSSQ A1

VSSQ C1

VSSQ N1

VSSQ R1

WCK01# WCK23#

VSSQ U1

VPP/NC

VDDQ G2

VSSQ H2

VSSQ K2

VDDQ L2

VDDQ B3

VSSQ A3

VSS

G10

VDD

C10

ABI#

VDD

VSS

D10

VDD

DQ17 DQ9 A13

DQ18 DQ10 B11

DQ19 DQ11 B13

DQ20 DQ12 E11

DQ21 DQ13 E13

DQ22 DQ14 F11

DQ23 DQ15 F13

DQ16 DQ8 A11

EDC2 EDC1

R13

BA2/A4 BA0/A2

K11

VDD

L4 VDD

G4 VDD

L1 VDD

VSS

B10 VSS

T5 VSS

L5 VSS

G5 VSS

B5 VSS

K1 VSS

VDDQ P1

BA3/A3 BA1/A5

H10

BA0/A2 BA2/A4

H11

BA1/A5 BA3/A3

K10

VDDQ D3

VDDQ F3

VDDQ H3

VDDQ K3

VDDQ M3

VDDQ P3

VDDQ T3

VDDQ E5

VDDQ N5

VDDQ E10

VDDQ N10

VDDQ B12

VDDQ D12

VDDQ F12

VDDQ H12

VDDQ K12

VDDQ M12

VDDQ P12

VDDQ T12

VDDQ G13

VDDQ L13

VDDQ B14

VDDQ D14

VDDQ F14

VDDQ M14

VDDQ P14

VSSQ C3

VSSQ E3

VSSQ N3

VSSQ R3

VSSQ U3

VSSQ C4

VSSQ R4

VSSQ F5

VSSQ M5

VSSQ F10

VSSQ M10

VSSQ C11

VSSQ R11

VSSQ A12

VSSQ C12

VSSQ E12

VSSQ N12

VSSQ R12

VSSQ U12

VSSQ H13

VSSQ K13

VSSQ A14

VSSQ C14

VSSQ E14

VSSQ N14

VSSQ R14

VSSQ U14

VDDQ T14

VDD

G11

VDD

L11

VDD

P11

VDD

G14

VDD

L14

VSS

H14

VSS

K14

DQ8 DQ16 U11

DQ9 DQ17 U13

DQ10 DQ18 T11

DQ11 DQ19 T13

DQ12 DQ20 N11

DQ13 DQ21 N13

DQ14 DQ22 M11

DQ15 DQ23 M13

DQ0 DQ24 U4

DQ1 DQ25 U2

DQ2 DQ26 T4

DQ3 DQ27 T2

DQ4 DQ28 N4

DQ5 DQ29 N2

DQ6 DQ30 M4

DQ7 DQ31 M2

EDC3 EDC0

DBI0# DBI3#

DBI1# DBI2#

D13

DBI2# DBI1#

P13

DBI3# DBI0#

VREFC

J14

SEN

J10 MF

A8/A7 A10/A0

A9/A1 A11/A6

A10/A0 A8/A7

A11/A6 A9/A1

A12/RFU/NC

CV353

1U_0402_6.3V6K

DIS@CV353

1U_0402_6.3V6K

DIS@

CV74

0.1U_0402_10V7K

DIS@CV74

0.1U_0402_10V7K

DIS@

D D

C C

B B

A A

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

DELL CONFIDENTIAL/PROPRIETARY

Memory Partition B - Lower 16 bits

NORMAL

MIRROR

B_1

B_3

B_0

B_2

WEB0#

CKEB0

RASB0#

CLKB0#

CLKB0

CSB0#_0

CKEB0

DRAM_RST#

CLKB0#

CLKB0

CASB0#

DRAM_RST#

MAB0_0

MAB0_1

MAB0_2

MAB0_3

MAB0_4

MAB0_5

MAB0_6

MAB0_7

MAB0_8

DDBIB0_1

DDBIB0_2

EDCB0_2

EDCB0_1

EDCB0_0

EDCB0_3

DDBIB0_0

DDBIB0_3

WCKB0_0

WCKB0B_0

WCKB0_1

WCKB0B_1

WCKB0_0

WCKB0B_1

WCKB0_1

WCKB0B_0

DQB0_17

DQB0_16

DQB0_18

DQB0_19

DQB0_20

DQB0_23

DQB0_21

DQB0_22

DQB0_8

DQB0_9

DQB0_11

DQB0_10

DQB0_13

DQB0_15

DQB0_12

DQB0_14

DQB0_5

DQB0_6

DQB0_7

DQB0_4

DQB0_0

DQB0_3

DQB0_1

DQB0_2

DQB0_29

DQB0_31

DQB0_30

DQB0_28

DQB0_26

DQB0_25

DQB0_27

DQB0_24

ADBIB0

VREFD5_1

VREFD5_2

VREFC5

VREFD5_2 VREFC5

MAB0_0

MAB0_1

MAB0_3

MAB0_2

MAB0_5

MAB0_4

MAB0_6

MAB0_7

CASB0#

RASB0#

CSB0#_0

WEB0#

VREFD6_1

VREFD6_2

VREFC6

VREFD6_2 VREFC6

CLKB0#<53>

CLKB0<53>

CKEB0<53>

ADBIB0<53>

WCKB0_1<53>

RASB0#<53>

CSB0#_0<53>

CASB0#<53>

WEB0#<53>

WCKB0B_0<53>

WCKB0_0<53>

WCKB0B_1<53>

DQB0_1 <53>

DQB0_3 <53>

DQB0_6 <53>

DQB0_5 <53>

DQB0_2 <53>

DQB0_0 <53>

DQB0_4 <53>

DQB0_7 <53>

DQB0_27 <53>

DQB0_25 <53>

DQB0_31 <53>

DQB0_29 <53>

DQB0_24 <53>

DQB0_26 <53>

DQB0_28 <53>

DQB0_30 <53>

EDCB0_1<53>

EDCB0_2<53>

DDBIB0_1<53>

DDBIB0_2<53>

DRAM_RST#<53,54,55,57>

MAB0_8<53>

MAB0_7<53>

MAB0_6<53>

MAB0_5<53>

MAB0_4<53>

MAB0_3<53>

MAB0_2<53>

MAB0_1<53>

MAB0_0<53>

DQB0_21 <53>

DQB0_23 <53>

DQB0_16 <53>

DQB0_17 <53>

DQB0_22 <53>

DQB0_20 <53>

DQB0_19 <53>

DQB0_18 <53>

DQB0_12 <53>

DQB0_15 <53>

DQB0_9 <53>

DQB0_8 <53>

DQB0_14 <53>

DQB0_13 <53>

DQB0_10 <53>

DQB0_11 <53>

EDCB0_3<53>

EDCB0_0<53>

DDBIB0_3<53>

DDBIB0_0<53>

+1.35V_MEM_GFX

+1.35V_MEM_GFX +1.35V_MEM_GFX

+1.35V_MEM_GFX

+1.35V_MEM_GFX +1.35V_MEM_GFX

+1.35V_MEM_GFX

Title

Size Document Number Rev

Date: Sheet of

LA-9984P

1.0

MARX-VRAM_B Lower_UV7,UV8

56 57Wednesday, May 22, 2013

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

LA-9984P

1.0

MARX-VRAM_B Lower_UV7,UV8

56 57Wednesday, May 22, 2013

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

LA-9984P

1.0

MARX-VRAM_B Lower_UV7,UV8

56 57Wednesday, May 22, 2013

Compal Electronics, Inc.

CV384

0.1U_0402_10V7K

DIS@CV384

0.1U_0402_10V7K

DIS@

RV5

5.49K_0402_1%

DIS@RV5

5.49K_0402_1%

DIS@

CV291

0.1U_0402_10V7K

DIS@CV291

0.1U_0402_10V7K

DIS@

RV4

5.49K_0402_1%

DIS@RV4

5.49K_0402_1%

DIS@

RV2

5.49K_0402_1%

DIS@RV2

5.49K_0402_1%

DIS@

RV163 121_0402_1%DIS@ RV163 121_0402_1%DIS@

1 2

CV292

1U_0402_6.3V6K

DIS@

CV292

1U_0402_6.3V6K

DIS@

CV283

1U_0402_6.3V6K

DIS@

CV283

1U_0402_6.3V6K

DIS@

CV5

10U_0603_6.3V6M

DIS@CV5

10U_0603_6.3V6M

DIS@

CV296

0.1U_0402_10V7K

DIS@CV296

0.1U_0402_10V7K

DIS@

RV9

5.49K_0402_1%

DIS@RV9

5.49K_0402_1%

DIS@

RV3

2.37K_0402_1%

DIS@RV3

2.37K_0402_1%

DIS@

CV386

0.1U_0402_10V7K

DIS@CV386

0.1U_0402_10V7K

DIS@

CV385

0.1U_0402_10V7K

DIS@CV385

0.1U_0402_10V7K

DIS@

CV25

1U_0402_6.3V6K

DIS@CV25

1U_0402_6.3V6K

DIS@

RV8

2.37K_0402_1%

DIS@RV8

2.37K_0402_1%

DIS@

CV19

1U_0402_6.3V6K

DIS@CV19

1U_0402_6.3V6K

DIS@

CV23

1U_0402_6.3V6K

DIS@CV23

1U_0402_6.3V6K

DIS@

CV12

1U_0402_6.3V6K

DIS@

CV12

1U_0402_6.3V6K

DIS@

CV293

1U_0402_6.3V6K

DIS@

CV293

1U_0402_6.3V6K

DIS@

CV285

0.1U_0402_10V7K

DIS@CV285

0.1U_0402_10V7K

DIS@

170-BALL

SGRAM GDDR5

MF=0 MF=1 MF=0MF=1

UV8

K4G20325FC-HC05_FBGA170~D

DIS@

170-BALL

SGRAM GDDR5

MF=0 MF=1 MF=0MF=1

UV8

K4G20325FC-HC05_FBGA170~D

DIS@

WE# CS#

L12

CS# WE#

G12

CAS# RAS#

RAS# CAS#

CKE#

J12

CK#

J11

VPP/NC

EDC0 EDC3

EDC1 EDC2

C13

DQ24 DQ0 A4

DQ25 DQ1 A2

DQ26 DQ2 B4

DQ27 DQ3 B2

DQ28 DQ4 E4

DQ29 DQ5 E2

DQ30 DQ6 F4

DQ31 DQ7 F2

VSSQ E1

VSS

T10

VSS

L10

VSS

P10

VREFD

A10

VDD

D11 VDD

R10

VDDQ B1

VDDQ D1

VDDQ F1

VDDQ M1

VREFD

U10

VDDQ T1

J13

RESET#

WCK01 WCK23

WCK23# WCK01#

WCK23 WCK01

VSSQ A1

VSSQ C1

VSSQ N1

VSSQ R1

WCK01# WCK23#

VSSQ U1

VPP/NC

VDDQ G2

VSSQ H2

VSSQ K2

VDDQ L2

VDDQ B3

VSSQ A3

VSS

G10

VDD

C10

ABI#

VDD

VSS

D10

VDD

DQ17 DQ9 A13

DQ18 DQ10 B11

DQ19 DQ11 B13

DQ20 DQ12 E11

DQ21 DQ13 E13

DQ22 DQ14 F11

DQ23 DQ15 F13

DQ16 DQ8 A11

EDC2 EDC1

R13

BA2/A4 BA0/A2

K11

VDD

L4 VDD

G4 VDD

L1 VDD

VSS

B10 VSS

T5 VSS

L5 VSS

G5 VSS

B5 VSS

K1 VSS

VDDQ P1

BA3/A3 BA1/A5

H10

BA0/A2 BA2/A4

H11

BA1/A5 BA3/A3

K10

VDDQ D3

VDDQ F3

VDDQ H3

VDDQ K3

VDDQ M3

VDDQ P3

VDDQ T3

VDDQ E5

VDDQ N5

VDDQ E10

VDDQ N10

VDDQ B12

VDDQ D12

VDDQ F12

VDDQ H12

VDDQ K12

VDDQ M12

VDDQ P12

VDDQ T12

VDDQ G13

VDDQ L13

VDDQ B14

VDDQ D14

VDDQ F14

VDDQ M14

VDDQ P14

VSSQ C3

VSSQ E3

VSSQ N3

VSSQ R3

VSSQ U3

VSSQ C4

VSSQ R4

VSSQ F5

VSSQ M5

VSSQ F10

VSSQ M10

VSSQ C11

VSSQ R11

VSSQ A12

VSSQ C12

VSSQ E12

VSSQ N12

VSSQ R12

VSSQ U12

VSSQ H13

VSSQ K13

VSSQ A14

VSSQ C14

VSSQ E14

VSSQ N14

VSSQ R14

VSSQ U14

VDDQ T14

VDD

G11

VDD

L11

VDD

P11

VDD

G14

VDD

L14

VSS

H14

VSS

K14

DQ8 DQ16 U11

DQ9 DQ17 U13

DQ10 DQ18 T11

DQ11 DQ19 T13

DQ12 DQ20 N11

DQ13 DQ21 N13

DQ14 DQ22 M11

DQ15 DQ23 M13

DQ0 DQ24 U4

DQ1 DQ25 U2

DQ2 DQ26 T4

DQ3 DQ27 T2

DQ4 DQ28 N4

DQ5 DQ29 N2

DQ6 DQ30 M4

DQ7 DQ31 M2

EDC3 EDC0

DBI0# DBI3#

DBI1# DBI2#

D13

DBI2# DBI1#

P13

DBI3# DBI0#

VREFC

J14

SEN

J10 MF

A8/A7 A10/A0

A9/A1 A11/A6

A10/A0 A8/A7

A11/A6 A9/A1

A12/RFU/NC

CV26

1U_0402_6.3V6K

DIS@CV26

1U_0402_6.3V6K

DIS@

CV21

1U_0402_6.3V6K

DIS@CV21

1U_0402_6.3V6K

DIS@

RV162

121_0402_1%

DIS@ RV162

121_0402_1%

DIS@

1 2

RV7

5.49K_0402_1%

DIS@RV7

5.49K_0402_1%

DIS@

CV18

1U_0402_6.3V6K

DIS@CV18

1U_0402_6.3V6K

DIS@

CV294

1U_0402_6.3V6K

DIS@

CV294

1U_0402_6.3V6K

DIS@

RV6

2.37K_0402_1%

DIS@RV6

2.37K_0402_1%

DIS@

CV20

1U_0402_6.3V6K

DIS@CV20

1U_0402_6.3V6K

DIS@

RV11

5.49K_0402_1%

DIS@RV11

5.49K_0402_1%

DIS@

170-BALL

SGRAM GDDR5

MF=0 MF=1 MF=0MF=1

UV7

K4G20325FC-HC05_FBGA170~D

DIS@

170-BALL

SGRAM GDDR5

MF=0 MF=1 MF=0MF=1

UV7

K4G20325FC-HC05_FBGA170~D

DIS@

WE# CS#

L12

CS# WE#

G12

CAS# RAS#

RAS# CAS#

CKE#

J12

CK#

J11

VPP/NC

EDC0 EDC3

EDC1 EDC2

C13

DQ24 DQ0 A4

DQ25 DQ1 A2

DQ26 DQ2 B4

DQ27 DQ3 B2

DQ28 DQ4 E4

DQ29 DQ5 E2

DQ30 DQ6 F4

DQ31 DQ7 F2

VSSQ E1

VSS

T10

VSS

L10

VSS

P10

VREFD

A10

VDD

D11 VDD

R10

VDDQ B1

VDDQ D1

VDDQ F1

VDDQ M1

VREFD

U10

VDDQ T1

J13

RESET#

WCK01 WCK23

WCK23# WCK01#

WCK23 WCK01

VSSQ A1

VSSQ C1

VSSQ N1

VSSQ R1

WCK01# WCK23#

VSSQ U1

VPP/NC

VDDQ G2

VSSQ H2

VSSQ K2

VDDQ L2

VDDQ B3

VSSQ A3

VSS

G10

VDD

C10

ABI#

VDD

VSS

D10

VDD

DQ17 DQ9 A13

DQ18 DQ10 B11

DQ19 DQ11 B13

DQ20 DQ12 E11

DQ21 DQ13 E13

DQ22 DQ14 F11

DQ23 DQ15 F13

DQ16 DQ8 A11

EDC2 EDC1

R13

BA2/A4 BA0/A2

K11

VDD

L4 VDD

G4 VDD

L1 VDD

VSS

B10 VSS

T5 VSS

L5 VSS

G5 VSS

B5 VSS

K1 VSS

VDDQ P1

BA3/A3 BA1/A5

H10

BA0/A2 BA2/A4

H11

BA1/A5 BA3/A3

K10

VDDQ D3

VDDQ F3

VDDQ H3

VDDQ K3

VDDQ M3

VDDQ P3

VDDQ T3

VDDQ E5

VDDQ N5

VDDQ E10

VDDQ N10

VDDQ B12

VDDQ D12

VDDQ F12

VDDQ H12

VDDQ K12

VDDQ M12

VDDQ P12

VDDQ T12

VDDQ G13

VDDQ L13

VDDQ B14

VDDQ D14

VDDQ F14

VDDQ M14

VDDQ P14

VSSQ C3

VSSQ E3

VSSQ N3

VSSQ R3

VSSQ U3

VSSQ C4

VSSQ R4

VSSQ F5

VSSQ M5

VSSQ F10

VSSQ M10

VSSQ C11

VSSQ R11

VSSQ A12

VSSQ C12

VSSQ E12

VSSQ N12

VSSQ R12

VSSQ U12

VSSQ H13

VSSQ K13

VSSQ A14

VSSQ C14

VSSQ E14

VSSQ N14

VSSQ R14

VSSQ U14

VDDQ T14

VDD

G11

VDD

L11

VDD

P11

VDD

G14

VDD

L14

VSS

H14

VSS

K14

DQ8 DQ16 U11

DQ9 DQ17 U13

DQ10 DQ18 T11

DQ11 DQ19 T13

DQ12 DQ20 N11

DQ13 DQ21 N13

DQ14 DQ22 M11

DQ15 DQ23 M13

DQ0 DQ24 U4

DQ1 DQ25 U2

DQ2 DQ26 T4

DQ3 DQ27 T2

DQ4 DQ28 N4

DQ5 DQ29 N2

DQ6 DQ30 M4

DQ7 DQ31 M2

EDC3 EDC0

DBI0# DBI3#

DBI1# DBI2#

D13

DBI2# DBI1#

P13

DBI3# DBI0#

VREFC

J14

SEN

J10 MF

A8/A7 A10/A0

A9/A1 A11/A6

A10/A0 A8/A7

A11/A6 A9/A1

A12/RFU/NC

CV290

1U_0402_6.3V6K

DIS@

CV290

1U_0402_6.3V6K

DIS@

CV287

0.1U_0402_10V7K

DIS@CV287

0.1U_0402_10V7K

DIS@

CV28

1U_0402_6.3V6K

DIS@CV28

1U_0402_6.3V6K

DIS@

CV22

1U_0402_6.3V6K

DIS@CV22

1U_0402_6.3V6K

DIS@

CV295

1U_0402_6.3V6K

DIS@

CV295

1U_0402_6.3V6K

DIS@

CV284

0.1U_0402_10V7K

DIS@CV284

0.1U_0402_10V7K

DIS@

RV10

2.37K_0402_1%

DIS@RV10

2.37K_0402_1%

DIS@

CV286

0.1U_0402_10V7K

DIS@CV286

0.1U_0402_10V7K

DIS@

CV281

0.1U_0402_10V7K

DIS@CV281

0.1U_0402_10V7K

DIS@

RV12

2.37K_0402_1%

DIS@RV12

2.37K_0402_1%

DIS@

CV288

0.1U_0402_10V7K

DIS@CV288

0.1U_0402_10V7K

DIS@

CV280

1U_0402_6.3V6K

DIS@

CV280

1U_0402_6.3V6K

DIS@

CV27

1U_0402_6.3V6K

DIS@CV27

1U_0402_6.3V6K

DIS@

CV4

10U_0603_6.3V6M

DIS@CV4

10U_0603_6.3V6M

DIS@

CV13

1U_0402_6.3V6K

DIS@CV13

1U_0402_6.3V6K

DIS@

CV297

0.1U_0402_10V7K

DIS@CV297

0.1U_0402_10V7K

DIS@

RV1

2.37K_0402_1%

DIS@RV1

2.37K_0402_1%

DIS@

CV24

1U_0402_6.3V6K

DIS@CV24

1U_0402_6.3V6K

DIS@

1 1

2 2

3 3

4 4

DELL CONFIDENTIAL/PROPRIETARY

AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D

THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL

MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.

DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS

NORMAL

Memory Partition B - Upper 16 bits

MIRROR

B_0

B_3

B_1

B_2

RASB1#

CKEB1

DRAM_RST#

ADBIB1

CASB1#

CLKB1#

CLKB1

CSB1#_0

CKEB1

ADBIB1

CLKB1#

CLKB1

WEB1#

DRAM_RST#

MAB1_8

MAB1_5

MAB1_6

MAB1_7

MAB1_3

MAB1_0

MAB1_1

MAB1_2

MAB1_8

MAB1_4

WCKB1B_0

WCKB1_0

WCKB1B_1

WCKB1_1

CASB1#

RASB1#

VREFD7_1

VREFD7_2

VREFC7

VREFD7_2 VREFC7

MAB1_7

MAB1_6

MAB1_5

MAB1_4

MAB1_3

MAB1_2

MAB1_1

MAB1_0

CSB1#_0

WEB1#

VREFD8_1

VREFC8

VREFD8_2

VREFD8_2 VREFC8

DQB1_0

DQB1_1

DQB1_3

DQB1_2

DQB1_7

DQB1_4

DQB1_6

DQB1_5

DDBIB1_0

DDBIB1_3

EDCB1_0

EDCB1_3

DQB1_21

DQB1_23

DQB1_22

DQB1_20

DQB1_19

DQB1_17

DQB1_18

DQB1_16

EDCB1_2

EDCB1_1

DDBIB1_2

DDBIB1_1

WCKB1B_0

WCKB1_0

WCKB1B_1

WCKB1_1

DQB1_25

DQB1_31

DQB1_24

DQB1_27

DQB1_28

DQB1_29

DQB1_30

DQB1_26DQB1_11

DQB1_12

DQB1_14

DQB1_13

DQB1_15

DQB1_9

DQB1_10

DQB1_8

CLKB1#<53>

CLKB1<53>

CKEB1<53>

ADBIB1<53>

CASB1#<53>

WEB1#<53>

RASB1#<53>

CSB1#_0<53>

DRAM_RST#<53,54,55,56>

MAB1_8<53>

MAB1_0<53>

MAB1_1<53>

MAB1_3<53>

MAB1_2<53>

MAB1_5<53>

MAB1_4<53>

MAB1_6<53>

MAB1_7<53>

DQB1_6 <53>

DQB1_4 <53>

DQB1_0 <53>

DQB1_1 <53>

DQB1_5 <53>

DQB1_7 <53>

DQB1_2 <53>

DQB1_3 <53>

DDBIB1_0<53>

DDBIB1_3<53>

EDCB1_0<53>

EDCB1_3<53>

DQB1_18 <53>

DQB1_17 <53>

DQB1_23 <53>

DQB1_21 <53>

DQB1_16 <53>

DQB1_19 <53>

DQB1_20 <53>

DQB1_22 <53>

EDCB1_2<53>

EDCB1_1<53>

DDBIB1_2<53>

DDBIB1_1<53>

WCKB1_0<53>

WCKB1B_0<53>

WCKB1B_1<53>

WCKB1_1<53>

DQB1_25 <53>

DQB1_31 <53>

DQB1_24 <53>

DQB1_27 <53>

DQB1_28 <53>

DQB1_29 <53>

DQB1_30 <53>

DQB1_26 <53>DQB1_11 <53>

DQB1_12 <53>

DQB1_14 <53>

DQB1_13 <53>

DQB1_15 <53>

DQB1_9 <53>

DQB1_10 <53>

DQB1_8 <53>

+1.35V_MEM_GFX

+1.35V_MEM_GFX +1.35V_MEM_GFX

+1.35V_MEM_GFX

+1.35V_MEM_GFX +1.35V_MEM_GFX

+1.35V_MEM_GFX

Title

Size Document Number Rev

Date: Sheet of

LA-9984P

1.0

MARX-VRAM_B Upper_UV9,UV10

57 57Wednesday, May 22, 2013

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

LA-9984P

1.0

MARX-VRAM_B Upper_UV9,UV10

57 57Wednesday, May 22, 2013

Compal Electronics, Inc.

Title

Size Document Number Rev

Date: Sheet of

LA-9984P

1.0

MARX-VRAM_B Upper_UV9,UV10

57 57Wednesday, May 22, 2013

Compal Electronics, Inc.

CV301

0.1U_0402_10V7K

DIS@CV301

0.1U_0402_10V7K

DIS@

CV313

1U_0402_6.3V6K

DIS@

CV313

1U_0402_6.3V6K

DIS@

CV318

0.1U_0402_10V7K

DIS@CV318

0.1U_0402_10V7K

DIS@

CV34

1U_0402_6.3V6K

DIS@CV34

1U_0402_6.3V6K

DIS@

RV16

2.37K_0402_1%

DIS@RV16

2.37K_0402_1%

DIS@

CV39

1U_0402_6.3V6K

DIS@CV39

1U_0402_6.3V6K

DIS@

CV38

1U_0402_6.3V6K

DIS@CV38

1U_0402_6.3V6K

DIS@

RV171 121_0402_1%DIS@RV171 121_0402_1%DIS@

1 2

CV315

0.1U_0402_10V7K

DIS@

CV315

0.1U_0402_10V7K

DIS@

CV392

1U_0402_6.3V6K

DIS@

CV392

1U_0402_6.3V6K

DIS@

CV37

1U_0402_6.3V6K

DIS@CV37

1U_0402_6.3V6K

DIS@

CV316

0.1U_0402_10V7K

DIS@

CV316

0.1U_0402_10V7K

DIS@

CV312

0.1U_0402_10V7K

DIS@

CV312

0.1U_0402_10V7K

DIS@

CV319

0.1U_0402_10V7K

DIS@CV319

0.1U_0402_10V7K

DIS@

RV20

5.49K_0402_1%

DIS@RV20

5.49K_0402_1%

DIS@

RV27

2.37K_0402_1%

DIS@RV27

2.37K_0402_1%

DIS@

CV299

1U_0402_6.3V6K

DIS@

CV299

1U_0402_6.3V6K

DIS@

170-BALL

SGRAM GDDR5

MF=0 MF=1 MF=0MF=1

UV9

K4G20325FC-HC05_FBGA170~D

DIS@

170-BALL

SGRAM GDDR5

MF=0 MF=1 MF=0MF=1

UV9

K4G20325FC-HC05_FBGA170~D

DIS@

WE# CS#

L12

CS# WE#

G12

CAS# RAS#

RAS# CAS#

CKE#

J12

CK#

J11

VPP/NC

EDC0 EDC3

EDC1 EDC2

C13

DQ24 DQ0 A4

DQ25 DQ1 A2

DQ26 DQ2 B4

DQ27 DQ3 B2

DQ28 DQ4 E4

DQ29 DQ5 E2

DQ30 DQ6 F4

DQ31 DQ7 F2

VSSQ E1

VSS

T10

VSS

L10

VSS

P10

VREFD

A10

VDD

D11 VDD

R10

VDDQ B1

VDDQ D1

VDDQ F1

VDDQ M1

VREFD

U10

VDDQ T1

J13

RESET#

WCK01 WCK23

WCK23# WCK01#

WCK23 WCK01

VSSQ A1

VSSQ C1

VSSQ N1

VSSQ R1

WCK01# WCK23#

VSSQ U1

VPP/NC

VDDQ G2

VSSQ H2

VSSQ K2

VDDQ L2

VDDQ B3

VSSQ A3

VSS

G10

VDD

C10

ABI#

VDD

VSS

D10

VDD

DQ17 DQ9 A13

DQ18 DQ10 B11

DQ19 DQ11 B13

DQ20 DQ12 E11

DQ21 DQ13 E13

DQ22 DQ14 F11

DQ23 DQ15 F13

DQ16 DQ8 A11

EDC2 EDC1

R13

BA2/A4 BA0/A2

K11

VDD

L4 VDD

G4 VDD

L1 VDD

VSS

B10 VSS

T5 VSS

L5 VSS

G5 VSS

B5 VSS

K1 VSS

VDDQ P1

BA3/A3 BA1/A5

H10

BA0/A2 BA2/A4

H11

BA1/A5 BA3/A3

K10

VDDQ D3

VDDQ F3

VDDQ H3

VDDQ K3

VDDQ M3

VDDQ P3

VDDQ T3

VDDQ E5

VDDQ N5

VDDQ E10

VDDQ N10

VDDQ B12

VDDQ D12

VDDQ F12

VDDQ H12

VDDQ K12

VDDQ M12

VDDQ P12

VDDQ T12

VDDQ G13

VDDQ L13

VDDQ B14

VDDQ D14

VDDQ F14

VDDQ M14

VDDQ P14

VSSQ C3

VSSQ E3

VSSQ N3

VSSQ R3

VSSQ U3

VSSQ C4

VSSQ R4

VSSQ F5

VSSQ M5

VSSQ F10

VSSQ M10

VSSQ C11

VSSQ R11

VSSQ A12

VSSQ C12

VSSQ E12

VSSQ N12

VSSQ R12

VSSQ U12

VSSQ H13

VSSQ K13

VSSQ A14

VSSQ C14

VSSQ E14

VSSQ N14

VSSQ R14

VSSQ U14

VDDQ T14

VDD

G11

VDD

L11

VDD

P11

VDD

G14

VDD

L14

VSS

H14

VSS

K14

DQ8 DQ16 U11

DQ9 DQ17 U13

DQ10 DQ18 T11

DQ11 DQ19 T13

DQ12 DQ20 N11

DQ13 DQ21 N13

DQ14 DQ22 M11

DQ15 DQ23 M13

DQ0 DQ24 U4

DQ1 DQ25 U2

DQ2 DQ26 T4

DQ3 DQ27 T2

DQ4 DQ28 N4

DQ5 DQ29 N2

DQ6 DQ30 M4

DQ7 DQ31 M2

EDC3 EDC0

DBI0# DBI3#

DBI1# DBI2#

D13

DBI2# DBI1#

P13

DBI3# DBI0#

VREFC

J14

SEN

J10 MF

A8/A7 A10/A0

A9/A1 A11/A6

A10/A0 A8/A7

A11/A6 A9/A1

A12/RFU/NC

CV311

1U_0402_6.3V6K

DIS@

CV311

1U_0402_6.3V6K

DIS@

CV35

1U_0402_6.3V6K

DIS@CV35

1U_0402_6.3V6K

DIS@

RV23

2.37K_0402_1%

DIS@RV23

2.37K_0402_1%

DIS@

CV32

1U_0402_6.3V6K

DIS@CV32

1U_0402_6.3V6K

DIS@

CV29

1U_0402_6.3V6K

DIS@CV29

1U_0402_6.3V6K

DIS@

RV17

5.49K_0402_1%

DIS@RV17

5.49K_0402_1%

DIS@

CV7

10U_0603_6.3V6M

DIS@CV7

10U_0603_6.3V6M

DIS@

RV169 121_0402_1%DIS@ RV169 121_0402_1%DIS@

1 2

CV306

0.1U_0402_10V7K

DIS@

CV306

0.1U_0402_10V7K

DIS@

RV19

2.37K_0402_1%

DIS@RV19

2.37K_0402_1%

DIS@

CV304

1U_0402_6.3V6K

DIS@

CV304

1U_0402_6.3V6K

DIS@

RV13

5.49K_0402_1%

DIS@RV13

5.49K_0402_1%

DIS@

CV307

0.1U_0402_10V7K

DIS@CV307

0.1U_0402_10V7K

DIS@

CV36

1U_0402_6.3V6K

DIS@CV36

1U_0402_6.3V6K

DIS@

RV22

5.49K_0402_1%

DIS@RV22

5.49K_0402_1%

DIS@

RV24

5.49K_0402_1%

DIS@RV24

5.49K_0402_1%

DIS@

170-BALL

SGRAM GDDR5

MF=0 MF=1 MF=0MF=1

UV10

K4G20325FC-HC05_FBGA170~D

DIS@

170-BALL

SGRAM GDDR5

MF=0 MF=1 MF=0MF=1

UV10

K4G20325FC-HC05_FBGA170~D

DIS@

WE# CS#

L12

CS# WE#

G12

CAS# RAS#

RAS# CAS#

CKE#

J12

CK#

J11

VPP/NC

EDC0 EDC3

EDC1 EDC2

C13

DQ24 DQ0 A4

DQ25 DQ1 A2

DQ26 DQ2 B4

DQ27 DQ3 B2

DQ28 DQ4 E4

DQ29 DQ5 E2

DQ30 DQ6 F4

DQ31 DQ7 F2

VSSQ E1

VSS

T10

VSS

L10

VSS

P10

VREFD

A10

VDD

D11 VDD

R10

VDDQ B1

VDDQ D1

VDDQ F1

VDDQ M1

VREFD

U10

VDDQ T1

J13

RESET#

WCK01 WCK23

WCK23# WCK01#

WCK23 WCK01

VSSQ A1

VSSQ C1

VSSQ N1

VSSQ R1

WCK01# WCK23#

VSSQ U1

VPP/NC

VDDQ G2

VSSQ H2

VSSQ K2

VDDQ L2

VDDQ B3

VSSQ A3

VSS

G10

VDD

C10

ABI#

VDD

VSS

D10

VDD

DQ17 DQ9 A13

DQ18 DQ10 B11

DQ19 DQ11 B13

DQ20 DQ12 E11

DQ21 DQ13 E13

DQ22 DQ14 F11

DQ23 DQ15 F13

DQ16 DQ8 A11

EDC2 EDC1

R13

BA2/A4 BA0/A2

K11

VDD

L4 VDD

G4 VDD

L1 VDD

VSS

B10 VSS

T5 VSS

L5 VSS

G5 VSS

B5 VSS

K1 VSS

VDDQ P1

BA3/A3 BA1/A5

H10

BA0/A2 BA2/A4

H11

BA1/A5 BA3/A3

K10

VDDQ D3

VDDQ F3

VDDQ H3

VDDQ K3

VDDQ M3

VDDQ P3

VDDQ T3

VDDQ E5

VDDQ N5

VDDQ E10

VDDQ N10

VDDQ B12

VDDQ D12

VDDQ F12

VDDQ H12

VDDQ K12

VDDQ M12

VDDQ P12

VDDQ T12

VDDQ G13

VDDQ L13

VDDQ B14

VDDQ D14

VDDQ F14

VDDQ M14

VDDQ P14

VSSQ C3

VSSQ E3

VSSQ N3

VSSQ R3

VSSQ U3

VSSQ C4

VSSQ R4

VSSQ F5

VSSQ M5

VSSQ F10

VSSQ M10

VSSQ C11

VSSQ R11

VSSQ A12

VSSQ C12

VSSQ E12

VSSQ N12

VSSQ R12

VSSQ U12

VSSQ H13

VSSQ K13

VSSQ A14

VSSQ C14

VSSQ E14

VSSQ N14

VSSQ R14

VSSQ U14

VDDQ T14

VDD

G11

VDD

L11

VDD

P11

VDD

G14

VDD

L14

VSS

H14

VSS

K14

DQ8 DQ16 U11

DQ9 DQ17 U13

DQ10 DQ18 T11

DQ11 DQ19 T13

DQ12 DQ20 N11

DQ13 DQ21 N13

DQ14 DQ22 M11

DQ15 DQ23 M13

DQ0 DQ24 U4

DQ1 DQ25 U2

DQ2 DQ26 T4

DQ3 DQ27 T2

DQ4 DQ28 N4

DQ5 DQ29 N2

DQ6 DQ30 M4

DQ7 DQ31 M2

EDC3 EDC0

DBI0# DBI3#

DBI1# DBI2#

D13

DBI2# DBI1#

P13

DBI3# DBI0#

VREFC

J14

SEN

J10 MF

A8/A7 A10/A0

A9/A1 A11/A6

A10/A0 A8/A7

A11/A6 A9/A1

A12/RFU/NC

RV21

2.37K_0402_1%

DIS@RV21

2.37K_0402_1%

DIS@

CV305

0.1U_0402_10V7K

DIS@CV305

0.1U_0402_10V7K

DIS@

CV31

1U_0402_6.3V6K

DIS@CV31

1U_0402_6.3V6K

DIS@

CV40

1U_0402_6.3V6K

DIS@CV40

1U_0402_6.3V6K

DIS@

CV308

0.1U_0402_10V7K

DIS@

CV308

0.1U_0402_10V7K

DIS@

CV298

1U_0402_6.3V6K

DIS@

CV298

1U_0402_6.3V6K

DIS@

CV302

1U_0402_6.3V6K

DIS@

CV302

1U_0402_6.3V6K

DIS@

CV33

1U_0402_6.3V6K

DIS@CV33

1U_0402_6.3V6K

DIS@

CV310

1U_0402_6.3V6K

DIS@

CV310

1U_0402_6.3V6K

DIS@

RV15

5.49K_0402_1%

DIS@RV15

5.49K_0402_1%

DIS@

RV14

2.37K_0402_1%

DIS@RV14

2.37K_0402_1%

DIS@

CV6

10U_0603_6.3V6M

DIS@CV6

10U_0603_6.3V6M

DIS@

CV391

0.1U_0402_10V7K

DIS@CV391

0.1U_0402_10V7K

DIS@

CV30

1U_0402_6.3V6K

DIS@CV30

1U_0402_6.3V6K

DIS@

CV303

0.1U_0402_10V7K

DIS@

CV303

0.1U_0402_10V7K

DIS@

www.s-manuals.com

Compal LA 9984P Schematics. Www.s Manuals.com. R1.0 Schematics

Navigation menu

Versions of this User Manual:

Views

Navigation
