ConfD User Guide
Copyright © 2005-2018 Tail-f Systems
ConfD 6.6
March 2, 2018
ConfD User Guide
ConfD 6.6
Publication date March 2, 2018
Copyright © 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018 Tail-f Systems
All contents in this document are confidential and proprietary to Tail-f Systems.
Table of Contents
1. About the Documentation ................................................................................................. 1
1.1. How to Read This Guide ........................................................................................ 1
1.2. Getting Documentation .......................................................................................... 1
1.3. Formatting Conventions ......................................................................................... 1
1.4. Documentation Feedback ........................................................................................ 2
2. An introduction to ConfD ................................................................................................. 3
2.1. An on-device software system for configuration management ........................................ 3

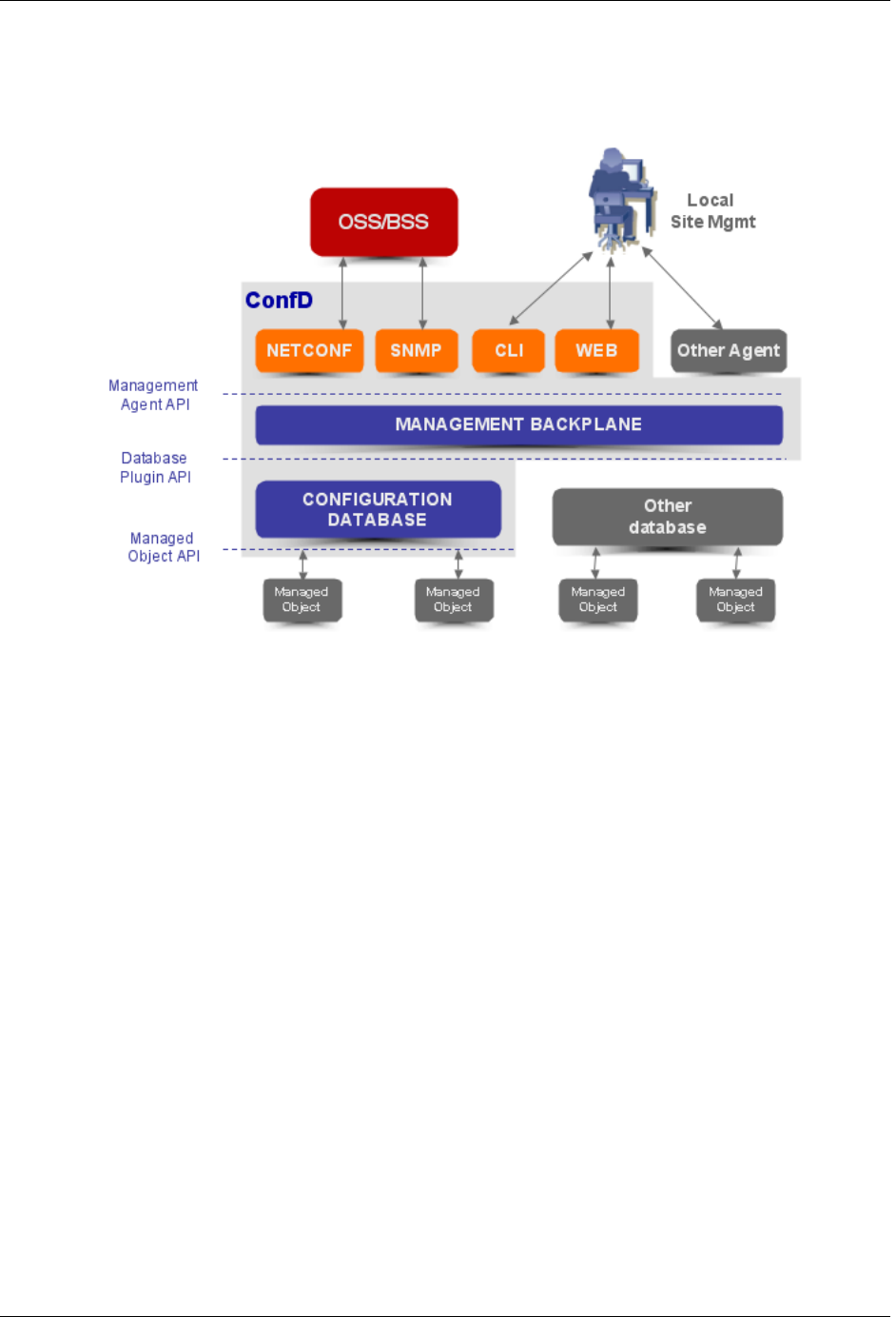

2.2. ConfD Architecture ............................................................................................... 3
3. The YANG Data Modeling Language ................................................................................. 8
3.1. The YANG Data Modeling Language ....................................................................... 8
3.2. YANG in ConfD .................................................................................................. 8
3.3. YANG Introduction ............................................................................................... 8
3.4. Working With YANG Modules ............................................................................. 16
3.5. Integrity Constraints ............................................................................................. 18
3.6. The when statement ............................................................................................. 20
3.7. Using the Tail-f Extensions with YANG ................................................................. 20
3.8. Custom Help Texts and Error Messages .................................................................. 22
3.9. Hidden Data ....................................................................................................... 24
3.10. An Example: Modeling a List of Interfaces ............................................................ 26
3.11. More on leafrefs ................................................................................................ 34
3.12. Using Multiple Namespaces ................................................................................ 36
3.13. Module Names, Namespaces and Revisions ............................................................ 37
3.14. Hash Values and the id-value Statement ................................................................ 38
3.15. Migrating from Confspecs to YANG ..................................................................... 39
3.16. The pyang tool .................................................................................................. 44
4. Rendering Agents .......................................................................................................... 45
4.1. Introduction ........................................................................................................ 45
4.2. Data Model ........................................................................................................ 45
4.3. Using the CLIs ................................................................................................... 47
4.4. Using NETCONF ................................................................................................ 50
5. CDB - The ConfD XML Database .................................................................................... 53
5.1. Introduction ........................................................................................................ 53
5.2. CDB ................................................................................................................. 53
5.3. An example ........................................................................................................ 54
5.4. Using keypaths ................................................................................................... 58
5.5. A session ........................................................................................................... 59
5.6. CDB subscriptions ............................................................................................... 60
5.7. Reconnect .......................................................................................................... 61
5.8. Loading initial data into CDB ................................................................................ 62
5.9. Automatic schema upgrades and downgrades ........................................................... 63
5.10. Using initialization files for upgrade ..................................................................... 68
5.11. Using MAAPI to modify CDB during upgrade ........................................................ 71
5.12. More complex schema upgrades ........................................................................... 72
5.13. The full dhcpd example ...................................................................................... 75
6. Operational Data ............................................................................................................ 82
6.1. Introduction to Operational Data ............................................................................ 82
6.2. Reading Statistics Data ......................................................................................... 82
6.3. Callpoints and Callbacks ...................................................................................... 83
6.4. Data Callbacks .................................................................................................... 85
6.5. User Sessions and ConfD Transactions .................................................................... 87
6.6. C Example with Operational Data .......................................................................... 87
iii
ConfD User Guide
6.7. The Protocol and a Library Threads Discussion ........................................................ 95
6.8. Operational data in CDB ...................................................................................... 97
6.9. Delayed Replies ................................................................................................ 100
6.10. Caching Operational Data .................................................................................. 101
6.11. Operational data lists without keys ...................................................................... 102
7. The external database API ............................................................................................. 104
7.1. Introduction to external data ................................................................................ 104
7.2. Scenario - The database is a file ........................................................................... 104
7.3. Callpoints and callbacks ...................................................................................... 104
7.4. Data Callbacks .................................................................................................. 105
7.5. User sessions and ConfD Transactions .................................................................. 105
7.6. External configuration data .................................................................................. 108
7.7. External configuration data with transactions .......................................................... 112
7.8. Writable operational data .................................................................................... 116
7.9. Supporting candidate commit ............................................................................... 116
7.10. Discussion - CDB versus external DB ................................................................. 118
8. Configuration Meta-Data ............................................................................................... 120
8.1. Introduction to Configuration Meta-Data ................................................................ 120
8.2. Meta-Data: annotation .................................................................................. 120
8.3. Meta-Data: tag ................................................................................................ 120
8.4. Meta-Data: inactive ...................................................................................... 121
9. Semantic validation ...................................................................................................... 122
9.1. Why Do We Need to Validate ............................................................................. 122
9.2. Syntactic Validation in YANG models .................................................................. 122
9.3. Integrity Constraints in YANG Models .................................................................. 122
9.4. The YANG must Statement ................................................................................. 123
9.5. Validation Logic ................................................................................................ 123
9.6. Validation Points ............................................................................................... 124
9.7. Validating Data in C .......................................................................................... 125
9.8. Validation Points and CDB ................................................................................. 130
9.9. Dependencies - Why Does Validation Points Get Called ........................................... 130
9.10. Configuration Policies ....................................................................................... 132
10. Transformations, Hooks, Hidden Data and Symlinks ......................................................... 134
10.1. Introduction ..................................................................................................... 134
10.2. Transformation Control Flow ............................................................................. 134
10.3. An Example .................................................................................................... 135
10.4. AAA Transform ............................................................................................... 140
10.5. Other Use Cases for Transformations .................................................................. 142
10.6. Hooks ............................................................................................................ 143
10.7. Hidden Data .................................................................................................... 146
10.8. tailf:symlink .................................................................................................... 148
11. Actions ..................................................................................................................... 151
11.1. Introduction ..................................................................................................... 151
11.2. Action as a Callback ........................................................................................ 151
11.3. Action as an Executable .................................................................................... 154
11.4. Related functionality ......................................................................................... 157
12. Notifications .............................................................................................................. 159
12.1. ConfD Asynchronous Events ............................................................................. 159
12.2. Audit Messages ............................................................................................... 160
12.3. Syslog Messages .............................................................................................. 162
12.4. Commit Events ................................................................................................ 162
12.5. Commit Failure Events ..................................................................................... 165
12.6. Confirmed Commit Events ................................................................................ 165
12.7. Commit Progress Events ................................................................................... 165
iv
ConfD User Guide
12.8. User Sessions .................................................................................................. 165
12.9. High Availability - Cluster Events ...................................................................... 166
12.10. Subagent Events ............................................................................................. 167
12.11. SNMP Agent Audit Log .................................................................................. 168
12.12. Forwarding Events .......................................................................................... 170
12.13. In-service Upgrade Events ............................................................................... 170
12.14. Heartbeat and Health Check Events ................................................................... 170
12.15. Notification stream Events ............................................................................... 170
13. In-service Data Model Upgrade .................................................................................... 171
13.1. Introduction ..................................................................................................... 171
13.2. Preparing for the Upgrade ................................................................................. 171
13.3. Initializing the Upgrade ..................................................................................... 172
13.4. Performing the Upgrade .................................................................................... 173
13.5. Committing the Upgrade ................................................................................... 173
13.6. Aborting the Upgrade ....................................................................................... 174
13.7. Upgrade and HA .............................................................................................. 174
14. The AAA infrastructure ............................................................................................... 176
14.1. The problem .................................................................................................... 176
14.2. Structure - data models ..................................................................................... 176
14.3. AAA related items in confd.conf ........................................................................ 177
14.4. Authentication ................................................................................................. 178
14.5. Group Membership ........................................................................................... 186
14.6. Authorization .................................................................................................. 187
14.7. The AAA cache ............................................................................................... 200
14.8. Populating AAA using CDB .............................................................................. 200
14.9. Populating AAA using external data .................................................................... 200
14.10. Hiding the AAA tree ...................................................................................... 201
15. The NETCONF Server ................................................................................................ 202
15.1. Introduction ..................................................................................................... 202
15.2. Capabilities ..................................................................................................... 203
15.3. NETCONF Transport Protocols .......................................................................... 206
15.4. Configuration of the NETCONF Server ............................................................... 208
15.5. Extending the NETCONF Server ........................................................................ 209
15.6. Monitoring of the NETCONF Server ................................................................... 214
15.7. Notification Capability ...................................................................................... 214
15.8. Using netconf-console ....................................................................................... 218
15.9. Actions Capability ............................................................................................ 219
15.10. Transactions Capability ................................................................................... 222
15.11. Proxy Forwarding Capability ............................................................................ 227
15.12. Inactive Capability .......................................................................................... 237
15.13. Tail-f Identification Capability .......................................................................... 239
15.14. The Query API .............................................................................................. 240
15.15. Meta-data in Attributes .................................................................................... 244
15.16. Namespace for Additional Error Information ....................................................... 245
16. The CLI agent ........................................................................................................... 248
16.1. Overview ........................................................................................................ 248
16.2. The J-style CLI ............................................................................................... 249
16.3. The C- and I-style CLI ..................................................................................... 251
16.4. The CLI in action ............................................................................................ 252
16.5. Environment for OS command execution ............................................................. 254
16.6. Command output processing .............................................................................. 254
16.7. Range expressions ............................................................................................ 261
16.8. Autorendering of enabled/disabled ...................................................................... 263
16.9. Actions ........................................................................................................... 263
v
ConfD User Guide
16.10. Command history ........................................................................................... 264
16.11. Clearing history ............................................................................................. 264
16.12. Command line editing ..................................................................................... 264
16.13. Using CLI completion ..................................................................................... 266
16.14. Using the comment characters # or ! .................................................................. 269
16.15. Annotations and tags ....................................................................................... 270
16.16. Activate and Deactivate ................................................................................... 271
16.17. CLI messages ................................................................................................ 272
16.18. confd.conf settings .......................................................................................... 273
16.19. CLI Environment ........................................................................................... 273
16.20. Commands in J-style ....................................................................................... 275
16.21. Commands in C/I-style .................................................................................... 287
16.22. Customizing the CLI ....................................................................................... 299
16.23. User defined wizards ...................................................................................... 305
16.24. User defined wizards in C ................................................................................ 308
16.25. User defined commands in C using the C-API ..................................................... 310
16.26. User defined commands as shell scripts .............................................................. 311
16.27. Modifying built-in commands ........................................................................... 311
16.28. Tailoring show commands ............................................................................... 312
16.29. Change password at initial login ....................................................................... 317
17. The SNMP Agent ....................................................................................................... 319
17.1. Introduction to the ConfD SNMP Agent .............................................................. 319
17.2. Agent Functional Description ............................................................................. 320
17.3. Generating MIBs from YANG ........................................................................... 339
17.4. Configuring the SNMP Agent ............................................................................ 342
17.5. How the SNMP Agent Interacts with ConfD ......................................................... 346
17.6. Running the SNMP Agent as a NET-SNMP subagent ............................................. 347
18. Web UI Development ................................................................................................. 349
18.1. Introduction ..................................................................................................... 349
18.2. Example of a common flow ............................................................................... 350
18.3. Example of a JSON-RPC client .......................................................................... 354
18.4. Example of a Comet client ................................................................................ 357
19. The JSON-RPC API ................................................................................................... 361
19.1. JSON-RPC ...................................................................................................... 361
19.2. Methods - commands ........................................................................................ 366
19.3. Methods - commands - subscribe ........................................................................ 368
19.4. Methods - data ................................................................................................ 373
19.5. Methods - data - attrs ....................................................................................... 375
19.6. Methods - data - leafs ....................................................................................... 376
19.7. Methods - data - leafref .................................................................................... 378
19.8. Methods - data - lists ........................................................................................ 379
19.9. Methods - data - query ...................................................................................... 382
19.10. Methods - database ......................................................................................... 386
19.11. Methods - general ........................................................................................... 387
19.12. Methods - messages ........................................................................................ 390
19.13. Methods - rollbacks ........................................................................................ 391
19.14. Methods - schema .......................................................................................... 393
19.15. Methods - session ........................................................................................... 400
19.16. Methods - session data .................................................................................... 402
19.17. Methods - transaction ...................................................................................... 403
19.18. Methods - transaction - changes ........................................................................ 406
19.19. Methods - transaction - commit changes ............................................................. 408
19.20. Methods - transaction - webui .......................................................................... 410
20. The web server .......................................................................................................... 411
vi
ConfD User Guide
20.1. Introduction ..................................................................................................... 411
20.2. Web server capabilities ..................................................................................... 411
20.3. CGI support .................................................................................................... 411
21. The REST API .......................................................................................................... 414
21.1. Introduction ..................................................................................................... 414
21.2. Getting started ................................................................................................. 414
21.3. Resource Examples .......................................................................................... 424
21.4. Resources ....................................................................................................... 438
21.5. Configuration Meta-Data ................................................................................... 448
21.6. Request/Response headers ................................................................................. 449
21.7. Special characters ............................................................................................. 450
21.8. Error Responses ............................................................................................... 452
21.9. The Query API ................................................................................................ 454
21.10. Custom Response HTTP Headers ...................................................................... 459
21.11. HTTP Status Codes ........................................................................................ 460
22. The RESTCONF API .................................................................................................. 462
22.1. Introduction ..................................................................................................... 462
22.2. Getting started ................................................................................................. 462
22.3. Capabilities ..................................................................................................... 464
22.4. Streams .......................................................................................................... 464
22.5. Schema resource .............................................................................................. 465
22.6. YANG Patch Media Type ................................................................................. 465
22.7. Extensions ...................................................................................................... 465
22.8. Custom Response HTTP Headers ....................................................................... 466
23. The Management Agent API ........................................................................................ 467
23.1. What is MAAPI? ............................................................................................. 467
23.2. A custom toy CLI ............................................................................................ 467
24. High Availability ........................................................................................................ 474
24.1. Introduction to ConfD High Availability .............................................................. 474
24.2. HA framework requirements .............................................................................. 475
24.3. Mode of operation ............................................................................................ 475
24.4. Security aspects ............................................................................................... 477
24.5. API ................................................................................................................ 477
24.6. Ticks .............................................................................................................. 479
24.7. Joining a cluster ............................................................................................... 479
24.8. Relay slaves .................................................................................................... 480
24.9. CDB replication ............................................................................................... 481
25. The SNMP Gateway ................................................................................................... 482
25.1. Introduction to the ConfD SNMP Gateway ........................................................... 482
25.2. Configuring Agent Access ................................................................................. 482
25.3. Compiling the MIBs ......................................................................................... 483
25.4. Receiving and Forwarding Notifications ............................................................... 483
25.5. Example Scenario ............................................................................................ 484
26. Subagents and Proxies ................................................................................................. 485
26.1. Introduction ..................................................................................................... 485
26.2. Subagent Registration ....................................................................................... 486
26.3. Subagent Requirements ..................................................................................... 490
26.4. Proxies ........................................................................................................... 490
27. Plug-and-play scripting ................................................................................................ 496
27.1. Introduction ..................................................................................................... 496
27.2. Script storage .................................................................................................. 496
27.3. Script interface ................................................................................................ 496
27.4. Loading of scripts ............................................................................................ 497
27.5. Command scripts ............................................................................................. 497
vii
ConfD User Guide
27.6. Policy scripts ................................................................................................... 502
27.7. Post-commit scripts .......................................................................................... 505
28. Advanced Topics ........................................................................................................ 508
28.1. Datastores ....................................................................................................... 508
28.2. Locks ............................................................................................................. 510
28.3. Installing ConfD on a target system .................................................................... 512
28.4. Configuring ConfD ........................................................................................... 513
28.5. Starting ConfD ................................................................................................ 515
28.6. ConfD IPC ...................................................................................................... 517
28.7. Restart strategies .............................................................................................. 521
28.8. Security issues ................................................................................................. 522
28.9. Running ConfD as a non privileged user .............................................................. 523
28.10. Storing encrypted values in ConfD .................................................................... 524
28.11. Disaster management ...................................................................................... 527
28.12. Troubleshooting ............................................................................................. 529
28.13. Tuning the size of confd_hkeypath_t .................................................................. 534
28.14. Error Message Customization ........................................................................... 535
28.15. Using a different version of OpenSSL ................................................................ 535
28.16. Using shared memory for schema information ..................................................... 536
28.17. Running application code inside ConfD .............................................................. 538
I. ConfD man-pages, Volume 1 .......................................................................................... 541
confd ..................................................................................................................... 542
confd_aaa_bridge ..................................................................................................... 547
confd_cli ................................................................................................................ 549
confd_cmd ............................................................................................................. 552
confd_load .............................................................................................................. 554
confdc .................................................................................................................... 559
maapi ..................................................................................................................... 570
II. ConfD man-pages, Volume 3 ......................................................................................... 575
confd_lib ................................................................................................................ 576
confd_lib_cdb .......................................................................................................... 577
confd_lib_dp ........................................................................................................... 615
confd_lib_events ...................................................................................................... 675
confd_lib_ha ........................................................................................................... 682
confd_lib_lib ........................................................................................................... 684
confd_lib_maapi ...................................................................................................... 706
confd_types ............................................................................................................. 773
III. ConfD man-pages, Volume 5 ....................................................................................... 814
clispec .................................................................................................................... 815
confd.conf .............................................................................................................. 872
mib_annotations ....................................................................................................... 930
tailf_yang_cli_extensions ........................................................................................... 932
tailf_yang_extensions ................................................................................................ 973
Glossary ....................................................................................................................... 1009
viii
List of Tables
3.1. YANG built-in types .................................................................................................... 12
17.1. SMI mapping to YANG types .................................................................................... 325
17.2. YANG mapping to SMI types .................................................................................... 326
21.1. REST vs NETCONF operations ................................................................................. 416
21.2. Query Parameters ..................................................................................................... 423
21.3. Resources and their Media Types ............................................................................... 439
21.4. Fields of the /api resource .......................................................................................... 440
21.5. Fields of the /api/<datastore> resource ......................................................................... 443
21.6. Built in operations .................................................................................................... 443
21.7. Error code vs HTTP Status ........................................................................................ 454
28.1. ConfD Start Phases .................................................................................................. 516
28.2. ConfD Start Phases, running in foreground ................................................................... 516
ix
List of Examples
5.1. a simple server data model, servers.yang .................................................................. 54
5.2. Pseudo code showing several sessions reusing one connection ............................................. 59
5.3. Pseudo code demonstrating how to avoid re-reading the configuration ................................... 62
5.4. Version 1.0 of the forest module .................................................................................... 63
5.5. Initial forest instance document ..................................................................................... 64
5.6. Version 2.0 of the forest module .................................................................................... 65
5.7. Forest instance document after upgrade ........................................................................... 66
5.8. Enabling the developer log ............................................................................................ 67
5.9. Developer log entries resulting from upgrade ................................................................... 67
5.10. Version 1.5 of the servers.yang module ......................................................................... 69
5.11. Writing to an upgrade transaction using MAAPI ............................................................. 71
5.12. Version 2 of the servers.yang module ............................................................................ 72
5.13. The upgrade() function of server_upgrade.c ...................................................... 73
5.14. A YANG module describing a dhcpd server configuration ................................................ 75
6.1. netstat.yang ................................................................................................................ 82
6.2. ARP table YANG module ............................................................................................ 84
6.3. Populated ARP table .................................................................................................... 85
7.1. A list of server structures ............................................................................................ 104
7.2. The smp.yang module ................................................................................................ 108
7.3. get_next() callback for smp.yang .................................................................................. 110
7.4. create() callback for smp.yang ..................................................................................... 111
7.5. remove() callback for smp.yang ................................................................................... 111
7.6. set_elem() callback for smp.yang .................................................................................. 111
7.7. save() utility function ................................................................................................. 112
7.8. write callbacks using accumulate .................................................................................. 113
7.9. prepare() callback using the accumulated write ops .......................................................... 114
7.10. commit() and abort() ................................................................................................ 115
7.11. Code to restore our array from a file ........................................................................... 116
7.12. checkpoint db callbacks ............................................................................................ 117
10.1. full.yang ................................................................................................................. 135
10.2. small.yang .............................................................................................................. 135
10.3. users.yang ............................................................................................................... 140
12.1. Creating a notification socket ..................................................................................... 160
12.2. reading the audit data ............................................................................................... 160
15.1. Example math rpc .................................................................................................... 210
17.1. Simple YANG module .............................................................................................. 323
17.2. Generating and compiling YANG from MIB ................................................................ 328
17.3. The YANG file generated by confdc --mib2yang .......................................................... 328
17.4. Specifying built-in MIBs to be loaded into the agent ...................................................... 331
17.5. SMI definition of an optional object ............................................................................ 333
17.6. YANG definition of an optional leaf ........................................................................... 334
17.7. simple.mib .............................................................................................................. 334
17.8. simple.yang ............................................................................................................. 335
17.9. simple.yang with secondary index ............................................................................... 335
17.10. TruthValue from the SNMPv2-TC ............................................................................. 336
17.11. A typedef for TruthValue ........................................................................................ 336
17.12. Functions for sending notification from C ................................................................... 337
17.13. SNMP varbind structures from confd_maapi.h ....................................................... 337
17.14. Notification registration ........................................................................................... 338
17.15. Sending a coldStart notification ................................................................................ 338
17.16. Sending a notification with a varbind ......................................................................... 338
x
ConfD User Guide
17.17. Example of a confd.conf .......................................................................................... 343
17.18. Old confd.conf content ............................................................................................ 344
17.19. Updated confd.conf content ...................................................................................... 344
17.20. Example community_init.xml ................................................................................... 345
19.1. Method get_value ..................................................................................................... 376
19.2. Method set_value ..................................................................................................... 377
19.3. Method query .......................................................................................................... 382
19.4. Method start_query ................................................................................................... 384
19.5. Method run_query .................................................................................................... 385
19.6. Method reset_query .................................................................................................. 385
19.7. Method stop_query ................................................................................................... 386
19.8. Method comet ......................................................................................................... 388
19.9. Method get_schema .................................................................................................. 396
19.10. Method get_module_prefix_map ............................................................................... 397
19.11. Method run_action .................................................................................................. 399
19.12. Method login ......................................................................................................... 400
19.13. Method logout ....................................................................................................... 401
19.14. Method get_trans .................................................................................................... 403
19.15. Method new_trans .................................................................................................. 405
19.16. Method get_trans_changes ....................................................................................... 406
21.1. ConfD configuration for REST ................................................................................... 414
21.2. ConfD configuration of the authentication cache TTL ..................................................... 415
21.3. ConfD configuration of Client IP via Proxy .................................................................. 415
21.4. Request URI structure ............................................................................................... 416
21.5. Using curl for accessing ConfD .................................................................................. 417
21.6. Get the "sys/interfaces" resource represented as JSON .................................................... 418
21.7. Create a new "sys/routes/inet/route" resource, with JSON payload ..................................... 419
21.8. Replace the "sys/routes/inet/route" resource contents ...................................................... 420
21.9. Update the "sys/routes/inet/route" resource contents ....................................................... 421
21.10. Delete the "sys/routes/inet/route" resource contents ....................................................... 422
21.11. Get options for the "sys" resource ............................................................................. 422
21.12. Get head for the "sys/interfaces/ex:serial" resource ....................................................... 422
21.13. Shallow get for the "sys" resource ............................................................................. 424
21.14. Deep get for the "sys/interfaces/interface" resource ....................................................... 424
21.15. Limit the response .................................................................................................. 426
21.16. Limit the response with select .................................................................................. 426
21.17. The "sys/ntp/server" list (no defaults) ......................................................................... 427
21.18. The "sys/ntp/server" list with all defaults .................................................................... 428
21.19. Creating a "sys/routes/inet/route" resource .................................................................. 428
21.20. Creating a "sys/interfaces/serial/ppp0/multilink" resource ............................................... 429
21.21. Creating a "route" resource using PUT ....................................................................... 429
21.22. The "route" resource after creation ............................................................................ 430
21.23. Replacing a "route" resource using PUT ..................................................................... 430
21.24. The "route" resource after replace ............................................................................. 431
21.25. Creating a "sys/interfaces/serial/ppp0/multilink" resource ............................................... 431
21.26. Creating a "sys/interfaces/serial/ppp0/authentication" resource ........................................ 432
21.27. The "authentication" resource after replace .................................................................. 432
21.28. Updating a "route" resource using PATCH ................................................................. 433
21.29. The "route" resource after update .............................................................................. 433
21.30. Creating a "sys/interfaces/serial/ppp0/multilink" resource ............................................... 434
21.31. Creating a "sys/interfaces/serial/ppp0/authentication" resource ........................................ 434
21.32. The "authentication" resource after update .................................................................. 434
21.33. The "sys/dns/server" list before insert ........................................................................ 435
21.34. Insert=before in the "sys/dns/server" list ..................................................................... 435
xi
ConfD User Guide
21.35. The "sys/dns/server" list after insert ........................................................................... 436
21.36. An "archive-log" action request example .................................................................... 436
21.37. delete the "sys/interfaces/ex:serial" list ....................................................................... 438
21.38. The "sys/interfaces" resource after delete .................................................................... 438
21.39. delete the "sys/interfaces/ex:serial" list with rollback label and comment ........................... 438
21.40. Namespaces in JSON .............................................................................................. 440
21.41. GET the /api resource ............................................................................................. 442
21.42. GET the /api/running resource .................................................................................. 445
21.43. Action in /api/operational ......................................................................................... 445
21.44. GET rollback files information ................................................................................. 446
21.45. GET rollback file content ........................................................................................ 447
21.46. Find and use the rollback operation resource ............................................................... 448
21.47. XML representation of meta-data .............................................................................. 449
21.48. JSON representation of meta-data ............................................................................. 449
21.49. Example of a XML formatted error message ............................................................... 452
21.50. Example of a JSON formatted error message ............................................................... 452
21.51. ConfD configuration for REST ................................................................................. 459
21.52. ............................................................................................................................ 460
22.1. ConfD configuration for REST ................................................................................... 462
22.2. ConfD configuration for RESTCONF .......................................................................... 462
22.3. ConfD configuration of the authentication cache TTL ..................................................... 463
22.4. ConfD configuration of Client IP via Proxy .................................................................. 463
22.5. ConfD RESTCONF capabilities .................................................................................. 464
22.6. ConfD RESTCONF streams ....................................................................................... 464
22.7. ConfD RESTCONF errors during streaming ................................................................. 465
22.8. Use of collections .................................................................................................... 465
22.9. Use of collections .................................................................................................... 466
22.10. ConfD configuration for RESTCONF ........................................................................ 466
23.1. scli.yang YANG module ........................................................................................... 467
24.1. A data model divided into common and node specific subtrees ......................................... 475
25.1. Example snmpgw configuration fragment in confd.conf .................................................. 482
25.2. C code for registering reception of notifications ............................................................. 483
25.3. Example 1 of translating and compiling a MIB .............................................................. 484
26.1. smtp subagent data ................................................................................................... 487
26.2. imap and pop subagent data ....................................................................................... 487
26.3. Equipment subagent data ........................................................................................... 488
26.4. master agent data ..................................................................................................... 488
26.5. Compile the YANG modules at the master ................................................................... 488
26.6. Master agent's confd.conf .......................................................................................... 489
26.7. Proxy configuration .................................................................................................. 490
26.8. Agent replies with forward capability .......................................................................... 492
26.9. Manager issues forward rpc to board-1 ........................................................................ 492
26.10. Manager issues command ........................................................................................ 492
26.11. close-session .......................................................................................................... 493
26.12. Auto login ............................................................................................................. 493
26.13. Forward rpc with auth data ...................................................................................... 494
152. Reloading all xml files in the cdb directory ................................................................... 557
153. Merging in the contents of conf.cli ......................................................................... 557
154. Print interface config and statistics data in cli format ....................................................... 557
155. Using xslt to format output ......................................................................................... 557
156. Using xmllint to pretty print the xml output ................................................................... 557
157. Saving config and operational data to /tmp/conf.xml ................................................ 557
158. Restoring both config and operational data .................................................................... 557
159. Measure how long it takes to fetch config ..................................................................... 557
xii
ConfD User Guide
160. Output all instances in list /foo/table which has ix larger than 10 ............................... 557
161. confd-light.cli ........................................................................................................... 815
162. The servers YANG model ........................................................................................ 1009
xiii
Chapter 1. About the Documentation
1.1. How to Read This Guide
This document provides a wealth of information about ConfD and how to use it for your particular needs.
It is written to be useful both when read front-to-back and also for readers that need to dive into particular
aspects of the many features of ConfD.
Readers that are new to ConfD will learn a lot about how to think about, and apply, the features of ConfD
by reading the first twelve chapters of this guide. They give an overview of the foundations of ConfD and
how they can be used in various types of environments to meet various types of needs. Having read these
chapters will also be useful as a guide during early design decisions to avoid missing out on useful ConfD
features or applying features in a less than optimal way.
The rest of the document provides information about particular parts of ConfD. Time permitting, it is very
useful to read as a whole, but they may also be read selectively depending on which parts of ConfD you
are planning to use.
This document also consists of manual pages. The manual pages are reference information for the various
tools, libraries and configuration files that are included in the ConfD package. They can also be found in
native manual page format in the ConfD release package.
1.2. Getting Documentation
Updated documentation sets are prepared along with ConfD releases and can always be found in the
customer download area or as part of the various deliverables. All releases contains the following updated
documents:
The ConfD User Guide is this document and is a separate download
The CHANGES file describes all new features and corrections in the release and is a separate download
The HIGHLIGHTS document is released with major releases and describes, with examples, all
substantial new features per release. The HIGHLIGHTS document is a separate download.
The KNOWN_ISSUES file is part of the release package and documents all known open issues at the
time of release
All ConfD release packages include a README file that describes how to install, set up and get started
with ConfD. The README file is located in the top directory of a ConfD installation.
The example collection includes a README file that introduces the reader to the wide selection of
examples and what they contain. The README is contained in the examples deliverable.
All of the documents listed above contain information that is essential to the understanding of how to
extract the most value out of ConfD and we urge all our users to read them.
1.3. Formatting Conventions
We use the following text and syntax conventions throughout the documentation:
Operating system references (e.g. commands, environment variables, filenames and command options)
are rendered in fixed-width font
1
About the Documentation
Programming language constructs (e.g. functions, constants and error codes) are rendered in fixed-
width font
Multi-line code snippets and screen output are rendered like this:
# confdc -c test.cs
# confdc -l -o test.fxs test.xso
We use the following admonitions throughout this document:
Tip
This an example of a tip that is used to describe practical information on how to apply, or think
about a certain aspect of the product
Note
This is an example of a note that is used to highlight a particular piece of information
Warning
This is an example of a warning that points out information that needs particular attention to
avoid problems
1.4. Documentation Feedback
We appreciate documentation feedback, comments and suggestions so that we can continuously improve
the documentation and make it more useful. Use the request tracker system to send us your comments
and make sure you include information about which version and what section of the documentation you
are referring to.
2
Chapter 2. An introduction to ConfD
2.1. An on-device software system for
configuration management
Network devices, such as routers, switches or gateways, need to be configured and monitored. A fair
amount of software is embedded in these devices to facilitate configuration and monitoring. This software
typically includes:
An SNMP agent for monitoring the device (SNMP is in practice almost never used for configuring
devices, although it is possible to do so).
Software to drive and render a command line interface (CLI).
A small web server and content making up a device-specific web site, for a web-based user interface
to the device management system.
In addition, the IETF has developed a standard called NETCONF for automated configuration of network
devices. NETCONF allows devices to expose an XML-based API that the network operator can use to set
and get full and partial configuration data sets.
NETCONF solves several management problems that have been lacking standardized solutions. However,
for an engineering organization with limited resources and a tight time schedule introducing/implementing
NETCONF also poses a problem; a whole new management sub-system needs to be implemented and
integrated with the other already existing management components, while time-to-market requirements
remain unchanged.
2.2. ConfD Architecture
Tail-f's ConfD is a device configuration toolkit meant to be integrated as a management sub-system in
network devices, providing:
An implementation of the NETCONF protocol
Automatic rendering of northbound interfaces, including CLI, Web UI and NETCONF
Clustered/fault-tolerant storage of configuration data
Master-agent/sub-agent framework for NETCONF, CLI, Web UI and SNMP
3
An introduction to ConfD
ConfD as sub-system on a network device
The following figure illustrates where ConfD would reside on, for example, a chassis-based router:
4
An introduction to ConfD
ConfD on a chassis-based router
ConfD executes as a regular Unix daemon on the target device, acting:
as a NETCONF agent for the NETCONF protocol
as a Web server for the Web UI
as a CLI engine for command-line access
and as an SNMP agent
It also contains a built-in XML configuration database.
The following figure illustrates the overall architecture. The ConfD architecture is modular, with well-
defined interfaces between sub-systems.
5
An introduction to ConfD
ConfD architecture
The NETCONF, SNMP, CLI and Web modules are Management Agents. These communicate with
external managers, and provide the managers with a protocol-specific view of the system. The box labeled
Other Agent is e.g. a GUI application or some other management protocol implementation. These other
Agents use the Management Agent API (MAAPI) to talk to the Management Backplane.
The Management Backplane provides an hierarchical view of the configuration and status/statistics data
through the Management Agent API. This API is a session-oriented read/write API to the hierarchical
data, with transaction-like semantics.
Examples of operations in this interface are 'create-subtree', 'get-instance', 'set-instance'. This interface is
used both when the configuration is stored in the built-in ConfD database, and when it is stored in an
external database.
The Management Backplane authenticates incoming requests through an AAA (Authentication,
Authorization, Accounting) plugin API. An AAA plugin authenticates users and authorizes their requests.
ConfD comes with a built-in AAA plugin, which can be replaced by vendor specific code.
In order to actually read and write the device-native configuration data, the sessions in the Management
Backplane use the Database Plugin API. A database plugin has to provide mapping from the hierarchical
view of the data used in the management protocols, to the native view used by the management database.
The management database can either be the integrated management database - called CDB - or some other
database. CDB is a light-weight fault-tolerant distributed XML database. CDB can be used in single or
multi-node systems in master slave configuration. It handles updates to the database schema automatically.
6
An introduction to ConfD
The Managed Objects in the application use the Managed Object API to read their configuration from the
ConfD management database. There is a also a subscription mechanism, which the Managed Objects can
use to react on configuration changes.
ConfD provides language bindings for the callback oriented plugin interfaces in C and Java. In the figure
above, the Database Plugin API and the AAA Plugin API are available in C and Java The normal function
call oriented APIs are available as C or Java APIs.
7
Chapter 3. The YANG Data Modeling
Language
3.1. The YANG Data Modeling Language
YANG is a data modeling language used to model configuration and state data manipulated by a
NETCONF agent. The YANG modeling language is defined in RFC 6020. YANG as a language will not be
described in its entirety here - rather we refer to the IETF RFC text at http://www.ietf.org/rfc/rfc6020.txt.
Another source of information regarding the YANG language is the wiki based web site http://www.yang-
central.org/. For a tutorial on the data modeling capabilities of YANG, see http://www.yang-central.org/
twiki/bin/view/Main/DhcpTutorial.
3.2. YANG in ConfD
In ConfD, YANG is not only used for NETCONF data. On the contrary, YANG is used to describe the
data model as a whole and used by all northbound interfaces.
A YANG module can be directly transformed into a final schema (.fxs) file that can be loaded into ConfD.
Currently all features of the YANG language except the anyxml statement are supported.
3.3. YANG Introduction
This section is a brief introduction to YANG. The exact details of all language constructs is fully described
in RFC 6020.
The ConfD programmer must know YANG well, since all APIs use various paths that are derived from
the YANG datamodel.
3.3.1. Modules and Submodules
A module contains three types of statements: module-header statements, revision statements, and definition
statements. The module header statements describe the module and give information about the module
itself, the revision statements give information about the history of the module, and the definition
statements are the body of the module where the data model is defined.
A module may be divided into submodules, based on the needs of the module owner. The external view
remains that of a single module, regardless of the presence or size of its submodules.
The include statement allows a module or submodule to reference material in submodules, and the
import statement allows references to material defined in other modules.
3.3.2. Data Modeling Basics
YANG defines four types of nodes for data modeling. In each of the following subsections, the example
shows the YANG syntax as well as a corresponding NETCONF XML representation.
3.3.3. Leaf Nodes
A leaf node contains simple data like an integer or a string. It has exactly one value of a particular type,
and no child nodes.
8
The YANG Data Modeling Language
leaf host-name {
type string;
description "Hostname for this system";
}
With XML value representation for example as:
<host-name>my.example.com</host-name>
An interesting variant of leaf nodes are typeless leafs.
leaf enabled {
type empty;
description "Enable the interface";
}
With XML value representation for example as:
<enabled/>
3.3.4. Leaf-list Nodes
A leaf-list is a sequence of leaf nodes with exactly one value of a particular type per leaf.
leaf-list domain-search {
type string;
description "List of domain names to search";
}
With XML value representation for example as:
<domain-search>high.example.com</domain-search>
<domain-search>low.example.com</domain-search>
<domain-search>everywhere.example.com</domain-search>
3.3.5. Container Nodes
A container node is used to group related nodes in a subtree. It has only child nodes and no value and
may contain any number of child nodes of any type (including leafs, lists, containers, and leaf-lists).
container system {
container login {
leaf message {
type string;
description
"Message given at start of login session";
}
}
}
With XML value representation for example as:
<system>
<login>
<message>Good morning, Dave</message>
9
The YANG Data Modeling Language
</login>
</system>
3.3.6. List Nodes
A list defines a sequence of list entries. Each entry is like a structure or a record instance, and is uniquely
identified by the values of its key leafs. A list can define multiple keys and may contain any number of
child nodes of any type (including leafs, lists, containers etc.).
list user {
key "name";
leaf name {
type string;
}
leaf full-name {
type string;
}
leaf class {
type string;
}
}
With XML value representation for example as:
<user>
<name>glocks</name>
<full-name>Goldie Locks</full-name>
<class>intruder</class>
</user>
<user>
<name>snowey</name>
<full-name>Snow White</full-name>
<class>free-loader</class>
</user>
<user>
<name>rzull</name>
<full-name>Repun Zell</full-name>
<class>tower</class>
</user>
3.3.7. Example Module
These statements are combined to define the module:
// Contents of "acme-system.yang"
module acme-system {
namespace "http://acme.example.com/system";
prefix "acme";
organization "ACME Inc.";
contact "joe@acme.example.com";
description
"The module for entities implementing the ACME system.";
revision 2007-06-09 {
10
The YANG Data Modeling Language
description "Initial revision.";
}
container system {
leaf host-name {
type string;
description "Hostname for this system";
}
leaf-list domain-search {
type string;
description "List of domain names to search";
}
container login {
leaf message {
type string;
description
"Message given at start of login session";
}
list user {
key "name";
leaf name {
type string;
}
leaf full-name {
type string;
}
leaf class {
type string;
}
}
}
}
}
3.3.8. State Data
YANG can model state data, as well as configuration data, based on the config statement. When a node
is tagged with config false, its sub hierarchy is flagged as state data, to be reported using NETCONF's
get operation, not the get-config operation. Parent containers, lists, and key leafs are reported also, giving
the context for the state data.
In this example, two leafs are defined for each interface, a configured speed and an observed speed. The
observed speed is not configuration, so it can be returned with NETCONF get operations, but not with get-
config operations. The observed speed is not configuration data, and cannot be manipulated using edit-
config.
list interface {
key "name";
config true;
leaf name {
type string;
}
leaf speed {
11
The YANG Data Modeling Language
type enumeration {
enum 10m;
enum 100m;
enum auto;
}
}
leaf observed-speed {
type uint32;
config false;
}
}
3.3.9. Built-in Types
YANG has a set of built-in types, similar to those of many programming languages, but with some
differences due to special requirements from the management domain. The following table summarizes
the built-in types.
Table 3.1. YANG built-in types
Name Type Description
binary Text Any binary data
bits Text/Number A set of bits or flags
boolean Text "true" or "false"
decimal64 Number 64-bit fixed point real number
empty Empty A leaf that does not have any value
enumeration Text/Number Enumerated strings with
associated numeric values
identityref Text A reference to an abstract identity
instance-identifier Text References a data tree node
int8 Number 8-bit signed integer
int16 Number 16-bit signed integer
int32 Number 32-bit signed integer
int64 Number 64-bit signed integer
leafref Text/Number A reference to a leaf instance
string Text Human readable string
uint8 Number 8-bit unsigned integer
uint16 Number 16-bit unsigned integer
uint32 Number 32-bit unsigned integer
uint64 Number 64-bit unsigned integer
union Text/Number Choice of member types
3.3.10. Derived Types (typedef)
YANG can define derived types from base types using the typedef statement. A base type can be either
a built-in type or a derived type, allowing a hierarchy of derived types. A derived type can be used as the
argument for the type statement.
12
The YANG Data Modeling Language
typedef percent {
type uint16 {
range "0 .. 100";
}
description "Percentage";
}
leaf completed {
type percent;
}
With XML value representation for example as:
<completed>20</completed>
User defined typedefs are useful when we want to name and reuse a type several times. It is also possible
to restrict leafs inline in the data model as in:
leaf completed {
type uint16 {
range "0 .. 100";
}
description "Percentage";
}
3.3.11. Reusable Node Groups (grouping)
Groups of nodes can be assembled into the equivalent of complex types using the grouping statement.
grouping defines a set of nodes that are instantiated with the uses statement:
grouping target {
leaf address {
type inet:ip-address;
description "Target IP address";
}
leaf port {
type inet:port-number;
description "Target port number";
}
}
container peer {
container destination {
uses target;
}
}
With XML value representation for example as:
<peer>
<destination>
<address>192.0.2.1</address>
<port>830</port>
</destination>
</peer>
13
The YANG Data Modeling Language
The grouping can be refined as it is used, allowing certain statements to be overridden. In this example,
the description is refined:
container connection {
container source {
uses target {
refine "address" {
description "Source IP address";
}
refine "port" {
description "Source port number";
}
}
}
container destination {
uses target {
refine "address" {
description "Destination IP address";
}
refine "port" {
description "Destination port number";
}
}
}
}
3.3.12. Choices
YANG allows the data model to segregate incompatible nodes into distinct choices using the choice and
case statements. The choice statement contains a set of case statements which define sets of schema
nodes that cannot appear together. Each case may contain multiple nodes, but each node may appear in
only one case under a choice.
When the nodes from one case are created, all nodes from all other cases are implicitly deleted. The device
handles the enforcement of the constraint, preventing incompatibilities from existing in the configuration.
The choice and case nodes appear only in the schema tree, not in the data tree or XML encoding. The
additional levels of hierarchy are not needed beyond the conceptual schema.
container food {
choice snack {
mandatory true;
case sports-arena {
leaf pretzel {
type empty;
}
leaf beer {
type empty;
}
}
case late-night {
leaf chocolate {
type enumeration {
enum dark;
enum milk;
enum first-available;
}
14
The YANG Data Modeling Language
}
}
}
}
With XML value reprentation for example as:
<food>
<chocolate>first-available</chocolate>
</food>
3.3.13. Extending Data Models (augment)
YANG allows a module to insert additional nodes into data models, including both the current module (and
its submodules) or an external module. This is useful e.g. for vendors to add vendor-specific parameters
to standard data models in an interoperable way.
The augment statement defines the location in the data model hierarchy where new nodes are inserted,
and the when statement defines the conditions when the new nodes are valid.
augment /system/login/user {
when "class != 'wheel'";
leaf uid {
type uint16 {
range "1000 .. 30000";
}
}
}
This example defines a uid node that only is valid when the user's class is not wheel.
If a module augments another model, the XML representation of the data will reflect the prefix of the
augmenting model. For example, if the above augmentation were in a module with prefix other, the
XML would look like:
<user>
<name>alicew</name>
<full-name>Alice N. Wonderland</full-name>
<class>drop-out</class>
<other:uid>1024</other:uid>
</user>
3.3.14. RPC Definitions
YANG allows the definition of NETCONF RPCs. The method names, input parameters and output
parameters are modeled using YANG data definition statements.
rpc activate-software-image {
input {
leaf image-name {
type string;
}
}
15
The YANG Data Modeling Language
output {
leaf status {
type string;
}
}
}
<rpc message-id="101"
xmlns="urn:ietf:params:xml:ns:netconf:base:1.0">
<activate-software-image xmlns="http://acme.example.com/system">
<name>acmefw-2.3</name>
</activate-software-image>
</rpc>
<rpc-reply message-id="101"
xmlns="urn:ietf:params:xml:ns:netconf:base:1.0">
<status xmlns="http://acme.example.com/system">
The image acmefw-2.3 is being installed.
</status>
</rpc-reply>
3.3.15. Notification Definitions
YANG allows the definition of notifications suitable for NETCONF. YANG data definition statements
are used to model the content of the notification.
notification link-failure {
description "A link failure has been detected";
leaf if-name {
type leafref {
path "/interfaces/interface/name";
}
}
leaf if-admin-status {
type ifAdminStatus;
}
}
<notification xmlns="urn:ietf:params:netconf:capability:notification:1.0">
<eventTime>2007-09-01T10:00:00Z</eventTime>
<link-failure xmlns="http://acme.example.com/system">
<if-name>so-1/2/3.0</if-name>
<if-admin-status>up</if-admin-status>
</link-failure>
</notification>
3.4. Working With YANG Modules
Assume we have a small trivial YANG file test.yang:
module test {
namespace "http://tail-f.com/test";
prefix "t";
16
The YANG Data Modeling Language
container top {
leaf a {
type int32;
}
leaf b {
type string;
}
}
}
Tip
There is an Emacs mode suitable for YANG file editing in the system distribution. It is called
yang-mode.el
We can use confdc compiler to compile the YANG module.
$ confdc -c test.yang
The above command creates an output file test.fxs that is a compiled schema that can be loaded into
the system. The confdc compiler with all its flags is fully described in confdc (1).
There exists a number of standards based auxiliary YANG modules defining various useful data types.
These modules, as well as their accompanying .fxs files can be found in the ${CONFD_DIR}/src/
confd/yang directory in the distribution.
The modules are:
ietf-yang-types - defining some basic data types such as counters, dates and times.
ietf-inet-types - defining several useful types related to IP addresses.
Whenever we wish to use any of those predefined modules we need to not only import the module into our
YANG module, but we must also load the corresponding .fxs file for the imported module into the system.
So if we extend our test module so that it looks like:
module test {
namespace "http://tail-f.com/test";
prefix "t";
import ietf-inet-types {
prefix inet;
}
container top {
leaf a {
type int32;
}
leaf b {
type string;
}
leaf ip {
type inet:ipv4-address;
}
}
}
17
The YANG Data Modeling Language
Normally when importing other YANG modules we must indicate through the --yangpath flag to
confdc where to search for the imported module. In the special case of the standard modules, this is not
required.
We compile the above as:
$ confdc -c test.yang
$ confdc --get-info test.fxs
fxs file
Confdc version: "3.0_2" (current Confdc version = "3.0_2")
uri: http://tail-f.com/test
id: http://tail-f.com/test
prefix: "t"
flags: 6
type: cs
mountpoint: undefined
exported agents: all
dependencies: ['http://www.w3.org/2001/XMLSchema',
'urn:ietf:params:xml:ns:yang:inet-types']
source: ["test.yang"]
We see that the generated .fxs file has a dependency to the standard
urn:ietf:params:xml:ns:yang:inet-types namespace. Thus if we try to start confd, we
must also ensure that the fxs file for that namespace is loaded.
Failing to do so gives:
$ confd -c confd.conf --foreground --verbose
The namespace urn:ietf:params:xml:ns:yang:inet-types (referenced by http://tail-f.com/test) could not be found in the loadPath.
Daemon died status=21
The remedy is to modify confd.conf so that it contains the proper load path or to provide the
directory containing the fxs file, alternatively we can provide the path on the command line. The directory
${CONFD_DIR}/etc/confd contains pre-compiled versions of the standard YANG modules.
$ confd -c confd.conf --addloadpath ${CONFD_DIR}/etc/confd --foreground --verbose
confd.conf is the configuration file for ConfD itself. It is described in confd.conf(5)
3.5. Integrity Constraints
The YANG language has built-in declarative constructs for common integrity constraints. These constructs
are conveniently specified as must statements.
A must statement is an XPath expression that must evaluate to true or a non-empty node-set.
An example is:
container interface {
leaf ifType {
type enumeration {
enum ethernet;
enum atm;
18
The YANG Data Modeling Language
}
}
leaf ifMTU {
type uint32;
}
must "ifType != 'ethernet' or "
+ "(ifType = 'ethernet' and ifMTU = 1500)" {
error-message "An ethernet MTU must be 1500";
}
must "ifType != 'atm' or "
+ "(ifType = 'atm' and ifMTU <= 17966 and ifMTU >= 64)" {
error-message "An atm MTU must be 64 .. 17966";
}
}
XPath is a very powerful tool here. It is often possible to express most realistic validation
constraints using XPath expressions. Note that for performance reasons, it is recommended to use the
tailf:dependency statement in the must statement. The compiler gives a warning if a must
statement lacks a tailf:dependency statement, and it cannot derive the dependency from the
expression. The options --fail-on-warnings or -E TAILF_MUST_NEED_DEPENDENCY can be
given to force this warning to be treated as an error. See Section 9.9, “Dependencies - Why Does Validation
Points Get Called” for details.
Another useful built-in constraint checker is the unique statement.
With the YANG code:
list server {
key "name";
unique "ip port";
leaf name {
type string;
}
leaf ip {
type inet:ip-address;
}
leaf port {
type inet:port-number;
}
}
We specify that the combination of IP and port must be unique. Thus the configuration:
<server>
<name>smtp</name>
<ip>192.0.2.1</ip>
<port>25</port>
</server>
<server>
<name>http</name>
<ip>192.0.2.1</ip>
<port>25</port>
</server>
is not valid.
19
The YANG Data Modeling Language
The usage of leafrefs (See the YANG specification) ensures that we do not end up with configurations
with dangling pointers. Leafrefs are also especially good, since the CLI and Web UI can render a better
interface.
If other constraints are necessary, validation callback functions can be programmed in C. Read more about
validation callbacks in Chapter 9, Semantic validation.
3.6. The when statement
The when statement is used to make its parent statement conditional. If the XPath expression specified as
the argument to this statement evaluates to false, the parent node cannot be given configured. Furthermore,
if the parent node exists, and some other node is changed so that the XPath expression becomes false, the
parent node is automatically deleted. For example:
leaf a {
type boolean;
}
leaf b {
type string;
when "../a = 'true'";
}
This data model snippet says that 'b' can only exist if 'a' is true. If 'a' is true, and 'b' has a value, and 'a' is
set to false, 'b' will automatically be deleted.
Since the XPath expression in theory can refer to any node in the data tree, it has to be re-evaluated when
any node in the tree is modified. But this would have a disastrous performance impact, so in order to avoid
this, ConfD keeps track of dependencies for each when expression. In some simple cases, the confdc can
figure out these dependencies by itself. In the example above, ConfD will detect that 'b' is dependant on 'a',
and evaluate b's XPath expression only if 'a' is modified. If confdc cannot detect the dependencies by itself,
it requires a tailf:dependency statement in the when statement. See Section 9.9, “Dependencies -
Why Does Validation Points Get Called” for details.
3.7. Using the Tail-f Extensions with YANG
Tail-f has an extensive set of extensions to the YANG language that integrates YANG models in ConfD.
For example when we have config false; data, we may wish to invoke user C code to deliver
the statistics data in runtime. To do this we annotate the YANG model with a Tail-f extension called
tailf:callpoint.
Alternatively we may wish to invoke user code to validate the configuration, this is also controlled through
an extension called tailf:validate.
All these extensions are handled as normal YANG extensions. (YANG is designed to be extended) We
have defined the Tail-f proprietary extensions in a file ${CONFD_DIR}/src/confd/yang/tailf-
common.yang
Continuing with our previous example, adding a callpoint and a validation point we get:
module test {
namespace "http://tail-f.com/test";
prefix "t";
20
The YANG Data Modeling Language
import ietf-inet-types {
prefix inet;
}
import tailf-common {
prefix tailf;
}
container top {
leaf a {
type int32;
config false;
tailf:callpoint mycp;
}
leaf b {
tailf:validate myvalcp {
tailf:dependency "../a";
}
type string;
}
leaf ip {
type inet:ipv4-address;
}
}
}
The above module contains a callpoint and a validation point. The exact syntax for all Tail-f extensions
are defined in the tailf-common.yang file.
Note the import statement where we import tailf-common.
When we are using YANG specifications in order to generate Java classes for ConfM, these extensions
are ignored. They only make sense on the device side. It is worth mentioning them though, since EMS
developers will certainly get the YANG specifications from the device developers, thus the YANG
specifications may contain extensions
The man page tailf_yang_extensions(5) describes all the Tail-f YANG extensions.
3.7.1. Using a YANG annotation file
Sometimes it is convenient to specify all Tail-f extension statements in-line in the original YANG module.
But in some cases, e.g. when implementing a standard YANG module, it is better to keep the Tail-f
extension statements in a separate annotation file. When the YANG module is compiled to an fxs file, the
compiler is given the original YANG module, and any number of annotation files.
A YANG annotation file is a normal YANG module which imports the module to annotate. Then the
tailf:annotate statement is used to annotate nodes in the original module. For example, the module
test above can be annotated like this:
module test {
namespace "http://tail-f.com/test";
prefix "t";
import ietf-inet-types {
prefix inet;
}
container top {
21
The YANG Data Modeling Language
leaf a {
type int32;
config false;
}
leaf b {
type string;
}
leaf ip {
type inet:ipv4-address;
}
}
}
module test-ann {
namespace "http://tail-f.com/test-ann";
prefix "ta";
import test {
prefix t;
}
import tailf-common {
prefix tailf;
}
tailf:annotate "/t:top/t:a" {
tailf:callpoint mycp;
}
tailf:annotate "/t:top" {
tailf:annotate "t:b" { // recursive annotation
tailf:validate myvalcp {
tailf:dependency "../t:a";
}
}
}
}
In order to compile the module with annotations, use the -a parameter to confdc:
confdc -c -a test-ann.yang test.yang
3.8. Custom Help Texts and Error Messages
Certain parts of a YANG model are used by northbound agents, e.g. CLI and Web UI, to provide the end-
user with custom help texts and error messages.
3.8.1. Custom Help Texts
A YANG statement can be annotated with a description statement which is used to describe the
definition for a reader of the module. This text is often too long and too detailed to be useful as help
text in a CLI. For this reason, ConfD by default does not use the text in the description for this
purpose. Instead, a tail-f specific statement, tailf:info is used. It is recommended that the standard
description statement contains a detailed description suitable for a module reader (e.g. NETCONF
client or server implementor), and tailf:info contains a CLI help text.
As an alternative, ConfD can be instructed to use the text in the description statement also for CLI
help text. See the option --use-description to confdc (1).
22
The YANG Data Modeling Language
For example, CLI uses the help text to prompt for a value of this particular type. The CLI shows this
information during tab/command completion or if the end-user explicitly asks for help using the ?-
character. The behavior depends on the mode the CLI is running in.
The Web UI uses this information likewise to help the end-user.
The mtu definition below has been annotated to enrich the end-user experience:
leaf mtu {
type uint16 {
range "1 .. 1500";
}
description
"MTU is the largest frame size that can be transmitted
over the network. For example, an Ethernet MTU is 1,500
bytes. Messages longer than the MTU must be divided
into smaller frames.";
tailf:info
"largest frame size";
}
3.8.2. Custom Help Text in a Typedef
Alternatively, we could have provided the help text in a typedef statement as in:
typedef mtuType {
type uint16 {
range "1 .. 1500";
}
description
"MTU is the largest frame size that can be transmitted over the
network. For example, an Ethernet MTU is 1,500
bytes. Messages longer than the MTU must be
divided into smaller frames.";
tailf:info
"largest frame size";
}
leaf mtu {
type mtuType;
}
If there is an explicit help text attached to a leaf, it overrides the help text attached to the type.
3.8.3. Custom Error Messages
A statement can have an optional error-message statement. The north-bound agents, for example, the CLI
uses this to inform the end-user about a provided value which is not of the correct type. If no custom error-
message statement is available ConfD generates a built-in error message, e.g. "1505 is too large.".
All northbound agents use the extra information provided by an error-message statement.
The typedef statement below has been annotated to enrich the end-user experience when it comes to
error information:
typedef mtuType {
23
The YANG Data Modeling Language
type uint32 {
range "1..1500" {
error-message
"The MTU must be a positive number not "
+ "larger than 1500";
}
}
}
3.9. Hidden Data
It is sometimes useful to hide nodes from some of the northbound interfaces. The tailf:export
statement, or the --export compile directive can be used to hide an entire module. It is recommended
to use the tailf:export statement. More fine grained control can be attained with the optional
tailf:hidden statement.
The tailf:hidden statement names a hide group. All nodes belonging to the same hide group are
treated the same way as fas as being hidden or invisible. The hide group name full is given a special
meaning. The full hide group is hidden from all northbound interfaces, not just user interfaces.
A related situation is when some nodes should be displayed to the user only when a certain condition is met.
For example, the "ethernet" subtree should be displayed only when the type of an interface is "ethernet".
This is covered in the subsection "Conditional display" below.
3.9.1. Fully Hidden Nodes
This is nodes that may be useful for the MOs, but should be hidden from all northbound interfaces. An
example is the set of physical network interfaces on a device and their types. This is "static" data, i.e. it
can't be changed by configuration, but it can vary between different models of a device that run the same
software, and the device-specific data can be provided via init file or through MAAPI.
This type of data could also be realized via a separate module where tailf:export is used to limit
the visibility, but being able to have some nodes in the data model hidden while others are not allows
for greater flexibility - e.g. lists in the config data can have hidden child nodes, which get instantiated
automatically along with the visible config nodes.
3.9.2. Hiding Nodes from User Interfaces
This is data that is fully visible to programmatic northbound interfaces such as NETCONF, but normally
hidden from user interfaces such as CLI and Web UI. Examples are data used for experimental or end-
customer-specific features, similar to hidden commands in the CLI but for data nodes.
A user interface may give access to this type of data (and even totally hidden data) if the user executes
an unhide command identifying hide group that should be revealed. After this the nodes belonging to
the hide group appear the same as unhidden data, i.e. they're included in tab completion, listed by show
commands etc.
A hide group can only be unhidden if the group is listed in the confd.conf. This means that a hide
group will be completely hidden to the user interfaces unless it has been explicitly allowed to be unhidden
in confd.conf. A password can optionally be required to unhide a group.
<hideGroup>
24
The YANG Data Modeling Language
<name>debug</name>
<password>secret</password>
</hideGroup>
3.9.3. Conditional display
Sometimes it is convenient to hide some CLI commands, or Web UI elements, when certain conditions on
the configuration are met. A typical example is a "discriminated union". One leaf is the type of something,
and depending on the value of this leaf, different containers are visible:
typedef interface-type {
type enumeration {
enum ethernet;
enum atm;
enum appletalk;
}
}
leaf if-type {
type interface-type;
}
container ethernet {
...
}
container atm {
...
}
container appletalk {
...
}
In this example, the "ethernet" container should be visible to the user only when the value of "if-type"
is "ethernet".
This can be accomplished by using the tailf:display-when statement. It contains an XPath
expression which specifies when the node should be displayed:
container ethernet {
tailf:display-when "../if-type = 'ethernet'";
...
}
container atm {
tailf:display-when "../if-type = 'atm'";
...
}
container appletalk {
tailf:display-when "../if-type = 'appletalk'";
...
}
With this data model, the CLI behaves like this:
25
The YANG Data Modeling Language
% show
if-type ethernet;
ethernet {
... # data for ethernet
}
% set <tab>
Possible completions:
ethernet if-type
% set if-type atm
% set atm ... # create atm data
% delete <tab>
Possible completions:
ethernet if-type # NOTE: ethernet NOT present
3.10. An Example: Modeling a List of Interfaces
Say for example that we want to model the interface list on a Linux based device. Running the ip link list
command reveals the type of information we have to model
$ /sbin/ip link list
1: eth0: <BROADCAST,MULTICAST,UP>; mtu 1500 qdisc pfifo_fast qlen 1000
link/ether 00:12:3f:7d:b0:32 brd ff:ff:ff:ff:ff:ff
2: lo: <LOOPBACK,UP>; mtu 16436 qdisc noqueue
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
3: dummy0: <BROADCAST,NOARP> mtu 1500 qdisc noop
link/ether a6:17:b9:86:2c:04 brd ff:ff:ff:ff:ff:ff
and this is how we want to represent the above in XML:
<?xml version="1.0"?>
<config xmlns="http://example.com/ns/link">
<links>
<link>
<name>eth0</name>
<flags>
<UP/>
<BROADCAST/>
<MULTICAST/>
</flags>
<addr>00:12:3f:7d:b0:32</addr>
<brd>ff:ff:ff:ff:ff:ff</brd>
<mtu>1500</mtu>
</link>
<link>
<name>lo</name>
<flags>
<UP/>
<LOOPBACK/>
</flags>
<addr>00:00:00:00:00:00</addr>
<brd>00:00:00:00:00:00</brd>
<mtu>16436</mtu>
</link>
26
The YANG Data Modeling Language
</links>
</config>
An interface or a link has data associated with it. It also has a name, an obvious choice to use as the key
- the data item which uniquely identifies an individual interface.
The structure of a YANG model is always a header, followed by type definitions, followed by the actual
structure of the data. A YANG model for the interface list starts with a header:
module links {
namespace "http://example.com/ns/links";
prefix link;
revision 2007-06-09 {
description "Initial revision.";
}
...
A number of datatype definitions may follow the YANG module header. Looking at the output from /sbin/
ip we see that each interface has a number of boolean flags associated with it, e.g. UP, and NOARP.
One way to model a sequence of boolean flags is as a sequence of statements:
leaf UP {
type boolean;
default false;
}
leaf NOARP {
type boolean;
default false;
}
A better way is to model this as:
leaf UP {
type empty;
}
leaf NOARP {
type empty;
}
We could choose to group these leafs together into a grouping. This makes sense if we wish to use the
same set of boolean flags in more than one place. We could thus create a named grouping such as:
grouping LinkFlags {
leaf UP {
type empty;
}
leaf NOARP {
type empty;
}
leaf BROADCAST {
type empty;
}
leaf MULTICAST {
27
The YANG Data Modeling Language
type empty;
}
leaf LOOPBACK {
type empty;
}
leaf NOTRAILERS {
type empty;
}
}
The output from /sbin/ip also contains Ethernet MAC addresses. These are best represented by the mac-
address type defined in the ietf-yang-types.yang file. The mac-address type is defined as:
typedef mac-address {
type string {
pattern '[0-9a-fA-F]{2}(:[0-9a-fA-F]{2}){5}';
}
description
"The mac-address type represents an IEEE 802 MAC address.
This type is in the value set and its semantics equivalent to
the MacAddress textual convention of the SMIv2.";
reference
"IEEE 802: IEEE Standard for Local and Metropolitan Area
Networks: Overview and Architecture
RFC 2579: Textual Conventions for SMIv2";
}
This defines a restriction on the string type, restricting values of the defined type "mac-address" to be
strings adhering to the regular expression [0-9a-fA-F]{2}(:[0-9a-fA-F]{2}){5} Thus strings
such as a6:17:b9:86:2c:04 will be accepted.
Queue disciplines are associated with each device. They are typically used for bandwidth management.
Another string restriction we could do is to define an enumeration of the different queue disciplines that
can be attached to an interface.
We could write this as:
typedef QueueDisciplineType {
type enumeration {
enum pfifo_fast;
enum noqueue;
enum noop;
enum htp;
}
}
There are a large number of queue disciplines and we only list a few here. The example serves to show
that using enumerations we can restrict the values of the data set in a way that ensures that data entered
always is valid from a syntactical point of view.
Now that we have a number of usable datatypes, we continue with the actual data structure describing a
list of interface entries:
container links {
list link {
28
The YANG Data Modeling Language
key name;
unique addr;
max-elements 1024;
leaf name {
type string;
}
container flags {
uses LinkFlags;
}
leaf addr {
type yang:mac-address;
mandatory true;
}
leaf brd {
type yang:mac-address;
mandatory true;
}
leaf qdisc {
type QueueDisciplineType;
mandatory true;
}
leaf qlen {
type uint32;
mandatory true;
}
leaf mtu {
type uint32;
mandatory true;
}
}
}
The key attribute on the leaf named "name" is important. It indicates that the leaf is the instance key for
the list entry named "link". All the link leafs are guaranteed to have unique values for their name leafs
due to the key declaration.
If one leaf alone does not uniquely identify an object, we can define multiple keys. At least one leaf must
be an instance key - we cannot have lists without a key.
List entries are ordered and indexed according to the value of the key(s).
3.10.1. Modeling Relationships
A very common situation when modeling a device configuration is that we wish to model a relationship
between two objects. This is achieved by means of the leafref statements. A leafref points to a
child of a list entry which either is defined using a key or unique attribute.
The leafref statement can be used to express three flavors of relationships: extensions, specializations
and associations. Below we exemplify this by extending the "link" example from above.
Firstly, assume we want to put/store the queue disciplines from the previous section in a separate container
- not embedded inside the links container.
We then specify a separate container , containing all the queue disciplines which each refers to a specific
link entry. This is written as:
container queueDisciplines {
29
The YANG Data Modeling Language
list queueDiscipline {
key linkName;
max-elements 1024;
leaf linkName {
type leafref {
path "/config/links/link/name";
}
}
leaf type {
type QueueDisciplineType;
mandatory true;
}
leaf length {
type uint32;
}
}
}
The linkName statement is both an instance key of the queueDiscipline list, and at the same time
refers to a specific link entry. This way we can extend the amount of configuration data associated with
a specific link entry.
Secondly, assume we want to express a restriction or specialization on Ethernet link entries, e.g. it should
be possible to restrict interface characteristics such as 10Mbps and half duplex.
We then specify a separate container, containing all the specializations which each refers to a specific
link:
container linkLimitations {
list LinkLimitation {
key linkName;
max-elements 1024;
leaf linkName {
type leafref {
path "/config/links/link/name";
}
}
container limitations {
leaf only10Mbs { type boolean;}
leaf onlyHalfDuplex { type boolean;}
}
}
}
The linkName leaf is both an instance key to the linkLimitation list, and at the same time refers
to a specific link leaf. This way we can restrict or specialize a specific link.
Thirdly, assume we want to express that one of the link entries should be the default link. In that case
we enforce an association between a non-dynamic defaultLink and a certain link entry:
leaf defaultLink {
type leafref {
path "/config/links/link/name";
}
}
30
The YANG Data Modeling Language
3.10.2. Ensuring Uniqueness
Key leafs are always unique. Sometimes we may wish to impose further restrictions on objects. For
example, we can ensure that all link entries have a unique MAC address. This is achieved through the
use of the unique statement:
container servers {
list server {
key name;
unique "ip port";
unique "index";
max-elements 64;
leaf name {
type string;
}
leaf index {
type uint32;
mandatory true;
}
leaf ip {
type inet:ip-address;
mandatory true;
}
leaf port {
type inet:port-number;
mandatory true;
}
}
}
In this example we have two unique statements. These two groups ensure that each server has a unique
index number as well as a unique ip and port pair.
3.10.3. Default Values
A leaf can have a static or dynamic default value. Static default values are defined with the default
statement in the data model. For example:
leaf mtu {
type int32;
default 1500;
}
and:
leaf UP {
type boolean;
default true;
}
A dynamic default value means that the default value for the leaf is the value of some other leaf in the data
model. This can be used to make the default values configurable by the user. Dynamic default values are
defined using the tailf:default-ref statement. For example, suppose we want to make the MTU
default value configurable:
31
The YANG Data Modeling Language
container links {
leaf mtu {
type uint32;
}
list link {
key name;
leaf name {
type string;
}
leaf mtu {
type uint32;
tailf:default-ref '../../mtu';
}
}
}
Now suppose we have the following data:
<links>
<mtu>1000</mtu>
<link>
<name>eth0</name>
<mtu>1500</mtu>
</link>
<link>
<name>eth1</name>
</link>
</links>
In the example above, link eth0 has the mtu 1500, and link eth1 has mtu 1000. Since eth1 does not
have a mtu value set, it defaults to the value of ../../mtu, which is 1000 in this case.
Note
Whenever a leaf has a default value it implies that the leaf can be left out from the XML document,
i.e. mandatory = false.
With the default value mechanism an old configuration can be used even after having added new settings.
Another example where default values are used is when a new instance is created. If all leafs within the
instance have default values, these need not be specified in, for example, a NETCONF create operation.
3.10.4. The Final Interface YANG model
Here is the final interface YANG model with all constructs described above:
module links {
namespace "http://example.com/ns/link";
prefix link;
import ietf-yang-types {
prefix yang;
}
grouping LinkFlagsType {
32
The YANG Data Modeling Language
leaf UP {
type empty;
}
leaf NOARP {
type empty;
}
leaf BROADCAST {
type empty;
}
leaf MULTICAST {
type empty;
}
leaf LOOPBACK {
type empty;
}
leaf NOTRAILERS {
type empty;
}
}
typedef QueueDisciplineType {
type enumeration {
enum pfifo_fast;
enum noqueue;
enum noop;
enum htb;
}
}
container config {
container links {
list link {
key name;
unique addr;
max-elements 1024;
leaf name {
type string;
}
container flags {
uses LinkFlagsType;
}
leaf addr {
type yang:mac-address;
mandatory true;
}
leaf brd {
type yang:mac-address;
mandatory true;
}
leaf mtu {
type uint32;
default 1500;
}
}
}
container queueDisciplines {
list queueDiscipline {
key linkName;
max-elements 1024;
leaf linkName {
type leafref {
33
The YANG Data Modeling Language
path "/config/links/link/name";
}
}
leaf type {
type QueueDisciplineType;
mandatory true;
}
leaf length {
type uint32;
}
}
}
container linkLimitations {
list linkLimitation {
key linkName;
leaf linkName {
type leafref {
path "/config/links/link/name";
}
}
container limitations {
leaf only10Mbps {
type boolean;
default false;
}
leaf onlyHalfDuplex {
type boolean;
default false;
}
}
}
}
container defaultLink {
leaf linkName {
type leafref {
path "/config/links/link/name";
}
}
}
}
}
If the above YANG file is saved on disk, as links.yang, we can compile and link it using the confdc
compiler:
$ confdc -c links.yang
We now have a ready to use schema file named links.fxs on disk. To actually run this example, we
need to copy the compiled links.fxs to a directory where ConfD can find it.
3.11. More on leafrefs
A leafref is a used to model relationships in the data model, as described in Section 3.10.1, “Modeling
Relationships”. In the simplest case, the leafreaf is a single leaf that references a single key in a list:
34
The YANG Data Modeling Language
list host {
key "name";
leaf name {
type string;
}
...
}
leaf host-ref {
type leafref {
path "../host/name";
}
}
But sometimes a list has more than one key, or we need to refer to a list entry within another list. Consider
this example:
list host {
key "name";
leaf name {
type string;
}
list server {
key "ip port";
leaf ip {
type inet:ip-address;
}
leaf port {
type inet:port-number;
}
...
}
}
If we want to refer to a specific server on a host, we must provide three values; the host name, the server
ip and the server port. Using leafrefs, we can accomplish this by using three connected leafs:
leaf server-host {
type leafref {
path "/host/name";
}
}
leaf server-ip {
type leafref {
path "/host[name=current()/../server-host]/server/ip";
}
}
leaf server-port {
type leafref {
path "/host[name=current()/../server-host]"
+ "/server[ip=current()/../server-ip]/../port";
}
}
35
The YANG Data Modeling Language
The path specification for server-ip means the ip address of the server under the host with same name
as specified in server-host.
The path specification for server-port means the port number of the server with the same ip as
specified in server-ip, under the host with same name as specified in server-host.
This syntax quickly gets awkward and error prone. ConfD supports a shorthand syntax, by introducing
an XPath function deref() (see the section called “XPATH FUNCTIONS”). Technically, this function
follows a leafreaf value, and returns all nodes that the leafref refer to (typically just one). The example
above can be written like this:
leaf server-host {
type leafref {
path "/host/name";
}
}
leaf server-ip {
type leafref {
path "deref(../server-host)/../server/ip";
}
}
leaf server-port {
type leafref {
path "deref(../server-ip)/../port";
}
}
Note that using the deref function is syntactic sugar for the basic syntax. The translation between the
two formats is trivial. Also note that deref() is an extension to YANG, and third party tools might not
understand this syntax. In order to make sure that only plain YANG constructs are used in a module, the
parameter --strict-yang can be given to confdc -c.
3.12. Using Multiple Namespaces
There are several reasons for supporting multiple configuration namespaces. Multiple namespaces can be
used to group common datatypes and hierarchies to be used by other YANG models. Separate namespaces
can be used to describe the configuration of unrelated sub-systems, i.e. to achieve strict configuration data
model boundaries between these sub-systems.
As an example, datatypes.yang is a YANG module which defines a reusable data type.
module datatypes {
namespace "http://example.com/ns/dt";
prefix dt;
grouping countersType {
leaf recvBytes {
type uint64;
mandatory true;
}
leaf sentBytes {
type uint64;
mandatory true;
}
}
36
The YANG Data Modeling Language
}
We compile and link datatypes.yang into a final schema file representing the http://
example.com/ns/dt namespace:
$ confdc -c datatypes.yang
To reuse our user defined countersType, we must import the datatypes module.
module test {
namespace "http://tail-f.com/test";
prefix "t";
import datatypes {
prefix dt;
}
container stats {
uses dt:countersType;
}
}
When compiling this new module that refers to another module, we must indicate to confdc where to
search for the imported module:
$ confdc -c test.yang --yangpath /path/to/dt
confdc also searches for referred modules in the colon (:) separated path defined by the environment
variable YANG_MODPATH and . (dot) is implicitly included. Thus we can run pyang on test.yang and
it will search for the datatypes.yang file and import it.
3.13. Module Names, Namespaces and
Revisions
We have three different entities that define our configuration data.
The module name. A system typically consists of several modules. In the future we also expect to see
standard modules in a manner similar to how we have standard SNMP modules.
It is highly recommended to have the vendor name embedded in the module name, similar to how
vendors have their names in proprietary MIB s today.
The XML namespace. A module defines a namespace. This is an important part of the module header.
For example we have:
module acme-system {
namespace "http://acme.example.com/system";
.....
The namespace string must uniquely define the namespace. It is very important that once we have settled
on a namespace we never change it. The namespace string should remain the same between revisions of
37
The YANG Data Modeling Language
a product. Do not embed revision information in the namespace string since that breaks manager side
NETCONF scripts.
The revision statement as in:
module acme-system {
namespace "http://acme.example.com/system";
prefix "acme";
revision 2007-06-09;
.....
The revision is exposed to a NETCONF manager in the capabilities sent from the agent to the NETCONF
manager in the initial hello message. The fine details of revision management is being worked on in the
IETF NETMOD working group and is not finalized at the time of this writing.
What is clear though, is that a manager should base its version decisions on the information in the
revision string.
A capabilities reply from a NETCONF agent to the manager may look as:
<?xml version="1.0" encoding="UTF-8"?>
<hello xmlns="urn:ietf:params:xml:ns:netconf:base:1.0">
<capabilities>
<capability>urn:ietf:params:netconf:base:1.0</capability>
<capability>urn:ietf:params:netconf:capability:writable-running:1.0</capability>
<capability>urn:ietf:params:netconf:capability:candidate:1.0</capability>
<capability>urn:ietf:params:netconf:capability:confirmed-commit:1.0</capability>
<capability>urn:ietf:params:netconf:capability:xpath:1.0</capability>
<capability>urn:ietf:params:netconf:capability:validate:1.0</capability>
<capability>urn:ietf:params:netconf:capability:rollback-on-error:1.0</capability>
<capability>http://example.com/ns/link?revision=2007-06-09</capability>
....
where the revision information for the http://example.com/ns/link namespace is encoded as
?revision=2007-06-09 using standard URI notation.
When we change the data model for a namespace, it is recommended to change the revision statement,
and to never make any changes to the data model that are backwards incompatible. This means that
all leafs that are added must be either optional or have a default value. That way it is ensured that old
NETCONF client code will continue to function on the new data model. Section 10 of RFC 6020 defines
exactly what changes can be made to a data model in order to not break old NETCONF clients.
3.14. Hash Values and the id-value Statement
Internally and in the programmer APIs, ConfD uses integer values to represent YANG node names and
the namespace URI. This conserves space and allows for more efficient comparisons (including switch
statements) in the user application code. By default, confdc automatically computes a hash value for the
namespace URI and for each string that is used as a node name.
Conflicts can occur in the mapping between strings and integer values - i.e. the initial assignment of integers
to strings is unable to provide a unique, bi-directional mapping. Such conflicts are extremely rare (but
possible) when the default hashing mechanism is used.
The conflicts are detected either by confdc or by the ConfD daemon when it loads the .fxs files.
38
The YANG Data Modeling Language
If there are any conflicts reported they will pertain to XML tags (or the namespace URI),
There are two different cases:
Two different strings mapped to the same integer. This is the classical hash conflict - extremely rare due
to the high quality of the hash function used. The resolution is to use the tailf:id-value statement
to assign a different integer to one of the strings - we should choose a number above 2^31+1 to avoid
collisions with the generated hash values. To assign a different integer to the namespace URI, we need
to use tailf:id-value as a substatement to the module statement.
One string mapped to two different integers. This is even more rare than the previous case - it can only
happen if a hash conflict was detected and avoided through the use of tailf:id-value on one of
the strings, and that string also occurs somewhere else. The resolution is to use tailf:id-value to
assign the same integer on both occurrences of the string. As in the previous case, we should choose
a number above 2^31+1.
3.15. Migrating from Confspecs to YANG
There are some constructs in confspecs that are not possible to directly translate into YANG models.
Probably the most problematic is how we, using confspecs, can mount pieces of configuration in one
confspec file into a mount point in another confspec file. It is also possible to mount entire namespaces, .fxs
files, into mount points in other namespaces. Neither is possible with the YANG language.
YANG has the submodule concept as a construct to divide a module. If the overall goal with confspec
mounting is to let different developers work on specific files that are subsequently linked together, that
same goal can be achieved in three different ways with YANG. The method described in Section 3.15.3,
“Partitioning the Module Through Augments Statements” is probably the closest match for the confspec
mounting functionality, but one of the others may be more appropriate or convenient to use.
3.15.1. Submodules and the Uses Statement
The strategy here is have a top module, that simply consists of a series of include statements, a series of
uses statements, and a set of submodules that all define their respective groupings:
module system {
namespace "http://tail-f.com/system";
prefix "s";
include system-sub;
uses top;
uses sys;
}
And then we can have arbitrary many sub modules.
submodule system-sub {
belongs-to system {
prefix s;
}
import ietf-inet-types {
prefix inet;
}
39
The YANG Data Modeling Language
grouping top {
container top {
leaf foo {
type int32;
}
leaf addr{
type inet:ip-address;
}
}
}
grouping sys {
leaf bar {
type int32;
}
}
}
3.15.2. Submodules and toplevel structures
The strategy here is have a top module, that simply consists of a series of include statements, and then
each of the submodules define top level structures.
module system {
namespace "http://tail-f.com/system";
prefix "s";
include system-sub;
include system-sub2;
.....
}
And then we can have arbitrary many sub modules.
submodule system-sub {
belongs-to system {
prefix s;
}
import ietf-inet-types {
prefix inet;
}
container top {
leaf foo {
type int32;
}
leaf addr{
type inet:ip-address;
}
}
leaf bar {
type int32;
}
40
The YANG Data Modeling Language
}
The include statement in the top module will ensure that the structures defined in the submodules(s)
get expanded.
3.15.3. Partitioning the Module Through Augments
Statements
First we need a toplevel file that includes all the submodules:
module system {
namespace "http://tail-f.com/system";
prefix "s";
include system-common;
include system-sub;
}
Following that we have one submodule that defines some shared data types, and most important, the
structure of the entire data model as a skeleton.
submodule system-common {
belongs-to system {
prefix s;
}
import ietf-inet-types {
prefix inet;
}
typedef myType {
type int32;
}
container system {
container chassis {
}
container stats {
}
}
}
And finally, we have one or more submodules that augment the structure defined in system-
common.yang
submodule system-sub {
belongs-to system {
prefix s;
}
41
The YANG Data Modeling Language
import ietf-inet-types {
prefix inet;
}
include system-common;
augment "/system/chassis" {
leaf foo {
type int32;
}
leaf addr{
type inet:ip-address;
}
}
augment "/s:system/s:stats" {
leaf bar {
type int32;
}
}
}
3.15.4. Miscellaneous
The confspec language has a construct called indexedView. This is a means to indicate in the data
model that items in a list have an order. Some of the north bound agents can then insert new list entries
given by the integer key values. Typical examples are things like firewall rules.
The indexedView concept is supported by the tailf:indexed-view extension to YANG.
However in most cases, it will probably be more appropriate to use the standard, more powerful YANG
mechanism called ordered-by user. Thus confspec users that use the indexedView may want to
migrate to ordered-by user instead of tailf:indexed-view. Read more about ordered-by
user in the YANG specification.
An alternative is to continue to use the Tail-f proprietary indexedView feature in the YANG model.
Yet another area that differs slightly are confspec keyrefs. A confspec keyref uses tagpaths to indicate
what it points to. The YANG equivalent is leafref that behave in a similar way. The major difference
is that a leafref use an XPath expression instead of a tagpath.
Leafrefs that are not also keys may be on the tagpath form we have in confspecs, but they may also be
instantiated XPath expressions - thus making leafrefs more powerful that confspec keyrefs.
We may also have list entries where one or more of the keys are leafrefs. As long as we have list entries
with a single key there is no difference at all compared to confspecs. It is only when we have multiple keys
that we see a difference. See Section 3.11, “More on leafrefs” for more info.
3.15.5. Enumerations
confspecs have enumeration on the form of:
<xs:simpleType name="YesNo">
<xs:restriction base="xs:string">
<xs:enumeration value="yes"/>
<xs:enumeration value="no"/>
</xs:restriction>
42
The YANG Data Modeling Language
</xs:simpleType>
The equivalent enumeration in YANG looks as:
typedef YesNo {
type enumeration {
enum yes;
enum no;
}
}
These two enumerations are however not completely equivalent. YANG enumerations are implicitly
numbered, starting at zero. Thus the exactly equivalent confspec enumerations looks like:
<xs:simpleType name="YesNo">
<xs:restriction base="xs:string">
<xs:enumeration value="yes" idValue="0"/>
<xs:enumeration value="no" idValue="1"/>
</xs:restriction>
</xs:simpleType>
Thus, applications that are currently not using the --allow-enum-conflicts flag to confdc may break. The
C API functions to map from hash value to string doesn't work properly for enumerations any longer when
we use YANG models. When we use YANG models, the flag --allow-enum-conflicts is implicitly used
due to the above mentioned fact that YANG enumerations always start at zero.
3.15.6. The Namespace URI
Prior to YANG we have recommended confspec users to embed version information in the string that
identifies a namespace as in:
<confspec xmlns="http://tail-f.com/ns/confspec/1.0"
xmlns:confd="http://tail-f.com/ns/confd/1.0"
xmlns:xs="http://www.w3.org/2001/XMLSchema"
targetNamespace="http://example.com/ns/interfaces/1.1"
mount="/">
using for example the targetNamespace attribute. This is no longer recommended practice. The
recommendation is now to never embed version information in the namespace URI, see Section 3.13,
“Module Names, Namespaces and Revisions”.
Using the new naming scheme one would translate the example above into a YANG module like this:
module interfaces {
namespace "http://example.com/ns/interfaces";
prefix interfaces;
...
}
However if we need to support upgrade from a software release that used confspec to a new release that uses
YANG for the same config we have to be careful. In confspec the identifier of a module is the part of the
namespace before the version number. That is, in http://example.com/ns/interfaces/1.1
the identifier is http://example.com/ns/interfaces (in confspec it can also be explicitly set
using the id attribute on the top-level confspec node). This matters to CDB upgrade, in that CDB
will use the identifier to determine if a namespace is the same or not, when upgrading (so that it can
43
The YANG Data Modeling Language
correctly identify http://example.com/ns/interfaces/2.0 as the new version of http://
example.com/ns/interfaces/1.1). When using YANG ConfD (and CDB) considers the whole
namespace string (since it isn't supposed to change between revisions) as the identifier. To help there is a
YANG extension called tailf:id which takes either an empty string (which means “treat the namespace
just as confspec would, and deduce the id from the namespace string”) or an explicit string (the equivalent
of using id in confspec).
In summary: if we need to support upgrade from a previous release and need to keep the exact namespace
string we had in confspec we can translate the initial confspec fragment above to:
module interfaces {
namespace "http://example.com/ns/interfaces/1.1";
prefix interfaces;
tailf:id "";
...
}
3.15.7. The cs2yang Tool
Finally we must mention the cs2yang tool. It is an XSLT based tool that can be used to translate confspec
files into YANG files. There are some constructs that are not directly translatable, but the output from
cs2yang provides an excellent starting point for migration.
Thus the first step in a migration from confspecs to YANG is to use the cs2yang tool on all confspec files
we wish to translate.
Following that, we must decide on a multi-file mount strategy as described above. The generated files
must then subsequently be hand edited into a suitable form.
In many confspec models, the namespace URI contains a version number. In YANG, the namespace URI
of a data model must not change if the model is updated. Instead, YANG has a revision statement to
handle data model versioning. Unless confspec based systems need to be upgraded in the field to YANG,
it is recommended that the version number in the namespace URI is removed, and a revision statement
is added. In this case, the tailf:id statement that cs2yang generated, must also be removed from the
YANG module. See Section 3.15.6, “The Namespace URI” for a more detailed discussion of this problem.
3.16. The pyang tool
pyang is a Python based tool that is integrated into the confdc tool chain. Pyang can be used to check
and transform YANG models. It has an extensible plugin architecture that allows users to plugin their
own output modules. Thus if we wish to to transform YANG data models - processing e.g proprietary
extensions, writing a Python plugin to pyang is a feasible way forward.
Pyang is developed by Tail-f, and it is open source. Code and documentation are available at http://
www.yang-central.org/.
Pyang is also described in the man page ???
44
Chapter 4. Rendering Agents
4.1. Introduction
In this chapter we reintroduce the links.yang model from the Yang chapter and see how we can use
that model to render all northbound interfaces.
This chapter is an overview, and all concepts touched upon in this chapter are thoroughly described in
later chapters.
4.2. Data Model
The links.yang data model introduced in the "Yang" chapter defines a set of interfaces. Compiling the
links.yang file into an .fxs file is the first required step.
module links {
namespace "http://example.com/ns/link";
prefix link;
import ietf-yang-types {
prefix yang;
}
grouping LinkFlagsType {
leaf UP {
type empty;
}
leaf NOARP {
type empty;
}
leaf BROADCAST {
type empty;
}
leaf MULTICAST {
type empty;
}
leaf LOOPBACK {
type empty;
}
leaf NOTRAILERS {
type empty;
}
}
typedef QueueDisciplineType {
type enumeration {
enum pfifo_fast;
enum noqueue;
enum noop;
enum htb;
}
}
container config {
container links {
45
Rendering Agents
list link {
key name;
unique addr;
max-elements 1024;
leaf name {
type string;
}
container flags {
uses LinkFlagsType;
}
leaf addr {
type yang:mac-address;
mandatory true;
}
leaf brd {
type yang:mac-address;
mandatory true;
}
leaf mtu {
type uint32;
default 1500;
}
}
}
container queueDisciplines {
list queueDiscipline {
key linkName;
max-elements 1024;
leaf linkName {
type leafref {
path "/config/links/link/name";
}
}
leaf type {
type QueueDisciplineType;
mandatory true;
}
leaf length {
type uint32;
}
}
}
container linkLimitations {
list linkLimitation {
key linkName;
leaf linkName {
type leafref {
path "/config/links/link/name";
}
}
container limitations {
leaf only10Mbps {
type boolean;
default false;
}
leaf onlyHalfDuplex {
type boolean;
default false;
}
}
46
Rendering Agents
}
}
container defaultLink {
leaf linkName {
type leafref {
path "/config/links/link/name";
}
}
}
}
}
The command to compile the YANG file is confdc -c links.yang Thus in our Makefile we have:
all: links.fxs
%.fxs: %.yang
$(CONFD_DIR)/bin/confdc -c $*.yang
The Makefile requires the UNIX environment variable CONFD_DIR to be set to the directory where ConfD
is installed.
Once we have the .fxs file, it's time to start ConfD. To do that we have some initial steps that must be
taken care of first.
We must have a configuration file for ConfD it self. This file is usually referred to as confd.conf. There
is a multitude of things we can configure in confd.conf(5) but for this initial example we'll just focus on
the things we need to get the links.yang example to work. We can copy the confd.conf file from
etc/confd/confd.conf relative to the installation directory of ConfD and add "." to the loadPath
Now with our newly compiled links.yang file we can start ConfD as:
# source /path/to/installed_confd/confdrc
# confd --foreground --verbose -c ./confd.conf
This starts ConfD in the foreground with all log messages displayed on stdout. This is a convenient way
of running ConfD during development.
4.3. Using the CLIs
The first thing we can try out is how a Juniper style CLI looks and feels on our data model. The ConfD
CLI(s) are entirely rendered from the data model. It's possible to extend and tweak the looks of the CLI
in several ways, but for now, we try just what we get from the plain data model. The ConfD CLI is run
through a small C program called confd_cli which is typically used as a login shell on the target host.
During development, it's usually more convenient to just invoke that program directly from the UNIX
prompt. The confd_cli program communicates with the ConfD daemon over the loopback socket.
Here is an actual session:
# confd_cli
47
Rendering Agents
Welcome to the ConfD CLI
admin connected from 127.0.0.1 using console on buzz
admin@buzz 17:37:17> configure
Entering configuration mode private
[ok][2009-03-17 17:37:26]
[edit]
admin@buzz 17:37:26% set config links link eth0 addr 00:12:3f:7d:b0:32 brd 00:1
2:3f:7d:b0:32
[ok][2009-03-17 17:37:48]
[edit]
admin@buzz 17:37:48% set config links link eth0 flags BROADCAST
[ok][2009-03-17 17:38:05]
[edit]
admin@buzz 17:38:05% set config links link eth0 flags
Possible completions:
BROADCAST LOOPBACK MULTICAST NOARP NOTRAILERS UP
admin@buzz 17:38:05% set config links link eth0 flags LOOPBACK
[ok][2009-03-17 17:38:25]
[edit]
admin@buzz 17:38:25% commit
Commit complete.
[ok][2009-03-17 17:38:31]
[edit]
admin@buzz 17:38:31% exit
[ok][2009-03-17 17:38:34]
admin@buzz 17:38:34> show configuration config
links {
link eth0 {
flags {
UP;
BROADCAST;
LOOPBACK;
}
addr 00:12:3f:7d:b0:32;
brd 00:12:3f:7d:b0:32;
}
}
[ok][2009-03-17 17:38:44]
admin@buzz 17:38:44> exit
#
Thus from the data model we got a fully functional Juniper like CLI.
We can also get a Cisco like CLI towards the same data model:
# confd_cli -C
Welcome to the ConfD CLI
admin connected from 127.0.0.1 using console on buzz
buzz# show running-config config
config links link eth0
flags UP
flags BROADCAST
flags LOOPBACK
addr 00:12:3f:7d:b0:32
48
Rendering Agents
brd 00:12:3f:7d:b0:32
!
buzz# config
Entering configuration mode terminal
buzz(config)# config links link <TAB>
Possible completions:
<name:string> eth0
buzz(config)# config links link eth0 <TAB>
Possible completions:
addr brd flags mtu <cr>
buzz(config)# config links link eth0 mtu 1200
buzz(config-link-eth0)# commit
Commit complete.
buzz(config-link-eth0)#
buzz(config)# config <TAB>
Possible completions:
defaultLink linkLimitations links queueDisciplines
buzz(config)# config defaultLink linkName eth0
buzz(config)# commit
Commit complete.
The rendered CLIs are highly capable containing all features expected by a modern CLI.
The data model contains a top level config container. This makes sense from a data modeling perspective
since it wraps all configuration items inside a container. However, we may wish to do away with the
container in the CLI. We want to issue the command defaultLink linkName eth0 as opposed to
the command config defaultLink linkName eth0.
The ConfD CLI can be tweaked in a myriad different ways. The typical development cycle is to define
the data model to be as succinct and understandable as possible. This makes life easier for the application
programmers who write C/C++ code that access the data model. Once the YANG model is good, we tweak
the CLI to become what we want.
In this tiny example we write a really small CLI modification file:
<clispec xmlns="http://tail-f.com/ns/clispec/1.0" style="c">
<operationalMode>
</operationalMode>
<configureMode>
<modifications>
<dropElem src="config"/>
</modifications>
</configureMode>
</clispec>
Save that file as mods.cli and compile that file as:
# confdc -c mods.cli
This results in a file called mods.ccl that needs to be put in the load path of ConfD. We then re-launch
the Cisco CLI:
49
Rendering Agents
# confd_cli -C
Welcome to the ConfD CLI
admin connected from 127.0.0.1 using console on buzz
buzz# config
Entering configuration mode terminal
buzz(config)# links link eth0 <TAB>
Possible completions:
addr brd flags mtu <cr>
buzz(config)# links link eth0 mtu ?
Possible completions:
<unsignedInt>[1200]
buzz(config)# links link eth0 mtu 1400
buzz(config-link-eth0)# commit
Commit complete.
buzz(config-link-eth0)#
4.4. Using NETCONF
NETCONF is a powerful protocol that can be used to programmatically reconfigure a device. We're still
running ConfD with the links.yang data model.
The easiest way to interact with the NETCONF agent in ConfD is to use a small python based program
called netconf-console that ships with ConfD. Let's just run it from the UNIX prompt and see what we get:
# netconf-console --user=admin --password=admin --get-config -x '/config'
<?xml version="1.0" encoding="UTF-8"?>
<rpc-reply xmlns="urn:ietf:params:xml:ns:netconf:base:1.0" message-id="1">
<data>
<config xmlns="http://example.com/ns/link">
<links>
<link>
<name>eth0</name>
<flags>
<UP/>
<BROADCAST/>
<LOOPBACK/>
</flags>
<addr>00:12:3f:7d:b0:32</addr>
<brd>00:12:3f:7d:b0:32</brd>
<mtu>1400</mtu>
</link>
</links>
<queueDisciplines/>
<linkLimitations>
<linkLimitation>
<linkName>eth0</linkName>
<limitations>
<only10Mbps>true</only10Mbps>
</limitations>
</linkLimitation>
</linkLimitations>
<defaultLink>
<linkName>eth0</linkName>
</defaultLink>
</config>
</data>
50
Rendering Agents
</rpc-reply>
The above command uses the python paramiko ssh client to establish an SSH session to ConfD. It then
issues a NETCONF get-config RPC to retrieve all configuration data found below the XPath /config,
i.e. this is precisely the data we have just entered in the CLI. The command netconf-console --get-config
is a great way to extract a backup of the entire configuration of the device.
If we want to manipulate the configuration with the netconf-consoleprogram , we must prepare some
XML data that can be sent as an edit-config and feed it to netconf-console.
Here is an example, save the following to a file, set-mtu.xml.
<edit-config>
<target>
<running/>
</target>
<config xmlns="http://example.com/ns/link">
<config>
<links>
<link>
<name>eth0</name>
<mtu>1100</mtu>
</link>
</links>
</config>
</config>
</edit-config>
Then run this with:
# netconf-console --user=admin --password=admin --rpc set-mtu.xml
<?xml version="1.0" encoding="UTF-8"?>
<rpc-reply xmlns="urn:ietf:params:xml:ns:netconf:base:1.0" message-id="1">
<ok/>
</rpc-reply>
It's also fairly instructive to directly connect to the agent using OpenSSH as in:
# ssh -s -p 2022 admin@localhost netconf
admin@localhost's password:
<?xml version="1.0" encoding="UTF-8"?>
<hello xmlns="urn:ietf:params:xml:ns:netconf:base:1.0">
<capabilities>
<capability>urn:ietf:params:netconf:base:1.0</capability>
<capability>urn:ietf:params:netconf:capability:writable-running:1.0</capability>
<capability>urn:ietf:params:netconf:capability:candidate:1.0</capability>
<capability>urn:ietf:params:netconf:capability:confirmed-commit:1.0</capability>
<capability>urn:ietf:params:netconf:capability:xpath:1.0</capability>
<capability>urn:ietf:params:netconf:capability:url:1.0?scheme=ftp,file</capability>
<capability>urn:ietf:params:netconf:capability:validate:1.0</capability>
<capability>urn:ietf:params:netconf:capability:rollback-on-error:1.0</capability>
<capability>http://example.com/ns/link</capability>
<capability>http://tail-f.com/ns/aaa/1.1</capability>
</capabilities>
<session-id>14</session-id></hello>
The agent replies with the capabilities it supports.
51
Rendering Agents
4.4.1. Generating Java classes for JNC
It is of course entirely possible to use the netconf-console program to XML script towards a NETCONF
agent. An alternative is to use a Java library such as JNC to interact with the NETCONF agent. JNC is in
the Open SOurce and can by found on github at https://github.com/tail-f-systems/JNC/.
52
Chapter 5. CDB - The ConfD XML
Database
5.1. Introduction
This chapter describes how to use ConfD's built-in configuration database CDB. As a running example,
we will describe a DHCP daemon configuration. CDB can also be used to store operational data - read
more about this in Section 6.8, “Operational data in CDB”.
A network device needs to store its configuration somewhere. Usually the device configuration is stored
in a database or in plain files, sometimes a combination of both.
ConfD has a built-in XML database which can be used to store the configuration data for the device. The
database is called CDB - Configuration DataBase.
5.2. CDB
By default, ConfD stores all configuration data in CDB. The alternative is to use an external database as
described in Chapter 7, The external database API. There are a number of advantages to CDB compared
to using some external storage for configuration data. CDB has:
A solid model on how to handle configuration data in network devices, including a good update
subscription mechanism.
A networked API whereby it is possible for an unconfigured device to find the configuration data on
the network and use that configuration.
Fast lightweight database access. CDB by default keeps the entire configuration in RAM as well as
on disk.
Ease of use. CDB is already integrated into ConfD, the database is lightweight and has no maintenance
needs. Writing instrumentation functions to access data is easy.
Automatic support for upgrade and downgrade of configuration data. This is a key feature, which is
useful not only when performing actual up/downgrades on the device. It also greatly simplifies the
development process by allowing individual developers to add/delete items in the configuration without
any impact whatsoever on other developers. This will be fully described later.
When using CDB to store the configuration data, the applications need to be able to:
1. Read configuration data from the database.
2. React when the database is written to. There are several possible writers to the database, such as the
CLI, NETCONF sessions, the Web UI, or the NETCONF agent. Suppose an operator runs the CLI and
changes the value of some leaf. When this happens, the application needs to be informed about the
configuration change.
The following figure illustrates the architecture when CDB is used.
53
CDB - The ConfD XML Database
ConfD CDB architecture scenario
The Applications/Managed Objects in the figure above read configuration data and subscribe to changes to
the database using a simple RPC-based API. The API is part of the libconfd.so shared library and is
fully documented in the UNIX man page confd_lib_cdb(3). Since the API is RPC-based, the Applications
may run on other hosts that are not running ConfD - which could be used for example in a chassis-based
system where ConfD only would run on the management blade, and the managed applications on other
blades in the system.
5.3. An example
Let us look at a simple example which will illustrate how to populate the database, how to read from it
using the C API, as well as react to changes to the data. First we need a YANG module (see Chapter 3, The
YANG Data Modeling Language for more details about how to write data models in YANG). Consider
this simplified, but functional, example:
Example 5.1. a simple server data model, servers.yang
module servers {
namespace "http://example.com/ns/servers";
prefix servers;
import ietf-inet-types {
prefix inet;
}
revision "2006-09-01" {
54
CDB - The ConfD XML Database
description "Initial servers data model";
}
/* A set of server structures */
container servers {
list server {
key name;
max-elements 64;
leaf name {
type string;
}
leaf ip {
type inet:ip-address;
mandatory true;
}
leaf port {
type inet:port-number;
mandatory true;
}
}
}
}
Since we are using CDB here, ConfD will keep an XML tree conforming to the above data model in its
internal persistent XML database.
We start by saving the YANG module to a file, servers.yang and compile and link the data model
into a single servers.fxs which is the binary format, used by ConfD, of a YANG module.
$ confdc -c servers.yang
We then proceed to use the --emit-h flag to generate a .h file which contains the namespace symbol
(servers__ns) which we need in order to use the CDB API.
$ confdc --emit-h servers.h servers.fxs
$ head servers.h
#ifndef _SERVERS_H_
#define _SERVERS_H_
#ifndef servers__ns
#define servers__ns 686487091
#define servers__ns_id "http://example.com/ns/servers"
#define servers__ns_uri "http://example.com/ns/servers"
#endif
Once we have compiled the YANG module, we can start ConfD. We need to provide a configuration file
to ConfD which indicates that we want ConfD to store the configuration.
The relevant parts from the confd.conf configuration file are:
<loadPath>
<dir>/etc/confd</dir>
</loadPath>
...
<cdb>
<enabled>true</enabled>
<dbDir>/var/confd/cdb</dbDir>
</cdb>
55
CDB - The ConfD XML Database
The newly generated .fxs file must be copied to the directory /etc/confd and the directory /var/
confd/cdb must exist and be writable. Thus:
$ cp servers.fxs /etc/confd
$ mkdir /var/confd/cdb
$ confd -v --foreground
By far the easiest way to populate the database with some actual data is to run the CLI.
$ confd_cli -u admin
admin connected from 127.0.0.1 using console on buzz
admin@buzz> configure private
Entering configuration mode "private"
admin@buzz% set servers server www
admin@buzz% set servers server www port 80
admin@buzz% set servers server www ip 192.168.128.1
admin@buzz% commit
Configuration committed
admin@buzz> show configuration
servers {
server www {
ip 192.168.128.1;
port 80;
}
}
Now the database is populated with a single server instance.
What remains to conclude our simple example is to write our application - our managed object - the code
that uses the configuration data in the database. The implied meaning of the servers.yang YANG
module is that the managed object would start and stop the services in the configuration. We will not do
that; we will merely show how to read the configuration from the CDB database and react to changes in
CDB.
The code is straightforward. We are using the API functions from libconfd.so. The CDB API is fully
described in the UNIX man page confd_lib_cdb(3).
Main looks like this:
int main(int argc, char **argv)
{
struct sockaddr_in addr;
int subsock;
int status;
int spoint;
addr.sin_addr.s_addr = inet_addr("127.0.0.1");
addr.sin_family = AF_INET;
addr.sin_port = htons(CONFD_PORT);
confd_init(argv[0], stderr, CONFD_SILENT);
if ((subsock = socket(PF_INET, SOCK_STREAM, 0)) < 0 )
confd_fatal("Failed to open socket\n");
if (cdb_connect(subsock, CDB_SUBSCRIPTION_SOCKET,
(struct sockaddr*)&addr,
sizeof (struct sockaddr_in)) < 0)
confd_fatal("Failed to confd_connect() to confd \n");
if ((status =
56
CDB - The ConfD XML Database
cdb_subscribe(subsock, 3, servers__ns, &spoint,"/servers"))
!= CONFD_OK) {
fprintf(stderr, "Terminate: subscribe %d\n", status);
exit(1);
}
if (cdb_subscribe_done(subsock) != CONFD_OK)
confd_fatal("cdb_subscribe_done() failed");
if ((status = read_conf(&addr)) != CONFD_OK) {
fprintf(stderr, "Terminate: read_conf %d\n", status);
exit(1);
}
/* ... */
The code initializes the library, reads the configuration and creates a socket to CDB. One socket
is a read socket and it is used to read configuration data by means of CDB API read functions,
while the other is a subscription socket. The subscription socket must be part of the client poll()
set. Whenever data arrives on the subscription socket, the client invokes a CDB API function,
cdb_read_subscription_socket() on the subscription socket. The subscription model will be
explained further later in this chapter.
The read_conf() function reads the configuration data from CDB and stores it in local ephemeral
(temporary) data structures. We have:
#include "servers.h"
struct server {
char name[BUFSIZ];
struct in_addr ip;
unsigned int port;
};
static struct server running_db[64];
static int num_servers = 0;
static int read_conf(struct sockaddr_in *addr)
{
int rsock, i, n, st = CONFD_OK;
struct in_addr ip;
u_int16_t port;
char buf[BUFSIZ];
if ((rsock = socket(PF_INET, SOCK_STREAM, 0)) < 0 )
return CONFD_ERR;
if (cdb_connect(rsock, CDB_READ_SOCKET, (struct sockaddr*)addr,
sizeof (struct sockaddr_in)) < 0)
return CONFD_ERR;
if (cdb_start_session(rsock, CDB_RUNNING) != CONFD_OK)
return CONFD_ERR;
cdb_set_namespace(rsock, servers__ns);
num_servers = 0;
if ((n = cdb_num_instances(rsock, "/servers/server")) < 0) {
cdb_close(rsock);
return n;
}
num_servers = n;
for(i=0; i<n; i++) {
57
CDB - The ConfD XML Database
if ((st = cdb_get_str(rsock, buf, BUFSIZ,
"/servers/server[%d]/name",i)) != CONFD_OK)
break;
if ((st = cdb_get_ipv4(
rsock, &ip,"/servers/server[%d]/ip",i))!= CONFD_OK)
break;
if ((st = cdb_get_u_int16(
rsock, &port, "/servers/server[%d]/port",i)) != CONFD_OK)
break;
strcpy(running_db[i].name, buf);
running_db[i].ip.s_addr = ip.s_addr;
running_db[i].port = port;
}
cdb_close(rsock);
return st;
}
The code first creates a read socket to ConfD by means of cdb_connect(). Following that, the code
figures out how many server instances CDB has stored and then loops over all of those instances and
reads the individual leaves with the different cdb_get_ functions.
Finally we have our poll() loop. The subscription socket we created in main() must be added to the
poll set - and whenever that file descriptor has IO ready to read we must act. When subsock is ready to
read, the following code fragment should be executed:
int sub_points[1];
int reslen;
if ((status = cdb_read_subscription_socket(subsock,
sub_points,
&reslen)) != CONFD_OK)
exit(status);
if (reslen > 0) {
if ((status = read_conf(&addr)) != CONFD_OK)
exit(1);
}
print_servers(); /* do something with data here... */
if ((status =
cdb_sync_subscription_socket(subsock, CDB_DONE_PRIORITY))
!= CONFD_OK) {
exit(status);
}
Instead of actually using the data we will merely print it to stdout when we receive any changes:
static void print_servers()
{
int i;
for (i=0; i < num_servers; i++) {
printf("server %d: %s %s:%d\n", i, running_db[i].name,
inet_ntoa(running_db[i].ip), running_db[i].port);
}
}
5.4. Using keypaths
We'll go through all the CDB API functions used in the C code, but first a note on the path notation. Several
of the API functions take a keypath as a parameter. A keypath leads down into the configuration data tree.
58
CDB - The ConfD XML Database
A keypath can be either absolute or relative. An absolute keypath starts from the root of the tree, while a
relative path starts from the "current position" in the tree. They are differentiated by presence or absence
of a leading "/". It is possible to change the "current position" with for example the cdb_cd() function.
XML elements that are containers for other XML elements, such as the servers container that contains
multiple server instances, can be traversed using two different path notations. In our code above, we
use the function cdb_num_instances() to figure out how many children a list has, and then traverse
all children using a [%d] notation. The children of a list have an implicit numbering starting at 0. Thus the
path: /servers/server[2]/port refers to the "port" leaf of the third server in the configuration.
This numbering is only valid during the current CDB session. CDB is always locked for the duration of
the read session.
We can also refer to list instances using the values of the keys of the list. Remember that we specified in the
data model which leaf(s) in the XML structure were keys using the key name statement at the beginning
of the list. In our case a server has the name leaf as key. So the path: /servers/server{www}/
ip refers to the ip leaf of the server whose name is "www".
A YANG list may have more than one key. In the next section we will provide an example where we
configure a DHCP daemon. That data model uses multiple keys and for example the path: /dhcp/
subNets/subNet{192.168.128.0 255.255.255.0}/routers refers to the routers list of
the subNet which has key "192.168.128.0 255.255.255.0".
The syntax for keys is a space separated list of key values enclosed within curly brackets: { Key1
Key2 ...}
Which version of bracket notation to use depends on the situation. For example the bracket notation is
normally used when looping through all instances. As a convenience all functions expecting keypaths
accept formatting characters and accompanying data items. For example cdb_get("server[%d]/
ifc{%s}/mtu", 2, "eth0") to fetch the MTU of the third server instance's interface named "eth0".
Using relative paths and cdb_pushd() it is possible to write code that can be re-used for common sub-
trees. An example of this is presented further down.
The current position also includes the namespace. To read elements from a different namespace use the
cdb_set_namespace() function.
5.5. A session
It is important to consider that CDB is locked for writing during a read session using the C API. A session
starts with cdb_start_session() and the lock is not released until the cdb_end_session() (or
the cdb_close()) call. CDB will also automatically release the lock if the socket is closed for some
other reason, such as program termination.
In the example above we created a new socket each time we called read_conf(). It is also possible
to re-use an existing connection.
Example 5.2. Pseudo code showing several sessions reusing one connection
cdb_connect(s);
..
cdb_start_session(s); /* Start session and take CDB lock */
cdb_cd();
cdb_get();
cdb_end_session(s); /* lock is released */
59
CDB - The ConfD XML Database
..
cdb_start_session(s); /* Start session and take CDB lock */
cdb_get();
cdb_end_session(s); /* lock is released */
..
cdb_close(s);
5.6. CDB subscriptions
The CDB subscription mechanism allows an external program to be notified when different parts of the
configuration changes. At the time of notification it is also possible to iterate through the changes written
to CDB. Subscriptions are always towards the running datastore (it is not possible to subscribe to changes
to the startup datastore). Subscriptions towards the operational data kept in CDB are also possible, but the
mechanism is slightly different, see below.
The first thing to do is to inform CDB which paths we want to subscribe to, registering a path returns a
subscription point identifier. This is done with the cdb_subscribe() function. Each subscriber can
have multiple subscription points, and there can be many different subscribers. Every point is defined
through a path - similar to the paths we use for read operations, with the exception that instead of fully
instantiated paths to list instances we can selectively use tagpaths.
We can subscribe either to specific leaves, or entire subtrees. Explaining this by example we get:
/named/options/pid-file
a subscription to a leaf. Only changes to this leaf will generate a notification.
/servers
Means that we subscribe to any changes in the subtree rooted at /servers. This includes additions
or removals of server instances, as well as changes to already existing server instances.
/servers/server{www}/ip
Means that we only want to be notified when the server "www" changes its ip address.
/servers/server/ip
Means we want to be notified when the leaf ip is changed in any server instance.
When adding a subscription point the client must also provide a priority, which is an integer. As CDB is
changed, the change is part of a transaction. For example the transaction is initiated by a commit operation
from the CLI or a candidate-commit operation in NETCONF resulting in the running database being
modified. As the last part of the transaction CDB will generate notifications in lock-step priority order. First
all subscribers at the lowest numbered priority are handled, once they all have replied and synchronized by
calling cdb_sync_subscription_socket() the next set - at the next priority level - is handled by
CDB. Not until all subscription points have been acknowledged is the transaction complete. This implies
that if the initiator of the transaction was for example a commit command in the CLI, the command will
hang until notifications have been acknowledged.
Note that even though the notifications are delivered within the transaction it is not possible for a subscriber
to reject the changes (since this would break the two-phase commit protocol used by the ConfD backplane
towards all data-providers).
When a client is done subscribing it needs to inform ConfD it is ready to receive notifications. This is done
by first calling cdb_subscribe_done(), after which the subscription socket is ready to be polled.
60
CDB - The ConfD XML Database
As a subscriber has read its subscription notifications using cdb_read_subscription_socket()
it can iterate through the changes that caused the particular subscription notification using
the cdb_diff_iterate() function. It is also possible to start a new read-session to the
CDB_PRE_COMMIT_RUNNING database to read the running database as it was before the pending
transaction.
Subscriptions towards the operational data in CDB are similar to the above, but due to the fact that the
operational data store is designed for light-weight access, and thus does not have transactions and normally
avoids the use of any locks, there are several differences - in particular:
Subscription notifications are only generated if the writer obtains a "subscription lock", by
using the cdb_start_session2() function with the CDB_LOCK_REQUEST flag, see the
confd_lib_cdb(3) manual page. It is possible to obtain a "subscription lock" for a subtree of the
operational data store by using the CDB_LOCK_PARTIAL flag.
Subscriptions are registered by using the cdb_subscribe2() function with type
CDB_SUB_OPERATIONAL (or cdb_oper_subscribe()) rather than cdb_subscribe().
No priorities are used.
Neither the writer that generated the subscription notifications nor other writes to the same data are
blocked while notifications are being delivered. However the subscription lock remains in effect until
notification delivery is complete.
The previous value for a modified leaf is not available when using the cdb_diff_iterate()
function.
Essentially a write operation towards the operational data store, combined with the subscription lock,
takes on the role of a transaction for configuration data as far as subscription notifications are concerned.
This means that if operational data updates are done with many single-element write operations, this can
potentially result in a lot of subscription notifications. Thus it is a good idea to use the multi-element
cdb_set_object() etc functions for updating operational data that applications subscribe to.
Since write operations that do not attempt to obtain a subscription lock are allowed to proceed even during
notification delivery, it is the responsibility of the applications using the operational data store to obtain
the lock as needed when writing. E.g. if subscribers should be able to reliably read the exact data that
resulted from the write that triggered their subscription, a subscription lock must always be obtained when
writing that particular set of data elements. One possibility is of course to obtain a lock for all writes to
operational data, but this may have an unacceptable performance impact.
To view registered subscribers use the confd --status command. For details on how to use the different
subscription functions see the confd_lib_cdb(3) manual page.
5.7. Reconnect
If ConfD is restarted, our CDB sockets obviously die. The correct thing to do then is to re-open the cdb
sockets and re-read the configuration. In the case of a high availability setup this also applies. If we are
connected to one ConfD node and that node dies, we must reconnect to another ConfD node and read/
subscribe to the configuration from that node.
If the configuration has not changed we do not want to restart our managed objects, we just want to
reconnect our CDB sockets. The API function cdb_get_txid() will read the last transaction id from
our cdb socket. The id is guaranteed to be unique. We issue the call cdb_get_txid() on the data socket
and we must not have an active read session on that socket while issuing the call.
61
CDB - The ConfD XML Database
Example 5.3. Pseudo code demonstrating how to avoid re-reading the configuration
struct cdb_txid prev_stamp;
cdb_connect(s);
load_config(s);
cdb_get_txid(s, &prev_stamp);
...
subscribe(....);
while (1) {
poll(...);
if (has_new_data(s)) {
load_config(s);
cdb_get_txid(s, &prev_stamp);
}
else if (is_closed(s)) {
struct cdb_txid new_stamp;
cdb_connect(s);
cdb_get_txid(s, &new_stamp);
if ((prev_stamp.s1 == new_stamp.s1) &&
(prev_stamp.s2 == new_stamp.s2) &&
(prev_stamp.s3 == new_stamp.s3) &&
(strcmp(prev_stamp.master, new_stamp.master) == 0)) {
/* no need to re-read config, it hasn't changed */
continue;
}
else {
load_config(s);
cdb_get_txid(s, &prev_stamp);
}
}
}
5.8. Loading initial data into CDB
When ConfD starts for the first time, assuming CDB is enabled, the CDB database is empty. CDB is
configured to store its data in a directory as in:
<cdb>
<enabled>true</enabled>
<dbDir>/var/confd/cdb</dbDir>
</cdb>
At startup, when CDB is empty, i.e. no database files are found in the CDB directory, CDB will try
to initialize the database from all instantiated XML documents found in the CDB directory. This is the
mechanism we use to have an empty database initialized to some default setup.
This feature can be used to for example reset the configuration back to some factory setting or some such.
For example, assume we have the data model from Example 5.1, “a simple server data model,
servers.yang”. Furthermore, assume CDB is empty, i.e. no database files at all reside under /var/
confd/cdb. However we do have a file, /var/confd/cdb/foobar.xml containing the following
data:
<servers:servers xmlns:servers="http://example.com/ns/servers">
<servers:server>
<servers:name>www</servers:name>
<servers:ip>192.168.3.4</servers:ip>
<servers:port>88</servers:port>
62
CDB - The ConfD XML Database
</servers:server>
<servers:server>
<servers:name>www2</servers:name>
<servers:ip>192.168.3.5</servers:ip>
<servers:port>80</servers:port>
</servers:server>
<servers:server>
<servers:name>smtp</servers:name>
<servers:ip>192.168.3.4</servers:ip>
<servers:port>25</servers:port>
</servers:server>
<servers:server>
<servers:name>dns</servers:name>
<servers:ip>192.168.3.5</servers:ip>
<servers:port>53</servers:port>
</servers:server>
</servers:servers>
CDB will be initialized from the above XML document. The feature of initializing CDB with some
predefined set of XML elements is used to initialize the AAA database. This is described in Chapter 14,
The AAA infrastructure.
All files ending in .xml will be loaded (in an undefined order) and committed in a single transaction when
CDB enters start phase 1 (see Section 28.5, “Starting ConfD” for more details on start phases). The format
of the init files is rather lax in that it is not required that a complete instance document following the data-
model is present, much like the NETCONF edit-config operation. It is also possible to wrap multiple
top-level tags in the file with a surrounding config tag, like this:
<config xmlns="http://tail-f.com/ns/config/1.0">
...
</config>
5.9. Automatic schema upgrades and
downgrades
Software upgrades and downgrades represent one of the main problems of managing configuration data of
network devices. Each software release for a network device is typically associated with a certain version
of configuration data layout, i.e. a schema. In ConfD the schema is the data model stored in the .fxs files.
Once CDB has initialized it also stores a copy of the schema associated with the data it holds.
Every time ConfD starts, CDB will check the current contents of the .fxs files with its own copy of the
schema files. If CDB detects any changes in the schema it initiates an upgrade transaction. In the simplest
case CDB automatically resolves the changes and commits the new data before ConfD reaches start-phase
one.
An example of how the CDB automatically handles upgrades follows. For version 1.0 of the "forest
configurator" software project the following YANG module is used:
Example 5.4. Version 1.0 of the forest module
module forest {
namespace "http://example.com/ns/forest";
prefix forest;
revision "2006-09-01" {
description "Initial forest model";
63
CDB - The ConfD XML Database
}
container forest {
list tree {
key name;
min-elements 2;
max-elements 1024;
leaf name {
type string;
}
leaf height {
type uint8;
mandatory true;
}
leaf type {
type string;
mandatory true;
}
}
list flower {
key name;
max-elements 1024;
leaf name {
type string;
}
leaf type {
type string;
mandatory true;
}
leaf color {
type string;
mandatory true;
}
}
}
}
The YANG module will be mounted at / in the larger compounded data model tree. We start ConfD and
populate the CDB, e.g. by using the ConfD CLI. The programmer then writes C code which reads these
items from the configuration database.
To demonstrate the automatic upgrade, we will assume that CDB is populated with the instance data in
Example 5.5, “Initial forest instance document”
Example 5.5. Initial forest instance document
<forest xmlns="http://example.com/ns/forest">
<tree>
<name>George</name><height>10</height><type>oak</type>
</tree>
<tree>
<name>Eliza</name><height>15</height><type>oak</type>
</tree>
<tree>
<name>Henry</name><height>12</height><type>pine</type>
</tree>
<flower>
<name>Sebastian</name><type>dandelion</type><color>yellow</color>
</flower>
64
CDB - The ConfD XML Database
<flower>
<name>Alvin</name><type>tulip</type><color>white</color>
</flower>
</forest>
During the development of the next version of the "forest configurator" software project a couple of
changes were made to the configuration data schema. The tree list height was found to need more than
256 possible values and expanded to a 32-bit integer, and two new leaves color and birthday were
added. The list flower had an optional edible leaf added, and the color changed type to a more strict
enumeration type. The result is in Example 5.6, “Version 2.0 of the forest module”.
Example 5.6. Version 2.0 of the forest module
module forest {
namespace "http://example.com/ns/forest";
prefix forest;
import tailf-xsd-types {
prefix xs;
}
revision "2009-10-01" {
description
"Needed room for taller trees.
Flowers can be edible.";
}
revision "2008-09-01" {
description "Initial forest model";
}
typedef colorType {
type enumeration {
enum unknown;
enum blue;
enum yellow;
enum red;
enum green;
}
}
container forest {
list tree {
key name;
min-elements 2;
max-elements 1024;
leaf name {
type string;
}
leaf height {
type int32;
mandatory true;
}
leaf birthday {
type xs:date;
default 2006-09-01;
}
leaf color {
type colorType;
default unknown;
65
CDB - The ConfD XML Database
}
leaf type {
type string;
mandatory true;
}
}
list flower {
key name;
max-elements 1024;
leaf name {
type string;
}
leaf type {
type string;
mandatory true;
}
leaf edible {
type empty;
}
leaf color {
type colorType;
default unknown;
}
}
}
}
After compiling this new version of the YANG module into an fxs file using confdc and restarting ConfD
with the new schema, CDB automatically detects that the namespace http://example.com/ns/
forest has been modified. CDB will then update the schema and the contents of the database. When
ConfD has started the data in the database now looks like in Example 5.7, “Forest instance document after
upgrade”
Example 5.7. Forest instance document after upgrade
<forest xmlns="http://example.com/ns/forest">
<tree>
<name>Eliza</name>
<height>15</height>
<birthday>2006-09-01</birthday>
<color>unknown</color>
<type>oak</type>
</tree>
<tree>
<name>George</name>
<height>10</height>
<birthday>2006-09-01</birthday>
<color>unknown</color>
<type>oak</type>
</tree>
<tree>
<name>Henry</name>
<height>12</height>
<birthday>2006-09-01</birthday>
<color>unknown</color>
<type>pine</type>
</tree>
<flower>
<name>Alvin</name>
66
CDB - The ConfD XML Database
<type>tulip</type>
<color>unknown</color>
</flower>
<flower>
<name>Sebastian</name>
<type>dandelion</type>
<color>yellow</color>
</flower>
</forest>
Let's follow what CDB does by checking the devel log. The devel log is meant to be used as support
while the application is developed. It is enabled in confd.conf as shown in Example 5.8, “Enabling
the developer log”.
Example 5.8. Enabling the developer log
<developerLog>
<enabled>true</enabled>
<file>
<enabled>true</enabled>
<name>/var/confd/log/devel.log</name>
</file>
</developerLog>
<developerLogLevel>trace</developerLogLevel>
Example 5.9. Developer log entries resulting from upgrade
upgrade: http://example.com/ns/forest -> http://example.com/ns/forest
upgrade: /forest/flower/{"Alvin"}/color: -> unknown (default because old value white does not fit in new type)
upgrade: /forest/flower/{"Sebastian"}/color: -> yellow (but with new type)
upgrade: /forest/tree/{"Eliza"}/birthday: added, with default (2006-09-01)
upgrade: /forest/tree/{"Eliza"}/color: added, with default (unknown)
upgrade: /forest/tree/{"Eliza"}/height: -> 15 (but with new type)
upgrade: /forest/tree/{"George"}/birthday: added, with default (2006-09-01)
upgrade: /forest/tree/{"George"}/color: added, with default (unknown)
upgrade: /forest/tree/{"George"}/height: -> 10 (but with new type)
upgrade: /forest/tree/{"Henry"}/birthday: added, with default (2006-09-01)
upgrade: /forest/tree/{"Henry"}/color: added, with default (unknown)
upgrade: /forest/tree/{"Henry"}/height: -> 12 (but with new type)
CDB can automatically handle the following changes to the schema:
Deleted elements
When an element is deleted from the schema, CDB simply deletes it (and any children) from the
database.
Added elements
If a new element is added to the schema it needs to either be optional, dynamic, or have a default
value. New elements with a default are added set to their default value. New dynamic or optional
elements are simply noted as a schema change.
Re-ordering elements
An element with the same name, but in a different position on the same level, is considered to be the
same element. If its type hasn't changed it will retain its value, but if the type has changed it will be
upgraded as described below.
Type changes
If a leaf is still present but its type has changed, automatic coercions are performed, so for example
integers may be transformed to their string representation if the type changed from e.g. int32 to string.
67
CDB - The ConfD XML Database
Automatic type conversion succeeds as long as the string representation of the current value can be
parsed into its new type. (Which of course also implies that a change from a smaller integer type, e.g.
int8, to a larger type, e.g. int32, succeeds for any value - while the opposite will not hold, but might!)
If the coercion fails, any supplied default value will be used. If no default value is present in the new
schema the automatic upgrade will fail.
Type changes when user-defined types are used are also handled automatically, provided that some
straightforward rules are followed for the type definitions. Read more about user-defined types in the
confd_types(3) manual page, which also describes these rules.
Hash changes
When a hash value of particular element has changed (due to an addition of, or a change to, a
tailf:id-value statement) CDB will update that element.
Key changes
When a key of a list is modified, CDB tries to upgrade the key using the same rules as explained above
for adding, deleting, re-ordering, change of type, and change of hash value. If automatic upgrade of
a key fails the entire list instance will be deleted.
Default values
If a leaf has a default value, which has not been changed from its default, then the automatic upgrade
will use the new default value (if any). If the leaf value has been changed from the old default, then
that value will be kept.
Adding / Removing namespaces
If a namespace no longer is present after an upgrade, CDB removes all data in that namespace. When
CDB detects a new namespace, it is initialized with default values.
Changing to/from operational
Elements that previously had config false set that are changed into database elements will be
treated as a added elements. In the opposite case, where data elements in the new data model are
tagged with config false, the elements will be deleted from the database.
Callpoint changes
CDB only considers the part of the data model in YANG modules that do not have external callpoints
(see Chapter 7, The external database API). But while upgrading, CDB does handle moving subtrees
into CDB from a callpoint and vice versa. CDB simply considers these as added and deleted schema
elements.
Thus an application can be developed using CDB in the first development cycle. When the external
database component is ready it can easily replace CDB without changing the schema.
Should the automatic upgrade fail, exit codes and log-entries will indicate the reason (see Section 28.11,
“Disaster management”).
5.10. Using initialization files for upgrade
As described earlier, when ConfD starts with an empty CDB database, CDB will load all instantiated XML
documents found in the CDB directory and use these to initialize the the database. We can also use this
mechanism for CDB upgrade, since CDB will again look for files in the CDB directory ending in .xml
when doing an upgrade.
This allows for handling many of the cases that the automatic upgrade can not do by itself, e.g. addition
of mandatory leaves (without default statements), or multiple instances of new dynamic containers. Most
68
CDB - The ConfD XML Database
of the time we can probably simply use the XML init file that is appropriate for a fresh install of the new
version also for the upgrade from a previous version.
When using XML files for initialization of CDB, the complete contents of the files is used. On upgrade
however, doing this could lead to modification of the user's existing configuration - e.g. we could end up
resetting data that the user has modified since CDB was first initialized. For this reason two restrictions
are applied when loading the XML files on upgrade:
Only data for elements that are new as of the upgrade (i.e. elements that did not exist in the previous
schema) will be considered.
The data will only be loaded if all old (i.e. previously existing) optional/dynamic parent elements and
instances exist in the current configuration.
To clarify this, we will look again at Example 5.1, “a simple server data model, servers.yang”. In
version 1.5 of the server manager, it was realized that the data model had a serious shortcoming: There was
no way to specify the protocol to use, TCP or UDP. To fix this, another leaf was added to the /servers/
server list, and the new YANG module looks like this:
Example 5.10. Version 1.5 of the servers.yang module
module servers {
namespace "http://example.com/ns/servers";
prefix servers;
import ietf-inet-types {
prefix inet;
}
revision "2007-06-01" {
description "added protocol.";
}
revision "2006-09-01" {
description "Initial servers data model";
}
/* A set of server structures */
container servers {
list server {
key name;
max-elements 64;
leaf name {
type string;
}
leaf ip {
type inet:ip-address;
mandatory true;
}
leaf port {
type inet:port-number;
mandatory true;
}
leaf protocol {
type enumeration {
enum tcp;
enum udp;
}
mandatory true;
69
CDB - The ConfD XML Database
}
}
}
}
Since it was considered important that the user explicitly specified the protocol, the new leaf was made
mandatory. Of course the XML init file was updated to include this leaf, and now looks like this:
<servers:servers xmlns:servers="http://example.com/ns/servers">
<servers:server>
<servers:name>www</servers:name>
<servers:ip>192.168.3.4</servers:ip>
<servers:port>88</servers:port>
<servers:protocol>tcp</servers:protocol>
</servers:server>
<servers:server>
<servers:name>www2</servers:name>
<servers:ip>192.168.3.5</servers:ip>
<servers:port>80</servers:port>
<servers:protocol>tcp</servers:protocol>
</servers:server>
<servers:server>
<servers:name>smtp</servers:name>
<servers:ip>192.168.3.4</servers:ip>
<servers:port>25</servers:port>
<servers:protocol>tcp</servers:protocol>
</servers:server>
<servers:server>
<servers:name>dns</servers:name>
<servers:ip>192.168.3.5</servers:ip>
<servers:port>53</servers:port>
<servers:protocol>udp</servers:protocol>
</servers:server>
</servers:servers>
We can then just use this new init file for the upgrade, and the existing server instances in the user's
configuration will get the new /servers/server/protocol leaf filled in as expected. However
some users may have deleted some of the original servers from their configuration, and in those cases we
obviously do not want those servers to get re-created during the upgrade just because they are present in
the XML file - the above restrictions make sure that this does not happen. Here is what the configuration
looks like after upgrade if the "smtp" server has been deleted before upgrade:
<servers xmlns="http://example.com/ns/servers">
<server>
<name>dns</name>
<ip>192.168.3.5</ip>
<port>53</port>
<protocol>udp</protocol>
</server>
<server>
<name>www</name>
<ip>192.168.3.4</ip>
<port>88</port>
<protocol>tcp</protocol>
</server>
<server>
<name>www2</name>
<ip>192.168.3.5</ip>
<port>80</port>
<protocol>tcp</protocol>
70
CDB - The ConfD XML Database
</server>
</servers>
This example also implicitly shows a limitation with this method: If the user has created additional servers,
the new XML file will not specify what protocol to use for those servers, and the upgrade cannot succeed
unless the external program method is used, see below. However the example is a bit contrived - in
practice this limitation is rarely a problem: It does not occur for new lists or optional elements, nor for
new mandatory elements that are not children of old lists. And in fact correctly adding this "protocol" leaf
for user-created servers would require user input - it can not be done by any fully automated procedure.
Note
Since CDB will attempt to load all *.xml files in the CDB directory at the time of upgrade, it is
important to not leave XML init files from a previous version that are no longer valid there.
It is always possible to write an external program to change the data before the upgrade transaction is
committed. This will be explained in the following sections.
5.11. Using MAAPI to modify CDB during
upgrade
To take full control over the upgrade transaction, ConfD must be started using the --start-
phase{0,1,2} command line options. When ConfD is started using the --start-phase0 option
CDB will initiate, and if it detects an upgrade situation the upgrade transaction will be created, and all
automatic upgrades will be performed. After which ConfD simply waits, either for a MAAPI connection
or confd --start-phase1.
Whenever changes to the schema cannot be handled automatically, or when the application programmer
wants more control over how the data in the upgraded database is populated it is possible to use MAAPI
to attach and write to the upgrade transaction in progress (see Chapter 23, The Management Agent API
for details on this API).
Using the maapi_attach_init() function call an external program can attach to the upgrade
transaction during phase0. For example a program that creates the optional container edible on each
flower in the previous forest example would look like this:
Example 5.11. Writing to an upgrade transaction using MAAPI
int th;
maapi_attach_init(ms, &th);
maapi_set_namespace(ms, th, simple__ns);
maapi_init_cursor(sock, th, &mc, "/forest/flower");
maapi_get_next(&mc);
while (mc.n != 0) {
maapi_create(sock, th, "/forest/flower{%x}/edible", &mc.keys[0]);
maapi_get_next(&mc);
}
maapi_destroy_cursor(&mc);
exit(0);
Note the use of the special maapi_attach_init() function, it attaches the MAAPI socket to the
upgrade transaction (or init transaction) and returns (through the second argument) the transaction handle
71
CDB - The ConfD XML Database
we need to make further MAAPI calls. This special upgrade transaction is only available during phase0.
Once we call confd --start-phase1 the transaction will be committed.
This method can also be combined with the init file usage described in the previous section - the data from
the init file will be applied immediately following the automatic conversions at the beginning of phase0,
and the external program can then use MAAPI to modify or complement the result.
5.12. More complex schema upgrades
In the previous section we showed how to use MAAPI to access the upgrade transaction after the automatic
upgrade had taken place. But this means that CDB has deleted all values that are no longer part of the
schema. Well, not quite yet. In start-phase0 it is possible to use all the CDB C-API calls to access the
data using the schema from the database as it looked before the automatic upgrade. That is, the complete
database as it stood before the upgrade is still available to the application. This allows us to write programs
that transfer data in an application specific way between software releases.
Say, for example, that the developers of the Example 5.1, “a simple server data model, servers.yang
now has decided that having all servers under one top-element is not enough for their 2.0 release. They
want to instead have different categories of servers under different server types. Also a new IP address
is added to each server, the adminIP. The new version of servers.yang could then look like this
(version 1.5 has not been merged to the 2.0 branch yet):
Example 5.12. Version 2 of the servers.yang module
module servers {
namespace "http://example.com/ns/servers";
prefix servers;
import ietf-inet-types {
prefix inet;
}
revision "2007-07-15" {
description "Split servers into www and others";
}
revision "2006-09-01" {
description "Initial servers data model";
}
container servers {
list www {
key name;
max-elements 32;
leaf name {
type string;
}
leaf ip {
type inet:ip-address;
mandatory true;
}
leaf port {
type inet:port-number;
mandatory true;
}
leaf adminIP {
72
CDB - The ConfD XML Database
type inet:ip-address;
mandatory true;
}
}
list others {
key name;
max-elements 32;
leaf name {
type string;
}
leaf ip {
type inet:ip-address;
mandatory true;
}
leaf port {
type inet:port-number;
mandatory true;
}
leaf adminIP {
type inet:ip-address;
mandatory true;
}
}
}
}
The plan for upgrading users with the old version of the software is to transfer all servers with their name
containing the letters "www" or whose port is equal to 80, to the /servers/www subtree, and all the
others to the /servers/others subtree. The new adminIP element will be initialized to 10.0.0.1 for
the first server, and then increased by one for each server found in the old database. The code to perform
this operation would have to be written like this:
Example 5.13. The upgrade() function of server_upgrade.c
static struct sockaddr_in addr; /* Keeps address to confd daemon */
/* confd_init() must be called before calling this function */
/* ms and cs are assumed to be valid sockets */
static void upgrade(int ms, int cs)
{
int th;
int i, n;
static struct in_addr admin_ip;
cdb_connect(cs, CDB_READ_SOCKET,
(struct sockaddr *)&addr, sizeof(addr));
cdb_start_session(cs, CDB_RUNNING);
cdb_set_namespace(cs, servers__ns);
maapi_connect(ms, (struct sockaddr *)&addr, sizeof(addr));
maapi_attach_init(ms, &th);
maapi_set_namespace(ms, th, servers__ns);
admin_ip.s_addr = htonl(0x0a000001); /* initialize to 10.0.0.1 */
n = cdb_num_instances(cs, "/servers/server");
printf("servers = %d\n", n);
for (i=0; i < n; i++) {
char name[128];
confd_value_t ip, port, aip;
73
CDB - The ConfD XML Database
char *dst;
/* read old database using cdb_* API */
cdb_get_str(cs, name, 128, "/servers/server[%d]/name", i);
cdb_get(cs, &ip, "/servers/server[%d]/ip", i);
cdb_get(cs, &port, "/servers/server[%d]/port", i);
if ((CONFD_GET_UINT16(&port) == 80) ||
(strstr(name, "www") != NULL)) {
dst = "/servers/www{%s}";
} else {
dst = "/servers/others{%s}";
}
/* now create entries in the new database using maapi */
maapi_create(ms, th, dst, name);
maapi_pushd(ms, th, dst, name);
maapi_set_elem(ms, th, &ip, "ip");
maapi_set_elem(ms, th, &port, "port");
CONFD_SET_IPV4(&aip, admin_ip);
maapi_set_elem(ms, th, &aip, "adminIP");
admin_ip.s_addr = htonl(ntohl(admin_ip.s_addr) + 1);
maapi_popd(ms, th);
}
cdb_end_session(cs);
cdb_close(cs);
}
It would of course be wise to add error checks to the code above. Also note that choosing new values for
added elements can be done in a number of different ways, perhaps the end-user needs to be prompted,
perhaps the data resides elsewhere on the device.
Now assuming the data in CDB is as in the "Initialization data for CDB" figure in the section above, then
running the upgrade code would be done in the following order.
$ confd --stop
... Install new versions of software and fxs files ...
$ confd --start-phase0
$ server_upgrade
$ confd --start-phase1
... Start other internal daemons ...
$ confd --start-phase2
Finally, after ConfD is up and running after the upgrade the data would look like this.
<servers xmlns="http://example.com/ns/servers">
<www>
<name>www</name>
<ip>192.168.3.4</ip>
<port>88</port>
<adminIP>10.0.0.3</adminIP>
</www>
<www>
<name>www2</name>
<ip>192.168.3.5</ip>
<port>80</port>
<adminIP>10.0.0.4</adminIP>
</www>
<others>
<name>dns</name>
74
CDB - The ConfD XML Database
<ip>192.168.3.5</ip>
<port>53</port>
<adminIP>10.0.0.1</adminIP>
</others>
<others>
<name>smtp</name>
<ip>192.168.3.4</ip>
<port>25</port>
<adminIP>10.0.0.2</adminIP>
</others>
</servers>
ConfD does not impose any specific meaning to "version" - any change in the data model is an upgrade
situation as far as CDB is concerned. ConfD also does not force the application programmer to handle
software releases in a specific way, as each application may have very different needs and requirements
in terms of footprint and storage etc.
5.13. The full dhcpd example
As an example, we show how to integrate dhcpd - the ISC DHCP daemon - under ConfD.
Assume we have Example 5.14, “A YANG module describing a dhcpd server configuration” in a file
called dhcpd.yang.
Example 5.14. A YANG module describing a dhcpd server configuration
module dhcpd {
namespace "http://example.com/ns/dhcpd";
prefix dhcpd;
import ietf-inet-types {
prefix inet;
}
import tailf-xsd-types {
prefix xs;
}
typedef loglevel {
type enumeration {
enum kern;
enum mail;
enum local7;
}
}
grouping subNetworkType {
leaf net {
type inet:ip-address;
}
leaf mask {
type inet:ip-address;
}
container range {
presence "";
leaf dynamicBootP {
type boolean;
default false;
}
75
CDB - The ConfD XML Database
leaf lowAddr {
type inet:ip-address;
mandatory true;
}
leaf hiAddr {
type inet:ip-address;
}
}
leaf routers {
type string;
}
leaf maxLeaseTime {
type xs:duration;
default PT7200S;
}
}
container dhcp {
leaf defaultLeaseTime {
type xs:duration;
default PT600S;
}
leaf maxLeaseTime {
type xs:duration;
default PT7200S;
}
leaf logFacility {
type loglevel;
default local7;
}
container SubNets {
container subNet {
uses subNetworkType;
}
}
container SharedNetworks {
list sharedNetwork {
key name;
max-elements 1024;
leaf name {
type string;
}
container SubNets {
container subNet {
uses subNetworkType;
}
}
}
}
}
}
We use some interesting constructs in this module. We define a grouping and reuse it twice in the
module. This is what we do when we want to reuse a data model structure defined somewhere else in
the specification.
Now we have a data model which is fully usable with ConfD. Consider an actual dhcpd.conf file which
looks like:
defaultleasetime 600;
maxleasetime 7200;
76
CDB - The ConfD XML Database
subnet 192.168.128.0 netmask 255.255.255.0 {
range 192.168.128.60 192.168.128.98;
}
sharednetwork 22429 {
subnet 10.17.224.0 netmask 255.255.255.0 {
option routers rtr224.example.org;
}
subnet 10.0.29.0 netmask 255.255.255.0 {
option routers rtr29.example.org;
}
}
The above dhcp configuration would be represented by an XML structure that looks like this:
<dhcp>
<maxLeaseTime>7200</maxLeaseTime>
<defaultLeaseTime>600</defaultLeaseTime>
<subNets>
<subNet>
<net>192.168.128.0</net>
<mask>255.255.255.0</mask>
<range>
<lowAddr>192.168.128.60</lowAddr>
<highAddr>192.168.128.98</highAddr>
</range>
</subNet>
</subNets>
<sharedNetworks>
<sharedNetwork>
<name>22429</name>
<subNets>
<subNet>
<net>10.17.224.0</net>
<mask>255.255.255.0</mask>
<routers>rtr224.example.org</routers>
</subNet>
<subNet>
<net>10.0.29.0</net>
<mask>255.255.255.0</mask>
<routers>rtr29.example.org</routers>
</subNet>
</subNets>
</sharedNetwork>
</sharedNetworks>
</dhcp>
The dhcp server subscribes to configuration changes and reconfigures when notified. For our purposes we
write a small program which:
1. Reads the configuration database.
2. Writes /etc/dhcp/dhcpd.conf and HUPs the daemon.
The main function looks exactly like the example where we read the servers database with the exception
that we establish a subscription socket for the path /dhcp instead of /servers. Whenever any
configuration change occurs for anything related to dhcp, the program rereads the configuration from CDB,
regenerates the dhcpd.conf file and HUPs the dhcp daemon.
Reading the dhcp configuration from CDB is done as follows:
77
CDB - The ConfD XML Database
static int read_conf(struct sockaddr_in *addr)
{
FILE *fp;
struct confd_duration dur;
int i, n, tmp;
int rsock;
if ((rsock = socket(PF_INET, SOCK_STREAM, 0)) < 0 )
confd_fatal("Failed to open socket\n");
if (cdb_connect(rsock, CDB_READ_SOCKET, (struct sockaddr*)addr,
sizeof (struct sockaddr_in)) < 0)
return CONFD_ERR;
cdb_set_namespace(rsock, dhcpd__ns);
if ((fp = fopen("dhcpd.conf.tmp", "w")) == NULL) {
cdb_close(rsock);
return CONFD_ERR;
}
cdb_get_duration(rsock, &dur, "/dhcp/defaultLeaseTime");
fprintf(fp, "default-lease-time %d\n", duration_to_secs(&dur));
cdb_get_duration(rsock, &dur, "/dhcp/maxLeaseTime");
fprintf(fp, "max-lease-time %d\n", duration_to_secs(&dur));
cdb_get_enum_value(rsock, &tmp, "/dhcp/logFacility");
switch (tmp) {
case dhcpd_kern:
fprintf(fp, "log-facility kern\n");
break;
case dhcpd_mail:
fprintf(fp, "log-facility mail\n");
break;
case dhcpd_local7:
fprintf(fp, "log-facility local7\n");
break;
}
n = cdb_num_instances(rsock, "/dhcp/subNets/subNet");
for (i=0; i<n; i++) {
cdb_cd(rsock, "/dhcp/subNets/subNet[%d]", i);
do_subnet(rsock, fp);
}
n = cdb_num_instances(rsock, "/dhcp/SharedNetworks/sharedNetwork");
for (i=0; i<n; i++) {
unsigned char *buf;
int buflen;
int j, m;
cdb_get_buf(rsock, &buf, &buflen,
"/dhcp/SharedNetworks/sharedNetwork[%d]/name");
fprintf(fp, "shared-network %.*s {\n", buflen, buf);
m = cdb_num_instances(
rsock,
"/dhcp/SharedNetworks/sharedNetwork[%d]/subNets/subNet", i);
for (j=0; j<m; j++) {
cdb_pushd(rsock, "/dhcp/SharedNetworks/sharedNetwork[%d]/"
"subNets/subNet[%d]", i, j);
do_subnet(rsock, fp);
cdb_popd(rsock);
}
78
CDB - The ConfD XML Database
fprintf(fp, "}\n");
}
fclose(fp);
return cdb_close(rsock);
}
The code first establishes a read socket to CDB. Following that the code utilizes various CDB read
functions to read the data. Look for example at how we extract the value /dhcp/defaultLeaseTime
from CDB. Looking at Example 5.14, “A YANG module describing a dhcpd server configuration”, we
see that the type of the leaf is xs:duration. There exists a special type safe version of cdb_get() which
reads a duration value from the database, which we use as follows:
cdb_get_duration(rsock, &dur, "/dhcp/defaultLeaseTime");
fprintf(fp, "default-lease-time %d\n", duration_to_secs(&dur));
Alternatively, we could have written:
confd_value_t v;
struct confd_duration dur;
cdb_get(rsock, &v, "/dhcp/defaultLeaseTime");
dur = CONFD_GET_DURATION(&v)
fprintf(fp, "default-lease-time %d\n", duration_to_secs(&dur));
We figure out how many shared networks instances there are through the call to
cdb_num_instances() and then refer to the individual instances through the string syntax /dhcp/
sharedNetworks/sharedNetwork[%d]. The key of an individual shared network is, according
to the data model, the name element but we do not care about that here, we iterate through each shared
network instance using integers. These integers which obviously refer to shared network instances are
only valid within this CDB session. Using the normal ConfD key syntax we can also refer to individual
shared networks instances, e.g. /dhcp/sharedNetworks/sharedNetwork{24-29}. When we
just wish to loop through a set of XML structures it is usually easier to use the [%d] key syntax.
Also note the call to cdb_get_enum_value(rsock, &tmp, "/dhcp/logFacility"); which
reads an enumeration. The logFacility element was defined as an enumerated type. Enumerations are
represented as integers, both in our C code, but more importantly they are also represented as integers when
we store the string in the CDB database on disk. I.e., we will not store the "logFacility" string "local7"
over and over again on disk. Similarly in our C code we also get a (switchable) integer value as returned
from cdb_get_enum_value().
Especially interesting in the read_conf() code above is how we use cdb_pushd() in combination
with cdb_popd(). The cdb_pushd() functions works like cdb_cd(), i.e. it changes the position in
the data tree, with the difference that we can call cdb_popd() and return to where we were earlier in
the XML tree. We traverse the SharedNetworks and execute
cdb_pushd(rsock, "/dhcp/SharedNetworks/sharedNetwork[%d]/"
"subNets/subNet[%d]", i, j);
do_subnet(rsock, fp);
cdb_popd(rsock);
Where the function do_subnet() reads in a subnet structure from CDB. The do_subnet() code
works on relative paths as opposed to absolute paths.
The purpose of the example is to show how we can reuse the function do_subnet() and call it
at different points in the XML tree. The function itself does not know whether it is reading a subnet
under /dhcp/subNets or under /dhcp/SharedNetworks/sharedNetwork/subNets. Also
noteworthy is that fact that utilizing pushd/popd makes for more efficient code since the part of the path
79
CDB - The ConfD XML Database
leading up to the pushed element is already parsed and verified to be correct. Thus the parsing and path
verification does not have to be executed for each and every element.
static void do_subnet(int rsock, FILE *fp)
{
struct in_addr ip;
char buf[BUFSIZ];
struct confd_duration dur;
char *ptr;
cdb_get_ipv4(rsock, &ip, "net");
fprintf(fp, "subnet %s ", inet_ntoa(ip));
cdb_get_ipv4(rsock, &ip, "mask");
fprintf(fp, "netmask %s {\n", inet_ntoa(ip));
if (cdb_exists(rsock, "range") == 1) {
int bool;
fprintf(fp, " range ");
cdb_get_bool(rsock, &bool, "range/dynamicBootP");
if (bool) fprintf(fp, " dynamic-bootp ");
cdb_get_ipv4(rsock, &ip, "range/lowAddr");
fprintf(fp, " %s ", inet_ntoa(ip));
cdb_get_ipv4(rsock, &ip, "range/hiAddr");
fprintf(fp, " %s ", inet_ntoa(ip));
fprintf(fp, "\n");
}
cdb_get_str(rsock, &buf[0], BUFSIZ, "routers");
/* replace space with comma */
for (ptr = buf; ptr != '\0'; ptr++) {
if (*ptr == ' ')
*ptr = ',';
}
fprintf(fp, "routers %s\n", buf);
cdb_get_duration(rsock, &dur, "maxLeaseTime");
fprintf(fp, "max-lease-time %d\n", duration_to_secs(&dur));
}
Finally, we define the code fragment that must be executed by our application when there is IO ready to
read on the subscription socket:
if (set[1].revents & POLLIN) {
int sub_points[1];
int reslen;
if ((status = cdb_read_subscription_socket(subsock,
&sub_points[0],
&reslen)) != CONFD_OK) {
fprintf(stderr, "terminate sub_read: %d\n", status);
exit(1);
}
if (reslen > 0) {
if ((status = read_conf(&addr)) != CONFD_OK) {
fprintf(stderr, "Terminate: read_conf %d\n", status);
exit(1);
}
}
rename("dhcpd.conf.tmp", "/etc/dhcpd.conf");
system("killall -HUP dhcpd");
if ((status = cdb_sync_subscription_socket(subsock,
80
CDB - The ConfD XML Database
CDB_DONE_PRIORITY))
!= CONFD_OK) {
fprintf(stderr, "failed to sync subscription: %d\n", status);
exit(1);
}
}
81
Chapter 6. Operational Data
6.1. Introduction to Operational Data
In Chapter 3, The YANG Data Modeling Language we showed how to define data models in YANG. In
Chapter 5, CDB - The ConfD XML Database we showed how to use CDB and also how to interface CDB
to external daemons. In this chapter, we show how to write instrumentation code for read-only operational
and statistics data.
Operational data is typically not kept in a database but read at runtime by instrumentation functions. This
would for example be statistics counters contained inside the managed objects themselves. In this chapter
we will show how to write such instrumentation functions in C.
An alternative approach to runtime operational data is to store the operational in CDB using a write
interface. This will be described in Section 6.8, “Operational data in CDB”.
The configuration of the network device is modeled by a YANG module. This describes the data model
of the device. We also need to write YANG modules for our operational data.
In the YANG data model, there can be restrictions on valid operational data. For example, a list might
have a "max-elements" constraint, or a "must" expression associated with it. For performance reasons,
ConfD does not check these constraints. It is assumed that the application code that generates operational
data enforces the constraints.
Normally, operational data is strictly read-only. If the operational state of the device needs to be modified, it
is typically done through special operations (rpc or actions in NETCONF, or special commands in the CLI).
But this imposes a problem with protocols like SNMP, that do not have a mechanism to invoke arbitrary
operations. In SNMP, this is solved by writing values to special objects, called writable operational objects.
These objects are implemented in the same way as writable configuration data, described in Section 7.8,
“Writable operational data”, and the section called “Writable MIB objects”.
6.2. Reading Statistics Data
A very common situation is that we wish to expose statistics data from the device. Consider for example
the output of the netstat -i command.
#root netstat -i
Iface MTU Met RX-OK RX-ERR RX-DRP TX-OK TX-ERR TX-DRP Flg
eth0 1500 0 212684 0 0 142470 0 0 BMRU
lo 16436 0 2077 0 0 2077 0 0 LRU
This is useful information to expose to the Web UI, the CLI or a management application running
NETCONF.
To address this we must do two things; the statistics information must be modeled in a YANG module:
Example 6.1. netstat.yang
container ifaces {
config false;
list iface {
key name;
max-elements 1024;
leaf name {
82
Operational Data
type string;
}
leaf mtu {
type uint32;
}
leaf metric {
type uint64;
}
leaf rx_ok {
type uint64;
}
leaf rx_err {
type uint64;
}
leaf rx_drp {
type uint64;
}
leaf tx_ok {
type uint64;
}
leaf tx_err {
type uint64;
}
leaf tx_drop {
type uint64;
}
leaf flag {
type string;
}
}
}
The above simple one-to-one mapping of the netstat -i output and a YANG data model might suffice for
our needs. It can be refined later.
The second thing that must be done is to write C code that parses the netstat -i output. Finally we must
connect that C code to ConfD. That procedure will be fully described in this chapter.
Thus we need to:
Write a YANG module describing our operational data (see Chapter 3, The YANG Data Modeling
Language).
Write a mapping between the data model and the operational data as represented on the target device.
The mapping is specified inside the data model itself, using callbacks to C.
6.3. Callpoints and Callbacks
The data model indicates where to invoke callbacks by annotation with callpoints. A callpoint has a
name which later can be used by an external program to connect to that named point.
Tip
We can always define callpoints in a separate YANG module by using the tailf:annotate
extension as described in the tailf_yang_extensions(5) manual page. This way we can keep the
data model free from implementation specific details.
Assume that we wish to model the ARP table of the host:
83
Operational Data
Example 6.2. ARP table YANG module
module arpe {
namespace "http://tail-f.com/ns/example/arpe";
prefix arpe;
import ietf-inet-types {
prefix inet;
}
import tailf-common {
prefix tailf;
}
container arpentries {
config false;
tailf:callpoint arpe;
list arpe {
key "ip ifname";
max-elements 1024;
leaf ip {
type inet:ip-address;
}
leaf ifname {
type string;
}
leaf hwaddr {
type string;
mandatory true;
}
leaf permanent {
type boolean;
mandatory true;
}
leaf published {
type boolean;
mandatory true;
}
}
}
}
The arpe callpoint will invoke callbacks in external programs that has registered itself with the name
"arpe". The programs use the API in the libconfd.so library to register themselves under different
callpoints.
The config false; statement instructs ConfD that the entire arpentries container is non-
configuration data. Data below that point is not part of the configuration; rather it should be viewed as
ephemeral read-only data.
Assume we have the above YANG module loaded in ConfD. Furthermore that ConfD receives a
NETCONF "get" request like:
<rpc xmlns="urn:ietf:params:xml:ns:netconf:base:1.0" message-id="1">
<get/>
</rpc>
ConfD is configured to accept a number of arpe list entries contained inside an arpentries container.
It does not know which arpe entries reside on the device though. With the above NETCONF request, the
task for ConfD is to produce an XML structure containing all the arpe entries on the device.
84
Operational Data
This is solved by letting the application register itself with a set of callback C functions under the callpoint.
The callback C functions do things like get_next(), get_elem() and so forth.
There can be several different C programs on the same device which register themselves under different
callpoints. These C programs that register with ConfD are referred to as daemons.
Daemons using libconfd.so to connect to ConfD.
In the above picture we show how two separate C programs (daemons) connect to ConfD using the
libconfd.so shared library.
6.4. Data Callbacks
Each callpoint in a YANG module must have an associated set of callback functions. The following data
callback functions are required for operational data:
get_next()
This callback is invoked repeatedly to find out which keys exist for a certain list. ConfD will invoke
the callback as a means to iterate through all entries of the list, in this case all arpe entries. For
example, assume that the ARP table on the device looks as:
Example 6.3. Populated ARP table
<arpe:arpentries xmlns:arpe="http://tail-f.com/ns/example/arpe/1.0">
<arpe:arpe>
85
Operational Data
<arpe:ip>192.168.1.1</arpe:ip>
<arpe:ifname>eth0</arpe:ifname>
<arpe:hwaddr>00:30:48:88:1F:E2</arpe:hwaddr>
<arpe:permanent>false</arpe:permanent>
<arpe:published>false</arpe:published>
</arpe:arpe>
<arpe:arpe>
<arpe:ip>192.168.1.42</arpe:ip>
<arpe:ifname>eth0</arpe:ifname>
<arpe:hwaddr>00:30:48:88:1F:C5</arpe:hwaddr>
<arpe:permanent>false</arpe:permanent>
<arpe:published>false</arpe:published>
</arpe:arpe>
</arpe:arpentries>
The job of the get_next() callback would be to return the first key on the first invocation, namely
the pair "192.168.1.1", "eth0" and then subsequently the remaining keys until there are no more keys.
(The data model says that we have two keys, ip and ifname.)
get_elem()
This callback is invoked by ConfD when ConfD needs to read the actual value of a leaf element. We
must also implement the get_elem() callback for the keys. ConfD invokes get_elem() on a
key as an existence test.
exists_optional()
This callback is called for all typeless and optional elements, i.e. presence containers and leafs of
type empty. For example the YANG module fragment:
container bs {
presence "bs";
config false;
tailf:callpoint bcp;
leaf foo {
type string;
}
}
If we do not have any typeless optional elements in our data model we need not implement this callback
and can set it to NULL. A detailed description of this callback can be found in the confd_lib_dp(3)
manual page.
We also have a number of additional optional callbacks that may be implemented for efficiency reasons.
The precise usage of these optional callbacks is described in the man page confd_lib_dp(3).
get_object()
If this optional callback is implemented, the work of the callback is to return an entire object, i.e.
a list entry. In this case all the five elements contained in an arpe entry - namely the ip, ifname,
hwaddr, permanent and finally published leafs.
num_instances()
When ConfD needs to figure out how many entries we have for a list, by default ConfD will repeatedly
invoke the get_next() callback. If this callback is registered, it will be called instead.
get_next_object()
This optional callback combines get_next() and get_object() into a single callback. This
callback only needs to be implemented when it is very important to be able to traverse a table fast.
86
Operational Data
find_next()
This callback primarily optimizes cases where ConfD wants to start a list traversal at some other point
than at the first entry of the list. It is mainly useful for lists with a large number of entries. If it is not
registered, ConfD will use a sequence of get_next() calls to find the desired list entry.
find_next_object()
This callback combines find_next() and get_object() into a single callback.
6.5. User Sessions and ConfD Transactions
In this section we will describe a number of new concepts. We will define what we mean by a user session
and what ConfD transactions are. This will be further explained in Chapter 7, The external database API.
A user session corresponds directly to an SSH/SSL session from a management station to ConfD. A user
session is associated with such data as the IP address of the management station and the user name of the
user who started the session, independent of northbound agent.
The user session data is always available to all callback functions.
A new transaction is started whenever an agent tries to read operational data. For each transaction two
user defined callbacks are potentially invoked:
init() From the daemon's point of view, this callback will be invoked when a transaction starts.
However as an optimization, ConfD will delay the invocation for a given daemon until
the point where some data needs to be read, i.e. just before the first get_next(),
get_elem(), etc callback.
finish() This callback gets invoked at the end of the transaction, if init() has been invoked. This
is a good place to deallocate any local resources for the transaction. This callback is optional.
The "lazy" invocation of init() means that for a transaction where none of the operational data provided
by a given daemon is accessed, that daemon will not have any callbacks at all invoked.
6.6. C Example with Operational Data
Assume we want to provide the state of the current ARP table on the device. To do this we need to write a
YANG module which models an ARP table, and then write C functions which populates the corresponding
XML tree. We use the YANG module from the previous section and save it to a file arpe.yang and
compile the module using the confdc compiler as:
# confdc -c arpe.yang
# confdc --emit-h arpe.h arpe.fxs
The --emit-h option to confdc is used to generate a header file. Thus, in our example the generated file
will be called arpe.h. The generated header file contains a mapping from the strings found in the data
model such as ip or permanent to integer values.
Finally we must instruct ConfD where to find the newly generated schema file. Using the default ConfD
configuration, ConfD looks for schema (.fxs) files under /etc/confd:
# cp arpe.fxs /etc/confd
# confd
87
Operational Data
After loading arpe.fxs, ConfD runs with the newly generated data model. Next we need to write the C
program which provides the ARP data by means of C callback functions.
An actual running version of this example can be found in the intro/5-c_stats directory in the
examples in the distribution release. We will walk through this C program here.
First we need to include confd_lib.h and confd_dp.h which are part of a ConfD release, as well
as the newly generated arpe.h. See confdc (1) for details.
#include <confd_lib.h>
#include <confd_dp.h>
#include "arpe.h"
We use a couple of global variables as well as a structure which represents an ARP entry.
/* Our daemon context as a global variable */
static struct confd_daemon_ctx *dctx;
static int ctlsock;
static int workersock;
struct aentry {
struct in_addr ip4;
char *hwaddr;
int perm;
int pub;
char *iface;
struct aentry *next;
};
struct arpdata {
struct aentry *arp_entries;
struct timeval lastparse;
};
The struct confd_daemon_ctx *dctx is a daemon context. It is a data structure which is passed to virtually
all the functions.
We are ready for the main() function. There we will initialize the library, connect to the ConfD daemon
and install a number of callback functions as pointers to C functions. Remember the architecture of this
system, ConfD executes as a common daemon, and the program we are writing executes outside the address
space of ConfD. Our program links with the ConfD library (libconfd.so) which manages the protocol
between our application and ConfD.
int main(int argc, char *argv[])
{
struct sockaddr_in addr;
int debuglevel = CONFD_TRACE;
struct confd_trans_cbs trans;
struct confd_data_cbs data;
memset(&trans, 0, sizeof (struct confd_trans_cbs));
trans.init = s_init;
trans.finish = s_finish;
memset(&data, 0, sizeof (struct confd_data_cbs));
data.get_elem = get_elem;
data.get_next = get_next;
88
Operational Data
strcpy(data.callpoint, arpe__callpointid_arpe);
/* initialize confd library */
confd_init("arpe_daemon", stderr, debuglevel);
addr.sin_addr.s_addr = inet_addr("127.0.0.1");
addr.sin_family = AF_INET;
addr.sin_port = htons(CONFD_PORT);
if (confd_load_schemas((struct sockaddr*)&addr,
sizeof (struct sockaddr_in)) != CONFD_OK)
confd_fatal("Failed to load schemas from confd\n");
if ((dctx = confd_init_daemon("arpe_daemon")) == NULL)
confd_fatal("Failed to initialize confdlib\n");
/* Create the first control socket, all requests to */
/* create new transactions arrive here */
if ((ctlsock = socket(PF_INET, SOCK_STREAM, 0)) < 0 )
confd_fatal("Failed to open ctlsocket\n");
if (confd_connect(dctx, ctlsock, CONTROL_SOCKET, (struct sockaddr*)&addr,
sizeof (struct sockaddr_in)) < 0)
confd_fatal("Failed to confd_connect() to confd \n");
/* Also establish a workersocket, this is the most simple */
/* case where we have just one ctlsock and one workersock */
if ((workersock = socket(PF_INET, SOCK_STREAM, 0)) < 0 )
confd_fatal("Failed to open workersocket\n");
if (confd_connect(dctx, workersock, WORKER_SOCKET,(struct sockaddr*)&addr,
sizeof (struct sockaddr_in)) < 0)
confd_fatal("Failed to confd_connect() to confd \n");
if (confd_register_trans_cb(dctx, &trans) == CONFD_ERR)
confd_fatal("Failed to register trans cb \n");
if (confd_register_data_cb(dctx, &data) == CONFD_ERR)
confd_fatal("Failed to register data cb \n");
if (confd_register_done(dctx) != CONFD_OK)
confd_fatal("Failed to complete registration \n");
At this point we have registered our callback functions for data manipulations under the arpe callpoint.
Whenever data needs to manipulated below that callpoint our C callback functions should be invoked.
The confd_register_done() call tells ConfD that we are done with the callback registrations - no
callbacks will be invoked before we issue this call.
The arpe__callpointid_arpe symbol that is used for the callpoint element in the data callback
registration is one of the definitions in the generated arpe.h file. It just maps to the string "arpe"
that we could have used instead, but by using the symbol we make sure that if the name given with the
tailf:callpoint statement in the YANG module is changed, without a corresponding change in the
C code, the problem is detected at compile time.
We have also created one control socket and one worker socket. These are sockets owned by the application
and they should be added to the poll() or select() set of the application.
All new requests that arrive from ConfD arrive on the control socket. As we will see, the init()
callback must call the API function confd_trans_set_fd() which will assign a worker socket to
89
Operational Data
the transaction. All further requests and replies for this transaction will be sent on the worker socket. We
can have several worker sockets and they can run in different operating system threads than the thread
owning the control socket.
The poll loop could look like:
while(1) {
struct pollfd set[2];
int ret;
set[0].fd = ctlsock;
set[0].events = POLLIN;
set[0].revents = 0;
set[1].fd = workersock;
set[1].events = POLLIN;
set[1].revents = 0;
if (poll(set, sizeof(set)/sizeof(*set), -1) < 0) {
perror("Poll failed:");
continue;
}
/* Check for I/O */
if (set[0].revents & POLLIN) {
if ((ret = confd_fd_ready(dctx, ctlsock)) == CONFD_EOF) {
confd_fatal("Control socket closed\n");
} else if (ret == CONFD_ERR && confd_errno != CONFD_ERR_EXTERNAL) {
confd_fatal("Error on control socket request: %s (%d): %s\n",
confd_strerror(confd_errno), confd_errno, confd_lasterr());
}
}
if (set[1].revents & POLLIN) {
if ((ret = confd_fd_ready(dctx, workersock)) == CONFD_EOF) {
confd_fatal("Worker socket closed\n");
} else if (ret == CONFD_ERR && confd_errno != CONFD_ERR_EXTERNAL) {
confd_fatal("Error on worker socket request: %s (%d): %s\n",
confd_strerror(confd_errno), confd_errno, confd_lasterr());
}
}
}
The crucial function above is confd_fd_ready(). When either of the (in this case, two) sockets
from the application to ConfD are ready to read, the application is responsible for invoking the
confd_fd_ready() function. This function will read data from the socket, unmarshal that data and
invoke the right callback function with the right arguments.
We have installed two transaction callbacks: init() and finish(), and also two data callbacks:
get_next() and get_elem().
The two transaction callbacks look like:
static int s_init(struct confd_trans_ctx *tctx)
{
struct arpdata *dp;
if ((dp = malloc(sizeof(struct arpdata))) == NULL)
return CONFD_ERR;
90
Operational Data
memset(dp, 0, sizeof(struct arpdata));
if (run_arp(dp) == CONFD_ERR) {
free(dp);
return CONFD_ERR;
}
tctx->t_opaque = dp;
confd_trans_set_fd(tctx, workersock);
return CONFD_OK;
}
static int s_finish(struct confd_trans_ctx *tctx)
{
struct arpdata *dp = tctx->t_opaque;
if (dp != NULL) {
free_arp(dp);
free(dp);
}
return CONFD_OK;
}
The init() callback reads the ARP table calling a function run_arp() and stores a local copy of a
parsed ARP table in the transaction context. This data structure (struct confd_trans_ctx *tctx) is allocated
by the library and used throughout the entire transaction. The t_opaque field in the transaction context
is meant to be used by the application to store transaction local data.
A naive version of run_arp() could call popen(3) on the command arp -an and parse the output:
# arp -an
? (192.168.128.33) at 00:40:63:C9:79:FC [ether] on eth1
? (217.209.73.1) at 00:02:3B:00:3B:67 [ether] on eth0
The parsed ARP table created by run_arp() is ordered by increasing key values, since ConfD expects
us to return entries in that order when traversing the list.
There may be several ConfD transactions running in parallel and some transactions may have been initiated
from the CLI and the current ARP data may be stale or may be nonexistent.
The init() callback must also indicate to the library which socket should be used for all future traffic for
this transaction. In our case, we have just one option, namely the single worker socket we created. This is
done through the call to confd_trans_set_fd(). Also, the init() callback was fed a transaction
context parameter. This structure is allocated by the library and fed to each and every callback function
executed during the life of the transaction. The structure is defined in confd_lib.h.
Our finish() function cleans up everything.
The data callbacks look like:
static int get_next(struct confd_trans_ctx *tctx,
confd_hkeypath_t *keypath,
long next)
{
struct arpdata *dp = tctx->t_opaque;
struct aentry *curr;
confd_value_t v[2];
if (next == -1) { /* first call */
if (need_arp(dp)) {
91
Operational Data
if (run_arp(dp) == CONFD_ERR)
return CONFD_ERR;
}
curr = dp->arp_entries;
} else {
curr = (struct aentry *)next;
}
if (curr == NULL) {
confd_data_reply_next_key(tctx, NULL, -1, -1);
return CONFD_OK;
}
/* 2 keys */
CONFD_SET_IPV4(&v[0], curr->ip4);
CONFD_SET_STR(&v[1], curr->iface);
confd_data_reply_next_key(tctx, &v[0], 2, (long)curr->next);
return CONFD_OK;
}
struct aentry *find_ae(confd_hkeypath_t *keypath, struct arpdata *dp)
{
struct in_addr ip = CONFD_GET_IPV4(&keypath->v[1][0]);
char *iface = (char*)CONFD_GET_BUFPTR(&keypath->v[1][1]);
struct aentry *ae = dp->arp_entries;
while (ae != NULL) {
if (ip.s_addr == ae->ip4.s_addr &&
(strcmp(ae->iface, iface) == 0) )
return ae;
ae=ae->next;
}
return NULL;
}
/* Keypath example */
/* /arpentries/arpe{192.168.1.1 eth0}/hwaddr */
/* 3 2 1 0 */
static int get_elem(struct confd_trans_ctx *tctx,
confd_hkeypath_t *keypath)
{
confd_value_t v;
struct aentry *ae = find_ae(keypath, tctx->t_opaque);
if (ae == NULL) {
confd_data_reply_not_found(tctx);
return CONFD_OK;
}
switch (CONFD_GET_XMLTAG(&(keypath->v[0][0]))) {
case arpe_hwaddr:
if (ae->hwaddr == NULL) {
confd_data_reply_not_found(tctx);
return CONFD_OK;
}
CONFD_SET_STR(&v, ae->hwaddr);
break;
case arpe_permanent:
CONFD_SET_BOOL(&v, ae->perm);
break;
92
Operational Data
case arpe_published:
CONFD_SET_BOOL(&v, ae->pub);
break;
case arpe_ip:
CONFD_SET_IPV4(&v, ae->ip4);
break;
case arpe_ifname:
CONFD_SET_STR(&v, ae->iface);
break;
default:
return CONFD_ERR;
}
confd_data_reply_value(tctx, &v);
return CONFD_OK;
}
The above code needs a bit of explaining. Before doing this we need to look at how the confd_hkeypath_t
data type works.
All the different data manipulation callbacks get a hashed keypath as a parameter. For example when a
daemon gets invoked in get_elem() and ConfD wants to read the published element for a specific
arp entry, the textual representation of the hkeypath is /arpentries/arpe{1.2.3.4 eth0}/
published.
The C representation of a hashed keypath is a fixed size array of values, as in:
typedef struct confd_hkeypath {
confd_value_t v[MAXDEPTH][MAXKEYLEN];
int len;
} confd_hkeypath_t;
The keypath is fed in the reverse order to the application, thus - when ConfD wants to read /
arpentries/arpe{1.2.3.4 eth0}/published, the following holds for the keypath:
keypath->v[0][0] is the XML element, namely published.
keypath->v[1][0] is the first key one step up, in our case the IP address 1.2.3.4.
keypath->v[1][1] is the second key one step up, in our case the interface name eth0.
keypath->v[2][0] is the XML element two steps up, namely arpe.
keypath->v[3][0] is the XML element three steps up, namely arpentries. The top level
element. This item could also have been obtained through the expression keypath->v[keypath-
>len - 1][0].
The actual values are represented as a union struct defined in confd_lib.h. The confd_value_t data
type can represent all ground data types such as strings, integers, but also slightly more complex data types
such as IP addresses and the various date and time data types found in XML schema.
confd_lib.h defines a set of macros to set and get the actual values from confd_value_t variables. For
example this code sets and gets an individual value:
confd_value_t myval;
int i = 99;
CONFD_SET_INT32(&myval, i);
93
Operational Data
assert(99 == CONFD_GET_INT32(&myval));
One important variant of confd_value_t is string. All data values which are of type string, or of a
type derived from string, are passed from ConfD to the application as NUL terminated strings. Thus
confd_value_t contains a length indicator and is NUL terminated.
All strings consist of an unsigned char* pointer and a length indicator. To copy such a string into a local
buffer we need to write code like:
char *mybuf = malloc(CONFD_GET_BUFSIZE(someval)+1);
strcpy(mybuf, (char*)CONFD_GET_BUFPTR(someval));
On the other hand, when the application needs to reply with a string value to ConfD, the application can
choose to use either a NUL terminated string or a buffer with a length indicator using the following macros:
confd_value_t myval;
CONFD_SET_STR(&myval, "Frank Zappa");
or
confd_value_t myval;
CONFD_SET_BUF(&myval, buf, buflen);
XML tags are also represented as confd_value_t. Remember that we said that keypath->v[0][0] was
the actual XML element. Also remember that confdc generated a .h file. The arpe.h file, containing all
the XML elements from arpe.yang as integers. The following code uses that to switch on the XML tag:
switch (CONFD_GET_XMLTAG(&(keypath->v[0][0]))) {
case arpe_hwaddr:
if (ae->hwaddr == NULL) {
confd_data_reply_not_found(tctx);
return CONFD_OK;
}
CONFD_SET_STR(&v, ae->hwaddr);
break;
case arpe_permanent:
CONFD_SET_BOOL(&v, ae->perm);
break;
Each keypath has a textual representation, so we can format a keypath by means of the API call
confd_pp_kpath(). A hashed keypath, a confd_hkeypath_t, represents a unique path down through
the XML tree and it is easy and efficient to walk the path through switch statements since the individual
XML elements in the path are integers.
The purpose of both functions, (get_next() and get_elem()), is to return data back to ConfD. Data
is not returned explicitly through return values from the callback functions, but rather through explicit
API calls.
So when the application gets invoked in get_elem() via a call to confd_fd_ready(), we need to
return a single value to ConfD. We do this through the call to confd_data_reply_value(). Thus
the following code snippet returns an integer value to ConfD.
confd_value_t myval;
CONFD_SET_INT32(&myval, 7777);
confd_data_reply_value(tctx, &myval);
94
Operational Data
The get_elem() callback is also used as an existence test by ConfD. It may seem redundant to
implement the get_elem() callback for a keypath such as: "/arpentries/arpe{1.2.3.4
eth0}/ip" since the only possible reply can be the IP address "1.2.3.4" which is already part of the
keypath. However, the user can enter any random path in the CLI and ConfD uses the get_elem()
callback to check whether an entry exists or not.
If the entry does not exist, the callback should call confd_data_reply_not_found() and then
return CONFD_OK. This is not an error.
The API is fully documented in the confd_lib_dp(3) manual page.
The get_next() callback gets invoked when ConfD needs to read all the keys of a certain list such as
our ARP entries. The next parameter will have the value -1 on the first invocation to get_next().
This invocation needs to return the first key in the ordered list created by run_arp(). In our case, with
our ARP entries, we have multiple keys. According to the data model the pair of the interface name and
the IP address makes up the key. Thus we need to return two values:
CONFD_SET_IPV4(&v[0], curr->ip4);
CONFD_SET_STR(&v[1], curr->iface);
confd_data_reply_next_key(tctx, &v[0], 2, (long)curr->next);
The last parameter to confd_data_reply_next_key() is a long integer which will be fed to us as
the next parameter on the subsequent call. We cast the pointer to the next struct aentry* as a long.
In the above code, we registered a single set of callback C functions on the callpoint. Sometimes we
may have different daemons that handle different kinds of data, but under the same callpoint. Say for
example that we have a list of interfaces, VLAN interfaces and regular interfaces. We have different
software modules which handle the VLAN interfaces and the regular interfaces. In this case, we may use
confd_register_range_data_cb() (See confd_lib_dp(3)) which makes it possible to install a
set of callbacks on a range of keys, for example one set of callbacks for eth0 to ethX and another set
of callbacks in the range from vlan0 to vlanX.
Also notable is the consistency of the data. If we use CDB to store our configuration data and we use
this external data API to deliver statistics data which is volatile we must choose whether we want to
deliver an exact snapshot of the statistics data or not. ConfD will consecutively call get_next() to
gather all the keys for a set of dynamic elements. A moment later ConfD will invoke get_elem()
or get_object() to gather the actual data. If this data no longer exists, the application can invoke
confd_data_reply_not_found() and all is fine.
An alternative for the application if we must always return consistent snapshots, is to gather and buffer
all the data in the init() callback and then return both get_next() data as well as get_elem()
data from those internal data structures. This data can be stored in the t_opaque field in the transaction
context and be released in the finish() callback.
In our example code above we have chosen the latter approach. Also notable is the check for age of
data at the beginning of get_next(). A NETCONF transaction is typically short lived, whereas a CLI
transaction remains live for as long as the user is logged in. Thus we may have to refresh the locally stored
ARP table if it is deemed to be too old.
6.7. The Protocol and a Library Threads
Discussion
We start this section with a picture showing the sequence of events that occur when the user defined
callback functions get invoked by the library.
95
Operational Data
Event chain that triggers user callbacks
On the library side we have one control socket and one or more worker sockets. The idea behind this
architecture is that it shall be possible to have a software architecture, whereby a main thread owns the
control socket, and we also have a set of worker threads, each owning one or more worker sockets. A
request to execute something arrives from ConfD on the control socket, and the thread owning the control
socket, the main thread, can then decide to assign a worker thread for that particular activity, be it a
validation, a new transaction or the invocation of an action. The owner of the control socket must thus
have a mapping between worker sockets and thread workers. This is up to the application to decide.
The downside of the architecture proposed above is complexity, whereas the upside is that regardless of
how long time it takes to execute an individual request from ConfD, the data provider is always ready to
accept and serve new callback requests from ConfD.
The case for a multi threaded dataprovider maybe isn't as strong as one could think. Say that we have a
statistics data provider which lists a very long list of statistics items, e.g. a huge routing table. If a CLI user
invokes the command to show all routing table entries, there will be a long series of get_next() and
get_elem() callback invocations. As long as the application is still polling the control socket, other
northbound agents can very well sneak in and execute their operations while the routing table is being
displayed. For example another CLI user issuing a request to reboot the host, will get his reboot request
served at the same time as the first CLI user is displaying the large routing table.
96
Operational Data
A data provider with just one thread, one control socket and one worker socket will never hang longer than
it takes to execute a single callback invocation, e.g. a single invocation of get_elem(), validate()
or action(). In many cases it will still be a good design to use at least one thread for the control socket
and one for the worker socket - this will allow for control socket requests to be handled quickly even if the
data callbacks require more processing time. If we have long-running action callbacks (e.g. file download),
multi-threading may be essential, see Section 11.2.2, “Using Threads”.
The intro/9-c_threads example in the ConfD examples collection shows one way to use multi-
threading in a daemon that implements both operational data callbacks and action callbacks. It has one
thread for the control socket and only a single worker socket/thread for the data callbacks, while multiple
worker sockets/threads are used to handle the action callbacks.
When we use multiple threads, it is important to remember that threads can not "share" socket connections
to ConfD. For the data provider API, this is basically fulfilled automatically, as we will not have multiple
threads polling the same socket. But when we use e.g. the CDB or MAAPI APIs, the application must
make sure that each thread has its own sockets. I.e. the ConfD API functions are thread-safe as such, but
multiple threads using them with the same socket will have unpredictable results, just as multiple threads
using the read() and write() system calls on the same file descriptor in general will. In the ConfD case, one
thread may end up getting the response to a request from another, or even a part of that response, which
will result in errors that can be very difficult to debug.
6.8. Operational data in CDB
It is possible to use CDB to store not only the configuration data but also operational data. Depending
on the application and the underlying architecture it may be easier for some of the managed objects to
write their operational data into CDB. Depending on the type of data, this would typically be done either
at regular intervals or whenever there is a change in the data. If this is done, no instrumentation functions
need to be written. The operational data then resides in CDB and all the northbound agents can read the
operational data automatically from CDB.
Similar to the CDB read interface, we need to create a CDB socket and also start a CDB session on the
socket before we can write data
The necessary steps are:
1. cdb_connect()
2. cdb_start_session() followed by cdb_set_namespace()
3. A series of calls to one or several of the CDB set functions, cdb_set_elem(), cdb_create(),
cdb_delete() cdb_set_object() or cdb_set_values()
These functions are described in detail in the confd_lib_cdb(3) manual page.
4. A call to cdb_end_session()
It is also possible to load operational data from an XML file into CDB using the function
cdb_load_file(), see the confd_lib_cdb(3) manual page. A command line utility called confd_load
can also be used, see confd_load(1).
We use the tailf:cdb-oper statement to indicate that operational data should be stored in CDB, see
the tailf_yang_extensions(5) manual page. The data can be either persistent, i.e. stored on disc, or volatile,
i.e. stored in RAM only - this is controlled by the tailf:persistent substatement to tailf:cdb-
oper.
97
Operational Data
As a realistic example we model IP traffic statistics in a Linux environment. We have a list of interfaces,
stored in CDB and then for each interface we have a statistics part. This example can be found in
cdb_oper/ifstatus in the examples collection. This is what our data model looks like:
module if {
namespace "http://tail-f.com/ns/example/if";
prefix if;
import ietf-inet-types {
prefix inet;
}
import tailf-common {
prefix tailf;
}
container interfaces {
list interface {
key name;
max-elements 1024;
leaf name {
type string;
}
list address {
key name;
max-elements 64;
leaf name {
type inet:ipv4-address;
}
leaf prefix-length {
type int32;
mandatory true;
}
}
container status {
config false;
tailf:cdb-oper;
container receive {
leaf bytes {
type uint64;
mandatory true;
}
leaf packets {
type uint64;
mandatory true;
}
leaf errors {
type uint32;
mandatory true;
}
leaf dropped {
type uint32;
mandatory true;
}
}
container transmit {
leaf bytes {
type uint64;
mandatory true;
98
Operational Data
}
leaf packets {
type uint64;
mandatory true;
}
leaf errors {
type uint32;
mandatory true;
}
leaf dropped {
type uint32;
mandatory true;
}
leaf collisions {
type uint32;
mandatory true;
}
}
}
}
}
}
Note the element /interfaces/interface/status, it has the substatement config false;
and below it we find a tailf:cdb-oper; statement. If we had implemented this operational data using
the techniques from the previous sections in this chapter, we would have had to write instrumentation
callback functions for the above operational data. For example get_elem() which would then be
given a path, e.g. /interfaces/interface{eth0}/status/receive/bytes When we use
the tailf:cdb-oper; statement these instrumentation callbacks are automatically provided internally
by ConfD. The downside is that we must populate the CDB data from the outside.
A function which reads network traffic statistics data and updates CDB according to the above data model
is:
#define GET_COUNTER() { \
if ((p = strtok(NULL, " \t")) == NULL) \
continue; \
counter = atoll(p); \
}
static int update_status(int sock)
{
FILE *proc;
int ret;
char buf[BUFSIZ];
char *ifname, *p;
long long counter;
confd_value_t val[1 + 4 + 1 + 5];
int i;
if ((ret = cdb_start_session(sock, CDB_OPERATIONAL)) != CONFD_OK)
return ret;
if ((ret = cdb_set_namespace(sock, if__ns)) != CONFD_OK)
return ret;
if ((proc = fopen("/proc/net/dev", "r")) == NULL)
return CONFD_ERR;
while (ret == CONFD_OK && fgets(buf, sizeof(buf), proc) != NULL) {
if ((p = strchr(buf, ':')) == NULL)
continue;
99
Operational Data
*p = ' ';
if ((ifname = strtok(buf, " \t")) == NULL)
continue;
i = 0;
CONFD_SET_XMLTAG(&val[i], if_receive, if__ns); i++;
GET_COUNTER(); /* rx bytes */
CONFD_SET_UINT64(&val[i], counter); i++;
GET_COUNTER(); /* rx packets */
CONFD_SET_UINT64(&val[i], counter); i++;
GET_COUNTER(); /* rx errs */
CONFD_SET_UINT32(&val[i], counter); i++;
GET_COUNTER(); /* rx drop */
CONFD_SET_UINT32(&val[i], counter); i++;
/* skip remaining rx counters */
GET_COUNTER(); GET_COUNTER(); GET_COUNTER(); GET_COUNTER();
CONFD_SET_XMLTAG(&val[i], if_transmit, if__ns); i++;
GET_COUNTER(); /* tx bytes */
CONFD_SET_UINT64(&val[i], counter); i++;
GET_COUNTER(); /* tx packets */
CONFD_SET_UINT64(&val[i], counter); i++;
GET_COUNTER(); /* tx errs */
CONFD_SET_UINT32(&val[i], counter); i++;
GET_COUNTER(); /* tx drop */
CONFD_SET_UINT32(&val[i], counter); i++;
GET_COUNTER(); /* skip */
GET_COUNTER(); /* tx colls */
CONFD_SET_UINT32(&val[i], counter); i++;
ret = cdb_set_object(sock, val, i,
"/interfaces/interface{%s}/status", ifname);
if (ret == CONFD_ERR && confd_errno == CONFD_ERR_BADPATH)
/* assume interface doesn't exist in config */
ret = CONFD_OK;
}
fclose(proc);
cdb_end_session(sock);
return ret;
}
We typically call this function at regular intervals.
6.9. Delayed Replies
If the data source is communicated with through some means of IPC it may be inconvenient to hang in the
callback functions and wait for the reply from the data source. The solution to this problem is to return a
special return value from the callback and then later explicitly send the response once it is available.
All the transaction callbacks as well as all the data callbacks can optionally return the value
CONFD_DELAYED_RESPONSE. This means that the callback returns, and we typically end up in our
main poll loop again. Once the reply returns it is then up to the application to send the reply back to ConfD.
The libconfd library contains a number of routines that can be invoked to convey a delayed
response. The callbacks are divided in two groups. The first group is the one where the actual return
100
Operational Data
value from the callback is the value that is sent to ConfD as a response. A good example is the
the transaction init() callback or the the data callback set_elem(). In both these case if the
callback returns CONFD_OK a positive ack is sent back to ConfD by the library. If we instead return
CONFD_DELAYED_RESPONSE the application must - once the reply is available - use either of the
functions confd_delayed_reply_ok() or confd_delayed_reply_error() to explicitly
send the reply. If no reply is sent within 120 seconds (configurable through confd.conf) the data
provider is considered dead by ConfD and ConfD will close all sockets to the data provider.
Another group of callbacks are the callbacks that require the application to explicitly send a
reply back to ConfD before returning. A good example is the data callback get_elem(). The
application must explicitly call confd_data_reply_value() before returning - unless the
CONFD_DELAYED_RESPONSE value is returned. If so, it is up to the application to later, when the
response value is available, explicitly call the confd_data_reply_value() function to send back
the return value.
6.10. Caching Operational Data
For operational data handled by an external data provider (i.e., using tailf:callpoint), the values
of elements may be kept for a certain time in a cache in ConfD. If such an element is accessed, its value
will be taken from the cache, and the data provider not called.
The cache is enabled, and the default time to keep values in the cache configured, with the element /
confdConfig/opcache in the confd.conf file, for example:
<opcache>
<enabled>true</enabled>
<timeout>5</timeout>
</opcache>
By default, the cache is disabled. The timeout value is given in seconds, it does not have a default. If confd
--reload is done, the cache will use the new timeout value. If the cache is disabled, the stored values are
cleared.
To indicate that the elements handled by a callpoint are to be saved in the cache, use the tailf:cache
statement:
leaf packetCounter {
type uint64;
config false;
tailf:callpoint a1 {
tailf:cache true;
}
}
It is also possible to override the cache timeout specified in confd.conf by using the tailf:timeout
substatement with tailf:cache in the data model.
leaf packetCounter {
type uint64;
config false;
tailf:callpoint a1 {
tailf:cache true {
tailf:timeout 7;
}
}
101
Operational Data
}
The timeout specified this way will be used for the node with the tailf:timeout statement and any
descendants of that node, unless another tailf:cache statement is used on a descendant node. Using
tailf:cache without a tailf:timeout substatement will cause the timeout to revert to the one
specified in confd.conf.
The results of get_next() and find_next() operations can not be cached in general, since the next
value returned by the data provider does not necessarily identify a specific list entry (e.g. it could be a
fixed pointer to a data structure holding the "next entry" information). However in the special case that the
data provider returns -1 for next the result can be cached, since retrieval of the next entry will then use
a find_next operation with the complete set of keys from the previous entry. See the confd_lib_dp(3)
manual page for further details.
The cache can be cleared, partially or completely, by means of the maapi_clear_opcache() function
- see the confd_lib_maapi(3) manual page.
6.11. Operational data lists without keys
It is possible to define lists for operational data without any keys in the YANG data model, e.g.:
list memory-pool {
config false;
tailf:callpoint memstats;
leaf buffer-size {
type uint32;
}
leaf number-of-buffers {
type uint32;
}
}
To support this without having completely separate APIs, we use a "pseudo" key in the ConfD APIs for
this type of list. This key is not part of the data model, and completely hidden in the northbound agent
interfaces, but is used with e.g. the get_next() and get_elem() callbacks as if it were a normal key.
This "pseudo" key is always a single signed 64-bit integer, i.e. the confd_value_t type is C_INT64. The
values can be chosen arbitrarily by the application, as long as a key value returned by get_next() can
be used to get the data for the corresponding list entry with get_elem() or get_object() as usual.
It could e.g. be an index into an array that holds the data, or even a memory address in integer form.
There are some issues that need to be considered though:
In some cases ConfD will do an "existence test" for a list entry. For "normal" lists, this is done by
requesting the first key leaf via get_elem(), but since there are no key leafs, this can not be done.
Instead ConfD will use the exists_optional() callback for this test. I.e. a data provider that has
this type of list must implement this callback, and handle a request where the keypath identifies a list
entry.
In the response to the get_next_object() callback, the data provider is expected to provide
the key values along with the other leafs in an array that is populated according to the data
model. This must be done also for this type of list, even though the key isn't actually in
the data model. The "pseudo" key must always be the first element in the array, and for the
confd_data_reply_next_object_tag_value_array() reply function, the tag value 0
should be used. Note that the key should not be included in the response to the get_object()
callback.
102
Operational Data
The same approach is used when we store operational data in CDB - the path used in the write (and
read) functions in the CDB API must include the "pseudo" integer key. If multiple list entries are to
be written with a single call to cdb_set_values(), which takes a tagged value array, the key for
each entry must be included in the array with a tag value of 0, in the same way as described above. This
applies also to reading multiple entries with a single call to cdb_get_values().
103
Chapter 7. The external database API
7.1. Introduction to external data
In the previous chapter we showed how to use ConfD with read-only operational data. In this chapter we
will use the same APIs from libconfd.so to implement externally stored configuration data. This is
the opposite of CDB, if CDB is used to store the configuration data, this section can be skipped.
We show how ConfD can use an external database as data source. The external data base can either be a
full-fledged real data base or something as simple as a text file.
The configuration of the network device is modeled by a YANG module. It describes the data model of
the device and ConfD needs to populate the XML data tree with actual data.
If the ConfD built-in XML database (CDB) is used to hold all configuration data, ConfD will automatically
read and write into that database. If, on the other hand, the actual configuration data is kept outside of
ConfD we need user supplied code to provide ConfD with the actual data of the configuration.
7.2. Scenario - The database is a file
Many standard UNIX applications read their configuration from a static file. If we want to integrate such
an application into our network device, it may not be feasible to rewrite the application so that it reads
its configuration from the device configuration database. In general we want to change the code of the
application as little as possible.
Examples of such applications are abundant. In general this applies to all open source applications
generally found on UNIX machines.
In order to integrate such an application into ConfD we must first write a YANG module which models
the part of the application (the part of the application's configuration file) which we wish to be able
to configure. Following that we must write C code which can read, parse, manipulate and write the
configuration file in question and finally we must connect that C code to ConfD.
We did precisely this exercise in Chapter 5, CDB - The ConfD XML Database, however the solution from
that chapter had the actual configuration data in CDB, and the configuration file was generated. Thus,
if the file was edited or otherwise changed externally, those changes would be overwritten the next time
we regenerated the file. In this chapter we will show how to use the actual file as a database. I.e. no
configuration data is ever kept inside ConfD, the data resides outside ConfD.
7.3. Callpoints and callbacks
Similar to how we managed operational data, we need to define a data model and annotate the model with
a callpoint.
Assume that we wish to model a set of 'server' structures as in the following YANG module:
Example 7.1. A list of server structures
module smp {
namespace "http://tail-f.com/ns/example/smp";
prefix smp;
104
The external database API
import ietf-inet-types {
prefix inet;
}
import tailf-common {
prefix tailf;
}
/* A set of server structures */
container servers {
tailf:callpoint simplecp;
list server {
key name;
max-elements 64;
leaf name {
type string;
}
leaf ip {
type inet:ipv4-address;
mandatory true;
}
leaf port {
type inet:port-number;
mandatory true;
}
}
}
}
The callpoint called simplecp instructs ConfD that whenever it needs to populate the XML tree below
simplecp, it must invoke callbacks in an external program which has registered itself with the name
simplecp. The external programs use the API in libconfd.so to register themselves under different
callpoints.
7.4. Data Callbacks
When we implemented the operational data callbacks we had to implement a set of callbacks
for each callpoint. With external data we must do the same, but some additional callbacks
must also be implemented. The data callbacks get_next(), get_elem(), get_object(),
get_next_object(), find_next(), find_next_object(), num_instances(), and
finally exists_optional() work precisely the same for external data as they do for operational data.
Those callbacks are thus described in the previous chapter.
Additionally the following data callback functions are required for external data:
create() - This callback creates a new list entry. In the case of the smp.yang module above, this
function needs to create a new empty "server" entry. Once the entry is created, it will be populated with
values through a series of calls to set_elem().
remove() - This callback needs to remove an entire list entry and all its subelements.
set_elem() - This callback sets the value of a leaf.
7.5. User sessions and ConfD Transactions
Again, similar to the chapter on operational data user sessions are created when a user logs in, and new
transactions are created when an agent initiates an activity.
105
The external database API
If we deal with operational data, the different phases are not interesting, thus then we only had to implement
the init() and a finish() callback. This section describes the states of a ConfD transaction and also
which user callbacks that need to be implemented in order to participate in the transaction.
In a device where ConfD is used to manage the configuration data there can be multiple sources of data.
To use ConfD terminology: there can be several different daemons that connect to ConfD under different
callpoints. Some callpoints may also be served by CDB.
Furthermore, a set of write operations may involve several of these daemons as well as CDB. In order
to ensure that all participants perform the operations, ConfD orchestrates a two-phase commit protocol
towards the different participants. Each NETCONF operation, such as edit-config or each call to
commit in the CLI will be clumped into a ConfD transaction. If we store our data outside of ConfD - as
will be described in this chapter - we must implement a number of callback functions in order to participate
in the various states of the transaction.
An individual daemon may (or may not) implement the callbacks for the two-phase commit protocol. If
there is only one daemon and CDB is not used at all, the two-phase commit protocol may be skipped. The
reason for this is that when there is only one participant, the two-phase commit protocol is irrelevant.
Each NETCONF operation, i.e. each edit-config and so forth, will execute as one transaction. Thus
transactions originating from NETCONF will be fairly short-lived entities whereas transactions originating
from the CLI or the Web UI will be longer.
A daemon that wishes to participate in the two-phase commit transaction must implement a number of
callback functions.
init() - As for operational data, from the daemon's point of view the init() callback is invoked
when a transaction starts, but ConfD delays the actual invocation as an optimization. For a daemon
providing configuration data, init() is invoked just before the first data-reading callback, or just
before the trans_lock() callback (see below), whichever comes first. When a transaction has
started, it is in a state we refer to as READ. ConfD will, while the transaction is in the READ state, execute
a series of read operations towards (possibly) different callpoints in the daemon.
Any write operations performed by the management station are accumulated by ConfD and the daemon
doesn't see them while in the READ state.
trans_lock() - This callback gets invoked by ConfD at the end of the transaction. ConfD has
accumulated a number of write operations and will now initiate the final write phases. Once the
trans_lock() callback has returned, the transaction is in the VALIDATE state. In the VALIDATE
state, ConfD will (possibly) execute a number of read operations in order to validate the new
configuration. Following the read operations for validations comes the invocation of one of the
write_start() or trans_unlock() callbacks.
trans_unlock() - This callback gets invoked by ConfD if the validation failed or if the validation
was done separate from the commit (e.g. by giving a validate command in the CLI). Depending on where
the transaction originated, the behavior after a call to trans_unlock() differs. If the transaction
originated from the CLI, the CLI reports to the user that the configuration is invalid and the transaction
remains in the READ state whereas if the transaction originated from a NETCONF client, the NETCONF
operation fails and a NETCONF rpc error is reported to the NETCONF client/manager.
write_start() - If the validation succeeded, the write_start() callback will be called and
the transaction enters the WRITE state. While in WRITE state, a number of calls to the write callbacks
set_elem(), create() and remove() will be performed.
If the underlying database supports real atomic transactions, this is a good place to start such a
transaction.
106
The external database API
The application should not modify the real running data here. If, later, the abort() callback is called,
all write operations performed in this state must be undone.
prepare() - Once all write operations are executed, the prepare() callback is executed. This
callback ensures that all participants have succeeded in writing all elements. The purpose of the callback
is merely to indicate to ConfD that the daemon is ok, and has not yet encountered any errors.
abort() - If any of the participants return an error or fail to reply in the prepare() callback,
the remaining participants all get invoked in the abort() callback. All data written so far in this
transaction should be disposed of.
commit() - If all participants successfully replied in their respective prepare() callbacks, all
participants get invoked in their respective commit() callbacks. This is the place to make all data
written by the write callbacks in WRITE state permanent.
finish() - And finally, the finish() callback gets invoked at the end. This is a good place to
deallocate any local resources for the transaction.
The finish() callback can be called from several different states.
The following picture illustrates the conceptual state machine a ConfD transaction goes through.
ConfD transaction state machine
All callbacks except the init() callback are optional. If a callback is not implemented, it is the same
as a succeeding empty implementation such as:
int mycallback(struct confd_trans_ctx *tctx)
{
107
The external database API
return CONFD_OK;
}
In the following examples, we will initially not use these transactions at all. We will implement the
init() callback only and let the other transaction callbacks be NULL.
7.6. External configuration data
In this section we provide a commented example which manages actual configuration data. The idea is that
ConfD runs the NETCONF agent and is entirely responsible for the candidate configuration and possibly
runs the CLI and the Web UI. The application is responsible for maintaining and storing the configuration
data.
An actual running version of this example can be found in the examples directory of a ConfD release under
user_guide_examples/simple_no_trans.
The example system stores "servers" with name, ip, and port on a file. Our YANG module will be very
simple; we have:
Example 7.2. The smp.yang module
module smp {
namespace "http://tail-f.com/ns/example/smp";
prefix smp;
import ietf-inet-types {
prefix inet;
}
import tailf-common {
prefix tailf;
}
/* A set of server structures */
container servers {
tailf:callpoint simplecp;
list server {
key name;
max-elements 64;
leaf name {
type string;
}
leaf ip {
type inet:ipv4-address;
mandatory true;
}
leaf port {
type inet:port-number;
mandatory true;
}
}
}
}
To implement this we first need a small database. We choose to use a simple array of "server" structures,
as in:
struct server {
char name[256];
108
The external database API
struct in_addr ip;
unsigned int port;
};
static struct server running_db[64];
static int num_servers = 0;
To create a new "server" in the database we add a new server structure to the array, as in:
static struct server *add_server(char *name)
{
int i, j;
for (i=0; i < num_servers; i++) {
if (strcmp(running_db[i].name, name) > 0) {
/* found the position to add at, now shuffle the */
/* remaining elems in the array one step */
for (j = num_servers; j > i; j--) {
running_db[j] = running_db[j-1];
}
break;
}
}
num_servers++;
memset(&running_db[i], 0, sizeof(struct server));
strcpy(running_db[i].name, name);
return &running_db[i];
}
static struct server *new_server(char *name, char *ip, char *port)
{
struct server *sp = add_server(name);
sp->ip.s_addr = inet_addr(ip);
sp->port = atoi(port);
return sp;
}
We keep the array ordered according to the key (server name), since ConfD expects us to return entries
in that order when traversing the list.
Note that at first glance this code looks like we may write off the end of the running_db array. But
this is not the case, since the server list in the data model is defined with max-elements 64;. This
means that ConfD will guarantee that there are never more than 64 servers.
To search the database for a specific server we have:
/* Find a specific server */
static struct server *find_server(confd_value_t *v)
{
int i;
for (i=0; i < num_servers; i++) {
if (confd_svcmp(running_db[i].name, v) == 0)
return &running_db[i];
}
return NULL;
}
Our find_server() function utilizes a strcmp()-like function from libconfd.so - the function
confd_svcmp() compares a string char* value to a confd_value_t value. The type of the confd_value_t
must obviously be either a string or a buffer.
109
The external database API
The initialization code is very similar to the ARP example in the chapter on operational data, with the
exception that we must also here register functions to write new data. We need to register callbacks to
set_elem() which set the value of a leaf element such as /servers/server{www}/ip. We also
need to register callback functions that can create a new "server" entry and delete old "server" entries.
Thus we initialize our data callback structure struct confd_data_cbs as:
data.get_elem = get_elem;
data.get_next = get_next;
data.set_elem = set_elem;
data.create = create;
data.remove = doremove;
The get_elem() and get_next() callbacks can be implemented in a manner similar to how we
implemented the corresponding callbacks for the ARP example. For example:
Example 7.3. get_next() callback for smp.yang
static int get_next(struct confd_trans_ctx *tctx,
confd_hkeypath_t *keypath,
long next)
{
confd_value_t v;
if (next == -1) { /* Get first key */
if (num_servers == 0) { /* Db is empty */
confd_data_reply_next_key(tctx, NULL, -1, -1);
return CONFD_OK;
}
CONFD_SET_STR(&v, running_db[0].name);
confd_data_reply_next_key(tctx, &v, 1, 1);
return CONFD_OK;
}
if (next == num_servers) { /* Last elem */
confd_data_reply_next_key(tctx, NULL, -1, -1);
return CONFD_OK;
}
CONFD_SET_STR(&v, running_db[next].name);
confd_data_reply_next_key(tctx, &v, 1, next+1);
return CONFD_OK;
}
The create callback is easy. The keypath passed to the create() callback will have the new key (last in
the string) as first element (in the array). Recall that the keypaths are passed in reversed order. For example
when ConfD wants to create a new server entry, named to for example "smtp", the keypath will look like
/servers/server{smtp}.
The data model can optionally specify default values. In smp.yang we didn't use that feature. For example
the "port" leaf was specified as:
leaf port {
type inet:port-number;
mandatory true;
}
and not as
leaf port {
110
The external database API
type inet:port-number;
default 0;
}
Our C code needs to be able to create list entries in the database without any of the actual values of the
leafs given. All keys will be given but none of the actual values of the other leafs (except for the key
leafs). ConfD will set all the missing values using the set_elem() callback. Our create() callback
looks like:
Example 7.4. create() callback for smp.yang
static int create(struct confd_trans_ctx *tctx,
confd_hkeypath_t *keypath)
{
confd_value_t *key = &keypath->v[0][0];
add_server((char *)CONFD_GET_BUFPTR(key));
return CONFD_OK;
}
In a similar manner, the remove() callback deletes a server entry.
Example 7.5. remove() callback for smp.yang
static int doremove(struct confd_trans_ctx *tctx,
confd_hkeypath_t *keypath)
{
int i, j;
confd_value_t *key = &keypath->v[0][0];
for (i=0; i < num_servers; i++) {
if (confd_svcmp(running_db[i].name, key) == 0) {
/* found the elem to remove, now shift the */
/* remaining elems in the array one step */
for (j=i+1; j < num_servers; j++) {
running_db[j-1] = running_db[j];
}
num_servers--;
return CONFD_OK;
}
}
return CONFD_OK;
}
Finally here is the set_elem() callback which is responsible for setting a leaf value. The code is:
Example 7.6. set_elem() callback for smp.yang
static int set_elem(struct confd_trans_ctx *tctx,
confd_hkeypath_t *keypath,
confd_value_t *newval)
{
confd_value_t *tag = &(keypath->v[0][0]);
struct server* s = find_server(&(keypath->v[1][0]));
if (s == NULL) {
confd_trans_seterr(tctx, "no such server found");
return CONFD_ERR;
}
111
The external database API
switch (CONFD_GET_XMLTAG(tag)) {
case smp_ip:
s->ip = CONFD_GET_IPV4(newval);
break;
case smp_port:
s->port = CONFD_GET_INT32(newval);
break;
default:
return CONFD_ERR;
}
return CONFD_OK;
}
Note that there is no switch clause for smp_name - ConfD will never change key values by invoking
set_elem() for key leafs. Changing keys can only be done by a combination of remove() and
create() invocations, followed by set_elem() invocations for the non-leaf keys in the created list
entry.
7.7. External configuration data with
transactions
In this section we introduce and use the transaction callbacks.
An actual running version of this example can be found in the examples directory of a ConfD release under
user_guide_examples/simple_trans.
An application is invoked in trans_lock() when a transaction is committed or when a transaction is
validated (e.g. by doing validate in the CLI), and the transaction enters the VALIDATE state.
When the application is invoked in the trans_lock() callback, the following is guaranteed.
A sequence of callbacks will be invoked without delays. ConfD has accumulated a number of write()
operations and will execute them in a sequence without delays.
No callbacks to any other transactions towards the same data store will be executed between the
invocation of trans_lock() and the invocation of finish() (or trans_unlock()). Thus all
transactions towards a given data store are serialized once they reach the VALIDATE state.
After validation, either trans_unlock() or write_start() is invoked. trans_unlock() is
called when the transaction is validated only, and write_start() is called when the validation was
done as the first part of the commit, and validation succeeded.
If the underlying database is a real database with real support for transactions, it is a very good idea to start
such a native transaction in the call to write_start(). If that is not the case the libconfd.so library
provides support which makes it possible to accumulate the write operations without actually writing them.
In this example we save the database to a file for persistence
Example 7.7. save() utility function
static int save(char *filename) {
FILE *fp;
int i;
112
The external database API
if ((fp = fopen(filename, "w")) == NULL)
return CONFD_ERR;
for (i=0; i < num_servers; i++) {
fprintf(fp, "%s %s %d\n",
running_db[i].name,
inet_ntoa(running_db[i].ip),
running_db[i].port);
}
fclose(fp);
return CONFD_OK;
}
We instantiate all the transaction callbacks and do the appropriate thing in each callback. Since the
database is just a simple array, the variable running_db, we choose to let the library libconfd.so
accumulate the individual write operations by returning CONFD_ACCUMULATE from the write callbacks
set_elem(), create() and remove(). The data will be copied into data structures in the library.
The purpose of doing this is that we do not want to explicitly write into our local data structures in the write
routines - rather we wish to delay this and perform the actual write operations in the prepare() callback.
Example 7.8. write callbacks using accumulate
static int set_elem(struct confd_trans_ctx *tctx,
confd_hkeypath_t *keypath,
confd_value_t *newval)
{
return CONFD_ACCUMULATE;
}
static int create(struct confd_trans_ctx *tctx,
confd_hkeypath_t *keypath)
{
return CONFD_ACCUMULATE;
}
static int doremove(struct confd_trans_ctx *tctx,
confd_hkeypath_t *keypath)
{
return CONFD_ACCUMULATE;
}
We are thus not doing anything at all in the write callbacks, except returning the value
CONFD_ACCUMULATE. Note that this will store a complete copy of the keypath and also of the new value
if the operation is set_elem().
All the operations will be copied and kept in a linked list in the transaction context (struct confd_trans_ctx).
In the PREPARED state we will loop through all the operations and perform them.
Remember the reason for implementing the two-phase commit protocol. There may be multiple daemons
connected to ConfD and a series of write operations, i.e a transaction may span several daemons. ConfD
ensures that e.g. a commit from the CLI is either written in all of the connected daemons or none - thus
ensuring a consistent database.
Recall the picture depicting the state transitions:
113
The external database API
ConfD transaction state machine
The most complicated callback is prepare():
Example 7.9. prepare() callback using the accumulated write ops
static int t_prepare(struct confd_trans_ctx *tctx)
{
struct server *s;
struct confd_tr_item *item = tctx->accumulated;
while (item) {
confd_hkeypath_t *keypath = item->hkp;
confd_value_t *leaf = &(keypath->v[0][0]);
switch(item->op) {
case C_SET_ELEM:
s = find_server(&(keypath->v[1][0]));
if (s == NULL)
break;
switch (CONFD_GET_XMLTAG(leaf)) {
case smp_ip:
s->ip = CONFD_GET_IPV4(item->val);
break;
case smp_port:
s->port = CONFD_GET_INT32(item->val);
break;
}
break;
case C_CREATE:
114
The external database API
add_server((char *)CONFD_GET_BUFPTR(leaf));
break;
case C_REMOVE:
remove_server(leaf);
break;
default:
return CONFD_ERR;
}
item = item->next;
}
return save("running.prep");
}
The above code loops through all the struct confd_tr_item structs accumulated by the library in the
accumulated field for the transaction context.
The accumulated write structs are defined as:
enum confd_tr_op {
C_SET_ELEM = 1,
C_CREATE= 2,
C_REMOVE = 3,
C_SET_CASE = 4,
C_SET_ATTR = 5,
C_MOVE_AFTER = 6
};
struct confd_tr_item {
char *callpoint;
enum confd_tr_op op;
confd_hkeypath_t *hkp;
confd_value_t *val;
confd_value_t *choice; /* only for set_case */
u_int32_t attr; /* only for set_attr */
struct confd_tr_item *next;
};
If we had a real native database with real transaction support, we wouldn't have used the accumulation
feature of the library at all - rather we would have started a native transaction in the write_start()
callback.
Our example database is just an array and a file; thus we use the accumulation feature of the library.
In the prepare() callback we finally save the database to a file called running.prep - thus preparing
to commit the changes we have made.
The corresponding abort() and commit() callbacks are easy:
Example 7.10. commit() and abort()
static int t_commit(struct confd_trans_ctx *tctx)
{
if (rename("running.prep", "running.DB") == 0)
return CONFD_OK;
else
return CONFD_ERR;
}
static int t_abort(struct confd_trans_ctx *tctx)
115
The external database API
{
restore("running.DB");
unlink("running.prep");
return CONFD_OK;
}
The restore() reads a file and initializes the database (our array) from that file:
Example 7.11. Code to restore our array from a file
static int restore(char *filename)
{
char buf[BUFSIZ];
FILE *fp;
if ((fp = fopen(filename, "r")) == NULL)
return CONFD_ERR;
num_servers = 0;
while (fgets(&buf[0], BUFSIZ, fp) != NULL) {
char *name, *ip, *port;
if ((name = strtok(buf, " \t\r\n")) != NULL &&
((ip = strtok(NULL, " \t\r\n")) != NULL) &&
((port = strtok(NULL, " \t\r\n")) != NULL)) {
printf("Loaded %s\n", name);
new_server(name, ip, port);
}
}
return CONFD_OK;
}
7.8. Writable operational data
Writable operational data is indicated in the YANG model as config false marked with
tailf:writable true. This is typically used when an SNMP MIB has data that models an operation,
like "reboot". For other interfaces than SNMP, such an operation should be modeled as an rpc or action.
Writable operational data must be implemented by callback functions, just like external configuration data,
as described in Section 7.7, “External configuration data with transactions”. When a transaction is started
for operational data, the dbname field in struct confd_trans_ctx is CONFD_OPERATIONAL.
7.9. Supporting candidate commit
The NETCONF protocol has as one of its major features the concept of candidate commit with a timeout.
The manager manipulates the candidate configuration and finally commits the candidate. This means that
the candidate configuration is copied into the running data base and thus is active.
If the commit operation is accompanied by a timeout then the semantics is that if the application has not
received a confirming commit before the timeout, the previous running configuration should be copied
back into running. The idea here is that if a configuration is somehow bad, an automatic rollback will
occur.
There are several different usage scenarios whereby this feature is supported with ConfD.
The by far easiest case is when the database is kept in the ConfD built-in XML database, CDB. When
that is the case, candidate commit is supported directly by ConfD natively.
116
The external database API
The next case is when the candidate configuration is managed by ConfD but the running
configuration is kept outside ConfD. This is described here. The application needs to register three
checkpoint callbacks in the database callback struct confd_db_cbs by means of the API call
confd_register_db_cb().
The final case is when both the running and the candidate configuration are kept entirely outside
of ConfD. Remember the ConfD transactions that get executed. When a new transaction is started, one
of the fields in the transaction context, the dbname field indicates which database the transaction is
started for.
If ConfD owns the candidate, no transactions will ever be created towards the candidate. If
the application owns both running and the candidate (as configured in confd.conf) then
transaction may be directed towards either running or candidate.
In the case where the candidate is owned by the application, the application needs to register six
candidate callbacks in the database callback struct struct confd_db_cbs by means of the API call
confd_register_db_cb(). This mode of operations only make sense if the external database can
truly support the candidate callbacks. If that is not the case it i better to let ConfD manage the candidate.
In this section we provide an example where ConfD owns the candidate datastore. The application needs
to register the following callbacks.
1. add_checkpoint_running() - This callback must create a checkpoint of the current running
configuration and store it in non-volatile memory. When the system restarts, it is the responsibility of
the external application to check if there is a checkpoint available, and use the checkpoint instead of
running.
2. del_checkpoint_running() - This function must delete a checkpoint created by
add_checkpoint_running(). It is called by ConfD when a confirming commit is received.
3. activate_checkpoint_running() - This function should rollback running to the checkpoint
created by add_checkpoint_running(). It is called by ConfD when the timer expires or if the
user session expires. There can be at most one checkpoint live at a time.
Using our previous save() and restore() functions the implementation of the checkpoint callbacks
becomes very simple.
Example 7.12. checkpoint db callbacks
add_checkpoint_running(struct confd_db_ctx *db)
{
return save("running.checkpoint");
}
del_checkpoint_running(struct confd_db_ctx *db)
{
unlink("running.checkpoint");
return CONFD_OK;
}
activate_checkpoint_running(struct confd_db_ctx *db)
{
return restore("running.checkpoint");
}
Two things remain to be done. First we need to register the checkpoint callbacks. Second we need to look
for the existence of a saved checkpoint when we initialize our database and if it exists, running should
be initialized from the checkpoint instead. Thus:
117
The external database API
/* global variable */
static struct confd_db_cbs dbcbs;
...
int main()
{
...
if ((restore("running.checkpoint")) != CONFD_OK)
restore("running.DB");
dbcbs.add_checkpoint_running = add_checkpoint_running;
dbcbs.del_checkpoint_running = del_checkpoint_running;
dbcbs.activate_checkpoint_running = activate_checkpoint_running;
/* register the callbacks */
confd_register_db_cb(dctx, &dbcbs);
confd_register_done(dctx);
If the underlying database is a real database we would install database checkpoints instead of copying
entire files back and forth.
If we choose to implement the checkpoint callbacks as above, we must obviously also configure ConfD
accordingly. The relevant sections in confd.conf from the datastores section are:
<candidate>
<enabled>true</enabled>
<implementation>confd</implementation>
</candidate>
And from the NETCONF section:
<capabilities>
<candidate>
<enabled>true</enabled>
</candidate>
<confirmed-commit>
<enabled>true</enabled>
</confirmed-commit>
</capabilities>
Finally, if we implement the database outside ConfD we may optionally choose to implement the lock()
and unlock() callbacks. This is only interesting if there exists additional locking mechanisms towards
the database - such as an external CLI which can lock the database, of if the external database owns the
candidate.
7.10. Discussion - CDB versus external DB
In this section we discuss some of the requirements that an external database must be able to fulfill in order
for ConfD to work properly. The reasons for choosing an external database as opposed to CDB may vary
between projects. Some projects already have a database and the managed object code is already tightly
coupled to that database. Other projects may feel that the underlying database must have characteristics
that CDB doesn't have. It is certainly the case that CDB is not the best choice for, for example distributed
118
The external database API
replication of large amounts of state data. CDB is not a check-pointing database for application state
replication.
The first and most important requirement ConfD has on an external database is that it can execute
transactions. The transaction manager inside ConfD will collect all data for a transaction and once the
data has been validated, it will send the data as a series of write operations to the data provider. It is
the responsibility of the database to execute this series of write operations atomically. Either they all get
written or none. External databases that do not support transactions can still be used of course, but that
then comes with the possibility of getting a corrupt configuration. Corruption will occur if:
1. Another data provider rejects the transaction - in this case ConfD will tell all data providers to abort. If
there are no other data providers than the external database - this cannot happen.
2. ConfD dies while sending the write operations to the data provider, alternatively the network
connectivity between ConfD and the data provider breaks. If this happens, the data provider never
gets the whole transaction. One way of partially addressing this problem may be to make use of
CONFD_ACCUMULATE feature whereby all writes are accumulated inside the library. That way the
data provider at least can be certain that it has the entire transaction prior to starting its own write session.
Furthermore, CDB has two important features, schema upgrade and subscriptions. An external database
must at least address this functionality.
Schema upgrade. When the YANG data model files are changed, CDB has the old schema - and its
associated data - stored. On upgrade, CDB transforms all the old data so that it adheres to the new schema.
If CDB is not used, the equivalent functionality must be performed by the external database.
Subscriptions - when the configuration is changed - the applications, the consumers of configuration data,
must somehow be notified of the configuration changes. If CDB is not used, this is now the task of the
external database.
Finally, if an external database is used, we must provide a mapping in the code of the data provider
between ConfD keypaths and values to entries in the external database. For example, if we use a simple
key/value database it's possible to write general code that works for all possible keypaths. The key is
a confd_hkeypath_t and the value is obviously a confd_value_t. The only problem is how to handle
create() and delete() operations for a key/value database. In the case of a delete operation, all
children must also be deleted. It is easy to find the children since the schema is loaded in a data provider
(through confd_load_schemas()) and a key/value data provider would then have to follow the
schema, and delete all children.
119
Chapter 8. Configuration Meta-Data
8.1. Introduction to Configuration Meta-Data
In ConfD, meta-data can be associated with configuration data nodes. The meta-data is stored as
attributes on data nodes in the configuration datastore. Having meta-data is optional, and requires
support from the datastore implementation. CDB (see Chapter 5, CDB - The ConfD XML Database fully
supports meta-data attributes, but if an external data provider (see Chapter 7, The external database API
is used for configuration data, it needs to explicitly support meta-data attributes.
There are three meta-data attributes in ConfD, annotation, tag, and inactive. Each of these is
discussed in the following sections.
To enable meta-data attributes, /confdConfig/enableAttributes in confd.conf (see
confd.conf(5)) must be set to true.
8.2. Meta-Data: annotation
Any configuration data node can have at most one annotation attribute. An annotation is an arbitrary
string which acts a comment for the node.
In the CLI, an annotation is set with the annotate command, and displayed as a comment. See
Section 16.15, “Annotations and tags” for details.
admin@host% annotate interface eth0 "mgmt interface"
admin@host% show interface
/* mgmt interface */
interface eth0 {
...
}
In NETCONF, an annotation is created and display as an XML attribute, see Section 15.15, “Meta-data
in Attributes” for details.
Annotations are not visible in the CDB API for CDB subscribers.
8.3. Meta-Data: tag
Any configuration data node can have a set of tags associated with it. Tags are set by the user for data
organization and filtering purposes.
In the CLI, tags are administered with the tag command, and displayed as a comment with special syntax.
It is also possible to filter the configuration based on how it is tagged. See Section 16.15, “Annotations
and tags” for details.
In NETCONF, a tag is created and display as an XML attribute, see Section 15.15, “Meta-data in
Attributes” for details. Standard XPath filtering can be used to filter the configuration based on how it
is tagged.
Tags are not visible in the CDB API for CDB subscribers.
120
Configuration Meta-Data
8.4. Meta-Data: inactive
Any existing, deletable data node can be marked as inactive. This has the same effect as deleting the
node, except that it is still kept in the configuration data store, marked as being inactive.
To enable support for inactive nodes, /confdConfig/enableInactive in confd.conf (see
confd.conf(5)) must be set to true. All configuration data providers must support the inactive
attribute.
In the CLI, the command deactivate makes a node inactive, and the command activate activates an inactive
node. See See Section 16.16, “Activate and Deactivate” for details.
In NETCONF, a separate capability is used by the server to announce that it supports inactive nodes. Clients
must use special parameters to tell the server that they understand the inactive attribute. See Section 15.12,
“Inactive Capability” for details.
Inactive nodes are not visible in the CDB API for CDB subscribers. If a node is inactivated, a CDB
subscriber will see the node as being deleted, and when it is activated, the CDB subscriber will see it as
being created.
Inactive nodes are not visible in validation code (see Chapter 9, Semantic validation). Validation
constraints defined in the data model (e.g. max-elements or must) do not take inactive nodes into
account.
Since data providers must support the inactive attribute, all hooks and transforms (see Chapter 10,
Transformations, Hooks, Hidden Data and Symlinks) will see the inactive nodes being marked as inactive,
and must be explicitly coded to handle this attribute.
admin@host% deactivate interface eth0
admin@host% show interface
inactive: interface eth-0 {
...
}
121
Chapter 9. Semantic validation
9.1. Why Do We Need to Validate
ConfD stores device configuration data. Some device configuration data is truly critical for the correct
operations of the device. Misconfiguring a network device may lead to a situation where the device is no
longer connected to the network. Before committing configuration data it is crucial to ensure that the new
configuration is correct.
Another benefit with a guaranteed correct configuration, is that application software which reads the
configuration data need not check the validity of the configuration.
ConfD has support for several different levels of validation. We have:
Syntactic validation - this means that the configuration data - viewed as an XML document - must
adhere to the YANG model.
Integrity constraints. Certain configuration leaves may only have values within specified ranges.
YANG must statements use XPath expressions that can be used to constrain values. This is a very
powerful mechanism whereby it's possible to instruct ConfD to compute an XPath expression whenever
a configuration change is attempted. This makes it possible to have value constraints that depend on
other parts of the configuration.
Explicit validation logic where user code gets to read and analyze the configuration prior to commit.
9.2. Syntactic Validation in YANG models
A YANG model is a schema. It has a number of constructs the define the structure of the model as a whole
as well as type constrains on individual leaves.
Structure enforcing statements include constructs like container presence statements, leaf mandatory
statements, leaf-list min and max elements statements and list min and max elements statements.
Each leaf has a either a built-in primitive type, e.g. integer, string, boolean etc, or a derived type e.g. a
union, enumeration, boundary restriction, or regular expression pattern
The ConfD CLI and Web UI use this information to guide the operator what is possible to configure.
9.3. Integrity Constraints in YANG Models
Before going for semantic validation we should also make sure that our need for validation can not be
satisfied by any of the integrity constraint constructs available in the YANG model modeling language:
min-elements and max-
elements
Specifies how many instances may exist in the configuration data
store. Both YANG list statements and leaf-list statements can be
constrained by a min and/or a max.
key Specifies that the leaf is used as a key for a multi-instance object.
An object can have multiple keys.
unique Specifies that the leaf's value must be unique across all instances.
122
Semantic validation
leafref The leafref type is used to reference a particular leaf instance in the
data tree. Its value is constrained to be the same as the value of an
existing leaf.
Read more about integrity constraints in the Chapter 3, The YANG Data Modeling Language chapter as
well in http://www.ietf.org/rfc/rfc6020.txt.
9.4. The YANG must Statement
Using XPath expressions it is possible to express constraints on values in virtually any way. XPath is
complicated and requires a bit of work to learn. It is well worth the effort though, since writing declarative
constraints on the data model - in the data model - is better than writing C code that executes outside of
ConfD.
9.5. Validation Logic
Semantic validation in ConfD extends the validation functionality to allow for verification of constraints
that can not be expressed by the above constructs. It is important to realize that the basic concept is the
same, though. The task of semantic validation is to make sure that the new configuration satisfies some
set of logical constraints before it is allowed to be committed.
With a command centric view of configuration, validation may be thought of as checking the validity
of operator actions vis-a-vis existing configuration. This tends to lead to complex and error prone code,
since there will often be a large number of combinations of actions and configuration values that need
to be checked, and some "corner cases" can easily be overlooked. Furthermore covering multiple user
interfaces, such as NETCONF and Web UI in addition to CLI, with the same validation code will be an
almost impossible task.
In contrast, ConfD's data model centric validation concept, i.e. checking the validity of the configuration
that will be the result of those actions, allows for clear and concise validation code that rejects an invalid
configuration regardless of which commands or other operations that were used to (attempt to) create it.
Attempting to validate the operations instead of the resulting configuration can also lead to problems with
loading config backups or doing rollbacks. The old configuration that should be applied as a result of such
actions is obviously valid (as long as the logical constraints have not changed), but validation logic that
rejects specific changes to the configuration may still result in that configuration being rejected.
An additional benefit of the "logical constraints" approach to validation is the possibility of "off-line"
validation - i.e. a complete configuration can be loaded onto a device that is not in production use, and the
validation code can give its verdict about its validity, even though the sequence of operations that would
lead to this configuration may not even be known.
Since ConfD provides access to the complete new configuration inside a transaction for the purpose of
semantic validation, it is generally straightforward to implement constraints that are expressed in terms
of relations between configuration nodes that must hold true for any valid configuration. Identifying and
formulating those constraints is thus the first thing we must do when implementing semantic validation.
There is however one case where using the validation functionality to check operator actions can be useful,
namely when we want to warn the operator of undesirable consequences - e.g. "If you change this value, the
system will reboot". This is not validation in the sense of verifying correctness, since the new configuration
will be valid too and should not be rejected - but the validation code is still the appropriate place to
implement such functionality. To specifically inspect changes from the current configuration to the new
configuration, the MAAPI API provides functions to iterate over all or a subset of the changes, or if CDB
is used, current configuration values can be read via the CDB API.
123
Semantic validation
9.6. Validation Points
In a manner similar to how we use callpoints to register callback functions which read and write data
in external databases, we use named validation points to define which code is responsible for the validation
of different parts of the configuration. However unlike callpoints, validation points do not form a hierarchy
where they "take over" responsibility from validation points higher up in the XML tree.
The validation code can reject the data, accept it, or accept it with a warning. If a warning is produced,
it will be displayed for interactive users (e.g. through the CLI or Web UI). The user may choose to abort
or continue to commit the transaction.
Validation callbacks are typically assigned to individual leafs or containers in the YANG model, but this
is mostly a matter of organization and modularization of the validation code. In some cases it may even
be feasible to use a single validation callback, e.g. on the top level node of the configuration. In such
a case, this callback is responsible for the validation of all values and their relationships throughout the
configuration.
A validation callback is only invoked if its validation point is for an element that exists in the new
configuration. This may be surprising, but it is a logical consequence of the "validate the configuration,
not the operations" concept of ConfD validation - we can not be asked to validate something that does not
exist. Since it sometimes leads to the question "How can I prevent deletion of an element?", an example
may be useful:
container notification {
leaf protocol {
type enumeration {
enum SNMP;
enum SMTP;
enum NETCONF;
}
mandatory true;
}
leaf smtp-server {
type inet:host;
}
}
Here we can configure a notification protocol, and optionally the address of an SMTP server - we want
it to be optional, since it is not needed unless the notification protocol is SMTP. However if protocol
SMTP and a server has been configured, the SMTP server element must not be deleted. But if we assign
a validation point to that element, the callback will not get invoked on deletion, since the element does
not exist in the new configuration!
The solution is in the previous section - we must identify and formulate the logical constraint. In this case
it is "If notification protocol SMTP is configured, an SMTP server must also be configured".
The easiest way to enforce this is through an XPath expression as in:
container notification {
leaf protocol {
must ". != 'SMTP' or ../smtp-server" {
error-message "Must specify smtp-server";
}
124
Semantic validation
type enumeration {
......
Alternatively, if we us C code logic to achieve the same thing to make sure that our callback is invoked,
we assign the validation point to the "protocol" element. The validation callback will then get the value of
this element as a parameter, and the implementation of the constraint check will just be:
if (CONFD_GET_ENUM_VALUE(newval) == nsprefix_SMTP &&
maapi_exists(maapi_socket, tctx->thandle, "/notification/smtp-server") != 1) {
confd_trans_seterr(tctx, "SMTP server must be configured");
return CONFD_ERR;
}
See the examples below for the API details. Note well that since it is based on the logical constraint,
this single expression also covers the other required case of "operational validation", i.e. setting of the
notification protocol to SMTP - it will be rejected unless an SMTP server has been configured.
Note
Validation will always fail if no code is registered under a validation point that would otherwise
have had its callback invoked during validation.
9.7. Validating Data in C
Next we describe how to connect user defined C code to the validation process. We start off with a really
simple YANG model.
module mtest {
namespace "http://tail-f.com/ns/example/mtest";
prefix mtest;
container mtest {
leaf a_number {
type int64;
default 42;
}
leaf b_number {
type int64;
default 7;
}
}
}
We wish to ensure that the integer value /mtest/a_number is bigger than /mtest/b_number. We use a YANG
model annotation file to specify the validation point. This is a good technique to use if wish to keep out
data models clean of any Tail-f extensions.
module mtest.annot {
namespace "http://tail-f.com/ns/example/mtest.annot";
prefix mtesta;
import mtest {
prefix m;
}
125
Semantic validation
import tailf-common {
prefix tailf;
}
tailf:annotate "/m:mtest/m:a_number" {
tailf:validate vp1;
}
}
We define a validation point on /mtest/a_number called vp1. This instructs ConfD that whenever ConfD
needs to validate the XML data element associated with /mtest/a_number, ConfD should call an external
process which has registered itself under the validation point vp1 using the libconfd interface. If no
process is registered, the validation will fail and it will not be possible to commit any changes.
We continue with the necessary C code to implement the relevant parts of the external process. The
complete code for this can be found in examples.confd/validate/c in the ConfD examples
collection. The validation code will be called during the validation phase of a ConfD transaction, i.e. before
any write operations have been performed. The C code must install three different callback functions.
init() - This callback will be invoked for any transaction where one of our validate() callbacks is
invoked. The purpose of the callback is to initialize data structures and sockets for the remainder of the
transaction. In particular it must indicate to the library which socket should be used for this transaction.
Another task to perform in the init() callback is to attach a MAAPI socket to this transaction. While
validating the individual values, we use MAAPI to possibly read other XML data elements from the
same transaction we are validating. The function maapi_attach() is used to attach our MAAPI
socket to the running transaction.
validate() - We may have several validation points. We must install one callback for each defined
validation point. The callback will be automatically called by ConfD during the actual validation phase.
The callback must return CONFD_OK if the validation succeeds, CONFD_ERR on validation failure, or
CONFD_VALIDATION_WARN to accept with a warning.
stop() - This callback will be invoked when the transaction finishes, if the init() callback was
invoked. It will be called regardless of the outcome of the transaction.
The init() and stop() callbacks are installed through the API call
confd_register_trans_validate_cb() and the individual validation point callbacks are
installed through consecutive calls to confd_register_valpoint_cb() for each defined
validation point.
We start by creating three sockets to ConfD. We need two sockets for the callback machinery and one
MAAPI socket.
#include "confd_lib.h"
#include "confd_dp.h"
#include "confd_maapi.h"
/* include generated ns file */
#include "mtest.h"
int debuglevel = CONFD_DEBUG;
static int ctlsock;
static int workersock;
static int maapi_socket;
126
Semantic validation
static struct confd_daemon_ctx *dctx;
confd_init("more_a_than_b", stderr, debuglevel);
if ((dctx = confd_init_daemon("mydaemon")) == NULL)
confd_fatal("Failed to initialize confd\n");
if ((ctlsock = socket(PF_INET, SOCK_STREAM, 0)) < 0 )
confd_fatal("Failed to open ctlsocket\n");
addr.sin_addr.s_addr = inet_addr("127.0.0.1");
addr.sin_family = AF_INET;
addr.sin_port = htons(CONFD_PORT);
OK(confd_load_schemas((struct sockaddr*)&addr, sizeof(struct sockaddr_in)));
/* Create the first control socket, all requests to */
/* create new transactions arrive here */
if (confd_connect(dctx, ctlsock, CONTROL_SOCKET,
(struct sockaddr*)&addr,
sizeof (struct sockaddr_in)) < 0) {
confd_fatal("Failed to confd_connect() to confd \n");
}
/* Also establish a workersocket, this is the most simple */
/* case where we have just one ctlsock and one workersock */
if ((workersock = socket(PF_INET, SOCK_STREAM, 0)) < 0 )
confd_fatal("Failed to open workersocket\n");
if (confd_connect(dctx, workersock, WORKER_SOCKET,(struct sockaddr*)&addr,
sizeof (struct sockaddr_in)) < 0)
confd_fatal("Failed to confd_connect() to confd \n");
if ((*maapi_sock = socket(PF_INET, SOCK_STREAM, 0)) < 0 )
confd_fatal("Failed to open socket\n");
if (maapi_connect(*maapi_sock, (struct sockaddr*)&addr,
sizeof (struct sockaddr_in)) < 0)
confd_fatal("Failed to confd_connect() to confd \n");
The above code connects three times. We need the control socket and the worker socket for the C callbacks.
This works precisely the same way as when C callbacks are installed for the external data provider API.
Thus the request from ConfD to invoke the init() callback will arrive on the control socket whereas
the subsequent requests to invoke the individual validate() callbacks as well as the finishing request
to invoke stop() will arrive on the designated worker socket.
The MAAPI socket will be used to attach the running transaction to a MAAPI socket.
All three sockets are connected to the same port number.
Next step is to continue with the installation of the callbacks:
struct confd_trans_validate_cbs vcb;
struct confd_valpoint_cb valp1;
static void OK(int rval)
127
Semantic validation
{
if (rval != CONFD_OK) {
fprintf(stderr, "more_a_than_b.c: error not CONFD_OK: %d : %s \n",
confd_errno, confd_lasterr());
abort();
}
}
vcb.init = init_validation;
vcb.stop = stop_validation;
confd_register_trans_validate_cb(dctx, &vcb);
valp1.validate = validate;
strcpy(valp1.valpoint, "vp1");
OK(confd_register_valpoint_cb(dctx, &valp1));
OK(confd_register_done(dctx));
Note the call to confd_register_done() after the callback registrations - this is required, to tell
ConfD that we have completed our registrations. The actual callbacks look like:
static int init_validation(struct confd_trans_ctx *tctx)
{
OK(maapi_attach(maapi_socket, mtest__ns, tctx));
confd_trans_set_fd(tctx, workersock);
return CONFD_OK;
}
static int stop_validation(struct confd_trans_ctx *tctx)
{
OK(maapi_detach(maapi_socket, tctx));
return CONFD_OK;
}
static int validate(struct confd_trans_ctx *tctx,
confd_hkeypath_t *keypath,
confd_value_t *newval)
{
int64_t b_val;
int64_t a_val;
int64_t newval_a;
/* we validate that a_number > b_number */
newval_a = CONFD_GET_INT64(newval);
/* this switch is not necessary in this case; we know that we're
called for a_number only. the switch is useful when the same
code is used to validate multiple objects. */
switch (CONFD_GET_XMLTAG(&(keypath->v[0][0]))) {
case mtest_a_number:
OK(maapi_get_int64_elem(maapi_socket, tctx->thandle, &b_val,
"/mtest/b_number"));
OK(maapi_get_int64_elem(maapi_socket, tctx->thandle, &a_val,
"/mtest/a_number"));
/* just an assertion to show that newval == /mtest/a_number */
/* in this transaction */
128
Semantic validation
assert(CONFD_GET_INT64(newval) == a_val);
if (newval_a == 88) {
/* This is how we get to interact with the CLI/webui */
confd_trans_seterr(tctx, "Dangerous value: 88");
return CONFD_VALIDATION_WARN;
}
else if (newval_a > b_val) {
return CONFD_OK;
}
else {
confd_trans_seterr(tctx, "a_number is <= b_number ");
return CONFD_ERR;
}
break;
default: {
char ebuf[BUFSIZ];
sprintf(ebuf, "Unknown tag %d",
CONFD_GET_XMLTAG(&(keypath->v[0][0])));
confd_trans_seterr(tctx, ebuf);
return CONFD_ERR;
} /* default case */
} /* switch */
}
The switch on the keypath exemplifies that we really get the keypath populated with the path leading to
the textual element being validated. We can thus have the same validation point validate different XML
data elements.
The init callback attaches to MAAPI and the global variable maapi_socket is used to read data
from the transaction. All MAAPI functions use a "transaction handle"; this handle is available inside the
instantiated struct confd_trans_ctx *tctx structure.
Finally we have a poll loop where we dispatch requests to invoke C callbacks on the control socket and
the worker socket.
while (1) {
struct pollfd set[2];
int ret;
set[0].fd = ctlsock;
set[0].events = POLLIN;
set[0].revents = 0;
set[1].fd = workersock;
set[1].events = POLLIN;
set[1].revents = 0;
if (poll(&set[0], 2, -1) < 0) {
perror("Poll failed:");
continue;
}
if (set[0].revents & POLLIN) {
if ((ret = confd_fd_ready(dctx, ctlsock)) == CONFD_EOF) {
129
Semantic validation
confd_fatal("Control socket closed\n");
} else if (ret == CONFD_ERR && confd_errno != CONFD_ERR_EXTERNAL) {
confd_fatal("Error on control socket request\n");
}
}
if (set[1].revents & POLLIN) {
if ((ret = confd_fd_ready(dctx, workersock)) == CONFD_EOF) {
confd_fatal("Worker socket closed\n");
} else if (ret == CONFD_ERR && confd_errno != CONFD_ERR_EXTERNAL) {
confd_fatal("Error on worker socket request\n");
}
}
}
In the above example we also showed how to issue a warning as opposed to a validation failure. Hadn't it
been for that, it would have been considerably easier to express the same validation as an XPath expression.
Thus we attach a must statement to the mtest container as:
container mtest {
must "a_number > b_number" {
error-message "a_number is <= b_number";
}
9.8. Validation Points and CDB
When CDB first starts or upgrades the database it creates a special transaction which, when committed,
will invoke validation. An external validation point (written e.g. in C) has to be registered before these
transactions are committed, otherwise starting ConfD will fail. Starting ConfD and external applications
in a synchronized way is accomplished using ConfD start phases (see the Advanced Topics chapter). To
avoid this extra complexity use the --ignore-initial-validation option when starting ConfD
(useful during development).
In a validation point it might be desirable to access CDB to validate a value against the old value of the
parameter (or some other parameter) in the configuration. Using the normal cdb calls this works fine in
the normal case, but when CDB is initializing there are no old values. The cdb_get_phase() call can
be used to check for this case, (see the confd_lib_cdb(3) manual page for details).
Note
If a CDB session is used throughout the validation phase (i.e. the session is not ended
until the stop() callback invocation), we must start it without a read lock, i.e. using
cdb_start_session2() with flags = 0. It is safe to do that in this particular case, since
the transaction lock prevents changes to CDB during validation.
9.9. Dependencies - Why Does Validation
Points Get Called
In general, validation code for a particular element in the configuration may read any other part of the
configuration, and accept or reject the configuration based on that. I.e. the outcome of the validation may
130
Semantic validation
actually depend on other configuration elements than the one the validation point is assigned to - and for
correct operation, the validation code must be executed when any element it depends on has been modified.
As ConfD can not make any assumptions about these dependencies, it takes the safe default of always
invoking all callbacks (for existing elements) on every configuration change.
It is possible to declare these dependencies explicitly in the YANG model. This can be a significant
optimization, but it is strictly an optimization, i.e. a validation callback implementing a logical constraint
verification will always return the same result for a given configuration, it doesn't matter if it is invoked
unnecessarily due to lack of a dependency declaration in the YANG model. On the other hand an
incorrect dependency declaration, that omits some dependency, can allow changes that lead to an invalid
configuration. Thus if dependency declarations are used, it is critical that they are correct, and in particular
that they are updated as needed if the validation logic of the callback is changed.
There can be multiple dependency declarations for a validation point. Each declaration consists of a
dependency element specifying a configuration subtree that the validation code is dependent upon.
If any element in any of the subtrees is modified, the validation callback is invoked. A subtree can be
specified as an absolute path or as a relative path.
The relative path '.' is often used to declare that the validation code needs to be run whenever the current
element or an element below it is modified. However note that per above, routinely specifying '.' as the only
dependency for all validation points is a dangerous practice - if the validation logic actually depends on
elements outside the subtree of the validation point, an invalid configuration may go undetected. Also, for
a leaf element, having '.' as the only dependency is almost always wrong - if the validation really depends
only on the leaf itself, it is likely that it could be expressed as a constraint in the YANG model instead
of via a validation callback.
As described above, if a dependency is not declared, it defaults to a single dependency on the root of the
configuration tree (/), which means that the validation code is executed when any configuration element
is modified.
If dependencies are declared on a leaf element, an implicit dependency on the leaf itself is added.
As an example, consider the /mtest/a_number validation above. The element a_number has validation
code attached to it, and this code depends on element b_number. Thus, this code has to be executed
whenever a_number or b_number is modified. To specify this, we can do:
leaf a_number {
type int64;
default 42;
tailf:validate vp1 {
tailf:dependency '../b_number';
}
}
Here we specified the validation point with its dependency sub-element directly in the YANG model
- it is of course possible to use an annotation file in this case too.
It is also possible, and recommended for performance reasons, to specify dependencies in must
statements:
leaf a_number {
type int64;
default 42;
must ". > ../b_number" {
131
Semantic validation
tailf:dependency '../b_number';
}
}
The compiler gives a warning if a must statement lacks a tailf:dependency statement, and
it cannot derive the dependency from the expression. The options --fail-on-warnings or -E
TAILF_MUST_NEED_DEPENDENCY can be given to force this warning to be treated as an error.
9.10. Configuration Policies
Configuration policies is an optional mechanism by which the operator of a ConfD-based system can
define its own custom validation rules. A configuration policy enforces custom validation rules on the
configuration data. These rules assert that the user-defined conditions are always true in committed data.
If a configuration change is done such that a policy rule would evaluate to false, the configuration change
is rejected by the system.
As an example, an operator might define a configuration policy that bgp must never be disabled on a
device, or define a policy that the MTU on SONET interfaces must be greater than 2048.
The data model for configuration policies is defined in tailf-configuration-policy.yang, in
the directory $CONFD_DIR/src/confd/configuration_policy/. The YANG model contains
a Also included in this directory is a pre-compiled .fxs file, and a Makefile that can be modified as
necessary, for example to compile the fxs file with a --export parameter to confdc.
To enable this optional feature, put the tailf-configuration-policy.fxs in the load path to
ConfD.
9.10.1. Example
These examples, and more, are available in examples.confd/validate/
configuration_policy in the distribution.
As a first simple example, we define a policy that makes sure that BGP is always enabled on the box. The
example assumes the following data model:
container protocols {
container bgp {
presence "enables bgp";
// BGP config goes here...
}
}
The following CLI commands, define the policy we need:
admin@host% configure
admin@host% set policy rule chk-bgp expr "/protocols/bgp"
admin@host% set policy rule chk-bgp error-message "bgp must be enabled"
admin@host% commit
Commit complete.
132
Semantic validation
Now, let's try to disable bgp:
admin@host% delete protocols bgp
admin@host% commit
Aborted: bgp must be enabled
As another example, we define a policy that ensures that the MTU of SONET interfaces are greater than
or equal than 2048:
admin@host> set autowizard false
admin@host> configure
admin@host% set policy rule chk-sonet-mtu
admin@host% edit policy rule chk-sonet-mtu
admin@host% set foreach "/interface[type='sonet']"
admin@host% set expr "mtu >= 2048"
admin@host% set error-message "Sonet interface {name} has MTU {mtu}, must be at least 2048"
admin@host% top
admin@host% commit
Commit complete.
[ok][2010-11-02 09:39:00]
This rule uses the foreach leaf. When ConfD evaluates this rule, it will first evaluate the foreach
expression. This expression evaluates to a node set with all sonet interfaces. Then, foreach node in this node
set, the expr expression is evaluated. If it evaluates to false, validation fails with the error message given.
The error message uses a special notation {<xpath-expression>}. Before the error message is
printed, ConfD substitutes all XPath expressions within { }, by converting the result to a string. In this
example, there are two such XPath expressions {name} and {mtu}.
This is best shown in an example:
mbj@x15% set interface so-1/0 type sonet mtu 4096
mbj@x15% set interface so-1/1 type sonet mtu 4096
mbj@x15% set interface so-1/2 type sonet mtu 1024
mbj@x15% validate
Failed: Sonet interface so-1/2 has MTU 1024, must be at least 2048
133
Chapter 10. Transformations, Hooks,
Hidden Data and Symlinks
10.1. Introduction
When building new variants of an old product, we often have a situation where we have large amounts
of application code, which reads configuration data from some datastore and we do not want to make any
changes to the application code, we merely wish to expose a different view of the same configuration data.
Another common situation is when we have application code which requires more configuration data than
we wish to expose through the northbound management interfaces. The application reads and use a number
of configuration items that do not make sense to expose through the different management interfaces.
In general, when the actual configuration data differs from what we wish to expose as management data,
we can use a variety of different techniques in ConfD.
In this chapter we describe the following four different techniques that all are used to somehow show
different views of the system.
Transforms are used to show a portion of the system in a different way than the original data model.
Hooks are used to execute user code whenever a part of the configuration is changed.
Hidden Data is means to hide parts of the configuration.
Symlinks are pointers in the data model effectively making one part of the data model appear at a different
place.
Some or several of the above features are often the required trick when we wish to accomplish certain
modifications of the data model. However, combining these features, can make the system complex. A
clean YANG data model is easy to understand - whereas a system consisting of hidden transformations with
symlinks here and there, can very easy become hard to understand. So - use these features with caution.
10.2. Transformation Control Flow
ConfD uses the data model, i.e. the YANG files to render all the northbound interfaces, the layout of the
datamodel is exactly reflected in the CLI and the Web UI. Thus, unfortunately, we may sometimes be
forced to manipulate the data model in order to have a desired look and feel in the CLI or the Web UI. In
these cases, a transform may be required trick.
A transformation works as follows. We start out with the YANG model we wish to transform. We may
add tailf:export maapi to that YANG module. This makes the YANG model invisible to all management
agents except MAAPI. Although invisible, the YANG model is loaded into the system and regardless of
whether the YANG model is populated through cdb or an external database it is fully operational and
accessible through the MAAPI APIs as well as through the CDB APIs (assuming the YANG model is
populated by CDB).
Following that, we write another YANG model which represents the management data we do wish to
expose to the northbound management agents. This YANG model has a callpoint which uses the attribute
tailf:transform. Finally we must write a program which acts as an external database, serving data
134
Transformations, Hooks,
Hidden Data and Symlinks
for a callpoint. This program should use the MAAPI API to read and write the real YANG model data
which is used by the managed objects.
10.3. An Example
Assume we have the following YANG model:
Example 10.1. full.yang
container full {
leaf firstname {
type string;
default George;
}
leaf a_number {
type int64;
default 42;
}
leaf b_number {
type int64;
default 7;
}
container servers {
list server {
key name;
max-elements 64;
leaf name {
type string;
}
leaf ip {
type inet:host;
mandatory true;
}
leaf port {
type inet:port-number;
mandatory true;
}
}
}
}
For some reason we think that this YANG model is way too complicated to expose through the management
interfaces. We have also invested time and energy in various applications that read and use precisely this
data and we do not want to change any of those applications.
What we want to do is to expose a YANG model which looks like:
Example 10.2. small.yang
container small {
container servers {
tailf:callpoint transcp {
tailf:transform true;
}
135
Transformations, Hooks,
Hidden Data and Symlinks
list server {
key name;
max-elements 64;
leaf name {
type string;
}
}
}
}
I.e. skip all the first toplevel elements, and skip the ip and the port. We write C code which derives both.
Also note the transformation callpoint.
When ConfD needs to read and write data in the small.yang YANG model, it will use the callpoint
transcp. I.e. it will invoke the installed callback functions for that callpoint. The main difference
between a normal callpoint and a transformation callpoint is when write and when validation occurs. In
a transformation callpoint the write operations occur before validation. This means that any data that is
written through MAAPI in the actual transform, will also be validated.
Similar to callpoints for external data, we need a worker socket a control socket and registered callbacks.
Our main() function together with some global variables would look like:
#include "full.h" /* generated .h files */
#include "small.h"
static struct confd_daemon_ctx *dctx;
static int ctlsock;
static int workersock;
struct confd_trans_cbs tcb;
struct confd_data_cbs data;
static int maapi_socket;
int main()
{
struct in_addr in;
struct sockaddr_in addr;
confd_init("MYNAME", stderr, debuglevel);
if ((dctx = confd_init_daemon("mydaemon")) == NULL)
confd_fatal("Failed to initialize confd\n");
if ((ctlsock = socket(PF_INET, SOCK_STREAM, 0)) < 0 )
confd_fatal("Failed to open ctlsocket\n");
inet_aton("127.0.0.1", &in);
addr.sin_addr.s_addr = in.s_addr;
addr.sin_family = AF_INET;
addr.sin_port = htons(CONFD_PORT);
confd_load_schemas((struct sockaddr*)&addr,sizeof (struct sockaddr_in))l
if (confd_connect(dctx, ctlsock, CONTROL_SOCKET, (struct sockaddr*)&addr,
sizeof (struct sockaddr_in)) < 0)
confd_fatal("Failed to confd_connect() to confd \n");
if ((workersock = socket(PF_INET, SOCK_STREAM, 0)) < 0 )
confd_fatal("Failed to open workersocket\n");
136
Transformations, Hooks,
Hidden Data and Symlinks
if (confd_connect(dctx, workersock, WORKER_SOCKET,(struct sockaddr*)&addr,
sizeof (struct sockaddr_in)) < 0)
confd_fatal("Failed to confd_connect() to confd \n");
tcb.init = init_transformation;
tcb.finish = stop_transformation;
confd_register_trans_cb(dctx, &tcb);
data.get_elem = get_elem;
data.get_next = get_next;
data.set_elem = set_elem;
data.create = create;
data.remove = dbremove;
data.exists_optional = NULL;
strcpy(data.callpoint, "transcp");
if (confd_register_data_cb(dctx, &data) != CONFD_OK)
confd_fatal("Failed to register data cb \n");
if (confd_register_done(dctx) != CONFD_OK)
confd_fatal("Failed to complete registration \n");
setup_maapi_sock(&maapi_socket));
.........
The above is precisely the same setup as when we register callbacks for an external database with the only
exception that the callpoint uses tailf:transform true.
The code to establish the MAAPI socket is just a call to maapi_connect().
The difference comes in the implementation of the data callbacks, with an external database, we have the
data to deliver, in the case of a transformation callpoint, we don't have the data. The data resides inside
ConfD and we can read and write that data inside the same transaction using maapi_attach().
The initialization looks like:
static int init_transformation(struct confd_trans_ctx *tctx)
{
maapi_attach(maapi_socket, full__ns, tctx);
confd_trans_set_fd(tctx, workersock);
return CONFD_OK;
}
static int stop_transformation(struct confd_trans_ctx *tctx)
{
if (tctx->t_opaque != NULL) {
struct maapi_cursor *mc = (struct maapi_cursor *)tctx->t_opaque;
maapi_destroy_cursor(mc);
free(tctx->t_opaque);
}
maapi_detach(maapi_socket, tctx);
return CONFD_OK;
}
137
Transformations, Hooks,
Hidden Data and Symlinks
Whenever a transaction starts, we get called - as usual - in our init() callback and whenever the
transaction terminates, regardless of the outcome of the transaction, we get called in our finish()
callback. Here we attach to the executing transaction using maapi_attach() in the init() callback.
We will use the attached MAAPI socket with the right transaction handle in all our data processing
callbacks. In the finish() callback we need to release any memory used for a MAAPI cursor, see
get_next() below.
The get_elem() callback is interesting. The path we get queried with is /small/servers/
server{key}/name which doesn't exist in the real database. What does exist as proper data though
is the path /full/servers/server{key}/name and we use the MAAPI socket to read that value
from the "hidden" YANG model.
static int get_elem(struct confd_trans_ctx *tctx,
confd_hkeypath_t *keypath)
{
confd_value_t v;
confd_value_t *leaf = &(keypath->v[0][0]);
confd_value_t *vp = &(keypath->v[1][0]);
switch (CONFD_GET_XMLTAG(leaf)) {
case small_name:
if (maapi_get_elem(maapi_socket, tctx->thandle, &v,
"/full/servers/server{%x}/name", vp) == CONFD_OK) {
confd_data_reply_value(tctx, &v);
free(CONFD_GET_BUFPTR(&v));
return CONFD_OK;
}
else if (confd_errno == CONFD_ERR_NOEXISTS) {
fprintf(stderr, "\nNOT FOUND \n");
confd_data_reply_not_found(tctx);
return CONFD_OK;
}
else {
fprintf (stderr, "errno = %d\n", confd_errno);
return CONFD_ERR;
}
default:
return CONFD_ERR;
}
}
It is important that we check confd_errno to distinguish between the real error cases and the case
where the element doesn't exist. Also note how we format the path to the maapi_get_elem() call
using the second element in the keypath. This will be the key since the path will be /small/servers/
server{key}/name.
set_elem() will never be called since our MO server only contains a key and no other elements.
The callback get_next() is also interesting. Here we utilize a MAAPI cursor to iterate through the
different "full" servers. Since the MAAPI cursor must exist across calls to get_next(), and we must
be able to handle multiple transactions (from different user sessions) in parallel, we allocate the cursor
dynamically and use the t_opaque element in the transaction context to keep track of it.
static int get_next(struct confd_trans_ctx *tctx,
138
Transformations, Hooks,
Hidden Data and Symlinks
confd_hkeypath_t *keypath,
long next)
{
struct maapi_cursor *mc;
if (next == -1) {
if (tctx->t_opaque == NULL) {
/* allocate the cursor */
mc = (struct maapi_cursor *)malloc(sizeof(struct maapi_cursor));
tctx->t_opaque = mc;
} else {
/* re-use previously allocated cursor */
mc = (struct maapi_cursor *)tctx->t_opaque;
maapi_destroy_cursor(mc);
}
maapi_init_cursor(maapi_socket, tctx->thandle, mc,
"/full/servers/server");
} else {
mc = (struct maapi_cursor *)tctx->t_opaque;
}
maapi_get_next(mc);
if (mc->n == 0) {
confd_data_reply_next_key(tctx, NULL, -1, -1);
return CONFD_OK;
}
confd_data_reply_next_key(tctx, &(mc->keys[0]), 1, 1);
return CONFD_OK;
}
Finally we have the delete() and create() callbacks. The delete() callback is completely
straightforward where we simply delete the same element from the hidden "full" YANG model. The
create() callback needs to do a bit of work. The "full" YANG model contains two elements that are
not part of the "small" YANG model. Thus when a manager creates a new element in the "small" YANG
model, it is the responsibility of our code here to create the corresponding element in the "full" YANG
model, but also to populate the additional two elements with values. If we fail to do that the commit will
fail since values in the "full" YANG model are unset.
The code to delete and create:
static int dbremove(struct confd_trans_ctx *tctx,
confd_hkeypath_t *keypath)
{
maapi_delete(maapi_socket, tctx->thandle,
"/full/servers/server{%x}", &(keypath->v[0][0]));
return CONFD_OK;
}
static int create(struct confd_trans_ctx *tctx,
confd_hkeypath_t *keypath)
{
/* this is where we have to do extra, we need to also populate */
/* the ip and ports fields in full.cs */
char buf[BUFSIZ];
confd_value_t *key = &(keypath->v[0][0]);
struct servent *srv;
maapi_create(maapi_socket, tctx->thandle,
139
Transformations, Hooks,
Hidden Data and Symlinks
"/full/servers/server{%x}", key);
maapi_set_elem2(maapi_socket, tctx->thandle,
"0.0.0.0",
"/full/servers/server{%x}/ip",key);
/* NUL terminate string */
memcpy(buf, CONFD_GET_BUFPTR(key), CONFD_GET_BUFSIZE(key));
buf[CONFD_GET_BUFSIZE(key)] = 0;
if ((srv = getservbyname(buf, NULL)) == NULL) {
char tbuf[BUFSIZ];
sprintf(tbuf, "Unknown service %s", buf);
confd_trans_seterr(tctx, tbuf);
return CONFD_ERR;
}
sprintf(buf, "%d", srv->s_port);
maapi_set_elem2(maapi_socket, tctx->thandle, buf,
"/full/servers/server{%x}/port",key);
return CONFD_OK;
}
10.4. AAA Transform
The ConfD AAA YANG model is a very good example of where we may wish to expose a different set
of configuration items to the management stations than what exists in the AAA YANG model tailf-
aaa.yang. The AAA system is described in Chapter 14, The AAA infrastructure.
The data in the AAA YANG model is used by ConfD itself and all that data including the fairly complicated
authorization rules must be there for ConfD to read. We think that very few devices wish to expose e.g. the
authorization rules from tailf-aaa.yang to end users. The solution to this is to use a transformation.
In the ConfD examples collection, we have an example which exposes a very simple AAA model. The
simple AAA YANG model looks as:
Example 10.3. users.yang
module users {
namespace "http://www.example.com/ns/users";
prefix u;
import tailf-common {
prefix tailf;
}
typedef Role {
type enumeration {
enum admin;
enum oper;
}
}
typedef passwdStr {
type tailf:md5-digest-string {
}
}
container users {
tailf:callpoint simple_aaa {
tailf:transform true;
140
Transformations, Hooks,
Hidden Data and Symlinks
}
list user {
key name;
max-elements 64;
leaf name {
type string;
}
leaf password {
type passwdStr;
mandatory true;
}
leaf role {
type Role;
mandatory true;
}
}
}
}
This YANG model just exposes a list of users. Each user has a password and an enum indicating the role
of the user. There are only two static roles to choose from, admin and oper.
If we also have intimate knowledge of the datamodel we are using, it is possible to generate static
authorization rules.
Let's take a look at the get_elem() callback. The task of this callback is to use MAAPI in order to
populate the simple YANG model from above.
static int get_elem(struct confd_trans_ctx *tctx,
confd_hkeypath_t *keypath)
{
confd_value_t v;
confd_value_t *leaf = &(keypath->v[0][0]);
confd_value_t *vp = &(keypath->v[1][0]);
switch (CONFD_GET_XMLTAG(leaf)) {
case aaa_simple_name:
if (maapi_get_elem(
maapi_socket, tctx->thandle, &v,
"/aaa/authentication/users/user{%x}/name", vp) == CONFD_OK) {
confd_data_reply_value(tctx, &v);
free(CONFD_GET_BUFPTR(&v));
return CONFD_OK;
}
else if (confd_errno == CONFD_ERR_NOEXISTS) {
confd_data_reply_not_found(tctx);
return CONFD_OK;
}
else {
printf ("errno = %d\n", confd_errno);
return CONFD_ERR;
}
case aaa_simple_password:
if (maapi_get_elem(
maapi_socket, tctx->thandle, &v,
"/aaa/authentication/users/user{%x}/password", vp)==CONFD_OK) {
141
Transformations, Hooks,
Hidden Data and Symlinks
confd_data_reply_value(tctx, &v);
free(CONFD_GET_BUFPTR(&v));
return CONFD_OK;
}
else if (confd_errno == CONFD_ERR_NOEXISTS) {
confd_data_reply_not_found(tctx);
return CONFD_OK;
}
else {
fprintf (stderr, "errno = %d\n", confd_errno);
return CONFD_ERR;
}
case aaa_simple_role: {
int ret;
char users[BUFSIZ];
char user[256];
memcpy(&user[0], CONFD_GET_BUFPTR(vp), CONFD_GET_BUFSIZE(vp));
user[CONFD_GET_BUFSIZE(vp)] = 0;
ret = maapi_get_str_elem(
maapi_socket, tctx->thandle, users, BUFSIZ,
"/aaa/authentication/groups/group{admin}/users");
if (strstr(users, user) != NULL) {
CONFD_SET_ENUM_VALUE(&v, aaa_simple_admin);
confd_data_reply_value(tctx, &v);
return CONFD_OK;
}
else {
maapi_get_str_elem(
maapi_socket, tctx->thandle, users, BUFSIZ,
"/aaa/authentication/groups/group{oper}/users");
if (strstr(users, user) != NULL) {
CONFD_SET_ENUM_VALUE(&v, aaa_simple_oper);
confd_data_reply_value(tctx, &v);
return CONFD_OK;
}
}
/* user not part of any group at all */
confd_data_reply_not_found(tctx);
return CONFD_OK;
}
default:
confd_fatal("Unexpected switch tag %d\n",
CONFD_GET_XMLTAG(leaf));
}
return CONFD_ERR;
}
10.5. Other Use Cases for Transformations
We may also envision a use case where we wish to expose more data than is available in the YANG model.
In this case the task of the transformation would be to aggregate the data and write into MAAPI.
Yet another use case for transformations would be when we wish to expose two variants of the same config,
one for novices and one for experts. In this case we have the full YANG model with all the details exposed
to experts and a simplified version which fills in many reasonable default values and possibly also derives
data, exposed to novices. The YANG model for novices would then be populated by a transformation.
142
Transformations, Hooks,
Hidden Data and Symlinks
One common transformation is to logically move an entire subtree of some data model to some other
place. For example, ConfD's AAA data model is named /aaa, but suppose we want to access it through
/system/advanced/aaa instead. This can be done by using a transform as described above, or it can
be done using a symlink, which essentially is a specialized, built-in transform.
Finally when we want to implement support for standard SNMP mibs while at the same time use a proper
hierarchical high level data model for all other north bound interfaces we must use a transform on the
SNMP data. To implement this we compile the mib into a YANG model document using the smidump
tool. We must then also annotate the YANG model derived from the MIB and set a transformation point
at the top. Thus when the SNMP agent tries to read data from the MIB (through the YANG model) our
transformation C code gets invoked and we can then, over the maapi interface, read the right data from
the high level data model and return that data to the SNMP agent.
10.6. Hooks
A hook is a function that is invoked within the transaction when an object is modified. The hook function
has access to the transaction, so it can modify other objects in the transaction as necessary.
A hook is a way for the application to participate in a transaction. A hook is like a callpoint or a validation
point only that the application gets to attach (using maapi) to the transaction and can write more data.
For example if we have an optional container containing a set of items, whenever the container is created,
our hook gets called and the container can be populated with proper values. This effect is also achieved by
letting the container elements have default values. The "default value" solution is compile time, whereas
a populating the container through a hook is obviously runtime.
Hooks can also be used to attach some magic to individual elements. Say that we have a leaf:
leaf magic {
type int32;
}
Whenever the magic leaf get set to, say -1, our hook code performs some other arbitrary write operations.
Thus the hook mechanism can be used to achieve a wide variety of effects.
A hook is implemented similar to a callpoint with the exception that only write callbacks need to
be implemented. The write callbacks are set_elem(), create(), remove(), set_case(),
set_attr(), and move_after(). However a hook only needs to implement the write callbacks that
it actually needs for its own use - the others can be left unimplemented, indicated by setting them to NULL
in the callback registration.
There are two types of hooks, set hooks and transaction hooks. The main difference between the two is
when they are invoked. Set hooks are invoked directly as an object is modified, and transaction hooks
are invoked in the two-phase commit phase. The ConfD transaction engine receives all the original write
operations from one of the north bound agents. Once all write operations have been received, i.e. when a
user for example types "commit" in the CLI, the transaction engine invokes the relevant transaction hooks.
Once all transaction hooks are run the validation phase is entered, thus the write operations performed by
the transaction hooks are also validated.
When set hooks make changes to the configuration, these changes are just like changes done directly by
the user - they will be committed together with other changes, e.g. when the user types "commit" in the
143
Transformations, Hooks,
Hidden Data and Symlinks
CLI. If such a commit operation cannot be completed, due to validation errors, the changes done by set
hooks will remain in the change set until explicitly reverted.
Changes done by transaction hooks are different, in that ConfD keeps track of them, and rolls them back
in case a commit operation cannot be completed. This makes it possible for the user to fix validation errors
and attempt to commit again.
The hook is specified similar to callpoint if we have:
list dyn {
key name;
max-elements 64;
tailf:callpoint foocp {
tailf:transaction-hook subtree;
}
leaf name {
type string;
}
leaf aval {
type string;
mandatory true;
}
leaf container {
type empty;
}
}
The statement: tailf:transaction-hook subtree; indicates that we wish to attach a hook
to this part of the data model. A set hook uses the statement tailf:set-hook instead. Similar
to a validator, the hook code will participate in the transaction by calling maapi_attach()
and similar to a data provider, the hook code must register its callbacks through calls to
confd_register_trans_cb() and confd_register_data_cb(). Only those of the possible
write callbacks that are actually needed by the hook need to be registered as data callbacks. All other
callbacks must be set to NULL.
For example our set_elem() callback could look like:
static int my_set_elem(struct confd_trans_ctx *tctx,
confd_hkeypath_t *keypath,
confd_value_t *newval)
{
confd_value_t *tag = &(keypath->v[0][0]);
confd_value_t *key = &(keypath->v[1][0]);
if (confd_svcmp("donk", key) == 0) {
maapi_setelem2(maapisock, tctx->thandle,"222", "/foo/bar");
.....
So whenever some north bound agent assigns the value "donk" to /dyn{key}/aval for all values of
key our code kicks in and additionally assigns a value to /foo/bar.
We can have three different kinds of hooks.
1. subtree - this assigns the hook code to all objects found below where the hook is defined. The value
"true" is the same as "subtree".
144
Transformations, Hooks,
Hidden Data and Symlinks
2. object - This is used when we wish to assign a hook to the manipulation of list entries. The hook
reaches down to and including the list where it is defined. If there exists further lists further down in
the tree they are not affected by the hook.
3. node - This is used when we wish to assign a hook an optional container and only that. It affects the
container but non of its children.
In some cases a transaction hook may need to update the transaction in a way that really depends
on the complete configuration, rather than on the changes done in the current transaction, making it
difficult to implement the hook via the create(), set_elem(), etc callbacks. We can then use the
tailf:invocation-mode substatement to tailf:transaction-hook, like this:
tailf:callpoint foocp {
tailf:transaction-hook subtree {
tailf:invocation-mode per-transaction;
}
}
The per-transaction argument tells ConfD that this hook should only have one data callback
invocation, regardless of the details of the changes to the objects the hook is assigned to. We can even use
the same callpoint name, with the same tailf:invocation-mode statement, at several points in the
data model, and still only get one callback invocation. The data callback that gets invoked for a transaction
hook specified like this is called write_all() (see the confd_lib_dp(3) manual page). It is thus the
only callback that should be registered for such a hook.
It is possible to define multiple hooks for a given node in the data model, and have them all invoked.
However hooks on descendant nodes override all hooks that are inherited from ancestor nodes. To
"accumulate" hooks, the inherited hooks that should remain in effect need to be specified again on
descendant nodes that have hooks. Consider the following example:
list dyn {
key name;
tailf:callpoint t1 {
tailf:transaction-hook subtree;
}
tailf:callpoint s1 {
tailf:set-hook subtree;
}
leaf name {
type string;
}
leaf aval {
type string;
}
leaf bval {
type string;
tailf:callpoint t2 {
tailf:transaction-hook subtree;
}
}
leaf cval {
type string;
tailf:callpoint t1 {
tailf:transaction-hook subtree;
}
145
Transformations, Hooks,
Hidden Data and Symlinks
tailf:callpoint s2 {
tailf:set-hook subtree;
}
}
}
The result of this will be that changes to the dyn list node or the aval leaf will invoke the callbacks
registered for the t1 and s1 callpoints, while changes to the bval leaf will only invoke the callbacks
registered for the t2 callpoint, and changes to the cval leaf will invoke the callbacks registered for the
t1 and s2 callpoints.
Since hook code gets to execute for all the possible write callbacks, the number of use cases for hook code
is very large. One common use case is once again associated to the implementation of standard MIBS.
Depending on the nature of the chosen standard MIBs, we may need to maintain mapping tables. If for
example the keys differ in the SNMP table from the high level data model we may need to maintain
additional mapping tables that are maintained by hook code.
10.6.1. Set Hooks and Candidate Configuration
When ConfD has been configured to provide a candidate configuration, set hook code will be invoked
when changes are done to the candidate configuration, while transaction hooks will be invoked when the
candidate is committed to running.
There are situations when you only want your hook to modify the running configuration:
A hook can use maapi to modify config elements that the operator is not allowed to modify directly,
according to the active aaa rule set. If such a modification is done on the candidate configuration store,
the operator will not be allowed to commit the candidate configuration to the running configuration. In
this situation you must thus use a transaction hook to modify the configuration.
10.7. Hidden Data
It is sometimes useful to hide nodes from some of the northbound interfaces. The tailf:export
statement can be used to hide an entire namespace. More fine grained control can be attained with the
tailf:hidden statement.
The tailf:hidden statement names a hide group, i.e. all containers and leafs that has the tailf:hidden
statement, with a specific hide group, are treated the same way as far as being hidden or invisible. The
hide group name full is given a special meaning. The full hide group is hidden from all northbound
interfaces, not just user interfaces.
A node with the tailf:hidden statement must be optional or have a default value if it can be implicitly
created via the creation of a differently hidden node higher up in the hierarchy (e.g. hidden leafs in a non-
hidden list entry).
A related situation is when some nodes should be displayed to user only when a certain condition is met. For
example, the ethernet subtree should be displayed only when the type of an interface is ethernet.
This can be achieved through the tailf:display-when statement.
10.7.1. Fully Hidden Nodes
This is nodes that may be useful for the application code, but should be hidden from all northbound
interfaces. An example is the set of physical network interfaces on a device and their types. This is static
146
Transformations, Hooks,
Hidden Data and Symlinks
data, i.e. it can't be changed by configuration, but it can vary between different models of a device that run
the same software, and the device-specific data can be provided via init file or through MAAPI.
This type of data could also be realized via a separate namespace where tailf:export is used to limit
the visibility, but being able to have some nodes in the data model hidden while others are not allows
for greater flexibility - e.g. list entries in the config data can have hidden containers or leafs, which get
instantiated automatically along with the visible config nodes.
10.7.2. Hiding nodes from User Interfaces
This is data that is fully visible to programmatic northbound interfaces such as NETCONF, but normally
hidden from user interfaces such as CLI and Web UI. Examples are data used for experimental or end-
customer-specific features, similar to hidden commands in the CLI but for data nodes.
A user interface may give access to this type of data (and even totally hidden data) if the user executes an
unhide command identifying the set of hidden data that should be revealed. After this these data nodes
appear the same as unhidden data, i.e. they are included in tab completion, listed by show commands etc.
A hide group can only be unhidden if the group is listed in the confd.conf file. This means that a hide
group will be completely hidden to the user interfaces unless it has been explicitly allowed to be unhidden
in the confd.conf file. A password can optionally be required to unhide a group.
<hideGroup>
<name>debug</name>
<password>secret</password>
</hideGroup>
10.7.3. Conditional Display
A typical usage example is a discriminated union. One leaf is the type of something, and depending on
the value of this leaf, different containers are visible:
container service {
leaf type {
default http;
type enumeration {
enum http;
enum smtp;
}
}
choice service-type {
container http {
presence "HTTP enabled";
tailf:display-when '/service/type = "http"';
leaf addr {
mandatory true;
type inet:ipv4-address;
}
leaf docroot {
mandatory true;
type string;
}
}
container smtp {
147
Transformations, Hooks,
Hidden Data and Symlinks
presence "SMTP enabled";
tailf:display-when '/service/type = "smtp"';
leaf smtp-relay {
mandatory true;
type boolean;
}
leaf use-virtual-mbox {
type boolean;
}
}
}
}
In this example, the "smtp" container should be visible to the user only when the value of service-
type is smtp.
This can be accomplished by using the tailf:display-when statement. It contains an XPath
expression which specifies when the node should be displayed:
10.8. tailf:symlink
NOTE: The usage of symlink is not recommended. If it is used, use it carefully. It can be made to work in
some special cases, but some other use cases, described below, are problematic. In the problematic cases,
tailf:link can often be used instead. See Section 10.8.1, “Discussion” for more details.
Sometimes we want to move things in our data models. One major downside of moving structures around
in the data model is that all code that reads data from CDB has to be changed. Sometimes this is not feasible
because we do not want to change this code. In this case the symlink feature may be a solution.
Another situation where symlinks might be the remedy is when we want to move things in the data model
due to aesthetics in the human interfaces, the CLI and the Web UI that are both rendered from the data
model.
The syntax for a symlink is straightforward:
container top {
tailf:symlink foo {
tailf:path "/baz/bar";
}
}
container baz {
container bar {
leaf target {
type string;
default "Zappa";
}
}
}
With the above construct we create a link from /top/foo to /baz/bar.
The net result of the link is that it will appear as if all data found in the data model below the link target,
e.g. /baz/bar will appear under the link source, e.g. /top/foo. Thus if prior to the symlink the path
/baz/bar{13}/server{www}/port was a valid key path, now the path /top/foo/bar{13}/
148
Transformations, Hooks,
Hidden Data and Symlinks
server{www}/port point to the same configuration item. Hence we now have two different ways to
configure the same item. The remedy to that is is typically to hide the the target configuration from the
north bound agents using the tailf:hidden or tailf:export statements.
The textual format of a symlink is an XPath absolute location path.
The target of a symlink can contain instantiated keys. Using XPath notation we could point to the
counters element in a specific server as in :
tailf:symlink mycounter {
tailf:path "/servers/server[ip='10.0.0.1'][port=80]'
+ "/counter";
}
Slightly more advanced is that the target can refer to keys in the source. If the target lies within a list,
all keys must be specified. A key either has a value, or is a reference to a key in the path of the source
element, using the function current() as starting point for an XPath location path. Example of a valid
target for a symlink is:
/servers/server[ip='10.0.0.1'][port=current()/../myport]/mycounter
This feature must be used when we want to use keys in our own path down the XML tree and use those
very same keys to find an other way down the XML tree.
At link time, confdc checks that the target of the symlink can actually exist at run-time. A symlink may
point to another symlink. confdc checks at link time, and ConfD at load time, that no cycles exist. Dangling
pointers may occur though. If we have a symlink that points into an optional container or into a list entry,
the target container can be removed. It is up to the application developers to check that dangling pointers
do not occur. If they do, and the symlink is accessed, this is logged in the developer log as an error.
Finally we need to mention that when we are symlinking into another namespace, we must indicate that
using the default XML notation for referencing elements in other namespaces. Thus if we want to have a
symlink into the http://example.com/ns/servers namespace we typically have to import the
module defining that namespace, and use the prefix of that module in the symlink as in:
import servers {
prefix srv;
}
...
tailf:symlink myserver {
tailf:path "/srv:servers/srv:server";
}
10.8.1. Discussion
Northbound Client Applications
The YANG modules that the device publishes to the northbound clients define the API between the client
and the device. Specifically, the YANG module defines the complete data tree for configuration and
operational state.
One problem with tailf:symlink is that a client application (EMS or NMS or similar) cannot just
ignore the statement, since it defines a subtree in the datastore. But since this is not a standard statement,
149
Transformations, Hooks,
Hidden Data and Symlinks
third-party clients will ignore it. This means that when they talk to the device, they will not understand
the subtree under the symlink.
Note that symlink is used to provide a different entry point to the same underlying data. If both the data
model with the symlink and the target data model is being exposed at the same time to the client, this will
be confusing to the client. A change in one part of the tree makes another part change automatically.
One solution to this problem is to make sure that the module with the symlink is not exposed to the client.
Instead, publish the target module only.
Another solution to this problem is to not publish the target module, but instead use pyang to sanitize the
module with the symlink. The sanitizing process replaces the symlink statement with a copy of the target
subtree. Then publish the sanitized version of the module.
NOTE: If a module is not published to a client, it should have a tailf:export statement, to
exclude the protocol the client is using. For example, suppose we have a symlink in our module acme-
system.yang from /system/netconf/nacm to the standard NACM path /nacm. The standard
NACM module might be annotated with:
tailf:export netconf;
and the system module with:
tailf:export cli;
tailf:export webui;
Errors
Another problem with symlinks is if the target subtree contains must expression or validation code that
refers to nodes outside the target subtree. For example, if a symlink foo points to /x/z in this example:
container x {
leaf y {
type int32;
}
leaf z {
type int32;
must ". > ../y" {
error-message "x must be greater than y";
}
}
If someone sets the foo to a value that happens to invalidate the must expression, the error message will
be misleading since it refers to a node they cannot see, and it is not easily fixed, since they cannot modify
the node y.
150
Chapter 11. Actions
11.1. Introduction
When we want to define operations that do not affect the configuration data store, we can use the
tailf:action statement in the YANG data model. The action definition specifies how the action is
invoked, including input and output parameters (if any). Once defined, the action is available for invocation
from all of NETCONF, CLI and Web UI. The action can be implemented either as a callback function
or as an executable. Action support is also discussed in Chapter 15, The NETCONF Server, Chapter 16,
The CLI agent, and WebUI.
11.2. Action as a Callback
To specify that the action is implemented as a callback in an application Daemon, that registers with
ConfD via the C API described in the confd_lib_dp(3) manual page, we use the tailf:actionpoint
statement.
The application must register the callback by calling this function:
int confd_register_action_cbs(struct confd_daemon_ctx *dx, const struct
confd_action_cbs *acb);
The struct confd_action_cbs is defined as:
struct confd_action_cbs {
char actionpoint[MAX_CALLPOINT_LEN];
int (*init)(struct confd_user_info *uinfo);
int (*abort)(struct confd_user_info *uinfo);
int (*action)(struct confd_user_info *uinfo,
struct xml_tag *name,
confd_hkeypath_t *kp,
confd_tag_value_t *params,
int nparams);
int (*command)(struct confd_user_info *uinfo,
char *path, int argc, char **argv);
int (*completion)(struct confd_user_info *uinfo,
int cli_style, char *token, int completion_char,
confd_hkeypath_t *kp,
char *cmdpath, char *cmdparam_id,
struct confd_qname *simpleType, char *extra);
void *cb_opaque; /* private user data */
};
The actionpoint element gives the name of the actionpoint from the data model, and the init and
action elements must point to two callback functions that are called in sequence when the action is
invoked. In the init() callback, we must associate a worker socket with the action. This socket will be
used for the invocation of the action() callback, which actually carries out the action. Thus in a multi
threaded application, actions can be dispatched to different threads.
The action() callback is invoked with parameters pertaining to the action, in particular a hashed
Keypath that can identify a particular list instance that the action should be applied to, and an array
giving the input parameters. The parameters have the form of an XML instance document conforming to
the specification in the input statement in the data model, and are represented as described for the Tagged
Value Array format in the section called “XML STRUCTURES” in the confd_types(3) manual page. If the
action should return any data values, it must call confd_action_reply_values() with an array of
values in the same form, conforming to the specification in the output statement in the data model.
151
Actions
Unlike the callbacks for data and validation, there is no transaction associated with an action callback.
However an action is always associated with a user session (NETCONF, CLI, etc), and only one action
at a time can be invoked from a given user session.
See the section called “CONFD ACTIONS” in the confd_lib_dp(3) manual page for additional information
about the action callbacks.
11.2.1. Example
As an example, we will look at one of several actions implemented in intro/7-c_actions in the
ConfD examples collection. The data model defines a list of servers, and an action that allows us to request
that a server is reset at some point in time. First, we specify the action in the data model like this:
list server {
key name;
max-elements 64;
leaf name {
tailf:cli-allow-range;
type string;
}
tailf:action reset {
tailf:actionpoint reboot-point;
input {
leaf when {
type string;
mandatory true;
}
}
output {
leaf time {
type string;
mandatory true;
}
}
}
}
Our implementation must have an init() callback and an action() callback. The init() callback
is straightforward:
static int init_action(struct confd_user_info *uinfo)
{
int ret = CONFD_OK;
printf("init_action called\n");
confd_action_set_fd(uinfo, workersock);
return ret;
}
I.e. it just tells ConfD that we want the previously connected worker socket to be used for the invocation
of the action() callback. The calls to printf(3) in these callback functions are of course only for
the purpose of illustration when we run the example. The action() callback, called do_action(),
has a twist: we are using the same callback for multiple actions in the data model, and the code looks at
the name parameter (the argument to tailf:action in the data model) to decide what to do:
/* This is the action callback function. In this example, we have a
single function for all four actions. */
152
Actions
static int do_action(struct confd_user_info *uinfo,
struct xml_tag *name,
confd_hkeypath_t *kp,
confd_tag_value_t *params,
int n)
{
confd_tag_value_t reply[3];
int i, k;
char buf[BUFSIZ];
char *p;
printf("do_action called\n");
for (i = 0; i < n; i++) {
confd_pp_value(buf, sizeof(buf), CONFD_GET_TAG_VALUE(&params[i]));
printf("param %2d: %9u:%-9u, %s\n", i, CONFD_GET_TAG_NS(&params[i]),
CONFD_GET_TAG_TAG(&params[i]), buf);
}
switch (name->tag) {
Our "reset" action is handled in this branch:
case config_reset:
printf("reset\n");
p = CONFD_GET_CBUFPTR(CONFD_GET_TAG_VALUE(&params[0]));
i = CONFD_GET_BUFSIZE(CONFD_GET_TAG_VALUE(&params[0]));
strncpy(buf, p, i);
buf[i] = 0;
strcat(buf, "-result");
i = 0;
CONFD_SET_TAG_STR(&reply[i], config_time, buf); i++;
confd_action_reply_values(uinfo, reply, i);
break;
The when leaf from the input statement in the data model is the first and only parameter, and is available
to the callback in params[0]. A real implementation of "reset" would analyze the string, e.g. "now" for
immediate reset or a date and time for some point in the future when the reset should be carried out. Here
we just append "-result" to the string and return that as a reply for the time leaf in the output statement,
by setting the first element in our reply[] array and calling confd_action_reply_values().
Finally we must register the callbacks:
/* register the action handler callback */
memset(&acb, 0, sizeof(acb));
strcpy(acb.actionpoint, "reboot-point");
acb.init = init_action;
acb.action = do_action;
acb.abort = abort_action;
if (confd_register_action_cbs(dctx, &acb) != CONFD_OK)
fail("Couldn't register action callbacks");
11.2.2. Using Threads
If we have long-running action callbacks (e.g. file download), it will typically be necessary to use multi-
threading for the daemon that handles the callbacks. Without threads, only one invocation of a given action
callback can be running at any point in time. Thus if the same action is requested from another user session,
the request will block until the currently running invocation has completed.
153
Actions
Even if we do not want to allow multiple invocations of an action callback to run in parallel, having one
thread for the control socket and one for the worker socket will make it possible to return an error from
the action init() callback when we are "busy" with a running action, instead of having the user wait
for the currently running action to complete. It will also allow us to handle other control socket requests
promptly. In the general case, where we do want to handle multiple action callback requests in parallel,
we need to use multiple worker sockets, with one thread handling each worker socket. We also need one
thread to handle the control socket, dispatching the callback requests to the different worker sockets.
The strategy to use for creating and allocating the worker sockets and threads is up to the application, based
on the needs for responsiveness in the user interface, resource usage requirements, and other application-
specific considerations. We can set up a fixed pool of sockets and threads on startup, or we can connect
worker sockets and spawn threads dynamically on demand, as well as close worker sockets and terminate
threads that are no longer in use.
The intro/9-c_threads example in the ConfD examples collection demonstrates one such strategy,
where worker sockets/threads for action callbacks are created on demand, giving each user session that
requests an action its own dedicated action worker thread. The user session stop() callback (see
confd_register_usess_cb() in the confd_lib_dp(3) manual page) is used to mark sockets/threads
as "idle" and available for assignment as action workers for other user sessions. With this strategy we may
need as many threads as there can be concurrent user sessions - by default there is no limit on this, but
such limits can be configured in confd.conf (e.g. /confdConfig/sessionLimits/maxSessions
for the total number of concurrent user sessions across all northbound interfaces), see the confd.conf(5)
manual page.
11.3. Action as an Executable
To specify that the action is implemented as a standalone executable (this could be either a compiled
program or a script), that is run to completion on each action invocation, we use the tailf:exec
statement. This has several substatements specifying how the executable should be invoked - for the full
details, see the tailf_yang_extensions(5) manual page:
tailf:args
A space separated list of argument strings to pass to the executable when it is invoked by ConfD. It
may contain variables on the form $(variablename), that are expanded before the command is
executed. E.g.
tailf:args "-p $(path)";
will result in the first argument being "-p" and the second being the CLI form (space-separated
elements) of the path leading to the action's parent container.
tailf:uid
The user id to use when running the executable.
tailf:gid
The group id to use when running the executable.
tailf:wd
The working directory to use when running the executable. If not specified, the home directory of
the user invoking the action is used, except for the case of a CLI session invoked via the confd_cli
command - then the directory where confd_cli was invoked is used.
tailf:global-no-duplicate
Specifies that only one instance with the name that is given as argument can be run at any time in
the system.
154
Actions
tailf:interrupt
Specifies which signal to use to interrupt the executable when the action invocation is interrupted.
The input parameters are passed to the executable as arguments (following those specified by
tailf:args) in the same general form as for a callback invocation. Each tag-value pair results in two
arguments, the first is the tag name as a string, the second is the value in string form. The special elements
used to indicate the start and end of a list entry or container and a typeless leaf (i.e. C_XMLBEGIN,
C_XMLEND, and C_XMLTAG in the C API) have the "values" __BEGIN, __END, and __LEAF. If the
action has output parameters, their values should be printed on standard output in the same form.
If the execution is successful, the executable should exit with code 0. Otherwise it may print error
information on standard output before exiting with a non-zero code. The error information can be either
a free-form string (corresponding to the confd_action_seterr() function for the callback) or
structured information corresponding to the NETCONF form described in the section called “EXTENDED
ERROR REPORTING” in the confd_lib_lib(3) manual page. It could for example print this on standard
output:
error-tag resource-denied
error-message "out of memory"
The error-tag element is required in this case.
In the CLI the action is not paginated by default and will only do so if it is piped to more.
joe@io> example_action | more
11.3.1. Example
Another action in intro/7-c_actions in the examples collection is implemented as a Perl script.
Here the data model defines a list of hosts, and an action that allows us to send ping requests to a host.
We specify the action in the data model like this:
list host {
key name;
leaf name {
type string;
}
tailf:action ping {
tailf:exec "./ping.pl" {
tailf:args "-c $(context) -p $(path)";
}
input {
leaf count {
type int32;
default "3";
}
}
output {
leaf header {
type string;
}
list response {
leaf data {
type string;
}
155
Actions
}
container statistics {
leaf packet {
type string;
}
leaf time {
type string;
}
}
}
}
}
The "-c $(context) -p $(path)" argument for the tailf:args statement has the effect that the context
(cli, netconf, etc) and the data model path will be passed to the script, followed by the count parameter
from the input statement in the data model. This parameter may have been given by the user or defaulted
according to the data model. Thus, if a host called "earth" exists in the configuration, and we use the J-
CLI and type this in operational mode:
request config host earth ping count 5
Then the script will be invoked as:
./ping.pl -c cli -p 'config host earth' count 5
The script starts by parsing these arguments, in particular picking up the last word of the -p value for
the host name (stored in the $host variable) and the argument for the count parameter (stored in the
$count variable):
while ($#ARGV >= 0) {
if ($ARGV[0] eq "-c") {
$context = $ARGV[1];
shift; shift;
} elsif ($ARGV[0] eq "-p") {
@path = split(' ', $ARGV[1]);
shift; shift;
} elsif ($ARGV[0] eq "count") {
$count = $ARGV[1];
shift; shift;
} else {
&fail("Unknown argument " . $ARGV[0]);
}
}
$host = $path[$#path];
In this example, the input parameters are very simple, just a single leaf. If we have lists or containers for
input in the data model, the script will receive them with __BEGIN and __END "values", as shown for
the output below.
Having collected the required parameters, and taking some OS dependencies into account, the script
proceeds to run the actual ping command, collecting the output (standard output and standard error) in
the $out variable, and checking the exit code. On a non-zero exit code (indicating failure), the fail
function will just print the output from ping on standard output and exit with code 1.
$ENV{'PATH'} = "/bin:/usr/bin:/sbin:/usr/sbin:" . $ENV{'PATH'};
if (`uname -s` eq "SunOS\n") {
$cmd = "ping -s $host 56 $count";
} else {
$cmd = "ping -c $count $host";
156
Actions
}
$out = `$cmd 2>&1`;
if ($? != 0) {
&fail($out);
}
If the execution of ping is successful, the script splits the output into lines and generates a reply according
to the output statement in the data model: each leaf is output with the leaf name followed by the value of
the leaf, and __BEGIN and __END "values" indicate the the start and end of each entry in the response
list, as well as the start and end of the statistics container:
@result = split('\n', $out);
print "header 'Invoked from " . $context . ": " . $result[0] . "'\n";
for ($i = 0; $i < $count; $i++) {
print "response __BEGIN data '" . $result[$i+1] . "' response __END\n";
}
$packets = $result[$#result-1];
$times = $result[$#result];
print "statistics __BEGIN\n";
print "packet '" . $packets . "' time '" . $times . "'\n";
print "statistics __END\n";
exit 0;
If we run the script interactively, using the command line above, we will get output that looks something
like this:
$ ./ping.pl -c cli -p 'config host earth' count 5
header 'Invoked from cli: PING earth.tail-f.com (192.168.1.42): 56 data bytes'
response __BEGIN data '64 bytes from 192.168.1.42: icmp_seq=0 ttl=64 time=0.187 ms' response __END
response __BEGIN data '64 bytes from 192.168.1.42: icmp_seq=1 ttl=64 time=0.150 ms' response __END
response __BEGIN data '64 bytes from 192.168.1.42: icmp_seq=2 ttl=64 time=0.208 ms' response __END
response __BEGIN data '64 bytes from 192.168.1.42: icmp_seq=3 ttl=64 time=0.205 ms' response __END
response __BEGIN data '64 bytes from 192.168.1.42: icmp_seq=4 ttl=64 time=0.204 ms' response __END
statistics __BEGIN
packet '5 packets transmitted, 5 packets received, 0.0% packet loss' time 'round-trip min/avg/max/stddev = 0.150/0.191/0.208/0.022 ms'
statistics __END
ConfD will parse this output and deliver the data to the requesting northbound agent. Since the values
include whitespace, they must be enclosed in quotes - either single quotes (') as in this example or double
quotes (") can be used. Arbitrary whitespace can be used to separate node names and values.
11.4. Related functionality
The action invocation mechanism is also used for some other related purposes:
A NETCONF RPC (see Section 15.5, “Extending the NETCONF Server” in Chapter 15, The NETCONF
Server) can be specified to invoke a callback or an executable (where ConfD translates the XML),
via the tailf:actionpoint and tailf:exec statements, respectively. This is implemented via
invocation of the action() callback, or running of an executable, exactly as described above. (When
the tailf:raw-xml statement is used with tailf:exec, the argument and result passing described
above is not applicable.)
The CLI can invoke "capi callbacks" for either complete CLI commands or command completion
functionality (see Chapter 16, The CLI agent). This is implemented via invocation of command() and
completion() callbacks, respectively, that are registered by the application in the same way as an
157
Actions
action() callback. See the section called “CONFD ACTIONS” in the confd_lib_dp(3) manual page
for the details.
158
Chapter 12. Notifications
12.1. ConfD Asynchronous Events
ConfD can deliver various classes of events to subscribing applications. The architecture is based on
notification sockets. The application(s) connect a notifications socket to ConfD. The application provides
a bit mask indicating which types of events the application is interested in. The application polls the socket
and invokes the API function confd_read_notification() whenever the socket is ready to read.
The API function populates a struct confd_notification structure.
The following is a list of the different asynchronous event classes that can be delivered from ConfD to the
application(s). See also the confd_lib_events(3) manual page. The program misc/notifications/
confd_notifications.c in the examples collection illustrates subscription and processing for all
these events, and can also be used standalone in a development environment to monitor ConfD events.
CONFD_NOTIF_AUDIT - Audit events.
CONFD_NOTIF_AUDIT_SYNC - Indicates that audit notifications (CONFD_NOTIF_AUDIT) must
be synced by the application.
CONFD_NOTIF_DAEMON - Syslog events that also go to /confdConf/logs/confdLog.
CONFD_NOTIF_NETCONF - Syslog events that also go to /confdConf/logs/netconfLog.
CONFD_NOTIF_DEVEL - Syslog events that also go to /confdConf/logs/developerLog.
CONFD_NOTIF_TAKEOVER_SYSLOG - Syslog control.
CONFD_NOTIF_COMMIT_SIMPLE - Commit message.
CONFD_NOTIF_COMMIT_DIFF - A complete diff compared to previous configuration.
CONFD_NOTIF_COMMIT_FAILED - Possible data inconsistency event.
CONFD_NOTIF_CONFIRMED_COMMIT - Events concerning confirmed commit processing.
CONFD_NOTIF_COMMIT_PROGRESS - Events with commit progress information.
CONFD_NOTIF_USER_SESSION - Whenever a user session is started or stopped.
CONFD_NOTIF_HA_INFO - Changes in ConfD's perception of the cluster configuration.
CONFD_NOTIF_HA_INFO_SYNC - Indicates that HA notifications (CONFD_NOTIF_HA_INFO)
must be synced by the application.
CONFD_NOTIF_SUBAGENT_INFO - Subagent related events.
CONFD_NOTIF_SNMPA - SNMP agent audit log.
CONFD_NOTIF_FORWARD_INFO - Events related to forwarding (proxying) of northbound agents.
CONFD_NOTIF_UPGRADE_EVENT - Events generated for in-service upgrade.
CONFD_NOTIF_HEARTBEAT - Heartbeat events.
159
Notifications
CONFD_NOTIF_HEALTH_CHECK - Health check events.
CONFD_NOTIF_STREAM_EVENT - Notification stream events.
12.2. Audit Messages
Many applications need explicit control over where and in which format the various audit messages are
sent. By audit messages here we mean any message related to user login/logout/reconfig activity. The list
of different audit messages that are possible to receive can be found in the file confd_logsyms.h
In order to receive the audit message we must first connect a notifications socket.
Example 12.1. Creating a notification socket
confd_init("Foobar", stderr, debuglevel);
if ((notsock = socket(PF_INET, SOCK_STREAM, 0)) < 0 )
confd_fatal("Failed to open notsocket\n");
inet_aton("127.0.0.1", &in);
addr.sin_addr.s_addr = in.s_addr;
addr.sin_family = AF_INET;
addr.sin_port = htons(CONFD_PORT);
dflag = CONFD_NOTIF_AUDIT;
if (confd_notifications_connect(
notsock,
(struct sockaddr*)&addr,
sizeof (struct sockaddr_in), dflag) < 0 ) {
confd_fatal("Failed to confd_connect() to confd \n");
}
The dflags argument is bit mask indicating which classes of notifications messages we wish to receive
over the socket. It is possible to receive several different classes of notifications messages over the same
socket.
Once we have the socket setup, we add it to our pollset and invoke confd_read_notification()
once the socket is ready to read.
Example 12.2. reading the audit data
while (1) {
struct pollfd set[1];
struct confd_notification n;
set[0].fd = notsock;
set[0].events = POLLIN;
set[0].revents = 0;
if (poll(&set[0], 1, -1) < 0) {
perror("Poll failed:");
continue;
}
if (set[0].revents & POLLIN) {
if (confd_read_notification(notsock, &n) != CONFD_OK)
exit(1);
switch(n.type) {
case CONFD_NOTIF_AUDIT:
printf("audit: sym=%d, user=%s/%d %s\n",
n.n.audit.logno,
160
Notifications
n.n.audit.user, n.n.audit.usid, n.n.audit.msg);
break;
.......
The structure struct confd_notification is defined as:
enum confd_notification_type {
CONFD_NOTIF_AUDIT = (1 << 0),
CONFD_NOTIF_DAEMON = (1 << 1),
CONFD_NOTIF_TAKEOVER_SYSLOG = (1 << 2),
CONFD_NOTIF_COMMIT_SIMPLE = (1 << 3),
CONFD_NOTIF_COMMIT_DIFF = (1 << 4),
CONFD_NOTIF_USER_SESSION = (1 << 5),
CONFD_NOTIF_HA_INFO = (1 << 6),
CONFD_NOTIF_SUBAGENT_INFO = (1 << 7),
CONFD_NOTIF_COMMIT_FAILED = (1 << 8),
CONFD_NOTIF_SNMPA = (1 << 9),
CONFD_NOTIF_FORWARD_INFO = (1 << 10),
CONFD_NOTIF_NETCONF = (1 << 11),
CONFD_NOTIF_DEVEL = (1 << 12),
CONFD_NOTIF_HEARTBEAT = (1 << 13),
CONFD_NOTIF_CONFIRMED_COMMIT = (1 << 14),
CONFD_NOTIF_UPGRADE_EVENT = (1 << 15),
CONFD_NOTIF_COMMIT_PROGRESS = (1 << 16),
CONFD_NOTIF_AUDIT_SYNC = (1 << 17),
CONFD_NOTIF_HEALTH_CHECK = (1 << 18),
CONFD_NOTIF_STREAM_EVENT = (1 << 19),
CONFD_NOTIF_HA_INFO_SYNC = (1 << 20),
NCS_NOTIF_PACKAGE_RELOAD = (1 << 21),
NCS_NOTIF_CQ_PROGRESS = (1 << 22),
CONFD_NOTIF_REOPEN_LOGS = (1 << 23)
};
struct confd_notification {
enum confd_notification_type type;
union {
struct confd_audit_notification audit;
struct confd_syslog_notification syslog;
struct confd_commit_notification commit;
struct confd_commit_diff_notification commit_diff;
struct confd_user_sess_notification user_sess;
struct confd_ha_notification hnot;
struct confd_subagent_notification subagent;
struct confd_forward_notification forward;
struct confd_commit_failed_notification cfail;
struct confd_snmpa_notification snmpa;
struct confd_confirmed_commit_notification confirm;
struct confd_upgrade_notification upgrade;
struct confd_progress_notification progress;
struct confd_stream_notification stream;
struct ncs_cq_progress_notification cq_progress;
} n;
};
Where the field type indicates the type of the message. Depending on the type, one of the other union
structures is populated by the confd_read_notification() API function
In our case with audit messages, we get a struct confd_audit_notification structure populated.
struct confd_audit_notification {
161
Notifications
int logno; /* number from confd_logsyms.h */
char user[MAXUSERNAMELEN];
char msg[BUFSIZ];
int usid; /* session id (0 means - not applicable ) */
};
The logno is an integer which defines the event. All log and audit events generated by confd are
enumerated and documented in the include file confd_logsyms.h.
If we have indicated that we want to synchronize audit messages with ConfD, we must call
confd_sync_audit_notification() after receiving an audit message, to signal ConfD that it
can continue processing.
12.3. Syslog Messages
Some applications have explicit requirements not only where to send syslog messages (this can be easily
configured in confd.conf) but also how and on which format to send the syslog messages. By default,
ConfD will simply invoke the standard libc syslog() function.
It is possible to subscribe to ConfD syslog messages and also at the same time suppress ConfD's own
syslogging. To subscribe to syslog messages, the application needs to use one or more of the flags
CONFD_NOTIF_DAEMON, CONFD_NOTIF_NETCONF, and CONFD_NOTIF_DEVEL in the mask given
to confd_notifications_connect().
If the mask given to confd_notifications_connect() contains the flag
CONFD_NOTIF_TAKEOVER_SYSLOG, ConfD will not invoke the regular syslog() function. Thus
in this case, it is entirely up to the application to actually report the messages.
If all notifications subscribers that have requested the CONFD_NOTIF_TAKEOVER_SYSLOG feature
close their notifications sockets, ConfD will revert to the behavior of invoking libc syslog().
Similarly, when ConfD is starting, before any application processes has connected and requested the
CONFD_NOTIF_TAKEOVER_SYSLOG feature, ConfD will of course use the standard syslog()
functionality
When subscribing to syslog messages we receive a populated struct confd_syslog_notification structure:
struct confd_syslog_notification {
int prio; /* from syslog.h */
int logno; /* number from confd_logsyms.h */
char msg[BUFSIZ];
};
The logno is an integer which defines the event. All syslog and audit events generated by confd are
enumerated and documented in the include file confd_logsyms.h.
12.4. Commit Events
There are two different types of commit events we can subscribe to. One really simple which just indicates
that a commit from a north bound agent has occurred. This is achieved by setting the subscription
bitmask to contain the flag: CONFD_NOTIF_COMMIT_SIMPLE. The message we receive contains a
struct confd_commit_notification structure:
struct confd_commit_notification {
enum confd_dbname database;
162
Notifications
int diff_available;
struct confd_user_info uinfo;
int flags;
};
This just provides information on which user committed to which database e.g. running or the candidate.
The other commit notification is considerably more complex and it provides information on exactly which
nodes were changed.
The flag value is CONFD_NOTIF_COMMIT_DIFF, and the structure we receive is:
struct confd_commit_diff_notification {
enum confd_dbname database;
struct confd_user_info uinfo;
struct confd_trans_ctx *tctx;
int flags;
char comment[MAX_COMMENT_LEN];
char label[MAX_LABEL_LEN];
};
The structure contains a transaction context which we can choose to use with maapi_attach()and thus
attach to the currently executing transaction. When the event is generated, this transaction has successfully
been committed by all data providers, but the commit operation has not completed and it is hanging, waiting
for the application to invoke confd_diff_notification_done(). The structure also includes the
"comment" and "label" given for the commit, if any (if not given, the comment and/or label elements
are zero-length strings).
maapi_attach() attaches a transaction context. We can then use that transaction context to read from
the transaction. The transaction has a list of nodes which constitute the configuration changes in the
transaction. We can traverse this list using the function maapi_diff_iterate() which will invoke
a user supplied function for each and every modification in the transaction.
The purpose of this feature is not to be able to check the commit diff. All such checking should be done
using the normal validation routines. The purpose is rather to be able to log diffs on a per commit basis.
Thus the first thing we need if we want to traverse the diff list is a function to be invoked for every diff
item. Our example here will just format the data and print to stdout.
static enum maapi_iter_ret iter(confd_hkeypath_t *kp,
enum maapi_iter_op op,
confd_value_t *oldv,
confd_value_t *v,
void *state)
{
char path[BUFSIZ];
char value[BUFSIZ];
char *opstr;
struct confd_cs_node *node;
confd_hkeypath_t *dkp;
int i;
confd_pp_kpath(path, sizeof(path), kp);
value[0] = 0;
switch (op) {
case MOP_CREATED:
opstr = "created";
break;
case MOP_DELETED:
163
Notifications
opstr = "deleted";
break;
case MOP_MODIFIED:
opstr = "modified";
break;
case MOP_VALUE_SET:
opstr = "value_set";
node = confd_find_cs_node(kp, kp->len);
confd_val2str(node->info.type, v, value, sizeof(value));
break;
case MOP_MOVED_AFTER:
if (v == NULL) {
opstr = "moved first";
} else {
opstr = "moved after";
/* create+print a hkeypath for the entry this one was moved after */
dkp = confd_hkeypath_dup(kp);
for (i = 0; v[i].type != C_NOEXISTS; i++) {
confd_free_value(&dkp->v[0][i]);
confd_value_dup_to(&v[i], &dkp->v[0][i]);
}
confd_pp_kpath(value, sizeof(value), dkp);
confd_free_hkeypath(dkp);
}
break;
case MOP_ATTR_SET:
if (v[1].type == C_NOEXISTS) {
opstr = "attr_del";
snprintf(value, sizeof(value), "%s", attr_str(&v[0]));
} else {
opstr = "attr_set";
i = snprintf(value, sizeof(value), "%s -> ", attr_str(&v[0]));
confd_pp_value(&value[i], sizeof(value) - i, &v[1]);
}
break;
}
printf ("ITER %s %s %s\n", path, opstr, value);
return ITER_RECURSE;
}
The iteration function must return an enum maapi_iter_ret indicating to ConfD what to continue to do.
We have the following possible return values:
ITER_STOP - Stop. Do not invoke the iteration function any more for this transaction
ITER_RECURSE - Iteration continues with all children of the modified node.
ITER_CONTINUE - Iteration ignores the children of the node and continues with the node's sibling.
The iteration function is called for each modified node in the configuration. See the description
of maapi_diff_iterate() in confd_lib_maapi(3) for a detailed description of when the
different op values MOP_CREATED, MOP_DELETED, MOP_MODIFIED, MOP_VALUE_SET, and
MOP_MOVED_AFTER are used.
Finally we must have a function which is invoked whenever we receive a notification of type
CONFD_NOTIF_COMMIT_DIFF. The function must use the supplied transaction context and attach, and
when it is done traversing the diff it must call confd_diff_notification_done().
static void handle_diff_notif(struct confd_trans_ctx *tctx)
164
Notifications
{
/* first we need a maapi socket */
int maapi_socket;
if ((maapi_socket = socket(PF_INET, SOCK_STREAM, 0)) < 0 )
confd_fatal("Failed to open socket\n");
if (maapi_connect(maapi_socket, (struct sockaddr*)&addr,
sizeof (struct sockaddr_in)) < 0)
confd_fatal("Failed to confd_connect() to confd \n");
/* no namespace needed for this */
OK(maapi_attach(maapi_socket, -1, tctx));
/* Now we can iterate through the currently hanging transaction */
/* and read out all the diffs */
OK(maapi_diff_iterate(maapi_socket, tctx->thandle, iter,
ITER_WANT_ATTR, NULL));
/* and finally call done to release data and let */
/* the transaction finish */
OK(confd_diff_notification_done(notif_socket, tctx));
close(maapi_socket);
}
12.5. Commit Failure Events
The CONFD_NOTIF_COMMIT_FAILED event is generated when a data provider fails in its commit
callback. ConfD executes a two-phase commit procedure towards all data providers when committing
transactions. When a provider fails in commit, the system is an unknown state. See confd_lib_maapi(3)
and the function maapi_get_running_db_status(). If the provider is "external", the name of the
failing daemon is provided. If the provider is another NETCONF agent, the IP address and port of that
agent is provided.
12.6. Confirmed Commit Events
When a a user has started a confirmed commit, when a confirming commit is issued, or when a confirmed
commit is aborted, a CONFD_NOTIF_CONFIRMED_COMMIT event is generated. The application
receives a struct confd_confirmed_commit_notification, which gives the specific action and user session
info for the committer. For a confirmed commit, the timeout value is also given.
12.7. Commit Progress Events
By subscribing to the CONFD_NOTIF_COMMIT_PROGRESS event, the application can receive the same
commit progress information that is reported when the commit | details CLI command is used. The
application receives a struct confd_progress_notification structure.
12.8. User Sessions
We can get notifications on user sessions and on user session events. A user session corresponds to an
actual user logging in to the system, for example a NETCONF manager
The struct confd_user_sess_notification structure is defined as:
165
Notifications
enum confd_user_sess_type {
CONFD_USER_SESS_START = 1, /* a user session is started */
CONFD_USER_SESS_STOP = 2,
CONFD_USER_SESS_LOCK = 3, /* a database is locked */
CONFD_USER_SESS_UNLOCK = 4,
CONFD_USER_SESS_START_TRANS = 5, /* a database transaction is started */
CONFD_USER_SESS_STOP_TRANS = 6
};
struct confd_user_sess_notification {
enum confd_user_sess_type type;
struct confd_user_info uinfo;
enum confd_dbname database;
};
This means that we can follow the progress of a user session, which databases are touched by the session
etc.
12.9. High Availability - Cluster Events
ConfD HA capabilities are described in Chapter 24, High Availability. This section describes the various
events that are asynchronously produced by ConfD when the cluster configuration is changed. These
changes may be induced explicitly by the application through invocation of the various HA related API
functions in libconfd or they may be induced by ConfD itself when the sockets between the HA nodes
get closed. It is vital that the High-Availability-Framework (HAFW) subscribes to these messages and
acts accordingly.
The struct confd_notification structure received by confd_read_notification() will populate the
hnot field with a struct confd_ha_notification. This in its turn is yet another union structure with a type
field.
struct confd_ha_notification {
enum confd_ha_info_type type;
/* additional info for various info types */
union {
int nomaster; /* CONFD_HA_INFO_NOMASTER */
struct confd_ha_node slave_died; /* CONFD_HA_INFO_SLAVE_DIED */
struct confd_ha_node slave_arrived;/* CONFD_HA_INFO_SLAVE_ARRIVED*/
int cdb_initialized_by_copy; /* CONFD_HA_INFO_SLAVE_INITIALIZED */
int beslave_result; /* CONFD_HA_INFO_BESLAVE_RESULT */
} data;
};
We start with a listing of types of the different HA related events that ConfD can send to the subscribing
application. The enum is defined as:
enum confd_ha_info_type {
CONFD_HA_INFO_NOMASTER = 1, /* we have no master */
CONFD_HA_INFO_SLAVE_DIED = 2, /* a slave disappeared */
CONFD_HA_INFO_SLAVE_ARRIVED = 3, /* a slave arrived to us */
CONFD_HA_INFO_SLAVE_INITIALIZED = 4, /* CDB is initialized */
CONFD_HA_INFO_IS_MASTER = 5, /* we are now master */
CONFD_HA_INFO_IS_NONE = 6, /* we are now none */
CONFD_HA_INFO_BESLAVE_RESULT = 7 /* result of async beslave() */
};
Each of the different informational messages has additional data associated to it.
166
Notifications
CONFD_HA_INFO_NOMASTER A node (which is a slave node) has lost contact with the master and is
now in HA state CONFD_HA_STATE_NONE. Only sent on the slave node.
Whenever we receive this message the nomaster field is populated. This is either the integer
CONFD_ERR_HA_CLOSED if the slave lost contact with master due to the socket getting closed or the
integer CONFD_ERR_HA_NOTICK if the slave has not received any live ticks from the master.
CONFD_HA_INFO_SLAVE_DIED A master node lost contact with a slave node. Only sent on the
master node. The field slave_died is populated with a struct confd_ha_node indicating which
particular slave died.
CONFD_HA_INFO_SLAVE_ARRIVED A master node was connected to by a slave node.
Authentication was ok and the slave is initializing its CDB database. Only sent at the master node. The
field slave_arrived is populated with a struct confd_ha_node indicating which slave arrived.
CONFD_HA_INFO_SLAVE_INITIALIZED A slave node has just finished its initialization and
synchronization of the database. The slave is now fully operational. Only sent at slave nodes. The field
cdb_initialized_by_copy is set to 1 if ConfD concluded that the entire CDB database has to
be copied and 0 if a copy was avoided.
CONFD_HA_INFO_IS_MASTER The node has been successfully elevated to master. This is only sent
at the master node, i.e. the node that just became master.
CONFD_HA_INFO_IS_NONE The node has been set to NONE mode.
CONFD_HA_INFO_BESLAVE_RESULT If we use asynchronous invocation of the
confd_ha_beslave() function, i.e. with the parameter waitreply set to 0, this message is
sent when the operation has completed. The field beslave_result is set to indicate the result
which would have been returned by a synchronous invocation of confd_ha_beslave(). Thus if
beslave_result is 0, the node has successfully become a slave, otherwise beslave_result
is one of the confd_errno values that can be returned by synchronous invocation of
confd_ha_beslave().
If we have indicated that we want to synchronize HA messages with ConfD, we must call
confd_sync_ha_notification() after receiving a HA message, to signal ConfD that it can
continue processing.
12.10. Subagent Events
The subagent mechanism is described in Chapter 26, Subagents and Proxies. This section describes the
related events which ConfD generates when acting as a master agent.
When the notification type is CONFD_NOTIF_SUBAGENT_INFO, the struct confd_notification structure
received by confd_read_notification() will populate the subagent field with a struct
confd_subagent_notification.
struct confd_subagent_notification {
enum confd_subagent_info_type type;
char name[MAXAGENTNAMELEN];
};
The type field is one of the values CONFD_SUBAGENT_INFO_UP or
CONFD_SUBAGENT_INFO_DOWN.
At first, each subagent is marked as being down. When ConfD successfully communicates with a subagent,
it is marked as up, and a corresponding event is generated. A down event is generated only if ConfD tries
167
Notifications
to communicate with a subagent, but fails. Thus, if a subagent closes an idle connection to the master
agent, it is not marked as down.
12.11. SNMP Agent Audit Log
The SNMP agent log is activated through the /confdCfg/logs/snmpLog element in the
confd.conf configuration file.
The SNMP audit log messages can also be received and processed by an external C program over a
notification socket. The application receives a struct confd_snmpa_notification structure. The structure
contains a series of fields describing the sent or received SNMP PDU. It also contains a list of all varbinds
in the PDU.
Each varbind contains a confd_value_t with the string representation of the SNMP value. Thus the type
of the value in a varbind is always C_BUF. See confd_events.h include file for the details of the
received structure.
The following code exemplifies how we write a program which establishes a notification socket and
subscribes to all SNMP PDUs in and out of the system.
We start off with some auxiliary function to format the PDU type and the type of a "varbind"
char *vb_type(struct confd_snmp_varbind *vb) {
switch (vb->vartype) {
case CONFD_SNMP_NULL: return "NULL";
case CONFD_SNMP_INTEGER: return "INTEGER";
case CONFD_SNMP_Interger32: return "Integer32";
case CONFD_SNMP_OCTET_STRING: return "OCTET STRING";
case CONFD_SNMP_OBJECT_IDENTIFIER: return "OBJECT IDENTIFIER";
case CONFD_SNMP_IpAddress: return "IpAddress";
case CONFD_SNMP_Counter32: return "Counter32";
case CONFD_SNMP_TimeTicks: return "TimeTicks";
case CONFD_SNMP_Opaque: return "Opaque";
case CONFD_SNMP_Counter64: return "Counter64";
case CONFD_SNMP_Unsigned32: return "Unsigned32";
}
return "";
}
char *pdutype(struct confd_snmpa_notification *snmp) {
switch (snmp->pdu_type) {
case CONFD_SNMPA_PDU_V1TRAP: return("V1TRAP");
case CONFD_SNMPA_PDU_V2TRAP: return("V2TRAP");
case CONFD_SNMPA_PDU_INFORM: return("INFORM");
case CONFD_SNMPA_PDU_GET_RESPONSE: return("GET_RESPONSE");
case CONFD_SNMPA_PDU_GET_REQUEST: return("GET_REQUEST");
case CONFD_SNMPA_PDU_GET_NEXT_REQUEST: return("GET_NEXT_REQUEST");
case CONFD_SNMPA_PDU_REPORT: return("REPORT");
case CONFD_SNMPA_PDU_GET_BULK_REQUEST: return("GET_BULK_REQUEST");
case CONFD_SNMPA_PDU_SET_REQUEST: return("SET_REQUEST");
default: return "";
}
}
Following that we show the code which invokes confd_read_notification() and reads a C
structure of the type struct confd_snmpa_notification
168
Notifications
The structure contains the type of the PDU, various other fields and also the complete SNMP "varbind"
lists in the PDU. The code prints the PDU type and then loops through all the varbinds and prints the
value of each varbind.
if (confd_read_notification(notsock, &n) != CONFD_OK)
exit(1);
switch(n.type) {
case CONFD_NOTIF_SNMPA: {
int i,j;
char buf[BUFSIZ];
buf[0] = 0;
char *ptr = &buf[0];
struct confd_snmpa_notification *snmp = &n.n.snmpa;
ptr += sprintf(ptr, "%s ", pdutype(snmp));
ptr += sprintf(ptr,"Id = %d ", snmp->request_id);
struct confd_ip *ip = &(snmp->ip);
ptr += sprintf(ptr, " %s:%d ",
inet_ntoa(ip->ip.v4),
snmp->port);
if ((snmp->error_status !=0 || snmp->error_index != 0)) {
ptr += sprintf(ptr, "ErrIx = %d ", snmp->error_index);
}
else if (snmp->pdu_type == CONFD_SNMPA_PDU_V1TRAP) {
ptr += sprintf(ptr,"Generic=%d Specific=%d",
snmp->v1_trap->generic_trap,
snmp->v1_trap->specific_trap);
struct confd_snmp_oid *enterp = &snmp->v1_trap->enterprise;
ptr += sprintf(ptr, " Enterprise=");
for(i=0; i < enterp->len; i++) {
ptr += sprintf(ptr,".%d", enterp->oid[i]);
}
}
for (i=0; i < snmp->num_variables; i++) {
struct confd_snmp_varbind *vb = &snmp->vb[i];
ptr += sprintf(ptr,"\n ");
switch (vb->type) {
case CONFD_SNMP_VARIABLE:
ptr += sprintf(ptr, " %s ", vb_type(vb));
ptr += sprintf(ptr,"%s=", vb->var.name);
break;
case CONFD_SNMP_OID:
ptr += sprintf(ptr, " %s ", vb_type(vb));
for (j=0; j < vb->var.oid.len; j++) {
ptr += sprintf(ptr,"%d", vb->var.oid.oid[j]);
if (j != vb->var.oid.len-1)
ptr += sprintf(ptr,".");
}
break;
case CONFD_SNMP_COL_ROW:
ptr += sprintf(ptr, " %s ", vb_type(vb));
ptr += sprintf(ptr, "%s", vb->var.cr.column);
for(j=0; j<vb->var.cr.rowindex.len; j++) {
ptr += sprintf(ptr,".%d",
vb->var.cr.rowindex.oid[j]);
}
break;
}
if (vb->val.type == C_BUF) {
char buf2[BUFSIZ];
169
Notifications
confd_pp_value(buf2, BUFSIZ, &vb->val);
ptr += sprintf(ptr, "=%s", buf2);
}
}
printf("%s\n\n", buf);
confd_free_notification(&n);
}
12.12. Forwarding Events
ConfD can forward (proxy) connections from northbound agents. When forwarding starts, ends,
or fails, a CONFD_NOTIF_FORWARD_INFO event is generated. The application receives a struct
confd_forward_notification structure which gives the type of forwarding event, the name of the target for
the forwarding, and user session information for the user that requested the forwarding.
12.13. In-service Upgrade Events
During in-service upgrade, the CONFD_NOTIF_UPGRADE_EVENT event is generated with different
values for the enum confd_upgrade_event_type event. The events correspond to the different phases
of the upgrade, see Chapter 13, In-service Data Model Upgrade and confd_lib_maapi(3) for a detailed
description.
12.14. Heartbeat and Health Check Events
The CONFD_NOTIF_HEARTBEAT and CONFD_NOTIF_HEALTH_CHECK events can be used by
applications that wish to monitor the health and liveness of ConfD itself. See confd_lib_events(3) for more
details about this.
12.15. Notification stream Events
The CONFD_NOTIF_STREAM_EVENT event is generated for a notification stream, i.e. event
notifications sent by an application as described in the section called “NOTIFICATION STREAMS” of
confd_lib_dp(3). See confd_lib_events(3) for more details about this.
170
Chapter 13. In-service Data Model
Upgrade
13.1. Introduction
When we want to change the data model used by ConfD, the simplest method is to stop and restart ConfD
with the new .fxs files in place. CDB will then detect the change and perform an upgrade, automatically
or assisted by external programs, as described in Chapter 5, CDB - The ConfD XML Database.
If it is necessary that ConfD keeps running throughout the data model change, we can instead control the
upgrade from an external program using a set of MAAPI functions, as described in this chapter. The CDB
upgrade will be performed in this case too of course, and all the techniques described in the CDB chapter
are applicable here too. But in addition, this procedure requires careful synchronization between different
ConfD components, e.g. transactions may not span the data model change, and all components must update
any related data, while still being able to revert to the original data model in case problems are detected.
The following four sections describe the phases and corresponding MAAPI function calls that
comprise this upgrade procedure, and the steps that must be taken by the program controlling
the procedure. A complete example showing the procedure can be found in examples.confd/
in_service_upgrade/simple in the bundled examples collection. The code excerpts and
description refer to this example. See also the confd_lib_maapi(3) manual page for the definitions of the
MAAPI functions.
13.2. Preparing for the Upgrade
All the new .fxs files, clispecs, MIBs, etc, as well as the docroot tree for the Web UI (if used), that are
to be used after the upgrade, must be installed separately from the current ones, and the current ones may
not be removed until the upgrade has completed successfully. A good way to organize this is to have the
references to the installation directories in confd.conf use a symbolic link. This way we can switch the
on-disk data to the new version by simply changing the link, without the need for complex modification
of confd.conf. Files that are unchanged between the two versions should be duplicated, or possibly
(hard-)linked if disk space is limited.
In the example, we use two directories pkg/v1 and pkg/v2 for the old and new versions, respectively,
and a symlink pkg/current that points to the currently used version. In confd.conf both /
confdConfig/loadPath/dir and /confdConfig/webui/docroot are then given with the
use of the symlink. Multiple loadPath directories are of course also possible, by having subdirectories
below v1 and/or v2.
For MIB (.bin) files other than the ones built-in to ConfD, confd.conf offers two possibilities: we
can either specify the actual file names with /confdConfig/snmpAgent/mibs/file elements, or
use /confdConfig/snmpAgent/mibs/fromLoadPath to tell ConfD to load these files from the
directories given via /confdConfig/loadPath. To have the symlink scheme work for the MIB files
on upgrade, we need to use the latter alternative, and only specify built-in MIBs via /confdConfig/
snmpAgent/mibs/file.
The upgrade.c program in the example controls the upgrade procedure. It can be run either standalone
or via a osCommand specification in the clispec. In both cases it must connect a MAAPI socket and
associate it with a user session. When running from the CLI, it must use the user session id provided by
the environment variable CONFD_MAAPI_USID for this, otherwise it can start a new user session:
171
In-service Data Model Upgrade
static int set_usess(int sock)
{
char *user = "admin";
const char *groups[] = {"admin"};
char *context = "system";
struct confd_ip ip;
/* must use usid from CLI to be allowed to run across upgrade */
if ((usid_env = getenv("CONFD_MAAPI_USID")) != NULL) {
return maapi_set_user_session(sock, atoi(usid_env));
} else {
ip.af = AF_INET;
inet_pton(AF_INET, "127.0.0.1", &ip.ip.v4);
return maapi_start_user_session(sock, user, context, groups, 1,
&ip, CONFD_PROTO_TCP);
}
}
Applications connected to ConfD, e.g. data providers and CDB subscribers, are not directly affected by
the upgrade procedure. If they need to take some action due to the upgrade, they should be subscribed
to CONFD_NOTIF_UPGRADE_EVENT event notifications (see Chapter 12, Notifications), and will
then be notified of the different phases of the upgrade. If nothing else, most applications should call
confd_load_schemas() (see confd_lib_lib(3)) when an upgrade has completed, in order to update
the in-memory representation of the data model. The cdb_subscriber.c program in the example
shows how this can be done.
13.3. Initializing the Upgrade
After having set up the MAAPI socket, the first step in the actual upgrade procedure is to call the
maapi_init_upgrade() function. Its purpose is to bring ConfD into "upgrade mode", where no
transactions are running, and the northbound agents have entered a state that does not allow new
transactions to be started.
progress("Initializing upgrade...\n");
phase = "Init";
/* run notifier in separate process
- maapi_init_upgrade() blocks */
notifier = run_notifier(timeout, force);
OK(maapi_init_upgrade(maapisock, timeout,
force ? MAAPI_UPGRADE_KILL_ON_TIMEOUT : 0));
if (notifier != -1)
kill(notifier, SIGTERM);
notifier = -1;
progress("Init OK\n");
maapi_prio_message(maapisock, "all",
"\n>>> System upgrade in progress...\n");
If users have sessions in configure mode when this function is called, they are given the opportunity to exit
from configure mode voluntarily. The function call will block until all transactions have been terminated
(although not longer than specified by the timeout). For this reason, we fork() a process that periodically
sends out messages to all users, informing them of the imminent upgrade.
If any transactions remain when the timeout expires, maapi_init_upgrade() will fail
with confd_errno CONFD_ERR_TIMEOUT, unless the MAAPI_UPGRADE_KILL_ON_TIMEOUT
flag was used. If upgrade.c was given the -f (force) option, it will pass this flag to
maapi_init_upgrade(), and any remaining transactions will be forcibly terminated instead.
172
In-service Data Model Upgrade
When maapi_init_upgrade() is called, a CONFD_UPGRADE_INIT_STARTED event notification
is sent, and when it completes successfully, a CONFD_UPGRADE_INIT_SUCCEEDED event notification
is sent.
Note
If the function fails, i.e. it does not return CONFD_OK, ConfD will automatically abort the
upgrade, reverting to the pre-upgrade state, and send a CONFD_UPGRADE_ABORTED event
notification. This is true also for the functions described in in the next two sections.
13.4. Performing the Upgrade
When maapi_init_upgrade() has completed successfully, the next step is to call
maapi_perform_upgrade(). This tells ConfD to load the new .fxs files etc, and we must pass it
a list of directories to load these files from. These are the directories that will become the new loadPath
directories once the upgrade is complete. These directories will also be searched for CDB "init files" (see
Section 5.8, “Loading initial data into CDB”), corresponding to the /confdConfig/cdb/initPath
directories that can be specified in confd.conf.
progress("Performing upgrade...\n");
phase = "Perform";
/* set up new loadpath directory */
snprintf(buf, sizeof(buf), PKG_DIR "/%s", version);
load_dir[0] = &buf[0];
OK(maapi_perform_upgrade(maapisock, &load_dir[0], ndirs));
progress("Perform OK\n");
At this point confd.conf and hence the current symlink must still point to the current version, and
thus we pass the new directory "explicitly" to the function as "./pkg/v2". In this example ConfD was
also started with the --addloadpath option specifying an additional loadPath directory. The contents
of this directory ($CONFD_DIR/etc/confd) does not change in the upgrade, but we must pass the same
directory to maapi_perform_upgrade() too - the files found in the given directories will completely
replace what ConfD is currently using.
A number of different problems may be detected during the loading of the new files, e.g. .fxs files may
have a version that is incompatible with the ConfD version, or they may reference namespaces that can
not be found. These problems will make maapi_perform_upgrade() fail with confd_errno
CONFD_ERR_BAD_CONFIG, and confd_lasterr() giving information about the details of the
problem. If the loading is successful, CDB will start its special upgrade transaction, and perform any
automatic upgrade operations that are needed, before maapi_perform_upgrade() returns.
When maapi_perform_upgrade() completes successfully, a CONFD_UPGRADE_PERFORMED
event notification is sent.
13.5. Committing the Upgrade
When maapi_perform_upgrade() has completed successfully, we must call
maapi_commit_upgrade() to tell ConfD to make the upgrade permanent. This will also tell CDB to
commit its upgrade transaction, and we may need to take some actions for this before the call:
If the upgrade requires that an external program modifies some CDB data, it must be done at this point,
using maapi_attach_init() as described in the CDB chapter.
173
In-service Data Model Upgrade
If the upgrade includes new validation points, or the validation logic for existing validation points
has changed, the new validators must connect to ConfD and register for their validation points before
maapi_commit_upgrade() is called.
In the example, all the changes can be handled by the automatic CDB upgrade, and we just proceed with
the call:
progress("Committing upgrade...\n");
phase = "Commit";
OK(maapi_commit_upgrade(maapisock));
relink(version);
progress("Commit OK\n");
maapi_prio_message(maapisock, "all",
">>> System upgrade has completed successfully.\n");
maapi_commit_upgrade() may fail if the upgraded data does not pass validation, and the errors
returned in this case are the same as for e.g. maapi_apply_trans(). Since this will also make ConfD
automatically revert to the pre-upgrade state, we must not change the on-disk data to reflect the upgrade
until maapi_commit_upgrade() has succeeded. In the code above, the relink() call changes the
symlink to point to the new version in an atomic manner.
When maapi_commit_upgrade() completes successfully, a CONFD_UPGRADE_COMMITED event
notification is sent.
13.6. Aborting the Upgrade
We can abort the upgrade at any point before the maapi_commit_upgrade() call by calling
maapi_abort_upgrade(). However as noted above, this should not be done when one of the other
functions fails, since ConfD aborts the upgrade automatically in those cases.
When maapi_abort_upgrade() aborts an upgrade, a CONFD_UPGRADE_ABORTED event
notification is sent.
13.7. Upgrade and HA
When we use the ConfD High Availability functionality, it is critical that all nodes in the HA cluster agree
on the data model used. For this reason we can not do in-service upgrade on a ConfD instance that is part
of a HA cluster. A ConfD node in HA state SLAVE or MASTER executing maapi_init_upgrade()
will fail with confd_errno CONFD_ERR_HA_WITH_UPGRADE. Conversely, when an in-service
upgrade is in progress, calling confd_ha_beslave() will also result in this error, and connections
from slaves will be rejected.
Thus in-service upgrade is only possible while in HA-state NONE.
To do the in-service upgrade on a HA cluster, we must thus use "rolling upgrade":
1. Disconnect one of the slaves from the cluster by calling confd_ha_benone().
2. Upgrade the disconnected slave as described above.
3. Tell the upgraded slave to become master by calling confd_ha_bemaster().
4. Tell the old master to not be master by calling confd_ha_benone()
174
In-service Data Model Upgrade
5. Upgrade the remaining nodes in the cluster one by one, telling each to connect as slave to the upgraded
master by calling confd_ha_beslave() when the upgrade is done.
Alternatively, since the HA configuration should be able to handle that a node is stopped and restarted
without service interruption, we may simply use the upgrade method described in the CDB chapter for
the "rolling upgrade".
175
Chapter 14. The AAA infrastructure
14.1. The problem
This chapter describes how to use ConfD's built-in authentication and authorization mechanisms. Users
log into ConfD through the CLI, NETCONF, RESTCONF, SNMP, or via the Web UI. In either case, users
need to be authenticated. That is, a user needs to present credentials, such as a password or a public key
in order to gain access. As an alternative for RESTCONF, users can be authenticated via token validation.
Once a user is authenticated, all operations performed by that user need to be authorized. That is, certain
users may be allowed to perform certain tasks, whereas others are not. This is called authorization. We
differentiate between authorization of commands and authorization of data access.
14.2. Structure - data models
The ConfD daemon manages device configuration including AAA information. In fact, ConfD both
manages AAA information and uses it. The AAA information describes which users may login, what
passwords they have and what they are allowed to do.
This is solved in ConfD by requiring a data model to be both loaded and populated with data.
ConfD uses the YANG module tailf-aaa.yang for authentication, while ietf-netconf-
acm.yang (NACM, RFC 6536) as augmented by tailf-acm.yang is used for group assignment and
authorization. For backwards compatibility, it is alternatively possible to use the older revision 2011-09-22
of tailf-aaa.yang for all of authentication, group assignment, and authorization. This legacy version
of tailf-aaa can be found in the $CONFD_DIR/src/confd/aaa directory, but its usage is not further
described here. Detailed information about this can be found in versions of this document for ConfD-5.3
and earlier.
14.2.1. Data model contents
The NACM data model is targeted specifically towards access control for NETCONF operations, and thus
lacks some functionality that is needed in ConfD, in particular support for authorization of CLI commands
and the possibility to specify the "context" (NETCONF/CLI/etc) that a given authorization rule should
apply to. This functionality is modeled by augmentation of the NACM model, as defined in the tailf-
acm.yang YANG module.
The ietf-netconf-acm.yang and tailf-acm.yang modules can be found in $CONFD_DIR/
src/confd/yang directory in the release, while tailf-aaa.yang can be found in the
$CONFD_DIR/src/confd/aaa directory.
The complete AAA data model defines a set of users, a set of groups and a set of rules. The data model
must be populated with data that is subsequently used by by ConfD itself when it authenticates users and
authorizes user data access. These YANG modules work exactly like all other fxs files loaded into the
system with the exception that ConfD itself uses them. The data belongs to the application, but ConfD
itself is the user of the data.
Since ConfD requires a data model for the AAA information for its operation, it will report an error and
fail to start if these data models can not be found.
176
The AAA infrastructure
14.3. AAA related items in confd.conf
ConfD itself is configured through a configuration file - confd.conf . In that file we have the following
items related to authentication and authorization:
/confdConfig/aaa/
sshServerKeyDir
If SSH termination is enabled for NETCONF or the CLI, the ConfD
built-in SSH server needs to have server keys. These keys are
generated by the ConfD install script and by default end up in
$CONFD_DIR/etc/confd/ssh .
It is also possible to use OpenSSH to terminate NETCONF or the
CLI. If OpenSSH is used to terminate SSH traffic, the SSH keys
are not necessary.
/confdConfig/aaa/
sshPubkeyAuthentication
If SSH termination is enabled for NETCONF or the CLI, this item
controls how the ConfD SSH daemon locates the user keys for
public key authentication. See Section 14.4.1, “Public Key Login”
for the details.
/confdConfig/aaa/
localAuthentication/
enabled
The term "local user" refers to a user stored under /aaa/
authentication/users. The alternative is a user unknown
to ConfD, typically authenticated by PAM.
By default, ConfD first checks local users before trying PAM or
external authentication.
Local authentication is practical in test environments. It is also
useful when we want to have one set of users that are allowed
to login to the host with normal shell access and another set of
users that are only allowed to access the system using the normal
encrypted, fully authenticated, northbound interfaces of ConfD.
If we always authenticate users through PAM it may make sense to
set this configurable to false. If we disable local authentication
it implicitly means that we must use either PAM authentication or
"external authentication". It also means that we can leave the entire
data trees under /aaa/authentication/users and, in the
case of "external auth" also /nacm/groups (for NACM) or /
aaa/authentication/groups (for legacy tailf-aaa) empty.
/confdConfig/aaa/pam ConfD can authenticate users using PAM (Pluggable
Authentication Modules). PAM is an integral part of most Unix-
like systems.
PAM is a complicated - albeit powerful - subsystem. It may be
easier to have all users stored locally on the host, However if we
want to store users in a central location, PAM can be used to
access the remote information. PAM can be configured to perform
most login scenarios including RADIUS and LDAP. One major
drawback with PAM authentication is that there is no easy way to
extract the group information from PAM. PAM authenticates users,
it does not also assign a user to a set of groups.
PAM authentication is thoroughly described later in this chapter.
177
The AAA infrastructure
/confdConfig/aaa/
defaultGroup
If this configuration parameter is defined and if the group of a user
cannot be determined, a logged in user ends up in the given default
group.
/confdConfig/aaa/
aaaBridge
This key will be described in the Section 14.9, “Populating AAA
using external data” section.
/confdConfig/aaa/
externalAuthentication
ConfD can authenticate users using an external executable.
This is further described later in the Section 14.4.4, “External
authentication” section.
/confdConfig/aaa/
externalValidation
ConfD can authenticate users by validation of tokens using
an external executable. This is further described later in the
Section 14.4.5, “External token validation” section. The difference
is that a token, instead of a username and password, is input and a
username and, optionally, a token is output. This is currently only
supported for RESTCONF.
/confdConfig/aaa/
authenticationCallback/
enabled
If this is set to "true", ConfD will, as the last step of
every authentication attempt, invoke an application callback. The
callback can reject an otherwise successful authentication. See
the section called “AUTHENTICATION CALLBACK” in the
confd_lib_dp(3) manual page for the details about this.
/confdConfig/aaa/
authorization/callback/
enabled
If this is set to "true", ConfD will invoke application callbacks
for authorization. The callbacks can partially or completely
replace the logic described in Section 14.6, “Authorization”. See
the section called “AUTHORIZATION CALLBACKS” in the
confd_lib_dp(3) manual page for the details about this.
14.4. Authentication
Depending on northbound management protocol, when a user session is created in ConfD, it may or
may not be authenticated. If the session is not yet authenticated, ConfD's AAA subsystem is used to
perform authentication and authorization, as described below. If the session already has been authenticated,
ConfD's AAA assigns groups to the user as described in Section 14.5, “Group Membership”, and performs
authorization, as described in Section 14.6, “Authorization”.
The authentication part of the data model can be found in tailf-aaa.yang:
container authentication {
tailf:info "User management";
container users {
tailf:info "List of local users";
list user {
key name;
leaf name {
type string;
tailf:info "Login name of the user";
}
leaf uid {
type int32;
mandatory true;
tailf:info "User Identifier";
}
178
The AAA infrastructure
leaf gid {
type int32;
mandatory true;
tailf:info "Group Identifier";
}
leaf password {
type passwdStr;
mandatory true;
}
leaf ssh_keydir {
type string;
mandatory true;
tailf:info "Absolute path to directory where user's ssh keys
may be found";
}
leaf homedir {
type string;
mandatory true;
tailf:info "Absolute path to user's home directory";
}
}
}
}
AAA authentication is used in the following cases:
When the built-in SSH server is used for NETCONF and CLI sessions.
For Web UI sessions and REST access.
When the function maapi_authenticate() is used.
The different authentication mechanisms that may be used in these cases are described below. Regardless
of which mechanism that is used, ConfD can optionally invoke an application callback as the last
step of the authentication process, see the section called “AUTHENTICATION CALLBACK” in
confd_lib_dp(3). The callback is not used for the actual authentication, but it can reject an otherwise
successful authentication.
ConfD's AAA authentication is not used in the following cases:
When NETCONF uses an external SSH daemon, such as OpenSSH.
In this case, the NETCONF session is initiated using the program netconf-subsys, as described in
Section 15.3, “NETCONF Transport Protocols”.
When NETCONF uses TCP, as described in Section 15.3, “NETCONF Transport Protocols”, e.g.
through the command netconf-console.
When the CLI uses an external SSH daemon, such as OpenSSH, or a telnet daemon.
In this case, the CLI session is initiated through the command confd_cli . An important special case
here is when a user has logged in to the host and invokes the command confd_cli from the shell.
When SNMP is used. SNMP has its own authentication mechanisms. See Section 17.5.2, “USM and
VACM and ConfD AAA” .
When the function maapi_start_user_session() is used without a preceding call of
maapi_authenticate().
179
The AAA infrastructure
14.4.1. Public Key Login
When a user logs in over NETCONF or the CLI using the built-in SSH server, with public key login, the
procedure is as follows.
The user presents a username in accordance with the SSH protocol. The SSH server consults the
settings for /confdConfig/aaa/sshPubkeyAuthentication and /confdConfig/aaa/
localAuthentication/enabled .
1. If sshPubkeyAuthentication is set to local, and the SSH keys in /aaa/
authentication/users/user{$USER}/ssh_keydir match the keys presented by the user,
authentication succeeds.
2. Otherwise, if sshPubkeyAuthentication is set to system, localAuthentication is
enabled, and the SSH keys in /aaa/authentication/users/user{$USER}/ssh_keydir
match the keys presented by the user, authentication succeeds.
3. Otherwise, if sshPubkeyAuthentication is set to system and the user /aaa/
authentication/users/user{$USER} does not exist, but the user does exist in the OS
password database, the keys in the user's $HOME/.ssh directory are checked. If these keys match the
keys presented by the user, authentication succeeds.
4. Otherwise, authentication fails.
In all cases the keys are expected to be stored in a file called authorized_keys (or
authorized_keys2 if authorized_keys does not exist), and in the native OpenSSH format
(i.e. as generated by the OpenSSH ssh-keygen command). If authentication succeeds, the user's group
membership is established as described in Section 14.5, “Group Membership”.
This is exactly the same procedure that is used by the OpenSSH server with the exception that the built-
in SSH server also may locate the directory containing the public keys for a specific user by consulting
the /aaa/authentication/users tree.
Setting up Public Key Login
We need to provide a directory where SSH keys are kept for a specific user, and give the absolute path
to this directory for the /aaa/authentication/users/user/ssh_keydir leaf. If public key
login is not desired at all for a user, the value of the ssh_keydir leaf should be set to "", i.e. the empty
string. Similarly, if the directory does not contain any SSH keys, public key logins for that user will be
disabled.
The built-in SSH daemon supports DSA and RSA keys. To generate and enable RSA keys of size 4096
bits for, say, user "bob", the following steps are required.
On the client machine, as user "bob", generate a private/public key pair as:
# ssh-keygen -b 4096 -t rsa
Generating public/private rsa key pair.
Enter file in which to save the key (/home/bob/.ssh/id_rsa):
Created directory '/home/bob/.ssh'.
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /home/bob/.ssh/id_rsa.
Your public key has been saved in /home/bob/.ssh/id_rsa.pub.
180
The AAA infrastructure
The key fingerprint is:
ce:1b:63:0a:f9:d4:1d:04:7a:1d:98:0c:99:66:57:65 bob@buzz
# ls -lt ~/.ssh
total 8
-rw------- 1 bob users 3247 Apr 4 12:28 id_rsa
-rw-r--r-- 1 bob users 738 Apr 4 12:28 id_rsa.pub
Now we need to copy the public key to the target machine where the NETCONF or CLI SSH client runs.
Assume we have the following user entry:
<user>
<name>bob</name>
<uid>100</uid>
<gid>10</gid>
<password>$1$feedbabe$nGlMYlZpQ0bzenyFOQI3L1</password>
<ssh_keydir>/var/system/users/bob/.ssh</ssh_keydir>
<homedir>/var/system/users/bob</homedir>
</user>
We need to copy the newly generated file id_rsa.pub, which is the public key, to a file on the target
machine called /var/system/users/bob/.ssh/authorized_keys
14.4.2. Password Login
Password login is triggered in the following cases:
When a user logs in over NETCONF or the CLI using the built in SSH server, with a password. The
user presents a username and a password in accordance with the SSH protocol.
When a user logs in using the Web UI. The Web UI asks for a username and password.
When the function maapi_authenticate() is used.
In this case, ConfD will by default try local authentication, PAM, and external authentication, in that
order, as described below. It is possible to change the order in which these are tried, by modifying the
confd.conf . parameter /confdConfig/aaa/authOrder . See confd.conf(5) for details.
1. If /aaa/authentication/users/user{$USER} exists and the presented password matches
the encrypted password in /aaa/authentication/users/user{$USER}/password the
user is authenticated.
2. If the password does not match or if the user does not exist in /aaa/authentication/users,
PAM login is attempted, if enabled. See ???? for details.
3. If all of the above fails and external authentication is enabled, the configured executable is invoked.
See ???? for details.
If authentication succeeds, the user's group membership is established as described in ????.
14.4.3. PAM
On operating systems supporting PAM, ConfD also supports PAM authentication. Using PAM
authentication with ConfD can be very convenient since it allows us to have the same set of users and
groups having access to ConfD as those that have access to the UNIX/Linux host itself.
181
The AAA infrastructure
If we use PAM, we do not have to have any users or any groups configured in the ConfD aaa namespace
at all. To configure PAM we typically need to do the following:
1. Remove all users and groups from the aaa initialization XML file.
2. Enable PAM in confd.conf by adding:
<pam>
<enabled>true</enabled>
<service>common-auth</service>
</pam>
to the aaa section in confd.conf . The service name specifies the PAM service, typically a file in the
directory /etc/pam.d, but may alternatively be an entry in a file /etc/pam.conf, depending on
OS and version. Thus it is possible to have a different login procedure to ConfD than to the host itself.
3. If pam is enabled and we want to use pam for login the system may have to run as root. This depends
on how pam is configured locally. However the default "system-auth" will typically require root since
the pam libraries then read /etc/shadow. If we don't want to run ConfD as root, the solution here is
to change owner of a helper program called $CONFD_DIR/lib/confd/lib/core/pam/priv/
epam and also set the setuid bit.
# cd $CONFD_DIR/lib/confd/lib/core/pam/priv/
# chown root:root epam
# chmod u+s epam
PAM is the recommended way to authenticate ConfD users.
As an example, say that we have user test in /etc/passwd, and furthermore:
# grep test /etc/group
operator:x:37:test
admin:x:1001:test
thus, the test user is part of the admin and the operator groups and logging in to ConfD as the test user,
through CLI ssh, Web UI, or netconf renders the following in the audit log.
<INFO> 28-Jan-2009::16:05:55.663 buzz confd[14658]: audit user: test/0 logged
in over ssh from 127.0.0.1 with authmeth:password
<INFO> 28-Jan-2009::16:05:55.670 buzz confd[14658]: audit user: test/5 assigned
to groups: operator,admin
<INFO> 28-Jan-2009::16:05:57.655 buzz confd[14658]: audit user: test/5 CLI 'exit'
Thus, the test user was found and authenticated from /etc/passwd, and the crucial group assignment
of the test user was done from /etc/group.
If we wish to be able to also manipulate the users, their passwords etc on the device we can write a private
YANG model for that data, store that data in CDB, setup a normal CDB subscriber for that data, and
182
The AAA infrastructure
finally when our private user data is manipulated, our CDB subscriber picks up the changes and changes
the contents of the relevant /etc files.
14.4.4. External authentication
A common situation is when we wish to have all authentication data stored remotely, not locally, for
example on a remote RADIUS or LDAP server. This remote authentication server typically not only stores
the users and their passwords, but also the group information.
If we wish to have not only the users, but also the group information stored on a remote server, the best
option for ConfD authentication is to use "external authentication".
If this feature is configured, ConfD will invoke the executable configured in /confdConfig/aaa/
externalAuthentication/executable in confd.conf , and pass the username and the clear
text password on stdin using the string notation: "[user;password;]\n".
For example if user "bob" attempts to login over SSH using the password "secret", and
external authentication is enabled, ConfD will invoke the configured executable and write
"[bob;secret;]\n" on the stdin stream for the executable.
The task of the executable is then to authenticate the user and also establish the username-to-groups
mapping.
For example the executable could be a RADIUS client which utilizes some proprietary vendor attributes to
retrieve the groups of the user from the RADIUS server. If authentication is successful, the program should
write "accept " followed by a space-separated list of groups the user is member of, and additional
information as described below. Again, assuming that Bob's password indeed was "secret", and that Bob is
member of the "admin" and the "lamers" groups, the program should write "accept admin lamers
$uid $gid $supplementary_gids $HOME\n" on its standard output and then exit.
Thus the format of the output from an "externalauth" program when authentication is successful should be:
"accept $groups $uid $gid $supplementary_gids $HOME\n"
Where
$groups is a space separated list of the group names the user is a member of.
$uid is the UNIX integer user id ConfD should use as default when executing commands for this user.
$gid is the UNIX integer group id ConfD should use as default when executing commands for this user.
$supplementary_gids is a (possibly empty) space separated list of additional UNIX group ids the
user is also a member of.
$HOME is the directory which should be used as HOME for this user when ConfD executes commands
on behalf of this user.
It is further possible for the program to return a token on successful authentication, by using
"accept_token" instead of "accept":
"accept_token $groups $uid $gid $supplementary_gids $HOME $token\n"
Where $token is an arbitrary string. ConfD will then, for some northbound interfaces, include this token
in responses.
183
The AAA infrastructure
It is also possible for the program to return additional information on successful authentication, by using
"accept_info" instead of "accept":
"accept_info $groups $uid $gid $supplementary_gids $HOME $info\n"
Where $info is some arbitrary text. ConfD will then just append this text to the generated audit log
message (CONFD_EXT_LOGIN).
Yet another possibility is for the program to return a warning that the user's password is about to expire,
by using "accept_warning" instead of "accept":
"accept_warning $groups $uid $gid $supplementary_gids $HOME $warning\n"
Where $warning is an appropriate warning message. The message will be processed by ConfD according
to the setting of /confdConfig/aaa/expirationWarning in confd.conf .
There is also support for token variations of "accept_info" and "accept_warning" namely
"accept_token_info" and "accept_token_warning". Both "accept_token_info" and
"accept_token_warning" expects the external program to output exactly the same as described
above with the addition of a token after $HOME:
"accept_token_info $groups $uid $gid $supplementary_gids $HOME $token
$info\n"
"accept_token_warning $groups $uid $gid $supplementary_gids $HOME $token
$warning\n"
If authentication failed, the program should write "reject" or "abort", possibly followed by a
reason for the rejection, and a trailing newline. For example "reject Bad password\n" or just
"abort\n". The difference between "reject" and "abort" is that with "reject", ConfD will
try subsequent mechanisms configured for /confdConfig/aaa/authOrder in confd.conf (if
any), while with "abort", the authentication fails immediately. Thus "abort" can prevent subsequent
mechanisms from being tried, but when external authentication is the last mechanism (as in the default
order), it has the same effect as "reject".
When external authentication is used, the group list returned by the external program is prepended by any
possible group information stored locally under the /aaa tree. Hence when we use external authentication
it is indeed possible to have the entire /aaa/authentication tree empty. The group assignment
performed by the external program will still be valid and the relevant groups will be used by ConfD when
the authorization rules are checked.
14.4.5. External token validation
When username, password authentication is not feasible, authentication by token validation is possible.
Currently only RESTCONF supports this mode of authentication. It shares all properties of external
authentication, but instead of a username and password, it takes a token as input. The output is also almost
the same, the only difference is that it is also expected to output a username.
If this feature is configured, ConfD will invoke the executable configured in /confdConfig/aaa/
externalValidation/executable in confd.conf , and pass the token on stdin using the
string notation: "[token;]\n".
For example if user "bob" attempts to login over RESTCONF using the token "topsecret", and external
validation is enabled, ConfD will invoke the configured executable and write "[topsecret;]\n" on
the stdin stream for the executable.
184
The AAA infrastructure
The task of the executable is then to validate the token, thereby authenticating the user and also establish
the username and username-to-groups mapping.
For example the executable could be a FUSION client which utilizes some proprietary vendor attributes
to retrieve the username and groups of the user from the FUSION server. If token validation is successful,
the program should write "accept " followed by a space-separated list of groups the user is member of,
and additional information as described below. Again, assuming that Bob's token indeed was "topsecret",
and that Bob is member of the "admin" and the "lamers" groups, the program should write "accept
admin lamers $uid $gid $supplementary_gids $HOME $USER\n" on its standard
output and then exit.
Thus the format of the output from an "externalvalidation" program when token validation authentication
is successful should be:
"accept $groups $uid $gid $supplementary_gids $HOME $USER\n"
Where
$groups is a space separated list of the group names the user is a member of.
$uid is the UNIX integer user id ConfD should use as default when executing commands for this user.
$gid is the UNIX integer group id ConfD should use as default when executing commands for this user.
$supplementary_gids is a (possibly empty) space separated list of additional UNIX group ids the
user is also a member of.
$HOME is the directory which should be used as HOME for this user when ConfD executes commands
on behalf of this user.
$USER is the user derived from mapping the token.
It is further possible for the program to return a new token on successful token validation authentication,
by using "accept_token" instead of "accept":
"accept_token $groups $uid $gid $supplementary_gids $HOME $USER $token
\n"
Where $token is an arbitrary string. ConfD will then, for some northbound interfaces, include this token
in responses.
It is also possible for the program to return additional information on successful token validation
authentication, by using "accept_info" instead of "accept":
"accept_info $groups $uid $gid $supplementary_gids $HOME $USER $info\n"
Where $info is some arbitrary text. ConfD will then just append this text to the generated audit log
message (CONFD_EXT_LOGIN).
Yet another possibility is for the program to return a warning that the user's password is about to expire,
by using "accept_warning" instead of "accept":
"accept_warning $groups $uid $gid $supplementary_gids $HOME $USER
$warning\n"
Where $warning is an appropriate warning message. The message will be processed by ConfD according
to the setting of /confdConfig/aaa/expirationWarning in confd.conf .
185
The AAA infrastructure
There is also support for token variations of "accept_info" and "accept_warning" namely
"accept_token_info" and "accept_token_warning". Both "accept_token_info" and
"accept_token_warning" expects the external program to output exactly the same as described
above with the addition of a token after $USER:
"accept_token_info $groups $uid $gid $supplementary_gids $HOME $USER
$token $info\n"
"accept_token_warning $groups $uid $gid $supplementary_gids $HOME $USER
$token $warning\n"
If token validation authentication failed, the program should write "reject" or "abort", possibly
followed by a reason for the rejection, and a trailing newline. For example "reject Bad password
\n" or just "abort\n". The difference between "reject" and "abort" is that with "reject",
ConfD will try subsequent mechanisms configured for /confdConfig/aaa/validationOrder
in confd.conf (if any), while with "abort", the token validation authentication fails immediately.
Thus "abort" can prevent subsequent mechanisms from being tried. Currently the only available token
validation authentication mechanism is the external one.
14.5. Group Membership
Once a user is authenticated, group membership must be established. A single user can be a member of
several groups. Group membership is used by the authorization rules to decide which operations a certain
user is allowed to perform. Thus the ConfD AAA authorization model is entirely group based. This is also
sometimes referred to as role based authorization.
All groups are stored under /nacm/groups, and each group contains a number of usernames. The
ietf-netconf-acm.yang model defines a group entry:
list group {
key name;
description
"One NACM Group Entry. This list will only contain
configured entries, not any entries learned from
any transport protocols.";
leaf name {
type group-name-type;
description
"Group name associated with this entry.";
}
leaf-list user-name {
type user-name-type;
description
"Each entry identifies the username of
a member of the group associated with
this entry.";
}
}
The tailf-acm.yang model augments this with a gid leaf:
186
The AAA infrastructure
augment /nacm:nacm/nacm:groups/nacm:group {
leaf gid {
type int32;
description
"This leaf associates a numerical group ID with the group.
When a OS command is executed on behalf of a user,
supplementary group IDs are assigned based on 'gid' values
for the groups that the use is a member of.";
}
}
A valid group entry could thus look like:
<group>
<name>admin</name>
<user-name>bob</user-name>
<user-name>joe</user-name>
<gid xmlns="http://tail-f.com/yang/acm">99</gid>
</group>
The above XML data would then mean that users bob and joe are members of the admin group. The
users need not necessarily exist as actual users under /aaa/authentication/users in order to
belong to a group. If for example PAM authentication is used, it does not make sense to have all users
listed under /aaa/authentication/users.
By default, the user is assigned to groups by using any groups provided by the northbound transport (e.g. via
the confd_cli or netconf-subsys programs), by consulting data under /nacm/groups, by consulting the
/etc/group file, and by using any additional groups supplied by the authentication method. If /nacm/
enable-external-groups is set to "false", only the data under /nacm/groups is consulted.
The resulting group assignment is the union of these methods, if it is non-empty. Otherwise, the default
group is used, if configured (/confdConfig/aaa/defaultGroup in confd.conf ).
A user entry has a UNIX uid and UNIX gid assigned to it. Groups may have optional group ids. When a
user is logged in, and ConfD tries to execute commands on behalf of that user, the uid/gid for the command
execution is taken from the user entry. Furthermore, UNIX supplementary group ids are assigned according
to the gids in the groups where the user is a member.
14.6. Authorization
Once a user is authenticated and group membership is established, when the user starts to perform various
actions, each action must be authorized. Normally the authorization is done based on rules configured in
the AAA data model as described in this section, but if needed we can also register application callbacks
to partially or completely replace this logic, see the section called “AUTHORIZATION CALLBACKS”
in confd_lib_dp(3).
The authorization procedure first checks the value of /nacm/enable-nacm. This leaf has a default of
true, but if it is set to false, all access is permitted. Otherwise, the next step is to traverse the rule-
list list:
list rule-list {
key "name";
187
The AAA infrastructure
ordered-by user;
description
"An ordered collection of access control rules.";
leaf name {
type string {
length "1..max";
}
description
"Arbitrary name assigned to the rule-list.";
}
leaf-list group {
type union {
type matchall-string-type;
type group-name-type;
}
description
"List of administrative groups that will be
assigned the associated access rights
defined by the 'rule' list.
The string '*' indicates that all groups apply to the
entry.";
}
// ...
}
If the group leaf-list in a rule-list entry matches any of the user's groups, the cmdrule list entries
are examined for command authorization, while the rule entries are examined for rpc, notification, and
data authorization.
14.6.1. Command authorization
The tailf-acm.yang module augments the rule-list entry in ietf-netconf-acm.yang
with a cmdrule list:
augment /nacm:nacm/nacm:rule-list {
list cmdrule {
key "name";
ordered-by user;
description
"One command access control rule. Command rules control access
to CLI commands and Web UI functions.
Rules are processed in user-defined order until a match is
found. A rule matches if 'context', 'command', and
'access-operations' match the request. If a rule
matches, the 'action' leaf determines if access is granted
or not.";
leaf name {
type string {
length "1..max";
}
description
188
The AAA infrastructure
"Arbitrary name assigned to the rule.";
}
leaf context {
type union {
type nacm:matchall-string-type;
type string;
}
default "*";
description
"This leaf matches if it has the value '*' or if its value
identifies the agent that is requesting access, i.e. 'cli'
for CLI or 'webui' for Web UI.";
}
leaf command {
type string;
default "*";
description
"Space-separated tokens representing the command. Refer
to the Tail-f AAA documentation for further details.";
}
leaf access-operations {
type union {
type nacm:matchall-string-type;
type nacm:access-operations-type;
}
default "*";
description
"Access operations associated with this rule.
This leaf matches if it has the value '*' or if the
bit corresponding to the requested operation is set.";
}
leaf action {
type nacm:action-type;
mandatory true;
description
"The access control action associated with the
rule. If a rule is determined to match a
particular request, then this object is used
to determine whether to permit or deny the
request.";
}
leaf log-if-permit {
type empty;
description
"If this leaf is present, access granted due to this rule
is logged in the developer log. Otherwise, only denied
access is logged. Mainly intended for debugging of rules.";
}
leaf comment {
type string;
description
"A textual description of the access rule.";
}
189
The AAA infrastructure
}
}
Each rule has seven leafs. The first is the name list key, the following three leafs are matching leafs. When
ConfD tries to run a command it tries to match the command towards the matching leafs and if all of
context, command, and access-operations match, the fifth field, i.e. the action, is applied.
name name is the name of the rule. The rules are checked in order, with the ordering
given by the the YANG ordered-by user semantics, i.e. independent of
the key values.
context context is either of the strings cli, webui, or * for a command rule. This
means that we can differentiate authorization rules for which access method is
used. Thus if command access is attempted through the CLI the context will
be the string cli whereas for operations via the Web UI, the context will be
the string webui.
command This is the actual command getting executed. If the rule applies to one or
several CLI commands, the string is a space separated list of CLI command
tokens, for example request system reboot. If the command applies
to Web UI operations, it is a space separated string similar to a CLI string. A
string which consists of just "*" matches any command.
It is important to understand that a command rule for the CLI applies to the
string as entered by the user. The command rules are not aware of the data
model. Thus it is not possible to have a rule like:
<cmdrule>
<name>delete-eth0</name>
<context>cli</context>
<command>delete interfaces interface eth0</command>
<access-operations>exec</access-operations>
<action>deny</action>
</cmdrule>
to protect a specific interface from removal in The Juniper CLI. The user can
enter:
joe@host% edit interfaces
joe@host% delete interface eth0
making the command rule above moot.
In the Cisco like CLIs it makes more sense to use command rules to protect
data. This is due to the command oriented character of the Cisco CLIs.
In general, we do not recommend using command rules to protect the
configuration. Use rules for data access as described in the next section to
control access to different parts of the data. Command rules should be used
only for CLI commands and Web UI operations that cannot be expressed as
data rules.
Another thing that is important for command rule processing of CLI
commands is the mode. If we enable the feature /confdConfig/cli/
modeInfoInAAA, the command rule matching will match on a string where
190
The AAA infrastructure
the CLI mode is prepended. This makes command rule processing more useful
in the Cisco style CLIs than in the Juniper style CLI.
The individual tokens can be POSIX extended regular expressions. Each
regular expression is implicitly anchored, i.e. an "^" is prepended and a "$" is
appended to the regular expression.
access-operations access-operations is used to match the operation that ConfD tries to
perform. It must be one or both of the "read" and "exec" values from the
access-operations-type bits type definition in ietf-netconf-
acm.yang, or "*" to match any operation.
action If all of the previous fields match, the rule as a whole matches and the value of
action will be taken. I.e. if a match is found, a decision is made whether to
permit or deny the request in its entirety. If action is permit, the request
is permitted, if action is deny, the request is denied and an entry written
to the developer log.
log-if-permit If this leaf is present, an entry is written to the developer log for a matching
request also when action is permit. This is very useful when debugging
command rules.
comment An optional textual description of the rule.
For the rule processing to be written to the devel log, the /confdConfig/logs/
developerLogLevel entry in confd.conf must be set to trace.
If no matching rule is found in any of the cmdrule lists in any rule-list entry that matches the user's
groups, this augmentation from tailf-acm.yang is relevant:
augment /nacm:nacm {
leaf cmd-read-default {
type nacm:action-type;
default "permit";
description
"Controls whether command read access is granted
if no appropriate cmdrule is found for a
particular command read request.";
}
leaf cmd-exec-default {
type nacm:action-type;
default "permit";
description
"Controls whether command exec access is granted
if no appropriate cmdrule is found for a
particular command exec request.";
}
leaf log-if-default-permit {
type empty;
description
"If this leaf is present, access granted due to one of
/nacm/read-default, /nacm/write-default, or /nacm/exec-default
/nacm/cmd-read-default, or /nacm/cmd-exec-default
being set to 'permit' is logged in the developer log.
Otherwise, only denied access is logged. Mainly intended
191
The AAA infrastructure
for debugging of rules.";
}
}
If "read" access is requested, the value of /nacm/cmd-read-default determines whether access
is permitted or denied.
If "exec" access is requested, the value of /nacm/cmd-exec-default determines whether access
is permitted or denied.
If access is permitted due to one of these default leafs, the /nacm/log-if-default-permithas the
same effect as the log-if-permit leaf for the cmdrule lists.
14.6.2. Rpc, notification, and data authorization
The rules in the rule list are used to control access to rpc operations, notifications, and data nodes defined
in YANG models. Access to invocation of actions (tailf:action) is controlled with the same method
as access to data nodes, with a request for "exec" access. ietf-netconf-acm.yang defines a rule
entry as:
list rule {
key "name";
ordered-by user;
description
"One access control rule.
Rules are processed in user-defined order until a match is
found. A rule matches if 'module-name', 'rule-type', and
'access-operations' match the request. If a rule
matches, the 'action' leaf determines if access is granted
or not.";
leaf name {
type string {
length "1..max";
}
description
"Arbitrary name assigned to the rule.";
}
leaf module-name {
type union {
type matchall-string-type;
type string;
}
default "*";
description
"Name of the module associated with this rule.
This leaf matches if it has the value '*' or if the
object being accessed is defined in the module with the
specified module name.";
}
choice rule-type {
description
"This choice matches if all leafs present in the rule
match the request. If no leafs are present, the
choice matches all requests.";
192
The AAA infrastructure
case protocol-operation {
leaf rpc-name {
type union {
type matchall-string-type;
type string;
}
description
"This leaf matches if it has the value '*' or if
its value equals the requested protocol operation
name.";
}
}
case notification {
leaf notification-name {
type union {
type matchall-string-type;
type string;
}
description
"This leaf matches if it has the value '*' or if its
value equals the requested notification name.";
}
}
case data-node {
leaf path {
type node-instance-identifier;
mandatory true;
description
"Data Node Instance Identifier associated with the
data node controlled by this rule.
Configuration data or state data instance
identifiers start with a top-level data node. A
complete instance identifier is required for this
type of path value.
The special value '/' refers to all possible
data-store contents.";
}
}
}
leaf access-operations {
type union {
type matchall-string-type;
type access-operations-type;
}
default "*";
description
"Access operations associated with this rule.
This leaf matches if it has the value '*' or if the
bit corresponding to the requested operation is set.";
}
leaf action {
type action-type;
mandatory true;
description
"The access control action associated with the
193
The AAA infrastructure
rule. If a rule is determined to match a
particular request, then this object is used
to determine whether to permit or deny the
request.";
}
leaf comment {
type string;
description
"A textual description of the access rule.";
}
}
tailf-acm augments this with two additional leafs:
augment /nacm:nacm/nacm:rule-list/nacm:rule {
leaf context {
type union {
type nacm:matchall-string-type;
type string;
}
default "*";
description
"This leaf matches if it has the value '*' or if its value
identifies the agent that is requesting access, e.g. 'netconf'
for NETCONF, 'cli' for CLI, or 'webui' for Web UI.";
}
leaf log-if-permit {
type empty;
description
"If this leaf is present, access granted due to this rule
is logged in the developer log. Otherwise, only denied
access is logged. Mainly intended for debugging of rules.";
}
}
Similar to the command access check, whenever a user through some agent tries to access an rpc, a
notification, a data item, or an action, access is checked. For a rule to match, three or four leafs must match
and when a match is found, the corresponding action is taken.
We have the following leafs in the rule list entry.
name name is the name of the rule. The rules are checked in order,
with the ordering given by the the YANG ordered-by user
semantics, i.e. independent of the key values.
module-name The module-name string is the name of the YANG module where
the node being accessed is defined. The special value * (i.e. the
default) matches all modules.
Note
Since the elements of the path to a given node may be
defined in different YANG modules when augmentation
is used, rules which have a value other than * for
194
The AAA infrastructure
the module-name leaf may require that additional
processing is done before a decision to permit or deny or
the access can be taken. Thus if an XPath that completely
identifies the nodes that the rule should apply to is given
for the path leaf (see below), it may be best to leave the
module-name leaf unset.
rpc-name / notification-name / path This is a choice between three possible leafs that are used for
matching, in addition to the module-name:
rpc-name
The name of a rpc operation, or "*" to match any rpc.
notification-name
The name of a notification, or "*" to match any notification.
pathA restricted XPath expression leading down into the populated
XML tree. A rule with a path specified matches if it is equal
to or shorter than the checked path. Several types of paths are
allowed.
1. Tagpaths that are not containing any keys. For example /
interfaces/interface/mtu .
2. Instantiated key: as in /interfaces/
interface[name="eth0"]/mask matches the mask
element only for the interface name "eth0". It's
possible to have partially instantiated paths only
containing some keys instantiated - i.e combinations
of tagpaths and keypaths. Assuming a deeper
tree, the path /hosts/host[name="venus"]/
servers/server/ip matches the "ip" element for all
servers, but only for the host named "venus".
3. Wild card at end as in: /interfaces/interface/*
does not match /interfaces/interface but rather
all children of that path.
Thus the path in a rule is matched against the path in the
attempted data access. If the attempted access has a path that
is equal to or longer than the rule path - we have a match.
If none of the leafs rpc-name, notification-name, or
path are set, the rule matches for any rpc, notification, data, or
action access.
context context is either of the strings cli, netconf, webui, snmp,
or * for a data rule. Furthermore, when we initiate user sessions
from MAAPI, we can choose any string we want.
Similarly to command rules we can differentiate access depending
on which agent is used to gain access.
access-operations access-operations is used to match the operation that
ConfD tries to perform. It must be one or more of the "create",
195
The AAA infrastructure
"read", "update", "delete" and "exec" values from the access-
operations-type bits type definition in ietf-netconf-
acm.yang, or "*" to match any operation.
action This leaf has the same characteristics as the action leaf for
command access.
log-if-permit This leaf has the same characteristics as the log-if-permit leaf
for command access.
comment An optional textual description of the rule.
If no matching rule is found in any of the rule lists in any rule-list entry that matches the user's
groups, the data model node for which access is requested is examined for presence of the NACM
extensions:
If the nacm:default-deny-all extension is specified for the data model node, access is denied.
If the nacm:default-deny-write extension is specified for the data model node, and "create",
"update", or "delete" access is requested, access is denied.
If examination of the NACM extensions did not result in access being denied, the value (permit or
deny) of the relevant default leaf is examined:
If "read" access is requested, the value of /nacm/read-default determines whether access is
permitted or denied.
If "create", "update", or "delete" access is requested, the value of /nacm/write-default
determines whether access is permitted or denied.
If "exec" access is requested, the value of /nacm/exec-default determines whether access is
permitted or denied.
If access is permitted due to one of these default leafs, this augmentation from tailf-acm.yang is
relevant:
augment /nacm:nacm {
...
leaf log-if-default-permit {
type empty;
description
"If this leaf is present, access granted due to one of
/nacm/read-default, /nacm/write-default, /nacm/exec-default
/nacm/cmd-read-default, or /nacm/cmd-exec-default
being set to 'permit' is logged in the developer log.
Otherwise, only denied access is logged. Mainly intended
for debugging of rules.";
}
}
I.e. it has the same effect as the log-if-permit leaf for the rule lists, but for the case where the value
of one of the default leafs permits the access.
When ConfD executes a command, the command rules in the authorization database are searched, The
rules are tried in order, as described above. When a rule matches the operation (command) that ConfD is
attempting, the action of the matching rule is applied - whether permit or deny.
196
The AAA infrastructure
When actual data access is attempted, the data rules are searched. E.g. when a user attempts to execute
delete aaa in the CLI, the user needs delete access to the entire tree /aaa.
Another example is if a CLI user writes show configuration aaa TAB it suffices to have read
access to at least one item below /aaa for the CLI to perform the TAB completion. If no rule matches or
an explicit deny rule is found, the CLI will not TAB complete.
Yet another example is if a user tries to execute delete aaa authentication users, we need to
perform a check on the paths /aaa and /aaa/authentication before attempting to delete the sub
tree. Say that we have a rule for path /aaa/authentication/users which is an permit rule and
we have a subsequent rule for path /aaa which is a deny rule. With this rule set the user should indeed
be allowed to delete the entire /aaa/authentication/users tree but not the /aaa tree nor the /
aaa/authentication tree.
We have two variations on how the rules are processed. The easy case is when we actually try to read or
write an item in the configuration database. The execution goes like:
foreach rule {
if (match(rule, path)) {
return rule.action;
}
}
The second case is when we execute TAB completion in the CLI. This is more complicated. The execution
goes like:
rules = select_rules_that_may_match(rules, path);
if (any_rule_is_permit(rules))
return permit;
else
return deny;
The idea being that as we traverse (through TAB) down the XML tree, as long as there is at least one rule
that can possibly match later, once we have more data, we must continue.
For example assume we have:
1. "/system/config/foo" --> permit
2. "/system/config" --> deny
If we in the CLI stand at "/system/config" and hit TAB we want the CLI to show foo as a
completion, but none of the other nodes that exist under /system/config. Whereas if we try to execute
delete /system/config the request must be rejected.
14.6.3. Authorization Examples
Assume that we have two groups, admin and oper. We want admin to be able to see and and edit the
XML tree rooted at /aaa, but we do not want users that are members of the oper group to even see
the /aaa tree. We would have the following rule-list and rule entries. Note, here we use the XML data
from tailf-aaa.yang to exemplify. The examples apply to all data, for all data models loaded into
the system.
<rule-list>
197
The AAA infrastructure
<name>admin</name>
<group>admin</group>
<rule>
<name>tailf-aaa</name>
<module-name>tailf-aaa</module-name>
<path>/</path>
<access-operations>read create update delete</access-operations>
<action>permit</action>
</rule>
</rule-list>
<rule-list>
<name>oper</name>
<group>oper</group>
<rule>
<name>tailf-aaa</name>
<module-name>tailf-aaa</module-name>
<path>/</path>
<access-operations>read create update delete</access-operations>
<action>deny</action>
</rule>
</rule-list>
If we do not want the members of oper to be able to execute the NETCONF operation edit-config,
we define the following rule-list and rule entries:
<rule-list>
<name>oper</name>
<group>oper</group>
<rule>
<name>edit-config</name>
<rpc-name>edit-config</rpc-name>
<context xmlns="http://tail-f.com/yang/acm">netconf</context>
<access-operations>exec</access-operations>
<action>deny</action>
</rule>
</rule-list>
To spell it out, the above defines four elements to match. If ConfD tries to perform a netconf operation,
which is the operation edit-config, and the user which runs the command is member of the oper
group, and finally it is an exec (execute) operation, we have a match. If so, the action is deny.
The path leaf can be used to specify explicit paths into the XML tree using XPath syntax. For example
the following:
<rule-list>
<name>admin</name>
<group>admin</group>
<rule>
<name>bob-password</name>
<path>/aaa/authentication/users/user[name='bob']/password</path>
<context xmlns="http://tail-f.com/yang/acm">cli</context>
<access-operations>read update</access-operations>
<action>permit</action>
</rule>
</rule-list>
198
The AAA infrastructure
Explicitly allows the admin group to change the password for precisely the bob user when the user is
using the CLI. Had path been /aaa/authentication/users/user/password the rule would
apply to all password elements for all users. Since the path leaf completely identifies the nodes that the
rule applies to, we do not need to give tailf-aaa for the module-name leaf.
ConfD applies variable substitution, whereby the username of the logged in user can be used in a path.
Thus:
<rule-list>
<name>admin</name>
<group>admin</group>
<rule>
<name>user-password</name>
<path>/aaa/authentication/users/user[name='$USER']/password</path>
<context xmlns="http://tail-f.com/yang/acm">cli</context>
<access-operations>read update</access-operations>
<action>permit</action>
</rule>
</rule-list>
The above rule allows all users that are part of the admin group to change their own passwords only.
Finally if we wish members of the oper group to never be able to execute the request system
reboot command, also available as a reboot NETCONF rpc, we have:
<rule-list>
<name>oper</name>
<group>oper</group>
<cmdrule xmlns="http://tail-f.com/yang/acm">
<name>request-system-reboot</name>
<context>cli</context>
<command>request system reboot</command>
<access-operations>exec</access-operations>
<action>deny</action>
</cmdrule>
<!-- The following rule is required since the user can -->
<!-- do "edit system" -->
<cmdrule xmlns="http://tail-f.com/yang/acm">
<name>request-reboot</name>
<context>cli</context>
<command>request reboot</command>
<access-operations>exec</access-operations>
<action>deny</action>
</cmdrule>
<rule>
<name>netconf-reboot</name>
<rpc-name>reboot</rpc-name>
<context xmlns="http://tail-f.com/yang/acm">netconf</context>
<access-operations>exec</access-operations>
<action>deny</action>
</rule>
199
The AAA infrastructure
</rule-list>
Debugging the AAA rules can be hard. The best way to debug rules that behave unexpectedly is to add
the log-if-permit leaf to some or all of the rules that have action permit. Whenever such a rule
triggers a permit action, an entry is written to the developer log.
Finally it is worth mentioning that when a user session is initially created it will gather the authorization
rules that are relevant for that user session and keep these rules for the life of the user session. Thus when
we update the AAA rules in e.g. the CLI the update will not apply to the current session - only to future
user sessions.
14.7. The AAA cache
ConfD's AAA subsystem will cache the AAA information in order to speed up the authorization process.
This cache must be updated whenever there is a change to the AAA information. The mechanism for this
update depends on how the AAA information is stored, as described in the following two sections.
14.8. Populating AAA using CDB
In order to start ConfD, the data models for AAA must be loaded. The defaults in the case that no actual
data is loaded for these models allow all read and exec access, while write access is denied. Access may still
be further restricted by the NACM extensions, though - e.g. the /nacm container has nacm:default-
deny-all, meaning that not even read access is allowed if no data is loaded.
The AAA data can either be stored in CDB or in an external daemon as described in the chapter Chapter 7,
The external database API. The only new problem when we use CDB to store the AAA data is to initialize
the AAA database. This can be done as described in the chapter Chapter 5, CDB - The ConfD XML
Database, from an XML document containing real data.
ConfD ships with a decent initialization document for the AAA database. The file is called
aaa_init.xml and is by default copied to the CDB directory by the ConfD install scripts. The file
defines two users, admin and oper with passwords set to admin and oper respectively.
Normally the AAA data will be stored as configuration in CDB. This allows for changes to be made
through ConfD's transaction-based configuration management. In this case the AAA cache will be
updated automatically when changes are made to the AAA data. If changing the AAA data via ConfD's
configuration management is not possible or desirable, it is alternatively possible to use the CDB
operational data store for AAA data. In this case the AAA cache can be updated either explicitly e.g. by
using the maapi_aaa_reload() function, see the ???? manual page, or by triggering a subscription
notification by using the "subscription lock" when updating the CDB operational data store, see ????.
14.9. Populating AAA using external data
Note
The confd_aaa_bridge program described here is deprecated. It does not support the NACM
data model. It may still be useful to study this as an example of an external data provider for AAA
data, however the implementation follows the same principles as for other external data providers.
An alternative to storing the AAA data in CDB is to store it outside of ConfD. ConfD comes with an
example implementation of such a program. It is called confd_aaa_bridge and is fully described in
the man page confd_aaa_bridge(1).
200
The AAA infrastructure
The procedure here is precisely the same as with any other data model - with the exception that ConfD
itself is a user of this data and reads it. Thus if using CDB to store the AAA data is not an option, the API
for external databases must be used to populate the AAA tree.
The YANG model which describes this is the same tailf-aaa.yang but annotated with a callpoint. It
is shipped together with the example implementation called confd_aaa_bridge. When we compile the
tailf-aaa.yang with the callpoint for external data we name the resulting file aaa_bridge.fxs.
Note
The name of the fxs file is not significant, the aaa_bridge.fxs name is used here only to
distinguish it from the aaa_cdb.fxs name that has been used for the CDB version of legacy
tailf-aaa. We can equally well use the more "natural" name tailf-aaa.fxs in both cases.
Note
We must additionally annotate the ietf-netconf-acm.yang module with a callpoint and
compile it, if the group assignment and authorization data is to be provided by an external
data provider. This annotation must be done in addition to the annotation done by the ietf-
netconf-acm-ann.yang module included in the ConfD release.
The example program confd_aaa_bridge.c which is delivered as source code in the ConfD release
contains an example implementation of external storage of the AAA data in an ad hoc .ini style file.
(This is only of interest for users that do not use CDB to store any data at all.) See the UNIX man page
confd_aaa_bridge(1).
The confd_aaa_bridge program implements a configuration data provider, and thus changes to
the AAA data can be made through ConfD's configuration management just as when the data is
stored as configuration in CDB. And similar to the CDB case, if changing the AAA data via ConfD's
configuration management is not possible or desirable, it is alternatively possible to let the AAA data
be provided by an operational (i.e. read-only) external data provider. In either case, when we use an
external data provider for AAA, the AAA cache must always be updated explicitly, e.g. by using the
maapi_aaa_reload() function, see the confd_lib_maapi(3) manual page. For a configuration data
provider, the confd_aaa_reload() function may be more convenient, see the confd_lib_dp(3)
manual page - this function is used by confd_aaa_bridge.
14.10. Hiding the AAA tree
Some applications may not want to expose the AAA data to end users in the CLI or the Web UI. Two
reasonable approaches exist here and both rely on the tailf:export statement. If a module has
tailf:export none it will be invisible to all agents. We can then either use a transform whereby we
define another AAA model and write a transform program which maps our AAA data to the data which
must exist in tailf-aaa.yang and ietf-netconf-acm.yang. This way we can choose to export
and and expose an entirely different AAA model.
Yet another very easy way out, is to define a set of static AAA rules whereby a set of fixed users and
fixed groups have fixed access to our configuration data. Possibly the only field we wish to manipulate
is the password field.
201
Chapter 15. The NETCONF Server
15.1. Introduction
This chapter describes the north bound NETCONF implementation in ConfD. As of this writing, the server
supports the following specifications:
RFC 4741 - NETCONF Configuration Protocol
RFC 4742 - Using the NETCONF Configuration Protocol over Secure Shell (SSH)
RFC 5277 - NETCONF Event Notifications
RFC 5717 - Partial Lock Remote Procedure Call (RPC) for NETCONF
RFC 6020 - YANG - A Data Modeling Language for the Network Configuration Protocol (NETCONF)
RFC 6021 - Common YANG Data Types
RFC 6022 - YANG Module for NETCONF Monitoring
RFC 6241 - Network Configuration Protocol (NETCONF)
RFC 6242 - Using the NETCONF Configuration Protocol over Secure Shell (SSH)
RFC 6243 - With-defaults capability for NETCONF
RFC 6470 - NETCONF Base Notifications
RFC 6536 - NETCONF Access Control Model
RFC 6991 - Common YANG Data Types
RFC 7895 - YANG Module Library
RFC 7950 - The YANG 1.1 Data Modeling Language
Note
For the <delete-config> operation specified in RFC 4741 / RFC 6241, only <url> with scheme
"file" is supported for the <target> parameter - i.e. no data stores can be deleted. The concept
of deleting a data store is not well defined, and at odds with the transaction-based configuration
management of ConfD. To delete the entire contents of a data store, with full transactional
support, a <copy-config> with an empty <config/> element for the <source> parameter can be
used.
Note
For the <partial-lock> operation, RFC 5717, section 2.4.1 says that f a node in the scope of the
lock is deleted by the session owning the lock, it is removed from the scope of the lock. In ConfD
this is not true; the deleted node is kept in the scope of the lock.
ConfD NETCONF north bound API can be used by arbitrary NETCONF clients. A simple Python
based NETCONF client called netconf-console is shipped as source code in the distribution. See
202
The NETCONF Server
Section 15.8, “Using netconf-console” for details. Other NETCONF clients will work too, as long as they
adhere to the NETCONF protocol. If you need a Java client, the open source client JNC can be used.
When integrating NCS into larger OSS/NMS environments, the NETCONF API is a good choice of
integration point.
15.2. Capabilities
The NETCONF server in ConfD supports all capabilities in both NETCONF 1.0 (RFC 4741) and
NETCONF 1.1 (RFC 6241).
:writable-running
This capability is enabled by default. If the candidate is used, this capability should be disabled in
confd.conf(5). Additionally, /confdConfig/datastores/running/access should be set
to writable-through-candidate.
:candidate
The NETCONF server uses the candidate provided by the ConfD backplane. This can either be
implemented in an external database, or using the built-in candidate support.
This capability is enabled by default. If the candidate is not used, this capability should be disabled
in confd.conf(5).
:confirmed-commit
If the running data store is implemented as an external database, it has to support the checkpoint
functions (see Chapter 7, The external database API). If it doesn't support checkpoints, this capability
must be disabled. The built-in CDB database supports checkpoints, and can thus be used with this
capability.
This capability is enabled by default. If the candidate is not used, this capability should be disabled
in confd.conf(5).
ConfD supports both version 1.0 and 1.1 of this capability.
:rollback-on-error
This capability allows the client to set the <error-option> parameter to rollback-on-
error. The other permitted values are stop-on-error (default) and continue-on-error.
Note that the meaning of the word "error" in this context is not defined in the specification. Instead,
the meaning of this word must be defined by the data model. Also note that if stop-on-error
or continue-on-error is triggered by the server, it means that some parts of the edit operation
succeeded, and some parts didn't. The error partial-operation must be returned in this case.
partial-operation is obsolete and SHOULD NOT be returned by a server. If some other error
occurs (i.e. an error not covered by the meaning of "error" above), the server generates an appropriate
error message, and the data store is unaffected by the operation.
The ConfD server never allows partial configuration changes, since it might result in inconsistent
configurations, and recovery from such a state can be very difficult for a client. This means that
regardless of the value of the <error-option> parameter, ConfD will always behave as if it had
the value rollback-on-error. So in ConfD, the meaning of the word "error" in stop-on-
error and continue-on-error, is something which never can happen.
This capability is enabled by default. It can be disabled in confd.conf(5), but it doesn't affect the server
behavior, other than the capability is not advertised.
It is possible to configure the NETCONF server to generate an operation-not-supported
error if the client asks for the error-option continue-on-error. See confd.conf(5).
203
The NETCONF Server
:validate
This capability is enabled by default. It can be disabled in confd.conf(5). The only reason for disabling
this capability would be if CDB is not used, and validation constraints are not specified in the YANG
data models, and the underlying database does not support any form of validation.
ConfD supports both version 1.0 and 1.1 of this capability.
:startup
This capability is disabled by default. Enable this if /confdConfig/datastores/startup is
enabled.
:url
The URL schemes supported are file, ftp, and sftp (SSH File Transfer Protocol).
There is no standard URL syntax for the sftp scheme, but ConfD supports the syntax used by curl:
sftp://<user>:<password>@<host>/<path>
Note that user name and password must be given for sftp URLs.
This capability is disabled by default, but can be enabled in confd.conf(5).
ConfD does not support validate from a url.
:xpath
This capability is enabled by default, but can be disabled in confd.conf(5).
The NETCONF server supports XPath according to the W3C XPath 1.0 specification (http://
www.w3.org/TR/xpath), except for the list given below. There are several reasons for not supporting
conventional XPath or for diverging from XPath, including the following:
1. The operation is performed on an XML database, not an XML document.
2. The implementation context does not support the operation.
3. Immaturity of IETF specifications. This refers to the result returned for some queries.
An XPath expression evaluation may terminate without matches or with an error (returned as a
NETCONF error). Upon one or more successful matches, the XPath output is returned as an XML tree
summarizing the matched database information, similarly to a conventional NETCONF subtree filter.
The following XPath features are not available:
Variables are not supported, since the evaluation context binds no variables.
Some location step axes are not supported: preceding, following, preceding-sibling, following-
sibling.
Some node tests are not supported: comment(), processing-instruction(). Note that these node types
are not stored in the database.
The XPath root node is not available. Instead, evaluation begins from each exported namespace.
This primarily affects the parent and ancestor axes.
XPath built-ins:
204
The NETCONF Server
id() the database does not store unique IDs
The following list of optional standard capabilities are also supported:
:notification
ConfD implements the urn:ietf:params:netconf:capability:notification:1.0
capability, including support for the optional replay feature.
This capability is disabled by default, but can be enabled in confd.conf(5).
See Section 15.7, “Notification Capability” for details.
:interleave
ConfD implements the urn:ietf:params:netconf:capability:interleave:1.0
capability, which allows the client to get send RPCs while a notification subscription is active.
This capability is disabled by default, but can be enabled in confd.conf(5).
:partial-lock
ConfD implements the urn:ietf:params:netconf:capability:partial-lock:1.0
capability, which allows the client to lock parts of the running data store.
This capability is disabled by default, but can be enabled in confd.conf(5).
:with-defaults
ConfD implements the urn:ietf:params:netconf:capability:with-
defaults:1.0 capability, which is used by the server to inform the client how default values are
handled by the server, and by the client to control whether defaults values should be generated to
replies or not.
This capability is enabled by default, but can be disabled in confd.conf(5).
:yang-library
ConfD implements the urn:ietf:params:netconf:capability:yang-library:1.0
capability, which informs the client that server implements the YANG module library RFC 7895,
and informs the client about the current module-set-id.
This capability is required by the YANG 1.1 specification RFC 7950, and cannot be disabled.
In addition to the standard capabilities ConfD also includes the following optional, non-standard
capabilities. They must be explicitly enabled in confd.conf (see confd.conf(5)) to be used.
actions
See Section 15.9, “Actions Capability” for details.
This capability should be enabled if actions are defined in the data model.
transactions
See Section 15.10, “Transactions Capability” for details.
This capability should be defined if ConfD runs as a subagent.
proxy forwarding
See Section 15.11, “Proxy Forwarding Capability” for details. This capability should be defined if
ConfD runs as a proxy host.
205
The NETCONF Server
inactive
See Section 15.12, “Inactive Capability” for details.
This capability should be defined if ConfD is configured to use attributes (see /confdConfig/
enableAttributes in confd.conf(5)).
The server reports each data model namespace it has loaded as separate capabilities, according to the
YANG specification.
The user can configure the server to make it report additional capability URIs.
15.2.1. Advertising Capabilities and YANG Modules
All enabled NETCONF capabilities are advertised in the hello message that the server sends to the client.
A YANG module is supported by the NETCONF server if it's fxs file is found in ConfD's loadPath, and
if the fxs files is exported to NETCONF.
The following YANG modules are built-in, which means that their fxs files must not be present in the
loadPath:
ietf-netconf
ietf-netconf-with-defaults
ietf-yang-library
ietf-yang-types
ietf-inet-types
All built-in modules except ietf-netconf-with-defaults are always supported by the server.
Support for ietf-netconf-with-defaults can be controlled by a setting in confd.conf.
All YANG version 1 modules supported by the server are advertised in the hello message, according to
the rules defined in RFC 6020.
All YANG version 1 and version 1.1 modules supported by the server are advertised in the module list
defined in ietf-yang-library.
If a YANG module (any version) is supported by the server, and its .yang or .yin file is found in the fxs file
or in the loadPath, then the module is also advertised in the schema list defined in ietf-netconf-
monitoring, made available for download with the RPC operation get-schema, and if RESTCONF
is enabled, also advertised in the schema leaf in ietf-yang-library. See Section 15.6, “Monitoring
of the NETCONF Server”.
15.3. NETCONF Transport Protocols
The NETCONF server natively supports the mandatory SSH transport, i.e., SSH is supported without the
need for an external SSH daemon (such as sshd). It also supports integration with OpenSSH.
15.3.1. Using OpenSSH
ConfD is delivered with a program netconf-subsys which is an OpenSSH subsystem program. It is invoked
by the OpenSSH daemon after successful authentication. It functions as a relay between the ssh daemon
206
The NETCONF Server
and ConfD; it reads data from the ssh daemon from standard input, and writes the data to ConfD over
a loopback socket, and vice versa. This program is delivered as source code in $CONFD_DIR/src/
confd/netconf/netconf-subsys.c . It can be modified to fit the needs of the application. For
example, it could be modified to read the group names for a user from an external LDAP server.
When using OpenSSH, the users are authenticated by OpenSSH, i.e. the user names are not stored in
ConfD. To use OpenSSH, compile the netconf-subsys program, and put the executable in e.g. /usr/
local/bin. Then add the following line to the ssh daemon's config file, sshd_config:
Subsystem netconf /usr/local/bin/netconf-subsys
The connection from netconf-subsys to ConfD can be arranged in one of two different ways:
1. Make sure ConfD is configured to listen to TCP traffic on localhost, port 2023, and disable SSH in
confd.conf (see confd.conf(5) ). (Re)start sshd and ConfD. Or:
2. Compile netconf-subsys to use a connection to the IPC port instead of the NETCONF TCP transport
(see the netconf-subsys.c source for details), and disable both TCP and SSH in confd.conf
. (Re)start sshd and ConfD.
This method may be preferable, since it makes it possible to use the IPC Access Check (see
Section 28.6.2, “Restricting access to the IPC port” ) to restrict the unauthenticated access to ConfD
that is needed by netconf-subsys.
By default the netconf-subsys program sends the names of the UNIX groups the authenticated user belongs
to. To test this, make sure that ConfD is configured to give access to the group(s) the user belongs to.
Easiest for test is to give access to all groups.
15.3.2. Internal TCP Transport
The server can also be configured to accept plain TCP traffic. This can be useful during development, for
debugging purposes, but it can also be used to plug in any other transport protocol. The way this works
is that some other daemon terminates the transport and authenticates the user. Then it connects to the
NETCONF server over TCP (preferably over the loopback interface for security reasons) and relays the
XML traffic to NETCONF.
In this case, the transport daemon will have to authenticate the user, and then tell the NETCONF server
about it. This should be done as a header sent over the TCP socket before any other bytes are sent. There
are two supported variants of this, only differing in encoding of the username. The first with the username
in plain text, where the header looks like this:
[username;source;proto;uid;gid;subgids;homedir;group-list;]\n
and the second with the username base64-encoded, where the header looks like this:
b64[b64username;source;proto;uid;gid;subgids;homedir;group-list;]\n
Where username is the plain text name of the authenticated user. b64username is the base64-encoded
name of the authenticated user. source is the textual representation of the ipv4 or ipv6 address and
port which the user connected from, with address and port separated by '/' (e.g. "10.0.0.1/1234"). proto
is the name of the transport protocol the client used (e.g. "beep" or "ssh"). uid, gid, supgids and
homedir are the UNIX user id, group id, supplementary group ids and home directory for this user.
These four parameters are only used if the user invokes a NETCONF RPC which is implemented with
an external program (see Section 15.5, “Extending the NETCONF Server”). group-list is a comma-
207
The NETCONF Server
separated list of group names for the user. This list should only be sent if the transport has the capability
to determine which groups a user belongs to. If not, an empty list should be sent. In this case, the normal
AAA mechanisms are used to determine group membership.
All NETCONF RPCs sent over this socket must use the framing protocol used by NETCONF over SSH.
The TCP socket is also used if we want to use a standard SSH daemon such as sshd instead of the built-
in SSH implementation. Then we would configure sshd to invoke a special program for the "netconf"
subsystem. This special program would connect to the TCP socket as described above. See more below.
15.4. Configuration of the NETCONF Server
ConfD itself is configured through a configuration file called confd.conf. In that file the following
items are related to the NETCONF server. For a complete description of these parameters, please see the
confd.conf(5) man page.
/confdConfig/logs/
netconfLog
This log can be enabled in order to troubleshoot the netconf
sessions.
/confdConfig/logs/
netconfTraceLog
When this log is enabled, all NETCONF traffic to and from ConfD
is stored in a file. This can be useful in order to understand and
troubleshoot the NETCONF protocol interactions.
/confdConfig/aaa/
sshServerKeyDir
This is where the built-in SSH server reads its ssh keys.
/confdConfig/aaa/pam/
service
This is the name of the PAM service to be used by the built-in SSH
server. Used only if PAM is enabled (which means an SSH user can
log in with username and password).
/confdConfig/netconf/
enabled
When set to "true", the NETCONF server is started.
/confdConfig/netconf/
transport/ssh
Settings for the built-in SSH server, such as listen ip address and
port.
/confdConfig/netconf/
transport/tcp
Settings for the plain-text TCP transport, such as listen ip address
and port.
/confdConfig/netconf/
capabilities
Under this parameter, we can control which capabilities are
reported by the server.
/confdConfig/netconf/
capabilities/capability
This parameter can be given multiple times. It specifies a URI string
which the NETCONF server will report as a capability in the hello
message sent to the client.
15.4.1. Error Handling
When ConfD processes <get>, <get-config>, and <copy-config> requests, the resulting data
set can be very large. To avoid buffering huge amounts of data, ConfD streams the reply to the client as it
traverses the data tree and calls data provider functions to retrieve the data.
If a data provider fails to return the data it is supposed to return, ConfD can take one of two actions. Either
it simply closes the NETCONF transport (default), or it can reply with an inline rpc error and continue to
208
The NETCONF Server
process the next data element. This behavior can be controlled with the /confdConfig/netconf/
rpcErrors configuration parameter (see confd.conf(5)). .
An inline error is always generated as a child element to the parent of the faulty element. For example, if
an error occurs when retrieving the leaf element "mac-address" of an "interface" the error might be:
<interface>
<name>atm1</name>
<rpc-error xmlns="urn:ietf:params:xml:ns:netconf:base:1.0">
<error-type>application</error-type>
<error-tag>operation-failed</error-tag>
<error-severity>error</error-severity>
<error-message xml:lang="en">Failed to talk to hardware</error-message>
<error-info>
<bad-element>mac-address</bad-element>
</error-info>
</rpc-error>
...
</interface>
If a get_next call fails in the processing of a list, a reply might look like this:
<interface>
<!-- successfully retrieved list entry -->
<name>eth0</name>
<mtu>1500</mtu>
<!-- more leafs here -->
</interface>
<rpc-error xmlns="urn:ietf:params:xml:ns:netconf:base:1.0">
<error-type>application</error-type>
<error-tag>operation-failed</error-tag>
<error-severity>error</error-severity>
<error-message xml:lang="en">Failed to talk to hardware</error-message>
<error-info>
<bad-element>interface</bad-element>
</error-info>
</rpc-error>
15.5. Extending the NETCONF Server
NETCONF is an extensible protocol in the sense that new RPC operations can be defined separately from
the standard. The NETCONF server in ConfD supports this through a simple API. New operations are
typically identified with a new capability. When a new capability is implemented in this way, the name
of the capability should be added to the list of capabilities that the NETCONF server sends in its initial
<hello> message. This list is defined in confd.conf (see confd.conf(5)).
New RPCs are defined in YANG modules.
An RPC can be implemented in three different ways:
As an executable program which is started by ConfD for each new RPC. The XML is passed as-is from
ConfD to the program, and the resulting XML is generated by the program.
As an executable program which is started by ConfD for each new RPC. The XML is parsed by ConfD,
and passed (in a certain format) on the command line to the program. ConfD generates an XML reply
based on the result from the program.
209
The NETCONF Server
As a C callback function. The application registers the callback with ConfD, and ConfD invokes the
callback function when the RPC operation is received. ConfD parses the XML and passes it in a C data
structure to the callback. ConfD generates an XML reply from the return value from the callback.
15.5.1. RPC as an Executable, ConfD does not Translate
the XML
In this case, the RPC is implemented as an ordinary executable program, which communicate with ConfD
over stdin/stdout. When ConfD invokes the program, it will pass the entire XML operation on stdin. The
program is responsible for parsing the operation data and placing its reply on stdout, and then terminate
with exit status zero. ConfD wraps this reply in a <rpc-reply> element. Note that ConfD does not
interpret the reply XML sent by the program; it merely sends the data as-is to the NETCONF client. Thus,
it is the responsibility of the program to produce a valid NETCONF XML reply. Note that a rpc reply
MUST contain one of <ok/>, <data> or <rpc-error>.
A program can also be run in batch mode, which can be used to send asynchronous data to the client. In
this case, the program does not exit after having replied to the original RPC. Instead it signals that the reply
has been sent by sending a NUL byte to ConfD. ConfD will enter its main loop and listen for new requests
from the client and data from the external programs. When data is received from one source, this source is
handled, while the others are (potentially) blocked. The asynchronous data sent by the external program
must be a complete self-contained XML chunk, followed by a single NUL byte. The program can exit at
any time, the session towards the client is not terminated just because the program exits.
The maximum number of concurrently running batch processes can be set in confd.conf (see
confd.conf(5)) using the parameter /confdConfig/netconf/maxBatchProcesses. The default
is no limit.
Here's an example of an rpc operation defined in this way:
module math-rpc {
namespace "http://example.com/math/1.0";
prefix math;
import tailf-common {
prefix tailf;
}
rpc math {
tailf:exec "/usr/bin/math" {
tailf:raw-xml;
}
}
}
All these examples are available under netconf_extensions/simple_rpc in the examples
distribution.
Now suppose that the following rpc is received by the NETCONF server:
Example 15.1. Example math rpc
<rpc xmlns="urn:ietf:params:xml:ns:netconf:base:1.0" message-id="1">
<math xmlns="http://example.com/math/1.0">
<add>
210
The NETCONF Server
<operand>2</operand>
<operand>3</operand>
</add>
</math>
</rpc>
ConfD will invoke /usr/local/bin/math and pass:
<math xmlns="http://example.com/math/1.0">
<add>
<operand>2</operand>
<operand>3</operand>
</add>
</math>
on stdin. The program will print the rpc-reply to stdout, and ConfD relays this data to the client.
15.5.2. RPC as an Executable, ConfD Translates the XML
In this case, the RPC is implemented as an ordinary executable program, with all XML parameters
converted by ConfD into command-line arguments to the program. If the program terminates normally
without producing any output on stdout, ConfD replies with an <ok/> rpc-reply. If the program terminates
normally and also generates data on stdout, ConfD interprets this data and passes it with <data> tags. If
the program terminates abnormally without producing any data, a generic operation-failed error is
returned. Finally, if the program terminates abnormally and also generates data on stdout, ConfD interprets
this data as an rpc-error, and sends the resulting XML to the client.
Here's an example of the same rpc operation as above defined this way:
module math-rpc {
namespace "http://example.com/math/1.0";
prefix math;
import tailf-common {
prefix tailf;
}
rpc math {
tailf:exec "/usr/bin/math";
input {
choice op {
container add {
leaf-list operand {
type int32;
min-elements 2;
max-elements 2;
}
}
container sub {
leaf-list operand {
type int32;
min-elements 2;
max-elements 2;
}
}
}
211
The NETCONF Server
}
output {
leaf result {
type int32;
}
}
}
}
Now suppose that the same RPC request as in Code listing 2 above is received. ConfD parses the XML
and invokes the command as:
/usr/local/bin/math add __BEGIN operand 2 operand 3 add __END
In general, the XML is flattened, and each XML element generates two strings on the command line. If
a container is received, the strings "elem-name" "__BEGIN" is generated. When the corresponding close
element is received, "elem-name" "__END" is generated. An element with a value will generate "elem-
name" "value". An empty element with no subelements will generate "elem-name" "__LEAF".
Next, the math program replies by printing on stdout:
result 5
The same translation rules applies to the result, and ConfD thus sends the following reply to the client:
<rpc-reply xmlns="urn:ietf:params:xml:ns:netconf:base:1.0" message-id="1">
<data>
<result xmlns="http://example.com/math/1.0">5</result>
</data>
</rpc-reply>
15.5.3. RPC as a Callback Function
In this case, the RPC is implemented as a callback function in C, with all XML parameters converted by
ConfD into a C data structure.
Here's an example of the same rpc operation as above defined this way:
module math-rpc {
namespace "http://example.com/math/1.0";
prefix math;
import tailf-common {
prefix tailf;
}
rpc math {
tailf:actionpoint "math";
input {
choice op {
container add {
leaf-list operand {
type int32;
min-elements 2;
max-elements 2;
212
The NETCONF Server
}
}
container sub {
leaf-list operand {
type int32;
min-elements 2;
max-elements 2;
}
}
}
}
output {
leaf result {
type int32;
}
}
}
}
The code that implements this looks like this:
static void register_math(struct confd_daemon_ctx *dctx)
{
struct confd_action_cbs acb;
memset(&acb, 0, sizeof(acb));
strcpy(acb.actionpoint, "math");
acb.init = init_action; /* this function is not shown here */
acb.action = do_math;
if (confd_register_action_cbs(dctx, &acb) != CONFD_OK)
confd_fatal("Couldn't register action callbacks\n");
if (confd_register_done(dctx) != CONFD_OK)
confd_fatal("Failed to complete registration \n");
}
static int do_math(struct confd_user_info *uinfo,
struct xml_tag *name,
confd_hkeypath_t *kp,
confd_tag_value_t *params,
int nparams)
{
confd_tag_value_t reply[1];
int op1, op2, result;
/*
we know that we get exactly 4 parameters;
add | del BEGIN
operand 1
operand 2
add | del END
*/
op1 = CONFD_GET_INT32(CONFD_GET_TAG_VALUE(&params[1]));
op2 = CONFD_GET_INT32(CONFD_GET_TAG_VALUE(&params[2]));
switch (CONFD_GET_TAG_TAG(&params[0])) {
case math_add:
result = op1 + op2;
break;
case math_del:
result = op1 - op2;
213
The NETCONF Server
break;
}
CONFD_SET_TAG_INT32(&reply[0], math_result, result);
confd_action_reply_values(uinfo, reply, 1);
return CONFD_OK;
}
15.6. Monitoring of the NETCONF Server
RFC 6022 - YANG Module for NETCONF Monitoring defines a YANG module, ietf-netconf-
monitoring, for monitoring of the NETCONF server. It contains statistics objects such as number of
RPCs received, status objects such as user sessions, and an operation to retrieve data models from the
NETCONF server.
In order to use this data model with ConfD, the fxs file (ietf-netconf-monitoring.fxs) must be
present in ConfD's loadPath. This fxs file is present in a development installation of ConfD.
This data model defines a new RPC operation, get-schema, which is used to retrieve YANG modules
from the NETCONF server. ConfD will report the YANG modules for all fxs files that are reported as
capabilities, and for which the corresponding YANG or YIN file is stored in the fxs file or found in the
loadPath. If a file is found in the loadPath, it has priority over a file stored in the fxs file. Note that by
default, the module and its submodules are stored in the fxs file by the compiler.
If the YANG (or YIN files) are copied into the loadPath, they can be stored as is or compressed with gzip.
The filename extension MUST be ".yang", ".yin", ".yang.gz", or ".yin.gz".
Also available is a Tail-f specific data model, tailf-netconf-monitoring, which augments
ietf-netconf-monitoring with additional data about files available for usage with the
<copy-config> command with a file <url> source or target. /confdConfig/netconf/
capabilities/url/enabled and /confdConfig/netconf/capabilities/url/file/
enabled must both be set to true. If rollbacks are enabled, those files are listed as well, and they can
be loaded using <copy-config>.
This data model also adds data about which notification streams are present in the system, and data about
sessions that subscribe to the streams.
In order to use this data model with ConfD, the fxs file (tailf-netconf-monitoring.fxs) must
be present in ConfD's loadPath. This fxs file is present in a development installation of ConfD.
These fxs files are available in the $CONFD_DIR/etc/confd directory, and the source for them are
available in the $CONFD_DIR/src/confd/yang directory, in the distribution. The Makefile in
the latter directory can be modified as necessary, for example to compile the fxs files with a --export
parameter to confdc.
15.7. Notification Capability
This section describes how NETCONF notifications are implemented within ConfD, and how the
applications generates these events.
Central to NETCONF notifications is the concept of a stream. The stream serves two purposes. It works
like a high-level filtering mechanism for the client. For example, if the client subscribes to notifications on
the security stream, it can expect to get security related notifications only. Second, each stream may
214
The NETCONF Server
have its own log mechanism. For example by keeping all debug notifications in a debug stream, they can
be logged separately from the security stream.
15.7.1. Notification Streams
ConfD has built-in support for the well-known stream NETCONF, defined in RFC 5277. ConfD supports
the notifications defined in RFC 6470 - NETCONF Base Notifications on this stream. If the application
needs to send any additional notifications on this stream, it can do so.
It is up to the application to define which additional streams it supports. In ConfD, this is done in
confd.conf (see confd.conf(5)). Each stream must be listed, and whether it supports replay or not. An
example which defines two streams, security and debug:
<notifications>
<eventStreams>
<stream>
<name>security</name>
<description>Security related notifications</description>
<replaySupport>true</replaySupport>
<builtinReplayStore>
<enabled>true</enabled>
<dir>/var/log</dir>
<maxSize>S10M</maxSize>
<maxFiles>50</maxFiles>
</builtinReplayStore>
</stream>
<stream>
<name>debug</name>
<description>Debug notifications</description>
<replaySupport>true</replaySupport>
</stream>
</eventStreams>
</notifications>
The well-known stream NETCONF does not have to be listed, but if it isn't listed, it will not support replay.
15.7.2. Automatic Replay
ConfD has builtin support for logging of notifications, i.e., if replay support has been enabled for a stream,
ConfD automatically stores all notifications on disk ready to be replayed should a NETCONF client ask
for logged notifications. In the confd.conf fragment above the security stream has been setup to use the
builtin notification log/replay store. The replay store uses a set of wrapping log files on disk (of a certain
number and size) to store the security stream notifications.
The reason for using a wrap log is to improve replay performance whenever a NETCONF client asks for
notifications in a certain time range. Any problems with log files not being properly closed due to hard
power failures etc. is also kept to a minimum, i.e., automatically taken care of by ConfD.
As an alternative to the builtin notification replay store the application can roll its own. This is described
in the next sub-section.
15.7.3. Implementing Custom Replay
If a stream supports replay, the logging and replay functionality can alternatively be implemented
by the application. In order to do this, the application must register a set of callback functions
215
The NETCONF Server
with ConfD using the function confd_register_notification_stream(). The callbacks are
get_log_start_time() and replay(). The first one is called by ConfD in order to find the earliest
event time available in the log. The second one is invoked whenever a NETCONF client asks for a replay
subscription. For full details on the notification API, please see the confd_lib_dp(3) manual page.
The following example is available in full source code form in the examples directory. A single stream
interface is used, and it supports replay.
/* The notification context (filled in by ConfD) for the live feed */
static struct confd_notification_ctx *live_ctx;
struct confd_notification_stream_cbs ncb;
memset(&ncb, 0, sizeof(ncb));
ncb.fd = workersock;
ncb.get_log_times = log_times;
ncb.replay = start_replay;
strcpy(ncb.streamname, "interface");
ncb.cb_opaque = NULL;
if (confd_register_notification_stream(dctx, &ncb, &live_ctx) != CONFD_OK) {
confd_fatal("Couldn't register stream %s\n", ncb.streamname);
}
if (confd_register_done(dctx) != CONFD_OK) {
confd_fatal("Failed to complete registration\n");
}
In this simple example, we keep the replay log in memory, in an array:
struct notif {
struct confd_datetime eventTime;
confd_tag_value_t *vals;
int nvals;
};
/* Our replay buffer is kept in memory in this example. It's a circular
* buffer of struct notif.
*/
#define MAX_BUFFERED_NOTIFS 4
static struct notif replay_buffer[MAX_BUFFERED_NOTIFS];
static unsigned int first_replay_idx = 0;
static unsigned int next_replay_idx = 0;
static struct confd_datetime replay_creation;
static int replay_has_aged_out = 0;
static struct confd_datetime replay_aged_time;
The get_log_start_time() callback simply returns the time of the first notification in the log:
static int log_times(struct confd_notification_ctx *nctx)
{
struct confd_datetime *aged;
if (replay_has_aged_out)
aged = &replay_aged_time;
else
aged = NULL;
216
The NETCONF Server
return confd_notification_reply_log_times(nctx, &replay_creation, aged);
}
When a client asks for a replay subscription, ConfD invokes the callback replay. The actual replay
notifications must not be sent from the callback. In this example, the callback allocates a replay structure,
and marks it as being active. The main loop will check for any active replays, and do the sending there.
#define MAX_REPLAYS 10
struct replay {
int active;
int started;
unsigned int idx;
struct confd_notification_ctx *ctx;
struct confd_datetime start;
struct confd_datetime stop;
int has_stop;
};
/* Keep tracks of active replays */
static struct replay replay[MAX_REPLAYS];
static int start_replay(struct confd_notification_ctx *nctx,
struct confd_datetime *start,
struct confd_datetime *stop)
{
int rnum;
for (rnum = 0; rnum < MAX_REPLAYS; rnum++) {
if (!replay[rnum].active) {
replay[rnum].active = 1;
replay[rnum].started = 0;
replay[rnum].idx = first_replay_idx;
replay[rnum].ctx = nctx;
replay[rnum].start = *start;
if (stop) {
replay[rnum].has_stop = 1;
replay[rnum].stop = *stop;
} else
replay[rnum].has_stop = 0; /* stop when caught up to live */
return CONFD_OK;
}
}
confd_notification_seterr(nctx, "Max no. of replay requests reached");
return CONFD_ERR;
}
15.7.4. Sending Notifications from an Application
Before an application can send a notification, the notification must be defined in a YANG module. In this
example, a notification link-down is defined. The notification has a single parameter if-index:
notification linkDown {
leaf ifIndex {
type leafref {
path "/interfaces/interface/ifIndex";
}
mandatory true;
}
217
The NETCONF Server
}
When the application sends an application, it uses the function confd_notification_send().
static void send_notifdown(int index)
{
confd_tag_value_t vals[3];
int i = 0;
CONFD_SET_TAG_XMLBEGIN(&vals[i], notif_linkDown, notif__ns); i++;
CONFD_SET_TAG_UINT32(&vals[i], notif_ifIndex, index); i++;
CONFD_SET_TAG_XMLEND(&vals[i], notif_linkDown, notif__ns); i++;
send_notification(vals, i);
}
static void send_notification(confd_tag_value_t *vals, int nvals)
{
int sz;
struct confd_datetime now;
struct notif *notif;
getdatetime(&now);
notif = &replay_buffer[next_replay_idx];
if (notif->vals) {
/* we're aging out this notification */
replay_has_aged_out = 1;
replay_aged_time = notif->eventTime;
first_replay_idx = (first_replay_idx + 1) % MAX_BUFFERED_NOTIFS;
free(notif->vals);
}
notif->eventTime = now;
sz = nvals * sizeof(confd_tag_value_t);
notif->vals = malloc(sz);
memcpy(notif->vals, vals, sz);
notif->nvals = nvals;
next_replay_idx = (next_replay_idx + 1) % MAX_BUFFERED_NOTIFS;
OK(confd_notification_send(live_ctx,
&notif->eventTime,
notif->vals,
notif->nvals));
}
15.8. Using netconf-console
The netconf-console program is a simple NETCONF client. It is delivered as Python source code
and can be used as-is or modified.
When ConfD has been started, we can use netconf-console to query the configuration of the
NETCONF Access Control groups:
$ netconf-console --get-config -x /nacm/groups
<?xml version="1.0" encoding="UTF-8"?>
<rpc-reply xmlns="urn:ietf:params:xml:ns:netconf:base:1.0" message-id="1">
<data>
<nacm xmlns="urn:ietf:params:xml:ns:yang:ietf-netconf-acm">
<groups>
218
The NETCONF Server
<group>
<name>admin</name>
<user-name>admin</user-name>
<user-name>private</user-name>
</group>
<group>
<name>oper</name>
<user-name>oper</user-name>
<user-name>public</user-name>
</group>
</groups>
</nacm>
</data>
</rpc-reply>
With the -x flag an XPath expression can be specified, in order to retrieve only data matching that
expression. This is a very convenient way to extract portions of the configuration from the shell or from
shell scripts.
15.9. Actions Capability
15.9.1. Overview
This capability introduces one new rpc method which is used to invoke actions (methods) defined in the
data model. When an action is invoked, the instance on which the action is invoked is explicitly identified
by an hierarchy of configuration or state data.
Here's a simple example which resets an interface.
<rpc message-id="101"
xmlns="urn:ietf:params:xml:ns:netconf:base:1.0">
<action xmlns="http://tail-f.com/ns/netconf/actions/1.0">
<data>
<interfaces xmlns="http://example.com/interfaces/1.0">
<interface>
<name>eth0</name>
<reset/>
</interface>
</interfaces>
</data>
</action>
</rpc>
<rpc-reply message-id="101"
xmlns="urn:ietf:params:xml:ns:netconf:base:1.0">
<ok/>
</rpc-reply>
15.9.2. Motivation
The alternative is to use a specialized rpc method for each action. There are a couple of drawbacks with that:
The name of the action has to be unique within the namespace. With the generic action method, the
name of the action is scoped by the element where the action is defined. For example, without a generic
action, ther might be two rpcs, 'reset-interface' and 'reset-server'. With the generic action, there are two
'reset' actions, scoped by 'interface' and 'server'.
219
The NETCONF Server
Care must be taken to ensure that returned XML is unique within the namespace. Suppose the two
methods 'reset-interface' and 'reset-server' returns a 'status', but of different type. The element must be
called something like 'reset-interface-status' and 'reset-server-status'.
With the generic action, it is easier to introduce intermediate NETCONF peers such as a master agent
in a master-sub agent deployment. For example, suppose there are two subagents, one which handles
interface 'eth0' and one which handles 'atm0'. When the hierarchy is excplicit in the request, the master
agent can dispatch to the correct subagent without any knowledge about the action parameters. On the
other hand, if the master agent gets a rpc 'reset-interface', it will have to parse the parameters to figure
out which subagent to send the request to.
15.9.3. Dependencies
None.
15.9.4. Capability Identifier
The actions capability is identified by the following capability string:
http://tail-f.com/ns/netconf/actions/1.0
15.9.5. New Operation: <action>
Description
The <action> operation identifies the data instance where the action is invoked, the action name, and its
parameters. If the action returns any result, it is scoped in the instance hierarchy in the reply.
Parameters
data: A hierarchy of configuration or state data as defined by one of the device's data models. The first
part of the hierarchy defines which instance the action is invoked upon. Then comes the action
name, and any parameters it might need.
One action only can be executed within one rpc. If more than one actions are present in the rpc,
an error MUST be returned with an <error-tag> set to "bad-element".
Positive Response
An action that does not return any result value, replies with the standard <ok/>. If a result value is returned,
it is encapsulated in the standard <data> element.
Negative Response
An <rpc-error> element is included in the <rpc-reply> if the request cannot be completed for any reason.
Example
Suppose we want to start a self-test on interface "eth0", and the test returns the run time (in seconds) of
the test and test status. In pseudo code
myif = find_if("eth0")
(time, status) = myif.self_test(IMMEDIATELY)
220
The NETCONF Server
Using the action RPC over NETCONF:
<rpc message-id="101"
xmlns="urn:ietf:params:xml:ns:netconf:base:1.0">
<action xmlns="http://tail-f.com/ns/netconf/actions/1.0">
<data>
<interfaces xmlns="http://example.com/interfaces/1.0">
<interface>
<name>eth0</name>
<self-test>
<when>immediately</when>
</self-test>
</interface>
</interfaces>
</data>
</action>
</rpc>
<rpc-reply message-id="101"
xmlns="urn:ietf:params:xml:ns:netconf:base:1.0">
<data>
<interfaces xmlns="http://example.com/interfaces/1.0">
<interface>
<name>eth0</name>
<self-test>
<run-time>29</run-time>
<status>ok</status>
</self-test>
</interface>
</interfaces>
</data>
</action>
</rpc-reply>
15.9.6. Modifications to Existing Operations
None.
15.9.7. XML Schema
This XML Schema defines the new action rpc.
<?xml version="1.0" encoding="UTF-8"?>
<xs:schema targetNamespace="http://tail-f.com/ns/netconf/actions/1.0"
xmlns="http://tail-f.com/ns/netconf/actions/1.0"
xmlns:xs="http://www.w3.org/2001/XMLSchema"
xmlns:netconf="urn:ietf:params:xml:ns:netconf:base:1.0"
elementFormDefault="qualified"
attributeFormDefault="unqualified"
xml:lang="en">
<!-- <action> operation -->
<xs:complexType name="ActionType">
<xs:complexContent>
<xs:extension base="netconf:rpcOperationType">
<xs:sequence>
<xs:element name="data" type="netconf:dataInlineType" />
</xs:sequence>
221
The NETCONF Server
</xs:extension>
</xs:complexContent>
</xs:complexType>
<xs:element name="action" type="ActionType"
substitutionGroup="netconf:rpcOperation"/>
</xs:schema>
15.10. Transactions Capability
15.10.1. Overview
This capability introduces four new rpc methods which are used to control a two-phase commit transaction
on the NETCONF server. The normal <edit-config> operation is used to write data in the transaction, but
the modifications are not applied until an explicit <commit-transaction> is sent.
This capability is formally defined in the YANG module "tailf-netconf-transactions".
A typical sequence of operations looks like this:
C S
| |
| capability exchange |
|-------------------------->|
|<------------------------->|
| |
| <start-transaction> |
|-------------------------->|
|<--------------------------|
| <ok/> |
| |
| <edit-config> |
|-------------------------->|
|<--------------------------|
| <ok/> |
| |
| <prepare-transaction> |
|-------------------------->|
|<--------------------------|
| <ok/> |
| |
| <commit-transaction> |
|-------------------------->|
|<--------------------------|
| <ok/> |
| |
15.10.2. Dependencies
None.
15.10.3. Capability Identifier
The transactions capability is identified by the following capability string:
222
The NETCONF Server
http://tail-f.com/ns/netconf/transactions/1.0
15.10.4. New Operation: <start-transaction>
Description
Starts a transaction towards a configuration datastore. There can be a single ongoing transaction per session
at any time.
When a transaction has been started, the client can send any NETCONF operation, but any <edit-config> or
<copy-config> operation sent from the client MUST specify the same <target> as the <start-transaction>,
and any <get-config> MUST specify the same <source> as <start-transaction>.
If the server receives an <edit-config> or <copy-config> with another <target>, or a <get-config> with
another <source>, an error MUST be returned with an <error-tag> set to "invalid-value".
The modifications sent in the <edit-config> operations are not immediately applied to the configuration
datastore. Instead they are kept in the transaction state of the server. The transaction state is only applied
when a <commit-transaction> is received.
The client sends a <prepare-transaction> when all modifications have been sent.
Parameters
target: Name of the configuration datastore towards which the transaction is started.
with-inactive: If this parameter is given, the transaction will handle the "inactive" and "active"
attributes. If given, it MUST also be given in the <edit-config> and <get-config>
invocations in the transaction.
Positive Response
If the device was able to satisfy the request, an <rpc-reply> is sent that contains an <ok> element.
Negative Response
An <rpc-error> element is included in the <rpc-reply> if the request cannot be completed for any reason.
If there is an ongoing transaction for this session already, an error MUST be returned with <error-app-
tag> set to "bad-state".
Example
<rpc message-id="101"
xmlns="urn:ietf:params:xml:ns:netconf:base:1.0">
<start-transaction xmlns="http://tail-f.com/ns/netconf/transactions/1.0">
<target>
<running/>
</target>
</start-transaction>
</rpc>
<rpc-reply message-id="101"
xmlns="urn:ietf:params:xml:ns:netconf:base:1.0">
223
The NETCONF Server
<ok/>
</rpc-reply>
15.10.5. New Operation: <prepare-transaction>
Description
Prepares the transaction state for commit. The server may reject the prepare request for any reason, for
example due to lack of resources or if the combined changes would result in an invalid configuration
datastore.
After a successful <prepare-transaction>, the next transaction related rpc operation must be <commit-
transaction> or <abort-transaction>. Note that an <edit-config> cannot be sent before the transaction is
either committed or aborted.
Care must be taken by the server to make sure that if <prepare-transaction> succeeds then the <commit-
transaction> SHOULD not fail, since this might result in an inconsistent distributed state. Thus, <prepare-
transaction> should allocate any resources needed to make sure the <commit-transaction> will succeed.
Parameters
None.
Positive Response
If the device was able to satisfy the request, an <rpc-reply> is sent that contains an <ok> element.
Negative Response
An <rpc-error> element is included in the <rpc-reply> if the request cannot be completed for any reason.
If there is no ongoing transaction in this session, or if the ongoing transaction already has been prepared,
an error MUST be returned with <error-app-tag> set to "bad-state".
Example
<rpc message-id="103"
xmlns="urn:ietf:params:xml:ns:netconf:base:1.0">
<prepare-transaction
xmlns="http://tail-f.com/ns/netconf/transactions/1.0"/>
</rpc>
<rpc-reply message-id="103"
xmlns="urn:ietf:params:xml:ns:netconf:base:1.0">
<ok/>
</rpc-reply>
15.10.6. New Operation: <commit-transaction>
Description
Applies the changes made in the transaction to the configuration datatore. The transaction is closed after
a <commit-transaction>.
224
The NETCONF Server
Parameters
None.
Positive Response
If the device was able to satisfy the request, an <rpc-reply> is sent that contains an <ok> element.
Negative Response
An <rpc-error> element is included in the <rpc-reply> if the request cannot be completed for any reason.
If there is no ongoing transaction in this session, or if the ongoing transaction already has not been prepared,
an error MUST be returned with <error-app-tag> set to "bad-state".
Example
<rpc message-id="104"
xmlns="urn:ietf:params:xml:ns:netconf:base:1.0">
<commit-transaction
xmlns="http://tail-f.com/ns/netconf/transactions/1.0"/>
</rpc>
<rpc-reply message-id="104"
xmlns="urn:ietf:params:xml:ns:netconf:base:1.0">
<ok/>
</rpc-reply>
15.10.7. New Operation: <abort-transaction>
Description
Aborts the ongoing transaction, and all pending changes are discarded. <abort-transaction> can be given
at any time during an ongoing transaction.
Parameters
None.
Positive Response
If the device was able to satisfy the request, an <rpc-reply> is sent that contains an <ok> element.
Negative Response
An <rpc-error> element is included in the <rpc-reply> if the request cannot be completed for any reason.
If there is no ongoing transaction in this session, an error MUST be returned with <error-app-tag> set to
"bad-state".
Example
<rpc message-id="104"
225
The NETCONF Server
xmlns="urn:ietf:params:xml:ns:netconf:base:1.0">
<abort-transaction
xmlns="http://tail-f.com/ns/netconf/transactions/1.0"/>
</rpc>
<rpc-reply message-id="104"
xmlns="urn:ietf:params:xml:ns:netconf:base:1.0">
<ok/>
</rpc-reply>
15.10.8. Modifications to Existing Operations
The <edit-config> operation is modified so that if it is received during an ongoing transaction, the
modifications are not immediately applied to the configuration target. Instead they are kept in the
transaction state of the server. The transaction state is only applied when a <commit-transaction> is
received.
Note that it doesn't matter if the <test-option> is 'set' or 'test-then-set' in the <edit-config>, since nothing
is actually set when the <edit-config> is received.
15.10.9. XML Schema
This XML Schema defines the new transaction rpcs.
<?xml version="1.0" encoding="UTF-8"?>
<xs:schema targetNamespace="http://tail-f.com/ns/netconf/transactions/1.0"
xmlns="http://tail-f.com/ns/netconf/transactions/1.0"
xmlns:xs="http://www.w3.org/2001/XMLSchema"
xmlns:netconf="urn:ietf:params:xml:ns:netconf:base:1.0"
elementFormDefault="qualified"
attributeFormDefault="unqualified"
xml:lang="en">
<!-- Type for <target> element -->
<xs:complexType name="TargetType">
<xs:choice>
<xs:element name="running"/>
<xs:element name="startup"/>
<xs:element name="candidate"/>
</xs:choice>
</xs:complexType>
<!-- <start-transaction> operation -->
<xs:complexType name="StartTransactionType">
<xs:complexContent>
<xs:extension base="netconf:rpcOperationType">
<xs:sequence>
<xs:element name="target" type="TargetType"/>
<xs:element name="with-inactive" minOccurs="0"/>
</xs:sequence>
</xs:extension>
</xs:complexContent>
</xs:complexType>
<xs:element name="start-transaction" type="StartTransactionType"
substitutionGroup="netconf:rpcOperation"/>
226
The NETCONF Server
<xs:element name="prepare-transaction"
substitutionGroup="netconf:rpcOperation"/>
<xs:element name="commit-transaction"
substitutionGroup="netconf:rpcOperation"/>
<xs:element name="abort-transaction"
substitutionGroup="netconf:rpcOperation"/>
</xs:schema>
15.11. Proxy Forwarding Capability
15.11.1. Overview
The Proxy Forwarding capability makes it possible to forward NETCONF requests to a target host through
a proxy NETCONF server. It can be used in situations where a client does not have direct network access
to a target host:
+--------+
| Client |
+--------+
|
|
|
+--------+
| Proxy |
| server |
+--------+
/ \
/ \
/ \
+--------+ +--------+
| Proxy | | Proxy |
| target | | target |
+--------+ +--------+
See RFC 2663 for a definition of a proxy. This RFC defines two terms "Application Level Gateway" (ALG)
and "Proxy":
ALGs are similar to Proxies, in that, both ALGs and proxies
facilitate Application specific communication between clients
and servers. Proxies use a special protocol to communicate with
proxy clients and relay client data to servers and vice
versa. Unlike Proxies, ALGs do not use a special protocol to
communicate with application clients and do not require changes
to application clients.
A client that wants to set up a NETCONF session to a Proxy target first connects to the Proxy server,
which advertises the "forward" capability. The client issues a <forward> RPC, with a <target> parameter
which specifies which Proxy target to connect to. The Proxy server sets up a NETCONF connection to
the Proxy target, and after successful authentication, replies with the Proxy target's capability list to the
client. From this point, the session is established, and any data received by the Proxy server from any side
is sent as-is (without interpretation) to the other side.
Client Server Target
227
The NETCONF Server
| | |
| | |
| capability exchange | |
|<------------------------->| |
| | |
| <forward> | |
|-------------------------->| |
|<--------------------------| |
| <mechanisms> | |
| | |
| <forward> | |
| <mechanism> | |
|-------------------------->| |
|<--------------------------| |
| <challenge> | |
| | |
| <challenge-response> | |
|-------------------------->| |
| | connect+authenticate |
| |-------------------------->|
| |<--------------------------|
| | <hello> |
| <capabilities> | |
|<--------------------------| |
| | |
| data | |
|-------------------------->| data |
| |-------------------------->|
| | |
| | data |
| data |<--------------------------|
|<--------------------------| |
| | |
| | |
Client Elements of Procedure
First, the client constructs a <forward> rpc:
1. If the client does not know with authentication mechanism is supported by the Proxy server for the
target, or if it wants to do automatic login, it sends a <forward> request without the "auth" parameter,
and waits for a reply.
2. If the client knows which mechanism to use, it sends a <forward> request with the "auth/mechanism"
parameter set, and waits for a reply.
The client MAY set the "auth/initial-response" parameter.
3. Then the client waits for a reply.
4. If the reply contains the "capabilities" parameter, the proxy connection is establihed.
5. If the reply contains the "challenge" parameter, the client sends a <challenge-response> RPC with the
repsonse to the challenge, which it can get e.g. by prompting the user for credentials.
If the mechanism is PLAIN, the challenge is always empty.
After the <challenge-response> RPC is sent, the client continues from step (3).
228
The NETCONF Server
6. If the reply contains the "sasl-failure" error, with the "failure" parameter set to "invalid-mechansim",
the client continues from step (2).
7. If the reply contains the "sasl-failure" error, with the "failure" parameter set to "not-authorized", the
client continues from step (1) or aborts.
8. Otherwise, the client interprets the error and aborts.
Server Elements of Procedure
The procedure when the <forward> RPC is received is as follows:
1. The server looks up the value of the "target" parameter in the "proxy" list in the running configuration.
If the target is not found, an "invalid-value" error is returned.
2. If the "auth" parameter is not present, and the server is configured to perform auto login, it extracts the
current user's credentials from the session, and continues from step (8).
3. If the "auth" parameter is not present, and the server is not configured to do auto login, it replies with
an error "sasl-authentication-needed", with a list of supported mechanisms.
4. If the "auth" parameter is present, the server verifies that the "mechanism" provided is supported by
the server.
Currently, the supported mechanism is "PLAIN".
If the mechanism is not supported, the server replies with a "sasl-failure" error with the "failure"
parameter set to "invalid-mechanism".
5. If the mechanism is supported, and the "initial-response" parameter is present, the server decodes the
response according to the mechanism.
If the response could not be decoded, the server replies with an "sasl-failure" error with the "failure"
parameter set to "incorrect-encoding".
If the response could be decoded, the server continues from step (8).
6. If the mechanism is supported, and the "initial-response" parameter is not present, the server replies
with a "challenge" parameter.
For PLAIN, the challenge is empty.
The server now remembers the target and mechanism, and waits to receive a <challenge-response>
RPC.
7. When the <challenge-response> RPC is received, the server decodes the "response" parameter as in (5).
If the response could be decoded, the server continues from step (8).
8. The server connects to the target with the given credentials.
If the connection fails due to communication problems, it replies with an "connection-failure" error.
If the server fails to authenticate with the given credentials, it replies with an "sasl-failure" error with
the "failure" parameter set to "not-authorized".
If the connection succeeds, the server replies with the capabilities of the target, and enters the proxying
mode.
229
The NETCONF Server
In proxying mode, the server reads data from both the client and the target, and writes any data received
to the other end, without interpreting the data. If any side of the connection is closed, the server closes
the other side.
15.11.2. Dependencies
None.
15.11.3. Capability Identifier
The proxy forwarding capability is identified by the following capability string:
http://tail-f.com/ns/netconf/forward/1.0
15.11.4. New Operation: <forward>
Description
Starts a proxy forwarding connection to the given target, if all user credentials are given.
The server can be configured to automatically login to the target. In this case, the <forward> rpc does not
contain any authentication parameters.
Parameters
target: Name of the target host to connect to. The name refers to an entry in
the "proxy" list on the running configuration.
auth/mechanism: Name of an SASL authentication mechanism to use. Currently the
"PLAIN" mechanism is supported.
auth/initial-response: If allowed by the selected mechanism, an initial response can be given.
This saves one round-trip.
For the PLAIN mechanism, the response is a base64 encoded PLAIN
"message" as defined in section 2 of RFC 4616. The optional "authzid"
MUST NOT be present.
Positive Response
If the server was able to connect and authenticate to the target, it replies with the target's capability list,
and the server then enters proxying mode.
If the server could not fully authenticate the client, it replies with a "challenge" element. The client should
reply to the challenge with a <challenge-response> RPC.
Negative Response
If the server could not find the target, it replies with an "invalid-value" error.
If the client did not provide a mechanism, the server replies with a "sasl-authentication-needed" error, with
a list of available mechanisms.
230
The NETCONF Server
If the client provided an unsupported mechanism, the server replies with a "sasl-failure" error with the
"failure" parameter set to"invalid-mechanism".
If the inital response could not be decoded, the server replies with an "sasl-failure" error with the "failure"
parameter set to "incorrect-encoding".
If the server fails to connect to the target, it replies with an "connection-failure" error.
If the server fails to authenticate with the given credentials, it replies with an "sasl-failure" error with the
"failure" parameter set to "not-authorized".
Example 1.
The proxy server is configured to do automatic login:
<rpc xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"
message-id="1">
<forward xmlns="http://tail-f.com/ns/netconf/forward/1.0">
<target>rne-141</target>
</forward>
</rpc>
<rpc-reply xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"
message-id="1">
<data>
<capabilities xmlns="http://tail-f.com/ns/netconf/forward/1.0">
<capability>urn:ietf:params:netconf:base:1.0</capability>
<capability>
urn:ietf:params:netconf:capability:writable-running:1.0
</capability
</capabilities>
</data>
</rpc-reply>
<!- client is now successfully connected to rne-141 -->
Example 2. Client needs to authenticate to the target:
<rpc xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"
message-id="1">
<forward xmlns="http://tail-f.com/ns/netconf/forward/1.0">
<target>rne-141</target>
</forward>
</rpc>
<rpc-reply xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"
message-id="1">
<rpc-error>
<error-type>protocol</error-type>
<error-tag>operation-failed</error-tag>
<error-severity>error</error-severity>
<error-app-tag>sasl-mechanisms</error-app-tag>
<error-info>
<mechanisms xmlns="http://tail-f.com/ns/netconf/forward/1.0">
<mechanism>PLAIN</mechanism>
</mechansims>
</error-info>
</rpc-error>
231
The NETCONF Server
</rpc>
<rpc xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"
message-id="2">
<forward xmlns="http://tail-f.com/ns/netconf/forward/1.0">
<target>rne-141</target>
<auth>
<mechanism>PLAIN</mechanism>
<initial-response>AGFkbWluAHNlY3JldA==</initial-response>
</auth>
</forward>
</rpc>
The decoded initial response in the auth message is:
<NUL>admin<NUL>secret
<rpc-reply xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"
message-id="2">
<data>
<capabilities xmlns="http://tail-f.com/ns/netconf/forward/1.0">
<capability>urn:ietf:params:netconf:base:1.0</capability>
</capabilities>
</data>
</rpc-reply>
<!- client is now successfully connected to rne-141 -->
Example 3. Client needs to authenticate to the proxy target, but
fails:
<rpc xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"
message-id="1">
<forward xmlns="http://tail-f.com/ns/netconf/forward/1.0">
<target>rne-141</target>
</forward>
</rpc>
<rpc-reply xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"
message-id="1">
<rpc-error>
<error-type>protocol</error-type>
<error-tag>operation-failed</error-tag>
<error-severity>error</error-severity>
<error-app-tag>sasl-authentication-needed</error-app-tag>
<error-info>
<mechanisms xmlns="http://tail-f.com/ns/netconf/forward/1.0">
<mechanism>PLAIN</mechanism>
</mechansims>
</error-info>
</rpc-error>
</rpc>
<rpc xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"
message-id="2">
<forward xmlns="http://tail-f.com/ns/netconf/forward/1.0">
<target>rne-141</target>
232
The NETCONF Server
<auth>
<mechanism>PLAIN</mechanism>
<initial-response>AGFkbWluAGFlY3JldA==</initial-response>
</auth>
</forward>
</rpc>
The decoded initial response in the auth message is:
<NUL>admin<NUL>aecret (bad passwd)
<rpc-reply xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"
message-id="2">
<rpc-error>
<error-type>protocol</error-type>
<error-tag>operation-failed</error-tag>
<error-severity>error</error-severity>
<error-app-tag>sasl-failure</error-app-tag>
<error-info>
<failure xmlns="http://tail-f.com/ns/netconf/forward/1.0">
<not-authorized/>
</failure>
</error-info>
</rpc-error>
</rpc-reply>
15.11.5. New Operation: <challenge-response>
Description
Sent after receiving a challenge reply to the <forward> request. If it succeds, the server will enter proxying
mode.
Parameters
response For the PLAIN mechanism, the response is a base64 encoded PLAIN "message" as defined
in section 2 of RFC 4616. The optional "authzid" MUST NOT be present.
Positive Response
If the server was able to connect and authenticate to the target, it replies with the target's capability list,
and the server then enters proxying mode.
If the server could not fully authenticate the client, it replies with a "challenge" element. The client should
reply to the challenge with a <challenge-response> RPC.
Negative Response
If the response could not be decoded, the server replies with an "sasl-failure" error with the "failure"
parameter set to "incorrect-encoding".
If the server fails to connect to the target, it replies with an "connection-failure" error.
If the server fails to authenticate with the given credentials, it replies with an "sasl-failure" error with the
"failure" parameter set to "not-authorized".
233
The NETCONF Server
Example
Client needs to authenticate to the target:
<rpc xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"
message-id="1">
<forward xmlns="http://tail-f.com/ns/netconf/forward/1.0">
<target>rne-141</target>
</forward>
</rpc>
<rpc-reply xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"
message-id="1">
<rpc-error>
<error-type>protocol</error-type>
<error-tag>operation-failed</error-tag>
<error-severity>error</error-severity>
<error-app-tag>sasl-mechanisms</error-app-tag>
<error-info>
<mechanisms xmlns="http://tail-f.com/ns/netconf/forward/1.0">
<mechanism>PLAIN</mechanism>
</mechansims>
</error-info>
</rpc-error>
</rpc>
<rpc xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"
message-id="2">
<forward xmlns="http://tail-f.com/ns/netconf/forward/1.0">
<target>rne-141</target>
<auth>
<mechanism>PLAIN</mechanism>
</auth>
</forward>
</rpc>
<rpc-reply xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"
message-id="2">
<data>
<challenge xmlns="http://tail-f.com/ns/netconf/forward/1.0"/>
</data>
</rpc-reply>
<rpc xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"
message-id="3">
<challenge-response xmlns="http://tail-f.com/ns/netconf/forward/1.0">
<reponse>AGFkbWluAHNlY3JldA==</response>
</challenge-response>
</rpc>
The decoded response in the auth message is:
<NUL>admin<NUL>secret
<rpc-reply xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"
message-id="3">
<data>
<capabilities xmlns="http://tail-f.com/ns/netconf/forward/1.0">
<capability>urn:ietf:params:netconf:base:1.0</capability>
234
The NETCONF Server
</capabilities>
</data>
</rpc-reply>
<!- client is now successfully connected to rne-141 -->
15.11.6. Modifications to Existing Operations
None.
15.11.7. Interactions with Other Capabilities
None.
15.11.8. XSD Schema
This XML Schema defines the new forwarding rpcs.
<?xml version="1.0" encoding="UTF-8"?>
<xs:schema targetNamespace="http://tail-f.com/ns/netconf/forward/1.0"
xmlns:xs="http://www.w3.org/2001/XMLSchema"
xmlns="http://tail-f.com/ns/netconf/forward/1.0"
xmlns:fwd="http://tail-f.com/ns/netconf/forward/1.0"
xmlns:nc="urn:ietf:params:xml:ns:netconf:base:1.0"
elementFormDefault="qualified"
attributeFormDefault="unqualified"
xml:lang="en">
<!-- <forward> operation -->
<xs:element name="forward" substitutionGroup="nc:rpcOperation">
<xs:complexType>
<xs:complexContent>
<xs:extension base="nc:rpcOperationType">
<xs:sequence>
<xs:element name="target" type="xs:string"/>
<xs:element name="auth" minOccurs="0">
<xs:complexType>
<xs:sequence>
<xs:element name="mechanism" type="xs:string"/>
<xs:element name="initial-response" minOccurs="0"
type="xs:string"/>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:extension>
</xs:complexContent>
</xs:complexType>
</xs:element>
<!-- <challenge-response> operation -->
<xs:element name="challenge-response" substitutionGroup="nc:rpcOperation">
<xs:complexType>
<xs:complexContent>
<xs:extension base="nc:rpcOperationType">
<xs:sequence>
235
The NETCONF Server
<xs:element name="response" type="xs:string"/>
</xs:sequence>
</xs:extension>
</xs:complexContent>
</xs:complexType>
</xs:element>
<!-- reply to <forward> and <challenge-response> operations -->
<xs:element name="capabilities">
<xs:complexType>
<xs:sequence>
<xs:element name="capability"
minOccurs="0" maxOccurs="unbounded"
type="xs:uri"/>
</xs:sequence>
</xs:complexType>
</xs:element>
<!-- reply to <forward> and <challenge-response> operations -->
<xs:element name="challenge" type="xs:string"/>
<!-- <error-info> content when <error-app-tag> is "sasl-failure" -->
<xs:element name="failure">
<xs:complexType>
<xs:sequence>
<xs:choice>
<xs:element name="incorrect-encoding">
<xs:complexType/>
</xs:element>
<xs:element name="invalid-authzid">
<xs:complexType/>
</xs:element>
<xs:element name="invalid-mechanism">
<xs:complexType/>
</xs:element>
<xs:element name="mechanism-too-weak">
<xs:complexType/>
</xs:element>
<xs:element name="not-authorized">
<xs:complexType/>
</xs:element>
<xs:element name="temporary-auth-failure">
<xs:complexType/>
</xs:element>
</xs:choice>
</xs:sequence>
</xs:complexType>
</xs:element>
<!--
<error-info> content when <error-app-tag> is
"sasl-authentication-needed"
-->
<xs:element name="mechanisms">
<xs:complexType>
<xs:sequence>
<xs:element name="mechanism"
minOccurs="0" maxOccurs="unbounded"
type="xs:string"/>
</xs:sequence>
236
The NETCONF Server
</xs:complexType>
<xs:element>
</xs:schema>
15.12. Inactive Capability
15.12.1. Overview
This capability is used by the NETCONF server to indicate that it supports marking nodes as being inactive.
A node that is marked as inactive exists in the data store, but is not used by the server. Any node can be
marked as inactive.
In order to not confuse clients that do not understand this attribute, the client has to instruct the server to
display and handle the inactive nodes. An inactive node is marked with an "inactive" XML attribute, and
in order to make it active, the "active" XML atribute is used.
This capability is formally defined in the YANG module "tailf-netconf-inactive".
15.12.2. Dependencies
None.
15.12.3. Capability Identifier
The inactive capability is identified by the following capability string:
http://tail-f.com/ns/netconf/inactive/1.0
15.12.4. New Operations
None.
15.12.5. Modifications to Existing Operations
A new parameter, <with-inactive>, is added to the <get>, <get-config>, <edit-config>, <copy-config>,
and <start-transaction> operations.
The <with-inactive> element is defined in the http://tail-f.com/ns/netconf/inactive/1.0 namespace, and
takes no value.
If this parameter is present in <get>, <get-config>, or <copy-config>, the NETCONF server will mark
inactive nodes with the "inactive" attribute.
If this parameter is present in <edit-config> or <copy-config>, the NETCONF server will treat inactive
nodes as existing, so that an attempt to create a node which is inactive will fail, and an attempt to delete
a node which is inactive will succeed. Further, the NETCONF server accepts the "inactive" and "active"
attributes in the data hierarchy, in order to make nodes inactive or active, respectively.
If the parameter is present in <start-transaction>, it MUST also be present in any <edit-config>, <copy-
config>, <get>, or <get-config> operations within the transaction. If it is not present in <start-transaction>,
it MUST NOT be present in any <edit-config> operation within the transaction.
237
The NETCONF Server
The "inactive" and "active" attributes are defined in the http://tail-f.com/ns/netconf/inactive/1.0
namespace. The "inactive" attribute's value is the string "inactive", and the "active" attribute's value is the
string "active".
Example
This request creates an inactive interface:
<rpc message-id="101"
xmlns="urn:ietf:params:xml:ns:netconf:base:1.0">
<edit-config>
<target>
<running/>
</target>
<with-inactive
xmlns="http://tail-f.com/ns/netconf/inactive/1.0"/>
<config>
<top xmlns="http://example.com/schema/1.2/config">
<interface inactive="inactive">
<name>Ethernet0/0</name>
<mtu>1500</mtu>
</interface>
</top>
</config>
</edit-config>
</rpc>
<rpc-reply message-id="101"
xmlns="urn:ietf:params:xml:ns:netconf:base:1.0">
<ok/>
</rpc-reply>
This request shows the inactive interface:
<rpc message-id="102"
xmlns="urn:ietf:params:xml:ns:netconf:base:1.0">
<get-config>
<source>
<running/>
</source>
<with-inactive
xmlns="http://tail-f.com/ns/netconf/inactive/1.0"/>
</get-config>
</rpc>
<rpc-reply message-id="102"
xmlns="urn:ietf:params:xml:ns:netconf:base:1.0">
<data>
<top xmlns="http://example.com/schema/1.2/config">
<interface inactive="inactive">
<name>Ethernet0/0</name>
<mtu>1500</mtu>
</interface>
</top>
</data>
</rpc-reply>
This request shows that inactive data is not returned unless the client asks for it:
<rpc message-id="103"
238
The NETCONF Server
xmlns="urn:ietf:params:xml:ns:netconf:base:1.0">
<get-config>
<source>
<running/>
</source>
</get-config>
</rpc>
<rpc-reply message-id="103"
xmlns="urn:ietf:params:xml:ns:netconf:base:1.0">
<data>
</data>
</rpc-reply>
This request activates the interface:
This request creates an inactive interface:
<rpc message-id="104"
xmlns="urn:ietf:params:xml:ns:netconf:base:1.0">
<edit-config>
<target>
<running/>
</target>
<with-inactive
xmlns="http://tail-f.com/ns/netconf/inactive/1.0"/>
<config>
<top xmlns="http://example.com/schema/1.2/config">
<interface active="active">
<name>Ethernet0/0</name>
</interface>
</top>
</config>
</edit-config>
</rpc>
<rpc-reply message-id="104"
xmlns="urn:ietf:params:xml:ns:netconf:base:1.0">
<ok/>
</rpc-reply>
15.13. Tail-f Identification Capability
15.13.1. Overview
This capability is used by a NETCONF peer to inform the other peer about the NETCONF stack and
NETCONF client. The receiving peer can use this information in log files etc.
The information a peer may advertise is:
vendor: The vendor of the NETCONF stack.
product: The NETCONF product.
version: The version of the product.
client-identity: The identity of the user starting the session. This parameter can be the local user
name of the operator in the client tool.
239
The NETCONF Server
All these parameters are free form strings, advertised as query parameters to the capability URI, in the
<hello> message.
15.13.2. Dependencies
None.
15.13.3. Capability Identifier
The identification capability is identified by the following capability string:
http://tail-f.com/ns/netconf/identification/1.0
15.13.4. Example
This is an example of how a client might advertise its identification information. Whitespace is added to
make the example more readable.
<hello xmlns="urn:ietf:params:xml:ns:netconf:base:1.0">
<capabilities>
<capability>
urn:ietf:params:netconf:base:1.1
</capability>
<capability>
http://tail-f.com/ns/netconf/identification/1.0?
vendor=tail-f
&amp;product=ncs
&amp;version=1.8
&amp;client-identity=admin
</capability>
</capabilities>
</hello>
15.13.5. ConfD
If a NETCONF client advertises this capability, ConfD picks up the information, and stores it
in the user session. The information is available to application programmers through the function
maapi_get_user_session_identification().
15.14. The Query API
The Query API consists of a number of RPC operations to start queries, fetch chunks of the result from
a query, restart a query, and stop a query.
In the installed release there are two YANG files named tailf-netconf-query.yang and tailf-
common-query.yang that defines these operations. An easy way to find the files is to run the following
command from the top directory of release installation:
$ find . -name tailf-netconf-query.yang
The API consists of the following operations:
start-query: Start a query and return a query handle.
fetch-query-result: Use a query handle to repeatedly fetch chunks of the result.
240
The NETCONF Server
immediate-query: Start a query and return the entire result immediately.
reset-query: (Re)set where the next fetched result will begin from.
stop-query: Stop (and close) the query.
In the following examples, the following data model is used:
container x {
list host {
key number;
leaf number {
type int32;
}
leaf enabled {
type boolean;
}
leaf name {
type string;
}
leaf address {
type inet:ip-address;
}
}
}
Here is an example of a start-query operation:
<start-query xmlns="http://tail-f.com/ns/netconf/query">
<foreach>
/x/host[enabled = 'true']
</foreach>
<select>
<label>Host name</label>
<expression>name</expression>
<result-type>string</result-type>
</select>
<select>
<expression>address</expression>
<result-type>string</result-type>
</select>
<sort-by>name</sort-by>
<limit>100</limit>
<offset>1</offset>
</start-query>
An informal interpretation of this query is:
For each /x/host where enabled is true, select its name, and address, and return the result sorted
by name, in chunks of 100 results at the time.
Let us discuss the various pieces of this request.
The actual XPath query to run is specified by the foreach element. In the example below will search
for all /x/host nodes that has the enabled node set to true:
<foreach>
/x/host[enabled = 'true']
</foreach>
241
The NETCONF Server
Now we need to define what we want to have returned from the node set by using one or more select
sections. What to actually return is defined by the XPath expression.
We must also choose how the result should be represented. Basically, it can be the actual value or the path
leading to the value. This is specified per select chunk The possible result-types are: string , path ,
leaf-value and inline.
The difference between string and leaf-value is somewhat subtle. In the case of string the result
will be processed by the XPath function string() (which if the result is a node-set will concatenate all
the values). The leaf-value will return the value of the first node in the result. As long as the result is
a leaf node, string and leaf-value will return the same result. In the example above, we are using
string as shown below. At least one result-type must be specified.
The result-type inline makes it possible to return the full sub-tree of data in XML format. The data will
be enclosed with a tag: data.
Finally we can specify an optional label for a convenient way of labeling the returned data. In the
example we have the following:
<select>
<label>Host name</label>
<expression>name</expression>
<result-type>string</result-type>
</select>
<select>
<expression>address</expression>
<result-type>string</result-type>
</select>
The returned result can be sorted. This is expressed as XPath expressions, which in most cases are very
simple and refers to the found node set. In this example we sort the result by the content of the name node:
<sort-by>name</sort-by>
To limit the max amount of results in each chunk that fetch-query-result will return we can set
the limit element. The default is to get all results in one chunk.
<limit>100</limit>
With the offset element we can specify at which node we should start to receive the result. The default
is 1, i.e., the first node in the resulting node-set.
<offset>1</offset>
Now, if we continue by putting the operation above in a file query.xml we can send a request, using
the command netconf-console, like this:
$ netconf-console --rpc query.xml
The result would look something like this:
<start-query-result>
<query-handle>12345</query-handle>
</start-query-result>
The query handle (in this example "12345") must be used in all subsequent calls. To retrieve the result,
we can now send:
<fetch-query-result xmlns="http://tail-f.com/ns/netconf/query">
242
The NETCONF Server
<query-handle>12345</query-handle>
</fetch-query-result>
Which will result in something like the following:
<query-result xmlns="http://tail-f.com/ns/netconf/query">
<result>
<select>
<label>Host name</label>
<value>One</value>
</select>
<select>
<value>10.0.0.1</value>
</select>
</result>
<result>
<select>
<label>Host name</label>
<value>Three</value>
</select>
<select>
<value>10.0.0.1</value>
</select>
</result>
</query-result>
If we try to get more data with the fetch-query-result we might get more result entries in return
until no more data exists and we get an empty query result back:
<query-result xmlns="http://tail-f.com/ns/netconf/query">
</query-result>
If we want to send the query and get the entire result with only one request, we can do this by using
immediate-query. This function takes similar arguments as start-query and returns the entire
result analogous fetch-query-result. Note that it is not possible to paginate or set an offset start
node for the result list; i.e. the options limit and offset are ignored.
An example request and response:
<immediate-query xmlns="http://tail-f.com/ns/netconf/query">
<foreach>
/x/host[enabled = 'true']
</foreach>
<select>
<label>Host name</label>
<expression>name</expression>
<result-type>string</result-type>
</select>
<select>
<expression>address</expression>
<result-type>string</result-type>
</select>
<sort-by>name</sort-by>
<timeout>600</timeout>
</immediate-query>
<query-result xmlns="http://tail-f.com/ns/netconf/query">
<result>
<select>
<label>Host name</label>
243
The NETCONF Server
<value>One</value>
</select>
<select>
<value>10.0.0.1</value>
</select>
</result>
<result>
<select>
<label>Host name</label>
<value>Three</value>
</select>
<select>
<value>10.0.0.3</value>
</select>
</result>
</query-result>
If we want to go back in the "stream" of received data chunks and have them repeated, we can do that with
the reset-query operation. In the example below we ask to get results from the 42:nd result entry:
<reset-query xmlns=\"http://tail-f.com/ns/netconf/query\">
<query-handle>12345</query-handle>
<offset>42</offset>
</reset-query>
Finally, when we are done we stop the query:
<stop-query xmlns="http://tail-f.com/ns/netconf/query">
<query-handle>12345</query-handle>
</stop-query>
15.15. Meta-data in Attributes
ConfD supports three pieces of meta-data data nodes: tags, annotations, and inactive.
This feature is by default disabled, but can be enabled by setting /confdConfig/
enableAttributes to true in confd.conf (see confd.conf(5)).
An annotation is a string which acts a comment. Any data node present in the configuration can get an
annotation. An annotation does not affect the underlying configuration, but can be set by a user to comment
what the configuration does.
An annotation is encoded as an XML attribute 'annotation' on any data node. To remove an annotation,
set the 'annotation' attribute to an empty string.
Any configuration data node can have a set of tags. Tags are set by the user for data organization and
filtering purposes. A tag does not affect the underlying configuration.
All tags on a data node are encoded as a space separated string in an XML attribute 'tags'. To remove all
tags, set the 'tags' attribute to an empty string.
Annotation, tags, and inactive attributes can be present in <edit-config>, <copy-config>, <get-
config>, and <get>. For example:
<rpc message-id="101"
xmlns="urn:ietf:params:xml:ns:netconf:base:1.0">
<edit-config>
<target>
244
The NETCONF Server
<running/>
</target>
<config>
<interfaces xmlns="http://example.com/ns/if">
<interface annotation="this is the management interface"
tags=" important ethernet ">
<name>eth0</name>
...
</interface>
</interfaces>
</config>
</edit-config>
</rpc>
15.16. Namespace for Additional Error
Information
ConfD adds an additional namespace which is used to define elements which are included in the <error-
info> element. This namespace also describes which <error-app-tag/> elements the server might
generate, as part of an <rpc-error/>.
<?xml version="1.0" encoding="UTF-8"?>
<xs:schema targetNamespace="http://tail-f.com/ns/netconf/params/1.1"
xmlns:xs="http://www.w3.org/2001/XMLSchema"
xml:lang="en">
<xs:annotation>
<xs:documentation>
Tail-f's namespace for additional error information.
This namespace is used to define elements which are included
in the 'error-info' element.
The following are the app-tags used by the NETCONF agent:
o not-writable
Means that an edit-config or copy-config operation was
attempted on an element which is read-only
(i.e. non-configuration data).
o missing-element-in-choice
Like the standard error missing-element, but generated when
one of a set of elements in a choice is missing.
o pending-changes
Means that a lock operation was attempted on the candidate
database, and the candidate database has uncommitted
changes. This is not allowed according to the protocol
specification.
o url-open-failed
Means that the URL given was correct, but that it could not
be opened. This can e.g. be due to a missing local file, or
bad ftp credentials. An error message string is provided in
245
The NETCONF Server
the &lt;error-message&gt; element.
o url-write-failed
Means that the URL given was opened, but write failed. This
could e.g. be due to lack of disk space. An error message
string is provided in the &lt;error-message&gt; element.
o bad-state
Means that an rpc is received when the session is in a state
which don't accept this rpc. An example is
&lt;prepare-transaction&gt; before &lt;start-transaction&gt;
</xs:documentation>
</xs:annotation>
<xs:element name="bad-keyref">
<xs:annotation>
<xs:documentation>
This element will be present in the 'error-info' container when
'error-app-tag' is "instance-required".
</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="bad-element" type="xs:string">
<xs:annotation>
<xs:documentation>
Contains an absolute XPath expression pointing to the element
which value refers to a non-existing instance.
</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="missing-element" type="xs:string">
<xs:annotation>
<xs:documentation>
Contains an absolute XPath expression pointing to the missing
element referred to by 'bad-element'.
</xs:documentation>
</xs:annotation>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="bad-instance-count">
<xs:annotation>
<xs:documentation>
This element will be present in the 'error-info' container when
'error-app-tag' is "too-few-elements" or "too-many-elements".
</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="bad-element" type="xs:string">
<xs:annotation>
<xs:documentation>
Contains an absolute XPath expression pointing to an
element which exists in too few or too many instances.
246
The NETCONF Server
</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="instances" type="xs:unsignedInt">
<xs:annotation>
<xs:documentation>
Contains the number of existing instances of the element
referd to by 'bad-element'.
</xs:documentation>
</xs:annotation>
</xs:element>
<xs:choice>
<xs:element name="min-instances" type="xs:unsignedInt">
<xs:annotation>
<xs:documentation>
Contains the minimum number of instances that must
exist in order for the configuration to be consistent.
This element is present only if 'app-tag' is
'too-few-elems'.
</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="max-instances" type="xs:unsignedInt">
<xs:annotation>
<xs:documentation>
Contains the maximum number of instances that can
exist in order for the configuration to be consistent.
This element is present only if 'app-tag' is
'too-many-elems'.
</xs:documentation>
</xs:annotation>
</xs:element>
</xs:choice>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:attribute name="annotation" type="xs:string">
<xs:annotation>
<xs:documentation>
This attribute can be present on any configuration data node. It
acts as a comment for the node. The annotation does not affect the
underlying configuration data.
</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="tags" type="xs:string">
<xs:annotation>
<xs:documentation>
This attribute can be present on any configuration data node. It
is a space separated string of tags for the node. The tags of a
node does not affect the underlying configuration data, but can
be used by a user for data organization, and data filtering.
</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:schema>
247
Chapter 16. The CLI agent
16.1. Overview
Confd provides three different CLI styles, one inspired by the Junos CLI (J), one inspired by the Cisco XR
CLI (C), and one inspired by the Cisco IOS CLI (I). All styles can be supported at the same time, or one
style can be chosen for a given deployment of ConfD. The default style is configured in the confd.conf
file using the style setting in the cli section.
The CLI is automatically rendered using the data model described by the yang files. This way we get an
auto-generated CLI, without any extra effort, except the design of our yang files. The auto-generated CLI
supports the following features:
Command line history and command line editor.
Tab completion for content of the configuration database.
Monitoring and inspecting log files.
Inspecting the system configuration and system state.
Fully configuring the system.
Alias expansion is performed when a command line is entered. Aliases are part of the configuration and are
manipulated accordingly. In the J-style CLI this is done by manipulating the nodes in the alias configuration
tree. In the C- and I-style CLIs this is done by the alias command in configuration mode.
The C- and I-style CLIs automatically create modes for each list node in the yang files, and commands
for setting each parameter are generated. Actions specified in the yang files are mapped to commands in
the mode where they appear.
The J-style CLI contains commands for manipulating the configuration and actions in the yang files are
mapped into request commands in operational mode.
Even though the auto-generated CLI is fully functional it can be customized and extended in numerous
ways:
Built-in commands can be moved, deleted and reordered.
Confirmation prompts can be added to built-in commands.
New commands can be implemented using the C-API and ordinary executables, and shell scripts can
be invoked from a command.
New commands can be mounted freely in the existing command hierarchy.
The built-in tab completion mechanism can be overridden using user defined callbacks.
New command hierarchies can be created.
A command timeout can be added, both a global timeout for all commands, and command specific
timeouts.
Actions and parts of the data tree can be hidden and can later be made visible when the user enters a
password.
248
The CLI agent
In the C- and I-style CLIs some additional customizations are possible.
The automatically generated modes can be suppressed.
New modes can be added at internal nodes.
The builtin show output can be replaced with an arbitrary command, either for the whole configuration
or just parts of it.
Custom mode names can be assigned statically or dynamically through a C-callback
Transactions can be disabled so that all CLI modifications take effect immediately. The IOS style CLI
automatically disables transactions.
How to customize and extend the auto-generated CLI is described in the clispec(5) manual page.
Tip: In the ConfD distribution there is an Emacs mode suitable for clispec editing.
16.2. The J-style CLI
16.2.1. Command Hierarchy
The CLI is built around a hierarchy of commands. This makes it possible to logically group commands.
The operational mode command hierarchy looks like this for the XR CLI:
--|- commit
|- compare -
| |- file
| |- startup
|- configure
|- file ---
| |- list
| |- show
| |- rename
| |- delete
| |- compare -
| | |- files
| |- copy
|- help
|- id
|- monitor -
| |
| |- stop
| |- start
|- ping
|- quit
|- request -
| |- <action>
| |- job -
| |- stop
| |- message
| |- system -
| |- logout -
| |- user
|
|- set
249
The CLI agent
|- set-path
|- show ---
| |- all
| |- jobs
| |- users
| |- status
| |- configuration
| |- cli
| |- cli -
| | |- history
| |- log
| |- notification
| |- parser -
| | |- dump
|- source
|- ssh
|- telnet
|- traceroute
The configure mode command hierarchy looks like this:
--|- activate
|- annotate
|- commit -
| |- confirmed
| |- check
| |- and-quit
|- compare -
| |- file
| |- running
|- deactivate
|- delete
|- edit
|- exit
|- help
|- hide
|- insert
|- move
|- load
|- quit
|- rename
|- revert
|- rollback
|- run
|- save
|- set
|- show -
| |- parser -
| | |- dump
|- status
|- tag -
| |- add
| |- clear
| |- del
|- top
|- unhide
|- up
|- validate
|- wizard -
|- adduser
250
The CLI agent
16.2.2. Two CLI modes
The ConfD CLI provides various commands for configuring and monitoring software, hardware, and
network connectivity of target devices. The CLI supports two modes: operational mode, for monitoring
the state of the device; and configure mode, for changing the state of the device.
The prompt indicates which mode the CLI is in. When moving from operational mode to configure mode
using the configure command, the prompt is changed from user@host> to user@host%. The prompts
can be configured using the prompt1 and prompt2 settings in the confd.conf file.
For example:
joe@io> configure
Entering configuration mode "private"
[ok][2006-06-02 12:31:59]
[edit]
joe@io%
16.2.3. Operational mode
Operational mode is the initial mode after successful login to the CLI. It is primarily used for viewing
the system status, controlling the CLI environment, monitoring and troubleshooting network connectivity,
and initiating the configure mode.
The full list of commands available in operational mode is listed below in the "Operational mode
commands" section.
16.2.4. Configure mode
Configure mode can be initiated by entering the configure command in operational mode. All changes to
the device's configuration are done to a copy of the active configuration, called a candidate configuration.
These changes do not take effect until a successful commit or commit confirm command is entered.
The full list of commands available in configure mode is listed below in the "Configure mode commands"
section.
16.3. The C- and I-style CLI
The C- and I-style CLI is inspired by the Cisco XR CLI and Cisco IOS CLI. The configuration is
manipulated through a series of commands and modes. Each parameter in the yang files is represented
by a separate command.
The CLI provides various commands for configuring and monitoring software, hardware, and network
connectivity of target devices. The CLI supports two modes: operational mode, for monitoring the state
of the device; and configure mode, for changing the state of the device. The configure mode consists
of a number of sub-modes for manipulating different parts of the configuration, i.e. the mode aaa
authentication users user is present for configuring user authentication parameters.
The prompt indicates which mode the CLI is in. When moving from operational/EXEC mode to configure
mode using the config command, the prompt is changed from host# to host(mode)#. The prompts can
be configured using the cPrompt1 and cPrompt2 settings in the confd.conf file, and additionally
in the IOS style through the prompt setting in the AAA configuration.
For example:
251
The CLI agent
joe connected from 127.0.0.1 using console on io
io# config terminal
Entering configuration mode private
io(config)#
16.3.1. Operational/EXEC mode
Operational mode is the initial mode after successful login to the CLI. It is primarily used for viewing
the system status, controlling the CLI environment, monitoring and troubleshooting network connectivity,
and initiating the configure mode.
The full list of commands available in operational mode is listed below in the "Operational mode
commands" section.
16.3.2. Configure mode
Configure mode can be initiated by entering the config command in operational mode. All changes to the
device's configuration are done to a copy of the active configuration, called a candidate configuration.
These changes do not take effect until a successful commit or commit confirm command is entered.
The full list of commands available in configure mode is listed below in the "Configure mode commands"
section. Additional commands and modes are dynamically derived from the yang files.
16.4. The CLI in action
16.4.1. Starting the CLI
The CLI is started using the confd_cli program. It can either be used as a login program or started manually
once the user has logged in.
In a typical device, ordinary users would have the confd_cli program as login shell, and the root user
would have to login and then start the CLI using confd_cli.
confd_cli is a fairly small program (about 800 lines of C code) which we distribute both as a binary
and source code (in $CONFD_DIR/src/confd/cli). When started it sets the terminal in raw mode,
connects to the ConfD daemon through a socket over the loopback interface, and sends user name, the
user's groups, protocol, client IP address, terminal settings etc., and then enters a proxying mode where it
sends key strokes from the user and prints characters sent by the ConfD daemon.
It is straightforward to modify the C program to send, for example, custom group information. The default
behavior is to send the UNIX groups the user belongs to.
Out of the box, the confd_cli program supports a range of options, primarily intended for debug and
development purposes.
The confd_cli program can also be used for batch processing of CLI commands, either by storing the
commands in a file and running confd_cli on the file, or by having the following line at the top of the file
(with the location of the program modified appropriately):
#!/bin/confd_cli
When the CLI is run non-interactively it will terminate at the first error and will only show the output of
the commands executed. It will not output the prompt or echo the commands. This is the same behavior
as for shell scripts.
252
The CLI agent
If you want to run a script non-interactively, e.g. as a script or through a pipe, and still want the prompts
and commands echoed, you can give the --interactive option.
Command line options:
confd_cli --help
Usage: confd_cli [options] [file]
Options:
--help, -h display this help
--host, -H <host> current host name (used in prompt)
--address, -A <addr> cli address to connect to
--port, -P <port> cli port to connect to
--cwd, -c <dir> current working directory
--proto, -p <proto> type of connection (tcp, ssh, console)
--verbose, -v verbose output
--ip, -i clients source ip
--interactive, -n force interactive mode
--juniper, -J Juniper style CLI
--cisco, -C Cisco XR style CLI
--user, -u <user> clients user name
--uid, -U <uid> clients user id
--groups, -g <groups> clients group list
--gids, -D <gids> clients group id list
--gid, -G <gid> clients group id
--noaaa disable AAA
host The argument to host should be the host name of the device. The confd_cli program
will use the result of the system call gethostname() as default value. The host name
is used in the CLI prompt.
address If ConfD has been configured to listen to a different address than 127.0.0.1 for the
communication between subsystems, then that address should be given as argument
to address (or we can use the CONFD_IPC_ADDRESS environment variable, or
recompile the confd_cli program with the new address compiled in).
port If ConfD has been configured to use a non-default port for the communication between
subsystems, then that port number should be given as argument to port (or we can
use the CONFD_IPC_PORT environment variable, or recompile the confd_cli program
with the new port compiled in).
cwd Directory to use as current working directory in the CLI. Normally the user's home
directory. The default is the directory where the confd_cli program is started.
proto Should be the protocol used by the user to connect to the box, one of tcp, ssh, and
console. The default is ssh for connections established with OpenSSH (the program
inspects the SSH_CONNECTION environment variable), and console for everything
else. This value is printed in the audit logs.
verbose If this argument is given, then the confd_cli program will be a bit more talkative during
the ConfD handshake phase.
ip Should be the user's source IP address, if the user connects through SSH or telnet. The
default is 127.0.0.1 to indicate the console. This value is printed in the audit logs.
interactive Force the CLI to echo commands and prompts even when not invoked from a terminal,
i.e. when reading input from a file or through a pipe.
cisco Force the CLI to provide a I-style CLI.
253
The CLI agent
juniper Force the CLI to provide a Juniper style CLI.
user The name of the user connecting. Used to set proper access rules and assign proper
groups (if the group mapping is kept in ConfD). The default is to use the login name
of the user.
uid The numeric user id of the connected user. The uid will be used when executing
osCommands, when checking file access permissions, and when creating files. Note
that ConfD needs to run as root for this to work properly.
gid The numeric group id of the connected user. The gid will be used when executing
osCommands, when checking file access permissions, and when creating files. Note
that ConfD needs to run as root for this to work properly.
groups The argument to groups should be a comma-separated list of groups. The default is to
send the OS groups that the user belongs to, i.e. the same as the groups shell command
gives us.
gids The argument to gids should be a comma-separated list of numeric group ids
representing the Unix supplementary groups for the user. These are used when
executing osCommands and when checking file access permissions.
noaaa Disables AAA. This is useful during development but should be removed in a
production system.
16.4.2. Starting the CLI in an overloaded system
If the number of ongoing sessions have reached the configured system limit, no more CLI sessions will
be allowed until one of the existing sessions have been terminated.
This makes it impossible to get into the system. A situation which may not be acceptable. The CLI therefore
has a mechanism for handling this problem. When the CLI detects that the session limit has been reached
it will check if the new user has privileges to execute the logout command. If the user does it will display
a list of the current user sessions on the box and ask the user if one of the sessions should be terminated
to make room for the new session.
16.5. Environment for OS command execution
All OS commands, i.e. executables or shell scripts, are executed using a program called cmdptywrapper.
To be able to execute an os-command as root or a specific user we need to make cmdptywrapper setuid
root, i.e.
# chown root cmdptywrapper
# chmod u+s cmdptywrapper
Failing that, all programs will be executed as the user who started the ConfD daemon. Consequently, if
that user is root we do not have to perform the chmod operation above.
16.6. Command output processing
It is possible to process the output from a command using an output redirect. This is done using the |
character. This redirect feature is supported in both the C- and I-style and the J-style CLI. Most of the
commands are the same but some commands differ. The redirect targets (pipe commands) can be modified
254
The CLI agent
using the clispec file, just as a regular CLI command. The commands can be chained to achieve more
complex processing.
In the J-style CLI the commands are called - append, count, display set (show configuration only), display
annotations, display json, display keypath, display xml, display xpath, show tags, hide annotations, hide
tags, except (exclude), extended, find (begin), linnum, match (include), match-all, match-any, more,
nomore, notab (auto-rendered show commands only), repeat (auto-rendered show commands only), save,
tab (show commands only) and until. It may look look this in the J-style CLI:
admin@tellus> show configuration | ?
Possible completions:
annotation - Show only statements whose annotation matches a pattern
append - Append output text to a file
best-effort - Display data even if data provider is unavailable or continue loading from file in presence of failures
count - Count the number of lines in the output
details - Display details
display - Display options
except - Show only text that does not matches a pattern
extended - Show referring elements
find - Search for the first occurrence of a pattern
hide - Hide display options
linnum - Enumerate lines in the output
match - Show only text that matches a pattern
match-all - All selected filters must match
match-any - At least one filter must match
more - Paginate output
nomore - Suppress pagination
save - Save output text to a file
select - Select additional columns
sort-by - Select sorting indices
tab - Enforce table output
tags - Show only statements whose tags matches a pattern
until - Display until the first occurrence of a pattern
In the C- and I-style CLIs the commands are called - append, count, exclude (except), display annotations,
display tags, hide annotations, hide tags, begin (find), include (match), linnum, match-all, match-any,
more, nomore, notab (auto-rendered show commands only), repeat (auto-rendered show commands only),
save, tab (show commands only) and until. It may look look this in the C- and I-style CLI:
tellus# show running-config | ?
Possible completions:
annotation Show only statements whose annotation matches a pattern
append Append output text to a file
begin Begin with the line that matches
count Count the number of lines in the output
details Display commit progress
display Display options
exclude Exclude lines that match
extended Display referring entries
hide Hide display options
include Include lines that match
linnum Enumerate lines in the output
match-all All selected filters must match
match-any At least one filter must match
more Paginate output
nomore Suppress pagination
save Save output text to a file
select Select additional columns
sort-by Select sorting indices
255
The CLI agent
tab Enforce table output
tags Show only statements whose tags matches a pattern
until End with the line that matches
The show annotations/tags and hide annotations/tags pipe targets are only available when viewing the
configuration, and only if attributes have been enabled in the confd.conf file.
16.6.1. Sort the the Output
The sort-by target makes it possible for the CLI user to control in which order instances should be
displayed, and can be used when the path points to a list. The argument to sort-by can either be a secondary
index or an arbitrary set of leafs in the list. If a secondary index is given as an argument, the table will be
sorted in the order defined by the secondary index. If a set of leafs is given as an argument, the table will
be sorted in the order in which the leafs are entered. For example:
admin@io 13:28:07> show configuration server | sort-by port ip | tab
NAME IP PORT DESCRIPTION
-----------------------------------
1 1.1.1.1 1010 -
7 1.1.1.17 1020 -
10 1.1.1.11 1040 -
3 1.1.1.3 1070 -
6 1.1.1.4 1070 -
5 1.1.1.5 1070 -
4 1.1.1.7 1070 -
8 1.1.1.8 1070 -
9 1.1.1.9 1070 -
11 1.1.1.10 1070 -
2 1.1.1.12 1070 -
[ok][2013-08-31 13:49:44]
admin@io 13:50:12>
16.6.2. Count the Number of Lines in the Output
This redirect target counts the number of lines in the output. For example:
admin@io 13:28:07> show configuration | count
[ok][2007-08-31 13:49:44]
Count: 99 lines
admin@io 13:49:44> show configuration aaa | count
[ok][2007-08-31 13:50:12]
Count: 90 lines
admin@io 13:50:12>
16.6.3. Search for a String in the Output
The match target (include in C- and I- style) is used to only include lines matching a regular expression.
For example:
admin@io 13:53:59> show configuration aaa | match {
aaa {
authentication {
users {
user admin {
256
The CLI agent
user oper {
user private {
user public {
groups {
group admin {
group oper {
authorization {
cmdrules {
cmdrule 1 {
cmdrule 2 {
cmdrule 3 {
cmdrule 150 {
datarules {
datarule 101 {
datarule 203 {
In the example above only lines containing { are shown. Similarly lines not containing a regular expression
can be included. This is done using the except target (exclude in C- and I- style). For example:
admin@io 13:56:30> show configuration aaa authentication | except {
uid 1000;
gid 100;
password $1$fB$0w68PmacQ4VmE3/M3nK3Ug==;
ssh_keydir /var/confd/homes/admin/.ssh;
homedir /var/confd/homes/admin;
}
uid 1000;
gid 100;
password $1$S6$brGZW9wSDifHoU7Rf5KSHA==;
ssh_keydir /var/confd/homes/oper/.ssh;
homedir /var/confd/homes/oper;
}
uid 1000;
gid 100;
password $1$L4$YcCoIivO4mrzoj8vCrEjlw==;
ssh_keydir /var/confd/homes/private/.ssh;
homedir /var/confd/homes/private;
}
uid 1000;
gid 100;
password $1$Ft$9zTEc79NWFE0E8v7I2RxVQ==;
ssh_keydir /var/confd/homes/public/.ssh;
homedir /var/confd/homes/public;
}
}
users "admin private";
}
users "oper public";
}
}
}
It is also possible to display the output starting at the first match of a regular expression, using the find
target (begin in C- and I- style). For example:
admin@io 14:03:44> show configuration aaa authentication users | find private
user private {
uid 1019;
gid 1013;
password $1$AO$hbQEgdGQLzlWhX/1FNL5f.;
257
The CLI agent
ssh_keydir /var/confd/homes/private/.ssh;
homedir /var/confd/homes/private;
}
user public {
uid 1019;
gid 1013;
password $1$Kh$0Lor2g1yrSQ7MYDLxFr9h0;
ssh_keydir /var/confd/homes/public/.ssh;
homedir /var/confd/homes/public;
}
Output can also be ended when a line matches a regular expression. This is done with the until target.
For example:
admin@io 14:03:44> show configuration aaa authentication users | find private | until public
user private {
uid 1019;
gid 1013;
password $1$AO$hbQEgdGQLzlWhX/1FNL5f.;
ssh_keydir /var/confd/homes/private/.ssh;
homedir /var/confd/homes/private;
}
user public {
It is also possible to filter the output by using a sequence of select statements followed by match-any or
match-any. Consider the configuration:
admin@io 14:03:44> show configuration servers server
server a {
ip 1.2.3.4;
port 23;
}
server b {
ip 2.3.4.5;
port 24;
}
server c {
ip 3.4.5.6;
port 25;
}
If we were to show all servers that has either ip 1.2.3.4 or port 24, this can be done by using select
statements, like so
admin@io 14:03:44> show configuration servers server | select ip 1.2.3.4 | select port 24 | match-any
server a {
ip 1.2.3.4;
port 23;
}
server b {
ip 2.3.4.5;
port 24;
}
whereas a match-all filtering would in this case result in
admin@io 14:03:44> show configuration servers server | select ip 1.2.3.4 | select port 24 | match-all
No entries found.
as there are no servers that has both ip 1.2.3.4 and port 24.
258
The CLI agent
16.6.4. Saving the Output to a File
The output can also be saved to a file using the save or append redirect target. For example:
admin@io 14:03:51> show configuration aaa | save /tmp/saved
Or to save the configuration, except all passwords
admin@io 14:03:51> show configuration | except password | save /tmp/saved
16.6.5. Regular expressions
The regular expressions is a subset of the regular expressions found in egrep and in the AWK programming
language. Some common operators are:
. Matches any character.
^ Matches the beginning of a string.
$ Matches the end of a string.
[abc...] Character class, which matches any of the characters abc... Char- acter ranges are specified
by a pair of characters separated by a -.
[^abc...] negated character class, which matches any character except abc....
r1 | r2 Alternation. It matches either r1 or r2.
r1r2 Concatenation. It matches r1 and then r2.
r+ Matches one or more rs.
r* Matches zero or more rs.
r? Matches zero or one rs.
(r) Grouping. It matches r.
For example, to only display uid and gid you can do the following:
admin@io 15:11:24> show configuration | match "(uid)|(gid)"
uid 1000;
gid 100;
uid 1000;
gid 100;
uid 1000;
gid 100;
uid 1000;
gid 100;
16.6.6. Display line numbers
The linnum target causes a line number to be displayed at the beginning of each line in the display.
admin@io 15:11:24> show configuration | match "(uid)|(gid)" | linnum
1: uid 1019;
259
The CLI agent
2: gid 1013;
3: uid 1019;
4: gid 1013;
5: uid 1019;
6: gid 1013;
7: uid 1019;
8: gid 1013;
16.6.7. Display as format
The display target can be used to display output in a set of output formats. Some of these output formats are
unique to specific modes, such as configuration or operational mode. The output formats json, keypath,
xml, and xpath are available in most modes and CLI styles (J, I, and C).
For instance, assuming we have a data model featuring a set of hosts, each containing a set of servers, we
can display the configuration data as JSON. This is depicted in the example below.
admin@io 15:11:24> show configuration hosts | display json
{
"data": {
"pipetargets_model:hosts": {
"host": [
{
"name": "host1",
"enabled": true,
"numberOfServers": 2,
"servers": {
"server": [
{
"name": "serv1",
"ip": "192.168.0.1",
"port": 5001
},
{
"name": "serv2",
"ip": "192.168.0.1",
"port": 5000
}
]
}
},
{
"name": "host2",
"enabled": false,
"numberOfServers": 0
...
Still working with the same data model as used in the example above, we might want to see the current
configuration in keypath format. The following example shows how to do that, and shows the resulting
output.
admin@io 15:11:24> show configuration hosts | display keypath
/hosts/host{host1} enabled
/hosts/host{host1}/numberOfServers 2
/hosts/host{host1}/servers/server{serv1}/ip 192.168.0.1
/hosts/host{host1}/servers/server{serv1}/port 5001
/hosts/host{host1}/servers/server{serv2}/ip 192.168.0.1
/hosts/host{host1}/servers/server{serv2}/port 5000
/hosts/host{host2} disabled
260
The CLI agent
/hosts/host{host2}/numberOfServers 0
16.7. Range expressions
It is possible to modify a range of instances at the same time using range expressions, and to display a
range of instances using a range expression.
Key attributes that are integers are automatically support range expressions, both in the J- style and the I-
and C- style CLI. The syntax is slightly different in the J-style than in I- and C- style.
Automatic range expressions are also supported for key elements of other types as long as they are restricted
to the pattern [a-zA-Z-]*[0-9]+/[0-9]+/[0-9]+/.../[0-9]+. I.e., the CLI understands the [integer]/[integer]
syntax.
If you have more complicated data-types then you may need to write a custom range callback. See the
examples.confd/cli/custom_ranges example.
Suppose we have data model like this:
module range {
namespace "http://tail-f.com/ns/example/range";
prefix range;
import ietf-inet-types {
prefix inet;
}
import tailf-common {
prefix tailf;
}
typedef interface-type {
type string {
pattern "((FastEthernet-)|(GigaEthernet-))[0-9]+/[0-9]+/[0-9]+";
}
}
list server {
key name;
max-elements 64;
leaf name {
type int32;
}
leaf ip {
type inet:ip-address;
mandatory true;
}
leaf port {
type inet:port-number;
mandatory true;
}
leaf description {
type string;
}
}
list interface {
key name;
261
The CLI agent
max-elements 64;
leaf name {
type interface-type;
}
leaf ip {
type inet:ip-address;
mandatory true;
}
leaf mtu {
type int32;
mandatory true;
}
leaf description {
type string;
}
tailf:action reset {
tailf:actionpoint reset-point;
input {
leaf mode {
type string;
mandatory true;
}
leaf debug {
type empty;
}
}
output {
leaf time {
type string;
mandatory true;
}
}
}
}
}
Then you can do the following in the J-style CLI. Display a selected subset of the servers:
show configuration server 1-3,5
Display the configuration of a subset of the interfaces:
show configuration interface FastEthernet-1/1/1,2
In configure mode you can edit a range of interfaces in one go. For example:
jb@io> configure
Entering configuration mode private
[ok][2009-06-16 12:57:59]
[edit]
jb@io% edit interface FastEthernet-1/1/1-3
[ok][2009-06-16 12:58:14]
[edit interface FastEthernet-1/1/1-3]
jb@io% set mtu 1400
[ok][2009-06-16 12:58:20]
[edit interface FastEthernet-1/1/1-3]
262
The CLI agent
jb@io% commit
Commit complete.
[ok][2009-06-16 12:58:22]
[edit interface FastEthernet-1/1/1-3]
jb@io%
In the C- and I- style CLIs the syntax is slightly different in configure mode. When you want to modify
a range of instances you enter a specific range mode.
io# config
Entering configuration mode terminal
io(config)# interface range FastEthernet-1/1/1-3
io(config-interface-FastEthernet-1/1/1-3)# mtu 1300
io(config-interface-FastEthernet-1/1/1-3)# commit
Commit complete.
io(config-interface-FastEthernet-1/1/1-3)#
See the examples.confd/cli/ranges example.
16.8. Autorendering of enabled/disabled
If the data model contains an element called enabled of type xs:boolean then it will get some special
treatment. Normally the user would have to enter enabled true and enabled false to enable/disable. To
make this a bit more user friendly the CLI will also accept enabled and disabled. A disabled command
will be auto generated if there is an enabled option of the proper type.
However, the disabled command will not be visible in configuration dumps, instead enabled false will
be shown. The disabled command is only provided as a sugar in the CLI.
This behaviour can be controlled on a global level by configuring the confd.conf setting /confdConfig/
cli/useShortEnabled. If the value is set to 'true', it is possible to disable the behavior on a per leaf basis,
by using the extension tailf:cli-suppress-shortenabled.
16.9. Actions
Actions are invoked differently in C/I- and J-mode. In C/I-mode an action appears as a mode specific
command, whereas in J-mode an action is invoked using the request command in operational mode.
For example, given the data model fragment below:
tailf:action shutdown {
tailf:actionpoint actions;
input {
tailf:constant-leaf flags {
type uint64 {
range "1 .. max";
}
tailf:constant-value 42;
}
leaf timeout {
type xs:duration;
default PT60S;
}
leaf message {
type string;
}
263
The CLI agent
container options {
leaf rebootAfterShutdown {
type boolean;
default false;
}
leaf forceFsckAfterReboot {
type boolean;
default false;
}
leaf powerOffAfterShutdown {
type boolean;
default true;
}
}
}
}
In J-mode the restart action is invoked as follows:
joe@io> request shutdown timeout 10s message reboot options { forceFsckAfterReboot true }
And in C/I-mode as a mode specific command as follows:
io(config)# system restart mode quick restore { db startup fast } debug timeout 45
Full command and argument completion is available when entering the command.
The order in which the action arguments are entered is not important. The parameters are reordered by the
CLI-backend before invoking the action callback.
In the CLI the action is not paginated by default and will only do so if it is piped to more.
joe@io> example_action | more
16.10. Command history
By default, command history is maintained in each mode. When we enter configure mode for the first
time, we will get an empty history, i.e. we cannot access the command history from operational mode.
When we exit back into operational mode we will again have access to the command history from the
preceding operational mode session. There is an exception to this, specifically, the 'confd.conf' setting
'unifiedHistory'. This makes the system use one single history for both modes.
16.11. Clearing history
By default, clearing the history in one mode (for instance operational mode) will not the affect the history
of the other mode. Enabling the 'confd.conf' setting 'unifiedHistory', will cause the 'clear history' command
to clear both the operational mode session's history and the configuration mode's history.
16.12. Command line editing
The default key strokes for editing the command line and moving around the command history are as
follows. Note that it is possible to change these commands using the keymap clispec modification. See
the clispec.5 man page for more details.
264
The CLI agent
16.12.1. Moving the cursor:
Move the cursor back one character
Ctrl-b or Left Arrow
Move the cursor back one word
Esc-b or Alt-b
Move the cursor forward one character
Ctrl-f or Right Arrow
Move the cursor forward one word
Esc-f or Alt-f
Move the cursor to the beginning of the command line
Ctrl-a or Home
Move the cursor to the end of the command line
Ctrl-e or End
16.12.2. Delete characters:
Delete the character before the cursor
Ctrl-h, Delete, or Backspace
Delete the character following the cursor
Ctrl-d
Delete all characters from the cursor to the end of the line
Ctrl-k
Delete the whole line
Ctrl-u or Ctrl-x
Delete the word before the cursor
Ctrl-w, Esc-Backspace, or Alt-Backspace
Delete the word after the cursor
Esc-d or Alt-d
16.12.3. Insert recently deleted text:
Insert the most recently deleted text at the cursor
Ctrl-y
16.12.4. Display previous command lines:
Scroll backward through the command history
Ctrl-p or Up Arrow
Scroll forward through the command history
Ctrl-n or Down Arrow
Search the command history in reverse order
Ctrl-r
265
The CLI agent
Show a list of previous commands
run the "show cli history" command
16.12.5. Capitalization:
Capitalize the word at the cursor, i.e. make the first character uppercase and the rest of the word lowercase.
Esc-c
Change the word at the cursor to lowercase.
Esc-l
Change the word at the cursor to uppercase.
Esc-u
16.12.6. Special:
Abort a command/Clear line
Ctrl-c
Quote insert character, i.e. do not treat the next keystroke as an edit command.
Ctrl-v/ESC-q
Redraw the screen
Ctrl-l
Transpose characters
Ctrl-t
Enter multi-line mode. This lets you enter multi-line values when prompted for a value in the CLI. It is
not available when editing a CLI command.
ESC-m
Exit configuration mode. Only in C- and I-style.
Ctrl-z
16.13. Using CLI completion
We do not always have to type the full command or option name for the CLI to recognize it. To display
possible completions, type the partial command followed immediately by <tab> or <space>.
If the partially typed command uniquely identifies a command, the full command name will appear.
Otherwise a list of possible completions is displayed.
Completion is disabled inside quotes; in other words, if we want to type an argument containing spaces,
we can either quote them with a \ (e.g. show file foo\ bar) or with a " (e.g. show file "foo bar"). Space
completion is disabled when entering a filename.
Command completion also applies to filenames and directories.
Example:
admin@io> <space>
Possible completions:
commit - Confirm a pending commit
configure - Manipulate software configuration information
file - Perform file operations
266
The CLI agent
help - Provide help information
monitor - Real-time debugging
ping - Ping a host
quit - Exit the management session
request - Make system-level requests
set - Set CLI properties
set-path - Set relative show-path
show - Show information about the system
ssh - Open a secure shell on another host
telnet - Open a telnet session to another host
traceroute - Trace the route to a remote host
admin@io> re<space>quest <space>
Possible completions:
job - Job operations
message - Send message to terminal of one or all users
system - System operations
admin@io> request m<space>essage all "hello"
16.13.1. Customizing CLI completion
CLI completion kicks in for both command parameters and for values adhering to leaf elements in yang. By
default completions are generated automatically depending on the parameter or leaf element type. Some
examples:
d199# history ?
<size>
Above we trigger a ?-completion for the built-in history command which takes a single parameter of type
xs:nonNegativeInteger. The built-in history command chooses to answer with a <size> completion string.
d199# config
Entering configuration mode terminal
d199(config)# interface ?
Possible completions:
<name: GigaEthernetX/Y>
Above we trigger a ?-completion for the list element interface which has a key leaf element of type
interfaceNameType defined in the http://tail-f.com/ns/example/config/1.0 namespace:
typedef interfaceNameType {
tailf:info "GigaEthernetX/Y";
type string;
}
If the default completion behavior is not satisfactory a custom completion callback can be used instead.
This holds true for both built-in and user defined commands as well for leaf elements in built-in and user
defined data models.
In the following examples we redefined the completion behavior for the two examples above.
d199# history ?
Possible completions:
500 750 The history must be a non-negative value (preferably 500 or 750)
and
d199# config
Entering configuration mode terminal
d199(config)# interface ?
267
The CLI agent
Possible completions:
FastEthernet0/1 FastEthernet IEEE 802.3
GigaEthernet0/1 GigabitEtherenet IEEE 802.3z
GigaEthernet0/2 GigabitEtherenet IEEE 802.3z
GigaEthernet1/1 GigabitEtherenet IEEE 802.3z
GigaEthernet1/2 GigabitEtherenet IEEE 802.3z
d199(config)# interface GigaEthernet ?
Possible completions:
GigaEthernet0/1 GigaEthernet0/2 GigaEthernet1/1 GigaEthernet1/2
This was achieved using the following clispec fragment:
<modifications>
<simpleType namespace="" name="uint64">
<callback>
<capi>
<completionpoint>generic-complete</completionpoint>
</capi>
</callback>
</simpleType>
<simpleType namespace="http://tail-f.com/ns/example/config"
name="interfaceNameType">
<callback>
<capi>
<completionpoint>ifs-complete</completionpoint>
</capi>
</callback>
</simpleType>
The generic-complete and ifs-complete callbacks look like this (fragments):
static int generic_complete(struct confd_user_info *uinfo, int cli_style,
char *token, int completion_char,
confd_hkeypath_t *kp, char *cmdpath,
char *cmdparam_id,
struct confd_qname *simpleType, char *extra) {
char keypath[BUFSIZ] = {0};
struct confd_completion_value values[6];
int i = 0;
if (strcmp(cmdpath, "history") == 0 ||
strcmp(cmdpath, "set history") == 0) {
values[i].type = CONFD_COMPLETION_INFO;
values[i].value = "The history must be a non-negative value (preferably 500 or 750)";
i++;
values[i].type = CONFD_COMPLETION;
values[i].value = "500";
values[i].extra = NULL;
i++;
values[i].type = CONFD_COMPLETION;
values[i].value = "750";
values[i].extra = NULL;
i++;
}
if (confd_action_reply_completion(uinfo, values, i) < 0)
268
The CLI agent
confd_fatal("Failed to reply to confd\n");
return CONFD_OK;
}
static int ifs_complete(struct confd_user_info *uinfo, int cli_style,
char *token, int completion_char, confd_hkeypath_t *kp,
char *cmdpath, char *cmdparam_id,
struct confd_qname *simpleType, char *extra) {
char keypath[BUFSIZ] = {0};
struct confd_completion_value values[6];
int i = 0;
if (completion_char == '?') {
values[i].type = CONFD_COMPLETION;
values[i].value = "GigaEthernet0/1";
values[i].extra = "GigabitEtherenet IEEE 802.3z";
i++;
values[i].type = CONFD_COMPLETION;
values[i].value = "GigaEthernet0/2";
values[i].extra = "GigabitEtherenet IEEE 802.3z";
i++;
values[i].type = CONFD_COMPLETION;
values[i].value = "GigaEthernet1/1";
values[i].extra = "GigabitEtherenet IEEE 802.3z";
i++;
values[i].type = CONFD_COMPLETION;
values[i].value = "GigaEthernet1/2";
values[i].extra = "GigabitEtherenet IEEE 802.3z";
i++;
values[i].type = CONFD_COMPLETION;
values[i].value = "FastEthernet0/1";
values[i].extra = "FastEthernet IEEE 802.3";
i++;
}
if (confd_action_reply_completion(uinfo, values, i) < 0)
confd_fatal("Failed to reply to confd\n");
return CONFD_OK;
}
Take a look at the completion callback example which comes bundled with the ConfD distribution, i.e.
cli/completions and read more about the completion callback API in the confd_lib_dp(3) manual
page.
16.14. Using the comment characters # or !
All characters following a # (in J-style) or ! (in C-style) character up to the next newline are ignored. This
makes it possible to have comments in a file containing CLI commands, and still be able to paste the file
into the command-line interface. For example:
269
The CLI agent
# Command file create 2006-05-20 by Joe Smith
# First show the configuration before we change it
show configuration
# Enter configuration mode and add joe as user
configure
wizard adduser
joe
foobar
foobar
admin
commit
exit
# Done
If we want to enter the # or the ! character as an argument, it has to be prefixed with a backslash (\) or
used inside quotes (").
16.15. Annotations and tags
If you have large configurations it may make sense to be able to associate comments (annotations) and
tags with the different parts. And then be able to filter the configuration with respect to the annotations or
tags. For example, tagging parts of the configuration that relates to a certain department or customer.
ConfD has support for both tags and annotations. The support is enabled by enabling configuration
attributes in the confd.conf file. I.e.,
<enableAttributes>true</enableAttributes>
Once attributes has been enabled a set of new commands will be available in the CLI for annotating and
tagging parts of the configuration. There will also be a set of pipe targets for controlling whether the tags
and annotations should be displayed, and for filtering depending on annotation and tag content.
The new commands are:
annotate <statement> <text>
tag add <statement> <tag>
tag del <statement> <tag>
tag clear <statement> <tag>
The annotations and tags will be displayed as comments where the tags are prefixed by Tags:. For example:
joe@io 16:10:17% annotate aaa authentication users user admin "Only allow the XX department access to this user."
[ok][2009-09-29 16:17:16]
[edit]
joe@io 16:17:16% tag add aaa authentication users user oper foo
[ok][2009-09-29 16:28:28]
[edit]
joe@io 16:29:02% show aaa authentication users user | tags foo
/* Tags: foo */
user oper {
uid 1000;
gid 1000;
270
The CLI agent
password $1$mfy4jdVt$dNJbiaylcbjpNIeRvHs3X0;
ssh_keydir /var/confd/homes/oper/.ssh;
homedir /var/confd/homes/oper;
}
[ok][2009-09-29 16:29:18]
[edit]
joe@io 16:29:29% show aaa authentication users user | annotation *XX*
/* Only allow the XX department access to this user. */
user admin {
uid 1000;
gid 1000;
password $1$Qe$71aKksCOyR.KTBG6ojcGg1;
ssh_keydir /var/confd/homes/admin/.ssh;
homedir /var/confd/homes/admin;
}
[ok][2009-09-29 16:29:33]
[edit]
joe@io 16:29:33%
It is possible to hide the tags and annotations when viewing the configuration, or to explicitly include them
in the listing. This is done using the display annotations/tags and hide annotations/tags pipe targets.
Note that annotations are tags are part of the configuration. If you add, remove or modify an annotation
or tag you need to commit the new configuration, just as you would if you have made any other change to
the configuration. In I-style this will happen automatically once you press enter.
See the examples.confd/cli/annotations example for a hands on experience.
16.16. Activate and Deactivate
It may be useful to be able to deactivate parts of a configuration without actually removing it from the
configuration file. It makes it possible to, for example, pre-provision a device or temporarily disable parts
of a configuration without loosing the config.
ConfD has support for activate/deactivate. The support is enabled by enabling configuration attributes in
the confd.conf file. I.e.,
<enableInactive>true</enableInactive>
Once inactive has been enabled two new commands becomes available in configure mode: activate and
deactivate. The argument to the command is a path into the configuration with the same properties as a
path that is deletable.
The new commands are:
activate <statement>
deactivate <statement>
A deactivated statement will be indicated by a comment that says Inactive on a line before the deactivated
statement in C- and I-style, and by an inactive: prefix in J-style.
In the J-style CLI
joe@io% deactivate server 1
271
The CLI agent
[ok][2010-11-02 14:45:25]
[edit]
joe@io% show server
inactive: server 1 {
ip 1.1.1.1;
port 1071;
}
server 2 {
ip 1.1.1.2;
port 1072;
}
server 3 {
ip 1.1.1.3;
port 1073;
}
[ok][2010-11-02 14:45:33]
[edit]
joe@io%
In the C- and I-style CLIs
io(config)# deactivate server 1
io(config)# show config
/* Inactive */
server 1
!
io(config)# show configuration merge server
/* Inactive */
server 1
ip 1.1.1.1
port 1071
!
server 2
ip 1.1.1.2
port 1072
!
server 3
ip 1.1.1.3
port 1073
!
io(config)#
See the examples.confd/cli/annotations example for a hands on experience.
16.17. CLI messages
Messages appear when we enter and exit configure mode, when we commit a configuration, and when we
type a command or value that is not valid.
Examples:
admin@io> show c
----------------^
syntax error: unknown command
Possible commands starting with c:
configuration - Display current configuration
272
The CLI agent
cli - Display cli settings
admin@io> show configuration
------------------^
syntax error: unknown command
[error][2006-06-09 10:12:05]
admin@io% set aaa auth
----------------------^
syntax error: element does not exist
Possible values starting with auth:
authentication
authorization
When we commit a configuration, the CLI first validates the configuration and if there is a problem
indicates what the problem is, for example a missing identifier or a value out of range. A message indicates
where the errors are.
Examples:
admin@io> configure
Entering configuration mode "private"
[ok][2006-06-02 12:31:59]
[edit]
admin@io% set aaa authorization rules rule 200
[ok][2006-06-02 12:31:59]
[edit]
admin@io% commit
Aborted: value is unset 'aaa authorization rules rule 200 action'
[error][2006-06-02 12:31:59]
[edit]
admin@io%
16.18. confd.conf settings
Parts of the CLI behavior can be controlled from the confd.conf file. See the confd.conf.5 man page
for a comprehensive description of all the options.
16.19. CLI Environment
There are a number of session variables in the CLI. They are only used during the session and are not
persistent. Their values are inspected using show cli in operational mode, and set using set in operational
mode. Their initial values are in order derived from the content of the confd.conf file, and the global
defaults as configured under /aaa:session, and finally from user specific settings configured under under /
aaa:user{<user>}/setting.
admin@io> show cli
cli {
autowizard true;
complete-on-space true;
ignore-leading-space false;
history 100;
idle-timeout 1800;
output {
file terminal;
273
The CLI agent
}
paginate true;
screen {
length 82;
width 80;
}
show {
defaults false;
}
terminal xterm;
}
[ok][2006-06-02 12:31:59]
admin@io>
The different values control different parts of the CLI behavior.
autowizard (true | false)
When enabled, the CLI will prompt the user for required settings when a new identifier is created and
for mandatory action parameters.
For example:
admin@io% set aaa authorization rules rule 200
Value for 'context' (<string>): *
Value for 'path' (<string>): *
Value for 'group' (<string>): *
Value for 'op' (<string>): rw
Value for 'action' [reject,accept]: reject
[ok][2006-06-02 12:31:59]
[edit]
admin@io%
This saves the user from typing explicit set commands to set each required setting.
Note that it is recommended to disable the autowizard before pasting in a list of commands, in order
to avoid prompting. A good practice is to start all such scripts with a line that disables the autowizard:
set autowizard false
...
set autowizard true
complete-on-space (true | false)
Controls if command completion should be attempted when <space> is entered. Entering <tab> always
results in command completion.
devtools (true | false)
Controls if certain commands that are useful for developers should be enabled. The commands xpath
and timecmd are examples of such a command.
ignore-leading--space (true | false)
Controls if leading spaces should be ignored or not. This is useful to turn off when pasting commands
into the CLI.
history (<integer>)
Size of CLI command history.
idle-timeout (<seconds>)
Maximum idle time before being logged out. Use 0 (zero) for for infinity.
274
The CLI agent
paginate (true | false)
Some commands paginate their output, for example. This can be disabled or enabled. It is enabled
by default.
screen width (<integer>)
Current width of terminal. This is used when paginating output to get proper line count.
screen length (<integer>)
Current length of terminal. This is used when paginating output to get proper line count.
service prompt config
Controls whether a prompt should be displayed in configure mode in the C- and I-style CLI. If set
to false then no prompt will be displayed. The setting is changed using the commands no service
prompt config and service prompt config in configure mode.
show defaults (true | false)
Controls if defaults values should be shown when displaying the configuration. The default values
are shown as comments after the configured value.
For example:
admin@io% show hosts host
host x15 {
domain tail-f.com;
defgw 10.1.5.2;
interfaces {
interface 1 {
name eth0;
ipMask {
ip 192.68.0.60; # 10.0.0.0
mask 255.255.0.0; # 255.255.0.0
}
enabled false;
}
}
}
[ok][2006-06-02 12:31:59]
[edit]
admin@io%
terminal (string)
Terminal type. This setting is used for controlling how line editing is performed. Supported terminals
are: dumb, vt100, xterm, linux, and ansi. Other terminals may also work but have no explicit support.
16.20. Commands in J-style
It is possible to get a full XML listing of the commands available in a running ConfD instance by using
the confd option --cli-j-dump <file>. The generated file is only intended for documentation purposes and
cannot be used as input to confdc.
16.20.1. Operational mode commands
compare startup [brief] [<pathfilter>]
Compare current configuration to the startup configuration. This command is only available when
the system has been configured to have a startup configuration. Differences will be annotated with -
(removed) and + (added). With the brief option, only the actual diffs will be shown.
275
The CLI agent
compare file <file> [brief] [<pathfilter>]
Compare current configuration to a configuration stored on file, i.e. previously saved using the save
command. Differences will be annotated with - (removed) and + (added). With the brief option, only
the actual diffs will be shown.
configure (private | exclusive | shared)
Enter configure mode. The default is private. The options have slightly different meaning depending
on how the system is configured; with a writable running configuration, with a startup configuration,
and with a candidate configuration.
private (writable running enabled)
Edit a private copy of the running configuration, no lock is taken.
private (writable running disabled, startup enabled)
Edit a private copy of the startup configuration, no lock is taken.
exclusive (candidate enabled)
Lock the running configuration and the candidate configuration and edit the candidate
configuration.
exclusive (candidate disabled, startup enabled)
Lock the running configuration (if enabled) and the startup configuration and edit the startup
configuration.
shared (writable running enabled, candidate enabled)
Edit the candidate configuration without locking it.
Example:
admin@io> configure private
Entering configuration mode "private"
[ok][2006-06-02 12:31:59]
[edit]
admin%
file show <file>
Display contents of a <file>.
Example:
admin@io> file show /etc/skel/.bash_profile
# /etc/skel/.bash_profile
# This file is sourced by bash for login shells. The following line
# runs our .bashrc and is recommended by the bash info pages.
[[ -f ~/.bashrc ]] &amp;&amp; . ~/.bashrc
[ok][2006-06-02 12:31:59]
admin@io>
file list <directory>
List files in <directory>.
Example:
admin@io> file list /config
rollback0
rollback1
rollback2
rollback3
rollback4
276
The CLI agent
[ok][2006-06-02 12:31:59]
admin@io>
help <command>
Display help text related to <command>.
Example:
admin@io> help request job
Help for command: request job
Job operations
[ok][2006-06-02 12:31:59]
admin@io>
request <path> <parameters>
Invokes the action found at path using the supplied parameters. For example, given the following
action specification in a yang file:
tailf:action shutdown {
tailf:actionpoint actions;
input {
tailf:constant-leaf flags {
type uint64 {
range "1 .. max";
}
tailf:constant-value 42;
}
leaf timeout {
type xs:duration;
default PT60S;
}
leaf message {
type string;
}
container options {
leaf rebootAfterShutdown {
type boolean;
default false;
}
leaf forceFsckAfterReboot {
type boolean;
default false;
}
leaf powerOffAfterShutdown {
type boolean;
default true;
}
}
}
}
the action can be invoked in the following way
admin@io> request shutdown timeout 10s message reboot options { forceFsckAfterReboot true }
request system logout user (<username> | <sessionid>)
Log out a specific user or session from the device. If the user held the configure exclusive lock, it
will be released.
<username> Log out a specific user.
277
The CLI agent
<sessionid> Terminate a specific session.
Example:
admin@io> show users
SID USER TYPE FROM PROTO LOGIN
*4 admin cli 127.0.0.1 console 13:11:03
3 oper cli 127.0.0.1 console 13:11:01
[ok][2006-06-02 12:31:59]
admin@io> request system logout user oper
[ok][2006-06-02 12:31:59]
admin@io> show users
SID USER TYPE FROM PROTO LOGIN
*4 admin cli 127.0.0.1 console 13:11:03
[ok][2006-06-02 12:31:59]
admin@io>
request message (all | <user>) <message>
Display a message on the screens of all users who are logged in to the device or on a specific screen.
all Display the message to all currently logged in users.
<user>
Display the message to a specific user.
Example:
admin@io> request message oper "I will reboot system in 5 minutes."
admin@io>
oper@io> Message from admin@io at 13:16:41...
I will reboot system in 5 minutes.
EOF
request job stop <job id>
Stop a specific background job. In the default CLI the only command that creates background jobs
is monitor start.
Example:
admin@io> monitor start /var/log/messages
[ok][2006-06-02 12:31:59]
admin@io> show jobs
JOB COMMAND
3 monitor start /var/log/messages
[ok][2006-06-02 12:31:59]
admin@io> request job stop 3
[ok][2006-06-02 12:31:59]
admin@io> show jobs
JOB COMMAND
[ok][2006-06-02 12:31:59]
admin@io>
set (complete-on-space | ignore-leading-space | idle-timeout | paginate | screen length | screen width
| terminal |autowizard | show defaults) <value>
Set CLI properties.
Example:
278
The CLI agent
admin@io> set autowizard true
[ok][2006-06-02 12:31:59]
admin@io>
set-path <path>
This commands lets you 'cd' into a status part of the tree. Similar to the 'edit' command in configure
mode.
show cli
Display CLI properties.
Example:
admin@io> show cli
cli {
autowizard true;
complete-on-space true;
ignore-leading-space false;
history 100;
idle-timeout 1800;
output {
file terminal;
}
paginate true;
screen {
length 82;
width 80;
}
show {
defaults false;
}
terminal xterm;
}
[ok][2006-06-02 12:31:59]
admin@io>
show cli history [<limit>]
Display CLI command history. By default the last 100 commands are listed. The size of the history
list is configured using the history CLI setting. If you specify a history limit, only the last number of
commands up to that limit will be shown.
Example:
admin@io> show cli history
06-19 14:34:02 -- ping router
06-20 14:42:35 -- show configuration
06-20 14:42:37 -- show users
06-20 14:42:40 -- show cli history
[ok][2006-06-20 14:42:40]
admin@io> show cli history 3
14:42:37 -- show users
14:42:40 -- show cli history
14:42:46 -- show cli history 3
[ok][2006-06-20 14:42:46]
admin@io>
show all [details] [<pathfilter>]
Display both configuration and status. By default the whole configuration and the whole status tree is
displayed. It is possible to limit what is shown by supplying a pathfilter.
279
The CLI agent
The pathfilter may be either a path pointing to a specific instance, or if an instance id is omitted, the
part following the omitted instance is treated as a filter.
show configuration [details] [<pathfilter>]
Display current configuration. By default the whole configuration is displayed. It is possible to limit
what is shown by supplying a pathfilter.
The pathfilter may be either a path pointing to a specific instance, or if an instance id is omitted, the
part following the omitted instance is treated as a filter.
Example:
To show the aaa settings for the admin user, you can do:
admin@io> show configuration aaa authentication users user admin
uid 100;
gid 10;
password $1$feedbabe$nGlMYlZpQ0bzenyFOQI3L1;
ssh_keydir /var/confd/homes/admin/.ssh;
homedir /var/confd/homes/admin;
[ok][2006-07-31 17:16:01]
admin@io>
To show all users that have group id 10, you would omit the user id, and instead specify gid 10.
admin@io> show configuration aaa authentication users user gid 10
user admin {
uid 100;
gid 10;
password $1$feedbabe$nGlMYlZpQ0bzenyFOQI3L1;
ssh_keydir /var/confd/homes/admin/.ssh;
homedir /var/confd/homes/admin;
}
user oper {
uid 100;
gid 10;
password $1$feedbabe$i2glnaB.iUj2VXh/zlq.o/;
ssh_keydir /var/confd/homes/oper/.ssh;
homedir /var/confd/homes/oper;
}
[ok][2006-07-31 17:16:56]
admin@io>
show parser dump <command prefix>
Shows all possible commands starting with command prefix.
show status <pathfilter>
Display current values of read-only nodes in the configuration.
show table <path>
This command shows the configuration as a table provided that path leads to a list element.
Example:
admin@io 09:42:08> show table aaa authentication groups group
NAME GID USERS
---------------------------
admin admin private
oper oper public
280
The CLI agent
[ok][2007-09-17 09:44:12]
[edit]
admin@io 09:44:12>
show users
Display currently logged on users. The current session, i.e. the session running the show status
command, is marked with an asterisk.
Example:
admin@io> show users
SID USER TYPE FROM PROTO LOGIN
*4 admin cli 127.0.0.1 console 13:11:03
3 oper cli 127.0.0.1 console 13:11:01
[ok][2006-06-02 12:31:59]
admin@io>
show jobs
Display currently running background jobs.
Example:
admin@io> show jobs
JOB COMMAND
3 monitor start /var/log/messages
show log <file>
Display contents of a log file.
Example:
admin@io> show log messages
source <file>
Execute commands from <file> as if they had been entered by the user. The autowizard is disabled
when executing commands from the file.
commit (abort | confirm) [persist-id <id>]
Abort or confirm a pending confirming commit. A pending confirming commit will also be aborted
if the CLI session is terminated without doing commit confirm. The default is confirm.
If the confirming commit has been initiated with the persist option then user needs to supply the same
token as a persist-id for the commit to have effect.
Example:
admin@io> commit abort
describe <command>
Display detailed information about a command.
Example:
admin@io> describe ping
Common
Source : clispec
File : commands-c.cli
281
The CLI agent
Callback [os command]
OS command : ping
Run as user : confd
Help
Verify IP (ICMP) connectivity to a host.
Info
Ping a host
timecmd <command>
Time command. It measures and displays the execution time of <command>.
Note that this command will only be available if devtools has been set to true in the CLI session
settings.
Example:
io# timecmd id
user = admin(501), gid=20, groups=admin, gids=12,20,33,61,79,80,81,98,100
Command executed in 0.00 sec
[ok][2016-09-16 14:06:15]
io#
16.20.2. Configure mode commands
activate <statement>
Activate a statement that has previously been deactivated.
Only available in when the system has been configured with support for inactive.
deactivate <statement>
Deactivate a statement in the configuration.
Only available in when the system has been configured with support for inactive.
annotate <statement> <text>
Associate an annotation with a given configuration statement. To remove an annotation leave the text
empty.
Only available in when the system has been configured with attributes enabled.
commit (check | and-quit | confirmed [<timeout>] [persist <token>] | to-startup) [comment <text>]
[label <text>] [persist-id <id>]
Commit current configuration to running.
check
Validate current configuration.
and-quit
Commit to running and quit configure mode.
to-startup
Commit current configuration to running and startup configuration. Only available if the system
is configured to have a startup configuration.
282
The CLI agent
confirmed
Commits the current configuration to running with a timeout. If no commit confirm command
has been issued before the timeout expires, then the configuration will be reverted to the
configuration that was active before the commit confirmed command was issued. If no timeout
is given then the confirming commit will have a timeout of 10 minutes. The configuration session
will be terminated after this command since no further editing is possible. Only available in
configure exclusive and configure shared mode when the system has been configured with a
candidate.
The confirming commit will be rolled back if the CLI session is terminated before confirming
the commit, unless the persist argument is given. If the persist command is given then the CLI
session can be terminated and a later session may confirm the pending commit by supplying the
persist token as an argument to the commit command using the persist-id argument.
comment <text>
Associate a comment with the commit. The comment can later be seen when examining rollback
files.
label <text>
Associate a label with the commit. The label can later be seen when examining rollback files.
persist-id <id>
If a prior confirming commit operation has been performed with the persist argument, then to
modify the ongoing confirming commit process the persist-id argument needs to be supplied with
the same persist token. This makes it possible to, for example, abort an onging persist commit,
or extend the timeout.
validate
Validates current configuration. This is the same operation as commit check.
insert <path>
Inserts a new element. If the element already exists and has the indexedView option set in the data
model, then the old element will be renamed to element+1 and the new element inserted in its place.
insert <path> [first | last| before key| after key]
Insert a new element into an ordered list. The element can be added first, last (default), before or after
another element.
move <path>[first|last|beforekey|afterkey]
Move an existing element to a new position in an ordered list. The element can be moved first, last
(default), before or after another element.
rename <instance path> <new id>
Rename an instance.
delete <path>
Delete a data element.
edit <path>
Edit a sub-element. Missing elements in path will be created.
exit (level | configuration-mode)
level Exit from this level. If performed on the top level, will exit configure
mode. This is the default if no option is given.
configuration-mode Exit from configuration mode regardless of which edit level.
283
The CLI agent
help <command>
Shows help text for command.
hide <hide-group>
Re-hides the elements and actions belonging to the hide groups. No password is required for hiding.
Note that this command is hidden and not shown during command completion.
unhide <hide-group>
Unhides all elements and actions belonging to the hide-group. You may be required to enter a
password. Note that this command is hidden and not shown during command completion
load (merge | replace | override) (<file> | terminal)
Load configuration from file or terminal.
merge Merge content of file/terminal with current configuration.
replace Replace the content of file/terminal for the corresponding parts of the current
configuration. This is different from override in the that only the parts that occur
in the file/terminal are replace, the rest of the configuration is left as is. In the case
of override the entire configuration is deleted (with the exception of hidden data)
before loading the new configuration from the file/terminal.
There currently exists a discrepancy in behavior between different CLI:s and file
formats. List nodes will be replaced for the following combinations:
Juniper CLI, XML and curly bracket format.
Cisco CLI, XML format.
List nodes will be merged for the following combination:
Cisco CLI, curly bracket format.
override The current configuration is deleted and a new configuration is loaded from file/
terminal. Hidden data is not affected.
The configuration file may contain replace: and delete: directives. For example if you have the
configuration
system {
parent-mo {
child-mo 1 {
attr 10;
}
child-mo 2 {
attr 5;
}
}
}
and want to delete child-mo 2, you can create a configuration file containing either (using replace:)
system {
replace:
parent-mo {
child-mo 1 {
attr 2;
}
}
}
284
The CLI agent
or (using delete:)
system {
parent-mo {
delete:
child-mo 2 {
attr 5;
}
}
}
save <file> [xml] [<pathfilter>]
Save the whole or parts of the current configuration to file. By the default the configuration is saved
in curly bracket format. If the xml argument is given then the configuration is saved in XML format.
rollback [<number>]
Return the configuration to a previously committed configuration. The system stores a limited number
of old configurations. The number of old configurations to store is configured in the confd.conf
file. If more than the configured number of configurations are stored, then the oldest configuration
is removed before creating a new one.
The most recently committed configuration (the running configuration) is number 0, the next most
recent 1, etc.
The files are called rollback0 - rollbackX, where X is the maximum number of saved committed
configurations.
Example:
admin@io% rollback 1
[ok][2006-06-02 12:31:59]
admin@io%
Note that this command is only available if rollback has been enabled in confd.conf.
run <command>
Run command in operational mode.
set <path> [<value>]
Set a parameter. If a new identifier is created and autowizard is enabled, then the CLI will prompt
the user for all mandatory sub-elements of that identifier. It will also prompt for mandatory action
parameters.
If no <value> is provided, then the CLI will prompt the user for the value. No echo of the entered
value will occur if <path> is an encrypted value, i.e. of the type tailf:md5-digest-string, tailf:des3-
cbc-encrypted-string, or tailf:aes-cfb-128-encrypted-string as described in confd_types(3).
show [details] [<pathfilter>]
Show current configuration. The show command can be limited to a part of the configuration by
providing a <pathfilter>.
show parser dump <command prefix>
Shows all possible commands starting with command prefix.
compare running [brief] [<pathfilter>]
Compare current configuration to the running configuration. Differences will be annotated with -
(removed) and + (added). With the brief option, only the actual diffs will be shown.
285
The CLI agent
compare startup [brief] [<pathfilter>]
Compare current configuration to the startup configuration. This command is only available when the
system has been configured to have a startup configuration. With the brief option, only the actual
diffs will be shown.
compare file <file> [brief] [<pathfilter>]
Compare current configuration to a configuration stored on file, i.e. previously saved using the save
command. With the brief option, only the actual diffs will be shown.
tag add <statement> <tag>
Add a tag to a configuration statement.
Only available in when the system has been configured with attributes enabled.
tag del <statement> <tag>
Remove a tag from a configuration statement.
Only available in when the system has been configured with attributes enabled.
tag clear <statement>
Remove all tags from a configuration statement.
Only available in when the system has been configured with attributes enabled.
top [command]
Exit to top level of configuration, or execute a command at the top level of the configuration.
up [command]
Exit one level of configuration, or execute a command at one level up.
revert
Copy running configuration into current configuration.
status
Display users currently editing the configuration.
describe [<path> | <command>]
Display detailed information about a command. This information may for example consist of the
source of the command (YANG, clispec or built-in), the corresponding path in the YANG file (in case
of an auto-rendered command) and information regarding what callpoints, actionpoints and validation
points that may be tied to the command. Due to the verbose information that may be displayed, it may
be desirable to restrict the usage of this command by including it in an appropriate set of authorization
rules or by the means of any other authorization functionality.
Example:
admin@io% describe dhcp
Common
Source : YANG
Module : dhcpd
Namespace : http://tail-f.com/ns/example/dhcpd
Path : /dhcp
Node : container
Exported agents : all
Checksum : 3c893927631cceee3700c23bb38cd050
286
The CLI agent
xpath [ctx <path>] (eval | must | when) <expression>
Evaluate an XPath expression. A context-path may be given to be used as the current context for
the evaluation of the expression. If no context-path is given, the current sub-mode will be used as
the context-path. The pipe command trace may be used to display debug/trace information during
execution of the command.
Note that this command will only be available if devtools has been set to true in the CLI session
settings.
evalEvaluate an XPath expression.
mustEvaluate the expression as a YANG must expression.
when
Evaluate the expression as a YANG when expression.
timecmd <command>
Time command. It measures and displays the execution time of <command>.
Note that this command will only be available if devtools has been set to true in the CLI session
settings.
Example:
io# timecmd status
Users currently editing the configuration:
admin console (cli from 127.0.0.1) on since 2016-09-16 14:15:29 private mode
Command executed in 0.00 sec
[ok][2016-09-16 14:16:01]
[edit]
io#
16.21. Commands in C/I-style
It is possible to get a full XML listing of the commands available in a running ConfD instance by using
the confd option --cli-c-dump <file>, for C-style and --cli-i-dump for I-style. The generated file is only
intended for documentation purposes and cannot be used as input to confdc.
16.21.1. Operational mode commands
The IOS CLI does not have any of the commands associated with transactions, i.e. commit, abort, show
configuration.
The IOS CLI has commands for entering and leaving privileged mode, settings passwords and secrets and
assigning privilege levels to commands in EXEC mode.
The privilege information for the IOS mode is stored in the AAA namespace under the aaa/ios element.
Note that all EXEC commands are available at level 15 without needing to specify them in the aaa-
configuration.
It is possible to assign custom prompt to the different levels in EXEC mode. The default is for level 0 to
have the "\h> " prompt and for all other levels to have the "\h# " prompt.
287
The CLI agent
compare startup [brief] [<pathfilter>]
Compare current configuration to the startup configuration. This command is only available when
the system has been configured to have a startup configuration. Differences will be annotated with -
(removed) and + (added). With the brief option, only the actual diffs will be shown.
compare file <file> [brief] [<pathfilter>]
Compare current configuration to a configuration stored on file, i.e. previously saved using the save
command. Differences will be annotated with - (removed) and + (added). With the brief option, only
the actual diffs will be shown.
config (terminal | shared | exclusive )
Enter configure mode. The default is terminal. The options have slightly different meaning depending
on how the system is configured; with a writable running configuration, with a startup configuration,
and with a candidate configuration.
terminal (writable running enabled)
Edit a private copy of the running configuration, no lock is taken.
terminal (writable running disabled, startup enabled)
Edit a private copy of the startup configuration, no lock is taken.
exclusive (candidate enabled)
Lock the running configuration and the candidate configuration and edit the candidate
configuration.
exclusive (candidate disabled, startup enabled)
Lock the running configuration (if enabled) and the startup configuration and edit the startup
configuration.
shared (writable running enabled, candidate enabled)
Edit the candidate configuration without locking it.
Example:
io# config terminal
Entering configuration mode terminal
io(config)#
enable (<level>)
Only available in IOS (i) mode. Enables privileged EXEC commands. The default level is 15. The
CLI will prompt for a password if a password has been assigned to the level.
Example:
io> enable
io#
disable (<level>)
Only available in IOS (i) mode. Downgrade to a lower privilege level.
Example:
io# disable 4
io#
file show <file>
Display contents of a <file>.
Example:
288
The CLI agent
io# file show /etc/skel/.bash_profile
# /etc/skel/.bash_profile
# This file is sourced by bash for login shells. The following line
# runs your .bashrc and is recommended by the bash info pages.
[[ -f ~/.bashrc ]] &amp;&amp; . ~/.bashrc
io#
file list <directory>
List files in <directory>.
Example:
io# file list /config
rollback0
rollback1
rollback2
rollback3
rollback4
io#
help <command>
Display help text related to <command>.
Example:
io# help config
Help for command: config
Manipulate software configuration information
io#
id Show user id information; uid, gid, and groups
Example:
io# id
user = joe(1000), gid=100, groups=wheel, gids=10,100
io#
message (all | <user>) <message>
Display a message on the screens of all users who are logged in to the device or on a specific screen.
all Display the message to all currently logged in users.
<user>
Display the message to a specific user.
Example:
io# message all "I will reboot the system in 5 minutes."
Message from joe@io at 13:26:49...
I will reboot the system in 5 minutes.
EOF
io#
job stop <job id>
Stop a specific background job. In the default C-style CLI there are no commands that create
background jobs. Custom commands can be created that do this.
289
The CLI agent
Example:
io# show jobs
JOB COMMAND
1 monitor start /tmp/saved
io# job stop 1
io# show jobs
JOB COMMAND
io#
show cli
Display CLI properties.
Example:
io# show cli
autowizard true
complete-on-space true
ignore-leading-space false
history 50
idle-timeout 1800
output-file terminal
paginate true
screen-length 82
screen-width 80
show-defaults false
terminal xterm
io#
history [<limit>]
Display CLI command history. By default the last 100 commands are listed. The size of the history
list is configured using the CLI history setting. If you specify a history limit, only the last number of
commands up to that limit will be shown.
Example:
io# history
13:28:46 -- show jobs
13:28:53 -- job stop 1
13:29:05 -- show jobs
13:29:51 -- show
13:29:53 -- show cli
13:30:31 -- history
io#
show configuration commit list <id>
List rollback files (C-style only). Note that this command is only available if rollback has been enabled
in confd.conf.
show notification stream <event stream name> [last <number of events>] [from <dateTime
(ccyy-mm-dd|hh:mm:ss|ccyy-mm-ddThh:mm:ss)>] [to <dateTime (ccyy-mm-dd|hh:mm:ss|ccyy-mm-
ddThh:mm:ss)>]
Display the last notifications in a selected stream. The stream must use the builtin store and have
replay enabled. It is possible to limit the output by specifying the maximum number of events and/
or a time range.
show parser dump <command prefix>
Shows all possible commands starting with command prefix.
290
The CLI agent
show running-config [details | all] [<pathfilter>]
Display current configuration. By default the whole configuration is displayed. It is possible to limit
what is shown by supplying a pathfilter. The pathfilter may be either a path pointing to a specific
instance, or if an instance id is omitted, the part following the omitted instance is treated as a filter.
Example:
To show the aaa settings for the admin user, you can do:
io# show running-config aaa authentication users user admin
aaa authentication users user admin
uid 1000
gid 100
password $1$fB$0w68PmacQ4VmE3/M3nK3Ug==
ssh_keydir /var/confd/homes/admin/.ssh
homedir /var/confd/homes/admin
!
io#
To show all users that have group id 10, you would omit the user id, and instead specify gid 10.
io# show running-config aaa authentication users user gid 100
aaa authentication users user admin
uid 1000
gid 100
password $1$fB$0w68PmacQ4VmE3/M3nK3Ug==
ssh_keydir /var/confd/homes/admin/.ssh
homedir /var/confd/homes/admin
!
aaa authentication users user oper
uid 1000
gid 100
password $1$S6$brGZW9wSDifHoU7Rf5KSHA==
ssh_keydir /var/confd/homes/oper/.ssh
homedir /var/confd/homes/oper
!
Per default only elements that have been explicitly set to a value are shown. This makes it easier to
handle large configurations. However, it is possible to force the show command to display all elements.
This is done using the 'details' or 'all' options.
show startup-config [details | all] [<pathfilter>]
Display the startup configuration. This command is only available if ConfD has been configured with
a startup configuration. By default the whole configuration is displayed. It is possible to limit what is
shown by supplying a pathfilter. The pathfilter may be either a path pointing to a specific instance, or
if an instance id is omitted, the part following the omitted instance is treated as a filter.
Per default only elements that have been explicitly set to a value are shown. This makes it easier to
handle large configurations. However, it is possible to force the show command to display all elements.
This is done using the 'details' or 'all' options.
write terminal [<pathfilter>]
Display current configuration.
copy running-config startup-config
Copy running configuration to startup configuration. Only available when the system has been
configured to have a startup database.
291
The CLI agent
write memory
Copy running configuration to startup configuration. Only available when the system has been
configured to have a startup database.
source <file>
Execute commands from <file> as if they had been entered by the user. The autowizard is disabled
when executing commands from the file.
show <pathfilter>
Display current values of read-only parameters. If a list element is encountered then the command
attempts to arrange the output as a table.
whoDisplay currently logged on users. The current session, i.e. the session running the show status
command, is marked with an asterisk.
Example:
io# who
Session User Context From Proto Date
*7 joe cli 127.0.0.1 console 13:19:05
io#
logout (<username> | <sessionid>)
Terminates the current session.
logout (<username> | <sessionid>)
Log out a specific user or session from the device. If the user held the configure exclusive lock, it
will be released.
<username> Log out a specific user.
<sessionid> Terminate a specific session.
Example:
io# who
Session User Context From Proto Date
*5 admin cli 127.0.0.1 console 10:25:46
4 jb cli 127.0.0.1 console 10:25:37
io# logout jb
io# who
Session User Context From Proto Date
*5 admin cli 127.0.0.1 console 10:25:46
io#
show jobs
Display currently running background jobs.
Example:
io# show jobs
JOB COMMAND
2 monitor start /tmp/saved
io#
show log <file>
Display contents of a log file.
292
The CLI agent
Example:
io# show log messages
commit (abort | confirm) [persist-id <id>]
Abort or confirm a pending confirming commit. A pending confirming commit will also be aborted
if the CLI session is terminated without doing commit confirm. The default is confirm.
If the confirming commit was initiated with a persist argument then the same token needs to be
supplied using the persist-id argument to this command.
Example:
io# commit abort
timestamp (enable | disable)
Display a timestamp after a command has been executed. The timestamp is displayed in the timezone
UTC+-00:00 by default. A UTC offset may be configured in confd.conf.
Example:
io# timestamp enable
io# config
Tue Mar 12 11:31:03.698 UTC
Entering configuration mode terminal
io(config)#
describe <command>
Display detailed information about a command.
Example:
# describe ping
Common
Source : clispec
File : commands-c.cli
Callback [os command]
OS command : ping
Run as user : confd
Help
Verify IP (ICMP) connectivity to a host.
Info
Ping a host
timecmd <command>
Time command. It measures and displays the execution time of <command>.
Note that this command will only be available if devtools has been set to true in the CLI session
settings.
Example:
io# timecmd pwd
At top level
293
The CLI agent
Command executed in 0.00 sec
io#
16.21.2. Configure mode commands
alias ( <alias-name> <alias-expansion>)
Defines the alias alias-name. It will be expanded to alias-expansion.
It is possible to define parametrised aliases, i.e. aliases that accepts parameters. The parameters are
then expanded when the alias is applied.
The alias can be used anywhere on the command line. After a command with an alias has been entered,
the expanded command line is displayed so that you can verify the alias value.
For example:
io(config)# alias foo(a,b) "show $(a) ; show $(b)"
io(config)# alias myUser c87923
io(config)# commit
io(config)# foo(history,configuration)
io(config)# show history ; show configuration
...
io(config)# aaa authentication users user myUser
io(config)# aaa authentication users user c87923
The aliases are stored persistently in cdb in the aaa namespace. Note that the clispec file needs to
contain the following three entries in the modifications section:
<dropElem src="alias expansion"/>
<multiValue src="alias expansion"/>
<suppressMode src="alias "/>
activate <statement>
Activate a statement in the configuration that has previously been deactivated.
Only available in when the system has been configured with support for inactive.
deactivate <statement>
Deactivate a statement in the configuration.
Only available in when the system has been configured with support for inactive.
annotate <statement> <text>
Associate an annotation with a given configuration statement. To remove an annotation leave the text
empty.
Only available in when the system has been configured with attributes enabled.
tag add <statement> <tag>
Add a tag to a configuration statement.
Only available in when the system has been configured with attributes enabled.
tag del <statement> <tag>
Remove a tag from a configuration statement.
294
The CLI agent
Only available in when the system has been configured with attributes enabled.
tag clear <statement>
Remove all tags from a configuration statement.
Only available in when the system has been configured with attributes enabled.
enable (secret | password) level <level> ( 0 | 7) <password>
Only available in IOS (i) mode. Configures a password for a specific EXEC level. If both a password
and a secret is configured, the secret is used.
secret | password Specifies how the password is to be encrypted
<level> The EXEC level to password protect
0 | 7 Use 0 to indicate that the password given at the end of the command is in
plain text, and 7 for an already encrypted password.
<password> The actual password
Example:
io(config)# enable secret level 3 0 bluebox
io(config)#
privilege <mode> level <level> <command>
Only available in IOS (i) mode. Configures for which level a command should be available.
<mode> In which mode is the command.
<level> In which privilege level should the command be available
<command> Command string.
Example:
io(config)# privilege exec level 4 show
io(config)#
hide <hide-group>
Re-hides the elements and actions belonging to the hide groups. No password is required for hiding.
Note that this command is hidden and not shown during command completion.
unhide <hide-group>
Unhides all elements and actions belonging to the hide-group. You may be required to enter a
password. Note that this command is hidden and not shown during command completion
commit (check | and-quit | confirmed [<timeout>] [persist <token>] to-startup) [comment <text>]
[label <text>] [persist-id <id>]
Commit current configuration to running.
check
Validate current configuration.
and-quit
Commit to running and quit configure mode.
295
The CLI agent
to-startup
Commit current configuration to running and startup configuration. Only available if the system
is configured to have a startup configuration.
confirmed
Commits the current configuration to running with a timeout. If no commit confirm command
has been issued before the timeout expires, then the configuration will be reverted to the
configuration that was active before the commit confirmed command was issued. If no timeout
is given then the confirming commit will have a timeout of 10 minutes. The configuration session
will be terminated after this command since no further editing is possible. Only available in
configure exclusive and configure shared mode when the system has been configured with a
candidate.
The confirming commit will be rolled back if the CLI session is terminated before confirming
the commit, unless the persist argument is given. If the persist command is given then the CLI
session can be terminated and a later session may confirm the pending commit by supplying the
persist token as an argument to the commit command using the persist-id argument.
comment <text>
Associate a comment with the commit. The comment can later be seen when examining rollback
files.
label <text>
Associate a label with the commit. The label can later be seen when examining rollback files.
persist-id <id>
If a prior confirming commit operation has been performed with the persist argument, then to
modify the ongoing confirming commit process the persist-id argument needs to be supplied with
the same persist token. This makes it possible to, for example, abort an onging persist commit,
or extend the timeout.
validate
Validates current configuration. This is the same operation as commit check.
insert <path>
Inserts a new element. If the element already exists and has the indexedView option set in the data
model, then the old element will be renamed to element+1 and the new element inserted in its place.
insert <path>[first|last|beforekey|afterkey]
Insert a new element into an ordered list. The element can be added first, last (default), before or after
another element.
move <path>[first|last|beforekey|afterkey]
Move an existing element to a new position in an ordered list. The element can be moved first, last
(default), before or after another element.
rename <instance path> <new id>
Rename an instance.
no <path>
Delete or unsets a data element.
exit (level | configuration-mode)
level Exit from current mode. If performed on the top level, will exit configure
mode. This is the default if no option is given.
296
The CLI agent
configuration-mode Exit from configuration mode regardless of mode.
help <command>
Shows help text for command.
load (<file> )
Load configuration from file.
pwdDisplay current submode path.
save <file> [xml] [<pathfilter>]
Save the whole or parts of the current configuration to file.
rollback configuration [<number>]
Return the configuration to a previously committed configuration. The system stores a limited number
of old configurations. The number of old configurations to store is configured in the confd.conf file. If
more than the configured number of configurations are stored, then the oldest configuration is removed
before creating a new one.
The most recently committed configuration (the running configuration) is number 0, the next most
recent 1, etc.
The files are called rollback0 - rollbackX, where X is the maximum number of saved committed
configurations.
Example:
io(config)# rollback configuration 1
io#
Note that this command is only available if rollback has been enabled in confd.conf.
do <command>
Run command in operational mode.
show configuration [<pathfilter>]
Show current configuration buffer. The show command can be limited to a part of the configuration
by providing a <pathfilter>.
show configuration diff [<pathfilter>]
Show configuration changes in diff style, ie new lines prefixed with a plus (+) sign, and removed lines
prefixed with a minus (-) sign.. The show command can be limited <pathfilter>.
show configuration commit changes <id>
Show changes that were committed for a given commit id.
show configuration commit list <id>
List rollback files (C-style only). Note that this command is only available if rollback has been enabled
in confd.conf.
show configuration rollback changes <nr>
Show changes for rolling back to rollback file nr.
show full-configuration [details] [<pathfilter>]
Show current configuration. The show command can be limited to a part of the configuration by
providing a <pathfilter>.
297
The CLI agent
show parser dump <command prefix>
Shows all possible commands starting with command prefix.
revert
Copy running configuration into current configuration.
clear
Remove all configuration changes.
describe [<path> | <command>]
Display detailed information about a command. This information may for example consist of the
source of the command (YANG, clispec or built-in), the corresponding path in the YANG file (in case
of an auto-rendered command) and information regarding what callpoints, actionpoints and validation
points that may be tied to the command. Due to the verbose information that may be displayed, it may
be desirable to restrict the usage of this command by including it in an appropriate set of authorization
rules or by the means of any other authorization functionality.
Example:
(config)# describe dhcp
Common
Source : YANG
Module : dhcpd
Namespace : http://tail-f.com/ns/example/dhcpd
Path : /dhcp
Node : container
Exported agents : all
Checksum : 3c893927631cceee3700c23bb38cd050
xpath [ctx <path>] (eval | must | when) <expression>
Evaluate an XPath expression. A context-path may be given to be used as the current context for
the evaluation of the expression. If no context-path is given, the current sub-mode will be used as
the context-path. The pipe command trace may be used to display debug/trace information during
execution of the command
Note that this command will only be available if devtools has been set to true in the CLI session
settings.
evalEvaluate an XPath expression.
mustEvaluate the expression as a YANG must expression.
when
Evaluate the expression as a YANG when expression.
timecmd <command>
Time command. It measures and displays the execution time of <command>.
Note that this command will only be available if devtools has been set to true in the CLI session
settings.
Example:
io# timecmd pwd
At top level
298
The CLI agent
Command executed in 0.00 sec
io#
16.22. Customizing the CLI
16.22.1. Modifying builtin commands
There are a number of built-in commands in each CLI style. These can be modified in a number of ways.
It is possible to remove them, rename them, hide them, change their help and info texts, add a command
timeout and to add confirmation prompts. This is done using the <modifications> section of the clispec
file. For example:
<modifications>
<confirmText src="configure">
Are your really sure you know what you are doing?
</confirmText>
<delete src="request system logout"/>
<delete src="show log"/>
<help src="configure private">
Enter private configuration mode.
</help>
<info src="configure">Hi there info configure!</info>
<help src="configure">Hi there help configure!</help>
<timeout src="show configuration">
10
</timeout> -->
</modifications>
See the clispec.5 man page for a detailed description of each modifications option.
16.22.2. Adding new commands
New commands can be added in two different ways, either as an action in the YANG file, or as a command
in the clispec file. The advantage of using an action is that the command will be available through
all northbound interfaces. However, a clispec command may give you better control over your input
parameters.
It is also possible to use a dedicated data model for the CLI, i.e. a YANG file that is only visible (exported)
in the CLI. This is useful if you want to add custom modes in the C- and I-style CLIs.
16.22.3. Suppressing automatically generated modes
The C- and I- style CLIs will automatically create new modes for all list elements in the configuration,
i.e. all elements that have maxOccurs larger than 1.
It is possible to suppress this behavior by adding a suppressMode direction in the modifications section
of the clispec file.
For example:
<modifications>
<suppressMode src="config hosts host"/>
</modifications>
The src attribute is the clispec path as it appears in the CLI. It should be the path to a list element.
299
The CLI agent
16.22.4. Creating new configuration modes
Similarly to suppressing an automatically generated mode it is sometimes desirable to create modes at
points in the configuration where there isn't a list element. This can be done trough a declaration in the
modifications section of the clispec file.
For example:
<modifications>
<addMode src="config hosts"/>
</modifications>
The src attribute should be a path to a static/internal element, i.e. an element with minOccurs="1"
maxOccurs="1".
16.22.5. Custom mode names
ConfD automatically assigns a mode name based on the element name and the key elements of the
container. There are two styles, full and short, where the short style only contains the last element of the
path and the full all components of the path. Which style to use is configured in the confd.conf file.
The automatic mode name can be overridden either by a fixed mode name or by a dynamically generated
mode name. It is done through a modeName declaration in the modifications section of the clispec file.
For example:
<modifications>
<modeName src="config hosts">
<fixed>hosts</fixed>
</modeName>
<modeName src="config hosts host interfaces interface">
<capi><cmdpoint>custommode</cmdpoint></capi>
</modeName>
</modifications>
ConfD will invoke the cmdpoint/action custommode the first time the mode is entered for a given instance.
It will then cache the mode name. The callback will receive the path to the instance as argv/argc arguments
and is expected to reply by calling the function confd_action_reply_command().
An example from actions.c in the cli/c_cli example:
static int do_modename(struct confd_user_info *uinfo,
char *path, int argc, char **argv)
{
int i;
int sock;
char *mode = "config-priv";
printf("do_modename called\n");
printf("path: %s\n", path);
for (i = 0; i < argc; i++) {
printf("param %2d: %s\n", i, argv[i]);
}
if (confd_action_reply_command(uinfo, &amp;mode, 1) < 0)
confd_fatal("Failed to reply to confd\n");
300
The CLI agent
return CONFD_OK;
}
16.22.6. Adding custom show output
It is possible to override the default output from the auto-rendered show commands but not for the J-style
'show configuration', 'show status', 'show all', and 'show table'. It can be done in two different ways. Either
using a show element in the clispec file or as a regular CLI command.
For example:
<show path="aaa authentication users user">
<callback>
<exec>
<osCommand>./aaa_auth.sh</osCommand>
</exec>
</callback>
</show>
The aaa_auth.sh executable will be invoked whenever the user enters "show aaa authentication users user"
or a path prefix. The command will receive the indent depth and path as arguments. The callback can be
either a C-function (capi), or an executable, and it will be invoked as an ordinary CLI command.
It is also possible to create an ordinary CLI command and mount it on the same path as the show command
target.
For example:
<cmd name="group" mount="show aaa authentication groups">
<help></help>
<info></info>
<callback>
<exec>
<osCommand>./aaa_group.sh</osCommand>
</exec>
</callback>
</cmd>
The advantage with this approach is that the command may take additional parameters, for example 'details'
or 'statistics'.
16.22.7. Command parameters
A custom CLI command can be defined to have a set of parameters. These parameters can be arranged
as a mix of:
a straight list of command options
a parameter tree
a choice list of parameters, where a minimum and maximum number of required parameters can be
specified
Suppose you want a command that accepts a number of options in an arbitrary order. For example:
show alarm [type <type>] [severity <minor|major>] [acknowledged] [active]
The parameters can be entered in arbitrary order and they are all optional. This can be achieved with a
choice params list with min and max set.
301
The CLI agent
<params mode="choice" min="0" max="4">
<param>
<info/><help/>
<name>type</name>
<prefix>--type </prefix>
</param>
<param>
<info/><help/>
<name>severity</name>
<type><enums>major minor</enums></type>
<prefix>--severity </prefix>
</param>
<param>
<info/><help/>
<type><enums>acknowledged</enums></type>
<prefix>--acknowledged</prefix>
</param>
<param>
<info/><help/>
<type><enums>active</enums></type>
<prefix>--active</prefix>
</param>
</params>
Suppose instead that you want the following command:
show alarm [type <type> severity <minor|major>] [acknowledged] [active]
That is, if you enter type you must also enter severity. You can specify this with a parameter tree where
severity is a child to the type parameter.
<params mode="choice" min="0" max="3">
<param>
<info/><help/>
<name>type</name>
<prefix>--type </prefix>
<params>
<param>
<info/><help/>
<name>severity</name>
<type><enums>major minor</enums></type>
<prefix>--severity </prefix>
</param>
</params>
</param>
<param>
<info/><help/>
<type><enums>acknowledged</enums></type>
<prefix>--acknowledged</prefix>
</param>
<param>
<info/><help/>
<type><enums>active</enums></type>
<prefix>--active</prefix>
</param>
</params>
You can have nested params lists where some are of choice mode and others are straight lists. However,
in a choice list there cannot be two possible paths given a token, i.e., you cannot have two items that have
the same name, or one named item and one that accepts a generic value. All paths must be deterministic.
302
The CLI agent
For example, you cannot have the following command parameters:
<params mode="choice" min="0" max="2">
<param>
<info/><help/>
<prefix>--type </prefix>
</param>
<param>
<info/><help/>
<type><enums>major minor</enums></type>
<prefix>--severity </prefix>
</param>
</params>
The reason is that if you enter the parameter major, then the CLI parser cannot determine if it is intended
as the first parameter or the second. The first parameter accepts any input.
16.22.8. Hiding parts of the configuration
It is possible to hide parts of the configuration using the hidden attribute in the yang files, and the hideGroup
attribute in the clispec file. All elements with the same hidden attribute belong to the same 'hide group'
For example (yang):
leaf resetuser {
tailf:hidden debug;
type boolean;
default false;
}
For example (clispec):
<cmd name="test">
<help/>
<info/>
<callback>
<exec>
<osCommand>
test.sh
</osCommand>
</exec>
</callback>
<options>
<hideGroup>debug</hideGroup>
</options>
</cmd>
In the yang example the resetuser leaf belongs to the debug hide group. All hidden yang elements must have
default values or be optional since they cannot be configured by the user unless they have been unhidden.
Elements hidden in this way will be hidden to users when using the Web UI or the CLI, but can optionally
be made visible, i.e. unhidden, through a hidden CLI command. An entry in the confd.conf file is needed
to make this possible.
For example:
<hideGroup>
<name>debug</name>
<password>verysecret</password>
</hideGroup>
303
The CLI agent
The debug hide group can be 'unhidden' in the CLI provided that the user knows the name of the hide group
and the password. It is possible to leave out the password parameter in which case the CLI will not prompt
for one. The unhide and hide commands are used to interactively hide and unhide hide groups in the CLI.
It is also possible to define a C-callback that is used to authenticate the user. This is useful when you want
short lived 'unhide' password, or user-specific unhide password.
Note that CLI commands and actions can also be hidden in the same way, but not individual action
parameters. Also, hidden elements are only hidden from the CLI and the Web UI unless the special hide
group full is used, in which case it is hidden from all northbound interfaces as well as the rollback file.
The special hide groups full is useful when the data is only used by the application and should not be part
of the actual configuration of the device.
16.22.9. EXEC commands
The I-style style has an additional concept of privilege levels. Only a subset of commands are initially
available when the user logs on to the box. It is then possible to enable a higher privilege level using the
enable command. Entering a new privilege level may require a password and the prompt may change as
a result of entering the level.
The AAA data model contains a section for controlling which commands are available in the different
levels, which prompt to use for each level and if a password or secret is configured.
The configuration mode commands enable and privilege are used for dynamically modifying this
configuration. The initial configuration should be supplied in the aaa_init.xml file.
16.22.10. File access
The default behavior is to enforce Unix style access restrictions. That is, the users uid, gid, and gids are
used to control what the user has read and write access to.
However, it is also possible to jail a CLI user to its home directory (or the directory where confd_cli is
started). This is controlled using the confd.conf parameter /confdConfig/cli/restrictedFileAccess. If this is
set to true, then the user only has access to the home directory, or if a directory is specified in a cli command
parameter (params/param/type/directory{wd} or params/param/type/file{wd}) to that directory.
16.22.11. Help texts
Help and information texts are specified in a number of places. In the yang files the tailf:info element is
used to specify a descriptive text that is shown when the user enters ? in the CLI. The first sentence of the
description text is used when showing one-line descriptions in the CLI, e.g.:
In the YANG file:
list ifs {
tailf:info "Configure interfaces";
...
}
list hosts {
tailf:info "Configure hosts";
...
}
list routing-protocol {
tailf:info "Routing protocols";
...
304
The CLI agent
}
In the CLI:
io(config)# config ?
Possible completions:
hosts Configure hosts
ifs Configure interfaces
routing-protocol Routing protocols
io(config)# config
It is also possible to specify help texts for simpleTypes in the YANG files. For example:
typedef service-type {
type enumeration {
enum http { tailf:info "Web server"; }
enum smtp { tailf:info "Mail server"; }
}
}
typedef service-name {
tailf:info "Name of service";
type string;
}
When used in the CLI it looks like this:
io(config)# server ?
<name:server type [smtp|www|imap]>
io(config)# server
It is also possible to modify the help texts for built-in types using the /clispec/$MODE/modifications/
typehelp element. For example:
<typehelp type="unsignedShort">integer</typehelp>
16.23. User defined wizards
If our configuration contains large structures that are nontrivial to configure in the CLI, we probably wish
to add tailor-made wizards to the CLI which aid the user in the process. Typically we want a wizard to
interact with the user, prompt the user, read some responses, and depending on the responses, populate
some structures with reasonable default values depending on the user's responses.
We can write our wizards either as executables or as callbacks. In this section we show how to add a user
to the AAA namespace using a shell script.
The wizard code needs to be able to perform the following tasks:
It must be able to interact with the user, i.e. it must be able to read and write to the CLI terminal.
It must be able to read and write to the db session which is used by the CLI. The CLI will start a db
session whenever it enters configuration mode, the wizard code must be able to read and write, not to
the database, but to the particular db session which is used by the running CLI. This is done in a shell
script using the maapi command which will attach to the current CLI session.
The command to invoke the wizard is added by editing the confd.cli file, and recompile it. The workings
of the confd.cli file is fully described in the UNIX man page clispec(5). A new wizard may be added by
adding the following in the confd.cli file:
305
The CLI agent
.....
<configureMode>
.....
<cmd name="wizard">
<info>Configuration wizards</info>
<help>Configuration wizards</help>
<cmd name="adduser">
<info>Create a Confd user</info>
<help>
Create a Confd user and assign him/her to the proper group
to control what parts of the system he/she has access to.
</help>
<callback>
<exec>
<osCommand>./adduser.sh</osCommand
<args> </args>
</exec>
</callback>
</cmd>
</cmd>
</configureMode>
This way, once inside configuration mode, the command "wizard adduser" will be available. The type of
the callback is <exec>, indicating that the wizard is implemented as an executable.
For example, adduser.sh:
#!/bin/bash
## Ask for user name
while true; do
echo -n "Enter user name: "
read user
if [ ! -n "${user}" ]; then
echo "You failed to supply a user name."
elif maapi --exists "/aaa:aaa/authentication/users/user{${user}}"; then
echo "The user already exists."
else
break
fi
done
## Ask for password
while true; do
echo -n "Enter password: "
read -s pass1
echo
if [ "${pass1:0:1}" == "$" ]; then
echo -n "The password must not start with $. Please choose a "
echo "different password."
else
echo -n "Confirm password: "
read -s pass2
echo
if [ "${pass1}" != "${pass2}" ]; then
echo "Passwords do not match."
306
The CLI agent
else
break
fi
fi
done
groups=`maapi --keys "/aaa:aaa/authentication/groups/group"`
while true; do
echo "Choose a group for the user."
echo -n "Available groups are: "
for i in ${groups}; do echo -n "${i} "; done
echo
echo -n "Enter group for user: "
read group
if [ ! -n "${group}" ]; then
echo "You must enter a valid group."
else
for i in ${groups}; do
if [ "${i}" == "${group}" ]; then
# valid group found
break 2;
fi
done
echo "You entered an invalid group."
fi
echo
done
echo "Creating user"
maapi --create "/aaa:aaa/authentication/users/user{${user}}"
maapi --set "/aaa:aaa/authentication/users/user{${user}}/password" "${pass1}"
echo "Setting home directory to: /var/confd/homes/${user}"
maapi --set "/aaa:aaa/authentication/users/user{${user}}/homedir" \
"/var/confd/homes/${user}"
echo "Setting ssh key directory to: /var/confd/homes/${user}/ssh_keydir"
maapi --set "/aaa:aaa/authentication/users/user{${user}}/ssh_keydir" \
"/var/confd/homes/${user}/ssh_keydir"
maapi --set "/aaa:aaa/authentication/users/user{${user}}/uid" "1000"
maapi --set "/aaa:aaa/authentication/users/user{${user}}/gid" "100"
echo "Adding user to the ${group} group."
gusers=`maapi --get "/aaa:aaa/authentication/groups/group{${group}}/users"`
for i in ${gusers}; do
if [ "${i}" == "${user}" ]; then
echo "User already in group"
exit 0
fi
done
maapi --set "/aaa:aaa/authentication/groups/group{${group}}/users" \
"${gusers} ${user}"
307
The CLI agent
16.24. User defined wizards in C
We can write precisely the same wizard in C as well. This example makes use of the MAAPI interface,
described in the UNIX man page confd_lib_maapi(3) as well as in the user guide chapter "MAAPI -
Management Agent API". Thus to fully understand this section, the MAAPI documentation must be read.
Similar to the shell script wizard we must modify the clispec file "confd.cli" to indicate the name of a
program to execute. We have:
<configureMode>
.....
<cmd name="wizard">
<info>Configuration wizards</info>
<help>Configuration wizards</help>
<cmd name="cadduser">
<info>Add a user</info>
<help>Add a user</help>
<callback>
<exec>
<osCommand>/usr/local/bin/maapi_add_user</osCommand>
<options>
<uid>user</uid>
</options>
</exec>
</callback>
</cmd>
....
</cmd>
</configureMode>
Using our modified "confd.cli", a command called "wizard cadduser" will be available in the CLI
configuration mode. When this CLI command is executed, the ConfD CLI will invoke the external program
called "/usr/local/bin/maapi_add_user".
This program will execute under a pseudo terminal (pty) which is connected to the actual CLI terminal.
Thus the external programs invoked by the CLI can manipulate the terminal - not just stdin and stdout.
The invoked program will have two environment variables set which can be used in the MAAPI interface
to create an attached MAAPI session towards the currently executing transaction in the CLI. Thus the
program must read "CONFD_MAAPI_USID" and "CONFD_MAAPI_THANDLE" from its environment.
Another thing which is different in the C implementation of a CLI wizard is that the C code must be
explicitly aware of which namespace it wants to manipulate. In our case, where we wish to add a user,
we wish to manipulate the AAA namespace, "http://tail-f.com/ns/aaa/1.1". The data model defining the
AAA namespace is included in a ConfD release and when the data model is compiled a .h file is generated
which contains the symbols defined in the namespace. This .h file must be included. Thus:
.....
#include "confd_lib.h"
#include "confd_maapi.h"
#include "aaa_bridge.h"
int main(int argc, char **argv)
{
int msock;
int debuglevel = CONFD_DEBUG;
struct in_addr in;
308
The CLI agent
struct sockaddr_in addr;
int usid, thandle;
char user[255], *pwd, home[255], sshdir[255];
char buf[BUFSIZ];
inet_aton("127.0.0.1", &amp;in);
addr.sin_addr.s_addr = in.s_addr;
addr.sin_family = AF_INET;
addr.sin_port = htons(4565);
confd_init("adduser", stderr, debuglevel);
confd_load_schemas((struct sockaddr*)&amp;addr,
sizeof (struct sockaddr_in));
if ((msock = socket(PF_INET, SOCK_STREAM, 0)) < 0 )
confd_fatal("Failed to open socket\n");
if (maapi_connect(msock, (struct sockaddr*)&amp;addr,
sizeof (struct sockaddr_in)) < 0)
confd_fatal("Failed to confd_connect() to confd: %s\n",
confd_lasterr());
usid = atoi(getenv("CONFD_MAAPI_USID"));
thandle = atoi(getenv("CONFD_MAAPI_THANDLE"));
if ((maapi_attach2(msock, aaa__ns, usid, thandle)) != CONFD_OK)
confd_fatal("Failed to attach: %s\n", confd_lasterr());
again0:
printf("Adding a user\n");
printf("Username: ");
if ((fgets(user,255, stdin)) == NULL)
exit(1);
user[strlen(user)-1] = 0;
if (maapi_cd(msock,thandle,"/aaa/authentication/users") != CONFD_OK)
confd_fatal("cannot CD: %s", confd_lasterr());
/* check if user exists */
if (maapi_exists(msock, thandle,"user{%s}", user) == 1) {
printf("user %s already exists: %s\n", user, confd_lasterr());
goto again0;
}
again:
if ((pwd = getpass("Password: ")) == NULL)
exit(1);
strcpy(buf, pwd);
if ((pwd = getpass("Confirm password: ")) == NULL)
exit(1);
if (strcmp(pwd, buf) != 0) {
printf("Password not confirmed\n");
goto again;
}
printf("Home: ");
if ((fgets(home,255,stdin)) == NULL)
exit(1);
home[strlen(home)-1] = 0;
printf("SSH dir: ");
if ((fgets(sshdir, 255, stdin)) == NULL)
exit(1);
309
The CLI agent
sshdir[strlen(sshdir)-1] = 0;
if (maapi_create(msock,thandle,"user{%s}",user) != CONFD_OK)
confd_fatal("failed to create user %s: %s\n", user, confd_lasterr());
if (maapi_set_elem2(msock,thandle,sshdir,"user{%s}/ssh_keydir",user) !=
CONFD_OK)
confd_fatal("failed to set ssh keydir: %s\n", confd_lasterr());
if (maapi_set_elem2(msock,thandle,pwd,"user{%s}/password",user) !=
CONFD_OK)
confd_fatal("failed to set password: %s\n", confd_lasterr());
if (maapi_set_elem2(msock,thandle,home,"user{%s}/homedir",user) !=
CONFD_OK)
confd_fatal("failed to set home: %s\n", confd_lasterr());
printf("user %s added successfully \n", user);
exit(0);
}
The code illustrates several points:
It reads the above mentioned environment variables and calls maapi_attach2() to attach to the
transaction.
The code includes the generated .h file from the AAA namespace. Furthermore, since the code is
manipulating the AAA namespace.
It makes use of the libc function getpass() which opens "/dev/tty" to read a password without
echoing the characters entered by the user.
It uses the MAAPI interface to read and write data. Once the program returns, the data written by the
program is still not committed. Not until the user executes the commit command in the CLI will the
data be actually written to the database opened by the CLI, whether running or the candidate.
16.25. User defined commands in C using the
C-API
A command can be implemented as a C-callback using the same API as used for actions, with some minor
modifications of the input parameters.
The arguments to the command are passed as string params where the first param is the full name of the
command, and the remaining params are the arguments that were used when invoking the command from
the CLI.
Maapi contains five CLI related functions which can be used for reading and writing to the CLI
from inside an action invoked from the CLI - maapi_cli_write, maapi_cli_printf, maapi_cli_prompt,
maapi_cli_prompt_oneof, and maapi_cli_read_eof.
Similar to commands implemented as executables, there is an option in the confd.cli file for specifying
that the command is implemented through a CAPI callback. It may look like this:
<configureMode>
...
310
The CLI agent
<cmd name="ctest">
<info>C-API command example</info>
<help>C-API command example</help>
<callback>
<capi>
<cmdpoint>testcommand</cmdpoint>
</capi>
</callback>
</cmd>
...
</configureMode>
The capi tag tells confd that the command is implemented using CAPI and the cmdpoint is the name of
the action callback to invoke when the command is used from the CLI.
16.26. User defined commands as shell scripts
ConfD comes with a small C program called maapi. This program can be used inside shell scripts that
are defined as CLI commands, as exemplified in the add_user.sh script above. The maapi program is
thoroughly described in the man page maapi(1).
The program attaches itself to the current transaction using maapi_attach() (see confd_lib_maapi(3)) and
executes a single change.
16.27. Modifying built-in commands
There are a number of built-in commands which can be modified in a number of ways. There should not
be confused with the auto-rendered commands which cannot be modified in the same way. The auto-
rendered commands are derived from the data-model at run-time and does not exist when confd is started.
The section below only relates to the built-in commands.
16.27.1. Renaming a command
A built-in command often consists of a command name part and a parameter part. For example, the
command config in C-mode has the name config and takes an optional parameter which can be either
terminal or exclusive.
It is possible to rename the command config but not the command argument. I.e. the following is possible,
<operationalMode>
<modifications>
<move src="config" dest="configure"/>
</modifications>
</operationalMode>
The following will not work since the command is config not config terminal.
<operationalMode>
<modifications>
<move src="config terminal" dest="config private"/>
</modifications>
</operationalMode>
In the general case it is difficult to know what are commands and what are arguments to the command. The
above could have been defined as two commands config private and config exclusive without affecting
the CLI behavior. Using confd --cli-c-dump can be used for determining which part is a command name
and which parts are command arguments.
311
The CLI agent
16.27.2. Hiding the old, creating new
If you want to change the way a builtin command works, for example the config command above. There
is a trick that can be used. It consists of renaming the original command and hiding it. Then add your own
command and have it invoke the original hidden command.
Suppose we want to change the config command above to take the parameters private and exclusive instead
of terminal and exclusive. This is the way to do it:
<operationalMode>
<modifications>
<move src="config" dest="xxconfig"/>
<hide src="xxconfig"/>
</modifications>
<cmd name="config">
<info>Manipulate software configuration information</info>
<help>Manipulate software configuration information</help>
<callback>
<exec><osCommand>/usr/local/bin/config.sh</osCommand></exec>
</callback>
<params>
<param>
<type>
<enumerate>
<enum>
<name>private</name>
<info>non-locked editing of configuration</info>
</enum>
<enum>
<name>exclusive</name>
<info>locked editing of configuration</info>
</enum>
</enumerate>
</type>
</param>
</params>
</cmd>
</operationalMode>
#!/bin/bash
case $1 in
private)
maapi --clicmd --no-hidden 'xxconfig terminal'
;;
shared)
maapi --clicmd --no-hidden 'xxconfig shared'
;;
*)
maapi --clicmd --no-hidden 'xxconfig terminal'
;;
esac
16.28. Tailoring show commands
There are several ways show commands can be tailored in the CLI. The data model can be modified,
explicit commands can be defined in the clispec files, the auto-rendered commands can be tweaked using
312
The CLI agent
clispec modifications, specific show callbacks can be defined in the clispec files, and show templates can
be defined in the clispec files.
16.28.1. How config="false" data is rendered
By default the CLI will create show commands in operational mode for displaying config="false" data.
Leaves and containers will be displayed as Name-Value pairs whereas list elements will be displayed as
tables, provided that the table will fit on the terminal screen.
A leaf element is rendered as follows:
Rendering of leaves and containers
Two different algorithms are used when rendering list elements. One for rendering a single element and
one for rendering multiple elements (either the entire table or a subset of the table).
When rendering a single element the following method is used:
313
The CLI agent
Rendering of a single list element
And when rendering a set of list elements the following is used:
314
The CLI agent
315
The CLI agent
Rendering of a set of list elements
16.28.2. Show templates
Show templates can be used in a few different ways. Either as a replacement for the default Name-Value
rendering, or for replacing the auto-rendered tables. By default only the Name-Value rendering is replaced
when a show template is defined, i.e. the show template will only be invoked for list elements if the table
is too wide for the screen (or if table view has been suppressed in some other way).
In order to also replace the default table rendering with the show template the auto-rendered table needs
to be suppressed. This is done using the YANG tailf:cli-suppress-table statement in the YANG file.
If a show template is used for rendering a table then the show template needs to render the table header,
this is done using a tailf:cli-show-template-legend statement. It also needs to suppress the default enter
text that is displayed for each instance. This is done by defining an empty tailf:cli-show-template-enter
template. Finally, a show template needs to be defined for the list element node that renders each table
line. A customized footer can be displayed by using a tailf:cli-show-template-footer statement.
The above will work fine when displaying an entire table. However, when displaying a single instance it
might be desirable to either display it as a table line, in which case a table header also needs to be displayed,
or in some other way. The problem is that the same show template is used in both situations.
The solution is to add a conditional in the template and display different texts in the two situations. For
example ( from the example/cli/show_template/jdemo.yang):
tailf:cli-show-template
"$(.legend_shown!=true?"
+"Address Interface "
+"$(.selected~=hwaddr?HW Address )"
+"$(.selected~=permanent?Permant )"
+"$(.selected~=published?Published)"
+"$(.selected~=bignum?$(.show_bignum? Bignum ))\n"
+"============================"
+"$(.selected~=hwaddr?===================)"
+"$(.selected~=permanent?=========)"
+"$(.selected~=published?=========)"
+"$(.selected~=bignum?$(.show_bignum?========))\n)"
+"$(ip|ljust:15) $(ifname|ljust:9) - "
+"$(.selected~=hwaddr?$(hwaddr|ljust:17) )"
+"$(.selected~=permanent?$(permanent|ljust:8) )"
+"$(.selected~=published?$(published|ljust:7) )"
+"$(.selected~=bignum?$(.show_bignum?$(.humanreadable? "
In the example above the legend is only displayed if it has not already been displayed. This is achieved
by inspecting the built-in variable .legend_shown. The same behavior can be achieved by using the
substatement tailf:cli-auto-legend (see listing below). The example above also tests on the .selected
variable to determine if each column has been selected to be displayed using the select pipe command.
tailf:cli-show-template
"$(ip|ljust:15) $(ifname|ljust:9) - "
+"$(.selected~=hwaddr?$(hwaddr|ljust:17) )"
+"$(.selected~=permanent?$(permanent|ljust:8) )"
+"$(.selected~=published?$(published|ljust:7) )"
+"$(.selected~=bignum?$(.show_bignum?$(.humanreadable? " {
tailf:cli-auto-legend;
}
316
The CLI agent
It is possible to ask confd to perform a validation of the paths that appear in the templates in the YANG
files. This is done by running the command confd --cli-check-templates once confd has been started.
16.29. Change password at initial login
To force the user to change the password at initial login, or when the password has expired, a start script
can be used.
The start script is specified in the clispec file. Only one start script can be present, if more are present (for
example in different clispec files) then only one of them will be executed (unspecified which).
In the clispec file:
<start>
<callback>
<exec>
<osCommand>./startup.sh</osCommand>
<args>$(user)</args>
</exec>
</callback>
</start>
In startup.sh something along the lines of:
#!/bin/bash
user=$1
oldpass=`maapi --get "/aaa:aaa/authentication/users/user{${user}}/password"`
echo "oldpass=${oldpass}"
if [ ${oldpass} == '$1$Dd0v2$Rd899rbrbFTeHuEjAtzvW/' ]; then
echo "You need to set a new password"
## Ask for password
while true; do
echo -n "Enter password: "
read -s pass1
echo
if [ "${pass1:0:1}" == "$" ]; then
echo -n "The password must not start with $. Please choose a "
echo "different password."
else
echo -n "Confirm password: "
read -s pass2
echo
if [ "${pass1}" != "${pass2}" ]; then
echo "Passwords do not match."
else
break
fi
fi
done
## create new transaction and write password
317
The CLI agent
confd_cmd -r -m -c \
"mset /aaa:aaa/authentication/users/user{${user}}/password ${pass1}"
fi
echo "Welcome!"
Note that the old password needs to be updated to your default startup password, or the test changed into
something a bit more sophisticated.
318
Chapter 17. The SNMP Agent
17.1. Introduction to the ConfD SNMP Agent
The ConfD integrated SNMP agent provides an environment where SNMP and other agents such as
NETCONF, Web UI, and CLI, coexist and use the same built-in database (CDB) for configuration storage
and the same set of instrumentation functions for controlling managed objects (MOs). Simple bindings
from SNMP MIB objects to YANG nodes is all that is needed to open up a configuration database to be
accessed by an SNMP manager.
The advantage of having an integrated SNMP agent in ConfD is that configuration data can be accessed
directly from the built-in database (CDB) or from user written managed objects without having to do the
tedious work of writing a separate set of instrumentation functions just for SNMP. One set of common
instrumentation functions is used for serving the NETCONF, CLI, Web UI, and SNMP agents.
confdc --mib2yang is used to make YANG models from MIBs. It also provides the necessary bindings
from MIB objects to nodes in the YANG model.
To go the opposite way, from YANG to MIBs, see Section 17.3, “Generating MIBs from YANG”.
The ConfD SNMP agent application provides the following features:
An extensible SNMP agent that understands SNMPv1, SNMPv2c and SNMPv3.
A MIB compiler that understands SMIv1 and SMIv2.
Configuration data is specified in YANG models.
Common instrumentation functions for controlling managed objects (MO's) via NETCONF, CLI, Web
UI, and SNMP agent.
The SNMP agent uses ConfD AAA datarules to determine access to data, as well as using the standard
SNMP view based and user based access control mechanisms.
The following MIBs are builtin in the ConfD SNMP agent:
SNMPv2-MIB RFC 3418
SNMP-FRAMEWORK-MIB RFC 3411
SNMP-USER-BASED-SM-MIB RFC 3414
SNMP-VIEW-BASED-ACM-MIB RFC 3415
SNMP-COMMUNITY-MIB RFC 3584
SNMP-TARGET-MIB and SNMP-NOTIFICATION-MIB RFC 3413
SNMP-MPD-MIB RFC 3412
TRANSPORT-ADDRESS-MIB RFC 3419
SNMP-USM-AES-MIB RFC 3826
IPV6-TC RFC 2465
The following MIBs define the SMI language:
319
The SNMP Agent
SNMPv2-SMI RFC 2578
SNMPv2-TC RFC 2579
SNMPv2-CONF RFC 2580
RFC1155-SMI RFC 1155
RFC-1212 RFC 1212
RFC-1215 RFC 1215
17.1.1. Implementing MIBs
To set up an SNMP agent to manage objects in the MIB the following information must be provided:
• MIB
YANG (.yang or .yin) file.
Associations between objects in the MIB and nodes in the YANG module.
Instrumentation functions (not needed for config data if CDB is used)
The MIBs are typically already existing standard or proprietary enterprise MIBs, but they can also be
generated from the YANG models.
The MIB compiler needs a mapping between the MIB object to nodes in the YANG module. This is done
by adding YANG statements to the data model, that associate YANG nodes with objects in the MIB. The
association statements can be written directly in the YANG module file, or in a separate YANG annotation
file (see tailf_yang_extensions(5)).
The confdc compiler verifies that the types of the SNMP objects and the types in the YANG module are
compatible.
There are three main use cases to consider when implementing a MIB with ConfD:
1. The MIB is given, and a YANG module is generated from the MIB.
The YANG modules and associations are generated with the confdc --mib2yang translator program.
The generated YANG modules will in this case resemble the structure of the MIBs.
2. The MIB and YANG module are both given (or written manually).
In this case, MIB associations should be written to bind MIB objects to the nodes in the YANG data
model. Statements tailf:snmp-name, tailf:snmp-oid, etc. are added either directly in the
YANG module or in a separate annotation file (see tailf_yang_extensions(5)).
3. The YANG module is given (or written manually), and the MIB is generated from it.
The MIBs are generated using the confdc --emit-mib command.
17.2. Agent Functional Description
The ConfD SNMP agent provides SNMP access to the data available through the ConfD management
backplane. The same data can also be accessed via other protocols/applications such as NETCONF, Web
UI, and CLI. This data can be stored in CDB, or made available by a data provider.
320
The SNMP Agent
SNMP has certain features that are not meaningful to model in YANG. There are also some requirements
on how the data is to be sorted in tables since SNMP operations require a strict lexicographical order of the
elements in a table. Below is a listing of some of the SNMP specific behaviors and what needs to be done:
The RowStatus column in tables are handled by the SNMP agent and must not be part of the YANG
model. Rows with a RowStatus column set to 'notReady' or 'notInService' are temporarily stored in the
SNMP agent and will not show up in the database. Once activated they will be inserted into the database.
SNMP requires objects that are stored in tables to be ordered in a strict lexicographical order. If we
have a list in a YANG module which is handled by an instrumentation function, the get_next()
callback function (which must be provided by the user), must return the elements in the same
lexicographical order as SNMP expects. If the order of the elements is not correct, then an SNMP
manager will not be able to correctly traverse the elements in a table. If the list statement has a
tailf:secondary-index with the name snmp, the agent will iterate over the table using this
index. Thus, the instrumentation code can reply with instances in SNMP lexicographical order when
the objects are retrieved over SNMP, and a more natural sort order when the objects are retrieved in
the CLI and other northbound interfaces.
Tables with INDEX with dynamic length must have a length byte as part of the index. If the table index is
specified as IMPLIED, then the length byte is excluded from the index. The statement tailf:sort-
order can be specified in lists and secondary indexes in the YANG module, to control whether index
elements should be ordered with the length byte included or not.
Enumerations must have the same enumerated values in YANG and in the MIB. Note that the symbolic
string associated with the enum may be different in the YANG module and MIB.
SNMP v3 has support for contexts. The ConfD SNMP agent uses "" as the default context where all
operations for this context are made towards the running database.
Scalar variables of TestAndIncr are automatically handled by the agent.
17.2.1. Operation Overview
The following steps are needed to get a ConfD SNMP agent up and running:
1. Write a MIB module, generate one from a YANG module, or use an existing one.
2. Write a YANG module, generate one from a MIB module, or use an existing one.
3. Write associations that provide the mapping of MIB objects into YANG nodes.
4. Write instrumentation functions for nodes in the YANG module, or store data in CDB.
5. Compile the YANG module into an .fxs file.
6. Run the MIB together with the YANG .fxs file, and an optional mib annotations file (.miba, see
mib_annotations(5)), through the MIB compiler to produce a .bin file.
7. Configure the agent (confd.conf and initial MIB data). Specify which compiled MIBs are to be
loaded by the agent (.bin files) in confd.conf .
8. The produced .fxs file as well as the .fxs files for the built-in MIBs must be found in the loadPath
specified in confd.conf .
9. Start ConfD.
321
The SNMP Agent
17.2.2. MIBs and YANG
The basic objects in a MIB are scalar objects and table objects. Each MIB object must be mapped to a
node in a YANG module. Scalar MIB objects must be mapped to YANG leafs with matching types, so that
the agent can translate the value between the SNMP value and the internal value defined by the YANG
type. Tables in the MIB must be mapped to lists in YANG. The mapping between the MIB objects and the
YANG nodes is specified in the YANG module (or annotation file for the module) using tailf:snmp-
name and tail:snmp-oid statements. tailf:snmp-name specifies the symbolic name of a MIB
object, and tailf:snmp-oid specifies the corresponding OID.
Let us assume that we have the following MIB named SIMPLE-MIB containing a scalar and table:
-- a scalar
numberOfHosts OBJECT-TYPE
SYNTAX INTEGER (0..65535)
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Return the current number of hosts"
::= { simpleVariables 1 }
-- a table
hostTable OBJECT-TYPE
SYNTAX SEQUENCE OF HostEntry
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"The table of hosts."
::= { simpleTables 1 }
hostEntry OBJECT-TYPE
SYNTAX HostEntry
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"Information about a host."
INDEX { hostName }
::= { hostTable 1 }
HostEntry ::= SEQUENCE {
hostName DisplayString,
hostEnabled TruthValue,
hostNumberOfServers Integer32,
hostRowStatus RowStatus
}
hostName OBJECT-TYPE
SYNTAX DisplayString
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"The unique index value of a row in this table."
::= { hostEntry 1 }
hostEnabled OBJECT-TYPE
SYNTAX TruthValue
MAX-ACCESS read-create
322
The SNMP Agent
STATUS current
DESCRIPTION
"A bool value saying if host is enabled or not."
::= { hostEntry 2 }
hostNumberOfServers OBJECT-TYPE
SYNTAX Integer32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"A read-only integer saying how many servers there currently are."
::= { hostEntry 3 }
hostRowStatus OBJECT-TYPE
SYNTAX RowStatus
MAX-ACCESS read-create
STATUS current
DESCRIPTION
"The status of this conceptual row in the hostTable."
::= { hostEntry 4 }
An association must be written to bind the two SNMP objects (the scalar and the table) into YANG. Below
is an example of a simple YANG module with SNMP statements that maps to SNMP objects in the MIB.
Example 17.1. Simple YANG module
module simple {
namespace "http://tail-f.com/ns/simple";
prefix simple;
import ietf-inet-types {
prefix inet;
}
import tailf-common {
prefix tailf;
}
typedef nameType {
type string {
length "min .. 255";
}
}
tailf:snmp-mib-module-name TAIL-F-TEST-MIB;
container simpleObjects {
leaf numberOfHosts {
type uint16;
mandatory true;
tailf:snmp-name numberOfHosts;
}
container hosts {
list host {
key name;
max-elements 64;
tailf:sort-order snmp;
tailf:snmp-name hostTable;
323
The SNMP Agent
tailf:snmp-row-status-column 4;
leaf name {
type nameType;
}
leaf enabled {
type boolean;
mandatory true;
tailf:snmp-name hostEnabled;
}
leaf numberOfServers {
type uint16;
mandatory true;
tailf:snmp-oid .3;
}
}
}
}
}
In the code listing above there is one variable numberOfHosts mapped to the SNMP scalar variable
numberOfHosts using the tailf:snmp-name statement. The numberOfServers object uses the
alternative notation with a tailf:snmp-oid statement. Which one to use is a matter of taste.
The list host is mapped to the SNMP table hostTable using tailf:snmp-name hostTable. It would
also be possible to specify the tailf:snmp-oid if preferred. Notice also that for tables which support
creation and deletion of rows through a RowStatus column, the statement tailf:snmp-row-status-
column can be given. (This is not necessary if the model will be used with an existing MIB, but it is
necessary for confdc --emit-mib to generate a writable table if the model is used for generating a new
MIB.) See Section 17.2.9, “The RowStatus column” for more details.
It is possible to map one YANG node to multiple SNMP objects. For example, if an SNMP table augments
another table, both these tables can be implemented in a single YANG list, where some leafs are mapped
to the base table, and some are mapped to the augmented table.
The following example illustrates the idea. The single YANG list 'interface' is mapped to the MIB tables
ifTable, ifXTable, and ipv4InterfaceTable:
list interface {
key index;
tailf:snmp-name 'ifTable'; // primary table
tailf:snmp-name 'ifXTable';
tailf:snmp-name 'IP-MIB:ipv4InterfaceTable';
leaf index {
type int32;
}
leaf description {
type string;
tailf:snmp-name 'ifDescr'; // mapped to primary table
}
leaf name {
type string;
tailf:snmp-name 'ifXTable:ifName';
}
324
The SNMP Agent
leaf ipv4-enable {
type boolean;
tailf:snmp-name
'IP-MIB:ipv4InterfaceTable:ipv4InterfaceEnableStatus';
}
...
}
17.2.3. Types
When the SNMP agent receives a request to GET an object, it will lookup the object in the compiled
MIB, and through the association information find the corresponding YANG node. Next, it will retrieve
the correct instances value from a data provider. This value will be encoded according to the type in the
YANG module. The SNMP agent translates this value to the corresponding SNMP value, and sends the
reply to the manager. For this translation to work, the types in the YANG module and MIB must match.
The following table shows how SMI data types are mapped to YANG datatypes. This mapping is used
internally in the agent in runtime, and also by the confdc --mib2yang program when a YANG module is
generated from a MIB. See the confd_types(3) man page for details about the XSD and confd types.
Table 17.1. SMI mapping to YANG types
SMI YANG C value type XML example
OBJECT IDENTIFIER yang:object-identifier C_OID 1.3.6.1.2.1
IpAddress inet:ipv4-address C_IPV4 192.168.2.3
Unsigned32 uint32 C_UINT32
Gauge32 yang:gauge32 C_UINT32
Counter32 yang:counter32 C_UINT32
TimeTicks yang:time-ticks C_UINT32
Integer32 int32 C_INT32
Counter64 yang:counter64 C_UINT64
INTEGER { enums... } enumeration C_ENUMHASH udp
INTEGER int32 C_INT32 42
DisplayString string C_BUF/C_STR Hello world!
OCTET STRING (with
DISPLAY-HINT on the
form "Na" or "Nt")
string C_BUF/C_STR Hello world!
OCTET STRING
(binary), Opaque tailf:hex-list C_BINARY 4f:12:ff
IPV6-TC::Ipv6Address inet:ipv6-address C_IPV6 ::213.180.94.158
SNMPv2-
TC::DateAndTime yang:date-and-time C_DATETIME 2006-08-17T16:30:53+02:00
SNMPv2-
TC::TruthValue boolean, enumeration
(1), empty C_BOOL,
C_ENUMHASH true
SNMPv2-
TC::PhysAddress yang:phys-address C_BINARY
SNMPv2-
TC::MacAddress yang:mac-address C_BINARY
325
The SNMP Agent
SMI YANG C value type XML example
SNMPv2-
TC::TimeStamp yang:timestamp C_UINT32
SNMPv2-
TC::TimeInterval int32 C_INT32
SNMPv2-TC::TAddress tailf:octet-list C_BINARY
(1) SNMPv2-TC::TruthValue is a bit special. At runtime, the agent can map it either to a normal
enumeration (which is how it is defined in SNMPv2-TC), to a boolean, to an empty leaf, or to a
presence-container. When confd --mib2yang is used to create the YANG module from a MIB, it uses the
enumeration mapping. This is also the recommended mapping. If a boolean is used, it cannot be part of
the INDEX in a table.
The following table shows how YANG data types are mapped to SMI datatypes. This mapping is used
internally in the agent in runtime, and also by the confdc --emit-mib program when a MIB is generated
from a YANG module.
If the association between the MIB and YANG module is written manually, the type mappings in this
table must be used.
Some of the more complex YANG types that cannot be easily translated to native SMI types are translated
into strings of the type "ConfdString" In this case, the human-readable string value is passed over SNMP.
These types cannot be used as INDEX in SNMP tables.
See the confd_types(3) man page for details about the XSD and confd types.
Table 17.2. YANG mapping to SMI types
YANG SMI C value type Use as INDEX
int32 Integer32 C_INT32 yes
int16 Integer32
(-32768..32767) C_INT16 yes
int8 Integer32 (-128..127) C_INT8 yes
uint64 ConfdString C_UINT64 yes
uint32 Unsigned32 C_UINT32 yes
uint16 Unsigned32 (0..65535) C_UINT16 yes
uint8 Unsigned32 (0..255) C_UINT8 yes
boolean SNMPv2-
TC::TruthValue C_BOOL no
enumeration INTEGER { enums... } C_ENUMHASH yes
string OCTET STRING C_BUF / C_STR yes
decimal64 ConfdString C_DECIMAL64 no
int64 ConfdString C_INT64 no
union ConfdString depending on type no
binary OCTET STRING C_BINARY no
empty SNMPV2-
TC::TruthValue C_BOOL no
identity not supported n/a n/a
326
The SNMP Agent
YANG SMI C value type Use as INDEX
yang:date-and-time SNMPv2-
TC::DateAndTime C_DATETIME yes
yang:counter32 Counter32 C_UINT32 yes
yang:counter64 Counter64 C_UINT64 yes
yang:gauge32 Gauge32 C_UINT32 yes
yang:object-identifier OBJECT IDENTIFIER C_OID yes
xs:float, xs:double,
xs:decimal ConfdString C_DOUBLE no
inet:ipv4-address IpAddress C_IPV4 yes
inet:ipv6-address IPV6-TC::Ipv6Address C_IPV6 yes
inet:ip-address OCTET STRING (SIZE
(4|16)) C_IPV4 | C_IPV6 yes
inet:host ConfdString C_BUF / C_STR no
inet:domain-name ConfdString C_BUF / C_STR no
inet:port-number Unsigned32 (0..65535) C_UINT16 yes
inet:ipv4-prefix OCTET STRING (SIZE
(5)) C_IPV4PREFIX yes
inet:ipv6-prefix OCTET STRING (SIZE
(17)) C_IPV6PREFIX yes
inet:ip-prefix OCTET STRING (SIZE
(5|17)) C_IPV4PREFIX |
C_IPV6PREFIX yes
tailf:size OCTET STRING C_BUF / C_STR no
tailf:octet-list, tailf:hex-
list OCTET STRING C_BINARY yes
xs:date ConfdString C_DATE no
xs:time ConfdString C_TIME no
xs:duration ConfdString C_DURATION no
xs:hexBinary OCTET STRING C_BINARY no
xs:QName not supported n/a n/a
A YANG presence container and a leaf of type empty can be mapped to a SMI scalar or columnar object
of type SNMPv2-TC::TruthValue. If the empty leaf or presence container exists, the SMI object is 'true',
and if it does not exist, but its parent exists, it has the value 'false'. Setting the SMI object to 'true' creates
the leaf or presence container, and setting it to 'false' deletes it.
17.2.4. Generating the YANG module
The confdc --mib2yang is used to generate a YANG (.yang) files from MIBs. The element structure in
the resulting YANG module will resemble the structure of the objects in the MIB.
If the MIB IMPORTs other MIBs, these MIBs must be available (as .mib files) to the compiler when
a YANG module is generated. By default, all MIBs in the current directory and all builtin MIBs (see
Section 17.1, “Introduction to the ConfD SNMP Agent”) are available. Since the compiler uses the tool
smidump to perform the conversion to YANG, the environment variable SMIPATH can be set to a colon-
separated list of directories to search for MIB files.
327
The SNMP Agent
Example 17.2. Generating and compiling YANG from MIB
$ confdc --mib2yang -o SIMPLE-MIB.yang SIMPLE-MIB.mib
$ confdc -c -o SIMPLE-MIB.fxs SIMPLE-MIB.yang
Below is the generated YANG module. The structure of the YANG module resembles the structure of the
SIMPLE-MIB it was generated from.
Example 17.3. The YANG file generated by confdc --mib2yang
module SIMPLE-MIB {
namespace "http://tail-f.com/ns/mibs/SIMPLE-MIB/200702080000Z";
prefix SIMPLE-MIB;
tailf:id "";
tailf:snmp-mib-module-name SIMPLE-MIB;
import ietf-yang-types {
prefix yang;
}
import ietf-inet-types {
prefix inet;
}
import tailf-common {
prefix tailf;
}
import tailf-xsd-types {
prefix xs;
}
import SNMPv2-TC {
prefix SNMPv2-TC;
}
revision 2007-02-08 {
description "";
}
container SIMPLE-MIB {
container variables {
tailf:snmp-oid 1.3.6.1.4.1.24961.3.1.1;
leaf numberOfHosts {
type int32;
tailf:snmp-oid 1.3.6.1.4.1.24961.3.1.1.1;
}
}
container hostTable {
list hostEntry {
key hostName;
tailf:sort-order snmp;
tailf:snmp-oid 1.3.6.1.4.1.24961.3.1.2.1;
leaf hostName {
type hostNameType;
tailf:snmp-oid 1.3.6.1.4.1.24961.3.1.2.1.1.1;
}
leaf hostEnabled {
type SNMPv2-TC:TruthValue;
tailf:snmp-oid 1.3.6.1.4.1.24961.3.1.2.1.1.2;
}
328
The SNMP Agent
leaf hostNumberOfServers {
type int32;
tailf:snmp-oid 1.3.6.1.4.1.24961.3.1.2.1.1.3;
}
}
}
}
typedef hostNameType {
type string {
length "min .. 64";
}
}
}
17.2.5. Compiling the YANG modules
Compile the YANG modules representing MIBs the same way that any other YANG module is compiled,
using confdc .
Note that all YANG modules representing the builtin MIBs are available in $CONFD_DIR/src/confd/
snmp/yang directory. The parameter --yangpath can be given to the compiler to search this directory.
17.2.6. Compiling the MIBs
MIB compilation
The confdc compiler is used for compiling the MIB into a binary format that can be loaded by the ConfD
SNMP agent. The MIB is compiled with the YANG .fxs file with associations that map the YANG nodes
into objects in the MIB. The resulting file is a binary (.bin) file that is loaded into the ConfD SNMP agent.
$ confdc -c SIMPLE-MIB.mib simple.fxs
If the MIB IMPORTs other MIBs, these MIBs must be available (as compiled .bin files) to the compiler. By
default, all compiled MIBs in the current directory and all builtin MIBs are available. Use the parameters
--include-dir or --include-file to specify where the compiler can find the compiled MIBs.
Note that not every object in the MIB must have a mapping to a node in the YANG module. By using
a separate MIB annotation file, ConfD can be instructed how these missing objects should be treated by
the SNMP agent. The agent can treat the objects either as not implemented, or as implemented but non-
existent.
The format of an annotation line is object-name annotation, where object-name is the name of
an object type (column or scalar), and annotation has the form behavior=noSuchObject,
behavior=noSuchInstance, max_access=not_accessible, max_access=read_only.
329
The SNMP Agent
If a line is blank or starts with a # character, it is ignored. An object name may occur on several lines.
Example:
$ cat HOST-RESOURCES-MIB.miba
# tell the agent to not implement these objects
hrPartitionID behavior=noSuchInstance
hrSWInstalledDate behavior=noSuchObject
$ confdc -c HOST_RESOURCES-MIB.mib \
--mib-annotation HOST_RESOURCES.miba host-resources.fxs
17.2.7. Loading MIBs
The ConfD SNMP agent have the following built-in MIBs:
SNMPv2-MIB, a mandatory MIB for an agent. This MIB is always loaded at start-up.
SNMP-MPD-MIB, a mandatory MIB for an agent. This MIB is always loaded at start-up if the agent
is configured for SNMPv3.
SNMP-FRAMEWORK-MIB, a mandatory MIB for an agent. This MIB is always loaded at start-up if
the agent is configured for SNMPv3.
SNMP-COMMUNITY-MIB, handles SNMP v1 and v2c communities.
SNMP-VIEW-BASED-ACM-MIB, handles the view based access control.
SNMP-USER-BASED-SM-MIB, handles the user based access control.
SNMP-TARGET-MIB, to be able to configure targets for SNMP traps.
SNMP-NOTIFICATION-MIB, defines SNMP traps.
IPV6-TC, defines some IPv6 specific TEXTUAL-CONVENTIONs.
TRANSPORT-ADDRESS-MIB, defines some OBJECT-IDENTITYs for transport protocols. This MIB
module cannot be loaded as a built-in module in the agent. If some other MIB IMPORTs this MIB, then
it needs to be compiled and loaded as other non-built-in MIBs.
SNMP-USM-AES-MIB, defines an OBJECT-IDENTITY for the AES privacy protocol. This MIB
module must not be loaded into the agent.
These MIBs of course must have their corresponding YANG .fxs files loaded in order for the SNMP agent
to work (see the next section). The MIBs themselves are not required to be loaded. The user decides which
MIBs should be loaded, and there may be reasons to not provide SNMP access to certain MIBs.
The MIBs SNMPv2-MIB, SNMP-MPD-MIB, and SNMP-FRAMEWORK-MIB, are always loaded into
the ConfD SNMP agent at start-up. These MIBs are required for an SNMP agent.
The other built-in MIBs are not loaded per default, which means that they cannot be accessed/configured
via SNMP but of course via for example CDB init files (see Section 5.8, “Loading initial data into CDB”)
NETCONF, or even CLI directly. If the intention is to have these MIBs loaded, they must be listed in
confd.conf without any explicit paths to where they are stored as shown in the example below.
Other MIBs (that are not built-in) are loaded by specifying their absolute or relative paths, or alternatively
the MIBs can be loaded from ConfDs loadPath. We recommend that these MIBs are loaded from the load
path. This is how other data model files (.fxs etc) are handled.
330
The SNMP Agent
The main reason for this recommendation is how MIBs can be dynamically reloaded. MIBs that are
explicitly listed are reloaded by giving the command confd --reload. If any MIB cannot be loaded for
whatever reason, ConfD halts. MIBs in the load path are reloaded using the data model upgrade functions,
see Chapter 13, In-service Data Model Upgrade.
Example 17.4. Specifying built-in MIBs to be loaded into the agent
<snmpAgent>
<enabled>true</enabled>
<mibs>
<!-- Load built-in MIBS -->
<file>SNMP-COMMUNITY-MIB.bin</file>
<file>SNMP-VIEW-BASED-ACM-MIB.bin</file>
<file>SNMP-USER-BASED-SM-MIB.bin</file>
<file>SNMP-TARGET-MIB.bin</file>
<file>SNMP-NOTIFICATION-MIB.bin</file>
<!-- Load specific user MIBs -->
<file>/etc/confd/mibs/SIMPLE-MIB.bin</file>
<!-- Load all MIBs present in the loadPath -->
<fromLoadPath>true</fromLoadPath>
</mibs>
</snmpAgent>
17.2.8. Loading YANG modules for built-in MIBs
The SNMP agent has a few built-in MIBs that store its configuration data in CDB. The following .fxs
files defines namespaces for the built-in MIBs and must be loaded at start-up if the SNMP agent is enabled:
SNMPv2-MIB.fxs, SNMPv2-SMI.fxs, SNMPv2-TC.fxs - contains base SNMPv2 types
SNMP-FRAMEWORK-MIB.fxs
SNMP-MPD-MIB.fxs
SNMP-COMMUNITY-MIB.fxs
SNMP-VIEW-BASED-ACM-MIB.fxs
SNMP-USER-BASED-SM-MIB.fxs
SNMP-TARGET-MIB.fxs
SNMP-NOTIFICATION-MIB.fxs
Preferably a loadPath in the confd.conf file can be set to the directory where these files are installed.
If ConfD fails to load these files it will terminate with a fatal error.
The built-in .fxs files are delivered as pre-built, but the YANG source code is provided as well.
Tampering with these files is not advised and may result in a serious internal error. However we may wish
to recompile these YANG modules using the confdc compiler flag --export, to not expose the built-
in MIB data to other ConfD internal protocols/applications such as NETCONF, CLI, and Web UI. The
YANG source code is provided for this reason.
Also, it is possible to provide external callpoints for the built-in MIB data to store the data in an
external database instead of CDB. If this is done and the SNMP Agent config is stored in an external
331
The SNMP Agent
database, ConfD must be told to pick up changes to the SNMP Agent config by means of the
maapi_snmpa_reload() function, see the ???? manual page. This is a drawback compared to storing
the data in CDB, since then, changes to the config will be automatically picked up by ConfD.
17.2.9. The RowStatus column
The rowstatus column for tables is always handled by the SNMP agent and should not be modeled in
the YANG modules. The tailf:snmp-row-status-column statement can be left out and the row
status column will be looked up by the compiler.
The RowStatus column in an SNMP table is used for reading the status of a conceptual row in a table and
for creating and deleting new conceptual rows in the table. The following values are always defined for
the row status:
active (1) - indicates that the conceptual row is available.
notInService (2) - indicates that the conceptual row is unavailable. This is a temporary state where the
row is stored in the SNMP agent and not in the database. A row with a RowStatus of 'notInService' can
be made 'active' which means that the row will be inserted into the database.
notReady (3) - indicates that the conceptual row is missing information. This is a temporary state where
the row is stored in the SNMP agent and not in the database. A RowStatus of 'notReady' is returned to
indicate that the row is missing a value for one or more mandatory column(s). When the row have all
the mandatory values set, a RowStatus of 'notInService' will be returned instead of 'notReady'.
createAndGo (4) - set by manager to create new row instance.
createAndWait (5) - set by manager to create new row instance but not make it available. A RowStatus
of 'notInService' or 'notReady' is returned depending on if all values for the mandatory columns are
set or not.
destroy (6) - set by manager to delete all instances in the conceptual row.
The createAndWait creates a new instance of a conceptual row in a temporary state where the row will
have a RowStatus set to 'notReady' or 'notInService' depending on if all the mandatory columns are set for
the column or not. It can be made 'active' and will then be inserted into the database. Note that there are no
guarantees that the row will exist more than 5 minutes (by default) in the temporary storage in the SNMP
Agent. The temporary cache used by the SNMP agent for this storage is volatile. The temporary storage
time can be configured in by setting temporaryStorageTime in confd.conf .
To delete a conceptual row the destroy value is used.
17.2.10. TestAndIncr
When a YANG module is generated from a MIB, and the MIB contains any scalar object of type
TestAndIncr, these objects are not translated into the YANG module, since they don't make sense outside
SNMP. Then, when the MIB is compiled, the compiler generates code so ConfD automatically handles
these objects. No coding is required.
17.2.11. MIB access and YANG config
Objects in MIBs can be read-only or writable. In YANG, nodes are marked as representing configuration
or non-configuration data.
332
The SNMP Agent
Read-only MIB objects
If a MIB object is read-only, it can be mapped to a configuration or non-configuration YANG node.
When a YANG module is generated from a MIB, all read-only MIB objects are translated into non-
configuration YANG nodes.
Writable MIB objects
If a MIB object is writable, it is usually mapped to a configuration YANG node. However, in some cases,
the MIB object doesn't really represent configuration, but is rather writable operational data. An example
could be a scalar variable rebootRouter. When written to, the router will reboot. In order to support
this, non-configuration YANG nodes can be marked with tailf:writable true. Writable MIB
objects can be mapped into non-configuration YANG nodes that are marked with tailf:writable
true.
When a YANG module is generated from a MIB, writable MIB objects are translated into configuration
YANG nodes, unless the MIB object is marked as representing writable operational data in a MIB
annotation file (see mib_annotations(5)).
If the SNMP agent receives a SET PDU with one or more writable operational objects, it will start a read-
write transaction towards CONFD_OPERATIONAL. In this transaction, the agent will write all variables
from the PDU, and then it will commit the transaction. Instrumentation code needs to be written to handle
these writes.
See Section 7.8, “Writable operational data” for how these objects are implemented, and
examples.confd/snmpa/9-writable-operational in the ConfD examples collection for an
example of how this can be implemented.
17.2.12. Optional YANG nodes
There is no protocol support in SNMP to delete optional nodes. Conceptual table rows are typically created
and deleted by using a RowStatus column, but there is no standardized way to delete optional nodes.
One technique to handle this is to introduce a special value for the object, so that the object is deleted when
it is set to this special value. ConfD supports this technique with the YANG extension tailf:snmp-
delete-value.
In order to use this technique, an optional leaf in the YANG model is mapped to a scalar or columnar object
in the MIB module. The data type definition of the MIB object allows the same values as the corresponding
YANG leaf, and in addition it also allows one extra value, not allowed by the YANG leaf. This special
value is also defined in the YANG model in the tailf:snmp-delete-value statement.
In the following example, we define a MIB object fooOptionalLeaf, and corresponding YANG leaf
foo-optional-leaf.
Example 17.5. SMI definition of an optional object
fooOptionalLeaf OBJECT-TYPE
SYNTAX Integer32 (0..255)
MAX-ACCESS read-create
STATUS current
DESCRIPTION
"The special value zero means not used."
::= { fooEntry 3 }
333
The SNMP Agent
Example 17.6. YANG definition of an optional leaf
leaf foo-optional-leaf {
type int32 {
range "1..255";
}
tailf:snmp-delete-value 0;
tailf:snmp-name fooOptionalLeaf;
}
When the SNMP agent receives a SET request to set this object to '0', the leaf will be deleted.
If the tailf:snmp-delete-value statement has the substatement tailf:snmp-send-
delete-value, the same special value will be returned on a GET request, instead of the default
noSuchInstance.
17.2.13. tailf:sort-order on tables
Tables in SNMP are strictly lexicographically ordered. An SNMP table is typically traversed with GET-
NEXT requests, where given a previous index of a row the next greater index is returned. Since the table
is specified in a YANG module and may be stored in an external database or perhaps as a managed object
(MO) written in C, it is important that the get_next() function returns the elements in correct order. If
the get-next function doesn't return the elements properly in order, SNMP will not work. If CDB is used to
store the data the ordering of the elements will be correct. Note that the tailf:sort-order statement
may have to be specified for indexes with dynamic length (see Section 17.2.8, “Loading YANG modules
for built-in MIBs”).
Types with dynamic length in SNMP like OCTET STRING will have a length indicator when they are
part of the INDEX, so the ordering for strings stored in such a table will be on length first, unless they are
declared as IMPLIED as in IMPLIED OCTET STRING. In this case the index will not have any length
indicator included, and the table should be sorted as normal.
The following values can be given to the tailf:sort-order statement:
normal This is the default and means that the table is sorted using the key values. This value
should be used when the corresponding SNMP table does not have any INDEX object
with dynamic length.
snmp This value means that when sorting, any key element of dynamic length will have the
length prepended to the value before sorting. It should be used if the corresponding
SNMP table has any INDEX object with dynamic length, and no IMPLIED object.
snmp-implied This value is the same as snmp, except that the last key element will not prepend the
length indicator to the key value. It should be used if the corresponding SNMP table
has any IMPLIED INDEX.
Here's an example of a MIB table with a DisplayString with dynamic length as index.
Example 17.7. simple.mib
hostTable OBJECT-TYPE
SYNTAX SEQUENCE OF HostEntry
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
334
The SNMP Agent
"The table of hosts."
::= { simpleTables 1 }
hostEntry OBJECT-TYPE
SYNTAX HostEntry
MAX-ACCESS not-accessible
STATUS current
DESCRIPTION
"Information about a host."
INDEX { hostName }
::= { hostTable 1 }
HostEntry ::= SEQUENCE {
hostName DisplayString,
hostEnabled TruthValue,
hostNumberOfServers INTEGER,
hostRowStatus RowStatus
}
If the list corresponding to this SNMP table is stored in CDB, the definition in the YANG module must
specify tailf:sort-order snmp so that the table is sorted correctly (with length indicator included).
Example 17.8. simple.yang
list host {
key name;
tailf:sort-order snmp;
leaf name {
type nameType;
}
leaf enabled {
type boolean;
mandatory true;
}
leaf numberOfServers {
type uint16;
mandatory true;
}
}
When the sort order is set to "snmp" or "snmp-implied" on a list, it affects the displayed sort order in
all northbound interfaces. Thus the list of hosts above will be sorted according to SNMP lexicographical
ordering, even in e.g. the CLI. Sometimes this may be confusing to users. This problem can be solved by
adding a tailf:secondary-index to the list:
Example 17.9. simple.yang with secondary index
list host {
key name;
tailf:secondary-index snmp {
tailf:index-leafs "name";
335
The SNMP Agent
tailf:sort-order snmp;
}
leaf name {
type nameType;
}
leaf enabled {
type boolean;
mandatory true;
}
leaf numberOfServers {
type uint16;
mandatory true;
}
}
When the SNMP agent traverses a table, it checks if there is a secondary-index with the reserved name
"snmp" defined for the table. If there is such an index, the agent traverses the table using this index.
In the example above, the host table is sorted in normal order, which means that "arthur" appears
before "ford". But since there is a secondary-index called snmp, the SNMP agent will use this index when
traversing the table, so that 4."ford" appears before 5."arthur" over SNMP.
Note that the presence of a secondary-index in the YANG module is not enough; the instrumentation code
must be prepared to perform the actual sorting. See confd_lib_dp(3) for details.
17.2.14. Enumerations
Enumerations in SNMP have textual representation mapped to an integer. A simple example would be
the definition for TruthValue:
Example 17.10. TruthValue from the SNMPv2-TC
TruthValue ::= TEXTUAL-CONVENTION
STATUS current
DESCRIPTION
"Represents a boolean value."
SYNTAX INTEGER { true(1), false(2) }
The confdc --mib2yang tool produces the following type definition for TruthValue:
Example 17.11. A typedef for TruthValue
typedef TruthValue {
type enumeration {
enum true {
value 1;
}
enum false {
value 2;
}
}
}
336
The SNMP Agent
17.2.15. Notifications
Notifications are defined by the NOTIFICATION-TYPE macro in SMIv2. There are two types of
notifications in SNMP: trap and inform. When the managed object needs to send trap notifications the
following functions should be called (from MO's written in C).
Example 17.12. Functions for sending notification from C
int confd_register_snmp_notification(
struct confd_daemon_ctx *dx, int fd,
const char *notify_name, const char *ctx_name,
struct confd_notification_ctx **nctx);
int confd_notification_send_snmp(
struct confd_notification_ctx *nctx, const char *notification,
struct confd_snmp_varbind *varbinds, int num_vars);
The confd_register_snmp_notification() function is typically called once to register the
parameters common to a set of notifications, and then the individual notifications are sent by calling
confd_notification_send_snmp(). The daemon context pointer dx is obtained by calling
confd_init_daemon(), and the socket file descriptor fd is a worker socket connected to the
ConfD daemon via a call to confd_connect(). See confd_lib_dp(3) man page for details about
these functions. Note also that a control socket must be connected to the ConfD daemon before calling
confd_register_snmp_notification().
The notify_name parameter matches the NotifyName in the snmpNotifyTable in the SNMP-
NOTIFICATION-MIB. Trap will be sent to targets pointed out by NotifyName. If NotifyName is ""; the
normal procedure defined in SNMP-NOTIFICATION-MIB is used, i.e. the trap is sent to all managers.
Otherwise, the NotifyName is used to find an entry in the SnmpNotifyTable which defines how to send
the notification (as an Inform or a Trap), and to select targets from SnmpTargetAddrTable (using the Tag).
The ctx_name is the name of the context. The default context is "".
The notification string is the notification name. For example "coldStart" or "warmStart".
This symbolic name of a notification must be defined in a MIB that is loaded into the agent.
If the empty string is used as notification name, the notification to send is constructed from the varbinds
array alone, which must then contain a value for the snmpTrapOID variable.
The varbinds array contains variable bindings for parameters that should be sent along in the
notification. The include file confd_lib.h defines data structures for these:
Example 17.13. SNMP varbind structures from confd_maapi.h
enum confd_snmp_var_type {
CONFD_SNMP_VARIABLE = 1,
CONFD_SNMP_OID = 2,
CONFD_SNMP_COL_ROW = 3
};
struct confd_snmp_oid {
int oid[128];
int len;
};
337
The SNMP Agent
struct confd_snmp_col_row {
char column[256];
struct confd_snmp_oid rowindex;
};
struct confd_snmp_varbind {
enum confd_snmp_var_type type;
union {
char name[256];
struct confd_snmp_oid oid;
struct confd_snmp_col_row cr;
} var;
confd_value_t val;
};
Each varbind is either:
a variable a symbolic name of a scalar variable referred to in the notification
specification.
a column a symbolic name of a column variable. Rowindex is the index of the
specified column.
an OBJECT IDENTIFIER for the instance of an object, scalar variable or column variable.
If a value is given it will be used. If it is not given (i.e. set to C_NOEXISTS) then the agent will look up
the value with a GET operation.
Example 17.14. Notification registration
int setup(struct confd_daemon_ctx *dctx, int workersock,
struct confd_notification_ctx **nctx)
{
if (confd_register_snmp_notification(dctx, workersock,
"std_v1_trap", "", nctx)) != CONFD_OK)
return CONFD_ERR;
return confd_register_done(dctx);
}
Example 17.15. Sending a coldStart notification
int test1(struct confd_notification_ctx *nctx)
{
return confd_notification_send_snmp(nctx, "coldStart", NULL, 0);
}
Example 17.16. Sending a notification with a varbind
int test2(struct confd_notification_ctx *nctx)
{
struct confd_snmp_varbind vb;
vb.type = CONFD_SNMP_VARIABLE;
338
The SNMP Agent
strcpy(vb.var.name, "myVariable");
CONFD_SET_INT32(&vb.val, 32);
return confd_notification_send_snmp(nctx, "notif1", &vb, 1);
}
The inform type notifications are similar to the trap type except there is an acknowledgment sent back
from the manager that received the inform. Two callbacks needs to be registered to receive the result of
the inform, and there's a separate function for sending an inform.
int confd_register_notification_snmp_inform_cb(
struct confd_daemon_ctx *dx,
const struct confd_notification_snmp_inform_cbs *cb);
int confd_notification_send_snmp_inform(
struct confd_notification_ctx *nctx, const char *notification,
struct confd_snmp_varbind *varbinds, int num_vars,
const char *cb_id, int ref);
The struct confd_notification_snmp_inform_cbs is defined as:
struct confd_notification_snmp_inform_cbs {
char cb_id[MAX_CALLPOINT_LEN];
void (*targets)(struct confd_notification_ctx *nctx,
int ref, struct confd_snmp_target *targets,
int num_targets);
void (*result)(struct confd_notification_ctx *nctx,
int ref, struct confd_snmp_target *target,
int got_response);
void *cb_opaque; /* private user data */
};
In order to debug the notification sending process in ConfD, the /confdConfig/logs/
developerLogLevel in confd.conf(5) can be set to "trace".
17.3. Generating MIBs from YANG
The previous sections have discussed the scenario where there is an existing set of MIB files, and then
confdc --mib2yang is used to convert these to YANG with the associations that the agent needs.
If instead no MIBs exist, but a number of YANG files (complied to .fxs files), these can be translated
to MIB files (in SMIv2 syntax), using the --emit-mib option of confdc.
The normal operation of the translator is to select those nodes that have an tailf:snmp-oid statement,
and ignore the others. If the option --generate-oids is given (described later in this section), all
elements are selected, unless explicitly marked with tailf:snmp-exclude-object.
The value of the tailf:snmp-oid statement can be either a one-component suffix, for example ".4", or
a full OID, such as "1.3.6.1.4.1.12345" or "private.1.12345". If it's a suffix, a full OID should be specified
for some ancestor element, in the YANG module header, or using the --oid option.
In order to be selected for translation to the MIB file, an element must also match the module name. The
module name can be given as an tailf:snmp-mib-module-name statement in the YANG module
header, which is then inherited by all nodes, or using the --module option. It can also be specified on a
node, which then overrides the value from the header or ancestor nodes.
Since tables can not reside inside tables in SMI, lists containing lists are handled by moving the inner
lists up to top level.
339
The SNMP Agent
Nodes inside containers in lists are given OIDs directly below the table entry, and names which are the
concatenation of the path down from the table level. The containers should not have an OID.
If a RowStatus column is desired for a table, use the statement tailf:snmp-row-status-column
on the corresponding list. The statement's value should be the column number (i.e., the last OID component,
with no leading period). The object will be called rowstatus.
17.3.1. Translating a .fxs file to a MIB
The form of the translation command is shown below (using fictitious parameters):
confdc --emit-mib FOO-MIB.mib --oid enterprises.24961 -- foo.fxs
The basename of the output file (here, FOO-MIB) by default becomes the name of the module (with all
letters made upper case). The option --module can be used to specify the module name.
Any other .fxs files we depend on have to be given with -f, as usual.
confdc --emit-mib FOO-MIB.mib --oid enterprises.24961 -f types.fxs -- foo.fxs
To build the .bin file to be loaded by the ConfD SNMP agent, do
confdc -c FOO-MIB.mib foo.fxs -f types.fxs
During translation, problems are reported as warnings or errors. When an error occurs, translation
continues so that a complete MIB file is still produced, but the exit status from confdc is 1, rather than 0.
17.3.2. --generate-oids
With the option --generate-oids, the translator selects all nodes, inventing OIDs for the nodes which
don't already have an tailf:snmp-oid statement. If a node has a tailf:snmp-exclude-object
statement, it is ignored. The --generate-oids is useful when the original YANG module cannot be
modified.
By default, the OID suffixes of child elements are numbered consecutively, starting with 1. This can
be overridden with a suffix tailf:snmp-oid on a node. The suffixes of the following elements will
continue from that point.
A RowStatus element is always generated.
Since the MIB compiler (i.e., confdc -c when given a MIB file) needs to know the association between
MIB objects and YANG nodes, and this association is not present in the YANG module (if it was, there
would be no need for generating OIDs), we use YANG annotation files.
A YANG annotation file is used to define the mapping between YANG nodes and MIB objects. The
YANG annotation file can be written by hand, or generated from the YANG module. Since it is important
in SNMP that OIDs once assigned do not change, it is recommended to generate an initial version of a
YANG annotation file, and then update it manually as the YANG module evolves. The process to do this is:
Compile the YANG module: confdc -c foo.yang
Generate an initial YANG annotation file: confdc --emit-mib FOO-MIB.mib --oid experimental.1 --
generate-oids --generate-yang-annotation foo.fxs
The YANG annotation file will be called foo-ann.yang.
340
The SNMP Agent
Once the initial YANG annotation file is generated, it should be kept and updated as the original YANG
module is updated. The MIB can then be generated as needed:
Compile the YANG module and annotation file: confdc -c -a foo-ann.yang foo.yang
Generate the MIB: confdc --emit-mib FOO-MIB.mib foo.fxs
Compile the MIB: confdc -c FOO-MIB.mib foo.fxs
17.3.3. Lexical structure
At the start of the generated MIB file, a header of comments gives some information on how the file was
produced, including the confdc invocation, the namespace of the .fxs file, and the current date and time.
(Any -- strings are converted to ++ because the former cannot occur in SMI comments.)
The only field in the module header which can be filled in with information from the .fxs file is the first
DESCRIPTION field, which is taken from the YANG module's description statement, if one exists.
The remaining fields have the following format, in order to facilitate automatic editing of the values:
LAST-UPDATED "@LAST-UPDATED"
ORGANIZATION "@ORGANIZATION"
CONTACT-INFO "@CONTACT-INFO"
REVISION "@REVISION"
DESCRIPTION "@REVISION-DESCRIPTION"
17.3.4. Names
The names of the objects are constructed by joining all the parts of the full tag path of the nodes, capitalizing
each part. An alternative is to not capitalize, and join the parts with "-" (with the option --join-names
hyphen see the section called “Emit SMIv2 MIB options”).
If the statement tailf:snmp-name is used on a node, its value is taken as the full name of the object.
For containers and tables, it also becomes the first part of its children's names.
The characters '.' and '_' can occur in YANG identifiers but not in SNMP identifiers; they are converted
to '-', unless the option --join-names force-capitalize is given. In this case, such identifiers
are capitalized (to lowerCamelCase).
If generated names clash with each other (for example both /x/a/b-c and /x/a-b/c yielding the name
x-a-b-c), an error is reported.
17.3.5. Types
YANG types are mapped according to the table in Table 17.2, “YANG mapping to SMI types”. .
The type restrictions that deal with lengths ranges are translated. The remaining restrictions (pattern,
fraction-digits) are silently ignored.
If inet:ipv6-address is used, Ipv6Address is imported from IPV6-TC. Otherwise, imports are only made
from SNMPv2-SMI, SNMPv2-CONF and SNMPv2-TC.
Leafs with types which are not handled are skipped in the translation, with a warning.
341
The SNMP Agent
Identifiers which have an invalid syntax (for example, start with a digit) are kept in the translation, but
a warning is given.
If a leaf with type yang:counter64 is used as an index or as writable, a warning is given.
17.3.6. Miscellaneous
STATUS is current by default for all objects. To cause STATUS to be deprecated or obsolete,
use the YANG statement status with the corresponding value on the YANG node.
MAX-ACCESS is read-only for operational nodes (having config false;).
Actions are silently ignored.
Before each generated OBJECT-TYPE and OBJECT IDENTIFIER, a comment containing the word
"tagpath" indicates which YANG node the object corresponds to.
DESCRIPTION is copied from the .fxs file, when available (if the description statement is
present). For containers, they are emitted as comments instead (the string "--" is replaced with "- -").
description for nodes that are not translated into any OID are lost. Double quote characters, which
can't occur in DESCRIPTION, are replaced with single quotes.
For a string with a min length, but no max length, the max length is assumed to be 65535.
tailf:sort-order snmp-implied; results in the IMPLIED keyword, if appropriate for the type.
If a type containing negative values is used as an index, or if a string with unlimited length is used as an
index, a warning is given.
If a list uses tailf:sort-order normal, the child nodes may not appear in SNMP order when
listed, and so some elements may get lost, or confuse the manager. A warning is given for such cases.
If tailf:sort-order snmp-implied is used for one list list, which contains another list, the
last index of the outer list (with implied length) can no longer have implied length in SNMP, so agent
communication will most likely fail.
DEFVAL clauses are emitted for string and integer types (including bit types), but not for others.
17.4. Configuring the SNMP Agent
Configuration data for the ConfD SNMP agent consists of:
data in confd.conf
data for built-in MIBs
The configuration data in confd.conf is typically only configured once and then never changed. (It is
possible to change however).
To store initial data for the built-in MIBs, CDB init files can be used. CDB init files are loaded the first
time the system is started and the database is initialized with this data. See Section 5.8, “Loading initial
data into CDB”. Typically these files will define access rules and users of the agent. Updating the MIB
data is done directly from the northbound agents such as NETCONF or CLI. The confdc compiler flag --
export can be used to grant access for applications / protocols such as NETCONF and CLI to modify
the built-in SNMP data. For this reason the YANG source for the built-in MIBs are provided so that they
can be recompiled with the --export flag.
342
The SNMP Agent
The data for the SNMP agent built-in MIBs are by default stored in CDB, but it is also possible have this
data in an external database. In this case the user needs to add external callpoints to the YANG modules
and recompile them.
17.4.1. Configuration data in confd.conf
There are a few elements that must be configured in confd.conf in order for the SNMP agent to start.
First of all the ConfD SNMP agent must be enabled, and it must have an address and a port that it will
try to bind to at start-up. If if fails to bind to the port, ConfD will fail to start. It should also have a list of
MIBs that should be loaded into the agent. If it fails to load any of the MIBs, ConfD will fail to start.
Several options can be given to control the behavior of the SNMP agent:
enabled Whether or not the agent should be started.
ip, port The IP address and port that the agent will bind and listen for
incoming requests to.
mibs The MIBs that the agent should load at start-up.
snmpVersions The version of the SNMP protocol that the agent will understand
(the supported versions are v1, v2c, and v3).
snmpEngineID,
snmpEngineMaxMessageSize
The engine identifier and max message size that this agent can
handle.
sysDescr Description of the entity. The description should include the full
name and version identification of the system. See SNMPv2-MIB
for more information.
sysObjectID The vendor's authoritative identification of the network
management subsystem contained in the entity. See SNMPv2-MIB
for more information.
sysServices A value which identifies the set of services that this entity primarily
offers. See SNMPv2-MIB for more information.
sysORTable An optional table with SNMP agent capabilities. These entries will
populate the real sysORTable in the SNMPv2-MIB.
Below is an example of a confd.conf file:
Example 17.17. Example of a confd.conf
<snmpAgent>
<enabled>true</enabled>
<ip>0.0.0.0</ip>
<port>161</port>
<mibs>
<file>SIMPLE-MIB.bin</file>
</mibs>
<snmpVersions>
<v1>true</v1>
<v2c>true</v2c>
<v3>false</v3>
</snmpVersions>
<snmpEngine>
343
The SNMP Agent
<snmpEngineID>80:00:61:81:05:01</snmpEngineID>
</snmpEngine>
<system>
<sysDescr>Tail-f ConfD agent</sysDescr>
<sysObjectID>1.3.6.1.4.1.24961</sysObjectID>
</system>
</snmpAgent>
This will enable the SNMP agent, which will listen to requests incoming to locally at port 161. The MIB
file SIMPLE-MIB.bin is loaded in the agent, and the agent will understand SNMP versions v1 and v2c,
but not v3.
17.4.2. Changing configuration data in confd.conf in
run-time
The data stored in confd.conf can be changed by modifying the file and then issuing a confd --reload
command. This will trigger an already running ConfD daemon to check its configuration data and make
the necessary changes. Certain changes like the SNMP agents IP address will trigger an internal restart of
the SNMP agent (ConfD will still remain up), other changes like the MIBs that are loaded can be done
without restarting the SNMP agent. It's thus possible to update the MIBs in a running ConfD SNMP agent
without restarting the SNMP agent.
Example 17.18. Old confd.conf content
<snmpAgent>
<enabled>true</enabled>
<ip>0.0.0.0</ip>
<port>161</port>
<mibs>
<file>SIMPLE-MIB.bin</file>
</mibs>
</snmpAgent>
Example 17.19. Updated confd.conf content
<snmpAgent>
<enabled>true</enabled>
<ip>0.0.0.0</ip>
<port>161</port>
<mibs>
<file>SIMPLE-MIB.bin</file>
<file>SIMPLE-MIB2.bin</file>
</mibs>
</snmpAgent>
The example above will on a confd --reload command unload all the loaded MIBs that were specified
on the old configuration, and load the MIBs specified in the updated configuration. The MIB SIMPLE-
MIB.bin is unloaded and then loaded again, which can be useful during development to update to a
newer version of the MIB.
17.4.3. Built-in MIB data
There is a set of standard MIBs which are used to control and configure an SNMP agent. These MIBs are
implemented in this agent. The user can control which of these MIBs are actually loaded into the agent, and
344
The SNMP Agent
thus made visible to SNMP managers. For example, in a non-secure environment, it might be a good idea
to not make MIBs that define access control visible. Note, the data that the MIBs define is used internally
in the agent, even if the MIBs are not loaded.
Any SNMP agent must implement the system group and the snmp group, defined in SNMPv2-MIB. This
MIB will be loaded by default.
An SNMPv3 agent must implement the SNMP-FRAMEWORK-MIB and SNMP-MPD-MIB. These MIBs
are also loaded by default, if the agent is configured for SNMPv3.
There are five other standard MIBs, which also may be loaded into the agent. These MIBs are:
SNMP-TARGET-MIB and SNMP-NOTIFICATION-MIB which defines managed objects for
configuration of management targets, i.e. receivers of notifications (traps and informs). These MIBs can
be used with any SNMP version.
SNMP-VIEW-BASED-ACM-MIB, which defines managed objects for access control. This MIB can
be used with any SNMP version.
SNMP-COMMUNITY-MIB, which defines managed objects for coexistence of SNMPv1 and
SNMPv2c with SNMPv3. This MIB is only useful if SNMPv1 or SNMPv2c is used, possibly in
combination with SNMPv3.
SNMP-USER-BASED-SM-MIB, which defines managed objects for authentication and privacy. This
MIB is only useful with SNMPv3.
Initial config data for communities, access rules, users etc. is preferably stored in CDB init files. They are
read once when the system is started for the first time and put in the database. The files must be located in
the dbDir. Typically a system have the following CDB init files for the built-in MIBs (the file name can
be anything but must end with the suffix _init.xml):
community_init.xml Data for SNMP-COMMUNITY-MIB. Defines the communities that have
access to the system.
vacm_init.xml Data for SNMP-VIEW-BASED-ACM-MIB. Defines view based access.
usm_init.xml Data for SNMP-USER-BASED-SM-MIB. Defines user based access used
with authentication and privacy. This is only used with SNMP v3.
target_init.xml Data for SNMP-TARGET-MIB. Defines trap targets.
notify_init.xml Data for SNMP-NOTIFICATION-MIB. Defines notifications.
Below is an example of an init file to define a community within the agent.
Example 17.20. Example community_init.xml
<SNMP-COMMUNITY-MIB
xmlns="http://tail-f.com/ns/mibs/SNMP-COMMUNITY-MIB/200308060000Z">
<snmpCommunityTable>
<snmpCommunityEntry>
<snmpCommunityIndex>public</snmpCommunityIndex>
<snmpCommunityName>public</snmpCommunityName>
<snmpCommunitySecurityName>public</snmpCommunitySecurityName>
<snmpCommunityContextEngineID>80:00:61:81:05:01</snmpCommunityContextEngineID>
<snmpCommunityContextName/>
345
The SNMP Agent
<snmpCommunityTransportTag/>
<snmpCommunityStorageType>permanent</snmpCommunityStorageType>
</snmpCommunityEntry
</snmpCommunityTable>
</SNMP-COMMUNITY-MIB>
SNMP-TARGET-MIB
The following values are supported for the object snmpTargetAddrTDomain:
SNMPv2-TM::snmpUDPDomain UDP over IPv4
TRANSPORT-ADDRESS-MIB::transportDomainUdpIpv4 UDP over IPv4 (same as
snmpUDPDomain above)
TRANSPORT-ADDRESS-MIB::transportDomainUdpIpv6 UDP over IPv6
SNMP-USER-BASED-SM-MIB
The following authentication algorithms are supported:
SNMP-USER-BASED-SM-MIB::usmNoAuthProtocol No Authentication Protocol.
SNMP-USER-BASED-SM-MIB::usmHMACMD5AuthProtocol The HMAC-MD5-96 Digest
Authentication Protocol.
SNMP-USER-BASED-SM-MIB::usmHMACSHAAuthProtocol The HMAC-SHA-96 Digest
Authentication Protocol.
The following privacy algorithms are supported:
SNMP-USER-BASED-SM-MIB::usmNoPrivProtocol No Privacy Protocol.
SNMP-USER-BASED-SM-MIB::usmDESPrivProtocol The CBC-DES Symmetric Encryption
Protocol.
SNMP-USM-AES-MIB::usmAesCfb128Protocol The CFB128-AES-128 Privacy Protocol.
17.5. How the SNMP Agent Interacts with
ConfD
17.5.1. ConfD Sessions and Transactions
All data access to ConfD is done through user sessions. Once a user session is established, it can open
read-only or read-write transactions towards a data store or towards operational data.
All requests start transactions towards the running data store.
SNMP over UDP does not have a concept of a user session. Each packet is (in theory) handled
independently. However, for performance reasons, the SNMP agent creates a user session and a transaction
when it receives the first packet. It then caches the session and transaction, and if it gets a new packet with
the same source IP address, same UDP port, and same securityName, it reuses the session and transaction.
If no packet has been received during a 10 second period, the session and transaction are closed.
346
The SNMP Agent
The cache has a limit of 32 sessions. If the cache is full when the agent needs to create a new session, an
old session can be closed for this purpose, even though it was in use less than 10 seconds ago.
The confd.conf parameters for session limits can be used to limit the number of concurrent SNMP
user sessions or configuration transactions, but note that higher values than 32 (the session cache limit
described above) will not have any effect.
17.5.2. USM and VACM and ConfD AAA
When the SNMP agent receives a SNMP request, it determines the securityName and SNMP context for
the request. If SNMPv1 or SNMPv2c is used, the snmpCommunityTable is consulted to determine the
securityName and SNMP context. If SNMPv3 is used, the SNMP context is explicitly given in the request,
and the securityName is determined from the usmUserTable.
When the SNMP agent starts a user session in ConfD, it uses the securityName as the username, the string
"snmp" as ConfD AAA context, and no groups. If the username is a member of any of ConfD's AAA
groups, it will be placed in these groups. Otherwise, if there is a defaultGroup configured in confd.conf
, the user will be placed in this group. Otherwise, the user does not belong to any group.
Note that the user is authenticated by the SNMP agent, and not by ConfD's AAA.
For each SNMP object the user tries to access, VACM is consulted to see if the user's securityName has
access, in the given context. If it has, the SNMP agent will try to access the corresponding YANG object.
ConfD's normal AAA authorization is consulted to see if the groups the user belongs to have access to
the YANG object.
Since both VACM and ConfD's AAA are consulted, a ConfD user can choose to use one of them, or
both. One usage strategy can be to add VACM rules which gives full access to everyone, and then rely
on ConfD's AAA datarules. Another strategy could be to have detailed rules in VACM, and then give full
access to the "snmp" context in ConfD's AAA.
17.5.3. ConfD High Availability
If ConfD is run in HA mode, the SNMP variables sysUpTime, snmpEngineTime, and
snmpEngineBoots are automatically replicated. This means that if a slave ConfD takes over as master,
these variables will keep their values.
It is essential that each ConfD instance in the cluster has the same snmpEngineID configured. This
value is defined in confd.conf , and it is the responsibility of the user to make sure it has the same
value on all nodes in the cluster. However, if ConfD's configuration is stored in CDB (see Section 28.4.2,
“Storing ConfD configuration parameters in CDB”), then since CDB is replicated, the snmpEngineID
will always be the same in the cluster.
17.6. Running the SNMP Agent as a NET-SNMP
subagent
The ConfD integrated SNMP agent can run as subagent to the NET-SNMP master agent. This is useful in
scenarios where you want to use NET-SNMP agents for monitoring the host, or reuse other NET-SNMP
subagents in your solution.
The easiest way to run the agent as sub-agent is to configure the proxy alternative in NET-SNMP
snmpd.conf. (See the snmpd.conf man page) Make sure that you have created an access view with the
correct OID root. You need to add a proxy command entry to the snmpd.conf file.
347
The SNMP Agent
proxy [-Cn CONTEXTNAME] [SNMPCMD_ARGS] HOST OID [REMOTEOID]
Values for the proxy configuration:
SNMPCMD_ARGS : these are the authentication parameters you want to pass to the ConfD SNMP
agent. Note that the original auth parameters will not be used. (See snmpcmd man page). In the
simplest configuration you specify a community string, for example -c secret where secret will be used
as community string for all requests forwarded to ConfD.
HOST : IPv4-address[:port] : the IP address and the port of the ConfD SNMP agent. Make sure that
ConfD uses a different port than the standard ports which you probably have configured for the NET-
SNMP master agent.
OID : the SNMP OBJECT-IDENTIFIER of the root of the tree managed by ConfD SNMP agent.
After adding the values in the snmpd.conf file, restart the snmpd service.
The example below will forward all requests for Tail-f specific objects to the ConfD agent running on
localhost on port 5000 using the communit string secret.
proxy -c secret localhost:5000 1.3.1.6.4.24961
348
Chapter 18. Web UI Development
18.1. Introduction
Web UI development is thought to be in the hands of the customer's frontend developers - they will know
best the requirements and how to fulfill those requirements in terms of esthetics, functionality and tool
chain (frameworks, libraries, external data sources and services).
ConfD comes with a nortbound interface in the shape of a JSON-RPC API. This API is designed with Web
UI applications in mind, and it complies with the JSON-RPC 2.0 specification [http://www.jsonrpc.org/
specification], while using HTTP/S as the transport mechanism.
The JSON-RPC API contains a handful of methods with well defined input method and params, along
with the output result.
In addition, the API also implements a Comet model, as long polling, to allow the client to subscribe to
different server events and receive event notifications about those events in near real time.
You can call these from a browser via AJAX (e.g. XMLHTTPRequest, jQuery [https://jquery.com/]) or
from the command line (e.g. curl [https://github.com/bagder/curl], httpie [https://github.com/jkbr/httpie]):
// with jQuery
$.ajax({
type: 'post',
url: '/jsonrpc',
contentType: 'application/json',
data: JSON.stringify({
jsonrpc: '2.0',
id: 1,
method: 'login',
params: {
'user': 'joe',
'passwd': 'SWkkasE32'
}
}),
dataType: 'json'
})
.done(function(data) {
if (data.result)
alert(data.result);
else
alert(data.error.type);
});
or
# with curl
curl \
-X POST \
-H 'Content-Type: application/json' \
-d '{"jsonrpc": "2.0", "id": 1, \
"method": "login", \
"params": {"user": "joe", \
349
Web UI Development
"passwd": "SWkkasE32"}}' \
http://127.0.0.1:8008/jsonrpc
# with httpie
http POST http://127.0.0.1:8008/jsonrpc \
jsonrpc=2.0 id:=1 \
method=login \
params:='{"user": "joe", "passwd": "SWkkasE32"}'
18.2. Example of a common flow
You can read in the JSON-RPC API chapter about all the available methods and their signatures, but here
is a working example of how a common flow would look like:
• login
create a new read transaction
read a value
create a new webui (read-write) transaction, in preparation for changing the value
change a value
commit (save) the changes
meanwhile, subscribe to changes and receive a notification
In the release package, under ${CONFD_DIR}/var/confd/webui/example, you will find working
code to run the example below.
/*jshint devel:true*/
// !!!
// The following code is purely for example purposes.
// The code has inline comments for a better understanding.
// Your mileage might vary.
// !!!
define([
'lodash',
'bluebird',
'./JsonRpc',
'./Comet'
], function(
_,
Promise,
JsonRpc,
Comet
) {
'use strict';
// CHANGE AT LEAST THESE
// IN ORDER TO MAKE THIS EXAMPLE WORK IN YOUR SETUP
var jsonrpcUrl = '/jsonrpc', // 'http://localhost:8008/jsonrpc';
path = '/dhcp:dhcp/max-lease-time',
value = Math.floor(Math.random() * 800) + 7200;
350
Web UI Development
var log,
jsonRpc,
comet,
funs = {},
ths = {
read: undefined,
webui: undefined
};
// UTILITY
log = function(msg) {
document.body.innerHTML =
'<pre>' +
msg +
'</pre>' +
document.body.innerHTML;
};
// SETUP
jsonRpc = new JsonRpc({
url: jsonrpcUrl,
onError: function(method, params, deferred, reply) {
var error = reply.error,
msg = [method,
params,
reply.id,
error.code,
error.type,
error.message
];
if (method === 'comet') {
return;
}
window.alert('JsonRpc error: ' + msg);
}
});
comet = new Comet({
jsonRpc: jsonRpc,
onError: function(reply) {
var error = reply.error,
msg = [reply.id, error.code, error.type, error.message];
window.alert('Comet error: ' + msg);
}
});
// CALLS FOR A COMMON SCENARIO
funs.login = function() {
log('Logging in as admin:admin...');
return jsonRpc.call('login', {
user: 'admin',
passwd: 'admin'
}).done(function() {
log('Logged in.');
});
};
351
Web UI Development
funs.getSystemSetting = function() {
log('Getting system settings...');
return jsonRpc.call('get_system_setting').done(function(result) {
log(JSON.stringify(result, null, 1));
});
};
funs.newReadTrans = function() {
log('Create a new read-only transaction...');
return jsonRpc.call('new_read_trans', {
db: 'running'
}).done(function(result) {
ths.read = result.th;
log('Read-only transaction with th (transaction handle) id: ' +
result.th + '.');
});
};
funs.newWebuiTrans = function() {
log('Create a new webui (read-write) transaction...');
return jsonRpc.call('new_webui_trans', {
conf_mode: 'private',
db: 'candidate'
}).done(function(result) {
ths.webui = result.th;
log('webui (read-write) transaction with th (transaction handle) id: ' +
result.th + '.');
});
};
funs.getValue = function(args /*{th, path}*/) {
log('Get value for ' + args.path + ' in ' + args.th + ' transaction...');
if (typeof args.th === 'string') {
args.th = ths[args.th];
}
return jsonRpc.call('get_value', {
th: args.th,
path: path
}).done(function(result) {
log(path + ' is now set to: ' + result.value + '.');
});
};
funs.setValue = function(args /*{th, path, value}*/) {
log('Set value for ' + args.path +
' to ' + args.value +
' in ' + args.th + ' transaction...');
if (typeof args.th === 'string') {
args.th = ths[args.th];
}
return jsonRpc.call('set_value', {
th: args.th,
path: path,
value: args.value
}).done(function(result) {
log(path + ' is now set to: ' + result.value + '.');
});
};
352
Web UI Development
funs.validate = function(args /*{th}*/) {
log('Validating changes in ' + args.th + ' transaction...');
if (typeof args.th === 'string') {
args.th = ths[args.th];
}
return jsonRpc.call('validate_commit', {
th: args.th
}).done(function() {
log('Validated.');
});
};
funs.commit = function(args /*{th}*/) {
log('Commiting changes in ' + args.th + ' transaction...');
if (typeof args.th === 'string') {
args.th = ths[args.th];
}
return jsonRpc.call('commit', {
th: args.th
}).done(function() {
log('Commited.');
});
};
funs.subscribeChanges = function(args /*{path, handle}*/) {
log('Subcribing to changes of ' + args.path +
' (with handle ' + args.handle + ')...');
return jsonRpc.call('subscribe_changes', {
comet_id: comet.id,
path: args.path,
handle: args.handle,
}).done(function(result) {
log('Subscribed with handle id ' + result.handle + '.');
});
};
// RUN
Promise.resolve([
funs.login,
funs.getSystemSetting,
funs.newReadTrans,
function() {
return funs.getValue({th: 'read', path: path});
},
function() {
var handle = comet.id + '-max-lease-time';
comet.on(handle, function(msg) {
log('>>> Notification >>>\n' +
JSON.stringify(msg, null, 2) +
'\n<<< Notification <<<');
});
return funs.subscribeChanges({th: 'read', path: path, handle: handle});
},
funs.newWebuiTrans,
function() {
return funs.setValue({th: 'webui', path: path, value: value.toString()});
},
function() {
return funs.getValue({th: 'webui', path: path});
},
353
Web UI Development
function() {
return funs.validate({th: 'webui'});
},
function() {
return funs.commit({th: 'webui'});
},
function() {
return new Promise(function(resolve) {
log('Waiting 2.5 seconds before one last call to get_value');
window.setTimeout(function() {
resolve();
}, 2500);
});
},
function() {
return funs.getValue({th: 'read', path: path});
},
]).each(function(fn){
return fn().then(function() {
log('--------------------------------------------------');
});
});
});
// Local Variables:
// mode: js
// js-indent-level: 2
// End:
18.3. Example of a JSON-RPC client
In the example above describing a common flow, a reference is made to using a JSON-RPC client to make
the RPC calls.
An example implementation of a JSON-RPC client, used in the example above:
/*jshint devel:true*/
// !!!
// The following code is purely for example purposes.
// The code has inline comments for a better understanding.
// Your mileage might vary.
// !!!
define([
'jquery',
'lodash'
], function(
$,
_
) {
'use strict';
var JsonRpc;
JsonRpc = function(params) {
354
Web UI Development
$.extend(this, {
// API
// Call a JsonRpc method with params
call: undefined,
// API (OPTIONAL)
// Decide what to do when there is no active session
onNoSession: undefined,
// Decide what to do when the request errors
onError: undefined,
// Set an id to start using in requests
id: 0,
// Set another url for the JSON-RPC API
url: '/jsonrpc',
// INTERNAL
makeOnCallDone: undefined,
makeOnCallFail: undefined
}, params || {});
_.bindAll(this, [
'call',
'onNoSession',
'onError',
'makeOnCallDone',
'makeOnCallFail'
]);
};
JsonRpc.prototype = {
call: function(method, params, timeout) {
var deferred = $.Deferred();
// Easier to associate request/response logs
// when the id is unique to each request
this.id = this.id + 1;
$.ajax({
// HTTP method is always POST for the JSON-RPC API
type: 'POST',
// Let's show <method> rather than just "jsonrpc"
// in the browsers' Developer Tools - Network tab - Name column
url: this.url + '/' + method,
// Content-Type is mandatory
// and is always "application/json" for the JSON-RPC API
contentType: 'application/json',
// Optionally set a timeout for the request
timeout: timeout,
// Request payload
data: JSON.stringify({
jsonrpc: '2.0',
id: this.id,
method: method,
params: params
}),
dataType: 'json',
355
Web UI Development
// Just in case you are doing cross domain requests
// NOTE: make sure you are setting CORS headers similarly to
// --
// Access-Control-Allow-Origin: http://server1.com, http://server2.com
// Access-Control-Allow-Credentials: true
// Access-Control-Allow-Headers: Origin, Content-Type, Accept
// Access-Control-Request-Method: POST
// --
// if you want to allow JSON-RPC calls from server1.com and server2.com
crossDomain: true,
xhrFields: {
withCredentials: true
}
})
// When done, or on failure,
// call a function that has access to both
// the request and the response information
.done(this.makeOnCallDone(method, params, deferred))
.fail(this.makeOnCallFail(method, params, deferred));
return deferred.promise();
},
makeOnCallDone: function(method, params, deferred) {
var me = this;
return function(reply/*, status, xhr*/) {
if (reply.error) {
return me.onError(method, params, deferred, reply);
}
deferred.resolve(reply.result);
};
},
onNoSession: function() {
// It is common practice that when missing a session identifier
// or when the session crashes or it times out due to inactivity
// the user is taken back to the login page
_.defer(function() {
window.location.href = 'login.html';
});
},
onError: function(method, params, deferred, reply) {
if (reply.error.type === 'session.missing_sessionid' ||
reply.error.type === 'session.invalid_sessionid') {
this.onNoSession();
}
deferred.reject(reply.error);
},
makeOnCallFail: function(method, params, deferred) {
return function(xhr, status, errorMessage) {
var error;
error = $.extend(new Error(errorMessage), {
type: 'ajax.response.error',
detail: JSON.stringify({method: method, params: params})
});
356
Web UI Development
deferred.reject(error);
};
}
};
return JsonRpc;
});
// Local Variables:
// mode: js
// js-indent-level: 2
// End:
18.4. Example of a Comet client
In the example above describing a common flow, a reference is made to starting a Comet channel and
subscribing to changes on a specific path.
An example implementation of a Comet client, used in the example above:
/*jshint devel:true*/
// !!!
// The following code is purely for example purposes.
// The code has inline comments for a better understanding.
// Your mileage might vary.
// !!!
define([
'jquery',
'lodash',
'./JsonRpc'
], function(
$,
_,
JsonRpc
) {
'use strict';
var Comet;
Comet = function(params) {
$.extend(this, {
// API
// Add a callback for a notification handle
on: undefined,
// Remove a specific callback or all callbacks for a notification handle
off: undefined,
// Stop all comet notifications
stop: undefined,
// API (OPTIONAL)
// Decide what to do when the comet errors
onError: undefined,
// Optionally set a different id for this comet channel
357
Web UI Development
id: 'main-1.' + String(Math.random()).substring(2),
// Optionally give an existing JsonRpc client
jsonRpc: new JsonRpc(),
// Optionally wait 1 second in between polling the comet channel
sleep: 1 * 1000,
// INTERNAL
handlers: [],
polling: false,
poll: undefined,
onPollDone: undefined,
onPollFail: undefined
}, params || {});
_.bindAll(this, [
'on',
'off',
'stop',
'onError',
'poll',
'onPollDone',
'onPollFail'
]);
};
Comet.prototype = {
on: function(handle, callback) {
if (!callback) {
throw new Error('Missing a callback for handle ' + handle);
}
// Add a handler made of handle id and a callback function
this.handlers.push({handle: handle, callback: callback});
// Start polling
_.defer(this.poll);
},
off: function(handle, callback) {
if (!handle) {
throw new Error('Missing a handle');
}
// Remove all handlers matching the handle,
// and optionally also the callback function
_.remove(this.handlers, {handle: handle, callback: callback});
// If there are no more handlers matching the handle,
// then unsubscribe from notifications, in order to releave
// the server and the network from redundancy
if (!_.find(this.handlers, {handle: handle}).length) {
this.jsonRpc.call('unsubscribe', {handle: handle});
}
},
stop: function() {
var me = this,
deferred = $.Deferred(),
deferreds = [];
358
Web UI Development
if (this.polling) {
// Unsubcribe from all known notifications, in order to releave
// the server and the network from redundancy
_.each(this.handlers, function(handler) {
deferreds.push(me.jsonRpc('unsubscribe', {
handle: handler.handle
}));
});
$.when.apply($, deferreds).done(function() {
deferred.resolve();
}).fail(function(err) {
deferred.reject(err);
}).always(function() {
me.polling = false;
me.handlers = [];
});
} else {
deferred.resolve();
}
return deferred.promise();
},
poll: function() {
var me = this;
if (this.polling) {
return;
}
this.polling = true;
this.jsonRpc.call('comet', {
comet_id: this.id
}).done(function(notifications) {
me.onPollDone(notifications);
}).fail(function(err) {
me.onPollFail(err);
}).always(function() {
me.polling = false;
});
},
onPollDone: function(notifications) {
var me = this;
// Polling has stopped meanwhile
if (!this.polling) {
return;
}
_.each(notifications, function(notification) {
var handle = notification.handle,
message = notification.message,
handlers = _.where(me.handlers, {handle: handle});
// If we received a notification that we cannot handle,
// then unsubcribe from it, in order to releave
359
Web UI Development
// the server and the network from redundancy
if (!handlers.length) {
return this.jsonRpc.call('unsubscribe', {handle: handle});
}
_.each(handlers, function(handler) {
_.defer(function() {handler.callback(message);});
});
});
_.defer(this.poll);
},
onPollFail: function(error) {
switch (error.type) {
case 'comet.duplicated_channel':
this.onError(error);
break;
default:
this.onError(error);
_.wait(this.poll, this.sleep);
}
},
onError: function(reply) {
var error = reply.error,
msg = [reply.id, error.code, error.type, error.message].join(' ');
console.error('Comet error: ' + msg);
}
};
return Comet;
});
// Local Variables:
// mode: js
// js-indent-level: 2
// End:
360
Chapter 19. The JSON-RPC API
19.1. JSON-RPC
19.1.1. Protocol overview
The JSON-RPC 2.0 Specification [http://www.jsonrpc.org/specification] contains all the details you need
in order to understand the protocol but here is the short version.
A request payload typically looks like this:
{"jsonrpc": "2.0",
"id": 1,
"method": "subtract",
"params": [42, 23]}
where the method and params properties are as defined in this manual page.
A response payload typically looks like this:
{"jsonrpc": "2.0",
"id": 1,
"result": 19}
or
{"jsonrpc": "2.0",
"id": 1,
"error":
{"code": -32601,
"type": "rpc.request.method.not_found",
"message": "Method not found"}}
The request id param is returned as-is in the response to make it easy to pair requests and responses.
The batch JSON-RPC standard is dependent on matching requests and responses by id, since the server
processes requests in any order it sees fit e.g.:
[{"jsonrpc": "2.0",
"id": 1,
"method": "subtract",
"params": [42, 23]}
,{"jsonrpc": "2.0",
"id": 2,
"method": "add",
"params": [42, 23]}]
with a possible response like (first result for "add", second result for "substract"):
[{"jsonrpc": "2.0",
"id": 2,
"result": 65}
,{"jsonrpc": "2.0",
"id": 1,
"result": 19}]
361
The JSON-RPC API
19.1.2. Common concepts
The URL for the JSON-RPC API is `/jsonrpc`. For logging and debugging purposes, you can add anything
as a subpath to the URL, for example turning the URL into `/jsonrpc/<method>` which will allow you
to see the exact method in different browsers' *Developer Tools* - Network tab - Name column, rather
than just an opaque "jsonrpc".
For brevity, in the upcoming descriptions of each methods, only the input params and the output result
are mentioned, although they are part of a fully formed JSON-RPC payload.
Authorization is based on HTTP cookies. The response to a successful call to login would create a session,
and set a HTTP-only cookie, and even a HTTP-only secure cookie over HTTPS, named sessionid. All
subsequent calls are authorized by the presence and the validity of this cookie.
The th param is a transaction handle identifier as returned from a call to new_read_trans or
new_write_trans.
The comet_id param is a unique id (decided by the client) which must be given first in a call to the comet
method, and then to upcoming calls which trigger comet notifications.
The handle param needs to a semantic value (not just a counter) prefixed with the comet id (for
disambiguation), and overrides the handle that would have otherwise been returned by the call. This gives
more freedom to the client and set semantic handles.
Common errors
The JSON-RPC specification defines the following error code values:
-32700 - Invalid JSON was received by the server. An error occurred on the server while parsing the
JSON text.
-32600 - The JSON sent is not a valid Request object.
-32601 - The method does not exist / is not available.
-32602 - Invalid method parameter(s).
-32603 - Internal JSON-RPC error.
-32000 to -32099 - Reserved for application defined errors (see below)
To make server errors easier to read, along the numeric code, we use a type param that yields a literal
error token. For all application defined errors, the code is always -32000. It's best to ignore the code and
just use the type param.
{"jsonrpc": "2.0",
"id": 1,
"method": "login",
"params":
{"foo": "joe",
"bar": "SWkkasE32"}}
which results in:
{"jsonrpc": "2.0",
"id": 1,
362
The JSON-RPC API
"error":
{"code": -32602,
"type": "rpc.method.unexpected_params",
"message": "Unexpected params",
"data":
{"param": "foo"}}}
The message param is a free text string in English meant for human consumption, which is a one-to-one
match with the type param. To remove noise from the examples, this param is omitted from the following
descriptions.
An additional method-specific data param may be added to give further details on the error, most
predominantly a reason param which is also a free text string in English meant for human consumption. To
remove noise from the examples, this param is omitted from the following descriptions. But any additional
data params will be noted by each method description.
Application defined errors
All methods may return one of the following JSON RPC or application defined errors, in addition to others,
specific to each method.
{"type": "rpc.request.parse_error"}
{"type": "rpc.request.invalid"}
{"type": "rpc.method.not_found"}
{"type": "rpc.method.invalid_params", "data": {"param": <string>}}
{"type": "rpc.internal_error"}
{"type": "rpc.request.eof_parse_error"}
{"type": "rpc.request.multipart_broken"}
{"type": "rpc.request.too_big"}
{"type": "rpc.request.method_denied"}
{"type": "rpc.method.unexpected_params", "data": {"param": <string>}}
{"type": "rpc.method.invalid_params_type", "data": {"param": <string>}}
{"type": "rpc.method.missing_params", "data": {"param": <string>}}
{"type": "rpc.method.unknown_params_value", "data": {"param": <string>}}
{"type": "rpc.method.failed"}
{"type": "rpc.method.denied"}
{"type": "rpc.method.timeout"}
{"type": "session.missing_sessionid"}
{"type": "session.invalid_sessionid"}
{"type": "session.overload"}
19.1.3. FAQ
What are the security characteristics of the JSON-RPC api?
JSON-RPC runs on top the embedded web server (see "The web server" chapter), which accepts HTTP
and/or HTTPS.
The JSON-RPC session ties the client and the server via an HTTP cookie, named "sessionid" which
contains a randomly server-generated number. This cookie is not only secure (when the requests come
363
The JSON-RPC API
over HTTPS), meaning that HTTPS cookies do not leak over HTTP, but even more importantly this cookie
is also http-only, meaning that only the server and the browser (e.g. not the JavaScript code) have access
to the cookie. Furthermore, this cookie is a session cookie, meaning that a browser restart would delete
the cookie altogether.
The JSON-RPC session lives as long as the user does not request to logout, as long as the user is active
within a 30 minute (default value, which is configurable) time frame, as long as there are no severe server
crashes. When the session dies, the server will reply with the intention to delete any "sessionid" cookies
stored in the browser (to prevent any leaks).
When used in a browser, the JSON-RPC API does not accept cross-domain requests by default, but can
be configured to do so via the custom headers functionality in the embedded web server, or by adding a
reverse-proxy (see "The web server" chapter).
What is the proper way to use the JSON-RPC api in a cors setup?
The embedded server allows for custom headers to be se, in this case CORS headers, like:
Access-Control-Allow-Origin: http://webpage.com
Access-Control-Allow-Credentials: true
Access-Control-Allow-Headers: Origin, Content-Type, Accept
Access-Control-Request-Method: POST
A server hosted at http://server.com responding with these headers, would mean that the JSON-RPC API
can be contacted from a browser which is showing a web page from http://webpage.com, and will allow
the browser to make POST requests, with a limited amount of headers and with credentials (i.e. cookies).
This is not enough though, because the browser also needs to be told that your JavaScript code really wants
to make a CORS request. A jQuery example would show like this:
// with jQuery
$.ajax({
type: 'post',
url: 'http://server.com/jsonrpc',
contentType: 'application/json',
data: JSON.stringify({
jsonrpc: '2.0',
id: 1,
method: 'login',
params: {
'user': 'joe',
'passwd': 'SWkkasE32'
}
}),
dataType: 'json',
crossDomain: true, // CORS specific
xhrFields: { // CORS specific
withCredentials: true // CORS specific
} // CORS specific
})
Without this setup, you will notice that the browser will not send the "sessionid" cookie on post-login
JSON-RPC calls.
What is a tag/keypath?
A tagpath is a path pointing to a specific position in a YANG module's schema.
364
The JSON-RPC API
A keypath is a path pointing to specific position in a YANG module's instance.
These kind of paths are used for several of the API methods (e.g. set_value, get_value, subscribe_changes),
and could be seen as XPath path specifications in abbreviated format.
Lets look at some examples using the following YANG module as input:
module devices {
namespace "http://acme.com/ns/devices";
prefix d;
container config {
leaf description { type string; }
list device {
key "interface";
leaf interface { type string; }
leaf date { type string; }
}
}
}
Valid tagpaths:
• `/d:config/description`
• `/d:config/device/interface`
Valid keypaths:
`/d:config/device{eth0}/date` - the date leaf value within a device with an interface key set to eth0
Note how the prefix is prepended to the first tag in the path. This prefix is compulsory.
Restricting access to methods
The AAA infrastructure can be used to restrict access to library functions using command rules:
<cmdrule xmlns="http://tail-f.com/yang/acm">
<name>webui</name>
<context xmlns="http://tail-f.com/yang/acm">webui</context>
<command>::jsonrpc:: get_schema</command>
<access-operations>read exec</access-operations>
<action>deny</action>
</cmdrule>
Note how the command is prefixed with "::jsonrpc:: ". This tells the AAA engine to apply the command
rule to JSON-RPC API functions.
You can read more about command rules in "The AAA infrastructure" chapter in this User Guide.
What is session.overload error?
A series of limits are imposed on the load that one session can put on the system.
This reduces the risk that a session takes overs the whole system and brings it into a DoS situation.
The response will include details about the limit that triggered the error.
Known limits:
365
The JSON-RPC API
only 10000 commands/subscriptions are allowed per session
19.2. Methods - commands
19.2.1. Method get_cmds
Get a list of the session's batch commands
Params
{}
Result
{"cmds": <array of cmd>}
cmd =
{"params": <object>,
"comet_id": <string>,
"handle": <string>,
"tag": <"string">,
"started": <boolean>,
"stopped": <boolean; should be always false>}
19.2.2. Method init_cmd
Starts a batch command
NOTE: The batch command must be listed as a named command in confd.conf or else it can not be started.
Read more about named commands in the confd.conf.5 manual page.
NOTE: the start_cmd method must be called to actually get the batch command to generate any messages,
unless the handle is provided as input.
NOTE: As soon as the batch command prints anything on stdout it will be sent as a message and turn up
as a result to your polling call to the comet method.
Params
{"th": <integer>,
"name": <string>,
"args": <string>,
"emulate": <boolean, default: false>,
"width": <integer, default: 80>,
"height": <integer, default: 24>,
"scroll": <integer, default: 0>,
"comet_id": <string>,
"handle": <string, optional>}
The name param is one on the named commands defined in confd.conf.
The args param any extra arguments to be provided to the command expect for the ones specified in
confd.conf.
The emulate param specifies if terminal emulation should be enabled.
366
The JSON-RPC API
The width, height, scroll properties define the screen properties.
Result
{"handle": <string>}
A handle to the batch command is returned (equal to handle if provided).
19.2.3. Method send_cmd_data
Sends data to batch command started with init_cmd
Params
{"handle": <string>,
"data": <string>}
The handle param is as returned from a call to init_cmd and the data param is what is to be sent to the
batch command started with init_cmd.
Result
{}
Errors (specific)
{"type": "cmd.not_initialized"}
19.2.4. Method start_cmd
Signals that a batch command can start to generate output.
NOTE: This method must be called to actually start the activity initiated by calls to one of the methods
init_cmd.
Params
{"handle": <string>}
The handle param is as returned from a call to init_cmd.
Result
{}
19.2.5. Method suspend_cmd
Suspends output from a batch command
NOTE: the init_cmd method must have been called with the emulate param set to true for this to work
Params
{"handle": <string>}
367
The JSON-RPC API
The handle param is as returned from a call to init_cmd.
Result
{}
19.2.6. Method resume_cmd
Resumes a batch command started with init_cmd
NOTE: the init_cmd method must have been called with the emulate param set to true for this to work
Params
{"handle": <string>}
The handle param is as returned from a call to init_cmd.
Result
{}
19.2.7. Method stop_cmd
Stops a batch command
NOTE: This method must be called to stop the activity started by calls to one of the methods init_cmd.
Params
{"handle": <string>}
The handle param is as returned from a call to init_cmd.
Result
{}
19.3. Methods - commands - subscribe
19.3.1. Method get_subscriptions
Get a list of the session's subscriptions
Params
{}
Result
{"subscriptions": <array of subscription>}
subscription =
368
The JSON-RPC API
{"params": <object>,
"comet_id": <string>,
"handle": <string>,
"tag": <"string">,
"started": <boolean>,
"stopped": <boolean; should be always false>}
19.3.2. Method subscribe_cdboper
Starts a subscriber to operational data in CDB. Changes done to configuration data will not be seen here.
NOTE: the start_subscription method must be called to actually get the subscription to generate any
messages, unless the handle is provided as input.
NOTE: the unsubscribe method should be used to end the subscription.
NOTE: As soon as a subscription message is generated it will be sent as a message and turn up as result
to your polling call to the comet method.
Params
{"comet_id": <string>,
"handle": <string, optional>,
"path": <string>,
"leaf_list_as_leaf": <boolean>, default: false} (DEPRECATED)
The path param is a keypath restricting the subscription messages to only be about changes done under
that specific keypath.
The leaf_list_as_leaf parameter is deprecated and will be removed in future versions. It can be used to
preserve backwards compatibility for leaf-list. If this parameter is not set (or false) the result for leaf-list
changes will be represented as created or deleted operations. With this parameter set to true the result will
be represented as a value_set operation.
Result
{"handle": <string>}
A handle to the subscription is returned (equal to handle if provided).
Subscription messages will end up in the comet method and the format of that message will be an array of
changes of the same type as returned by the changes method. See above.
Errors (specific)
{"type": "db.cdb_operational_not_enabled"}
19.3.3. Method subscribe_changes
Starts a subscriber to configuration data in CDB. Changes done to operational data in CDB data will not be
seen here. Furthermore, subscription messages will only be generated when a transaction is successfully
committed.
NOTE: the start_subscription method must be called to actually get the subscription to generate any
messages, unless the handle is provided as input.
369
The JSON-RPC API
NOTE: the unsubscribe method should be used to end the subscription.
NOTE: As soon as a subscription message is generated it will be sent as a message and turn up as result
to your polling call to the comet method.
Params
{"comet_id": <string>,
"handle": <string, optional>,
"path": <string>,
"skip_local_changes": <boolean, default: false>,
"hide_changes": <boolean, default: false>,
"hide_values": <boolean, default: false>,
"leaf_list_as_leaf": <boolean>, default: false} (DEPRECATED)
The path param is a keypath restricting the subscription messages to only be about changes done under
that specific keypath.
The skip_local_changes param specifies if configuration changes done by the owner of the read-write
transaction should generate subscription messages.
The hide_changes and hide_values params specify a lower level of information in subscription messages,
in case it is enough to receive just a "ping" or a list of changed keypaths, respectively, but not the new
values resulted in the changes.
The leaf_list_as_leaf parameter is deprecated and will be removed in future versions. It can be used to
preserve backwards compatibility for leaf-list. If this parameter is not set (or false) the result for leaf-list
changes will be represented as created or deleted operations. With this parameter set to true the result will
be represented as a value_set operation.
Result
{"handle": <string>}
A handle to the subscription is returned (equal to handle if provided).
Subscription messages will end up in the comet method and the format of that message will be an object
such as:
{"db": <"running" | "startup" | "candidate">,
"user": <string>,
"ip": <string>,
"changes": <array>}
The user and ip properties are the username and ip-address of the committing user.
The changes param is an array of changes of the same type as returned by the changes method. See above.
19.3.4. Method subscribe_poll_leaf
Starts a polling subscriber to any type of operational and configuration data (outside of CDB as well).
NOTE: the start_subscription method must be called to actually get the subscription to generate any
messages, unless the handle is provided as input.
NOTE: the unsubscribe method should be used to end the subscription.
370
The JSON-RPC API
NOTE: As soon as a subscription message is generated it will be sent as a message and turn up as result
to your polling call to the comet method.
Params
{"th": <integer>,
"path": <string>,
"interval": <integer between 0 and 3600>,
"comet_id": <string>,
"handle": <string, optional>}
The path param is a keypath pointing to a leaf value.
The interval is a timeout in seconds between when to poll the value.
Result
{"handle": <string>}
A handle to the subscription is returned (equal to handle if provided).
Subscription messages will end up in the comet method and the format of is a simple string value.
19.3.5. Method subscribe_upgrade
Starts a subscriber to upgrade messages.
NOTE: the start_subscription method must be called to actually get the subscription to generate any
messages, unless the handle is provided as input.
NOTE: the unsubscribe method should be used to end the subscription.
NOTE: As soon as a subscription message is generated it will be sent as a message and turn up as result
to your polling call to the comet method.
Params
{"comet_id": <string>,
"handle": <string, optional>}
Result
{"handle": <string>}
A handle to the subscription is returned (equal to handle if provided).
Subscription messages will end up in the comet method and the format of that message will be an object
such as:
{"upgrade_state": <"wait_for_init" | "init" | "abort" | "commit">,
"timeout": <number, only if "upgrade_state" === "wait_for_init">}
19.3.6. Method subscribe_jsonrpc_batch
Starts a subscriber to JSONRPC messages for batch requests.
371
The JSON-RPC API
NOTE: the start_subscription method must be called to actually get the subscription to generate any
messages, unless the handle is provided as input.
NOTE: the unsubscribe method should be used to end the subscription.
NOTE: As soon as a subscription message is generated it will be sent as a message and turn up as result
to your polling call to the comet method.
Params
{"comet_id": <string>,
"handle": <string, optional>}
Result
{"handle": <string>}
A handle to the subscription is returned (equal to handle if provided).
Subscription messages will end up in the comet method having exact same structure like a JSONRPC
response:
{"jsonrpc":"2.0",
"result":"admin",
"id":1}
{"jsonrpc": "2.0",
"id": 1,
"error":
{"code": -32602,
"type": "rpc.method.unexpected_params",
"message": "Unexpected params",
"data":
{"param": "foo"}}}
19.3.7. Method start_subscription
Signals that a subscribe command can start to generate output.
NOTE: This method must be called to actually start the activity initiated by calls to one of the methods
subscribe_cdboper, subscribe_changes, subscribe_messages, subscribe_poll_leaf or subscribe_upgrade
**with no handle
Params
{"handle": <string>}
The handle param is as returned from a call to subscribe_cdboper, subscribe_changes,
subscribe_messages, subscribe_poll_leaf or subscribe_upgrade.
Result
{}
19.3.8. Method unsubscribe
Stops a subscriber
372
The JSON-RPC API
NOTE: This method must be called to stop the activity started by calls to one of the methods
subscribe_cdboper, subscribe_changes, subscribe_messages, subscribe_poll_leaf or subscribe_upgrade.
Params
{"handle": <string>}
The handle param is as returned from a call to subscribe_cdboper, subscribe_changes,
subscribe_messages, subscribe_poll_leaf or subscribe_upgrade.
Result
{}
19.4. Methods - data
19.4.1. Method create
Create a list entry, a presence container, or a leaf of type empty
Params
{"th": <integer>,
"path": <string>}
The path param is a keypath pointing to data to be created.
Result
{}
Errors (specific)
{"type": "db.locked"}
19.4.2. Method delete
Deletes an existing list entry, a presence container, or an optional leaf and all its children (if any)
Params
{"th": <integer>,
"path": <string>}
The path param is a keypath pointing to data to be deleted.
Result
{}
Errors (specific)
{"type": "db.locked"}
373
The JSON-RPC API
19.4.3. Method exists
Checks if optional data exists
Params
{"th": <integer>,
"path": <string>}
The path param is a keypath pointing to data to be checked for existence.
Result
{"exists": <boolean>}
19.4.4. Method get_case
Get the case of a choice leaf
Params
{"th": <integer>,
"path": <string>,
"choice": <string>}
The path param is a keypath pointing to data that contains the choice leaf given by the choice param.
Result
{"case": <string>}
19.4.5. Method show_config
Retrieves a compact string representation of the configuration
Params
{"th": <integer>,
"path": <string>
"result_as": <"string" | "json", default: "string">
"with_oper": <boolean, default: false>
"max_size": <"integer", default: 0>}
The path param is a keypath to the configuration to be returned. result_as controls the output format, string
for a compact string format and json for json. max_size sets the maximum size of the data field in kb, set
to 0 to disable the limit.
Result
result_as string
{"config": <string>}
result_as json
{"data": <json>}
374
The JSON-RPC API
19.4.6. Method load
Load XML configuration into current transaction
Params
{"th": <integer>,
"data": <string>
"path": <string, default: "/">
"format": <"json" | "xml", default: "xml">
"mode": <"create" | "merge" | "replace", default: "merge">}
The data param is the data to be loaded into the transaction. mode controls how the data is loaded into the
transaction, analogous with the CLI command load.format informs load about which format data is in. If
format is xml the data must be an XML document encoded as a string. If format is json data can either be
a JSON document encoded as a string or the JSON data itself.
Result
{}
Errors (specific)
{"row": <integer>, "message": <string>}
19.5. Methods - data - attrs
19.5.1. Method get_attrs
Get node attributes
Params
{"th": <integer>,
"path": <string>,
"names": <array of string>}
The path param is a keypath pointing to the node and the names param is a list of attribute names that
you want to retrieve.
Result
{"attrs": <object of attribute name/value>}
19.5.2. Method set_attrs
Set node attributes
Params
{"th": <integer>,
"path": <string>,
"attrs": <object of attribute name/value>}
375
The JSON-RPC API
The path param is a keypath pointing to the node and the attrs param is an object that maps attribute names
to their values.
Result
{}
19.6. Methods - data - leafs
19.6.1. Method get_value
Gets a leaf value
Params
{"th": <integer>,
"path": <string>,
"check_default": <boolean, default: false>}
The path param is a keypath pointing to a value.
The check_default param adds is_default to the result if set to true. is_default is set to true if the default
value handling returned the value.
Result
{"value": <string>}
Example 19.1. Method get_value
curl \
--cookie 'sessionid=sess12541119146799620192;' \
-X POST \
-H 'Content-Type: application/json' \
-d '{"jsonrpc": "2.0", "id": 1, \
"method": "get_value", \
"params": {"th": 4711, \
"path": "/dhcp:dhcp/max-lease-time"}}' \
http://127.0.0.1:8008/jsonrpc
{
"jsonrpc": "2.0",
"id": 1,
"result": {"value": "7200"}
}
19.6.2. Method get_values
Get leaf values
Params
{"th": <integer>,
"path": <string>,
"leafs": <array of string>}
376
The JSON-RPC API
The path param is a keypath pointing to a container. the leafs param is an array of children names residing
under the parent container in the YANG module.
Result
{"values": <array of value/error>}
value = {"value": <string>, "access": <access>}
error = {"error": <string>, "access": <access>} |
{"exists": true, "access": <access>} |
{"not_found": true, "access": <access>}
access = {"read": true, write: true}
NOTE: The access object has no "read" and/or "write" properties if there are no read and/or access rights.
19.6.3. Method set_value
Sets a leaf value
Params
{"th": <integer>,
"path": <string>,
"value": <string | boolean | integer | array | null>,
"dryrun": <boolean, default: false}
The path param is the keypath to give a new value as specified with the value param.
value can be an array when the path is a leaf-list node.
When value is null, the set_value method acts like delete.
When dryrun is true, this function can be used to test if a value is valid or not.
Result
{}
Errors (specific)
{"type": "data.already_exists"}
{"type": "data.not_found"}
{"type": "data.not_writable"}
{"type": "db.locked"}
Example 19.2. Method set_value
curl \
--cookie 'sessionid=sess12541119146799620192;' \
-X POST \
-H 'Content-Type: application/json' \
-d '{"jsonrpc": "2.0", "id": 1, \
"method": "set_value", \
"params": {"th": 4711, \
"path": "/dhcp:dhcp/max-lease-time", \
"value": "4500"}}' \
377
The JSON-RPC API
http://127.0.0.1:8008/jsonrpc
{"jsonrpc": "2.0",
"id": 1,
"result": {}
}
19.7. Methods - data - leafref
19.7.1. Method deref
Dereferences a leaf with a leafref type
Params
{"th": <integer>,
"path": <string>,
"result_as": <"paths" | "target" | "list-target", default: "paths">}
The path param is a keypath pointing to a leaf with a leafref type.
Result
{"paths": <array of string, a keypath to a leaf>}
{"target": <a keypath to a leaf>}
{"list-target": <a keypath to a list>}
19.7.2. Method get_leafref_values
Gets all possible values for a leaf with a leafref type
Params
{"th": <integer>,
"path": <string>,
"skip_grouping": <boolean, default: false>,
"keys": <object>}
The th param is as returned from a call to new_read_trans or new_write_trans. The path param is a keypath
pointing to a leaf with a leafref type.
The skip_grouping param is by default set to false and is only needed to be set to true if if a set of sibling
leafref leafs points to a list instance with multiple keys and if get_leafref_values should return an array of
possible leaf values instead an array of arrays with possible key value combinations.
The keys param is an optional array of values that should be set if a more than one leafref statement is
used within action/rpc input parameters and if they refer to each other using `deref()` or `current()` XPath
functions. For example consider this model:
rpc create-service {
tailf:exec "./run.sh";
input {
leaf name {
378
The JSON-RPC API
type leafref {
path "/myservices/service/name";
}
}
leaf if {
type leafref {
path "/myservices/service[name=current()/../name]/interfaces/name"
}
}
}
output {
leaf result { type string; }
}
}
The leaf if refers to leaf name in its XPath expression so to be able to successfully run get_leafref_values on
that node you need to provide a valid value for the name leaf using the keys parameter. The keys parameter
could for example look like this:
{"/create-service/name": "service1"}
Result
{"values": <array of string>,
"source": <string> | false}
The source param will point to the keypath where the values originate. If the keypath cannot be resolved
due to missing/faulty items in the keys parameter source will be false.
19.8. Methods - data - lists
19.8.1. Method rename_list_entry
Renames a list entry.
Params
{"th": <integer>,
"from_path": <string>,
"to_keys": <array of string>}
The from_path is a keypath pointing out the list entry to be renamed.
The list entry to be renamed will, under the hood, be deleted all together and then recreated with the content
from the deleted list entry copied in.
The to_keys param is an array with the new key values. The array must contain a full set of key values.
Result
{}
Errors (specific)
{"type": "data.already_exists"}
{"type": "data.not_found"}
379
The JSON-RPC API
{"type": "data.not_writable"}
19.8.2. Method copy_list_entry
Copies a list entry.
Params
{"th": <integer>,
"from_path": <string>,
"to_keys": <array of string>}
The from_path is a keypath pointing out the list entry to be copied.
The to_keys param is an array with the new key values. The array must contain a full set of key values.
Result
{}
Errors (specific)
{"type": "data.already_exists"}
{"type": "data.not_found"}
{"type": "data.not_writable"}
19.8.3. Method move_list_entry
Moves an ordered-by user list entry relative to its siblings.
Params
{"th": <integer>,
"from_path": <string>,
"to_path": <string>,
"mode": <"first" | "last" | "before" | "after">}
The from_path is a keypath pointing out the list entry to be moved.
The list entry to be moved can either be moved to the first or the last position, i.e. if the mode param is
set to first or last the to_path keypath param has no meaning.
If the mode param is set to before or after the to_path param must be specified, i.e. the list entry will be
moved to the position before or after the list entry which the to_path keypath param points to.
Result
{}
Errors (specific)
{"type": "db.locked"}
19.8.4. Method append_list_entry
Append a list entry to a leaf-list.
380
The JSON-RPC API
Params
{"th": <integer>,
"path": <string>,
"value": <string%gt;}
The path is a keypath pointing to a leaf-list.
Result
{}
19.8.5. Method count_list_keys
Counts the number of keys in a list.
Params
{"th": <integer>
"path": <string>}
The path parameter is a keypath pointing to a list.
Result
{"count": <integer>}
19.8.6. Method get_list_keys
Enumerates keys in a list.
Params
{"th": <integer>,
"path": <string>,
"chunk_size": <integer greater than zero, optional>,
"start_with": <array of string, optional>,
"lh": <integer, optional>}
The th parameter is the transaction handle.
The path parameter is a keypath pointing to a list. Required on first invocation - optional in following.
The chunk_size parameter is the number of requested keys in the result. Optional - default is unlimited.
The start_with parameter will be used to filter out all those keys that do not start with the provided strings.
The parameter supports multiple keys e.g. if the list has two keys, then start_with can hold two items.
The lh (list handle) parameter is optional (on the first invocation) but must be used in following invocations.
Result
{"keys": <array of array of string>,
"total_count": <integer>,
381
The JSON-RPC API
"lh": <integer, optional>}
Each invocation of get_list_keys will return at most chunk_size keys. The returned lh must be used in
following invocations to retrieve next chunk of keys. When no more keys are available the returned lh
will be set to `-1`.
On the first invocation lh can either be omitted or set to `-1`.
19.9. Methods - data - query
19.9.1. Method query
Starts a new query attached to a transaction handle, retrieves the results, and stops the query immediately.
This is a convenience method for calling start_query, run_query and stop_query in a one-time sequence.
This method should not be used for paginated results, as it results in performance degradation - use
start_query, multiple run_queryand stop_queryinstead.
Example 19.3. Method query
curl \
--cookie "sessionid=sess11635875109111642;"
-X POST
-d '{"jsonrpc": "2.0", "id": 1, \
"method": "query", \
"params": {"th": 1, \
"xpath_expr": "/dhcp:dhcp/dhcp:foo", \
"result_as": "keypath-value"}}' \
http://127.0.0.1:8008/jsonrpc
{"jsonrpc": "2.0",
"id": 1,
"result":
{"current_position": 2,
"total_number_of_results": 4,
"number_of_results": 2,
"number_of_elements_per_result": 2,
"results": ["foo", "bar"]}}
19.9.2. Method start_query
Starts a new query attached to a transaction handle. On success a query handle is returned to be in
subsequent calls to run_query.
Params
{"th": <integer>,
"xpath_expr": <string, optional if path is given%gt;,
"path": <string, keypath, optional if xpath_expr is given%gt;,
"selection": <array of xpath expressions, optional>
"chunk_size": <integer greater than zero, optional>
"initial_offset": <integer, optional>,
"sort", <array of xpath expressions, optional>,
"sort_order": <"ascending" | "descending", optional>,
"include_total": <boolean, default: true>,
"context_node": <string, keypath, optional>,
382
The JSON-RPC API
"result_as": <"string" | "keypath-value" | "leaf_value_as_string", default: "string">}
The xpath_expr param is the primary XPath expression to base the query on. Alternatively, one can give
a keypath as the path param, and internally the keypath will be translated into an XPath expression.
A query is a way of evaluating an XPath expression and returning the results in chunks. The primary
XPath expression must evaluate to a node-set, i.e. the result. For each node in the result a selection Xpath
expression is evaluated with the result node as its context node.
Note: The terminology used here is as defined in http://en.wikipedia.org/wiki/XPath.
For example, given this YANG snippet:
list interface {
key name;
unique number;
leaf name {
type string;
}
leaf number {
type uint32;
mandatory true;
}
leaf enabled {
type boolean;
default true;
}
}
The xpath_expr could be `/interface[enabled='true']` and selection could be `{ "name", "number" }`.
Note that the selection expressions must be valid XPath expressions, e.g. to figure out the name of an
interface and whether its number is even or not, the expressions must look like: `{ "name", "(number mod
2) == 0" }`.
The result are then fetched using run_query, which returns the result on the format specified by result_as
param.
There are two different types of result:
string result is just an array with resulting strings of evaluating the selection XPath expressions
`keypath-value` result is an array the keypaths or values of the node that the selection XPath expression
evaluates to.
This means that care must be taken so that the combination of selection expressions and return types
actually yield sensible results (for example `1 + 2` is a valid selection XPath expression, and would result
in the string 3 when setting the result type to string - but it is not a node, and thus have no keypath-value.
It is possible to sort the result using the built-in XPath function `sort-by()` but it is also also possible to
sort the result using expressions specified by the sort param. These expressions will be used to construct
a temporary index which will live as long as the query is active. For example to start a query sorting first
on the enabled leaf, and then on number one would call:
$.post("/jsonrpc", {
jsonrpc: "2.0",
id: 1,
method: "start_query",
383
The JSON-RPC API
params: {
th: 1,
xpath_expr: "/interface[enabled='true']",
selection: ["name", "number", "enabled"],
sort: ["enabled", "number"]
}
})
.done(...);
The context_node param is a keypath pointing out the node to apply the query on; only taken into account
when the xpath_expr uses relatives paths. Lack of a context_node, turns relatives paths into absolute paths.
The chunk_size param specifies how many result entries to return at a time. If set to 0 a default number
will be used.
The initial_offset param is the result entry to begin with (1 means to start from the beginning).
Result
{"qh": <integer>}
A new query handler handler id to be used when calling run_query etc
Example 19.4. Method start_query
curl \
--cookie "sessionid=sess11635875109111642;"
-X POST
-d '{"jsonrpc": "2.0", "id": 1, \
"method": "start_query", \
"params": {"th": 1, \
"xpath_expr": "/dhcp:dhcp/dhcp:foo", \
"result_as": "keypath-value"}}' \
http://127.0.0.1:8008/jsonrpc
{"jsonrpc": "2.0",
"id": 1,
"result": 47}
19.9.3. Method run_query
Retrieves the result to a query (as chunks). For more details on queries please read the description of
"start_query".
Params
{"qh": <integer>}
The qh param is as returned from a call to "start_query".
Result
{"position": <integer>,
"total_number_of_results": <integer>,
"number_of_results": <integer>,
"chunk_size": <integer greater than zero, optional>,
"result_as": <"string" | "keypath-value" | "leaf_value_as_string">,
384
The JSON-RPC API
"results": <array of result>}
result = <string> |
{"keypath": <string>, "value": <string>}
The position param is the number of the first result entry in this chunk, i.e. for the first chunk it will be 1.
How many result entries there are in this chunk is indicated by the number_of_results param. It will be
0 for the last chunk.
The chunk_size and the result_as properties are as given in the call to start_query.
The total_number_of_results param is total number of result entries retrieved so far.
The result param is as described in the description of start_query.
Example 19.5. Method run_query
curl \
--cookie "sessionid=sess11635875109111642;" \
-X POST \
-H 'Content-Type: application/json' \
-d '{"jsonrpc": "2.0", "id": 1, \
"method": "run_query", \
"params": {"qh": 22}}' \
http://127.0.0.1:8008/jsonrpc
{"jsonrpc": "2.0",
"id": 1,
"result":
{"current_position": 2,
"total_number_of_results": 4,
"number_of_results": 2,
"number_of_elements_per_result": 2,
"results": ["foo", "bar"]}}
19.9.4. Method reset_query
Reset/rewind a running query so that it starts from the beginning again. Next call to "run_query" will then
return the first chunk of result entries.
Params
{"qh": <integer>}
The qh param is as returned from a call to start_query.
Result
{}
Example 19.6. Method reset_query
curl \
--cookie 'sessionid=sess12541119146799620192;' \
-X POST \
385
The JSON-RPC API
-H 'Content-Type: application/json' \
-d '{"jsonrpc": "2.0", "id": 1, \
"method": "reset_query", \
"params": {"qh": 67}}' \
http://127.0.0.1:8008/jsonrpc
{"jsonrpc": "2.0",
"id": 1,
"result": true}
19.9.5. Method stop_query
Stops the running query identified by query handler. If a query is not explicitly closed using this call it
will be cleaned up when the transaction the query is linked to ends.
Params
{"qh": <integer>}
The qh param is as returned from a call to "start_query".
Result
{}
Example 19.7. Method stop_query
curl \
--cookie 'sessionid=sess12541119146799620192;' \
-X POST \
-H 'Content-Type: application/json' \
-d '{"jsonrpc": "2.0", "id": 1, \
"method": "stop_query", \
"params": {"qh": 67}' \
http://127.0.0.1:8008/jsonrpc
{"jsonrpc": "2.0",
"id": 1,
"result": true}
19.10. Methods - database
19.10.1. Method reset_candidate_db
Resets the candidate datastore
Result
{}
19.10.2. Method lock_db
Takes a database lock
386
The JSON-RPC API
Params
{"db": <"startup" | "running" | "candidate">}
The db param specifies which datastore to lock.
Result
{}
Errors (specific)
{"type": "db.locked", "data": {"sessions": <array of string>}}
The `data.sessions` param is an array of strings describing the current sessions of the locking user, e.g. an
array of "admin tcp (cli from 192.245.2.3) on since 2006-12-20 14:50:30 exclusive".
19.10.3. Method unlock_db
Releases a database lock
Params
{"db": <"startup" | "running" | "candidate">}
The db param specifies which datastore to unlock.
Result
{}
19.10.4. Method copy_running_to_startup_db
Copies the running datastore to the startup datastore
Result
{}
19.11. Methods - general
19.11.1. Method comet
Listens on a comet channel, i.e. all asynchronous messages from batch commands started by
calls to start_cmd, subscribe_cdboper, subscribe_changes, subscribe_messages, subscribe_poll_leaf or
subscribe_upgrade ends up on the comet channel.
You are expected to have a continuous long polling call to the comet method at any given time. As soon
as the browser or server closes the socket, due to browser or server connect timeout, the comet method
should be called again.
As soon as the comet method returns with values they should be dispatched and the comet method should
be called again.
387
The JSON-RPC API
Params
{"comet_id": <string>}
Result
[{"handle": <integer>,
"message": <a context specific json object, see example below>},
...]
Errors (specific)
{"type": "comet.duplicated_channel"}
Example 19.8. Method comet
curl \
--cookie 'sessionid=sess12541119146799620192;' \
-X POST \
-H 'Content-Type: application/json' \
-d '{"jsonrpc": "2.0", "id": 1, \
"method": "subscribe_changes", \
"params": {"comet_id": "main", \
"path": "/dhcp:dhcp"}}' \
http://127.0.0.1:8008/jsonrpc
{"jsonrpc": "2.0",
"id": 1,
"result": {"handle": "2"}}
curl \
--cookie 'sessionid=sess12541119146799620192;' \
-X POST \
-H 'Content-Type: application/json' \
-d '{"jsonrpc": "2.0", "id": 1, \
"method": "batch_init_done", \
"params": {"handle": "2"}}' \
http://127.0.0.1:8008/jsonrpc
{"jsonrpc": "2.0",
"id": 1,
"result": {}}
curl \
-m 15 \
--cookie 'sessionid=sess12541119146799620192;' \
-X POST \
-H 'Content-Type: application/json' \
-d '{"jsonrpc": "2.0", "id": 1, \
"method": "comet", \
"params": {"comet_id": "main"}}' \
http://127.0.0.1:8008/jsonrpc
hangs... and finally...
{"jsonrpc": "2.0",
"id": 1,
"result":
388
The JSON-RPC API
[{"handle": "1",
"message":
{"db": "running",
"changes":
[{"keypath": "/dhcp:dhcp/default-lease-time",
"op": "value_set",
"value": "100"}],
"user": "admin",
"ip": "127.0.0.1"}}]}
In this case the admin user seems to have set `/dhcp:dhcp/default-lease-time` to 100.
19.11.2. Method get_system_setting
Extracts system settings such as capabilities, supported datastores, etc.
Params
{"operation": <"capabilities" | "customizations" | "models" | "user" | "version" | "all" | "namespaces", default: "all">}
The operation param specifies which system setting to get:
capabilities - the server-side settings are returned, e.g. is rollback and confirmed commit supported
customizations - an array of all webui customizations
models - an array of all loaded YANG modules are returned, i.e. prefix, namespace, name
user - the username of the currently logged in user is returned
version - the system version
all - all of the above is returned.
(DEPRECATED) namespaces - an object of all loaded YANG modules are returned, i.e. prefix to
namespace
Result
{"user:" <string>,
"models:" <array of YANG modules>,
"version:" <string>,
"customizations": <array of customizations>,
"capabilities":
{"rollback": <boolean>,
"copy_running_to_startup": <boolean>,
"exclusive": <boolean>,
"confirmed_commit": <boolean>
},
"namespaces": <object of YANG modules prefix/namespace>}
The above is the result if using the all operation.
19.11.3. Method abort
Abort a JSON-RPC method by its associated id.
389
The JSON-RPC API
Params
{"id": <integer>}
The xpath_expr param is the XPath expression to be evaluated.
Result
{}
19.11.4. Method eval_XPath
Evaluates an xpath expression on the server side
Params
{"th": <integer>,
"xpath_expr": <string>}
The xpath_expr param is the XPath expression to be evaluated.
Result
{"value": <string>}
19.12. Methods - messages
19.12.1. Method send_message
Sends a message to another user in the CLI or Web UI
Params
{"to": <string>,
"message": <string>}
The to param is the user name of the user to send the message to and the message param is the actual
message.
NOTE: The username "all" will broadcast the message to all users.
Result
{}
19.12.2. Method subscribe_messages
Starts a subscriber to messages.
NOTE: the start_subscription method must be called to actually get the subscription to generate any
messages, unless the handle is provided as input.
NOTE: the unsubscribe method should be used to end the subscription.
390
The JSON-RPC API
NOTE: As soon as a subscription message is generated it will be sent as a message and turn up as result
to your polling call to the comet method.
Params
{"comet_id": <string>,
"handle": <string, optional>}
Result
<string>
A handle to the subscription is returned (equal to handle if provided).
Subscription messages will end up in the comet method and the format of these messages depend on what
has happened.
When a new user has logged in:
{"new_user": <integer, a session id to be used by "kick_user">
"me": <boolean, is it myself?>
"user": <string>,
"proto": <"ssh" | "tcp" | "console" | "http" | "https" | "system">,
"ctx": <"cli" | "webui" | "netconf">
"ip": <string, user's ip-address>,
"login": <string, login timestamp>}
When a user logs out:
{"del_user": <integer, a session id>,
"user": <string>}
When receiving a message:
{"sender": <string>,
"message": <string>}
19.13. Methods - rollbacks
19.13.1. Method get_rollbacks
Lists all available rollback files
Result
{"rollbacks": <array of rollback>}
rollback =
{"nr": <integer>,
"creator": <string>,
"date": <string>,
"via": <"system" | "cli" | "webui" | "netconf">,
"comment": <string>,
"label": <string>}
The nr param is a rollback number to be used in calls to load_rollback etc.
391
The JSON-RPC API
The creator and date properties identify the name of the user responsible for committing the configuration
stored in the rollback file and when it happened.
The via param identifies the interface that was used to create the rollback file.
The label and comment properties is as given calling the methods set_comment and set_label on the
transaction.
19.13.2. Method get_rollback
Gets the content of a specific rollback file. The rollback format is as defined in a curly bracket format as
defined in the CLI.
Params
{"nr": <integer>}
Result
<string, rollback file in curly bracket format>
19.13.3. Method install_rollback
Installs a specific rollback file into a new transaction and commits it. The configuration is restored to
the one stored in the rollback file and no further operations are needed. It is the equivalent of creating
a new private write private transaction handler with new_write_trans, followed by calls to the methods
load_rollback, validate_commit and commit.
Params
{"nr": <integer>}
Result
{}
19.13.4. Method load_rollback
Rolls back within an existing transaction, starting with the latest rollback file, down to a specified rollback
file, or selecting only the specified rollback file (also known as "selective rollback").
Params
{"th": <integer>,
"nr": <integer>,
"path": <string>,
"selective": <boolean, default: false>}
The nr param is a rollback number returned by get_rollbacks.
The path param is a keypath that restrict the rollback to be applied only to a subtree.
The selective param, false by default, can restrict the rollback process to use only the rollback specified by
nr, rather than applying all known rollbacks files starting with the latest down to the one specified by nr.
392
The JSON-RPC API
Result
{}
19.14. Methods - schema
19.14.1. Method get_schema
Exports a JSON schema for a selected part (or all) of a specific YANG module (with optional instance
data inserted)
Params
{"th": <integer>,
"namespace": <string, optional>,
"path": <string, optional>,
"levels": <integer, default: -1>,
"insert_values": <boolean, default: false>,
"evaluate_when_entries": <boolean, default: false>
"stop_on_list": <boolean, default: false>}
One of the properties namespace or path must be specified.
A namespace is as specified in a YANG module.
A path is a tagpath/keypath pointing into a specific sub-tree of a YANG module.
The levels param limits the maximum depth of containers and lists from which a JSON schema should be
produced (-1 means unlimited depth).
The insert_values param signals that instance data for leafs should be inserted into the schema. This way
the need for explicit forthcoming calls to get_elem are avoided.
The evaluate_when_entries param signals that schema entries should be included in the schema
even though their "when" or "tailf:display-when" statements evaluate to false, i.e. instead a boolean
evaluated_when_entry param is added to these schema entries.
The stop_on_list param limits the schema generation to one level under the list when true.
Result
{"meta":
{"namespace": <string, optional>,
"keypath": <string, optional>,
"prefix": <string>,
"types": <array of type>},
"data": <array of child>}
type = <array of {<string, type name with prefix>: <type_stack>}>
type_stack = <array of type_stack_entry>
type_stack_entry =
{"bits": <array of string>, "size": <32 | 64>} |
{"leaf_type": <type_stack>, "list_type": <type_stack>} |
{"union": <array of type_stack>} |
{"name": <primitive_type | "user_defined">,
393
The JSON-RPC API
"info": <string, optional>,
"readonly": <boolean, optional>,
"facets": <array of facet, only if not primitive type>}
primitive_type =
"empty" |
"binary" |
"bits" |
"date-and-time" |
"instance-identifier" |
"int64" |
"int32" |
"int16" |
"uint64" |
"uint32" |
"uint16" |
"uint8" |
"ip-prefix" |
"ipv4-prefix" |
"ipv6-prefix" |
"ip-address-and-prefix-length" |
"ipv4-address-and-prefix-length" |
"ipv6-address-and-prefix-length" |
"hex-string" |
"dotted-quad" |
"ip-address" |
"ipv4-address" |
"ipv6-address" |
"gauge32" |
"counter32" |
"counter64" |
"object-identifier"
facet_entry =
{"enumeration": {"label": <string>, "info": <string, optional>}} |
{"fraction-digits": {"value": <integer>}} |
{"length": {"value": <integer>}} |
{"max-length": {"value": <integer>}} |
{"min-length": {"value": <integer>}} |
{"leaf-list": <boolean>} |
{"max-inclusive": {"value": <integer>}} |
{"max-length": {"value": <integer>}} |
{"range": {"value": <array of range_entry>}} |
{"min-exclusive": {"value": <integer>}} |
{"min-inclusive": {"value": <integer>}} |
{"min-length": {"value": <integer>}} |
{"pattern": {"value": <string, regular expression>}} |
{"total-digits": {"value": <integer>}}
range_entry =
"min" |
"max" |
<integer> |
[<integer, min value>, <integer, max value>]
child =
{"kind": <kind>,
"name": <string>,
"qname": <string, same as "name" but with prefix prepended>,
"info": <string>,
394
The JSON-RPC API
"namespace": <string>,
"is_action_input": <boolean>,
"is_action_output": <boolean>,
"is_cli_preformatted": <boolean>,
"presence": <boolean>,
"ordered_by": <boolean>,
"is_config_false_callpoint": <boolean>,
"key": <boolean>,
"exists": <boolean>,
"value": <string | number | boolean>,
"is_leafref": <boolean>,
"leafref_target": <string>,
"when_targets": <array of string>,
"deps": <array of string>
"hidden": <boolean>,
"default_ref":
{"namespace": <string>,
"tagpath": <string>
},
"access":
{"create": <boolean>,
"update": <boolean>,
"delete": <boolean>,
"execute": <boolean>
},
"config": <boolean>,
"readonly": <boolean>,
"suppress_echo": <boolean>,
"type":
{"name": <primitive_type>,
"primitive": <boolean>
}
"generated_name": <string>,
"units": <string>,
"leafref_groups": <array of string>,
"active": <string, active case, only if "kind" is "choice">,
"cases": <array of case, only of "kind" is "choice">,
"default": <string | number | boolean>,
"mandatory": <boolean>,
"children": <children>
}
kind =
"module" |
"access-denies" |
"list-entry" |
"choice" |
"key" |
"leaf-list" |
"action" |
"container" |
"leaf" |
"list" |
"notification"
case_entry =
{"kind": "case",
"name": <string>,
"children": <array of child>
}
395
The JSON-RPC API
This is a fairly complex piece of JSON but it essentially maps what is seen in a YANG module. Keep that
in mind when scrutinizing the above.
The meta param contains meta-information about the YANG module such as namespace and prefix but it
also contains type stack information for each type used in the YANG module represented in the data param.
Together with the meta param, the data param constitutes a complete YANG module in JSON format.
Example 19.9. Method get_schema
curl \
--cookie "sessionid=sess11635875109111642;" \
-X POST \
-H 'Content-Type: application/json' \
-d '{"jsonrpc": "2.0", "id": 1, \
"method": "get_schema", \
"params": {"th": 2, \
"path": "/aaa:aaa/authentication/users/user{admin}", \
"levels": -1, \
"insert_values": true}}' \
http://127.0.0.1:8008/jsonrpc
{"jsonrpc": "2.0",
"id": 1,
"result":
{"meta":
{"namespace": "http://tail-f.com/ns/aaa/1.1",
"keypath": "/aaa:aaa/authentication/users/user{admin}",
"prefix": "aaa",
"types":
{"http://tail-f.com/ns/aaa/1.1:passwdStr":
[{"name": "http://tail-f.com/ns/aaa/1.1:passwdStr"},
{"name": "MD5DigestString"}]}}},
"data":
{"kind": "list-entry",
"name": "user",
"qname": "aaa:user",
"access":
{"create": true,
"update": true,
"delete": true},
"children":
[{"kind": "key",
"name": "name",
"qname": "aaa:name",
"info": {"string": "Login name of the user"},
"mandatory": true,
"access": {"update": true},
"type": {"name": "string", "primitive": true}},
...]}}
19.14.2. Method hide_schema
Hides data which has been adorned with a "hidden" statement in YANG modules. "hidden" statements is
an extension defined in the tail-common YANG module (http://tail-f.com/yang/common).
Params
{"th": <integer>,
396
The JSON-RPC API
"group_name": <string>
The group_name param is as defined by a "hidden" statement in a YANG module.
Result
{}
19.14.3. Method unhide_schema
Unhides data which has been adorned with a "hidden" statement in YANG modules. "hidden" statements
is an extension defined in the tail-common YANG module (http://tail-f.com/yang/common).
Params
{"th": <integer>,
"group_name": <string>,
"passwd": <string>}
The group_name param is as defined by a "hidden" statement in a YANG module.
The passwd param is a password needed to hide the data that has been adorned with a "hidden" statement.
The password is as defined in the confd.conf file.
Result
{}
19.14.4. Method get_module_prefix_map
Returns a map from module name to module prefix.
Params
Method takes no parameters.
Result
<key-value object>
result = {"module-name": "module-prefix"}
Example 19.10. Method get_module_prefix_map
curl \
--cookie 'sessionid=sess12541119146799620192;' \
-X POST \
-H 'Content-Type: application/json' \
-d '{"jsonrpc": "2.0", id: 1, \
"method": "get_module_prefix_map", \
"params": {}' \
http://127.0.0.1:8008/jsonrpc
{"jsonrpc": "2.0",
397
The JSON-RPC API
"id": 1,
"result": {
"cli-builtin": "cli-builtin",
"confd_cfg": "confd_cfg",
"iana-crypt-hash": "ianach",
"ietf-inet-types": "inet",
"ietf-netconf": "nc",
"ietf-netconf-acm": "nacm",
"ietf-netconf-monitoring": "ncm",
"ietf-netconf-notifications": "ncn",
"ietf-netconf-with-defaults": "ncwd",
"ietf-restconf": "rc",
"ietf-restconf-monitoring": "rcmon",
"ietf-yang-library": "yanglib",
"ietf-yang-types": "yang",
"tailf-aaa": "aaa",
"tailf-acm": "tacm",
"tailf-common-monitoring": "tfcg",
"tailf-confd-monitoring": "tfcm",
"tailf-kicker": "kicker",
"tailf-netconf-extensions": "tfnce",
"tailf-netconf-monitoring": "tncm",
"tailf-netconf-query": "tfncq",
"tailf-rest-error": "tfrerr",
"tailf-rest-query": "tfrestq",
"tailf-rollback": "rollback",
"tailf-webui": "webui",
}
}
19.14.5. Method run_action
Invokes an action or rpc defined in a YANG module.
Params
{"th": <integer>,
"path": <string>,
"params": <json, optional>
"format": <"normal" | "bracket" | "json", default: "normal">,
"comet_id": <string, optional>,
"handle": <string, optional>}
Actions are as specified in th YANG module, i.e. having a specific name and a well defined set of
parameters and result. the path param is a keypath pointing to an action or rpc in and the params param
is a JSON object with action parameters.
The format param defines if the result should be an array of key values or a pre-formatted string on bracket
format as seen in the CLI. The result is also as specified by the YANG module.
Both a comet_id and handle need to be provided in order to receive notifications.
NOTE This method is often used to call an action that uploads binary data (e.g. images) and retrieving
them at a later time. While retrieval is not a problem, uploading is a problem, because JSON-RPC request
payloads have a size limitation (e.g. 64 kB). The limitation is needed for performance concerns because
the payload is first buffered, before the JSON string is parsed and the request is evaluated. When you have
scenarios that need binary uploads, please use the CGI functionality instead which has a size limitation
that can be configured, and which is not limited to JSON payloads, so one can use streaming techniques.
398
The JSON-RPC API
Result
<string | array of result | key-value object>
result = {"name": <string>, "value": <string>}
Errors (specific)
{"type": "action.invalid_result", "data": {"path": <string, path to invalid result>}}
Example 19.11. Method run_action
curl \
--cookie 'sessionid=sess12541119146799620192;' \
-X POST \
-H 'Content-Type: application/json' \
-d '{"jsonrpc": "2.0", id: 1, \
"method": "run_action", \
"params": {"th": 2, \
"path": "/dhcp:dhcp/set-clock", \
"params": {"clockSettings": "2014-02-11T14:20:53.460%2B01:00"}}}' \
http://127.0.0.1:8008/jsonrpc
{"jsonrpc": "2.0",
"id": 1,
"result": [{"name":"systemClock", "value":"0000-00-00T03:00:00+00:00"},
{"name":"inlineContainer/bar", "value":"false"},
{"name":"hardwareClock","value":"0000-00-00T04:00:00+00:00"}]}
curl \
-s \
--cookie 'sessionid=sess12541119146799620192;' \
-X POST \
-H 'Content-Type: application/json' \
-d'{"jsonrpc": "2.0", "id": 1, \
"method": "run_action", \
"params": {"th": 2, \
"path": "/dhcp:dhcp/set-clock", \
"params": {"clockSettings": \
"2014-02-11T14:20:53.460%2B01:00"}, \
"format": "bracket"}}' \
http://127.0.0.1:8008/jsonrpc
{"jsonrpc": "2.0",
"id": 1,
"result": "systemClock 0000-00-00T03:00:00+00:00\ninlineContainer {\n \
bar false\n}\nhardwareClock 0000-00-00T04:00:00+00:00\n"}
curl \
-s \
--cookie 'sessionid=sess12541119146799620192;' \
-X POST \
-H 'Content-Type: application/json' \
-d'{"jsonrpc": "2.0", "id": 1, \
"method": "run_action", \
"params": {"th": 2, \
"path": "/dhcp:dhcp/set-clock", \
"params": {"clockSettings": \
"2014-02-11T14:20:53.460%2B01:00"}, \
399
The JSON-RPC API
"format": "json"}}' \
http://127.0.0.1:8008/jsonrpc
{"jsonrpc": "2.0",
"id": 1,
"result": {"systemClock": "0000-00-00T03:00:00+00:00",
"inlineContainer": {"bar": false},
"hardwareClock": "0000-00-00T04:00:00+00:00"}}
19.15. Methods - session
19.15.1. Method login
Creates a user session and sets a browser cookie
Params
{"user": <string>, "passwd": <string>, "ack_warning": <boolean, default: false>}
The user and passwd are the credentials to be used in order to create a user session. The common AAA
engine in ConfD is used to verify the credentials.
If the method fails with a warning, the warning needs to be displayed to the user, along with a checkbox
to allow the user to acknowledge the warning. The acknowledgement of the warning translates to setting
ack_warning to true.
Result
{"warning": <string, optional>}
NOTE The response will have a `Set-Cookie` HTTP header with a sessionid cookie which will be your
authentication token for upcoming JSON-RPC requests.
The warning is a free-text string that should be displayed to the user after a successful login. This is not
to be mistaken with a failed login that has a warning as well. In case of a failure, the user should also
acknowledge the warning, not just have it displayed for optional reading.
Example 19.12. Method login
curl \
-X POST \
-H 'Content-Type: application/json' \
-d '{"jsonrpc": "2.0", "id": 1, \
"method": "login", \
"params": {"user": "joe", \
"passwd": "SWkkasE32"}}' \
http://127.0.0.1:8008/jsonrpc
{"jsonrpc": "2.0",
"id": 1,
"error":
{"code": -32000,
"type": "rpc.method.failed",
"message": "Method failed"}}
curl \
-X POST \
400
The JSON-RPC API
-H 'Content-Type: application/json' \
-d '{"jsonrpc": "2.0", "id": 1, \
"method": "login", \
"params": {"user": "admin", \
"passwd": "admin"}}' \
http://127.0.0.1:8008/jsonrpc
{"jsonrpc": "2.0",
"id": 1,
"result": {}}
NOTE sessionid cookie is set at this point in your User Agent (browser). In our examples, we set the cookie
explicitly in the upcoming requests for clarity.
curl \
--cookie "sessionid=sess4245223558720207078;" \
-X POST \
-H 'Content-Type: application/json' \
-d '{"jsonrpc": "2.0", "id": 1, \
"method": "get_trans"}' \
http://127.0.0.1:8008/jsonrpc
{"jsonrpc": "2.0",
"id": 1,
"result": {"trans": []}}
19.15.2. Method logout
Removes a user session and invalidates the browser cookie
The HTTP cookie identifies the user session so no input parameters are needed.
Params
None.
Result
{}
Example 19.13. Method logout
curl \
--cookie "sessionid=sess4245223558720207078;" \
-X POST \
-H 'Content-Type: application/json' \
-d '{"jsonrpc": "2.0", "id": 1, \
"method": "logout"}' \
http://127.0.0.1:8008/jsonrpc
{"jsonrpc": "2.0",
"id": 1,
"result": {}}
curl \
--cookie "sessionid=sess4245223558720207078;" \
-X POST \
-H 'Content-Type: application/json' \
401
The JSON-RPC API
-d '{"jsonrpc": "2.0", "id": 1, \
"method": "logout"}' \
http://127.0.0.1:8008/jsonrpc
{"jsonrpc": "2.0",
"id": 1,
"error":
{"code": -32000,
"type": "session.invalid_sessionid",
"message": "Invalid sessionid"}}
19.15.3. Method kick_user
Kills a user session, i.e. kicking out the user
Params
{"user": <string | number>}
The user param is either the username of a logged in user or session id.
Result
{}
19.16. Methods - session data
19.16.1. Method get_session_data
Gets session data from the session store
Params
{"key": <string>}
The key param for which to get the stored data for. Read more about the session store in the
put_session_data method.
Result
{"value": <string>}
19.16.2. Method put_session_data
Puts session data into the session store. The session store is small key-value server-side database where
data can be stored under a unique key. The data may be an arbitrary object, but not a function object. The
object is serialized into a JSON string and then stored on the server.
Params
{"key": <string>,
"value": <string>}
The key param is the unique key for which the data in the value param is to be stored.
402
The JSON-RPC API
Result
{}
19.16.3. Method erase_session_data
Erases session data previously stored with "put_session_data".
Params
{"key": <string>}
The key param for which all session data will be erased. Read more about the session store in the
put_session_data method.
Result
{}
19.17. Methods - transaction
19.17.1. Method get_trans
Lists all transactions
Params
None.
Result
{"trans": <array of transaction>}
transaction =
{"db": <"running" | "startup" | "candidate">,
"mode": <"read" | "read_write", default: "read">,
"conf_mode": <"private" | "shared" | "exclusive", default: "private">,
"tag": <string>,
"th": <integer>}
Example 19.14. Method get_trans
curl \
--cookie 'sessionid=sess12541119146799620192;' \
-X POST \
-H 'Content-Type: application/json' \
-d '{"jsonrpc": "2.0", "id": 1, \
"method": "get_trans"}' \
http://127.0.0.1:8008/jsonrpc
{"jsonrpc": "2.0",
"id": 1,
"result":
{"trans":
403
The JSON-RPC API
[{"db": "running",
"th": 2}]}}
19.17.2. Method new_trans
Creates a new transaction
Params
{"db": <"startup" | "running" | "candidate", default: "running">,
"mode": <"read" | "read_write", default: "read">,
"conf_mode": <"private" | "shared" | "exclusive", default: "private">,
"tag": <string>,
"th": <integer>,
"on_pending_changes": <"reuse" | "reject" | "discard", default: "reuse">}
The conf_mode param specifies which transaction semantics to use when it comes to lock and commit
strategies. These three modes mimics the modes available in the CLI.
The meaning of private, shared and exclusive have slightly different meaning depending on how the system
is configured; with a writable running, startup or candidate configuration.
private (*writable running enabled*) - Edit a private copy of the running configuration, no lock is taken.
private (*writable running disabled, startup enabled*) - Edit a private copy of the startup configuration,
no lock is taken.
exclusive (*candidate enabled*) - Lock the running configuration and the candidate configuration and edit
the candidate configuration.
exclusive (*candidate disabled, startup enabled*) - Lock the running configuration (if enabled) and the
startup configuration and edit the startup configuration.
shared (*writable running enabled, candidate enabled*) - Edit the candidate configuration without locking
it.
The tag param is a way to tag transactions with a keyword, so that they can be filtered out when you call
the get_trans method.
The th param is a way to create transactions within other read_write transactions.
The on_pending_changes param decides what to do if the candidate already has been written to, e.g. a
CLI user has started a shared configuration session and changed a value in the configuration (without
committing it). If this parameter is omitted the default behavior is to silently reuse the candidate. If "reject"
is specified the call to the "new_trans" method will fail if the candidate is non-empty. If "discard" is
specified the candidate is silently cleared if it is non-empty.
Result
{"th": <integer>}
A new transaction handler id
Errors (specific)
{"type": "trans.confirmed_commit_in_progress"}
{"type": "db.locked", "data": {"sessions": <array of string>}}
404
The JSON-RPC API
The `data.sessions` param is an array of strings describing the current sessions of the locking user, e.g. an
array of "admin tcp (cli from 192.245.2.3) on since 2006-12-20 14:50:30 exclusive".
Example 19.15. Method new_trans
curl \
--cookie 'sessionid=sess12541119146799620192;' \
-X POST \
-H 'Content-Type: application/json' \
-d '{"jsonrpc": "2.0", "id": 1, \
"method": "new_trans", \
"params": {"db": "running", \
"mode": "read"}}' \
http://127.0.0.1:8008/jsonrpc
{"jsonrpc": "2.0",
"id": 1,
"result": 2}
19.17.3. Method delete_trans
Deletes a transaction created by new_trans or new_webui_trans
Params
{"th": <integer>}
Result
{}
19.17.4. Method set_trans_comment
Adds a comment to the active read-write transaction. This comment will be stored in rollback files and
can be seen with a call to get_rollbacks.
Params
{"th": <integer>}
Result
{}
19.17.5. Method set_trans_label
Adds a label to the active read-write transaction. This label will be stored in rollback files and can be seen
with a call to get_rollbacks.
Params
{"th": <integer>}
Result
{}
405
The JSON-RPC API
19.18. Methods - transaction - changes
19.18.1. Method is_trans_modified
Checks if any modifications has been done to a transaction
Params
{"th": <integer>}
Result
{"modified": <boolean>}
19.18.2. Method get_trans_changes
Extracts modifications done to a transaction
Params
{"th": <integer>,
"leaf_list_as_leaf": <boolean>, default: false} (DEPRECATED),
"output": <"compact" | "legacy", default: "legacy">
The leaf_list_as_leaf parameter is deprecated and will be removed in future versions. It can be used to
preserve backwards compatibility for leaf-list. If this parameter is not set (or false) the result for leaf-list
changes will be represented as created or deleted operations. With this parameter set to true the result will
be represented as a value_set operation.
The output parameter controls the result content. legacy format include old and value for all operation
types even if their value is undefined. undefined values are represented by an empty string. compact format
excludes old and value if their value is undefined.
Result
{"changes": <array of change>}
change =
{"keypath": <string>,
"op": <"created" | "deleted" | "modified" | "value_set">,
"value": <string,>,
"old": <string>
}
The value param is only interesting if op is set to one of created, modified or value_set.
The old param is only interesting if op is set to modified.
Example 19.16. Method get_trans_changes
curl \
--cookie 'sessionid=sess12541119146799620192;' \
-X POST \
-H 'Content-Type: application/json' \
406
The JSON-RPC API
-d '{"jsonrpc": "2.0", "id": 1, \
"method": "changes", \
"params": {"th": 2}}' \
http://127.0.0.1:8008/jsonrpc
{"jsonrpc": "2.0",
"id": 1,
"result":
[{"keypath":"/dhcp:dhcp/default-lease-time",
"op": "value_set",
"value": "100",
"old": ""}]}
19.18.3. Method validate_trans
Validates a transaction
Params
{"th": <integer>}
Result
{}
or
{"warnings": <array of warning>}
warning = {"paths": <array of string>, "message": <string>}
Errors (specific)
{"type": "trans.resolve_needed", "data": {"users": <array string>}}
The `data.users` param is an array of conflicting usernames.
{"type": "trans.validation_failed", "data": {"errors": <array of error>}}
error = {"paths": <array of string>, "message": <string>}
The `data.errors` param points to a keypath that is invalid.
19.18.4. Method get_trans_conflicts
Gets the conflicts registered in a transaction
Params
{"th": <integer>}
Result
{"conflicts:" <array of conflicts>}
conflict =
{"keypath": <string>,
407
The JSON-RPC API
"op": <"created" | "deleted" | "modified" | "value_set">,
"value": <string>,
"old": <string>}
The value param is only interesting if op is set to one of created, modified or value_set.
The old param is only interesting if op is set to modified.
19.18.5. Method resolve_trans
Tells the server that the conflicts have been resolved
Params
{"th": <integer>}
Result
{}
19.19. Methods - transaction - commit changes
19.19.1. Method validate_commit
Validates a transaction before calling commit. If this method succeeds (with or without warnings) then the
next operation must be all call to either commit or clear_validate_lock. The configuration will be locked
for access by other users until one of these methods are called.
Params
{"th": <integer>}
Result
{}
or
{"warnings": <array of warning>}
warning = {"paths": <array of string>, "message": <string>}
Errors (specific)
Same as for the validate_trans method.
19.19.2. Method clear_validate_lock
Releases validate lock taken by validate_commit
Params
{"th": <integer>}
408
The JSON-RPC API
Result
{}
19.19.3. Method commit
Copies the configuration into the running datastore.
Params
{"th": <integer>,
"timeout": <integer, default: 0>,
"release_locks" <boolean, default: true>}
The timeout param represents the confirmed commit timeout, i.e. set it to zero (0) to commit without
timeout.
For backwards compatibility, the flags param can also be a bit mask with the following limit values:
`1 << 0` - Do not release locks, overridden by the release_locks if set
`1 << 2` - Do not drop revision
If a call to confirm_commit is not done within timeout seconds an automatic rollback is performed.
This method can also be used to "extend" a confirmed commit that is already in progress, i.e. set a new
timeout or add changes.
A call to abort_commit can be made to abort the confirmed commit.
NOTE: Must be preceded by a call to validate_commit
NOTE: The transaction handler is deallocated as a side effect of this method
Result
{"commit_queue_id": <integer>}
The commit_queue_id is only returned if the method is run with the async_commit_queue flag, or with the
sync_commit_queue flag and a timeout occurs.
Errors (specific)
{"type": "trans.confirmed_commit_in_progress"}
19.19.4. Method abort_commit
Aborts the active read-write transaction
Result
{}
19.19.5. Method confirm_commit
Confirms the currently pending confirmed commit
409
The JSON-RPC API
Result
{}
19.20. Methods - transaction - webui
19.20.1. Method get_webui_trans
Gets the webui read-write transaction
Result
{"trans": <array of trans>}
trans =
{"db": <"startup" | "running" | "candidate", default: "running">,
"conf_mode": <"private" | "shared" | "exclusive", default: "private">,
"th": <integer>
}
19.20.2. Method new_webui_trans
Creates a read-write transaction that can be retrieved by 'get_webui_trans'.
Params
{"db": <"startup" | "running" | "candidate", default: "running">,
"conf_mode": <"private" | "shared" | "exclusive", default: "private">
"on_pending_changes": <"reuse" | "reject" | "discard", default: "reuse">}
See 'new_trans' for semantics of the parameters and specific errors.
The on_pending_changes param decides what to do if the candidate already has been written to, e.g. a
CLI user has started a shared configuration session and changed a value in the configuration (without
committing it). If this parameter is omitted the default behavior is to silently reuse the candidate. If "reject"
is specified the call to the "new_webui_trans" method will fail if the candidate is non-empty. If "discard"
is specified the candidate is silently cleared if it is non-empty.
Result
{"th": <integer>}
A new transaction handler id
410
Chapter 20. The web server
20.1. Introduction
This document describes an embedded basic web server that can deliver static and Common Gateway
Interface (CGI) dynamic content to a web client, commonly a browser. Due to the limitations of this web
server, and/or of its configuration capabilities, a proxy server such as Nginx is recommended to address
special requirements.
20.2. Web server capabilities
The web server can be configured through settings in confd.conf - see the manual pages of the section
called “CONFIGURATION PARAMETERS” .
Here is a brief overview of what you can configure on the web server:
"toggle web server": the web server can be turned on or off
"toggle transport": enable HTTP and/or HTTPS, set IPs, ports, redirects, certificates, etc.
"hostname": set the hostname of the web server and decide whether to block requests for other hostnames
"/": set the docroot from where all static content is served
"/login": set the docroot from where static content is served for URL paths starting with /login
"/custom": set the docroot from where static content is served for URL paths starting with /custom
"/cgi": toggle CGI support and set the docroot from where dynamic content is served for URL paths
starting with /cgi
"non-authenticated paths": by default all URL paths, except those needed for the login page are hidden
from non-authenticated users; authentication is done by calling the JSONRPC "login" method
"allow symlinks": allow symlinks from under the docroot
"cache": set the cache time window for static content
"log": several logs are available to configure in terms of file paths - an access log, a full HTTP traffic/
trace log and a browser/JavaScript log
"custom headers": set custom headers across all static and dynamic content, including requests to "/
jsonrpc".
In addition to what is configurable, the web server also GZip-compresses responses automatically if the
browser handles such responses, either by compressing the response on the fly, or, if requesting a static
file, like "/bigfile.txt", by responding with the contents of "/bigfile.txt.gz", if there is such a file.
20.3. CGI support
The web server includes CGI functionality, disabled by default. Once you enable it in confd.conf - see the
manual pages of the section called “CONFIGURATION PARAMETERS” , you can write CGI scripts,
411
The web server
that will be called with the following ConfD environment variables prefixed with CONFD_ when a user
has logged-in via JSON-RPC:
"JSONRPC_SESSIONID": the JSON-RPC session id (cookie)
"JSONRPC_START_TIME": the start time of the JSON-RPC session
"JSONRPC_END_TIME": the end time of the JSON-RPC session
"JSONRPC_READ": the latest JSON-RPC read transaction
"JSONRPC_READS": a comma-separated list of JSON-RPC read transactions
"JSONRPC_WRITE": the latest JSON-RPC write transaction
"JSONRPC_WRITES": a comma-separated of JSON-RPC write transactions
"MAAPI_USER": the MAAPI username
"MAAPI_GROUPS": a comma-separated list of MAAPI groups
"MAAPI_UID": the MAAPI UID
"MAAPI_GID": the MAAPI GID
"MAAPI_SRC_IP": the MAAPI source IP address
"MAAPI_SRC_PORT": the MAAPI source port
"MAAPI_USID": the MAAPI USID
"MAAPI_READ": the latest MAAPI read transaction
"MAAPI_READS": a comma-separated list of MAAPI read transactions
"MAAPI_WRITE": the latest MAAPI write transaction
"MAAPI_WRITES": a comma-separated of MAAPI write transactions
Server or HTTP specific information is also exported as environment variables:
• "SERVER_SOFTWARE":
• "SERVER_NAME":
• "GATEWAY_INTERFACE":
• "SERVER_PROTOCOL":
• "SERVER_PORT":
• "REQUEST_METHOD":
• "REQUEST_URI":
• "DOCUMENT_ROOT":
• "DOCUMENT_ROOT_MOUNT":
412
The web server
• "SCRIPT_FILENAME":
• "SCRIPT_TRANSLATED":
• "PATH_INTO":
• "PATH_TRANSLATED":
• "SCRIPT_NAME":
• "REMOTE_ADDR":
• "REMOTE_HOST":
• "SERVER_ADDR":
• "LOCAL_ADDR":
• "QUERY_STRING":
• "CONTENT_TYPE":
• "CONTENT_LENGTH":
"HTTP_*": HTTP headers e.g. "Accept" value is exported as HTTP_ACCEPT
413
Chapter 21. The REST API
21.1. Introduction
This document describes a RESTful API over HTTP for accessing data defined in YANG. It tries to
follow the RESTCONF Internet Draft [draft-ietf-netconf-restconf-00] but since it predates the creation of
RESTCONF, a number of differences exists. Whenever such a difference occur, it will be clearly stated.
The RESTCONF protocol operates in the configuration datastores defined in NETCONF. It defines a
set of Create, Retrieve, Update, Delete (CRUD) operations that can be used to access these datastores.
The YANG language defines the syntax and semantics of datastore content, operational data and protocol
operations. REST operations are used to access the hierarchical data within a datastore. Request and
response data can be in XML or JSON format, where XML is the default format.
To get a quick introduction to how to enable REST in ConfD and how to run the CRUD operations,
continue to Section 21.2, “Getting started”.
To read more about resources, continue to Section 21.4, “Resources”.
Tip
All REST request/response examples in this chapter are based on the examples.confd/rest/router
example. Go to this example to play around and get familiar with the REST api.
21.2. Getting started
In order to enable REST in ConfD, REST must be enabled in confd.conf . The web server configuration
for REST is shared with the WebUI's config. However, the WebUI does not have to be enabled for REST
to work.
Here's a minimal example of what is needed in the conf file:
Example 21.1. ConfD configuration for REST
<rest>
<enabled>true</enabled>
</rest>
<webui>
<enabled>false</enabled>
<transport>
<tcp>
<enabled>true</enabled>
<ip>0.0.0.0</ip>
<port>8008</port>
</tcp>
</transport>
</webui>
414
The REST API
21.2.1. The Authentication Cache
The REST server maintains an authentication cache. When authenticating an incoming request for a
particular User:Password, it is first checked if the User exists in the cache and if so, the request is processed.
This makes it possible to avoid the, potentially time consuming, login procedure that will take place in
case of a cache miss.
Cache entries has a maximum Time-To-Live (TTL) and upon expiry a cache entry is removed which will
cause the next request for that User to perform the normal login procedure. The TTL value is configurable
via the authCacheTTL parameter, as shown in the example. Note that, by setting the TTL value to zero
(PT0S), the cache is effectively turned off.
Example 21.2. ConfD configuration of the authentication cache TTL
...
<aaa>
...
<rest>
<!-- Set the TTL to 10 seconds! -->
<authCacheTTL>PT10S</authCacheTTL>
</rest>
...
</aaa>
...
It is also possible to combine the Clients IP address with the User name as a key into the cache. This
behaviour is disabled by default. It can be enabled by setting the enableAuthCacheClientIp parameter to
true.
21.2.2. Client IP via Proxy
It is possible to configure the ConfD REST server to pick up the client IP address via a HTTP header in
the request. A list of HTTP headers to look for is configurable via the proxyHeaders parameter as shown
in the example.
To avoid misuse of this feature, only requests from trusted sources will be searched for such a HTTP
header. The list of trusted sources is configured via the allowedProxyIpPrefix as shown in the example.
Example 21.3. ConfD configuration of Client IP via Proxy
...
<webui>
...
<useForwardedClientIp>
<proxyHeaders>X-Forwarded-For</proxyHeaders>
<proxyHeaders>X-REAL-IP</proxyHeaders>
<allowedProxyIpPrefix>10.12.34.0/24</allowedProxyIpPrefix>
<allowedProxyIpPrefix>2001:db8:1234::/48</allowedProxyIpPrefix>
</useForwardedClientIp>
...
</webui>
...
415
The REST API
21.2.3. Request URI structure
Resources are represented with URIs following the structure for generic URIs in [RFC3986].
Example 21.4. Request URI structure
<OP> /api/<path>?<query>#<fragment>
^ ^ ^ ^ ^
| | | | |
method entry resource query fragment
M M O O I
M=mandatory, O=optional, I=ignored
<text> replaced by client with real values
A REST operation is derived from the HTTP method and the request URI, using the following conceptual
fields:
"method": the HTTP method identifying the REST operation requested by the client, to act upon the
target resource specified in the request URI.
"entry": the well-known REST entry point ("/api").
Note
THIS DIFFERS FROM RESTCONF!
"resource": the path expression identifying the resource that is being accessed by the operation. If this
field is not present, then the target resource is the API itself, represented by the media type "application/
vnd.yang.api".
Note
THE MEDIA TYPE DIFFERS FROM RESTCONF!
"query": the set of parameters associated with the REST message. These have the familiar form
of "name=value" pairs. There is a specific set of parameters defined, see Section 21.2.12, “Query
Parameters”. The contents of the query parameter value must be encoded according to [RFC2396],
section 3.4. Any reserved characters must be encoded with escape sequences, according to [RFC2396],
section 2.4.
"fragment": This field is not used by the REST protocol.
The REST protocol uses HTTP methods to identify the CRUD operation requested for a particular
resource. The following table shows how the REST operations relate to NETCONF protocol operations:
Table 21.1. REST vs NETCONF operations
REST NETCONF
GET <get-config>, <get>
416
The REST API
REST NETCONF
POST <edit-config> (operation="create")
PUT <edit-config> (operation="replace")
PATCH <edit-config> (operation="merge")
DELETE <edit-config> (operation="delete")
OPTIONS none
HEAD none
21.2.4. Accessing the REST API
The REST API can be accessed, e.g., by using curl:
Example 21.5. Using curl for accessing ConfD
curl -u admin:admin -s http://localhost:8008/api/foo/bar -X GET
To provide an HTTP header use the -H switch:
... -H "Accept: application/vnd.data+xml"
Note that in the following examples we will shorten the curl calls to:
GET /foo/bar
Accept: application/vnd.data+xml
By default curl will display responses on standard output. The headers are not included. To include these
the "-i" switch has to be added.
curl -i ...
The response can then typically look like:
HTTP/1.1 200 OK
Server: ConfD/5.3.0
Cache-control: private, no-cache, must-revalidate, proxy-revalidate
Date: Fri, 05 Sep 2014 13:09:46 GMT
Content-Type: application/vnd.yang.data+json
Transfer-Encoding: chunked
Etag: 1409-922585-953711
Last-Modified: Fri, 01 Jan 1971 00:00:00 GMT
{
"some-data": {
417
The REST API
"some-value": "value"
}
}
In the examples shown in this chapter we will from the beginning show all headers with the response. In
later examples the headers will be omitted for brevity.
21.2.5. GET
The GET method is sent by the client to retrieve data and meta-data for a resource. It is supported for all
resource types, except operation resources. The request must contain a request URI that contains at least
the entry point component (/api). Note how we make use of the Accept HTTP header to indicate what
format we want the returned result to be in. The value of the Accept HTTP header, in this example:
application/yang.data+json, must be a valid media type. Since XML is the default format
we need to explicitly request JSON in the example below. To read more about the media types, see
Section 21.4, “Resources”.
Example 21.6. Get the "sys/interfaces" resource represented as JSON
GET /running/sys/interfaces/ex:serial
Accept: application/vnd.yang.collection+json
The server might respond:
HTTP/1.1 200 OK
Server:
Date: Wed, 12 Aug 2015 11:38:20 GMT
Last-Modified: Fri, 01 Jan 1971 00:00:00 GMT
Cache-Control: private, no-cache, must-revalidate, proxy-revalidate
Etag: 1439-379499-898453
Content-Type: application/vnd.yang.collection+json
Transfer-Encoding: chunked
Pragma: no-cache
{
"collection": {
"example-serial:serial": [
{
"name": "ppp0",
"ppp": {
"accounting": "acme"
},
"authentication": {
"method": "pap"
},
"authorization": "admin",
"ipcp": {
}
}
]
}
}
418
The REST API
Note
To indicate a particular YANG namespace in the URI, the YANG module prefix is used. In the
example we are using a module prefix: ex .
THIS DIFFERS FROM RESTCONF!
In accordance with RESTCONF, the returned "serial" container is using a module name: example-
serial to indicate a particular YANG namespace.
To read more about the ETag and Last-Modified response headers, see Section 21.6, “Request/
Response headers”.
Refer to Section 21.3.1, “GET and Query examples” for more resource retrieval examples.
21.2.6. POST
The POST method is sent by the client to create a data resource or invoke an operation resource ("rpc"
or "tailf:action").
Here we show an example of resource creation using POST. For an example of operation invokation see
Section 21.3.3, “Invoke Operations”
Example 21.7. Create a new "sys/routes/inet/route" resource, with JSON payload
POST /running/sys/routes/inet
Content-Type: application/vnd.yang.data+json
{
"route": {
"name": "10.20.1.0",
"prefix-length": "24"
}
}
If the resource is created, the server might respond as follows:
HTTP/1.1 100 Continue
Server:
Allow: GET, POST, OPTIONS, HEAD
Content-Length: 0
HTTP/1.1 201 Created
Server:
Location:
http://127.0.0.1:8008/api/running/sys/routes/inet/route/10.20.1.0,24
Date: Wed, 12 Aug 2015 11:38:20 GMT
Allow: GET, POST, OPTIONS, HEAD
Last-Modified: Wed, 12 Aug 2015 11:38:20 GMT
Cache-Control: private, no-cache, must-revalidate, proxy-revalidate
Etag: 1439-379500-235361
Content-Length: 0
Content-Type: text/html
Pragma: no-cache
419
The REST API
If the POST method succeeds, a "201 Created" Status-Line is returned and there is no response
message body. Also, a "Location" header identifying the child resource that was created is present
in the response.
Refer to the section called “Create a List Instance with POST” for more examples of creating resources.
If the target resource type is an operation resource, then the POST method is treated as a request to
invoke that operation. The message body (if any) is processed as the operation input parameters. Refer to
Section 21.4.5, “Operations and Actions” for details on operation resources.
21.2.7. PUT
The PUT method is sent by the client to create or replace the target resource. The request must contain a
request URI that contains a target resource that identifies the data resource to create or replace.
Example 21.8. Replace the "sys/routes/inet/route" resource contents
PUT /running/sys/routes/inet/route/10.20.1.0,24
Content-Type: application/vnd.yang.data+json
{
"route": {
"name": "10.20.1.0",
"prefix-length": "24",
"description": "Example route",
"enabled" : "false"
}
}
If the resource is updated, the server might respond:
HTTP/1.1 100 Continue
Server:
Allow: GET, POST, OPTIONS, HEAD
Content-Length: 0
HTTP/1.1 204 No Content
Server:
Date: Wed, 12 Aug 2015 11:38:20 GMT
Allow: GET, POST, OPTIONS, HEAD
Last-Modified: Wed, 12 Aug 2015 11:38:20 GMT
Cache-Control: private, no-cache, must-revalidate, proxy-revalidate
Etag: 1439-379500-401146
Content-Length: 0
Content-Type: text/html
Pragma: no-cache
The "insert" and "resource" query parameters are supported by the PUT method for data resources, for
more examples see the section called “Insert Data into Resources”.
Note
The "resource" query parameter correspond to the "point" query parameter in RESTCONF.
420
The REST API
THIS DIFFERS FROM RESTCONF!
If the PUT method creates a new resource, a "201 Created" Status-Line is returned. If an existing resource
is modified, either "200 OK" or "204 No Content" are returned.
Refer to the section called “Create and Replace a List Instance with PUT” for more examples on how to
use PUT.
21.2.8. PATCH
The PATCH method is used to create or update a sub-resource within the target resource. If the target
resource instance does not exist, the server WILL NOT create it.
To replace just the "enabled" field in the "route" list resource (instead of replacing the entire resource with
the PUT method), the client might send a plain patch as follows.
Example 21.9. Update the "sys/routes/inet/route" resource contents
PATCH /running/sys/routes/inet/route/10.20.1.0,24
Content-Type: application/vnd.yang.data+json
{
"route": {
"enabled" : "true"
}
}
If the resource is updated, the server might respond:
HTTP/1.1 100 Continue
Server:
Allow: GET, POST, OPTIONS, HEAD
Content-Length: 0
HTTP/1.1 204 No Content
Server:
Date: Wed, 12 Aug 2015 11:38:20 GMT
Allow: GET, POST, OPTIONS, HEAD
Last-Modified: Wed, 12 Aug 2015 11:38:20 GMT
Cache-Control: private, no-cache, must-revalidate, proxy-revalidate
Etag: 1439-379500-570215
Content-Length: 0
Content-Type: text/html
Pragma: no-cache
Refer to the section called “Update Existing List Instance with PATCH” for more examples on how to
use PATCH.
21.2.9. DELETE
The DELETE method is used to delete the target resource. If the DELETE method succeeds, a "204 No
Content" Status-Line is returned, and there is no response message body.
421
The REST API
Example 21.10. Delete the "sys/routes/inet/route" resource contents
DELETE /running/sys/routes/inet/route/10.20.1.0,24
If the resource is successfully deleted, the server might respond:
HTTP/1.1 204 No Content
Server:
Date: Wed, 12 Aug 2015 11:38:20 GMT
Last-Modified: Wed, 12 Aug 2015 11:38:20 GMT
Cache-Control: private, no-cache, must-revalidate, proxy-revalidate
Etag: 1439-379500-746781
Content-Length: 0
Content-Type: text/html
Pragma: no-cache
Refer to Section 21.3.4, “Delete Data Resources” for more examples on how to use DELETE.
21.2.10. OPTIONS
The OPTIONS method is sent by the client to discover which methods are supported by the server for a
specific resource. The supported methods are listed in the ALLOW header.
Example 21.11. Get options for the "sys" resource
OPTIONS /running/sys
The server might respond:
HTTP/1.1 200 OK
Server:
Allow: DELETE, GET, HEAD, PATCH, POST, PUT
Cache-Control: private, no-cache, must-revalidate, proxy-revalidate
Content-Length: 0
Content-Type: text/html
Pragma: no-cache
Here the options method responds with an ALLOW header indicating that all methods are allowed on the
"sys" resource.
21.2.11. HEAD
The HEAD method is sent by the client to retrieve just the headers that would be returned for the
comparable GET method, without the response body. The access control behavior is enforced as if the
method was GET instead of HEAD. The server will respond the same as if the method was GET instead
of HEAD, except that no response body is included.
Example 21.12. Get head for the "sys/interfaces/ex:serial" resource
422
The REST API
HEAD /running/sys/interfaces/ex:serial
The server might respond:
HTTP/1.1 200 OK
Server:
Date: Wed, 12 Aug 2015 11:38:20 GMT
Last-Modified: Wed, 12 Aug 2015 11:38:20 GMT
Cache-Control: private, no-cache, must-revalidate, proxy-revalidate
Etag: 1439-379500-746781
Content-Length: 0
Content-Type: application/vnd.yang.collection+xml
Pragma: no-cache
Here the "Content-Length" header is 0. This is because the content length calculation is not eligible when
the actual content is suppressed as with the HEAD method.
21.2.12. Query Parameters
Each REST operation allows zero or more query parameters to be present in the request URI. The specific
parameters that are allowed depends on the resource type, and sometimes the specific target resource used,
in the request.
Table 21.2. Query Parameters
Name Methods Description
deep GET Retrieve a resource with all subresources inline.
insert POST For an ordered-by user list, we can specify where a resource,
to be created, should be inserted. This query parameter is
used together with the resource query parameter. Possible
values are: after, before,first and last. See the section called
“Insert Data into Resources” for details.
limit GET Used by the client to specify a limited set of list entries
to retrieve. See the section called “Partial Responses” for
details.
offset GET Used by the client to specify a limited set of list entries
to retrieve. See the section called “Partial Responses” for
details.
operations GET Used by the client to include/exclude operations
(tailf:actions) in the result. Possible values are: true, which is
the default value, and false.
resource POST For an ordered-by user list, we can specify where a resource,
to be created, should be inserted. This query parameter is
used together with the insert query parameter. See the section
called “Insert Data into Resources” for details.
select GET Used by the client to select which nodes and subresources
in a resource to retrieve. See the section called “Partial
Responses” for details.
shallow GET Retrieve a resource with no subresources inline.
423
The REST API
Name Methods Description
unhide GET Used by the client to unhide hidden nodes. See the section
called “Hidden Nodes” for details.
verbose GET Used by the client to control display of the "self" and "path"
attributes of the resource. See the section called “Displaying
Default Data” for details.
with-defaults GET Used by the client to control display of default data in GET
requests. See the section called “Displaying Default Data” for
details.
Note
The query parameters of the REST API is not the same as for RESTCONF.
THIS DIFFERS FROM RESTCONF!
If neither "deep" nor "shallow" is used, you will get a variable depth returned. The output shown will stop
at the first encountered presence container or list key value(s).
21.3. Resource Examples
21.3.1. GET and Query examples
Retrieve Data Resources
If a resource only needs to be outlined, the shallow query parameter can be used on the GET request.
Example 21.13. Shallow get for the "sys" resource
GET /running/sys?shallow
The server might respond:
<sys xmlns="http://example.com/router"
xmlns:y="http://tail-f.com/ns/rest"
xmlns:r="http://example.com/router">
<interfaces/>
<routes/>
<syslog/>
<ntp/>
<dns/>
</sys>
On the other hand, if the full subtree under a resource is required, the deep query parameter can be used
on the GET request.
Example 21.14. Deep get for the "sys/interfaces/interface" resource
GET /running/sys/interfaces/interface?deep
424
The REST API
The server might respond:
<collection xmlns:y="http://tail-f.com/ns/rest">
<interface xmlns="http://example.com/router">
<name>eth0</name>
<unit xmlns="http://example.com/router">
<name>0</name>
<enabled>true</enabled>
<status xmlns="http://example.com/router">
</status>
<family xmlns="http://example.com/router">
<inet xmlns="http://example.com/router">
<address xmlns="http://example.com/router">
<name>192.168.1.2</name>
<prefix-length>16</prefix-length>
</address>
</inet>
</family>
</unit>
<unit xmlns="http://example.com/router">
<name>1</name>
<enabled>true</enabled>
<status xmlns="http://example.com/router">
</status>
<family xmlns="http://example.com/router">
<inet xmlns="http://example.com/router">
<address xmlns="http://example.com/router">
<name>192.168.1.3</name>
<prefix-length>16</prefix-length>
</address>
</inet>
</family>
</unit>
<unit xmlns="http://example.com/router">
<name>2</name>
<enabled>true</enabled>
<description>My Vlan</description>
<vlan-id>18</vlan-id>
<status xmlns="http://example.com/router">
</status>
</unit>
</interface>
</collection>
For more info about "deep" vs "shallow", see: Section 21.2.12, “Query Parameters” [424]
Partial Responses
By default, the server sends back the full representation of a resource after processing a request. For better
performance, the server can be instructed to send only the nodes the client really needs in a partial response.
To request a partial response for a set of list entries, use the "offset" and "limit" query parameters to specify
a limited set of entries to be returned.
For example, if we what to retrieve only 2 entries from the sys/routes/inte/route list we can
issue the command:
425
The REST API
Example 21.15. Limit the response
GET /running/sys/routes/inet/route?offset=3&limit=2
The following request retrieves 2 entries starting from entry 3 (the first entry is 0):
<collection xmlns:y="http://tail-f.com/ns/rest">
<route xmlns="http://example.com/router">
<name>10.40.0.0</name>
<prefix-length>16</prefix-length>
<description>Route 4</description>
<next-hop xmlns="http://example.com/router">
<name>192.168.10.4</name>
</next-hop>
</route>
<route xmlns="http://example.com/router">
<name>10.50.0.0</name>
<prefix-length>16</prefix-length>
<description>Route 5</description>
<next-hop xmlns="http://example.com/router">
<name>192.168.10.5</name>
</next-hop>
</route>
</collection>
To request a filtered partial response, use the "select" query parameter to specify the nodes and
subresources to be returned.
Use a semicolon-separated list to select multiple nodes.
Use "a/b" to select a node "b" that is nested within node "a"; use "a/b/c" to select a node "c" nested
within "b".
Specify node subselectors to request only specific subnodes by placing expressions in parentheses "( )"
after any selected node.
To specify all subnodes of a specific node use the special wildcard notion within parentheses "(*)"
NOTE: "a/b/c;a/b/d" is equivalent to "a/b(c;d)"
The following request selects the routes name and next-hop/name nodes:
Example 21.16. Limit the response with select
GET
/running/sys/routes/inet/route/10.20.0.0,16?select=name;next-hop(name)
The server might respond:
<route xmlns="http://example.com/router"
xmlns:y="http://tail-f.com/ns/rest"
xmlns:r="http://example.com/router">
426
The REST API
<name>10.20.0.0</name>
<next-hop>
<name>192.168.10.2</name>
</next-hop>
</route>
Hidden Nodes
Hidden nodes are described in Section 10.7, “Hidden Data”. By default, hidden nodes are not visible in
the REST interface. In order to unhide hidden nodes for retrieval or editing, clients can use the query
parameter "unhide". The format of the "unhide" parameter is a comma-separated list of
<groupname>[;<password>]
As an example:
unhide=extra,debug;secret
This example unhides the normal group "extra" and the password-protected group "debug" with the
password "secret".
Displaying Default Data
Normally, leaf nodes that are not set but has a default value are not displayed at a GET request. This
behavior can be controlled by the use of the "with-defaults" query parameter. This parameter can take one
of four values:
"report-all": all data nodes are be reported, including any data nodes considered to be default data by
the server.
"explicit": a data node that has been explicitly set is reported. This is also the case when a data node is
explicitly set to a value that coincide with the default value for the node.
"trim": data nodes are not reported if they contain default value even if this was explicitly set to that
value.
"report-all-tagged": In this mode the server returns all data nodes, just like the "report-all" mode, except
a data node that is considered by the server to contain default data will include an attribute to indicate
this condition.
A request with the "with-defaults" query parameter without a specified value will be interpreted as "report-
all".
If we make a normal GET of the "sys/ntp/server" resource. The default values are not retrieved:
Example 21.17. The "sys/ntp/server" list (no defaults)
GET /running/sys/ntp/server
<collection xmlns:y="http://tail-f.com/ns/rest">
<server xmlns="http://example.com/router">
427
The REST API
<name>10.2.3.4</name>
<key>2</key>
</server>
</collection>
We can get also the default values by setting the query parameter with-defaults=report-all.
Example 21.18. The "sys/ntp/server" list with all defaults
GET /running/sys/ntp/server?with-defaults=report-all
<collection xmlns:y="http://tail-f.com/ns/rest">
<server xmlns="http://example.com/router">
<name>10.2.3.4</name>
<enabled>true</enabled>
<peer>false</peer>
<version>4</version>
<key>2</key>
</server>
</collection>
21.3.2. Examples using POST, PUT and PATCH
To create a child resource you POST the child resource to its parent (target) resource, and in a successful
result you will get returned the URI to the created resource in the Location header.
With PUT you will create or replace a target (data) resource. The message body is expected to contain the
content used to create or replace the target resource.
Create a List Instance with POST
POST can be used to create a child resource to the resource specified by the uri. In this example we create
a "route" list entry. The URI points to the parent container of the list. The payload in the POST request
contain a "route" node that, at least, contain the list keys.
Note
When creating a list entry all keys must be given in the payload.
Example 21.19. Creating a "sys/routes/inet/route" resource
POST /running/sys/routes/inet
Content-Type: application/vnd.yang.data+xml
<route>
<name>10.20.3.0</name>
<prefix-length>24</prefix-length>
</route>
428
The REST API
The server might respond:
HTTP/1.1 201
When an element is successfully created the HTTP status response is 201. If the element already existed
the status response is 409.
Create a Presence Container, within a list, with POST
In this example we create a "multilink" presence container. The URI points to the list instance that contains
the presence container, i.e the URI ends with the key(s). The payload in the POST request contain a
"multilink" node that contain a value for the leaf node "group".
Note
It is not possible to create a non-presence container with POST, as non-presence containers per
definition always exists.
Example 21.20. Creating a "sys/interfaces/serial/ppp0/multilink" resource
POST /running/sys/interfaces/serial/ppp0
Content-Type: application/vnd.yang.data+xml | egrep
'(HTTP.*Created.*|Locat*)'
<multilink>
<group>1</group>
</multilink>
The server might respond:
HTTP/1.1 201 Created
Location:
http://127.0.0.1:8008/api/running/sys/interfaces/ex:serial/ppp0/multil
ink
Create and Replace a List Instance with PUT
PUT can be used to create or replace a resource. No distinction is made in the prerequisites for PUT. If
no resource existed it is created, but if it existed it is replaced. In the example, note how the URI ends
with the keys.
Example 21.21. Creating a "route" resource using PUT
PUT /running/sys/routes/inet/route/10.30.3.0,24
Content-Type: application/vnd.yang.data+xml
429
The REST API
<route>
<name>10.30.3.0</name>
<prefix-length>24</prefix-length>
<next-hop>
<name>192.168.4.4</name>
<metric>100</metric>
</next-hop>
</route>
The server might respond:
HTTP/1.1 201
When an element is successfully created the HTTP status response is 201. We make a GET to verify the
"route" list after the PUT of the element.
Example 21.22. The "route" resource after creation
GET /running/sys/routes/inet/route/10.30.3.0,24
<route xmlns="http://example.com/router"
xmlns:y="http://tail-f.com/ns/rest"
xmlns:r="http://example.com/router">
<name>10.30.3.0</name>
<prefix-length>24</prefix-length>
<next-hop>
<name>192.168.4.4</name>
</next-hop>
</route>
Note
We didn't get the "metric" in the above result from the GET! This has to do with the (non) use of
"deep" and "shallow", see: Section 21.2.12, “Query Parameters” [424]
We will now do a replace of the same "route" element.
Example 21.23. Replacing a "route" resource using PUT
PUT /running/sys/routes/inet/route/10.30.3.0,24
Content-Type: application/vnd.yang.data+xml
<route>
<name>10.30.3.0</name>
<prefix-length>24</prefix-length>
<next-hop>
<name>192.168.3.1</name>
<metric>100</metric>
</next-hop>
430
The REST API
<next-hop>
<name>192.168.4.2</name>
<metric>200</metric>
</next-hop>
</route>
The server might respond:
HTTP/1.1 204
We get the 204 response as the resource already existed. We can verify that the element is replaced.
Example 21.24. The "route" resource after replace
GET /running/sys/routes/inet/route/10.30.3.0,24
<route xmlns="http://example.com/router"
xmlns:y="http://tail-f.com/ns/rest"
xmlns:r="http://example.com/router">
<name>10.30.3.0</name>
<prefix-length>24</prefix-length>
<next-hop>
<name>192.168.3.1</name>
</next-hop>
<next-hop>
<name>192.168.4.2</name>
</next-hop>
</route>
Create and Replace Presence Container with PUT
In this example we create a "multilink" presence container. The uri points to the not yet existing URI for
the presence container "multilink". The payload in the PUT request contain a "multilink" node that contain
a value for the leaf node 'group'.
Example 21.25. Creating a "sys/interfaces/serial/ppp0/multilink" resource
PUT /running/sys/interfaces/serial/ppp0/multilink
Content-Type: application/vnd.yang.data+xml
<multilink>
<group>1</group>
</multilink>
The server might respond:
HTTP/1.1 201
431
The REST API
Any subsequent request to the same URI will replace the content of "multilink" with the new payload. But
the response code will instead be 204, since the resource already exists.
Note
Have in mind that PUT will replace everything with the provided payload. So in the example
above, if the container "multilink" contained additional subnodes, other than "group", they would
have been deleted as they were not present in the payload.
Replace Non-Presence Container with PUT
In this example we "populate" a non-presence container with subnode data. The URI points to the existing
URI for the non-presence container "authentication", since a non-presence container always exist if its
parent exist.
Example 21.26. Creating a "sys/interfaces/serial/ppp0/authentication" resource
PUT /running/sys/interfaces/serial/ppp0/authentication
Content-Type: application/vnd.yang.data+xml
<authentication>
<method>pap</method>
<list-name>foobar</list-name>
</authentication>
The server might respond:
HTTP/1.1 204
Note
Have in mind that PUT will replace everything with the provided payload. So in the example
above, if the container "authentication" contained additional subnodes, they would have been
deleted as they were not present in the payload.
Example 21.27. The "authentication" resource after replace
GET /running/sys/interfaces/serial/ppp0/authentication
<authentication xmlns="http://example.com/example-serial"
xmlns:y="http://tail-f.com/ns/rest"
xmlns:ex="http://example.com/example-serial"
xmlns:r="http://example.com/router">
<method>pap</method>
<list-name>foobar</list-name>
</authentication>
432
The REST API
Update Existing List Instance with PATCH
To update an existing resource the PATCH method can be used. PATCH will not be allowed on non-
existent resources. When we use PATCH the payload should only contain the data that should be modified.
Example 21.28. Updating a "route" resource using PATCH
PATCH /running/sys/routes/inet/route/10.30.3.0,24
Content-Type: application/vnd.yang.data+xml
<route>
<next-hop>
<name>192.168.5.1</name>
<metric>400</metric>
</next-hop>
</route>
The server might respond:
HTTP/1.1 204
The response status 204 indicated successful update. Here we can see that a new next-hop entry has been
added to the route.
Example 21.29. The "route" resource after update
GET /running/sys/routes/inet/route/10.30.3.0,24
<route xmlns="http://example.com/router"
xmlns:y="http://tail-f.com/ns/rest"
xmlns:r="http://example.com/router">
<name>10.30.3.0</name>
<prefix-length>24</prefix-length>
<next-hop>
<name>192.168.3.1</name>
</next-hop>
<next-hop>
<name>192.168.4.2</name>
</next-hop>
<next-hop>
<name>192.168.5.1</name>
</next-hop>
</route>
Update Presence Container with PATCH
PATCH can not be used to create new resources directly, since it must operate on existing resources.
PATCH, in contrast to PUT, only merges the provided payload with the existing configuration, which
makes it possible to create child resources within the target resource. In this example we create a
433
The REST API
"multilink" presence container. The uri points to the existing parent resource for the presence container
"multilink".
Example 21.30. Creating a "sys/interfaces/serial/ppp0/multilink" resource
PATCH /running/sys/interfaces/serial/ppp0
Content-Type: application/vnd.yang.data+xml
<serial>
<multilink>
<group>1</group>
</multilink>
</serial>
The server might respond:
HTTP/1.1 204
Update Non-Presence Container with PATCH
In this example we "populate" a non-presence container with subnode data. The URI points to the existing
URI for the non-presence container "authentication", since a non-presence container always exist if its
parent exist.
Example 21.31. Creating a "sys/interfaces/serial/ppp0/authentication" resource
PATCH /running/sys/interfaces/serial/ppp0/authentication
Content-Type: application/vnd.yang.data+xml
<authentication>
<method>eap</method>
</authentication>
The server might respond:
HTTP/1.1 204
Note
Have in mind that PATCH will merge the existing configuration with the provided payload. So
in the example above, if the container "authentication" contained additional subnodes not present
in the payload, they will remain in the resulting configuration. Below the node 'list-name' was
not present in the payload, but is still present in the resulting configuration.
Example 21.32. The "authentication" resource after update
434
The REST API
GET /running/sys/interfaces/serial/ppp0/authentication
<authentication xmlns="http://example.com/example-serial"
xmlns:y="http://tail-f.com/ns/rest"
xmlns:ex="http://example.com/example-serial"
xmlns:r="http://example.com/router">
<method>eap</method>
<list-name>foobar</list-name>
</authentication>
Insert Data into Resources
For an ordered-by user list, the POST request can include the query parameters insert and resource.
The insert parameter indicated where the new element should be created. Legal values are:
first: insert on top of list.
last: insert on bottom of list.
before: insert before the element indicated by the resource parameter.
after: insert after the element indicated by the resource parameter.
The resource parameter contains the uri to an existing element in the list.
So we verify this functionality by first retrieving the "sys/dns/server" list:
Example 21.33. The "sys/dns/server" list before insert
GET /running/sys/dns
<dns xmlns="http://example.com/router"
xmlns:y="http://tail-f.com/ns/rest"
xmlns:r="http://example.com/router">
<server>
<address>10.2.3.4</address>
</server>
</dns>
We now insert a new element before the existing element:
Example 21.34. Insert=before in the "sys/dns/server" list
POST
/running/sys/dns?insert=before&resource=/api/running/sys/dns/server/10
.2.3.4
Content-Type: application/vnd.yang.data+xml
<server>
435
The REST API
<address>10.1.1.2</address>
</server>
The server might respond:
HTTP/1.1 201
We get a 201 status when successful and we verify the result by retreiving the list once again:
Example 21.35. The "sys/dns/server" list after insert
GET /running/sys/dns
<dns xmlns="http://example.com/router"
xmlns:y="http://tail-f.com/ns/rest"
xmlns:r="http://example.com/router">
<server>
<address>10.1.1.2</address>
</server>
<server>
<address>10.2.3.4</address>
</server>
</dns>
21.3.3. Invoke Operations
To invoke an operation, use the POST method. The message body (if any) is processed as the operation
input parameters.
Example 21.36. An "archive-log" action request example
The following yang model snippet shows the definition of the action archive-log:
grouping syslog {
list server {
key "name";
leaf name {
type inet:host;
}
leaf enabled {
type boolean;
}
list selector {
key "name";
leaf name {
type int32;
}
leaf negate {
type boolean;
}
leaf comparison {
436
The REST API
type enumeration {
enum "same-or-higher";
enum "same";
}
}
leaf level {
type syslogLevel;
}
leaf-list facility {
type syslogFacility;
min-elements 1;
max-elements "8";
}
}
leaf administrator {
type string;
tailf:hidden maint;
}
tailf:action archive-log {
tailf:exec "./scripts/archive-log";
input {
leaf archive-path {
type string;
}
leaf compress {
type boolean;
}
}
output {
leaf result {
type string;
}
}
}
}
}
The action is invoked using the following URI. Note, the _operations tag that indicates the action
invocation:
POST /running/sys/syslog/server/10.3.4.5/
operations/archive-log
Content-Type: application/vnd.yang.data+xml
<input>
<archive-path>/tmp</archive-path>
<compress>false</compress>
</input>
The server might respond:
<output xmlns='http://example.com/router'>
<result>success</result>
</output>
437
The REST API
If the POST method succeeds, a "200 OK" Status-Line is returned if there is a response message body,
and a "204 No Content" Status-Line is returned if there is no response message body.
If the user is not authorized to invoke the target operation, an error response containing a "403 Forbidden"
Status-Line is returned to the client.
21.3.4. Delete Data Resources
A delete removes all data in the subtree under a resource. In this example we remove the complete "sys/
interfaces/ex:serial" list.
Example 21.37. delete the "sys/interfaces/ex:serial" list
DELETE /running/sys/interfaces/ex:serial
The server might respond:
HTTP/1.1 204
The response status 204 indicates success. If we retrieve the "sys/interfaces" resource we can verify that
the "ex:serial" list is removed.
Example 21.38. The "sys/interfaces" resource after delete
GET /running/sys/interfaces
<interfaces xmlns="http://example.com/router"
xmlns:y="http://tail-f.com/ns/rest"
xmlns:r="http://example.com/router">
<interface>
<name>eth0</name>
</interface>
</interfaces>
Whenever a change is made and a rollback resource is created we can set a label and a comment for that
change. If we used that together with the DELETE above, we could have used this command instead.
Example 21.39. delete the "sys/interfaces/ex:serial" list with rollback label and
comment
DELETE /running/sys/interfaces/ex:serial?rollback-comment=remove%20subtree&ro
llback-label=delete
21.4. Resources
The RESTCONF protocol operates on a hierarchy of resources, starting with the top-level API resource
itself. Each resource represents a manageable component within the device.
438
The REST API
A resource can be considered a collection of conceptual data and the set of allowed methods on that data.
It can contain child nodes that are nested resources. The child resource types and methods allowed on
them are data-model specific.
A resource has its own media type identifier, represented by the Content-Type header in the HTTP
response message. A resource can contain zero or more nested resources. A resource can be created and
deleted independently of its parent resource, as long as the parent resource exists.
The RESTCONF resources are accessed via a set of URIs defined in this document. The set of YANG
modules supported by the server will determine the additional data model specific operations, top-level
data node resources, and notification event messages supported by the server.
The resources used in the RESTCONF protocol are identified by the "path" component in the request URI,
see Example 21.4, “Request URI structure”. Each operation is performed on a target resource.
21.4.1. Representation
The RESTCONF protocol defines some application specific media types to identify each of the available
resource types. The following resource types are defined in the REST API:
Table 21.3. Resources and their Media Types
Resource Media Type
API application/vnd.yang.api
Datastore application/vnd.yang.datastore
Data application/vnd.yang.data
Operation application/vnd.yang.operation
Note
The REST API does not support all of the datastores defined in RESTCONF, neither does it use
the same media types.
THIS DIFFERS FROM RESTCONF!
XML representation
A resource is represented in XML as an XML element, with an XML attribute "y:self" that contains the
URI for the resource. In the XML representation, every resource has an XML attribute:
y:self="..."
Leafs are properties of the resource. They are encoded in XML as elements.
XML namespaces must be used whenever there are multiple sibling nodes with the same local name.
This only happens if a YANG module augments a node with the same name as another node in the same
container or list. XML namespaces MAY always be used, even if there are no risk of a conflict.
JSON representation
In the JSON representation, this URI is encoded as:
"_self": "..."
439
The REST API
In the representation of a list resource, the keys are always present, and encoded first.
JSON doesn't have anything similar to XML namespaces. However, we have adopted the notion defined
in the Internet Draft: "Modeling JSON Text with YANG", where a <yang-module-name>:<tag> tag name
is used in the JSON data to indicate the namespace. Note that it is only when the namespace changes that
this notion is used.
Example 21.40. Namespaces in JSON
...
"foo": [
{
"_self": "/api/operational/x/foo/1",
"id": 1,
// Note: the 'card' container exist in a different namespace
// compared to its parent 'foo' list element. The
// 'a' is the Yang module name where 'card' is defined
"a:card": {
"_self": "/api/operational/x/foo/1/a:card",
"id": 1
}
...
21.4.2. API Resource (/api)
The top-level resource has the media type "application/vnd.yang.api+xml" or "application/vnd.yang.api
+json". It is accessible through the well-known URI "/api".
This resource has the following fields:
Table 21.4. Fields of the /api resource
Field Description
version The version of the REST api.
config Link to the "config" resource.
running Link to the "running" resource.
startup Link to the "startup" resource.
candidate Link to the "candidate" resource.
operational Link to the "operational" resource.
operations Container for available operations (i.e: YANG rpc statements).
rollbacks Container for available rollback files.
In XML, this resource is represented as an XML document with the document root element "y:api",
underneath which all the resource's fields are represented as subelements.
In JSON, this resource is represented as a JSON object.
Supported HTTP methods: GET, HEAD, OPTIONS.
The version Field
The "version" field is a string identifying the version of the REST api.
440
The REST API
The config Resource
The "config" resource represents a unified configuration datastore, used to simplify resource management
for the client. The underlying NETCONF datastores are used to implement the unified datastore, but the
clients do not have to care about which underlying datastore to used.
The server hides all NETCONF datastore details for edit operations, such as the :candidate and :startup
capabilities. When a client writes to this resource, the server performs the edits in the datastores used; if
the candidate is enabled, the changes are written to the candidate, and then the candidate is committed; if
the startup is enabled, the changes are written to running and running is copied to startup.
The media type of this resource is either "application/vnd.yang.datastore+xml" or "application/
vnd.yang.datastore+json".
Note
This resource resembles the RESTCONF "Datastore Resource" except that it does not contain
operational data. RESTCONF differs from the REST API as it does not have separate NETCONF
datastores for "running", "candidate" and "startup".
The running Resource
The "running" resource represents the running configuration datastore, and is present on all devices. Not
all devices support direct modification to this resource.
The media type of this resource is either "application/vnd.yang.datastore+xml" or "application/
vnd.yang.datastore+json".
The startup Resource
The "startup" resource represents the startup configuration datastore. Not all devices support this resource.
The media type of this resource is "application/vnd.yang.datastore+xml" or "application/
vnd.yang.datastore+json".
The candidate Resource
The "candidate" resource represents the candidate configuration datastore. Not all devices support this
resource.
The media type of this resource is "application/vnd.yang.datastore+xml" or "application/
vnd.yang.datastore+json".
The operational Resource
The "operational" read-only resource represents the state data as well as the config data on the device, and
is present on all devices. Note that actions defined as config false also will show up in this resource.
The media type of this resource is "application/vnd.yang.datastore+xml" or "application/
vnd.yang.datastore+json".
Note
This resource resembles the RESTCONF "Datastore Resource" except that it is read-only.
441
The REST API
The transaction Resource
The "transaction" resource represents a transaction datastore created by the JSON-RPC API. This allows
REST API requests that read or write towards an existing transaction, without committing the transaction
(this is left up to other entities e.g. the JSON-RPC API).
The media type of this resource is either "application/vnd.yang.datastore+xml" or "application/
vnd.yang.datastore+json".
The operations Container
The "operations" container contains all operations defined with the "rpc" statement in the YANG models
supported on the device.
The rollbacks Container
The "rollbacks" container contains all available rollback files to be used to rollback the configuration state
to an earlier incarnation.
The logout Resource
The "logout" read-only resource is a meta-resource that always replies with 401 Unauthorized in order
to aid scenarios where the REST API credentials are being cached by the HTTP client (e.g. a browser).
Calling this resource will prompt for new credentials on subsequent requests to any other resource on the
same realm.
Examples
In order to retrieve the representation of this resource, a client can send:
Note the use of the 'verbose' query parameter, see Section 21.2.12, “Query Parameters”.
Example 21.41. GET the /api resource
GET /api?verbose
Application:vnd.yang.api+xml
The server might respond:
HTTP/1.1 200 OK
Server:
Date: Wed, 12 Aug 2015 11:38:23 GMT
Cache-Control: private, no-cache, must-revalidate, proxy-revalidate
Content-Length: 288
Content-Type: application/vnd.yang.api+xml
Vary: Accept-Encoding
Pragma: no-cache
<api xmlns="http://tail-f.com/ns/rest"
xmlns:y="http://tail-f.com/ns/rest" y:self="/api">
<version>0.5</version>
<config y:self="/api/config"/>
<running y:self="/api/running"/>
442
The REST API
<operational y:self="/api/operational"/>
<operations/>
<rollbacks y:self="/api/rollbacks"/>
</api>
21.4.3. Datastore Resource (/api/<datastore>)
The media types "application/vnd.yang.datastore+xml" and "application/vnd.yang.datastore+json"
represent a complete datastore. All three configuration datastores defined by NETCONF are available, as
the resources:
• running
• candidate
• startup
operational (read-only)
Note
The state data defined by NETCONF is available as a read-only resource "operational".
THIS DIFFERS FROM RESTCONF!
A config datastore (i.e one of "running", "candidate","startup") resource has the following fields:
Table 21.5. Fields of the /api/<datastore> resource
Field Description
operations Container for available built-in operations.
y:operations Container for available user defined actions.
<all top-level data
models nodes> Top-level nodes from the YANG models.
The "operational" datastore contains both operational and config data; as well as the containers as shown
in the table: Table 21.5, “Fields of the /api/<datastore> resource”.
The REST API has a number of built-in operations that may be applicable for a particular datastore, and
if they are applicable they are included in the operations container as described below:
Table 21.6. Built in operations
Field Description
commit Link to the "commit" resource.
copy-running-to-startup Link to the "copy-running-to-startup" resource.
discard-changes Link to the "discard-changes" resource.
lock Link to the "lock" resource.
validate Link to the "validate" resource.
In XML, the /api/<datastore> resource is represented as an XML document with the document root
element "y:data", underneath which all the resource's fields are represented as subelements.
443
The REST API
In JSON, this resource is represented as a JSON object.
The operations are described below, and all represented by the media type "application/
vnd.yang.operation", see Section 21.3.3, “Invoke Operations”.
The lock Resource
In order to access a datastore through a lock, the client needs to POST to the "lock" resource. If the
server is able to lock the datastore, the POST request succeeds with the status code "201 Created", and the
"Location" HTTP header contains the URI to a newly created resource representing the locked datastore.
To unlock the datastore, the client deletes the newly created resource using the HTTP method DELETE.
The "config" resource cannot be locked.
In the representation of a locked datastore, the "lock" operation is not available.
In order to facilitate recovery from failing clients with outstanding locks, the REST server deletes the
resource representing the lock after some time of inactivity.
The media type of this resource is "application/vnd.yang.operation+xml".
The commit Resource
In the representation of the candidate datastore, the "commit" operation is present, and can be POSTed to
by the client to commit candidate to running, as described in section 8.3 in RFC 6241.
The media type of this resource is "application/vnd.yang.operation".
The copy-running-to-startup Resource
In the representation of the running datastore, the "copy-running-to-startup" operation is present, if the
server also supports the startup datastore, and can be POSTed to by the client to copy the contents of
running to startup, as described in section 8.7 in RFC 6241.
The media type of this resource is "application/vnd.yang.operation".
The discard-changes Resource
In the representation of the candidate datastore, the "discard-changes" operation is present, and can be
POSTed to by the client to revert the candidate to the current running configuration, as described in section
8.3.4.2 in RFC 6241.
The media type of this resource is "application/vnd.yang.operation".
The validate Resource
In the representation of the candidate datastore, the "validate" operation is present, and can be POSTed to
by the client to validate the contents of the candidate, as described in section 8.6.4.1 in RFC 6241.
The media type of this resource is "application/vnd.yang.operation".
Examples
The examples in this section could instead have been performed using JSON specific mime types such as
"application/vnd.yang.api+json", "application/vnd.yang.datastore+json" and "application/vnd.yang.data
+json".
444
The REST API
To retrieve a representation of the running datastore in XML format, a client can send:
(Note the use of the 'verbose' query parameter, see Section 21.2.12, “Query Parameters”)
Example 21.42. GET the /api/running resource
GET /api/running?verbose
Application:vnd.yang.api+xml
The server might respond:
HTTP/1.1 200 OK
Server:
Date: Wed, 12 Aug 2015 11:38:23 GMT
Last-Modified: Wed, 12 Aug 2015 11:38:23 GMT
Cache-Control: private, no-cache, must-revalidate, proxy-revalidate
Etag: 1439-379503-31029
Content-Type: application/vnd.yang.datastore+xml
Transfer-Encoding: chunked
Pragma: no-cache
<data xmlns:y="http://tail-f.com/ns/rest" y:self="/api/running">
<sys xmlns="http://example.com/router" y:self="/api/running/sys">
...
</sys>
...
<operations>
<lock y:self="/api/running/_lock">/api/running/_lock</lock>
<rollback
y:self="/api/running/_rollback">/api/running/_rollback</rollback>
</operations>
</data>
To copy running to startup, a client can send:
POST /api/running/_copy-running-to-startup
Host: example.com
Accept: application/vnd.yang.operations+xml
Note that any action defined as "config false" will only show up under the /api/operational datastore.
Example 21.43. Action in /api/operational
...
<blaha xmlns="http://example.com/ns/ktm"
y:self="/api/operational/blaha">
<y:operations y:path="/blaha">
<bar y:self="/api/operational/blaha/_operations/bar"/>
<!-- NOTE: this action is defined as 'config false'
and hence, shows up under the 'operational'
datastore -->
445
The REST API
</y:operations>
</blaha>
...
21.4.4. Data Resource (/api/<datastore>/<data>)
By default, all top-level objects, list entries, and containers are resources. Any resource derived from a
YANG module is represented with the media type "application/vnd.yang.data+xml".
When such a resource is retrieved, a "path" property is included in its representation (a "y:path" attribute
in XML). The value of this property is the resource's instance-identifier.
Supported HTTP methods: DELETE, GET, HEAD, OPTIONS, PATCH, POST, PUT.
Note that resources representing non-presence containers cannot be deleted, and thus they do not support
the DELETE method.
Refer to Section 21.3, “Resource Examples” for examples of how to operate on "application/vnd.yang.data
+xml".
21.4.5. Operations and Actions
YANG-defined operations, defined with the YANG statements "rpc" or "tailf:action", and the built-in
operations, are represented with the media type "application/vnd.yang.operation".
Resources of this type accept only the method "POST".
In XML, such resources are encoded as subelements to the XML element "y:operations". In JSON, they
are encoded under "_operations".
If an operation does not require any parameters, the POST message has no body. If the client wishes to send
parameters to the operation, they are encoded as an XML document with the document element "input".
If an operation does not produce any output, the HTTP response code is 204 (No Content). If it produces
output, the HTTP response code is 200 (OK), and the output of the operation is encoded as an XML
document with the document element "output".
Supported HTTP methods: POST
21.4.6. The Rollback Resource
The rollback resource can be accessed from the top level "/api/rollbacks" resource as described above, and
a rollback file can be applied to any database.
Listing and Inspecting Rollback Files
In order to list available a rollback files, a client can send:
Example 21.44. GET rollback files information
GET /api/rollbacks
Application:vnd.yang.api+xml
446
The REST API
The server might respond:
<rollbacks xmlns="http://tail-f.com/ns/rest"
xmlns:y="http://tail-f.com/ns/rest">
<file>
<name>0</name>
<creator>admin</creator>
<date>2015-08-12 13:38:23</date>
<via>rest</via>
<label></label>
<comment></comment>
</file>
<file>
<name>1</name>
<creator>admin</creator>
<date>2015-08-12 13:38:22</date>
<via>rest</via>
<label></label>
<comment></comment>
</file>
</rollbacks>
Note how each rollback file is represented as separate resources, e.g. "/api/rollbacks/0". We can also see
how the 'rollback-label' and 'rollback-comment' is used in "/api/rollbacks/0/label" and "/api/rollbacks/0/
comment". These resources can be inspected individually and a client can send:
Example 21.45. GET rollback file content
GET /api/rollbacks/0
Application:vnd.yang.api+xml
The server might respond:
# Created by: admin
# Date: 2015-08-12 13:38:23
# Via: rest
# Type: delta
# Label:
# Comment:
# No: 10016
sys {
interfaces {
serial ppp0 {
ppp {
accounting acme;
}
authentication {
method eap;
list-name foobar;
}
authorization admin;
multilink {
447
The REST API
group 1;
}
}
}
}
The payload is in the same curly bracket rollback format as used in the NETCONF, CLI and Web UI agents.
Applying Rollback Files
To apply a rollback file to a database use the appropriate "rollback" resource/operation in the datastore
of your choice:
Example 21.46. Find and use the rollback operation resource
GET /api/running
Application:vnd.yang.datastore+xml
The server might respond:
<data xmlns:y="http://tail-f.com/ns/rest">
<sys xmlns="http://example.com/router">
...
</sys>
...
<operations>
<lock>/api/running/_lock</lock>
<rollback>/api/running/_rollback</rollback>
</operations>
</data>
Note the "/api/running/_rollback" resource operation.
POST an appropriate rollback file name to the "/api/running/_rollback" resource operation to apply it:
POST /api/running/_rollback
Content-Type: application/vnd.yang.data+xml
<file>0</file>
The server might respond:
HTTP/1.1 204
21.5. Configuration Meta-Data
As described in Chapter 8, Configuration Meta-Data it is possible to associate meta-data with the
configuration data. For REST, resources such as containers, lists as well as leafs and leaf-lists can have
such meta-data. For XML, this meta-data is represented as attributes, attached to the XML element in
448
The REST API
question. For JSON, there does not exist a natural way to represent this info. Hence we have introduced
a special notation, see the example below.
Example 21.47. XML representation of meta-data
<x xmlns="urn:x"
y:self="/api/running/x"
xmlns:y="http://tail-f.com/ns/rest"
xmlns:x="urn:x"
y:path="/x:x">
<id tags=" important ethernet " annotation="hello world">42</id>
<person y:self="/api/running/x/person" annotation="This is a person">
<name>Bill</name>
<person annotation="This is another person">grandma</person>
</person>
</x>
Example 21.48. JSON representation of meta-data
{
"x": {
"_self": "/api/running/x",
"_path": "/x:x",
"id": 42,
"@id": {"tags": ["important","ethernet"],"annotation": "hello world"},
"person": {
"_self": "/api/running/x/person",
// NB: the below refers to the parent object
"@@person": {"annotation": "This is a person"},
"name": "Bill",
"person": "grandma",
// NB: the below refers to the sibling object
"@person": {"annotation": "This is another person"}
}
}
}
For JSON, note how we represent the meta data for a certain object "x" by another object constructed of
the object name prefixed with either one or two "@" signs. The meta-data object "@x" refers to the sibling
object "x" and the "@@x" object refers to the parent object.
Note
THIS DIFFERS FROM RESTCONF!
21.6. Request/Response headers
There are some optional request and response headers that are of interest since some functionality is
obtained by their use. We here focus on the Etag and Last-Modified response headers, and the
request headers that are correlated to these (If-Match, If-None-Match, If-Modified-Since
and If-Unmodified-since).
21.6.1. Response headers
Etag: This header (entity-tag) is a string representing the latest transaction id in the database. This
header is only available for the "running" resource or equivalent.
449
The REST API
Last-Modified: This header contains the timestamp for the last change in the database. This header
is only available for the "running" resource or equivalent. Also, this header is only available if rollback
files are enabled.
21.6.2. Request headers
If-None-Match: This header evaluates to true if the supplied value does not match the latest Etag
value. If evaluated to false an error response with status 304 (Not Modified) will be sent with no body.
The usage of this is for instance for a GET operation to get information if the data has changed since last
retrieval. This header carry only meaning if the Etag response header has previously been acquired.
If-Modified-Since: This request-header field is used with a HTTP method to make it conditional,
i.e if the requested variant has not been modified since the time specified in this field, an entity will
not be returned from the server; instead, a 304 (Not Modified) response will be returned without any
message-body.
Usage of this is for instance for a GET operation to get information if (and only if) the data has changed
since last retrieval. Thus, this header should use the value of a Last-Modified response header that
has previously been acquired.
If-Match: This header evaluates to true if the supplied value matches the latest Etag value. If
evaluated to false an error response with status 412 (Precondition Failed) will be sent with no body.
The usage of this can be to control if a POST operation should be executed or not (i.e. do not execute if
the database has changed). This header carry only meaning if the Etag response header has previously
been acquired.
If-Unmodified-Since: This header evaluates to true if the supplied value is later or equal to
the last acquired Last-Modified timestamp. If evaluated to false an error response with status 412
(Precondition Failed) will be sent with no body.
The usage of this can be to control if a POST operation should be executed or not (i.e. do not execute if
the database has changed). This header carry only meaning if the Last-Modified response header
has previously been acquired.
21.7. Special characters
When setting or retrieving data it is sometimes necessary to represent special characters in the payload.
In the REST api the payload can have both XML and JSON format. The special characters handled in
the REST api are:
"new line": representing a line feed (decimal ascii value 10)
"carriage return": representing carriage return (decimal ascii value 13)
"horizontal tab": representing a tabulation (decimal ascii value 9)
The ambition in the REST api is that special characters should be handled in the same way as they are in the
CLI. Since the CLI is capable to present configuration data both as strings and XML the CLI representation
can be used as template for both the XML and JSON format.
21.7.1. XML representation of special characters
When in the XML case the special characters uses the representation &#xH; where H is the ascii hex value
or &#DD; where DD is the ascii decimal value. Since "&" is the quoting character this is also treated as a
450
The REST API
special character, and so is "<" since this is the separator character indicating the beginning of a tag value.
The following is the list of XML special characters:
"new line": represented by &#xA; or &#10;
"carriage return": represented by &#xD; or &#13;
"horizontal tab": represented by &#x9; or &#09;
"&": represented by &amp;
"<": represented by &lt;
An example XML fragment is
<foo>123\n456\\n &lt;&amp;></foo>
which is interpreted as:
123
456\n <&>
21.7.2. JSON representation of special characters
In the JSON formatted string case the quote character "\" and string separator characters are used "\"" which
also becomes special characters in the string case. The complete list of JSON special characters become:
"new line": represented by \n
"carriage return": represented by \r
"horizontal tab": represented by \t
"\": represented by \ or \\
""": represented by \"
The \ quote character is used in the following way: A single \ in a string that is not directly followed by
characters n,r or t are unaltered (as a \ character). Two \\ are interpreted as \ (the escaped \). This implies
that both \\\ and \\\\ are are interpreted as \\ and so forth.
An example JSON string is
"123\n456\\n \\\"
which is interpreted as:
123
456\n \\
451
The REST API
21.8. Error Responses
Error responses are formatted either in XML and JSON depending on the preferred MIME type in the
request.
In your installed release you should be able to find a Yang file named tailf-rest-error.yang
that defines the structure of these error replies. An easy way to find the file run, from the top directory
of your installation:
find . -name tailf-rest-error.yang
Let's start by looking at an example of how a structured error reply can look like.
Example 21.49. Example of a XML formatted error message
curl -i -X PUT "localhost:8008/api/running/hosts"
-H "Content-Type: application/vnd.yang.data+xml" ...
HTTP/1.1 500 Internal Server Error
Server: ConfD/5.3.0
Cache-control: private, no-cache, must-revalidate, proxy-revalidate
Date: Thu, 10 Jul 2014 07:59:04 GMT
Content-Length: 259
Content-Type: text/xml
<errors xmlns="http://tail-f.com/ns/tailf-rest-error">
<error>
<error-tag>operation-failed</error-tag>
<error-urlpath>/api/running/hosts</error-urlpath>
<error-message>internal error</error-message>
</error>
</errors>
Example 21.50. Example of a JSON formatted error message
curl -i -X POST "localhost:8008/api/running/hosts2" \
-H "Content-Type: application/vnd.yang.data+json" ...
HTTP/1.1 400 Bad Request
Server: ConfD/5.3.0
Cache-control: private, no-cache, must-revalidate, proxy-revalidate
Date: Thu, 10 Jul 2014 09:11:13 GMT
Content-Length: 199
Content-Type: text/json
{"errors":
{"error":
[{
"error-message": "unexpected trailing data: hosts",
"error-urlpath": "/api/running/hosts",
"error-tag": "malformed-message"
}
]
}
452
The REST API
}
The YANG model for the error messages is taken from the NETCONF specification. However, note that
the REST API currently only sets three values when reporting an error:
"error-tag": An error classification tag.
"error-urlpath": The URI used by the error generating request.
"error-message": A descriptive error message.
The error-tag element has a number of predefined values and there is also a preferred HTTP status code
connected to each error-tag. These are:
"in-use": HTTP Status: 409 Conflict
"invalid-value": HTTP Status: 400 Bad Request
"too-big": HTTP Status: 413 Request Entity Too Large
"missing-attribute": HTTP Status: 400 Bad Request
"bad-attribute": HTTP Status: 400 Bad Request
"unknown-attribute": HTTP Status: 400 Bad Request
"bad-element": HTTP Status: 400 Bad Request
"unknown-element": HTTP Status: 400 Bad Request
"unknown-namespace": HTTP Status: 400 Bad Request
"access-denied": HTTP Status: 403 Forbidden
"lock-denied": HTTP Status: 409 Conflict
"resource-denied": HTTP Status: 409 Conflict
"rollback-failed": HTTP Status: 500 Internal Server Error
"data-exists": HTTP Status: 409 Conflict
"data-missing": HTTP Status: 409 Conflict
"operation-not-supported": HTTP Status: 501 Not Implemented
"operation-failed": HTTP Status: 500 Internal Server Error
"partial-operation": HTTP Status: 500 Internal Server Error
"malformed-message": HTTP Status: 400 Bad Request
21.8.1. User extended error messages
For data providers, hooks, transforms etc there exist a possibility to add extensions to error
messages and change error codes before sending errors back to the server from the callbacks (see:
Section 28.14, “Error Message Customization”). These codes and error messages will also be visible
453
The REST API
over the REST interface. More on how to use these options can be found in the confd_lib_dp(3)
man page, e.g under the confd_db_seterr_extended function, or in the Javadoc for the
com.tailf.dp.DpCallbackExtendedException class.
Using the above mechanism to change the errorcode for an emitted error, will have effect on the REST
HTTP response statuses. The following table show their relationship:
Table 21.7. Error code vs HTTP Status
Error Code HTTP Status
CONFD_ERRCODE_IN_USE 409 Conflict
CONFD_ERRCODE_RESOURCE_DENIED 409 Conflict
CONFD_ERRCODE_INCONSISTENT_VALUE 400 Bad Request
CONFD_ERRCODE_ACCESS_DENIED 403 Forbidden
CONFD_ERRCODE_APPLICATION 400 Bad Request
CONFD_ERRCODE_APPLICATION_INTERNAL 500 Internal Server Error
CONFD_ERRCODE_DATA_MISSING 409 Conflict
CONFD_ERRCODE_INTERRUPT 500 Internal Server Error
21.9. The Query API
The Query API consists of a number of Requests and Replies which are sent as payload via the (REST)
HTTP connection.
In your installed release you should be able to find two YANG files named tailf-rest-query.yang
and tailf-common-query.yang that defines the structure of these Requests / Replies. An easy way
to find the files is to run the following command from the top directory of your installation:
find . -name tailf-rest-query.yang
The API consists of the following Requests:
"start-query": Start a query and return a query handle.
"fetch-query-result": Use a query handle to repeatedly fetch chunks of the result.
"immediate-query": Start a query and return the entire result immediately.
"reset-query": (Re)set where the next fetched result will begin from.
"stop-query": Stop (and close) the query.
The API consists of the following Replies:
"start-query-result": Reply to the start-query request
"query-result": Reply to the fetch-query-result and immediate-query requests
In the following examples, we'll use this data model:
454
The REST API
container x {
list host {
key number;
leaf number {
type int32;
}
leaf enabled {
type boolean;
}
leaf name {
type string;
}
leaf address {
type inet:ip-address;
}
}
}
The actual format of the payload should be represented either in XML or JSON. For XML it could look
like this:
<start-query xmlns="http://tail-f.com/ns/tailf-rest-query">
<foreach>
/x/host[enabled = 'true']
</foreach>
<select>
<label>Host name</label>
<expression>name</expression>
<result-type>string</result-type>
</select>
<select>
<expression>address</expression>
<result-type>string</result-type>
</select>
<sort-by>name</sort-by>
<limit>100</limit>
<offset>1</offset>
<timeout>600</timeout>
</start-query>
An informal interpretation of this query is:
For each '/x/host' where 'enabled' is true, select its 'name', and 'address', and return the result sorted by
'name', in chunks of 100 results at the time.
Let us discuss the various pieces of this request. To start with, when using XML, we need to specify the
name space as shown:
<start-query xmlns="http://tail-f.com/ns/tailf-rest-query">
The actual XPath query to run is specified by the 'foreach' element. In the example below will search for
all '/x/host' nodes that has the 'enabled' node set to 'true':
<foreach>
/x/host[enabled = 'true']
455
The REST API
</foreach>
Now we need to define what we want to have returned from the node set by using one or more 'select'
sections. What to actually return is defined by the XPath 'expression'.
Choose how the result should be represented. Basically, it can be the actual value or the path leading to
the value. This is specified per select chunk The possible result-types are: 'string' , 'path' , 'leaf-value' and
'inline'.
The difference between 'string' and 'leaf-value' is somewhat subtle. In the case of 'string' the result will be
processed by the XPath function: string() (which if the result is a node-set will concatenate all the values).
The 'leaf-value' will return the value of the first node in the result. As long as the result is a leaf node, 'string'
and 'leaf-value' will return the same result. In the example above, the 'string' is used as shown below. At
least one result-type must be specified.
The result-type 'inline' makes it possible to return the full sub-tree of data, either in XML or in JSON
format. The data will be enclosed with a tag: 'data'.
It is possible to specify an optional 'label' for a convenient way of labeling the returned data:
<select>
<label>Host name</label>
<expression>name</expression>
<result-type>string</result-type>
</select>
<select>
<expression>address</expression>
<result-type>string</result-type>
</select>
The returned result can be sorted. This is expressed as XPath expressions, which in most cases are very
simple and refers to the found node set. In this example we sort the result by the content of the 'name' node:
<sort-by>name</sort-by>
To limit the max amount of results in each chunk that 'fetch-query-result' will return we can set the 'limit'
element. The default is to get all results in one chunk.
<limit>100</limit>
With the 'offset' element we can specify at which node we should start to receive the result. The default
is 1, i.e., the first node in the resulting node-set.
<offset>1</offset>
It is possible to set a custom timeout when starting or resetting a query. Each time a function is called, the
timeout timer resets. The default is 600 seconds, i.e. 10 minutes.
<timeout>600</timeout>
456
The REST API
Note
Note that there can exist other underlying timeouts that are shorter than the REST Query API
timeout.
This request, expressed in JSON, would look like this:
{
"start-query": {
"foreach": "/x/host[enabled = 'true']",
"select": [
{
"label": "Host name",
"expression": "name",
"result-type": ["string"]
},
{
"expression": "address",
"result-type": ["string"]
}
],
"sort-by": ["name"],
"limit": 100,
"offset": 1,
"timeout": 600
}
}
Now, if we continue by putting this XML example in a file test.xml we can send a request, using the
command 'curl', like this:
curl -i 'http://admin:admin@localhost:8008/api/query' \
-X POST -T test.xml \
-H "Content-Type: application/vnd.yang.data+xml"
The important parts of the above is the '/api/query' in the URI and that we send a HTTP 'POST' with the
correct 'Content-Type'.
The result would look something like this:
<start-query-result>
<query-handle>12345</query-handle>
</start-query-result>
The query handle (in this example '12345') must be used in all subsequent calls. To retrieve the result,
we can now send:
<fetch-query-result xmlns="http://tail-f.com/ns/tailf-rest-query">
<query-handle>12345</query-handle>
</fetch-query-result>
457
The REST API
Which will result in something like the following:
<query-result xmlns="http://tail-f.com/ns/tailf-rest-query">
<result>
<select>
<label>Host name</label>
<value>One</value>
</select>
<select>
<value>10.0.0.1</value>
</select>
</result>
<result>
<select>
<label>Host name</label>
<value>Three</value>
</select>
<select>
<value>10.0.0.3</value>
</select>
</result>
</query-result>
If we try to get more data with the 'fetch-query-result' we might get more 'result' entries in return until no
more data exists and we get an empty query result back:
<query-result xmlns="http://tail-f.com/ns/tailf-rest-query">
</query-result>
If we want to send the query and get the entire result with only one request, we can do this by using
'immediate-query'. This function takes similar arguments as 'start-query' and returns the entire result
analogous 'fetch-query-result'. Note that it is not possible to paginate or set an offset start node for the
result list; i.e. the options 'limit' and 'offset' are ignored.
An example request and response:
<immediate-query xmlns="http://tail-f.com/ns/tailf-rest-query">
<foreach>
/x/host[enabled = 'true']
</foreach>
<select>
<label>Host name</label>
<expression>name</expression>
<result-type>string</result-type>
</select>
<select>
<expression>address</expression>
<result-type>string</result-type>
</select>
<sort-by>name</sort-by>
<timeout>600</timeout>
</immediate-query>
458
The REST API
<query-result xmlns="http://tail-f.com/ns/tailf-rest-query">
<result>
<select>
<label>Host name</label>
<value>One</value>
</select>
<select>
<value>10.0.0.1</value>
</select>
</result>
<result>
<select>
<label>Host name</label>
<value>Three</value>
</select>
<select>
<value>10.0.0.3</value>
</select>
</result>
</query-result>
If we want to go back in the "stream" of received data chunks and have them repeated, we can do that with
the 'reset-query' request. In the example below we ask to get results from the 42:nd result entry:
<reset-query xmlns=\"http://tail-f.com/ns/tailf-rest-query\">
<query-handle>12345</query-handle>
<offset>42</offset>
</reset-query>
Finally, when we are done we stop the query:
<stop-query xmlns="http://tail-f.com/ns/tailf-rest-query">
<query-handle>12345</query-handle>
</stop-query>
21.10. Custom Response HTTP Headers
The REST server can be configured to reply with particular HTTP headers in the HTTP response. For
example, to support Cross-Origin Resource Sharing (CORS, http://www.w3.org/TR/cors/) there is a need
to add a couple of headers to the HTTP Response.
We add the extra configuration parameter in confd.conf
Example 21.51. ConfD configuration for REST
<rest>
<enabled>true</enabled>
<customHeaders>
<header>
<name>Access-Control-Allow-Origin</name>
<value>*</value>
459
The REST API
</header>
</customHeaders>
</rest>
Example 21.52.
Send a request with Origin header:
OPTIONS .bob.com
A result can then look like
HTTP/1.1 200 OK
Server:
Allow: GET, HEAD
Cache-Control: private, no-cache, must-revalidate, proxy-revalidate
Content-Length: 0
Content-Type: text/html
Access-Control-Allow-Origin: http://api.bob.com
Pragma: no-cache
21.11. HTTP Status Codes
The REST server will return standard HTTP response codes, as described in the list below:
200 OK The request was successfully completed, and a response body is
returned containing a representation of the resource.
201 Created A resource was created, and the new resource URI is returned in
the "Location" header.
204 No Content The request was successfully completed, but no response body is
returned.
400 Bad Request The request could not be processed because it contains missing or
invalid information (such as validation error on an input field, a
missing required value, and so on).
401 Unauthorized The request requires user authentication. The response includes a
"WWW-Authenticate" header field for basic authentication.
403 Forbidden Access to the resource was denied by the server, due to
authorization rules.
404 Not Found The requested resource does not exist.
405 Method Not Allowed The HTTP method specified in the request (DELETE, GET,
HEAD, PATCH, POST, PUT) is not supported for this resource.
460
The REST API
406 Not Acceptable The resource identified by this request is not capable of generating
the requested representation, specified in the "Accept" header or in
the "format" query parameter.
409 Conflict This code is used if a request tries to create a resource that already
exists.
415 Unsupported Media Type The format of the request is not supported.
500 Internal Error The server encountered an unexpected condition which prevented
it from fulfilling the request.
501 Not Implemented The server does not (currently) support the functionality required
to fulfill the request.
503 Unavailable The server is currently unable to handle the request due to the
resource being used by someone else, or the server is temporarily
overloaded.
461
Chapter 22. The RESTCONF API
22.1. Introduction
RESTCONF is a HTTP based protocol as defined in RFC 8040. It is very similar to the ConfD REST API.
This chapter describes any extensions and/or deviations between our implementation and RFC 8040.
22.2. Getting started
In order to enable RESTCONF in ConfD, RESTCONF must be enabled in the confd.conf
configuration file. The web server configuration for RESTCONF is shared with the WebUI's config.
However, the WebUI does not have to be enabled for RESTCONF to work.
Here's a minimal example of what is needed in the confd.conf file:
Example 22.1. ConfD configuration for REST
<restconf>
<enabled>true</enabled>
</restconf>
<webui>
<enabled>false</enabled>
<transport>
<tcp>
<enabled>true</enabled>
<ip>0.0.0.0</ip>
<port>8008</port>
</tcp>
</transport>
</webui>
22.2.1. Root resource discovery
RESTCONF makes it possible to specify where the RESTCONF API is located, as described in RFC 8040.
As per default, the RESTCONF API root is /restconf. To change this, configure the RESTCONF API root
in the confd.conf file as:
Example 22.2. ConfD configuration for RESTCONF
<restconf>
<enabled>true</enabled>
<rootResource>my_own_restconf_root</rootResource>
</restconf>
The RESTCONF API root will now be /my_own_restconf_root.
Note
In this document, all examples will assume the RESTCONF API root to be /restconf.
462
The RESTCONF API
22.2.2. The Authentication Cache
The RESTCONF server maintains an authentication cache. When authenticating an incoming request for a
particular User:Password, it is first checked if the User exists in the cache and if so, the request is processed.
This makes it possible to avoid the, potentially time consuming, login procedure that will take place in
case of a cache miss.
Cache entries has a maximum Time-To-Live (TTL) and upon expiry a cache entry is removed which will
cause the next request for that User to perform the normal login procedure. The TTL value is configurable
via the authCacheTTL parameter, as shown in the example. Note that, by setting the TTL value to zero
(PT0S), the cache is effectively turned off.
Example 22.3. ConfD configuration of the authentication cache TTL
...
<aaa>
...
<rest>
<!-- Set the TTL to 10 seconds! -->
<authCacheTTL>PT10S</authCacheTTL>
</rest>
...
</aaa>
...
It is also possible to combine the Clients IP address with the User name as a key into the cache. This
behaviour is disabled by default. It can be enabled by setting the enableAuthCacheClientIp parameter to
true.
22.2.3. Client IP via Proxy
It is possible to configure the ConfD RESTCONF server to pick up the client IP address via a HTTP
header in the request. A list of HTTP headers to look for is configurable via the proxyHeaders parameter
as shown in the example.
To avoid misuse of this feature, only requests from trusted sources will be searched for such a HTTP
header. The list of trusted sources is configured via the allowedProxyIpPrefix as shown in the example.
Example 22.4. ConfD configuration of Client IP via Proxy
...
<webui>
...
<useForwardedClientIp>
<proxyHeaders>X-Forwarded-For</proxyHeaders>
<proxyHeaders>X-REAL-IP</proxyHeaders>
<allowedProxyIpPrefix>10.12.34.0/24</allowedProxyIpPrefix>
<allowedProxyIpPrefix>2001:db8:1234::/48</allowedProxyIpPrefix>
</useForwardedClientIp>
...
</webui>
...
463
The RESTCONF API
22.3. Capabilities
RESTCONF capabilities are described in Section 9.1 of RFC 8040.
To view currently enabled capabilities, use the ietf-restconf-monitoring YANG model. This is available
via /restconf/data/restconf-state, example result:
Example 22.5. ConfD RESTCONF capabilities
<restconf-state xmlns="urn:ietf:params:xml:ns:yang:ietf-restconf-monitoring"
xmlns:rcmon="urn:ietf:params:xml:ns:yang:ietf-restconf-monitoring">
<capabities>
<capility>
urn:ietf:params:restconf:capability:defaults:1.0?basic-mode=explicit
</capability>
<capility>urn:ietf:params:restconf:capability:depth:1.0</capability>
<capility>urn:ietf:params:restconf:capability:fields:1.0</capability>
<capility>urn:ietf:params:restconf:capability:with-defaults:1.0</capability>
<capility>urn:ietf:params:restconf:capability:filter:1.0</capability>
<capility>urn:ietf:params:restconf:capability:replay:1.0</capability>
<capility>http://tail-f.com/ns/restconf/collection/1.0</capability>
<capility>http://tail-f.com/ns/restconf/query-api/1.0</capability>
</capalities>
</restconf-state>
22.4. Streams
RESTCONF event notification streams are described in Sections 6 and 9.2 of RFC 8040, where also
notification examples can be found.
RESTCONF event notification is a way for RESTCONF clients to retrieve notifications for different
event streams. Event streams configured in ConfD can be subscribed to using different channels such as
RESTCONF or NETCONF.
More information on how to define a new notification event using Yang is described in RFC 6020.
How to add and configure notifications support in ConfD is described in the confd.conf(5) man page.
The design of RESTCONF event notification is inspired by how NETCONF event notification is designed.
More information on NETCONF event notification can be found in RFC 5277.
To view currently enabled event streams, use the ietf-restconf-monitoring YANG model. This is available
via /restconf/data/restconf-state/streams, example result:
Example 22.6. ConfD RESTCONF streams
<streams xmlns="urn:ietf:params:xml:ns:yang:ietf-restconf-monitoring"
xmlns:rcmon="urn:ietf:params:xml:ns:yang:ietf-restconf-monitoring">
<stream>
<name>NETCONF</name>
<description>default NETCONF event stream</description>
<replay-support>false</replay-support>
<access>
<encoding>xml</encoding>
464
The RESTCONF API
<location>https://localhost:8889/restconf/streams/NETCONF/xml</location>
</access>
<access>
<encoding>json</encoding>
<location>https://localhost:8889/restconf/streams/NETCONF/json
</location>
</access>
</stream>
</streams>
Errors occurring during streaming of events will be reported as Server-Sent Events (SSE) comments as
described in W3C.REC-eventsource-20150203 Example error:
Example 22.7. ConfD RESTCONF errors during streaming
: error: notification stream NETCONF temporarily unavailable
22.5. Schema resource
RFC 8040 Section 3.7 describes retrieval of YANG modules used by the server via the RPC operation
get-schema. The YANG source is made available by ConfD in two ways: compiled into the fxs file or
put in the loadPath. See Section 15.6, “Monitoring of the NETCONF Server”.
22.6. YANG Patch Media Type
The ConfD RESTCONF API also support the YANG Patch Media Type, as defined in RFC 8072
22.7. Extensions
To avoid any potential future conflict with the RESTCONF standard, any extensions made to the ConfD
implementation of RESTCONF is located under the URL path: /restconf/tailf, or is controlled by means
of a vendor specific media type.
Note
There is no index of extensions under /restconf/tailf. To list extensions, access /restconf/data/
modules-state and follow published links for schemas.
22.7.1. Collections
The RESTCONF specification states that a result containing multiple instances (e.g a number of list entries)
is not allowed if XML encoding is used. The reason for this is that an XML document can only have one
root node.
To remedy this, a HTTP GET request can make use of the "Accept:" media type: application/
vnd.yang.collection+xml as shown in the following example.
Example 22.8. Use of collections
curl -H "Accept: application/vnd.yang.collection+xml" http://....
The result will then be wrapped with a "collection" element as shown below:
465
The RESTCONF API
Example 22.9. Use of collections
<collection xmlns:y="urn:ietf:params:xml:ns:yang:ietf-restconf">
....
</collection>
22.7.2. The RESTCONF Query API
Refer to Section 21.9, “The Query API” for a complete description of this functionality.
The only difference in the ConfD implementation is the use of the RESTCONF URI root resource, and
the RESTCONF media types. An example of how a curl request can look like is shown below:
curl -i 'http://admin:admin@localhost:8008/restconf/tailf/query' \
-X POST -T test.xml \
-H "Content-Type: application/yang-data+xml"
22.8. Custom Response HTTP Headers
The RESTCONF server can be configured to reply with particular HTTP headers in the HTTP response.
For example, to support Cross-Origin Resource Sharing (CORS, http://www.w3.org/TR/cors/) there is a
need to add a couple of headers to the HTTP Response.
We add the extra configuration parameter in confd.conf
Example 22.10. ConfD configuration for RESTCONF
<restconf>
<enabled>true</enabled>
<customHeaders>
<header>
<name>Access-Control-Allow-Origin</name>
<value>*</value>
</header>
</customHeaders>
</restconf>
466
Chapter 23. The Management Agent
API
23.1. What is MAAPI?
MAAPI is a C API which provides full access to the ConfD internal transaction engine. It is used in a
number of different settings.
We use MAAPI if we want to write our own management application. Using the MAAPI interface, it
is for example possible to implement a custom built command line interface (CLI) or Web UI. This
usage is described below.
We use MAAPI to access ConfD data inside a not yet committed transaction when we wish to implement
semantic validation in C. This is fully described in Chapter 9, Semantic validation.
We use MAAPI to access ConfD data inside a not yet committed transaction when we wish to implement
CLI wizards in C. Here we can invoke an external C program which can read and write, both to the
executing transaction, but also interact with the CLI user. This is fully described in Chapter 16, The
CLI agent.
Finally MAAPI is also used during database upgrade to access and write data to a special upgrade
transaction. This is fully described in Chapter 5, CDB - The ConfD XML Database.
Thus, MAAPI is an API which contains functions that are the northbound equivalents of all the callbacks
described in Chapter 7, The external database API.
A typical sequence of API calls when using MAAPI to write a management application would be
1. Create a user session, this is the equivalent of an established SSH connection from a NETCONF
manager. It is up to the MAAPI application to authenticate users. The TCP connection from the MAAPI
application to ConfD is a clear text connection.
2. Establish a new ConfD transaction
3. Issue a series of read and write operations towards the ConfD transaction
4. Commit or abort the transaction
MAAPI also has support for several operations that do not work immediately towards a ConfD transaction.
This includes users session management, locking, and candidate manipulation.
23.2. A custom toy CLI
In this section we implement a small toy CLI towards a specific data model. We start with the following
YANG module:
Example 23.1. scli.yang YANG module
module scli {
namespace "http://tail-f.com/test/scli";
prefix scli;
467
The Management Agent API
import ietf-inet-types {
prefix inet;
}
leaf foo {
type string;
default "fooo";
}
leaf bar {
type int32;
default 66;
}
list servers {
key "name";
max-elements 64;
leaf name {
type string;
}
leaf ip {
type inet:ipv4-address;
mandatory true;
}
leaf port {
type inet:port-number;
mandatory true;
}
}
}
We compile this file with confdc (1) and load it into ConfD as usual. Data is kept in CDB, since there are
no callpoints defined. At this point, we can manipulate the configuration data with a NETCONF manager
or the ConfD built-in CLI.
What we wish to do is to write a small custom CLI, that understands the structure of the XML tree using
the MAAPI.
All functions in MAAPI are described in the confd_lib_maapi(3) manual page. We will use a subset of
those functions in this example.
We start off with some global variables, and a trivial main() function.
#include "confd_lib.h"
#include "confd_maapi.h"
/* include .h file generated by confdc */
#include "scli.h"
static int sock, th;
static char *user = "admin";
static const char *groups[] = {"admin"};
static int debuglevel = CONFD_DEBUG;
static char *context = "maapi";
static enum confd_dbname dbname = CONFD_RUNNING;
int main(int argc, char **argv)
{
int c;
while ((c = getopt(argc, argv, "rc")) != -1) {
switch(c) {
468
The Management Agent API
case 'r':
dbname = CONFD_RUNNING;
break;
case 'c':
dbname = CONFD_CANDIDATE;
break;
}
}
confd_init("MYNAME", stderr, debuglevel);
cnct();
runcli();
}
The code in main() sets a global variable dbname which will be the database we are opening, i.e. we
can choose to run this CLI either towards the running database or towards the candidate database.
The code first calls cnct() which creates a MAAPI socket and connects to ConfD, following that we
run the simple CLI.
The code to connect to ConfD looks like this:
static void cnct()
{
struct in_addr in;
struct sockaddr_in addr;
struct confd_ip ip;
inet_aton("127.0.0.1", &in);
addr.sin_addr.s_addr = in.s_addr;
addr.sin_family = AF_INET;
addr.sin_port = htons(4565);
if ((sock = socket(PF_INET, SOCK_STREAM, 0)) < 0 )
confd_fatal("Failed to open socket\n");
if (maapi_connect(sock, (struct sockaddr*)&addr,
sizeof (struct sockaddr_in)) < 0)
confd_fatal("Failed to confd_connect() to confd \n");
ip.af = AF_INET;
inet_aton("66.55.44.33", &ip.ip.v4);
maapi_start_user_session(sock, user, context, groups, 1,
&ip, CONFD_PROTO_TCP);
th = maapi_start_trans(sock, dbname, CONFD_READ_WRITE);
maapi_set_namespace(sock, th, scli__ns);
}
The code first creates a normal socket, and then connects to ConfD using maapi_connect(). Following
that the code calls maapi_start_user_session() which creates a user session on the socket.
We must usually have an established user session before we can issue any of the MAAPI calls. There are
some calls that can be performed on the socket without an already established user session.
A user session must be authenticated by the agent before the agent connects to ConfD. This
authentication must be performed by the agent code, and once the agent issues the call to
maapi_start_user_session(), the authentication must already be done. ConfD also has an
469
The Management Agent API
authentication system built-in to it. The behavior of the ConfD built-in authentication system is controlled
through the AAA section in confd.conf. Thus, when we're implementing a proprietary agent, either
we do the authentication ourselves, or we can ask ConfD to authenticate the user through the API function
maapi_authenticate(). Thus we could have written:
char *groups[10];
if (maapi_authenticate(sock, user, pass, &groups[0], 10) == 1) {
int i = 0;
while (groups[i])
i++;
maapi_start_user_session(sock, user, context, groups, i,
&srcip, CONFD_PROTO_TCP);
This way we only need to obtain the clear text password in the agent and we can let ConfD perform
the actual authentication as well as the group assignment. The group assignment is important, since the
authorization model in ConfD hinges entirely on group membership.
Once we have established a user session, we continue to create a transaction towards either the running
database or the candidate. This is done through the call to maapi_start_trans(). The call returns
a transaction handle, a th which is subsequently used when we read and write data. Remember that we
are creating a transaction, thus nothing is written to actual storage until we commit the transaction. This
applies also when we access the running database.
Finally we make our first call towards the transaction, and that is to indicate the name of the namespace we
are planning to work against. This is a hashed integer value which can be found in a header file generated
from scli.fxs. Read more about how to generate a header (.h) file from a .fxs file in the confdc (1)
compiler man page.
Once we have connected, established a user session and also created our first transaction, we enter the
CLI input loop called runcli().
#define DELIM " \n\r"
static void runcli()
{
char ibuf[BUFSIZ];
struct maapi_cursor mc;
int ival;
char *tok;
printf("#cli "); fflush(stdout);
while(fgets(ibuf, BUFSIZ, stdin) != NULL) {
if ((tok = strtok(ibuf, DELIM)) == NULL) {
printf("#cli "); fflush(stdout);
continue;
}
if (strcmp(tok, "show") == 0) {
if (maapi_get_str_elem(sock, th, ibuf, BUFSIZ, "/foo") ==CONFD_OK)
printf ("foo: %s\n", ibuf);
else if (confd_errno == CONFD_ERR_NOEXISTS)
printf ("foo: \n");
else
confd_fatal("What \n");
if (maapi_get_int32_elem(sock, th, &ival, "/bar") == CONFD_OK)
printf ("bar: %d\n", ival);
470
The Management Agent API
else if (confd_errno == CONFD_ERR_NOEXISTS)
printf ("bar: ");
else
confd_fatal("What \n");
maapi_init_cursor(sock, th, &mc, "/servers/server");
maapi_get_next(&mc);
while (mc.n != 0) {
struct in_addr ip;
uint16_t port;
char tmpbuf[BUFSIZ];
maapi_get_ipv4_elem(sock, th, &ip,
"/servers/server{%x}/ip",
&mc.keys[0]);
maapi_get_u_int16_elem(sock, th, &port,
"/servers/server{%x}/port",
&mc.keys[0]);
confd_pp_value(tmpbuf,BUFSIZ,&mc.keys[0]);
printf ("server name=%s ip=%s port=%d\n",
tmpbuf, inet_ntoa(ip), port);
maapi_get_next(&mc);
}
maapi_destroy_cursor(&mc);
}
else if (strcmp(tok, "abort") == 0) {
maapi_abort_trans(sock, th);
maapi_finish_trans(sock, th);
th = maapi_start_trans(sock, dbname, CONFD_READ_WRITE);
maapi_set_namespace(sock, th, scli__ns);
}
else if (strcmp(tok, "commit") == 0) {
maapi_apply_trans(sock, th, 0);
maapi_finish_trans(sock, th);
th = maapi_start_trans(sock, dbname, CONFD_READ_WRITE);
maapi_set_namespace(sock, th, scli__ns);
}
else if (strcmp(tok, "create") == 0) {
char *name; char *ipstr; char *portstr;
if (((name = strtok(NULL, DELIM)) == NULL) ||
((ipstr = strtok(NULL, DELIM)) == NULL) ||
((portstr = strtok(NULL, DELIM)) == NULL)) {
printf ("input error \n"); goto err;
}
if (maapi_create(sock, th, "/servers/server{%s}", name) !=
CONFD_OK) {
printf ("error: %d %s \n ", confd_errno,confd_lasterr());
goto err;
}
if (maapi_set_elem2(sock,th,ipstr,"/servers/server{%s}/ip",name)
!= CONFD_OK) {
printf ("error: %d %s \n ", confd_errno, confd_lasterr());
goto err;
}
if (maapi_set_elem2(sock,th,portstr,"/servers/server{%s}/port",
name)
!= CONFD_OK) {
printf ("error: %d %s \n ", confd_errno, confd_lasterr());
goto err;
}
471
The Management Agent API
}
else if (strcmp(tok, "delete-config") == 0) {
if (maapi_delete_config(sock, dbname) != CONFD_OK)
printf ("error: %d, %s\n", confd_errno,
confd_lasterr());
}
else if (strcmp(tok, "delete") == 0) {
char *name;
if ((name= strtok(NULL, DELIM)) == NULL) {
printf ("input error"); goto err;
}
if (maapi_delete(sock, th, "/servers/server{%s}", name)
!= CONFD_OK) {
printf ("error: %s \n ", confd_lasterr());
goto err;
}
}
else if (strcmp(tok, "candidate-reset") == 0) {
if (maapi_candidate_reset(sock) != CONFD_OK)
printf ("error: %d, %s\n", confd_errno,
confd_lasterr());
}
else if (strcmp(tok, "validate-trans") == 0) {
if (maapi_validate_trans(sock, th,1,1) == CONFD_OK) {
printf ("ok \n");
}
else {
printf ("nok: %s\n", confd_lasterr());
}
}
else if (strcmp(tok, "candidate-confirmed-commit") == 0) {
char *istr = strtok(NULL, DELIM);
if (!istr) {printf("input error\n"); goto err;}
if (maapi_candidate_confirmed_commit(sock, atoi(istr))!=CONFD_OK) {
printf("error: %s\n", confd_lasterr());
}
else {
printf("ok\n");
}
}
else if (strcmp(tok, "candidate-commit") == 0) {
if (maapi_candidate_commit(sock) != CONFD_OK) {
printf("error: %s\n", confd_lasterr());
}
else {
printf("ok\n");
}
}
else {
printf("commands \n");
printf(" show - show current conf\n");
printf(" help - show this text\n");
printf(" abort - abort current trans \n");
printf(" commit - commit current trans\n");
printf(" create name ip port - create new server\n");
printf(" delete name - delete server\n");
printf(" candidate-reset - copy running into cand");
printf(" validate - trans validate");
472
The Management Agent API
printf(" delete-config - delete config");
printf(" candidate-commit - copy cand to running | confirm");
printf(" candidate-confirmed-commit secs \n");
printf(" \n");
}
err:
printf("#cli "); fflush(stdout);
}
}
The code above reads lines from stdin, parses the line and invokes different MAAPI calls. For example,
if we wish to use the show command to show the contents of the opened database, we first read the two
leaf elements, called /foo and /bar. We must check the return values from those read calls. If we look
at the data model, the values are defined as:
leaf foo {
type string;
default "fooo";
}
leaf bar {
type int32;
default 66;
}
The above elements both have default values. However if we open an empty candidate, they do not exist
there.
Following that, in order to show the database, we must traverse all /servers/server instances and
display them on the screen. We do this by using a maapi_cursor. A cursor must first be initialized,
and then we can use the cursor to find out the key value(s) of the next element until there are no more
elements.
Another interesting call is the call to create a new server. We create a new server instance through the call
to maapi_create(sock, th, "/servers/server{%s}", name). Once we have created a
new "server" instance we must also set the values for the two leafs inside the server instance, the ip and
the port elements. If we fail to do this, commit will fail.
There are two variants on the MAAPI function which sets a a value. One where the value is a regular
string, and one where the value is of type confd_value_t. Usually when we implement a proprietary agent,
somehow a user will enter values as strings. In our code above, we use the string variant.
This program can be found in the examples section of a ConfD release, in the misc/maapi_cli
directory.
If we want to use MAAPI to implement a general purpose agent which works on all data models,
we can use the confd_cs_node tree that is generated when we call maapi_load_schemas()/
confd_load_schemas(), see the section called “USING SCHEMA INFORMATION” in the
confd_types(3) manual page. This is a representation of the complete data model in the form of a tree of
linked C structures.
473
Chapter 24. High Availability
24.1. Introduction to ConfD High Availability
ConfD support replication of the CDB configuration as well as of the operational data kept in CDB. The
replication architecture is that of one active master and a number of passive slaves.
All configuration write operations must occur at the master and ConfD will automatically distribute the
configuration updates to the set of live slaves. Operational data in CDB may be replicated or not based on
the tailf:persistent statement in the data model and the ConfD configuration. All write operations
for replicated operational data must also occur at the master, with the updates distributed to the live slaves,
whereas non-replicated operational data can also be written on the slaves.
The only thing ConfD does is to replicate the CDB data amongst the members in the HA group. It doesn't
perform any of the otherwise High-Availability related tasks such as running election protocols in order
to elect a new master. This is the task of a High-Availability Framework (HAFW) which must be in place.
The HAFW must instruct ConfD which nodes are up and down using API functions from confd_lib_ha(3).
Thus in order to use ConfD configuration replication we must first have a HAFW.
Replication is supported in several different architectural setups. For example two-node active/standby
designs as well as multi-node clusters with runtime software upgrade.
Master - Slave configuration
In a chassis solution there are (at least two) but a fixed number of management blades. We wish that all
configuration data is replicated and if the active dies the standby will takeover and the configuration data
is not lost.
One master - several slaves
474
High Availability
Furthermore it is assumed that the entire cluster configuration is equal on all hosts in the cluster. This
means that node specific configuration must be kept in different node specific subtrees, for example as in
Example 24.1, “A data model divided into common and node specific subtrees”.
Example 24.1. A data model divided into common and node specific subtrees
container cfg {
container shared {
leaf dnsserver {
type inet:ipv4-address;
}
leaf defgw {
type inet:ipv4-address;
}
leaf token {
type AESCFB128EncryptedString;
}
...
}
container cluster {
list host {
key ip;
max-elements 8;
leaf ip {
type inet:ipv4-address;
}
...
}
}
}
24.2. HA framework requirements
ConfD only replicates the CDB data. ConfD must be told by the HAFW which node should be master and
which nodes should be slaves.
The HA framework must also detect when nodes fail and instruct ConfD accordingly. If the master node
fails, the HAFW must elect one of the remaining slaves and appoint it the new master. The remaining
slaves must also be informed by the HAFW about the new master situation. ConfD will never take any
actions regarding master/slave-ness by itself.
24.3. Mode of operation
ConfD must be instructed through the confd.conf configuration file that it should run in HA mode.
The following configuration snippet enables HA mode:
<ha>
<enabled>true</enabled>
<ip>0.0.0.0</ip>
<port>4569</port>
<tickTimeout>PT20S</tickTimeout>
</ha>
The IP address and the port above indicates which IP and which port should be used for the communication
between the HA nodes. The tickTimeout is a duration indicating how often each slave must send a tick
475
High Availability
message to the master indicating liveness. If the master has not received a tick from a slave within 3 times
the configured tick time, the slave is considered to be dead. Similarly, the master sends tick messages to
all the slaves. If a slave has not received any tick messages from the master within the 3 times the timeout,
the slave will consider the master dead and report accordingly.
A HA node can be in one of three states: NONE, SLAVE or MASTER. Initially a node is in the NONE
state. This implies that the node will read its configuration from CDB, stored locally on file. Once the HA
framework has decided whether the node should be a slave or a master the HAFW must invoke either the
function confd_ha_beslave(master) or confd_ha_bemaster().
When a ConfD HA node starts, it always starts up in mode NONE. This is consistent with how ConfD
works without HA enabled. At this point there are no other nodes connected. Each ConfD node reads its
configuration data from the locally stored CDB and applications on or off the node may connect to ConfD
and read the data they need.
At some point, the HAFW will command some nodes to become slave nodes of a named master node.
When this happens, each slave node tracks changes and (logically or physically) copies all the data from
the master. Previous data at the slave node is overwritten.
Note that the HAFW, by using ConfD's start phases, can make sure that ConfD does not start its northbound
interfaces (NETCONF, CLI, ...) until the HAFW has decided what type of node it is. Furthermore once a
node has been set to the SLAVE state, it is not possible to initiate new write transactions towards the node.
It is thus never possible for an agent to write directly into a slave node. Once a node is returned either to
the NONE state or to the MASTER state, write transactions can once again be initiated towards the node.
The HAFW may command a slave node to become master at any time. The slave node already has up-
to-date data, so it simply stops receiving updates from the previous master. Presumably, the HAFW also
commands the master node to become a slave node, or takes it down or handles the situation somehow. If
it has crashed, the HAFW tells the slave to become master, restarts the necessary services on the previous
master node and gives it an appropriate role, such as slave. This is outside the scope of ConfD.
Each of the master and slave nodes have the same set of all callpoints and validation points locally on each
node. The start sequence has to make sure the corresponding daemons are started before the HAFW starts
directing slave nodes to the master, and before replication starts. The associated callbacks will however
only be executed at the master. If e.g. the validation executing at the master needs to read data which is
not stored in the configuration and only available on another node, the validation code must perform any
needed RPC calls.
If the order from the HAFW is to become master, the node will start to listen for incoming slaves at the
ip:port configured under /confdCfg/ha. The slaves TCP connect to the master and this socket is
used by ConfD to distribute the replicated data.
If the order is to be a slave, the node will contact the master and possibly copy the entire configuration
from the master. This copy is not performed if the master and slave decide that they have the same version
of the CDB database loaded, in which case nothing needs to be copied. This mechanism is implemented
by use of a unique token, the "transaction id" - it contains the node id of the node that generated it and
and a time stamp, but is effectively "opaque".
This transaction id is generated by the cluster master each time a configuration change is committed, and
all nodes write the same transaction id into their copy of the committed configuration. If the master dies,
and one of the remaining slaves is appointed new master, the other slaves must be told to connect to the
new master. They will compare their last transaction id to the one from the newly appointed master. If
they are the same, no CDB copy occurs. This will be the case unless a configuration change has sneaked
in, since both the new master and the remaining slaves will still have the last transaction id generated
by the old master - the new master will not generate a new transaction id until a new configuration
476
High Availability
change is committed. The same mechanism works if a slave node is simply restarted. In fact no cluster
reconfiguration will lead to a CDB copy unless the configuration has been changed in between.
Northbound agents should run on the master, it is not possible for an agent to commit write operations
at a slave node.
When an agent commits its CDB data, CDB will stream the committed data out to all registered slaves. If
a slave dies during the commit, nothing will happen, the commit will succeed anyway. When and if the
slave reconnects to the cluster, the slave will have to copy the entire configuration. All data on the HA
sockets between ConfD nodes only go in the direction from the master to the slaves. A slave which isn't
reading its data will eventually lead to a situation with full TCP buffers at the master. In principle it is the
responsibility of HAFW to discover this situation and notify the master ConfD about the hanging slave.
However if 3 times the tick timeout is exceeded, ConfD will itself consider the node dead and notify the
HAFW. The default value for tick timeout is 20 seconds.
The master node holds the active copy of the entire configuration data in CDB. All configuration data has
to be stored in CDB for replication to work. At a slave node, any request to read will be serviced while
write requests will be refused. Thus, CDB subscription code works the same regardless of whether the
CDB client is running at the master or at any of the slaves. Once a slave has received the updates associated
to a commit at the master, all CDB subscribers at the slave will be duly notified about any changes using
the normal CDB subscription mechanism.
24.4. Security aspects
We specify in confd.conf which IP address the master should bind for incoming slaves. If we choose
the default value 0.0.0.0 it is the responsibility of the application to ensure that connection requests
only arrive from acceptable trusted sources through some means of firewalling.
A cluster is also protected by a token, a secret string only known to the application. The API function
confd_ha_connect() must be given the token. A slave node that connects to a master node negotiates
with the master using a CHAP-2 like protocol, thus both the master and the slave are ensured that the other
end has the same token without ever revealing their own token. The token is never sent in clear text over
the network. This mechanism ensures that a connection from a ConfD slave to a master can only succeed
if they both have the same token.
It is indeed possible to store the token itself in CDB, thus an application can initially read the token from
the local CDB data, and then use that token in confd_ha_connect(). In this case it may very well be
a good idea to have the token stored in CDB be of type tailf:aes-cfb-128-encrypted-string.
If the actual CDB data that is sent on the wire between cluster nodes is sensitive, and the network is
untrusted, the recommendation is to use IPSec between the nodes. An alternative option is to decide exactly
which configuration data is sensitive and then use the tailf:aes-cfb-128-encrypted-string type for that data.
If the configuration data is of type tailf:aes-cfb-128-encrypted-string the encrypted data will be sent on the
wire in update messages from the master to the slaves.
24.5. API
There are two APIs used by the HA framework to control the replication aspects of CDB. First there exists a
synchronous API used to tell ConfD what to do, secondly the application may create a notifications socket
and subscribe to HA related events where ConfD notifies the application on certain HA related events such
as the loss of the master etc. This notifications API is described in ????. The HA related notifications sent
by ConfD are crucial to how to program the HA framework.
The following functions are used from the HAFW to instruct ConfD about the cluster.
477
High Availability
int confd_ha_connect(int sock, const struct sockaddr* srv, int
srv_sz, const char *token);
Connects a HA socket to ConfD and also provides the secret token to be used in later negotiations
with other nodes.
int confd_ha_bemaster(int sock, confd_value_t *mynodeid);
Instructs the local node to become master. The function also provides a node identifier for the node.
The node id is of type confd_value_t. Thus if we in our configuration have trees with different branches
for node local data, it is highly recommended to use the same type there as for the type of the node id.
int confd_ha_beslave(int sock, confd_value_t *mynodeid, struct
confd_ha_node *master, int waitreply);
Instructs a node to be slave. The definition of the struct confd_ha_node is:
struct confd_ha_node {
confd_value_t nodeid;
int af; /* AF_INET | AF_INET6 | AF_UNSPEC */
union { /* address of remote note */
struct in_addr ip4;
struct in6_addr ip6;
char *str;
} addr;
char buf[128]; /* when confd_read_notification() and */
/* confd_ha_get_status() populate these structs, */
/* if type of nodeid is C_BUF, the pointer */
/* will be set to point into this buffer */
char addr_buf[128]; /* similar to the above, but for the address */
/* of remote node when using external IPC */
/* (from getpeeraddr() callback for slaves) */
};
int confd_ha_benone(int sock);
Resets a node to the initial state.
int confd_ha_berelay(int sock);
Instructs a slave node to be a relay for other slaves. This is discussed in Section 24.8, “Relay slaves”.
int confd_ha_get_status(int sock, struct confd_ha_status
*stat);
Returns the status of the current node in the user provided struct confd_ha_status structure. The
definition is:
struct confd_ha_status {
enum confd_ha_status_state state;
/* if state is MASTER, we also have a list of slaves */
/* if state is SLAVE, then nodes[0] contains the master */
/* if state is RELAY_SLAVE, then nodes[0] contains the master,
478
High Availability
and following entries contain the "sub-slaves" */
/* if state is NONE, we have no nodes at all */
struct confd_ha_node nodes[255];
int num_nodes;
};
int confd_ha_slave_dead(int sock, confd_value_t *nodeid);
This function must be used by the HAFW to tell ConfD that a slave node is dead. It is vital that this
is indeed executed. ConfD will notice that a slave is dead automatically if the socket to the slave is
closed, however the slave can die without closing its socket. If configured, ConfD will periodically
send alive tick messages from the slaves to the master. If a tick message isn't received by the master
within the pre configured time the master will consider the slave dead, close the socket and report to
the application through a notifications socket.
24.6. Ticks
The configuration parameter /confdCfg/ha/tickTimeout is by default set to 20 seconds. This
means that every 20 seconds each slave will send a tick message on the socket leading to the master.
Similarly, the master will send a tick message every 20 seconds on every slave socket.
This aliveness detection mechanism is necessary for ConfD. If a socket gets closed all is well, ConfD will
cleanup and notify the application accordingly using the notifications API. However, if a remote node
freezes, the socket will not get properly closed at the other end. ConfD will distribute update data from the
master to the slaves. If a remote node is not reading the data, TCP buffer will get full and ConfD will have
to start to buffer the data. ConfD will buffer data for at most tickTime times 3 time units. If a tick
has not been received from a remote node within that time, the node will be considered dead. ConfD will
report accordingly over the notifications socket and either remove the hanging slave or, if it is a slave that
loose contact with the master, go into the initial NONE state.
If the HAFW can be really trusted, it is possible to set this timeout to PT0S, i.e zero, in which case the
entire dead-node-detection mechanism in ConfD is disabled.
24.7. Joining a cluster
Some applications consist of several machines and also have an architecture where it is possible to
dynamically add more machines to the cluster. The procedure to add a machine to the cluster is called
“joining the cluster”.
Assume a situation where the cluster is running, we know that the master is running at IP address
master_ip. A common technique is to bring up a virtual IP address (VIP) on the master and then use
gratuitous ARP to inform the other hosts on the same L2 network about the new MAC/IP mapping.
The code to join a cluster is always going to be application specific. Typically we would do something
like the following:
1. Start the new machine with an initial simple CLI which gathers the following information from the
user or from the network.
The VIP. We need to know where the master is. This can be entered manually. Another technique
would be to use UDP broadcast at the new machine and let code running at the master reply.
Regardless, we need an IP address to connect to.
479
High Availability
The admin password.
2. Connect to a server at the VIP and send the admin password. This server code must then:
Use maapi_authenticate() to check that the remote user indeed knows the admin password
(or whichever user we choose in our application).
Assume a data model similar to the one in Example 24.1, “A data model divided into common and
node specific subtrees”. The server code running at the master would then use MAAPI to populate
the new /cfg/cluster/host tree for the joining slave. Finally the master code replies with the
secret cluster token found in the master config at /cfg/shared/token. It is not necessary to
have the token in CDB, it could also be stored somewhere else or even hard coded if the network
for cluster communication is considered trusted.
The join code at the new machine now has the token. It can start ConfD with its default configuration.
Once ConfD is started the join code invokes confd_ha_beslave() and we are done.
24.8. Relay slaves
The normal setup of a ConfD HA cluster is to have all slaves connected directly to the master. This is a
configuration that is both conceptually simple and reasonably straightforward to manage for the HAFW.
In some scenarios, in particular a cluster with multiple slaves at a location that is network-wise distant
from the master, it can however be sub-optimal, since the replicated data will be sent to each remote slave
individually over a potentially low-bandwidth network connection.
To make this case more efficient, we can instruct a slave to be a relay for other slaves, by invoking the
confd_ha_berelay() API function. This will make the slave start listening on the IP address and
port configured for HA in confd.conf, and handle connections from other slaves in the same manner
as the cluster master does. The initial CDB copy (if needed) to a new slave will be done from the relay
slave, and when the relay slave receives CDB data for replication from its master, it will distribute the data
to all its connected slaves in addition to updating its own CDB copy.
To instruct a node to become a slave connected to a relay slave, we use the confd_ha_beslave()
function as usual, but pass the node information for the relay slave instead of the node information for the
master. I.e. the "sub-slave" will in effect consider the relay slave as its master. To instruct a relay slave to
stop being a relay, we can invoke the confd_ha_beslave() function with the same parameters as in
the original call. This is a no-op for a "normal" slave, but it will cause a relay slave to stop listening for
slave connections, and disconnect any already connected "sub-slaves".
This setup requires special consideration by the HAFW. Instead of just telling each slave to connect to
the master independently, it must setup the slaves that are intended to be relays, and tell them to become
relays, before telling the "sub-slaves" to connect to the relay slaves. Consider the case of a master M and a
slave S0 in one location, and two slaves S1 and S2 in a remote location, where we want S1 to act as relay
for S2. The setup of the cluster then needs to follow this procedure:
1. Tell M to be master.
2. Tell S0 and S1 to be slave with M as master.
3. Tell S1 to be relay.
4. Tell S2 to be slave with S1 as master.
Conversely, the handling of network outages and node failures must also take the relay slave setup into
account. For example, if a relay slave loses contact with its master, it will transition to the NONE state
480
High Availability
just like any other slave, and it will then disconnect its "sub-slaves" which will cause those to transition
to NONE too, since they lost contact with "their" master. Or if a relay slave dies in a way that is detected
by its "sub-slaves", they will also transition to NONE. Thus in the example above, S1 and S2 needs to be
handled differently. E.g. if S2 dies, the HAFW probably won't take any action, but if S1 dies, it makes
sense to instruct S2 to be a slave of M instead (and when S1 comes back, perhaps tell S2 to be a relay
and S1 to be a slave of S2).
Besides the use of confd_ha_berelay(), the API is mostly unchanged when using relay slaves.
The HA event notifications reporting the arrival or the death of a slave are still generated only
by the "real" cluster master. If the confd_ha_get_status() API function is used towards a
relay slave, it will report the node state as CONFD_HA_STATE_SLAVE_RELAY rather than just
CONFD_HA_STATE_SLAVE, and the array of nodes will have its master as the first element (same as
for a "normal" slave), followed by its "sub-slaves" (if any).
24.9. CDB replication
When HA is enabled in confd.conf CDB automatically replicates data written on the master to the
connected slave nodes. Replication is done on a per-transaction basis to all the slaves in parallel. It can be
configured to be done asynchronously (best performance) or synchronously in step with the transaction
(most secure). When ConfD is in slave mode the northbound APIs are in read-only mode, that is the
configuration can not be changed on a slave other than through replication updates from the master. It is still
possible to read from for example NETCONF or CLI (if they are enabled) on a slave. CDB subscriptions
works as usual. When ConfD is in the NONE state CDB is unlocked and it behaves as when ConfD is
not in HA mode at all.
The Section 6.8, “Operational data in CDB” describes how operational data can be stored in CDB. If this is
used it is also possible to replicate operational data in HA mode. Since replication comes at a cost ConfD
makes it configurable whether to replicate all operational data, or just the persistent data (the default).
See the confd.conf(5) man-page for the /confdConfig/cdb/operational/replication
configurable. Replication of operational data can also be configured to be done asynchronously or
synchronously, via the /confdConfig/cdb/operational/replicationMode configurable,
but since there are no transactions for the writing of operational data, this pertains to a given API call
writing operational data.
481
Chapter 25. The SNMP Gateway
25.1. Introduction to the ConfD SNMP Gateway
By using the SNMP gateway, ConfD makes SNMP data available through the management interfaces
(such as CLI and NETCONF). The idea is that ConfD can co-exist with external SNMP agents on the
device, and use SNMP (in the simplest case it will be SNMP over the loopback interface) to retrieve data
from the agents, and present it over e.g. NETCONF.
What is needed to access the data provided by an SNMP agent is the MIB files defining the data. The
MIB modules are translated into read-only YANG modules, using the standard mapping defined in http://
www.ietf.org/rfc/rfc6643.txt. After compiling the YANG files, as described in earlier chapters, ConfD can
load the resulting .fxs files and can then provide data from the SNMP agent through the various ConfD
interfaces (CLI, NETCONF, etc.).
The gateway supports SNMP v1 and v2c when it communicates with the SNMP agent. SNMP v2c is
preferred over v1, since it is more efficient.
25.2. Configuring Agent Access
In the ConfD configuration file confd.conf, the location of SNMP agents and characteristics of the
communication with them can be specified with the /confdConfig/snmpgw element. An example is
shown below:
Example 25.1. Example snmpgw configuration fragment in confd.conf
<snmpgw>
<enabled>true</enabled>
<trapPort>5000</trapPort>
<agent>
<name>a1</name>
<subscriptionId>id1</subscriptionId>
<forwardNotifStream>stream1</forwardNotifStream>
<enabled>true</enabled>
<community>private</community>
<version>v2c</version>
<timeout>PT2S</timeout>
<ip>127.0.0.1</ip>
<port>161</port>
<module>ONE-MIB</module>
<module>TWO-MIB</module>
</agent>
<agent>
<name>a2</name>
<subscriptionId>id2</subscriptionId>
<enabled>true</enabled>
<community>private</community>
<version>v2c</version>
<timeout>PT2S</timeout>
<ip>192.168.1.12</ip>
<port>161</port>
<module>THIRD-MIB</module>
</agent>
</snmpgw>
482
The SNMP Gateway
Each /confdConfig/snmpgw/agent element is called an SNMP agent configuration element. It has
to have a unique name (mainly for error reporting), and relates a subset of the configuration to a particular
SNMP agent. The element module, which can be present multiple times, specifies which MIBs the agent
implements. Each such MIB must be converted to YANG and compiled into an .fxs file.
The subscriptionId, forwardNotifStream and trapPort elements are described in the
section Receiving and Forwarding Notifications.
The default value for the enabled element is true. If the value is false, this agent element is
disregarded.
The possible values for the SNMP protocol version are v1 and v2c. v2c is preferred.
The /confdConfig/snmpgw/agent/timeout element has the type xs:duration. Timeout when
communicating with the SNMP agent produces an error, and the ConfD operation is aborted.
In addition to the community element, which only allows for the specification of Unicode community
strings, the element community_bin can be used for specifying arbitrary community strings, in the
hexadecimal format xs:hexBinary. For example, <community_bin>004103</community_bin>
specifies a string with three bytes; 0x00, 0x41 and 0x03. If both community_bin and community are
given, the latter is ignored.
25.3. Compiling the MIBs
Each MIB is converted to YANG using confdc with the parameter --mib2yang-std. Then the resulting
YANG module is compiled using confdc with the parameters -c --snmpgw.
$ confdc --mib2yang-std -o IF-MIB.yang IF-MIB.mib
$ confdc -c --snmpgw -o IF-MIB.fxs IF-MIB.yang
25.4. Receiving and Forwarding Notifications
For the purpose of forwarding SNMP notifications (also called traps) from external agents to a user
application, the SNMP gateway can be made to listen for notifications on the port indicated by the
element /confdConfig/snmpgw/trapPort. If this element is not present, listening for notifications
is disabled.
Only SNMPv2 notifications are handled.
Each agent configuration element may have a child element subscriptionId (of type xs:token). When
a notification arrives, its sender (IP address and port) is compared with the agent configuration elements in
an attempt to determine a subscriptionId. If a subscription id is found, and any application has subscribed
to that subscription id, the notification is sent to it. A given ip/port pair should be handled by at most one
subscriptionId, otherwise the confd.conf file is rejected.
To register its interest in notification reception, the application should call the function
confd_register_notification_sub_snmp_cb(). Example:
Example 25.2. C code for registering reception of notifications
int recv_snmp(struct confd_notification_ctx *nctx, char *notif,
struct confd_snmp_varbind *vb, int n,
confd_value_t *srcaddr, u_int16_t srcport)
{
483
The SNMP Gateway
...
}
int main()
{
...
struct confd_daemon_ctx *dctx;
struct confd_notification_sub_snmp_cb snmpcb;
dctx = confd_init_daemon(dname, debuglevel, stderr);
[ connect control and worker sockets ]
strcpy(snmpcb.sub_id, "id1");
snmpcb.recv = recv_snmp;
confd_register_notification_sub_snmp_cb(dctx, &snmpcb);
confd_register_done(dctx);
...
}
"id1" here is the subscription id. The function recv_snmp() will be called when a notification arrives:
notif is the name of the notification, if it can be obtained from the notification id (if the relevant MIB is
loaded into the agent, or a YANG notification with the corresponding value for smiv2:oid is declared
in a loaded module), otherwise the empty string. srcaddr/srcport are the IP address and port of the
notification's (immediate) sender. The notification id appears in second position among the variables, and
a timestamp in first position, as they should in a well-formed notification.
One thing an application may want to do with a received notification is to forward it somewhere else. See
Section 17.2.15, “Notifications” for how to do that.
Instead of, or in addition to, the subscriptionId, an agent configuration element may have a
forwardNotifStream child element. If present, this must correspond to a notification stream that
doesn't implement replay support externally. (I.e. it must either use built-in replay support, or not offer
replay.) When notifications arrive on the trap port, and a forwarding notification stream is set for the
agent, the loaded yang modules will be search for a notification corresponding to the OID of the received
notification, and if such a notification type exists, the received notification will be translated to that type
and sent out on the forwarding stream. Unknown notifications will be dropped, as will unknown varbinds
in otherwise recognized notifications.
25.5. Example Scenario
In the following example, we assume that there exist a MIB OUR-MIB.mib and we wish to translate into
a ConfD .fxs file so that we can use ConfD to access the MIB data. The example is very small; real-life
MIBs are likely to also depend on several standard MIBs.
The following steps produce the file that ConfD needs (namely, OUR-MIB.fxs):
Example 25.3. Example 1 of translating and compiling a MIB
$ confdc --mib2yang-std -o OUR-MIB.yang OUR-MIB.mib
$ confdc -c --snmpgw OUR-MIB.yang
484
Chapter 26. Subagents and Proxies
26.1. Introduction
ConfD supports a master/subagent concept similar to that found in e.g. AgentX (RFC 2741). The idea is
that there is one master agent running on a managed device. It terminates the northbound interfaces such
as NETCONF and CLI. The master agent is connected to a set of subagents which provide instrumentation
of the subsystems.
A subagent has its own data store, separate from the master agent. A subagent is an essential part of the
system, i.e. if the master agent cannot talk to the subagent, this is handled as a data provider failure.
Subagents may be used in a chassis based system when some of the blades may also ship as standalone
products. In this case it is desirable to have identical software on the blade regardless of weather the blade
sits in a chassis or is shipped as a standalone product.
Subagents are also the right choice when there is a need to to integrate software that already has a
management interface of its own. In this case, it is desirable not to change that code, but still make it appear
as an integrated part of the entire chassis. A typical usage scenario is when there is an existing standalone
product that also should be part of a chassis solution.
Subagents are not the right choice for supporting field replaceable units (FRU), such as interface cards. In
this case, it is recommended to have the software on the FRU connect to a ConfD running on a management
processor through the normal ConfD C-APIs.
In ConfD, NETCONF is used as master-to-subagent protocol. The subagent only has to provide a
NETCONF interface. The master agent can provide any northbound interfaces, for example CLI and Web
UI only. This is accomplished in ConfD by separating the northbound agents from the data providers.
Somewhat simplified, the subagents are viewed and handled as any other data provider.
Authentication and authorization (access control) is done by the master agent. This means that access
control rules are configured at the master agent, and checked in runtime at the master. The subagent should
be configured to allow full access to the user which the master agent uses for the connections.
The following picture illustrates how a chassis based system internally consists of three different
subsystems.
485
Subagents and Proxies
Multiple devices within a chassis system
Subagents are used when management station should perceive the system as a whole; thus subagents can
be viewed as an internal implementation detail, not visible from the outside.
Another common architecture is that of configuring one ConfD instance to be able to proxy configuration
traffic explicitly to one or more other managed devices.
This architecture is usable in similar situations as subagents with the exception that the outside management
station must have explicit knowledge about the internal subsystems. It is common to build chassis based
systems that consist of several subsystems that are themselves devices. The internal devices are typically
not reachable on the external network, they are attached to network internal to the chassis - thus the need
for a proxy solution.
26.2. Subagent Registration
The subagents are registered at the master agent. Information about each subagent is written into the
master agent's confd.conf file. The subagent configuration is marked as "reloadable", see Section 28.4,
“Configuring ConfD”, so it is possible for the application to easily use parts of the subagent configuration
in its own configuration.
Once a subagent is enabled, it will be viewed as an essential part of the system, i.e. if the master agent
cannot talk to the subagent, this is handled as a data provider failure. This means that operations like <edit-
config> will fail if the master cannot contact an enabled subagent. ConfD sends an event to the application
when it detects communication failures with subagents. The event is described in the confd_lib_events(3)
man page. The application can choose to disable or remove the subagent if it wants to, either by modifying
the master agent's confd.conf file and do confd --reload, or by directly changing the configuration
parameters (see Section 28.4, “Configuring ConfD”).
486
Subagents and Proxies
The registration information needed per subagent is:
subagent address and transport
Currently supported transports are SSH and TCP. TCP is non-standard, but unencrypted and thus
more efficient.
authentication information
For SSH, specify the username and password that ConfD will use when connecting to the subagent.
For TCP, the ConfD specific TCP header described in the NETCONF chapter is used. This means
that the user name and groups have to defined for the subagent.
registration path
An XPath expression which defines where in the master agent's data hierarchy the subagent's data is
registered. For example /config/blade[id="3"] /config/ospf, or just /.
Each subagent registers a set of top-elements from one or more namespaces. These nodes will be mounted
at the registration path at the master agent.
The data model that the subagent registers must be available at the master agent, in the form of a .fxs file in
the normal load path. This .fxs file must be compiled with the flag --subagent MountPath before it is
loaded in the master agent. This option tells the master agent that this namespace is handled by a subagent.
MountPath is the same as the registration path in confd.conf, but without any instance selectors.
26.2.1. Example
Here is a step-by-step example on how to add three subagents, called A, B and C, to a master agent. We
will assume that A and B implement one instance each of some service. A implements the SMTP service,
and B IMAP and POP. Subagent C implements the equipment subsystem. The idea is that there might be
more than one SMTP service or IMAP service, but a single equipment subsystem.
If a client talks directly to A, it will get the following data:
Example 26.1. smtp subagent data
<smtp-config xmlns="http://example.com/smtp/1.0">
<enabled>true</enabled>
...
</smtp-config>
If a client talks directly to B, it will get the following data:
Example 26.2. imap and pop subagent data
<imap-config xmlns="http://example.com/imap/2.1">
<enabled>true</enabled>
...
</imap-config>
<pop-config xmlns="http://example.com/pop/1.2">
<enabled>true</enabled>
...
</pop-config>
If a client talks directly to C, it will get the following data:
487
Subagents and Proxies
Example 26.3. Equipment subagent data
<config xmlns="http://example.com/equipment/2.1">
<chassis>
...
</chassis>
</config>
At the master agent, we want the following data:
Example 26.4. master agent data
<system xmlns="http://example.com/service/3.3">
<services>
<service>
<name>smtp1</name>
<type>smtp</type>
<smtp-config xmlns="http://example.com/smtp/1.0">
<enabled>true</enabled>
...
</smtp-config>
</service>
<service>
<name>imap1</name>
<type>imap</type>
<imap-config xmlns="http://example.com/imap/2.1">
<enabled>true</enabled>
...
</imap-config>
<service>
<name>pop1</name>
<type>pop</type>
<pop-config xmlns="http://example.com/pop/1.2">
<enabled>true</enabled>
...
</pop-config>
</pop-config>
</service>
</services>
</system>
<config xmlns="http://example.com/equipment/2.1">
<chassis>
...
</chassis>
</config>
The first thing to do at the master agent is to compile the YANG modules:
Example 26.5. Compile the YANG modules at the master
$ confdc -c --subagent /system/services/service -o smtp.fxs smtp.yang
$ confdc -c --subagent /system/services/service -o imap.fxs imap.yang
$ confdc -c --subagent /system/services/service -o pop.fxs pop.yang
$ confdc -c --subagent / -o equip.fxs equip.yang
488
Subagents and Proxies
Next, we put the following into confd.conf:
Example 26.6. Master agent's confd.conf
<subagents>
<enabled>true</enabled>
<subagent>
<name>A</name>
<enabled>true</enabled>
<tcp>
<ip>10.0.0.1</ip>
<port>2023</port>
<confdAuth>
<user>admin</user>
<group>admin</group>
</confdAuth>
</tcp>
<mount xmlns:sa="http://example.com/smtp/1.0">
<path>/system/services/service[name="smtp1"]</path>
<node>sa:smtp-config</node>
</mount>
</subagent>
<subagent>
<name>B</name>
<enabled>true</enabled>
<tcp>
<ip>10.0.0.2</ip>
<port>2023</port>
<confdAuth>
<user>admin</user>
<group>admin</group>
</confdAuth>
</tcp>
<mount xmlns:imap="http://example.com/imap/2.1"
xmlns:pop="http://example.com/pop/1.3">
<path>/system/services/service[name="imap1"]
/system/services/service[name="pop1"]</path>
<node>imap:imap-config pop:pop-config</node>
</mount>
</subagent>
<subagent>
<name>C</name>
<enabled>true</enabled>
<tcp>
<ip>127.0.0.1</ip>
<port>2043</port>
<confdAuth>
<user>admin</user>
<group>admin</group>
</confdAuth>
</tcp>
<mount xmlns:sa="http://example.com/equipment/2.1">
<path>/</path>
<node>sa:config</node>
489
Subagents and Proxies
</mount>
</subagent>
Note that the instances /services/service[name="smtp1"], /services/
service[name="imap1"], and /services/service[name="pop1"] must be created in the
database at the master agent before the subagent will be used.
26.3. Subagent Requirements
Some of the capabilities the master agent advertises must be supported among all subagents. For example,
in order for the master agent to advertise the startup capability, all subagents must support it. Some
other capabilities can be handled entirely in the master agent, and can be advertised independently of the
subagents.
:writable-running, :startup, :confirmed-commit, :validate
These capabilities can be advertised by the master agent if all subagents support them.
:candidate
This capabilities can be advertised by the master agent if all subagents support them. In this
case, the master ConfD must be configured with /confdConfig/datastores/candidate/
implementation set to external in confd.conf.
:rollback-on-error
This capability can be advertised by the master agent if all subagents support the http://
tail-f.com/ns/netconf/transactions/1.0 capability. One exception to this is if there
is one single subagent which doesn't support the 'transactions' capability (and zero or more agents
supporting it), and this single agent supports :rollback-on-error. For more information on the
'transactions' capability, see Section 15.10, “Transactions Capability”.
:xpath
This capability can be advertised by the master agent independently of the subagents. The subagents
do not have to support XPath.
:url
This capability can be advertised by the master agent independently of the subagents. The subagents
do not have to support the :url capability.
26.4. Proxies
ConfD can be configured to proxy NETCONF traffic and CLI sessions. The configuration of the proxies
reside in confd.conf. The proxy configuration is marked as "reloadable", see Section 28.4, “Configuring
ConfD”, so it is possible for the application to easily use parts of the proxy configuration in its own
configuration.
As an example, assume we have a chassis system with two internal boards that reside on a chassis internal
network that is not reachable from the outside. We still want the operators to be able to configure the
boards, thus we instruct ConfD to proxy network traffic to the internal boards. An example configuration
snippet (from confd.conf) could be:
Example 26.7. Proxy configuration
<proxyForwarding>
<enabled>true</enabled>
490
Subagents and Proxies
<autoLogin>true</autoLogin>
<proxy>
<target>board-1</target>
<address>10.10.0.1</address>
<netconf>
<ssh>
<port>830</port>
</ssh>
</netconf>
<cli>
<ssh>
<port>22</port>
</ssh>
</cli>
</proxy>
<proxy>
<target>board-2</target>
<address>10.10.0.2</address>
<netconf>
<ssh>
<port>830</port>
</ssh>
</netconf>
<cli>
<ssh>
<port>22</port>
</ssh>
</cli>
</proxy>
</proxyForwarding>
<netconf>
<capabilities>
<forward>
<enabled>true</enabled>
</forward>
<!-- other capabilities here ... -->
</capabilities>
<!-- more netconf config here ... -->
</netconf>
The above instructs ConfD to proxy forward CLI traffic and NETCONF traffic from the "Management
interface host" (MIH) to the "Internal hosts" (IH) Both types of traffic must be explicitly initiated by the
operator.
We define two internal hosts to which we wish to proxy traffic. Each internal host has a symbolic name
which is is used by both the CLI operator as well as the NETCONF client.
For all internal hosts we define weather we want to attempt auto login or not. If the ConfD internal SSH
server was used in the original connection to the management interface host, be it NETCONF or CLI,
ConfD has access to the clear text password. In that case an SSH connection attempt will be made with
the same username/password pair as the original connection. If that fails, the NETCONF session will fail
with a error whereas the CLI will prompt for a new password. If ConfD does not have access to the SSH
password for the original connection to the management interface host, a password must be explicitly
supplied by the CLI operator/NETCONF client.
It is of course also possible to arrange private/public keys on the chassis host in such a manner so that
passwords will never be used.
491
Subagents and Proxies
26.4.1. CLI forwarding
The CLI user must explicitly initiate SSH connections to the internal hosts using the builtin "forward"
command in the CLI. The single argument of the "forward" command is the string defined as "target"
in confd.conf. The SSH connection to the target will be made with the same userid as the original CLI
connection has.
admin@chassis> forward [TAB]
Possible completions:
board-1 - 10.10.0.1:22
board-2 - 10.10.0.2:22
admin@chassis> forward board-1
admin@board-1> id
user = admin(2), gid=3, groups=admin, gids=
[ok][2008-08-15 12:14:41]
admin@board-1> ^D
Connection to board-1 closed
[ok][2008-08-15 12:14:58]
admin@chassis>
The above (Juniper style CLI) shows a session where the CLI operator connects the CLI to an internal
host (board-1)
26.4.2. NETCONF forwarding
ConfD publishes a new "proxy forwarding" NETCONF capability. If the management station issues the
forward command, ConfD relays this connection to the IH. The proxy forwarding capability is defined
in the NETCONF chapter.
If the command succeeds, any messages arriving in this session would subsequently be forwarded to the
target device without any analysis on the forwarding device. This channel is also open to NETCONF
notifications sent from the IH. This goes on until the session is closed.
A NETCONF session that connects to board-1 and asks for the dhcp configuration could like this:
Example 26.8. Agent replies with forward capability
<hello xmlns="urn:ietf:params:xml:ns:netconf:base:1.0">
<capabilities>
<capability>urn:ietf:params:netconf:base:1.0</capability>
<capability>http://tail-f.com/ns/netconf/forward/1.0</capability>
</capabilities>
</hello>
Example 26.9. Manager issues forward rpc to board-1
<rpc xmlns="urn:ietf:params:xml:ns:netconf:base:1.0" message-id="1">
<forward xmlns="http://tail-f.com/ns/netconf/forward/1.0">
<target>board-1</target>
</forward>
</rpc>
Example 26.10. Manager issues command
<rpc xmlns="urn:ietf:params:xml:ns:netconf:base:1.0" message-id="2">
<get>
492
Subagents and Proxies
<filter>
<dhcp xmlns="http://tail-f.com/ns/example/dhcpd/1.0"/>
</filter>
</get>
</rpc>
This last get request will be forwarded to the IH by the MIH. Finally the manager issues a close-
session request whereby the manager will have the original SSH connection back to the IMH.
Example 26.11. close-session
<rpc xmlns="urn:ietf:params:xml:ns:netconf:base:1.0" message-id="3">
<close-session/>
</rpc>
When ConfD at the MIH sees the "forward" command, ConfD looks up the IH identity in its configuration
which provides a mapping to the appropriate IP address. ConfD then establishes an SSH connection to
the IH.
The "forward" command may require authentication from the user. This happens if ConfD is not configured
to do automatic login to the IH, or if automatic login fails. In this case, the reply will be 'not-authorized'.
The authentication protocol is SASL (RFC 4422), using the XML mapping defined for XMMP (RFC
3920). ConfD supports the PLAIN authentication mechanism (RFC 4616).
On successful completion of the "forward" command, the IH's capabilities are returned in the "rpc-reply".
When the IH or management station closes the connection, either normally or in error, the MIH terminates
the forwarding of that session.
It should be noted that the management station may choose to open a single SSH session to the MIH and
utilize the SSH channel concept to establish multiple NETCONF sessions under a single SSH session. The
NETCONF sessions could be directed to the MIH as well as any IH. This is an optimization that saves
memory for the rather large SSH session state on the management station. For more information on SSH
channels, see section 5 of RFC 4254.
The MIH will however have to establish full SSH sessions to each IH as forward requests come in from
the management station.
26.4.3. Example - ConfD is configured to do automatic
login
This is the most simple example, the manager sends a "forward" rpc and receives the capabilities of the IH.
Example 26.12. Auto login
<rpc xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"
message-id="1">
<forward xmlns="http://tail-f.com/ns/netconf/forward/1.0">
<target>board-1</target>
</forward>
</rpc>
<rpc-reply xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"
message-id="1">
<data>
493
Subagents and Proxies
<capabilities>
<capability>urn:ietf:params:netconf:base:1.0</capability>
</capabilities>
</data>
</rpc-reply>
26.4.4. Example - Client needs to authenticate to the IH
Here the client sends a "forward" rpc and receives an error:
<rpc xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"
message-id="1">
<forward xmlns="http://tail-f.com/ns/netconf/forward/1.0">
<target>board-1</target>
</forward>
</rpc>
<rpc-reply xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"
message-id="1">
<rpc-error>
<error-type>protocol</error-type>
<error-tag>operation-failed</error-tag>
<error-severity>error</error-severity>
<error-app-tag>sasl-mechanisms</error-app-tag>
<error-info>
<mechanisms xmlns="http://tail-f.com/ns/netconf/forward/1.0">
<mechanism>PLAIN</mechanism>
</mechanisms>
</error-info>
</rpc-error>
</rpc>
The error indicates that the client needs to authenticate. This is done using the SASL protocol.
Example 26.13. Forward rpc with auth data
<rpc xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"
message-id="2">
<forward xmlns="http://tail-f.com/ns/netconf/forward/1.0">
<target>board-1</target>
<auth>
<mechanism>PLAIN</mechanism>
<initial-response>AGFkbWluAHNlY3JldA==</initial-response>
</auth>
</forward>
</rpc>
The decoded initial response in the auth message is:
[NUL]admin[NUL]secret
Finally the client receives the capabilities of the IH
<rpc-reply xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"
message-id="2">
<data>
<capabilities>
<capability>urn:ietf:params:netconf:base:1.0</capability>
</capabilities>
494
Subagents and Proxies
</data>
</rpc-reply>
The client is now successfully connected to board-1
26.4.5. Example - Client needs to authenticate to the IH
but fails
Similar to the example above, but the client sends a a bad password as in:
<rpc xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"
message-id="2">
<forward xmlns="http://tail-f.com/ns/netconf/forward/1.0">
<target>board-1</target>
<auth>
<mechanism>PLAIN</mechanism>
<initial-response>AGFkbWluAGFlY3JldA==</initial-response>
</auth>
</forward>
</rpc>
The decoded initial response in the auth message is:
[NUL]admin[NUL]aecret
An error is received:
<rpc-reply xmlns="urn:ietf:params:xml:ns:netconf:base:1.0"
message-id="2">
<rpc-error>
<error-type>protocol</error-type>
<error-tag>operation-failed</error-tag>
<error-severity>error</error-severity>
<error-app-tag>sasl-failure</error-app-tag>
<error-info>
<failure xmlns="http://tail-f.com/ns/netconf/forward/1.0">
<not-authorized/>
</failure>
</error-info>
</rpc-error>
</rpc-reply>
495
Chapter 27. Plug-and-play scripting
27.1. Introduction
This chapter defines a scripting mechanism to be used together with the CLI (scripting is not available
for any other northbound interfaces). The chapter is intended for users that are familiar with UNIX shell
scripting and/or programming. With the scripting mechanism it is possible for an end-user to add new
functionality to ConfD in a plug-and-play like manner. No special tools are needed. There are three
categories of scripts:
command scripts used to add new commands to the CLI.
policy scripts invoked at validation time and may control the outcome of a transaction.
Policy scripts have the mandate to cause a transaction to abort.
post-commit scripts invoked when a transaction has been committed. Post-commit scripts can
for example be used for logging, sending external events etc.
The terms "script" and "scripting" used throughout this description refer to how functionality can be added
without a requirement for integration using the ConfD programming APIs. ConfD will only run the scripts
as UNIX executables. Thus they may be written as shell scripts, or using some other scripting language
that is supported by the OS, or even be compiled code. The scripts are run with the same user id as ConfD.
27.2. Script storage
Scripts are stored in a directory tree with a predefined structure where there is a sub-directory for each
script category:
scripts/
command/
policy/
post-commit/
For all script categories it suffices to just add a valid script in the correct sub-directory in order to enable
the script. See the details for each script category for how a valid script of that category is defined. Scripts
with a name beginning with a dot character ('.') are ignored.
The directory path to the location of the scripts is configured with the /confdConf/scripts/dir
configuration parameter. It is possible to have several scripts directories.
27.3. Script interface
All scripts are required to provide a formal description of their interface. When the scripts are loaded,
ConfD will invoke the scripts with (one of)
--command
--policy
--post-commit
as argument depending of the script category.
496
Plug-and-play scripting
The script must respond by writing its formal interface description on stdout and exit normally. Such
a description consists of one or more sections. Which sections that are required depends on the category
of the script.
The sections do however have a common syntax. Each section begins with the keyword "begin" followed
by the type of section. After that one or more lines of settings follows. Each such setting begins with
a name, followed by a colon character (':') and after that the value is stated. The section ends with the
keyword "end". Empty lines and spaces may be used to improve the readability.
For examples see each corresponding section below.
27.4. Loading of scripts
Scripts are automatically loaded at startup and may also be manually reloaded with the CLI command
script reload. The command takes an optional verbosity parameter which may have one of the
following values:
diff Shows info about those scripts that have been changed since the latest (re)load. This is the
default.
all Shows info about all scripts regardless of whether they have been changed or not.
errors Shows info about those scripts that are erroneous, regardless of whether they have been
changed or not. Typical errors are invalid file permissions and syntax errors in the interface
description.
Yet another parameter may be useful when debugging reload of scripts:
debug Shows additional debug info about the scripts.
An example session reloading scripts:
admin@ncs# script reload all
$NCS_DIR/examples.ncs/getting-started/using-ncs/7-scripting/scripts:
ok
command:
add_user.sh: unchanged
echo.sh: unchanged
policy:
check_dir.sh: unchanged
post-commit:
show_diff.sh: unchanged
/opt/ncs/scripts: ok
command:
device_brief.sh: unchanged
device_brief_c.sh: unchanged
device_list.sh: unchanged
device_list_c.sh: unchanged
device_save.sh: unchanged
27.5. Command scripts
Command scripts are used to add new commands to the CLI. The scripts are executed in the context of a
transaction. When the script is run in oper mode, this is a read-only transaction, when it is run in config
497
Plug-and-play scripting
mode, it is a read-write transaction. In that context the script may make use of the environment variables
CONFD_MAAPI_USID and CONFD_MAAPI_THANDLE in order to attach to the active transaction. This
makes it simple to make use of the maapi command (see the ???? manual page) for various purposes.
Each command script must be able to handle the argument --command and, when invoked, write a
command section to stdout. If the CLI command is intended to take parameters, one param section
per CLI parameter must also be emitted.
The command is not paginated by default in the CLI and will only do so if it is piped to more.
joe@io> example_command_script | more
27.5.1. Command section
The following settings can be used to define a command:
modes Defines in which CLI mode(s) that the command should be available. The value can be oper,
config or both (separated with space).
styles Defines in which CLI styles that the command should be available. The value can be one or
more of c, i and j (separated with space). c means Cisco style, i, means Cisco IOS and
j for J-style.
cmdpath Is the full CLI command path. For example the command path my script echo implies
that the command will be called my script echo in the CLI.
help Command help text.
An example of a command section is:
begin command
modes: oper
styles: c i j
cmdpath: my script echo
help: Display a line of text
end
27.5.2. Param section
In this section various aspects of a parameter is specified. This may both affect the parameter syntax for
the end-user in the CLI as well as what the command script will get as arguments. The following settings
can be used to customize each CLI parameter:
name Optional name of the parameter. If provided, the CLI will prompt for this name before the
value. By default the name is not forwarded to the script. See flag and prefix.
type The type of the parameter. By default each parameter has a value, but by setting the type
to void the CLI will not prompt for a value. In order to be useful the void type must be
combined with name and either flag or prefix.
presence Controls whether the parameter must be present in the CLI input or not. Can be set to
optional or mandatory.
498
Plug-and-play scripting
words Controls the number of words that the parameter value may consist of. By default the
value must consist of just one word (possibly quoted if it contains spaces). If set to any,
the parameter may consist of any number of words. This setting is only valid for the last
parameter.
flag Extra word added before the parameter value. For example if set to -f and the user enters
logfile, the script will get -f logfile as arguments.
prefix Extra string prepended to the parameter value (as a single word). For example if set to --
file= and the user enters logfile, the script will get --file=logfile as argument.
help Parameter help text.
If the command takes a parameter to redirect the output to a file, a param section might look like this:
begin param
name: file
presence: optional
flag: -f
help: Redirect output to file
end
27.5.3. Full command example
A command denying changes the configured trace-dir for a set of devices it can use the check_dir.sh
script.
#!/bin/bash
set -e
while [ $# -gt 0 ]; do
case "$1" in
--command)
# Configuration of the command
#
# modes - CLI mode (oper config)
# styles - CLI style (c i j)
# cmdpath - Full CLI command path
# help - Command help text
#
# Configuration of each parameter
#
# name - (optional) name of the parameter
# more - (optional) true or false
# presence - optional or mandatory
# type - void - A parameter without a value
# words - any - Multi word param. Only valid for the last param
# flag - Extra word added before the parameter value
# prefix - Extra string prepended to the parameter value
# help - Command help text
cat << EOF
begin command
modes: config
499
Plug-and-play scripting
styles: c i j
cmdpath: user-wizard
help: Add a new user
end
EOF
exit
;;
*)
break
;;
esac
shift
done
## Ask for user name
while true; do
echo -n "Enter user name: "
read user
if [ ! -n "${user}" ]; then
echo "You failed to supply a user name."
elif ncs-maapi --exists "/aaa:aaa/authentication/users/user{${user}}"; then
echo "The user already exists."
else
break
fi
done
## Ask for password
while true; do
echo -n "Enter password: "
read -s pass1
echo
if [ "${pass1:0:1}" == "$" ]; then
echo -n "The password must not start with $. Please choose a "
echo "different password."
else
echo -n "Confirm password: "
read -s pass2
echo
if [ "${pass1}" != "${pass2}" ]; then
echo "Passwords do not match."
else
break
fi
fi
done
groups=`ncs-maapi --keys "/nacm/groups/group"`
while true; do
echo "Choose a group for the user."
echo -n "Available groups are: "
for i in ${groups}; do echo -n "${i} "; done
echo
echo -n "Enter group for user: "
read group
if [ ! -n "${group}" ]; then
500
Plug-and-play scripting
echo "You must enter a valid group."
else
for i in ${groups}; do
if [ "${i}" == "${group}" ]; then
# valid group found
break 2;
fi
done
echo "You entered an invalid group."
fi
echo
done
echo "Creating user"
ncs-maapi --create "/aaa:aaa/authentication/users/user{${user}}"
ncs-maapi --set "/aaa:aaa/authentication/users/user{${user}}/password" \
"${pass1}"
echo "Setting home directory to: /homes/${user}"
ncs-maapi --set "/aaa:aaa/authentication/users/user{${user}}/homedir" \
"/homes/${user}"
echo "Setting ssh key directory to: /homes/${user}/ssh_keydir"
ncs-maapi --set "/aaa:aaa/authentication/users/user{${user}}/ssh_keydir" \
"/homes/${user}/ssh_keydir"
ncs-maapi --set "/aaa:aaa/authentication/users/user{${user}}/uid" "1000"
ncs-maapi --set "/aaa:aaa/authentication/users/user{${user}}/gid" "100"
echo "Adding user to the ${group} group."
gusers=`ncs-maapi --get "/nacm/groups/group{${group}}/user-name"`
for i in ${gusers}; do
if [ "${i}" == "${user}" ]; then
echo "User already in group"
exit 0
fi
done
ncs-maapi --set "/nacm/groups/group{${group}}/user-name" "${gusers} ${user}"
Calling examples.confd/scripting/scripts/command/echo.sh with the argument --
command argument produces a command section and a couple of param sections:
$ ./echo.sh --command
begin command
modes: oper
styles: c i j
cmdpath: my script echo
help: Display a line of text
end
begin param
name: nolf
type: void
501
Plug-and-play scripting
presence: optional
flag: -n
help: Do not output the trailing newline
end
begin param
name: file
presence: optional
flag: -f
help: Redirect output to file
end
begin param
presence: mandatory
words: any
help: String to be displayed
end
In the complete example examples.confd/scripting there is a README file and a simple
command script scripts/command/echo.sh.
27.6. Policy scripts
Policy scripts are invoked at validation time, before a change is committed. They provide a simplified way
of defining validation points with callbacks. A policy script can reject the data, accept it, or accept it with
a warning. If a warning is produced, it will be displayed for interactive users (e.g. through the CLI or Web
UI). The user may choose to abort or continue to commit the transaction.
Policy scripts are typically assigned to individual leafs or containers. In some cases it may be feasible
to use a single policy script, e.g. on the top level node of the configuration. In such a case, this script is
responsible for the validation of all values and their relationships throughout the configuration.
All policy scripts are invoked on every configuration change. The policy scripts can be configured to
depend on certain subtrees of the configuration, which can save time but it is very important that all
dependencies are stated and also updated when the validation logic of the policy script is updated.
Otherwise an update may be accepted even though a dependency should have denied it.
There can be multiple dependency declarations for a policy script. Each declaration consists of a
dependency element specifying a configuration subtree that the validation code is dependent upon. If any
element in any of the subtrees is modified, the policy script is invoked. A subtree is specified as an absolute
path.
If there are no declared dependencies, the root of the configuration tree (/) is used, which means that the
validation code is executed when any configuration element is modified. If dependencies are declared on
a leaf element, an implicit dependency on the leaf itself is added.
Each policy script must handle the argument --policy and, when invoked, write a policy section
to stdout. The script must also perform the actual validation when invoked with the argument --
keypath.
27.6.1. Policy section
The following settings can be used to configure a policy script:
keypath Mandatory. Keypath is a path to a node in the configuration data tree. The policy script
(and the automatically created validation point) will be associated with this node. The
502
Plug-and-play scripting
path must be absolute. A keypath can for example be /devices/device/c0. The
script will be invoked if the configuration node, referred to by by the keypath, is changed
or if any node in the subtree under the node (if the node is a container or list) is changed.
dependency Declaration of a dependency. The dependency must be an absolute keypath. Multiple
dependency settings can be declared. Default is /.
priority An optional integer parameter specifying the order policy scripts and other validation
callbacks will be evaluated, in order of increasing priority, where lower value is higher
priority. The default priority is 0.
call This optional setting can only be used if the associated node, declared as keypath, is
a list. If set to once, the policy script is only called once even though there exists many
list entries in the data store. This is useful if we have a huge amount of instances or if
values assigned to each instance have to be validated in comparison with its siblings.
Default is each.
A policy that will be run for every change on or under /devices/device.
begin policy
keypath: /devices/device
dependency: /devices/global-settings
priority: 4
call: each
end
27.6.2. Validation
When ConfD has come to the conclusion that the policy script should be invoked to perform its validation
logic, the script is invoked with the option --keypath. If the registered node is a leaf, its value will be
given with the --value option. For example --keypath /devices/device/c0 or if the node is
a leaf --keypath /devices/device/c0/address --value 127.0.0.1.
Once the script has performed its validation logic it must exit with a proper status. The following exit
statuses are valid:
0Validation ok. Vote for commit.
1When the outcome of the validation is dubious it is possible for the script to issue a warning message.
The message is extracted from the script output on stdout. An interactive user has the possibility to
choose to abort or continue to commit the transaction. Non-interactive users automatically vote for
commit.
2When the validation fails it is possible for the script to issue an error message. The message is extracted
from the script output on stdout. The transaction will be aborted.
27.6.3. Full policy example
A policy denying changes the configured trace-dir for a set of devices it can use the check_dir.sh
script.
#!/bin/sh
503
Plug-and-play scripting
usage_and_exit() {
cat << EOF
Usage: $0 -h
$0 --policy
$0 --keypath <keypath> [--value <value>]
-h display this help and exit
--policy display policy configuration and exit
--keypath <keypath> path to node
--value <value> value of leaf
Return codes:
0 - ok
1 - warning message is printed on stdout
2 - error message is printed on stdout
EOF
exit 1
}
while [ $# -gt 0 ]; do
case "$1" in
-h)
usage_and_exit
;;
--policy)
cat << EOF
begin policy
keypath: /devices/global-settings/trace-dir
dependency: /devices/global-settings
priority: 2
call: each
end
EOF
exit 0
;;
--keypath)
if [ $# -lt 2 ]; then
echo "<ERROR> --keypath <keypath> - path omitted"
usage_and_exit
else
keypath=$2
shift
fi
;;
--value)
if [ $# -lt 2 ]; then
echo "<ERROR> --value <value> - leaf value omitted"
usage_and_exit
else
value=$2
shift
fi
;;
*)
usage_and_exit
;;
esac
shift
done
504
Plug-and-play scripting
if [ -z "${keypath}" ]; then
echo "<ERROR> --keypath <keypath> is mandatory"
usage_and_exit
fi
if [ -z "${value}" ]; then
echo "<ERROR> --value <value> is mandatory"
usage_and_exit
fi
orig="./logs"
dir=${value}
# dir=`ncs-maapi --get /devices/global-settings/trace-dir`
if [ "${dir}" != "${orig}" ] ; then
echo "/devices/global-settings/trace-dir: must retain it original value (${orig})"
exit 2
fi
Trying to change that parameter would result in an aborted transaction
admin@ncs(config)# devices global-settings trace-dir ./testing
admin@ncs(config)# commit
Aborted: /devices/global-settings/trace-dir: must retain it original
value (./logs)
In the complete example examples.confd/scripting there is a README file and a simple policy
script scripts/policy/check_number_of_hosts.sh .
27.7. Post-commit scripts
Post-commit scripts are run when a transaction has been committed, but before any locks have been
released. The transaction hangs until the script has returned. The script cannot change the outcome of the
transaction. Post-commit scripts can for example be used for logging, sending external events etc. The
scripts run as the same user id as ConfD.
The script is invoked with --post-commit at script (re)load. In future releases it is possible that the
post-commit section will be used for control of post-commit scripts behavior.
At post-commit, the script is invoked without parameters. In that context the script may make use of the
environment variables CONFD_MAAPI_USID and CONFD_MAAPI_THANDLE in order to attach to the
active (read-only) transaction.
This makes it simple to make use of the maapi command. Especially the command maapi --keypath-
diff / may turn out to be useful, as it provides a listing of all updates within the transaction on a format
that is easy to parse.
27.7.1. Post-commit section
All post-commit scripts must be able to handle the argument --post-commit and, when invoked, write
an empty post-commit section to stdout:
begin post-commit
505
Plug-and-play scripting
end
27.7.2. Full post-commit example
Assume the administrator of a system would want to have a mail each time a change is performed on the
system, a script such as mail_admin.sh:
#!/bin/bash
set -e
if [ $# -gt 0 ]; then
case "$1" in
--post-commit)
cat &lt;&lt; EOF
begin post-commit
end
EOF
exit 0
;;
*)
echo
echo "Usage: $0 [--post-commit]"
echo
echo " --post-commit Mandatory for post-commit scripts"
exit 1
;;
esac
else
file="mail_admin.log"
NCS_DIFF=$(ncs-maapi --keypath-diff /)
mail -s "NCS Mailer" admin@example.com &lt;&lt;EOF
AutoGenerated mail from NCS
$NCS_DIFF
EOF
fi
If the admin then loads this script
admin@ncs# script reload debug
$NCS_DIR/examples.ncs/getting-started/using-ncs/1-simulated-cisco-ios/scripts:
ok
post-commit:
mail_admin.sh: new
--- Output from
$NCS_DIR/examples.ncs/getting-started/using-ncs/1-simulated-cisco-ios/scripts/post-commit/mail_admin.sh
--post-commit ---
1: begin post-commit
2: end
3:
---
admin@ncs# config
Entering configuration mode terminal
506
Plug-and-play scripting
admin@ncs(config)# devices global-settings trace-dir ./again
admin@ncs(config)# commit
Commit complete.
This configuration change will produce an email to admin@example.com with subject NCS Mailer
and body
AutoGenerated mail from NCS
value set : /devices/global-settings/trace-dir
In the complete example examples.confd/scripting there is a README file and a simple post-
commit script scripts/post-commit/show_diff.sh.
507
Chapter 28. Advanced Topics
28.1. Datastores
A datastore is a complete set of configuration parameters for the device stored and manipulated as a single
entity.
A datastore can be locked in its entirety with a global write lock.
ConfD supports three different named configuration datastores - running, startup, and candidate. The
respective datastores support a set of capabilities as explained below:
running The running datastore contains the complete configuration currently active on the device.
Running can be configured to support the read-write or the writable-through-candidate
modes. Writable-through-candidate means that running can only be modified by making
changes to the candidate datastore (see below), and by committing these changes to the
candidate.
startup The startup datastore is a persistent datastore which the device reads every time it reboots.
If running is read-write and the device has a startup datastore, a manager can try changes
by writing them to running. If things look good, the changes can be made persistent by
copying them to startup. This ensures that the device uses the same configuration after
reboot.
candidate The candidate datastore is used to hold configuration data that can be manipulated without
impacting the current configuration. The candidate configuration is a full configuration
data set that serves as a workspace for creating and manipulating configuration data.
Additions, deletions, and changes may be made to this data to construct the desired
configuration.
The candidate datastore can be committed, which means that the device's running
configuration is replaced with the contents of the candidate datastore.
The candidate can be used in two different modes, with different characteristics:
It can be modified without first taking a lock on the datastore. If it is modified outside
a lock, it is marked as being dirty. When the candidate is dirty it means that it is
(potentially) different from the running configuration. When it is dirty, a lock cannot
be taken. It leaves the dirty state by being committed to running, or by discarding all
changes (which effectively resets it to the contents of running).
If the candidate is not dirty, and a lock is taken, no one but the owner of the lock can
modify the database. If changes are made to the candidate while it is locked, and the
owner unlocks it (or closes the CLI, Web UI or NETCONF session), all changes are
discarded, and the datastore is unlocked.
The candidate can be committed to running with a specified timeout. In this case, running
is set to the contents of the candidate. If a second commit, called a confirming-commit,
is given within the timeout, the changes are made permanent. If no confirming-commit
is given within the timeout period, running is reverted to the state it had before the first
commit.
508
Advanced Topics
A project using ConfD must choose a valid combination of datastores to support. Which combination to
choose depends on the system resources available on the device, and which characteristics the end-product
should have.
The following is a list of valid combinations:
running in read-write mode, no startup, no candidate
A single, non-volatile datastore is used.
Once changes are written to the datastore, they are persistent, and cannot automatically be rolled
back.
The application needs to react to changes to the database. If CDB is used, this means that the
application must use the subscription mechanism.
running in read-write mode and startup
startup is stored in non-volatile memory, and running in read-write RAM.
The application needs to be written in such a way that it reacts to changes to the database. If CDB
is used, this means that the application must use the subscription mechanism.
running in read-write mode and candidate
Both running and candidate are stored in non-volatile memory.
NOTE: This combination is NOT RECOMMENDED. When a manager reconfigures a node that
has the candidate and also read-write running, the manager can never know that running is up to date
with the candidate and must thus always (logically) copy running to the candidate prior to modifying
the candidate. This introduces unnecessary overhead, and makes automation more complicated.
The application needs to react to changes to the database. If CDB is used, this means that the
application must use the subscription mechanism.
In this mode, running can be modified without going through the candidate. This means that a client
that wishes to work with the candidate may need to copy running into the candidate, to ensure that
no changes to running are lost when the candidate is committed.
running in writable-through-candidate mode and candidate
Both running and candidate are stored in non-volatile memory, but the candidate can efficiently be
implemented as a diff against running.
The application needs to react to changes to the database. If CDB is used, this means that the
application must use the subscription mechanism.
In this mode, all changes always go through the candidate, so a client does never have to copy
running to candidate in order to not lose any data.
ConfD ensures that running and startup are always consistent, in the sense that the validation constraints
defined in the data model hold. The candidate is allowed to be temporarily inconsistent, but if it is
committed to running, it must be valid.
ConfD by default implements the datastores chosen in CDB. However, ConfD can also be configured to
use an external database. If an external database is used, this database must implement the running and
startup datastores if applicable. If the candidate is used, it may be implemented with CDB or as an external
database.
509
Advanced Topics
28.2. Locks
This section will explain the different locks that exist in ConfD and how they interact. It is important to
understand the architecture of ConfD with its management backplane, and the transaction state machine
as described in Section 7.5, “User sessions and ConfD Transactions” to be able to understand how the
different locks fit into the picture.
28.2.1. Global locks
The ConfD management backplane keeps a lock for each datastore: running, startup and candidate. These
locks are usually referred to as the global locks and they provide a mechanism to grant exclusive access
to the datastore the lock guards.
The global locks are the only locks that can explicitly be taken through a northbound agent, for example
by the NETCONF <lock> operation, or by calling maapi_lock().
A global lock can be taken for the whole datastore, or it can be a partial lock (for a subset of the datamodel).
Partial locks are exposed through NETCONF and MAAPI.
An agent can request a global lock to ensure that it has exclusive write-access to a datastore. When a global
lock is held by an agent it is not possible for anyone else to write to the datastore the lock guards - this is
enforced by the transaction engine. A global lock on a datastore is granted to an agent if there are no other
holders of it (including partial locks), and if all dataproviders approve the lock request. Each dataprovider
(CDB and/or external dataproviders) will have its lock() callback invoked to get a chance to refuse or
accept the lock. The output of confd --status includes locking status. For each user session locks (if any)
per datastore is listed.
28.2.2. Transaction locks
A northbound agent starts a user session towards ConfD's management backplane. Each user session can
then start multiple transactions. A transaction is either read/write or read-only and is always started against
a specific datastore.
The transaction engine has its internal locks, one for every datastore. These transaction locks exists to
serialize configuration updates towards the datastore and are separate from the global locks.
As a northbound agent wants to update a datastore with a new configuration it will implicitly grab and
release the transactional lock corresponding to the datastore it is trying to modify. The transaction engine
takes care of managing the locks, as it moves through the transaction state machine and there is no API
that exposes the transactional locks to the northbound agents.
When the transaction engine wants to take a lock for a transaction (for example when entering the validate
state) it first checks that no other transaction has the lock. Then it checks that no user session has a global
lock on that datastore. Finally each dataprovider is invoked by its trans_lock() callback.
28.2.3. Northbound agents and global locks
In contrast to the implicit transactional locks, some northbound agents expose explicit access to the global
locks. This is done a bit differently by each agent.
The management API exposes the global locks by providing maapi_lock() and maapi_unlock()
functions (and the corresponding maapi_lock_partial() maapi_unlock_partial() for
partial locking). Once a user session is established (or attached to) these functions can be called.
510
Advanced Topics
In the CLI the global locks are taken when entering different configure modes as follows:
configure exclusive When the candidate datastore is enabled both the running and
candidate global locks will be taken.
configure exclusive When the candidate datastore is disabled and the startup datastore is
enabled both running (if enabled) and startup global locks are taken.
configure private | shared Does not grab any locks
The global locks are then kept by the CLI until either the configure mode is exited, or in the case of commit
confirmed <timeout> the lock is released when it returns.
The Web UI behaves in the same way as the CLI (it presents three edit tabs called "Edit private", "Edit
exclusive", and "Edit shared" which corresponds to the CLI modes described above).
The NETCONF agent translates the <lock> operation into a request for the global lock for the requested
datastore. Partial locks are also exposed through the partial-lock rpc.
28.2.4. External data providers
Implementing the lock() and unlock() callbacks is not required of an external dataprovider. ConfD
will never try to initiate the trans_lock() state transition (see the transaction state diagram in
Section 7.5, “User sessions and ConfD Transactions”) towards a data provider while a global lock is taken
- so the reason for a dataprovider to implement the locking callbacks is if someone else can write (or lock
for example to take a backup) to the data providers database.
28.2.5. CDB
CDB ignores the lock() and unlock() callbacks (since the data-provider interface is the only write
interface towards it).
CDB has its own internal locks on the database. The running and startup datastore each has a single write
and multiple read locks. It is not possible to grab the write-lock on a datastore while there are active read-
locks on it. The locks in CDB exists to make sure that a reader always gets a consistent view of the data
(in particular it becomes very confusing if another user is able to delete configuration nodes in between
calls to get_next() on YANG list entries).
During a transaction trans_lock() takes a CDB read-lock towards the transactions datastore and
write_start() tries to release the read-lock and grab the write-lock instead.
A CDB external client (usually referred to as an MO, managed object) implicitly takes a CDB read-lock
between cdb_start_session() and cdb_end_session() on the specified datastore (running or
startup). This means that while an MO is reading, a transaction can not pass through write_start()
(and conversely a CDB reader can not start while a transaction is in between write_start() and
commit() or abort()).
The Operational store in CDB does not have any locks. ConfD's transaction engine can only read from it,
and the MO writes are atomic per write operation.
28.2.6. Lock impact on user sessions
When a session tries to modify a data store that is locked in some way, it will fail. For example, the CLI
might print:
511
Advanced Topics
admin@host% commit
Aborted: the configuration database is locked
[error][2009-06-11 16:27:21]
Since some of the locks are short lived (such as a CDB read lock), ConfD can be configured to retry the
failing operation for a short period of time. If the data store still is locked after this time, the operation fails.
To configure this, set /confdConfig/commitRetryTimeout in confd.conf.
28.3. Installing ConfD on a target system
The ConfD installation package contains both binaries for the target system and a development
environment including documentation. Many of these files are not needed on a target, and can be excluded.
Additional files can be removed depending on the feature configuration on the target.
In the following description, $CONFD_DIR refers to the directory where ConfD has been installed.
A minimal example set of files on a target system can be:
$CONFD_DIR/bin/confd
$CONFD_DIR/etc/confd/*fxs
$CONFD_DIR/lib/confd/bin/*
$CONFD_DIR/lib/confd/erts/*
$CONFD_DIR/lib/confd/lib/core/*
$CONFD_DIR/lib/confd/lib/netconf/*
This target system has only NETCONF as northbound agent and no examples, no source code and no
development tools.
$CONFD_DIR/etc/confd/ contains configuration files and does not need to be located under
$CONFD_DIR.
Files associated with certain features can be removed if the system is set up not to use them:
Optional utilities $CONFD_DIR/bin/confd_cmd
$CONFD_DIR/bin/confd_load
$CONFD_DIR/bin/maapi
$CONFD_DIR/bin/netconf-console
$CONFD_DIR/bin/netconf-console-tcp
The CLI agent $CONFD_DIR/bin/confd_cli
$CONFD_DIR/etc/confd/confd.ccl
$CONFD_DIR/lib/confd/lib/cli*
The NETCONF server $CONFD_DIR/lib/confd/lib/netconf*
The Web UI and REST server $CONFD_DIR/lib/confd/lib/webui*
$CONFD_DIR/etc/confd/ietf-restconf-monitoring.fxs
The Web UI frontend $CONFD_DIR/var/confd/webui*
The SNMP agent and gateway $CONFD_DIR/bin/smidump
$CONFD_DIR/lib/confd/lib/snmp*
smidump is only used for producing YANG files - it is not used by
ConfD itself, and therefore not likely to be needed on the target.
512
Advanced Topics
The integrated SSH server The integrated SSH server is not needed if OpenSSH is used to
terminate SSH for NETCONF and the CLI:
$CONFD_DIR/lib/confd/lib/core/ssh*
The confdc compiler The compiler can be removed unless we plan to to compile YANG
files on the host.
$CONFD_DIR/bin/confdc
$CONFD_DIR/bin/cs2yang
$CONFD_DIR/bin/pyang
$CONFD_DIR/bin/yanger
$CONFD_DIR/lib/confd/lib/confdc*
$CONFD_DIR/lib/cs2yang*
$CONFD_DIR/lib/pyang*
The AAA bridge See documentation on AAA - basically this is a pre-compiled
example program which probably won't be used on target:
$CONFD_DIR/lib/confd/lib/core/capi/priv/confd_aaa_bridge
Static libraries These static libraries makes no sense on target:
$CONFD_DIR/lib/libconfd.a
Support for Symmetric Multiprocessing (SMP) introduces some overhead both in CPU and memory usage,
and in order to give optimal performance in all scenarios, the installation includes two separate executables
for the ConfD daemon, $CONFD_DIR/lib/confd/erts/bin/confd (no SMP support) and
$CONFD_DIR/lib/confd/erts/bin/confd.smp (with SMP support). If ConfD will always be
run either with or without SMP support, one of these executables can be removed. See also the --smp
option in the confd(1) manual page
If $CONFD_DIR/lib/confd/erts/bin/confd is removed, ConfD will always run with SMP
support, although with a single thread on a single-processor system or if it is started with --smp 1. If
$CONFD_DIR/lib/confd/erts/bin/confd.smp is removed, ConfD will never run with SMP
support, and the --smp option has no effect other than refusing to start the daemon if the argument is
bigger than 1.
28.4. Configuring ConfD
When ConfD is started, it reads its configuration file and starts all subsystems configured to start (such as
NETCONF, CLI etc.). If a configuration parameter is changed, ConfD can be reloaded by issuing:
$ confd --reload
This command also tells ConfD to close and reopen all log files, which makes it suitable to use from a
system like logrotate.
There is also another way, whereby the ConfD configuration parameters that can be changed in runtime
are loaded from an external namespace. Thus allowing the user to store ConfD's configuration in ConfD
(specifically in CDB) itself. This will be described further down.
28.4.1. Using the configuration file
On a typical system, the configuration data resides in ConfD's database CDB. Some of the parameters in
the configuration are intended for the target OS environment, such as the IP address of the management
513
Advanced Topics
interface. The OS reads this information from its own configuration files, such as /etc/conf.d/net.
This means that the application typically reads this data from CDB, and generates configuration files
needed by the system before starting them. If a manager changes one of these parameters, the application
subscribes to changes in CDB, regenerates the files, and restarts the system daemons. This mechanism
can also be used for the configuration of ConfD itself. The application must subscribe to changes to
any parameter affecting ConfD (such as management IP address), update the ConfD configuration file
confd.conf, and then instruct ConfD to reload it.
ConfD comes bundled with a small example tool which can be used to patch confd.conf files:
$CONFD_DIR/src/confd/tools/xmlset.c. This tool uses the light-weight Expat XML Parser
(http://expat.sourceforge.net/).
This example changes confd.conf to disable the Web UI:
$ xmlset C false confdConfig webui enabled < confd.conf
This example changes confd.conf to removes the encryptedStrings container:
$ xmlset R confdConfig encryptedStrings < confd.conf
28.4.2. Storing ConfD configuration parameters in CDB
In the ConfD distribution in the $CONFD_DIR/src/confd/dyncfg directory the
confd_dyncfg.yang YANG module is included. The module defines the namespace http://tail-f.com/
ns/confd_dyncfg/1.0 which contains all the ConfD configuration parameters that can be modified in
runtime. I.e. it is a subset of the namespace that defines the ConfD configuration file (confd.conf).
To enable the feature of storing ConfD's configuration in CDB the setting /confdConfig/
runtimeReconfiguration has to be set to namespace in the configuration file. This instructs
ConfD to read all its "static" configuration from the configuration file, and then load the rest of the
configuration from the confd_dyncfg namespace (which must be served by CDB). A requirement is that
the confd_dyncfg.fxs is in ConfD's loadPath. It is also advisable to have a suitable _init.xml file in
ConfD's CDB directory.
The best way to understand how to use this feature is the example confdconf/dyncfg in the bundled
example collection.
In most cases the interesting use of this feature is to be able to expose a particular aspect of ConfD's
configuration to the end-user and hide the rest. This can be achieved by combining the use of the --
export none flag when compiling the confd_dyncfg.yang module with the use of the symlink feature
(exactly how they work are explained in Section 10.7, “Hidden Data”). The snmpa/6-dyncfg example
in the example collection shows how to expose a small subset of the SNMP agent configuration (as well
as some minor aspects of the CLI parameters) in a private namespace.
For example, if we want to be able to expose the ConfD's built-in SNMP agents listen port as an end-user
configurable as the leaf /sys/snmp-port, we could write a YANG model like this:
container sys {
tailf:symlink snmp-port {
tailf:path "/dyncfg:confdConfig/dyncfg:snmpAgent/dyncfg:port";
}
}
When a transaction containing changes to /confdConfig is committed ConfD will pick up the changes
made and act accordingly. Thus there is no longer a need for confd --reload except for closing/re-opening
of log-files (as described above) or to update the fxs files for sub-agents.
514
Advanced Topics
When /confdConfig/runtimeReconfiguration is set to namespace, any settings in
confd.conf for the parameters that exist in the confd_dyncfg namespace are ignored, with one
exception: the configuration under /confdConfig/logs. This configuration is needed before CDB
has started, and ConfD will therefore initially use the settings from confd.conf, with the CDB settings
taking precedence once CDB has started (i.e. when the transition to phase1 is completed).
28.5. Starting ConfD
By default, ConfD starts in the background without an associated terminal. If it is started as confd --
foreground, it starts in the foreground attached to the current terminal. This feature can be used to start
ConfD from a process manager. In order to properly stop ConfD in the foreground case, close ConfD's
standard input, or use confd --stop as usual. When ConfD is started in the foreground, the commands
confd --wait-phase0 and confd --wait-started can be used to synchronize the startup sequence. See below
for more details.
If startup or candidate with confirming-commit is used, the system might need to use a configuration
which is different from the previous running when it reboots. An example of this is if startup is used, and a
manager writes a configuration into running which renders the device unstable, and it is rebooted. It might
be that the management IP address used by the OS is not the one that should be used (if it was changed
before reboot). We'd like to be able to change this address in the OS configuration files before bringing up
the interface. But we don't know the address until ConfD has been started, and ConfD itself needs to listen
to this address. To solve this dilemma, ConfD's startup sequence can be split into several phases. The first
phase brings up the ConfD daemon, but no subsystems that listen to the management IP address (such as
NETCONF and CLI). This phase must be started after the loopback interface has been brought up, since
the loopback interface is used to communicate between the application and ConfD.
It is also necessary to use the start phases when CDB is used and semantic validation via external callbacks
has been implemented. CDB will validate the new configuration when ConfD is started without an existing
database, as well as when a schema upgrade has caused configuration changes. This validation is done on
the transition to phase1, which means that validation callbacks must be registered before this.
Note
If an application has both validation callbacks and other callbacks (e.g. data provider), and
uses the same daemon structure and control socket through all the phases, it must register
all the callbacks in phase0. This is because the confd_register_done() function (see
confd_lib_dp(3)) must be called after all registrations are done, and no callbacks will be invoked
before this function has been called. The tables below reflect this requirement, but it is also
possible to register all callbacks in phase0, which may simplify the startup sequence (however
CDB subscribers can not be added until phase1).
The sequence to start up the system should be like this:
1. bring up the loopback interface
2. confd --start-phase0
3. start applications that implement validation callbacks
4. confd --start-phase1
5. start remaining applications, read from CDB
6. potentially update confd.conf and do confd --reload
515
Advanced Topics
7. bring up the management interface
8. confd --start-phase2
Note that if ConfD is started without any parameters, it will bring up the entire system at once.
This table summarizes the different start-phases and what they do.
Table 28.1. ConfD Start Phases
Command line When command returns ConfD
has After which application can/
should
confd --start-phase0 If upgrading or initializing
CDB, created an initial
transaction.
If upgrading or initializing,
the application can modify the
initial transaction
Register validation callbacks
Possibly register external data-
providers, transformations, etc
(see Note above)
Setup notification sockets
Connect to HA
confd --start-phase1 If upgrading or initializing
CDB, committed initial
transaction
Make HA state transitions
Register remaining external
data-providers, transformation
callbacks, etc (see Note above)
Add CDB subscribers
confd --start-phase2 Bound and started listening to
NETCONF, CLI, Web UI, and
SNMP addresses / ports
Allowed initiation of MAAPI
user sessions
This table summarizes the different start-phases when ConfD is started in the foreground.
Table 28.2. ConfD Start Phases, running in foreground
Command line When command returns ConfD
has After which application can/
should
confd --foreground --
start-phase0
This command never returns.
516
Advanced Topics
Command line When command returns ConfD
has After which application can/
should
confd --wait-phase0 If upgrading or initializing
CDB, created an initial
transaction.
If upgrading or initializing,
the application can modify the
initial transaction
Register validation callbacks
Possibly register external data-
providers, transformations, etc
(see Note above)
Setup notification sockets
confd --start-phase1 If upgrading or initializing
CDB, committed initial
transaction
Connect to HA
Register remaining external
data-providers, transformation
callbacks, etc (see Note above)
Add CDB subscribers
confd --start-phase2 Bound and started listening to
NETCONF, CLI, Web UI, and
SNMP addresses / ports
Allowed initiation of MAAPI
user sessions
28.6. ConfD IPC
Client libraries connect to ConfD using TCP. We tell ConfD which address to use for these
connections through the /confdConfig/confdIpcAddress/ip (default value 127.0.0.1) and /
confdConfig/confdIpcAddress/port (default value 4565) elements in confd.conf. It is
possible to change these values, but it requires a number of steps to also configure the clients. Also there
are security implications, see section Security issues below.
Some clients read the environment variables CONFD_IPC_ADDR and CONFD_IPC_PORT to determine
if something other than the default is to be used, others might need to be recompiled. This is a list of clients
which communicate with ConfD, and what needs to be done when confdIpcAddress is changed.
Client Changes required
Remote commands via the confd command Remote commands, such as confd --reload, check
the environment variables CONFD_IPC_ADDR
and CONFD_IPC_PORT.
CDB and MAAPI clients The address supplied to cdb_connect() and
maapi_connect() must be changed.
517
Advanced Topics
Client Changes required
Data provider API clients The address supplied to confd_connect() must
be changed.
confd_cli The Command Line Interface (CLI) client,
confd_cli, checks the environment variables
CONFD_IPC_ADDR and CONFD_IPC_PORT.
Alternatively the port can be provided on the
command line (using the -P option).
NOTE: confd_cli is provided as source, in
$CONFD_DIR/src/confd/cli, so it is also possible to
re-compile it using the new address as default.
Notification API clients The new address must be supplied to
confd_notifications_connect()
To run more than one instance of ConfD on the same host (which can be useful in development scenarios)
each instance needs its own IPC port. For each instance set /confdConfig/confdIpcAddress/
port in confd.conf to something different.
There are two more instances of ports that will have to be modified, NETCONF and CLI
over SSH. The netconf (SSH and TCP) ports that ConfD listens to by default are 2022 and
2023 respectively. Modify /confdConfig/netconf/transport/ssh and /confdConfig/
netconf/transport/tcp, either by disabling them or changing the ports they listen to. The CLI
over SSH by default listens to 2024; modify /confdConfig/cli/ssh either by disabling or changing
the default port.
28.6.1. Using a different IPC mechanism
We can set up ConfD to use a different IPC mechanism than TCP for the client library connections, as well
as for the communication between ConfD nodes in a HA cluster. This can be useful e.g. in a chassis system
where ConfD runs on a management blade, while the managed objects run on data processing blades that
may not have a TCP/IP implementation.
There are several requirements that must be fulfilled by such an IPC mechanism:
It must adhere to the standard socket API, with SOCK_STREAM semantics. I.e. it must provide
an ordered, reliable byte stream, with connection management via the connect(), bind(),
listen(), and accept() primitives.
It must support non-blocking operations (requested via fcntl(O_NONBLOCK)), for accept() as
well as for read and write operations. Ideally non-blocking connect() should also be supported, but
this is not currently used by ConfD in this case.
It must support the use of poll() for I/O multiplexing.
For ConfD to be able to use this mechanism without knowledge of address format etc, we must provide
C code in the form of a shared object, which is dynamically loaded by ConfD. The interface between
ConfD and the shared object code is defined in the ipc_drv.h file in the $CONFD_DIR/src/
confd/ipc_drv directory in the release. The shared object must be named ipc_drv_ops.so
and installed in the $CONFD_DIR/lib/confd/lib/core/confd/priv directory of the ConfD
installation, see the sample Makefile in the ipc_drv directory. The interface is implemented via the
confd_ext_ipc_init() function. This function must be provided by the shared object, and it must
return a pointer to a callback structure defined in the shared object:
518
Advanced Topics
struct confd_ext_ipc_cbs {
int (*getaddrinfo)(char *address,
int *family, int *type, int *protocol,
struct sockaddr **addr, socklen_t *addrlen,
char **errstr);
int (*socket)(int family, int type, int protocol, char **errstr);
int (*getpeeraddr)(int fd, char **address, char **errstr); /* optional */
int (*connect)(char *address, char **errstr);
int (*bind)(char *address, char **errstr);
void (*unbind)(int fd); /* optional */
};
The structure must provide (i.e. have non-NULL function pointers for) either both of the
getaddrinfo() and socket() callbacks, or both of the connect() and bind() callbacks - it
may of course provide all of them. The getpeeraddr() and unbind() callbacks are optional. If both
getaddrinfo() and socket() are provided, the shared object can also be used by applications using
the C APIs to connect to ConfD (see e.g. the confd_cmd.c source code in the $CONFD_DIR/src/
confd/tools directory).
All the callbacks except unbind() can report an error by returning -1, and in this case optionally provide
an error message via the errstr parameter. If an error message is provided, errstr must point to
dynamically allocated memory - ConfD will free it through a call to free(3) after reporting the error.
getaddrinfo() This callback should parse the given text-format address (see below). If the
parsing is successful, the callback should return 0 and provide data that can
be used for the socket() callback and for the standard bind(2) and/or
connect(2) system calls via the family, type, protocol, addr, and
addrlen parameters. The structure pointed to by addr must be dynamically
allocated - ConfD will free it after use through a call to free(3).
socket() This callback should create a socket, and if successful return the socket file
descriptor.
getpeeraddr() This optional callback should create a text representation of the address of the remote
host/node connected via the socket fd, and if successful return 0 and provide the
text-format address via the address parameter. The main purpose of the callback
is to make it possible to use the maapi_disconnect_remote() function (see
the confd_lib_maapi(3) manual page), but the provided address will also be used in
e.g. HA status and notifications, and will be included in ConfD debug dumps.
connect() This callback should create a socket, connect it to the given address (see below),
and if successful return the socket file descriptor.
bind() This callback should create a socket, bind it to the given address (see below), and
if successful return the socket file descriptor.
unbind() This is an optional callback that can be used if we need to do any special cleanup
when a bound socket is closed. In this case the callback must also close the file
descriptor - otherwise the function pointer can be set to NULL, and ConfD will close
the file descriptor.
Two examples using this interface are provided in the $CONFD_DIR/src/confd/ipc_drv directory.
One of them (ipc_drv_unix.c) uses AF_UNIX sockets, and implements only the connect(),
bind(), and unbind() callbacks. The other (ipc_drv_etcp.c) actually uses standard AF_INET/
AF_INET6 TCP sockets just like the "normal" ConfD IPC - this can be meaningful if we need to set some
non-standard socket options such as Linux SO_VRF for all IPC sockets. This example implements the
getaddrinfo(), socket(), and getpeeraddr() callbacks.
519
Advanced Topics
An older version of this interface (also defined in ipc_drv.h) used a confd_ipc_init() function
and a struct confd_ipc_cbs callback structure. This interface is deprecated, but will continue to
be supported. The main differences are that the old interface lacks the getaddrinfo(), socket(),
and getpeeraddr() callbacks, and that any error message would be provided via a static errstr
structure element.
To enable the use of this alternate IPC mechanism for the client library connections, we
need to set /confdConfig/confdExternalIpc/enabled to "true" in confd.conf.
This causes any settings for /confdConfig/confdIpcAddress/ip and /confdConfig/
confdIpcAddress/port to be ignored, and we can instead specify the address to use in /
confdConfig/confdExternalIpc/address. The address is given in text form, and ConfD
passes it to the getaddrinfo(), bind(), and/or connect() callbacks without any interpretation.
If we want to use the alternate IPC for the inter-node HA communication, we can in the same way
set /confdConfig/ha/externalIpc/enabled and /confdConfig/ha/externalIpc/
address in confd.conf. Additionally the HA API uses a struct that holds a node address:
struct confd_ha_node {
confd_value_t nodeid;
int af; /* AF_INET | AF_INET6 | AF_UNSPEC */
union { /* address of remote note */
struct in_addr ip4;
struct in6_addr ip6;
char *str;
} addr;
char buf[128]; /* when confd_read_notification() and */
/* confd_ha_get_status() populate these structs, */
/* if type of nodeid is C_BUF, the pointer */
/* will be set to point into this buffer */
char addr_buf[128]; /* similar to the above, but for the address */
/* of remote node when using external IPC */
/* (from getpeeraddr() callback for slaves) */
};
When this struct is used to specify the address of the master in the confd_ha_beslave() call, the
af element should be set to AF_UNSPEC, and the str element of the addr union should point to the
text form of the master node's address. When the struct is used to deliver information from ConfD, in
the HA event notifications and the result of a confd_ha_get_status() call, af will also be set to
AF_UNSPEC, but str will be NULL for slave nodes unless a peer address has been provided via the
getpeeraddr() callback.
The client changes we need to do are analogous to those listed in the table above for the case of using a
different IP address and/or port for TCP - the differences are:
Instead of CONFD_IPC_ADDR and CONFD_IPC_PORT, the environment variable
CONFD_IPC_EXTADDR is used to specify the address. This should be in the same form as used in
confd.conf, and if the variable is set it causes any CONFD_IPC_ADDR and CONFD_IPC_PORT
settings to be ignored.
The confd_cli program also needs to be told where to find the shared object that it should
use for the connect() operation. This is done via the CONFD_IPC_EXTSOPATH environment
variable, i.e. it typically needs to be set to $CONFD_DIR/lib/confd/lib/core/confd/priv/
ipc_drv_ops.so.
Provided that the getaddrinfo() and socket() callbacks are provided by the shared object, the
confd_cmd, confd_load, and maapi commands included in the release can also use the shared object
520
Advanced Topics
if the CONFD_IPC_EXTSOPATH environment variable is set. Otherwise these programs will assume
that any setting of environment CONFD_IPC_EXTADDR is the pathname of an AF_UNIX socket.
As noted above, confd_cli is provided as source, so we can alternatively modify it to support the alternate
IPC mechanism "natively". This is also the case for confd_cmd, confd_load, and maapi.
Note
If we rebuild confd_cli or the other commands from source, but want to keep the support
for alternate IPC via the environment variables and shared object, the preprocessor macro
EXTERNAL_IPC must be defined. This can be done by un-commenting the #define in the
source, or by using a -D option to the compiler.
28.6.2. Restricting access to the IPC port
By default, the clients connecting to the ConfD IPC port are considered trusted, i.e. there is no
authentication required, and we rely on the use of 127.0.0.1 for /confdConfig/confdIpcAddress/
ip to prevent remote access. In case this is not sufficient, it is possible to restrict the access to the IPC
port by configuring an access check.
The access check is enabled by setting the confd.conf element /confdConfig/
confdIpcAccessCheck/enabled to "true", and specifying a filename for /confdConfig/
confdIpcAccessCheck/filename. The file should contain a shared secret, i.e. a random character
string. Clients connecting to the IPC port will then be required to prove that they have knowledge of the
secret through a challenge handshake, before they are allowed access to the ConfD functions provided
via the IPC port.
Note
Obviously the access permissions on this file must be restricted via OS file permissions, such that
it can only be read by the ConfD daemon and client processes that are allowed to connect to the
IPC port. E.g. if both the ConfD daemon and the clients run as root, the file can be owned by
root and have only "read by owner" permission (i.e. mode 0400). Another possibility is to have
a group that only the ConfD daemon and the clients belong to, set the group ID of the file to that
group, and have only "read by group" permission (i.e. mode 040).
To provide the secret to the client libraries, and inform them that they need to use the access check
handshake, we have to set the environment variable CONFD_IPC_ACCESS_FILE to the full pathname
of the file containing the secret. This is sufficient for all the clients mentioned above, i.e. there is no need
to change application code to support or enable this check.
Note
The access check must be either enabled or disabled for both the ConfD daemon and the clients.
E.g. if /confdConfig/confdIpcAccessCheck/enabled in confd.conf is not set
to "true", but clients are started with the environment variable CONFD_IPC_ACCESS_FILE
pointing to a file with a secret, the client connections will fail.
28.7. Restart strategies
If the ConfD daemon is shut down, all applications connected to the ConfD daemon must enter an
indefinite reconnect loop. If ConfD has been configured to use a startup datastore, all applications keeping
521
Advanced Topics
configuration data in their run-time state must re-read the configuration data from CDB, when the daemon
comes back.
If ConfD has been setup to not use a startup datastore, all applications which keep configuration data in
their run-time state can just proceed its processing without any re-read of the configuration data from CDB,
when the daemon comes back.
The ConfD daemon must be restarted if .fxs files in a running system are to be changed. It is not enough
to issue a:
$ confd --reload
Before we restart the daemon we need to stop all applications relying on the .fxs files that are updated.
Whenever the daemon is up and running the stopped applications can be restarted.
Applications which do not rely on the updated .fxs files can safely be kept running. However, be sure to
follow the startup datastore reconnect strategy above.
28.8. Security issues
ConfD requires some privileges to perform certain tasks. The following tasks may, depending on the target
system, require root privileges.
Binding to privileged ports. The confd.conf configuration file specifies which port numbers ConfD
should bind(2) to. If any of these port numbers are lower than 1024, ConfD usually requires root
privileges unless the target operating system allows ConfD to bind to these ports as a non-root user.
If PAM is to be used for authentication, the program installed as $CONFD_DIR/lib/confd/lib/
core/pam/priv/epam acts as a PAM client. Depending on the local PAM configuration, this
program may require root privileges. If PAM is configured to read the local passwd file, the program
must either run as root, or be setuid root. If the local PAM configuration instructs ConfD to run
for example pam_radius_auth, root privileges are possibly not required depending on the local PAM
installation.
If the CLI is used and we want to create CLI commands that run executables, we may want to modify the
permissions of the $CONFD_DIR/lib/confd/lib/core/confd/priv/cmdptywrapper
program.
To be able to run an executable as root or a specific user, we need to make cmdptywrapper setuid root,
i.e.:
1. # chown root cmdptywrapper
2. # chmod u+s cmdptywrapper
Failing that, all programs will be executed as the user running the confd daemon. Consequently, if that
user is root we do not have to perform the chmod operations above.
The same applies for executables run via actions, but then we may want to modify the permissions of
the $CONFD_DIR/lib/confd/lib/core/confd/priv/cmdwrapper program instead:
1. # chown root cmdwrapper
2. # chmod u+s cmdwrapper
522
Advanced Topics
ConfD can be instructed to terminate NETCONF over clear text TCP. This is useful for debugging since
the NETCONF traffic can then be easily captured and analyzed. It is also useful if we want to provide some
local proprietary transport mechanism which is not SSH. Clear text TCP termination is not authenticated,
the clear text client simply tells ConfD which user the session should run as. The idea is that authentication
is already done by some external entity, such as an SSH server. If clear text TCP is enabled, it is very
important that ConfD binds to localhost (127.0.0.1) for these connections.
Client libraries connect to ConfD. For example the CDB API is TCP based and a CDB client
connects to ConfD. We instruct ConfD which address to use for these connections through the
confd.conf parameters /confdConfig/confdIpcAddress/ip (default address 127.0.0.1) and /
confdConfig/confdIpcAddress/port (default port 4565).
ConfD multiplexes different kinds of connections on the same socket (IP and port combination). The
following programs connect on the socket:
Remote commands, such as e.g. confd --reload
CDB clients.
External database API clients.
MAAPI, The Management Agent API clients.
The confd_cli program
All of the above are considered trusted. MAAPI clients and confd_cli should supposedly authenticate the
user before connecting to ConfD whereas CDB clients and external database API clients are considered
trusted and do not have to authenticate.
Thus, since the confdIpcAddress socket allows full unauthenticated access to the system, it is important
to ensure that the socket is not accessible from untrusted networks. However it is also possible to restrict
access to this socket by means of an access check, see Section 28.6.2, “Restricting access to the IPC port”
above.
28.9. Running ConfD as a non privileged user
A common misfeature found on UN*X operating systems is the restriction that only root can bind to ports
below 1024. Many a dollar has been wasted on workarounds and often the results are security holes.
Both FreeBSD and Solaris have elegant configuration options to turn this feature off. On FreeBSD:
$ sysctl net.inet.ip.portrange.reservedhigh=0
The above is best added to your /etc/sysctl.conf
Similarly on Solaris we can just configure this. Assuming we want to run ConfD under a non-root user
"confd". On Solaris we can do that easily by granting the specific right to bind privileged ports below 1024
(and only that) to the "confd" user using:
$ /usr/sbin/usermod -K defaultpriv=basic,net_privaddr confd
523
Advanced Topics
And check the we get what we want through:
$ grep confd /etc/user_attr
confd::::type=normal;defaultpriv=basic,net_privaddr
Linux doesn't have anything like the above. There are a couple of options on Linux. The best is to
use an auxiliary program like authbind http://packages.debian.org/stable/authbind or
privbind http://sourceforge.net/projects/privbind/
These programs are run by root. To start confd under e.g authbind we can do:
privbind -u confd /opt/confd/confd-2.7/bin/confd \
-c /etc/confd.conf
The above command starts confd as user confd and binds to ports below 1024
28.10. Storing encrypted values in ConfD
Using the tailf:des3-cbc-encrypted-string or the tailf:aes-cfb-128-encrypted-
string built-in types it is possible to store encrypted values in ConfD (see confd_types(3)). The keys
used to encrypt these values are stored in confd.conf. Whenever an encrypted leaf is read using the
CDB API or MAAPI it is possible to decrypt the returned string using the confd_decrypt() function.
When the keys in confd.conf are changed, the encrypted values will not be decryptable any longer,
so care must be taken to re-install the values using the new keys. This section will provide an example
on how to do this.
The encrypted values can only be decrypted using confd_decrypt(), which only works when ConfD
is running with the correct keys, so the procedure to update the encrypted values is:
1. Read all the encrypted values and decrypt them
2. Stop the ConfD daemon
3. Restart it with the new encryption keys
4. Write back the values in clear-text, which will cause ConfD to encrypt them again
A very simple YANG model to store encrypted strings could be:
module enctest {
namespace "http://www.example.com/ns/enctest";
prefix e;
import tailf-common {
prefix tailf;
}
container strs {
list str {
key nr;
max-elements 64;
leaf nr {
524
Advanced Topics
type int32;
}
leaf secret {
type tailf:aes-cfb-128-encrypted-string;
mandatory true;
}
}
}
}
The we could write a function which would read all the encrypted leafs and save the clear-text equivalent.
Such a function (without error checking) could look like this:
static void install_keys(struct sockaddr_in *addr)
{
struct confd_daemon_ctx *dctx;
int ctlsock = socket(PF_INET, SOCK_STREAM, 0);
dctx = confd_init_daemon(progname);
confd_connect(dctx, ctlsock, CONTROL_SOCKET, (struct sockaddr*)addr, sizeof (*addr));
confd_install_crypto_keys(dctx);
close(ctlsock);
confd_release_daemon(dctx);
}
static void get_clear_text(struct sockaddr_in *addr, FILE *f)
{
int rsock = socket(PF_INET, SOCK_STREAM, 0);
int i, n;
install_keys(addr);
cdb_connect(rsock, CDB_READ_SOCKET, (struct sockaddr*)addr, sizeof(*addr));
cdb_start_session(rsock, CDB_RUNNING);
cdb_set_namespace(rsock, smp__ns);
n = cdb_num_instances(rsock, "/strs/str");
for(i=0; i<n; i++) {
int nr;
char cstr[BUFSIZ], dstr[BUFSIZ];
cdb_get_str(rsock, cstr, sizeof(cstr), "/strs/str[%d]/secret", i);
cdb_get_int32(rsock, &nr, "/strs/str[%d]/nr", i);
memset(dstr, 0, sizeof(dstr));
confd_decrypt(cstr, strlen(cstr), dstr);
fprintf(f, "/strs/str{%d}/secret=$0$%s\n", nr, dstr);
}
cdb_end_session(rsock),
cdb_close(rsock);
}
Note the prefixing of the clear-text output of $0$ - this is what indicates to the ConfD daemon that the
strings are in clear text, causing it to encrypt them when we install them again.
Now the opposite function, reading lines on the form "keypath=value" and using the
maapi_set_elem2() function to write them back to the ConfD daemon.
static void set_values(struct sockaddr_in *addr, FILE *f)
{
int msock = socket(PF_INET, SOCK_STREAM, 0);
int th;
525
Advanced Topics
struct confd_ip ip;
const char *groups[] = { "admin" };
maapi_connect(msock, (struct sockaddr*)addr, sizeof(*addr));
ip.af = AF_INET;
inet_aton("127.0.0.1", &ip.ip.v4);
maapi_start_user_session(msock, "admin", progname,
groups, sizeof(groups) / sizeof(*groups),
&ip, CONFD_PROTO_TCP);
maapi_start_trans(msock, CONFD_RUNNING, CONFD_READ_WRITE);
maapi_set_namespace(msock, th, smp__ns);
for (;;) {
char *key, *val, line[BUFSIZ];
if (fgets(line, sizeof(line), f) == NULL) {
break;
}
key = line;
val = strchr(key, (int)'=');
*val++ = 0; /* NUL terminate the key, make val point to value */
maapi_set_elem2(msock, th, val, key);
}
maapi_apply_trans(msock, th, 0);
maapi_end_user_session(msock);
close(msock);
}
Putting it together with this main() function makes a useful utility program for the task at hand.
int main(int argc, char **argv)
{
char *confd_addr = "127.0.0.1";
int confd_port = CONFD_PORT;
struct sockaddr_in addr;
int c, mode = 0; /* 1 = get, 2 = set */
/* Parse command line */
while ((c = getopt(argc, argv, "gs")) != EOF) {
switch (c) {
case 'g':
mode = 1;
break;
case 's':
mode = 2;
break;
default:
printf("huh?\n");
exit(1);
}
}
if (!mode) {
fprintf(stderr, "%s: must provide either -s or -g\n", argv[0]);
exit(1);
}
/* Initialize address to confd daemon */
{
struct in_addr in;
inet_aton(confd_addr, &in);
addr.sin_addr.s_addr = in.s_addr;
addr.sin_family = AF_INET;
526
Advanced Topics
addr.sin_port = htons(confd_port);
}
confd_init(argv[0], stderr, dbg);
switch (mode) {
case 1: get_clear_text(&addr, stdout); break;
case 2: set_values(&addr, stdin); break;
}
exit(0);
}
Using this utility, called crypto_keys, installing new encryption keys could be done using a shell script
like this.
# First save clear text version of the keys in a temporary file
crypto_keys -g > TOP_SECRET
# Now stop the daemon
confd --stop
# Install the new AES encryption key (provided to this script in $1)
mv confd.conf confd.conf.old
xmlset C "$1" confdConfig encryptedStrings AESCFB128 key < \
confd.conf.old > confd.conf
rm -f confd.conf.old
# Bring the daemon up to start-phase 1
confd -c confd-conf --start-phase0
confd --start-phase1
# Now write back the keys, and remove the temporary file
crypto_keys -s < TOP_SECRET
rm -f TOP_SECRET
# We are done
confd --start-phase2
In this example we are only using AES encryption, and only modifying the key, not the initial vector
- but it is easy to extend to use the 3DES keys as well. The xmlset utility (provided as example
source in $CONFD_DIR/src/confd/tools) in the ConfD distribution) is used to modify the key in
confd.conf. Writing back the encrypted leaf in start phase 1 ensures that no external method (e.g. a
NETCONF request) modifies the data before it is re-installed with the new encryption keys.
28.11. Disaster management
This section describes a number of disaster scenarios and recommends various actions to take in the
different disaster variants.
28.11.1. ConfD fails to start
CDB keeps its data in two files A.cdb and C.cdb. If ConfD is stopped, these two files can simply be
copied, and the copy is then a full backup of CDB. If ConfD is running, we cannot copy the files, but need
to use confd --cdb-backup file to copy the two CDB files into a backup file (in gzipped tar format).
Furthermore, if neither A.cdb nor C.cdb exists in the configured CDB directory, CDB will attempt to
initialize from all files in the CDB directory with the suffix ".xml".
527
Advanced Topics
Thus, there exists two different ways to reinitiate CDB from a previous known good state, either from .xml
files of from a CDB backup. The .xml files would typically be used to reinstall "factory defaults" whereas
a CDB backup could be used in more complex scenarios.
When ConfD starts and fails to initialize, the following exit codes can occur:
Exit codes 1 and 19 mean that an internal error has occurred. A text message should be in the logs, or
if the error occurred at startup before logging had been activated, on standard error (standard output if
ConfD was started with --foreground). Generally the message will only be meaningful to the ConfD
developers, and an internal error should always be reported to Tail-f support.
Exit codes 2 and 3 are only used for the confd "control commands" (see the section COMMUNICATING
WITH CONFD in the confd(1) manual page), and mean that the command failed due to timeout. Code
2 is used when the initial connect to ConfD didn't succeed within 5 seconds (or the TryTime if given),
while code 3 means that the ConfD daemon did not complete the command within the time given by
the --timeout option.
Exit code 10 means that one of the init files in the CDB directory was faulty in some way. Further
information in the log.
Exit code 11 means that the CDB configuration was changed in an unsupported way. This will only
happen when an existing database is detected, which was created with another configuration than the
current in confd.conf.
Exit code 12 means that the C.cdb file is in an old and unsupported format (this can only happen if the
CDB database was created with a ConfD version older than 1.3, from which upgrading isn't supported).
Exit code 13 means that the schema change caused an upgrade, but for some reason the upgrade failed.
Details are in the log. The way to recover from this situation is either to correct the problem or to re-
install the old schema (fxs) files.
Exit code 14 means that the schema change caused an upgrade, but for some reason the upgrade failed,
corrupting the database in the process. This is rare and usually caused by a bug. To recover, either start
from an empty database with the new schema, or re-install the old schema files and apply a backup.
Exit code 15 means that A.cdb or C.cdb is corrupt in a non-recoverable way. Remove the files and
re-start using a backup or init files.
Exit code 16 means that CDB ran into an unrecoverable file-error while booting (such as running out
of space on the device while writing the initial schema file).
Exit code 20 means that ConfD failed to bind a socket. By default this means that Confd refuses to
start. It is however possible to force Confd to ignore this fatal error situation by enabling the parameter /
confdConfig/ignoreBindErrors. Instead a warning is issued and the failing northbound agent is disabled.
The agent may be enabled by dynamically re-configuring the failing agent to use another port and restart
Confd.
Exit code 21 means that some ConfD configuration file is faulty. More information in the logs.
Exit code 22 indicates a ConfD installation related problem, e.g. that the user does not have read access
to some library files, or that some file is missing.
If the ConfD daemon starts normally, the exit code is 0.
If CDB is reinitialized to factory defaults, it may not be possible to reach the machine over the network.
The only way to reconfigure the machine is through a CLI login over the serial console.
528
Advanced Topics
If the AAA database is broken, ConfD will start but with no authorization rules loaded. This means that all
write access to the configuration is denied. The ConfD CLI can be started with a flag confd_cli --noaaa
which will allow full unauthorized access to the configuration. Usage of the ConfD cli with this flag can
possibly be enabled for some special UNIX user which can only login over the serial port. Thus --noaaa
provides a way to reconfigure the box although the AAA database is broken.
28.11.2. ConfD failure after startup
ConfD attempts to handle all runtime problems without terminating, e.g. by restarting specific components.
However there are some cases where this is not possible, described below. When ConfD is started the
default way, i.e. as a daemon, the exit codes will of course not be available, but see the --foreground option
in the confd(1) manual page.
Out of memory: If ConfD is unable to allocate memory, it will exit by calling abort(3). This will generate
an exit code as for reception of the SIGABRT signal - e.g. if ConfD is started from a shell script, it will
see 134 as exit code (128 + the signal number).
Out of file descriptors for accept(2): If ConfD fails to accept a TCP connection due to lack of file
descriptors, it will log this and then exit with code 25. To avoid this problem, make sure that the process
and system-wide file descriptor limits are set high enough, and if needed configure session limits in
confd.conf.
28.11.3. Transaction commit failure
When the system is updated, ConfD executes a two phase commit protocol towards the different
participating databases including CDB. If a participant fails in the commit() phase although the
participant succeeded in the prepare phase, the configuration is possibly in an inconsistent state.
When ConfD considers the configuration to be in a inconsistent state, operations will continue. It is still
possible to use NETCONF, the CLI and all other northbound management agents. The CLI has a different
prompt which reflects that the system is considered to be in an inconsistent state and also the Web UI
shows this:
-- WARNING ------------------------------------------------------
Running db may be inconsistent. Enter private configuration mode and
install a rollback configuration or load a saved configuration.
------------------------------------------------------------------
It is slightly more involved using the NETCONF agent. The NETCONF transaction which resulted in a
failed commit will fail, but following that the only way to see that the system is considered to be in an
inconsistent state is by reading the data defined by tailf-netconf-monitoring.
The MAAPI API has two interface functions which can be used to set and retrieve the consistency status.
This API can thus be used to manually reset the consistency state. Apart from this, the only way to reset
the state to a consistent state is by reloading the entire configuration.
28.12. Troubleshooting
This section discusses problems that new users have seen when they started to use ConfD. Please do not
hesitate to contact our support team (see below) if you are having trouble, regardless of whether your
problem is listed here or not.
529
Advanced Topics
28.12.1. Installation Problems
Error messages during installation
The installation program gives a lot of error messages, the first few like the ones below. The resulting
installation is obviously incomplete.
tar: Skipping to next header
gzip: stdin: invalid compressed data--format violated
Cause: This happens if the installation program has been damaged, most likely because it has been
downloaded in 'ascii' mode.
Resolution: Remove the installation directory. Download a new copy of ConfD from our servers. Make
sure you use binary transfer mode every step of the way.
28.12.2. Problems Starting ConfD
ConfD terminating with GLIBC error
ConfD terminates immediately with a message similar to the one below.
Internal error: Open failed: /lib/tls/libc.so.6: version
`GLIBC_2.3.4' not found (required by
.../lib/confd/lib/core/util/priv/syst_drv.so)
Cause: This happens if you are running on a very old Linux version. The GNU libc (GLIBC) version is
older than 2.3.4, which was released 2004.
Resolution: Use a newer Linux system, or upgrade the GLIBC installation.
ConfD terminating with libcrypto error
ConfD terminates immediately with a message similar to this:
Bad configuration: .../confd.conf:0: cannot dynamically link with
libcrypto shared library
Cause: This normally happens due to the OpenSSL package being of the wrong version or not installed
in the operating system.
Resolution: One of
1. Install the OpenSSL package with the correct version. This is 1.0.0 for Linux releases of ConfD,
0.9.8 or 0.9.7 for some other operating systems. To find out the version to install, run:
$ ldd $CONFD_DIR/lib/confd/lib/core/crypto/priv/lib/crypto.so
Note: only the libcrypto shared library (libcrypto.so.N.N.N) is actually required by ConfD.
2. Provided that a different version of OpenSSL, 0.9.7 or greater, is installed: Rebuild the ConfD
components that depend on libcrypto to use this version, as described in Section 28.15, “Using a
different version of OpenSSL”.
ConfD terminates immediately, or when the Web UI is enabled, with a message similar to:
530
Advanced Topics
Bad configuration: .../confd.conf:0: libcrypto shared library mismatch
(DES_INT) - crypto.so and libconfd must be rebuilt
or:
Bad configuration: .../confd.conf:0: libcrypto shared library mismatch
(RC4_CHAR) - crypto.so must be rebuilt for support of default setting
for /confdConfig/webui/transport/ssl/ciphers
Cause: This happens if the OpenSSL package is of the correct version, but has been built with a
configuration parameter that makes the interface incompatible with the build that is expected by ConfD.
Resolution: Applying resolution 2 above is always sufficient. Applying resolution 1 is also a possibility,
but requires that the OpenSSL package is built with the expected configuration parameters. Contact
Tail-f support if this method is desired but unsuccessful in solving the problem. In case only the second
message (with RC4_CHAR) occurs, yet another way to resolve the issue is to configure a cipher list for
/confdConfig/webui/transport/ssl/ciphers in confd.conf (or confd_dyncfg) that
does not include any RC4-based ciphers - see confd.conf(5).
28.12.3. Problems Running Examples
Some examples are dependent on features that might only be available on Linux. Before such examples
can run, they would have to be ported.
The 'netconf-console' program fails
Sending NETCONF commands and queries with 'netconf-console' fails, while it works using 'netconf-
console-tcp'. The error message is below.
You must install the python ssh implementation paramiko in order to use ssh.
Cause: The netconf-console command is implemented using the Python programming language. It depends
on the python SSH implementation Paramiko. Since you are seeing this message, your operating system
doesn't have the python-module Paramiko installed. The Paramiko package, in turn, depends on a Python
crypto library (pycrypto).
Resolution: Install Paramiko (and pycrypto, if necessary) using the standard installation mechanisms for
your OS. An alternative approach is to go to the project home pages to fetch, build and install the missing
packages.
• http://www.lag.net/paramiko/
• http://www.amk.ca/python/code/crypto
These packages come with simple installation instructions. You will need root privileges to install these
packages, however. When properly installed, you should be able to import the paramiko module without
error messages
$ python
...
>>> import paramiko
>>>
Exit the Python interpreter with Ctrl+D.
531
Advanced Topics
A workaround is to use 'netconf-console-tcp'. It uses TCP instead of SSH and doesn't require Paramiko or
Pycrypto. Note that TCP traffic is not encrypted.
28.12.4. General Troubleshooting Strategies
If you have trouble starting or running ConfD, the examples or the clients you write, here are some
troubleshooting tips.
Transcript When contacting support, it often helps the support engineer to
understand what you are trying to achieve if you copy-paste the
commands, responses and shell scripts that you used to trigger the
problem.
Verbose flag When ConfD is started, give the --verbose (abbreviated -v) and --
foreground flags. This will prevent ConfD from starting as a daemon
and cause some messages to be printed on the stdout.
$ confd --verbose --foreground ...
Log files To find out what ConfD is/was doing, browsing ConfD's log files is
often helpful. In the examples, they are called 'devel.log', 'confd.log',
'audit.log' and 'confd.log'. If you are working with your own system,
make sure the log files are enabled in 'confd.conf'. They are already
enabled in all the examples.
Status ConfD will give you a comprehensive status report if you call
$ confd --status
ConfD status information is also available as operational data under /
confd-state when the tailf-confd-monitoring.fxs and
tailf-common-monitoring.fxs data model files are present
in ConfD's loadPath. These files are stored in $CONFD_DIR/
etc/confd in the ConfD release, and the functionality thus enabled
by default. See the corresponding YANG modules tailf-confd-
monitoring.yang and tailf-common-monitoring.yang
in the $CONFD_DIR/src/confd/yang directory of the ConfD
release for documentation of the provided data. To allow programmatic
access to this data via MAAPI without exposing it to end users, the
modules can be recompiled with the --export none option to
confdc (see confdc (1)).
Note
When recompiling these modules, it is critical that
the annotation module tailf-confd-monitoring-
ann.yang is used, see $CONFD_DIR/src/confd/
yang/Makefile.
Check data provider If you are implementing a data provider (for operational or configuration
data), you can verify that it works for all possible data items using
532
Advanced Topics
$ confd --check-callbacks
Debug dump If you suspect you have experienced a bug in ConfD, or ConfD told
you so, you can give Support a debug dump to help us diagnose the
problem. It contains a lot of status information (including a full confd
--status report) and some internal state information. This information is
only readable and comprehensible to the ConfD development team, so
send the dump to your support contact. A debug dump is created using
$ confd --debug-dump mydump1
Just as in CSI on TV, it's important that the information is collected as
soon as possible after the event. Many interesting traces will wash away
with time, or stay undetected if there are lots of irrelevant facts in the
dump.
Debug error log Another thing you can do if you suspect you have experienced a bug
in ConfD, is to enable the error log. The logged information is only
readable and comprehensible to the ConfD development team, so send
the log to your support contact.
By default, the error log is disabled. To enable it, add this chunk of XML
between <logs> and </logs> in your confd.conf file:
<errorLog>
<enabled>true</enabled>
<filename>./error.log</filename>
</errorLog>
This will actually create a number of files called ./error.log*. Please send
them all to us.
System dump If ConfD aborts due to failure to allocate memory (see Section 28.11,
“Disaster management”), and you believe that this is due to a memory
leak in ConfD, creating one or more debug dumps as described above
(before ConfD aborts) will produce the most useful information for
Support. If this is not possible, you can make ConfD produce a system
dump just before aborting. To do this, set the environment variable
$CONFD_DUMP to a file name for the dump before starting ConfD. The
dumped information is only comprehensible to the ConfD development
team, so send the dump to your support contact.
System call trace To catch certain types of problems, especially relating to system start
and configuration, the operating system's system call trace can be
invaluable. This tool is called strace/ktrace/truss. Please send the result
to your support contact for a diagnosis. Running instructions below.
Linux:
$ strace -f -o mylog1.strace -s 1024 confd ...
533
Advanced Topics
BSD:
$ ktrace -ad -f mylog1.ktrace confd ...
$ kdump -f mylog1.ktrace > mylog1.kdump
Solaris:
$ truss -f -o mylog1.truss confd ...
Application debugging The primary tool for debugging the interaction between applications
and ConfD is to give the debug level debug to confd_init()
as CONFD_TRACE, see the confd_lib_lib(3) manual page. If more
in-depth debugging using e.g. gdb is needed, it may be useful to
rebuild the libconfd library from source with debugging symbols.
This can be done by using the libconfd source package confd-
<vsn>.libconfd.tar.gz that is delivered with the ConfD
release. The package includes a README file that describes how to do
the build - note in particular the "Application debugging" section.
When debugging application memory leaks with a tool like valgrind,
it is often necessary to rebuild libconfd from source, since the default
build uses a "pool allocator" that makes the stack trace information
for memory leaks from valgrind completely misleading for allocations
from libconfd. The details of how to do a build that disables the pool
allocator are described in the "Application debugging" section of the
README in the libconfd source package.
28.13. Tuning the size of confd_hkeypath_t
The ConfD C API library libconfd uses a C struct for passing keypaths to callback functions:
typedef struct confd_hkeypath {
int len;
confd_value_t v[MAXDEPTH][MAXKEYLEN];
} confd_hkeypath_t;
See the section called “XML PATHS” in the confd_types(3) manual page for discussion about how this
struct is used. The values used for MAXDEPTH and MAXKEYLEN are 20 and 9, respectively, which should
be big enough even for very large and complex data models. However this comes at a cost in memory
(mainly stack) usage - the size of a confd_hkeypath_t is approximately 5.5 kB. Also, in some rare cases,
we may have a data model where one or both of these values are not large enough.
It is possible to use other values for MAXDEPTH and MAXKEYLEN, but this requires both that libconfd
is rebuilt from source with the new values, and that all applications that use libconfd are also compiled
with the new values. It is of course possible to just edit confd_lib.h with the new values, but the
#define statements for these in confd_lib.h are guarded with #ifndef directives, which means
that they can alternatively be overridden without changing confd_lib.h.
Overriding can be done either via -D options on the compiler command line, or via #define statements
before the #include for confd_lib.h. For building libconfd itself without source changes, only
534
Advanced Topics
the -D option method is possible, though. The build procedure supports an EXTRA_CFLAGS make
variable that can be used this purpose, see the README file included in the libconfd source package. E.g.
we can do the libconfd build with:
$ make EXTRA_CFLAGS="-DMAXDEPTH=10 -DMAXKEYLEN=5"
The -D option method can of course be used when building applications too, but it is probably less error-
prone to use the #define method. E.g. if we make sure that none of the application C or C++ files include
confd_lib.h (or confd.h) directly, but instead include say app.h, we can have this in app.h:
#define MAXDEPTH 10
#define MAXKEYLEN 5
#include <confd_lib.h>
Whenever an application connects to ConfD via one of the API functions (i.e. confd_connect(),
cdb_connect(), etc), a check is made that the MAXDEPTH and MAXKEYLEN values used for building
the library are large enough for the data models loaded into ConfD. If they are not, the connection will fail
with confd_errno set to CONFD_ERR_PROTOUSAGE and confd_lasterr() giving a message
with the required minimum values. Whether the connection succeeds or not, the library will also set
the global variables confd_maxdepth and confd_maxkeylen to the minimum values required by
ConfD. Thus the values can be found by simply printing these variables in any application that connects
to ConfD.
28.14. Error Message Customization
The ConfD release includes a XML document, $CONFD_DIR/src/confd/errors/
errcode.xml, that specifies all the customizable errors that may be reported in the different northbound
interfaces. The errors are classified with a type and a code, and for each error a parameterized format string
for the default error message is given.
The purpose of this file is both to serve as a reference list of the possible errors, which could e.g. be
processed programmatically when generating end-user documentation, and to provide the basis for error
message customization.
All the error messages specified in the file can be customized by means of application callbacks. An
application can register a callback for one or more of the error types, and whenever an error is to be reported
in a northbound interface, the callback will first be invoked and given the opportunity to return a message
that is different from the default.
The callback will receive user session information, the error type and code, the default error message,
and the parameters used to create the default message. For errors of type "validation", the callback
also has access to the contents of the transaction that failed validation. See the section called “ERROR
FORMATTING CALLBACK” in the confd_lib_dp(3) manual page for the details of the callback
registration and invocation.
28.15. Using a different version of OpenSSL
ConfD depends on the OpenSSL libcrypto shared library for a number of cryptographic functions.
(The libssl library is not used by ConfD.) Currently most ConfD releases, in particular all releases
for Linux systems, are built with OpenSSL version 1.0.0, and thus require that the libcrypto library
from this version is present when ConfD is run. Some releases for other systems require libcrypto
from OpenSSL version 0.9.8 or 0.9.7. It is also possible that a given version, even though it is the one that
ConfD requires, has been built with configuration parameters that make the interface incompatible with
the build that is expected by ConfD.
535
Advanced Topics
However the libcrypto dependency is limited to two components in the ConfD release, the libconfd
library used by applications, and a shared object called crypto.so, that is used by the ConfD daemon
as an interface to libcrypto. Both these components are included in source form in the confd-
<vsn>.libconfd.tar.gz tar archive that is provided with each ConfD release.
To use a different OpenSSL version than the one the ConfD release is built with, e.g. due to a Linux
development or target environment having OpenSSL version 0.9.8 installed for other purposes, it is
sufficient to use the provided sources to rebuild these two components with the desired OpenSSL version,
and replace them in the ConfD release. The toplevel README file included in the tar archive has
instructions on how to do the build of both libconfd and crypto.so.
While libconfd can be located wherever it is convenient for application use, crypto.so must be
placed in the $CONFD_DIR/lib/confd/lib/core/crypto/priv/lib directory in the ConfD
installation. The Makefiles in the tar archive have install targets for libconfd and crypto.so that
will do a copy to the appropriate place in the ConfD installation if CONFD_DIR is set to the installation
directory.
28.16. Using shared memory for schema
information
It is possible to use shared memory to make schema information (see the section called “USING SCHEMA
INFORMATION” in confd_types(3)) available to multiple processes on a given host, without requiring
each of them to load the information directly from ConfD by calling one of the schema-loading functions
(confd_load_schemas() etc, see the confd_lib_lib(3) and confd_lib_maapi(3) manual pages). This
can be a very significant performance improvement for system startup, where multiple application
processes will otherwise load schema information more or less simultaneously, and can also reduce RAM
usage.
The mechanism uses a shared memory mapping created by mmap(2), backed by a file. One process needs
to call first confd_mmap_schemas_setup(), and then one of schema-loading functions, to populate
the shared memory segment. Once this has been done, any process (including the one doing the initial
load) can call confd_mmap_schemas() to map the shared memory segment into its address space and
make the information available to the libconfd library and for direct access by the application. See the
confd_lib_lib(3) manual page for the specification of these functions.
The mechanism can be used in different ways, but assuming that persistent storage for the backing
file is available, the optimal approach is to do the load and file creation step only on first system
start and when a data model upgrade is done. Then it is sufficient to call confd_mmap_schemas()
on all other occasions. If persistent storage is not available, a RAM-based file system such as Linux
"tmpfs" can be used for the backing file, in which case the load and file creation step needs to be
done on each boot (and on data model upgrade). It is also possible to request that ConfD creates and
maintains the backing file, see /confdConfig/enableSharedMemorySchema in confd.conf(5)
and maapi_get_schema_file_path() in confd_lib_maapi(3).
Since the schema information includes absolute pointers (e.g. the parent, children, and next
pointers in a struct confd_cs_node), it is necessary to map the shared memory at the same virtual address
in all processes. The addr argument to confd_mmap_schemas_setup() is passed to mmap(2),
and the address returned by mmap(2) is used for the mapping. The address is also recorded in the
shared memory segment to make it available for confd_mmap_schemas(). The value of the size
argument is also passed in the initial mmap(2) invocation, unless it is smaller than the first allocation
done (e.g. if it is 0). In any case, unless the CONFD_MMAP_SCHEMAS_KEEP_SIZE flag is passed to
confd_mmap_schemas_setup(), the loading will extend the mapped segment as needed, and the
final size will only be as large as needed for the data, even if a larger value was passed as size.
536
Advanced Topics
Ideally we would give NULL for the addr argument and an approximate size for size, letting the kernel
choose a suitable address and letting the load step adjust the final size based on the amount of data loaded.
Unfortunately this often results in an address that is not honored on the subsequent mmap(2) call done
by confd_mmap_schemas(), which thus fails. The possible choices of addr and/or size to get the
desired result are OS- and OS-version-dependant, but on Linux it generally works to use an addr argument
that is at an offset from the top of the heap that is larger than expected heap usage, and give size as 0, as
shown in the sample code below using a 256 MB offset. (It is not a fatal error if heap usage later exceeds
this offset, as malloc(3) etc will skip over the mapped area, but it may have some performance impact.)
#include <stdio.h>
#include <stdlib.h>
#include <stdint.h>
#include <unistd.h>
#include <assert.h>
#include <sys/types.h>
#include <sys/socket.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <netdb.h>
#include <confd_lib.h>
#define MB (1024 * 1024)
#define SCHEMA_FILE "/etc/schemas"
#define OK(E) do { \
int _ret = (E); \
if (_ret != CONFD_OK) { \
confd_fatal( \
"%s returned %d, confd_errno=%d, confd_lasterr()='%s'\n", \
#E, _ret, confd_errno, confd_lasterr()); \
} \
} while (0)
static void *get_shm_addr(size_t offset)
{
size_t pagesize;
char *addr;
pagesize = (size_t)sysconf(_SC_PAGESIZE);
addr = malloc(1);
free(addr);
addr += offset;
/* return pagesize-aligned address */
return addr - ((uintptr_t)addr % pagesize);
}
int main(int argc, char **argv)
{
struct sockaddr_in addr;
void *shm_addr;
addr.sin_addr.s_addr = inet_addr("127.0.0.1");
addr.sin_family = AF_INET;
addr.sin_port = htons(CONFD_PORT);
confd_init(argv[0], stderr, CONFD_TRACE);
shm_addr = get_shm_addr(256 * MB);
OK(confd_mmap_schemas_setup(shm_addr, 0, SCHEMA_FILE ".tmp", 0));
537
Advanced Topics
OK(confd_load_schemas((struct sockaddr *)&addr,
sizeof(struct sockaddr_in)));
if (rename(SCHEMA_FILE ".tmp", SCHEMA_FILE) != 0)
confd_fatal("Failed to rename\n");
return 0;
}
This code uses a temporary file that is renamed after the load is complete. This is not necessary,
but ensures that the SCHEMA_FILE always represents complete schema info if it exists. It can also
serve as a simple synchronization mechanism to let other processes know when they can do their
confd_mmap_schemas() call.
On Solaris (at least Solaris 10), the address passed to mmap(2) is effectively ignored, and the returned
address depends strictly on the size of the mapping. Thus there is no point passing anything other than
NULL for the addr to confd_mmap_schemas_setup(), but instead the size must be big enough
for the loaded schema info, and the CONFD_MMAP_SCHEMAS_KEEP_SIZE flag must be used.
In a multi-node system, with application processes connecting to ConfD across a network, shared memory
can of course not be used between the nodes. The most straightforward way to handle this is to do the
initial load and file creation step on each node. If the nodes have the same HW architecture and OS, a
possible alternative could be to copy the backing store file from one node to the others using some file
transfer mechanism.
28.17. Running application code inside ConfD
28.17.1. The econfd API
The Erlang API to ConfD is implemented as an Erlang/OTP application called econfd. This application
comes i two flavours. One is builtin in ConfD in order to support applications running in the same Erlang
VM as ConfD. The other is a separate library which is included in source form in the ConfD release, in
the $CONFD_DIR/erlang directory. Building econfd as described in the $CONFD_DIR/erlang/
econfd/README file will compile the Erlang code and generate the documentation.
This API can be used by applications written in Erlang in much the same way as the C and Java APIs are
used, i.e. code running in an Erlang VM can use the econfd API functions to make socket connections to
ConfD for data provider, MAAPI, CDB, etc access. However the API is also available internally in ConfD,
which makes it possible to run Erlang application code inside the ConfD daemon, without the overhead
imposed by the socket communication.
There is little or no support for testing and debugging Erlang code executing internally in ConfD, since
ConfD provides a very limited runtime environment for Erlang in order to minimize disk and memory
footprints. Thus the recommended method is to develop Erlang code targeted for this by using econfd
in a separate Erlang VM, where an interactive Erlang shell and all the other development support included
in the standard Erlang/OTP releases are available. When development and testing is completed, the code
can be deployed to run internally in ConfD without changes.
For information about the Erlang programming language and development tools, please refer to
www.erlang.org and the available books about Erlang (some are referenced on the web site).
28.17.2. Running inside ConfD
All application code SHOULD use the prefix "ec_" for module names, application names, registered
processes (if any), and named ets tables (if any), to avoid conflict with existing or future names used by
ConfD itself.
538
Advanced Topics
The Erlang code is packaged into applications which are automatically started and stopped by ConfD if
they are located at the proper place. ConfD will search the load path as defined by /confdConfig/
loadPath for directories called erlang-lib. The structure of such a directory is the same as a standard
lib directory in Erlang. The directory may contain multiple Erlang applications. Each one must have a
valid .app file. See the Erlang documentation of application and app for more info.
The following config settings in the .app file are explicitly treated by ConfD:
applications A list of applications which needs to be started before this application
can be started. This info is used to compute a valid start order.
included_applications A list of applications which are started on behalf of this application. This
info is used to compute a valid start order.
env A property list, containing [{Key,Val}] tuples. Besides other
keys, used by the application itself, a few predefined keys are used
by ConfD. The key confd_start_phase is used by ConfD to
determine which start phase the application is to be started in. Valid
values are phase0, phase1 and phase2. Default is phase1.
The key confd_restart_type is used by ConfD to determine
which impact a restart of the application will have. This is the
same as the restart_type() type in application. Valid
values are permanent, transient and temporary. Default is
permanent.
When the application is started, one of its processes should make initial connections to the ConfD
subsystems, register callbacks etc. This is typically done in the init/1 function of a gen_server
or similar. While the internal connections are made using the exact same API functions (e.g.
econfd_maapi:connect/2) as for an application running in an external Erlang VM, any Address
and Port arguments are ignored, and instead standard Erlang inter-process communication is used. The
internal_econfd/embedded_applications/transform example in the bundled collection
shows a transform written in Erlang and executing internally in ConfD.
An alternate way (the old way) of running custom code in the Erlang VM of ConfD is to load single
Erlang modules (as opposed to use proper applications). When ConfD starts, specifically when phase0
is reached, ConfD will search the load path as defined by /confdConfig/loadPath for compiled
Erlang modules, i.e. *.beam files. The modules that are found will be loaded, unless the module name
conflicts with an existing ConfD module. If there is a module name conflict, ConfD will terminate with an
error message and exit code 21. The -on_load() directive can be used to spawn a process that makes
initial connections to the ConfD subsystems, registers callbacks, sets up supervision if desired, etc. The
internal_econfd/single_modules/transform example in the bundled collection shows a
transform written in Erlang and executing internally in ConfD.
The --printlog option to confd, which prints the contents of the ConfD errorLog, is normally
only useful for Tail-f support and developers, but it may also be relevant for debugging problems with
application code running inside ConfD. The errorLog collects the events sent to the OTP error_logger,
e.g. crash reports as well as info generated by calls to functions in the error_logger(3) module. Another
possibility for primitive debugging is to run confd with the --foreground option, where calls to
io:format/2 etc will print to standard output. Printouts may also be directed to the developer log by
using econfd:log/3.
While Erlang application code running in an external Erlang VM can use basically any version of Erlang/
OTP, this is not the case for code running inside ConfD, since the Erlang VM is evolving and provides
limited backward/forward compatibility. To avoid incompatibility issues when loading the beam files, the
Erlang compiler erlc in same version the ConfD distribution should be used.
539
Advanced Topics
ConfD provides the VM, erlc and the kernel, stdlib, and crypto OTP applications.
Note
Obviously application code running internally in the ConfD daemon can have an impact on the
execution of the standard ConfD code. Thus it is critically important that the application code is
thoroughly tested and verified before being deployed for production in a system using ConfD.
28.17.3. User-defined types
We can implement user-defined types with Erlang code in a manner similar to what is described for C
in the section called “USER-DEFINED TYPES” in confd_types(3). In the econfd API, we populate a
#confd_type_cbs{} record and register it using econfd_schema:register_type_cbs/1.
For an application running inside ConfD, this registration will have the same effect as using a shared
object in the C API, i.e. the callback functions will be used internally by ConfD for doing string <-> value
translation and syntax validation.
Callbacks for user-defined types may in general be required to be registered very early in the ConfD
startup, in particular default values specified in the YANG data model will be translated from string
form to internal representation when the corresponding .fxs file is loaded. A really early start of the
application is achieved by using the early_phase0 as confd_start_phase in the application
.app file. An application started in this early phase should not have e.g. registration of normal data
provider callbacks, since ConfD is not prepared to handle such registrations at this early point in the
startup. The internal_econfd/embedded_applications/user_type example shows how
the callbacks can be implemented in Erlang.
An alternate way (the old way) of defining ConfD user-defined-types in Erlang is to load a single module
(as opposed to use a proper application). By giving a module implementing such callbacks a name starting
with "ec_user_type" (i.e. file name ec_user_type*.beam), we can tell ConfD that it should
be loaded early enough for default value translation. The internal_econfd/single_modules/
user_type example shows how the callbacks can be implemented in Erlang. It uses this naming
convention to be able to handle the translation of a default value specified in the data model.
540
ConfD man-pages, Volume 1
Table of Contents
confd ............................................................................................................................. 542
confd_aaa_bridge ............................................................................................................. 547
confd_cli ........................................................................................................................ 549
confd_cmd ..................................................................................................................... 552
confd_load ...................................................................................................................... 554
confdc ............................................................................................................................ 559
maapi ............................................................................................................................. 570
541
Nameconfd — command to start and control the ConfD daemon
Synopsis
confd [--conf ConfFile] [--cd Dir] [--libdir LibDir] [--addloadpath Dir] [--nolog ] [--smp Nr] [ --
foreground [ -v | --verbose ] [--stop-on-eof] ] [--ignore-initial-validation ] [--full-upgrade-validation ] [--
start-phase0 ] [ --epoll { true | false } ]
confd { --wait-phase0[ TryTime] | --start-phase1 | --start-phase2 | --wait-started[ TryTime] | --clear-
aaa-cache | --reload | --areload | --status | --check-callbacks [ Namespace | Path ] | --loadfile File |
--rollback Nr | --debug-dump File | --cli-j-dump File | --cli-i-dump File | --cli-c-dump File | --
cli-check-templates | --loadxmlfiles File... | --mergexmlfiles File... | --cdb-backup File | --stop } [--
timeout MaxTime]
confd { --version | --cdb-debug-dump Directory | --printlog BaseFileName | --set-snmp-engine-
boots Nr }
DESCRIPTION
Use this command to start and control the ConfD daemon.
STARTING CONFD
These options are relevant when starting the ConfD daemon.
-c, --conf ConfFile ConfFile is the path to a confd.conf file. The default location is
defined when ConfD is installed, typically /etc/confd/confd.conf.
--cd Dir Change working directory
-l, --libdir LibDir LibDir is where the ConfD helper libraries are found. The default
location is defined when ConfD is installed. The use of this flag is
deprecated since confd figures out this information automatically,
and using the confd command with LibDir from a different version
of ConfD is not supported.
--addloadpath Dir Add Dir to the set of directories ConfD uses to load fxs, clispec and,
optionally, bin files.
--nolog Do not log initial startup messages to syslog.
--smp Nr Number of threads to run for Symmetric Multiprocessing (SMP).
The default is 1, i.e. no SMP support. A value bigger than 1 will
enable SMP support, where ConfD will at any given time use at
most as many logical processors as the number of threads. The SMP
behavior can also be affected by removing one of the two ConfD
daemon executables from the installation, see the section Installing
ConfD on a target system in the Advanced Topics chapter in the
User Guide for the details of this.
--foreground [ -v | --
verbose ] [ --stop-on-
eof ]
Do not start as a daemon. Can be used to start ConfD from a process
manager. In combination with -v or --verbose, all log messages
are printed to stdout. Useful during development. In combination
542
confd
with --stop-on-eof, ConfD will stop if it receives EOF (ctrl-d) on
standard input. Note that to stop ConfD when run in foreground,
send EOF (if --stop-on-eof was used) or use confd --stop. Do not
terminate with ctrl-c, since ConfD in that case won't have the chance
to close the database files.
--ignore-initial-
validation
When CDB starts on an empty database, or when upgrading, it
starts a transaction to load the initial configuration or perform
the upgrade. This option makes ConfD skip any validation
callpoints when committing these initial transaction. (The preferred
alternative is to use start-phases and register the validation
callpoints in phase 0, see the user guide).
--full-upgrade-
validation
Perform a full validation of the entire database if the data models
have been upgraded. This is useful in order to trigger external
validation to run even if the database content has not been modified.
--start-phase0 Start the daemon, but only start internal subsystems and CDB.
Phase 0 is used when a controlled upgrade is done.
--epoll { true | false } Determines whether ConfD should use an enhanced poll() function
(e.g. Linux epoll(7)). This can improve performance when ConfD
has a high number of connections, but there may be issues with the
implementation in some OS/kernel versions. The default is false.
COMMUNICATING WITH CONFD
When the ConfD daemon has been started, these options are used to communicate with the running
daemon.
By default these options will perform their function by connecting to a running ConfD daemon over
the loopback interface on the standard port. If the environment variable CONFD_IPC_PORT and/or
CONFD_IPC_ADDR are set then the address/port in those variables will be used to communicate with
the ConfD daemon. (Must be used if the daemon is not listening on its standard port on localhost, see the
/confdConfig/confdIpcAddress/ip setting in the confd.conf(5) man-page, and the section on
ConfD IPC in the ConfD Users Guide).
--wait-phase0
[ TryTime ]
This call hangs until ConfD has initialized start phase0. After this
call has returned, it is safe to register validation callbacks, upgrade
CDB etc. This function is useful when ConfD has been started
with --foreground and --start-phase0. It will keep trying the initial
connection to ConfD for at most TryTime seconds (default 5).
For an equivalent C function see maapi_wait_start() in
confd_lib_maapi(3).
--start-phase1 Do not start the subsystems that listen to the management IP
address. Must be called after the daemon was started with --start-
phase0.
For an equivalent C function see maapi_start_phase() in
confd_lib_maapi(3).
--start-phase2 Must be called after the management interface has been brought up,
if --start-phase1 has been used. Starts the subsystems that listens to
the management IP address.
543
confd
For an equivalent C function see maapi_start_phase() in
confd_lib_maapi(3).
--wait-started
[ TryTime ]
This call hangs until ConfD is completely started. This function is
useful when ConfD has been started with --foreground. It will keep
trying the initial connection to ConfD for at most TryTime seconds
(default 5).
For an equivalent C function see maapi_wait_start() in
confd_lib_maapi(3).
--clear-aaa-cache Clear the ConfD AAA cache. When the AAA namespace is
stored outside ConfD, for example through the confd_aaa_bridge.c
program, ConfD must be notified when there is new AAA data to
be read. ConfD caches all AAA data and this command will force
ConfD to reload the AAA cache.
For an equivalent C function see maapi_aaa_reload() in
confd_lib_maapi(3).
--reload Reload the ConfD daemon configuration. All log files are
closed and reopened, which means that confd --reload can
be used from e.g. logrotate(8) - however it is preferable to
use maapi_reopen_logs() for this, see confd_lib_maapi(3).
maapi_reopen_logs() can also be invoked via confd_cmd -
c reopen_logs, see confd_cmd(1).
For an equivalent C function see maapi_reload_config() in
confd_lib_maapi(3).
Note
If we update a .fxs file, it is not enough to do a reload;
the daemon has to be restarted, or the procedure described
in the In-service Data Model Upgrade chapter in the User
Guide has to be used.
--areload Asynchronously reload the ConfD daemon configuration. This can
be used in scripts executed by the ConfD daemon.
For an equivalent C function see maapi_reload_config() in
confd_lib_maapi(3).
--stop Stop the ConfD daemon.
For an equivalent C function see maapi_stop() in
confd_lib_maapi(3).
--status Prints status information about the ConfD daemon on stdout.
Among the things listed are: loaded namespaces, current user
sessions, callpoints (and whether they are registered or not), CDB
status, and the current start-phase. Start phases are reported as
"status:" and can be one of starting (which is pre-phase0), phase0,
phase1, started (i.e. phase2), or stopping (which means that ConfD
is about to shutdown).
544
confd
--debug-dump File Dump debug information from an already running ConfD daemon
into a file. The file only makes sense to ConfD developers. It is
often a good idea to include a debug dump in ConfD trouble reports.
--cli-j-dump File Dump cli structure information from the ConfD daemon into a file.
--cli-i-dump File Dump cli structure information from the ConfD daemon into a file.
--cli-c-dump File Dump cli structure information from the ConfD daemon into a file.
--cli-check-templates Walks through the entire data tree and validates all templates and
verifies that all paths in the templates are valid.
--check-callbacks
[Namespace | Path]
Walks through the entire data tree (config and stat), or only
the Namespace or Path, and verifies that all read-callbacks are
implemented for all elements, and verifies their return values.
--loadfile File Load configuration in curly bracket format from File.
--rollback Nr Rollback configuration to saved configuration number Nr.
--loadxmlfiles File ... Load configuration in XML format from Files. The configuration
is completely replaced by the contents in Files.
--mergexmlfiles File ... Load configuration in XML format from Files. The configuration is
merged with the contents in Files. The XML may use the 'operation'
attribute, in the same way as it is used in a NETCONF <edit-config>
operation.
--cdb-backup File Save a snapshot of the CDB database into a GZipp:ed tar archive
file (given by the File argument). If the File argument is a relative
path, the file will be saved relative the ConfD daemon's current
working directory. Only configuration data stored in CDB is saved
(persistent CDB operational data is not). Note: if the database is
locked for writing, the command will fail.
--timeout MaxTime Specify the maximum time to wait for the ConfD daemon to
complete the command, in seconds. If this option is not given, no
timeout is used.
STANDALONE OPTIONS
--cdb-debug-dump
Directory
Print a lot of information about the CDB files in Directory to
stdout. This is a completely stand-alone feature and the only thing
needed is the .cdb files (no running ConfD daemon or .fxs files etc).
--version Reports the ConfD version without interacting with the daemon.
--printlog BaseFileName Print the contents of the ConfD errorLog. This is normally only
useful for Tail-f support and developers, since the information
pertains to internal details of the ConfD software components,
but it may also be relevant for Erlang application code executed
internally in ConfD. The argument is the name as specified by
/confdConfig/logs/errorLog/filename, i.e. without
the .idx, .1 etc suffixes.
545
confd
--set-snmp-engine-boots
Nr
Set the initial value, or override the previous value for the
snmpEngineBoots counter object. After invoking ConfD with this
option and (re-)starting ConfD the counter's value will be Nr +
1. This is potentially useful if an SNMP Agent implementation
is being replaced by ConfD, using the same snmpEngineId as
the previous agent implementation, and not wanting to clear the
snmpEngineBoots counter for SNMP managers that have been
communicating with the old Agent using SNMP v3. Invoking
ConfD with this option must be done with /confdConfig/
stateDir as working directory.
--timeout MaxTime See above.
DIAGNOSTICS
If ConfD starts, the exit status is 0. If not it is a positive integer. The different meanings of the different exit
codes are documented in the Advanced topics chapter in the user guide. When failing to start, the reason
is normally given in the ConfD daemon log. The location of the daemon log is specified in the ConfFile
as described in confd.conf(5).
SEE ALSO
confd.conf(5) - ConfD daemon configuration file format
546
Nameconfd_aaa_bridge — Populating ConfD aaa_bridge.fxs with external data
Synopsis
<aaa>
<aaaBridge>
<enabled>true</enabled>
<file>/etc/confd/aaa.conf</file>
</aaaBridge>
</aaa>
DESCRIPTION
Note
This program is deprecated. It does not support the NACM data model for access control.
ConfD needs to have the YANG module defining the namespace http://tail-f.com/ns/
aaa/1.1 defined. The namespace is mandatory for ConfD to run. The namespace specifies authentication
and authorization data for ConfD and ConfD doesn't run unless this namespace is populated. This is fully
described in the document "The ConfD AAA infrastructure"
We can either choose to use CDB to populate the AAA namespace in which case no C code needs to be
written. Using CDB is the easiest and recommended way to populate the AAA. In the CDB case we should
choose to have the "aaa_cdb.fxs" file in ConfD load path. By default ConfD use CDB to store the AAA
data, thus this man page is only of interest for users that don't use CDB to store the "/aaa" tree.
If we do not want to use CDB, we can choose to populate the namespace using "aaa_bridge.fxs" using
external data in which case a program - using the ConfD external data API from libconfd.so must be written
to populate aaa_bridge.fxs.
confd_aaa_bridge.c is an example of such a program. It reads and writes an ad hoc .ini file which is used
as "external database" for authentication and authorization data. If we enable confd_aaa_bridge in the
configuration file for ConfD (see confd.conf(5)) ConfD will automatically start a precompiled version of
confd_aaa_bridge on startup and stop it on shutdown.
Note
confd_aaa_bridge is just an example of how we can choose to populate the AAA namespace if
we do not want to use CDB at all.
confd_aaa_bridge reads and writes a file with the following syntax:
[users]
.. a set of users
[groups]
.. a set of groups
[cmdrules]
.. a set of rules
[datarules]
.. a set of rules
547
confd_aaa_bridge
The [users] are specified as six space/tab separated fields
user uid gid cryptpassword sshdir homedir
The user field is the name of the user, the cryptpassword is the encrypted (see man crypt(3))
password of the user. The sshdir is the name of a directory where the users SSH keys are kept and
finally the homedir is a directory which is considered the HOME directory of the user. The CLI will
save files in this directory. The uid and gid are UNIX ids ConfD will use to run commands on behalf of
the logged in user.
[users]
admin 0 0 $1$feedbabe$nGlMYlZpQ0bzenyFOQI3L1 /var/u1/.ssh /var/u1
oper 0 0 $1$feedbabe$i2glnaB.iUj2VXh/zlq.o/ /var/u2/.ssh /var/u2
The [groups] are specified as several space/tab separated fields
group gid user1 user2 ......
The first field, the group is the name of a group, the remainder of space separated strings is a list of users
being members in the group. The gid is the UNIX group id of this group. -1 means that no additional group
id should be assigned to a user that belongs to this group.
The [cmdrules] are specified as six space/tab separated fields:
index context command group op action
And the [datarules] are specified of seven space/tab separated fields
index context namespace keypath group op action
The meaning of the different rule fields is described in the AAA userguide.
SIGNALS
If the signal SIGHUP is sent to the program as in
# killall -HUP confd_aaa_bridge
The program will die, ConfD will notice the exit code and silently restart confd_aaa_bridge. This is a
convenient way to force ConfD to reload a data file edited by hand, is to kill -HUP the confd_aaa_bridge
UNIX process
SEE ALSO
See the YANG module tailf-aaa.yang in the $CONFD_DIR/src/confd/aaa directory in
the release, as well as the accompanying annotation YANG module bridge-ann.yang in the
$CONFD_DIR/src/confd/confd_aaa_bridge directory, which brings the necessary callpoint
into the original YANG module tailf-aaa.yang.
548
Nameconfd_cli — Frontend to the ConfD CLI engine
Synopsis
confd_cli [options] [File]
confd_cli [ --help ] [ --host Host ] [ --ip IpAddress | IpAddress/Port ] [ --address Address
] [ --port PortNumber ] [ --cwd Directory ] [ --proto tcp> | ssh | console ] [ --interactive ] [ --
noninteractive ] [ -J | -C | -I ] [ --user Username ] [ --uid UidInt ] [ --groups Groups ] [ --gids GidList
] [ --gid Gid ] [ --opaque Opaque ] [ --noaaa ]
DESCRIPTION
The confd_cli program is a C frontend to the ConfD CLI engine. The confd_cli program connects to ConfD
and basically passes data back and forth from the user to ConfD.
confd_cli can be invoked from the command line. If so, no authentication is done. The archetypical usage
of confd_cli is to use it as a login shell in /etc/passwd, in which case authentication is done by the login
program.
The source code for confd_cli resides in $CONFD_DIR/src/confd/cli and can be modified if
required.
OPTIONS
-h, --help Display help text.
-H, --host HostName Gives the name of the current host. The confd_cli program will use
the value of the system call gethostbyname() by default. The
host name is used in the CLI prompt.
-i, --ip IpAddress |
IpAddress/Port
Set the IP (or IP address and port) which ConfD reports that the
user is coming from. The confd_cli program by default tries to
determine this automatically by reading the SSH_CONNECTION
environment variable.
-A, --address Address CLI address to connect to. The default is 127.0.0.1. This can be
controlled by either this flag, or the UNIX environment variable
CONFD_IPC_ADDR. The -A flag takes precedence.
-P, --port PortNumber CLI port to connect to. The default is the ConfD IPC port, which
is 4565 This can be controlled by either this flag, or the UNIX
environment variable CONFD_IPC_PORT. The -P flag takes
precedence.
-c, --cwd Directory The current working directory for the user once in the CLI. All file
references from the CLI will be relative to the cwd. By default the
value will be the actual cwd where confd_cli is invoked.
-p, --proto ssh | tcp |
console
The protocol the user is using. If SSH_CONNECTION is set, this
defaults to "ssh", otherwise "console".
549
confd_cli
-n, --interactive This forces the CLI to run in interactive mode. In non interactive
mode, the CLI never prompts the user for any input. This flag can
sometimes be useful in certain CLI scripting scenarios.
-N, --noninteractive This forces the CLI to run in non interactive mode. See
Section 16.4.1, “Starting the CLI” for further info.
-J, -C, -I This flag sets the mode of the CLI. -J is Juniper style CLI, -C is
Cisco XR style CLI and -I is Cisco IOS style CLI.
-u, --user User Indicates to ConfD which username the user has. This defaults to
the username of the invoker.
-U, --uid Uid Indicates to ConfD which uid the user has.
-g, --groups GroupList Indicates to ConfD which groups the user are a member of. The
parameter is a comma separated string. This defaults to the actual
UNIX groups the user is a member of. The group names are used by
the AAA system in ConfD to authorize data and command access.
-D, --gids GidList Indicates to ConfD which secondary group ids the user shall have.
The parameter is a comma separated string of integers. This defaults
to the actual secondary UNIX group ids the user has. The gids are
used by ConfD when ConfD executes commands on behalf of the
user.
-G, --gid Gid Indicates to ConfD which group id the user shall have. This defaults
to the actual UNIX group id the user has. The gid is used by ConfD
when ConfD executes commands on behalf of the user.
-O, --opaque Opaque Pass an opaque string to ConfD. The string
is not interpreted by ConfD, only made available
to application code. See "built-in variables" in
clispec(5) and maapi_get_user_session_opaque() in
confd_lib_maapi(3). The string can be given either via this flag, or
via the UNIX environment variable CONFD_CLI_OPAQUE. The
-O flag takes precedence.
--noaaa Completely disables all AAA checks for this CLI. This can be used
as a disaster recovery mechanism if the AAA rules in ConfD have
somehow become corrupted.
ENVIRONMENT VARIABLES
CONFD_IPC_ADDR Which IP address to connect to.
CONFD_IPC_PORT Which TCP port to connect to.
SSH_CONNECTION Set by openssh and used by confd_cli to determine client IP address etc.
TERM Passed on to terminal aware programs invoked by ConfD.
EXIT CODES
0 Normal exit
550
confd_cli
1 Failed to read user data for initial handshake.
2 Close timeout, client side closed, session inactive.
3 Idle timeout triggered.
4 Tcp level error detected on daemon side.
5 Internal error occurred in daemon.
5 User interrupted clistart using special escape char.
6 User interrupted clistart using special escape char.
7 Daemon abruptly closed socket.
SCRIPTING
It is very easy to use confd_cli from /bin/sh scripts. confd_cli reads stdin and can then also be run in non
interactive mode. This is the default if stdin is not a tty (as reported by isatty())
Here is example of invoking confd_cli from a shell script.
#!/bin/sh
confd_cli << EOF
configure
set foo bar 13
set funky stuff 44
commit
exit no-confirm
exit
EOF
And here is en example capturing the output of confd_cli:
#!/bin/sh
{ confd_cli << EOF;
configure
set trap-manager t2 ip-address 10.0.0.1 port 162 snmp-version 2
commit
exit no-confirm
exit
EOF
} | grep 'Aborted:.*not unique.*'
if [ $? != 0 ]; then
echo 'test2: commit did not fail'; exit 1;
fi
The above type of CLI scripting is a very efficient and easy way to test various aspects of the CLI.
551
Nameconfd_cmd — Command line utility that interfaces to common ConfD library functions
Synopsis
confd_cmd [(1) options] [filename]
confd_cmd [(1) options] -c string
confd_cmd -h | -h commands | -h command-name...
(1) [ -r | -o | -e | -S ] [-f [w] | [p] [ r | s ] ] [-a address] [-p port] [-u user] [-g group] [-x context]
[-s] [-m] [-h] [-d]
DESCRIPTION
The confd_cmd utility is implemented as a wrapper around many common CDB and MAAPI function
calls. The purpose is to make it easier to prototype and test various ConfD issues using normal scripting
tools.
Input is provided as a file (default stdin unless a filename is given) or as directly on the command line
using the -c string option. The confd_cmd expects commands separated by semicolon (;) or newlines.
A pound (#) sign means that the rest of the line is treated as a comment. For example:
confd_cmd -c get_phase
Would print the current start-phase of ConfD, and:
confd_cmd -c "get_phase ; get_txid"
would first print the current start-phase, then the current transaction ID of CDB.
Sessions towards CDB, and transactions towards MAAPI are created as-needed. At the end of the script
any open CDB sessions are closed, and any MAAPI read/write transactions are committed.
Source code to this utility is included in the distribution as src/confd/tools/confd_cmd.c.
OPTIONS
-d Debug flag. Add more to increase debug level. All debug output will be to stderr.
-m Don't load the schemas at startup.
ENVIRONMENT VARIABLES
CONFD_IPC_ADDR,
CONFD_IPC_EXTADDR
The address used to connect to the ConfD daemon, overrides the compiled
in default.
CONFD_IPC_PORT The port number to connect to the ConfD daemon on, overrides the
compiled in default.
CONFD_IPC_EXTSOPATH The absolute path to the shared object to use for a connection using external
IPC when CONFD_IPC_EXTADDR is given.
552
confd_cmd
EXAMPLES
1. Getting the address of eth0
confd_cmd -c "get /sys:sys/ifc{eth0}/ip"
2. Setting a leaf in CDB operational
confd_cmd -o -c "set /sys:sys/ifc{eth0}/stat/tx 88"
3. Making ConfD running on localhost the master, with the name node0
confd_cmd -c "master node0"
Then tell the ConfD also running on localhost, but listening on port 4566, slave to the master. Calling
the slave node1
confd_cmd -p 4566 -c "slave node1 node0 127.0.0.1"
SEE ALSO
Source code, included in $CONFD_DIR/src/confd/tools/confd_cmd.c
confd_lib_maapi(3) - Confd MAAPI library
confd_lib_cdb(3) - Confd CDB library
553
Nameconfd_load — Command line utility to load and save ConfD configurations
Synopsis
confd_load [-W] [-S] [(1) common options] [filename]
confd_load -l [ -m | -r ] [-D] [(1) common options] [filename...]
confd_load -C [-R] [filename...]
confd_load -h | -?
(1) [-d] [-t] [-F { x | p | o | j | c | i } ] [ -H | -U ] [-a] [-e] [ [-u user] [-g group...] [-c context] | [-i]]
[[-p keypath] | [-P XPath]] [-o] [-s] [-O]
DESCRIPTION
The confd_load command is a command line interface to the functions maapi_save_config(),
maapi_load_config(), maapi_load_config_stream(), and cdb_load_file()
respectively.
This command provides a convenient way of loading and saving all or parts of the configuration in different
formats. It can be used to initialize or restore configurations as well as in CLI commands.
If you run confd_load without any options it will print the current configuration in XML format on stdout.
The exit status will be zero on success and non-zero otherwise.
Source code to this utility is included in the distribution as src/confd/tools/confd_load.c.
COMMON OPTIONS
-d Debug flag. Add more to increase debug level. All debug output
will be to stderr.
-t Measure how long the requested command takes and print the result
on stderr.
-F x | p | o | j | c | i Selects the format of the configuration, must be set both when
loading and saving. One of XML (x), pretty XML (p), JSON (o),
curly braces J-style CLI (j), C-style CLI (c), or I-style CLI (i).
Default is XML.
-H Hide all hidden nodes. By default, no nodes are hidden unless
confd_load has attached to an existing transaction, in which case
the hidden nodes are the same as in that transaction's session.
-U Unhide all hidden nodes. By default, no nodes are hidden unless
confd_load has attached to an existing transaction, in which case
the hidden nodes are the same as in that transaction's session.
-u user, -g group ..., -c
context
Loading and saving the configuration is done in a user session,
using these options it is possible to specify which user, groups
(more than one -g can be used to add groups), and context that
should be used when starting the user session. If only a user is
554
confd_load
supplied the user is assumed to belong to a single group with the
same name as the user. This is significant in that AAA rules will be
applied for the specified user / groups / context combination. The
default is to use the system context, which implies that AAA rules
will not be applied at all.
Note
If the environment variables CONFD_MAAPI_USID
and CONFD_MAAPI_THANDLE are set (see the
ENVIRONMENT section), or if the -i option is used,
these options are silently ignored, since confd_load will
attach to an existing transaction.
-i Instead of starting a new user session and transaction, confd_load
will try to attach to the init session. This is only valid when ConfD
is in start phase 0, and will fail otherwise. It can be used to
load a “factory default”file during startup, or loading a file during
upgrade.
-s Start transaction towards the startup datastore (instead of the
default running). I.e. when loading, the configuration loaded will
be committed to startup, and as such won't take effect until ConfD
is restarted.
SAVE CONFIGURATION
By default the complete current configuration will be output on stdout. To save it in a file add the
filename on the command line (the -f option is deprecated). The file is opened by the confd_load utility,
permissions and ownership will be determined by the user running confd_load. Output format is specified
using the -F option.
When saving the configuration in XML format, the context of the user session (see the -c option) will
determine which namespaces with export restriction (from tailf:export) that are included. If the
system context is used (this is the default), all namespaces are saved, regardless of export restriction.
When saving the configuration in one of the CLI formats, the context used for this selection is always cli.
A number of options are only applicable, or have a special meaning when saving the configuration:
-f filename Filename to save configuration to (option is deprecated, just give the filename on the
command line).
-W Include leaves which are unset (set to their default value) in the output. By
default these leaves are not included in the output. (Corresponds to the
MAAPI_CONFIG_WITH_DEFAULTS flag).
-S Include the default value of a leaf as a comment (only works for CLI formats, not XML).
(Corresponds to the MAAPI_CONFIG_SHOW_DEFAULTS flag).
-p keypath Only include the configuration below keypath in the output.
-P XPath Filter the configuration using the XPath expression. (Only works for the XML format.)
-o Include operational data in the output. (Corresponds to the
MAAPI_CONFIG_WITH_OPER flag).
555
confd_load
-O Include only operational data, and ancestors to operational data nodes, in the output.
(Corresponds to the MAAPI_CONFIG_OPER_ONLY flag).
LOAD CONFIGURATION
When the -l option is present confd_load will load all the files listed on the command line using the
maapi_load_config() function. The file(s) are expected to be in XML format unless otherwise
specified using the -F flag. Note that it is the ConfD daemon that opens the file(s), it must have permission
to do so. However relative pathnames are assumed to be relative to the working directory of the confd_load
command (it will pass an absolute pathname to maapi_load_config()).
If neither of the -m and -r options are given when multiple files are listed on the command line,
confd_load will silently treat the second and subsequent files as if -m had been given, i.e. it will merge in
the contents of these files instead of deleting and replacing the configuration for each file. Note, we almost
always want the merge behavior. If no file is given, or "-" is given as a filename, confd_load will stream
standard input to ConfD by using maapi_load_config_stream().
-f filename The file to load (deprecated, just list the file after the options instead).
-m Merge in the contents of filename, the (somewhat unfortunate) default is to delete
and replace. (Corresponds to the MAAPI_CONFIG_MERGE flag).
-x Lax loading. Only applies to XML loading. Ignore unknown namespaces, attributes
and elements.
-r Replace the part of the configuration that is present in filename, the default is to
delete and replace. (Corresponds to the MAAPI_CONFIG_REPLACE flag).
-a When loading configuration in 'i' or 'c' format, do a commit operation after each line.
Default and recommended is to only commit when all the configuration has been
loaded. (Corresponds to the MAAPI_CONFIG_AUTOCOMMIT flag).
-e When loading configuration do not abort when encountering errors (corresponds to the
MAAPI_CONFIG_CONTINUE_ON_ERROR flag).
-D Call maapi_delete_all (MAAPI_DEL_ALL) before loading the file.
-p keypath Call maapi_delete(keypath) before loading the file.
-o Accept but ignore contents in the file which is operational data (without this flag it will
be an error). (Corresponds to the MAAPI_CONFIG_WITH_OPER flag)
-O Start a transaction to load only operational data, and ancestors to operational data nodes.
Only supported for XML input.
LOAD CDB OPERATIONAL
The -C option is a direct interface to the cdb_load_file() function.
The -C option is used to load operational data. When you use -C all other options except -R (and -d)
are ignored, since they don't apply. Files on the command line must be in XML format and will be fed
to cdb_load_file() in the order they are listed. If no file is given, or "-" is given as a filename,
confd_load will read standard input and use cdb_load_str() to load the collected data. If the -R
option is included, CDB operational subscription notifications will be generated.
556
confd_load
Any data which isn't part of CDB operational per the data model will be ignored. This means that you can
save a single file with both configuration and operational data and feed it back to confd_load.
If you use a relative path for filename it is assumed to be relative to the working directory of the
confd_load command (it will pass an absolute pathname to cdb_load_file()).
Note
This option is DEPRECATED. Use -O instead which use maapi_load_config() with
MAAPI_CONFIG_OPER_ONLY flag).
EXAMPLES
Example 152. Reloading all xml files in the cdb directory
confd_load -D -m -l cdb/*.xml
Example 153. Merging in the contents of conf.cli
confd_load -l -m -F j conf.cli
Example 154. Print interface config and statistics data in cli format
confd_load -F i -o -p /sys:sys/ifc
Example 155. Using xslt to format output
confd_load -F x -p /sys:sys/ifc | xsltproc fmtifc.xsl -
Example 156. Using xmllint to pretty print the xml output
confd_load -F x | xmllint --format -
Example 157. Saving config and operational data to /tmp/conf.xml
confd_load -F x -o > /tmp/conf.xml
Example 158. Restoring both config and operational data
confd_load -l -F x -o /tmp/conf.xml
confd_load -C /tmp/conf.xml
Example 159. Measure how long it takes to fetch config
confd_load -t > /dev/null
elapsed time: 0.011 s
Example 160. Output all instances in list /foo/table which has ix larger than 10
confd_load -F x -P "/foo/table[ix > 10]"
ENVIRONMENT
CONFD_IPC_ADDR,
CONFD_IPC_EXTADDR
The address used to connect to the ConfD daemon, overrides the compiled
in default.
557
confd_load
CONFD_IPC_PORT The port number to connect to the ConfD daemon on, overrides the
compiled in default.
CONFD_IPC_EXTSOPATH The absolute path to the shared object to use for a connection using external
IPC when CONFD_IPC_EXTADDR is given.
CONFD_MAAPI_USID,
CONFD_MAAPI_THANDLE
If set confd_load will use maapi_attach2() to attach to an existing
transaction in an existing user session instead of starting a new session.
These environment variables are set by the ConfD CLI when it
invokes external commands, which means you can run confd_load
directly from the CLI. For example, the following addition to the
<operationalMode> in a clispec file (see clispec(5))
<cmd name="servers" mount="show">
<info/>
<help/>
<callback>
<exec>
<osCommand>confd_load</osCommand>
<args>-F j -p /system/servers</args>
</exec>
</callback>
</cmd>
will add a show servers command which, when run will invoke
confd_load -F j -p /system/servers. This will output the configuration
below /system/servers in curly braces format.
Note that when these environment variables are set, it means that the
configuration will be loaded into the current CLI transaction (which must
be in configure mode, and have AAA permissions to actually modify the
config). To load (or save) a file in a separate transaction, unset these two
environment variables before invoking the confd_load command.
SEE ALSO
confd_lib_maapi(3) - Confd MAAPI library
confd_lib_cdb(3) - Confd CDB library
558
Nameconfdc — Confdc compiler
Synopsis
confdc -c [-a | --annotate YangAnnotationFile] [--deviation DeviationFile ] [-o FxsFile]
[--verbose] [--fail-on-warnings] [-E | --error ErrorCode...] [-W | --warning ErrorCode...] [-w |
--no-warning ErrorCode...] [--strict-yang] [--no-yang-source] [--use-description [always] ] [[--no-
features] | [-F | --features Features ...]] [--ignore-unknown-features] [-p | --prefix Prefix] [--subagent
MountPath] [--yangpath YangDir] [--export Agent [-f FxsFileOrDir...] ...] -- YangFile
confdc --strip-yang-source FxsFile
confdc --list-errors
confdc -c [-o CclFile] ClispecFile
confdc -c [-o BinFile] [-I Dir] MibFile
confdc -c [-o BinFile] [--read-only] [--verbose] [-I Dir] [--include-file BinFile] [--fail-
on-warnings] [--warn-on-type-errors ] [--warn-on-access-mismatch ] [--mib-annotation MibA] [-f
FxsFileOrDir...] -- MibFile FxsFile...
confdc --emit-h HFile [--macro-prefix Prefix] [--include-type ] [--exclude-enums ] [--fail-on-
warnings ] FxsFile
confdc --emit-h HFile [-a | --annotate YangAnnotationFile] [--deviation DeviationFile
] [--strict-yang] [[--no-features] | [-F | --features Features ...]] [--ignore-unknown-features] [--
yangpath YangDir] [--macro-prefix Prefix] [--include-type ] [--exclude-enums ] [--fail-on-warnings ]
YangFile
confdc --emit-java JFile [--print-java-filename ] [--java-disable-prefix ] [--java-package Package]
[--exclude-enums ] [--fail-on-warnings ] [-f FxsFileOrDir ...] FxsFile
confdc --emit-python PyFile [--print-python-filename ] [--no-init-py ] [--python-disable-prefix ] [--
exclude-enums ] [--fail-on-warnings ] [-f FxsFileOrDir ...] FxsFile
confdc --emit-hrl HrlFile [--macro-prefix Prefix] [--include-type ] [--exclude-enums ] [--fail-on-
warnings ] FxsFile
confdc --emit-hrl HrlFile [-a | --annotate YangAnnotationFile] [--deviation
DeviationFile ] [--strict-yang] [[--no-features] | [-F | --features Features ...]] [--ignore-unknown-
features] [--yangpath YangDir] [--macro-prefix Prefix] [--include-type ] [--exclude-enums ] [--fail-
on-warnings ] YangFile
confdc --emit-mib MibFile [ --join-names capitalize | hyphen ] [--oid OID] [--top Name]
[--tagpath Path] [--import Module Name] [--module Module] [--generate-oids ] [--generate-yang-
annotation] [--skip-symlinks] [--top Top] [--fail-on-warnings ] [--no-comments ] [--read-only ] --
FxsFile...
confdc --mib2yang-std [-p Prefix] [-o YangFile] -- MibFile
confdc --mib2yang-mods [--mib-annotation MibA] [--keep-readonly] [--namespace Uri] [--revision
Date] [-o YangDeviationFile] -- MibFile
559
confdc
confdc --mib2yang [--mib-annotation MibA] [--emit-doc] [--snmp-name] [--read-only] [-u Uri] [-p
Prefix] [-o YangFile] -- MibFile
confdc --snmpuser EngineID User AuthType PrivType PassPhrase
confdc --get-info FxsFile
confdc --get-uri FxsFile
confdc --version
DESCRIPTION
During startup the ConfD daemon loads .fxs files describing our configuration data models. A .fxs file is the
result of a compiled YANG data model file. The daemon also loads clispec files describing customizations
to the auto-generated CLI. The clispec files are described in clispec(5).
A yang file by convention uses .yang (or .yin) filename suffix. YANG files are directly transformed
into .fxs files by confdc.
We can use any number of .fxs files when working with the ConfD daemon.
The --emit-h option is used to generate a .h file from a .fxs or YANG (.yang/.yin) file. How to use the
generated .h files is described in the ConfD User Guide.
The --emit-java option is used to generate a .java file from a .fxs file. The java file is used in
combination with the Java library for Java based applications.
The --emit-python option is used to generate a .py file from a .fxs file. The python file is used in
combination with the Python library for Python based applications.
The --emit-hrl option is used to generate a .hrl file from a .fxs or YANG (.yang/.yin) file. The .hrl
file can be used for Erlang based applications.
The --print-java-filename option is used to print the resulting name of the would be
generated .java file.
The --print-python-filename option is used to print the resulting name of the would be
generated .py file.
The --python-disable-prefix option is used to prevent prepending the Yang module prefix to
each symbol in the generated .py file.
The --emit-mib option is used to generate an SNMP MIB from .fxs files.
The --snmpuser option is used to generate localized keys for SNMP v3.
A clispec file by convention uses a .cli filename suffix. We use the confdc command to compile a clispec
into a loadable format (with a .ccl suffix).
A mib file by convention uses a .mib filename suffix. The confdc command is used for compiling the mib
with one or more fxs files (containing OID to YANG mappings) into a loadable format (with a .bin suffix).
See the ConfD User Guide for more information about compiling the mib.
Take a look at the EXAMPLE section for a crash course.
560
confdc
OPTIONS
Common options
-f, --fxsdep
FxsFileOrDir... .fxs files (or directories containing .fxs files) to be used to resolve
cross namespace dependencies.
--yangpath YangModuleDir YangModuleDir is a directory containing other YANG modules
and submodules. This flag must be used when we import or
include other YANG modules or submodules that reside in another
directory.
-o, --output File Put the resulting file in the location given by File.
Compile options
-c, --compile File Compile a YANG file (.yang/.yin) to a .fxs file or a clispec (.cli file)
to a .ccl file, or a MIB (.mib file) to a .bin file
-a, --annotate
AnnotationFile
YANG users that are utilizing the tailf:annotate extension must use
this flag to indicate the YANG annotation file(s).
This parameter can be given multiple times.
--deviation
DeviationFile
Indicates that deviations from the module in DeviationFile should
be present in the fxs file.
This parameter can be given multiple times.
-Ffeatures, --feature
features
Indicates that support for the YANG features should be present
in the fxs file. features is a string on the form modulename:
[feature(,feature)*]
This option is used to prune the data model by removing all nodes
that are defined with a "if-feature" that is not listed as feature.
This option can be given multiple times.
If this option is not given, nothing is pruned, i.e., it works as if all
features were explicitly listed.
If the module uses a feature defined in an imported YANG module,
it must be given as modulename:feature.
--no-yang-source By default, the YANG module and submodules source is included
in the fxs file, so that a NETCONF or RESTCONF client can
download the module from the server.
If this option is given, the YANG source is not included.
--no-features Indicates that no YANG features from the given module are
supported.
--ignore-unknown-
features
Instructs the compiler to not give an error if an unknown feature is
specified with --feature.
561
confdc
-p, --prefix Prefix ConfD needs to have a unique prefix for each loaded YANG
module, which is used e.g. in the CLI and in the APIs. By default
the prefix defined in the YANG module is used, but this prefix is
not required to be unique across modules. This option can be used
to specify an alternate prefix in case of conflicts. The special value
'module-name' means that the module name will be used for this
prefix.
--use-description
[always]
Normally, 'description' statements are ignored by confdc. Instead
the 'tailf:info' statement is used as help and information text in the
CLI and Web UI. When this option is specified, text in 'description'
statements is used if no 'tailf:info' statement is present. If the option
always is given, 'description' is used even if 'tailf:info' is present.
--export Agent ... Makes the namespace visible to Agent. Agent is either "none", "all",
"netconf", "snmp", "cli", "webui", "rest" or a free-text string. This
option overrides any tailf:export statements in the module.
The option "all" makes it visible to all agents. Use "none" to make
it invisible to all agents.
--subagent MountPath This option is used to compile a subagent's YANG modules for the
master agent. It tells the master agent that this namespace is handled
by a subagent. MountPath is an XPath expression (without instance
selectors) where the namespace is mounted in the master agent's
data hierarchy.
--fail-on-warnings Make compilation fail on warnings.
-W ErrorCode Treat ErrorCode as a warning, even if --fail-on-
warnings is given. ErrorCode must be a warning or a minor
error.
Use --list-errors to get a listing of all errors and warnings.
The following example treats all warnings except the warning for
dependency mismatch as errors:
$ confdc -c --fail-on-warnings -W TAILF_DEPENDENCY_MISMATCH
-w ErrorCode Do not report the warning ErrorCode, even if --fail-on-
warnings is given. ErrorCode must be a warning.
Use --list-errors to get a listing of all errors and warnings.
The following example ignores the warning
TAILF_DEPENDENCY_MISMATCH:
$ confdc -c -w TAILF_DEPENDENCY_MISMATCH
-E ErrorCode Treat the warning ErrorCode as an error.
Use --list-errors to get a listing of all errors and warnings.
The following example treats only the warning for unused import
as an error:
$ confdc -c -E UNUSED_IMPORT
562
confdc
--strict-yang Force strict YANG compliance. Currently this checks that the
deref() function is not used in XPath expressions and leafrefs.
Standard MIB to YANG options
--mib2yang-std MibFile Generate a YANG file from the MIB module (.mib file), in accordance
with the IETF standard, RFC-6643.
If the MIB IMPORTs other MIBs, these MIBs must be available
(as .mib files) to the compiler when a YANG module is generated.
By default, all MIBs in the current directory and all builtin MIBs are
available. Since the compiler uses the tool smidump to perform the
conversion to YANG, the environment variable SMIPATH can be set
to a colon-separated list of directories to search for MIB files.
-p, --prefix Prefix Specify a prefix to use in the generated YANG module.
An appendix to the RFC describes how the prefix is automatically
generated, but such an automatically generated prefix is not always
unique, and ConfD requires unique prefixes in all loaded modules.
Standard MIB to YANG modification options
--mib2yang-mods MibFile Generate a combined YANG deviation/annotation file from the MIB
module (.mib file), which can be used to compile the yang file
generated by --mib2yang-std, to achieve a similar result as with the
non-standard --mib2yang translation.
-p, --prefix Prefix Specify a prefix to use in the generated YANG module.
An appendix to the RFC describes how the prefix is automatically
generated, but such an automatically generated prefix is not always
unique, and ConfD requires unique prefixes in all loaded modules.
--mib-annotation MibA Provide a MIB annotation file to control how to override the
standard translation of specific MIB objects to YANG. See
mib_annotations(5).
--revision Date Generate a revision statement with the provided Date as value in the
deviation/annotation file.
--namespace Uri Specify a uri to use as namespace in the generated deviation/
annotation module.
--keep-readonly Do not generate any deviations of the standard config (false)
statements. Without this flag, config statements will be deviated to
true on yang nodes corresponding to writable MIB objects.
MIB to YANG options
--mib2yang MibFile Generate a YANG file from the MIB module (.mib file).
If the MIB IMPORTs other MIBs, these MIBs must be available (as .mib
files) to the compiler when a YANG module is generated. By default,
all MIBs in the current directory and all builtin MIBs are available.
Since the compiler uses the tool smidump to perform the conversion
563
confdc
to YANG, the environment variable SMIPATH can be set to a colon-
separated list of directories to search for MIB files.
-u, --uri Uri Specify a uri to use as namespace in the generated YANG module.
-p, --prefix Prefix Specify a prefix to use in the generated YANG module.
--mib-annotation MibA Provide a MIB annotation file to control how to translate specific MIB
objects to YANG. See mib_annotations(5).
--snmp-name Generate the YANG statement "tailf:snmp-name" instead of
"tailf:snmp-oid".
--read-only Generate a YANG module where all nodes are "config false".
MIB compiler options
-c, --compile MibFile Compile a MIB module (.mib file) to a .bin file.
If the MIB IMPORTs other MIBs, these MIBs must be available
(as compiled .bin files) to the compiler. By default, all compiled
MIBs in the current directory and all builtin MIBs are available.
Use the parameters --include-dir or --include-file to specify where
the compiler can find the compiled MIBs.
--verbose Print extra debug info during compilation.
--read-only Compile the MIB as read-only. All SET attempts over SNMP will
be rejected.
-I, --include-dir Dir Add the directory Dir to the list of directories to be searched for
IMPORTed MIBs (.bin files).
--include-file File Add File to the list of files of IMPORTed (compiled) MIB files.
File must be a .bin file.
--fail-on-warnings Make compilation fail on warnings.
--warn-on-type-errors Warn rather than give error on type checks performed by the MIB
compiler.
--warn-on-access-
mismatch
Give a warning if an SNMP object has read only access to a config
object.
--mib-annotation MibA Provide a MIB annotation file to fine-tune how specific MIB
objects should behave in the SNMP agent. See mib_annotations(5).
Emit C header file options
--emit-h HFile Generate a .h utility header file to be used when working with the
ConfD C APIs.
Note
When the header file is generated from a YANG
(.yang/.yin) file, the YANG file is currently compiled to a
temporary .fxs file as an intermediary step.
564
confdc
--macro-prefix Prefix Without this option, all macro definitions in the generated .h file
are prepended with the argument of the prefix statement in the
YANG module. If this option is used, the macro definitions are
prepended with Prefix instead.
--include-type If this option is used all macro definitions for enums in the
generated .h file have the type name as part of their name.
--exclude-enums If this option is used, macro definitions for enums are omitted
from the generated .h file. This can in some cases be useful to
avoid conflicts between enum symbols, or between enums and other
symbols.
--fail-on-warnings If this option is used all warnings are treated as errors and confdc
will fail its execution.
Emit Erlang header file options
--emit-hrl HrlFile Generate a .hrl utility header file to be used when working with the
ConfD Erlang APIs.
Note
When the header file is generated from a YANG
(.yang/.yin) file, the YANG file is currently compiled to a
temporary .fxs file as an intermediary step.
--macro-prefix Prefix Without this option, all macro definitions in the generated .hrl file
are prepended with the argument of the prefix statement in the
YANG module. If this option is used, the macro definitions are
prepended with Prefix instead.
--include-type If this option is used all macro definitions for enums in the
generated .hrl file have the type name as part of their name.
--exclude-enums If this option is used, macro definitions for enums are omitted
from the generated .hrl file. This can in some cases be useful to
avoid conflicts between enum symbols, or between enums and other
symbols.
--fail-on-warnings If this option is used all warnings are treated as errors and confdc
will fail its execution.
Emit SMIv2 MIB options
--emit-mib MibFile Generates a MIB file for use with SNMP agents/managers. See the
appropriate section in the SNMP agent chapter in the ConfD User
Guide for more information.
--join-names capitalize Join element names without separator, but capitalizing, to get the
MIB name. This is the default.
--join-names hyphen Join element names with hyphens to get the MIB name.
--join-names force-
capitalize
The characters '.' and '_' can occur in YANG identifiers but not
in SNMP identifiers; they are converted to hyphens, unless this
565
confdc
option is given. In this case, such identifiers are capitalized (to
lowerCamelCase).
--oid OID Let OID be the top object's OID. If the first component of the OID
is a name not defined in SNMPv2-SMI, the --import option is
also needed in order to produce a valid MIB module, to import
the name from the proper module. If this option is not given, a
tailf:snmp-oid statement must be specified in the YANG
header.
--tagpath Path Generate the MIB only for a subtree of the module. The Path
argument is an absolute schema node identifier, and it must refer
to container nodes only.
--import Module Name Add an IMPORT statement which imports Name from the MIB
Module.
--top Name Let Name be the name of the top object.
--module Name Let Name be the module name. If a tailf:snmp-mib-
module-name statement is in the YANG header, the two names
must be equal.
--generate-oids Translate all data nodes into MIB objects, and generate OIDs for
data nodes without tailf:snmp-oid statements.
--generate-yang-
annotation
Generate a YANG annotation file containing the tailf:snmp-
oid, tailf:snmp-mib-module-name and tailf:snmp-
row-status-column statements for the nodes. Implies --
skip-symlinks.
--skip-symlinks Do not generate MIB objects for data nodes modeled through
symlinks.
--fail-on-warnings If this option is used all warnings are treated as errors and confdc
will fail its execution.
--no-comments If this option is used no additional comments will be generated in
the MIB.
--read-only If this option is used all objects in the MIB will be read only.
--prefix String Prefix all MIB object names with String.
Emit SNMP user options
--snmpuser EngineID
User AuthType PrivType
PassPhrase
Generates a user entry with localized keys for the specified engine
identifier. The output is an usmUserEntry in XML format that
can be used in an initiation file for the SNMP-USER-BASED-
SM-MIB::usmUserTable. In short this command provides key
generation for users in SNMP v3. This option takes five arguments:
The EngineID is either a string or a colon separated hexlist, or a dot
separated octet list. The User argument is a string specifying the
user name. The AuthType argument is one of md5, sha, or none.
The PrivType argument is one of des, aes, or none. The PassPhrase
argument is a string.
566
confdc
Emit Java options
--emit-java JFile Generate a .java ConfNamespace file from a .fxs file to be used
when working with the Java library. The file is useful, but not
necessary when working with the NAVU library. JFile could either
be a file or a directory. If JFile is a directory the resulting .java file
will be created in that directory with a name based on the module
name in the YANG module. If JFile is not a directory that file is
created. Use --print-java-filename to get the resulting file name.
--print-java-filename Only print the resulting java file name. Due to restrictions of
identifiers in Java the name of the Class and thus the name of the
file might get changed if non Java characters are used in the name
of the file or in the name of the module. If this option is used no
file is emitted the name of the file which would be created is just
printed on stdout.
--java-package Package If this option is used the generated java file will have the given
package declaration at the top.
--exclude-enums If this option is used, definitions for enums are omitted from the
generated java file. This can in some cases be useful to avoid
conflicts between enum symbols, or between enums and other
symbols.
--fail-on-warnings If this option is used all warnings are treated as errors and confdc
will fail its execution.
-f, --fxsdep
FxsFileOrDir... .fxs files (or directories containing .fxs files) to be used to resolve
cross namespace dependencies.
Misc options
--strip-yang-source
FxsFile
Removes included YANG source from the fxs file. This makes the
file smaller, but it means that the YANG module and submodules
cannot be downloaded from the server, unless they are present in
the load path.
--get-info FxsFile Various info about the file is printed on standard output, including
the names of the source files used to produce this file, which
confdc version was used, and for fxs files, namespace URI, other
namespaces the file depends on, namespace prefix, and mount
point.
--get-uri FxsFile Extract the namespace URI.
--version Reports the confdc version.
EXAMPLE
Assume we have the file system.yang:
module system {
namespace "http://example.com/ns/gargleblaster";
prefix "gb";
567
confdc
import ietf-inet-types {
prefix inet;
}
container servers {
list server {
key name;
leaf name {
type string;
}
leaf ip {
type inet:ip-address;
}
leaf port {
type inet:port-number;
}
}
}
}
To compile this file we do:
$ confdc -c system.yang
If we intend to access data from this module from our C programs, it is meaningful to generate a .h file
like this:
$ confdc -c --emit-h blaster.h system.fxs
The .h file contains #define entries for the different nodes in system.yang. C code that needs to
manipulate or read data from this module will typically need to include the generated .h file.
If we intend to manipulate this data from our Java programs, we must typically also invoke:
$ confdc --emit-java blaster.java system.fxs
Finally we show how to compile a clispec into a loadable format:
$ confdc -c mycli.cli
$ ls mycli.ccl
myccl.ccl
DIAGNOSTICS
On success exit status is 0. On failure 1. Any error message is printed to stderr.
YANG 1.1
ConfD supports YANG 1.1, as defined in RFC 7950, with the following exceptions:
Type empty in unions and in list keys is not supported.
Type leafref in unions are not validated, and treated as a string internally.
anydata is not supported.
568
confdc
The new scoping rules for submodules are not implemented. Specifically, a submodule must still include
other submodules in order to access definitions defined there.
Inline notification statements are handled by the compiler, but not supported in the APIs.
The new XPath functions derived-from() and derived-from-or-self() can only be used
with literal strings in the second argument.
Leafref paths without prefixes in top-level typedefs are handled as in YANG 1.
SEE ALSO
The ConfD User Guide
confd (1) command to start and control the ConfD daemon
confd.conf (5) ConfD daemon configuration file format
clispec(5) CLI specification file format
mib_annotations(5) MIB annotations file format
569
Namemaapi — command to access an ongoing transaction
Synopsis
maapi --get Path...
maapi --set Path Value [ Path Value... ]
maapi --keys Path...
maapi --exists Path...
maapi --delete Path...
maapi --create Path...
maapi --insert Path...
maapi --revert
maapi --msg To Message Sender
--priomsg To Message
--sysmsg To Message
maapi --cliget Param...
maapi --cliset Param Value [ Param Value... ]
maapi --cmd2path Cmd [ Cmd ]
maapi --cmd-path [--is-deleta ] [--emit-parents ] [--non-recursive ] Path [ Path ]
maapi --cmd-diff Path [ Path ]
maapi --keypath-diff Path
maapi --clicmd [--get-io ] [--no-hidden ] [--no-error ] [--no-aaa ] [--no-fullpath ] [--unhide <group>]
Cli command...
DESCRIPTION
This command is intended to be used from inside a CLI command or a NETCONF extension RPC. These
can be implemented in several ways, as an action callback or as an executable.
It is sometimes convenient to use a shell script to implement a CLI command and then invoke the script as
an executable from the CLI. The maapi program makes it possible to manipulate the transaction in which
the script was invoked.
Using the maapi command it is possible to, for example, write configuration wizards and custom show
commands.
OPTIONS
-g, --get Path ... Read element value at Path and display result. Multiple values can
be read by giving more than one Path as argument to get.
570
maapi
-s, --set Path Value ... Set the value of Path to Value. Multiple values can be set by giving
multiple Path Value pairs as arguments to set.
-k, --keys Path ... Display all instances found at path. Multiple Paths can be specified.
-e, --exists Path ... Exit with exit code 0 if Path exists (if multiple paths are given all
must exist for the exit code to be 0).
-d, --delete Path ... Delete element found at Path.
-c, --create Path ... Create the element Path.
-i, --insert Path ... Insert the element at Path. This is only possible if the elem has the
'indexed-view' attribute set.
-z, --revert Remove all changes in the transaction.
-m, --msg To Message
Sender
Send message to a user logged on to the system.
-Q, --priomsg To Message Send prio message to a user logged on to the system.
-M, --sysmsg To Message Send system message to a user logged on to the system.
-G, --cliget Param ... Read and display CLI session parameter or attribute. Multiple
params can be read by giving more than one Param as argument to
cliget. Possible params are for C and I-style: complete-on-space,
idle-timeout, ignore-leading-space, paginate, output-file, screen-
length, screen-width, history, terminal, autowizard, "service prompt
config" , show-defaults, and if enabled, display-level. And for
J-style: complete-on-space, idle-timeout, ignore-leading-space,
paginate, "output file", "screen length", "screen width", terminal,
history, autowizard, "show defaults", and if enabled, display-level.
In addition to this the attributes called annotation, tags and inactive
can be read.
-S, --cliset Param Value ... Set CLI session parameter to Value. Multiple params can be
set by giving more than one Param-Value pair as argument to
cliset. Possible params are for C and I-style: complete-on-space,
idle-timeout, ignore-leading-space, paginate, output-file, screen-
length, screen-width, history, terminal, autowizard, "service prompt
config", show-defaults, and if enabled, display-level. And for
J-style: complete-on-space, idle-timeout, ignore-leading-space,
paginate, "output file", "screen length", "screen width", terminal,
history, autowizard, "show defaults", and if enabled, display-level.
-E, --cmd-path [--is-
delete] [--emit-parents]
[--non-recursive] Path
Display the C- and I-style command for a given path. Optionally
display the command to delete the path, and optionally emit the
parents, ie the commands to reach the submode of the path.
-L, --cmd-diff Path Display the C- and I-style command for going from the running
configuration to the current configuration.
-q, --keypath-diff Path Display the difference between the current state in the attached
transaction and the running configuration. One line is emitted for
each difference. Each such line begins with the type of the change,
571
maapi
followed by a colon (':') character and lastly the keypath. The type of
the change is one of the following: "created", "deleted", "modified",
"value set", "moved after" and "attr set".
-T, --cmd2path Cmd Attempts to derive an aaa-style namespace and path from a C-/I-
style command path.
-C, --clicmd [--get-
io] [--no-hidden] [--no-
error] [--no-aaa] [--no-
fullpath] [--unhide group]
Cli command to execute
Execute cli command in ongoing session, optionally ignoring that
a command is hidden, unhiding a specific hide group, or ignoring
the fullpath check of the argument to the show command. Multiple
hide groups may be unhidden using the --unhide parameter multiple
times.
EXAMPLE
Suppose we want to create an add-user wizard as a shell script. We would add the command in the clispec
file confd.cli as follows:
...
<configureMode>
<cmd name="wizard">
<info>Configuration wizards</info>
<help>Configuration wizards</help>
<cmd name="adduser">
<info>Create a user</info>
<help>Create a user</help>
<callback>
<exec>
<osCommand>./adduser.sh</osCommand>
</exec>
</callback>
</cmd>
</cmd>
</configureMode>
...
And have the following script adduser.sh:
#!/bin/bash
## Ask for user name
while true; do
echo -n "Enter user name: "
read user
if [ ! -n "${user}" ]; then
echo "You failed to supply a user name."
elif maapi --exists "/aaa:aaa/authentication/users/user{${user}}"; then
echo "The user already exists."
else
break
fi
done
## Ask for password
while true; do
echo -n "Enter password: "
read -s pass1
572
maapi
echo
if [ "${pass1:0:1}" == "$" ]; then
echo -n "The password must not start with $. Please choose a "
echo "different password."
else
echo -n "Confirm password: "
read -s pass2
echo
if [ "${pass1}" != "${pass2}" ]; then
echo "Passwords do not match."
else
break
fi
fi
done
groups=`maapi --keys "/aaa:aaa/authentication/groups/group"`
while true; do
echo "Choose a group for the user."
echo -n "Available groups are: "
for i in ${groups}; do echo -n "${i} "; done
echo
echo -n "Enter group for user: "
read group
if [ ! -n "${group}" ]; then
echo "You must enter a valid group."
else
for i in ${groups}; do
if [ "${i}" == "${group}" ]; then
# valid group found
break 2;
fi
done
echo "You entered an invalid group."
fi
echo
done
echo
echo "Creating user"
echo
maapi --create "/aaa:aaa/authentication/users/user{${user}}"
maapi --set "/aaa:aaa/authentication/users/user{${user}}/password" \
"${pass1}"
echo "Setting home directory to: /var/confd/homes/${user}"
maapi --set "/aaa:aaa/authentication/users/user{${user}}/homedir" \
"/var/confd/homes/${user}"
echo
echo "Setting ssh key directory to: "
echo "/var/confd/homes/${user}/ssh_keydir"
maapi --set "/aaa:aaa/authentication/users/user{${user}}/ssh_keydir" \
"/var/confd/homes/${user}/ssh_keydir"
echo
maapi --set "/aaa:aaa/authentication/users/user{${user}}/uid" "1000"
573
maapi
maapi --set "/aaa:aaa/authentication/users/user{${user}}/gid" "100"
echo "Adding user to the ${group} group."
gusers=`maapi --get "/aaa:aaa/authentication/groups/group{${group}}/users"`
for i in ${gusers}; do
if [ "${i}" == "${user}" ]; then
echo "User already in group"
exit 0
fi
done
maapi --set "/aaa:aaa/authentication/groups/group{${group}}/users" \
"${gusers} ${user}"
echo
exit 0
DIAGNOSTICS
On success exit status is 0. On failure 1 or 2. Any error message is printed to stderr.
ENVIRONMENT VARIABLES
Environment variables are used for determining which user session and transaction should be used when
performing the operations. The CONFD_MAAPI_USID and CONFD_MAAPI_THANDLE environment
variables are automatically set by ConfD when invoking a CLI command, but when a NETCONF extension
RPC is invoked, only CONFD_MAAPI_USID is set, since there is no transaction associated with such
an invocation.
CONFD_MAAPI_USID User session to use.
CONFD_MAAPI_THANDLE The transaction to use when performing the operations.
CONFD_MAAPI_DEBUG Maapi debug information will be printed if this variable is defined.
CONFD_IPC_ADDR,
CONFD_IPC_EXTADDR
The address used to connect to the ConfD daemon, overrides the compiled
in default.
CONFD_IPC_PORT The port number to connect to the ConfD daemon on, overrides the
compiled in default.
CONFD_IPC_EXTSOPATH The absolute path to the shared object to use for a connection using external
IPC when CONFD_IPC_EXTADDR is given.
SEE ALSO
The ConfD User Guide
confd(1) - command to start and control the ConfD daemon
confdc(1) - YANG compiler
confd.conf(5) - ConfD daemon configuration file format
clispec(5) - CLI specification file format
574
ConfD man-pages, Volume 3
Table of Contents
confd_lib ........................................................................................................................ 576
confd_lib_cdb .................................................................................................................. 577
confd_lib_dp ................................................................................................................... 615
confd_lib_events .............................................................................................................. 675
confd_lib_ha ................................................................................................................... 682
confd_lib_lib ................................................................................................................... 684
confd_lib_maapi .............................................................................................................. 706
confd_types ..................................................................................................................... 773
575
Nameconfd_lib — C library for connecting to ConfD
LIBRARY
ConfD Library, (libconfd, -lconfd)
DESCRIPTION
The libconfd shared library is used to connect to ConfD. The documentation for the library is divided
into several manual pages:
confd_lib_lib(3) Common Library Functions
confd_lib_dp(3) The Data Provider API
confd_lib_events(3) The Event Notification API
confd_lib_ha(3) The High Availability API
confd_lib_cdb(3) The CDB API
confd_lib_maapi(3) The Management Agent API
There is also a C header file associated with each of these manual pages:
#include <confd_lib.h> Common type definitions and prototypes for the functions in the
confd_lib_lib(3) manual page. Always needed.
#include <confd_dp.h> Needed when functions in the confd_lib_dp(3) manual page are
used.
#include
<confd_events.h>
Needed when functions in the confd_lib_events(3) manual page are
used.
#include <confd_ha.h> Needed when functions in the confd_lib_ha(3) manual page are
used.
#include <confd_cdb.h> Needed when functions in the confd_lib_cdb(3) manual page are
used.
#include <confd_maapi.h> Needed when functions in the confd_lib_maapi(3) manual page are
used.
For backwards compatibility, #include <confd.h> can also be used, and is equivalent to:
#include <confd_lib.h>
#include <confd_dp.h>
#include <confd_events.h>
#include <confd_ha.h>
SEE ALSO
The ConfD User Guide
576
Nameconfd_lib_cdb — library for connecting to ConfD built-in XML database (CDB)
Synopsis
#include <confd_lib.h> #include <confd_cdb.h>
int cdb_connect(int sock, enum cdb_sock_type type, const struct
sockaddr* srv, int srv_sz);
int cdb_connect_name(int sock, enum cdb_sock_type type, const struct
sockaddr* srv, int srv_sz, const char *name);
int cdb_mandatory_subscriber(int sock, const char *name);
int cdb_set_namespace(int sock, int hashed_ns);
int cdb_end_session(int sock);
int cdb_start_session(int sock, enum cdb_db_type db);
int cdb_start_session2(int sock, enum cdb_db_type db, int flags);
int cdb_close(int sock);
int cdb_wait_start(int sock);
int cdb_get_phase(int sock, struct cdb_phase *phase);
int cdb_get_txid(int sock, struct cdb_txid *txid);
int cdb_initiate_journal_compaction(int sock);
int cdb_load_file(int sock, const char *filename, int flags);
int cdb_load_str(int sock, const char *xml_str, int flags);
int cdb_get_user_session(int sock);
int cdb_get_transaction_handle(int sock);
int cdb_set_timeout(int sock, int timeout_secs);
int cdb_exists(int sock, const char *fmt, ...);
int cdb_cd(int sock, const char *fmt, ...);
int cdb_pushd(int sock, const char *fmt, ...);
int cdb_popd(int sock);
int cdb_getcwd(int sock, size_t strsz, char *curdir);
int cdb_getcwd_kpath(int sock, confd_hkeypath_t **kp);
int cdb_num_instances(int sock, const char *fmt, ...);
int cdb_next_index(int sock, const char *fmt, ...);
577
confd_lib_cdb
int cdb_index(int sock, const char *fmt, ...);
int cdb_is_default(int sock, const char *fmt, ...);
int cdb_subscribe2(int sock, enum cdb_sub_type type, int flags, int
priority, int *spoint, int nspace, const char *fmt, ...);
int cdb_subscribe(int sock, int priority, int nspace, int *spoint, const
char *fmt, ...);
int cdb_oper_subscribe(int sock, int nspace, int *spoint, const char
*fmt, ...);
int cdb_subscribe_done(int sock);
int cdb_trigger_subscriptions(int sock, int sub_points[], int len);
int cdb_trigger_oper_subscriptions(int sock, int sub_points[], int len,
int flags);
int cdb_diff_match(int sock, int subid, struct xml_tag tags[], int
tagslen);
int cdb_read_subscription_socket(int sock, int sub_points[], int
*resultlen);
int cdb_read_subscription_socket2(int sock, enum cdb_sub_notification
*type, int *flags, int *subpoints[], int *resultlen);
int cdb_replay_subscriptions(int sock, struct cdb_txid *txid, int
sub_points[], int len);
int cdb_get_replay_txids(int sock, struct cdb_txid **txid, int
*resultlen);
int cdb_diff_iterate(int sock, int subid, enum cdb_iter_ret (*iter)
(confd_hkeypath_t *kp, enum cdb_iter_op op, confd_value_t *oldv,
confd_value_t *newv, void *state), int flags, void *initstate);
int cdb_diff_iterate_resume(int sock, enum cdb_iter_ret reply,
enum cdb_iter_ret (*iter)( confd_hkeypath_t *kp, enum cdb_iter_op
op, confd_value_t *oldv, confd_value_t *newv, void *state), void
*resumestate);
int cdb_cli_diff_iterate(int sock, int subid, cli_diff_iter_function_t
*iter, int flags, void *initstate);
int cdb_get_modifications(int sock, int subid, int flags,
confd_tag_value_t **values, int *nvalues, const char *fmt, ...);
int cdb_get_modifications_iter(int sock, int flags, confd_tag_value_t
**values, int *nvalues);
int cdb_get_modifications_cli(int sock, int subid, int flags, char
**str);
int cdb_sync_subscription_socket(int sock, enum
cdb_subscription_sync_type st);
578
confd_lib_cdb
int cdb_sub_progress(int sock, const char *fmt, ...);
int cdb_sub_abort_trans(int sock, enum confd_errcode code, u_int32_t
apptag_ns, u_int32_t apptag_tag, const char *fmt, ...);
int cdb_sub_abort_trans_info(int sock, enum confd_errcode code,
u_int32_t apptag_ns, u_int32_t apptag_tag, const confd_tag_value_t
*error_info, int n, const char *fmt, ...);
int cdb_get_case(int sock, const char *choice, confd_value_t *rcase,
const char *fmt, ...);
int cdb_get(int sock, confd_value_t *v, const char *fmt, ...);
int cdb_get_int8(int sock, int8_t *rval, const char *fmt, ...);
int cdb_get_int16(int sock, int16_t *rval, const char *fmt, ...);
int cdb_get_int32(int sock, int32_t *rval, const char *fmt, ...);
int cdb_get_int64(int sock, int64_t *rval, const char *fmt, ...);
int cdb_get_u_int8(int sock, u_int8_t *rval, const char *fmt, ...);
int cdb_get_u_int16(int sock, u_int16_t *rval, const char *fmt, ...);
int cdb_get_u_int32(int sock, u_int32_t *rval, const char *fmt, ...);
int cdb_get_u_int64(int sock, u_int64_t *rval, const char *fmt, ...);
int cdb_get_bit32(int sock, u_int32_t *rval, const char *fmt, ...);
int cdb_get_bit64(int sock, u_int64_t *rval, const char *fmt, ...);
int cdb_get_bitbig(int sock, unsigned char **rval, int *bufsiz, const
char *fmt, ...);
int cdb_get_ipv4(int sock, struct in_addr *rval, const char *fmt, ...);
int cdb_get_ipv6(int sock, struct in6_addr *rval, const char *fmt, ...);
int cdb_get_double(int sock, double *rval, const char *fmt, ...);
int cdb_get_bool(int sock, int *rval, const char *fmt, ...);
int cdb_get_datetime(int sock, struct confd_datetime *rval, const char
*fmt, ...);
int cdb_get_date(int sock, struct confd_date *rval, const char
*fmt, ...);
int cdb_get_time(int sock, struct confd_time *rval, const char
*fmt, ...);
int cdb_get_duration(int sock, struct confd_duration *rval, const char
*fmt, ...);
int cdb_get_enum_value(int sock, int32_t *rval, const char *fmt, ...);
579
confd_lib_cdb
int cdb_get_objectref(int sock, confd_hkeypath_t **rval, const char
*fmt, ...);
int cdb_get_oid(int sock, struct confd_snmp_oid **rval, const char
*fmt, ...);
int cdb_get_buf(int sock, unsigned char **rval, int *bufsiz, const char
*fmt, ...);
int cdb_get_buf2(int sock, unsigned char *rval, int *n, const char
*fmt, ...);
int cdb_get_str(int sock, char *rval, int n, const char *fmt, ...);
int cdb_get_binary(int sock, unsigned char **rval, int *bufsiz, const
char *fmt, ...);
int cdb_get_hexstr(int sock, unsigned char **rval, int *bufsiz, const
char *fmt, ...);
int cdb_get_qname(int sock, unsigned char **prefix, int *prefixsz,
unsigned char **name, int *namesz, const char *fmt, ...);
int cdb_get_list(int sock, confd_value_t **values, int *n, const char
*fmt, ...);
int cdb_get_ipv4prefix(int sock, struct confd_ipv4_prefix *rval, const
char *fmt, ...);
int cdb_get_ipv6prefix(int sock, struct confd_ipv6_prefix *rval, const
char *fmt, ...);
int cdb_get_decimal64(int sock, struct confd_decimal64 *rval, const char
*fmt, ...);
int cdb_get_identityref(int sock, struct confd_identityref *rval, const
char *fmt, ...);
int cdb_get_ipv4_and_plen(int sock, struct confd_ipv4_prefix *rval,
const char *fmt, ...);
int cdb_get_ipv6_and_plen(int sock, struct confd_ipv6_prefix *rval,
const char *fmt, ...);
int cdb_get_dquad(int sock, struct confd_dotted_quad *rval, const char
*fmt, ...);
int cdb_vget(int sock, confd_value_t *v, const char *fmt, va_list args);
int cdb_get_object(int sock, confd_value_t *values, int n, const char
*fmt, ...);
int cdb_get_objects(int sock, confd_value_t *values, int n, int ix, int
nobj, const char *fmt, ...);
int cdb_get_values(int sock, confd_tag_value_t *values, int n, const
char *fmt, ...);
580
confd_lib_cdb
int cdb_set_elem(int sock, confd_value_t *val, const char *fmt, ...);
int cdb_set_elem2(int sock, const char *strval, const char *fmt, ...);
int cdb_vset_elem(int sock, confd_value_t *val, const char *fmt, va_list
args);
int cdb_set_case(int sock, const char *choice, const char *scase, const
char *fmt, ...);
int cdb_create(int sock, const char *fmt, ...);
int cdb_delete(int sock, const char *fmt, ...);
int cdb_set_object(int sock, const confd_value_t *values, int n, const
char *fmt, ...);
int cdb_set_values(int sock, const confd_tag_value_t *values, int n,
const char *fmt, ...);
LIBRARY
ConfD Library, (libconfd, -lconfd)
DESCRIPTION
The libconfd shared library is used to connect to the ConfD built-in XML database, CDB. The purpose
of this API is to provide a read and subscription API to CDB.
CDB owns and stores the configuration data and the user of the API wants to read that configuration data
and also get notified when someone through either NETCONF, SNMP, the CLI, the Web UI or the MAAPI
modifies the data so that the application can re-read the configuration data and act accordingly.
CDB can also store operational data, i.e. data which is designated with a "config false" statement in
the YANG data model. Operational data can be both read and written by the applications, but NETCONF
and the other northbound agents can only read the operational data.
PATHS
The majority of the functions described here take as their two last arguments a format string and a variable
number of extra arguments as in: char *fmt, ...);
The fmt is a printf style format string which is used to format a path into the XML data tree. Assume
the following YANG fragment:
container hosts {
list host {
key name;
leaf name {
type string;
}
leaf domain {
type string;
}
581
confd_lib_cdb
leaf defgw {
type inet:ipv4-address;
}
container interfaces {
list interface {
key name;
leaf name {
type string;
}
leaf ip {
type inet:ipv4-address;
}
leaf mask {
type inet:ipv4-address;
}
leaf enabled {
type boolean;
}
}
}
}
}
Furthermore, assuming our database is populated with the following data.
<hosts xmlns="http://example.com/ns/hst/1.0">
<host>
<name>buzz</name>
<domain>tail-f.com</domain>
<defgw>192.168.1.1</defgw>
<interfaces>
<interface>
<name>eth0</name>
<ip>192.168.1.61</ip>
<mask>255.255.255.0</mask>
<enabled>true</enabled>
</interface>
<interface>
<name>eth1</name>
<ip>10.77.1.44</ip>
<mask>255.255.0.0</mask>
<enabled>false</enabled>
</interface>
</interfaces>
</host>
</hosts>
The format path /hosts/host{buzz}/defgw refers to the leaf called defgw of the host whose key
(name leaf) is buzz.
The format path /hosts/host{buzz}/interfaces/interface{eth0}/ip refers to the leaf
called ip in the eth0 interface of the host called buzz.
It is possible loop through all entries in a list as in:
n = cdb_num_instances(sock, "/hosts/host");
for (i=0; i<n; i++) {
cdb_cd(sock, "/hosts/host[%d]", i)
.....
582
confd_lib_cdb
Thus instead of an actually instantiated key inside a pair of curly braces {key}, we can use a temporary
integer key inside a pair of brackets [n].
We can use the following modifiers:
%d requiring an integer parameter (type int) to be substituted.
%u requiring an unsigned integer parameter (type unsigned int) to be substituted.
%s requiring a char* string parameter to be substituted.
%ip4 requiring a struct in_addr* to be substituted.
%ip6 requiring a struct in6_addr* to be substituted.
%x requiring a confd_value_t* to be substituted.
%*x requiring an array length and a confd_value_t* pointing to an array of values to be substituted.
%h requiring a confd_hkeypath_t* to be substituted.
%*h requiring a length and a confd_hkeypath_t* to be substituted.
Thus,
char *hname = "earth";
struct in_addr ip;
ip.s_addr = inet_addr("127.0.0.1");
cdb_cd(sock, "/hosts/host{%s}/bar{%ip4}", hname, &ip);
would change the current position to the path: "/hosts/host{earth}/bar{127.0.0.1}"
It is also possible to use the different '%' modifiers outside the curly braces, thus the above example could
have been written as:
char *prefix = "/hosts/host";
cdb_cd(sock, "%s{%s}/bar{%ip4}", prefix, hname, &ip);
If an element has multiple keys, the keys must be space separated as in cdb_cd("/bars/bar{%s
%d}/item", str, i);. However the '%*x' modifier is an exception to this rule, and it is especially
useful when we have a number of key values that are unknown at compile time. If we have a list foo
which is known to have two keys, and we have those keys in an array key[], we can use cdb_cd("/
foo{%x %x}", &key[0], &key[1]);. But if the number of keys is unknown at compile time
(or if we just want a more compact code), we can instead use cdb_cd("/foo{%*x}", n, key);
where n is the number of keys.
The '%h' and '%*h' modifiers can only be used at the beginning of a format path, as they expand
to the absolute path corresponding to the confd_hkeypath_t. These modifiers are particularly useful
with cdb_diff_iterate() (see below), or for MAAPI access in data provider callbacks (see
confd_lib_maapi(3) and confd_lib_dp(3)). The '%*h' variant allows for using only the initial part of a
confd_hkeypath_t, as specified by the preceding length argument (similar to '%.*s' for printf(3)).
For example, if the iter() function passed to cdb_diff_iterate() has been invoked with a
confd_hkeypath_t *kp that corresponds to /hosts/host{buzz}, we can read the defgw child element
with
confd_value_t v;
cdb_get(s, &v, "%h/defgw", kp);
583
confd_lib_cdb
or the entire list entry with
confd_value_t v[5];
cdb_get_object(sock, v, 5, "%h", kp);
or the defgw child element for host mars with
confd_value_t v;
cdb_get(s, &v, "%*h{mars}/defgw", kp->len - 1, kp);
All the functions that take a path on this form also have a va_list variant, of the same form as cdb_vget()
and cdb_vset_elem(), which are the only ones explicitly documented below. I.e. they have a prefix
"cdb_v" instead of "cdb_", and take a single va_list argument instead of a variable number of arguments.
FUNCTIONS
All functions return CONFD_OK (0), CONFD_ERR (-1) or CONFD_EOF (-2) unless otherwise stated.
CONFD_EOF means that the socket to ConfD has been closed.
Whenever CONFD_ERR is returned from any API function described here, it is possible to obtain
additional information on the error through the symbol confd_errno, see the ERRORS section in the
confd_lib_lib(3) manual page.
int cdb_connect(int sock, enum cdb_sock_type type, const struct
sockaddr* srv, int srv_sz);
The application has to connect to ConfD before it can interact. There are two different types of connections
identified by cdb_sock_type:
CDB_DATA_SOCKET This is a socket which is used to read configuration data, or to read
and write operational data.
CDB_SUBSCRIPTION_SOCKET This is a socket which is used to receive notifications about updates to
the database. A subscription socket needs to be part of the application
poll set.
Additionally the type CDB_READ_SOCKET is accepted for backwards compatibility - it is equivalent
to CDB_DATA_SOCKET.
A call to cdb_connect() is typically followed by a call to either cdb_start_session() for a
reading session or a call to cdb_subscribe() for a subscription socket.
Note
If this call fails (i.e. does not return CONFD_OK), the socket descriptor must be closed and a
new socket created before the call is re-attempted.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS
int cdb_connect_name(int sock, enum cdb_sock_type type, const struct
sockaddr* srv, int srv_sz, const char *name);
When we use cdb_connect() to create a connection to ConfD/CDB, the name parameter passed
to the library initialization function confd_init() (see confd_lib_lib(3)) is used to identify the
connection in status reports and logs. I we want different names to be used for different connections from
the same application process, we can use cdb_connect_name() with the wanted name instead of
cdb_connect().
584
confd_lib_cdb
Note
If this call fails (i.e. does not return CONFD_OK), the socket descriptor must be closed and a
new socket created before the call is re-attempted.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS
int cdb_mandatory_subscriber(int sock, const char *name);
Attaches a mandatory attribute and a mandatory name to the subscriber identified by sock. The name
parameter is distinct from the name parameter in cdb_connect_name.
CDB keeps a list of mandatory subscribers for infinite extent, i.e. until confd is restarted. The function
is idempotent.
Absence of one or more mandatory subscribers will result in abort of all transactions. A mandatory
subscriber must be present during the entire PREPARE delivery phase.
If a mandatory subscriber crashes during a PREPARE delivery phase, the subscriber should be restarted
and the commit operation should be retried.
A mandatory subscriber is present if the subscriber has issued at least one cdb_subscribe2() call
followed by a cdb_subscribe_done() call.
A call to cdb_mandatory_subscriber() is only allowed before the first call of
cdb_subscribe2().
Note
Only applicable for two-phase subscribers.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS
int cdb_set_namespace(int sock, int hashed_ns);
If we want to access data in CDB where the toplevel element name is not unique, we need to set the
namespace. We are reading data related to a specific .fxs file. confdc can be used to generate a .h file with
a #define for the namespace, by the flag --emit-h to confdc (see confdc(1)).
It is also possible to indicate which namespace to use through the namespace prefix when we read and
write data. Thus the path /foo:bar/baz will get us /bar/baz in the namespace with prefix "foo"
regardless of what the "set" namespace is. And if there is only one toplevel element called "bar" across all
namespaces, we can use /bar/baz without the prefix and without calling cdb_set_namespace().
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int cdb_end_session(int sock);
We use cdb_connect() to establish a read socket to CDB. When the socket is closed, the read session
is ended. We can reuse the same socket for another read session, but we must then end the session and
create another session using cdb_start_session().
While we have a live CDB read session for configuration data, CDB is normally locked for writing. Thus
all external entities trying to modify CDB are blocked as long as we have an open CDB read session. It
is very important that we remember to either cdb_end_session() or cdb_close() once we have
read what we wish to read.
585
confd_lib_cdb
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int cdb_start_session(int sock, enum cdb_db_type db);
Starts a new session on an already established socket to CDB. The db parameter should be one of:
CDB_RUNNING Creates a read session towards the running database.
CDB_PRE_COMMIT_RUNNING Creates a read session towards the running database as it
was before the current transaction was committed. This is
only possible between a subscription notification and the final
cdb_sync_subscription_socket(). At any other time trying
to call cdb_start_session() will fail with confd_errno set to
CONFD_ERR_NOEXISTS.
In the case of a CDB_SUB_PREPARE subscription notification a
session towards CDB_PRE_COMMIT_RUNNING will (in spite of the
name) will return values as they were before the transaction which
is about to be committed took place. This means that if you want
to read the new values during a CDB_SUB_PREPARE subscription
notification you need to create a session towards CDB_RUNNING.
However, since it is locked the session needs to be started in lockless
mode using cdb_start_session2(). So for example:
cdb_read_subscription_socket2(ss, &type, &flags, &subp, &len);
/* ... */
switch (type) {
case CDB_SUB_PREPARE:
/* Set up a lockless session to read new values: */
cdb_start_session2(s, CDB_RUNNING, 0);
read_new_config(s);
cdb_end_session(s);
cdb_sync_subscription_socket(ss, CDB_DONE_PRIORITY);
break;
/* ... */
CDB_STARTUP Creates a read session towards the startup database.
CDB_OPERATIONAL Creates a read/write session towards the operational database. For
further details about working with operational data in CDB, see the
OPERATIONAL DATA section below.
Note
Subscriptions on operational data will not be triggered from a
session created with this function - to trigger operational data
subscriptions, we need to use cdb_start_session2(),
see below.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_LOCKED,
CONFD_ERR_NOEXISTS
If the error is CONFD_ERR_LOCKED it means that we are trying to create a new CDB read
session precisely when the write phase of some transaction is occurring. Thus correct usage of
cdb_start_session() is:
while (1) {
586
confd_lib_cdb
if (cdb_start_session(sock, CDB_RUNNING) == CONFD_OK)
break;
if (confd_errno == CONFD_ERR_LOCKED) {
sleep(1);
continue;
}
.... handle error
}
Alternatively we can use cdb_start_session2() with flags = CDB_LOCK_SESSION|
CDB_LOCK_WAIT. This means that the call will block until the lock has been acquired, and thus we
do not need the retry loop.
int cdb_start_session2(int sock, enum cdb_db_type db, int flags);
This function may be used instead of cdb_start_session() if it is considered necessary to have
more detailed control over some aspects of the CDB session - if in doubt, use cdb_start_session()
instead. The sock and db arguments are the same as for cdb_start_session(), and these values
can be used for flags (ORed together if more than one):
#define CDB_LOCK_WAIT (1 << 0)
#define CDB_LOCK_SESSION (1 << 1)
#define CDB_LOCK_REQUEST (1 << 2)
#define CDB_LOCK_PARTIAL (1 << 3)
The flags affect sessions for the different database types as follows:
CDB_RUNNING CDB_LOCK_SESSION obtains a read lock for the complete
session, i.e. using this flag alone is equivalent to calling
cdb_start_session(). CDB_LOCK_REQUEST obtains a read
lock only for the duration of each read request. This means that
values of elements read in different requests may be inconsistent
with each other, and the consequences of this must be carefully
considered. In particular, the use of cdb_num_instances() and
the [n] "integer index" notation in keypaths is inherently unsafe in
this mode. Note: The implementation will not actually obtain a lock
for a single-value request, since that is an atomic operation anyway.
The CDB_LOCK_PARTIAL flag is not allowed.
CDB_STARTUP Same as CDB_RUNNING.
CDB_PRE_COMMIT_RUNNING This database type does not have any locks, which means that
it is an error to call cdb_start_session2() with any
CDB_LOCK_XXX flag included in flags. Using a flags value of
0 is equivalent to calling cdb_start_session().
CDB_OPERATIONAL CDB_LOCK_REQUEST obtains a "subscription lock" for the
duration of each write request. This can be described as an "advisory
exclusive" lock, i.e. only one client at a time can hold the lock (unless
CDB_LOCK_PARTIAL is used), but the lock does not affect clients
that do not attempt to obtain it. It also does not affect the reading of
operational data. The purpose of this lock is to indicate that the client
wants the write operation to generate subscription notifications. The
lock remains in effect until any/all subscription notifications generated
as a result of the write has been delivered.
587
confd_lib_cdb
If the CDB_LOCK_PARTIAL flag is used together with
CDB_LOCK_REQUEST, the "subscription lock" only applies to the
smallest data subtree that includes all the data in the write request. This
means that multiple writes that generates subscription notifications,
and delivery of the corresponding notifications, can proceed in parallel
as long as they affect disjunct parts of the data tree.
The CDB_LOCK_SESSION flag is not allowed. Using a flags
value of 0 is equivalent to calling cdb_start_session().
In all cases of using CDB_LOCK_SESSION or CDB_LOCK_REQUEST described above, adding the
CDB_LOCK_WAIT flag means that instead of failing with CONFD_ERR_LOCKED if the lock can
not be obtained immediately, requests will wait for the lock to become available. When used with
CDB_LOCK_SESSION it pertains to cdb_start_session2() itself, with CDB_LOCK_REQUEST
it pertains to the individual requests.
While it is possible to use this function to start a session towards a configuration database type with no
locking at all (flags = 0), this is strongly discouraged in general, since it means that even the values read
in a single multi-value request (e.g. cdb_get_object(), see below) may be inconsistent with each
other. However it is necessary to do this if we want to have a session open during semantic validation,
see the "Semantic Validation" chapter in the User Guide - and in this particular case it is safe, since the
transaction lock prevents changes to CDB during validation.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_LOCKED,
CONFD_ERR_NOEXISTS, CONFD_ERR_PROTOUSAGE
int cdb_close(int sock);
Closes the socket. cdb_end_session() should be called before calling this function.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
Even if the call returns an error, the socket will be closed.
int cdb_wait_start(int sock);
This call waits until CDB has completed start-phase 1 and is available, when it is CONFD_OK is returned.
If CDB already is available (i.e. start-phase >= 1) the call returns immediately. This can be used by a CDB
client who is not synchronously started and only wants to wait until it can read its configuration. The call
can be used after cdb_connect().
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS
int cdb_get_phase(int sock, struct cdb_phase *phase);
Returns the start-phase CDB is currently in, in the struct cdb_phase pointed to by the second argument. Also
if CDB is in phase 0 and has initiated an init transaction (to load any init files) the flag CDB_FLAG_INIT
is set in the flags field of struct cdb_phase and correspondingly if an upgrade session is started the
CDB_FLAG_UPGRADE is set. The call can be used after cdb_connect() and returns CONFD_OK.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS
int cdb_initiate_journal_compaction(int sock);
Normally CDB handles journal compaction of the config datastore automatically. If this has been turned
off (in the configuration file) then the A.cdb file will grow indefinitely unless this API function is called
588
confd_lib_cdb
periodically to initiate compaction. This function initiates a compaction and returns immediately (if the
datastore is locked, the compaction will be delayed, but eventually compaction will take place). Calling
this function when journal compaction is configured to be automatic has no effect.
Errors: -
int cdb_get_txid(int sock, struct cdb_txid *txid);
Read the last transaction id from CDB. This function can be used if we are forced to reconnect to CDB,
If the transaction id we read is identical to the last id we had prior to loosing the CDB sockets we don't
have to reload our managed object data. See the User Guide for full explanation. Returns CONFD_OK on
success and CONFD_ERR or CONFD_EOF on failure.
int cdb_get_replay_txids(int sock, struct cdb_txid **txid, int
*resultlen);
When the subscriptionReplay functionality is enabled in confd.conf this function returns the list of
available transactions that CDB can replay. The current transaction id will be the first in the list, the second
at txid[1] and so on. The number of transactions is returned in resultlen. In case there are no replay
transactions available (the feature isn't enabled or there hasn't been any transactions yet) only one (the
current) transaction id is returned. It is up to the caller to free() txid when it is no longer needed.
int cdb_set_timeout(int sock, int timeout_secs);
A timeout for client actions can be specified via /confdConfig/cdb/clientTimeout in
confd.conf, see the confd.conf(5) manual page. This function can be used to dynamically extend
(or shorten) the timeout for the current action. Thus it is possible to configure a restrictive timeout in
confd.conf, but still allow specific actions to have a longer execution time.
The function can be called either with a subscription socket during subscription delivery on that socket
(including from the iter() function passed to cdb_diff_iterate()), or with a data socket that has
an active session. The timeout is given in seconds from the point in time when the function is called.
Note
The timeout for subscription delivery is common for all the subscribers receiving notifications at
a given priority. Thus calling the function during subscription delivery changes the timeout for
all the subscribers that are currently processing notifications.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_PROTOUSAGE,
CONFD_ERR_BADSTATE
int cdb_exists(int sock, const char *fmt, ...);
Leafs in the data model may be optional, and presence containers and list entries may or may not exist.
This function checks whether a node exists in CDB. Returns 0 for false, 1 for true and CONFD_ERR or
CONFD_EOF for errors.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADPATH
int cdb_cd(int sock, const char *fmt, ...);
Changes the working directory according to the format path. Note that this function can not be used as
an existence test.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADPATH
589
confd_lib_cdb
int cdb_pushd(int sock, const char *fmt, ...);
Similar to cdb_cd() but pushes the previous current directory on a stack.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSTACK,
CONFD_ERR_BADPATH
int cdb_popd(int sock);
Pops the top element from the directory stack and changes directory to previous directory.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSTACK
int cdb_getcwd(int sock, size_t strsz, char *curdir);
Returns the current position as previously set by cdb_cd(), cdb_pushd(), or cdb_popd() as a
string path. Note that what is returned is a pretty-printed version of the internal representation of the current
position, it will be the shortest unique way to print the path but it might not exactly match the string given
to cdb_cd(). The buffer in *curdir will be NULL terminated, and no more characters than strsz-1 will
be written to it.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS
int cdb_getcwd_kpath(int sock, confd_hkeypath_t **kp);
Returns the current position like cdb_getcwd(), but as a pointer to a hashed keypath instead of as a
string. The hkeypath is dynamically allocated, and may further contain dynamically allocated elements.
The caller must free the allocated memory, easiest done by calling confd_free_hkeypath().
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS
int cdb_num_instances(int sock, const char *fmt, ...);
Returns the number of entries in a list. On error CONFD_ERR or CONFD_EOF is returned.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADPATH
int cdb_next_index(int sock, const char *fmt, ...);
Given a path to a list entry cdb_next_index() returns the position (starting from 0) of the next entry
(regardless of whether the path exists or not). When the list has multiple keys a * may be used for the
last keys to make the path partially instantiated. For example if /foo/bar has three integer keys, the
following pseudo code could be used to iterate over all entries with 42 as the first key:
/* find the first entry of /foo/bar with 42 as first key */
ix = cdb_next_index(sock, "/foo/bar{42 * *}");
for (; ix>=0; ix++) {
int32_t k1 = 0;
cdb_get_int32(sock, &k1, "/foo/bar[%d]/key1", ix);
if (k1 != 42) break;
/* ... do something with /foo/bar[%d] ... */
}
If there is no next entry -1 is returned. It is not possible to use this function on an ordered-by user list. On
error CONFD_ERR or CONFD_EOF is returned.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADPATH
int cdb_index(int sock, const char *fmt, ...);
590
confd_lib_cdb
Given a path to a list entry cdb_index() returns its position (starting from 0). On error CONFD_ERR
or CONFD_EOF is returned.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADPATH
int cdb_is_default(int sock, const char *fmt, ...);
This function returns 1 for a leaf which has a default value defined in the data model when no value has
been set, i.e. when the default value is in effect. It returns 0 for other existing leafs, and CONFD_ERR or
CONFD_EOF for errors. There is normally no need to call this function, since CDB automatically provides
the default value as needed when cdb_get() etc is called.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADPATH,
CONFD_ERR_NOEXISTS
int cdb_subscribe(int sock, int priority, int nspace, int *spoint, const
char *fmt, ...);
Sets up a CDB subscription so that we are notified when CDB configuration data changes. There can
be multiple subscription points from different sources, that is a single client daemon can have many
subscriptions and there can be many client daemons.
Each subscription point is defined through a path similar to the paths we use for read operations. We
can subscribe either to specific leafs or entire subtrees. Subscribing to list entries can be done using fully
qualified paths, or tagpaths to match multiple entries. A path which isn't a leaf element automatically
matches the subtree below that path. When specifying keys to a list entry it is possible to use the wildcard
character * which will match any key value.
When subscribing to a leaf with a tailf:default-ref statement, or to a subtree with elements that
have tailf:default-ref, implicit subscriptions to the referred leafs are added. This means that a
change in a referred leaf will generate a notification for the subscription that has referring leaf(s) - but
currently such a change will not be reported by cdb_diff_iterate(). Thus to get the new "effective"
value of a referring leaf in this case, it is necessary to either read the value of the leaf with e.g. cdb_get()
- or to use a subscription that includes the referred leafs, and use cdb_diff_iterate() when a
notification for that subscription is received.
Some examples
/hosts Means that we subscribe to any changes in the subtree - rooted at
/hosts. This includes additions or removals of host entries as
well as changes to already existing host entries.
/hosts/host{www}/
interfaces/
interface{eth0}/ip
Means we are notified when host www changes its IP address on
eth0.
/hosts/host/interfaces/
interface/ip
Means we are notified when any host changes any of its IP
addresses.
/hosts/host/interfaces Means we are notified when either an interface is added/removed or
when an individual leaf element in an existing interface is changed.
The priority value is an integer. When CDB is changed, the change is performed inside a transaction.
Either a commit operation from the CLI or a candidate-commit operation in NETCONF means that
the running database is changed. These changes occur inside a ConfD transaction. CDB will handle the
subscriptions in lock-step priority order. First all subscribers at the lowest priority are handled, once they
591
confd_lib_cdb
all have replied and synchronized through calls to cdb_sync_subscription_socket() the next
set - at the next priority level is handled by CDB. Priority numbers are global, i.e. if there are multiple
client daemons notifications will still be delivered in priority order per all subscriptions, not per daemon.
See cdb_diff_iterate() and cdb_diff_match() for ways of filtering subscription notifications and
finding out what changed. The easiest way is though to not use either of the two above mentioned diff
function but to solely rely on the positioning of the subscription points in the tree to figure out what
changed.
cdb_subscribe() returns a subscription point in the return parameter spoint. This integer
value is used to identify this particular subscription.
Because there can be many subscriptions on the same socket the client must notify ConfD when it is done
subscribing and ready to receive notifications. This is done using cdb_subscribe_done().
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADPATH,
CONFD_ERR_NOEXISTS
int cdb_oper_subscribe(int sock, int nspace, int *spoint, const char
*fmt, ...);
Sets up a CDB subscription for changes in the operational data base. Similar to the subscriptions for
configuration data, we can be notified of changes to the operational data stored in CDB. Note that there
are several differences from the subscriptions for configuration data:
Notifications are only generated if the writer has taken a subscription lock, see
cdb_start_session2() above.
Priorities are not used for these notifications.
It is not possible to receive the previous value for modified leafs in cdb_diff_iterate().
A special synchronization reply must be used when the notifications have been read (see
cdb_sync_subscription_socket() below).
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADPATH,
CONFD_ERR_NOEXISTS
int cdb_subscribe2(int sock, enum cdb_sub_type type, int flags, int
priority, int *spoint, int nspace, const char *fmt, ...);
This function supersedes the current cdb_subscribe() and cdb_oper_subscribe() as well as
makes it possible to use the new two phase subscription method. The cdb_sub_type is defined as:
enum cdb_sub_type {
CDB_SUB_RUNNING = 1,
CDB_SUB_RUNNING_TWOPHASE = 2,
CDB_SUB_OPERATIONAL = 3
};
The CDB subscription type CDB_SUB_RUNNING is the same as cdb_subscribe(),
CDB_SUB_OPERATIONAL is the same as cdb_oper_subscribe(), and
CDB_SUB_RUNNING_TWOPHASE does a two phase subscription.
The flags argument should be set to 0, or a combination of:
CDB_SUB_WANT_ABORT_ON_ABORTNormally if a subscriber is the one to abort a transaction it
will not receive an abort notification. This flags means that this
592
confd_lib_cdb
subscriber wants an abort notification even if it was the one that
called cdb_sub_abort_trans(). This flag is only valid when the
subscription type is CDB_SUB_RUNNING_TWOPHASE.
The two phase subscriptions work like this: A subscriber uses cdb_subscribe2() with the type
set to CDB_SUB_RUNNING_TWOPHASE to register as many subscription points as required. The
cdb_subscribe_done() function is used to indicate that no more subscription points will be
registered on that particular socket. Only after cdb_subscribe_done() is called will subscription
notifications be delivered.
Once a transaction enters prepare state all CDB two phase subscribers will be notified
in priority order (lowest priority first, subscribers with the same priority is delivered
in parallel). The cdb_read_subscription_socket2() function will set type to
CDB_SUB_PREPARE. Once all subscribers have acknowledged the notification by using the function
cdb_sync_subscription_socket(CDB_DONE_PRIORITY) they will subsequently be notified
when the transaction is committed. The CDB_SUB_COMMIT notification is the same as the current
subscription mechanism, so when a transaction is committed all subscribers will be notified (again in
priority order).
When a transaction is aborted, delivery of any remaining CDB_SUB_PREPARE notifications is
cancelled. The subscribers that had already been notified with CDB_SUB_PREPARE will be notified
with CDB_SUB_ABORT (This notification will be done in reverse order of the CDB_SUB_PREPARE
notification). The transaction could be aborted because one of the subscribers that received
CDB_SUB_PREPARE called cdb_sub_abort_trans(), but it could also be caused for other reasons,
for example another data provider (than CDB) can abort the transaction.
Note
Two phase subscriptions are not supported for NCS.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADPATH,
CONFD_ERR_NOEXISTS
int cdb_subscribe_done(int sock);
When a client is done registering all its subscriptions on a particular subscription socket it must call
cdb_subscribe_done(). No notifications will be delivered until then.
int cdb_trigger_subscriptions(int sock, int sub_points[], int len);
This function makes it possible to trigger CDB subscriptions for configuration data even though the
configuration has not been modified. The caller will trigger all subscription points passed in the sub_points
array (or all subscribers if the array is of zero length) in priority order, and the call will not return until the
last subscriber has called cdb_sync_subscription_socket().
The call is blocking and doesn't return until all subscribers have acknowledged the notification. That means
that it is not possible to use cdb_trigger_subscriptions() in a cdb subscriber process (without
forking a process or spawning a thread) since it would cause a deadlock.
The subscription notification generated by this "synthetic" trigger will seem like a regular subscription
notification to a subscription client. As such, it is possible to use cdb_diff_iterate() to traverse
the changeset. CDB will make up this changeset in which all leafs in the configuration will appear to be
set, and all list entries and presence containers will appear as if they are created.
If the client is a two-phase subscriber, a prepare notification will first be delivered and if any client
aborts this synthetic transaction further delivery of subscription notification is suspended and an error is
593
confd_lib_cdb
returned to the caller of cdb_trigger_subscriptions(). The error is the result of mapping the
CONFD_ERRCODE as set by the aborting client as described for MAAPI in the EXTENDED ERROR
REPORTING section in the confd_lib_lib(3) manpage. Note however that the configuration is still the
way it is - so it is up to the caller of cdb_trigger_subscriptions() to take appropriate action
(for example: raising an alarm, restarting a subsystem, or even rebooting the system).
If one or more subscription ids is passed in the subids array that are not valid, an error
(CONFD_ERR_PROTOUSAGE) will be returned and no subscriptions will be triggered. If no subscription
ids are passed this error can not occur (even if there aren't any subscribers).
int cdb_trigger_oper_subscriptions(int sock, int sub_points[], int len,
int flags);
This function works like cdb_trigger_subscriptions(), but for CDB subscriptions to
operational data. The caller will trigger all subscription points passed in the sub_points array (or all
operational data subscribers if the array is of zero length), and the call will not return until the last subscriber
has called cdb_sync_subscription_socket().
Since the generation of subscription notifications for operational data requires that the subscription lock is
taken (see cdb_start_session2()), this function implicitly attempts to take a "global" subscription
lock. If the subscription lock is already taken, the function will by default return CONFD_ERR with
confd_errno set to CONFD_ERR_LOCKED. To instead have it wait until the lock becomes available,
CDB_LOCK_WAIT can be passed for the flags parameter.
int cdb_replay_subscriptions(int sock, struct cdb_txid *txid, int
sub_points[], int len);
This function makes it possible to replay the subscription events for the last configuration change to some
or all CDB subscribers. This call is useful in a number of recovery scenarios, where some CDB subscribers
lost connection to ConfD before having received all the changes in a transaction. The replay functionality
is only available if it has been enabled in confd.conf
The caller specifies the transaction id of the last transaction that the application has completely seen and
acted on. This verifies that the application has only missed (part of) the last transaction. If a different (older)
transaction ID is specified, an error is returned and no subscriptions will be triggered. If the transaction
id is the latest transaction ID (i.e. the caller is already up to date) nothing is triggered and CONFD_OK
is returned.
By calling this function, the caller will potentially trigger all subscription points passed in the sub_points
array (or all subscribers if the array is of zero length). The subscriptions will be triggered in priority order,
and the call will not return until the last subscriber has called cdb_sync_subscription_socket().
The call is blocking and doesn't return until all subscribers have acknowledged the notification. That means
that it is not possible to use cdb_replay_subscriptions() in a cdb subscriber process (without
forking a process or spawning a thread) since it would cause a deadlock.
The subscription notification generated by this "synthetic" trigger will seem like a regular subscription
notification to a subscription client. It is possible to use cdb_diff_iterate() to traverse the
changeset.
If the client is a two-phase subscriber, a prepare notification will first be delivered and if any client
aborts this synthetic transaction further delivery of subscription notification is suspended and an error is
returned to the caller of cdb_replay_subscriptions(). The error is the result of mapping the
CONFD_ERRCODE as set by the aborting client as described for MAAPI in the EXTENDED ERROR
REPORTING section in the confd_lib_lib(3) manpage.
594
confd_lib_cdb
int cdb_read_subscription_socket(int sock, int sub_points[], int
*resultlen);
The subscription socket - which is acquired through a call to cdb_connect() - must be part
of the application poll set. Once the subscription socket has I/O ready to read, we must call
cdb_read_subscription_socket() on the subscription socket.
The call will fill in the result in the array sub_points with a list of integer values containing
subscription points earlier acquired through calls to cdb_subscribe(). The global variable
cdb_active_subscriptions can be read to find how many active subscriptions the application
has. Make sure the sub_points[] array is at least this big, otherwise the confd library will write in
unallocated memory.
The subscription points may be either for configuration data or operational data (if
cdb_oper_subscribe() has been used on the same socket), but they will all be of the same "type" -
i.e. a single call of the function will never deliver a mix of configuration and operational data subscription
points.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS
int cdb_read_subscription_socket2(int sock, enum cdb_sub_notification
*type, int *flags, int *subpoints[], int *resultlen);
enum cdb_sub_notification {
CDB_SUB_PREPARE = 1,
CDB_SUB_COMMIT = 2,
CDB_SUB_ABORT = 3,
CDB_SUB_OPER = 4
};
This is another version of the cdb_read_subscription_socket() with two important differences:
1. In this version subpoints is allocated by the library, and it is up to the caller of this function to free()
it when it is done.
2. It is possible to retrieve the type of the subscription notification via the type return parameter.
All parameters except sock are return parameters. It is legal to pass in flags and type as NULL
pointers (in which case type and flags cannot be retrieved). subpoints is an array of integers, the length
is indicated in resultlen, it is allocated by the library, and must be freed by the caller. The type
parameter is what the subscriber uses to distinguish the different types of subscription notifications.
The flags return parameter can have the following bits set:
CDB_SUB_FLAG_IS_LAST This bit is set when this notification is the last of its type for this
subscription socket.
CDB_SUB_FLAG_HA_IS_SLAVE This bit is set when ConfD runs in HA mode, and the current HA
mode is slave. I.e. it is a convenient way for the subscriber to know
wether this node is in slave mode or not.
CDB_SUB_FLAG_TRIGGER This bit is set when the cause of the subscription notification is that
someone called cdb_trigger_subscriptions().
CDB_SUB_FLAG_REVERT If a confirming commit is aborted it will look to the CDB subscriber
as if a transaction happened that is the reverse of what the original
transaction was. This bit will be set when such a transaction is the
cause of the notification. Note that for a two-phase subscriber both
595
confd_lib_cdb
a prepare and a commit notification is delivered. However it is not
possible to reply by calling cdb_sub_abort_trans() for the
prepare notification in this case, instead the subscriber will have
to take appropriate backup action if it needs to abort (for example:
raise an alarm, restart, or even reboot the system).
CDB_SUB_FLAG_HA_SYNC This bit is set when the cause of the subscription notification is
initial synchronization of a HA slave from CDB on the master.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS
int cdb_diff_iterate(int sock, int subid, enum cdb_iter_ret (*iter)
(confd_hkeypath_t *kp, enum cdb_iter_op op, confd_value_t *oldv,
confd_value_t *newv, void *state), int flags, void *initstate);
After reading the subscription socket the cdb_diff_iterate() function can be used to iterate over
the changes made in CDB data that matched the particular subscription point given by subid.
The user defined function iter() will be called for each element that has been modified and matches the
subscription. The iter() callback receives the confd_hkeypath_t kp which uniquely identifies
which node in the data tree that is affected, the operation, and optionally the values it has before and after
the transaction. The op parameter gives the modification as:
MOP_CREATED The list entry, presence container, or leaf of type empty given by kp has
been created.
MOP_DELETED The list entry, presence container, or optional leaf given by kp has been
deleted.
If the subscription was triggered because an ancestor was deleted, the iter()
function will not called at all if the delete was above the subscription
point. However if the flag ITER_WANT_ANCESTOR_DELETE is passed to
cdb_diff_iterate() then deletes that trigger a descendant subscription
will also generate a call to iter(), and in this case kp will be the path that was
actually deleted.
MOP_MODIFIED A descendant of the list entry given by kp has been modified.
MOP_VALUE_SET The value of the leaf given by kp has been set to newv.
MOP_MOVED_AFTERThe list entry given by kp, in an ordered-by user list, has been moved. If
newv is NULL, the entry has been moved first in the list, otherwise it has been
moved after the entry given by newv. In this case newv is a pointer to an array of
key values identifying an entry in the list. The array is terminated with an element
that has type C_NOEXISTS.
By setting the flags parameter ITER_WANT_REVERSE two-phase subscribers may use this function
to traverse the reverse changeset in case of CDB_SUB_ABORT notification. In this scenario a two-
phase subscriber traverses the changes in the prepare phase (CDB_SUB_PREPARE notification) and if
the transaction is aborted the subscriber may iterate the inverse to the changes during the abort phase
(CDB_SUB_PREPARE notification).
For configuration subscriptions, the previous value of the node can also be passed to iter() if the flags
parameter contains ITER_WANT_PREV, in which case oldv will be pointing to it (otherwise NULL).
For operational data subscriptions, the ITER_WANT_PREV flag is ignored, and oldv is always NULL
- there is no equivalent to CDB_PRE_COMMIT_RUNNING that holds "old" operational data.
596
confd_lib_cdb
If iter() returns ITER_STOP, no more iteration is done, and CONFD_OK is returned. If iter()
returns ITER_RECURSE iteration continues with all children to the node. If iter() returns
ITER_CONTINUE iteration ignores the children to the node (if any), and continues with the node's
sibling, and if iter() returns ITER_UP the iteration is continued with the node's parents sibling. If,
for some reason, the iter() function wants to return control to the caller of cdb_diff_iterate()
before all the changes has been iterated over it can return ITER_SUSPEND. The caller then has to call
cdb_diff_iterate_resume() to continue/finish the iteration.
The state parameter can be used for any user supplied state (i.e. whatever is supplied as initstate
is passed as state to iter() in each invocation).
By default the traverse order is undefined but guaranteed to be the most efficient one. The traverse order
may be changed by setting setting a bit in the flags parameter:
ITER_WANT_SCHEMA_ORDER The iter() function will be invoked in schema order (i.e. in the
order in which the elements are defined in the YANG file).
ITER_WANT_LEAF_FIRST_ORDERThe iter() function will be invoked for leafs first, then non-leafs.
ITER_WANT_LEAF_LAST_ORDERThe iter() function will be invoked for non-leafs first, then leafs.
If the flags parameter ITER_WANT_LEAF_LIST_AS_LEAF is given, changes to leaf-lists will cause
invocations of iter() as for leafs and and not as for lists, e.g. with MOP_VALUE_SET rather than
MOP_CREATED / MOP_DELETED.
Note
This flag is deprecated, and only present for temporary backward compatibility - it will be
removed in a future release.
Note
This flag is not supported when invoking cdb_diff_iterate() on a HA slave.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS,
CONFD_ERR_BADSTATE, CONFD_ERR_PROTOUSAGE.
int cdb_diff_iterate_resume(int sock, enum cdb_iter_ret reply,
enum cdb_iter_ret (*iter)( confd_hkeypath_t *kp, enum cdb_iter_op
op, confd_value_t *oldv, confd_value_t *newv, void *state), void
*resumestate);
The application must call this function whenever an iterator function has returned ITER_SUSPEND
to finish up the iteration. If the application does not wish to continue iteration it must at least call
cdb_diff_iterate_resume(s, ITER_STOP, NULL, NULL); to clean up the state. The
reply parameter is what the iterator function would have returned (i.e. normally ITER_RECURSE or
ITER_CONTINUE) if it hadn't returned ITER_SUSPEND. Note that it is up to the iterator function to
somehow communicate that it has returned ITER_SUSPEND to the caller of cdb_diff_iterate(),
this can for example be a field in a struct for which a pointer to can passed back and forth in the state/
resumestate variable.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS,
CONFD_ERR_BADSTATE.
int cdb_diff_match(int sock, int subid, struct xml_tag tags[], int
tagslen);
597
confd_lib_cdb
This function can be invoked when a subscription point has fired. Similar to the
confd_hkp_tagmatch() function it takes an argument which is an array of XML tags. The function
will invoke cdb_diff_iterate() on a subscription socket. Using combinations of ITER_STOP,
ITER_CONTINUE and ITER_RECURSE return values, the function checks a tagpath and decides whether
any changes (under the subscription point) has occurred that also match the provided path tags. It is
slightly easier to use this function than cdb_diff_iterate() but can also be slower since it is a
general purpose matcher.
If we have a subscription point at /root, we could invoke this function as:
struct xml_tag tags[] = {{root_root, root__ns},
{root_servers, root__ns},
{root_server, root__ns}};
/* /root/servers/server */
int retv = cdb_diff_match(subsock, subpoint, tags, 3);
The function returns 1 if there were any changes under subpoint that matched tags, 0 if no match
was found and CONFD_ERR on error.
int cdb_cli_diff_iterate(int sock, int subid, cli_diff_iter_function_t
*iter, int flags, void *initstate);
Where the cli_diff_iter_function_t is defined as:
typedef enum cdb_iter_ret
(cli_diff_iter_function_t)(confd_hkeypath_t *kp,
enum cdb_iter_op op,
confd_value_t *oldv,
confd_value_t *newv,
char *clistr,
int token_count,
struct confd_cli_token *tokens,
void *state);
Note
This function is DEPRECATED. Use cdb_get_modifications_cli() instead.
The function cdb_cli_diff_iterate() works just like the cdb_diff_iterate() function,
except the iter() function takes three additional parameters, clistr, token_count, and tokens.
The clistr is a string containing the (C-style) rendering of the CLI commands equivalent to the current
keypath/operation. The tokens is actually an array of length token_count, it contains the CLI string
broken down by token.
The string and the token array (including all the strings in the array) are allocated by the library, and will
be freed by the library when the iter function returns.
If flags has the ITER_WANT_SCHEMA_ORDER bit set, then the iter() function will be invoked in
schema order (i.e. in the order in which the elements are defined in the YANG file). Normally the order
is undefined, which is most efficient.
Note that the cli commands are independent of whether the originating request actually came in over the
CLI or some other northbound interface.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS,
CONFD_ERR_BADSTATE.
598
confd_lib_cdb
int cdb_get_modifications(int sock, int subid, int flags,
confd_tag_value_t **values, int *nvalues, const char *fmt, ...);
The cdb_get_modifications() function can be called after reception of a subscription notification
to retrieve all the changes that caused the subscription notification. The socket s is the subscription socket,
the subscription id must also be provided. Optionally a path can be used to limit what is returned further
(only changes below the supplied path will be returned), if this isn't needed fmt can be set to NULL.
When cdb_get_modifications() returns CONFD_OK, the results are in values, which is a tag
value array with length nvalues. The library allocates memory for the results, which must be free:d by
the caller. This can in all cases be done with code like this:
confd_tag_value_t *values;
int nvalues, i;
if (cdb_get_modifications(sock, subid, flags, &values, &nvalues,
"/some/path") == CONFD_OK) {
...
for (i = 0; i < nvalues; i++)
confd_free_value(CONFD_GET_TAG_VALUE(&values[i]));
free(values);
}
The tag value array differs somewhat between how it is described in the confd_types(3) manual page, most
notably only the values that were modified in this transaction are included. In addition to that these are the
different values of the tags depending on what happened in the transaction:
A leaf of type empty that has been deleted has the value of C_NOEXISTS, and when it is created it
has the value C_XMLTAG.
A leaf or a leaf-list that has been set to a new value (or its default value) is included with that new value.
If the leaf or leaf-list is optional, then when it is deleted the value is C_NOEXISTS.
Presence containers are included when they are created or when they have modifications below them (by
the usual C_XMLBEGIN, C_XMLEND pair). If a presence container has been deleted its tag is included,
but has the value C_NOEXISTS.
By default cdb_get_modifications() does not include list instances (created, deleted, or modified)
- but if the CDB_GET_MODS_INCLUDE_LISTS flag is included in the flags parameter, list instances
will be included. Created and modified instances are included wrapped in the C_XMLBEGIN / C_XMLEND
pair, with the keys first. Deleted list instances instead begin with C_XMLBEGINDEL, then follows the
keys, immediately followed by a C_XMLEND.
If the CDB_GET_MODS_SUPPRESS_DEFAULTS flag is included in the flags parameter, a default
value that comes into effect for a leaf due to an ancestor list entry or presence container being created will
not be included, and a default value that comes into effect for a leaf due to a set value being deleted will
be included as a deletion (i.e. with value C_NOEXISTS).
When processing a CDB_SUB_ABORT notification for a two phase subscription, it is also possible to
request a list of "reverse" modifications instead of the normal "forward" list. This is done by including the
CDB_GET_MODS_REVERSE flag in the flags parameter.
int cdb_get_modifications_iter(int sock, int flags, confd_tag_value_t
**values, int *nvalues);
The cdb_get_modifications_iter() is basically a convenient short-hand of the
cdb_get_modifications() function intended to be used from within a iteration function started by
599
confd_lib_cdb
cdb_diff_iterate(). In this case no subscription id is needed, and the path is implicitly the current
position in the iteration.
Combining this call with cdb_diff_iterate() makes it for example possible to iterate over a list, and
for each list instance fetch the changes using cdb_get_modifications_iter(), and then return
ITER_CONTINUE to process next instance.
Note
Note: The CDB_GET_MODS_REVERSE flag is ignored by
cdb_get_modifications_iter(). It will instead return a "forward" or "reverse"
list of modifications for a CDB_SUB_ABORT notification according to whether
the ITER_WANT_REVERSE flag was included in the flags parameter of the
cdb_diff_iterate() call.
int cdb_get_modifications_cli(int sock, int subid, int flags, char
**str);
The cdb_get_modifications_cli() function can be called after reception of a subscription
notification to retrieve all the changes that caused the subscription notification as a string in Cisco CLI
format. The socket s is the subscription socket, the subscription id must also be provided. The flags
parameter is currently unused, and should be set to zero for future compatibility.
The CLI string is malloc(3)ed by the library, and the caller must free the memory using free(3) when it
is not needed any longer.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS
int cdb_sync_subscription_socket(int sock, enum
cdb_subscription_sync_type st);
Once we have read the subscription notification through a call to
cdb_read_subscription_socket() and optionally used the cdb_diff_iterate() to iterate
through the changes as well as acted on the changes to CDB, we must synchronize with CDB so that CDB
can continue and deliver further subscription messages to subscribers with higher priority numbers.
There are four different types of synchronization replies the application can use in the enum
cdb_subscription_sync_type parameter:
CDB_DONE_PRIORITY This means that the application has acted on the subscription notification
and CDB can continue to deliver further notifications.
CDB_DONE_SOCKET This means that we are done. But regardless of priority, CDB shall not
send any further notifications to us on our socket that are related to the
currently executing transaction.
CDB_DONE_TRANSACTION This means that CDB should not send any further notifications to any
subscribers - including ourselves - related to the currently executing
transaction.
CDB_DONE_OPERATIONAL This should be used when a subscription notification for operational data
has been read. It is the only type that should be used in this case, since
the operational data does not have transactions and the notifications do
not have priorities.
When using two phase subscriptions and cdb_read_subscription_socket2() has returned the
type as CDB_SUB_PREPARE or CDB_SUB_ABORT the only valid response is CDB_DONE_PRIORITY.
600
confd_lib_cdb
For configuration data, the transaction that generated the subscription notifications is pending until all
notifications have been acknowledged. A read lock on CDB is in effect while notifications are being
delivered, preventing writes until delivery is complete.
For operational data, the writer that generated the subscription notifications is not directly affected,
but the "subscription lock" remains in effect until all notifications have been acknowledged -
thus subsequent attempts to obtain a "global" subscription lock, or a subscription lock using
CDB_LOCK_PARTIAL for a non-disjuct subtree, will fail or block while notifications are being delivered
(see cdb_start_session2() above). Write operations that don't attempt to obtain the subscription
lock will proceed independent of the delivery of subscription notifications.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS
int cdb_sub_progress(int sock, const char *fmt, ...);
After receiving a subscription notification (using cdb_read_subscription_socket()) but before
acknowledging it (or aborting, in the case of prepare subscriptions), it is possible to send progress reports
back to ConfD using the cdb_sub_progress() function. The socket sock must be the subscription
socket, and it is allowed to call the function more than once to display more than one message. It is also
possible to use this function in the diff-iterate callback function. A newline at the end of the string isn't
necessary.
Depending on which north-bound interface that triggered the transaction, the string passed may be reported
by that interface. Currently this is only presented in the CLI when the operator requests detailed reporting
using the commit | details command.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS
int cdb_sub_abort_trans(int sock, enum confd_errcode code, u_int32_t
apptag_ns, u_int32_t apptag_tag, const char *fmt, ...);
This function is to be called instead of cdb_sync_subscription_socket() when
the subscriber wishes to abort the current transaction. It is only valid to call after
cdb_read_subscription_socket2() has returned with type set to CDB_SUB_PREPARE. The
arguments after sock are the same as to confd_X_seterr_extended() and give the caller a way
of indicating the reason for the failure. Details can be found in the EXTENDED ERROR REPORTING
section in the confd_lib_lib(3) manpage.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS
int cdb_sub_abort_trans_info(int sock, enum confd_errcode code,
u_int32_t apptag_ns, u_int32_t apptag_tag, const confd_tag_value_t
*error_info, int n, const char *fmt, ...);
This function does the same as cdb_sub_abort_trans(), and additionally gives the possibility to
provide contents for the NETCONF <error-info> element. See the EXTENDED ERROR REPORTING
section in the confd_lib_lib(3) manpage.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS
int cdb_get_user_session(int sock);
Returns the user session id for the transaction that triggered the current subscription notification.
This function uses a subscription socket, and can only be called when a subscription notification for
configuration data has been received on that socket, before cdb_sync_subscription_socket()
has been called. Additionally, it is not possible to call this function from the iter() function
601
confd_lib_cdb
passed to cdb_diff_iterate(). To retrieve full information about the user session, use
maapi_get_user_session() (see confd_lib_maapi(3)).
Note
Note: When the ConfD High Availability functionality is used, the user session information is
not available on slave nodes.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADSTATE,
CONFD_ERR_NOEXISTS
int cdb_get_transaction_handle(int sock);
Returns the transaction handle for the transaction that triggered the current subscription notification.
This function uses a subscription socket, and can only be called when a subscription notification for
configuration data has been received on that socket, before cdb_sync_subscription_socket()
has been called. Additionally, it is not possible to call this function from the iter() function passed to
cdb_diff_iterate().
Note
A CDB client is not expected to access the ConfD transaction store directly - this function should
only be used for logging or debugging purposes.
Note
When the ConfD High Availability functionality is used, the transaction information is not
available on slave nodes.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADSTATE,
CONFD_ERR_NOEXISTS
int cdb_get(int sock, confd_value_t *v, const char *fmt, ...);
This function reads a value from the path in fmt and writes the result into the result parameter
confd_value_t. The path must lead to a leaf element in the XML data tree. Note that for the
C_BUF, C_BINARY, C_LIST, C_OBJECTREF, C_OID, C_QNAME, C_HEXSTR, and C_BITBIG
confd_value_t types, the buffer(s) pointed to are allocated using malloc(3) - it is up to the user of this
interface to free them using confd_free_value().
Errors: CONFD_ERR_NOEXISTS, CONFD_ERR_MALLOC, CONFD_ERR_OS,
CONFD_ERR_BADPATH, CONFD_ERR_BADTYPE
All the type safe versions of cdb_get() described below, as well as cdb_vget(), also have
the same possible Errors. When the type of the read value is wrong, confd_errno is set to
CONFD_ERR_BADTYPE and the function returns CONFD_ERR. The YANG type is given in the
descriptions below.
int cdb_get_int8(int sock, int8_t *rval, const char *fmt, ...);
Type safe variant of cdb_get() which is used to read int8 values.
int cdb_get_int16(int sock, int16_t *rval, const char *fmt, ...);
Type safe variant of cdb_get() which is used to read int16 values.
int cdb_get_int32(int sock, int32_t *rval, const char *fmt, ...);
602
confd_lib_cdb
Type safe variant of cdb_get() which is used to read int32 values.
int cdb_get_int64(int sock, int64_t *rval, const char *fmt, ...);
Type safe variant of cdb_get() which is used to read int64 values.
int cdb_get_u_int8(int sock, u_int8_t *rval, const char *fmt, ...);
Type safe variant of cdb_get() which is used to read uint8 values.
int cdb_get_u_int16(int sock, u_int16_t *rval, const char *fmt, ...);
Type safe variant of cdb_get() which is used to read uint16 values.
int cdb_get_u_int32(int sock, u_int32_t *rval, const char *fmt, ...);
Type safe variant of cdb_get() which is used to read uint32 values.
int cdb_get_u_int64(int sock, u_int64_t *rval, const char *fmt, ...);
Type safe variant of cdb_get() which is used to read uint64 values.
int cdb_get_bit32(int sock, u_int32_t *rval, const char *fmt, ...);
Type safe variant of cdb_get() which is used to read bits values where the highest assigned bit position
for the type is 31.
int cdb_get_bit64(int sock, u_int64_t *rval, const char *fmt, ...);
Type safe variant of cdb_get() which is used to read bits values where the highest assigned bit position
for the type is above 31 and below 64.
int cdb_get_bitbig(int sock, unsigned char **rval, int *bufsiz, const
char *fmt, ...);
Type safe variant of cdb_get() which is used to read bits values where the highest assigned bit position
for the type is above 63. Upon successful return rval is pointing to a buffer of size bufsiz. It is up to
the user of this function to free the buffer using free(3) when it is not needed any longer.
int cdb_get_ipv4(int sock, struct in_addr *rval, const char *fmt, ...);
Type safe variant of cdb_get() which is used to read inet:ipv4-address values.
int cdb_get_ipv6(int sock, struct in6_addr *rval, const char *fmt, ...);
Type safe variant of cdb_get() which is used to read inet:ipv6-address values.
int cdb_get_double(int sock, double *rval, const char *fmt, ...);
Type safe variant of cdb_get() which is used to read xs:float and xs:double values.
int cdb_get_bool(int sock, int *rval, const char *fmt, ...);
Type safe variant of cdb_get() which is used to read boolean values.
int cdb_get_datetime(int sock, struct confd_datetime *rval, const char
*fmt, ...);
Type safe variant of cdb_get() which is used to read date-and-time values.
603
confd_lib_cdb
int cdb_get_date(int sock, struct confd_date *rval, const char
*fmt, ...);
Type safe variant of cdb_get() which is used to read xs:date values.
int cdb_get_time(int sock, struct confd_time *rval, const char
*fmt, ...);
Type safe variant of cdb_get() which is used to read xs:time values.
int cdb_get_duration(int sock, struct confd_duration *rval, const char
*fmt, ...);
Type safe variant of cdb_get() which is used to read xs:duration values.
int cdb_get_enum_value(int sock, int32_t *rval, const char *fmt, ...);
Type safe variant of cdb_get() which is used to read enumeration values. If we have:
typedef unboundedType {
type enumeration {
enum unbounded;
enum infinity;
}
}
The two enumeration values unbounded and infinity will occur as two #define integers in the .h file
which is generated from the YANG module. Thus this function cdb_get_enum_value() populates
an unsigned integer pointer.
int cdb_get_objectref(int sock, confd_hkeypath_t **rval, const char
*fmt, ...);
Type safe variant of cdb_get() which is used to read instance-identifier values. Upon successful return
rval is pointing to an allocated confd_hkeypath_t. It is up to the user of this function to free the hkeypath
using confd_free_hkeypath() when it is not needed any longer.
int cdb_get_oid(int sock, struct confd_snmp_oid **rval, const char
*fmt, ...);
Type safe variant of cdb_get() which is used to read object-identifier values. Upon successful return
rval is pointing to an allocated struct confd_snmp_oid. It is up to the user of this function to free the
struct using free(3) when it is not needed any longer.
int cdb_get_buf(int sock, unsigned char **rval, int *bufsiz, const char
*fmt, ...);
Type safe variant of cdb_get() which is used to read string values. Upon successful return rval is
pointing to a buffer of size bufsiz. It is up to the user of this function to free the buffer using free(3)
when it is not needed any longer.
int cdb_get_buf2(int sock, unsigned char *rval, int *n, const char
*fmt, ...);
Type safe variant of cdb_get() which is used to read string values. If the buffer returned by
cdb_get() fits into *n bytes CONFD_OK is returned and the buffer is copied into *rval. Upon
successful return *n is set to the number of bytes copied into *rval.
604
confd_lib_cdb
int cdb_get_str(int sock, char *rval, int n, const char *fmt, ...);
Type safe variant of cdb_get() which is used to read string values. If the buffer returned by
cdb_get() plus a terminating NUL fits into n bytes CONFD_OK is returned and the buffer is copied
into *rval (as well as a terminating NUL character).
int cdb_get_binary(int sock, unsigned char **rval, int *bufsiz, const
char *fmt, ...);
Type safe variant of cdb_get(), as cdb_get_buf() but for binary values. Upon successful return
rval is pointing to a buffer of size bufsiz. It is up to the user of this function to free the buffer using
free(3) when it is not needed any longer.
int cdb_get_hexstr(int sock, unsigned char **rval, int *bufsiz, const
char *fmt, ...);
Type safe variant of cdb_get(), as cdb_get_buf() but for yang:hex-string values. Upon successful
return rval is pointing to a buffer of size bufsiz. It is up to the user of this function to free the buffer
using free(3) when it is not needed any longer.
int cdb_get_qname(int sock, unsigned char **prefix, int *prefixsz,
unsigned char **name, int *namesz, const char *fmt, ...);
Type safe variant of cdb_get() which is used to read xs:QName values. Note that prefixsz can be
zero (in which case *prefix will be set to NULL). The space for prefix and name is allocated using
malloc(), it is up to the user of this function to free them when no longer in use.
int cdb_get_list(int sock, confd_value_t **values, int *n, const char
*fmt, ...);
Type safe variant of cdb_get() which is used to read values of a YANG leaf-list. The function
will malloc() an array of confd_value_t elements for the list, and return a pointer to the array via the
**values parameter and the length of the array via the *n parameter. The caller must free the memory
for the values (see cdb_get()) and the array itself. An example that reads and prints the elements of
a list of strings:
confd_value_t *values;
int i, n;
cdb_get_list(sock, &values, &n, "/system/cards");
for (i = 0; i < n; i++) {
printf("card %d: %s\n", i, CONFD_GET_BUFPTR(&values[i]));
confd_free_value(&values[i]);
}
free(values);
int cdb_get_ipv4prefix(int sock, struct confd_ipv4_prefix *rval, const
char *fmt, ...);
Type safe variant of cdb_get() which is used to read inet:ipv4-prefix values.
int cdb_get_ipv6prefix(int sock, struct confd_ipv6_prefix *rval, const
char *fmt, ...);
Type safe variant of cdb_get() which is used to read inet:ipv6-prefix values.
int cdb_get_decimal64(int sock, struct confd_decimal64 *rval, const char
*fmt, ...);
605
confd_lib_cdb
Type safe variant of cdb_get() which is used to read decimal64 values.
int cdb_get_identityref(int sock, struct confd_identityref *rval, const
char *fmt, ...);
Type safe variant of cdb_get() which is used to read identityref values.
int cdb_get_ipv4_and_plen(int sock, struct confd_ipv4_prefix *rval,
const char *fmt, ...);
Type safe variant of cdb_get() which is used to read tailf:ipv4-address-and-prefix-length values.
int cdb_get_ipv6_and_plen(int sock, struct confd_ipv6_prefix *rval,
const char *fmt, ...);
Type safe variant of cdb_get() which is used to read tailf:ipv6-address-and-prefix-length values.
int cdb_get_dquad(int sock, struct confd_dotted_quad *rval, const char
*fmt, ...);
Type safe variant of cdb_get() which is used to read yang:dotted-quad values.
int cdb_vget(int sock, confd_value_t *v, const char *fmt, va_list args);
This function does the same as cdb_get(), but takes a single va_list argument instead of a variable
number of arguments - i.e. similar to vprintf(). Corresponding va_list variants exist for all the
functions that take a path as a variable number of arguments.
int cdb_get_object(int sock, confd_value_t *values, int n, const char
*fmt, ...);
In some cases it can be motivated to read multiple values in one request - this will be more efficient since
it only incurs a single round trip to ConfD, but usage is a bit more complex. This function reads at most n
values from the container or list entry specified by the path, and places them in the values array, which
is provided by the caller. The array is populated according to the specification of the Value Array format
in the XML STRUCTURES section of the confd_types(3) manual page.
When reading from a container or list entry with mixed configuration and operational data (i.e. a config
container or list entry that has some number of operational elements), some elements will have the "wrong"
type - i.e. operational data in a session for CDB_RUNNING/CDB_STARTUP, or config data in a session
for CDB_OPERATIONAL. Leaf elements of the "wrong" type will have a "value" of C_NOEXISTS in the
array, while static or (existing) optional sub-container elements will have C_XMLTAG in all cases. Sub-
containers or leafs provided by external data providers will always be represented with C_NOEXISTS,
whether config or not.
On success, the function returns the actual number of elements in the container or list entry. I.e. if the
return value is bigger than n, only the values for the first n elements are in the array, and the remaining
values have been discarded. Note that given the specification of the array contents, there is always a fixed
upper bound on the number of actual elements, and if there are no presence sub-containers, the number
is constant.
As an example, with the YANG fragment in the PATHS section above, this code could be used to read
the values for interface "eth0" on host "buzz":
char *path = "/hosts/host{buzz}/interfaces/interface{%s}";
confd_value_t v[4];
606
confd_lib_cdb
struct in_addr ip, mask;
int enabled;
cdb_get_object(sock, v, 4, path, "eth0");
/* v[0] is interface name, already known
- must be freed since it's a C_BUF */
confd_free_value(&v[0]);
ip = CONFD_GET_IPV4(&v[1]);
mask = CONFD_GET_IPV4(&v[2]);
enabled = CONFD_GET_BOOL(&v[3]);
In this simple example, we assumed that the application was aware of the details of the data model,
specifically that a confd_value_t array of length 4 would be sufficient for the values we wanted to retrieve,
and at which positions in the array those values could be found. If we make use of schema information
loaded from the ConfD daemon into the library (see confd_types(3)), we can avoid "hardwiring" these
details. The following, more complex, example does the same as the above, but using only the names (in
the form of #defines from the header file generated by confdc --emit-h) of the relevant leafs:
char *path = "/hosts/host{buzz}/interfaces/interface{%s}";
struct confd_cs_node *object = confd_cs_node_cd(NULL, path);
struct confd_cs_node *cur;
int n = confd_max_object_size(object);
int i;
confd_value_t v[n];
struct in_addr ip, mask;
int enabled;
cdb_get_object(sock, v, n, path, "eth0");
for (cur = object->children, i = 0;
cur != NULL;
cur = confd_next_object_node(object, cur, &v[i]), i++) {
switch (cur->tag) {
case hst_ip:
ip = CONFD_GET_IPV4(&v[i]);
break;
case hst_mask:
mask = CONFD_GET_IPV4(&v[i]);
break;
case hst_enabled:
enabled = CONFD_GET_BOOL(&v[i]);
break;
}
/* always free - it is a no-op if not needed */
confd_free_value(&v[i]);
}
See confd_lib_lib(3) for the specification of the confd_max_object_size() and
confd_next_object_node() functions. Also worth noting is that the return value from
confd_max_object_size() is a constant for a given node in a given data model - thus we
could optimize the above by calling confd_max_object_size() only at the first invocation of
cdb_get_object() for a given node, making use of the opaque element of struct confd_cs_node
to store the value:
char *path = "/hosts/host{buzz}/interfaces/interface{%s}";
struct confd_cs_node *object = confd_cs_node_cd(NULL, path);
int n;
struct in_addr ip, mask;
int enabled;
607
confd_lib_cdb
if (object->opaque == NULL) {
n = confd_max_object_size(object);
object->opaque = (void *)n;
} else {
n = (int)object->opaque;
}
{
struct confd_cs_node *cur;
confd_value_t v[n];
int i;
cdb_get_object(sock, v, n, path, "eth0");
for (cur = object->children, i = 0;
cur != NULL;
cur = confd_next_object_node(object, cur, &v[i]), i++) {
...
}
}
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADPATH
int cdb_get_objects(int sock, confd_value_t *values, int n, int ix, int
nobj, const char *fmt, ...);
Similar to cdb_get_object(), but reads multiple entries of a list based on the "instance integer"
otherwise given within square brackets in the path - here the path must specify the list without the instance
integer. At most n values from each of nobj entries, starting at entry ix, are read and placed in the
values array.
The array must be at least n * nobj elements long, and the values for list entry ix + i start at element
array[i * n] (i.e. ix starts at array[0], ix+1 at array[n], and so on). On success, the highest
actual number of values in any of the list entries read is returned. An error (CONFD_ERR_NOEXISTS)
will be returned if we attempt to read more entries than actually exist (i.e. if ix + nobj - 1 is
outside the range of actually existing list entries). Example - read the data for all interfaces on the host
"buzz" (assuming that we have memory enough for that):
char *path = "/hosts/host{buzz}/interfaces/interface";
int n;
n = cdb_num_instances(sock, path);
{
confd_value_t v[n*4];
char name[n][64];
struct in_addr ip[n], mask[n];
int enabled[n];
int i;
cdb_get_objects(sock, v, 4, 0, n, path);
for (i = 0; i < n*4; i += 4) {
confd_pp_value(&name[i][0], 64, &v[i]);
/* value must be freed since it's a C_BUF */
confd_free_value(&v[i]);
ip[i] = CONFD_GET_IPV4(&v[i+1]);
mask[i] = CONFD_GET_IPV4(&v[i+2]);
enabled[i] = CONFD_GET_BOOL(&v[i+3]);
}
/* configure interfaces... */
608
confd_lib_cdb
}
This simple example can of course be enhanced to use loaded schema information in a similar manner as
for cdb_get_object() above.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADPATH,
CONFD_ERR_NOEXISTS
int cdb_get_values(int sock, confd_tag_value_t *values, int n, const
char *fmt, ...);
Read an arbitrary set of sub-elements of a container or list entry. The values array must be pre-populated
with n values based on the specification of the Tagged Value Array format in the XML STRUCTURES
section of the confd_types(3) manual page, where the confd_value_t value element is given as follows:
C_NOEXISTS means that the value should be read from CDB and stored in the array.
C_PTR also means that the value should be read from CDB, but instead gives the expected type and a
pointer to the type-specific variable where the value should be stored. Thus this gives a functionality
similar to the type safe versions of cdb_get().
C_XMLBEGIN and C_XMLEND are used as per the specification.
Key values to select list entries can be given with their values.
As a special case, the "instance integer" can be used to select a list entry by using C_CDBBEGIN instead
of C_XMLBEGIN (and no key values).
Note
When we use C_PTR, we need to take special care to free any allocated memory. When we use
C_NOEXISTS and the value is stored in the array, we can just use confd_free_value()
regardless of the type, since the confd_value_t has the type information. But with C_PTR,
only the actual value is stored in the pointed-to variable, just as for cdb_get_buf(),
cdb_get_binary(), etc, and we need to free the memory specifically allocated for the
types listed in the description of cdb_get() above. See the corresponding cdb_get_xxx()
functions for the details of how to do this.
All elements have the same position in the array after the call, in order to simplify extraction of the values -
this means that optional elements that were requested but didn't exist will have C_NOEXISTS rather than
being omitted from the array. However requesting a list entry that doesn't exist, or requesting non-CDB
data, or operational vs config data, is an error. Note that when using C_PTR, the only indication of a non-
existing value is that the destination variable has not been modified - it's up to the application to set it to
some "impossible" value before the call when optional leafs are read.
In this rather complex example we first read only the "name" and "enabled" values for all interfaces,
and then read "ip" and "mask" for those that were enabled - a total of two requests. Note that since the
"interface" list begin/end elements are in the array, the path must not include the "interface" component.
When reading values from a single container, it is generally simpler to have the container component (and
keys or instance integer) in the path instead.
char *path = "/hosts/host{buzz}/interfaces";
int n = cdb_num_instances(sock, "%s/interface", path);
{
/* when reading ip/mask, we need 5 elements per interface:
begin + name (key) + ip + mask + end */
609
confd_lib_cdb
confd_tag_value_t tv[n*5];
char name[n][64];
struct in_addr ip[n], mask[n];
int i, j;
int n_if;
/* read name and enabled for all interfaces */
j = 0;
for (i = 0; i < n; i++) {
CONFD_SET_TAG_CDBBEGIN(&tv[j], hst_interface, hst__ns, i); j++;
CONFD_SET_TAG_NOEXISTS(&tv[j], hst_name); j++;
CONFD_SET_TAG_NOEXISTS(&tv[j], hst_enabled); j++;
CONFD_SET_TAG_XMLEND(&tv[j], hst_interface, hst__ns); j++;
}
cdb_get_values(sock, tv, j, path);
/* extract name for enabled interfaces */
j = 0;
for (i = 0; i < n*4; i += 4) {
int enabled = CONFD_GET_BOOL(CONFD_GET_TAG_VALUE(&tv[i+2]));
confd_value_t *v = CONFD_GET_TAG_VALUE(&tv[i+1]);
if (enabled) {
confd_pp_value(&name[j][0], 64, v);
j++;
}
/* name must be freed regardless since it's a C_BUF */
confd_free_value(v);
}
n_if = j;
/* read ip and mask for enabled interfaces by key value (name) */
j = 0;
for (i = 0; i < n_if; i++) {
CONFD_SET_TAG_XMLBEGIN(&tv[j], hst_interface, hst__ns); j++;
CONFD_SET_TAG_STR(&tv[j], hst_name, &name[i][0]); j++;
CONFD_SET_TAG_PTR(&tv[j], hst_ip, C_IPV4, &ip[i]); j++;
CONFD_SET_TAG_PTR(&tv[j], hst_mask, C_IPV4, &mask[i]); j++;
CONFD_SET_TAG_XMLEND(&tv[j], hst_interface, hst__ns); j++;
}
cdb_get_values(sock, tv, j, path);
for (i = 0; i < n_if; i++) {
/* configure interface i with ip[i] and mask[i]... */
}
}
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADPATH,
CONFD_ERR_BADTYPE, CONFD_ERR_NOEXISTS
int cdb_get_case(int sock, const char *choice, confd_value_t *rcase,
const char *fmt, ...);
When we use the YANG choice statement in the data model, this function can be used to find the
currently selected case, avoiding useless cdb_get() etc requests for elements that belong to other
cases. The fmt, ... arguments give the path to the container or list entry where the choice is defined,
and choice is the name of the choice. The case value is returned to the confd_value_t that rcase points
to, as type C_XMLTAG - i.e. we can use the CONFD_GET_XMLTAG() macro to retrieve the hashed
tag value. If no case is currently selected (i.e. for an optional choice that doesn't have a default case), the
function will fail with CONFD_ERR_NOEXISTS.
610
confd_lib_cdb
If we have "nested" choices, i.e. multiple levels of choice statements without intervening container
or list statements in the data model, the choice argument must give a '/'-separated path with alternating
choice and case names, from the data node given by the fmt, ... arguments to the specific choice that
the request pertains to.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADPATH,
CONFD_ERR_NOEXISTS
OPERATIONAL DATA
It is possible for an application to store operational data (i.e. status and statistical information) in CDB,
instead of providing it on demand via the callback interfaces described in the confd_lib_dp(3) manual page.
The operational database has no transactions and normally avoids the use of locks in order to provide light-
weight access methods, however when the multi-value API functions below are used, all updates requested
by a given function call are carried out atomically. Read about how to specify the storage of operational
data in CDB via the tailf:cdb-oper extension in the tailf_yang_extensions(5) manual page.
To establish a session for operational data, the application needs to use cdb_connect() with
CDB_DATA_SOCKET and cdb_start_session() with CDB_OPERATIONAL. After this, all the
read and access functions above are available for use with operational data, and additionally the write
functions described below. Configuration data can not be accessed in a session for operational data, nor
vice versa - however it is possible to have both types of sessions active simultaneously on two different
sockets, or to alternate the use of one socket via cdb_end_session(). The write functions can never
be used in a session for configuration data.
Note
In order to trigger subscriptions on operational data, we must obtain a subscription lock via the
use of cdb_start_session2() instead of cdb_start_session(), see above.
In YANG it is possible to define a list of operational data without any keys. For this type of list, we use
a single "pseudo" key which is always of type C_INT64 - see the Operational Data chapter in the User
Guide. This key isn't visible in the northbound agent interfaces, but is used in the functions described here
just as if it was a "normal" key.
int cdb_set_elem(int sock, confd_value_t *val, const char *fmt, ...);
int cdb_set_elem2(int sock, const char *strval, const char *fmt, ...);
There are two different functions to set the value of a single leaf. The first takes the value from a
confd_value_t struct, the second takes the string representation of the value.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADPATH,
CONFD_ERR_BADTYPE, CONFD_ERR_NOT_WRITABLE
int cdb_vset_elem(int sock, confd_value_t *val, const char *fmt, va_list
args);
This function does the same as cdb_set_elem(), but takes a single va_list argument instead of a
variable number of arguments - i.e. similar to vprintf(). Corresponding va_list variants exist for all
the functions that take a path as a variable number of arguments.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADPATH,
CONFD_ERR_BADTYPE, CONFD_ERR_NOT_WRITABLE
int cdb_create(int sock, const char *fmt, ...);
611
confd_lib_cdb
Create a new list entry, presence container, or leaf of type empty. Note that for list entries and containers,
sub-elements will not exist until created or set via some of the other functions, thus doing implicit create
via cdb_set_object() or cdb_set_values() may be preferred in this case.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADPATH,
CONFD_ERR_NOT_WRITABLE, CONFD_ERR_NOTCREATABLE,
CONFD_ERR_ALREADY_EXISTS
int cdb_delete(int sock, const char *fmt, ...);
Delete a list entry, presence container, or leaf of type empty, and all its child elements (if any).
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADPATH,
CONFD_ERR_NOT_WRITABLE, CONFD_ERR_NOTDELETABLE, CONFD_ERR_NOEXISTS
int cdb_set_object(int sock, const confd_value_t *values, int n, const
char *fmt, ...);
Set all elements corresponding to the complete contents of a container or list entry, except for sub-lists.
The values array must be populated with n values according to the specification of the Value Array
format in the XML STRUCTURES section of the confd_types(3) manual page.
If the container or list entry itself, or any sub-elements that are specified as existing, do not exist before
this call, they will be created, otherwise the existing values will be updated. Non-mandatory leafs and
presence containers that are specified as not existing in the array, i.e. with value C_NOEXISTS, will be
deleted if they existed before the call.
When writing to a container with mixed configuration and operational data (i.e. a config container or
list entry that has some number of operational elements), all config leaf elements must be specified as
C_NOEXISTS in the corresponding array elements, while config sub-container elements are specified
with C_XMLTAG just as for operational data.
For a list entry, since the key elements must be present in the array, it is not required that the key values
are included in the path given by fmt. If the key values are included in the path, the values of the key
elements in the array are ignored.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADPATH,
CONFD_ERR_BADTYPE, CONFD_ERR_NOT_WRITABLE
int cdb_set_values(int sock, const confd_tag_value_t *values, int n,
const char *fmt, ...);
Set arbitrary sub-elements of a container or list entry. The values array must be populated with n values
according to the specification of the Tagged Value Array format in the XML STRUCTURES section of the
confd_types(3) manual page.
If the container or list entry itself, or any sub-elements that are specified as existing, do not exist before
this call, they will be created, otherwise the existing values will be updated. Both mandatory and optional
elements may be omitted from the array, and all omitted elements are left unchanged. To actually delete a
non-mandatory leaf or presence container as described for cdb_set_object(), it may (as an extension
of the format) be specified as C_NOEXISTS instead of being omitted.
For a list entry, the key values can be specified either in the path or via key elements in the array - if the
values are in the path, the key elements can be omitted from the array. For sub-lists present in the array, the
key elements must of course always also be present though, immediately following the C_XMLBEGIN
element and in the order defined by the data model. It is also possible to delete a list entry by using
612
confd_lib_cdb
a C_XMLBEGINDEL element, followed by the keys in data model order, followed by a C_XMLEND
element.
For a list without keys (see above), the "pseudo" key may (or in some cases must) be present in the array,
but of course there is no tag value for it, since it isn't present in the data model. In this case we must use
a tag value of 0, i.e. it can be set with code like:
confd_tag_value_t tv[7];
CONFD_SET_TAG_INT64(&tv[1], 0, 42);
The same method is used when reading data from such a list with the cdb_get_values() function
described above.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADPATH,
CONFD_ERR_BADTYPE, CONFD_ERR_NOT_WRITABLE
int cdb_set_case(int sock, const char *choice, const char *scase, const
char *fmt, ...);
When we use the YANG choice statement in the data model, this function can be used to select the
current case. When configuration data is modified by northbound agents, the current case is implicitly
selected (and elements for other cases potentially deleted) by the setting of elements in a choice. For
operational data in CDB however, this is under direct control of the application, which needs to explicitly
set the current case. Setting the case will also automatically delete elements belonging to other cases, but
it is up to the application to not set any elements in the "wrong" case.
The fmt, ... arguments give the path to the container or list entry where the choice is defined, and
choice and scase are the choice and case names. For an optional choice, it is possible to have no case
at all selected. To indicate that the previously selected case should be deleted without selecting another
case, we can pass NULL for the scase argument.
If we have "nested" choices, i.e. multiple levels of choice statements without intervening container
or list statements in the data model, the choice argument must give a '/'-separated path with alternating
choice and case names, from the data node given by the fmt, ... arguments to the specific choice that
the request pertains to.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADPATH,
CONFD_ERR_NOTDELETABLE
int cdb_load_file(int sock, const char *filename, int flags);
Load operational data from filename into CDB operational. The file must be in xml format, and sock
must be connected to CDB operational (i.e. cdb_start_session() or cdb_start_session2()
must have been called with CDB_OPERATIONAL). If the file contains config data, or operational data
not residing in CDB, that data will be silently ignored. If the name of the file ends in .gz (or .Z) then the
file is assumed to be gzipped, and will be uncompressed as it is loaded.
Note
If you use a relative pathname for filename, it is taken as relative to the working directory of
the ConfD daemon, i.e. the directory where the daemon was started.
Note that there are no transactions in CDB operational, so there will not be any validation or transactional
commit of the file. However the file will be completely parsed before CDB tries to set the values, with the
result that any errors in the file will abort the operation without changing anything in CDB operational.
613
confd_lib_cdb
The flags parameter is currently not used, and should be set to 0.
Note
This function is DEPRECATED. Use maapi_load_config() instead.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOT_WRITABLE,
CONFD_ERR_BADPATH, CONFD_ERR_EXTERNAL
int cdb_load_str(int sock, const char *xml_str, int flags);
Load operational data from the string xml_str into CDB operational. I.e. instead of having the xml data
read from a file as for cdb_load_file(), it is passed as a string to the function. Besides this, the
function works the same as cdb_load_file().
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOT_WRITABLE,
CONFD_ERR_EXTERNAL
SEE ALSO
confd_lib(3) - Confd lib
confd_types(3) - ConfD C data types
The ConfD User Guide
614
Nameconfd_lib_dp — callback library for connecting data providers to ConfD
Synopsis
#include <confd_lib.h> #include <confd_dp.h>
struct confd_daemon_ctx *confd_init_daemon(const char *name);
int confd_set_daemon_flags(struct confd_daemon_ctx *dx, int flags);
void confd_release_daemon(struct confd_daemon_ctx *dx);
int confd_connect(struct confd_daemon_ctx *dx, int sock, enum
confd_sock_type type, const struct sockaddr *srv, int addrsz);
int confd_register_trans_cb(struct confd_daemon_ctx *dx, const struct
confd_trans_cbs *trans);
int confd_register_db_cb(struct confd_daemon_ctx *dx, const struct
confd_db_cbs *dbcbs);
int confd_register_range_data_cb(struct confd_daemon_ctx *dx, const
struct confd_data_cbs *data, const confd_value_t *lower, const
confd_value_t *upper, int numkeys, const char *fmt, ...);
int confd_register_data_cb(struct confd_daemon_ctx *dx, const struct
confd_data_cbs *data);
int confd_register_usess_cb(struct confd_daemon_ctx *dx, const struct
confd_usess_cbs *ucb);
int ncs_register_service_cb(struct confd_daemon_ctx *dx, const struct
ncs_service_cbs *scb);
int ncs_register_nano_service_cb(struct confd_daemon_ctx *dx, const
char *component_type, const char *state, const struct
ncs_nano_service_cbs *scb);
int confd_register_done(struct confd_daemon_ctx *dx);
int confd_fd_ready(struct confd_daemon_ctx *dx, int fd);
void confd_trans_set_fd(struct confd_trans_ctx *tctx, int sock);
int confd_data_reply_value(struct confd_trans_ctx *tctx, const
confd_value_t *v);
int confd_data_reply_value_array(struct confd_trans_ctx *tctx, const
confd_value_t *vs, int n);
int confd_data_reply_tag_value_array(struct confd_trans_ctx *tctx,
const confd_tag_value_t *tvs, int n);
int confd_data_reply_next_key(struct confd_trans_ctx *tctx, const
confd_value_t *v, int num_vals_in_key, long next);
615
confd_lib_dp
int confd_data_reply_not_found(struct confd_trans_ctx *tctx);
int confd_data_reply_found(struct confd_trans_ctx *tctx);
int confd_data_reply_next_object_array(struct confd_trans_ctx *tctx,
const confd_value_t *v, int n, long next);
int confd_data_reply_next_object_tag_value_array(struct
confd_trans_ctx *tctx, const confd_tag_value_t *tv, int n, long next);
int confd_data_reply_next_object_arrays(struct confd_trans_ctx *tctx,
const struct confd_next_object *obj, int nobj, int timeout_millisecs);
int confd_data_reply_next_object_tag_value_arrays(struct
confd_trans_ctx *tctx, const struct confd_tag_next_object *tobj, int
nobj, int timeout_millisecs);
int confd_data_reply_attrs(struct confd_trans_ctx *tctx, const
confd_attr_value_t *attrs, int num_attrs);
int ncs_service_reply_proplist(struct confd_trans_ctx *tctx, const
struct ncs_name_value *proplist, int num_props);
int ncs_nano_service_reply_proplist(struct confd_trans_ctx *tctx, const
struct ncs_name_value *proplist, int num_props);
int confd_delayed_reply_ok(struct confd_trans_ctx *tctx);
int confd_delayed_reply_error(struct confd_trans_ctx *tctx, const char
*errstr);
int confd_data_set_timeout(struct confd_trans_ctx *tctx, int
timeout_secs);
void confd_trans_seterr(struct confd_trans_ctx *tctx, const char
*fmt, ...);
void confd_trans_seterr_extended(struct confd_trans_ctx *tctx, enum
confd_errcode code, u_int32_t apptag_ns, u_int32_t apptag_tag, const
char *fmt, ...);
int confd_trans_seterr_extended_info(struct confd_trans_ctx *tctx,
enum confd_errcode code, u_int32_t apptag_ns, u_int32_t apptag_tag,
confd_tag_value_t *error_info, int n, const char *fmt, ...);
void confd_db_seterr(struct confd_db_ctx *dbx, const char *fmt, ...);
void confd_db_seterr_extended(struct confd_db_ctx *dbx, enum
confd_errcode code, u_int32_t apptag_ns, u_int32_t apptag_tag, const
char *fmt, ...);
int confd_db_seterr_extended_info(struct confd_db_ctx *dbx, enum
confd_errcode code, u_int32_t apptag_ns, u_int32_t apptag_tag,
confd_tag_value_t *error_info, int n, const char *fmt, ...);
int confd_db_set_timeout(struct confd_db_ctx *dbx, int timeout_secs);
int confd_aaa_reload(const struct confd_trans_ctx *tctx);
616
confd_lib_dp
int confd_install_crypto_keys(struct confd_daemon_ctx* dtx);
void confd_register_trans_validate_cb(struct confd_daemon_ctx *dx,
const struct confd_trans_validate_cbs *vcbs);
int confd_register_valpoint_cb(struct confd_daemon_ctx *dx, const
struct confd_valpoint_cb *vcb);
int confd_register_range_valpoint_cb(struct confd_daemon_ctx *dx,
struct confd_valpoint_cb *vcb, const confd_value_t *lower, const
confd_value_t *upper, int numkeys, const char *fmt, ...);
int confd_delayed_reply_validation_warn(struct confd_trans_ctx *tctx);
int confd_register_action_cbs(struct confd_daemon_ctx *dx, const struct
confd_action_cbs *acb);
int confd_register_range_action_cbs(struct confd_daemon_ctx *dx, const
struct confd_action_cbs *acb, const confd_value_t *lower, const
confd_value_t *upper, int numkeys, const char *fmt, ...);
void confd_action_set_fd(struct confd_user_info *uinfo, int sock);
void confd_action_seterr(struct confd_user_info *uinfo, const char
*fmt, ...);
void confd_action_seterr_extended(struct confd_user_info *uinfo, enum
confd_errcode code, u_int32_t apptag_ns, u_int32_t apptag_tag, const
char *fmt, ...);
int confd_action_seterr_extended_info(struct confd_user_info *uinfo,
enum confd_errcode code, u_int32_t apptag_ns, u_int32_t apptag_tag,
confd_tag_value_t *error_info, int n, const char *fmt, ...);
int confd_action_reply_values(struct confd_user_info *uinfo,
confd_tag_value_t *values, int nvalues);
int confd_action_reply_command(struct confd_user_info *uinfo, char
**values, int nvalues);
int confd_action_reply_rewrite(struct confd_user_info *uinfo, char
**values, int nvalues, char **unhides, int nunhides);
int confd_action_reply_rewrite2(struct confd_user_info *uinfo, char
**values, int nvalues, char **unhides, int nunhides, struct
confd_rewrite_select **selects, int nselects);
int confd_action_reply_completion(struct confd_user_info *uinfo, struct
confd_completion_value *values, int nvalues);
int confd_action_reply_range_enum(struct confd_user_info *uinfo, char
**values, int keysize, int nkeys);
int confd_action_delayed_reply_ok(struct confd_user_info *uinfo);
int confd_action_delayed_reply_error(struct confd_user_info *uinfo,
const char *errstr);
617
confd_lib_dp
int confd_action_set_timeout(struct confd_user_info *uinfo, int
timeout_secs);
int confd_register_notification_stream(struct confd_daemon_ctx *dx,
const struct confd_notification_stream_cbs *ncbs, struct
confd_notification_ctx **nctx);
int confd_notification_send(struct confd_notification_ctx *nctx, struct
confd_datetime *time, confd_tag_value_t *values, int nvalues);
int confd_notification_replay_complete(struct confd_notification_ctx
*nctx);
int confd_notification_replay_failed(struct confd_notification_ctx
*nctx);
int confd_notification_reply_log_times(struct confd_notification_ctx
*nctx, struct confd_datetime *creation, struct confd_datetime *aged);
void confd_notification_set_fd(struct confd_notification_ctx *nctx, int
fd);
void confd_notification_set_snmp_src_addr(struct
confd_notification_ctx *nctx, const struct confd_ip *src_addr);
int confd_notification_set_snmp_notify_name(struct
confd_notification_ctx *nctx, const char *notify_name);
void confd_notification_seterr(struct confd_notification_ctx *nctx,
const char *fmt, ...);
void confd_notification_seterr_extended(struct confd_notification_ctx
*nctx, enum confd_errcode code, u_int32_t apptag_ns, u_int32_t
apptag_tag, const char *fmt, ...);
int confd_notification_seterr_extended_info(struct
confd_notification_ctx *nctx, enum confd_errcode code, u_int32_t
apptag_ns, u_int32_t apptag_tag, confd_tag_value_t *error_info, int n,
const char *fmt, ...);
int confd_register_snmp_notification(struct confd_daemon_ctx *dx,
int fd, const char *notify_name, const char *ctx_name, struct
confd_notification_ctx **nctx);
int confd_notification_send_snmp(struct confd_notification_ctx *nctx,
const char *notification, struct confd_snmp_varbind *varbinds, int
num_vars);
int confd_register_notification_snmp_inform_cb(struct confd_daemon_ctx
*dx, const struct confd_notification_snmp_inform_cbs *cb);
int confd_notification_send_snmp_inform(struct confd_notification_ctx
*nctx, const char *notification, struct confd_snmp_varbind *varbinds,
int num_vars, const char *cb_id, int ref);
int confd_register_notification_sub_snmp_cb(struct confd_daemon_ctx
*dx, const struct confd_notification_sub_snmp_cb *cb);
618
confd_lib_dp
int confd_notification_flush(struct confd_notification_ctx *nctx);
int confd_register_auth_cb(struct confd_daemon_ctx *dx, const struct
confd_auth_cb *acb);
void confd_auth_seterr(struct confd_auth_ctx *actx, const char
*fmt, ...);
int confd_register_authorization_cb(struct confd_daemon_ctx *dx, const
struct confd_authorization_cbs *acb);
int confd_access_reply_result(struct confd_authorization_ctx *actx, int
result);
int confd_authorization_set_timeout(struct confd_authorization_ctx
*actx, int timeout_secs);
int confd_register_error_cb(struct confd_daemon_ctx *dx, const struct
confd_error_cb *ecb);
void confd_error_seterr(struct confd_user_info *uinfo, const char
*fmt, ...);
LIBRARY
ConfD Library, (libconfd, -lconfd)
DESCRIPTION
The libconfd shared library is used to connect to the ConfD Data Provider API. The purpose of this
API is to provide callback hooks so that user-written data providers can provide data stored externally to
ConfD. ConfD needs this information in order to drive its northbound agents.
The library is also used to populate items in the data model which are not data or configuration items, such
as statistics items from the device.
The library consists of a number of API functions whose purpose is to install different callback functions
at different points in the data model tree which is the representation of the device configuration. Read more
about callpoints in tailf_yang_extensions(5). Read more about how to use the library in the User Guide
chapters on Operational data and External data.
FUNCTIONS
struct confd_daemon_ctx *confd_init_daemon(const char *name);
Initializes a new daemon context or returns NULL on failure. For most of the library functions described
here a daemon_ctx is required, so we must create a daemon context before we can use them. The daemon
context contains a d_opaque pointer which can be used by the application to pass application specific data
into the callback functions.
The name parameter is used in various debug printouts and and is also used to uniquely identify the
daemon. The confd --status will use this name when indicating which callpoints are registered.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_PROTOUSAGE
619
confd_lib_dp
int confd_set_daemon_flags(struct confd_daemon_ctx *dx, int flags);
This function modifies the API behaviour according to the flags ORed into the flags argument. It should
be called immediately after creating the daemon context with confd_init_daemon(). The following
flags are available:
CONFD_DAEMON_FLAG_STRINGSONLY
If this flag is used, the callback functions described below will only receive string values for all
instances of confd_value_t (i.e. the type is always C_BUF). The callbacks must also give only string
values in their reply functions. This feature can be useful for proxy-type applications that are unaware
of the types of all elements, i.e. data model agnostic.
CONFD_DAEMON_FLAG_REG_REPLACE_DISCONNECT
By default, if one daemon replaces a callpoint registration made by another daemon, this is only
logged, and no action is taken towards the daemon that has "lost" its registration. This can be
useful in some scenarios, e.g. it is possible to have an "initial default" daemon providing "null" data
for many callpoints, until the actual data provider daemons have registered. If a daemon uses the
CONFD_DAEMON_FLAG_REG_REPLACE_DISCONNECT flag, it will instead be disconnected from
ConfD if any of its registrations are replaced by another daemon, and can take action as appropriate.
CONFD_DAEMON_FLAG_NO_DEFAULTS
This flag tells ConfD that the daemon does not store default values. By default, ConfD assumes that
the daemon doesn't know about default values, and thus whenever default values come into effect,
ConfD will issue set_elem() callbacks to set those values, even if they have not actually been set
by the northbound agent. Similarly set_case() will be issued with the default case for choices
that have one.
When the CONFD_DAEMON_FLAG_NO_DEFAULTS flag is set, ConfD will only issue
set_elem() callbacks when values have been explicitly set, and set_case() when a case has
been selected by explicitly setting an element in the case. Specifically:
When a list entry or presence container is created, there will be no callbacks for descendant leafs
with default value, or descendant choices with default case, unless values have been explicitly set.
When a leaf with a default value is deleted, a remove() callback will be issued instead of a
set_elem() with the default value.
When the current case in a choice with default case is deleted without another case being selected,
the set_case() callback will be invoked with the case value given as NULL instead of the
default case.
Note
A daemon that has the CONFD_DAEMON_FLAG_NO_DEFAULTS flag set must reply
to get_elem() and the other callbacks that request leaf values with a value of type
C_DEFAULT, rather than the actual default value, when the default value for a leaf is in
effect. It must also reply to get_case() with C_DEFAULT when the default case is in
effect.
CONFD_DAEMON_FLAG_PREFER_BULK_GET
This flag requests that the get_object() callback rather than get_elem() should be used
whenever possible, regardless of whether a "bulk hint" is given by the northbound agent. If
get_elem() is not registered, the flag is not useful (it has no effect - get_object() is always
used anyway), but in cases where the callpoint also covers leafs that cannot be retrieved with
get_object(), the daemon must register get_elem().
620
confd_lib_dp
CONFD_DAEMON_FLAG_BULK_GET_CONTAINER
This flag tells ConfD that the data provider is prepared to handle a get_object() callback
invocation for the toplevel ancestor container when a leaf is requested by a northbound agent, if there
exists no ancestor list node but there exists such a container. If this flag is not set, get_object()
is only invoked for list entries, and get_elem() is always used for leafs that do not have an
ancestor list node. If both get_object() and get_elem() are registered, the choice between
them is made as for list entries, i.e. based on a "bulk hint" from the northbound agent unless the flag
CONFD_DAEMON_FLAG_PREFER_BULK_GET is also set (see above).
CONFD_DAEMON_FLAG_LEAF_LIST_AS_LEAF
This flag requests that data provider and transform callbacks should treat leaf-lists as leafs and not as
lists, e.g. use get_elem() / set_elem() rather than get_next() / create().
Note
This flag is deprecated, and only present for temporary backward compatibility - it will be
removed in a future release.
Note
This flag is not supported for hooks, i.e. hook callbacks will always treat leaf-lists as lists -
if the flag is set for a hook, it will cause an error on callback invocation for a leaf-list.
Note
This flag has no effect for validation callbacks - however just as for a list, a
tailf:validate statement for a leaf-list may use a tailf:call-once substatement
to request a single invocation for validation of the whole leaf-list.
void confd_release_daemon(struct confd_daemon_ctx *dx);
Returns all memory that has been allocated by confd_init_daemon() and other functions for the
daemon context. The control socket as well as all the worker sockets must be closed by the application
(before or after confd_release_daemon() has been called).
int confd_connect(struct confd_daemon_ctx *dx, int sock, enum
confd_sock_type type, const struct sockaddr *srv, int addrsz);
Connects to the ConfD daemon. The dx parameter is a daemon context acquired through a call to
confd_init_daemon().
There are two different types of connected sockets between an external daemon and ConfD.
CONTROL_SOCKET The first socket that is connected must always be a control socket. All requests
from ConfD to create new transactions will arrive on the control socket, but it is
also used for a number of other requests that are expected to complete quickly -
the general rule is that all callbacks that do not have a corresponding init()
callback are in fact control socket requests. There can only be one control socket
for a given daemon context.
WORKER_SOCKET We must always create at least one worker socket. All transaction, data, validation,
and action callbacks, except the init() callbacks, use a worker socket. It is
possible for a daemon to have multiple worker sockets, and the init() callback
(see e.g. confd_register_trans_cb()) must indicate which worker socket
should be used for the subsequent requests. This makes it possible for an
621
confd_lib_dp
application to be multi-threaded, where different threads can be used for different
transactions.
Returns CONFD_OK when successful or CONFD_ERR on connection error.
Note
All the callbacks that are invoked via these sockets are subject to timeouts configured
in confd.conf, see confd.conf(5). The callbacks invoked via the control socket must
generate a reply back to ConfD within the time configured for /confdConfig/capi/
newSessionTimeout, the callbacks invoked via a worker socket within the time configured
for /confdConfig/capi/queryTimeout. If either timeout is exceeded, the daemon will
be considered dead, and ConfD will disconnect it by closing the control and worker sockets.
Note
If this call fails (i.e. does not return CONFD_OK), the socket descriptor must be closed and a
new socket created before the call is re-attempted.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_PROTOUSAGE
int confd_register_trans_cb(struct confd_daemon_ctx *dx, const struct
confd_trans_cbs *trans);
This function registers transaction callback functions. A transaction is a ConfD concept. There may be
multiple sources of data for the device configuration.
In order to orchestrate transactions with multiple sources of data, ConfD implements a two-phase commit
protocol towards all data sources that participate in a transaction.
Each NETCONF operation will be an individual ConfD transaction. These transactions are typically very
short lived. Transactions originating from the CLI or the Web UI have longer life. The ConfD transaction
can be viewed as a conceptual state machine where the different phases of the transaction are different
states and the invocations of the callback functions are state transitions. The following ASCII art depicts
the state machine.
+-------+
| START |
+-------+
| init()
|
v
read() +------+ finish()
------> | READ | --------------------> START
+------+
^ |
trans_unlock() | | trans_lock()
| v
read() +----------+ finish()
------> | VALIDATE | -----------------> START
+----------+
| write_start()
|
v
write() +-------+ finish()
-------> | WRITE | -------------------> START
+-------+
| prepare()
622
confd_lib_dp
|
v
+----------+ commit() +-----------+
| PREPARED | -----------> | COMMITTED |
+----------+ +-----------+
| abort() |
| | finish()
v |
+---------+ v
| ABORTED | START
+---------+
| finish()
|
v
START
The struct confd_trans_cbs is defined as:
struct confd_trans_cbs {
int (*init)(struct confd_trans_ctx *tctx);
int (*trans_lock)(struct confd_trans_ctx *sctx);
int (*trans_unlock)(struct confd_trans_ctx *sctx);
int (*write_start)(struct confd_trans_ctx *sctx);
int (*prepare)(struct confd_trans_ctx *tctx);
int (*abort)(struct confd_trans_ctx *tctx);
int (*commit)(struct confd_trans_ctx *tctx);
int (*finish)(struct confd_trans_ctx *tctx);
void (*interrupt)(struct confd_trans_ctx *tctx);
};
Transactions can be performed towards fours different kind of storages.
CONFD_CANDIDATE If the system has been configured so that the external database owns the
candidate data share, we will have to execute candidate transactions here.
Usually ConfD owns the candidate and in that case the external database will
never see any CONFD_CANDIDATE transactions.
CONFD_RUNNING This is a transaction towards the actual running configuration of the device.
All write operations in a CONFD_RUNNING transaction must be propagated
to the individual subsystems that use this configuration data.
CONFD_STARTUP If the system has ben configured to support the NETCONF startup capability,
this is a transaction towards the startup database.
CONFD_OPERATIONAL This value indicates a transaction towards writable operational data.
This transaction is used only if there are non-config data marked as
tailf:writable true in the YANG module.
Currently, these transaction are only started by the SNMP agent, and only
when writable operational data is SET over SNMP.
Which type we have is indicated through the confd_dbname field in the confd_trans_ctx.
A transaction, regardless of whether it originates from the NETCONF agent, the CLI or the Web UI, has
several distinct phases:
init()
This callback must always be implemented. All other callbacks are optional. This means that if the
callback is set to NULL, ConfD will treat it as an implicit CONFD_OK. libconfd will allocate a
623
confd_lib_dp
transaction context on behalf of the transaction and give this newly allocated structure as an argument
to the init() callback. The structure is defined as:
struct confd_user_info {
int af; /* AF_INET | AF_INET6 */
union {
struct in_addr v4; /* address from where the */
struct in6_addr v6; /* user session originates */
} ip;
u_int16_t port; /* source port */
char username[MAXUSERNAMELEN]; /* who is the user */
int usid; /* user session id */
char context[MAXCTXLEN]; /* cli | webui | netconf | */
/* noaaa | any MAAPI string */
enum confd_proto proto; /* which protocol */
struct confd_action_ctx actx; /* used during action call */
time_t logintime;
enum confd_usess_lock_mode lmode; /* the lock we have (only from */
/* maapi_get_user_session()) */
char snmp_v3_ctx[255]; /* SNMP context for SNMP sessions */
/* empty string ("") for non-SNMP sessions */
char clearpass[255]; /* if have the pass, it's here */
/* only if confd internal ssh is used */
int flags; /* CONFD_USESS_FLAG_... */
void *u_opaque; /* Private User data */
/* ConfD internal fields */
char *errstr; /* for error formatting callback */
int refc;
};
struct confd_trans_ctx {
int fd; /* trans (worker) socket */
int vfd; /* validation worker socket */
struct confd_daemon_ctx *dx; /* our daemon ctx */
enum confd_trans_mode mode;
enum confd_dbname dbname;
struct confd_user_info *uinfo;
void *t_opaque; /* Private User data (transaction) */
void *v_opaque; /* Private User data (validation) */
struct confd_error error; /* user settable via */
/* confd_trans_seterr*() */
struct confd_tr_item *accumulated;
int thandle; /* transaction handle */
void *cb_opaque; /* private user data from */
/* data callback registration */
void *vcb_opaque; /* private user data from */
/* validation callback registration */
int secondary_index; /* if != 0: secondary index number */
/* for list traversal */
int validation_info; /* CONFD_VALIDATION_FLAG_XXX */
char *callpoint_opaque; /* tailf:opaque for callpoint
in data model */
char *validate_opaque; /* tailf:opaque for validation point
in data model */
union confd_request_data request_data; /* info from northbound agent */
int hide_inactive; /* if != 0: config data with
CONFD_ATTR_INACTIVE should be hidden */
/* ConfD internal fields */
int index; /* array pos */
624
confd_lib_dp
int lastop; /* remember what we were doing */
int last_proto_op; /* ditto */
int seen_reply; /* have we seen a reply msg */
int query_ref; /* last query ref for this trans */
int in_num_instances;
u_int32_t num_instances;
long nextarg;
struct confd_data_cbs *next_dcb;
confd_hkeypath_t *next_kp;
struct confd_tr_item *lastack; /* tail of acklist */
int refc;
};
This callback is required to prepare for future read/write operations towards the data source. It could
be that a file handle or socket must be established. The place to do that is usually the init() callback.
The init() callback is conceptually invoked at the start of the transaction, but as an optimization,
ConfD will as far as possible delay the actual invocation for a given daemon until it is required. In
case of a read-only transaction, or a daemon that is only providing operational data, this can have the
result that a daemon will not have any callbacks at all invoked (if none of the data elements that it
provides are accessed).
The callback must also indicate to libconfd which WORKER_SOCKET should be used for future
communications in this transaction. This is the mechanism which is used by libconfd to distribute
work among multiple worker threads in the database application. If another thread than the thread
which owns the CONTROL_SOCKET should be used, it is up to the application to somehow notify
that thread.
The choice of descriptor is done through the API call confd_trans_set_fd() which sets the
fd field in the transaction context.
The callback must return CONFD_OK, CONFD_DELAYED_RESPONSE or CONFD_ERR.
The transaction then enters READ state, where ConfD will perform a series of read() operations.
trans_lock()
This callback is invoked when the validation phase of the transaction starts. If the underlying database
supports real transactions, it is usually appropriate to start such a native transaction here.
The callback must return CONFD_OK, CONFD_DELAYED_RESPONSE, CONFD_ERR, or
CONFD_ALREADY_LOCKED. The transaction enters VALIDATE state, where ConfD will
perform a series of read() operations.
The trans lock is set until either trans_unlock() or finish() is called. ConfD ensures that a
trans_lock is set on a single transaction only. In the case of the CONFD_DELAYED_RESPONSE -
to later indicate that the database is already locked, use the confd_delayed_reply_error()
function with the special error string "locked". An alternate way to indicate that the
database is already locked is to use confd_trans_seterr_extended() (see below) with
CONFD_ERRCODE_IN_USE - this is the only way to give a message in the "delayed" case.
If this function is used, the callback must return CONFD_ERR in the "normal" case, and in the
"delayed" case confd_delayed_reply_error() must be called with a NULL argument after
confd_trans_seterr_extended().
trans_unlock()
This callback is called when the validation of the transaction failed, or the validation is triggered
explicitly (i.e. not part of a 'commit' operation). This is common in the CLI and the Web UI where
625
confd_lib_dp
the user can enter invalid data. Transactions that originate from NETCONF will never trigger this
callback. If the underlying database supports real transactions and they are used, the transaction should
be aborted here.
The callback must return CONFD_OK, CONFD_DELAYED_RESPONSE or CONFD_ERR. The
transaction re-enters READ state.
write_start()
This callback is invoked when the validation succeeded and the write phase of the transaction starts.
If the underlying database supports real transactions, it is usually appropriate to start such a native
transaction here.
The transaction enters the WRITE state. No more read() operations will be performed by ConfD.
The callback must return CONFD_OK, CONFD_DELAYED_RESPONSE, CONFD_ERR, or
CONFD_IN_USE.
If CONFD_IN_USE is returned, the transaction is restarted, i.e. it effectively returns to
the READ state. To give this return code after CONFD_DELAYED_RESPONSE, use the
confd_delayed_reply_error() function with the special error string "in_use". An
alternative for both cases is to use confd_trans_seterr_extended() (see below) with
CONFD_ERRCODE_IN_USE - this is the only way to give a message in the "delayed" case.
If this function is used, the callback must return CONFD_ERR in the "normal" case, and in the
"delayed" case confd_delayed_reply_error() must be called with a NULL argument after
confd_trans_seterr_extended().
prepare()
If we have multiple sources of data it is highly recommended that the callback is implemented. The
callback is called at the end of the transaction, when all read and write operations for the transaction
have been performed and the transaction should prepare to commit.
This callback should allocate the resources necessary for the commit, if any. The callback must return
CONFD_OK, CONFD_DELAYED_RESPONSE, CONFD_ERR, or CONFD_IN_USE.
If CONFD_IN_USE is returned, the transaction is restarted, i.e. it effectively returns to
the READ state. To give this return code after CONFD_DELAYED_RESPONSE, use the
confd_delayed_reply_error() function with the special error string "in_use". An
alternative for both cases is to use confd_trans_seterr_extended() (see below) with
CONFD_ERRCODE_IN_USE - this is the only way to give a message in the "delayed" case.
If this function is used, the callback must return CONFD_ERR in the "normal" case, and in the
"delayed" case confd_delayed_reply_error() must be called with a NULL argument after
confd_trans_seterr_extended().
commit()
This callback is optional. This callback is responsible for writing the data to persistent storage. Must
return CONFD_OK, CONFD_DELAYED_RESPONSE or CONFD_ERR.
abort()
This callback is optional. This callback is responsible for undoing whatever was done in the
prepare() phase. Must return CONFD_OK, CONFD_DELAYED_RESPONSE or CONFD_ERR.
finish()
This callback is optional. This callback is responsible for releasing resources allocated in the init()
phase. In particular, if the application choose to use the t_opaque field in the confd_trans_ctx to
hold any resources, these resources must be released here.
626
confd_lib_dp
interrupt()
This callback is optional. Unlike the other transaction callbacks, it does not imply a change of the
transaction state, it is instead a notification that the user running the transaction requested that it
should be interrupted (e.g. Ctrl-C in the CLI). Also unlike the other transaction callbacks, the callback
request is sent asynchronously on the control socket. Registering this callback may be useful for
a configuration data provider that has some (transaction or data) callbacks which require extensive
processing - the callback could then determine whether one of these callbacks is being processed,
and if feasible return an error from that callback instead of completing the processing. In that case,
confd_trans_seterr_extended() with code CONFD_ERRCODE_INTERRUPT should be
used.
All the callback functions (except interrupt()) must return CONFD_OK,
CONFD_DELAYED_RESPONSE or CONFD_ERR.
It is often useful to associate an error string with a CONFD_ERR return value. This can be done through
a call to confd_trans_seterr() or confd_trans_seterr_extended().
Depending on the situation (original caller) the error string gets propagated to the CLI, the Web UI or the
NETCONF manager.
int confd_register_db_cb(struct confd_daemon_ctx *dx, const struct
confd_db_cbs *dbcbs);
We may also optionally have a set of callback functions which span over several ConfD transactions.
If the system is configured in such a way so that the external database owns the candidate data store we
must implement four callback functions to do this. If ConfD owns the candidate the candidate callbacks
should be set to NULL.
If ConfD owns the candidate, ConfD has been configured to support confirmed-commit and the
revertByCommit isn't enabled, then three checkpointing functions must be implemented; otherwise these
should be set to NULL. When confirmed-commit is enabled, the user can commit the candidate with
a timeout. Unless a confirming commit is given by the user before the timer expires, the system must
rollback to the previous running configuration. This mechanism is controlled by the checkpoint callbacks.
If the revertByCommit feature is enabled the potential rollback to previous running configuration is done
using normal reversed commits, hence no checkpointing support is required in this case. See further below.
An external database may also (optionally) support the lock/unlock and lock_partial/unlock_partial
operations. This is only interesting if there exists additional locking mechanisms towards the database -
such as an external CLI which can lock the database, or if the external database owns the candidate.
Finally, the external database may optionally validate a candidate configuration. Configuration validation
is preferably done through ConfD - however if a system already has implemented extensive configuration
validation - the candidate_validate() callback can be used.
The struct confd_db_cbs structure looks like:
struct confd_db_cbs {
int (*candidate_commit)(struct confd_db_ctx *dbx, int timeout);
int (*candidate_confirming_commit)(struct confd_db_ctx *dbx);
int (*candidate_reset)(struct confd_db_ctx *dbx);
int (*candidate_chk_not_modified)(struct confd_db_ctx *dbx);
int (*candidate_rollback_running)(struct confd_db_ctx *dbx);
int (*candidate_validate)(struct confd_db_ctx *dbx);
int (*add_checkpoint_running)(struct confd_db_ctx *dbx);
int (*del_checkpoint_running)(struct confd_db_ctx *dbx);
int (*activate_checkpoint_running)(struct confd_db_ctx *dbx);
int (*copy_running_to_startup)(struct confd_db_ctx *dbx);
627
confd_lib_dp
int (*running_chk_not_modified)(struct confd_db_ctx *dbx);
int (*lock)(struct confd_db_ctx *dbx, enum confd_dbname dbname);
int (*unlock)(struct confd_db_ctx *dbx, enum confd_dbname dbname);
int (*lock_partial)(struct confd_db_ctx *dbx,
enum confd_dbname dbname, int lockid,
confd_hkeypath_t paths[], int npaths);
int (*unlock_partial)(struct confd_db_ctx *dbx,
enum confd_dbname dbname, int lockid);
int (*delete_config)(struct confd_db_ctx *dbx,
enum confd_dbname dbname);
};
If we have an externally implemented candidate, that is if confd.conf item /confdConfig/
datastores/candidate/implementation is set to "external", we must implement the 5
candidate callbacks. Otherwise (recommended) they must be set to NULL.
If implementation is "external", all databases (if there are more than one) MUST take care of the candidate
for their part of the configuration data tree. If ConfD is configured to use an external database for parts of
the configuration, and the built-in CDB database is used for some parts, CDB will handle the candidate
for its part. See also misc/extern_candidate in the examples collection.
The callback functions are are the following:
candidate_commit()
This function should copy the candidate DB into the running DB. If timeout != 0, we should
be prepared to do a rollback or act on a candidate_confirming_commit(). The timeout
parameter can not be used to set a timer for when to rollback; this timer is handled by the ConfD
daemon. If we terminate without having acted on the candidate_confirming_commit(),
we MUST restart with a rollback. Thus we must remember that we are waiting for a
candidate_confirming_commit() and we must do so on persistent storage. Must only be
implemented when the external database owns the candidate.
candidate_confirming_commit()
If the timeout in the candidate_commit() function is != 0, we will be either invoked
here or in the candidate_rollback_running() function within timeout seconds.
candidate_confirming_commit() should make the commit persistent, whereas a call to
candidate_rollback_running() would copy back the previous running configuration to
running.
candidate_rollback_running()
If for some reason, apart from a timeout, something goes wrong, we get invoked in the
candidate_rollback_running() function. The function should copy back the previous
running configuration to running.
candidate_reset()
This function is intended to copy the current running configuration into the candidate. It is invoked
whenever the NETCONF operation <discard-changes> is executed or when a lock is released
without committing.
candidate_chk_not_modified()
This function should check to see if the candidate has been modified or not. Returns CONFD_OK if
no modifications has been done since the last commit or reset, and CONFD_ERR if any uncommitted
modifications exist.
candidate_validate()
This callback is optional. If implemented, the task of the callback is to validate the candidate
configuration. Note that the running database can be validated by the database in the prepare()
628
confd_lib_dp
callback. candidate_validate() is only meaningful when an explicit validate operation is
received, e.g. through NETCONF.
add_checkpoint_running()
This function should be implemented only when ConfD owns the candidate, confirmed-commit is
enabled and revertByCommit is disabled.
It is responsible for creating a checkpoint of the current running configuration and storing the
checkpoint in non-volatile memory. When the system restarts this function should check if there is a
checkpoint available, and use the checkpoint instead of running.
del_checkpoint_running()
This function should delete a checkpoint created by add_checkpoint_running(). It is called
by ConfD when a confirming commit is received unless revertByCommit is enabled.
activate_checkpoint_running()
This function should rollback running to the checkpoint created by
add_checkpoint_running(). It is called by ConfD when the timer expires or if the user session
expires unless revertByCommit is enabled.
copy_running_to_startup()
This function should copy running to startup. It only needs to be implemented if the startup data store
is enabled.
running_chk_not_modified()
This function should check to see if running has been modified or not. It only needs to be implemented
if the startup data store is enabled. Returns CONFD_OK if no modifications have been done since the
last copy of running to startup, and CONFD_ERR if any modifications exist.
lock()
This should only be implemented if our database supports locking from other sources than
through ConfD. In this case both the lock/unlock and lock_partial/unlock_partial callbacks must be
implemented. If a lock on the whole database is set through e.g. NETCONF, ConfD will first make
sure that no other ConfD transaction has locked the database. Then it will call lock() to make sure
that the database is not locked by some other source (such as a non-ConfD CLI). Returns CONFD_OK
on success, and CONFD_ERR if the lock was already held by an external entity.
unlock()
Unlocks the database.
lock_partial()
This should only be implemented if our database supports locking from other sources than through
ConfD, see lock() above. This callback is invoked if a northbound agent requests a partial lock.
The paths[] argument is an npaths long array of hkeypaths that identify the leafs and/or subtrees
that are to be locked. The lockid is a reference that will be used on a subsequent corresponding
unlock_partial() invocation.
unlock_partial()
Unlocks the partial lock that was requested with lockid.
delete_config()
Will be called for 'startup' or 'candidate' only. The database is supposed to be set to erased.
All the above callback functions must return either CONFD_OK or CONFD_ERR. If the
system is configured so that ConfD owns the candidate, then obviously the candidate related
629
confd_lib_dp
functions need not be implemented. If the system is configured to not do confirmed commit,
candidate_confirming_commit() and candidate_commit() need not to be implemented.
It is often interesting to associate an error string with a CONFD_ERR return value. In particular the
validate() callback must typically indicate which item was invalid and why. This can be done through
a call to confd_db_seterr() or confd_db_seterr_extended().
Depending on the situation (original caller) the error string is propagated to the CLI, the Web UI or the
NETCONF manager.
int confd_register_data_cb(struct confd_daemon_ctx *dx, const struct
confd_data_cbs *data);
This function registers the data manipulation callbacks. The data model defines a number of "callpoints".
Each callpoint must have an associated set of data callbacks.
Thus if our database application serves three different callpoints in the data model we must install three
different sets of data manipulation callbacks - one set at each callpoint.
The data callbacks either return data back to ConfD or they do not. For example the create() callback
does not return data whereas the get_next() callback does. All the callbacks that return data do so
through API functions, not by means of return values from the function itself.
The struct confd_data_cbs is defined as:
struct confd_data_cbs {
char callpoint[MAX_CALLPOINT_LEN];
/* where in the XML tree do we */
/* want this struct */
/* Only necessary to have this cb if our data model has */
/* typeless optional nodes or oper data lists w/o keys */
int (*exists_optional)(struct confd_trans_ctx *tctx,
confd_hkeypath_t *kp);
int (*get_elem)(struct confd_trans_ctx *tctx,
confd_hkeypath_t *kp);
int (*get_next)(struct confd_trans_ctx *tctx,
confd_hkeypath_t *kp, long next);
int (*set_elem)(struct confd_trans_ctx *tctx,
confd_hkeypath_t *kp,
confd_value_t *newval);
int (*create)(struct confd_trans_ctx *tctx,
confd_hkeypath_t *kp);
int (*remove)(struct confd_trans_ctx *tctx,
confd_hkeypath_t *kp);
/* optional (find list entry by key/index values) */
int (*find_next)(struct confd_trans_ctx *tctx,
confd_hkeypath_t *kp,
enum confd_find_next_type type,
confd_value_t *keys, int nkeys);
/* optional optimizations */
int (*num_instances)(struct confd_trans_ctx *tctx,
confd_hkeypath_t *kp);
int (*get_object)(struct confd_trans_ctx *tctx,
confd_hkeypath_t *kp);
int (*get_next_object)(struct confd_trans_ctx *tctx,
confd_hkeypath_t *kp, long next);
int (*find_next_object)(struct confd_trans_ctx *tctx,
confd_hkeypath_t *kp,
630
confd_lib_dp
enum confd_find_next_type type,
confd_value_t *keys, int nkeys);
/* next two are only necessary if 'choice' is used */
int (*get_case)(struct confd_trans_ctx *tctx,
confd_hkeypath_t *kp, confd_value_t *choice);
int (*set_case)(struct confd_trans_ctx *tctx,
confd_hkeypath_t *kp, confd_value_t *choice,
confd_value_t *caseval);
/* next two are only necessary for config data providers,
and only if /confdConfig/enableAttributes is 'true' */
int (*get_attrs)(struct confd_trans_ctx *tctx,
confd_hkeypath_t *kp,
u_int32_t *attrs, int num_attrs);
int (*set_attr)(struct confd_trans_ctx *tctx,
confd_hkeypath_t *kp,
u_int32_t attr, confd_value_t *v);
/* only necessary if "ordered-by user" is used */
int (*move_after)(struct confd_trans_ctx *tctx,
confd_hkeypath_t *kp, confd_value_t *prevkeys);
/* only for per-transaction-invoked transaction hook */
int (*write_all)(struct confd_trans_ctx *tctx,
confd_hkeypath_t *kp);
void *cb_opaque; /* private user data */
};
One of the parameters to the callback is a confd_hkeypath_t (h - as in hashed keypath). This is fully
described in confd_types(3).
The cb_opaque element can be used to pass arbitrary data to the callbacks, e.g. when the same set of
callbacks is used for multiple callpoints. It is made available to the callbacks via an element with the same
name in the transaction context (tctx argument), see the structure definition above.
If the tailf:opaque substatement has been used with the tailf:callpoint statement in the data
model, the argument string is made available to the callbacks via the callpoint_opaque element in
the transaction context.
When use of the CONFD_ATTR_INACTIVE attribute is enabled in the ConfD configuration
(/confdConfig/enableAttributes and /confdConfig/enableInactive both set to
true), read callbacks (get_elem() etc) for configuration data must observe the current value of the
hide_inactive element in the transaction context. If it is non-zero, those callbacks must act as if data
with the CONFD_ATTR_INACTIVE attribute set does not exist.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_PROTOUSAGE
get_elem()
This callback function needs to return the value of a specific leaf. Assuming we have the following
data model:
container servers {
tailf:callpoint mycp;
list server {
key name;
max-elements 64;
leaf name {
type string;
}
leaf ip {
type inet:ip-address;
631
confd_lib_dp
}
leaf port {
type inet:port-number;
}
}
}
For example the value of the ip leaf in the server entry whose key is "www" can be returned
separately. The way to return a single data item is through confd_data_reply_value().
The callback must return CONFD_OK on success, CONFD_ERR on error or
CONFD_DELAYED_RESPONSE if the reply value is not yet available. In the latter
case the application must at a later stage call confd_data_reply_value() (or
confd_delayed_reply_ok() for a write operation). If an error is discovered at the time of a
delayed reply, the error is signaled through a call to confd_delayed_reply_error()
If the leaf does not exist the callback must call confd_data_reply_not_found(). If the leaf
has a default value defined in the data model, and no value has been set, the callback should use
confd_data_reply_value() with a value of type C_DEFAULT - this makes it possible for
northbound agents to leave such leafs out of the data returned to the user/manager (if requested).
The implementation of get_elem() must be prepared to return values for all the leafs including
the key(s). When ConfD invokes get_elem() on a key leaf it is an existence test. The application
should verify whether the object exists or not.
get_next()
This callback makes it possible for ConfD to traverse a set of list entries, or a set leaf-list elements
(unless the deprecated daemon flag CONFD_DAEMON_FLAG_LEAF_LIST_AS_LEAF is used).
The next parameter will be -1 on the first invocation. This function should reply by means of the
function confd_data_reply_next_key().
If the list has a tailf:secondary-index statement (see tailf_yang_extensions(5)), and the
entries are supposed to be retrieved according to one of the secondary indexes, the variable tctx-
>secondary_index will be set to a value greater than 0, indicating which secondary-index is
used. The first secondary-index in the definition is identified with the value 1, the second with 2, and
so on. confdc can be used to generate #defines for the index names. If no secondary indexes are
defined, or if the sort order should be according to the key values, tctx->secondary_index is 0.
To signal that no more entries exist, we reply with a NULL pointer as the key value in the
confd_data_reply_next_key() function.
The callback must return CONFD_OK on success, CONFD_ERR on error or
CONFD_DELAYED_RESPONSE if the reply value is not yet available. In the latter case the
application must at a later stage call confd_data_reply_next_key().
Note
For a list that does not specify a non-default sort order by means of a ordered-by user
or tailf:sort-order statement, ConfD assumes that list entries are ordered strictly by
increasing key (or secondary index) values. Thus for correct operation, we must observe this
order when returning list entries in a sequence of get_next() calls.
set_elem()
This callback writes the value of a leaf. Note that an optional leaf with a type other than empty is
created by a call to this function. The callback must return CONFD_OK on success, CONFD_ERR
on error or CONFD_DELAYED_RESPONSE.
632
confd_lib_dp
create()
This callback creates a new list entry, a presence container, a leaf of type empty, or a leaf-list
element (unless the deprecated daemon flag CONFD_DAEMON_FLAG_LEAF_LIST_AS_LEAF is
used). In the case of the servers data model above, this function need to create a new server entry.
Must return CONFD_OK on success, CONFD_ERR on error, CONFD_DELAYED_RESPONSE or
CONFD_ACCUMULATE.
The data provider is responsible for maintaining the order of list entries. If the list is marked as
ordered-by user in the YANG data model, the create() callback must add the list entry to
the end of the list.
remove()
This callback is used to remove an existing list entry or presence container and all its
sub nodes (if any), an optional leaf, or a leaf-list element (unless the deprecated daemon flag
CONFD_DAEMON_FLAG_LEAF_LIST_AS_LEAF is used). When we use the YANG choice
statement in the data model, it may also be used to remove nodes that are not optional as such when
a different case (or none) is selected. I.e. it must always be possible to remove cases in a choice.
Must return CONFD_OK on success, CONFD_ERR on error, CONFD_DELAYED_RESPONSE or
CONFD_ACCUMULATE.
exists_optional()
If we have presence containers or leafs of type empty, we cannot use the get_elem() callback
to read the value of such a node, since it does not have a type. An example of a data model could be:
container bs {
presence "";
tailf:callpoint bcp;
list b {
key name;
max-elements 64;
leaf name {
type string;
}
container opt {
presence "";
leaf ii {
type int32;
}
}
leaf foo {
type empty;
}
}
}
The above YANG fragment has 3 nodes that may or may not exist and that do not have a type. If we
do not have any such elements, nor any operational data lists without keys (see below), we do not
need to implement the exists_optional() callback and can set it to NULL.
If we have the above data model, we must implement the exists_optional(), and our
implementation must be prepared to reply on calls of the function for the paths /bs, /bs/b/opt,
and /bs/b/foo. The leaf /bs/b/opt/ii is not mandatory, but it does have a type namely int32,
and thus the existence of that leaf will be determined through a call to the get_elem() callback.
The exists_optional() callback may also be invoked by ConfD as "existence
test" for an entry in an operational data list without keys (see the Operational Data
633
confd_lib_dp
chapter in the User Guide), or for a leaf-list entry (unless the deprecated daemon flag
CONFD_DAEMON_FLAG_LEAF_LIST_AS_LEAF is used). Normally this existence test is done
with a get_elem() request for the first key, but since there are no keys, this callback is used instead.
Thus if we have such lists, or leaf-lists, we must also implement this callback, and handle a request
where the keypath identifies a list entry or a leaf-list element.
The callback must reply to ConfD using either the confd_data_reply_not_found() or the
confd_data_reply_found() function.
The callback must return CONFD_OK on success, CONFD_ERR on error or
CONFD_DELAYED_RESPONSE if the reply value is not yet available.
find_next()
This optional callback can be registered to optimize cases where ConfD wants to start a list traversal
at some other point than at the first entry of the list, or otherwise make a "jump" in a list traversal. If
the callback is not registered, ConfD will use a sequence of get_next() calls to find the desired
list entry.
Where the get_next() callback provides a next parameter to indicate which keys should
be returned, this callback instead provides a type parameter and a set of values to indicate
which keys should be returned. Just like for get_next(), the callback should reply by calling
confd_data_reply_next_key() with the keys for the requested list entry.
The keys parameter is a pointer to a nkeys elements long array of key values, or secondary index-
leaf values (see below). The type can have one of two values:
CONFD_FIND_NEXT The callback should always reply with the key values for the
first list entry after the one indicated by the keys array, and a
next value appropriate for retrieval of subsequent entries. The
keys array may not correspond to an actual existing list entry
- the callback must return the keys for the first existing entry
that is "later" in the list order than the keys provided by the
callback. Furthermore the number of values provided in the array
(nkeys) may be fewer than the number of keys (or number of
index-leafs for a secondary-index) in the data model, possibly
even zero. This means that only the first nkeys values are
provided, and the remaining ones should be taken to have a value
"earlier" than the value for any existing list entry.
CONFD_FIND_SAME_OR_NEXT If the values in the keys array completely identify an actual
existing list entry, the callback should reply with the keys for this
list entry and a corresponding next value. Otherwise the same
logic as described for CONFD_FIND_NEXT should be used.
The dp/find_next example in the bundled examples collection has an implementation of the
find_next() callback for a list with two integer keys. It shows how the type value and the
provided keys need to be combined in order to find the requested entry - or find that no entry matching
the request exists.
If the list has a tailf:secondary-index statement (see tailf_yang_extensions(5)), the callback
must examine the value of the tctx->secondary_index variable, as described for the
get_next() callback. If tctx->secondary_index has a value greater than 0, the keys and
nkeys parameters do not represent key values, but instead values for the index leafs specified by the
tailf:index-leafs statement for the secondary index. The callback should however still reply
with the actual key values for the list entry in the confd_data_reply_next_key() call.
634
confd_lib_dp
Once we have called confd_data_reply_next_key(), ConfD will use get_next() (or
get_next_object()) for any subsequent entry-by-entry list traversal - however we can request
that this traversal should be done using find_next() (or find_next_object()) instead, by
passing -1 for the next parameter to confd_data_reply_next_key(). In this case ConfD
will always invoke find_next()/find_next_object() with type CONFD_FIND_NEXT,
and the (complete) set of keys from the previous reply.
Note
In the case of list traversal by means of a secondary index, the secondary
index values must be unique for entry-by-entry traversal with find_next()/
find_next_object() to be possible. Thus we can not pass -1 for the next parameter
to confd_data_reply_next_key() in this case if the secondary index values are not
unique.
To signal that no entry matching the request exists, i.e. we have reached the end of the
list while evaluating the request, we reply with a NULL pointer as the key value in the
confd_data_reply_next_key() function.
Note
For a list that does not specify a non-default sort order by means of a ordered-by user
or tailf:sort-order statement, ConfD assumes that list entries are ordered strictly by
increasing key values.
If we have registered find_next() (or find_next_object()), it is not strictly necessary
to also register get_next() (or get_next_object()) - except for the case of traversal by
secondary index when the secondary index values are not unique, see above. If a northbound agent
does a get_next request, and neither get_next() nor get_next_object() is registered, ConfD
will instead invoke find_next() (or find_next_object()), the same way as if -1 had been
passed for the next parameter to confd_data_reply_next_key() as described above - the
actual next value passed is ignored. The very first get_next request for a traversal (i.e. where the
next parameter would be -1) will cause a find_next invocation with type CONFD_FIND_NEXT
and nkeys == 0, i.e. no keys provided.
The callback must return CONFD_OK on success, CONFD_ERR on error or
CONFD_DELAYED_RESPONSE if the reply value is not yet available. In the latter case the
application must at a later stage call confd_data_reply_next_key().
num_instances()
This callback can optionally be implemented. The purpose is to return the number of entries in a list,
or the number of elements in a leaf-list. If the callback is set to NULL, whenever ConfD needs to
calculate the number of entries in a certain list, ConfD will iterate through the entries by means of
consecutive calls to the get_next() callback.
If we have a large number of entries and it is computationally cheap to calculate the number of entries
in a list, it may be worth the effort to implement this callback for performance reasons.
The number of entries is returned in an confd_value_t value of type C_INT32. The value is returned
through a call to confd_data_reply_value(), see code example below:
int num_instances;
confd_value_t v;
CONFD_SET_INT32(&v, num_instances);
635
confd_lib_dp
confd_data_reply_value(trans_ctx, &v);
return CONFD_OK;
Must return CONFD_OK on success, CONFD_ERR on error or CONFD_DELAYED_RESPONSE.
get_object()
The implementation of this callback is also optional. The purpose of the callback is to return an entire
object, i.e. a list entry, in one swoop. If the callback is not implemented, ConfD will retrieve the whole
object through a series of calls to get_elem().
By default, the callback will only be called for list entries - i.e. get_elem() is still needed for leafs
that are not defined in a list, but if there are no such leafs in the part of the data model covered by
a given callpoint, the get_elem() callback may be omitted when get_object() is registered.
This has the drawback that ConfD will have to invoke get_object() even if only a single leaf in a list
entry is needed though, e.g. for the existence test mentioned for get_elem().
However, if the CONFD_DAEMON_FLAG_BULK_GET_CONTAINER flag is set via
confd_set_daemon_flags(), get_object() will also be used for the toplevel ancestor
container (if any) when no ancestor list node exists. I.e. in this case, get_elem() is only needed for
toplevel leafs - if there are any such leafs in the part of the data model covered by a given callpoint.
When ConfD invokes the get_elem() callback, it is the responsibility of the application
to issue calls to the reply function confd_data_reply_value(). The get_object()
callback cannot use this function since it needs to return a sequence of values. The
get_object() callback must use either the confd_data_reply_value_array() function
or the confd_data_reply_tag_value_array() function. See the description of these
functions below for the details of the arguments passed. If the entry requested does not exist, the
callback must call confd_data_reply_not_found().
Remember, the callback exists_optional() must always be implemented when we have
presence containers or leafs of type empty. If we also choose to implement the get_object()
callback, ConfD can sometimes derive the existence of such a node through a previous call to
get_object(). This is however not always the case, thus even if we implement get_object(),
we must also implement exists_optional()if we have such nodes.
If we pass an array of values which does not comply with the rules for the above functions, ConfD
will notice and an error is reported to the agent which issued the request. A message is also logged
to ConfD's developerLog.
The callback must return CONFD_OK on success, CONFD_ERR on error or
CONFD_DELAYED_RESPONSE if the reply value is not yet available.
get_next_object()
The implementation of this callback is also optional. Similar to the get_object() callback the
purpose of this callback is to return an entire object, or even multiple objects, in one swoop. It
combines the functionality of get_next() and get_object() into a single callback, and adds
the possibility to return multiple objects. Thus we need only implement this callback if it very
important to be able to traverse a list very fast. If the callback is not implemented, ConfD will
retrieve the whole object through a series of calls to get_next() and consecutive calls to either
get_elem() or get_object().
When we have registered get_next_object(), it is not strictly necessary to also register
get_next(), but omitting get_next() may have a serious performance impact, since there
are cases (e.g. CLI tab completion) when ConfD only wants to retrieve the keys for a list. In
such a case, if we have only registered get_next_object(), all the data for the list will be
636
confd_lib_dp
retrieved, but everything except the keys will be discarded. Also note that even if we have registered
get_next_object(), at least one of the get_elem() and get_object() callbacks must be
registered.
Similar to the get_next() callback, if the next parameter is -1 ConfD wants to retrieve the first
entry in the list.
Similar to the get_next() callback, if the tctx->secondary_index parameter is greater than
0 ConfD wants to retrieve the entries in the order defined by the secondary index.
Similar to the get_object() callback, get_next_object() needs to reply with
an entire object expressed as either an array of confd_value_t values or an array of
confd_tag_value_t values. It must also indicate which is the next entry in the list similar to the
get_next() callback. The two functions confd_data_reply_next_object_array()
and confd_data_reply_next_object_tag_value_array() are use to convey the return
values for one object from the get_next_object() callback.
If we want to reply with multiple objects, we must instead use
one of the functions confd_data_reply_next_object_arrays() and
confd_data_reply_next_object_tag_value_arrays(). These functions take an
"array of object arrays", where each element in the array corresponds to the
reply for a single object with confd_data_reply_next_object_array() and
confd_data_reply_next_object_tag_value_array(), respectively.
If we pass an array of values which does not comply with the rules for the above functions, ConfD
will notice and an error is reported to the agent which issued the request. A message is also logged
to ConfD's developerLog.
The callback must return CONFD_OK on success, CONFD_ERR on error or
CONFD_DELAYED_RESPONSE if the reply value is not yet available.
find_next_object()
The implementation of this callback is also optional. It relates to get_next_object() in exactly
the same way as find_next() relates to get_next(). I.e. instead of a parameter next, we get
a type parameter and a set of key values, or secondary index-leaf values, to indicate which object
or objects to return to ConfD via one of the reply functions.
Similar to the get_next_object() callback, if the tctx->secondary_index parameter is
greater than 0 ConfD wants to retrieve the entries in the order defined by the secondary index. And as
described for the find_next() callback, in this case the keys and nkeys parameters represent
values for the index leafs specified by the tailf:index-leafs statement for the secondary index.
Similar to the get_next_object() callback, the callback can
use any of the functions confd_data_reply_next_object_array(),
confd_data_reply_next_object_tag_value_array(),
confd_data_reply_next_object_arrays(), and
confd_data_reply_next_object_tag_value_arrays() to return one or more objects
to ConfD.
If we pass an array of values which does not comply with the rules for the above functions, ConfD
will notice and an error is reported to the agent which issued the request. A message is also logged
to ConfD's developerLog.
The callback must return CONFD_OK on success, CONFD_ERR on error or
CONFD_DELAYED_RESPONSE if the reply value is not yet available.
637
confd_lib_dp
get_case()
This callback only needs to be implemented if we use the YANG choice statement in the part of the
data model that our data provider is responsible for, but when we use choice, the callback is required.
It should return the currently selected case for the choice given by the choice argument - kp is
the path to the container or list entry where the choice is defined.
In the general case, where there may be multiple levels of choice statements without intervening
container or list statements in the data model, the choice is represented as an array of
confd_value_t elements with the type C_XMLTAG, terminated by an element with the type
C_NOEXISTS. This array gives a reversed path with alternating choice and case names, from the
data node given by kp to the specific choice that the callback request pertains to - similar to how a
confd_hkeypath_t gives a path through the data tree.
If we don't have such "nested" choices in the data model, we can ignore this array aspect, and just
treat the choice argument as a single confd_value_t value. The case is always represented as a
confd_value_t with the type C_XMLTAG. I.e. we can use CONFD_GET_XMLTAG() to get the
choice tag from choice and CONFD_SET_XMLTAG() to set the case tag for the reply value.
The callback should use confd_data_reply_value() to return the case value to ConfD, or
confd_data_reply_not_found() for an optional choice without default case if no case is
currently selected. If an optional choice with default case does not have a selected case, the callback
should use confd_data_reply_value() with a value of type C_DEFAULT.
Must return CONFD_OK on success, CONFD_ERR on error, or CONFD_DELAYED_RESPONSE.
set_case()
This callback is completely optional, and will only be invoked (if registered) if we use the YANG
choice statement and provide configuration data. The callback sets the currently selected case
for the choice given by the kp and choice arguments, and is mainly intended to make it easier to
support the get_case() callback. ConfD will additionally invoke the remove() callback for all
nodes in the previously selected case, i.e. if we register set_case(), we do not need to analyze
set_elem() callbacks to determine the currently selected case, or figure out which nodes that
should be deleted.
For a choice without a mandatory true statement, it is possible to have no case at all selected.
To indicate that the previously selected case should be deleted without selecting another case, the
callback will be invoked with NULL for the caseval argument.
The callback must return CONFD_OK on success, CONFD_ERR on error,
CONFD_DELAYED_RESPONSE or CONFD_ACCUMULATE.
get_attrs()
This callback only needs to be implemented for callpoints specified for configuration data, and only
if attributes are enabled in the ConfD configuration (/confdConfig/enableAttributes set
to true). These are the currently supported attributes:
/* CONFD_ATTR_TAGS: value is C_LIST of C_BUF/C_STR */
#define CONFD_ATTR_TAGS 0x80000000
/* CONFD_ATTR_ANNOTATION: value is C_BUF/C_STR */
#define CONFD_ATTR_ANNOTATION 0x80000001
/* CONFD_ATTR_INACTIVE: value is C_BOOL 1 (i.e. "true") */
#define CONFD_ATTR_INACTIVE 0x00000000
/* CONFD_ATTR_BACKPOINTER: value is C?LIST of C_BUF/C_STR */
#define CONFD_ATTR_BACKPOINTER 0x80000003
638
confd_lib_dp
The attrs parameter is an array of attributes of length num_attrs, giving the requested attributes
- if num_attrs is 0, all attributes are requested. If the node given by kp does not exist, the
callback should reply by calling confd_data_reply_not_found(), otherwise it should call
confd_data_reply_attrs(), even if no attributes are set.
Note
It is very important to observe this distinction, i.e. to use
confd_data_reply_not_found() when the node doesn't exist, since ConfD may use
get_attrs() as an existence check when attributes are enabled. (This avoids doing one
callback request for existence check and another to collect the attributes.)
Must return CONFD_OK on success, CONFD_ERR on error, or CONFD_DELAYED_RESPONSE.
set_attr()
This callback also only needs to be implemented for callpoints specified for configuration data, and
only if attributes are enabled in the ConfD configuration (/confdConfig/enableAttributes
set to true). See get_attrs() above for the supported attributes.
The callback should set the attribute attr for the node given by kp to the value v. If the callback is
invoked with NULL for the value argument, it means that the attribute should be deleted.
The callback must return CONFD_OK on success, CONFD_ERR on error,
CONFD_DELAYED_RESPONSE or CONFD_ACCUMULATE.
move_after()
This callback only needs to be implemented if we provide configuration data that has YANG lists or
leaf-lists with a ordered-by user statement. The callback moves the list entry or leaf-list element
given by kp. If prevkeys is NULL, the entry/element is moved first in the list/leaf-list, otherwise it
is moved after the entry/element given by prevkeys. In this case, for a list, prevkeys is a pointer
to an array of key values identifying an entry in the list. The array is terminated with an element that
has type C_NOEXISTS. For a leaf-list, prevkeys is a pointer to an array with the leaf-list element
followed by an element that has type C_NOEXISTS.
The callback must return CONFD_OK on success, CONFD_ERR on error,
CONFD_DELAYED_RESPONSE or CONFD_ACCUMULATE.
write_all()
This callback will only be invoked for a transaction hook specified with tailf:invocation-
mode per-transaction; - see the chapter Transformations, Hooks, Hidden Data and Symlinks
in the User Guide. It is also the only callback that is invoked for such a hook. The callback is expected
to make all the modifications to the current transaction that hook functionality requires. The kp
parameter is currently always NULL, since the callback does not pertain to any particular data node.
The callback must return CONFD_OK on success, CONFD_ERR on error, or
CONFD_DELAYED_RESPONSE.
The six write callbacks (excluding write_all()), namely set_elem(), create(), remove(),
set_case(), set_attr(), and move_after() may return the value CONFD_ACCUMULATE.
If CONFD_ACCUMULATE is returned the library will accumulate the written values as a linked list
of operations. This list can later be traversed in either of the transaction callbacks prepare() or
commit().
This provides trivial transaction support for applications that want to implement the ConfD two-phase
commit protocol but lacks an underlying database with proper transaction support. The write operations
are available as a linked list of confd_tr_item structs:
639
confd_lib_dp
struct confd_tr_item {
char *callpoint;
enum confd_tr_op op;
confd_hkeypath_t *hkp;
confd_value_t *val;
confd_value_t *choice; /* only for set_case */
u_int32_t attr; /* only for set_attr */
struct confd_tr_item *next;
};
The list is available in the transaction context in the field accumulated. The entire list and its content
will be automatically freed by the library once the transaction finishes.
int confd_register_range_data_cb(struct confd_daemon_ctx *dx, const
struct confd_data_cbs *data, const confd_value_t *lower, const
confd_value_t *upper, int numkeys, const char *fmt, ...);
This is a variant of confd_register_data_cb() which registers a set of callbacks for a range of list
entries. There can thus be multiple sets of C functions registered on the same callpoint, even by different
daemons. The lower and upper parameters are two numkeys long arrays of key values, which define
the endpoints of the list range. It is also possible to do a "default" registration, by giving lower and
upper as NULL (numkeys is ignored). The callbacks for the default registration will be invoked when
the keys are not in any of the explicitly registered ranges.
The fmt and remaining parameters specify a string path for the list that the keys apply to, in the same form
as for the confd_lib_maapi(3) and confd_lib_cdb(3) functions. However if the list is a sublist to another
list, the key element for the parent list(s) may be completely omitted, to indicate that the registration applies
to all entries for the parent list(s) (similar to CDB subscription paths).
An example that registers one set of callbacks for the range /servers/server{aaa} - /servers/
server{mzz} and another set for /servers/server{naa} - /servers/server{zzz}:
confd_value_t lower, upper;
CONFD_SET_STR(&lower, "aaa");
CONFD_SET_STR(&upper, "mzz");
if (confd_register_range_data_cb(dctx, &data_cb1, &lower, &upper, 1,
"/servers/server") == CONFD_ERR)
confd_fatal("Failed to register data cb\n");
CONFD_SET_STR(&lower, "naa");
CONFD_SET_STR(&upper, "zzz");
if (confd_register_range_data_cb(dctx, &data_cb2, &lower, &upper, 1,
"/servers/server") == CONFD_ERR)
confd_fatal("Failed to register data cb\n");
In this example, as in most cases where this function is used, the data model defines a list with a single key,
and numkeys is thus always 1. However it can also be used for lists that have multiple keys, in which
case the upper and lower arrays may be populated with multiple keys, upto however many keys the
data model specifies for the list, and numkeys gives the number of keys in the arrays. If fewer keys than
specified in the data model are given, the registration covers all possible values for the remaining keys,
i.e. they are effectively wildcarded.
While traversal of a list with range registrations will always invoke e.g. get_next() only for actually
registered ranges, it is also possible that a request from a northbound interface is made for data in a
specific list entry. If the registrations do not cover all possible key values, such a request could be for a
list entry that does not fall in any of the registered ranges, which will result in a "no registration" error. To
640
confd_lib_dp
avoid the error, we can either restrict the type of the keys such that only values that fall in the registered
ranges are valid, or, for operational data, use a "default" registration as described above. In this case the
daemon with the "default" registration would just reply with confd_data_reply_not_found() for
all requests for specific data, and confd_data_reply_next_key() with NULL for the key values
for all get_next() etc requests.
Note
For a given callpoint name, there can only be either one non-range registration or a number of
range registrations that all pertain to the same list. If a range registration is done after a non-range
registration or vice versa, or if a range registration is done with a different list path than earlier
range registrations, the latest registration completely replaces the earlier one(s). If we want to
register for the same ranges in different lists, we must thus have a unique callpoint for each list.
Note
Range registrations can not be used for lists that have the tailf:secondary-index
extension, since there is no way for ConfD to traverse the registrations in secondary-index order.
int confd_register_usess_cb(struct confd_daemon_ctx *dx, const struct
confd_usess_cbs *ucb);
This function can be used to register information callbacks that are invoked for user session start and stop.
The struct confd_usess_cbs is defined as:
struct confd_usess_cbs {
void (*start)(struct confd_daemon_ctx *dx,
struct confd_user_info *uinfo);
void (*stop)(struct confd_daemon_ctx *dx,
struct confd_user_info *uinfo);
};
Both callbacks are optional. They can be used e.g. for a multi-threaded daemon to manage a pool of worker
threads, by allocating worker threads to user sessions. In this case we would ideally allocate a worker
thread the first time an init() callback for a given user session requires a worker socket to be assigned,
and use only the stop() usess callback to release the worker thread - using the start() callback to
allocate a worker thread would often mean that we allocated a thread that was never used. The u_opaque
element in the struct confd_user_info can be used to manage such allocations.
Note
These callbacks will only be invoked if the daemon has also registered other callbacks.
Furthermore, as an optimization, ConfD will delay the invocation of the start() callback until
some other callback is invoked. This means that if no other callbacks for the daemon are invoked
for the duration of a user session, neither start() nor stop() will be invoked for that user
session. If we want timely notification of start and stop for all user sessions, we can subscribe to
CONFD_NOTIF_AUDIT events, see confd_lib_events(3).
Note
When we call confd_register_done() (see below), the start() callback (if registered)
will be invoked for each user session that already exists.
int confd_register_done(struct confd_daemon_ctx *dx);
641
confd_lib_dp
When we have registered all the callbacks for a daemon (including the other types described below if we
have them), we must call this function to synchronize with ConfD. No callbacks will be invoked until it
has been called, and after the call, no further registrations are allowed.
int confd_fd_ready(struct confd_daemon_ctx *dx, int fd);
The database application owns all data provider sockets to ConfD and is responsible for the polling
of these sockets. When one of the ConfD sockets has I/O ready to read, the application must invoke
confd_fd_ready() on the socket. This function will:
Read data from ConfD
Unmarshal this data
Invoke the right callback with the right arguments
When this function reads the request from from ConfD it will block on read(), thus if it is important for
the application to have nonblocking I/O, the application must dispatch I/O from ConfD in a separate thread.
The function returns the return value from the callback function, normally CONFD_OK (0), or
CONFD_ERR (-1) on error and CONFD_EOF (-2) when the socket to ConfD has been closed. Thus
CONFD_ERR can mean either that the callback function that was invoked returned CONFD_ERR,
or that some error condition occurred within the confd_fd_ready() function. These cases can be
distinguished via confd_errno, which will be set to CONFD_ERR_EXTERNAL if CONFD_ERR
comes from the callback function. Thus a correct call to confd_fd_ready() looks like:
struct pollfd set[n];
/* ...... */
if (set[0].revents & POLLIN) {
if ((ret = confd_fd_ready(dctx, mysock)) == CONFD_EOF) {
confd_fatal("ConfD socket closed\n");
} else if (ret == CONFD_ERR &&
confd_errno != CONFD_ERR_EXTERNAL) {
confd_fatal("Error on ConfD socket request: %s (%d): %s\n",
confd_strerror(confd_errno), confd_errno,
confd_lasterr());
}
}
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_PROTOUSAGE,
CONFD_ERR_EXTERNAL
void confd_trans_set_fd(struct confd_trans_ctx *tctx, int sock);
Associate a worker socket with the transaction, or validation phase. This function must be called in
the transaction and validation init() callbacks - a minimal implementation of a transaction init()
callback looks like:
static int init(struct confd_trans_ctx *tctx)
{
confd_trans_set_fd(tctx, workersock);
return CONFD_OK;
}
int confd_data_reply_value(struct confd_trans_ctx *tctx, const
confd_value_t *v);
642
confd_lib_dp
This function is used to return a single data item to ConfD.
Errors: CONFD_ERR_PROTOUSAGE, CONFD_ERR_MALLOC, CONFD_ERR_OS,
CONFD_ERR_BADTYPE
int confd_data_reply_value_array(struct confd_trans_ctx *tctx, const
confd_value_t *vs, int n);
This function is used to return an array of values, corresponding to a complete list entry, to ConfD. It can
be used by the optional get_object() callback. The vs array is populated with n values according
to the specification of the Value Array format in the XML STRUCTURES section of the confd_types(3)
manual page.
In the easiest case, similar to the "servers" example above, we can construct a reply array as follows:
struct in_addr ip4 = my_get_ip(.....);
confd_value_t ret[3];
CONFD_SET_STR(&ret[0], "www");
CONFD_SET_IPV4(&ret[1], ip4);
CONFD_SET_UINT16(&ret[2], 80);
confd_data_reply_value_array(tctx, ret, 3);
Any containers inside the object must also be passed in the array. For example an entry in the b list used
in the explanation for exists_optional() would have to be passed as:
confd_value_t ret[4];
CONFD_SET_STR(&ret[0], "b_name");
CONFD_SET_XMLTAG(&ret[1], myprefix_opt, myprefix__ns);
CONFD_SET_INT32(&ret[2], 77);
CONFD_SET_NOEXISTS(&ret[3]);
confd_data_reply_value_array(tctx, ret, 4);
Thus, a container or a leaf of type empty must be passed as its equivalent XML tag if it exists. If a
presence container or leaf of type empty does not exist, it must be passed as a value of C_NOEXISTS.
In the example above, the leaf foo does not exist, thus the contents of position 3 in the array.
If a presence container does not exist, its non existing values must not be passed - it suffices to say that
the container itself does not exist. In the example above, the opt container did exist and thus we also had
to pass the contained value(s), the ii leaf.
Hence, the above example represents:
<b>
<name>b_name</name>
<opt>
<ii>77</ii>
</opt>
</b>
int confd_data_reply_tag_value_array(struct confd_trans_ctx *tctx,
const confd_tag_value_t *tvs, int n);
This function is used to return an array of values, corresponding to a complete list entry, to ConfD. It can be
used by the optional get_object() callback. The tvs array is populated with n values according to the
643
confd_lib_dp
specification of the Tagged Value Array format in the XML STRUCTURES section of the confd_types(3)
manual page.
I.e. the difference from confd_data_reply_value_array() is that the values are tagged with the
node names from the data model - this means that non-existing values can simply be omitted from the
array, per the specification above. Additionally the key leafs can be omitted, since they are already known
by ConfD - if the key leafs are included, they will be ignored. Finally, in e.g. the case of a container with
both config and non-config data, where the config data is in CDB and only the non-config data provided
by the callback, the config elements can be omitted (for confd_data_reply_value_array() they
must be included as C_NOEXISTS elements).
However, although the tagged value array format can represent nested lists, these must not be passed
via this function, since the get_object() callback only pertains to a single entry of one list. Nodes
representing sub-lists must thus be omitted from the array, and ConfD will issue separate get_object()
invocations to retrieve the data for those.
Using the same examples as above, in the "servers" case, we can construct a reply array as follows:
struct in_addr ip4 = my_get_ip(.....);
confd_tag_value_t ret[2];
int n = 0;
CONFD_SET_TAG_IPV4(&ret[n], myprefix_ip, ip4); n++;
CONFD_SET_TAG_UINT16(&ret[n], myprefix_port, 80); n++;
confd_data_reply_tag_value_array(tctx, ret, n);
An entry in the b list used in the explanation for exists_optional() would be passed as:
confd_tag_value_t ret[3];
int n = 0;
CONFD_SET_TAG_XMLBEGIN(&ret[n], myprefix_opt, myprefix__ns); n++;
CONFD_SET_TAG_INT32(&ret[n], myprefix_ii, 77); n++;
CONFD_SET_TAG_XMLEND(&ret[n], myprefix_opt, myprefix__ns); n++;
confd_data_reply_tag_value_array(tctx, ret, n);
The C_XMLEND element is not strictly necessary in this case, since there are no subsequent elements
in the array. However it would have been required if the optional foo leaf had existed, thus it is good
practice to always include both the C_XMLBEGIN and C_XMLEND elements for nested containers (if
they exist, that is - otherwise neither must be included).
int confd_data_reply_next_key(struct confd_trans_ctx *tctx, const
confd_value_t *v, int num_vals_in_key, long next);
This function is used by the get_next() and find_next() callbacks to return the next key, or the
next leaf-list element in case get_next() is invoked for a leaf-list. A list may have multiple key leafs
specified in the data model. The parameter num_vals_in_key indicates the number of key values,
i.e. the length of the v array. In the typical case with a list having just a single key leaf specified,
num_vals_in_key is always 1. For a leaf-list, num_vals_in_key is always 1.
The long next will be passed into the next invocation of the get_next() callback if it has a value
other than -1. Thus this value provides a means for the application to traverse the data. Since this is long
it is possible to pass a void* pointing to the next list entry in the application - effectively passing a pointer
to confd and getting it back in the next invocation of get_next().
To indicate that no more entries exist, we reply with a NULL pointer for the v array. The values of the
num_vals_in_key and next parameters are ignored in this case.
644
confd_lib_dp
Passing the value -1 for next has a special meaning. It tells ConfD that we want the next request for this
list traversal to use the find_next() (or find_next_object()) callback instead of get_next()
(or get_next_object()).
Note
In the case of list traversal by means of a secondary index, the secondary index values must
be unique for entry-by-entry traversal with find_next()/find_next_object() to be
possible. Thus we can not pass -1 for the next parameter in this case if the secondary index
values are not unique.
Errors: CONFD_ERR_PROTOUSAGE, CONFD_ERR_MALLOC, CONFD_ERR_OS,
CONFD_ERR_BADTYPE
int confd_data_reply_not_found(struct confd_trans_ctx *tctx);
This function is used by the get_elem() and exists_optional() callbacks to indicate to ConfD
that a list entry or node does not exist.
Errors: CONFD_ERR_PROTOUSAGE, CONFD_ERR_MALLOC, CONFD_ERR_OS
int confd_data_reply_found(struct confd_trans_ctx *tctx);
This function is used by the exists_optional() callback to indicate to ConfD that a node does exist.
Errors: CONFD_ERR_PROTOUSAGE, CONFD_ERR_MALLOC, CONFD_ERR_OS
int confd_data_reply_next_object_array(struct confd_trans_ctx *tctx,
const confd_value_t *v, int n, long next);
This function is used by the optional get_next_object() and find_next_object()
callbacks to return an entire object including its keys, as well as the next parameter that
has the same function as for confd_data_reply_next_key(). It combines the functions of
confd_data_reply_next_key() and confd_data_reply_value_array().
The array of confd_value_t elements must be populated in exactly the same manner as for
confd_data_reply_value_array() and the long next is used in the same manner as the
equivalent next parameter in confd_data_reply_next_key(). To indicate the end of the list we
- similar to confd_data_reply_next_key() - pass a NULL pointer for the value array.
If we are replying to a get_next_object() or find_next_object() request for an operational
data list without keys (see the Operational Data chapter in the User Guide), we must include the "pseudo"
key in the array, as the first element (i.e. preceding the actual leafs from the data model).
If we are replying to a get_next_object() request for a leaf-list, we must pass the value of the leaf-
list element as the only element in the array.
Errors: CONFD_ERR_PROTOUSAGE, CONFD_ERR_MALLOC, CONFD_ERR_OS,
CONFD_ERR_BADTYPE
int confd_data_reply_next_object_tag_value_array(struct
confd_trans_ctx *tctx, const confd_tag_value_t *tv, int n, long next);
This function is used by the optional get_next_object() and find_next_object()
callbacks to return an entire object including its keys, as well as the next parameter that
645
confd_lib_dp
has the same function as for confd_data_reply_next_key(). It combines the functions of
confd_data_reply_next_key() and confd_data_reply_tag_value_array().
Similar to how the confd_data_reply_value_array() has its companion function
confd_data_reply_tag_value_array() if we want to return an object as an array of
confd_tag_value_t values instead of an array of confd_value_t values, we can use this function
instead of confd_data_reply_next_object_array() when we wish to return values from the
get_next_object() callback.
The array of confd_tag_value_t elements must be populated in exactly the same manner as for
confd_data_reply_tag_value_array() (except that the key values must be included),
and the long next is used in the same manner as the equivalent next parameter in
confd_data_reply_next_key(). The key leafs must always be given as the first elements of
the array, and in the order specified in the data model. To indicate the end of the list we - similar to
confd_data_reply_next_key() - pass a NULL pointer for the value array.
If we are replying to a get_next_object() or find_next_object() request for an operational
data list without keys (see the Operational Data chapter in the User Guide), the "pseudo" key must be
included, as the first element in the array, with a tag value of 0 - i.e. it can be set with code like this:
confd_tag_value_t tv[7];
CONFD_SET_TAG_INT64(&tv[0], 0, 42);
Similarly, if we are replying to a get_next_object() request for a leaf-list, we must pass the value
of the leaf-list element as the only element in the array, with a tag value of 0.
Errors: CONFD_ERR_PROTOUSAGE, CONFD_ERR_MALLOC, CONFD_ERR_OS,
CONFD_ERR_BADTYPE
int confd_data_reply_next_object_arrays(struct confd_trans_ctx *tctx,
const struct confd_next_object *obj, int nobj, int timeout_millisecs);
This function is used by the optional get_next_object() and find_next_object() callbacks
to return multiple objects including their keys, in confd_value_t form. The struct confd_next_object is
defined as:
struct confd_next_object {
confd_value_t *v;
int n;
long next;
};
I.e. it corresponds exactly to the data provided for a call of
confd_data_reply_next_object_array(). The parameter obj is a pointer to an nobj
elements long array of such structs. We can also pass a timeout value for ConfD's caching of the
returned data via timeout_millisecs. If we pass 0 for this parameter, the value configured via /
confdConfig/capi/objectCacheTimeout in confd.conf (see confd.conf(5)) will be used.
The cache in ConfD may become invalid (e.g. due to timeout) before all the returned list
entries have been used, and ConfD may then need to issue a new callback request based on an
"intermediate" next value. This is done exactly as for the single-entry case, i.e. if next is -1,
find_next_object() (or find_next()) will be used, with the keys from the "previous" entry,
otherwise get_next_object() (or get_next()) will be used, with the given next value.
Thus a data provider can choose to give next values that uniquely identify list entries if that is convenient,
or otherwise use -1 for all next elements - or a combination, e.g. -1 for all but the last entry. If any
646
confd_lib_dp
next value is given as -1, at least one of the find_next() and find_next_object() callbacks
must be registered.
To indicate the end of the list we can either pass a NULL pointer for the obj array, or pass an array where
the last struct confd_next_object element has the v element set to NULL. The latter is preferable, since
we can then combine the final list entries with the end-of-list indication in the reply to a single callback
invocation.
Note
When next values other than -1 are used, these must remain valid even after the end of the
list has been reached, since ConfD may still need to issue a new callback request based on an
"intermediate" next value as described above. They can be discarded (e.g. allocated memory
released) when a new get_next_object() or find_next_object() callback request
for the same list in the same transaction has been received, or at the end of the transaction.
Note
In the case of list traversal by means of a secondary index, the secondary index values must
be unique for entry-by-entry traversal with find_next_object()/find_next() to be
possible. Thus we can not use -1 for the next element in this case if the secondary index values
are not unique.
Errors: CONFD_ERR_PROTOUSAGE, CONFD_ERR_MALLOC, CONFD_ERR_OS,
CONFD_ERR_BADTYPE
int confd_data_reply_next_object_tag_value_arrays(struct
confd_trans_ctx *tctx, const struct confd_tag_next_object *tobj, int
nobj, int timeout_millisecs);
This function is used by the optional get_next_object() and find_next_object() callbacks to
return multiple objects including their keys, in confd_tag_value_t form. The struct confd_tag_next_object
is defined as:
struct confd_tag_next_object {
confd_tag_value_t *tv;
int n;
long next;
};
I.e. it corresponds exactly to the data provided for a call of
confd_data_reply_next_object_tag_value_array(). The parameter tobj is a pointer to
an nobj elements long array of such structs. We can also pass a timeout value for ConfD's caching of
the returned data via timeout_millisecs. If we pass 0 for this parameter, the value configured via
/confdConfig/capi/objectCacheTimeout in confd.conf (see confd.conf(5)) will be used.
The cache in ConfD may become invalid (e.g. due to timeout) before all the returned list
entries have been used, and ConfD may then need to issue a new callback request based on an
"intermediate" next value. This is done exactly as for the single-entry case, i.e. if next is -1,
find_next_object() (or find_next()) will be used, with the keys from the "previous" entry,
otherwise get_next_object() (or get_next()) will be used, with the given next value.
Thus a data provider can choose to give next values that uniquely identify list entries if that is convenient,
or otherwise use -1 for all next elements - or a combination, e.g. -1 for all but the last entry. If any
647
confd_lib_dp
next value is given as -1, at least one of the find_next() and find_next_object() callbacks
must be registered.
To indicate the end of the list we can either pass a NULL pointer for the tobj array, or pass an array where
the last struct confd_tag_next_object element has the tv element set to NULL. The latter is preferable,
since we can then combine the final list entries with the end-of-list indication in the reply to a single
callback invocation.
Note
When next values other than -1 are used, these must remain valid even after the end of the
list has been reached, since ConfD may still need to issue a new callback request based on an
"intermediate" next value as described above. They can be discarded (e.g. allocated memory
released) when a new get_next_object() or find_next_object() callback request
for the same list in the same transaction has been received, or at the end of the transaction.
Note
In the case of list traversal by means of a secondary index, the secondary index values must
be unique for entry-by-entry traversal with find_next_object()/find_next() to be
possible. Thus we can not use -1 for the next element in this case if the secondary index values
are not unique.
Errors: CONFD_ERR_PROTOUSAGE, CONFD_ERR_MALLOC, CONFD_ERR_OS,
CONFD_ERR_BADTYPE
int confd_data_reply_attrs(struct confd_trans_ctx *tctx, const
confd_attr_value_t *attrs, int num_attrs);
This function is used by the get_attrs() callback to return the requested attribute values. The attrs
array should be populated with num_attrs elements of type confd_attr_value_t, which is defined as:
typedef struct confd_attr_value {
u_int32_t attr;
confd_value_t v;
} confd_attr_value_t;
If multiple attributes were requested in the callback invocation, they should be given in the same order in
the reply as in the request. Requested attributes that are not set should be omitted from the array. If none of
the requested attributes are set, or no attributes at all are set when all attributes are requested, num_attrs
should be given as 0, and the value of attrs is ignored.
Errors: CONFD_ERR_PROTOUSAGE, CONFD_ERR_MALLOC, CONFD_ERR_OS,
CONFD_ERR_BADTYPE
int confd_delayed_reply_ok(struct confd_trans_ctx *tctx);
This function must be used to return the equivalent of CONFD_OK when the actual callback returned
CONFD_DELAYED_RESPONSE. I.e. it is appropriate for a transaction callback, a data callback for a
write operation, or a validation callback, when the result is successful.
Errors: CONFD_ERR_PROTOUSAGE, CONFD_ERR_MALLOC, CONFD_ERR_OS
int confd_delayed_reply_error(struct confd_trans_ctx *tctx, const char
*errstr);
648
confd_lib_dp
This function must be used to return an error when the actual callback returned
CONFD_DELAYED_RESPONSE. There are two cases where the value of errstr has a special
significance:
"locked" after invocation of
trans_lock()
This is equivalent to returning CONFD_ALREADY_LOCKED
from the callback.
"in_use" after invocation
of write_start() or
prepare()
This is equivalent to returning CONFD_IN_USE from the callback.
In all other cases, calling confd_delayed_reply_error() is equivalent to calling
confd_trans_seterr() with the errstr value and returning CONFD_ERR from the
callback. It is also possible to first call confd_trans_seterr() (for the varargs format) or
confd_trans_seterr_extended() etc (for EXTENDED ERROR REPORTING as described in
confd_lib_lib(3)), and then call confd_delayed_reply_error() with NULL for errstr.
Errors: CONFD_ERR_PROTOUSAGE, CONFD_ERR_MALLOC, CONFD_ERR_OS
int confd_data_set_timeout(struct confd_trans_ctx *tctx, int
timeout_secs);
A data callback should normally complete "quickly", since e.g. the execution of a 'show' command in the
CLI may require many data callback invocations. Thus it should be possible to set the /confdConfig/
capi/queryTimeout in confd.conf (see above) such that it covers the longest possible execution
time for any data callback. In some rare cases it may still be necessary for a data callback to have a longer
execution time, and then this function can be used to extend (or shorten) the timeout for the current callback
invocation. The timeout is given in seconds from the point in time when the function is called.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS
void confd_trans_seterr(struct confd_trans_ctx *tctx, const char
*fmt, ...);
This function is used by the application to set an error string. The next transaction or data callback which
returns CONFD_ERR will have this error description attached to it. This error may propagate to the CLI,
the NETCONF manager, the Web UI or the log files depending on the situation. We also use this function
to propagate warning messages from the validate() callback if we are doing semantic validation in
C. The fmt argument is a printf style format string.
void confd_trans_seterr_extended(struct confd_trans_ctx *tctx, enum
confd_errcode code, u_int32_t apptag_ns, u_int32_t apptag_tag, const
char *fmt, ...);
This function can be used to provide more structured error information from a transaction or data callback,
see the section EXTENDED ERROR REPORTING in confd_lib_lib(3).
int confd_trans_seterr_extended_info(struct confd_trans_ctx *tctx,
enum confd_errcode code, u_int32_t apptag_ns, u_int32_t apptag_tag,
confd_tag_value_t *error_info, int n, const char *fmt, ...);
This function can be used to provide structured error information in the same way as
confd_trans_seterr_extended(), and additionally provide contents for the NETCONF <error-
info> element. See the section EXTENDED ERROR REPORTING in confd_lib_lib(3).
void confd_db_seterr(struct confd_db_ctx *dbx, const char *fmt, ...);
649
confd_lib_dp
This function is used by the application to set an error string. The next db callback function which returns
CONFD_ERR will have this error description attached to it. This error may propagate to the CLI, the
NETCONF manager, the Web UI or the log files depending on the situation. The fmt argument is a printf
style format string.
void confd_db_seterr_extended(struct confd_db_ctx *dbx, enum
confd_errcode code, u_int32_t apptag_ns, u_int32_t apptag_tag, const
char *fmt, ...);
This function can be used to provide more structured error information from a db callback, see the section
EXTENDED ERROR REPORTING in confd_lib_lib(3).
int confd_db_seterr_extended_info(struct confd_db_ctx *dbx, enum
confd_errcode code, u_int32_t apptag_ns, u_int32_t apptag_tag,
confd_tag_value_t *error_info, int n, const char *fmt, ...);
This function can be used to provide structured error information in the same way as
confd_db_seterr_extended(), and additionally provide contents for the NETCONF <error-info>
element. See the section EXTENDED ERROR REPORTING in confd_lib_lib(3).
int confd_db_set_timeout(struct confd_db_ctx *dbx, int timeout_secs);
Some of the DB callbacks registered via confd_register_db_cb(), e.g.
copy_running_to_startup(), may require a longer execution time than others, and in these cases
the timeout specified for /confdConfig/capi/newSessionTimeout may be insufficient. This
function can then be used to extend the timeout for the current callback invocation. The timeout is given
in seconds from the point in time when the function is called.
int confd_aaa_reload(const struct confd_trans_ctx *tctx);
When the ConfD AAA tree is populated by an external data provider (see the AAA chapter in the
User Guide), this function can be used by the data provider to notify ConfD when there is a change
to the AAA data. I.e. it is an alternative to executing the command confd --clear-aaa-cache. See also
maapi_aaa_reload() in confd_lib_maapi(3).
int confd_install_crypto_keys(struct confd_daemon_ctx* dtx);
It is possible to define DES3 and AES keys inside confd.conf. These keys are used by ConfD to encrypt
data which is entered into the system which has either of the two builtin types tailf:des3-cbc-encrypted-
string or tailf:aes-cfb-128-encrypted-string. See confd_types(3).
This function will copy those keys from ConfD (which reads confd.conf) into memory in the library. The
parameter dtx is a daemon context which is connected through a call to confd_connect().
Note
The function must be called before confd_register_done() is called. If this is
impractical, or if the application doesn't otherwise use a daemon context, the equivalent
function maapi_install_crypto_keys() may be more convenient to use, see
confd_lib_maapi(3).
NCS SERVICE CALLBACKS
NCS service callbacks are invoked in a manner similar to the data callbacks described above, but require
a registration for a service point, specified as ncs:servicepoint in the data model. The init()
650
confd_lib_dp
transaction callback must also be registered, and must use the confd_trans_set_fd() function to
assign a worker socket for the transaction.
int ncs_register_service_cb(struct confd_daemon_ctx *dx, const struct
ncs_service_cbs *scb);
This function registers the service callbacks. The struct ncs_service_cbs is defined as:
struct ncs_name_value {
char *name;
char *value;
};
enum ncs_service_operation {
NCS_SERVICE_CREATE = 0,
NCS_SERVICE_UPDATE = 1,
NCS_SERVICE_DELETE = 2
};
struct ncs_service_cbs {
char servicepoint[MAX_CALLPOINT_LEN];
int (*pre_modification)(struct confd_trans_ctx *tctx,
enum ncs_service_operation op,
confd_hkeypath_t *kp,
struct ncs_name_value *proplist,
int num_props);
int (*pre_lock_create)(struct confd_trans_ctx *tctx,
confd_hkeypath_t *kp,
struct ncs_name_value *proplist,
int num_props, int fastmap_thandle);
int (*create)(struct confd_trans_ctx *tctx, confd_hkeypath_t *kp,
struct ncs_name_value *proplist, int num_props,
int fastmap_thandle);
int (*post_modification)(struct confd_trans_ctx *tctx,
enum ncs_service_operation op,
confd_hkeypath_t *kp,
struct ncs_name_value *proplist,
int num_props);
void *cb_opaque; /* private user data */
};
The create() callback is invoked inside NCS FASTMAP when creation or update of a service instance
is committed. It should attach to the FASTMAP transaction by means of maapi_attach2() (see
confd_lib_maapi(3)), passing the fastmap_thandle transaction handle as the thandle parameter to
maapi_attach2(). The usid parameter for maapi_attach2() should be given as 0. To modify
data in the FASTMAP transaction, the NCS-specific maapi_shared_xxx() functions must be used,
see the section NCS SPECIFIC FUNCTIONS in the confd_lib_maapi(3) manual page.
The pre_lock_create() callback is invoked in the same way as the create() callback. The
difference is that this callback is invoked outside the transaction lock of the current transaction, and may
thus run in parallel with pre_lock_create() invocations in other transactions.
Note
A service can only register one of the two functions create() and pre_lock_create()
The pre_modification() and post_modification() callbacks are optional, and are invoked
outside FASTMAP. pre_modification() is invoked before create, update, or delete of the
651
confd_lib_dp
service, as indicated by the enum ncs_service_operation op parameter. Conversely
post_modification() is invoked after create, update, or delete of the service. These functions can
be useful e.g. for allocations that should be stored and existing also when the service instance is removed.
All the callbacks receive a property list via the proplist and num_props parameters. This list is
initially empty (proplist == NULL and num_props == 0), but it can be used to store and later modify
persistent data outside the service model that might be needed.
Note
We must call the confd_register_done() function when we are done with all registrations
for a daemon, see above.
int ncs_service_reply_proplist(struct confd_trans_ctx *tctx, const
struct ncs_name_value *proplist, int num_props);
This function must be called with the new property list, immediately prior to returning from
the callback, if the stored property list should be updated. If a callback returns without calling
ncs_service_reply_proplist(), the previous property list is retained. To completely delete the
property list, call this function with the num_props parameter given as 0.
VALIDATION CALLBACKS
This library also supports the registration of callback functions on validation points in the data model.
A validation point is a point in the data model where ConfD will invoke an external function to validate
the associated data. The validation occurs before a transaction is committed. Similar to the state machine
described for "external data bases" above where we install callback functions in the struct confd_trans_cbs,
we have to install callback functions for each validation point. It does not matter if the database is CDB
or an external database, the validation callbacks described here work equally well for both cases.
void confd_register_trans_validate_cb(struct confd_daemon_ctx *dx,
const struct confd_trans_validate_cbs *vcbs);
This function installs two callback functions for the struct confd_daemon_ctx. One function that gets called
when the validation phase starts in a transaction and one when the validation phase stops in a transaction.
In the init() callback we can use the MAAPI api to attach to the running transaction, this way we can
later on, freely traverse the configuration and read data. The data we will be reading through MAAPI (see
confd_lib_maapi(3)) will be read from the shadow storage containing the not-yet-committed data.
The struct confd_trans_validate_cbs is defined as:
struct confd_trans_validate_cbs {
int (*init)(struct confd_trans_ctx *tctx);
int (*stop)(struct confd_trans_ctx *tctx);
};
It must thus be populated with two function pointers when we call this function.
The init() callback is conceptually invoked at the start of the validation phase, but just as for transaction
callbacks, ConfD will as far as possible delay the actual invocation of the validation init() callback for
a given daemon until it is required. This means that if none of the daemon's validate() callbacks need
to be invoked (see below), init() and stop() will not be invoked either.
If we need to allocate memory or other resources for the validation this can also be done in the init()
callback, with the resources being freed in the stop() callback. We can use the t_opaque element
in the struct confd_trans_ctx to manage this, but in a daemon that implements both data and validation
652
confd_lib_dp
callbacks it is better to use the v_opaque element for validation, to be able to manage the allocations
independently.
Similar to the init() callback for external data bases, we must in the init() callback associate a file
descriptor with the transaction. This file descriptor will be used for the actual validation. Thus in a multi
threaded application, we can have one thread performing validation for a transaction in parallel with other
threads executing e.g. data callbacks. Thus a typical implementation of an init() callback for validation
looks as:
static int init_validation(struct confd_trans_ctx *tctx)
{
maapi_attach(maapi_socket, mtest__ns, tctx);
confd_trans_set_fd(tctx, workersock);
return CONFD_OK;
}
int confd_register_valpoint_cb(struct confd_daemon_ctx *dx, const
struct confd_valpoint_cb *vcb);
We must also install an actual validation function for each validation point, i.e. for each
tailf:validate statement in the YANG data model.
A validation point has a name and an associated function pointer. The struct which must be populated for
each validation point looks like:
struct confd_valpoint_cb {
char valpoint[MAX_CALLPOINT_LEN];
int (*validate)(struct confd_trans_ctx *tctx,
confd_hkeypath_t *kp,
confd_value_t *newval);
void *cb_opaque; /* private user data */
};
Note
We must call the confd_register_done() function when we are done with all registrations
for a daemon, see above.
See the user guide chapter "Semantic validation" for code examples. The validate() callback can
return CONFD_OK if all is well, or CONFD_ERROR if the validation fails. If we wish a message to
accompany the error we must prior to returning from the callback, call confd_trans_seterr() or
confd_trans_seterr_extended().
The cb_opaque element can be used to pass arbitrary data to the callback, e.g. when the same callback
is used for multiple validation points. It is made available to the callback via the element vcb_opaque
in the transaction context (tctx argument), see the structure definition above.
If the tailf:opaque substatement has been used with the tailf:validate statement in the data
model, the argument string is made available to the callback via the validate_opaque element in the
transaction context.
We also have yet another special return value which can be used (only) from the validate()
callback which is CONFD_VALIDATION_WARN. Prior to return of this value we must call
confd_trans_seterr() which provides a string describing the warning. The warnings will get
propagated to the transaction engine, and depending on where the transaction originates, ConfD may
or may not act on the warnings. If the transaction originates from the CLI or the Web UI, ConfD will
interactively present the user with a choice - whereby the transaction can be aborted.
653
confd_lib_dp
If the transaction originates from NETCONF - which does not have any interactive capabilities - the
warnings are ignored. The warnings are primarily intended to alert inexperienced users that attempt to
make - dangerous - configuration changes. There can be multiple warnings from multiple validation points
in the same transaction.
It is also possible to let the validate() callback return CONFD_DELAYED_RESPONSE in
which case the application at a later stage must invoke either confd_delayed_reply_ok(),
confd_delayed_reply_error() or confd_delayed_reply_validation_warn().
In some cases it may be necessary for the validation callbacks to verify the availability of resources
that will be needed if the new configuration is committed. To support this kind of verification, the
validation_info element in the struct confd_trans_ctx can carry one of these flags:
CONFD_VALIDATION_FLAG_TEST
When this flag is set, the current validation phase is a "test" validation, as in e.g. the CLI 'validate'
command, and the transaction will return to the READ state regardless of the validation result. This
flag is available in all of the init(), validate(), and stop() callbacks.
CONFD_VALIDATION_FLAG_COMMIT
When this flag is set, all requirements for a commit have been met, i.e. all validation as well as the
write_start and prepare transitions have been successful, and the actual commit will follow. This flag
is only available in the stop() callback.
int confd_register_range_valpoint_cb(struct confd_daemon_ctx *dx,
struct confd_valpoint_cb *vcb, const confd_value_t *lower, const
confd_value_t *upper, int numkeys, const char *fmt, ...);
A variant of confd_register_valpoint_cb() which registers a validation function for a range
of key values. The lower, upper, numkeys, fmt, and remaining parameters are the same as for
confd_register_range_data_cb(), see above.
int confd_delayed_reply_validation_warn(struct confd_trans_ctx *tctx);
This function must be used to return the equivalent of CONFD_VALIDATION_WARN when the
validate() callback returned CONFD_DELAYED_RESPONSE. Before calling this function, we
must call confd_trans_seterr() to provide a string describing the warning.
Errors: CONFD_ERR_PROTOUSAGE, CONFD_ERR_MALLOC, CONFD_ERR_OS
NOTIFICATION STREAMS
The application can generate notifications that are sent via the northbound protocols. Currently NETCONF
notification streams are supported. The application generates the content for each notification and sends
it via a socket to ConfD, which in turn manages the stream subscriptions and distributes the notifications
accordingly.
A stream always has a "live feed", which is the sequence of new notifications, sent in real time as they
are generated. Subscribers may also request "replay" of older, logged notifications if the stream supports
this, perhaps transitioning to the live feed when the end of the log is reached. There may be one or more
replays active simultaneously with the live feed. ConfD forwards replay requests from subscribers to the
application via callbacks if the stream supports replay.
Each notification has an associated time stamp, the "event time". This is the time when the event that
generated the notification occurred, rather than the time the notification is logged or sent, in case these
times differ. The application must pass the event time to ConfD when sending a notification, and it is also
needed when replaying logged events, see below.
654
confd_lib_dp
int confd_register_notification_stream(struct confd_daemon_ctx *dx,
const struct confd_notification_stream_cbs *ncbs, struct
confd_notification_ctx **nctx);
This function registers the notification stream and optionally two callback functions used for the
replay functionality. If the stream does not support replay, the callback elements in the struct
confd_notification_stream_cbs are set to NULL. A context pointer is returned via the **nctx
argument - this must be used by the application for the sending of live notifications via
confd_notification_send() (see below).
The confd_notification_stream_cbs structure is defined as:
struct confd_notification_stream_cbs {
char streamname[MAX_STREAMNAME_LEN];
int fd;
int (*get_log_times)(
struct confd_notification_ctx *nctx);
int (*replay)(struct confd_notification_ctx *nctx,
struct confd_datetime *start,
struct confd_datetime *stop);
void *cb_opaque; /* private user data */
};
The fd element must be set to a previously connected worker socket. This socket may be used for multiple
notification streams, but not for any of the callback processing described above. Since it is only used for
sending data to ConfD, there is no need for the application to poll the socket. Note that the control socket
must be connected before registration even if the callbacks are not registered.
Note
We must call the confd_register_done() function when we are done with all registrations
for a daemon, see above.
The get_log_times() callback is called by ConfD to find out a) the creation time of the current log and
b) the event time of the last notification aged out of the log, if any. The application provides the times via
the confd_notification_reply_log_times() function (see below) and returns CONFD_OK.
The replay() callback is called by ConfD to request replay. The nctx context pointer must be saved by
the application and used when sending the replay notifications via confd_notification_send(),
as well as for the confd_notification_replay_complete() (or
confd_notification_replay_failed()) call (see below) - the callback should
return without waiting for the replay to complete. The pointer references allocated
memory, which is freed by the confd_notification_replay_complete() (or
confd_notification_replay_failed()) call.
The times given by *start and *stop specify the extent of the replay. The start time will always be
given and specify a time in the past, however the stop time may be either in the past or in the future or
even omitted, i.e. the stop argument is NULL. This means that the subscriber has requested that the
subscription continues indefinitely with the live feed when the logged notifications have been sent.
If the stop time is given:
The application sends all logged notifications that have an event time later than the start time but not
later than the stop time, and then calls confd_notification_replay_complete(). Note that
if the stop time is in the future when the replay request arrives, this includes notifications logged while
the replay is in progress (if any), as long as their event time is not later than the stop time.
655
confd_lib_dp
If the stop time is not given:
The application sends all logged notifications that have an event time later than the start time, and then
calls confd_notification_replay_complete(). Note that this includes notifications logged
after the request was received (if any).
ConfD will if needed switch the subscriber over to the live feed and then end the subscription when the stop
time is reached. The callback may analyze the start and stop arguments to determine start and stop
positions in the log, but if the analysis is postponed until after the callback has returned, the confd_datetime
structure(s) must be copied by the callback.
The replay() callback may optionally select a separate worker socket to be used for the replay
notifications. In this case it must call confd_notification_set_fd() to indicate which socket
should be used.
Note that unlike the callbacks for external data bases and validation, these callbacks do not use a worker
socket for the callback processing, and consequently there is no init() callback to request one. The
callbacks are invoked, and the reply is sent, via the daemon control socket.
The cb_opaque element in the confd_notification_stream_cbs structure can be used to pass arbitrary
data to the callbacks in much the same way as for callpoint and validation point registrations, see the
description of the struct confd_data_cbs structure above. However since the callbacks are not associated
with a transaction, this element is instead made available in the confd_notification_ctx structure.
int confd_notification_send(struct confd_notification_ctx *nctx, struct
confd_datetime *time, confd_tag_value_t *values, int nvalues);
This function is called by the application to send a notification, whether "live" or replay. The nctx pointer
is provided by ConfD as described above. The time argument specifies the event time for the notification.
The values argument is an array of length nvalues, populated with the content of the notification as
described for the Tagged Value Array format in the XML STRUCTURES section of the confd_types(3)
manual page.
For example, a NETCONF notification of the form
<ncn:notification
xmlns:ncn="urn:ietf:params:xml:ns:netconf:notification:1.0">
<linkUp xmlns="http://example.com/ns/test/1.0">
<ncn:eventTime>2007-08-17T08:56:05Z</ncn:eventTime>
<ifIndex>3</ifIndex>
</linkUp>
</ncn:notification>
could be sent with the following code:
struct confd_notification_ctx *nctx;
struct confd_datetime event_time = {2007, 8, 17, 8, 56, 5, 0, 0, 0};
confd_tag_value_t notif[3];
int n = 0;
CONFD_SET_TAG_XMLBEGIN(&notif[n], test_linkUp, test__ns); n++;
CONFD_SET_TAG_UINT32(&notif[n], test_ifIndex, 3); n++;
CONFD_SET_TAG_XMLEND(&notif[n], test_linkUp, test__ns); n++;
confd_notification_send(nctx, &event_time, notif, n);
Note
While it is possible to use separate threads to send live and replay notifications for a given
stream, or to send different streams on a given worker socket, this is not recommended. This is
656
confd_lib_dp
because it involves rather complex synchronization problems that can only be fully solved by the
application, in particular in the case where a replay switches over to the live feed.
int confd_notification_replay_complete(struct confd_notification_ctx
*nctx);
The application calls this function to notify ConfD that the replay is complete, using the nctx pointer
received in the corresponding replay() callback invocation.
int confd_notification_replay_failed(struct confd_notification_ctx
*nctx);
In case the application fails to complete the replay as requested (e.g. the log gets
overwritten while the replay is in progress), the application should call this function instead
of confd_notification_replay_complete(). An error message describing the reason
for the failure can be supplied by first calling confd_notification_seterr() or
confd_notification_seterr_extended(), see below. The nctx pointer received in the
corresponding replay() callback invocation is used for both calls.
void confd_notification_set_fd(struct confd_notification_ctx *nctx, int
fd);
This function may optionally be called by the replay() callback to request that the worker socket given
by fd should be used for the replay. Otherwise the socket specified in the confd_notification_stream_cbs
at registration will be used.
int confd_notification_reply_log_times(struct confd_notification_ctx
*nctx, struct confd_datetime *creation, struct confd_datetime *aged);
Reply function for use in the get_log_times() callback invocation. If no notifications have been aged
out of the log, give NULL for the aged argument.
void confd_notification_seterr(struct confd_notification_ctx *nctx,
const char *fmt, ...);
In some cases the callbacks may be unable to carry out the requested actions, e.g. the capacity for
simultaneous replays might be exceeded, and they can then return CONFD_ERR. This function allows
the callback to associate an error message with the failure. It can also be used to supply an error message
before calling confd_notification_replay_failed().
void confd_notification_seterr_extended(struct confd_notification_ctx
*nctx, enum confd_errcode code, u_int32_t apptag_ns, u_int32_t
apptag_tag, const char *fmt, ...);
This function can be used to provide more structured error information from a notification callback, see
the section EXTENDED ERROR REPORTING in confd_lib_lib(3).
int confd_notification_seterr_extended_info(struct
confd_notification_ctx *nctx, enum confd_errcode code, u_int32_t
apptag_ns, u_int32_t apptag_tag, confd_tag_value_t *error_info, int n,
const char *fmt, ...);
This function can be used to provide structured error information in the same way as
confd_notification_seterr_extended(), and additionally provide contents for the
NETCONF <error-info> element. See the section EXTENDED ERROR REPORTING in
confd_lib_lib(3).
657
confd_lib_dp
int confd_register_snmp_notification(struct confd_daemon_ctx *dx,
int fd, const char *notify_name, const char *ctx_name, struct
confd_notification_ctx **nctx);
SNMP notifications can also be sent via the notification framework, however most aspects of the stream
concept described above do not apply for SNMP. This function is used to register a worker socket, the
snmpNotifyName (notify_name), and SNMP context (ctx_name) to be used for the notifications.
The fd parameter must give a previously connected worker socket. This socket may be used for different
notifications, but not for any of the callback processing described above. Since it is only used for sending
data to ConfD, there is no need for the application to poll the socket. Note that the control socket must be
connected before registration, even if none of the callbacks described below are registered.
The context pointer returned via the **nctx argument must be used by the application for
the subsequent sending of the notifications via confd_notification_send_snmp() or
confd_notification_send_snmp_inform() (see below).
When a notification is sent using one of these functions, it is delivered to the management targets
defined for the snmpNotifyName in the snmpNotifyTable in SNMP-NOTIFICATION-MIB for
the specified SNMP context. If notify_name is NULL or the empty string (""), the notification is sent
to all management targets. If ctx_name is NULL or the empty string (""), the default context ("") is used.
Note
We must call the confd_register_done() function when we are done with all registrations
for a daemon, see above.
int confd_notification_send_snmp(struct confd_notification_ctx *nctx,
const char *notification, struct confd_snmp_varbind *varbinds, int
num_vars);
Sends the SNMP notification specified by notification, without requesting inform-request delivery
information. This is equivalent to calling confd_notification_send_snmp_inform() (see
below) with NULL as the cb_id argument. I.e. if the common arguments are the same, the two functions
will send the exact same set of traps and inform-requests.
int confd_register_notification_snmp_inform_cb(struct confd_daemon_ctx
*dx, const struct confd_notification_snmp_inform_cbs *cb);
If we want to receive information about the delivery of SNMP inform-requests, we must register two
callbacks for this. The struct confd_notification_snmp_inform_cbs is defined as:
struct confd_notification_snmp_inform_cbs {
char cb_id[MAX_CALLPOINT_LEN];
void (*targets)(struct confd_notification_ctx *nctx,
int ref, struct confd_snmp_target *targets,
int num_targets);
void (*result)(struct confd_notification_ctx *nctx,
int ref, struct confd_snmp_target *target,
int got_response);
void *cb_opaque; /* private user data */
};
The callback identifier cb_id can be chosen arbitrarily, it is only used when sending SNMP notifications
with confd_notification_send_snmp_inform() - however each inform callback registration
must use a unique cb_id. The callbacks are invoked via the control socket, i.e. the application must poll
it and invoke confd_fd_ready() when data is available.
658
confd_lib_dp
When a notification is sent, the target() callback will be invoked once with num_targets
(possibly 0) inform-request targets in the targets array, followed by num_targets invocations
of the result() callback, one for each target. The ref argument (passed from the
confd_notification_send_snmp_inform() call) allows for tracking the result of multiple
notifications with delivery overlap.
Note
We must call the confd_register_done() function when we are done with all registrations
for a daemon, see above.
int confd_notification_send_snmp_inform(struct confd_notification_ctx
*nctx, const char *notification, struct confd_snmp_varbind *varbinds,
int num_vars, const char *cb_id, int ref);
Sends the SNMP notification specified by notification. If cb_id is not NULL, the callbacks
registered for cb_id will be invoked with the ref argument as described above, otherwise no inform-
request delivery information will be provided. The varbinds array should be populated with num_vars
elements as described in the Notifications section of the SNMP Agent chapter in the User Guide.
If notification is the empty string, no notification is looked up; instead varbinds defines
the notification, including the notification id (variable name "snmpTrapOID"). This is especially
useful for forwarding a notification which has been received from the SNMP gateway (see
confd_register_notification_sub_snmp_cb() below).
If varbinds does not contain a timestamp (variable name "sysUpTime"), one will be supplied by the
agent.
void confd_notification_set_snmp_src_addr(struct
confd_notification_ctx *nctx, const struct confd_ip *src_addr);
By default, the source address for the SNMP notifications that are sent by the above functions is chosen by
the IP stack of the OS. This function may be used to select a specific source address, given by src_addr,
for the SNMP notifications subsequently sent using the nctx context. The default can be restored by
calling the function with a src_addr where the af element is set to AF_UNSPEC.
int confd_notification_set_snmp_notify_name(struct
confd_notification_ctx *nctx, const char *notify_name);
This function can be used to change the snmpNotifyName (notify_name) for the nctx
context. The new snmpNotifyName is used for notifications sent by subsequent calls to
confd_notification_send_snmp() and confd_notification_send_snmp_inform()
that use the nctx context.
int confd_register_notification_sub_snmp_cb(struct confd_daemon_ctx
*dx, const struct confd_notification_sub_snmp_cb *cb);
Registers a callback function to be called when an SNMP notification is received by the SNMP gateway.
The struct confd_notification_sub_snmp_cb is defined as:
struct confd_notification_sub_snmp_cb {
char sub_id[MAX_CALLPOINT_LEN];
int (*recv)(struct confd_notification_ctx *nctx,
char *notification,
struct confd_snmp_varbind *varbinds, int num_vars,
confd_value_t *src_addr, u_int16_t src_port);
659
confd_lib_dp
void *cb_opaque; /* private user data */
};
The sub_id element is the subscription id for the notifications. The recv() callback will be called
when a notification is received. See the section "Receiving and Forwarding Traps" in the chapter "The
SNMP gateway" in the Users Guide.
Note
We must call the confd_register_done() function when we are done with all registrations
for a daemon, see above.
int confd_notification_flush(struct confd_notification_ctx *nctx);
Notifications are sent asynchronously, i.e. normally without blocking the caller of the send functions
described above. This means that in some cases, ConfD's sending of the notifications on the northbound
interfaces may lag behind the send calls. If we want to make sure that the notifications have actually
been sent out, e.g. in some shutdown procedure, we can call confd_notification_flush(). This
function will block until all notifications sent using the given nctx context have been fully processed by
ConfD. It can be used both for notification streams and for SNMP notifications (however it will not wait
for replies to SNMP inform-requests to arrive).
CONFD ACTIONS
The use of action callbacks can be specified either via a rpc statement or via a tailf:action statement
in the YANG data model, see the YANG specification and tailf_yang_extensions(5). In both cases the use
of a tailf:actionpoint statement specifies that the action is implemented as a callback function.
This section describes how such callback functions should be implemented and registered with ConfD.
Unlike the callbacks for data and validation, there is not always a transaction associated with an action
callback. However an action is always associated with a user session (NETCONF, CLI, etc), and only
one action at a time can be invoked from a given user session. Hence a pointer to the associated struct
confd_user_info is passed to the callbacks.
The action callback mechanism is also used for command and completion callbacks configured for the CLI,
either in a YANG module using tailf extension statements, or in a clispec(5). As the parameter structure
is significantly different, special callbacks are used for these functions.
int confd_register_action_cbs(struct confd_daemon_ctx *dx, const struct
confd_action_cbs *acb);
This function registers up to five callback functions, two of which will be called in sequence when an
action is invoked. The struct confd_action_cbs is defined as:
struct confd_action_cbs {
char actionpoint[MAX_CALLPOINT_LEN];
int (*init)(struct confd_user_info *uinfo);
int (*abort)(struct confd_user_info *uinfo);
int (*action)(struct confd_user_info *uinfo,
struct xml_tag *name,
confd_hkeypath_t *kp,
confd_tag_value_t *params,
int nparams);
int (*command)(struct confd_user_info *uinfo,
char *path, int argc, char **argv);
int (*completion)(struct confd_user_info *uinfo,
660
confd_lib_dp
int cli_style, char *token, int completion_char,
confd_hkeypath_t *kp,
char *cmdpath, char *cmdparam_id,
struct confd_qname *simpleType, char *extra);
void *cb_opaque; /* private user data */
};
The init() callback, and at least one of the action(), command(), and completion() callbacks,
must be specified. It is in principle possible to use a single "point name" for more than one of these callback
types, and have the corresponding callback invoked in each case, but in typical usage we would only
register one of the callbacks action(), command(), and completion(). Below, the term "action
callback" is used to refer to any of these three.
Similar to the init() callback for external data bases, we must in the init() callback associate a
worker socket with the action. This socket will be used for the invocation of the action callback, which
actually carries out the action. Thus in a multi threaded application, actions can be dispatched to different
threads.
However note that unlike the callbacks for external data bases and validation, both init() and action
callbacks are registered for each action point (i.e. different action points can have different init()
callbacks), and there is no finish() callback - the action is completed when the action callback returns.
The struct confd_action_ctx actx element inside the struct confd_user_info holds action-specific data,
in particular the t_opaque element could be used to pass data from the init() callback to the
action callback, if needed. If the action is associated with a transaction, the thandle element is set to
the transaction handle, and can be used with a call to maapi_attach2() (see confd_lib_maapi(3)),
otherwise thandle will be -1. It is up to the northbound interface whether to invoke the action with
a transaction handle, and the action implementer must check if the thandle is -1 or a proper transaction
handle if the action intends to use it. The CLI will always invoke an action with a transaction handle (it
will pass a handle to a read_write transaction when in configure mode, and a read transaction otherwise).
The NETCONF interface will do so if the tailf extension <start-transaction/> was used
before the action was invoked. A transaction handle will also be passed to the callback when invoked via
maapi_request_action_th() (see confd_lib_maapi(3)).
The cb_opaque element in the confd_action_cbs structure can be used to pass arbitrary data to the
callbacks in much the same way as for callpoint and validation point registrations, see the description of the
struct confd_data_cbs structure above. This element is made available in the confd_action_ctx structure.
If the tailf:opaque substatement has been used with the tailf:actionpoint statement in the
data model, the argument string is made available to the callbacks via the actionpoint_opaque
element in the confd_action_ctx structure.
Note
We must call the confd_register_done() function when we are done with all registrations
for a daemon, see above.
The action() callback receives all the parameters pertaining to the action: The name argument is a
pointer to the action name as defined in the data model, the kp argument gives the path through the data
model for an action defined via tailf:action (it is a NULL pointer for an action defined via rpc),
and finally the params argument is a representation of the inout parameters provided when the action is
invoked. The params argument is an array of length nparams, populated as described for the Tagged
Value Array format in the XML STRUCTURES section of the confd_types(3) manual page.
The command() callback is invoked for CLI callback commands. It must always result in a call of
confd_action_reply_command(). As the parameters in this case are all in string form, they are
661
confd_lib_dp
passed in the traditional Unix argc, argv manner - i.e. argv is an array of argc pointers to NUL-
terminated strings plus a final NULL pointer element, and argv[0] is the name of the command.
Additionally the full path of the command is available via the path argument.
The completion() callback is invoked for CLI completion and information. It must result in a
call of confd_action_reply_completion(), except for the case when the callback is invoked
via a tailf:cli-custom-range-enumerator statement in the data model (see below). The
cli_style argument gives the style of the CLI session as a character: 'J', 'C', or 'I'. The token argument
is a NUL-terminated string giving the parameter of the CLI command line that the callback invocation
pertains to, and completion_char is the character that the user typed, i.e. TAB ('\t'), SPACE (' '), or
'?'. If the callback pertains to a data model element, kp identifies that element, otherwise it is NULL. The
cmdpath is a NUL-terminated string giving the full path of the command. If a cli-completion-id
is specified in the YANG module, or a completionId is specified in the clispec, it is given as a NUL-
terminated string via cmdparam_id, otherwise this argument is NULL. If the invocation pertains to an
element that has a type definition, the simpleType argument identifies the type with namespace and
type name, otherwise it is NULL. The extra argument is currently unused (always NULL).
When completion() is invoked via a tailf:cli-custom-range-enumerator statement
in the data model, it is a request to provide possible key values for creation of an entry in
a list with a custom range specification. The callback must in this case result in a call of
confd_action_reply_range_enum(). Refer to the cli/range_create example in the
bundled examples collection to see an implementation of such a callback.
The action callbacks must return CONFD_OK, CONFD_ERR, or CONFD_DELAYED_RESPONSE.
CONFD_DELAYED_RESPONSE implies that the application must later reply asynchronously.
The optional abort() callback is called whenever an action is aborted, e.g. when a user invokes
an action from one of the northbound agents and aborts it before it has completed. The abort()
callback will be invoked on the control socket. It is the responsibility of the abort() callback
to make sure that the pending reply from the action callback is sent. This is required to allow the
worker socket to be used for further queries. There are several possible ways for an application to
support aborting. E.g. the application can return CONFD_DELAYED_RESPONSE from the action
callback. Then, when the abort() callback is called, it can terminate the executing action and use e.g.
confd_action_delayed_reply_error(). Alternatively an application can use threads where the
action callback is executed in a separate thread. In this case the abort() callback could inform the thread
executing the action that it should be terminated, and that thread can just return from the action callback.
int confd_register_range_action_cbs(struct confd_daemon_ctx *dx, const
struct confd_action_cbs *acb, const confd_value_t *lower, const
confd_value_t *upper, int numkeys, const char *fmt, ...);
A variant of confd_register_action_cbs() which registers action callbacks for a range of
key values. The lower, upper, numkeys, fmt, and remaining parameters are the same as for
confd_register_range_data_cb(), see above.
Note
This function can not be used for registration of the command() or completion() callbacks
- only actions specified in the data model are invoked via a keypath that can be used for selection
of the corresponding callbacks.
void confd_action_set_fd(struct confd_user_info *uinfo, int sock);
Associate a worker socket with the action. This function must be called in the init() callback - a typical
implementation of an init() callback looks as:
662
confd_lib_dp
static int init_action(struct confd_user_info *uinfo)
{
confd_action_set_fd(uinfo, workersock);
return CONFD_OK;
}
int confd_action_reply_values(struct confd_user_info *uinfo,
confd_tag_value_t *values, int nvalues);
If the action definition specifies that the action should return data, it must invoke this function in response
to the action() callback. The values argument points to an array of length nvalues, populated with
the output parameters in the same way as the params array above.
Note
This function must only be called for an action() callback.
int confd_action_reply_command(struct confd_user_info *uinfo, char
**values, int nvalues);
If a CLI callback command should return data, it must invoke this function in response to the command()
callback. The values argument points to an array of length nvalues, populated with pointers to NUL-
terminated strings.
Note
This function must only be called for a command() callback.
int confd_action_reply_rewrite(struct confd_user_info *uinfo, char
**values, int nvalues, char **unhides, int nunhides);
This function can be called instead of confd_action_reply_command() as a response to a show
path rewrite callback invocation. The values argument points to an array of length nvalues, populated
with pointers to NUL-terminated strings representing the tokens of the new path. The unhides argument
points to an array of length nunhides, populated with pointers to NUL-terminated strings representing
hide groups to temporarily unhide during evaluation of the show command.
Note
This function must only be called for a command() callback.
int confd_action_reply_rewrite2(struct confd_user_info *uinfo, char
**values, int nvalues, char **unhides, int nunhides, struct
confd_rewrite_select **selects, int nselects);
This function can be called instead of confd_action_reply_command() as a response to a
show path rewrite callback invocation. The values argument points to an array of length nvalues,
populated with pointers to NUL-terminated strings representing the tokens of the new path. The unhides
argument points to an array of length nunhides, populated with pointers to NUL-terminated strings
representing hide groups to temporarily unhide during evaluation of the show command. The selects
argument points to an array of length nselects, populated with pointers to confd_rewrite_select structs
representing additional select targets.
Note
This function must only be called for a command() callback.
663
confd_lib_dp
int confd_action_reply_completion(struct confd_user_info *uinfo, struct
confd_completion_value *values, int nvalues);
This function must normally be called in response to the completion() callback. The values
argument points to an nvalues long array of confd_completion_value elements:
enum confd_completion_type {
CONFD_COMPLETION,
CONFD_COMPLETION_INFO,
CONFD_COMPLETION_DESC,
CONFD_COMPLETION_DEFAULT
};
struct confd_completion_value {
enum confd_completion_type type;
char *value;
char *extra;
};
For a completion alternative, type is set to CONFD_COMPLETION, value gives the alternative as a
NUL-terminated string, and extra gives explanatory text as a NUL-terminated string - if there is no such
text, extra is set to NULL. For "info" or "desc" elements, type is set to CONFD_COMPLETION_INFO
or CONFD_COMPLETION_DESC, respectively, and value gives the text as a NUL-terminated string
(the extra element is ignored).
In order to fallback to the normal completion behavior, type should be set to
CONFD_COMPLETION_DEFAULT. CONFD_COMPLETION_DEFAULT cannot be combined with
the other completion types, implying the values array always must have length 1 which is indicated
by nvalues setting.
Note
This function must only be called for a completion() callback.
int confd_action_reply_range_enum(struct confd_user_info *uinfo, char
**values, int keysize, int nkeys);
This function must be called in response to the completion() callback when it is invoked via a
tailf:cli-custom-range-enumerator statement in the data model. The values argument
points to a keysize * nkeys long array of strings giving the possible key values, where keysize is
the number of keys for the list in the data model and nkeys is the number of list entries for which keys
are provided. I.e. the array gives entry1-key1, entry1-key2, ..., entry2-key1, entry2-key2, ... and so on. See
the cli/range_create example in the bundled examples collection for details.
Note
This function must only be called for a completion() callback.
void confd_action_seterr(struct confd_user_info *uinfo, const char
*fmt, ...);
If action callback encounters fatal problems that can not be expressed via the reply function, it may call
this function with an appropriate message and return CONFD_ERR instead of CONFD_OK.
void confd_action_seterr_extended(struct confd_user_info *uinfo, enum
confd_errcode code, u_int32_t apptag_ns, u_int32_t apptag_tag, const
char *fmt, ...);
664
confd_lib_dp
This function can be used to provide more structured error information from an action callback, see the
section EXTENDED ERROR REPORTING in confd_lib_lib(3).
int confd_action_seterr_extended_info(struct confd_user_info *uinfo,
enum confd_errcode code, u_int32_t apptag_ns, u_int32_t apptag_tag,
confd_tag_value_t *error_info, int n, const char *fmt, ...);
This function can be used to provide structured error information in the same way as
confd_action_seterr_extended(), and additionally provide contents for the NETCONF
<error-info> element. See the section EXTENDED ERROR REPORTING in confd_lib_lib(3).
int confd_action_delayed_reply_ok(struct confd_user_info *uinfo);
int confd_action_delayed_reply_error(struct confd_user_info *uinfo,
const char *errstr);
If we use the CONFD_DELAYED_RESPONSE as a return value from the action callback, we must
later asynchronously reply. If we use one of the confd_action_reply_xxx() functions, this is
a complete reply. Otherwise we must use the confd_action_delayed_reply_ok() function to
signal success, or the confd_action_delayed_reply_error() function to signal an error.
int confd_action_set_timeout(struct confd_user_info *uinfo, int
timeout_secs);
Some action callbacks may require a significantly longer execution time than others, and this time may
not even be possible to determine statically (e.g. a file download). In such cases the /confdConfig/
capi/queryTimeout setting in confd.conf (see above) may be insufficient, and this function can
be used to extend (or shorten) the timeout for the current callback invocation. The timeout is given in
seconds from the point in time when the function is called.
Examples on how to work with actions are available in the User Guide and in the bundled examples
collection.
AUTHENTICATION CALLBACK
We can register a callback with ConfD's AAA subsystem, to be invoked whenever AAA has completed
processing of an authentication attempt. In the case where the authentication was otherwise successful,
the callback can still cause it to be rejected. This can be used to implement specific access policies, as
an alternative to using PAM or "External" authentication for this purpose. The callback will only be
invoked if it is both enabled via /confdConfig/aaa/authenticationCallback/enabled in
confd.conf (see confd.conf(5)) and registered as described here.
Note
If the callback is enabled in confd.conf but not registered, or invocation keeps failing for
some reason, all authentication attempts will fail.
Note
This callback can not be used to actually perform the authentication. If we want to implement
the authentication outside of ConfD, we need to use PAM or "External" authentication, see the
AAA chapter in the User Guide.
int confd_register_auth_cb(struct confd_daemon_ctx *dx, const struct
confd_auth_cb *acb);
665
confd_lib_dp
Registers the authentication callback. The struct confd_auth_cb is defined as:
struct confd_auth_cb {
int (*auth)(struct confd_auth_ctx *actx);
};
The auth() callback is invoked with a pointer to an authentication context that provides information
about the result of the authentication so far. The callback must return CONFD_OK or CONFD_ERR, see
below. The struct confd_auth_ctx is defined as:
struct confd_auth_ctx {
struct confd_user_info *uinfo;
char *method;
int success;
union {
struct { /* if success */
int ngroups;
char **groups;
} succ;
struct { /* if !success */
int logno; /* number from confd_logsyms.h */
char *reason;
} fail;
} ainfo;
/* ConfD internal fields */
char *errstr;
};
The uinfo element points to a struct confd_user_info with details about the user logging in, specifically
user name, password (if used), source IP address, context, and protocol. Note that the user session does
not actually exist at this point, even if the AAA authentication was successful - it will only be created if
the callback accepts the authentication, hence e.g. the usid element is always 0.
The method string gives the authentication method used, as follows:
"password" Password authentication. This generic term is used if the
authentication failed.
"local", "pam", "external" Password authentication. On successful authentication, the specific
method that succeeded is given. See the AAA chapter in the User
Guide for an explanation of these methods.
"publickey" Public key authentication via the internal SSH server.
Other Authentication with an unknown or unsupported method with this
name was attempted via the internal SSH server.
If success is non-zero, the AAA authentication succeeded, and groups is an array of length ngroups
that gives the groups that will be assigned to the user at login. If the callback returns CONFD_OK, the
complete authentication succeeds and the user is logged in. If it returns CONFD_ERR (or an invalid return
value), the authentication fails.
If success is zero, the AAA authentication failed (with logno set to CONFD_AUTH_LOGIN_FAIL),
and the explanatory string reason. This invocation is only for informational purposes - the callback
return value has no effect on the authentication, and should normally be CONFD_OK.
void confd_auth_seterr(struct confd_auth_ctx *actx, const char
*fmt, ...);
666
confd_lib_dp
This function can be used to provide a text message when the callback returns CONFD_ERR. If used when
rejecting a successful authentication, the message will be logged in ConfD's audit log (otherwise a generic
"rejected by application callback" message is logged).
AUTHORIZATION CALLBACKS
We can register two authorization callbacks with ConfD's AAA subsystem. These will be invoked when
the northbound agents check that a command or a data access is allowed by the AAA access rules. The
callbacks can partially or completely replace the access checks done within the AAA subsystem, and they
may accept or reject the access. Typically many access checks are done during the processing of commands
etc, and using these callbacks can thus have a significant performance impact. Unless it is a requirement
to query an external authorization mechanism, it is far better to only configure access rules in the AAA
data model (see the AAA chapter in the User Guide).
The callbacks will only be invoked if they are both enabled via /confdConfig/aaa/
authorization/callback/enabled in confd.conf (see confd.conf(5)) and registered as
described here.
Note
If the callbacks are enabled in confd.conf but no registration has been done, or if invocation
keeps failing for some reason, all access checks will be rejected.
int confd_register_authorization_cb(struct confd_daemon_ctx *dx, const
struct confd_authorization_cbs *acb);
Registers the authorization callbacks. The struct confd_authorization_cbs is defined as:
struct confd_authorization_cbs {
int cmd_filter;
int data_filter;
int (*chk_cmd_access)(struct confd_authorization_ctx *actx,
char **cmdtokens, int ntokens, int cmdop);
int (*chk_data_access)(struct confd_authorization_ctx *actx,
u_int32_t hashed_ns, confd_hkeypath_t *hkp,
int dataop, int how);
};
Both callbacks are optional, i.e. we can set the function pointer in struct confd_authorization_cbs
to NULL if we don't want the corresponding callback invocation. In this case the AAA
subsystem will handle the access check as if the callback was registered, but always replied with
CONFD_ACCESS_RESULT_DEFAULT (see below).
The cmd_filter and data_filter elements can be used to prevent access checks from causing
invocation of a callback even though it is registered. If we do not want any filtering, they must
be set to zero. The value is a bitmask obtained by ORing together values: For cmd_filter, we
can use the possible values for cmdop (see below), preventing the corresponding invocations of
chk_cmd_access(). For data_filter, we can use the possible values for dataop and how (see
below), preventing the corresponding invocation of chk_data_access(). If the callback invocation
is prevented by filtering, the AAA subsystem will handle the access check as if the callback had replied
with CONFD_ACCESS_RESULT_CONTINUE (see below).
Both callbacks are invoked with a pointer to an authorization context that provides information about
the user session that the access check pertains to, and the group list for that session. The struct
confd_authorization_ctx is defined as:
struct confd_authorization_ctx {
667
confd_lib_dp
struct confd_user_info *uinfo;
int ngroups;
char **groups;
struct confd_daemon_ctx *dx;
/* ConfD internal fields */
int result;
int query_ref;
};
chk_cmd_access()
This callback is invoked for command authorization, i.e. it corresponds to the rules under /aaa/
authorization/cmdrules in the AAA data model. cmdtokens is an array of ntokens
NUL-terminated strings representing the command to be checked, corresponding to the command
leaf in the cmdrule list. If /confdConfig/cli/modeInfoInAAA is enabled in confd.conf
(see confd.conf(5)), mode names will be prepended in the cmdtokens array. The cmdop parameter
gives the operation, corresponding to the ops leaf in the cmdrule list. The possible values for
cmdop are:
CONFD_ACCESS_OP_READ
Read access. The CLI will use this during command completion, to filter out alternatives that are
disallowed by AAA.
CONFD_ACCESS_OP_EXECUTE
Execute access. This is used when a command is about to be executed.
Note
This callback may be invoked with actx->uinfo == NULL, meaning that no user session
has been established for the user yet. This will occur e.g. when the CLI checks whether a user
attempting to log in is allowed to (implicitly) execute the command "request system logout
user" (J-CLI) or "logout" (C/I-CLI) when the maximum number of sessions has already been
reached (if allowed, the CLI will ask whether the user wants to terminate one of the existing
sessions).
chk_data_access()
This callback is invoked for data authorization, i.e. it corresponds to the rules under /aaa/
authorization/datarules in the AAA data model. hashed_ns and hkp give the namespace
and hkeypath of the data node to to be checked, corresponding to the namespace and keypath
leafs in the datarule list. The hkp parameter may be NULL, which means that access to the entire
namespace given by hashed_ns is requested. When a hkeypath is provided, some key elements
in the path may be without key values (i.e. hkp->v[n][0].type == C_NOEXISTS). This indicates
"wildcard" keys, used for CLI tab completion when keys are not fully specified. The dataop
parameter gives the operation, corresponding the ops leaf in the datarule list. The possible values
for dataop are:
CONFD_ACCESS_OP_READ
Read access.
CONFD_ACCESS_OP_EXECUTE
Execute access.
CONFD_ACCESS_OP_CREATE
Create access.
CONFD_ACCESS_OP_UPDATE
Update access.
668
confd_lib_dp
CONFD_ACCESS_OP_DELETE
Delete access.
CONFD_ACCESS_OP_WRITE
Write access. This is used when the specific write operation (create/update/delete) isn't known
yet, e.g. in CLI command completion or processing of a NETCONF edit-config.
The how parameter is one of:
CONFD_ACCESS_CHK_INTERMEDIATE
Access to the given data node or its descendants is requested. This is used e.g. in CLI command
completion or processing of a NETCONF edit-config.
CONFD_ACCESS_CHK_FINAL
Access to the specific data node is requested.
int confd_access_reply_result(struct confd_authorization_ctx *actx, int
result);
The callbacks must call this function to report the result of the access check to ConfD, and should normally
return CONFD_OK. If any other value is returned, it will cause the access check to be rejected. The actx
parameter is the pointer to the authorization context passed in the callback invocation, and result must
be one of:
CONFD_ACCESS_RESULT_ACCEPT
The access is allowed. This is a "final verdict", analogous to a "full match" when the AAA rules are
used.
CONFD_ACCESS_RESULT_REJECT
The access is denied.
CONFD_ACCESS_RESULT_CONTINUE
The access is allowed "so far". I.e. access to sub-elements is not necessarily allowed. This result is
mainly useful when chk_cmd_access() is called with cmdop == CONFD_ACCESS_OP_READ
or chk_data_access() is called with how == CONFD_ACCESS_CHK_INTERMEDIATE.
CONFD_ACCESS_RESULT_DEFAULT
The request should be handled according to the rules configured in the AAA data model.
int confd_authorization_set_timeout(struct confd_authorization_ctx
*actx, int timeout_secs);
The authorization callbacks are invoked on the daemon control socket, and as such are expected to
complete quickly, within the timeout specified for /confdConfig/capi/newSessionTimeout.
However in case they send requests to a remote server, and such a request needs to be retried, this function
can be used to extend the timeout for the current callback invocation. The timeout is given in seconds from
the point in time when the function is called.
ERROR FORMATTING CALLBACK
It is possible to register a callback function to generate customized error messages for ConfD's internally
generated errors. All the customizable errors are defined with a type and a code in the XML document
$CONFD_DIR/src/confd/errors/errcode.xml in the ConfD release. To use this functionality,
the application must #include the file confd_errcode.h, which defines C constants for the types
and codes.
669
confd_lib_dp
int confd_register_error_cb(struct confd_daemon_ctx *dx, const struct
confd_error_cb *ecb);
Registers the error formatting callback. The struct confd_error_cb is defined as:
struct confd_error_cb {
int error_types;
void (*format_error)(struct confd_user_info *uinfo,
struct confd_errinfo *errinfo,
char *default_msg);
};
The error_types element is the logical OR of the error types that the callback should handle. An
application daemon can only register one error formatting callback, and only one daemon can register for
each error type. The available types are:
CONFD_ERRTYPE_VALIDATION
Errors detected by ConfD's internal semantic validation of the data model constraints, e.g. mandatory
elements that are unset, dangling references, etc. The codes for this type are the confd_errno values
corresponding to the validation errors, as resulting e.g. from a call to maapi_apply_trans() (see
confd_lib_maapi(3)). I.e. CONFD_ERR_NOTSET, CONFD_ERR_BAD_KEYREF, etc - see the 'id'
attribute in errcode.xml.
CONFD_ERRTYPE_BAD_VALUE
Type errors, i.e. errors generated when an invalid value is given for a leaf in the data model. The codes
for this type are defined in confd_errcode.h as CONFD_BAD_VALUE_XXX, where "XXX"
is the all-uppercase form of the code name given in errcode.xml.
CONFD_ERRTYPE_CLI
CLI-specific errors. The codes for this type are defined in confd_errcode.h as
CONFD_CLI_XXX in the same way as for CONFD_ERRTYPE_BAD_VALUE.
CONFD_ERRTYPE_MISC
Miscellaneous errors, which do not fit into the other categories. The codes for this type
are defined in confd_errcode.h as CONFD_MISC_XXX in the same way as for
CONFD_ERRTYPE_BAD_VALUE.
CONFD_ERRTYPE_OPERATION
The same set of errors and codes as for CONFD_ERRTYPE_VALIDATION, but detected in validation
of input parameters for an rpc or action.
The format_error() callback is invoked with a pointer to a struct confd_errinfo, which gives the error
type and type-specific structured information about the details of the error. It is defined as:
struct confd_errinfo {
int type; /* CONFD_ERRTYPE_XXX */
union {
struct confd_errinfo_validation validation;
struct confd_errinfo_bad_value bad_value;
struct confd_errinfo_cli cli;
struct confd_errinfo_misc misc;
} info;
};
For CONFD_ERRTYPE_VALIDATION and CONFD_ERRTYPE_OPERATION, the struct
confd_errinfo_validation validation gives the detailed information, using an info union
that has a specific struct member for each code:
670
confd_lib_dp
struct confd_errinfo_validation {
int code; /* CONFD_ERR_NOTSET, CONFD_ERR_TOO_FEW_ELEMS, ... */
union {
struct {
/* the element given by kp is not set */
confd_hkeypath_t *kp;
} notset;
struct {
/* kp has n instances, must be at least min */
confd_hkeypath_t *kp;
int n, min;
} too_few_elems;
struct {
/* kp has n instances, must be at most max */
confd_hkeypath_t *kp;
int n, max;
} too_many_elems;
struct {
/* the elements given by kps1 have the same set
of values vals as the elements given by kps2
(kps1, kps2, and vals point to n_elems long arrays) */
int n_elems;
confd_hkeypath_t *kps1;
confd_hkeypath_t *kps2;
confd_value_t *vals;
} non_unique;
struct {
/* the element given by kp references
the non-existing element given by ref
Note: 'ref' may be NULL or have key elements without values
(ref->v[n][0].type == C_NOEXISTS) if it cannot be instantiated */
confd_hkeypath_t *kp;
confd_hkeypath_t *ref;
} bad_keyref;
struct {
/* the mandatory 'choice' statement choice in the
container kp does not have a selected 'case' */
confd_value_t *choice;
confd_hkeypath_t *kp;
} unset_choice;
struct {
/* the 'must' expression expr for element kp is not satisfied
- error_message and and error_app_tag are NULL if not given
in the 'must'; val points to the value of the element if it
has one, otherwise it is NULL */
char *expr;
confd_hkeypath_t *kp;
char *error_message;
char *error_app_tag;
confd_value_t *val;
} must_failed;
struct {
/* the element kp has the instance-identifier value instance,
which doesn't exist, but require-instance is 'true' */
confd_hkeypath_t *kp;
confd_hkeypath_t *instance;
} missing_instance;
struct {
/* the element kp has the instance-identifier value instance,
which doesn't conform to the specified path filters */
671
confd_lib_dp
confd_hkeypath_t *kp;
confd_hkeypath_t *instance;
} invalid_instance;
struct {
/* the expression for a configuration policy rule evaluated to
'false' - error_message is the associated error message */
char *error_message;
} policy_failed;
struct {
/* the XPath expression expr, for the configuration policy
rule with key name, could not be compiled due to msg */
char *name;
char *expr;
char *msg;
} policy_compilation_failed;
struct {
/* the expression expr, for the configuration policy rule
with key name, failed XPath evaluation due to msg */
char *name;
char *expr;
char *msg;
} policy_evaluation_failed;
} info;
/* These are only provided for CONFD_ERRTYPE_VALIDATION */
int test; /* 1 if 'validate', 0 if 'commit' */
struct confd_trans_ctx *tctx; /* only valid for duration of callback */
};
The member structs are named as the confd_errno values that are used for the code elements, i.e.
notset for CONFD_ERR_NOTSET, etc. For CONFD_ERRTYPE_VALIDATION, the callback also
has full information about the transaction that failed validation via the struct confd_trans_ctx
*tctx element - it is even possible to use maapi_attach() (see confd_lib_maapi(3)) to attach to the
transaction and read arbitrary data from it, in case the data directly related to the error (as given in the
code-specific struct) is not sufficient.
For the other error types, the corresponding confd_errinfo_xxx struct gives the code and an array
with the parameters for the default error message, as defined by the <fmt> element in errcode.xml:
enum confd_errinfo_ptype {
CONFD_ERRINFO_KEYPATH,
CONFD_ERRINFO_STRING
};
struct confd_errinfo_param {
enum confd_errinfo_ptype type;
union {
confd_hkeypath_t *kp;
char *str;
} val;
};
struct confd_errinfo_bad_value {
int code;
int n_params;
struct confd_errinfo_param *params;
};
The parameters in the params array are given in the order they appear in the <fmt> specification.
Parameters that are specified as {path} have params[n].type set to CONFD_ERRINFO_KEYPATH,
672
confd_lib_dp
and are represented as a confd_hkeypath_t that can be accessed via params[n].val.kp. All other
parameters are represented as strings, i.e. params[n].type is CONFD_ERRINFO_STR and the string
value can be accessed via params[n].val.str. The struct confd_errinfo_cli cli
and struct confd_errinfo_misc misc union members have the same form as struct
confd_errinfo_bad_value shown above.
Finally, the default_msg callback parameter gives the default error message that will be reported to
the user if the format_error() function does not generate a replacement.
void confd_error_seterr(struct confd_user_info *uinfo, const char
*fmt, ...);
This function must be called by format_error() to provide a replacement of the default error message.
If format_error() returns without calling confd_error_seterr(), the default message will be
used.
Here is an example that targets a specific validation error for a specific element in the data model. For this
case only, it replaces ConfD's internally generated messages of the form:
"too many 'protocol bgp', 2 configured, at most 1 must be configured"
with
"Only 1 bgp instance is supported, cannot define 2"
#include <confd_lib.h>
#include <confd_dp.h>
#include <confd_errcode.h>
.
.
int main(int argc, char **argv)
{
struct confd_error_cb ecb;
.
.
memset(&ecb, 0, sizeof(ecb));
ecb.error_types = CONFD_ERRTYPE_VALIDATION;
ecb.format_error = format_error;
if (confd_register_error_cb(dctx, &ecb) != CONFD_OK)
confd_fatal("Couldn't register error callback\n");
.
}
static void format_error(struct confd_user_info *uinfo,
struct confd_errinfo *errinfo,
char *default_msg)
{
struct confd_errinfo_validation *err;
confd_hkeypath_t *kp;
err = &errinfo->info.validation;
if (err->code == CONFD_ERR_TOO_MANY_ELEMS) {
kp = err->info.too_many_elems.kp;
if (CONFD_GET_XMLTAG(&kp->v[0][0]) == myns_bgp &&
CONFD_GET_XMLTAG(&kp->v[1][0]) == myns_protocol) {
confd_error_seterr(uinfo,
"Only %d bgp instance is supported, "
"cannot define %d",
err->info.too_many_elems.max,
673
confd_lib_dp
err->info.too_many_elems.n);
}
}
}
The CLI-specific "Aborted: " prefix is not included in the message for this error type - if we wanted to
replace that too, we could include the CONFD_ERRTYPE_CLI error type in the registration and process
the CONFD_CLI_COMMAND_ABORTED error code for this type, see errcode.xml.
SEE ALSO
confd.conf(5) - ConfD daemon configuration file format
The ConfD User Guide
674
Nameconfd_lib_events — library for subscribing to ConfD event notifications
Synopsis
#include <confd_lib.h> #include <confd_events.h>
int confd_notifications_connect(int sock, const struct sockaddr* srv,
int srv_sz, int mask);
int confd_notifications_connect2(int sock, const struct sockaddr* srv,
int srv_sz, int mask, struct confd_notifications_data *data);
int confd_read_notification(int sock, struct confd_notification *n);
void confd_free_notification(struct confd_notification *n);
int confd_diff_notification_done(int sock, struct confd_trans_ctx
*tctx);
int confd_sync_audit_notification(int sock, int usid);
int confd_sync_ha_notification(int sock);
LIBRARY
ConfD Library, (libconfd, -lconfd)
DESCRIPTION
The libconfd shared library is used to connect to ConfD and subscribe to certain events generated by
ConfD. The API to receive events from ConfD is a socket based API whereby the application connects
to ConfD and receives events on a socket. See also the Notifications chapter in the User Guide. The
program misc/notifications/confd_notifications.c in the examples collection illustrates
subscription and processing for all these events, and can also be used standalone in a development
environment to monitor ConfD events.
EVENTS
The following events can be subscribed to:
CONFD_NOTIF_AUDIT
All audit log events are sent from ConfD on the event notification socket.
CONFD_NOTIF_AUDIT_SYNC
This flag modifies the behavior of a subscription for the CONFD_NOTIF_AUDIT event - it
has no effect unless CONFD_NOTIF_AUDIT is also present. If this flag is present, ConfD
will stop processing in the user session that causes an audit notification to be sent, and
continue processing in that user session only after all subscribers with this flag have called
confd_sync_audit_notification().
CONFD_NOTIF_DAEMON
All log events that also goes to the /confdConf/logs/confdLog log are sent from ConfD on
the event notification socket.
675
confd_lib_events
CONFD_NOTIF_NETCONF
All log events that also goes to the /confdConf/logs/netconfLog log are sent from ConfD
on the event notification socket.
CONFD_NOTIF_DEVEL
All log events that also goes to the /confdConf/logs/developerLog log are sent from ConfD
on the event notification socket.
CONFD_NOTIF_TAKEOVER_SYSLOG
If this flag is present, ConfD will stop syslogging. The idea behind the flag is that we want to configure
syslogging for ConfD in order to let ConfD log its startup sequence. Once ConfD is started we wish
to subsume the syslogging done by ConfD. Typical applications that use this flag want to pick up all
log messages, reformat them and use some local logging method.
Once all subscriber sockets with this flag set are closed, ConfD will resume to syslog.
CONFD_NOTIF_COMMIT_SIMPLE
An event indicating that a user has somehow modified the configuration.
CONFD_NOTIF_COMMIT_DIFF
An event indicating that a user has somehow modified the configuration. The main difference
between this event and the abovementioned CONFD_NOTIF_COMMIT_SIMPLE is that
this event is synchronous, i.e. the entire transaction hangs until we have explicitly called
confd_diff_notification_done(). The purpose of this event is to give the applications
a chance to read the configuration diffs from the transaction before it finishes. A user subscribing
to this event can use MAAPI to attach (maapi_attach()) to the running transaction and use
maapi_diff_iterate() to iterate through the diff. This feature can also be used to produce a
complete audit trail of who changed what and when in the system. It is up to the application to format
that audit trail.
CONFD_NOTIF_COMMIT_FAILED
This event is generated when a data provider fails in its commit callback. ConfD executes a
two-phase commit procedure towards all data providers when committing transactions. When a
provider fails in commit, the system is an unknown state. See confd_lib_maapi(3) and the function
maapi_get_running_db_state(). If the provider is "external", the name of failing daemon is
provided. If the provider is another NETCONF agent, the IP address and port of that agent is provided.
CONFD_NOTIF_CONFIRMED_COMMIT
This event is generated when a user has started a confirmed commit, when a confirming commit is
issued, or when a confirmed commit is aborted; represented by enum confd_confirmed_commit_type.
For a confirmed commit, the timeout value is also present in the notification.
CONFD_NOTIF_COMMIT_PROGRESS
This event provides progress information about the commit of a transaction, i.e. the same information
that is reported when the commit | details CLI command is used. The application receives a struct
confd_progress_notification which gives details for the specific transaction along with the progress
information, see confd_events.h.
CONFD_NOTIF_USER_SESSION
An event related to user sessions. There are 6 different user session related event types, defined in
enum confd_user_sess_type: session starts/stops, session locks/unlocks database, session starts/stop
database transaction.
CONFD_NOTIF_HA_INFO
An event related to ConfDs perception of the current cluster configuration.
676
confd_lib_events
CONFD_NOTIF_HA_INFO_SYNC
This flag modifies the behavior of a subscription for the CONFD_NOTIF_HA_INFO event - it
has no effect unless CONFD_NOTIF_HA_INFO is also present. If this flag is present, ConfD
will stop all HA processing, and continue only after all subscribers with this flag have called
confd_sync_ha_notification().
CONFD_NOTIF_SUBAGENT_INFO
Only sent if ConfD runs as a master agent with subagents enabled. This event is sent when
the subagent connection is lost or reestablished. There are two event types, defined in enum
confd_subagent_info_type: subagent up and subagent down.
CONFD_NOTIF_SNMPA
This event is generated whenever an SNMP pdu is processed by ConfD. The application receives a
struct confd_snmpa_notification structure. The structure contains a series of fields describing the sent
or received SNMP pdu. It contains a list of all varbinds in the pdu.
Each varbind contains a confd_value_t with the string representation of the SNMP value. Thus the
type of the value in a varbind is always C_BUF. See confd_events.h include file for the details
of the received structure.
Note
This event may allocate memory dynamically inside the struct confd_notification, thus we
must always call confd_free_notification() after receiving and processing this
event.
CONFD_NOTIF_FORWARD_INFO
This event is generated whenever ConfD forwards (proxies) a northbound agent.
CONFD_NOTIF_UPGRADE_EVENT
This event is generated for the different phases of an in-service upgrade, i.e. when the data model is
upgraded while ConfD is running. The application receives a struct confd_upgrade_notification where
the enum confd_upgrade_event_type event gives the specific upgrade event, see confd_events.h.
The events correspond to the invocation of the MAAPI functions that drive the upgrade, see
confd_lib_maapi(3).
CONFD_NOTIF_HEARTBEAT
This event can be be used by applications that wish to monitor the health and liveness of ConfD
itself. It needs to be requested through a call to confd_notifications_connect2(),
where the required heartbeat_interval can be provided via the struct
confd_notifications_data parameter. ConfD will continuously generate heartbeat events on
the notification socket. If ConfD fails to do so, ConfD is hung, or prevented from getting the CPU time
required to send the event. The timeout interval is measured in milliseconds. Recommended value is
10000 milliseconds to cater for truly high load situations. Values less than 1000 are changed to 1000.
CONFD_NOTIF_HEALTH_CHECK
This event is similar to CONFD_NOTIF_HEARTBEAT, in that it can be be used by
applications that wish to monitor the health and liveness of ConfD itself. However while
CONFD_NOTIF_HEARTBEAT will be generated as long as ConfD is not completely hung,
CONFD_NOTIF_HEALTH_CHECK will only be generated after a basic liveness check of the different
ConfD subsystems has completed successfully. This event also needs to be requested through a call
to confd_notifications_connect2(), where the required health_check_interval
can be provided via the struct confd_notifications_data parameter. Since the event
generation incurs more processing than CONFD_NOTIF_HEARTBEAT, a longer interval than 10000
677
confd_lib_events
milliseconds is recommended, but in particular the application must be prepared for the actual interval
to be significantly longer than the requested one in high load situations. Values less than 1000 are
changed to 1000.
CONFD_NOTIF_REOPEN_LOGS
This event indicates that ConfD will close and reopen its log files, i.e. that confd --reload or
maapi_reopen_logs() (e.g. via confd_cmd -c reopen_logs) has been used.
NCS_NOTIF_PACKAGE_RELOAD
This event is generated whenever NCS has completed a package reload.
NCS_NOTIF_CQ_PROGRESS
This event is generated to report the progress of commit queue entries.
The application receives a struct ncs_cq_progress_notification where the enum
ncs_cq_progress_notif_type type gives the specific event that occurred, see confd_events.h.
This can be one of NCS_CQ_ITEM_WAITING - (waiting on another executing entry),
NCS_CQ_ITEM_EXECUTING, NCS_CQ_ITEM_LOCKED (stalled by parent queue in cluster),
NCS_CQ_ITEM_COMPLETED, NCS_CQ_ITEM_FAILED or NCS_CQ_ITEM_DELETED.
Note
This event may allocate memory dynamically inside the struct confd_notification, thus we
must always call confd_free_notification() after receiving and processing this
event.
CONFD_NOTIF_STREAM_EVENT
This event is generated for a notification stream, i.e. event notifications sent by an
application as described in the NOTIFICATION STREAMS section of confd_lib_dp(3). The
application receives a struct confd_stream_notification where the enum confd_stream_notif_type
type gives the specific event that occurred, see confd_events.h. This can be
either an actual event notification (CONFD_STREAM_NOTIFICATION_EVENT), one of
CONFD_STREAM_NOTIFICATION_COMPLETE or CONFD_STREAM_REPLAY_COMPLETE,
which indicates that a requested replay has completed, or CONFD_STREAM_REPLAY_FAILED,
which indicates that a requested replay could not be carried out. In all cases except
CONFD_STREAM_NOTIFICATION_EVENT, no further CONFD_NOTIF_STREAM_EVENT events
will be delivered on the socket.
This event also needs to be requested through a call to confd_notifications_connect2(),
where the required stream_name must be provided via the struct
confd_notifications_data parameter. The additional elements in the struct can be used as
follows:
The start_time element can be given to request a replay, in which case stop_time can also
be given to specify the end of the replay (or "live feed"). The start_time and stop_time
must be set to the type C_NOEXISTS to indicate that no value is given, otherwise values of type
C_DATETIME must be given.
The xpath_filter element may be used to specify an XPath filter to be applied to the
notification stream. If no filtering is wanted, xpath_filter must be set to NULL.
The usid element may be used to specify the id of an existing user session for filtering based
on AAA rules. Only notifications that are allowed by the access rights of that user session will be
received. If no AAA restrictions are wanted, usid must be set to 0.
678
confd_lib_events
Note
This event may allocate memory dynamically inside the struct confd_notification, thus we
must always call confd_free_notification() after receiving and processing this
event.
Several of the above notification messages contain a lognumber which identifies the event. All log
numbers are listed in the file confd_logsyms.h. Furthermore the array confd_log_symbols[]
can be indexed with the lognumber and it contains the symbolic name of each error. The array
confd_log_descriptions[] can also be indexed with the lognumber and it contains a textual
description of the logged event.
FUNCTIONS
The API to receive events from ConfD is:
int confd_notifications_connect(int sock, const struct sockaddr* srv,
int srv_sz, int mask);
int confd_notifications_connect2(int sock, const struct sockaddr* srv,
int srv_sz, int mask, struct confd_notifications_data *data);
These functions create a notification socket. The mask is a bitmask of one or several enum
confd_notification_type values:
enum confd_notification_type {
CONFD_NOTIF_AUDIT = (1 << 0),
CONFD_NOTIF_DAEMON = (1 << 1),
CONFD_NOTIF_TAKEOVER_SYSLOG = (1 << 2),
CONFD_NOTIF_COMMIT_SIMPLE = (1 << 3),
CONFD_NOTIF_COMMIT_DIFF = (1 << 4),
CONFD_NOTIF_USER_SESSION = (1 << 5),
CONFD_NOTIF_HA_INFO = (1 << 6),
CONFD_NOTIF_SUBAGENT_INFO = (1 << 7),
CONFD_NOTIF_COMMIT_FAILED = (1 << 8),
CONFD_NOTIF_SNMPA = (1 << 9),
CONFD_NOTIF_FORWARD_INFO = (1 << 10),
CONFD_NOTIF_NETCONF = (1 << 11),
CONFD_NOTIF_DEVEL = (1 << 12),
CONFD_NOTIF_HEARTBEAT = (1 << 13),
CONFD_NOTIF_CONFIRMED_COMMIT = (1 << 14),
CONFD_NOTIF_UPGRADE_EVENT = (1 << 15),
CONFD_NOTIF_COMMIT_PROGRESS = (1 << 16),
CONFD_NOTIF_AUDIT_SYNC = (1 << 17),
CONFD_NOTIF_HEALTH_CHECK = (1 << 18),
CONFD_NOTIF_STREAM_EVENT = (1 << 19),
CONFD_NOTIF_HA_INFO_SYNC = (1 << 20),
NCS_NOTIF_PACKAGE_RELOAD = (1 << 21),
NCS_NOTIF_CQ_PROGRESS = (1 << 22),
CONFD_NOTIF_REOPEN_LOGS = (1 << 23)
};
The confd_notifications_connect2() variant is required if we wish
to subscribe to CONFD_NOTIF_HEARTBEAT, CONFD_NOTIF_HEALTH_CHECK, or
CONFD_NOTIF_STREAM_EVENT events. The struct confd_notifications_data is defined as:
struct confd_notifications_data {
int heartbeat_interval; /* required if we wish to generate */
679
confd_lib_events
/* CONFD_NOTIF_HEARTBEAT events */
/* the time is milli seconds */
int health_check_interval; /* required if we wish to generate */
/* CONFD_NOTIF_HEALTH_CHECK events */
/* the time is milli seconds */
/* The following five are used for CONFD_NOTIF_STREAM_EVENT */
char *stream_name; /* stream name (required) */
confd_value_t start_time; /* type = C_NOEXISTS or C_DATETIME */
confd_value_t stop_time; /* type = C_NOEXISTS or C_DATETIME */
/* when start_time is C_DATETIME */
char *xpath_filter; /* optional XPath filter for the */
/* stream - NULL for no filter */
int usid; /* optional user session id for */
/* AAA restriction - 0 for no AAA */
};
When requesting the CONFD_NOTIF_STREAM_EVENT event,
confd_notifications_connect2() may fail and return CONFD_ERR, with some specific
confd_errno values:
CONFD_ERR_NOEXISTS The stream name given by stream_name does not exist.
CONFD_ERR_XPATH The XPath filter provided via xpath_filter failed to compile.
CONFD_ERR_NOSESSION The user session id given by usid does not identify an existing user
session.
Note
If these calls fail (i.e. do not return CONFD_OK), the socket descriptor must be closed and a new
socket created before the call is re-attempted.
int confd_read_notification(int sock, struct confd_notification *n);
The application is responsible for polling the notification socket. Once data is available to be read on the
socket the application must call confd_read_notification() to read the data from the socket.
On success the function returns CONFD_OK and populates the struct confd_notification* pointer. See
confd_events.h for the definition of the struct confd_notification structure.
If the application is not reading from the socket and a write() from ConfD hangs for more than 15 seconds,
ConfD will close the socket and log the event to the confdLog
void confd_free_notification(struct confd_notification *n);
The struct confd_notification can sometimes have memory dynamically allocated inside it. Currently the
notification types that render structures with allocated memory inside them are CONFD_NOTIF_SNMPA,
CONFD_NOTIF_STREAM_EVENT and also NCS_NOTIF_CQ_PROGRESS. If such an event is received,
this function must be called to free any memory allocated inside the received notification structure.
For those notification structures that do not have any memory allocated, this function is a no-op, thus it is
always safe to call this function after a notification structure has been processed.
int confd_diff_notification_done(int sock, struct confd_trans_ctx
*tctx);
If the received event was CONFD_NOTIF_COMMIT_DIFF it is important that we call this function when
we are done reading the transaction diffs over MAAPI. The transaction is hanging until this function gets
called. This function also releases memory associated to the transaction in the library.
680
confd_lib_events
int confd_sync_audit_notification(int sock, int usid);
If the received event was CONFD_NOTIF_AUDIT, and we are subscribing to notifications with the
flag CONFD_NOTIF_AUDIT_SYNC, this function must be called when we are done processing the
notification. The user session is hanging until this function gets called.
int confd_sync_ha_notification(int sock);
If the received event was CONFD_NOTIF_HA_INFO, and we are subscribing to notifications with the
flag CONFD_NOTIF_HA_INFO_SYNC, this function must be called when we are done processing the
notification. All HA processing is blocked until this function gets called.
SEE ALSO
The ConfD User Guide
681
Nameconfd_lib_ha — library for connecting to ConfD HA subsystem
Synopsis
#include <confd_lib.h> #include <confd_ha.h>
int confd_ha_connect(int sock, const struct sockaddr* srv, int srv_sz,
const char *token);
int confd_ha_bemaster(int sock, confd_value_t *mynodeid);
int confd_ha_beslave(int sock, confd_value_t *mynodeid, struct
confd_ha_node *master, int waitreply);
int confd_ha_berelay(int sock);
int confd_ha_benone(int sock);
int confd_ha_get_status(int sock, struct confd_ha_status *stat);
int confd_ha_slave_dead(int sock, confd_value_t *nodeid);
LIBRARY
ConfD Library, (libconfd, -lconfd)
DESCRIPTION
The libconfd shared library is used to connect to the ConfD High Availability (HA) subsystem. ConfD
can replicate the configuration data on several nodes in a cluster. The purpose of this API is to manage
the HA functionality. The details on usage of the HA API are described in the chapter High availability
in the User Guide.
FUNCTIONS
int confd_ha_connect(int sock, const struct sockaddr* srv, int srv_sz,
const char *token);
Connect a HA socket which can be used to control a ConfD HA node. The token is a secret string that
must be shared by all participants in the cluster. There can only be one HA socket towards ConfD, a new
call to confd_ha_connect() makes ConfD close the previous connection and reset the token to the
new value. Returns CONFD_OK or CONFD_ERR.
Note
If this call fails (i.e. does not return CONFD_OK), the socket descriptor must be closed and a
new socket created before the call is re-attempted.
int confd_ha_bemaster(int sock, confd_value_t *mynodeid);
Instruct a HA node to be master and also give the node a name. Returns CONFD_OK or CONFD_ERR.
682
confd_lib_ha
Errors: CONFD_ERR_HA_BIND if we cannot bind the TCP socket, CONFD_ERR_BADSTATE if
ConfD is still in start phase 0.
int confd_ha_beslave(int sock, confd_value_t *mynodeid, struct
confd_ha_node *master, int waitreply);
Instruct a ConfD HA node to be slave with a named master. The waitreply is a boolean int. If 1, the
function is synchronous and it will hang until the node has initialized its CDB database. This may mean that
the CDB database is copied in its entirety from the master. If 0, we do not wait for the reply, but it is possible
to use a notifications socket and get notified asynchronously via a HA_INFO_BESLAVE_RESULT
notification. In both cases, it is also possible to use a notifications socket and get notified asynchronously
when CDB at the slave is initialized.
If the call of this function fails with confd_errno CONFD_ERR_HA_CLOSED, it means that the
initial synchronization with the master failed, either due to the socket being closed or due to a timeout while
waiting for a response from the master. The function will fail with error CONFD_ERR_BADSTATE if
ConfD is still in start phase 0.
Errors: CONFD_ERR_HA_CONNECT, CONFD_ERR_HA_BADNAME,
CONFD_ERR_HA_BADTOKEN, CONFD_ERR_HA_BADFXS, CONFD_ERR_HA_BADVSN,
CONFD_ERR_HA_CLOSED, CONFD_ERR_BADSTATE
int confd_ha_berelay(int sock);
Instruct an established HA slave node to be a relay for other slaves. This can be useful in certain deployment
scenarios, but makes the management of the cluster more complex. Read more about this in the Relay
slaves section of the High availability chapter in the User Guide. Returns CONFD_OK or CONFD_ERR.
Errors: CONFD_ERR_HA_BIND if we cannot bind the TCP socket, CONFD_ERR_BADSTATE if the
node is not already a slave.
int confd_ha_benone(int sock);
Instruct a node to resume the initial state, i.e. neither master nor slave.
Errors: CONFD_ERR_BADSTATE if ConfD is still in start phase 0.
int confd_ha_get_status(int sock, struct confd_ha_status *stat);
Query a ConfD HA node for its status. If successful, the function populates the confd_ha_status structure.
This is the only HA related function which is possible to call while the ConfD daemon is still in start
phase 0.
int confd_ha_slave_dead(int sock, confd_value_t *nodeid);
This function must be used by the application to inform ConfD HA subsystem that another node which
is possibly connected to ConfD is dead.
Errors: CONFD_ERR_BADSTATE if ConfD is still in start phase 0.
SEE ALSO
confd.conf(5) - ConfD daemon configuration file format
The ConfD User Guide
683
Nameconfd_lib_lib — common library functions for applications connecting to ConfD
Synopsis
#include <confd_lib.h>
void confd_init(const char *name, FILE *estream, const enum
confd_debug_level debug);
int confd_set_debug(enum confd_debug_level debug, FILE *estream);
void confd_fatal(const char *fmt, ...);
int confd_load_schemas(const struct sockaddr* srv, int srv_sz);
int confd_load_schemas_list(const struct sockaddr* srv, int srv_sz, int
flags, const u_int32_t *nshash, const int *nsflags, int num_ns);
int confd_mmap_schemas_setup(void *addr, size_t size, const char
*filename, int flags);
int confd_mmap_schemas(const char *filename);
void confd_free_schemas(void);
int confd_svcmp(const char *s, const confd_value_t *v);
int confd_pp_value(char *buf, int bufsiz, const confd_value_t *v);
int confd_ns_pp_value(char *buf, int bufsiz, const confd_value_t *v,
int ns);
int confd_pp_kpath(char *buf, int bufsiz, const confd_hkeypath_t
*hkeypath);
int confd_pp_kpath_len(char *buf, int bufsiz, const confd_hkeypath_t
*hkeypath, int len);
char *confd_xmltag2str(u_int32_t ns, u_int32_t xmltag);
int confd_xpath_pp_kpath(char *buf, int bufsiz, u_int32_t ns, const
confd_hkeypath_t *hkeypath);
int confd_format_keypath(char *buf, int bufsiz, const char *fmt, ...);
int confd_vformat_keypath(char *buf, int bufsiz, const char *fmt,
va_list ap);
int confd_get_nslist(struct confd_nsinfo **listp);
char *confd_ns2prefix(u_int32_t ns);
char *confd_hash2str(u_int32_t hash);
u_int32_t confd_str2hash(const char *str);
684
confd_lib_lib
struct confd_cs_node *confd_find_cs_root(int ns);
struct confd_cs_node *confd_find_cs_node(const confd_hkeypath_t
*hkeypath, int len);
struct confd_cs_node *confd_find_cs_node_child(const struct
confd_cs_node *parent, struct xml_tag xmltag);
struct confd_cs_node *confd_cs_node_cd(const struct confd_cs_node
*start, const char *fmt, ...);
int confd_max_object_size(struct confd_cs_node *object);
struct confd_cs_node *confd_next_object_node(struct confd_cs_node
*object, struct confd_cs_node *cur, confd_value_t *value);
struct confd_type *confd_find_ns_type(u_int32_t nshash, const char
*name);
struct confd_type *confd_get_leaf_list_type(struct confd_cs_node
*node);
int confd_val2str(struct confd_type *type, const confd_value_t *val,
char *buf, int bufsiz);
int confd_str2val(struct confd_type *type, const char *str,
confd_value_t *val);
char *confd_val2str_ptr(struct confd_type *type, const confd_value_t
*val);
int confd_get_decimal64_fraction_digits(struct confd_type *type);
int confd_get_bitbig_size(struct confd_type *type);
int confd_hkp_tagmatch(struct xml_tag tags[], int tagslen,
confd_hkeypath_t *hkp);
int confd_hkp_prefix_tagmatch(struct xml_tag tags[], int tagslen,
confd_hkeypath_t *hkp);
int confd_val_eq(const confd_value_t *v1, const confd_value_t *v2);
void confd_free_value(confd_value_t *v);
confd_value_t *confd_value_dup_to(const confd_value_t *v, confd_value_t
*newv);
void confd_free_dup_to_value(confd_value_t *v);
confd_value_t *confd_value_dup(const confd_value_t *v);
void confd_free_dup_value(confd_value_t *v);
confd_hkeypath_t *confd_hkeypath_dup(const confd_hkeypath_t *src);
confd_hkeypath_t *confd_hkeypath_dup_len(const confd_hkeypath_t *src,
int len);
685
confd_lib_lib
void confd_free_hkeypath(confd_hkeypath_t *hkp);
void confd_free_authorization_info(struct confd_authorization_info
*ainfo);
char *confd_lasterr(void);
char *confd_strerror(int code);
struct xml_tag *confd_last_error_apptag(void);
int confd_register_ns_type(u_int32_t nshash, const char *name, struct
confd_type *type);
int confd_register_node_type(struct confd_cs_node *node, struct
confd_type *type);
int confd_type_cb_init(struct confd_type_cbs **cbs);
int confd_decrypt(const char *ciphertext, int len, char *output);
int confd_stream_connect(int sock, const struct sockaddr* srv, int
srv_sz, int id, int flags);
int confd_deserialize(struct confd_deserializable *s, unsigned char
*buf);
int confd_serialize(struct confd_serializable *s, unsigned char *buf,
int bufsz, int *bytes_written, unsigned char **allocated);
void confd_deserialized_free(struct confd_deserializable *s);
LIBRARY
ConfD Library, (libconfd, -lconfd)
DESCRIPTION
The libconfd shared library is used to connect to ConfD. This manual page describes functions and
data structures that are not specific to any one of the APIs that are described in the other confd_lib_xxx(3)
manual pages.
FUNCTIONS
void confd_init(const char *name, FILE *estream, const enum
confd_debug_level debug);
Initializes the ConfD library. Must be called before any other ConfD API functions are called.
The debug parameter is used to control the debug level. The following levels are available:
CONFD_SILENT No printouts whatsoever are produced by the library.
CONFD_DEBUG Various printouts will occur for various error conditions. This is a decent value
to have as default. If syslog is enabled for the library, these printouts will be
686
confd_lib_lib
logged at syslog level LOG_ERR, except for errors where confd_errno is
CONFD_ERR_INTERNAL, which are logged at syslog level LOG_CRIT.
CONFD_TRACE The execution of callback functions and CDB/MAAPI API calls will be
traced. This is very verbose and very useful during debugging. If syslog
is enabled for the library, these printouts will be logged at syslog level
LOG_DEBUG.
CONFD_PROTO_TRACE The low-level protocol exchange between the application and ConfD will be
traced. This is even more verbose than CONFD_TRACE, and normally only of
interest to Tail-f support. These printouts will not be logged via syslog, i.e. a
non-NULL value for the estream parameter must be provided.
The estream parameter is used by all printouts from the library. The name parameter is typically
included in most of the debug printouts. If the estream parameter is NULL, no printouts to a file will
occur. Independent of the estream parameter, syslog can be enabled for the library by setting the global
variable confd_lib_use_syslog to 1. See SYSLOG AND DEBUG in this man page.
int confd_set_debug(enum confd_debug_level debug, FILE *estream);
This function can be used to change the estream and debug parameters for the library.
int confd_load_schemas(const struct sockaddr* srv, int srv_sz);
Utility function that uses maapi_load_schemas() (see confd_lib_maapi(3)) to load schema
information from ConfD. This function connects to ConfD and loads all the schema information in
ConfD for all loaded "fxs" files into the library. This is necessary in order to get proper printouts of e.g.
confd_hkeypaths which otherwise just contains arrays of integers. This function should typically always
be called when we initialize the library. See confd_types(3).
int confd_load_schemas_list(const struct sockaddr* srv, int srv_sz, int
flags, const u_int32_t *nshash, const int *nsflags, int num_ns);
Utility function that uses maapi_load_schemas_list() to load a subset of the schema information
from ConfD. See the description of maapi_load_schemas_list() in confd_lib_maapi(3) for the
details of how to use the flags, nshash, nsflags, and num_ns parameters.
int confd_mmap_schemas_setup(void *addr, size_t size, const char
*filename, int flags);
This function sets up for a subsequent call of one of the schema-loading functions
(confd_load_schemas() etc) to load the schema information into a shared memory segment instead
of into the process' heap. See the section Using shared memory for schema information in the Advanced
Topics chapter in the User Guide for usage discussion. The addr and (potentially) size arguments are
passed to mmap(2), and filename specifies the pathname of a file to use as backing store. The flags
parameter can be given as CONFD_MMAP_SCHEMAS_KEEP_SIZE to request that the shared memory
segment should be exactly the size given by the (non-zero) size argument - if this size is insufficient to
hold the schema information, the schema-loading function will fail.
int confd_mmap_schemas(const char *filename);
Map a shared memory segment, previously created by confd_mmap_schemas_setup()
and subsequent schema loading, into the current process' address space, and make it ready
for use. The filename argument specifies the pathname of the file that is used as
backing store. See also /confdConfig/enableSharedMemorySchema in confd.conf(5) and
maapi_get_schema_file_path() in confd_lib_maapi(3).
687
confd_lib_lib
void confd_free_schemas(void);
Free or unmap the memory allocated or mapped by schema loading, undoing the result of loading - i.e.
schema information will no longer be available. There is normally no need to call this function, since
the memory will be automatically freed/unmapped if a new schema loading is done, or when the process
terminates, but it may be useful in some cases.
int confd_svcmp(const char *s, const confd_value_t *v);
Utility function with similar semantics to strcmp() which compares a confd_value_t to a char*.
int confd_pp_value(char *buf, int bufsiz, const confd_value_t *v);
Utility function which pretty prints up to bufsiz characters into buf, giving a string representation
of the value v. Since only the "primitive" type as defined by the enum confd_vtype is available,
confd_pp_value() can not produce a true string representation in all cases, see the list below. If this
is a problem, use confd_val2str() instead.
C_ENUM_VALUE The value is printed as "enum<N>", where N is the integer value.
C_BIT32 The value is printed as "bits<X>", where X is an unsigned integer in hexadecimal
format.
C_BIT64 The value is printed as "bits<X>", where X is an unsigned integer in hexadecimal
format.
C_BITBIG The value is printed as "bits<X>", where X is an unsigned integer (possibly very
large) in hexadecimal format.
C_BINARY The string representation for xs:hexBinary is used, i.e. a sequence of hexadecimal
characters.
C_DECIMAL64 If the value of the fraction_digits element is within the possible range (1..18),
it is assumed to be correct for the type and used for the string representation.
Otherwise the value is printed as "invalid64<N>", where N is the value of the value
element.
C_XMLTAG The string representation is printed if schema information has been loaded into the
library. Otherwise the value is printed as "tag<N>", where N is the integer value.
C_IDENTITYREF The string representation is printed if schema information has been loaded into the
library. Otherwise the value is printed as "idref<N>", where N is the integer value.
All the pp pretty print functions, i.e. confd_pp_value() confd_ns_pp_value(),
confd_pp_kpath() and confd_xpath_pp_kpath(), as well as the
confd_format_keypath() and confd_val2str() functions, return the number of characters
printed (not including the trailing NUL used to end output to strings) if there is enough space.
The formatting functions do not write more than bufsiz bytes (including the trailing NUL). If the output
was truncated due to this limit then the return value is the number of characters (not including the trailing
NUL) which would have been written to the final string if enough space had been available. Thus, a return
value of bufsiz or more means that the output was truncated.
Except for confd_val2str(), these functions will never return CONFD_ERR or any other negative
value.
int confd_ns_pp_value(char *buf, int bufsiz, const confd_value_t *v,
int ns);
688
confd_lib_lib
This function is deprecated, but will remain for backward compatibility. It just calls
confd_pp_value() - use confd_pp_value() directly, or confd_val2str() (see below),
instead.
int confd_pp_kpath(char *buf, int bufsiz, const confd_hkeypath_t
*hkeypath);
Utility function which pretty prints up to bufsiz characters into buf, giving a string representation of
the path hkeypath. This will use the ConfD curly brace notation, i.e. "/servers/server{www}/
ip". Requires that schema information is available to the library, see confd_types(3). Same return value
as confd_pp_value().
int confd_pp_kpath_len(char *buf, int bufsiz, const confd_hkeypath_t
*hkeypath, int len);
A variant of confd_pp_kpath() that prints only the first len elements of hkeypath.
int confd_format_keypath(char *buf, int bufsiz, const char *fmt, ...);
Several of the functions in confd_lib_maapi(3) and confd_lib_cdb(3) take a variable number of arguments
which are then, similar to printf, used to generate the path passed to ConfD - see the PATHS section of
confd_lib_cdb(3). This function takes the same arguments, but only formats the path as a string, writing
at most bufsiz characters into buf. If the path is absolute and schema information is available to the
library, key values referenced by a "%x" modifier will be printed according to their specific type, i.e.
effectively using confd_val2str(), otherwise confd_pp_value() is used. Same return value as
confd_pp_value().
int confd_vformat_keypath(char *buf, int bufsiz, const char *fmt,
va_list ap);
Does the same as confd_format_keypath(), but takes a single va_list argument instead of a variable
number of arguments - i.e. similar to vprintf. Same return value as confd_pp_value().
char *confd_xmltag2str(u_int32_t ns, u_int32_t xmltag);
This function is deprecated, but will remain for backward compatibility. It just calls
confd_hash2str() - use confd_hash2str() directly instead, see below.
int confd_xpath_pp_kpath(char *buf, int bufsiz, u_int32_t ns, const
confd_hkeypath_t *hkeypath);
Similar to confd_pp_kpath() except that the path is formatted as an XPath path, i.e. "/
servers:servers/server[name="www"]/ip". This function can also take the namespace
integer as an argument. If 0 is passed as ns, the namespace is derived from the hkeypath.
Requires that schema information is available to the library, see confd_types(3). Same return value as
confd_pp_value().
int confd_get_nslist(struct confd_nsinfo **listp);
Provides a list of the namespaces known to the library as an array of struct confd_nsinfo structures:
struct confd_nsinfo {
const char *uri;
const char *prefix;
u_int32_t hash;
const char *revision;
const char *module;
689
confd_lib_lib
};
A pointer to the array is stored in *listp, and the function returns the number of elements in the array.
The module element in struct confd_nsinfo will give the module name for namespaces defined by YANG
modules, otherwise it is NULL. The revision element will give the revision for YANG modules that
have a revision statement, otherwise it is NULL.
char *confd_ns2prefix(u_int32_t ns);
Returns a NUL-terminated string giving the namespace prefix for the namespace ns, if the namespace is
known to the library - otherwise it returns NULL.
char *confd_hash2str(u_int32_t hash);
Returns a NUL-terminated string representing the node name given by hash, or NULL if the hash value
is not found. Requires that schema information has been loaded from the ConfD daemon into the library,
see confd_types(3) - otherwise it always returns NULL.
u_int32_t confd_str2hash(const char *str);
Returns the hash value representing the node name given by str, or 0 if the string is not found. Requires
that schema information has been loaded from the ConfD daemon into the library, see confd_types(3) -
otherwise it always returns 0.
struct confd_cs_node *confd_find_cs_root(int ns);
When schema information is available to the library, this function returns the root of the tree representaton
of the namespace given by ns, i.e. a pointer to the struct confd_cs_node for the (first) toplevel node. For
namespaces that are augmented into other namespaces such that they do not have a toplevel node, this
function returns NULL - the nodes of such a namespace are found below the augment target node(s) in
other tree(s). See confd_types(3).
struct confd_cs_node *confd_find_cs_node(const confd_hkeypath_t
*hkeypath, int len);
Utility function which finds the struct confd_cs_node corresponding to the len first elements of the hashed
keypath. To make the search consider the full keypath, pass the len element from the confd_hkeypath_t
structure (i.e. mykeypath->len). See confd_types(3).
struct confd_cs_node *confd_find_cs_node_child(const struct
confd_cs_node *parent, struct xml_tag xmltag);
Utility function which finds the struct confd_cs_node corresponding to the child node given as xmltag.
See confd_types(3).
struct confd_cs_node *confd_cs_node_cd(const struct confd_cs_node
*start, const char *fmt, ...);
Utility function which finds the resulting struct confd_cs_node given an (optional) starting node and
a (relative or absolute) string keypath. I.e. this function navigates the tree in a manner corresponding
to cdb_cd()/maapi_cd(). Note however that the confd_cs_node tree does not have a node
corresponding to "/". It is possible to pass start as NULL, in which case the path must be absolute (i.e.
start with a "/").
Since the key values are not relevant for the tree navigation, the key elements can be omitted, i.e. a "tagpath"
can be used - if present, key elements are ignored, whether given in the {...} form or the CDB-only [N]
form. See confd_types(3).
690
confd_lib_lib
If the path can not be found, NULL is returned, confd_errno is set to CONFD_ERR_BADPATH, and
confd_lasterr() can be used to retrieve a string that describes the reason for the failure.
int confd_max_object_size(struct confd_cs_node *object);
Utility function which returns the maximum size (i.e. the needed length of the confd_value_t array) for
an "object" retrieved by cdb_get_object(), maapi_get_object(), and corresponding multi-
object functions. The object parameter is a pointer to the list or container confd_cs_node node for which
we want to find the maximum size. See the description of cdb_get_object() in confd_lib_cdb(3)
for usage examples.
struct confd_cs_node *confd_next_object_node(struct confd_cs_node
*object, struct confd_cs_node *cur, confd_value_t *value);
Utility function to allow navigation of the confd_cs_node schema tree in parallel with the
confd_value_t array populated by cdb_get_object(), maapi_get_object(), and corresponding
multi-object functions. The object parameter is a pointer to the list or container node as for
confd_max_object_size(), the cur parameter is a pointer to the confd_cs_node node for the
current value, and the value parameter is a pointer to the current value in the array. The function returns
a pointer to the confd_cs_node node for the next value in the array, or NULL when the complete object
has been traversed. In the initial call for a given traversal, we must pass object->children for the
cur parameter - this always points to the confd_cs_node node for the first value in the array. See the
description of cdb_get_object() in confd_lib_cdb(3) for usage examples.
struct confd_type *confd_find_ns_type(u_int32_t nshash, const char
*name);
Returns a pointer to a type definition for the type named name, which is defined in the namespace identified
by nshash, or NULL if the type could not be found. If nshash is 0, the type name will be looked
up among the ConfD built-in types (i.e. the YANG built-in types, the types defined in the YANG "tailf-
common" module, and the types defined in the "confd" and "xs" namespaces). The type definition pointer
can be used with the confd_val2str() and confd_str2val() functions, see below. If nshash
is not 0, the function requires that schema information has been loaded from the ConfD daemon into the
library, see confd_types(3) - otherwise it returns NULL.
struct confd_type *confd_get_leaf_list_type(struct confd_cs_node
*node);
For a leaf-list node, the type field in the struct confd_cs_node_info (see confd_types(3)) identifies a
"list type" for the leaf-list "itself". This function takes a pointer to the struct confd_cs_node for a leaf-
list node as argument, and returns the type of the elements in the leaf-list, i.e. corresponding to the type
substatement for the leaf-list in the YANG module. If called for a node that is not a leaf-list, it returns
NULL and sets confd_errno to CONFD_ERR_PROTOUSAGE. Requires that schema information has
been loaded from the ConfD daemon into the library, see confd_types(3) - otherwise it returns NULL and
sets confd_errno to CONFD_ERR_UNAVAILABLE.
int confd_val2str(struct confd_type *type, const confd_value_t *val,
char *buf, int bufsiz);
Prints the string representation of val into buf, which has the length bufsiz, using type information
from the data model. Returns the length of the string as described for confd_pp_value(), or
CONFD_ERR if the value could not be converted (e.g. wrong type). The type pointer can be
obtained either from the struct confd_cs_node corresponding to the leaf that val pertains to, or via the
confd_find_ns_type() function above. The struct confd_cs_node can in turn be obtained by various
combinations of the functions that operate on the confd_cs_node trees (see above), or by user-defined
691
confd_lib_lib
functions for navigating those trees. Requires that schema information has been loaded from the ConfD
daemon into the library, see confd_types(3).
int confd_str2val(struct confd_type *type, const char *str,
confd_value_t *val);
Stores the value corresponding to the NUL-terminated string str in val, using type information
from the data model. Returns CONFD_OK, or CONFD_ERR if the string could not be converted. See
confd_val2str() for a description of the type argument. Requires that schema information has been
loaded from the ConfD daemon into the library, see confd_types(3).
Note
When the resulting value is of one of the C_BUF, C_BINARY, C_LIST, C_OBJECTREF,
C_OID, C_QNAME, C_HEXSTR, or C_BITBIG confd_value_t types, the library has allocated
memory to hold the value. It is up to the user of this function to free the memory using
confd_free_value().
char *confd_val2str_ptr(struct confd_type *type, const confd_value_t
*val);
A variant of confd_val2str() that can be used only when the string representation is a constant,
i.e. C_ENUM_VALUE values. In this case it returns a pointer to the string, otherwise NULL. See
confd_val2str() for a description of the type argument. Requires that schema information has been
loaded from the ConfD daemon into the library, see confd_types(3).
int confd_get_decimal64_fraction_digits(struct confd_type *type);
Utility function to obtain the value of the argument to the fraction-digits statement for a YANG
decimal64 type. This is useful when we want to create a confd_value_t for such a type, since the value
element must be scaled according to the fraction-digits value. The function returns the fraction-digits value,
or 0 if the type argument does not refer to a decimal64 type. Requires that schema information has been
loaded from the ConfD daemon into the library, see confd_types(3).
int confd_get_bitbig_size(struct confd_type *type);
Utility function to obtain the maximum size needed for the byte array for the C_BITBIG confd_value_t
representation used when a YANG bits type has a highest bit position above 63. This is useful when
we want to create a confd_value_t for such a type, since an array of this size can hold the values for all
the bits defined for the type. Applications may however provide a confd_value_t with a shorter (but not
longer) array to ConfD. The file generated by confdc --emit-h also includes a #define symbol for this
size. The function returns 0 if the type argument does not refer to a bits type with a highest bit position
above 63. Requires that schema information has been loaded from the ConfD daemon into the library,
see confd_types(3).
int confd_hkp_tagmatch(struct xml_tag tags[], int tagslen,
confd_hkeypath_t *hkp);
When checking the hkeypaths that get passed into each iteration in e.g. cdb_diff_iterate() we can
either explicitly check the paths, or use this function to do the job. The tags array (typically statically
initialized) specifies a tagpath to match against the hkeypath. See cdb_diff_match(). The function
returns one of these values:
#define CONFD_HKP_MATCH_NONE 0
#define CONFD_HKP_MATCH_TAGS (1 << 0)
#define CONFD_HKP_MATCH_HKP (1 << 1)
#define CONFD_HKP_MATCH_FULL (CONFD_HKP_MATCH_TAGS|CONFD_HKP_MATCH_HKP)
692
confd_lib_lib
CONFD_HKP_MATCH_TAGS means that the whole tagpath was matched by the hkeypath, and
CONFD_HKP_MATCH_HKP means that the whole hkeypath was matched by the tagpath.
int confd_hkp_prefix_tagmatch(struct xml_tag tags[], int tagslen,
confd_hkeypath_t *hkp);
A simplified version of confd_hkp_tagmatch() - it returns 1 if the tagpath matches a prefix of the
hkeypath, i.e. it is equivalent to calling confd_hkp_tagmatch() and checking if the return value
includes CONFD_HKP_MATCH_TAGS.
int confd_val_eq(const confd_value_t *v1, const confd_value_t *v2);
Utility function which compares two values. Returns positive value if equal, 0 otherwise.
void confd_fatal(const char *fmt, ...);
Utility function which formats a string, prints it to stderr and exits with exit code 1.
void confd_free_value(confd_value_t *v);
When we retrieve values via the CDB or MAAPI interfaces, or convert strings to values via
confd_str2val(), and these values are of either of the types C_BUF, C_BINARY, C_QNAME,
C_OBJECTREF, C_OID, C_LIST, C_HEXSTR, or C_BITBIG, the library has allocated memory to
hold the values. This memory must be freed by the application when it is done with the value. This
function frees memory for all confd_value_t types. Note that this function does not free the structure
itself, only possible internal pointers inside the struct. Typically we use confd_value_t variables as
automatic variables allocated on the stack. If the held value is of fixed size, e.g. integers, xmltags etc, the
confd_free_value() function does nothing.
Note
Memory for values received as parameters to callback functions is always managed by the library
- the application must not call confd_free_value() for those (on the other hand values of
the types listed above that are received as parameters to a callback function must be copied if
they are to persist beyond the callback invocation).
confd_value_t *confd_value_dup_to(const confd_value_t *v, confd_value_t
*newv);
This function copies the contents of *v to *newv, allocating memory for the actual value for the types
that need it. It returns newv, or NULL if allocation failed. The allocated memory (if any) can be freed
with confd_free_dup_to_value().
void confd_free_dup_to_value(confd_value_t *v);
Frees memory allocated by confd_value_dup_to(). Note this is not the same as
confd_free_value(), since confd_value_dup_to() also allocates memory for values of type
C_STR - such values are not freed by confd_free_value().
confd_value_t *confd_value_dup(const confd_value_t *v);
This function allocates memory and duplicates *v, i.e. a confd_value_t struct is always allocated, memory
for the actual value is also allocated for the types that need it. Returns a pointer to the new confd_value_t,
or NULL if allocation failed. The allocated memory can be freed with confd_free_dup_value().
693
confd_lib_lib
void confd_free_dup_value(confd_value_t *v);
Frees memory allocated by confd_value_dup(). Note this is not the same as
confd_free_value(), since confd_value_dup() also allocates the actual confd_value_t struct,
and allocates memory for values of type C_STR - such values are not freed by confd_free_value().
confd_hkeypath_t *confd_hkeypath_dup(const confd_hkeypath_t *src);
This function allocates memory and duplicates a confd_hkeypath_t.
confd_hkeypath_t *confd_hkeypath_dup_len(const confd_hkeypath_t *src,
int len);
Like confd_hkeypath_dup(), but duplicates only the first len elements of the confd_hkeypath_t.
I.e. the elements are shifted such that v[0][0] still refers to the last element.
void confd_free_hkeypath(confd_hkeypath_t *hkp);
This function will free memory allocated by e.g. confd_hkeypath_dup().
void confd_free_authorization_info(struct confd_authorization_info
*ainfo);
This function will free memory allocated by maapi_get_authorization_info().
int confd_decrypt(const char *ciphertext, int len, char *output);
When data is read over the CDB interface, the MAAPI interface or received in event notifications, the data
for the two builtin types tailf:des3-cbc-encrypted-string or tailf:aes-cfb-128-encrypted-string is encrypted.
This function decrypts len bytes of data from ciphertext and writes the clear text to the output
pointer. The output pointer must point to an area that is at least len bytes long.
Note
One of the functions confd_install_crypto_keys() and
maapi_install_crypto_keys() must have been called before confd_decrypt()
can be used.
USER-DEFINED TYPES
It is possible to define new types, i.e. mappings between a textual representation and a confd_value_t
representation that are not pre-defined in the ConfD daemon. Read more about this in the confd_types(3)
manual page.
int confd_type_cb_init(struct confd_type_cbs **cbs);
This is the prototype for the function that a shared object implementing one or more user-defined types
must provide. See confd_types(3).
int confd_register_ns_type(u_int32_t nshash, const char *name, struct
confd_type *type);
This function can be used to register a user-defined type with the libconfd library, to make it possible
for confd_str2val() and confd_val2str() to provide local string<->value translation in the
application. See confd_types(3).
694
confd_lib_lib
int confd_register_node_type(struct confd_cs_node *node, struct
confd_type *type);
This function provides an alternate way to register a user-defined type with the libconfd library, in
particular when the user-defined type is specified "inline" in a leaf or leaf-list statement. See
confd_types(3).
CONFD STREAMS
Some functions in the ConfD lib stream data. Either from ConfD to the application of from the application
to ConfD. The individual functions that use this feature will explicitly indicate that the data is passed over
a stream socket.
int confd_stream_connect(int sock, const struct sockaddr* srv, int
srv_sz, int id, int flags);
Connects a stream socket to ConfD. The id and the flags take different values depending on the usage
scenario. This is indicated for each individual function that makes use of a stream socket.
Note
If this call fails (i.e. does not return CONFD_OK), the socket descriptor must be closed and a
new socket created before the call is re-attempted.
MARSHALLING
In various distributed scenarios we may want to send confd_lib datatypes over the network. We have
support to marshall and unmarshall some key datatypes.
int confd_serialize(struct confd_serializable *s, unsigned char *buf,
int bufsz, int *bytes_written, unsigned char **allocated);
This function takes a confd_serializable struct as parameter. We have:
enum confd_serializable_type {
CONFD_SERIAL_NONE = 0,
CONFD_SERIAL_VALUE_T = 1,
CONFD_SERIAL_HKEYPATH = 2,
CONFD_SERIAL_TAG_VALUE = 3
};
struct confd_serializable {
enum confd_serializable_type type;
union {
confd_value_t *value;
confd_hkeypath_t *hkp;
confd_tag_value_t *tval;
} u;
};
The structure must be populated with a valid type and also a value to be serialized. The serialized data will
be written into the provided buffer. If the size of the buffer is insufficient, the function returns the required
size as a positive integer. If the provided buffer is NULL, the function will allocate a buffer and it is the
responsibility of the caller to free the buffer. The optionally allocated buffer is then returned in the output
char ** parameter allocated. The function returns 0 on success and -1 on failures.
695
confd_lib_lib
int confd_deserialize(struct confd_deserializable *s, unsigned char
*buf);
This function takes a confd_deserializable struct as parameter. We have:
struct confd_deserializable {
enum confd_serializable_type type;
union {
confd_value_t value;
confd_hkeypath_t hkp;
confd_tag_value_t tval;
} u;
void *internal; // internal structure containing memory
// for the above datatypes to point _into_
// freed by a call to confd_deserialize_free()
};
This function is the reverse of confd_serialize(). It populates the provided confd_deserializable
structure with a type indicator and a reproduced value of the correct type. The structure contains allocated
memory that must subsequently be freed with confd_deserialiaze().
void confd_deserialized_free(struct confd_deserializable *s);
A populated confd_deserializable struct contains allocated memory that must be freed. This function
traverses a confd_deserializable struct as populated by the confd_deserialize() function and frees
all allocated memory.
EXTENDED ERROR REPORTING
The data provider callback functions described in confd_lib_dp(3) can pass error information back
to ConfD either as a simple string using confd_xxx_seterr(), or in a more structured/detailed
form using the corresponding confd_xxx_seterr_extended() function. This form is also used
when a CDB subscriber wishes to abort the current transaction with cdb_sub_abort_trans(), see
confd_lib_cdb(3). There is also a set of confd_xxx_seterr_extended_info() functions and
a cdb_sub_abort_trans_info() function, that can alternatively be used if we want to provide
contents for the NETCONF <error-info> element. The description below uses the functions for transaction
callbacks as an example, but the other functions follow the same pattern:
void confd_trans_seterr_extended(struct confd_trans_ctx *tctx, enum
confd_errcode code, u_int32_t apptag_ns, u_int32_t apptag_tag, const
char *fmt, ...);
The function can be used also after a data provider callback has returned
CONFD_DELAYED_RESPONSE, but in that case it must be followed by a call of
confd_delayed_reply_error() (see confd_lib_dp(3)) with NULL for the errstr pointer.
One of the following values can be given for the code argument:
CONFD_ERRCODE_IN_USE
Locking a data store was not possible because it was already locked.
CONFD_ERRCODE_RESOURCE_DENIED
General resource unavailability, e.g. insufficient memory to carry out an operation.
CONFD_ERRCODE_INCONSISTENT_VALUE
A request parameter had an unacceptable/invalid value
696
confd_lib_lib
CONFD_ERRCODE_ACCESS_DENIED
The request could not be fulfilled because authorization did not allow it. (No additional error
information will be reported by the northbound agent, to avoid any security breach.)
CONFD_ERRCODE_APPLICATION
Unspecified error.
CONFD_ERRCODE_APPLICATION_INTERNAL
As CONFD_ERRCODE_APPLICATION, but the additional error information is only for logging/
debugging, and should not be reported by northbound agents.
CONFD_ERRCODE_DATA_MISSING
A request could not be completed because the relevant data model content does not exist.
CONFD_ERRCODE_INTERRUPT
Processing of a request was terminated due to user interrupt - see the description of the
interrupt() transaction callback in confd_lib_dp(3).
There is currently limited support for specifying one of a set of fixed error tags via apptag_ns and
apptag_tag: apptag_ns should be 0, and apptag_tag can be either 0 or the hash value for a data
model node.
The fmt and remaining arguments can specify an arbitrary string as for confd_trans_seterr(),
but when used with one of the code values that has a specific meaning, it should only be given if it has
some additional information - e.g. passing "In use" with CONFD_ERRCODE_IN_USE is not meaningful,
and will typically result in duplicated information being reported by the northbound agent. If there is no
additional information, just pass an empty string ("") for fmt.
A call of confd_trans_seterr(tctx, "string") is equivalent to confd_trans_seterr_extended(tctx,
CONFD_ERRCODE_APPLICATION, 0, 0, "string").
When the extended error reporting is used, the northbound agents will, where possible, use the extended
error information to give protocol-specific error reports to the managers, as described in the following
tables. (The CONFD_ERRCODE_INTERRUPT code does not have a mapping here, since these interfaces
do not provide the possibility to interrupt a transaction.)
For SNMP, the code argument is mapped to SNMP ErrorStatus
code SNMP ErrorStatus
CONFD_ERRCODE_IN_USE resourceUnavailable
CONFD_ERRCODE_RESOURCE_DENIED resourceUnavailable
CONFD_ERRCODE_INCONSISTENT_VALUE inconsistentValue
CONFD_ERRCODE_ACCESS_DENIED noAccess
CONFD_ERRCODE_APPLICATION genErr
CONFD_ERRCODE_APPLICATION_INTERNAL genErr
CONFD_ERRCODE_DATA_MISSING inconsistentValue
For NETCONF the code argument is mapped to <error-tag>:
code NETCONF error-tag
CONFD_ERRCODE_IN_USE in-use
CONFD_ERRCODE_RESOURCE_DENIED resource-denied
CONFD_ERRCODE_INCONSISTENT_VALUE invalid-value
697
confd_lib_lib
code NETCONF error-tag
CONFD_ERRCODE_ACCESS_DENIED access-denied
CONFD_ERRCODE_APPLICATION_ operation-failed
CONFD_ERRCODE_APPLICATION_INTERNAL operation-failed
CONFD_ERRCODE_DATA_MISSING data-missing
The tag specified by apptag_ns/apptag_tag will be reported as <error-app-tag>.
For MAAPI the code argument is mapped to confd_errno:
code confd_errno
CONFD_ERRCODE_IN_USE CONFD_ERR_INUSE
CONFD_ERRCODE_RESOURCE_DENIED CONFD_ERR_RESOURCE_DENIED
CONFD_ERRCODE_INCONSISTENT_VALUE CONFD_ERR_INCONSISTENT_VALUE
CONFD_ERRCODE_ACCESS_DENIED CONFD_ERR_ACCESS_DENIED
CONFD_ERRCODE_APPLICATION CONFD_ERR_EXTERNAL
CONFD_ERRCODE_APPLICATION_INTERNAL CONFD_ERR_APPLICATION_INTERNAL
CONFD_ERRCODE_DATA_MISSING CONFD_ERR_DATA_MISSING
The tag (if any) can be retrieved by calling
struct xml_tag *confd_last_error_apptag(void);
If no tag was provided by the callback (e.g. plain confd_trans_seterr() was used, or the error did
not originate from a data provider callback at all), this function returns a pointer to a struct xml_tag with
both the ns and the tag element set to 0.
In the CLI and Web UI a text string is produced through some combination of the code and the string
given by fmt, ....
int confd_trans_seterr_extended_info(struct confd_trans_ctx *tctx,
enum confd_errcode code, u_int32_t apptag_ns, u_int32_t apptag_tag,
confd_tag_value_t *error_info, int n, const char *fmt, ...);
This function can be used to provide structured error information in the same way as
confd_trans_seterr_extended(), and additionally provide contents for the NETCONF <error-
info> element. The error_info argument is an array of length n, populated as described for the
Tagged Value Array format in the XML STRUCTURES section of the confd_types(3) manual page. The
error_info information is discarded for other northbound agents than NETCONF.
The tailf:error-info statement (see tailf_yang_extensions(5)) must have been used in one or more
YANG modules to declare the data nodes for <error-info>. As an example, we could have this error-
info declaration:
module mod {
namespace "http://tail-f.com/test/mod";
prefix mod;
import tailf-common {
prefix tailf;
}
698
confd_lib_lib
...
tailf:error-info {
leaf severity {
type enumeration {
enum info;
enum error;
enum critical;
}
}
container detail {
leaf class {
type uint8;
}
leaf code {
type uint8;
}
}
}
...
}
A call of confd_trans_seterr_extended_info() to populate the <error-info> could then look
like this:
confd_tag_value_t error_info[10];
int i = 0;
CONFD_SET_TAG_ENUM_VALUE(&error_info[i],
mod_severity, mod_error);
CONFD_SET_TAG_NS(&error_info[i], mod__ns); i++;
CONFD_SET_TAG_XMLBEGIN(&error_info[i],
mod_detail, mod__ns); i++;
CONFD_SET_TAG_UINT8(&error_info[i], mod_class, 42); i++;
CONFD_SET_TAG_UINT8(&error_info[i], mod_code, 17); i++;
CONFD_SET_TAG_XMLEND(&error_info[i],
mod_detail, mod__ns); i++;
OK(confd_trans_seterr_extended_info(tctx, CONFD_ERRCODE_APPLICATION,
0, 0, error_info, i,
"Operation failed"));
Note
The toplevel elements in the confd_tag_value_t array must have the ns element of the struct
xml_tag set. The CONFD_SET_TAG_XMLBEGIN() macro will set this element, but for toplevel
leaf elements the CONFD_SET_TAG_NS() macro needs to be used, as shown above.
The <error-info> section resulting from the above would look like this:
<error-info>
...
<severity xmlns="http://tail-f.com/test/mod">error</severity>
<detail xmlns="http://tail-f.com/test/mod">
<class>42</class>
<code>17</code>
</detail>
</error-info>
699
confd_lib_lib
ERRORS
All functions in libconfd signal errors through the return of the #defined CONFD_ERR - which has
the value -1 - or alternatively CONFD_EOF (-2) which means that ConfD closed its end of the socket.
Data provider callbacks (see confd_lib_dp(3)) can also signal errors by returning CONFD_ERR from the
callback. This can be done for all different kinds of callbacks. It is possible to to provide additional error
information from one of these callbacks by using one of the functions:
confd_trans_seterr(),
confd_trans_seterr_extended(),
confd_trans_seterr_extended_info()
For transaction callbacks
confd_db_seterr(),
confd_db_seterr_extended(),
confd_db_seterr_extended_info()
For db callbacks
confd_action_seterr(),
confd_action_seterr_extended(),
confd_action_seterr_extended_info()
For action callbacks
confd_notification_seterr(),
confd_notification_seterr_extended(),
confd_notification_seterr_extended_info()
For notification callbacks
CDB two phase subscribers (see confd_lib_cdb(3)) can also provide error information when
cdb_read_subscription_socket2() has returned with type set to CDB_SUB_PREPARE, using
one of the functions cdb_sub_abort_trans() and cdb_sub_abort_trans_info().
Whenever CONFD_ERR is returned from any API function in libconfd it is possible to obtain
additional information on the error through the symbol confd_errno. Additionally there may be an
error text associated with the error. A call to the function
char *confd_lasterr(void);
returns a string which contains additional textual information on the error. Furthermore, the function
char *confd_strerror(int code);
returns a string which describes a particular error code. When one of the The following error codes are
available:
CONFD_ERR_NOEXISTS (1)
Typically we tried to read a value through CDB or MAAPI which does not exist.
CONFD_ERR_ALREADY_EXISTS (2)
We tried to create something which already exists.
CONFD_ERR_ACCESS_DENIED (3)
Access to an object was denied due to AAA authorization rules.
CONFD_ERR_NOT_WRITABLE (4)
We tried to write an object which is not writable.
CONFD_ERR_BADTYPE (5)
We tried to create or write an object which is specified to have another type (see confd_types(3)) than
the one we provided.
700
confd_lib_lib
CONFD_ERR_NOTCREATABLE (6)
We tried to create an object which is not possible to create.
CONFD_ERR_NOTDELETABLE (7)
We tried to delete an object which is not possible to delete.
CONFD_ERR_BADPATH (8)
We provided a bad path in any of the printf style functions which take a variable number of arguments.
CONFD_ERR_NOSTACK (9)
We tried to pop without a preceding push.
CONFD_ERR_LOCKED (10)
We tried to lock something which is already locked.
CONFD_ERR_INUSE (11)
We tried to commit while someone else holds a lock.
CONFD_ERR_NOTSET (12)
A mandatory leaf does not have a value, either because it has been deleted, or not set after a create.
CONFD_ERR_NON_UNIQUE (13)
A group of leafs specified with the unique statement are not unique.
CONFD_ERR_BAD_KEYREF (14)
Dangling pointer.
CONFD_ERR_TOO_FEW_ELEMS (15)
A min-elements violation. A node has fewer elements or entries than specified with min-
elements.
CONFD_ERR_TOO_MANY_ELEMS (16)
A max-elements violation. A node has fewer elements or entries than specified with max-
elements.
CONFD_ERR_BADSTATE (17)
Some function, such as the MAAPI commit functions that require several functions to be called in a
specific order, was called out of order.
CONFD_ERR_INTERNAL (18)
An internal error. This normally indicates a bug in ConfD or libconfd (if nothing else the lack of a
better error code), please report it to Tail-f support.
CONFD_ERR_EXTERNAL (19)
All errors that originate in user code.
CONFD_ERR_MALLOC (20)
Failed to allocate memory.
CONFD_ERR_PROTOUSAGE (21)
Usage of API functions or callbacks was wrong. It typically means that we invoke a function when we
shouldn't. For example if we invoke the confd_data_reply_next_key() in a get_elem()
callback we get this error.
CONFD_ERR_NOSESSION (22)
A session must be established prior to executing the function.
701
confd_lib_lib
CONFD_ERR_TOOMANYTRANS (23)
A new MAAPI transaction was rejected since the transaction limit threshold was reached.
CONFD_ERR_OS (24)
An error occurred in a call to some operating system function, such as write(). The proper errno
from libc should then be read and used as failure indicator.
CONFD_ERR_HA_CONNECT (25)
Failed to connect to a remote HA node.
CONFD_ERR_HA_CLOSED (26)
A remote HA node closed its connection to us, or there was a timeout waiting for a sync response
from the master during a call of confd_ha_beslave().
CONFD_ERR_HA_BADFXS (27)
A remote HA node had a different set of fxs files compared to us. It could also be that the set is the
same, but the version of some fxs file is different.
CONFD_ERR_HA_BADTOKEN (28)
A remote HA node has a different token than us.
CONFD_ERR_HA_BADNAME (29)
A remote ha node has a different name than the name we think it has.
CONFD_ERR_HA_BIND (30)
Failed to bind the ha socket for incoming HA connects.
CONFD_ERR_HA_NOTICK (31)
A remote HA node failed to produce the interval live ticks.
CONFD_ERR_VALIDATION_WARNING (32)
maapi_validate() returned warnings.
CONFD_ERR_SUBAGENT_DOWN (33)
An operation towards a mounted NETCONF subagent failed due to the subagent not being up.
CONFD_ERR_LIB_NOT_INITIALIZED (34)
The confd library has not been properly initialized by a call to confd_init().
CONFD_ERR_TOO_MANY_SESSIONS (35)
Maximum number of sessions reached.
CONFD_ERR_BAD_CONFIG (36)
An error in a configuration.
CONFD_ERR_RESOURCE_DENIED (37)
A data provider callback returned CONFD_ERRCODE_RESOURCE_DENIED (see EXTENDED
ERROR REPORTING above).
CONFD_ERR_INCONSISTENT_VALUE (38)
A data provider callback returned CONFD_ERRCODE_INCONSISTENT_VALUE (see
EXTENDED ERROR REPORTING above).
CONFD_ERR_APPLICATION_INTERNAL (39)
A data provider callback returned CONFD_ERRCODE_APPLICATION_INTERNAL (see
EXTENDED ERROR REPORTING above).
702
confd_lib_lib
CONFD_ERR_UNSET_CHOICE (40)
No case has been selected for a mandatory choice statement.
CONFD_ERR_MUST_FAILED (41)
A must constraint is not satisfied.
CONFD_ERR_MISSING_INSTANCE (42)
The value of an instance-identifier leaf with require-instance true does not
specify an existing instance.
CONFD_ERR_INVALID_INSTANCE (43)
The value of an instance-identifier leaf does not conform to the specified path filters.
CONFD_ERR_UNAVAILABLE (44)
We tried to use some unavailable functionality, e.g. get/set attributes on an operational data element.
CONFD_ERR_EOF (45)
This value is used when a function returns CONFD_EOF. Thus it is not strictly necessary to
check whether the return value is CONFD_ERR or CONFD_EOF - if the function should return
CONFD_OK on success, but the return value is something else, the reason can always be found via
confd_errno.
CONFD_ERR_NOTMOVABLE (46)
We tried to move an object which is not possible to move.
CONFD_ERR_HA_WITH_UPGRADE (47)
We tried to perform an in-service data model upgrade on a HA node that was either a master or a
slave, or we tried to make the node a HA master or slave while an in-service data model upgrade
was in progress.
CONFD_ERR_TIMEOUT (48)
An operation did not complete within the specified timeout.
CONFD_ERR_ABORTED (49)
An operation was aborted.
CONFD_ERR_XPATH (50)
Compilation or evaluation of an XPath expression failed.
CONFD_ERR_NOT_IMPLEMENTED (51)
A request was made for an operation that wasn't implemented. This will typically occur if an
application uses a version of libconfd that is more recent than the version of the ConfD daemon,
and a CDB or MAAPI function is used that is only implemented in the library version.
CONFD_ERR_HA_BADVSN (52)
A remote HA node had an incompatible protocol version.
CONFD_ERR_POLICY_FAILED (53)
A user-defined policy expression evaluated to false.
CONFD_ERR_POLICY_COMPILATION_FAILED (54)
A user-defined policy XPath expression could not be compiled.
CONFD_ERR_POLICY_EVALUATION_FAILED (55)
A user-defined policy expression failed XPath evaluation.
NCS_ERR_CONNECTION_REFUSED (56)
NCS failed to connect to a device.
703
confd_lib_lib
CONFD_ERR_START_FAILED (57)
ConfD daemon failed to proceed to next start-phase.
CONFD_ERR_DATA_MISSING (58)
A data provider callback returned CONFD_ERRCODE_DATA_MISSING (see EXTENDED
ERROR REPORTING above).
CONFD_ERR_CLI_CMD (59)
Execution of a CLI command failed.
CONFD_ERR_UPGRADE_IN_PROGRESS (60)
A request was made for an operation that is not allowed when in-service data model upgrade is in
progress.
CONFD_ERR_NOTRANS (61)
An invalid transaction handle was passed to a MAAPI function - i.e. the handle did not refer to a
transaction that was either started on, or attached to, the MAAPI socket.
NCS_ERR_SERVICE_CONFLICT (62)
An NCS service invocation running outside the transaction lock modified data that was also modified
by a service invocation in another transaction.
MISCELLANEOUS
The library will always set the default signal handler for SIGPIPE to be SIG_IGN. All libconfd APIs are
socket based and the library must be able to detect failed write operations in a controlled manner.
The include file confd_lib.h includes assert.h and uses assert macros in the specialized
CONFD_GET_XXX() macros. If the behavior of assert is not wanted in a production environment, we can
define NDEBUG before including confd_lib.h (or confd.h), see assert(3). Alternatively we can
define a CONFD_ASSERT() macro before including confd_lib.h. The assert macros are invoked via
CONFD_ASSERT(), which is defined by:
#ifndef CONFD_ASSERT
#define CONFD_ASSERT(E) assert(E)
#endif
I.e. by defining a different version of CONFD_ASSERT(), we can get our own error handler invoked
instead of assert(3), for example:
void log_error(char *file, int line, char *expr);
#define CONFD_ASSERT(E) \
((E) ? (void)0 : log_error(__FILE__, __LINE__, #E))
#include <confd_lib.h>
SYSLOG AND DEBUG
When developing applications with libconfd we always need to indicate to the library which verbosity
level should be used by the library. There are three different levels to choose from: CONFD_SILENT
where the library never writes anything, never, CONFD_DEBUG where the library reports all errors and
finally CONFD_TRACE where the library traces the execution and invocations of all the various callback
functions.
704
confd_lib_lib
There are two different destinations for all library printouts. When we call confd_init(), we always
need to supply a FILE* stream which should be used for all printouts. This parameter can be set to NULL
if we never want any FILE* printouts to occur.
The second destination is syslog, i.e. the library will syslog if told to. This is controlled by the global
integer variable confd_lib_use_syslog. If we set this variable to 1, libconfd will syslog all
output. If we set it to 0 the library will not syslog. It is the responsibility of the application to (optionally)
call openlog() before initializing the ConfD library. The default value is 0.
There also exists a hook point at which a library user can install their own printer. This done by assigning
to a global variable confd_user_log_hook, as in:
void mylogger(int syslogprio, const char *fmt, va_list ap) {
char buf[BUFSIZ];
sprintf(buf, "MYLOG:(%d) ", syslogprio); strcat(buf, fmt);
vfprintf(stderr, buf, ap);
}
confd_user_log_hook = mylogger;
The syslogprio is LOG_ERR or LOG_CRIT for error messages, and LOG_DEBUG for trace
messages, see the description of confd_init().
Thus a good combination of values in a target environment is to set the FILE* handle to NULL and
confd_lib_use_syslog to 1. This way we do not get the overhead of file logging and at the same
time get all errors reported to syslog.
SEE ALSO
confd(5) - ConfD daemon configuration file format
The ConfD User Guide
705
Nameconfd_lib_maapi MAAPI (Management Agent API). A library for connecting to ConfD with a read/
write interface inside transactions.
Synopsis
#include <confd_lib.h> #include <confd_maapi.h>
int maapi_start_user_session(int sock, const char *username, const char
*context, const char **groups, int numgroups, const struct confd_ip
*src_addr, enum confd_proto prot);
int maapi_start_user_session2(int sock, const char *username, const char
*context, const char **groups, int numgroups, const struct confd_ip
*src_addr, int src_port, enum confd_proto prot);
int maapi_start_trans(int sock, enum confd_dbname dbname, enum
confd_trans_mode readwrite);
int maapi_start_trans2(int sock, enum confd_dbname dbname, enum
confd_trans_mode readwrite, int usid);
int maapi_start_trans_flags(int sock, enum confd_dbname dbname, enum
confd_trans_mode readwrite, int usid, int flags);
int maapi_connect(int sock, const struct sockaddr* srv, int srv_sz);
int maapi_load_schemas(int sock);
int maapi_load_schemas_list(int sock, int flags, const u_int32_t
*nshash, const int *nsflags, int num_ns);
int maapi_get_schema_file_path(int sock, char **buf);
int maapi_close(int sock);
int maapi_start_user_session3(int sock, const char *username, const char
*context, const char **groups, int numgroups, const struct confd_ip
*src_addr, int src_port, enum confd_proto prot, const char *vendor,
const char *product, const char *version, const char *client_id);
int maapi_end_user_session(int sock);
int maapi_kill_user_session(int sock, int usessid);
int maapi_get_user_sessions(int sock, int res[], int n);
int maapi_get_user_session(int sock, int usessid, struct confd_user_info
*us);
int maapi_get_my_user_session_id(int sock);
int maapi_set_user_session(int sock, int usessid);
int maapi_get_user_session_identification(int sock, int usessid, struct
confd_user_identification *uident);
706
confd_lib_maapi
int maapi_get_user_session_opaque(int sock, int usessid, char **opaque);
int maapi_get_authorization_info(int sock, int usessid, struct
confd_authorization_info **ainfo);
int maapi_set_next_user_session_id(int sock, int usessid);
int maapi_lock(int sock, enum confd_dbname name);
int maapi_unlock(int sock, enum confd_dbname name);
int maapi_is_lock_set(int sock, enum confd_dbname name);
int maapi_lock_partial(int sock, enum confd_dbname name, char *xpaths[],
int nxpaths, int *lockid);
int maapi_unlock_partial(int sock, int lockid);
int maapi_candidate_validate(int sock);
int maapi_delete_config(int sock, enum confd_dbname name);
int maapi_candidate_commit(int sock);
int maapi_candidate_commit_persistent(int sock, const char
*persist_id);
int maapi_candidate_commit_info(int sock, const char *persist_id, const
char *label, const char *comment);
int maapi_candidate_confirmed_commit(int sock, int timeoutsecs);
int maapi_candidate_confirmed_commit_persistent(int sock, int
timeoutsecs, const char *persist, const char *persist_id);
int maapi_candidate_confirmed_commit_info(int sock, int timeoutsecs,
const char *persist, const char *persist_id, const char *label, const
char *comment);
int maapi_candidate_abort_commit(int sock);
int maapi_candidate_abort_commit_persistent(int sock, const char
*persist_id);
int maapi_candidate_reset(int sock);
int maapi_confirmed_commit_in_progress(int sock);
int maapi_copy_running_to_startup(int sock);
int maapi_is_running_modified(int sock);
int maapi_is_candidate_modified(int sock);
int maapi_start_trans_flags2(int sock, enum confd_dbname dbname, enum
confd_trans_mode readwrite, int usid, int flags, const char *vendor,
const char *product, const char *version, const char *client_id);
707
confd_lib_maapi
int maapi_start_trans_in_trans(int sock, enum confd_trans_mode
readwrite, int usid, int thandle);
int maapi_finish_trans(int sock, int thandle);
int maapi_validate_trans(int sock, int thandle, int unlock, int
forcevalidation);
int maapi_prepare_trans(int sock, int thandle);
int maapi_prepare_trans_flags(int sock, int thandle, int flags);
int maapi_commit_trans(int sock, int thandle);
int maapi_abort_trans(int sock, int thandle);
int maapi_apply_trans(int sock, int thandle, int keepopen);
int maapi_apply_trans_flags(int sock, int thandle, int keepopen, int
flags);
int maapi_apply_trans_with_result(int sock, int thandle, int keepopen,
int flags, const char *tag, int timeoutsecs, confd_tag_value_t **values,
int *nvalues);
int maapi_commit_queue_result(int sock, int thandle, int timeoutsecs,
struct ncs_commit_queue_result *result);
int maapi_set_namespace(int sock, int thandle, int hashed_ns);
int maapi_cd(int sock, int thandle, const char *fmt, ...);
int maapi_pushd(int sock, int thandle, const char *fmt, ...);
int maapi_popd(int sock, int thandle);
int maapi_getcwd(int sock, int thandle, size_t strsz, char *curdir);
int maapi_getcwd_kpath(int sock, int thandle, confd_hkeypath_t **kp);
int maapi_exists(int sock, int thandle, const char *fmt, ...);
int maapi_num_instances(int sock, int thandle, const char *fmt, ...);
int maapi_get_elem(int sock, int thandle, confd_value_t *v, const char
*fmt, ...);
int maapi_get_int8_elem(int sock, int thandle, int8_t *rval, const char
*fmt, ...);
int maapi_get_int16_elem(int sock, int thandle, int16_t *rval, const
char *fmt, ...);
int maapi_get_int32_elem(int sock, int thandle, int32_t *rval, const
char *fmt, ...);
int maapi_get_int64_elem(int sock, int thandle, int64_t *rval, const
char *fmt, ...);
708
confd_lib_maapi
int maapi_get_u_int8_elem(int sock, int thandle, u_int8_t *rval, const
char *fmt, ...);
int maapi_get_u_int16_elem(int sock, int thandle, u_int16_t *rval, const
char *fmt, ...);
int maapi_get_u_int32_elem(int sock, int thandle, u_int32_t *rval, const
char *fmt, ...);
int maapi_get_u_int64_elem(int sock, int thandle, u_int64_t *rval, const
char *fmt, ...);
int maapi_get_ipv4_elem(int sock, int thandle, struct in_addr *rval,
const char *fmt, ...);
int maapi_get_ipv6_elem(int sock, int thandle, struct in6_addr *rval,
const char *fmt, ...);
int maapi_get_double_elem(int sock, int thandle, double *rval, const
char *fmt, ...);
int maapi_get_bool_elem(int sock, int thandle, int *rval, const char
*fmt, ...);
int maapi_get_datetime_elem(int sock, int thandle, struct confd_datetime
*rval, const char *fmt, ...);
int maapi_get_date_elem(int sock, int thandle, struct confd_date *rval,
const char *fmt, ...);
int maapi_get_time_elem(int sock, int thandle, struct confd_time *rval,
const char *fmt, ...);
int maapi_get_duration_elem(int sock, int thandle, struct confd_duration
*rval, const char *fmt, ...);
int maapi_get_enum_value_elem(int sock, int thandle, int32_t *rval,
const char *fmt, ...);
int maapi_get_bit32_elem(int sock, int thandle, u_int32_t *rval, const
char *fmt, ...);
int maapi_get_bit64_elem(int sock, int thandle, u_int64_t *rval, const
char *fmt, ...);
int maapi_get_bitbig_elem(int sock, int thandle, unsigned char **rval,
int *bufsiz, const char *fmt, ...);
int maapi_get_objectref_elem(int sock, int thandle, confd_hkeypath_t
**rval, const char *fmt, ...);
int maapi_get_oid_elem(int sock, int thandle, struct confd_snmp_oid
**rval, const char *fmt, ...);
int maapi_get_buf_elem(int sock, int thandle, unsigned char **rval, int
*bufsiz, const char *fmt, ...);
709
confd_lib_maapi
int maapi_get_str_elem(int sock, int thandle, char *buf, int n, const
char *fmt, ...);
int maapi_get_binary_elem(int sock, int thandle, unsigned char **rval,
int *bufsiz, const char *fmt, ...);
int maapi_get_hexstr_elem(int sock, int thandle, unsigned char **rval,
int *bufsiz, const char *fmt, ...);
int maapi_get_qname_elem(int sock, int thandle, unsigned char **prefix,
int *prefixsz, unsigned char **name, int *namesz, const char *fmt, ...);
int maapi_get_list_elem(int sock, int thandle, confd_value_t **values,
int *n, const char *fmt, ...);
int maapi_get_ipv4prefix_elem(int sock, int thandle, struct
confd_ipv4_prefix *rval, const char *fmt, ...);
int maapi_get_ipv6prefix_elem(int sock, int thandle, struct
confd_ipv6_prefix *rval, const char *fmt, ...);
int maapi_get_decimal64_elem(int sock, int thandle, struct
confd_decimal64 *rval, const char *fmt, ...);
int maapi_get_identityref_elem(int sock, int thandle, struct
confd_identityref *rval, const char *fmt, ...);
int maapi_get_ipv4_and_plen_elem(int sock, int thandle, struct
confd_ipv4_prefix *rval, const char *fmt, ...);
int maapi_get_ipv6_and_plen_elem(int sock, int thandle, struct
confd_ipv6_prefix *rval, const char *fmt, ...);
int maapi_get_dquad_elem(int sock, int thandle, struct confd_dotted_quad
*rval, const char *fmt, ...);
int maapi_vget_elem(int sock, int thandle, confd_value_t *v, const char
*fmt, va_list args);
int maapi_init_cursor(int sock, int thandle, struct maapi_cursor *mc,
const char *fmt, ...);
int maapi_get_next(struct maapi_cursor *mc);
int maapi_find_next(struct maapi_cursor *mc, enum confd_find_next_type
type, confd_value_t *inkeys, int n_inkeys);
void maapi_destroy_cursor(struct maapi_cursor *mc);
int maapi_set_elem(int sock, int thandle, confd_value_t *v, const char
*fmt, ...);
int maapi_set_elem2(int sock, int thandle, const char *strval, const
char *fmt, ...);
int maapi_vset_elem(int sock, int thandle, confd_value_t *v, const char
*fmt, va_list args);
710
confd_lib_maapi
int maapi_create(int sock, int thandle, const char *fmt, ...);
int maapi_delete(int sock, int thandle, const char *fmt, ...);
int maapi_get_object(int sock, int thandle, confd_value_t *values, int
n, const char *fmt, ...);
int maapi_get_objects(struct maapi_cursor *mc, confd_value_t *values,
int n, int *nobj);
int maapi_get_values(int sock, int thandle, confd_tag_value_t *values,
int n, const char *fmt, ...);
int maapi_set_object(int sock, int thandle, const confd_value_t *values,
int n, const char *fmt, ...);
int maapi_set_values(int sock, int thandle, const confd_tag_value_t
*values, int n, const char *fmt, ...);
int maapi_get_case(int sock, int thandle, const char *choice,
confd_value_t *rcase, const char *fmt, ...);
int maapi_get_attrs(int sock, int thandle, u_int32_t *attrs, int
num_attrs, confd_attr_value_t **attr_vals, int *num_vals, const char
*fmt, ...);
int maapi_set_attr(int sock, int thandle, u_int32_t attr, confd_value_t
*v, const char *fmt, ...);
int maapi_delete_all(int sock, int thandle, enum maapi_delete_how how);
int maapi_revert(int sock, int thandle);
int maapi_set_flags(int sock, int thandle, int flags);
int maapi_set_delayed_when(int sock, int thandle, int on);
int maapi_set_label(int sock, int thandle, const char *label);
int maapi_set_comment(int sock, int thandle, const char *comment);
int maapi_copy(int sock, int from_thandle, int to_thandle);
int maapi_copy_path(int sock, int from_thandle, int to_thandle, const
char *fmt, ...);
int maapi_copy_tree(int sock, int thandle, const char *from, const char
*tofmt, ...);
int maapi_insert(int sock, int thandle, const char *fmt, ...);
int maapi_move(int sock, int thandle, confd_value_t* tokey, int n, const
char *fmt, ...);
int maapi_move_ordered(int sock, int thandle, enum maapi_move_where
where, confd_value_t* tokey, int n, const char *fmt, ...);
int maapi_shared_create(int sock, int thandle, int flags, const char
*fmt, ...);
711
confd_lib_maapi
int maapi_shared_set_elem(int sock, int thandle, confd_value_t *v, int
flags, const char *fmt, ...);
int maapi_shared_set_elem2(int sock, int thandle, const char *strval,
int flags, const char *fmt, ...);
int maapi_shared_set_values(int sock, int thandle, const
confd_tag_value_t *values, int n, int flags, const char *fmt, ...);
int maapi_shared_insert(int sock, int thandle, int flags, const char
*fmt, ...);
int maapi_shared_copy_tree(int sock, int thandle, int flags, const char
*from, const char *tofmt, ...);
int maapi_ncs_apply_template(int sock, int thandle, char *template_name,
const struct ncs_name_value *variables, int num_variables, int flags,
const char *rootfmt, ...);
int maapi_shared_ncs_apply_template(int sock, int thandle, char
*template_name, const struct ncs_name_value *variables, int
num_variables, int flags, const char *rootfmt, ...);
int maapi_ncs_get_templates(int sock, char ***templates, int
*num_templates);
int maapi_ncs_write_service_log_entry(int sock, const char *msg,
confd_value_t *type, confd_value_t *level, const char *fmt, ...);
int maapi_authenticate(int sock, const char *user, const char *pass,
char *groups[], int n);
int maapi_authenticate2(int sock, const char *user, const char *pass,
const struct confd_ip *src_addr, int src_port, const char *context, enum
confd_proto prot, char *groups[], int n);
int maapi_validate_token(int sock, const char *token, const struct
confd_ip *src_addr, int src_port, const char *context, enum confd_proto
prot, char *groups[], int n);
int maapi_attach(int sock, int hashed_ns, struct confd_trans_ctx *ctx);
int maapi_attach2(int sock, int hashed_ns, int usid, int thandle);
int maapi_attach_init(int sock, int *thandle);
int maapi_detach(int sock, struct confd_trans_ctx *ctx);
int maapi_detach2(int sock, int thandle);
int maapi_diff_iterate(int sock, int thandle, enum maapi_iter_ret
(*iter)(confd_hkeypath_t *kp, enum maapi_iter_op op, confd_value_t
*oldv, confd_value_t *newv, void *state), int flags, void *initstate);
int maapi_keypath_diff_iterate(int sock, int thandle, enum
maapi_iter_ret (*iter)(confd_hkeypath_t *kp, enum maapi_iter_op op,
confd_value_t *oldv, confd_value_t *newv, void *state), int flags, void
*initstate, const char *fmtpath, ...);
712
confd_lib_maapi
int maapi_diff_iterate_resume(int sock, enum maapi_iter_ret reply,
enum maapi_iter_ret (*iter)(confd_hkeypath_t *kp, enum maapi_iter_op
op, confd_value_t *oldv, confd_value_t *newv, void *state), void
*resumestate);
int maapi_iterate(int sock, int thandle, enum maapi_iter_ret (*iter)
(confd_hkeypath_t *kp, confd_value_t *v, confd_attr_value_t *attr_vals,
int num_attr_vals, void *state), int flags, void *initstate, const char
*fmtpath, ...);
int maapi_iterate_resume(int sock, enum maapi_iter_ret reply,
enum maapi_iter_ret (*iter)(confd_hkeypath_t *kp, confd_value_t *v,
confd_attr_value_t *attr_vals, int num_attr_vals, void *state), void
*resumestate);
int maapi_get_running_db_status(int sock);
int maapi_set_running_db_status(int sock, int status);
int maapi_list_rollbacks(int sock, struct maapi_rollback *rp, int
*rp_size);
int maapi_load_rollback(int sock, int thandle, int rollback_num);
int maapi_request_action(int sock, confd_tag_value_t *params, int
nparams, confd_tag_value_t **values, int *nvalues, int hashed_ns, const
char *fmt, ...);
int maapi_request_action_th(int sock, int thandle, confd_tag_value_t
*params, int nparams, confd_tag_value_t **values, int *nvalues, const
char *fmt, ...);
int maapi_request_action_str_th(int sock, int thandle, char **output,
const char *cmd_fmt, const char *path_fmt, ...);
int maapi_xpath2kpath(int sock, const char *xpath, confd_hkeypath_t
**hkp);
int maapi_user_message(int sock, const char *to, const char *message,
const char *sender);
int maapi_sys_message(int sock, const char *to, const char *message);
int maapi_prio_message(int sock, const char *to, const char *message);
int maapi_cli_diff_cmd(int sock, int thandle, int thandle_old, char
*res, int size, int flags, const char *fmt, ...);
int maapi_cli_accounting(int sock, const char *user, const int usid,
const char *cmdstr);
int maapi_cli_path_cmd(int sock, int thandle, char *res, int size, int
flags, const char *fmt, ...);
int maapi_cli_cmd_to_path(int sock, const char *line, char *ns, int
nsize, char *path, int psize);
713
confd_lib_maapi
int maapi_cli_cmd_to_path2(int sock, int thandle, const char *line, char
*ns, int nsize, char *path, int psize);
int maapi_cli_prompt(int sock, int usess, const char *prompt, int echo,
char *res, int size);
int maapi_cli_prompt2(int sock, int usess, const char *prompt, int echo,
int timeout, char *res, int size);
int maapi_cli_prompt_oneof(int sock, int usess, const char *prompt, char
**choice, int count, char *res, int size);
int maapi_cli_prompt_oneof2(int sock, int usess, const char *prompt,
char **choice, int count, int timeout, char *res, int size);
int maapi_cli_read_eof(int sock, int usess, int echo, char *res, int
size);
int maapi_cli_read_eof2(int sock, int usess, int echo, int timeout,
char *res, int size);
int maapi_cli_write(int sock, int usess, const char *buf, int size);
int maapi_cli_cmd(int sock, int usess, const char *buf, int size);
int maapi_cli_cmd2(int sock, int usess, const char *buf, int size, int
flags);
int maapi_cli_cmd3(int sock, int usess, const char *buf, int size, int
flags, const char *unhide, int usize);
int maapi_cli_cmd4(int sock, int usess, const char *buf, int size, int
flags, char **unhide, int usize);
int maapi_cli_cmd_io(int sock, int usess, const char *buf, int size,
int flags, const char *unhide, int usize);
int maapi_cli_cmd_io2(int sock, int usess, const char *buf, int size,
int flags, char **unhide, int usize);
int maapi_cli_cmd_io_result(int sock, int id);
int maapi_cli_printf(int sock, int usess, const char *fmt, ...);
int maapi_cli_vprintf(int sock, int usess, const char *fmt, va_list
args);
int maapi_cli_set(int sock, int usess, const char *opt, const char
*value);
int maapi_cli_get(int sock, int usess, const char *opt, char *res, int
size);
int maapi_set_readonly_mode(int sock, int flag);
int maapi_disconnect_remote(int sock, const char *address);
int maapi_disconnect_sockets(int sock, int *sockets, int nsocks);
714
confd_lib_maapi
int maapi_save_config(int sock, int thandle, int flags, const char
*fmtpath, ...);
int maapi_save_config_result(int sock, int id);
int maapi_load_config(int sock, int thandle, int flags, const char
*filename);
int maapi_load_config_cmds(int sock, int thandle, int flags, const char
*cmds, const char *fmt, ...);
int maapi_load_config_stream(int sock, int thandle, int flags);
int maapi_load_config_stream_result(int sock, int id);
int maapi_roll_config(int sock, int thandle, const char *fmtpath, ...);
int maapi_roll_config_result(int sock, int id);
int maapi_get_stream_progress(int sock, int id);
int maapi_xpath_eval(int sock, int thandle, const char *expr, int
(*result)(confd_hkeypath_t *kp, confd_value_t *v, void *state), void
(*trace)(char *), void *initstate, const char *fmtpath, ...);
int maapi_xpath_eval_expr(int sock, int thandle, const char *expr, char
**res, void (*trace)(char *), const char *fmtpath, ...);
int maapi_query_start(int sock, int thandle, const char *expr,
const char *context_node, int chunk_size, int initial_offset, enum
confd_query_result_type result_as, int nselect, const char *select[],
int nsort, const char *sort[]);
int maapi_query_startv(int sock, int thandle, const char *expr,
const char *context_node, int chunk_size, int initial_offset, enum
confd_query_result_type result_as, int select_nparams, ...);
int maapi_query_result(int sock, int qh, struct confd_query_result
**qrs);
int maapi_query_result_count(int sock, int qh);
int maapi_query_free_result(struct confd_query_result *qrs);
int maapi_query_reset_to(int sock, int qh, int offset);
int maapi_query_reset(int sock, int qh);
int maapi_query_stop(int sock, int qh);
int maapi_do_display(int sock, int thandle, const char *fmtpath, ...);
int maapi_install_crypto_keys(int sock);
int maapi_init_upgrade(int sock, int timeoutsecs, int flags);
int maapi_perform_upgrade(int sock, const char **loadpathdirs, int n);
int maapi_commit_upgrade(int sock);
715
confd_lib_maapi
int maapi_abort_upgrade(int sock);
int maapi_aaa_reload(int sock, int synchronous);
int maapi_aaa_reload_path(int sock, int synchronous, const char
*fmt, ...);
int maapi_snmpa_reload(int sock, int synchronous);
int maapi_start_phase(int sock, int phase, int synchronous);
int maapi_wait_start(int sock, int phase);
int maapi_reload_config(int sock);
int maapi_reopen_logs(int sock);
int maapi_stop(int sock, int synchronous);
int maapi_rebind_listener(int sock, int listener);
int maapi_clear_opcache(int sock, const char *fmt, ...);
LIBRARY
ConfD Library, (libconfd, -lconfd)
DESCRIPTION
The libconfd shared library is used to connect to the ConfD transaction manager. The API described in
this man page has several purposes. We can use MAAPI when we wish to implement our own proprietary
management agent. We also use MAAPI to attach to already existing ConfD transactions, for example
when we wish to implement semantic validation of configuration data in C, and also when we wish to
implement CLI wizards in C.
PATHS
The majority of the functions described here take as their two last arguments a format string and a variable
number of extra arguments as in: char * fmt, ...);
The paths for MAAPI work like paths for CDB (see confd_lib_cdb(3)) with the exception that the bracket
notation '[n]' is not allowed for MAAPI paths.
All the functions that take a path on this form also have a va_list variant, of the same form as
maapi_vget_elem() and maapi_vset_elem(), which are the only ones explicitly documented
below. I.e. they have a prefix "maapi_v" instead of "maapi_", and take a single va_list argument instead
of a variable number of arguments.
FUNCTIONS
All functions return CONFD_OK (0), CONFD_ERR (-1) or CONFD_EOF (-2) unless otherwise stated.
Whenever CONFD_ERR is returned from any API function in confd_lib_maapi it is possible to obtain
additional information on the error through the symbol confd_errno, see the ERRORS section of
confd_lib_lib(3).
In the case of CONFD_EOF it means that the socket to ConfD has been closed.
716
confd_lib_maapi
int maapi_connect(int sock, const struct sockaddr* srv, int srv_sz);
The application has to connect to ConfD before it can interact with ConfD .
Note
If this call fails (i.e. does not return CONFD_OK), the socket descriptor must be closed and a
new socket created before the call is re-attempted.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS
int maapi_load_schemas(int sock);
This function dynamically loads schema information from the ConfD daemon into the library, where it is
available to all the library components as described in the confd_types(3) and confd_lib_lib(3) man pages.
See also confd_load_schemas() in confd_lib_lib(3).
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS
int maapi_load_schemas_list(int sock, int flags, const u_int32_t
*nshash, const int *nsflags, int num_ns);
A variant of maapi_load_schemas() that allows for loading a subset of the schema information from
the ConfD daemon into the library. This means that the loading can be significantly faster in the case of a
system with many large data models, with the drawback that the functions that use the schema information
will have limited functionality or not work at all.
The flags parameter can be given as CONFD_LOAD_SCHEMA_HASH to request that the
global mapping between strings and hash values for the data model nodes should be
loaded. If flags is given as 0, this mapping is not loaded. The mapping is required for
use of the functions confd_hash2str(), confd_str2hash(), confd_cs_node_cd(),
and confd_xpath_pp_kpath(). Additionally, without the mapping, confd_pp_value(),
confd_pp_kpath(), and confd_pp_kpath_len(), as well as the trace printouts from the library,
will print nodes as "tag<N>", where N is the hash value, instead of the node name.
The nshash parameter is a num_ns elements long array of namespace hash values, requesting that
schema information should be loaded for the listed namespaces according to the corresponding element
of the nsflags array (also num_ns elements long). For each namespace, either or both of these flags
may be given:
CONFD_LOAD_SCHEMA_NODES This flag requests that the confd_cs_node tree (see
confd_types(3)) for the namespace should be loaded.
This tree is required for the use of the functions
confd_find_cs_root(), confd_find_cs_node(),
confd_find_cs_node_child(), confd_cs_node_cd(),
confd_register_node_type(),
confd_get_leaf_list_type(), and
confd_xpath_pp_kpath() for the namespace. Additionally,
the above functions that print a confd_hkeypath_t, as well as the
library trace printouts, will attempt to use this tree and the type
information (see below) to find the correct string representation for
key values - if the tree isn't available, key values will be printed as
described for confd_pp_value().
CONFD_LOAD_SCHEMA_TYPES This flag requests that information about the types defined in the
namespace should be loaded. The type information is required for
717
confd_lib_maapi
use of the functions confd_val2str(), confd_str2val(),
confd_find_ns_type(),
confd_get_leaf_list_type(),
confd_register_ns_type(), and
confd_register_node_type() for the namespace.
Additionally the confd_hkeypath_t-printing functions and the library
trace printouts will also fall back to confd_pp_value() as
described above if the type information isn't available.
Type definitions may refer to types defined in other namespaces.
If the CONFD_LOAD_SCHEMA_TYPES flag has been given for a
namespace, and the types defined there have such type references
to namespaces that are not included in the nshash array, the
referenced type information will also be loaded, if necessary
recursively, until the types have a complete definition.
See also confd_load_schemas_list() in confd_lib_lib(3).
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS
int maapi_get_schema_file_path(int sock, char **buf);
If shared memory schema support has been enabled via /confdConfig/
enableSharedMemorySchema in confd.conf, this function will return the pathname of the file
used for the shared memory mapping, which can then be passed to confd_mmap_schemas() (see
confd_lib_lib(3)). If the call is successful, buf is set to point to a dynamically allocated string, which must
be freed by the application by means of calling free(3).
If creation of the schema file is in progress when the function is called, the call will block until the creation
has completed. If shared memory schema support has not been enabled, or if the creation of the schema
file failed, the function returns CONFD_ERR with confd_errno set to CONFD_ERR_NOEXISTS.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_close(int sock);
Effectively a call to maapi_end_user_session() and also closes the socket.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION
Even if the call returns an error, the socket will be closed.
SESSION MANAGEMENT
int maapi_start_user_session(int sock, const char *username, const char
*context, const char **groups, int numgroups, const struct confd_ip
*src_addr, enum confd_proto prot);
Once we have created a MAAPI socket, we must also establish a user session on the socket. It is up
to the user of the MAAPI library to authenticate users. The library user can ask ConfD to perform the
actual authentication through a call to maapi_authenticate() but authentication may very well
occur through some other external means.
Thus, when we use this function to create a user session, we must provide all relevant information about
the user. If we wish to execute read/write transactions over the MAAPI interface, we must first have an
established user session.
718
confd_lib_maapi
A user session corresponds to a NETCONF manager who has just established an authenticated SSH
connection, but not yet sent any NETCONF commands on the SSH connection.
The struct confd_ip is defined in confd_lib.h and must be properly populated before the call. For
example:
struct confd_ip ip;
ip.af = AF_INET;
inet_aton("10.0.0.33", &ip.ip.v4);
The context parameter can be any string. The string provided here is precisely the context string which
will be used to authorize all data access through the AAA system. Each AAA rule has a context string
which must match in order for a AAA rule to match. (See the AAA chapter in the User Guide.)
Using the string "system" for context has special significance:
The session is exempt from all maxSessions limits in confd.conf.
There will be no authorization checks done by the AAA system.
The session is not logged in the audit log.
The session is not shown in 'show users' in CLI etc.
The session may be started already in ConfD start phase 0. (However read-write transactions can
not be started until phase 1, i.e. transactions started in phase 0 must use parameter readwrite ==
CONFD_READ).
Thus this can be useful e.g. when we need to create the user session for an "internal" transaction done by
an application, without relation to a session from a northbound agent. Of course the implications of the
above need to be carefully considered in each case.
It is not possible to create new user sessions until ConfD has reached start phase 2 (See confd(1)), with
the above exception of a session with the context set to "system".
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_ALREADY_EXISTS,
CONFD_ERR_BADSTATE
int maapi_start_user_session2(int sock, const char *username, const char
*context, const char **groups, int numgroups, const struct confd_ip
*src_addr, int src_port, enum confd_proto prot);
This function does the same as maapi_start_user_session(), but allows for the TCP/UDP
source port to be passed to ConfD . Calling maapi_start_user_session() is equivalent to calling
maapi_start_user_session2() with src_port 0.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_ALREADY_EXISTS,
CONFD_ERR_BADSTATE
int maapi_start_user_session3(int sock, const char *username, const char
*context, const char **groups, int numgroups, const struct confd_ip
*src_addr, int src_port, enum confd_proto prot, const char *vendor,
const char *product, const char *version, const char *client_id);
This function does the same as maapi_start_user_session2(), but allows additional information
about the session to be passed to ConfD . Calling maapi_start_user_session2() is equivalent to
calling maapi_start_user_session3() with vendor, product and version set to NULL,
719
confd_lib_maapi
and client_id set to __MAAPI_CLIENT_ID__. The __MAAPI_CLIENT_ID__ macro (defined in
confd_maapi.h) will expand to a string representation of __FILE__:__LINE__.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_ALREADY_EXISTS,
CONFD_ERR_BADSTATE
int maapi_end_user_session(int sock);
Ends our own user session. If the MAAPI socket is closed, the user session is automatically ended.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION
int maapi_kill_user_session(int sock, int usessid);
Kill the user session identified by usessid.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_get_user_sessions(int sock, int res[], int n);
Get the usessid for all current user sessions. The res array is populated with at most n usessids, and the
total number of user sessions is returned (i.e. if the return value is larger than n, the array was too short
to hold all usessids).
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS
int maapi_get_user_session(int sock, int usessid, struct confd_user_info
*us);
Populate the confd_user_info structure with the data for the user session identified by usessid.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_get_my_user_session_id(int sock);
A user session is identified through an integer index, a usessid. This function returns the usessid associated
with the MAAPI socket sock.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_set_user_session(int sock, int usessid);
Associate the socket with an already existing user session. This can be used instead of
maapi_start_user_session() when we really do not want to start a new user session, e.g. if we
want to call an action on behalf of a given user session.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_get_user_session_identification(int sock, int usessid, struct
confd_user_identification *uident);
If the flag CONFD_USESS_FLAG_HAS_IDENTIFICATION is set in the flags field of the
confd_user_info structure, additional identification information has been provided by the northbound
client. This information can then be retrieved into a confd_user_identification structure (see
confd_lib.h) by calling this function. The elements of confd_user_identification are either NULL (if
the corresponding information was not provided) or point to a string. The strings must be freed by the
application by means of calling free(3).
720
confd_lib_maapi
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_get_user_session_opaque(int sock, int usessid, char **opaque);
If the flag CONFD_USESS_FLAG_HAS_OPAQUE is set in the flags field of the confd_user_info
structure, "opaque" information has been provided by the northbound client (see the -O option in
confd_cli(1)). The information can then be retrieved by calling this function. If the call is successful,
opaque is set to point to a dynamically allocated string, which must be freed by the application by means
of calling free(3).
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_get_authorization_info(int sock, int usessid, struct
confd_authorization_info **ainfo);
This function retrieves authorization info for a user session, i.e. the groups that the user has been assigned
to. The struct confd_authorization_info is defined as:
struct confd_authorization_info {
int ngroups;
char **groups;
};
If the call is successful, ainfo is set to point to a dynamically allocated structure, which must be freed by
the application by means of calling confd_free_authorization_info() (see confd_lib_lib(3)) .
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_set_next_user_session_id(int sock, int usessid);
Set the user session id that will be assigned to the next user session started. The given value is silently
forced to be in the range 100 .. 2^31-1. This function can be used to ensure that session ids for user sessions
started by northbound agents or via MAAPI are unique across a ConfD restart.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS
LOCKS
int maapi_lock(int sock, enum confd_dbname name);
int maapi_unlock(int sock, enum confd_dbname name);
These functions can be used to manipulate locks on the 3 different database types. If maapi_lock()
is called and the database is already locked, CONFD_ERR is returned, and confd_errno will be set
to CONFD_ERR_LOCKED. If confd_errno is CONFD_ERR_EXTERNAL it means that a callback
has been invoked in an external database to lock/unlock which in its turn returned an error. (See
confd_lib_dp(3) for external database callback API)
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_LOCKED,
CONFD_ERR_EXTERNAL, CONFD_ERR_NOSESSION
int maapi_is_lock_set(int sock, enum confd_dbname name);
Returns a positive integer being the usid of the current lock owner if the lock is set, and 0 if the lock is
not set.
int maapi_lock_partial(int sock, enum confd_dbname name, char *xpaths[],
int nxpaths, int *lockid);
721
confd_lib_maapi
int maapi_unlock_partial(int sock, int lockid);
We can also manipulate partial locks on the databases, i.e. locks on a specified set of leafs and/or subtrees.
The specification of what to lock is given via the xpaths array, which is populated with nxpaths
pointers to XPath expressions. If the lock succeeds, maapi_lock_partial() returns CONFD_OK,
and a lock identifier to use with maapi_unlock_partial() is stored in *lockid.
If CONFD_ERR is returned, some values of confd_errno are of particular interest:
CONFD_ERR_LOCKED Some of the requested nodes are already locked.
CONFD_ERR_EXTERNAL A callback has been invoked in an external database to lock_partial/
unlock_partial which in its turn returned an error (see confd_lib_dp(3) for
external database callback API).
CONFD_ERR_NOEXISTS The list of XPath expressions evaluated to an empty set of nodes - i.e. there
is nothing to lock.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_LOCKED,
CONFD_ERR_EXTERNAL, CONFD_ERR_NOSESSION, CONFD_ERR_NOEXISTS
CANDIDATE MANIPULATION
All the candidate manipulation functions require that the candidate data store is enabled in confd.conf
- otherwise they will set confd_errno to CONFD_ERR_NOEXISTS. If the candidate data store is
enabled, confd_errno may be set to CONFD_ERR_NOEXISTS for other reasons, as described below.
All these functions may also set confd_errno to CONFD_ERR_EXTERNAL. This value can only be
set when the candidate is owned by the external database. When ConfD owns the candidate, which is the
most common configuration scenario, the candidate manipulation function will never set confd_errno
to CONFD_ERR_EXTERNAL.
int maapi_candidate_validate(int sock);
This function validates the candidate. The function should only be used when the candidate is not owned
by ConfD , i.e. when the candidate is owned by an external database.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_EXTERNAL
int maapi_candidate_commit(int sock);
This function copies the candidate to running. It is also used to confirm a previous call to
maapi_candidate_confirmed_commit(), i.e. to prevent the automatic rollback if a confirmed
commit is not confirmed.
If confd_errno is CONFD_ERR_INUSE it means that some other user session is doing a confirmed
commit or has a lock on the database. CONFD_ERR_NOEXISTS means that there is an ongoing persistent
confirmed commit (see below) - i.e. there is no confirmed commit that this function call can apply to.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS,
CONFD_ERR_INUSE, CONFD_ERR_NOSESSION, CONFD_ERR_EXTERNAL
int maapi_candidate_confirmed_commit(int sock, int timeoutsecs);
This function also copies the candidate into running. However if a call to
maapi_candidate_commit() is not done within timeoutsecs an automatic rollback will occur.
722
confd_lib_maapi
It can also be used to "extend" a confirmed commit that is already in progress, i.e. set a new timeout or
add changes.
If confd_errno is CONFD_ERR_NOEXISTS it means that there is an ongoing persistent confirmed
commit (see below).
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS,
CONFD_ERR_INUSE, CONFD_ERR_NOSESSION, CONFD_ERR_EXTERNAL
int maapi_candidate_abort_commit(int sock);
This function cancels an ongoing confirmed commit.
If confd_errno is CONFD_ERR_NOEXISTS it means that some other user session initiated the
confirmed commit, or that there is an ongoing persistent confirmed commit (see below).
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS,
CONFD_ERR_NOSESSION, CONFD_ERR_EXTERNAL
int maapi_candidate_confirmed_commit_persistent(int sock, int
timeoutsecs, const char *persist, const char *persist_id);
This function can be used to start or extend a persistent confirmed commit. The persist parameter sets
the cookie for the persistent confirmed commit, while the persist_id gives the cookie for an already
ongoing persistent confirmed commit. This gives the following possibilities:
persist = "cookie",
persist_id = NULL Start a persistent confirmed commit with the cookie "cookie", or
extend an already ongoing non-persistent confirmed commit and
turn it into a persistent confirmed commit.
persist = "newcookie",
persist_id = "oldcookie" Extend an ongoing persistent confirmed commit that uses the
cookie "oldcookie" and change the cookie to "newcookie".
persist = NULL,
persist_id = "cookie" Extend an ongoing persistent confirmed commit that uses the
cookie "oldcookie" and turn it into a non-persistent confirmed
commit.
persist = NULL,
persist_id = NULL Does the same as
maapi_candidate_confirmed_commit().
Typical usage is to start a persistent confirmed commit with persist = "cookie", persist_id =
NULL, and to extend it with persist = "cookie", persist_id = "cookie".
If confd_errno is CONFD_ERR_NOEXISTS it means that there is an ongoing persistent confirmed
commit, but persist_id didn't give the right cookie for it.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS,
CONFD_ERR_INUSE, CONFD_ERR_NOSESSION, CONFD_ERR_EXTERNAL
int maapi_candidate_confirmed_commit_info(int sock, int timeoutsecs,
const char *persist, const char *persist_id, const char *label, const
char *comment);
This function does the same as maapi_candidate_confirmed_commit_persistent(), but
allows for setting the "Label" and/or "Comment" that is stored in the rollback file when the candidate is
committed to running. To set only the "Label", give comment as NULL, and to set only the "Comment",
723
confd_lib_maapi
give label as NULL. If both label and comment are NULL, the function does exactly the same as
maapi_candidate_confirmed_commit_persistent().
Note
To ensure that the "Label" and/or "Comment" are stored in the rollback file in all cases when doing
a confirmed commit, they must be given both with the confirmed commit (using this function)
and with the confirming commit (using maapi_candidate_commit_info()).
If confd_errno is CONFD_ERR_NOEXISTS it means that there is an ongoing persistent confirmed
commit, but persist_id didn't give the right cookie for it.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS,
CONFD_ERR_INUSE, CONFD_ERR_NOSESSION, CONFD_ERR_EXTERNAL
int maapi_candidate_commit_persistent(int sock, const char
*persist_id);
Confirm an ongoing persistent confirmed commit with the cookie given by persist_id. If
persist_id is NULL, it does the same as maapi_candidate_commit().
If confd_errno is CONFD_ERR_NOEXISTS it means that there is an ongoing persistent confirmed
commit, but persist_id didn't give the right cookie for it.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS,
CONFD_ERR_INUSE, CONFD_ERR_NOSESSION, CONFD_ERR_EXTERNAL
int maapi_candidate_commit_info(int sock, const char *persist_id, const
char *label, const char *comment);
This function does the same as maapi_candidate_commit_persistent(), but allows for setting
the "Label" and/or "Comment" that is stored in the rollback file when the candidate is committed to
running. To set only the "Label", give comment as NULL, and to set only the "Comment", give
label as NULL. If both label and comment are NULL, the function does exactly the same as
maapi_candidate_commit_persistent().
Note
To ensure that the "Label" and/or "Comment" are stored in the rollback file in all cases
when doing a confirmed commit, they must be given both with the confirmed commit (using
maapi_candidate_confirmed_commit_info()) and with the confirming commit
(using this function).
If confd_errno is CONFD_ERR_NOEXISTS it means that there is an ongoing persistent confirmed
commit, but persist_id didn't give the right cookie for it.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS,
CONFD_ERR_INUSE, CONFD_ERR_NOSESSION, CONFD_ERR_EXTERNAL
int maapi_candidate_abort_commit_persistent(int sock, const char
*persist_id);
Cancel an ongoing persistent confirmed commit with the cookie given by persist_id. (If
persist_id is NULL, it does the same as maapi_candidate_abort_commit().)
If confd_errno is CONFD_ERR_NOEXISTS it means that there is an ongoing persistent confirmed
commit, but persist_id didn't give the right cookie for it.
724
confd_lib_maapi
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS,
CONFD_ERR_INUSE, CONFD_ERR_NOSESSION, CONFD_ERR_EXTERNAL
int maapi_candidate_reset(int sock);
This function copies running into candidate.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_INUSE,
CONFD_ERR_EXTERNAL, CONFD_ERR_NOSESSION
int maapi_confirmed_commit_in_progress(int sock);
Checks whether a confirmed commit is ongoing. Returns 1 if some user session currently has an ongoing
confirmed commit operation and 0 if not.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS
int maapi_copy_running_to_startup(int sock);
This function copies running to startup.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_INUSE,
CONFD_ERR_EXTERNAL, CONFD_ERR_NOSESSION, CONFD_ERR_NOEXISTS
int maapi_is_running_modified(int sock);
Returns 1 if running has been modified since the last copy to startup, 0 if it has not been modified.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_NOEXISTS
int maapi_is_candidate_modified(int sock);
Returns 1 if candidate has been modified, i.e if there are any outstanding non committed changes to the
candidate, 0 if no changes are done
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_NOEXISTS
TRANSACTION CONTROL
int maapi_start_trans(int sock, enum confd_dbname name, enum
confd_trans_mode readwrite);
The main purpose of MAAPI is to provide read and write access into the ConfD transaction manager.
Regardless of whether data is kept in CDB or in some (or several) external data bases, the same API is
used to access data. ConfD acts as a mediator and multiplexes the different commands to the code which
is responsible for each individual data node.
This function creates a new transaction towards the data store specified by name, which can be
one of CONFD_CANDIDATE, CONFD_OPERATIONAL, CONFD_RUNNING, or CONFD_STARTUP
(however updating the startup data store is better done via maapi_copy_running_to_startup()).
The readwrite parameter can be either CONFD_READ, to start a readonly transaction, or
CONFD_READ_WRITE, to start a read-write transaction.
A readonly transaction will incur less resource usage, thus if no writes will be done (e.g. the purpose of
the transaction is only to read operational data), it is best to use CONFD_READ. There are also some cases
where starting a read-write transaction is not allowed, e.g. if we start a transaction towards the running data
725
confd_lib_maapi
store and /confdConfig/datastores/running/access is set to "writable-through-candidate"
in confd.conf, or if ConfD is running in HA slave mode.
If start of the transaction is successful, the function returns a new transaction handle, a non-negative integer
thandle which must be used as a parameter in all API functions which manipulate the transaction.
We will drive this transaction forward through the different states a ConfD transaction goes through. See
the ascii arts in confd_lib_dp(3) for a picture of these states. If an external database is used, and it has
registered callback functions for the different transaction states, those callbacks will be called when we
in MAAPI invoke the different MAAPI transaction manipulation functions. For example when we call
maapi_start_trans() the init() callback will be invoked in all external databases. (However
ConfD may delay the actual invocation of init() as an optimization, see confd_lib_dp(3).) If data is
kept in CDB, ConfD will handle everything internally.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_TOOMANYTRANS, CONFD_ERR_BADSTATE, CONFD_ERR_NOT_WRITABLE
int maapi_start_trans2(int sock, enum confd_dbname name, enum
confd_trans_mode readwrite, int usid);
If we want to start new transactions inside actions, we can use this function to execute the new transaction
within the existing user session. It is equivalent to calling maapi_set_user_session() and then
maapi_start_trans().
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_TOOMANYTRANS, CONFD_ERR_BADSTATE, CONFD_ERR_NOT_WRITABLE
int maapi_start_trans_flags(int sock, enum confd_dbname name, enum
confd_trans_mode readwrite, int usid, int flags);
This function makes it possible to set the flags that can otherwise be used with maapi_set_flags()
already when starting a transaction, as well as setting the MAAPI_FLAG_HIDE_INACTIVE and
MAAPI_FLAG_DELAYED_WHEN flags that can only be used with maapi_start_trans_flags().
See the description of maapi_set_flags() for the available flags. It also incorporates the
functionality of maapi_start_trans() and maapi_start_trans2() with respect to user
sessions: If usid is 0, the transaction will be started within the user session associated with the MAAPI
socket (like maapi_start_trans()), otherwise it will be started within the user session given by
usid (like maapi_start_trans2()).
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_TOOMANYTRANS, CONFD_ERR_BADSTATE, CONFD_ERR_NOT_WRITABLE
int maapi_start_trans_flags2(int sock, enum confd_dbname dbname, enum
confd_trans_mode readwrite, int usid, int flags, const char *vendor,
const char *product, const char *version, const char *client_id);
This function does the same as maapi_start_trans_flags() but allows additional information
about the transaction to be passed to ConfD. Calling maapi_start_trans_flags() is equivalent
to calling maapi_start_trans_flags2() with vendor, product and version set to NULL,
and client_id set to __MAAPI_CLIENT_ID__. The __MAAPI_CLIENT_ID__ macro (defined in
confd_maapi.h) will expand to a string representation of __FILE__:__LINE__.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_TOOMANYTRANS, CONFD_ERR_BADSTATE, CONFD_ERR_NOT_WRITABLE
int maapi_start_trans_in_trans(int sock, enum confd_trans_mode
readwrite, int usid, int thandle);
726
confd_lib_maapi
This function makes it possible to start a transaction with another transaction as backend, instead of
an actual data store. This can be useful if we want to make a set of related changes, and then either
apply or discard them all based on some criterion, while other changes remain unaffected. The thandle
identifies the backend transaction to use. If usid is 0, the transaction will be started within the user session
associated with the MAAPI socket, otherwise it will be started within the user session given by usid.
If we call maapi_apply_trans() for this "transaction in a transaction", the changes (if any) will
be applied to the backend transaction. To discard the changes, call maapi_finish_trans() without
calling maapi_apply_trans() first.
The changes in this transaction can be validated by calling maapi_validate_trans() with a non-
zero value for forcevalidation, but calling maapi_apply_trans() will not do any validation
- in either case, the resulting configuration will be validated when the backend transaction is committed
to the running data store. Note though that unlike the case with a transaction directly towards a data store,
no transaction lock is taken on the underlying data store when doing validation of this type of transaction
- thus it is possible for the contents of the data store to change (due to commit of another transaction)
during the validation.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_TOOMANYTRANS, CONFD_ERR_BADSTATE
int maapi_finish_trans(int sock, int thandle);
This will finish the transaction. If the transaction is implemented by an external database, this will invoke
the finish() callback.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_NOEXISTS
The error CONFD_ERR_NOEXISTS is set for all API functions which use a thandle, the return value
from maapi_start_trans(), whenever no transaction is started.
int maapi_validate_trans(int sock, int thandle, int unlock, int
forcevalidation);
This function validates all data written in the transaction. This includes all data model constraints and all
defined semantic validation in C, i.e. user programs that have registered functions under validation points.
(See the Semantic Validation chapter in the User Guide.)
If this function returns CONFD_ERR, the transaction is open for further editing. There are two special
confd_errno values which are of particular interest here.
CONFD_ERR_EXTERNAL this means that an external validation program in C returns
CONFD_ERR i.e. that the semantic validation failed. The reason
for the failure can be found in confd_lasterr()
CONFD_ERR_VALIDATION_WARNINGThis means that an external semantic validation program
in C returned CONFD_VALIDATION_WARN. The string
confd_lasterr() is organized as a series of NUL terminated
strings as in keypath1, reason1, keypath2,
reason2 ... where the sequence is terminated with an
additional NUL
If unlock is 1, the transaction is open for further editing even if validation succeeds. If unlock is 0 and
the function returns CONFD_OK, the next function to be called MUST be maapi_prepare_trans()
or maapi_finish_trans().
727
confd_lib_maapi
unlock = 1 can be used to implement a 'validate' command which can be given in the middle of an editing
session. The first thing that happens is that a lock is set. If unlock == 1, the lock is released on success.
The lock is always released on failure.
The forcevalidation parameter should normally be 0. It has no effect for a transaction
towards the running or startup data stores, validation is always performed. For a transaction towards
the candidate data store, validation will not be done unless forcevalidation is non-zero.
Avoiding this validation is preferable if we are going to commit the candidate to running (e.g. with
maapi_candidate_commit()), since otherwise the validation will be done twice. However if we
are implementing a 'validate' command, we should give a non-zero value for forcevalidation.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_NOEXISTS, CONFD_ERR_NOTSET, CONFD_ERR_NON_UNIQUE,
CONFD_ERR_BAD_KEYREF, CONFD_ERR_TOO_FEW_ELEMS,
CONFD_ERR_TOO_MANY_ELEMS, CONFD_ERR_UNSET_CHOICE,
CONFD_ERR_MUST_FAILED, CONFD_ERR_MISSING_INSTANCE,
CONFD_ERR_INVALID_INSTANCE, CONFD_ERR_INUSE, CONFD_ERR_BADTYPE,
CONFD_ERR_EXTERNAL, CONFD_ERR_BADSTATE
int maapi_prepare_trans(int sock, int thandle);
This function must be called as first part of two-phase commit. After this function has been called
maapi_commit_trans() or maapi_abort_trans() must be called.
It will invoke the prepare callback in all participants in the transaction. If all participants reply with
CONFD_OK, the second phase of the two-phase commit procedure is commenced.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_NOEXISTS, CONFD_ERR_EXTERNAL, CONFD_ERR_NOTSET,
CONFD_ERR_BADSTATE, CONFD_ERR_INUSE
int maapi_commit_trans(int sock, int thandle);
int maapi_abort_trans(int sock, int thandle);
Finally at the last stage, either commit or abort must be called. A call to one of these functions must also
eventually be followed by a call to maapi_finish_trans() which will terminate the transaction.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_NOEXISTS, CONFD_ERR_EXTERNAL, CONFD_ERR_BADSTATE
int maapi_apply_trans(int sock, int thandle, int keepopen);
Invoking the above transaction functions in exactly the right order can be a bit complicated. The
right order to invoke the functions is maapi_validate_trans(), maapi_prepare_trans(),
maapi_commit_trans() (or maapi_abort_trans()). Usually we do not require this fine
grained control over the two-phase commit protocol. It is easier to use maapi_apply_trans() which
validates, prepares and eventually commits or aborts.
A call to maapi_apply_trans() must also eventually be followed by a call to
maapi_finish_trans() which will terminate the transaction.
Note
For a readonly transaction, i.e. one started with readwrite == CONFD_READ, or for a read-
write transaction where we haven't actually done any writes, we do not need to call any of the
728
confd_lib_maapi
validate/prepare/commit/abort or apply functions, since there is nothing for them to do. Calling
maapi_finish_trans() to terminate the transaction is sufficient.
The parameter keepopen can optionally be set to 1, then the changes to the transaction are not discarded
if validation fails. This feature is typically used by management applications that wish to present the
validation errors to an operator and allow the operator to fix the validation errors and then later retry the
apply sequence.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_NOEXISTS, CONFD_ERR_NOTSET, CONFD_ERR_NON_UNIQUE,
CONFD_ERR_BAD_KEYREF, CONFD_ERR_TOO_FEW_ELEMS,
CONFD_ERR_TOO_MANY_ELEMS, CONFD_ERR_UNSET_CHOICE,
CONFD_ERR_MUST_FAILED, CONFD_ERR_MISSING_INSTANCE,
CONFD_ERR_INVALID_INSTANCE, CONFD_ERR_INUSE, CONFD_ERR_BADTYPE,
CONFD_ERR_EXTERNAL, CONFD_ERR_BADSTATE
READ/WRITE FUNCTIONS
int maapi_set_namespace(int sock, int thandle, int hashed_ns);
If we want to read or write data where the toplevel element name is not unique, we must indicate which
namespace we are going to use. It is possible to change the namespace several times during a transaction.
The hashed_ns integer is the integer which is defined for the namespace in the .h file which is generated
by the 'confdc' compiler. It is also possible to indicate which namespace to use through the namespace
prefix when we read and write data. Thus the path /foo:bar/baz will get us /bar/baz in the
namespace with prefix "foo" regardless of what the "set" namespace is. And if there is only one toplevel
element called "bar" across all namespaces, we can use /bar/baz without the prefix and without calling
maapi_set_namespace().
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_NOEXISTS
int maapi_cd(int sock, int thandle, const char *fmt, ...);
This function mimics the behavior of the UNIX "cd" command. It changes our working position in the data
tree. If we are worried about performance, it is more efficient to invoke maapi_cd() to some position
in the tree and there perform a series of operations using relative paths than it is to perform the equivalent
series of operations using absolute paths. Note that this function can not be used as an existence test.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_BADPATH, CONFD_ERR_NOEXISTS
int maapi_pushd(int sock, int thandle, const char *fmt, ...);
Behaves like maapi_cd() with the exception that we can subsequently call maapi_popd() and
returns to the previous position in the data tree.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_BADPATH, CONFD_ERR_NOSTACK, CONFD_ERR_NOEXISTS
int maapi_popd(int sock, int thandle);
Pops the top position of the directory stack and changes directory.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_BADPATH, CONFD_ERR_NOSTACK, CONFD_ERR_NOEXISTS
729
confd_lib_maapi
int maapi_getcwd(int sock, int thandle, size_t strsz, char *curdir);
Returns the current position as previously set by maapi_cd(), maapi_pushd(), or maapi_popd()
as a string. Note that what is returned is a pretty-printed version of the internal representation of the current
position, it will be the shortest unique way to print the path but it might not exactly match the string given
to maapi_cd(). The buffer in *curdir will be NULL terminated, and no more characters than strsz-1
will be written to it.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_NOEXISTS
int maapi_getcwd_kpath(int sock, int thandle, confd_hkeypath_t **kp);
Returns the current position like maapi_getcwd(), but as a pointer to a hashed keypath instead of as
a string. The hkeypath is dynamically allocated, and may further contain dynamically allocated elements.
The caller must free the allocated memory, easiest done by calling confd_free_hkeypath().
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_NOEXISTS
int maapi_exists(int sock, int thandle, const char *fmt, ...);
Boolean function which return 1 if the path refers to an existing node in the data tree, 0 if it does not.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_BADPATH, CONFD_ERR_NOEXISTS, CONFD_ERR_ACCESS_DENIED
int maapi_num_instances(int sock, int thandle, const char *fmt, ...);
Returns the number of entries for a list in the data tree.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_BADPATH, CONFD_ERR_NOEXISTS, CONFD_ERR_ACCESS_DENIED
int maapi_get_elem(int sock, int thandle, confd_value_t *v, const char
*fmt, ...);
This function reads a value from the path in fmt and writes the result into the result parameter
confd_value_t. The path must lead to a leaf node in the data tree. Note that for the C_BUF, C_BINARY,
C_LIST, C_OBJECTREF, C_OID, C_QNAME, C_HEXSTR, and C_BITBIG confd_value_t types, the
buffer(s) pointed to are allocated using malloc(3) - it is up to the user of this interface to free them using
confd_free_value().
The maapi interface also contains a long list of access functions that accompany the
maapi_get_elem() function which is a general access function that returns a confd_value_t. The
accompanying functions all have the format maapi_get_<type>_elem() where <type> is one of the
actual C types a confd_value_t can have. For example the function:
maapi_get_int64_elem(int sock, int thandle, int64_t *rval,
const char *fmt, ...);
is used to read a signed 64 bit integer. It fills in the provided int64_t parameter. This corresponds to
the YANG datatype int64, see confd_types(3). Similar access functions are provided for all the different
builtin types.
One access function that needs additional explaining is the maapi_get_str_elem(). This function
copies at most n-1 characters into a user provided buffer, and terminates the string with a NUL
character. If the buffer is not sufficiently large CONFD_ERR is returned, and confd_errno is set to
730
confd_lib_maapi
CONFD_ERR_PROTOUSAGE. Note it is always possible to use maapi_get_elem() to get hold of the
confd_value_t, which in the case of a string buffer contains the length.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADPATH,
CONFD_ERR_NOEXISTS, CONFD_ERR_ACCESS_DENIED, CONFD_ERR_PROTOUSAGE,
CONFD_ERR_BADTYPE
int maapi_get_int8_elem(int sock, int thandle, int8_t *rval, const char
*fmt, ...);
int maapi_get_int16_elem(int sock, int thandle, int16_t *rval, const
char *fmt, ...);
int maapi_get_int32_elem(int sock, int thandle, int32_t *rval, const
char *fmt, ...);
int maapi_get_int64_elem(int sock, int thandle, int64_t *rval, const
char *fmt, ...);
int maapi_get_u_int8_elem(int sock, int thandle, u_int8_t *rval, const
char *fmt, ...);
int maapi_get_u_int16_elem(int sock, int thandle, u_int16_t *rval, const
char *fmt, ...);
int maapi_get_u_int32_elem(int sock, int thandle, u_int32_t *rval, const
char *fmt, ...);
int maapi_get_u_int64_elem(int sock, int thandle, u_int64_t *rval, const
char *fmt, ...);
int maapi_get_ipv4_elem(int sock, int thandle, struct in_addr *rval,
const char *fmt, ...);
int maapi_get_ipv6_elem(int sock, int thandle, struct in6_addr *rval,
const char *fmt, ...);
int maapi_get_double_elem(int sock, int thandle, double *rval, const
char *fmt, ...);
int maapi_get_bool_elem(int sock, int thandle, int *rval, const char
*fmt, ...);
int maapi_get_datetime_elem(int sock, int thandle, struct confd_datetime
*rval, const char *fmt, ...);
int maapi_get_date_elem(int sock, int thandle, struct confd_date *rval,
const char *fmt, ...);
int maapi_get_gyearmonth_elem(int sock, int thandle, struct
confd_gYearMonth *rval, const char *fmt, ...);
int maapi_get_gyear_elem(int sock, int thandle, struct confd_gYear
*rval, const char *fmt, ...);
int maapi_get_time_elem(int sock, int thandle, struct confd_time *rval,
const char *fmt, ...);
731
confd_lib_maapi
int maapi_get_gday_elem(int sock, int thandle, struct confd_gDay *rval,
const char *fmt, ...);
int maapi_get_gmonthday_elem(int sock, int thandle, struct
confd_gMonthDay *rval, const char *fmt, ...);
int maapi_get_month_elem(int sock, int thandle, struct confd_gMonth
*rval, const char *fmt, ...);
int maapi_get_duration_elem(int sock, int thandle, struct confd_duration
*rval, const char *fmt, ...);
int maapi_get_enum_value_elem(int sock, int thandle, int32_t *rval,
const char *fmt, ...);
int maapi_get_bit32_elem(int sock, int th, int32_t *rval, const char
*fmt, ...);
int maapi_get_bit64_elem(int sock, int th, int64_t *rval, const char
*fmt, ...);
int maapi_get_oid_elem(int sock, int th, struct confd_snmp_oid **rval,
const char *fmt, ...);
int maapi_get_buf_elem(int sock, int thandle, unsigned char **rval, int
*bufsiz, const char *fmt, ...);
int maapi_get_str_elem(int sock, int th, char *buf, int n, const char
*fmt, ...);
int maapi_get_binary_elem(int sock, int thandle, unsigned char **rval,
int *bufsiz, const char *fmt, ...);
int maapi_get_qname_elem(int sock, int thandle, unsigned char **prefix,
int *prefixsz, unsigned char **name, int *namesz, const char *fmt, ...);
int maapi_get_list_elem(int sock, int th, confd_value_t **values, int
*n, const char *fmt, ...);
int maapi_get_ipv4prefix_elem(int sock, int thandle, struct
confd_ipv4_prefix *rval, const char *fmt, ...);
int maapi_get_ipv6prefix_elem(int sock, int thandle, struct
confd_ipv6_prefix *rval, const char *fmt, ...);
Similar to the CDB API, MAAPI also includes typesafe variants for all the builtin types. See
confd_types(3).
int maapi_vget_elem(int sock, int thandle, confd_value_t *v, const char
*fmt, va_list args);
This function does the same as maapi_get_elem(), but takes a single va_list argument instead of a
variable number of arguments - i.e. similar to vprintf(). Corresponding va_list variants exist for all
the functions that take a path as a variable number of arguments.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADPATH,
CONFD_ERR_NOEXISTS, CONFD_ERR_ACCESS_DENIED, CONFD_ERR_PROTOUSAGE,
CONFD_ERR_BADTYPE
732
confd_lib_maapi
int maapi_init_cursor(int sock, int thandle, struct maapi_cursor *mc,
const char *fmt, ...);
Whenever we wish to iterate over the entries in a list in the data tree, we must first initialize a cursor. The
cursor is subsequently used in a while loop.
For example if we have:
container servers {
list server {
key name;
max-elements 64;
leaf name {
type string;
}
leaf ip {
type inet:ip-address;
}
leaf port {
type inet:port-number;
mandatory true;
}
}
}
We can have the following C code which iterates over all server entries.
struct maapi_cursor mc;
maapi_init_cursor(sock, th, &mc, "/servers/server");
maapi_get_next(&mc);
while (mc.n != 0) {
... do something
maapi_get_next(&mc);
}
maapi_destroy_cursor(&mc);
When a tailf:secondary-index statement is used in the data model (see tailf_yang_extensions(5)),
we can set the secondary_index element of the struct maapi_cursor to indicate the name of
a chosen secondary index - this must be done after the call to maapi_init_cursor() (which
sets secondary_index to NULL) and before any call to maapi_get_next(). In this case,
secondary_index must point to a NUL-terminated string that is valid throughout the iteration.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_BADPATH, CONFD_ERR_NOEXISTS, CONFD_ERR_ACCESS_DENIED
int maapi_get_next(struct maapi_cursor *mc);
Iterates and gets the keys for the next entry in a list. The key(s) can be used to retrieve further data. The
key(s) are stored as confd_value_t structures in an array inside the struct maapi_cursor. The array of keys
will be deallocated by the library.
For example to read the port leaf from an entry in the server list above, we would do:
....
maapi_init_cursor(sock, th, &mc, "/servers/server");
maapi_get_next(&mc);
while (mc.n != 0) {
733
confd_lib_maapi
confd_value_t v;
maapi_get_elem(sock, th, &v, "/servers/server{%x}/port", &mc.keys[0]);
....
maapi_get_next(&mc);
}
The '%*x' modifier (see the PATHS section in confd_lib_cdb(3)) is especially useful when working
with a maapi cursor. The example above assumes that we know that the /servers/server list has
exactly one key. But we can alternatively write maapi_get_elem(sock, th, &v, "/servers/
server{%*x}/port", mc.n, mc.keys); - which works regardless of the number of keys that
the list has.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_BADPATH, CONFD_ERR_NOEXISTS, CONFD_ERR_ACCESS_DENIED
int maapi_find_next(struct maapi_cursor *mc, enum confd_find_next_type
type, confd_value_t *inkeys, int n_inkeys);
Update the cursor mc with the key(s) for the list entry designated by the type and inkeys parameters.
This function may be used to start a traversal from an arbitrary entry in a list. Keys for subsequent entries
may be retrieved with the maapi_get_next() function.
The inkeys array is populated with n_inkeys values that designate the starting point in the list.
Normally the array is populated with key values for the list, but if the secondary_index element of
the cursor has been set, the array must instead be populated with values for the corresponding secondary
index-leafs. The type can have one of two values:
CONFD_FIND_NEXT The keys for the first list entry after the one indicated by the inkeys
array are requested. The inkeys array does not have to correspond
to an actual existing list entry. Furthermore the number of values
provided in the array (n_inkeys) may be fewer than the number
of keys (or number of index-leafs for a secondary-index) in the
data model, possibly even zero. This indicates that only the first
n_inkeys values are provided, and the remaining ones should be
taken to have a value "earlier" than the value for any existing list
entry.
CONFD_FIND_SAME_OR_NEXT If the values in the inkeys array completely identify an actual
existing list entry, the keys for this entry are requested. Otherwise the
same logic as described for CONFD_FIND_NEXT is used.
The following example will traverse the server list starting with the first entry (if any) that has a key
value that is after "smtp" in the list order:
....
confd_value_t inkeys[1];
maapi_init_cursor(sock, th, &mc, "/servers/server");
CONFD_SET_STR(&inkeys[0], "smtp");
maapi_find_next(&mc, CONFD_FIND_NEXT, inkeys, 1);
while (mc.n != 0) {
confd_value_t v;
maapi_get_elem(sock, th, &v, "/servers/server{%x}/port", &mc.keys[0]);
....
maapi_get_next(&mc);
}
734
confd_lib_maapi
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_BADPATH, CONFD_ERR_NOEXISTS, CONFD_ERR_ACCESS_DENIED
void maapi_destroy_cursor(struct maapi_cursor *mc);
Deallocates memory which is associated with the cursor.
int maapi_set_elem(int sock, int thandle, confd_value_t *v, const char
*fmt, ...);
int maapi_set_elem2(int sock, int thandle, const char *strval, const
char *fmt, ...);
We have two different functions to set values. One where the value is a string and one where the value to
set is a confd_value_t. The string version is useful when we have implemented a management agent where
the user enters values as strings. The version with confd_value_t is useful when we are setting values
which we have just read.
Another note which might effect users is that if the type we are writing is any of the encrypt or
hash types, the maapi_set_elem2() will perform the asymmetric conversion of values whereas the
maapi_set_elem() will not. See confd_types(3), the types tailf:md5-digest-string, tailf:des3-cbc-
encrypted-string, and tailf:aes-cfb-128-encrypted-string.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_BADPATH, CONFD_ERR_NOEXISTS, CONFD_ERR_BADTYPE,
CONFD_ERR_ACCESS_DENIED, CONFD_ERR_NOT_WRITABLE, CONFD_ERR_INUSE
int maapi_vset_elem(int sock, int thandle, confd_value_t *v, const char
*fmt, va_list args);
This function does the same as maapi_set_elem(), but takes a single va_list argument instead of a
variable number of arguments - i.e. similar to vprintf(). Corresponding va_list variants exist for all
the functions that take a path as a variable number of arguments.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_BADPATH, CONFD_ERR_NOEXISTS, CONFD_ERR_BADTYPE,
CONFD_ERR_ACCESS_DENIED, CONFD_ERR_NOT_WRITABLE, CONFD_ERR_INUSE
int maapi_create(int sock, int thandle, const char *fmt, ...);
Create a new list entry, a presence container, or a leaf of type empty in the data tree. For example:
maapi_create(sock,th,"/servers/server{www}");
If we are creating a new server entry as above, we must also populate all other data nodes below, which
do not have a default value in the data model. Thus we must also do e.g.:
maapi_set_elem2(sock, th, "80", "/servers/server{www}/port");
before we try to commit the data.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_BADPATH, CONFD_ERR_NOEXISTS, CONFD_ERR_BADTYPE,
CONFD_ERR_ACCESS_DENIED, CONFD_ERR_NOT_WRITABLE,
CONFD_ERR_NOTCREATABLE, CONFD_ERR_INUSE, CONFD_ERR_ALREADY_EXISTS
int maapi_delete(int sock, int thandle, const char *fmt, ...);
735
confd_lib_maapi
Delete an existing list entry, a presence container, or an optional leaf and all its children (if any) from
the data tree.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_BADPATH, CONFD_ERR_NOEXISTS, CONFD_ERR_BADTYPE,
CONFD_ERR_ACCESS_DENIED, CONFD_ERR_NOT_WRITABLE,
CONFD_ERR_NOTDELETABLE, CONFD_ERR_INUSE
int maapi_get_object(int sock, int thandle, confd_value_t *values, int
n, const char *fmt, ...);
This function reads at most n values from the list entry or container specified by the path, and places them
in the values array, which is provided by the caller. The array is populated according to the specification
of the Value Array format in the XML STRUCTURES section of the confd_types(3) manual page.
On success, the function returns the actual number of elements needed. I.e. if the return value is bigger
than n, only the values for the first n elements are in the array, and the remaining values have been
discarded. Note that given the specification of the array contents, there is always a fixed upper bound on
the number of actual elements, and if there are no presence sub-containers, the number is constant.
See the description of cdb_get_object() in confd_lib_cdb(3) for usage examples - they apply to
maapi_get_object() as well.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_BADPATH, CONFD_ERR_NOEXISTS, CONFD_ERR_ACCESS_DENIED
int maapi_get_objects(struct maapi_cursor *mc, confd_value_t *values,
int n, int *nobj);
Similar to maapi_get_object(), but reads multiple list entries based on a struct maapi_cursor.
At most n values from each of at most *nobj list entries, starting at the entry after the one given
by *mc, are read and placed in the values array. The cursor must have been initialized with
maapi_init_cursor() at some point before the call, but in principle it is possible to mix calls to
maapi_get_next() and maapi_get_objects() using the same cursor.
The array must be at least n * *nobj elements long, and the values for entry i start at element array[i
* n] (i.e. the first entry read starts at array[0], the second at array[n], and so on). On success, the
highest actual number of values in any of the entries read is returned. If we attempt to read more entries than
actually exist (i.e. if there are less than *nobj entries after the entry indicated by *mc), *nobj is updated
with the actual number (possibly 0) of entries read. In this case the n element of the cursor is set to 0 as for
maapi_get_next(). Example - read the data for all entries in the "server" list above, in chunks of 10:
#define VALUES_PER_ENTRY 3
#define ENTRIES_PER_REQUEST 10
struct maapi_cursor mc;
confd_value_t v[ENTRIES_PER_REQUEST*VALUES_PER_ENTRY];
int nobj, ret, i;
maapi_init_cursor(sock, th, &mc, "/servers/server");
do {
nobj = ENTRIES_PER_REQUEST;
ret = maapi_get_objects(&mc, v, VALUES_PER_ENTRY, &nobj);
if (ret >= 0) {
for (i = 0; i < nobj; i++) {
... process entry starting at v[i*VALUES_PER_ENTRY] ...
}
} else {
736
confd_lib_maapi
... handle error ...
}
} while (ret >= 0 && mc.n != 0);
maapi_destroy_cursor(&mc);
See also the description of cdb_get_object() in confd_lib_cdb(3) for examples on how to use loaded
schema information to avoid "hardwiring" constants like VALUES_PER_ENTRY above, and the relative
position of individual leaf values in the value array.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_BADPATH, CONFD_ERR_PROTOUSAGE, CONFD_ERR_NOEXISTS,
CONFD_ERR_ACCESS_DENIED
int maapi_get_values(int sock, int thandle, confd_tag_value_t *values,
int n, const char *fmt, ...);
Read an arbitrary set of sub-elements of a container or list entry. The values array must be pre-populated
with n values based on the specification of the Tagged Value Array format in the XML STRUCTURES
section of the confd_types(3) manual page, where the confd_value_t value element is given as follows:
C_NOEXISTS means that the value should be read from the transaction and stored in the array.
C_PTR also means that the value should be read from the transaction, but instead gives the expected
type and a pointer to the type-specific variable where the value should be stored. Thus this gives a
functionality similar to the type safe maapi_get_xxx_elem() functions.
C_XMLBEGIN and C_XMLEND are used as per the specification.
Keys to select list entries can be given with their values.
Note
When we use C_PTR, we need to take special care to free any allocated memory. When we use
C_NOEXISTS and the value is stored in the array, we can just use confd_free_value()
regardless of the type, since the confd_value_t has the type information. But with C_PTR, only
the actual value is stored in the pointed-to variable, just as for maapi_get_buf_elem(),
maapi_get_binary_elem(), etc, and we need to free the memory specifically allocated for
the types listed in the description of maapi_get_elem() above. The details of how to do this
are not given for the maapi_get_xxx_elem() functions here, but it is the same as for the
corresponding cdb_get_xxx() functions, see confd_lib_cdb(3).
All elements have the same position in the array after the call, in order to simplify extraction of the values
- this means that optional elements that were requested but didn't exist will have C_NOEXISTS rather
than being omitted from the array. However requesting a list entry that doesn't exist is an error. Note that
when using C_PTR, the only indication of a non-existing value is that the destination variable has not
been modified - it's up to the application to set it to some "impossible" value before the call when optional
leafs are read.
Note
Selection of a list entry by its "instance integer", which can be done with cdb_get_values()
by using C_CDBBEGIN, can not be done with maapi_get_values()
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_BADPATH, CONFD_ERR_BADTYPE, CONFD_ERR_NOEXISTS,
CONFD_ERR_ACCESS_DENIED
737
confd_lib_maapi
int maapi_set_object(int sock, int thandle, const confd_value_t *values,
int n, const char *fmt, ...);
Set all leafs corresponding to the complete contents of a list entry or container, excluding for sub-lists. The
values array must be populated with n values according to the specification of the Value Array format
in the XML STRUCTURES section of the confd_types(3) manual page. Additionally, since operational
data cannot be written, array elements corresponding to operational data leafs or containers must have the
value C_NOEXISTS.
If the node specified by the path, or any sub-nodes that are specified as existing, do not exist before this
call, they will be created, otherwise the existing values will be updated. Nodes that can be deleted and
are specified as not existing in the array, i.e. with value C_NOEXISTS, will be deleted if they existed
before the call.
For a list entry, since the key values must be present in the array, it is not required that the key values
are included in the path given by fmt. If the key values are included in the path, the key values in the
array are ignored.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_BADPATH, CONFD_ERR_NOEXISTS, CONFD_ERR_BADTYPE,
CONFD_ERR_ACCESS_DENIED, CONFD_ERR_NOT_WRITABLE, CONFD_ERR_INUSE
int maapi_set_values(int sock, int thandle, const confd_tag_value_t
*values, int n, const char *fmt, ...);
Set arbitrary sub-elements of a container or list entry. The values array must be populated with n values
according to the specification of the Tagged Value Array format in the XML STRUCTURES section of the
confd_types(3) manual page.
If the container or list entry itself, or any sub-elements that are specified as existing, do not exist before
this call, they will be created, otherwise the existing values will be updated. Both mandatory and optional
elements may be omitted from the array, and all omitted elements are left unchanged. To actually delete
a non-mandatory leaf or presence container as described for maapi_set_object(), it may (as an
extension of the format) be specified as C_NOEXISTS instead of being omitted.
For a list entry, the key values can be specified either in the path or via key elements in the array - if the
values are in the path, the key elements can be omitted from the array. For sub-lists present in the array, the
key elements must of course always also be present though, immediately following the C_XMLBEGIN
element and in the order defined by the data model. It is also possible to delete a list entry by using
a C_XMLBEGINDEL element, followed by the keys in data model order, followed by a C_XMLEND
element.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_BADPATH, CONFD_ERR_NOEXISTS, CONFD_ERR_BADTYPE,
CONFD_ERR_ACCESS_DENIED, CONFD_ERR_NOT_WRITABLE, CONFD_ERR_INUSE
int maapi_get_case(int sock, int thandle, const char *choice,
confd_value_t *rcase, const char *fmt, ...);
When we use the YANG choice statement in the data model, this function can be used to find the
currently selected case, avoiding useless maapi_get_elem() etc requests for nodes that belong to
other cases. The fmt, ... arguments give the path to the list entry or container where the choice is
defined, and choice is the name of the choice. The case value is returned to the confd_value_t that
rcase points to, as type C_XMLTAG - i.e. we can use the CONFD_GET_XMLTAG() macro to retrieve
the hashed tag value.
738
confd_lib_maapi
If we have "nested" choices, i.e. multiple levels of choice statements without intervening container
or list statements in the data model, the choice argument must give a '/'-separated path with alternating
choice and case names, from the data node given by the fmt, ... arguments to the specific choice that
the request pertains to.
For a choice without a mandatory true statement where no case is currently selected, the function will
fail with CONFD_ERR_NOEXISTS if the choice doesn't have a default case. If it has a default case, it will
be returned unless the MAAPI_FLAG_NO_DEFAULTS flag is in effect (see maapi_set_flags()
below) - if the flag is set, the value returned via rcase will have type C_DEFAULT.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_BADPATH, CONFD_ERR_NOEXISTS, CONFD_ERR_ACCESS_DENIED
int maapi_get_attrs(int sock, int thandle, u_int32_t *attrs, int
num_attrs, confd_attr_value_t **attr_vals, int *num_vals, const char
*fmt, ...);
Retrieve attributes for a configuration node. These attributes are currently supported:
/* CONFD_ATTR_TAGS: value is C_LIST of C_BUF/C_STR */
#define CONFD_ATTR_TAGS 0x80000000
/* CONFD_ATTR_ANNOTATION: value is C_BUF/C_STR */
#define CONFD_ATTR_ANNOTATION 0x80000001
/* CONFD_ATTR_INACTIVE: value is C_BOOL 1 (i.e. "true") */
#define CONFD_ATTR_INACTIVE 0x00000000
/* CONFD_ATTR_BACKPOINTER: value is C?LIST of C_BUF/C_STR */
#define CONFD_ATTR_BACKPOINTER 0x80000003
The attrs parameter is an array of attributes of length num_attrs, specifying the wanted attributes - if
num_attrs is 0, all attributes are retrieved. If no attributes are found, *num_vals is set to 0, otherwise
an array of confd_attr_value_t elements is allocated and populated, its address stored in *attr_vals,
and *num_vals is set to the number of elements in the array. The confd_attr_value_t struct is defined as:
typedef struct confd_attr_value {
u_int32_t attr;
confd_value_t v;
} confd_attr_value_t;
If any attribute values are returned (*num_vals > 0), the caller must free the allocated memory by calling
confd_free_value() for each of the confd_value_t elements, and free(3) for the *attr_vals
array itself.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_BADPATH, CONFD_ERR_NOEXISTS, CONFD_ERR_ACCESS_DENIED,
CONFD_ERR_UNAVAILABLE
int maapi_set_attr(int sock, int thandle, u_int32_t attr, confd_value_t
*v, const char *fmt, ...);
Set an attribute for a configuration node. See maapi_get_attrs() above for the supported attributes.
To delete an attribute, call the function with a value of type C_NOEXISTS.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_BADPATH, CONFD_ERR_BADTYPE, CONFD_ERR_NOEXISTS,
CONFD_ERR_ACCESS_DENIED, CONFD_ERR_UNAVAILABLE
739
confd_lib_maapi
int maapi_delete_all(int sock, int thandle, enum maapi_delete_how how);
This function can be used to delete "all" the configuration data within a transaction. The how argument
specifies the extent of "all":
MAAPI_DEL_SAFE Delete everything except namespaces that were exported to none (with
tailf:export none). Toplevel nodes that cannot be deleted due to
AAA rules are silently left in place, but descendant nodes will still be deleted
if the AAA rules allow it.
MAAPI_DEL_EXPORTED Delete everything except namespaces that were exported to none (with
tailf:export none). AAA rules are ignored, i.e. nodes are deleted
even if the AAA rules don't allow it.
MAAPI_DEL_ALL Delete everything. AAA rules are ignored.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_NOEXISTS
int maapi_revert(int sock, int thandle);
This function removes all changes done to the transaction.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_NOEXISTS
int maapi_set_flags(int sock, int thandle, int flags);
We can modify some aspects of the read/write session by calling this function - these values can
be used for the flags argument (ORed together if more than one) with this function and/or with
maapi_start_trans_flags():
#define MAAPI_FLAG_HINT_BULK (1 << 0)
#define MAAPI_FLAG_NO_DEFAULTS (1 << 1)
#define MAAPI_FLAG_CONFIG_ONLY (1 << 2)
#define MAAPI_FLAG_HIDE_INACTIVE (1 << 3) /* maapi_start_trans_flags() only */
#define MAAPI_FLAG_DELAYED_WHEN (1 << 6) /* maapi_start_trans_flags() only */
MAAPI_FLAG_HINT_BULK tells the ConfD backplane that we will be reading substantial amounts
of data. This has the effect that the get_object() and get_next_object() callbacks (if
available) are used towards external data providers when we call maapi_get_elem() etc and
maapi_get_next(). The maapi_get_object() function always operates as if this flag was set.
MAAPI_FLAG_NO_DEFAULTS says that we want to be informed when we read leafs with default values
that have not had a value set. This is indicated by the returned value being of type C_DEFAULT instead
of the actual value. The default value for such leafs can be obtained from the confd_cs_node tree provided
by the library (see confd_types(3)).
MAAPI_FLAG_CONFIG_ONLY will make the maapi_get_xxx() functions return config nodes only - if
we attempt to read operational data, it will be treated as if the nodes did not exist. This is mainly useful
in conjunction with maapi_get_object() and list entries or containers that have both config and
operational data (the operational data nodes in the returned array will have the "value" C_NOEXISTS),
but the other functions also obey the flag.
MAAPI_FLAG_HIDE_INACTIVE can only be used with maapi_start_trans_flags(), and
only when starting a readonly transaction (parameter readwrite == CONFD_READ). It will hide
740
confd_lib_maapi
configuration data that has the CONFD_ATTR_INACTIVE attribute set, i.e. it will appear as if that data
does not exist.
MAAPI_FLAG_DELAYED_WHEN can also only be used with maapi_start_trans_flags(),
but regardless of whether the flag is used or not, the "delayed when" mode can subsequently
be changed with maapi_set_delayed_when(). The flag is only meaningful when starting a
read-write transaction (parameter readwrite == CONFD_READ_WRITE), and will cause "delayed
when" mode to be enabled from the beginning of the transaction. See the description of
maapi_set_delayed_when() for information about the "delayed when" mode.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_NOEXISTS
int maapi_set_delayed_when(int sock, int thandle, int on);
This function enables (on non-zero) or disables (on == 0) the "delayed when" mode of a transaction.
When successful, it returns 1 or 0 as indication of whether "delayed when" was enabled or disabled before
the call. See also the MAAPI_FLAG_DELAYED_WHEN flag for maapi_start_trans_flags().
The YANG when statement makes its parent data definition statement conditional. This can be
problematic in cases where we don't have control over the order of writing different data nodes. E.g. when
loading configuration from a file, the data that will satisfy the when condition may occur after the data
that the when applies to, making it impossible to actually write the latter data into the transaction - since
the when isn't satisfied, the data nodes effectively do not exist in the schema.
This is addressed by the "delayed when" mode for a transaction. When "delayed when" is enabled, it
is possible to write to data nodes even though they are conditional on a when that isn't satisfied. It has
no effect on reading though - trying to read data that is conditional on an unsatisfied when will always
result in CONFD_ERR_NOEXISTS or equivalent. When disabling "delayed when", any "delayed" when
statements will take effect immediately - i.e. if the when isn't satisfied at that point, the conditional nodes
and any data values for them will be deleted. If we don't explicitly disable "delayed when" by calling this
function, it will be automatically disabled when the transaction enters the VALIDATE state (e.g. due to
call of maapi_apply_trans()).
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_NOEXISTS
int maapi_set_label(int sock, int thandle, const char *label);
Set the "Label" that is stored in the rollback file when a transaction towards running is committed. Setting
the "Label" for transactions via candidate can be done when the candidate is committed to running, by
using the maapi_candidate_commit_info() function. For a confirmed commit, the "Label" must
also be given via the maapi_candidate_confirmed_commit_info() function.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_NOEXISTS
int maapi_set_comment(int sock, int thandle, const char *comment);
Set the "Comment" that is stored in the rollback file when a transaction towards running is committed.
Setting the "Comment" for transactions via candidate can be done when the candidate is committed
to running, by using the maapi_candidate_commit_info() function. For a confirmed commit,
the "Comment" must also be given via the maapi_candidate_confirmed_commit_info()
function.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_NOEXISTS
741
confd_lib_maapi
NCS SPECIFIC FUNCTIONS
The functions in this sections can only be used with NCS, and specifically the maapi_shared_xxx()
functions must be used for NCS FASTMAP, i.e. in the service create() callback. Those functions
maintain attributes that are necessary when multiple service instances modify the same data.
int maapi_shared_create(int sock, int thandle, int flags, const char
*fmt, ...);
FASTMAP version of maapi_create(). Normally the flags parameter should be given
as 0, but it is possible to suppress the creation of backpointer attributes by passing
MAAPI_SHARED_NO_BACKPOINTER for flags.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_BADPATH, CONFD_ERR_NOEXISTS, CONFD_ERR_BADTYPE,
CONFD_ERR_ACCESS_DENIED, CONFD_ERR_NOT_WRITABLE,
CONFD_ERR_NOTCREATABLE, CONFD_ERR_INUSE
int maapi_shared_set_elem(int sock, int thandle, confd_value_t *v, int
flags, const char *fmt, ...);
int maapi_shared_set_elem2(int sock, int thandle, const char *strval,
int flags, const char *fmt, ...);
FASTMAP versions of maapi_set_elem() and maapi_set_elem2(). The flags parameter is
currently unused and should be given as 0.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_BADPATH, CONFD_ERR_NOEXISTS, CONFD_ERR_BADTYPE,
CONFD_ERR_ACCESS_DENIED, CONFD_ERR_NOT_WRITABLE, CONFD_ERR_INUSE
int maapi_shared_insert(int sock, int thandle, int flags, const char
*fmt, ...);
FASTMAP version of maapi_insert(). Normally the flags parameter should be given
as 0, but it is possible to suppress the creation of backpointer attributes by passing
MAAPI_SHARED_NO_BACKPOINTER for flags.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_ACCESS_DENIED, CONFD_ERR_BADTYPE, CONFD_ERR_NOT_WRITABLE,
CONFD_ERR_NOEXISTS, CONFD_ERR_NOTDELETABLE
int maapi_shared_set_values(int sock, int thandle, const
confd_tag_value_t *values, int n, int flags, const char *fmt, ...);
FASTMAP version of maapi_set_values(). Normally the flags parameter should be
given as 0, but it is possible to suppress the creation of backpointer attributes by passing
MAAPI_SHARED_NO_BACKPOINTER for flags.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_BADPATH, CONFD_ERR_NOEXISTS, CONFD_ERR_BADTYPE,
CONFD_ERR_ACCESS_DENIED, CONFD_ERR_NOT_WRITABLE, CONFD_ERR_INUSE
int maapi_shared_copy_tree(int sock, int thandle, int flags, const char
*from, const char *tofmt, ...);
742
confd_lib_maapi
FASTMAP version of maapi_copy_tree(). Normally the flags parameter should be
given as 0, but it is possible to suppress the creation of backpointer attributes by passing
MAAPI_SHARED_NO_BACKPOINTER for flags.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_ACCESS_DENIED, CONFD_ERR_NOT_WRITABLE, CONFD_ERR_BADPATH
int maapi_ncs_apply_template(int sock, int thandle, char *template_name,
const struct ncs_name_value *variables, int num_variables, int flags,
const char *rootfmt, ...);
Apply a template that has been loaded into NCS. The template_name parameter gives the name of
the template. The variables parameter is an num_variables long array of variables and names for
substitution into the template. The struct ncs_name_value is defined as:
struct ncs_name_value {
char *name;
char *value;
};
The flags parameter is currently unused and should be given as 0.
Note
If this function is called under FASTMAP it will have the same behavior as the corresponding
FASTMAP function maapi_shared_ncs_apply_template().
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_ACCESS_DENIED, CONFD_ERR_NOT_WRITABLE, CONFD_ERR_BADPATH,
CONFD_ERR_NOEXISTS, CONFD_ERR_XPATH
int maapi_shared_ncs_apply_template(int sock, int thandle, char
*template_name, const struct ncs_name_value *variables, int
num_variables, int flags, const char *rootfmt, ...);
FASTMAP version of maapi_ncs_apply_template(). Normally the flags parameter should be
given as 0.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_ACCESS_DENIED, CONFD_ERR_NOT_WRITABLE, CONFD_ERR_BADPATH,
CONFD_ERR_NOEXISTS, CONFD_ERR_XPATH
int maapi_ncs_get_templates(int sock, char ***templates, int
*num_templates);
Retrieve a list of the templates currently loaded into NCS. On success, a pointer to an array of template
names is stored in templates and the length of the array is stored in num_templates. The library
allocates memory for the result, and the caller is responsible for freeing it. This can in all cases be done
with code like this:
char **templates;
int num_templates, i;
if (maapi_ncs_get_templates(sock, &templates, &num_templates) == CONFD_OK) {
...
for (i = 0; i < num_templates; i++) {
743
confd_lib_maapi
free(templates[i]);
}
if (num_templates > 0) {
free(templates);
}
}
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS
MISCELLANEOUS FUNCTIONS
int maapi_delete_config(int sock, enum confd_dbname name);
This function empties a data store.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_EXTERNAL
int maapi_copy(int sock, int from_thandle, int to_thandle);
If we open two transactions from the same user session but towards different data stores, such as one
transaction towards startup and one towards running, we can copy all data from one data store to the
other with this function. This is a replace operation - any configuration that exists in the transaction given
by to_handle but not in the one given by from_handle will be deleted from the to_handle
transaction.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_ACCESS_DENIED, CONFD_ERR_NOT_WRITABLE
int maapi_copy_path(int sock, int from_thandle, int to_thandle, const
char *fmt, ...);
Similar to maapi_copy(), but does a replacing copy only of the subtree rooted at the path given by
fmt and remaining arguments.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_ACCESS_DENIED, CONFD_ERR_NOT_WRITABLE
int maapi_copy_tree(int sock, int thandle, const char *from, const char
*tofmt, ...);
This function copies the entire configuration tree rooted at from to tofmt. List entries are created
accordingly. If the destination already exists, from is copied on top of the destination. This function
is typically used inside actions where we for example could use maapi_copy_tree() to copy
a template configuration into a new list entry. The from path must be pre-formatted, e.g. using
confd_format_keypath(), whereas the destination path is formatted by this function.
Note
The data models for the source and destination trees must match - i.e. they must either be identical,
or the data model for the source tree must be a proper subset of the data model for the destination
tree. This is always fulfilled when copying from one entry to another in a list, or if both source and
destination tree have been defined via YANG uses statements referencing the same grouping
definition. If a data model mismatch is detected, e.g. an existing data node in the source tree does
not exist in the destination data model, or an existing leaf in the source tree has a value that is
744
confd_lib_maapi
incompatible with the type of the leaf in the destination data model, maapi_copy_tree()
will return CONFD_ERR with confd_errno set to CONFD_ERR_BADPATH.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_ACCESS_DENIED, CONFD_ERR_NOT_WRITABLE, CONFD_ERR_BADPATH
int maapi_insert(int sock, int thandle, const char *fmt, ...);
This function inserts a new entry in a list that uses the tailf:indexed-view statement. The key
must be of type integer. If the inserted entry already exists, the existing and subsequent entries will be
renumbered as needed, unless renumbering would require an entry to have a key value that is outside the
range of the type for the key. In that case, the function returns CONFD_ERR with confd_errno set
to CONFD_ERR_BADTYPE.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_ACCESS_DENIED, CONFD_ERR_BADTYPE, CONFD_ERR_NOT_WRITABLE,
CONFD_ERR_NOEXISTS, CONFD_ERR_NOTDELETABLE
int maapi_move(int sock, int thandle, confd_value_t* tokey, int n, const
char *fmt, ...);
This function moves an existing list entry, i.e. renames the entry using the tokey parameter, which is
an array containing n keys.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_ACCESS_DENIED, CONFD_ERR_NOT_WRITABLE, CONFD_ERR_NOEXISTS,
CONFD_ERR_NOTMOVABLE, CONFD_ERR_ALREADY_EXISTS
int maapi_move_ordered(int sock, int thandle, enum maapi_move_where
where, confd_value_t* tokey, int n, const char *fmt, ...);
For a list with the YANG ordered-by user statement, this function can be used to change the
order of entries, by moving one entry to a new position. When new entries in such a list are created with
maapi_create(), they are always placed last in the list. The path given by fmt and the remaining
arguments identifies the entry to move, and the new position is given by the where argument:
MAAPI_MOVE_FIRST Move the entry first in the list. The tokey and n arguments are ignored, and
can be given as NULL and 0.
MAAPI_MOVE_LAST Move the entry last in the list. The tokey and n arguments are ignored, and
can be given as NULL and 0.
MAAPI_MOVE_BEFORE Move the entry to the position before the entry given by the tokey argument,
which is an array of key values with length n.
MAAPI_MOVE_AFTER Move the entry to the position after the entry given by the tokey argument,
which is an array of key values with length n.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_ACCESS_DENIED, CONFD_ERR_NOT_WRITABLE, CONFD_ERR_NOEXISTS,
CONFD_ERR_NOTMOVABLE
int maapi_authenticate(int sock, const char *user, const char *pass,
char *groups[], int n);
If we are implementing a proprietary management agent with MAAPI API, the function
maapi_start_user_session() requires the application to tell ConfD which groups the user
745
confd_lib_maapi
are member of. ConfD itself has the capability to authenticate users. A MAAPI application can use
maapi_authenticate() to let ConfD authenticate the user, as per the AAA configuration in
confd.conf
If the authentication is successful, the function returns 1, and the groups[] array is populated with at
most n-1 NUL-terminated strings containing the group names, followed by a NULL pointer that indicates
the end of the group list. The strings are dynamically allocated, and it is up to the caller to free the memory
by calling free(3) for each string. If the function is used in a context where the group names are not
needed, pass 1 for the n parameter.
If the authentication fails, the function returns 0, and confd_lasterr() (see confd_lib_lib(3)) will
return a message describing the reason for the failure.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION
int maapi_authenticate2(int sock, const char *user, const char *pass,
const struct confd_ip *src_addr, int src_port, const char *context, enum
confd_proto prot, char *groups[], int n);
This function does the same thing as maapi_authenticate(), but allows for passing of
the additional parameters src_addr, src_port, context, and prot, which otherwise are
passed only to maapi_start_user_session()/maapi_start_user_session2(). These
parameters are not used when ConfD performs the authentication, but they will be passed to an external
authentication executable (see the External authentication section of the AAA chapter in the User
Guide) if /confdConfig/aaa/externalAuthentication/includeExtra is set to "true" in
confd.conf, see confd.conf(5). They will also be made available to the authentication callback that can
be registered by an application (see confd_lib_dp(3)).
Errors: CONFD_ERR_PROTOUSAGE, CONFD_ERR_MALLOC, CONFD_ERR_OS,
CONFD_ERR_NOSESSION
int maapi_attach(int sock, int hashed_ns, struct confd_trans_ctx *ctx);
While ConfD is executing a transaction, we have a number of situations where we wish to invoke user C
code which can interact in the transaction. One such situation is when we wish to write semantic validation
code which is invoked in the validation phase of a ConfD transaction. This code needs to execute within
the context of the executing transaction, it must thus have access to the "shadow" storage where all not-
yet-committed data is kept.
This function attaches to a existing transaction. See the Semantic Validation chapter in the User Guide
for example code.
Another situation where we wish to attach to the executing transaction is when we are using the
notifications API and subscribe to notification of type CONFD_NOTIF_COMMIT_DIFF and wish to read
the committed diffs from the transaction.
The hashed_ns parameter is basically just there to save a call to maapi_set_namespace().
We can call maapi_set_namespace() any number of times to change from the one we passed to
maapi_attach(), and we can also give the namespace in prefix form in the path parameter to the read/
write functions - see the maapi_set_namespace() description.
If we do not want to give a specific namespace when invoking maapi_attach(), we can give 0 for the
hashed_ns parameter (-1 works too but is deprecated). We can still call the read/write functions as long
as the toplevel element in the path is unique, but otherwise we must call maapi_set_namespace(),
or use a prefix in the path.
int maapi_attach2(int sock, int hashed_ns, int usid, int thandle);
746
confd_lib_maapi
When we write proprietary CLI commands in C and we wish those CLI commands to be able to use MAAPI
to read and write data inside the same transaction the CLI command was invoked in, we do not have an
initialized transaction structure available. Then we must use this function. CLI commands get the usid
passed in UNIX environment variable CONFD_MAAPI_USID and the thandle passed in environment
variable CONFD_MAAPI_THANDLE. We also need to use this function when implementing such CLI
commands via action command() callbacks, see the confd_lib_dp(3) man page. In this case the usid is
provided via uinfo->usid and the thandle via uinfo->actx.thandle. To use the user session
id that is the owner of the transaction, set usid to 0. If the namespace does not matter set hashed_ns
to 0, see maapi_attach().
int maapi_attach_init(int sock, int *thandle);
This function is used to attach the MAAPI socket to the special transaction available in phase0 used for
CDB initialization and upgrade. The function is also used if we need to modify CDB data during in-service
data model upgrade (see the "In-service Data Model Upgrade" chapter in the User Guide). The transaction
handle, which is used in subsequent calls to MAAPI, is filled in by the function upon successful return.
See the CDB chapter in the User Guide.
int maapi_detach(int sock, struct confd_trans_ctx *ctx);
Detaches an attached MAAPI socket. This function is typically called in the stop() callback in validation
code. An attached MAAPI socket will be automatically detached when the ConfD transaction terminates.
This function performs an explicit detach.
int maapi_detach2(int sock, int thandle);
Detaches an attached MAAPI socket when we do not have an initialized transaction structure available,
see maapi_attach2() above. This is mainly useful in an action command() callback.
int maapi_diff_iterate(int sock, int thandle, enum maapi_iter_ret
(*iter)(confd_hkeypath_t *kp, enum maapi_iter_op op, confd_value_t
*oldv, confd_value_t *newv, void *state), int flags, void *initstate);
This function can be called from an attached MAAPI session. The purpose of the function is to iterate
through the transaction diff. It can typically be used in conjunction with the notification API when we
subscribe to CONFD_NOTIF_COMMIT_DIFF events. It can also be used inside validation callbacks.
For all diffs in the transaction the supplied callback function iter() will be called. The iter() callback
receives the confd_hkeypath_t kp which uniquely identifies which node in the data tree that is
affected, the operation, and an optional value. The op parameter gives the modification as:
MOP_CREATED The list entry, presence container, or leaf of type empty given by kp has
been created.
MOP_DELETED The list entry, presence container, or optional leaf given by kp has been
deleted.
MOP_MODIFIED A descendant of the list entry given by kp has been modified.
MOP_VALUE_SET The value of the leaf given by kp has been set to newv. If the
MAAPI_FLAG_NO_DEFAULTS flag has been set and the default value for the
leaf has come into effect, newv will be of type C_DEFAULT instead of giving
the default value.
MOP_MOVED_AFTERThe list entry given by kp, in an ordered-by user list, has been moved. If
newv is NULL, the entry has been moved first in the list, otherwise it has been
747
confd_lib_maapi
moved after the entry given by newv. In this case newv is a pointer to an array of
key values identifying an entry in the list. The array is terminated with an element
that has type C_NOEXISTS.
MOP_ATTR_SET An attribute for the node given by kp has been modified (see the description
of maapi_get_attrs() for the supported attributes). The iter() callback
will only get this invocation when attributes are enabled in confd.conf
(/confdConfig/enableAttributes, see confd.conf(5)) and the flag
ITER_WANT_ATTR has been passed to maapi_diff_iterate(). The
newv parameter is a pointer to a 2-element array, where the first element is
the attribute represented as a confd_value_t of type C_UINT32 and the second
element is the value the attribute was set to. If the attribute has been deleted, the
second element is of type C_NOEXISTS.
The oldv parameter passed to iter() is always NULL.
If iter() returns ITER_STOP, no more iteration is done, and CONFD_OK is returned. If
iter() returns ITER_RECURSE iteration continues with all children to the node. If iter()
returns ITER_CONTINUE iteration ignores the children to the node (if any), and continues with
the node's sibling. If, for some reason, the iter() function wants to return control to the
caller of maapi_diff_iterate() before all the changes have been iterated over it can return
ITER_SUSPEND. The caller then has to call maapi_diff_iterate_resume() to continue/finish
the iteration.
The flags parameter is a bitmask with the following bits:
ITER_WANT_ATTR Enable MOP_ATTR_SET invocations of the iter() function.
ITER_WANT_P_CONTAINER Invoke iter() for modified presence-containers.
ITER_WANT_LEAF_LIST_AS_LEAFChanges to leaf-lists will cause invocations of iter() as for
leafs and not as for lists, e.g. with MOP_VALUE_SET rather than
MOP_CREATED / MOP_DELETED.
Note
This flag is deprecated, and only present for temporary
backward compatibility - it will be removed in a future
release.
The state parameter can be used for any user supplied state (i.e. whatever is supplied as init_state
is passed as state to iter() in each invocation).
The iter() invocations are not subjected to AAA checks, i.e. regardless of which path we have and
which context was used to create the MAAPI socket, all changes are provided.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS,
CONFD_ERR_BADSTATE.
CONFD_ERR_BADSTATE is returned when we try to iterate on a transaction which is in the wrong state
and not attached.
int maapi_keypath_diff_iterate(int sock, int thandle, enum
maapi_iter_ret (*iter)(confd_hkeypath_t *kp, enum maapi_iter_op op,
confd_value_t *oldv, confd_value_t *newv, void *state), int flags, void
*initstate, const char *fmtpath, ...);
748
confd_lib_maapi
This function behaves precisely like the maapi_diff_iterate() function except that it takes an
additional format path argument. This path prunes the diff and only changes below the provided path are
considered.
int maapi_diff_iterate_resume(int sock, enum maapi_iter_ret reply,
enum maapi_iter_ret (*iter)(confd_hkeypath_t *kp, enum maapi_iter_op
op, confd_value_t *oldv, confd_value_t *newv, void *state), void
*resumestate);
The application must call this function to finish up the iteration whenever an iterator
function for maapi_diff_iterate() or maapi_keypath_diff_iterate() has returned
ITER_SUSPEND. If the application does not wish to continue iteration, it must at least call
maapi_diff_iterate_resume(s, ITER_STOP, NULL, NULL); to clean up the state. The
reply parameter is what the iterator function would have returned (i.e. normally ITER_RECURSE or
ITER_CONTINUE) if it hadn't returned ITER_SUSPEND. Note that it is up to the iterator function to
somehow communicate that it has returned ITER_SUSPEND to the caller of maapi_diff_iterate()
or maapi_keypath_diff_iterate(), this can for example be a field in a struct for which a pointer
can be passed back and forth via the state/resumestate parameters.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS,
CONFD_ERR_BADSTATE.
int maapi_iterate(int sock, int thandle, enum maapi_iter_ret (*iter)
(confd_hkeypath_t *kp, confd_value_t *v, confd_attr_value_t *attr_vals,
int num_attr_vals, void *state), int flags, void *initstate, const char
*fmtpath, ...);
This function can be used to iterate over all the data in a transaction and the underlying
data store, as opposed to iterating over only the changes like maapi_diff_iterate() and
maapi_keypath_diff_iterate() do. The fmtpath parameter can be used to prune the iteration
to cover only the subtree below the given path, similar to maapi_keypath_diff_iterate()
- if fmtpath is given as "/", there will not be any such pruning. Additionally, if the flag
MAAPI_FLAG_CONFIG_ONLY is in effect (see maapi_set_flags()), all operational data subtrees
will be excluded from the iteration.
The supplied callback function iter() will be called for each node in the data tree included in the
iteration. It receives the kp parameter which uniquely identifies the node, and if the node is a leaf with a
type, also the value of the leaf as the v parameter - otherwise v is NULL.
The flags parameter is a bitmask with the following bits:
ITER_WANT_ATTR If this flag is given and the node has any attributes set, the
attr_vals parameter will point to a num_attr_vals long
array of attributes and values (see maapi_get_attrs()),
otherwise attr_vals is NULL.
ITER_WANT_LEAF_LIST_AS_LEAFIf this flag is given, leaf-lists will cause invocations of iter()
as for leafs and not as for lists, i.e. a single invocation with the v
parameter giving the complete leaf-list, rather than an invocation
for each leaf-list element with the value in the kp parameter.
Note
This flag is deprecated, and only present for temporary
backward compatibility - it will be removed in a future
release.
749
confd_lib_maapi
The return value from iter() has the same effect as for maapi_diff_iterate(), except that if
ITER_SUSPEND is returned, the caller then has to call maapi_iterate_resume() to continue/finish
the iteration.
int maapi_iterate_resume(int sock, enum maapi_iter_ret reply,
enum maapi_iter_ret (*iter)(confd_hkeypath_t *kp, confd_value_t *v,
confd_attr_value_t *attr_vals, int num_attr_vals, void *state), void
*resumestate);
The application must call this function to finish up the iteration whenever an iterator function for
maapi_iterate() has returned ITER_SUSPEND. If the application does not wish to continue
iteration, it must at least call maapi_iterate_resume(s, ITER_STOP, NULL, NULL); to
clean up the state. The reply parameter is what the iterator function would have returned (i.e. normally
ITER_RECURSE or ITER_CONTINUE) if it hadn't returned ITER_SUSPEND. Note that it is up to
the iterator function to somehow communicate that it has returned ITER_SUSPEND to the caller of
maapi_iterate(), this can for example be a field in a struct for which a pointer can be passed back
and forth via the state/resumestate parameters.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS,
CONFD_ERR_BADSTATE.
int maapi_get_running_db_status(int sock);
If a transaction fails in the commit() phase, the configuration database is in in a possibly inconsistent state.
This function queries ConfD on the consistency state. Returns 1 if the configuration is consistent and 0
otherwise.
int maapi_set_running_db_status(int sock, int status);
This function explicitly sets ConfDs notion of the consistency state.
int maapi_list_rollbacks(int sock, struct maapi_rollback *rp, int
*rp_size);
List at most *rp_size number of rollback files. The number of existing rollback files is reported in *rp_size
as well. The function will populate an array of maapi_rollback structs.
int maapi_load_rollback(int sock, int thandle, int rollback_num);
Install a rollback file.
int maapi_request_action(int sock, confd_tag_value_t *params, int
nparams, confd_tag_value_t **values, int *nvalues, int hashed_ns, const
char *fmt, ...);
Invoke an action defined in the data model. The params and values arrays are the parameters for
and results from the action, respectively, and use the Tagged Value Array format described in the XML
STRUCTURES section of the confd_types(3) manual page. The library allocates memory for the result
values, and the caller is responsible for freeing it. This can in all cases be done with code like this:
confd_tag_value_t *values;
int nvalues = 0, i;
if (maapi_request_action(sock, params, nparams,
&values, &nvalues, myprefix__ns,
"/path/to/action") == CONFD_OK) {
...
750
confd_lib_maapi
for (i = 0; i < nvalues; i++)
confd_free_value(CONFD_GET_TAG_VALUE(&values[i]));
if (nvalues > 0)
free(values);
}
However if the value array is known not to include types that require memory allocation (see
maapi_get_elem() above), only the array itself needs to be freed.
The socket must have an established user session. The path given by fmt and the varargs list is the full
path to the action, i.e. the final element must be the name of the action in the data model. Since actions are
not associated with ConfD transactions, the namespace must be provided and the path must be absolute -
but see maapi_request_action_th() below.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_BADPATH, CONFD_ERR_NOEXISTS, CONFD_ERR_BADTYPE,
CONFD_ERR_ACCESS_DENIED, CONFD_ERR_EXTERNAL
int maapi_request_action_th(int sock, int thandle, confd_tag_value_t
*params, int nparams, confd_tag_value_t **values, int *nvalues, const
char *fmt, ...);
Does the same thing as maapi_request_action(), but uses the current namespace, the path position,
and the user session from the transaction indicated by thandle, and makes the transaction handle
available to the action() callback, see confd_lib_dp(3) (this is the only relation to the transaction, and the
transaction is not affected in any way by the call itself). This function may be convenient in some cases
where actions are invoked in conjunction with a transaction, and it must be used if the action needs to
access the transaction store.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_BADPATH, CONFD_ERR_NOEXISTS, CONFD_ERR_BADTYPE,
CONFD_ERR_ACCESS_DENIED, CONFD_ERR_EXTERNAL
int maapi_request_action_str_th(int sock, int thandle, char **output,
const char *cmd_fmt, const char *path_fmt, ...);
Does the same thing as maapi_request_action_th(), but takes the parameters as a string and
returns the result as a string. The library allocates memory for the result string, and the caller is responsible
for freeing it. This can in all cases be done with code like this:
char *output = NULL;
if (maapi_request_action_str_th(sock, th, &output,
"test reverse listint [ 1 2 3 4 ]", "/path/to/action") == CONFD_OK) {
...
free(output);
}
The varargs in the end of the function must contain all values listed in both format strings (that is cmd_fmt
and path_fmt) in the same order as they occur in the strings. Here follows an equivalent example which
uses the format strings:
char *output = NULL;
if (maapi_request_action_str_th(sock, th, &output,
"test %s [ 1 2 3 %d ]", "%s/action",
"reverse listint", 4, "/path/to") == CONFD_OK) {
751
confd_lib_maapi
...
free(output);
}
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOSESSION,
CONFD_ERR_BADPATH, CONFD_ERR_NOEXISTS, CONFD_ERR_BADTYPE,
CONFD_ERR_ACCESS_DENIED, CONFD_ERR_EXTERNAL
int maapi_xpath2kpath(int sock, const char *xpath, confd_hkeypath_t
**hkp);
Convert a XPath path to a hashed keypath. The XPath expression must be an "instance identifier", i.e. all
elements and keys must be fully specified. Namespace prefixes are optional, unless required to resolve
ambiguities (e.g. when multiple namespaces have the same root element).
The returned keypath is dynamically allocated, and may further contain dynamically allocated elements.
The caller must free the allocated memory, easiest done by calling confd_free_hkeypath().
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADPATH
int maapi_user_message(int sock, const char *to, const char *message,
const char *sender);
Send a message to a specific user, a specific user session or all users depending on the to parameter. If
set to a user name, then message will be delivered to all CLI and Web UI sessions by that user. If set
to an integer string, eg "10", then message will be delivered to that specific user session, CLI or Web
UI. If set to "all" then all users will get the message.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_sys_message(int sock, const char *to, const char *message);
Send a message to a specific user, a specific user session or all users depending on the to parameter. If
set to a user name, then message will be delivered to all CLI and Web UI sessions by that user. If set to
an integer string, eg "10", then message will be delivered to that specific user session, CLI or Web UI.
If set to "all" then all users will get the message. No formatting of the message is performed as opposed
to the user message where a timestamp and sender information is added to the message.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_prio_message(int sock, const char *to, const char *message);
Send a high priority message to a specific user, a specific user session or all users depending on the to
parameter. If set to a user name, then message will be delivered to all CLI and Web UI sessions by that
user. If set to an integer string, eg "10", then message will be delivered to that specific user session, CLI
or Web UI. If set to "all" then all users will get the message. No formatting of the message is performed
as opposed to the user message where a timestamp and sender information is added to the message.
The message will not be delayed until the user terminates any ongoing command but will be output directly
to the terminal without delay. Messages sent using the maapi_sys_message and maapi_user_message, on
the other hand, are not displayed in the middle of some other output but delayed until the any ongoing
commands have terminated.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_cli_prompt(int sock, int usess, const char *prompt, int echo,
char *res, int size);
752
confd_lib_maapi
Prompt user for a string. The echo parameter is used to control if the input should be echoed or not. If
set to CONFD_ECHO all input will be visible and if set to CONFD_NOECHO only stars will be shown
instead of the actual characters entered by the user. The resulting string will be stored in res and it will
be NUL terminated.
This function is intended to be called from inside an action callback when invoked from the CLI.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_cli_prompt2(int sock, int usess, const char *prompt, int echo,
int timeout, char *res, int size);
This function does the same as maapi_cli_prompt(), but also takes a timeout parameter, which
controls how long (in seconds) to wait for input before aborting.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_cli_prompt_oneof(int sock, int usess, const char *prompt, char
**choice, int count, char *res, int size);
Prompt user for one of the strings given in the choice parameter. For example:
int res;
char buf[BUFSIZ];
char *choice[] = {"yes","no"};
...
res = maapi_cli_prompt_oneof(sock, uinfo->usid,
"Do you want to proceed (yes/no): ",
choice, 2, buf, BUFSIZ);
The user can enter a unique prefix of the choice but the value returned in buf will always be one of the
strings provided in the choice parameter. The result string stored in buf is NUL terminated. If the user
enters a value not in choice he will automatically be re-prompted. For example:
Do you want to proceed (yes/no): maybe
The value must be one of: yes,no.
Do you want to proceed (yes/no):
This function is intended to be called from inside an action callback when invoked from the CLI.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_cli_prompt_oneof2(int sock, int usess, const char *prompt,
char **choice, int count, int timeout, char *res, int size);
This function does the same as maapi_cli_promt_oneof(), but also takes a timeout parameter.
If no activity is seen for timeout seconds an error is returned.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_cli_read_eof(int sock, int usess, int echo, char *res, int
size);
Read a multi line string from the CLI. The user has to end the input using ctrl-D. The entered characters
will be stored NUL terminated in res. The echo parameters controls if the entered characters should be
753
confd_lib_maapi
echoed or not. If set to CONFD_ECHO they will be visible and if set to CONFD_NOECHO stars will
be echoed instead.
This function is intended to be called from inside an action callback when invoked from the CLI.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_cli_read_eof2(int sock, int usess, int echo, int timeout,
char *res, int size);
This function does the same as maapi_cli_read_eof(), but also takes a timeout parameter, which
indicates how long the user may be idle (in seconds) before the reading is aborted.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_cli_write(int sock, int usess, const char *buf, int size);
Write to the CLI.
This function is intended to be called from inside an action callback when invoked from the CLI.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_cli_printf(int sock, int usess, const char *fmt, ...);
Write to the CLI using printf formatting. This function is intended to be called from inside an action
callback when invoked from the CLI.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_cli_vprintf(int sock, int usess, const char *fmt, va_list
args);
Does the same as maapi_cli_printf(), but takes a single va_list argument instead of a variable
number of arguments, like vprintf().
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_cli_accounting(int sock, const char *user, const int usid,
const char *cmdstr);
Generate an audit log entry in the CLI audit log.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_cli_diff_cmd(int sock, int thandle, int thandle_old, char
*res, int size, int flags, const char *fmt, ...);
Get the diff between two sessions as C-/I-style CLI commands.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_cli_path_cmd(int sock, int thandle, char *res, int size, int
flags, const char *fmt, ...);
This function tries to determine which C-/I-style CLI command can be associated with a given path in
the data model in context of a given transaction. This is determined by running the formatting code used
by the 'show running-config' command for the subtree given by the path, and the looking for text lines
754
confd_lib_maapi
associated with the given path. Consequentcly, if the path does not exist in the transaction no output will
be generated, or if tailf:cli- annotations have been used to suppress the 'show running-config' text for a
path then no such command can be derived.
The flags can be given as MAAPI_FLAG_EMIT_PARENTS to enable the commands to reach the
submode for the path to be emitted.
The flags can be given as MAAPI_FLAG_DELETE to emit the command to delete the given path.
The flags can be given as MAAPI_FLAG_NON_RECURSIVE to prevent that all children to a container
or list item are displayed.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_cli_cmd_to_path(int sock, const char *line, char *ns, int
nsize, char *path, int psize);
Given a data model path formatted as a C- and I-style command, try to determine the corresponding
namespace and path. If the string cannot be interpreted as a path an error message is given indicating that
the string is either an operational mode command, a configuration mode command, or just badly formatted.
The string is interpreted in the context of the current running configuration, ie all xpath expressions in the
data model are evaluated in the context of the running config. Note that the same input may result in a
correct answer when invoked with one state of the running config, and an error if the running config has
another state due to different list elements being present, or xpath (when and display-when) expressions
are being evaluated differently.
This function requires that the socket has an established user session.
The line is the NUL terminated string of command tokens to be interpreted.
The ns and path parameters are used for storing the resulting namespace and path.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_cli_cmd_to_path2(int sock, int thandle, const char *line, char
*ns, int nsize, char *path, int psize);
Given a data model path formatted as a C- and I-style command, try to determine the corresponding
namespace and path. If the string cannot be interpreted as a path an error message is given indicating that
the string is either an operational mode command, a configuration mode command, or just badly formatted.
The string is interpreted in the context of the provided transaction handler, ie all xpath expressions in the
data model are evaluated in the context of the transaction. Note that the same input may result in a correct
answer when invoked with one state of one config, and an error when given another config due to different
list elements being present, or xpath (when and display-when) expressions are being evaluated differently.
This function requires that the socket has an established user session.
The th is a transaction handler.
The line is the NUL terminated string of command tokens to be interpreted.
The ns and path parameters are used for storing the resulting namespace and path.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_cli_cmd(int sock, int usess, const char *buf, int size);
Execute CLI command in ongoing CLI session.
755
confd_lib_maapi
This function is intended to be called from inside an action callback when invoked from the CLI.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_cli_cmd2(int sock, int usess, const char *buf, int size, int
flags);
Execute CLI command in ongoing CLI session.
This function is intended to be called from inside an action callback when invoked from the CLI. The flags
field is used to disable certain checks during the execution. The value is a bitmask.
MAAPI_CMD_NO_FULLPATHDo not perform the fullpath check on show commands.
MAAPI_CMD_NO_HIDDEN Allows execution of hidden CLI commands.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_cli_cmd3(int sock, int usess, const char *buf, int size, int
flags, const char *unhide, int usize);
Execute CLI command in ongoing CLI session.
This function is intended to be called from inside an action callback when invoked from the CLI. The flags
field is used to disable certain checks during the execution. The value is a bitmask.
MAAPI_CMD_NO_FULLPATHDo not perform the fullpath check on show commands.
MAAPI_CMD_NO_HIDDEN Allows execution of hidden CLI commands.
The unhide parameter is used for passing a hide group which is unhidden during the execution of the
command.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_cli_cmd4(int sock, int usess, const char *buf, int size, int
flags, char **unhide, int usize);
Execute CLI command in ongoing CLI session.
This function is intended to be called from inside an action callback when invoked from the CLI. The flags
field is used to disable certain checks during the execution. The value is a bitmask.
MAAPI_CMD_NO_FULLPATHDo not perform the fullpath check on show commands.
MAAPI_CMD_NO_HIDDEN Allows execution of hidden CLI commands.
The unhide parameter is used for passing hide groups which are unhidden during the execution of the
command.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_cli_cmd_io(int sock, int usess, const char *buf, int size,
int flags, const char *unhide, int usize);
Execute CLI command in ongoing CLI session and output result on socket.
This function is intended to be called from inside an action callback when invoked from the CLI. The flags
field is used to disable certain checks during the execution. The value is a bitmask.
756
confd_lib_maapi
MAAPI_CMD_NO_FULLPATHDo not perform the fullpath check on show commands.
MAAPI_CMD_NO_HIDDEN Allows execution of hidden CLI commands.
The unhide parameter is used for passing a hide group which is unhidden during the execution of the
command.
The function returns CONFD_ERR on error or a positive integer id that can subsequently be used together
with confd_stream_connect(). ConfD will write all data in a stream on that socket and when done,
ConfD will close its end of the socket.
Once the stream socket is connected we can read the output from the cli command data on the socket. We
need to continue reading until we receive EOF on the socket. To check if the command was successful we
use the function. maapi_cli_cmd_io_result().
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_cli_cmd_io2(int sock, int usess, const char *buf, int size,
int flags, char **unhide, int usize);
Execute CLI command in ongoing CLI session and output result on socket.
This function is intended to be called from inside an action callback when invoked from the CLI. The flags
field is used to disable certain checks during the execution. The value is a bitmask.
MAAPI_CMD_NO_FULLPATHDo not perform the fullpath check on show commands.
MAAPI_CMD_NO_HIDDEN Allows execution of hidden CLI commands.
The unhide parameter is used for passing hide groups which are unhidden during the execution of the
command.
The function returns CONFD_ERR on error or a positive integer id that can subsequently be used together
with confd_stream_connect(). ConfD will write all data in a stream on that socket and when done,
ConfD will close its end of the socket.
Once the stream socket is connected we can read the output from the cli command data on the socket. We
need to continue reading until we receive EOF on the socket. To check if the command was successful we
use the function. maapi_cli_cmd_io_result().
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_cli_cmd_io_result(int sock, int id);
We use this function to read the status of executing a cli command and streaming the result over a socket.
The sock parameter must be the same maapi socket we used for maapi_cli_cmd_io() and the id
parameter is the id returned by maapi_cli_cmd_io().
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_ACCESS_DENIED,
CONFD_ERR_EXTERNAL
int maapi_cli_get(int sock, int usess, const char *opt, char *res, int
size);
Read CLI session parameter or attribute.
This function is intended to be called from inside an action callback when invoked from the CLI.
757
confd_lib_maapi
Possible params are for C and I-style: complete-on-space, idle-timeout, ignore-leading-space, paginate,
output-file, screen-length, screen-width, history, terminal, autowizard, "service prompt config" , show-
defaults, and if enabled, display-level. And for J-style: complete-on-space, idle-timeout, ignore-leading-
space, paginate, "output file", "screen length", "screen width", terminal, history, autowizard, "show
defaults", and if enabled, display-level. In addition to this the attributes called annotation, tags and inactive
can be read.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_cli_set(int sock, int usess, const char *opt, const char
*value);
Set CLI session parameter.
This function is intended to be called from inside an action callback when invoked from the CLI.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_set_readonly_mode(int sock, int flag);
There are certain situations where we want to explicitly control if a ConfD instance should be able to
handle write operations from the northbound agents. In certain high-availability scenarios we may want to
ensure that a node is a true readonly node, i.e. it should not be possible to initiate new write transactions
on that node.
It can also be interesting in upgrade scenarios where we are interested in making sure that no configuration
changes can occur during some interval.
This function toggles the readonly mode of a ConfD instance. If the flag parameter is non-zero, ConfD
will be set in readonly mode, if it is zero, ConfD will be taken out of readonly mode. It is also worth to
note that when a ConfD HA node is in slave mode as instructed by the application, no write transactions
can occur regardless of the value of the flag set by this function.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_disconnect_remote(int sock, const char *address);
Disconnect all remote connections between CONFD_IPC_PORT (see the ConfD IPC section in the
Advanced Topics chapter in the User Guide) and address.
Since ConfD clients, e.g. CDB readers/subscribers, are connected using TCP it is also possible to do this
remotely over a network. However since TCP doesn't offer a fast and reliable way of detecting that the
other end has disappeared ConfD can get stuck waiting for a reply from such a disconnected client.
In some environments there will be an alternative supervision method that can detect when a remote host is
unavailable, and in that situation this function can be used to instruct ConfD to drop all remote connections
to a particular host. The address parameter is an IP address as a string, and the socket is a maapi socket
obtained using maapi_connect(). On success, the function returns the number of connections that
were closed.
Note
ConfD will close all its sockets with remote address address, except HA connections. For HA
use confd_ha_slave_dead() or an HA state transition.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADTYPE,
CONFD_ERR_UNAVAILABLE
758
confd_lib_maapi
int maapi_disconnect_sockets(int sock, int *sockets, int nsocks);
This function is an alternative to maapi_disconnect_remote() that can be useful in particular
when using the "External IPC" functionality (see "Using a different IPC mechanism" in the ConfD
IPC section in the Advanced Topics chapter in the User Guide). In this case ConfD does not have any
knowledge of the remote address of the IPC connections, and thus maapi_disconnect_remote() is
not applicable. The maapi_disconnect_sockets() instead takes an array of nsocks socket file
descriptor numbers for the sockets parameter.
ConfD will close all connected sockets whose local file descriptor number is included the sockets array.
The file descriptor numbers can be obtained e.g. via the lsof(8) command, or some similar tool in case lsof
does not support the IPC mechanism that is being used.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADTYPE
int maapi_save_config(int sock, int thandle, int flags, const char
*fmtpath, ...);
This function can be used to save the entire config (or a subset thereof) in different formats. The flags
parameter controls the saving as follows. The value is a bitmask.
MAAPI_CONFIG_XML
The configuration format is XML.
MAAPI_CONFIG_XML_PRETTY
The configuration format is pretty printed XML.
MAAPI_CONFIG_JSON
The configuration is in JSON format.
MAAPI_CONFIG_J
The configuration is in curly bracket Juniper CLI format.
MAAPI_CONFIG_C
The configuration is in Cisco XR style format.
MAAPI_CONFIG_C_IOS
The configuration is in Cisco IOS style format.
MAAPI_CONFIG_XPATH
The fmtpath and remaining arguments give an XPath filter instead of a keypath. Can only be used
with MAAPI_CONFIG_XML and MAAPI_CONFIG_XML_PRETTY.
MAAPI_CONFIG_WITH_DEFAULTS
Default values are part of the configuration dump.
MAAPI_CONFIG_SHOW_DEFAULTS
Default values are also shown next to the real configuration value. Applies only to the CLI formats.
MAAPI_CONFIG_WITH_OPER
Include operational data in the dump.
MAAPI_CONFIG_HIDE_ALL
Hide all hidden nodes (see below).
MAAPI_CONFIG_UNHIDE_ALL
Unhide all hidden nodes (see below).
759
confd_lib_maapi
MAAPI_CONFIG_WITH_SERVICE_META
Include NCS service-meta-data attributes (refcounter, backpointer, and original-value) in the dump.
MAAPI_CONFIG_NO_PARENTS
When a path is provided its parent nodes are by default included. With this option the output will
begin immediately at path - skipping any parents.
MAAPI_CONFIG_OPER_ONLY
Include only operational data, and ancestors to operational data nodes, in the dump.
The provided path indicates which part(s) of the configuration to save. By default it is interpreted as
a keypath as for other MAAPI functions, and thus identifies the root of a subtree to save. However
it is possible to indicate wildcarding of list keys by completely omitting key elements - i.e. this
requests save of a subtree for each entry of the corresponding list. For MAAPI_CONFIG_XML and
MAAPI_CONFIG_XML_PRETTY it is alternatively possible to give an XPath filter, by including the flag
MAAPI_CONFIG_XPATH.
If for example fmtpath is "/aaa:aaa/authentication/users" we dump a subtree of the AAA
data, while if it is "/aaa:aaa/authentication/users/user/homedir", we dump only the
homedir leaf for each user in the AAA data. If fmtpath is NULL, the entire configuration is dumped,
except that namespaces with restricted export (from tailf:export) are treated as follows:
When the MAAPI_CONFIG_XML or MAAPI_CONFIG_XML_PRETTY formats are used, the context
of the user session that started the transaction is used to select namespaces with restricted export. If the
"system" context is used, all namespaces are selected, regardless of export restriction.
When one of the CLI formats is used, the context used to select namespaces with restricted export is
always "cli".
By default, the treatment of nodes with a tailf:hidden statement depends on the state of the
transaction. For a transaction started via MAAPI, no nodes are hidden, while for a transaction started by
another northbound agent (e.g. CLI) and attached to, the nodes that are hidden are the same as in that
agent session. The default can be overridden by using one of the flags MAAPI_CONFIG_HIDE_ALL and
MAAPI_CONFIG_UNHIDE_ALL.
The function returns CONFD_ERR on error or a positive integer id that can subsequently be used together
with confd_stream_connect(). Thus this function doesn't save the configuration to a file, but rather
it returns an integer than is used together with a ConfD stream socket. ConfD will write all data in a stream
on that socket and when done, ConfD will close its end of the socket. Thus the following code snippet
indicates the usage pattern of this function.
int id;
int streamsock;
struct sockaddr_in addr;
id = maapi_save_config(sock, th, flags, path);
if (id < 0) {
... handle error ...
}
addr.sin_addr.s_addr = inet_addr("127.0.0.1");
addr.sin_family = AF_INET;
addr.sin_port = htons(CONFD_PORT);
streamsock = socket(PF_INET, SOCK_STREAM, 0);
confd_stream_connect(streamsock, (struct sockaddr*)&addr,
sizeof(struct sockaddr_in), id, 0);
760
confd_lib_maapi
Once the stream socket is connected we can read the configuration data on the socket. We need to continue
reading until we receive EOF on the socket. To check if the configuration retrieval was successful we use
the function maapi_save_config_result().
The stream socket must be connected within 10 seconds after the id is received.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BAD_TYPE
int maapi_save_config_result(int sock, int id);
We use this function to verify that we received the entire configuration over the stream socket. The sock
parameter must be the same maapi socket we used for maapi_save_config() and the id parameter
is the id returned by maapi_save_config().
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_ACCESS_DENIED,
CONFD_ERR_EXTERNAL
int maapi_load_config(int sock, int thandle, int flags, const char
*filename);
This function loads a configuration from filename into ConfD. The th parameter is a transaction handle.
This can be either for a transaction created by the application, in which case the application must also apply
the transaction, or for an attached transaction (which must not be applied by the application). The format
of the file can be either XML, curly bracket Juniper CLI format, Cisco XR style format, or Cisco IOS style
format. The caller of the function has to indicate which it is by using one of the MAAPI_CONFIG_XML,
MAAPI_CONFIG_J, MAAPI_CONFIG_C, or MAAPI_CONFIG_C_IOS flags, with the same meanings
as for maapi_save_config(). If the name of the file ends in .gz (or .Z) then the file is assumed to
be gzipped, and will be uncompressed as it is loaded.
Note
If you use a relative pathname for filename, it is taken as relative to the working directory of
the ConfD daemon, i.e. the directory where the daemon was started.
By default the complete configuration (as allowed by the user of the current transaction) is deleted before
the file is loaded. To merge the contents of the file use the MAAPI_CONFIG_MERGE flag. To replace
only the part of the configuration that is present in the file, use the MAAPI_CONFIG_REPLACE flag.
If the transaction th is started against the data store CONFD_OPERATIONAL config false data is loaded.
The existing config false data is not deleted before the file is loaded. Rather it is the responsibility of the
client.
The only supported format for loading 'config false' data is MAAPI_CONFIG_XML.
Additional flags for MAAPI_CONFIG_XML:
MAAPI_CONFIG_WITH_OPER
Any operational data in the file should be ignored (instead of producing an error).
MAAPI_CONFIG_XML_LOAD_LAX
Lax loading. Ignore unknown namespaces, elements, and attributes.
MAAPI_CONFIG_OPER_ONLY
Load only operational data, and ancestors to operational data nodes.
Additional flag for MAAPI_CONFIG_C and MAAPI_CONFIG_C_IOS:
761
confd_lib_maapi
MAAPI_CONFIG_AUTOCOMMIT
A commit should be performed after each line. In this case the transaction identified by th is not
used for the loading.
Additional flags for all CLI formats, i.e. MAAPI_CONFIG_J, MAAPI_CONFIG_C, and
MAAPI_CONFIG_C_IOS:
MAAPI_CONFIG_CONTINUE_ON_ERROR
Do not abort the load when an error is encountered.
MAAPI_CONFIG_SUPPRESS_ERRORS
Do not display the long error message but instead a oneline error with the line number.
The other flags parameters are the same as for maapi_save_config(), however the flags
MAAPI_CONFIG_WITH_SERVICE_META MAAPI_CONFIG_NO_PARENTS are ignored.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADTYPE,
CONFD_ERR_BADPATH, CONFD_ERR_BAD_CONFIG, CONFD_ERR_ACCESS_DENIED,
CONFD_ERR_PROTOUSAGE, CONFD_ERR_EXTERNAL
int maapi_load_config_cmds(int sock, int thandle, int flags, const char
*cmds, const char *fmt, ...);
This function loads a configuration like maapi_load_config(), but reads the configuration
from the string cmds instead of from a file. The th and flags parameters are the same as for
maapi_load_config().
An optional chroot path can be given. This is only used with the MAAPI_CONFIG_C flag set.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADTYPE,
CONFD_ERR_BADPATH, CONFD_ERR_BAD_CONFIG, CONFD_ERR_ACCESS_DENIED,
CONFD_ERR_PROTOUSAGE, CONFD_ERR_EXTERNAL
int maapi_load_config_stream(int sock, int thandle, int flags);
This function loads a configuration like maapi_load_config(), but reads the configuration from
a ConfD stream socket instead of from a file. The th and flags parameters are the same as for
maapi_load_config().
The function returns CONFD_ERR on error or a positive integer id that can subsequently be used together
with confd_stream_connect(). ConfD will read all data from the stream socket until it receives
EOF. Thus the following code snippet indicates the usage pattern of this function.
int id;
int streamsock;
struct sockaddr_in addr;
id = maapi_load_config_stream(sock, th, flags);
if (id < 0) {
... handle error ...
}
addr.sin_addr.s_addr = inet_addr("127.0.0.1");
addr.sin_family = AF_INET;
addr.sin_port = htons(CONFD_PORT);
streamsock = socket(PF_INET, SOCK_STREAM, 0);
762
confd_lib_maapi
confd_stream_connect(streamsock, (struct sockaddr*)&addr,
sizeof(struct sockaddr_in), id, 0);
Once the stream socket is connected we can write the configuration data on the socket. When we have
written the complete configuration, we must close the socket, to make ConfD receive EOF. To check if the
configuration load was successful we use the function maapi_load_config_stream_result().
The stream socket must be connected within 10 seconds after the id is received.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADTYPE,
CONFD_ERR_PROTOUSAGE, CONFD_ERR_EXTERNAL
int maapi_load_config_stream_result(int sock, int id);
We use this function to verify that the configuration we wrote on the stream socket was successfully loaded.
The sock parameter must be the same maapi socket we used for maapi_load_config_stream()
and the id parameter is the id returned by maapi_load_config_stream().
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADTYPE,
CONFD_ERR_BADPATH, CONFD_ERR_BAD_CONFIG, CONFD_ERR_ACCESS_DENIED,
CONFD_ERR_EXTERNAL
int maapi_roll_config(int sock, int thandle, const char *fmtpath, ...);
This function can be used to save the equivalent of a rollback file for a given configuration before it is
committed (or a subtree thereof) in curly bracket format.
The provided path indicates where we want the configuration to be rooted. It must be a prefix prepended
keypath. If fmtpath is NULL, a rollback config for the entire configuration is dumped. If for example
fmtpath is "/aaa:aaa/authentication/users" we create a rollback config for a part of the
AAA data. It is not possible to extract non-config data using this function.
The function returns CONFD_ERR on error or a positive integer id that can subsequently be used together
with confd_stream_connect(). Thus this function doesn't save the rollback configuration to a file,
but rather it returns an integer that is used together with a ConfD stream socket. ConfD will write all data
in a stream on that socket and when done, ConfD will close its end of the socket. Thus the following code
snippet indicates the usage pattern of this function.
int id;
int streamsock;
struct sockaddr_in addr;
id = maapi_roll_config(sock, tid, path);
addr.sin_addr.s_addr = inet_addr("127.0.0.1");
addr.sin_family = AF_INET;
addr.sin_port = htons(CONFD_PORT);
streamsock = socket(PF_INET, SOCK_STREAM, 0);
confd_stream_connect(streamsock, (struct sockaddr*)&addr,
sizeof (struct sockaddr_in), id,0);
Once the stream socket is connected we can read the configuration data on the socket. We need to continue
reading until we receive EOF on the socket. To check if the configuration retrieval was successful we use
the function maapi_roll_config_result().
The stream socket must be connected within 10 seconds after the id is received.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BAD_TYPE
763
confd_lib_maapi
int maapi_roll_config_result(int sock, int id);
We use this function to assert that we received the entire rollback configuration over a stream socket.
The sock parameter must be the same maapi socket we used for maapi_roll_config() and the id
parameter is the id returned by maapi_roll_config().
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_ACCESS_DENIED,
CONFD_ERR_EXTERNAL
int maapi_get_stream_progress(int sock, int id);
In some cases (e.g. an action or custom command that can be interrupted by the user) it may be useful to
be able to terminate ConfD's reading of data from a stream socket (by closing the socket) without waiting
for a potentially large amount of data written to the socket to be consumed by ConfD. This function allows
us to limit the amount of data "in flight" between the application and ConfD, by reporting the amount of
data read by ConfD so far.
The sock parameter must be the maapi socket used for a function call that required a stream socket
for writing to ConfD (currently the only such function is maapi_load_config_stream()), and
the id parameter is the id returned by that function. maapi_get_stream_progress() returns the
number of bytes that ConfD has read from the stream socket. If id does not identify a stream socket
that is currently being read by ConfD, the function returns CONFD_ERR with confd_errno set to
CONFD_ERR_NOEXISTS. This can be due to e.g. that the socket has been closed, or that an error has
occurred - but also that ConfD has determined that all the data has been read (e.g. the end of an XML
document has been read). To avoid the latter case, the function should only be called when we have more
data to write, and before the writing of that data. The following code shows a possible way to use this
function.
#define MAX_IN_FLIGHT 4096
char buf[BUFSIZ];
int sock, streamsock, id;
int n, n_written = 0, n_read = 0;
int result;
...
while (!do_abort() && (n = get_data(buf, sizeof(buf))) > 0) {
while (n_written - n_read > MAX_IN_FLIGHT) {
if ((n_read = maapi_get_stream_progress(sock, id)) < 0) {
... handle error ...
}
}
if (write(streamsock, buf, n) != n) {
... handle error ...
}
n_written += n;
}
close(streamsock);
result = maapi_load_config_stream_result(sock, id);
Note
A call to maapi_get_stream_progress() does not return until the number of
bytes read has increased from the previous call (or if there is an error). This means
that the above code does not imply busy-looping, but also that if the code was to call
maapi_get_stream_progress() when n_read == n_written, the result would be a
deadlock.
764
confd_lib_maapi
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_NOEXISTS
int maapi_xpath_eval(int sock, int thandle, const char *expr, int
(*result)(confd_hkeypath_t *kp, confd_value_t *v, void *state), void
(*trace)(char *), void *initstate, const char *fmtpath, ...);
This function evaluates the XPath Path expression as supplied in expr. For each node in the resulting
node set the function result is called with the keypath to the resulting node as the first argument, and,
if the node is a leaf and has a value, the value of that node as the second argument. The expression will
be evaluated using the root node as the context node, unless a path to an existing node is given as the
last argument. For each invocation the result() function should return ITER_CONTINUE to tell the
XPath evaluator to continue with the next resulting node. To stop the evaluation the result() can return
ITER_STOP instead.
The trace is a pointer to a function that takes a single string as argument. If supplied it will be invoked
when the xpath implementation has trace output for the current expression. (For an easy start, for example
the puts(3) will print the trace output to stdout). If no trace is wanted NULL can be given.
The initstate parameter can be used for any user supplied opaque data (i.e. whatever is supplied as
initstate is passed as state to the result() function for each invocation).
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADPATH,
CONFD_ERR_XPATH
int maapi_xpath_eval_expr(int sock, int thandle, const char *expr, char
**res, void (*trace)(char *), const char *fmtpath, ...);
Evaluate the XPath expression given in expr and return the result as a string, pointed to by res. If the
call succeeds, res will point to a malloc:ed string that the caller needs to free. If the call fails res will
be set to NULL.
It is possible to supply a path which will be treated as the initial context node when evaluating expr (i.e.
if the path is relative, this is treated as the starting point, and this is also the node that current() will
return when used in the XPath expression). If NULL is given, the current maapi position is used.
The trace is a pointer to a function that takes a single string as argument. If supplied it will be invoked
when the xpath implementation has trace output for the current expression. (For an easy start, for example
the puts(3) will print the trace output to stdout). If no trace is wanted NULL can be given.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADPATH,
CONFD_ERR_XPATH
int maapi_query_start(int sock, int thandle, const char *expr,
const char *context_node, int chunk_size, int initial_offset, enum
confd_query_result_type result_as, int nselect, const char *select[],
int nsort, const char *sort[]);
Start a new query attached to the transaction given in th. If successful a query handle is returned (the
query handle is then used in subsequent calls to maapi_query_result() etc). Brief summary of all
parameters:
sock A previously opened maapi socket.
th A transaction handle to a previously started transaction.
expr The primary XPath expression.
765
confd_lib_maapi
context_node The context node (an ikeypath) for the primary expression. NULL is legal, and
means that the context node will be /.
chunk_size How many results to return at a time. If set to 0 a default number will be used.
initial_offset Which result in line to begin with (1 means to start from the begining).
result_as The format the results will be returned in.
nselect The number of expressions in the select parameter.
select An array of XPath "select" expressions, of length nselect.
nsort The number of expressions in the sort parameter.
sort An array of XPath expressions which will be used for sorting, of length nselect.
A query is a way of evaluating an XPath expression and returning the results in chunks. The usage pattern
is as follows: a primary expression in provided in the expr argument, which must evaluate to a node-set,
the "results". For each node in the results node-set every "select" expression is evaluated with the result
node as its context node. For example, given the YANG snippet:
list interface {
key name;
unique number;
leaf name {
type string;
}
leaf number {
type uint32;
mandatory true;
}
leaf enabled {
type boolean;
default true;
}
...
}
and given that we want to find the name and number of all enabled interfaces - the expr could be "/
interface[enabled='true']", and the select expressions would be { "name", "number" }.
Note that the select expressions can have any valid XPath expression, so if you wanted to find out
an interfaces name, and whether its number is even or not, the expressions would be: { "name",
"(number mod 2) == 0" }.
The results are then fetched using the maapi_query_result() function, which returns the results on
the format specified by the result_as parameter. There are four different types of result, as defined by
the type enum confd_query_result_type:
enum confd_query_result_type {
CONFD_QUERY_STRING = 0,
CONFD_QUERY_HKEYPATH = 1,
CONFD_QUERY_HKEYPATH_VALUE = 2,
CONFD_QUERY_TAG_VALUE = 3
};
I.e. the results can be returned as strings, hkeypaths, hkeypaths and values, or tags and values. The string
is just the resulting string of evaluating the select XPath expression. For hkeypaths, tags, and values it is
766
confd_lib_maapi
the path/tag/value of the node that the select XPath expression evaluates to. This means that care must
be taken so that the combination of select expression and return types actually yield sensible results (for
example "1 + 2" is a valid select XPath expression, and would result in the string "3" when setting the
result type to CONFD_QUERY_STRING - but it is not a node, and thus have no hkeypath, tag, or value).
A complete example:
qh = maapi_query_start(s, th, "/interface[enabled='true']", NULL,
1000, 1, CONFD_QUERY_TAG_VALUE,
2, (char *[]){ "name", "number" }, 0, NULL);
n = 0;
do {
maapi_query_result(s, qh, &qr);
n = qr->nresults;
for (i=0; i<n; i++) {
printf("result %d:\n", i + qr->offset);
for (j=0; j<qr->nelements; j++) {
// We know the type is tag-value
char *tag = confd_hash2str(qr->results[i].tv[j].tag.tag);
confd_pp_value(tmpbuf, BUFSIZ, &qr->results[i].tv[j].v);
printf(" %s: %s\n", tag, tmpbuf);
}
}
maapi_query_free_result(qr);
} while (n > 0);
maapi_query_stop(s, qh);
It is possible to sort the results using the built-in XPath function sort-by() (see the
tailf_yang_extensions(5) man page)
It is also possible to sort the result using any expressions passed in the sort array. These array will be
used to construct a temporary index which will live as long as the query is active. For example to start a
query sorting first on the enabled leaf, and then on number one would call:
qh = maapi_query_start(s, th, "/interface[enabled='true']", NULL,
1000, 1, CONFD_QUERY_TAG_VALUE,
3, (char *[]){ "name", "number", "enabled" },
2, (char *[]){ "enabled", "number" });
...
Note that the index the query constructs is kept in memory, which will be released when the query is
stopped.
int maapi_query_result(int sock, int qh, struct confd_query_result
**qrs);
Fetch the next available chunk of results associated with query handle qh. The results are returned in a
struct confd_query_result, which is allocated by the library. The structure is defined as:
struct confd_query_result {
enum confd_query_result_type type;
int offset;
int nresults;
int nelements;
union {
char **str;
767
confd_lib_maapi
confd_hkeypath_t *hkp;
struct {
confd_hkeypath_t hkp;
confd_value_t val;
} *kv;
confd_tag_value_t *tv;
} *results;
void *__internal; /* confd_lib internal housekeeping */
};
The type will always be the same as was requested in the call to maapi_query_start(), it is there
to indicate which of the pointers in the union to use. The offset is the number of the first result in
this chunk (i.e. for the first chunk it will be 1). How many results that are in this chunk is indicated
in nresults, when there are no more available results it will be set to 0. Each result consists of
nelements elements (this number is the same as the number of select parameters given in the call to
maapi_query_start().
All data pointed to in the result struct (as well as the struct itself) is allocated by the library - and when
finished processing the result the user must call maapi_query_free_result() to free this data.
int maapi_query_free_result(struct confd_query_result *qrs);
The struct confd_query_result returned by maapi_query_result() is dynamically allocated (and
it also contains pointers to other dynamically allocated data) and so it needs to be freed when the result
has been processed. Use this function to free the struct confd_query_result (and its accompanying data)
returned by maapi_query_result().
int maapi_query_reset(int sock, int qh);
Reset / rewind a running query so that it starts from the beginning again. Next call to
maapi_query_result() will then return the first chunk of results. The function can be called at any
time (i.e. both after all results have been returned to essentially run the same query again, as well as after
fetching just one or a couple of results).
int maapi_query_reset_to(int sock, int qh, int offset);
Like maapi_query_reset(), except after the query has been reset it is restarted with the initial offset
set to offset. Next call to maapi_query_result() will then return the first chunk of results at that
offset. The function can be called at any time (i.e. both after all results have been returned to essentially
run the same query again, as well as after fetching just one or a couple of results).
int maapi_query_stop(int sock, int qh);
Stops the running query identified by qh, and makes ConfD free up any internal resources associated with
the query. If a query isn't explicitly closed using this call it will be cleaned up when the transaction the
query is linked to ends.
int maapi_install_crypto_keys(int sock);
It is possible to define DES3 and AES keys inside confd.conf. These keys are used by ConfD to encrypt
data which is entered into the system which has either of the two builtin types tailf:des3-cbc-encrypted-
string or tailf:aes-cfb-128-encrypted-string. See confd_types(3).
This function will copy those keys from ConfD (which reads confd.conf) into memory in the library. To
decrypt data of these types, use the function confd_decrypt(), see confd_lib_lib(3).
int maapi_do_display(int sock, int thandle, const char *fmtpath, ...);
768
confd_lib_maapi
If the data model uses the YANG when or tailf:display-when statement, this function can be used
to determine if the item given by fmtpath, ... should be displayed or not.
int maapi_init_upgrade(int sock, int timeoutsecs, int flags);
This is the first of three functions that must be called in sequence to perform an in-service data model
upgrade, i.e. replace fxs files etc without restarting the ConfD daemon. See the In-service Data Model
Upgrade chapter in the User Guide for a detailed description of this procedure.
This function initializes the upgrade procedure. The timeoutsecs parameter specifies a maximum time
to wait for users to voluntarily exit from "configure mode" sessions in CLI and Web UI. If transactions are
still active when the timeout expires, the function will by default fail with CONFD_ERR_TIMEOUT. If the
flag MAAPI_UPGRADE_KILL_ON_TIMEOUT was given via the flags parameter, such transactions
will instead be forcibly terminated, allowing the initialization to complete successfully.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_LOCKED,
CONFD_ERR_BADSTATE, CONFD_ERR_HA_WITH_UPGRADE, CONFD_ERR_TIMEOUT,
CONFD_ERR_ABORTED
int maapi_perform_upgrade(int sock, const char **loadpathdirs, int n);
When maapi_init_upgrade() has completed successfully, this function must be called to instruct
ConfD to load the new data model files. The loadpathdirs parameter is an array of n strings that
specify the directories to load from, corresponding to the /confdConfig/loadPath/dir elements
in confd.conf (see confd.conf(5)).
These directories will also be searched for CDB "init files" (see the CDB chapter in the User Guide). I.e. if
the upgrade needs such files, we can place them in one of the new load path directories - or we can include
directories that are used only for CDB "init files" in the loadpathdirs array, corresponding to the /
confdConfig/cdb/initPath/dir elements that can be specified in confd.conf.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADSTATE,
CONFD_ERR_BAD_CONFIG
int maapi_commit_upgrade(int sock);
When also maapi_perform_upgrade() has completed successfully, this function must be called
to make the upgrade permanent. This includes committing the CDB upgrade transaction when CDB
is used, and we can thus get all the different validation errors that can otherwise result from
maapi_apply_trans().
When maapi_commit_upgrade() has completed successfully, the program driving the upgrade must
also make sure that the /confdConfig/loadPath/dir elements in confd.conf reference the new
directories. If CDB "init files" are used in the upgrade as described for maapi_commit_upgrade()
above, the program should also make sure that the /confdConfig/cdb/initPath/dir elements
reference the directories where those files are located.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADSTATE,
CONFD_ERR_NOTSET, CONFD_ERR_NON_UNIQUE, CONFD_ERR_BAD_KEYREF,
CONFD_ERR_TOO_FEW_ELEMS, CONFD_ERR_TOO_MANY_ELEMS,
CONFD_ERR_UNSET_CHOICE, CONFD_ERR_MUST_FAILED,
CONFD_ERR_MISSING_INSTANCE, CONFD_ERR_INVALID_INSTANCE,
CONFD_ERR_BADTYPE, CONFD_ERR_EXTERNAL
int maapi_abort_upgrade(int sock);
Calling this function at any point before the call of maapi_commit_upgrade() will abort the upgrade.
769
confd_lib_maapi
Note
maapi_abort_upgrade() should not be called if any of the three previous functions fail -
in that case, ConfD will do an internal abort of the upgrade.
CONFD DAEMON CONTROL
int maapi_aaa_reload(int sock, int synchronous);
When the ConfD AAA tree is populated by an external data provider (see the AAA chapter in the User
Guide), this function can be used by the data provider to notify ConfD when there is a change to the AAA
data. I.e. it is an alternative to executing the command confd --clear-aaa-cache.
If the synchronous parameter is 0, the function will only initiate the loading of the AAA data, just
like confd --clear-aaa-cache does, and return CONFD_OK as long as the communication with ConfD
succeeded. Otherwise it will wait for the loading to complete, and return CONFD_OK only if the loading
was successful.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_EXTERNAL
int maapi_aaa_reload_path(int sock, int synchronous, const char
*fmt, ...);
A variant of maapi_aaa_reload() that causes only the AAA subtree given by the path in fmt to be
loaded. This may be useful to load changes to the AAA data when loading the complete AAA tree from
an external data provider takes a long time. Obviously care must be taken to make sure that all changes
actually get loaded, and a complete load using e.g. maapi_aaa_reload() should be done at least
when ConfD is started. The path may specify a container or list entry, but not a specific leaf.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_EXTERNAL
int maapi_snmpa_reload(int sock, int synchronous);
When the ConfD SNMP Agent config is implemented by an external data provider (see the SNMP Agent
chapter in the User Guide), this function must be used by the data provider to notify ConfD when there
is a change to the data.
If the synchronous parameter is 0, the function will only initiate the loading of the data, and return
CONFD_OK as long as the communication with ConfD succeeded. Otherwise it will wait for the loading
to complete, and return CONFD_OK only if the loading was successful.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_EXTERNAL
int maapi_start_phase(int sock, int phase, int synchronous);
Once the ConfD daemon has been started in phase0 it is possible to use this function to tell the daemon
to proceed to startphase 1 or 2 (as indicated in the phase parameter). If synchronous is non-zero the
call does not return until the daemon has completed the transition to the requested start phase.
Note that start-phase1 can fail, (see documentation of --start-phase1 in confd(1)) in particular if
CDB fails. In that case maapi_start_phase() will return CONFD_ERR, with confderrno set to
CONFD_ERR_START_FAILED. However if ConfD stops before it has a chance to send back the error
CONFD_EOF might be returned.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_START_FAILED
int maapi_wait_start(int sock, int phase);
770
confd_lib_maapi
To synchronize startup with ConfD this function can be used to wait for ConfD to reach a particular start
phase (0, 1, or 2). Note that to implement an equivalent of confd --wait-started or confd --wait-phase0
case must also be taken to retry maapi_connect(), which will fail until ConfD has started enough to
accept connections to its IPC port.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_PROTOUSAGE
int maapi_stop(int sock, int synchronous);
Request the ConfD daemon to stop, if synchronous is non-zero the call will wait until ConfD has come
to a complete halt. Note that since the daemon exits, the socket won't be re-usable after this call. Equivalent
to confd --stop.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS
int maapi_reload_config(int sock);
Request that the ConfD daemon reloads its configuration files. The daemon will also close and re-open
its log files. Equivalent to confd --reload.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS
int maapi_reopen_logs(int sock);
Request that the ConfD daemon closes and re-opens its log files, useful for logrotate(8).
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS
int maapi_rebind_listener(int sock, int listener);
Request that the subsystem(s) specified by listener rebinds its listener socket(s). Currently open
sockets (if any) will be closed, and new sockets created and bound via bind(2) and listen(2). This
is useful e.g. if /confdConfig/ignoreBindErrors/enabled is set to "true" in confd.conf,
and some bindings have failed due to a problem that subsequently has been fixed. Calling this function
then avoids the disable/enable config change that would otherwise be required to cause a rebind.
The following values can be used for the listener parameter, ORed together if more than one:
#define CONFD_LISTENER_IPC (1 << 0)
#define CONFD_LISTENER_NETCONF (1 << 1)
#define CONFD_LISTENER_SNMP (1 << 2)
#define CONFD_LISTENER_CLI (1 << 3)
#define CONFD_LISTENER_WEBUI (1 << 4)
Note
It is not possible to rebind sockets for northbound listeners during the transition from start phase
1 to start phase 2. If this is attempted, the call will fail (and do nothing) with confd_errno
set to CONFD_ERR_BADSTATE.
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADSTATE
int maapi_clear_opcache(int sock, const char *fmt, ...);
Request clearing of the operational data cache (see the Operational Data chapter in the User Guide). A
path can be given via the fmt and subsequent parameters, to clear only the cached data for the subtree
designated by that path. To clear the whole cache, pass NULL or "/" for fmt.
771
confd_lib_maapi
Errors: CONFD_ERR_MALLOC, CONFD_ERR_OS, CONFD_ERR_BADPATH
SEE ALSO
confd_lib(3) - Confd lib
confd_types(3) - ConfD C data types
The ConfD User Guide
772
Nameconfd_types — ConfD value representation in C
Synopsis
#include <confd_lib.h>
DESCRIPTION
The libconfd library manages data values such as elements received over the NETCONF protocol. This
man page describes how these values as well as the XML paths (confd_hkeypath_t) identifying the values
are represented in the C language.
TYPEDEFS
The following enum defines the different types. These are used to represent data model types from several
different sources - see the section DATA MODEL TYPES at the end of this manual page for a full
specification of how the data model types map to these types.
enum confd_vtype {
C_NOEXISTS = 1, /* end marker */
C_XMLTAG = 2, /* struct xml_tag */
C_SYMBOL = 3, /* not yet used */
C_STR = 4, /* NUL-terminated strings */
C_BUF = 5, /* confd_buf_t (string ...) */
C_INT8 = 6, /* int8_t (int8) */
C_INT16 = 7, /* int16_t (int16) */
C_INT32 = 8, /* int32_t (int32) */
C_INT64 = 9, /* int64_t (int64) */
C_UINT8 = 10, /* u_int8_t (uint8) */
C_UINT16 = 11, /* u_int16_t (uint16) */
C_UINT32 = 12, /* u_int32_t (uint32) */
C_UINT64 = 13, /* u_int64_t (uint64) */
C_DOUBLE = 14, /* double (xs:float,xs:double) */
C_IPV4 = 15, /* struct in_addr in NBO */
/* (inet:ipv4-address) */
C_IPV6 = 16, /* struct in6_addr in NBO */
/* (inet:ipv6-address) */
C_BOOL = 17, /* int (boolean) */
C_QNAME = 18, /* struct confd_qname (xs:QName) */
C_DATETIME = 19, /* struct confd_datetime */
/* (yang:date-and-time) */
C_DATE = 20, /* struct confd_date (xs:date) */
C_TIME = 23, /* struct confd_time (xs:time) */
C_DURATION = 27, /* struct confd_duration (xs:duration) */
C_ENUM_VALUE = 28, /* int32_t (enumeration) */
C_BIT32 = 29, /* u_int32_t (bits size 32) */
C_BIT64 = 30, /* u_int64_t (bits size 64) */
C_LIST = 31, /* confd_list (leaf-list) */
C_XMLBEGIN = 32, /* struct xml_tag, start of container or */
/* list entry */
C_XMLEND = 33, /* struct xml_tag, end of container or */
/* list entry */
C_OBJECTREF = 34, /* struct confd_hkeypath* */
773
confd_types
/* (instance-identifier) */
C_UNION = 35, /* (union) - not used in API functions */
C_PTR = 36, /* see cdb_get_values in confd_lib_cdb(3) */
C_CDBBEGIN = 37, /* as C_XMLBEGIN, with CDB instance index */
C_OID = 38, /* struct confd_snmp_oid* */
/* (yang:object-identifier) */
C_BINARY = 39, /* confd_buf_t (binary ...) */
C_IPV4PREFIX = 40, /* struct confd_ipv4_prefix */
/* (inet:ipv4-prefix) */
C_IPV6PREFIX = 41, /* struct confd_ipv6_prefix */
/* (inet:ipv6-prefix) */
C_DEFAULT = 42, /* default value indicator */
C_DECIMAL64 = 43, /* struct confd_decimal64 (decimal64) */
C_IDENTITYREF = 44, /* struct confd_identityref (identityref) */
C_XMLBEGINDEL = 45, /* as C_XMLBEGIN, but for a deleted list */
/* entry */
C_DQUAD = 46, /* struct confd_dotted_quad */
/* (yang:dotted-quad) */
C_HEXSTR = 47, /* confd_buf_t (yang:hex-string) */
C_IPV4_AND_PLEN = 48, /* struct confd_ipv4_prefix */
/* (tailf:ipv4-address-and-prefix-length) */
C_IPV6_AND_PLEN = 49, /* struct confd_ipv6_prefix */
/* (tailf:ipv6-address-and-prefix-length) */
C_BITBIG = 50, /* confd_buf_t (bits size > 64) */
C_MAXTYPE /* maximum marker; add new values above */
};
A concrete value is represented as a confd_value_t C struct:
typedef struct confd_value {
enum confd_vtype type; /* as defined above */
union {
struct xml_tag xmltag;
u_int32_t symbol;
confd_buf_t buf;
confd_buf_const_t c_buf;
char *s;
const char *c_s;
int8_t i8;
int16_t i16;
int32_t i32;
int64_t i64;
u_int8_t u8;
u_int16_t u16;
u_int32_t u32;
u_int64_t u64;
double d;
struct in_addr ip;
struct in6_addr ip6;
int boolean;
struct confd_qname qname;
struct confd_datetime datetime;
struct confd_date date;
struct confd_time time;
struct confd_duration duration;
int32_t enumvalue;
u_int32_t b32;
u_int64_t b64;
struct confd_list list;
774
confd_types
struct confd_hkeypath *hkp;
struct confd_vptr ptr;
struct confd_snmp_oid *oidp;
struct confd_ipv4_prefix ipv4prefix;
struct confd_ipv6_prefix ipv6prefix;
struct confd_decimal64 d64;
struct confd_identityref idref;
struct confd_dotted_quad dquad;
u_int32_t enumhash; /* backwards compat */
} val;
} confd_value_t;
C_NOEXISTS This is used internally by ConfD, as an end marker in confd_hkeypath_t arrays,
and as a "value does not exist" indicator in arrays of values.
C_DEFAULT This is used to indicate that an element with a default value defined in the data
model does not have a value set. When reading data from ConfD, we will only get
this indication if we specifically request it, otherwise the default value is returned.
C_XMLTAG An C_XMLTAG value is represented as a struct:
struct xml_tag {
u_int32_t tag;
u_int32_t ns;
};
When a YANG module is compiled by the confdc(1) compiler, the --emit-
h flag is used to generate a .h file containing definitions for all the nodes in the
module. For example if we compile the following YANG module:
# cat blaster.yang
module blaster {
namespace "http://tail-f.com/ns/blaster";
prefix blaster;
import tailf-common {
prefix tailf;
}
typedef Fruit {
type enumeration {
enum apple;
enum orange;
enum pear;
}
}
container tiny {
tailf:callpoint xcp;
leaf foo {
type int8;
}
leaf bad {
type int16;
}
}
}
# confdc -c blaster.yang
# confdc --emit-h blaster.h blaster.fxs
775
confd_types
We get the following contents in blaster.h
# cat blaster.h
/*
* BEWARE BEWARE BEWARE BEWARE BEWARE BEWARE BEWARE BEWARE BEWARE
* This file has been auto-generated by the confdc compiler.
* Source: blaster.fxs
* BEWARE BEWARE BEWARE BEWARE BEWARE BEWARE BEWARE BEWARE BEWARE
*/
#ifndef _BLASTER_H_
#define _BLASTER_H_
#ifdef __cplusplus
extern "C" {
#endif /* __cplusplus */
#ifndef blaster__ns
#define blaster__ns 670579579
#define blaster__ns_id "http://tail-f.com/ns/blaster"
#define blaster__ns_uri "http://tail-f.com/ns/blaster"
#endif
#define blaster_orange 1
#define blaster_apple 0
#define blaster_pear 2
#define blaster_foo 161968632
#define blaster_tiny 1046642021
#define blaster_bad 1265139696
#define blaster__callpointid_xcp "xcp"
#ifdef __cplusplus
}
#endif
#endif
The integers in the .h file are used in the struct xml_tag, thus the container
node tiny is represented as a xml_tag C struct {tag=1046642021,
ns=670579579} or, using the #defines {tag=blaster_tiny,
ns=blaster__ns}.
Each callpoint, actionpoint, and validate statement also yields a preprocessor
symbol. If the symbol is used rather than the literal string in calls to ConfD, the
C compiler will catch the potential problem when the id in the data model has
changed but the C code hasn't been updated.
Sometimes we wish to retrieve a string representation of defined hash values. This
can be done with the function confd_hash2str(), see the USING SCHEMA
INFORMATION section below.
C_BUF This type is used to represent the YANG built-in type string and the xs:token
type. The struct which is used is:
typedef struct confd_buf {
unsigned int size;
unsigned char *ptr;
} confd_buf_t;
776
confd_types
Strings passed to the application from ConfD are always NUL-terminated. When
values of this type are received by the callback functions in confd_lib_dp(3), the
ptr field is a pointer to libconfd private memory, and the data will not survive
unless copied by the application.
To create and extract values of type C_BUF we do:
confd_value_t myval;
char *x; int len;
CONFD_SET_BUF(&myval, "foo", 3)
x = CONFD_GET_BUFPTR(&myval);
len = CONFD_GET_BUFSIZE(&myval);
It is important to realize that C_BUF data received by the application through
either maapi_get_elem() or cdb_get() which are of type C_BUF must
be freed by the application.
C_STR This tag is never received by the application. Values and keys received
in the various data callbacks (See confd_register_data_cb() in
confd_lib_dp(3) never have this type. It is only used when the application
replies with values to ConfD. (See confd_data_reply_value() in
confd_lib_dp(3)).
It is used to represent regular NUL-terminated char* values. Example:
confd_value_t myval;
myval.type = C_STR;
myval.val.s = "Zaphod";
/* or alternatively and recommended */
CONFD_SET_STR(&myval, "Beeblebrox");
C_INT8 Used to represent the YANG built-in type int8, which is a signed 8 bit integer.
The corresponding C type is int8_t. Example:
int8_t ival;
confd_value_t myval;
CONFD_SET_INT8(&myval, -32);
ival = CONFD_GET_INT8(&myval);
C_INT16 Used to represent the YANG built-in type int16, which is a signed 16 bit integer.
The corresponding C type is int16_t. Example:
int16_t ival;
confd_value_t myval;
CONFD_SET_INT16(&myval, -3277);
ival = CONFD_GET_INT16(&myval);
C_INT32 Used to represent the YANG built-in type int32, which is a signed 32 bit integer.
The corresponding C type is int32_t. Example:
int32_t ival;
confd_value_t myval;
777
confd_types
CONFD_SET_INT32(&myval, -77732);
ival = CONFD_GET_INT32(&myval);
C_INT64 Used to represent the YANG built-in type int64, which is a signed 64 bit integer.
The corresponding C type is int64_t. Example:
int64_t ival;
confd_value_t myval;
CONFD_SET_INT64(&myval, -32);
ival = CONFD_GET_INT64(&myval);
C_UINT8 Used to represent the YANG built-in type uint8, which is an unsigned 8 bit
integer. The corresponding C type is u_int8_t. Example:
u_int8_t ival;
confd_value_t myval;
CONFD_SET_UINT8(&myval, 32);
ival = CONFD_GET_UINT8(&myval);
C_UINT16 Used to represent the YANG built-in type uint16, which is an unsigned 16 bit
integer. The corresponding C type is u_int16_t. Example:
u_int16_t ival;
confd_value_t myval;
CONFD_SET_UINT16(&myval, 3277);
ival = CONFD_GET_UINT16(&myval);
C_UINT32 Used to represent the YANG built-in type uint32, which is an unsigned 32 bit
integer. The corresponding C type is u_int32_t. Example:
u_int32_t ival;
confd_value_t myval;
CONFD_SET_UINT32(&myval, 77732);
ival = CONFD_GET_UINT32(&myval);
C_UINT64 Used to represent the YANG built-in type uint64, which is an unsigned 64 bit
integer. The corresponding C type is u_int64_t. Example:
u_int64_t ival;
confd_value_t myval;
CONFD_SET_UINT64(&myval, 32);
ival = CONFD_GET_UINT64(&myval);
C_DOUBLE Used to represent the XML schema types xs:decimal, xs:float and xs:double.
They are all coerced into the C type double. Example:
double d;
confd_value_t myval;
CONFD_SET_DOUBLE(&myval, 3.14);
d = CONFD_GET_DOUBLE(&myval);
C_BOOL Used to represent the YANG built-in type boolean. The C representation is an
integer with 0 representing false and non-zero representing true. Example:
778
confd_types
int bool
confd_value_t myval;
CONFD_SET_BOOL(&myval, 1);
b = CONFD_GET_BOOL(&myval);
C_QNAME Used to represent XML Schema type xs:QName which consists of a pair of
strings, prefix and a name. Data is allocated by the library as for C_BUF.
Example:
unsigned char* prefix, *name;
int prefix_len, name_len;
confd_value_t myval;
CONFD_SET_QNAME(&myval, "myprefix", 8, "myname", 6);
prefix = CONFD_GET_QNAME_PREFIX_PTR(&myval);
prefix_len = CONFD_GET_QNAME_PREFIX_SIZE(&myval);
name = CONFD_GET_QNAME_NAME_PTR(&myval);
name_len = CONFD_GET_QNAME_NAME_SIZE(&myval);
C_DATETIME Used to represent the YANG type yang:date-and-time. The C representation is
a struct:
struct confd_datetime {
int16_t year;
u_int8_t month;
u_int8_t day;
u_int8_t hour;
u_int8_t min;
u_int8_t sec;
u_int32_t micro;
int8_t timezone;
int8_t timezone_minutes;
};
ConfD does not try to convert the data values into timezone independent C structs.
The timezone and timezone_minutes fields are integers where:
timezone == 0 &&
timezone_minutes == 0
represents UTC. This corresponds to a
timezone specification in the string form
of "Z" or "+00:00".
-14 <= timezone &&
timezone <= 14
represents an offset in hours from
UTC. In this case timezone_minutes
represents a fraction of an hour in
minutes if the offset from UTC isn't
an integral number of hours, otherwise
it is 0. If timezone != 0,
its sign gives the direction of the
offset, and timezone_minutes is
always >= 0 - otherwise the sign
of timezone_minutes gives the
direction of the offset. E.g. timezone
== 5 && timezone_minutes
== 30 corresponds to a timezone
specification in the string form of
"+05:30".
779
confd_types
timezone ==
CONFD_TIMEZONE_UNDEF
means that the string form indicates lack
of timezone information with "-00:00".
It is up to the application to transform these structs into more UNIX friendly
structs such as struct tm from <time.h>. Example:
#include <time.h>
confd_value_t myval;
struct confd_datetime dt;
struct tm *tm = localtime(time(NULL));
dt.year = tm->tm_year + 1900; dt.month = tm->tm_mon + 1;
dt.day = tm->tm_mday; dt->hour = tm->tm_hour;
dt.min = tm->tm_min; dt->sec = tm->tm_sec;
dt.micro = 0; dt.timezone = CONFD_TIMEZONE_UNDEF;
CONFD_SET_DATETIME(&myval, dt);
dt = CONFD_GET_DATETIME(&myval);
C_DATE Used to represent the XML Schema type xs:date. The C representation is a struct:
struct confd_date {
int16_t year;
u_int8_t month;
u_int8_t day;
int8_t timezone;
int8_t timezone_minutes;
};
Example:
confd_value_t myval;
struct confd_date dt;
dt.year = 1960, dt.month = 3,
dt.day = 31; dt.timezone = CONFD_TIMEZONE_UNDEF;
CONFD_SET_DATE(&myval, dt);
dt = CONFD_GET_DATE(&myval);
C_TIME Used to represent the XML Schema type xs:time. The C representation is a struct:
struct confd_time {
u_int8_t hour;
u_int8_t min;
u_int8_t sec;
u_int32_t micro;
int8_t timezone;
int8_t timezone_minutes;
};
Example:
confd_value_t myval;
struct confd_time dt;
dt.hour = 19, dt.min = 3,
dt.sec = 31; dt.timezone = CONFD_TIMEZONE_UNDEF;
CONFD_SET_TIME(&myval, dt);
dt = CONFD_GET_TIME(&myval);
780
confd_types
C_DURATION Used to represent the XML Schema type xs:duration. The C representation is a
struct:
struct confd_duration {
u_int32_t years;
u_int32_t months;
u_int32_t days;
u_int32_t hours;
u_int32_t mins;
u_int32_t secs;
u_int32_t micros;
};
Example of something that is supposed to last 3 seconds:
confd_value_t myval;
struct confd_duration dt;
memset(&dt, 0, sizeof(struct confd_duration));
dt.secs = 3;
CONFD_SET_DURATION(&myval, dt);
dt = CONFD_GET_DURATION(&myval);
C_IPV4 Used to represent the YANG type inet:ipv4-address. The C representation is a
struct in_addr Example:
struct in_addr ip;
confd_value_t myval;
ip.s_addr = inet_addr("192.168.1.2");
CONFD_SET_IPV4(&myval, ip);
ip = CONFD_GET_IPV4(&myval);
C_IPV6 Used to represent the YANG type inet:ipv6-address. The C representation is as
struct in6_addr Example:
struct in6_addr ip6;
confd_value_t myval;
inet_pton(AF_INET6, "FFFF::192.168.42.2", &ip6);
CONFD_SET_IPV6(&myval, ip6);
ip6 = CONFD_GET_IPV6(&myval);
C_ENUM_VALUE Used to represent the YANG built-in type enumeration - like the Fruit
enumeration from the beginning of this man page.
enum fruit {
ORANGE = blaster_orange,
APPLE = blaster_apple,
PEAR = blaster_pear
};
enum fruit f;
confd_value_t myval;
CONFD_SET_ENUM_VALUE(&myval, APPLE);
f = CONFD_GET_ENUM_VALUE(&myval);
Thus leafs that have type enumeration in the YANG module do not have values
that are strings in the C code, but integer values according to the YANG standard.
781
confd_types
The file generated by confdc --emit-h includes #define symbols for these
integer values.
C_BIT32, C_BIT64 Used to represent the YANG built-in type bits when the highest bit position
assigned is below 64. In C the value representation for a bitmask is either a 32 bit
or a 64 bit unsigned integer, depending on the highest bit position assigned. The
file generated by confdc --emit-h includes #define symbols giving bitmask
values for the defined bit names.
u_int32_t mask = 77;
confd_value_t myval;
CONFD_SET_BIT32(&myval, mask);
mask = CONFD_GET_BIT32(&myval);
C_BITBIG Used to represent the YANG built-in type bits when the highest bit position
assigned is above 63. In C the value representation for a bitmask in this case is
a "little-endian" byte array (confd_buf_t), i.e. byte 0 holds bits 0-7, byte 1 holds
bit 8-15, and so on. The file generated by confdc --emit-h includes #define
symbols giving position values for the defined bit names, as well as the size
needed for a byte array that can hold the values for all the defined bits.
unsigned char mask[myns__size_mytype];
unsigned char *mask2;
confd_value_t myval;
memset(mask, 0, sizeof(mask));
CONFD_BITBIG_SET_BIT(mask, myns__pos_mytype_somebit);
CONFD_SET_BITBIG(&myval, mask, sizeof(mask));
mask2 = CONFD_GET_BITBIG_PTR(&myval);
C_LIST Used to represent a YANG leaf-list. In C the value representation for is:
struct confd_list {
unsigned int size;
struct confd_value *ptr;
};
Similar to the C_BUF type, the confd library will allocate data when an element
of type C_LIST is retrieved via maapi_get_elem() or cdb_get().
Using confd_free_value() (see confd_lib_lib(3)) to free allocated data is
especially convenient for C_LIST, as the individual list elements may also have
allocated data (e.g. a YANG leaf-list of type string).
To set a value of type C_LIST we have to populate the list array separately, for
example:
confd_value_t arr[5];
confd_value_t v;
confd_value_t *vp;
int i, size;
for (i=0; i<5; i++)
CONFD_SET_INT32(&arr[i], i);
CONFD_SET_LIST(&v, &arr[0], 5);
vp = CONFD_GET_LIST(&v);
size = CONFD_GET_LISTSIZE(&v);
782
confd_types
C_XMLBEGIN,
C_XMLEND
These are only used in the "Tagged Value Array" format for representing XML
structures, see below. The representation is the same as for C_XMLTAG.
C_OBJECTREF This is used to represent the YANG built-in type instance-identifier. Values are
represented as confd_hkeypath_t pointers. Data is allocated by the library as
for C_BUF. When we read an instance-identifier via e.g. cdb_get() we can
retrieve the pointer to the keypath as:
confd_value_t v;
confd_hkeypath_t *hkp;
cdb_get(sock, &v, mypath);
hkp = CONFD_GET_OBJECTREF(&v);
To retrieve the value which is identified by the instance-identifier we can e.g.
use the "%h" modifier in the format string used with the CDB and MAAPI API
functions.
C_OID This is used to represent the YANG yang:object-identifier and yang:object-
identifier-128 types, i.e. SNMP Object Identifiers. The value is a pointer to a
struct:
struct confd_snmp_oid {
u_int32_t oid[128];
int len;
};
Data is allocated by the library as for C_BUF. When using values of this type,
we set or get the len element, and the individual OID elements in the oid array.
This example will store the string "0.1.2" in buf:
struct confd_snmp_oid myoid;
confd_value_t myval;
char buf[BUFSIZ];
int i;
for (i = 0; i < 3; i++)
myoid.oid[i] = i;
myoid.len = 3;
CONFD_SET_OID(&myval, &myoid);
confd_pp_value(buf, sizeof(buf), &myval);
C_BINARY This type is used to represent arbitrary binary data. The YANG built-in type
binary, the ConfD built-in types tailf:hex-list and tailf:octet-list, and the XML
Schema primitive type xs:hexBinary all use this type. The value representation
is the same as for C_BUF. Binary (C_BINARY) data received by the application
from ConfD is always NUL terminated, but since the data may also contain NUL
bytes, it is generally necessary to use the size given by the representation.
typedef struct confd_buf {
unsigned int size;
unsigned char *ptr;
} confd_buf_t;
Data is also allocated by the library as for C_BUF. Example:
783
confd_types
confd_value_t myval, myval2;
unsigned char *bin;
int len;
bin = CONFD_GET_BINARY_PTR(&myval);
len = CONFD_GET_BINARY_SIZE(&myval);
CONFD_SET_BINARY(&myval2, bin, len);
C_IPV4PREFIX Used to represent the YANG data type inet:ipv4-prefix. The C representation is
a struct as follows:
struct confd_ipv4_prefix {
struct in_addr ip;
u_int8_t len;
};
Example:
struct confd_ipv4_prefix prefix;
confd_value_t myval;
prefix.ip.s_addr = inet_addr("10.0.0.0");
prefix.len = 8;
CONFD_SET_IPV4PREFIX(&myval, prefix);
prefix = CONFD_GET_IPV4PREFIX(&myval);
C_IPV6PREFIX Used to represent the YANG data type inet:ipv6-prefix. The C representation is
a struct as follows:
struct confd_ipv6_prefix {
struct in6_addr ip6;
u_int8_t len;
};
Example:
struct confd_ipv6_prefix prefix;
confd_value_t myval;
inet_pton(AF_INET6, "2001:DB8::1428:57A8", &prefix.ip6);
prefix.len = 125;
CONFD_SET_IPV6PREFIX(&myval, prefix);
prefix = CONFD_GET_IPV6PREFIX(&myval);
C_DECIMAL64 Used to represent the YANG built-in type decimal64, which is a decimal number
with 64 bits of precision. The C representation is a struct as follows:
struct confd_decimal64 {
int64_t value;
u_int8_t fraction_digits;
};
The value element is scaled with the value of the fraction_digits
element, to be able to represent it as a 64-bit integer. Note that
fraction_digits is a constant for any given instance of a decimal64 type.
It is provided whenever we receive a C_DECIMAL64 from ConfD. When we
provide a C_DECIMAL64 to ConfD, we can set fraction_digits either to
the correct value or to 0 - however the value element must always be correctly
784
confd_types
scaled. See also confd_get_decimal64_fraction_digits() in the
confd_lib_lib(3) man page.
Example:
struct confd_decimal64 d64;
confd_value_t myval;
d64.value = 314159;
d64.fraction_digits = 5;
CONFD_SET_DECIMAL64(&myval, d64);
d64 = CONFD_GET_DECIMAL64(&myval);
C_IDENTITYREF Used to represent the YANG built-in type identityref, which references an
existing identity. The C representation is a struct as follows:
struct confd_identityref {
u_int32_t ns;
u_int32_t id;
};
The ns and id elements are hash values that represent the namespace of the
module that defines the identity, and the identity within that module.
Example:
struct confd_identityref idref;
confd_value_t myval;
idref.ns = des__ns;
idref.id = des_des3
CONFD_SET_IDENTITYREF(&myval, idref);
idref = CONFD_GET_IDENTITYREF(&myval);
C_DQUAD Used to represent the YANG data type yang:dotted-quad. The C representation
is a struct as follows:
struct confd_dotted_quad {
unsigned char quad[4];
};
Example:
struct confd_dotted_quad dquad;
confd_value_t myval;
dquad.quad[0] = 1;
dquad.quad[1] = 2;
dquad.quad[2] = 3;
dquad.quad[3] = 4;
CONFD_SET_DQUAD(&myval, dquad);
dquad = CONFD_GET_DQUAD(&myval);
C_HEXSTR Used to represent the YANG data type yang:hex-string. The value representation
is the same as for C_BUF and C_BINARY. C_HEXSTR data received by the
application from ConfD is always NUL terminated, but since the data may
also contain NUL bytes, it is generally necessary to use the size given by the
representation.
785
confd_types
typedef struct confd_buf {
unsigned int size;
unsigned char *ptr;
} confd_buf_t;
Data is also allocated by the library as for C_BUF/C_BINARY. Example:
confd_value_t myval, myval2;
unsigned char *hex;
int len;
hex = CONFD_GET_HEXSTR_PTR(&myval);
len = CONFD_GET_HEXSTR_SIZE(&myval);
CONFD_SET_HEXSTR(&myval2, bin, len);
C_IPV4_AND_PLEN Used to represent the ConfD built-in data type tailf:ipv4-address-and-prefix-
length. The C representation is the same struct that is used for C_IPV4PREFIX,
as follows:
struct confd_ipv4_prefix {
struct in_addr ip;
u_int8_t len;
};
Example:
struct confd_ipv4_prefix ip_and_len;
confd_value_t myval;
ip_and_len.ip.s_addr = inet_addr("172.16.1.2");
ip_and_len.len = 16;
CONFD_SET_IPV4_AND_PLEN(&myval, ip_and_len);
ip_and_len = CONFD_GET_IPV4_AND_PLEN(&myval);
C_IPV6_AND_PLEN Used to represent the ConfD built-in data type tailf:ipv6-address-and-prefix-
length. The C representation is the same struct that is used for C_IPV6PREFIX,
as follows:
struct confd_ipv6_prefix {
struct in6_addr ip6;
u_int8_t len;
};
Example:
struct confd_ipv6_prefix ip_and_len;
confd_value_t myval;
inet_pton(AF_INET6, "2001:DB8::1428:57A8", &ip_and_len.ip6);
ip_and_len.len = 64;
CONFD_SET_IPV6_AND_PLEN(&myval, ip_and_len);
ip_and_len = CONFD_GET_IPV6_AND_PLEN(&myval);
XML PATHS
Almost all of the callback functions the user is supposed write for the confd_lib_dp(3) library takes a
parameter of type confd_hkeypath_t. This type includes an array of the type confd_value_t described
above. The confd_hkeypath_t is defined as a C struct:
786
confd_types
typedef struct confd_hkeypath {
int len;
confd_value_t v[MAXDEPTH][MAXKEYLEN];
} confd_hkeypath_t;
Where:
#define MAXDEPTH 20 /* max depth of data model tree
(max KP length + 1) */
#define MAXKEYLEN 9 /* max number of key elems
(max keys + 1) */
For example, assume we have a YANG module with:
container servers {
tailf:callpoint mycp;
list server {
key name;
max-elements 64;
leaf name {
type string;
}
leaf ip {
type inet:ip-address;
}
leaf port {
type inet:port-number;
}
}
}
Assuming a server entry with the name "www" exists, then the path /servers/server{www}/ip
is valid and identifies the ip leaf in the server entry whose key is "www".
The confd_hkeypath_t which corresponds to /servers/server{www}/ip is received in reverse
order so the following holds assuming the variable holding a pointer to the keypath is called hkp.
hkp->v[0][0] is the last element, the "ip" element. It is a data model node, and
CONFD_GET_XMLTAG(&hkp->v[0][0]) will evaluate to a hashed integer (which can be found in
the confdc generated .h file as a #define)
hkp->v[1][0] is the next element in the path. The key element is called "name". This is a string value
- thus strcmp("www", CONFD_GET_BUFPTR(&hkp->v[1][0])) == 0 holds.
If we had chosen to use multiple keys in our data model - for example if we had chosen to use both the
"name" and the "ip" leafs as keys:
key "name ip";
The hkeypaths would be different since two keys are required. A valid path identifying a port leaf would
be /servers/server{www 10.2.3.4}/port. In this case we can get to the ip part of the key
with:
struct in_addr ip;
787
confd_types
ip = CONFD_GET_IPV4(&hkp->v[1][1])
USER-DEFINED TYPES
We can define new types in addition to those listed in the TYPEDEFS section above. This can be useful
if none of the predefined types, nor a derivation of one of those types via standard YANG restrictions, is
suitable. Of course it is always possible to define a type as a derivation of string and have the application
parse the string whenever a value needs to be processed, but with a user-defined type ConfD will do the
string <-> value translation just as for the predefined types.
A user-defined type will always have a value representation that uses a confd_value_t with one of the
enum confd_vtype values listed above, but the textual representation and the range(s) of allowed values are
defined by the user. The misc/user_type example in the collection delivered with the ConfD release
shows implementation of several user-defined types - it will be useful to refer to it for the description below.
The choice of confd_vtype to use for the value representation can be whatever suits the actual data values
best, with one exception:
Note
The C_LIST confd_vtype value can not be used for a leaf that is a key in a YANG list. The
"normal" C_LIST usage is only for representation of leaf-lists, and a leaf-list can of course not
be a key. Thus the ConfD code is not prepared to handle this kind of "value" for a key. It is a
strong recommendation to never use C_LIST for a user-defined type, since even if the type is not
initially used for key leafs, subsequent development may see a need for this, at which point it
may be cumbersome to change to a different representation.
The example uses C_INT32, C_IPV4PREFIX, and C_IPV6PREFIX for the value representation of the
respective types, but in many cases the opaque byte array provided by C_BINARY will be most suitable
- this can e.g. be mapped to/from an arbitrary C struct.
When we want to implement a user-defined type, we need to specify the type as string, and add
a tailf:typepoint statement - see tailf_yang_extensions(5). We can use tailf:typepoint
wherever a built-in or derived type can be specified, i.e. as sub-statement to typedef, leaf, or leaf-
list:
typedef myType {
type string;
tailf:typepoint my_type;
}
container c {
leaf one {
type myType;
}
leaf two {
type string;
tailf:typepoint two_type;
}
}
The argument to the tailf:typepoint statement is used to locate the type implementation, similar
to how "callpoints" are used to locate data providers, but the actual mechanism is different, as described
below.
788
confd_types
To actually implement the type definition, we need to write three callback functions that are defined in
the struct confd_type:
struct confd_type {
/* If a derived type point at the parent */
struct confd_type *parent;
/* not used in confspecs, but used in YANG */
struct confd_type *defval;
/* parse value located in str, and validate.
* returns CONFD_TRUE if value is syntactically correct
* and CONFD_FALSE otherwise.
*/
int (*str_to_val)(struct confd_type *self,
struct confd_type_ctx *ctx,
const char *str, unsigned int len,
confd_value_t *v);
/* print the value to str.
* does not print more than len bytes, including trailing NUL.
* return value as snprintf - i.e. if the value is correct for
* the type, it returns the length of the string form regardless
* of the len limit - otherwise it returns a negative number.
* thus, the NUL terminated output has been completely written
* if and only if the returned value is nonnegative and less
* than len.
* If strp is non-NULL and the string form is constant (i.e.
* C_ENUM_VALUE), a pointer to the string is stored in *strp.
*/
int (*val_to_str)(struct confd_type *self,
struct confd_type_ctx *ctx,
const confd_value_t *v,
char *str, unsigned int len,
const char **strp);
/* returns CONFD_TRUE if value is correct, otherwise CONFD_FALSE
*/
int (*validate)(struct confd_type *self,
struct confd_type_ctx *ctx,
const confd_value_t *v);
/* data optionally used by the callbacks */
void *opaque;
};
I.e. str_to_val() and val_to_str() are responsible for the string to value and value to string
translations, respectively, and validate() may be called to verify that a given value adheres to any
restrictions on the values allowed for the type. The errstr element in the struct confd_type_ctx
*ctx passed to these functions can be used to return an error message when the function fails - in this
case errstr must be set to the address of a dynamically allocated string. The other elements in ctx
are currently unused.
Including user-defined types in a YANG union may need some special consideration. Per the YANG
specification, the string form of a value is matched against the union member types in the order they are
specified until a match is found, and this procedure determines the type of the value. A corresponding
procedure is used by ConfD when the value needs to be converted to a string, but this conversion does not
include any evaluation of restrictions etc - the values are assumed to be correct for their type. Thus the
789
confd_types
val_to_str() function for the member types are tried in order until one succeeds, and the resulting
string is used. This means that a) val_to_str() must verify that the value is of the correct type, i.e.
that it has the expected confd_vtype, and b) if the value representation is the same for multiple member
types, there is no guarantee that the same member type as for the string to value conversion is chosen.
The opaque element in the struct confd_type can be used for any auxiliary (static) data needed by the
functions (on invocation they can reference it as self->opaque). The parent and defval elements are
not used in this context, and should be NULL.
Note
The str_to_val() function must allocate space (using e.g. malloc(3)) for the actual data
value for those confd_value_t types that are listed as having allocated data above, i.e. C_BUF,
C_QNAME, C_LIST, C_OBJECTREF, C_OID, C_BINARY, and C_HEXSTR.
We make the implementation available to ConfD by creating one or more shared objects (.so files)
containing the above callback functions. Each shared object may implement one or more types, and
at startup the ConfD daemon will search the directories specified for /confdConfig/loadPath in
confd.conf for files with a name that match the pattern "confd_type*.so" and load them.
Each shared object must also implement an "init" callback:
int confd_type_cb_init(struct confd_type_cbs **cbs);
When the object has been loaded, ConfD will call this function. It must return a pointer to an array of type
callback structures via the cbs argument, and the number of elements in the array as return value. The
struct confd_type_cbs is defined as:
struct confd_type_cbs {
char *typepoint;
struct confd_type *type;
};
These structures are then used by ConfD to locate the implementation of a given type, by searching for a
typepoint string that matches the tailf:typepoint argument in the YANG data model.
Note
Since our callbacks are executed directly by the ConfD daemon, it is critically important that they
do not have a negative impact on the daemon. No other processing can be done by ConfD while
the callbacks are executed, and e.g. a NULL pointer dereference in one of the callbacks will cause
ConfD to crash. Thus they should be simple, purely algorithmic functions, never referencing any
external resources.
Note
When user-defined types are present, the ConfD daemon also needs to load the libconfd.so shared
library, otherwise used only by applications. This means that either this library must be in one
of the system directories that are searched by the OS runtime loader (typically /lib and /usr/lib),
or its location must be given by setting the LD_LIBRARY_PATH environment variable before
starting ConfD.
The above is enough for ConfD to use the types that we have defined, but the libconfd library can also
do local string<->value translation if we have loaded the schema information, as described in the USING
790
confd_types
SCHEMA INFORMATION section below. For this to work for user-defined types, we must register the
type definitions with the library, using one of these functions:
int confd_register_ns_type(u_int32_t nshash, const char *name, struct
confd_type *type);
Here we must pass the hash value for the namespace where the type is defined as nshash, and the name
of the type from a typedef statement (i.e. not the typepoint name if they are different) as name. Thus
we can not use this function to register a user-defined type that is specified "inline" in a leaf or leaf-
list statement, since we don't have a name for the type.
int confd_register_node_type(struct confd_cs_node *node, struct
confd_type *type);
This function takes a pointer to a schema node (see the section USING SCHEMA INFORMATION) that
uses the type instead of namespace and type name. It is necessary to use this for registration of user-defined
types that are specified "inline", but it can also be used for user-defined types specified via typedef.
In the latter case it will be equivalent to calling confd_register_ns_type() for the typedef, i.e. a
single registration will apply to all nodes using the typedef.
The functions can only be called after confd_load_schemas() or maapi_load_schemas()
(see below) has been called, and if confd_load_schemas()/ maapi_load_schemas() is called
again, the registration must be re-done. The misc/user_type example shows a way to use the exact
same code for the shared object and for this registration.
Schema upgrades when the data is stored in CDB requires special consideration for user-defined types.
Normally CDB can handle any type changes automatically, and this is true also when changing to/from/
between user-defined types, provided that the following requirements are fulfilled:
1. A given typepoint name always refers to the exact same implementation - i.e. same value representation,
same range restrictions, etc.
2. Shared objects providing implementations for all the typepoint ids used in the new and the old schema
are made available to ConfD.
I.e. if we change the implementation of a type, we also change the typepoint name, and keep the old
implementation around. If requirement 1 isn't fulfilled, we can end up with the case of e.g. a changed value
representation between schema versions even though the types are indistinguishable for CDB. This can
still be handled by using MAAPI to modify CDB during the upgrade as described in the User Guide, but
if that is not done, CDB will just carry the old values over, which in effect results in a corrupt database.
USING SCHEMA INFORMATION
Schema information from the data model can be loaded from the ConfD daemon at runtime using the
maapi_load_schemas() function, see the confd_lib_maapi(3) manual page. Information for all
namespaces loaded into ConfD is then made available. In many cases it may be more convenient to
use the confd_load_schemas() utility function. For details about this function and those discussed
below, see confd_lib_lib(3). After loading the data, we can call confd_get_nslist() to find which
namespaces are known to the library as a result.
Note that all pointers returned (directly or indirectly) by the functions discussed here reference dynamically
allocated memory maintained by the library - they will become invalid if confd_load_schemas()
or maapi_load_schemas() is subsequently called again.
The confdc(1) compiler can also optionally generate a C header file that has #define symbols for the integer
values corresponding to data model nodes and enumerations.
791
confd_types
When the schema information has been made available to the library, we can format an arbitrary instance
of a confd_value_t value using confd_pp_value() or confd_ns_pp_value(), or an arbitrary
hkeypath using confd_pp_kpath() or confd_xpath_pp_kpath(). We can also get a pointer to
the string representing a data model node using confd_hash2str().
Furthermore a tree representation of the data model is available, which contains a struct confd_cs_node
for every node in the data model. There is one tree for each namespace that has toplevel elements.
/* flag bits in confd_cs_node_info */
#define CS_NODE_IS_LIST (1 << 0)
#define CS_NODE_IS_WRITE (1 << 1)
#define CS_NODE_IS_CDB (1 << 2)
#define CS_NODE_IS_ACTION (1 << 3)
#define CS_NODE_IS_PARAM (1 << 4)
#define CS_NODE_IS_RESULT (1 << 5)
#define CS_NODE_IS_NOTIF (1 << 6)
#define CS_NODE_IS_CASE (1 << 7)
#define CS_NODE_IS_CONTAINER (1 << 8)
#define CS_NODE_HAS_WHEN (1 << 9)
#define CS_NODE_HAS_DISPLAY_WHEN (1 << 10)
#define CS_NODE_HAS_META_DATA (1 << 11)
#define CS_NODE_IS_WRITE_ALL (1 << 12)
#define CS_NODE_IS_LEAF_LIST (1 << 13)
#define CS_NODE_IS_LEAFREF (1 << 14)
#define CS_NODE_IS_DYN CS_NODE_IS_LIST /* backwards compat */
/* cmp values in confd_cs_node_info */
#define CS_NODE_CMP_NORMAL 0
#define CS_NODE_CMP_SNMP 1
#define CS_NODE_CMP_SNMP_IMPLIED 2
#define CS_NODE_CMP_USER 3
#define CS_NODE_CMP_UNSORTED 4
struct confd_cs_node_info {
u_int32_t *keys;
int minOccurs;
int maxOccurs; /* -1 if unbounded */
enum confd_vtype shallow_type;
struct confd_type *type;
confd_value_t *defval;
struct confd_cs_choice *choices;
int flags;
u_int8_t cmp;
struct confd_cs_meta_data *meta_data;
};
struct confd_cs_meta_data {
char* key;
char* value;
};
struct confd_cs_node {
u_int32_t tag;
u_int32_t ns;
struct confd_cs_node_info info;
struct confd_cs_node *parent;
struct confd_cs_node *children;
struct confd_cs_node *next;
void *opaque; /* private user data */
792
confd_types
};
struct confd_cs_choice {
u_int32_t tag;
u_int32_t ns;
int minOccurs;
struct confd_cs_case *default_case;
struct confd_cs_node *parent; /* NULL if parent is case */
struct confd_cs_case *cases;
struct confd_cs_choice *next;
struct confd_cs_case *case_parent; /* NULL if parent is node */
};
struct confd_cs_case {
u_int32_t tag;
u_int32_t ns;
struct confd_cs_node *first;
struct confd_cs_node *last;
struct confd_cs_choice *parent;
struct confd_cs_case *next;
struct confd_cs_choice *choices;
};
Each confd_cs_node is linked to its related nodes: parent is a pointer to the parent node, next is a
pointer to the next sibling node, and children is a pointer to the first child node - for each of these, a
NULL pointer has the obvious meaning.
Each confd_cs_node also contains an information structure: For a list node, the keys field is a zero-
terminated array of integers - these are the tag values for the children nodes that are key elements. This
makes it possible to find the name of a key element in a keypath. If the confd_cs_node is not a list node,
the keys field is NULL. The shallow_type field gives the "primitive" type for the element, i.e. the
enum confd_vtype value that is used in the confd_value_t representation.
Typed leaf nodes also carry a complete type definition via the type pointer, which can be used with the
conf_str2val() and confd_val2str() functions, as well as the leaf's default value (if any) via
the defval pointer.
If the YANG choice statement is used in the data model, additional structures are created by the
schema loading. For list and container nodes that have choice statements, the choices element
in confd_cs_node_info is a pointer to a linked list of confd_cs_choice structures representing the
choices. Each confd_cs_choice has a pointer to the parent node and a cases pointer to a linked list of
confd_cs_case structures representing the cases for that choice. Finally, each confd_cs_case structure has
pointers to the parent confd_cs_choice structure, and to the confd_cs_node structures representing the
first and last element in the case. Those confd_cs_node structures, i.e. the "toplevel" elements of a case,
have the CS_NODE_IS_CASE flag set. Note that it is possible for a case to be "empty", i.e. there are no
elements in the case - then the first and last pointers in the confd_cs_case structure are NULL.
For a list node, the sort order is indicated by the cmp element in confd_cs_node_info. The value
CS_NODE_CMP_NORMAL means an ordinary, system ordered, list. CS_NODE_CMP_SNMP is system
ordered, but ordered according to SNMP lexicographical order, and CS_NODE_CMP_SNMP_IMPLIED
is an SNMP lexicographical order where the last key has an IMPLIED keyword.
CS_NODE_CMP_UNSORTED is system ordered, but is not sorted. The value CS_NODE_CMP_USER
denotes an "ordered-by user" list.
If the tailf:meta-data extension is used for a node, the meta_data element points to an array
of struct confd_cs_meta_data, otherwise it is NULL. In the array, the key element is the argument
of tailf:meta-data, and the value element is the argument of the tailf:meta-value
793
confd_types
substatement, if any - otherwise it is NULL. The end of the array is indicated by a struct where the key
element is NULL.
Action and notification specifications are included in the tree in the same way as the config/data elements
- they are indicated by the CS_NODE_IS_ACTION flag being set on the action node, and the
CS_NODE_IS_NOTIF flag being set on the notification node, respectively. Furthermore the nodes
corresponding to the sub-statements of the action's input statement have the CS_NODE_IS_PARAM
flag set, and those corresponding to the sub-statements of the action's output statement have
the CS_NODE_IS_RESULT flag set. Note that the input and output statements do not have
corresponding nodes in the tree.
The confd_find_cs_root() function returns the root of the tree for a given namespace, and the
confd_find_cs_node(), confd_find_cs_node_child(), and confd_cs_node_cd()
functions are useful for navigating the tree. Assume that we have the following data model:
container servers {
list server {
key name;
max-elements 64;
leaf name {
type string;
}
leaf ip {
type inet:ip-address;
}
leaf port {
type inet:port-number;
}
}
}
Then, given the keypath /servers/server{www} in confd_hkeypath_t form, a call to
confd_find_cs_node() would return a struct confd_cs_node, i.e. a pointer into the tree, as in:
struct confd_cs_node *csp;
char *name;
csp = confd_find_cs_node(mykeypath, mykeypath->len);
name = confd_hash2str(csp->info.keys[0])
and the C variable name will have the value "name". These functions make it possible to format keypaths
in various ways.
If we have a keypath which identifies a node below the one we are interested in, such as /servers/
server{www}/ip, we can use the len parameter as in confd_find_cs_node(kp, 3) where 3
is the length of the keypath we wish to consider.
The equivalent of the above confd_find_cs_node() example, but using a string keypath, could be
written as:
csp = confd_cs_node_cd(confd_find_cs_root(mynamespace),
"/servers/server{www}");
The type field in the struct confd_cs_node_info can be used for data model aware string <-> value
translations. E.g. assuming that we have a confd_hkeypath_t *kp representing the element /servers/
server{www}/ip, we can do the following:
confd_value_t v;
794
confd_types
csp = confd_find_cs_node(kp, kp->len);
confd_str2val(csp->info.type, "10.0.0.1", &v);
The confd_value_t v will then be filled in with the corresponding C_IPV4 value. This technique is
generally necessary for translating C_ENUM_VALUE values to the corresponding strings (or vice versa),
since there isn't a type-independent mapping. But confd_val2str() (or confd_str2val()) can
always do the translation, since it is given the full type information. E.g. this will store the string
"nonVolatile" in buf:
confd_value_t v;
char buf[64];
CONFD_SET_ENUM_VALUE(&v, 3);
root = confd_find_cs_root(SNMP_COMMUNITY_MIB__ns);
csp = confd_cs_node_cd(root, "/SNMP-COMMUNITY-MIB/snmpCommunityTable/"
"snmpCommunityEntry/snmpCommunityStorageType");
confd_val2str(csp->info.type, &v, buf, sizeof(buf));
The type information can also be found by using the confd_find_ns_type() function to look up
the type name as a string in the namespace where it is defined - i.e. we could alternatively have achieved
the same result with:
CONFD_SET_ENUM_VALUE(&v, 3);
type = confd_find_ns_type(SNMPv2_TC__ns, "StorageType");
confd_val2str(type, &v, buf, sizeof(buf));
If we give 0 for the nshash argument to confd_find_ns_type(), the type name will be looked
up among the ConfD built-in types (i.e. the YANG built-in types, the types defined in the YANG "tailf-
common" module, and the types defined in the pre-defined "confd" and/or "xs" namespaces) - e.g. the type
information for /servers/server{www}/name could be found with confd_find_ns_type(0,
"string").
XML STRUCTURES
Two different methods are used to represent a subtree of data nodes. "Value Array" describes a format that
is simpler but has some limitations, while "Tagged Value Array" describes a format that is more complex
but can represent an arbitrary subtree.
Value Array
The simpler format is an array of confd_value_t elements corresponding to the complete contents of a list
entry or container. The content of sub-list entries cannot be represented. The array is populated through
a "depth first" traversal of the data tree as follows:
1. Optional leafs or presence containers that do not exist use a single array element, with type
C_NOEXISTS (value ignored).
2. List nodes use a single array element, with type C_NOEXISTS (value ignored), regardless of the actual
number of entries or their contents.
3. Leafs with a type other than empty use an array element with their type and value as usual.
4. Leafs of type empty use an array element with type C_XMLTAG, and tag and ns set according to
the leaf name.
795
confd_types
5. Containers use one array element with type C_XMLTAG, and tag and ns set according to the element
name, followed by array elements for the sub-nodes according to this list.
Note that the list or container node corresponding to the complete array is not included in the array, and
that there is no array element for the "end" of a container.
As an example, the array corresponding to the /servers/server{www} list entry above could be
populated as:
confd_value_t v[3];
struct in_addr ip;
CONFD_SET_STR(&v[0], "www");
ip.s_addr = inet_addr("192.168.1.2");
CONFD_SET_IPV4(&v[1], ip);
CONFD_SET_UINT16(&v[2], 80);
Tagged Value Array
This format uses an array of confd_tag_value_t elements. This is a structure defined as:
typedef struct confd_tag_value {
struct xml_tag tag;
confd_value_t v;
} confd_tag_value_t;
I.e. each value element is associated with the struct xml_tag that identifies the node in the data model. The
ns element of the struct xml_tag can normally be set to 0, with the meaning "current namespace". The
array is populated, normally through a "depth first" traversal of the data tree, as follows:
1. Optional leafs or presence containers that do not exist are omitted entirely from the array.
2. List and container nodes use one array element where the value has type C_XMLBEGIN, and tag and
ns set according to the node name, followed by array elements for the sub-nodes according to this list,
followed by one array element where the value has type C_XMLEND, and tag and ns set according
to the node name.
3. Leafs with a type other than empty use an array element with their type and value as usual.
4. Leafs of type empty use an array element where the value has type C_XMLTAG, and tag and ns set
according to the leaf name.
Note that the list or container node corresponding to the complete array is not included in the array. In some
usages, non-optional nodes may also be omitted from the array - refer to the relevant API documentation
to see whether this is allowed and the semantics of doing so.
A set of CONFD_SET_TAG_XXX() macros corresponding to the CONFD_SET_XXX() macros
described above are provided - these set the ns element to 0 and the tag element to their second argument.
The array corresponding to the /servers/server{www} list entry above could be populated as:
confd_tag_value_t tv[3];
struct in_addr ip;
CONFD_SET_TAG_STR(&tv[0], servers_name, "www");
ip.s_addr = inet_addr("192.168.1.2");
CONFD_SET_TAG_IPV4(&tv[1], servers_ip, ip);
796
confd_types
CONFD_SET_TAG_UINT16(&tv[2], servers_port, 80);
There are also macros to access the components of the confd_tag_value_t elements:
confd_tag_value_t tv;
u_int16_t port;
if (CONFD_GET_TAG_TAG(&tv) == servers_port)
port = CONFD_GET_UINT16(CONFD_GET_TAG_VALUE(&tv));
DATA MODEL TYPES
This section describes the types that can be used in YANG data modeling, and their C representation. Also
listed is the corresponding SMIv2 type, which is used when a data model is translated into a MIB. In several
cases, the data model type cannot easily be translated into a native SMIv2 type. In those cases, the type
OCTET STRING is used in the translation. The SNMP agent in ConfD will in those cases send the string
representation of the value over SNMP. For example, the xs:float value 3.14 is sent as the string "3.14".
These subsections describe the following sets of types, which can be used with YANG data modeling:
YANG built-in types
The ietf-yang-types YANG module
The ietf-inet-types YANG module
The tailf-common YANG module
The tailf-xsd-types YANG module
YANG built-in types
These types are built-in to the YANG language, and also built-in to ConfD.
int8 A signed 8-bit integer.
value.type = C_INT8
union element = i8
C type = int8_t
SMIv2 type = Integer32 (-128 .. 127)
int16 A signed 16-bit integer.
value.type = C_INT16
union element = i16
C type = int16_t
SMIv2 type = Integer32 (-32768 .. 32767)
int32 A signed 32-bit integer.
value.type = C_INT32
797
confd_types
union element = i32
C type = int32_t
SMIv2 type = Integer32
int64 A signed 64-bit integer.
value.type = C_INT64
union element = i64
C type = int64_t
SMIv2 type = OCTET STRING
uint8 An unsigned 8-bit integer.
value.type = C_UINT8
union element = u8
C type = u_int8_t
SMIv2 type = Unsigned32 (0 .. 255)
uint16 An unsigned 16-bit integer.
value.type = C_UINT16
union element = u16
C type = u_int16_t
SMIv2 type = Unsigned32 (0 .. 65535)
uint32 An unsigned 32-bit integer.
value.type = C_UINT32
union element = u32
C type = u_int32_t
SMIv2 type = Unsigned32
uint64 An unsigned 64-bit integer.
value.type = C_UINT64
union element = u64
C type = u_int64_t
SMIv2 type = OCTET STRING
decimal64 A decimal number with 64 bits of precision. The C representation uses a
struct with a 64-bit signed integer for the scaled value, and an unsigned 8-
798
confd_types
bit integer in the range 1..18 for the number of fraction digits specified by
the fraction-digits sub-statement.
value.type = C_DECIMAL64
union element = d64
C type = struct confd_decimal64
SMIv2 type = OCTET STRING
string The string type is represented as a struct confd_buf_t when received from
ConfD in the C code. I.e. it is NUL-terminated and also has a size given.
However, when the C code wants to produce a value of the string type it
is possible to use a confd_value_t with the value type C_BUF or C_STR
(which requires a NUL-terminated string)
value.type = C_BUF
union element = buf
C type = confd_buf_t
SMIv2 type = OCTET STRING
boolean The boolean values "true" and "false".
value.type = C_BOOL
union element = boolean
C type = int
SMIv2 type = TruthValue
enumeration Enumerated strings with associated numeric values. The C representation
uses the numeric values.
value.type = C_ENUM_VALUE
union element = enumvalue
C type = int32_t
SMIv2 type = INTEGER
bits A set of bits or flags. Depending on the highest argument given to a
position sub-statement, the C representation uses either C_BIT32,
C_BIT64, or C_BITBIG.
value.type = C_BIT32, C_BIT64, or C_BITBIG
union element = b32, b64, or buf
C type = u_int32_t, u_int64_t, or confd_buf_t
SMIv2 type = Unsigned32 or OCTET STRING
799
confd_types
binary Any binary data.
value.type = C_BINARY
union element = buf
C type = confd_buf_t
SMIv2 type = OCTET STRING
identityref A reference to an abstract identity.
value.type = C_IDENTITYREF
union element = idref
C type = struct confd_identityref
SMIv2 type = OCTET STRING
union The union type has no special confd_value_t representation - elements are
represented as one of the member types according to the current value
instantiation. This means that for unions that comprise different "primitive"
types, applications must check the type element to determine the type, and
the type safe alternatives to the cdb_get() and maapi_get_elem()
functions can not be used.
Note that the YANG specification stipulates that when a value of type union
is validated, the first matching member type should be chosen. Consider
this YANG fragment:
leaf uni {
type union {
type int32;
type int64;
}
}
If we set the leaf to the value 2, it should thus be of type int32, not type
int64. This is enforced when ConfD converts a string to an internal value,
but not when setting values "directly" via e.g. maapi_set_elem() or
cdb_set_elem(). It is thus possible to set the leaf to a C_INT64 with
the value 2, but this is formally an invalid value.
Applications setting values of type union must thus take care to choose the
member type correctly, or alternatively provide the value as a string via
one of the functions maapi_set_elem2(), cdb_set_elem2(), or
confd_str2val(). These functions will always turn the string "2" into
a C_INT32 with the above definition.
The SMIv2 type is an OCTET STRING.
instance-identifier The instance-identifier built-in type is used to uniquely identify a particular
instance node in the data tree. The syntax for an instance-identifier is a
subset of the XPath abbreviated syntax.
value.type = C_OBJECTREF
800
confd_types
union element = hkp
C type = confd_hkeypath_t
SMIv2 type = OCTET STRING
The leaf-list statement
The values of a YANG leaf-list node is represented as an element with a list of values of the type
given by the type sub-statement.
value.type = C_LIST
union element = list
C type = struct confd_list
SMIv2 type = OCTET STRING
The ietf-yang-types YANG module
This module contains a collection of generally useful derived YANG data types. They are defined in the
urn:ietf:params:xml:ns:yang:ietf-yang-types namespace.
yang:counter32, yang:zero-based-
counter32 32-bit counters, corresponding to the Counter32 type and the
ZeroBasedCounter32 textual convention of the SMIv2.
value.type = C_UINT32
union element = u32
C type = u_int32_t
SMIv2 type = Counter32
yang:counter64, yang:zero-based-
counter64 64-bit counters, corresponding to the Counter64 type and the
ZeroBasedCounter64 textual convention of the SMIv2.
value.type = C_UINT64
union element = u64
C type = u_int64_t
SMIv2 type = Counter64
yang:gauge32 32-bit gauge value, corresponding to the Gauge32 type of the
SMIv2.
value.type = C_UINT32
union element = u32
C type = u_int32_t
SMIv2 type = Counter32
801
confd_types
yang:gauge64 64-bit gauge value, corresponding to the CounterBasedGauge64
SMIv2 textual convention.
value.type = C_UINT64
union element = u64
C type = u_int64_t
SMIv2 type = Counter64
yang:object-identifier, yang:object-
identifier-128 An SNMP OBJECT IDENTIFIER (OID). This is a sequence
of integers which identifies an object instance for example
"1.3.6.1.4.1.24961.1".
Note
The tailf:value-length restriction is measured
in integer elements for object-identifier and object-
identifier-128.
value.type = C_OID
union element = oidp
C type = confd_snmp_oid
SMIv2 type = OBJECT IDENTIFIER
yang:yang-identifier A YANG identifier string as defined by the 'identifier' rule in
Section 12 of RFC 6020.
value.type = C_BUF
union element = buf
C type = confd_buf_t
SMIv2 type = OCTET STRING
yang:date-and-time The date-and-time type is a profile of the ISO 8601 standard for
representation of dates and times using the Gregorian calendar.
value.type = C_DATETIME
union element = datetime
C type = struct confd_datetime
SMIv2 type = DateAndTime
yang:timeticks, yang:timestamp Time ticks and time stamps, measured in hundredths of seconds.
Corresponding to the TimeTicks type and the TimeStamp textual
convention of the SMIv2.
value.type = C_UINT32
union element = u32
802
confd_types
C type = u_int32_t
SMIv2 type = Counter32
yang:phys-address Represents media- or physical-level addresses represented as a
sequence octets, each octet represented by two hexadecimal digits.
Octets are separated by colons.
Note
The tailf:value-length restriction is measured in
number of octets for phys-address.
value.type = C_BINARY
union element = buf
C type = confd_buf_t
SMIv2 type = OCTET STRING
yang:mac-address The mac-address type represents an IEEE 802 MAC address.
The length of the ConfD C_BINARY representation is always 6.
value.type = C_BINARY
union element = buf
C type = confd_buf_t
SMIv2 type = OCTET STRING
yang:xpath1.0 This type represents an XPATH 1.0 expression.
value.type = C_BUF
union element = buf
C type = confd_buf_t
SMIv2 type = OCTET STRING
yang:hex-string A hexadecimal string with octets represented as hex digits separated
by colons.
Note
The tailf:value-length restriction is measured in
number of octets for hex-string.
value.type = C_HEXSTR
union element = buf
C type = confd_buf_t
803
confd_types
SMIv2 type = OCTET STRING
yang:uuid A Universally Unique Identifier in the string representation defined
in RFC 4122.
value.type = C_BUF
union element = buf
C type = confd_buf_t
SMIv2 type = OCTET STRING
yang:dotted-quad An unsigned 32-bit number expressed in the dotted-quad notation.
value.type = C_DQUAD
union element = dquad
C type = struct confd_dotted_quad
SMIv2 type = OCTET STRING
The ietf-inet-types YANG module
This module contains a collection of generally useful derived YANG data types for Internet addresses
and related things. They are defined in the urn:ietf:params:xml:ns:yang:inet-types
namespace.
inet:ip-version This value represents the version of the IP protocol.
value.type = C_ENUM_VALUE
union element = enumvalue
C type = int32_t
SMIv2 type = INTEGER
inet:dscp The dscp type represents a Differentiated Services Code-Point.
value.type = C_UINT8
union element = u8
C type = u_int8_t
SMIv2 type = Unsigned32 (0 .. 255)
inet:ipv6-flow-label The flow-label type represents flow identifier or Flow Label in an IPv6
packet header.
value.type = C_UINT32
union element = u32
C type = u_int32_t
804
confd_types
SMIv2 type = Unsigned32
inet:port-number The port-number type represents a 16-bit port number of an Internet
transport layer protocol such as UDP, TCP, DCCP or SCTP.
The value space and representation is identical to the built-in uint16 type.
inet:as-number The as-number type represents autonomous system numbers which
identify an Autonomous System (AS).
The value space and representation is identical to the built-in uint32 type.
inet:ip-address The ip-address type represents an IP address and is IP version neutral.
The format of the textual representations implies the IP version.
This is a union of the inet:ipv4-address and inet:ipv6-address types
defined below. The representation is thus identical to the representation
for one of these types.
The SMIv2 type is an OCTET STRING (SIZE (4|16)).
inet:ipv4-address The ipv4-address type represents an IPv4 address in dotted-quad notation.
The use of a zone index is not supported by ConfD.
value.type = C_IPV4
union element = ip
C type = struct in_addr
SMIv2 type = IpAddress
inet:ipv6-address The ipv6-address type represents an IPv6 address in full, mixed, shortened
and shortened mixed notation.
The use of a zone index is not supported by ConfD.
value.type = C_IPV6
union element = ip6
C type = struct in6_addr
SMIv2 type = IPV6-MIB:Ipv6Address
inet:ip-prefix The ip-prefix type represents an IP prefix and is IP version neutral. The
format of the textual representations implies the IP version.
This is a union of the inet:ipv4-prefix and inet:ipv6-prefix types defined
below. The representation is thus identical to the representation for one
of these types.
The SMIv2 type is an OCTET STRING (SIZE (5|17)).
inet:ipv4-prefix The ipv4-prefix type represents an IPv4 address prefix. The prefix length
is given by the number following the slash character and must be less than
or equal to 32.
805
confd_types
A prefix length value of n corresponds to an IP address mask which has
n contiguous 1-bits from the most significant bit (MSB) and all other bits
set to 0.
The IPv4 address represented in dotted quad notation must have all bits
that do not belong to the prefix set to zero.
An example: 10.0.0.0/8
value.type = C_IPV4PREFIX
union element = ipv4prefix
C type = struct confd_ipv4_prefix
SMIv2 type = OCTET STRING (SIZE (5))
inet:ipv6-prefix The ipv6-prefix type represents an IPv6 address prefix. The prefix length
is given by the number following the slash character and must be less than
or equal 128.
A prefix length value of n corresponds to an IP address mask which has
n contiguous 1-bits from the most significant bit (MSB) and all other bits
set to 0.
The IPv6 address must have all bits that do not belong to the prefix set
to zero.
An example: 2001:DB8::1428:57AB/125
value.type = C_IPV6PREFIX
union element = ipv6prefix
C type = struct confd_ipv6_prefix
SMIv2 type = OCTET STRING (SIZE (17))
inet:domain-name The domain-name type represents a DNS domain name. The name
SHOULD be fully qualified whenever possible.
value.type = C_BUF
union element = buf
C type = confd_buf_t
SMIv2 type = OCTET STRING
inet:host The host type represents either an IP address or a DNS domain name.
This is a union of the inet:ip-address and inet:domain-name types defined
above. The representation is thus identical to the representation for one
of these types.
The SMIv2 type is an OCTET STRING, which contains the textual
representation of the domain name or address.
806
confd_types
inet:uri The uri type represents a Uniform Resource Identifier (URI) as defined
by STD 66.
value.type = C_BUF
union element = buf
C type = confd_buf_t
SMIv2 type = OCTET STRING
The iana-crypt-hash YANG module
This module defines a type for storing passwords using a hash function, and features to
indicate which hash functions are supported by an implementation. The type is defined in the
urn:ietf:params:xml:ns:yang:iana-crypt-hash namespace.
ianach:crypt-hash The crypt-hash type is used to store passwords using a hash function.
The algorithms for applying the hash function and encoding the result are
implemented in various UNIX systems as the function crypt(3). A value of
this type matches one of the forms:
$0$<clear text password>
$<id>$<salt>$<password hash>
$<id>$<parameter>$<salt>$<password hash>
The "$0$" prefix indicates that the value is clear text. When such a value is
received by the server, a hash value is calculated, and the string "$<id>$<salt>
$" or $<id>$<parameter>$<salt>$ is prepended to the result. This value is
stored in the configuration data store.
If a value starting with "$<id>$", where <id> is not "0", is received, the server
knows that the value already represents a hashed value, and stores it as is in
the data store.
In the Tail-f implementation, this type is logically a union of the types
tailf:md5-digest-string, tailf:sha-256-digest-string, and tailf:sha-512-digest-
string - see the section The tailf-common YANG module below. All the
hashed values of these types are accepted, and the choice of algorithm
to use for hashing clear text is specified via the /confdConfig/
cryptHash/algorithm parameter in confd.conf (see confd.conf(5)).
If the algorithm is set to "sha-256" or "sha-512", it can be tuned via the /
confdConfig/cryptHash/rounds parameter in confd.conf.
value.type = C_BUF
union element = buf
C type = confd_buf_t
SMIv2 type = OCTET STRING
The tailf-common YANG module
This module defines Tail-f common YANG types, that are built-in to ConfD.
807
confd_types
tailf:size A value that represents a number of bytes. An example could be
S1G8M7K956B; meaning 1GB+8MB+7KB+956B = 1082138556
bytes. The value must start with an S. Any byte magnifier can be left
out, i.e. S1K1B equals 1025 bytes. The order is significant though,
i.e. S1B56G is not a valid byte size.
The value space and representation is identical to the built-in uint64
type.
tailf:octet-list A list of dot-separated octets for example "192.168.255.1.0".
Note
The tailf:value-length restriction is measured in
number of octets for octet-list.
value.type = C_BINARY
union element = buf
C type = confd_buf_t
SMIv2 type = OCTET STRING
tailf:hex-list A list of colon-separated hexa-decimal octets for example
"4F:4C:41:71".
Note
The tailf:value-length restriction is measured in
octets of binary data for hex-list.
value.type = C_BINARY
union element = buf
C type = confd_buf_t
SMIv2 type = OCTET STRING
tailf:md5-digest-string The md5-digest-string type automatically computes a MD5 digest
for a value adhering to this type.
This is best explained using an example. Suppose we have a leaf:
leaf key {
type tailf:md5-digest-string;
}
A valid configuration is:
<key>$0$In god we trust.</key>
The "$0$" prefix indicates that this is plain text and that this value
should be represented as a MD5 digest from now. ConfD computes
808
confd_types
a MD5 digest for the value and prepends "$1$<salt>$", where
<salt> is a random eight character salt used to generate the digest.
When this value later on is fetched from ConfD the following is
returned:
<key>$1$fB$ndk2z/PIS0S1SvzWLqTJb.</key>
A value adhering to md5-digest-string must have "$0$" or a
"$1$<salt>$" prefix.
The digest algorithm is the same as the md5 crypt
function used for encrypting passwords for various UNIX
systems, e.g. http://www.freebsd.org/cgi/cvsweb.cgi/~checkout~/
src/lib/libcrypt/crypt.c?rev=1.5&content-type=text/plain
Note
The pattern restriction can not be used with this type.
value.type = C_BUF
union element = buf
C type = confd_buf_t
SMIv2 type = OCTET STRING
tailf:sha-256-digest-string The sha-256-digest-string type automatically computes a SHA-256
digest for a value adhering to this type. A value of this type matches
one of the forms:
$0$<clear text password>
$5$<salt>$<password hash>
$5$rounds=<number>$<salt>$<password hash>
The "$0$" prefix indicates that this is plain text. When a plain text
value is received by the server, a SHA-256 digest is calculated, and
the string "$5$<salt>$" is prepended to the result, where <salt> is a
random 16 character salt used to generate the digest. This value is
stored in the configuration data store. The algorithm can be tuned
via the /confdConfig/cryptHash/rounds parameter in
confd.conf (see confd.conf(5)), which if set to a number other
than the default will cause "$5$rounds=<number>$<salt>$" to be
prepended instead of only "$5$<salt>$".
If a value starting with "$5$" is received, the server knows that the
value already represents a SHA-256 digest, and stores it as is in the
data store.
The digest algorithm used is the same as the SHA-256 crypt
function used for encrypting passwords for various UNIX systems,
see e.g. http://www.akkadia.org/drepper/SHA-crypt.txt
value.type = C_BUF
809
confd_types
union element = buf
C type = confd_buf_t
SMIv2 type = OCTET STRING
tailf:sha-512-digest-string The sha-512-digest-string type automatically computes a SHA-512
digest for a value adhering to this type. A value of this type matches
one of the forms:
$0$<clear text password>
$6$<salt>$<password hash>
$6$rounds=<number>$<salt>$<password hash>
The "$0$" prefix indicates that this is plain text. When a plain text
value is received by the server, a SHA-512 digest is calculated, and
the string "$6$<salt>$" is prepended to the result, where <salt> is a
random 16 character salt used to generate the digest. This value is
stored in the configuration data store. The algorithm can be tuned
via the /confdConfig/cryptHash/rounds parameter in
confd.conf (see confd.conf(5)), which if set to a number other
than the default will cause "$6$rounds=<number>$<salt>$" to be
prepended instead of only "$6$<salt>$".
If a value starting with "$6$" is received, the server knows that the
value already represents a SHA-512 digest, and stores it as is in the
data store.
The digest algorithm used is the same as the SHA-512 crypt
function used for encrypting passwords for various UNIX systems,
see e.g. http://www.akkadia.org/drepper/SHA-crypt.txt
value.type = C_BUF
union element = buf
C type = confd_buf_t
SMIv2 type = OCTET STRING
tailf:des3-cbc-encrypted-string The des3-cbc-encrypted-string type automatically encrypts a value
adhering to this type using DES in CBC mode followed by a base64
conversion. If the value isn't encrypted already, that is.
This is best explained using an example. Suppose we have a leaf:
leaf enc {
type tailf:des3-cbc-encrypted-string;
}
A valid configuration is:
<enc>$0$In god we trust.</enc>
810
confd_types
The "$0$" prefix indicates that this is plain text. When a plain
text value is received by the server, the value is DES3/Base64
encrypted, and the string "$7$" is prepended. The resulting string
is stored in the configuration data store.
When a value of this type is read, the encrypted value is always
returned. In the example above, the following value could be
returned:
<enc>$7$Qxxsn8BVzxphCdflqRwZm6noKKmt0QoSWnRnhcXqocg=</enc>
If a value starting with "$7$" is received, the server knows that the
value is already encrypted, and stores it as is in the data store.
A value adhering to this type must have a "$0$" or a "$7$" prefix.
ConfD uses a configurable set of encryption keys to
encrypt the string. For details, see the description of the
encryptedStrings configurable in the confd.conf(5) manual
page.
Note
The pattern restriction can not be used with this type.
value.type = C_BUF
union element = buf
C type = confd_buf_t
SMIv2 type = OCTET STRING
tailf:aes-cfb-128-encrypted-string The aes-cfb-128-encrypted-string works exactly like des3-cbc-
encrypted-string but AES/128bits in CFB mode is used to encrypt
the string. The prefix for encrypted values is "$8$".
Note
The pattern restriction can not be used with this type.
value.type = C_BUF
union element = buf
C type = confd_buf_t
SMIv2 type = OCTET STRING
tailf:ip-address-and-prefix-length The ip-address-and-prefix-length type represents a combination of
an IP address and a prefix length and is IP version neutral. The
format of the textual representations implies the IP version.
This is a union of the tailf:ipv4-address-and-prefix-length and
tailf:ipv6-address-and-prefix-length types defined below. The
811
confd_types
representation is thus identical to the representation for one of these
types.
The SMIv2 type is an OCTET STRING (SIZE (5|17)).
tailf:ipv4-address-and-prefix-length The ipv4-address-and-prefix-length type represents a combination
of an IPv4 address and a prefix length. The prefix length is given
by the number following the slash character and must be less than
or equal to 32.
An example: 172.16.1.2/16
value.type = C_IPV4_AND_PLEN
union element = ipv4prefix
C type = struct confd_ipv4_prefix
SMIv2 type = OCTET STRING (SIZE (5))
tailf:ipv6-address-and-prefix-length The ipv6-address-and-prefix-length type represents a combination
of an IPv6 address and a prefix length. The prefix length is given
by the number following the slash character and must be less than
or equal to 128.
An example: 2001:DB8::1428:57AB/64
value.type = C_IPV6_AND_PLEN
union element = ipv6prefix
C type = struct confd_ipv6_prefix
SMIv2 type = OCTET STRING (SIZE (17))
The tailf-xsd-types YANG module
"This module contains useful XML Schema Datatypes that are not covered by YANG types directly.
xs:duration value.type = C_DURATION
union element = duration
C type = struct confd_duration
SMIv2 type = OCTET STRING
xs:date value.type = C_DATE
union element = date
C type = struct confd_date
SMIv2 type = OCTET STRING
xs:time value.type = C_TIME
union element = time
812
confd_types
C type = struct confd_time
SMIv2 type = OCTET STRING
xs:token value.type = C_BUF
union element = buf
C type = confd_buf_t
SMIv2 type = OCTET STRING
xs:hexBinary value.type = C_BINARY
union element = buf
C type = confd_buf_t
SMIv2 type = OCTET STRING
xs:QName value.type = C_QNAME
union element =qname
C type = struct confd_qname
SMIv2 type = <not applicable>
xs:decimal, xs:float, xs:double value.type = C_DOUBLE
union element = d
C type = double
SMIv2 type = OCTET STRING
SEE ALSO
The ConfD User Guide
confd_lib(3) - confd C library.
confd.conf(5) - confd daemon configuration file format
813
ConfD man-pages, Volume 5
Table of Contents
clispec ............................................................................................................................ 815
confd.conf ...................................................................................................................... 872
mib_annotations ............................................................................................................... 930
tailf_yang_cli_extensions ................................................................................................... 932
tailf_yang_extensions ........................................................................................................ 973
814
Nameclispec — CLI specification file format
DESCRIPTION
This manual page describes the syntax and semantics of a ConfD CLI specification file (from now on called
"clispec"). A clispec is an XML configuration file describing commands to be added to the automatically
rendered Juniper and Cisco style ConfD CLI. It also makes it possible to modify the behavior of standard/
built-in commands, using move/delete operations and customizable confirmation prompts. In Cisco style
custom mode-specific commands can be added by specifying a mount point relating to the specified mode.
Tip
In the ConfD distribution there is an Emacs mode suitable for clispec editing.
A clispec file (with a .cli suffix) is to be compiled using the confdc compiler into an internal representation
(with a .ccl suffix), ready to be loaded by the ConfD daemon on startup. Like this:
$ confdc -c commands.cli
$ ls commands.ccl
commands.ccl
The .ccl file should be put in the ConfD daemon loadPath as described in confd.conf(5) When the ConfD
daemon is started the clispec is loaded accordingly.
The ConfD daemon loads all .ccl files it finds on startup. Ie, you can have one or more clispec files for
Cisco XR (C) style CLI emulation, one or more for Cisco IOS (I), and one or more for Juniper (J) style
emulation. If you drop several .ccl files in the loadPath all will be loaded. The standard commands are
defined in confd.cli (available in the ConfD distribution). The intention is that we use confd.cli as a starting
point, i.e. first we delete, reorder and replace built-in commands (if needed) and we then proceed to add
our own custom commands.
EXAMPLE
The confd-light.cli example is a light version of the standard confd.cli. It adds one operational mode
command and one configure mode command, implemented by two OS executables, it also removes the
'save' command from the pipe commands.
Example 161. confd-light.cli
<clispec xmlns="http://tail-f.com/ns/clispec/1.0" style="j">
<operationalMode>
<modifications>
<delete src="file"/>
<confirmText src="quit">
Are you really sure you want to quit?
</confirmText>
<help src="configure private">Edit a private copy of the configuration</help>
<info src="configure private">Edit a private copy of the configuration</info>
</modifications>
<cmd name="copy" mount="file">
<info>Copy a file</info>
815
clispec
<help>Copy a file in the file system.</help>
<callback>
<exec>
<osCommand>cp</osCommand>
<options>
<uid>confd</uid>
</options>
</exec>
</callback>
<params>
<param>
<type><file/></type>
<info>&lt;source file&gt;</info>
</param>
<param>
<type><file/></type>
<info>&lt;destination&gt;</info>
</param>
</params>
</cmd>
</operationalMode>
<configureMode>
<cmd name="adduser" mount="wizard">
<info>Create a user</info>
<help>Create a user and assign him/her to a group.</help>
<callback>
<exec>
<osCommand>adduser.sh</osCommand>
</exec>
</callback>
</cmd>
</configureMode>
<pipeCmds>
<modifications>
<delete src="save"/>
</modifications>
</pipeCmds>
</clispec>
confd-light.cli achieves the following:
Adds a confirmation prompt to the standard operation "delete" command.
Deletes the standard "file" command.
Adds the operational mode command "copy" and mounts it under the standard "file" command.
The "copy" command is implemented using the OS executable "/usr/bin/cp".
The executable is called with parameters as defined by the "params" element.
The executable runs as the same user id as ConfD as defined by the "uid" element.
Adds the configure command "adduser" and mounts it under the standard "wizard" command.
Below we present the gory details when it comes to constructs in a clispec.
816
clispec
ELEMENTS AND ATTRIBUTES
This section lists all clispec elements and their attributes including their type (within parentheses) and
default values (within square brackets). Elements are written using a path notation to make it easier to see
how they relate to each other.
Note: $MODE is either "operationalMode", "configureMode" or "pipeCmds".
/clispec
This is the top level element which contains (in order) zero or more "operationalMode" elements, zero or
more "configureMode" element, and zero or more "pipeCmds" elements.
It has a style attribute which can have the value "j", "i" or "c". If no style attribute is specified it defaults
to "j".
/clispec/$MODE
The $MODE ("operationalMode", "configureMode", or "pipeCmds") element contains (in order) zero or
one "modifications" elements, zero or more "start" elements, zero or more "show" elements, and zero or
more "cmd" elements.
The "show" elements are only used in the C-style CLI.
It has a name attribute which is used to create a named custom mode. A custom command can be defined
for entering custom modes. See the cmd/callback/mode elements below.
/clispec/$MODE/modifications
The "modifications" element describes which operations to apply to the
built-in commands. It contains (in any order) zero or more "delete",
"move", "paginate", "info", "paraminfo", "help", "paramhelp", "confirmText",
"defaultConfirmOption", "dropElem", "compactElem", "compactStatsElem", "columnStats",
"multiValue", "columnWidth", "columnAlign", "defaultColumnAlign", "noKeyCompletion",
"noMatchCompletion", "modeName", "suppressMode", "suppressTable", "enforceTable",
"showTemplate", "showTemplateLegend", "showTemplateEnter", "showTemplateFooter",
"runTemplate", "runTemplateLegend", "runTemplateEnter", "runTemplateFooter", "addMode",
"autocommitDelay", "keymap", "pipeFlags", "addPipeFlags", "negPipeFlags", "legend", "footer",
"suppressKeyAbbrev", "allowKeyAbbrev", "hasRange", "suppressRange", "allowWildcard",
"suppressWildcard", "suppressValidationWarningPrompt", "displayEmptyConfig", "displayWhen",
"customRange", "completion", "suppressKeySort" and "simpleType" elements.
/clispec/$MODE/modifications/paginate
The "paginate" element can be used to change the default paginate behavior for a built-in command.
Attributes:
path (cmdpathType) The "path" attribute is mandatory. It specifies which command to change.
cmdpathType is a space-separated list of commands, pointing out a specific
sub-command.
value (true|false) The "value" attribute is mandatory. It specifies whether the paginate attribute
should be enabled or disabled by default.
817
clispec
/clispec/$MODE/modifications/displayWhen
The "displayWhen" element can be used to add a displayWhen xpath condition to a command.
Attributes:
path (cmdpathType) The "path" attribute is mandatory. It specifies which command
to change. cmdpathType is a space-separated list of commands,
pointing out a specific sub-command.
expr (xpath expression) The "expr" attribute is mandatory. It specifies an xpath expression.
If the expression evaluates to true then the command is available,
otherwise not.
ctx (path) The "ctx" attribute is optional. If not specified the current editpath/
mode-path is used as context node for the xpath evaluation. Note
that the xpath expression will automatically evaluate to false if a
display when expression is used for a top-level command and no ctx
is specified. The path may contain variables defined in the dict.
/clispec/$MODE/modifications/move
The "move" element can be used to move (rename) a built-in command.
Attributes:
src (cmdpathType) The "src" attribute is mandatory. It specifies which command
to move. cmdpathType is a space-separated list of commands,
pointing out a specific sub-command.
dest (cmdpathType) The "dest" attribute is mandatory. It specifies where to move the
command specified by the "src" attribute. cmdpathType is a space-
separated list of commands, pointing out a specific sub-command.
inclSubCmds (xs:boolean) The "inclSubCmds" attribute is optional. If specified and set to true
then all commands to which the 'src' command is a prefix command
will be included in the move operation.
An example:
<configureMode>
<modifications>
<move src="load" dest="xload" inclSubCmds="true"/>
</modifications>
</configureMode>
would in the C-style CLI move 'load', 'load merge', 'load override'
and 'load replace' to 'xload', 'xload merge', 'xload override' and
'xload replace', respectively.
/clispec/$MODE/modifications/copy
The "copy" element can be used to copy a built-in command.
818
clispec
Attributes:
src (cmdpathType) The "src" attribute is mandatory. It specifies which command to
copy. cmdpathType is a space-separated list of commands, pointing
out a specific sub-command.
dest (cmdpathType) The "dest" attribute is mandatory. It specifies where to copy the
command specified by the "src" attribute. cmdpathType is a space-
separated list of commands, pointing out a specific sub-command.
inclSubCmds (xs:boolean) The "inclSubCmds" attribute is optional. If specified and set to true
then all commands to which the 'src' command is a prefix command
will be included in the copy operation.
An example:
<configureMode>
<modifications>
<copy src="load" dest="xload" inclSubCmds="true"/>
</modifications>
</configureMode>
would in the C-style CLI copy 'load', 'load merge', 'load override'
and 'load replace' to 'xload', 'xload merge', 'xload override' and
'xload replace', respectively.
/clispec/$MODE/modifications/delete
The "delete" element makes it possible to delete a built-in command. Note that commands that are auto-
rendered from the data model cannot be removed using this modification. To remove an auto-rendered
command use the 'tailf:hidden' element in the data model.
Attributes:
src (cmdpathType) The "src" attribute is mandatory. It specifies which command to delete.
cmdpathType is a space-separated list of commands, pointing out a specific
sub-command.
/clispec/$MODE/modifications/pipeFlags
The "pipeFlags" element makes it possible to modify the pipe flags of the builtin commands. The argument
is a space separated list of pipe flags. It will replace the builtin list.
Attributes:
src (cmdpathType) The "src" attribute is mandatory. It specifies which command to modify.
cmdpathType is a space-separated list of commands, pointing out a specific
sub-command.
/clispec/$MODE/modifications/addPipeFlags
The "addPipeFlags" element makes it possible to add pipe flags to the existing list of pipe flags for a builtin
command. The argument is a space separated list of pipe flags.
819
clispec
Attributes:
src (cmdpathType) The "src" attribute is mandatory. It specifies which command to modify.
cmdpathType is a space-separated list of commands, pointing out a specific
sub-command.
/clispec/$MODE/modifications/negPipeFlags
The "negPipeFlags" element makes it possible to modify the neg pipe flags of the builtin commands. The
argument is a space separated list of neg pipe flags. It will replace the builtin list.
Attributes:
src (cmdpathType) The "src" attribute is mandatory. It specifies which command to modify.
cmdpathType is a space-separated list of commands, pointing out a specific
sub-command.
/clispec/$MODE/modifications/dropElem
The "dropElem" element makes it possible to drop node in the data model from paths in the Cisco style
CLIs. If you drop a child node to a list node we recommend that you also use suppressMode on that list
node, otherwise the CLI will be very confusing. For example, for the alias command in the CLI. If we only
dropped the expansion node but did not suppress the automatic mode creation for the alias node, when you
typed the alias command you would end up in the alias submode, but since you have dropped the expansion
node you end up specifying the expansion directly without typing any command. Quite confusing.
Note that dropped nodes to not appear in match completions.
Attributes:
src (pathType) The "src" attribute is mandatory. It specifies which path to drop. pathType is a
space-separated list of elements, pointing out a specific list element.
Note that the tailf:cli-drop-node-name YANG extension can be used to the same effect directly in YANG
file.
/clispec/$MODE/modifications/compactElem
The "compactElem" element tells the C- and I-style CLIs 'show running-configuration' command to use the
compact representation for this path. The compact representation means that all leaf elements are shown
on a single line.
Attributes:
src (pathType) The "src" attribute is mandatory. It specifies which path to make compact.
pathType is a space-separated list of elements, pointing out a specific list element.
Note that the tailf:cli-compact-syntax YANG extension can be used to the same effect directly in YANG
file.
/clispec/$MODE/modifications/compactStatsElem
The "compactStatsElem" element tells the show command in the C- and I-style CLIs to use the compact
representation for this path. The compact representation means that all leaf elements are shown on a single
line.
820
clispec
Attributes:
src (pathType) The "src" attribute is mandatory. It specifies which path to make
compact. pathType is a space-separated list of elements, pointing
out a specific element.
wrap (xs:boolean) The "wrap" attribute is optional. It specified whether the line should
be wrapped at screen-width or not.
delimiter (xs:string) The "delimiter" attribute is optional. It specified which string to
use between the element name and the value when displaying leaf
values.
prettify(xs:boolean) The "prettify" attribute is optional. If set to 'true' then dash:es and
underscores will be replaced by spaces in leaf element names.
spacer (xs:string) The "spacer" attribute is optional. It specified which string to use
between the elements when displayed in compact format.
width (xs:positiveInteger) The "width" attribute is optional. It specified a fixed terminal width
to use before wrapping line. It is only used when wrap is set to 'true'.
If width is not specified the line is wrapped when the terminal width
is reached.
Note that the tailf:cli-compact-stats YANG extension can be used to the same effect directly in YANG file.
/clispec/$MODE/modifications/columnWidth
The "columnWidth" element can be used to set fixed widths for specific columns in auto-rendered tables.
Attributes:
path (pathType) The "path" attribute is mandatory. It specifies which path to set the
column width for. pathType is a space-separated list of node names,
pointing out a specific data model node.
width (xs:positiveInteger) The "width" attribute is mandatory. It specified a fixed column
width.
Note that the tailf:cli-column-width YANG extension can be used to the same effect directly in YANG file.
/clispec/$MODE/modifications/columnAlign
The "columnAlign" element can be used to specify the alignment of the data in specific columns in auto-
rendered tables.
Attributes:
path (pathType) The "path" attribute is mandatory. It specifies which path to set the
column alignment for. pathType is a space-separated list of node
names, pointing out a specific data model node.
align (left|right|center) The "align" attribute is mandatory.
Note that the tailf:cli-column-align YANG extension can be used to the same effect directly in YANG file.
821
clispec
/clispec/$MODE/modifications/defaultColumnAlign
The "defaultColumnAlign" element can be used to specify a default alignment of a simpletype when used
in auto-rendered tables.
Attributes:
namespace (xs:string) The "namespace" attribute is required. It specifies in which
namespace the type is found. It can be either the namespace URI
or the namespace prefix.
name (xs:string) The "name" attribute is required. It specifies the name of the type
in the given namespace.
align (left|right|center) The "align" attribute is mandatory.
/clispec/$MODE/modifications/multiLinePrompt
The "multiLinePrompt" element can be used to specify that the CLI should automatically enter multi-line
prompt mode when prompting for values of the given type.
Attributes:
namespace (xs:string) The "namespace" attribute is required. It specifies in which namespace
the type is found. It can be either the namespace URI or the namespace
prefix.
name (xs:string) The "name" attribute is required. It specifies the name of the type in the
given namespace.
/clispec/$MODE/modifications/columnStats
The "columnStats" element tells the Cisco style CLIs show command to display elements in a container
as a column, ie to not repeat the name of the container element on each line but instead indent each leaf
under the container.
Attributes:
src (pathType) The "src" attribute is mandatory. It specifies which path to make display as a
column. pathType is a space-separated list of elements, pointing out a specific
container element.
Note that the tailf:cli-column-stats YANG extension can be used to the same effect directly in YANG file.
/clispec/$MODE/modifications/showTemplate
The "showTemplate" element is used for specifying a template to use by the show command in the J-,
C- and I-style CLIs.
Show templates are associated with YANG nodes and are used by the CLI when the 'show' command is
given for a path in operational mode. It is primarily intended for displaying "config false" data but "config
true" data may be included in the template as well.
The template may contain a mix of text and expandable entries. Expandable entries all start with $( and
end with a matching ). Parentheses and dollar signes needs to be quoted in plain-text.
822
clispec
Expansion:
Parameter is either a relative or absolute path to a leaf (eg /foo/bar, foo/bar), or one of the builtin
variables: .selected, .entered, .legend_shown, .user, .groups, .ip, .display_groups, .path, .ipath or .licounter.
In addition the variables "spath" and "ispath" are available when a command is executed from a show path.
.selected The .selected variable contains the list of selected paths to be shown. The show
template can inspect this element to determine if a given element should be
displayed or not. For example:
$(.selected~=hwaddr?HW Address)
.entered The .entered variable is true if the "entered" text has been displayed (either the
auto generated text or a showTemplateEnter). This is useful when having a non-
table template where each instance should have a text.
$(.entered?:host $(name))
.legend_shown The .legend_shown variable is true if the "legend" text has been displayed
(either the auto generated table header or a showTemplateLegend). This is
useful to inspect when displaying a table row. If the user enteres the path
to a specific instance the builtin table header will not be displayed and the
showTemplateLegend will not be invoked and it may be useful to render the
legend specifically for this instance.
$(.legend_shown!=true?Address Interface)
.user The .user variable contains the name of the current user. This can be used for
differentiating the content displayed for a specific user, or in paths. For example:
$(user{$(.user)}/settings)
.groups The .groups variable contains the a list of groups that the user belongs to.
.display_groups The .display_groups variable contains a list of selected display groups. This can
be used to display different content depending on the selected display group. For
example:
$(.display_groups~=details?details...)
.ip The .ip variable contains the ip address that the user connected from.
.path The .path variable contains the path to the entry, formatted in CLI style.
.ipath The .ipath variable contains the path to the entry, formatted in template style.
.spath The .spath variable contains the show path, formatted in CLI style.
.ispath The .ipath variable contains the show path, formatted in template style.
823
clispec
.licounter The .licounter variable contains a counter that is incremented for each instance
in a list. This means that it will be 0 in the legend, contain the total number of list
instances in the footer and something in between in the basic show template.
$(parameter)
The value of parameter is substituted.
$(cond?word1:word2)
The expansion of word1 is substituted if the value of cond evaluates to true, otherwise
the expansion of word2 is substituted.
cond may be one of
parameter
Evaluates to true if the node exists.
parameter == <value>
Evaluates to true if the value of the parameter equals <value>
parameter != <value>
Evaluates to true if the value of the parameter does not equal <value>
parameter ~= <value>
Provided that parameters value is a list then this expression evaluates
to true if <value> is a member of the list.
$(parameter|filter)
The value of parameter processed by filter is substituted. Filters may be either one of the
built-ins or a customized filter defined in a callback. See /confdConfig/cli/templateFilter.
A built-in filter may be one of
capfirst
Capitalizes the first character of the value.
filesizeformat
Format the value in a 'human-readable' format (i.e. '13 KB', '4.1 MB'
'102 bytes' etc), where K means 1024, M means 1024*1024 etc.
When used without argument the default number of decimals
displayed is 2. When used with a numeric integer argument,
filesizeformat will display the given number of decimal places.
humanreadable
Similar to filesizeformat except no bytes suffix is added. (i.e. '13.13
k', '4.2 M' '102' etc), where k means 1000, M means 1000*1000 etc.
When used without argument the default number of decimals
displayed is 2. When used with a numeric integer argument,
humanreadable will display the given number of decimal places.
824
clispec
commasep
Separate the numerical values into groups of three digits using a
comma (e.g., 1234567 -> 1,234,567)
hex
Display integer as hex number. An argument can be used to indicate
how many digits should be used in the output. If the hex number is
too long it will be truncated at the front, if it is too short it will be
padded with zeros at the front. If the width is a negative number then
at most that number of digits will be used, but short numbers will not
be padded with zeroes. For example:
value Template Output
12345 {{ value|hex }} 3039
12345 {{ value|hex:2 }} 39
12345 {{ value|hex:8 }} 00003039
hexlist
Display integer as hex number with : between pairs. An argument can
be used to indicate how many digits should be used in the output. If
the hex number is too long it will be truncated at the front, if it is
too short it will be padded with zeros at the front. If the width is a
negative number then at most that number of digits will be used, but
short numbers will not be padded with zeroes.For example:
value Template Output
12345 {{ value|hexlist }} 30:39
12345 {{ value|hexlist:2 }} 39
12345 {{ value|hexlist:8 }} 00:00:30:39
floatformat
Used for type 'float' in tailf-xsd-types. We recommend that the YANG
built-in type 'decimal64' is used instead of 'float'.
When used without an argument, rounds a floating-point number to
one decimal place -- but only if there's a decimal part to be displayed.
For example:
value Template Output
34.23234 {{ value|floatformat }} 34.2
34.00000 {{ value|floatformat }} 34
34.26000 {{ value|floatformat }} 34.3
If used with a numeric integer argument, floatformat rounds a number
to that many decimal places. For example:
value Template Output
825
clispec
34.23234 {{ value|floatformat:3 }} 34.232
34.00000 {{ value|floatformat:3 }} 34.000
34.26000 {{ value|floatformat:3 }} 34.260
If the argument passed to floatformat is negative, it will round a
number to that many decimal places -- but only if there's a decimal
part to be displayed. For example:
value Template Output
34.23234 {{ value|floatformat:-3 }} 34.232
34.00000 {{ value|floatformat:-3 }} 34
34.26000 {{ value|floatformat:-3 }} 34.260
Using floatformat with no argument is equivalent to using floatformat
with an argument of -1.
ljust:width
Left-align the value given a width.
rjust:width
Right-align the value given a width.
trunc:width
Truncate value to a given width.
lower
Convert the value into lowercase.
upper
Convert the value into uppercase.
show:<dictionary>
Substitutes the result of invoking the default display function for the
parameter. The dictionary can be used for introducing own variables
that can be accessed in the same manner as builtin variables. The
user defined variables overrides builtin variables. The dictionary is
specified as a string on the following form:
(key=value)(:key=value)*
For example, with the following expression:
$(foo|show:myvar1=true:myvar2=Interface)
the user defined variables can be accessed like this:
$(.myvar1!=true?Address) $(.myvar2)
826
clispec
dict:<dictionary>
Translate the value using the dictionary. Can for example be used for
displaying on/off instead of true/false.
For example
$(foo|dict:true=on:false=off)
Nested invocations are allowed, ie it is possible to have expressions like $((state|dict:yes=Yes:no=No)|
rjust:14), or $(/foo{$(../bar)}).
An example:
<modifications>
<showTemplate path="interfaces">$(name) is administratively $(status), line protocol is $(line/status)
Hardware is $(hw), address is $(port_address) (bia $(bia))
Internet address is $(address)
MTU $(mtu) bytes, BW $(bw|humanreadable)bit, DLY $(dly) usec,
reliability $(reliability), txload $(txload), rxload $(rxload)
Encapsulation $(encapsulation|upper), $(loopback?:loopback not set)
Keepalive $(keepalive?set to \($(keepalive) sec\):not set)
ARP type: $(arpType), ARP Timeout $(arpTimeout)
Last input $(lastInput), output $(output), output hang $(outputHang)
Last clearing of "show interface" counters $(lastClear)
Queuing strategy: $(queingSrategy)
Output queue $(output/queue), $(output/drops) drops; input queue $(input/queue), $(input/drops) drops
5 minute input rate $(input/rate) bits/sec, $(input/packetRate) packets/sec
5 minute output rate $(output/rate) bits/sec, $(output/packetRate) packets/sec
$(input/packets) packets input, $(input/bytes) bytes, $(input/buffer) no buffer
Received $(input/receivedBroadcasts) broadcasts, $(input/runts) runts, $(input/giants) giants, $(input/throttle) throttles
$(input/errors) input errors, $(input/crc) CRC, $(input/frame) frame, $(input/overrun) overrun, $(input/ignore) ignored
$(input/dribble) input packets with dribble condition detected
$(output/packets) packets output, $(output/bytes) bytes, $(output/underruns) underruns
$(output/errors) output errors, $(output/collisions) collisions, $(output/resets) interface resets
$(output/babbles) babbles, $(output/lateCollision) late collision, $(output/deferred) deferred
$(lostCarrier) lost carrier, $(noCarrier) no carrier
$(output/bufferFails) output buffer failures, $(output/bufferSwapped) output buffers swapped out
</showTemplate>
</modifications>
Attributes:
path (pathType) The "path" attribute is mandatory. It specifies on which path to apply the show
template. pathType is a space-separated list of elements, pointing out a specific
container element.
Note that the tailf:cli-show-template YANG extension can be used to the same effect directly in YANG
file.
/clispec/$MODE/modifications/showTemplateLegend
The "showTemplateLegend" element is used for specifying a template to use by the show command in the
J-, C- and I-style CLIs when displaying a set of list nodes as a legend.
Attributes:
827
clispec
path (pathType) The "path" attribute is mandatory. It specifies on which path to apply the show
template. pathType is a space-separated list of elements, pointing out a specific
container element.
Note that the tailf:cli-show-template-legend YANG extension can be used to the same effect directly in
YANG file.
/clispec/$MODE/modifications/showTemplateEnter
The "showTemplateEnter" element is used for specifying a template to use by the show command in the
J-, C- and I-style CLIs when displaying a set of list element nodes before displaying each instance.
In addition to the builtin variables in ordinary templates there are two additional variables
available: .prefix_str and .key_str.
.prefix_str The .prefix_str variable contains the text displayed before the key values when auto-
rendering an enter text.
.key_str The .key_str variable contains the keys as a text
Attributes:
path (pathType) The "path" attribute is mandatory. It specifies on which path to apply the show
template. pathType is a space-separated list of elements, pointing out a specific
container element.
Note that the tailf:cli-show-template-enter YANG extension can be used to the same effect directly in
YANG file.
/clispec/$MODE/modifications/showTemplateFooter
The "showTemplateFooter" element is used for specifying a template to use by the show command in the
J-, C- and I-style CLIs after a set of list nodes has been displayed as a table.
Attributes:
path (pathType) The "path" attribute is mandatory. It specifies on which path to apply the show
template. pathType is a space-separated list of elements, pointing out a specific
container element.
Note that the tailf:cli-show-template-footer YANG extension can be used to the same effect directly in
YANG file.
/clispec/$MODE/modifications/runTemplate
The "run" element is used for specifying a template to use by the "show running-config" command in the
C- and I-style CLIs. The syntax is the same as for the showTemplate above. The template is only used if
it is associated with a leaf element. Containers and lists cannot have runTemplates.
Note that extreme care must be taken when using this feature if the result should be paste:able into the
CLI again.
Attributes:
path (pathType) The "path" attribute is mandatory. It specifies on which path to apply the show
running-config template. pathType is a space-separated list of elements, pointing
out a specific container element.
828
clispec
Note that the tailf:cli-run-template YANG extension can be used to the same effect directly in YANG file.
/clispec/$MODE/modifications/runTemplateLegend
The "runTemplateLegend" element is used for specifying a template to use by the show running-config
command in the C- and I-style CLIs when displaying a set of list nodes as a legend.
Attributes:
path (pathType) The "path" attribute is mandatory. It specifies on which path to apply the show
running-config template. pathType is a space-separated list of elements, pointing
out a specific container element.
Note that the tailf:cli-run-template-legend YANG extension can be used to the same effect directly in
YANG file.
/clispec/$MODE/modifications/runTemplateEnter
The "runTemplateEnter" element is used for specifying a template to use by the show running-config
command in the C- and I-style CLIs when displaying a set of list element nodes before displaying each
instance.
In addition to the builtin variables in ordinary templates there are two additional variables
available: .prefix_str and .key_str.
.prefix_str The .prefix_str variable contains the text displayed before the key values when auto-
rendering an enter text.
.key_str The .key_str variable contains the keys as a text
Attributes:
path (pathType) The "path" attribute is mandatory. It specifies on which path to apply the show
running-config template. pathType is a space-separated list of elements, pointing
out a specific container element.
Note that the tailf:cli-run-template-enter YANG extension can be used to the same effect directly in YANG
file.
/clispec/$MODE/modifications/runTemplateFooter
The "runTemplateFooter" element is used for specifying a template to use by the show running-config
command in the C- and I-style CLIs after a set of list nodes has been displayed as a table.
Attributes:
path (pathType) The "path" attribute is mandatory. It specifies on which path to apply the show
running-config template. pathType is a space-separated list of elements, pointing
out a specific container element.
Note that the tailf:cli-run-template-footer YANG extension can be used to the same effect directly in
YANG file.
/clispec/$MODE/modifications/hasRange
The "hasRange" element is used for specifying that a given non-integer key element should allow range
expressions
829
clispec
Attributes:
path (pathType) The "path" attribute is mandatory. It specifies on which path to allow range
expressions. pathType is a space-separated list of elements, pointing out a specific
list element.
Note that the tailf:cli-allow-range YANG extension can be used to the same effect directly in YANG file.
/clispec/$MODE/modifications/suppressRange
The "suppressRange" element is used for specifying that a given integer key element should not allow
range expressions
Attributes:
path (pathType) The "path" attribute is mandatory. It specifies on which path to suppress range
expressions. pathType is a space-separated list of elements, pointing out a specific
list element.
Note that the tailf:cli-suppress-range YANG extension can be used to the same effect directly in YANG
file.
/clispec/$MODE/modifications/customRange
The "customRange" element is used for specifying that a given list element should support ranges. A
type matching the range expression must be supplied, as well as a callback to use to determine if a given
instance is covered by a given range expression. It contains one or more "rangeType" elements and one
"callback" element.
Attributes:
path (pathType) The "path" attribute is mandatory. It specifies on which path to apply the custom
range. pathType is a space-separated list of elements, pointing out a specific list
element.
Note that the tailf:cli-custom-range YANG extension can be used to the same effect directly in YANG file.
/clispec/$MODE/modifications/customRange/callback
The "callback" element is used for specifying which callback to invoke for checking if a list element
instance belongs to a range. It contains a "capi" element.
Note that the tailf:cli-custom-range-actionpoint YANG extension can be used to the same effect directly
in YANG file.
/clispec/$MODE/modifications/customRange/callback/capi
The "capi" element is used for specifying the name of the callback to invoke for checking if a list element
instance belongs to a range.
Attributes:
id (string) The "id" attribute is optional. It specifies a string which is passed to the callback when
invoked to check if a value belongs in a range. This makes it possible to use the same
callback at several locations and still keep track of which point it is invoked from.
830
clispec
/clispec/$MODE/modifications/customRange/rangeType
The "rangeType" element is used for specifying which key element of a list element should support range
expressions. It is also used for specifying a matching type. All range expressions must belong to the
specified type, and a valid key element must not be a valid element of this type.
Attributes:
key (string) The "key" attribute is mandatory. It specifies which key element of the list
that the rangeType applies to.
namespace (string) The "namespace" attribute is mandatory. It specifies which namespace the
type belongs to.
name (string) The "name" attribute is mandatory. It specifies the name of the range type.
Note that the tailf:cli-range-type YANG extension can be used to the same effect directly in YANG file.
/clispec/$MODE/modifications/allowWildcard
The "allowWildcard" element is used for specifying that a given list element should allow wildcard
expressions in the show pattern
Attributes:
path (pathType) The "path" attribute is mandatory. It specifies on which path to allow wildcard
expressions. pathType is a space-separated list of elements, pointing out a specific
list element.
Note that the tailf:cli-allow-wildcard YANG extension can be used to the same effect directly in YANG
file.
/clispec/$MODE/modifications/suppressWildcard
The "suppressWildcard" element is used for specifying that a given list element should not allow wildcard
expressions in the show pattern
Attributes:
path (pathType) The "path" attribute is mandatory. It specifies on which path to suppress wildcard
expressions. pathType is a space-separated list of elements, pointing out a specific
list element.
Note that the tailf:cli-suppress-wildcard YANG extension can be used to the same effect directly in YANG
file.
/clispec/$MODE/modifications/
suppressValidationWarningPrompt
The "suppressValidationWarningPrompt" element is used for specifying that for a given path a validate
warning should not result in a prompt to the user. The warning is displayed but without blocking the
commit operation.
Attributes:
831
clispec
path (pathType) The "path" attribute is mandatory. It specifies on which path to suppress the
validation warning prompt. pathType is a space-separated list of elements,
pointing out a specific list element.
Note that the tailf:cli-suppress-validate-warning-prompt YANG extension can be used to the same effect
directly in YANG file.
/clispec/$MODE/modifications/errorMessageRewrite
The "errorMessageRewrite" element is used for specifying that a callback should be invoked for possibly
rewriting error messages before displaying them.
/clispec/$MODE/modifications/errorMessageRewrite/
callback
The "callback" element is used for specifying which callback to invoke for rewriting a message. It contains
a "capi" element.
/clispec/$MODE/modifications/errorMessageRewrite/
callback/capi
The "capi" element is used for specifying the name of the callback to invoke for rewriting a message.
/clispec/$MODE/modifications/showPathRewrite
The "showPathRewrite" element is used for specifying that a callback should be invoked for possibly
rewriting the show path before executing a show command. The callback is invoked by the builtin show
command.
/clispec/$MODE/modifications/showPathRewrite/callback
The "callback" element is used for specifying which callback to invoke for rewriting the show path. It
contains a "capi" element.
/clispec/$MODE/modifications/showPathRewrite/callback/
capi
The "capi" element is used for specifying the name of the callback to invoke for rewriting the show path.
/clispec/$MODE/modifications/noKeyCompletion
The "noKeyCompletion" element tells the CLI to not perform completion for key elements for a given
path. This is to avoid querying the data provider for all existing keys.
Attributes:
src (pathType) The "src" attribute is mandatory. It specifies which path to make not do completion
for. pathType is a space-separated list of elements, pointing out a specific list
element.
Note that the tailf:cli-no-key-completion extension can be used to the same effect directly in YANG file.
832
clispec
/clispec/$MODE/modifications/noMatchCompletion
The "noMatchCompletion" element tells the CLI to not provide match completion for a given element
path for show commands.
Attributes:
path (pathType) The "path" attribute is mandatory. It specifies which path to make not do match
completion for. pathType is a space-separated list of elements, pointing out a
specific list element.
Note that the tailf:cli-no-match-completion YANG extension can be used to the same effect directly in
YANG file.
/clispec/$MODE/modifications/incompleteShowPath
The "incompleteShowPath" element makes it possible to specify that a path to the show command in the
C and I-style CLIs is considered incomplete. It can also be used to specify that a minimum number of
keys needs to be specified.
Attributes:
path (pathType) The "path" attribute is mandatory. It specifies which path to
consider incomplete. pathType is a space-separated list of elements,
pointing out a specific list element.
minKeys (positiveInteger) The "minKeys" attribute is optional. For paths leading to a list
element it is possible to specify the minimum number of required
keys.
Note that the tailf:cli-incomplete-show-path YANG extension can be used to the same effect directly in
YANG file.
/clispec/$MODE/modifications/suppressShowPath
The "suppressShowPath" element makes it possible to specify that a path to the show command should
not be available. This only applies to I- and C- style CLI.
Attributes:
path (pathType) The "path" attribute is mandatory. It specifies which path to suppress. pathType
is a space-separated list of elements, pointing out a specific list element.
Note that the tailf:cli-suppress-show-path YANG extension can be used to the same effect directly in
YANG file.
/clispec/$MODE/modifications/suppressShowMatch
The "suppressShowMatch" element makes it possible to specify that a specific completion match (ie a
filter match that appear at list element nodes as an alternative to specifying a single instance) to the show
command should not be available.
Attributes:
path (pathType) The "path" attribute is mandatory. It specifies which path to suppress. pathType
is a space-separated list of elements, pointing out a specific list element.
833
clispec
Note that the tailf:cli-suppress-show-match YANG extension can be used to the same effect directly in
YANG file.
/clispec/$MODE/modifications/incompleteCommand
The "incompleteCommand" element makes it possible to specify that an auto-rendered command in C- and
I-mode should be considered incomplete. It can be used to prevent <cr> from appearing in the completion
list for optional internal nodes.
Attributes:
path (pathType) The "path" attribute is mandatory. It specifies which path to consider incomplete.
pathType is a space-separated list of elements, pointing out a specific list element.
Note that the tailf:cli-incomplete-command YANG extension can be used to the same effect directly in
YANG file.
/clispec/$MODE/modifications/sequenceCommands
The "sequenceCommands" element makes it possible to specify that an auto-rendered command in C- and
I-mode should only accept arguments in the same order as they are specified in the YANG module. This, in
combination with dropElem, can be used to create CLI commands for setting multiple leafs in a container
without having to specify the leaf names.
Attributes:
path (pathType) The "path" attribute is mandatory. It specifies which path to make into an
argument sequence. pathType is a space-separated list of elements, pointing out
a specific container element.
Note that the tailf:cli-sequence-commands YANG extension can be used to the same effect directly in
YANG file.
/clispec/$MODE/modifications/fullCommand
The "fullCommand" element makes it possible to specify that an auto-rendered command in C- and I-
mode should be considered full. It can be used to prevent further command stacking.
Attributes:
path (pathType) The "path" attribute is mandatory. It specifies which path to consider full.
pathType is a space-separated list of elements, pointing out a specific list element.
Note that the tailf:cli-full-command YANG extension can be used to the same effect directly in YANG file.
/clispec/$MODE/modifications/fullShowPath
The "fullShowPath" element makes it possible to specify that a path to the show command in the C and I-
style CLIs is considered complete. No further elements can be added to the path.
Attributes:
path (pathType) The "path" attribute is mandatory. It specifies which path to
consider complete. pathType is a space-separated list of elements,
pointing out a specific list element.
834
clispec
maxKeys (positiveInteger) The "maxKeys" attribute is optional. For paths leading to a list
element it is possible to specify the maximum number of allowed
keys.
Note that the tailf:cli-full-show-path YANG extension can be used to the same effect directly in YANG
file.
/clispec/$MODE/modifications/multiValue
The "multiValue" element tells the parser for the C- and I- style CLIs that a specific leaf element should
get its value from the rest of the command line. If this modification is used for a given leaf it will not be
possible to enter any more leaf values on the same command line.
Attributes:
src (pathType) The "src" attribute is mandatory. It specifies which path to make a multiline input
item by default. pathType is a space-separated list of elements, pointing out a
specific list element.
Note that the tailf:cli-multi-value YANG extension can be used to the same effect directly in YANG file.
/clispec/$MODE/modifications/enforceTable
The "enforceTable" element makes it possible to force the generation of a table for a list element node
regardless of whether the table will be too wide or not. This applies to the tables generated by the auto-
rendered show commands for config="false" data in the C- and I- style CLIs.
Attributes:
src (pathType) The "src" attribute is mandatory. It specifies which path to enforce. pathType is a
space-separated list of elements, pointing out a specific list element.
Note that the tailf:cli-enforce-table YANG extension can be used to the same effect directly in YANG file.
/clispec/$MODE/modifications/suppressTable
The "suppressTable" element makes it possible to suppress an automatically generated table in the C- and
I- style CLIs when using the show command.
Attributes:
src (pathType) The "src" attribute is mandatory. It specifies which path to suppress. pathType is
a space-separated list of elements, pointing out a specific list element.
Note that the tailf:cli-suppress-table YANG extension can be used to the same effect directly in YANG file.
/clispec/$MODE/modifications/preformatted
The "preformatted" element makes it possible to suppress quoting of stats elements when displaying them.
Newlines will be preserved in strings etc
Attributes:
src (pathType) The "src" attribute is mandatory. It specifies which path to consider preformatted.
pathType is a space-separated list of elements, pointing out a specific list element.
835
clispec
Note that the tailf:cli-preformatted YANG extension can be used to the same effect directly in YANG file.
/clispec/$MODE/modifications/exposeKeyName
The "exposeKeyName" element makes it possible to force the C- and I-style CLIs to expose the key name
to the CLI user. The user will be required to enter the name of the key and the key name will be displayed
when showing the configuration.
Attributes:
path (pathType) The "src" attribute is mandatory. It specifies which leaf to expose. pathType is a
space-separated list of elements, pointing out a specific list key element.
Note that the tailf:cli-expose-key-name YANG extension can be used to the same effect directly in YANG
file.
/clispec/$MODE/modifications/displayEmptyConfig
The "displayEmptyConfig" element makes it possible to tell confd to display empty configuration list
elements when displaying stats data in J-style CLI, provided that the list element has at least one optional
config="false" element.
Attributes:
path (pathType) The "path" attribute is mandatory. It specifies which path to apply the mod to.
pathType is a space-separated list of elements, pointing out a specific list element.
Note that the tailf:cli-display-empty-config YANG extension can be used to the same effect directly in
YANG file.
/clispec/$MODE/modifications/suppressKeyAbbrev
The "suppressKeyAbbrev" element makes it possible to suppress the use of abbreviations for specific key
elements.
Attributes:
src (pathType) The "src" attribute is mandatory. It specifies which path to suppress. pathType is
a space-separated list of elements, pointing out a specific list element.
Note that the tailf:cli-suppress-key-abbreviation YANG extension can be used to the same effect directly
in YANG file.
/clispec/$MODE/modifications/allowKeyAbbrev
The "allowKeyAbbrev" element makes it possible to allow the use of abbreviations for specific key
elements.
Attributes:
src (pathType) The "src" attribute is mandatory. It specifies which path to suppress. pathType is
a space-separated list of elements, pointing out a specific list element.
Note that the tailf:allow-key-abbreviation YANG extension can be used to the same effect directly in
YANG file.
836
clispec
/clispec/$MODE/modifications/suppressMode
The "suppressMode" element makes it possible to suppress an automatically generated mode in C- and
I- style CLI.
Attributes:
src (pathType) The "src" attribute is mandatory. It specifies which path to suppress. pathType is
a space-separated list of elements, pointing out a specific list element.
Note that the tailf:cli-suppress-mode YANG extension can be used to the same effect directly in YANG
file.
/clispec/$MODE/modifications/addMode
The "addMode" element makes it possible to create a mode at a non-list element. Only applicable in C-
and I- style CLI.
Attributes:
src (pathType) The "src" attribute is mandatory. It specifies for which path to create the mode.
pathType is a space-separated list of elements, pointing out a specific non-list, non-
leaf element.
Note that the tailf:cli-add-mode YANG extension can be used to the same effect directly in YANG file.
/clispec/$MODE/modifications/modeName
The "modeName" element makes it possible to specify a custom mode name in the C- and I- style CLI.
It contains one of the elements "fixed" or "capi".
Attributes:
src (pathType) The "src" attribute is mandatory. It specifies for which path the custom mode name
should apply. pathType is a space-separated list of elements, pointing out a path
to a mode.
/clispec/$MODE/modifications/modeName/fixed
(xs:string)
Specifies a fixed mode name.
Note that the tailf:cli-mode-name YANG extension can be used to the same effect directly in YANG file.
/clispec/$MODE/modifications/modeName/capi
Specifies that the mode name should be calculated through a callback function. It contains exactly one
"cmdpoint" element.
Note that the tailf:cli-mode-name-actionpoint YANG extension can be used to the same effect directly
in YANG file.
/clispec/$MODE/modifications/modeName/capi/cmdpoint
(xs:string)
Specifies the callpoint name of the mode name function.
837
clispec
/clispec/$MODE/modifications/autocommitDelay
The "autocommitDelay" element makes it possible to enable transactions while in a specific submode (or
submode of that mode). The modifications performed in that mode will not take effect until the user exits
that submode.
Attributes:
path (pathType) The "path" attribute is mandatory. It specifies which path to delay autocommit
for. pathType is a space-separated list of elements, pointing out a specific non-
list, non-leaf element.
Note that the tailf:cli-delayed-auto-commit YANG extension can be used to the same effect directly in
YANG file.
/clispec/$MODE/modifications/simpleType
The "simpleType" element makes it possible to customize the handling of a type. A type is typically
attached to each leaf in a YANG module or to command parameters. The "simpleType" element makes it
possible to customize both builtin and derived types. For now the only handling that can be customized
is how CLI completion is to be performed.
The "simpleType" element contains a single element "capi".
Attributes:
namespace (string) The "namespace" attribute is mandatory. It specifies the namespace URI
whereas the type to be modified has been defined.
name (string) The "name" attribute is mandatory. It specifies the name of the type to be
customized
/clispec/$MODE/modifications/simpleType/capi
Specifies that the simpleType customization should be calculated through a callback function. It contains
exactly one "completionpoint" element.
/clispec/$MODE/modifications/simpleType/capi/
completionpoint (xs:string)
Specifies the callpoint name of the completion function.
/clispec/$MODE/modifications/completion
The "completion" element makes it possible to customize the completion of a specific path.
The "completion" element contains a single element "capi" enclosed in the "callback" element.
Attributes:
path (cmdpathType) The "path" attribute is mandatory. It specifies for which path the completion
callback should be applied to. cmdpathType is a space-separated list of
commands.
838
clispec
Note that the tailf:cli-completion-actionpoint YANG extension can be used to the same effect directly in
YANG file.
/clispec/$MODE/modifications/completion/callback/capi
Specifies that the completion customization should be calculated through a callback function. It contains
exactly one "completionpoint" element.
/clispec/$MODE/modifications/completion/callback/capi/
completionpoint (xs:string)
Specifies the callpoint name of the completion function.
Attributes:
id (string) The "id" attribute is optional. It specifies a string which is passed to the callback when
invoked. This makes it possible to use the same callback at several locations and still
keep track of which point it is invoked from.
/clispec/$MODE/modifications/suppressKeySort
The "suppressKeySort" element makes it possible to suppress sorting of key-values in the completion list.
Instead the values will be displayed in the same order as they are provided by the data-provider (external
or CDB).
Attributes:
path (pathType) The "path" attribute is mandatory. It specifies which path to not sort. pathType
is a space-separated list of elements, pointing out a specific list element.
Note that the tailf:cli-suppress-key-sort YANG extension can be used to the same effect directly in YANG
file.
/clispec/$MODE/modifications/legend (xs:string)
The "legend" element makes it possible to add a custom legend to be displayed when before printing a
table. The legend is specified as a template string.
Attributes:
path (cmdpathType) The "path" attribute is mandatory. It specifies for which path the legend
should be printed. cmdpathType is a space-separated list of commands.
Note that the tailf:cli-legend YANG extension can be used to the same effect directly in YANG file.
/clispec/$MODE/modifications/footer (xs:string)
The "footer" element makes it possible to specify a template that will be displayed after printing a table.
Attributes:
path (cmdpathType) The "path" attribute is mandatory. It specifies for which path the footer
should be printed. cmdpathType is a space-separated list of commands.
839
clispec
Note that the tailf:cli-footer YANG extension can be used to the same effect directly in YANG file.
/clispec/$MODE/modifications/help (xs:string)
The "help" element makes it possible to add a custom help text to the specified built-in command.
Attributes:
src (cmdpathType) The "src" attribute is mandatory. It specifies which command to add the text
to. cmdpathType is a space-separated list of commands, pointing out a specific
sub-command.
/clispec/$MODE/modifications/paramhelp (xs:string)
The "paramhelp" element makes it possible to add a custom help text to a parameter to a specified built-
in command.
Attributes:
src (cmdpathType) The "src" attribute is mandatory. It specifies which command to add the
text to. cmdpathType is a space-separated list of commands, pointing out
a specific sub-command.
nr (positiveInteger) The "nr" attribute is mandatory. It specifies which parameter of the
command to add the text to.
/clispec/$MODE/modifications/typehelp (xs:string)
The "typehelp" element makes it possible to add a custom help text for the built-in primitive types,
e.g. to change the default type name in the CLI. For example, to display "<integer>" instead of
"<unsignedShort>".
The built-in primitive types are: string, atom, normalizedString, boolean, float, decimal,
double, hexBinary, base64Binary, anyURI, anySimpleType, QName, NOTATION, token, integer,
nonPositiveInteger, negativeInteger, long, int, short, byte, nonNegativeInteger, unsignedLong,
positiveInteger, unsignedInt, unsignedShort, unsignedByte, dateTime, date, gYearMonth, gDay,
gYear, time, gMonthDay, gMonth, duration, inetAddress, inetAddressIPv4, inetAddressIP,
inetAddressIPv6, inetAddressDNS, inetPortNumber, size, MD5DigestString, DES3CBCEncryptedString,
AESCFB128EncryptedString, objectRef, bits_type_32, bits_type_64, hexValue, hexList, octetList,
Gauge32, Counter32, Counter64, and oid.
Attributes:
type (xs:Name) The "type" attribute is mandatory. It specifies which primitive type to modify.
/clispec/$MODE/modifications/info (xs:string)
The "info" element makes it possible to add a custom info text to the specified built-in command.
Attributes:
src (cmdpathType) The "src" attribute is mandatory. It specifies which command to hide.
cmdpathType is a space-separated list of commands, pointing out a specific
sub-command.
840
clispec
/clispec/$MODE/modifications/paraminfo (xs:string)
The "paraminfo" element makes it possible to add a custom info text to a parameter to a specified built-
in command.
Attributes:
src (cmdpathType) The "src" attribute is mandatory. It specifies which command to add the
text to. cmdpathType is a space-separated list of commands, pointing out
a specific sub-command.
nr (positiveInteger) The "nr" attribute is mandatory. It specifies which parameter of the
command to add the text to.
/clispec/$MODE/modifications/timeout (xs:integer|infinity)
The "timeout" element makes it possible to add a custom command timeout (in seconds) to the specified
built-in command.
Attributes:
src (cmdpathType) The "src" attribute is mandatory. It specifies which command to add the
timeout to. cmdpathType is a space-separated list of commands, pointing out
a specific sub-command.
/clispec/$MODE/modifications/hide
The "hide" element makes it possible to hide a built-in command
Attributes:
src (cmdpathType) The "src" attribute is mandatory. It specifies which command to hide.
cmdpathType is a space-separated list of commands, pointing out a specific
sub-command.
An example:
<modifications>
<hide src="file show"/>
</modifications>
/clispec/$MODE/modifications/hideGroup
The "hideGroup" element makes it possible to hide a built-in command under a hide group.
Attributes:
src (cmdpathType) The "src" attribute is mandatory. It specifies which command to hide.
cmdpathType is a space-separated list of commands, pointing out a specific
sub-command.
name (xs:string) The "name" attribute is mandatory. It specifies which hide group to hide the
command.
841
clispec
An example:
<modifications>
<hideGroup src="file show" name="debug"/>
</modifications>
/clispec/$MODE/modifications/submodeCommand
The "submodeCommand" element makes it possible to make a command visible in the completion lists
of all submodes.
Attributes:
src (cmdpathType) The "src" attribute is mandatory. It specifies which command to make
available. cmdpathType is a space-separated list of commands, pointing out
a specific sub-command.
An example:
<modifications>
<submodeCommand src="clear"/>
</modifications>
/clispec/$MODE/modifications/confirmText (xs:string)
The "confirmText" element makes it possible to add a confirmation text to the specified command, i.e. the
CLI user is prompted whenever this command is executed. The prompt to be used is given as a body to
the element as seen in confd-light.cli above. The valid answers are "yes" and "no" - the text " [yes, no]"
will automatically be added to the given confirmation text.
Attributes:
src (cmdpathType) The "src" attribute is mandatory. It specifies which command to add
a confirmation prompt to. cmdpathType is a space-separated list of
commands, pointing out a specific sub-command.
defaultOption (yes|no) The "defaultOption" attribute is optional. It makes it possible to
customize if "yes" or "no" should be the default option, i.e. if the
user just hits ENTER. If this element is not defined it defaults
to whatever is specified by the /clispec/$MODE/modifications/
defaultConfirmOption element.
/clispec/$MODE/modifications/defaultConfirmOption (yes|
no)
The "defaultConfirmOption" element makes it possible to customize if "yes" or "no" should be the default
option, i.e. if the user just hits ENTER, for the confirmation text added by the "confirmText" element.
If this element is not defined it defaults to "yes".
This element affects both /clispec/$MODE/modifications/confirmText and /clispec/$MODE/cmd/
confirmText if they have not defined their "defaultOption" attributes.
842
clispec
/clispec/$MODE/modifications/keymap
The "keymap" element makes it possible to modify the key bindings in the command line editor.
Attributes:
key (xs:string) The "key" attribute is mandatory. It specifies which sequence of
keystrokes to modify.
action (keymapActionType) The "action" attribute is mandatory. It specifies what should
happen when the specified key sequence is executed. Possible
values are: "unset", "new", "exist", "start_of_line", "back", "abort",
"tab", "delete_forward", "delete_forward_no_eof", "end_of_line",
"forward", "kill_rest", "redraw", "redraw_clear", "newline",
"insert(chars)", "history_next", "history_prev", "isearch_back",
"transpose", "kill_line", "quote", "word_delete_back",
"yank", "end_mode", "delete", "word_delete_forward",
"beginning_of_line", "delete", "end_of_line", "word_forward",
"word_back", "end_of_line", "beginning_of_line", "word_back",
"word_forward", "word_capitalize", "word_lowercase",
"word_uppercase", "word_delete_back", "word_delete_forward",
"multiline_mode", "yank_killring", and "quot". To remove a
default binding use the action "remove_binding".
The default keymap is:
<keymap key="\^A" action="start_of_line"/>
<keymap key="\^B" action="back"/>
<keymap key="\^C" action="abort"/>
<keymap key="\^D" action="delete_forward"/>
<keymap key="\^E" action="end_of_line"/>
<keymap key="\^F" action="forward"/>
<keymap key="\^J" action="newline"/>
<keymap key="\^K" action="kill_rest"/>
<keymap key="\^L" action="redraw_clear"/>
<keymap key="\^M" action="newline"/>
<keymap key="\^N" action="history_next"/>
<keymap key="\^P" action="history_prev"/>
<keymap key="\^R" action="isearch_back"/>
<keymap key="\^T" action="transpose"/>
<keymap key="\^U" action="kill_line"/>
<keymap key="\^V" action="quote"/>
<keymap key="\^W" action="word_delete_back"/>
<keymap key="\^X" action="kill_line"/>
<keymap key="\^Y" action="yank"/>
<keymap key="\^Z" action="end_mode"/>
<keymap key="\d" action="delete"/>
<keymap key="\t" action="tab"/>
<keymap key="\b" action="delete"/>
<keymap key="\ed" action="word_delete_forward"/>
<keymap key="\e[Z" action="tab"/>
<keymap key="\e[A" action="history_prev"/>
<keymap key="\e[1~" action="beginning_of_line"/>
<keymap key="\e[3~" action="delete"/>
<keymap key="\e[4~" action="end_of_line"/>
<keymap key="\eOA" action="history_prev"/>
<keymap key="\eOB" action="history_next"/>
<keymap key="\eOC" action="forward"/>
843
clispec
<keymap key="\eOD" action="back"/>
<keymap key="\eOM" action="newline"/>
<keymap key="\eOp" action="insert(0)"/>
<keymap key="\eOq" action="insert(1)"/>
<keymap key="\eOr" action="insert(2)"/>
<keymap key="\eOs" action="insert(3)"/>
<keymap key="\eOt" action="insert(4)"/>
<keymap key="\eOu" action="insert(5)"/>
<keymap key="\eOv" action="insert(6)"/>
<keymap key="\eOw" action="insert(7)"/>
<keymap key="\eOx" action="insert(8)"/>
<keymap key="\eOy" action="insert(9)"/>
<keymap key="\eOm" action="insert(-)"/>
<keymap key="\eOl" action="insert(*)"/>
<keymap key="\eOn" action="insert(.)"/>
<keymap key="\e[5C" action="word_forward"/>
<keymap key="\e[5D" action="word_back"/>
<keymap key="\e[1;5C" action="word_forward"/>
<keymap key="\e[1;5D" action="word_back"/>
<keymap key="\e[B" action="history_next"/>
<keymap key="\e[C" action="forward"/>
<keymap key="\e[D" action="back"/>
<keymap key="\e[F" action="end_of_line"/>
<keymap key="\e[H" action="beginning_of_line"/>
<keymap key="\eb" action="word_back"/>
<keymap key="\ef" action="word_forward"/>
<keymap key="\ec" action="word_capitalize"/>
<keymap key="\el" action="word_lowercase"/>
<keymap key="\eu" action="word_uppercase"/>
<keymap key="\e\b" action="word_delete_back"/>
<keymap key="\e\d" action="word_delete_back"/>
<keymap key="\ed" action="word_delete_forward"/>
<keymap key="\em" action="multiline_mode"/>
<keymap key="\ey" action="yank_killring"/>
<keymap key="\eq" action="quote"/>
The default keymap for I-style differs with the following mapping:
<keymap key="\^D" action="delete_forward_no_eof"/>
/clispec/$MODE/show
The "show" element overrides the built-in show command, in the C-style CLI, for a givenpath defined
by the "path" attribute. It contains (in order) zero or one "callback" elements, and zero or one "options"
elements.
Attributes:
path (showpathType) [] The "path" attribute is required. It specifies for which path the
command should be invoked.
An example:
<show path="aaa authentication users user">
<callback>
<exec>
<osCommand>./show_aaa_auth.sh</osCommand>
</exec>
844
clispec
</callback>
</show>
/clispec/$MODE/show/callback
The "callback" element specifies how the command is implemented, e.g. as a OS executable or a CAPI
callback. It contains one of the elements "capi", and "exec".
/clispec/$MODE/show/callback/mode
The "mode" element specifies that the command is used for entering a custom mode. It contains one "name"
and one "datastore" element.
An example:
<callback>
<mode>
<name>debug</name>
<datastore>private</name>
</mode>
</callback>
/clispec/$MODE/show/callback/mode/name (xs:NCName)
The "name" element specifies the name of the custom mode. For this to work, a custom mode with that
name must be declared.
/clispec/$MODE/show/callback/mode/datastore[private]
The "datastore" element must be one of "private", "shared" and "exclusive". It is ignored for operational
custom modes and when entering a configure mode from within another configure mode. It is only used
when going from operational mode to configure mode.
/clispec/$MODE/show/callback/capi
The "capi" element specifies that the command is implemented using C-API using the same API as for
actions. It contains one "cmdpoint" element and one or zero "args" element.
An example:
<callback>
<capi>
<cmdpoint>adduser</cmdpoint>
</capi>
</callback>
/clispec/$MODE/show/callback/capi/args (argsType)
The "args" element specifies the arguments to use when executing the command specified by the
"callpoint" element. argsType is a space-separated list of argument strings.
The string may contain a number of built-in variables which are expanded on execution. The built-in
variables are: "cwd", "user", "groups", "ip", "maapi", "uid", "gid", "tty", "ssh_connection", "opaque",
"path", "cpath", "ipath" and "licounter". In addition the variables "spath" and "ispath" are available when
a command is executed from a show path. For example:
845
clispec
<args>$(user)</args>
Will expand to the username.
/clispec/$MODE/show/callback/capi/cmdpoint (xs:NCName)
The "cmdpoint" element specifies the name of the C-API action to be called. For this to work, a actionpoint
must be registered with the ConfD daemon at startup.
/clispec/$MODE/show/callback/exec
The "exec" element specifies how the command is implemented using an executable or a shell script. It
contains (in order) one "osCommand" element, zero or one "args" elements and zero or one "options"
elements.
An example:
<callback>
<exec>
<osCommand>cp</osCommand>
<options>
<uid><phrase condition="confd">confd</phrase><phrase condition="ncs">ncs</phrase></uid>
<wd>/var/tmp</wd>
...
</options>
</exec>
</callback>
/clispec/$MODE/show/callback/exec/osCommand (xs:token)
The "osCommand" element specifies the path to the executable or shell script to be called. If the command
is in the $PATH (as specified when we start the ConfD daemon) the path may just be the name of the
command.
The "osCommand" and "args" for "show" differs a bit from the ones for "cmd". For "show" there are a few
built-in arguments that always are given to the "osCommand". These are appended to "args". The built-in
arguments are "0", the keypath (ispath) and an optional filter. Like this: "0 /prefix:keypath *".
The command is not paginated by default in the CLI and will only do so if it is piped to more.
joe@io> example_os_command | more
The command is invoked as if it had been executed by exec(3), i.e. not in a shell environment such as
"/bin/sh -c ...".
/clispec/$MODE/show/callback/exec/args (argsType)
The "args" element specifies additional arguments to use when executing the command specified
by the "osCommand" element. The "args" arguments are prepended to the mandatory ones listed in
"osCommand". argsType is a space-separated list of argument strings.
The string may contain a number of built-in variables which are expanded on execution. The built-in
variables are: "cwd", "user", "groups", "ip", "maapi", "uid", "gid", "tty", "ssh_connection", "opaque",
"path", "cpath", "ipath" and "licounter". In addition the variables "spath" and "ispath" are available when
a command is executed from a show path. For example:
846
clispec
<args>$(user)</args>
Will expand to the username and the three built-in arguments. For example: "admin 0 /prefix:keypath *".
/clispec/$MODE/show/callback/exec/options
The "options" element specifies how the command is be executed. It contains (in any order) zero or one
"uid" elements, zero or one "gid" elements, zero or one "wd" elements, zero or one "batch" elements, zero
or one "pty" element, zero or one of "interrupt" elements, zero or one of "noInput", zero or one "raw"
elements, and zero or one "ignoreExitValue" elements.
/clispec/$MODE/show/callback/exec/options/uid (idType)
[confd]
The "uid" element specifies which user id to use when executing the command. Possible values are:
confd (default) The command is run as the same user id as the ConfD daemon.
user The command is run as the same user id as the user logged in to the
CLI, i.e. we have to make sure that this user id exists as an actual
user id on the device.
root The command is run as root.
<uid> (the numerical user <uid>) The command is run as the user id <uid>.
Note: If uid is set to either "user", "root" or "<uid>" the the
ConfD daemon must have been started as root (or setuid), or the
showptywrapper must have setuid root permissions.
/clispec/$MODE/show/callback/exec/options/gid (idType)
[confd]
The "gid" element specifies which group id to use when executing the command. Possible values are:
confd (default) The command is run as the same group id as the ConfD daemon.
user The command is run as the same group id as the user logged in to
the CLI, i.e. we have to make sure that this group id exists as an
actual group on the device.
root The command is run as root.
<gid> (the numerical group
<gid>)The command is run as the group id <gid>.
Note: If gid is set to either "user", "root" or "<gid>" the the
ConfD daemon must have been started as root (or setuid), or the
showptywrapper must have setuid root permissions.
/clispec/$MODE/show/callback/exec/options/wd (xs:token)
The "wd" element specifies which working directory to use when executing the command. If not given,
the command is executed from the location of the CLI.
847
clispec
/clispec/$MODE/show/callback/exec/options/pty
(xs:boolean)
The "pty" element specifies weather a pty should be allocated when executing the command. The default
is to allocate a pty for operational and configure osCommands, but not for osCommands executing as a
pipe command. This behavior can be overridden with this parameter.
/clispec/$MODE/show/callback/exec/options/interrupt
(interruptType) [sigkill]
The "interrupt" element specifies what should happen when the user enters ctrl-c in the CLI. Possible
values are:
sigkill (default) The command is terminated by sending the sigkill signal.
sigint The command is interrupted by the sigint signal.
sigterm The command is interrupted by the sigterm signal.
ctrlc The command is sent the ctrl-c character which is interpreted by the pty.
/clispec/$MODE/show/callback/exec/options/
ignoreExitValue
The "ignoreExitValue" element specifies that the CLI engine should ignore the fact that the command
returns a non-zero value. Normally it signals an error on stdout if a non-zero value is returned.
/clispec/$MODE/show/callback/exec/options/raw
The "raw" element specifies that the CLI engine should set the pty in raw mode when executing the
command. This prevents normal output processing like converting \n to \n\r.
/clispec/$MODE/show/callback/exec/options/
globalNoDuplicate (xs:token)
The "globalNoDuplicate" element specifies that only one instance with the same name can be run at any one
time in the system. The command can be started either from the CLI, the Web UI or through NETCONF.
/clispec/$MODE/show/callback/exec/options/noInput
(xs:token)
The "noInput" element specifies that the command should not grab the input stream and consume freely
from that. This option should be used if the command should not consume input characters. If not used
then the command will eath all data from the input stream and cut-and-paste may not work as intended.
/clispec/$MODE/show/options
The "options" element specifies under what circumstances the CLI command should execute. It contains
(in any order) zero or one "notInterruptible" elements, zero or one of "displayWhen" elements, and zero
or one "paginate" elements.
848
clispec
/clispec/$MODE/show/options/notInterruptible
The "notInterruptible" element disables <ctrl-c> and the execution of the CLI command can thus not be
interrupted.
/clispec/$MODE/show/options/paginate
The "paginate" element enables a filter for paging through CLI command output text one screen at a time.
/clispec/$MODE/show/options/displayWhen
The "displayWhen" element can be used to add a displayWhen xpath condition to a command.
Attributes:
expr (xpath expression) The "expr" attribute is mandatory. It specifies an xpath expression.
If the expression evaluates to true then the command is available,
otherwise not.
ctx (path) The "ctx" attribute is optional. If not specified the current editpath/
mode-path is used as context node for the xpath evaluation. Note
that the xpath expression will automatically evaluate to false if a
display when expression is used for a top-level command and no ctx
is specified. The path may contain variables defined in the dict.
/clispec/operationalMode/start
The "start" command is executed when the CLI is started. It can be used to, for example, remind the user
to change an expired password. It contains (in order) zero or one "callback" elements, and zero or one
"options" elements.
This element must occur after the <modifications> section and before any <cmd> entries.
An example:
<start>
<callback>
<exec>
<osCommand>./startup.sh</osCommand>
</exec>
</callback>
</start>
/clispec/operationalMode/start/callback
The "callback" element specifies how the command is implemented, e.g. as a OS executable or an API
callback. It contains one of the elements "capi", and "exec".
/clispec/operationalMode/start/callback/capi
The "capi" element specifies that the command is implemented using C-API using the same API as for
actions. It contains one "cmdpoint" element.
An example:
849
clispec
<callback>
<capi>
<cmdpoint>adduser</cmdpoint>
</capi>
</callback>
/clispec/operationalMode/start/callback/capi/cmdpoint
(xs:NCName)
The "cmdpoint" element specifies the name of the C-API action to be called. For this to work, a actionpoint
must be registered with the ConfD daemon at startup.
/clispec/operationalMode/start/callback/exec
The "exec" element specifies how the command is implemented using an executable or a shell script. It
contains (in order) one "osCommand" element, zero or one "args" elements and zero or one "options"
elements.
An example:
<callback>
<exec>
<osCommand>cp</osCommand>
<options>
<uid>confd</uid>
<wd>/var/tmp</wd>
...
</options>
</exec>
</callback>
/clispec/operationalMode/start/callback/exec/osCommand
(xs:token)
The "osCommand" element specifies the path to the executable or shell script to be called. If the command
is in the $PATH (as specified when we start the ConfD daemon) the path may just be the name of the
command.
The command is invoked as if it had been executed by exec(3), i.e. not in a shell environment such as
"/bin/sh -c ...".
/clispec/operationalMode/start/callback/exec/args
(argsType)
The "args" element specifies the arguments to use when executing the command specified by the
"osCommand" element. argsType is a space-separated list of argument strings. The built-in variables are:
"cwd", "user", "groups", "ip", "maapi", "uid", "gid", "tty", "ssh_connection", "opaque", "path", "cpath",
"ipath" and "licounter". In addition the variables "spath" and "ispath" are available when a command is
executed from a show path. For example:
<args>$(user)</args>
Will expand to the username.
850
clispec
/clispec/operationalMode/start/callback/exec/options
The "options" element specifies how the command is be executed. It contains (in any order) zero or one
"uid" elements, zero or one "gid" elements, zero or one "wd" elements, zero or one "batch" elements, zero
or one of "interrupt" elements, and zero or one "ignoreExitValue" elements.
/clispec/operationalMode/start/callback/exec/options/
uid (idType) [confd]
The "uid" element specifies which user id to use when executing the command. Possible values are:
confd (default) The command is run as the same user id as the ConfD daemon.
user The command is run as the same user id as the user logged in to the
CLI, i.e. we have to make sure that this user id exists as an actual
user id on the device.
root The command is run as root.
<uid> (the numerical user <uid>) The command is run as the user id <uid>.
Note: If uid is set to either "user", "root" or "<uid>" the the
ConfD daemon must have been started as root (or setuid), or the
startptywrapper must have setuid root permissions.
/clispec/operationalMode/start/callback/exec/options/
gid (idType) [confd]
The "gid" element specifies which group id to use when executing the command. Possible values are:
confd (default) The command is run as the same group id as the ConfD daemon.
user The command is run as the same group id as the user logged in to
the CLI, i.e. we have to make sure that this group id exists as an
actual group on the device.
root The command is run as root.
<gid> (the numerical group
<gid>)The command is run as the group id <gid>.
Note: If gid is set to either "user", "root" or "<gid>" the the
ConfD daemon must have been started as root (or setuid), or the
startptywrapper must have setuid root permissions.
/clispec/operationalMode/start/callback/exec/options/
wd (xs:token)
The "wd" element specifies which working directory to use when executing the command. If not given,
the command is executed from the location of the CLI.
/clispec/operationalMode/start/callback/exec/options/
globalNoDuplicate (xs:token)
The "globalNoDuplicate" element specifies that only one instance with the same name can be run at any one
time in the system. The command can be started either from the CLI, the Web UI or through NETCONF.
851
clispec
/clispec/operationalMode/start/callback/exec/options/
interrupt (interruptType) [sigkill]
The "interrupt" element specifies what should happen when the user enters ctrl-c in the CLI. Possible
values are:
sigkill (default) The command is terminated by sending the sigkill signal.
sigint The command is interrupted by the sigint signal.
sigterm The command is interrupted by the sigterm signal.
ctrlc The command is sent the ctrl-c character which is interpreted by the pty.
/clispec/operationalMode/start/callback/exec/options/
ignoreExitValue(xs:boolean) [false]
The "ignoreExitValue" element specifies if the CLI engine should ignore the fact that the command returns
a non-zero value. Normally it signals an error on stdout if a non-zero value is returned.
/clispec/operationalMode/start/options
The "options" element specifies under what circumstances the CLI command should execute. It contains
(in any order) zero or one "notInterruptible" elements, and zero or one "paginate" elements.
/clispec/operationalMode/start/options/
notInterruptible
The "notInterruptible" element disables <ctrl-c> and the execution of the CLI command can thus not be
interrupted.
/clispec/operationalMode/start/options/paginate
The "paginate" element enables a filter for paging through CLI command output text one screen at a time.
/clispec/$MODE/cmd
The "cmd" element adds a new command to the CLI hierarchy as defined by its "mount" and "mode"
attributes. It contains (in order) one "info" element, one "help" element, zero or one "confirmText" element,
zero or one "callback" elements, zero or one "params" elements, zero or one "options" elements and finally
zero or more "cmd" elements (recursively).
Attributes:
name (xs:NCName) The "name" attribute is mandatory. It specifies the name of the
command.
mode (cmdpathType) [] The "mode" attribute is optional. It specifies that the command
should be mounted in a specific submode. The attribute is only
applicable in the C- and I-style CLIs. If no "mode" attribute is given
the command is mounted in the topmost mode.
852
clispec
extend (xs:boolean) [false] The "extend" attribute is optional. It specifies that the command
should be mounted on top of an existing command, ie with the exact
same name as an existing command but with different parameters.
Which command is executed depends on which parameters are
supplied when the command is invoked. This can be used to overlay
an existing command.
mount (cmdpathType) [] The "mount" attribute is optional. It specifies where in the
command hierarchy of built-in commands this command should be
mounted. If no mount attribute is given, or if it is empty (""), the
command is mounted on the top-level of the CLI hierarchy.
An example:
<cmd name="copy" mount="file">
<info>Copy a file</info>
<help>Copy a file from in the file system.</help>
<callback>
<exec>
<osCommand>cp</osCommand>
<options>
<uid>confd</uid>
</options>
</exec>
</callback>
<params>
<param>
<type><file/></type>
<info>&amp;lt;source file&amp;gt;</info>
</param>
<param>
<type><file/></type>
<info>&amp;lt;destination&amp;gt;</info>
</param>
</params>
<cmd ...>
...
<cmd ...>
...
</cmd>
</cmd>
<cmd ...>
...
</cmd>
</cmd>
/clispec/$MODE/cmd/info (xs:string)
The "info" element is a single text line describing the command.
An example:
<cmd name="start">
<info>Start displaying the system log or trace a file</info>
...
853
clispec
and when we do the following in the CLI we get:
joe@xev> monitor st<TAB>
Possible completions:
start - Start displaying the system log or trace a file
stop - Stop displaying the system log or trace a file
joe@xev> monitor st
/clispec/$MODE/cmd/help (xs:string)
The "help" element is a multi-line text string describing the command. This text is shown when we use
the "help" command.
An example:
joe@xev> help monitor start
Help for command: monitor start
Start displaying the system log or trace a file in the background.
We can abort the logging using the "monitor stop" command.
joe@xev>
/clispec/$MODE/cmd/timeout (xs:integer|infinity)
The "timeout" element is a timeout for the command in seconds. Default is infinity.
/clispec/$MODE/cmd/confirmText
See /clispec/$MODE/modifications/confirmText
/clispec/$MODE/cmd/callback
The "callback" element specifies how the command is implemented, e.g. as a OS executable or a CAPI
callback. It contains one of the elements "capi", "exec", "table" or "execStop".
Note: A command which has a callback defined may not have recursive sub-commands. Likewise, a
command which has recursive sub-commands may not have a callback defined. A command without sub-
commands must have a callback defined.
/clispec/$MODE/cmd/callback/table
The "table" element specifies that the command should display parts of the configuration in the form of
a table.
An example:
<callback>
<table>
<root>/all:config/hosts/host</root>
<item>
<width>20</width>
<header>NAME</header>
<path>name</path>
<align>lefg</align>
854
clispec
</item>
<item>
<header>DOMAIN</header>
<path>domain</path>
</item>
<item>
<header>IP</header>
<path>interfaces/interface/ip</path>
<align>right</align>
</item>
</table>
</callback>
/clispec/$MODE/cmd/callback/table/root (xs:string)
Should be a path to a list element. All item paths in the table are relative to this path.
/clispec/$MODE/cmd/callback/table/legend (xs:string)
Should be a legend template to display before showing the table.
/clispec/$MODE/cmd/callback/table/footer (xs:string)
Should be a footer template to display after showing the table.
/clispec/$MODE/cmd/callback/table/item
Specifies a column in the table. It contains a "header" element and a "path" element, and optionally a
"width" element.
/clispec/$MODE/cmd/callback/table/item/header (xs:string)
Header of this column in the table.
/clispec/$MODE/cmd/callback/table/item/path (xs:string)
Path to the element in this column.
/clispec/$MODE/cmd/callback/table/item/width (xs:integer)
The width in characters of this column.
/clispec/$MODE/cmd/callback/table/item/align (left|right|
center)
The data alignment of this column.
/clispec/$MODE/cmd/callback/capi
The "capi" element specifies that the command is implemented using C-API using the same API as for
actions. It contains one "cmdpoint" element.
An example:
855
clispec
<callback>
<capi>
<cmdpoint>adduser</cmdpoint>
</capi>
</callback>
/clispec/$MODE/cmd/callback/capi/cmdpoint (xs:NCName)
The "cmdpoint" element specifies the name of the C-API action to be called. For this to work, a actionpoint
must be registered with the ConfD daemon at startup.
/clispec/$MODE/cmd/callback/exec
The "exec" element specifies how the command is implemented using an executable or a shell script. It
contains (in order) one "osCommand" element, zero or one "args" elements and zero or one "options"
elements.
An example:
<callback>
<exec>
<osCommand>cp</osCommand>
<options>
<uid>confd</uid>
<wd>/var/tmp</wd>
...
</options>
</exec>
</callback>
/clispec/$MODE/cmd/callback/exec/osCommand (xs:token)
The "osCommand" element specifies the path to the executable or shell script to be called. If the command
is in the $PATH (as specified when we start the ConfD daemon) the path may just be the name of the
command.
The command is invoked as if it had been executed by exec(3), i.e. not in a shell environment such as
"/bin/sh -c ...".
/clispec/$MODE/cmd/callback/exec/args (argsType)
The "args" element specifies the arguments to use when executing the command specified by the
"osCommand" element. argsType is a space-separated list of argument strings. The built-in variables are:
"cwd", "user", "groups", "ip", "maapi", "uid", "gid", "tty", "ssh_connection", "opaque", "path", "cpath",
"ipath" and "licounter". The variable "pipecmd_XYZ" can be used to determine whether a certain builtin
pipe command has been run together with the command. Here XYZ is the name of the pipe command.
An example of such a variable is "pipecmd_include". In addition the variables "spath" and "ispath" are
available when a command is executed from a show path. For example:
<args>$(user)</args>
Will expand to the username.
856
clispec
/clispec/$MODE/cmd/callback/exec/options
The "options" element specifies how the command is be executed. It contains (in any order) zero or one
"uid" elements, zero or one "gid" elements, zero or one "wd" elements, zero or one "batch" elements, zero
or one of "interrupt" elements, and zero or one "ignoreExitValue" elements.
/clispec/$MODE/cmd/callback/exec/options/uid (idType)
[confd]
The "uid" element specifies which user id to use when executing the command. Possible values are:
confd (default) The command is run as the same user id as the ConfD daemon.
user The command is run as the same user id as the user logged in to the
CLI, i.e. we have to make sure that this user id exists as an actual
user id on the device.
root The command is run as root.
<uid> (the numerical user <uid>) The command is run as the user id <uid>.
Note: If uid is set to either "user", "root" or "<uid>" the the
ConfD daemon must have been started as root (or setuid), or the
cmdptywrapper must have setuid root permissions.
/clispec/$MODE/cmd/callback/exec/options/gid (idType)
[confd]
The "gid" element specifies which group id to use when executing the command. Possible values are:
confd (default) The command is run as the same group id as the ConfD daemon.
user The command is run as the same group id as the user logged in to
the CLI, i.e. we have to make sure that this group id exists as an
actual group on the device.
root The command is run as root.
<gid> (the numerical group
<gid>)The command is run as the group id <gid>.
Note: If gid is set to either "user", "root" or "<gid>" the the
ConfD daemon must have been started as root (or setuid), or the
cmdptywrapper must have setuid root permissions.
/clispec/$MODE/cmd/callback/exec/options/wd (xs:token)
The "wd" element specifies which working directory to use when executing the command. If not given,
the command is executed from the location of the CLI.
/clispec/$MODE/cmd/callback/exec/options/pty
(xs:boolean)
The "pty" element specifies weather a pty should be allocated when executing the command. The default
is to allocate a pty for operational and configure osCommands, but not for osCommands executing as a
pipe command. This behavior can be overridden with this parameter.
857
clispec
/clispec/$MODE/cmd/callback/exec/options/
globalNoDuplicate (xs:token)
The "globalNoDuplicate" element specifies that only one instance with the same name can be run at any one
time in the system. The command can be started either from the CLI, the Web UI or through NETCONF.
/clispec/$MODE/cmd/callback/exec/options/noInput
(xs:token)
The "noInput" element specifies that the command should not grab the input stream and consume freely
from that. This option should be used if the command should not consume input characters. If not used
then the command will eath all data from the input stream and cut-and-paste may not work as intended.
/clispec/$MODE/cmd/callback/exec/options/batch
The "batch" element makes it possible to specify that a command returns immediately but still runs in
the background, optionally generating output on stdout. An example of such a command is the standard
"monitor start" command, which prints additional data appended to a (log) file:
joe@io> monitor start /var/log/messages
joe@io>
log: Apr 10 11:59:32 earth ntpd[530]: kernel time sync enabled 2001
Ten seconds later...
log: Apr 12 01:59:02 earth sshd[26847]: error: PAM: auth error for cathy
joe@io> monitor stop /var/log/messages
joe@io>
The "batch" element contains (in order) one "group" element, an optional "prefix" element, and an optional
"noDuplicate" element. The prefix defaults to the empty string.
An example from confd .cli implementing the monitor functionality:
<cmd name="start">
...
<callback>
<exec>
<osCommand>tail</osCommand>
<args>-f -n 0</args>
<options>
...
<batch>
<group>monitor_file</group>
<prefix>log:</prefix>
<noDuplicate/>
</batch>
</options>
</exec>
</callback>
...
</cmd>
The batch group is used to kill the command as exemplified in the "execStop" element description below.
"noDuplicate" indicates that a specific file is not allowed to be monitored by several commands in parallel.
858
clispec
/clispec/$MODE/cmd/callback/exec/options/batch/group
(xs:NCName)
The "group" element attaches a group label to the command. The group label is used when defining a
"stop" command whose job it is to kill the background command. Take a look at the monitor example
above for better understanding.
The stop command is defined using a "execStop" element as described below.
/clispec/$MODE/cmd/callback/exec/options/batch/prefix
(xs:NCName)
The "prefix" element specifies a string to prepend to all lines printed by the background command. In the
monitor example above, "log:" is the chosen prefix.
/clispec/$MODE/cmd/callback/exec/options/batch/
noDuplicate
The "noDuplicate" element specifies that only a single instance of this batch command, including the
given/specified parameters, can run in the background.
/clispec/$MODE/cmd/callback/exec/options/interrupt
(interruptType) [sigkill]
The "interrupt" element specifies what should happen when the user enters ctrl-c in the CLI. Possible
values are:
sigkill (default) The command is terminated by sending the sigkill signal.
sigint The command is interrupted by the sigint signal.
sigterm The command is interrupted by the sigterm signal.
ctrlc The command is sent the ctrl-c character which is interpreted by the pty.
/clispec/$MODE/cmd/callback/exec/options/
ignoreExitValue(xs:boolean) [false]
The "ignoreExitValue" element specifies if the CLI engine should ignore the fact that the command returns
a non-zero value. Normally it signals an error on stdout if a non-zero value is returned.
/clispec/$MODE/cmd/callback/execStop
The "execStop" element specifies that a command defined by an "exec" element is to be killed.
Attributes:
batchGroup (xs:NCName) The "batchGroup" attribute is mandatory. It specifies a background
command to kill. It corresponds to a group label defined by another
"exec" command using the "batch" element.
859
clispec
An example from confd.cli which kills a background monitor session:
<cmd name="stop">
...
<callback>
<execStop batchGroup="monitor_file"/>
</callback>
...
</cmd>
/clispec/$MODE/cmd/params
The "params" element lists which parameters the CLI should prompt for. These parameters are then used as
arguments to either the CAPI callback or the OS executable command (as specified by the "capi" element
or the "exec" element, respectively). If an "args" element as well as a "params" element has been specified,
all of them are used as arguments: first the "args" arguments and then the "params" values are passed to
the CAPI callback or executable.
The "params" element contains (in order) zero or more "param" elements and zero or one "any" elements.
Attributes:
mode (list|choice) This is an optional attribute. If it is "choice" then at least "min"
and at most "max" params must be given by the user. If it is "list"
then all non-optional parameters must be given the command in the
order they appear in the list.
min (xs:nonNegativeInteger) This optional attribute defines the minumun number of parameters
from the body of the "params" element that the user must supply
with the command. It is only applicable if the mode attribute has
been set to "choice". The default value is "1".
max (xs:nonNegativeInteger |
unlimited) This optional attribute defines the maximum number of parameters
from the body of the "params" element that the user may supply
with the command. It is only applicable if the mode attribute
has been set to "choice". The default value is "1" unless multi is
specified, in which case the default is "unlimited".
multi (xs:boolean) This optional attribute controls if each parameters should be
allowed to be entered more than once. If set to "true" then each
parameter may occur multiple times. The default is "false".
An example from confd.cli which copies one file to another:
<params>
<param>
<type><file/></type>
...
</param>
<param>
<type><file/></type>
...
</param>
...
860
clispec
</params>
/clispec/$MODE/cmd/params/param
The "param" element defines the nature of a single parameter which the CLI should prompt for. It contains
(in any order) zero or one "type" element, zero or one "info" element, zero or one "help" element, zero
or one "optional" element, zero or one "name" element, zero or one "params" element, zero or one
"auditLogHide" element, zero or one "prefix" element, zero or one "flag" element, zero or one "id" element,
zero or one "hideGroup" element, and zero or one "simpleType" element and zero or one "completionId"
element.
/clispec/$MODE/cmd/params/param/type
The "type" element is optional and defines the parameter type. It contains either a "enums", "enumerate",
"void", "keypath", "file", "url_file", "simpleType", "xpath", "url_directory_file", "directory_file",
"url_directory" or a "directory" element. If the "type" element is not present, the value entered by the user
is passed unmodified to the callback.
/clispec/$MODE/cmd/params/param/type/enums (enumsType)
The "enums" element defines a list of allowed enum values for the parameter. enumsType is a space-
separated list of string enums.
An example:
<enums>for bar baz</enums>
/clispec/$MODE/cmd/params/param/type/enumerate
The "enumerate" is used to define a set of values with info text. It can contain one of more of the element
"elem".
/clispec/$MODE/cmd/params/param/type/enumerate/enum
The "enum" is used to define an enumeration value with help text. It must contain the element "name" and
optionally an "info" element and a "hideGroup" element.
/clispec/$MODE/cmd/params/param/type/enumerate/enum/
name(xs:token)
The "name" is used to define the name of an enumeration.
/clispec/$MODE/cmd/params/param/type/enumerate/enum/
info(xs:string)
The "info" is used to define the info that is displayed during completion in the CLI. The element is optional.
/clispec/$MODE/cmd/params/param/type/enumerate/enum/hideGroup(xs:string)
The "hideGroup" element makes an enum value invisible and it cannot be used even if a user knows about
its existence. The enum value will become visible when the hide group is 'unhidden' using the unhide
command.
861
clispec
/clispec/$MODE/cmd/params/param/type/void
The "void" element is used to indicate that this parameter should not prompt for a value. It can only be
used when the "name" element is used.
/clispec/$MODE/cmd/params/param/type/keypath
(keypathType)
The "keypath" element specifies that the parameter must be a keypath pointing to a configuration value.
Valid keypath values are: new or exist:
new The keypath is either an already existing configuration value or an instance value to be created.
exist The keypath must be an already existing configuration value.
/clispec/$MODE/cmd/params/param/type/key (path)
The "key" element specifies that the parameter is an instance identifier, either an existing instance or a
new. If the list has multiple key elements then they will be entered with a space in between.
The path should point to a list element, not the actual key leaf. If the list has multiple keys then they user
will be requested to enter all keys of an instance. The path may be either absolute or relative to the current
submode path. Also variables referring to key elements in the current submode path may be used, where
the closes key is named $(key-1-1), $(key-1-2) etc. Eg
/foo{key-2-1,key-2-2}/bar{key-1-1,key-1-2}/...
Attributes:
mode (keypathType) The "mode" attribute is mandatory. It specifies if the parameter refers to an
existing (exist) instance or a new (new) instance.
/clispec/$MODE/cmd/params/param/type/pattern
(patternType)
The "pattern" element specifies that the parameter must be a show command pattern. Valid pattern values
are: stats or config or all:
stats The pattern is only related to "config false" nodes in the data model. Note that CLI
modifications such as fullShowPath, incompleteShowPath etc are applied to this pattern.
config The pattern is only related to "config true" elements in the data model.
all The pattern spans over all visible nodes in the data model.
/clispec/$MODE/cmd/params/param/type/file
The "file" element specifies that the parameter is a file on disk. The CLI automatically enables tab
completion to help the user to choose the correct file.
Attributes:
wd (xs:token) The "wd" attribute is optional. It specifies a working directory to be used as the
root for the tab completion algorithm. If no "wd" attribute is specified, the working
862
clispec
directory is as defined for the "/clispec/$MODE/cmd/callback/exec/options/wd"
element.
An example:
<file wd="/var/log/"/>
/clispec/$MODE/cmd/params/param/type/url_file
The "url_file" element specifies that the parameter is a file on disk or an URL. The CLI automatically
enables tab completion to help the user to choose the correct file.
Attributes:
wd (xs:token) The "wd" attribute is optional. It specifies a working directory to be used as the
root for the tab completion algorithm. If no "wd" attribute is specified, the working
directory is as defined for the "/clispec/$MODE/cmd/callback/exec/options/wd"
element.
An example:
<file wd="/var/log/"/>
/clispec/$MODE/cmd/params/param/type/simpleType
The "simpleType" element specifies that the parameter should conform to some specific simpleType
specified in a namespace. It can contain zero or one "info" element
Attributes:
namespace (xs:string) The "namespace" attribute is required. It specifies in which
namespace the type is found. It can be either the namespace URI
or the namespace prefix.
name (xs:string) The "name" attribute is required. It specifies the name of the type
in the given namespace.
disallowValue (xs:string) The "disallowValue" attribute is optional. It specifies a regular
expression of unaccepted values.
An example:
<simpleType namespace="<ulink url='http://tail-f.com/ns/confd/1.0'>http://tail-f.com/ns/confd/1.0</ulink>"
name="inetAddressIP"/>
/clispec/$MODE/cmd/params/param/type/simpleType/info
The "info" element contains a single line describing the simpleType that will appear during auto-
completion. Note that this will override any other info texts provided by this type.
/clispec/$MODE/cmd/params/param/type/xpath
The "xpath" element specifies that the parameter should conform to one of the values returned by the xpath
expression given as attribute.
863
clispec
Attributes:
expr (xs:string) The "expr" attribute is required. It specifies an xpath expression that returns
a set of valid values for this parameter. The expression may contain variables
defined in the dict.
ctx (xs:string) The "ctx" attribute is optional. It specifies the context for the evaluation of the
xpath expression. The path may contain variables defined in the dict.
lax (xs:boolean) The "lax" attribute is optional. It specifies if the given value should be checked
against the values given by the xpath expression. The default is "true" which
means that tab completion will present the values given by the xpath expression
but the parser will accept any value. This makes parsing a bit faster. When lax
is set to "false" a syntax error will be generated if an unexisting value is given
as parameter.
An example:
<params>
<param>
<name>host</name>
<type>
<xpath expr="/simpleObjects/hosts/host/name" lax="false" />
</type>
<flag>--host</flag>
<id>hostname</id>
</param>
<param>
<name>server</name>
<type>
<xpath expr="servers/server/name"
ctx="/simpleObjects/hosts/host{$(hostname)}"/>
</type>
<flag>--server</flag>
</param>
</params>
/clispec/$MODE/cmd/params/param/type/directory
The "directory" element specifies that the parameter is a directory on disk. The CLI automatically enables
tab completion to help the user choose the correct directory.
Attributes:
wd (xs:token) The "wd" attribute is optional. It specifies a working directory to be used as the
root for the tab completion algorithm. If no "wd" attribute is specified, the working
directory is as defined for the "wd" element.
An example:
<directory wd="/var/log/"/>
/clispec/$MODE/cmd/params/param/type/url_directory
The "url_directory" element specifies that the parameter is a directory on disk or an URL. The CLI
automatically enables tab completion to help the user choose the correct directory.
864
clispec
Attributes:
wd (xs:token) The "wd" attribute is optional. It specifies a working directory to be used as the
root for the tab completion algorithm. If no "wd" attribute is specified, the working
directory is as defined for the "wd" element.
An example:
<directory wd="/var/log/"/>
/clispec/$MODE/cmd/params/param/type/directory_file
The "directory_file" element specifies that the parameter is a directory or a file on disk. The CLI
automatically enables tab completion to help the user choose the correct directory or file.
An example:
<directory_file/>
/clispec/$MODE/cmd/params/param/type/
url_directory_file
The "url_directory_file" element specifies that the parameter is a directory or a file on disk or an URL.
The CLI automatically enables tab completion to help the user choose the correct directory or file.
An example:
<directory_file/>
/clispec/$MODE/cmd/params/param/info (xs:string)
The "info" element is a single text line describing the parameter.
An example:
<cmd name="id" mount="">
<info>Find uid and groups of a user</info>
<help>Find uid and groups of a user, using the id program</help>
<callback>
<exec>
<osCommand>id</osCommand>
</exec>
</callback>
<params>
<param>
<info>User name</info>
<help>User name</help>
</param>
</params>
</cmd>
and when we do the following in the CLI we get:
joe@x15> id <TAB>
865
clispec
User name
joe@x15> id snmp
uid=108(snmp) gid=65534(nogroup) groups=65534(nogroup)
[ok][2006-08-30 14:51:28]
Note: This description is only shown if the "type" element is left out.
/clispec/$MODE/cmd/params/param/help (xs:string)
The "help" element is a multi-line text string describing the parameter. This text is shown when we use
the '?' character.
/clispec/$MODE/cmd/params/param/hideGroup (xs:string)
The "hideGroup" element makes a CLI parameter invisible and it cannot be used even if a user knows
about its existence. The parameter will become visible when the hide group is 'unhidden' using the unhide
command.
This mechanism correspond to the 'tailf:hidden' statement in a YANG module.
/clispec/$MODE/cmd/params/param/name (xs:token)
The "name" element is a token which has to be entered by the user before entering the actual parameter
value. It is used to get named parameters.
An example:
<cmd name="copy" mount="file">
<info>Copy a file</info>
<help>Copy a file from one location to another in the file system</help>
<callback>
<exec>
<osCommand>cp</osCommand>
<options>
<uid>user</uid>
</options>
</exec>
</callback>
<params>
<param>
<type><file/></type>
<info>&amp;lt;source file&amp;gt;</info>
<help>source file</help>
<name>from</name>
</param>
<param>
<type><file/></type>
<info>&amp;lt;destination file&amp;gt;></info>
<help>destination file</help>
<name>to</name>
</param>
</params>
</cmd>
The result is that the user has to enter
file copy from /tmp/orig to /tmp/copy
866
clispec
/clispec/$MODE/cmd/params/param/prefix (xs:string)
The "prefix" element is a string that is prepended to the argument before calling the osCommand. This can
be used to add Unix style command flags in front of the supplied parameters.
An example:
<cmd name="ssh">
<info>Open a secure shell on another host</info>
<help>Open a secure shell on another host</help>
<callback>
<exec>
<osCommand>ssh</osCommand>
<options>
<uid>user</uid>
<interrupt>ctrlc</interrupt>
</options>
</exec>
</callback>
<params>
<param>
<info>&amp;lt;login&amp;gt;</info>
<help>Users login name on host</help>
<name>user</name>
<prefix>--login=</prefix>
</param>
<param>
<info>&amp;lt;host&amp;gt;</info>
<help>host name or IP</help>
<name>host</name>
</param>
</params>
</cmd>
The user would enter for example
ssh user joe host router.intranet.net
and the resulting call to the ssh executable would become
ssh --login=joe router.intranet.net
/clispec/$MODE/cmd/params/param/flag (xs:string)
The "flag" element is a string that is prepended to the argument before calling the osCommand. In contrast
to the prefix element it will not be appended to the current parameter, but instead appear as a separate
argument, ie instead of adding a unix style flag as "--foo=" (prefix) you add arguments in the style of
"-f <param>" where -f is one arg and <param> is another. Both <prefix> and <flag> can be used at the
same time.
An example:
<cmd name="ssh">
<info>Open a secure shell on another host</info>
<help>Open a secure shell on another host</help>
867
clispec
<callback>
<exec>
<osCommand>ssh</osCommand>
<options>
<uid>user</uid>
<interrupt>ctrlc</interrupt>
</options>
</exec>
</callback>
<params>
<param>
<info>&amp;lt;login&amp;gt;</info>
<help>Users login name on host</help>
<name>user</name>
<flag>-l</flag>
</param>
<param>
<info>&amp;lt;host&amp;gt;</info>
<help>host name or IP</help>
<name>host</name>
</param>
</params>
</cmd>
The user would enter for example
ssh user joe host router.intranet.net
and the resulting call to the ssh executable would become
ssh -l joe router.intranet.net
/clispec/$MODE/cmd/params/param/id (xs:string)
The "id" is used for identifying the value of the parameter and can be used as a variable in the value of
a key parameter.
An example:
<cmd name="test">
<info/>
<help/>
<callback>
<exec>
<osCommand>/bin/echo</osCommand>
</exec>
</callback>
<params>
<param>
<name>host</name>
<id>h</id>
<type><key mode="exist">/host</key></type>
</param>
<param>
<name>interface</name>
<type><key mode="exist">/host{$(h)}/interface</key></type>
</param>
868
clispec
</params>
</cmd>
There are also three builtin variables: user, uid and gid. The id and the builtin variables can be used in
when specifying the path value of a key parameter, and also when specifying the wd attribute of the file,
url_file, directory, and url_directory.
/clispec/$MODE/cmd/params/param/callback/capi
Specifies that the parameter completion should be calculated through a callback function. It contains
exactly one "completionpoint" element.
/clispec/$MODE/cmd/params/param/callback/capi/
completionpoint (xs:string)
Specifies the callpoint name of the completion function.
/clispec/$MODE/cmd/params/param/auditLogHide
The "auditLogHide" element specifies that the parameter should be obfuscated in the audit log. This is
suitable when clear text passwords are passed as command parameters.
/clispec/$MODE/cmd/params/param/optional
The "optional" element specifies that the parameter is optional and not required. It contains zero or one
"default" element. It cannot be used inside a params of type "choice".
/clispec/$MODE/cmd/params/param/optional/default
The "default" element makes it possible to specify a default value, should the parameter be left out.
An example:
<optional>
<default>42</default>
</optional>
/clispec/$MODE/cmd/params/param/completionId xs:string
The "completionId" element makes it possible to identify a specific parameter whenever it is referred to
from a completion callback, i.e. a completion callback takes an optional completion ID parameter as input.
Read more about completion callbacks in the confd_lib_dp(3) manual page and in the "The CLI agent"
User Guide chapter.
/clispec/$MODE/cmd/params/any
The "any" element specifies that any number of parameters are allowed. It contains (in any order) one
"info" element and one "help" element.
/clispec/$MODE/cmd/params/any/info (xs:string)
The "info" element is a single text line describing the parameter(s) expected.
An example:
869
clispec
<cmd name="evaluate" mount="">
<info>Evaluate an arithmetic expression</info>
<help>Evaluate an arithmetic expression, using the expr program</help>
<callback>
<exec>
<osCommand>expr</osCommand>
</exec>
</callback>
<params>
<any>
<info>Arithmetic expression</info>
<help>Arithmetic expression</help>
</any>
</params>
</cmd>
and when we do the following in the CLI we get:
joe@xev> eva<TAB>
joe@xev> evaluate <TAB>
Arithmetic expression
joe@xev> evaluate 2 + 5
7
[ok][2006-08-30 14:47:17]
/clispec/$MODE/cmd/params/any/help (xs:string)
The "help" element is a multi-line text string describing these anonymous parameters. This text is shown
we use the '?' character.
/clispec/$MODE/cmd/options
The "options" element specifies under what circumstances the CLI command should execute. It
contains (in any order) zero or one "hidden" element, zero or one "hideGroup" element, zero or one
"denyRunAccess" element, zero or one "notInterruptible" element, zero or one "pipeFlags" element, zero
or one "negPipeFlags" element, zero or one of "submodeCommand" and "topModeCommand", zero or
one of "displayWhen" element, and zero or one "paginate" element.
/clispec/$MODE/cmd/options/hidden
The "hidden" element makes a CLI command invisible even though it can be evaluated if we know about
its existence. This comes handy for commands which are used for debugging or are in pre-release state.
/clispec/$MODE/cmd/options/hideGroup (xs:string)
The "hideGroup" element makes a CLI command invisible and it cannot be used even if a user knows
about its existence. The command will become visible when the hide group is 'unhidden' using the unhide
command.
This mechanism correspond to the 'tailf:hidden' statement in a YANG module.
/clispec/operationalMode/cmd/options/denyRunAccess
The "denyRunAccess" element is used to restrict the possibility to run an operational mode command from
configure mode.
870
clispec
Comment: The built-in "run" command is used to execute operational mode commands from configure
mode.
/clispec/$MODE/cmd/options/displayWhen
The "displayWhen" element can be used to add a displayWhen XPath condition to a command.
Attributes:
expr (xpath expression) The "expr" attribute is mandatory. It specifies an xpath expression.
If the expression evaluates to true then the command is available,
otherwise not.
ctx (path) The "ctx" attribute is optional. If not specified the current editpath/
mode-path is used as context node for the xpath evaluation. Note
that the xpath expression will automatically evaluate to false if a
display when expression is used for a top-level command and no ctx
is specified. The path may contain variables defined in the dict.
/clispec/$MODE/cmd/options/notInterruptible
The "notInterruptible" element disables <ctrl-c> and the execution of the CLI command can thus not be
interrupted.
/clispec/$MODE/cmd/options/submodeCommand
The "submodeCommand" element makes a CLI command visible in all submodes.
/clispec/$MODE/cmd/options/topModeCommand
The "topModeCommand" element prevents a command mounted under a top mode command from being
visible in all submodes.
/clispec/$MODE/cmd/options/pipeFlags
The "pipeFlags" element is used to signal that certain pipe commands should be made available if this
command is entered.
/clispec/$MODE/cmd/options/negPipeFlags
The "negPipeFlags" element is used to signal that certain pipe commands should not be made available if
this command is entered, ie it is used to block out specific pipe commands.
/clispec/$MODE/cmd/options/paginate
The "paginate" element enables a filter for paging through CLI command output text one screen at a time.
SEE ALSO
The ConfD User Guide confdc(1) - Confdc compiler confd_lib_dp(3) - callback library for connecting to
ConfD confd.cli - The standard ConfD CLI commands. clispec.xsd - A W3C XML schema (http://
tail-f.com/ns/clispec/1.0) describing a clispec.
871
Nameconfd.conf — ConfD daemon configuration file format
DESCRIPTION
Whenever we start (or reload) the ConfD daemon it reads its configuration from /etc/confd/
confd.conf or from the file specified with the -c option, as described in confd(1).
confd.conf is an XML configuration file formally defined by a W3C XML Schema, as referred to
in the SEE ALSO section. This schema file is included in the distribution. The ConfD distribution also
includes a commented confd.conf.example file.
Tip
In the ConfD distribution there is an Emacs mode suitable for confd.conf editing.
A short example: A ConfD configuration file which specifies where to find compiled YANG files etc,
which facility to use for syslog, that the developer log should be disabled and that the audit log should be
enabled. Finally, it also disables clear text NETCONF support:
<?xml version="1.0" encoding="UTF-8"?>
<confdConfig xmlns="http://tail-f.com/ns/confd_cfg/1.0">
<loadPath>
<dir>/etc/confd</dir>
</loadPath>
<stateDir>/var/confd/state</stateDir>
<cdb>
<enabled>true</enabled>
<dbDir>/var/confd/cdb</dbDir>
</cdb>
<aaa>
<sshServerKeyDir>/etc/confd/ssh</sshServerKeyDir>
</aaa>
<datastores>
<startup>
<enabled>false</enabled>
</startup>
<candidate>
<filename>/var/confd/candidate/candidate.db</filename>
</candidate>
</datastores>
<logs>
<syslogConfig>
<facility>daemon</facility>
</syslogConfig>
<developerLog>
<enabled>false</enabled>
</developerLog>
<auditLog>
<enabled>true</enabled>
</auditLog>
</logs>
872
confd.conf
<netconf>
<transport>
<tcp>
<enabled>false</enabled>
</tcp>
</transport>
</netconf>
<webui>
<transport>
<tcp>
<enabled>false</enabled>
<ip>0.0.0.0</ip>
<port>8008</port>
</tcp>
</transport>
</webui>
</confdConfig>
Many configuration parameters get their default values as defined in the schema. Filename parameters
have no default values.
CONFIGURATION PARAMETERS
This section lists all available configuration parameters and their type (within parenthesis) and default
values (within square brackets). Parameters are written using a path notation to make it easier to see how
they relate to each other:
/confdConfig
The top-level element.
/confdConfig/confdIpcAddress/ip
ConfD listens by default on 127.0.0.1:4565 for incoming TCP connections from CDB, MAAPI, the
CLI, the external database API, as well as commands from the confd script (such as "confd --reload").
This value and port (below) can be changed. If they are changed all clients using MAAPI, CDB et.c.
must be re-compiled to handle this. See the ConfD IPC section in the Advanced Topics chapter in
the User Guide on how to do this.
Note that there are severe security implications involved if ConfD is instructed to bind(2) to anything
but localhost. Read more about this in the ConfD IPC section in the Advanced Topics chapter in the
User Guide. Use the IP 0.0.0.0 if you want ConfD to to listen(2) on all IPv4 addresses.
/confdConfig/confdIpcAddress/port
The port number where ConfD listens for incoming connections from CDB, the CLI and the external
database API.
/confdConfig/confdIpcExtraListenIp (inet:ip-address)
A list of additional IPs to which we wish to bind the ConfD IPC listener. This is useful if we don't
want to use the wildcard 0.0.0.0 address in order to never expose the ConfD IPC to certain interfaces.
/confdConfig/confdExternalIpc/enabled (boolean) [false]
Enables a user-provided IPC mechanism. ConfD can be set up to use a different protocol than TCP
for the IPC connections, see the ConfD IPC section in the Advanced Topics chapter in the User Guide
for the details.
873
confd.conf
/confdConfig/confdExternalIpc/address (string)
The address where ConfD should listen for incoming connections from CDB, MAAPI, etc, when the
user-provided IPC mechanism is enabled. See the ConfD IPC section in the Advanced Topics chapter
in the User Guide for further details.
/confdConfig/confdIpcListenBacklog (int32) [25]
The maximum length to which the queue of pending connections for the IPC sockets may grow (see
the OS manual page for listen(2)). If a very large number of applications connect to ConfD more or
less simultaneously at startup, this value may need to be raised to avoid connection failures.
Note
The OS may restrict the length to a lower value, e.g. on Linux it is silently truncated to the
value in /proc/sys/net/core/somaxconn - i.e. this value may also need to be raised.
/confdConfig/confdIpcAccessCheck/enabled (boolean) [false]
Enables access check for incoming connections to the IPC listener sockets. The access check requires
that connecting clients prove possession of a shared secret. See the section Restricting access to the
IPC port in the Advanced Topics chapter in the User Guide for the details.
/confdConfig/confdIpcAccessCheck/filename (string)
The full path to a file containing the shared secret for the IPC access check. The file should be protected
via OS file permissions, such that it can only be read by the ConfD daemon and client processes that
are allowed to connect to the IPC listener sockets. See the section Restricting access to the IPC port
in the Advanced Topics chapter in the User Guide for further details.
/confdConfig/runtimeReconfiguration (config-file|namespace) [config-
file]
Controls whether ConfD should find run-time modifiable configuration parameters in the
configuration file (config-file setting) or whether ConfD should them from a namespace with the data
stored in CDB. See further the Advanced Topics chapter in the Users Guide as well as the confdconf/
dyncfg example in the example collection.
/confdConfig/ignoreBindErrors/enabled (boolean) [false]
enabled is either "true" or "false". By default (false) Confd will refuse to start if any of its nortbound
agents fails to bind their respective ports. When enabled, this parameter forces Confd to ignore that
fatal error situation and instead it just issues a warning and disables the failing agent. The agent may
be enabled by dynamically re-configuring the failing agent to use another port and restart Confd.
/confdConfig/enableSharedMemorySchema (boolean) [false]
is either "true" or "false". If "true", then a C program will be started that loads the schema into shared
memory, which then can be accessed by the C and Python APIs.
/confdConfig/sharedMemorySchemaExecutable (string)
the executable that setup the shared memory holding the schema. If left unconfigured, the
included executable $CONFD_DIR/lib/confd/lib/core/confd/priv/mmap_schema is used. Using
mmap_schema means ConfD creates and maintains the backing file, meaning that you don't have to
write your own application. Note that if the value is configured, it must be specified as an absolute
path (i.e containing the root directory and all other subdirectories leading to the executable).
/confdConfig/loadPath/dir
The loadPath element contains any number of dir elements. Each dir element points to a directory
path on disk which is searched for compiled YANG files (.fxs files), and compiled clispec files (.ccl
file) during daemon startup.
874
confd.conf
/confdConfig/stateDir
This is where ConfD writes persistent state data. Currently the only state files are 'running.invalid'
which exists only if the running database status is invalid, which it will be if one of the database
implementation fails during the two-phase commit protocol, and 'global.data' which is used to store
some data that needs to be retained across reboots.
/confdConfig/commitRetryTimeout(xs:duration|infinity) [PT0S]
Commit timeout in the ConfD backplane. This timeout controls for how long the commit operation
will attempt to complete the operation when some other entity is locking the database, e.g. some other
commit is in progress or some managed object is locking the database.
/confdConfig/maxValidationErrors(uint32|unbounded) [1]
Controls how many validation errors are collected and presented to the user at a time when the user
performs a validate or commit operation. Note that syntactical errors are detected and reported when
the data is entered, and thus not covered by this parameter.
/confdConfig/hideGroup - container element
Hide groups that can be unhidden must be listed here. Multiple hideGroup entries are allowed in the
confd.conf file.
If a hide groups does not have a hideGroup entry, then it cannot be unhidden using the CLI 'unhide'
command. However, it is possible to add a hideGroup entry to the confd.conf file and then use confd
--reload to make it available in the CLI. This may be useful to enable for example a diagnostics hide
groups that you do not event want accessible using a password.
/confdConfig/hideGroup/name (string)
Name of hide group. This name should correspond to a hide group name in some data model.
/confdConfig/hideGroup/password (string) []
A password can optionally be specified for a hide group. If no password or callback is given then the
hide group can be unhidden without giving a password.
If a password is specified then the hide group cannot be enabled unless the password is entered.
To completely disable a hide group, ie make it impossible to unhide it, remove the entire hideGroup
container for that hide group.
/confdConfig/hideGroup/callback (string) []
A callback can optionally be specified for a hide group. If no callback or password is given then the
hide group can be unhidden without giving a password.
If a callback is specified then the hide group cannot be enabled unless a password is entered and the
callback successfully verifies the password. Using a callback it is possible to have short lived unhide
passwords and per-user unhide passwords.
The callback must be registered as a command() callback with
confd_register_action_cbs(), see confd_lib_dp(3). The path argument to the callback is
always "hidegroup", while argv[0] is the name of the hide group, argv[1] is the name of the
user issuing the unhide command, and argv[2] is the given password. The callback should return
CONFD_OK to allow the unhiding, otherwise CONFD_ERR.
/confdConfig/cdb/enabled (boolean) [false]
enabled is either "true" or "false". If "false", CDB is disabled.
/confdConfig/cdb/persistent (boolean) [true]
If persistent is set to false CDB will operate in RAM-only mode. This is only applicable for permanent
slave nodes, i.e. slaves that are unable to become master, in a HA cluster.
875
confd.conf
/confdConfig/cdb/journalCompaction (automatic|manual) [automatic]
Controls the way the CDB configuration store does its journal compaction. Never set to anything but
the default 'automatic' unless there is an external mechanism which controls the compaction using the
cdb_initiate_journal_compaction() API call.
/confdConfig/cdb/dbDir (string)
dbDir is the directory on disk which CDB use for its storage and any temporary files being used. It is
also the directory where CDB searches for initialization files.
/confdConfig/cdb/initPath
The initPath can contain any number of <dir> items, which should be directories. When CDB first
starts it will first look in these directories for initialization files. The directories will be searched in
the order they are listed, lastly the dbDir is searched.
/confdConfig/cdb/clientTimeout (xs:duration|infinity) [infinity]
clientTimeout specifies how long CDB should wait while a client performs a certain action, before
considering that client unresponsive. When set to infinity, CDB will never timeout waiting for a
response from a client. A client which doesn't respond will have its socket closed. The timeout is
applied to clients in the following situations:
When a reader client calls cdb_start_session() it must end it with cdb_end_session()
within the timeout period.
When a subscription client receives a subscription notification, it must respond with a call to
cdb_sync_subscription_socket() within the timeout period.
/confdConfig/cdb/subscriptionReplay/enabled (boolean) [false]
By setting subscriptionReplay/enabled to true it is possible to use the
cdb_replay_subscriptions() to “replay” the previously committed transaction to CDB
subscribers. This means that CDB subscribers that miss one subscription notification can have it
triggered again. CDB will save the previous transaction in a separate file in the dbDir.
/confdConfig/cdb/replication (async|sync) [sync]
When CDB replication is enabled (which it is when high-availability mode is enabled, see /
confdConfig/ha) the CDB configuration stores can be replicated either asynchronously or
synchronously. With asynchronous replication, a transaction updating the configuration is allowed to
complete as soon as the updates have been sent to the connected slaves. With the default synchronous
replication, the transaction is suspended until the updates have been completely propagated to the
slaves, and the subscribers on the slaves (if any) have acknowledged their subscription notifications
(see confd_lib_cdb(3)).
/confdConfig/cdb/operational - container element
Operational data can either be implemented by external callbacks, or stored in CDB (or a combination
of both). The operational datastore is used when data is to be stored in CDB.
/confdConfig/cdb/operational/enabled (boolean) [false]
Whether to enable storage of operational data in CDB.
/confdConfig/cdb/operational/dbDir (string)
By default CDB operational uses the same directory for its storage. Use this setting to make CDB
operational use a separate directory.
/confdConfig/cdb/operational/persistent (confspec|always|never) [confspec]
By default the decision on how operational data in CDB is stored (persistent or volatile) is
decided for each element in the YANG data model, via the tailf:persistent substatement to
876
confd.conf
tailf:cdb-oper, see tailf_yang_extensions(5) It is possible to override this by using this setting
in confd.conf. If "never", CDB will only keep the operational datastore in RAM. And if set to "always"
all CDB stored operational data will be persistently backed to a file.
/confdConfig/cdb/operational/replication (always|never|persistent) [persistent]
When CDB replication is enabled (which it is when high-availability mode is enabled, see /
confdConfig/ha) the CDB operational store can optionally be replicated too. When set to "persistent",
only persistent operational data is replicated. When set to "never", CDB operational is never replicated.
Using "always" means that both persistent and non-persistent data is replicated. Note however that
non-persistent data is only replicated to connected slaves at the time of writing. I.e. when a new slave
connects to the master, only the persistent data is synchronized from the master, even if "always" is
used.
/confdConfig/cdb/operational/replicationMode (async|sync) [async]
When CDB replication is enabled (which it is when high-availability mode is enabled, see /
confdConfig/ha) the replication of the CDB operational store (according to /confdConfig/cdb/
operational/replication) can be done either asynchronously or synchronously. With the
default asynchronous replication, an API call writing operational data will return as soon as the updates
have been sent to the connected slaves. With synchronous replication, the API call will block until
the updates have been completely propagated to the slaves.
/confdConfig/ha/enabled (boolean) [false]
Enables the high-availability mode.
/confdConfig/ha/ip (inet:ip-address) [0.0.0.0]
Defines which IP address ConfD should use for incoming requests from other HA nodes.
/confdConfig/ha/port (inet:port-number) [4569]
Defines which port number confd should use for incoming requests from other HA nodes.
/confdConfig/ha/externalIpc/enabled (boolean) [false]
Enables a user-provided IPC mechanism for the communication between HA nodes. See the ConfD
IPC section in the Advanced Topics chapter in the User Guide for further details.
/confdConfig/ha/externalIpc/address (string)
The address ConfD should use for incoming requests from other HA nodes when the user-provided
IPC mechanism is enabled. See the ConfD IPC section in the Advanced Topics chapter in the User
Guide for further details.
/confdConfig/ha/tickTimeout (xs:duration) [PT20S]
Defines the timeout between keepalive ticks sent between HA nodes. The special value "PT0" means
that no keepalive ticks will ever be sent.
/confdConfig/encryptedStrings - container element
encryptedStrings defines keys used to encrypt strings adhering to the types tailf:des3-cbc-encrypted-
string and tailf:aes-cfb-128-encrypted-string as defined in the tailf-common YANG module, see the
confd_types(3) manual page.
/confdConfig/encryptedStrings/DES3CBC/key1 (hex8Value), /confdConfig/
encryptedStrings/DES3CBC/key2 (hex8Value), /confdConfig/encryptedStrings/
DES3CBC/key3 (hex8Value), /confdConfig/encryptedStrings/DES3CBC/initVector
(hex8Value)
In the DES3CBC case three 64 bits (8 bytes) keys and a random initial vector are used to encrypt the
string. The initVector element is only used when upgrading from versions before ConfD-6.2, but it
is kept for backward compatibility reasons.
877
confd.conf
/confdConfig/encryptedStrings/AESCFB128/key (hex16Value), /confdConfig/
encryptedStrings/AESCFB128/initVector (hex16Value)
In the AESCFB128 case one 128 bits (16 bytes) key and a random initial vector are used to encrypt
the string. The initVector element is only used when upgrading from versions before ConfD-6.2, but
it is kept for backward compatibility reasons.
/confdConfig/cryptHash - container element
cryptHash specifies how cleartext values should be hashed for leafs of the types ianach:crypt-hash,
tailf:sha-256-digest-string, and tailf:sha-512-digest-string - see the confd_types(3) manual page.
/confdConfig/cryptHash/algorithm (md5|sha-256|sha-512) [md5]
algorithm can be set to one of the values 'md5', 'sha-256', or 'sha-512', to choose the corresponding
hash algorithm for hashing of cleartext values for the ianach:crypt-hash type.
/confdConfig/cryptHash/rounds (unit32 > 999) [5000]
For the 'sha-256' and 'sha-512' algorithms for the ianach:crypt-hash type, and for the tailf:sha-256-
digest-string and tailf:sha-512-digest-string types, 'rounds' specifies how many times the hashing loop
should be executed. If a value other than the default 5000 is specified, the hashed format will have
'rounds=N$', where N is the specified value, prepended to the salt. This parameter is ignored for the
'md5' algorithm for ianach:crypt-hash.
/confdConfig/logs - container element
This section defines settings which affect the logging done by ConfD.
/confdConfig/logs/syslogConfig
Shared settings for how to log to syslog. Logs (see below) can be configured to log to file and/or
syslog. If a log is configured to log to syslog, the settings under /confdConfig/logs/syslogConfig are
used used.
/confdConfig/logs/syslogConfig/version (bsd|1) [bsd]
version is either "bsd" (traditional syslog) or "1" (new IETF syslog format: RFC 5424). "1" implies
that /confdConfig/logs/syslogConfig/udp/enabled must be set to true.
/confdConfig/logs/syslogConfig/facility (daemon|authpriv|local0|...|local7|uint32)
[daemon]
facility is either "daemon", "authpriv", "local0", ..., "local7" or an unsigned integer. This facility
setting is the default facility and applies if no explicit facility is set for a log. It's also possible to
set individual facilities in the different logs below. Furthermore with the syslogServers container
described below it is possible to set default facility on a per server basis. If facility is explicitly set
for a log type, that item is used.
/confdConfig/logs/syslogConfig/udp container
Is a container for UDP syslog. This container can only contain the configuration for a single
UDP syslog server. If we need more than one syslog server we must use the /confdConfig/logs/
syslogConfig/syslogServers container instead. If the udp container is used, the syslogServers container
is ignored.
/confdConfig/logs/syslogConfig/udp/enabled (boolean) [false]
enabled is either "true" or "false". If "false", messages will be sent to the local syslog daemon.
/confdConfig/logs/syslogConfig/udp/host (inet:host)
host is either a domain name or an IPv4/IPv6 network address. UDP syslog messages are sent to this
host.
/confdConfig/logs/syslogConfig/udp/port (inet:port-number) [514]
port is a valid port number to be used in combination with /confdConfig/logs/syslogConfig/udp/host.
878
confd.conf
/confdConfig/logs/syslogConfig/syslogServers - container
We can have an arbitrary long list of syslog servers defined. As mentioned above, the use of the
syslogServers container is an complementary alternative to the udp container.
/confdConfig/logs/syslogConfig/syslogServers/server/host (inet:host)
host is either a domain name or an IPv4/IPv6 network address. UDP syslog messages are sent to this
host.
/confdConfig/logs/syslogConfig/syslogServers/server/port (inet:port-number)
[514]
port is a valid port number to be used in combination with this syslog server
/confdConfig/logs/syslogConfig/syslogServers/server/version (bsd|1) [bsd]
Version of syslog messages for this syslog server.
/confdConfig/logs/syslogConfig/syslogServers/server/facility (daemon|
local0|...|local7|uint32) [daemon]
Facility of syslog messages for this syslog server.
/confdConfig/logs/syslogConfig/syslogServers/server/enabled (true|false)
[true]
Is this syslog server enabled.
/confdConfig/logs/confdLog - container element
confdLog is ConfD's daemon log. Check this log for startup problems of the ConfD daemon itself.
This log is not rotated, i.e. use logrotate(8).
/confdConfig/logs/confdLog/enabled (boolean) [true]
enabled is either "true" or "false". If "true", the log is enabled. This configuration parameter takes
effect for both existing and new sessions.
/confdConfig/logs/confdLog/file/enabled (boolean) [false]
enabled is either "true" or "false". If "true", file logging is enabled.
/confdConfig/logs/confdLog/file/name (string)
name is the full path to the actual log file.
/confdConfig/logs/confdLog/syslog/enabled (boolean) [false]
enabled is either "true" or "false". If "true", syslog messages are sent.
/confdConfig/logs/confdLog/syslog/facility (daemon|authpriv|local0|...|local7|
uint32)[]
facility is either "daemon", "authpriv", "local0", ..., "local7" or an unsigned integer. This optional
value overrides the /confdConfig/logs/syslogConfig/facility for this particular log
/confdConfig/logs/developerLog - container element
developerLog is a debug log for troubleshooting user-written C code, AAA rules etc. Enable and check
this log for problems with validation code etc. This log is enabled by default. In all other regards it
can be configured as confdLog. This log is not rotated, i.e. use logrotate(8).
/confdConfig/logs/developerLogLevel (error|info|trace) [info]
Controls which level of developer messages are printed in the developer log. This configuration
parameter takes effect for both existing and new sessions.
/confdConfig/logs/auditLog - container element
auditLog is an audit log recording successful and failed logins to the ConfD backplane. This log is
enabled by default. In all other regards it can be configured as /confdConfig/logs/confdLog. This log
is not rotated, i.e. use logrotate(8).
879
confd.conf
/confdConfig/logs/auditLogCommit (boolean) [false]
Controls whether the audit log should include messages about the resulting configuration changes for
each commit to the running data store. This configuration parameter takes effect for both existing and
new sessions. If set to "true", the audit log will include entries of the form:
commit thandle <N> begin [confirmed [extended]]
commit thandle <N> comment <comment>
commit thandle <N> label <label>
commit thandle <N> <path> created
commit thandle <N> <path> deleted
commit thandle <N> <path> moved first
commit thandle <N> <path> moved after {<keys>}
commit thandle <N> <path> set to "<value>"
commit thandle <N> <path> default set (<value>)
commit thandle <N> <path> attribute "<name>" set to "<value>"
commit thandle <N> <path> attribute "<name>" deleted
commit thandle <N> end
commit confirmed completed
commit confirmed canceled
The "commit thandle <N> begin" entry indicates the start of a commit for the transaction with handle
N. This is followed by a "commit thandle <N> comment <comment>" entry and/or a "commit thandle
<N> label <label>" entry if a commit comment and/or label was given, then a number of "commit
thandle <N> <path> ..." entries detailing the changes, and finally a "commit thandle <N> end" entry.
If "begin" is followed by "confirmed", it means that the changes are part of a confirmed commit that
will not be permanent until a "commit confirmed completed" entry is logged - if "commit confirmed
canceled" is logged instead, the changes have been reverted. If "begin confirmed" is followed by
"extended", it means that the changes are part of a confirmed commit that extends a confirmed commit
that is already in progress.
/confdConfig/logs/snmpLog - container element
snmpLog is a log for tracing SNMP requests and responses. This log is disabled by default. In all
other regards it can be configured as /confdConfig/logs/confdLog. This log is not rotated, i.e. use
logrotate(8).
/confdConfig/logs/snmpLogLevel (error|info) [info]
Controls which level of SNMP pdus are printed in the SNMP log. The value "error" means that only
PDUs with error-status not equal to "noError" are printed.
/confdConfig/logs/netconfLog - container element
netconfLog is a log for troubleshooting NETCONF operations, such as checking why e.g. a filter
operation didn't return the data requested. This log is enabled by default. In all other regards it can be
configured as /confdConfig/logs/confdLog. This log is not rotated, i.e. use logrotate(8).
/confdConfig/logs/netconfLog/enabled (boolean) [false]
enabled is either "true" or "false". If "true", NETCONF logging is performed. This configuration
parameter takes effect for both existing and new sessions.
/confdConfig/logs/netconfTraceLog - container element
netconfTraceLog is a log for understanding and troubleshooting NETCONF protocol interactions.
When this log is enabled, all NETCONF traffic to and from ConfD is stored to a file. By default, all
XML is pretty-printed. This will slow down the NETCONF server, so be careful when enabling this
log. This log is not rotated, i.e. use logrotate(8).
/confdConfig/logs/netconfTraceLog/enabled (boolean) [false]
enabled is either "true" or "false". If "true", all NETCONF traffic is logged. This configuration
parameter takes effect for both existing and new sessions.
880
confd.conf
/confdConfig/logs/netconfTraceLog/filename (string)
The name of the file where the NETCONF traffic trace log is written.
/confdConfig/logs/netconfTraceLog/format (pretty|raw) [pretty]
The value 'pretty' means that the XML data is pretty-printed. The value 'raw' means that it is not. This
configuration parameter takes effect for both existing and new sessions.
/confdConfig/logs/xpathTraceLog - container element
xpathTraceLog is a log for understanding and troubleshooting XPath evaluations. When this log is
enabled, the execution of all XPath queries evaluated by ConfD is logged to a file.
This will slow down ConfD, so be careful when enabling this log. This log is not rotated, i.e. use
logrotate(8).
/confdConfig/logs/xpathTraceLog/enabled (boolean) [false]
enabled is either "true" or "false". If "true", all XPath execution is logged.
/confdConfig/logs/xpathTraceLog/filename (string)
The name of the file where the XPath trace log is written.
/confdConfig/logs/webuiAccessLog - container element
webuiAccessLog is an access log for the embedded ConfD Web server. This file adheres to the
Common Log Format, as defined by Apache and others. This log is not enabled by default and is not
rotated, i.e. use logrotate(8).
/confdConfig/logs/webuiAccessLog/enabled (boolean) [false]
enabled is either "true" or "false". If "true", the access log is used.
/confdConfig/logs/webuiAccessLog/dir (string)
The path to the directory whereas the access log should be written to.
/confdConfig/logs/webuiAccessLog/trafficLog (boolean) [false]
Is either "true" or "false". If "true", all HTTP(S) traffic towards the embedded Web server is logged
in a log file named "traffic.trace". Beware: Do not use this log in a production setting. This log is not
enabled by default and is not rotated, i.e. use logrotate(8).
/confdConfig/logs/webuiBrowserLog - container element
webuiBrowserLog makes it possible to log Javascript errors/exceptions in a log file on the target
device instead of just in the browser's error console. This log is not enabled by default and is not
rotated, i.e. use logrotate(8).
/confdConfig/logs/webuiBrowserLog/enabled (boolean) [false]
enabled is either "true" or "false". If "true", the browser log is used.
/confdConfig/logs/webuiBrowserLog/filename (string)
The path to the filename whereas browser log entries should be written to.
/confdConfig/logs/errorLog - container element
errorLog is an error log used for internal logging from the ConfD daemon. It is used for troubleshooting
the ConfD daemon itself, and it is recommended that it is enabled, in order to capture information
about problems that are difficult to reproduce. This log is rotated by the ConfD daemon (see below).
/confdConfig/logs/errorLog/enabled (boolean) [false]
enabled is either "true" or "false". If "true", error logging is performed. This configuration parameter
takes effect for both existing and new sessions.
/confdConfig/logs/errorLog/filename (string)
filename is the full path to the actual log file. This parameter must be set if the errorLog is enabled.
881
confd.conf
/confdConfig/logs/errorLog/maxSize (confd:size) [S1M]
maxSize is the maximum size of an individual log file before it is rotated. Log filenames are reused
when five logs have been exhausted. This configuration parameter takes effect for both existing and
new sessions.
/confdConfig/datastores - container element
datastores defines which datastores the ConfD daemon should be setup to handle.
/confdConfig/datastores/startup - container element
ConfD may keep separate running and startup configuration databases. When the system reboots for
whatever reason, the running config database is lost, and the startup is read.
/confdConfig/datastores/startup/enabled (boolean) [false]
enabled is either "true" or "false". If "true", a startup database is managed. Enable this only if our
system uses a separate startup and running database.
/confdConfig/datastores/candidate - container element
ConfD may keep a shared, named alternative configuration database which can be modified without
impacting the running configuration. Changes in the candidate can be commit to running, or discarded.
/confdConfig/datastores/candidate/enabled (boolean) [true]
enabled is either "true" or "false". If "true", a candidate database is managed. Enable this if we want
our users to use this feature from NETCONF, CLI or Webui, or other agents.
/confdConfig/datastores/candidate/implementation (confd|external) [confd]
implementation is either "confd" or "external". By default, ConfD implements the candidate
configuration without impacting the application. But if our system already implements the candidate
itself, set "implementation" to "external". This implies that the "external" candidate implementation
must implement 5 C function callbacks for candidate manipulation. (See confd_lib_dp(3) and the
example "misc/extern_candidate".
/confdConfig/datastores/candidate/storage (disk|ram|auto) [auto]
storage is either "disk", "ram", or "auto".
disk ConfD always stores the candidate on disk. "filename" must also be set (see below).
ram ConfD always stores the candidate in ram.
Note
If this alternative is used the implementation is not fully NETCONF compliant if
confirmed-commit is enabled. The reason is that when confirmed-commit is used,
the system must rollback to the previous configuration if it reboots but RAM data
are lost.
auto ConfD stores the candidate on disk if absolutely necessary for proper operation; otherwise it
is stored in ram. "filename" must also be set (see below).
/confdConfig/datastores/candidate/filename (string)
filename is the name of the file where the candidate will be stored, if implementation is "confd" and
"storage" is "disk" or "auto".
/confdConfig/datastores/candidate/confirmedCommit - container element
ConfD may use confirmed commits while using the candidate datastore. It is possible to configure
different behaviors of how the confirmed commits will behave. This config section is only valid for
the candidate datastore.
882
confd.conf
/confdConfig/datastores/candidate/confirmedCommit/revertByCommit
(boolean) [false]
while using confirmed commits with the candidate datastore it is possible to revert the confirmed
commit using normal reversed commit(s) instead of activating a previously stored checkpoint. This
is decided by setting the revertByCommit config parameter to true. RevertByCommit will only have
effect if the candidate datastore is implemented in ConfD, i.e. /confdConfig/datastores/candidate/
implementation is set to confd.
Note
Setting revertByCommit to true will have severe impact on performance upon failing
confirmed commits. Hence, it is not recommended to use revertByCommit true unless you
absolutely can't support the highly optimized checkpoint scenario.
/confdConfig/datastores/running - container element
By default, the running configuration is writable. This means that the application must be prepared
to handle dynamic changes to the configuration.
/confdConfig/datastores/running/access (read-write|writable-through-candidate) [read-
write]
access is either "read-write" or "writable-through-candidate". If "writable-through-candidate", the
candidate datastore must be enabled.
NOTE: The default value of read-write here is somewhat unfortunate. If the candidate is enabled it is
better to set the value writable-through-candidate. When a NETCONF manager reconfigures a node
that has the candidate and also read-write running, the manager can never know that running is up
to date with the candidate and must thus always (logically) copy running to the candidate prior to
modifying the candidate.
/confdConfig/scripts
It is possible to add scripts to control various things in ConfD, such as post-commit callbacks. New
CLI commands can also be added. The scripts must be stored under /confdConfig/scripts/dir where
there is a sub-directory for each script category. For some script categories it suffices to just add a
script in the correct the sub-directory in order to enable the script. For others some configuration needs
to be done.
/confdConfig/scripts/dir
The directory path to the location of plug-and-play scripts. The scripts directory must have the
following sub-directories:
scripts/command/
policy/
post-commit/
/confdConfig/defaultHandlingMode (explicit|trim|report-all) [explicit]
defaultHandlingModeType is either "explicit", "trim", or "report-all". This parameter controls how
default values for leafs are handled in the northbound interfaces.
explicit If a value is set over a northbound interface, it is not considered default.
Default values are not displayed in northbound interfaces, unless asked for by the
user.
trim If a value is set over a northbound interface, it is considered default if it is equal to
the data model's default value.
883
confd.conf
Values equal to the data model's default value are not displayed in northbound
interfaces, unless asked for by the user.
report-all All values are logically stored in the data store, and displayed in northbound
interfaces.
If the data store has the capability to handle default values, which for example CDB has, it will work
with all values for this parameter. In this case, default values are never actaully stored in the data store.
The value of this parameter should be chosen to give the end-user the best experience.
If the data store does not have the capability to handle default values, this parameter should be set
to 'report-all'.
/confdConfig/sortTransactions (boolean) [true]
This parameter controls how ConfD lists newly created, not yet committed list entries. If this value
is set to 'false', ConfD will list all new entries before listing existing data. This was the only behavior
in pre 2.5 versions of ConfD.
If this value is set to 'true', ConfD will merge new and existing entries, and provide one sorted view
of the data. This behavior works well when CDB is used to store configuration data, but if an external
data provider is used, ConfD does not know the sort order, and can thus not merge the new entries
correctly. If an external data provider is used for configuration data, and the sort order differs from
CDB's sort order, this parameter should be set to 'false'.
/confdConfig/enableAttributes (boolean) [false]
This parameter controls if ConfD's attribute feature should be enabled or not. Currently there are
three attributes, annotation, tags, and inactive. These are available in northbound interfaces (e.g. the
annotate command in the CLI, and annotation XML attribute in NETCONF), but in order to be useful
they need support from the underlying configuration data provider. CDB supports attributes, but if an
external data provider is used for configuration data, and it does not support the attribute callbacks,
this parameter should be set to 'false'.
/confdConfig/enableInactive (boolean) [false]
This parameter controls if ConfD's inactive feature should be enabled or not. This feature also requires
enableAttributes to be enabled.
/confdConfig/sessionLimits - container element
Parameters for limiting concurrent access to ConfD.
/confdConfig/sessionLimits/maxSessions (uint32|unbounded) [unbounded]
Puts a limit to the total number of concurrent sessions to ConfD. This configuration parameter takes
effect only for new sessions.
/confdConfig/sessionLimits/sessionLimit - container element
Parameters for limiting concurrent access for a specific context to ConfD. There can be multiple
instances of this container element, each one specifying parameters for a specific context.
/confdConfig/sessionLimits/sessionLimit/context (cli|netconf|xs:token)
The context is either one of cli, netconf, webui, snmp, rest, or it can be any other context string defined
through the use of MAAPI. As an example, if we use MAAPI to implement a CORBA interface to
ConfD, our MAAPI program could send the string "corba" as context.
/confdConfig/sessionLimits/sessionLimit/maxSessions (uint32|unbounded)
[unbounded]
Puts a limit to the total number of concurrent sessions to ConfD for the corresponding context.
884
confd.conf
/confdConfig/sessionLimits/maxConfigSessions (uint32|unbounded) [unbounded]
Puts a limit to the total number of concurrent configuration sessions to ConfD. This configuration
parameter takes effect only for new sessions.
/confdConfig/sessionLimits/configSessionLimit - container element
Parameters for limiting concurrent read-write transactions for a specific context to ConfD. There can
be multiple instances of this container element, each one specifying parameters for a specific context.
/confdConfig/sessionLimits/configSessionLimit/context (cli|netconf|xs:token)
The context is either one of cli, netconf, webui, snmp, rest, or it can be any other context string defined
through the use of MAAPI. As an example, if we use MAAPI to implement a CORBA interface to
ConfD, our MAAPI program could send the string "corba" as context.
/confdConfig/sessionLimits/configSessionLimit/maxSessions (uint32|
unbounded) [unbounded]
Puts a limit to the total number of concurrent configuration sessions to ConfD for the corresponding
context. This configuration parameter takes effect only for new sessions.
/confdConfig/capi - container element
C-API parameters.
/confdConfig/capi/newSessionTimeout (xs:duration) [PT30S]
Timeout for a daemon to respond to a control socket request, see confd_lib_dp(3). If the daemon fails
to respond within the given time, it will be disconnected.
/confdConfig/capi/queryTimeout (xs:duration) [PT120S]
Timeout for a daemon to respond to a worker socket query, see confd_lib_dp(3). If the daemon fails
to respond within the given time, it will be disconnected.
/confdConfig/capi/connectTimeout (xs:duration) [PT60S]
Timeout for a daemon to send initial message after connecting the socket to the confd server. If the
daemon fails to initiate the connection within the given time, it will be disconnected.
/confdConfig/capi/objectCacheTimeout (xs:duration) [PT2S]
Timeout for the cache used by the get_object() and get_next_object() callback requests,
see confd_lib_dp(3). ConfD caches the result of these calls and serves get_elem requests from
northbound agents from the cache.
Note
Setting this timeout too low will effectively cause the callbacks to be non-functional - e.g.
get_object() may be invoked for each get_elem request from a northbound agent.
/confdConfig/capi/eventReplyTimeout (xs:duration) [PT120S]
Timeout for the reply from an event notification subscriber for a notification that requires a reply,
see confd_lib_events(3). If the subscriber fails to reply within the given time, the notification socket
will be closed.
/confdConfig/rollback - container element
Settings controlling if and where rollback files are created. A rollback file contains a copy of the
system configuration. The current running configuration is always stored in rollback0, the previous
version in rollback1 etc. The oldest saved configuration has the highest suffix.
/confdConfig/rollback/enabled (boolean) [false]
If "true", then a rollback file will be created whenever the running configuration is modified. If /
confdConfig/ha/enabled is set to true then rollback files are replicated from master to slaves. The
885
confd.conf
rollback feature must be enabled on all HA nodes (although is possible to have a slave with rollbacks
disabled, that slave will then not replicate the rollback files).
/confdConfig/rollback/directory (string)
Location where rollback files will be created.
/confdConfig/rollback/historySize (uint32) [50]
Number of old configurations to save.
/confdConfig/rollback/type (full|delta) [delta]
Type of rollback file to use. If "full" is specified, then a full configuration dump is stored in each
rollback file. Rollback file 0 will always contain the running configuration.
If "delta" is used, then only the changes are stored in the rollback file. Rollback file 0 will contain
the changes from the last configuration.
Using deltas is more space and time efficient for large configurations. Full rollback files are more
robust when multiple external databases are used. If the external databases becomes inconsistent a
previous configuration can always be restored using a full rollback file.
/confdConfig/rollback/rollbackNumbering (fixed|rolling) [rolling]
rollbackNumbering is either "fixed" or "rolling". If set to "rolling" then rollback file "0" will always
contain the last commit. When using "fixed" each rollback will get a unique increasing number.
/confdConfig/ssh - container element
This section defines settings which affect the behavior of the builtin SSH implementation.
/confdConfig/ssh/idleConnectionTimeout (xs:duration) [PT10M]
The maximum time that an authenticated connection to the SSH server is allowed to exist without
open channels. If the timeout is reached, the SSH server closes the connection. Default is PT10M, i.e.
10 minutes. If the value is 0, there is no timeout.
/confdConfig/ssh/algorithms - container element
This section defines custom lists of algorithms to be usable with the built-in SSH implementation.
For each type of algorithm, an empty value means that all supported algorithms should be usable, and
a non-empty value (a comma-separated list of algorithm names) means that the intersection of the
supported algorithms and the configured algorithms should be usable.
/confdConfig/ssh/algorithms/serverHostKey (string)
The supported serverHostKey algorithms (if implemented in libcrypto) are "ssh-dss" and "ssh-rsa",
but for any SSH server, it is limited to those algorithms for which there is a host key installed in the
directory given by /confdConfig/aaa/sshServerKeyDir.
To limit the usable serverHostKey algorithms to "ssh-dss", set this value to "ssh-dss" or avoid
installing a key of any other type than ssh-dss in the sshServerKeyDir.
/confdConfig/ssh/algorithms/kex (string)
The supported key exchange algorithms (as long as their hash functions are implemented
in libcrypto) are "diffie-hellman-group-exchange-sha256", "diffie-hellman-group-exchange-sha1",
"diffie-hellman-group14-sha1" and "diffie-hellman-group1-sha1".
To limit the usable key exchange algorithms to "diffie-hellman-group14-sha1" and "diffie-hellman-
group-exchange-sha256" (in that order) set this value to "diffie-hellman-group14-sha1,diffie-hellman-
group-exchange-sha256".
886
confd.conf
/confdConfig/ssh/algorithms/dhGroup - container element
Range of allowed group size, the SSH server responds to the client during a "diffie-hellman-group-
exchange". The range will be the intersection of what the client requests, if there is none the key
exchange will be aborted.
/confdConfig/ssh/algorithms/dhGroup/minSize (uint32) [2048]
Minimal size of p in bits.
/confdConfig/ssh/algorithms/dhGroup/maxSize (uint32) [4096]
Maximal size of p in bits.
/confdConfig/ssh/algorithms/mac (string)
The supported mac algorithms (if implemented in libcrypto) are "hmac-md5", "hmac-sha1", "hmac-
sha2-256", "hmac-sha2-512", "hmac-sha1-96" and "hmac-md5-96".
/confdConfig/ssh/algorithms/encryption (string)
The supported encryption algorithms (if implemented in libcrypto) are "aes128-ctr", "aes192-ctr",
"aes256-ctr", "aes128-cbc", "aes256-cbc" and "3des-cbc".
/confdConfig/ssh/clientAliveInterval (xs:duration|infinity) [infinity]
If no data has been received from a connected client for this long, a request that requires a response
from the client, will be sent over the SSH transport.
/confdConfig/ssh/clientAliveCountMax (uint32) [3]
If no data has been received from the client, after this many consecutive clientAliveInterval has passed,
the connection will be dropped.
/confdConfig/cli - container element
CLI parameters.
/confdConfig/cli/enabled (boolean) [true]
enabled is either "true" or "false". If "true", the CLI server is started.
/confdConfig/cli/transactions (boolean) [true]
Control whether commit should be supported in the CLI or not. When set to false all commands will
be automatically committed when the user press ENTER in the CLI.
/confdConfig/cli/transactionCntrlCmds (boolean) [false]
transactionCtrlCmds is either "true" or "false". If "true", then the CLI will have commands for enabling
and disabling transactions in configure mode, ie "enable transactions" and "disable transactions". If
set to "false" no such commands will be present.
/confdConfig/cli/allowImplicitWildcard (boolean) [true]
When set to true, users do not need to explicitly type * in the place of keys in lists, in order to see all
list instances. When set to false, users have to explicitly type * to see all list instances. This option can
be set to "false", to help in the case where tab completion in the CLI takes long time when performed
on lists with many instances.
/confdConfig/cli/startupScriptNonInteractive (boolean) [false]
startupScriptNonInteractive is either "true" or "false". If set to "true" then a CLI startup script will be
evaluated also for non-interactive sessions.
/confdConfig/cli/tableLabel (boolean) [false]
tableLabel is either "true" or "false". If "true" then tables displayed in C and I style CLI will have a
relative location label to make it possible to know which table is displayed.
887
confd.conf
/confdConfig/cli/addExtraTableSpacing (boolean) [false]
addExtraTableSpacing is either "true" or "false". If set to "true" then an additional newline will be
added on each side of the table. This configuration parameter takes effect for both existing and new
sessions.
/confdConfig/cli/tableLookAhead (uint64 > 0) [50]
The tableLookAhead element tells confd how many rows to pre-fetch when displaying a table. The
prefetched rows are used for calculating the required column widths for the table. If set to a small
number it is recommended to explicitly configure the column widths in the clispec file.
/confdConfig/cli/moreBufferLines (uint32|unbounded) [5000]
moreBufferLines is used to limit the buffering done by the more process. It can be "unbounded" or a
positive integer describing the maximum number of lines to buffer.
/confdConfig/cli/showTableLabelsIfMultiple (boolean) [false]
showTableLabelsIfMultiple is either "true" or "false". If set to "true" then table labels will only be
displayed if multiple tables, or a table and additional data is displayed. If set to "false" then table labels
are always shown if they exists and tableLabel is enabled.
/confdConfig/cli/editWrapMode (wrap|newline|vt100) [wrap]
editWrapMode is either "wrap", "newline" or "vt100". If "wrap" or "vt100" is used then cut-and-
paste will work in xterms (and other terminal emulators) but the CLI may behave oddly if the screen
width is manually configured to something other than the true screen width. If "vt100" is used then
no >space<>backspace< is used to force line wrapping. This makes it easier for scripts that rely on
command line echoing but the cursor will disappear at the end of the line temporarily.
/confdConfig/cli/supportQuoteEOL (boolean) [true]
supportQuoteEOL is either true or false. If set to true then a final backslash (\) on a line means that
the next line will be concatenated with the previous line, similarly to a Linux Shell.
/confdConfig/cli/useShortEnabled (boolean) [true]
useShortEnabled is either "true" or "false". If set to "true" then the CLI will display "enabled" or
"disabled" in place of "enabled true" and "enabled false".
/confdConfig/cli/smartRenameFiltering (boolean) [true]
smartRenameFiltering is either "true" or "false". If set to "true" then only paths that leads to existing
instances will be presented when doing completion. This will lead to some extra calls to get_next()
in order to determine if a path has instances or not. When set to "false" all paths with potentially
instances are presented.
/confdConfig/cli/allowWildcard (boolean) [true]
allowWildcard is either "true" or "false". If "true" then wildcard expressions are allowed in show
commands.
/confdConfig/cli/allowAllAsWildcard (boolean) [false]
allowAllAsWildcard is either "true" or "false". If "true" then "all" can be used in place of "*" as
wildcard.
/confdConfig/cli/allowRangeExpression (boolean) [true]
allowRangeExpression is either "true" or "false". If "true" then range expressions are allowed for all
key values of type basic type integer. An alternative is to specify hasRange for each path in the clispec.
/confdConfig/cli/allowRangeExpressionAllTypes (boolean) [true]
allowRangeExpressionAllTypes is either "true" or "false". If "true" then range expressions are allowed
for all key values regardless of type. An alternative is to specify hasRange for each element in the
yang files.
888
confd.conf
/confdConfig/cli/suppressRangeKeyword (boolean) [false]
suppressRangeKeyword is either "true" or "false". If "true" then 'range' keyword is not allowed in C-
and I-style for range expressions.
/confdConfig/cli/exitModeOnEmptyRange (boolean) [false]
exitModeOnEmptyRange is either "true" or "false". If "true" and if standing in a range submode, the
CLI will exit to the parent submode if all instances in the range has been deleted by the user.
/confdConfig/cli/useDoubleDotRanges (boolean) [false]
useDoubleDotRanges is either "true" or "false". If "true" then range expressions are types as 1..3, if
set to "false" then ranges are given as 1-3.
/confdConfig/cli/singleElemPattern (boolean) [true]
singleElemPattern is either "true" or "false". If "true" then filters/patterns to show commands can be
used to specify that you want to see a specific leaf element of all lists. Only that leaf element will
be shown for each list entry. This works for both tables and row based rendering. To get the old 2.7
behavior set this flag to "false".
/confdConfig/cli/multiPatternOperation (any/all) [any]
multiPatternOperation is one of "any", and "all". When set to "any" a pattern is true if at least one match
is found, if set to "all", all patterns needs to be found for the pattern expression to be considered true.
/confdConfig/cli/defaultTableBehavior (dynamic|enforce|suppress) [dynamic]
defaultTableBehavior is either "dynamic", "suppress", or "enforce". If set to "dynamic" then list nodes
will be displayed as tables if the resulting table will fit on the screen. If set to suppress, then list nodes
will not be displayed as tables unless a table has been specified by some other means (ie through a
setting in the clispec-file or through a command line parameter), if set to "enforce" then list nodes will
always be displayed as tables unless otherwise specified in the clispec-file or on the command line.
/confdConfig/cli/allowTableOverflow (boolean) [false]
allowTableOverflow is either "true" or "false". If "true" then tables displayed in a Cisco style CLI will
be allowed to overflow. If "false" a too wide table will be displayed as a "setting - value" list instead.
/confdConfig/cli/tableOverflowTruncate (boolean) [false]
tableOverflowTruncate is either "true" or "false". If "true" then overflowing tables will be truncated
instead of wrapped.
/confdConfig/cli/allowTableCellWrap (boolean) [true]
allowTableCellWrap is either "true" or "false". If "true" then tables displayed in a Cisco style CLI
will be allowed to wrap if the initial cell-width estimate proves to be too narrow. If "false" a too wide
table cell will overflow instead, pushing the rest of the line to the right.
/confdConfig/cli/compactTable (boolean) [false]
compactTable is either "true" or "false". If "true" then tables with multiple dynamic levels will be
displayed more compactly. The first instance of the sub-element will appear on the same row as the
parent instance. When set to "false" all new instances will appear on a new row. This configuration
parameter takes effect only for new sessions.
/confdConfig/cli/showKeyName (boolean) [true]
showKeyName is either "true" or "false". If "true" then the key name will be displayed in the
completion list during completion.
/confdConfig/cli/promptEnumLimit (uint64) [4]
promptEnumLimit controls how many enumerations should be included in the prompt when
prompting the user for a value where there are a number of alternatives. If the number of alternatives
exceeds the above configured limit then the list will be truncated and the string "..." will be added.
889
confd.conf
/confdConfig/cli/showAllNs (boolean) [false]
showAllNs is either "true" or "false". If "true" then all element names will be shown with their
namespace prefix in the CLI. This is visible when displaying the running configuration and when
modifying the configuration.
/confdConfig/cli/useExposeNsPrefix (boolean) [true]
useExposeNsPrefix is either "true" or "false". If "true" then all nodes annotated with the tailf:cli-
expose-ns-prefix will result in the namespace prefix being shown/required. If set to "false" then the
tailf:cli-expose-ns-prefix annotation will be ignored.
/confdConfig/cli/sortSubmodeCmds (boolean) [true]
sortSubmodeCmds is either "true" or "false". If set to "true" then local submode commands are listed
before global commands when the user enters ? in a submode in C and I-style.
/confdConfig/cli/sortLocalCmds (boolean) [true]
sortLocalCms is either "true" or "false". If set to "true" and sortSubmodeCmds are also set to true,
then local submode commands are listed before global commands when the user enters ? in a submode
in C and I-style, and the order of the commands is alphabetically ordered. If set to false then the order
of the local submode commands are the same as in the data model.
/confdConfig/cli/allowOldStyleModeCmds (boolean) [false]
allowOldStyleModeCmds is either "true" or "false". If set to "true" then CLI commands in I and
C-style are interpreted as mode commands if the path coincide with a list in the data-model. The
recommended way to mount commands in a submode is instead to use the "mount" attribute.
/confdConfig/cli/continueOnErrorCmdStack (boolean) [false]
continueOnErrorCmdStack is either "true" or "false". If set to "true" then command stack execution
will continue even if an earlier command in the stack failed with an error, ie show xx ; show zz
will execute both 'show xx' and 'show zz' even if 'show xx' failed with an error. If set to "false" then
command execution will be aborted as soon as a command fails.
/confdConfig/cli/completionShowOldVal (boolean) [true]
completionShowOldVal is either "true" or "false". If set to "true" a leaf's old value will be displayed
inside brackets during command line completion. If set to "false" it will not be shown.
/confdConfig/cli/completionMetaInfo (false|alt1|alt2) [false]
completionMetaInfo is either "false", "alt1" or "alt2". This option only applies to the J-style CLI. If set
to "alt1" then the alternatives shown for possible completions will be prefixed as follows: containers
with >, lists with +, and leaf-lists +. For example:
Possible completions:
...
> applications
+ apply-groups
...
+ dns-servers
...
If set to "alt2", then possible completions will be prefixed as follows: containers with >, lists with
children with +>, and lists without children +. For example:
Possible completions:
...
> applications
+>apply-groups
...
+ dns-servers
...
890
confd.conf
/confdConfig/cli/reportInvalidCompletionInput (boolean) [true]
reportInvalidCompletionInput is either true or false. If set to 'true' the CLI will display an error
message during completion when the user press '?' to indicate if an invalid token has been entered
on the command line.
/confdConfig/cli/banner (string)
Banner shown to the user when the CLI is started. Default is empty. This configuration parameter
takes effect only for new sessions.
/confdConfig/cli/bannerFile (string)
Name of file whose contents are shown to the user when the CLI is started. If empty, the message, if
any, set via /confdConfig/cli/banner is shown. Default is empty. This configuration parameter takes
effect only for new sessions.
/confdConfig/cli/completionShowMax (int64) [100]
Maximum number of possible alternatives to present when doing completion.
/confdConfig/cli/rollbackAAA (boolean) [false]
If set to true then AAA rules will be applied when a rollback file is loaded. This means that rollback
may not be possible if some other user have made changes that the current user does not have access
privileges to.
/confdConfig/cli/rollbackMax (int64)
Maximum number of rollback changes to allow through the CLI. This configuration parameter takes
effect for both existing and new sessions.
/confdConfig/cli/rollbackNumbering (fixed|rolling) [rolling]
rollbackNumbering is either "fixed" or "rolling". If set to "rolling" then rollback file "0" will always
contain the last commit. When using "fixed" each rollback will get a unique increasing number. This
configuration parameter takes effect for both existing and new sessions.
/confdConfig/cli/rollbackNumberingInitial (int64) [10000]
rollbackNumberingInitial is the starting point of the rollback numbering when the "increasing"
rollback numbering scheme is used. This configuration parameter takes effect when ConfD initially
starts.
/confdConfig/cli/historyMaxSize (int64) [1000]
Sets maximum configurable history size.
/confdConfig/cli/messageMaxSize (int64) [10000]
Maximum size of user message.
/confdConfig/cli/compactShow (boolean) [false]
Use compact representation when showing the configuration in C and I style CLIs. This configuration
parameter takes effect for both existing and new sessions.
/confdConfig/cli/compactStatsShow (boolean) [false]
Use compact representation when showing the operational data in C and I style CLIs. This
configuration parameter takes effect for both existing and new sessions.
/confdConfig/cli/prettifyStatsName (boolean) [false]
Default setting for prettifying, ie changing _ and - to space in element names when displaying
config='false' data in key-value listings.
/confdConfig/cli/displayEmptyConfigContainers (boolean) [true]
displayEmptyConfigContainers is either "true" or "false". If set to "true" then 'show status' in the J-
style CLI will display empty lists that are "config true" even when there is no data to display. If set
to "false" the those containers will not be shown.
891
confd.conf
/confdConfig/cli/confirmUncommitedOnExit (prompt|discard) [prompt]
If set to 'prompt' then the user will be prompted whether to discard uncommitted changes or not. If set
to 'discard' then uncommitted changes will be discarded without prompting the user. If set to 'commit'
then uncommitted changes will be automatically committed without asking the user.
/confdConfig/cli/reconfirmHidden (boolean) [false]
If set to true the user will have to re-confirm non-echoing values in the CLI. Ie, when the CLI prompts
the user for a value that is not echoed the user will be asked to enter it twice.
/confdConfig/cli/dequoteHidden (boolean) [false]
If set to true the value that the user entered will be unquoted, ie if the user enters \n it will be interpreted
as a newline. This is the default behavior for all other leaf types. If set to false then no unquoting will
be performed for hidden (non-echoing) data types when the CLI explicitly prompts for their values.
Dequoting will still be performed for values entered directly on the command line.
/confdConfig/cli/enumKeyInfo (boolean) [false]
If set to true the CLI will add the text <keyname:enumeration> whenever it is displaying a completion
list for entering a key value that is an enumeration. For example:
io(config)# vqe dsp channel 1
Possible completions:
<b-id:enumeration> 10 11 12 13 14 5 6 9
/confdConfig/cli/historySave (boolean) [true]
If set to "true" then the CLI history will be saved between CLI sessions. The history is stored in the
state directory.
/confdConfig/cli/historyRemoveDuplicates (boolean) [false]
If set to "true" then repeated commands in the CLI will only be stored once in the history. Each
invocation of the command will only update the date of the last entry. If set to "false" duplicates will
be stored in the history.
/confdConfig/cli/unifiedHistory (boolean) [false]
If set to "true" then the 'show history' command will display the unified command history, ie the
command history from all modes. If set to "false" then only the command history from the current
mode will be shown. Also, if set to "true" then the 'clear history' command will adopt the same
behaviour as described above.
/confdConfig/cli/showDefaults (boolean) [false]
showDefaults is either "true" or "false". If "true" then default values will be shown when displaying
the configuration. The default value is shown inside a comment on the same line as the value. Showing
default values can also be enabled in the CLI per session using the operational mode command "set
show defaults true". This configuration parameter takes effect only for new sessions.
/confdConfig/cli/reallocateOperTrans (boolean) [false]
reallocateOperTrans is either "true" or "false". If "true" then a new read transaction will be allocated
for each oper-mode command. When set to "false" a single oper transaction will be used for the entire
CLI session.
/confdConfig/cli/quickSshTeardown (boolean) [false]
quickSshTeardown controls if CLI sessions initiated through an SSH sessions should be torn down
directly when the socket is closed, or not. When set to 'true' the socket will be closed as soon as the
CLI receives a tcp shutdown, if set to 'false' it will wait until all pending data has been written.
/confdConfig/cli/cAlignLeafValues (boolean) [true]
cAlignLeafValues is either "true" or "false". If "true" then the leaf values of all siblings in a container
or list will be aligned.
892
confd.conf
/confdConfig/cli/jAlignLeafValues (boolean) [true]
jAlignLeafValues is either "true" or "false". If "true" then the leaf values of all siblings in a container
or list will be aligned.
/confdConfig/cli/columnStats (boolean) [false]
columnStats is either "true" or "false". If "false" then the container element is repeated on each line
when displaying config="false" data in the C and I style CLIs using the "show" command. If set to
"true" then the name of the container will not be repeated, instead all leaves will be indented. This
configuration parameter takes effect for both existing and new sessions.
/confdConfig/cli/allowAbbrevCmds (boolean) [true]
allowAbbrevCmds is either "true" or "false". If "false" then commands are not allowed to be
abbreviated in the CLI.
/confdConfig/cli/allowAbbrevCmdsOnLoad (boolean) [true]
allowAbbrevCmdsOnLoad is either "true" or "false". If "false" then commands are not allowed to be
abbreviated in the CLI in non interactive mode, ie when loading configurations from file.
/confdConfig/cli/strictRefsOnLoad (boolean) [false]
strictRefsOnLoad is either "true" or "false". If "false" then keyref/leafref targets does not have to exist
when loading a config from a file. If set to "true" then the target creation must appear earlier in the
loaded file than the reference to the target. Note that there is a rather heavy performance penalty for
loading files with many keyrefs when this is set to true, or for piping CLI commands into confd_cli.
/confdConfig/cli/allowAbbrevKeys (boolean) [false]
allowAbbrevKeys is either "true" or "false". If "false" then key elements are not allowed to be
abbreviated in the CLI. This is relevant in the J-style CLI when using the commands 'delete' and 'edit'.
In the C/I-style CLIs when using the commands 'no', 'show configuration' and for commands to enter
submodes.
/confdConfig/cli/allowAbbrevParamNames (boolean) [false]
allowAbbrevParamNames is either "true" or "false". If "false" then cli command parameter names, ie
<name>xx</name>, cannot be abbreviated.
/confdConfig/cli/allowAbbrevEnums (boolean) [true]
allowAbbrevEnums is either "true" or "false". If "false" then enums entered in the cli cannot be
abbreviated.
/confdConfig/cli/allowCaseInsensitiveEnums (boolean) [true]
allowCaseInsensitiveEnums is either "true" or "false". If "false" then enums entered in the cli must
match in case, ie you cannot enter FALSE if the cli asks for 'true' or 'false'.
/confdConfig/cli/caseInsensitive (boolean) [false]
caseInsensitive is either "true" or "false". If "false" then all CLI commands must have the correct case.
If set to "true" then case is mostly ignored. Note that if set to "true" then all data model files and
clispec-files must be written with this in mind. You cannot have two elems that conflict in case.
/confdConfig/cli/caseInsensitiveKeys (boolean) [false]
caseInsensitiveKeys is either "true" or "false". If "false" then all user defined instance names must
have correct case. If set to "true" then case is mostly ignored. Note that if set to "true" then all data
model files and clispec-files must be written with this in mind. You cannot have two elems that conflict
in case.
/confdConfig/cli/ignoreLeadingWhitespace (boolean) [false]
ignoreLeadingWhitespace is either "true" or "false". If "false" then the CLI will show completion help
when the user enters TAB or SPACE as the first characters on a row. If set to "true" then leading
893
confd.conf
SPACE and TAB are ignored. The user can enter '?' to get a list of possible alternatives. Setting the
value to "true" makes it easier to paste scripts into the CLI.
/confdConfig/cli/indentTemplates (boolean) [false]
indentTemplates is either "true" or "false". If set to "true" then the text resulting from a show template
will be indented to the same level as the surrounding auto-rendered show text. If set to "false" then
no automatic indentation will occur. The automatic variable ".indent" may be used in the templates
to do manual indentation.
/confdConfig/cli/compListCompact (boolean) [false]
compListCompact is either "true" or "false". If "true" then the CLI will display items with an associated
info text one per line, and all the rest in compact format. This configuration parameter takes effect
for both existing and new sessions.
/confdConfig/cli/completionListLine (boolean) [false]
completionListLine is either "true" or "false". If "true" then the CLI will display completion lists one
item per line. If set to "false" one-line presentation will be used for items with info texts and compact
for the rest. (if compListCompact above is set to true there may be a mix of the to formats in the same
listing) This configuration parameter takes effect for both existing and new sessions.
/confdConfig/cli/showMatchBeforePossible (boolean) [false]
showMatchBeforePossible is either "true" or "false". If set to "true" then the match completions will
be displayed before the other possible completions, if set to "false" then the match completions will
be displayed after.
/confdConfig/cli/wrapInfo (boolean) [true]
wrapInfo is either "true" or "false". If "false" then the CLI will not automatically wrap the info field in
"Possible completion:" listings. If set to "true" then the info text will be word-wrapped and indented.
/confdConfig/cli/wrapPrompt (boolean) [false]
wrapPrompt is either "true" or "false". If "false" then the CLI will not automatically word wrap the
prompt when prompting the user for some input. If set to "true" then the prompt will be word-wrapped
according to the current terminal width.
/confdConfig/cli/sortShowElems (boolean) [true]
sortShowElems is either "true" or "false". If "false" then the show commands will display the elements
in the order they appear in the data model. If set to "true" then all non-lists will appear before the lists.
This setting only applies to the C- and I-style CLIs.
/confdConfig/cli/possibleCompletionsFormat (string) [Possible completions]
possibleCompletionsFormat is the string displayed before the displaying the actual completion
possibilities.
/confdConfig/cli/matchCompletionsFormat (string) [Possible match completions:]
matchCompletionsFormat is the string displayed before the displaying the actual match completion
possibilities.
/confdConfig/cli/noMatchCompletionsFormat (string) [Possible match completions:]
noMatchCompletionsFormat is the string displayed when there are no matching completion
possibilities. The string is empty by default.
/confdConfig/cli/showDescription (boolean) [true]
showDescription is either true or false. If set to false then the Description: xx text will not be displayed.
/confdConfig/cli/explicitSetCreate (boolean) [false]
explicitSetCreate is either "true" or "false". If set to "true" then the 'set' command in J-style CLI cannot
be used to create instances. Instead a new command called 'create' becomes available for creating
894
confd.conf
instances. Note that this deviates from a typical Juniper style CLI where instance creation is performed
by the 'set' command.
/confdConfig/cli/templateFilter - container element
User defined template filters must be listed here. They can be used in show templates in the same
manner as the builtin ones. A template filter takes a string as input in 'argv[1]' and returns a modified
version of it by invoking 'confd_action_reply_command'. It can also take extra arguments. For
example '|a_filter:foo:42' implies 'argv[2]="foo"' and 'argv[3]="42".
/confdConfig/cli/templateFilter/name (string)
Name of template filter.
/confdConfig/cli/templateFilter/callback (string)
Name of callback. The callback receives a string as first argument, optionally followed by the list of
arguments given to the filter in the show template.
/confdConfig/cli/enableDisplayLevel (true|false|pipe) [pipe]
enableDisplayLevel is either "true", "false" or "pipe". If "false" then the 'displaylevel' option to the
show command will not be available in the CLIs. If set to "pipe" then a special pipe target called
'display-level' will be available.
The displaylevel option can be used to limit how many levels will be displayed by the show command.
If a display level of 1 is specified then only the direct children of an element will be shown. If a display
level of 3 is specified then only elements at depth 3 below a given element will be displayed, etc.
A user can also modify the default display level for a given CLI- session using the display-level setting
in the CLI, similarly to the screen-width, or idle-timeout settings.
/confdConfig/cli/enableDisplayGroups (boolean) [true]
enableDisplayGroups is either "true" or "false". If "false" then the user will not be able to provide a
set of display groups when issuing the show command.
/confdConfig/cli/defaultDisplayLevel (int64) [99999999]
If enableDisplayLevel is set to "true" then this settings controls the default display level used if no
explicit display level is specified. It is also used as the initial value of the (set) 'display-level' command
in the CLI.
/confdConfig/cli/instanceDescription (boolean) [true]
instanceDescription is either "true" or "false". If "true" then the CLI will look for description elems
and add their values as info texts when displaying possible completions in the CLI. This makes it
easier to identify the different instances.
/confdConfig/cli/addErrorPrefixSuffix (boolean) [true]
addErrorPrefixSuffix is either "true" or "false". If "true" then the CLI will add "Error: " or "Aborted:
" and when operations fail in the CLI. If set to "false" then the prefix will not be added for errors
generated by some callback.
/confdConfig/cli/autocommitLoad (boolean) [false]
autocommitLoad is either "true" or "false". If "true" then when executing the 'load' command each
line will be committed as soon as it has been read. Note that this is normally not a good idea. Only
applies when transactions are disabled.
/confdConfig/cli/autocommitLoadChunkSize (uint64 > 0) [1]
autocommitLoadChunkSize is used to avoid auto commit:ing after each line but instead commit after
a chunk of lines have been read.
895
confd.conf
/confdConfig/cli/allOrNothingLoad (boolean) [false]
allOrNothingLoad is either true or false. If set to true then the transaction will be reset and all changes
discarded if an error is encountered when loading a file. This behavior will not happen when the 'best
effort' pipe target is used, nor when stopLoadOnError is set to false, nor when autocommitLoad is
set to true.
/confdConfig/cli/stopLoadOnError (boolean) [true]
stopLoadOnError is either "true" or "false". If "false" then the 'load' command in the C and I-style
CLIs will not terminate on the first error but continue to process commands form the file.
/confdConfig/cli/enableLoadMerge (boolean) [true]
enableLoadMerge is either "true" or "false". If "false" then the 'load' command in the C and I-style
CLIs will not have an option for how to load a config file. If set to "true" then the 'load' command will
have an additional option for loading the file either in 'override' mode or in 'merge' mode. 'override'
is the mode used if enableLoadMerge is set to 'false'.
/confdConfig/cli/loadActivityClock (boolean) [false]
loadActivityClock can be either "true" or "false". If set to "true" then a |/-\| style animation will be
displayed if the load operation takes more than 200 ms to complete.
/confdConfig/cli/oldDetailsArg (boolean) [false]
oldDetailsArg is either "true" or "false". If "false" then commands that display the configuration will
not have a "details" argument but instead have a pipe flag called "details". The setting is present for
backwards compatibility, the recommended setting for future use is "false".
/confdConfig/cli/withDefaults (boolean) [false]
DEPRECATED - use /confdConfig/defaultHandlingMode instead to control this behavior
consistently for all northbound interfaces. Set /confdConfig/defaultHandlingMode to
report-all to display default values.
withDefaults is either "true" or "false". If "false" then leaf nodes that have their default values will
not be shown when the user displays the configuration, unless the user gives the "details" option to
the "show" command.
This is useful when there are many settings which are seldom used. When set to "false" only the values
actually modified by the user will be shown.
/confdConfig/cli/ignoreShowWithDefaultOnDiff (boolean) [false]
When set to 'true' ConfD will ignore the annotation tailf:cli-show-with-default when displaying the
configuration changes in the C-style CLI.
/confdConfig/cli/trimDefaultShow (boolean) [false]
trimDefaultShow is either "true" or "false". If "true" then leaf nodes that have the same value as the
default value will not be displayed even when explicitly configured to have that value. When set to
"false" such leaves will be displayed if explicitly configured to have the value. This setting applies to
show commands, ie show running-config and show config.
If this behavior is wanted, it is recommended to set /confdConfig/defaultHandlingMode
to trim instead of using this parameter, in order to get a consistent behavior for all northbound
interfaces.
If the default handling mode is trim, explicitly configured values that are the same as the default
value are never stored in the data store. This means that if the default handling mode is trim, this
parameter has no effect.
This configuration parameter takes effect for both existing and new sessions.
896
confd.conf
/confdConfig/cli/trimDefaultSave (boolean) [false]
trimDefaultSave is either "true" or "false". If "true" then leaf nodes that have the same value as the
default value will not be displayed even when explicitly configured to have that value. When set to
"false" such leaves will be displayed if explicitly configured to have the value. This setting applies
to the save command.
If this behavior is wanted, it is recommended to set /confdConfig/defaultHandlingMode
to trim instead of using this parameter, in order to get a consistent behavior for all northbound
interfaces.
If the default handling mode is trim, explicitly configured values that are the same as the default
value are never stored in the data store. This means that if the default handling mode is trim, this
parameter has no effect.
This configuration parameter takes effect for both existing and new sessions.
/confdConfig/cli/docWrap (boolean) [true]
docWrap is either "true" or "false". If "false" then certain documentation texts will not be enclosed
in "<" and ">", if set to "true" they will be.
/confdConfig/cli/infoOnMatch (boolean) [true]
infoOnMatch is either "true" or "false". If "true" then the CLI will add info texts when displaying
possible match completions. If set to "false" then the info text will not be shown.
/confdConfig/cli/externalActionErrorMsg (string)
The externalActionErrorMsg value is displayed whenever an external error occurs when executing
an action in the CLI.
/confdConfig/cli/infoOnTab (boolean) [true]
infoOnTab is either "true" or "false". If "false" then no info strings will be displayed in the tab
completion list when the user enters TAB.
/confdConfig/cli/infoOnSpace (boolean) [true]
infoOnSpace is either "true" or "false". If "false" then no info strings will be displayed in the tab
completion list when the user enters SPACE.
/confdConfig/cli/newLogout (boolean) [true]
newLogout is either "true" or "false". If "false" then the I and C modes will have a single "logout"
command for logging out a user and a specific session. If set to "true" then there will be two different
commands - "logout user <name>" and "logout session <id>"
/confdConfig/cli/newInsert (boolean) [true]
newInsert is either "true" or "false". If "false" then the old insert command will be used. If set to "true"
then the new insert command, capable of inserting ordered-by-user list elements, will be used.
/confdConfig/cli/showEditors (boolean) [true]
showEditors is either true or false. If set to true then a list of current editors will be displayed when
a user enters configure mode.
/confdConfig/cli/whoShowMode (boolean) [true]
whoShowMode is either "true" or "false". If set to "true" then an 'Config Mode' column will be added
to the table shown when issuing the 'who' command in C- and I-mode.
/confdConfig/cli/whoHistoryDateTimeFormat (short|long) [short]
whoHistoryDateTimeFormat decides if the date should always include the date (long), or only include
the date when different from today (short).
897
confd.conf
/confdConfig/cli/messageFormat (string) [Message from $(sender) at $(time)...\n
$(message)\nEOF\n]
messageFormat controls how messages between users and from the system should be presented to the
user. The format string may contain the variables $(sender), $(time), $(message), $(date), $(time12),
$(time12ampm), $(time12hm), $(host), $(hostname), and $(user).
/confdConfig/cli/messageWordWrap (boolean) [false]
messageWordWrap is either "true" or "false". If set to "true" then all system/user/prio messages in the
CLI will be word-wrapped to the current terminal width.
/confdConfig/cli/messageQueueSize (int64) [10]
Some messages are not displayed in the CLI when a command executed, but are delayed until the
current command execution has finished. The size of the queue of pending messages is configured in
messageQueueSize. This configuration parameter takes effect for both existing and new sessions.
/confdConfig/cli/defaultPrefix (string) []
defaultPrefix is a string that is placed in front of the default value when a configuration is shown with
default values as comments.
/confdConfig/cli/jWarningPrefix (string) [Warning: ]
jWarningPrefix is a string that is placed in front of warnings when they are displayed in the CLI. J-
style CLI.
/confdConfig/cli/jAbortedPrefix (string) [Aborted: ]
jAbortedPrefix is a string that is placed in front of aborted messages when they are displayed in the
CLI. J-style CLI.
/confdConfig/cli/jErrorPrefix (string) [Error: ]
jErrorPrefix is a string that is placed in front of error messages when they are displayed in the CLI.
J-style CLI.
/confdConfig/cli/cWarningPrefix (string) [Warning: ]
cWarningPrefix is a string that is placed in front of warnings when they are displayed in the CLI. I-
and C-style CLI.
/confdConfig/cli/cAbortedPrefix (string) [Aborted: ]
cAbortedPrefix is a string that is placed in front of aborted messages when they are displayed in the
CLI. I- and C-style CLI.
/confdConfig/cli/cErrorPrefix (string) [Error: ]
cErrorPrefix is a string that is placed in front of error messages when they are displayed in the CLI.
I- and C-style CLI.
/confdConfig/cli/invalidDataString (string) [--ERROR--]
invalidDataString is a string that is displayed instead of the real value whenever a data provider returns
an invalid data element.
/confdConfig/cli/prompt1 (string) [\u@\h> ]
Prompt used in operational mode. The string may contain a number of backslash-escaped special
characters which are decoded as follows:
\[ and \] Enclosing sections of the prompt in \[ and \] makes that part not count when
calculating the width of the prompt. This makes sense, for example, when including
non-printable characters, or control codes that are consumed by the terminal. The
common control codes for setting text properties for vt100/xterm are ignored
898
confd.conf
automatically, so are control characters. Updating the xterm title can be done using
a control sequence may look like this:
<prompt1>\[&#x1b;]0;\u@\h&#x07;\]\u@\h&gt; </prompt1>
\d the date in "YYYY-MM-DD" format (e.g., "2006-01-18")
\h the hostname up to the first '.'
\H the hostname
\s the client source ip
\S the name provided by the -H argument to confd_cli
\t the current time in 24-hour HH:MM:SS format
\T the current time in 12-hour HH:MM:SS format
\@ the current time in 12-hour am/pm format
\A the current time in 24-hour HH:MM format
\u the username of the current user
\m the mode name (only used in XR style)
\m{N} same as \m, but the number of trailing components in the displayed path is limited to
be max N (an integer). Characters removed are replaced with an ellipsis (...).
\M the mode name inside parenthesis if in a mode
\M{N} same as \M, but the number of trailing components in the displayed path is limited to
be max N (an integer). Characters removed are replaced with an ellipsis (...).
/confdConfig/cli/prompt2 (string) [\u@\h% ]
Prompt used in configuration mode. The string may contain a number of backslash-escaped special
characters which are decoded as described above.
/confdConfig/cli/cPrompt1 (string) [\h# ]
Prompt used in operational mode in C style. The string may contain a number of backslash-escaped
special characters which are decoded as described above. This configuration parameter takes effect
for both existing and new sessions.
/confdConfig/cli/cPrompt2 (string) [\h(\m)# ]
Prompt used in configuration mode in C style. The string may contain a number of backslash-escaped
special characters which are decoded as described above. This configuration parameter takes effect
for both existing and new sessions.
/confdConfig/cli/cStylePromptInJStyle (boolean) [false]
If set to true then the \m and \M will be expanded just as in C- and I-style
/confdConfig/cli/promptHostnameDelimiter (string) [.]
When the \h token is used in a prompt the first part of the hostname up until the first occurrence of
the promptHostnameDelimiter is used. This configuration parameter takes effect for both existing and
new sessions.
899
confd.conf
/confdConfig/cli/asyncPromptRefresh (boolean) [true]
asyncPromptRefresh is either "true" or "false". If set to "true" the CLI prompt will be refreshed when
asynchronous tasks prints messages in the CLI, such as messages from other users.
/confdConfig/cli/showLogDirectory (string)
Location where the 'show log' command looks for log files.
/confdConfig/cli/modeInfoInAudit (true|false|path) [false]
modeInfoInAudit is either "true", "false" or "path". If "true", then all commands will be prefixed
with major and minor mode name when logged as audit messages. This means that it is possible to
differentiate between commands with the same name in different modes. Major mode is "operational"
or "configure" and minor mode is "top" in J-style and the name of the submode in C- and I-mode. On
the top-level in C- and I-mode it is also "top". If set to "path" the major mode will be followed by
the full command path to the submode.
/confdConfig/cli/auditLogMode (all|allowed|denied) [all]
auditLogMode is either "all", "allowed", or "denied". If "all", then all commands that the user tries
to execute will be logged in the audit trail log. If "allowed", only allowed commands will be logged,
ie commands that are actually run by the user. If "denied", only commands that the user were not
allowed to execute will be logged, prefixed with "denied".
/confdConfig/cli/style (j|c|i) [j]
style is either "j", "c", or "i". If "j", then the CLI will be presented as a Juniper style CLI. If "c" then
the CLI will appear as Cisco XR style, and if "i" then a Cisco IOS style CLI will be rendered.
/confdConfig/cli/idleTimeout (xs:duration) [PT30M]
Maximum idle time before terminating a CLI session. Default is PT30M, ie 30 minutes. PT0M means
no timeout. Will be silently capped to 49 days 17 hours. This configuration parameter takes effect
only for new sessions.
/confdConfig/cli/promptSessionsCLI (boolean) [false]
promptSessionsCLI is either "true" or "false". If set to "true" then only the current CLI sessions will
be displayed when the user tries to start a new CLI session and the maximum number of sessions
has been reached. Note that MAAPI sessions with their context set to "cli" would be regarded as CLI
sessions and would be listed as such.
/confdConfig/cli/disableIdleTimeoutOnCmd (boolean) [true]
disableIdleTimeoutOnCmd is either "true" or "false". If set to "false" then the idle timeout will trigger
even when a command is running in the CLI. If set to "true" the idle timeout will only trigger if the
user is idling at the CLI prompt.
/confdConfig/cli/commandTimeout (xs:duration|infinity) [infinity]
Global command timeout. Terminate command unless the command has completed within the
timeout. It is generally a bad idea to use this feature since it may have undesirable effects in a loaded
system where normal commands take longer to complete than usual.
This timeout can be overridden by a command specific timeout specified in the confd.cli file.
/confdConfig/cli/commitRetryTimeout (xs:duration|infinity) [PT0S]
Commit timeout in the CLI. This timeout controls for how long the commit operation will attempt to
complete the operation when some other entity is locking the database, e.g. some other commit is in
progress or some managed object is locking the database.
There is a similiar configuration parameter, /confdConfig/commitRetry/Timeout, which
sets a timeout for all ConfD transactions, not just for CLI transactions.
900
confd.conf
/confdConfig/cli/timezone (utc|local) [local]
Used to specify which timezone should be used when displaying the time in the CLI. If "local" is
specified then the timezone that is configured on the device will be used.
/confdConfig/cli/utcOffset (int64) [0]
If the timezone is set to UTC this can be set to specify the UTC offset measured in minutes.
/confdConfig/cli/timestamp - container element
Default value for the timestamps in the CLI. The user can always enable or disable the display of
timestamps, this only controls the initial session value.
/confdConfig/cli/timestamp/enabled (boolean) [false]
enabled is either "true" or "false". If "true" the CLI will print a timestamp before the output of each
command. This configuration parameter takes effect only for new sessions.
/confdConfig/cli/timestamp/clock24 (boolean) [true]
clock24 is either "true" or "false". If "true" the 24-hour time notation will be used when displaying
hours. This configuration parameter takes effect for both existing and new sessions.
/confdConfig/cli/timestamp/format (string) [\d{l,4}\m{l,5}\D{l,3}\H{r,2,0}:\t{r,2,0}:
\s{r,2,0}.\c{l,3,0} UTC\u{l,1}\o{r,2,0}:\k{r,2,0}]
Specifies the format of the timestamp. The string may contain a number of backslash-escaped special
characters which are decoded as follows:
\Y the current year in YYYY format
\M the current month (1-12)
\D the current day of month (1-31)
\m the name of the current month (Jan, Feb, ...)
\d the name of the current day of week (Mon, Tue, ...)
\H the current hour (0-23 or 1-12)
\t the current minute (0-59)
\a am/pm
\A AM/PM
\s the current second (0-59)
\c the current microsecond (0+)
\u UTC offset sign (-/+)
\o UTC offset hour (0-23 or 1-12)
\k UTC offset minute (0-59)
Note
the UTC offset characters \u, o and \k can still be used even if the timezone (/
confdConfig/cli/timezone) is set to "local". The characters \a (am/pm) and \A (AM/
901
confd.conf
PM) should only be used when clock24 (/confdConfig/cli/timestamp/clock24)
is set to "false".
After each special character another character sequence can be specified in order to control the
field width, alignment and padding character. The sequence can be either {A, W, P} or {A,W}
where A is the alignment and can be either 'l' or 'r', W is the field width and P is the padding
character. If P is not specified, " " will be used as the padding character. Example, the format
"\d{l,4}\m{l,5}\D{l,3}\H{r,2,0}:\t{r,2,0}" would translate into "Wed Jun 3 08:35".
This configuration parameter takes effect for both existing and new sessions.
/confdConfig/cli/spaceCompletion - container element
Default value for space completion in the CLI. The user can always enable or disable completion on
space, this only controls the initial session value.
/confdConfig/cli/spaceCompletion/enabled (boolean) [true]
enabled is either "true" or "false". If "true" command and argument completion will be performed
when <space> is entered.
/confdConfig/cli/autoWizard - container element
Default value for autowizard in the CLI. The user can always enable or disable the auto wizard in
each session, this controls the initial session value. This configuration parameter takes effect only for
new sessions.
/confdConfig/cli/autoWizard/enabled (boolean) [true]
enabled is either "true" or "false". If "true" the CLI will prompt the user for required attributes when
a new identifier is created. This configuration parameter takes effect only for new sessions.
/confdConfig/cli/ssh/enabled (boolean) [true]
enabled is either "true" or "false". If "true" ConfD will will run the builtin SSH daemon and run the
CLI.
/confdConfig/cli/ssh/ip (inet:ip-address) [0.0.0.0]
ip is an IP address which the ConfD CLI should listen to for SSH sessions. 0.0.0.0 means that it listens
to the port (/confdConfig/cli/ssh/port) for all IPv4 addresses on the machine.
/confdConfig/cli/ssh/port (inet:port-number) [2024]
The port number for CLI SSH
/confdConfig/cli/ssh/extraIpPorts (ip:port ip:port ...) []
extraIpPorts is a leaf-list of ip:port pairs which the CLI also listens to for SSH connections. For IPv6
addresses, the syntax [ip]:port may be used. If the ":port" is omitted, /confdConfig/cli/ssh/
port is used.
This element is a leaf-list, i.e. multiple values are represented by multiple <extraIpPorts>
items. Example:
<extraIpPorts>10.45.22.11:4777</extraIpPorts>
<extraIpPorts>127.0.0.1</extraIpPorts>
<extraIpPorts>:::88</extraIpPorts>
<extraIpPorts>[::]</extraIpPorts>
/confdConfig/cli/ssh/dscp (uint8)
Support for setting the Differentiated Services Code Point (6 bits) for traffic originating from the CLI
for SSH connections.
902
confd.conf
/confdConfig/cli/ssh/banner (string) []
banner is a string that will be presented to the client before authenticating when logging in to the CLI
via the built-in SSH server.
/confdConfig/cli/ssh/bannerFile (string)
Name of file whose contents will be presented to the client before authenticating when logging in
to the CLI via the built-in SSH server. If /confdConfig/cli/ssh/banner is non-empty, its value will be
shown before the contents of this file. Default is empty.
/confdConfig/cli/showCommitProgress (boolean) [false]
showCommitProgress can be either "true" or "false". If set to "true" then the commit operation in the
CLI will provide some progress information when the output is piped to the 'details' target.
/confdConfig/cli/commitActivityClock (boolean) [false]
commitActivityClock can be either "true" or "false". If set to "true" then a |/-\| style animation will be
displayed if the commit operation takes more than 200 ms to complete. This configuration parameter
takes effect for both existing and new sessions.
/confdConfig/cli/commitMessage (boolean) [true]
commitMessage is either "true" or "false". If set to "true" then a message will be displayed in the CLI
whenever a commit operation is performed in the system. This is always disabled in I-style, and in
transactionless mode. This configuration parameter takes effect only for new sessions.
/confdConfig/cli/commitMessageFormat (string) [System message at $(time)...\nCommit
performed by $(user) via $(proto) using $(ctx).\n]
commitMessageFormat controls how commit messages are displayed in the CLI. The format string
may contain the variables $(user), $(time), $(ctx), $(date), $(time12), $(time12ampm), $(time12hm),
$(host), $(hostname), and $(proto). This configuration parameter takes effect for both existing and
new sessions.
/confdConfig/cli/suppressCommitMessages - container element
Suppress commit messages from certain contexts.
/confdConfig/cli/suppressCommitMessages/context (string) []
Suppress commit messages from a certain context. The value of suppressCommitMessages should be
the name of a context. For example "system".
/confdConfig/cli/jStatusFormat (string) [[$(status)][$(time)]\n]
jStatusFormat controls which status message is displayed after executing a CLI command in the
J-style CLI. The format string may contain the variables $(status), $(time), $(date), $(time12),
$(time12ampm), $(time12hm), $(host), $(hostname), and $(proto).
/confdConfig/cli/forcedExitFormat (string) [You are forced out of configure mode by
$(user).\n]
forceExitFormat controls which message to display when a user is forced out of configure mode
by another user. The format string may contain the variables $(user), $(time), $(date), $(time12),
$(time12ampm), $(time12hm), $(host) and $(hostname).
/confdConfig/cli/showSubsystemMessages (boolean) [true]
showSubsystemMessages is either "true" or "false". If "true" the CLI will display a system message
whenever a connected daemon is started or stopped.
/confdConfig/cli/ignoreSubsystemFailures (boolean) [false]
ignoreSubsystemFailures is either "true" or "false". If "true" the CLI will make a best effort to display
data even if a data provider is unavailable.
903
confd.conf
/confdConfig/cli/showEmptyContainers (boolean) [false]
showEmptyContainers is either "true" or "false". If "true" the CLI will display empty container nodes
when displaying the configuration. If "false" then empty static containers will not be shown.
/confdConfig/cli/showTags (boolean) [true]
showTags is either "true" or "false". If "true" the CLI will display configuration tags if they are present.
If set to "false" then the tags will not be displayed by default.
/confdConfig/cli/showAnnotations (boolean) [true]
showAnnotations is either "true" or "false". If "true" the CLI will display configuration annotations if
they are present. If set to "false" then the annotations will not be displayed by default.
/confdConfig/cli/orderedShowConfig (boolean) [true]
orderedShowConfig is either "true" or "false". If "true" then the commands displayed when running
the "show configuration" command in C-mode will take leafrefs and cli-diff-dependency into account.
/confdConfig/cli/suppressFastShow (boolean) [false]
suppressFastShow is either "true" or "false". If "true" then the fast show optimization will be
suppressed in the C-style CLI. The fast show optimization is somewhat experimental and may break
certain operations.
/confdConfig/cli/leafPrompting (boolean) [true]
leafPrompting is either "true" or "false". If "true" the CLI will prompt the user for leaf values if they
are not provided on the command line. If "false" then an error message will be displayed if the user
does not provide a value for a leaf.
/confdConfig/cli/jExtendedShow (boolean) [true]
jExtendedShow is either "true" or "false". If set to "true" then the J-style CLI will have auto-rendered
show commands in the same style as the C and I-style CLIs. The 'show status' command can still be
used for viewing config="false" data.
/confdConfig/cli/jShowCR (boolean) [false]
jShowCR is either "true" or "false". If set to "true" then the J-style CLI will show >cr< in the
completion list whenever it is legal to press cr.
/confdConfig/cli/showPipe (boolean) [true]
showPipe is either "true" or "false". If set to "true" in operational mode the completion list will contain
| if it is legal to enter |. In J-style the jShowCR must also be set to enable this. If disablePipe is set, it
will override the setting of showPipe and imply the same behavior as if showPipe is "false".
/confdConfig/cli/showPipeConfig (boolean) [false]
showPipeConfig is either "true" or "false". If set to "true" in configure mode the completion list
will contain | if it is legal to enter |. In J-style the jShowCR must also be set to enable this. If
disablePipeConfig is set, it will override the setting of showPipeConfig and imply the same behavior
as if showPipeConfig is "false".
/confdConfig/cli/disablePipe (boolean) [false]
disablePipe is either "true" or "false". If set to "true" then the pipe commands are disabled in
operational mode.
/confdConfig/cli/disablePipeConfig (boolean) [false]
disablePipeConfig is either "true" or "false". If set to "true" then the pipe commands are disabled in
configure mode.
/confdConfig/cli/pipeHelpMode (pipeHelpModeType) [auto]
If showPipe is set to true, then pipeHelpMode determines how the pipe option will be displayed to
the user. If set to "auto", then the description text "Output modifiers" will only be displayed if there
904
confd.conf
are any other options with help texts, otherwise it will not be shown. If set to "always" then the help
text will always be displayed, if set to "never" then it will never be displayed.
/confdConfig/cli/jAllowDeleteAll (boolean) [true]
jAllowDeleteAll is either "true" or "false". If set to "true" then the J-style CLI will show the command
"delete" without arguments, if set to "false" then an argument is required.
/confdConfig/cli/cSilentNo (boolean) [true]
Silently ignore deletes of non-existing instances.
/confdConfig/cli/cModeExitFormat (string) [!]
cModeExitFormat is the string used in the CLI when displaying the running configuration to indicate
exit from a submode.
/confdConfig/cli/cRestrictiveNo (boolean) [false]
If a leaf value is given when an optional leaf is deleted, the given value is normally ignored and
the node is deleted regardless of the value. When cRestrictiveNo is set to "true", the given value is
required to be equal to the old value in order to the delete operation to be allowed. For example the
Cisco style command "no interface eth0 mtu 1500" will only succeed if the mtu has the value 1500.
/confdConfig/cli/cExtendedCmdSearch (boolean) [true]
Extend the available submode commands to all commands in parent (and grand-parent) modes. These
commands are not visible during completion but will be executed if entered. If set to "false" then only
commands for entering other submodes are available in parent and grand-parent modes, if set to "true"
all commands in parent and grand-parent modes are available.
/confdConfig/cli/cSuppressCmdSearch (boolean) [false]
Prevent non-local commands from being executed. This negates the effect of cExtendedCmdSearch
above. It is recommended to also set cModeExitFormat to "exit" when this option is set to true.
/confdConfig/cli/enterSubmodeOnLeaf (boolean) [true]
enterSubmodeOnLeaf is either "true" or "false". If set to "true" (the default) then setting a leaf in a
submode from a parent mode results in entering the submode after the command has completed. If
set to "false" then an explicit command for entering the submode is needed. For example, if running
the command
interface FastEthernet 1/1/1 mtu 1400
from the top level in config mode. If enterSubmodeOnLeaf is true the CLI will end up in the "interface
FastEthernet 1/1/1" submode after the command execution. If set to "false" then the CLI will remain
at the top level. To enter the submode when set to "false" the command
interface FastEthernet 1/1/1
is needed. Applied to the C- and I- style CLI.
/confdConfig/cli/noFollowIncompleteCommand (boolean) [false]
noFollowIncompleteCommand is either "true" or "false". If set to "true" then the 'no' command will
take incomplete-command declarations into account. If set to "false" it will not.
/confdConfig/cli/jShowUnset (boolean) [false]
jShowUnset is either "true" or "false". If set to "true" then the J-style CLI will show unset leaves with
the value of jShowUnsetText when doing "show configuration".
/confdConfig/cli/jShowUnsetText (string) [UNSET]
jShowUnsetText is the text printed for unset values if jShowUnset has been set to true.
905
confd.conf
/confdConfig/cli/jShowTableRecursive (boolean) [false]
jShowTableRecursive is either "true" or "false". If "true" the J-style CLI will attempt to display the
result of the command "show table" as a table even when a list is not directly specified. If set to "false"
then a table will only be produced if a list node is specified as argument to "show table".
/confdConfig/cli/cPrivate (boolean) [false]
cPrivate is either "true" or "false". If set to "true" then the term "private" will be used in place
of "terminal" for denoting the private/terminal configuration mode. When set to "false" the term
"terminal" will be used instead.
/confdConfig/cli/cTab (boolean) [false]
cTab is either "true" or "false". If "true" the Cisco style CLI will not display any help text when the
user enters TAB. If "false" then help text will be shown when entering TAB, similarly to the Juniper-
style CLI.
/confdConfig/cli/cTabInfo (boolean) [false]
cTabInfo is either "true" or "false". If "false" the Cisco style CLI will not display any info text when the
user enters TAB. If "true" then info text will be shown when entering TAB, similarly to the Juniper-
style CLI.
/confdConfig/cli/tabExtend (boolean) [false]
tabExtend is either "true" or "false". If "true" the CLI will extend the current token to the next longer
alternative.
/confdConfig/cli/cHelp (boolean) [true]
cHelp is either "true" or "false". If "true" the Cisco style CLI will not display any desc text when
the user enters '?'. If "false" then desc text will be shown when entering '?', similarly to the Juniper-
style CLI.
/confdConfig/cli/restrictedFileAccess (boolean) [false]
restrictedFileAccess is either "true" or "false". If this is set to "true", then the user only has access
to the home directory (or the directory where confd_cli is started), or if a directory is specified in a
cli command parameter (params/param/type/directory{wd} or params/param/type/file{wd}) to that
directory.
/confdConfig/cli/hideDotFiles (boolean) [false]
hideDotFile is either "true" or "false". If "true" then files starting with a '.' will not be visible in the CLI..
/confdConfig/cli/restrictedFileRegexp (string) []
restrictedFileRegexp is either an empty string or an regular expression (AWK style). If not empty then
all files and directories created or accessed must match the regular expression. This can be used to
ensure that certain symbols does not occur in created file names.
/confdConfig/cli/mapActions (both|config|oper) [both]
mapActions is either "both", "config", or "oper". If "both", then actions are available both in
operational mode and in configure mode. If "oper" then they are only available in operational mode,
and if "config" then they are only available in configure mode.
/confdConfig/cli/modeNameStyle (full|short|two) [short]
modeNameStyle is either "short", "two", or "full". If "short", then the mode name of submodes in the
Cisco style CLIs will be constructed from the last element in the path and the instance key. If set to
"two" then the two last modes will be used for the mode name. If set to "full" then all components
in the path will be used in the mode name.
/confdConfig/cli/modeInfoInAAA (true|false|path) [false]
modeInfoInAAA is either "true", "false" or "path", If "true", then all commands will be prefixed with
major and minor mode name when processed by the AAA-rules. This means that it is possible to
906
confd.conf
differentiate between commands with the same name in different modes. Major mode is "operational"
or "configure" and minor mode is "top" in J-style and the name of the submode in C- and I-mode. On
the top-level in C- and I-mode it is also "top". If set to "path" and if the command operation is "read"
the major mode will be followed by the path to the submode which will be followed by the command.
If set to "path" and if the command operation is "execute" the major mode will instead be followed by
the command and the path to the submode will be prepended to any path arguments of the command.
/confdConfig/cli/cmdAAAForAutowizard (true|false) [false]
cmdAAAForAutowizard si either "true" or "false". If set to "true" then the CLI will generate synthetic
commands, and perform AAA command rule checks for, for all paths and values requested by the
autowizard functionality.
/confdConfig/cli/quoteStyle (quote|baskslash) [backslash]
quoteStyle is either "quote" or "backslash". If set to "quote" then the quote characters will be used
on the CLI command line for quoting strings with troublesome characters. If set to "backslash" then
a backslash will be used. For example:
Using quote:
io(config)# description "description with spaces"
Using backslash:
io(config)# description description\ with\ spaces
/confdConfig/cli/laxBarQuoting (boolean) [false]
laxBarQuoting is either "true" or "false". If set to "true" then | and ; are only quoted if they appear by
them selves. A consequence of this is that the user must have whitespace on both sides of | and ; on
the command line when these characters are used as pipe (|) or concatenator (;).
/confdConfig/cli/expandAliasOnCompletion (boolean) [true]
expandAliasOnCompletion is either true or false. If set to true then aliases will be expanded before
invoking the completion code.
/confdConfig/cli/expandAliasEscape (boolean) [false]
expandAliasEscape is either false or a character. If set to a character then expanding an alias can be
prevented by putting the character in front of the alias.
/confdConfig/cli/allowParenQuotes (boolean) [false]
allowParenQuotes is either "true" or "false". If set to "true" then parentheses are treated as quotes, ie
the string (xx yy) will be equivalent to "xx yy" and xx\ yy on the CLI command line.
/confdConfig/cli/execNavigationCmds (boolean) [false]
execNavigationCmds is either "true" or "false". If set to "true" then it is possible to enter a submode
also in exec mode in C- and I-style CLI.
/confdConfig/cli/exitConfigModeOnCtrlC (boolean) [true]
exitConfigModeOnCtrlC is either "true" or "false". If set to "false" the user will not be thrown out of
config mode when ctrl-c is pressed on an empty command line.
/confdConfig/cli/allowOvewriteOnCopy (boolean) [false]
allowOverwriteOnCopy is either "true" or "false". If set to "true" then the copy command in the CLI
will overwrite the target if it exists. If set to "false" then an error will be displayed if the target exists.
/confdConfig/cli/inheritPaginate (boolean) [true]
inheritPaginate is either "true" or "false". If set to "true" then the paginate setting of a pipe command
will be determined by the paginate setting of the main command. If set to "false", then the output from
907
confd.conf
a pipe command will not be paginated unless pagination for that pipe command has been overridden
in a clispec file.
/confdConfig/cli/escapeBackslash (boolean) [false]
escapeBackslash is either "true" or "false". If "true" then backslash is escaped in the CLI.
/confdConfig/cli/bypassAllowAbbrevKeys (boolean) [false]
bypassAllowAbbrevKeys is either "true" or "false". If "true" then /confdConfig/cli/
allowAbbrevKeys setting does not take any effect. It means that no matter what is set for /
confdConfig/cli/allowAbbrevKeys, the key elements are not allowed to be abbreviated in
the CLI. This is relevant in the J-style CLI when using the commands 'delete' and 'edit'. In the C/I-
style CLIs when using the commands 'no', 'show configuration' and for commands to enter submodes.
/confdConfig/aaa - container element
The login procedure to ConfD is fully described in the ConfD User's Guide.
/confdConfig/aaa/sshLoginGraceTime (xs:duration) [PT10M]
ConfD closes ssh connections after this time if the client has not successfully authenticated itself by
then. If the value is PT0S, there is no time limit for client authentication.
This is a global value for all ssh servers in ConfD.
Modification of this value will only affect ssh connections that are established after the modification
has been done.
/confdConfig/aaa/sshMaxAuthTries (uint32|unbounded) [unbounded]
ConfD closes ssh connections when the client has made this number of unsuccessful authentication
attempts.
This is a global value for all ssh servers in ConfD.
Modification of this value will only affect ssh connections that are established after the modification
has been done.
/confdConfig/aaa/sshPubkeyAuthentication (none|local|system) [system]
Controls how the ConfD SSH daemon locates the user keys for public key authentication.
If set to "none", public key authentication is disabled.
If set to "local", and the user exists in /aaa/authentication/users, the keys in the user's
'ssh_keydir' directory are used.
If set to "system", the user is first looked up in /aaa/authentication/users, but
only if /confdConfig/aaa/localAuthentication/enabled is set to "true" - if
localAuthentication is disabled, or the user does not exist in /aaa/authentication/
users, but the user does exist in the OS password database, the keys in the user's $HOME/.ssh
directory are used.
/confdConfig/aaa/sshServerKeyDir (string)
sshServerKeyDir is the directory file path where the keys used by the ConfD SSH daemon are found.
This parameter must be set if SSH is enabled for NETCONF or the CLI. If SSH is enabled, the server
keys used by ConfD are of the same format as the server keys used by openssh, i.e. the same format
as generated by 'ssh-keygen'.
Only DSA- and RSA-type keys can be used with the ConfD SSH daemon, as generated by 'ssh-keygen'
with the '-t dsa' and '-t rsa' switches, respectively.
908
confd.conf
The key must be stored with an empty passphrase, and with the name 'ssh_host_dsa_key' if it is a
DSA-type key, and with the name 'ssh_host_rsa_key' if it is an RSA-type key.
The SSH server will advertise support for those key types for which there is a key file available
and for which the required algorithm is enabled, see the /confdConfig/ssh/algorithms/
serverHostKey directive.
/confdConfig/aaa/defaultGroup (string)
If the group of a user cannot be found in the AAA sub-system, a logged in user will end up as a member
of the default group (if specified). If a user logs in and the group membership cannot be established,
the user will have zero access rights.
/confdConfig/aaa/authOrder (string)
By default the AAA system will try to authenticate a user in the following order. (1)
localAuthentication i.e. the user is found inside /aaa/authentication/users. (2) pam - i.e
PAM authentication - if enabled - is tried. (3) externalAuthentication i.e. an external program is
invoked to authenticate the user.
The default is thus:
"localAuthentication pam externalAuthentication"
To change the order - change this string. For example in order to always try pam authentication before
local auth set it to: "pam localAuthentication"
/confdConfig/aaa/expirationWarning (ignore|display|prompt) [ignore]
When PAM or external authentication is used, the authentication mechanism may give a warning that
the user's password is about to expire. This parameter controls how ConfD processes that warning
message.
If set to "ignore", the warning is ignored.
If set to "display", interactive user interfaces will display the warning message at login time.
If set to "prompt", interactive user interfaces will display the warning message at login time, and
require that the user acknowledges the message before proceeding.
/confdConfig/aaa/auditUserName (always|known|never) [always]
Controls the logging of the user name when a failed authentication attempt is logged to the audit log.
If set to "always", the user name is always logged.
If set to "known", the user name is only logged when it is known to be valid (i.e. when attempting
localAuthentication and the user exists in /aaa/authentication/users), otherwise it is
logged as "[withheld]".
If set to "never", the user name is always logged as "[withheld]".
/confdConfig/aaa/localAuthentication/enabled (boolean) [true]
enabled is either "true" or "false". If "true", local authentication is used, i.e. the user data kept in the
aaa namespace is used to authenticate users. If "false" some other authentication mechanism such as
PAM or external authentication must be used.
/confdConfig/aaa/pam - container element
If PAM is to be used for login the ConfD daemon typically must run as root.
909
confd.conf
/confdConfig/aaa/pam/enabled (boolean) [false]
enabled is either "true" or "false". If "true", ConfD uses PAM for authentication.
/confdConfig/aaa/pam/service (string) [common-auth]
The PAM service to be used for the authentication. This can be any service we have installed in the /
etc/pam.d directory. Different unices have different services installed under /etc/pam.d, and
some use a file /etc/pam.conf instead - choose a service which makes sense or create a new one.
/confdConfig/aaa/pam/timeout (xs:duration) [PT10S]
The maximum time that authentication will wait for a reply from PAM. If the timeout is reached, the
PAM authentication will fail, but authentication attempts may still be done with other mechanisms as
configured for /confdConfig/aaa/authOrder. Default is PT10S, i.e. 10 seconds.
/confdConfig/aaa/rest/authCacheTTL (xs:duration) [PT10S]
The amount of time that REST API and RESTCONF locally caches authentication credentials before
querying the AAA server. Default is PT10S, i.e. 10 seconds. Setting to PT0S, i.e. 0 seconds, effectively
disables the authentication cache.
/confdConfig/aaa/rest/enableAuthCacheClientIp (boolean) [false]
If enabled, a clients source IP address will also be stored in the REST/RESTCONF authentication
cache.
/confdConfig/aaa/externalAuthentication/enabled (boolean) [false]
enabled is either "true" or "false". If "true", external authentication is used.
/confdConfig/aaa/externalAuthentication/executable (string)
If we enable external authentication, an executable on the local host can be launched to authenticate
a user. The executable will receive the username and the cleartext password on its standard input.
The format is "[${USER};${PASS};]\n". For example if user is "bob" and password is "secret", the
executable will receive the string "[bob;secret;]" followed by a newline on its standard input. The
program must parse this line.
The task of the external program, which for example could be a RADIUS client, is to authenticate
the user and also provide the user to groups mapping. Refer to the External authentication section of
the AAA chapter in the User Guide for the details of how the program should report the result back
to ConfD.
/confdConfig/aaa/externalAuthentication/useBase64 (boolean) [false]
When set to "true", ${USER} and ${PASS} in the data passed to the executable will be base64-
encoded, allowing e.g. for the password to contain ';' characters. For example if user is "bob" and
password is "secret", the executable will receive the string "[Ym9i;c2VjcmV0;]" followed by a
newline.
/confdConfig/aaa/externalAuthentication/includeExtra (boolean) [false]
When set to "true", additional information items will be provided to the executable: source IP
address and port, context, and protocol. I.e. the complete format will be "[${USER};${PASS};${IP};
${PORT};${CONTEXT};${PROTO};]\n". Example: "[bob;secret;192.168.1.1;12345;cli;ssh;]\n".
/confdConfig/aaa/authenticationCallback/enabled (boolean) [false]
enabled is either "true" or "false". If "true", ConfD will invoke an application callback when
authentication has succeeded or failed. The callback may reject an otherwise successful authentication.
If the callback has not been registered, all authentication attempts will fail. See confd_lib_dp(3) for
the callback details.
/confdConfig/aaa/authorization/enabled (boolean) [true]
enabled is either "true" or "false". If "false", all authorization checks are turned off similar to the -
noaaa flag in confd_cli.
910
confd.conf
/confdConfig/aaa/authorization/callback/enabled (boolean) [false]
enabled is either "true" or "false". If "true", ConfD will invoke application callbacks for authorization.
If the callbacks have not been registered, all authorization checks will be rejected. See confd_lib_dp(3)
for the callback details.
/confdConfig/aaa/authorization/nacmCompliant (boolean) [true]
In earlier versions, ConfD did not fully comply with the NACM specification: the 'module-name' leaf
was required to match toplevel nodes, but it was not considered for the node being accessed. If this
leaf is set to "false", this non-compliant behavior remains - this setting is only provided for backward
compatibility with existing rule sets, and is not recommended.
/confdConfig/aaa/aaaBridge - container element
aaaBridge specifies if the aaa_bridge, as described in confd_aaa_bridge(1), will be used to access
external AAA info.
/confdConfig/aaa/aaaBridge/enabled (boolean) [false]
enabled is either "true" or "false". If "true", the confd_aaa_bridge program is automatically started
by ConfD
/confdConfig/aaa/aaaBridge/file (string)
file specifies the location of the AAA data file needed by the confd_aaa_bridge program.
/confdConfig/aaa/namespace (string) [http://tail-f.com/ns/aaa/1.1]
If we want to move the AAA data into another userdefined namespace, we indicate that here.
/confdConfig/aaa/prefix (string) [/]
If we want to move the AAA data into another userdefined namespace, we indicate the prefix path in
that namespace where the ConfD AAA namespace has been mounted.
This feature has been deprecated, it is easier to achieve this through a symlink.
/confdConfig/netconf - container element
This section defines settings which decide how the NETCONF agent should behave, with respect to
NETCONF and SSH.
/confdConfig/netconf/enabled (boolean) [true]
enabled is either "true" or "false". If "true", the NETCONF agent is started.
/confdConfig/netconf/versions - container element
The list of NETCONF versions that the NETCONF server will understand and advertise.
/confdConfig/netconf/versions/v1.0 (boolean) [true]
Setting the value to true will enable NETCONF version 1.0, as defined in RFC 4741.
/confdConfig/netconf/versions/v1.1 (boolean) [true]
Setting the value to true will enable NETCONF version 1.1, as defined in RFC 6241.
/confdConfig/netconf/transport - container element
Settings deciding which transport services the NETCONF agent should listen to, e.g. TCP and SSH.
/confdConfig/netconf/transport/ssh - container element
Settings deciding how the NETCONF SSH transport service should behave.
/confdConfig/netconf/transport/ssh/enabled (boolean) [true]
enabled is either "true" or "false". If "true", the NETCONF agent uses SSH as a transport service.
911
confd.conf
/confdConfig/netconf/transport/ssh/ip (inet:ip-address) [0.0.0.0]
ip is an IP address which the ConfD NETCONF agent should listen to. 0.0.0.0 means that it listens to
the port (/confdConfig/netconf/transport/ssh/port) for all IPv4 addresses on the machine.
/confdConfig/netconf/transport/ssh/port (inet:port-number) [2022]
port is a valid port number to be used in combination with /confdConfig/netconf/transport/ssh/ip. Note
that the standard port for NETCONF over SSH is 830.
/confdConfig/netconf/transport/ssh/extraIpPorts (ip:port ip:port ...) []
extraIpPorts is a leaf-list of ip:port pairs which the NETCONF agent also listens to for SSH
connections. For IPv6 addresses, the syntax [ip]:port may be used. If the ":port" is omitted, /
confdConfig/netconf/transport/ssh/port is used.
This element is a leaf-list, i.e. multiple values are represented by multiple <extraIpPorts>
items. Example:
<extraIpPorts>10.45.22.11:4777</extraIpPorts>
<extraIpPorts>127.0.0.1</extraIpPorts>
<extraIpPorts>:::88</extraIpPorts>
<extraIpPorts>[::]</extraIpPorts>
/confdConfig/netconf/transport/ssh/dscp (uint8)
Support for setting the Differentiated Services Code Point (6 bits) for traffic originating from the
NETCONF server for SSH connections.
/confdConfig/netconf/transport/tcp - container element
NETCONF over TCP is not standardized, but it can be useful during development in order to use e.g.
netcat for scripting. It is also useful if we want to use our own proprietary transport. In that case we
setup the NETCONF agent to listen to localhost and then proxy it from our transport service module.
/confdConfig/netconf/transport/tcp/enabled (boolean) [false]
enabled is either "true" or "false". If "true", the NETCONF agent uses clear text TCP as a transport
service.
/confdConfig/netconf/transport/tcp/ip (inet:ip-address) [0.0.0.0]
ip is an IP address which the ConfD NETCONF agent should listen to. 0.0.0.0 means that it listens to
the port (/confdConfig/netconf/transport/tcp/port) for all IPv4 addresses on the machine.
/confdConfig/netconf/transport/tcp/port (inet:port-number) [2023]
port is a valid port number to be used in combination with /confdConfig/netconf/transport/tcp/ip.
/confdConfig/netconf/transport/tcp/extraIpPorts (ip:port ip:port ...) []
extraIpPorts is a leaf-list of ip:port pairs which the NETCONF agent also listens to for TCP
connections. For IPv6 addresses, the syntax [ip]:port may be used. If the ":port" is omitted, /
confdConfig/netconf/transport/tcp/port is used.
This element is a leaf-list, i.e. multiple values are represented by multiple <extraIpPorts>
items. Example:
<extraIpPorts>10.45.22.11:4777</extraIpPorts>
<extraIpPorts>127.0.0.1</extraIpPorts>
<extraIpPorts>:::88</extraIpPorts>
<extraIpPorts>[::]</extraIpPorts>
/confdConfig/netconf/transport/tcp/dscp (uint8)
Support for setting the Differentiated Services Code Point (6 bits) for traffic originating from the
NETCONF server for TCP connections.
912
confd.conf
/confdConfig/netconf/capabilities - container element
Decide which NETCONF capabilities to enable here.
/confdConfig/netconf/capabilities/startup/enabled (boolean) [false]
enabled is either "true" or "false". If "true", the startup NETCONF capability is enabled. Enable only
if /confdConfig/datastores/startup is enabled.
/confdConfig/netconf/capabilities/candidate/enabled (boolean) [true]
enabled is either "true" or "false". If "true", the candidate NETCONF capability is enabled. Enable
only if /confdConfig/datastores/candidate is enabled.
/confdConfig/netconf/capabilities/confirmed-commit/enabled (boolean) [true]
enabled is either "true" or "false". If "true", the confirmed-commit NETCONF capability is enabled.
/confdConfig/netconf/capabilities/writable-running/enabled (boolean) [true]
enabled is either "true" or "false". If "true", the writable-running NETCONF capability is enabled.
Enable only if /confdConfig/datastores/running/access is read-write.
/confdConfig/netconf/capabilities/rollback-on-error/enabled (boolean) [true]
enabled is either "true" or "false". If "true", the rollback-on-error NETCONF capability is enabled.
/confdConfig/netconf/capabilities/validate/enabled (boolean) [true]
enabled is either "true" or "false". If enabled "true", the validate NETCONF capability is enabled.
/confdConfig/netconf/capabilities/validate/test-only (boolean) [false]
DEPRECATED - this feature is available in NETCONF 1.1.
If test-only "true", the NETCONF agent allows 'test-only' as a valid value for the '<test-option>'
parameter in '<edit-config>'.
/confdConfig/netconf/capabilities/url - container element
Turn on the URL capability options we want to support.
/confdConfig/netconf/capabilities/url/enabled (boolean) [false]
enabled is either "true" or "false". If "true", the url NETCONF capability is enabled.
/confdConfig/netconf/capabilities/url/file - container element
Decide how the url file support should behave.
/confdConfig/netconf/capabilities/url/file/enabled (boolean) [true]
enabled is either "true" or "false". If "true", the url file scheme is enabled.
/confdConfig/netconf/capabilities/url/file/rootDir (string)
rootDir is a directory path on disk where ConfD will store the result from an NETCONF operation
using the url capability. This parameter must be set if the file url scheme is enabled.
/confdConfig/netconf/capabilities/url/ftp - container element
Decide how the url ftp scheme should behave.
/confdConfig/netconf/capabilities/url/ftp/enabled (boolean) [true]
enabled is either "true" or "false". If "true", the url ftp scheme is enabled.
/confdConfig/netconf/capabilities/url/sftp - container element
Decide how the url sftp scheme should behave.
/confdConfig/netconf/capabilities/url/sftp/enabled (boolean) [true]
enabled is either "true" or "false". If "true", the url sftp scheme is enabled.
913
confd.conf
/confdConfig/netconf/capabilities/xpath/enabled (boolean) [true]
enabled is either "true" or "false". If "true", the xpath capability is enabled.
/confdConfig/netconf/capabilities/notification/enabled (boolean) [false]
enabled is either "true" or "false". If "true", the notification capability, defined in RFC 5277, is enabled.
/confdConfig/netconf/capabilities/notification/interleave/enabled
(boolean) [false]
enabled is either "true" or "false". If "true", the interleave capability, defined in RFC 5277, is enabled.
With this capability enabled, the NETCONF agent will process RPCs while sending notifications.
/confdConfig/netconf/capabilities/partial-lock/enabled (boolean) [false]
enabled is either "true" or "false". If "true", the partial-lock capability defined in RFC 5717 is enabled.
/confdConfig/netconf/capabilities/actions/enabled (boolean) [false]
enabled is either "true" or "false". If "true", the http://tail-f.com/ns/netconf/
actions/1.0 capability is enabled.
>/confdConfig/netconf/capabilities/transactions/enabled (boolean) [false]
enabled is either "true" or "false". If "true", the http://tail-f.com/ns/netconf/
transactions/1.0 capability is enabled.
/confdConfig/netconf/capabilities/ietf-with-defaults/enabled (boolean)
[true]
enabled is either "true" or "false". If "true", the with-defaults capability, defined in RFC 6243, is
enabled.
The NETCONF server will advertise its 'basic-mode' and 'also-supported' modes depending on the
parameter /confdConfig/defaultHandlingMode.
/confdConfig/netconf/capabilities/with-defaults/enabled (boolean) [false]
DEPRECATED - use ietf-with-defaults instead.
enabled is either "true" or "false". If "true", the http://tail-f.com/ns/netconf/with-
defaults/1.0 capability is enabled.
/confdConfig/netconf/capabilities/forward/enabled (boolean) [false]
enabled is either "true" or "false". If "true", the http://tail-f.com/ns/netconf/
forward/1.0 capability is enabled.
/confdConfig/netconf/capabilities/tailf-commit/enabled (boolean) [false]
DEPRECATED - this feature is available in NETCONF 1.1.
enabled is either "true" or "false". If "true", the http://tail-f.com/ns/netconf/
commit/1.0 capability is enabled.
/confdConfig/netconf/capabilities/query/enabled (boolean) [false]
enabled is either "true" or "false". If "true", the http://tail-f.com/ns/netconf/query
capability is enabled.
/confdConfig/netconf/capabilities/inactive/enabled (boolean) [false]
enabled is either "true" or "false". If "true", the http://tail-f.com/ns/netconf/
inactive/1.0 capability is enabled.
914
confd.conf
/confdConfig/netconf/capabilities/capability (xs:anyURI)
capability is a parameter can be given multiple times. It specifies a URI string which the NETCONF
agent will report as a capability in the hello message sent to the client.
/confdConfig/netconf/maxBatchProcesses(uint32|unbounded) [unbounded]"
Controls how many concurrent NETCONF batch processes there can be at any time. A batch process
can be started by the agent if a new NETCONF operation is implemented as a batch operation. See
the NETCONF chapter in the ConfD User's Guide for details.
/confdConfig/netconf/extendedSessions (boolean) [false]
If extendedSessions are enabled, all ConfD sessions can be terminated using <kill-session>, i.e. not
only can other NETCONF session be terminated, but also CLI sessions, Webui sessions etc. If such
a session holds a lock, it's session id will be returned in the <lock-denied>, instead of "0".
Strictly speaking, this extension is not covered by the NETCONF specification; therefore it's false
by default.
/confdConfig/netconf/sendDefaults (boolean) [false]
DEPRECATED - use /confdConfig/defaultHandlingMode instead to control this behavior
consistently for all northbound interfaces.
If sendDefaults is true, default values will be included in the replies to <get>, <get-config>, and <copy-
config>. If sendDefaults is false, default values will not be included by default.
If /confdConfig/netconf/capabilities/with-defaults is enabled, this behavior can be controlled by the
NETCONF client.
/confdConfig/netconf/rpcErrors (close|inline) [close]
If rpcErrors is "inline", and an error occurs during the processing of a <get> or <get-config> request
when ConfD tries to fetch some data from a data provider, ConfD will generate an rpc-error element
in the faulty element, and continue to process the next element.
If an error occurs and rpcErrors is "close", the NETCONF transport is closed by ConfD.
/confdConfig/netconf/idleTimeout (xs:duration) [PT0S]
Maximum idle time before terminating a NETCONF session. If the session is waiting for notifications,
or has a pending confirmed commit, the idle timeout is not used. The default value is 0, which means
no timeout. Will be silently capped to 49 days 17 hours Modification of this value will only affect
connections that are established after the modification has been done.
/confdConfig/netconf/writeTimeout (xs:duration) [PT0S]
Maximum time for a write operation towards a client to complete. If the time is exceeded, the
NETCONF session is terminated. The default value is 0, which means no timeout. Modification of
this value will only affect connections that are established after the modification has been done.
/confdConfig/proxyForwarding - container element
This section defines settings which affect the behavior of Proxy Forwarding.
/confdConfig/proxyForwarding/enabled (boolean) [false]
enabled is either "true" or "false". If "true", proxy forwarding is enabled.
/confdConfig/proxyForwarding/autoLogin (boolean) [false]
autoLogin is either "true" or "false". If "true", ConfD will try to login to the target system with the
current sessions credentials, if it has access to them. In order for ConfD to get access to the session
credentials, the builtin SSH daemon must be used.
915
confd.conf
/confdConfig/proxyForwarding/proxy - container element
Parameters for a single proxy.
/confdConfig/proxyForwarding/proxy/target - container element
The name of the proxy target. It is used as a unique identifier of the proxy target. This is the target
name that users give when they want to connect to the target.
The name is included in the proxy events (see confd_lib_events(3)) generated by ConfD.
/confdConfig/proxyForwarding/proxy/address (inet:host)
The IP address of the proxy target system.
/confdConfig/proxyForwarding/proxy/netconf - container element
If present, the target is available for NETCONF proxy forwarding.
/confdConfig/proxyForwarding/proxy/netconf/ssh - container element
If present, the proxy connections between ConfD and the proxy NETCONF target will be over SSH.
/confdConfig/proxyForwarding/proxy/netconf/ssh/port (inet:port-number)
[2022]
The port where the proxy target listens for NETCONF SSH connections.
/confdConfig/proxyForwarding/proxy/netconf/tcp - container element
If present, the proxy connections between ConfD and the proxy NETCONF target will be over TCP.
/confdConfig/proxyForwarding/proxy/netconf/tcp/port (inet:port-number)
[2023]
The port where the proxy target listens for NETCONF TCP connections.
/confdConfig/proxyForwarding/proxy/cli - container element
If present, the target is available for CLI proxy forwarding.
/confdConfig/proxyForwarding/proxy/cli/ssh - container element
If present, the proxy connections between ConfD and the proxy CLI target will be over SSH.
/confdConfig/proxyForwarding/proxy/cli/ssh/port (inet:port-number)
[22]
The port where the proxy target listens for CLI SSH connections.
/confdConfig/snmpAgent - container element
This section defines settings which affect the behavior of the SNMP agent.
/confdConfig/snmpAgent/enabled (boolean) [false]
enabled is either "true" or "false". If "true", the SNMP agent is enabled.
/confdConfig/snmpAgent/ip (inet:ip-address) [0.0.0.0]
ip is an IP address which the ConfD SNMP agent should listen to. 0.0.0.0 means that it listens to the
port (/confdConfig/snmpAgent/port) for all IPv4 addresses on the machine.
/confdConfig/snmpAgent/port (inet:port-number) [161]
port is a valid port number to be used in combination with /confdConfig/snmpAgent/ip.
/confdConfig/snmpAgent/extraIpPorts (ip:port ip:port ...) []
extraIpPorts is a leaf-list of ip:port pairs which the SNMP agent also listens to. For IPv6 addresses,
the syntax [ip]:port may be used. If the ":port" is omitted, /confdConfig/snmpAgent/port
is used.
916
confd.conf
This element is a leaf-list, i.e. multiple values are represented by multiple <extraIpPorts>
items. Example:
<extraIpPorts>10.45.22.11:4777</extraIpPorts>
<extraIpPorts>127.0.0.1</extraIpPorts>
<extraIpPorts>:::88</extraIpPorts>
<extraIpPorts>[::]</extraIpPorts>
/confdConfig/snmpAgent/dscp (uint8)
Support for setting the Differentiated Services Code Point (6 bits) for traffic originating from the
SNMP agent.
/confdConfig/snmpAgent/mibs - container element
This section defines a list of MIBs that should be loaded into the SNMP agent.
/confdConfig/snmpAgent/mibs/file (string)
file is the location of a MIB file that should be loaded into the SNMP agent. For example:
<file>./TAIL-F-TEST-MIB.bin</file>
The MIB file must be in binary format (.bin) produced with the confdc compiler. For loading of a
built-in MIB no path must be given. Example:
<file>SNMP-USER-BASED-SM-MIB.bin</file>
See the ConfD User's Guide for more information about loading MIBs into the SNMP agent.
/confdConfig/snmpAgent/mibs/fromLoadPath (boolean) [false]
If true, any ".bin" file found in the /confdConfig/loadPath is loaded at startup. Bult-in MIBs must still
be listed explicitly using the "file" element.
/confdConfig/snmpAgent/temporaryStorageTime (uint32) [300]
The time, in seconds, that the agent keeps temporary table entries before deleting them. A table entry
is temporary if its RowStatus column is 'notReady' or 'notInService'.
/confdConfig/snmpAgent/sessionIgnorePort (boolean) [false]
If true, the SNMP Agent will consider requests originating from one and the same IP Address, and
using the same security name, as related, regardless of source port. Per default, the SNMP Agent will
consider requests originating from one and the same IP Address and port, and using the same security
name, as related. Related requests are handled in the same user session. This is absolutely necessary for
achieving good performance when processing consecutive get-next requests, as during SNMP walks.
/confdConfig/snmpAgent/snmpVersions - container element
This section defines the list of SNMP versions that the SNMP agent should understand.
/confdConfig/snmpAgent/snmpVersions/v1 (boolean) [true]
Setting the value to true will enable SNMP v1 in the SNMP agent.
/confdConfig/snmpAgent/snmpVersions/v2c (boolean) [true]
Setting the value to true will enable SNMP v2c in the SNMP agent.
/confdConfig/snmpAgent/snmpVersions/v3 (boolean) [true]
Setting the value to true will enable SNMP v3 in the SNMP agent.
/confdConfig/snmpAgent/snmpEngine - container element
This section defines properties from the SNMP-FRAMEWORK-MIB (RFC3411) for the SNMP
agent.
917
confd.conf
/confdConfig/snmpAgent/snmpEngine/snmpEngineID (confd:hexlist) [
The name of the SNMP engine. snmpEngineID is defined in the SNMP-FRAMEWORK-MIB
(RFC3411).
/confdConfig/snmpAgent/snmpEngine/snmpEngineMaxMessageSize (uint64) [50000]
The maximum size of SNMP messages that the agent can send or receive. The
snmpEngineMaxMessageSize is defined in the SNMP-FRAMEWORK-MIB (RFC3411).
/confdConfig/snmpAgent/snmpEngine/authenticationFailureNotifyName
(string) [""]
When the SNMP agent sends the standard authenticationFailure notification, it is delivered to
the management targets defined for the snmpNotifyName in the snmpNotifyTable in SNMP-
NOTIFICATION-MIB (RFC3413). If authenticationFailureNotifyName is the empty string (default),
the notification is delivered to all management targets.
/confdConfig/snmpAgent/contexts (string)
A leaf-list of context names which this SNMP Agent, i.e. one or more external data providers,
recognize in addition to the empty context, "".
This element is a leaf-list, i.e. multiple values are represented by multiple <contexts> items.
/confdConfig/snmpAgent/dropWhenInUse (boolean) [false]
Whenever a set request cannot be completed, due to competing actions (typically CDB clients, or
other transactions) preventing the SNMP Agent from taking the required locks on configuration stores
and data providers affected by the request, the SNMP Agent will respond to the set request with an
"in use" error. If dropWhenInUse is true, the SNMP Agent will silently drop the request instead.
/confdConfig/snmpAgent/system - container element
This section defines properties from the SNMPv2-MIB (RFC3418) for the SNMP agent.
/confdConfig/snmpAgent/system/sysDescr (string)
A textual description of the entity. This value should include the full name and version identification
of the system's hardware type, software operating-system, and networking software. The sysDescr is
defined in the SNMPv2-MIB (RFC3418).
/confdConfig/snmpAgent/system/sysObjectID (confd:oid)
The vendor's authoritative identification of the network management subsystem contained in the
entity. The sysObjectID is defined in the SNMPv2-MIB (RFC3418).
/confdConfig/snmpAgent/system/sysServices (uint64) [72]
A value which indicates the set of services that this entity may potentially offer. The sysServices is
defined in the SNMPv2-MIB (RFC3418).
/confdConfig/snmpAgent/system/sysORTable - container element
Entries that will populate the sysORTable from SNMPv2-MIB.
/confdConfig/snmpAgent/system/sysORTable/sysOREntry - container element
Corresponds to one entry in the sysORTable from SNMPv2-MIB.
/confdConfig/snmpAgent/system/sysORTable/sysOREntry/sysORIndex
(uint64)
The index for this row in the table.
/confdConfig/snmpAgent/system/sysORTable/sysOREntry/sysORID
(confd:oid)
The OID of the AGENT-CAPABILITIES invocation.
918
confd.conf
/confdConfig/snmpAgent/system/sysORTable/sysOREntry/sysORDescr
(string)
A textual description of capabilities defined in sysORID.
/confdConfig/snmpgw - container element
This section defines settings which affect the behavior of the SNMP gateway.
/confdConfig/snmpgw/enabled (boolean) [false]
enabled is either "true" or "false". If "true", the gateway is enabled.
/confdConfig/snmpgw/trapPort (inet:port-number)
The port number to listen for traps on.
/confdConfig/snmpgw/agent - container element
Parameters for a single agent.
/confdConfig/snmpgw/agent/enabled (boolean) [true]
enabled is either "true" or "false". If "true", the agent is enabled.
/confdConfig/snmpgw/agent/name (xs:token)
A name for the agent, mainly used for error reporting.
/confdConfig/snmpgw/agent/subscriptionId (xs:token)
The subscription id, if set, is used for indicating to which applications external traps should be sent on.
/confdConfig/snmpgw/agent/forwardNotifStream (xs:token)
The forwarding notification stream, if present, indicates that traps should be automatically translated
in accordance with the yang definition of the notification, and sent out on the given stream. The given
stream may not implement replay support externally.
/confdConfig/snmpgw/agent/community (string) [private]
The community string for communication with the agent. If the community string cannot be expressed
in Unicode, use the element community_bin instead (see below). If both community_bin and
community are specified, community is ignored.
/confdConfig/snmpgw/agent/community_bin (xs:hexBinary)
The community string for communication with the agent, encoded in hexBinary. For example,
<community>AB</community> and <community_bin>4142</community_bin> are
equivalent. The main use for this is when the community string cannot be expressed in Unicode.
/confdConfig/snmpgw/agent/version (v1 | v2c) [v2c]
The default protocol version to use. The value indicates the preferred version - if the agent doesn't
respond, the other version will be tried.
/confdConfig/snmpgw/agent/timeout (xs:duration) [PT5S]
The amount of time to wait for an answer from the agent before aborting the operation. The default
is five seconds.
/confdConfig/snmpgw/agent/ip (inet:ip-address)
The host (specified as a name or an IP address) on which the agent is running.
/confdConfig/snmpgw/agent/port (inet:port-number) [161]
The port number to use for communication with the agent.
/confdConfig/snmpgw/agent/module (string)
A list of MIB module names that this agent implements. Each such MIB must be convert to YANG
and compiled with the --snmpgw flag to confdc.
919
confd.conf
/confdConfig/webui - container element
This section defines settings which decide how the embedded ConfD Web server should behave, with
respect to TCP and SSL etc.
/confdConfig/webui/enabled (boolean) [false]
enabled is either "true" or "false". If "true", the Web server is started.
/confdConfig/webui/serverName (string) [localhost]
The hostname the Web server serves.
/confdConfig/webui/matchHostName(boolean) [false]
This setting specifies if the Web server only should serve URLs adhering to the serverName defined
above. By default the serverName is "localhost" and matchHostName is "false", i.e. any server name
can be given in the URL. If you want the server to only accept URLs adhering to the serverName,
enable this setting.
/confdConfig/webui/cacheRefreshSecs (uint64) [0]
The ConfD Web server uses a RAM cache for static content. An entry sits in the cache for a number
of seconds before it is reread from disk (on access). The default is 0.
/confdConfig/webui/maxRefEntries (uint64) [100]
Leafref and keyref entries are represented as drop-down menus in the automatically generated Web
UI. By default no more than 100 entries are fetched. This element makes this number configurable.
/confdConfig/webui/docroot
The location of the document root on disk. If this configurable is omitted the docroot points to the
next generation docroot in the ConfD distro instead.
/confdConfig/webui/webuiIndexUrl
Where to redirect after successful login, which by default is '/index.html'.
/confdConfig/webui/loginDir
The loginDir element points out an alternative login directory which contains your HTML code etc
used to login to the Web UI. This directory will be mapped https://<ip-address>/login. If this element
is not specified the default login/ directory in the docroot will be used instead.
/confdConfig/webui/customDir
The custom-dir element points out a custom directory which contains the customizations you want to
apply to the auto- generated Web UI. The content of this directory should be as described in the User
Guide and it will be mapped to https://<ip-address>/custom.
/confdConfig/webui/customHeaders/header
The customHeaders element contains any number of header elements, with a valid header-field as
defined in RFC7230. The headers will be part of HTTP responses on "/login.html", "/index.html" and
"/jsonrpc".
/confdConfig/webui/customHeaders/header/name (string)
RFC7230 field-name, e.g. Accept-Control-Allow-Origin
/confdConfig/webui/customHeaders/header/value (string)
RFC7230 field-value, e.g. http://www.cisco.com
/confdConfig/webui/X-Frame-Options
By default the X-Frame-Options header is set to DENY for the /login.html and /index.html pages.
With this header it can be set to SAMEORIGIN or ALLOW-FROM instead.
920
confd.conf
/confdConfig/webui/disableAuth/dir
The disableAuth element contains any number of dir elements. Each dir element points to a directory
path in the docroot which should not be restricted by the AAA engine. If no dir elements are specified
the following directories and files will not be restricted by the AAA engine: "/login" and "/login.html".
/confdConfig/webui/transport - container element
Settings deciding which transport services the Web server should listen to, e.g. TCP and SSL.
/confdConfig/webui/transport/tcp - container element
Settings deciding how the Web server TCP transport service should behave.
/confdConfig/webui/transport/tcp/enabled (boolean) [false]
enabled is either "true" or "false". If "true", the Web server uses cleart text TCP as a transport service.
/confdConfig/webui/transport/tcp/redirect (string)
If given the user will be redirected to the specified URL. Two macros can be specified, i.e. @HOST@
and @PORT@. For example https://@HOST@:443 or https://192.12.4.3:@PORT@
/confdConfig/webui/transport/tcp/disableNonAuthRedirect (boolean) [false]
disableNonAuthRedirect is either "true" or "false". If "true" non-authenticated HTTP requests (expect
"/" and "/index.html") result in a 404 HTTP reply. If false all non-authenticated requests are redirected
to "/login.html".
/confdConfig/webui/transport/tcp/ip (inet:ip-address) [0.0.0.0]
ip is an IP address which the Web server should listen to. 0.0.0.0 means that it listens to the port (/
confdConfig/webui/transport/tcp/port) for all IPv4 addresses on the machine.
/confdConfig/webui/transport/tcp/port (inet:port-number) [8008]
port is a valid port number to be used in combination with /confdConfig/webui/transport/tcp/ip.
/confdConfig/webui/transport/tcp/extraIpPorts (ip:port ip:port ...) []
extraIpPorts is a leaf-list of ip:port pairs which the Web server also listens to for TCP connections.
For IPv6 addresses, the syntax [ip]:port may be used. If the ":port" is omitted, /confdConfig/
webui/transport/tcp/port is used.
This element is a leaf-list, i.e. multiple values are represented by multiple <extraIpPorts>
items. Example:
<extraIpPorts>10.45.22.11:4777</extraIpPorts>
<extraIpPorts>127.0.0.1</extraIpPorts>
<extraIpPorts>:::88</extraIpPorts>
<extraIpPorts>[::]</extraIpPorts>
/confdConfig/webui/transport/tcp/dscp (uint8)
Support for setting the Differentiated Services Code Point (6 bits) for traffic originating from the Web
server for TCP connections.
/confdConfig/webui/transport/ssl - container element
Settings deciding how the Web server SSL (Secure Sockets Layer) transport service should behave.
SSL is widely deployed on the Internet and virtually all bank transactions as well as all on-line
shopping today is done with SSL encryption. There are many good sources on describing SSL in
detail, e.g. http://www.tldp.org/HOWTO/SSL-Certificates-HOWTO/ which describes how to manage
certificates and keys.
/confdConfig/webui/transport/ssl/enabled (boolean) [false]
enabled is either "true" or "false". If "true", the Web server uses SSL as a transport service.
921
confd.conf
/confdConfig/webui/transport/ssl/disableNonAuthRedirect (boolean) [false]
disableNonAuthRedirect is either "true" or "false". If "true" non-authenticated HTTP requests (expect
"/" and "/index.html") result in a 404 HTTP reply. If false all non-authenticated requests are redirected
to "/login.html".
/confdConfig/webui/transport/ssl/redirect (string)
If given the user will be redirected to the specified URL. Two macros can be specified, i.e. @HOST@
and @PORT@. For example http://@HOST@:80 or http://192.12.4.3:@PORT@
/confdConfig/webui/transport/ssl/ip (inet:ip-address) [0.0.0.0]
ip is an IP address which the Web server should listen to. 0.0.0.0 means that it listens to the port (/
confdConfig/webui/transport/ssl/port) for all IPv4 addresses on the machine.
/confdConfig/webui/transport/ssl/port (inet:port-number) [8888]
port is a valid port number to be used in combination with /confdConfig/webui/transport/ssl/ip.
/confdConfig/webui/transport/ssl/extraIpPorts (ip:port ip:port ...) []
extraIpPorts is a leaf-list of ip:port pairs which the Web server also listens to for SSL connections.
For IPv6 addresses, the syntax [ip]:port may be used. If the ":port" is omitted, /confdConfig/
webui/transport/ssl/port is used.
This element is a leaf-list, i.e. multiple values are represented by multiple <extraIpPorts>
items. Example:
<extraIpPorts>10.45.22.11:4777</extraIpPorts>
<extraIpPorts>127.0.0.1</extraIpPorts>
<extraIpPorts>:::88</extraIpPorts>
<extraIpPorts>[::]</extraIpPorts>
/confdConfig/webui/transport/ssl/dscp (uint8)
Support for setting the Differentiated Services Code Point (6 bits) for traffic originating from the Web
server for SSL connections.
/confdConfig/webui/transport/ssl/keyFile (string)
Specifies which file that contains the private key for the certificate. Read more about certificates in /
confdConfig/webui/transport/ssl/certFile. If this configurable is omitted the keyFile points to a built-
in self signed certificate/key in the ConfD distro instead. Note: Only use this certificate/key for test
purposes.
/confdConfig/webui/transport/ssl/certFile (string)
Specifies which file that contains the server certificate. The certificate is either a self-signed test
certificate or a genuin and validated certificate bought from a CA (Certificate Authority). If this
configurable is omitted the keyFile points to a built-in self signed certificate/key in the ConfD distro
instead. Note: Only use this certificate/key for test purposes.
The ConfD distribution comes with a server certificate which can be used for testing purposes
($CONFD_DIST/var/confd/webui/cert/host.{cert,key}). This server certificate has been generated
using a local CA certificate:
$ openssl
OpenSSL> genrsa -out ca.key 4096
OpenSSL> req -new -x509 -days 3650 -key ca.key -out ca.cert
OpenSSL> genrsa -out host.key 4096
OpenSSL> req -new -key host.key -out host.csr
OpenSSL> x509 -req -days 365 -in host.csr -CA ca.cert \
-CAkey ca.key -set_serial 01 -out host.cert
922
confd.conf
/confdConfig/webui/transport/ssl/caCertFile (string)
Specifies which file that contains the trusted certificates to use during client authentication and to use
when attempting to build the server certificate chain. The list is also used in the list of acceptable CA
certificates passed to the client when a certificate is requested.
The ConfD distribution comes with a CA certificate which can be used for testing purposes
($CONFD_DIST/var/confd/webui/ca_cert/ca.cert).
/confdConfig/webui/transport/ssl/verify (1 | 2 | 3) [1]
Specifies the level of verification the server does on client certificates. 1 means nothing, 2 means the
server will ask the client for a certificate but not fail if the client does not supply a client certificate,
3 means that the server requires the client to supply a client certificate.
If caCertFile has been set to the ca.cert file generated above you can verify that it works correctly
using, for example:
$ openssl s_client -connect 127.0.0.1:8888 \
-cert client.cert -key client.key
For this to work client.cert must have been generated using the ca.cert from above:
OpenSSL> genrsa -out client.key 4096
OpenSSL> req -new -key client.key -out client.csr
OpenSSL> x509 -req -days 3650 -in client.csr -CA ca.cert \
-CAkey ca.key -set_serial 01 -out client.cert
/confdConfig/webui/transport/ssl/depth (uint64) [1]
Specifies the depth of certificate chains the server is prepared to follow when verifying client
certificates.
/confdConfig/webui/transport/ssl/ciphers (string) [DEFAULT]
Specifies the cipher suites to be used by the server as a colon-separated list
from the set ECDHE-ECDSA-AES256-GCM-SHA384, ECDHE-RSA-AES256-GCM-SHA384,
ECDHE-ECDSA-AES256-SHA384, ECDHE-RSA-AES256-SHA384, ECDH-ECDSA-AES256-
GCM-SHA384, ECDH-RSA-AES256-GCM-SHA384, ECDH-ECDSA-AES256-SHA384, ECDH-
RSA-AES256-SHA384, DHE-RSA-AES256-GCM-SHA384, DHE-DSS-AES256-GCM-SHA384,
DHE-RSA-AES256-SHA256, DHE-DSS-AES256-SHA256, AES256-GCM-SHA384, AES256-
SHA256, ECDHE-ECDSA-AES128-GCM-SHA256, ECDHE-RSA-AES128-GCM-SHA256,
ECDHE-ECDSA-AES128-SHA256, ECDHE-RSA-AES128-SHA256, ECDH-ECDSA-AES128-
GCM-SHA256, ECDH-RSA-AES128-GCM-SHA256, ECDH-ECDSA-AES128-SHA256, ECDH-
RSA-AES128-SHA256, DHE-RSA-AES128-GCM-SHA256, DHE-DSS-AES128-GCM-SHA256,
DHE-RSA-AES128-SHA256, DHE-DSS-AES128-SHA256, AES128-GCM-SHA256, AES128-
SHA256, ECDHE-ECDSA-AES256-SHA, ECDHE-RSA-AES256-SHA, DHE-RSA-AES256-SHA,
DHE-DSS-AES256-SHA, ECDH-ECDSA-AES256-SHA, ECDH-RSA-AES256-SHA, AES256-
SHA, ECDHE-ECDSA-DES-CBC3-SHA, ECDHE-RSA-DES-CBC3-SHA, EDH-RSA-DES-
CBC3-SHA, EDH-DSS-DES-CBC3-SHA, ECDH-ECDSA-DES-CBC3-SHA, ECDH-RSA-DES-
CBC3-SHA, DES-CBC3-SHA, ECDHE-ECDSA-AES128-SHA, ECDHE-RSA-AES128-SHA,
DHE-RSA-AES128-SHA, DHE-DSS-AES128-SHA, ECDH-ECDSA-AES128-SHA, ECDH-RSA-
AES128-SHA, AES128-SHA, EDH-RSA-DES-CBC-SHA, and DES-CBC-SHA, or the word
"DEFAULT" (use all cipher suites in that list for which the required support is implemented in
libcrypto). See the OpenSSL manual page ciphers(1) for the definition of the cipher suites. NOTE:
The general cipher list syntax described in ciphers(1) is not supported.
/confdConfig/webui/transport/ssl/protocols (string) [DEFAULT]
Specifies the SSL/TLS protocol versions to be used by the server as a whitespace-separated list from
the set sslv3 tlsv1 tlsv1.1 tlsv1.2, or the word "DEFAULT" (use all supported protocol versions except
sslv3).
923
confd.conf
/confdConfig/webui/cgi - container element
CGI-script support
/confdConfig/webui/cgi/enabled (boolean) [false]
enabled is either "true" or "false". If "true", CGI-script support is enabled.
/confdConfig/webui/cgi/dir (string)
The directory path to the location of the CGI-scripts.
/confdConfig/webui/idleTimeout (xs:duration) [PT30M]
Maximum idle time before terminating a Web UI session. PT0M means no timeout. Default is PT30M,
ie 30 minutes.
/confdConfig/webui/absoluteTimeout (xs:duration) [PT60M]
Maximum absolute time before terminating a Web UI session. PT0M means no timeout. Default is
PT60M, ie 60 minutes.
/confdConfig/webui/rateLimiting (uint64) [1000000]
Maximum number of allowed JSON-RPC requests every hour. 0 means infinity.
/confdConfig/webui/namedCommands - container element
Named commands are used to define a well defined set of executables which can be run on the target
device from the browser using a call to Maapi.runCmd().
/confdConfig/webui/namedCommands/exec
"exec" directives specify how a named command is mapped to an executable or a shell script. It
contains (in order) one "name" directive, one "osCommand" directive, zero or one "args" directives
and zero or one "options" directives.
An example:
<exec name="cli">
<osCommand>confd_cli</osCommand>
<args>-u$(user) --proto http</args>
</exec>
/confdConfig/webui/namedCommands/exec/name (xs:token)
The command alias name to be used in Maapi.runCmd() calls.
/confdConfig/webui/namedCommands/exec/osCommand (xs:token)
The "osCommand" directive specifies the path to the executable or shell script to be called. If the
command is in the $PATH (as specified when we start the ConfD daemon) the path may just be the
name of the command.
The command is invoked as if it had been executed by exec(3), i.e. not in a shell environment such
as "/bin/sh -c ...".
/confdConfig/webui/namedCommands/exec/args (argsType)
The "args" directive specifies the arguments to use when executing the command specified by the
"osCommand" directive. argsType is a space-separated string of argument strings.
/confdConfig/webui/namedCommands/exec/options - container element
The "options" directive specifies how the command is be executed. It contains (in any order) zero or
one "uid" directives and zero or one "wd" directives.
/confdConfig/webui/namedCommands/exec/options/uid (idType)
The "uid" directive specifies which user id to use when executing the command. Possible values are:
924
confd.conf
confd (default) The command is run as the same user id as the ConfD daemon.
user The command is run as the same user id as the user logged in
to the CLI, i.e. we have to make sure that this user id exists as
an actual user id on the device.
root The command is run as root.
<uid> (the numerical user <uid>) The command is run as the user id <uid>.
Note
If uid is set to either "user", "root" or "<uid>" the
the ConfD daemon must have been started as root (or
setuid), or the cmdptywrapper must have setuid root
permissions.
/confdConfig/webui/namedCommands/exec/options/wd (string)
The "wd" directive specifies which working directory to use when executing the command. If not
given, the command is executed from the location of the CLI.
/confdConfig/webui/audit (boolean) [false]
audit is either "true" or "false". If "true", then JSON-RPC/CGI requests are logged to the audit log.
/confdConfig/webui/useForwardedClientIp - container element
This section is created if a Client IP address should be looked for among HTTP headers such as 'X-
Forwarded-For' or 'X-REAL-IP', etc.
/confdConfig/webui/useForwardedClientIp/proxyHeaders (string)
Name of the HTTP headers that contain the true Client IP address. Typically the de facto standard is
to use the 'X-Forwarded-For' header, but other headers exists, e.g: 'X-REAL-IP'. The first header in
this list, found to contain an IP address will cause this IP address to be used as the Client IP address. In
case of several elements, the first element, separated by a space or comma, will be used. The header
name specified here is not case sensitive.
This element is a leaf-list, i.e. multiple values are represented by multiple <proxyHeaders>
items.
/confdConfig/webui/useForwardedClientIp/allowedProxyIpPrefix (inet:ip-
prefix)
Only the source IP-prefix addresses listed here will be trusted to contain a Client IP address in a HTTP
header as specified in 'proxyHeaders'.
This element is a leaf-list, i.e. multiple values are represented by multiple
<allowedProxyIpPrefix> items.
/confdConfig/rest - container element
This section defines settings for the RESTful API to ConfD.
/confdConfig/rest/enabled (boolean) [false]
enabled is either "true" or "false". If "true", the RESTful API is activated.
/confdConfig/rest/showHidden (boolean) [false]
Hidden nodes are not shown by default in REST. Such nodes can be unhidden to the REST client by
including the query parameter "unhide", which is a comma separated list of
925
confd.conf
<hide-group-name>[;<passwd>]
If showHidden is set to "true", hidden nodes are always shown in the REST API.
/confdConfig/rest/customHeaders/header - container element
The customHeaders element contains any number of header elements, with a valid header-field as
defined in RFC7230 3.2.
/confdConfig/rest/customHeaders/header/name (string)
RFC7230 field-name, e.g. Accept-Control-Allow-Origin
/confdConfig/rest/customHeaders/header/value (string)
RFC7230 field-value, e.g. http://www.cisco.com
/confdConfig/restconf - container element
This section defines settings for the RESTCONF API to ConfD.
/confdConfig/restconf/enabled (boolean) [false]
enabled is either "true" or "false". If "true", the RESTCONF API is activated.
/confdConfig/restconf/rootResource (string) [restconf]
The RESTCONF root resource path.
/confdConfig/restconf/schemaServerUrl (string)
Change the schema element in the ietf-yang-library:modules-state resource response.
/confdConfig/restconf/tokenResponse - container element
When authenticating via AAA externalAuthentication or externalValidation and a token is returned,
it is possible to include a header with the token in the response.
/confdConfig/restconf/tokenResponse/xAuthToken (boolean) [false]
Either 'true' or 'false'. If 'true', a x-auth-token header is included in the response with any token returned
from AAA.
/confdConfig/restconf/tokenResponse/tokenCookie - container element
Configuration of RESTCONF token cookies.
/confdConfig/restconf/tokenResponse/tokenCookie/name (string)
The cookie name, exactly as it is to be sent. If configured, a HTTP cookie of that name included in
the response with any token returned from AAA as value.
/confdConfig/restconf/tokenResponse/tokenCookie/directives (string)
An optional string with directives appended to the cookie, exactly as it is to be sent.
/confdConfig/restconf/customHeaders/header - container element
The customHeaders element contains any number of header elements, with a valid header-field as
defined in RFC7230 3.2.
/confdConfig/restconf/customHeaders/header/name (string)
RFC7230 field-name, e.g. Accept-Control-Allow-Origin
/confdConfig/restconf/customHeaders/header/value (string)
RFC7230 field-value, e.g. http://www.cisco.com
/confdConfig/subagents - container element
Present only if ConfD runs as a master agent. Lists all registered subagents.
926
confd.conf
/confdConfig/subagents/enabled (boolean) [false]
enabled is either "true" or "false". If "true", ConfD acts as a master agent.
/confdConfig/subagents/subagent - container element
Parameters for a single subagent.
/confdConfig/subagents/subagent/name (xs:token)
The name of the subagent. It is used as a unique identifier of the subagent. The name is included in
the subagent events (see confd_lib_events(3)) generated by ConfD.
/confdConfig/subagents/subagent/enabled (boolean) [true]
enabled is either "true" or "false". If "false", the subagent is ignored by ConfD.
/confdConfig/subagents/subagent/tcp - container element
Parameters to be used when the masteragent communicates with the subagent over plain text TCP.
This is more efficient than SSH, but TCP is non-standard.
/confdConfig/subagents/subagent/tcp/ip (inet:ip-address)
The IP address where the subagent listens for NETCONF TCP connections.
/confdConfig/subagents/subagent/tcp/port (inet:port-number) [2023]
The port where the subagent listens for NETCONF TCP connections.
/confdConfig/subagents/subagent/tcp/confdAuth - container element
Currently, in order to use NETCONF over TCP, the subagent must understand the ConfD proprietary
TCP header, described in the NETCONF chapter in the ConfD User's Guide.
/confdConfig/subagents/subagent/tcp/confdAuth/user (string)
The user name to be used for authorization on the subagent.
/confdConfig/subagents/subagent/tcp/confdAuth/group (string)
The group name to be used for authorization on the subagent.
/confdConfig/subagents/subagent/ssh - container element
Parameters to be used when the masteragent communicates with the subagent over SSH.
/confdConfig/subagents/subagent/ssh/ip (inet:ip-address)
The IP address where the subagent listens for NETCONF SSH connections.
/confdConfig/subagents/subagent/ssh/port (inet:port-number) [2022]
The port where the subagent listens for NETCONF SSH connections.
/confdConfig/subagents/subagent/ssh/user (string)
The SSH user name used for authentication at the subagent.
/confdConfig/subagents/subagent/ssh/password (string)
The SSH user's password.
/confdConfig/subagents/subagent/mount - container element
This parameter defines where in the data hierarchy the subagent is registered. It consists of a path
which must exist in the data model of the master agent, and the name of the node which the subagent
implements.
/confdConfig/subagents/subagent/mount/path (string)
The path, in restricted XPath syntax, where the subagent's data is mounted. The XPath is restricted as
an instance-identifier (See confd_types(3)). To mount on the top level, use "/". Note that the XPath
expression must not contain any namespace prefixes.
927
confd.conf
If the subagent mounts more than one node, this object is a space separated list of paths.
/confdConfig/subagents/subagent/mount/node (xs:QName)
The namespace and name of the top-level node in that namespace.
If the subagent mounts more than one node, this object is a leaf-list of QNames, which must be of
the same length as the 'path' object.
This element is a leaf-list, i.e. multiple values are represented by multiple <node> items.
/confdConfig/subagents/subagent/disableSubtreeOptimization (boolean) [false]
Whenever possible, the master agent sends a single subtree filter request, instead of one request for
each object. If the subagent cannot handle these requests, for any reason, set this parameter to "true".
/confdConfig/notifications - container element
This section defines settings which affect notifications.
/confdConfig/notifications/eventStreams - container element
Lists all available notification event streams.
/confdConfig/notifications/eventStreams/stream - container element
Parameters for a single notification event stream.
/confdConfig/notifications/eventStreams/stream/name (string)
The name attached to a specific event stream.
/confdConfig/notifications/eventStreams/stream/description (string)
A descriptive text attached to a specific event stream.
/confdConfig/notifications/eventStreams/stream/replaySupport (boolean)
Signals if replay support is available for a specific event stream.
/confdConfig/notifications/eventStreams/stream/builtinReplayStore -
container element
Parameters for the builtin replay support for this event stream.
If replay support is enabled ConfD automatically stores all notifications on disk ready to be
replayed should a NETCONF manager or RESTCONF event notification subscriber ask for logged
notifications. The replay store uses a set of wrapping log files on disk (of a certain number and size)
to store the notifications.
The max size of each wrap log file (see below) should not be too large. This to achieve fast replay of
notifications in a certain time range. If possible use a larger number of wrap log files instead.
If in doubt use the recommended settings (see below).
/confdConfig/notifications/eventStreams/stream/builtinReplayStore/
enabled (boolean) [false]
enabled is either "true" or "false". If "false", the applications must implement its own replay support.
/confdConfig/notifications/eventStreams/stream/builtinReplayStore/dir
(string)
The wrapping log files will be put in this disk location.
/confdConfig/notifications/eventStreams/stream/builtinReplayStore/
maxSize (confd:size)
The max size of each log wrap file. The recommended setting is ~S10M.
928
confd.conf
/confdConfig/notifications/eventStreams/stream/builtinReplayStore/
maxFiles (int64)
The max number of log wrap files. The recommended setting is ~50 files.
/confdConfig/opcache - container element
This section defines settings which affect the behavior of the operational data cache - see the
"Operational data" chapter in the User Guide.
/confdConfig/opcache/enabled (boolean) [false]
enabled is either "true" or "false". If "true", the cache is enabled.
/confdConfig/opcache/timeout (uint64)
The amount of time to keep data in the cache, in seconds.
SEE ALSO
confd(1) - command to start and control the ConfD daemon
confd_lib_dp(3) - callback library for connecting to ConfD
confd_types(3) - Confd XML value representation in C
confd_cfg.xsd - A W3C XML schema (http://tail-f.com/ns/confd_cfg/1.0) describing the
daemon configuration.
confd.conf.example - A commented confd.conf example file.
929
Namemib_annotations — MIB annotations file format
DESCRIPTION
This manual page describes the syntax and semantics used to write MIB annotations. A MIB annotation
file is used to modify the behavior of certain MIB objects without having to edit the original MIB file.
MIB annotations are separate file with a .miba suffix, and is applied to to a MIB when a YANG module
is generated and when the MIB is compiled. See confdc(1).
SYNTAX
Each line in a MIB annotation file has the following syntax:
<MIB Object Name> <modifier> [= <value>]
where modifier is one of max_access, display_hint, behavior, unique, or
operational.
Blank lines are ignored, and lines starting with # are treated as comments and ignored.
If modifier is max_access, value must be one of not_accessible or read_only.
If modifier is display_hint, value must be a valid DISPLAY-HINT value. The display hint is
used to determine if a string object should be treated as text or binary data.
If modifier is behavior, value must be one of noSuchObject or noSuchInstance. When a
YANG module is generated from a MIB, objects with a specified behavior are not converted to YANG.
When the SNMP agent responds to SNMP requests for such an object, the corresponding error code is used.
If modifier is unique, value must be a valid YANG "unique" expression, i.e., a space-separated list
of column names. This modifier must be given on table entries.
If modifier is operational, there must not be any value given. A writable object marked
as operational will be translated into a non-configuration YANG node, marked with a
tailf:writable true statement, indicating that the object represents writable operational data.
EXAMPLE
An example of a MIB annotation file.
# the following object does not have value
ifStackLastChange behavior = noSuchInstance
# this deprecated table is not implemented
ifTestTable behavior = noSuchObject
SEE ALSO
The ConfD User Guide
930
mib_annotations
confdc(1) YANG compiler
931
Nametailf_yang_cli extensions — Tail-f YANG CLI extensions
Synopsis
tailf:cli-add-mode
tailf:cli-allow-join-with-key
tailf:cli-allow-join-with-value
tailf:cli-allow-key-abbreviation
tailf:cli-allow-range
tailf:cli-allow-wildcard
tailf:cli-autowizard
tailf:cli-boolean-no
tailf:cli-break-sequence-commands
tailf:cli-case-insensitive
tailf:cli-case-sensitive
tailf:cli-column-align
tailf:cli-column-stats
tailf:cli-column-width
tailf:cli-compact-stats
tailf:cli-compact-syntax
tailf:cli-completion-actionpoint
tailf:cli-configure-mode
tailf:cli-custom-error
tailf:cli-custom-range
tailf:cli-custom-range-actionpoint
tailf:cli-custom-range-enumerator
tailf:cli-delayed-auto-commit
tailf:cli-delete-container-on-delete
tailf:cli-delete-when-empty
tailf:cli-diff-after
932
tailf_yang_cli_extensions
tailf:cli-diff-before
tailf:cli-diff-create-after
tailf:cli-diff-create-before
tailf:cli-diff-delete-after
tailf:cli-diff-delete-before
tailf:cli-diff-dependency
tailf:cli-diff-modify-after
tailf:cli-diff-modify-before
tailf:cli-diff-set-after
tailf:cli-diff-set-before
tailf:cli-disabled-info
tailf:cli-disallow-value
tailf:cli-display-empty-config
tailf:cli-display-separated
tailf:cli-drop-node-name
tailf:cli-embed-no-on-delete
tailf:cli-enforce-table
tailf:cli-exit-command
tailf:cli-explicit-exit
tailf:cli-expose-key-name
tailf:cli-expose-ns-prefix
tailf:cli-flat-list-syntax
tailf:cli-flatten-container
tailf:cli-full-command
tailf:cli-full-no
tailf:cli-full-show-path
tailf:cli-hide-in-submode
tailf:cli-ignore-modified
tailf:cli-incomplete-command
tailf:cli-incomplete-no
933
tailf_yang_cli_extensions
tailf:cli-incomplete-show-path
tailf:cli-instance-info-leafs
tailf:cli-key-format
tailf:cli-list-syntax
tailf:cli-min-column-width
tailf:cli-mode-name
tailf:cli-mode-name-actionpoint
tailf:cli-mount-point
tailf:cli-multi-line-prompt
tailf:cli-multi-value
tailf:cli-multi-word-key
tailf:cli-no-key-completion
tailf:cli-no-keyword
tailf:cli-no-match-completion
tailf:cli-no-name-on-delete
tailf:cli-no-value-on-delete
tailf:cli-only-in-autowizard
tailf:cli-oper-info
tailf:cli-operational-mode
tailf:cli-optional-in-sequence
tailf:cli-prefix-key
tailf:cli-preformatted
tailf:cli-range-delimiters
tailf:cli-range-list-syntax
tailf:cli-recursive-delete
tailf:cli-remove-before-change
tailf:cli-replace-all
tailf:cli-reset-container
tailf:cli-run-template
tailf:cli-run-template-enter
934
tailf_yang_cli_extensions
tailf:cli-run-template-footer
tailf:cli-run-template-legend
tailf:cli-sequence-commands
tailf:cli-show-config
tailf:cli-show-long-obu-diffs
tailf:cli-show-no
tailf:cli-show-obu-comments
tailf:cli-show-order-tag
tailf:cli-show-order-taglist
tailf:cli-show-template
tailf:cli-show-template-enter
tailf:cli-show-template-footer
tailf:cli-show-template-legend
tailf:cli-show-with-default
tailf:cli-strict-leafref
tailf:cli-suppress-key-abbreviation
tailf:cli-suppress-key-sort
tailf:cli-suppress-list-no
tailf:cli-suppress-mode
tailf:cli-suppress-no
tailf:cli-suppress-quotes
tailf:cli-suppress-range
tailf:cli-suppress-shortenabled
tailf:cli-suppress-show-conf-path
tailf:cli-suppress-show-match
tailf:cli-suppress-show-path
tailf:cli-suppress-silent-no
tailf:cli-suppress-table
tailf:cli-suppress-validation-warning-prompt
tailf:cli-suppress-warning
935
tailf_yang_cli_extensions
tailf:cli-suppress-wildcard
tailf:cli-table-footer
tailf:cli-table-legend
tailf:cli-trim-default
tailf:cli-value-display-template
DESCRIPTION
This manpage describes all the Tail-f CLI extension statements.
The YANG source file $CONFD_DIR/src/confd/yang/tailf-cli-extensions.yang gives
the exact YANG syntax for all Tail-f YANG CLI extension statements - using the YANG language itself.
Most of the concepts implemented by the extensions listed below are described in the User Guide.
YANG STATEMENTS
tailf:cli-add-mode
Creates a mode of the container.
Can be used in config nodes only.
Used in I- and C-style CLIs.
The cli-add-mode statement can be used in: container, tailf:symlink, and refine.
The following substatements can be used:
tailf:cli-suppress-warning
tailf:cli-allow-join-with-key
Indicates that the list name may be written together with the first key, without requiring a whitespace in
between, ie allowing both interface ethernet1/1 and interface ethernet 1/1
Used in I- and C-style CLIs.
The cli-allow-join-with-key statement can be used in: list, tailf:symlink, and refine.
The following substatements can be used:
tailf:cli-display-joined Specifies that the joined version should be used when displaying the configuration
in C- and I- mode.
tailf:cli-allow-join-with-value
Indicates that the leaf name may be written together with the value, without requiring a whitespace in
between, ie allowing both interface ethernet1/1 and interface ethernet 1/1
Used in I- and C-style CLIs.
936
tailf_yang_cli_extensions
The cli-allow-join-with-value statement can be used in: leaf, tailf:symlink, and refine.
The following substatements can be used:
tailf:cli-display-joined Specifies that the joined version should be used when displaying the configuration
in C- and I- mode.
tailf:cli-allow-key-abbreviation
Key values can be abbreviated.
In the J-style CLI this is relevant when using the commands 'delete' and 'edit'.
In the I- and C-style CLIs this is relevant when using the commands 'no', 'show configuration' and for
commands to enter submodes.
See also /confdConfig/cli/allowAbbrevKeys in confd.conf(5).
The cli-allow-key-abbreviation statement can be used in: list, tailf:symlink, and refine.
tailf:cli-allow-range
Means that the non-integer key should allow range expressions.
Can be used in key leafs only.
Used in J-, I- and C-style CLIs.
The cli-allow-range statement can be used in: leaf, tailf:symlink, and refine.
tailf:cli-allow-wildcard
Means that the list allows wildcard expressions in the 'show' pattern.
See also /confdConfig/cli/allowWildcard in confd.conf(5).
Used in J-, I- and C-style CLIs.
The cli-allow-wildcard statement can be used in: list, tailf:symlink, and refine.
tailf:cli-autowizard
Specifies that the autowizard should include this leaf even if the leaf is optional.
One use case is when implementing pre-configuration of devices. A config false node can be defined for
showing if the configuration is active or not (preconfigured).
Used in J-, I- and C-style CLIs.
The cli-autowizard statement can be used in: leaf, tailf:symlink, and refine.
tailf:cli-boolean-no
Specifies that a leaf of type boolean should be displayed as '<leafname>' if set to true, and 'no <leafname>'
if set to false.
937
tailf_yang_cli_extensions
Cannot be used in conjunction with tailf:cli-hide-in-submode or tailf:cli-compact-syntax.
Used in I- and C-style CLIs.
The cli-boolean-no statement can be used in: typedef, leaf, refine, and tailf:symlink.
The following substatements can be used:
tailf:cli-reversed Specified that true should be displayed as 'no <name>' and false as 'name'.
Used in I- and C-style CLIs.
tailf:cli-suppress-warning
tailf:cli-break-sequence-commands
Specifies that previous cli-sequence-command declaration should stop at this point. Only applicable when
a cli-sequence-command declaration has been used in the parent container.
Used in I- and C-style CLIs.
The cli-break-sequence-commands statement can be used in: leaf, tailf:symlink, leaf-list, list, container,
and refine.
The following substatements can be used:
tailf:cli-suppress-warning
tailf:cli-case-insensitive
Specifies that node is case-insensitive. If applied to a container or a list, any nodes below will also be
case-insensitive.
Node names are discovered without care of the case. Also affect matching of key values in lists. However
it doesn't affect the storing of a leaf value. E.g. a modification of a leaf value from upper case to lower
case is still considered a modification of data.
Note that this will override any case-insensitivity settings configured in confd.conf
The cli-case-insensitive statement can be used in: container, list, and leaf.
tailf:cli-case-sensitive
Specifies that this node is case-sensitive. If applied to a container or a list, any nodes below will also be
case-sensitive.
This negates the cli-case-insensitive extension (see below).
Note that this will override any case-sensitivity settings configured in confd.conf
The cli-case-sensitive statement can be used in: container, list, and leaf.
tailf:cli-column-align value
Specifies the alignment of the data in the column in the auto-rendered tables.
Used in J-, I- and C-style CLIs.
938
tailf_yang_cli_extensions
The cli-column-align statement can be used in: leaf, leaf-list, tailf:symlink, and refine.
tailf:cli-column-stats
Display leafs in the container as columns, i.e., do not repeat the name of the container on each line, but
instead indent each leaf under the container.
Used in I- and C-style CLIs.
The cli-column-stats statement can be used in: container, refine, and tailf:symlink.
tailf:cli-column-width value
Set a fixed width for the column in the auto-rendered tables.
Used in J-, I- and C-style CLIs.
The cli-column-width statement can be used in: leaf, leaf-list, tailf:symlink, and refine.
tailf:cli-compact-stats
Instructs the CLI engine to use the compact representation for this node. The compact representation means
that all leaf elements are shown on a single line.
Used in J-, I- and C-style CLIs.
The cli-compact-stats statement can be used in: list, container, tailf:symlink, and refine.
The following substatements can be used:
tailf:cli-wrap If present, the line will be wrapped at screen width.
tailf:cli-width Specifies a fixed terminal width to use before wrapping line. It is only used when tailf:cli-
wrap is present. If a width is not specified the line is wrapped when the terminal width is reached.
tailf:cli-delimiter Specifies a string to print between the leaf name and its value when displaying leaf
values.
tailf:cli-prettify If present, dashes (-) and underscores (_) in leaf names are replaced with spaces.
tailf:cli-spacer Specifies a string to print between the nodes.
tailf:cli-compact-syntax
Instructs the CLI engine to use the compact representation for this node in the 'show running-configuration'
command. The compact representation means that all leaf elements are shown on a single line.
Cannot be used in conjunction with tailf:cli-boolean-no.
Used in I- and C-style CLIs.
The cli-compact-syntax statement can be used in: list, container, tailf:symlink, and refine.
The following substatements can be used:
tailf:cli-suppress-warning
939
tailf_yang_cli_extensions
tailf:cli-completion-actionpoint value
Specifies that completion for the leaf values is done through a callback function.
The argument is the name of an actionpoint, which must be implemented by custom code. In the
actionpoint, the completion() callback function will be invoked. See confd_lib_dp(3) for details.
Used in J-, I- and C-style CLIs.
The cli-completion-actionpoint statement can be used in: leaf-list, leaf, tailf:symlink, and refine.
The following substatements can be used:
tailf:cli-completion-id Specifies a string which is passed to the callback when invoked. This makes it
possible to use the same callback at several locations and still keep track of which point it is invoked from.
tailf:cli-configure-mode
An action or rpc with this attribute will be available in configure mode, but not in operational mode.
The default is that the action or rpc is available in both configure and operational mode.
Used in J-, I- and C-style CLIs.
The cli-configure-mode statement can be used in: tailf:action and rpc.
tailf:cli-custom-error text
This statement specifies a custom error message to be displayed when the user enters an invalid value.
The cli-custom-error statement can be used in: leaf, tailf:symlink, and refine.
tailf:cli-custom-range
Specifies that the key should support ranges. A type matching the range expression must be supplied.
Can be used in key leafs only.
Used in J-, I- and C-style CLIs.
The cli-custom-range statement can be used in: leaf, tailf:symlink, and refine.
The following substatements can be used:
tailf:cli-range-type This statement contains the name of a derived type, possibly with a prefix. If no prefix
is given, the type must be defined in the local module. For example:
cli-range-type p:my-range-type;
All range expressions must match this type, and a valid key value must not match this type.
tailf:cli-suppress-warning
tailf:cli-custom-range-actionpoint value
Specifies that the list supports range expressions and that a custom function will be invoked to determine
if an instance belong in the range or not. At least one key element needs a cli-custom-range statement.
940
tailf_yang_cli_extensions
The argument is the name of an actionpoint, which must be implemented by custom code. In the
actionpoint, the completion() callback function will be invoked. See confd_lib_dp(3) for details.
When a range expression value which matches the type is given in the CLI, the CLI engine will invoke the
callback with each existing list entry instance. If the callback returns CONFD_OK, it matches the range
expression, and if it returns CONFD_ERR, it doesn't match.
Used in J-, I- and C-style CLIs.
The cli-custom-range-actionpoint statement can be used in: list, tailf:symlink, and refine.
The following substatements can be used:
tailf:cli-completion-id Specifies a string which is passed to the callback when invoked. This makes it
possible to use the same callback at several locations and still keep track of which point it is invoked from.
tailf:cli-allow-caching Allow caching of the evaluation results between different parent paths.
tailf:cli-suppress-warning
tailf:cli-custom-range-enumerator value
Specifies a callback to invoke to get an array of instances matching a regular expression. This is used when
instances should be allowed to be created using a range expression in set.
The callback is not used for delete or show operations.
The callback is allowed to return a superset of all matching instances since the instances will be filtered
using the range expression afterwards.
Used in J-, I- and C-style CLIs.
The cli-custom-range-enumerator statement can be used in: list, tailf:symlink, and refine.
The following substatements can be used:
tailf:cli-completion-id Specifies a string which is passed to the callback when invoked. This makes it
possible to use the same callback at several locations and still keep track of which point it is invoked from.
tailf:cli-allow-caching Allow caching of the evaluation results between different parent paths.
tailf:cli-suppress-warning
tailf:cli-delayed-auto-commit
Enables transactions while in a specific submode (or submode of that mode). The modifications performed
in that mode will not take effect until the user exits that submode.
Can be used in config nodes only. If used in a container, the container must also have a tailf:cli-add-mode
statement, and if used in a list, the list must not also have a tailf:cli-suppress-mode statement.
Used in I- and C-style CLIs.
The cli-delayed-auto-commit statement can be used in: container, list, tailf:symlink, and refine.
tailf:cli-delete-container-on-delete
Specifies that the parent container should be deleted when . this leaf is deleted.
941
tailf_yang_cli_extensions
The cli-delete-container-on-delete statement can be used in: leaf, tailf:symlink, and refine.
tailf:cli-delete-when-empty
Instructs the CLI engine to delete the list when the last list instance is deleted'. Requires that cli-suppress-
mode is set.
The behavior is recursive. If all optional leafs in a list instance are deleted the list instance itself is deleted.
If that list instance happens to be the last list instance in a list it is also deleted. And so on. Used in I-
and C-style CLIs.
The cli-delete-when-empty statement can be used in: list and container.
tailf:cli-diff-after path
When displaying C-style configuration diffs, display any changes made to this node after any changes
made to the target node(s).
Thus, the dependency will trigger when any changes (created, modified or deleted) has been made to this
node while any changes (created, modified or deleted) has been made to the target node(s).
Applies to C-style
The cli-diff-after statement can be used in: container, list, leaf, leaf-list, tailf:symlink, and refine.
The following substatements can be used:
tailf:xpath-root
tailf:cli-when-target-set Specify that the dependency should trigger when the target node(s) has been set
(created or modified). Note; using this sub-statement is equivalent with using both tailf:cli-when-target-
create and tailf:cli-when-target-modify
tailf:cli-when-target-create Specify that the dependency should trigger when the target node(s) has been
created
tailf:cli-when-target-modify Specify that the dependency should trigger when the target node(s) has been
modified (not created or deleted)
tailf:cli-when-target-delete Specify that the dependency should trigger when the target node(s) has been
deleted
tailf:cli-suppress-warning
tailf:cli-diff-before path
When displaying C-style configuration diffs, display any changes made to this node before any changes
made to the target node(s).
Thus, the dependency will trigger when any changes (created, modified or deleted) has been made to this
node while any changes (created, modified or deleted) has been made to the target node(s).
Applies to C-style
The cli-diff-before statement can be used in: container, list, leaf, leaf-list, tailf:symlink, and refine.
The following substatements can be used:
942
tailf_yang_cli_extensions
tailf:xpath-root
tailf:cli-when-target-set Specify that the dependency should trigger when the target node(s) has been set
(created or modified). Note; using this sub-statement is equivalent with using both tailf:cli-when-target-
create and tailf:cli-when-target-modify
tailf:cli-when-target-create Specify that the dependency should trigger when the target node(s) has been
created
tailf:cli-when-target-modify Specify that the dependency should trigger when the target node(s) has been
modified (not created or deleted)
tailf:cli-when-target-delete Specify that the dependency should trigger when the target node(s) has been
deleted
tailf:cli-suppress-warning
tailf:cli-diff-create-after path
When displaying C-style configuration diffs, display any create operations made on this node after any
changes made to the target node(s).
Thus, the dependency will trigger when this node has been created while any changes (created, modified
or deleted) has been made to the target node(s).
Applies to C-style
The cli-diff-create-after statement can be used in: container, list, leaf, leaf-list, tailf:symlink, and refine.
The following substatements can be used:
tailf:xpath-root
tailf:cli-when-target-set Specify that the dependency should trigger when the target node(s) has been set
(created or modified). Note; using this sub-statement is equivalent with using both tailf:cli-when-target-
create and tailf:cli-when-target-modify
tailf:cli-when-target-create Specify that the dependency should trigger when the target node(s) has been
created
tailf:cli-when-target-modify Specify that the dependency should trigger when the target node(s) has been
modified (not created or deleted)
tailf:cli-when-target-delete Specify that the dependency should trigger when the target node(s) has been
deleted
tailf:cli-suppress-warning
tailf:cli-diff-create-before path
When displaying C-style configuration diffs, display any create operations made on this node before any
changes made to the target node(s).
Thus, the dependency will trigger when this node has been created while any changes (created, modified
or deleted) has been made to the target node(s).
Applies to C-style
943
tailf_yang_cli_extensions
The cli-diff-create-before statement can be used in: container, list, leaf, leaf-list, tailf:symlink, and refine.
The following substatements can be used:
tailf:xpath-root
tailf:cli-when-target-set Specify that the dependency should trigger when the target node(s) has been set
(created or modified). Note; using this sub-statement is equivalent with using both tailf:cli-when-target-
create and tailf:cli-when-target-modify
tailf:cli-when-target-create Specify that the dependency should trigger when the target node(s) has been
created
tailf:cli-when-target-modify Specify that the dependency should trigger when the target node(s) has been
modified (not created or deleted)
tailf:cli-when-target-delete Specify that the dependency should trigger when the target node(s) has been
deleted
tailf:cli-suppress-warning
tailf:cli-diff-delete-after path
When displaying C-style configuration diffs, display any delete operations made on this node after any
changes made to the target node(s).
Thus, the dependency will trigger when this node has been deleted while any changes (created, modified
or deleted) has been made to the target node(s).
Applies to C-style
The cli-diff-delete-after statement can be used in: container, list, leaf, leaf-list, tailf:symlink, and refine.
The following substatements can be used:
tailf:xpath-root
tailf:cli-when-target-set Specify that the dependency should trigger when the target node(s) has been set
(created or modified). Note; using this sub-statement is equivalent with using both tailf:cli-when-target-
create and tailf:cli-when-target-modify
tailf:cli-when-target-create Specify that the dependency should trigger when the target node(s) has been
created
tailf:cli-when-target-modify Specify that the dependency should trigger when the target node(s) has been
modified (not created or deleted)
tailf:cli-when-target-delete Specify that the dependency should trigger when the target node(s) has been
deleted
tailf:cli-suppress-warning
tailf:cli-diff-delete-before path
When displaying C-style configuration diffs, display any delete operations made on this node before any
changes made to the target node(s).
944
tailf_yang_cli_extensions
Thus, the dependency will trigger when this node has been deleted while any changes (created, modified
or deleted) has been made to the target node(s).
Applies to C-style
The cli-diff-delete-before statement can be used in: container, list, leaf, leaf-list, tailf:symlink, and refine.
The following substatements can be used:
tailf:xpath-root
tailf:cli-when-target-set Specify that the dependency should trigger when the target node(s) has been set
(created or modified). Note; using this sub-statement is equivalent with using both tailf:cli-when-target-
create and tailf:cli-when-target-modify
tailf:cli-when-target-create Specify that the dependency should trigger when the target node(s) has been
created
tailf:cli-when-target-modify Specify that the dependency should trigger when the target node(s) has been
modified (not created or deleted)
tailf:cli-when-target-delete Specify that the dependency should trigger when the target node(s) has been
deleted
tailf:cli-suppress-warning
tailf:cli-diff-dependency path
Tells the 'show configuration' command, and the diff generator that this node depends on another node.
When removing the node with this declaration, it should be removed before the node it depends on is
removed, ie the declaration controlls the ordering of the commands in the 'show configuration' output.
Applies to C-style
The cli-diff-dependency statement can be used in: container, list, leaf, leaf-list, tailf:symlink, and refine.
The following substatements can be used:
tailf:xpath-root
tailf:cli-trigger-on-set Specify that the dependency should trigger on set/modify of the target path, but
deletion of the target will trigger the current node to be placed in front of the target.
The annotation can be used to get the diff behavior where one leaf is first deleted before the other leaf is
set. For example, having the data model below:
container X { leaf A { tailf:cli-diff-dependency "../B" { tailf:cli-trigger-on-set; } type empty; } leaf B
{ tailf:cli-diff-dependency "../A" { tailf:cli-trigger-on-set; } type empty; } }
produces the following diffs when setting one leaf and deleting the other
no X A X B
and
no X B X A
this can also be done with list instances, for example
945
tailf_yang_cli_extensions
list a { key id;
leaf id { tailf:cli-diff-dependency "/c[id=current()/../id]" { tailf:cli-trigger-on-set; } type string; } }
list c { key id; leaf id { tailf:cli-diff-dependency "/a[id=current()/../id]" { tailf:cli-trigger-on-set; } type
string; } }
we get
no a foo c foo !
and
no c foo a foo !
In the above case if we have the same id in list "a" and "c" and we delete the instance in one list, and add
it in the other, then the deletion will always preceed the create.
tailf:cli-trigger-on-delete This annotation can be used togeter with tailf:cli-trigger-on-set to also get the
behavior that when deleting the target display changes to this node first. For exmaple:
container settings { tailf:cli-add-mode;
leaf opmode { tailf:cli-no-value-on-delete;
type enumeration { enum nat; enum transparent; } }
leaf manageip { when "../opmode = 'transparent'"; mandatory true; tailf:cli-no-value-on-delete; tailf:cli-
diff-dependency '../opmode' { tailf:cli-trigger-on-set; tailf:cli-trigger-on-delete; }
type string; } }
What we are trying to achieve here is that if manageip is deleted, it should be displayed before opmode,
but if we configure both opmode and manageip, we should display opmode first, ie get the diffs:
settings opmode transparent manageip 1.1.1.1 !
and
settings no manageip opmode nat !
and
settings no manageip no opmode !
The cli-trigger-on-set annotation will cause the 'no manageip' command to be displayed before setting
opmode. The tailf:cli-trigger-on-delete will cause 'no manageip' to be placed before 'no opmode' when
both are deleted.
In the first diff where both are created, opmode will come first due to the diff-dependency setting,
regardless of the cli-trigger-on-delete and cli-trigger-on-set.
tailf:cli-trigger-on-all Specify that the dependency should always trigger. It is the same as placing one
element before another in the data model. For example, given the data model:
container X { leaf A { tailf:cli-diff-dependency '../B' { tailf:cli-trigger-on-all; } type empty; } leaf B { type
empty; } }
We get the diffs
946
tailf_yang_cli_extensions
X B X A
and
no X B no X A
tailf:cli-suppress-warning
tailf:cli-diff-modify-after path
When displaying C-style configuration diffs, display any modify operations made on this node after any
changes made to the target node(s).
Thus, the dependency will trigger when this node has been modified (not created or deleted) while any
changes (created, modified or deleted) has been made to the target node(s).
Applies to C-style
The cli-diff-modify-after statement can be used in: container, list, leaf, leaf-list, tailf:symlink, and refine.
The following substatements can be used:
tailf:xpath-root
tailf:cli-when-target-set Specify that the dependency should trigger when the target node(s) has been set
(created or modified). Note; using this sub-statement is equivalent with using both tailf:cli-when-target-
create and tailf:cli-when-target-modify
tailf:cli-when-target-create Specify that the dependency should trigger when the target node(s) has been
created
tailf:cli-when-target-modify Specify that the dependency should trigger when the target node(s) has been
modified (not created or deleted)
tailf:cli-when-target-delete Specify that the dependency should trigger when the target node(s) has been
deleted
tailf:cli-suppress-warning
tailf:cli-diff-modify-before path
When displaying C-style configuration diffs, display any modify operations made on this node before any
changes made to the target node(s).
Thus, the dependency will trigger when this node has been modified (not created or deleted) while any
changes (created, modified or deleted) has been made to the target node(s).
Applies to C-style
The cli-diff-modify-before statement can be used in: container, list, leaf, leaf-list, tailf:symlink, and refine.
The following substatements can be used:
tailf:xpath-root
tailf:cli-when-target-set Specify that the dependency should trigger when the target node(s) has been set
(created or modified). Note; using this sub-statement is equivalent with using both tailf:cli-when-target-
create and tailf:cli-when-target-modify
947
tailf_yang_cli_extensions
tailf:cli-when-target-create Specify that the dependency should trigger when the target node(s) has been
created
tailf:cli-when-target-modify Specify that the dependency should trigger when the target node(s) has been
modified (not created or deleted)
tailf:cli-when-target-delete Specify that the dependency should trigger when the target node(s) has been
deleted
tailf:cli-suppress-warning
tailf:cli-diff-set-after path
When displaying C-style configuration diffs, display any set operations (created or modified) made on this
node after any changes made to the target node(s).
Thus, the dependency will trigger when this node has been set (created or modified) while any changes
(created, modified or deleted) has been made to the target node(s).
Applies to C-style
The cli-diff-set-after statement can be used in: container, list, leaf, leaf-list, tailf:symlink, and refine.
The following substatements can be used:
tailf:xpath-root
tailf:cli-when-target-set Specify that the dependency should trigger when the target node(s) has been set
(created or modified). Note; using this sub-statement is equivalent with using both tailf:cli-when-target-
create and tailf:cli-when-target-modify
tailf:cli-when-target-create Specify that the dependency should trigger when the target node(s) has been
created
tailf:cli-when-target-modify Specify that the dependency should trigger when the target node(s) has been
modified (not created or deleted)
tailf:cli-when-target-delete Specify that the dependency should trigger when the target node(s) has been
deleted
tailf:cli-suppress-warning
tailf:cli-diff-set-before path
When displaying C-style configuration diffs, display any set operations (created or modified) made on this
node before any changes made to the target node(s).
Thus, the dependency will trigger when this node has been set (created or modified) while any changes
(created, modified or deleted) has been made to the target node(s).
Applies to C-style
The cli-diff-set-before statement can be used in: container, list, leaf, leaf-list, tailf:symlink, and refine.
The following substatements can be used:
tailf:xpath-root
948
tailf_yang_cli_extensions
tailf:cli-when-target-set Specify that the dependency should trigger when the target node(s) has been set
(created or modified). Note; using this sub-statement is equivalent with using both tailf:cli-when-target-
create and tailf:cli-when-target-modify
tailf:cli-when-target-create Specify that the dependency should trigger when the target node(s) has been
created
tailf:cli-when-target-modify Specify that the dependency should trigger when the target node(s) has been
modified (not created or deleted)
tailf:cli-when-target-delete Specify that the dependency should trigger when the target node(s) has been
deleted
tailf:cli-suppress-warning
tailf:cli-disabled-info value
Specifies an info string that will be used as a descriptive text for the value 'disable' (false) of boolean-typed
leafs when the confd.conf(5) setting /confdConfig/cli/useShortEnabled is set to 'true'.
Used in J-, I- and C-style CLIs.
The cli-disabled-info statement can be used in: leaf, tailf:symlink, and refine.
tailf:cli-disallow-value value
Specifies that a pattern for invalid values.
Used in I- and C-style CLIs.
The cli-disallow-value statement can be used in: leaf, leaf-list, refine, and tailf:symlink.
tailf:cli-display-empty-config
Specifies that the node will be included when doing a 'show stats', even if it is a non-config node, provided
that the list contains at least one non-config node.
Used in J-style CLI.
The cli-display-empty-config statement can be used in: list, tailf:symlink, and refine.
tailf:cli-display-separated
Tells CLI engine to display this container as a separate line item even when it has children. Only applies
to presence containers.
Applicable for optional containers in the C- and I- style CLIs.
The cli-display-separated statement can be used in: container, tailf:symlink, and refine.
tailf:cli-drop-node-name
Specifies that the name of a node is not present in the CLI.
If tailf:cli-drop-node-name is given on a child to a list node, we recommend that you also use tailf:cli-
suppress-mode on that list node, otherwise the CLI will be very confusing.
949
tailf_yang_cli_extensions
For example, consider this data model, from the tailf-aaa module:
list alias {
key name;
leaf name {
type string;
}
leaf expansion {
type string;
mandatory true;
tailf:cli-drop-node-name;
}
}
If you type 'alias foo' in the CLI, you would end up in the 'alias' submode. But since the expansion is
dropped, you would end up specifying the expansion value without typing any command.
If, on the other hand, the 'alias' list had a tailf:cli-suppress-mode statement, you would set an expansion
'bar' by typing 'alias foo bar'.
tailf:cli-drop-node-name cannot be used inside tailf:action.
Used in I- and C-style CLIs.
The cli-drop-node-name statement can be used in: leaf, container, list, leaf-list, tailf:symlink, and refine.
The following substatements can be used:
tailf:cli-suppress-warning
tailf:cli-embed-no-on-delete
Embed no in front of the element name insead of at the beginning of the line.
Applies to C-style
The cli-embed-no-on-delete statement can be used in: leaf, container, list, leaf-list, tailf:symlink, and refine.
tailf:cli-enforce-table
Forces the generation of a table for a list element node regardless of whether the table will be too wide or
not. This applies to the tables generated by the auto-rendred show commands for non-config data.
Used in I- and C-style CLIs.
The cli-enforce-table statement can be used in: list, tailf:symlink, and refine.
tailf:cli-exit-command value
Tells the CLI to add an explicit exit-from-submode command. The tailf:info substatement can be used for
adding a custom info text for the command.
Used in I- and C-style CLIs.
The cli-exit-command statement can be used in: list, container, refine, and tailf:symlink.
The following substatements can be used:
950
tailf_yang_cli_extensions
tailf:info
tailf:cli-explicit-exit
Tells the CLI to add an explicit exit command when displaying the configuration. It will not be added if
cli-exit-command is defined as well. The annotation is inherited by all sub-modes.
Used in I- and C-style CLIs.
The cli-explicit-exit statement can be used in: list, container, refine, and tailf:symlink.
tailf:cli-expose-key-name
Force the user to enter the name of the key and display the key name when displaying the running-
configuration.
Used in J-, I- and C-style CLIs.
The cli-expose-key-name statement can be used in: leaf, tailf:symlink, and refine.
tailf:cli-expose-ns-prefix
When used force the CLI to display namespace prefix of all children.
The cli-expose-ns-prefix statement can be used in: container, list, tailf:symlink, and refine.
tailf:cli-flat-list-syntax
Specifies that elements in a leaf-list should be entered without surrounding brackets. Also, multiple
elements can be added to a list or deleted from a list.
Used in J-, I- and C-style CLIs.
The cli-flat-list-syntax statement can be used in: leaf-list and refine.
The following substatements can be used:
tailf:cli-replace-all
tailf:cli-flatten-container
Allows the CLI to exit the container and continue to input from the parent container when all leaves in
the current container has been set.
Can be used in config nodes only.
Used in I- and C-style CLIs.
The cli-flatten-container statement can be used in: container, list, tailf:symlink, and refine.
tailf:cli-full-command
Specifies that an auto-rendered command should be considered complete, ie, no additional leaves or
containers can be entered on the same command line.
Used in I- and C-style CLIs.
951
tailf_yang_cli_extensions
The cli-full-command statement can be used in: leaf, leaf-list, list, tailf:symlink, container, and refine.
The following substatements can be used:
tailf:cli-suppress-warning
tailf:cli-full-no
Specifies that an auto-rendered 'no'-command should be considered complete, ie, no additional leaves or
containers can be entered on the same command line.
Used in I- and C-style CLIs.
The cli-full-no statement can be used in: leaf, leaf-list, list, tailf:symlink, container, and refine.
tailf:cli-full-show-path
Specifies that a path to the show command is considered complete, i.e., no more elements can be added to
the path. It can also be used to specify a maximum number of keys to be given for lists.
Used in J-, I- and C-style CLIs.
The cli-full-show-path statement can be used in: leaf, leaf-list, list, container, tailf:symlink, and refine.
The following substatements can be used:
tailf:cli-max-keys Specifies the maximum number of allowed keys for the show command.
tailf:cli-hide-in-submode
Hide leaf when submode has been entered. Mostly useful when leaf has to be entered in order to enter a
submode. Also works for flattened containers.
Cannot be used in conjunction with tailf:cli-boolean-no.
Used in I- and C-style CLIs.
The cli-hide-in-submode statement can be used in: leaf, container, tailf:symlink, and refine.
The following substatements can be used:
tailf:cli-suppress-warning
tailf:cli-ignore-modified
Tells the cdb_cli_diff_iterate system call to not generate a CLI string when this container is modified. The
string will instead be generated for the modified sub-element.
Applies to C-style and I-style
The cli-ignore-modified statement can be used in: container, list, leaf, leaf-list, tailf:symlink, and refine.
tailf:cli-incomplete-command
Specifies that an auto-rendered command should be considered incomplete. Can be used to prevent <cr>
from appearing in the completion list for optional internal nodes, for example, or to ensure that the user
enters all leaf values in a container (if used in combination with cli-sequence-commands).
952
tailf_yang_cli_extensions
Used in I- and C-style CLIs.
The cli-incomplete-command statement can be used in: leaf, leaf-list, list, container, and refine.
The following substatements can be used:
tailf:cli-suppress-warning
tailf:cli-incomplete-no
Specifies that an auto-rendered 'no'-command should not be considered complete, ie, additional leaves or
containers must be entered on the same command line.
Used in I- and C-style CLIs.
The cli-incomplete-no statement can be used in: leaf, leaf-list, list, container, tailf:symlink, and refine.
tailf:cli-incomplete-show-path
Specifies that a path to the show command is considered incomplete, i.e., it needs more elements added to
the path. It can also be used to specify a minimum number of keys to be given for lists.
Used in J-, I- and C-style CLIs.
The cli-incomplete-show-path statement can be used in: leaf, tailf:symlink, leaf-list, list, container, and
refine.
The following substatements can be used:
tailf:cli-min-keys Specifies the minimum number of required keys for the show command.
tailf:cli-instance-info-leafs value
This statement is used to specifiy how list entries are displayed when doing completion in the CLI. By
default, a list entry is displayed by listing its key values, and the value of a leaf called 'description', if such
a leaf exists in the list entry.
The 'cli-instance-info-leafs' statement takes as its argument a space separated string of leaf names. When
a list entry is displayed, the values of these leafs are concatenated with a space character as separator and
shown to the user.
For example, when asked to specify an interface the CLI will display a list of possible interface instances,
say 1 2 3 4. If the cli-instance-info-leafs property is set to 'description' then the CLI might show:
Possible completions: 1 - internet 2 - lab 3 - dmz 4 - wlan
Used in J-, I- and C-style CLIs.
The cli-instance-info-leafs statement can be used in: list, tailf:symlink, and refine.
tailf:cli-key-format value
The format string is used when parsing a key value and when generating a key value for an existing
configuration. The key items are numbered from 1-N and the format string should indicate how they are
related by using $(X) (where X is the key number). For example:
953
tailf_yang_cli_extensions
tailf:cli-key-format '$(1)-$(2)' means that the first key item is concatenated with the second key item by a '-'.
Used in J-, I- and C-style CLIs.
The cli-key-format statement can be used in: list, tailf:symlink, and refine.
tailf:cli-list-syntax
Specifies that each entry in a leaf-list should be displayed as a separate element.
Used in J-, I- and C-style CLIs.
The cli-list-syntax statement can be used in: leaf-list, tailf:symlink, and refine.
The following substatements can be used:
tailf:cli-multi-word Specifies that a multi-word value may be entered without quotes.
tailf:cli-min-column-width value
Set a minimum width for the column in the auto-rendered tables.
Used in J-, I- and C-style CLIs.
The cli-min-column-width statement can be used in: leaf, leaf-list, tailf:symlink, and refine.
tailf:cli-mode-name value
Specifies a custom mode name, instead of the default which is the name of the list or container node.
Can be used in config nodes only. If used in a container, the container must also have a tailf:cli-add-mode
statement, and if used in a list, the list must not also have a tailf:cli-suppress-mode statement.
Variables for the list keys in the current mode are available. For examples, 'config-foo-xx
$(name)' (privided the key leaf is called 'name').
Used in I- and C-style CLIs.
The cli-mode-name statement can be used in: container, list, tailf:symlink, and refine.
The following substatements can be used:
tailf:cli-suppress-warning
tailf:cli-mode-name-actionpoint value
Specifies that a custom function will be invoked to find out the mode name, instead of using the default
with is the name of the list or container node.
The argument is the name of an actionpoint, which must be implemented by custom code. In the
actionpoint, the command() callback function will be invoked, and it must return a string with the mode
name. See confd_lib_dp(3) for details.
Can be used in config nodes only. If used in a container, the container must also have a tailf:cli-add-mode
statement, and if used in a list, the list must not also have a tailf:cli-suppress-mode statement.
954
tailf_yang_cli_extensions
Used in I- and C-style CLIs.
The cli-mode-name-actionpoint statement can be used in: container, list, and refine.
The following substatements can be used:
tailf:cli-suppress-warning
tailf:cli-mount-point value
By default actions are mounted under the 'request' command in the J-style CLI and at the top-level in the
I- and C-style CLIs. This annotation allowes the action to be mounted under other top level commands
The cli-mount-point statement can be used in: tailf:action and rpc.
tailf:cli-multi-line-prompt
Tells the CLI to automatically enter multi-line mode when prompting the user for a value to this leaf.
Used in J-, I- and C-style CLIs.
The cli-multi-line-prompt statement can be used in: leaf, tailf:symlink, and refine.
tailf:cli-multi-value
Specifies that all remaining tokens on the command line should be considered a value for this leaf. This
prevents the need for quoting values containing spaces, but also prevents multiple leaves from being set
on the same command line once a multi-value leaf has been given on a line.
If the tailf:cli-max-words substatements is used then additional leaves may be entered.
Note: This extension isn't applicable in actions
Used in I- and C-style CLIs.
The cli-multi-value statement can be used in: leaf, tailf:symlink, and refine.
The following substatements can be used:
tailf:cli-max-words Specifies the maximum number of allowed words for the key or value.
tailf:cli-multi-word-key
Specifies that the key should allow multiple tokens for the value. Proper type restrictions needs to be used
to limit the range of the leaf value.
Can be used in key leafs only.
Note: This extension isn't applicable in actions
Used in J-, I- and C-style CLIs.
The cli-multi-word-key statement can be used in: leaf, tailf:symlink, and refine.
The following substatements can be used:
tailf:cli-max-words Specifies the maximum number of allowed words for the key or value.
955
tailf_yang_cli_extensions
tailf:cli-no-key-completion
Specifies that the CLI engine should not perform completion for key leafs in the list. This is to avoid
querying the data provider for all existing keys.
Used in J-, I- and C-style CLIs.
The cli-no-key-completion statement can be used in: list, tailf:symlink, and refine.
tailf:cli-no-keyword
Specifies that the name of a node is not present in the CLI.
Note that is must be used with some care, just like tailf:cli-drop-node-name. The resulting data model must
still be possible to parse deterministically. For example, consider the data model
container interfaces {
list traffic {
tailf:cli-no-keyword;
key id;
leaf id { type string; }
leaf mtu { type uint16; }
}
list management {
tailf:cli-no-keyword;
key id;
leaf id { type string; }
leaf mtu { type uint16; }
}
}
In this case it is impossible to determine if the config
interfaces {
eth0 {
mtu 1400;
}
}
Means that there should be an traffic interface instance named 'eth0' or a management interface instance
maned 'eth0'. If, on the other hand, a restriction on the type was used, for example
container interfaces {
list traffic {
tailf:cli-no-keyword;
key id;
leaf id { type string; pattern 'eth.*'; }
leaf mtu { type uint16; }
}
list management {
tailf:cli-no-keyword;
key id;
leaf id { type string; pattern 'lo.*';}
leaf mtu { type uint16; }
}
}
then the problem would disappear.
956
tailf_yang_cli_extensions
Used in the J-style CLIs.
The cli-no-keyword statement can be used in: leaf, container, list, leaf-list, tailf:symlink, and refine.
tailf:cli-no-match-completion
Specifies that the CLI engine should not provide match completion for the key leafs in the list.
Used in J-, I- and C-style CLIs.
The cli-no-match-completion statement can be used in: list, tailf:symlink, and refine.
tailf:cli-no-name-on-delete
When displaying the deleted version of this element do not include the name.
Applies to C-style
The cli-no-name-on-delete statement can be used in: leaf, container, list, leaf-list, tailf:symlink, and refine.
tailf:cli-no-value-on-delete
When displaying the deleted version of this leaf do not include the old value.
Applies to C-style
The cli-no-value-on-delete statement can be used in: leaf, leaf-list, tailf:symlink, and refine.
tailf:cli-only-in-autowizard
Force leaf values to be entered in the autowizard. This is intended to prevent users from entering passwords
and other sensitive information in plain text.
Used in J-, I- and C-style CLIs.
The cli-only-in-autowizard statement can be used in: leaf.
tailf:cli-oper-info text
This statement works exactly as tailf:info, with the exception that it is used when displaying the element
info in the context of stats.
Both tailf:info and tailf:cli-oper-info can be present at the same time.
The cli-oper-info statement can be used in: leaf, leaf-list, list, container, rpc, identity, tailf:action,
tailf:symlink, and refine.
tailf:cli-operational-mode
An action or rpc with this attribute will be available in operational mode, but not in configure mode.
The default is that the action or rpc is available in both configure and operational mode.
Used in J-, I- and C-style CLIs.
The cli-operational-mode statement can be used in: tailf:action and rpc.
957
tailf_yang_cli_extensions
tailf:cli-optional-in-sequence
Specifies that this element is optional in the sequence. If it is set it must be set in the right sequence but
may be skipped.
Used in I- and C-style CLIs.
The cli-optional-in-sequence statement can be used in: leaf, tailf:symlink, leaf-list, list, container, and
refine.
The following substatements can be used:
tailf:cli-suppress-warning
tailf:cli-prefix-key
This leaf has to be given as a prefix before entering the actual list keys. Very backwards but a construct
that exists in some Cisco CLIs.
The construct can be used also for leaf-lists but only when then tailf:cli-range-list-syntax is also used.
Used in I- and C-style CLIs.
The cli-prefix-key statement can be used in: leaf, tailf:symlink, refine, and leaf-list.
The following substatements can be used:
tailf:cli-before-key Specifies before which key the prefix element should be inserted. The first key has
number 1.
tailf:cli-suppress-warning
tailf:cli-preformatted
Suppresses quoting of non-config elements when displaying them. Newlines will be preserved in strings
etc.
Used in J-, I- and C-style CLIs.
The cli-preformatted statement can be used in: leaf, tailf:symlink, and refine.
tailf:cli-range-delimiters value
Allows for custom delimiters to be defined for range expressions. By default only / is considered a
delimiter, ie when processing a key like 1/2/3 then each of 1, 2 and 3 will be matched separately agains
range expressions, ie given the expression 1-3/5-6/7,8 1 will be matched with 1-3, 2 with 5-6, and 3 with
7,8. If, for example, the delimiters value is set to '/.' then both '/' and '.' will be considered delimiters and
an key such as 1/2/3.4 will consist of the enteties 1,2,3,4, all matched separately.
Used in J-, I- and C-style CLIs.
The cli-range-delimiters statement can be used in: list, tailf:symlink, and refine.
tailf:cli-range-list-syntax
Specifies that elements in a leaf-list or a list should be entered without surrounding brackets and presented
as ranges. The element in the list should be separated by a comma. For example:
958
tailf_yang_cli_extensions
vlan 1,3,10-20,30,32,300-310
When this statement is used for lists, the list must have a single key. The elements are be presented as
ranges as above.
The type of the list key, or the leaf-list, must be integer based.
Used in J-, I- and C-style CLIs.
The cli-range-list-syntax statement can be used in: leaf-list, list, and refine.
tailf:cli-recursive-delete
When generating configuration diffs delete all contents of a container or list before deleting the node.
Applies to C-style
The cli-recursive-delete statement can be used in: container, list, tailf:symlink, and refine.
tailf:cli-remove-before-change
Instructs the CLI engine to generate a no-commnd before modifying an existing instance. It only applies
when generating diffs, eg 'show configuration' in C-style.
The cli-remove-before-change statement can be used in: leaf-list, list, leaf, tailf:symlink, and refine.
tailf:cli-replace-all
Specifies that the new leaf-list value(s) should replace the old, as opposed to be added to the old leaf-list.
The cli-replace-all statement can be used in: leaf-list, tailf:cli-flat-list-syntax, and refine.
tailf:cli-reset-container
Specifies that all sibling leaves in the container should be reset when this element is set.
When used on a container its content is cleared when set.
The cli-reset-container statement can be used in: leaf, list, container, tailf:symlink, and refine.
tailf:cli-run-template value
Specifies a template string to be used by the 'show running-config' command in operational mode. It is
primarily intended for displaying config data but non-config data may be included in the template as well.
See the defintion of cli-template-string for more info.
Used in I- and C-style CLIs.
The cli-run-template statement can be used in: leaf, leaf-list, tailf:symlink, and refine.
tailf:cli-run-template-enter value
Specifies a template string to be printed before each list entry is printed.
959
tailf_yang_cli_extensions
When used on a container it only has effect when the container also has a tailf:cli-add-mode, and when
tailf:cli-show-no isn't used on the container.
See the defintion of cli-template-string for more info.
The variable .reenter is set to 'true' when the 'show configuration' command is executed and the list or
container isn't created. This allow, for example, to display
create foo
when an instance is created
edit foo
when something inside the instance is modified.
Used in I- and C-style CLIs.
The cli-run-template-enter statement can be used in: list, container, tailf:symlink, and refine.
The following substatements can be used:
tailf:cli-suppress-warning
tailf:cli-run-template-footer value
Specifies a template string to be printed after all list entries are printed.
See the defintion of cli-template-string for more info.
Used in I- and C-style CLIs.
The cli-run-template-footer statement can be used in: list, tailf:symlink, and refine.
tailf:cli-run-template-legend value
Specifies a template string to be printed before all list entries are printed.
See the defintion of cli-template-string for more info.
Used in I- and C-style CLIs.
The cli-run-template-legend statement can be used in: list, tailf:symlink, and refine.
tailf:cli-sequence-commands
Specifies that an auto-rendered command should only accept arguments in the same order as they are
specified in the YANG model. This, in combination with tailf:cli-drop-node-name, can be used to create
CLI commands for setting multiple leafs in a container without having to specify the leaf names.
In almost all cases this annotation should be accompanied by the tailf:cli-compact-syntax annotation.
Otherwise the output from 'show running-config' will not be correct, and the sequence 'save xx' 'load
override xx' will not work.
Used in I- and C-style CLIs.
The cli-sequence-commands statement can be used in: list, container, tailf:symlink, and refine.
960
tailf_yang_cli_extensions
The following substatements can be used:
tailf:cli-reset-siblings Specifies that all sibling leaves in the sequence should be reset whenever the first
leaf in the sequence is set.
tailf:cli-reset-all-siblings Specifies that all sibling leaves in the container should be reset whenever the
first leaf in the sequence is set.
tailf:cli-suppress-warning
tailf:cli-show-config
Specifies that the node will be included when doing a 'show running-configuration', even if it is a non-
config node.
Used in I- and C-style CLIs.
The cli-show-config statement can be used in: leaf, leaf-list, list, container, refine, and tailf:symlink.
tailf:cli-show-long-obu-diffs
Instructs the CLI engine to not generate 'insert' comments when displaying configuration changes of
ordered-by user lists, but instead explicitly remove old instances with 'no' and then add the instances
following a newly inserted instance. Should not be used together with tailf:cli-show-obu-comments
The cli-show-long-obu-diffs statement can be used in: list, tailf:symlink, and refine.
The following substatements can be used:
tailf:cli-suppress-warning
tailf:cli-reset-full Indicates that the list should be fully printed out on change.
tailf:cli-show-no
Specifies that an optional leaf node or presence container should be displayed as 'no <name>' when it does
not exist. For example, if a leaf 'shutdown' has this property and does not exist, 'no shutdown' is displayed.
Used in I- and C-style CLIs.
The cli-show-no statement can be used in: leaf, list, leaf-list, refine, tailf:symlink, and container.
The following substatements can be used:
tailf:cli-suppress-warning
tailf:cli-show-obu-comments
Enforces the CLI engine to generate 'insert' comments when displaying configuration changes of ordered-
by user lists. Should not be used together with tailf:cli-show-long-obu-diffs
The cli-show-obu-comments statement can be used in: list, tailf:symlink, and refine.
The following substatements can be used:
tailf:cli-suppress-warning
961
tailf_yang_cli_extensions
tailf:cli-show-order-tag value
Specifies a custom display order for nodes with the tailf:cli-show-order-tag attribute. Nodes will be
displayed in the order indicated by a cli-show-order-taglist attribute in a parent node.
The scope of a tag reaches until a new taglist is encountered.
Used in I- and C-style CLIs.
The cli-show-order-tag statement can be used in: container, list, leaf, leaf-list, tailf:symlink, and refine.
The following substatements can be used:
tailf:cli-suppress-warning
tailf:cli-show-order-taglist value
Specifies a custom display order for nodes with the tailf:cli-show-order-tag attribute. Nodes will be
displayed in the order indicated in the list. Nodes without a tag will be displayed after all nodes with a
tag have been displayed.
The scope of a taglist is until a new taglist is encountered.
Used in I- and C-style CLIs.
The cli-show-order-taglist statement can be used in: container, list, tailf:symlink, and refine.
tailf:cli-show-template value
Specifies a template string to be used by the 'show' command in operational mode. It is primarily intended
for displaying non-config data but config data may be included in the template as well.
See the defintion of cli-template-string for more info.
Some restrictions includes not applying templates on a leaf that is the key in a list. It is recommended to
use the template directly on the list to format the whole list instead.
Used in J-, I- and C-style CLIs.
The cli-show-template statement can be used in: leaf, leaf-list, list, tailf:symlink, container, and refine.
The following substatements can be used:
tailf:cli-auto-legend Specifies that the legend should be automatically rendered if not already displayed.
Useful when using templates for rendering tables.
tailf:cli-show-template-enter value
Specifies a template string to be printed before each list entry is printed.
See the defintion of cli-template-string for more info.
Used in J-, I- and C-style CLIs.
The cli-show-template-enter statement can be used in: list, tailf:symlink, and refine.
962
tailf_yang_cli_extensions
tailf:cli-show-template-footer value
Specifies a template string to be printed after all list entries are printed.
See the defintion of cli-template-string for more info.
Used in J-, I- and C-style CLIs.
The cli-show-template-footer statement can be used in: list, tailf:symlink, and refine.
tailf:cli-show-template-legend value
Specifies a template string to be printed before all list entries are printed.
See the defintion of cli-template-string for more info.
Used in J-, I- and C-style CLIs.
The cli-show-template-legend statement can be used in: list and refine.
tailf:cli-show-with-default
This leaf will be displayed even when it has its default value. Note that this will somewhat result in a
slightly different behaviour when you save a config and then load it again. With this setting in place a leaf
that has not been configured will be configured after the load.
Used in I- and C-style CLIs.
The cli-show-with-default statement can be used in: leaf, refine, and tailf:symlink.
tailf:cli-strict-leafref
Specifies that the leaf should only be allowed to be assigned references to existing instances when the
command is executed. Without this annotation the requirement is that the instance exists on commit time.
Used in I- and C-style CLIs.
The cli-strict-leafref statement can be used in: leaf, leaf-list, tailf:symlink, and refine.
tailf:cli-suppress-key-abbreviation
Key values cannot be abbreviated. The user must always give complete values for keys.
In the J-style CLI this is relevant when using the commands 'delete' and 'edit'.
In the I- and C-style CLIs this is relevant when using the commands 'no', 'show configuration' and for
commands to enter submodes.
See also /confdConfig/cli/allowAbbrevKeys in confd.conf(5).
The cli-suppress-key-abbreviation statement can be used in: list, tailf:symlink, and refine.
tailf:cli-suppress-key-sort
Instructs the CLI engine to not sort the keys in alphabetical order when presenting them to the user during
TAB completion.
963
tailf_yang_cli_extensions
Used in J-, I- and C-style CLIs.
The cli-suppress-key-sort statement can be used in: list, tailf:symlink, and refine.
tailf:cli-suppress-list-no
Specifies that the CLI should not accept deletion of the entire list or leaf-list. Only specific instances should
be deletable not the entire list in one command. ie, 'no foo <instance>' should be allowed but not 'no foo'.
Used in I- and C-style CLIs.
The cli-suppress-list-no statement can be used in: leaf-list, list, tailf:symlink, and refine.
tailf:cli-suppress-mode
Instructs the CLI engine to not make a mode of the list node.
Can be used in config nodes only.
Used in I- and C-style CLIs.
The cli-suppress-mode statement can be used in: list, tailf:symlink, and refine.
The following substatements can be used:
tailf:cli-suppress-warning
tailf:cli-suppress-no
Specifies that the CLI should not auto-render 'no' commands for this element. An element with this
annotation will not appear in the completion list to the 'no' command.
Used in I- and C-style CLIs.
The cli-suppress-no statement can be used in: leaf, leaf-list, list, tailf:symlink, container, and refine.
tailf:cli-suppress-quotes
Specifies that configuration data for a leaf should never be wrapped with quotes. All internal data will be
escaped to make sure it can be presented correctly.
Can't be used for keys.
Used in J-, I- and C-style CLIs.
The cli-suppress-quotes statement can be used in: leaf.
tailf:cli-suppress-range
Means that the integer key should not allow range expressions.
Can be used in key leafs only.
Used in J-, I- and C-style CLIs.
The cli-suppress-range statement can be used in: leaf, tailf:symlink, and refine.
964
tailf_yang_cli_extensions
The following substatements can be used:
tailf:cli-suppress-warning
tailf:cli-suppress-shortenabled
Suppresses the confd.conf(5) setting /confdConfig/cli/useShortEnabled.
Used in J-, I- and C-style CLIs.
The cli-suppress-shortenabled statement can be used in: leaf, tailf:symlink, and refine.
tailf:cli-suppress-show-conf-path
Specifies that the show running-config command cannot be invoked with the path, ie the path is suppressed
when auto-rendering show running- config commands for config='true' data.
Used in J-, I- and C-style CLIs.
The cli-suppress-show-conf-path statement can be used in: leaf, leaf-list, list, container, tailf:symlink, and
refine.
tailf:cli-suppress-show-match
Specifies that a specific completion match (i.e., a filter match that appear at list nodes as an alternative to
specifying a single instance) to the show command should not be available.
Used in J-, I- and C-style CLIs.
The cli-suppress-show-match statement can be used in: leaf, leaf-list, list, tailf:symlink, container, and
refine.
tailf:cli-suppress-show-path
Specifies that the show command cannot be invoked with the path, ie the path is suppressed when auto-
rendering show commands for config='false' data.
Used in J-, I- and C-style CLIs.
The cli-suppress-show-path statement can be used in: leaf, leaf-list, list, tailf:symlink, container, and refine.
tailf:cli-suppress-silent-no value
Specifies that the confd.cnof directive cSilentNo should be suppressed for a leaf and that a custom error
message should be displayed when the user attempts to delete a non-existing element.
Used in I- and C-style CLIs.
The cli-suppress-silent-no statement can be used in: leaf, leaf-list, list, tailf:symlink, container, and refine.
tailf:cli-suppress-table
Instructs the CLI engine to not print the list as a table in the 'show' command.
Can be used in non-config nodes only.
965
tailf_yang_cli_extensions
Used in I- and C-style CLIs.
The cli-suppress-table statement can be used in: list, tailf:symlink, and refine.
tailf:cli-suppress-validation-warning-prompt
Instructs the CLI engine to not prompt the user whether to proceed or not if a warning is generated for
this node.
Used in I- and C-style CLIs.
The cli-suppress-validation-warning-prompt statement can be used in: list, leaf, container, leaf-list,
tailf:symlink, and refine.
tailf:cli-suppress-warning value
Avoid involving specific CLI-extension related YANG statements in warnings related to certain yanger
error codes. For a list of yanger error codes do 'yanger -e'.
Used in I- and C-style CLIs.
The cli-suppress-warning statement can be used in: tailf:cli-run-template-enter, tailf:cli-sequence-
commands, tailf:cli-hide-in-submode, tailf:cli-boolean-no, tailf:cli-compact-syntax, tailf:cli-break-
sequence-commands, tailf:cli-show-long-obu-diffs, tailf:cli-show-obu-comments, tailf:cli-suppress-
range, tailf:cli-suppress-mode, tailf:cli-custom-range, tailf:cli-custom-range-actionpoint, tailf:cli-
custom-range-enumerator, tailf:cli-drop-node-name, tailf:cli-add-mode, tailf:cli-mode-name, tailf:cli-
incomplete-command, tailf:cli-full-command, tailf:cli-mode-name-actionpoint, tailf:cli-optional-in-
sequence, tailf:cli-prefix-key, tailf:cli-show-no, tailf:cli-show-order-tag, tailf:cli-diff-dependency, and
container.
tailf:cli-suppress-wildcard
Means that the list does not allow wildcard expressions in the 'show' pattern.
See also /confdConfig/cli/allowWildcard in confd.conf(5).
Used in J-, I- and C-style CLIs.
The cli-suppress-wildcard statement can be used in: list, tailf:symlink, and refine.
tailf:cli-table-footer value
Specifies a template string to be printed after all list entries are printed.
Used in J-, I- and C-style CLIs.
The cli-table-footer statement can be used in: list, tailf:symlink, and refine.
tailf:cli-table-legend value
Specifies a template string to be printed before all list entries are printed.
Used in J-, I- and C-style CLIs.
The cli-table-legend statement can be used in: list, tailf:symlink, and refine.
966
tailf_yang_cli_extensions
tailf:cli-trim-default
Do not display value if it is same as default.
Used in I- and C-style CLIs.
The cli-trim-default statement can be used in: leaf, tailf:symlink, and refine.
tailf:cli-value-display-template value
Specifies a template string to be used when formating the value of a leaf for display. Note that other leaves
cannot be referenced from a display template of one leaf. The only value accessible is the leaf's own value,
accessed through $(.).
See the defintion of cli-template-string for more info.
Used in J-, I- and C-style CLIs.
The cli-value-display-template statement can be used in: leaf, tailf:symlink, and refine.
YANG TYPES
cli-template-string
A template is a text string which is expanded by the CLI engine, and then displayed to the user.
The template may contain a mix of text and expandable entries. Expandable entries all start with $( and
end with a matching ). Parentheses and dollar signs need to be quoted in plain text.
(Disclaimer: tailf:cli-template-string will not respect all CLI YANG extensions existing from expandable
entries. For instance, tailf:cli-no-name-on-delete will have no effect when the value of a node with this
extension is fetched as a result of expanding CLI templates.)
The template is expanded as follows:
A parameter is either a relative or absolute path to a leaf element (eg /foo/bar, foo/bar), or one of the builtin
variables: .selected, .entered, .legend_shown, .user, .groups, .ip, .display_groups, .path, .ipath or .licounter.
In addition the variables .spath and .ispath are available when a command is executed from a show path.
.selected
The .selected variable contains the list of selected paths to be shown. The show template can inspect this
element to determine if a given element should be displayed or not. For example:
$(.selected~=hwaddr?HW Address)
.entered
The .entered variable is true if the "entered" text has been displayed (either the auto generated text or a
showTemplateEnter). This is useful when having a non-table template where each instance should have
a text.
$(.entered?:host $(name))
.legend_shown
967
tailf_yang_cli_extensions
The .legend_shown variable is true if the "legend" text has been displayed (either the auto generated table
header or a showTemplateLegend). This is useful to inspect when displaying a table row. If the user enteres
the path to a specific instance the builtin table header will not be displayed and the showTemplateLegend
will not be invoked and it may be useful to render the legend specifically for this instance.
$(.legend_shown!=true?Address Interface)
.user
The .user variable contains the name of the current user. This can be used for differentiating the content
displayed for a specific user, or in paths. For exapmle:
$(user{$(.user)}/settings)
.groups
The .groups variable contains the a list of groups that the user belongs to.
.display_groups
The .display_groups variable contains a list of selected display groups. This can be used to display different
content depending on the selected display group. For example:
$(.display_groups~=details?details...)
.ip
The .ip variable contains the ip address that the user connected from.
.path
The .path variable contains the path to the entry, formated in CLI style.
.ipath
The .ipath variable contains the path to the entry, formated in template style.
.spath
The .spath variable contains the show path, formated in CLI style.
.ispath
The .ispath variable contains the show path, formated in template style.
.licounter
The .licounter variable contains a counter that is incremented for each instance in a list. This means that
it will be 0 in the legend, contain the total number of list instances in the footer and something in between
in the basic show template.
$(parameter)
The value of 'parameter' is substituted.
$(cond?word1:word2)
The expansion of 'word1' is substituted if 'cond' evaluates to true, otherwise the expansion of 'word2' is
substituted.
968
tailf_yang_cli_extensions
'cond' may be one of
parameter
Evaluates to true if the node exists.
parameter == <value>
Evaluates to true if the value of the parameter equals <value>.
parameter != <value>
Evalutes to true if the value of the parameter does not equal <value>
parameter ~= <value>
Provided that the value of the parameter is a list (i.e., the node that the parameter refers to is a leaf-list),
this expression evaluates to true if <value> is a member of the list.
Note that it is also possible to omit ':word2' in order to print the entire statement, or nothing. As an example
$(conf?word1) will print 'word1' if conf exists, otherwise it will print nothing.
$(cond??word1)
Double question marks can be used to achieve the same effect as above, but with the distinction that the
'cond' variable needs to be explicitly configured, in order to be evaluated as existing. This is needed in the
case of evaluating leafs with default values, where the single question mark operator would evaluate to
existing even if not explicitly configured.
$(parameter|filter)
The value of 'parameter' processed by 'filter' is substituted. Filters may be either one of the built-ins or a
customized filter defined in a callback. See /confdConfig/cli/templateFilter.
A built-in 'filter' may be one of:
capfirst
Capitalizes the first character of the value.
lower
Converts the value into lowercase.
upper
Converts the value into uppercase.
filesizeformat
Formats the value in a human-readable format (e.g., '13 KB', '4.10 MB', '102 bytes' etc), where K means
1024, M means 1024*1024 etc.
When used without argument the default number of decimals displayed is 2. When used with a numeric
integer argument, filesizeformat will display the given number of decimal places.
humanreadable
969
tailf_yang_cli_extensions
Similar to filesizeformat except no bytes suffix is added (e.g., '13.00 k', '4.10 M' '102' etc), where k means
1000, M means 1000*1000 etc.
When used without argument the default number of decimals displayed is 2. When used with a numeric
integer argument, humanreadable will display the given number of decimal places.
commasep
Separate the numerical values into groups of three digits using a comma (e.g., 1234567 -> 1,234,567)
hex
Display integer as hex number. An argument can be used to indicate how many digits should be used in
the output. If the hex number is too long it will be truncated at the front, if it is too short it will be padded
with zeros at the front. If the width is a negative number then at most that number of digits will be used,
but short numbers will not be padded with zeroes. Another argument can be given to indicate if the hex
numbers should be written with lower or upper case.
For example:
value Template Output
12345 {{ value|hex }} 3039
12345 {{ value|hex:2 }} 39
12345 {{ value|hex:8 }} 00003039
12345 {{ value|hex:-8 }} 3039
14911 {{ value|hex:-8:upper }} 3A3F
14911 {{ value|hex:-8:lower }} 3a3f
hexlist
Display integer as hex number with : between pairs. An argument can be used to indicate how many digits
should be used in the output. If the hex number is too long it will be truncated at the front, if it is too short
it will be padded with zeros at the front. If the width is a negative number then at most that number of
digits will be used, but short numbers will not be padded with zeroes. Another argument can be given to
indicate if the hex numbers should be written with lower or upper case.
For example:
value Template Output
12345 {{ value|hexlist }} 30:39
12345 {{ value|hexlist:2 }} 39
12345 {{ value|hexlist:8 }} 00:00:30:39
12345 {{ value|hexlist:-8 }} 30:39
14911 {{ value|hexlist:-8:upper }} 3A:3F
14911 {{ value|hexlist:-8:lower }} 3a:3f
floatformat
Used for type 'float' in tailf-xsd-types. We recommend that the YANG built-in type 'decimal64' is used
instead of 'float'.
When used without an argument, rounds a floating-point number to one decimal place -- but only if there
is a decimal part to be displayed.
For example:
value Template Output
34.23234 {{ value|floatformat }} 34.2
970
tailf_yang_cli_extensions
34.00000 {{ value|floatformat }} 34
34.26000 {{ value|floatformat }} 34.3
If used with a numeric integer argument, floatformat rounds a number to that many decimal places. For
example:
value Template Output
34.23234 {{ value|floatformat:3 }} 34.232
34.00000 {{ value|floatformat:3 }} 34.000
34.26000 {{ value|floatformat:3 }} 34.260
If the argument passed to floatformat is negative, it will round a number to that many decimal places --
but only if there's a decimal part to be displayed. For example:
value Template Output
34.23234 {{ value|floatformat:-3 }} 34.232
34.00000 {{ value|floatformat:-3 }} 34
34.26000 {{ value|floatformat:-3 }} 34.260
Using floatformat with no argument is equivalent to using floatformat with an argument of -1.
ljust:width
Left-align the value given a width.
rjust:width
Right-align the value given a width.
trunc:width
Truncate value to a given width.
lower
Convert the value into lowercase.
upper
Convert the value into uppercase.
show:<dictionary>
Substitutes the result of invoking the default display function for the parameter. The dictionary can be
used for introducing own variables that can be accessed in the same manner as builtin variables. The user
defined variables overrides builtin variables. The dictionary is specified as a string on the following form:
(key=value)(:key=value)*
For example, with the following expression:
$(foo|show:myvar1=true:myvar2=Interface)
the user defined variables can be accessed like this:
$(.myvar1!=true?Address) $(.myvar2)
A special case is the dict variable 'indent'. It controls the indentation level of the displayed path. The current
indent level can be incremented and decremented using =+ and =-.
971
tailf_yang_cli_extensions
For example:
$(foobar|show:indent=+2) $(foobar|show:indent=-1) $(foobar|show:indent=10)
Another special case is he dict variable 'noalign'. It may be used to suppress the default aligning that may
occur when displaying an element.
For example:
$(foobar|show:noalign)
dict:<dictionary>
Translates the value using the dictionary. Can for example be used for displaying on/off instead of true/
false. The dictionary is specified as a string on the following form:
(key=value)(:key=value)*
For example, with the following expression:
$(foo|dict:true=on:false=off)
if the leaf 'foo' has value 'true', it is displayed as 'on', and if its value is 'false' it is displayed as 'off'.
Nested invocations are allowed, ie it is possible to have expressions
like $((state|dict:yes=Yes:no=No)|rjust:14), or $(/foo{$(../bar)})
For example:
list interface {
key name;
leaf name { ... }
leaf status { ... }
container line {
leaf status { ... }
}
leaf mtu { ... }
leaf bw { ... }
leaf encapsulation { ... }
leaf loopback { ... }
tailf:cli-show-template
'$(name) is administratively $(status),'
+ ' line protocol is $(line/status)\n'
+ 'MTU $(mtu) bytes, BW $(bw|humanreadable)bit, \n'
+ 'Encap $(encapsulation|upper), $(loopback?:loopback not set)\n';
}
SEE ALSO
The User Guide
confdc(1) ConfD compiler
tailf_yang_extensions(5) Tail-f YANG extensions
972
Nametailf_yang_extensions — Tail-f YANG extensions
Synopsis
tailf:action
tailf:actionpoint
tailf:alt-name
tailf:annotate
tailf:annotate-module
tailf:callpoint
tailf:cdb-oper
tailf:code-name
tailf:confirm-text
tailf:default-ref
tailf:dependency
tailf:display-column-name
tailf:display-groups
tailf:display-hint
tailf:display-status-name
tailf:display-when
tailf:error-info
tailf:exec
tailf:export
tailf:hidden
tailf:id
tailf:id-value
tailf:indexed-view
tailf:info
tailf:info-html
tailf:java-class-name
973
tailf_yang_extensions
tailf:junos-val-as-xml-tag
tailf:junos-val-with-prev-xml-tag
tailf:key-default
tailf:link
tailf:lower-case
tailf:meta-data
tailf:ncs-device-type
tailf:ned-data
tailf:ned-default-handling
tailf:ned-ignore-compare-config
tailf:no-dependency
tailf:no-leafref-check
tailf:non-strict-leafref
tailf:operation
tailf:override-auto-dependencies
tailf:path-filters
tailf:secondary-index
tailf:snmp-delete-value
tailf:snmp-exclude-object
tailf:snmp-lax-type-check
tailf:snmp-mib-module-name
tailf:snmp-name
tailf:snmp-ned-accessible-column
tailf:snmp-ned-delete-before-create
tailf:snmp-ned-modification-dependent
tailf:snmp-ned-recreate-when-modified
tailf:snmp-ned-set-before-row-modification
tailf:snmp-oid
tailf:snmp-row-status-column
974
tailf_yang_extensions
tailf:sort-order
tailf:sort-priority
tailf:step
tailf:structure
tailf:suppress-echo
tailf:symlink
tailf:transaction
tailf:typepoint
tailf:unique-selector
tailf:validate
tailf:value-length
tailf:writable
tailf:xpath-root
DESCRIPTION
This manpage describes all the Tail-f extensions to YANG. The YANG extensions consist of YANG
statements and XPath functions to be used in YANG data models.
The YANG source file $CONFD_DIR/src/confd/yang/tailf-common.yang gives the exact
YANG syntax for all Tail-f YANG extension statements - using the YANG language itself.
Most of the concepts implemented by the extensions listed below are described in the ConfD User Guide.
For example user defined validation is described in the Validation chapter. The YANG syntax is described
here though.
YANG STATEMENTS
tailf:action name
Defines an action (method) in the data model.
When the action is invoked, the instance on which the action is invoked is explicitly identified by an
hierarchy of configuration or state data.
The action statement can have either a 'tailf:actionpoint' or a 'tailf:exec' substatement. If the action is
implemented as a callback in an application daemon, 'tailf:actionpoint' is used, whereas 'tailf:exec' is used
for an action implemented as a standalone executable (program or script). Additionally, 'action' can have
the same substatements as the standard YANG 'rpc' statement, e.g., 'description', 'input', and 'output'.
For example:
container sys {
975
tailf_yang_extensions
list interface {
key name;
leaf name {
type string;
}
tailf:action reset {
tailf:actionpoint my-ap;
input {
leaf after-seconds {
mandatory false;
type int32;
}
}
}
}
}
We can also add a 'tailf:confirm-text', which defines a string to be used in the user interfaces to prompt
the user for confirmation before the action is executed. The optional 'tailf:confirm-default' and 'tailf:cli-
batch-confirm-default' can be set to control if the default is to proceed or to abort. The latter will only be
used during batch processing in the CLI (e.g. non-interactive mode).
tailf:action reset {
tailf:actionpoint my-ap;
input {
leaf after-seconds {
mandatory false;
type int32;
}
}
tailf:confirm-text 'Really want to do this?' {
tailf:confirm-default true;
}
}
The 'tailf:actionpoint' statement can have a 'tailf:opaque' substatement, to define an opaque string that is
passed to the callback function.
tailf:action reset {
tailf:actionpoint my-ap {
tailf:opaque 'reset-interface';
}
input {
leaf after-seconds {
mandatory false;
type int32;
}
}
}
When we use the 'tailf:exec' substatement, the argument to exec specifies the program or script that should
be executed. For example:
tailf:action reboot {
tailf:exec '/opt/sys/reboot.sh' {
tailf:args '-c $(context) -p $(path)';
}
input {
leaf when {
976
tailf_yang_extensions
type enumeration {
enum now;
enum 10secs;
enum 1min;
}
}
}
}
The action statement can be used in: augment, list, container, and grouping.
The following substatements can be used:
tailf:actionpoint
tailf:alt-name
tailf:cli-mount-point
tailf:cli-configure-mode
tailf:cli-operational-mode
tailf:cli-oper-info
tailf:code-name
tailf:confirm-text
tailf:display-when
tailf:exec
tailf:hidden
tailf:info
tailf:info-html
tailf:actionpoint name
Identifies the callback in a data provider that implements the action. See confd_lib_dp(3) for details on
the API.
The actionpoint statement can be used in: rpc, action, tailf:action, and refine.
The following substatements can be used:
tailf:opaque Defines an opaque string which is passed to the callback function in the context.
tailf:internal For internal ConfD / NCS use only.
tailf:alt-name name
This property is used to specify an alternative name for the node in the CLI. It is used instead of the node
name in the CLI, both for input and output.
977
tailf_yang_extensions
The alt-name statement can be used in: rpc, action, leaf, leaf-list, list, container, and refine.
tailf:annotate target
Annotates an existing statement with a 'tailf' statement or a validation statement. This is useful in order to
add tailf statements to a module without touching the module source. Annotation statements can be put in a
separate annotation module, and then passed to 'confdc' (or 'pyang') when the original module is compiled.
Any 'tailf' statement, except 'symlink' and 'action' can be annotated. The statements 'symlink' and 'action'
modifies the data model, and are thus not allowed.
The validation statements 'must', 'min-elements', 'max-elements', 'mandatory', 'unique', and 'when' can also
be annotated.
A 'description' can also be annotated.
'tailf:annotate' can occur on the top-level in a module, or in another 'tailf:annotate' statement.
The argument is a 'schema-nodeid', i.e. the same as for 'augment', or a '*'. It identifies a target node in the
schema tree to annotate with new statements. The special value '*' can be used within another 'tailf:annotate'
statetement, to select all children for annotation.
The target node is searched for after 'uses' and 'augment' expansion. All substatements to 'tailf:annotate'
are treated as if they were written inline in the target node, with the exception of any 'tailf:annotate'
substatements. These are treated recursively. For example, the following snippet adds one callpoint to /
x and one to /x/y:
tailf:annotate /x {
tailf:callpoint xcp;
tailf:annotate y {
tailf:callpoint ycp;
}
}
The annotate statement can be used in: module and submodule.
The following substatements can be used:
tailf:annotate
tailf:annotate-module module-name
Annotates an existing module or submodule statement with a 'tailf' statement. This is useful in order to add
tailf statements to a module without touching the module source. Annotation statements can be put in a
separate annotation module, and then passed to 'confdc' (or 'pyang') when the original module is compiled.
'tailf:annotate-module' can occur on the top-level in a module, and is used to add 'tailf' statements to the
module statement itself.
The argument is a name of the module or submodule to annotate.
The annotate-module statement can be used in: module.
The following substatements can be used:
tailf:snmp-oid
978
tailf_yang_extensions
tailf:snmp-mib-module-name
tailf:id
tailf:id-value
tailf:export
tailf:unique-selector
tailf:annotate-statement Annotates an existing statement with a 'tailf' statement, a validation statement, or
a type restrcition statement. This is useful in order to add tailf statements to a module without touching
the module source. Annotation statements can be put in a separate annotation module, and then passed to
'confdc' (or 'pyang') when the original module is compiled.
Any 'tailf' statement, except 'symlink' and 'action' can be annotated. The statements 'symlink' and 'action'
modifies the data model, and are thus not allowed.
The validation statements 'must', 'min-elements', 'max-elements', 'mandatory', 'unique', and 'when' can also
be annotated.
The type restriction statement 'pattern' can also be annotated.
A 'description' can also be annotated.
The argument is an XPath-like expression that selects a statement to annotate. The syntax is:
<statement-name> ( '[' <arg-name> '=' <arg-value> ']' )
where <statement-name> is the name of the statement to annotate, and if there are more than one such
statement in the parent, <arg-value> is the quoted value of the statement's argument.
All substatements to 'tailf:annotate-statement' are treated as if they were written inline in the target node,
with the exception of any 'tailf:annotate-statement' substatements. These are treated recursively.
For example, given the grouping:
grouping foo { leaf bar { type string; } leaf baz { type string; } }
the following snippet adds a callpoint to the leaf 'baz':
tailf:annotate-statement grouping[name='foo'] { tailf:annotate-statement leaf[name='baz'] { tailf:callpoint
xcp; } }
tailf:callpoint id
Identifies a callback in a data provider. A data provider implements access to external data, either
configuration data in a database or operational data. By default ConfD uses the embedded database (CDB)
to store all data. However, some or all of the configuration data may be stored in an external source. In
order for ConfD to be able to manipulate external data, a data provider registers itself using the callpoint
id as described in confd_lib_dp(3).
A callpoint is inherited to all child nodes unless another 'callpoint' or an 'cdb-oper' is defined.
The callpoint statement can be used in: leaf, leaf-list, list, container, refine, and grouping.
The following substatements can be used:
979
tailf_yang_extensions
tailf:config If this statement is present, the callpoint is applied to nodes with a matching value of their
'config' property.
tailf:transform If set to 'true', the callpoint is a transformation callpoint. How transformation callpoints are
used is described in the 'Transformations, Hooks, Hidden Data and Symlinks' chapter in the User's Guide.
tailf:set-hook Set hooks are a means to associate user code to the transaction. Whenever an element gets
written, created, or deleted, user code gets invoked and can optionally write more data into the same
transaction.
The difference between set- and transaction hooks are that set hooks are invoked immediately when a write
operation is requested by a north bound agent, and transaction hooks are invoked at commit time.
The value 'subtree' means that all nodes in the configuration below where the hook is defined are affected.
The value 'object' means that the hook only applies to the list where it is defined, i.e. it applies to all child
nodes that are not themselves lists.
The value 'node' means that the hook only applies to the node where it is defined and none of its children.
For more details on hooks, see the 'Transformations, Hooks, Hidden Data and Symlinks' chapter in the
User's Guide.
tailf:transaction-hook Transaction hooks are a means to associate user code to the transaction. Whenever
an element gets written, created, or deleted, user code gets invoked and can optionally write more data
into the same transaction.
The difference between set- and transaction hooks are that set hooks are invoked immediately when an
element is modified, but transaction hooks are invoked at commit time.
The value 'subtree' means that all nodes in the configuration below where the hook is defined are affected.
The value 'object' means that the hook only applies to the list where it is defined, i.e. it applies to all child
nodes that are not themselves lists.
The value 'node' means that the hook only applies to the node where it is defined and none of its children.
For more details on hooks, see the 'Transformations, Hooks, Hidden Data and Symlinks' chapter in the
User's Guide.
tailf:cache If set to 'true', the operational data served by the callpoint will be cached by ConfD. If set to
'true' in a node that represents configuration data, the statement 'tailf:config' must be present and set to
'false'. This feature is further described in the section 'Caching operational data' in the 'Operational data'
chapter in the User's Guide.
tailf:opaque Defines an opaque string which is passed to the callback function in the context.
tailf:internal For internal ConfD / NCS use only.
tailf:cdb-oper
Indicates that operational data nodes below this node are stored in CDB.
The cdb-oper statement can be used in: leaf, leaf-list, list, container, and refine.
The following substatements can be used:
980
tailf_yang_extensions
tailf:persistent If it is set to 'true', the operational data is stored on disk. If set to 'false', the operational data
is not persistent across ConfD restarts. The default is 'false'.
tailf:code-name name
Used to give another name to the enum or node name in generated header files. This statement is typically
used to avoid name conflicts if there is a data node with the same name as the enumeration, if there are
multiple enumerations in different types with the same name but different values, or if there are multiple
node names that are mapped to the same name in the header file.
The code-name statement can be used in: enum, bit, leaf, leaf-list, list, container, rpc, action, identity,
notification, and tailf:action.
tailf:confirm-text text
A string which is used in the user interfaces to prompt the user for confirmation before the action is
executed. The optional 'confirm-default' and 'cli-batch-confirm-default' can be set to control if the default is
to proceed or to abort. The latter will only be used during batch processing in the CLI (e.g. non-interactive
mode).
The confirm-text statement can be used in: rpc, action, and tailf:action.
The following substatements can be used:
tailf:confirm-default Specifies if the default is to proceed or abort the action when a confirm-text is set. If
this value is not specified, a ConfD global default value can be set in clispec(5).
tailf:cli-batch-confirm-default
tailf:default-ref path
This statement defines a dynamic default value. It is a reference to some other leaf in the datamodel. If no
value has been set for this leaf, it defaults to the value of the leaf that the 'default-ref' argument points to.
The textual format of a 'default-ref' is an XPath location path with no predicates.
The type of the leaf with a 'default-ref' will be set to the type of the referred leaf. This means that the type
statement in the leaf with the 'default-ref' is ignored, but it SHOULD match the type of the referred leaf.
Here is an example, where a group without a 'hold-time' will get as default the value of another leaf up
in the hierarchy:
leaf hold-time {
mandatory true;
type int32;
}
list group {
key 'name';
leaf name {
type string;
}
leaf hold-time {
type int32;
tailf:default-ref '../../hold-time';
}
}
981
tailf_yang_extensions
The default-ref statement can be used in: leaf and refine.
tailf:dependency path
This statement is used to specify that the must or when expression or validation function depends on a set
of subtrees in the data store. Whenever a node in one of those subtrees are modified, the must or when
expression is evaluated, or validation code executed.
The textual format of a 'dependency' is an XPath location path with no predicates.
If the node that declares the dependency is a leaf, there is an implicit dependency to the leaf itself.
For example, with the leafs below, the validation code for'vp' will be called whenever 'a' or 'b' is modified.
leaf a {
type int32;
tailf:validate vp {
tailf:dependency '../b';
}
}
leaf b {
type int32;
}
For 'when' and 'must' expressions, the compiler can derive the dependencies automatically from the XPath
expression in most cases. The exception is if any wildcards are used in the expression.
For 'when' expressions to work, a 'tailf:dependency' statement must be given, unless the compiler can
figure out the dependency by itself.
Note that having 'tailf:validate' statements without dependencies impacts the overall performance of the
system, since all such validation functions are evaluated at every commit.
The dependency statement can be used in: must, when, and tailf:validate.
The following substatements can be used:
tailf:xpath-root
tailf:display-column-name name
This property is used to specify an alternative column name for the leaf in the CLI. It is used when
displaying the leaf in a table in the CLI.
The display-column-name statement can be used in: leaf, leaf-list, and refine.
tailf:display-groups value
This property is used in the CLI when 'enableDisplayGroups' has been set to true in the confd.conf(5) file.
Display groups are used to control which elements should be displayed by the show command.
The argument is a space-separated string of tags.
In the J-style CLI the 'show status', 'show table' and 'show all' commands use display groups. In the C- and
I-style CLIs the 'show <pattern>' command uses display groups.
If no display groups are specified when running the commands, the node will be displayed if it does not
have the 'display-groups' property, or if the property value includes the special value 'none'.
982
tailf_yang_extensions
If display groups are specified when running the command, then the node will be displayed only if its
'display-group' property contains one of the specified display groups.
The display-groups statement can be used in: leaf, leaf-list, list, container, and refine.
tailf:display-hint hint
This statement can be used to add a display-hint to a leaf or typedef of type binary. The display-hint is used
in the CLI and WebUI instead of displaying the binary as a base64-encoded string. It is also used for input.
The value of a 'display-hint' is defined in RFC 2579.
For example, with the display-hint value '1x:', the value is printed and inputted as a colon-separated hex list.
The display-hint statement can be used in: leaf and typedef.
tailf:display-status-name name
This property is used to specify an alternative name for the element in the CLI. It is used when displaying
status information in the C- and I-style CLIs.
The display-status-name statement can be used in: leaf, leaf-list, list, container, and refine.
tailf:display-when condition
The argument contains an XPath expression which specifies when the node should be displayed in the CLI
and WebUI. For example, when the CLI performs completion, and one of the candidates is a node with
a 'display-when' expression, the expression is evaluated by the CLI. If the XPath expression evaluates to
true, the node is shown as a possible completion candidate, otherwise not.
For a list, the display-when expression is evaluated once for the entire list. In this case, the XPath context
node is the list's parent node.
This feature is further described in the 'Transformations, Hooks, Hidden Data and Symlinks' chapter in
the User Guide.
The display-when statement can be used in: leaf, leaf-list, list, container, and refine.
The following substatements can be used:
tailf:xpath-root
tailf:error-info
Declares a set of data nodes to be used in the NETCONF <error-info> element.
A data provider can use one of the confd_*_seterr_extended_info() functions (see confd_lib_dp(3)) to set
these data nodes on errors.
This statement may be used multiple times.
For example:
tailf:error-info {
leaf severity {
type enumeration {
enum info;
983
tailf_yang_extensions
enum error;
enum critical;
}
}
container detail {
leaf class {
type uint8;
}
leaf code {
type uint8;
}
}
}
The error-info statement can be used in: module and submodule.
tailf:exec cmd
Specifies that the rpc or action is implemented as an OS executable. The argument 'cmd' is the path to the
executable file. If the command is in the $PATH of ConfD, the 'cmd' can be just the name of the executable.
The exec statement can be used in: rpc, action, and tailf:action.
The following substatements can be used:
tailf:args Specifies arguments to send to the executable when it is invoked by ConfD. The argument 'value'
is a space separated list of argument strings. It may contain variables on the form $(variablename). These
variables will be expanded before the command is executed. The following variables are always available:
$(user) The name of the user which runs the operation.
$(groups) A comma separated string of the names of the groups the user belongs to.
$(ip) The source ip address of the user session.
$(uid) The user id of the user.
$(gid) The group id of the user.
When the parent 'exec' statement is a substatement of 'action', the following additional variablenames are
available:
$(keypath) The path that identifies the parent container of 'action' in string keypath form, e.g., '/
sys:host{earth}/interface{eth0}'.
$(path) The path that identifies the parent container of 'action' in CLI path form, e.g., 'host earth interface
eth0'.
$(context) cli | webui | netconf | any string provided by MAAPI
For example: args '-user $(user) $(uid)'; might expand to: -user bob 500
tailf:uid Specifies which user id to use when executing the command.
If 'uid' is an integer value, the command is run as the user with this user id.
If 'uid' is set to either 'user', 'root' or an integer user id, the ConfD daemon must have been started as root
(or setuid), or the ConfD executable program 'cmdwrapper' must have setuid root permissions.
984
tailf_yang_extensions
tailf:gid Specifies which group id to use when executing the command.
If 'gid' is an integer value, the command is run as the group with this group id.
If 'gid' is set to either 'user', 'root' or an integer group id, the ConfD daemon must have been started as root
(or setuid), or the ConfD executable program 'cmdwrapper' must have setuid root permissions.
tailf:wd Specifies which working directory to use when executing the command. If not given the command
is executed from the homedir of the user logged in to ConfD.
tailf:global-no-duplicate Specifies that only one instance with the same name can be run at any one time
in the system. The command can be started either from the CLI, the WebUI or through NETCONF. If a
client tries to execute this command while another operation with the same 'global-no-duplicate' name is
running, a 'resource-denied' error is generated.
tailf:raw-xml Specifies that ConfD should not convert the RPC XML parameters to command line
arguments. Instead, ConfD just passes the raw XML on stdin to the program.
This statement is not allowed in 'tailf:action'.
tailf:interruptible Specifies whether the client can abort the execution of the executable.
tailf:interrupt This statement specifies which signal is sent to executable by ConfD in case the client
terminates or aborts the execution.
If not specified, 'sigkill' is sent.
tailf:export agent
Makes this data model visible in the northbound interface 'agent'.
This statement makes it possible to have a data model visible through some northbound interface but not
others. For example, if a MIB is used to generate a YANG module, the resulting YANG module can be
exposed through SNMP only.
Use the special agent 'none' to make the data model completely hidden to all notherbound interfaces.
The agent can also be a free-form string. In this case, the data model will be visible to maapi applications
using this string as its 'context'.
The export statement can be used in: module.
tailf:hidden tag
This statement can be used to hide a node from some, or all, northbound interfaces. All nodes with the
same value are considered a hide group and are treated the same with regards to being visible or not in
a northbound interface.
A node with an hidden property is not shown in the northbound user interfaces (CLI and Web UI) unless
an 'unhide' operation has been performed in the user interface.
The hidden value 'full' indicates that the node should be hidden from all northbound interfaces, including
programmatical interfaces such as NETCONF.
The value '*' is not valid.
A hide group can be unhidden only if this has been explicitly allowed in the confd.conf(5) daemon
configuration.
985
tailf_yang_extensions
Multiple hide groups can be specified by giving this statement multiple times. The node is shown if any
of the specified hide groups has been given in the 'unhide' operation.
Note that if a mandatory node is hidden, a hook callback function (or similar) might be needed in order
to set the element.
The hidden statement can be used in: leaf, leaf-list, list, container, tailf:action, refine, tailf:symlink, rpc,
and action.
tailf:id name
This statement is used when old confspec models are translated to YANG. It needs to be present if systems
deployed with data based on confspecs are updated to YANG based data models.
In confspec, the 'id' of a data model was a string that never would change, even if the namespace URI
would change. It is not needed in YANG, since the namespace URi cannot change as a module is updated.
This statement is typically present in YANG modules generated by cs2yang. If no live upgrade needs to
be done from a confspec based system to a YANG based system, this statement can be removed from
such a generated module.
The id statement can be used in: module.
tailf:id-value value
This statement lets you specify a hard wired numerical id value to associate with the parent node. This
id value is normally auto generated by confdc and is used when working with the ConfD API to refer to
a tag name, to avoid expensive string comparison. Under certain rare circumstances this auto generated
hash value may collide with a hash value generated for a node in another data model. Whenever such a
collision occurs the ConfD daemon fails to start and instructs the developer to use the 'id-value' statement
to resolve the collision.
A thorough discussion on id-value can be found in the section Hash Values and the id-value Statement
in the YANG chapter in the User Guide.
The id-value statement can be used in: module, leaf, leaf-list, list, container, rpc, action, identity,
notification, choice, case, and tailf:action.
tailf:indexed-view
This element can only be used if the list has a single key of an integer type.
It is used to signal that lists instances uses an indexed view, i.e., making it possible to insert a new list
entry at a certain position. If a list entry is inserted at a certain position, list entries following this position
are automatically renumbered by the system, if needed, to make room for the new entry.
This statement is mainly provided for backwards compatibility with confspecs. New data models should
consider using YANG's ordered-by user statement instead.
The indexed-view statement can be used in: list.
The following substatements can be used:
tailf:auto-compact If an indexed-view list is marked with this statement, it means that the server will
automatically renumber entires after a delete operation so that the list entries are strictly monotonically
increasing, starting from 1, with no holes. New list entries can either be insterted anywhere in the list,
986
tailf_yang_extensions
or created at the end; but it is an error to try to create a list entry with a key that would result in a hole
in the sequence.
For example, if the list has entries 1,2,3 it is an error to create entry 5, but correct to create 4.
tailf:info text
Contains a textual description of the definition, suitable for being presented to the CLI and WebUI users.
The first sentence of this textual description is used in the CLI as a summary, and displayed to the user
when a short explanation is presented.
The 'description' statement is related, but targeted to the module reader, rather than the CLI or WebUI user.
The info string may contain a ';;' keyword. It is used in type descriptions for leafs when the builtin type
info needs to be customized. A 'normal' info string describing a type is assumed to contain a short textual
description. When ';;' is present it works as a delimiter where the text before the keyword is assumed
to contain a short description and the text after the keyword a long(er) description. In the context of
completion in the CLI the text will be nicely presented in two columns where both descriptions are aligned
when displayed.
The info statement can be used in: typedef, leaf, leaf-list, list, container, rpc, action, identity, type, enum,
bit, length, pattern, range, refine, action, tailf:action, tailf:symlink, and tailf:cli-exit-command.
tailf:info-html text
This statement works exactly as 'tailf:info', with the exception that it can contain HTML markup. The
WebUI will display the string with the HTML markup, but the CLI will remove all HTML markup before
displaying the string to the user. In most cases, using this statement avoids using special descriptions in
webspecs and clispecs.
If this statement is present, 'tailf:info' cannot be given at the same time.
The info-html statement can be used in: leaf, leaf-list, list, container, rpc, action, identity, tailf:action,
tailf:symlink, and refine.
tailf:java-class-name name
Used to give another name than the default name to generated Java classes. This statemement is typically
used to avoid name conflicts in the Java classes.
The java-class-name statement can be used in: leaf, leaf-list, list, container, and refine.
tailf:junos-val-as-xml-tag
Internal extension to handle non-YANG JUNOS data models. Use only for key enumeration leafs.
The junos-val-as-xml-tag statement can be used in: leaf.
tailf:junos-val-with-prev-xml-tag
Internal extension to handle non-YANG JUNOS data models. Use only for keys where previous key is
marked with 'tailf:junos-val-as-xml-tag'.
The junos-val-with-prev-xml-tag statement can be used in: leaf.
987
tailf_yang_extensions
tailf:key-default value
Must be used for key leafs only.
Specifies a value that the CLI and WebUI will use when a list entry is created, and this key leaf is not
given a value.
If one key leaf has a key-default value, all key leafs that follow this key leaf must also have key-default
values.
The key-default statement can be used in: leaf.
tailf:link target
This statement specifies that the data node should be implemented as a link to another data node, called
the target data node. This means that whenever the node is modified, the system modifies the target data
node instead, and whenever the data node is read, the system returns the value of target data node.
Note that if the data node is a leaf, the target node MUST also be a leaf, and if the data node is a leaf-list,
the target node MUST also be a leaf-list.
Note that the type of the data node MUST be the same as the target data node. Currently the compiler
cannot check this.
The argument is an XPath absolute location path. If the target lies within lists, all keys must be specified. A
key either has a value, or is a reference to a key in the path of the source node, using the function current()
as starting point for an XPath location path. For example:
/a/b[k1='paul'][k2=current()/../k]/c
The link statement can be used in: leaf and leaf-list.
The following substatements can be used:
tailf:inherit-set-hook This statement specifies that a 'tailf:set-hook' statement should survive through
symlinks. If set to true a set hook gets called as soon as the value is set via a symlink but also during
commit. The normal behaviour is to only call the set hook during commit time.
tailf:lower-case
Use for config false leafs and leaf-lists only.
This extension serves as a hint to the system that the leaf's type has the implict pattern '[^A-Z]*', i.e., all
strings returned by the data provider are lower case (in the 7-bit ASCII range).
The CLI uses this hint when it is run in case-insensitive mode to optimize the lookup calls towards the
data provider.
The lower-case statement can be used in: leaf and leaf-list.
tailf:meta-data value
Extra meta information attached to the node. The instance data part of this information is accessible using
MAAPI. It is also printed in communication with CLI NEDs, but is not visible to normal users of the CLI.
To CLI NEDs, the output will be printed as comments like this:
! meta-data :: /ncs:devices/device{xyz}/config/xyz:AA :: A_STRING
988
tailf_yang_extensions
The schema information is available to the ConfD C-API through the confd_cs_node struct, and to the
JSON-RPC API through get-schema.
Note: Can't be used on key leafs.
The meta-data statement can be used in: container, list, leaf, leaf-list, tailf:symlink, and refine.
The following substatements can be used:
tailf:meta-value This statement contains a string value for the meta data key.
The output from the CLI to CLI NEDs will be similar to comments like this: ! meta-data :: /ncs:devices/
device{xyz}/config/xyz:AA :: A_KEY :: A_VALUE
tailf:ncs-device-type type
Internal extension to tell NCS what type of device the data model is used for.
The ncs-device-type statement can be used in: container, list, leaf, leaf-list, refine, and module.
tailf:ned-data path-expression
Dynamic meta information to be added by the NCS device manager.
In the cases where NCS can't provide the complete 'to' and 'from' transactions to the NED to read from
(most notably when using the commit queue) this annotation can be used to tell the NCS device manager
to save part of the 'to' and / or 'from' transaction so that the NED will be able to read from these parts
as needed.
The 'path-expression' will be used as an XPath filter to indicate which data will be preserved. Use the
'transaction' substatement to choose which transaction to apply the filter on. The context node of the XPath
filter is always the instance data node corresponding to the schema node where the 'ned-data' extension
is added.
Note that the filter will only be applied if the node that has this annotation is in the diffset of the transaction.
The 'operation' substatement can be used to further limit when the filter should be applied.
The ned-data statement can be used in: container, list, leaf, leaf-list, and refine.
The following substatements can be used:
tailf:transaction
tailf:xpath-root
tailf:operation
tailf:ned-default-handling mode
This statement can only be used in NEDs for devices that have irregular handling of defaults. It sets a
special default handling mode for the leaf, regardless of the device's native default handling mode.
The ned-default-handling statement can be used in: leaf.
tailf:ned-ignore-compare-config
Typically used for ignoring device encrypted leafs in the compare-config output.
989
tailf_yang_extensions
The ned-ignore-compare-config statement can be used in: leaf.
tailf:no-dependency
This optional statements can be used to explicitly say that a 'must' expression or a validation function is
evaluated at every commit. Use this with care, since the overall performance of the system is impacted
if this statement is used.
The no-dependency statement can be used in: must and tailf:validate.
tailf:no-leafref-check
This statement can be used to let 'leafref' type statements reference non-existing leafs. While similar to the
'tailf:non-strict-leafref' statement, this does not allow reference from config to non-config.
The no-leafref-check statement can be used in: type.
tailf:non-strict-leafref
This statement can be used in leafs and leaf-lists similar to 'leafref', but allows reference to non-existing
leafs, and allows reference from config to non-config.
This statement takes no argument, but expects the core YANG statement 'path' as a substatement. The
function 'deref' cannot be used in the path, since it works on nodes of type leafref only.
The type of the leaf or leaf-list must be exactly the same as the type of the target.
This statement can be viewed as a substitute for a standard 'require-instance false' on leafrefs, which isn't
allowed.
The CLI uses this statement to provide completion with existing values, and the WebUI uses it to provide
a drop-down box with existing values.
The non-strict-leafref statement can be used in: leaf and leaf-list.
tailf:operation op
Only evaluate the XPath filter when the operation matches.
tailf:override-auto-dependencies
This optional statement can be used to instruct the compiler to use the provided tailf:dependency statements
instead of the dependencies that the compiler calculates from the expression.
Use with care, and only if you are sure that the provided dependecies are correct.
The override-auto-dependencies statement can be used in: must and when.
tailf:path-filters value
Used for type 'instance-identifier' only.
The argument is a space separated list of absolute or relative XPath expressions.
This statement declares that the instance-identifier value must match one of the specified paths, according
to the following rules:
990
tailf_yang_extensions
1. each XPath expression is evaluated, and returns a node set.
2. if there is no 'tailf:no-subtree-match' statement, the instance-identifier matches if it refers to a node in
this node set, or if it refers to any descendant node of this node set.
3. if there is a 'tailf:no-subtree-match' statement, the instance-identifier matches if it refers to a node in
this node set.
For example:
The value /a/b[key='k1']/c matches the XPath expression /a/b[key='k1']/c.
The value /a/b[key='k1']/c matches the XPath expression /a/b/c.
The value /a/b[key='k1']/c matches the XPath expression /a/b, if there is no 'tailf:no-subtree-match'
statement.
The value /a/b[key='k1'] matches the XPath expression /a/b, if there is a 'tailf:no-subtree-match' statement.
The path-filters statement can be used in: type.
The following substatements can be used:
tailf:no-subtree-match See tailf:path-filters.
tailf:secondary-index name
This statement creates a secondary index with a given name in the parent list. The secondary index can be
used to control the displayed sort order of the instances of the list.
Read more about sort order in 'The ConfD Command-Line Interface (CLI)' chapters in the User Guide,
confd_lib_dp(3), and confd_lib_maapi(3).
NOTE: Currently secondary-index is not supported for config false data stored in CDB.
The secondary-index statement can be used in: list.
The following substatements can be used:
tailf:index-leafs This statement contains a space separated list of leaf names. Each such leaf must be a
direct child to the list. The secondary index is kept sorted according to the values of these leafs.
tailf:sort-order
tailf:display-default-order Specifies that the list should be displayed sorted according to this secondary
index in the show command.
If the list has more than one secondary index, 'display-default-order' must be present in one index only.
Used in J-, I- and C-style CLIs and WebUI.
tailf:snmp-delete-value value
This statement is used to define a value to be used in SNMP to delete an optional leaf. The argument to this
statement is the special value. This special value must not be part of the value space for the YANG leaf.
If the optional leaf does not exists, reading it over SNMP returns 'noSuchInstance', unless the statement
'tailf:snmp-send-delete-value' is used, in which case the same value as used to delete the node is returned.
991
tailf_yang_extensions
For example, the YANG leaf:
leaf opt-int {
type int32 {
range '1..255';
}
tailf:snmp-delete-value 0 {
tailf:snmp-send-delete-value;
}
}
can be mapped to a SMI object with syntax:
SYNTAX Integer32 (0..255)
Setting such an object to '0' over SNMP will delete the node from the datastore. If the node does not exsist,
reading it over SNMP will return '0'.
The snmp-delete-value statement can be used in: leaf.
The following substatements can be used:
tailf:snmp-send-delete-value See tailf:snmp-delete-value.
tailf:snmp-exclude-object
Used when an SNMP MIB is generated from a YANG module, using the --generate-oids option to confdc.
If this statement is present, confdc will exclude this object from the resulting MIB.
The snmp-exclude-object statement can be used in: leaf, leaf-list, list, container, tailf:symlink, and refine.
tailf:snmp-lax-type-check value
Normally, the ConfD MIB compiler checks that the data type of an SNMP object matches the data type
of the corresponding YANG leaf. If both objects are writeble, the data types need to precisely match, but
if the SNMP object is read-only, or if snmp-lax-type-check is set to 'true', the compiler accepts the object
if the SNMP type's value space is a superset of the YANG type's value space.
If snmp-lax-type-check is true and the MIB object is writable, the SNMP agent will reject values outside
the YANG data type range in runtime.
The snmp-lax-type-check statement can be used in: leaf.
tailf:snmp-mib-module-name name
Used when the YANG module is mapped to an SNMP module.
Specifies the name of the SNMP MIB module where the SNMP objects are defined.
This property is inherited by all child nodes.
The snmp-mib-module-name statement can be used in: leaf, leaf-list, list, container, module, and refine.
tailf:snmp-name name
Used when the YANG module is mapped to an SNMP module.
992
tailf_yang_extensions
When the parent node is mapped to an SNMP object, this statement specifies the name of the SNMP object.
If the parent node is mapped to multiple SNMP objects, this statement can be given multiple times. The
first statement specifies the primary table.
In a list, the argument is interpreted as:
[MIB-MODULE-NAME:]TABLE-NAME
For a leaf representing a table column, it is interpreted as:
[[MIB-MODULE-NAME:]TABLE-NAME:]NAME
For a leaf representing a scalar variable, it is interpreted as:
[MIB-MODULE-NAME:]NAME
If a YANG list is mapped to multiple SNMP tables, each such SNMP table must be specified with a
'tailf:snmp-name' statement. If the table is defined in another MIB than the MIB specified in 'tailf:snmp-
mib-module-name', the MIB name must be specified in this argument.
A leaf in a list that is mapped to multiple SNMP tables must specify the name of the table it is mapped
to if it is different from the primary table.
In the following example, a single YANG list 'interface' is mapped to the MIB tables ifTable, ifXTable,
and ipv4InterfaceTable:
list interface {
key index;
tailf:snmp-name 'ifTable'; // primary table
tailf:snmp-name 'ifXTable';
tailf:snmp-name 'IP-MIB:ipv4InterfaceTable';
leaf index {
type int32;
}
leaf description {
type string;
tailf:snmp-name 'ifDescr'; // mapped to primary table
}
leaf name {
type string;
tailf:snmp-name 'ifXTable:ifName';
}
leaf ipv4-enable {
type boolean;
tailf:snmp-name
'IP-MIB:ipv4InterfaceTable:ipv4InterfaceEnableStatus';
}
...
}
When emitting a mib from yang, enum labels are used as-is if they follow the SMI rules for labels (no '.'
or '_' characters and beginning with a lowercase letter). Any label that doesn't satisfy the SMI rules will
be converted as follows:
An initial uppercase character will be downcased.
If the initial character is not a letter it will be prepended with an 'a'.
993
tailf_yang_extensions
Any '.' or '_' characters elsewhere in the label will be substituted with '-' characters.
In the resulting label, any multiple '-' character sequence will be replaced with a single '-' character.
If this automatic conversion is not suitable, snmp-name can be used to specify the label to use when
emitting a MIB.
The snmp-name statement can be used in: leaf, leaf-list, list, container, tailf:symlink, enum, and refine.
tailf:snmp-ned-accessible-column leaf-name
The name or subid number of an accessible column that is instantiated in all table entries in a table. The
column does not have to be writable. The SNMP NED will use this column when it uses GET-NEXT to
loop through the list entries, and when doing existence tests.
If this column is not given, the SNMP NED uses the following algorithm:
1. If there is a RowStatus column, it will be used. 2. If an INDEX leaf is accessible, it will be used. 3.
Otherwise, use the first accessible column returned by the SNMP agent.
The snmp-ned-accessible-column statement can be used in: list.
tailf:snmp-ned-delete-before-create
This statement is used in a list to make the SNMP NED always send deletes before creates. Normally,
creates are sent before deletes.
The snmp-ned-delete-before-create statement can be used in: list.
tailf:snmp-ned-modification-dependent
This statement is used on all columns in a table that require the usage of the column marked with tailf:snmp-
ned-set-before-row-modification.
This statement can be used on any column in a table where one leaf is marked with tailf:snmp-ned-set-
before-row-modification, or a table that AUGMENTS such a table, or a table with a foreign index in such
a table.
The snmp-ned-modification-dependent statement can be used in: leaf.
tailf:snmp-ned-recreate-when-modified
This statement is used in a list to make the SNMP NED delete and recreate the row when a column in
the row is modified.
The snmp-ned-recreate-when-modified statement can be used in: list.
tailf:snmp-ned-set-before-row-modification value
If this statement is present on a leaf, it tells the SNMP NED that if a column in the row is modified, and
it is marked with 'tailf:snmp-ned-modification-dependent', then the column marked with 'tailf:snmp-ned-
set-before-modification' needs to be set to <value> before the other column is modified. After all such
columns have been modified, the column marked with 'tailf:snmp-ned-set-before-modification' is reset to
its initial value.
The snmp-ned-set-before-row-modification statement can be used in: leaf.
994
tailf_yang_extensions
tailf:snmp-oid oid
Used when the YANG module is mapped to an SNMP module.
If this statement is present as a direct child to 'module', it indicates the top level OID for the module.
When the parent node is mapped to an SNMP object, this statement specifies the OID of the SNMP object.
It may be either a full OID or just a suffix (a period, followed by an integer). In the latter case, a full OID
must be given for some ancestor element.
NOTE: when this statement is set in a list, it refers to the OID of the correspondig table, not the table entry.
The snmp-oid statement can be used in: leaf, leaf-list, list, container, tailf:symlink, module, and refine.
tailf:snmp-row-status-column value
Used when an SNMP module is generated from the YANG module.
When the parent list node is mapped to an SNMP table, this statement specifies the column number of
the generated RowStatus column. If it is not specified, the generated RowStatus column will be the last
in the table.
The snmp-row-status-column statement can be used in: list and refine.
tailf:sort-order how
This statement can be used for 'ordered-by system' lists and leaf-lists only. It indicates in which way the
list entries are sorted.
The sort-order statement can be used in: list, leaf-list, and tailf:secondary-index.
tailf:sort-priority value
This extension takes an integer parameter specifying the order and can be placed on leafs, containers, lists
and leaf-lists. When showing, or getting configuration, leaf values will be returned in order of increasing
sort-priority.
The default sort-priority is 0.
The sort-priority statement can be used in: leaf, leaf-list, list, container, and refine.
tailf:step value
Used to further restrict the range of integer and decimal types. The argument is a positive integer or decimal
value greater than zero. The allowed values for the type is further restricted to only those values that
matches the expression:
'low' + n * 'step'
where 'low' is the lowest allowed value in the range, n is a non-negative integer.
For example, the following type:
type int32 {
range '-2 .. 9' {
995
tailf_yang_extensions
tailf:step 3;
}
}
has the value space { -2, 1, 4, 7 }
The step statement can be used in: range.
tailf:structure name
Internal extension to define a data structure without any semantics attached.
The structure statement can be used in: module and submodule.
tailf:suppress-echo value
If this statetement is set to 'true', leafs of this type will not have their values echoed when input in the
webui or when the CLI prompts for the value. The value will also not be included in the audit log in clear
text but will appear as ***.
The suppress-echo statement can be used in: typedef, leaf, and leaf-list.
tailf:symlink name
DEPRECATED: Use tailf:link instead. There are no plans to remove tailf:symlink.
This statement defines a 'symbolic link' from a node to some other node. The argument is the name of the
new node, and the mandatory substatement 'tailf:path' points to the node which is linked to.
The symlink statement can be used in: list, container, module, submodule, augment, and case.
The following substatements can be used:
tailf:alt-name
tailf:cli-add-mode
tailf:cli-allow-join-with-key
tailf:cli-allow-join-with-value
tailf:cli-allow-key-abbreviation
tailf:cli-allow-range
tailf:cli-allow-wildcard
tailf:cli-autowizard
tailf:cli-boolean-no
tailf:cli-break-sequence-commands
tailf:cli-column-align
tailf:cli-column-stats
996
tailf_yang_extensions
tailf:cli-column-width
tailf:cli-compact-stats
tailf:cli-compact-syntax
tailf:cli-completion-actionpoint
tailf:cli-custom-error
tailf:cli-custom-range
tailf:cli-custom-range-actionpoint
tailf:cli-custom-range-enumerator
tailf:cli-delayed-auto-commit
tailf:cli-delete-container-on-delete
tailf:cli-delete-when-empty
tailf:cli-diff-dependency
tailf:cli-disabled-info
tailf:cli-disallow-value
tailf:cli-display-empty-config
tailf:cli-display-separated
tailf:cli-drop-node-name
tailf:cli-no-keyword
tailf:cli-enforce-table
tailf:cli-embed-no-on-delete
tailf:cli-exit-command
tailf:cli-explicit-exit
tailf:cli-expose-key-name
tailf:cli-expose-ns-prefix
tailf:cli-flat-list-syntax
tailf:cli-flatten-container
tailf:cli-full-command
tailf:cli-full-no
tailf:cli-full-show-path
997
tailf_yang_extensions
tailf:cli-hide-in-submode
tailf:cli-ignore-modified
tailf:cli-incomplete-command
tailf:cli-incomplete-no
tailf:cli-incomplete-show-path
tailf:cli-instance-info-leafs
tailf:cli-key-format
tailf:cli-list-syntax
tailf:cli-min-column-width
tailf:cli-mode-name
tailf:cli-mode-name-actionpoint
tailf:cli-multi-value
tailf:cli-multi-word-key
tailf:cli-multi-line-prompt
tailf:cli-no-key-completion
tailf:cli-no-match-completion
tailf:cli-no-name-on-delete
tailf:cli-no-value-on-delete
tailf:cli-oper-info
tailf:cli-optional-in-sequence
tailf:cli-prefix-key
tailf:cli-preformatted
tailf:cli-range-delimiters
tailf:cli-range-list-syntax
tailf:cli-recursive-delete
tailf:cli-remove-before-change
tailf:cli-reset-container
tailf:cli-run-template
tailf:cli-run-template-enter
998
tailf_yang_extensions
tailf:cli-run-template-footer
tailf:cli-run-template-legend
tailf:cli-sequence-commands
tailf:cli-show-config
tailf:cli-show-no
tailf:cli-show-order-tag
tailf:cli-show-order-taglist
tailf:cli-show-template
tailf:cli-show-template-enter
tailf:cli-show-template-footer
tailf:cli-show-template-legend
tailf:cli-show-with-default
tailf:cli-strict-leafref
tailf:cli-suppress-key-abbreviation
tailf:cli-suppress-key-sort
tailf:cli-suppress-list-no
tailf:cli-suppress-mode
tailf:cli-suppress-no
tailf:cli-suppress-range
tailf:cli-suppress-shortenabled
tailf:cli-suppress-show-conf-path
tailf:cli-suppress-show-match
tailf:cli-suppress-show-path
tailf:cli-suppress-silent-no
tailf:cli-suppress-validation-warning-prompt
tailf:cli-suppress-wildcard
tailf:cli-table-footer
tailf:cli-table-legend
tailf:cli-trim-default
999
tailf_yang_extensions
tailf:cli-value-display-template
tailf:display-when
tailf:hidden
tailf:inherit-set-hook This statement specifies that a 'tailf:set-hook' statement should survive through
symlinks. If set to true a set hook gets called as soon as the value is set via a symlink but also during
commit. The normal behaviour is to only call the set hook during commit time.
tailf:info
tailf:info-html
tailf:path This statement specifies which node a symlink points to.
The textual format of a symlink is an XPath absolute location path. If the target lies within lists, all keys
must be specified. A key either has a value, or is a reference to a key in the path of the source node, using
the function current() as starting point for an XPath location path. For example:
/a/b[k1='paul'][k2=current()/../k]/c
tailf:snmp-exclude-object
tailf:snmp-name
tailf:snmp-oid
tailf:sort-priority
tailf:transaction direction
Which transaction that the result of the XPath filter will be applied to, when set to 'both' it will apply to
both the 'to' and the 'from' transaction.
tailf:typepoint id
If a typedef, leaf, or leaf-list has a 'typepoint' statement, a user-defined type is specified, as opposed to a
derivation or specification of an existing type. The implementation of a user-defined type must be provided
in the form of a shared object with C callback functions that is loaded into the ConfD daemon at startup
time. Read more about user-defined types in the confd_types(3) manual page.
The argument defines the ID associated with a typepoint. This ID is provided by the shared object, and
used by the ConfD daemon to locate the implementation of a specific user-defined type.
The typepoint statement can be used in: typedef, leaf, and leaf-list.
tailf:unique-selector context-path
The standard YANG statement 'unique' can be used to check for uniqueness within a single list only.
Specifically, it cannot be used to check for uniqueness of leafs within a sublist.
For example:
container a {
list b {
1000
tailf_yang_extensions
...
unique 'server/ip server/port';
list server {
...
leaf ip { ... };
leaf port { ... };
}
}
}
The unique expression above is not legal. The intention is that there must not be any two 'server' entries
in any 'b' with the same combination of ip and port. This would be illegal:
<a> <b> <name>b1</name> <server> <ip>10.0.0.1</ip> <port>80</port> </server> </b> <b>
<name>b2</name> <server> <ip>10.0.0.1</ip> <port>80</port> </server> </b> </a>
With 'tailf:unique-selector' and 'tailf:unique-leaf', this kind of constraint can be defined.
The argument to 'tailf:unique-selector' is an XPath descendant location path (matches the rule 'descendant-
schema-nodeid' in RFC 6020). The first node in the path MUST be a list node, and it MUST be defined in
the same module as the tailf:unique-selector. For example, the following is illegal:
module y {
...
import x {
prefix x;
}
tailf:unique-selector '/x:server' { // illegal
...
}
}
For each instance of the node where the selector is defined, it is evaluated, and for each node selected by
the selector, a tuple is constructed by evaluating the 'tailf:unique-leaf' expression. All such tuples must be
unique. If a 'tailf:unique-leaf' expression refers to a non-existing leaf, the corresponding tuple is ignored.
In the example above, the unique expression can be replaced by:
container a {
tailf:unique-selector 'b/server' {
tailf:unique-leaf 'ip';
tailf:unique-leaf 'port';
}
list b {
...
}
}
For each container 'a', the XPath expression 'b/server' is evaluated. For each such server, a 2-tuple is
constructed with the 'ip' and 'port' leafs. Each such 2-tuple is guaranteed to be unique.
The unique-selector statement can be used in: module, submodule, grouping, augment, container, and list.
The following substatements can be used:
tailf:unique-leaf See 'tailf:unique-selector' for a description of how this statement is used.
The argument is an XPath descendant location path (matches the rule 'descendant-schema-nodeid' in RFC
6020), and it MUST refer to a leaf.
1001
tailf_yang_extensions
tailf:validate id
Identifies a validation callback which is invoked when a configuration value is to be validated. The callback
validates a value and typically checks it towards other values in the data store. Validation callbacks are
used when the YANG built-in validation constructs ('must', 'unique') are not expressive enough.
Callbacks use the API described in confd_lib_maapi(3) to access whatever other configuration values
needed to perform the validation.
Validation callbacks are typically assigned to individual nodes in the data model, but it may be feasible
to use a single validation callback on a root node. In that case the callback is responsible for validation of
all values and their relationships throughout the data store.
The 'validate' statment should in almost all cases have a 'tailf:dependency' substatement. If such a statement
is not given, the validate function is evaluated at every commit, leading to overall performance degradation.
If the 'validate' statement is defined in a 'must' statement, validation callback is called instead of evaluating
the must expression. This is useful if the evaluation of the must statement uses too much resources, and
the condition expressed with the must statement is easier to check with a validation callback function.
The validate statement can be used in: leaf, leaf-list, list, container, grouping, refine, and must.
The following substatements can be used:
tailf:call-once This optional statement can be used only if the parent statement is a list or a leaf-list. If
'call-once' is 'true', the validation callback is only called once even though there exists many list or leaf-
list entries in the data store. This is useful if we have a huge amount of instances or if values assigned to
each instance have to be validated in comparison with its siblings.
tailf:dependency
tailf:opaque Defines an opaque string which is passed to the callback function in the context.
tailf:internal For internal ConfD / NCS use only.
tailf:priority This extension takes an integer parameter specifying the order validation code will be
evaluated, in order of increasing priority.
The default priority is 0.
tailf:value-length value
Used only for the types: yang:object-identifier yang:object-identifier-128 yang:phys-address yang:hex-
string tailf:hex-list tailf:octet-list xs:hexBinary
This type restriction is used to limit the length of the value-space value of the type. Note that since all
these types are derived from 'string', the standard 'length' statement restricts the lexical representation of
the value.
The argument is a length expression string, with the same syntax as for the standard YANG 'length'
statement.
The value-length statement can be used in: type.
tailf:writable value
This extension makes operational data (i.e., config false data) writable. Only valid for leafs.
1002
tailf_yang_extensions
The writable statement can be used in: leaf.
tailf:xpath-root value
Internal extension to 'chroot' XPath expressions
The xpath-root statement can be used in: must, when, path, tailf:display-when, tailf:cli-diff-dependency,
tailf:cli-diff-before, tailf:cli-diff-delete-before, tailf:cli-diff-set-before, tailf:cli-diff-create-before, tailf:cli-
diff-modify-before, tailf:cli-diff-after, tailf:cli-diff-delete-after, tailf:cli-diff-set-after, tailf:cli-diff-create-
after, and tailf:cli-diff-modify-after.
YANG TYPES
aes-cfb-128-encrypted-string
The aes-cfb-128-encrypted-string works exactly like des3-cbc-encrypted-string but AES/128bits in CFB
mode is used to encrypt the string. The prefix for encrypted values is '$8$'.
des3-cbc-encrypted-string
The des3-cbc-encrypted-string type automatically encrypts a value adhering to this type using DES in CBC
mode followed by a base64 conversion. If the value isn't encrypted already, that is.
This is best explained using an example. Suppose we have a leaf:
leaf enc {
type tailf:des3-cbc-encrypted-string;
}
A valid configuration is:
<enc>$0$In god we trust.</enc>
The '$0$' prefix signals that this is plain text. When a plain text value is received by the server, the
value is DES3/Base64 encrypted, and the string '$7$' is prepended. The resulting string is stored in the
configuration data store.
When a value of this type is read, the encrypted value is always returned. In the example above, the
following value could be returned:
<enc>$7$Qxxsn8BVzxphCdflqRwZm6noKKmt0QoSWnRnhcXqocg=</enc>
If a value starting with '$7$' is received, the server knows that the value is already encrypted, and stores
it as is in the data store.
A value adhering to this type must have a '$0$' or a '$7$' prefix.
ConfD uses a configurable set of encryption keys to encrypt the string. For details, see 'encryptedStrings'
in the confd.conf(5) manual page.
hex-list
DEPRECATED: Use yang:hex-string instead. There are no plans to remove tailf:hex-list.
A list of colon-separated hexa-decimal octets e.g. '4F:4C:41:71'.
1003
tailf_yang_extensions
The statement tailf:value-length can be used to restrict the number of octets. Note that using the 'length'
restriction limits the number of characters in the lexical representation.
ip-address-and-prefix-length
The ip-address-and-prefix-length type represents a combination of an IP address and a prefix length and
is IP version neutral. The format of the textual representations implies the IP version.
ipv4-address-and-prefix-length
The ipv4-address-and-prefix-length type represents a combination of an IPv4 address and a prefix length.
The prefix length is given by the number following the slash character and must be less than or equal to 32.
ipv6-address-and-prefix-length
The ipv6-address-and-prefix-length type represents a combination of an IPv6 address and a prefix length.
The prefix length is given by the number following the slash character and must be less than or equal to 128.
md5-digest-string
The md5-digest-string type automatically computes a MD5 digest for a value adhering to this type.
This is best explained using an example. Suppose we have a leaf:
leaf key {
type tailf:md5-digest-string;
}
A valid configuration is:
<key>$0$In god we trust.</key>
The '$0$' prefix signals that this is plain text. When a plain text value is received by the server, an MD5
digest is calculated, and the string '$1$<salt>$' is prepended to the result, where <salt> is a random eight
character salt used to generate the digest. This value is stored in the configuration data store.
When a value of this type is read, the computed MD5 value is always returned. In the example above, the
following value could be returned:
<key>$1$fB$ndk2z/PIS0S1SvzWLqTJb.</key>
If a value starting with '$1$' is received, the server knows that the value already represents an MD5 digest,
and stores it as is in the data store.
A value adhering to this type must have a '$0$' or a '$1$<salt>$' prefix.
If a default value is specified, it must have a '$1$<salt>$' prefix.
The digest algorithm used is the same as the md5 crypt function used for encrypting passwords for various
UNIX systems, see e.g. http://www.freebsd.org/cgi/cvsweb.cgi/~checkout/~/src/lib/libcrypt/crypt.c
octet-list
A list of dot-separated octets e.g. '192.168.255.1.0'.
The statement tailf:value-length can be used to restrict the number of octets. Note that using the 'length'
restriction limits the number of characters in the lexical representation.
1004
tailf_yang_extensions
sha-256-digest-string
The sha-256-digest-string type automatically computes a SHA-256 digest for a value adhering to this type.
A value of this type matches one of the forms:
$0$<clear text password> $5$<salt>$<password hash> $5$rounds=<number>$<salt>$<password hash>
The '$0$' prefix signals that this is plain text. When a plain text value is received by the server, a SHA-256
digest is calculated, and the string '$5$<salt>$' is prepended to the result, where <salt> is a random 16
character salt used to generate the digest. This value is stored in the configuration data store. The algorithm
can be tuned via the /confdConfig/cryptHash/rounds parameter, which if set to a number other than the
default will cause '$5$rounds=<number>$<salt>$' to be prepended instead of only '$5$<salt>$'.
If a value starting with '$5$' is received, the server knows that the value already represents a SHA-256
digest, and stores it as is in the data store.
If a default value is specified, it must have a '$5$' prefix.
The digest algorithm used is the same as the SHA-256 crypt function used for encrypting passwords for
various UNIX systems, see e.g. http://www.akkadia.org/drepper/SHA-crypt.txt
sha-512-digest-string
The sha-512-digest-string type automatically computes a SHA-512 digest for a value adhering to this type.
A value of this type matches one of the forms:
$0$<clear text password> $6$<salt>$<password hash> $6$rounds=<number>$<salt>$<password hash>
The '$0$' prefix signals that this is plain text. When a plain text value is received by the server, a SHA-512
digest is calculated, and the string '$6$<salt>$' is prepended to the result, where <salt> is a random 16
character salt used to generate the digest. This value is stored in the configuration data store. The algorithm
can be tuned via the /confdConfig/cryptHash/rounds parameter, which if set to a number other than the
default will cause '$6$rounds=<number>$<salt>$' to be prepended instead of only '$6$<salt>$'.
If a value starting with '$6$' is received, the server knows that the value already represents a SHA-512
digest, and stores it as is in the data store.
If a default value is specified, it must have a '$6$' prefix.
The digest algorithm used is the same as the SHA-512 crypt function used for encrypting passwords for
various UNIX systems, see e.g. http://www.akkadia.org/drepper/SHA-crypt.txt
size
A value that represents a number of bytes. An example could be S1G8M7K956B; meaning 1GB + 8MB
+ 7KB + 956B = 1082138556 bytes. The value must start with an S. Any byte magnifier can be left out,
e.g. S1K1B equals 1025 bytes. The order is significant though, i.e. S1B56G is not a valid byte size.
In ConfD, a 'size' value is represented as an uint64.
XPATH FUNCTIONS
This section describes XPath functions that can be used for example in "must" expressions in YANG
modules.
1005
tailf_yang_extensions
node-set deref(node-set) The deref() function follows the reference defined by the first
node in document order in the argument node-set, and returns the
nodes it refers to.
If the first argument node is an instance-identifier, the function
returns a node-set that contains the single node that the instance
identifier refers to, if it exists. If no such node exists, an empty node-
set is returned.
If the first argument node is a leafref, the function returns a node-
set that contains the nodes that the leafref refers to.
If the first argument node is of any other type, an empty node-set
is returned.
bool re-match(string, string) The re-match() function returns true if the string in the first
argument matches the regular expression in the second argument;
otherwise it returns false.
For example: re-match('1.22.333', '\d{1,3}\.
\d{1,3}\.\d{1,3}') returns true. To count all
logical interfaces called eth0.number: count(/sys/ifc[re-
match(name,'eth0\.\d+')]).
The regular expressions used are the XML Schema regular
expressions, as specified by W3C in http://www.w3.org/TR/
xmlschema-2/#regexs. Note that this includes implicit anchoring of
the regular expression at the head and tail, i.e. if you want to match
an interface that has a name that starts with 'eth' then the regular
expression must be 'eth.*'.
number string-compare(string,
string)The string-compare() function returns -1, 0, or 1 depending
on whether the value of the string of the first argument is
respectively less than, equal to, or greater than the value of the string
of the second argument.
number compare(Expression,
Expression)The compare() function returns -1, 0, or 1 depending on whether
the value of the first argument is respectively less than, equal to, or
greater than the value of the second argument.
The expressions are evaluated in a special way: If they both
are XPath constants they are compared using the string-
compare() function. But, more interestingly, if the expressions
results in node-sets with at least one node, and that node is an
existing leaf that leafs value is compared with the other expression,
and if the other expression is a constant that expression is converted
to an internal value with the same type as the expression that
resulted in a leaf. Thus making it possible to order values based on
the internal representation rather than the string representation. For
example, given a leaf:
leaf foo {
type enumeration {
enum ccc;
enum bbb;
enum aaa;
1006
tailf_yang_extensions
}
}
it would be possible to call compare(foo, 'bbb') (which, for
example, would return -1 if foo='ccc'). Or to have a must expression
like this: must "compare(.,'bbb') >= 0"; which would
require foo to be set to 'bbb' or 'aaa'.
If one of the expressions result in an empty node-set, a non-leaf
node, or if the constant can't be converted to the other expressions
type then NaN is returned.
number min(node-set) Returns the numerically smallest number in the node-set, or NaN if
the node-set is empty.
number max(node-set) Returns the numerically largest number in the node-set, or NaN if
the node-set is empty.
number avg(node-set) Returns the numerical average of the node-set, or NaN if the node-
set is empty, or if any numerical conversion of a node failed.
number band(number, number) Returns the result of bitwise AND:ing the two numbers. Unless the
numbers are integers NaN will be returned.
number bor(number, number) Returns the result of bitwise OR:ing the two numbers. Unless the
numbers are integers NaN will be returned.
number bxor(number, number) Returns the result of bitwise Exclusive OR:ing the two numbers.
Unless the numbers are integers NaN will be returned.
number bnot(number) Returns the result of bitwise NOT on number. Unless the number
is an integer NaN will be returned.
node-set sort-by(node-set, string) The sort-by() function makes it possible to order a node-
set according to a secondary index (see the tailf:secondary-index
extension). The first argument must be an expression that evaluates
to a node-set, where the nodes in the node-set are all list instances of
the same list. The second argument must be the name of an existing
secondary index on that list. For example given the YANG model:
container sys {
list host {
key name;
unique number;
tailf:secondary-index number {
tailf:index-leafs "number";
}
leaf name {
type string;
}
leaf number {
type uint32;
mandatory true;
}
leaf enabled {
type boolean;
default true;
1007
tailf_yang_extensions
}
...
}
}
The expression sort-by(/sys/host,"number")
would result in all hosts, sorted by their
number. And the expression, sort-by(/sys/
host[enabled='true'],"number") would result in all
enabled hosts, sorted by number. Note also that since the
function returns a node-set it is also legal to add location
steps to the result. I.e. the expression sort-by(/sys/
host[enabled='true'],"number")/name results in all
host names sorted by the hosts number.
SEE ALSO
tailf_yang_cli_extensions(5) Tail-f YANG CLI extensions
The ConfD User Guide
confdc(1) Confdc compiler
1008
Glossary
Many of the following entries refer to this example data model, which models a list of "servers":
Example 162. The servers YANG model
module servers {
namespace "http://www.example.com/ns/servers";
prefix srv;
import ietf-inet-types {
prefix inet;
}
import dataTypes {
prefix dt;
}
container servers {
list server {
key "ip port";
max-elements 64;
leaf ip {
type inet:ip-address;
}
leaf port {
type inet:port-number;
}
leaf counters {
type dt:countersType;
mandatory true;
config false;
}
}
}
}
AAA AAA stands for authentication, authorization and accounting.
ConfD requires the data model defined by the namespace http://tail-
f.com/ns/aaa/VERSION to be loaded. Currently valid values for VERSION
are 1.0 and 1.1. The data found there is used to authenticate users and authorize
access for users. We usually refer to this namespace as the AAA namespace.
Accounting Accounting refers to the tracking of the consumption of network resources by
users. This information may be used for management, planning, billing, or other
purposes. Typical information that is gathered in accounting is the identity of the
user, the nature of the service delivered, when the service began, and when it
ended.
See Also AAA.
Agent See Management Agent.
Annotation When compiling a YANG module, it can be annotated with callpoints,
actionpoints and validation elements from a separate annotation file. This is useful
for example when implementing a standard YANG module, without modifying
the original file.
1009
Glossary
Authentication Authentication refers to the confirmation that a user who is requesting services is
a valid user of the network services requested. Authentication is accomplished via
the presentation of an identity and credentials. Examples of types of credentials
are passwords and digital certificates.
See Also AAA.
Authorization Authorization refers to the granting of specific types of service (including "no
service") to a user, based on authentication, what services they are requesting,
and the current system state. Authorization may be based on restrictions, for
example time-of-day restrictions, or physical location restrictions, or restrictions
against multiple logins by the same user. Authorization determines the nature of
the service which is granted to a user.
In ConfD all actions are authorized by reading the authorization data found in the
AAA namespace http://tail-f.com/ns/aaa/version.
See Also AAA.
Backplane See Management Backplane.
Candidate datastore The candidate datastore (or just candidate) is one of the three configuration
datastores in ConfD. It holds changes to the configuration before they are
committed to the running datastore.
CDB CDB is the built-in configuration database provided by ConfD. It is possible to
use an external database to store the configuration, or to use CDB, as well as a
combination of both.
CDB C API This is the C API towards CDB. It contains functions to read configuration data,
read and write operational data, and subscribe to changes in configuration data.
CDB session A program which uses the CDB C API needs to establish CDB sessions to read
configuration data, or read/write operational data. These are short-lived sessions
that are established through a call to cdb_start_session().
The entire configuration part of CDB is locked for writing while any CDB read
session is active.
CDB upgrade An upgrade is the operation of adapting an existing configuration to a newer
version of the configuration schemas.
Confspec Confspec is a Tail-f proprietary data modelling language. YANG is a better
standards based technology to achieve the same thing. Confspecs are no longer
supported.
Configuration A configuration is an instantiated data model. The data model defines the layout of
the configuration. An example of a configuration which adheres to the data model
in Example 162, “The servers YANG model” is:
<servers>
<server>
<name>www</name>
<ip>192.168.128.1</ip>
<port>80</port>
</server>
<server>
<name>pop</name>
<ip>0.0.0.0</ip>
<port>110</port>
1010
Glossary
</server>
</servers>
The data model also defines "non-configuration" data, also known as statistical or
operational data. This data is not part of the configuration.
Daemon A daemon is a UNIX process that runs in the background. In the ConfD
documentation we refer to the "ConfD daemon" meaning the "confd" process. We
also refer to external database processes as daemons. Typically in a deployment
scenario, the programs implementing the external database callbacks will run as
daemons.
Data provider Southbound of ConfD we may have several data providers. These can either be
daemons implementing the ConfD "data callbacks" or the ConfD database CDB.
A data provider has the following responsibilities:
Read and return data when ConfD requests data to be read
Write data into its store when ConfD requests it to write data
Obey the two-phase commit protocol used by ConfD when writing data
Data store See Data provider.
Export When a data model is compiled, it can be exported to selected northbound
interfaces, instead of being visible to all.
External database We may choose to store all configuration data in an external database, or in plain
configuration files. From ConfD's point of view, we then have the configuration
in an external database and no data is kept in CDB. There can be multiple
external databases simultaneously connected to ConfD. It is also possible to use
a combination of CDB and external database(s).
The C or Java code which implements an "external database" must adhere strictly
to the ConfD transaction protocol. This is done by implementing a specific set
of callback C functions. This could be viewed as the equivalent of implementing
instrumentation functions in an SNMP agent.
Initialization file An XML file (with suffix .xml) used for initializing the part of the configuration
which is stored in the CDB database.
Instrumentation This is the task of implementing data callback functions for an external database.
Keypath A keypath is a string that uniquely identifies a node in a Configuration. A keypath
is an (older) alternative syntax for a YANG instance-identifier.
The following are examples of keypaths
/servers/server{www}/
port
which uniquely identifies the data element:
<port>80</port> in the first server in
Configuration.
/servers which identifies the top level servers
container element.
A keypath is a path down the XML tree. Which path to choose down the tree, i.e.
which list entry to choose, must be indicated with a {key} notation.
1011
Glossary
The keypath /servers/server{www}/port is equivalent to the instance-
identifier /servers/server[name="www"]/port.
We also have a different notation which is used in the CDB C API to identify
data elements. The CDB C API contains a function cdb_num_instances()
which returns an integer. In Configuration we had two different servers,
thus cdb_num_instances() would return 2 and the keypath /servers/
server[1]/port would uniquely identify the port element in the second
server element. A keypath that uses the [index] notation in the path is only valid
for the current CDB session.
In the C callback APIs, keypaths in the form of hashed keypaths are represented
by the C type confd_hkeypath_t.
Management Agent A Management Agent, or simply Agent, is a software entity which terminates
some management protocol and provides a view of the managed system. The
Agents in ConfD are NETCONF, SNMP, CLI, and Web UI, and proprietary agents
that utilize the MAAPI API.
Management Backplane This is the layer of software inside ConfD which sits between the northbound agent
interfaces and the southbound data providers. The main task of the management
backplane is to multiplex and format data between the northbound and the
southbound interfaces through transactions.
MAAPI MAAPI - The Management Agent API - is an API which is used to connect to
the ConfD transaction system. ConfD provides MAAPI bindings for C and Java.
MAAPI is a northbound interface API which can be used to perform all read
and write operations towards ConfD. It is possible to implement any proprietary
configuration Agent with MAAPI.
MAAPI is also used to implement CLI wizards and semantic validation of
configuration data in C.
Path filter Path filters restrict the set of valid elements to a subtree. The value of an element
with the type confd:objectRef is a pointer to another element, and the set of
elements to which the value is allowed to point can be restricted by specifying a
list of path filters, in XPath syntax.
Likewise, the CLI show command can be restricted by a path filter (as a space-
separated list of path items).
Running datastore The running datastore is one of the three configuration datastores in ConfD. It
contains the currently active configuration.
Schema A schema defines the structure of data. A schema in ConfD is represented by
YANG modules, compiled to a schema file having the file name suffix ".fxs".
Session See CDB session or User session.
Startup datastore The startup datastore is one of the three configuration datastores in ConfD. It
contains a configuration to be read by the device each time it reboots.
Subscription Programs communicating with ConfD using one of the APIs can ask to be
notified of certain events, by setting up a subscription. Subscription functionality
is available in the CDB C API for notification of CDB configuration changes and
for the asynchronous events described in the "Notifications" chapter.
1012
Glossary
Tagpath A tagpath is a string and it is similar to a keypath with the exception that there
are no keys in a tagpath. For example the string /servers/server/mask is a tagpath
whereas the string /servers/server{www}/mask is a keypath.
The keypath above uniquely identifies a single instance of a particular mask in
a particular server, namely the server named "www", whereas the tagpath above
identifies all masks in all servers in the configuration.
Target device By target device, or just "device", we mean the entire embedded box that is being
built, such as the physical router if it is a router that is being configured by ConfD.
Transaction ConfD implements all writes towards all three possible configuration stores,
startup, running and the candidate as two-phase commit transaction.
A configuration may be stored in several databases. We can have some part
of the configuration in CDB and other parts in several external databases. A
commit operation may span over several databases and we always want to ensure
that all participants, i.e., all involved databases are ready to commit. Thus the C
API to implement an external database always requires the external database to
implement several callback C functions which will be called during the different
phases of the transaction.
A transaction is always associated with a corresponding user session.
Transformations A transformation is used when we have a data model which we do not want
to expose through the northbound Agent interfaces. We hide the undesired data
model, and expose another model which then must transform data to and from the
hidden model.
User session A user session corresponds directly to an SSH/SSL session from a management
station to ConfD. A user session is associated with such data as the IP address of
the management station and the user name of the user who logged in to ConfD,
whether through NETCONF, the CLI or the Web UI.
Validation Validation is the process of ensuring the correctness of the input configuration
data. Syntactic validation is the first phase and it ensures type correctness and all
checks that are possible to express in the YANG model. Semantic validation is the
second phase and it requires application specific knowledge. The programmer has
to write C or Java code which performs the semantic validation.
XPath XPath is a language for selecting parts of an XML document. ConfD uses XPath
(version 1.0) in its full form in NETCONF requests, as well as a very restricted
subset to specify path filters in elements of the confd:objectRef type.
1013
