High Performance Portable Heating and Cooling
Australia Day Council Corporate Club MemberAustralian made indoor evaporative cooling Australian owned
Portable refrigerated cooling solutions >
Portable, fresh, natural cooling >
Classy, convenient & comfortable >
Portable Heating
Portable Heating
Evaporative Cooling
Evaporative Cooling
Refrigerated Cooling
Tower Fans
Refrigerated Cooling
Blows the rest away!
Beats the cold like
no others!
Beats the others cold!

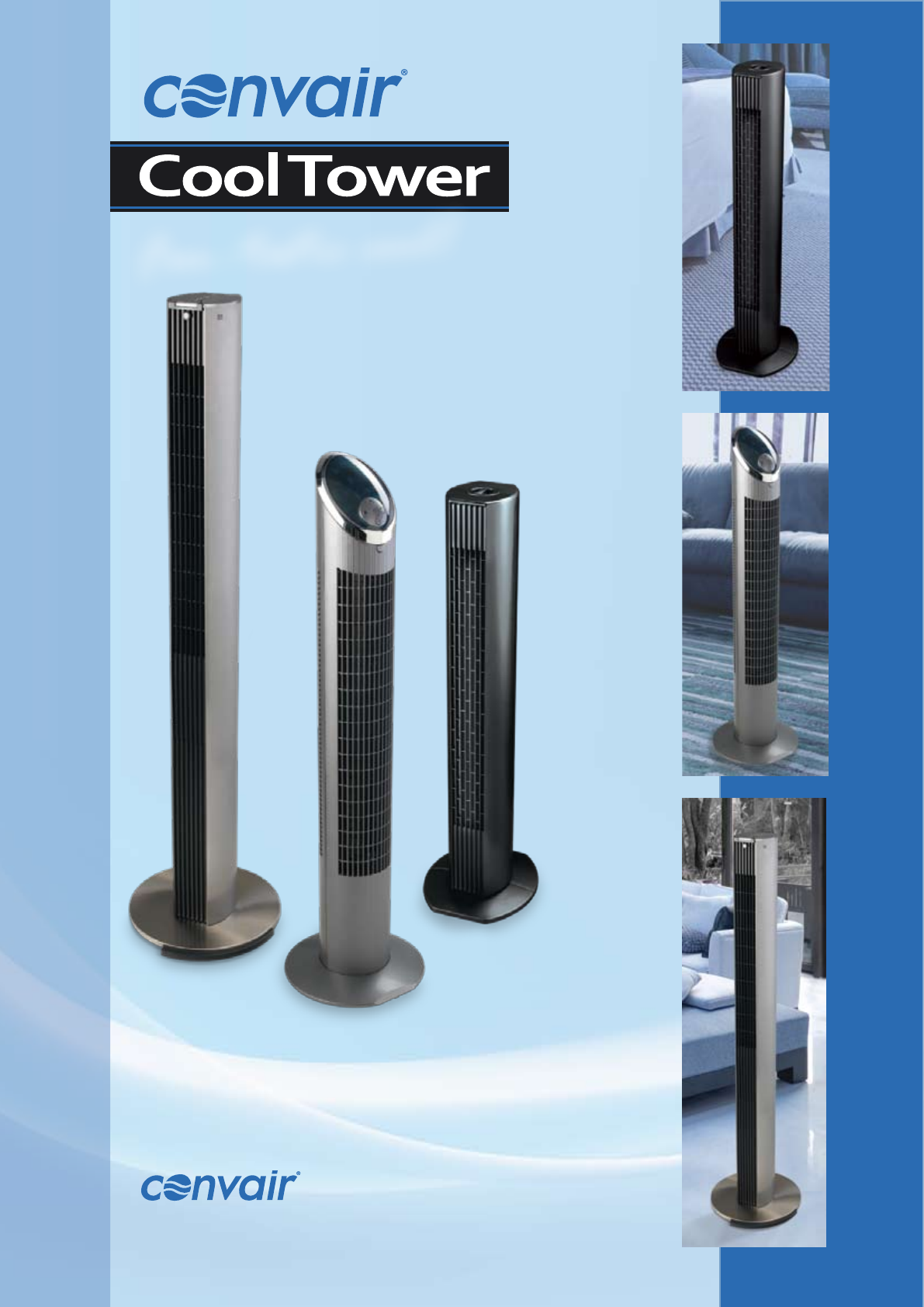

Stylish portable Tower Fans >
Tower Fans
Fan - tastic cool!
Enjoy instant climate control right
where you need it with Convair’s
superb range of super-eective
heating and cooling solutions.
At the touch of a button, turn any
room in the home or oce into
your personal comfort zone.
High performance
portable heating
and cooling
You deserve the world’s best.
Portable Evaporative Cooling
Evaporative Cooling
Blows the rest away!
The big Australian
The frugal Australian
The cool Australian
The rugged Australian
The quiet Australian
Advanced designs – Superior engineering
For more than 30 years Convair has led the world in manufacturing sensational
portable evaporative cooling. Convair is engineered to deliver outstanding cooling
performance throughout the harshest Australian summer.
Convair portable evaporative coolers are versatile, easy to move and so cheap to
operate. Running costs for an evaporative cooler are signicantly lower than any other
form of portable cooling saving you money while doing your bit for the environment.
Convair blows the rest away with cooling performance that is superior to all other
comparable evaporative coolers. Take a look at the advanced design features
(page 7) which set Convair apart from the rest - you’ll be blown away too with
Convair’s design and performance.
Be assured that your Convair cooler will withstand scorching Australian conditions
year after year. In fact the hotter it is the better Convair performs, both inside and out!
Convair’s advanced fan technology combined with cleverly designed lter pads
provides optimum cooling performance with super-quiet air delivery. This means that
Convair is the ideal choice for cooling bedrooms, ensuring a wonderful night’s sleep.
The Australian way
Convair portable evaporative coolers contain no harmful CFC gases and provide
cooling that is refreshingly clean. Air is drawn into the unit and cooled naturally as it
passes through water moistened pads. Nothing could be simpler, cleaner or healthier.
Inside...
Some air conditioners require you to close up the house to deliver cooling.
With Convair evaporative coolers, windows and doors can stay open so that you can
enjoy the best of summer and still stay cool.
Convair evaporative coolers are totally portable and so versatile - simply unplug the
power cord and move to any room in the house. What could be easier?
Great at relieving the summer heat in bedrooms, family rooms and living areas - but
have you considered a cooling solution for your alfresco or outdoor entertainment area?
Convair has an evaporative cooling solution that can be used for both indoors and out.
The Convair cooling advantage
...and out.
You deserve the world’s best.
Evaporative Cooling
Portable evaporative
cooling that really works!
Portable evaporative
cooling that really works!
Blows the rest away!
The Convair technology advantage
Filter media
This Australian manufactured Convair
lter pad uses a high tech Chillcel®
“honeycomb” design that provides
maximum surface area and optimizes
cooling performance. Air is forced to
come in contact with evaporating water
which delivers maximum cooling eect.
Most imported units come from China
and use a very ineective “towel”
system with up to 20 times less heat
exchange area than Convair Chillcel®.
Air is able to bypass the lter media
and not receive any cooling eect
from the water.
Ours Theirs
For portable evaporative airconditioners to deliver a cooling eect, it is critical for air to pass
through a moistened lter pad.
Fan system
Convair has an advanced fan which is
designed to deliver maximum airow
with minimum noise. The fan and
Chillcel® design ensures that air is drawn
from the rear of the unit and forced to
pass through the saturated lter pad.
Most imported units have a small
tangential fan that draws air into the
front grill and re-circulate this air with-
out it passing through the lter media.
If air does not pass through eective
lter media, the cooler will not deliver
any cooling eect.
Ours Theirs
The fan system should deliver maximum airow and ensure even distribution of air through the
lter media. It should also be designed for quiet operation.
Water distribution system
Convair has a patented water
distribution system that ensures the
lter media stays totally saturated.
The unique channel design resists
clogging and delivers a steady, even
water distribution at all times.
Many imported units have a water
distribution system where water is
pumped into a trough at the top of the
unit and distributed to the lter media via
small holes. These holes are easily blocked
by sediment and result in sections of the
pad not staying saturated. Dry sections of
the pad allow air to rush through without
delivering any cooling eect.
Ours Theirs
The lter media must be completely saturated at all times, to maximise cooling.
Portable evaporative
cooling that really works!
Portable evaporative
cooling that really works! Convair Magicool
Convair Magicool
Convair Magicool
Competitor product
Competitor product
Competitor product
You deserve the world’s best.
M3000 COOLMASTER
Ideal for large rooms, patios, oces and workshops
18 litre water tank with easy water ll from front
Powerful 3 speed centrifugal fan Economical to run
Polymer construction Magazine rack
MASTERCOOL
14 litre water tank for overnight operation Proven best seller
Base tted with castors for easy portability Economical and ultra-quiet
Suits medium to large areas High velocity ‘Stealth’ fan technology
3 speed cooling, or fan only Adjustable directional vanes
Large buggy wheels and carry handle for easy manoeuvrability
Lightweight and so simple to use Cheaper to run than a 60W light bulb
Recessed carry handle 3 speed cooling, or fan only
13 litre water tank for overnight operation Ideal for home or oce
High velocity ‘Stealth’ fan technology
COMPACT MAGICOOL
Blows the rest away!
Convair Evaporative - Product Range & Features
Indoor Cooling Medium/Large Rooms
Medium Rooms
Extra Large Rooms/Outdoors Large Rooms/Outdoors
Compact Rooms
YEAR
WARRANTY
Robust, UV stabilised construction
Auto air swing with high volume airow
Remote control with timer function
Suitable for alfresco (outdoor cooling),
workshops, large open areas and family living
areas
2 speed adjustable airow
2 Year Warranty
Large indoor areas have always been
dicult to cool eectively with any
form of portable
cooler – UNTIL NOW!
Convair Outback systems are made to
withstand the harshest of Australian summers.
Tough, rugged coolers that output large volumes of
cool, fresh air right where you need it.
Outdoor Indoor
Cooling
YEAR
WARRANTY
Convair Outback models are perfect for large open plan living areas and oces with the unique ability to also provide highly
eective cooling in outdoor applications such as alfresco living, patios and workshops. Beat the heat OUTBACK with Convair!
SI5000
45 Litre capacity SI4000
30 Litre capacity
AUSTRALIAN
MADE
Built and tested for Australian conditions
AUSTRALIAN
OWNED
Convair is wholly Australian owned
The above analysis was drawn from Meridian Test Laboratory test analysis. The testing was performed by a NATA accredited laboratory to the requirements
of Australian Standards AS2913 “Evaporative Airconditioning Equipment”. Cooling effect calculated with ambient conditions 38OC DB, 21OC WB, target room
temperature 27.4OC. Correct at time of printing.
Magicool
0
Cooling Eect 100 200 300 400 500
(Watts)
Airow
0
150
450
600
750
(m3/hr)
Medium Coolers
Bonaire Vail
Dimplex DEVA 20
M3000 Coolmaster
Megacool
Mastercool
0
Cooling Eect 300 600 900 1200 1500
(Watts)
Airow
0
250
500
750
1000
1250
(m3/hr)
1
1
2
1
2
2
Large Coolers
No Cooling effect
2
1
2
1
2
1
2
1
2
1
Bonaire Tahoe
2
1
IXL Icecap2
No Cooling effect
2
1
Sunair ECSII
No Cooling effect
2
1
Blueway BL518C
No Cooling effect
2
1
Mistral MEC1R
No Cooling effect
2
1
Evaporative Cooling
The above analysis was drawn from Meridian Test Laboratory test analysis. The testing was performed by a NATA accredited laboratory to the requirements
of Australian Standards AS2913 “Evaporative Airconditioning Equipment”. Cooling effect calculated with ambient conditions 38OC DB, 21OC WB, target room
temperature 27.4OC. Correct at time of printing.
Magicool
0
Cooling Eect 100 200 300 400 500
(Watts)
Airow
0
150
300
450
600
750
(m3/hr)
Medium Coolers
Bonaire Vail
Dimplex DEVA 20
M3000 Coolmaster
Megacool
Mastercool
0
Cooling Eect 300 600 900 1200 1500
(Watts)
Airow
0
250
500
750
1000
1250
(m3/hr)
1
1
2
1
2
2
Large Coolers
No Cooling effect
2
1
2
1
2
1
2
1
2
1
Bonaire Tahoe
2
1
IXL Icecap2
No Cooling effect
2
1
Sunair ECSII
No Cooling effect
2
1
Blueway BL518C
No Cooling effect
2
1
Mistral MEC1R
No Cooling effect
2
1
Refrigerated Cooling

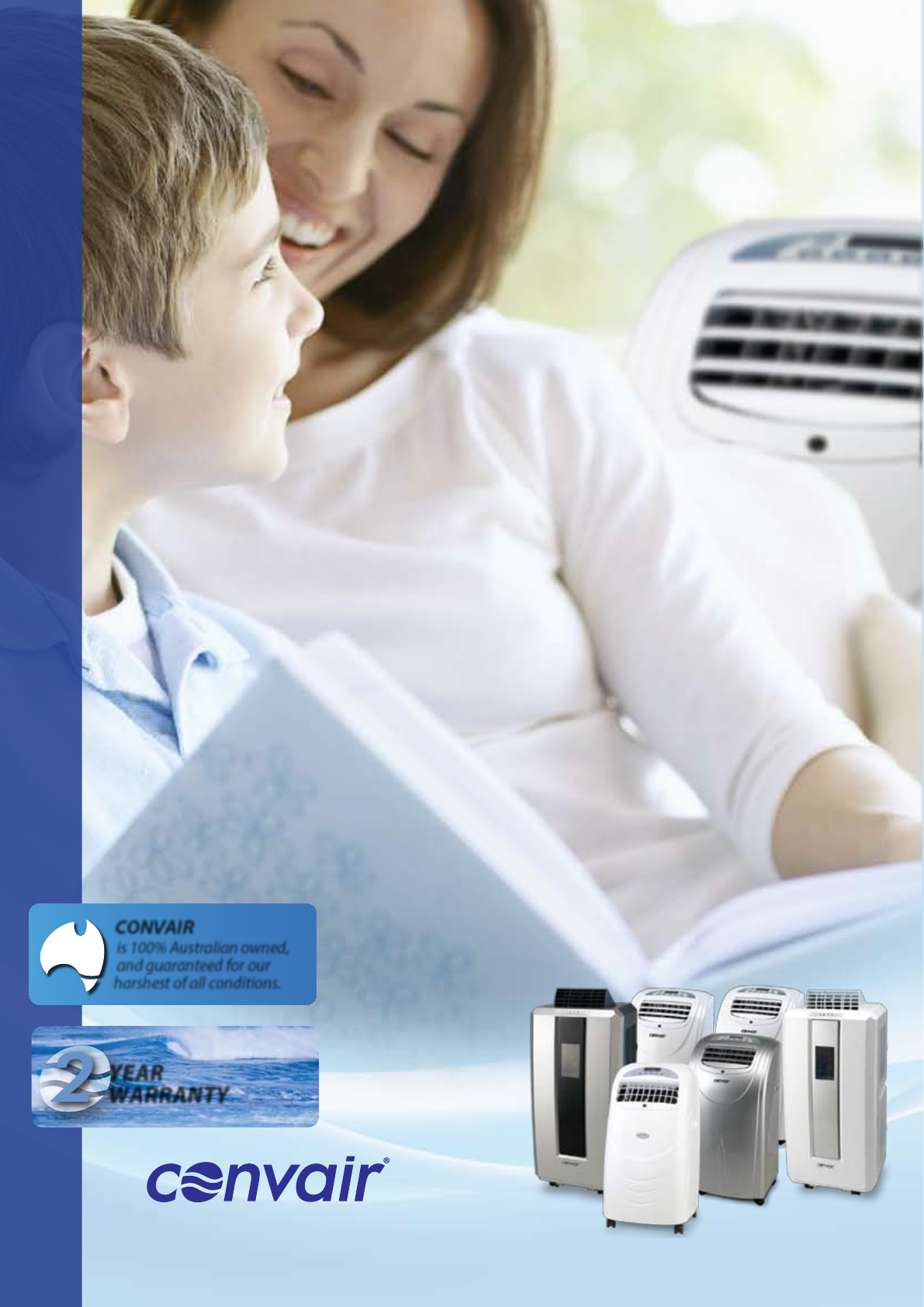

is 100% Australian owned,
and guaranteed for our
harshest of all conditions.
CONVAIR
YEAR
WARRANTY
In Keeping with Convair’s proven expertise in achieving the very best portable cooling solutions
available, the new 2009 range of Convair ClimateMaster portable air conditioners naturally sets the
benchmark in portable air conditioning excellence.
Boasting an impressive range of styles and capacities (2.6kw to 4.4kw) and an incredible array of
‘extra’ features as standard, Convair ClimateMaster portable air conditioners truly deliver on all fronts.
Features include:
Aquasmart Cooling Technology
By re-evaporating moisture/humidity from the air over the air conditioning coil, all ClimateMaster
units deliver signicant performance increases in both cooling and energy eciency while reducing
the need for frequent emptying of the in-built water tank.
Ioniser and multi-stage ltration
By combining Convair’s multi-stage electrostatic ltration system and IONISER, ClimateMaster
delivers cleaner, healthier indoor air quality, as well as providing many additional health benets
associated with Negative ION technology.
Soft touch control panel and Remote control.
From the comfort of your lounge chair or at the unit itself, you are in total control.
Dehumidication function
By cleverly removing excess moisture from the air, comfort level and cooling performance is
optimised.
Sleep mode
Reduced noise levels, self adjusting temperature control and auto operation to ensure a good
night’s sleep - it’s a real dream!
Get ready for the perfect night’s sleep with the intelligent “sleep mode” from ClimateMaster.
On/o timer programming
On / o 12 or 24 hour timer setting (some models)*
Reverse cycle or Cooling only?
ClimateMaster oers a wide choice of cooling only models for summer cooling while also providing
reverse cycle model options for year-round heating and cooling comfort.
As reverse cycle air conditioning is one of the most energy ecient and cost eective forms of
portable electrical heating available, ClimateMaster is the obvious choice for comfort control,
all year long.
DIY installation and adjustable window kit/exhaust hose ttings included
2 year Parts and Labour warranty.
*(
Please refer to the following page for specic model details and specications.)
oers...
Convair ClimateMaster
You deserve the world’s best.
Beats the others cold!
Refrigerated Cooling
All Climate Master
models include -
Air outlet ducts,
window kit, lters
and remote control.
Beats the others cold!
Cooling only models
002248 002354 002385
ClimateMaster
CM9RW
Cooling Capacity (btu/hr - watts) 9000 Btu/hr (2600W) 12000 Btu/hr (3500W) 15000 Btu/hr (4400W) 12000 Btu/hr (3500W) 12000 Btu/hr (3500W) 15000 Btu/hr (4400W)
Cooling Airow (m3/hr) 240m3/hr 310m3/hr 500m3/hr 310m3/hr 310m3/hr 500m3/hr
Heating Capacity (btu/hr - watts) - - - 12000 Btu/hr (3500W) 12000 Btu/hr (3500W) 15000 Btu/hr (4400W)
Heating Airow (m3/hr) - - - 310m3/hr 310m3/hr 500m3/hr
Recommended max room size (m2) 18m2 22m2 28m2 22m2 22m2 28m2
Aquasmart Technology Yes Yes Yes Yes Yes Yes
Remote Control + Manual Control Yes Yes Yes Yes Yes Yes
Electronic Thermostat Yes (Thermostat range 16 - 31o C) Yes (Thermostat range 16 - 31o C) Yes (Thermostat range 16 - 31o C) Yes (Thermostat range 16 - 31o C) Yes (Thermostat range 16 - 31o C) Yes (Thermostat range 16 - 31o C)
On/o timer 12hr (in 0.5hr increments) 12hr (in 0.5hr increments) 24hr (in 1hr increments) 12hr (in 0.5hr increments) 12hr (in 0.5hr increments) 24hr (in 1hr increments)
Negative ION generator (Ioniser) Yes Yes Yes Yes Yes Yes
2 stage air purifying ltration system Yes Yes Yes Yes Yes Yes
Ti02 UV and Carbon Filters N/A N/A Yes N/A N/A Yes
Fan operation Low/Med/Hi + Auto Low/Med/Hi + Auto Low/Med/Hi Low/Med/Hi + Auto Low/Med/Hi + Auto Low/Med/Hi
Adjustable vanes 4 Way Auto 4 Way Auto 2 Way Manual 4 Way Auto 4 Way Auto 2 Way Manual
Fan only operation Yes Yes Yes Yes Yes Yes
Dehumidication function Yes Yes Yes via cooling mode Yes Yes Yes via cooling mode
Moisture/Humidity removal (Litres/hr) 1.8 L/hr 2.4 L/hr 1.5 L/hr 2.4 L/hr 2.4 L/hr 1.5 L/hr
Sleep mode No No Yes No No Yes
Portability/Castors Yes Yes Yes Yes Yes Yes
Adjustable window venting kit Yes Yes Yes Yes Yes Yes
Power Supply
220-240 volts/50Hz/single phase (3 pin 10amp power lead as standard)
220-240 volts/50Hz/single phase (3 pin 10amp power lead as standard)
Power consumption (Watts/Amps) 1100(W) - 5(A) 1300(W) - 6.0(A) 1680(W) - 7.2(A) 1350(W) - 6.2(A) 1350(W) - 6.2(A) 1680(W) - 7.2(A)
Auto restart after power failure Yes Yes Yes Yes Yes Yes
2 year parts and Labour Yes Yes Yes Yes Yes Yes
3 Minute compressor safety delay Yes Yes Yes Yes Yes Yes
Over temperature safety protection Yes Yes Yes Yes Yes Yes
Condensate overow/compressor cut out safety
Yes Yes Yes Yes Yes Yes
Condensate tank full alarm Yes Yes Yes Yes Yes Yes
Anti frost/De-ice protection mode Yes Yes Yes Yes Yes Yes
Refrigerant type R407C R407C R410A R407C R407C R410A
Compressor Type Rotary Rotary Rotary Rotary Rotary Rotary
Weight (inc window vent kit) kg 34 40 36 40 40 36
Physical Dimensions (D x W x H) cm 385 x 400 x 725 445 x 350 x 870 420 x 400 x 840 445 x 350 x 870 445 x 350 x 870 420 x 400 x 840
ClimateMaster
CM12RW
ClimateMaster
CM15RW
Performance
Features
Electrical Specications
Warranty
Additional Protection Features
Refrigeration
You deserve the world’s best.
Beats the others cold!
Heating & Cooling models
Cooling Capacity (btu/hr - watts) 9000 Btu/hr (2600W) 12000 Btu/hr (3500W) 15000 Btu/hr (4400W) 12000 Btu/hr (3500W) 12000 Btu/hr (3500W) 15000 Btu/hr (4400W)
Cooling Airow (m3/hr) 240m3/hr 310m3/hr 500m3/hr 310m3/hr 310m3/hr 500m3/hr
Heating Capacity (btu/hr - watts) - - - 12000 Btu/hr (3500W) 12000 Btu/hr (3500W) 15000 Btu/hr (4400W)
Heating Airow (m3/hr) - - - 310m3/hr 310m3/hr 500m3/hr
Recommended max room size (m2) 18m2 22m2 28m2 22m2 22m2 28m2
Aquasmart Technology Yes Yes Yes Yes Yes Yes
Remote Control + Manual Control Yes Yes Yes Yes Yes Yes
Electronic Thermostat Yes (Thermostat range 16 - 31o C) Yes (Thermostat range 16 - 31o C) Yes (Thermostat range 16 - 31o C) Yes (Thermostat range 16 - 31o C) Yes (Thermostat range 16 - 31o C) Yes (Thermostat range 16 - 31o C)
On/o timer 12hr (in 0.5hr increments) 12hr (in 0.5hr increments) 24hr (in 1hr increments) 12hr (in 0.5hr increments) 12hr (in 0.5hr increments) 24hr (in 1hr increments)
Negative ION generator (Ioniser) Yes Yes Yes Yes Yes Yes
2 stage air purifying ltration system Yes Yes Yes Yes Yes Yes
Ti02 UV and Carbon Filters N/A N/A Yes N/A N/A Yes
Fan operation Low/Med/Hi + Auto Low/Med/Hi + Auto Low/Med/Hi Low/Med/Hi + Auto Low/Med/Hi + Auto Low/Med/Hi
Adjustable vanes 4 Way Auto 4 Way Auto 2 Way Manual 4 Way Auto 4 Way Auto 2 Way Manual
Fan only operation Yes Yes Yes Yes Yes Yes
Dehumidication function Yes Yes Yes via cooling mode Yes Yes Yes via cooling mode
Moisture/Humidity removal (Litres/hr) 1.8 L/hr 2.4 L/hr 1.5 L/hr 2.4 L/hr 2.4 L/hr 1.5 L/hr
Sleep mode No No Yes No No Yes
Portability/Castors Yes Yes Yes Yes Yes Yes
Adjustable window venting kit Yes Yes Yes Yes Yes Yes
Power Supply
220-240 volts/50Hz/single phase (3 pin 10amp power lead as standard)
220-240 volts/50Hz/single phase (3 pin 10amp power lead as standard)
Power consumption (Watts/Amps) 1100(W) - 5(A) 1300(W) - 6.0(A) 1680(W) - 7.2(A) 1350(W) - 6.2(A) 1350(W) - 6.2(A) 1680(W) - 7.2(A)
Auto restart after power failure Yes Yes Yes Yes Yes Yes
2 year parts and Labour Yes Yes Yes Yes Yes Yes
3 Minute compressor safety delay Yes Yes Yes Yes Yes Yes
Over temperature safety protection Yes Yes Yes Yes Yes Yes
Condensate overow/compressor cut out safety
Yes Yes Yes Yes Yes Yes
Condensate tank full alarm Yes Yes Yes Yes Yes Yes
Anti frost/De-ice protection mode Yes Yes Yes Yes Yes Yes
Refrigerant type R407C R407C R410A R407C R407C R410A
Compressor Type Rotary Rotary Rotary Rotary Rotary Rotary
Weight (inc window vent kit) kg 34 40 36 40 40 36
Physical Dimensions (D x W x H) cm 385 x 400 x 725 445 x 350 x 870 420 x 400 x 840 445 x 350 x 870 445 x 350 x 870 420 x 400 x 840
ClimateMaster
CM12RCW
ClimateMaster
CM12RCS
ClimateMaster
CM15RCS
002361 002255 002378
Tower Fans
You deserve the world’s best.
CTF01
3 Speed Fan
Oscillation Mode
2 Year Replacement
Warranty
CTF02i
3 Speed Fan
Oscillation Mode (90o)
Remote Control
with Timer
Ioniser
2 Year Replacement
Warranty
CTF05
3 Speed Fan
3 Oscillation Modes
Remote Control
with Timer
‘Natural’ Wind Mode
Stainless Steel Finish
2 Year Replacement
Warranty
Fan - tastic cool!
Portable Heating
Stylish Italian Design
Free standing or wall mounted
Convenient 2 heat settings
Powerful 1000/2000W
2 year warranty
Oscillating Ceramic Tower Heaters
CTH01
Quick, powerful heat distribution
Three comfort settings
Ultra safe & super ecient ceramic element
Two year warranty
Power 1,000/2,000W
CTH02
Quick, powerful heat distribution
Electronic timer
Remote control
Three comfort settings
Ultra safe & super ecient ceramic element
Two year warranty
Power 1,000/2,000W
CTH04
Quick, powerful heat distribution
Electronic timer
Remote control
Three comfort settings
Ultra safe & super ecient ceramic element
Two year warranty
Power 1,000/2,000W
Beats the cold like no others!
Designed and assembled in Italy
from imported and Italian components.
You deserve the world’s best.
Seeley International
‘ALL STARS’ brands representation:
Seeley International Pty Ltd
1-11 Rothesay Avenue
St Marys, South Australia 5042
ABN 23 054 687 035
Phone (08) 8276 2355
www.convair.net.au
marketing@seeleyinternational.com
Convair is a wholly owned trademark of
Seeley International Pty Ltd. Established
in 1972, Seeley International has grown to
become Australia's largest air conditioning
manufacturer with brands including
Breezair, Climate Wizard, Braemar, Convair
and Coolair. 100% Australian owned,
Seeley International exports Australian
made products to more than 110 countries
and also distributes and markets the best
of the world's refrigerated air conditioning
products under licence in Australia. Seeley
International, world leader in advanced,
energy efficient cooling technology. As Convair strives for continuous product improvement opportunity, specifications subject to change without notice. Unit colour may vary
slightly from that depicted in this brochure. Information in this brochure was correct at the time of preparation. E&OE. C0089:1009FP
Printed 30/10/2009

Navigation menu
