CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

`

Preface

CradlePoint reserves the right to revise this publication and to make changes in the content thereof without obligation to

notify any person or organization of any revisions or changes.

Manual Revisions

Revision

Date

Description

Author

1.0

Mar. 14, 2013

Initial release for Firmware version 4.2

Jeremy Cramer

1.1

Sept. 2, 2013

Updates for Firmware version 4.4

Jeremy Cramer

2.0

Nov. 21, 2013

Updates for Firmware version 5.0

Jeremy Cramer

Trademarks

CradlePoint and the CradlePoint logo are registered trademarks of CradlePoint, Inc. in the United States and other

countries. All other company or product names mentioned herein are trademarks or registered trademarks of their

respective companies.

without prior expressed written consent by CradlePoint, Inc.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

`

Table of Contents

1 INTRODUCTION ................................................................ 3

1.1 PACKAGE CONTENTS ............................................................. 3

1.2 SYSTEM REQUIREMENTS......................................................... 3

1.3 CBA750B OVERVIEW ........................................................... 4

1.4 CRADLEPOINT ARC CBA750B SERIES...................................... 6

2 HARDWARE OVERVIEW .................................................. 12

2.1 PORTS, BUTTONS, AND SWITCHES .......................................... 13

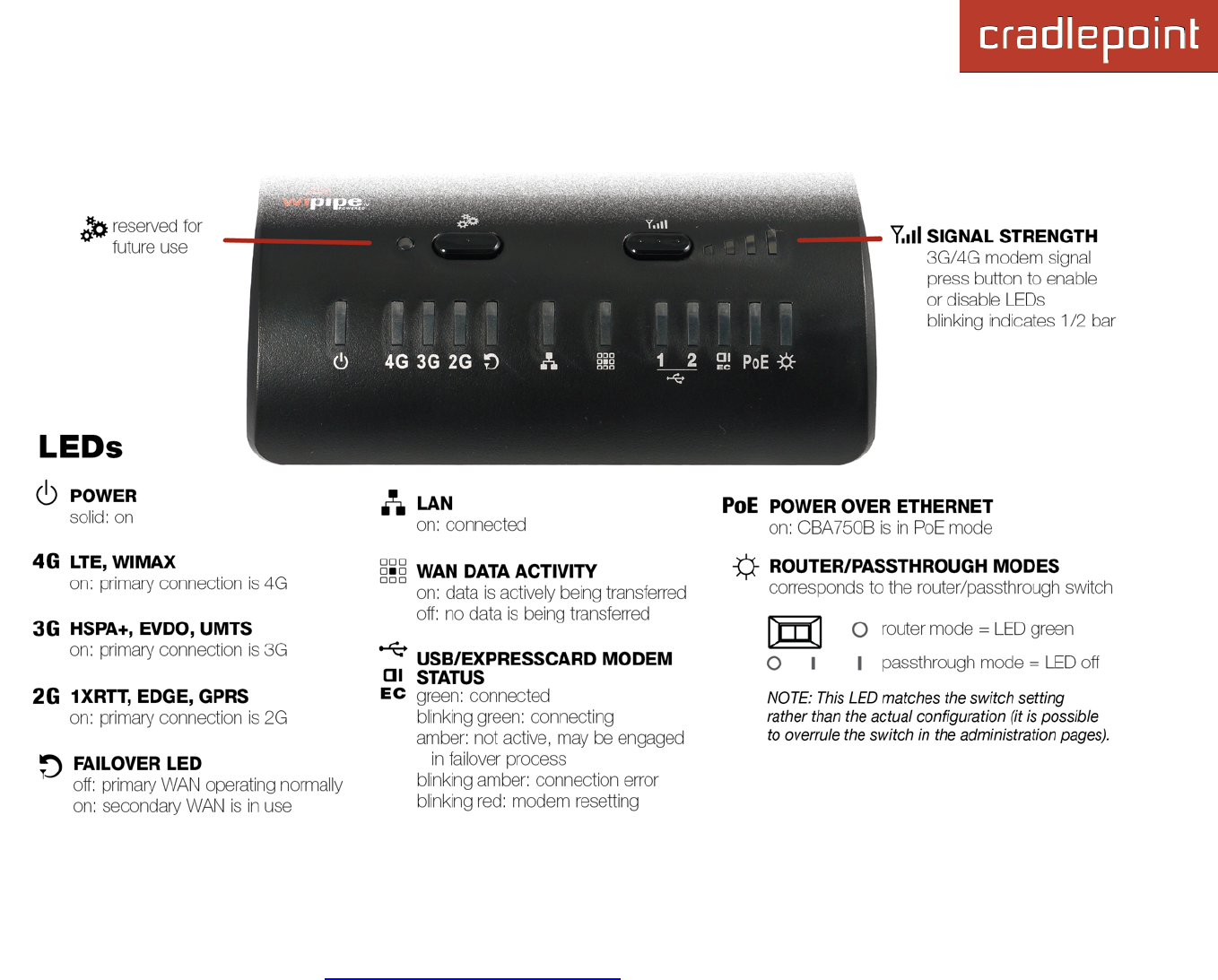

2.2 LEDS ................................................................................ 15

3 QUICK START .................................................................. 16

3.1 BASIC SETUP ...................................................................... 16

3.2 ACCESSING THE ADMINISTRATION PAGES ................................ 17

3.3 COMMON PROBLEMS .......................................................... 18

4 WEB INTERFACE -- ESSENTIALS ........................................ 21

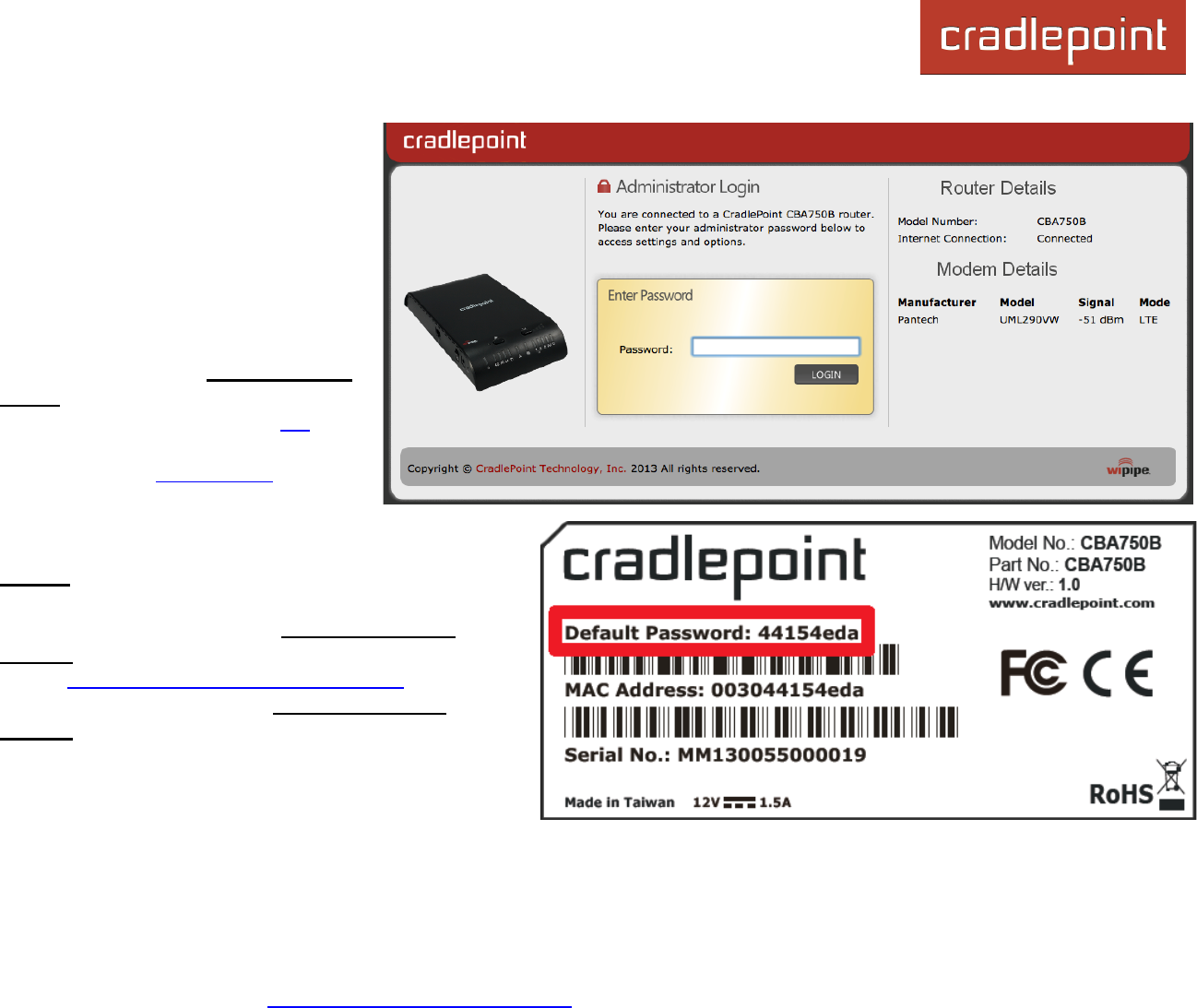

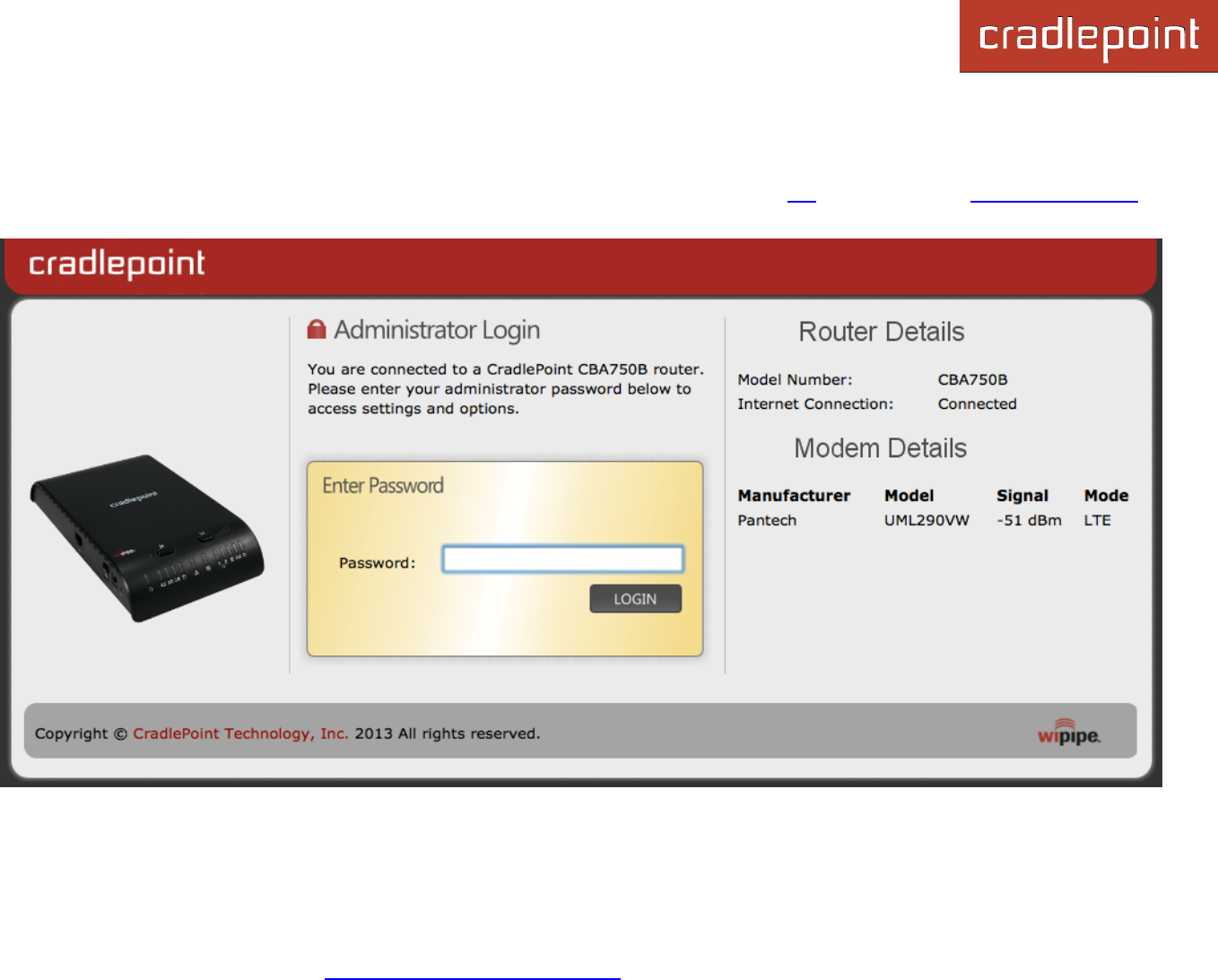

4.1 ADMINISTRATOR LOGIN ....................................................... 22

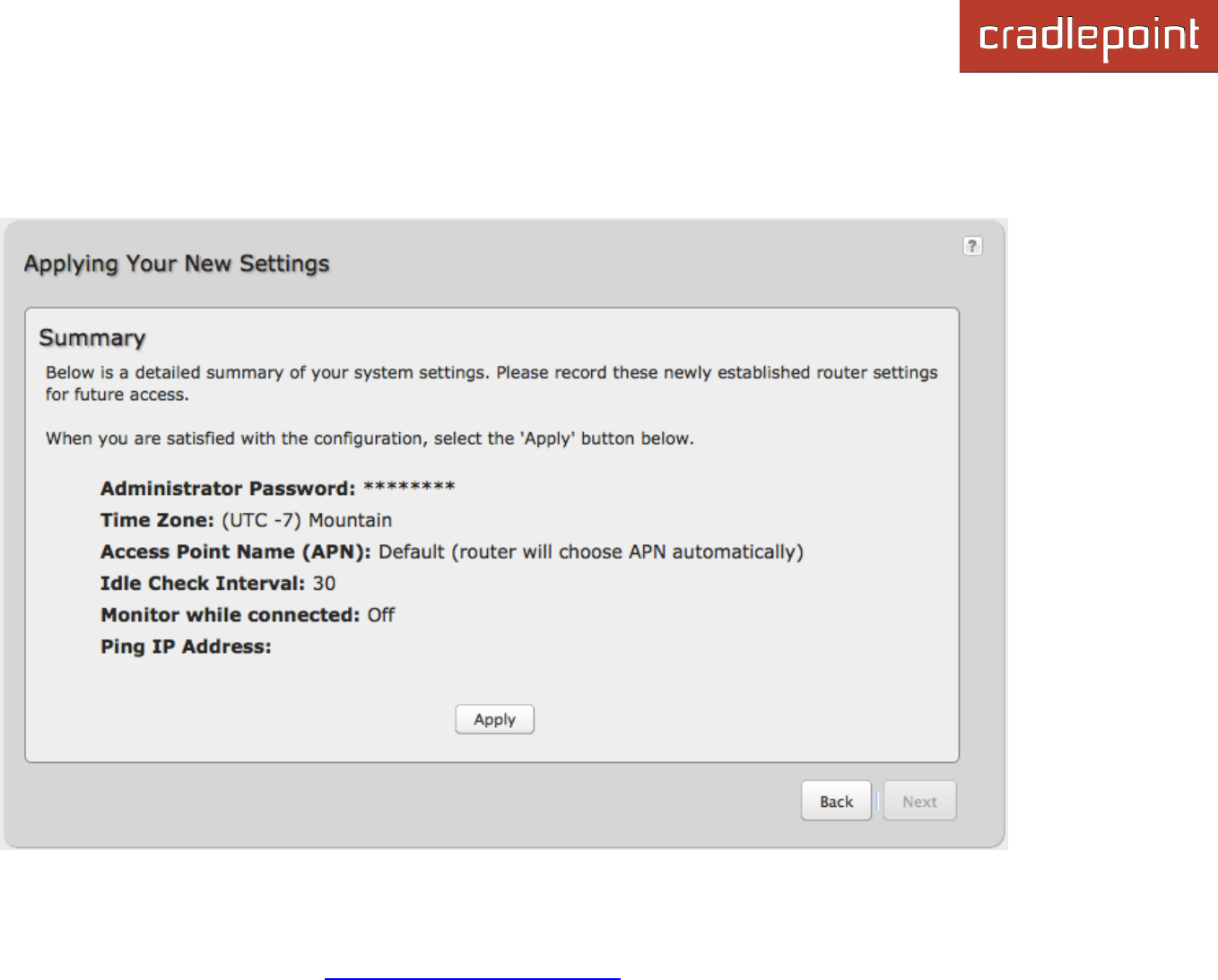

4.2 GETTING STARTED – FIRST TIME SETUP ................................... 24

4.3 QUICK LINKS ...................................................................... 29

4.4 CONFIGURATION PAGES ....................................................... 30

4.5 ENTERPRISE CLOUD MANAGER REGISTRATION.......................... 32

4.6 IP PASSTHROUGH SETUP ...................................................... 33

5 STATUS ........................................................................... 35

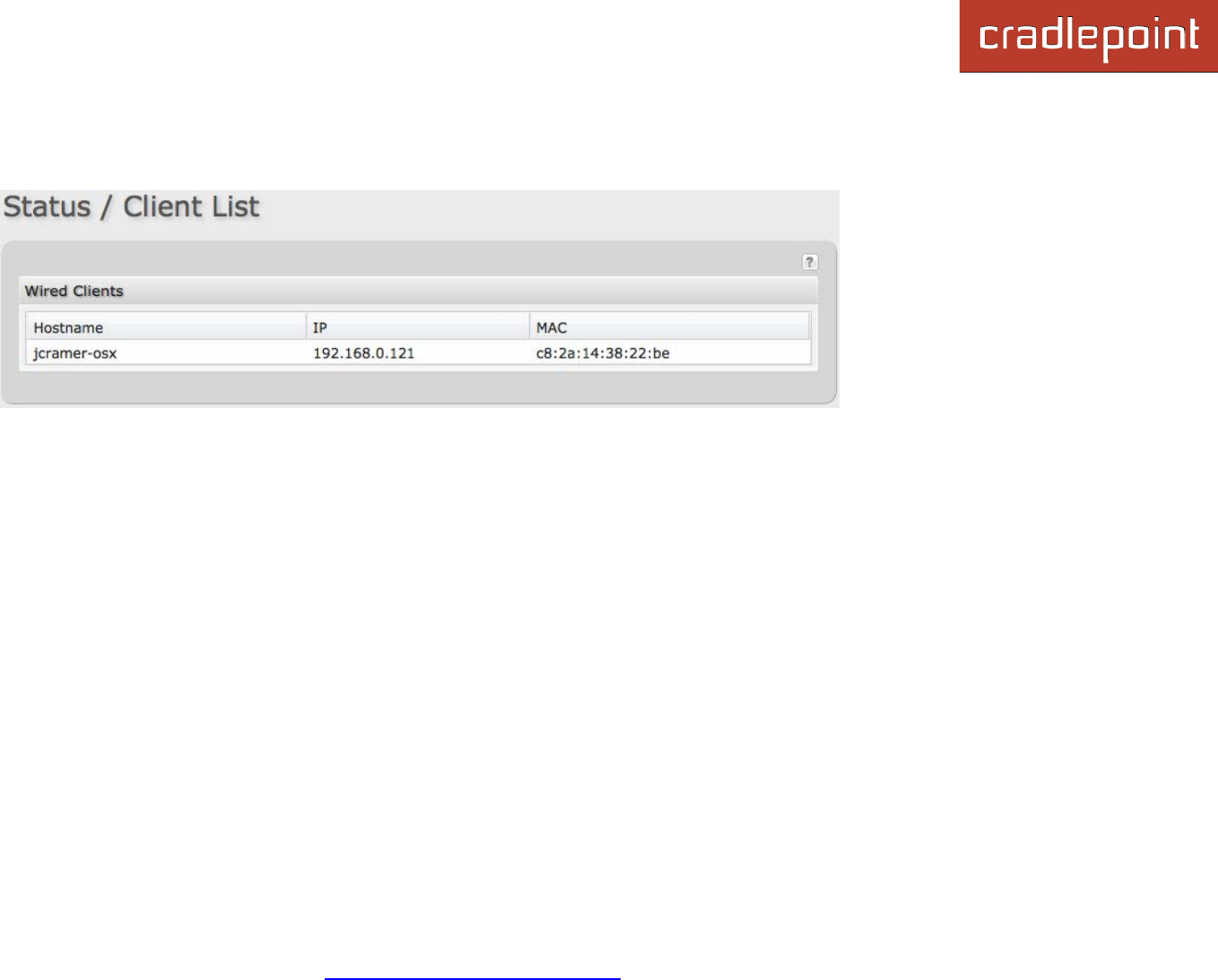

5.1 CLIENT LIST........................................................................ 36

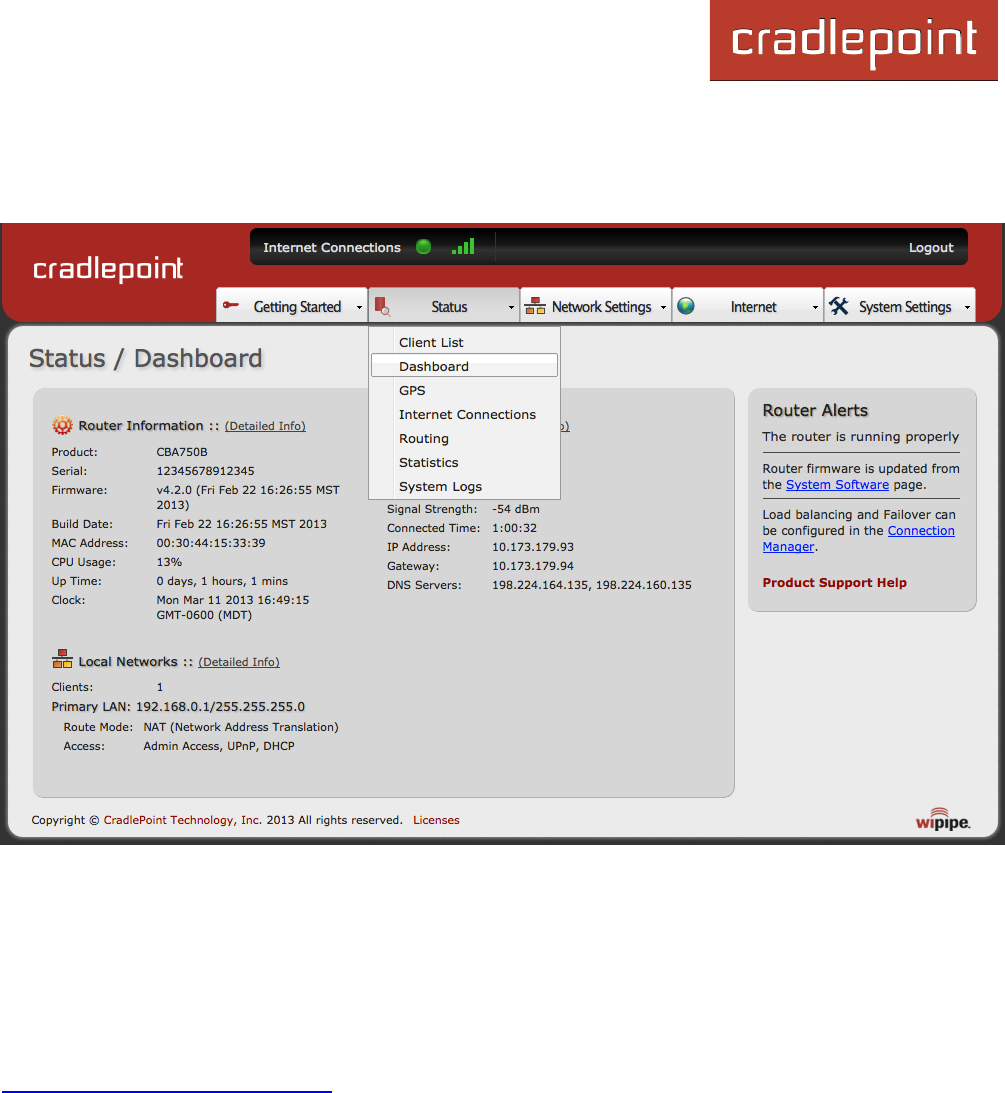

5.2 DASHBOARD ...................................................................... 37

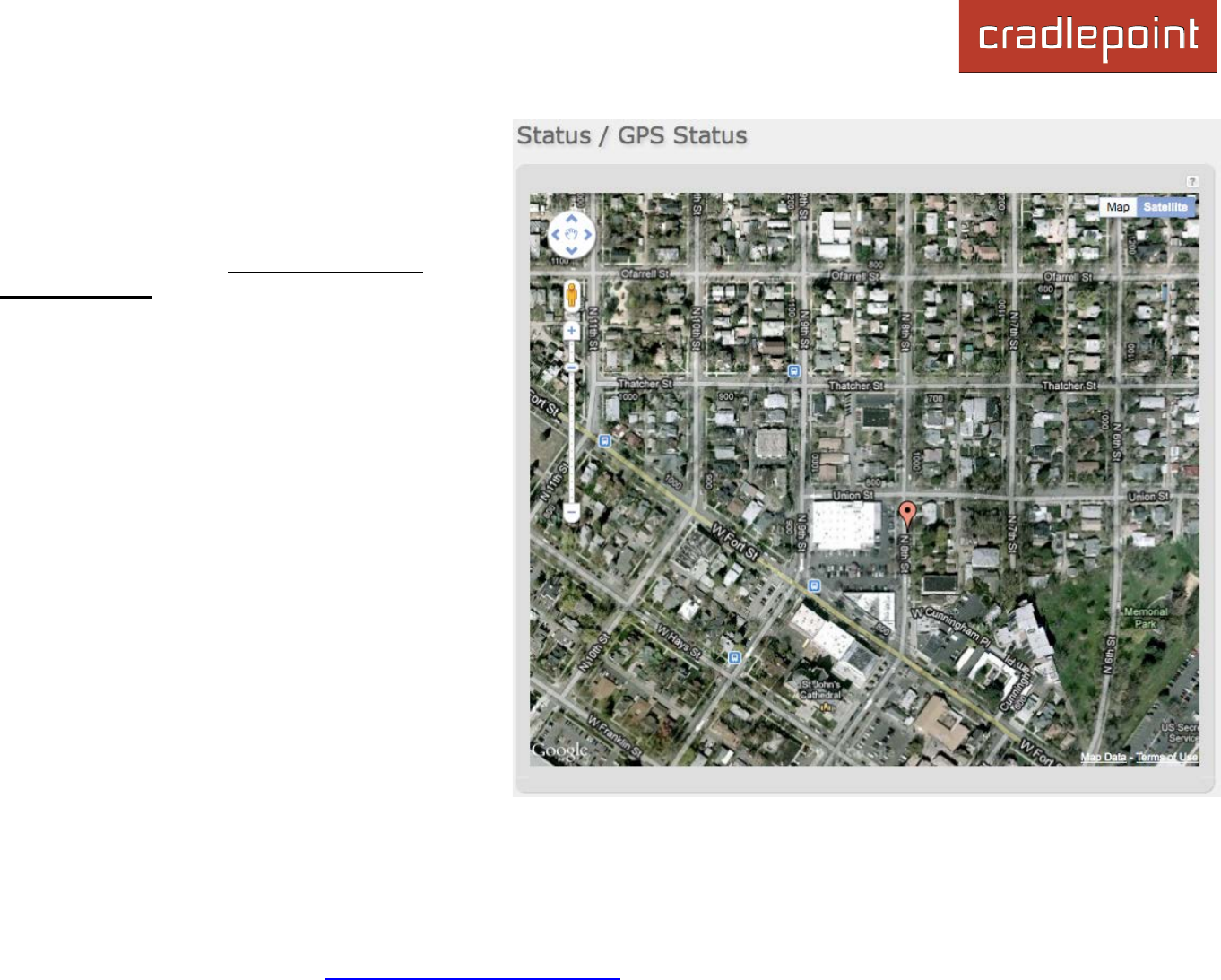

5.3 GPS ................................................................................. 40

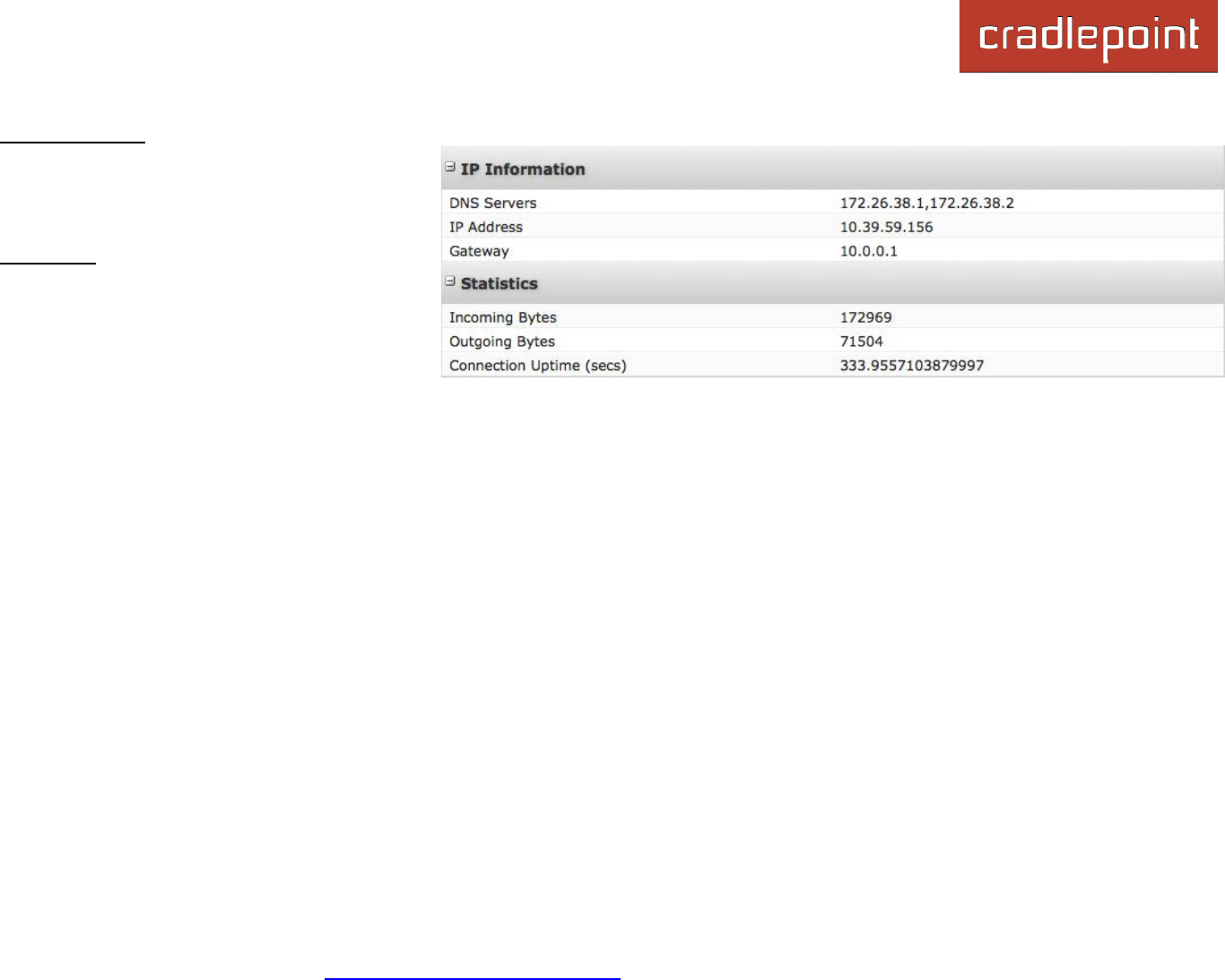

5.4 INTERNET CONNECTIONS ...................................................... 41

5.5 ROUTING .......................................................................... 51

5.6 STATISTICS ......................................................................... 52

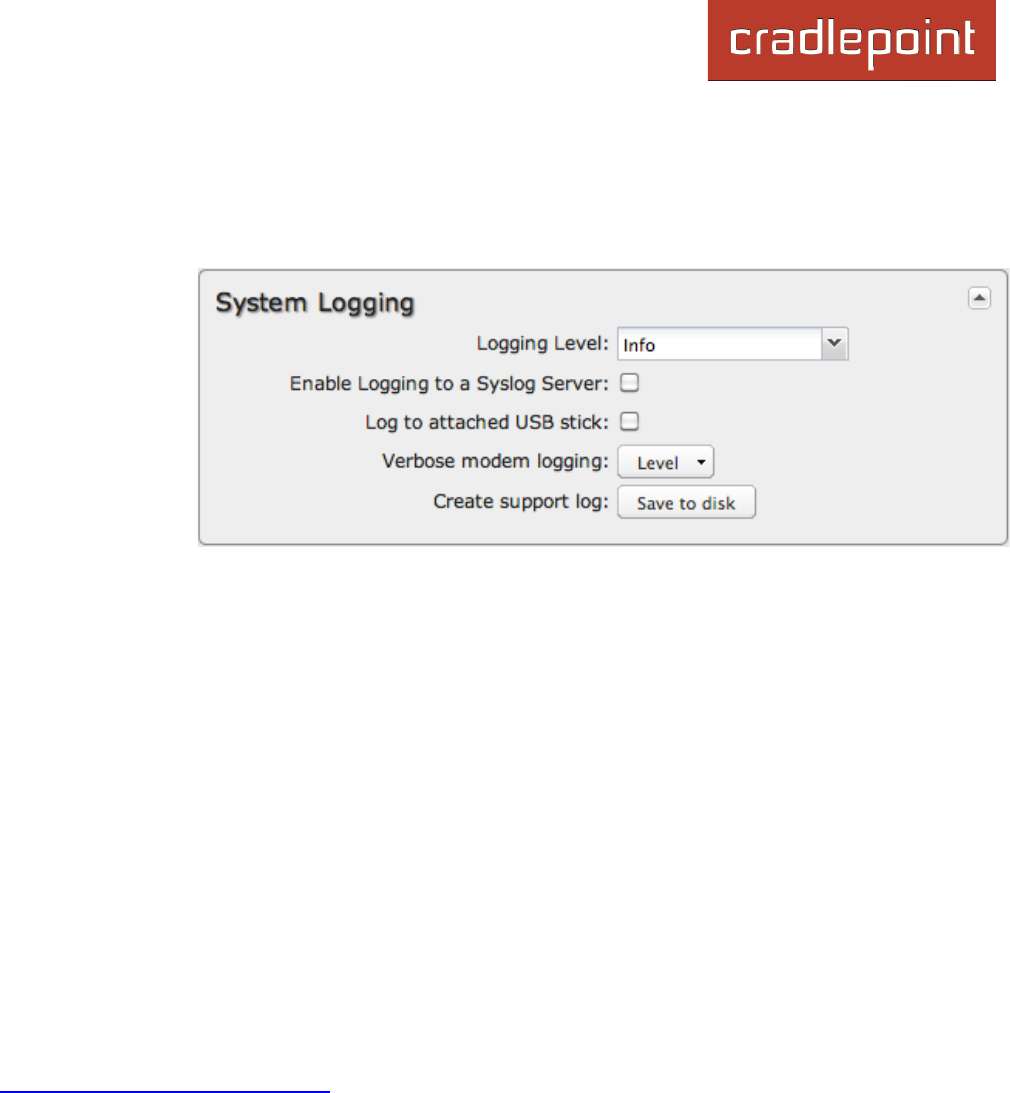

5.7 SYSTEM LOGS..................................................................... 55

6 NETWORK SETTINGS ....................................................... 56

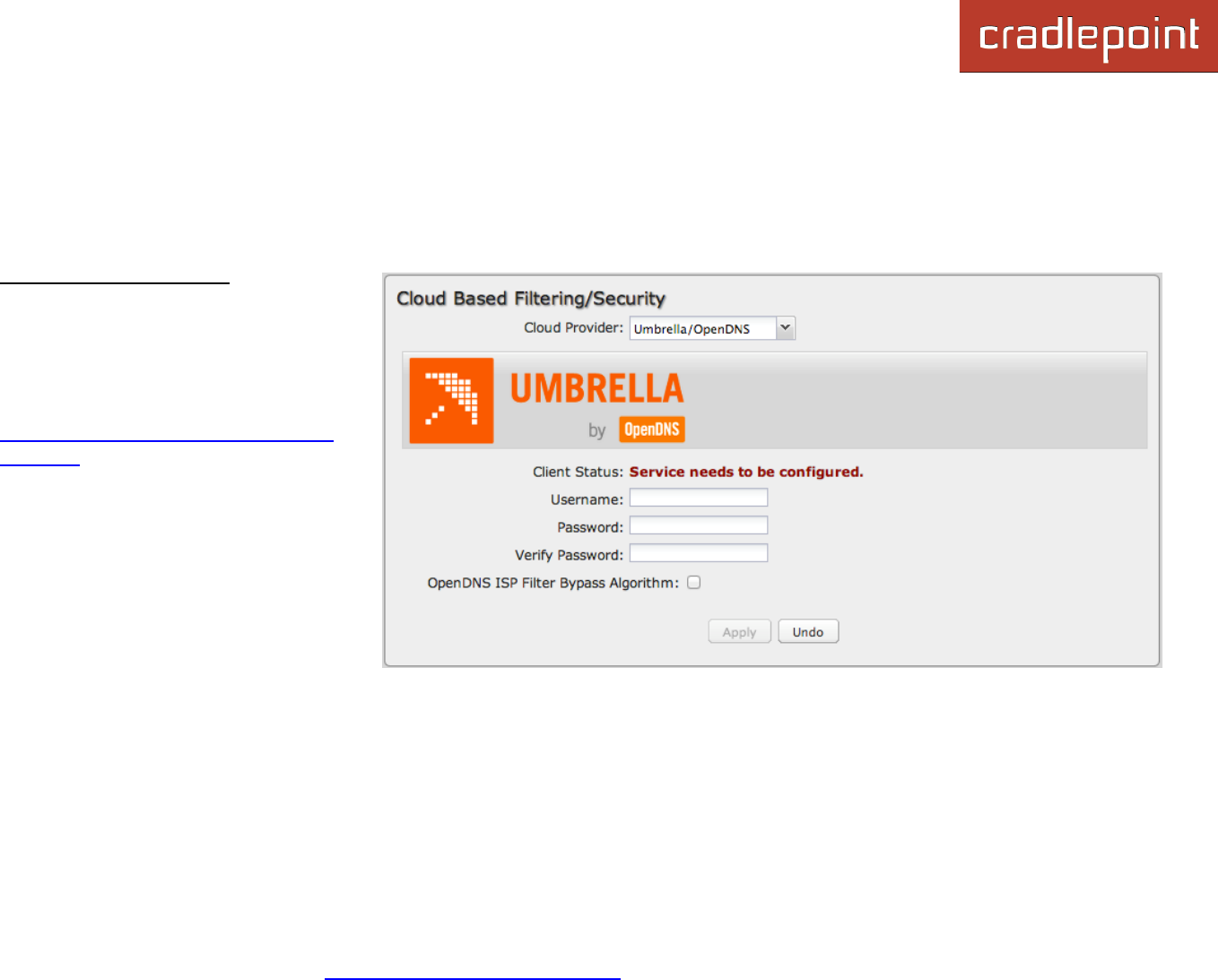

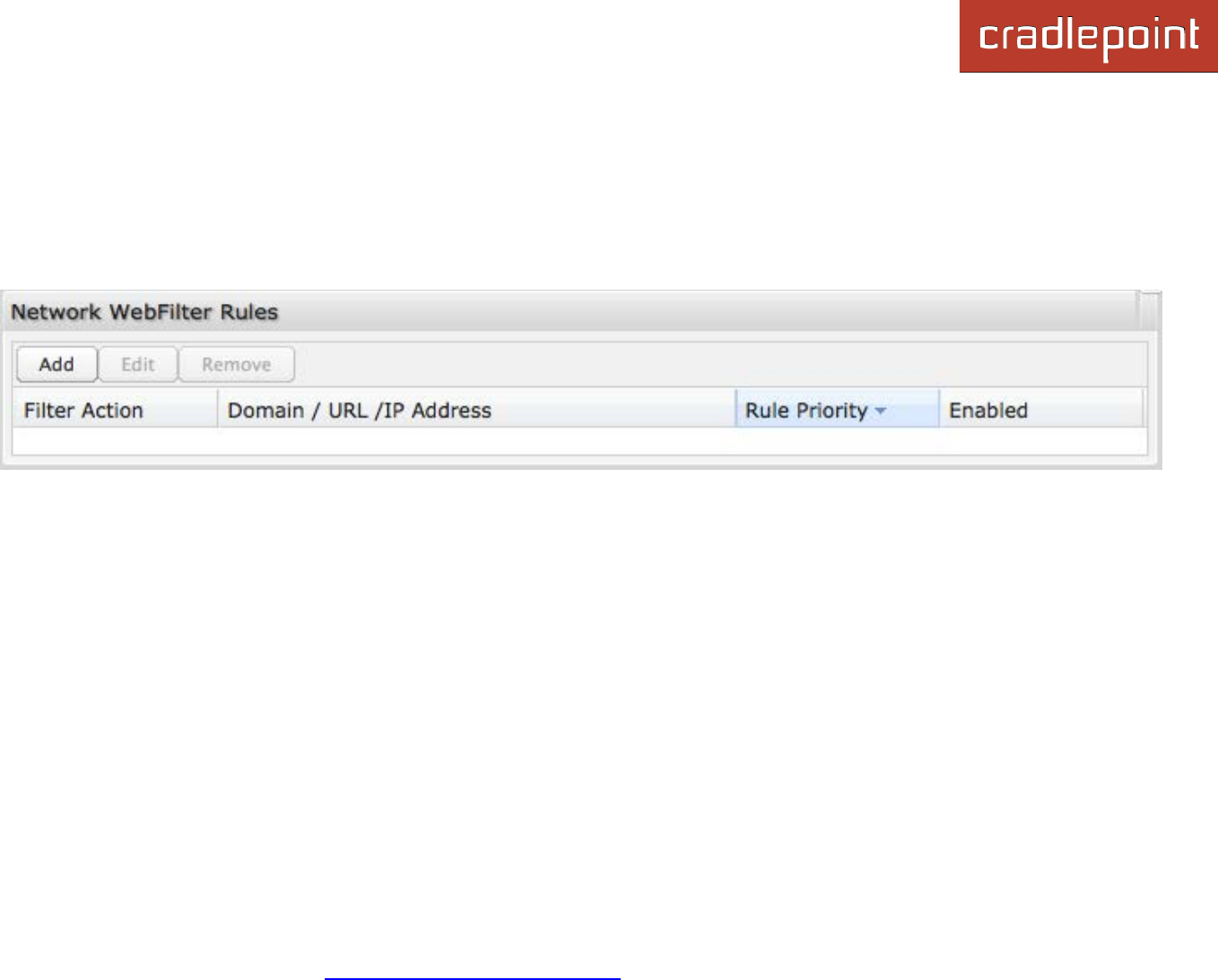

6.1 CONTENT FILTERING ............................................................ 57

6.2 DHCP SERVER ................................................................... 61

6.3 DNS ................................................................................ 62

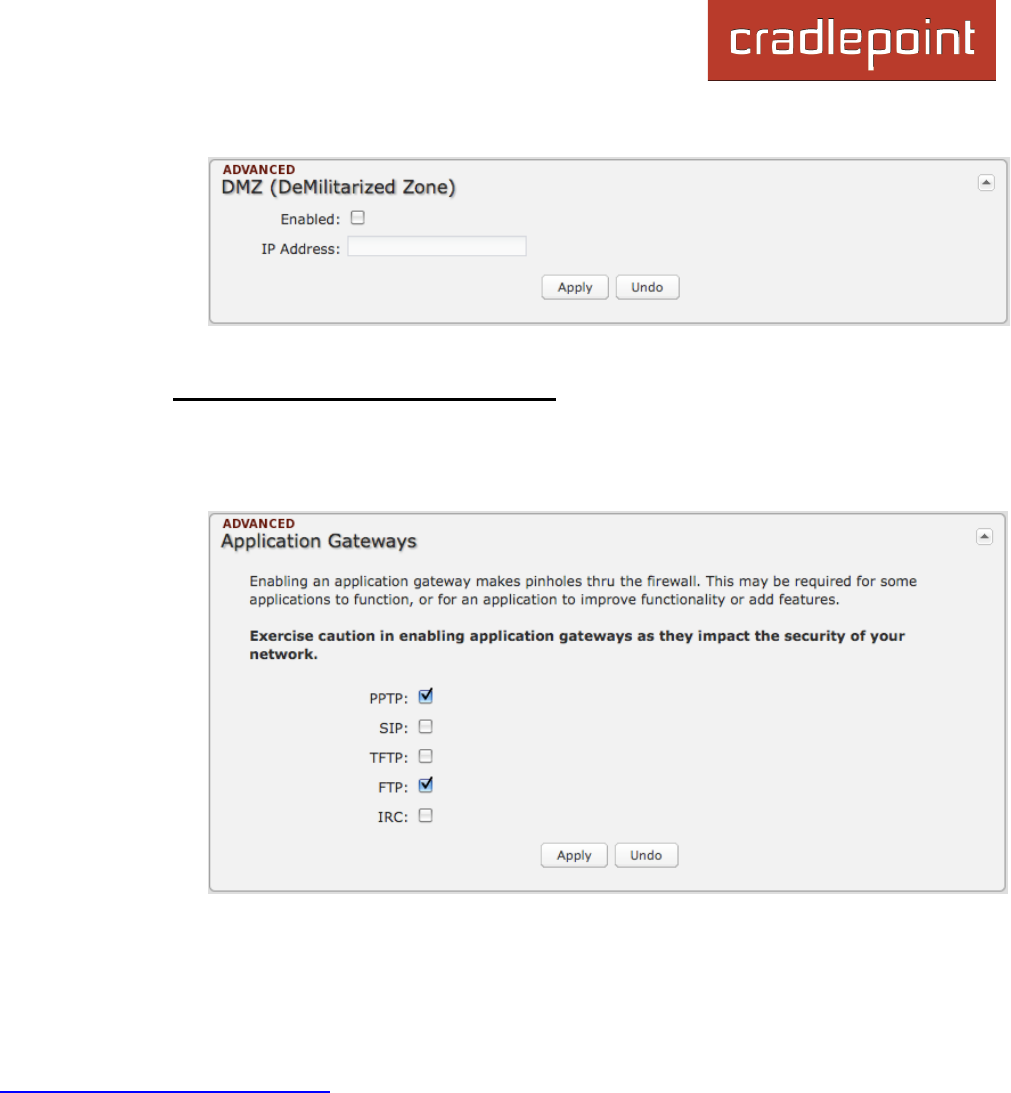

6.4 FIREWALL .......................................................................... 65

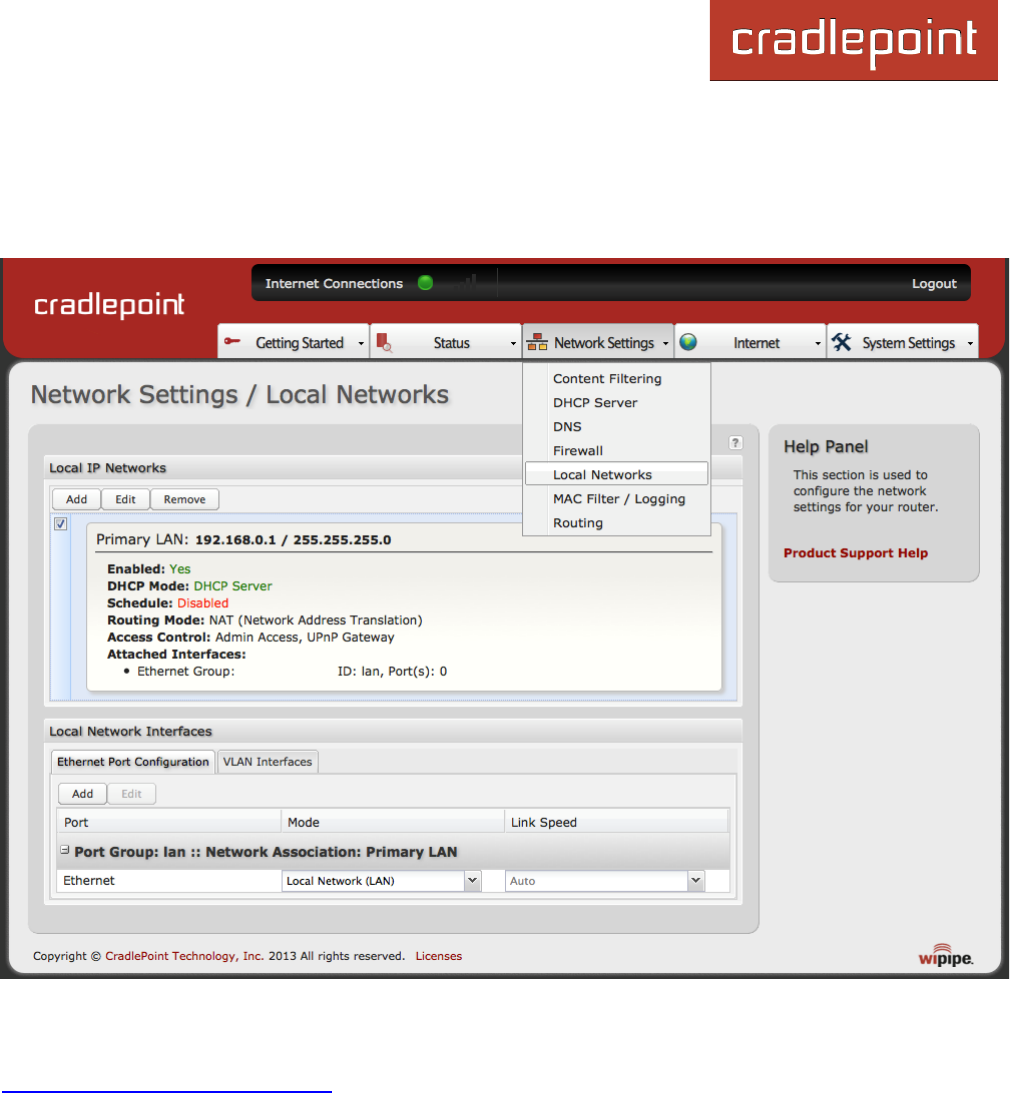

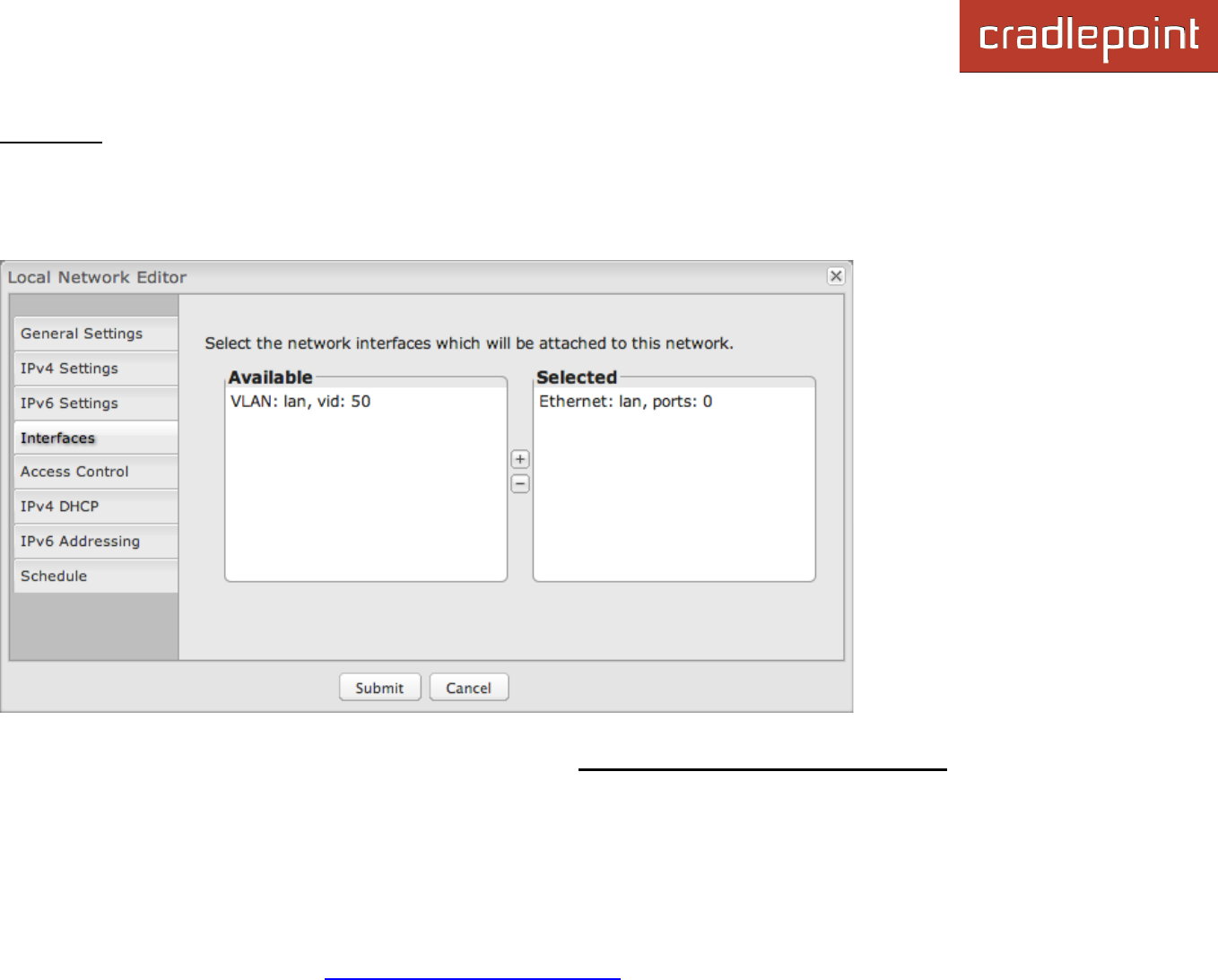

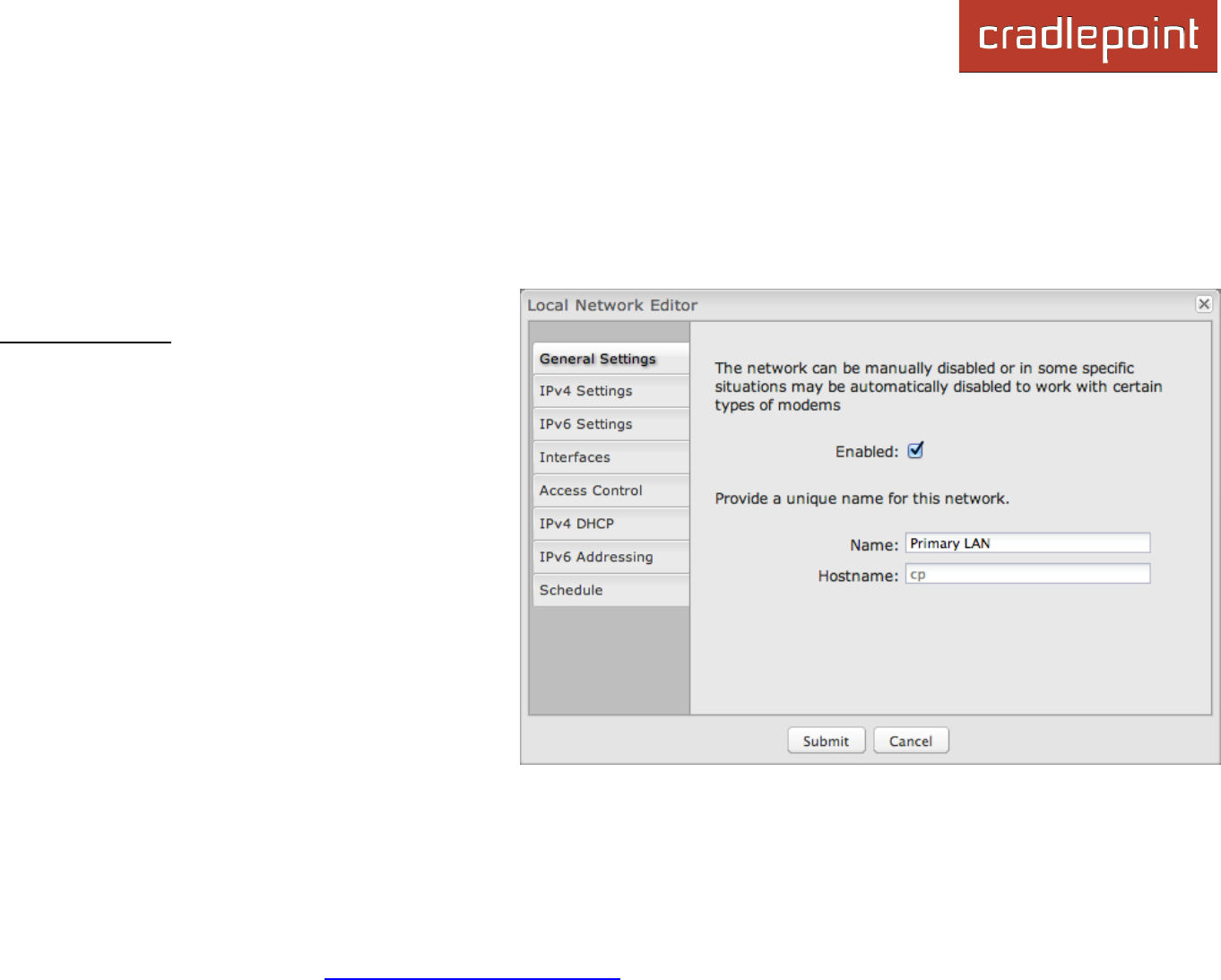

6.5 LOCAL NETWORKS .............................................................. 73

6.6 MAC FILTER / LOGGING ...................................................... 87

6.7 ROUTING .......................................................................... 89

7 INTERNET ........................................................................ 90

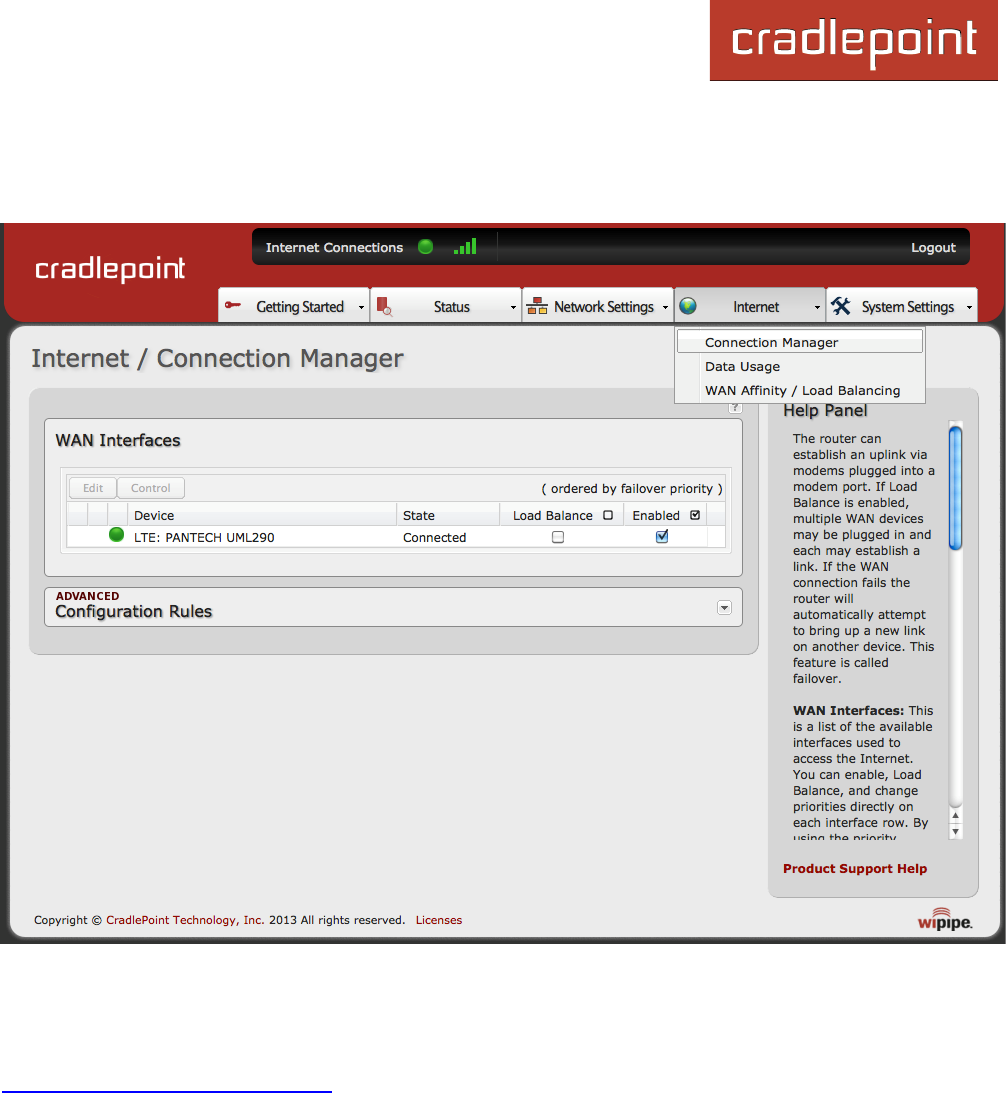

7.1 CONNECTION MANAGER ...................................................... 91

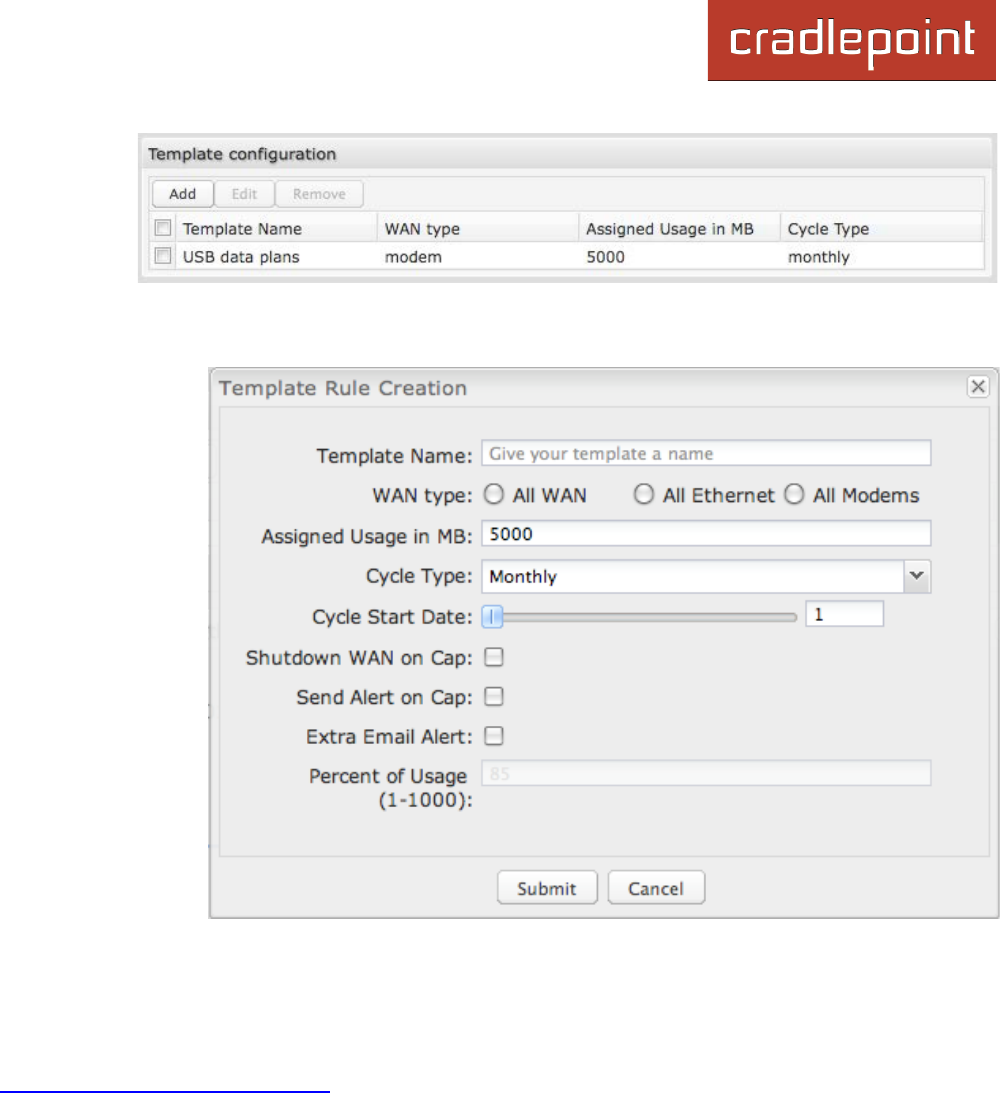

7.2 DATA USAGE ................................................................... 115

7.3 WAN AFFINITY AND LOAD BALANCING ................................. 119

8 SYSTEM SETTINGS ......................................................... 123

8.1 ADMINISTRATION ............................................................. 124

8.2 DEVICE ALERTS ................................................................. 141

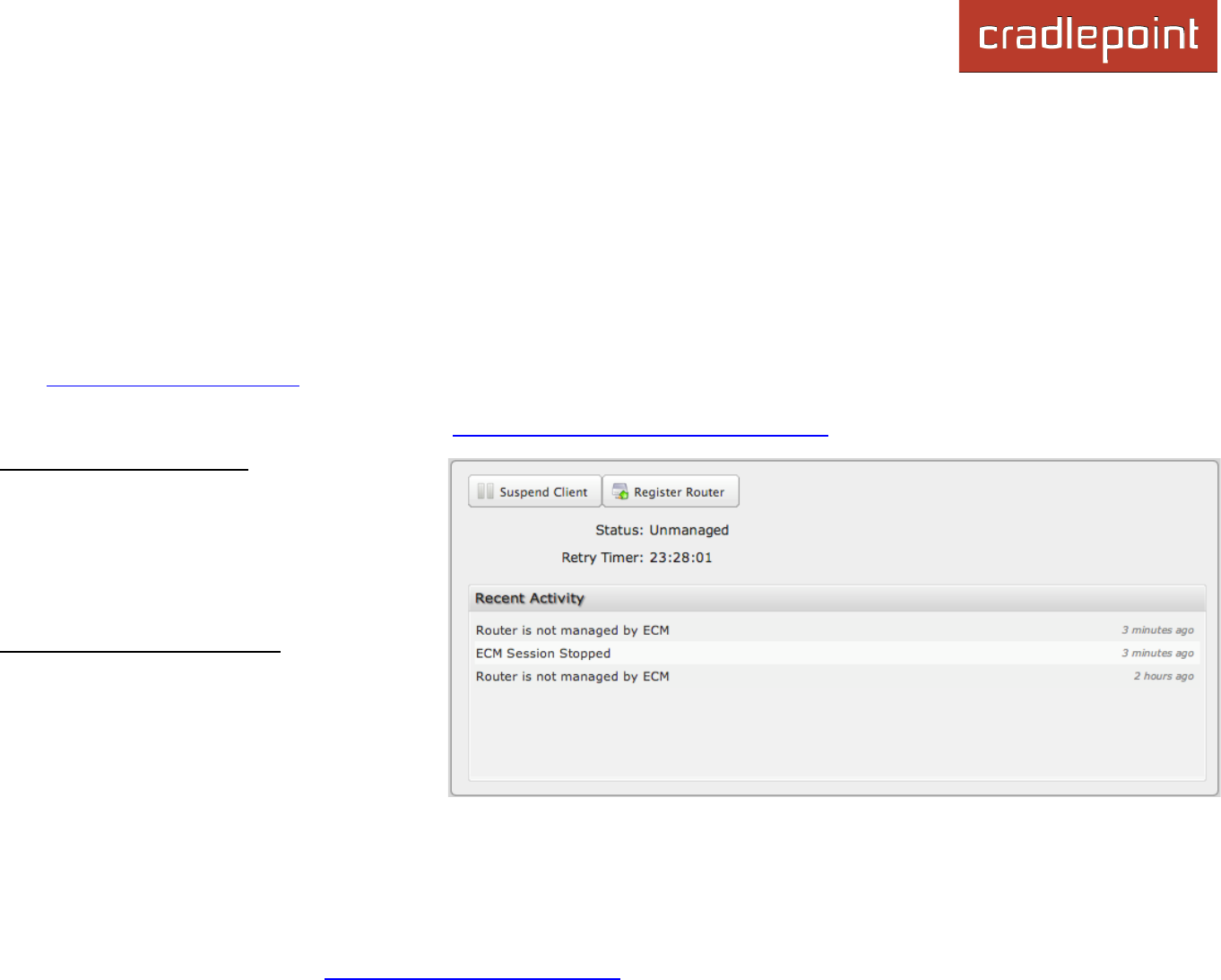

8.3 ENTERPRISE CLOUD MANAGER ............................................ 143

8.4 SERIAL REDIRECTOR ........................................................... 145

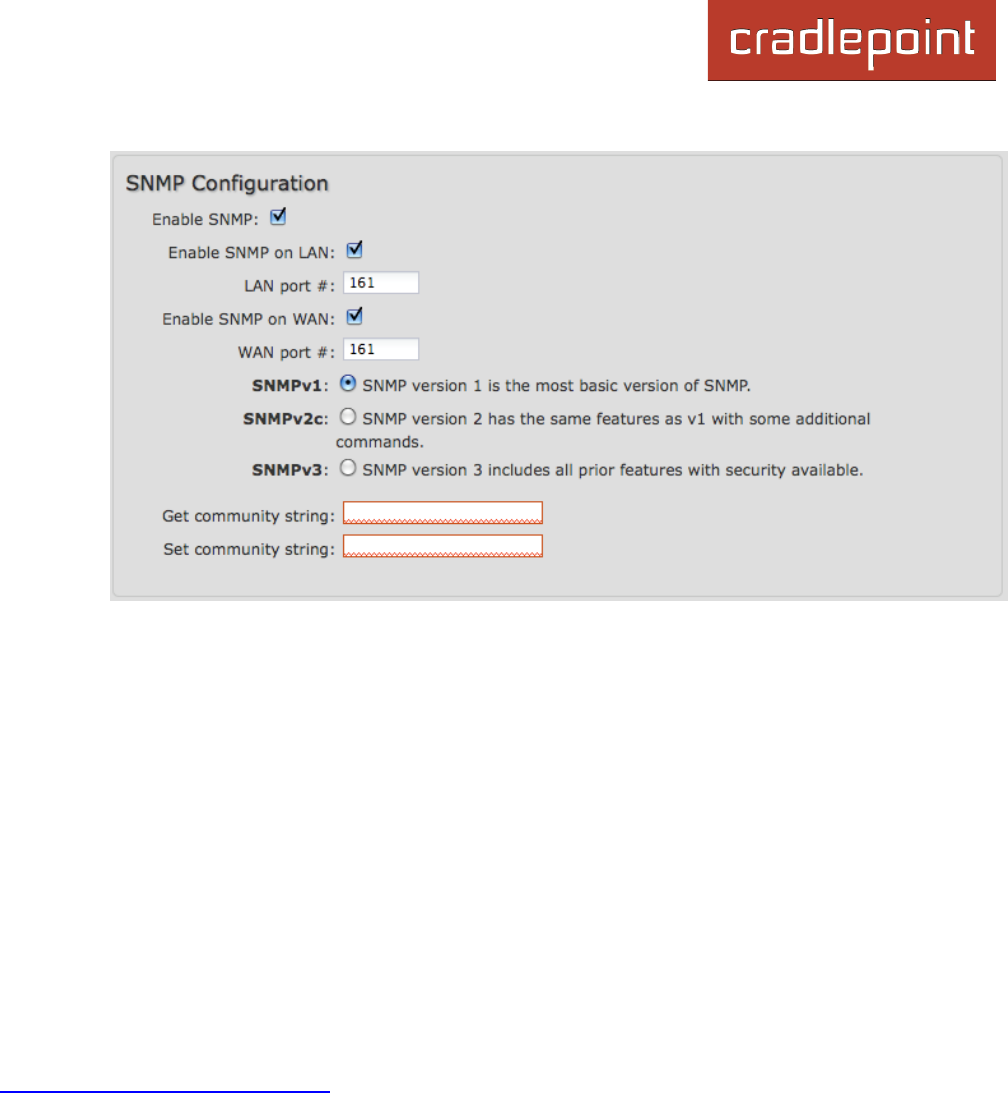

8.5 SNMP CONFIGURATION .................................................... 147

8.6 SYSTEM CONTROL ............................................................. 150

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

8.7 SYSTEM SOFTWARE ........................................................... 151

9 GLOSSARY..................................................................... 153

10 APPENDIX ..................................................................... 168

10.1 REGULATORY AND SAFETY INFORMATION ............................ 168

10.2 WARRANTY, LIABILITY, PRIVACY, ETC. ................................. 169

10.3 SPECIFICATIONS .............................................................. 170

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

1 INTRODUCTION

1.1 Package Contents

• CradlePoint Cellular Broadband Adapter (CBA750B)

• AC power adapter (12V, 1.5A) WARNING: using a power adapter other than the one provided may damage the

CBA750B and will void the warranty

• Mounting hardware

• CAT5 Ethernet cable

• Setup guide

• Optional: ARC Series includes integrated 3G/4G business-grade modem with modem antennas

o ARC CBA750B-LE – 4G LTE / EVDO for Verizon

o ARC CBA750B-LP-AT – 4G LTE / HSPA+ for AT&T

o ARC CBA750B-LP2-EU – 4G LTE / HSPA+ for Europe

o ARC CBA750B-LP – 4G LTE / HSPA+ for Canada

o ARC CBA750B-W – 4G WiMAX for Sprint or CLEAR

1.2 System Requirements

• An Internet source: a CradlePoint 3G/4G business-grade modem or broadband data modem (USB,

ExpressCard) with active subscription.

• Windows 2000/XP/7, Mac OS X, or Linux computer.

• Internet Explorer v6.0 or higher, Firefox v2.0 or higher, Safari v1.0 or higher.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

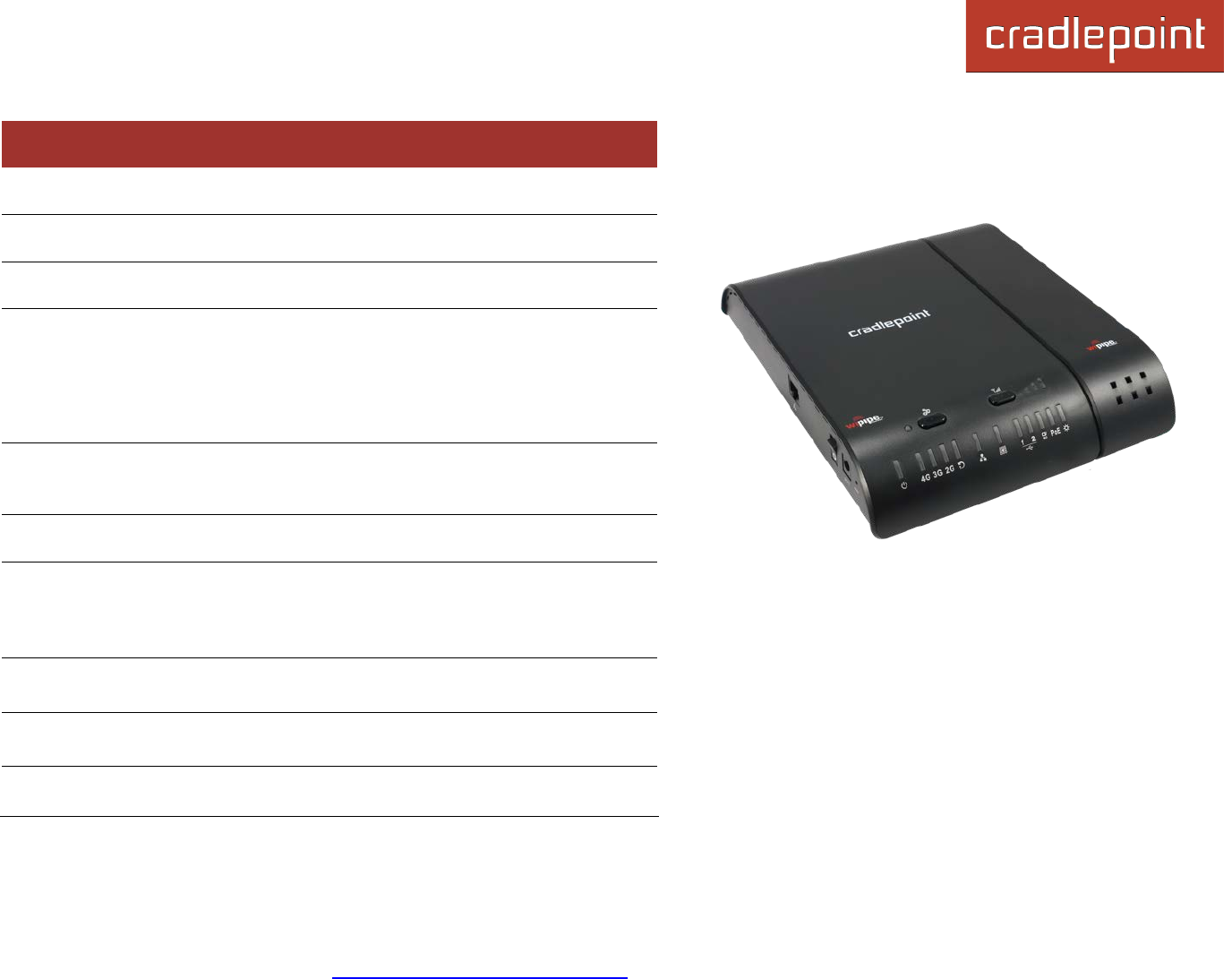

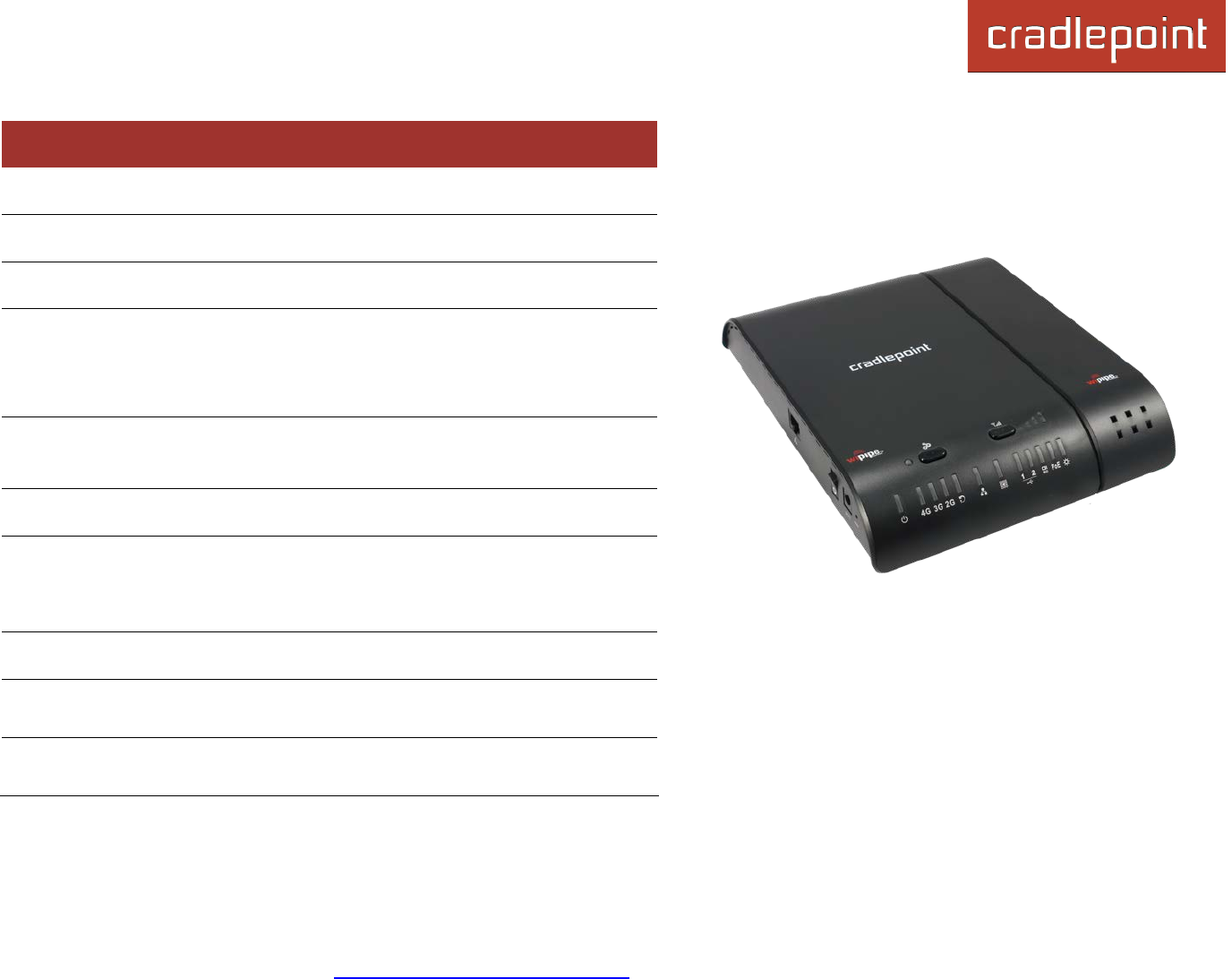

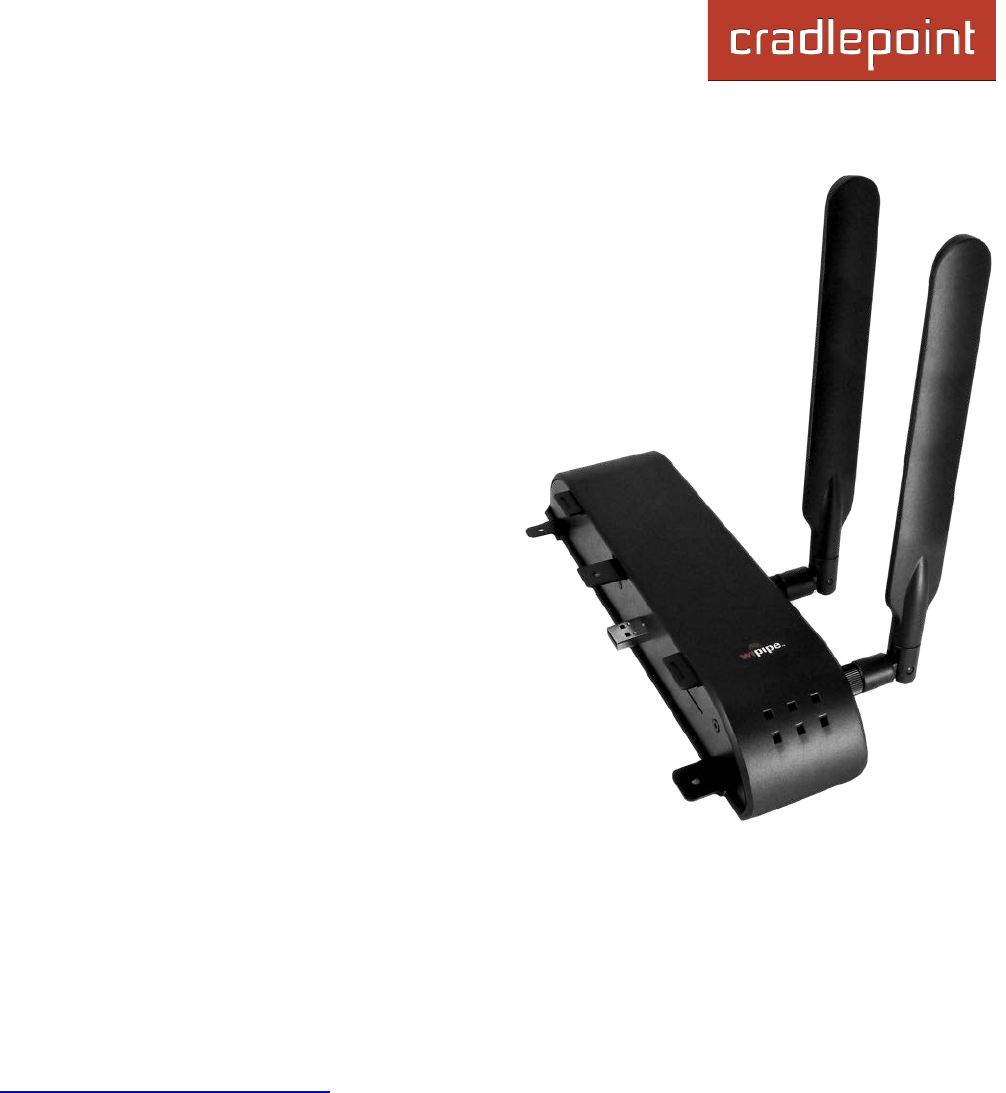

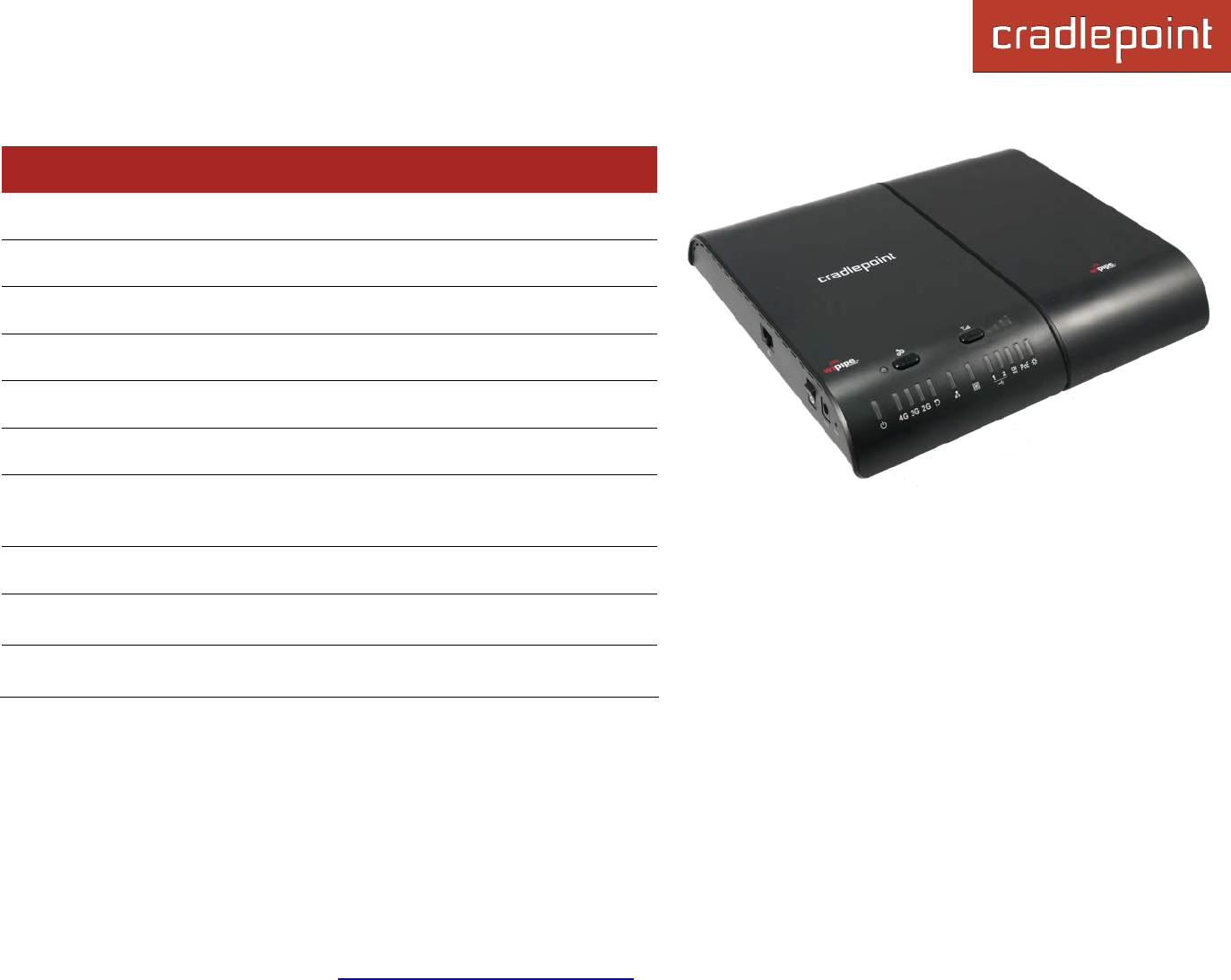

1.3 CBA750B Overview

WIRELESS WAN CONNECTIVITY

The CradlePoint CBA750B mobile broadband series adapters enable easy-to-install wireless WAN connectivity in fixed-

business locations. For distributed enterprises like branch offices, retail stores, restaurants, and small businesses, the

CBA750B provides 3G/4G wireless network connectivity to keep your business up and running.

FAILOVER MADE SIMPLE

The CradlePoint CBA750B 3G/4G cellular broadband adapter provides IP passthrough capabilities for any device that

requires wireless broadband access. For most applications, simply connect the CBA750B to an existing CPE router

configured for WAN failover, and it’s ready to go. The CBA750B handles the wireless WAN connection through a 3G/4G

modem (included with ARC models) when failover occurs.

PRIMARY CONNECT IS EASY TOO

For temporary networks – or when wired connections are impractical – the CBA750B can serve as a primary-connect

device, converting mobile broadband to Ethernet for point-of-sale tools, digital signs, and kiosks.

KEY FEATURES

• 3G/4G mobile broadband connectivity

• Drop into existing network for a turnkey failover solution

• Remote management capabilities

• Power-over-Ethernet

1.3.1 CradlePoint Enterprise Cloud Manager

Rapidly deploy and dynamically manage networks at geographically distributed stores and branch locations with

Enterprise Cloud Manager, CradlePoint’s next generation management and application platform. Enterprise Cloud

Manager integrates cloud management with your CradlePoint devices to improve productivity, increase reliability, reduce

costs, and enhance the intelligence of your network and business operations. Learn more at http://cradlepoint.com/ecm.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

1.3.2 CradleCare – Access the Experts 24/7

CradlePoint understands how important and critical network uptime is to your business. We have a knowledgeable

enterprise technical support staff that is available anytime via phone, chat, or email to protect your investment. Our

experts will expedite issue resolution and provide ﬂexible device-by-device solutions to help maximize operational

efﬁciency. This allows you to dedicate more time to what’s important: your business.

Support

• CradleCare Support Agreement: 24/7 technical support, software upgrades, and advanced hardware exchange –

1, 3, and 5 year options

• CradleCare Extended Warranty: extends the standard warranty to 3 or 5 years

On-Site Services

• CradleCare Standard 3G/4G Site Survey: Comprehensive carrier analysis for optimal performance

• CradleCare Standard Installation: Deploy the experts to ensure a successful installation

Learn more at http://www.cradlepoint.com/products/cradlecare.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

1.4 CradlePoint ARC CBA750B Series

ARC Series includes a CradlePoint 3G/4G business-grade modem with the CBA750B and creates an

effortless instant network from high-speed wireless broadband.

CradlePoint integrated business-grade modems are specifically designed to provide the highest level of

performance, reliability, and security for 24x7 business-critical applications. Modems can be located and

oriented to receive the highest signal strength.

All models discontinued as of 3/1/16:

• ARC CBA750B-LE-VZ – 4G LTE/EVDO for Verizon

• ARC CBA750B-LP-AT – 4G LTE/HSPA+ for AT&T

• ARC CBA750B-LP2-EU – 4G LTE/HSPA+ for Europe

• ARC CBA750B-LP – 4G LTE/HSPA+ for AT&T

• ARC CBA750B-W – 4G WiMAX for Sprint or CLEAR

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

CBA750B-LE-VZ 4G LTE/EVDO for Verizon

Technology: LTE, EVDO Rev A

Downlink Rates: LTE 100 Mbps, EVDO 3.1 Mbps (theoretical)

Uplink Rates: LTE 50 Mbps, EVDO 1.8 Mbps (theoretical)

Frequency Band:

• LTE Band 13 (700 MHz)

• CDMA EVDO Rev A/1xRTT (800/1,900 MHz)

Power: LTE 23 +/− 1 dBm, EVDO 24 +/− 1 dBm (typical

conducted)

Module: Sierra Wireless MC7750

Antennas: two SMA male (plug), 1 dBi (LTE), 2 dBi

(Cellular/PCS) gain; finger tighten only; maximum torque spec is 7

kgf-cm

GPS: standalone GPS support

Industry Standards & Certs: FCC, Verizon

Modem Model Number: MC200LE

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

CBA750B-LP-AT 4G LTE/HSPA+ for AT&T

Technology: LTE, HSPA+

Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps (theoretical)

Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps (theoretical)

Frequency Band:

• LTE Band 17 (700MHz), Band 4 (AWS)

• HSPA+/ UMTS (850/1900/2100 MHz)

•

GSM/GPRS/EDGE (850/900/1800/1900 MHz)

Module Power: LTE 23 +/− 1 dBm, UMTS 23 +/− 1 dBm (typical

conducted)

Module: Sierra Wireless MC7700

Antennas: two SMA male (plug), 1 dBi (LTE), 2 dBi

(Cellular/PCS) gain; support for GPS on aux connection; finger

tighten only

GPS: standalone GPS support

Industry Standards & Certs: PTCRB, FCC, IC, AT&T

Modem Model Number:

MC200LP

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

CBA750B-LP2-EU 4G LTE/HSPA+ for Europe

Technology: LTE, HSPA+

Downlink Rates: LTE 50 Mbps, HSPA+ 21.1 Mbps (theoretical)

Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps (theoretical)

Frequency Bands:

• LTE (800/900/1800/2100/2600 MHz)

• HSPA+/UMTS (900/2100 MHz)

•

EDGE/GPRS/GSM (900/1800/1900 MHz)

Module Power: LTE 23 +/− 1 dBm, UMTS 23 +/− 1 dBm (typical

conducted)

Module: Sierra Wireless MC7710

Antennas: two SMA male (plug), 1 dBi (LTE), 2 dBi

(Cellular/PCS) gain; support for GPS on aux connection; finger

tighten only

GPS: standalone GPS support

Industry Standards & Certs: CE, GCF-CC

Modem Model Number:

MC200LP2

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

CBA750B-LP 4G LTE/HSPA+ for Canada

Technology: LTE, HSPA+

Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps (theoretical)

Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps (theoretical)

Frequency Band:

• LTE Band 17 (700MHz), Band 4 (AWS)

• HSPA+/ UMTS (850/1900/2100 MHz)

•

GSM/GPRS/EDGE (850/900/1800/1900 MHz)

Module Power: LTE 23 +/− 1 dBm, UMTS 23 +/− 1 dBm (typical

conducted)

Module: Sierra Wireless MC7700

Antennas: two SMA male (plug), 1 dBi (LTE), 2 dBi

(Cellular/PCS) gain; support for GPS on aux connection; finger

tighten only

GPS: standalone GPS support

Industry Standards & Certs: PTCRB, FCC, IC

Modem Model Number:

MC200LP

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

CBA750B-W 4G WiMAX for Sprint or Clear

Technology: WiMAX 802.16e Wave 2

Downlink Rates: 10M bps peak, 6 Mbps average

Uplink Rates: 5 Mbps peak, 1.2 Mbps average

Frequency Band: 2,500 MHz band

Power: 23.5 +/− 0.5 dBm (RSU/CPE)

Module: Beceem 250 chipset

Antennas: two SMA male (plug), 5 dBi gain, finger tighten only;

maximum torque spec is 7 kgf-cm

GPS: no GPS support

Industry Standards & Certs: FCC, Sprint; CLEAR

Modem Model Number: MC100W

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

2 HARDWARE OVERVIEW

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

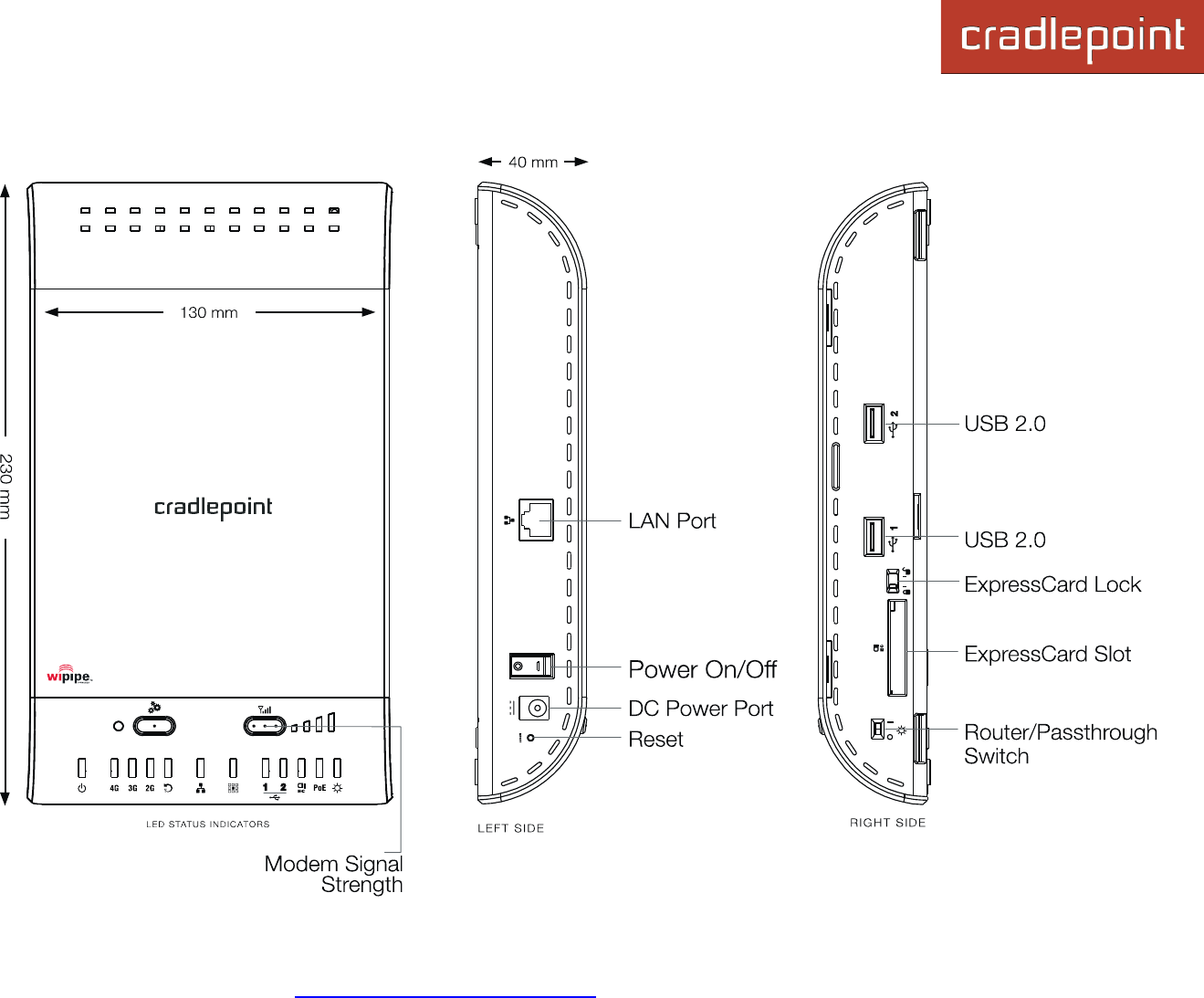

2.1 Ports, Buttons, and Switches

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

Modem Signal Strength: The bar LEDs indicate the signal strength from the active 3G/4G modem (CradlePoint

business-grade modem or USB/ExpressCard modem). Pushing this button toggles the display on and off. The signal

strength is shown for 10 seconds if the modem does not support concurrent data connection and signal strength

measurement. A blinking LED indicates ½ bar.

LAN Port: The CBA750B has one Ethernet port for a local network connection. Use this for connectivity and also for

Power-over-Ethernet (optional).

Power On/Off:

• I = On

• O = Off

DC Power Port: Attach the included power supply.

Reset: Return your CBA750B to factory default settings by pressing and holding the Reset button. This button is

recessed, so it requires a pointed object such as a paper clip to press. Press and hold for 10 seconds to initiate reset. This

erases configuration changes and resets the administrator password to the Default Password found on the product label.

USB/ExpressCard Modem Ports: The CBA750B has two USB 2.0 ports and one ExpressCard port.

Router/Passthrough Switch:

• I = Passthrough mode – Forces complete IP passthrough configuration.

• O = Router mode – Allows normal configuration options for the router.

The CBA750B ships with the Router/Passthrough Switch set to IP passthrough mode. In IP passthrough mode, all

of the following settings are pushed to the router:

• Load balance is disabled; the highest priority WAN device is used.

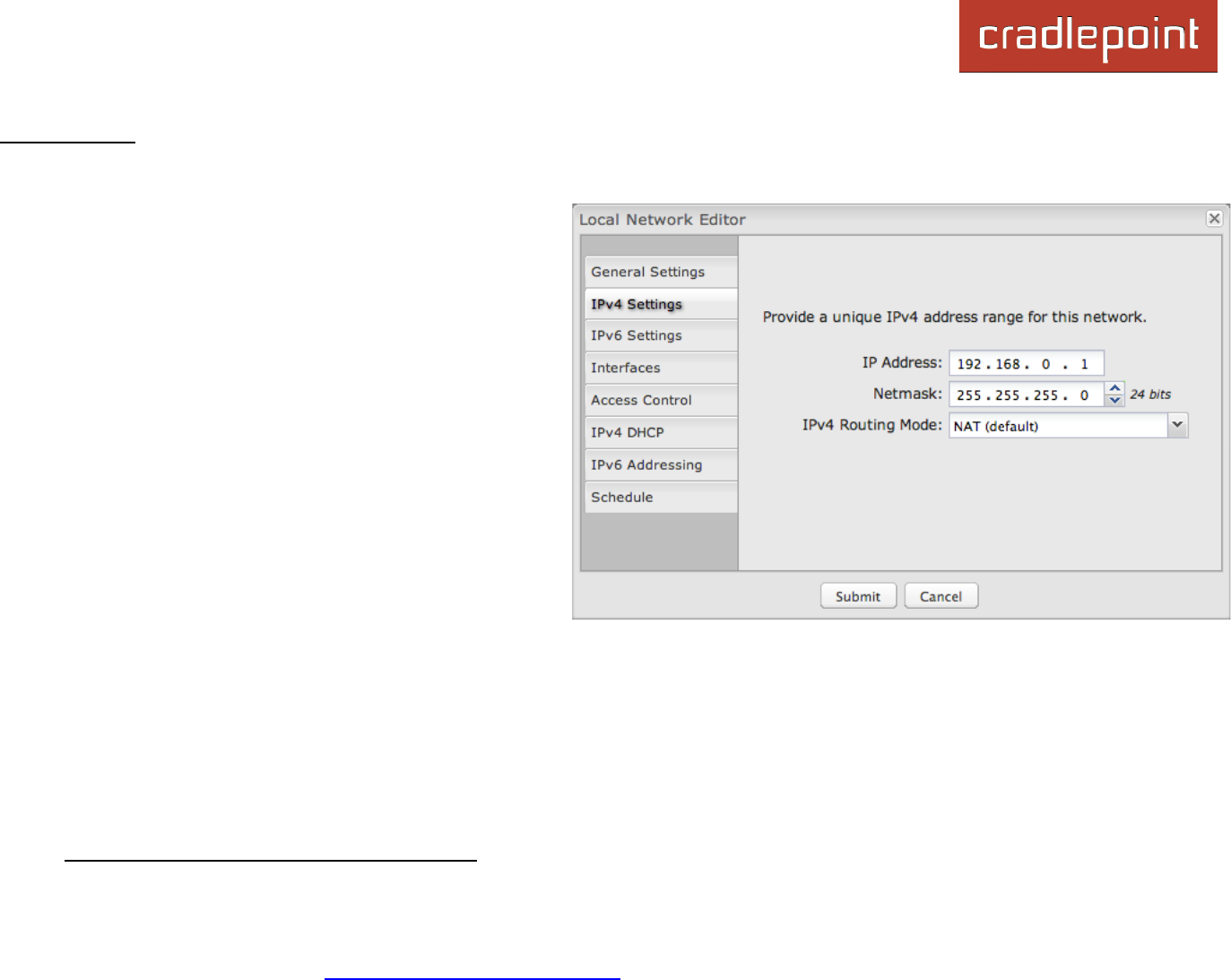

• The Routing Mode is set to IP Passthrough. (Network Settings → Local Networks in the “Local Network Editor”

under “IP Settings”)

• The Subnet Selection Mode is set to “Automatically Create Subnet”. (Network Settings → Local Networks in the

“Local Network Editor” under “IP Settings” – shows when IP Passthrough is set as the Routing Mode)

• If you have created secondary networks, they are disabled: only the primary LAN is enabled.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

2.2 LEDs

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

3 QUICK START

3.1 Basic Setup

1) Connect a CradlePoint business-grade modem or USB/ExpressCard wireless broadband data modem with an

active subscription.

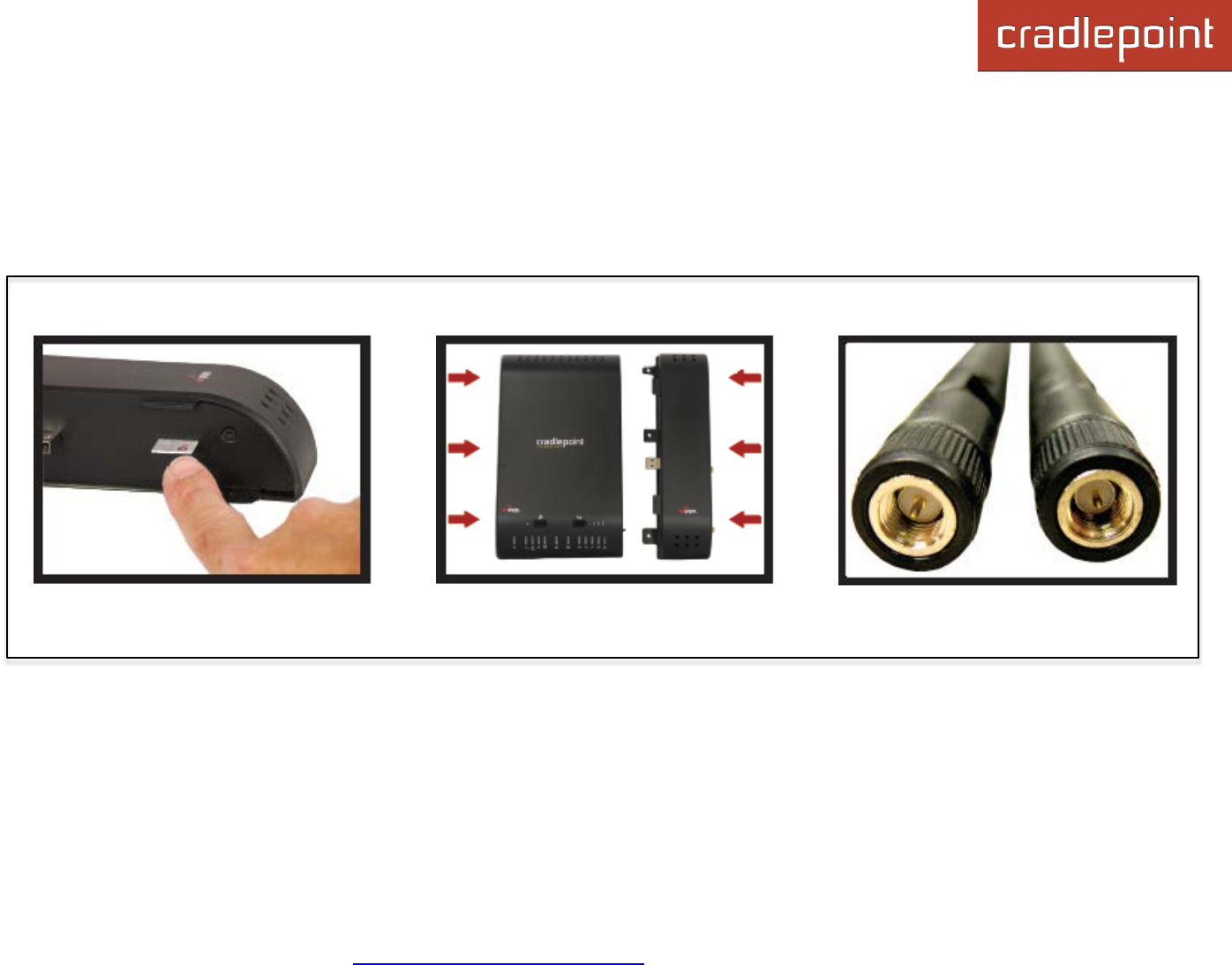

Integrated Business-Grade Modem (Optional)

A) Purchase a data plan. Insert SIM

if model requires.

B) Connect modem to CBA750B.

Insert screws on backside.

C) Insert antennas (finger tight

only).

2) Connect the 12v DC power adapter to the router and a power source.

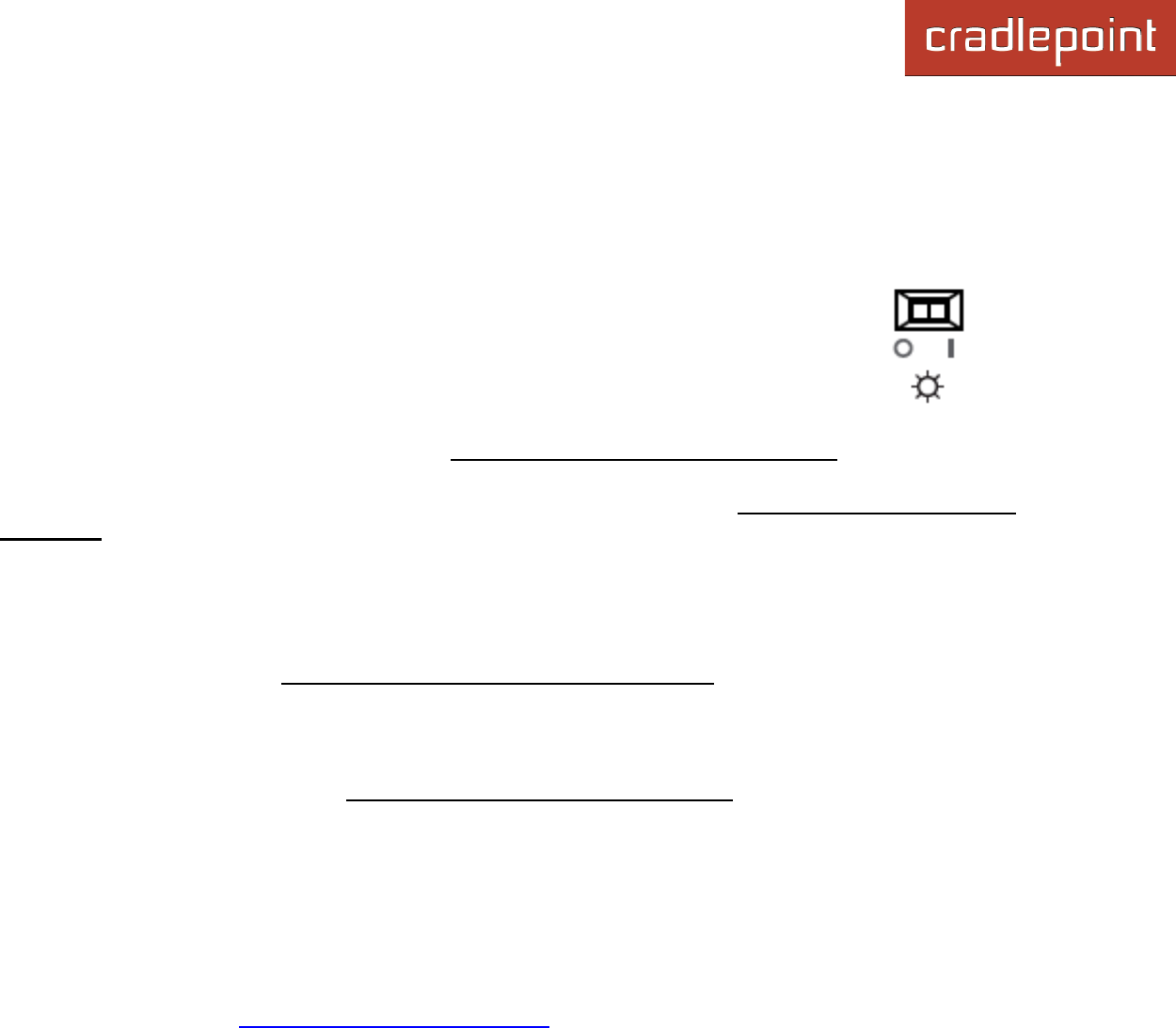

3) Flip the power switch to the ON position; this illuminates the green Power Status LED.

• O = off

• I = on

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

3.2 Accessing the Administration

Pages

The CBA750B can be used immediately

without any configuration changes, but to

configure any of the advanced features of

the CBA750B, you need to log into the

administration pages:

• Access your router’s Administrator

Login screen by opening a web

browser window and typing “cp/”

(your router’s default hostname) or

the IP address “192.168.0.1” into the

address bar.

• Enter your Default Password. This password can be

found on the bottom of the CBA750B. Then click the

LOGIN button.

• When you log in for the first time, you will be

automatically directed to the First Time Setup

Wizard. Follow the instructions given with the Wizard

or see Getting Started – First Time Setup for more

information about using the First Time Setup

Wizard.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

3.3 Common Problems

This section contains some of the most common issues faced by users of the CBA750B.

Please visit CradlePoint Knowledge Base at http://knowledgebase.cradlepoint.com/ for more help and answers to your

other questions.

3.3.1 You Cannot Connect to the Internet with a CradlePoint business-grade modem

Make sure that you have an active data plan and that your modem has been activated. A wireless broadband data plan

must be added to your business-grade modem. Wireless broadband data plans are available from wireless carriers such

as Verizon, AT&T, and Sprint. A new line of service can be added or a data plan can be transferred from an existing

account. You will need the ESN number (or SIM/IMEI number depending on your carrier plan) from the product label on

your modem to add or transfer a line of service.

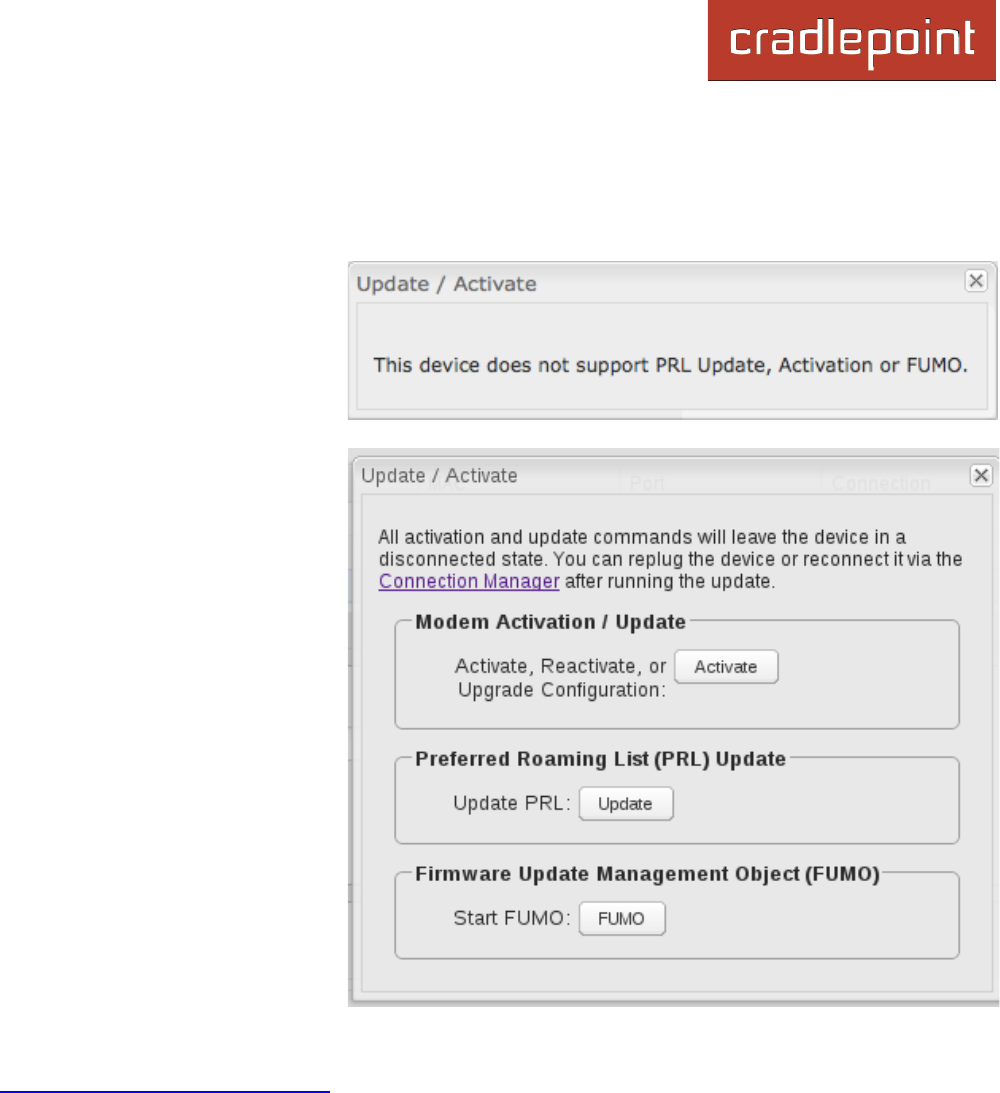

After adding a data plan to the modem, you may need to activate the modem:

1. Log in to the CBA750B administration pages (see Accessing the Administration Pages).

2. Select Internet from the top navigation bar and Modem Settings from the dropdown menu (Internet → Modem

Settings).

3. Find and select the CradlePoint modem.

4. Click Update/Activate.

5. Click Activate in the popup.

Finally, if you have an active data plan and you have already activated your modem, you may be out of range of your

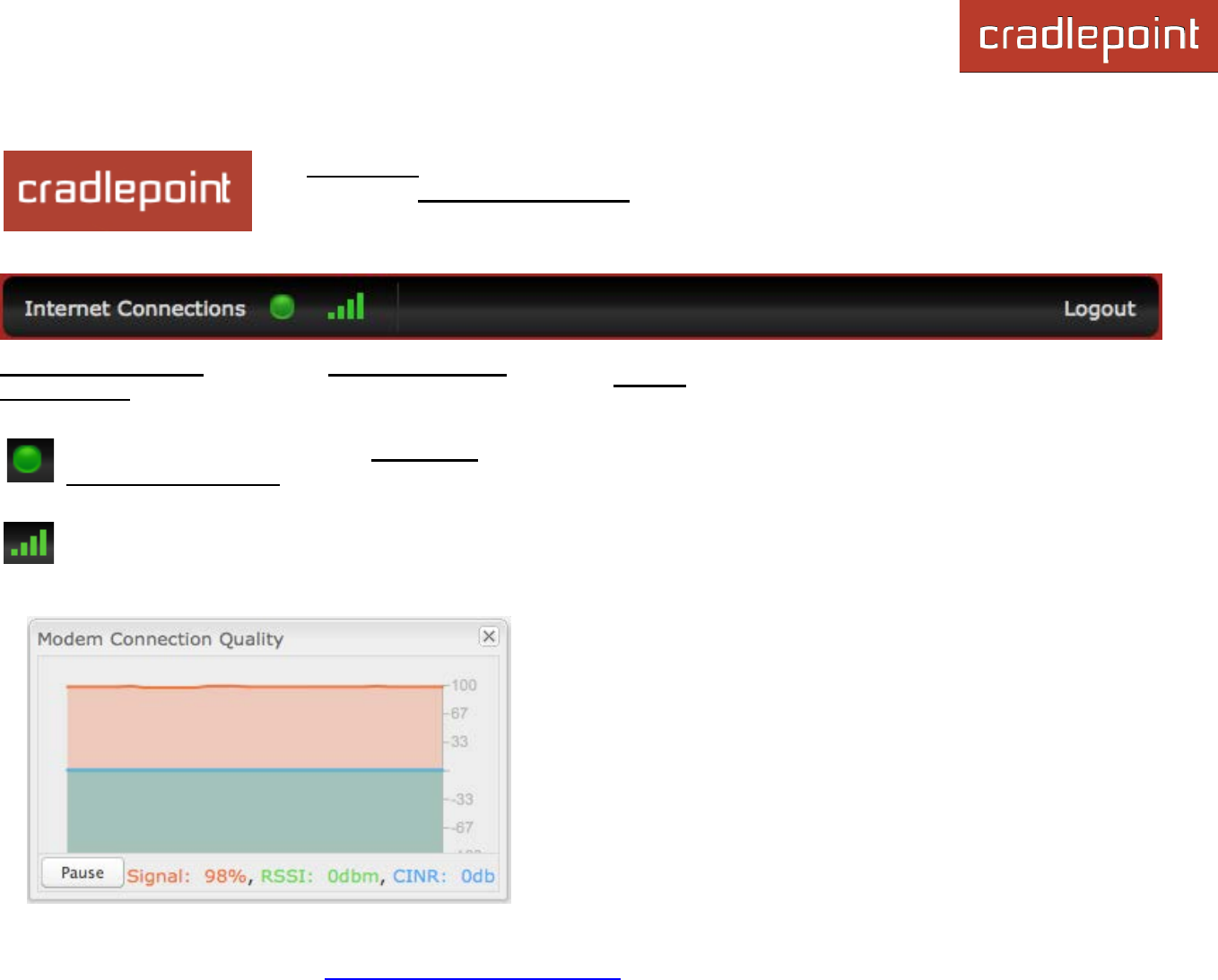

service provider. Check your signal strength in the Internet section of the Dashboard (Status → Dashboard). If you have

a weak signal in your location, contact your service provider.

If you are still not online after activating the modem, call CradlePoint Technical Support for further assistance.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

3.3.2 Your USB or ExpressCard Modem Does Not Work With the Router

• If your USB or ExpressCard modem is not working with the router, check the list of supported devices at

http://www.cradlepoint.com/modems to ensure you are using a supported device and carrier. The device you are

using must be supported on the carrier network providing your cellular service or it’s considered an unsupported

device, even if it is supported on another carrier’s network.

• Sometimes a USB data modem needs to be updated or have other configurations set correctly in order to make a

connection through the router. If your USB Modem has not been updated recently, it is recommended that you do

so if it is having trouble connecting to the CBA750B. Insert your USB data modem into your PC and access the

Internet using the software provided by your cellular carrier. Follow the directions provided to complete the update.

Once you have updated your USB data modem, reconnect the cellular device to your CradlePoint router and

connect to the Internet.

• If you are using a WiMAX modem, you need to set the WiMAX Realm. This can be done in the administration

pages. Log in using the hostname “cp/” or IP address “http://192.168.0.1” in your browser. Go to Internet →

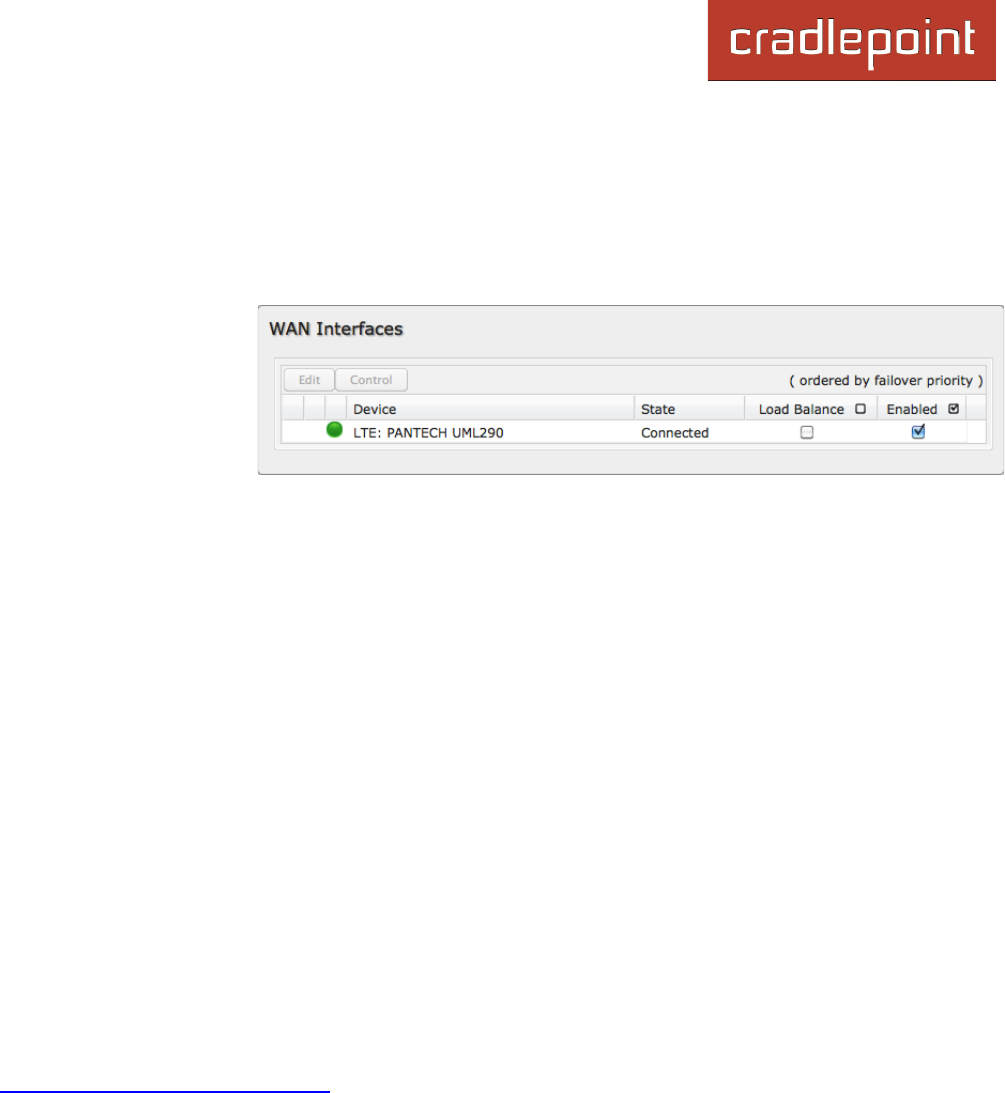

Connection Manager. In the WAN Interfaces section, select your modem and click “Edit.” Select the WiMAX

Settings tab and select/input your WiMAX Realm.

• Some wireless carriers provide more than one Access Point Name (APN) that a modem can connect to. If you wish

to specify the APN, this can be done on the administration pages. Log in using the hostname “cp/” or IP address

“http://192.168.0.1” in your browser. Go to Internet → Connection Manager. In the WAN Interfaces section,

select your modem and click “Edit.” Select the SIM/APN Settings tab. There is an Access Point Name field: Set

the APN and click Submit. Some APN examples are isp.cingular, ecp.tmobile.com, and vpn.com. The modem

must be removed and reinserted (or the router must be rebooted) for this change to take effect.

• If the above issues have been resolved and you can connect to the router but you cannot get Internet through it

using your modem, you may need to upgrade the router firmware. Use your computer (you may need to plug your

modem directly into your computer if you don’t have another way to access the Internet) to download the latest

firmware for the router at http://www.cradlepoint.com/firmware/CBA750B. Then log into the router administration

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

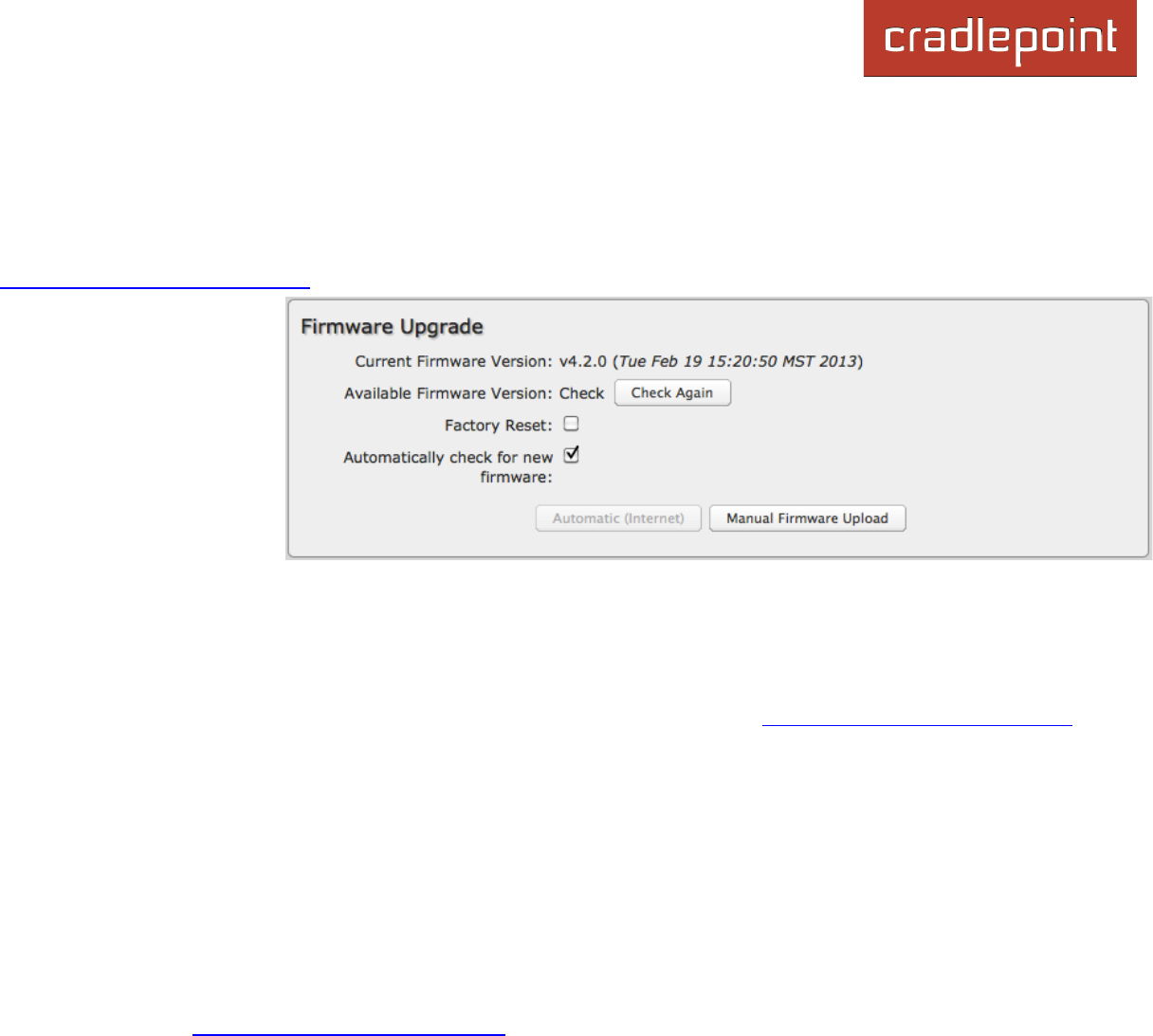

pages and manually upload the firmware. Go to System Settings → System Software and click on “Manual

Firmware Upload”.

If you are still unable to access the Internet after following the above directions, contact CradlePoint Technical Support for

further assistance.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

4 WEB INTERFACE -- ESSENTIALS

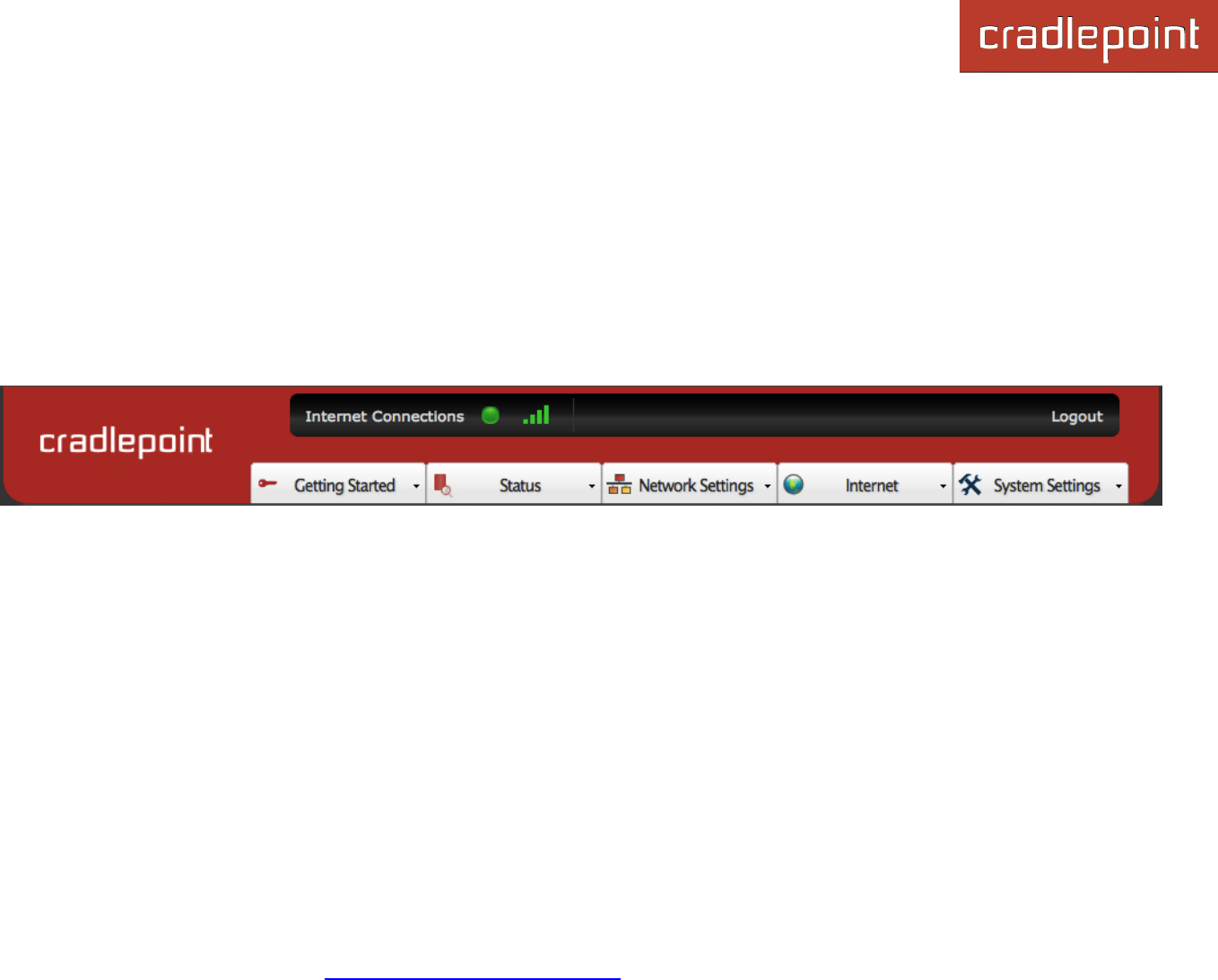

The CBA750B has a Web interface for configuration and administration of all features. The interface is organized with 5

tabs at the top of the screen:

• Getting Started

• Status

• Network Settings

• Internet

• System Settings

Web Interface – Essentials contains the following sections to help you more quickly and easy navigate these

administration pages:

4.1 Administrator Login

4.2 Getting Started – First Time Setup

4.3 Quick Links

4.4 Configuration Pages

4.5 IP Passthrough Setup

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

4.1 Administrator Login

To access the administration pages, open a Web browser and type the hostname “cp/” or IP address “http://192.168.0.1”

into the address bar. The Administrator Login page will appear.

Log in using your administrator password. Initially, this password can be found on the bottom of the CBA750B unit as the

Default Password. This password is also the last eight digits of the unit’s MAC address.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

You may have changed the administrator password during initial setup using the First Time Setup Wizard. Log in using

your personalized administrator password.

If you have forgotten your personalized password, you can reset the CBA750B to factory defaults. When you reset the

router, the administrator password will revert back to the Default Password. Press and hold the reset button on the

router unit until the lights flash (approximately 10-15 seconds). You can then log in using the Default Password.

4.1.1 Router Details

The Administrator Login page includes a quick-reference section that shows the following information:

Router Details

• Model Number: CBA750B

• Internet Connection: Connected/Disconnected

Modem Details

• Manufacturer: The name of the modem manufacturer (CradlePoint, Novatel, etc.).

• Model: The name of the modem model.

• Signal: The strength of the signal (dBm).

• Mode: (LTE, EVDO, HSPA, etc.)

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

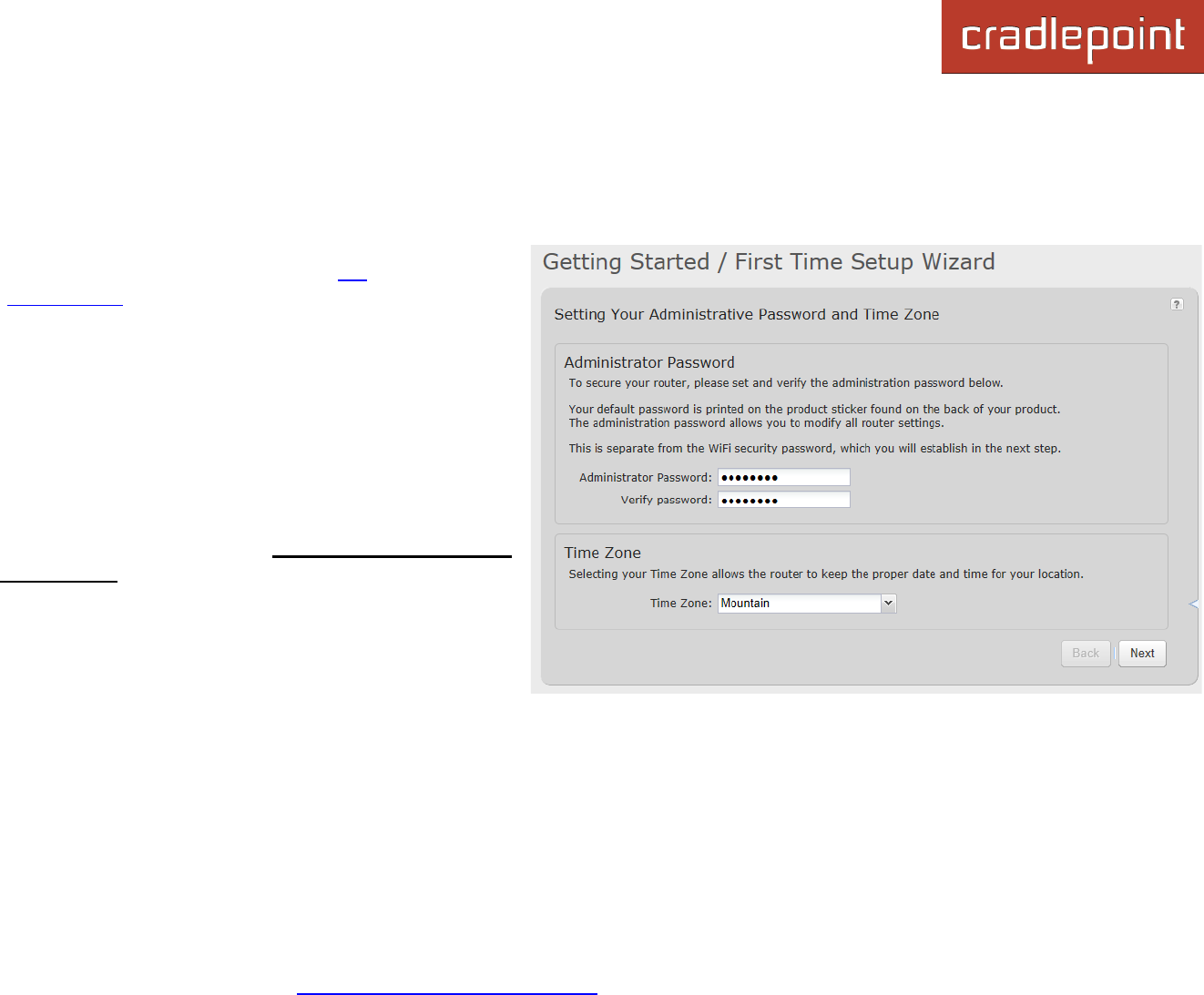

4.2 Getting Started – First Time Setup

The First Time Setup Wizard will help you configure your APN and failure check settings and change your administrator

password to something you choose.

1) Open a browser window and type “cp/” or

“192.168.0.1” into the address bar. Press

enter/return.

2) When prompted for your password, type the eight

character Default Password found on the product

label on the bottom of the CBA750B (this is also the

last 8 digits of the router’s MAC address).

3) When you log in for the first time, you will be

automatically directed to the FIRST TIME SETUP

WIZARD. (Otherwise, go to Getting Started → First

Time Setup).

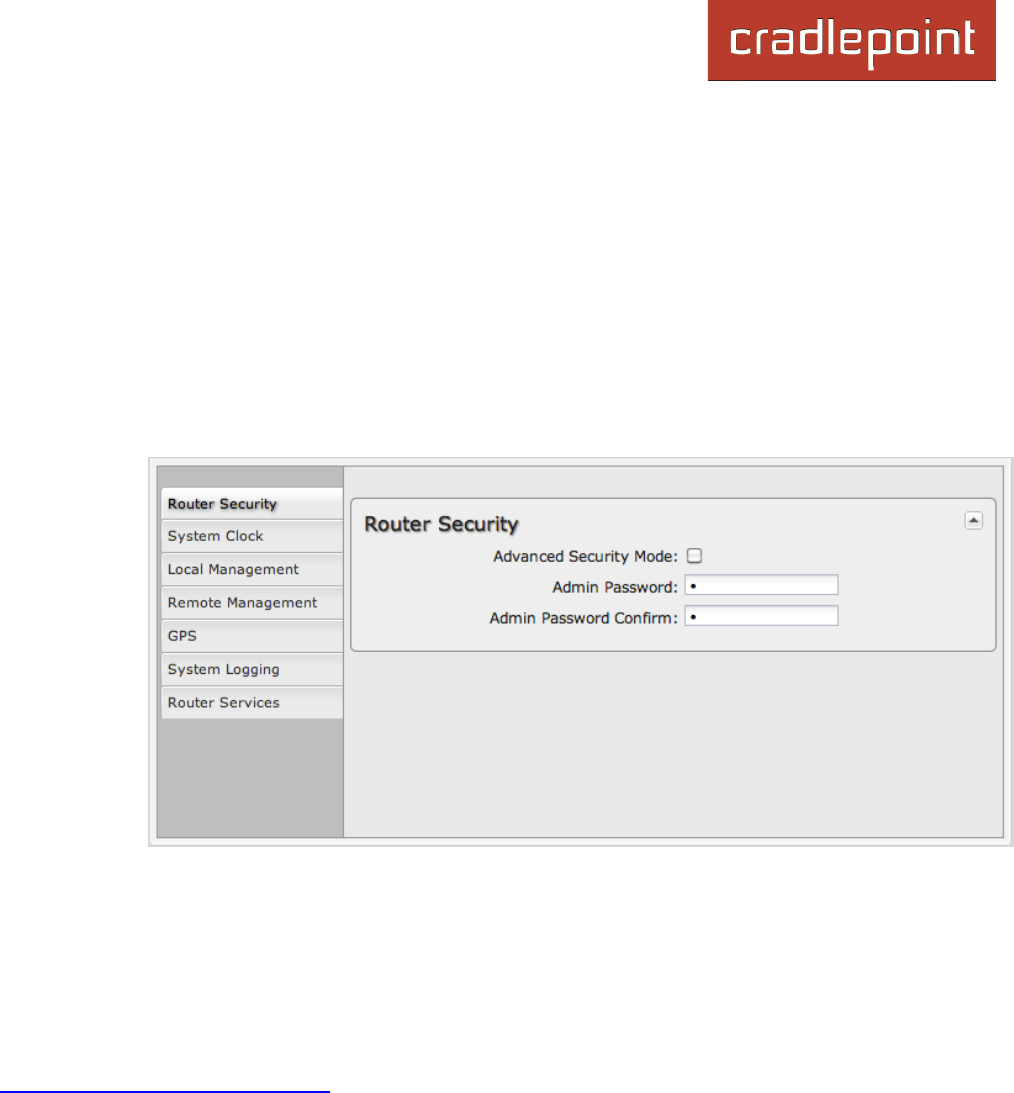

4) CradlePoint recommends that you change the

router’s ADMINISTRATOR PASSWORD, which is

used to log in to the administration pages.

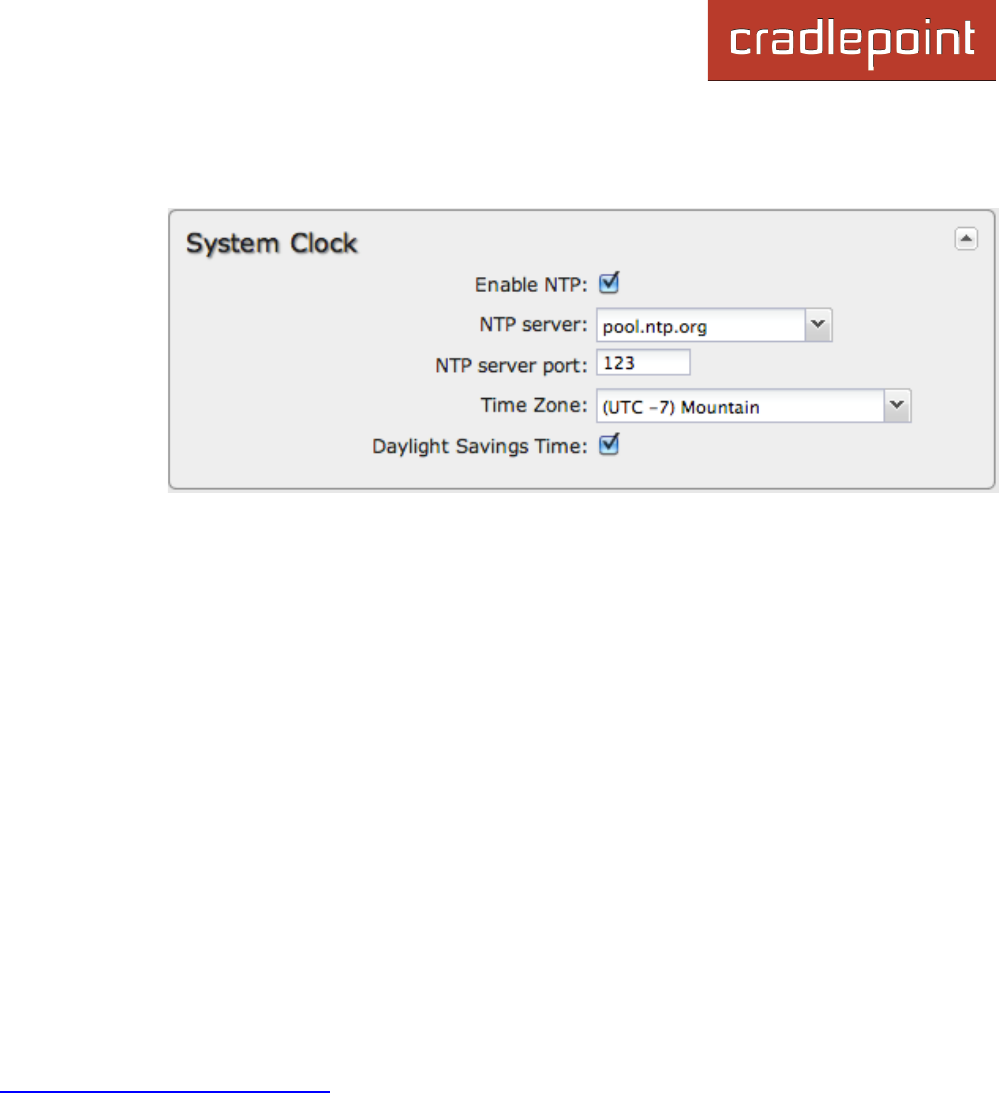

5) You can select your TIME ZONE from a dropdown list. (This may be necessary to properly show time in your router

log, but typically your router will automatically determine your time zone through your browser.) Click NEXT.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

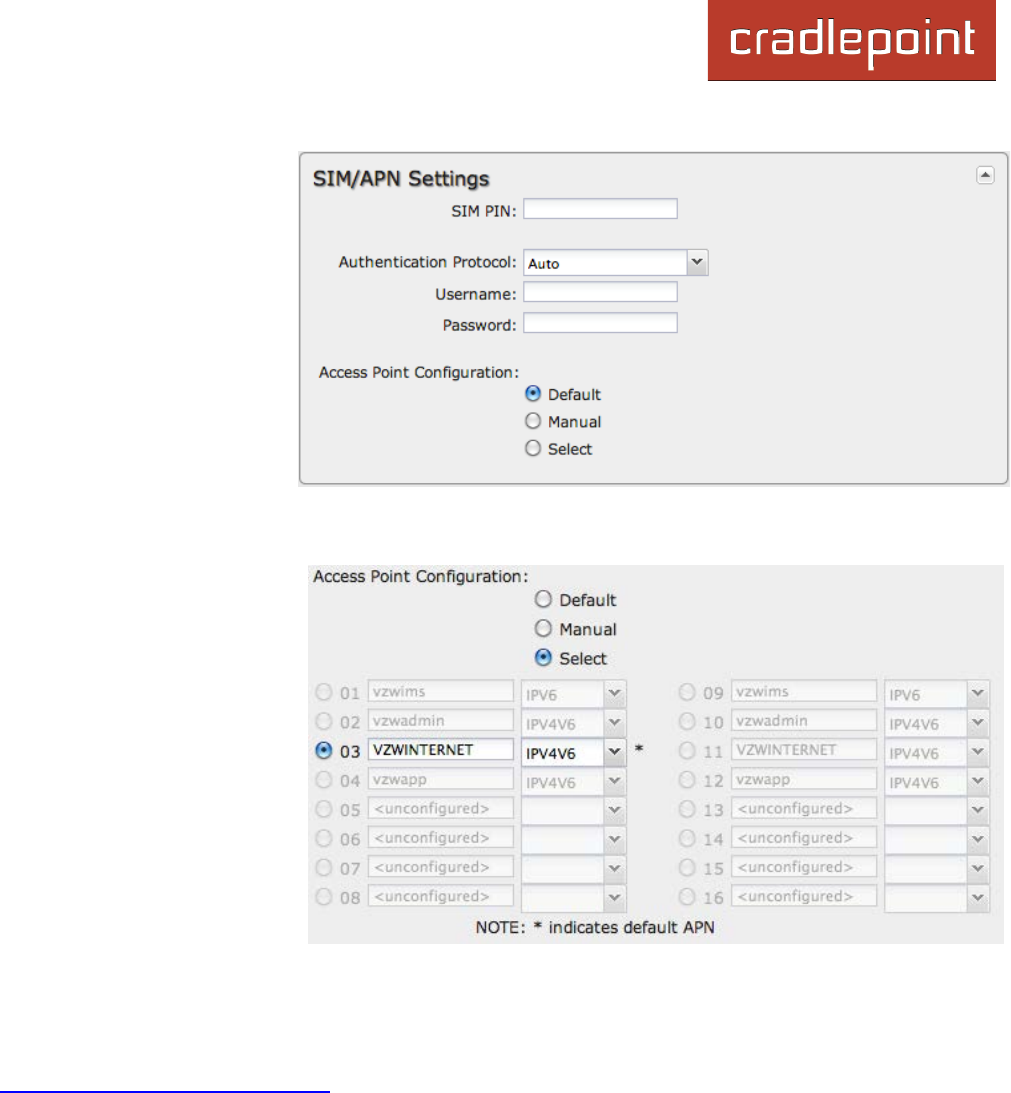

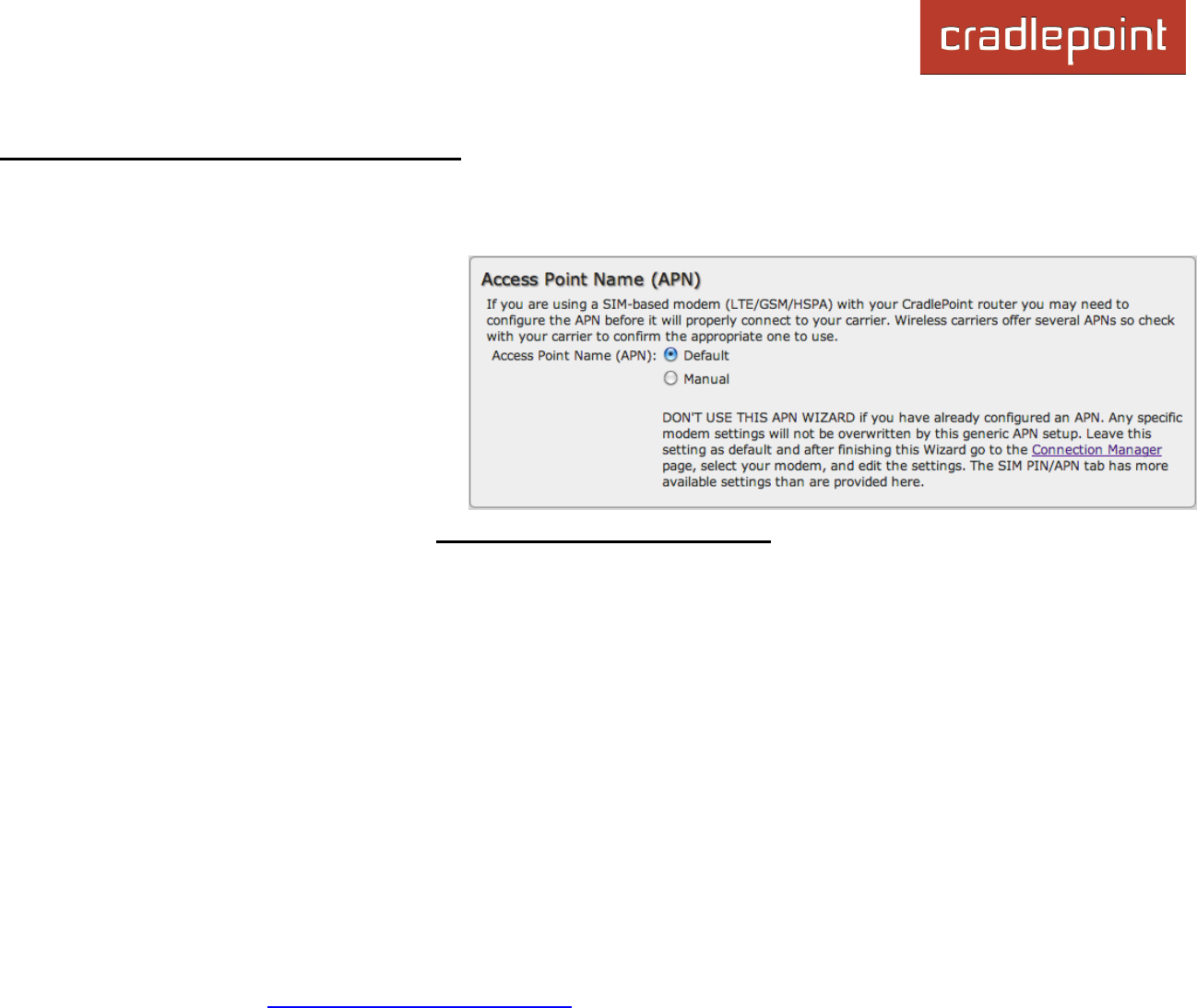

6) Configuring Your Access Point Name (APN):

If you are using a SIM-based modem (LTE/GSM/HSPA) with your CradlePoint router, you may need to configure the

APN before it will properly connect to your carrier. Wireless carriers offer several APNs, so check with your carrier to

confirm the appropriate one to use. Some examples include:

• AT&T: "broadband"

• T-Mobile: "epc.tmobile.com"

• Rogers LTE: "lteinternet.apn"

• Bell: "inet.bell.ca"

• TELUS: "isp.telus.com"

You can either leave this on the Default setting

or select Manual and input a specific APN.

If your specific modem or SIM already has APNs

programmed into it, you should leave this on the

Default setting. After finishing this Wizard go to Internet → Connection Manager, select your modem, and edit the

settings. The SIM PIN/APN tab has more available settings than are provided here.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

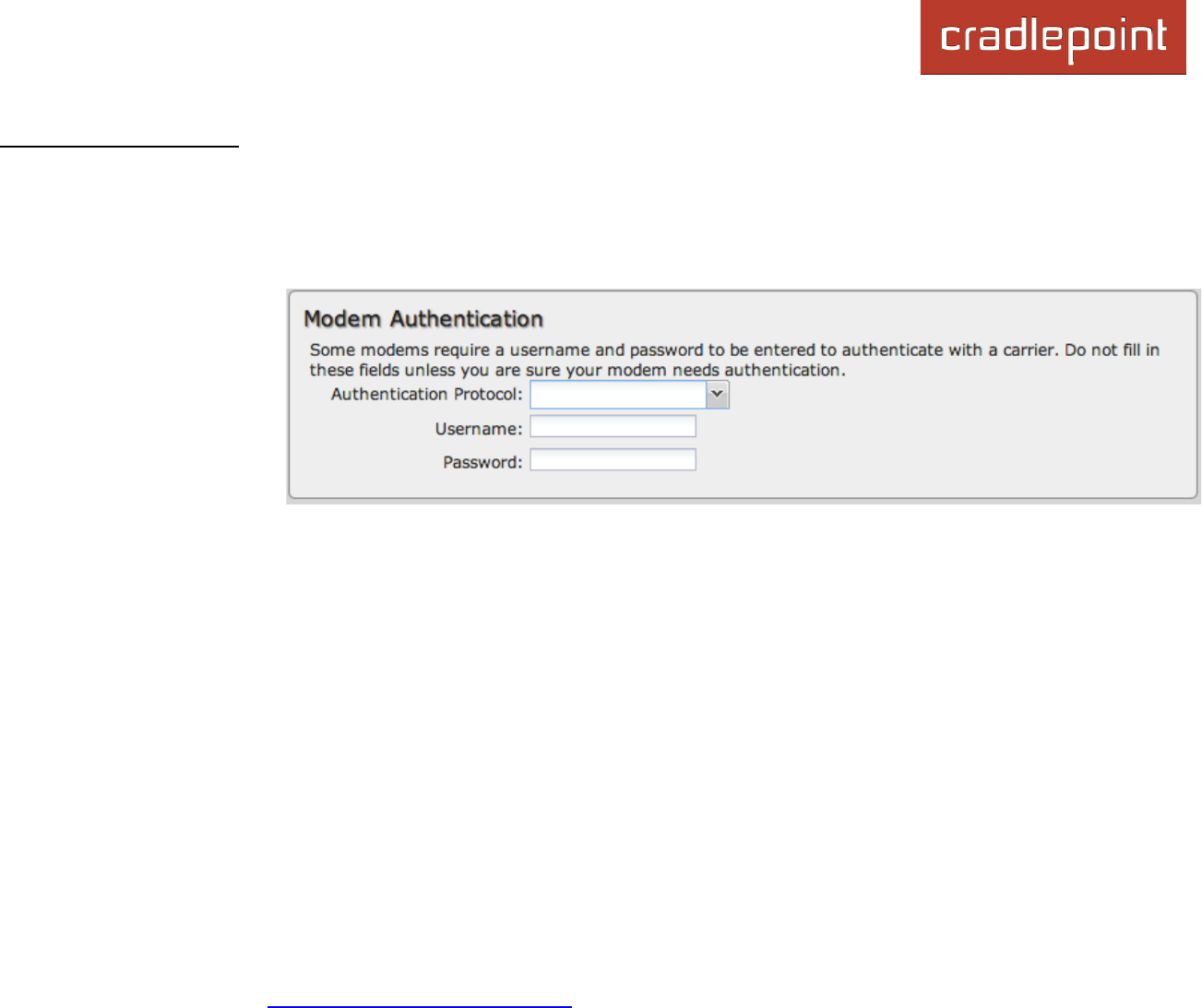

7) Modem Authentication:

Some modems require a username and password to be entered to authenticate with a carrier. Do not fill in these fields

unless you are sure your modem needs authentication.

• Authentication Protocol – Set this only if your service provider requires a specific protocol and the Auto

option chooses the wrong one. Select from:

o Auto

o Pap

o Chap

• Username

• Password

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

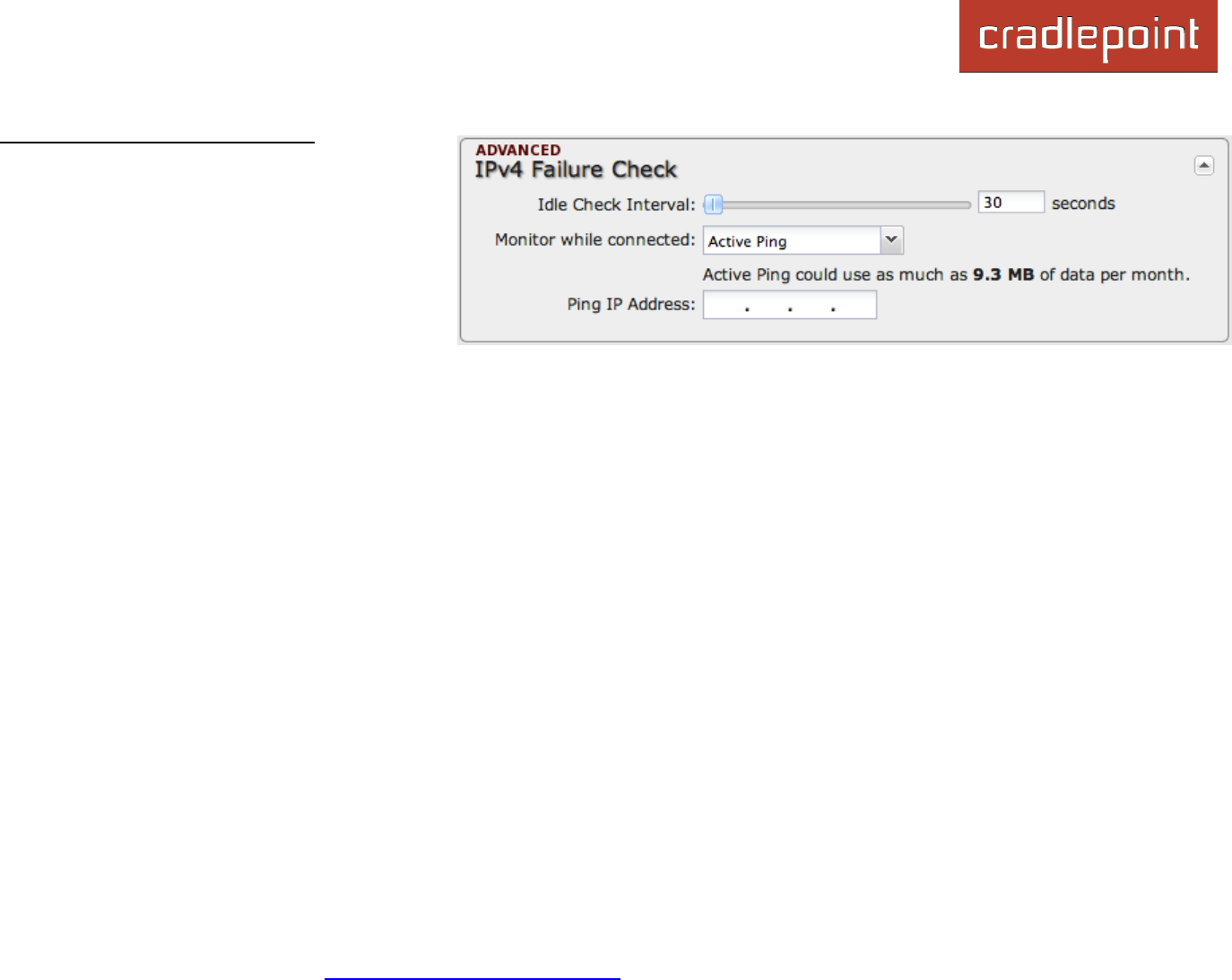

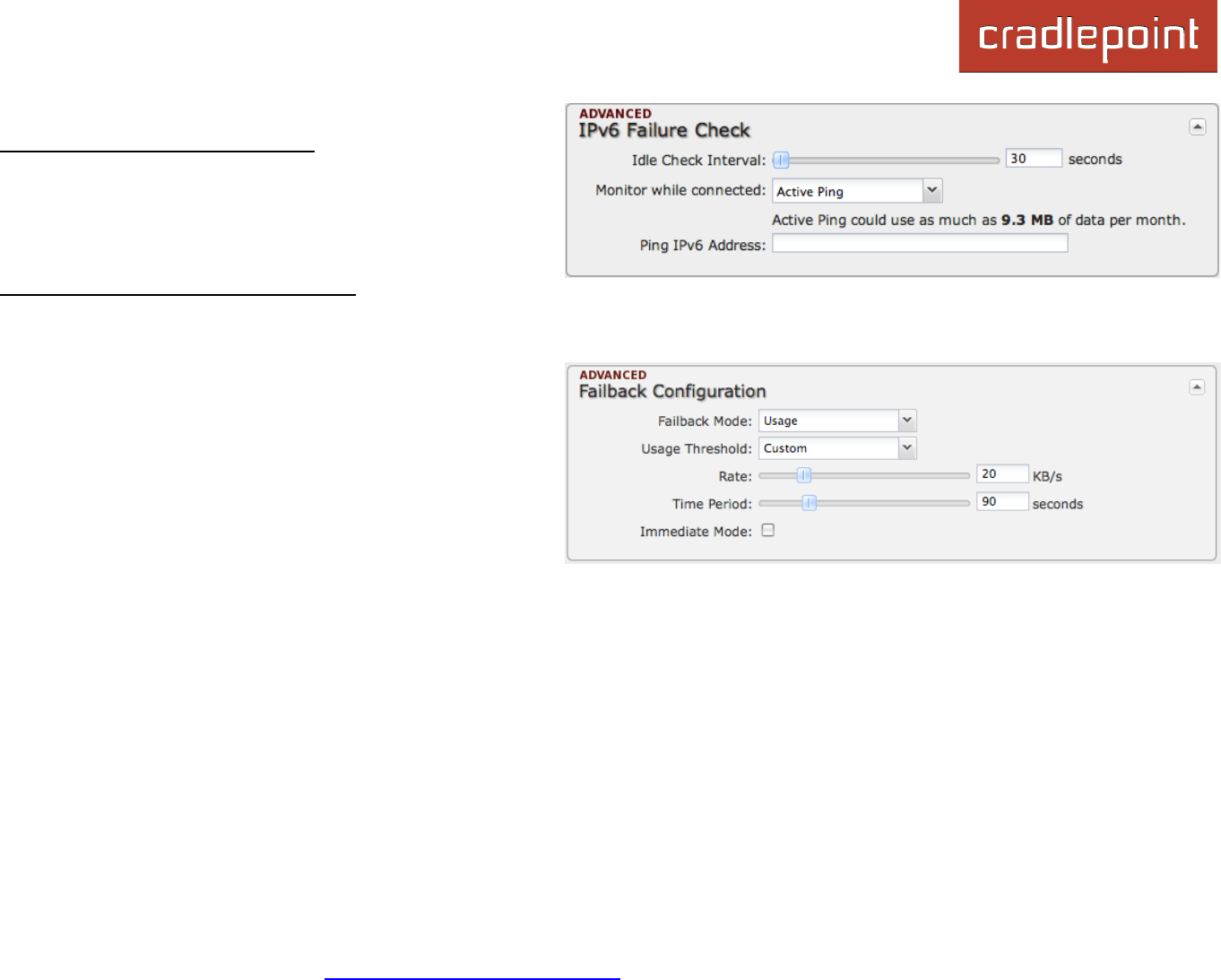

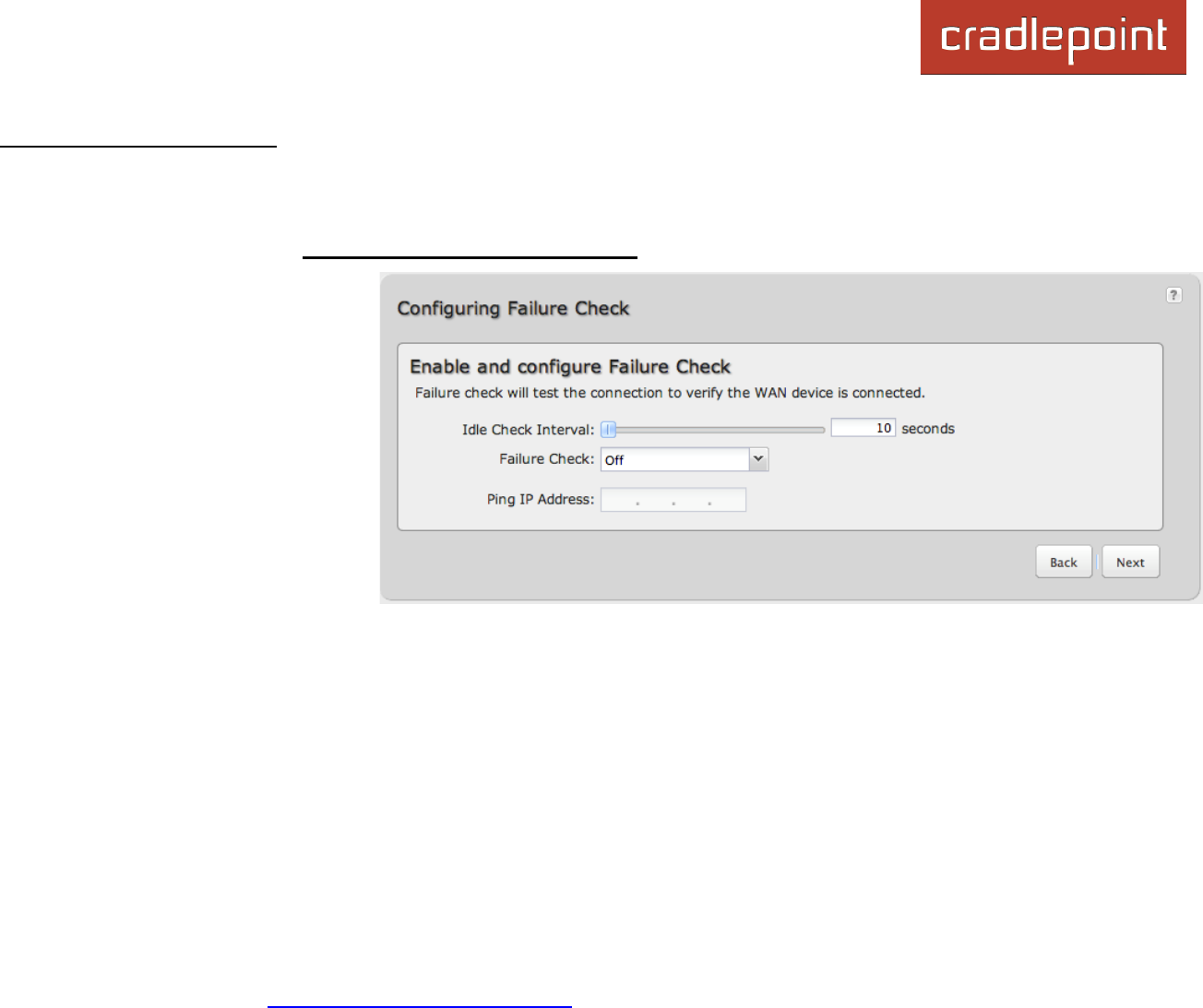

8) Configuring Failure Check:

It is possible for a WAN interface to go down without the router recognizing the failure. (For example: the carrier for a

cellular modem goes dormant.) Enable Failure Check to ensure that you can get out to the Internet via your primary

WAN connection. This option is disabled by default because it may use data unnecessarily. Use this in combination

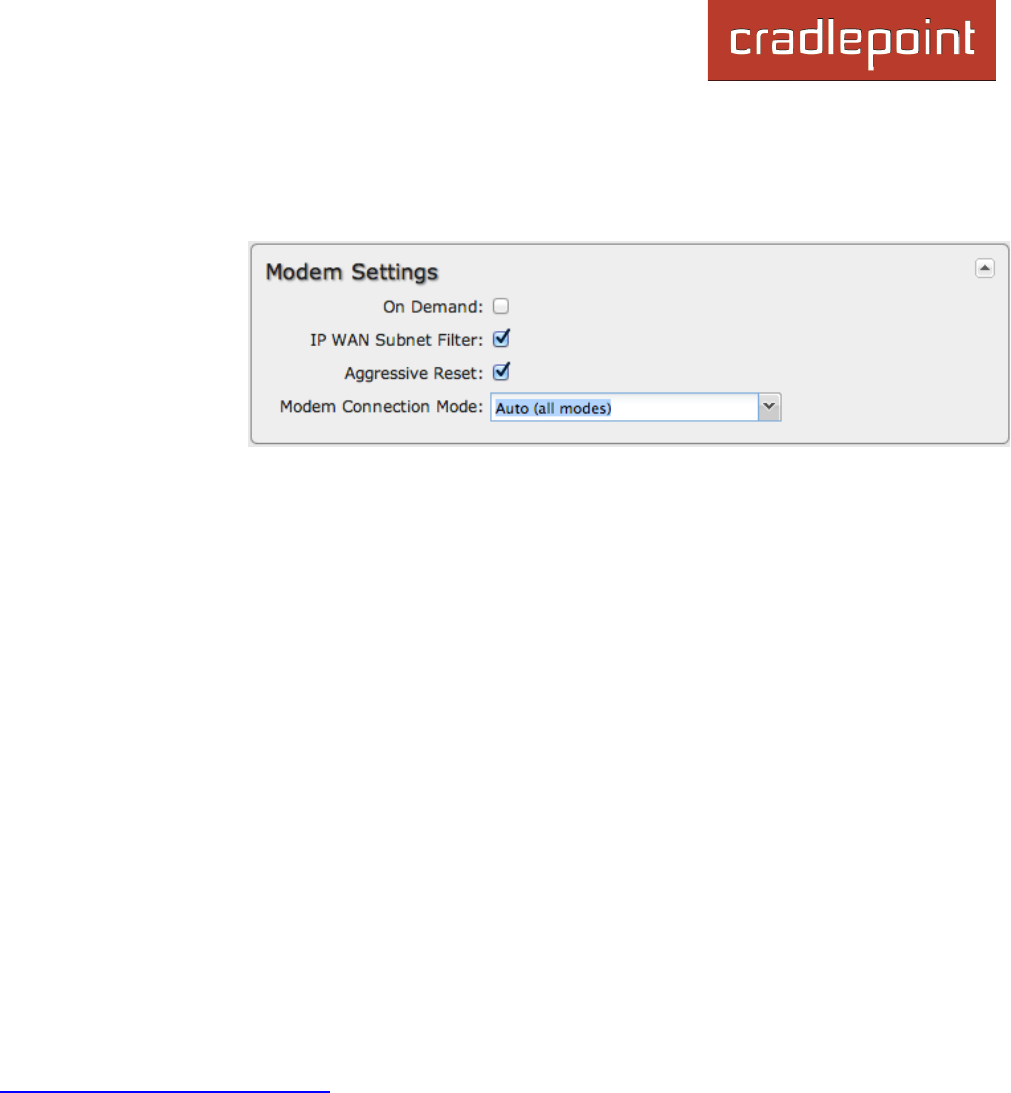

with failover or Aggressive Reset (Internet → Connection Manager under Modem Settings in the interface/rule

editor).

Idle Check Interval: Set the number of

seconds the router will wait between

checks to see if the WAN is still

available. (Default: 30 seconds. Range:

10-3600 seconds.)

Monitor while connected: Select from

the dropdown menu. (Default: Off)

• Active Ping: A ping request will

be sent to the Ping Target. If no

data is received, the ping request

will be retried 4 times at 5-second

intervals. If still no data is

received, the device will be disconnected and failover will occur. When “Active Ping” is selected, the next line

gives an estimate of data usage in this form: “Active Ping could use as much as 9.3 MB of data per month.”

This amount depends on the Idle Check Interval.

• Off: Once the link is established the router takes no action to verify that it is still up.

Ping IP Address: If you selected “Active Ping”, you will need to input an IP address that will respond to a ping request.

This IP address must be an address that can be reached through your WAN connection. Some ISPs/Carriers block

certain addresses, so choose an address that all of your WAN connections can use. For best results, select an

established public IP address. For example, you might ping Google Public DNS at 8.8.8.8 or Level 3 Communications at 4.2.2.2.

Click NEXT.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

9) Review the details and record your administrative password.

Click APPLY to save the settings and update them to your router.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

4.3 Quick Links

The CradlePoint logo in the upper left-hand corner of all the administration pages is a link to

the Dashboard (Status → Dashboard), which displays fundamental information about the

router.

The black bar across the top provides quick access to important information and controls.

Internet Connection This links to Status → Internet

Connections where you can view in-depth information

about your Internet sources.

Click on this green dot to link to Internet →

Connection Manager where you can manage

your WAN interface(s).

Click on the image of four signal bars to open a

“Modem Connection Quality” popup window that

shows the strength of your Internet signal.

Logout Click to log out of the administration pages.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

4.4 Configuration Pages

The following table shows the navigation layout of the administration pages. Click on the tabs along the top bar to reveal

the following dropdown menus.

Getting Started

Status

Network Settings

Internet

System Settings

Enterprise Cloud

Manager Registration

First Time Setup

IP Passthrough Setup

Client List

Dashboard

GPS

Internet Connections

Routing

Statistics

System Logs

Content Filtering

DHCP Server

DNS

Firewall

Local Networks

MAC Filter / Logging

Routing

Connection Manager

Data Usage

WAN Affinity / Load

Balancing

Administration

Device Alerts

Enterprise Cloud

Manager

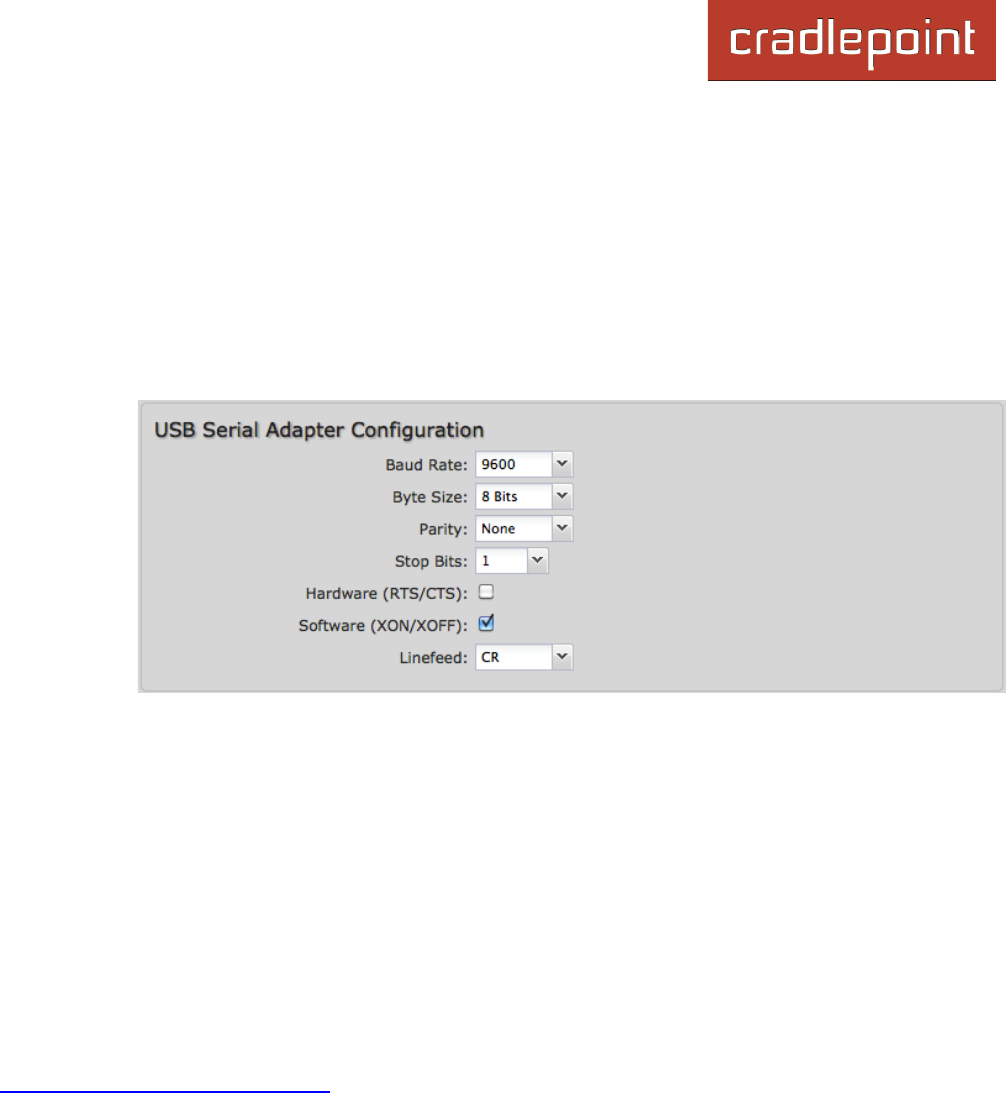

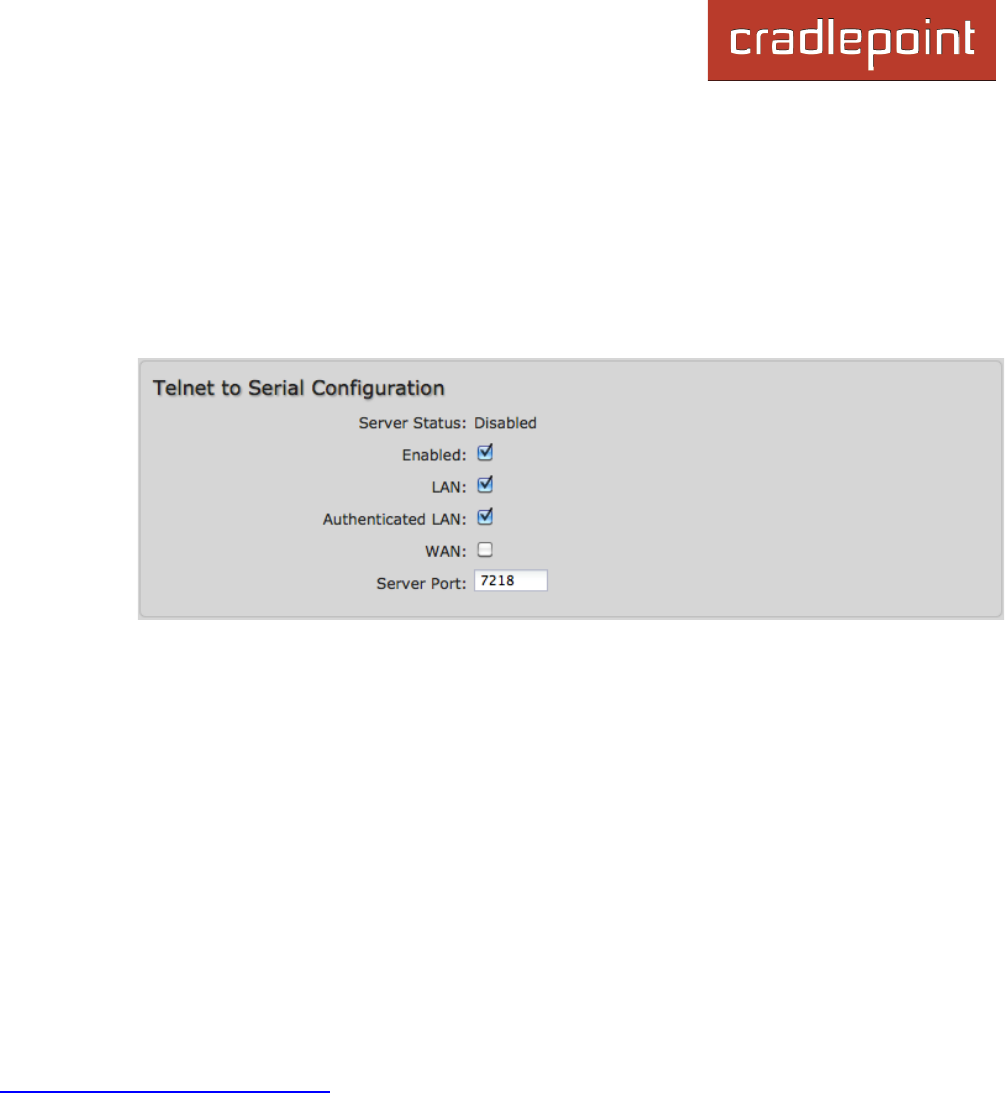

Serial Redirector

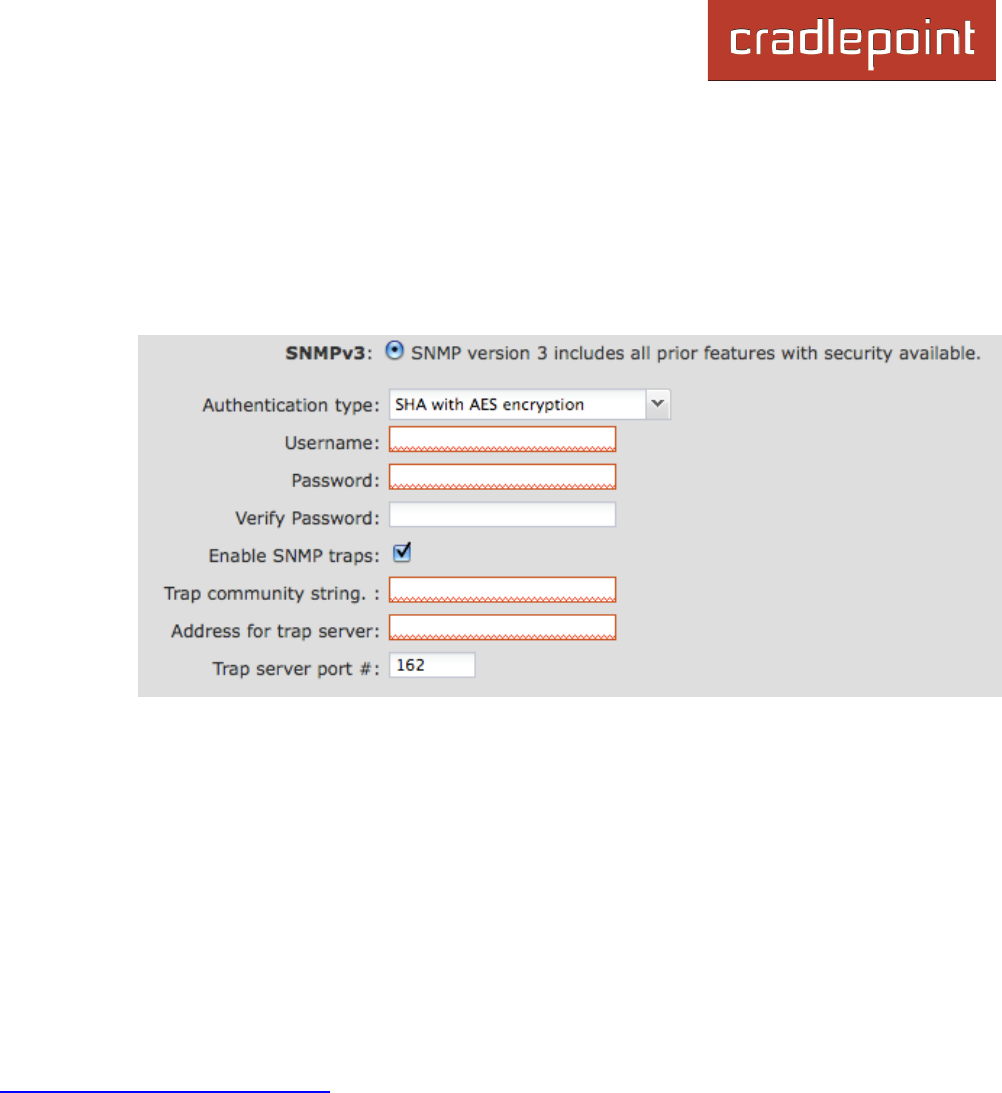

SNMP Configuration

System Control

System Software

Status – Displays various types of information about your router such as a list of clients that are attached to your

networks (Client List), the details of each Internet source your router is using (Internet Connections), and a map of

your router’s location (GPS). Very few changes can be made from this tab because the primary purpose is to display

information.

Network Settings – Provides configuration options for the network(s), or LAN, created by your router. For example, you

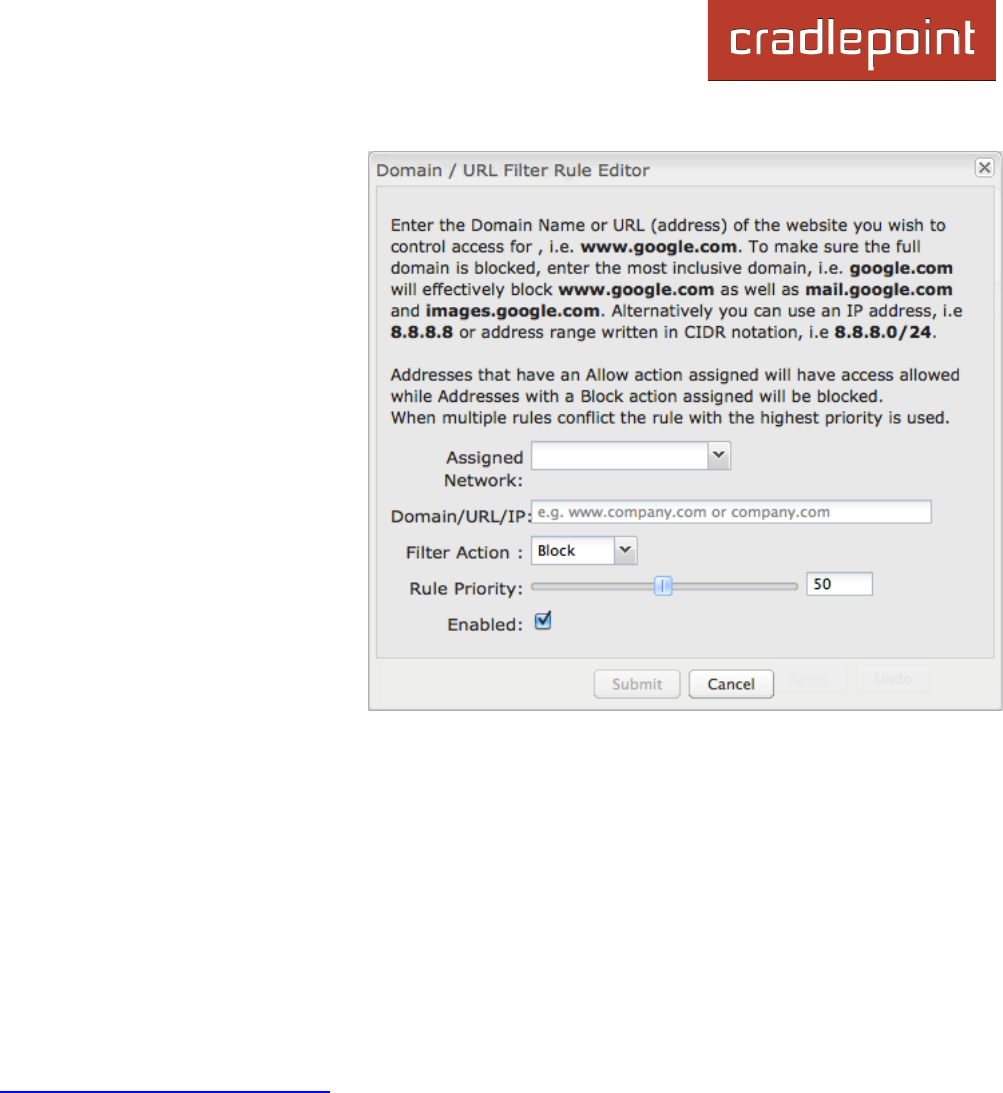

can enable a VLAN (Local Networks) or set up rules to filter websites (Content Filtering).

Internet – Provides configuration options for the Internet sources, or WAN, used by the router. For example, you can set

up a rule to track how much data you are using per month on a modem (Data Usage) or set the APN for a modem

(Connection Manager).

System Settings – Provides broad administrative controls. For example, you can upgrade firmware (System Software),

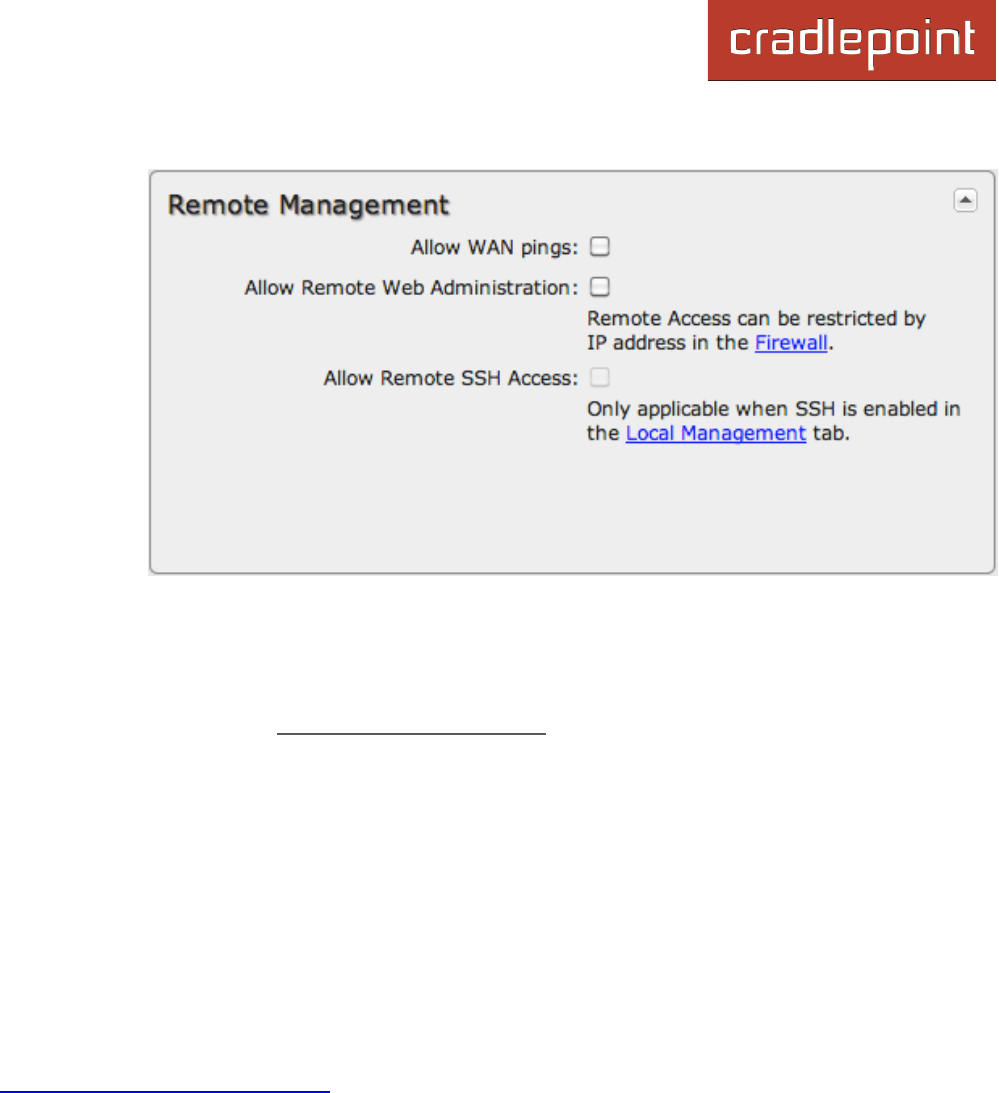

or enable remote management of the router (Administration).

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

4.4.1 Network Settings vs. Internet

When using the Web interface, it will be important to pay attention to the difference between the Internet source for your

CBA750B and the network created by the CBA750B. The “Internet” tab broadly refers to the router’s source of Internet,

while the “Network Settings” tab broadly refers to the network created by the router.

Internet tab Network Settings tab

Internet “input”

Source for CBA750B

WAN (Wide Area Network)

Internet “output”

Network created by CBA750B

LAN (Local Area Network)

Examples:

• If you want to change the content filtering settings for the network created by the CBA750B, go to the Network

Settings tab.

• If you want to track the data usage for your Internet source (such as your CradlePoint business-grade modem), go

to the Internet tab.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

4.5 Enterprise Cloud Manager Registration

To register your device with CradlePoint Enterprise Cloud Manager, navigate to Getting Started → Enterprise Cloud

Manager Registration.

Input your ECM Username and ECM Password and click Register. You have now registered the device with Enterprise

Cloud Manager.

If you do not have ECM credentials, see http://www.cradlepoint.com/ecm for details or sign up at

http://www.cradlepoint.com/ecm-signup.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

4.6 IP Passthrough Setup

The CBA750B’s IP passthrough function takes the IP address of the attached modem and passes it through to the LAN.

By default, the CBA750B is configured for IP passthrough – the device ships with the ROUTER/PASSTHROUGH

SWITCH set to the I position (“O” is router mode; “I” is passthrough mode). Using IP passthrough disables some of the

device’s other router functionality.

There are three methods for setting up IP passthrough:

1) The ROUTER/PASSTHROUGH SWITCH on the device itself is set to “I”.

This forces a complete IP passthrough configuration with the following settings:

• Load balance is disabled; the highest priority WAN device is used.

• The Routing Mode is set to IP Passthrough. (Network Settings → Local Networks in the “Local Network

Editor” under “IP Settings”)

• The Subnet Selection Mode will be set to "Automatically Create Subnet". (Network Settings → Local

Networks in the “Local Network Editor” under “IP Settings” – this shows once IP Passthrough is set as the

Routing Mode.) You have the option to override this and select Force 24 Subnet, which forces a subnet of

255.255.255.0 and uses the first available address in the network as the gateway. This is for compatibility with

equipment that may not handle modem addressing schemes and should not be used unless necessary.

• If you have created secondary networks, they are disabled; only the primary LAN is enabled.

2) In the administration pages, select Getting Started → IP Passthrough Setup. This wizard will force an IP

passthrough configuration that matches the ROUTER/PASSTHROUGH SWITCH settings shown above. Simply read

through the wizard and select Enable IP Passthrough on the second page.

3) For custom configuration, manually input IP passthrough settings in the administration pages (this is the preferred

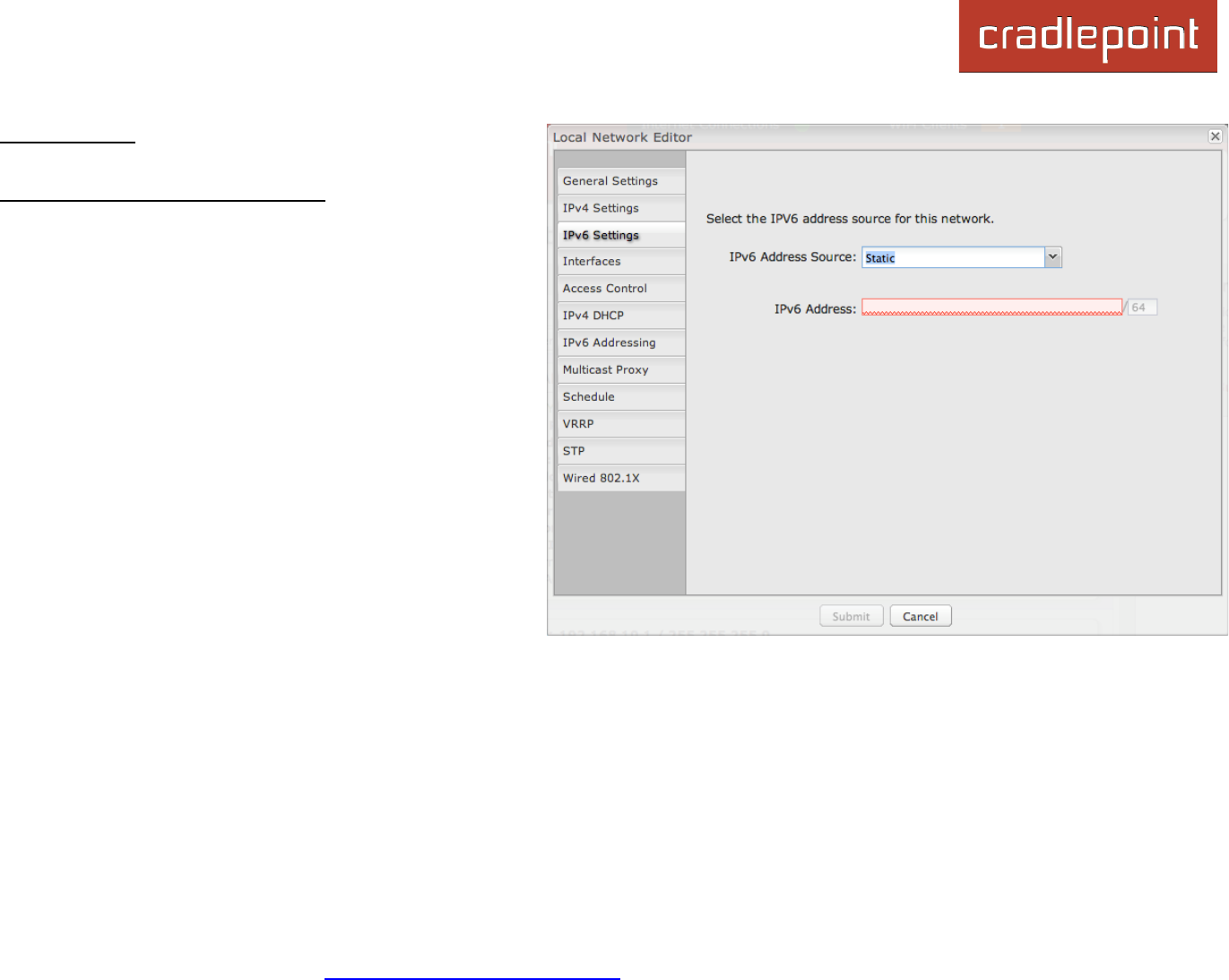

method for network professionals). Go to Network Settings → Local Networks for most of these changes.

Depending on your settings, you may need to go to other pages as well (e.g. you may need to disable load balancing).

Changes in the administration pages can overrule the switch setting, AND vice versa (i.e. the most recent setting changes

are implemented, regardless of method). In the administration pages you can set the device to ignore changes to the

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

router/passthrough switch. This option is listed in System Settings → Administration under the “Local Management”

tab. Click on the “Disable IP Passthrough/Configuration mode switch” option.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

5 STATUS

The Status tab displays information about many different aspects of the router. It provides access to 7 submenu options:

• Client List

• Dashboard

• GPS

• Internet Connections

• Routing

• Statistics

• System Logs

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

5.1 Client List

The Client List displays the Hostname, IP, and MAC of the device connected to your router.

Hostname: The name by which each computer or device in a network is known.

IP: The IP address, or “Internet Protocol address”, specifies a location for each device.

MAC: This is the "MAC address", a factory-assigned identifier used to identify a specific attached computer or device.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

5.2 Dashboard

The Dashboard shows fundamental information about your router, divided into the following basic categories:

• Router Information

• Internet

• Local Networks

For more in-depth information and/or configuration

options, click on the Detailed Info link beside the

category title. For each category, this links to:

Router Information

• System Settings → Administration

Internet

• Internet → Connection Manager

Local Networks

• Network Settings → Local Networks

After the initial setup of the router, every time you log in you will automatically be directed to

this Dashboard. Also, you can click on the CradlePoint logo in the upper left-hand corner to

return to the Dashboard from any page.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

Router Information: “Detailed Info” links to System Settings → Administration.

• Product: CBA750B

• Serial: Device serial number

• Firmware: Gives the number of the current firmware version

• Build Date: Year-month-day-hours-minutes-seconds for the most recent firmware upgrade

• MAC Address: The router’s unique identifier

• CPU Usage: Expressed as a percentage

• Up Time: Total time for current session

• Clock: Current local date and time

To check for firmware upgrades, see System Settings → System Software.

Internet: “Detailed Info” links to Internet → Connection Manager.

• State: Connected/Disconnected

• Signal Strength: Expressed as a percentage

• WAN Type: Modem

• Connection Type: LTE, HSPA, WiMAX, etc.

• Connected Time: The time the current Internet source (WAN) has been connected

• IP Address

• Gateway

• DNS Servers

For configuration options, see Internet → Connection Manager.

The IP address and gateway describe your active WAN source.

For DNS server configuration options, see Network Settings → DNS.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

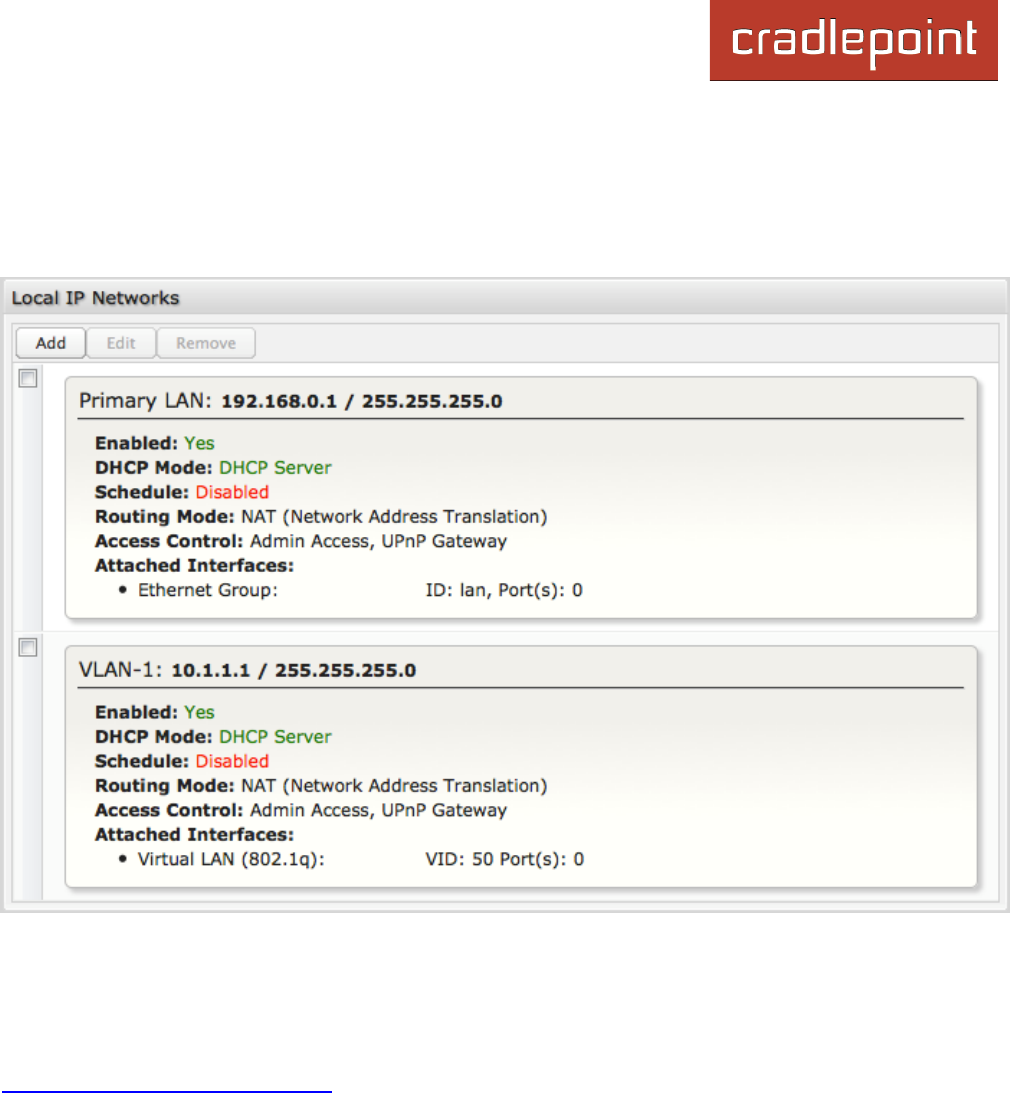

Local Networks: “Detailed Info” links to Network Settings → Local Networks.

• Clients: The number of current clients.

For each network, the following information is displayed:

• Network Name: IP Address/Netmask

o Route Mode: NAT (Network Address Translation), Standard (NAT-less), IP Passthrough, or Disabled.

o Access: Admin Access, LAN Isolation, UPnP (Universal Plug and Play), and/or DHCP.

To configure a network, see Network Settings → Local Networks.

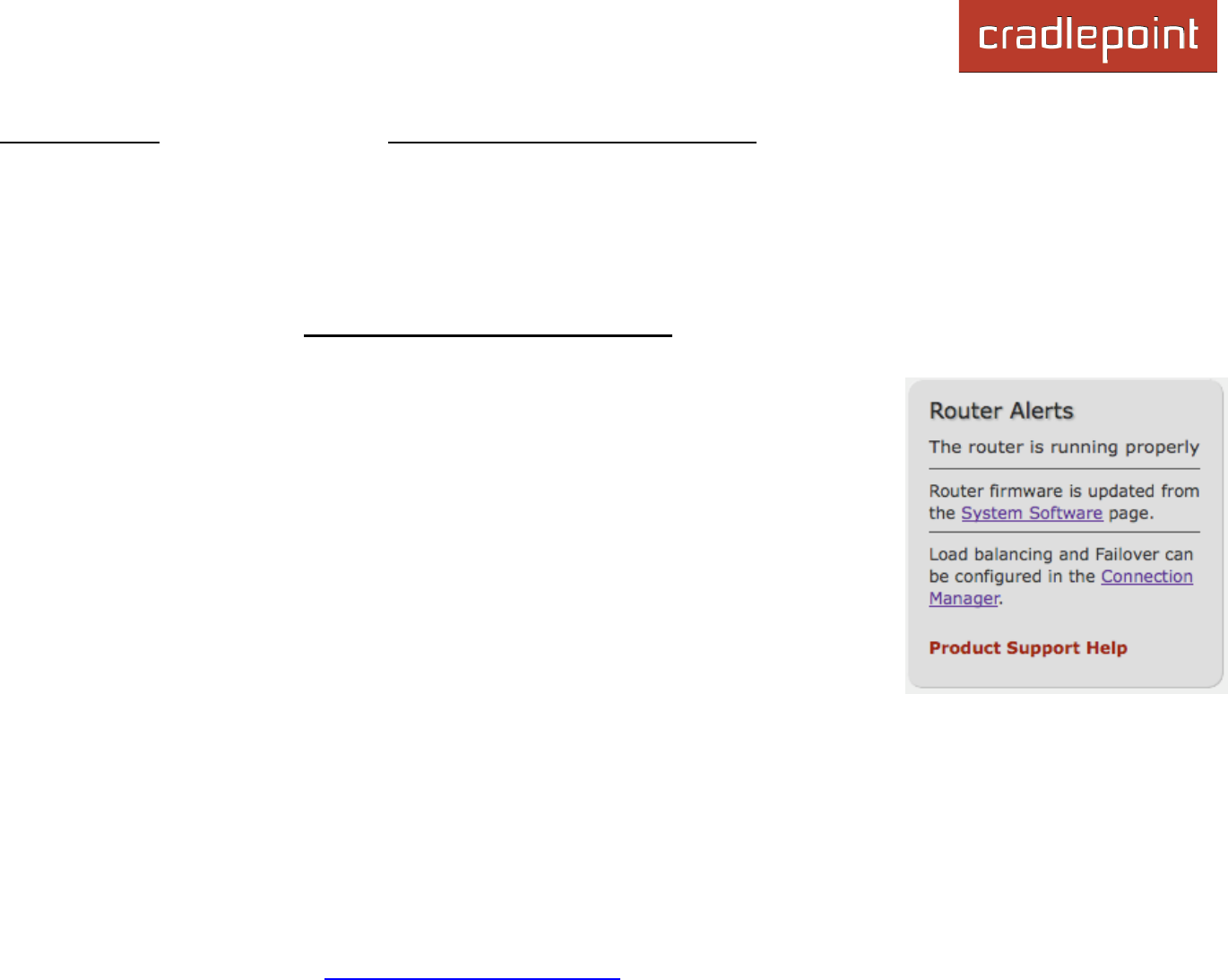

5.2.1 Router Alerts

On the right side of the Dashboard page is a brief set of “Router Alerts” that state basic

information such as whether the router is running properly. This will inform you about the

availability of new firmware, for example.

Router Alerts includes links to the System Software page (for new firmware) and the

Connection Manager.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

5.3 GPS

If GPS support is enabled and a modem capable of

providing GPS coordinates is connected, this page

shows a graphical view of your router's location.

See the GPS section in System Settings →

Administration to enable GPS support.

GPS information is only displayed if 1) the modem

supports GPS, 2) your carrier allows the GPS

functionality, and 3) the modem has sufficient GPS

signal strength. If no information is displayed, check

that both the modem and your carrier support GPS.

If GPS is supported, make sure the modem is in an

area where it can receive a signal from the GPS

satellites.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

5.4 Internet Connections

The Internet Connections submenu option provides a list of attached WAN devices used as the Internet source for the

CBA750B. Select one of these devices to see detailed information about that particular device.

For each type of modem, different information will be included in the Device Information section. Possible devices

include:

• LTE Modem

• HSPA+ Modem

• WiMAX Modem

• GSM Modem

• EVDO Modem

Depending on the device, possible information will be in the following sections: Diagnostics, General Information, IP

Information, and Statistics. The Diagnostics section provides specific information about how the modem is communicating

with its carrier.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

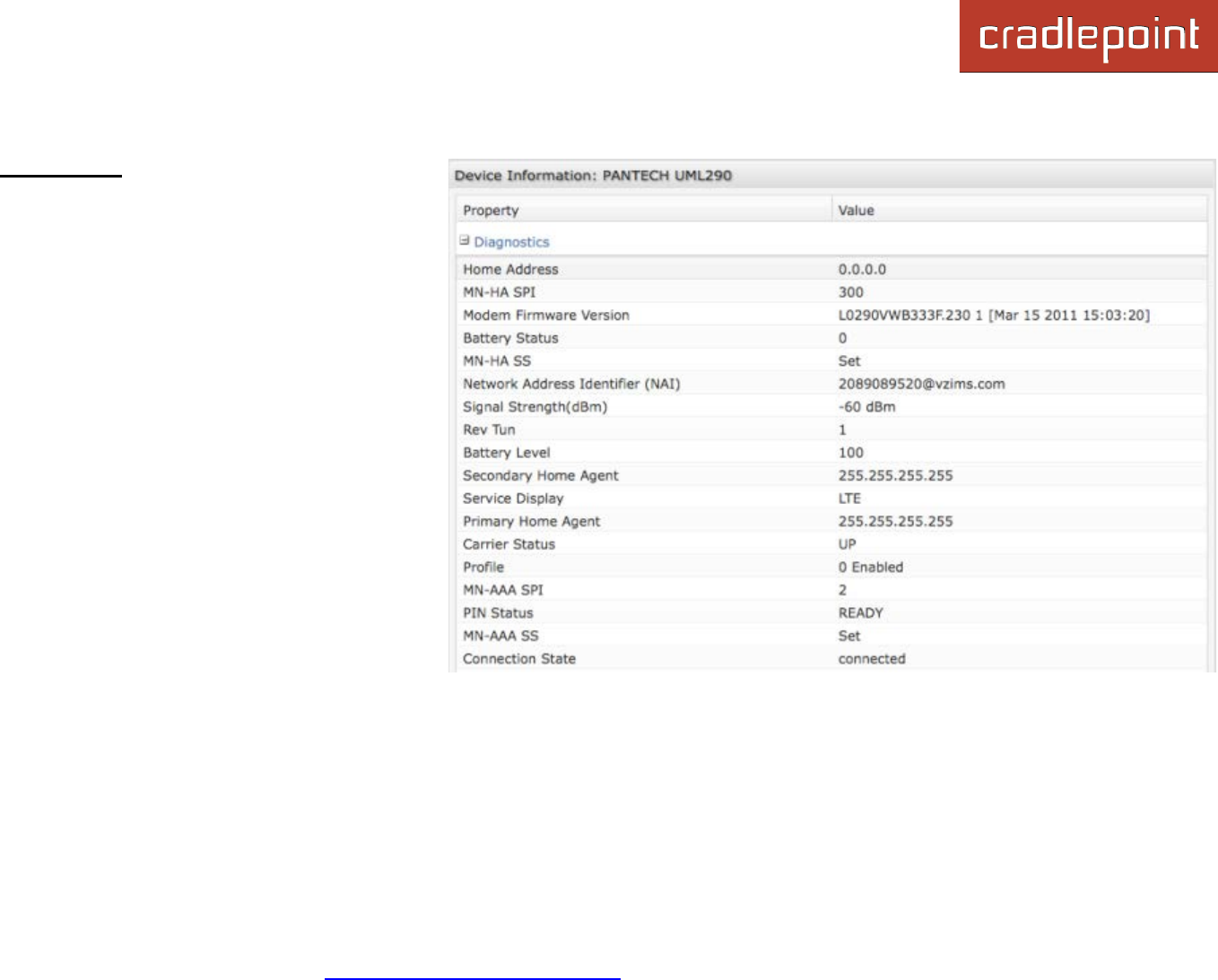

5.4.1 LTE Modem (PANTECH UML290)

Diagnostics

• Home Address

• MN-HA SPI

• Modem Firmware Version

• Battery Status

• MN-HA SS

• Network Address Identifier (NAI)

• Signal Strength(dBm)

• Rev Tun

• Battery Level

• Secondary Home Agent

• Service Display LTE

• Primary Home Agent

• Carrier Status

• Profile

• MN-AAA SPI

• PIN Status

• MN-AAA SS

• Connection State (connected, idle,

etc.)

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

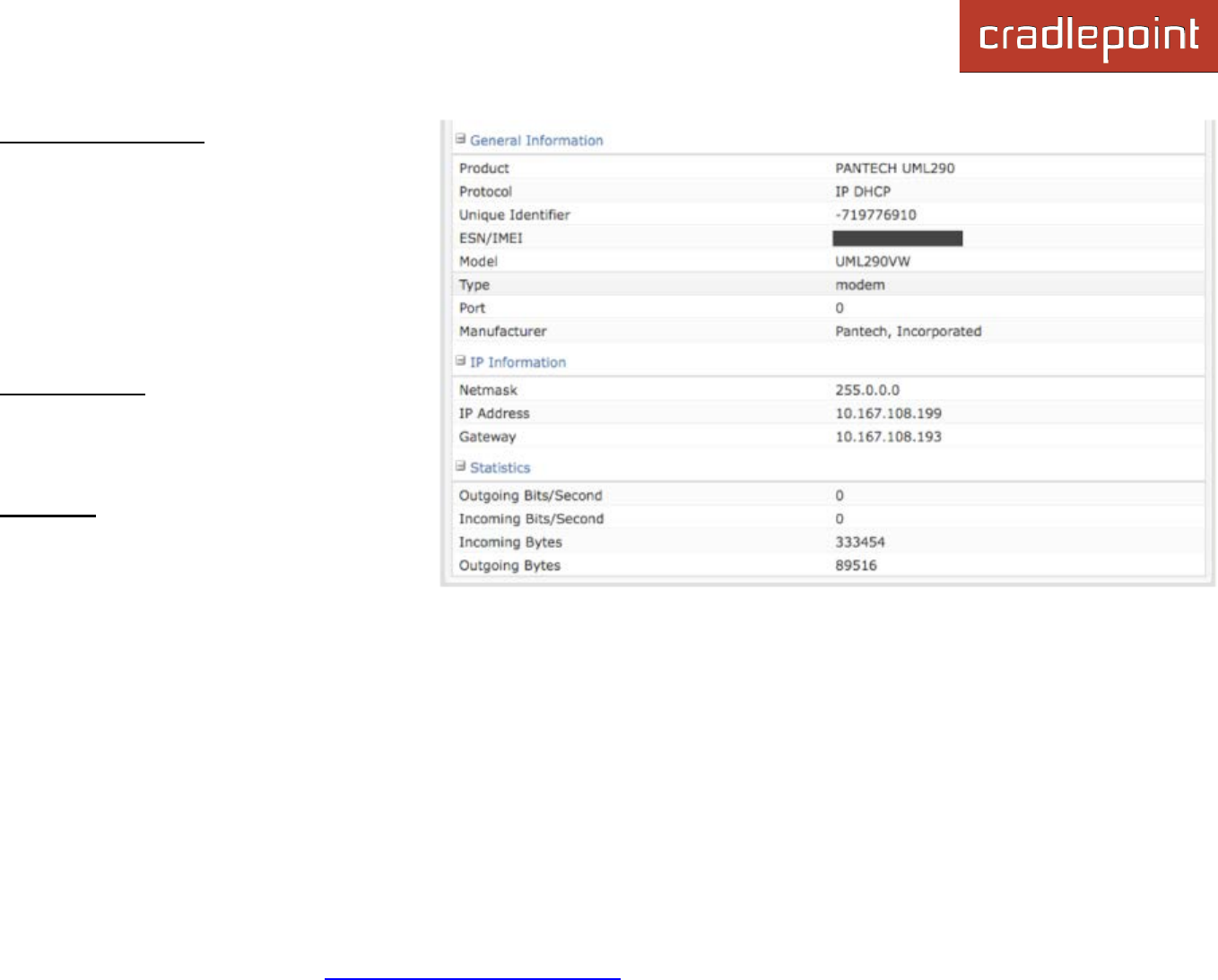

General Information

• Product PANTECH UML290

• Protocol IP DHCP

• Unique Identifier

• ESN/IMEI

• Model UML290VW

• Type modem

• Port

• Manufacturer Pantech, Incorporated

IP Information

• Netmask

• IP Address

• Gateway

Statistics

• Outgoing Bits/Second

• Incoming Bits/Second

• Incoming Bytes

• Outgoing Bytes

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

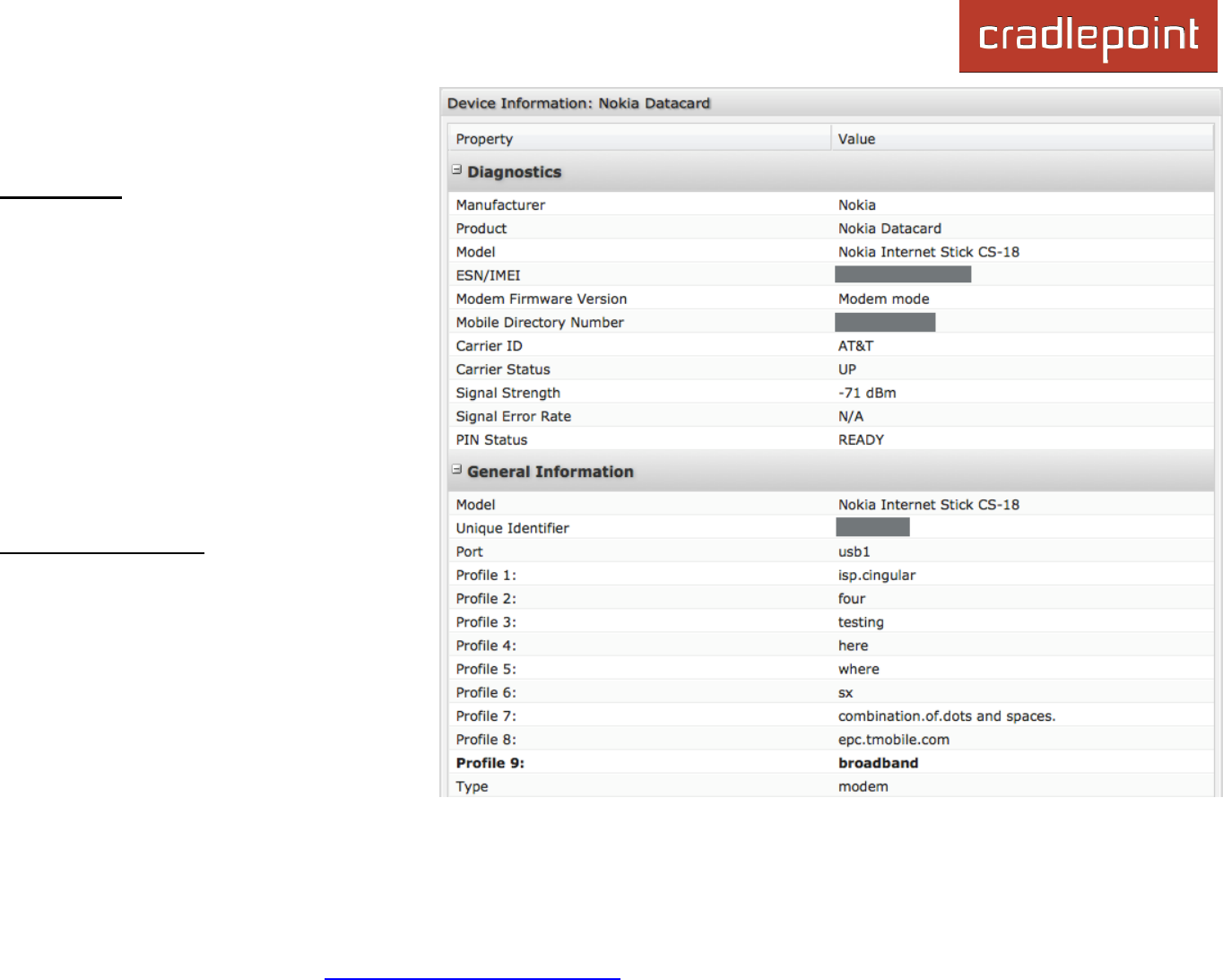

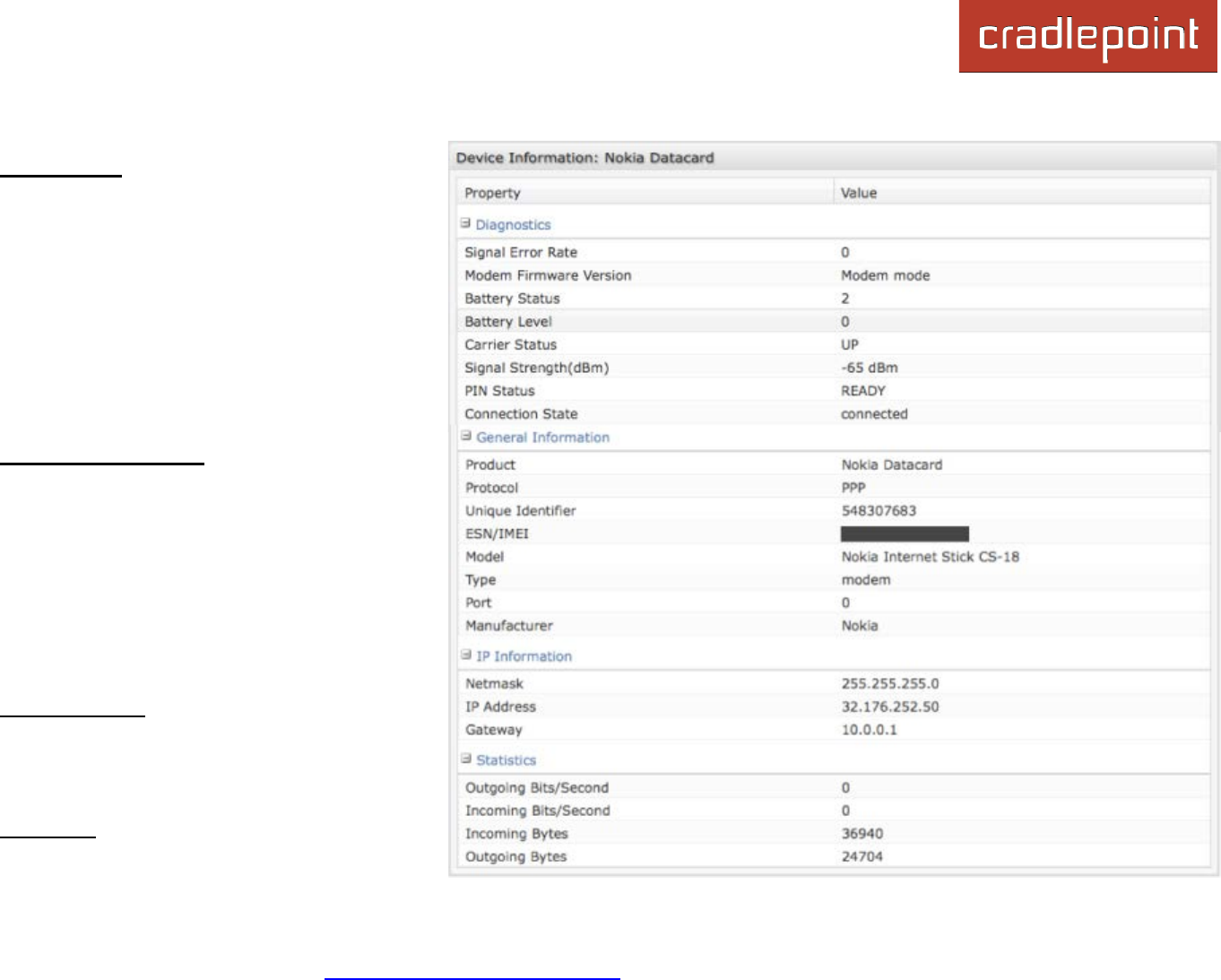

5.4.2 HSPA+ Modem (Nokia Datacard)

Diagnostics

• Manufacturer Nokia

• Product Nokia Datacard

• Model Nokia Internet Stick CS-18

• ESN/IMEI

• Modem Firmware Version

• Mobile Directory Number

• Carrier ID AT&T

• Carrier Status

• Signal Strength

• Signal Error Rate

• PIN Status

General Information

• Model Nokia Internet Stick CS-18

• Unique Identifier

• Port

• Profiles 1-9

• Type modem

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

IP Information

• DNS Servers

• IP Address

• Gateway

Statistics

• Incoming Bytes

• Outgoing Bytes

• Connection Uptime (secs)

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

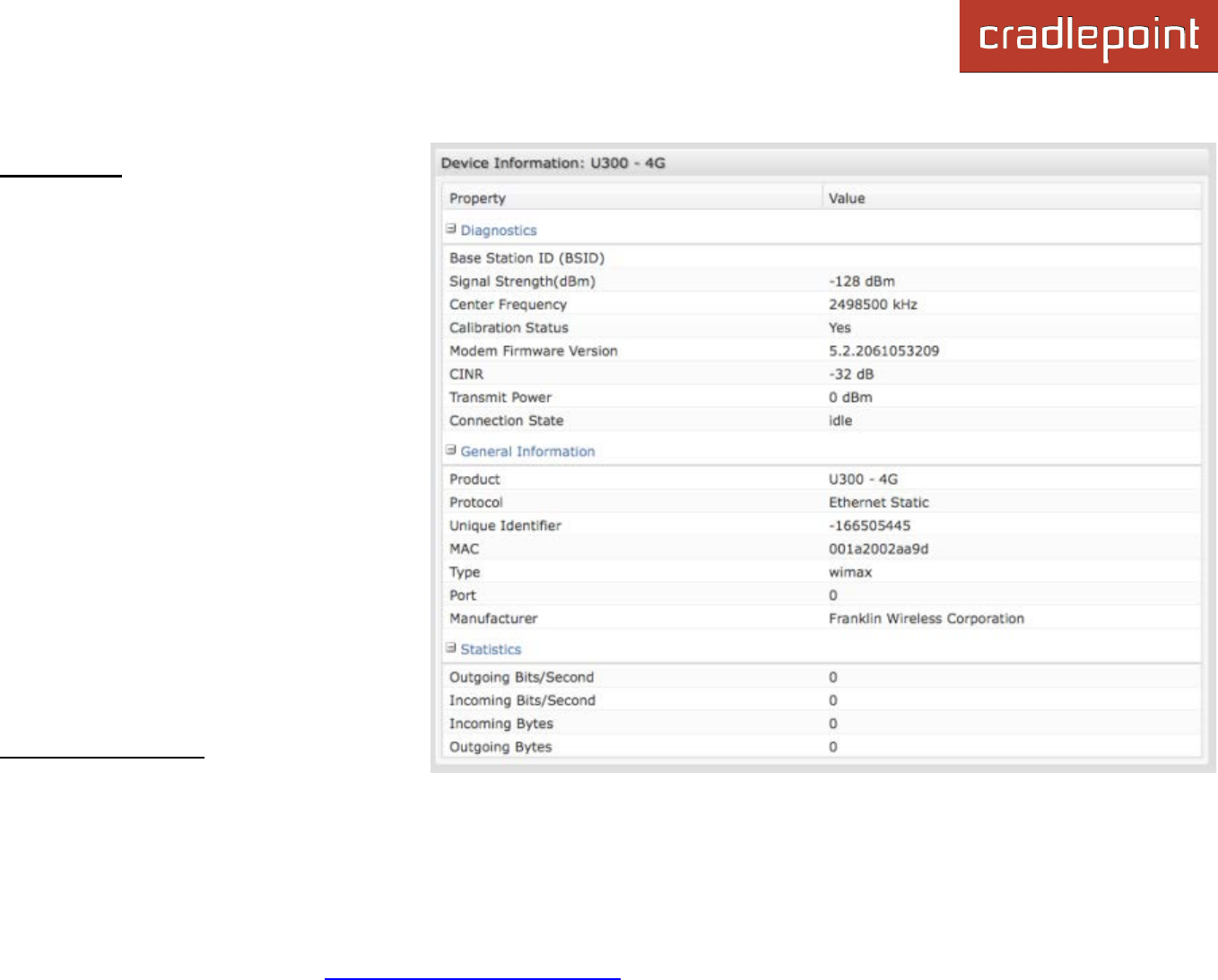

5.4.3 WiMAX Modem (U300 – 4G)

Diagnostics

For a WiMAX modem, the CINR and

Signal Strength values are important as

they show how strong the signal is and

that has significant effects on how much

data the router can download or send. You

can place the router in different locations

to see where you get better signal. You

can also see a LED display of the current

signal strength. Pressing the router's

Signal Strength button will toggle the LED

display on and off.

• Base Station ID (BSID)

• Signal Strength(dBm)

• Center Frequency

• Calibration Status—Don’t worry if

this says the modem is not

calibrated.

• Modem Firmware Version

• CINR

• Connection State (connected, idle,

etc.)

General Information

• Product U300 – 4G

• Protocol Ethernet Static

• Unique Identifier

• MAC

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

• Type WiMAX

• Port

• Manufacturer Franklin Wireless Corporation

Statistics

• Outgoing Bits/Second

• Incoming Bits/Second

• Incoming Bytes

• Outgoing Bytes

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

5.4.4 GSM Modem (Nokia Datacard)

Diagnostics

• Signal Error Rate

• Modem Firmware Version

• Battery Status

• Battery Level

• Carrier Status

• Signal Strength(dBm)

• PIN Status

• Connection State (connected, idle,

etc.)

General Information

• Product Nokia Datacard

• Protocol PPP

• Unique Identifier

• ESN/IMEI

• Model Nokia Internet Stick CS-18

• Type modem

• Port

• Manufacturer Nokia

IP Information

• Netmask

• IP Address

• Gateway

Statistics

• Outgoing Bits/Second

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

• Incoming Bits/Second

• Incoming Bytes

• Outgoing Bytes

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

5.4.5 EVDO Modem: (MC760 Comcast)

Diagnostics

• Modem Firmware Version

• PRL Version

• Service Display EVDO

• Carrier Status

• Signal Strength(dBm)

• Connection Type CDMA

• Connection State (connected, idle, etc.)

General Information

• Product MC769 COMCAST

• Protocol PPP

• Unique Identifier

• ESN/IMEI

• Model MC760 COMCAST

• Type modem

• Port

• Manufacturer Novatel Wireless Inc.

IP Information

• Netmask

• IP Address

• Gateway

Statistics

• Outgoing Bits/Second

• Incoming Bits/Second

• Incoming Bytes

• Outgoing Bytes

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

5.5 Routing

System Routes displays routes associated with networks connected to the router.

Static Routes displays user-specified routes configured in Network Settings → Routing,

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

5.6 Statistics

The Statistics submenu option displays basic traffic statistics.

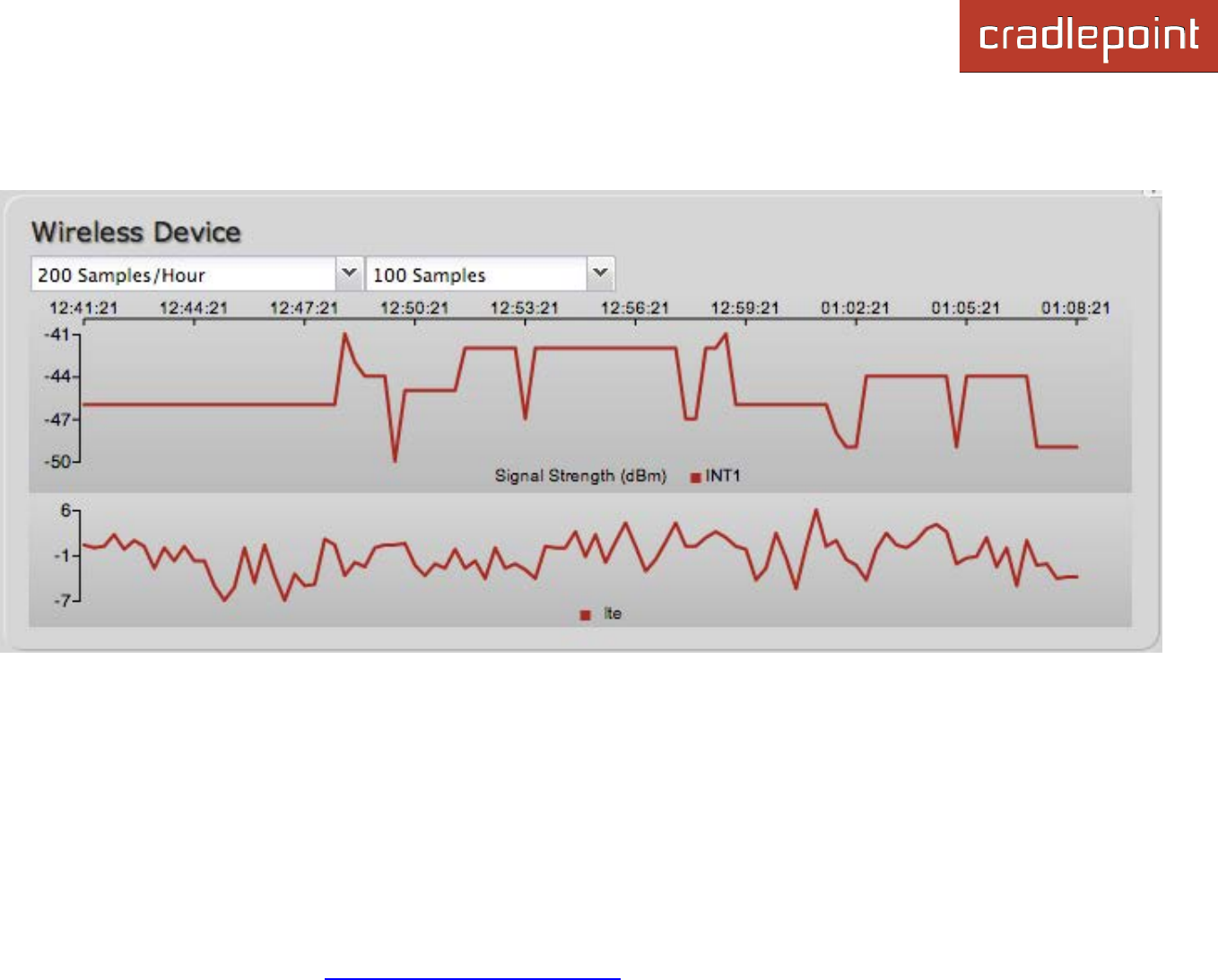

Wireless Statistics: View the signal strength and other wireless modem information. The wireless device’s signal

strength will only be displayed as long as it supports “Live Diagnostics.” Sample rate and size can be adjusted from the

dropdown boxes.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

Data Usage: A measure of amount of information that is currently being sent or received through the network. Sample

rate and size can be adjusted from the dropdown boxes.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

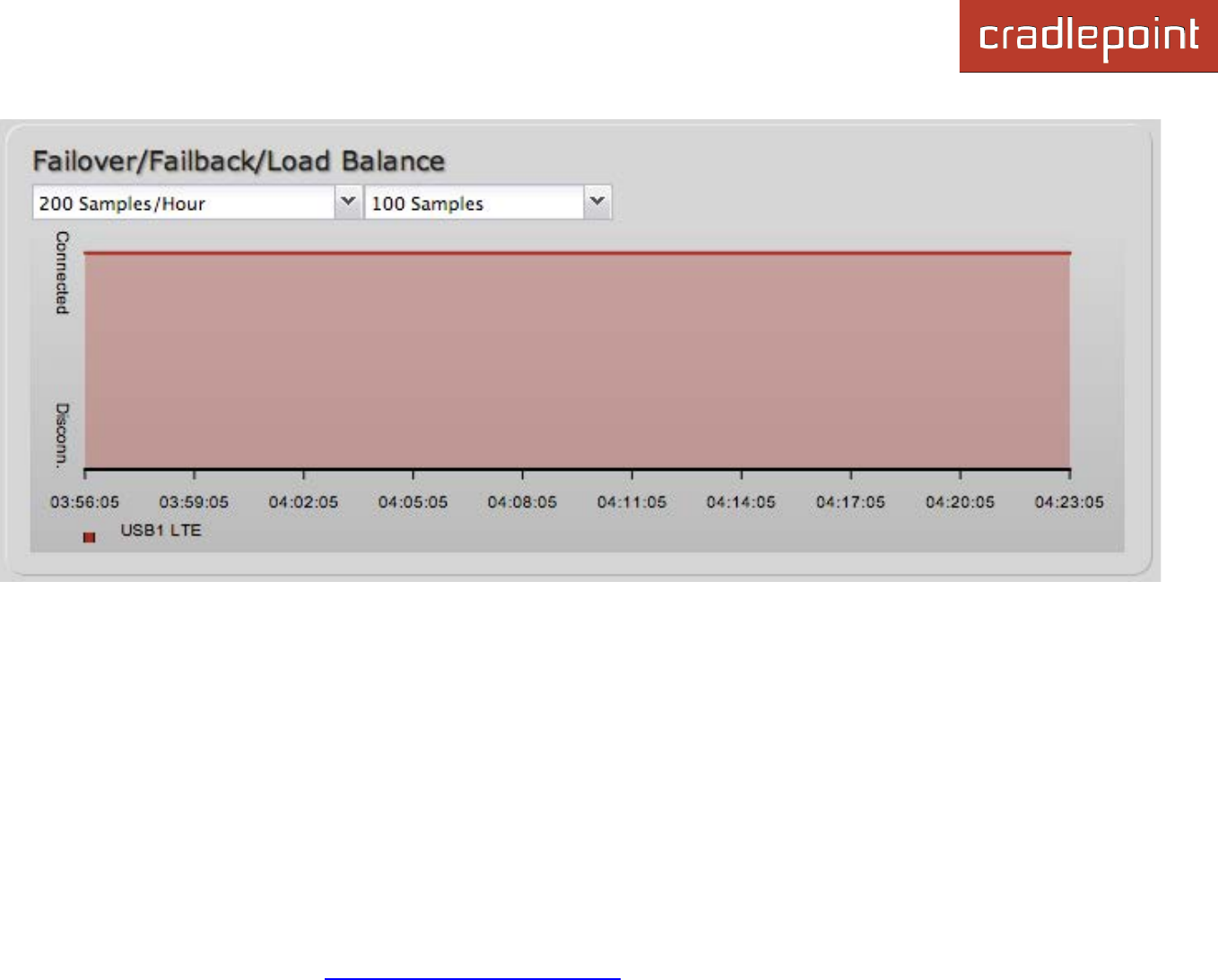

Failover/Failback/Load Balance: An easy way to view current connective states of the devices plugged into the router

as compared to the past. Sample rate and size can be adjusted from the dropdown boxes.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

5.7 System Logs

The router automatically logs (records) events of possible interest in its internal memory. If there is not enough internal

memory for all events, logs of older events are deleted, but logs of the latest events are retained. The log options allow

you to filter the router logs so you can easily find relevant messages. This router also has external Syslog Server support

so you can send the log files to a computer on your network that is running a Syslog utility.

Auto Update: The logs automatically refresh whenever

the router creates a new message.

Update: Click to check for new router messages.

Clear Log: Clear the log file.

Save Log: This will open a dialog in your browser that

will allow you to save the router's log to your computer.

Search: Enter keywords to find specific events.

Level: Select/Deselect from the following levels to filter

messages by priority.

• Critical

• Error

• Warning

• Info

NOTE: The logs are erased whenever the router is rebooted or

loses power.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

6 NETWORK SETTINGS

The Network Settings tab provides access to 7 submenu options for administering the following functions/tasks. These

functions are all related to controlling the LAN (Local Area Networks), the networks you set up with the CBA750B.

• Content Filtering

• DHCP Server

• DNS

• Firewall

• Local Networks

• MAC Filter / Logging

• Routing

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

6.1 Content Filtering

You have two main options for filtering content in a network created by your router.

1) Network WebFilter Rules: Create a list of websites that will be either disallowed or allowed. Customize the filter

settings for each network. (These rules will not block HTTPS websites.)

2) OpenDNS Content Filtering: Allows several options for filtering rules using OpenDNS, a third party service.

6.1.1 Network WebFilter Rules

Network WebFilter Rules allow you to control access from your network to external domains or websites. Rules are

assigned to a specific LAN network (or all networks). The highest priority rule will have precedence when there is a

conflict. Addresses can be added by URL/Domain name or by IP address.

Exceptions to existing rules can be created by adding another rule with higher priority. For example, if access to

espn.go.com is desired but go.com is blocked with a priority of 50, the addition of an “Allow” rule for espn.go.com with a

priority of 51 or greater will allow access.

When creating rules keep in mind that some sites use multiple domains, so each domain may need a rule added to

produce the desired behavior.

NOTE: Websites that use HTTPS will not be blocked by these rules. You will need to use OpenDNS to block HTTPS websites.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

Click Add or Edit to open the Filter Rule Editor.

• Assigned Network: Select either “All Networks” or one of

your LAN networks from the dropdown list.

• Domain/URL/IP: Enter the Domain Name or URL (address)

of the website you wish to control access for, e.g.

www.google.com. To make sure the full domain is

blocked, enter the most inclusive domain (e.g. google.com

will effectively block www.google.com as well as

maps.google.com and images.google.com). Alternatively

you can use an IP address, e.g. 8.8.8.8, or address range

written in CIDR notation, e.g. 8.8.8.0/24.

• Filter Action: Select Block or Allow.

• Rule Priority: Higher number rules overrule lower number

rules.

• Enabled: A rule can be enabled or disabled by selecting or

deselecting the checkbox.

Click Submit to save your rule changes.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

6.1.2 Default Filter Settings

Use Default Network Filter Settings together with Network WebFilter Rules to control website access. All of your

networks are set to allow website access by default. Select a network and click Edit to change the default filter settings.

Default Action: Select from the following dropdown options:

• Allow Access (default)

• Block Access

When a network is set to Allow Access, it will allow access to

sites not specifically blocked in the WebFilter Rules.

When a network is set to Block Access, it will block access to

sites not specifically allowed in the WebFilter Rules.

Filter URLs by IP Address: (Default: No) Changing this option to

“Yes” will cause the router to perform a DNS lookup on URL

entries, and the IP addresses will be appended to the appropriate

block/allow list. This can have the side effect of being very strict;

sites that are hosted across many domains may need every

domain added to the list for full functionality.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

6.1.3 Cloud Based Filtering/Security

Select a third-party Cloud Provider from the dropdown list.

• Disabled

• Umbrella by OpenDNS

Umbrella by OpenDNS

Umbrella by OpenDNS is a cloud-

based web filtering and security

solution that protects you online by

filtering websites. Go to

http://www.opendns.com/business-

security/ for information about

Umbrella.

Enter your Umbrella account

information in order to use these

content filtering settings.

OpenDNS ISP Filter Bypass

Algorithm: It is possible that your

Internet Service Provider (ISP) uses

the port that OpenDNS is configured

to access, port 53, which will prevent OpenDNS filtering. If OpenDNS does not appear to be working correctly, enabling

this will attempt to bypass those ports when using an OpenDNS content filtering level.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

6.2 DHCP Server

DHCP stands for Dynamic Host Configuration Protocol. The built-in DHCP server automatically assigns IP addresses to

the computers and other devices on each local area network (LAN). In this section you can view a list of assigned IP

addresses and reserve IP addresses for particular devices.

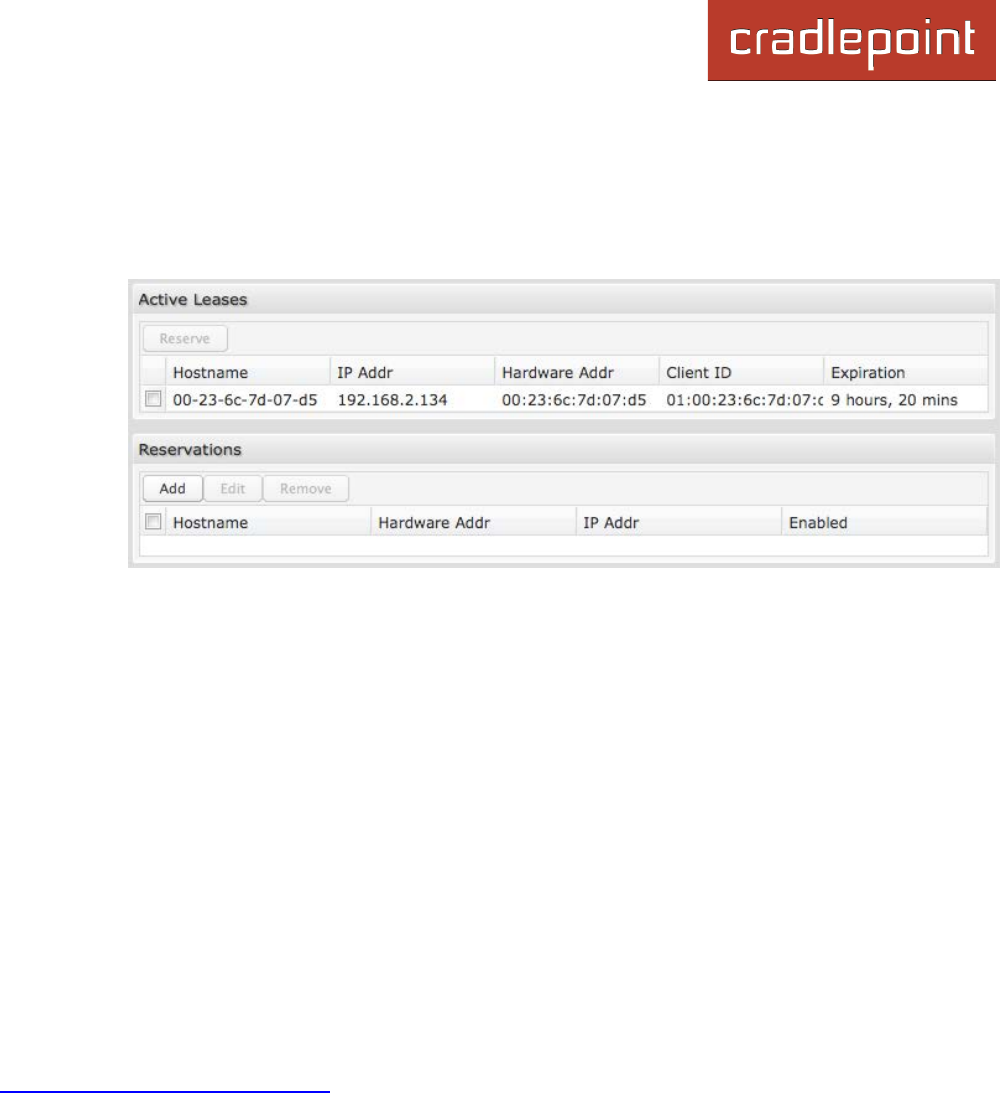

Active Leases: A list of devices that have

been provided DHCP leases. The DHCP

server automatically assigns these leases.

This list will not include any devices that

have static IP addresses on the network.

Select a device and click Reserve to add

the device and its IP address to the list of

Reservations.

Reservations: This is a list of devices with

reserved IP addresses. This reservation is

almost the same as when a device has a static IP address except that the device must still request an IP address from the

router. The router will provide the device the same IP address every time. DHCP reservations are helpful for server

computers on the local network that are hosting applications such as Web and FTP. Servers on your network should

either use a static IP address or a reservation.

While you have the option to manually input the information to reserve an IP address (Hostname, Hardware Addr, IP

Addr), it is much simpler to select a device under the Active Leases section and click “Reserve.” The selected device’s

information will automatically be added under Reservations.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

6.3 DNS

DNS, or Domain Name System, is a naming system that translates between domain names (www.cradlepoint.com, for

example) and Internet IP addresses (206.207.82.197). A DNS server acts as an Internet phone book, translating between

names that make sense to people and the more complex numerical identifiers. The DNS page for the CBA750B has these

distinct functions:

• DNS Settings: By default your router is set to automatically acquire DNS servers through your Internet provider

(Automatic). DNS Settings allows you to specify DNS servers of your choosing instead (Static).

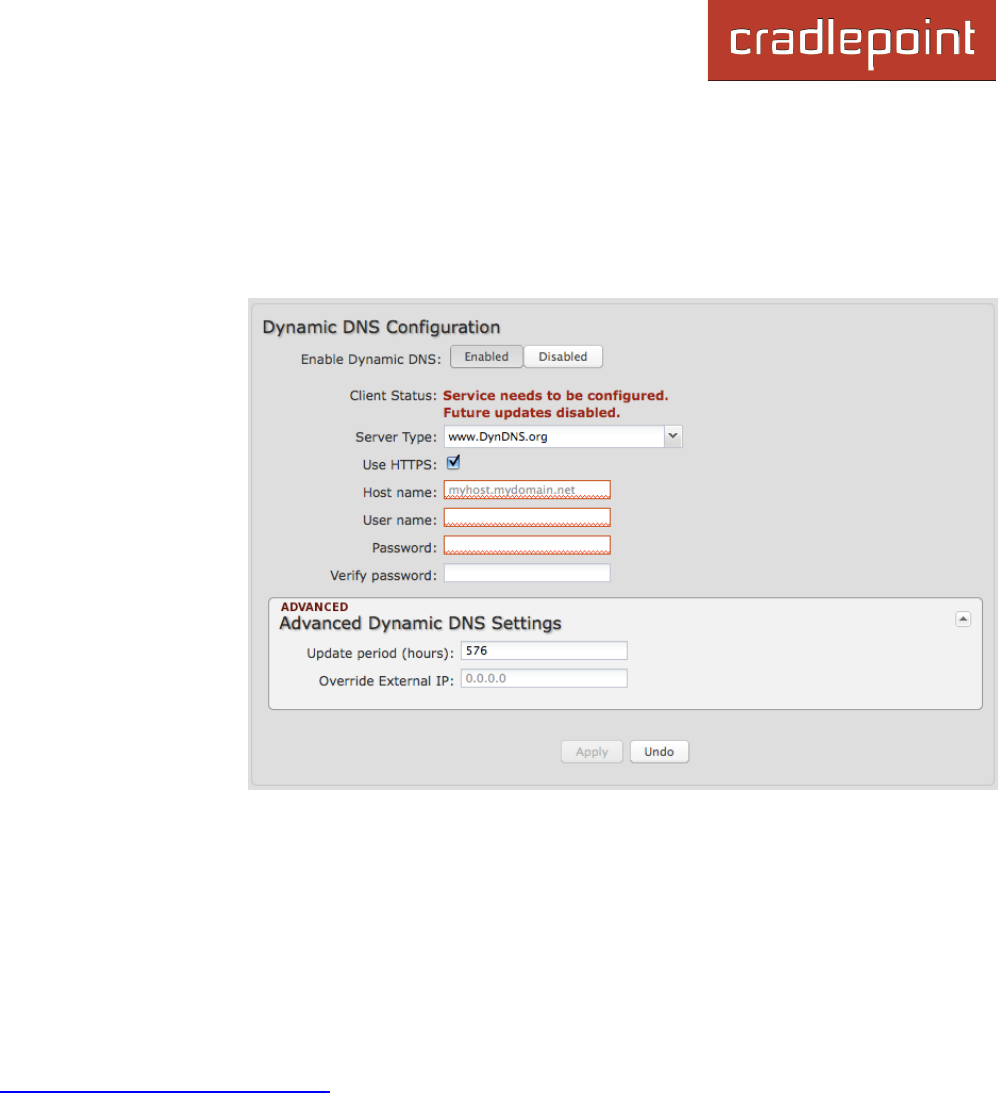

• Dynamic DNS Configuration: Allows you to host a server (Web, FTP, etc.) using a domain name that you have

purchased (www.yourname.com) with your dynamically assigned IP address.

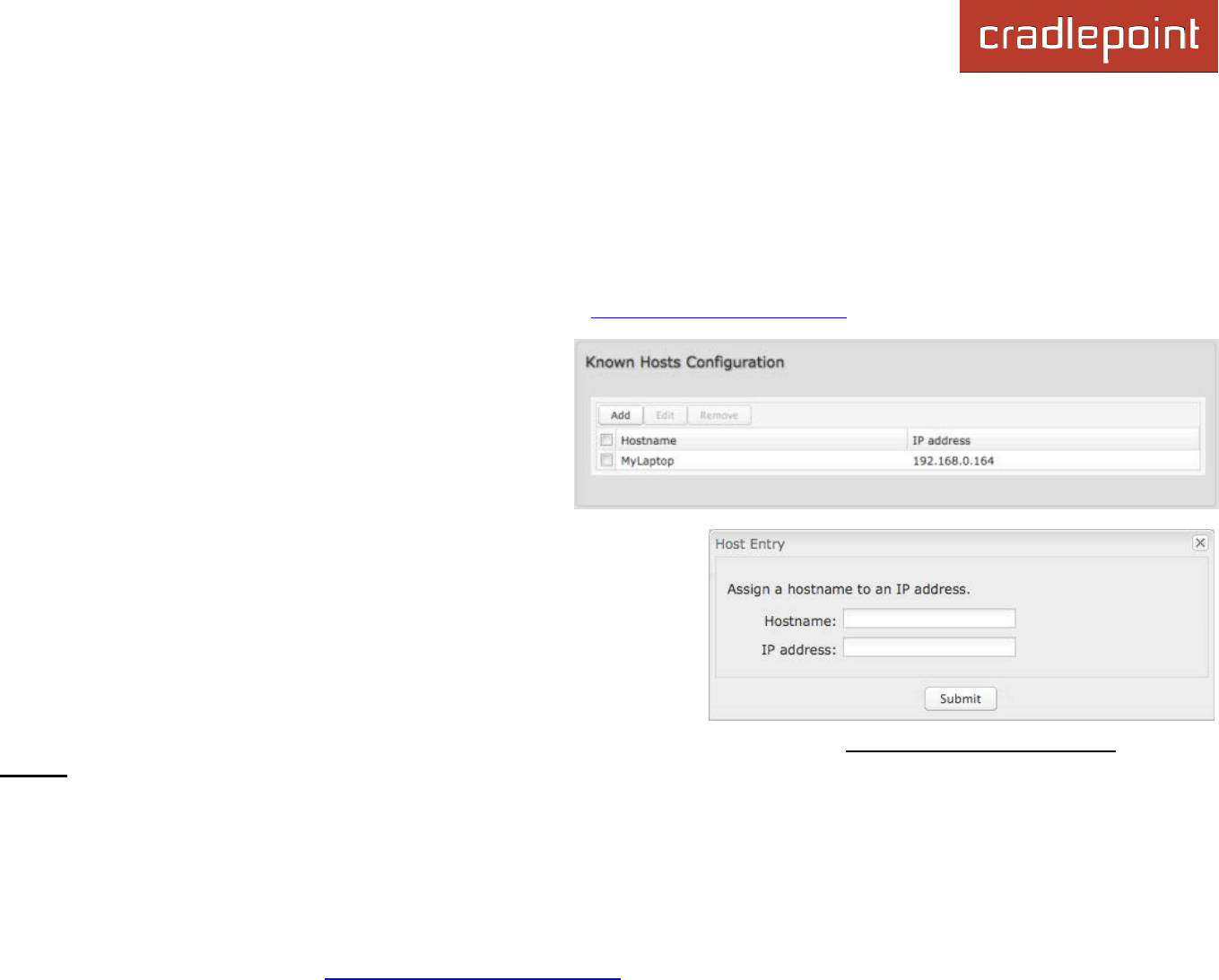

• Known Hosts Configuration: Allows you to map a name (printer, scanner, laptop, etc.) to an IP address of a

device on the network.

6.3.1 DNS Settings

You have the option to choose specific DNS servers for

your network instead of using the DNS servers assigned

by your Internet provider. The default DNS servers are

usually adequate. You may want to assign DNS servers if

the default DNS servers are performing poorly or if you

have a local DNS server on your network.

Automatic Config: Automatic or Static (default:

Automatic). Switching to “Static” enables you to set specific DNS servers in the Primary DNS and Secondary DNS fields.

Primary DNS and Secondary DNS: If you choose to specify your DNS servers, then enter the IP addresses of the

servers you want as your primary and secondary DNS servers in these fields. The DNS server settings will be pre-

populated with public DNS server IP addresses. You can override the IP address with any other DNS server IP address of

your choice. For example, Google Public DNS servers have the IP addresses 8.8.8.8 and 8.8.4.4 while 4.2.2.2 and 4.2.2.3

are servers from Level 3 Communications.

Force All DNS Requests To Router: Enabling this will redirect all DNS requests from LAN clients to the router's DNS

server. This will allow the router even more control over IP addresses even when clients have their own DNS servers

statically set.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

6.3.2 Dynamic DNS Configuration

The Dynamic DNS feature allows you to host a server (Web, FTP, etc.) using a domain name that you have purchased

(www.yourname.com) with your dynamically assigned IP address. Most broadband Internet Service Providers assign

dynamic (changing) IP addresses. When you use a Dynamic DNS service provider, you can enter your host name to

connect to your server, no matter what your IP address is.

Enable Dynamic DNS: Enable this option only if you

have purchased your own domain name and registered

with a Dynamic DNS service provider.

Server Type. Select a Dynamic DNS service provider

from the pull-down list:

• www.DynDNS.org

• www.DNSomatic.com

• www.ChangeIP.com

• www.NO-IP.com

• Custom Server (DynDNS clone)

Custom Server Address. Only available if you select

Custom Server from the Server Address dropdown list.

Enter your custom dynamic DNS server address here.

The server must support the Dynamic DNS protocol.

See www.dyndns.org for details. Example:

myserver.mydomain.net.

Use HTTPS: Use the more secure HTTPS protocol.

This is recommended, but could be disabled if not compatible with the server.

Host name: Enter your host name, fully qualified. For example: myhost.mydomain.net.

User name: Enter the user name or key provided by the Dynamic DNS service provider. If the Dynamic DNS provider

supplies only a key, enter that key for both the User name and Password fields.

Password: Enter the password or key provided by the Dynamic DNS service provider.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

6.3.3 Advanced Dynamic DNS Settings

Update period (hours). (Default: 576) The time between periodic updates to the Dynamic DNS if your dynamic IP

address has not changed. The timeout period is entered in hours so valid values are from 1 to 8760.

Override External IP. The external IP is usually configured automatically during connection. However, in situations where

the unit is within a private network behind a firewall or router, the network's external IP address will have to be manually

configured in this field.

You may find out what your external IP address is by going to http://myip.dnsomatic.com/ in a web browser.

6.3.4 Known Hosts Configuration

The Known Hosts Configuration feature allows you to

map a name (printer, scanner, laptop, etc.) to an IP

address of a device on the network. This assigns a new

hostname that can be used to conveniently identify a

device within the network, such as an office printer.

Click Add to name a device in your network.

Fill in the following fields:

• Hostname: Choose a name that is meaningful to you. No spaces

are allowed in this field.

• IP address: The address of the device within your network.

EXAMPLE: a personal laptop with IP address 192.168.0.164 could be assigned the

name “MyLaptop”.

Since the assigned name is mapped to an IP address, the device’s IP

address should not change. To ensure that the device keeps the same IP address, go to Network Settings → DHCP

Server and reserve the IP address for the device by selecting the device in the Active Leases list and clicking “Reserve”.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

6.4 Firewall

The router automatically provides a firewall. Unless you configure the router to the contrary, the router does not respond

to unsolicited incoming requests on any port, thereby making your LAN invisible to cyber attackers.

However, some network applications cannot run with a tight firewall. Those applications need to selectively open ports in

the firewall to function correctly. The options on this page control ways of opening the firewall to address the needs of

specific types of applications.

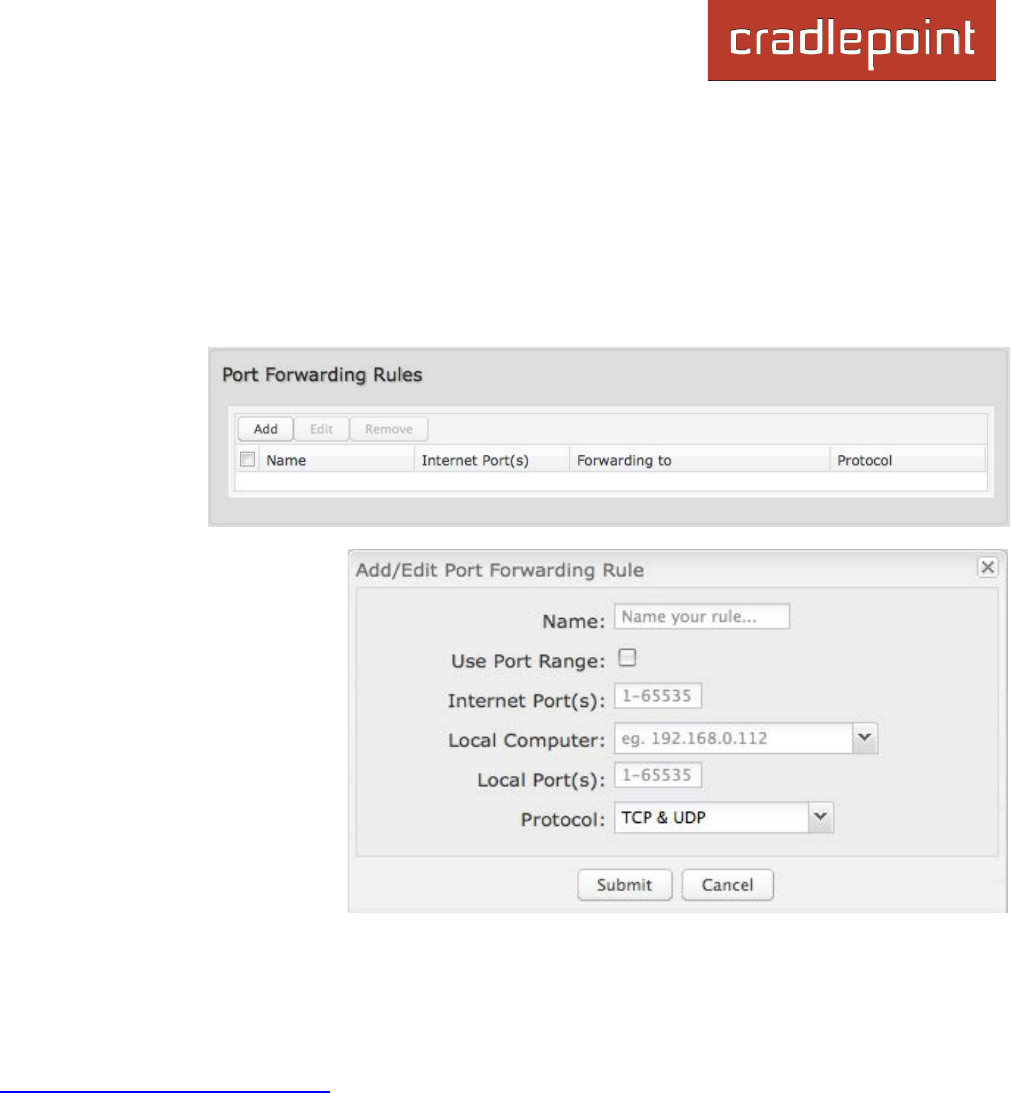

6.4.1 Port Forwarding Rules

A port forwarding rule allows traffic from the

Internet to reach a computer on the inside of your

network. For example, a port forwarding rule might

be used to run a Web server.

Exercise caution when adding new rules as

they impact the security of your network.

Click Add to create a new port forwarding rule, or select an

existing rule and click Edit.

Add/Edit Port Forwarding Rule

• Name: Name your rule.

• Use Port Range: Changes the selection options to allow

you to input a range of ports (if desired).

• Internet Port(s): The port number(s) as you want it

defined on the Internet. Typically these will be the same

as the local port numbers, but they do not have to be.

These numbers will be mapped to the local port numbers.

• Local Computer: Select the IP address of an attached

device from the dropdown menu, or manually input the IP address of a device.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

• Local Port(s): The port number(s) that corresponds to the service (Web server, FTP, etc) on a local computer or

device. For example, you might input “80” in the Local Port(s) field to open a port for a Web server on a computer

within your network. The Internet Port(s) field could then also be 80, or you could choose another port number that

will be used across the Internet to access your Web server. If you choose a number other than 80 for the Internet

Port, connections to that number will be mapped to 80—and therefore the Web server—within your network.

• Protocol: Select from the following options in the dropdown menu:

o TCP

o UDP

o TCP & UDP

• Click Submit to save your completed port forwarding rule.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

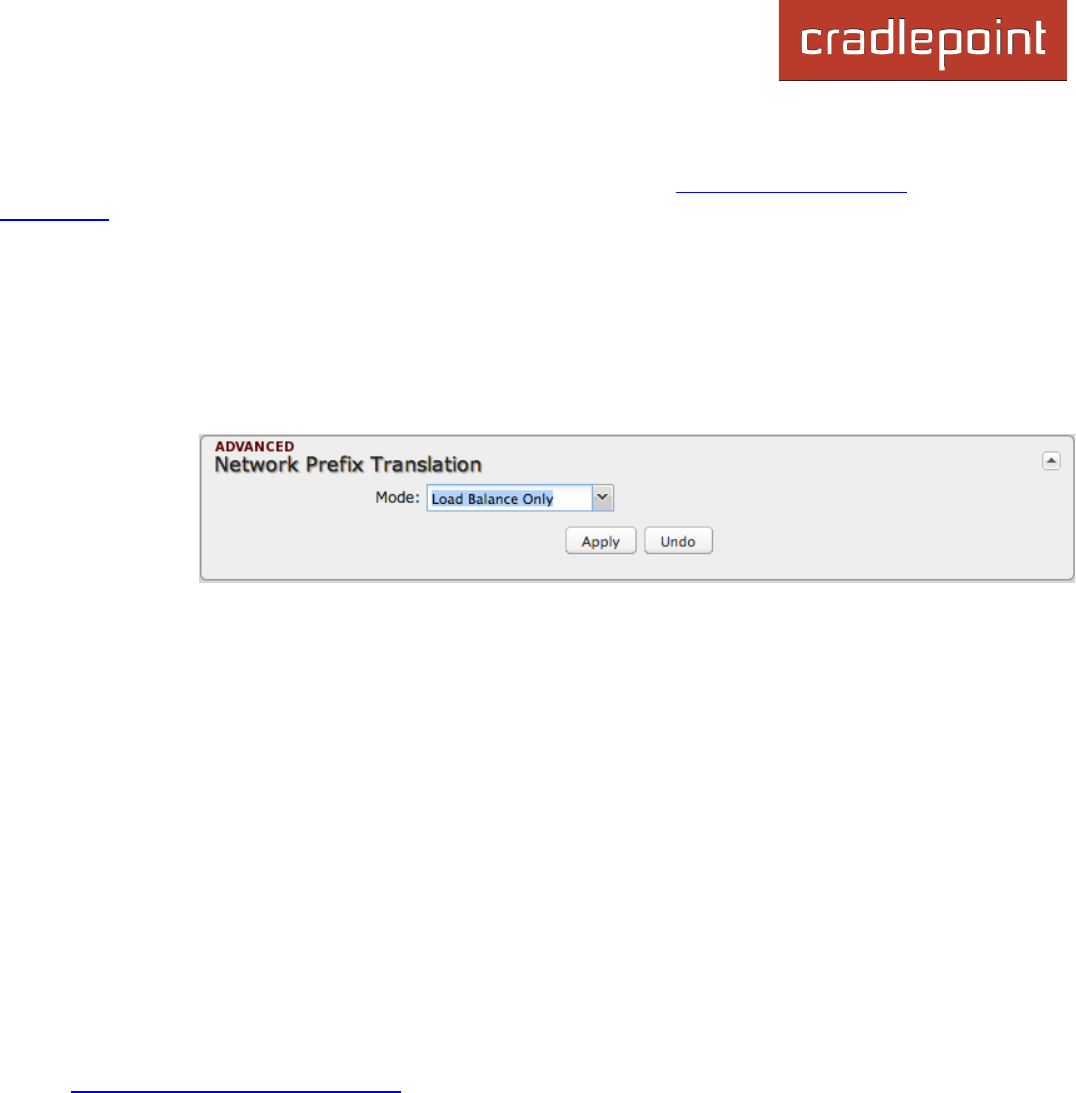

6.4.2 Network Prefix Translation (Advanced)

Network Prefix Translation is used in IPv6 networks to translate one IPv6 prefix to another. IPv6 prefix translation is an

experimental specification (RFC 6296) trying to achieve address independence similar to NAT in IPv4. Unlike NAT,

however, NPT is stateless and preserves the IPv6 principle that each device has a routable public address. But it still

breaks any protocol embedding IPv6 addresses (e.g. IPsec) and is generally not recommended for use by the IETF. NPT

can help to keep internal network ranges consistent across various IPv6 providers, but it cannot be used effectively in all

situations.

The primary purpose for CradlePoint’s NPT implementation is for failover/failback and load balancing setups. LAN clients

can potentially retain the original IPv6 lease information and may experience a more seamless transition when WAN

connectivity changes than if not utilizing NPT.

Mode:

• None – No translation is performed

• Load Balance Only – (Default) Only

translate networks when actively load

balancing

• First – Use the first IPv6 prefix found

• Static – Always use a static IPv6 translation (input the prefix here)

Transitioning from short prefix to a longer prefix (such as from /48 to /64) is not without problems, as some of the LANs

may lose IPv6 connectivity.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

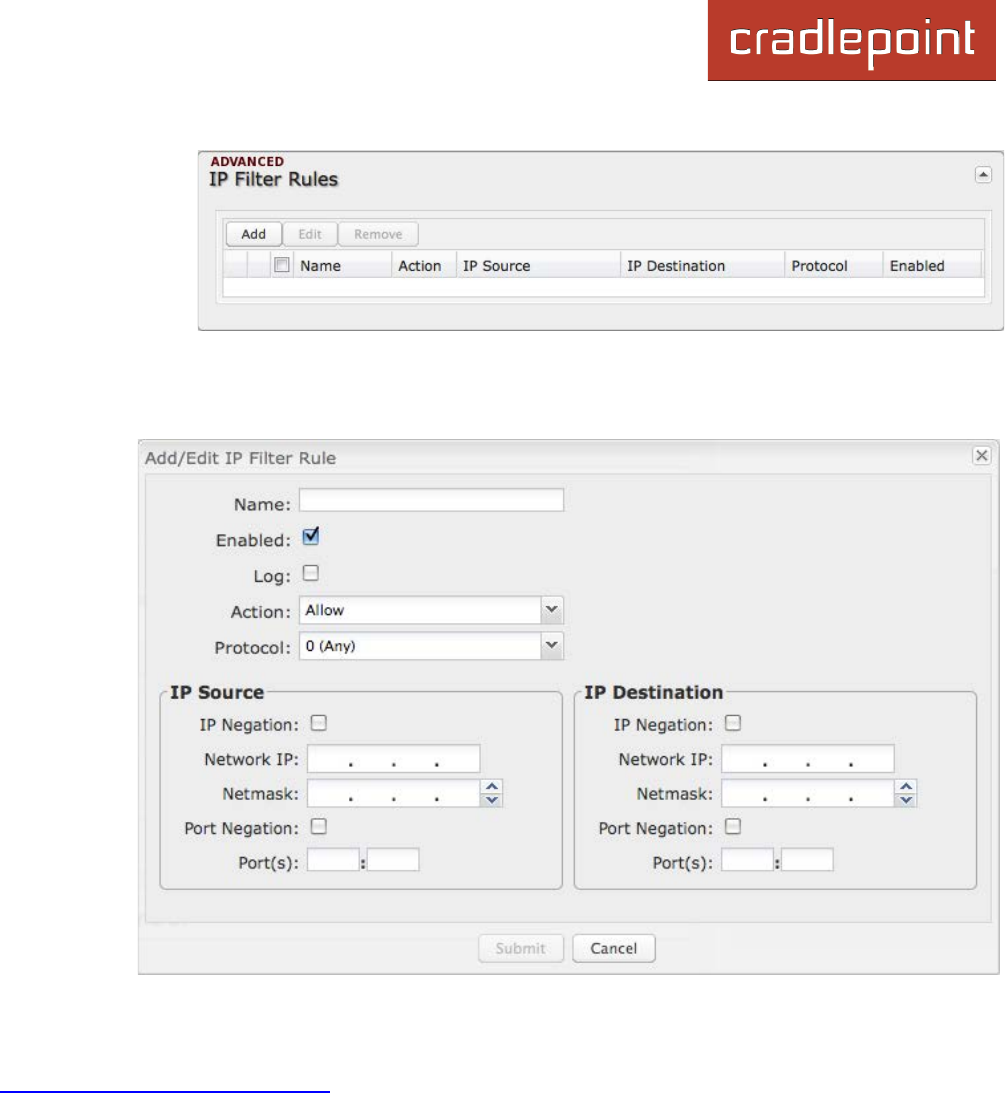

6.4.3 IP Filter Rules (Advanced)

An "Incoming" IP filter rule restricts remote access

to computers on your local network. "Outgoing"

filter rules prevent computers on your local

network from initiating communication to the

address range specified in the rule.

This feature is especially useful when combined with port forwarding and/or DMZ to restrict remote access to a specified

host or network range. For example, in order to host a server you might have opened ports with a port forwarding rule that

could expose your LAN to cyber attacks. With an incoming IP filter rule, you can restrict the access to your LAN to only

known devices.

• Name: Name your rule.

• Enabled: Selected by default.

• Log: When checked each packet

matching this filter rule will be logged

in the System Logs.

• Action: “Allow” or “Deny”

• Protocol: Any, ICMP, TCP, UDP,

GRE, ESP, or SCTP.

IP Source / IP Destination

• IP Negation: Match on any IP

address that is NOT in the specified IP

network range.

• Network IP: Optional field to specify a

matching network IP address for this

rule to match against.

• Netmask: Use this to define a subnet

size this rule will match against.

• Port Negation: Match on any port

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

that is NOT in the specified port range.

• Port(s): Use for a single port or a range of ports. Fill in the left side for a single port.

Use Network IP, Netmask, and Port(s) to specify the ports and addresses for which the rule applies. You can specify a

range of ports or a single port. Similarly, the netmask can be used to define either a range of addresses (i.e.

255.255.255.0) or a single address (255.255.255.255).

If you leave these values blank, then all IP addresses and ports will be included. IP Source and IP Destination options

can be used to differentiate between the directions that packets go. You could permit packets to come from particular IP

addresses but then not allow packets to return to those addresses.

Example of an IP Filter Rule: Suppose you have opened a port in your firewall in order to run a server. Someone, Johnny, is abusing that

opening, so you would like to restrict his access. Create a rule that will deny Johnny’s IP address.

Add IP Filter Rule

• Name: No more Johnny

• Enabled: Selected

• Action: Deny

• Protocol: Any

IP Source

• Network IP: 172.22.24.160 (Johnny’s IP address)

• Netmask: 255.255.255.255 (This netmask restricts the rule to one single address).

• Port(s): 80

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

6.4.4 DMZ: DeMilitarized Zone (Advanced)

A DMZ host is effectively not firewalled in the

sense that any computer on the Internet may

attempt to remotely access network services at the

DMZ IP address. Typical uses involve running a

public Web server or sharing files.

Input the IP Address of a single device in your

network to create a DeMilitarized Zone for that device. To ensure that the IP address of the selected device remains

consistent, go to the “Reservations” section under Network Settings → DHCP Server and reserve the IP address for the

device.

As with port forwarding, use caution when enabling the DMZ feature as it can threaten the security of your

network. Only use DMZ as a last resort.

6.4.5 Application Gateways (Advanced)

Enabling an application gateway makes pinholes

thru the firewall. This may be required for some

applications to function, or for an application to

improve functionality or add features.

Exercise caution in enabling application

gateways as they impact the security of your

network.

Enable any of the following types of application

gateways:

• PPTP: For virtual private network access

using Point to Point Tunneling Protocol. This

is enabled by default.

• SIP: For Voice over IP using Session Initiation Protocol.

• TFTP: Enables file transfer using Trivial File Transfer Protocol.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

• FTP: To allow normal mode when using File Transfer Protocol. This is not needed for passive mode. This is

enabled by default.

• IRC: For Direct Client to Client (DCC) transfer when using Internet Relay Chat. You may wish to forward TCP port

113 for incoming identd (RFC 1413) requests.

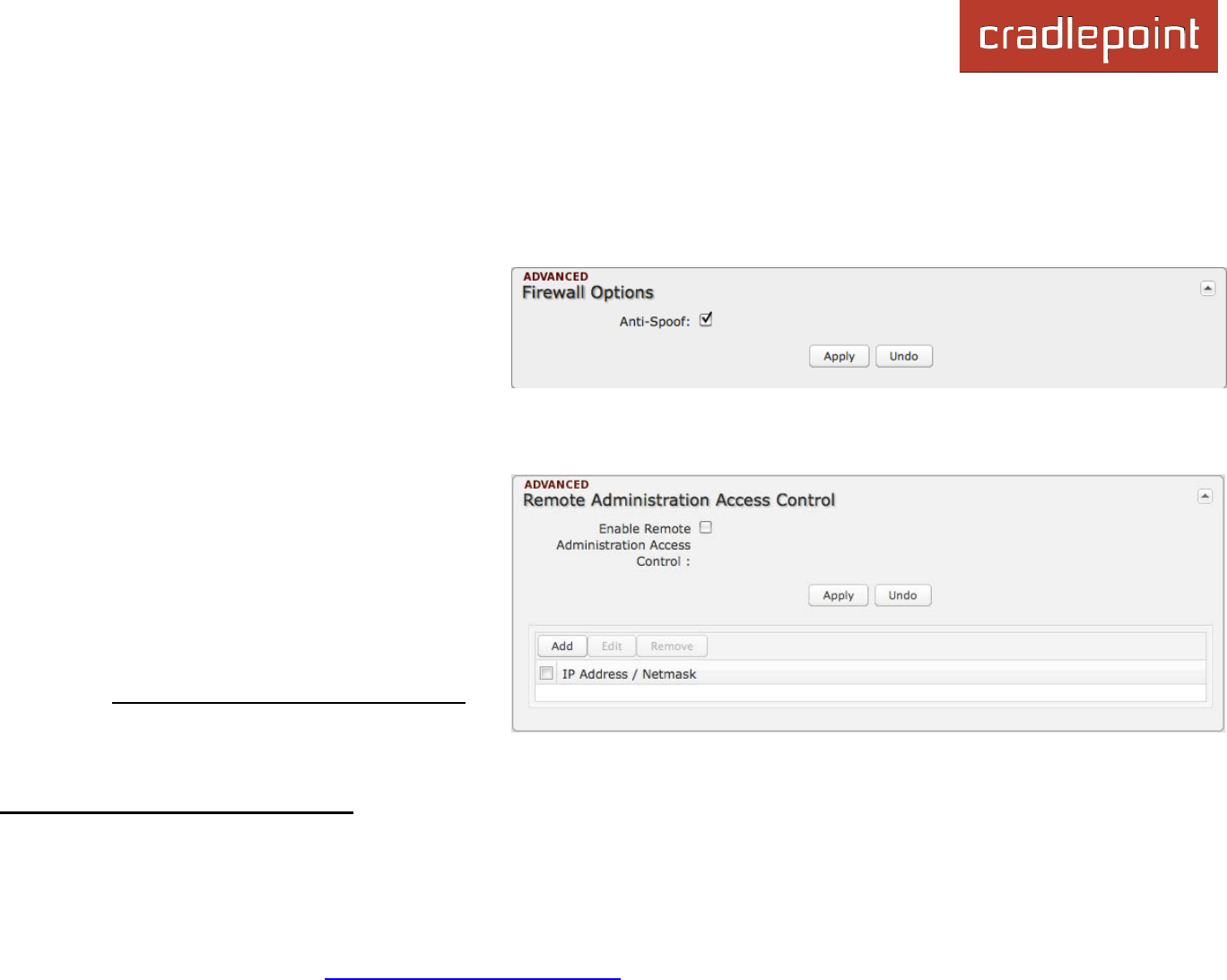

6.4.6 Firewall Options (Advanced)

Anti-Spoof: Anti-Spoof checks help protect against

malicious users faking the source address in

packets they transmit in order to either hide

themselves or to impersonate someone else. Once

the user has spoofed their address they can launch

a network attack without revealing the true source of the attack or attempt to gain access to network services that are

restricted to certain addresses.

6.4.7 Remote Administration Access Control

(Advanced)

Enable Remote Administration Access Control:

Selecting this option allows you to make remote

administration tools available to only the specified

IP addresses. Access from all other IP addresses

will be blocked. This option only filters IP

addresses: you must enable Remote Management

separately (System Settings → Administration).

The services affected by this include remote HTTP,

HTTPS, SNMP, and SSH configuration tools. This does not restrict access to LAN-based administration, i.e. devices

within your network still have administration access. The individual remote administration services can be enabled under

System Settings → Administration --> Remote Management.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

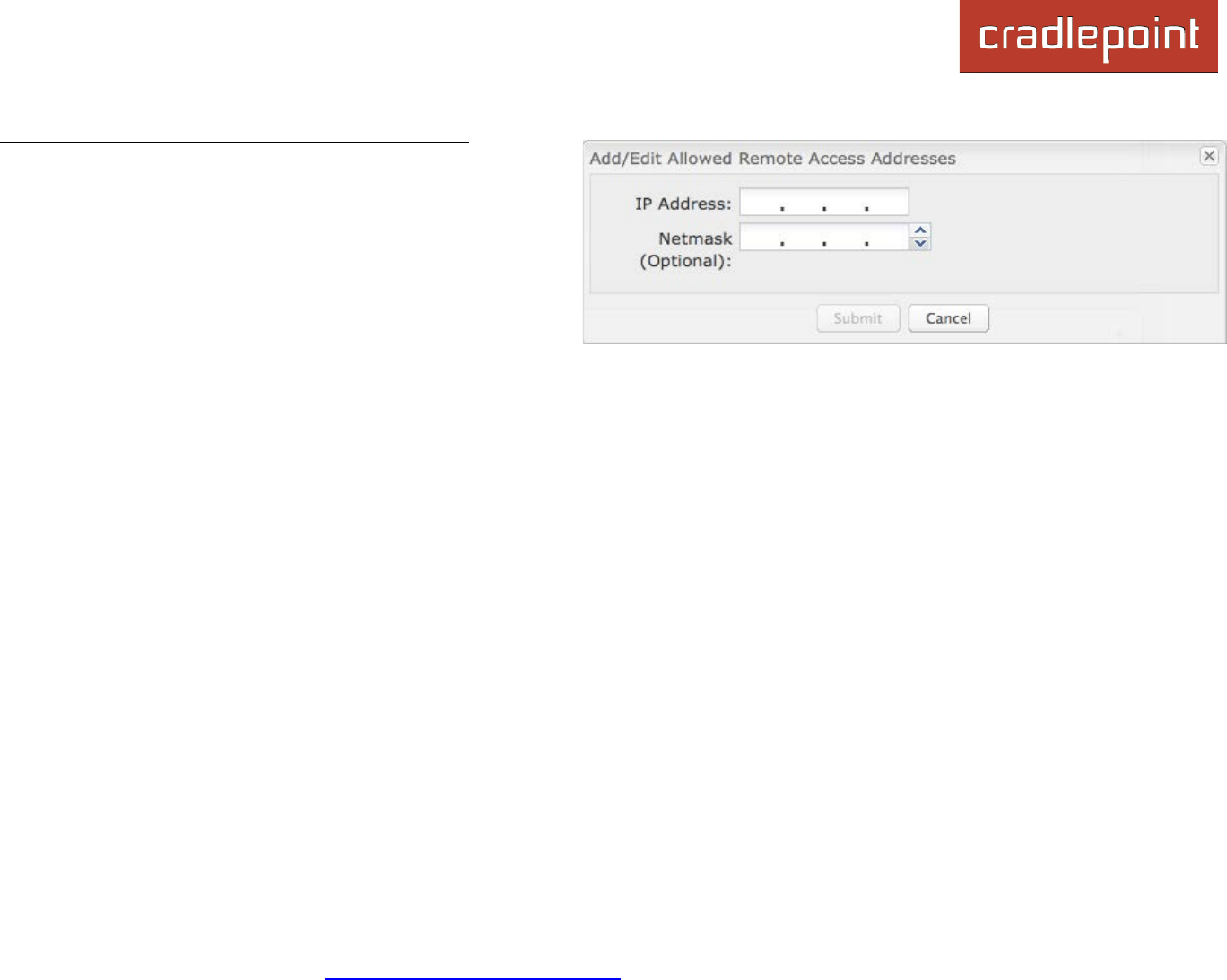

Remote Administration Access Control Editor

IP Address: The IP address that will be allowed to access

administrative services through the WAN.

Netmask (Optional): The netmask allows you to specify

what IP address sets will be allowed access. If this field is

left empty a netmask of 255.255.255.255 will be used,

which means that only the single specified IP address

would have remote administration access.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

6.5 Local Networks

This section is used to configure the settings for networks created by your router. The user can set up multiple networks

on the CBA750B, each with its own unique configuration and its own selection of interfaces. Each local network can be

attached to either (or both) of the following types of interfaces:

• Ethernet

• VLAN

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

6.5.1 Local IP Networks

Local IP Networks displays the following information for each network:

• Network Name and IP address/Netmask (along the top bar)

• Enabled (Yes/No)

• DHCP Mode (e.g. DHCP Server mode)

• Schedule (Enabled/Disabled – See the

Schedule tab in the Local Network

Editor)

• IPv4 Routing Mode (NAT, Standard,

IP Passthrough, Disabled)

• IPv6 Addressing Mode (SLAAC Only,

SLAAC with DHCP, Disable SLAAC

and DHCP)

• Access Control (Admin Access, UPnP Gateway, LAN Isolation)

• Attached Interfaces (Ethernet port, VLAN)

Click Add to configure a new network, or select an existing network and click Edit to view configuration options.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

6.5.2 Local Network Editor

Click Add or select a network and click Edit to open the Local Network Editor to make configure a LAN. The Local

Network Editor contains the following tabs: General Settings, IPv4 Settings, IPv6 Settings, Interfaces, Access Control,

IPv4 DHCP, IPv6 Addressing, and Schedule.

General Settings:

Enabled: Push to manually disable a network. Also,

some settings could cause a network to be

automatically disabled: click here to re-enable the

network.

Name: This primarily helps to identify this network

during other administration tasks.

Hostname: [Default: cp (for CradlePoint)] The

hostname is the DNS name associated with the

router's local area network IP address.

NOTE: You can access the router’s administration pages by

typing the hostname into your browser, so if you change “cp” to

another hostname, you can access the administration pages

through the new hostname.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

IPv4 Settings:

IP Address: This is the address used by the router for local area network communication. Changes to this parameter may

require a restart to computers on this network.

Each network must have a distinct IP address. Most users

will want an address from one of the following private IP

ranges:

• 10.0.0.1 - 10.255.255.1

• 172.16.0.1 - 172.31.255.1

• 192.168.0.1 - 192.168.255.1

NOTE: The final number does not have to be 1, but it is a simple,

logical convention for routers that leaves higher numbers free for

other devices.

Netmask: (Default: 255.255.255.0) The netmask controls

how many IP addresses can be used in this network. The

default value allows for 254 IP addresses.

IPv4 Routing Mode: (Default: NAT) Each network can

use a unique routing mode to connect to the Internet and

other local networks. NAT is desirable for most

configurations. Select from the following options in the

dropdown list:

• NAT: Network Address Translation hides private IP addresses behind the router's IP address. This is the simplest

and most common choice for users, because NAT does the translation work for you.

• Standard: NAT-less routing. If you select Standard, you must separately configure your IP addresses so that they

will be publically accessible. Typically you will not select this option unless you have a specific reason to bypass

NAT.

• IP Passthrough: IP Passthrough passes the IP address given by a cellular modem (WAN) through the router to

Ethernet (LAN). The easiest way to enable IP Passthrough mode is with the IP Passthrough Setup Wizard (see

Getting Started → IP Passthrough Setup).

• Disabled: Disable this network.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

IPv6 Settings:

IPv6 must be enabled through the WAN initially: go to

Internet → Connection Manager to enable IPv6.

IPv6 Address Source: By default, this is set to

Delegated, which means the IPv6 address range for

the LAN is passed through from the WAN side. Change

this to Static to input your own IPv6 address range

here, or select None to explicitly disable IPv6 LAN

connectivity.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

Interfaces:

Select network interfaces to attach to this network. Choose from the Ethernet port and VLAN interfaces. Double-click on

an interface shown on the left in the Available section to move them to the Selected section on the right (or highlight an

interface and click the “+” button). To deselect an interface, double-click on an interface in the Selected section (or

highlight the interface and click the “–“ button).

If you want more interface options, you must configure additional interfaces separately. See the Local Network

Interfaces section below (on this same administration page: Network Settings → Local Networks).

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

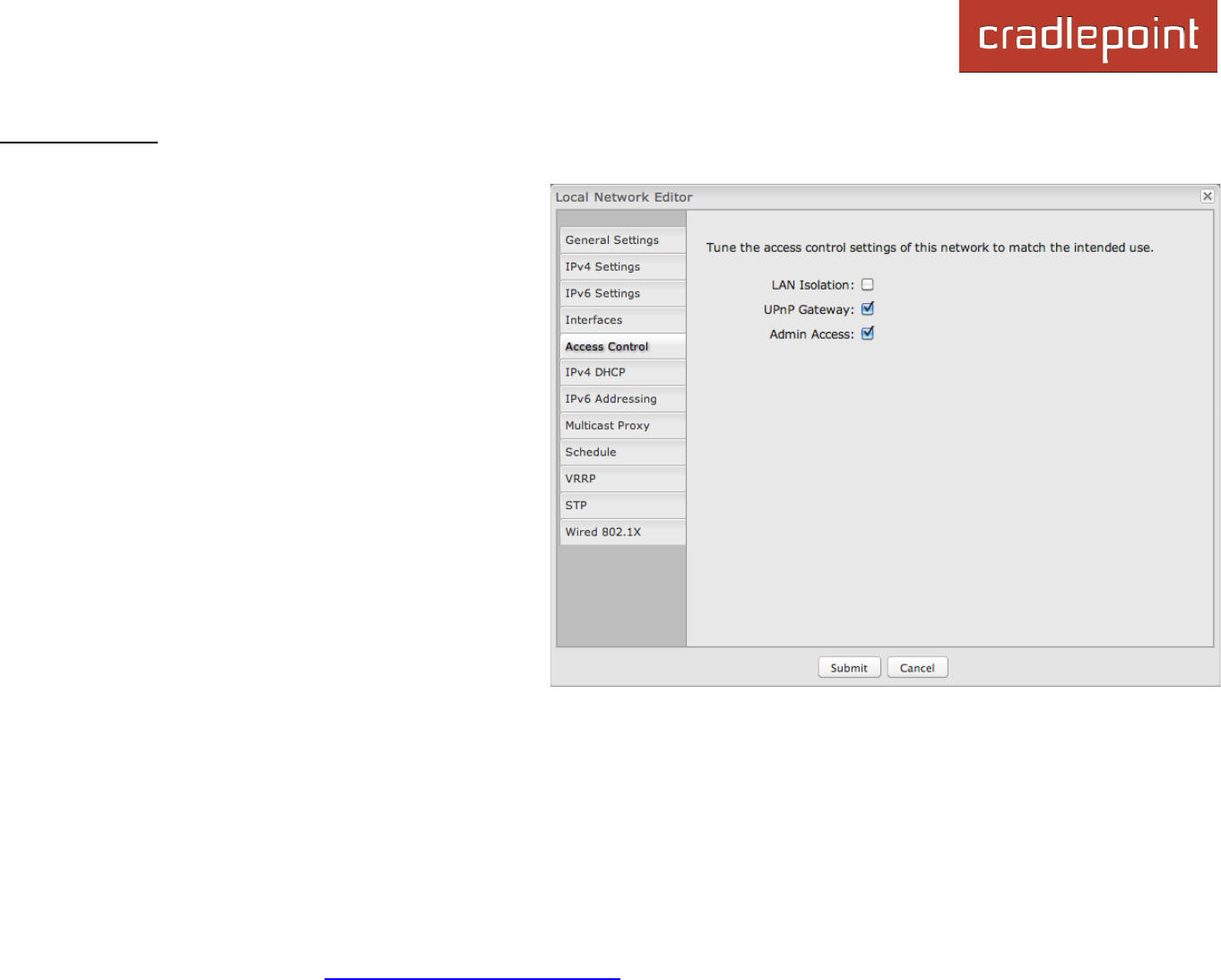

Access Control:

Tune the access control settings of this network to match the intended use. Simply select or deselect any of the following:

• LAN Isolation: When checked, this network will

NOT be allowed to communicate with other local

networks.

• UPnP Gateway: Select the UPnP (Universal

Plug and Play) option if you want to enable the

UPnP Gateway service for computers on this

network.

• Admin Access: When enabled, users may

access these administration pages on this

network.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

IPv4 DHCP:

Changing settings for the IPv4 DHCP server is optional. The default selections are almost always sufficient.

DHCP Server: (Default: Enabled) When the DHCP server is enabled, users of your network will be able to automatically

connect to the Internet without any special configuration. It is recommended that you leave this enabled. Disabling the

DHCP server is only recommended if you have another DHCP server on your network and it is configured properly.

Range Start and Range End: These designate the range of values in the reserved pool of IP addresses for the DHCP

server. Values within this range will be given to any DHCP enabled computers on your network. The default values are

almost always sufficient (default: 72 to 200, as in 192.168.0.72 to 192.168.0.200).

Example: The router uses an IP address of 192.168.0.1 for its primary network by default. A computer designated as a Web server has a static IP

address of 192.168.0.3. Another computer is designated as an FTP server with a static IP address of 192.168.0.4. The starting IP address for the

DHCP server needs to be 192.168.0.5 or higher.

Lease Time: [Default: 720 minutes (12 hours)] The lease time specifies how long DHCP-enabled computers will wait

before requesting a new DHCP lease. Smaller values are better suited to busy environments.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

Custom Options: Input a custom DHCP option by first clicking the Custom Options field to enable it and then clicking

“Add” at the top of the table that appears. There are close to 200 possible DHCP options available. One of the more

common uses is to assign a VoIP phone server using option 66 (Server name).

• Option: Select an option from the dropdown list or

manually enter the number of an option. A complete list of

options is available from IANA.

• Value: Generally this field should be a string, IP address,

or numeric value. Some fields can accept both IP

addresses and hostnames – in these cases you may need

to wrap this value in quotes. For example, option 66

(Server name) requires quotes around IP addresses.

DHCP Relay: DHCP Relay communicates with a DHCP server

and acts as a proxy for DHCP broadcast messages that must be

routed to remote segments. This is accomplished by converting broadcast DHCP messages to unicast messages to

communicate between clients and servers.

DHCP Server Address: An optional DHCP server address if more than one DHCP server is located on the network. This

field is only available when DHCP Relay is enabled.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

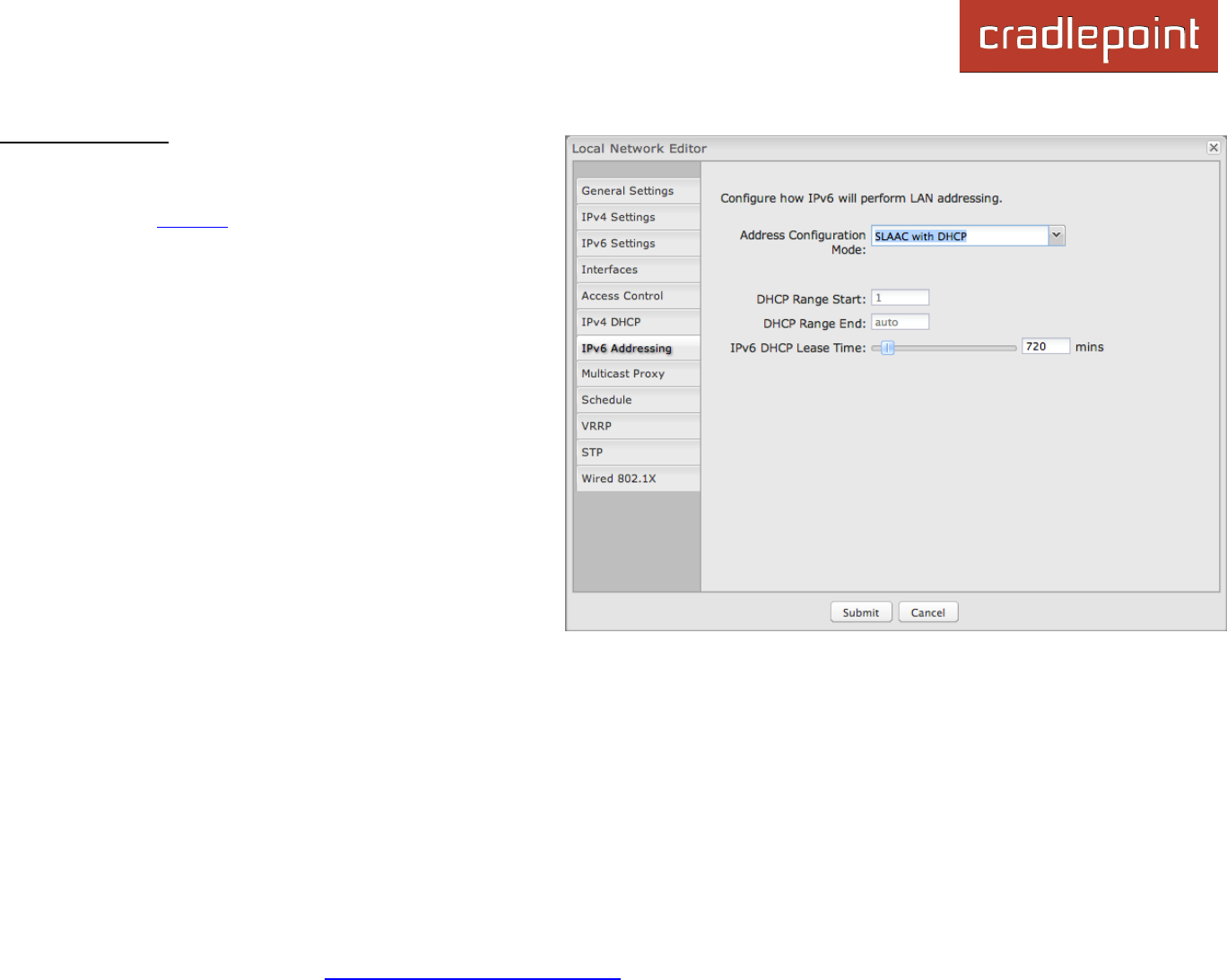

IPv6 Addressing:

Address Configuration Mode:

SLAAC Only – SLAAC stands for stateless address

autoconfiguration. The router regularly generates a

router advertisement that includes network prefix and

routing information, allowing clients to autogenerate an

address and start communicating on the network. Clients

utilize neighbor discovery protocols to ensure multiple

clients on the subnet have not chosen an identical

address.

SLAAC with DHCP – (Default) IPv6 DHCP provides an

additional client configuration method and is regularly

combined with SLAAC to provide DNS servers (a

shortcoming in the original SLAAC specification) and

additional options not supported by SLAAC. By

defaulting to SLAAC with DHCPv6, all IPv6-capable

clients on the network should be configurable with IPv6

connectivity.

• DHCP Range Start: The beginning of the range that will be used for IPV6 DHCP addresses. The IPv6 range will

always start at 1.

• DHCP Range End: The ending IP address in the DHCP Server range is the end of the reserved pool of IP

addresses that will be given to any DHCP-enabled computers on your network.

• IPv6 DHCP Lease Time: This specifies how long DHCP-enabled computers will wait before requesting a new

DHCP lease.

Disable SLAAC and DHCP – Disable both IPv6 address configuration modes.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

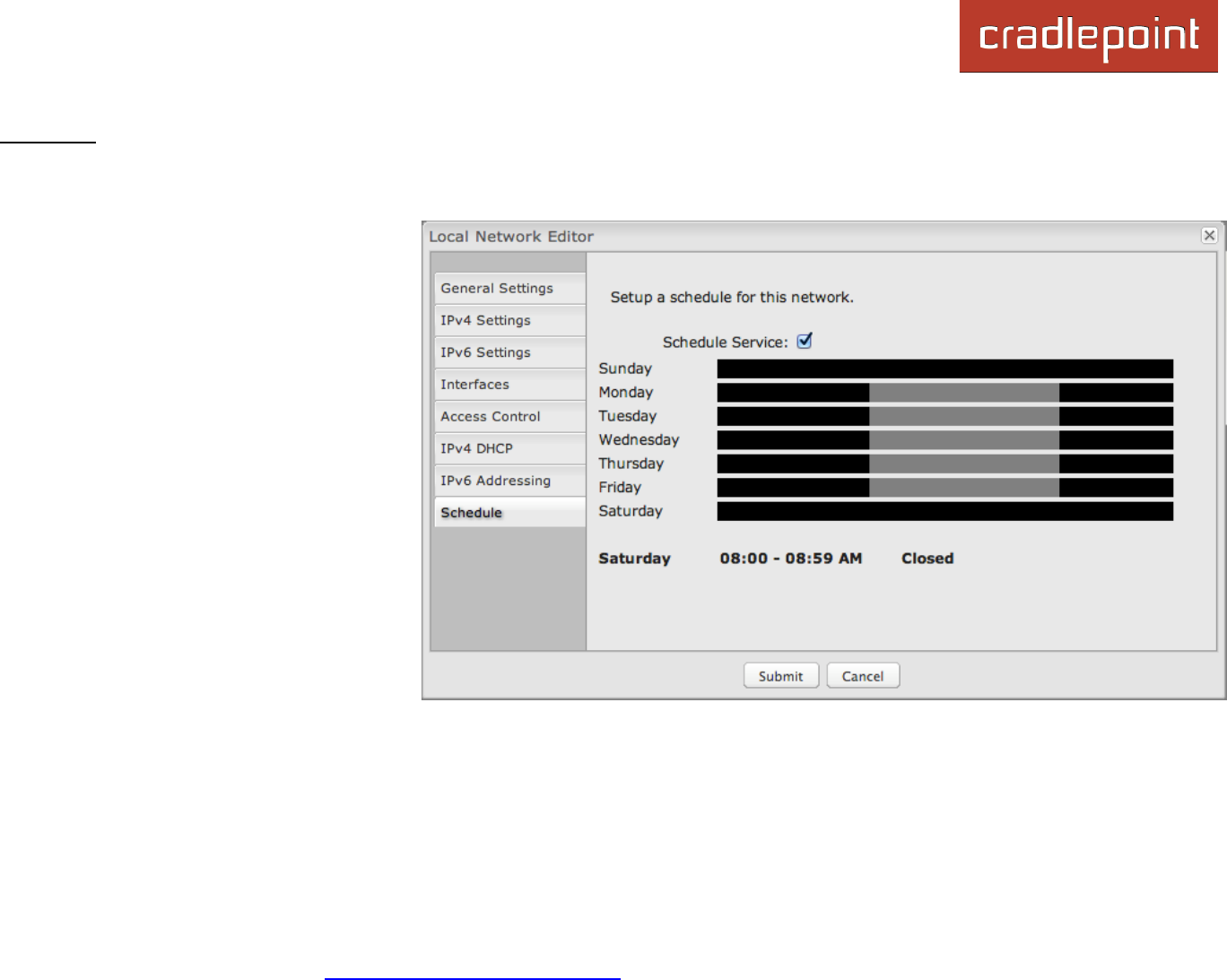

Schedule:

Set up a schedule for this network interface. This allows an interface to be enabled or disabled during specific hours of a

day. For example, use this to limit the network to business hours.

Schedule Service: (Default: Disabled.)

Select to enable. This will open a

configurable chart for setting the

schedule.

Each hour of the week is represented by a

black or gray square. Black represents

disabled, while gray represents enabled.

Hover over a square to reveal the hour it

represents. Click on the squares to toggle

between black and gray.

In the example shown, the network is

enabled from 8-5 on Monday through

Friday, but disabled at all other times.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

6.5.3 Local Network Interfaces

Each LAN type—Ethernet and VLAN—has a separate section with configuration options. Unless the default configuration

is sufficient, YOU MUST CONFIGURE EACH INTERFACE SEPARATELY in order to create the desired interface options

for a network. You can then select these interfaces to add to a network in the Local Network Editor (see above).

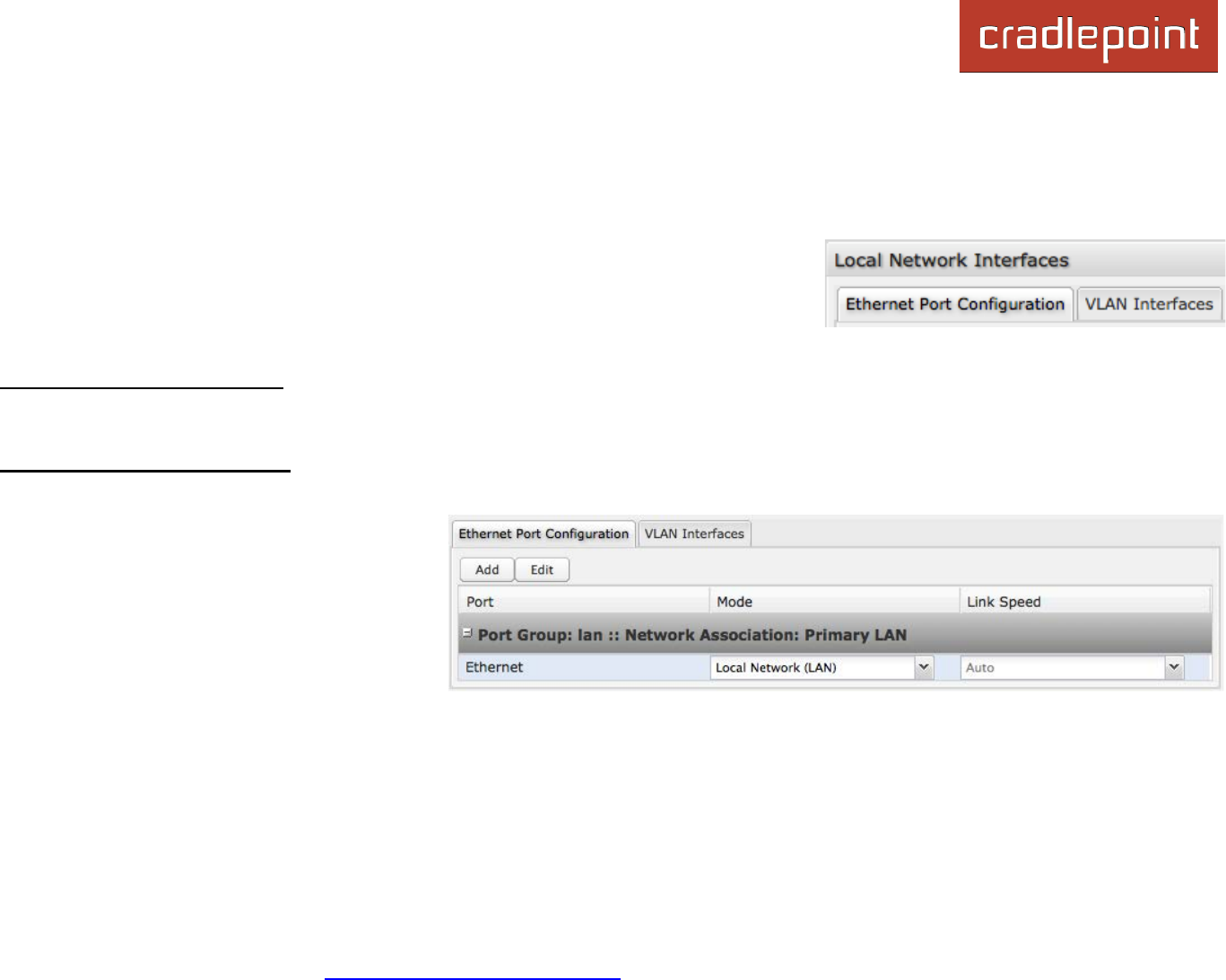

Select from the following tabs:

• Ethernet Port Configuration

• VLAN Interfaces

Ethernet Port Configuration

Ethernet Port Configuration provides controls for your router’s Ethernet port. While default settings will be sufficient in

most circumstances, you have the ability to control the Link Speed. Additional controls for WAN ports are available in

Internet → Ethernet Settings.

Link Speed: Default setting is Auto. The Auto setting is preferred in most cases.

• Auto

• 10Mbps - Half Duplex

• 10Mbps - Full Duplex

• 100Mbps - Half Duplex

• 100Mbps - Full Duplex

• 1000Mbps - Full Duplex

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

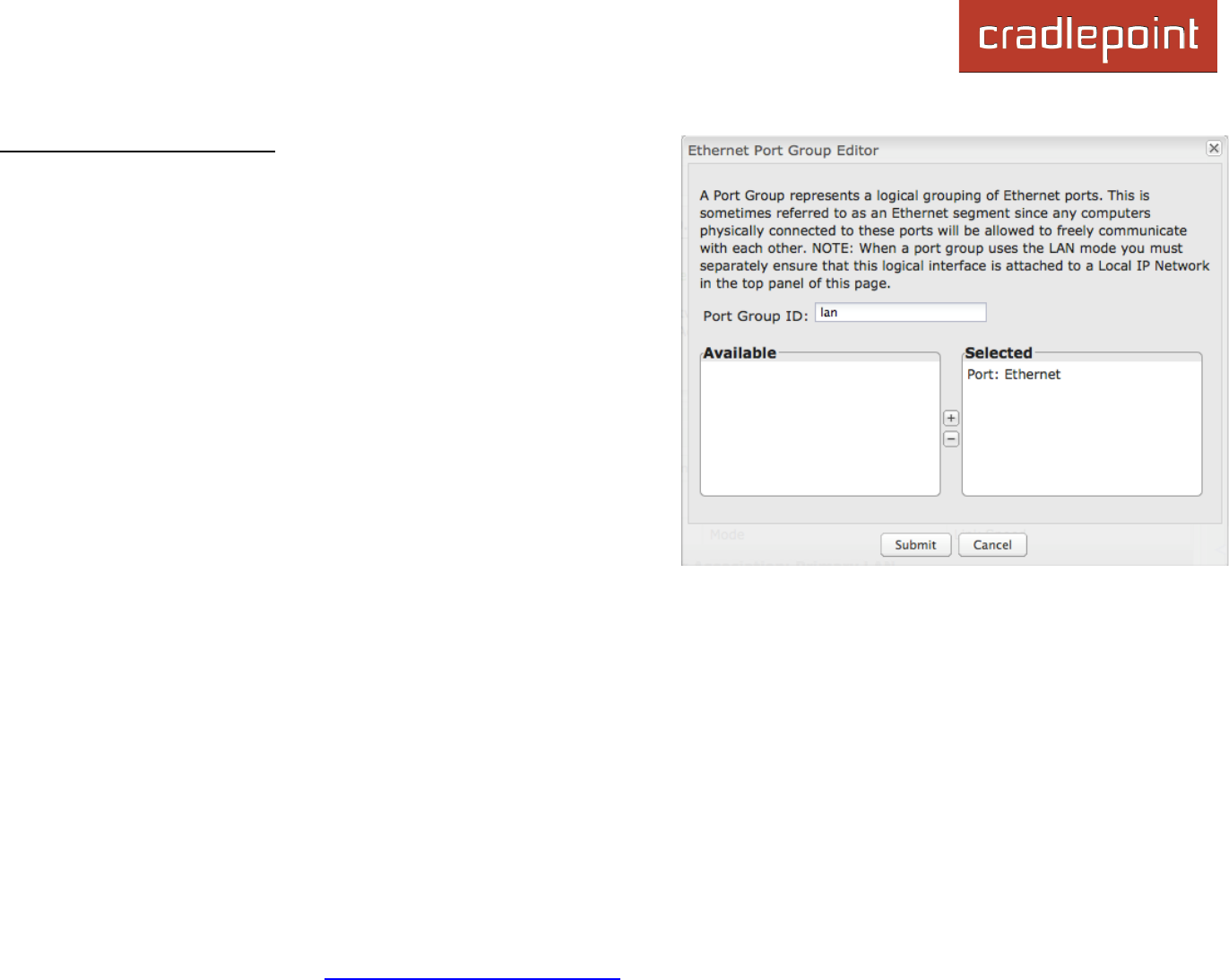

Ethernet Port Group Editor

A Port Group represents a logical grouping of Ethernet ports. Any

computers physically connected to ports in a group will be allowed to

freely communicate with each other.

Since the CBA750B has only 1 Ethernet port, this feature will rarely

be necessary. The only use is to switch the port to a different local

network.

NOTE: You must separately ensure that this logical interface is attached to a Local

IP Network in the top panel of this page.

Port Group ID: The Group ID field provides a reference to this port

group to be used in other parts of the router configuration. For

example, this ID is referenced in the Local IP Networks configuration

to attach this group of Ethernet port group with a network

configuration. Use a simple short text phrase to describe a group,

such as "main", "guestport", etc.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

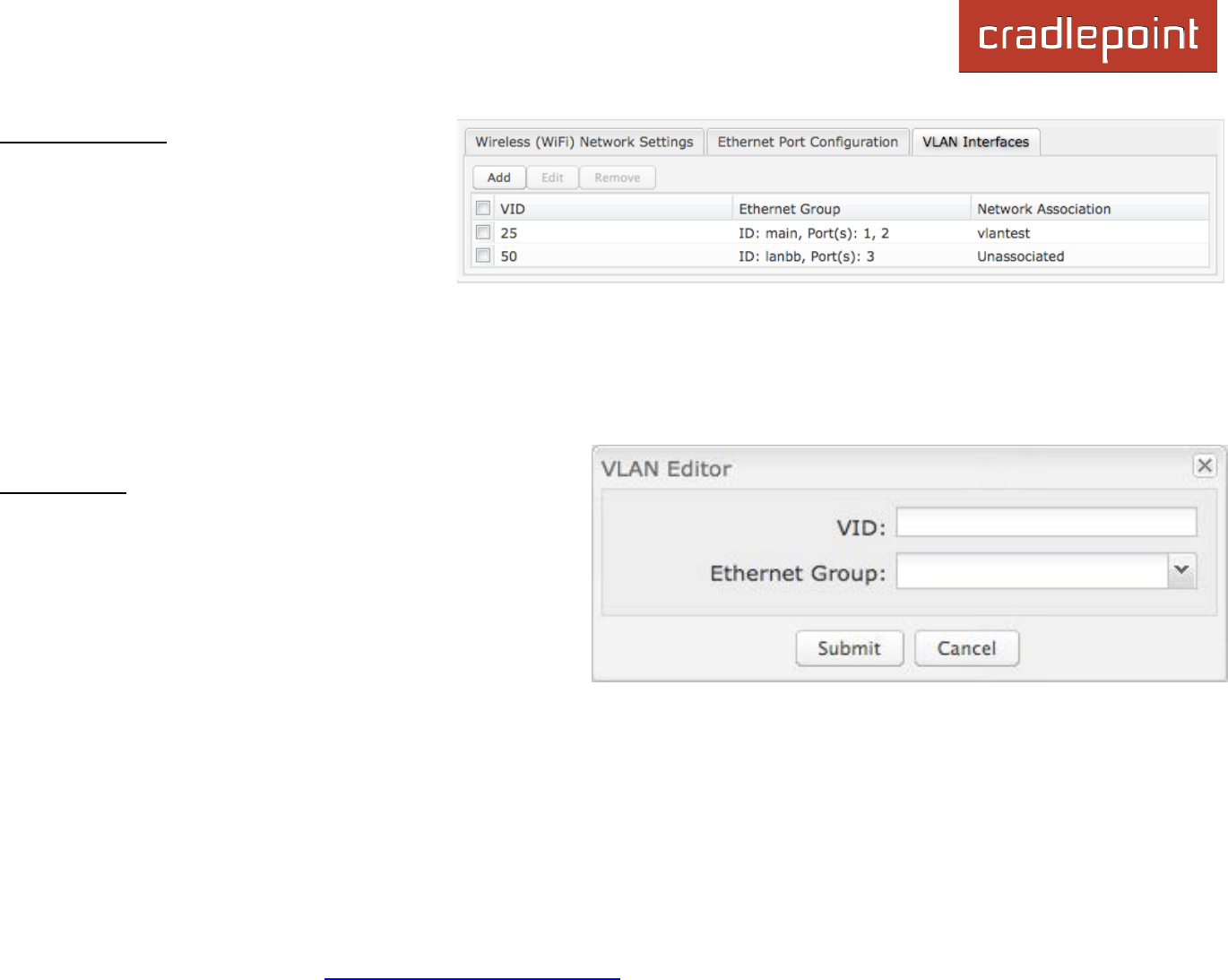

VLAN Interfaces

A virtual local area network, or VLAN,

functions as any other physical LAN, but it

enables computers and other devices to be

grouped together even if they are not

physically attached to the same network

switch.

To enable a VLAN, select a VID (virtual LAN ID) and an Ethernet port group through which users can access the VLAN.

Then go back up to the Local Network Editor to attach your new VLAN to a network. To use a VLAN, the VID must be

shared with another router or similar device so that multiple physical networks have access to the one virtual network.

Click Add to create a new VLAN interface.

VLAN Editor

VID: An integer value that is the Virtual LAN ID.

Ethernet Group: Select the LAN port with which you want

to associate the VLAN ID from a dropdown list.

Click Submit to save your configured VLAN.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

6.6 MAC Filter / Logging

A MAC (Media Access Control) address is a unique identifier for a computer or other device. This page allows you to

manage clients by MAC address. You can filter clients by MAC addresses and/or keep a log of devices connected to your

router.

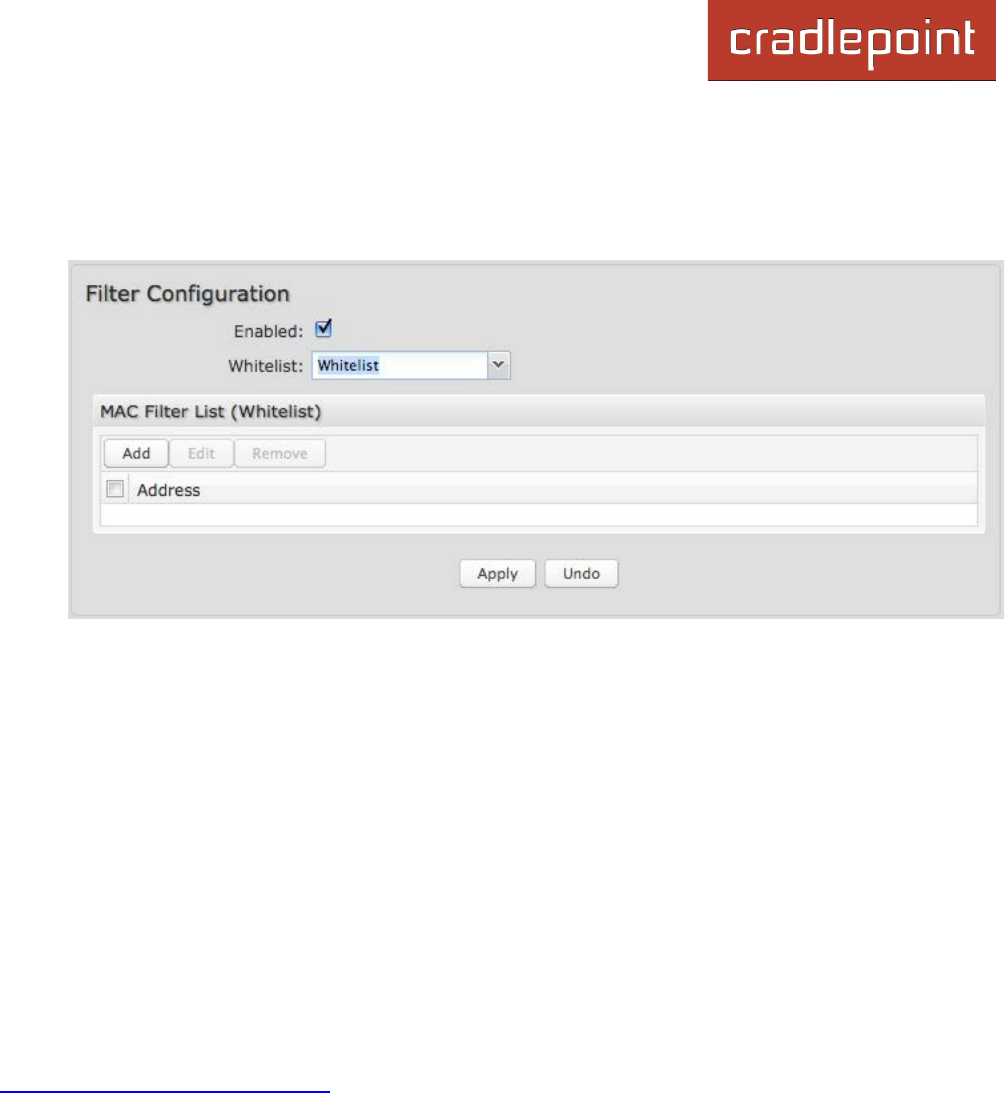

6.6.1 Filter Configuration

The MAC Filter allows you to create a

list of devices that have either

exclusive access (whitelist) or no

access (blacklist) to your LAN.

Enabled: Click to allow MAC Filter

options.

Whitelist: Select either “Whitelist” or

“Blacklist” from a dropdown menu. In

"Whitelist" mode, the router will

restrict access to all computers except

those contained in the "MAC Filter

List" panel. In “Blacklist” mode, listed devices are completely blocked.

MAC Filter List (Whitelist or Blacklist): Add devices to either your whitelist or blacklist simply by inputting each device’s

MAC address.

NOTE: Use caution when using the MAC Filter to avoid accidentally blocking yourself from accessing the router.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

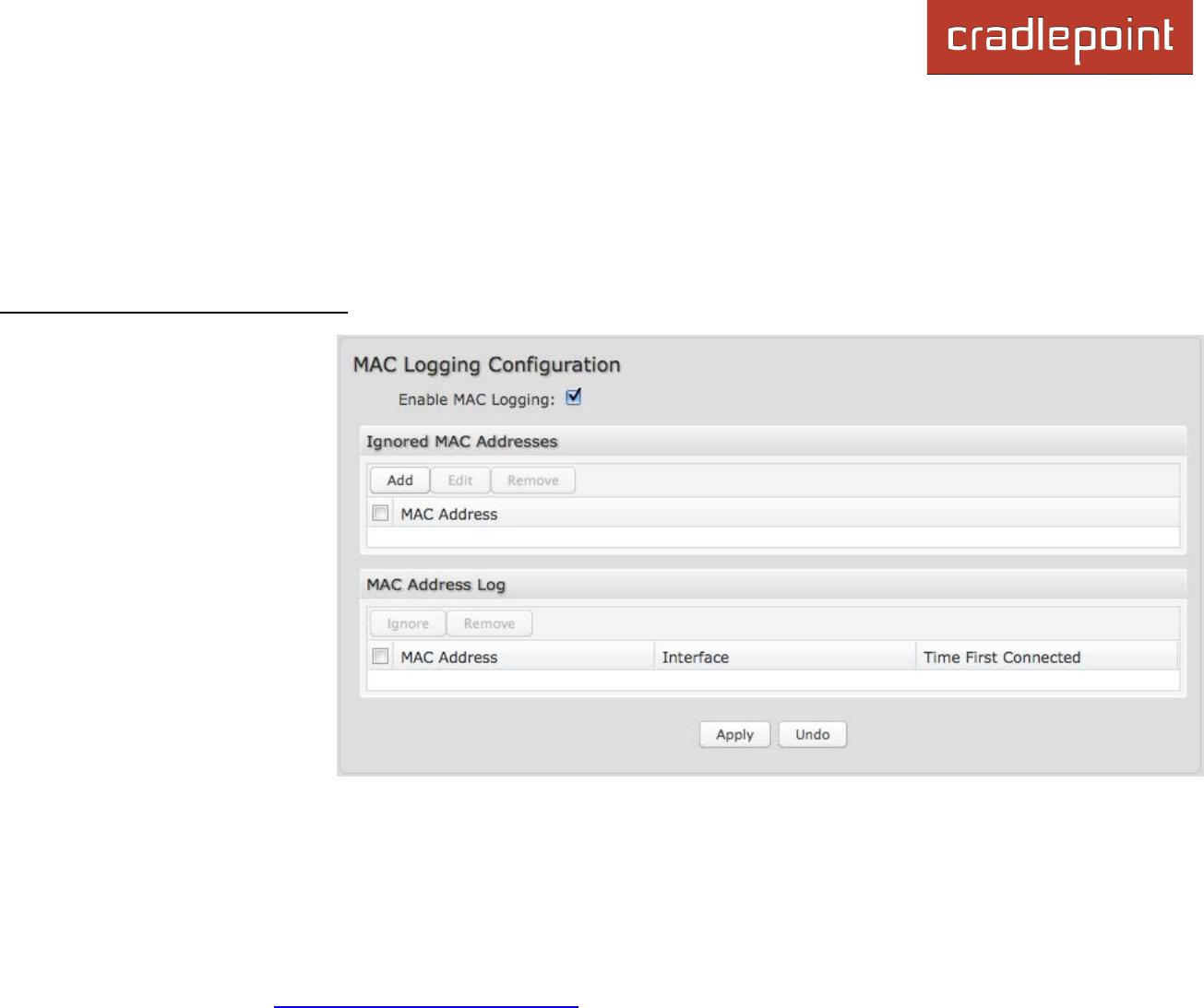

6.6.2 MAC Logging Configuration

Enable MAC Logging: Enabling MAC Logging will cause the router to log MAC addresses that are connected to the

router. MAC addresses that you do not want to have logged (addresses that you expect to be connected) should be

added to the “Ignored MAC Addresses” list.

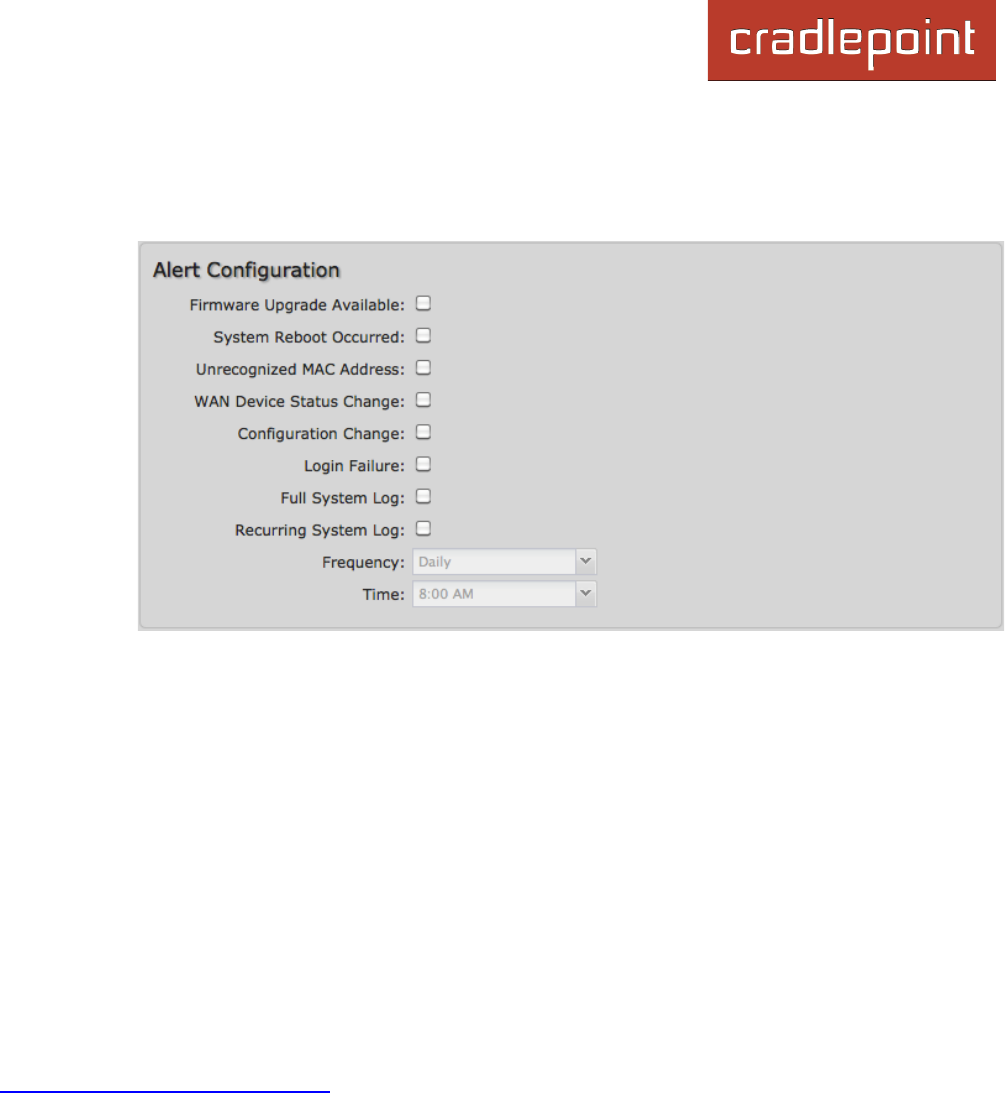

You can configure the router to send an alert if a connected device has a MAC address that the router doesn’t recognize.

Go to System Settings → Device Alerts to set up these email alerts.

Ignored MAC Addresses: This is the

list of MAC addresses that will not

produce an alert or a log entry when

they are connected to the router.

These should be MAC addresses that

you expect to be connected to the

router.

To add MAC addresses to this list,

simply select devices shown in the

MAC Address Log and click “Ignore.”

You can also add addresses

manually.

MAC Address Log: This shows the

last 64 MAC addresses that have

connected to the router, as well as

which interface was used to connect.

The time/date that is logged is the time of the first connection. The page may need to be refreshed to show the most

recent log entries.

Double-clicking on entries from this list will add them to the Ignored MAC Addresses list.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

6.7 Routing

Add a new static route to the IP routing table or edit/remove an existing route.

Static routes are used in networks with more than one layer, such as when there is a network within a network so that

packet destinations are hidden behind an additional router. Adding a static route is a way of telling the router about an

additional step that packets will need to take to reach their destination.

Click Add to create a new static route.

IP/Network Address: The IP address of the target

network or host.

Netmask: The Netmask, along with the IP address, defines the network the computer belongs to and which other IP

addresses the computer can see in the same LAN. An IP address of 192.168.0.1 along with a Netmask of 255.255.255.0

defines a network with 256 available IP addresses from 192.168.0.0 to 192.168.0.255.

NOTE: 255.255.255.255 is used to signify only the host that was

entered in the IP/Network Address field.

Gateway: Specifies the next hop to be taken if this route is

used. A gateway of 0.0.0.0 implies there is no next hop,

and the IP address matched is directly connected to the

router on the interface specified: LAN or WAN.

Allow Network Access: (Default: Deselected.) Some

static routes will need an IP Filter Rule via the Firewall to

allow packets through the route without being blocked.

Selecting this option automatically creates this IP Filter

Rule. If the IP/Network Address falls outside the LAN IP

range, you probably need to select this option.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

7 INTERNET

The Internet tab provides access to 3 submenu items for managing a variety of Internet connection options.

• Connection Manager

• Data Usage

• WAN Affinity / Load

Balancing

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

7.1 Connection Manager

The router can establish an uplink via any modems plugged into a modem port. If there is more than one modem attached

and the primary connection fails, the router will automatically attempt to bring up a new link on another device. This

feature is called failover. If Load Balance is enabled, multiple WAN devices establish a link at the same time.

7.1.1 WAN Interfaces

This is a list of the available interfaces used to access

the Internet. You can enable, stop, or start devices from

this section. By using the priority arrows (the arrows in

the boxes to the left—these show if you have more than

one available interface), you can set the interface the

router uses by default and the order that it allows

failover.

Load Balance: If this is enabled, the router will use multiple WAN interfaces to increase the data transfer throughput by

using any connected WAN interface consecutively. Selecting Load Balance will automatically start the WAN interface and

add it to the pool of WAN interfaces to use for data transfer. Turning off Load Balance for an active WAN interface may

require the user to restart a current browsing session.

Enabled: Selected by default. Deselect to disable an interface.

Click on the small box at the top of the list to select/deselect all devices for either Load Balance or Enabled.

Click on a device in the list to reveal additional information about that device and to enable configuration options.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

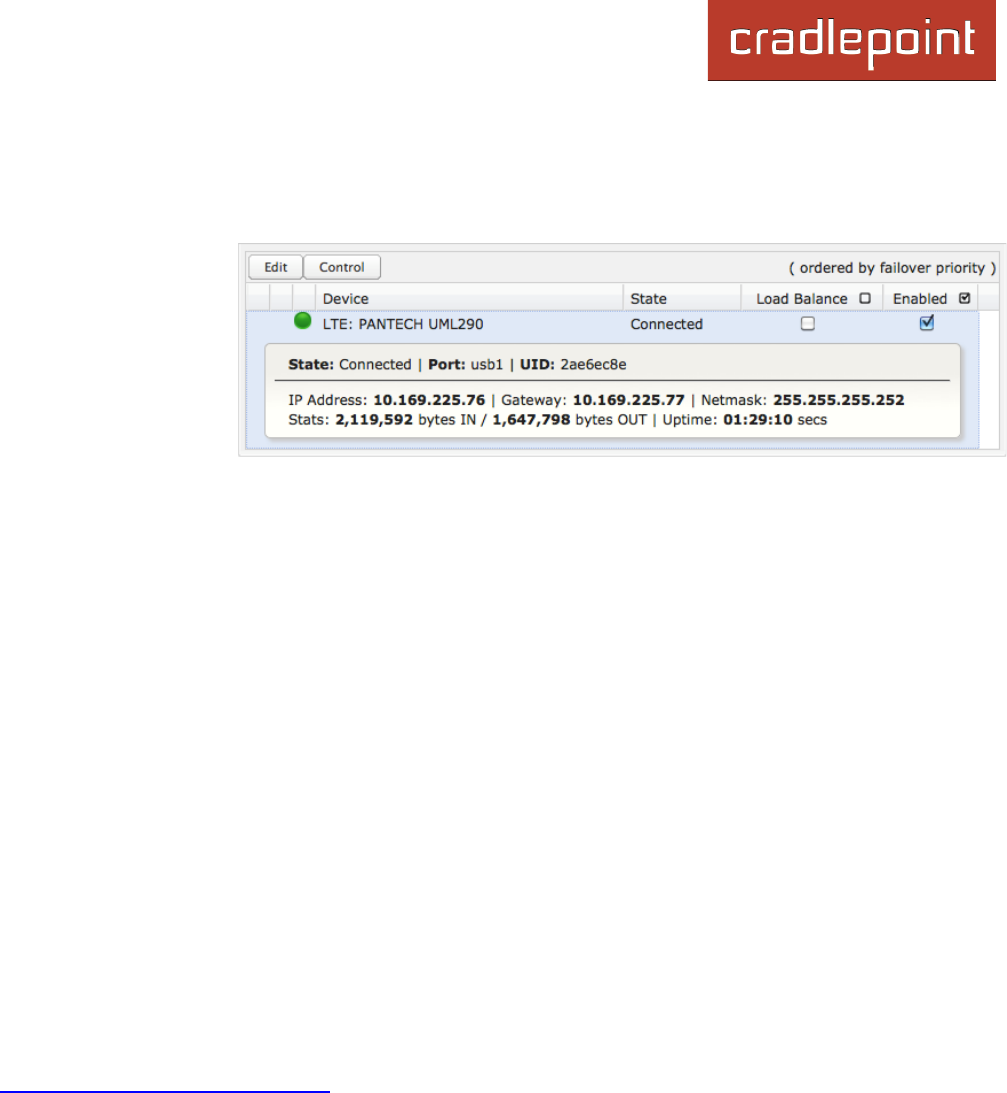

7.1.2 Device Configuration

Clicking on a device reveals the following information:

• State (Connected, Available, etc.)

• Port

• UID (Unique identifier. This could be a name or

number/letter combination.)

• IP Address

• Gateway

• Netmask

• Stats: bytes in, bytes out

• Uptime

Click “Edit” to view configuration options for the selected device. Click “Control” to view options to activate or update the

device.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

7.1.3 General Settings

• Enabled: Select/deselect to

enable/disable.

• Force NAT: Normally the LAN Route

Mode controls the use of NAT

(network address translation). When

this option is selected the router will

always perform NAT when traffic is

sent out from this device.

• Priority: This number controls failover

and failback order. The lower the

number, the higher the priority and the

more use the device will get. This

number will change when you move

devices around with the priority arrows

in the WAN Interfaces list.

• Load Balance: Select to allow this

device to be available for the Load

Balance pool.

• Download bandwidth: Defines the

default download bandwidth for use in

Load Balance algorithms. (Range: 128

Kb/s to 76800 Kb/s.)

• MTU: Maximum transmission unit. This is the size of the largest protocol data unit that the device can pass.

(Range: 46 to 1500 Bytes.)

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

IPv4 Failure Check (Advanced)

If this is enabled, the router will check that the

highest priority active WAN interface can get

to the Internet even if the WAN connection is

not actively being used. If the interface goes

down, the router will switch to the next highest

priority interface available. If this is not

selected, the router will still failover to the next

highest priority interface but only after the

user has attempted to get out to the Internet and failed.

Idle Check Interval: The amount of time between each check. (Default: 30 seconds. Range: 10-3600 seconds.)

Monitor while connected: (Default: Off) Select from the following dropdown options:

• Passive DNS (modem only): The router will take no action until data is detected that is destined for the WAN.

When this data is detected, the data will be sent and the router will check for received data for 2 seconds. If no data

is received the router behaves as described below under Active DNS.

• Active DNS (modem only): A DNS request will be sent to the DNS servers. If no data is received, the DNS

request will be retried 4 times at 5-second intervals. (The first 2 requests will be directed at the Primary DNS server

and the second 2 requests will be directed at the Secondary DNS server.) If still no data is received, the device will

be disconnected and failover will occur.

• Active Ping: A ping request will be sent to the Ping Target. If no data is received, the ping request will be retried 4

times at 5-second intervals. If still no data is received, the device will be disconnected and failover will occur. When

“Active Ping” is selected, the next line gives an estimate of data usage in this form: “Active Ping could use as much

as 9.3 MB of data per month.” This amount depends on the Idle Check Interval.

• Off: Once the link is established the router takes no action to verify that it is still up.

Ping IP Address: If you selected “Active Ping”, you will need to input an IP address. This must be an address that can be

reached through your WAN connection (modem/Ethernet). Some ISPs/Carriers block certain addresses, so choose an

address that all of your WAN connections can use. For best results, select an established public IP address.

For example, you might ping Google Public DNS at 8.8.8.8 or Level 3 Communications at 4.2.2.2.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

IPv6 Failure Check (Advanced)

These settings match IPv4 Failure Check; the only

difference in the UI is that the ping address uses IPv6.

Failback Configuration (Advanced)

This is used to configure failback, which is the ability to go back to a higher priority WAN interface if it regains connection

to its network.

Usage: Fail back based on the amount of data passed

over time. This is a good setting for when you have a

dual-mode EVDO/WiMAX modem and you are going in

and out of WiMAX coverage. If the router has failed over

to EVDO it will wait until you have low data usage before

bringing down the EVDO connection to check if a WiMAX

connection can be made.

• High (Rate: 80 KB/s. Time Period: 30 seconds.)

• Normal (Rate: 20 KB/s. Time Period: 90 seconds.)

• Low (Rate: 10 KB/s. Time Period: 240 seconds.)

• Custom (Rate range: 1-100 KB/s. Time Period range: 10-300 seconds.)

Time: Fail back only after a set period of time. (Default: 90 seconds. Range: 10-300 seconds.) This ensures that the

higher priority interface has remained online for a set period of time before it becomes active (in case the connection is

dropping in and out, for example).

Disabled: Deactivate failback mode.

Immediate Mode: Fail back immediately whenever a higher priority interface is plugged in or when there is a priority

change. Immediate failback returns you to the use of your preferred Internet source more quickly which may have

advantages such as reducing the cost of a failover data plan, but it may cause more interruptions in your network than

Usage or Time modes.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

7.1.4 IP Overrides

IP overrides allow you to override IP settings after a device’s IP settings have been configured. Only the fields that are

filled out will be overridden. Override any of the following fields:

• IP Address

• Subnet Mask

• Gateway IP

• Primary DNS Server

• Secondary DNS Server

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

7.1.5 IPv6 Settings

The IPv6 (http://en.wikipedia.org/wiki/IPv6) configuration allows you to enable and configure IPv6 for a WAN device.

These settings should be configured in combination with the IPv6 LAN settings (go to Network Settings → Local

Networks, select the LAN under Local IP Networks, and click Edit) to achieve the desired result.

This is a dual-stacked implementation of IPv6, so IPv6 and IPv4 are used alongside each other. If you enable IPv6, the

router will not allow connections via IPv4. When IPv6 is enabled, some router features are no longer supported. These

are:

• RADIUS/TACACS+ accounting for wireless clients and admin/CLI login

• IP Passthrough (not needed with IPv6)

• NAT (not needed with IPv6)

• Bounce pages

• UPnP

• Syslog

• SNMP over the WAN (LAN works)

There are two main types of IPv6 WAN connectivity: native (Auto and Static) and tunneling over IPv4 (6to4, 6in4, and

6rd).

• Native – (Auto and Static) The upstream ISP routes IPv6 packets directly.

• IPv6 tunneling – (6to4, 6in4, and 6rd) Each IPv6 packet is encapsulated by the router in an IPv4 packet and

routed over an IPv4 route to a tunnel endpoint that decapsulates it and routes the IPv6 packet natively. The reply is

encapsulated by the tunnel endpoint in an IPv4 packet and routed back over an IPv4 route. Some tunnel modes do

not require upstream ISPs to route or even be aware of IPv6 traffic at all. Some modes are utilized by upstream

ISPs to simplify the configuration and rollout of IPv6.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

Enable IPv6 and select the desired IPv6 connection method for this WAN interface.

• Disabled (default) – IPv6 disabled on this interface.

• Auto – IPv6 will use automatic connection settings (if available).

• Static – Input a specific IPv6 address for your WAN connection. This is provided by the ISP if it is supported.

• 6to4 Tunnel (http://en.wikipedia.org/wiki/6to4) – Encapsulates the IPv6 data and transfers it to an automatic tunnel

provider (if your ISP supports it).

• 6in4 Tunnel (http://en.wikipedia.org/wiki/6in4) – Encapsulates the IPv6 data and sends it to the configured tunnel

provider.

• 6rd Tunnel (IPv6 rapid deployment: http://en.wikipedia.org/wiki/IPv6_rapid_deployment) – Encapsulates the IPv6

data and sends it to a relay server provided by your ISP.

When you configure IPv6, you have the option to designate DNS Servers and Delegated Networks. Because of the

dual-stack setup, these settings are optional: when configured for IPv6, the router will fall back to IPv4 settings when

necessary.

DNS Servers

Each WAN device is required to connect IPv4 before connecting IPv6. Because of this, DNS servers are optional, as most

IPv4 DNS servers will respond with AAAA records (128-bit IPv6 DNS records, most commonly used to map hostnames to

the IPv6 address of the host) if requested. If no IPv6 DNS servers are configured, the system will fall back to the DNS

servers provided by the IPv4 configuration.

Delegated Networks

A delegated network is an IPv6 network that is inherently provided by or closely tied to a WAN IP configuration. The IPv6

model is for each device to have end-to-end IP connectivity without relying on any translation mechanism. In order to

achieve this, each client device on the LAN network needs to have a publicly routable IPv6 address.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

Auto

IPv6 auto-configuration mode uses DHCPv6 and/or SLAAC to configure the IPv6 networks. When you select Auto, all of

the following settings are optional (depending on your provider’s requirements):

• PD Request Size – Prefix Delegation request size. This is the size of IPv6 network that will be requested from the

ISP to delegate to LAN networks. (Default: 63)

• Primary IPv6 DNS Server – (optional) Depending on your provider, this may be required. This only takes effect if

the default global DNS setting on the Network Settings → DNS page is "Automatic".

• Additional IPv6 DNS Server – Secondary DNS server.

• Delegated IPv6 Network – (optional) Network available for delegation to LANs. Depending on your provider, this

may be required. Prefixes specified here only take effect if those supplied by the connection are insufficient to

configure your LANs.

• Delegated IPv6 Network – Additional network available for delegation to LANs.

Example Configuration:

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

Static

As with IPv4, static configuration is available for situations where the WAN IPv6 topology is fixed.

• IPv6 Address/CIDR – Input the IPv6 static IP address and mask length provided by your ISP (see

http://en.wikipedia.org/wiki/Classless_Inter-Domain_Routing for an explanation of CIDR).

• IPv6 Gateway IP – Input the IPv6 remote gateway IP address provided by your ISP.

• Primary IPv6 DNS Server – (optional) Depending on your provider/setup, this may be required. This only takes

effect if the default global DNS setting on the Network Settings → DNS page is "Automatic".

• Additional IPv6 DNS Server – Secondary DNS server.

• Delegated IPv6 Network – (optional) Network available for delegation to LANs. Depending on your provider, this

may be required. Prefixes specified here only take effect if those supplied by the connection are insufficient to

configure your LANs.

• Delegated IPv6 Network – Additional network available for delegation to LANs.

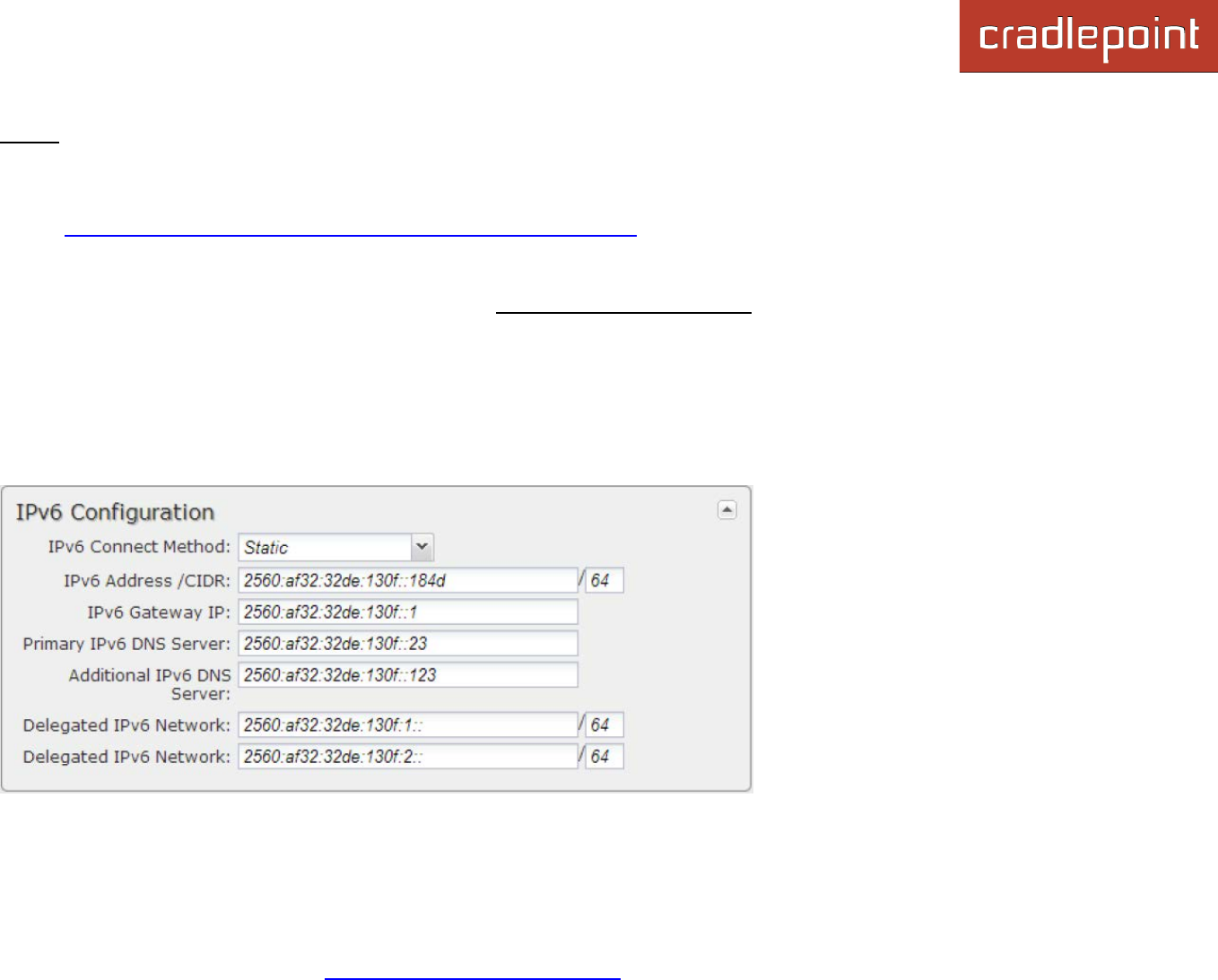

Example Configuration:

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

6to4 Tunnel

Out of the box, 6to4 is the simplest mode to enable full end-to-end IPv6 connectivity in an organization if the upstream ISP

properly routes packets to and from the 6to4 unicast relay servers.

• Primary IPv6 DNS Server – (optional) Depending on your provider, this may be required. This only takes effect if

the default global DNS setting on the Network Settings → DNS page is "Automatic".

• Additional IPv6 DNS Server – Secondary DNS server.

• Delegated IPv6 Network – (optional) Network available for delegation to LANs. Depending on your provider, this

may be required. Prefixes specified here only take effect if those supplied by the connection are insufficient to

configure your LANs.

• Delegated IPv6 Network – Additional network available for delegation to LANs.

Example Configuration:

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

6in4 Tunnel

The 6in4 tunnel mode utilizes explicit IPv4 tunnel endpoints and encapsulates IPv6 packets using 41 as the specified

protocol type in the IP header. A 6in4 tunnel broker provides a static IPv4 server endpoint, decapsulates packets and

provides routing for both egress and ingress IPv6 packets. Most tunnel brokers provide a facility to request delegated

networks for use through the tunnel.

• Tunnel Server IP – Input the tunnel server IP address provided by your tunnel service.

• Local IPv6 Address – Input the local IPv6 address provided by your tunnel service.

• Primary IPv6 DNS Server – (optional) Depending on your provider, this may be required. This only takes effect if

the default global DNS setting on the Network Settings → DNS page is "Automatic".

• Additional IPv6 DNS Server – Secondary DNS server.

• Delegated IPv6 Network – (optional) Network available for delegation to LANs. Depending on your provider, this

may be required. Prefixes specified here only take effect if those supplied by the connection are insufficient to

configure your LANs.

• Delegated IPv6 Network – Additional network available for delegation to LANs.

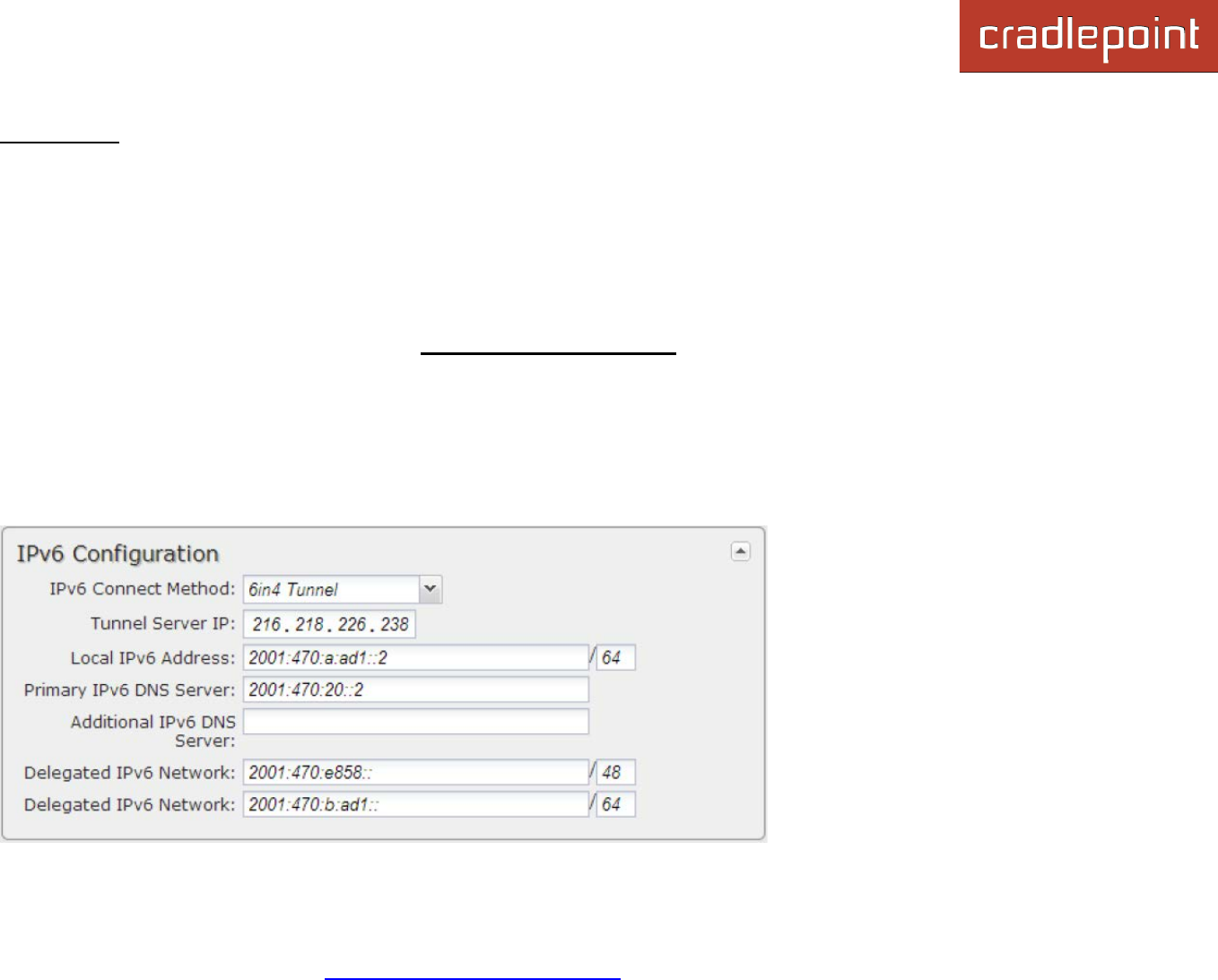

Example Configuration:

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

6rd Tunnel

IPv6 Rapid Deployment (6rd) is a method of IPv6 site configuration derived from 6to4. It is different from 6to4 in that the

ISP provides explicit 6rd infrastructure that handles the IPv4 ↔ IPv6 translation within the ISP network. 6rd is considered

more reliable than 6to4 as the ISP explicitly maintains infrastructure to support tunneled IPv6 traffic over their IPv4

network.

• 6rd Prefix – The 6rd prefix and prefix length should be supplied by your ISP.

• IPv4 Border Router Address – This address should be supplied by your ISP.

• IPv4 Common Prefix Mask – Input the number of common prefix bits that you can mask off of the WAN's IPv4

address.

• Primary IPv6 DNS Server – (optional) Depending on your provider, this may be required. This only takes effect if

the default global DNS setting on the Network Settings → DNS page is "Automatic".

• Additional IPv6 DNS Server – Secondary DNS server.

• Delegated IPv6 Network – (optional) Network available for delegation to LANs. Depending on your provider, this

may be required. Prefixes specified here only take effect if those supplied by the connection are insufficient to

configure your LANs.

• Delegated IPv6 Network – Additional network available for delegation to LANs.

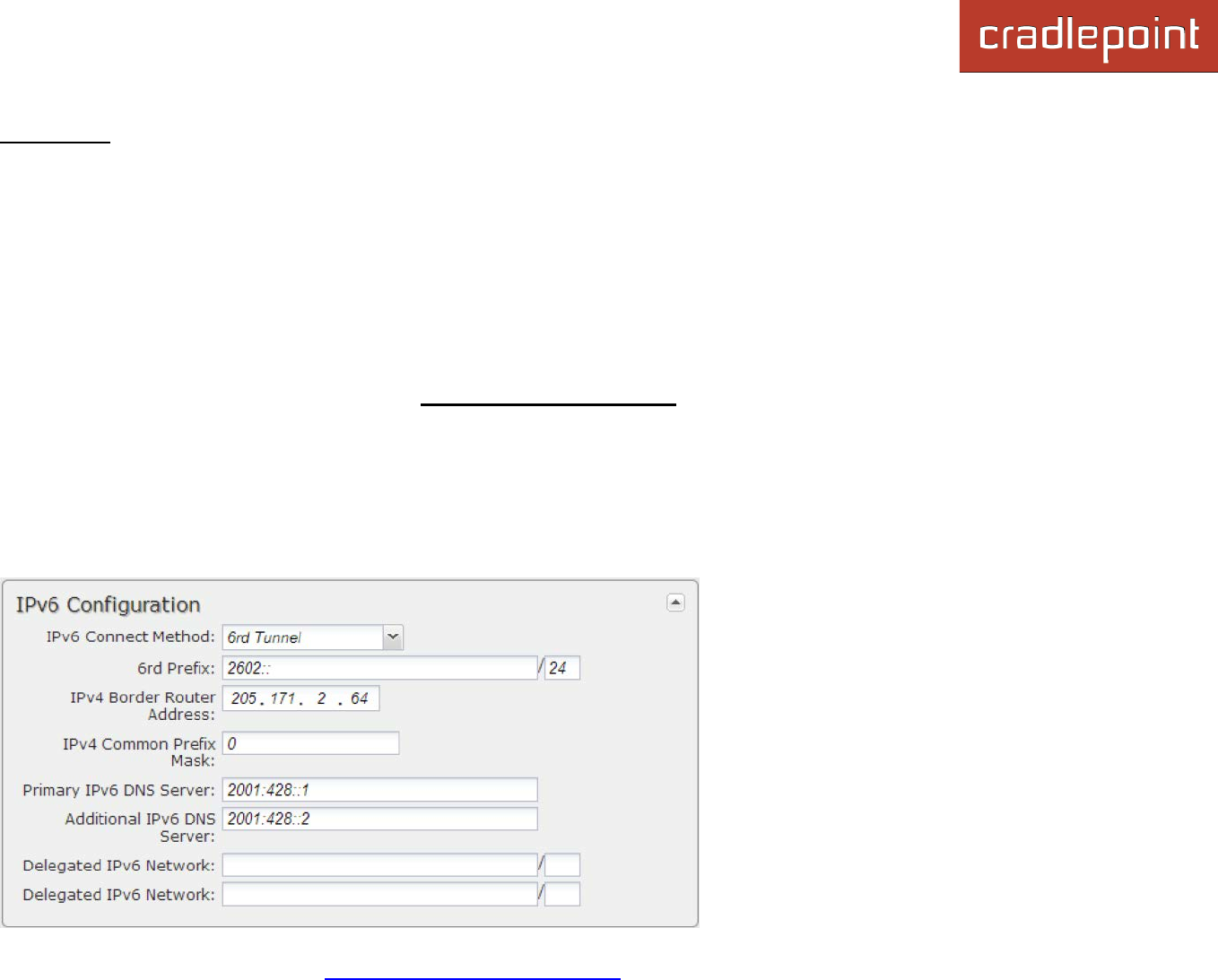

Example Configuration:

7.1.6

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

7.1.6 Modem Settings

Not all modems will have all of the options shown below; the available options are specific to the modem type.

On Demand: Typically modem connections are not

always on. When this mode is selected a connection to

the Internet is made as needed. When this mode is not

selected a connection to the Internet is always

maintained.

IP WAN Subnet Filter: This feature will filter out any

packets going to the modem that do not match the

network (address and netmask).

Aggressive Reset: When Aggressive Reset is enabled the system will attempt to maintain a good modem connection. If

the Internet has been unreachable for a period of time, a reset of the modem will occur in attempt to re-establish the

connection.

Enable Aux Antenna: Enable or disable the modem's auxiliary diversity antenna. This should normally be left enabled.

Modem Connection Mode: Specify how the modem should connect to the network. Not all options are available for all

modems; this will default to Auto if an incompatible mode is selected.

• Auto (all modes): Let the modem decide which network to use.

• Auto 3G (3G or less): Let the modem decide which 2G or 3G network to use. Do not attempt to connect to LTE.

• Force LTE: Connect to LTE only and do not attempt to connect to 3G or WiMAX.

• Force 3G (EVDO, UMTS, HSPA): Connect to 3G network only.

• Force 2G (1xRTT, EDGE, GPRS): Connect to 2G network only.

See the following tables for a breakdown of the technologies used with various CradlePoint ARC models when any

Modem Connection Mode is selected.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

CDMA Technology

Auto Auto 3G Force 4G Force 3G (module auto selects)

Force 2G

(<= 3G) LTE

1xEVDOAe

(EHRPD) 1xEVDO-A

(HRPD) (3G) 1xEVDO-0

(HRPD) (3G) 1xRTT

(2.5G)

ARC CBA750B-LE

(Sierra Wireless MC7750)

✔ ✔ ✔ ✔

✔ ✔ ✔

GSM Technology

Auto Auto 3G Force 4G

Force 3G

(module auto selects) Force 2G

(module auto selects)

(<= 3G) LTE

HSPA+

(4G/3.5G) HSPA

(3G) EDGE

(2.75G) GPRS

(2.5G)

ARC CBA750B-LP

(Sierra Wireless MC7700)

✔

✔ ✔ ✔ ✔ ✔ ✔

ARC CBA750B-LP2

(Sierra Wireless MC7710)

✔

✔ ✔ ✔ ✔ ✔ ✔

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

Network Selection Mode: Wireless carriers are assigned unique network identifying codes known as PLMN (Public Land

Mobile Network). To manually select a particular carrier, select the Manual radio button and enter the network PLMN.

Functional Mode: Selects the functional mode of the modem. IPPT mode causes the modem to act as a transport,

passing Internet data and IP address information between the modem and the Internet directly. NAT mode causes the

modem to NAT the IP address information. Consequently, IPPT mode does not allow user access to the modem web UI

and NAT mode does allow user access to the modem web UI.

AT Config Script: Enter the AT commands to be used for carrier specific modem configuration settings. Each command

must be entered on a separate line. The command and associated response will be logged, so you should check the

system log to make sure there were no errors.

NOTE: AT Config Script should not be used unless told to do so by your modem's cellular provider or by a support technician.

AT Dial Script: This is included for legacy devices only. Most users will not use this option. Go to SIM/APN/Auth

Settings instead if you need to select a specific Access Point Name.

If you do need this option for older devices, enter the AT commands to be used in establishing a network connection.

Each command must be entered on a separate line. All command responses must include “OK” except the final command

response, which must include “CONNECT”.

Example:

AT

ATDT*99***2#

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

7.1.7 WiMAX Settings

WiMAX Realm: Select from the following dropdown

options:

• Clear – clearwire-wmx.net

• Rover – rover-wmx.net

• Sprint 3G/4G – sprintpcs.com

• Xohm –xohm.com

• BridgeMAXX – bridgeMAXX.com

• Time Warner Cable – mobile.rr.com

• Comcast – mob.comcast.net

TTLS Authentication Mode: TTLS inner authentication protocol. Select from the following dropdown options:

• MSCHAPv2/MD5 (Microsoft Challenge Handshake Authentication Protocol version2/Message-Digest Algorithm 5)

• PAP (Password Authentication Protocol)

• CHAP (Challenge Handshake Authentication Protocol)

TTLS Username: Username for TTLS authentication.

TTLS Password: Password for TTLS authentication.

WiMAX Authentication Identity: User ID on the network. Leave this blank unless your provider tells you otherwise.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

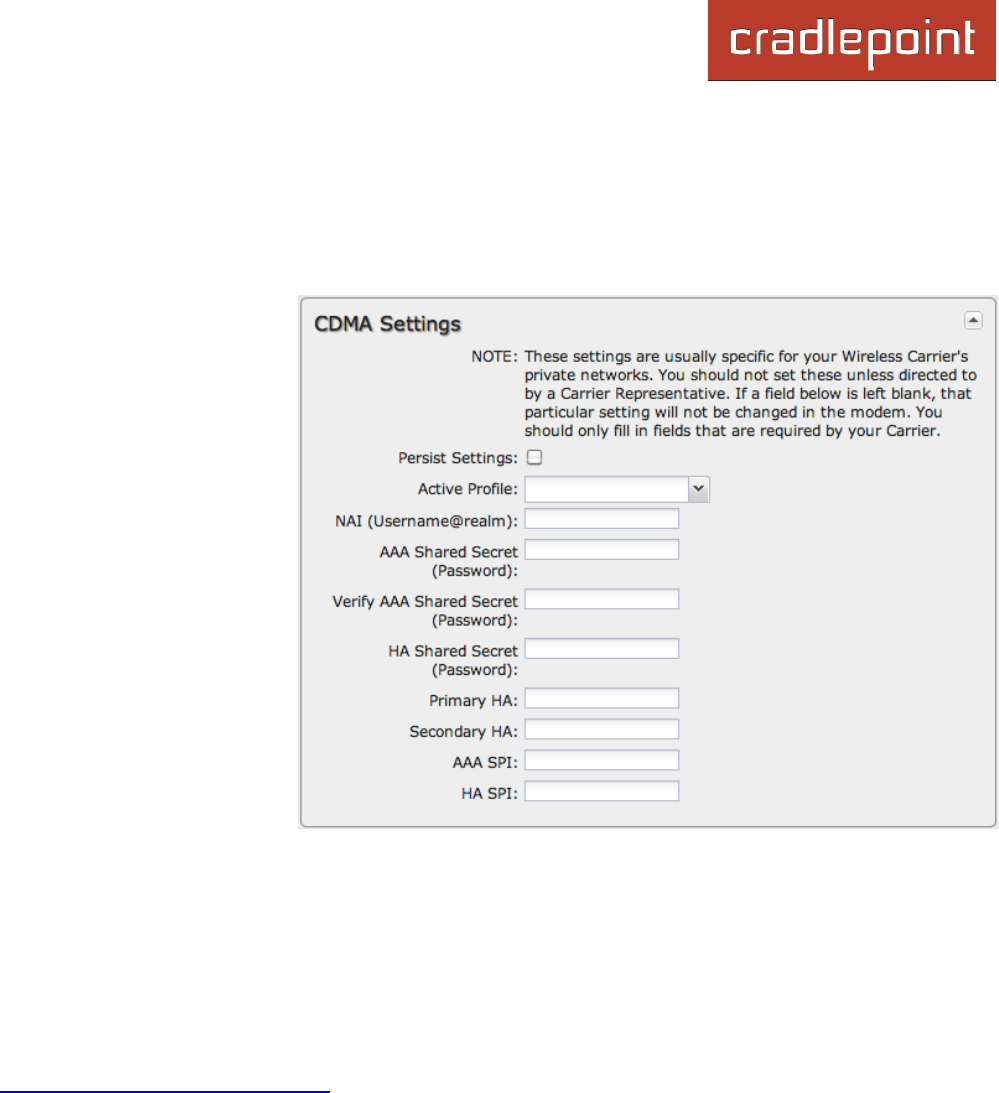

7.1.8 CDMA Settings

These settings are usually specific to your wireless carrier’s private networks. You should not set these unless directed to

by a carrier representative. If a field below is left blank, that particular setting will not be changed in the modem. You

should only fill in fields that are required by your carrier.

• Persist Settings: If this is not checked, these

settings will only be in place until the router is

rebooted or the modem is unplugged.

• Active Profile: Select a number from 0-5 from the

dropdown list.

The following fields can be left blank. If left blank they will

remain unchanged in the modem.

• NAI (Username@realm): Network Access Identifier.

NAI is a standard system of identifying users who

attempt to connect to a network.

• AAA Shared Secret (Password): “Authentication,

Authorization, and Accounting” password.

• Verify AAA Shared Secret.

• HA Shared Secret: “Home Agent” shared secret.

• Primary HA.

• Secondary HA.

• AAA SPI: AAA Security Parameter Index.

• HA SPI: HA Security Parameter Index.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

7.1.9 SIM/APN/Auth Settings

SIM PIN: PIN number for a GSM modem with a locked SIM.

Authentication Protocol: Set this only if your service

provider requires a specific protocol and the Auto option

chooses the wrong one. Choose from Auto, PAP, and

CHAP and then input your username and password.

Access Point Configuration: Some wireless carriers

provide multiple Access Point configurations that a modem

can connect to. Some APN examples are ‘isp.cingular” and “vpn.com”.

• Default: Let the router choose an APN automatically.

• Manual: Enter an APN by hand.

• Select: This opens a table with 16 slots for APNs,

each of which can be set as IP, IPV4V6, or IPV6. The

default APN is marked with an asterisk (*). You can

change the APN names, select a different APN, etc.

For Verizon modems, only the third slot is editable.

Changes made here are written to the modem, so a

factory reset of the router will not impact these

settings.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

7.1.10 Update/Activate a Modem

Some 3G/4G modems can be updated and activated while plugged into the router. Updates and activation methods vary

by modem model and service provider. Possible methods are: PRL Update, Activation, and FUMO. All supported methods

will be displayed when you select your modem and click “Control”. If no methods are displayed for your device then you

will need to update and activate your device externally.

To update or activate a modem, select the device and click

“Control”.

The modem does not support Update/Activate methods: A

message will state that there is no support for PRL Update,

Activation, or FUMO.

The modem supports Update/Activate methods: A message

will display showing options for each supported method:

• Modem Activation / Update: Activate, Reactivate, or

Upgrade Configuration.

• Preferred Roaming List (PRL) Update

• Firmware Update Management Object (FUMO)

Click the appropriate icon to start the process.

If the modem is connected when you start an operation the

router will automatically disconnect it. The router may start

another modem as a failover measure. When the operation is

done the modem will go back to an idle state, at which point the

router may restart it depending on failover and failback settings.

NOTE: Only one operation is supported at a time. If you try to start the same

operation on the same modem twice the UI will not report failure and the

request will finish normally when the original request is done. However if you

try to start a different operation or use a different modem, this second request

will fail without interfering with the pending operation.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

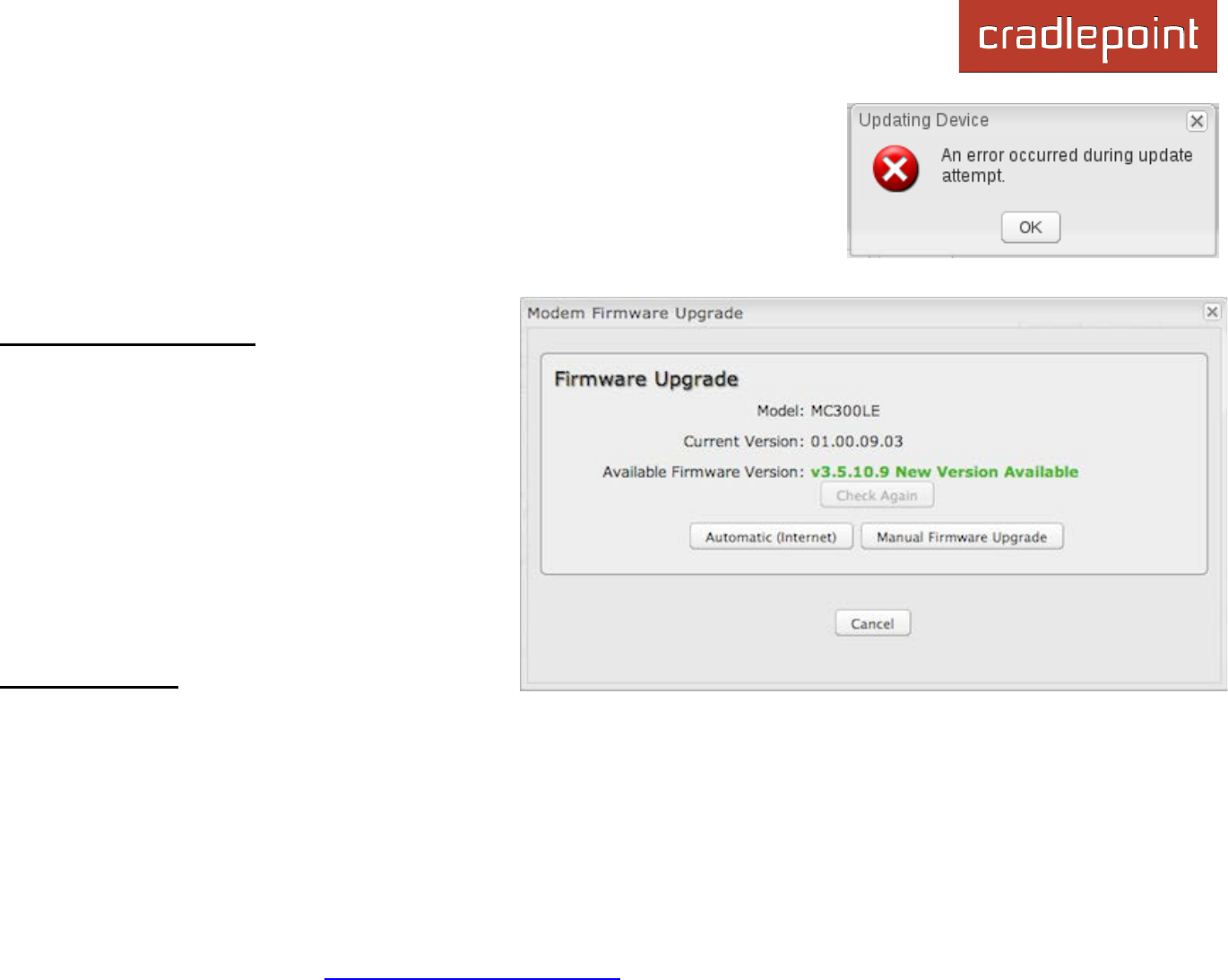

Process Timeout: If the process fails an error message will display.

Activation has a 3-minute timeout, PRL update has a 4-minute timeout, and FUMO has

a 10-minute timeout.

Update Modem Firmware

Click on the Firmware button to open the Modem

Firmware Upgrade window. This will show whether

there is new modem firmware available.

If you select Automatic (Internet) the firmware will

be updated automatically. Use Manual Firmware

Upgrade to instead manually upload firmware from

a local computer or device.

NOTE: Only CradlePoint integrated modems have this

firmware upgrade option.

Reset the Modem

Click on the Reset button to power cycle the modem. This will have the same effect as unplugging the modem.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

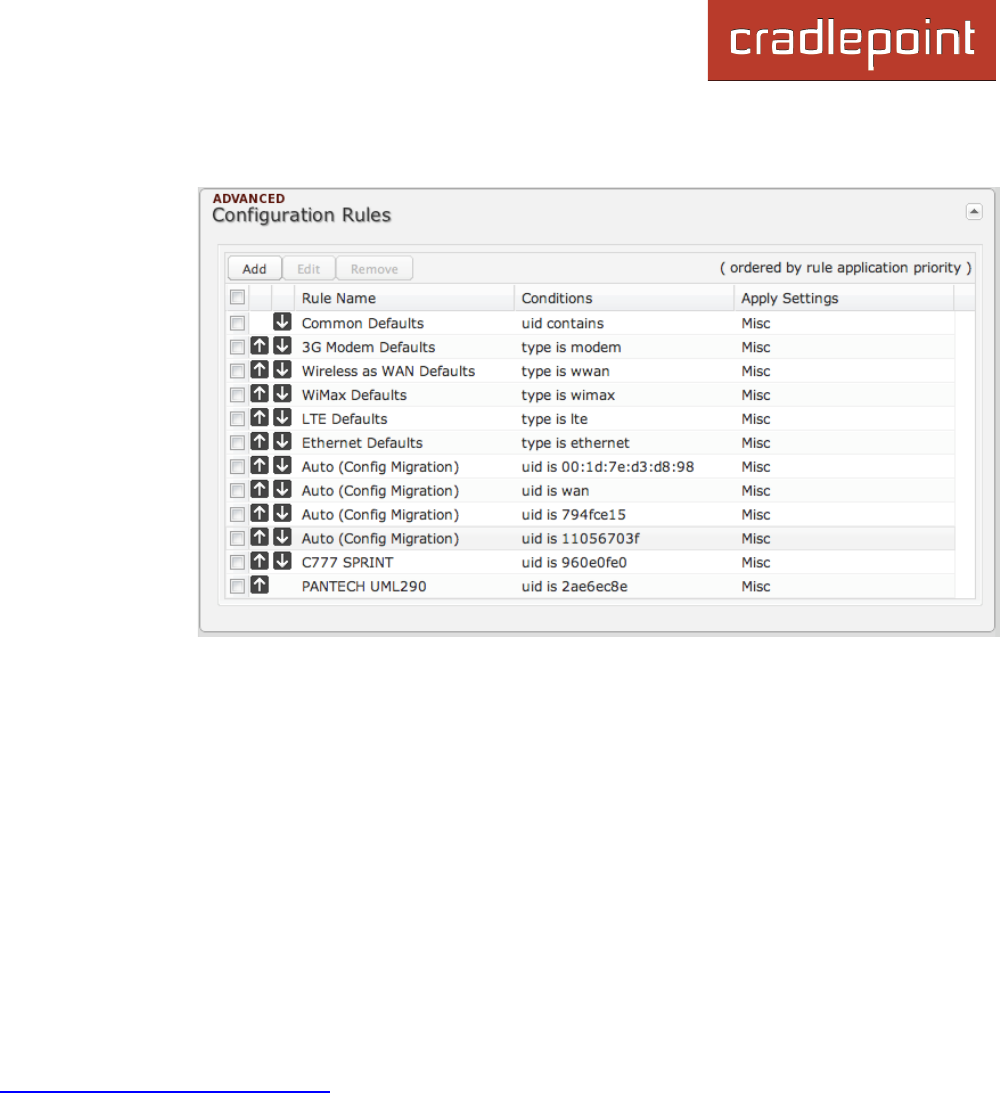

7.1.11 Configuration Rules (Advanced)

This section allows you to create general rules that

apply to the Internet connections of a particular

type. These can be general or very specific. For

example, you could create a rule that applies to all

WiMAX modems, or a rule that only applies to an

Internet source with a particular MAC address.

The Configuration Rules list shows all rules that

you have created, as well as all of the default

rules. These are listed in the order they will be

applied. The most general rules are listed at the

top, and the most specific rules are at the bottom.

The router goes down the list and applies all rules

that fit for attached Internet sources. Configuration

settings farther down the list will override previous

settings.

Select any of these rules and click “Edit” to change the settings for a rule. To create a new rule, click “Add.”

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

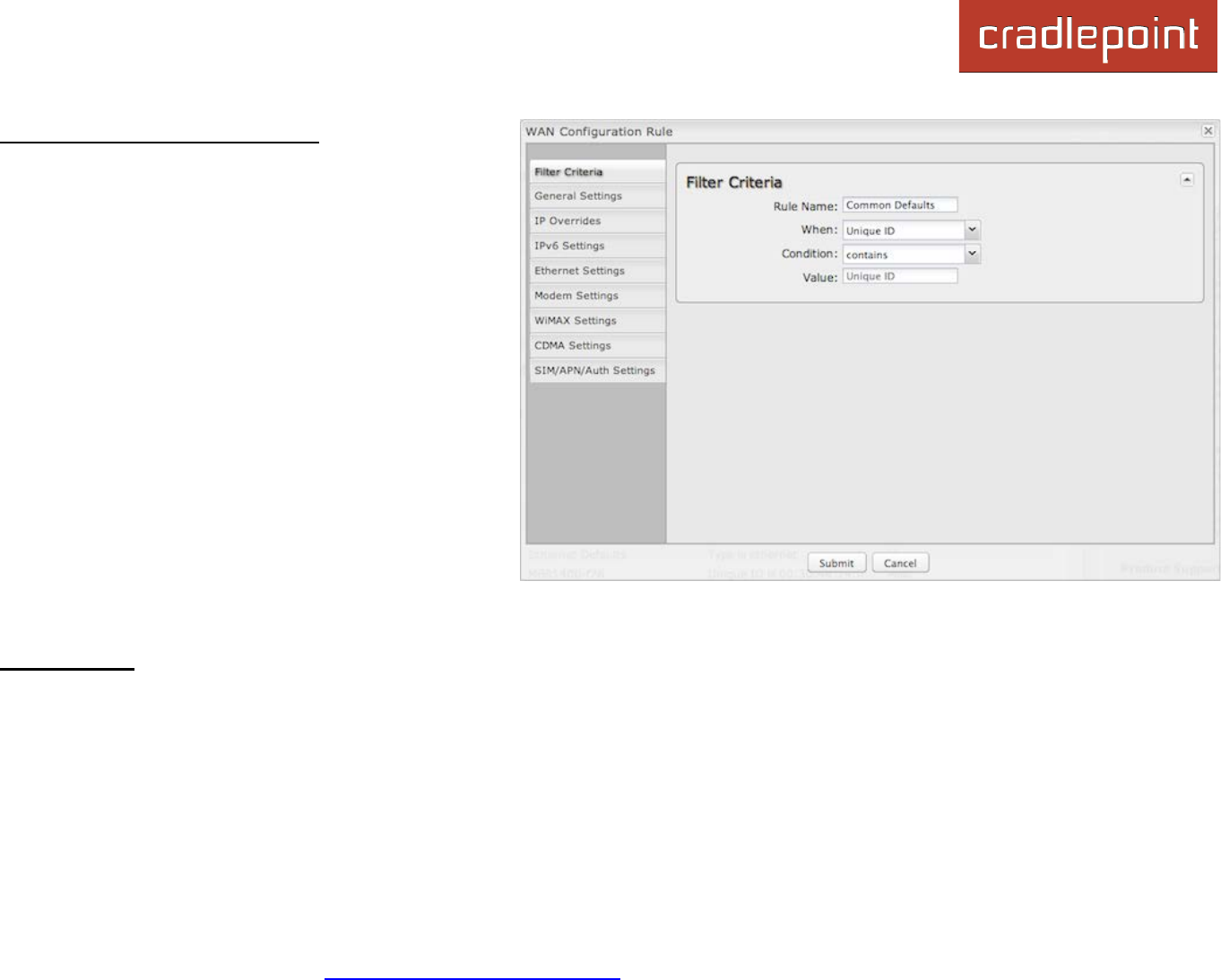

WAN Configuration Rule Editor

After clicking “Add” or “Edit,” you will see a popup

with the following tabs:

• Filter Criteria

• General Settings

• IP Overrides

• IPv6 Settings

• Ethernet Settings

• Modem Settings

• WiMAX Settings

• CDMA Settings

• SIM/APN/Auth Settings

Filter Criteria. Begin by setting the Filter Criteria if you are creating a new rule. Create a name for your rule and the

condition for which the rule applies:

Rule Name: Create a name meaningful to you. This name is optional.

Select each of the following to create a condition for your rule. When:

• Port (USB Port 1, 2; ExpressPort): Select by the port that you are plugging the modem into.

• Manufacturer: Select by the manufacturer, such as Sierra Wireless.

• Model: Set your rule according to the specific model of modem.

• Type (LTE, Modem, WiMAX, HSPA): Select by type of Internet source.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

• Serial Number: Select 3G or LTE modem by Serial Number.

• MAC Address: Select WiMAX modem by MAC Address.

• Unique ID: Select by ID. This is generated by the router and displayed when the device is connected to the

router.

Condition: Select “is,” “is not,” “starts with,” “contains,” or “ends with” to create your condition’s statement.

Value: If the correct values are available, select from the dropdown list. You may need to manually input the value.

The condition will be of the following form:

“ (When) is/is not (value) ”

For example:

“Type is not WiMAX”

“Port is USB Port 1”

Once you have established the condition for your configuration rule, choose from the other tabs to set the desired

configuration. All of the tab options – General Settings, IP Overrides, IPv6 Settings, Ethernet Settings, Modem

Settings, WiMAX Settings, CDMA Settings, and SIM/APN/Auth Settings – have the same configuration options shown

above in the WAN Configuration section (the options for Configuration Rules are the same as they are for individual

devices).

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

7.2 Data Usage

Data Usage Management & Alerts allows you to create and manage rules that help control the data usage of a modem.

If you have a limited data plan or a price increase on your plan after a certain amount of usage, a Data Usage Rule can

help you track these amounts. You can set a rule to shut down use of a modem and/or send a message when you reach a

data usage amount you set.

Enable Data Usage: Enabled/Disabled. (Default:

Disabled.)

When you select Enabled, you will see the Data Usage

Agreement shown to the right. The purpose of this

agreement is to ensure that you understand that the data

numbers for the CBA750B may not perfectly match those

of your carrier: CradlePoint cannot be held responsible.

You must accept the agreement by clicking Yes in order to

begin creating data usage rules.

Warning: You should set your data limits lower than your

Data Allowance and regularly compare the numbers

provided by the router with the numbers from your carrier.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

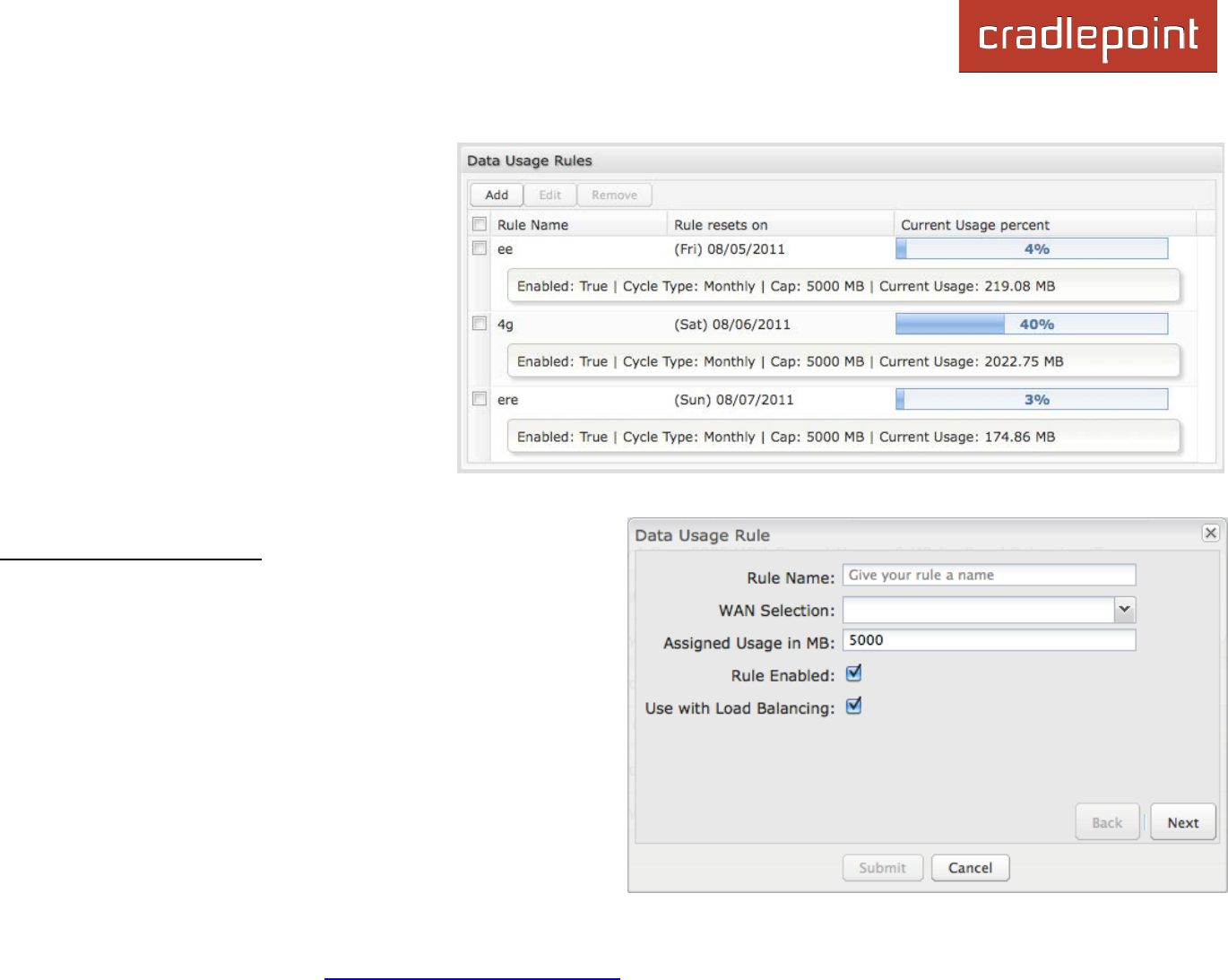

7.2.1 Data Usage Rules

The Date Usage Rule display shows basic

information for each rule you have created

(including rules created with a template). The

following information is displayed:

• Rule Name

• Enabled: True/False

• Date for Rule Reset

• Cycle Type: Daily, Weekly, or Monthly

• Cap: Amount in MB.

• Current Usage: Shown as an amount

in MB, as a percentage of the cap, and

in a bar graph.

Click Add to configure a new Data Usage Rule.

Data Usage Rule – page 1

Rule Name: Give your rule a name for later recognition.

WAN Selection: Select from the dropdown list of currently

attached WAN devices.

Assigned Usage in MB: Enter a cap amount in megabytes.

1024 megabytes equals 1 gigabyte.

Rule Enabled: (Default: Enabled.) Click to disable.

Use with Load Balancing: When checked, the Load Balancing

feature is allowed to use the thresholds and metrics of this rule

when making balance decisions. This causes Load Balancing to

spread the data usage between interfaces according to the

assigned usage rather than bandwidth. This is a best effort to

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

keep all interfaces with these rules at a similar percentage utilization of data (e.g. 10%, 50%, 90%) as the cycle

progresses, rather than quickly using 100% of a fast 1GB capped interface while using only a fraction of a slow 10GB

capped interface, thus leaving the rest of the cycle with only the slow interface. The Data Usage algorithm on the Load

Balancing page must be selected or this checkbox has no effect.

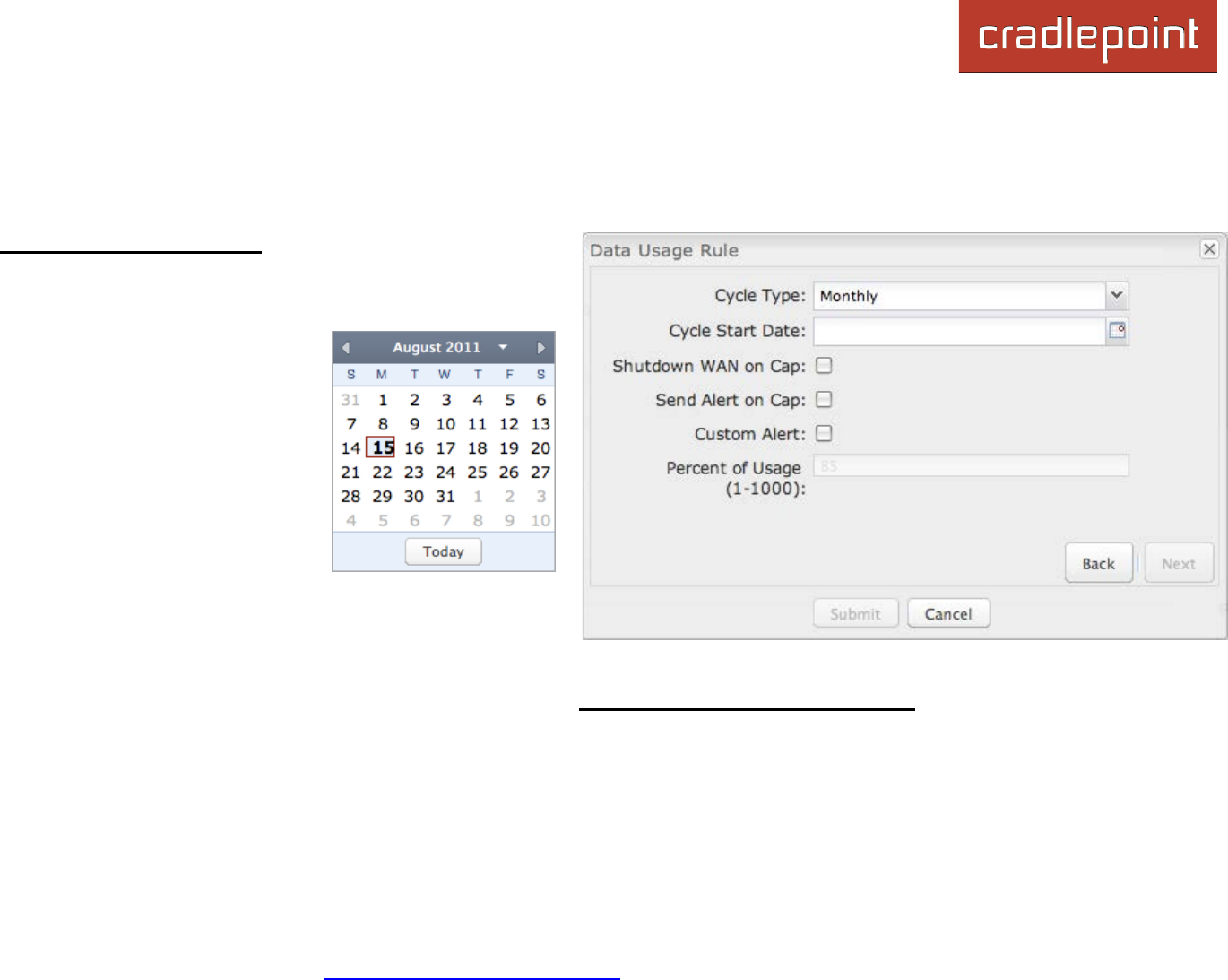

Data Usage Rule – page 2

Cycle Type: How often the rule will reset. The data usage

amount will be reset at the end of each cycle. Select the

length of a cycle from a dropdown menu with the following

choices:

• Daily

• Weekly

• Monthly

Cycle Start Date: Select the

date you wish the rule to begin.

This date will be used to track

when the rule will reset.

Shutdown WAN on Cap: If

selected, the WAN device will shut down when the

assigned usage is reached. A cycle reset or a rule deletion

will re-enable the device.

Send Alert on Cap: An email alert will be generated and sent when the assigned usage is reached.

WARNING: The SMTP mail server must be configured in System Settings → Device Alerts.

Custom Alert: When checked you enable a second email to be configured for a percentage of the assigned usage.

Percent of Usage (1-1000): If selected, a custom alert will be sent when your data usage reaches this percentage of your

usage cap. For example, you could set this at 90 percent so that you know when your usage is nearing 100 percent of the

cap.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

7.2.2 Template Configuration

Templates allow you to control multiple

WAN devices with the same rule. Each WAN

device that matches a template will

automatically have its own rule created.

For example, you can set a template rule for all mobile data modems that causes your router to send an alert after 1000 MB of usage in a month.

When you attach a new 4G USB modem, your template will immediately create a new Data Usage Rule for the attached modem that sends the

alert as specified.

Click Add to configure a new Template rule.

Create a Template Name that you can recognize.

The template will apply to one of the following

WAN types:

• All WAN

• All Modems

Select one of these types.

The rest of the rule settings options match those in

the Data Usage Rules. See the section above for

additional information about how to configure your

template usage rules.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

7.3 WAN Affinity and Load Balancing

WAN affinity and load balancing both require multiple WAN devices, which is not typical usage

Load Balance

Select the Load Balance

Algorithm from the following

dropdown options:

• Round-Robin: Evenly

distribute each session

to the available WAN connections.

• Rate: Distribute load based on the current upload and download rates. A WAN device's upload and download

bandwidth values can be set in Internet → Connection Manager.

• Spillover: This was the default algorithm in older (version 3) firmware. Load is always given to devices with the

most available bandwidth. The estimated bandwidth rate is based on a combination of the upload and download

configuration values and the observed capabilities of the device.

• Data Usage: This mode works in concert with the Data Usage feature (Internet → Data Usage). The router will

make a best effort to keep data usage between interfaces at a similar percentage of the assigned data cap in the

Data Usage rule for each interface, rather than distributing sessions based solely on bandwidth. For proper function

you need to create data usage rules for each WAN device you will be load balancing. Make certain to select the

"Use with Load Balancing" checkbox in the Data Usage rule editor.

WAN Affinity

WAN Affinity rules allow you to manage traffic in your network so that particular bandwidth uses are associated with

particular WAN sources. This allows you to prioritize bandwidth.

EXAMPLE: You could specify that your guest LAN is only associated with your Ethernet connection with no failover. Then if your

Ethernet connection goes down and the embedded modem connects for failover for your primary LAN, your guest LAN will not take

bandwidth from your primary LAN, saving you money.

Click “Add” to open the WAN Affinity Policy Editor and create a new WAN Affinity rule.

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

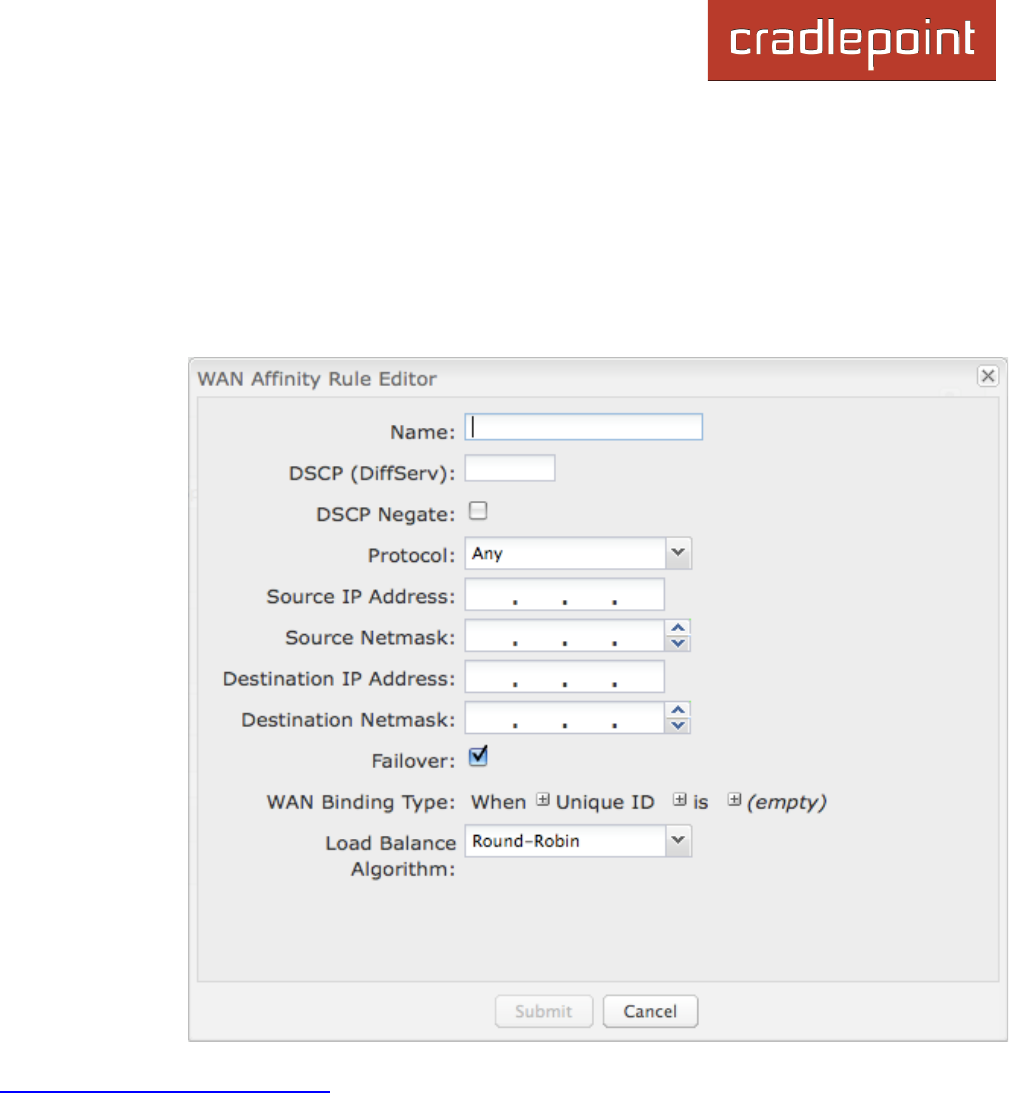

Name: Give a name for your rule that is meaningful to you.

DSCP (DiffServ): Differentiated Services Code Point is the successor to TOS (Type of Service). Use this field to select

traffic based on the DSCP header in each IP packet. This field is sometimes set by latency sensitive equipment such as

VoIP phones. If you know specific DSCP values, you can input one here.

DSCP Negate: When checked this rule will match on any packet that does NOT match the DSCP field.

Protocol: Select from the dropdown list to specify the protocol for a particular data use. Otherwise, leave “Any” selected.

• Any

• ICMP

• TCP

• UDP

• GRE

• ESP

• SCTP

Source IP Address, Source Netmask,

Destination IP Address, and Destination

Netmask: Specify an IP address or range of IP

addresses by combining an IP address with a

netmask for either “source” or “destination” (or

both). Source vs. destination is defined by traffic

flow. Leave these blank to include all IP

addresses (such as if your rule is defined by a

particular port instead).

EXAMPLE: If you want to associate this rule with your

guest LAN, you could input the IP address and

netmask for the guest LAN here (leaving the last slot

“0” to allow for any user attached to the guest

network):

• Source IP Address: 192.168.10.0

CRADLEPOINT CBA750B | USER MANUAL Firmware version 5.0

• Source Netmask: 255.255.255.0

Failover: (Default: Selected.) When this is selected and traffic from the chosen WAN device for this rule is interrupted, the

router will fail over to another available WAN device. Deselect this option to restrict this traffic to only the selected WAN

interface.

WAN Binding Type: You have several options for specifying the type of WAN interface(s) you want associated with your

rule. Designate the interface(s) by Port, Manufacturer, Model, Type, Serial Number, MAC Address, or Unique ID. This

selection will create a dropdown list of options to complete a sentence with the following form: “When ____ is ____,” such

as, “When Type is LTE.” You also have the option to replace “is” with “isn’t,” “starts with,” “ends with,” or “contains.”

• Port: Select from the dropdown list of possible WAN ports on the router.

o USB 1

o USB 2

o ExpressPort

• Manufacturer: Select from a dropdown list of attached devices.

• Model: Select from a dropdown list of attached devices.

• Type: Select from the dropdown list of possible WAN types.

o WiMAX

o Modem

o LTE

• Serial Number: Select from a dropdown list of attached devices.

• MAC Address: Select from a dropdown list of attached devices.

• Unique ID: Select from a dropdown list of attached devices.

Load Balance Algorithm: Select the Load Balance Algorithm for this WAN Affinity rule from the following dropdown

options:

• Round-Robin: Evenly distribute each session to the available WAN connections.

• Rate: Distribute load based on the current upload and download rates. A WAN device's upload and download

bandwidth values can be set in Internet → Connection Manager.
