User Manual / IBR600B/IBR650B 9/5/17
COR Series
Router
IBR600B / IBR650B
User Manual
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 2
User Manual / IBR600B/IBR650B 9/5/17
TABLE OF CONTENTS
INTRODUCTION 4
WHAT’S IN THE BOX 4
KEY FEATURES 4
WAN 4
LAN 4
WIFI 4
MANAGEMENT 5
VPN AND ROUTING 5
SECURITY 5
SPECIFICATIONS 6
ACCESSORIES 7
BUSINESS-GRADE MODEM SPECIFICATIONS 7
SUPPORT AND WARRANTY 7
HARDWARE 8
EXTENSIBILITY DOCK INSTALLATION INSTRUCTIONS 10
EXTENSIBILITY DOCK HARDWARE AND DIMENSIONS 11
LEDS 12
QUICK START 13
BASIC SETUP 13
ACCESSING THE ADMINISTRATION PAGES 14
FIRST TIME SETUP WIZARD 14
USING NETCLOUD MANAGER 14
ADMINISTRATION PAGES 15
QUICK LINKS 15
DASHBOARD 15
CONNECTION MANAGER 16
WAN INTERFACE PROFILES & PRIORITY 16
STATUS 20
INTERNET 20
CLIENT LIST 25
TUNNELS 25
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 3
User Manual / IBR600B/IBR650B 9/5/17
FIREWALL 26
ROUTING 26
ETHERNET 27
GPS 27
SYSTEM LOGS 27
NETWORKING 28
LOCAL NETWORKS 28
VLAN INTERFACES 38
TUNNELS 39
ROUTING 51
QOS 61
DNS SERVERS 64
WIFI AS WAN 66
WAN AFFINITY 67
CLIENT DATA USAGE 69
NHRP 70
SECURITY 72
IDENTITIES 72
ZONE FIREWALL 72
CONTENT FILTERING 77
CERTIFICATE MANAGEMENT 80
SYSTEM 83
ADMINISTRATION 83
NETCLOUD 88
DEVICE ALERTS 88
SERIAL REDIRECTOR 90
GPIO CONFIGURATION 90
SNMP CONFIGURATION 92
SYSTEM CONTROL 93
DIAGNOSTICS 95
SETUP WIZARDS 96
APPENDIX A 99
POWER/GPIO CONNECTOR 99
EXTENSIBILITY DOCK 99
APPENDIX B 102
ROUTER COMMUNICATION/DATA USAGE 102
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 4
User Manual / IBR600B/IBR650B 9/5/17
WAN
• Cat 4 LTE modem with auto-carrier selection (Verizon, AT&T, T-Mobile)
• Dual-modem capable with optional COR Extensibility Dock 4G LTE/HSPA+
• WiFi as WAN*
• Failover/Failback
• Load Balancing
• Advanced Modem Failure Check
• WAN Port Speed Control
•
• IP Passthrough
* - IBR600B only
LAN
• VLAN 802.1Q
• DHCP Server, Client, Relay
• DNS and DNS Proxy
• DynDNS
• UPnP
• DMZ
• Multicast/Multicast Proxy
• QoS (DSCP and Priority Queuing)
• MAC Address Filtering
WIFI*
• 802.11 b/g/n
• Up to 64 connected devices
• Two SSIDs
• WPA2 Enterprise WiFi
• Hotspot/Captive Portal
• SSID-based Priority
* - IBR600B only
INTRODUCTION
WHAT’S IN THE BOX
• COR IBR600B/IBR650B Integrated Broadband Router w/ integrated mounting bracket
•
•
• 12V / 1.5A power supply w/ locking connector; GPIO/power cable available
• Quick Start Guide, regulatory and warranty information
* - IBR600B only
KEY FEATURES
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 5
User Manual / IBR600B/IBR650B 9/5/17
MANAGEMENT
• Cradlepoint NetCloud Manager¹
• Web UI, API, CLI
• Data Usage Alerts (router and per client)
• Advanced Troubleshooting (support)
• Device Alerts
• SNMP
• SMS control
• Auto APN Recovery
VPN AND ROUTING
•
• L2TP
• GRE Tunnel
• OSPF/BGP/RIP
• Per-Interface Routing
• Routing Rules
• NAT-less Routing
• Virtual Server/Port Forwarding
• NEMO/DMNR
• IPv6
• VRRP
• STP
• NHRP
• VTI Tunnel support
• OpenVPN support
• CP Secure VPN compatible
SECURITY
• RADIUS and TACACS+ support* 802.1x authentication for Ethernet
• Zscaler integration
•
• ALGs
• MAC Address Filtering
• Advanced Security Mode (local user management only)
• Per-Client Web Filtering
• IP Filtering
• Content Filtering (basic)
• Website Filtering
• Zone-Based Object Firewall with host address (IP or FQDN), port, and MAC address
*-Native support for authentication. Authorization and accounting support through hotspot/captive portal services.
1 – NetCloud Manager requires a subscription
2 - Requires an Extended Enterprise License
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 6
User Manual / IBR600B/IBR650B 9/5/17
WAN:
• Integrated 4G LTE modem (with HSPA+ failover)
• Dual-modem capable with optional COR Extensibility Dock
• One 10/100/1000 Ethernet port (WAN or LAN), one 10/100 (WAN or LAN)
LAN: One 10/100/1000 Ethernet port (WAN or LAN), one 10/100 Ethernet port (WAN or LAN)
PORTS:
• Power
• 2-wire GPIO
• Two Ethernet LAN or WAN
• Two cellular antenna connectors (SMA)
• Two WiFi connectors* (reverse SMA)
• Cradlepoint COR Extensibility Dock Port/custom cable Port (15-pin) with 4 GPIOs, power input, ignition sensing and
5 V out
TEMPERATURE:
• -20 °C to 60 °C (-4 °F to 140 °F) operating
• -30 °C to 70 °C (-22 °F to 158 °F) storage
HUMIDITY (non-condensing):
• 5% to 95% operating
• 5% to 95% storage
POWER:
• IBR600B
• Idle: 0.17A @ 12 V
• Typical: 0.45 A @ 12V
• Max: 1.2 A @ 12 V
• IBR650B
• Idle: 0.13 A @ 12 V
• Typical: 0.25 A @ 12 V
• max: 1.0 A @ 12 V
• DC input steady state voltage range: 9–33 VDC
• Recommended inline fuse for vehicle installations: 1.5 A fast-blow
SIZE: 4.6 × 4.1 × 1.1 in (117 × 104 × 27.3 mm)
WEIGHT: 10.1 oz. (285 g)
CERTIFICATIONS:
• FCC
• WiFi Alliance*
• Safety: UL/CUL, CB Scheme, EN60950-1
• Shock/Vibration/Humidity: compliant with MIL STD 810G and SAEJ1455
• Materials: WEEE, RoHS, RoHS-2, California Prop 65
• Vehicle: E-Mark, compliant with ISO 7637-2
• Telecom: PTCRB/CTIA
•
*-IBR600B only
SPECIFICATIONS
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 7
User Manual / IBR600B/IBR650B 9/5/17
COR IBR600B/IBR650B models include an integrated 4G LTE/HSPA modem.
COR IBR600B-LP4, COR IBR650B-LP4
• Technology: Category 4 LTE, HSPA+
• Downlink Rates: LTE 150 Mbps, HSPA+ 42.2 Mbps
• Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps
• Frequency Bands:
• LTE: Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700
MHz)
• DC-HSPA+/UMTS Rel. 9, Cat 24: Bands 5 and 2 (850/1900 MHz)
• Power: LTE 23 dBm ± 1, HSPA+ 23 dBm ± 1
• Antennas:2)
• Industry Standards & Certs: FCC, WiFi Alliance (IBR600B only), Verizon, AT&T, PTCRB, carrier Private Networks
• SIM: two 2FF slots (secured)
ACCESSORIES
BUSINESS-GRADE MODEM SPECIFICATIONS
CradleCare Support available in the US and Canada with technical support, software upgrades, and advanced hardware
exchange – 1-, 3-, and 5-year options.
Three-year limited hardware warranty available world-wide on IBR600B/IBR650B series products when purchased from
an approved Cradlepoint Partner or Distributor – extend warranty to 5 years.
SUPPORT AND WARRANTY
GPS Protocols: TAIP and NMEA 0183 V3.0
NOTE: GPS requires COR Extensibility Dock with 2nd modem that supports GPS (MC400LP6, MC400LPE)
• Indoor/Outdoor Panel Patch (Part #: 170669-000)
• Multi-Band Omni-Directional Antenna (Part #: 170668-000)
• Universal 3G/4G/LTE antenna w/ SMA connector (2dBi/3dBi) (Part # 170649-000)
• Directional Yagi (Log-Periodic) antenna for external (outside) mounting (Part # 170588-000)
• 12” Mag-mount antenna (Part # 170605-000)
• 4” Mini mag-mount antenna (Part # 170606-000)
• 9-wire power & GPIO cable (Part #170680-000)
• COR 2-meter power & GPIO cable (direct wire) (Part # 170585-000)
• COR vehicle power adapter (Part # 170635-000)
• COR wall power adapter (Part # 170584-001)
See the Cradlepoint antenna accessories page for more information about antennas. Also see the Antenna Ordering
and Installation Guide, available as a PDF in the Resources section of antenna and router product pages.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 8
User Manual / IBR600B/IBR650B 9/5/17
HARDWARE
3G/4G Antenna
Connector (SMA)
SIM slots
LEDs
Power Switch
3G/4G Antenna
Connector (SMA)
IBR600B-LP4
FRONT
10/100/1000 Ethernet Port
Power Port
WiFi Antenna Connector
(Reverse SMA)
Reset Button USB port
WiFi Antenna Connector
(Reverse SMA)
REAR
Router to Dock Connector 10/100 Ethernet Port
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 9
User Manual / IBR600B/IBR650B 9/5/17
IBR650B-LP4
FRONT
3G/4G Antenna
Connector (SMA)
SIM slots
LEDs
Power Switch
3G/4G Antenna
Connector (SMA)
* - See Appendix A for Pinout information
REAR
10/100 Ethernet Port
USB port
Reset Button
Power Port Router to Dock Connector
10/100/1000 Ethernet Port
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 10
User Manual / IBR600B/IBR650B 9/5/17

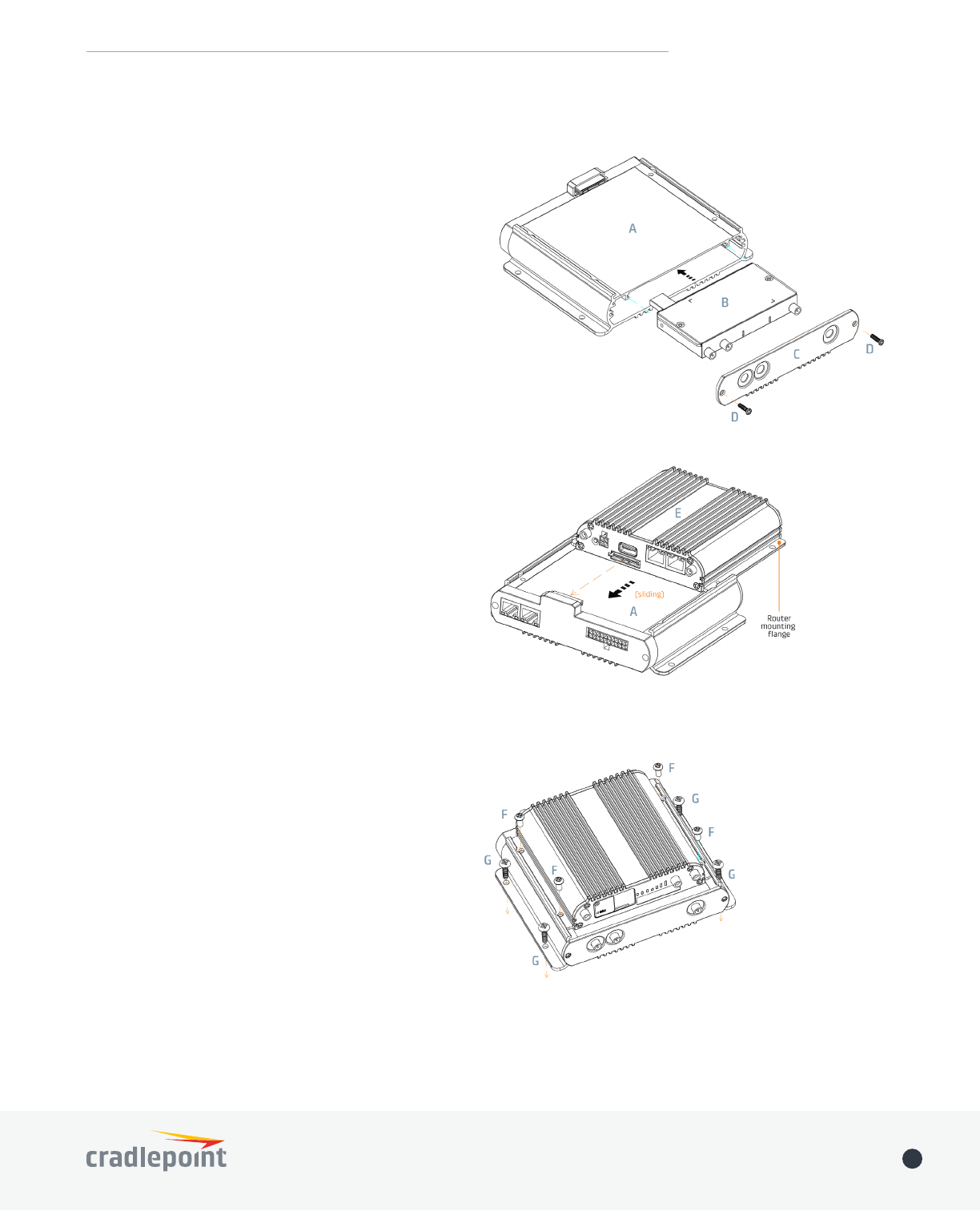

1. Remove modem door (C) from dock (A).
2. Insert activated SIM(s) into MC400 modem (B).
3. Slide MC400 modem (B) into modem dock (A).
4. Attach modem door (C) using M3 screws (D).
5. Remove dock port protective cover. With the
dock port of the router facing the dock, slide the
rails of the dock (A).
6. Fully seat the dock connectors and align the router/
dock holes.
7. Secure router to dock using four M5x8 screws
(F), then secure dock to mounting surface using
four mounting screws (G) (not supplied). For high-
vibration environments, Cradlepoint recommends
using thread locker.
EXTENSIBILITY DOCK INSTALLATION INSTRUCTIONS
NOTE: Do not place router antennas and
MC400 antennas immediately adjacent.
Cradlepoint recommends remotely attaching
one or both sets of antennas.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 11
User Manual / IBR600B/IBR650B 9/5/17
EXTENSIBILITY DOCK HARDWARE AND DIMENSIONS
Top view Bottom view
Rear view
Front view
GPIO Connector*
* - See Appendix A for Pinout information
10/100 Ethernet Ports
Dock to Router Connector
3G/4G Antenna
Connector (SMA)
3G/4G Antenna
Connector (SMA)
GPS Connector (SMA)
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 12
User Manual / IBR600B/IBR650B 9/5/17
LEDS
INDICATOR BEHAVIOR
POWER
The Cradlepoint IBR600B/IBR650B must be powered using an approved 12 V DC
power source.
• Blue = Powered ON.
• No Light = Not receiving power. Check the power switch and the power source connection.
WiFi BROADCAST Indicates WiFi activity (IBR600B only).
• Green = WiFi is on and operating normally.
• Amber = Attention. Open the administration pages and check the router status.
INTEGRATED OR USB MODEM
Indicates information about the integrated modem or
attached USB modem.
• Green = Modem has established an active connection.
• Blinking Green = Modem is connecting.
• Amber = Modem is not active.
• Blinking Amber = Data connection error. No modem connection possible.
• Blinking Red = Modem is in the process of resetting.
SIGNAL STRENGTH Blue LED bars indicate the active modem’s signal strength.
• 4 Solid Bars = Strongest signal.
• 1 Blinking Bar = Weakest signal. (A blinking bar indicates half of a bar.)
Other ADDITIONAL LED INDICATIONS
•
• Two of the modem LEDs blink red in unison for 10 seconds when there is an error during
NCOS upgrade.
• The IBR650B has a dedicated Attention LED.
• If a USB modem is plugged in, only Signal Strength LEDs will light up.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 13
User Manual / IBR600B/IBR650B 9/5/17
QUICK START
BASIC SETUP
1. Insert an activated SIM
A wireless broadband data plan must be added to your Cradlepoint IBR600B/IBR650B. Wireless broadband data
plans are available from wireless carriers such as Verizon, AT&T, Sprint, EE, and Vodafone. The SIM must be
provisioned with the carrier. Contact your carrier for details about selecting a data plan and about the process
for provisioning your SIM.
click into place.
2. Attach the WiFi and modem antennas
Attach the two WiFi antennas and two modem antennas to the connectors. Antennas are jointed, which enables
you to position them for optimal signal. To attach, hold the antenna straight and twist the base of the antenna
to connect, folding the joint if needed. NOTE: Ensure that the router antennas are not near metal or other RF
reflective surfaces.
3. Connect the power source
Plug the provided power supply into an electrical outlet. Then connect the power supply to the router.
4. Ensure power is switched on
Close SIM door, and secure with included screw if desired.
NOTE: SIM door functions as power switch. Router will not power on unless SIM door is closed.
5. Connect to a computer or other network equipment
For the IBR650B, simply connect your device(s) to the LAN port via
Ethernet.
1. On a WiFi-enabled computer or device, open the window or
dropdown menu that allows you to access wireless networks.
The IBR600B network will appear on the list: select this network.
2. Log in. You will need to input the Default Password when
prompted. The Default Password is provided on the product label
found on the bottom of your router (this password is the last
eight digits of the router’s MAC address, which can be found on
the product box or on the product label).
NOTE: If more than one IBR600B wireless router is visible, you can find
the correct unit by checking for its SSID (service set identifier; the
unique name of the local network). The default SSID of the primary
network has the form IBR600B-xxx, where “xxx” is the last 3 digits of
the router’s MAC address.
NOTE: The product label above is an example only: your DEFAULT PASSWORD and SSID will be unique.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 14
User Manual / IBR600B/IBR650B 9/5/17
ACCESSING THE ADMINISTRATION PAGES
changes to your router.
1. Open a browser window and type “cp/” or “192.168.0.1” in the address bar. Press ENTER/RETURN.
2. When prompted for your password, type the eight character DEFAULT PASSWORD found on the product
label.
NetCloud Manager
for all of them at once. See below for more information about NCM.
FIRST TIME SETUP WIZARD
USING NETCLOUD MANAGER
FIRST TIME SETUP WIZARD,
which will walk you through the steps to customize your Cradlepoint IBR600B/IBR650B. You have the ability to
• Administrator Password
• Time Zone
• WiFi Network Name
• Security Mode
• Access Point Name (APN) for SIM-based modems
• Modem Authentication
• Failure Check
If you are currently using the router’s WiFi network, you will need to reconnect your devices to the network
using the newly established wireless network name and password.
NOTE: To return to the First Time Setup Wizard after your initial login, select SYSTEM from the navigation bar,
expand Setup Wizard, and select First Time Setup.
Rapidly deploy and dynamically manage networks at geographically distributed stores and branch locations with
NetCloud Manager, Cradlepoint’s next generation management and application platform. NetCloud Manager
(NCM) integrates cloud management with your Cradlepoint devices to improve productivity, increase reliability,
reduce costs, and enhance the intelligence of your network and business operations.
Click here to sign up for a free 30-day NCM trial.
Depending on your ordering process, your devices may have already been bulk-loaded into NCM. If so, simply
log in at cradlepointecm.com using your NCM credentials and begin managing your devices seamlessly from the
cloud.
If your device has not yet been loaded into your NCM account, you need to register. Log into the device
administration pages and select NetCloud from the SYSTEM menu. Enter your NCM username and password, and
click on “Register”.
Once you have registered your device, go to cradlepointecm.com and log in using your NCM credentials.
For more information about how to use Cradlepoint NetCloud Manager, see the following:
• Getting Started
• NCM on the Knowledge Base
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 15
User Manual / IBR600B/IBR650B 9/5/17
ADMINISTRATION PAGES
Quick Links
Dashboard
Connection Manager
Status
Networking
Security
System
QUICK LINKS
DASHBOARD
The Dashboard is a centralized location for basic
information about the status of your router. The
areas include:
• Device Information
• Ethernet WAN*
• Modems*
• WWAN*
• Ethernet LAN*
• WiFi LAN*
*-To quickly edit settings for any of these areas,
click on the pencil icon ( ) in the top-right of the
desired dialog box.
You may return to the Dashboard at any time by
clicking on DASHBOARD from the left menu or by
clicking on the Cradlepoint logo at the top-left of
the screen.
Quick Links allows you to bookmark your most commonly-used settings. Simply click on the bookmark icon ( )
to add an item to your Quick Links menu. To remove an item from your Quick Links menu, select the item and
click on the remove bookmark icon ( ).
Quick Links Menu Add Quick Link Delete Quick Link
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 16
User Manual / IBR600B/IBR650B 9/5/17
CONNECTION MANAGER
The router can establish an uplink via Ethernet, WiFi as WAN, or 3G/4G modems (removable or external USB). If the
primary WAN connection fails, the router will automatically attempt to bring up a new link on another device: this
feature is called failover. If Load Balance is enabled, multiple WAN devices may establish a link concurrently.
This is a list of the available interfaces used to access the Internet. You can enable, stop, or start devices from this
section. Drag the priority icon ( ) up or down to set the interface the router uses by default and the order that it
allows failover.
WAN INTERFACE PROFILES & PRIORITY
Availability Key
Enable Load Balance
On Demand
WAN Verify Data Usage
FailbackStandby
STANDBY
Standby is used to decrease failover time from one WAN interface to another. When Standby is enabled for a WAN
Standby, the connection is already established and failover will take much less time.
Note that the current connected interface(s) is/are indicated by a green connection state. For interfaces on Standby,
the interface is indicated by a yellow connection state. If the interface is indicated in red, the interface is not currently
connected or in Standby.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 17
User Manual / IBR600B/IBR650B 9/5/17
LOAD BALANCE
To enable Load Balancing, select the check box for each desired device. If this is enabled, the router will use multiple
WAN interfaces to increase the data transfer throughput by using any connected WAN interface consecutively.
Selecting Load Balance will automatically start the WAN interface and add it to the pool of WAN interfaces to use
browsing session.
From WAN Management, select the Load Balance Algorithm from the following dropdown options:
• Round-Robin: Evenly distribute each session to the available
WAN connections.
• Rate: Distribute load based on the current upload and
download rates. A WAN device’s upload and download
bandwidth values can be set in Internet > Connection
Manager.
• Spillover: This was the default algorithm in older (version
available bandwidth. The estimated bandwidth rate is based
values and the observed capabilities of the device.
• Data Usage: This mode works in concert with the Data Usage feature (Internet > Data Usage).
cap in the data usage rule for each interface, rather than distributing sessions based solely on bandwidth. For proper
functioning you need to create data usage rules for each WAN device you will be load balancing. Make certain to select
the “Use with Load Balancing” checkbox in the data usage rule editor.
ON DEMAND
Typically, modem connections are not always on.
When the On Demand mode is selected a connection
to the Internet is made as needed. When On
Demand is not selected a connection to the Internet
is always maintained.
WAN VERIFY
If this is enabled, the router will check that the highest priority active WAN interface can get to the Internet even if
the WAN connection is not actively being used. If the interface goes down, the router will switch to the next highest
priority interface available. If this is not selected, the router will still failover to the next highest priority interface but
only after the user has attempted to get out to the Internet and failed.
Idle Check Interval: The amount of time between each check. (Default: 30 seconds. Range: 10-3600 seconds.)
Monitor while connected
• Passive DNS (modem only): The router will take no action until data is detected that is destined for the WAN.
When this data is detected, the data will be sent and the router will check for received data for two seconds. If no
data is received the router behaves as described below under Active DNS.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 18
User Manual / IBR600B/IBR650B 9/5/17
FAILBACK
connection to its network.
Select the Failback Mode from the following
options:
• Usage
• Time
• Disabled
Usage Threshold: Fail back based on the amount
of data passed over time. This is a good setting for
when you have a dual-mode EVDO/WiMAX modem
and you are going in and out of WiMAX coverage. If
the router has failed over to EVDO it will wait until
you have low data usage before bringing down the EVDO connection to check if a WiMAX connection can be made.
• High (Rate: 80 KB/s. Time Period: 30 seconds.)
• Normal (Rate: 20 KB/s. Time Period: 90 seconds.)
• Low (Rate: 10 KB/s. Time Period: 240 seconds.)
• Custom (Rate range: 1-100 KB/s. Time Period range: 10-300 seconds.)
Time: Fail back only after a set period of time. (Default: 90 seconds. Range: 10-300 seconds.) This is a good setting if
you have a primary wired WAN connection and only use a modem for failover when your wired connection goes down.
This ensures that the higher priority interface has remained online for a set period of time before it becomes active
(in case the connection is dropping in and out, for example).
Disabled: Deactivate failback mode.
Immediate Mode: Fail back immediately whenever a higher priority interface is plugged in or when there is a priority
change. Immediate failback returns you to the use of your preferred Internet source more quickly which may have
advantages such as reducing the cost of a failover data plan, but it may cause more interruptions in your network
than Usage or Time modes.
• Active DNS (modem only): A DNS request will be
sent to the DNS servers. If no data is received, the
directed at the Primary DNS server and the second
two requests will be directed at the Secondary
DNS server.) If still no data is received, the device
will be disconnected and failover will occur.
• Active Ping: A ping request will be sent to the
Ping Target. If no data is received, the ping request
If still no data is received, the device will be
disconnected and failover will occur. When “Active Ping” is selected, the next line gives an estimate of data usage
in this form: “Active Ping could use as much as 9.3 MB of data per month.” This amount depends on the Idle
Check Interval.
• O: Once the link is established the router takes no action to verify that it is still up.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 19
User Manual / IBR600B/IBR650B 9/5/17
DATA USAGE
Data UsageMonitor Monthly (or Weekly or Daily)
Usage to begin tracking this information. This data is not retained between router reboots.
For Monthly and Weekly you are able to specify the day to
start each cycle (e.g. the 1st or Tuesday, respectively).
Usage Cap: Enter a Cap amount in Megabytes. 1024
Megabyte is equal to 1 Gigabyte.
Use with Load Balancing: When checked, the Load
Balancing feature is allowed to use the thresholds and
metrics of this rule when making balance decisions. This
causes Load Balancing to spread the data usage between
interfaces according to the assigned usage rather than
these rules at a similar percentage utilization of data (e.g.
10%, 50%, 90%) as the cycle progresses, rather than quickly
using 100% of a fast 1GB capped interface while using only
a fraction of a slow 10GB capped interface, thus leaving
the rest of the cycle with only the slow interface. The Data
Shutdown on Cap: When checked, the WAN device will shutdown when the assigned usage is reached. A cycle reset or
a rule deletion will re-enable the device.
Alert on Cap: An email alert will be generated and sent when the assigned data cap is reached. NOTE: The SMTP mail
System > Device Alerts.
Custom Alerts:
usage cap.
Custom Alert Percentages: Example: “50,80,90,110” (values can exceed
100%) (Triggers alerts when 50, 80, 90, 110% of usage cap is used)
NOTE: To enable data usage, check Data Usage Enabled from WAN
Management.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 20
User Manual / IBR600B/IBR650B 9/5/17
STATUS
INTERNET
CONNECTIONS
Select your device to reveal
detailed information about the
following device properties:
• Summary
• Modem
• Cellular Network
• General Information
• IPv4 Information
• Statistics
Internet
Client List
Tunnels
Firewall
Routing
Ethernet
GPS
System Logs
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 21
User Manual / IBR600B/IBR650B 9/5/17
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 22
User Manual / IBR600B/IBR650B 9/5/17
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 23
User Manual / IBR600B/IBR650B 9/5/17

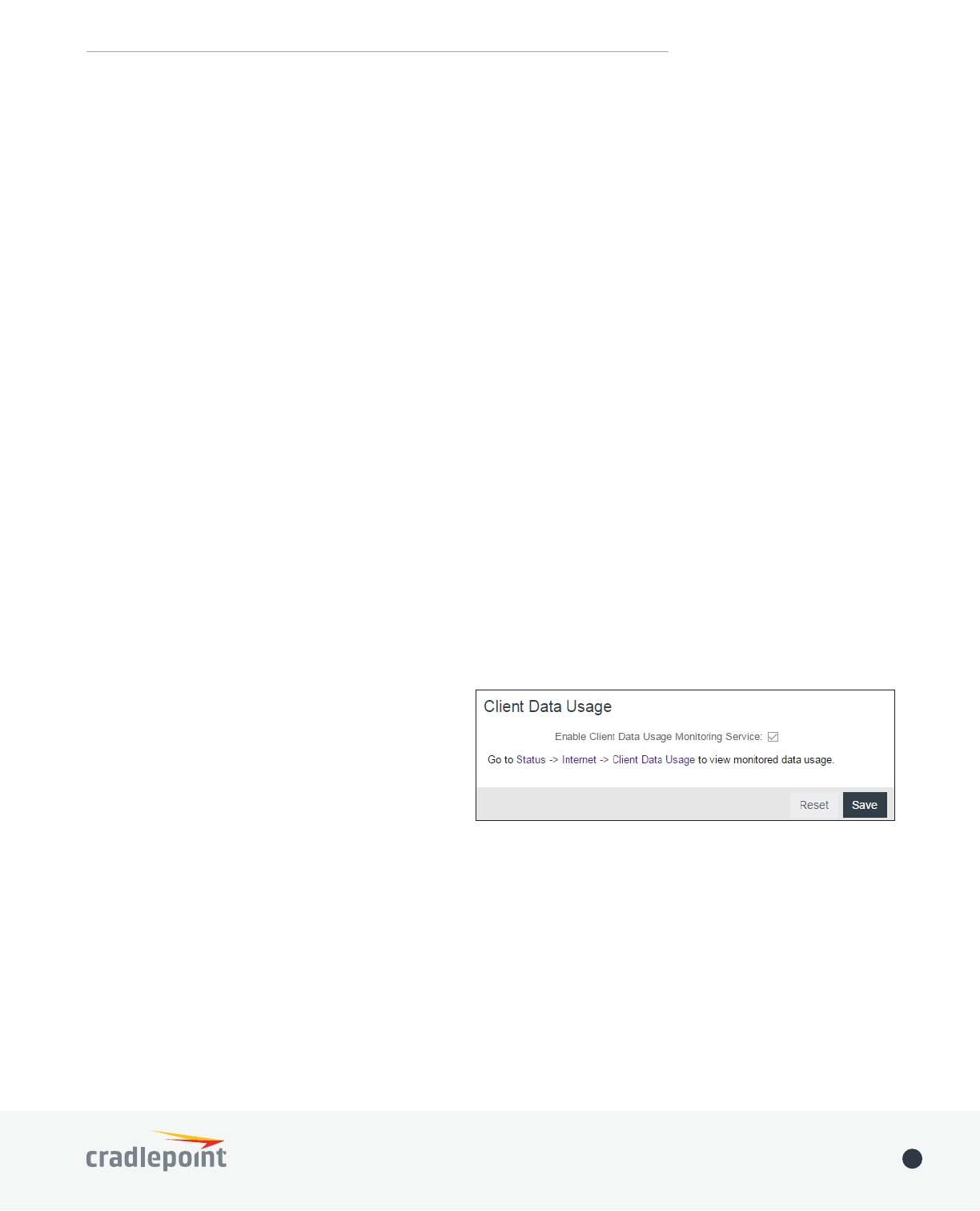

CLIENT DATA USAGE
Displays the following client information:
• Name
• IP Address
• MAC Address
• Data Uploaded
• Data Downloaded
•
To reset information, click Reset Statistics.
STATISTICS
Statistics can be gathered at variable Sample Rate and Sample Size for the following areas:
• Wireless Device
• Data Usage
• Failover/Failback/Load Balance
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 24
User Manual / IBR600B/IBR650B 9/5/17
QOS
Displays packets and bytes transmitted and
received by your Quality of Service (QoS) queues.
NETWORKING
> QoS.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 25
User Manual / IBR600B/IBR650B 9/5/17

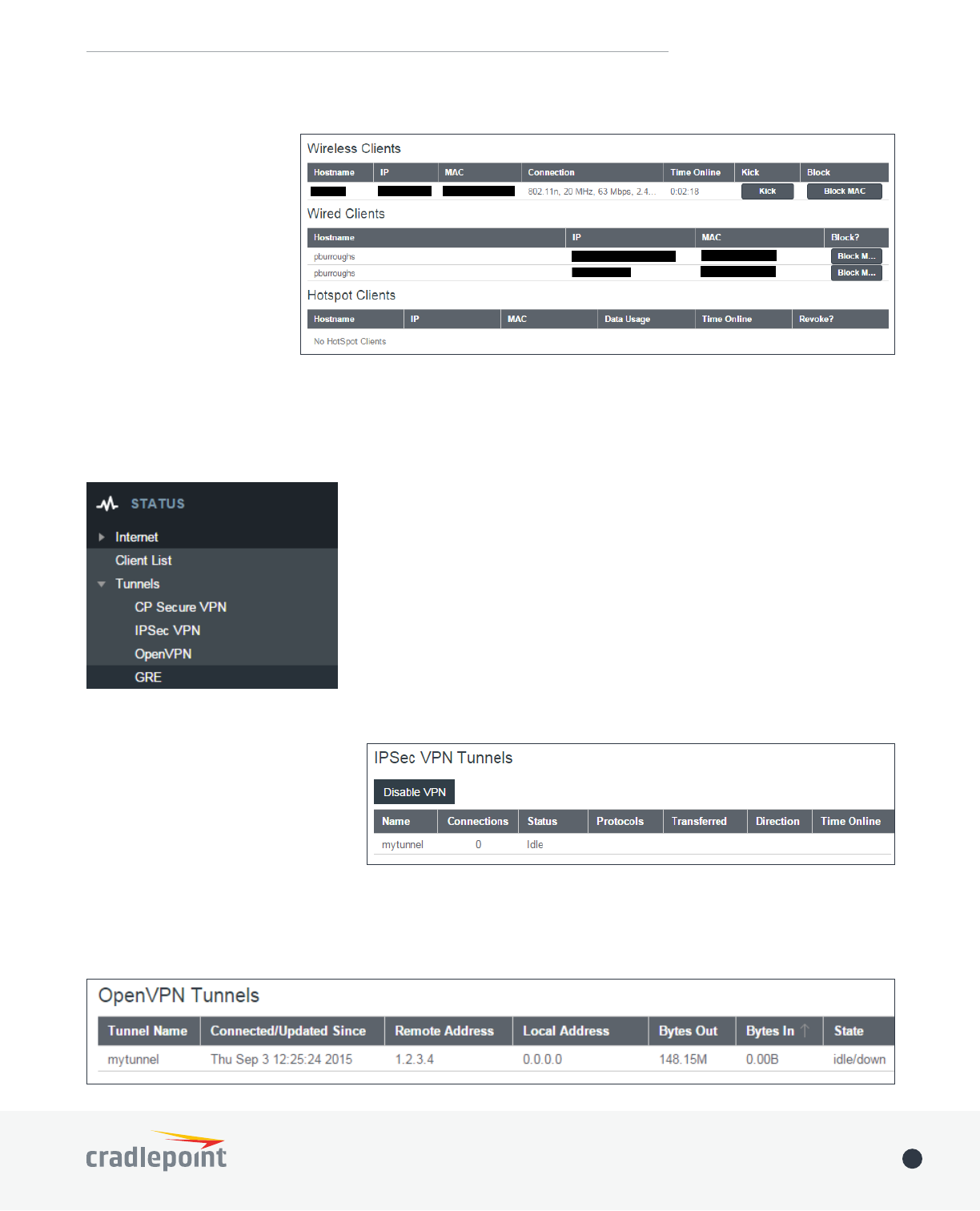

CLIENT LIST
Displays information about
your Wireless, Wired, and
Hotspot Clients, and allows
you to Kick Wireless Clients,
block MAC addresses of both
Wireless and Wired Clients,
and Revoke Hotspot Clients.
TUNNELS
CP SECURE VPN
Secure VPN Tunnels, go to NETWORKING > Tunnels > CP Secure VPN.
IPSEC VPN
Displays status of your IPSec VPN
VPN Tunnels, go to NETWORKING >
Tunnels > IPSec VPN.
OPEN VPN (ONLY ON IBR600B)
NETWORKING > Tunnels
> OpenVPN.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 26
User Manual / IBR600B/IBR650B 9/5/17
FIREWALL
SECURITY
from the left navigation.

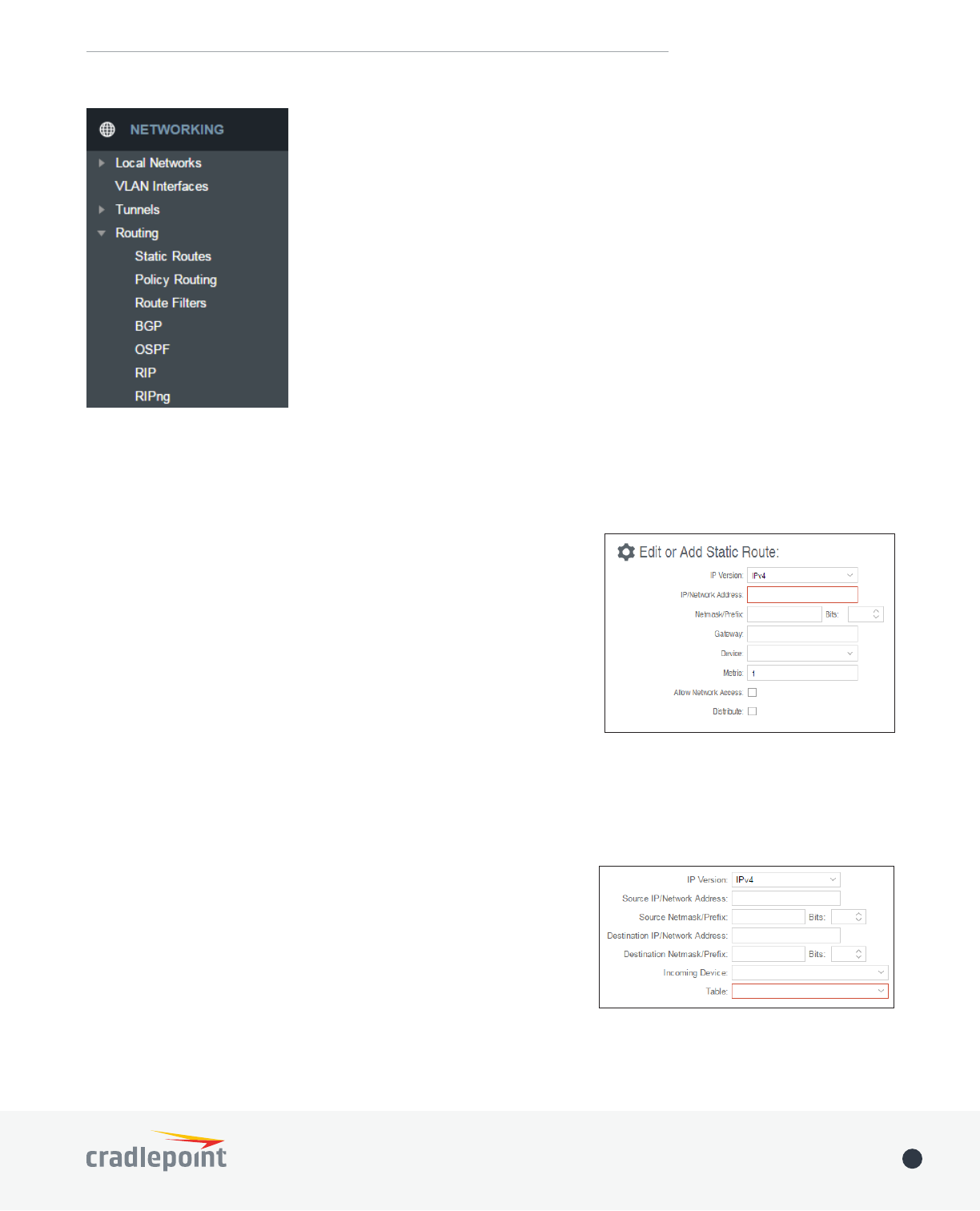

ROUTING
Displays information about your
System, GRE, and NEMO Routes.
NETWORKING > Tunnels.
GRE
NETWORKING > Tunnels > GRE.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 27
User Manual / IBR600B/IBR650B 9/5/17
ETHERNET
Ethernet ports, go to NETWORKING > Local Networks >
Ethernet Ports.
GPS
SYSTEM > Administration > GPS. NOTE: GPS
only available with COR Extensibility Dock (https://cradlepoint.com/products/accessories/cor-extensibility-dock).

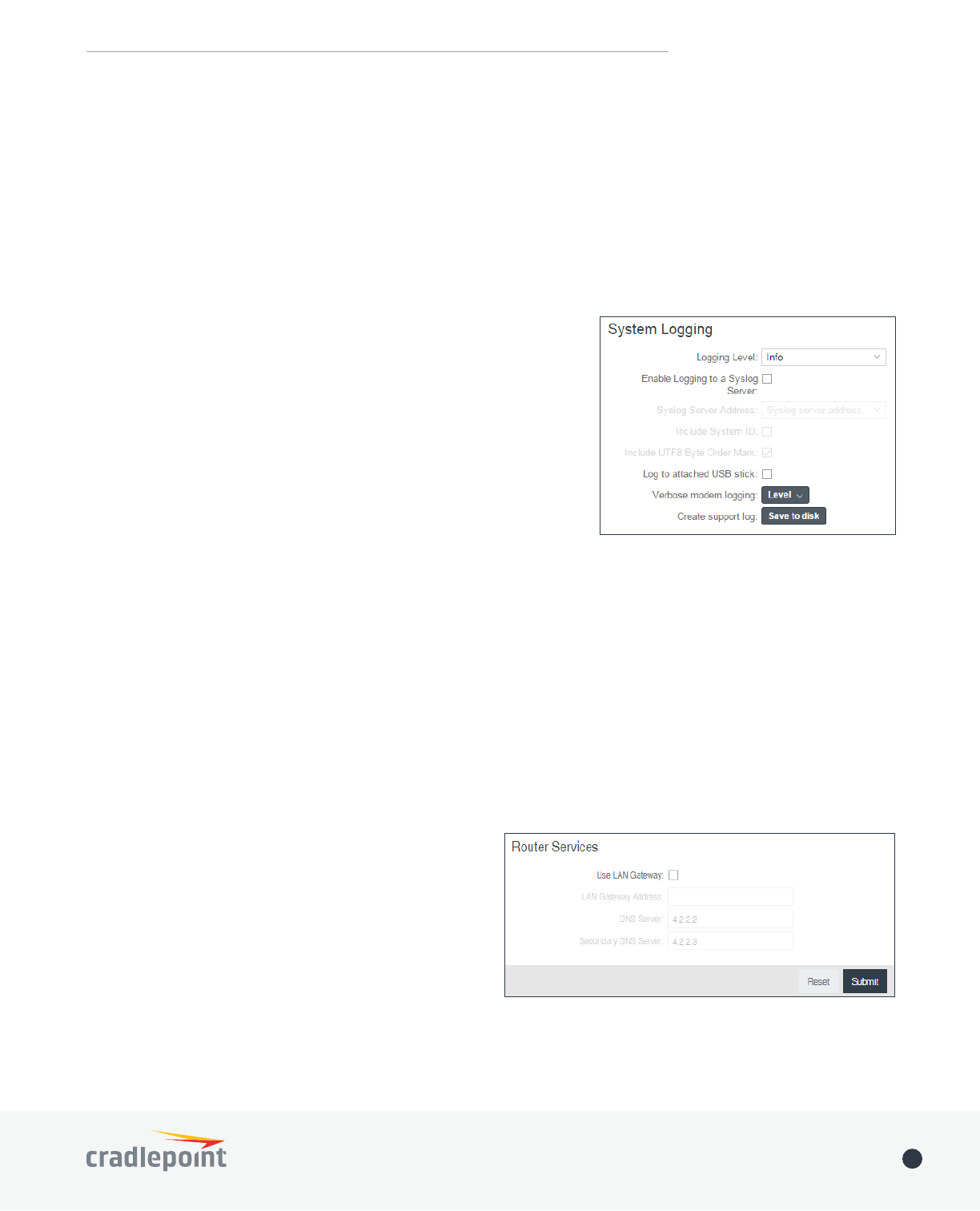

SYSTEM LOGS
SYSTEM > Administration > System
Logging.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 28
User Manual / IBR600B/IBR650B 9/5/17
NETWORKING
Local Networks
VLAN Interfaces
Tunnels
Routing
QoS
DNS Servers
WiFi as WAN
WAN Anity
Client Data Usage
NHRP

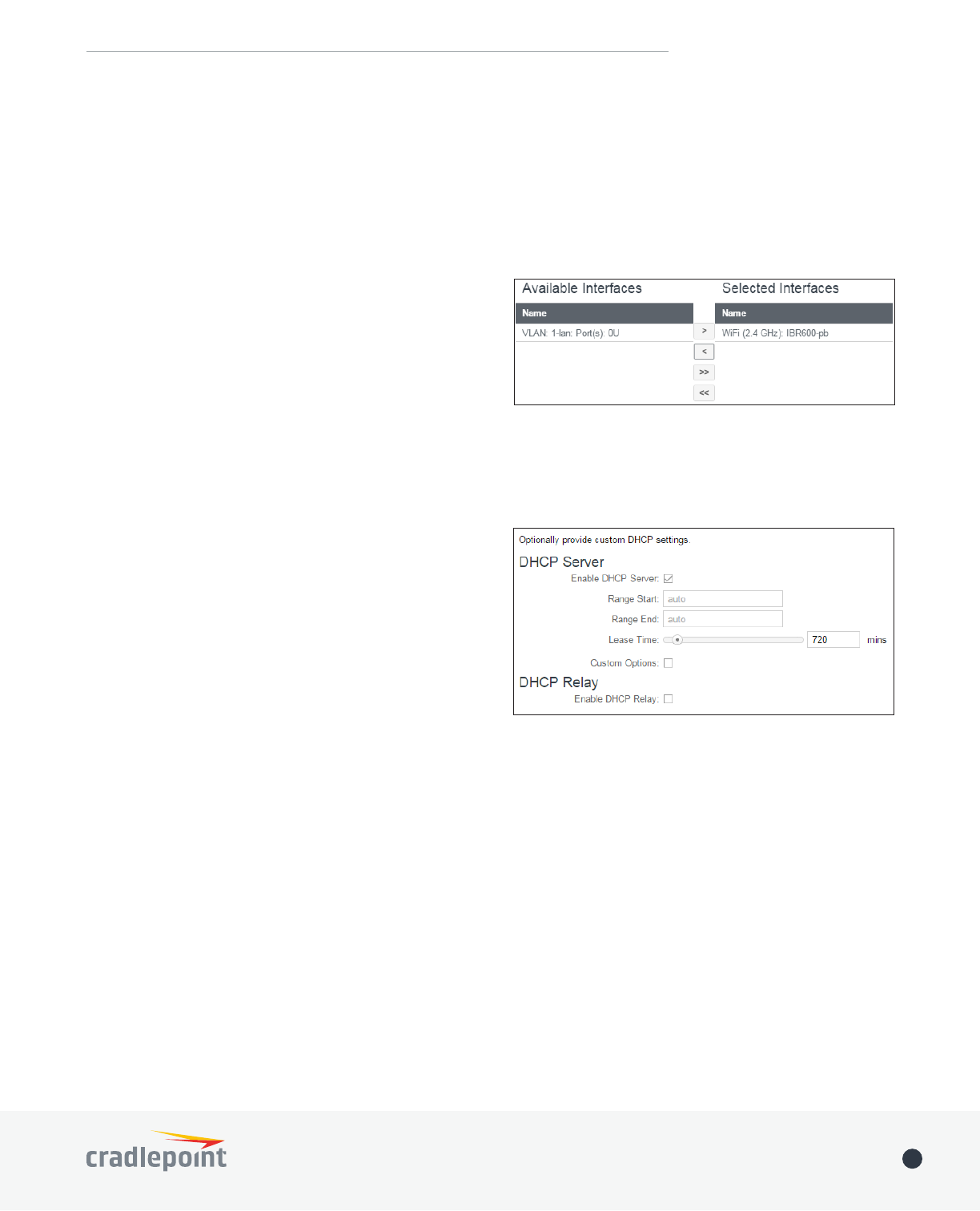

LOCAL NETWORKS
WiFi Name (SSID): When
users browse for available
wireless networks, this is
the name that they will
see. This name is referred
to as the SSID (service set
purposes, Cradlepoint highly
recommends that you change
Security Mode: You have several options for
selecting a security mode. The mode you choose
depends on the security features your wireless
adapters support.
• WPA2 Personal
• WPA / WPA2 Personal
• WPA2 Enterprise
• WPA / WPA2 Enterprise
• WEP Auto
• Open
Select “Open” to create a hotspot: otherwise select the best security that your devices will support
(Cradlepoint recommends WPA2).
• “Personal” security modes require passwords.
• “Enterprise” security modes are linked to a RADIUS server and require RADIUS authentication: IP, Port, and
Shared Key (Secondary IP and NAS ID optional).
WIRELESS (WIFI) SETTINGS
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 29
User Manual / IBR600B/IBR650B 9/5/17
• “WPA2” (Personal or Enterprise) forces AES as the WPA Cipher.
• “WPA/WPA2” and “WPA” (Personal or Enterprise) allow AES, TKIP/AES, and TKIP.
• “WEP Auto” requires a WEP Key.
• “Open” has no password or other security measures.
NOTE: If you don’t know whether you should choose Personal or Enterprise, assume Personal since you need to
know RADIUS authentication for Enterprise.
In order to protect your network from hackers and unauthorized users, Cradlepoint highly recommends WPA2/
AES for security if your attached devices can support it. WEP and WPA/TKIP are obsolete and have been
replaced by WPA/AES. Using those security settings will cause the WiFi to limit to 802.11g modes.
NOTE: If you select one of the security modes and are unable to connect to the router afterwards, you can use
Hidden
attack a router that is not broadcasting its SSID, which adds to the wireless security, but it is also more
Isolate: Select this to isolate all wireless clients so they cannot directly communicate with each other on the
wireless network.
WMM
video streams are given higher priority than print jobs, since video streams need consistent throughput.
Enabled: Whether the network is available.

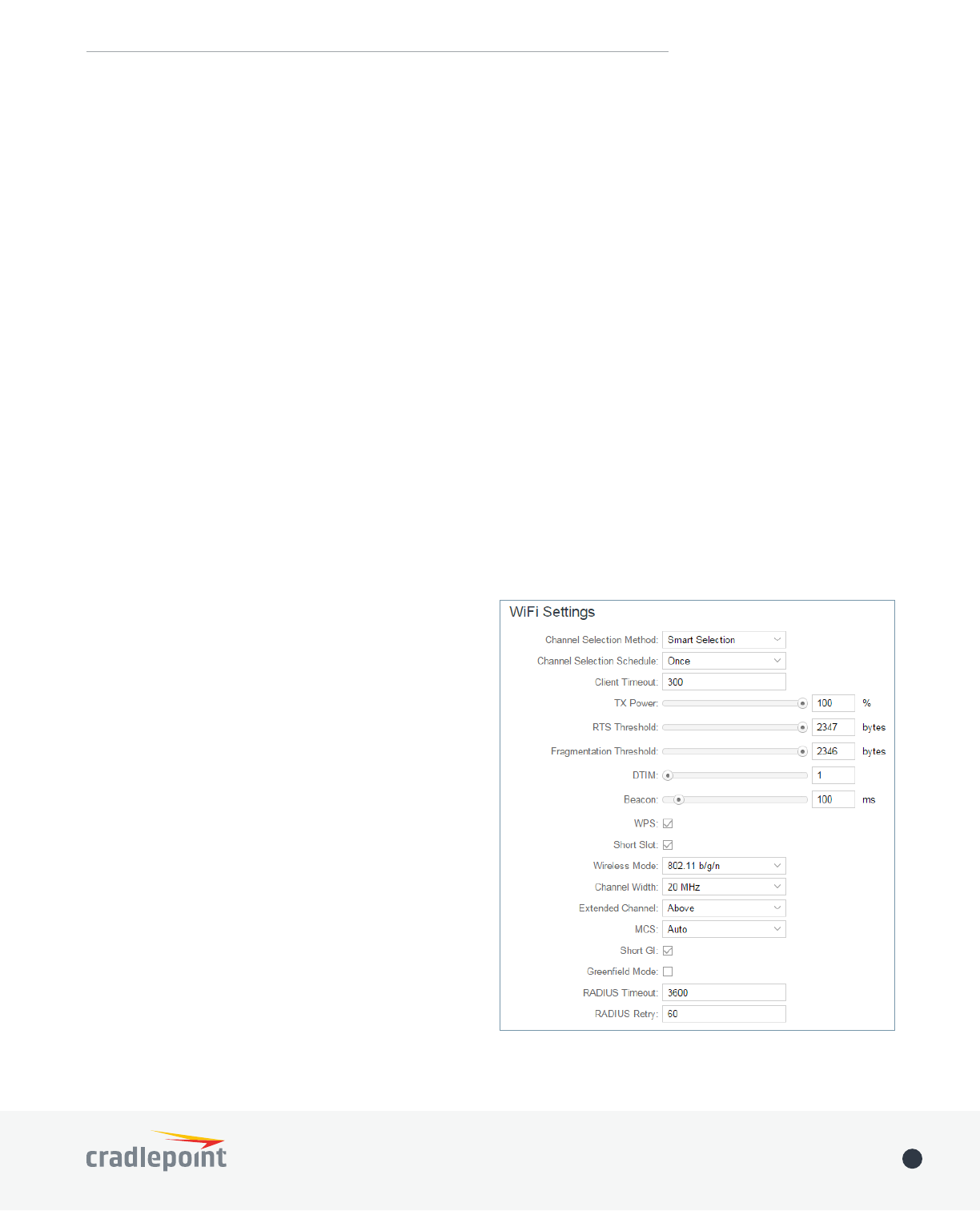

When you select Wireless (WiFi) Settings from Local Networks, you have several additional options for
WiFi Settings heading.
Channel Selection Method: This controls how a WiFi
channel is selected.
• User Selection – Manually set the channel
• Random Selection – The router randomly sets the
channel
• Smart Selection (Default) – Scans to determine the
lowest interference WiFi channel
Channel Selection Schedule: When using the “Smart”
channel selection, this controls whether the router
will periodically rescan for a better channel and
change to it. Select from “Once,” “Daily,” “Weekly,” or
“Monthly.” Note that there may be a momentary WiFi
disconnection while the channel changes.
Channel: (Shows if User Selection is selected.) The WiFi
channel* corresponds to a frequency the router uses to
communicate with other devices. For 2.4 GHz, the range
is 1 to 11, and 1, 6, and 11 do not overlap each other.
Select a channel from the dropdown list:
• 1 (2412 MHz)
• 2 (2417 MHz)
• 3 (2422 MHz)
• 4 (2427 MHz)
• 5 (2432 MHz)
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 30
User Manual / IBR600B/IBR650B 9/5/17
• 6 (2437 MHz)
• 7 (2442 MHz)
• 8 (2447 MHz)
• 9 (2452 MHz)
• 10 (2457 MHz)
• 11 (2462 MHz)
* - Channels listed above represent US/FCC settings. EU users will see different settings.
Client Timeout: If the access point is not able to communicate with the client it will disconnect it after this
timeout (in seconds).
TX Power: Normally the wireless transmitter operates at 100% power. In some circumstances, however, there
RTS Threshold: When an excessive number of wireless packet collisions are occurring, wireless performance
can be improved by using the RTS/CTS (Request to Send/Clear to Send) handshake protocol. The wireless
transmitter will begin to send RTS frames (and wait for CTS) when data frame size in bytes is greater than the
RTS Threshold. This setting should remain at its default value.
Fragmentation Threshold: Wireless frames can be divided into smaller units (fragments) to improve
performance in the presence of RF interference and at the limits of RF coverage. Fragmentation will occur
when frame size in bytes is greater than the Fragmentation Threshold. This setting should remain at its default
value. Setting the Fragmentation value too low may result in poor performance.
DTIM: A DTIM is a countdown informing clients of the next window for listening to broadcast and multicast
sends the next DTIM with a DTIM Interval value. Wireless clients detect the beacons and awaken to receive the
broadcast and multicast messages. The default value is 1. Valid settings are between 1 and 255.
Beacon: Beacons are packets sent by a wireless router to synchronize wireless devices. Specify a Beacon
Period value between 20 and 1000 milliseconds.
WPS: WiFi Protected Setup is a method for easy and secure establishment of a wireless network. It can be
used instead of passwords when connecting clients that support WPS. To initiate WPS, either press the WPS
button on the product (if it has one) or use the Connect button in the Getting Started / WiFi Protected Setup
menu.
Short Slot: Slot Time is the period wireless clients use in determining if the channel is free for transmission.
Enabling this value allows clients that can utilize a shorter time to do so. Disabling this option forces all
transmission collisions.
Wireless Mode: Select the WiFi clients with which the router will be compatible. Greater compatibility is a
2.4 GHz options
• 802.11 b
• 802.11 b/g
• 802.11 b/g/n
• 802.11 n
Channel Width: Selects whether the router uses a single 20 MHz channel to send/receive, or uses two adjacent
20 MHz channels to create a 40 MHz channel. Higher performance is possible with the 40 MHz channel.
Selecting Auto is generally best. Enabling WiFi as WAN will force 20 MHz only mode.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 31
User Manual / IBR600B/IBR650B 9/5/17
Extended Channel: When operating in 40 MHz mode the access point will use an extended channel either below
or above the current channel. Optimal selection will depend on the channels of other networks in the area.
MCS: 802.11n uses multiple Modulation Coding Schemes to enable higher throughput in various environments.
Since clients can dynamically change rates depending on environment, selecting Auto is generally best.
Short GI: Short GI is an optimization for shortening the interval between transmissions. May be incompatible
with older clients.
Greeneld Mode:
performance but can improve performance if all devices in the area are 802.11n compatible.
RADIUS Timeout: (Default: 3600 seconds) When using an Enterprise security mode clients will be forced to re-
authenticate with the RADIUS server at this interval in seconds. This allows administrators to revoke access so
when an attached client’s authentication expires, the client must re-authenticate.
RADIUS Retry: (Default: 60 seconds) When using an Enterprise security mode, if a RADIUS query fails to
receive a response from the server it will delay by this interval (in seconds) before attempting another query.
unreachable.
ETHERNET PORTS
the ability to control: Mode (WAN or LAN) and Link Speed. Additional controls for WAN ports are available in
CONNECTION MANAGER.
Mode: WAN or LAN. By default there is one LAN (Local Area Network) port and one WAN (Wide Area Network)
port.
• Internet (WAN) is used as a possible source of Internet for the router
• Local Network (LAN) is for connecting a computer or similar device directly to the router with an Ethernet
cable.
Link Speed: Default setting is Auto. The Auto setting is preferred in most cases.
• Auto
• 10Mbps - Half Duplex
• 10Mbps - Full Duplex
• 100Mbps - Half Duplex
• 100Mbps - Full Duplex
• 1000Mbps - Full Duplex
HOTSPOT SERVICES
Any of your networks can be enabled as a hotspot. To enable a hotspot, you need to select a network and set
it as a hotspot in NETWORKING > Hotspot Services.
NOTE: Although any network can be a hotspot, the router allows only one hotspot.
Hotspot Mode: Choose from the following dropdown options:
• Simple: Allows “Terms of Use” page and timeout settings controlled within the router
• RADIUS/UAM: Allows you to set up external authentication servers
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 32
User Manual / IBR600B/IBR650B 9/5/17
Local IP Network: A single LAN Group – including
hotspot. If you do not already have a LAN Group
Configure and set the
IPv4 Routing Mode to “Hotspot” for the LAN Group
you want to use.
NOTE: Routing Mode is in the Primary LAN Editor
under the IPv4 Settings tab. Select a network in
NETWORKING > Local IP Networks and click Edit to
open the Primary LAN Editor.
Allow Service on 3G/4G Modems: Allows you to
enable or disable hotspot access to the Internet over
a modem. This is often used if the router has a main wired link and a secondary modem for failover (typically
the modem if the wired connection goes down.
Disable Service if Ethernet Threshold is met: This will block hotspot use of the WAN when the threshold is
met. This can be used if the router is being used as a backup failover connection to another router with a wired
connection. If that other router’s wired connection goes down and it starts using this router for its primary
connection, then disable hotspot use of the WAN connection. Set the limiting Rate (KB/s) and Time Period
(seconds).
Redirect HTTPS Requests: This allows initial requests to HTTPS websites to be redirected appropriately.
Hotspot/UAM Authentication Port
the port.

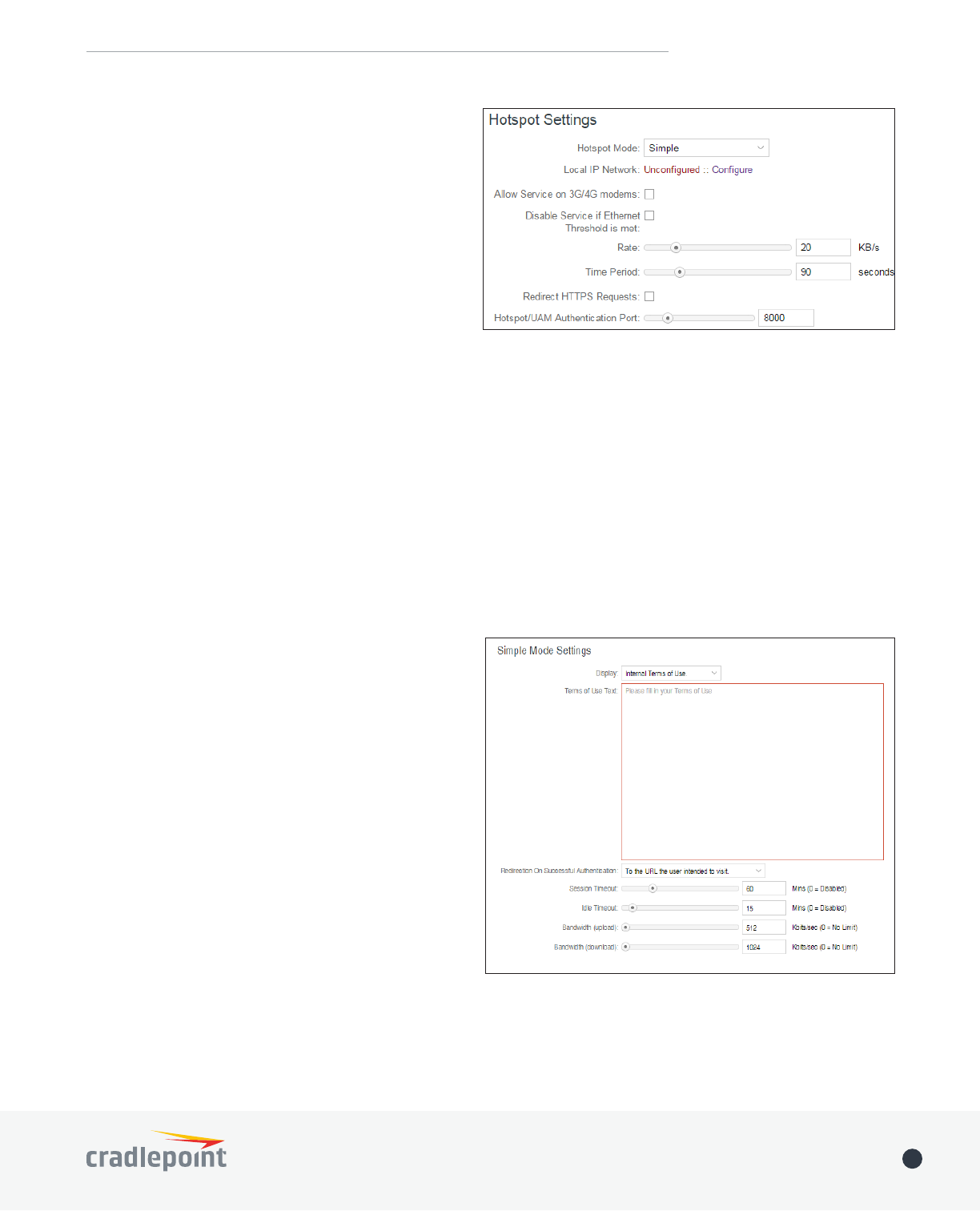

Simple Mode Settings
Display: This section allows you to choose if a “Terms
of Use” page will be given to the user connecting to
the hotspot.
• Internal Terms of Use. Fill in your own terms of
use.
• External Terms of Use. Specify a URL that has the
Terms of Use page. Users will automatically be
directed to this page.
• No Terms of Use. Redirect Only.
Redirection on Successful Authentication: Depending
on your choice for the “Terms of Use” page, you have
further options for where the user will be directed.
After the user accepts the terms, you can either
let him/her continue to the URL they were trying to
URL once before continuing on.
• To the URL the user intended to visit
•
Redirect URL
address.
Session Timeout: (Default: 60 minutes.) The amount of time the user may use the router before being forced to
authenticate again.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 33
User Manual / IBR600B/IBR650B 9/5/17
Idle Timeout: (Default: 15 minutes.) If the user is idle for this amount of time, make them re-authenticate.
Bandwidth (upload): (Default: 512 Kbits/sec.) The data rate limit for users uploading data through the hotspot.
Bandwidth (download): (Default: 1024 Kbits/sec.) The data rate limit for users downloading data through the
hotspot.
Allowed Hosts/Domains Prior to Authentication
Adding hostnames to this list will allow access from your
network to any external domain or website prior to being
authenticated. For example, a hotel might allow access to
its own website prior to authentication.
Click Add to enter new hostnames you wish to allow.
Enter the hostname or domain name of the website you
wish to allow, e.g. www.company.com or company.com. To
allow all domain and sub-domain options, use a wildcard, e.g. *.company.com.
Click Update to save your additions.
Authorized MAC Addresses
Add the MAC addresses of trusted machines. This gives them automatic
access through the hotspot portal.
Click Add to enter new MAC Addresses you wish to allow.
Click Update to save your additions.
DHCP SERVER
addresses to the computers and other devices on each local area network (LAN). In this section you can view a
list of assigned IP addresses and reserve IP addresses for particular devices.
Active Leases: A list of devices that have been provided
DHCP leases. The DHCP server automatically assigns these
leases. This list will not include any devices that have
static IP addresses on the network. Select a device and
click Reserve to add the device and its IP address to the
list of Reservations.
Reservations: This is a list of devices with reserved IP
addresses. This reservation is almost the same as when a
device has a static IP address except that the device must
still request an IP address from the router. The router will
provide the device the same IP address every time. DHCP
reservations are helpful for server computers on the local network that are hosting applications such as Web
and FTP. Servers on your network should either use a static IP address or a reservation.
While you have the option to manually input the information to reserve an IP address (Hostname, Hardware
Addr, IP Addr), it is much simpler to select a device under the Active Leases section and click “Reserve.” The
selected device’s information will automatically be added under Reservations.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 34
User Manual / IBR600B/IBR650B 9/5/17
LOCAL IP NETWORKS
Local IP Networks displays the following information for
each network:
• Network Name, IP address/Netmask, and Enabled/
Disabled (along the top bar)
• Multicast Proxy (Enabled/Disabled)
• DHCP Server (Enabled/Disabled)
• DHCP Relay (Enabled/Disabled)
• Schedule (Enabled/Disabled – See the Schedule tab in
the Local Network Editor)
• VRRP Failover State (Disabled, Backup, or Master)
• IPv4 Routing Mode (NAT, Standard, IP Passthrough,
Hotspot, Disabled)
• IPv6 Addressing Mode (SLAAC Only, SLAAC with
DHCP, Disable SLAAC and DHCP)
• Access Control (Admin Access, UPnP Gateway, LAN
Isolation)
• Attached Interfaces (Ethernet ports, WiFi, VLAN)
Click AddRemove to delete
a network, or select an existing network and click Edit to
General Settings
Enabled: The network can be manually disabled or in
work with certain types of modems.
Name: The “name” property primarily helps to identify
this network during other administration tasks.
Hostname: The hostname is the DNS name associated with the router’s local area network IP address.
IPv4 Settings
IP Address: This is the address used by the router for local area network communication. Changes to this
parameter may require a restart to computers on this network.
Netmask: The netmask controls how many IP addresses can be used in this network. The default value is
usually acceptable for most situations.
IPv4 Routing Mode: Each network can use a unique routing mode to connect to the Internet. The default of
• NAT: Network Address Translation hides private IP addresses behind the router’s IP address.
• Standard: Without NAT exposes the subnet addresses which requires them to be externally routable.
• IP Passthrough: IP Passthrough passes the IP address given by the modem WAN through the router.
Hotspot, VPN, and GRE must be disabled. Any Wireless interfaces must be removed from this network in
order to enable IP Passthrough.
• Hotspot: Provide Hotspot Services on this Network, requiring Terms of Service or RADIUS/UAM
authentication before WAN access will occur on both Wireless and Wired LAN connections.
IPv6 Settings
IPv6 Address Source: The Address source has three settings. The default of Delegated is desirable in most
• Delegated: The address is provided by a router connected to this router’s WAN.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 35
User Manual / IBR600B/IBR650B 9/5/17
• Static: The address is provided by the router admin.
• None: No use of an IPv6 WAN address, IPv6 is disabled on the WAN.
IPv6 Address: An IPv6 Address is a unique numerical label for a computer or device using the Internet Protocol
(IP). IPv6 addresses are typically in the format composed of 8 sets of 4 hexadecimal numbers. Leading zeros
can be ignored and the longest set of continuous zeros can be replaced with ::. For example, the IPv6 address
of 0001:0000:0234:5678:0000:0000:9abc:0def can be expressed as 1:0:234:5678::9abc:def.
Interfaces
Select the network interfaces which will be attached
to this network by either dragging desired interface
or clicking left or right arrows to move them between
Available Interfaces and Selected Interfaces.
Access Control
UPnP Gateway: Select the UPnP (Universal Plug and Play)
option if you want to enable the UPnP Gateway service
for computers on this network.
Admin Access: When enabled users may access these admin pages from this network.
IPv4 DHCP
DHCP Server
• Enable DHCP Server: When the DHCP server is
enabled, users of your network will be able to
automatically connect to the Internet without
you leave this enabled. Advanced DHCP server
NETWORKING > Local
Networks > DHCP Server.
• Range Start: The starting IP address in the DHCP
Server range is the beginning of the reserved pool
of IP addresses which will be given to any DHCP
enabled computers on your network. The default
• Range End: The ending IP address in the DHCP Server range is the end of the reserved pool of IP
addresses which will be given to any DHCP enabled computers on your network. The default value is
• Lease Time:
new DHCP lease. Smaller values are better suited to busy environments.
• Custom Options: Send optional extra options to DHCP clients of this network. This can be used to, for
example, set the boot TFTP server of a network for disk-less clients.
DHCP Relay
• Enable DHCP Relay: DHCP Relay communicates with a DHCP server and acts as a proxy for DHCP
broadcast messages that must be routed to remote segments. This is accomplished by converting
broadcast DHCP messages to unicast messages to communicate between clients and servers.
Multicast Proxy
Multicast Proxy:
Quick Leave Mode: Disable quick leave mode if it’s vital that the daemon should act exactly as a real multicast
client on the upstream interface. However, disabling this function increases the risk of bandwidth saturation.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 36
User Manual / IBR600B/IBR650B 9/5/17
Altnet:
legal multicast sources.
IPv6 Addressing

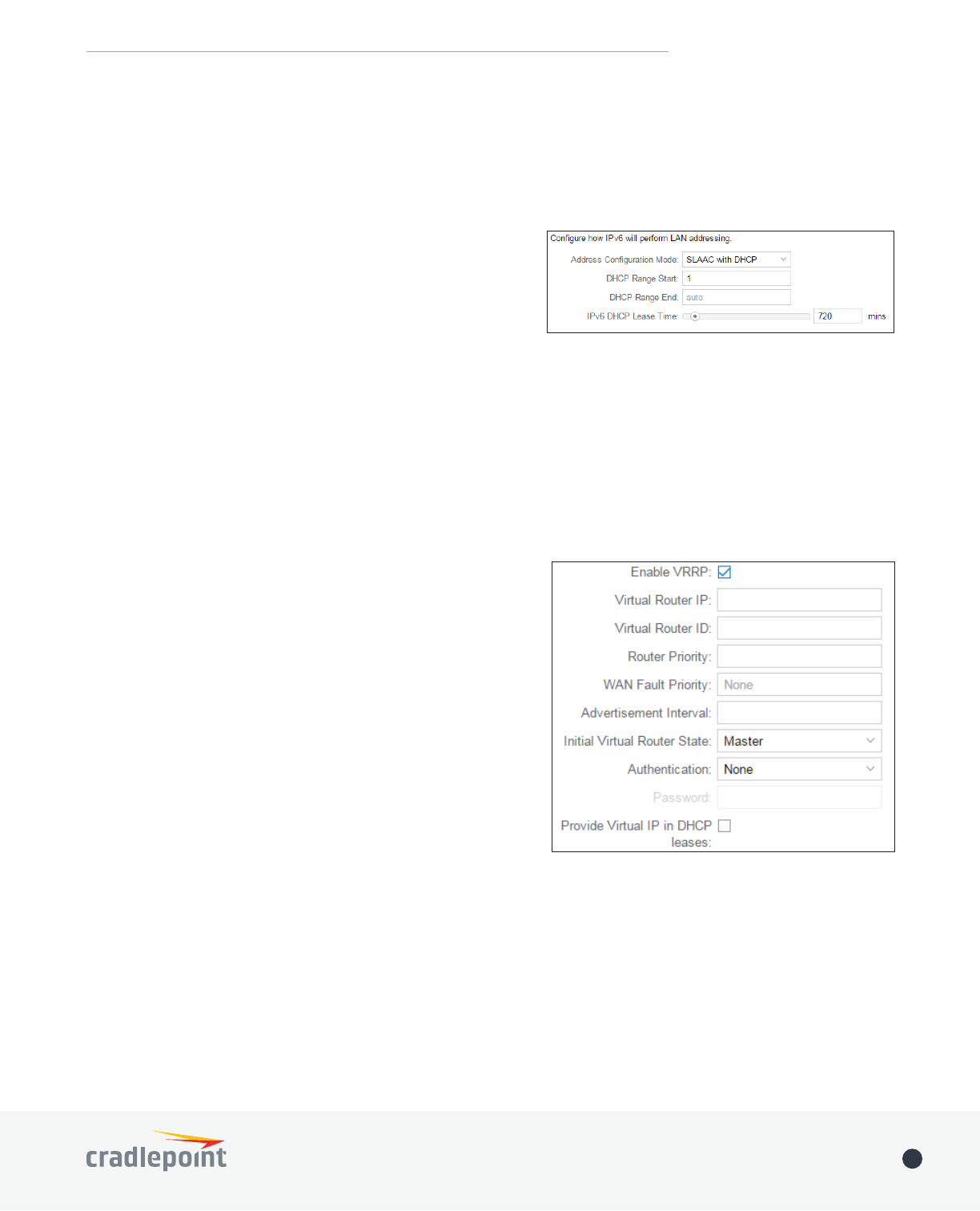

Address Configuration Mode:
DHCP Range Start: The DHCP Range Start is the beginning of
the range that will be used for IPV6 DHCP addresses. The IPv6
range will always start at 1.
DHCP Range End: The ending IP address in the DHCP Server
range is the end of the reserved pool of IP addresses which
will be given to any DHCP enabled computers on your network.
IPv6 DHCP Lease Time:
computers will wait before requesting a new DHCP lease.
Schedule
Enable Schedule Service: Enable the interface scheduler. A schedule allows an interface to be enabled or disabled
VRRP
Enable VRRP: Enable or disable VRRP.
Virtual Router IP: IP Address of the Virtual Router.
Virtual Router ID:
Router Priority: Failover priority of this router. The highest
priority router will take ownership of the Virtual IP.
WAN Fault Priority: This optional value sets the failover priority
of this router when no WAN connection is available. If the value
matches the normal router priority, WAN connection state
will not be considered. If the value is empty (the default), the
router will always give up the Virtual IP and let a new master
take over when no WAN connection is available.
Advertisement Interval: Sets the amount of time (in seconds)
between sending VRRP advertisements.
Initial Value Router State: This controls the initial failover state
Authentication: VRRP Authentication Method. Note that VRRP
Authentication has been deprecated as of RFC 3768.
Password: VRRP Group Password.
Provide Virtual IP in DHCP leases: Select this to automatically
set the DHCP default gateway address and DNS server address
to the Virtual IP in DHCP leases provided on this network.
STP
Enable STP: Enable Spanning Tree Protocol loop detection.
Bridge Priority: Set the priority of the bridge. When determining the root bridge of the spanning tree topology,
be the root bridge, then set it to a value less than the default of 32768. A valid priority value is between 0 and
65535.
Wired 802.1X
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 37
User Manual / IBR600B/IBR650B 9/5/17
Enable 802.1X: Require IEEE 802.1X Authorization.
Reauthentication Period: EAP reauthentication period in
seconds.
Auth Server IP Address: IP address of the connected RADIUS
server.
Auth Server MAC Address: Hardware address of the
connected RADIUS server’s interface. NOTE: If you don’t
know the MAC address for the RADIUS server, enter
00:00:00:00:00:00, and the service will try to find the MAC
address from the given IP address.
Port
Password
Acct Server IP Address: IP address of the connected RADIUS
server.
Acct Server MAC Address: This is the Hardware address
of the connected RADIUS server’s interface. NOTE: If you
don’t know the MAC address for the RADIUS server, enter
00:00:00:00:00:00, and the service will try to find the MAC
address from the given IP address.
Port
Password
connected to your router.
Filter Conguration
The MAC Filter allows you to create a list of devices that
have either exclusive access (whitelist) or no access
(blacklist) to your local network.
Enabled: Click to allow MAC Filter options.
Whitelist: Select either “Whitelist” or “Blacklist” from a
dropdown menu. In “Whitelist” mode, the router will restrict
LAN access to all computers except those contained in the
“MAC Filter List” panel. In “Blacklist” mode, listed devices are
completely blocked from local network access.
MAC Filter List (Whitelist or Blacklist)
Add devices to either your whitelist or blacklist simply by
inputting each device’s MAC address.
NOTE: Use caution when using the MAC Filter to avoid accidentally blocking yourself from accessing the router.
MAC Logging Conguration

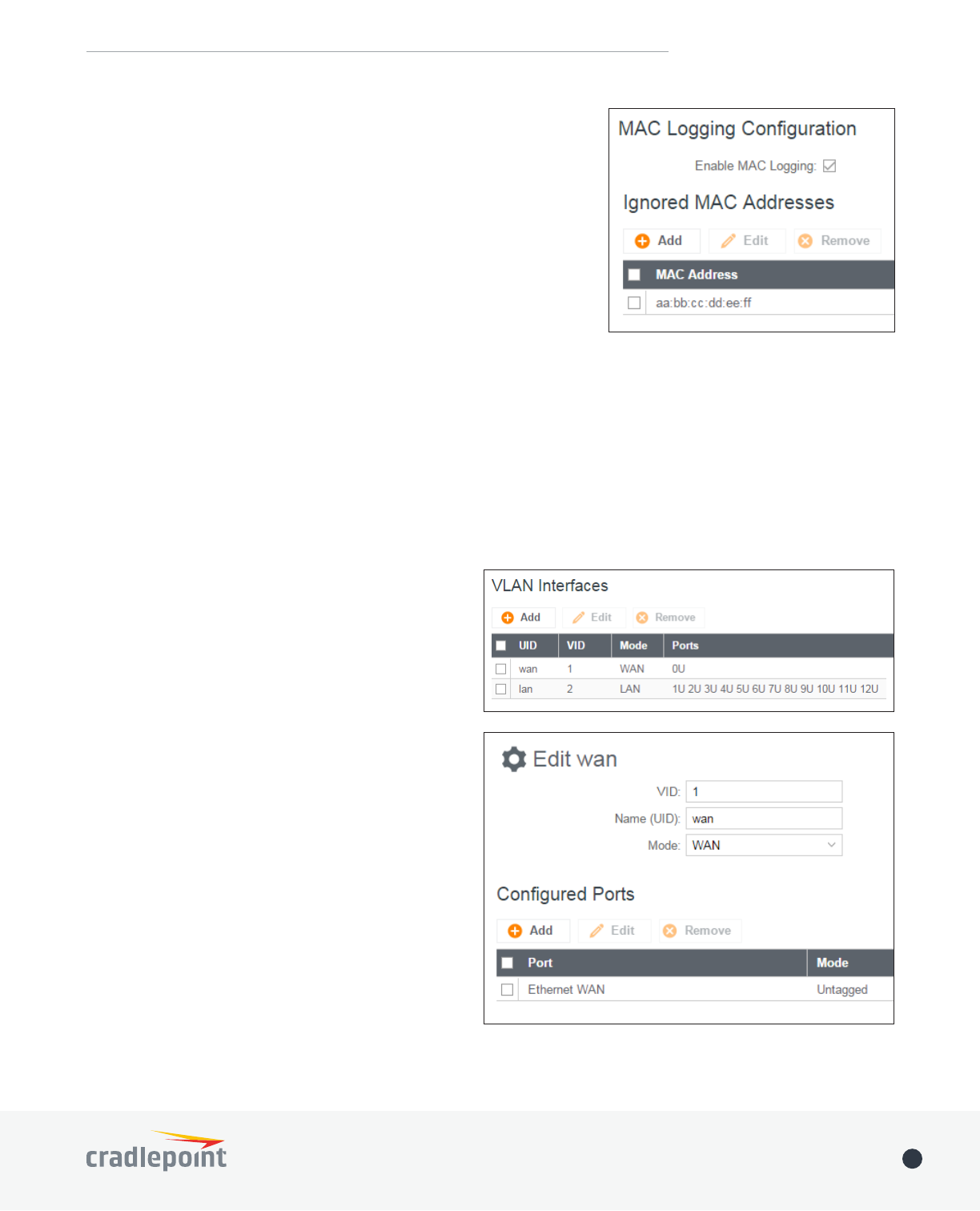

Enable MAC Logging: Enabling MAC Logging will cause the router to log MAC addresses that are connected to
the router. MAC addresses that you do not want to have logged (addresses that you expect to be connected)
should be added to the “Ignored MAC Addresses” list.
MAC FILTER & LOGGING
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 38
User Manual / IBR600B/IBR650B 9/5/17
has a MAC address that the router doesn’t recognize. Go to SYSTEM >
Device Alerts to set up these email alerts.
Ignored MAC Addresses
This is the list of MAC addresses that will not produce an alert or a log
entry when they are connected to the router. These should be MAC
addresses that you expect to be connected to the router. To add MAC
addresses to this list, simply select devices shown in the MAC Address
Log and click “Ignore.” You can also add addresses manually.
MAC Address Log
This shows the last 64 MAC addresses that have connected to the
connection. The page may need to be refreshed to show the most recent log entries.
Double-clicking on entries from this list will add them to the Ignored MAC Addresses list.
VLAN INTERFACES
A virtual local area network, or VLAN, functions as
any other physical LAN, but it enables computers and
other devices to be grouped together even if they are
not physically attached to the same network switch.
To enable a VLAN, select a VID (virtual LAN ID) and
a group of Ethernet ports through which users
can access the VLAN. Then go back up to the Local
Network Editor to attach your new VLAN to a
network. To use a VLAN, the VID must be shared
with another router or similar device so that multiple
physical networks have access to the one virtual
network.
Click Add to create a new VLAN interface. To edit an
interface, select the check box next to the desired
interface.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 39
User Manual / IBR600B/IBR650B 9/5/17
TUNNELS
CP SECURE VPN
private data network that minimizes both cost and complexity. Unlike traditional
bulky head-end concentrator hardware solutions, CP Secure VPN allows IT managers
to secure their expanding Edge Networks using architectures that scale quickly and
are easy to maintain. For more information, visit cradlepoint.com.
NOTE: CP Secure VPN requires an NCM Prime subscription. For more information,
visit cradlepoint.com.
IPSEC VPN
VPN (virtual private network) tunnels are used to establish a secure connection to a remote network over a
public network. For example, VPN tunnels can be used across the Internet by an individual to connect to an
up a secure connection across the (normally) unsecure Internet by assigning VPN encryption protocols.
Cradlepoint VPN tunnels use IPsec (Internet Protocol security) to authenticate and encrypt packets exchanged
across the tunnels. To set up a VPN tunnel with a Cradlepoint router on one end, there must be another device
(usually a router) that also supports IPsec on the other end.
IKE (Internet Key Exchange) is the security protocol in IPsec. IKE has two phases, phase 1 and phase 2. The
The VPN tunnel status page allows you to view the state of the VPN tunnels. If a tunnel fails to connect to the
remote site, check the System Logs for more information. You may double click on a cell to directly edit that
information.
Click AddEdit to make changes to an existing tunnel.
Add/Edit Tunnel – General
Tunnel Name
Anonymous Mode: Select to allow remote connections from any IP
address.
Responder Mode: When enabled, the router will not initiate
negotiation with peers.
Local Identity
phase 1 negotiation. If left blank it will default to the IP address of
then both must match in order for the negotiation to succeed. If NAT-T
is being used, a single word (instead of an address) can be used if a
DynDNS connection is not being used.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 40
User Manual / IBR600B/IBR650B 9/5/17
Remote Identity
IP address of the WAN connection. If NAT-T is being used, a single word (instead of an address) can be used if a
DynDNS connection is not being used.
Authentication Mode: Select from Pre-Shared Key and Certificate. Pre-Shared Key is used when there is a
single key common to both ends of the VPN. Certificate
private key that can be uploaded to the router. Select Enable Certificate Support in the Global VPN Settings
Pre-Shared Key: Create a password or key. The routers on both sides of the tunnel must use this same key.
Mode: Select from Tunnel, Transport or VTI-Tunnel. Tunnel Mode
Transport Mode is
used for end-to-end communications (for example, for communications between a client and a server). VTI
Tunnel
Initiation Mode: Always On or On Demand. Always On is used if you want the tunnel to initiate the tunnel
connection whenever the WAN becomes available. Select On Demand if you want the tunnel to initiate a
Tunnel Enabled: Enabled or Disabled.

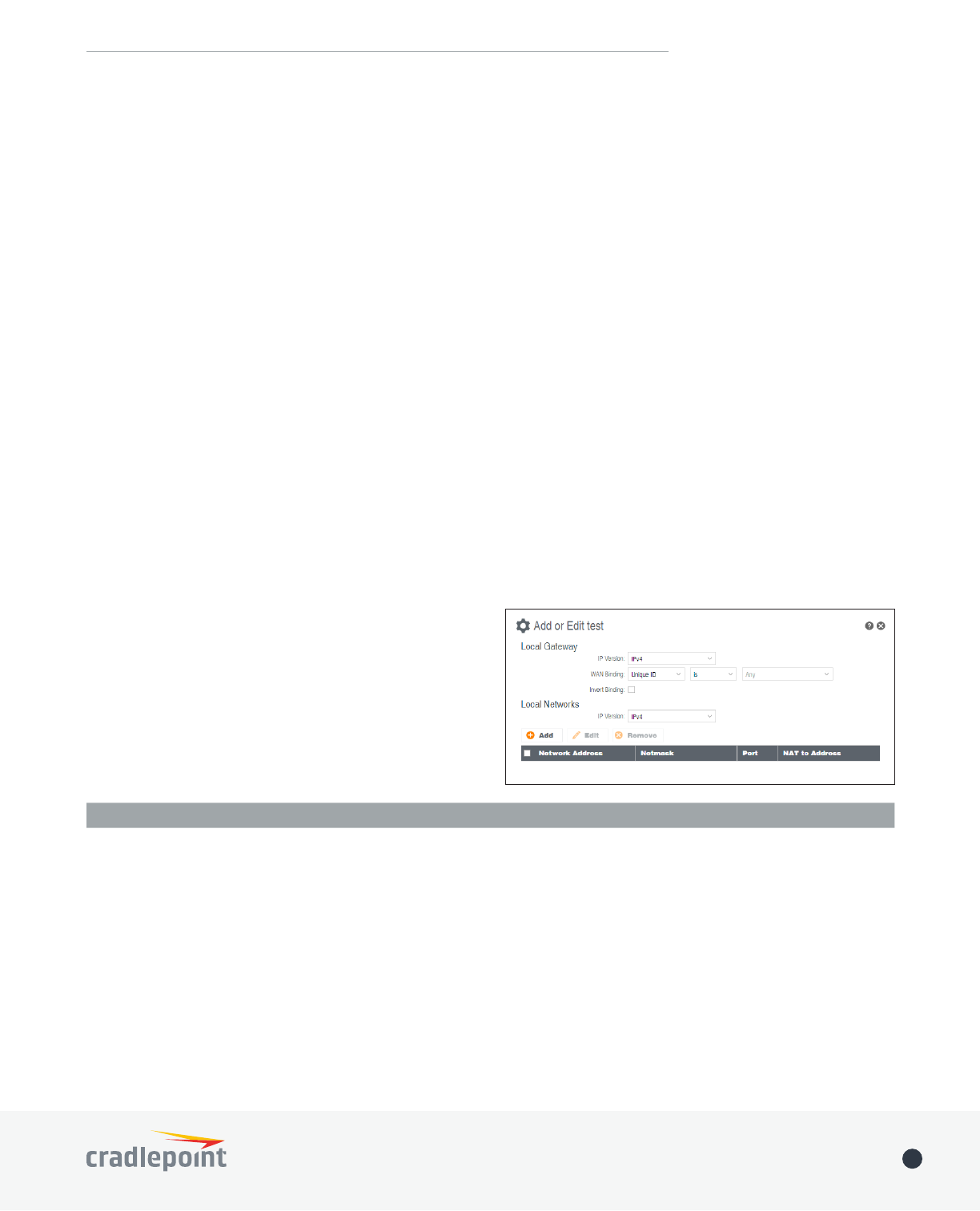

Add/Edit Tunnel – Local Gateway
IP Version: Select IPv4 or IPv6.
WAN Binding: WAN Binding is an optional parameter
An example use case is when there is a router with both
a primary and failover WAN device and the tunnel should
only be used when the system has failed over to the
backup connection.
Make a selection for “When,” “Condition,” and “Value” to
create a WAN Binding. The condition will be in the form
of these examples:
When Condition Value
Port Is USB Port 1
Type Is not WiMax
• When:
• Port – Select by the physical port on the router that you are plugging the modem into (e.g., “USB
Port 2”).
• Manufacturer – Select by the modem manufacturer (e.g., “Cradlepoint Inc.”).
• Model
• Type – Select by type of Internet source (Ethernet, LTE, Modem, Wireless as WAN, WiMAX).
• Serial Number – Select a 3G or LTE modem by the serial number.
• MAC Address – Select a WiMAX modem by MAC Address.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 41
User Manual / IBR600B/IBR650B 9/5/17
• Unique ID – Select by ID. This is generated by the router and displayed when the device is connected
to the router.
• Condition: Select “is,” “is not,” “starts with,” “contains,” or “ends with” to create your condition’s
statement.
• Value: If the correct values are available, select from the dropdown list. You may need to manually input
the value.
Invert Binding: Advanced option that inverts the meaning of WAN Binding to only establish this tunnel when
NOT connected.
Add/Edit Tunnel – Local Networks
IP Version: Select IPv4 or IPv6.
The Network Address and the Netmask
VPN tunnel.
NOTE
Optionally: A Port
Add/Edit Tunnel – Remote Gateway
Gateway: This value can be any of the following: an
name in the form of “host.domain.com” (DNS names
are case-insensitive, so only lower case letters are
allowed). It is recommended that you use a dynamic
DNS hostname instead of the static IP address – by
using the dynamic DNS hostname, updates of the
remote WAN IP are compensated for while connecting
to a VPN tunnel.
Add/Edit Tunnel – Remote Networks
The Network Address and the Netmask
access to via the VPN tunnel.
NOTE: the remote network IP address MUST
Optionally: A Port
Add/Edit Tunnel – IKE Phase 1
To set up a tunnel with a remote site, you need to match your tunnel’s IKE negotiation parameters with the
remote site. By selecting several encryption, hash, and DH group options, you improve your chances for a
successful tunnel negotiation. For greatest compatibility, select all options; for greatest security, select only
the most secure options that your devices support.
Exchange Mode: The IKE protocol has two modes of negotiating phase 1 – Main (also called Identity Protection)
and Aggressive.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 42
User Manual / IBR600B/IBR650B 9/5/17
• In Main mode, IKE separates the key information from the
identities, allowing for the identities of peers to be secure at
the expense of extra packet exchanges.
• In Aggressive mode, IKE tries to combine as much information
into fewer packets while maintaining security. Aggressive mode
is slightly faster but less secure.
Because it has better security, Main mode is recommended for
most users.
Key Lifetime: The lifetime of the generated keys of phase 1 of the
IPsec negotiation from IKE. After the time has expired, IKE will
renegotiate a new set of phase 1 keys.
Encryption, Hash, and DH Groups
Each IKE exchange uses one encryption algorithm, one hash function, and one DH group to make a secure
exchange.
Encryption: Used to encrypt messages sent and received by IPsec.
• AES 128
• AES 256
• DES
• 3DES
Hash: Used to compare, authenticate, and validate that data across the VPN arrives in its intended form and to
derive keys used by IPSec.
• MD5
• SHA1
• SHA2 256
• SHA2 384
• SHA2 512
Note that some Encryption/Hash combinations (e.g., 3DES with SHA2 384/512) are computationally expensive,
impacting WAN performance. AES is as strong an encryption and performs much better than 3DES.
DH Groups
numbers associated with key generation. The strength of the key generated is partially determined by the
strength of the DH Group. Group 5, for instance, has greater strength than Group 2.
• Group 1: 768-bit key
• Group 2: 1024-bit key
• Group 5: 1536-bit key
In IKE Phase 1 you can only select one DH group if you are using Aggressive exchange mode.
By default, all the algorithms (encryption, hash, and DH groups) supported by the device are checked, which
means they are allowed for any given exchange. Deselect these options to limit which algorithms will be
accepted. Be sure to check that the router (or similar device) at the other end of the tunnel has matching
algorithms.
The algorithms are listed in order by priority. You can reorder this priority list by clicking and dragging
algorithms up or down. Any selected algorithm may be used for IKE exchange, but the algorithms on the top of
the list are more likely to be used more often.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 43
User Manual / IBR600B/IBR650B 9/5/17
Add/Edit Tunnel – IKE Phase 2
Perfect Forward Secrecy (PFS): Enabling this feature will require IKE to generate a new set of keys in phase
2 rather than using the same key generated in phase 1. Additionally, with this option enabled the new keys
security.
Key Lifetime: The lifetime of the generated keys of phase 2 of the IPsec negotiation from IKE. After the time
has expired, IKE will renegotiate a new set of phase 2 keys.
Phase 2 has the same selection of Encryption and DH Groups as phase 1, but you are restricted to only one
DH Group. Phase 2 and phase 1 selections do not have to match. For the Hash selection an added value of
truncation, but RFC4868 requires 128-bit. A VPN to newer Cisco or Juniper devices will typically require 128-bit.
Add/Edit Tunnel – Dead Peer Detection
Dead Peer Detection (DPD)
connection while a policy is in use.
Connection Idle Time
an IPsec session to be idle before beginning to send Dead Peer
Detection (DPD) packets to the peer machine. (Default: 30 seconds.
Range: 10 – 3600 seconds.)
Request Frequency allows you to adjust the delay between these
DPD packets. (Default: 15 seconds. Range: 2 – 30 seconds.)
Maximum Requests: Specify how many requests to send at the
selected time interval before the tunnel is considered dead.
(Default: 5. Range: 2 – 10.)
Failback Retry Period: If you have VPN tunnel failover/failback
enabled (see below), set the time period between each check on the primary network after failover. (Default:
10 seconds. Range: 5 – 60 seconds.)
Failover Tunnel and Failback Tunnel: Use these settings to create two tunnels – one as the primary tunnel and
1. Create two tunnels: one for primary and one for backup. Make sure that both tunnels have the same
Remote Network and that both have Dead Peer Detection enabled.
2. Choose one to be the primary tunnel. Open the editor for this tunnel and make sure Tunnel Enabled is
selected. Then go to the Dead Peer Detection page. Under Failover Tunnel select the other tunnel you
have created.
3. Open the editor for the failover tunnel. Make sure Tunnel Enabled is not selected. On the Dead Peer
Detection page, set the Failback Tunnel to your primary tunnel.
Global VPN Settings
Enable VPN Service: Enabling VPN Service will allow
Certificate Name
IKE / ISAKMP Port: Internet Key Exchange / Internet
Security Association and Key Management Protocol
port. (Default: 500. This is a standard VPN port that
usually does not need to be changed.)
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 44
User Manual / IBR600B/IBR650B 9/5/17
IKE / ISAKMP NAT-T Port: Internet Key Exchange / Internet Security Association and Key Management Protocol
network address translation traversal port. (Default: 4500. This is a standard VPN NAT-T port that usually does
not need to be changed.)
NAT-T KeepAlive Interval: Number of seconds between sending NAT-T packets to keep the tunnel alive if no
all cases.)
Tunnel Connect Retry: Number of seconds between connection attempts. (Default: 30 seconds. Range: 10-255
OpenVPN is an open source software application that implements virtual private network (VPN) techniques
access facilities.
Once you have a valid feature license, click Add to create a new OpenVPN tunnel. Click Edit to make changes to
an existing tunnel.
Add/Edit Tunnel – General
• Tunnel Name – Enter a name to uniquely identify this
tunnel
• Tunnel Mode – Select which mode this tunnel endpoint is
required to be. Choose from the following:
• Client
• Server
• Device Type - Select between Routed (TUN) or Bridged
(TAP) virtual device.
• Routed creates an interface that can be used in the
Zone Firewall and is fully routable.
• Bridged creates a network interface that can
be assigned to a LAN under the Local Networks
assigned LAN device.
• Local Endpoint - Enter the IP Address of the LNS (tunnel
server) peer
• Local Netmask – Enter the Netmask of the LNS (tunnel
server) peer
• Remote Endpoint – Enter the IP Address of the LNS (tunnel
server) peer
• Remote Netmask – Enter the Netmask of the LNS (tunnel server) peer
• Support IPv6 Tunnels
input an IPv6 Tunnel Address and Tunnel Prefix Length for IPv6
• Tunnel Protocol – Choose UDP or TCP
• Port – Specify the port if desired
• Ping – (Displays if the Configuration Mode is Advanced) If no packets have been sent in the amount of
time entered, a ping is sent to the remote endpoint
OPEN VPN (ONLY ON IBR600B)
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 45
User Manual / IBR600B/IBR650B 9/5/17
• Ping Restart – (Displays if the Configuration Mode is Advanced) If no pings have been received in the
amount of time entered, OpenVPN restarts the tunnel
• Tunnel Enabled – Click to enable/disable this tunnel
Add/Edit Tunnel – Security
• Cipher – Encrypt packets with the selected algorithm.
of being fast, very secure, and allowing key sizes of up
where keys are changed infrequently. OpenVPN supports
the CBC, CFB, and OFB cipher modes, however CBC is
recommended and CFB and OFB should be considered
advanced modes.
• Auth Algorithm – Authenticate packets with HMAC using message digest algorithm alg. (The default is
SHA1). HMAC is a commonly used message authentication algorithm (MAC) that uses a data string, a secure
hash algorithm, and a key, to produce a digital signature.
• Verify peer certicate
• TLS-Authentication – In client/server mode: adds an additional layer of HMAC authentication on top of the
tls control channel to protect against DoS attacks. In point-to-point mode: encrypts the communication
using a static key. These keys must match on each endpoint.
Add/Edit Tunnel – Remote Servers
Create a list of remote server connections to connect to. OpenVPN will try to connect to each host in the list. If
a disconnect occurs from a given server, the next server will be tried in a round-robin fashion.
• Host – IP address of the remote server
• Port – Specify the port if desired
• Protocol – Select UDP or TCP
Add/Edit Tunnel – Routes
Add or remove the routes that will be used to direct packets through the tunnel.
• Network Address
• Netmask
Generate Client Conguration
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 46
User Manual / IBR600B/IBR650B 9/5/17
GRE
Generic Routing Encapsulation (GRE) tunnels can be used to create a connection between two private
networks. Most Cradlepoint routers are enabled for both GRE and VPN tunnels. GRE tunnels are simpler to
• Local Network and Remote Network addresses for the “Glue Network,” the network that is created by
the administrator that serves as the “glue” between the networks of the tunnel. Each address must be a
the tunnel.
• Remote Gateway, the public facing WAN IP address that the local gateway is going to connect to.
• Routes
tunnel.
Optionally, you might also want to enable the tunnel Keep Alive feature to monitor the status of a tunnel and
more accurately determine if the tunnel is alive or not.
Click AddEdit to make changes to an existing tunnel.
Add/Edit Tunnel – General
Tunnel Name: Give the tunnel a name that uniquely
Tunnel Key: Enables an ID key for a GRE tunnel,
(Multipoint GRE).
Local Network: This is the local side of the “Glue
Network,” a network created by the administrator
to form the tunnel. The user creates the IP address
addresses of the networks it is gluing together.
Choose any private IP address from the following
three ranges that doesn’t match either network:
• 10.0.0.0 - 10.255.255.255
• 172.16.0.0 - 172.31.255.255
• 192.168.0.0 - 192.168.255.255
Remote Network: This is the remote side of the
“Glue Network.” Again, the user must create an IP
address that is distinct from the IP addresses of the networks that are being glued together.
Subnet Mask
with this mask. 255.255.255.0 is a logical choice for most users.
Remote Gateway: This is the public facing, WAN-side IP address of the network to which the local gateway is
going to connect.
TTL: Set the Time to Live (TTL), or hop limit, for the GRE tunnel.
MTU: Set the maximum transmission unit (MTU) for the GRE tunnel.
WAN BindingONLY operate when
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 47
User Manual / IBR600B/IBR650B 9/5/17
both a primary and failover WAN device and the tunnel should only be used when the system has failed over to
the backup connection.
Make a selection for “When,” “Condition,” and “Value” to create a WAN Binding. The condition will be in the
form of these examples:
When Condition Value
Port Is USB Port 1
Type Is not WiMax
• When:
• Port – Select by the physical port on the router into which you are plugging the modem (e.g., “USB
Port 2”).
• Manufacturer – Select by the modem manufacturer (e.g., “Cradlepoint Inc.”)
• Model
• Type – Select by type of Internet source (Ethernet, LTE, Modem, Wireless as WAN, WiMAX)
• Serial Number – Select a 3G or LTE modem by the serial number
• MAC Address – Select a WiMAX modem by MAC Address
• Unique ID – Select by ID. This is generated by the router and displayed when the device is connected
to the router.
• Condition: Select “is,” “is not,” “starts with,” “contains,” or “ends with” to create your condition’s
statement.
• Value: If the correct values are available, select from the dropdown list. You may need to manually input
the value.
Invert WAN Binding: Advanced option that inverts the meaning of WAN Binding to only establish this tunnel
NOT connected.
Tunnel Enabled: Select to activate the tunnel.
Add/Edit Tunnel – Routes
allowed through the tunnel.
Click Add Route
remote network:
• Network Address – This is the network address that is the destination of the route. This should be set to
the network address at the remote side of the tunnel.
• Netmask
You can set the tunnel to connect to a range of IP addresses or to a single IP address. For example, you could
input 192.168.0.0 and 255.255.255.0 to connect your tunnel to all the addresses of the remote network in
the 192.168.0.x range. Alternatively, you could select a single address by inputting that address along with a
Netmask of 255.255.255.255.
Add/Edit Tunnel – Keep Alive
GRE keep-alive packets can be enabled to be sent through the tunnel in order to monitor the status of the
tunnel and more accurately determine if the tunnel is alive or not.
GRE keep-alive packets may be sent from both sides of a tunnel, or from just one side.
Enabled: Select to enable GRE Keep Alive to continually send keep-alive packets to the remote peer.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 48
User Manual / IBR600B/IBR650B 9/5/17
Rate: Choose the length of time in seconds for each check
(Default: 10 seconds. Range: 2 – 3600 seconds).
Retry: Select the number of attempts before the GRE
tunnel is considered down or up (Default: 3. Range: 1 – 255).
Failover Tunnel and Failback Tunnel: Use these settings to
create two tunnels – one as the primary tunnel and one as
complete the following steps:
1. Create two tunnels: one for primary and one for backup. Make sure both tunnels have Keep Alive enabled.
2. Choose one to be the primary tunnel. Open the editor for this tunnel and make sure Tunnel Enabled is
selected. Then go to the Keep Alive page. Under Failover Tunnel select the other tunnel you have created.
3. Open the editor for the failover tunnel. Make sure Tunnel Enabled is not selected. On the Keep Alive page,
set the Failback Tunnel to your primary tunnel.
NEMO
session continuity for every node in a mobile network as the network moves.
NEMO requires a service provider, e.g. Verizon Wireless Private Network with DMNR (Dynamic Mobile Network
Once you have a NEMO service provider and a valid feature license, add networks to the Networks Routed by
NEMOAdd. In the popup window, input:
• Network Address - This is the network address that is the destination of the route. This should be set to
the network address at the remote side of the tunnel.
• Netmask
local network you want associated with the NEMO settings.
Network Mobility (NEMO) Settings
Enbable: Enable NEMO.
WAN: Select the WAN(s) to use for the NEMO connection. An expression such as “Unique ID is (any)” will allow
NEMO to operate on any WAN, whereas “Type is LTE” will limit NEMO operation to the WAN(s) provided by any
connected LTE device(s).
With WAN: Register the NEMO connection simultaneous
If not checked, will only register the NEMO connection
when needed.
Home IP Address and Home Netmask – These may be
provided by your NEMO service provider. The IP address
is a placeholder, “dummy” address; any IP address can be
used (1.2.3.4 is common).
Home Agent IP Address, Home Agent Password, and
Home Agent SPI
your NEMO service provider.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 49
User Manual / IBR600B/IBR650B 9/5/17
Renew Registration – The NEMO network regularly re-registers with the home agent (e.g., every 30 seconds).
Specify the number of seconds between each check-in.
MTU – Override the maximum transmission unit (MTU) of the NEMO tunnel. The TCP MSS (maximum segment
size) is automatically derived from the MTU. Leave blank to rely on Path MTU Discovery.
Layer 2 Tunneling Protocol (L2TP) tunnels can be used to create a connection between two private networks.
Once you have a valid feature license, click **Add** to create a new L2TP tunnel. Click **Edit** to make changes
to an existing tunnel.

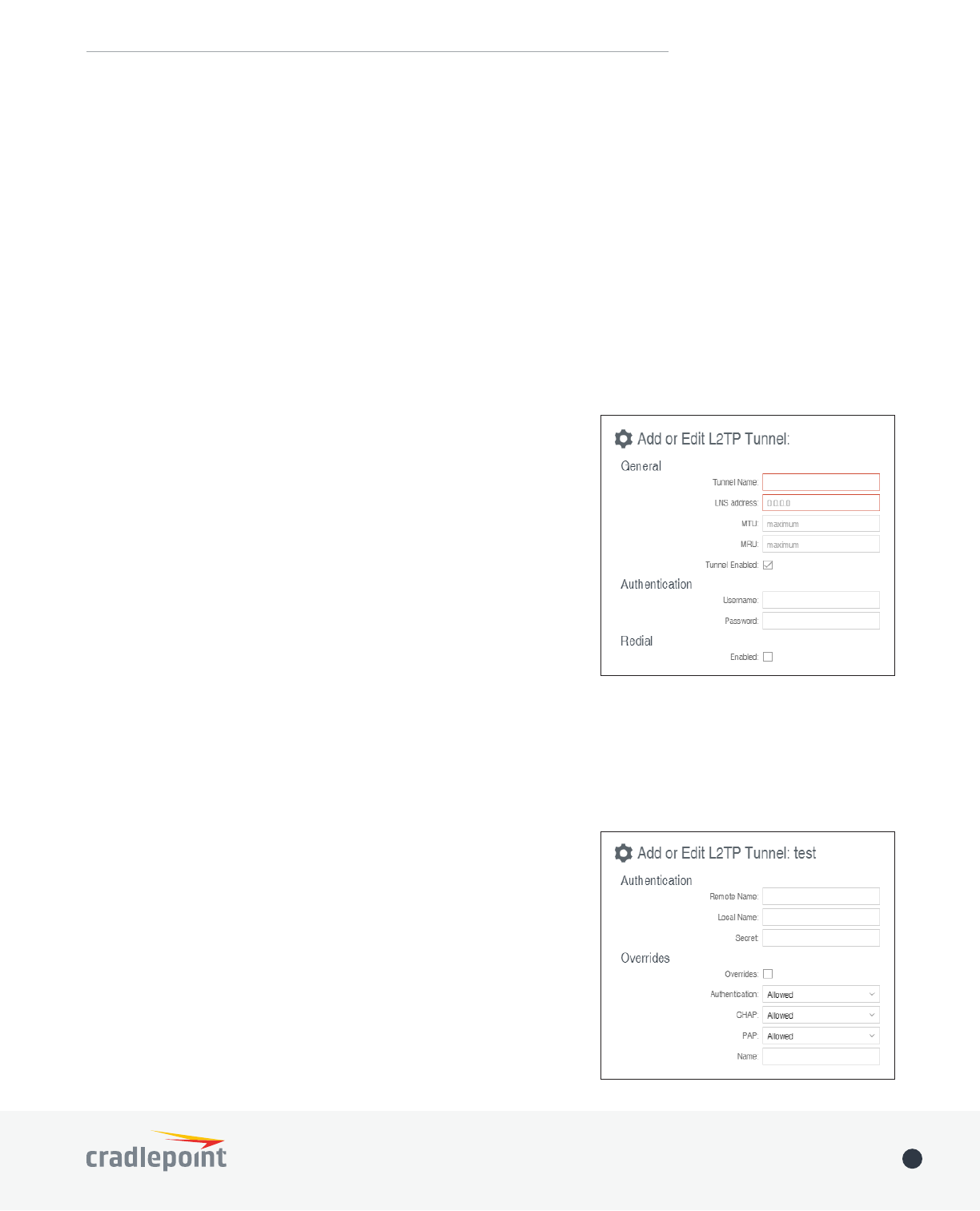

Add/Edit Tunnel – General
• Tunnel Name – Enter a name to uniquely identify this tunnel
• LNS address – Enter the IP Address of the LNS (tunnel server)
peer
• MTU – Set the maximum transmission unit (MTU) for the L2TP
tunnel
• MRU – Set the maximum receive unit (MRU) to request from
the tunnel peer. The MRU is very similar to the MTU: MTU is for
packets sent and MRU is for packets received
• Tunnel Enabled – Click to enable/disable this tunnel. Default:
Enabled.
Authentication
More authentication options and overrides are available in the next
section.
• Username
blank to disable.
• Password – Shared secret (or password) used to authenticate the associated Local and Remote names.
Redial
• Enabled – When this is selected, the tunnel will attempt to reconnect if disconnected.
Add/Edit Tunnel – Authentication
• Remote Name
remote system as its identity, sometimes a username or
hostname. Leave blank to match any.
• Local Name
system as the local system identity; sometimes a username or
hostname. Leave blank to match any.
• Secret – Shared secret (or password) used to authenticate the
associated Local and Remote names.
Overrides
Override Authentication methods/parameters. With methods set to
L2TP
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 50
User Manual / IBR600B/IBR650B 9/5/17
Allow the two ends of the tunnel can negotiate a common scheme. Sometimes this negotiation fails, or the
implementation on one end is incompatible with the other. To solve those authentication issues, enable the
overrides as needed.
• Authentication
• CHAP – Choose from Allowed, Refused, or Required.
• PAP – Choose from Allowed, Refused, or Required.
• Name – Override names used to authenticate the router. Leave empty to use the default.
Add/Edit Tunnel – Routes
remove routes to be used to funnel packets through the tunnel.
• Network Address – This is the network address that is the destination of the route. This should be set to
the network address at the remote side of the tunnel.
• Netmask
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 51
User Manual / IBR600B/IBR650B 9/5/17
ROUTING
STATIC ROUTES
Add a new static route to the IP routing table or edit/remove an existing route.
Static routes are used in networks with more than one layer, such as when there
is a network within a network so that packet destinations are hidden behind an
additional router. Adding a static route is a way of telling the router about an
additional step that packets will need to take to reach their destination.
Click Add to create a new static route.
IP Version
IP/Network Address or IPv6 Address: The IP address of the target network
CIDR notation to declare a range of
addresses.
Netmask/Prex
the computer belongs to and which other IP addresses the computer can see in the same LAN. An IP address
192.168.0.0 to 192.168.0.255.
Gateway or IPv6 Gateway
LAN or WAN.
Device: Select the network interface from the dropdown menu (e.g.
especially in cases when the IP address is changing.
Metric: Set the numerical priority of the route. Lower numbers have
higher priority.
Allow Network Access: (Default: Deselected.) Some static routes
will need an IP Filter Rule via the Firewall to allow packets through
the route without being blocked. Selecting this option automatically
creates this IP Filter Rule. If the IP/Network Address falls outside the
LAN IP range, you probably need to select this option.
Distribute: Allow this static route to be distributed via a routing protocol (BGP, OSPF, RIP, RIPng).
POLICY ROUTING
Policy routing allows for the addition of routes which are only
evaluated when a certain set of conditions match. The evaluation
occurs before the main system routes and can override the primary
route table. If no policy route is matched, the lookup will fall back on
the primary route table instead.
Route Policies:
will use the primary route table instead. To add a route policy, click Add.
• IP Version: Select the IP protocol version.
• Source IP/Network Address
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 52
User Manual / IBR600B/IBR650B 9/5/17
• Source Netmask/Prex
• Destination IP/Network Address
• Destination Netmask/Prex
• Incoming Device: Select the incoming device upon which this
policy will match. (optional)
• Table: Select the route table to use for routing when this policy
is matched.
Route Tables: Static route tables to be used in policy route lookups.
are not available for use in dynamic routing protocols. To add a
route, click Add.
• IP Version: Select the IP protocol version.
• IP/Network Address
• Netmask/Prex
• Gateway
• Device: Select the interface or enter null0 to install a black hole
route.
• Metric: Set the route metric.
• Allow Network Access: Some static routes will need an IP Filter
automatically add this rule for you.
ROUTE FILTERS
Common route lters
the route is denied.
Access List:
Prefix List: Works the same as an access list with the addition of
Route Map: Provides a richer set of match conditions for packet
to a route via set actions.
• Description: Displayed to help identify the route map.
• Permit: Checking Permit will carry out the Set Actions if the Match Conditions are met, and permit the
route. Clearing Permit will deny the route if the Match Conditions are met.
• Match Conditions:
• Set Actions: A set of actions that are triggered by a match.
an incompatible protocol will cause errors during operation that prevent the routing protocol from starting.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 53
User Manual / IBR600B/IBR650B 9/5/17
• OSPF-specific: metric-type.
• BGP-specific: as-path, weight, comm-list, local-preference, community,
ext community.
expressed as two 16-bit values separated by a colon (e.g. 18838:722). A
received or well-known community can be referenced by its number (or
it by name.
Note certain well-known communities can be used by name without
no-advertise (never advertise these routes), no-export (don’t
advertise beyond confederation boundary), local-AS (don’t advertise to
external peers), internet (advertise to everyone), and none (used to clear
any community associated with a route).
BGP route lters are only used by the BGP protocol. Access lists are
route is denied.
Access List:
Community List:
a label which is attached to routes learned from that community. Then that
community or label can be used to select which policy(s) should be applied
to those routes.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 54
User Manual / IBR600B/IBR650B 9/5/17
The latest version of BGP (Border Gateway Protocol) is version 4. BGP-4 is one of the Exterior Gateway
Protocols and de facto standard of Inter Domain routing protocol. BGP-4 is described in RFC1771, A Border
Gateway Protocol 4 (BGP-4). BGP is a distance vector routing
protocol, and the AS-Path framework provides distance
vector metric and loop detection to BGP RFC1930.
BGP Editor
• Enabled: Click to enable/disable the policy. (Default:
enabled).
• Name: Unique name of the policy.
• Router-ID: This sets the router-ID of the BGP process.
The router-ID may be an IP address of the router, but
need not be – it can be any arbitrary 32-bit number.
However it *MUST* be unique within the entire BGP
domain to the BGP speaker: bad things will happen if
• Cluster ID:
• ASN: The AS (Autonomous System) number is one of the essential elements of BGP.
• View Name: Specify a view to exchange BGP routing information without adding to the kernel routing
table.
• Distance:
• Maximum Paths: Maximum Paths can be set greater than 1 to allow multipath routing. This setting limits
• Multipath Relax:
BGP
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 55
User Manual / IBR600B/IBR650B 9/5/17
• Timers Keepalive/Hold: Keepalive interval is the time between keepalive messages sent to peers. Hold
time is the timeout after the last keepalive message until the peer is declared dead. The Keepalive interval
must be set in order to set the Hold time. All times are in seconds from 1 to 65535. Set to 0 or empty to
disable (default).
Networks Associated with ASN or IPv6 Networks Associated with ASN
detecting whether the BGP connection is internal one or external one. Use the IPv4 address and netmask or
IPv6 address with a CIDR notation

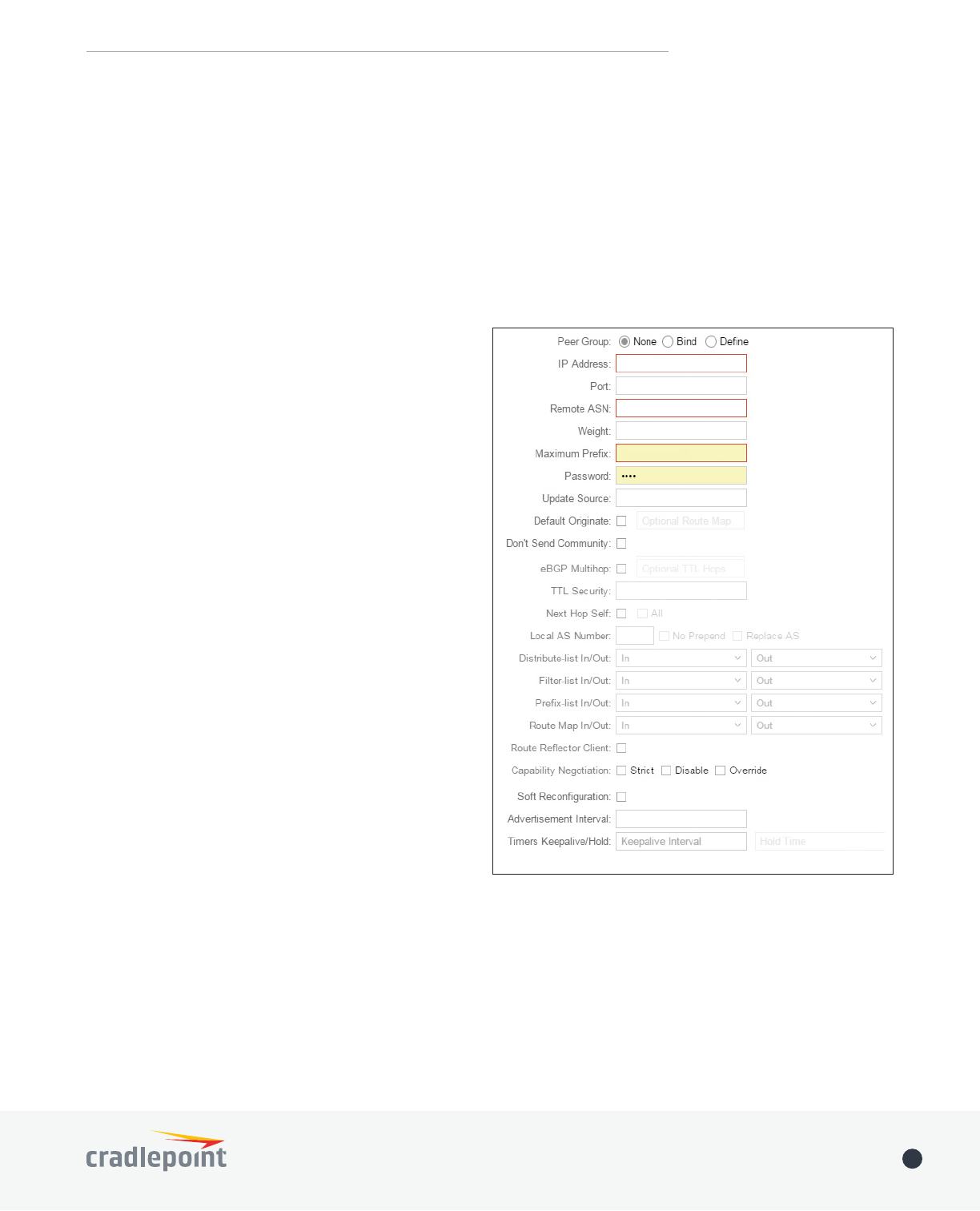

Neighbor Options or IPv6 Neighbor Options
• Peer Group: Optionally specify a peer group for this neighbor. You can Bind to an existing peer group or
Define a new one. A neighbor will inherit the
properties from the peer group to which it is
override inherited properties.
• IP Address: The IP address of the neighbor. Not
• Port: Specify port.
• Remote ASN: Enter the ASN of the remote AS.
The AS (Autonomous System) number is one of
the essential elements of BGP. BGP is a distance
vector routing protocol, and the AS-Path
framework provides distance vector metric and
loop detection to BGP. RFC1930.
• Weight: Assign a weight to a neighbor connection.
• Maximum Prex: Specify the maximum number
• Password: Enable message digest5 (MD5)
authentication on a TCP connection between BGP
peers. The same password must be used on both
peers.
• Update Source: Specify the IPv4 source address or
interface name to use for the BGP session to this
neighbor.
• Default Originate: Allow the local router to send
the default route (0.0.0.0) to a neighbor for use
as a default route. Optionally, a route map can be
• Don’t Send Community: Unless this option is
be sent to the BGP neighbor.
• eBGP Multihop: Accept and attempt BGP connections to external peers residing on networks that are not
directly connected. Mutually exclusive with TTL Security. Optionally specify Time To Live from 1 to 255
hops.
• TTL Security: Specify the number of hops to reach eBGP neighbors. Mutually exclusive with eBGP Multihop.
• Next Hop Self:
learned via eBGP. Select All to also apply this setting to routes learned via iBGP.
• Local AS Number:
received AS_PATH when receiving routing updates from the peer, and prepended to the outgoing AS_PATH
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 56
User Manual / IBR600B/IBR650B 9/5/17
when transmitting local routes to the peer. Check No Prepend to not prepend the local AS Number to either
the received or outgoing AS_PATH. Check Replace AS to prepend the local AS Number to just the outgoing
AS_PATH.
• Distribute-list In/Out: Specify a distribute-list for the peer in either or both directions. Lists are chosen
• Filter-list In/Out:
BGP tab.
• Prex-list In/Out: Filter this neighbor’s incoming and/or outgoing advertisements according to the
tab.
• Route Map In/Out: Apply a route map to incoming and/or outgoing routes. Maps are chosen from the
• Route Reector Client:
client.
• Capability Negotiation:Strict to completely
match capabilities. Select Disable to suppress sending a negotiation message to peers that are not
Override to ignore the remote peer’s capability value and use the local
value instead.
• Soft Reconguration:
• Advertisement Interval:
• Timers Keepalive/Hold: Keepalive interval is the time between keepalive messages sent to peers. Hold
time is the timeout after the last keepalive message until the peer is declared dead. The Keepalive interval
must be set in order to set the Hold time. All times are in seconds from 1 to 65535. Set to 0 or empty to
disable (default).
Redistribute Routes
• Type: The type is the source of the route. Select from: Main, Connected, Static, RIP, and OSPF.
• Metric: Numerical priority of the route.
• Route Map
applied to routes.
OSPF
OSPF (Open Shortest Path First) version 2 is a routing protocol described in RFC2328, OSPF Version 2. OSPF
is an IGP (Interior Gateway Protocol). Compared with RIP, OSPF can provide more scalable network support
and faster convergence times. OSPF is widely used in large networks such as ISP (Internet Service Provider)
backbone and enterprise networks. Click Add to add an OSPF router.
General
• Enable: Enable and disable the routing protocol policy.
• Router ID
This ID MUST be unique within the entire OSPF domain - errors will happen if multiple OSPF speakers are
• ABR Type: The OSPF standard does not allow an ABR to consider routes through connected non-backbone
areas. Relaxed (default) relaxes this restriction and will consider routes through non-backbone areas if the
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 57
User Manual / IBR600B/IBR650B 9/5/17
backbone area is down. Standard respects the OSPF
standard regardless if the backbone area is down.
Shortcut will always route through the best path
even if it does not go through the backbone area.
When this is set, shortcut can be enabled/disabled
on a per area basis.
• Flags: RFC 1583 Compatibility uses the predecessor
standard RFC 1583 path preference algorithm. This
typically is NOT set. Opaque capability enables
forwarding Opaque LSA extensions described in RFC
5250.
• Max Metric: Set this router to broadcast max
that this router is unreachable.
• Passive Interface Default:
send link-state advertisements.
• Refresh Timer: Sets the OSPF LSA refresh timer. Default is 10 seconds.
• Reference Bandwith (Mb/s): Sets the reference bandwidth for cost calculations. Link cost will
automatically scale in reference to this bandwidth unless explicitly overridden. The default is 100 Mb/s
equal to cost of 1. Note: this setting MUST be consistent across routers in the OSPF domain.
• SPF Timers:
values allows you to manage CPU usage when calculating SPF. Delay sets the initial delay. SPF calculations
will always be performed at least this many milliseconds apart. Consecutive SPF calculations will always
be separated by at least the Hold Time up to the Max Hold Time increasing by Max Hold Time for each
consecutive calculation.
Interfaces
• Device: Select device interface.
• Options: Set interface options. Passive means no Hellos will be transmitted out this interface. MTU Ignore
disables MTU mismatch detection.
• Network Type: Set the network type for this interface.
• Authentication: Set OSPF interface authentication.
Key sets the OSPF authentication key to a simple
password. After setting authentication key, all OSPF
packets are authenticated. The authentication key
has a maximum length of eight characters if using
plain text authentication and sixteen characters
if using message-digest authentication. Key ID
enables message-digest authentication. Leave this
blank to enable plain text authentication. The Key ID
digest. This ID is part of the protocol and must be
consistent across routers on a link.
• Cost: OSPF metric for this interface.
• Transmit Delay: Link state transmit delay.
• Priority: The router with the highest priority will be more eligible to become Designated Router. Setting
this to 0 disables this router from participating in DR elections.
• Intervals: Set hello intervals. Hello sets the number of seconds for the Hello Interval timer value. Setting
this value, Hello packets will be sent every timer value seconds. This value must be the same for all routers
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 58
User Manual / IBR600B/IBR650B 9/5/17
in the area. The default value is 10 seconds. Dead sets the number of seconds for the Router Dead Interval
timer value used for Wait Timer and Inactivity Timer. This value must be the same for all routers attached
an area. The default value is 40 seconds. Retransmit sets the number of seconds between retransmitting
lost link state advertisements.
• Sub-second Hellos: Enable sub-second Hellos and set the number of Hellos per second. When set, Dead
Interval is set to one second.
Areas
• Area:
IP address).
• Default Cost: Set the cost of default-summary LSAs announced to stubby areas.
• Options: Set options for this area. Stub indicates that this area is a stub and no area router will propagate
routes external to OSPF and AS-External LSAs
(Type-5s) or ASBR-Summary LSAs (Type-4) will
be propagated into the area. Only Network-
Summary (Type-3) and default-route summary
advertisements will be propagated. Not-So-Stubby
indicates this area is Not-So-Stubby or NSSA.
This is similar to a stubby area except external
routes are propagated as Type-7 LSAs. NSSA
translated to Type-5 LSAs with the NSSA Translate
option set. No Summary
So-Stubby area. Default routes will be injected as a type 3 summary LSA.
• NSSA Type 7-to-5 Translation: Method of translating Type-7 LSAs to Type-5 when propagating external
routes. Via Election indicates this router is an NSSA Border Router but other border routers exist in the
topology. It will perform Type-7 to Type-5 translation unless another border router has Always set or is set
to Via Election and has a higher router-id. Always indicates this is an NSSA Border Router and must always
perform Type-7 tp Type-5 LSA translations. Never indicates that this router must never perform Type-7 to
Type-5 LSA translations.
• Shortcut: Enable or disable shortcuts through non-backbone areas. Default will shortcut only if the
backbone link is down. Requires that ABR Type be set to Shortcut.
• Access-List Filter: Filter Type-3 summary LSAs to/from area using access lists. This is only applicable on
ABR.
• Prex-List Filter:
ABR.
Redistribute
• Default Originate: Enable broadcasting default route. Always will cause the default route (0.0.0.0/0) to be
broadcast even if it is not in the routing table. MetricMetric Type
is the OSPF metric type (default Type-2). Route Map
• Default Metric: Specify the default metric
for routes redistributed to OSPF. This can be
overridden under the Redistribute
• Default Distance: Sets the default administrative
distance for intra-area, inter-area and external
Distances. The default is 110.
• Distances: Specify administrative distances for intra-area, inter-area, or external routes. This overrides
the value set in Default Distance.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 59
User Manual / IBR600B/IBR650B 9/5/17
RIP
RIP (Routing Information Protocol) is a widely deployed interior gateway protocol. RIP is a distance-vector
protocol based on the Bellman-Ford algorithms. As a distance-vector protocol, RIP sends updates from
one router to its neighbors periodically, allowing the convergence to a known topology. In each update, the
distance to any given network will be broadcast to its neighboring router. The router supports RIP version 2 as
described in RFC2453 and RIP version 1 as described in RFC1058.
RIP Editor
• Name: Unique name of the policy.
• Metric: RIP metric is a value for distance for the
network. Usually RIP increments the metric when
the network information is received. The metric for
redistributed routes is set to 1.
• Protocol Version
either version 1 or version 2 packets. The default is
to send RIPv2 while accepting both RIPv1 and RIPv2
(and replying with packets of the appropriate version
for REQUESTS / triggered updates).
• Password: RIPv2 allows packets to be authenticated
via either an insecure plain text password, included
with the packet, or a more secure MD5 based HMAC
(keyed-Hashing for Message AuthentiCation). RIPv1 cannot be authenticated at all, so when authentication
• Plain text password: Select to use a plain text password instead of an MD5 HMAC. WARNING: A plain text
password is insecure.
• Enabled: Click to enable/disable the policy. (Default: enabled.)
• Timers: Update
seconds. TimeoutGarbage
120 seconds.
• Oset list in:
• Oset list out:
Networks: Set the RIP-enabled interfaces by network. RIP is enabled on the interfaces that have addresses
within the network range.
Interfaces:
the interface’s IP addresses are dynamic.
• Device: Select network interface device.
• Send version: Select the RIP version that will be
sent on this interface, overriding the global setting.
Version can be 1 or 2, or 0 to select both.
• Receive version: Select the RIP version that will
be accepted on this interface, overriding the global
setting. Version can be 1 or 2, or 0 to select both.
• Passive: Select passive mode for the interface. In passive mode, RIP routing updates are accepted by, but
not sent out of, the interface.
• No split horizon: Disable the split horizon mechanism. Enabling prevents RIP from advertising routes over
the interface on which they were learned.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 60
User Manual / IBR600B/IBR650B 9/5/17
• Distribute Access-list In/Out:
routes.
• Distribute Prex-list In/Out:
routes.
Neighbors: When a neighbor doesn’t understand multicast, this command is used to specify neighbors. In some
cases, not all routers will be able to understand multicasting, where packets are sent to a network or a group
of addresses. In a situation where a neighbor cannot process multicast packets, it is necessary to establish a
direct link between routers. The neighbor command allows the network administrator to specify a router as a
RIP neighbor. The no neighbor a.b.c.d command will disable the RIP neighbor. Assign a neighbor by inputting an
IP address.
Redistribute Routes
• Type: The type is the source of the route. Select from: Main, Connected, Static, OSPF, BGP.
• Metric: RIP metric is a value for distance for the network. Usually RIP increments the metric when the
network information is received. The metric for redistributed routes is set to 1.
• Route Map
applied to routes.
RIP
RIPng (RIP next generation) extends RIPv2 to support IPv6. See RIPng on Wikipedia and RFC 2080 for details.
RIPng Editor
• Name: Unique name of the policy.
• Metric: RIPng metric is a value for distance for the network.
Usually the RIP service increments the metric when the network
information is received. The metric for redistributed routes is set
to 1.
• Enabled: Click to enable/disable the policy. (Default: enabled.)
Networks: Set the RIPng-enabled interfaces by network using IPv6 addresses. RIPng is enabled on the
interfaces that have addresses within the network range.
Routes
Redistribute Routes
• Type: The type is the source of the route. Select from: Main, Connected, Static, OSPF, BGP.
• Metric: RIPng metric is a value for distance for the network. Usually the RIP service increments the metric
when the network information is received. The metric for redistributed routes is set to 1.
• Route Map
applied to routes.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 61
User Manual / IBR600B/IBR650B 9/5/17
QOS
allowing the user to prioritize applications.
Enable QoS

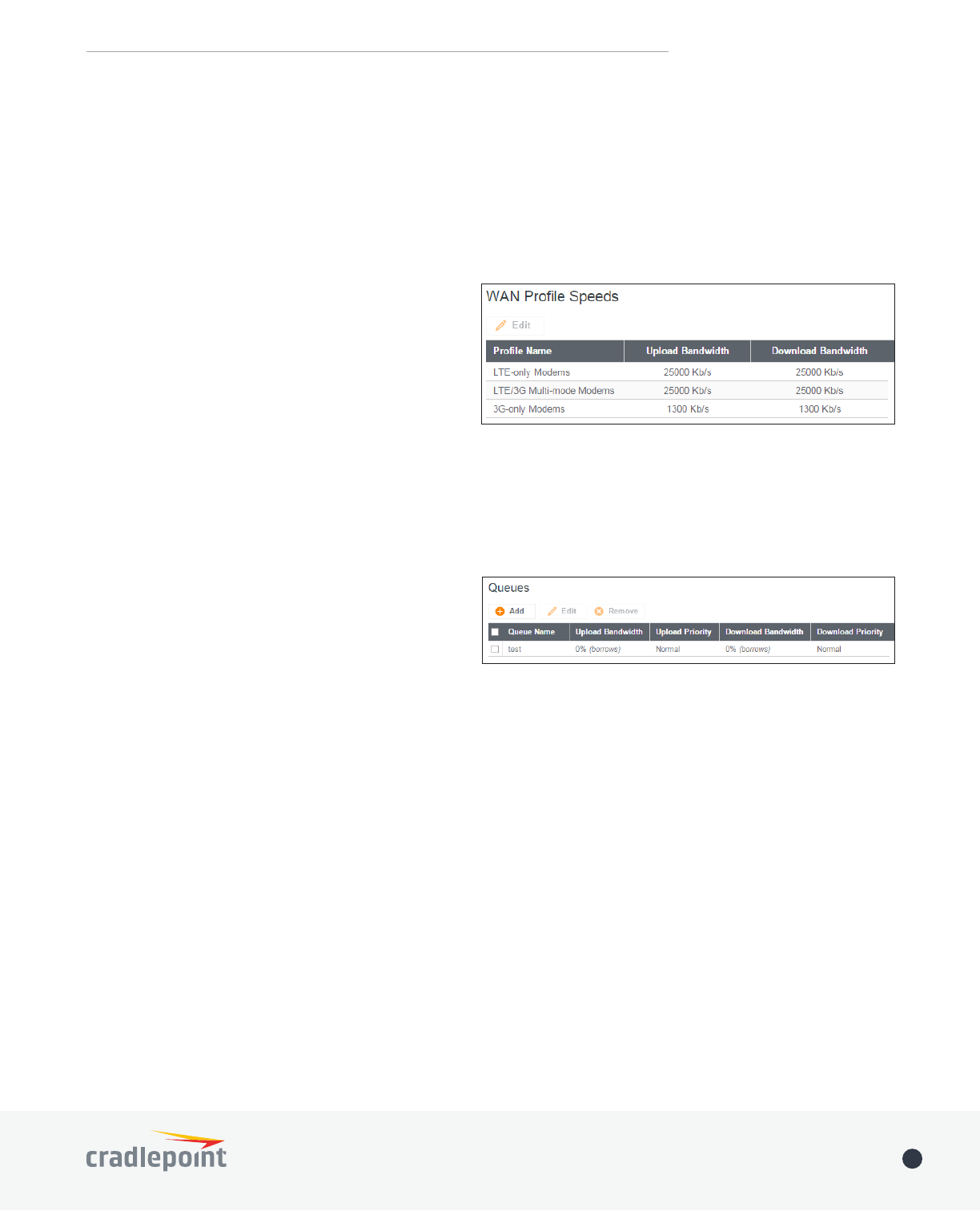

WAN Prole Speeds
Upload Speed and Download Speed: Setting the
Upload Speed and Download Speed is required to
to restrict the maximum upload and/or download
speed for the Internet source(s) you are using.
For example, you might restrict the upload speed
to prioritize available bandwidth for download or
to reduce overall bandwidth use in order to lower
costs. It is recommended that you experiment with
NOTE: Upload speed is the speed at which data can be transferred to your ISP. Download speed is the speed at
which data can be transferred to you from your ISP. You can test your connection speeds with a service such
as speedtest.net.
Queues
Queues and rules work in conjunction to prioritize
bandwidth for the most critical operations. Multiple
rules can be associated with one queue. Use rules to
associate your more critical operations with queues
that have higher bandwidth settings. For example,
you might have two queues, one for “critical” and
one for “secondary” with critical having most of the bandwidth percentage. Use rules to associate your most
important bandwidth needs (POS system, VoIP, etc.) with the critical queue. Restrict the bandwidth available
for less important functions with the secondary queue.
Assign percentages of both upload and download bandwidth to each queue. If you assign 80% download
Click Add
Queue Name: Choose a name that is meaningful to you.
DSCP (DiffServ) Tag
shaping based on the DSCP Tags as opposed to IP addresses or ports.
This setting is optional.
Upload Bandwidth
Enable Upload QoS
this selected to include upload restrictions with this queue.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 62
User Manual / IBR600B/IBR650B 9/5/17
Borrow Spare Bandwidth: (Default: Enabled.) When
this is enabled, the interfaces/protocols associated
with this rule will borrow unused bandwidth from
other rules. Disabling borrowing will restrict the
Upload Bandwidth: This is the percentage of the
connected WAN upload bandwidth that will be
is adjusted to the remaining percentage after other
rules receive their share.
Upload Priority
slider to select from the following options (Default: Normal):
• Lowest
• Lower
• Below Normal
• Normal
• Above Normal
• High
• Higher
• Highest
Click Next to continue to the next page.
Download Bandwidth
Enable Download QoS
this selected to include download restrictions with this queue.
Borrow Spare Bandwidth: (Default: Enabled.) When this is enabled, the interfaces/protocols associated with
Download Bandwidth: This is the percentage of the connected WAN upload bandwidth that will be reserved for
their share.
Download Priority
Normal):
• Lowest
• Lower
• Below Normal
• Normal
• Above Normal
• High
• Higher
• Highest
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 63
User Manual / IBR600B/IBR650B 9/5/17
Click Finish to save this queue.
Rules
above.
Click Add

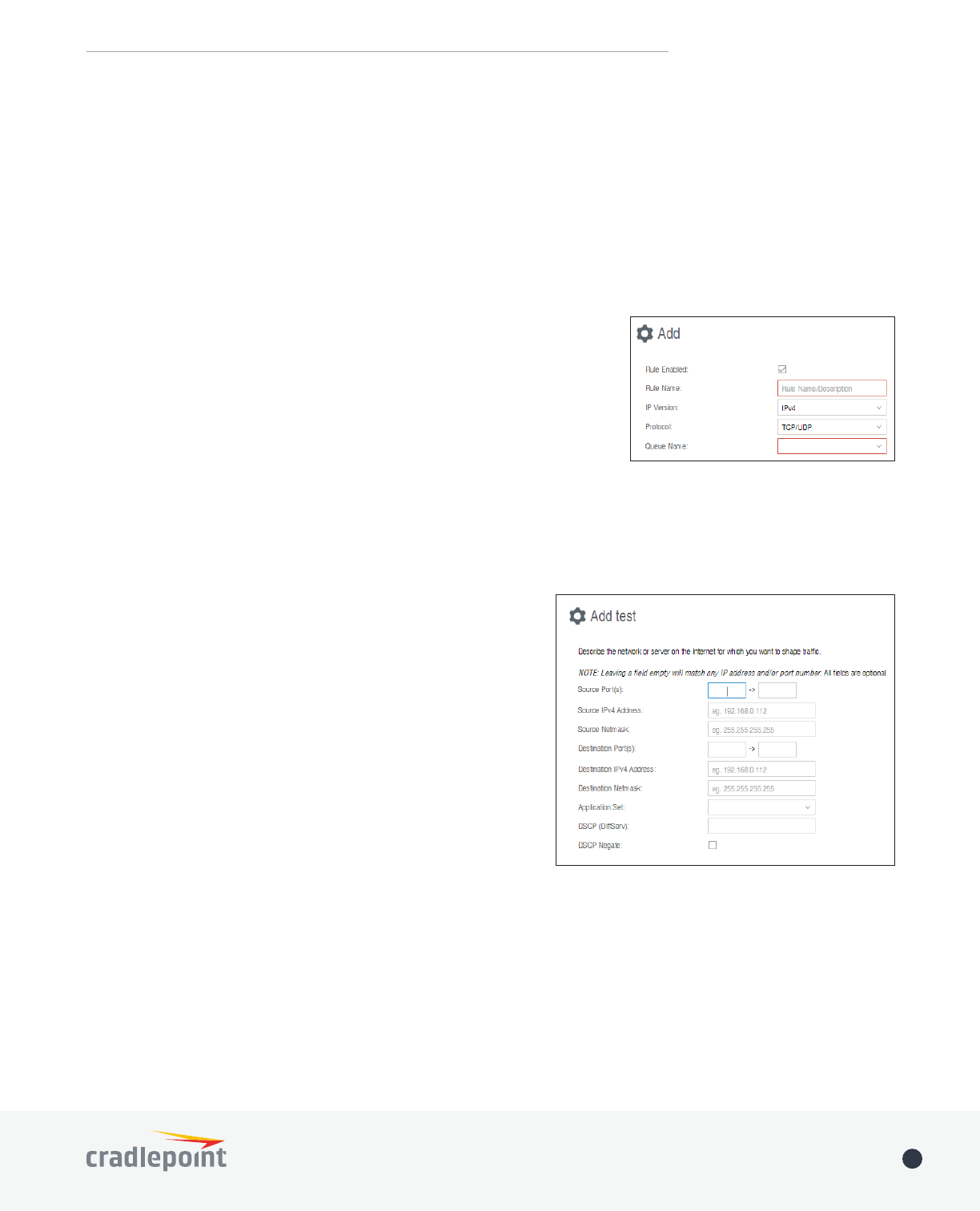

Traffic Shaping / QoS Rule Editor
a protocol for the rule, and select a queue to associate the rule with.
Rule Enabled: (Default: Enabled.) Deselect this to disable this rule. This
download QoS are disabled then the rule will disable automatically.
Rule Name: Create a name for the rule that is meaningful to you.
Protocol: The protocol used by the messages: TCP/UDP, TCP, UDP, or ICMP.
Queue Name: Select a queue to associate this rule with.
Click Next to continue to the next page.
Source Port(s) and/or Destination Port(s): Enter a port number between 1 and 65535. To enter a single port
number, input the number into the left box. To enter a range
“80:90” would represent all ports between 80 and 90 including
80 and 90 themselves.
Source IP Address, Source Netmask, Destination IP Address,
and Destination Netmask: Specify an IP address or range of
IP addresses by combining an IP address with a netmask for
either “source” or “destination” (or both). Source vs. destination
instead).
EXAMPLE: If you want to associate this rule with your guest
LAN, you could input the IP address and netmask for the guest
LAN here (leaving the last slot “0” to allow for any user attached
to the guest network):
• Source IP Address: 192.168.10.0
• Source Netmask: 255.255.255.0
Application Set
Application sets require an active license to exist on the device for them to function.
DSCP (DiffServ)
sensitive equipment such as VoIP phones. This setting is optional.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 64
User Manual / IBR600B/IBR650B 9/5/17
DNS, or Domain Name System, is a naming system that translates between domain names (www.cradlepoint.
com, for example) and Internet IP addresses (206.207.82.197). A DNS server acts as an Internet phone book,
page for the device has these distinct functions:
• DNS Settings: By default your router is set to automatically acquire DNS servers through your Internet
provider (Automatic). DNS Settings allows you to specify DNS servers of your choosing instead (Static).
• Split DNS
• Dynamic DNS Conguration: Allows you to host a server (Web, FTP, etc.) using a domain name that you
have purchased (www.example.com) with your dynamically assigned IP address.
• Known Hosts Conguration: Allows you to map a name (printer, scanner, laptop, etc.) to an IP address of a
device on the network.
DNS Settings
assigned by your Internet provider. The default DNS servers are usually adequate. You may want to assign DNS
servers if the default DNS servers are performing poorly, if you want WiFi clients to access DNS servers that
you use for customized addressing, or if you have a local DNS server on your network.
Mode: Automatic or Static (default: Automatic). Switching to
Primary
DNS and Secondary DNS
Primary DNS and Secondary DNS: If you choose to specify your
DNS servers, then enter the IP addresses of the servers you
The DNS server settings will be pre-populated with public DNS
server IP addresses. You can override the IP address with any
other DNS server IP address of your choice. For example, Google
Public DNS servers have the IP addresses 8.8.8.8 and 8.8.4.4 while 4.2.2.2 and 4.2.2.3 are servers from Level 3
Communications.
Force All DNS Requests To Router: Enabling this will redirect all DNS requests from LAN clients to the router’s
DNS server. This will allow the router even more control over IP addresses even when clients have their own
DNS servers statically set.
Split DNS
Split DNS allows you create two zones for the same domain, one to be used by the internal network, the other
used by the external network. Split DNS directs internal hosts to an internal domain name server for name
resolution and external hosts are directed to an external domain name server for name resolution.
DSCP Negate
Click Finish to save this rule.
DNS SERVERS
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 65
User Manual / IBR600B/IBR650B 9/5/17

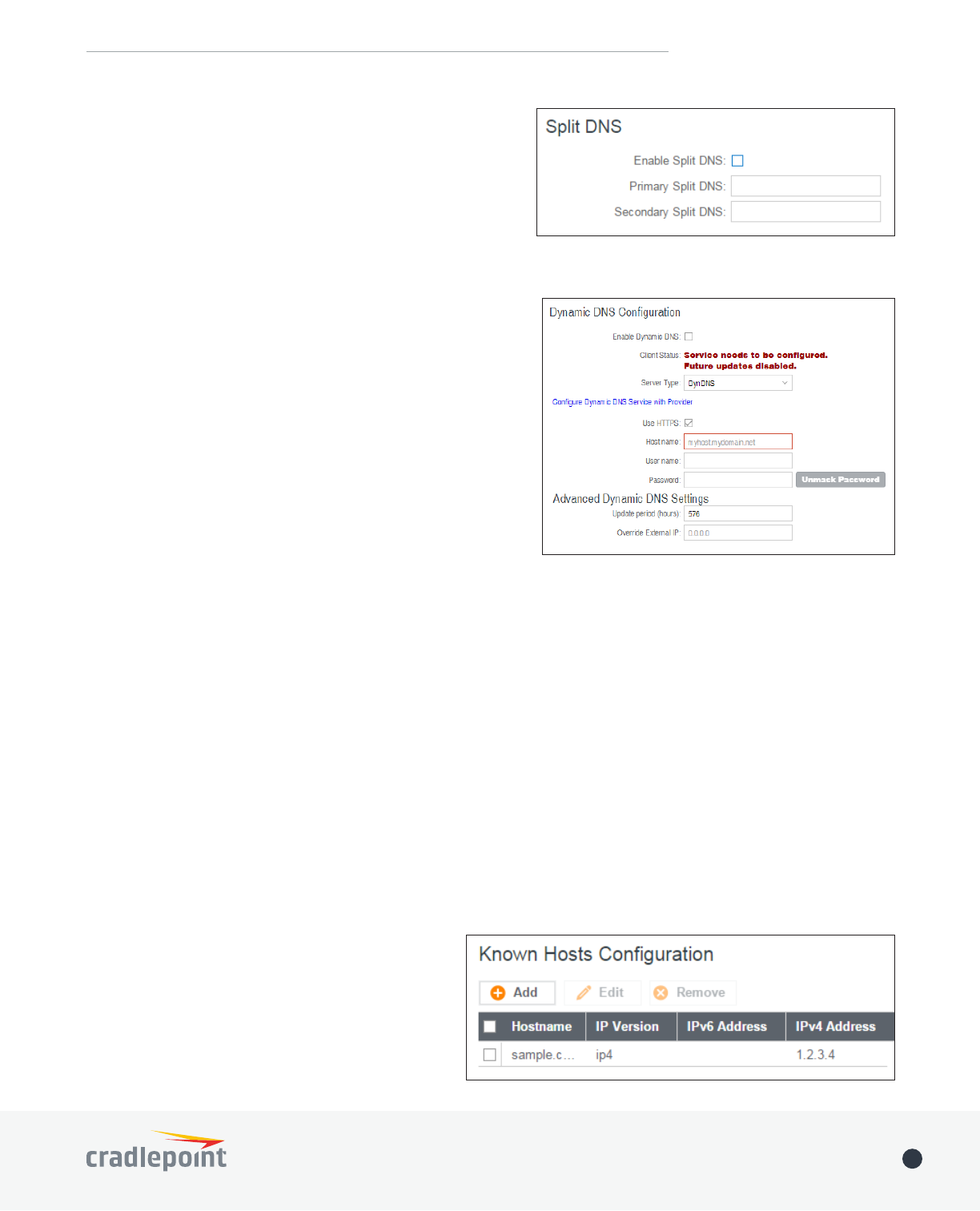

Primary Split DNS and Secondary Split DNS: If you choose
to specify your DNS servers, then enter the IP addresses of
the servers you want as your primary and secondary DNS
Domain: Click Add to add desired domain for Split DNS.
Dynamic DNS Conguration
The Dynamic DNS feature allows you to host a server (Web, FTP, etc.) using a domain name that you have
purchased (www.yourname.com) with your dynamically assigned IP address. Most broadband Internet Service
Providers assign dynamic (changing) IP addresses. When
you use a Dynamic DNS service provider, you can enter your
host name to connect to your server, no matter what your IP
address is.
• Enable Dynamic DNS: Enable this option only if you have
purchased your own domain name and registered with a
Dynamic DNS service provider.
• Server Type. Select a dynamic DNS service provider from
the dropdown list:
• DynDNS
• DNS-O-Matic
• ChangeIP
• NO-IP
• Custom Server (DynDNS clone)
• Custom Server Address. Only available if you select
Custom Server from the Server Address dropdown list. Enter your custom DynDNS clone server address
here. For example: www.mydyndns.org.
• Use HTTPS: Use the more secure HTTPS protocol. This is recommended, but can be disabled if not
compatible with the server.
• Host name
• User name: Enter the user name or key provided by the dynamic DNS service provider. If the dynamic DNS
provider supplies only a key, enter that key for both the User name and Password
• Password: Enter the password or key provided by the dynamic DNS service provider.
Advanced Dynamic DNS Settings
Update period (hours): (Default: 576) The time between periodic updates to the dynamic DNS, if your dynamic
IP address has not changed. The timeout period is entered in hours so valid values are from 1 to 8760.
Override External IP
http://myip.dnsomatic.com in a web browser.
Known Hosts Conguration
to map a name (printer, scanner, laptop, etc.) to an
IP address of a device on the network. This assigns
a new hostname that can be used to conveniently
identify a device within the network, such as an
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 66
User Manual / IBR600B/IBR650B 9/5/17
WIFI AS WAN
WiFi as WAN uses an outside WiFi network as its
Internet source. When WiFi as WAN is enabled, the
select and connect to. Unless a selected WiFi source
is on an unprotected network, you will need to know
its password or key.
To enable WiFi as WAN, select WiFi Radio #1 and
Wireless as WAN under WiFi Client Mode.
All Cradlepoint routers and some other routers use the same default IP address for the primary network:
address. The router is attempting to use the same IP address for both WAN and LAN, which is impossible. Go to
NETWORKING > Local Networks > Local IP Networks. Select the network and click Edit. You can change the IP
address under IPv4 Settings. For example, you might change 192.168.0.1 to 192.168.1.1.
Saved Proles
is in range, then the router will connect with the highest priority network.
Network
BSSID
connect to a hidden network using WiFi as WAN. It is optional when connecting to a visible network. If it is
Auth Mode: The type of encryption that is used by the network.
• None
• WEP Auto
• WEP Open
Click Add to name a device in your network.
• Hostname
• IP address: The address of the device within your network.
EXAMPLE: a personal laptop with IP address 192.168.0.164 could be assigned the name “MyLaptop.”
Since the assigned name is mapped to an IP address, the device’s IP address should not change. To ensure that
the device keeps the same IP address, go to NETWORKING > Local Networks > DHCP Server and reserve the IP
address for the device by selecting the device in the Active Leases list and clicking Reserve.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 67
User Manual / IBR600B/IBR650B 9/5/17
• WEP Shared
• WPA1 Personal
• WPA2 Personal
• WPA1 & WPA2 Personal
You have two options for adding network
• Automatic – Select a WiFi network in Site
Survey and click Import
• Manual – Click on Add under Saved
Profiles and input the required
information.
Site Survey
This is a list of WiFi networks that the router
about the network such as its mode and
channel. Click “Refresh” if a WiFi network you
want to connect to is not listed. You can sort
If you import a network from Site Survey, most of the information about the network will already be
completed. You need to input the password (if there is one) and then click submit to save the WiFi as WAN
Wireless Scan Settings
Scan Interval: How often WiFi as WAN scans the environment for updates. (Default: 60 seconds. Range: 5–3600
seconds.)
Scan While Connected
occurs the wireless communication of the router will be temporarily interrupted. Normally this should be
disabled.
WAN AFFINITY
your network so that particular bandwidth uses
are associated with particular WAN sources. This
allows you to prioritize bandwidth.
EXAMPLE: You could specify that your guest LAN
is only associated with your Ethernet connection
with no failover. Then if your Ethernet connection
goes down and the embedded modem connects for failover for your primary LAN, your guest LAN will not take
bandwidth from your primary LAN, saving you money.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 68
User Manual / IBR600B/IBR650B 9/5/17

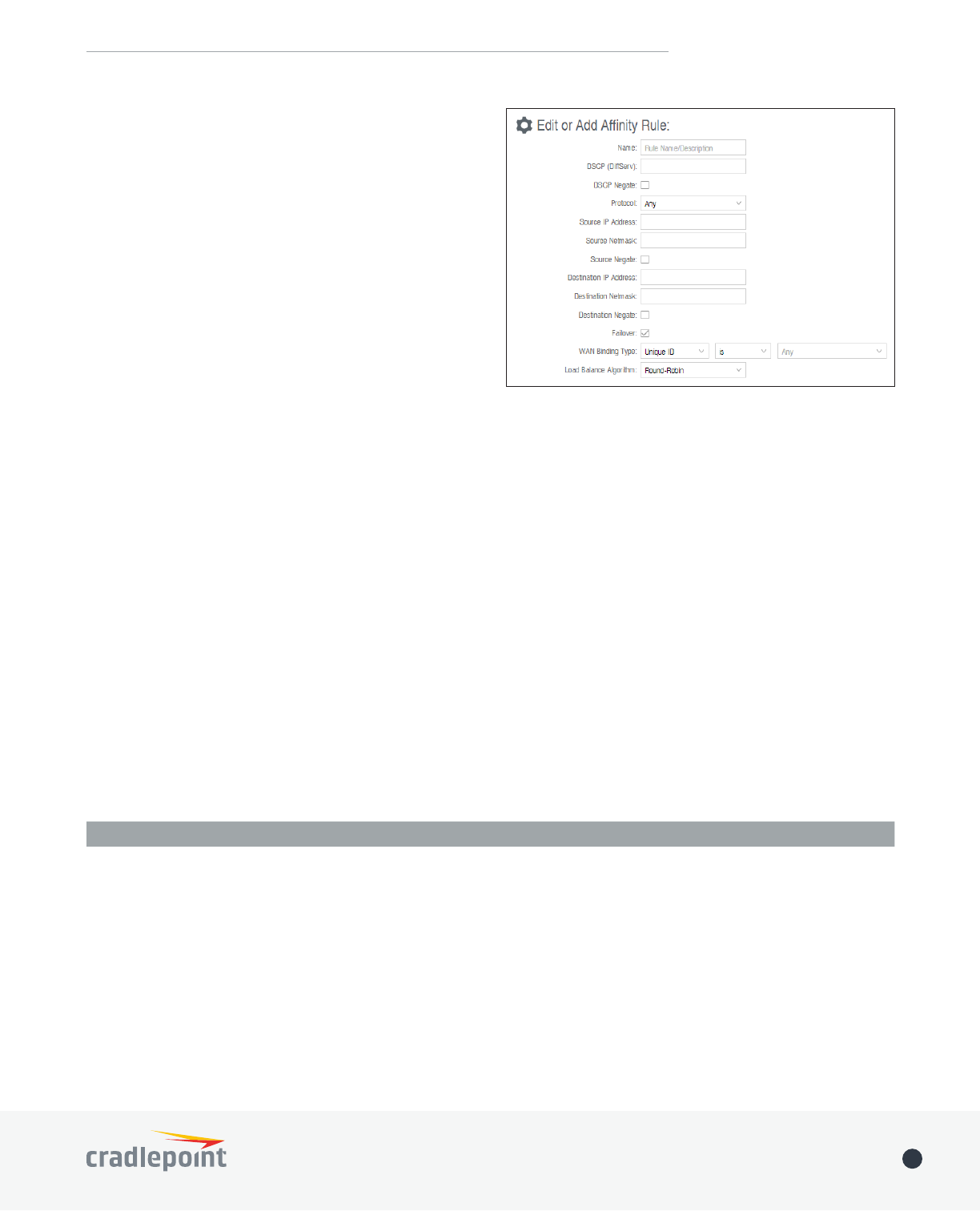

Click Add
Name: Give a name for your rule that is meaningful to
you.
DSCP (DiServ)
DSCP values, you can input one here.
DSCP Negate: When checked this rule will match on any
Protocol: Select from the dropdown list to specify the
protocol for a particular data use. Otherwise, leave
“Any” selected.
• Any
• ICMP
• TCP
• UDP
• GRE
• ESP
• SCTP
Source IP Address, Source Netmask, Destination IP Address, and Destination Netmask: Specify an IP address
or range of IP addresses by combining an IP address with a netmask for either “source” or “destination” (or
EXAMPLE: If you want to associate this rule with your guest LAN, you could input the IP address and netmask
for the guest LAN here (leaving the last slot “0” to allow for any user attached to the guest network):
• Source IP Address: 192.168.10.0
• Source Netmask: 255.255.255.0
Failover
interrupted, the router will fail over to another available WAN device. Deselect this option to restrict this
When Condition Value
Port Is USB Port 1
Type Is not WiMax
• When:
• Port – Select by the physical port on the router that you are plugging the modem into (e.g., “USB Port
2”).
• Manufacturer – Select by the modem manufacturer (e.g., “Cradlepoint Inc.”).
• Model
• Type – Select by type of Internet source (Ethernet, LTE, Modem, Wireless as WAN, WiMAX).
• Serial Number – Select a 3G or LTE modem by the serial number.
• MAC Address – Select from a dropdown list of attached devices.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 69
User Manual / IBR600B/IBR650B 9/5/17
• Unique ID – Select by ID. This is generated by the router and displayed when the device is connected
to the router.
• Condition: Select “is,” “is not,” “starts with,” “contains,” or “ends with” to create your condition’s
statement.
• Value: If the correct values are available, select from the dropdown list. You may need to manually input
the value.
Load Balance Algorithm
dropdown options:
• Round-Robin: Evenly distribute each session to the available WAN connections.
• Rate: Distribute load based on the current upload and download rates. A WAN device’s upload and
download bandwidth values can be set in CONNECTION MANAGER.
• Spillover
the most available bandwidth. The estimated bandwidth rate is based on a combination of the upload and
• Data Usage
keep data usage between interfaces at a similar percentage of the assigned data cap in the data usage rule
for each interface, rather than distributing sessions based solely on bandwidth. For proper functioning you
need to create data usage rules for each WAN device you will be load balancing. Make certain to select the
“Use with Load Balancing” checkbox in the data usage rule editor.
CLIENT DATA USAGE
Client Data Usage displays upload and download
Enable Client Data
Usage Monitoring Service to begin tracking this
information. This data is not retained between
router reboots.
For each client this shows: Name, IP address, MAC
address, amount of data uploaded (MB), amount of
The names that are shown are received during a DHCP exchange. If a client disconnects and reconnects with a
new IP address there will be an additional entry in this list.
Pressing Reset Statistics will restart all counters at 0.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 70
User Manual / IBR600B/IBR650B 9/5/17
NHRP
Next Hop Resolution Protocol is a protocol used to discover addresses of clients on Non-Broadcast Multiple
Access (NBMA) networks. It is used to create next-generation VPN technologies that allow shortcutting
between spokes. With NHRP, systems attached to an NBMA network dynamically learn the NBMA address of
the other systems that are part of that network, allowing these systems to directly communicate without
requiring an intermediate hop.
• Name: Name of the GRE tunnel that NHRP will use
• Protocol Address/Prex: GRE
tunnel endpoint mapping that NHRP
associates with the NBMA server
• NBMA Address: NBMA server address
associated with
• Flags:
• SD: Shortcut-Destination
• N: Non-Caching
• S: Shortcut
• R: Redirect
Click Add to create a new NHRP interface.
• Enabled: Enable or disable the interface.
• Name: Give the interface a unique name that matches the mGRE (multipoint GRE) tunnel. Select from
• Peer Authentication: Embeds the secret
plaintext password to outgoing NHRP
packets. Incoming NHRP packets on this
interface are discarded unless this password
is present. Max length: eight characters.
• Holding Time
NHRP registration requests and resolution
replies.
• Shortcut-Destination: Reply with
authoritative answers on NHRP resolution
requests destined to addresses in this
interface (instead of forwarding the packets).
• Non-Caching: Disables caching of peer
information from forwarded NHRP resolution
reply packets.
• Shortcut: Enable creation of shortcut routes.
• Redirect: Enable sending of proprietary
packets.
• Multicast: Determines how multicast
packets should be forwarded through NHRP
interfaces.
• NHS:
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 71
User Manual / IBR600B/IBR650B 9/5/17
• Dynamic: Multicast packets will be forwarded to each connected peer. This is typically used for an
NHRP hub.
You also have the option to create static mappings for this interface. Click Add in the table to open the static
mapping editor.
• Protocol Address: Mapped endpoint to from protocol address to NBMA address
• Protocol Prex
• NBMA Address
• RegisterRegistration Request should be sent to this peer on
R in the static mapping table if selected)
• Proprietary OS
C in the static mapping table if selected).
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 72
User Manual / IBR600B/IBR650B 9/5/17
SECURITY
IDENTITIES
HOST ADDRESSES
match on any single item in the group will cause the rule to match. Identities are
referenced in rules by their name. Choosing descriptive names like “NW Sales Team”
or “Engineering” will aid in understanding existing rules and in choosing identities for
new rules.
A single identity can contain a combination of IPv4 and IPv6 addresses. IPv4/6
addresses cannot be combined with FQDN addresses in the same identity.
IP addresses are entered using CIDR notation, e.g. 1.2.3.4/32 and 0123:4567::CDEF/128.
FQDN addresses are entered with at least one dot separating a top-level domain from
a root zone, e.g. cradlepoint.com.
To add a Host Address Identity, click Add.
PORTS
A port identity member can be entered as a single Start port number or as a port range by entering both a
Start and End port number.
To add a Port Identity, click Add.
MAC ADDRESSES
To add a MAC Address Identity, click Add.
ZONE FIREWALL
ZONE DEFINITION
A Zone is a group of network interfaces. By default all interfaces within a zone
are allowed to initialize network communication with each other, however any
will be denied.
To add a zone, click Add.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 73
User Manual / IBR600B/IBR650B 9/5/17
FILTER POLICIES
Edited, or Removed.
• Default Allow All
to another zone. The state of the connection is
tracked to allow responses to traverse the zones
back to the source. LAN to WAN forwardings use
this policy by default. The policy can be removed or
• Default Deny All
to another zone. WAN to LAN forwardings use this
policy by default. The policy can be removed or
Click Add
• Name: Create a name meaningful to you.
• Action: Choose either Allow or Deny
• Log: When checked, every rule in the policy will log matching packets as if the rule’s Log option had been
selected.
Click Add
Editor.
• Name: Create a rule name meaningful to you.
• Action: Choose either Allow or Deny. This is the
• Log
rule will be logged in the System Log.
• IP Version: Select the IP version to match.
• Enter match criteria under Source, Destination, and
Protocols.
• SourceHost, Port and MAC
• Host: Enter an IP address or select a host identity.
• Port: Enter a port, port range, or select a port identity.
• MAC: Enter a MAC address or select a MAC address identity.
• Destination
Source
• Protocols
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 74
User Manual / IBR600B/IBR650B 9/5/17
OPTIONS
Firewall Options
• Anti-Spoof: Anti-Spoof checks help protect against malicious users faking the source address in packets
they transmit in order to either hide themselves or to impersonate someone else. Once the user has
spoofed their address they can launch a network attack without revealing the true source of the attack or
attempt to gain access to network services that are restricted to certain addresses.
• Log Web Access: Enable this option to create a syslog record of web (IP port 80) access. Each entry will
contain the the IP address of the server and the client. Note that this may create a lot of log entries,
especially on a busy network. Sending the system log to a syslog server is recommended.
Application Gateways
to function, or for an application to improve functionality or add features.
NOTE: Exercise caution in enabling application gateways as they impact the security of your network.
• PPTP: For virtual private network access using Point to Point Tunneling Protocol.
• SIP: For Voice over IP using Session Initiation Protocol.
• TFTP:
• FTP: To allow normal mode when using File Transfer Protocol. Not needed for passive mode.
• IRC: For Direct Client to Client (DCC) transfer when using Internet Relay Chat. You may wish to forward TCP
port 113 for incoming identd (RFC 1413) requests.
DMZ (Demilitarized Zone)
remotely access network services at the DMZ IP address. Typical uses involve running a public web server,
NOTE: As with port forwarding, caution should be used when enabling the DMZ feature as it can threaten the
security of your network.
ZONE FORWARDING
be Added, Edited, Removed, or Toggled. Toggling a
Forwarding will either enable or disable the Forwarding.
Source and Destination zones are chosen from the list
be selected for forwarding endpoints:
• The All
forwardings.
• The Router
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 75
User Manual / IBR600B/IBR650B 9/5/17
the Internet to reach a computer on the
inside of your network. For example, a port
forwarding rule might be used to run a Web
server.
NOTE: Exercise caution when adding new
rules as they impact the security of your
network.
Click Add to create a new port forwarding rule, or select an existing rule and click Edit.
Add/Edit Port Forwarding Rule
• Name: Name your rule.
• Enabled: Toggle whether your rule is enabled. Selected by
default.
• Use Port Range: Changes the selection options to allow you to
input a range of ports (if desired).
• Internet Port(s)
the Internet. Typically these will be the same as the local port
numbers, but they do not have to be. These numbers will be
mapped to the local port numbers.
NETWORK PREFIX TRANSLATION
IPv6 prex
translationRFC 6296) trying to achieve address independence similar to NAT
in IPv4. Unlike NAT, however, NPT is stateless and preserves the IPv6 principle that each device has a routable
public address. But it still breaks any protocol embedding IPv6 addresses (e.g. IPsec) and is generally not
recommended for use by the IETF. NPT can help to keep internal network ranges consistent across various IPv6
The primary purpose for Cradlepoint’s NPT implementation is for failover/failback and load balancing setups.
LAN clients can potentially retain the original IPv6 lease information and may experience a more seamless
transition when WAN connectivity changes than if not utilizing NPT.
Mode:
• None – No translation is performed
• Load Balance Only – (Default) Only translate networks when actively load balancing
• First
• Static
the LANs may lose IPv6 connectivity.
REMOTE ACCESS RESTRICTION
Add any IPv4 addresses that need access to remote administration to this list. Clicking Add will allow the
Edit will allow you to change settings for
the selected address. Remove will remove a selected entry.
PORT FORWARD
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 76
User Manual / IBR600B/IBR650B 9/5/17
• Local Computer: Select the IP address of an attached device from the dropdown menu, or manually input
the IP address of a device.
• Local Port(s): The port number(s) that corresponds to the service (Web server, FTP, etc.) on a local
choose another port number that will be used across the Internet to access your Web server. If you choose
a number other than 80 for the Internet Port, connections to that number will be mapped to 80 – and
therefore the Web server – within your network.
• Protocol: Select from the following options in the dropdown menu:
• TCP
• UDP
• TCP & UDP
Click Save to save your completed port forwarding rule.
NAT
Zone NAT is similar to Port Forwarding and provides that
functionality by mapping ports available on interfaces
associated with the Zone to ports available on local clients.
Zone NAT also has the ability to map many types interfaces
selectable via a Zone. For example, GRE interfaces can be
client thereby limiting exposure to the local LAN while still
Click Add to create a Destination NAT.
• Source Zone Name: The Zone created in Zone Firewall.
Select the Zone to NAT.
• Original Destination IP:
to an internal network.
• Inbound Port(s):
• Local Computer:
• Local Port(s):
• Protocol:
NAT
NAT allows translating the destination ip of incoming
will be forwarded. Netmasks should generally match. If the
local network range is larger than the incoming destination
One-to-One NAT can be accomplished by specifying a host
address or a /32 cidr address.
Click Add to create a NAT.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 77
User Manual / IBR600B/IBR650B 9/5/17
General Settings
Enbable Webfilter
forwarding.
Filter HTTPS
into the proxy. The proxy will then extract the host name from the SNI (Server
Name Indication). If SNI is unavailable then the original destination IP address is
SSL/TLS session is done.
Upstream Proxy Settings
Enabled: Select whether the use of an Upstream Proxy server is
enabled.
Proxy Address: The Proxy Address is the address the desired HTTP
proxy is hosted at. Addresses can be input as host names or as ip
HTTP Port: The port the HTTP Proxy is listening on.
HTTPS Port (Optional): The port for the proxy to forward HTTPS
Cradlepoint router as a proxy for HTTPS to work properly.
MAC Address WebFilter Rules allow you to control
domains or websites. To add a rule, click Add.
• MAC Address: Enter MAC Address.
• Filter Action: Select Block or Allow.
• Domain/URL/IP: Enter the Domain Name or
URL (address) of the website you wish to
control access for, e.g. www.google.com. To
make sure the full domain is blocked, enter
the most inclusive domain (e.g. google.com
well as maps.google.com and images.google.
com). Alternatively you can use an IP address,
e.g. 8.8.8.8, or address range written in CIDR
notation, e.g. 8.8.8.0/24.
• Rule Priority: Higher number rules overrule lower number rules.
• Enabled: A rule can be enabled or disabled by selecting or deselecting the checkbox.
Use MAC Address WebFilter Defaults together with MAC Address WebFilter Rules to control website access for
Add/Edit to change this
setting for a MAC address.
Input the MAC Address and Default Action you would like to apply to that MAC address.
MAC WEB FILTER RULES
CONTENT FILTERING
WEBFILTER SETTINGS
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 78
User Manual / IBR600B/IBR650B 9/5/17
Default Action: Select from the following
dropdown options:
• Allow Access (default)
• Block Access
When a network is set to Allow Access, it will
WebFilter Rules. When a network is set to Block
Access
allowed in the WebFilter Rules.
NETWORK WEB FILTER RULES
access from your network to any external domain
network and the highest priority rule will have
be added by URL/Domain name or by IP address.
notation, e.g. 4.2.2.2/24.
Exceptions to existing rules can be created by
adding another rule with higher priority. For
example if access to maps.example.com is desired,
but example.com is blocked with a priority of 50.
The addition of an allow rule for maps.example.
com with a priority of 49 or less will allow access.
When creating rules keep in mind that some sites
use multiple domains so each domain may need a
rule added to produce the desired behavior.
To add a Network Web Filter Rule, click Add.
Default Network Filter Settings
When a network is set to Allow (Blacklist) it will
allow access to those sites not blocked in the
Filter Rules. Selecting Block (Whitelist) will only
allow access to websites with an Allow action in
the Filter rules, all other sites will be blocked.
Selecting to Filter URLs by IP Address will cause
the router to perform a DNS lookup on URL entries
and the IP addresses will be appended to the
appropriate block/allow list. This can have side
for full functionality.
The settings can be changed by selecting a network and clicking the Edit button.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 79
User Manual / IBR600B/IBR650B 9/5/17
Select a third-party Cloud Provider from the dropdown list.
• Umbrella by OpenDNS
• Zscaler Secure Web Gateway
• Zscaler Internet Security
Umbrella by OpenDNS
http://
www.opendns.com/business-security for information about Umbrella.
Enter your Umbrella account information in order to use these content
OpenDNS ISP Filter Bypass Algorithm: It is possible that your Internet
not appear to be working correctly, enabling this will attempt to bypass
Zscaler
Zscaler
several plan options. Depending on your Zscaler implementation, this
could include:
• Global Cloud Platform
• Real-Time Reporting
• Behavioral Analysis
• URL Filtering
• Advanced Threat Protection
• Inline Anti-Virus & Anti-Spyware
• Web 2.0 Control
• Data Loss Prevention
• Bandwidth Management
• Web Access Control
• And more…
NOTE: Zscaler requires a feature license. Go to SYSTEM > Feature
Licenses to enable this feature.
Enter your Zscaler account information to enable these settings. Input
local network information (Network Address and Netmask) to assign
your Zscaler implementation to one or more local network(s).
CLOUD-BASED FILTERING
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 80
User Manual / IBR600B/IBR650B 9/5/17
CERTIFICATE MANAGEMENT
LOCAL CERTIFICATES
• Name
• Location
• Organization Information
issuer belongs
• Common Name: Name used to match authentication credentials
Add.
Remove
button.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 81
User Manual / IBR600B/IBR650B 9/5/17
CERTIFICATE SIGNING REQUEST
security issues
information).
Generate a certicate signing requestCertificate Name
When you export the CSR, select a Digest, or cryptographic hash function. These are listed in order of increasing
security. More security requires more router resources.
• MD5
• SHA-128
• SHA-256
PKCS12
PKCS #12 is one of the public-key cryptography standards
because it is protected by an encryption key.
PEM
PEM is a container format for encoding data – in this case,
email (PEM stands for Privacy-enhanced Electronic Mail), but
it has never been widely used for that purpose. The format is
The PEM format uses Base64 and DER (Distinguished Encoding
Rules) encoding.
computer or local device and upload it to the router. Give the
download it to your computer or local device in PEM format.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 82
User Manual / IBR600B/IBR650B 9/5/17
and download it to your computer or local device in PKCS
passphrase to protect it. This key is required for future use of
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 83
User Manual / IBR600B/IBR650B 9/5/17
SYSTEM
ADMINISTRATION
ROUTER SECURITY
When the router is
advanced security mode,
several aspects of the
networking functionality
will be extended to support
high security environments. This includes support for multiple user accounts,
use your router in a PCI DSS compliant environment this option is mandatory.
REMOTE ADMIN
Remote Management allows a user to enable incoming
WAN pings or change settings for the router from the
Internet using the router’s Internet address.
Allow WAN pings – When enabled the functionality
allows an external WAN client to ping the router.
Allow Remote Web Administration – When remote
administration is enabled it allows access to these
administration web pages from the Internet. With it
disabled, you must be a client on the local network to
access the administration website. For security, remote
access is usually done via a non-standard http port. Additionally, encrypted connections can be required for an
added level of security.
• Require HTTPS Connection – Requiring a secure (https) connection is recommended
• HTTP Port: Default – 8080. This option is disabled if you select “Require Secure Connection”
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 84
User Manual / IBR600B/IBR650B 9/5/17
SYSTEM CLOCK
• Secure HTTPS Port – Default: 8443.
NOTESECURITY > Zone Firewall > Remote
Access Restriction.
Allow Remote SSH Access – This will enable SSH access to the router from the Internet. It is only available when
SSH access is enabled in the Local Management tab. Some carriers block the remote SSH access ports. If a ping
to the router’s WAN port does not work, it is unlikely that remote SSH access will work.
Enabling NTP will tell the router to get its system time
from a remote server on the Internet. If you do not
enable NTP, the router time will be based on when the
router OS was built, which is guaranteed to be wrong.
Whenever the Internet connection is re-established and
once a week thereafter the router will ask the server
for the current time so it can correct itself.
You then have the option of selecting an NTP server and
adjusting the NTP server port. Select the NTP server
from the dropdown list. Any of the given NTP servers
synchronize your router’s time with other devices in a
network.
• Time Zone – Select from a dropdown list. Setting your Time Zone is required to properly show time in your
router log.
• Daylight Savings Time – Select this checkbox if your location observes daylight saving time.
LOCAL MANAGEMENT
• Enable Internet Bounce Pages – Bounce pages show up in your web browser when the router is not
connected to the Internet. They inform you that you are not connected and try to explain why. If you disable
bounce pages then you will just get the usual browser timeout. In the normal case when the router is
connected to the Internet you don’t see them at all.
• Reboot Count – Track number of router reboots.
FEATURE LICENSES
Some Cradlepoint features may require a license. These
features are disabled by default. To obtain a feature
license, contact your Cradlepoint sales representative.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 85
User Manual / IBR600B/IBR650B 9/5/17
• Enable Login Banner – Add the CLI banner to the
router’s login page.
• Local Domain – The local domain is used as the
the hostnames of DHCP clients as DHCP_HOSTNAME.
LOCAL_DOMAIN.
• System Identier – This is a customizable identity
that will be used in router reporting and alerting. The
default value is the product name and the last three
characters of the MAC address of the router.
• Asset Identier – This is a customizable string that
will be used in router reporting and alerting.
• Require HTTPS Connection – Check this box if
you want to encrypt all router administration
communication.
• Secure HTTPS Port – Enter the port number you want
to use. The default is 443.
• Enable SSH Server – When the router’s SSH server is
enabled you may access the router’s command line interface (CLI) using the standards-based SSH protocol.
Use the username “admin” and the standard system password to log in.
• SSH Server Port – Default: 22.
• Automatically Set System Identier
client that gets a DHCP lease. This feature cannot be used with email alerts but alerts can be sent to NCM.
GPS
NOTE: GPS only available with COR Extensibility Dock (https://cradlepoint.com/products/accessories/cor-
extensibility-dock). If you have an attached device with GPS support, you can enable a graphical view of your
router’s location, which appears in STATUS > GPS. SIM-based models with GPS support require that the SIM
be inserted. Some carriers disable GPS support in otherwise supported modems. If you encounter issues with
Enable GPS – Enable support for querying GPS information from capable modems.
Send to Client(s)
• Enable this Server - Enables a local server to which clients can connect and recieve GPS sentences.
• Server Name
• Enable GPS server on LAN
sentences to TCP connected clients.
• Enable GPS server on WAN - Enables a server on the WAN side
connected clients.
• Port - Choose a port between 1 and 65535.
Send to Server(s)
• Enable this client - Enables periodic reporting of GPS sentences to
encountered or if the Internet connection goes down, and send the
• Client name
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 86
User Manual / IBR600B/IBR650B 9/5/17
• Server - Remote server hostname or IP.
• Port - Remote server port.
• Specify Time Interval - Restricts the GPS sentence reporting to a
• Start Time - Reporting start time.
• End Time - Reporting end time.
SMS
SMS (Short Message Service, or text messaging) requires a cellular modem with an active data plan. SMS is not
designed to be a full remote management feature: SMS allows you to connect to the router for a few simple
queries or commands with a text messaging service (e.g., from your phone). A modem that does not have
SMS is enabled on the router by default. However, it only
works if SMS is supported and enabled on the modem.
Most modems have SMS enabled by default, but the
carrier may charge a fee for each text message sent or
received. Contact your carrier to review these fees and/or
to enable an SMS plan.
Important notes about SMS:
• Messages are limited to 160 characters.
• SMS is not a guaranteed delivery protocol. The carriers do not guarantee that the SMS message will be
delivered to the modem or that the modem’s response will be delivered to the sender. This means an
administrator might have to send messages multiple times before the desired action is performed.
• SMS is a slow protocol. It can take seconds or up to a few minutes for messages to be delivered.
• SMS messages are not encrypted; they are sent in full readable text over the network.
Enable SMS support – SMS support is enabled by default on the router. Deselect this to disable.
Password – By default, the password is the last eight characters of the router’s MAC address (i.e., the Default
Password on the product label). You can change this password to anything between 1 and 16 characters. It
should be long enough to be useful for security but short enough to easily type into your phone (or other
texting client).
White List – This list is blank by default, which means that the router will accept SMS messages from any phone
number. Leaving this blank is unsecure, so Cradlepoint recommends that you add phone numbers to this list.
Once any numbers are listed, only those numbers have the ability to connect to the router via SMS.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 87
User Manual / IBR600B/IBR650B 9/5/17
SYSTEM LOGGING
Logging LevelDebug will
record the most information while a log level of Critical will only record the most urgent messages. Each level
includes all messages from all of the levels below it on the list (e.g. “Warning” includes all “Error” and “Critical”
messages as well).
• Debug
• Info
• Warning
• Error
• Critical
Enable Logging to a Syslog Server: Enabling this option will send
Hostname or IP address of the Syslog server (or select from the
dropdown menu).
• Syslog Server Address: Select the Hostname or IP address from
the dropdown menu, or type this in manually.
• Include System ID: This option will include the router’s “System
ID” at the beginning of every log message. This is often useful
when a single remote Syslog server is handling logs for several
routers.
• Include UTF8 Byte Order Mark: The log message is sent using
UTF-8 encoding. By default the router will attach the Unicode Byte
Order Mark (BOM) to the Syslog message in compliance with the Syslog protocol, RFC5424. Some Syslog
servers may not fully support RFC5424 and will treat the BOM as ASCII text, which will appear as garbled
characters in the log. If this occurs, disable this option.
Log to attached USB stick: Only enable this option if instructed by a Cradlepoint support agent. This will write a
USB stick, or you may lose some logging data.
Verbose modem logging: Only enable this option if instructed by a Cradlepoint support agent.
Create support log
instructed by a Cradlepoint support agent.
ROUTER SERVICES
By default, router services (NetCloud Manager, NTP, etc.)
connect to the router via the WAN. In some setups it
makes sense to use the LAN instead. For example, if
your router is used strictly for 3G/4G failover behind
another router, you may not want to use 3G/4G data
unnecessarily. Select Use LAN Gateway to set your
router services to connect via the LAN.
LAN Gateway Address: Input the IP address of the
LAN side connection. If this is a 3G/4G failover router
operating behind another router, the LAN Gateway
Address is the IP address of that other router.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 88
User Manual / IBR600B/IBR650B 9/5/17
NETCLOUD
Cradlepoint NetCloud Manager
organizing your Cradlepoint routers. Key features include the following:
•
• Health monitoring of router connectivity and data usage
• Remote management and control of routers
• Historical record keeping of device logs and status
Registering Your Router – Once you have signed up for NCM, click on the Register Router button to begin
managing the router through NCM. Input your NCM Username and Password and click Register. You have now
registered the device with NetCloud Manager.
Suspending the NCM Client – Click on the Suspend Client button to stop communication between the device and
NCM. Suspending the client will make it stop any current activity and go dormant. It will not attempt to contact
the server while suspended. This is a temporary setting that will not survive a router reboot; to disable the
client altogether use the NetCloud Settings panel (below).
NetCloud Settings (Advanced)
• Enabled: Enable the NCM client to contact
the server. While this box is unchecked, the
NCM client will never attempt to contact the
server. (Default: Enabled)
• Server Host:Port: The DNS hostname and port
number for your NCM server. (Default: stream.
cradlepoint.com)
• Session Retry Timer: How long to wait,
in seconds, before starting a new NCM session following a connection drop or connectivity failure. Note
connectivity loss.
• Unmanaged Checkin Timer: How often, in seconds, the router checks with NCM to see if the router is
network usage over time.
• Maximum Alerts Buffer
DEVICE ALERTS
YOU MUST
ENABLE AN SMTP EMAIL SERVER TO RECEIVE ALERTS.
Alerts can be included for the following:
• NCOS Upgrade Available: An NCOS update is available for this device.
• System Reboot Occurred: This router has rebooted. This depends on NTP being enabled and available to
report the correct time.
DNS Server and Secondary DNS Server: The primary and secondary DNS server numbers match the static DNS
values (set at NETWORKING > DNS Servers). You can leave the default values or set them manually here.
(Changing these values also changes the static DNS values.)
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 89
User Manual / IBR600B/IBR650B 9/5/17
• Unrecognized MAC Address: Used with the MAC
monitoring lists. An alert is sent when a new
unrecognized MAC address is connected to the
router.
• WAN Device Status Change: An attached WAN
device has changed status. The possible statuses are
plugged, unplugged, connected, and disconnected.
• Conguration Change: A change to the router
• Login Success: A successful login attempt has been
detected.
• Login Failure: A failed login attempt has been
detected.
• Account Locked: Account has been locked due to
excessive failed login attempts.
• IP Address Banned: An IP address has been banned.
• VPN Tunnel Goes Down: Sends an alert when a VPN
tunnel goes down.
• Feature License Expiration: Sends an alert when a
feature license is about to expire.
• Router SDK Application: A router SDK Application
may send an alert.
• Full System Log
contains the contents of the system log.
• Recurring System Log: The system log is sent periodically. This alert contains all of the system events since
the last recurring alert. It can be scheduled for daily, weekly and monthly reports (Frequency). You also
choose the Time you want the alert sent.
SMTP Mail Server
Since your router does not have its own email server, to receive alerts you must enable an SMTP server. This is
possible through most email services (Gmail, Yahoo, etc.)
following is an example using Gmail:
• Server Address: smtp.gmail.com
• Server Port: 587 (for TLS, or Transport Layer Security port; the router does not support SSL).
• Authentication Required: For Gmail, mark this checkbox.
• User Name: Your full email address
• Password: Your Gmail password
• From Address: Your email address
• To Address: Your email address
should receive a test email at your account.
Delivery Options (Advanced)
Email Subject Prefix
Retry Attempts: The number of attempts made to send an alert to the mail server. After the attempts are
exhausted, the alert is discarded.
Retry Delay: The delay between retry attempts.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 90
User Manual / IBR600B/IBR650B 9/5/17
SERIAL REDIRECTOR
A single USB Serial device can be used to establish a serial link to a host port on the router. The USB Serial
device can also be accessed by running “serial” from an SSH session.
Telnet to Serial Conguration
• Enabled: Enabling Telnet to Serial will start a Telnet server that
passes its connection to the serial adapter. Enabling this service
is not necessary when accessing serial through SSH.
• LAN: Enable serial redirector for LAN connections.
• Authenticated LAN: Enable serial redirector for Authenticated
LAN connections. You must be logged into the router to use the
redirector.
• WAN: Enable serial redirector for WAN connections.
• Server Port: Enter a port number for the redirector to use. (Default: 7218)
GPIO CONFIGURATION
Input Pin
• Enabled: Enable monitoring and alerting on this GPIO.
• Direction: In or Out (4 in/out, 2 in only).
• GPIO Name:
• Low State Name:
• High State Name:
• Alert Trigger State:
• Action:
GPIOs allows you to monitor inputs and produce outputs with simple conditions. Click Edit to edit/enable/disable.
Sensing, you must leave the other pin unused and disconnected.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 91
User Manual / IBR600B/IBR650B 9/5/17

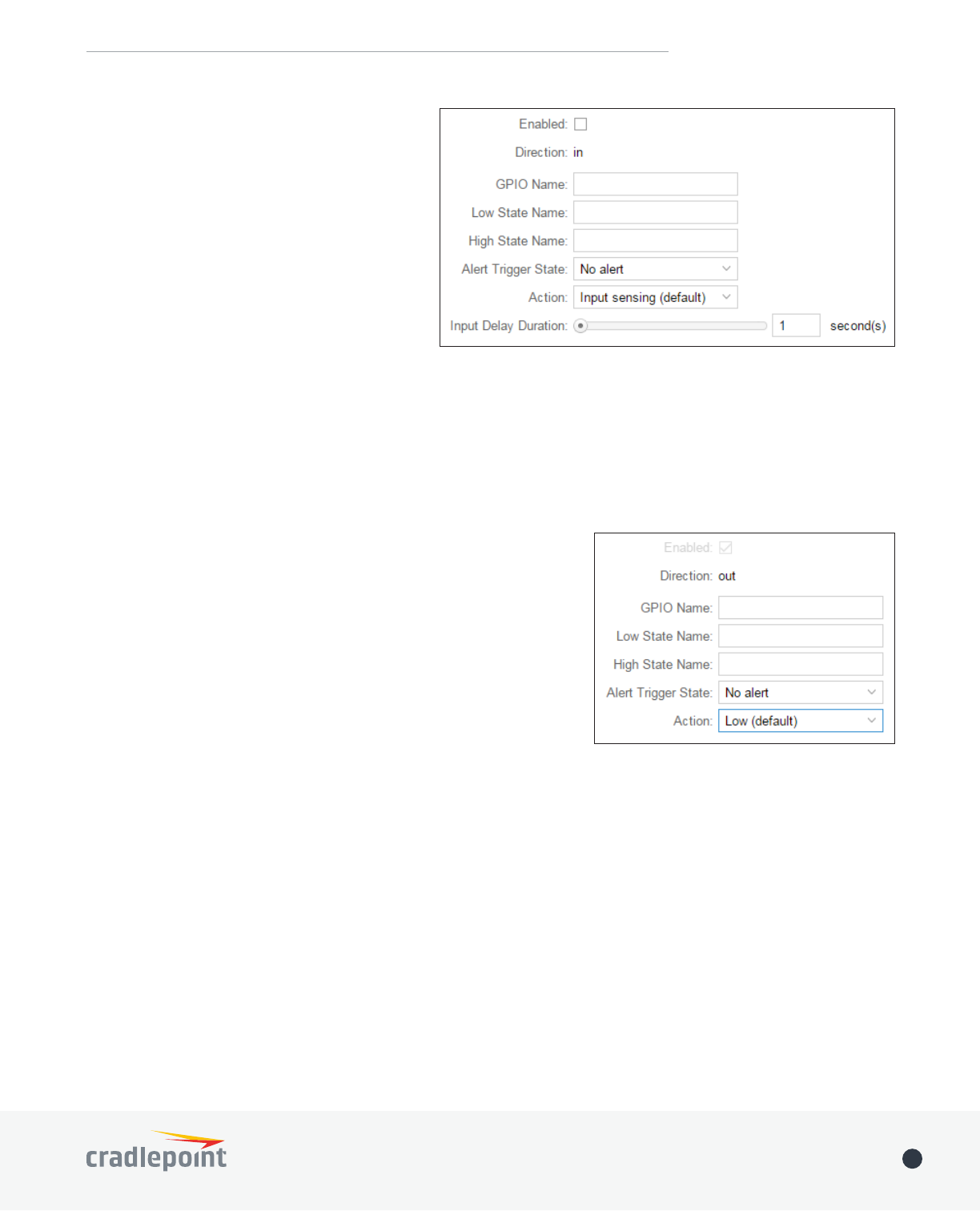

• Input Sensing (default): In this
mode the logic state (high or low) is
automatically sensed by the router and
is readable as the Current Value.
• Ignition Sensing: In this mode the
been held low for the timeout period
in seconds. The router will then reboot
when the input is returned to high. If
the input is held low for less than the
timeout period before returning to high,
no action is taken.
• Router Reset: In this mode an external
device can reset the router by holding
the input low for 10 seconds.
• Input Delay Duration: Input delay duration setting aims to minimize the number of false positives by waiting
action. It’s important to note that there is an additional 200ms delay, even when this setting is at 0 seconds.
Output Pin
• Enabled: Enable monitoring and alerting on this GPIO.
• Direction: In or Out (4 in/out, 1 out only*).
• GPIO Name:
engine’. This will be used to form an alert string. For example
• Low State Name: Name the low state of this GPIO. For example
running.’
• High State Name: Name the high state of this GPIO. For example
running.’
• Alert Trigger State:
alert. Options: No Alert, High, Low, Both.
• Action:
• Low (default): In this mode the output pin is not used and is at 0V (ground potential).
• High/Router Running: In these modes the output pin is logic low while the router is booting and
transitions to logic high when the router is fully running. If the router is reset, the output returns to low
until the router has fully rebooted.
• Modem Connected: In this mode the output pin is logic low until the modem has connected to the tower.
If the connection drops, this output is set low until the connection is restored.
* - Hardware note: The output-only pin is an open collector/drain.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 92
User Manual / IBR600B/IBR650B 9/5/17
SNMP CONFIGURATION
SNMP, or Simple Network Management Protocol, is an Internet standard protocol for remote management. You
might use this instead of NetCloud Manager if you want to remotely manage a set of routers that include both
Cradlepoint and non-Cradlepoint products.
SNMP Conguration
• Enable SNMP: Selecting
“Enable SNMP” will reveal the
options.
Network Settings
• Enable SNMP on LAN:
Enabling SNMP on LAN will
make SNMP services available
on the LAN networks provided
by this router. SNMP will
not be available on guest or
virtual networks that do not
have administrative access.
• LAN port #: Use the LAN
LAN port number you wish
to access SNMP services on.
(Default: 161)
• Enable SNMP on WAN:
Enabling SNMP on WAN will
make SNMP services available
to the WAN interfaces of the
router.
• WAN port #: Use the WAN
which publicly accessible
port you wish to make
SNMP services available on.
(Default: 161)
• SNMP Version
• SNMPv1
transmit with settings compatible with SNMP version 1 protocols.
• SNMPv2c: SNMP version 2c has the same features as v1 with some additional commands. SNMPv2c will
• SNMPv3: SNMP version 3 includes all prior features with security available. SNMPv3 is the most secure
SNMP v1 & v2c Settings
• Get community string: The “Get community string” is used to read SNMP information from the router. This
string is like a password that is transmitted in regular text with no protection.
• Set community string: The “Set community string” is used when writing SNMP settings to the router. This
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 93
User Manual / IBR600B/IBR650B 9/5/17
SNMPv3
• Authentication type: Select the authentication and encryption type that will be used when connecting to
SNMP clients.
• MD5 with no encryption
• SHA with no encryption
• MD5 with DES encryption
• SHA with DES encryption
• MD5 with AES encryption
• SHA with AES encryption
• Username
• Password
password must be at least eight characters long.
• Enable SNMP traps
• Trap community string
community name.
• Address for trap server: Enter the address of the host system that you want trap alerts sent to.
• Trap server port #: Enter the port number that the remote host will be listening for trap alerts on. (Default:
162)
General Settings
Read Only.
• System Contact: Input the email address of the system administrator.
• System Name: Input the router’s hostname.
• System Location: Input the physical location of the router. This is simply a string for your own information.
This allows the administrator to load new NetCloud OS onto the router to add
may not want to upgrade just because a new version is available. Check the NCOS
release notes for information to decide if you should upgrade.
Current NCOS Version: Shows the number of the current NCOS and the date it was
updated.
Available NCOS Version: If there is a
new NCOS version available, this will
list the version number. Click “Check
Again” to have the router check for
the newest OS.
Automatic NCOS Check: Automatically
check for new NCOS updates once
daily.
SYSTEM CONTROL
NETCLOUD OS
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 94
User Manual / IBR600B/IBR650B 9/5/17
Manual NCOS Upload: Upload the router OS from an attached computer. (Go
to cradlepoint.com/rmware to download the router OS.)
System Cong Save/Restore
Download Settings: Click on “Dowload Settings” to save your current
Restore Settings: Click on “Restore Settings” to restore your previous
NCOS Management
computer without rebooting between steps.
MODEM FIRMWARE
to carrier updates or defect resolution. If you are happy with the operation of the modem, you may not want to
to decide if you should upgrade or not.
within the device’s memory.
For modems supporting manual carrier switching (such as LPE), select File
Check/Upgrade or File (manual) process.
• Automatically check for new firmware: Click the checkbox to indicate whether the system is to
This global setting applies to all modems connected to the router.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 95
User Manual / IBR600B/IBR650B 9/5/17
• Select Modem: Select the
appropriate modem which you
would like to update. Note that
dual SIM devices are listed as a
single modem.
In the Installed Firmware grid, you
will see the following columns:
• Active (Multi-firmware modems
only): Indicates which carrier
package is currently active on
the modem. Note: You cannot
select the active image. On multi-
firmware modems, the carrier firmware is selected automatically.
• Carrier:
“Generic” will be displayed.
DEVICE OPTIONS
Reboot Options
• Reboot the Device: Manually restart the
router.
• Factory Reset Router: Reset the router to its
original settings. Once reset your SSID and
admin password will match the sticker on the
bottom of the router.
• Device Console: Access router’s command line
interface (CLI) console.
Scheduled Reboot
• Scheduled Reboot: Router will restart at
• Enable Watchdog Reboot: Router will restart
when it determines an unrecoverable error
condition has occurred.

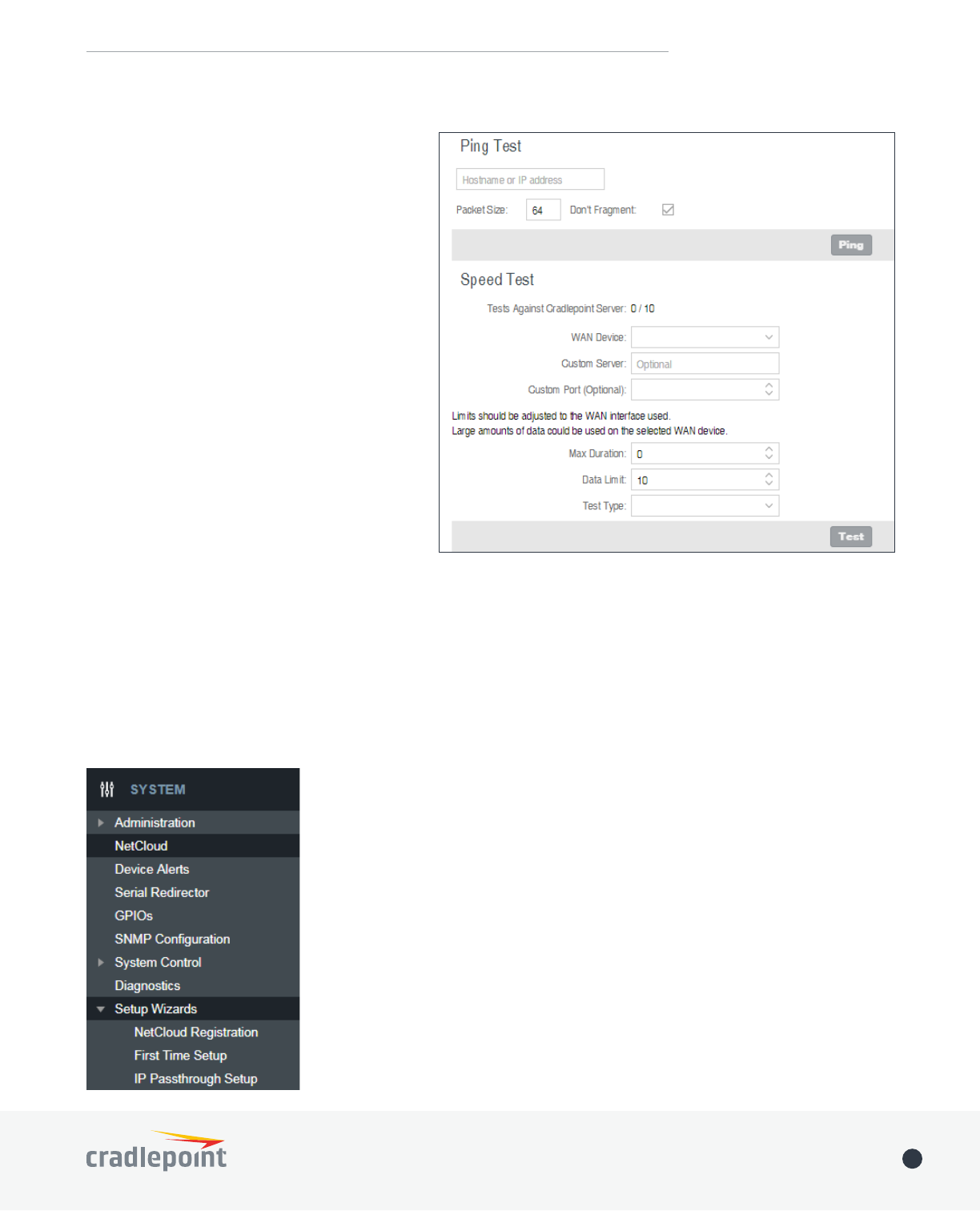

DIAGNOSTICS
Ping Test
A simple test to check Internet connectivity. Type the Hostname or IP address of the computer you want to ping
Ping’ button.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 96
User Manual / IBR600B/IBR650B 9/5/17
Speed Test
• Tests Against Cradlepoint Server - Up to
ten speed tests are permitted against a
Cradlepoint server.
• WAN Device - The WAN Device that is
selected will have the test run on it. If no
device is selected then the highest priority
connected device will be used.
• Custom Server - Type the Hostname or IP
address of the server to which you wish to
perform a test. If left empty the test will
be done to a Cradlepoint server.
• Custom Port (Optional) - The port to which
the test is directed.
• Max Duration - The Max Duration is the
Maximum amount of time for which the
• Data Limit - The Data Limit is the limit of
how much data will be transferred while
measuring the connection speed; this
should be limited to reduce the expense
of a speed test. Setting the limit to 0 will
cause the test to run until enough data is
collected or the duration limit is met.
• Test Type - Select the type of test you would like to run. TCP Upload will test speed going to the server, TCP
Download will test speed coming to the client, and UDP will measure the speed going to the server.
SETUP WIZARDS
NETCLOUD REGISTRATION
need to create an account you can signup at cradlepoint.com.
Once you’ve created an account, or if you already have one, you can enter your
NCM username and password to register the router.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 97
User Manual / IBR600B/IBR650B 9/5/17
Administrator Password and Time Zone
Enter a password for the administrator who will have full
access to the router’s management interface.
You can use the default password on the back of your
product, or you can create a custom Administrator Password.
Conguring Your Wireless Network
• Wireless Network Name - When you are browsing for
available wireless networks, this is the name that
will be broadcast from this router. This name is also
referred to as the SSID. For security purposes, it is highly
network name.
• Enable Guest Network - If the guest network is enabled,
anyone can connect to the special guest network
which allows limited connectivity to the Internet while
preventing access to your local network.
• Security Mode
• Best (WPA2): Select this option if your wireless
adapters support WPA2-only mode. This will
connect to most new devices and is the most
secure, but may not connect to older devices or
some handheld devices such as a PSP.
• Good (WPA1 & WPA2): Select this option if your
wireless adapters support WPA or WPA2. This is the
most compatible with modern devices and PCs.
• Poor (WEP): Select this option if your wireless
adapters only support WEP. This should only be used
if a legacy device that only supports WEP will be connected to the router. WEP is insecure and obsolete
and is only supported in the router for legacy reasons. The router cannot use 802.11n modes if WEP is
enabled; router WiFi performance and range will be limited.
• None (OPEN): Select this option if you do not want to activate any security features.
• WPA Password - The WPA Password must be between 8 and 64 characters long. A combination of upper
and lower case letters along with numbers and special characters is recommended to prevent hackers from
gaining access to your network.
Conguring Your APN and Modem Authentication
If you are using a SIM-based modem (LTE/GSM/HSPA) with
before it will properly connect to your carrier. Wireless
password on the back of your product, or you can create a
custom Administrator Password.
NOTE: DO NOT USE THIS APN WIZARD if you have already
be overwritten by this generic APN setup. Leave this
FIRST TIME SETUP
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 98
User Manual / IBR600B/IBR650B 9/5/17
CONNECTION MANAGER page, select your modem, and edit the settings. The SIM PIN/APN tab has more available
settings than are provided here.
authentication.
• Authentication Protocol
• Username
• Password
Enable and Congure Failure Check
Failure check will test the connection to verify the WAN
device is connected.
• Idle Check Interval: Set the number of seconds the
router will wait between checks to see if the WAN is
still available.
• Failure Check:
• Off: Once the link is established the router takes no
action to verify that it is still up.
• On: Modems will be set to use the Passive DNS
failure check type. Ethernet and WiFi as WAN
connections will be set to use Active Ping.
• Ping IP Address: This IP address must be an address
that can be reached through your WAN connection
(modem/Ethernet). Some ISPs/Carriers block certain
addresses, so choose an address that all of your WAN
connections can use.
Summary
Review your settings and click Finish to exit or Back to
edit.
IP PASSTHROUGH SETUP
IP passthrough takes a 3G/4G WAN data source (USB, ExpressCard, or Cradlepoint business-grade modem) and
passes the IP address through to Ethernet LAN.
they are compatible with how the router will be used.
• All Ethernet ports will be set to LAN
• All network groups except the primary network group will be removed
• All WAN devices will have Load Balance disabled and the highest priority device will be used
• All Wireless interfaces will be removed from the primary network group
• All Router based VPN and GRE services will be disabled
• The Routing Mode will be set to IP Passthrough
• The Subnet Selection Mode will be set to “Automatically Create Subnet” unless overridden via the Subnet
Selection Mode dropdown
Any Ethernet WAN connections should be disconnected before IP passthrough is enabled.
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 99
User Manual / IBR600B/IBR650B 9/5/17
APPENDIX A
EXTENSIBILITY DOCK
PINOUTS
Router to Dock Connector
Router to Dock Connector
Pin 1 Ethernet TX-
Pin 2 Ethernet TX+
Pin 3 Ethernet RX-
Pin 4 GND
Pin 5 Ethernet RX+
Pin 6 USB D-
Pin 7 USB D+
Pin 8 GPIO1
Pin 9 GPIO2
Pin 10 GPIO3
Pin 11 GPIO4
Pin 12 GND
Pin 13 Ignition Sense
Pin 14 Router power in/out (18 W in min; 6 W out max)
Pin 15 Router power in/out (18 W in min; 6 W out max)
This connector has four pin slots: power, ground, input, and output.
Connector pinout – view into router (rear view of cable connector):
Pin Definition Details Wire Color
1 Ground - Black
2Power 9-33 V DC Red
3 Input 3.4 V input high threshold (33 V tolerant) Orange
4 Output capable of sinking 250 mA Blue
POWER/GPIO CONNECTOR
PINOUTS
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 100
User Manual / IBR600B/IBR650B 9/5/17
2x10 Dock GPIO Connector
2x10 Dock GPIO Connector
Pin 1 Router+Dock power - input only (24 W min)
Pin 2 Router+Dock power - input only (24 W min)
Pin 3 Reserved
Pin 4 Reserved
Pin 5 GPI (ignition sense)
Pin 6 GPIO1
Pin 7 GPIO2
Pin 8 GPIO3
Pin 9 GPIO4
Pin 10 Low current 5 V output (50 mA max)
Pin 11-20 Ground
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 101
User Manual / IBR600B/IBR650B 9/5/17
GPIO CABLE
• Ignition Sense threshold: max 3.4 V,
protected to 33 V
• GPIOs: LLTL compatible, protected
to 33 V
©2017 Cradlepoint. All Rights Reserved. | +1.855.813.3385 | cradlepoint.com 102
User Manual / IBR600B/IBR650B 9/5/17
WARRANTY INFORMATION
Cradlepoint, Inc. warrants this product against defects in materials and workmanship to the original purchaser for a period of three
(3) years from the date of shipment. This warranty is limited to a repair or replacement of the product, at Cradlepoint’s discretion, as
purchaser’s sole and exclusive remedy. Cradlepoint does not warrant that the operation of the device will meet your requirements or be
error free.
LIMITATION OF CRADLEPOINT LIABILITY
The information contained in this Safety, Regulatory, and Warranty Guide is subject to change without notice and does not represent
FOR ANY AND ALL: (A) DIRECT, INDIRECT, SPECIAL, GENERAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR EXEMPLARY DAMAGES, INCLUDING
WITHOUT LIMITATION FOR LOSS OF PROFITS OR REVENUE OR OF ANTICIPATED PROFITS OR REVENUE ARISING OUT OF THE USE OR INABILITY
TO USE THE DEVICE, EVEN IF CRADLEPOINT AND/OR ITS AFFILIATES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, AND EVEN
IF SUCH DAMAGES ARE FORESEEABLE; OR (B) CLAIMS BY ANY THIRD PARTY. NOTWITHSTANDING THE FOREGOING, IN NO EVENT SHALL THE
AGGREGATE LIABILITY OF CRADLEPOINT AND/OR ITS AFFILIATES ARISING UNDER OR IN CONNECTION WITH THE DEVICE, REGARDLESS OF THE
NUMBER OF EVENTS, OCCURRENCES, OR CLAIMS GIVING RISE TO LIABILITY, EXCEED THE PRICE PAID BY THE ORIGINAL PURCHASER OF THE
DEVICE.
PRIVACY
Cradlepoint collects general data pertaining to the use of Cradlepoint products via the Internet including, by way of example, IP address,
device ID, operating system, browser type and version number, etc. To review Cradlepoint’s privacy policy, please visit cradlepoint.com/
privacy.
OTHER BINDING DOCUMENTS; TRADEMARKS; COPYRIGHT
By activating or using your IBR600B or IBR650B device, you agree to be bound by Cradlepoint’s Terms of Use, User License and other
applicable Legal Policies.
© 2017 Cradlepoint, Inc. All rights reserved. Cradlepoint is not responsible for omissions or errors in typography or photography.
Cradlepoint, IBR600B, IBR650B, and the Cradlepoint logo are trademarks of Cradlepoint, Inc. in the US and other countries. Other
trademarks are property of their respective owners.
OPEN SOURCE SOFTWARE
This product contains software distributed under one or more of the following open source licenses: GNU General Public License Version
2, BSD License, Net-SNMP License, and PSF License Agreement for Python 3.3. For more information on this software, including licensing
terms and your rights to access source code, contact Cradlepoint at cradlepoint.com/opensource.
ROUTER COMMUNICATION/DATA USAGE
access the latest NetCloud OS and modem updates, clock synchronization (NTP), and NetCloud Manager (NCM) membership. Such
communication may result in data usage and applicable charges regardless of whether the router uses a wired or wireless Internet
connection. To avoid such data usage and potential charges, consult the following Knowledge Base article:
http://knowledgebase.cradlepoint.com/articles/support/router-communication-data-usage
APPENDIX B
