CVT
User Manual: cvt
Open the PDF directly: View PDF
.
Page Count: 208 [warning: Documents this large are best viewed by clicking the View PDF Link!]
- QUICK REFERENCE INDEX
- Table of Contents
- INDEX FOR DTC
- PRECAUTIONS
- PREPARATION
- CVT FLUID
- CVT SYSTEM
- ON BOARD DIAGNOSTIC (OBD) SYSTEM
- TROUBLE DIAGNOSIS
- DTC Inspection Priority Chart
- Fail-Safe
- FAIL-SAFE FUNCTION
- Output Speed Sensor (Secondary Speed Sensor)
- Input Speed Sensor (Primary Speed Sensor)
- PNP Switch
- CVT Fluid Temperature Sensor
- Transmission Fluid Pressure Sensor A (Secondary Pressure Sensor)
- Pressure Control Solenoid A (Line Pressure Solenoid)
- Pressure Control Solenoid B (Secondary Pressure Solenoid)
- Torque Converter Clutch Solenoid
- Step Motor
- CVT Lock-Up Select Solenoid
- FAIL-SAFE FUNCTION
- How To Perform Trouble Diagnosis For Quick and Accurate Repair
- CVT Electrical Parts Location
- Circuit Diagram
- Inspections Before Trouble Diagnosis
- Vehicle Speed When Shifting Gears
- TCM Input/Output Signal Reference Values
- CONSULT-II
- Diagnostic Procedure Without CONSULT-II
- DTC U1000 CAN COMMUNICATION LINE
- DTC P0615 START SIGNAL CIRCUIT
- DTC P0703 STOP LAMP SWITCH CIRCUIT
- DTC P0705 PARK/NEUTRAL POSITION SWITCH
- DTC P0710 CVT FLUID TEMPERATURE SENSOR CIRCUIT
- DTC P0715 INPUT SPEED SENSOR CIRCUIT (PRI SPEED SENSOR)
- DTC P0720 VEHICLE SPEED SENSOR CVT (SECONDARY SPEED SENSOR)
- DTC P0725 ENGINE SPEED SIGNAL
- DTC P0730 BELT DAMAGE
- DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE
- DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)
- DTC P0745 LINE PRESSURE SOLENOID VALVE
- DTC P0746 PRESSURE CONTROL SOLENOID A PERFORMANCE (LINE PRESSURE SOLENOID VALVE)
- DTC P0776 PRESSURE CONTROL SOLENOID B PERFOMANCE (SEC PRESSURE SOLENOID VALVE)
- DTC P0778 PRESSURE CONTROL SOLENOID B ELECTRICAL (SEC PRESSURE SOLENOID VALVE)
- DTC P0840 TRANSMISSION FLUID PRESSURE SENSOR A CIRCUIT (SEC PRESSURE SENSOR)
- DTC P0841 PRESSURE SENSOR FUNCTION
- DTC P0845 TRANSMISSION FLUID PRESSURE SENSOR B CIRCUIT (PRI PRESSURE SENSOR)
- DTC P0868 SECONDARY PRESSURE DOWN
- DTC P1701 TRANSMISSION CONTROL MODULE (POWER SUPPLY)
- DTC P1705 THROTTLE POSITION SENSOR
- DTC P1722 ESTM VEHICLE SPEED SIGNAL
- DTC P1723 CVT SPEED SENSOR FUNCTION
- DTC P1726 ELECTRIC THROTTLE CONTROL SYSTEM
- DTC P1740 LOCK-UP SELECT SOLENOID VALVE CIRCUIT
- DTC P1745 LINE PRESSURE CONTROL
- DTC P1777 STEP MOTOR - CIRCUIT
- DTC P1778 STEP MOTOR - FUNCTION
- SECOND POSITION SWITCH
- TROUBLE DIAGNOSIS FOR SYMPTOMS
- SHIFT CONTROL SYSTEM
- CVT SHIFT LOCK SYSTEM
- AIR BREATHER HOSE
- DIFFERENTIAL SIDE OIL SEAL
- CVT FLUID COOLER VALVE
- TRANSAXLE ASSEMBLY
- SERVICE DATA AND SPECIFICATIONS (SDS)
- JOINT CONNECTOR (J/C)
- ELECTRICAL UNITS
- SUPER MULTIPLE JUNCTION (SMJ)
- FUSE BLOCK - JUNCTION BOX (J/B)
- FUSE, FUSIBLE LINK AND RELAY BOX
CVT-1
CVT
C TRANSMISSION/TRANSAXLE
CONTENTS
D
E
F
G
H
I
J
K
L
M
SECTION CVT A
B
CVT
Revision; 2004 April 2003 Murano
CVT
INDEX FOR DTC ........................................................ 6
Alphabetical Index .................................................... 6
DTC No. Index ......................................................... 7
PRECAUTIONS .......................................................... 8
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 8
Precautions for TCM and CVT Assembly Replace-
ment ......................................................................... 8
EEPROM ERASING PATTERNS .......................... 8
METHOD FOR ERASING THE EEPROM IN THE
TCM ...................................................................... 8
METHOD FOR WRITING DATA FROM THE
ROM ASSEMBLY IN THE TRANSMISSION ........ 9
CHECK METHOD ................................................. 9
Removal and Installation Procedure for CVT Unit
Connector ................................................................. 9
REMOVAL ............................................................. 9
INSTALLATION ..................................................... 9
Precautions ............................................................ 10
Service Notice or Precautions .................................11
OBD-II SELF-DIAGNOSIS ...................................11
Wiring Diagrams and Trouble Diagnosis .................11
PREPARATION ......................................................... 12
Special Service Tools ............................................. 12

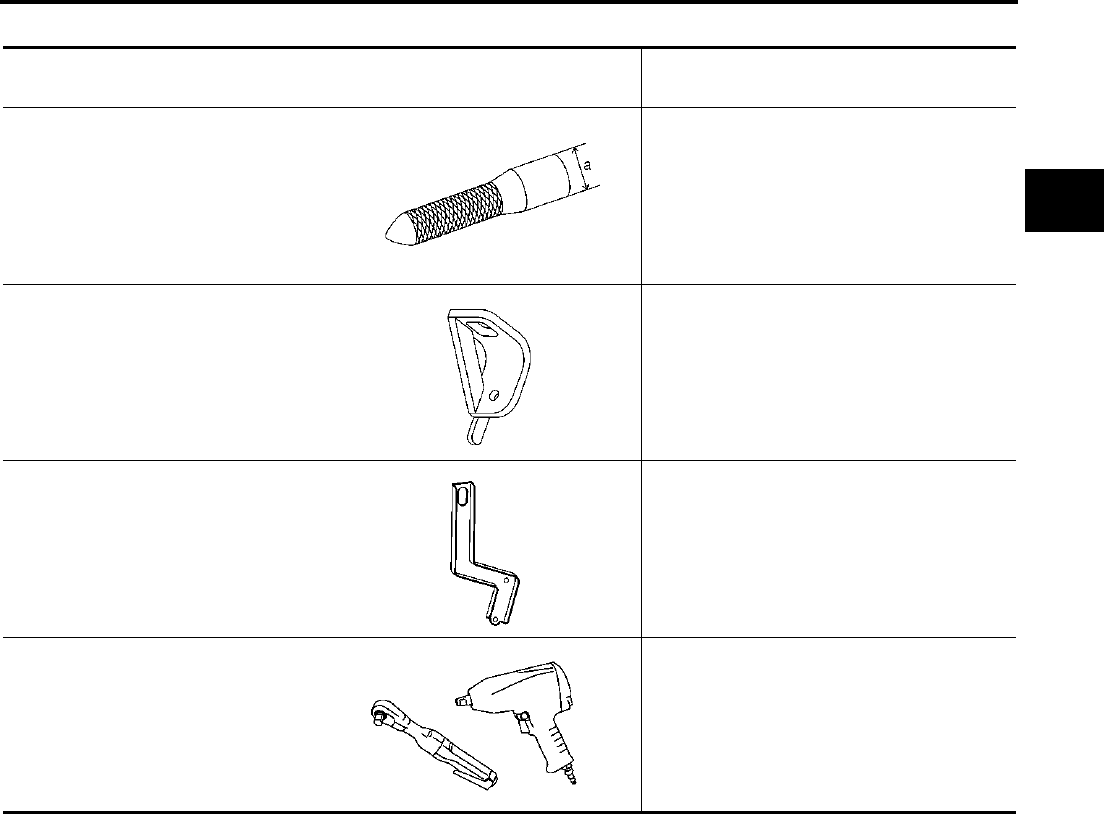

Commercial Service Tools ...................................... 13
CVT FLUID ............................................................... 14
Checking CVT Fluid ............................................... 14
FLUID LEVEL CHECK ........................................ 14
FLUID CONDITION CHECK ............................... 15
Changing CVT Fluid ............................................... 15
CVT SYSTEM ........................................................... 16

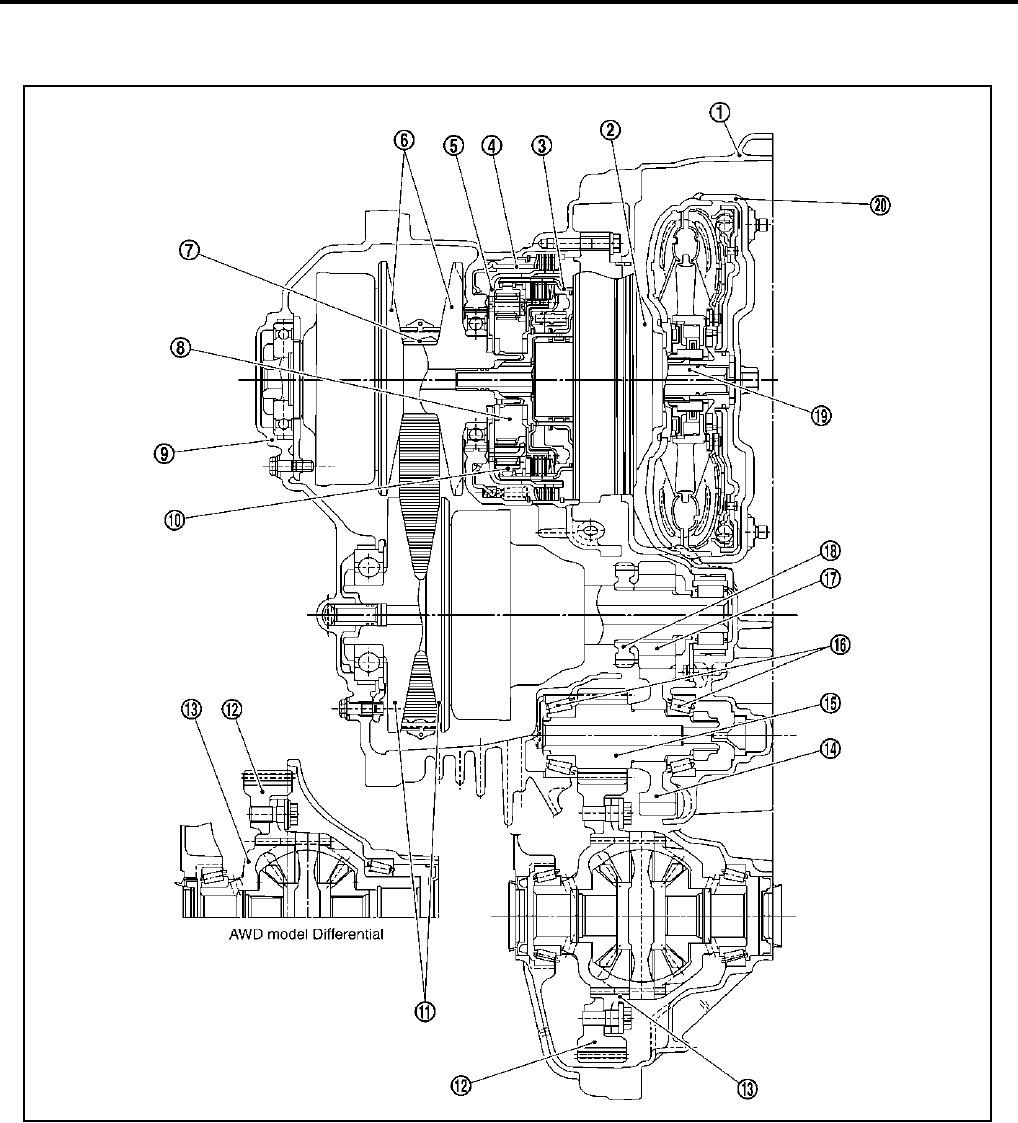

Cross-Sectional View - RE0F09A .......................... 16

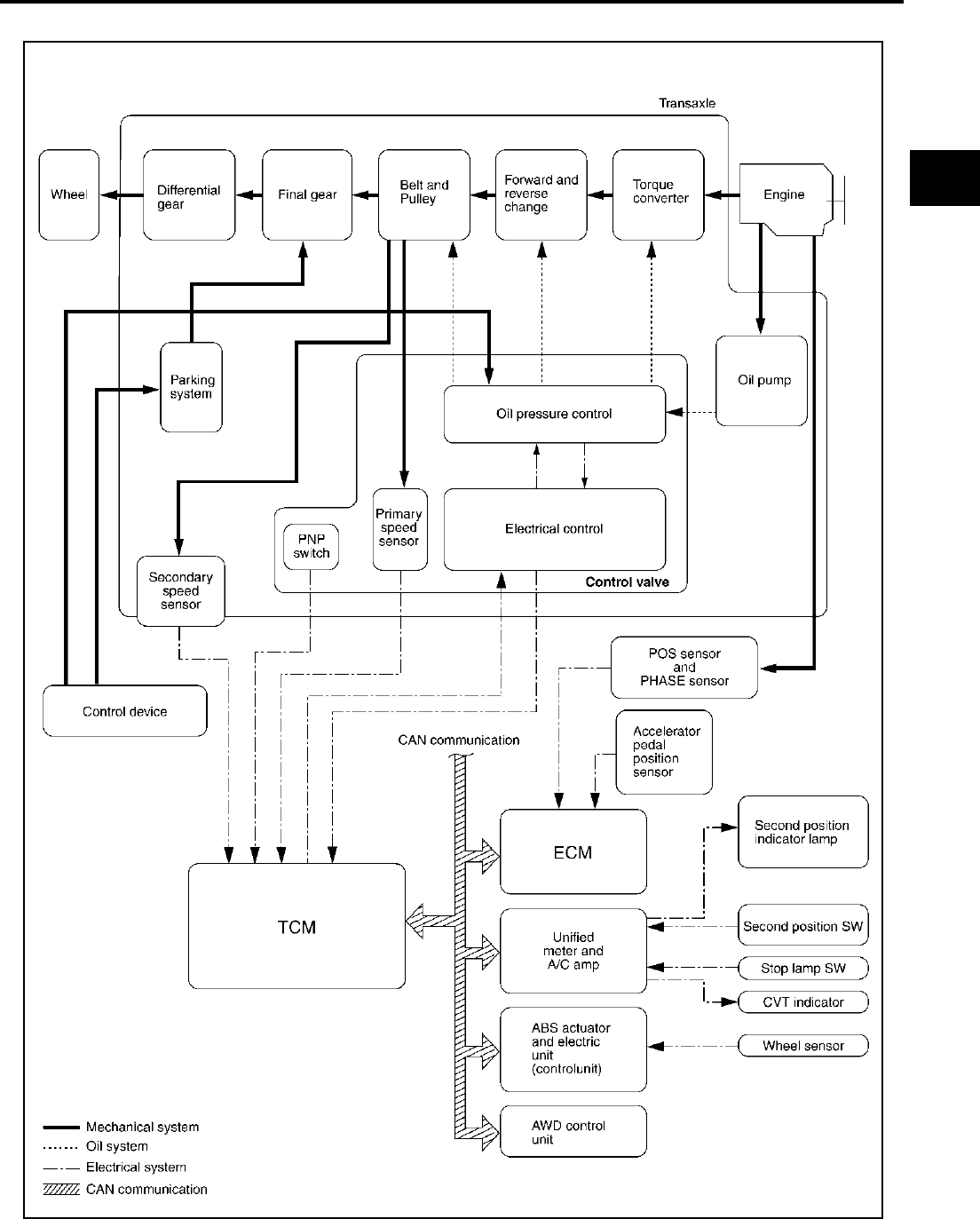

Control System ....................................................... 17
Hydraulic Control System ....................................... 18
TCM Function ......................................................... 19
CONTROL SYSTEM OUTLINE .......................... 19

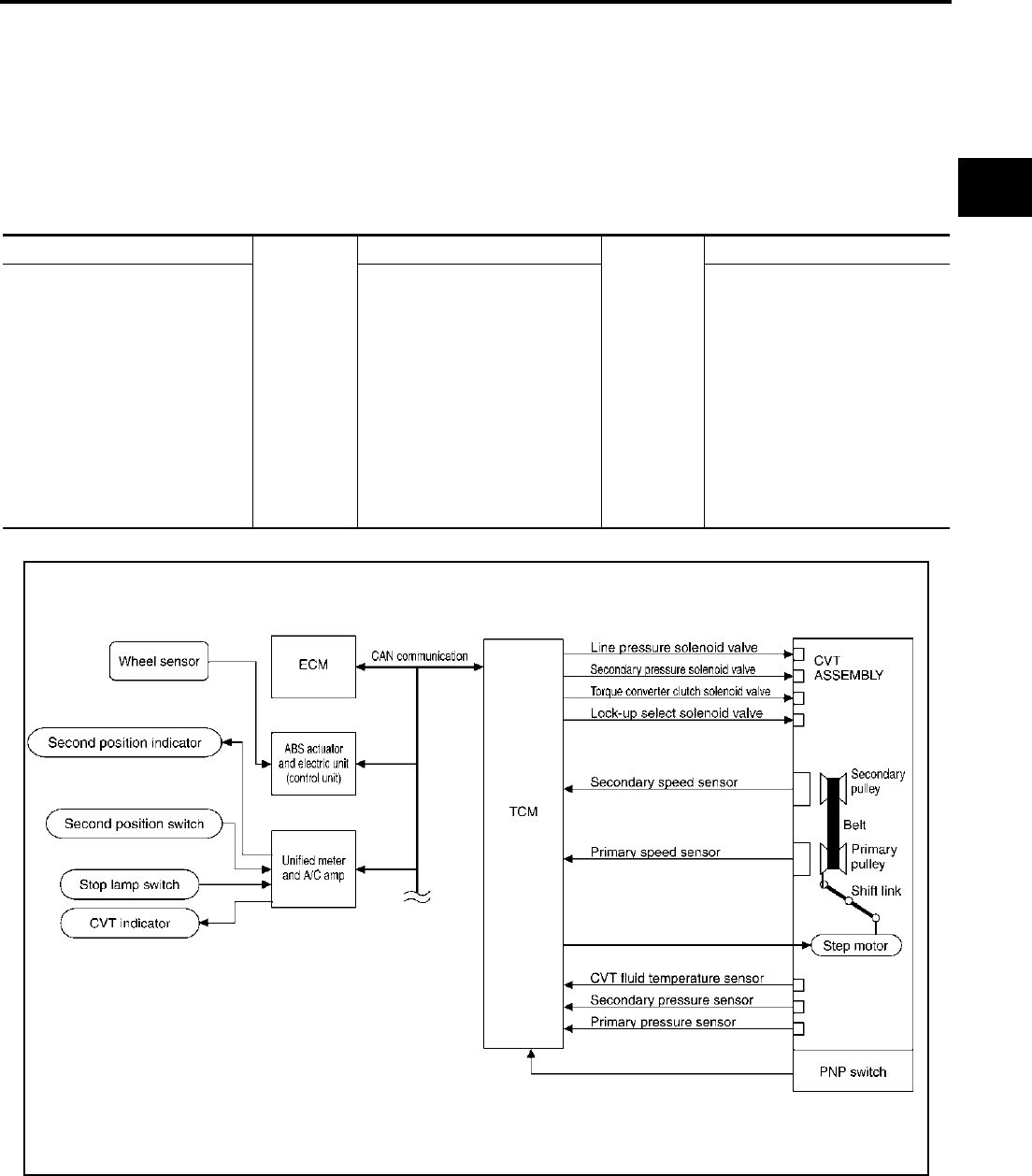

CONTROL SYSTEM DIAGRAM ......................... 19

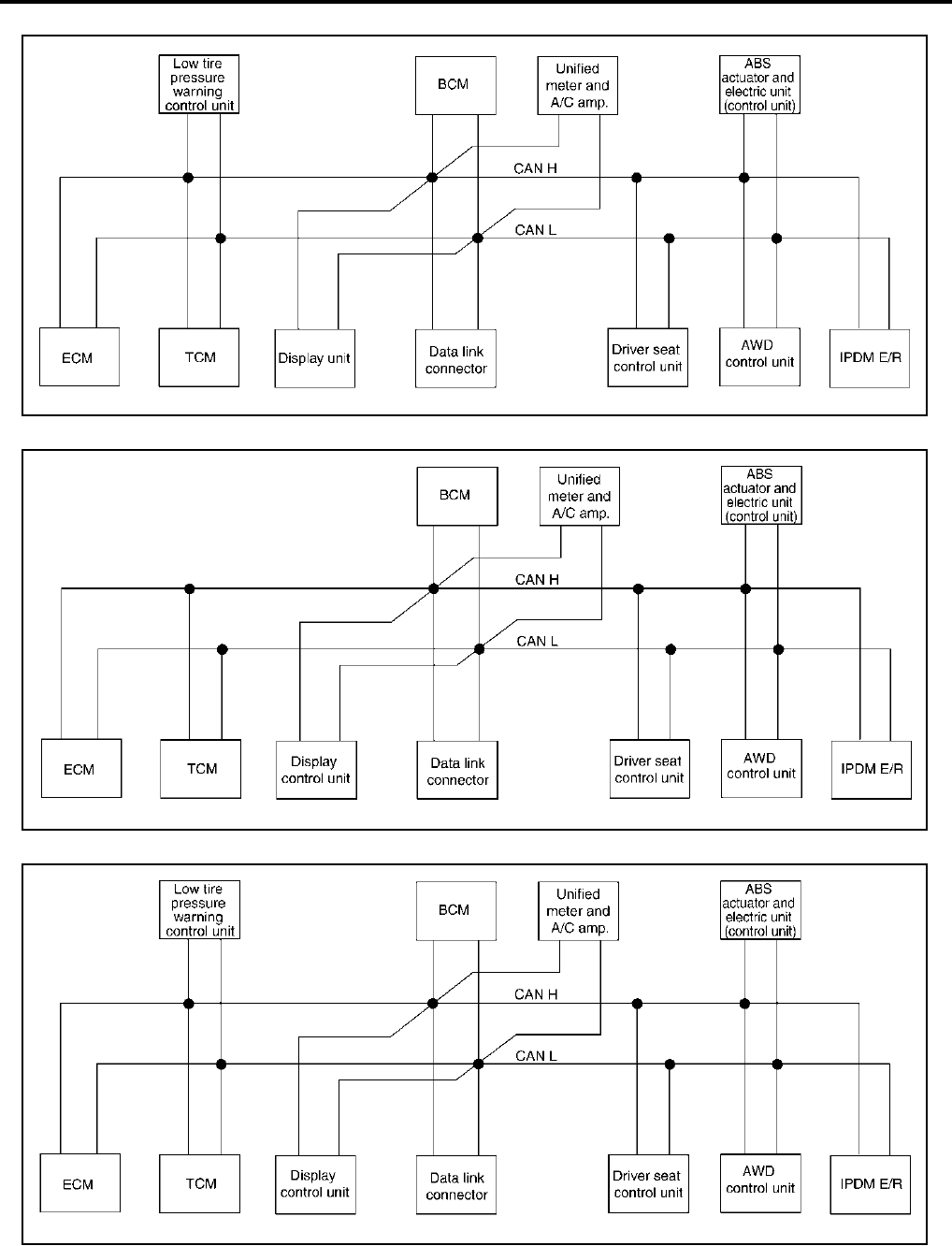

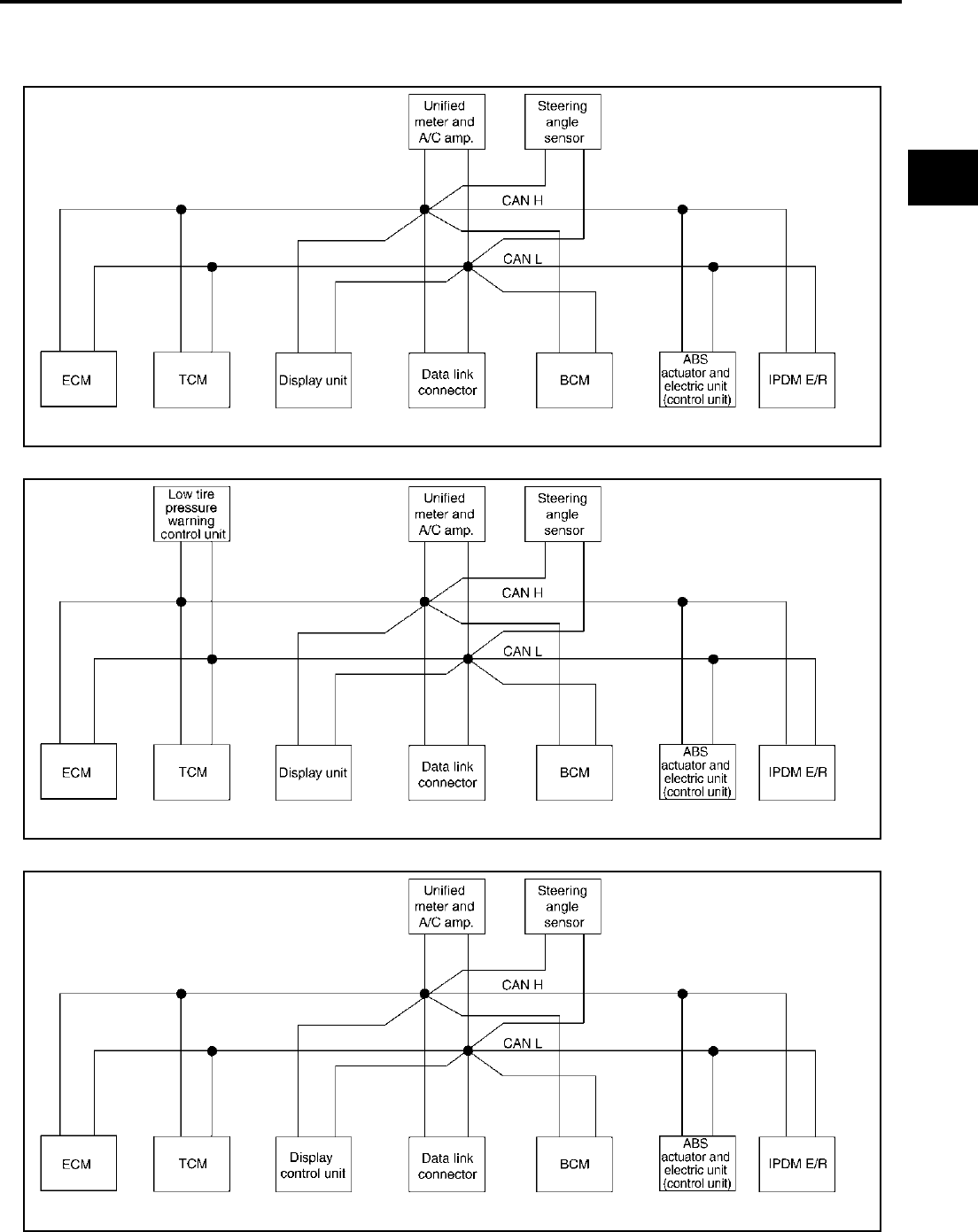

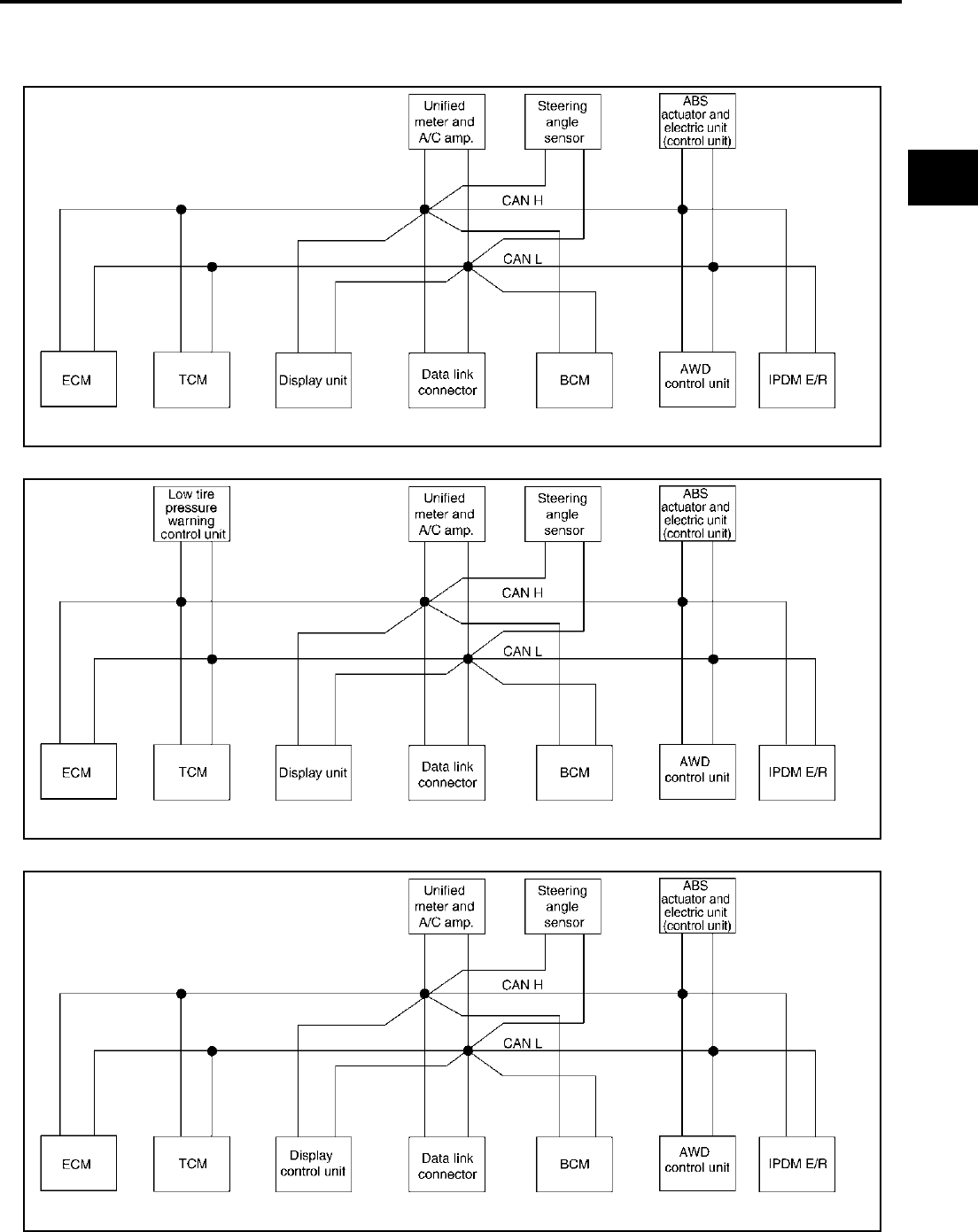

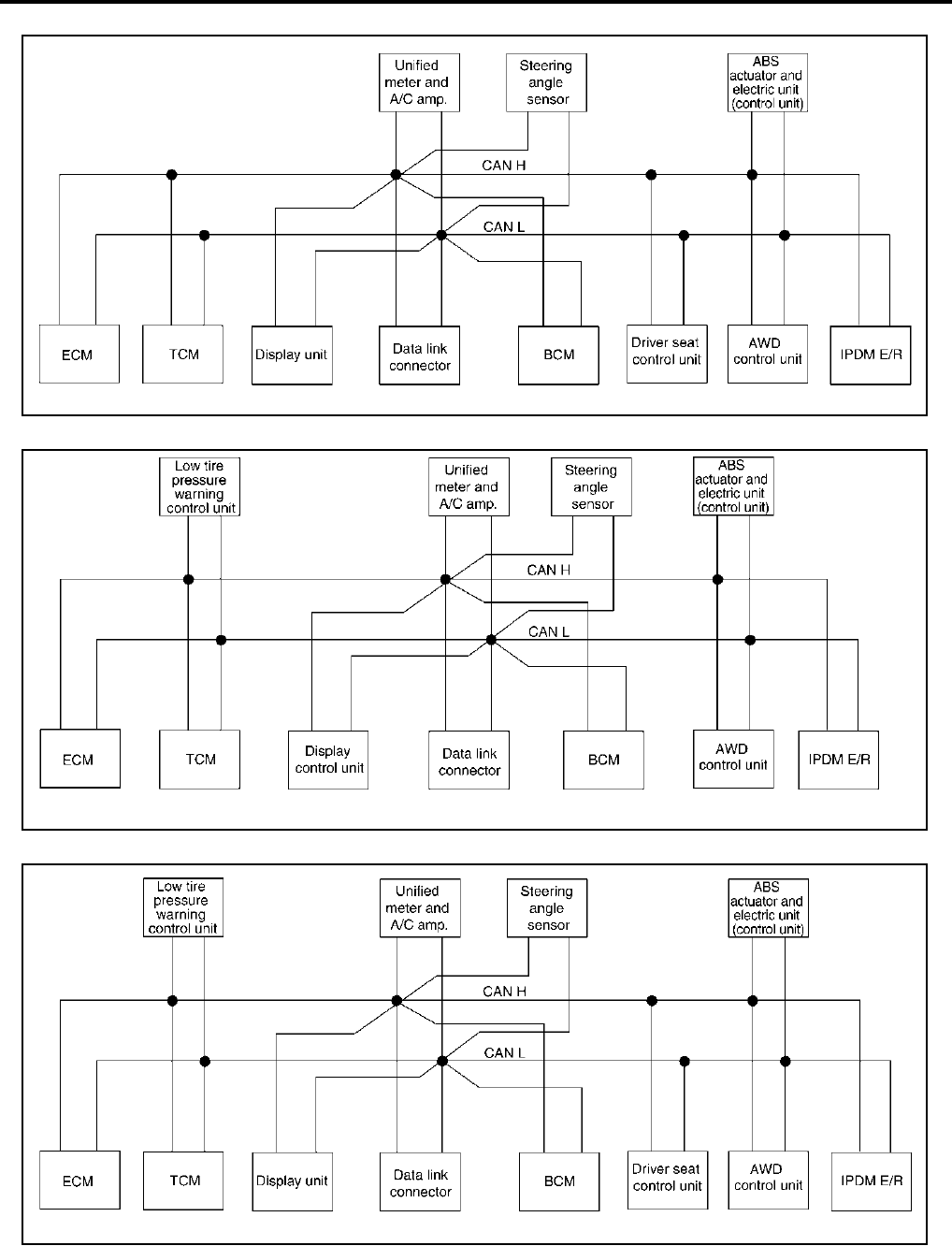

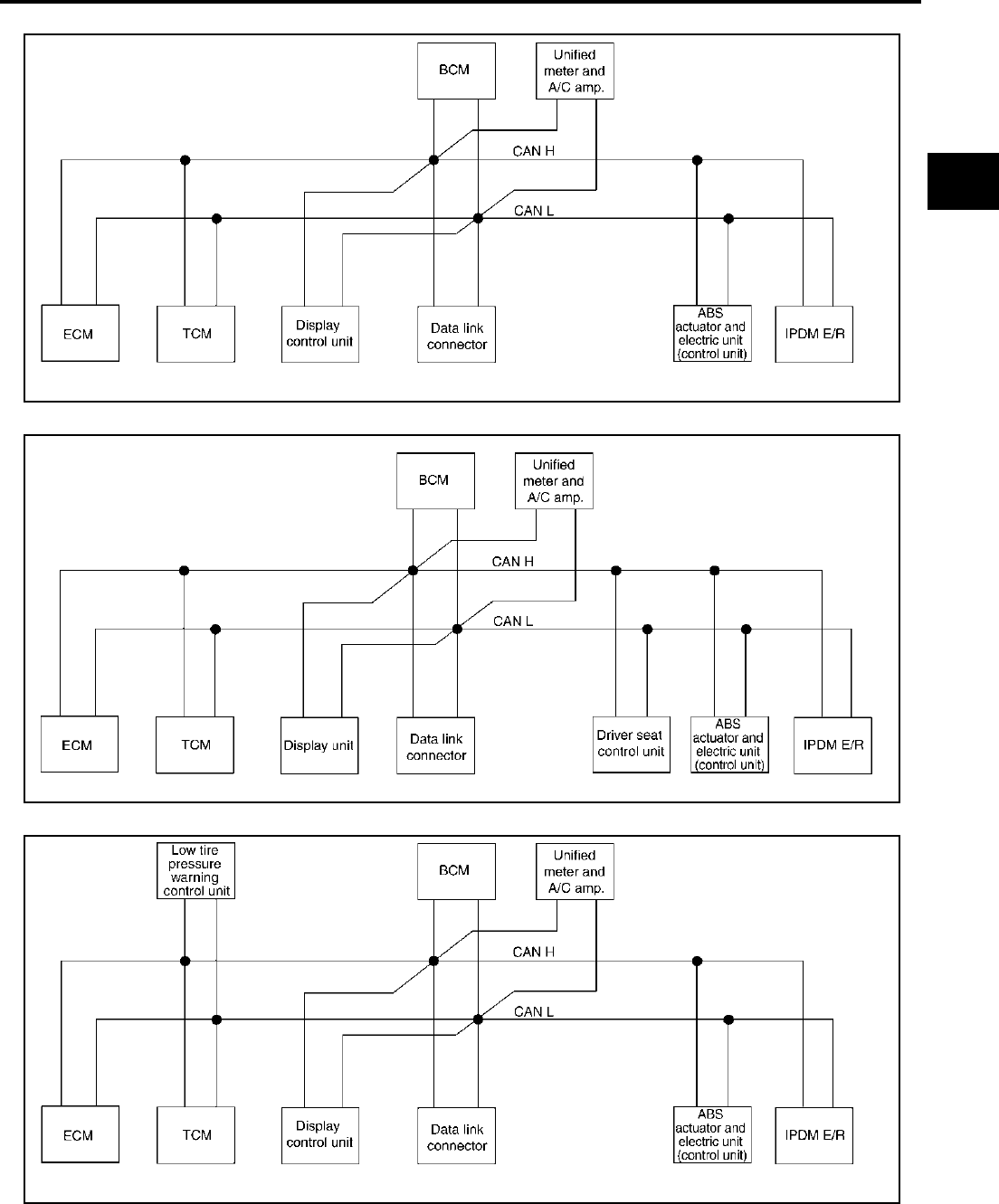

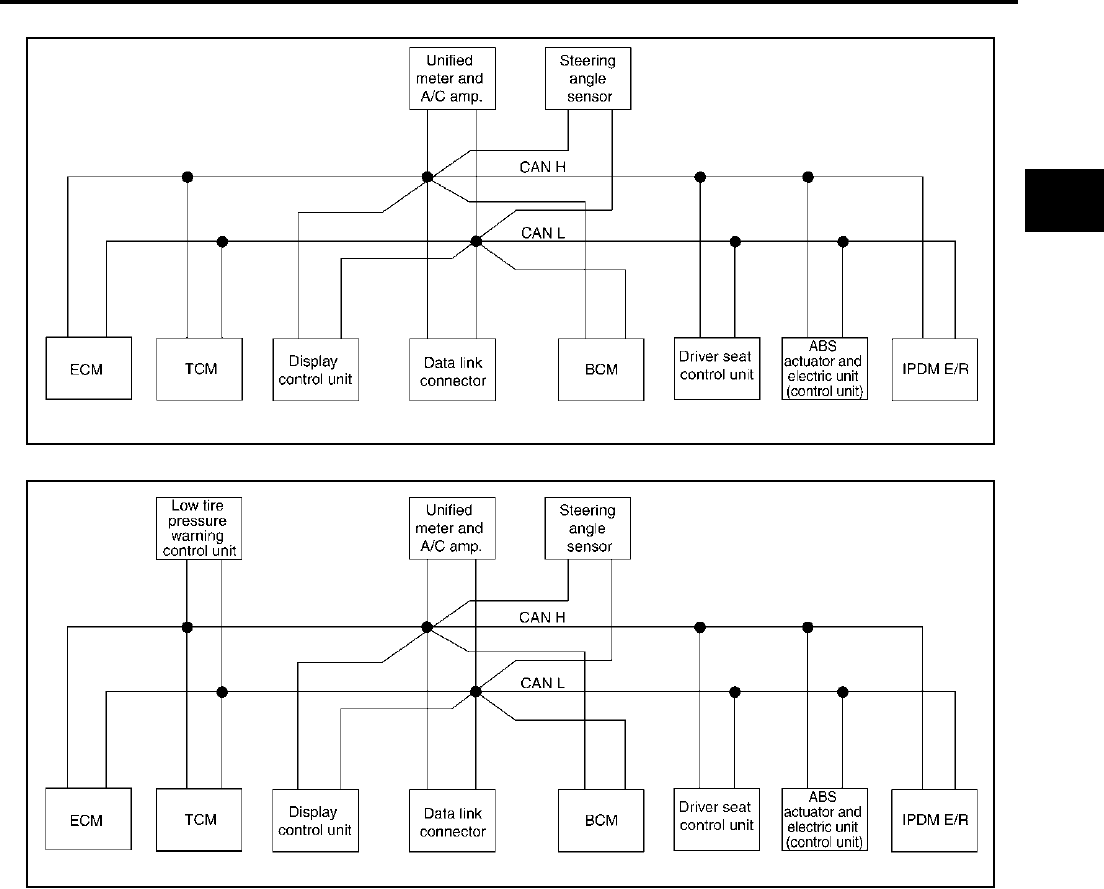

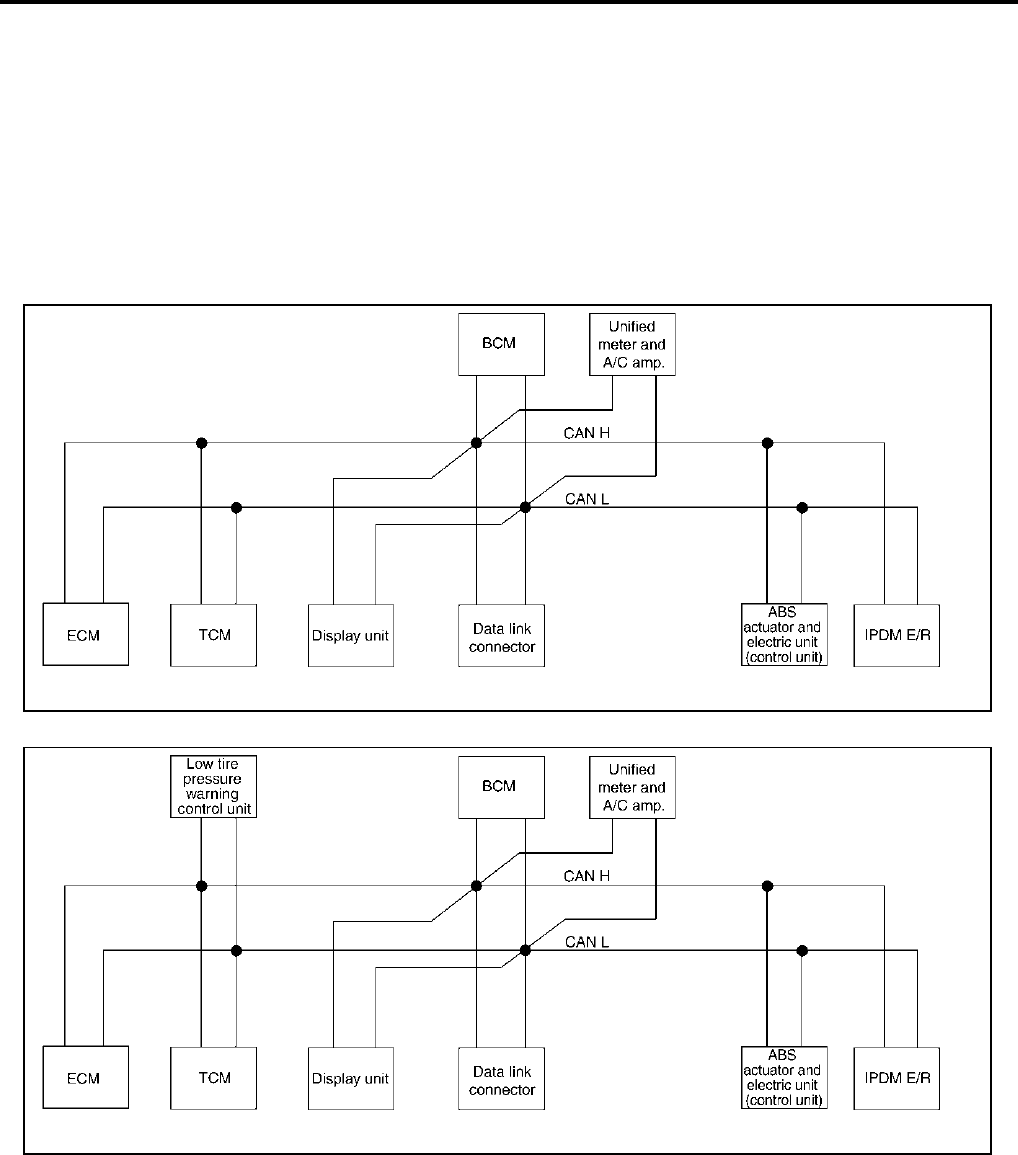

CAN Communication Unit For 2WD Models .......... 20
SYSTEM DESCRIPTION .................................... 20
TYPE 1/TYPE 2/TYPE 3/TYPE 4/TYPE 5/TYPE
6/TYPE 7/TYPE 8 ................................................ 20
TYPE 9/TYPE10/TYPE 11/TYPE 12/TYPE 13/
TYPE 14/TYPE 15/TYPE 16 ............................... 25

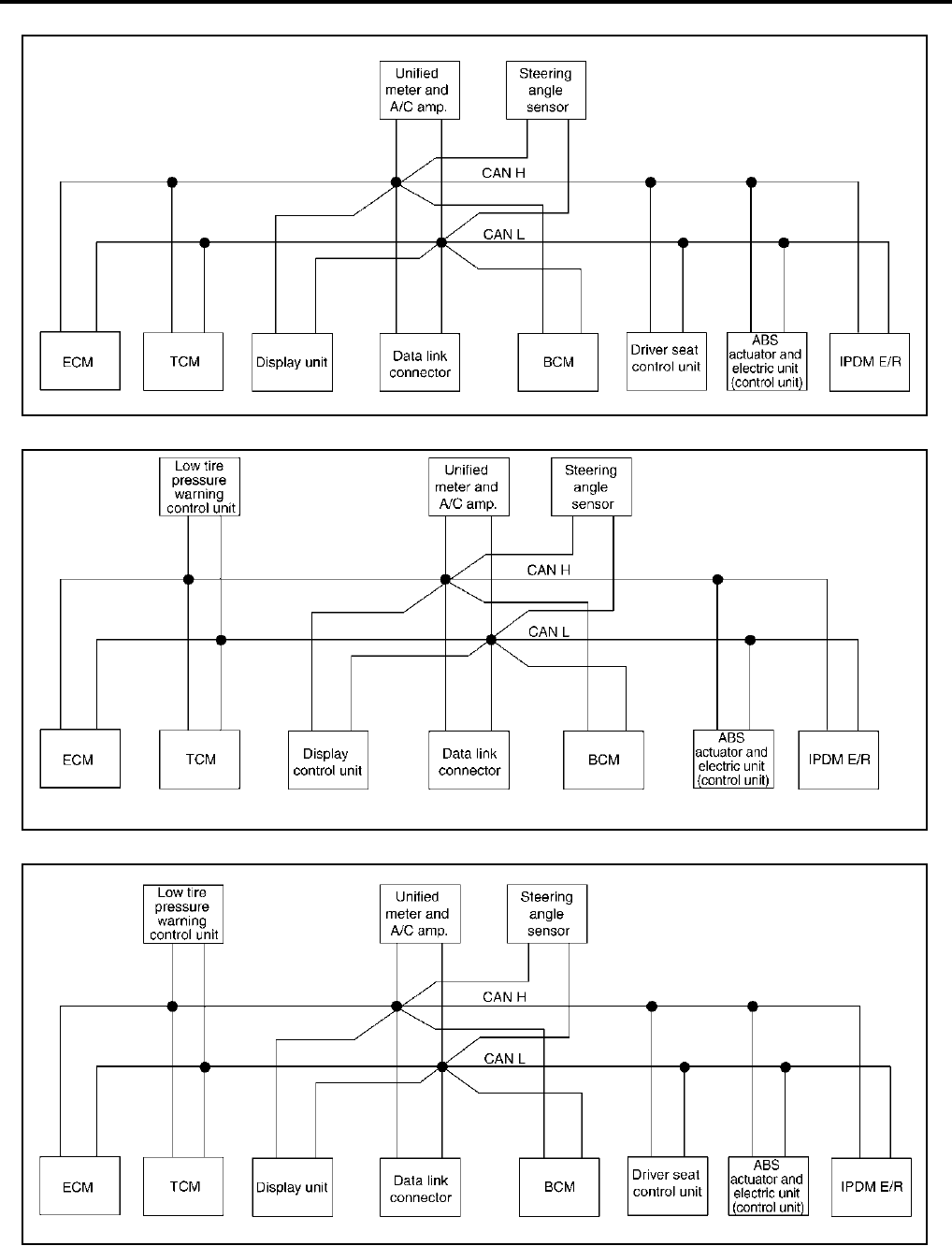

CAN Communication Unit For AWD Models .......... 30
SYSTEM DESCRIPTION .................................... 30
TYPE 17/TYPE 18/TYPE 19/TYPE 20/TYPE 21/
TYPE 22/TYPE 23/TYPE 24 ............................... 30
TYPE 25/TYPE26/TYPE 27/TYPE 28/TYPE 29/
TYPE 30/TYPE 31/TYPE 32 ............................... 35
Input/Output Signal of TCM .................................... 40
Line Pressure and Secondary Pressure Control .... 40
NORMAL CONTROL .......................................... 41
FEEDBACK CONTROL ...................................... 41
Shift Control ............................................................ 41
“D” POSITION ..................................................... 41
“S”POSITION ...................................................... 41
“L” POSITION ...................................................... 42
DOWNHILL ENGINE BRAKE CONTROL (AUTO
ENGINE BRAKE CONTROL) .............................. 42
KICKDOWN CONTROL ...................................... 42

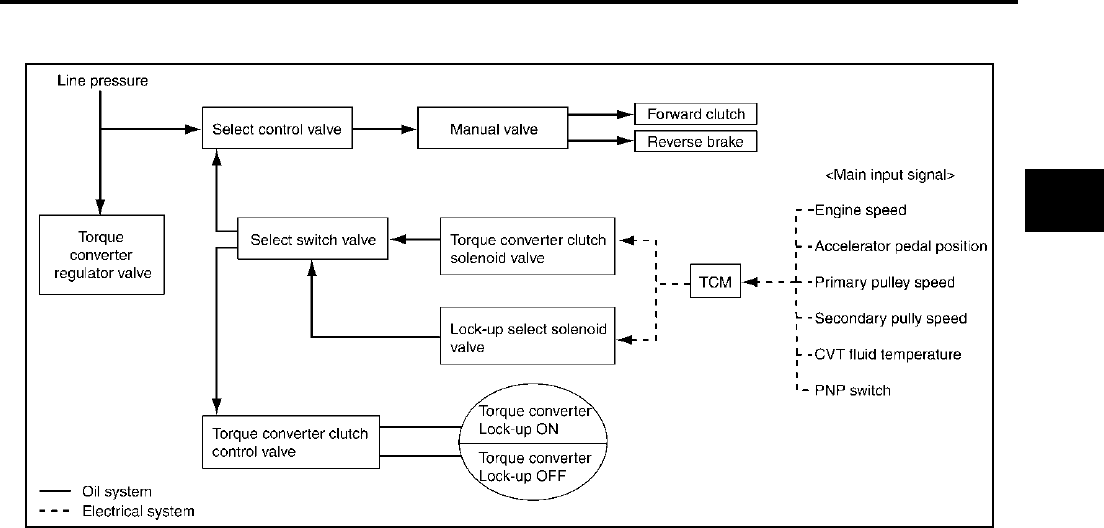

Lock-Up and Select Control .................................... 42
TORQUE CONVERTER CLUTCH AND SELECT
CONTROL VALVE CONTROL ............................ 43
Control Valve .......................................................... 44
FUNCTION OF CONTROL VALVE ..................... 44
ON BOARD DIAGNOSTIC (OBD) SYSTEM ............ 45
Introduction ............................................................. 45
OBD-II Function for CVT System ........................... 45
One or Two Trip Detection Logic of OBD-II ............ 45
ONE TRIP DETECTION LOGIC ......................... 45
TWO TRIP DETECTION LOGIC ......................... 45
OBD-II Diagnostic Trouble Code (DTC) ................. 45
HOW TO READ DTC AND 1ST TRIP DTC ......... 45
HOW TO ERASE DTC ........................................ 46
HOW TO ERASE DTC (WITH CONSULT-II) ....... 47
HOW TO ERASE DTC (WITH GST) ................... 47
Malfunction Indicator Lamp (MIL) ........................... 48
DESCRIPTION .................................................... 48
TROUBLE DIAGNOSIS ............................................ 49
CVT-2
Revision; 2004 April 2003 Murano
DTC Inspection Priority Chart .................................49
Fail-Safe ................................................................. 49
FAIL-SAFE FUNCTION ....................................... 49
How To Perform Trouble Diagnosis For Quick and
Accurate Repair ...................................................... 50
INTRODUCTION ................................................. 50

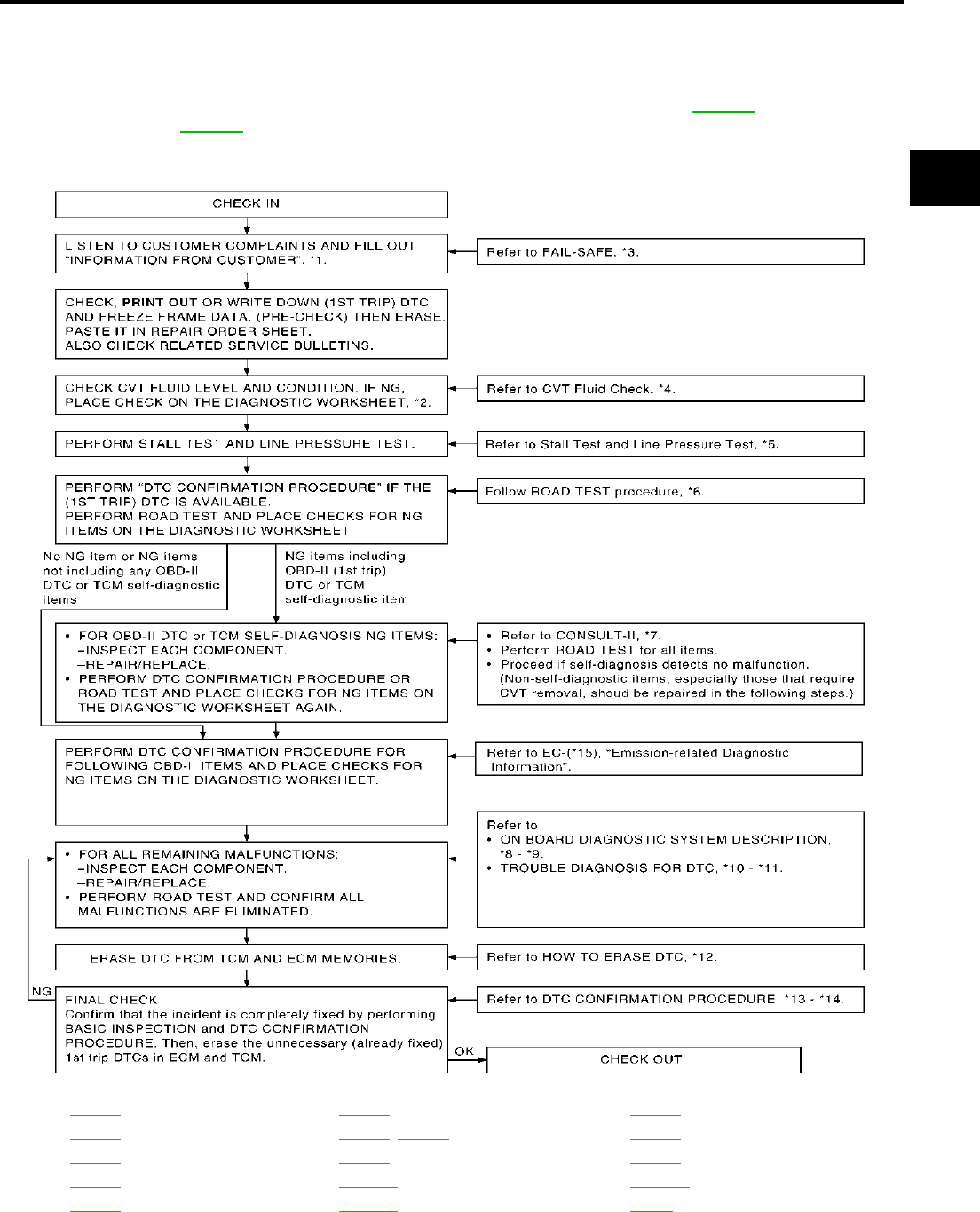

WORK FLOW ...................................................... 51
DIAGNOSTIC WORKSHEET .............................. 52
CVT Electrical Parts Location .................................54

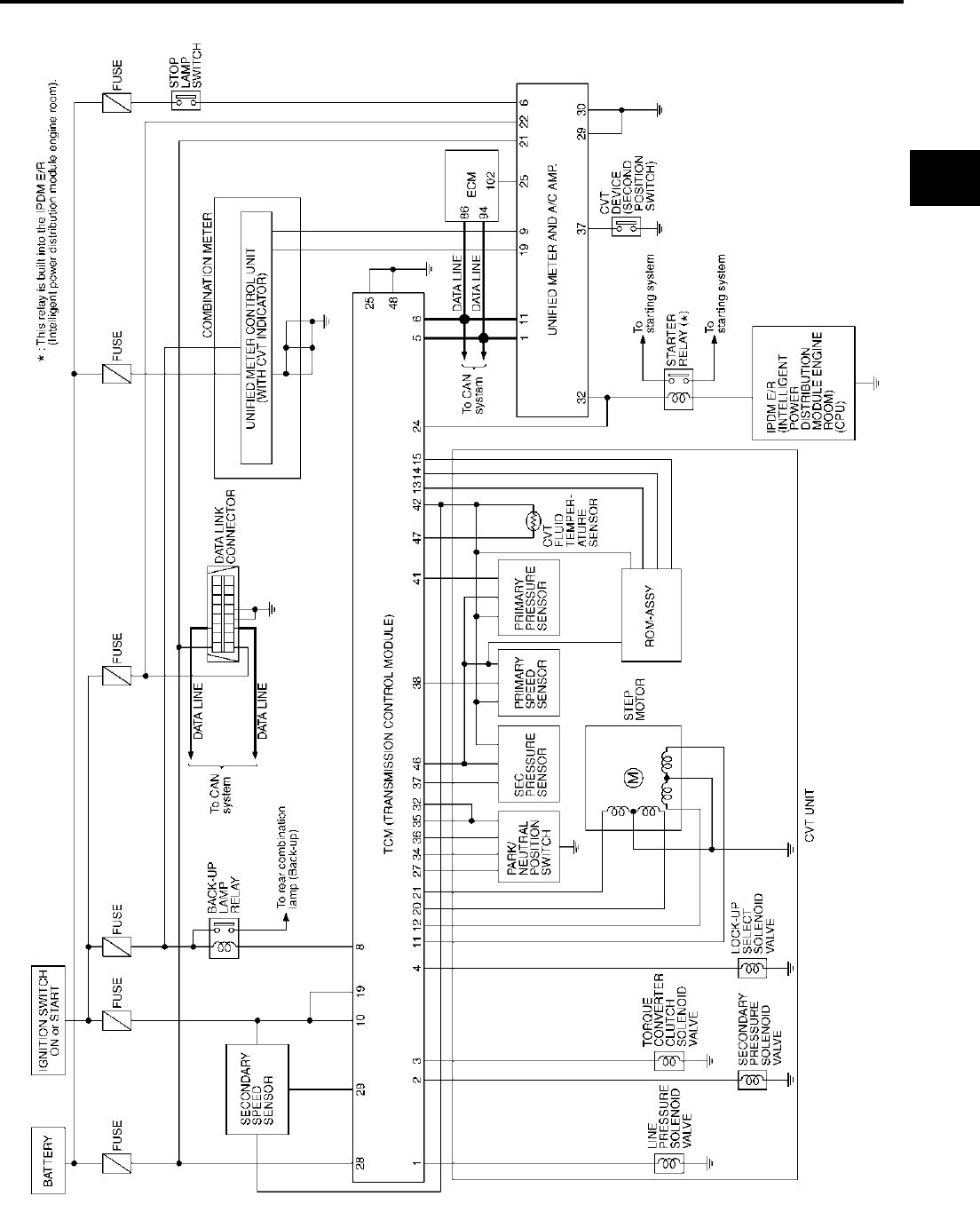

Circuit Diagram ....................................................... 55
Inspections Before Trouble Diagnosis .................... 56
CVT FLUID CHECK ............................................ 56
STALL TEST ........................................................ 56
LINE PRESSURE TEST ...................................... 57
ROAD TEST ........................................................ 59
Vehicle Speed When Shifting Gears ...................... 62
TCM Input/Output Signal Reference Values ........... 63
TCM TERMINAL CONNECTOR LAYOUT .......... 63
TCM INSPECTION TABLE .................................. 63
CONSULT-II ............................................................ 66

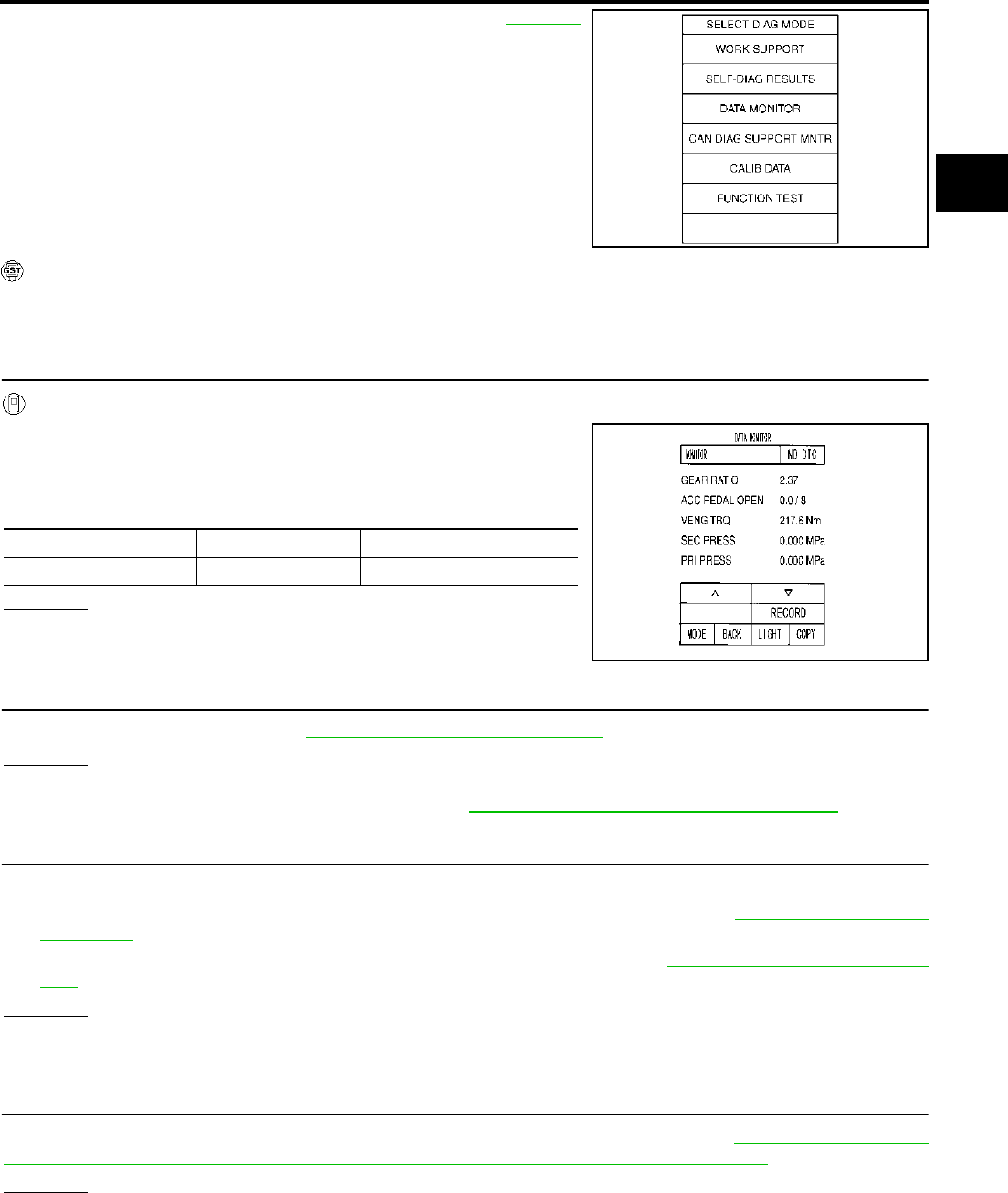

FUNCTION .......................................................... 66
WORK SUPPORT MODE WITH CONSULT-II .... 66
SELF-DIAGNOSTIC PROCEDURE (WITH
CONSULT-II) ....................................................... 70
Diagnostic Procedure Without CONSULT-II ........... 75
OBD-II SELF-DIAGNOSTIC PROCEDURE
(WITH GST) ......................................................... 75
DTC U1000 CAN COMMUNICATION LINE ..............76
Description .............................................................. 76
On Board Diagnosis Logic ...................................... 76
Possible Cause ....................................................... 76
DTC Confirmation Procedure ................................. 76
WITH CONSULT-II .............................................. 76
WITH GST ........................................................... 76
Wiring Diagram — CVT — CAN ............................. 77
Diagnostic Procedure ............................................. 78
DTC P0615 START SIGNAL CIRCUIT .....................79
Description .............................................................. 79
On Board Diagnosis Logic ...................................... 79
Possible Cause ....................................................... 79
DTC Confirmation Procedure ................................. 79
WITH CONSULT-II .............................................. 79
Wiring Diagram — CVT — STSIG .......................... 80
Diagnostic Procedure ............................................. 81
DTC P0703 STOP LAMP SWITCH CIRCUIT ........... 83
Description .............................................................. 83
On Board Diagnosis Logic ...................................... 83
Possible Cause ....................................................... 83
DTC Confirmation Procedure ................................. 83
WITH CONSULT-II .............................................. 83
Diagnostic Procedure ............................................. 83
DTC P0705 PARK/NEUTRAL POSITION SWITCH ...85
Description .............................................................. 85
On Board Diagnosis Logic ...................................... 85
Possible Cause ....................................................... 85
DTC Confirmation Procedure ................................. 85
WITH CONSULT-II .............................................. 85
WITH GST ........................................................... 85
Wiring Diagram — CVT — PNP/SW ...................... 86
Diagnostic Procedure ..............................................87
Component Inspection ............................................89
PNP SWITCH ......................................................89
DTC P0710 CVT FLUID TEMPERATURE SENSOR
CIRCUIT ....................................................................90
Description ..............................................................90
CONSULT-II Reference Value .................................90
On Board Diagnosis Logic ......................................90
Possible Cause .......................................................90
DTC Confirmation Procedure ..................................90
WITH CONSULT-II ...............................................90
WITH GST ...........................................................90
Wiring Diagram - CVT - FTS ...................................91
Diagnostic Procedure ..............................................92
Component Inspection ............................................94
CVT FLUID TEMPERATURE SENSOR ..............94
DTC P0715 INPUT SPEED SENSOR CIRCUIT (PRI
SPEED SENSOR) .....................................................95
Description ..............................................................95
CONSULT-II Reference Value .................................95
On Board Diagnosis Logic ......................................95
Possible Cause .......................................................95
DTC Confirmation Procedure ..................................95
WITH CONSULT-II ...............................................95
WITH GST ...........................................................96
Wiring Diagram - CVT - PRSCVT ...........................97
Diagnostic Procedure ..............................................98
DTC P0720 VEHICLE SPEED SENSOR CVT (SEC-
ONDARY SPEED SENSOR) ...................................101
Description ............................................................101
CONSULT-II Reference Value ...............................101
On Board Diagnosis Logic ....................................101
Possible Cause .....................................................101
DTC Confirmation Procedure ................................101
WITH CONSULT-II .............................................101
WITH GST .........................................................102
Wiring Diagram - CVT - SESCVT .........................103
Diagnostic Procedure ............................................104
DTC P0725 ENGINE SPEED SIGNAL ....................108
Description ............................................................108
On Board Diagnosis Logic ....................................108
Possible Cause .....................................................108
DTC Confirmation Procedure ................................108
WITH CONSULT-II .............................................108
Diagnostic Procedure ............................................108
DTC P0730 BELT DAMAGE ...................................110
Description ............................................................110
CONSULT-II Reference Value ...............................110
On Board Diagnosis Logic ....................................110
Possible Cause .....................................................110
DTC Confirmation Procedure ................................110
WITH CONSULT-II .............................................110
Diagnostic Procedure ............................................ 111
DTC P0740 TORQUE CONVERTER CLUTCH
SOLENOID VALVE ..................................................112
Description ............................................................112
CONSULT-II Reference Value ...............................112
On Board Diagnosis Logic ....................................112
Possible Cause .....................................................112
CVT-3
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
DTC Confirmation Procedure ................................112
WITH CONSULT-II .............................................112
WITH GST ..........................................................112
Wiring Diagram - CVT - TCV .................................113
Diagnostic Procedure ............................................114
Component Inspection ..........................................116
TORQUE CONVERTER CLUTCH SOLENOID
VALVE ................................................................116
DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP) ..117
Description ............................................................117
CONSULT-II Reference Value ...............................117
On Board Diagnosis Logic ....................................117
Possible Cause .....................................................117
DTC Confirmation Procedure ................................117
WITH CONSULT-II .............................................117
WITH GST ..........................................................117
Diagnostic Procedure ............................................118
DTC P0745 LINE PRESSURE SOLENOID VALVE . 120
Description ........................................................... 120
CONSULT-II Reference Value .............................. 120
On Board Diagnosis Logic ................................... 120
Possible Cause .................................................... 120
DTC Confirmation Procedure ............................... 120
WITH CONSULT-II ............................................ 120
WITH GST ......................................................... 120
Wiring Diagram — CVT — LPSV ......................... 121
Diagnostic Procedure ........................................... 122
Component Inspection ......................................... 124
PRESSURE CONTROL SOLENOID VALVE A
(LINE PRESSURE SOLENOID VALVE) ........... 124
DTC P0746 PRESSURE CONTROL SOLENOID A
PERFORMANCE (LINE PRESSURE SOLENOID
VALVE) .................................................................... 125
Description ........................................................... 125
On Board Diagnosis Logic ................................... 125
Possible Cause .................................................... 125
DTC Confirmation Procedure ............................... 125
WITH CONSULT-II ............................................ 125
WITH GST ......................................................... 125
Diagnostic Procedure ........................................... 126
DTC P0776 PRESSURE CONTROL SOLENOID B
PERFOMANCE (SEC PRESSURE SOLENOID
VALVE) .................................................................... 128
Description ........................................................... 128
CONSULT-II Reference Value .............................. 128
On Board Diagnosis Logic ................................... 128
Possible Cause .................................................... 128
DTC Confirmation Procedure ............................... 128
WITH CONSULT-II ............................................ 128
WITH GST ......................................................... 129
Diagnostic Procedure ........................................... 129
DTC P0778 PRESSURE CONTROL SOLENOID B
ELECTRICAL (SEC PRESSURE SOLENOID
VALVE) .................................................................... 131
Description ........................................................... 131
CONSULT-II Reference Value .............................. 131
On Board Diagnosis Logic ................................... 131
Possible Cause .................................................... 131
DTC Confirmation Procedure ............................... 131
WITH CONSULT-II ............................................131
WITH GST .........................................................131

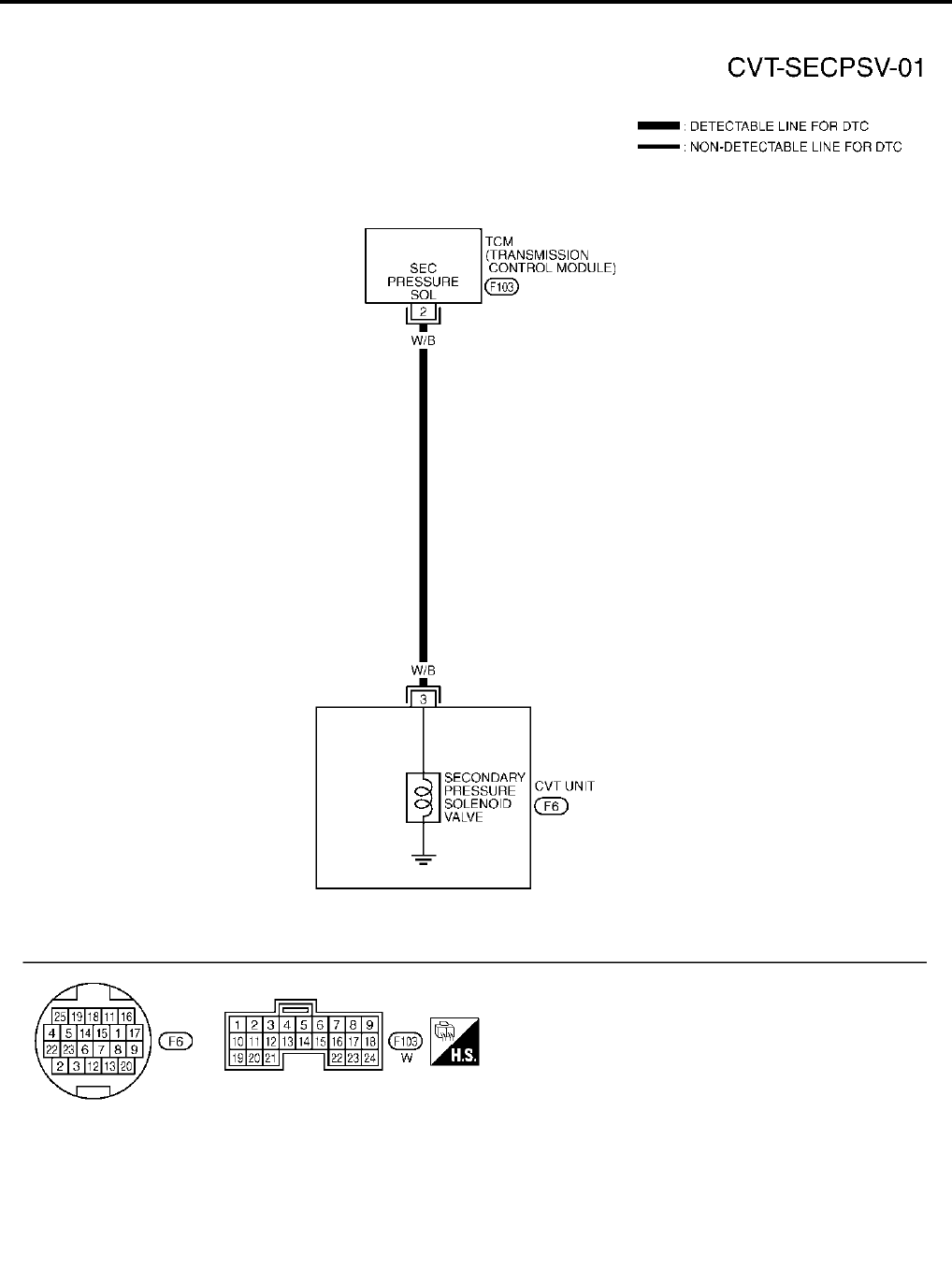

Wiring Diagram — CVT — SECPSV ....................132
Diagnostic Procedure ...........................................133
Component Inspection ..........................................134
PRESSURE CONTROL SORENOID VALVE B
(SECONDARY PRESSURE SOLENOID VALVE)
.134
DTC P0840 TRANSMISSION FLUID PRESSURE
SENSOR A CIRCUIT (SEC PRESSURE SENSOR) .135
Description ............................................................135
CONSULT-II Reference Value ..............................135
On Board Diagnosis Logic ....................................135
Possible Cause .....................................................135
DTC Confirmation Procedure ...............................135
WITH CONSULT-II ............................................135
WITH GST .........................................................135
Wiring Diagram - CVT - SECPS ...........................136
Diagnostic Procedure ...........................................137
DTC P0841 PRESSURE SENSOR FUNCTION .....140
Description ............................................................140
CONSULT-II Reference Value ..............................140
On Board Diagnosis Logic ....................................140
Possible Cause .....................................................140
DTC Confirmation Procedure ...............................140
WITH CONSULT-II ............................................140
Diagnostic Procedure ...........................................141
DTC P0845 TRANSMISSION FLUID PRESSURE
SENSOR B CIRCUIT (PRI PRESSURE SENSOR) .143
Description ............................................................143
CONSULT-II Reference Value ..............................143
On Board Diagnosis Logic ....................................143
Possible Cause .....................................................143
DTC Confirmation Procedure ...............................143
WITH CONSULT-II ............................................143
WITH GST .........................................................143

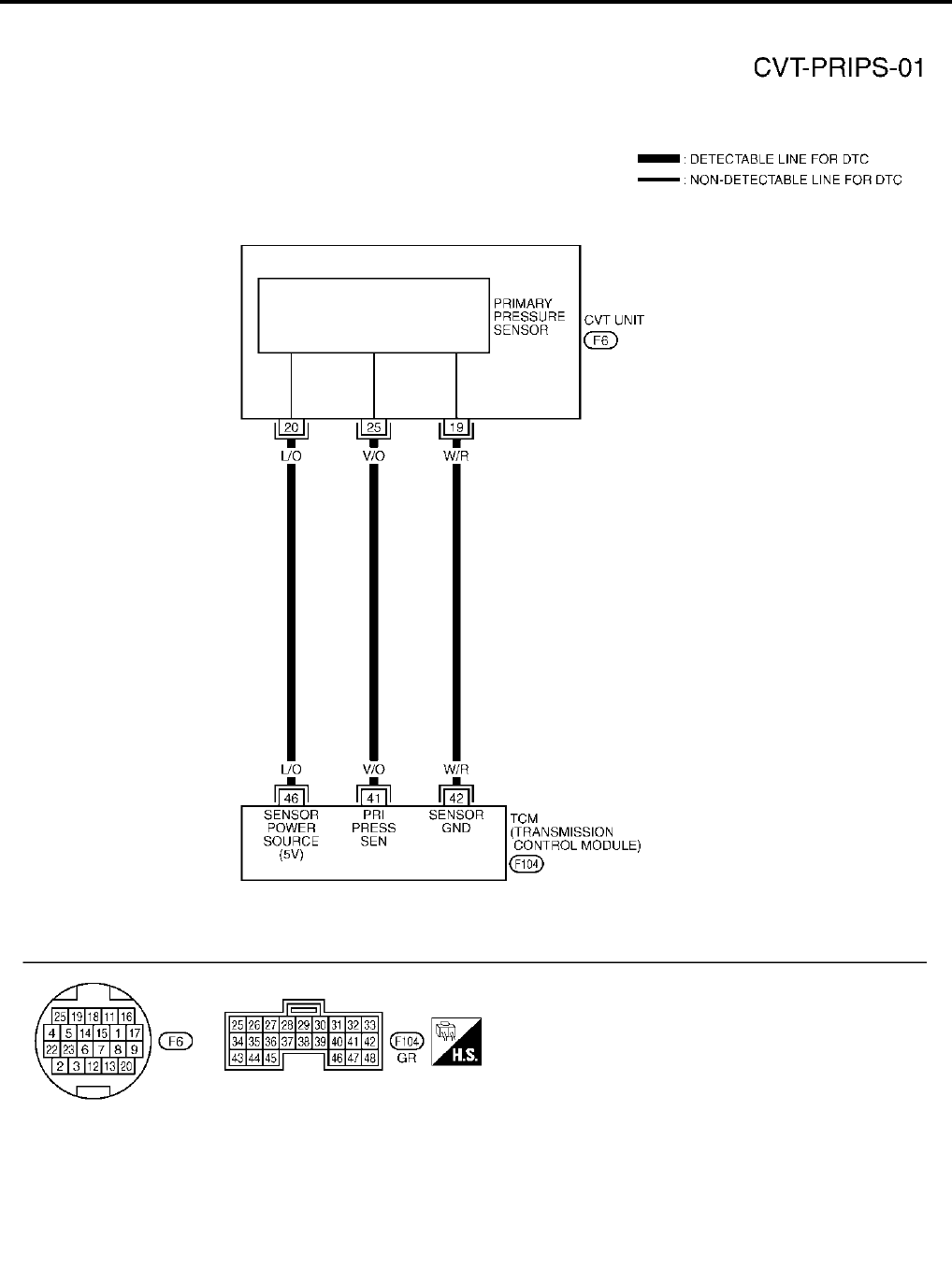

Wiring Diagram - CVT - PRIPS ............................144
Diagnostic Procedure ...........................................145
DTC P0868 SECONDARY PRESSURE DOWN .....147
Description ............................................................147
CONSULT-II Reference Value ..............................147
On Board Diagnosis Logic ....................................147
Possible Cause .....................................................147
DTC Confirmation Procedure ...............................147
WITH CONSULT-II ............................................147
Diagnostic Procedure ...........................................148
DTC P1701 TRANSMISSION CONTROL MODULE
(POWER SUPPLY) ..................................................150
Description ............................................................150
On Board Diagnosis Logic ....................................150
Possible Cause .....................................................150
DTC Confirmation Procedure ...............................150
WITH CONSULT-II ............................................150
Wiring Diagram — CVT — POWER .....................151
Diagnostic Procedure ...........................................152
DTC P1705 THROTTLE POSITION SENSOR .......155
Description ............................................................155
On Board Diagnosis Logic ....................................155
Possible Cause .....................................................155
CVT-4
Revision; 2004 April 2003 Murano
DTC Confirmation Procedure ...............................155
WITH CONSULT-II ............................................155
Diagnostic Procedure ...........................................155
DTC P1722 ESTM VEHICLE SPEED SIGNAL .......157
Description ............................................................157
On Board Diagnosis Logic ....................................157
Possible Cause .....................................................157
DTC Confirmation Procedure ...............................157
WITH CONSULT-II ............................................157
Diagnostic Procedure ...........................................157
DTC P1723 CVT SPEED SENSOR FUNCTION .....159
Description ............................................................159
On Board Diagnosis Logic ....................................159
Possible Cause .....................................................159
DTC Confirmation Procedure ...............................159
WITH CONSULT-II ............................................159
Diagnostic Procedure ...........................................160
DTC P1726 ELECTRIC THROTTLE CONTROL
SYSTEM ..................................................................161
Description ............................................................161
On Board Diagnosis Logic ....................................161
Possible Cause .....................................................161
DTC Confirmation Procedure ...............................161
WITH CONSULT-II ............................................161
Diagnostic Procedure ...........................................161
DTC P1740 LOCK-UP SELECT SOLENOID VALVE
CIRCUIT ..................................................................163
Description ............................................................163
CONSULT-II Reference Value ..............................163
On Board Diagnosis Logic ....................................163
Possible Cause .....................................................163
DTC Confirmation Procedure ...............................163
WITH CONSULT-II ............................................163
WITH GST .........................................................163
Wiring Diagram - CVT - L/USSV ...........................164
Diagnostic Procedure ...........................................165
Component Inspection ..........................................166
LOCK-UP SELECT SOLENOID VALVE ............166
DTC P1745 LINE PRESSURE CONTROL .............167
Description ............................................................167
On Board Diagnosis Logic ....................................167
Possible Cause .....................................................167
DTC Confirmation Procedure ...............................167
WITH CONSULT-II ............................................167
Diagnostic Procedure ...........................................167
DTC P1777 STEP MOTOR - CIRCUIT ...................168
Description ............................................................168
CONSULT-II Reference Value ..............................168
On Board Diagnosis Logic ....................................168
Possible Cause .....................................................168
DTC Confirmation Procedure ...............................168
WITH CONSULT-II ............................................168
WITH GST .........................................................169
Wiring Diagram — CVT — STM ...........................170
Diagnostic Procedure ...........................................171
Component Inspection ..........................................172
STEP MOTOR ...................................................172
DTC P1778 STEP MOTOR - FUNCTION ...............173
Description ............................................................173
CONSULT-II Reference Value ...............................173
On Board Diagnosis Logic ....................................173
Possible Cause .....................................................173
DTC Confirmation Procedure ................................173
WITH CONSULT-II .............................................173
WITH GST .........................................................174
Diagnostic Procedure ............................................174
SECOND POSITION SWITCH ................................175
Description ............................................................175
CONSULT-II Reference Value ...............................175
Possible Cause .....................................................175

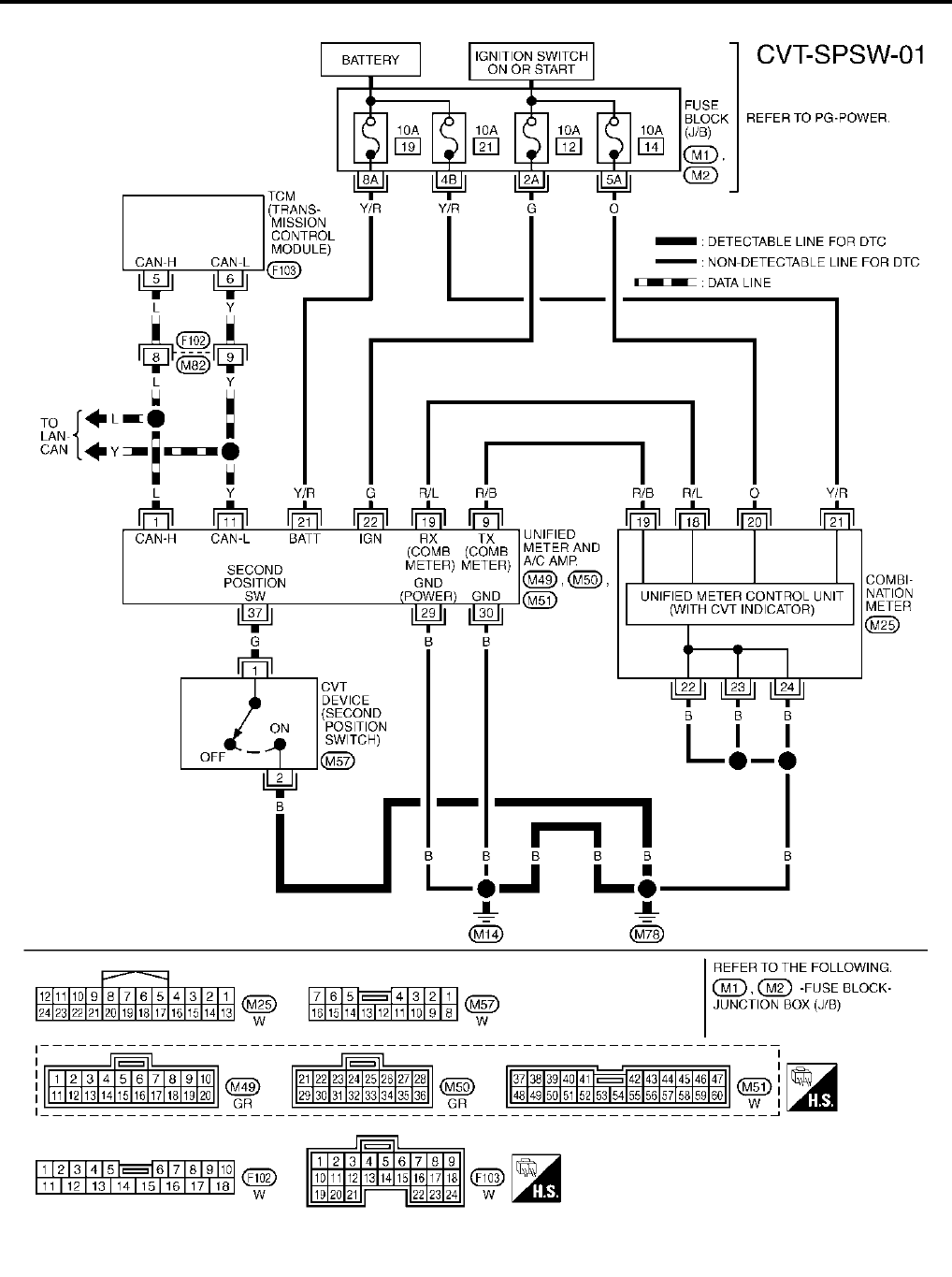

Wiring Diagram — CVT — SPSW ........................176
Diagnostic Procedure ............................................177
Component Inspection ..........................................177
SECOND POSITION SWITCH ..........................177
TROUBLE DIAGNOSIS FOR SYMPTOMS ............178
Wiring Diagram — CVT — NONDTC ...................178
SHIFT CONTROL SYSTEM ....................................182
Control Device Removal and Installation ..............182
REMOVAL ..........................................................183
INSTALLATION ..................................................183
Adjustment of CVT Position ..................................183
Checking of CVT Position .....................................183
CVT SHIFT LOCK SYSTEM ...................................184
Description ............................................................184
Shift Lock System Electrical Parts Location ..........184

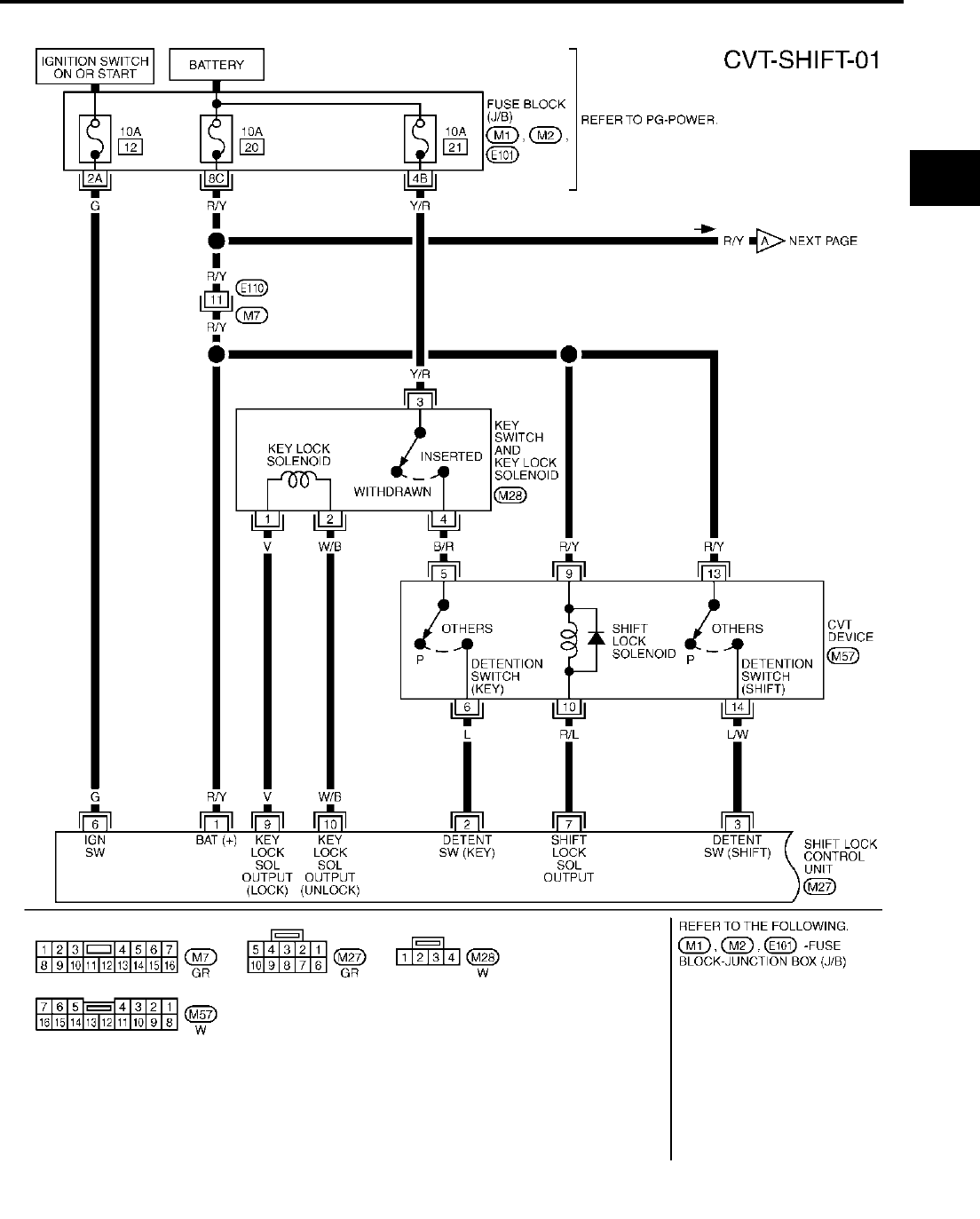

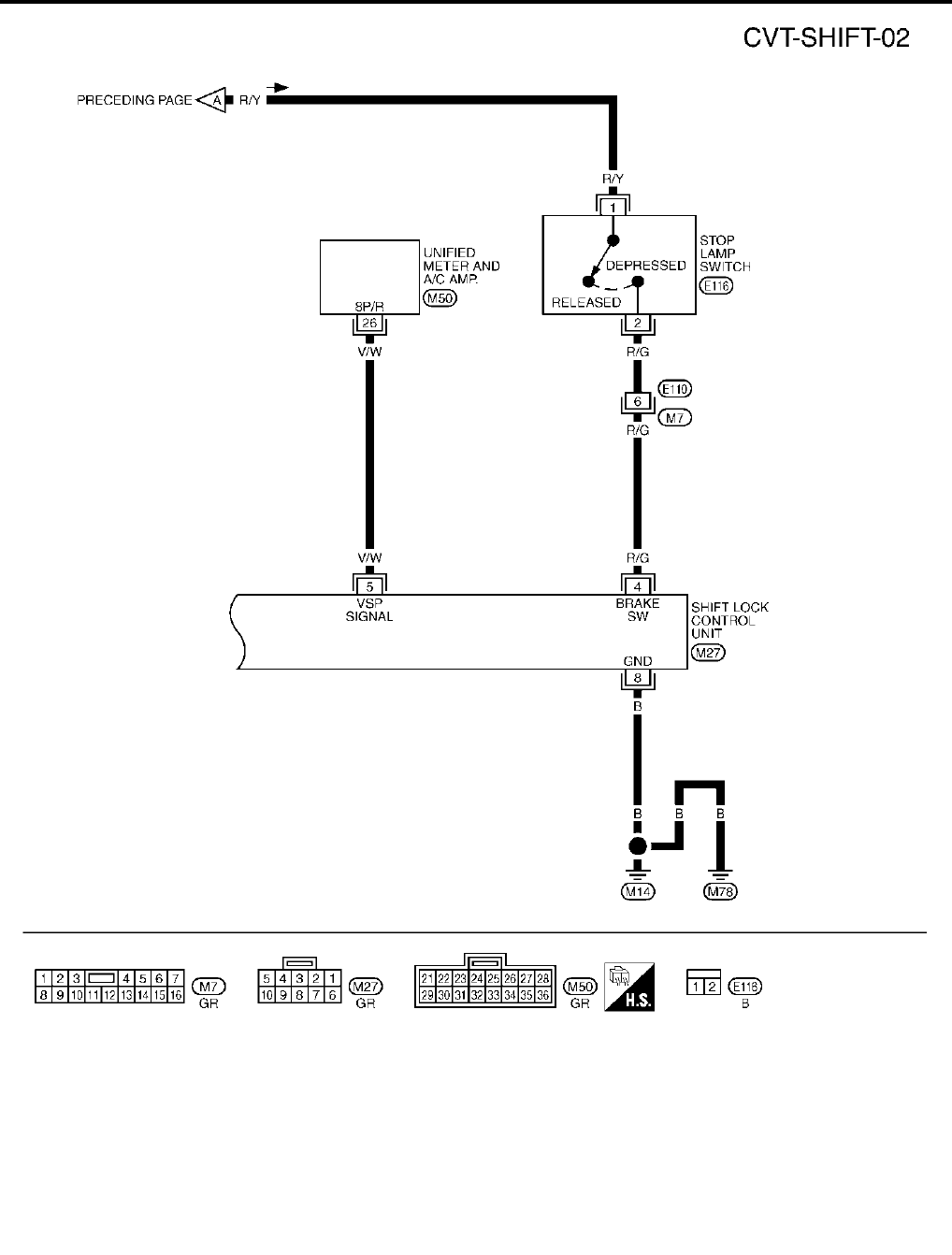

Wiring Diagram — CVT — SHIFT ........................185
Shift Lock Control Unit Reference Values .............187
SHIFT LOCK HARNESS CONNECTOR TERMI-
NALS LAYOUT ..................................................187
SHIFT LOCK CONTROL UNIT INSPECTION
TABLE ................................................................187
Component Inspection ..........................................188
SHIFT LOCK SOLENOID ..................................188
DETENTION SWITCH .......................................188
DETENTION SWITCH .......................................188
KEY LOCK SOLENOID .....................................188
KEY SWITCH .....................................................189
STOP LAMP SWITCH .......................................189
AIR BREATHER HOSE ...........................................190
Removal and Installation .......................................190
DIFFERENTIAL SIDE OIL SEAL ............................191
Removal and Installation .......................................191
REMOVAL ..........................................................191
INSTALLATION ..................................................192
CVT FLUID COOLER VALVE .................................193
Removal and Installation .......................................193
COMPONENTS .................................................193

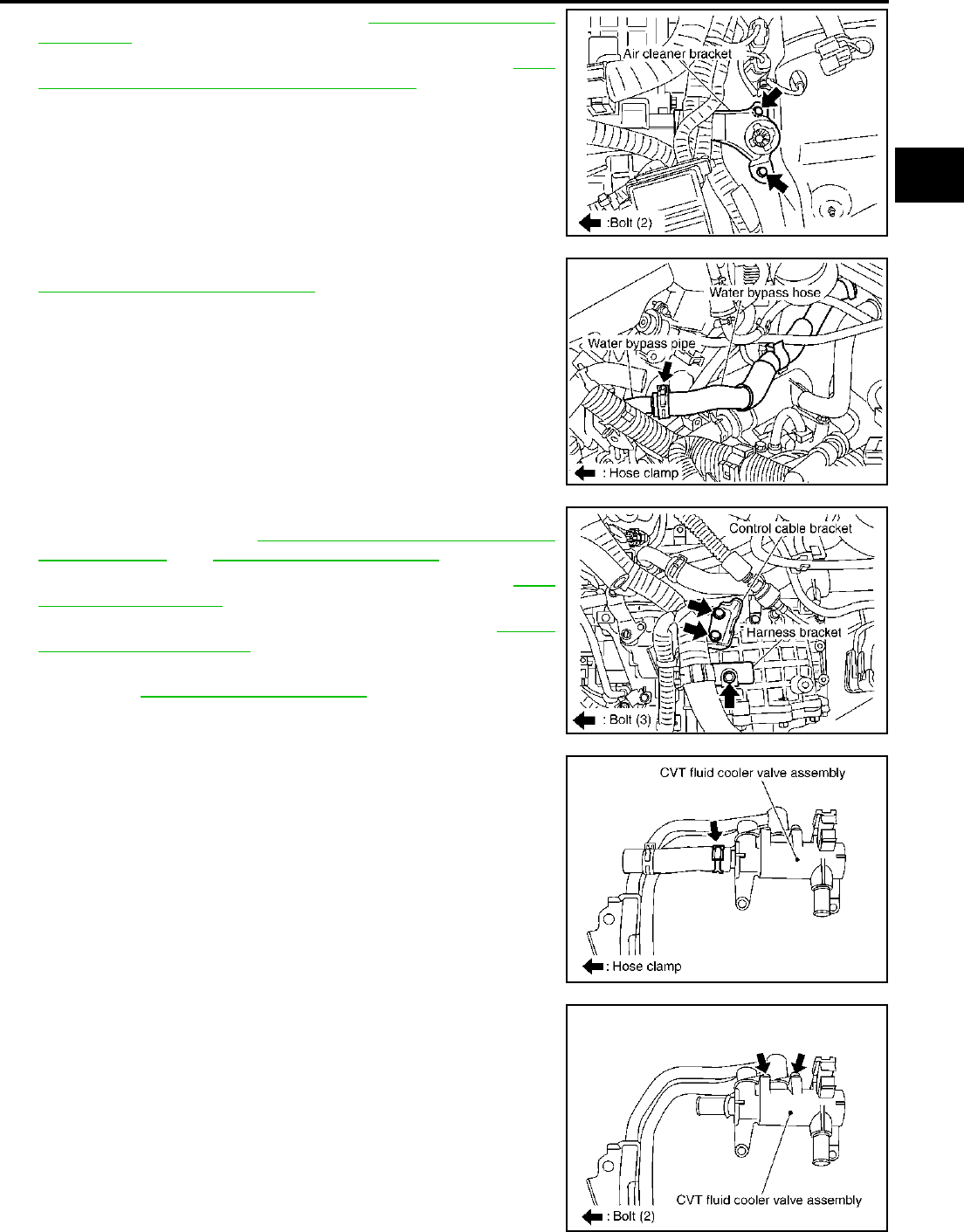

REMOVAL ..........................................................194
INSTALLATION ..................................................196
Component Inspection ..........................................196
TRANSAXLE ASSEMBLY ......................................197
Removal and Installation .......................................197
COMPONENTS (2WD MODELS) ......................197
COMPONENTS (AWD MODELS) .....................199

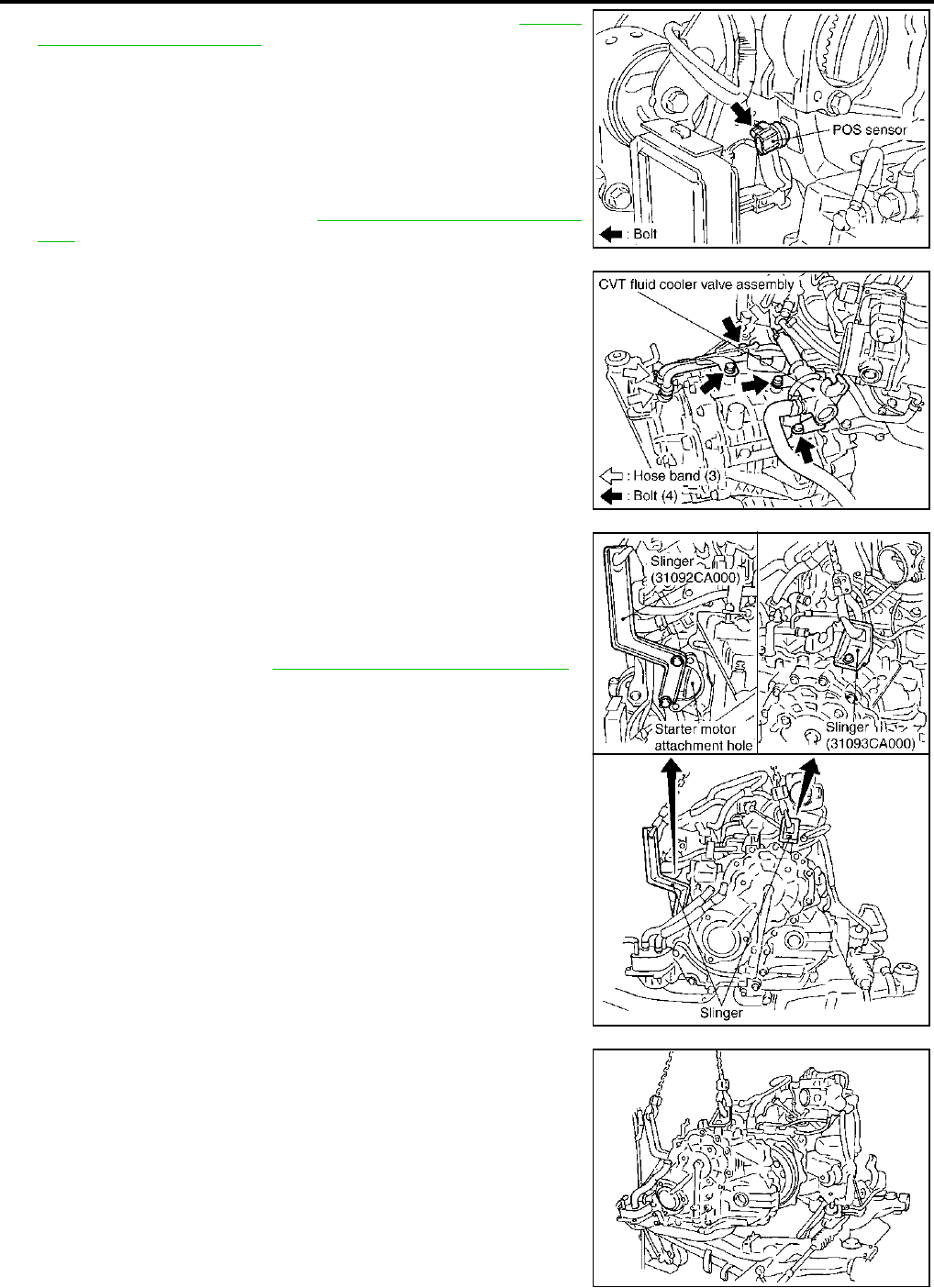

REMOVAL ..........................................................201
INSPECTION .....................................................203
INSTALLATION ..................................................203
SERVICE DATA AND SPECIFICATIONS (SDS) ....206
CVT-5
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
General Specifications ......................................... 206
Stall Speed ........................................................... 206
Line Pressure ....................................................... 206
Solenoid Valves .................................................... 206
CVT Fluid Temperature Sensor ............................206
Primary Speed Sensor .........................................206
Secondary Speed Sensor .....................................207
Removal and Installation ......................................207
CVT-6
INDEX FOR DTC
Revision; 2004 April 2003 Murano
INDEX FOR DTC PFP:00024
Alphabetical Index ACS001S6
NOTE:
If DTC U1000 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000. Refer to
CVT-76 .
*1: These numbers are prescribed by SAE J2012.
*2: CONSULT-II screen terms are shown differently depending on the version of CONSULT-II card.
Items
(CONSULT-II screen terms)
DTC
Reference page
OBD-II Except OBD-II
CONSULT-II
GST*1
CONSULT-II only
“TRANSMISSION”
A/T TCC S/V FNCTN P0744 P0744 CVT-117
ATF TEMP SEN/CIRC P0710 P0710 CVT-90
BELT DAMG — P0730 CVT-110
BRAKE SW/CIRC — P0703 CVT-83
CAN COMM CIRCUIT U1000 U1000 CVT-76
CVT SPD SEN/FNCTN — P1723 CVT-159
ENGINE SPEED SIG — P0725 CVT-108
ELEC TH CONTROL — P1726 CVT-161
ESTM VEH SPD SIG — P1722 CVT-157
INPUT SPD SEN/CIRC (IN PY SPD SEN/CIRC)*2 P0715 P0715 CVT-95
L/PRESS CONTROL — P1745 CVT-167
L/PRESS SOL/CIRC P0745 P0745 CVT-120
PRS CNT SOL/A FCTN (L/PRESS SOL/FNCTN)*2 P0746 P0746 CVT-125
LU-SLCT SOL/CIRC P1740 P1740 CVT-163
PNP SW/CIRC P0705 P0705 CVT-85
PRESS SEN/FNCTN — P0841 CVT-140
TR PRS SENS/B CIRC (PRI PRS SEN/CIRC)*2 P0845 P0845 CVT-143
SEC/PRESS DOWN — P0868 CVT-147
PRS CNT SOL/B CIRC (SEC/PRESS SOL/CIRC)*2 P0778 P0778 CVT-131
PRS CNT SOL/B FCTN (SEC/PRESS SOL/FNCTN)*2 P0776 P0776 CVT-128
TR PRS SENS/A CIRC (SEC PRS SEN/CIRC)*2 P0840 P0840 CVT-135
STARTER RELAY/CIRC — P0615 CVT-79
STEP MOTOR/CIRC P1777 P1777 CVT-168
STEP MOTOR/FNCTN P1778 P1778 CVT-173
TCC SOLENOID/CIRC P0740 P0740 CVT-112
TCM-POWER SUPPLY — P1701 CVT-150
TP SEN/CIRC A/T — P1705 CVT-155
VEH SPD SEN/CIR AT P0720 P0720 CVT-101
INDEX FOR DTC
CVT-7
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
DTC No. Index ACS001S7
NOTE:
If DTC U1000 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000. Refer to
CVT-76 .
*1: These numbers are prescribed by SAE J2012.
*2: CONSULT-II screen terms are shown differently depending on the version of CONSULT-II card.
DTC
Items
(CONSULT-II screen terms) Reference page
OBD-II Except OBD-II
CONSULT-II
GST*1
CONSULT-II only
“TRANSMISSION”
— P0615 STARTER RELAY/CIRC CVT-79
— P0703 BRAKE SW/CIRC CVT-83
P0705 P0705 PNP SW/CIRC CVT-85
P0710 P0710 ATF TEMP SEN/CIRC CVT-90
P0715 P0715 INPUT SPD SEN/CIRC (IN PY SPD SEN/CIRC)*2 CVT-95
P0720 P0720 VEH SPD SEN/CIR AT CVT-101
— P0725 ENGINE SPEED SIG CVT-108
— P0730 BELT DAMG CVT-110
P0740 P0740 TCC SOLENOID/CIRC CVT-112
P0744 P0744 A/T TCC S/V FNCTN CVT-117
P0745 P0745 L/PRESS SOL/CIRC CVT-120
P0746 P0746 PRS CNT SOL/A FCTN (L/PRESS SOL/FNCTN)*2 CVT-125
P0776 P0776 PRS CNT SOL/B FCTN (SEC/PRESS SOL/FNCTN)*2 CVT-128
P0778 P0778 PRS CNT SOL/B CIRC (SEC/PRESS SOL/CIRC)*2 CVT-131
P0840 P0840 TR PRS SENS/A CIRC (SEC PRS SEN/CIRC)*2 CVT-135
— P0841 PRESS SEN/FNCTN CVT-140
P0845 P0845 TR PRS SENS/B CIRC (PRI PRS SEN/CIRC)*2 CVT-143
— P0868 SEC/PRESS DOWN CVT-147
— P1701 TCM-POWER SUPPLY CVT-150
— P1705 TP SEN/CIRC A/T CVT-155
— P1722 ESTM VEH SPD SIG CVT-157
— P1723 CVT SPD SEN/FNCTN CVT-159
— P1726 ELEC TH CONTROL CVT-161
P1740 P1740 LU-SLCT SOL/CIRC CVT-163
— P1745 L/PRESS CONTROL CVT-167
P1777 P1777 STEP MOTOR/CIRC CVT-168
P1778 P1778 STEP MOTOR/FNCTN CVT-173
U1000 U1000 CAN COMM CIRCUIT CVT-76
CVT-8
PRECAUTIONS
Revision; 2004 April 2003 Murano
PRECAUTIONS PFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER” ACS003KX
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:
●To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
●Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
●Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for TCM and CVT Assembly Replacement ACS001SA
CAUTION:
●Check if new data (Unit ID) are entered correctly after replacing CVT assembly and erasing data in
TCM. (Connect CONSULT-II, and then turn ignition switch OFF.)
●When replacing CVT assembly or TCM, refer to the pattern table below and erase the EEPROM in the
TCM if necessary.
EEPROM ERASING PATTERNS
METHOD FOR ERASING THE EEPROM IN THE TCM

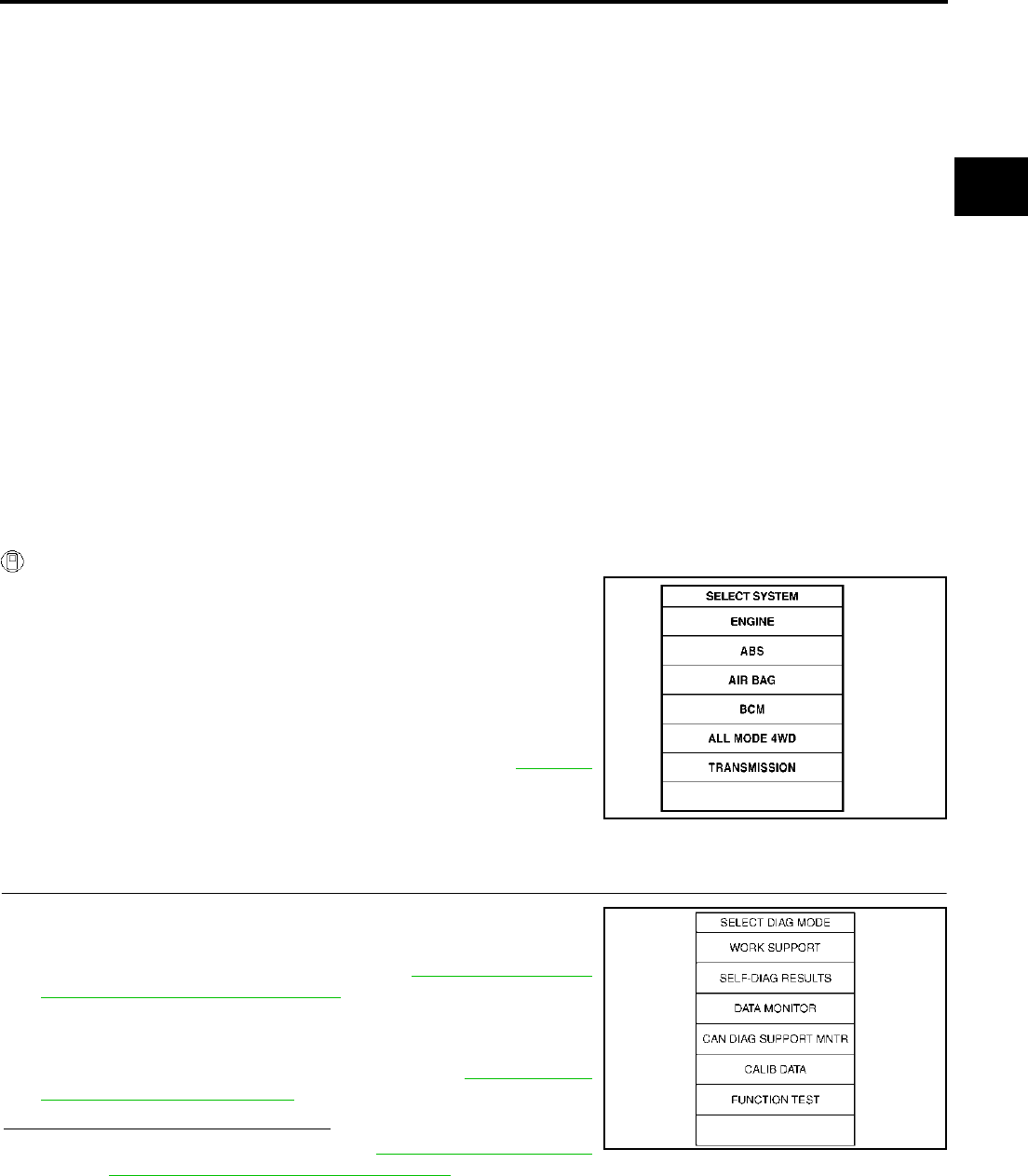

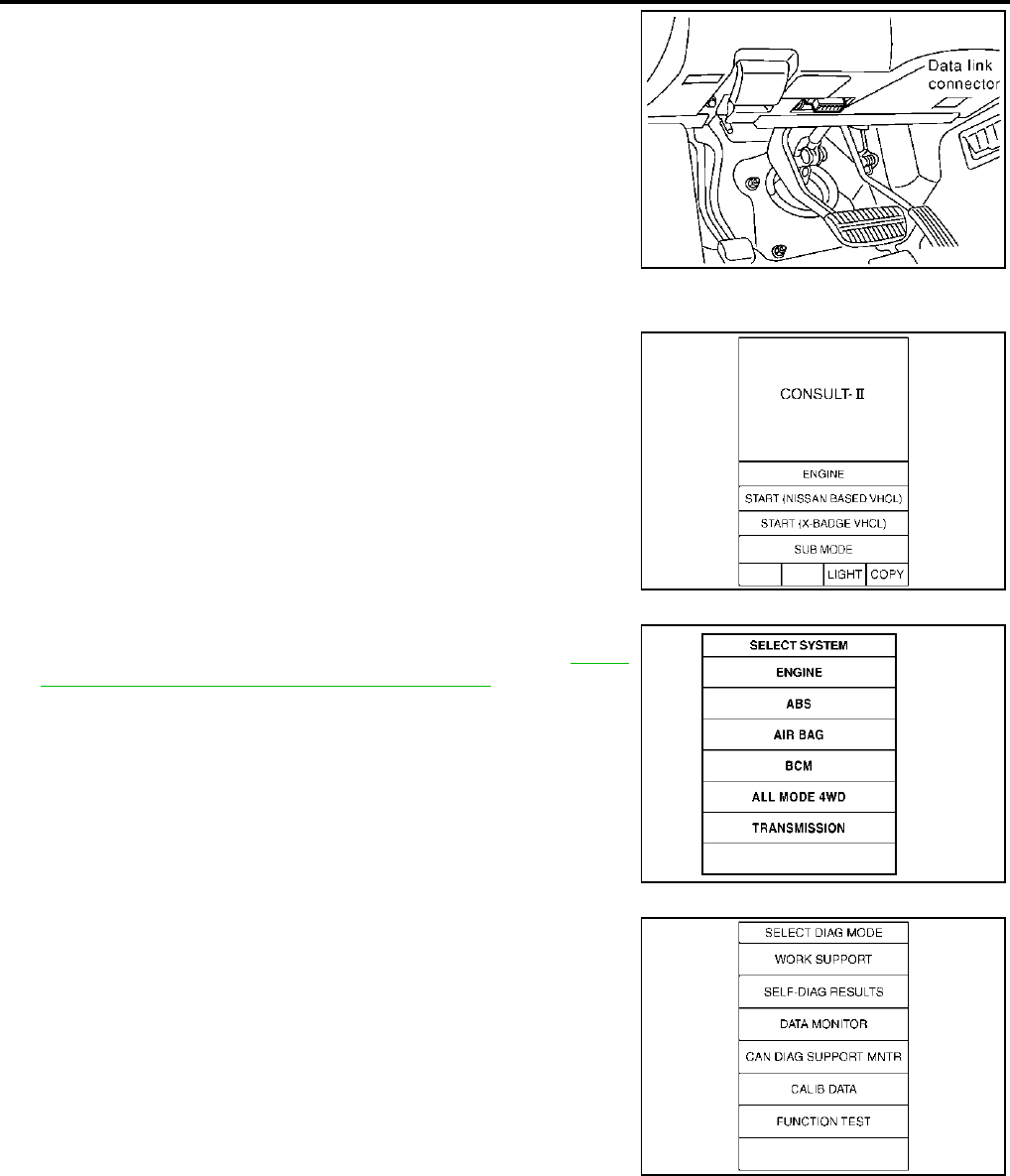

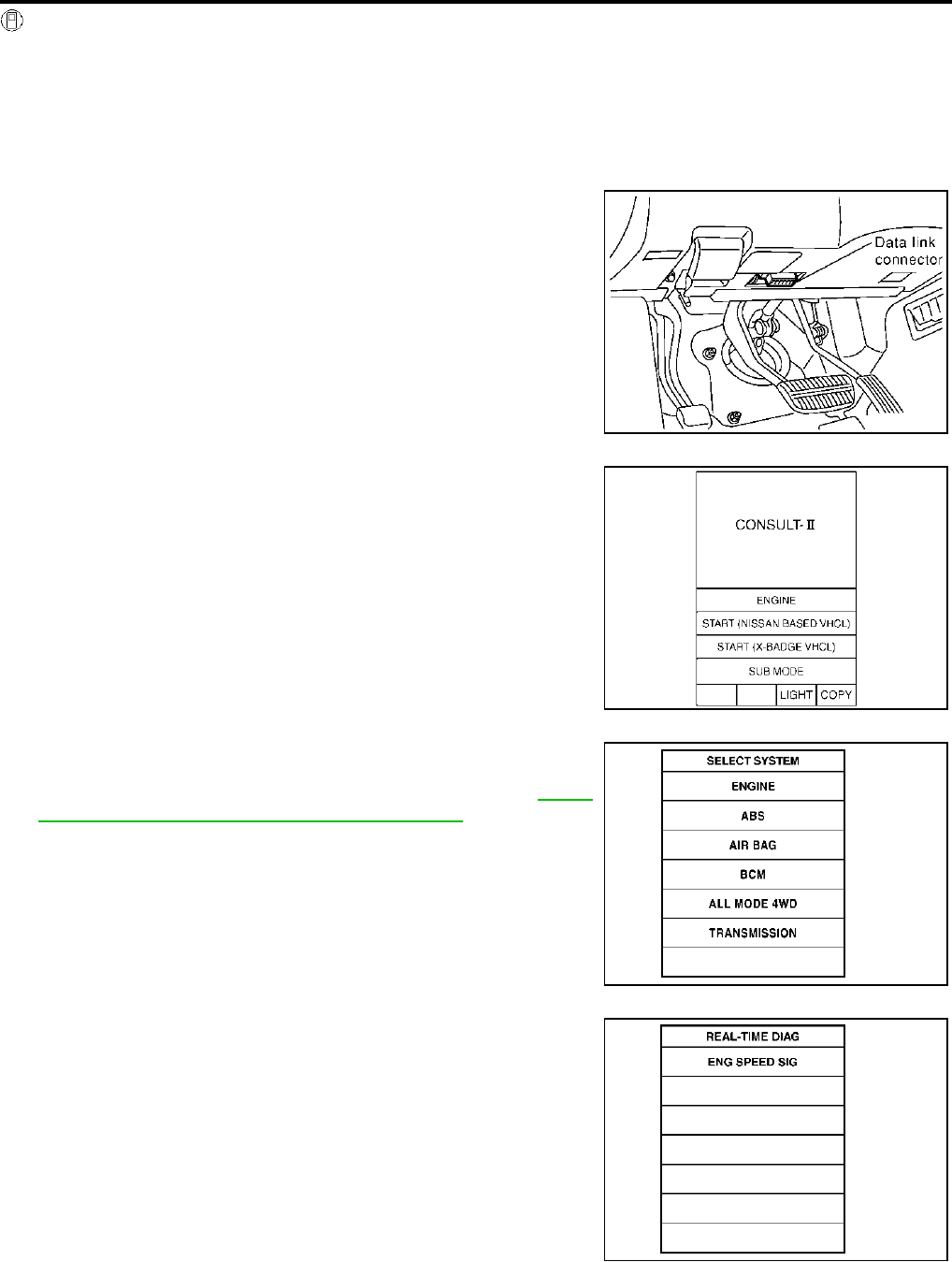

1. Connect CONSULT-II to data link connector.
2. Turn ignition switch “ON”. Confirm that CONSULT-II is turned “ON”.
3. Move selector lever to “R” position.
4. Touch “START” on CONSULT-II.
5. Select “SELF-DIAG RESULTS” mode for “TRANSMISSION” with CONSULT-II.
6. Brake switch “ON”.
7. Press the accelerator pedal (0.5/8 - 4/8 throttle) not to exceed the half, and hold it in the half or less open
position. (This will set the closed throttle position signal to “OFF” and the wide open throttle position signal
to “OFF”.)
8. Touch “ERASE” on CONSULT-II, and then touch “YES”.
9. Wait 3 seconds and then release the accelerator pedal.
10. Turn ignition switch “OFF”.
CVT assembly TCM Erasing EEPROM in TCM Remarks
Replaced Replaced Not required
Not required because the EEPROM in the TCM is in
the default state. (CVT assembly must be replaced
first.)
Not replaced Replaced Not required Not required because the EEPROM in the TCM is in
the default state.
Replaced Not replaced Required
Required because data has been written in the
EEPROM in the TCM and because the TCM cannot
write data from the ROM assembly in the transmis-
sion.
PRECAUTIONS
CVT-9
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
METHOD FOR WRITING DATA FROM THE ROM ASSEMBLY IN THE TRANSMISSION
In the following procedure, the TCM reads data from the ROM assembly and writes it to the EEPROM in the
TCM.
1. With the EEPROM in the TCM erased.
2. Move selector lever to “P” position.
3. Turn ignition switch “ON”.
CHECK METHOD
●Normal: About 2 seconds after the ignition is switched to “ON” position, the CVT indicator lamp lights up
for 2 seconds.
●Non-standard: Even after the ignition is switched to “ON” position, the CVT indicator lamp does not light
up after 2 seconds or illuminates immediately.
CAUTION:
Perform in the P or N position.
Cope for non-standard
●Replace the CVT assembly.
●Replace the TCM.

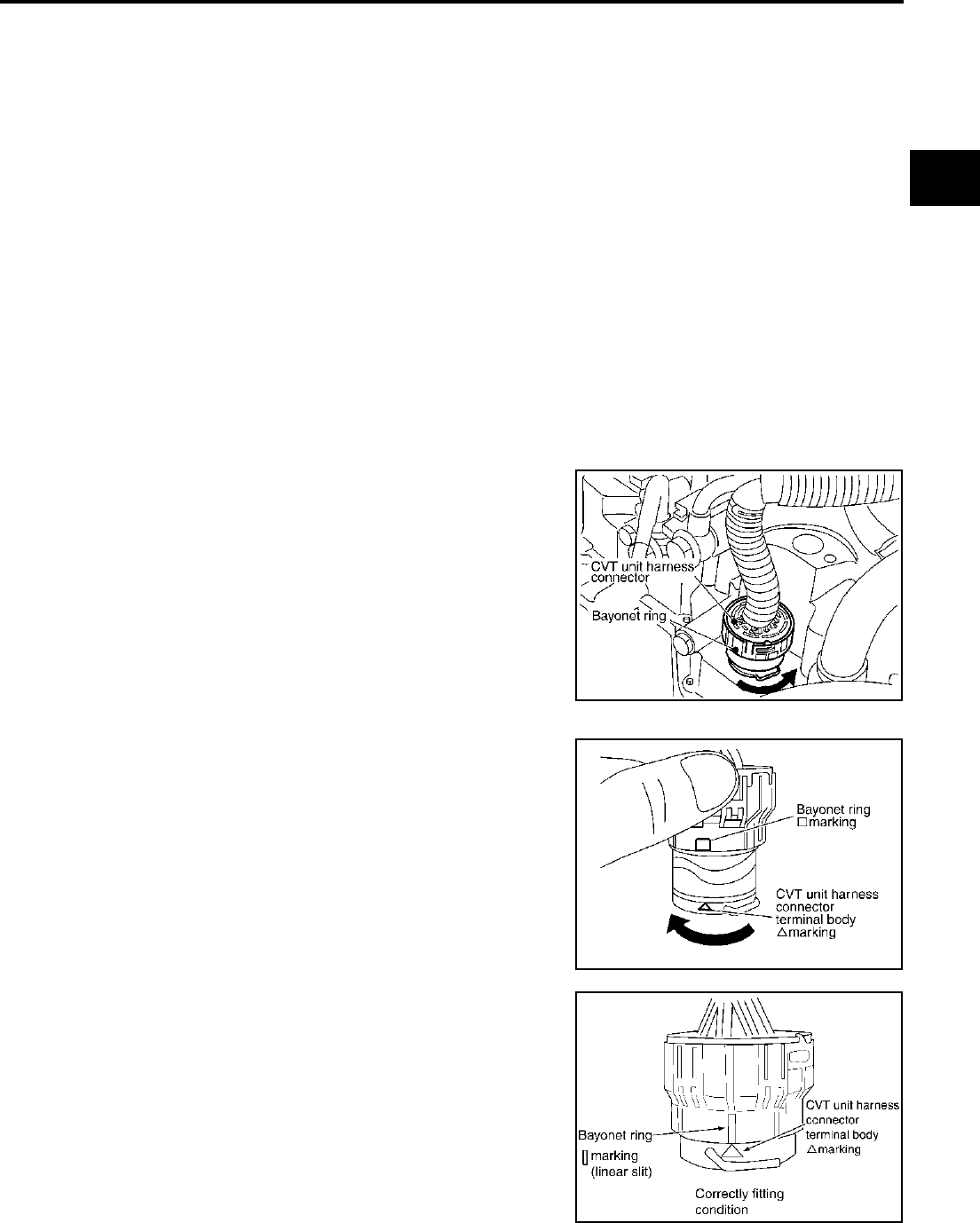

Removal and Installation Procedure for CVT Unit Connector ACS003L1
REMOVAL
●Rotate bayonet ring counterclockwise, pull out CVT unit harness
connector upward and remove it.
INSTALLATION
1. Align ∆ marking on CVT unit harness connector terminal body
with ❏ marking on bayonet ring, insert CVT unit harness con-
nector, and then rotate bayonet ring clockwise.
2. Rotate bayonet ring clockwise until ∆ marking on CVT unit har-
ness connector terminal body is aligned with the slit on bayonet
ring as shown in the figure (correctly fitting condition), install
CVT unit harness connector to CVT unit harness connector ter-
minal body.
SCIA2096E
SCIA2097E
SCIA2098E
CVT-10
PRECAUTIONS
Revision; 2004 April 2003 Murano

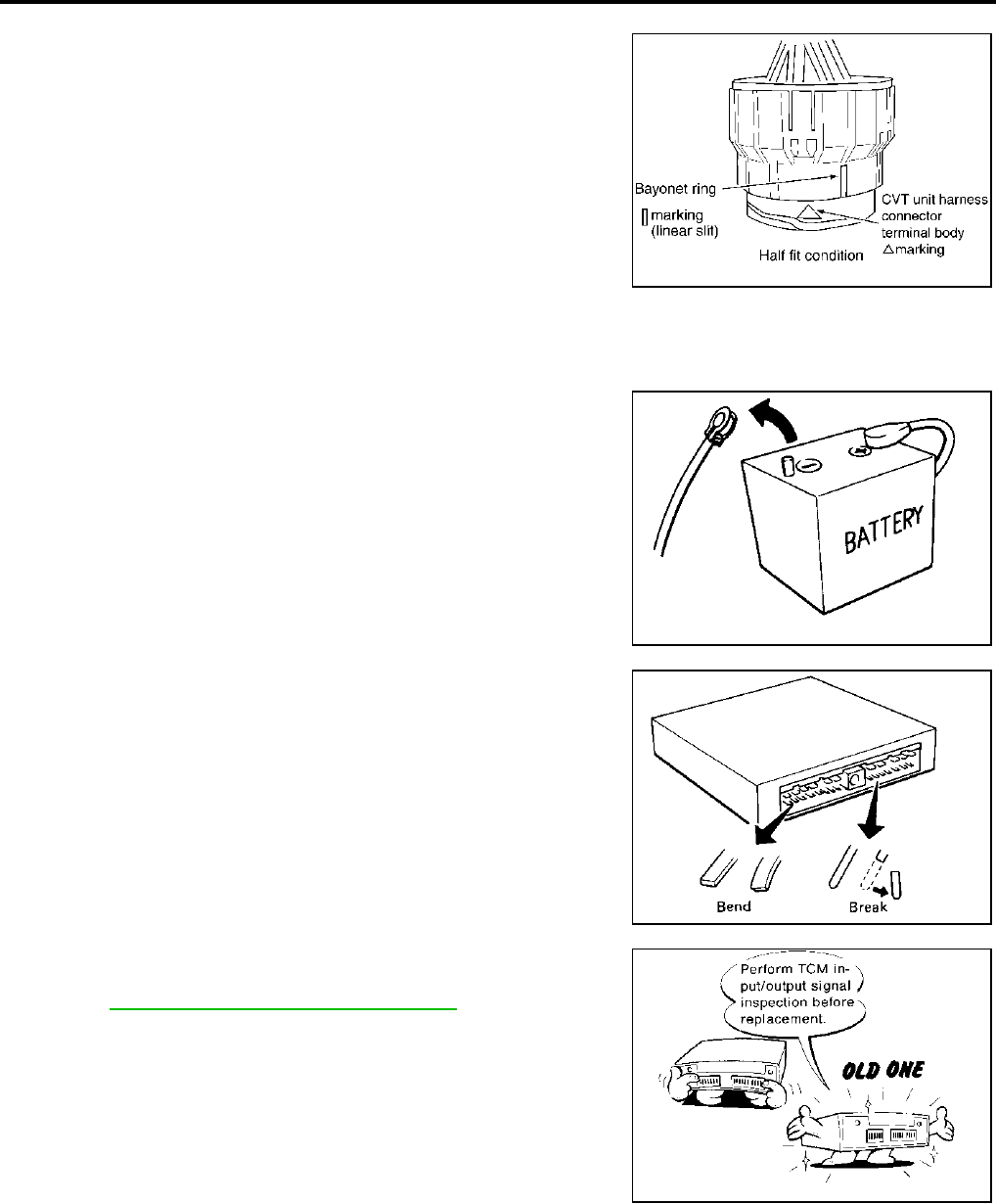

CAUTION:
●Securely align ∆ marking on CVT unit harness connector
terminal body with bayonet ring slit. Then, be careful not
to make a half fit condition as shown in the figure.
●Do not mistake the slit of bayonet ring for other dent por-
tion.
Precautions ACS001SB
NOTE:
If any malfunctions occur in the RE0F09A model transaxle, replace the entire transaxle assembly.
●Before connecting or disconnecting the TCM harness con-
nector, turn ignition switch “OFF” and disconnect negative
battery cable. Because battery voltage is applied to TCM
even if ignition switch is turned “OFF”.
●When connecting or disconnecting pin connectors into or
from TCM, take care not to damage pin terminals (bend or
break).
When connecting pin connectors make sure that there are
not any bends or breaks on TCM pin terminal.
●Before replacing TCM, perform TCM input/output signal
inspection and make sure whether TCM functions properly
or not. CVT-63, "TCM INSPECTION TABLE".
SCIA2099E
SEF289H
SEF291H
MEF040DA
PRECAUTIONS
CVT-11
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
●After performing each TROUBLE DIAGNOSIS, perform
“DTC (Diagnostic Trouble Code) CONFIRMATION PROCE-
DURE”.
If the repair is completed the DTC should not be displayed in
the “DTC CONFIRMATION PROCEDURE”.
●Always use the specified brand of CVT fluid. Refer to MA-11, "Fluids and Lubricants" .
●Use paper rags, not cloth rags, during work.
●After replacing the CVT fluid, dispose of the waste oil using the methods prescribed by law, ordinance,
etc.
Service Notice or Precautions ACS001SC
OBD-II SELF-DIAGNOSIS
●CVT self-diagnosis is performed by the TCM in combination with the ECM. The results can be read
through the blinking pattern of the CVT indicator or the malfunction indicator lamp (MIL). Refer to the table
on CVT-71, "Self-Diagnostic Result Test Mode" for the indicator used to display each self-diagnostic
result.
●The self-diagnostic results indicated by the MIL are automatically stored in both the ECM and TCM mem-
ories.
Always perform the procedure on CVT-46, "HOW TO ERASE DTC" to complete the repair and
avoid unnecessary blinking of the MIL.
For details of OBD-II, refer to EC-68, "ON BOARD DIAGNOSTIC (OBD) SYSTEM" .
●Certain systems and components, especially those related to OBD, may use the new style slide-
locking type harness connector. For description and how to disconnect, refer to PG-79, "HAR-
NESS CONNECTOR".
Wiring Diagrams and Trouble Diagnosis ACS001SD
When you read wiring diagrams, refer to the following:
●GI-14, "How to Read Wiring Diagrams".
●PG-3, "POWER SUPPLY ROUTING CIRCUIT" for power distribution circuit.
When you perform trouble diagnosis, refer to the following:
●GI-10, "How to Follow Trouble Diagnoses".
●GI-26, "How to Perform Efficient Diagnosis for an Electrical Incident".
SEF217U
CVT-12
PREPARATION
Revision; 2004 April 2003 Murano
PREPARATION PFP:00002
Special Service Tools ACS001SE

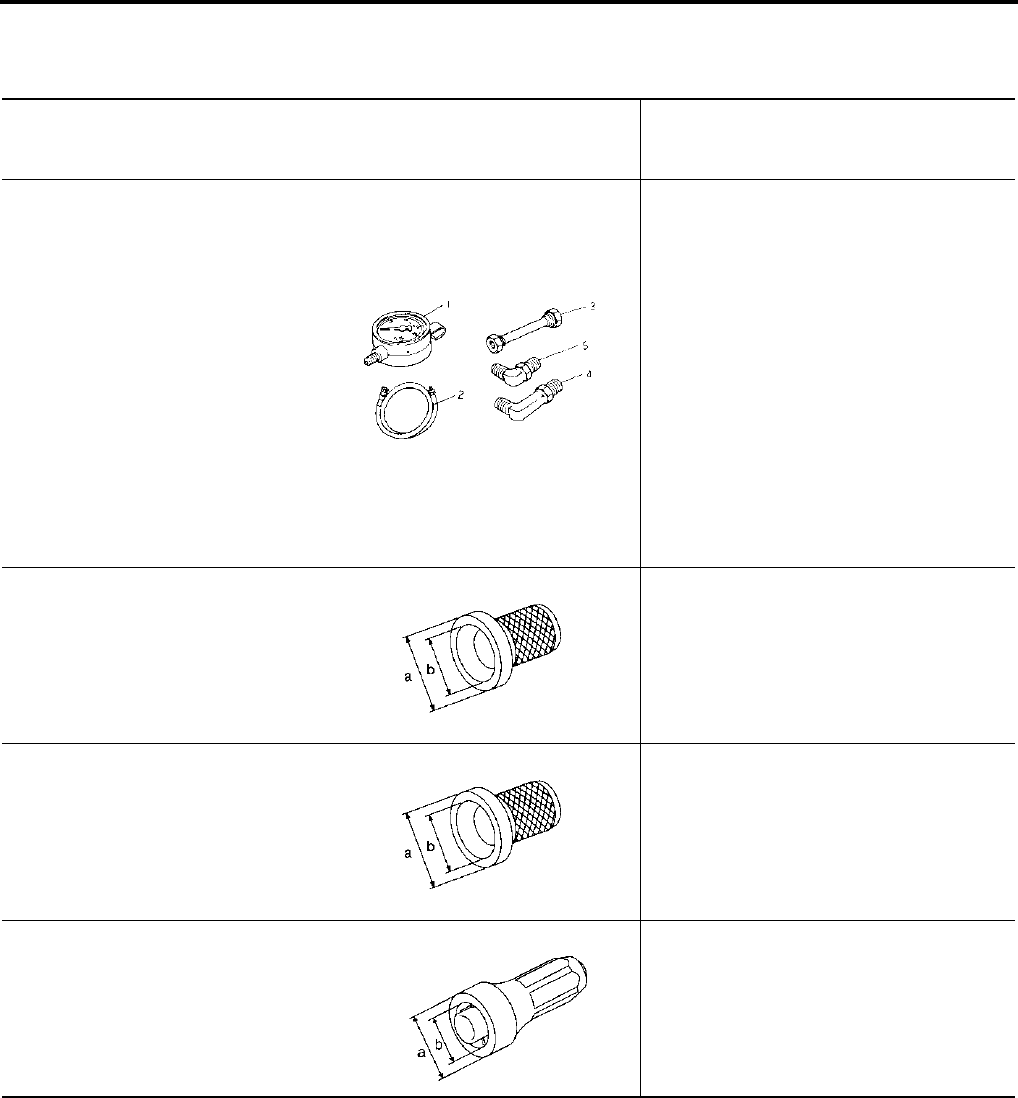

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Tool number
(Kent-Moore No.)
Tool name
Description
ST2505S001
(J34301-C)
Oil pressure gauge set
1 ST25051001
(—)
Oil pressure gauge
2 ST25052000
(—)
Hose
3 ST25053000
(—)
Joint pipe
4 ST25054000
(—)
Adapter
5 ST25055000
(—)
Adapter
Measuring line pressure
KV40100621

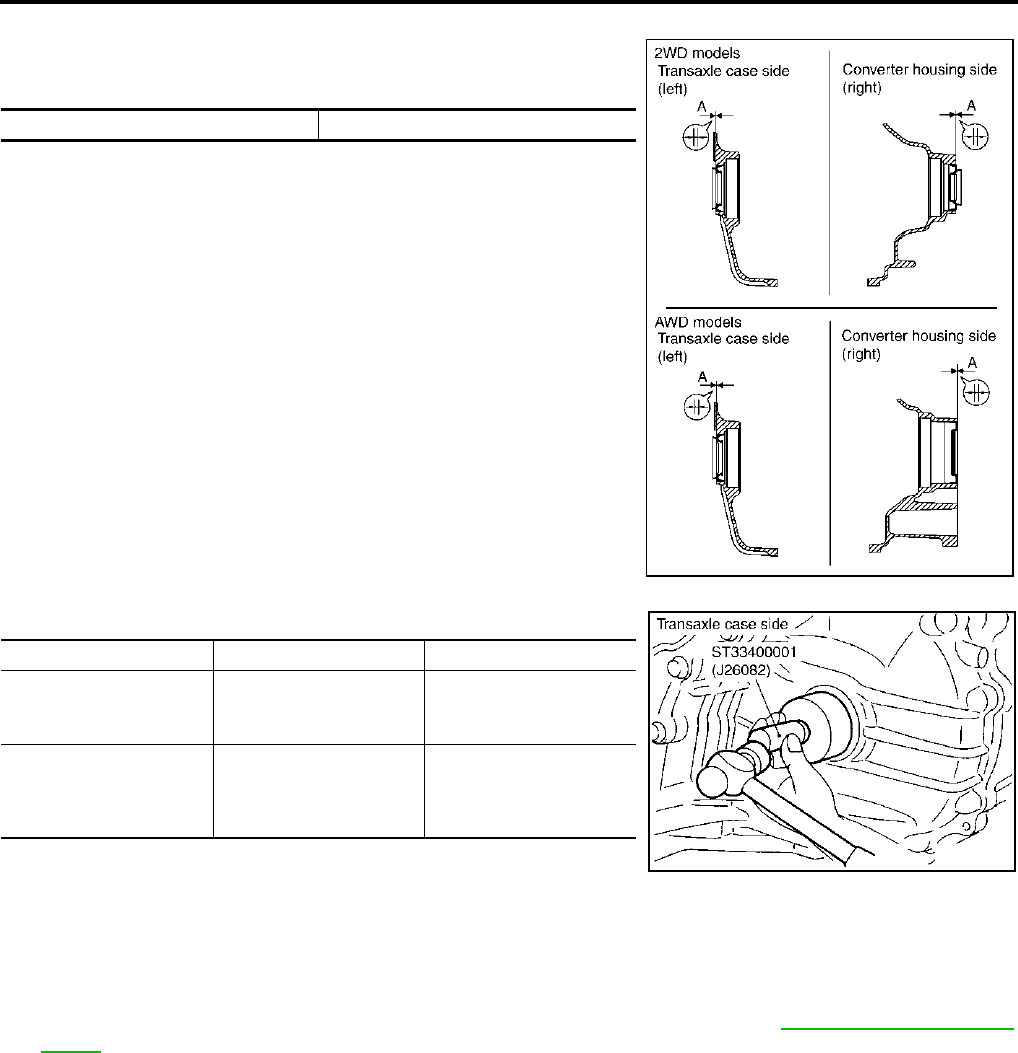

(J25273)
Drift
a: 76 mm (2.99 in) dia.
b: 69 mm (2.72 in) dia
Installing differential side oil seal
● With AWD models
● Converter housing side (right)
ST33400001
(J26082)
Drift
a: 60 mm (2.36 in) dia.
b: 47 mm (1.85 in) dia.
Installing differential side oil seal
● Transaxle case side (left)
ST33400001
(J47005)
Drift
a: 69.85 mm (2.75 in) dia.
b: 49.53 mm (1.95 in) dia.
Installing differential side oil seal
● With 2WD models
● Converter housing side (right)
ZZA0600D
NT086
NT086
SCIA5777E
PREPARATION
CVT-13
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
Commercial Service Tools ACS001SF
(Tool number)
Tool name Description
(31197CA000)
Drive plate location guide
a: 14 mm (0.55 in) dia.
Installing transaxle assembly
(31093CA000)
Slinger
Removing and installing transaxle assembly
(31092CA000)
Slinger
Removing and installing transaxle assembly
Power tool Loosening bolts and nuts
SCIA2013E
SCIA2014E
SCIA2015E
PBIC0190E
CVT-14
CVT FLUID
Revision; 2004 April 2003 Murano
CVT FLUID PFP:KLE50
Checking CVT Fluid ACS002KW
FLUID LEVEL CHECK

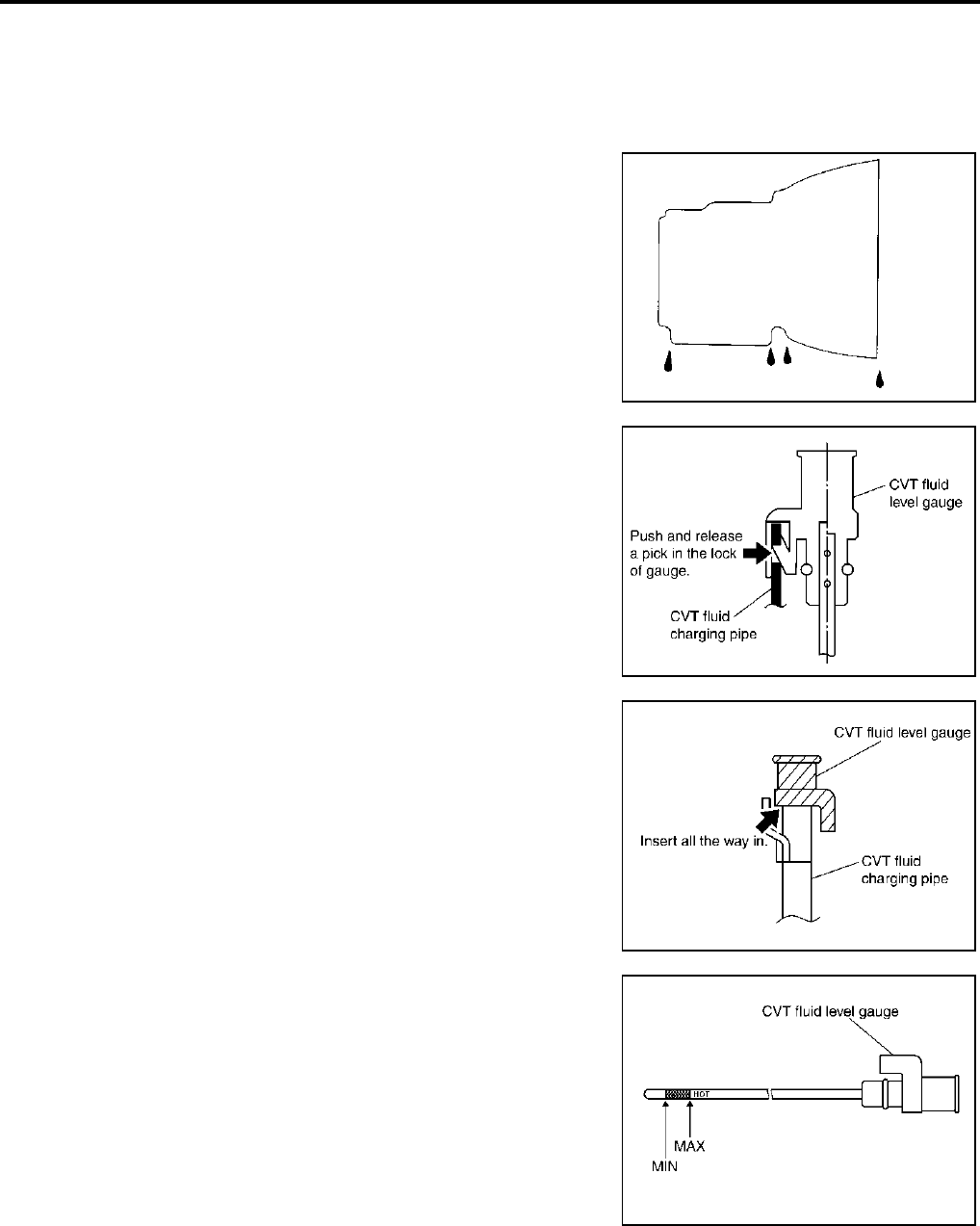

Fluid level should be checked with the fluid warmed up to 50 to 80°C (122 to 176°F). The fluid level check pro-
cedure is as follows:
1. Check for fluid leakage.
2. With the engine warmed up, drive the vehicle in an urban area.
When ambient temperature is 20°C (68°F), it takes about 10
minutes for the CVT fluid to warm up to 50 - 80°C (122 - 176°F).
3. Park the vehicle on a level surface.
4. Apply parking brake firmly.
5. With engine at idle, while depressing brake pedal, move shift
selector throughout the entire shift range.
6. Pull out the dipstick from the CVT fluid charging pipe after press-
ing the tab on the dipstick to release the lock.
7. Wipe fluid off the dipstick and rotate the dipstick attached for
180° to securely insert the dipstick until it meets the end of the
CVT fluid charging pipe.
CAUTION:
Always use paper towels to wipe fluid off the dipstick.
8. Place the selector lever in P or N and make sure the fluid level is
within the specified range.
CAUTION:
●When CVT fluid level gauge reinstall, insert CVT fluid
charging pipe until CVT fluid level gauge is locking
surely.
SMA146B
SCIA1933E
SCIA1931E
SCIA1932E
CVT FLUID
CVT-15
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano

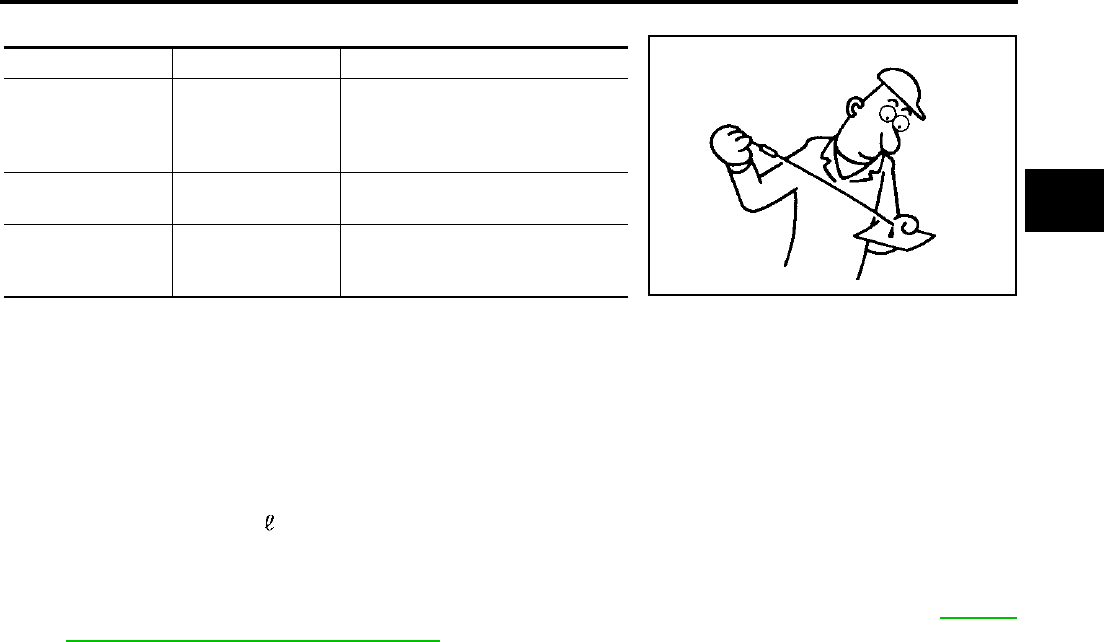

FLUID CONDITION CHECK
Changing CVT Fluid ACS002KX
1. Warm up CVT fluid by driving the vehicle for 10 minutes.
2. Drain CVT fluid from CVT fluid cooler hose (return side) and refill with new CVT fluid at CVT fluid charging
pipe with the engine running at idle speed.
3. Refill until new CVT fluid comes out from CVT fluid cooler hose (return side).
About 30 to 50% extra fluid will be required for this procedure.
CAUTION:
●Use genuine NISSAN CVT fluid NS-2.
●Delete CVT fluid deterioration date with CONSULT-II after changing CVT fluid. Refer to CVT-68,
"Check CVT Fluid Deterioration Date" .
4. Check fluid level and condition.
Fluid status Conceivable Cause Required Operation
Varnished (viscous
varnish state)
Clutch, brake
scorched
Replace the CVT fluid and check
the CVT main unit and the vehicle
for malfunctions (wire harnesses,
cooler pipes, etc.)
Milky white or
cloudy Water in the fluid Replace the CVT fluid and check for
places where water is getting in.
Large amount of
metal powder mixed
in
Unusual wear of
sliding parts within
CVT
Replace the CVT fluid and check for
improper operation of the CVT.
ATA0022D
Fluid capacity
Approx. 10.2 (10-6/8 US qt, 9 lmp qt)
CVT-16
CVT SYSTEM
Revision; 2004 April 2003 Murano
CVT SYSTEM PFP:31036
Cross-Sectional View - RE0F09A ACS0020F
1. Converter housing 2. Oil pump 3. Forward clutch
4. Reverse brake 5. Planetary carrier 6. Primary pulley
7. Steel belt 8. Sun gear 9. Side cover
10. Internal gear 11. Secondary pulley 12. Final gear
13. Differential case 14. Idler gear 15. Reduction gear
16. Taper roller bearing 17. Output gear 18. Parking gear
19. Input shaft 20. Torque converter
SCIA4837E
CVT SYSTEM
CVT-17
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
Control System ACS0029J
SCIA1929E
CVT-18
CVT SYSTEM
Revision; 2004 April 2003 Murano

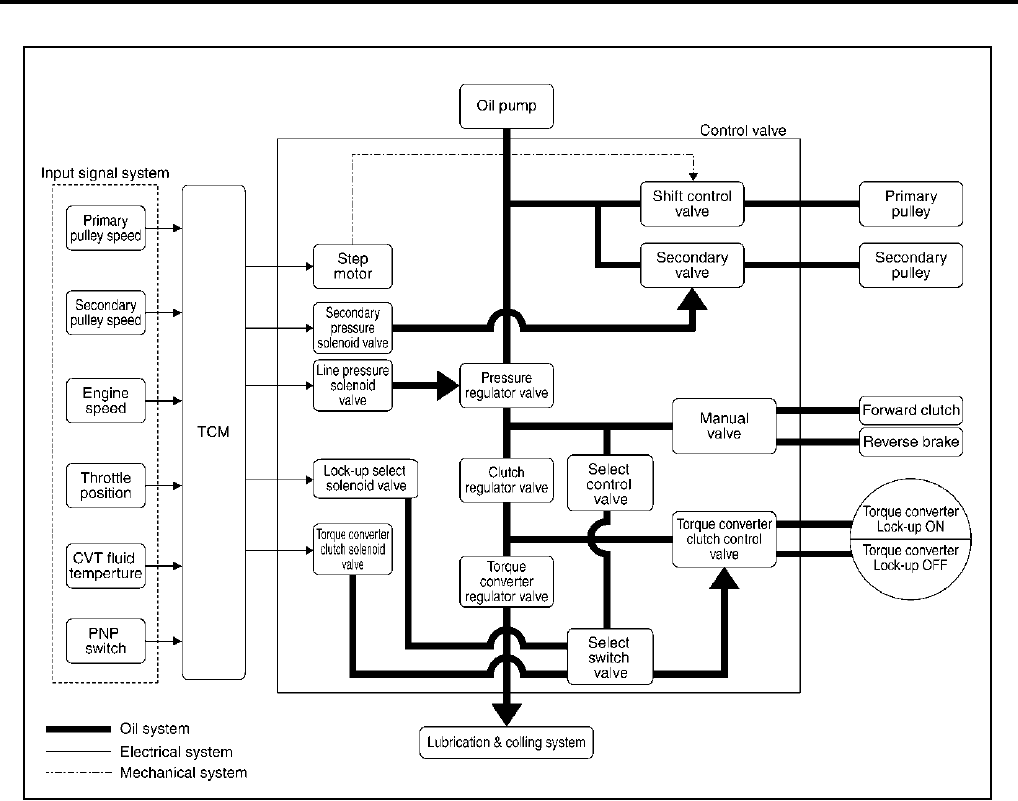

Hydraulic Control System ACS002IN
SCIA1807E
CVT SYSTEM
CVT-19
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
TCM Function ACS0020H
The function of the TCM is to:
●Receive input signals sent from various switches and sensors.
●Determine required line pressure, shifting point, and lock-up operation.
●Send required output signals to the step motor and the respective solenoids.
CONTROL SYSTEM OUTLINE
The CVT senses vehicle operating conditions through various sensors. It always controls the optimum shift
position and reduces shifting and lock-up shocks.
CONTROL SYSTEM DIAGRAM
SENSORS (or SIGNAL)
Þ
TCM
Þ
ACTUATORS
PNP switch
Accelerator pedal position signal
Closed throttle position signal
Engine speed signal
Engine torque signal
CVT fluid temperature sensor
Vehicle speed signal
Second position switch signal
Stop lamp switch signal
Primary speed sensor
Secondary speed sensor
Primary pressure sensor
Secondary pressure sensor
Shift control
Line pressure control
Primary pressure control
Secondary pressure control
Lock-up control
Engine brake control
Vehicle speed control
Fail-safe control
Self-diagnosis
CONSULT-II communication line
Duet-EA control
CAN system
On board diagnosis
Step motor
Torque converter clutch solenoid
valve
Lock-up select solenoid valve
Line pressure solenoid valve
Secondary pressure solenoid
valve
Second position indicator lamp
SCIA5131E
CVT-20
CVT SYSTEM
Revision; 2004 April 2003 Murano
CAN Communication Unit For 2WD Models ACS003L3
SYSTEM DESCRIPTION
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
TYPE 1/TYPE 2/TYPE 3/TYPE 4/TYPE 5/TYPE 6/TYPE 7/TYPE 8
System Diagram
●Type1
●Type2
SKIA4902E
SKIA4903E
CVT SYSTEM
CVT-21
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano

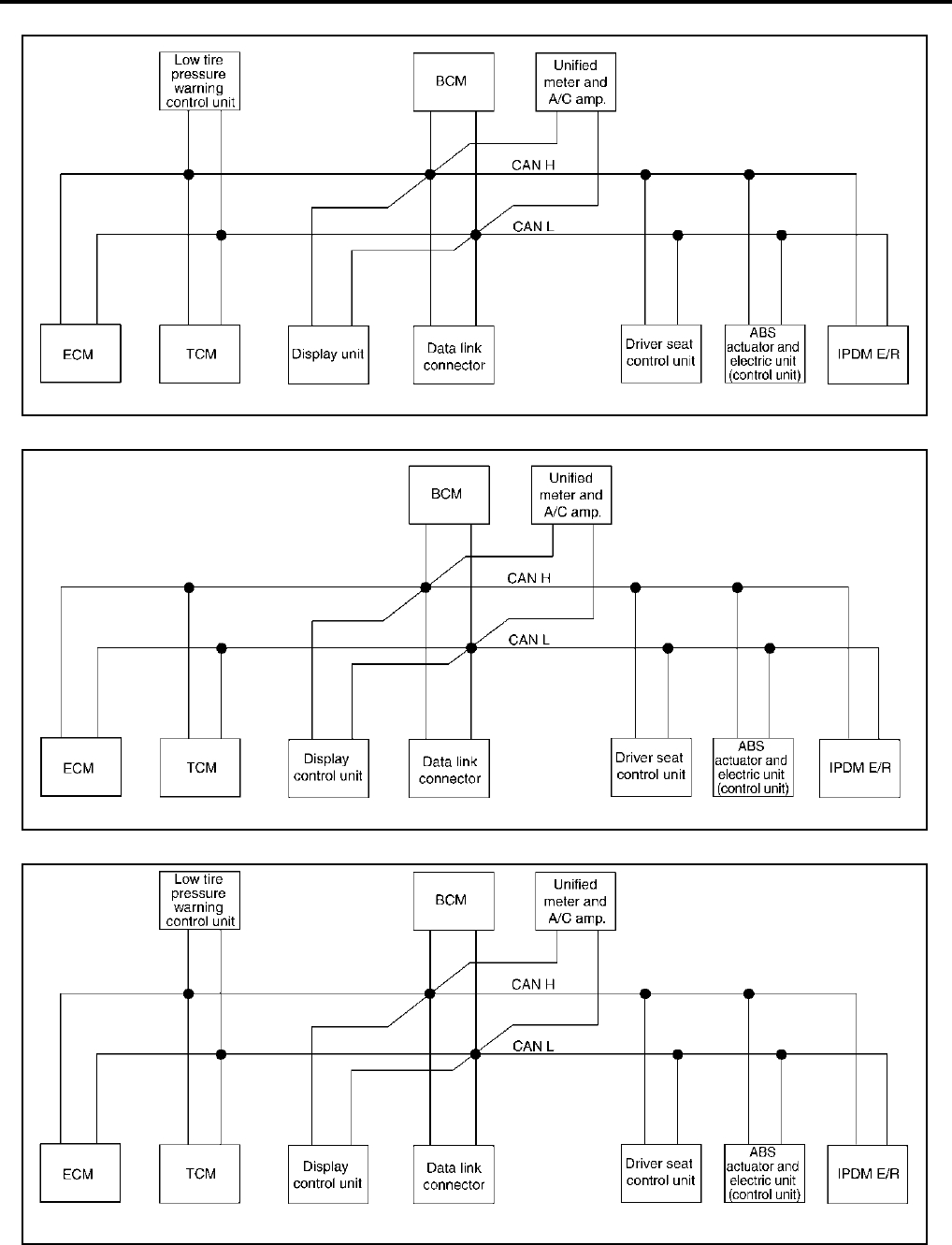

●Type3
●Type4
●Type5
SKIA4904E
SKIA4905E
SKIA4906E
CVT-22
CVT SYSTEM
Revision; 2004 April 2003 Murano
●Type6
●Type7
●Type8
SKIA4907E
SKIA4908E
SKIA4909E
CVT SYSTEM
CVT-23
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
Input/Output Signal Chart T: Transmit R: Receive
Signals ECM TCM
Low
tire
pres-
sure
warn-
ing
control
unit
Dis-
play
unit
Dis-
play
control
unit
BCM
Uni-
fied
meter
and A/
C amp.
Driver
seat
control
unit
ABS
actua-
tor and
elec-
tric unit
(con-
trol
unit)
IPDM
E/R
Engine speed signal T R R R R
Engine status signal T R
Engine coolant temperature signal T R
CVT position indicator signal T R
Second position signal R T
Second position indicator signal T R
Engine and CVT integrated control
signal
TR
RT
Accelerator pedal position signal T R
Closed throttle position signal T R
Wide open throttle position signal T R
Key switch signal TR
Ignition switch signal T R R
P range signal T R
Stop lamp switch signal R T
Fuel consumption monitor signal T R
CVT self-diagnosis signal R T
ABS operation signal R T
Air conditioner switch signal R T
A/C compressor request signal T R
A/C compressor feedback signal T R
Blower fan motor switch signal R T
A/C control signal TT R
RR T
Cooling fan speed request signal T R
Position lights request signal T R R
Low beam request signal T R
Low beam status signal R T
High beam request signal T R R
High beam status signal R T
Front fog lights request signal T R
Vehicle speed signal RRT
RRRRTR
Sleep request 1 signal T R
Sleep request 2 signal T R
Door switch signal RT
RRTRR R
Turn indicator signal T R
CVT-24
CVT SYSTEM
Revision; 2004 April 2003 Murano
Key fob ID signal TR
Key fob door unlock signal T R
Seat belt buckle switch signal R T
Oil pressure switch signal RT
TR
Buzzer output signal T R
Fuel level sensor signal R T
Fuel level low warning signal R R T
Malfunction indicator lamp signal T R
ASCD SET lamp signal T R
ASCD CRUISE lamp signal T R
Input shaft revolution signal R T
Output shaft revolution signal R T
Front wiper request signal T R
Front wiper stop position signal R T
Rear window defogger switch signal T R
Rear window defogger control signal R R R T
Hood switch signal RT
Theft warning horn request signal T R
Horn chirp signal TR
Tire pressure signal T R
Tire pressure data signal T R R
ABS warning lamp signal RT
Brake warning lamp signal RT
System setting signal T T R
Parking brake switch signal R T
Signals ECM TCM
Low
tire
pres-
sure
warn-
ing
control
unit
Dis-
play
unit
Dis-
play
control
unit
BCM
Uni-
fied
meter
and A/
C amp.
Driver
seat
control
unit
ABS
actua-
tor and
elec-
tric unit
(con-
trol
unit)
IPDM
E/R
CVT SYSTEM
CVT-25
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
TYPE 9/TYPE10/TYPE 11/TYPE 12/TYPE 13/TYPE 14/TYPE 15/TYPE 16
System Diagram
●Type9
●Type10
●Type11
SKIA4910E
SKIA4911E
SKIA4912E
CVT-26
CVT SYSTEM
Revision; 2004 April 2003 Murano
●Type12
●Type13
●Type14
SKIA4913E
SKIA4914E
SKIA4915E
CVT SYSTEM
CVT-27
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
●Type15
●Type16
SKIA4916E
SKIA4917E
CVT-28
CVT SYSTEM
Revision; 2004 April 2003 Murano
Input/Output Signal Chart T: Transmit R: Receive
Signals ECM TCM
Low
tire
pres-
sure
warn-
ing
con-
trol
unit
Dis-
play
unit
Dis-
play
con-
trol
unit
BCM
Uni-
fied
meter
and A/
C
amp.
Steer-
ing
angle
sen-
sor
Driver
seat
con-
trol
unit
ABS
actua-
tor
and
elec-
tric
unit
(con-
trol
unit)
IPDM
E/R
Engine speed signal T R R R R R
Engine status signal T R
Engine coolant temperature signal T R
Engine and CVT integrated control
signal
TR
RT
Accelerator pedal position signal T R R
Closed throttle position signal T R
Wide open throttle position signal T R
Key switch signal T R
Ignition switch signal T R R
P range signal T R R
Stop lamp switch signal R T
VDC operation signal R T
Second position indicator signal T R R
Second position signal R T
Fuel consumption monitor signal T R
CVT self-diagnosis signal R T
Input shaft revolution signal R T R
Output shaft revolution signal R T R
Air conditioner switch signal R T
A/C compressor request signal T R
A/C compressor feedback signal T R
Blower fan motor switch signal R T
A/C control signal TT R
RR T
Cooling fan speed request signal T R
Position lights request signal T R R
Low beam request signal T R
Low beam status signal R T
High beam request signal T R R
High beam status signal R T
Front fog lights request signal T R
Vehicle speed signal RRT
RRRRTR
Sleep request 1 signal T R
Sleep request 2 signal T R
CVT SYSTEM
CVT-29
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
Door switch signal RT
RRTRRR
Turn indicator signal T R
Key fob ID signal T R
Key fob door unlock signal T R
Seat belt buckle switch signal R T
Oil pressure switch signal RT
TR
Buzzer output signal T R
Fuel level sensor signal R T
Fuel level low warning signal R R T
Malfunction indicator signal T R
ASCD SET lamp signal T R
ASCD CRUISE lamp signal T R
Front wiper request signal T R
Front wiper stop position signal R T
Rear window defogger switch signal T R
Rear window defogger control signal R R R T
Hood switch signal R T
Theft warning horn request signal T R
Horn chirp signal T R
Steering angle sensor signal TR
Tire pressure signal T R
Tire pressure data signal T R R
CVT position indicator signal T R R
ABS warning lamp signal R T
VDC OFF indicator lamp signal R T
SLIP indicator lamp signal R T
Brake warning lamp signal R T
System setting signal T T R
Parking brake switch signal R T
Signals ECM TCM
Low
tire
pres-
sure
warn-
ing
con-
trol
unit
Dis-
play
unit
Dis-
play
con-
trol
unit
BCM
Uni-
fied
meter
and A/
C
amp.
Steer-
ing
angle
sen-
sor
Driver
seat
con-
trol
unit
ABS
actua-
tor
and
elec-
tric
unit
(con-
trol
unit)
IPDM
E/R
CVT-30
CVT SYSTEM
Revision; 2004 April 2003 Murano
CAN Communication Unit For AWD Models ACS003L4
SYSTEM DESCRIPTION
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
TYPE 17/TYPE 18/TYPE 19/TYPE 20/TYPE 21/TYPE 22/TYPE 23/TYPE 24

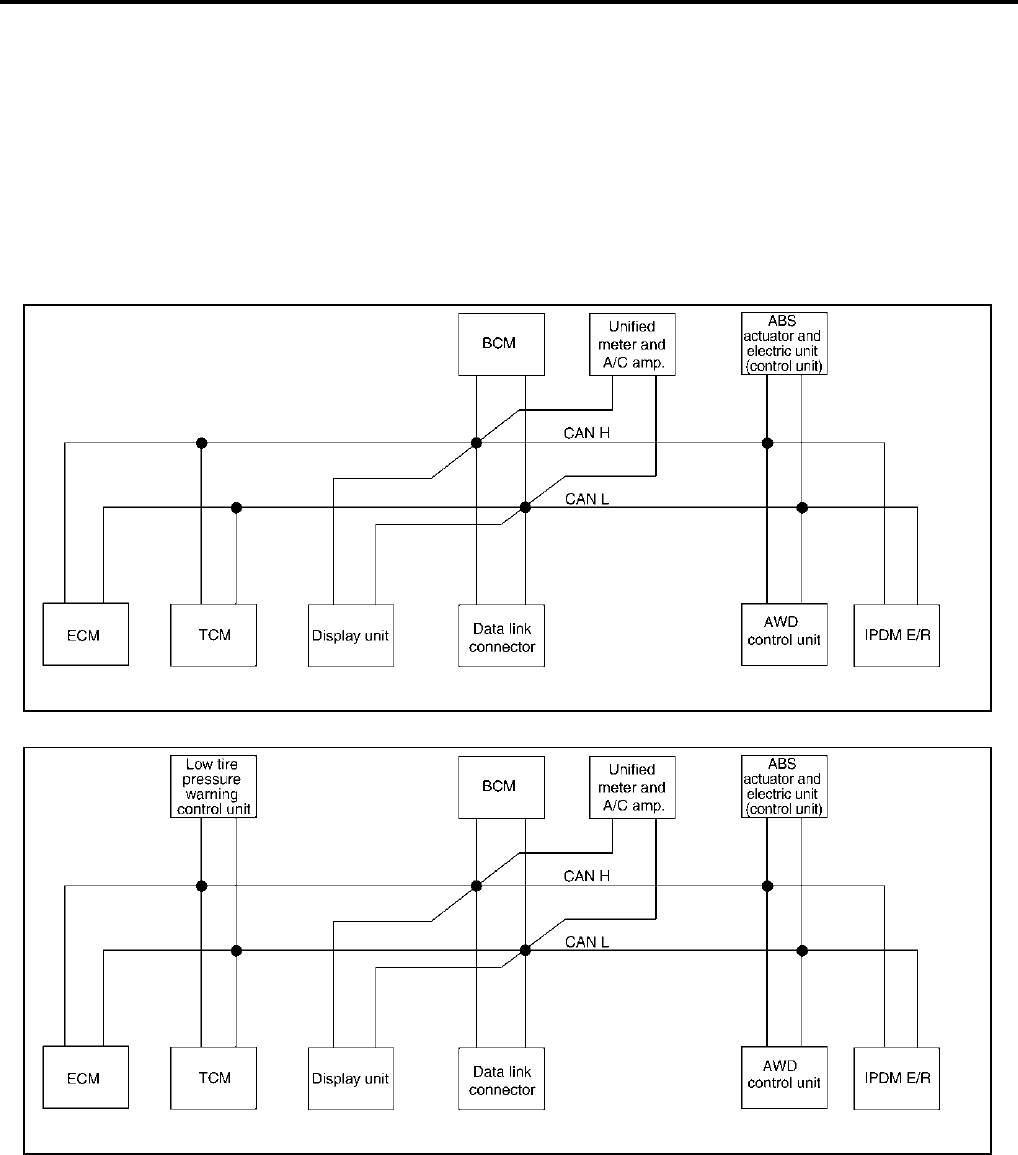

System Diagram
●Type17
●Type18
SKIA4918E
SKIA4919E
CVT SYSTEM
CVT-31
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano

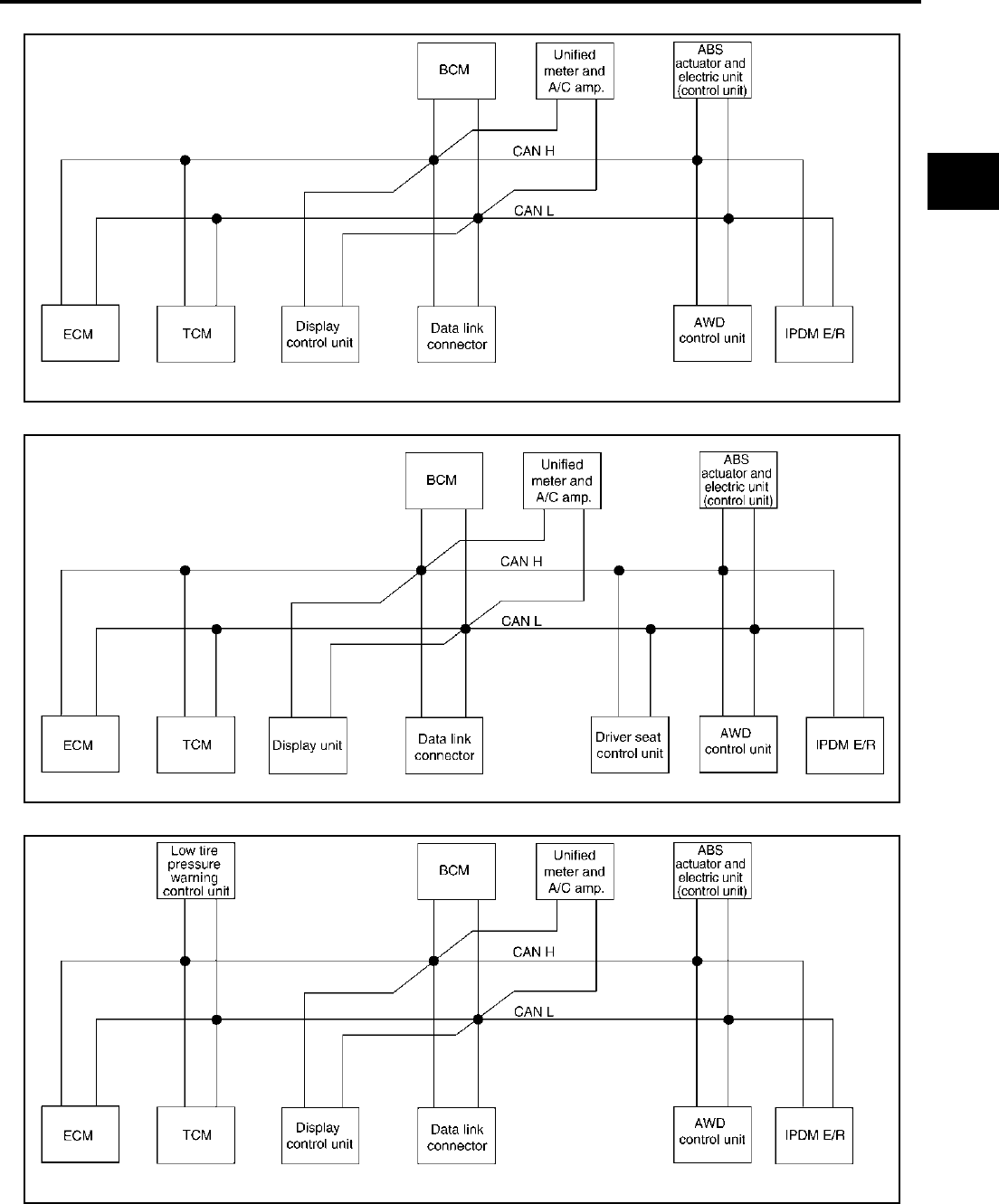

●Type19
●Type20
●Type21
SKIA4920E
SKIA4921E
SKIA4922E
CVT-32
CVT SYSTEM
Revision; 2004 April 2003 Murano
●Type22
●Type23
●Type24
SKIA4923E
SKIA4924E
SKIA4925E
CVT SYSTEM
CVT-33
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
Input/Output Signal Chart T: Transmit R: Receive
Signals ECM TCM
Low
tire
pres-
sure
warn-
ing
con-
trol
unit
Dis-
play
unit
Dis-
play
con-
trol
unit
BCM
Uni-
fied
meter
and A/
C
amp.
Driver
seat
con-
trol
unit
AWD
con-
trol
unit
ABS
actua-
tor
and
elec-
tric
unit
(con-
trol
unit)
IPDM
E/R
CVT position indicator signal T R
Second position signal R T
Second position indicator signal T R
Engine speed signal T R R R R R R
Engine status signal T R
Engine coolant temperature signal T R
Accelerator pedal position signal T R R
Closed throttle position signal T R
Wide open throttle position signal T R
Key switch signal T R
Ignition switch signal T R R
P range signal T R
Stop lamp switch signal R T R
Fuel consumption monitor signal T R
CVT self-diagnosis signal R T
ABS operation signal R R T
Air conditioner switch signal R T
A/C compressor request signal T R
A/C compressor feedback signal T R
Blower fan motor switch signal R T
A/C control signal TT R
RR T
Cooling fan speed request signal T R
Position lights request signal T R R
Low beam request signal T R
Low beam status signal R T
High beam request signal T R R
High beam status signal R T
Front fog lights request signal T R
Vehicle speed signal RRRT
RRRRTR
Sleep request 1 signal T R
Sleep request 2 signal T R
Door switch signal RT
RRTRR R
Key fob ID signal T R
Key fob door unlock signal T R
CVT-34
CVT SYSTEM
Revision; 2004 April 2003 Murano
Turn indicator signal T R
Seat belt buckle switch signal R T
Oil pressure switch signal RT
TR
Buzzer output signal T R
Fuel level sensor signal R T
Fuel level low warning signal R R T
Malfunction indicator lamp signal T R
ASCD SET lamp signal T R
ASCD CRUISE lamp signal T R
Input shaft revolution signal R T
Output shaft revolution signal R T
Front wiper request signal T R
Front wiper stop position signal R T
Rear window defogger switch signal T R
Rear window defogger control signal R R R T
Engine and CVT integrated control
signal
TR
RT
Hood switch signal R T
Theft warning horn request signal T R
Horn chirp signal T R
Tire pressure signal T R
Tire pressure data signal T R R
ABS warning lamp signal R T
Brake warning lamp signal R T
System setting signal T T R
AWD warning lamp signal R T
AWD lock indicator lamp signal R T
AWD lock switch signal T R
Parking brake switch signal R T R
Signals ECM TCM
Low
tire
pres-
sure
warn-
ing
con-
trol
unit
Dis-
play
unit
Dis-
play
con-
trol
unit
BCM
Uni-
fied
meter
and A/
C
amp.
Driver
seat
con-
trol
unit
AWD
con-
trol
unit
ABS
actua-
tor
and
elec-
tric
unit
(con-
trol
unit)
IPDM
E/R
CVT SYSTEM
CVT-35
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
TYPE 25/TYPE26/TYPE 27/TYPE 28/TYPE 29/TYPE 30/TYPE 31/TYPE 32
System Diagram
●Type25
●Type26
●Type27
SKIA4926E
SKIA4927E
SKIA4928E
CVT-36
CVT SYSTEM
Revision; 2004 April 2003 Murano
●Type28
●Type29
●Type30
SKIA4929E
SKIA4930E
SKIA4931E
CVT SYSTEM
CVT-37
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano

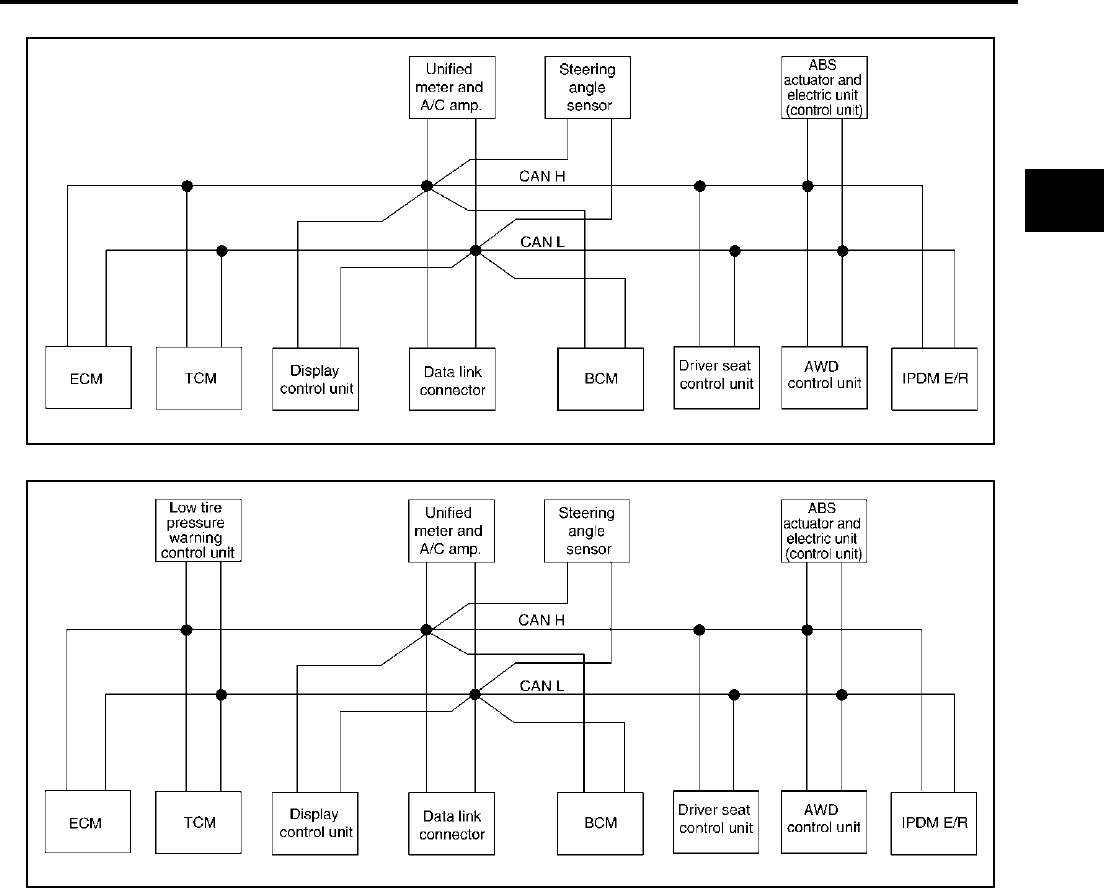

●Type31
●Type32
SKIA4932E
SKIA4933E
CVT-38
CVT SYSTEM
Revision; 2004 April 2003 Murano
Input/Output Signal Chart T: Transmit R: Receive
Signals ECM TCM
Low
tire
pres-
sure
warn-
ing
con-
trol
unit
Dis-
play
unit
Dis-
play
con-
trol
unit
BCM
Uni-
fied
meter
and
A/C
amp.
Steer
ing
angle
sen-
sor
Drive
r seat
con-
trol
unit
AWD
con-
trol
unit
ABS
actu-
ator
and
elec-
tric
unit
(con-
trol
unit)
IPDM
E/R
Engine and CVT integrated control
signal
TR
RT
Second position signal R T
VDC operation signal R R T
Stop lamp switch signal R T R
Key switch signal T R
Ignition switch signal T R R
P range signal T R R
Closed throttle position signal T R
Wide open throttle position signal T R
Second position indicator signal T R R
Engine speed signal T R R R R R R
Engine status signal T R
Engine coolant temperature signal T R
Accelerator pedal position signal T R R R
Fuel consumption monitor signal T R
CVT self-diagnosis signal R T
Input shaft revolution signal R T R
Output shaft revolution signal R T R
Air conditioner switch signal R T
A/C compressor request signal T R
A/C compressor feedback signal T R T
Blower fan motor switch signal R T
A/C control signal TT R
RR T
Cooling fan speed request signal T R
Position lights request signal T R R
Low beam request signal T R
Low beam status signal R T
High beam request signal T R R
High beam status signal R T
Front fog lights request signal T R
Vehicle speed signal RRRT
RRRRTR
Sleep request 1 signal T R
Sleep request 2 signal T R
CVT SYSTEM
CVT-39
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
Door switch signal RT
RRTR R R
Turn indicator signal T R
Key fob ID signal T R
Key fob door unlock signal T R
Seat belt buckle switch signal R T
Oil pressure switch signal RT
TR
Buzzer output signal T R
Fuel level sensor signal R T
Fuel level low warning signal R R T
Malfunction indicator signal T R
ASCD SET lamp signal T R
ASCD CRUISE lamp signal T R
Front wiper request signal T R
Front wiper stop position signal R T
Rear window defogger switch signal T R
Rear window defogger control signal R R R T
Hood switch signal R T
Theft warning horn request signal T R
Horn chirp signal T R
Steering angle sensor signal T R
Tire pressure signal T R
Tire pressure data signal T R R
CVT position indicator signal T R R
ABS warning lamp signal R T
VDC OFF indicator lamp signal R T
SLIP indicator lamp signal R T
Brake warning lamp signal R T
System setting signal T T R
AWD warning lamp signal R T
AWD lock indicator lamp signal R T
AWD lock switch signal T R
Parking brake switch signal R T R
Signals ECM TCM
Low
tire
pres-
sure
warn-
ing
con-
trol
unit
Dis-
play
unit
Dis-
play
con-
trol
unit
BCM
Uni-
fied
meter
and
A/C
amp.
Steer
ing
angle
sen-
sor
Drive
r seat
con-
trol
unit
AWD
con-
trol
unit
ABS
actu-
ator
and
elec-
tric
unit
(con-
trol
unit)
IPDM
E/R
CVT-40
CVT SYSTEM
Revision; 2004 April 2003 Murano

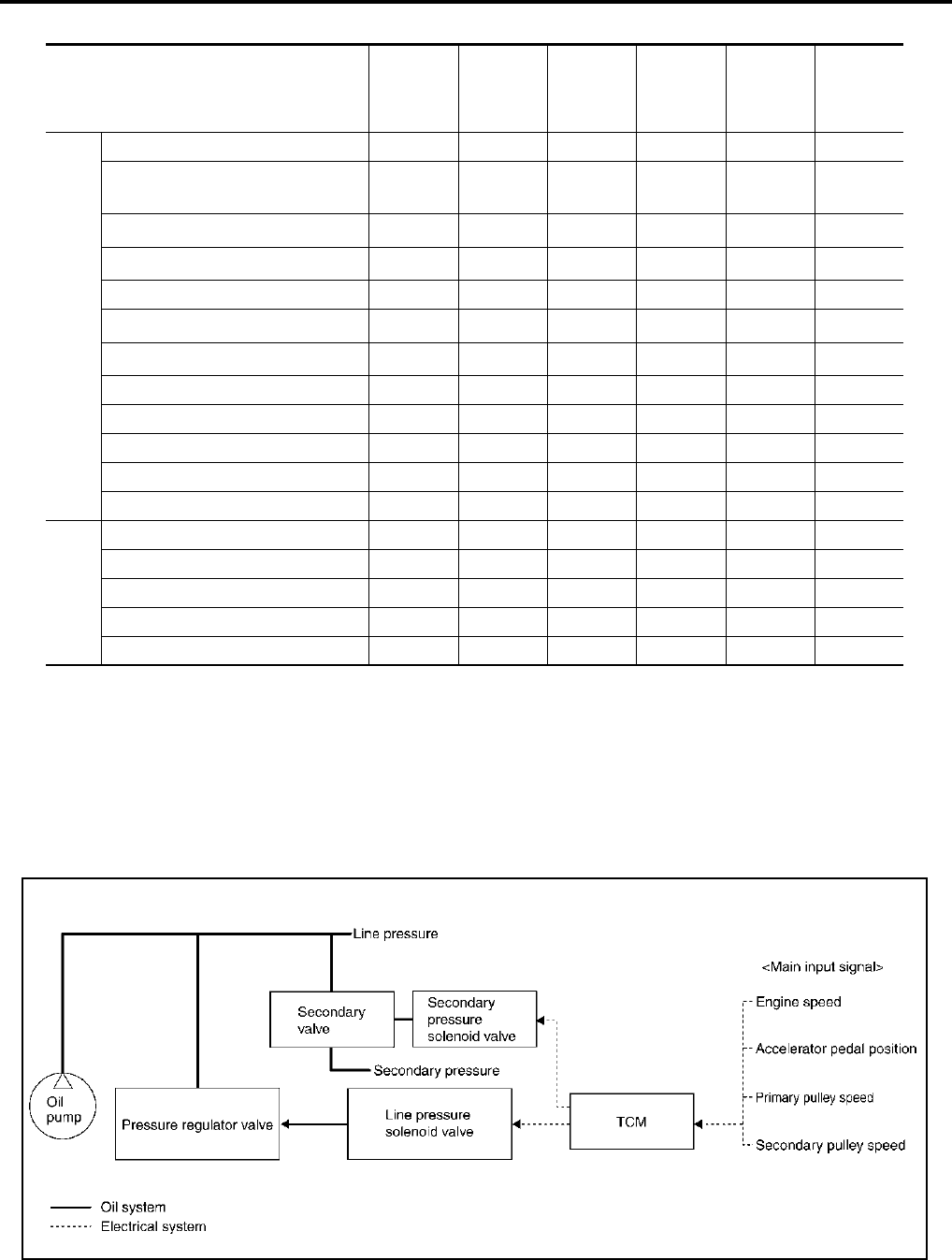

Input/Output Signal of TCM ACS0020J
*1: Input by CAN communications.
*2: If these input and output signals are different, the TCM triggers the fail-safe function.
Line Pressure and Secondary Pressure Control ACS0020K
●When an input torque signal equivalent to the engine drive force is sent from the ECM to the TCM, the
TCM controls the line pressure solenoid valve and secondary pressure solenoid valve.
●This line pressure solenoid controls the pressure regulator valve as the signal pressure and adjusts the
pressure of the operating oil discharged from the oil pump to the line pressure most appropriate to the
driving state. Secondary pressure is made by line pressure decreasing.
Control item
Fluid
pressure
control
Select
control
Shift con-
trol
Lock-up
control
CAN
communi-
cation
control
Fail-safe
function
(*2)
Input
PNP switch X X X X X X
Accelerator pedal position signal
(*1) X X X X X X
Closed throttle position signal(*1) X X XX
Engine speed signal(*1) X X X X X
CVT fluid temperature sensor X X X X X
Second position switch signal(*1) X X X
Stop lamp switch signal(*1) X X X X
Primary speed sensor X X X X X
Secondary speed sensor X X X X X X
Primary pressure sensor X X X
Secondary pressure sensor X X X
TCM power supply voltage signal X X X X X
Out-
put
Step motor X X
TCC solenoid valve X X X
Lock-up select solenoid valve X X X
Line pressure solenoid valve X X X X
Secondary pressure solenoid valve X X X
SCIA1846E
CVT SYSTEM
CVT-41
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
NORMAL CONTROL
Optimize the line pressure and secondary pressure, depending on driving conditions, on the basis of the throt-
tle position, the engine speed, the primary pulley (input) revolution speed, the secondary pulley (output) revo-
lution speed, the brake signal, the PNP switch signal, the lock-up signal, the voltage, the target gear ratio, the
fluid temperature, and the fluid pressure.
FEEDBACK CONTROL
When controlling the normal fluid pressure or the selected fluid pressure, the secondary pressure can be set
more accurately by using the fluid pressure sensor to detect the secondary pressure and controlling the feed-
back.

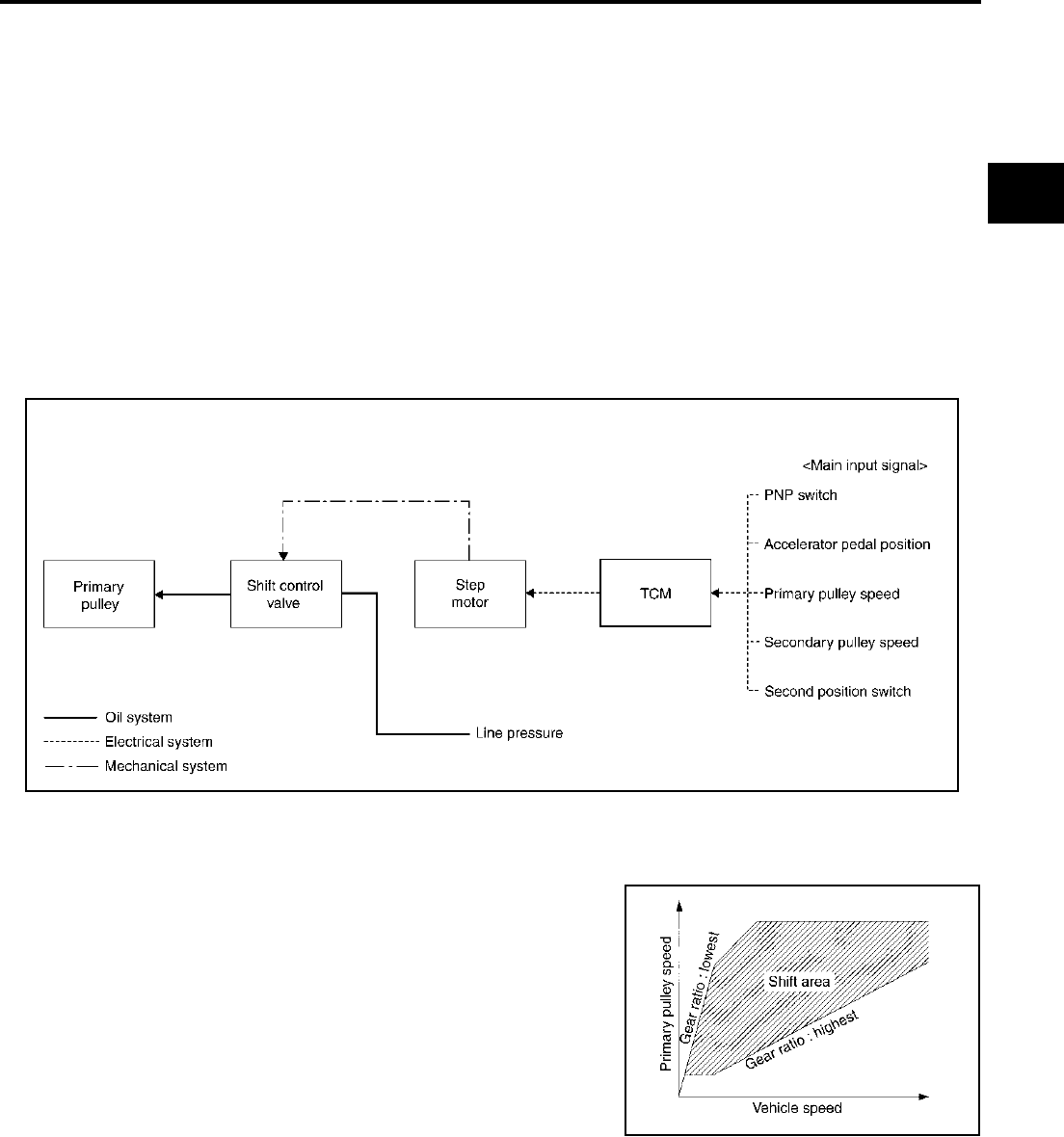

Shift Control ACS0020L
In order to select the gear ratio which can obtain the driving force in accordance with driver's intention and the
vehicle condition, monitor the driving conditions, such as the vehicle speed and the throttle position, select the
appropriate gear ratio, and determine how to change the gear before reaching it in the TCM. Then send the
command to the step motor, and control the flow-in/flow-out of line pressure from the primary pulley to deter-
mine the position of the moving-pulley and control the gear ratio.
NOTE:
The gear ratio is set for every position separately.

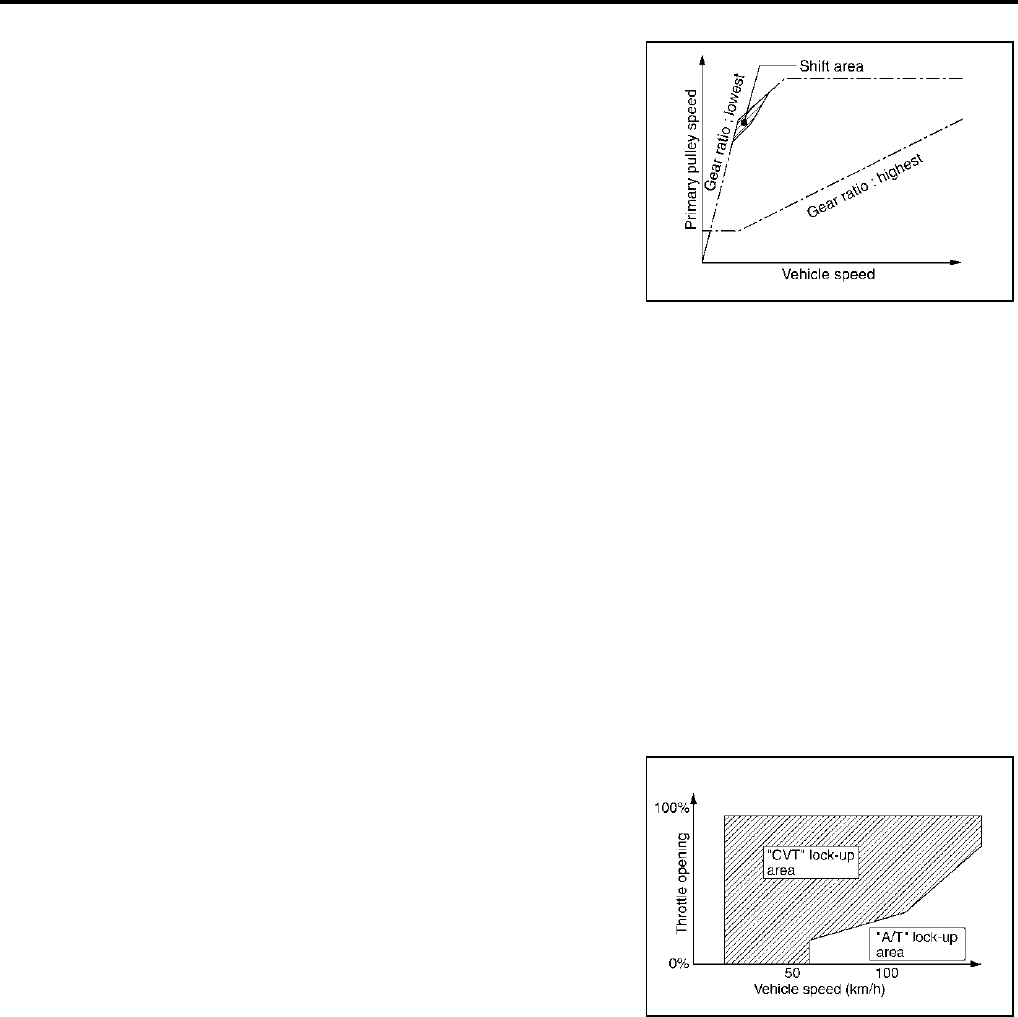

“D” POSITION
Shifting over all the ranges of gear ratios from the lowest to the high-
est.
“S”POSITION
Use this position for the improved engine braking.
SCIA1952E
SCIA1953E
CVT-42
CVT SYSTEM
Revision; 2004 April 2003 Murano
“L” POSITION
By limiting the gear range to the lowest position, the strong driving
force and the engine brake can be secured.
DOWNHILL ENGINE BRAKE CONTROL (AUTO ENGINE BRAKE CONTROL)
When downhill is detected with the accelerator pedal released, the engine brake will be strengthened up by
downshifting so as not to accelerate the vehicle more than necessary.
KICKDOWN CONTROL
During sudden deceleration, determine if it is a sudden deceleration from the throttle position to secure the
highly responsive driving force as necessary. When it is judged as sudden deceleration, speed up the shift pat-
tern faster than normal depression for a certain period of time, and slowly shift gears to get highly responsive
shift pattern.
Lock-Up and Select Control ACS002S9
●The torque converter clutch piston in the torque converter is engaged to eliminate torque converter slip to
increase power transmission efficiency.
●The torque converter clutch control valve operation is controlled by the torque converter clutch solenoid
valve, which is controlled by a signal from TCM. The torque converter clutch control valve engages or
releases the torque converter clutch piston.
●When shifting between N (P) ⇔ D (R), torque converter clutch solenoid controls engagement power of
forward clutch and reverse brake.
●The lock-up applied gear range was expanded by locking up the
torque converter at a lower vehicle speed than conventional
CVT models.
SCIA1955E
SCIA1958E
CVT SYSTEM
CVT-43
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
TORQUE CONVERTER CLUTCH AND SELECT CONTROL VALVE CONTROL
Lock-Up and Select Control System Diagram
Lock-Up Released
●In the lock-up released state, the torque converter clutch control valve is set into the unlocked state by the
torque converter clutch solenoid and the lock-up apply pressure is drained.
In this way, the torque converter clutch piston is not coupled.
Lock-Up Applied
●In the lock-up applied state, the torque converter clutch control valve is set into the locked state by the
torque converter clutch solenoid and lock-up apply pressure is generated.
In this way, the torque converter clutch piston is pressed and coupled.
Select Control
●When shifting between N (P)⇔D (R), optimize the operating pressure on the basis of the throttle position,
the engine speed, and the secondary pulley (output) revolution speed to lessen the shift shock.
●Switch lock-up control or select control with torque converter clutch solenoid valve to switching select
valve switch with lock-up select solenoid valve.
SCIA2374E
CVT-44
CVT SYSTEM
Revision; 2004 April 2003 Murano
Control Valve ACS002S8
FUNCTION OF CONTROL VALVE
Name Function
Torque converter regulator valve Optimize the supply pressure for the torque converter depending on driving conditions.
Pressure regulator valve Optimize the discharge pressure from the oil pump depending on driving conditions.
TCC control valve ●Activate or deactivate the lock-up.
●Lock-up smoothly by opening lock-up operation excessively.
TCC solenoid valve Controls the TCC control valve or select control valve.
Shift control valve Controls flow-in/out of line pressure from the primary pulley depending on the stroke dif-
ference between the stepping motor and the primary pulley.
Secondary valve Controls the line pressure from the secondary pulley depending on operating condi-
tions.
Clutch regulator valve Adjust the clutch operating pressure depending on operating conditions.
Secondary pressure solenoid valve Controls the secondary valve.
Line pressure solenoid valve Controls the line pressure control valve.
Step motor Controls the pulley ratio.
Manual valve Transmit the clutch operating pressure to each circuit in accordance with the selected
position.
Select control valve Engage forward clutch, reverse brake smoothly depending on select operation.
Select switch valve Switch torque converter clutch solenoid valve control pressure use to torque converter
clutch control valve or select control valve.
Lock-up select solenoid valve Controls the select switch valve.
ON BOARD DIAGNOSTIC (OBD) SYSTEM
CVT-45
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
ON BOARD DIAGNOSTIC (OBD) SYSTEM PFP:00028
Introduction ACS001SS
The CVT system has two self-diagnostic systems.
The first is the emission-related on board diagnostic system (OBD-II) performed by the TCM in combination
with the ECM. The malfunction is indicated by the MIL (malfunction indicator lamp) and is stored as a DTC in
the ECM memory, and the TCM memory.
The second is the TCM original self-diagnosis performed by the TCM. The malfunction is stored in the TCM
memory. The detected items are overlapped with OBD-II self-diagnostic items. For detail, refer to CVT-71,
"Self-Diagnostic Result Test Mode" .
OBD-II Function for CVT System ACS001ST
The ECM provides emission-related on board diagnostic (OBD-II) functions for the CVT system. One function
is to receive a signal from the TCM used with OBD-related parts of the CVT system. The signal is sent to the
ECM when a malfunction occurs in the corresponding OBD-related part. The other function is to indicate a
diagnostic result by means of the MIL (malfunction indicator lamp) on the instrument panel. Sensors, switches
and solenoid valves are used as sensing elements.
The MIL automatically illuminates in One or Two Trip Detection Logic when a malfunction is sensed in relation
to CVT system parts.
One or Two Trip Detection Logic of OBD-II ACS001SU
ONE TRIP DETECTION LOGIC
If a malfunction is sensed during the first test drive, the MIL will illuminate and the malfunction will be stored in
the ECM memory as a DTC. The TCM is not provided with such a memory function.
TWO TRIP DETECTION LOGIC
When a malfunction is sensed during the first test drive, it is stored in the ECM memory as a 1st trip DTC
(diagnostic trouble code) or 1st trip freeze frame data. At this point, the MIL will not illuminate. — First Trip
If the same malfunction as that experienced during the first test drive is sensed during the second test drive,
the MIL will illuminate. — Second Trip
The “trip” in the “One or Two Trip Detection Logic” means a driving mode in which self-diagnosis is performed
during vehicle operation.
OBD-II Diagnostic Trouble Code (DTC) ACS001SV
HOW TO READ DTC AND 1ST TRIP DTC
DTC and 1st trip DTC can be read by the following methods.
( with CONSULT-II or GST) CONSULT-II or GST (Generic Scan Tool) Examples: P0705, P0720 etc.
These DTC are prescribed by SAE J2012.
(CONSULT-II also displays the malfunctioning component or system.)
●1st trip DTC No. is the same as DTC No.
●Output of the diagnostic trouble code indicates that the indicated circuit has a malfunction. How-
ever, in case of the Mode II and GST, they do not indicate whether the malfunction is still occurring
or occurred in the past and returned to normal.
CONSULT-II can identify them as shown below, therefore, CONSULT-II (if available) is recom-
mended.
A sample of CONSULT-II display for DTC and 1st trip DTC is shown
on the next page. DTC or 1st trip DTC of a malfunction is displayed
in SELF-DIAGNOSTIC RESULTS mode for “ENGINE” with CON-
SULT-II. Time data indicates how many times the vehicle was driven
after the last detection of a DTC.
SCIA2272E
CVT-46
ON BOARD DIAGNOSTIC (OBD) SYSTEM
Revision; 2004 April 2003 Murano

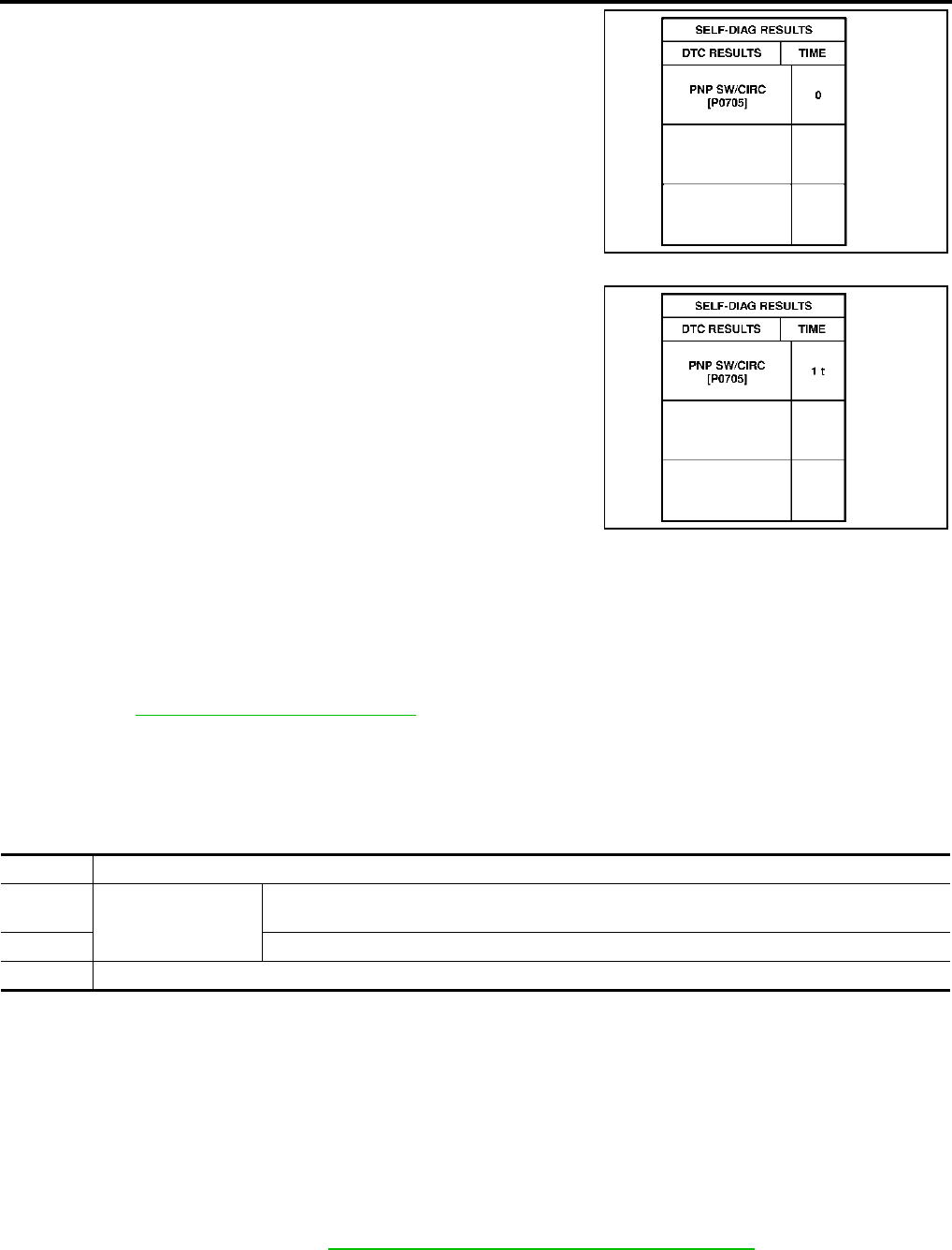

If the DTC is being detected currently, the time data will be “0”.
If a 1st trip DTC is stored in the ECM, the time data will be “1t”.
Freeze Frame Data and 1st Trip Freeze Frame Data
The ECM has a memory function, which stores the driving condition such as fuel system status, calculated
load value, engine coolant temperature, short term fuel trim, long term fuel trim, engine speed and vehicle
speed at the moment the ECM detects a malfunction.
Data which are stored in the ECM memory, along with the 1st trip DTC, are called 1st trip freeze frame data,
and the data, stored together with the DTC data, are called freeze frame data and displayed on CONSULT-II
or GST. The 1st trip freeze frame data can only be displayed on the CONSULT-II screen, not on the GST. For
details, refer to EC-125, "CONSULT-II Function" .
Only one set of freeze frame data (either 1st trip freeze frame data or freeze frame data) can be stored in the
ECM. 1st trip freeze frame data is stored in the ECM memory along with the 1st trip DTC. There is no priority
for 1st trip freeze frame data, and it is updated each time a different 1st trip DTC is detected. However, once
freeze frame data (2nd trip detection/MIL on) is stored in the ECM memory, 1st trip freeze frame data is no
longer stored. Remember, only one set of freeze frame data can be stored in the ECM. The ECM has the fol-
lowing priorities to update the data.
Both 1st trip freeze frame data and freeze frame data (along with the DTC) are cleared when the ECM mem-
ory is erased.
HOW TO ERASE DTC
The diagnostic trouble code can be erased by CONSULT-II, GST or ECM DIAGNOSTIC TEST MODE as
described following.
●If the battery cable is disconnected, the diagnostic trouble code will be lost within 24 hours.
●When you erase the DTC, using CONSULT-II or GST is easier and quicker than switching the mode
selector on the ECM.
The following emission-related diagnostic information is cleared from the ECM memory when erasing DTC
related to OBD-II. For details, refer to EC-69, "Emission-related Diagnostic Information" .
●Diagnostic trouble codes (DTC)
●1st trip diagnostic trouble codes (1st trip DTC)
●Freeze frame data
SAT015K
SAT016K
Priority Items
1Freeze frame data
Misfire — DTC: P0300 - P0306
Fuel Injection System Function — DTC: P0171, P0172, P0174, P0175
2 Except the above items (Includes CVT related items)
3 1st trip freeze frame data

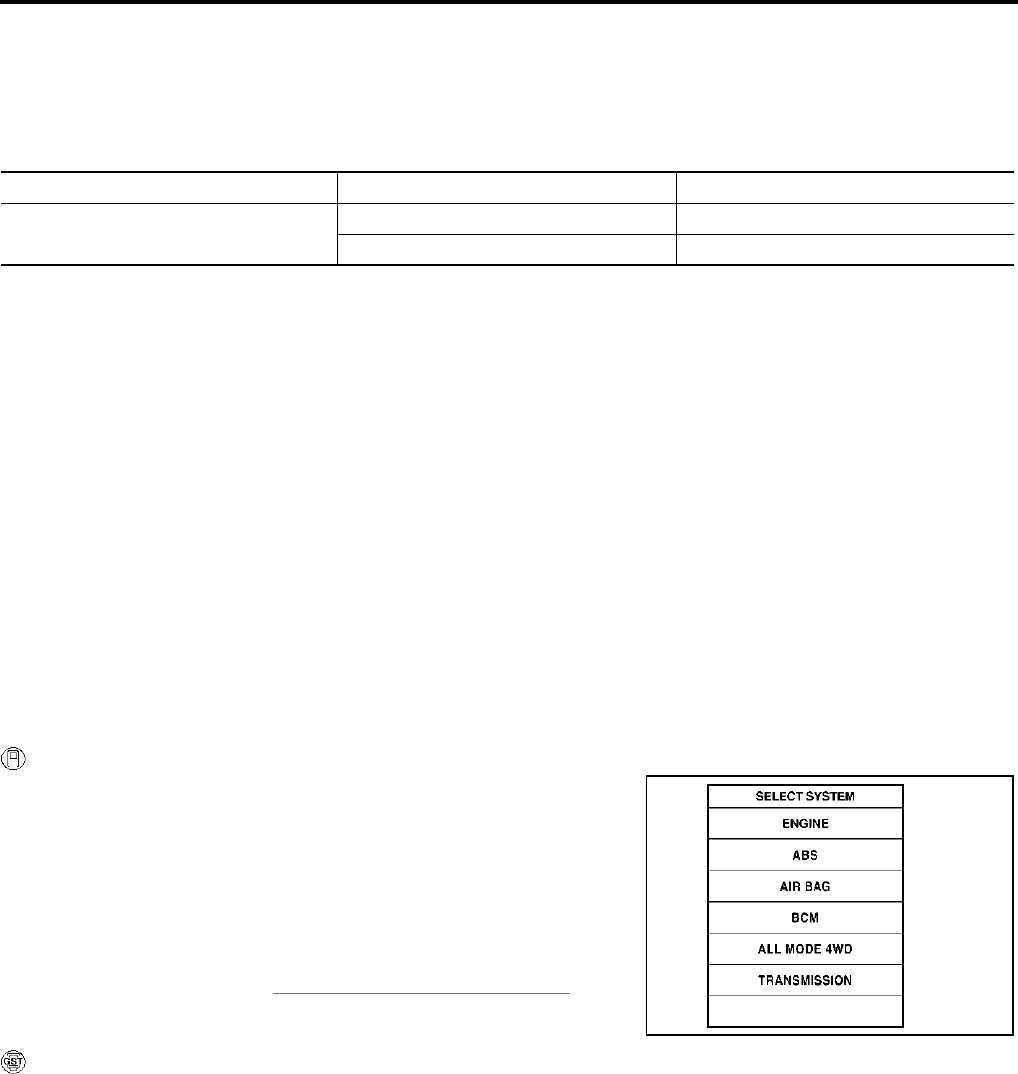

ON BOARD DIAGNOSTIC (OBD) SYSTEM
CVT-47
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
●1st trip freeze frame data
●System readiness test (SRT) codes
●Test values

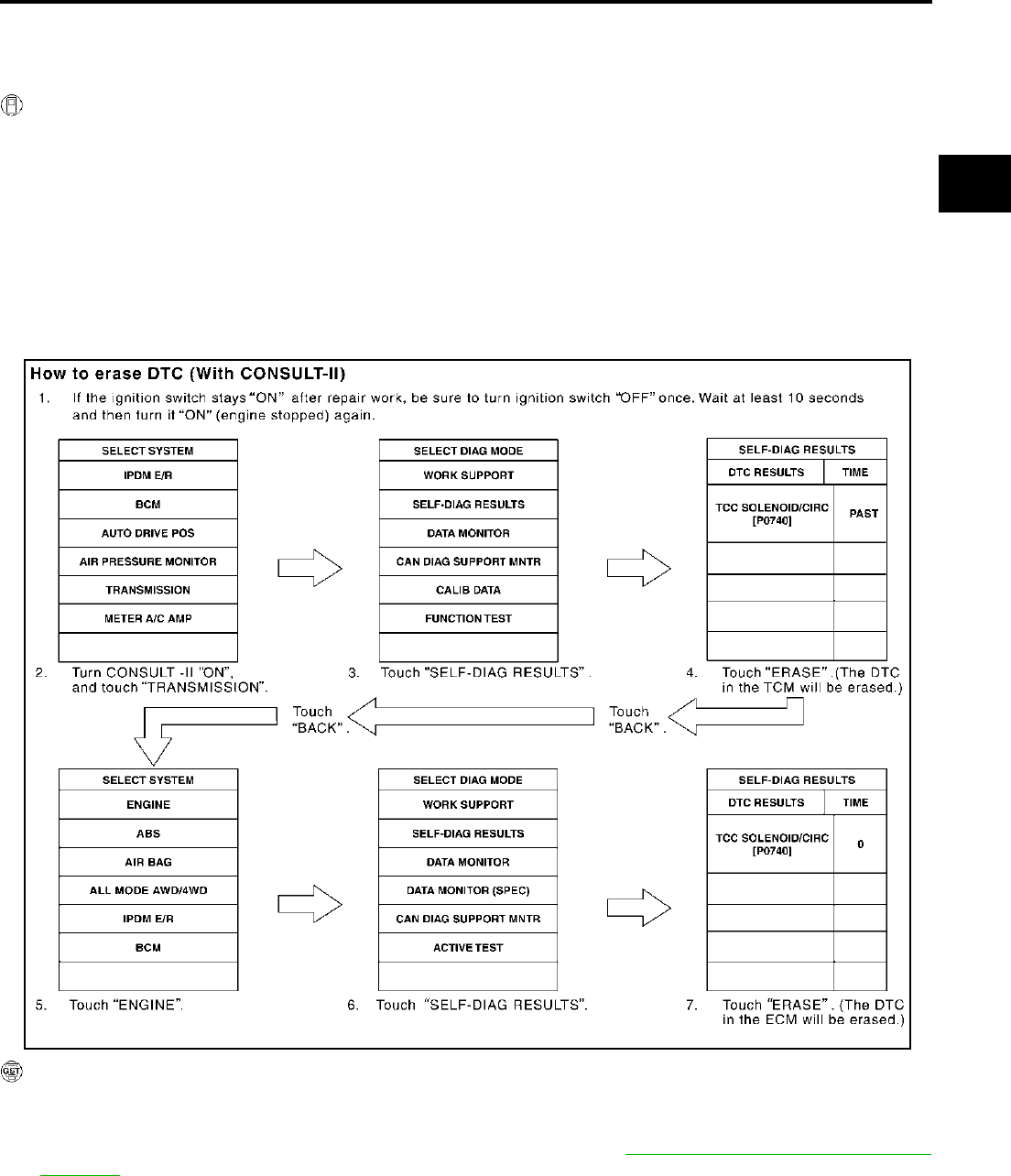

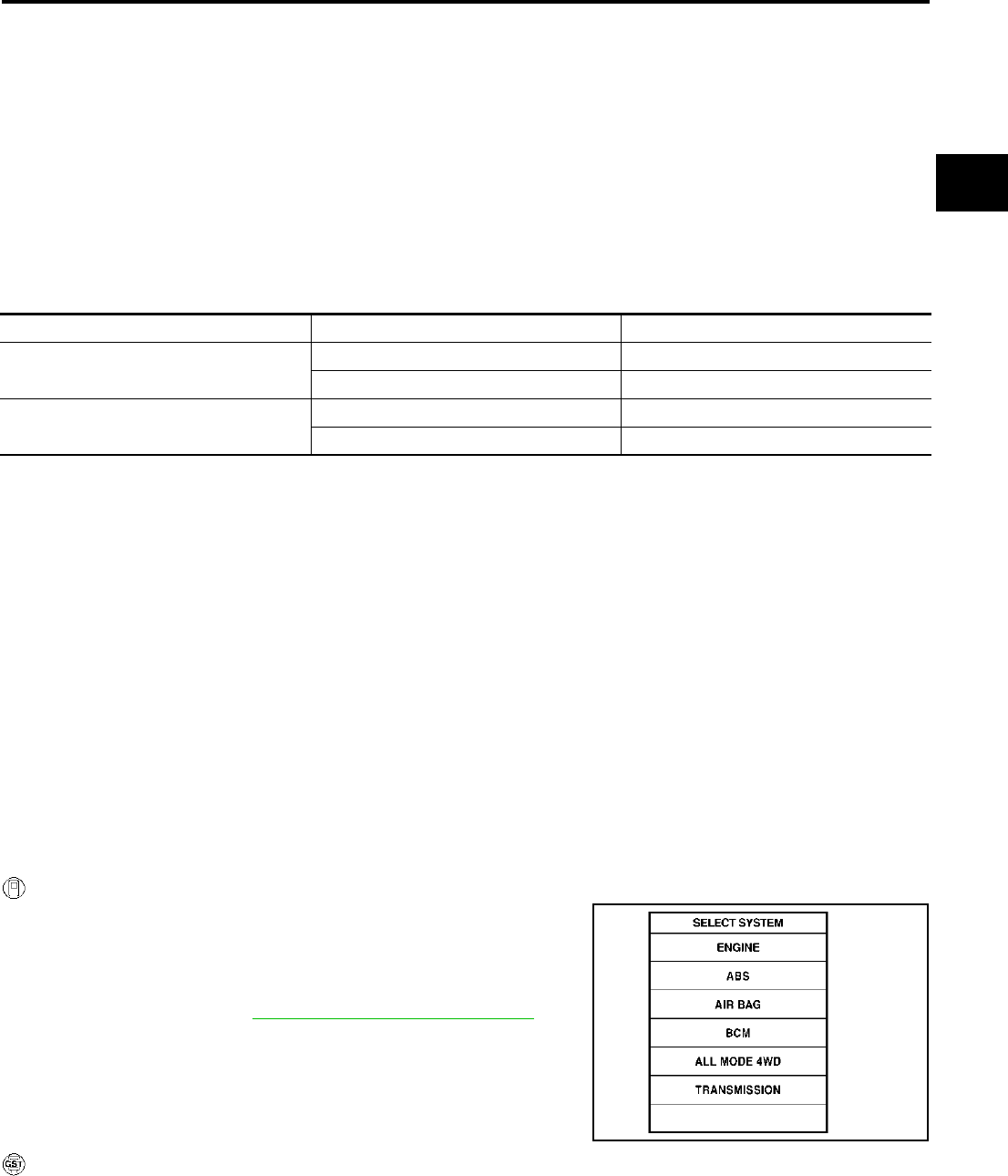

HOW TO ERASE DTC (WITH CONSULT-II)
●If a DTC is displayed for both ECM and TCM, it is necessary to be erased for both ECM and TCM.
1. If the ignition switch stays “ON” after repair work, be sure to turn ignition switch “OFF” once. Wait at least
10 seconds and then turn it “ON” (engine stopped) again.
2. Turn CONSULT-II “ON” and touch “TRANSMISSION”.
3. Touch “SELF-DIAG RESULTS”.
4. Touch “ERASE”. (The DTC in the TCM will be erased.) Then touch “BACK” twice.
5. Touch “ENGINE”.
6. Touch “SELF-DIAG RESULTS”.
7. Touch “ERASE”. (The DTC in the ECM will be erased.)
HOW TO ERASE DTC (WITH GST)
1. If the ignition switch stays “ON” after repair work, be sure to turn ignition switch “OFF” once. Wait at least
10 seconds and then turn it “ON” (engine stopped) again.
2. Select Mode 4 with Generic Scan Tool (GST). For details, refer to EC-138, "Generic Scan Tool (GST)
Function" .
SCIA5768E
CVT-48
ON BOARD DIAGNOSTIC (OBD) SYSTEM
Revision; 2004 April 2003 Murano
Malfunction Indicator Lamp (MIL) ACS001SW
DESCRIPTION

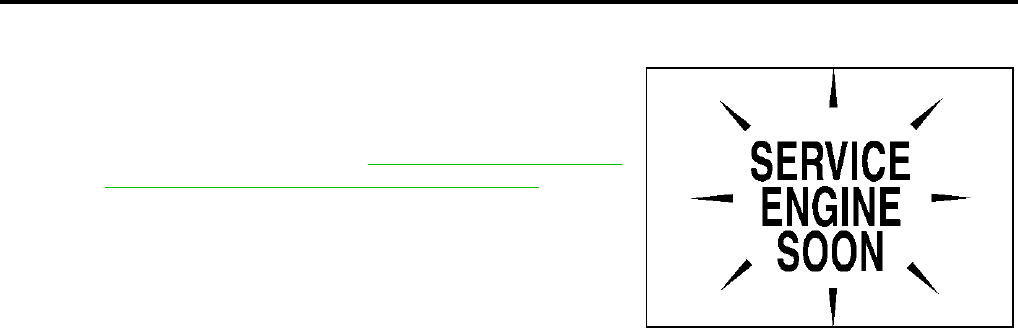

The MIL is located on the instrument panel.
1. The MIL will light up when the ignition switch is turned “ON” with-
out the engine running. This is a bulb check.
●If the MIL does not light up, refer to DI-61, "WARNING LAMPS" ,
or see EC-650, "MIL AND DATA LINK CONNECTOR" .
2. When the engine is started, the MIL should go off.
If the MIL remains on, the on board diagnostic system has
detected an engine system malfunction.
SEF217U
TROUBLE DIAGNOSIS
CVT-49
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
TROUBLE DIAGNOSIS PFP:00004
DTC Inspection Priority Chart ACS001SX
If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.
NOTE:
If DTC U1000 is displayed with other DTCs, first perform the trouble diagnosis for DTC U1000. Refer to
CVT-76 .
Fail-Safe ACS001SY
The TCM has an electrical fail-safe mode. This mode makes it possible to operate even if there is an error in a
main electronic control input/output signal circuit.
FAIL-SAFE FUNCTION
If any malfunction occurs in a sensor or solenoid, this function controls the CVT to make driving possible.
Output Speed Sensor (Secondary Speed Sensor)
●The shift pattern is changed in accordance with throttle position when an unexpected signal is sent from
the output speed sensor (secondary speed sensor) to the TCM. The Second position is inhibited, and the
transmission is put in “D” if “S” is selected.
Input Speed Sensor (Primary Speed Sensor)
●The shift pattern is changed in accordance with throttle position and secondary speed (vehicle speed)
when an unexpected signal is sent from the input speed sensor (primary speed sensor) to the TCM. The
Second position is inhibited and the transmission is put in “D” if “S” is selected.
PNP Switch
●If an unexpected signal is sent from the PNP switch to the TCM, the transmission is put in “D”
CVT Fluid Temperature Sensor
●If an unexpected signal is sent from the CVT fluid temperature sensor to the TCM, the gear ratio in use
before receiving the unexpected signal is maintained or the gear ratio is controlled to keep engine speed
under 5000 rpm.
Transmission Fluid Pressure Sensor A (Secondary Pressure Sensor)
●If an unexpected signal is sent from the transmission fluid pressure sensor A (secondary pressure sensor)
to the TCM, the secondary pressure feedback control is stopped and the offset value obtained before the
non-standard condition occurs is used to control line pressure.
●If transmission fluid pressure sensor A (secondary pressure sensor) error signal is input to TCM, second-
ary pressure feedback control stops, but line pressure is controlled normally.
Pressure Control Solenoid A (Line Pressure Solenoid)
●If an unexpected signal is sent from the solenoid to the TCM, the pressure control solenoid A (line pres-
sure solenoid) is turned “off” to achieve the maximum fluid pressure.
Pressure Control Solenoid B (Secondary Pressure Solenoid)
●If an unexpected signal is sent from the solenoid to the TCM, the pressure control solenoid B (secondary
pressure solenoid) is turned “off” to achieve the maximum fluid pressure.
Torque Converter Clutch Solenoid
●If an unexpected signal is sent from the solenoid to the TCM, the torque converter clutch solenoid is
turned “off” to cancel the lock-up.
Step Motor
●If an unexpected signal is sent from the step motor to the TCM, the step motor coil phases “A” through “D”
are all turned “off” to hold the gear ratio used right before the non-standard condition occurred.
Priority Detected items (DTC)
1 U1000 CAN communication line
2 Except above
CVT-50
TROUBLE DIAGNOSIS
Revision; 2004 April 2003 Murano
CVT Lock-Up Select Solenoid
●If an unexpected signal is sent from the solenoid to the TCM, the lock-up select solenoid is turned “off” to
cancel the lock-up.
How To Perform Trouble Diagnosis For Quick and Accurate Repair ACS001SZ

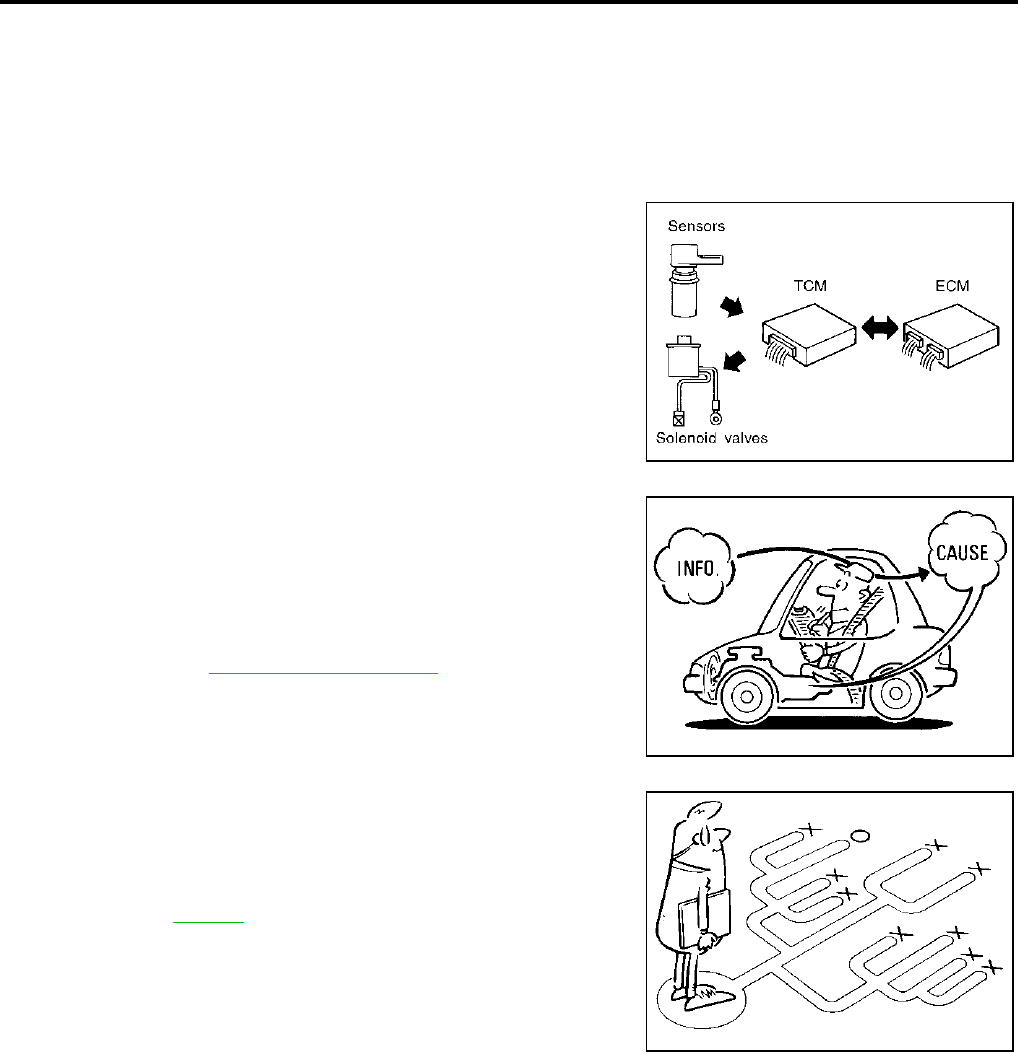

INTRODUCTION
The TCM receives a signal from the vehicle speed sensor, PNP switch and provides shift control or lock-up
control via CVT solenoid valves.
The TCM also communicates with the ECM by means of a signal
sent from sensing elements used with the OBD-related parts of the
CVT system for malfunction-diagnostic purposes. The TCM is capa-
ble of diagnosing malfunctioning parts while the ECM can store mal-
functions in its memory.
Input and output signals must always be correct and stable in the
operation of the CVT system. The CVT system must be in good
operating condition and be free of valve seizure, solenoid valve mal-
function, etc.
It is much more difficult to diagnose an error that occurs intermit-
tently rather than continuously. Most intermittent errors are caused
by poor electric connections or improper wiring. In this case, careful
checking of suspected circuits may help prevent the replacement of
good parts.
A visual check only may not find the cause of the errors. A road test
with CONSULT-II (or GST) or a circuit tester connected should be
performed. Follow the CVT-51, "WORK FLOW" .
Before undertaking actual checks, take a few minutes to talk with a
customer who approaches with a drivability complaint. The customer
can supply good information about such errors, especially intermit-
tent ones. Find out what symptoms are present and under what con-
ditions they occur. A “Diagnostic Worksheet” as shown on the
example (Refer to CVT-52 ) should be used.
Start your diagnosis by looking for “conventional” errors first. This will
help troubleshoot drivability errors on an electronically controlled
engine vehicle.
Also check related Service bulletins.
SAT631IB
SAT632I
SEF234G
TROUBLE DIAGNOSIS
CVT-51
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
WORK FLOW
A good understanding of the malfunction conditions can make troubleshooting faster and more accurate.
In general, each customer feels differently about a malfunction. It is important to fully understand the symp-
toms or conditions for a customer complaint.
Make good use of the two sheets provided, “Information From Customer” (Refer to CVT-52 ) and “Diagnostic
Worksheet” (Refer to CVT-52 ), to perform the best troubleshooting possible.
Work Flow Chart
*1. CVT-52 *2. CVT-52 *3. CVT-49
*4. CVT-56 *5. CVT-56, CVT-57 *6. CVT-59
*7. CVT-66 *8. CVT-45 *9. CVT-75
*10. CVT-76 *11. CVT-173 *12. CVT-178
*13. CVT-76 *14. CVT-173 *15. EC-69
SCIA1973E
CVT-52
TROUBLE DIAGNOSIS
Revision; 2004 April 2003 Murano
DIAGNOSTIC WORKSHEET
Information from Customer
KEY POINTS
●WHAT..... Vehicle & CVT model
●WHEN..... Date, Frequencies
●WHERE..... Road conditions
●HOW..... Operating conditions, Symptoms
Diagnostic Worksheet Chart
Customer name MR/MS Model & Year VIN
Trans. Model Engine Mileage
malfunction Date Manuf. Date In Service Date
Frequency ❏ Continuous ❏ Intermittent ( times a day)
Symptoms ❏ Vehicle does not move. (❏ Any position ❏ Particular position)
❏ No shift
❏ Lock-up malfunction
❏ Shift shock or slip (❏ N → D ❏ N → R ❏ Lock-up ❏ Any drive position)
❏ Noise or vibration
❏ No pattern select
❏ Others
()
Malfunction indicator lamp (MIL) ❏ Continuously lit ❏ Not lit
1❏ Read the item on “cautions concerning fail-safe and understand the customer's complaint. CVT-49
2
❏ CVT fluid inspection
CVT-56
❏ Leak (Repair leak location.)
❏ State
❏ Amount
3
❏ Stall test and line pressure test
CVT-56,
CVT-57
❏ Stall test
❏ Torque converter one-way clutch
❏ Reverse brake
❏ Forward clutch
❏ Steel belt
❏ Engine
❏ Line pressure low
❏ Primary pulley
❏ Secondary pulley
❏ Line pressure inspection - Suspected part:
TROUBLE DIAGNOSIS
CVT-53
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
4
❏ perform all road tests and enter checks in required inspection items. CVT-59
4-1.
Check before engine is started
❏ perform self-diagnostics. Enter checks for detected items.
❏ Output speed sensor (secondary speed sensor). CVT-101 .
❏ Input speed sensor (primary speed sensor). CVT-95 .
❏ TCC solenoid valve. CVT-112 .
❏ Pressure control solenoid valve A (line pressure solenoid valve).CVT-120 .
❏ Pressure control solenoid valve B (secondary pressure solenoid valve). CVT-131 .
❏ Transmission fluid pressure sensor A (secondary pressure sensor).CVT-135 .
❏ Transmission fluid pressure sensor B (primary pressure sensor).CVT-143 .
❏ Lock-up select solenoid valve. CVT-163 .
❏ Step motor. CVT-168 .
❏ PNP switch. CVT-85 .
❏ CVT fluid temperature sensors. CVT-90 .
❏ Stop lamp switch signal. CVT-83 .
❏ Start signal. CVT-79 .
❏ Accelerator pedal position signal. CVT-155 .
❏ Vehicle speed signal. CVT-157 .
❏ Engine speed signal. CVT-108 .
❏ CAN communication. CVT-76 .
❏ TCM power supply. CVT-150 .
❏ Steel belt. CVT-110
❏ Battery
❏ Other
4-2. Driving tests CVT-59
❏ Cannot Be Changed To Second position. CVT-175 .
❏ CVT Does Not Shift. CVT-59 .
❏ perform self-diagnostics. Enter checks for detected items.
❏ Output speed sensor (secondary speed sensor). CVT-101 .
❏ Input speed sensor (primary speed sensor). CVT-95 .
❏ TCC solenoid valve. CVT-112 .
❏ Pressure control solenoid valve A (line pressure solenoid valve).CVT-120 .
❏ Pressure control solenoid valve B (secondary pressure solenoid valve). CVT-131 .
❏ Transmission fluid pressure sensor A (secondary pressure sensor).CVT-135 .
❏ Transmission fluid pressure sensor B (primary pressure sensor).CVT-143 .
❏ Lock-up select solenoid valve. CVT-163 .
❏ Step motor. CVT-168 .
❏ PNP switch. CVT-85 .
❏ CVT fluid temperature sensors. CVT-90 .
❏ Stop lamp switch signal. CVT-83 .
❏ Start signal. CVT-79 .
❏ Accelerator pedal position signal. CVT-155 .
❏ Vehicle speed signal. CVT-157 .
❏ Engine speed signal. CVT-108 .
❏ CAN communication. CVT-76 .
❏ TCM power supply. CVT-150 .
❏ Steel belt. CVT-110
❏ Battery
❏ Other
5❏ Inspect each system for items found to be NG in the self-diagnostics and repair or replace the malfunctioning
parts.
6❏ perform all road tests and enter the checks again for the required items. CVT-59
7❏ For any remaining NG items, perform the “diagnostics procedure” and repair or replace the malfunctioning
parts.
8❏ Erase the results of the self-diagnostics from the TCM.
CVT-66,
CVT-75
CVT-54
TROUBLE DIAGNOSIS
Revision; 2004 April 2003 Murano
CVT Electrical Parts Location ACS001T0
SCIA4282E
TROUBLE DIAGNOSIS
CVT-55
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
Circuit Diagram ACS001T1
TCWA0145E
CVT-56
TROUBLE DIAGNOSIS
Revision; 2004 April 2003 Murano

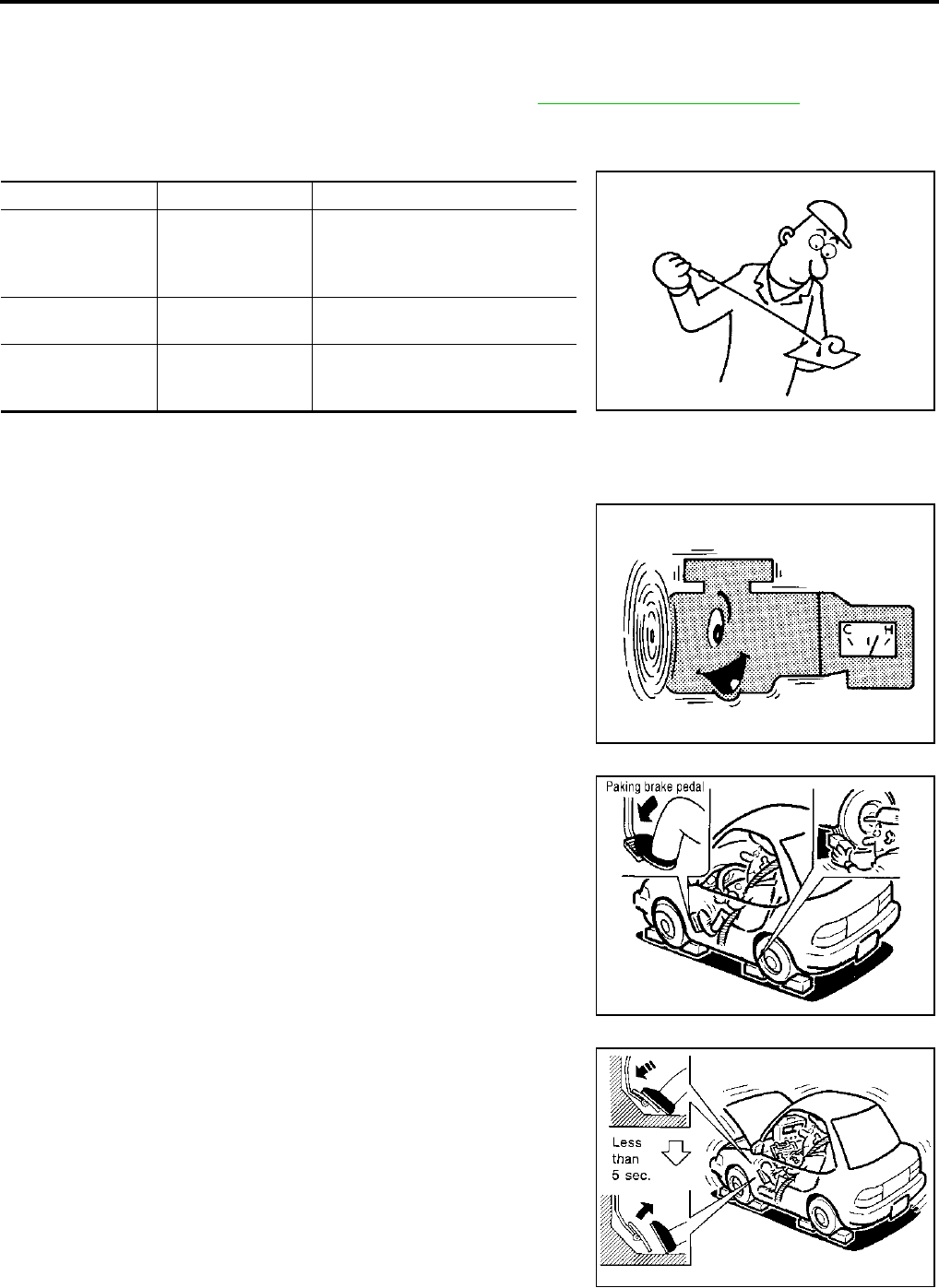

Inspections Before Trouble Diagnosis ACS001T2
CVT FLUID CHECK
Fluid Leakage and Fluid Level Check
●Inspect for fluid leakage and check the fluid level. Refer to CVT-14, "Checking CVT Fluid" .
Fluid Condition Check
Inspect the fluid condition.
STALL TEST
Stall Test Procedure
1. Inspect the amount of engine oil. Replenish the engine oil if necessary.
2. Drive for about 10 minutes to warm up the vehicle so that the
CVT fluid temperature is 50 - 80°C (122 - 176°F). Inspect the
amount of CVT fluid. Replenish if necessary.
3. Securely engage the parking brake so that the tires do not turn.
4. Engine start, apply foot brake, and place selector lever in “D”
position.
5. While holding down the foot brake, gradually press down the
accelerator pedal.
6. Quickly read off the stall speed, and then quickly remove your
foot from the accelerator pedal.
CAUTION:
Do not hold down the accelerator pedal for more than 5 sec-
onds during this test.
7. Move the selector lever to the “N” position.
8. Cool down the CVT fluid.
Fluid status Conceivable Cause Required Operation
Varnished (viscous
varnish state)
Clutch, brake
scorched
Replace the ATF and check the
CVT main unit and the vehicle for
malfunctions (wire harnesses,
cooler pipes, etc.)
Milky white or
cloudy Water in the fluid Replace the ATF and check for
places where water is getting in.
Large amount of
metal powder mixed
in
Unusual wear of
sliding parts within
CVT
Replace the ATF and check for
improper operation of the CVT.
SAT638A
SAT647B
SCIA1224E
SAT514G
TROUBLE DIAGNOSIS
CVT-57
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
CAUTION:
Run the engine at idle for at least one minute.

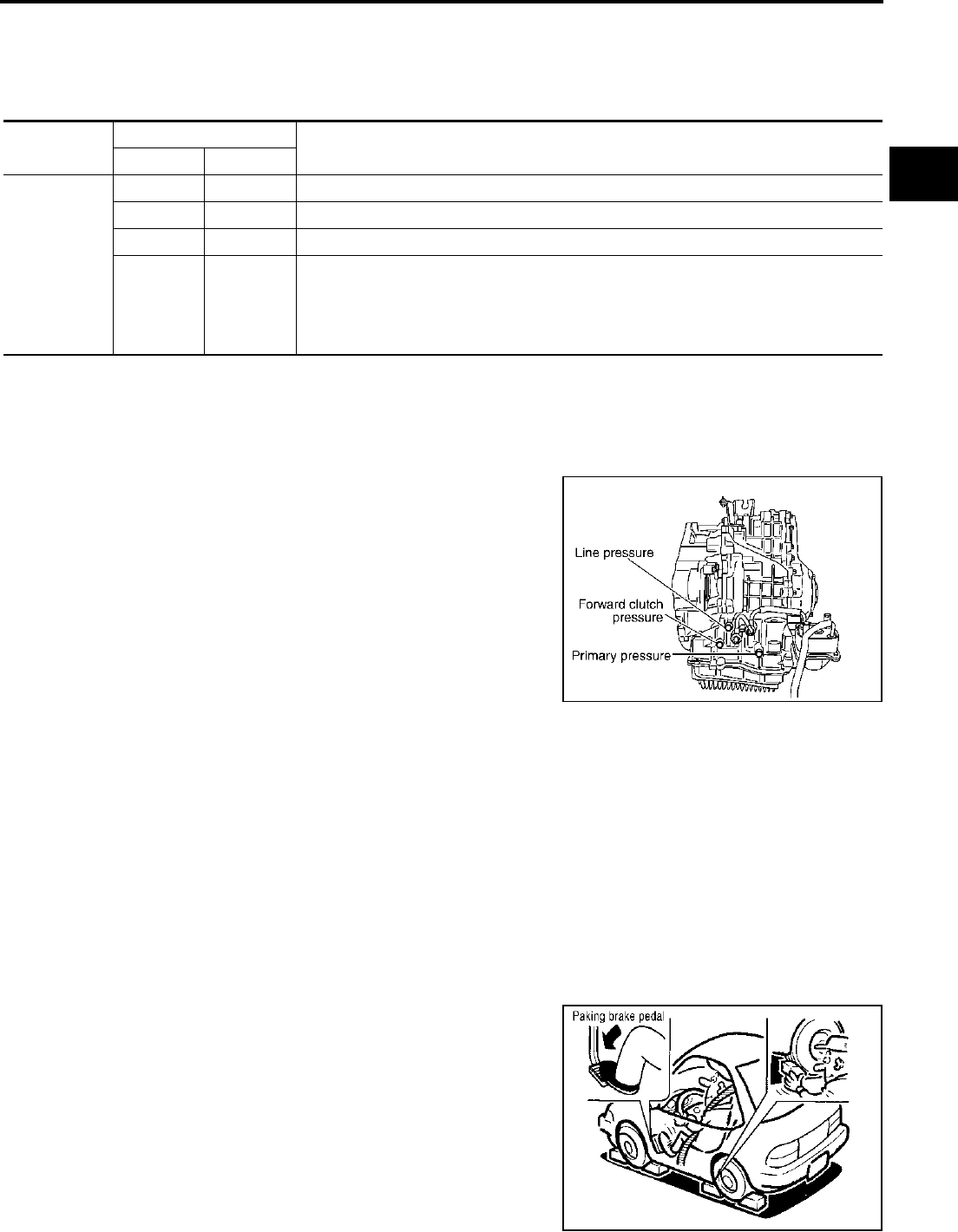

Judgement Stall Test
O: Stall speed within standard value position
H: Stall speed higher than standard value
L: Stall speed lower than standard value
LINE PRESSURE TEST
Line Pressure Test Port
Line Pressure Test Procedure
1. Inspect the amount of engine oil and replenish if necessary.
2. Drive the car for about 10 minutes to warm it up so that the CVT fluid reaches in the range of 50 - 80°C
(122 - 176°F), then inspect the amount of CVT fluid and replenish if necessary.
NOTE:
The automatic fluid temperature rises in the range of 50 - 80°C (122 - 176°F) during 10 minutes of
driving.
3. After warming up CVT, remove the oil pressure detection plug and install the oil pressure gauge [special
service tool: ST2505S001 (J34301-C)].
CAUTION:
When using the oil pressure gauge, be sure to use the O- ring attached to the oil pressure detec-
tion plug.
4. Securely engage the parking brake so that the tires do not turn.
Stall speed :2,700 - 3,250 rpm
Selector lever position Expected problem location
DR
Stall rotation
HO
●Forward clutch
OH
●Reverse brake
LL
●Engine and torque converter one-way clutch
HH
●Line pressure low
●Primary pulley
●Secondary pulley
●Steel belt
SCIA1980E
SCIA1224E
CVT-58
TROUBLE DIAGNOSIS
Revision; 2004 April 2003 Murano
5. Start the engine, and then measure the line pressure at both idle
and the stall speed.
CAUTION:
●Keep the brake pedal pressed all the way down during
measurement.
●When measuring the line pressure at the stall speed,
refer to CVT-56, "STALL TEST" .
6. After the measurements are complete, install the oil pressure
detection plug and tighten to the regulation torque below.
CAUTION:
Do not reuse the O-ring.
Line Pressure
*1: Reference values.
Judgement of Line Pressure Test
:5.0 - 10 N-m (0.51 - 1.0 kg-m, 45 - 88 in-lb) SAT493G
Engine Engine speed Line Pressure kPa (kg/cm2 , psi)
R,D,L positions
VQ35DE At idle speed 750 (7.65, 108.8)
At stall speed 5300 - 5700 (54.06 - 58.14, 768.5 - 826.5)*1
Judgement Possible cause
Idle speed
Low for all positions
(P, R, N, D, L)
Possible causes include malfunctions in the pressure supply system and low oil pump output.
For example
●Oil pump wear
●Pressure regulator valve or plug sticking or spring fatigue
●Oil strainer Þ oil pump Þ pressure regulator valve passage oil leak
●Engine idle speed too low
Only low for a spe-
cific position
Possible causes include an oil pressure leak in a passage or device related to the position after
the pressure is distributed by the manual valve.
High
Possible causes include a sensor malfunction or malfunction in the line pressure adjustment func-
tion.
For example
●Accelerator pedal position signal malfunction
●CVT fluid temperature sensor malfunction
●Pressure control solenoid A (line pressure solenoid) malfunction (sticking in “OFF” state, filter
clog, cut line)
●Pressure regulator valve or plug sticking
TROUBLE DIAGNOSIS
CVT-59
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano

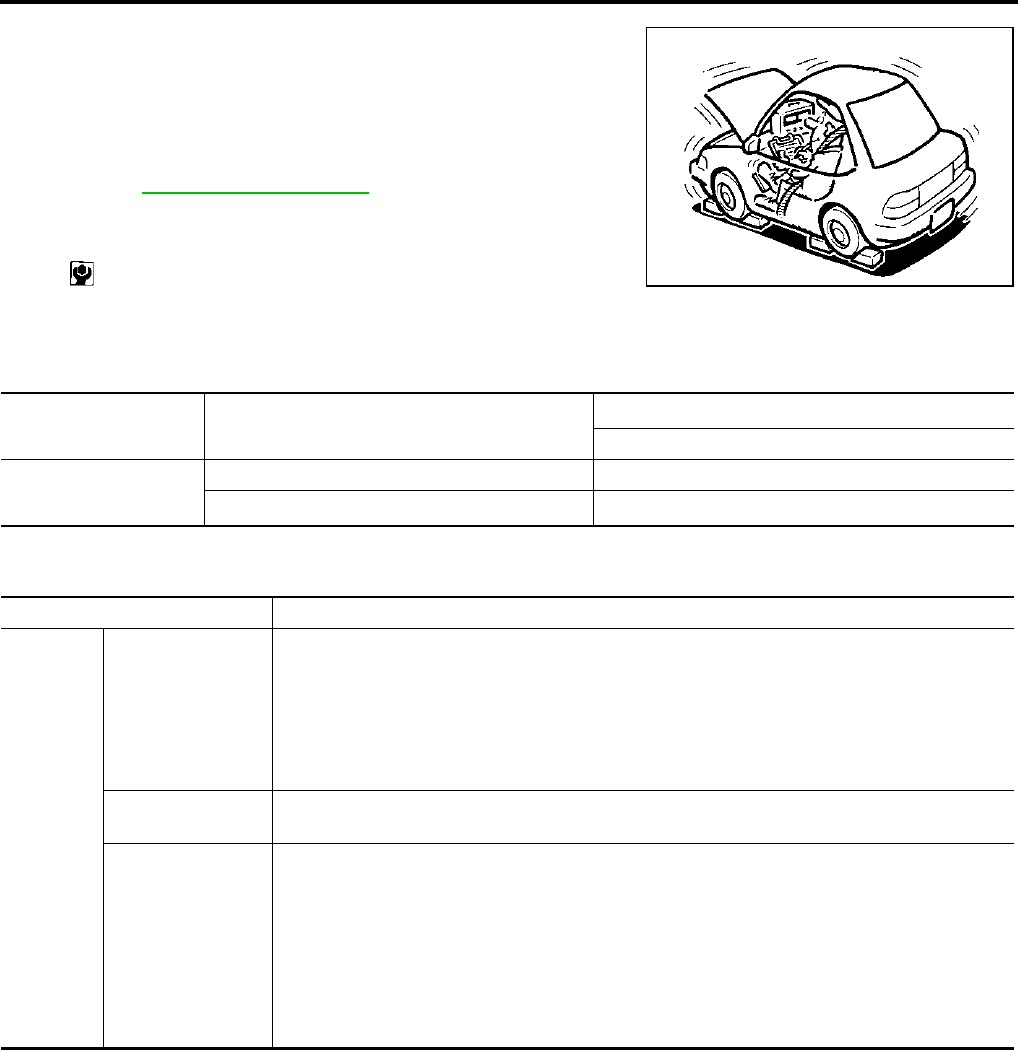

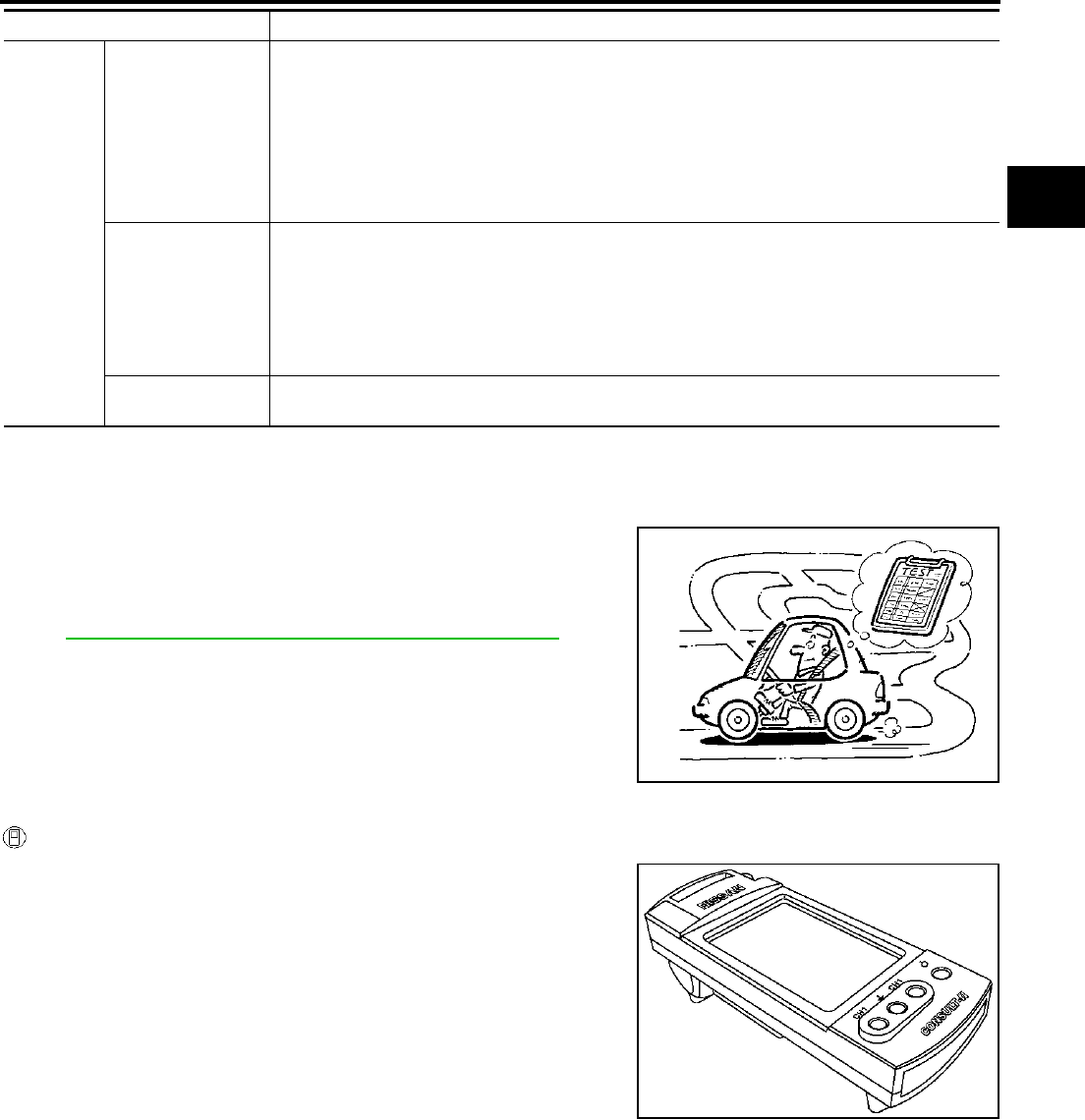

ROAD TEST
Description
●The purpose of the test is to determine overall performance of CVT and analyze causes of problems.
●Before road test, familiarize yourself with all test procedures and
items to check.
●perform tests on all items until specified symptom is found. Trou-
bleshoot items which check out No Good after road test. Refer
to CVT-45, "ON BOARD DIAGNOSTIC (OBD) SYSTEM" .
Cruse Test
With CONSULT-II
●Using CONSULT-II, perform a cruise test and record the result.
●Print the result and ensure that shifts and lock-ups take place as
per Shift Schedule.
CONSULT-II Setting Procedure
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. Turn ignition switch “OFF”.
Stall speed
Oil pressure does
not rise higher than
the oil pressure for
idle.
Possible causes include a sensor malfunction or malfunction in the pressure adjustment function.
For example
●Accelerator pedal position signal malfunction
●TCM breakdown
●Pressure control solenoid A (line pressure solenoid) malfunction (shorting, sticking in“ ON”
state)
●Pressure regulator valve or plug sticking
The pressure rises,
but does not enter
the standard posi-
tion.
Possible causes include malfunctions in the pressure supply system and malfunction in the pres-
sure adjustment function.
For example
●Accelerator pedal position signal malfunction
●Pressure control solenoid A (line pressure solenoid) malfunction (sticking, filter clog)
●Pressure regulator valve or plug sticking
Only low for a spe-
cific position
Possible causes include an oil pressure leak in a passage or device related to the position after
the pressure is distributed by the manual valve.
Judgement Possible cause
SAT496G
SAT601J
CVT-60
TROUBLE DIAGNOSIS
Revision; 2004 April 2003 Murano

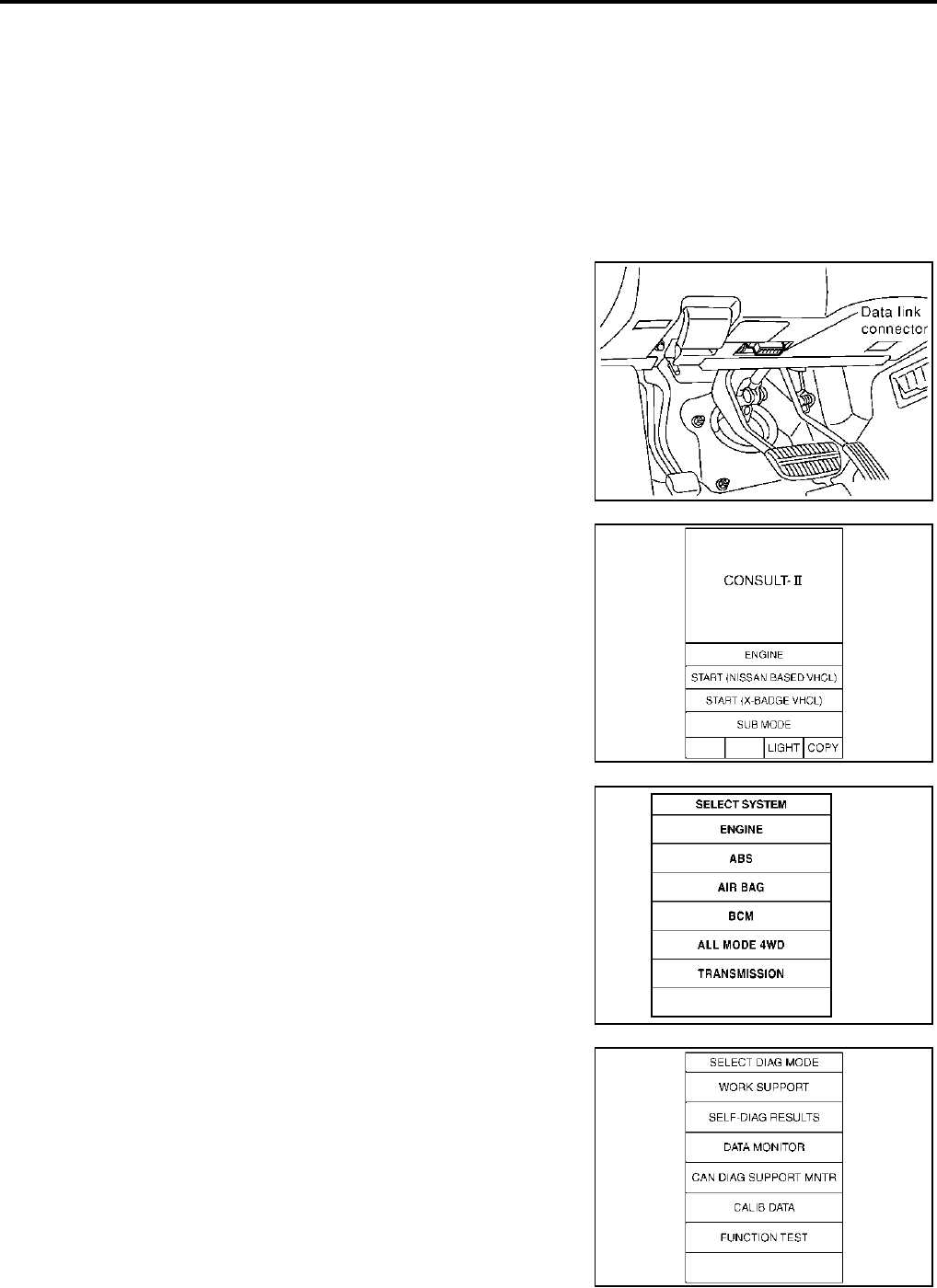

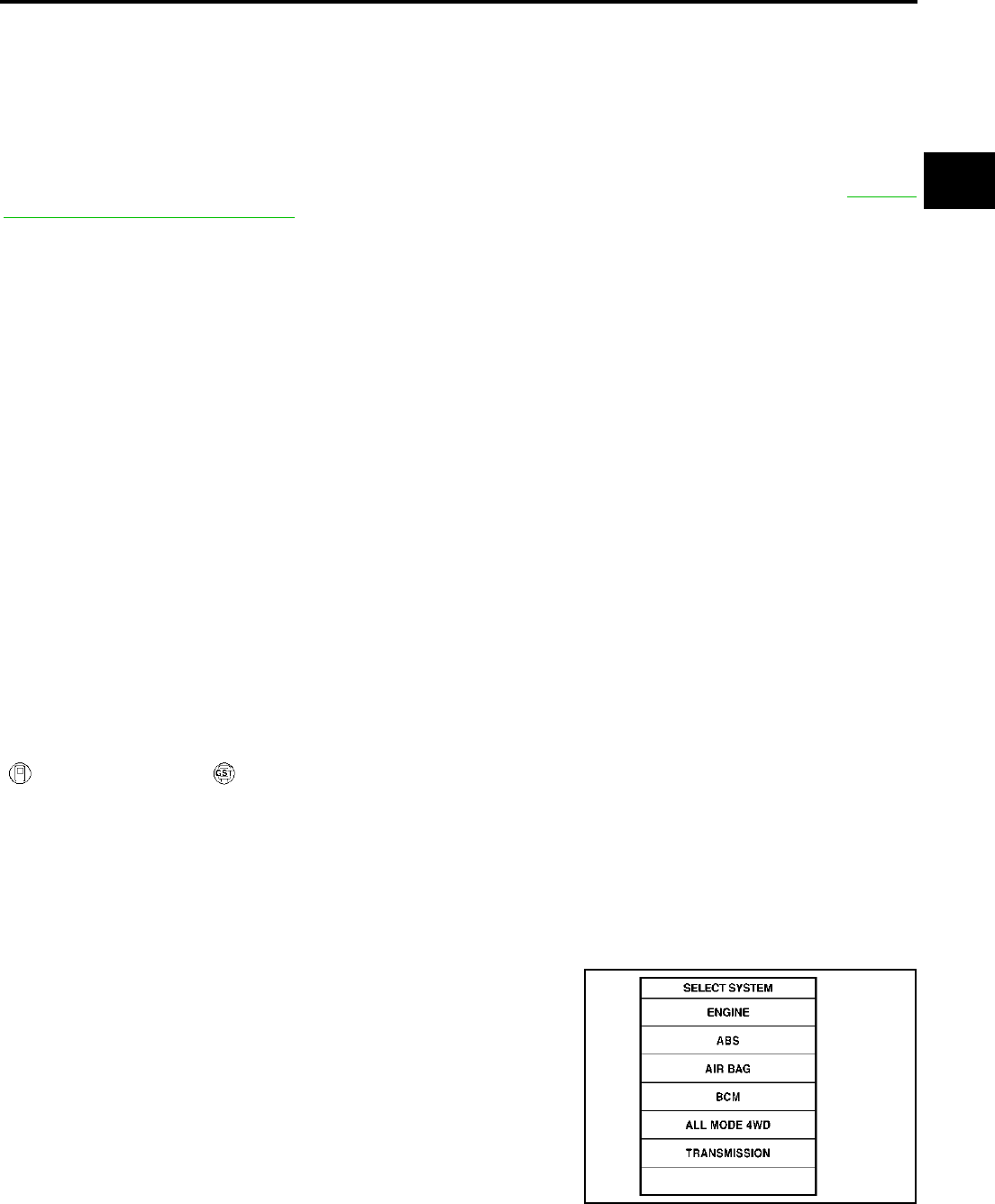

2. Connect CONSULT-II and CONSULT-II CONVERSTER to data
link connector, which is located in lower instrument panel on
driver side.
3. Turn ignition switch “ON”.

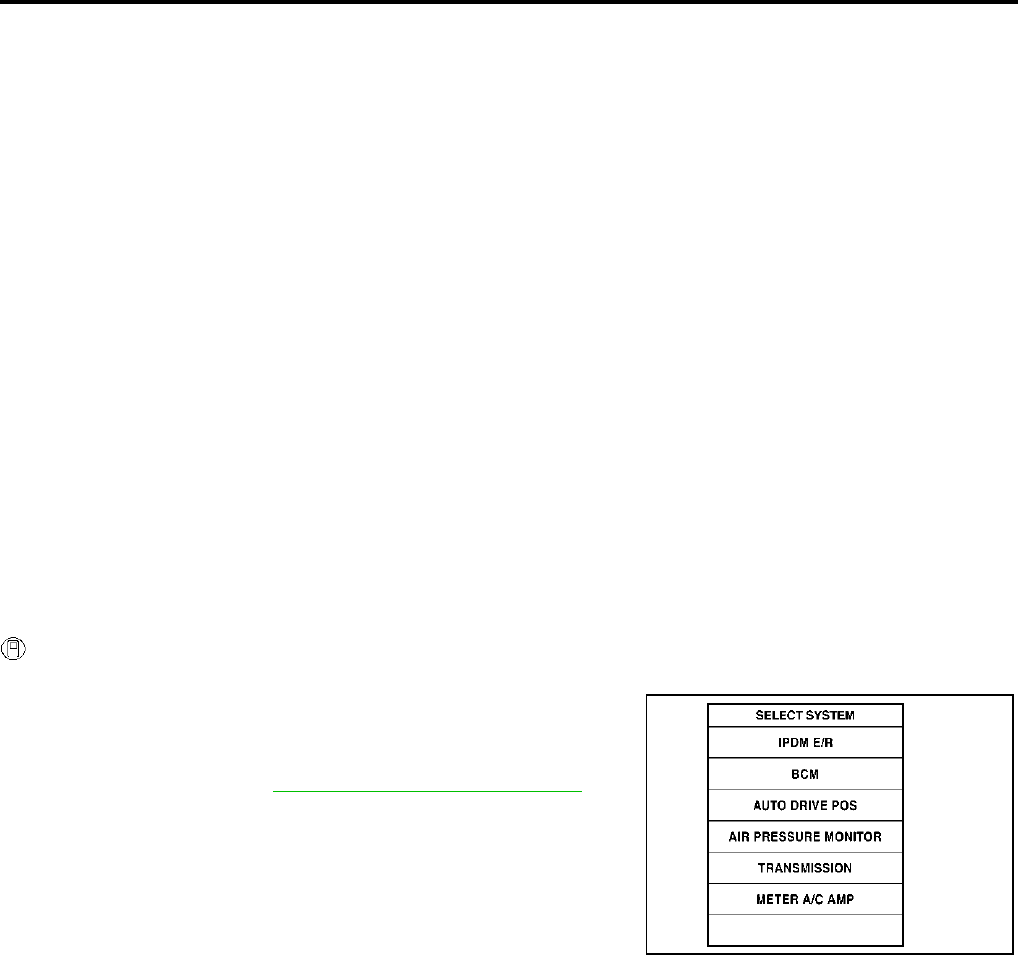

4. Touch “START (NISSAN BASED VHCL)”.

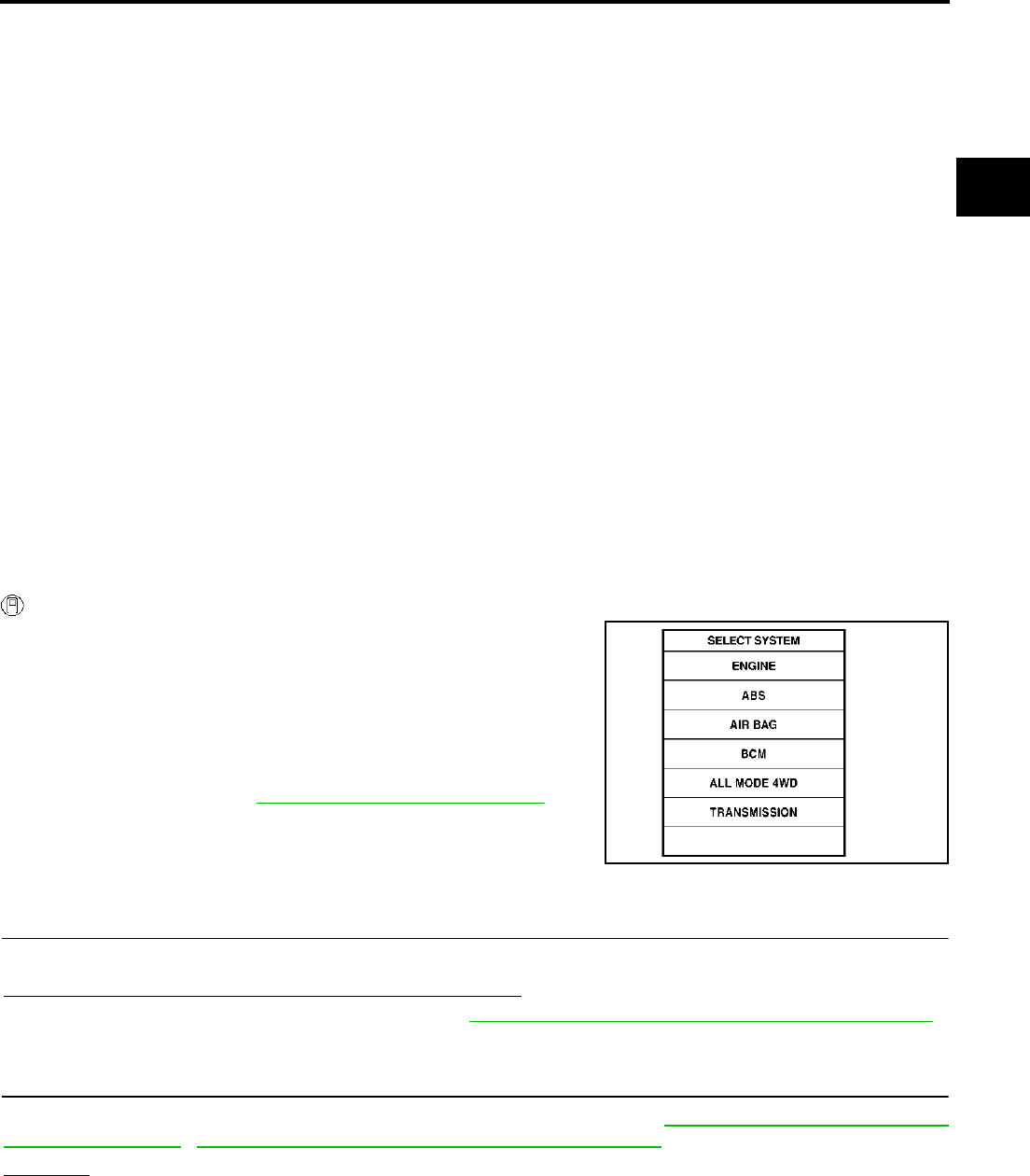

5. Touch “TRANSMISSION”.
If “TRANSMISSION” or “ENGINE” is not indicated, go to GI-38,
"CONSULT-II Data Link Connector (DLC) Circuit" .
6. Touch “DATA MONITOR”.

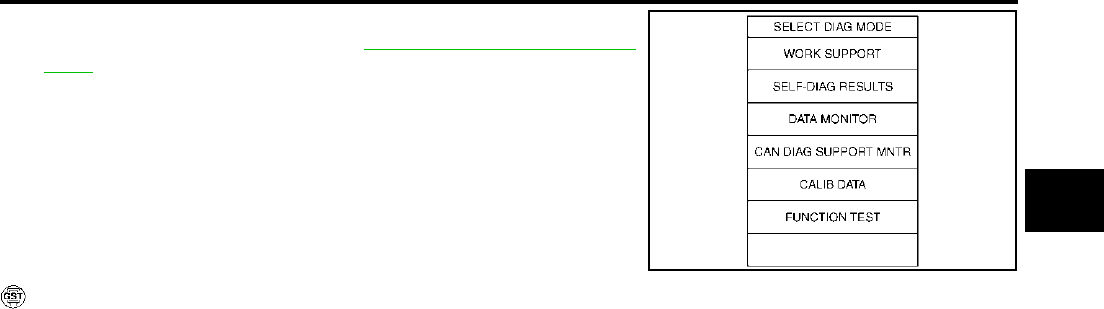

PBIB0196E
SAIA0450E
SCIA2272E
SCIA5492E
TROUBLE DIAGNOSIS
CVT-61
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano

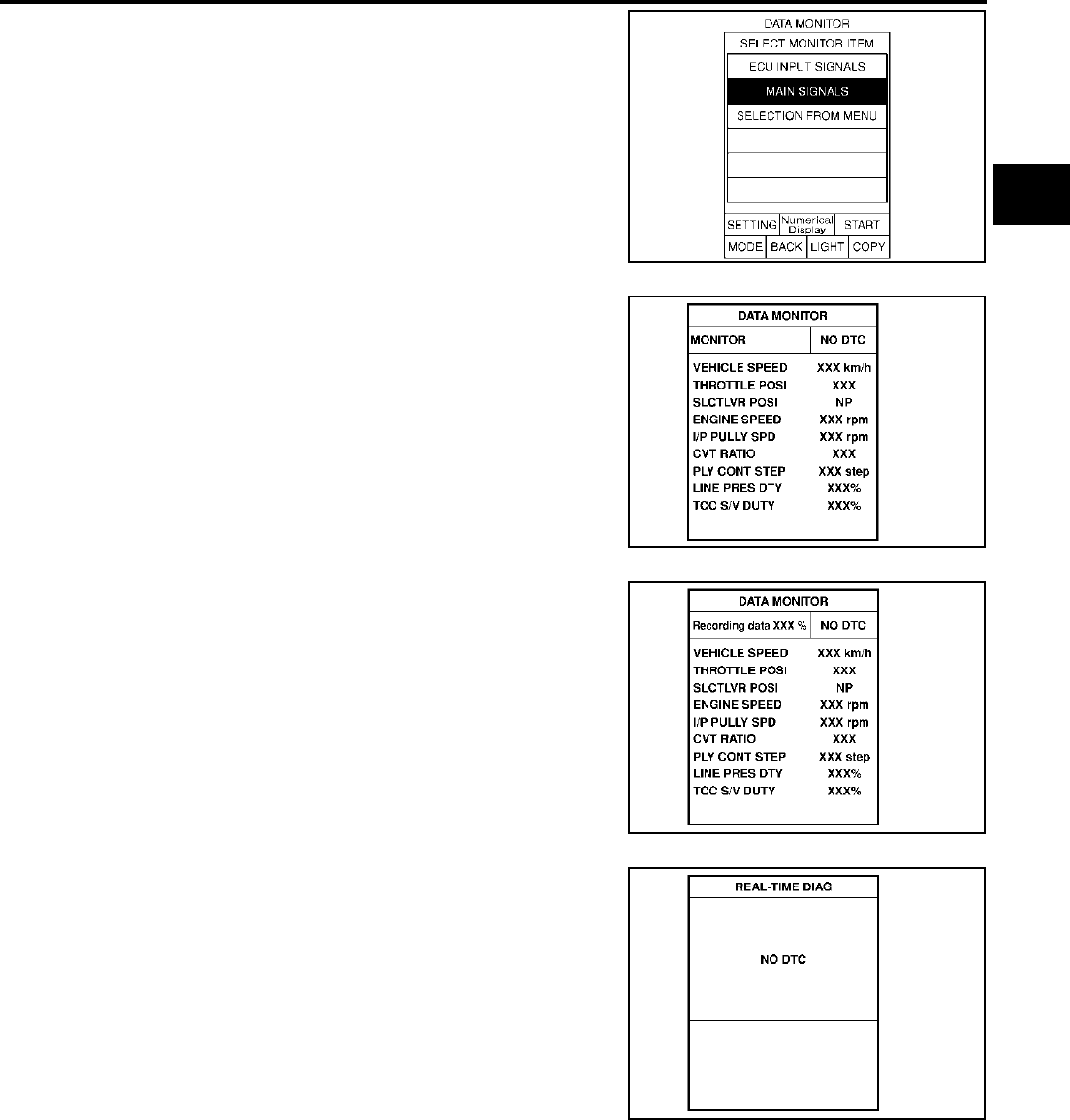

7. Touch “MAIN SIGNALS” to set recording condition.
8. See “Numerical Display”, “Barchart Display” or “Line Graph Dis-
play”.
9. Touch “START”.
10. When performing cruise test, touch “Store Data”.
11. After finishing cruise test part 1, touch “STOP”.
12. Touch “STORE”.
SCIA5493E
SAT236K
SAT237K
SAT254K
CVT-62
TROUBLE DIAGNOSIS
Revision; 2004 April 2003 Murano

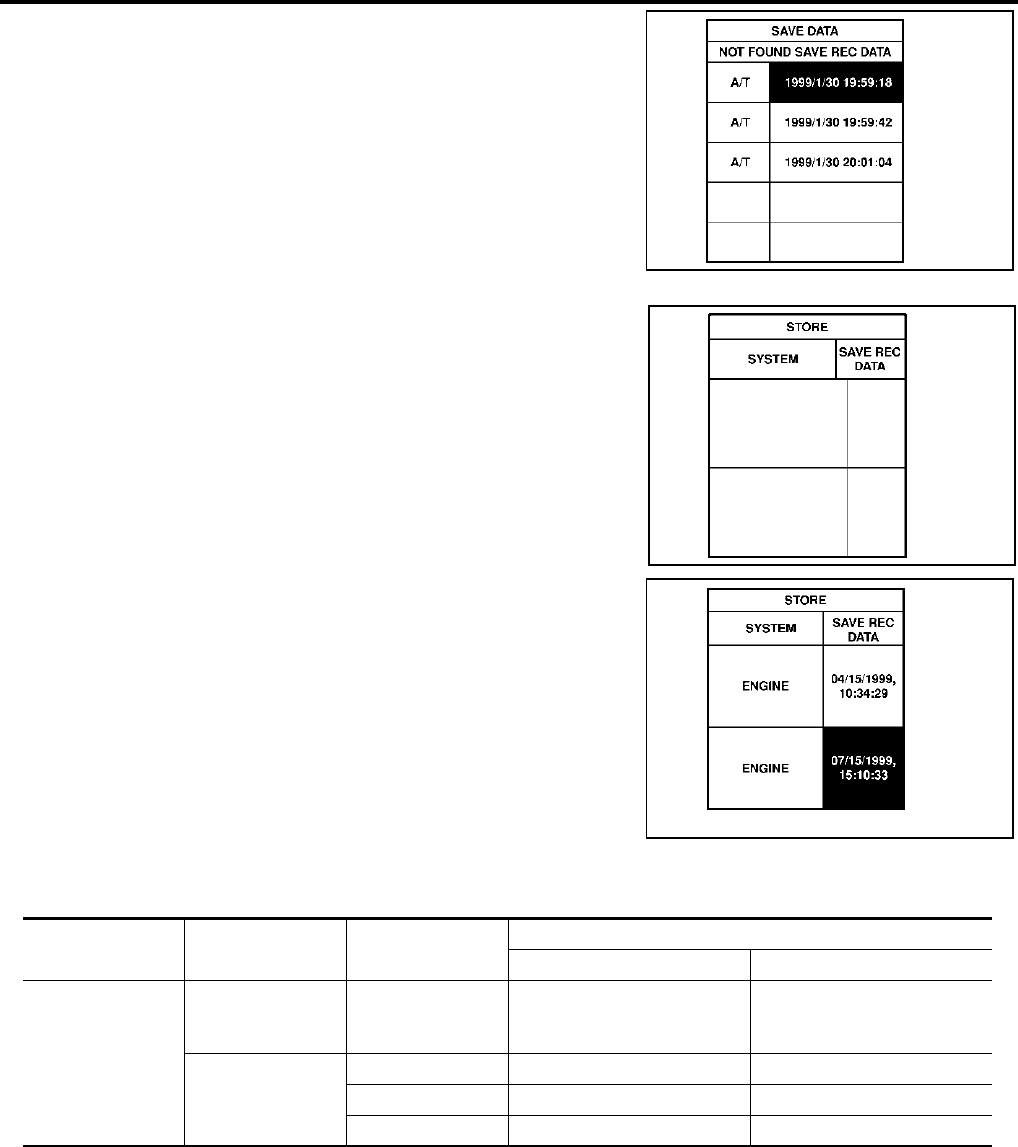

13. Touch “DISPLAY”.
14. Touch “PRINT”.
15. Check the monitor data printed out.
Vehicle Speed When Shifting Gears ACS001T8
Numerical value data are reference values.
CAUTION:
Lock-up clutch is engaged when vehicle speed is approximately 18 km/h (11MPH) to 40 km/h (25MPH).
SAT608J
SAT974J
SAT238K
Engine type Throttle position Shift pattern Engine speed (rpm)
At 40 km/h (25MPH) At 60 km/h (37MPH)
VQ35DE
8/8
D position
Second position
L position
2,800 - 4,300 3,900 - 5,300
2/8
D position 1,200 - 2,000 1,300 - 2,100
Second position 2,200 - 3,000 2,800 - 3,600
L position 2,800 - 3,600 3,800 - 4,600
TROUBLE DIAGNOSIS
CVT-63
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
TCM Input/Output Signal Reference Values ACS001TC

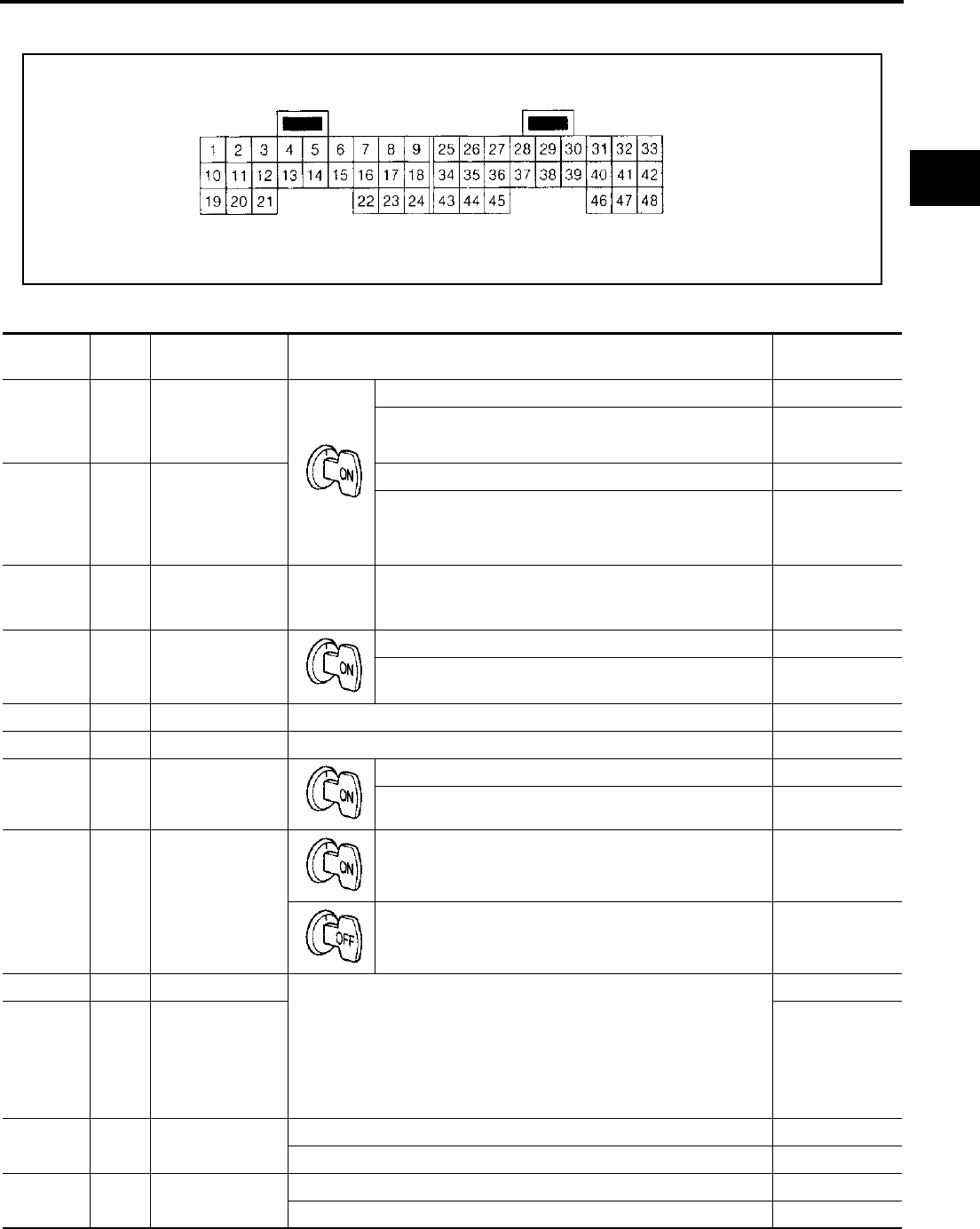

TCM TERMINAL CONNECTOR LAYOUT
TCM INSPECTION TABLE
Data are reference values and are measured between each terminal and ground.
SCIA0495E
Terminal
No.
Wire
color Item Condition Data (Approx.)
1R/Y
Pressure control
solenoid valve A
(line pressure
solenoid valve)
Release your foot from the accelerator pedal. 5.0 - 7.0V
Press the accelerator pedal all the way down. 1.0V
2W/B
Pressure control
solenoid valve B
(secondary pres-
sure solenoid
valve)
Release your foot from the accelerator pedal. 5.0 - 7.0V
Press the accelerator pedal all the way down. 3.0 - 4.0V
3L/W
TCC solenoid
valve
When
vehicle
cruises
Lock-up applied to lock-up cancelled 6.0 - 1.0V
4L/Y
Lock-up select
solenoid valve
N position Battery voltage
Wait at least for 5 seconds with the selector lever in D
position 0V
5 L CAN H – –
6 Y CAN L – –
8SB
Back-up lamp
relay
Selector lever in “R” position. Battery voltage
Selector lever in other positions. 0V
10 Y/L Power supply
— Battery voltage
—0V
11 G/R Step motor A Within 2 seconds after key switch “ON”, the time measurement by
using the pulse width measurement function (Hi level) of CONSULT-
II.*1
CAUTION:
Connect the diagnosis data link cable to the vehicle diagnosis
connector.
*1: A circuit tester cannot be used to test this item.
30.0 msec
12 O/B Step motor B 10.0 msec
13 G/W ROM assembly ——
——
14 L/R ROM assembly ——
——
CVT-64
TROUBLE DIAGNOSIS
Revision; 2004 April 2003 Murano
15 BR/R ROM assembly ——
——
19 Y/L Power supply
— Battery voltage
—0V
20 R Step motor C Within 2 seconds after key switch “ON”, the time measurement by
using the pulse width measurement function (Hi level) of CONSULT-
II.*1
CAUTION:
Connect the diagnosis data link cable to the vehicle diagnosis
connector.
*1: A circuit tester cannot be used to test this item.
30.0 msec
21 R/G Step motor D 10.0 msec
24 G/O Starter relay
Selector lever in “N”,“P”position. Battery voltage
Selector lever in other position. 0V
—0V
25 B Ground — 0V
27 BR/W PNP switch 1
Selector lever in “R”,“N”,“D”position. 0V
Selector lever in other position. Battery voltage
28 Y/R Power supply
(Memory back-up) — Battery voltage
29 LG/R
Output speed sen-
sor (secondary
speed sensor)
When
vehicle
cruises
When driving [D position, 20 km/h (12 MPH)] 300 (Hz)
32 GR PNP switch 3
(monitor)
Selector lever in “D”,“L” position. 0V
Selector lever in other positions. Battery voltage
34 P/B PNP switch 2 Selector lever in “N”,“D”,“L”position. 0V
Selector lever in other positions. Battery voltage
35 P/L PNP switch 3 Selector lever in “D”,“L” position. 0V
Selector lever in other positions. Battery voltage
36 G PNP switch 4 Selector lever in “R”, “D”position. 0V
Selector lever in other positions. Battery voltage
37 V/W
Transmission fluid
pressure sensor A
(secondary pres-
sure sensor)
N position idle 0.8V
38 LG
Input speed sen-
sor (primary
speed sensor)
When
vehicle
cruises
When driving [L position, 20 km/h (12 MPH)] 600 (Hz)
Terminal
No.
Wire
color Item Condition Data (Approx.)
TROUBLE DIAGNOSIS
CVT-65
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
41 V/O
Transmission fluid
pressure sensor B
(primary pressure
sensor)
N position idle 0.7 - 1.2V
42 W/R Sensor ground — 0V
46 L/O Sensor power —4.5 - 5.5V
47 V CVT fluid temper-
ature sensor
When CVT fluid temperature is 20°C (68°F) 2.0V
When CVT fluid temperature is 80°C (176°F) 1.0V
48 B Ground — 0V
Terminal
No.
Wire
color Item Condition Data (Approx.)
CVT-66
TROUBLE DIAGNOSIS
Revision; 2004 April 2003 Murano

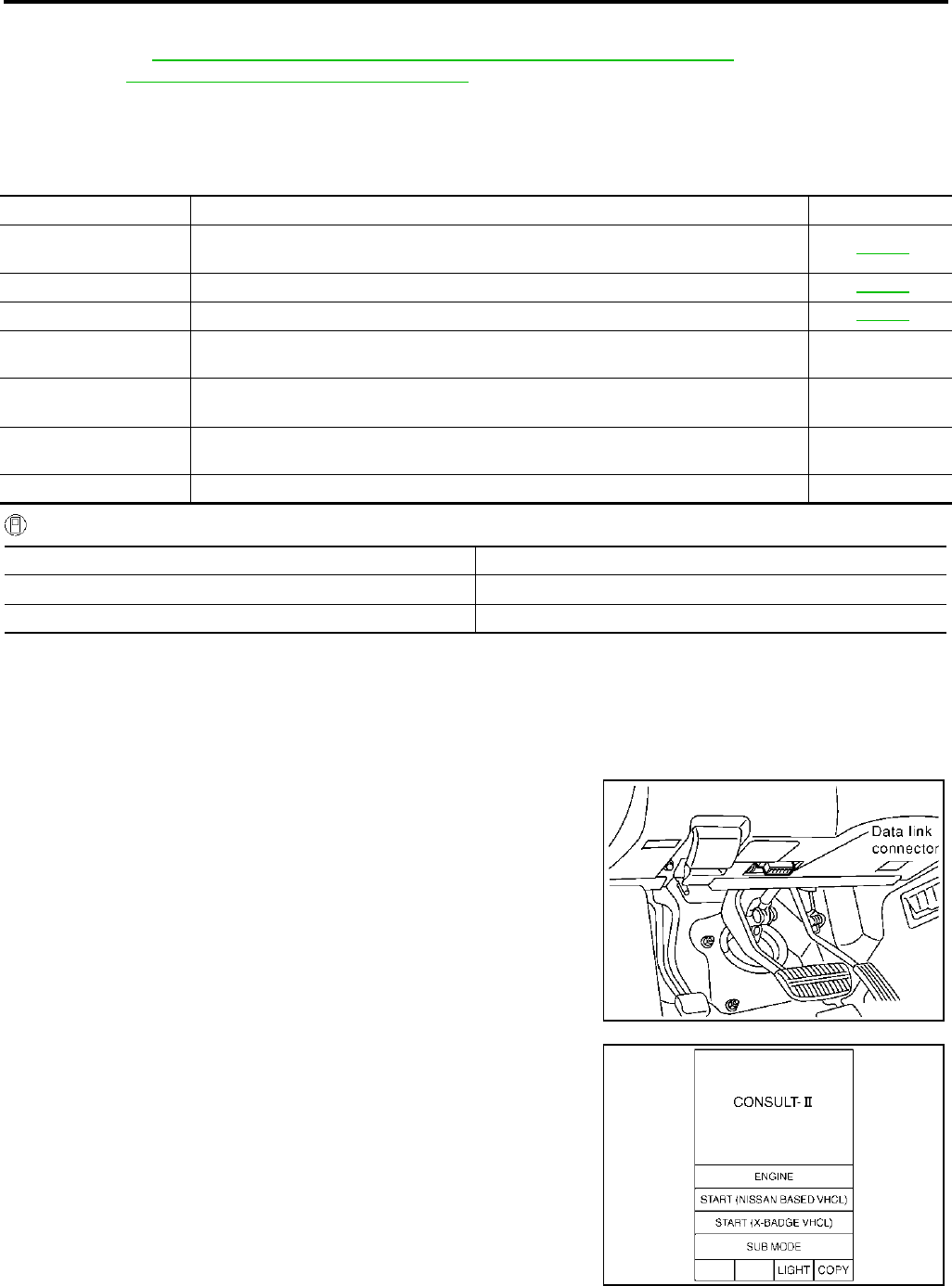

CONSULT-II ACS004LP
After performing CVT-70, "SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II)" , place check marks for
results on the CVT-52, "DIAGNOSTIC WORKSHEET" . Reference pages are provided following the items.
NOTICE:
●Additional CONSULT-II information can be found in the Operation Manual supplied with the CONSULT-II
unit.
FUNCTION
WORK SUPPORT MODE WITH CONSULT-II
Engine Brake Adjustment
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. Turn ignition switch “OFF”.
2. Connect CONSULT-II and CONSULT-II CONVERSTER to data
link connector, which is located in lower instrument panel on
driver side.
3. Turn ignition switch “ON”.

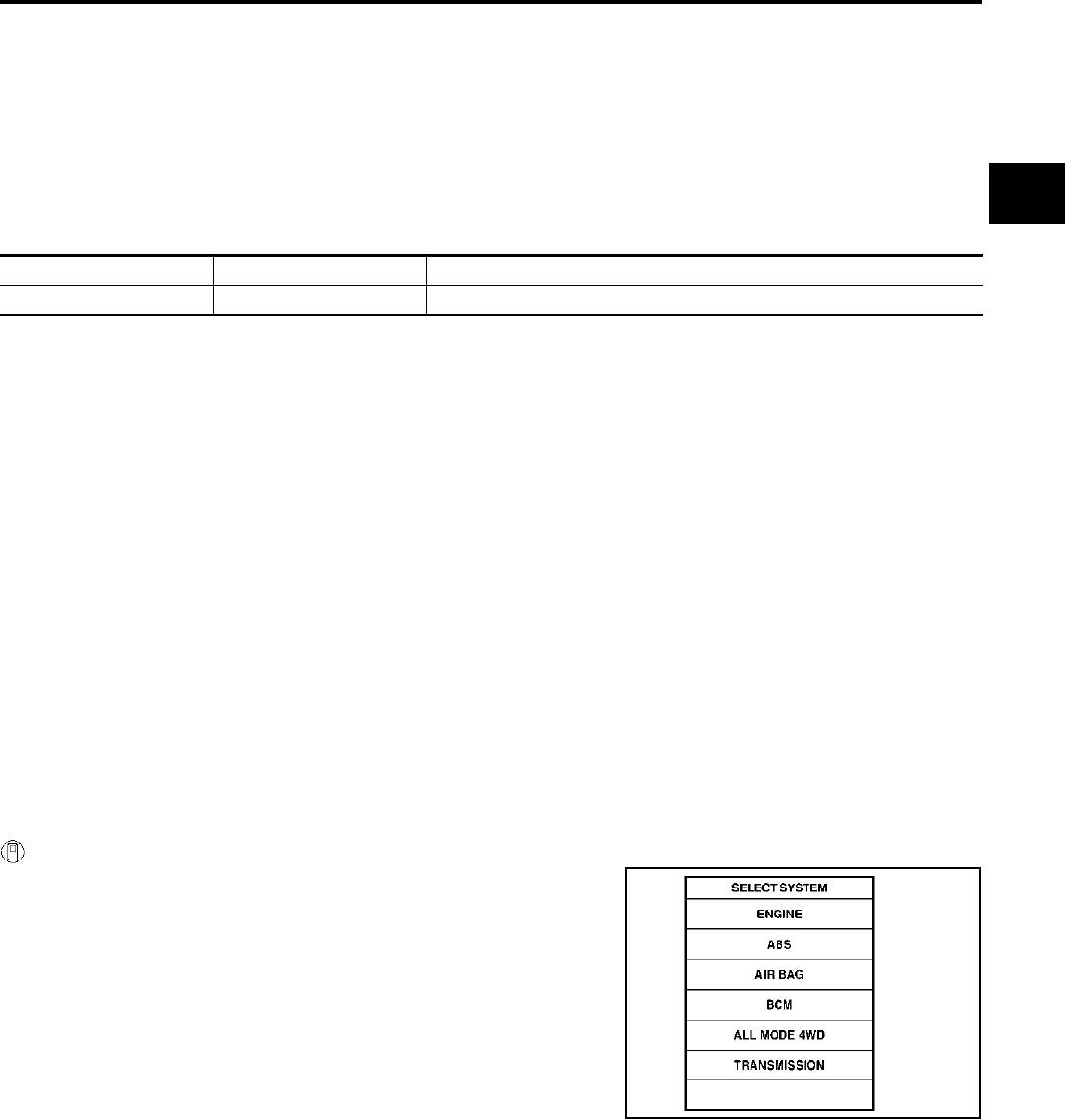

4. Touch “START (NISSAN BASED VHCL)”.
Diagnostic test mode Function Reference page
Work support This mode enables a technician to adjust some devices faster and more accurately by
following the indications on CONSULT-II. CVT-66
Self-diagnostic results Self-diagnostic results can be read and erased quickly. CVT-71
Data monitor Input/Output data in the ECM can be read. CVT-73
CAN diagnostic support
monitor The results of transmit/receive diagnosis of CAN communication can be read. —
CALIB data Characteristic information for TCM and CVT assembly can be read. Do not use, but
displayed. —
Function test Conducted by CONSULT-II instead of a technician to determine whether each system
is “OK” or “NG”. —
ECU (TCM) part number ECU (TCM) part number can be read. —
Work support item Description
ENGINE BRAKE ADJ. The engine brake level setting can be canceled.
CONFORM CVTF DETERIORTN The CVT fluid deterioration level can be checked.
PBIB0196E
SAIA0450E
TROUBLE DIAGNOSIS
CVT-67
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano

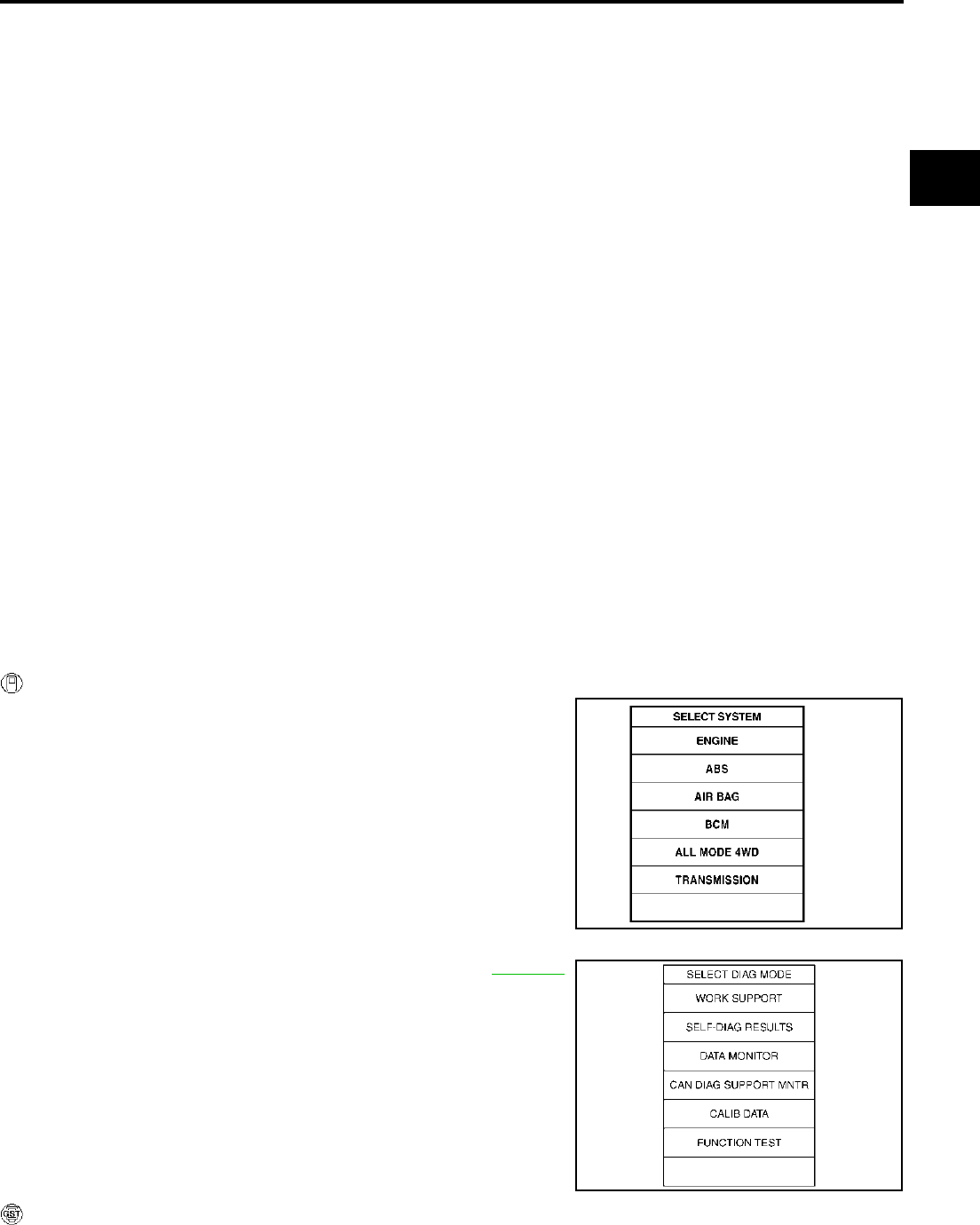

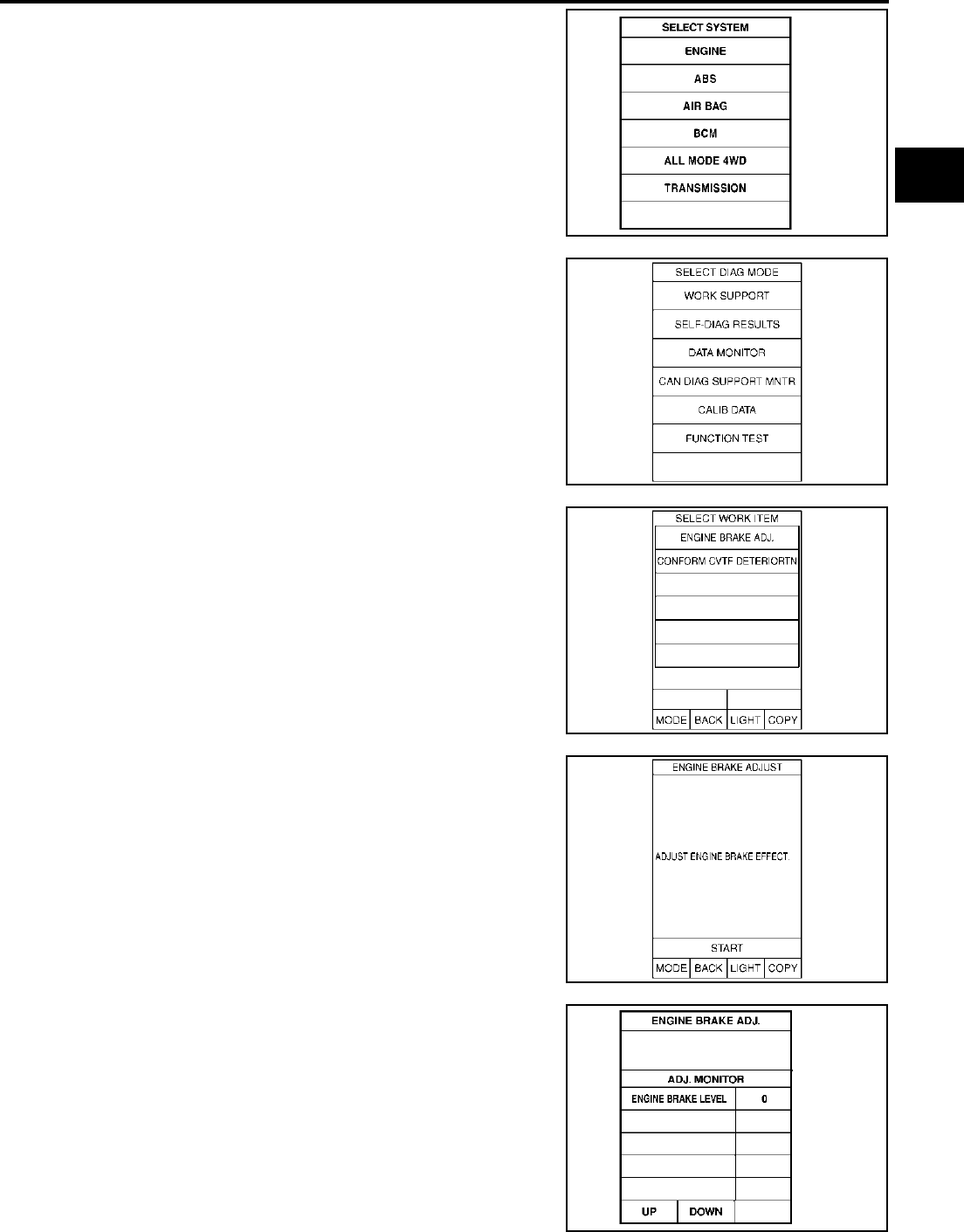

5. Touch “TRANSMISSION”.
6. Touch “WORK SUPPORT”.
7. Touch “ENGINE BRAKE ADJUSTMENT”.
8. Touch “START”.
9. Set “ENGINE BRAKE LEVEL” by touching “UP” or “DOWN”.
10. Turn ignition switch “OFF”, wait at least 5 seconds and then turn
ignition switch “ON”.
SCIA2272E
SCIA5492E
SCIA4287E
SCIA4288E
ENGINE BRAKE LEVEL
0: Initial set value (Engine brake level control is
activated)
OFF: Engine brake level control is deactivated.
SAT934J
CVT-68
TROUBLE DIAGNOSIS
Revision; 2004 April 2003 Murano
11. Engine brake level set is completed.
CAUTION:
Mode of “+1” “0” “-1” “-2” “OFF” can be selected by pressing the “UP” “DOWN” on CONSULT
screen. However, do not select mode other than “0” and “OFF”. If the “+1” or “-1” or “-2” is
selected, that might cause the abnormality of drivability.

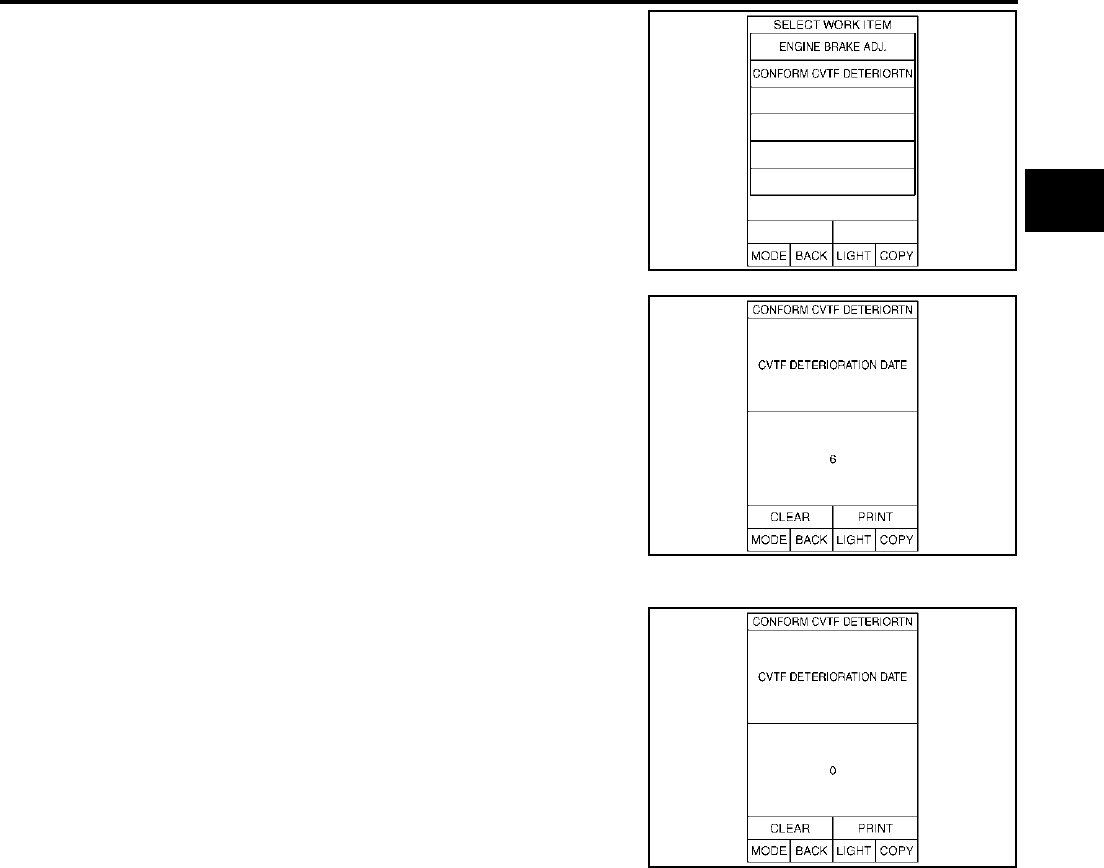

Check CVT Fluid Deterioration Date
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. Turn ignition switch “OFF”.
2. Connect CONSULT-II and CONSULT-II CONVERSTER to data
link connector, which is located in lower instrument panel on
driver side.
3. Turn ignition switch “ON”.
4. Touch “START (NISSAN BASED VHCL)”.

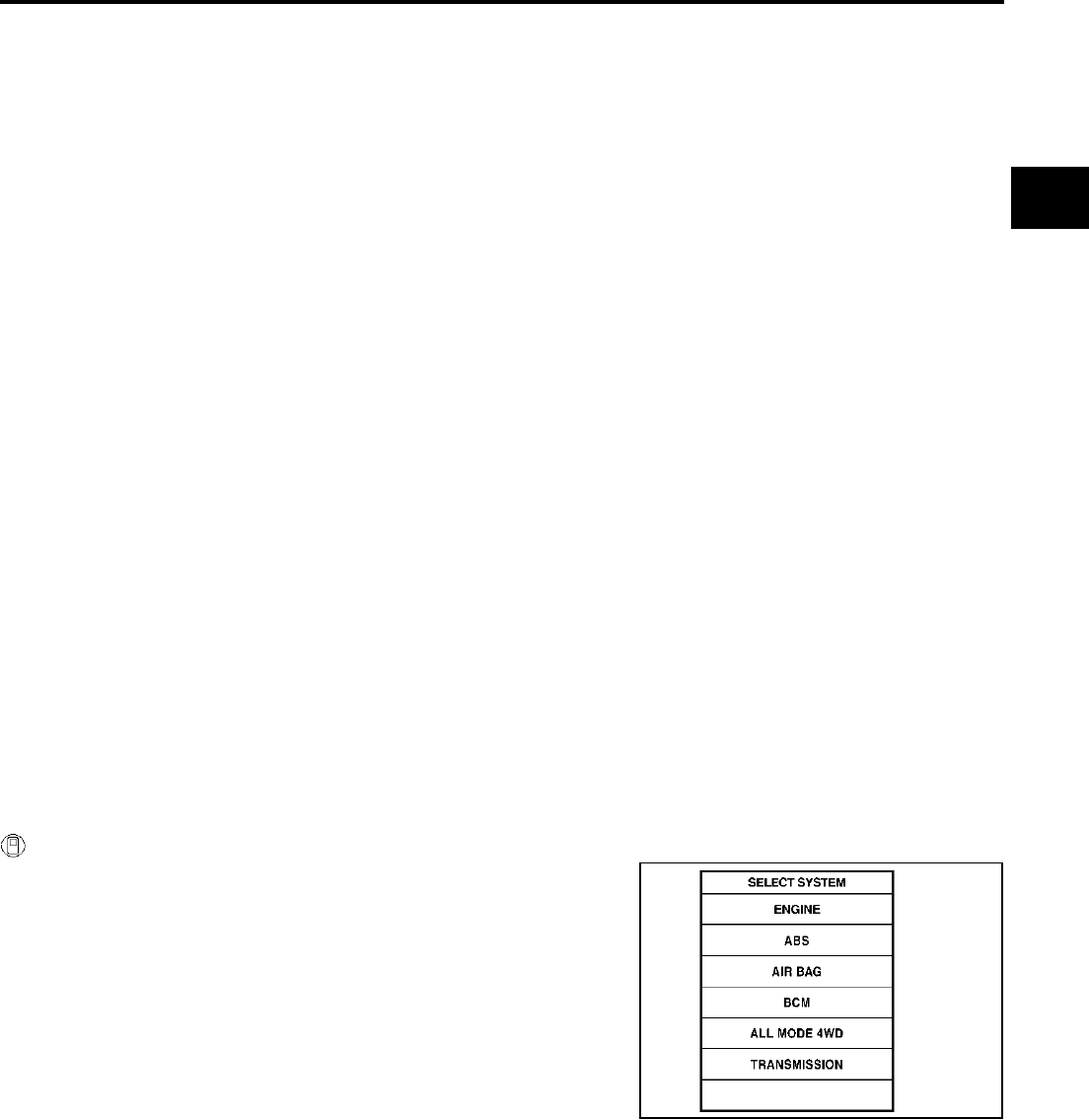

5. Touch “TRANSMISSION”.
6. Touch “WORK SUPPORT”.
PBIB0196E
SAIA0450E
SCIA2272E
SCIA5492E
TROUBLE DIAGNOSIS
CVT-69
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
7. Touch “CONFORM CVTF DETERIORTN”.
8. Check“CVTF DETERIORATION DATE”
CAUTION:
Touch “CLEAR” after changing CVT fluid, and then erase
“CVTF DETERIORATION”.
SCIA4287E
CVTF DETERIORATION DATE
More than 210000
: It is necessary to change CVT fluid.
Less than 210000
: It is not necessary to change CVT fluid.
SCIA4289E
SCIA4290E
CVT-70
TROUBLE DIAGNOSIS
Revision; 2004 April 2003 Murano

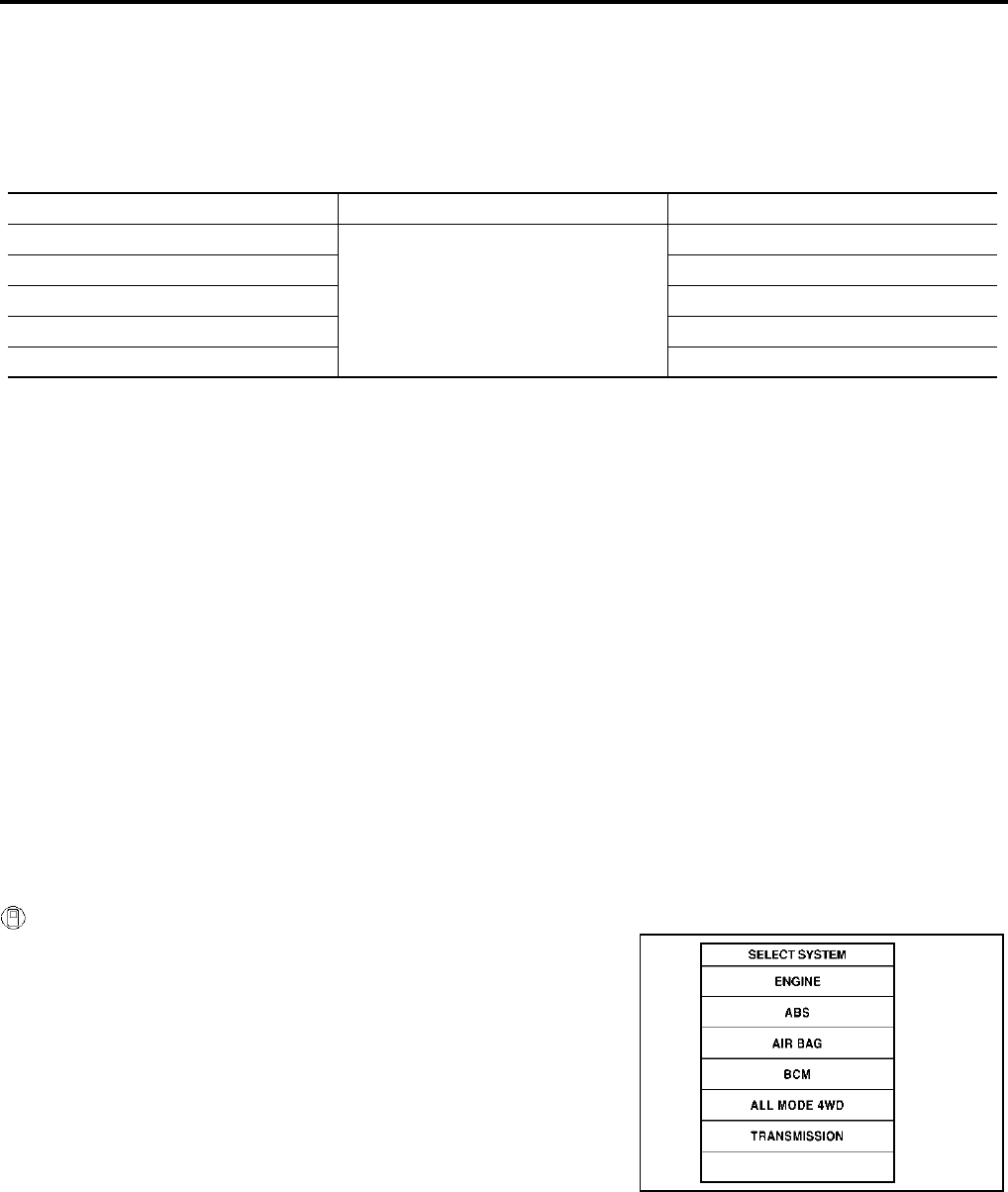

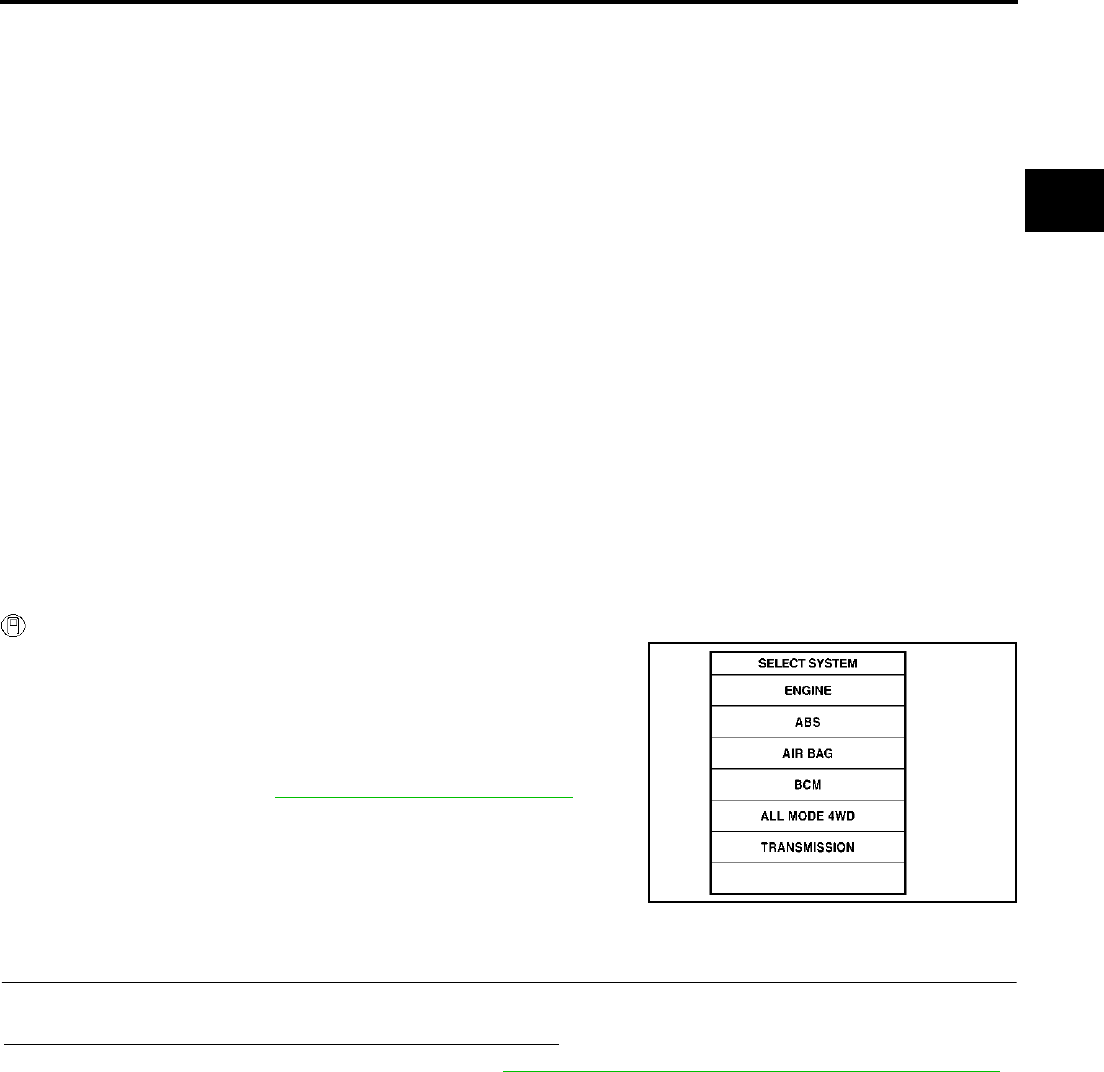

SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II)
CONSULT-II Setting Procedure
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
●For details, refer to the separate “CONSULT-II Operations Manual”.
1. Turn ignition switch “OFF”.
2. Connect CONSULT-II and CONSULT-II CONVERSTER to data
link connector, which is located in lower instrument panel on
driver side.
3. Turn ignition switch “ON”.
4. Touch “START (NISSAN BASED VHCL)”.
5. Touch “ENGINE” for OBD-II detected items or touch “TRANS-
MISSION” for TCM self-diagnosis.
If “TRANSMISSION” or “ENGINE” is not indicated, go to GI-38,
"CONSULT-II Data Link Connector (DLC) Circuit" .

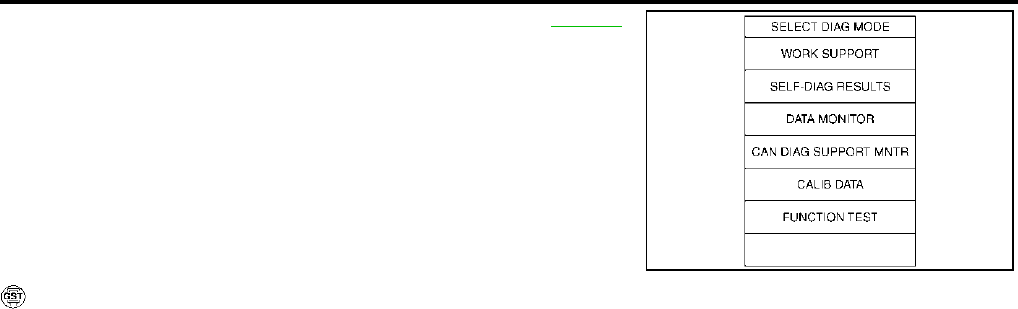

6. Touch “SELF-DIAG RESULTS”.
Display shows malfunction experienced since the last erasing
operation.
CONSULT-II performs REAL-TIME SELF-DIAGNOSIS.
Also, any malfunction detected while in this mode will be dis-
played at real time.
PBIB0196E
SAIA0450E
SCIA2272E
SAT987J
TROUBLE DIAGNOSIS
CVT-71
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
Self-Diagnostic Result Test Mode
Items (CONSULT-II
screen terms) Malfunction is detected when...
TCM self-diag-
nosis OBD-II (DTC)
“TRANSMIS-
SION” with
CONSULT-II
MIL indicator
lamp*1,
“ENGINE” with
CONSULT-II or
GST
CAN COMM CIR-
CUIT ●When a malfunction is detected in CAN communications U1000 U1000
STARTER RELAY/
CIRC
●If this signal is ON other than in P or N position, this is judged to be
a malfunction.
(And if it is OFF in P or N position, this is judged to be a malfunc-
tion too.)
P0615 —
BRAKE SW/CIRC ●When the brake switch does not switch to ON or OFF P0703 —
PNP SW/CIRC ●PNP switch 1-4 signals input with impossible pattern
●PNP switch 3 monitor terminal open or short circuit P0705 P0705
ATF TEMP SEN/
CIRC
● During running, the CVT fluid temperature sensor signal voltage is
excessively high or low P0710 P0710
INPUT SPD SEN/
CIRC (IN PY SPD
SEN/CIRC)*2
●Input speed sensor (primary speed sensor) signal is not input due
to an open circuit.
●An unexpected signal is input when vehicle is being driven.
P0715 P0715
VEH SPD SEN/CIR
AT
●Signal from vehicle speed sensor CVT [Output speed sensor
(Secondary speed sensor)] not input due to open or short circuit
●Unexpected signal input during running
P0720 P0720
ENGINE SPEED SIG ●TCM does not receive the CAN communication signal from the
ECM. P0725 —
BELT DAMG ●Unexpected gear ratio detected P0730 —
TCC SOLENOID/
CIRC ●Normal voltage not applied to solenoid due to open or short circuit P0740 P0740
A/T TCC S/V FNCTN
●CVT cannot perform lock-up even if electrical circuit is good.
●TCM detects as irregular by comparing difference value with slip
rotation.
P0744 P0744
L/PRESS SOL/CIRC
●Normal voltage not applied to solenoid due to open or short circuit
●TCM detects as irregular by comparing target value with monitor
value.
P0745 P0745
PRS CNT SOL/A
FCTN (L/PRESS
SOL/FNCTN)*2
●Unexpected gear ratio was detected in the LOW side due to
excessively low line pressure. P0746 P0746
PRS CNT SOL/B
FCTN (SEC/PRESS
SOL/FNCTN)*2
●Secondary pressure is too high or too low compared with the com-
manded value while driving. P0776 P0776
PRS CNT SOL/B
CIRC (SEC/PRESS
SOL/CIRC)*2
●Normal voltage not applied to solenoid due to cut line, short, or the
like
●TCM detects as irregular by comparing target value with monitor
value.
P0778 P0778
TR PRS SENS/A
CIRC (SEC PRS
SEN/CIRC)*2
●Signal voltage of the transmission fluid pressure sensor A (sec-
ondary pressure sensor) is too high or too low while driving. P0840 P0840
PRESS SEN/FNCTN
●Correlation between the values of the transmission fluid pressure
sensor A (secondary pressure sensor) and the transmission fluid
pressure sensor B (primary pressure sensor) is out of specifica-
tion.
P0841 —
CVT-72
TROUBLE DIAGNOSIS
Revision; 2004 April 2003 Murano
*1: Refer to CVT-48, "Malfunction Indicator Lamp (MIL)" .
*2: CONSULT-II screen terms are shown differently depending on the version of CONSULT-II card.
TR PRS SENS/B
CIRC (PRI PRS SEN/
CIRC)*2
●Signal voltage of the transmission fluid pressure sensor B (primary
pressure sensor) is too high or too low while driving. P0845 P0845
SEC/PRESS DOWN ●Secondary fluid pressure is too low compared with the com-
manded value while driving. P0868 —
TCM-POWER SUP-
PLY
●When the power supply to the TCM is cut “OFF”, for example
because the battery is removed, and the self-diagnostics memory
function stops
●This is not a malfunction message (Whenever shutting “OFF” a
power supply to the TCM, this message appears on the screen.)
P1701 —
TP SEN/CIRC A/T ●TCM does not receive the proper accelerator pedal position sig-
nals (input by CAN communication) from ECM. P1705 —
ESTM VEH SPD SIG
●CAN communication with the ABS actuator and the electric unit
(control unit) is malfunctioning.
●There is a great difference between the vehicle speed signal from
the ABS actuator and the electric unit (control unit), and the vehi-
cle speed sensor signal.
P1722 —
CVT SPD SEN/
FNCTN
●A rotation sensor error is detected because the gear does not
change in accordance with the position of the stepping motor.
CAUTION:
One of the secondary rotation, the primary rotation, or the
engine speed is displayed at the same time.
P1723 —
ELEC TH CONTROL ●The electronically controlled throttle for ECM is malfunctioning. P1726 —
LU-SLCT SOL/CIRC
●Normal voltage not applied to solenoid due to cut line, short, or the
like
●TCM detects as irregular by comparing target value with monitor
value.
P1740 P1740
L/PRESS CONTROL ●TCM detects the unexpected line pressure. P1745 —
STEP MOTOR/CIRC ●Each coil of the step motor is not energized properly due to an
open or a short. P1777 P1777
STEP MOTOR/
FNCTN
●There is a great difference between the number of steps for the
stepping motor and for the actual gear ratio. P1778 P1778
NO DTC IS
DETECTED: FUR-
THER TESTING
MAY BE REQUIRED
●No NG item has been detected. X X
Items (CONSULT-II
screen terms) Malfunction is detected when...
TCM self-diag-
nosis OBD-II (DTC)
“TRANSMIS-
SION” with
CONSULT-II
MIL indicator
lamp*1,
“ENGINE” with
CONSULT-II or
GST
TROUBLE DIAGNOSIS
CVT-73
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
Data Monitor Mode (CVT) X: Standard, —: Not applicable
Monitored item (Unit)
Monitor Item Selection
Remarks
ECU INPUT
SIGNALS
MAIN SIG-
NALS
SELEC-
TION FROM
MENU
VSP SENSOR (km/h) X — X Output speed sensor (secondary speed
sensor).
ESTM VSP SIG (km/h) X — X
PRI SPEED SEN (rpm) X — X
ENG SPEED SIG (rpm) X — X
SEC HYDR SEN (V) X — X
PRI HYDR SEN (V) X — X
ATF TEMP SEN (V) X — X
VVIGN SEN (V) X — X
VEHICLE SPEED (km/h) — X X Vehicle speed recognized by the TCM.
PRI SPEED (rpm) — X X Primary pulley speed.
SEC SPEED (rpm) — — X Secondary pulley speed.
ENG SPEED (rpm) — X X
SLIP REV (rpm) — X X Difference between engine speed and
primary pulley speed
GEAR RATIO — X X
G SPEED (G) — — X
ACC PEDAL OPEN (0.0/8) X X X
Degree of opening for accelerator rec-
ognized by the TCM
For fail-safe operation, the specific
value used for control is displayed.
ENG TRQ ACT (N-m) — — X
VENG TRQ (N-m) — X X
PRI TRQ (N-m) — — X
TRQ RTO — — X
SEC PRESS (MPa) — X X
PRI PRESS (MPa) — X X
ATF TEMP — X X
DSR REV (rpm) — — X
DGEAR RATIO — — X
DSTM STEP (step) — — X
STM STEP (step) — X X
LU PRS (MPa) — — X
LINE PRS (MPa) — — X
SEC PRS (MPa) — — X
ISOLT1 (A) — X X Torque converter clutch solenoid valve
output current
ISOLT2 (A) — X X Pressure control solenoid valve A (line
pressure solenoid valve) output current
ISOLT3 (A) — X X
Pressure control solenoid valve B (sec-
ondary pressure solenoid valve) output
current
SOLMON1 (A) X X X Torque converter clutch solenoid valve
monitor current
CVT-74
TROUBLE DIAGNOSIS
Revision; 2004 April 2003 Murano
SOLMON2 (A) XXX
Pressure control solenoid valve A (line
pressure solenoid valve) monitor cur-
rent
SOLMON3 (A) XXX
Pressure control solenoid valve B (sec-
ondary pressure solenoid valve) moni-
tor current
INH SW3M (ON-OFF display) X — X PNP switch 3 ON-OFF status monitor
INH SW4 (ON-OFF display) X — X PNP switch 4 ON-OFF status
INH SW3 (ON-OFF display) X — X PNP switch 3 ON-OFF status
INH SW2 (ON-OFF display) X — X PNP switch 2 ON-OFF status
INH SW1 (ON-OFF display) X — X PNP switch 1 ON-OFF status
BRAKESW (ON-OFF display) X X X Stop lamp switch
FULL SW (ON-OFF display) X X X Signal input with CAN communications
IDLE SW (ON-OFF display) X X X
SECOND POS SW (ON-OFF display) X X X
STRDWNSW (ON-OFF display) X — X
Not mounted but displayed.
STRUPSW (ON-OFF display) X — X
DOWNLVR (ON-OFF display) X — X
UPLVR (ON-OFF display) X — X
NONMMODE (ON-OFF display) X — X
MMODE (ON-OFF display) X — X
INDLRNG (ON-OFF display) — — X “L” position indicator output
INDDRNG (ON-OFF display) — — X “D” position indicator output
INDNRNG (ON-OFF display) — — X “N” position indicator output
INDRRNG (ON-OFF display) — — X “R” position indicator output
INDPRNG (ON-OFF display) — — X “P” position indicator output
CVTLAMP (ON-OFF display) — — X
SECOND POS IND (ON-OFF display) — — X
MMODE IND (ON-OFF display) — — X Not mounted but displayed.
SMCOIL D (ON-OFF display) — — X Step motor coil “D” energizing status
SMCOIL C (ON-OFF display) — — X Step motor coil “C” energizing status
SMCOIL B (ON-OFF display) — — X Step motor coil “B” energizing status
SMCOIL A (ON-OFF display) — — X Step motor coil “A” energizing status
LUSEL SOL OUT (ON-OFF display) — — X
REV LAMP (ON-OFF display) — X X
STRTR RLY OUT (ON-OFF display) — — X PNP relay
LU SEL SOL MON (ON-OFF display) — — X
STRTR RLY MON (ON-OFF display) — — X PNP relay
VDC ON (ON-OFF display) X — X
TCS ON (ON-OFF display) X — X
ABS ON (ON-OFF display) X — X
ACC ON (ON-OFF display) X — X Not mounted but displayed.
Monitored item (Unit)
Monitor Item Selection
Remarks
ECU INPUT
SIGNALS
MAIN SIG-
NALS
SELEC-
TION FROM
MENU
TROUBLE DIAGNOSIS
CVT-75
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
Diagnostic Procedure Without CONSULT-II ACS001TE
OBD-II SELF-DIAGNOSTIC PROCEDURE (WITH GST)
Refer to EC-138, "Generic Scan Tool (GST) Function" .
RENGE — X X
Indicates position is recognized by
TCM. Indicates a specific value required
for control when fail-safe function is
activated.
M GEAR POS — X X Not mounted but displayed.
Voltage (V) — — X Displays the value measured by the
voltage probe.
Frequency (Hz) — — X
The value measured by the pulse probe
is displayed.
DUTY·HI (high) (%) — — X
DUTY·LOW (low) (%) — — X
PLS WIDTH·HI (ms) — — X
PLS WIDTH·LOW (ms) — — X
Monitored item (Unit)
Monitor Item Selection
Remarks
ECU INPUT
SIGNALS
MAIN SIG-
NALS
SELEC-
TION FROM
MENU
CVT-76
DTC U1000 CAN COMMUNICATION LINE
Revision; 2004 April 2003 Murano

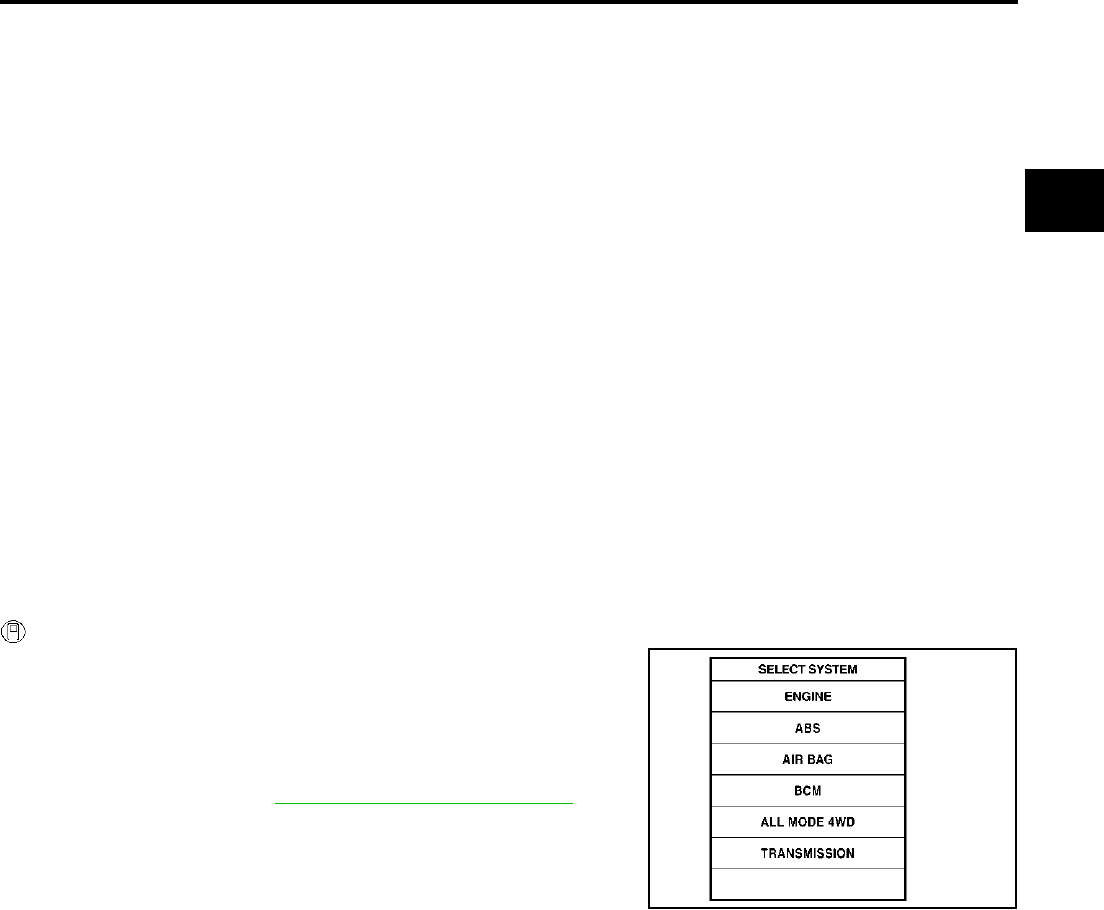

DTC U1000 CAN COMMUNICATION LINE PFP:23710
Description ACS001TF
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent malfunction detection ability.
Many electronic control units are equipped onto a vehicle, and each control unit shares information and links
with other control units during operation (not independent). In CAN communication, control units are con-
nected with 2 communication lines (CAN H line, CAN L line) allowing a high rate of information transmission
with less wiring. Each control unit transmits/receives data but selectively reads required data only.
On Board Diagnosis Logic ACS001TG
●This is an OBD-II self-diagnostic item.
●Diagnostic trouble code “CAN COMM CIRCUIT” with CONSULT-II or U1000 without CONSULT-II is
detected when TCM cannot communicate to other control units.
Possible Cause ACS001TH
Harness or connectors
(CAN communication line is open or shorted.)
DTC Confirmation Procedure ACS001TI
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “DATA MONITOR” mode for “TRANSMISSION” with
CONSULT-II.
3. Start engine and wait for at least 6 seconds.
4. If DTC is detected, go to CVT-78, "Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II”.
SCIA2272E
DTC U1000 CAN COMMUNICATION LINE
CVT-77
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano

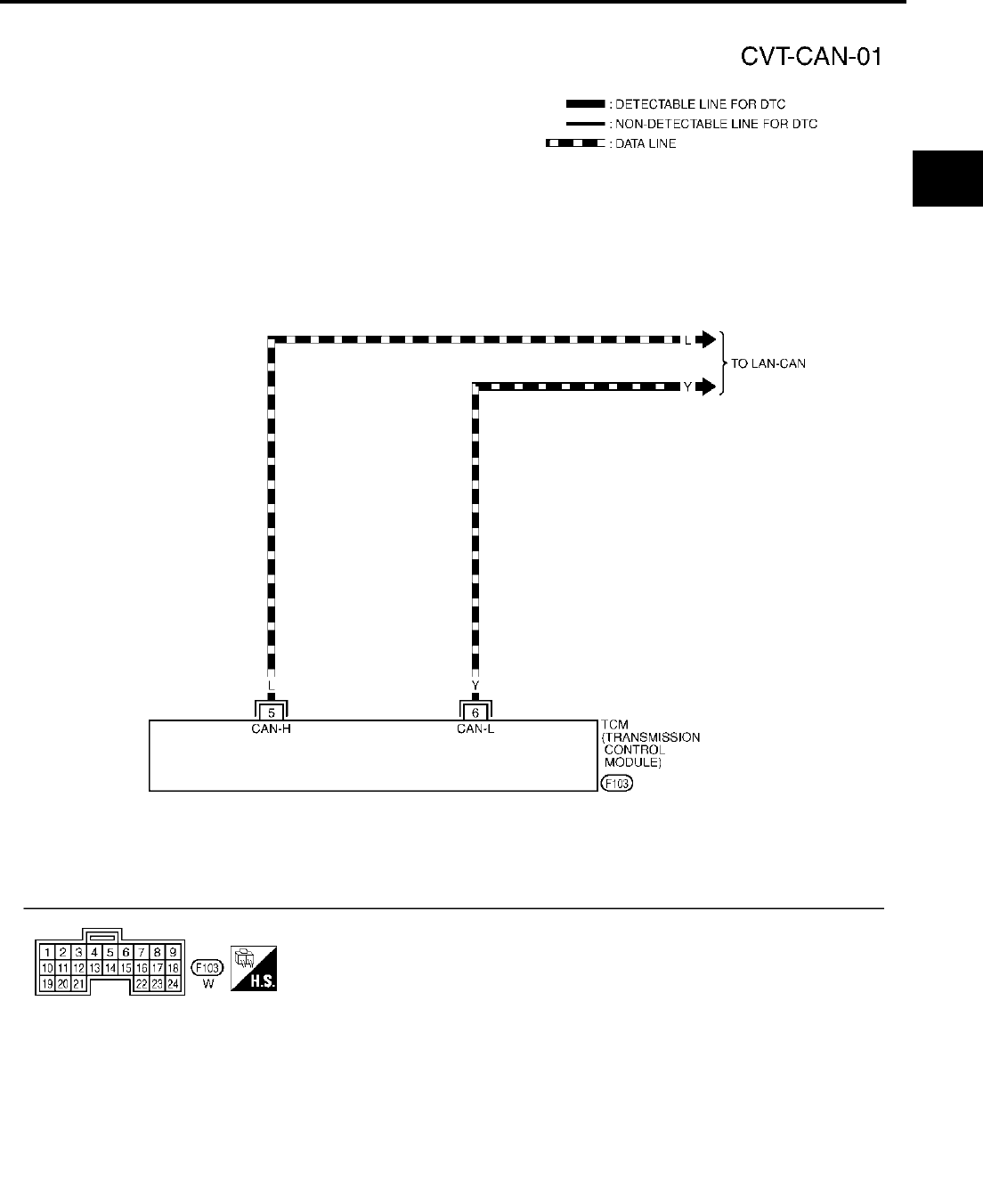

Wiring Diagram — CVT — CAN ACS001TJ
TCWA0147E
CVT-78
DTC U1000 CAN COMMUNICATION LINE
Revision; 2004 April 2003 Murano
TCM terminals and data are reference values.

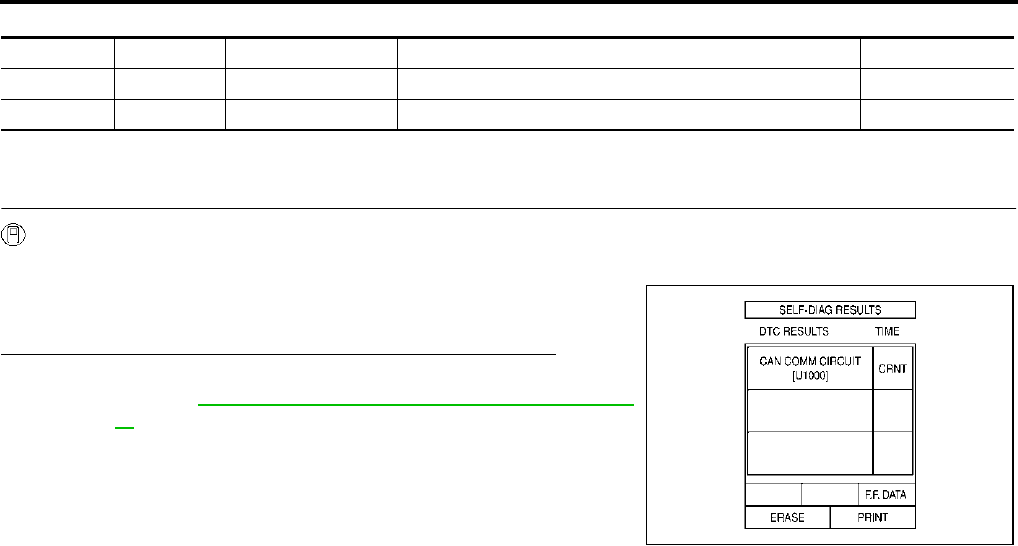

Diagnostic Procedure ACS001TK
1. CHECK CAN COMMUNICATION CIRCUIT
With CONSULT-II
1. Turn ignition switch “ON” and start engine.
2. Select “SELF-DIAG RESULTS” mode for “TRANSMISSION”
with CONSULT-II.
Is any malfunction of the “CAN COMM CIRCUIT” indicated?
YES >> Print out CONSULT-II screen, GO TO LAN section.
Refer to LAN-10, "Precautions When Using CONSULT-
II" .
NO >> INSPECTION END
Terminal No. Wire color Item Condition Data (Approx.)
5 L CAN H – –
6 Y CAN L – –
SCIA2818E
DTC P0615 START SIGNAL CIRCUIT
CVT-79
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
DTC P0615 START SIGNAL CIRCUIT PFP:25230
Description ACS001TL
●TCM controls park/neutral (PNP) relay (starter relay) in IPDM E/R.
●TCM switches PNP relay “ON” at “P” or “N” position and allows to crank engine.
●Then it prohibits cranking other than at “P” or “N” position.
On Board Diagnosis Logic ACS001TM
●This is not an OBD-II self-diagnostic item.
●Diagnostic trouble code “STARTER RELAY/CIRC” with CONSULT-II is detected when park/neutral (PNP)
relay (starter relay) switched “ON” other than at “P” or “N” position. (Or when switched “OFF” at “P” or “N”
position).
Possible Cause ACS001TN
●Harness or connectors
[The park/neutral position (PNP) relay (starter relay) and TCM circuit is open or shorted.]
●Park/neutral position (PNP) relay (starter relay)
DTC Confirmation Procedure ACS001TO
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “DATA MONITOR” mode for “TRANSMISSION” with
CONSULT-II.
3. Start engine.
4. Drive vehicle for at least 2 consecutive seconds.
5. If DTC is detected, go to CVT-81, "Diagnostic Procedure" .
SCIA2272E
CVT-80
DTC P0615 START SIGNAL CIRCUIT
Revision; 2004 April 2003 Murano

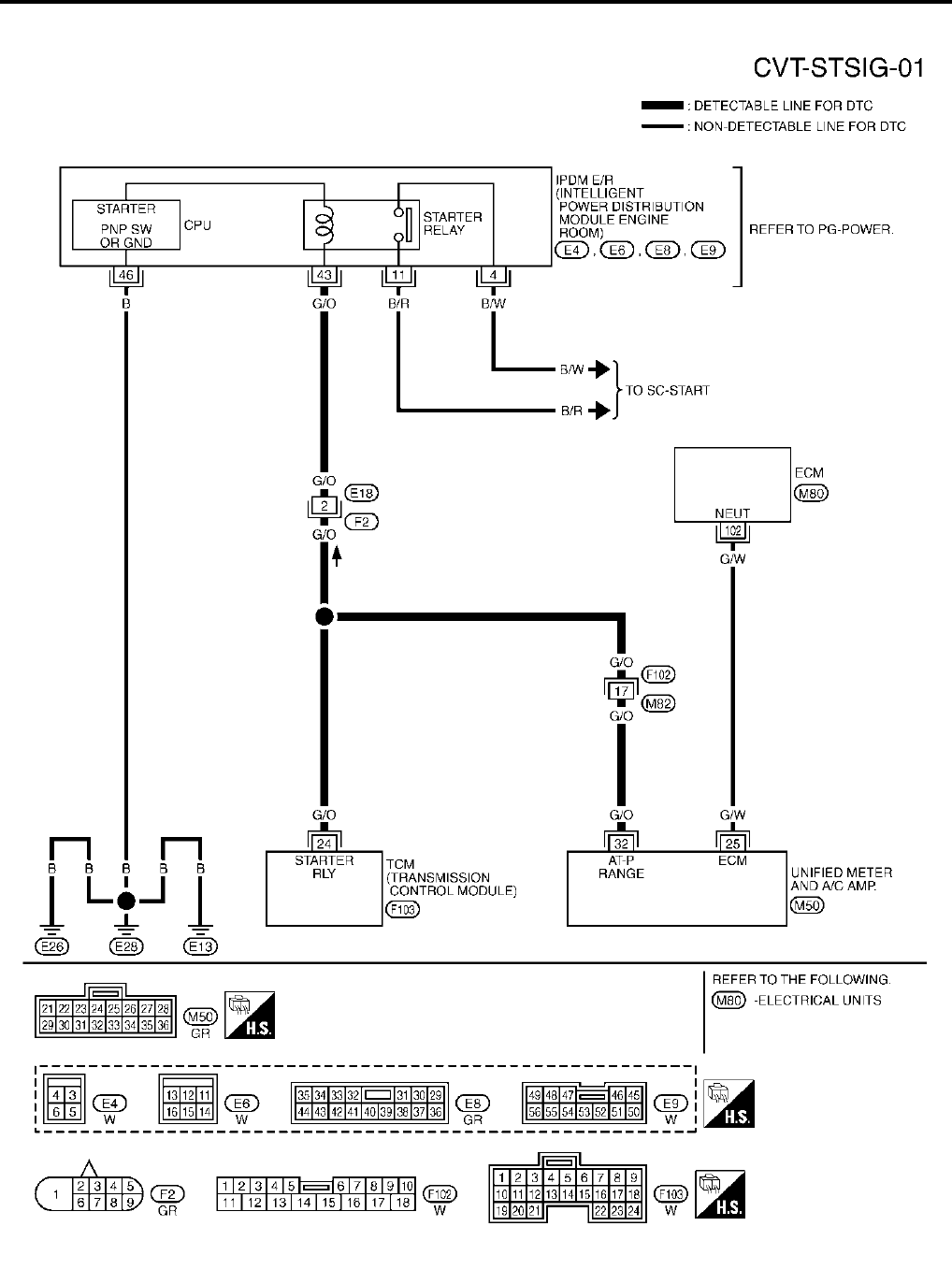

Wiring Diagram — CVT — STSIG ACS001TP
TCWA0160E
DTC P0615 START SIGNAL CIRCUIT
CVT-81
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
TCM terminal and data are reference values. Measured between each terminal and ground.

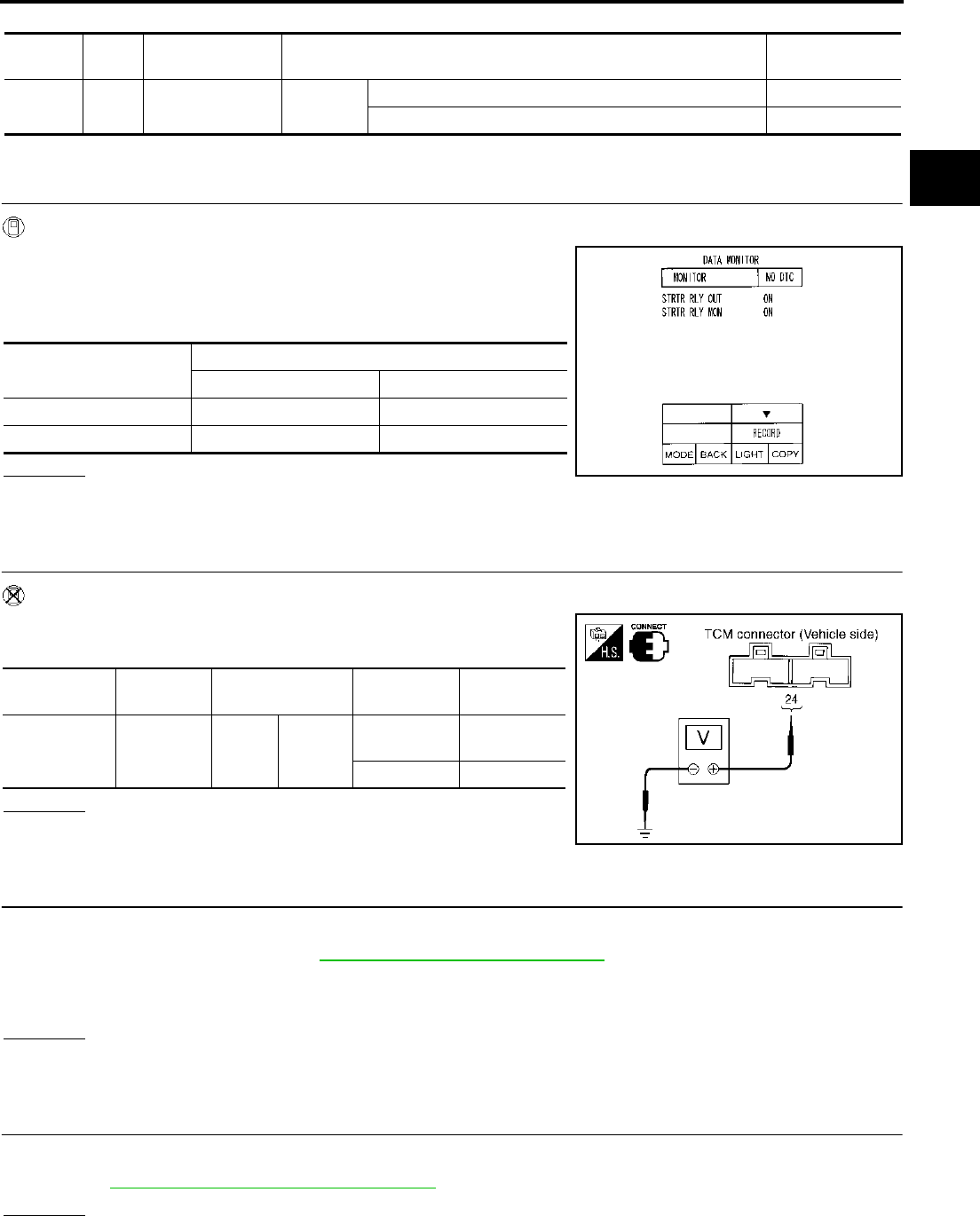

Diagnostic Procedure ACS001TQ
1. CHECK PNP RELAY (STARTER RELAY) (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode
for “TRANSMISSION” with CONSULT-II and check monitor
“STRTR RLY OUT”, “STRTR RLY MON”(PNP relay) ON/OFF.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
2. CHECK PNP RELAY (STARTER RELAY) (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Check voltage between the TCM connector and ground.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING ITEM
Check the following:
●PNP relay (starter relay). Refer to PG-85, "STANDARDIZED RELAY" .
●Open or short-circuits in the harness between TCM and the PNP relay
●Ground circuit for the PNP relay (starter relay)
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4. CHECK DTC
Check again.
●Refer to CVT-79, "DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 5.
Terminal
No.
Wire
color Item Condition Data (Approx.)
24 G/O PNP relay
(Starter relay) IGN ON Selector lever in “N”, “P” position. Battery voltage
Selector lever in other position. 0V
Shift position Item
“STRTR RLY OUT” “STRTR RLY MON”
N and P ON ON
R, D and L OFF OFF
SCIA2274E
Item Connector
No.
Terminal No.
(Wire color) Shift position Voltage
(Approx.)
PNP relay
(Starter relay) F103 24
(G/O) Ground N and P Battery
voltage
R, D and L 0V
SCIA2022E
CVT-82
DTC P0615 START SIGNAL CIRCUIT
Revision; 2004 April 2003 Murano
5. CHECK TCM INSPECTION
1. Perform TCM input/output signal inspection.
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
DTC P0703 STOP LAMP SWITCH CIRCUIT
CVT-83
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano

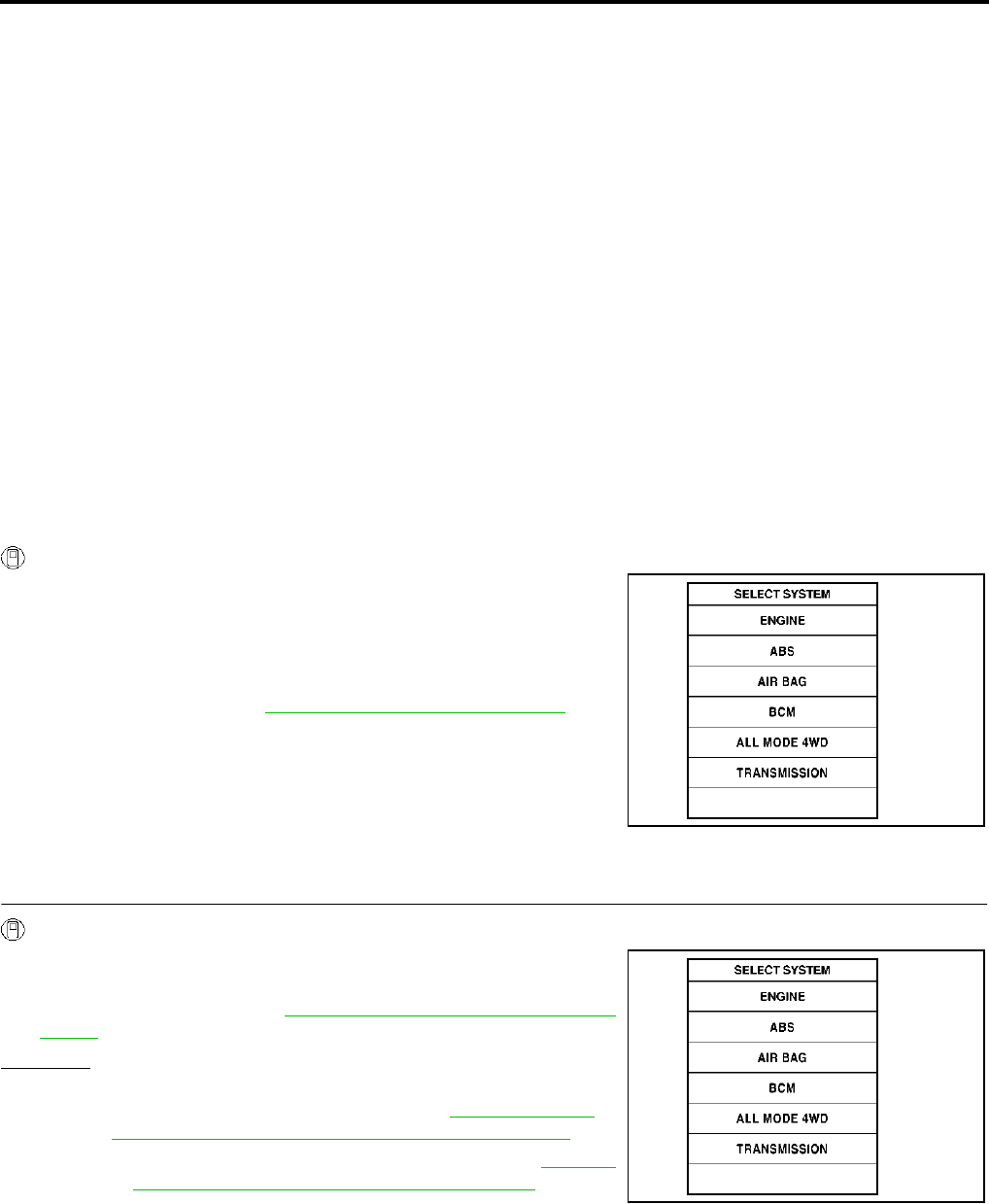

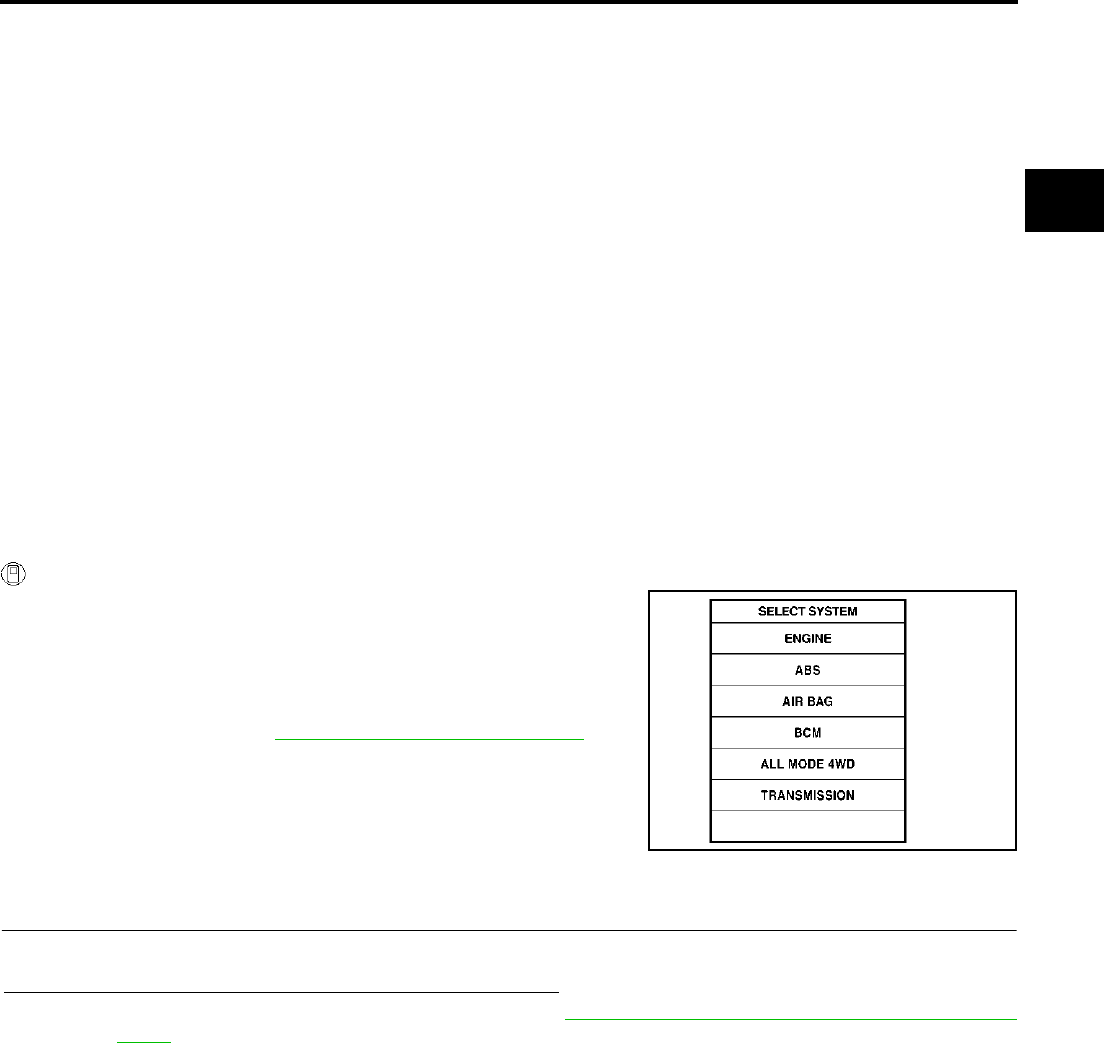

DTC P0703 STOP LAMP SWITCH CIRCUIT PFP:25320
Description ACS002SJ
“ON”, “OFF” status of the stop lamp switch is sent via the CAN communication from the unified meter and the
A/C amp to TCM using the signal.
On Board Diagnosis Logic ACS002SK
●This is not an OBD-II self-diagnostic item.
●Diagnostic trouble code “BRAKE SW/CIRC” with CONSULT-II is detected when the brake switch does not
switch to “ON” and “OFF”.
–The brake switch does not switch to “ON”, “OFF”.
Possible Cause ACS002SL
●Harness or connectors
[The stop lamp switch and unified meter and A/C amp circuit is open or shorted.]
[CAN communication line is open or shorted.]
●Stop lamp switch
DTC Confirmation Procedure ACS002SM
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.

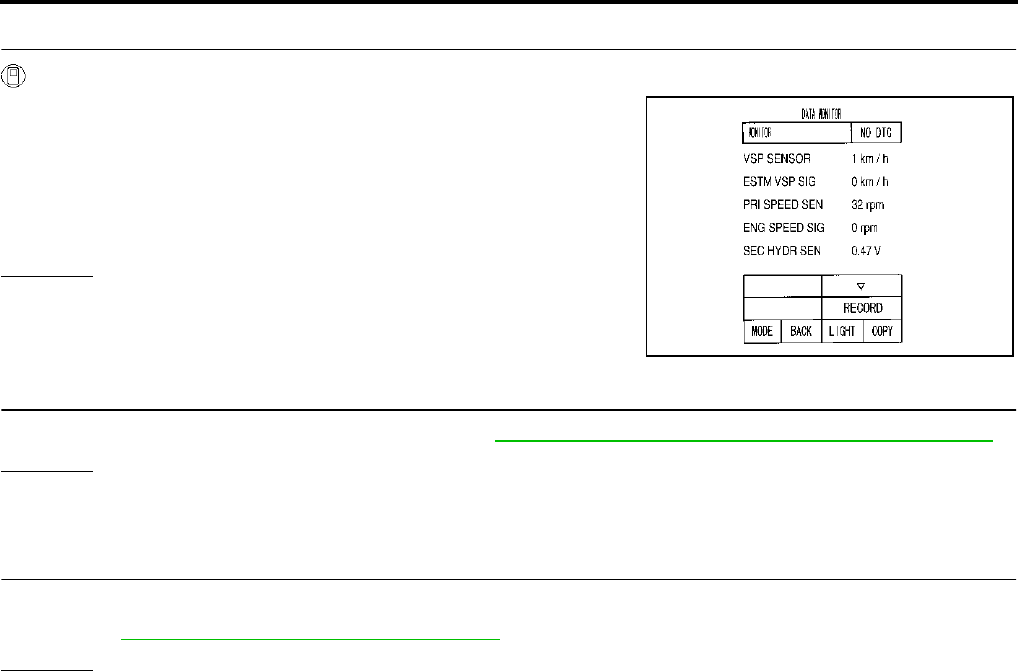

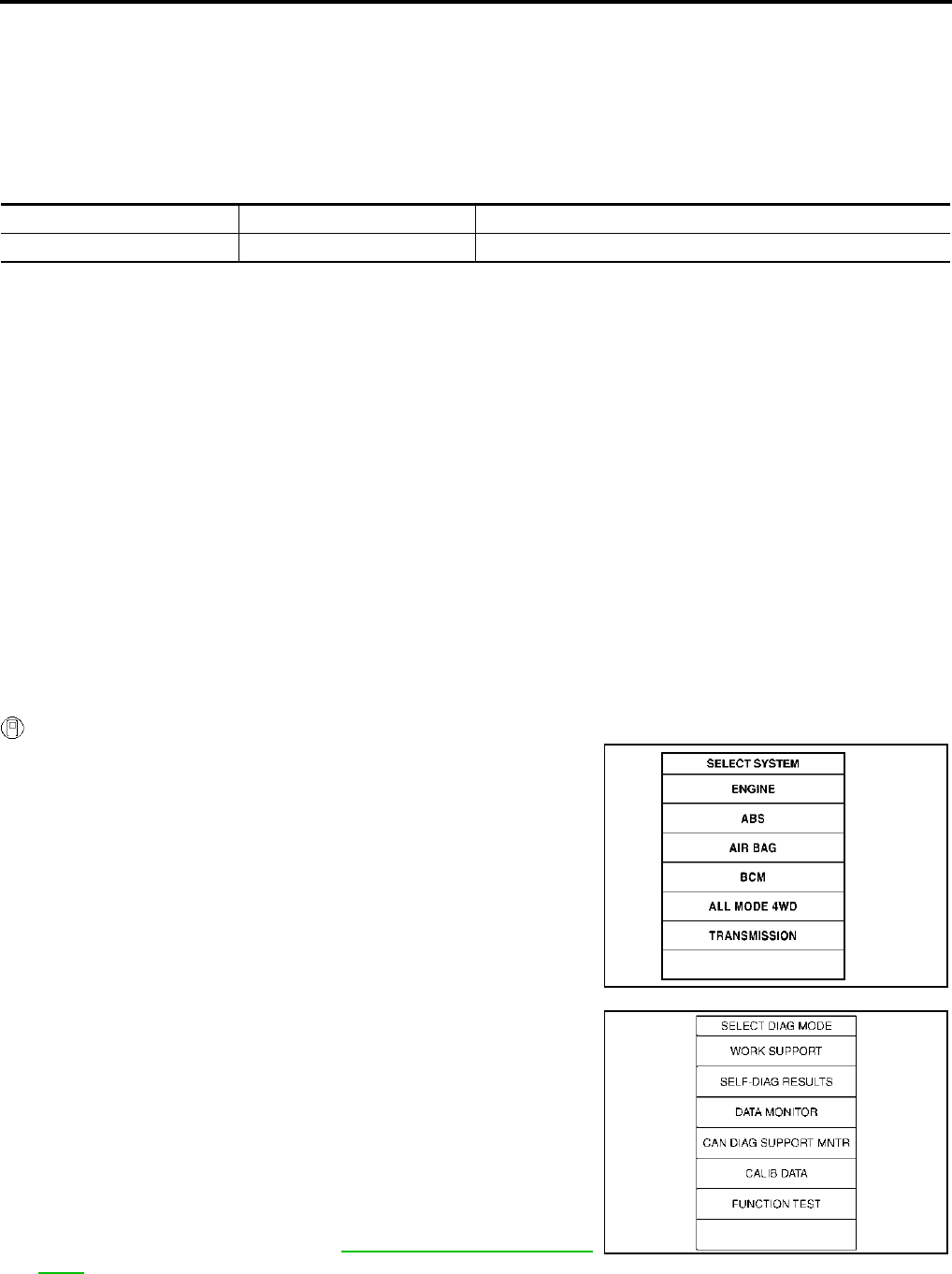

WITH CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “DATA MONITOR” mode for “TRANSMISSON” with
CONSULT-II.
3. Start engine.
4. Start vehicle for at least 3 consecutive seconds.
5. If DTC is detected, go to CVT-83, "Diagnostic Procedure" .
Diagnostic Procedure ACS002IT
1. CHECK CAN COMMUNICATION LINE
Perform the self-diagnosis.
Is any malfunction of the “CAN COMM CIRCUIT” indicated?
YES >> Check CAN communication line. Refer to CVT-76, "DTC U1000 CAN COMMUNICATION LINE" .
NO >> GO TO 2.
SCIA2272E
CVT-84
DTC P0703 STOP LAMP SWITCH CIRCUIT
Revision; 2004 April 2003 Murano

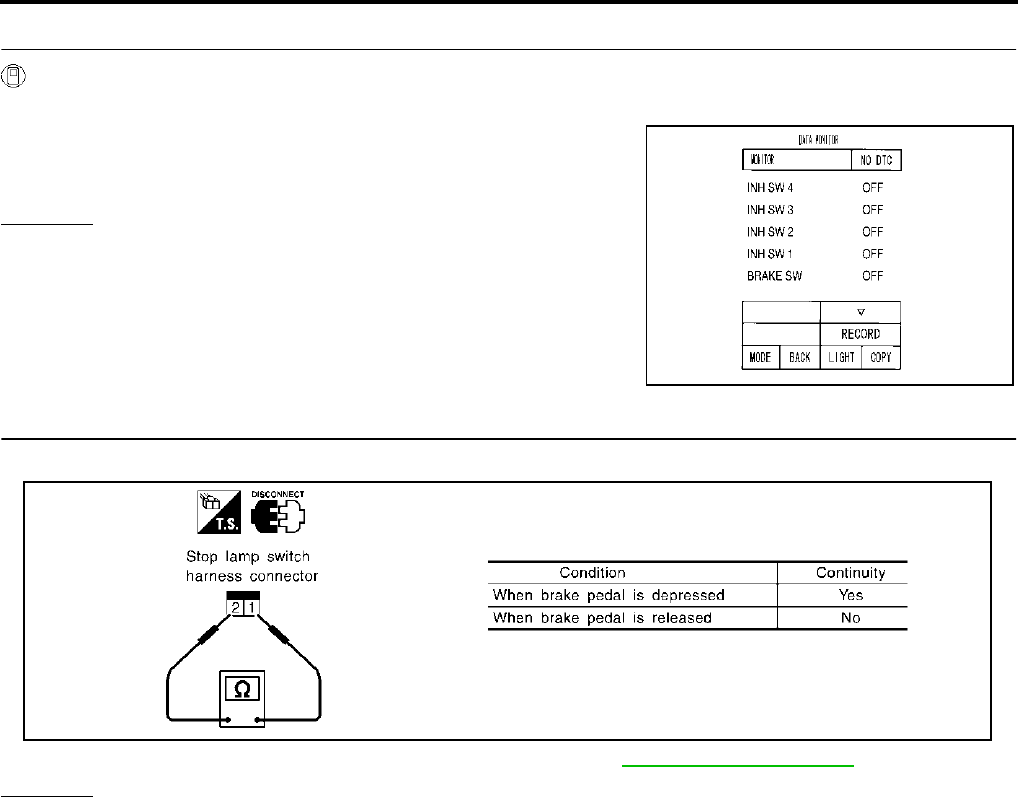

2. CHECK STOP LAMP SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“TRANSMISSON” with CONSULT-II.
3. Read out ON/OFF switching action of the “BRAKE SW”.
OK or NG
OK >> INSPECTION END
NG >> GO TO 3.
3. CHECK STOP LAMP SWITCH
Check continuity between stop lamp switch harness connector E116 terminals 1 (R/Y) and 2 (R/G).
Check stop lamp switch after adjusting brake pedal — refer to BR-6, "BRAKE PEDAL" .
OK or NG
OK >> Check the following. If NG, Repair or Replace Damaged Parts.
●Harness for short or open between battery and stop lamp switch.
●Harness for short or open between stop lamp switch and unified meter and A/C amp.
NG >> Repair or Replace the stop lamp switch.
SCIA2275E
SCIA3700E
DTC P0705 PARK/NEUTRAL POSITION SWITCH
CVT-85
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
DTC P0705 PARK/NEUTRAL POSITION SWITCH PFP:32006
Description ACS001TR
●The park/neutral position (PNP) switch includes 4 transmission position switches.
●TCM judges the selector lever position by the PNP switch signal.
On Board Diagnosis Logic ACS001TS
●This is an OBD-II self-diagnostic item.
●Diagnostic trouble code “PNP SW/CIRC” with CONSULT-II or P0705 without CONSULT-II is detected
under the following conditions.
–When TCM does not receive the correct voltage signal from the PNP switches 1, 2, 3 and 4 based on the
gear position.
–When the signal from monitor terminal of PNP switch 3 is different from PNP switch 3.
Possible Cause ACS001TT
●Harness or connectors
[The park/neutral position (PNP) switches 1, 2, 3, 4 and TCM circuit is open or shorted.]
●Park/neutral position (PNP) switches 1, 2, 3, 4
●Park/neutral position (PNP) switch 3 monitor terminal is open or shorted
DTC Confirmation Procedure ACS001TU
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.

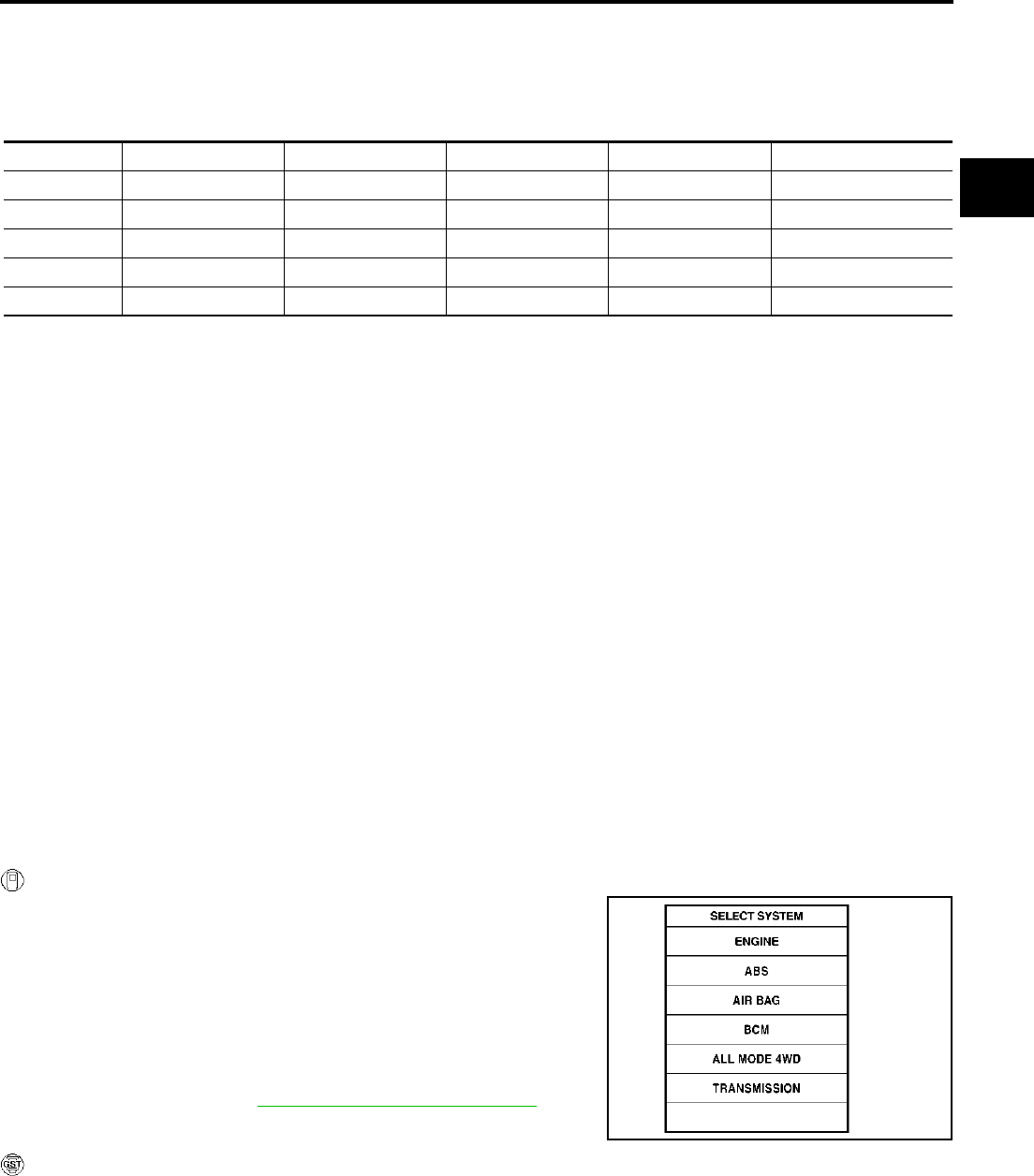

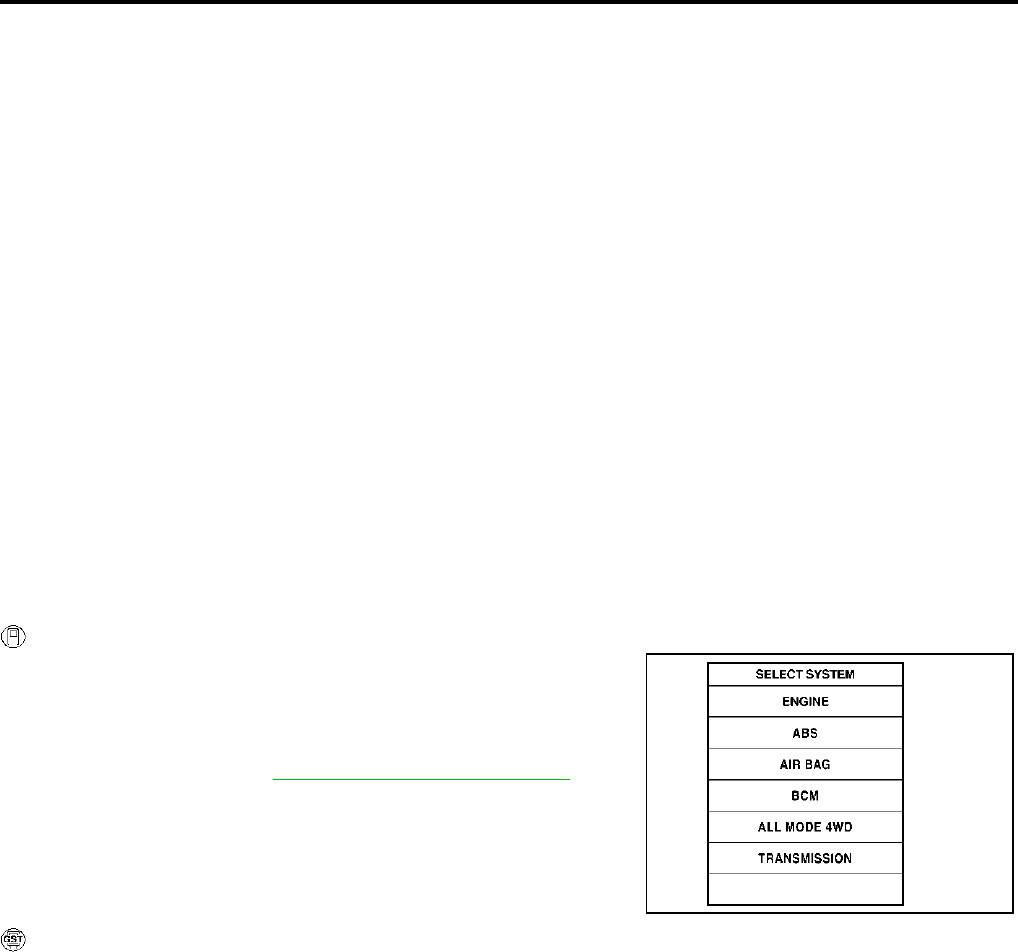

WITH CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “DATA MONITOR” mode for “ENGINE” with CONSULT-II.
3. Start engine.
4. Drive vehicle and maintain the following conditions for at least 2
consecutive seconds.
VHCL SPEED SE: More than 10km/h (6 MPH)
ENG SPEED SIG: More than 450rpm
ACC PEDAL OPEN: More than 1/8
5. If DTC is detected, go to CVT-87, "Diagnostic Procedure" .
WITH GST
Follow the procedure “With CONSULT-II”.
Shift position PNP switch 1 PNP switch 2 PNP switch 3 PNP switch 4 PNP switch 3 (monitor)
P OFF OFF OFF OFF OFF
R ON OFF OFF ON OFF
N ON ON OFF OFF OFF
DONONONON ON
L OFF ON ON OFF ON
SCIA2272E
CVT-86
DTC P0705 PARK/NEUTRAL POSITION SWITCH
Revision; 2004 April 2003 Murano

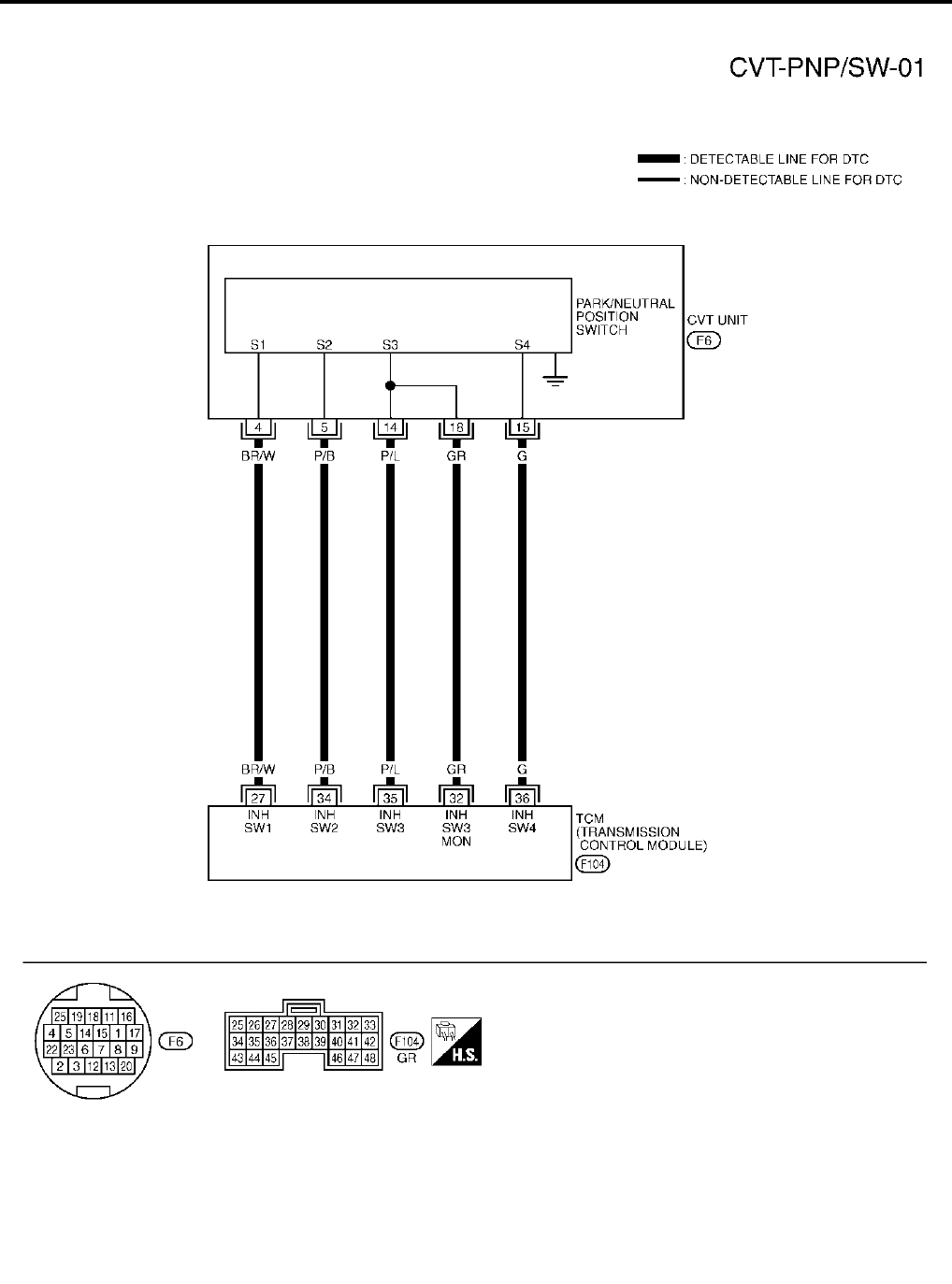

Wiring Diagram — CVT — PNP/SW ACS001TV
TCWA0148E
DTC P0705 PARK/NEUTRAL POSITION SWITCH
CVT-87
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
TCM terminals and data are reference values. Measured between each terminal and ground.
Diagnostic Procedure ACS001TW

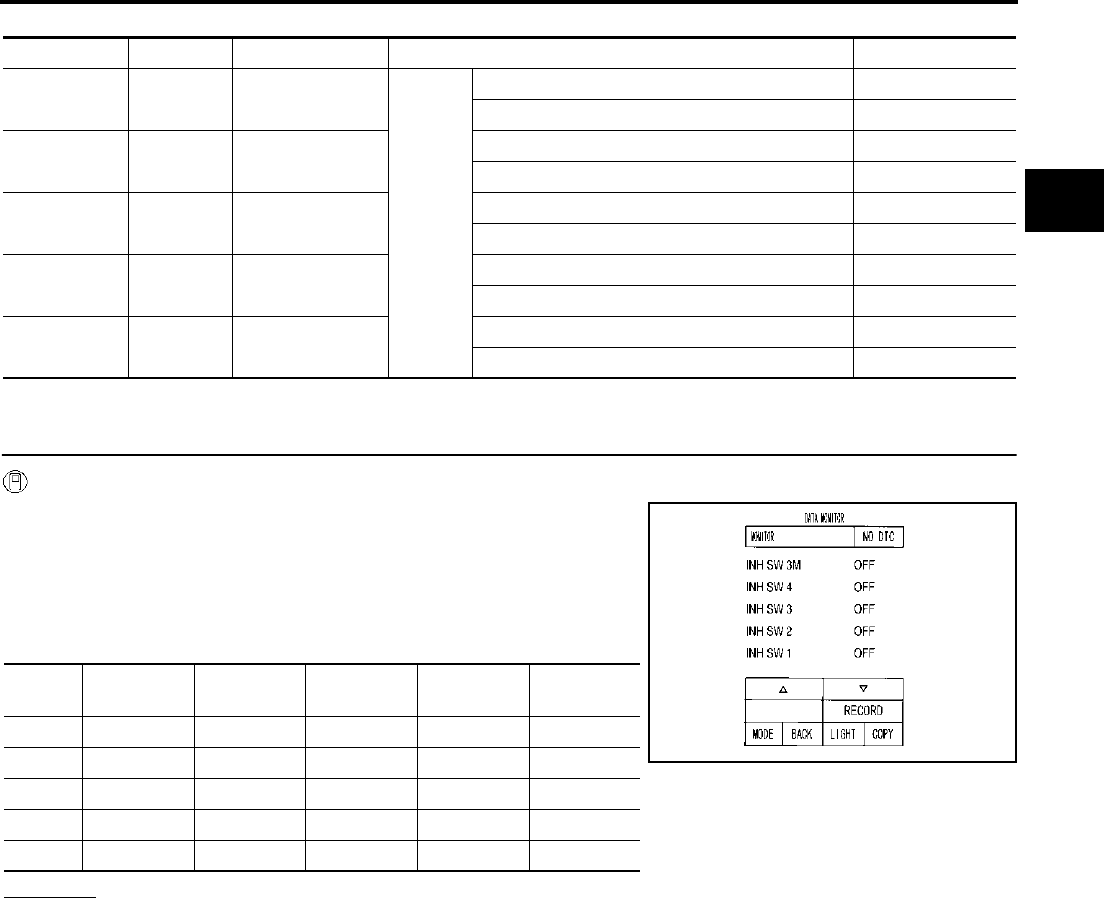

1. CHECK PNP SW CIRCUIT (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“TRANSMISSON” with CONSULT-II.
3. Selector lever to “P”, “R”, “N”,“D” and “L” position to check the
value of “INH SW1” “INH SW2” “INH SW3” “INH SW4” and “INH
SW3M”.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
Terminal No. Wire color Item Condition Data (Approx.)
27 BR/W PNP switch 1
IGN ON
Selector lever in “P”, “L” position. Battery voltage
Selector lever in other position. 0V
34 P/B PNP switch 2 Selector lever in “P”, “R” position. Battery voltage
Selector lever in other position. 0V
35 P/L PNP switch 3 Selector lever in “P”, “R”, “N” position. Battery voltage
Selector lever in other position. 0V
36 G PNP switch 4 Selector lever in “P”, “N”, “L” position. Battery voltage
Selector lever in other position. 0V
32 GR PNP switch 3
(monitor)
Selector lever in “P”, “R”, “N” position. Battery voltage
Selector lever in other position. 0V
Shift
position “INH SW1” “INH SW2” “INH SW3” “INH SW4” “INH
SW3M”
P OFF OFF OFF OFF OFF
RONOFFOFFONOFF
N ON ON OFF OFF OFF
DONONONONON
L OFF ON ON OFF ON
SCIA2276E
CVT-88
DTC P0705 PARK/NEUTRAL POSITION SWITCH
Revision; 2004 April 2003 Murano

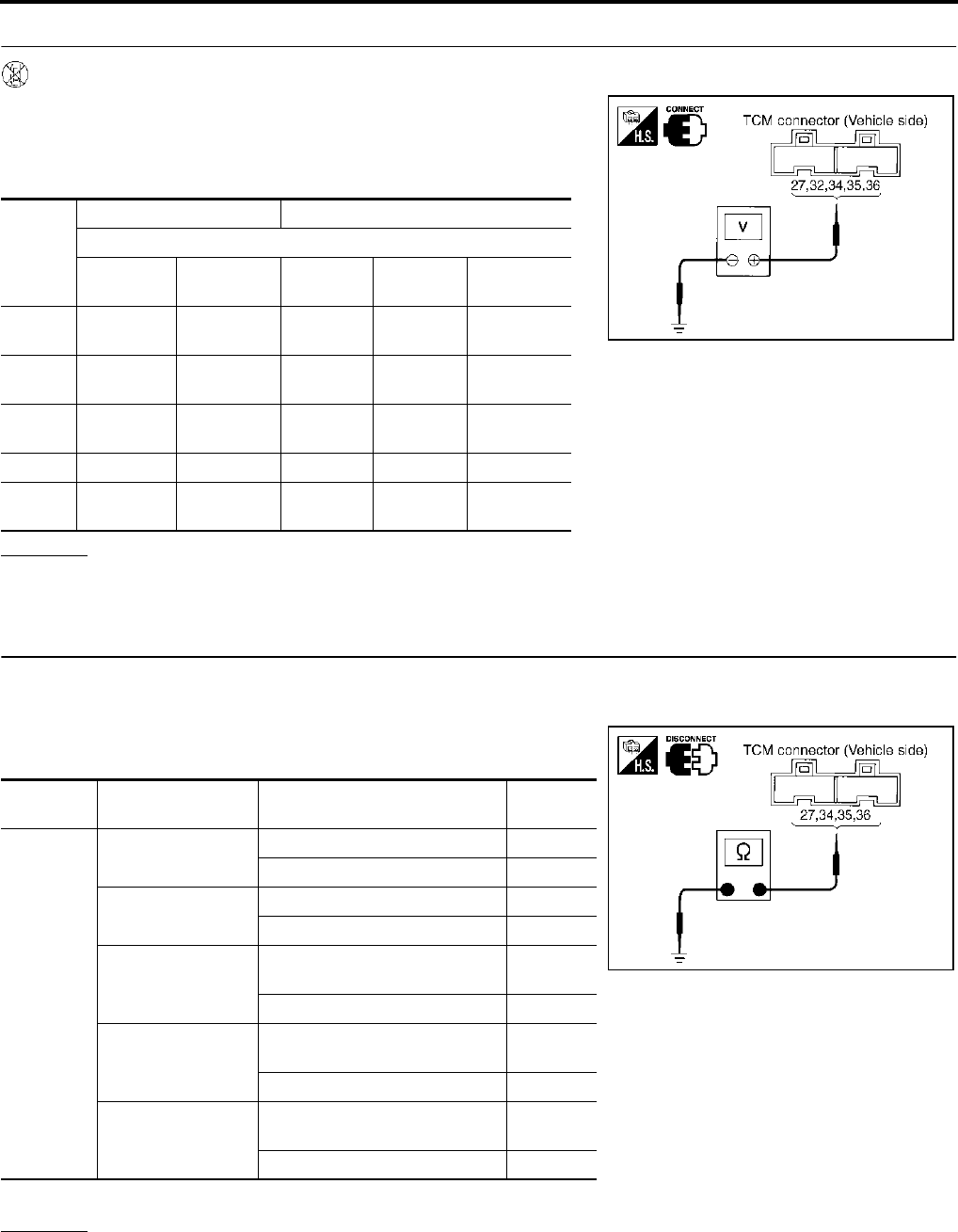

2. CHECK PNP SW CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Change selector lever to “P“, “R”, “N”, “D” or “L” position to
check voltage between the TCM connector terminals and
ground.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. CHECK THE HARNESS BETWEEN TCM AND PNP SWITCH
1. Turn ignition switch “OFF”.
2. Disconnect the TCM connector.
3. Check the continuity between TCM connector terminals (vehicle
side) 27 (BR/W), 34 (P/B), 35 (P/L), 36 (G), 32 (GR) and ground.
4. If OK, check the harness for short-circuit to ground or the power source.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
Shift
position
Connector No. F104
Terminal No. (Wire color)
27 (BR/W) -
Ground
34 (P/B) -
Ground
35 (P/L) -
Ground
36 (G) -
Ground
32 (GR) -
Ground
PBattery
voltage
Battery
voltage
Battery
voltage
Battery
voltage
Battery
voltage
R0V
Battery
voltage
Battery
voltage 0V Battery
voltage
N0V 0V
Battery
voltage
Battery
voltage
Battery
voltage
D0V 0V 0V0V 0V
LBattery
voltage 0V 0V Battery
voltage 0V
SCIA2024E
Connector
No.
Terminal No.
(Wire color) Condition Continuity
F104
27 (BR/W) - ground Select lever in “P”, “L” position. No
Select lever in other position. Yes
34 (P/B) - ground Select lever in “P”, “R” position. No
Select lever in other position. Yes
35 (P/L) - ground
Select lever in “P”, “R”, “N” posi-
tion. No
Select lever in other position. Yes
36 (G) - ground
Select lever in “P”,“N”, “L” posi-
tion. No
Select lever in other position. Yes
32 (GR) - ground
Select lever in “P”, “R”, “N” posi-
tion. No
Select lever in other position. Yes
SCIA2337E
DTC P0705 PARK/NEUTRAL POSITION SWITCH
CVT-89
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
4. DETECT MALFUNCTIONING ITEM
Check the following items.
●Open or short-circuit in the harness between TCM and PNP switch 1, 2, 3, 4.
●Open or short-circuit in the harness between TCM and PNP switch 3 monitor.
●Open-circuit in ground between TCM and PNP switch (transaxle assembly).
●PNP switch. Refer to CVT-89, "Component Inspection" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. CHECK DTC
Check again.
●Refer to CVT-85, "DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 6.
6. CHECK TCM INSPECTION
1. Perform TCM input/output signal inspection.
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> 1. Repair or replace damaged parts.
2. Replace the transaxle assembly. Refer to CVT-197, "Removal and Installation" .

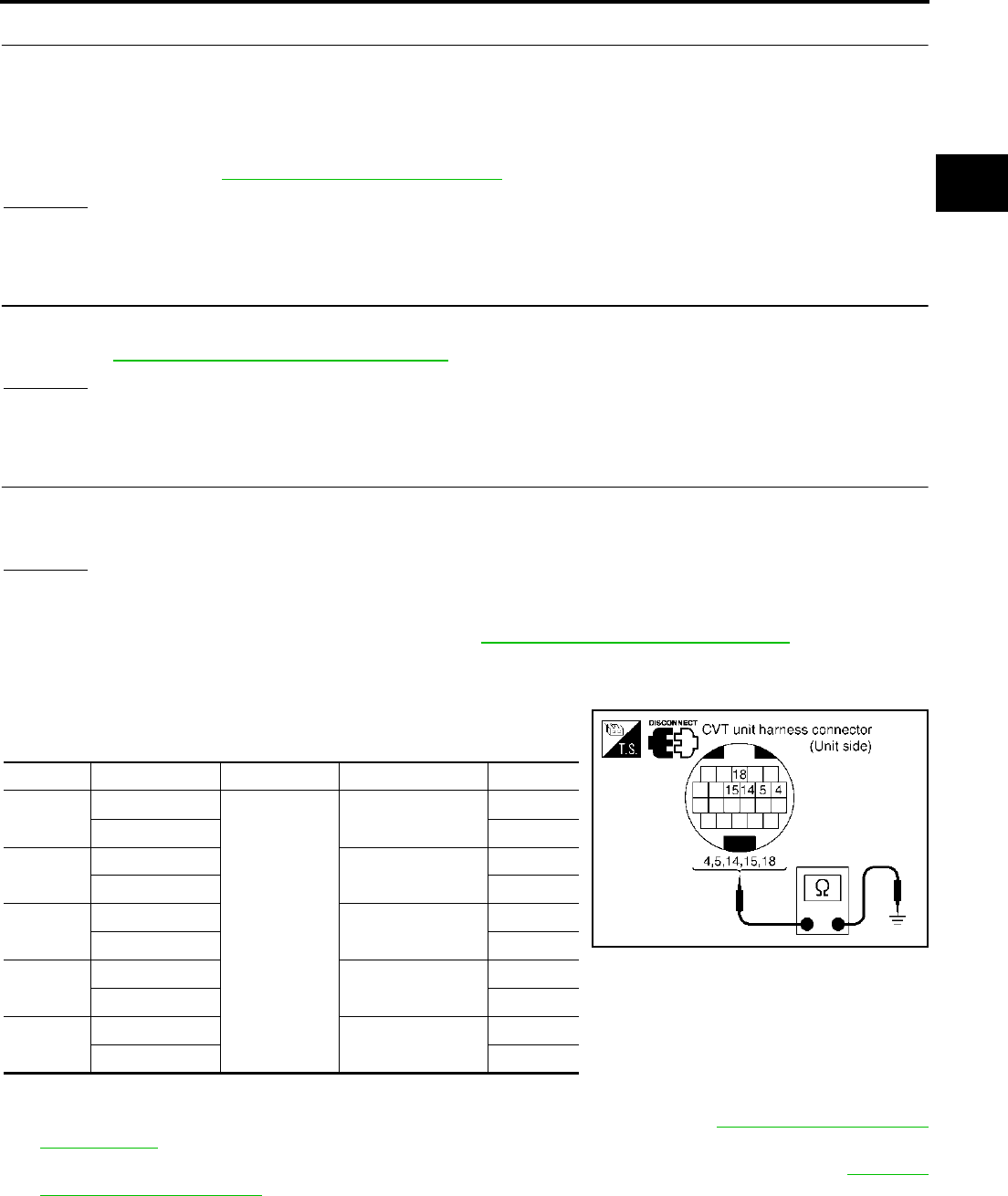

Component Inspection ACS001TX
PNP SWITCH
1. Change selector lever to various positions to check the continu-
ity between terminals on the PNP switch and ground.
2. If NG, check the continuity with the control linkage disconnected. (Refer to Step 1 above.)
3. If OK with the control linkage disconnected, adjust the control linkage. Refer to CVT-183, "Adjustment of
CVT Position" .
4. If NG even when the control linkage is disconnected, replace the transaxle assembly. Refer to CVT-197,
"Removal and Installation" .
PNP SW Shift position Connector No. Terminal No. Continuity
SW 1 R, N, D
F6
4 - Ground Yes
other position. No
SW 2 N, D, L 5 - Ground Yes
other position. No
SW 3 D, L 14 - Ground Yes
other position. No
SW 4 R, D 15 - Ground Yes
other position. No
SW 3
Monitor
D, L 18 - Ground Yes
other position. No
SCIA2025E
CVT-90
DTC P0710 CVT FLUID TEMPERATURE SENSOR CIRCUIT
Revision; 2004 April 2003 Murano

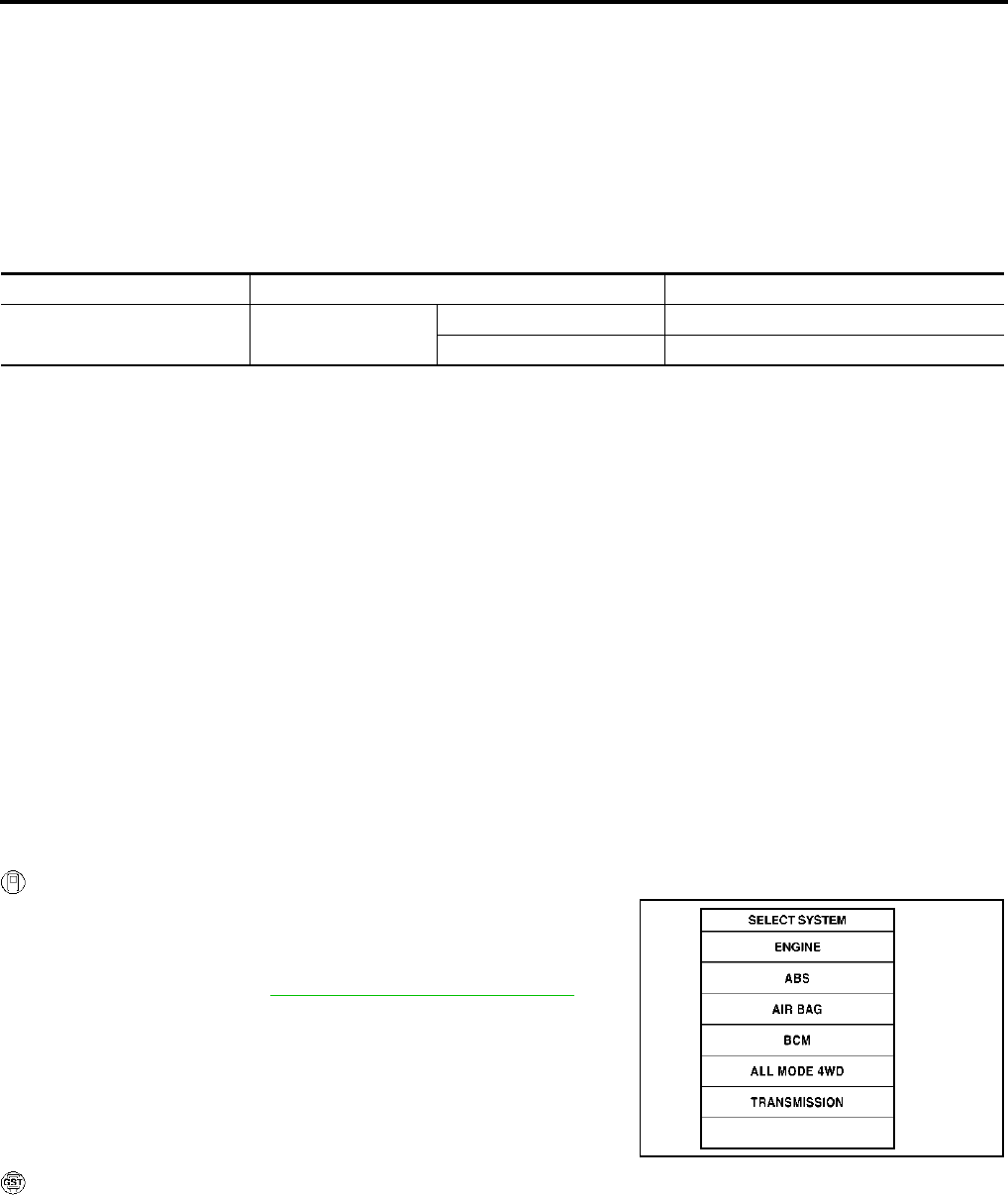

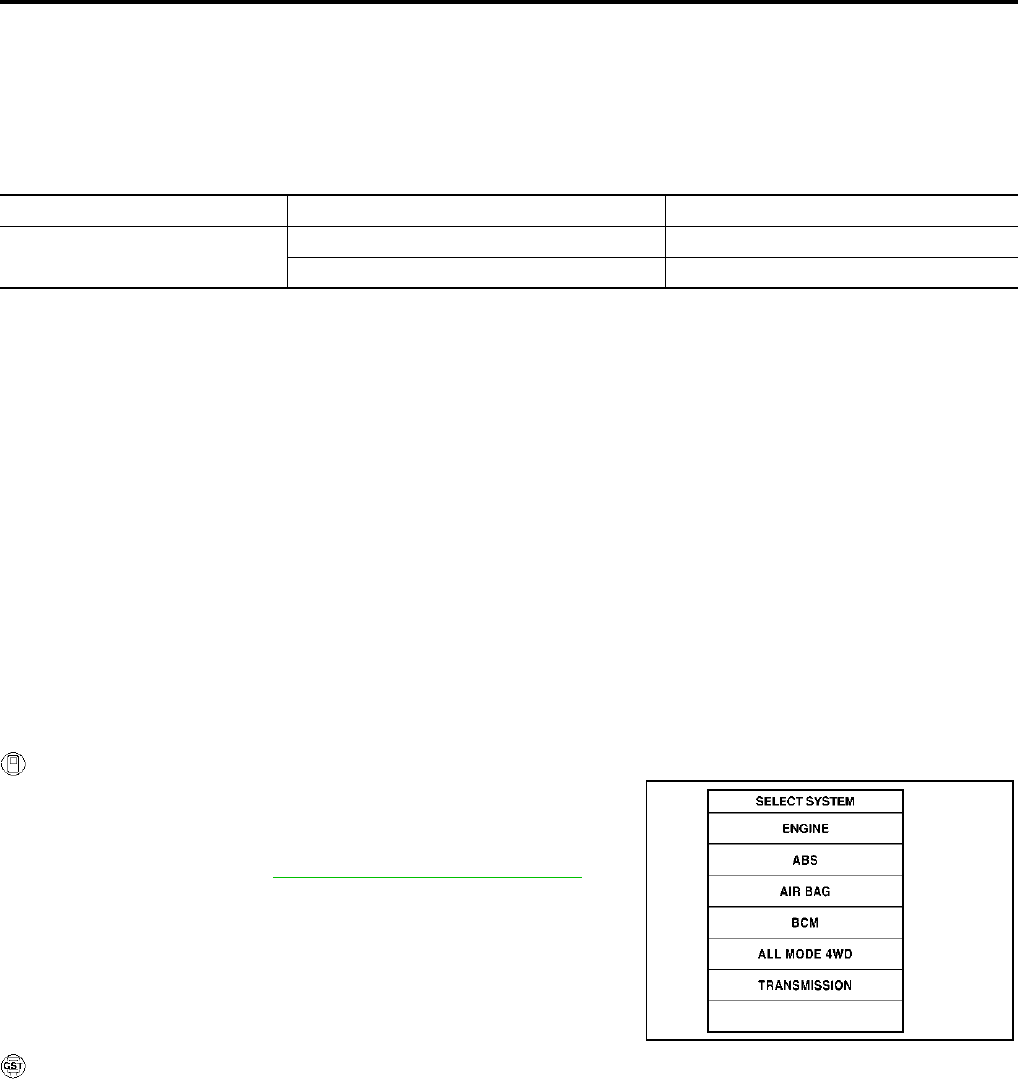

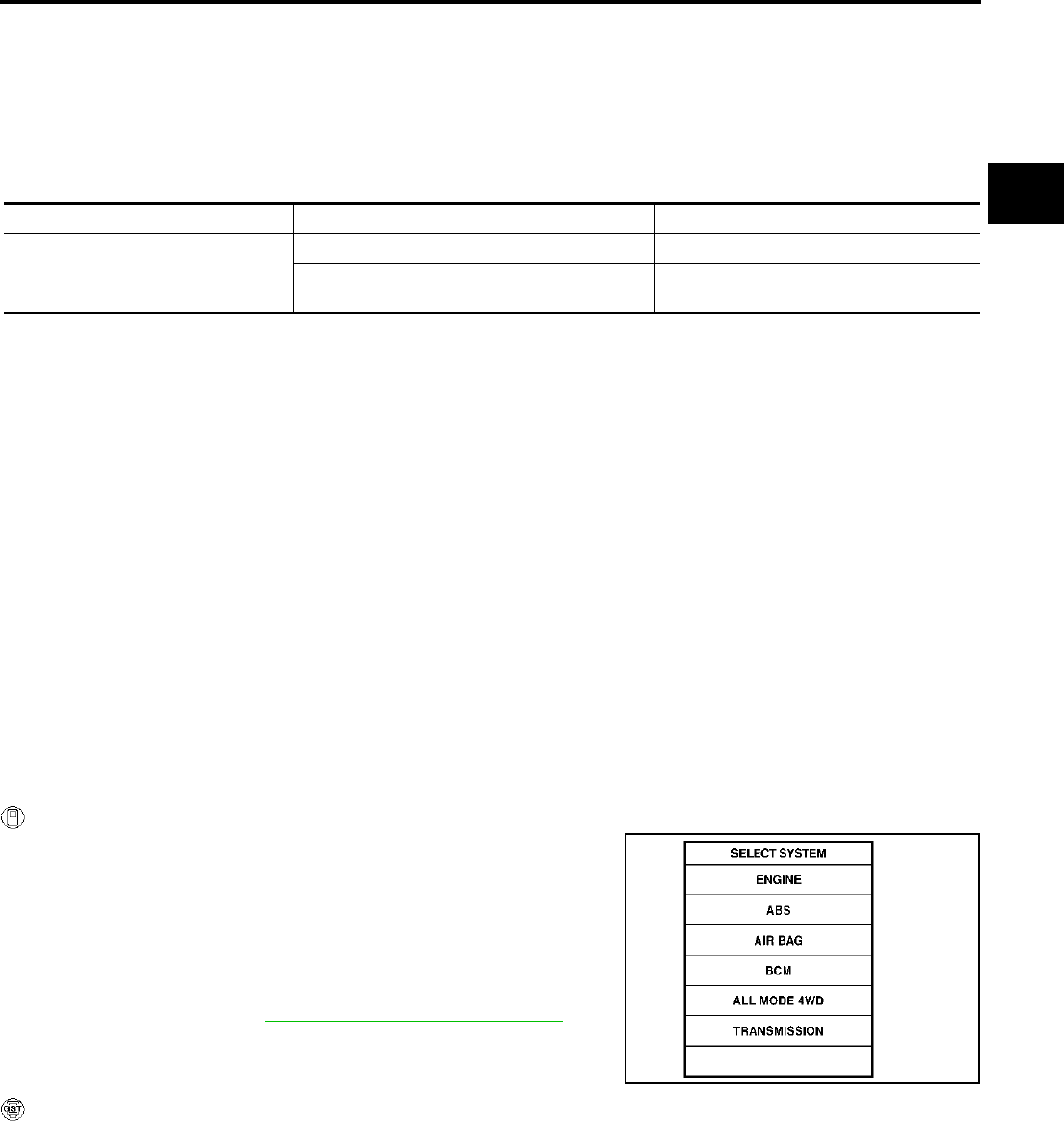

DTC P0710 CVT FLUID TEMPERATURE SENSOR CIRCUIT PFP:31020
Description ACS002SN
The CVT fluid temperature sensor detects the CVT fluid temperature and sends a signal to the TCM.
CONSULT-II Reference Value ACS002SO
Remarks: Specification data are reference values.
On Board Diagnosis Logic ACS002SP
●This is an OBD-II self-diagnostic item.
●Diagnostic trouble code “ATF TEMP SEN/CIRC” with CONSULT-II or P0710 without CONSULT-II is
detected when TCM receives an excessively low or high voltage from the sensor.
Possible Cause ACS002SQ
●Harness or connectors
(The sensor circuit is open or shorted.)
●CVT fluid temperature sensors
DTC Confirmation Procedure ACS002SR
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.

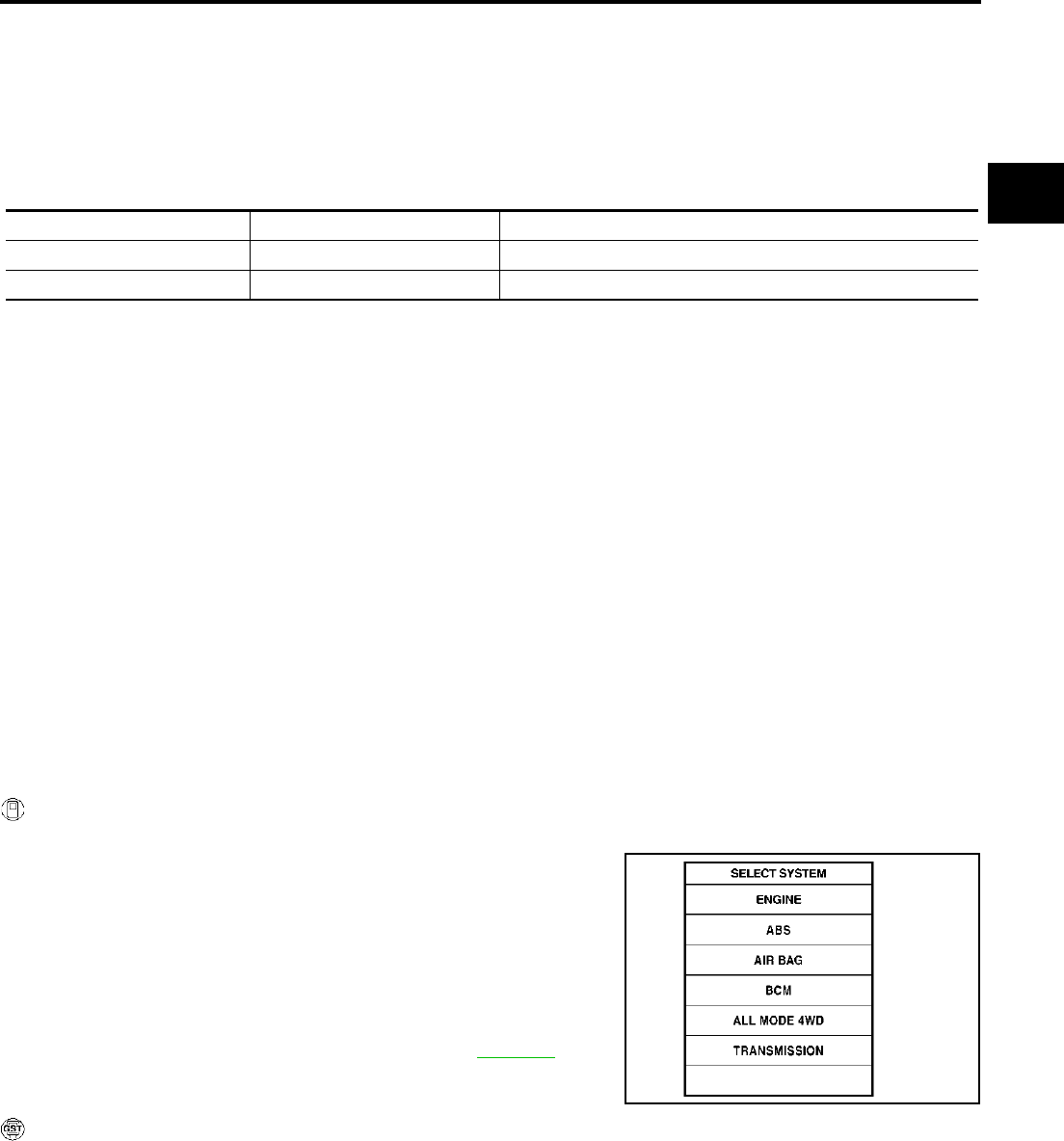

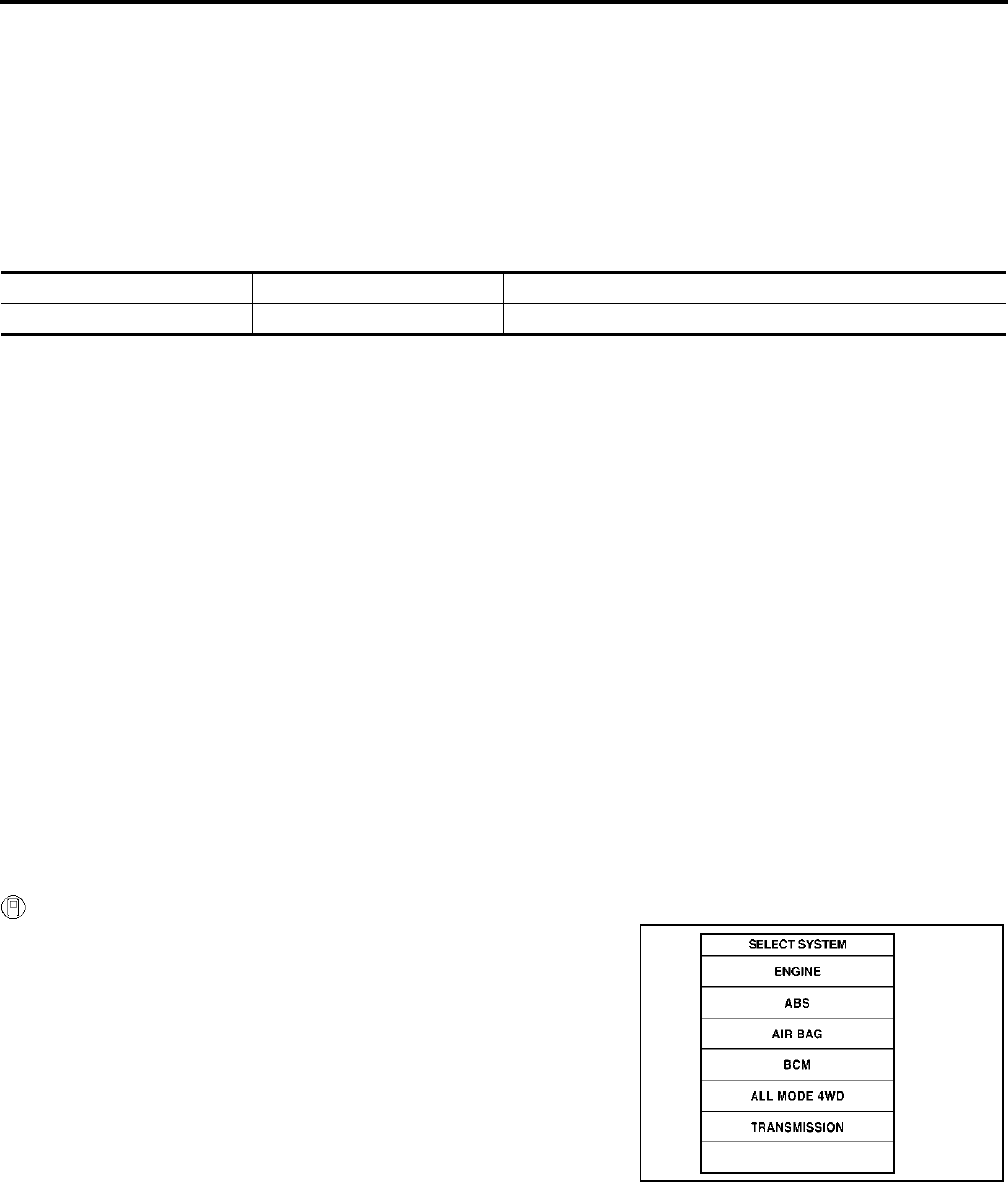

WITH CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “DATA MONITOR” mode for “ENGINE” with CONSULT-II.
3. Start engine and maintain the following conditions for at least 10
minutes (Total). (It is not necessary to maintain continuously.)
VHCL SPEED SE: 10 km/h (6 MPH) or more
ENG SPEED: 450rpm more than
ACC PEDAL OPEN: More than 1/8
Selector lever: “D” position
4. If DTC is detected, go to CVT-92, "Diagnostic Procedure" .
WITH GST
Follow the procedure “With CONSULT-II”.
Monitor item Condition Specification (Approximately)
CVT fluid temperature sensor Cold [20°C (68°F)] 2.0V
Hot [80°C (176°F)] 1.0V
SCIA2272E
DTC P0710 CVT FLUID TEMPERATURE SENSOR CIRCUIT
CVT-91
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano

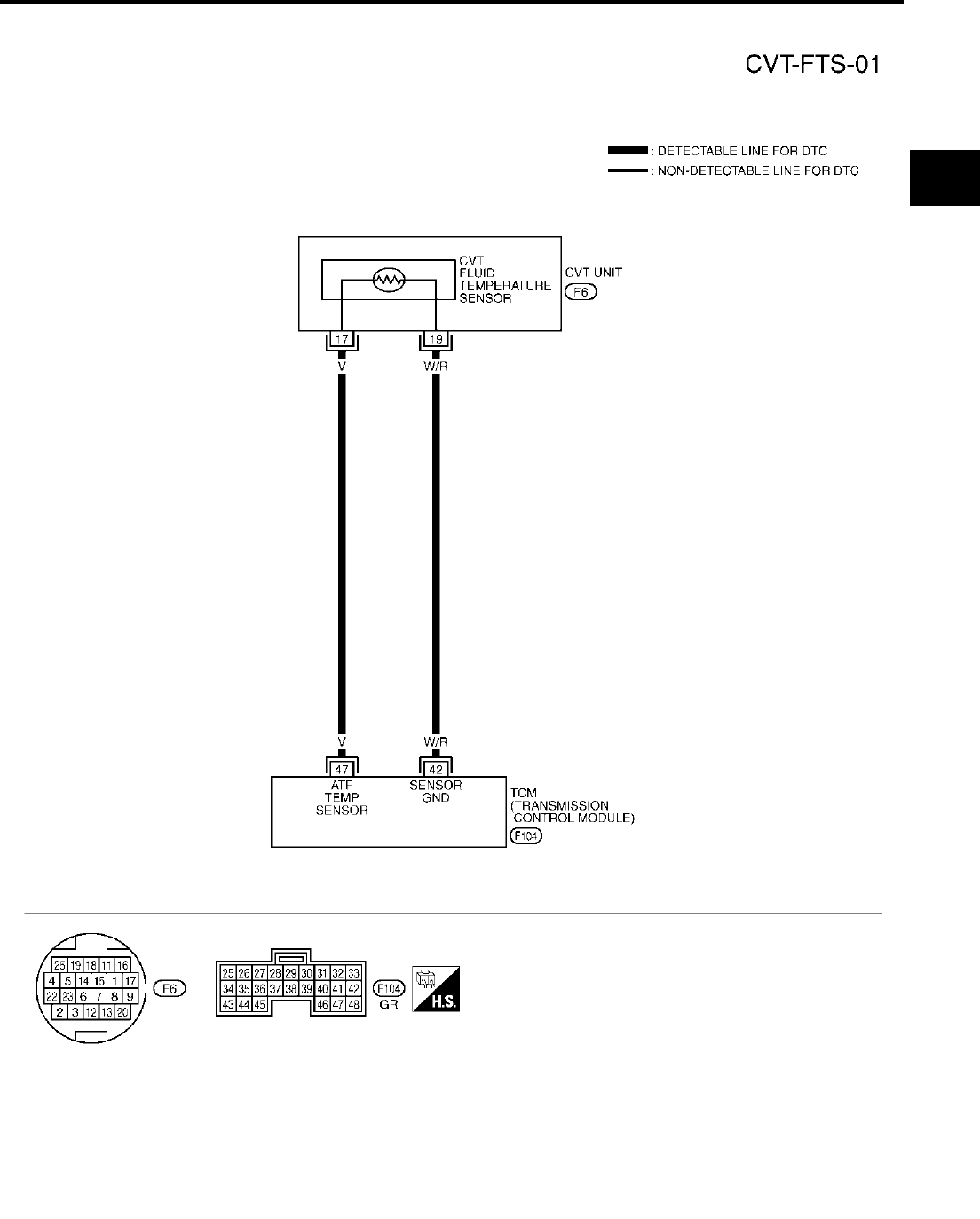

Wiring Diagram - CVT - FTS ACS0020Q
TCWA0149E
CVT-92
DTC P0710 CVT FLUID TEMPERATURE SENSOR CIRCUIT
Revision; 2004 April 2003 Murano
TCM terminals and data are reference values. Measured between each terminal and ground.

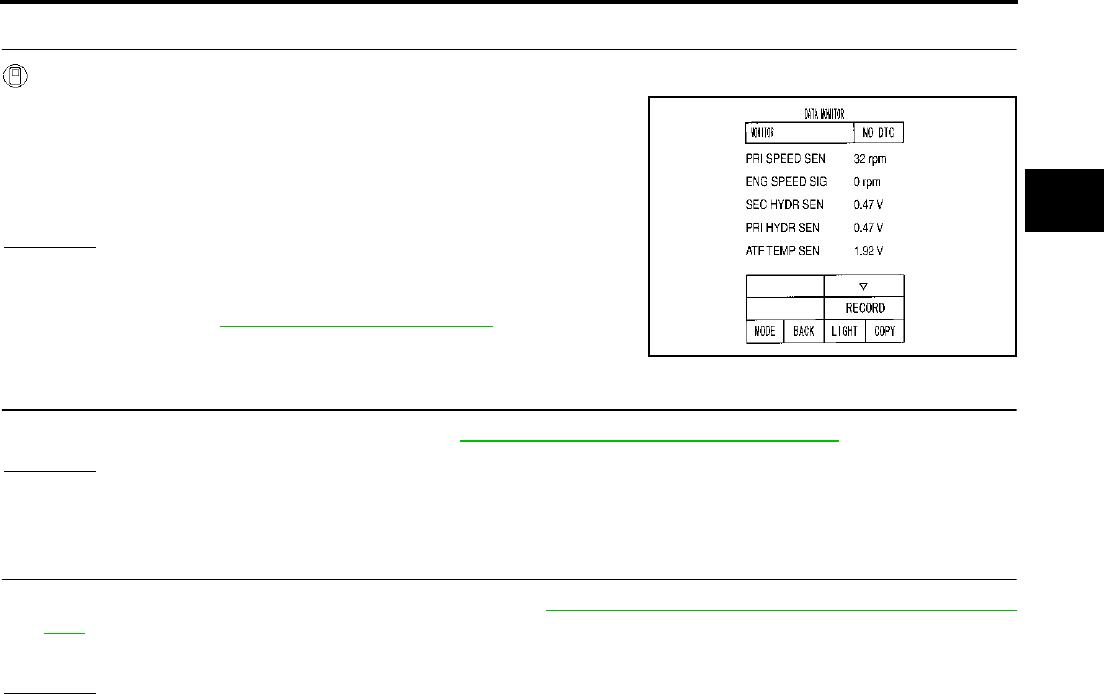

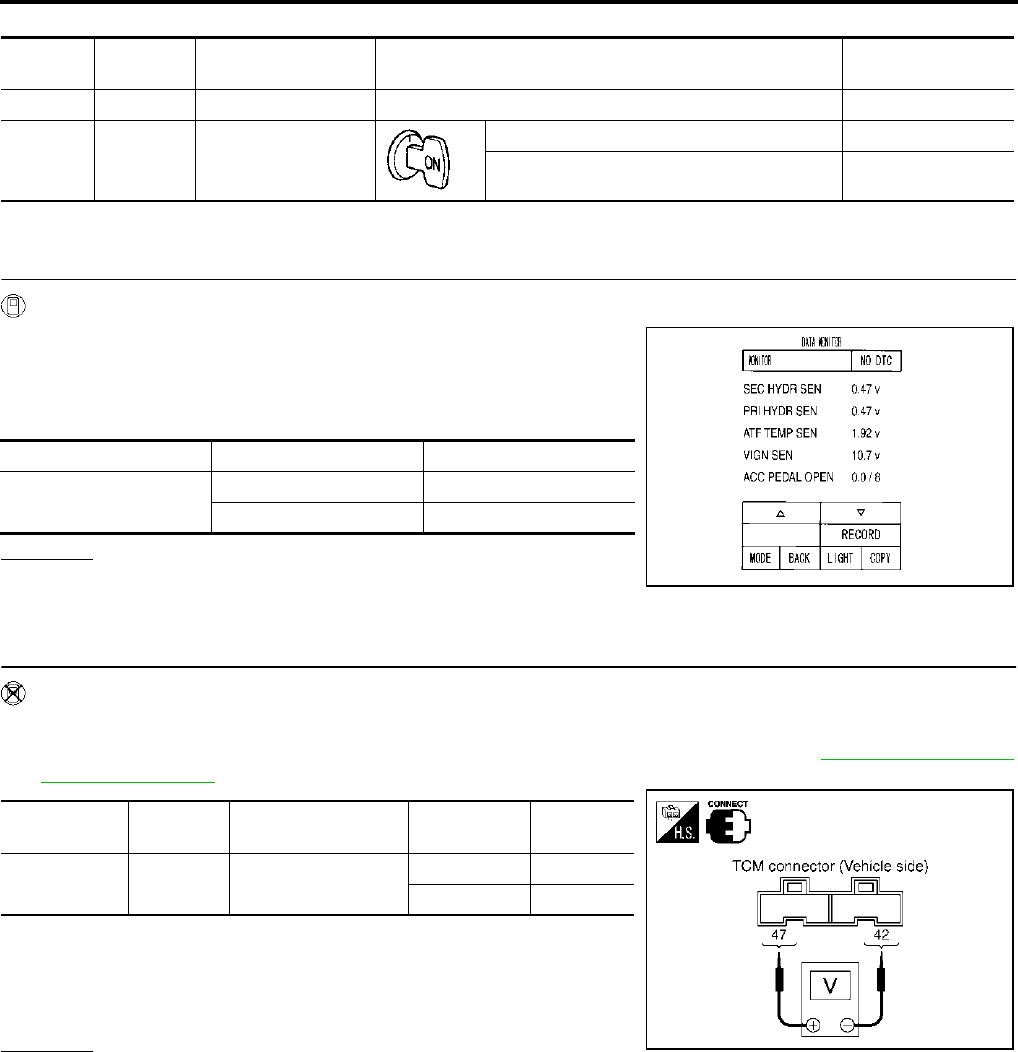

Diagnostic Procedure ACS002SS
1. CHECK FLUID TEMPERATURE SENSOR SIGNAL (WITH CONSULT-II)
With CONSULT-II
1. Start engine.
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“TRASMISSION” with CONSULT-II.
3. Read out the value of “ATF TEMP SEN”.
OK or NG
OK >> GO TO 6.
NG >> GO TO 3.
2. CHECK FLUID TEMPERATURE SENSOR SIGNAL (WITHOUT CONSULT-II)
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM connector and ground while warming up CVT. Refer to CVT-91, "Wiring Dia-
gram - CVT - FTS" .
3. Turn ignition switch “OFF”.
4. Disconnect the TCM connector.
5. Check if there is continuity between the connector terminal and
ground.
OK or NG
OK >> GO TO 6.
NG >> GO TO 3.
Terminal
No. Wire color Item Condition Judgement standard
(Approx.)
42 W/R Sensor ground — —
47 V CVT fluid tempera-
ture sensor
When CVT fluid temperature is 20°C (68°F). 2.0V
When CVT fluid temperature is 80°C (176°F). 1.0V
Item name Condition °C (°F) Display value (Approx.) V
CVT fluid temperature
sensor
20 (68) 2.0
80 (176) 1.0
SCIA2277E
Name Connector
No. Terminal No. Temperature
°C (°F)
Voltage (V)
(Approx.)
Fluid tempera-
ture sensor 1 F104 47 (V) - 42 (W/R)
(ground)
20 (68) 2.0
80 (176) 1.0
SCIA2027E
DTC P0710 CVT FLUID TEMPERATURE SENSOR CIRCUIT
CVT-93
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano

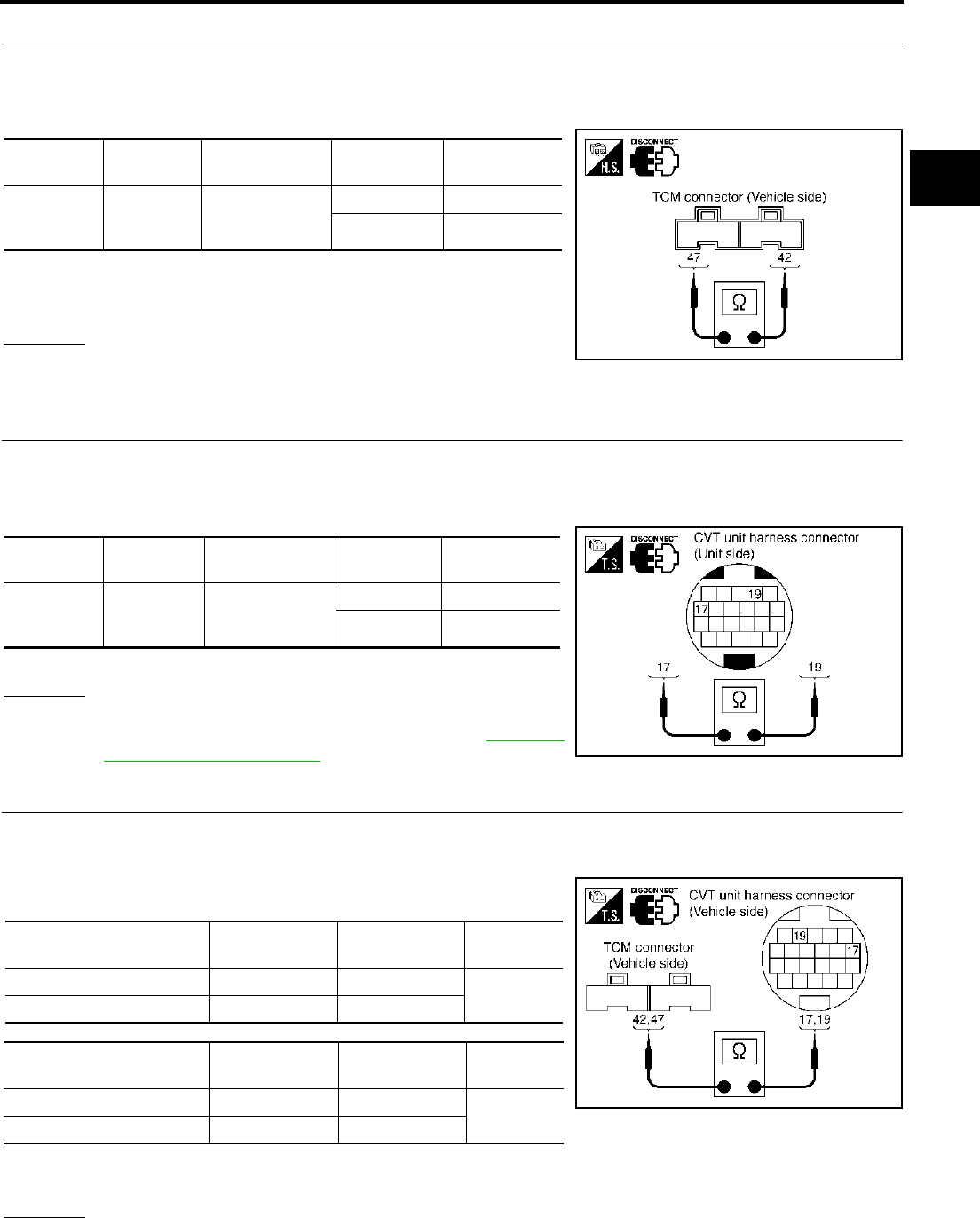

3. CHECK FLUID TEMPERATURE SENSOR CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect the TCM connector.
3. Check resistance between terminals 47 and 42.
4. Disconnect the TCM connector.
5. Check if there is continuity between the connector terminal and
ground.
OK or NG
OK >> GO TO 6.
NG >> GO TO 4.

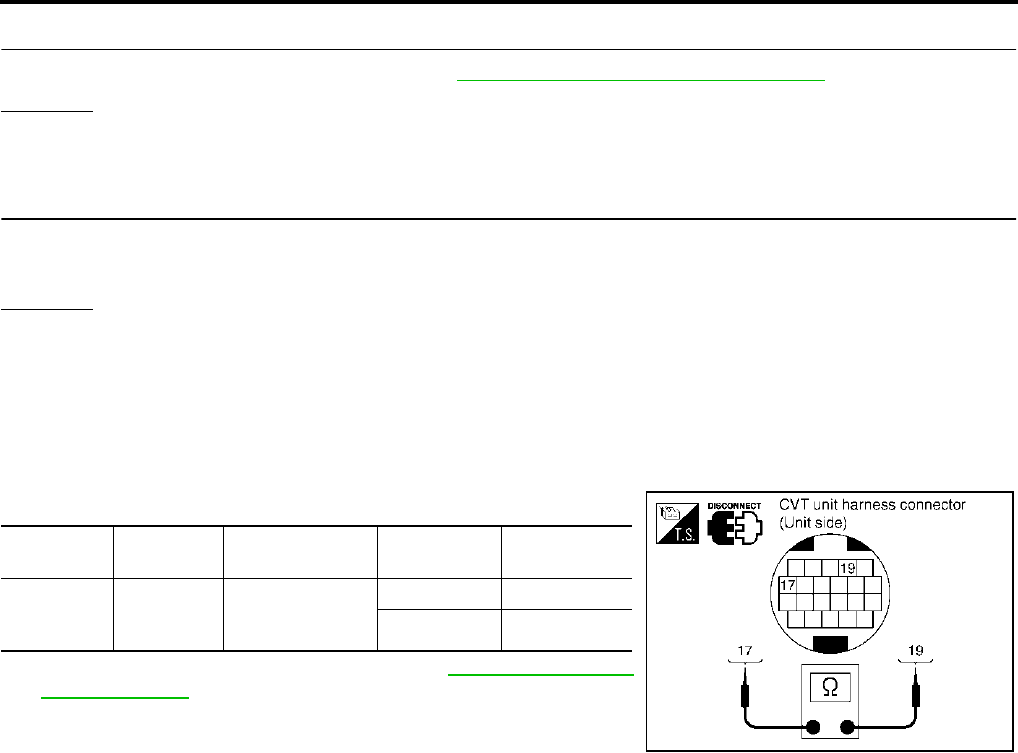

4. CHECK FLUID TEMPERATURE SENSOR
1. Turn ignition switch “OFF”.
2. Disconnect CVT unit harness connector.
3. Check resistance between terminals 17 and 19.
4. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Replace the transaxle assembly. Refer to CVT-197,
"Removal and Installation" .
5. CHECK THE HARNESS BETWEEN TCM AND CVT FLUID TEMPERATURE SENSOR
1. Turn ignition switch “OFF”.
2. Disconnect the TCM connector and CVT unit harness connector.
3. Check continuity between TCM connector and CVT unit harness
connector.
4. If OK, check harness for short to ground and short power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
Name Connector
No.
Terminal No.
(Wire color)
Temperature
°C (°F)
Resistance
(KΩ) (Approx.)
CVT fluid
tempera-
ture sensor
F104 47 (V) - 42 (W/
R) (ground)
20 (68) 2.5
80 (176) 0.3
SCIA2338E
Name Connector
No. Terminal No. Temperature
°C (°F)
Resistance
(KΩ) (Approx.)
CVT fluid
tempera-
ture sensor
F6 17 - 19
20 (68) 2.5
80 (176) 0.3
SCIA2026E
Item Connector No. Terminal No.
(Wire color) Continuity
TCM F104 42 (W/R) Yes
CVT unit harness connector F6 19 (W/R)
Item Connector No. Terminal No.
(Wire color) Continuity
TCM F104 47 (V) Yes
CVT unit harness connector F6 17 (V)
SCIA2339E
CVT-94
DTC P0710 CVT FLUID TEMPERATURE SENSOR CIRCUIT
Revision; 2004 April 2003 Murano
6. CHECK DTC
Perform “DTC Confirmation Procedure”. Refer to CVT-90, "DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 7.
7. PERFORM TCM INSPECTION
1. Perform TCM input/output signal inspection.
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
Component Inspection ACS003KY
CVT FLUID TEMPERATURE SENSOR
1. Turn ignition switch “OFF”.
2. Disconnect CVT unit harness connector.
3. Check resistance between terminals 17 and 19.
4. If NG, replace transaxle assembly. Refer to CVT-197, "Removal
and Installation" .
Name Connector
No.
Terminal No.
(Wire color)
Temperature
°C (°F)
Resistance
(KΩ) (Approx.)
CVT fluid
tempera-
ture sensor
F6 17 (V) - 19 (W/R)
20 (68) 2.5
80 (176) 0.3
SCIA2026E
DTC P0715 INPUT SPEED SENSOR CIRCUIT (PRI SPEED SENSOR)
CVT-95
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
DTC P0715 INPUT SPEED SENSOR CIRCUIT (PRI SPEED SENSOR) PFP:31935
Description ACS002ST
The input speed sensor (primary speed sensor) detects the primary pulley revolution speed and sends a sig-
nal to the TCM.
NOTE:
CONSULT-II screen terms are shown differently depending on the version of CONSULT-II card.
CONSULT-II Reference Value ACS002SU
Remarks: Specification data are reference values.
On Board Diagnosis Logic ACS002SV
●This is an OBD-II self-diagnostic item.
●Diagnostic trouble code “IN PY SPD SEN/CIRC” with CONSULT-II or P0715 without CONSULT-II is
detected when TCM does not receive the proper signal from the sensor.
Possible Cause ACS002SW
●Harness or connectors
(The sensor circuit is open or shorted.)
●Input speed sensor (primary speed sensor)
DTC Confirmation Procedure ACS002SX
CAUTION:
●Always drive vehicle at a safe speed.
●Be careful not to rev engine into the red zone on the tachometer.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 5 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON” and select “DATA MONITOR” mode for
“ENGINE” with CONSULT-II.
2. Start engine and maintain the following conditions for at least 5
consecutive seconds.
VHCL SPEED SE: 10 km/h (6 MPH) or more
ACC PEDAL OPEN: More than 1/8
Selector lever: D position
ENG SPEED: 450 rpm or more
Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.

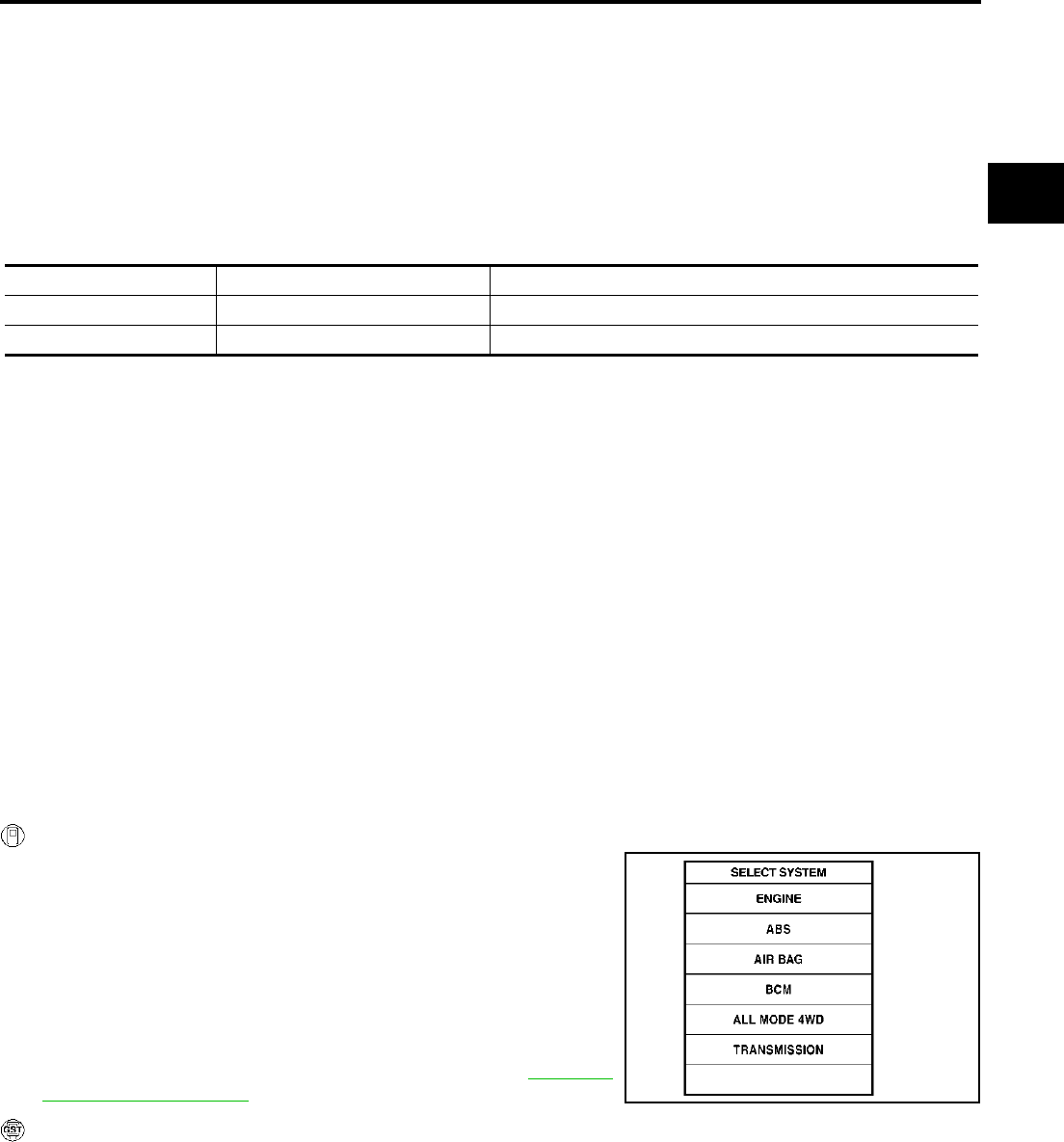

Monitor item Condition Specification (Approximately)
ENG SPEED SIG Engine running Closely matches the tachometer reading.
PRI SPEED SEN During driving (lock-up ON) Approximately matches the engine speed.
SCIA2272E
DTC P0715 INPUT SPEED SENSOR CIRCUIT (PRI SPEED SENSOR)
CVT-97
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
Wiring Diagram - CVT - PRSCVT ACS0020X

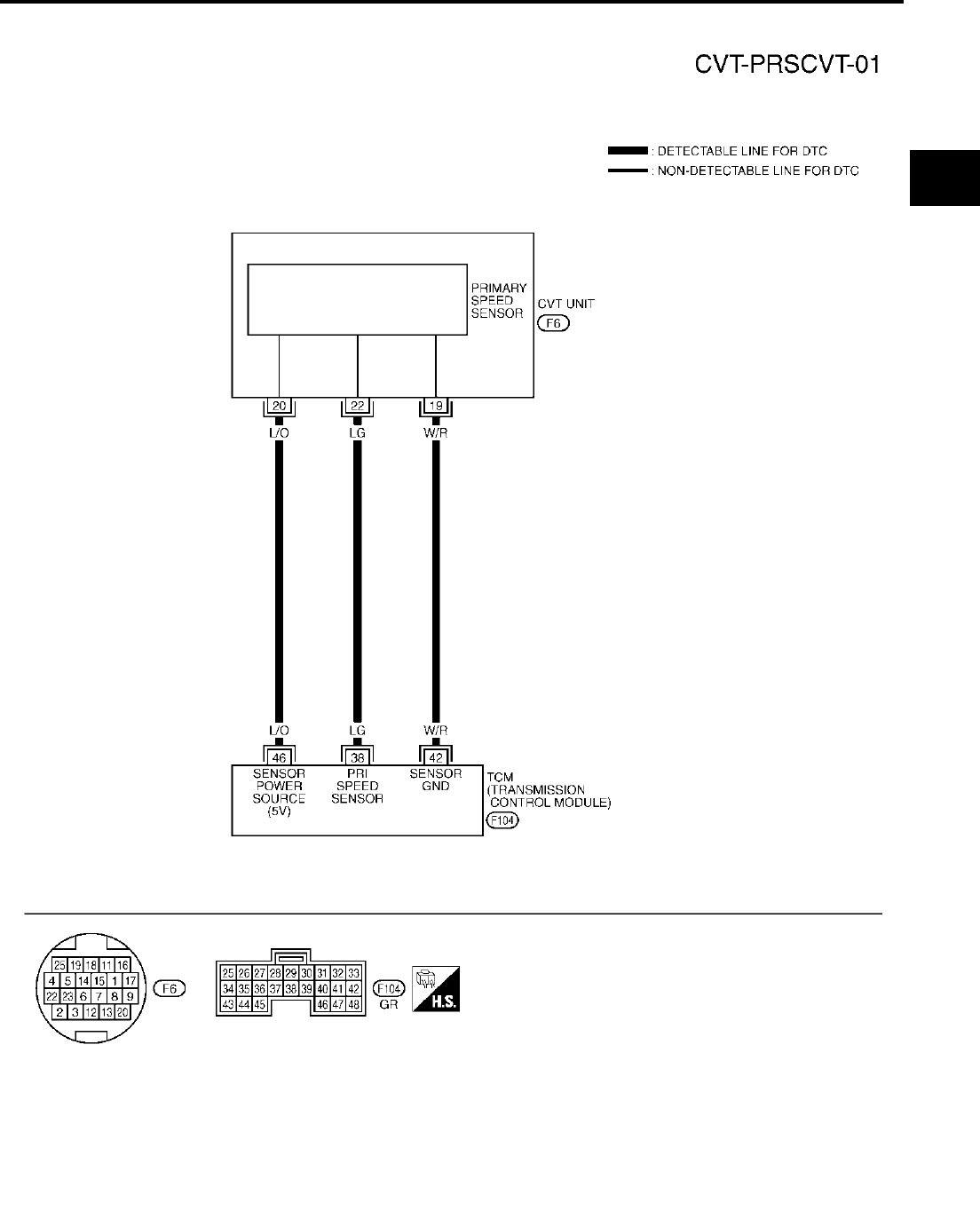

TCWA0156E
CVT-98
DTC P0715 INPUT SPEED SENSOR CIRCUIT (PRI SPEED SENSOR)
Revision; 2004 April 2003 Murano
Remarks: Specification data are reference values.

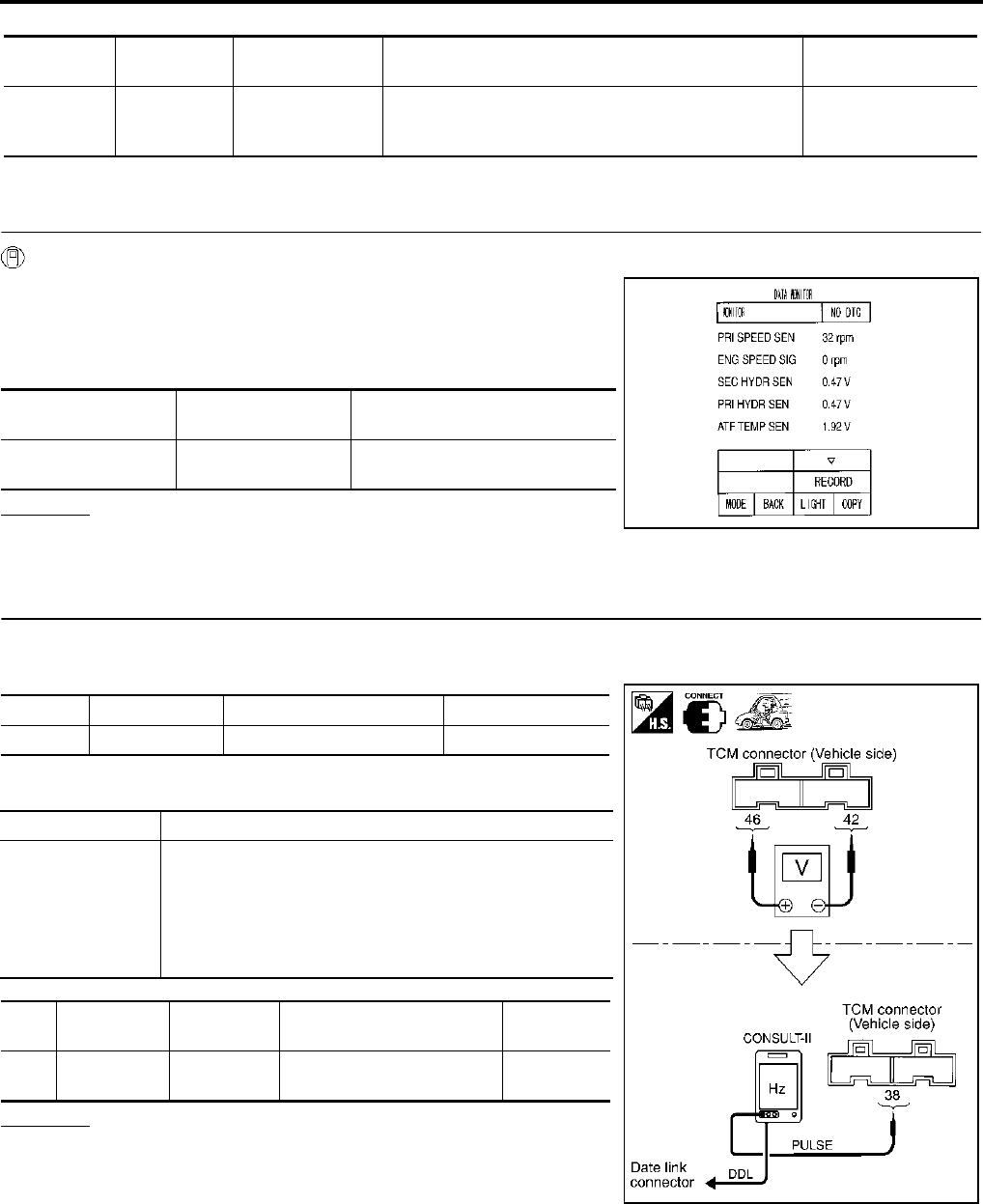

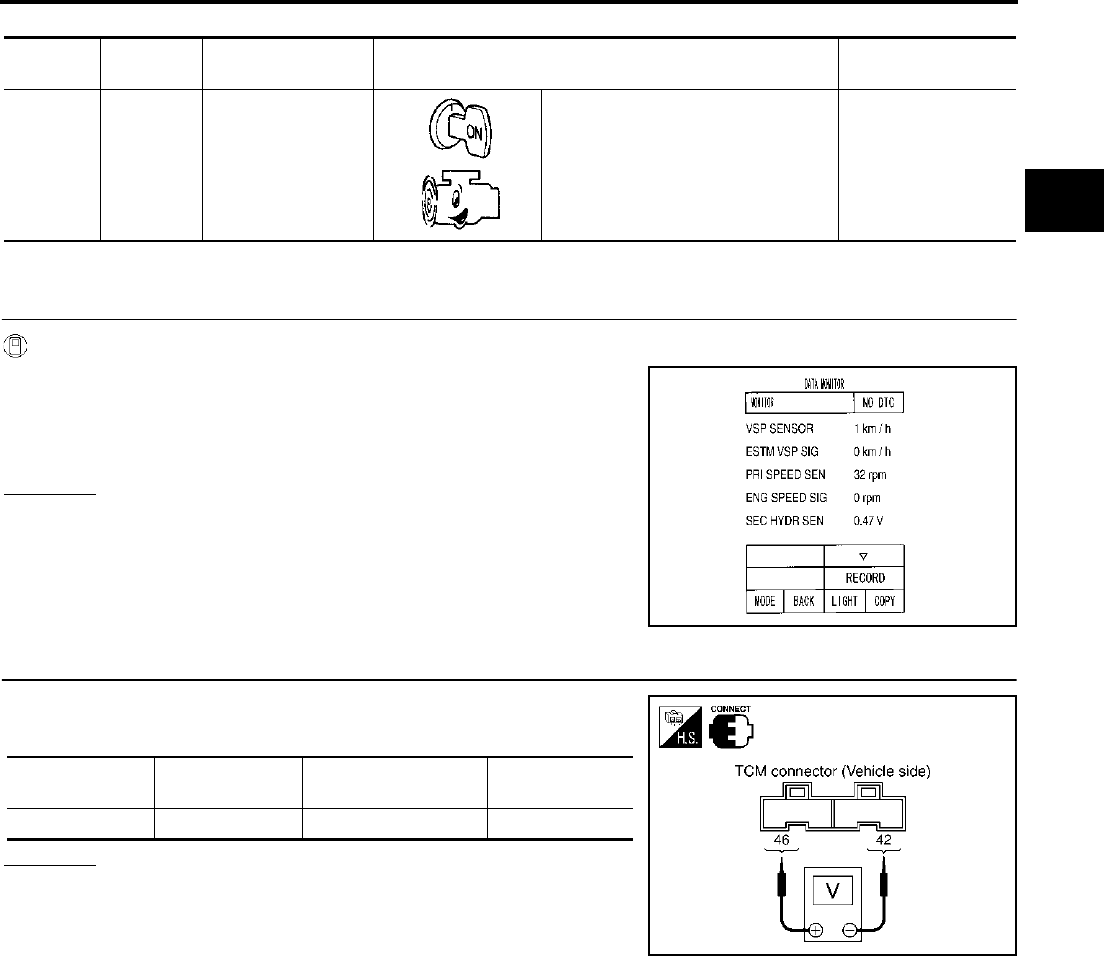

Diagnostic Procedure ACS0020Y
1. CHECK INPUT SIGNALS
With CONSULT-II
1. Start engine.
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
3. Start vehicle and read out the value of “PRI SPEED SEN”.
OK or NG
OK >> GO TO 6.
NG >> GO TO 2.
2. CHECK INPUT SPEED SENSOR (PRIMARY SPEED SENSOR)
1. Start engine.
2. Check voltage between TCM connector terminals 46 (L/O) and 42 (W/R).
3. Check the pulse with CONSULT-II or oscilloscope. When vehicle
cruises.
OK or NG
OK >> GO TO 6.
NG - 1 >> Battery voltage is not supplied: GO TO 3.
NG - 2 >> Battery voltage is supplied, but there is a malfunction in
the frequency: GO TO 4.
Terminal No. Wire color Item Condition Judgement standard
(Approx.)
38 G/Y
Input speed sen-
sor (primary
speed sensor)
When driving [L position, 20 km/h (12 MPH)] 600 Hz
Monitor item Condition Specification
(Approximately)
PRI SPEED SEN During driving
(lock-up ON)
Approximately matches the
engine speed.
SCIA2278E
Item Connector No. Terminal No. (Wire color) Data (Approx.)
TCM F104 46 (L/O) - 42 (W/R) 4.5 - 5.5 (V)
Name Condition
Input speed sensor
(primary speed
sensor)
When running at 20 km/h (12 MPH) in “L” position with the
closed throttle position signal “OFF”, use the CONSULT-II
pulse frequency measuring function.
CAUTION:
Connect the data link connector to the vehicle-side diag-
nosis connector.
Item Connector
No.
Terminal No.
(Wire color) Name Data
(Approx.)
TCM F104 38 (LG) Input speed sensor
(primary speed sensor) 600 (Hz)
SCIA1915E
DTC P0715 INPUT SPEED SENSOR CIRCUIT (PRI SPEED SENSOR)
CVT-99
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano

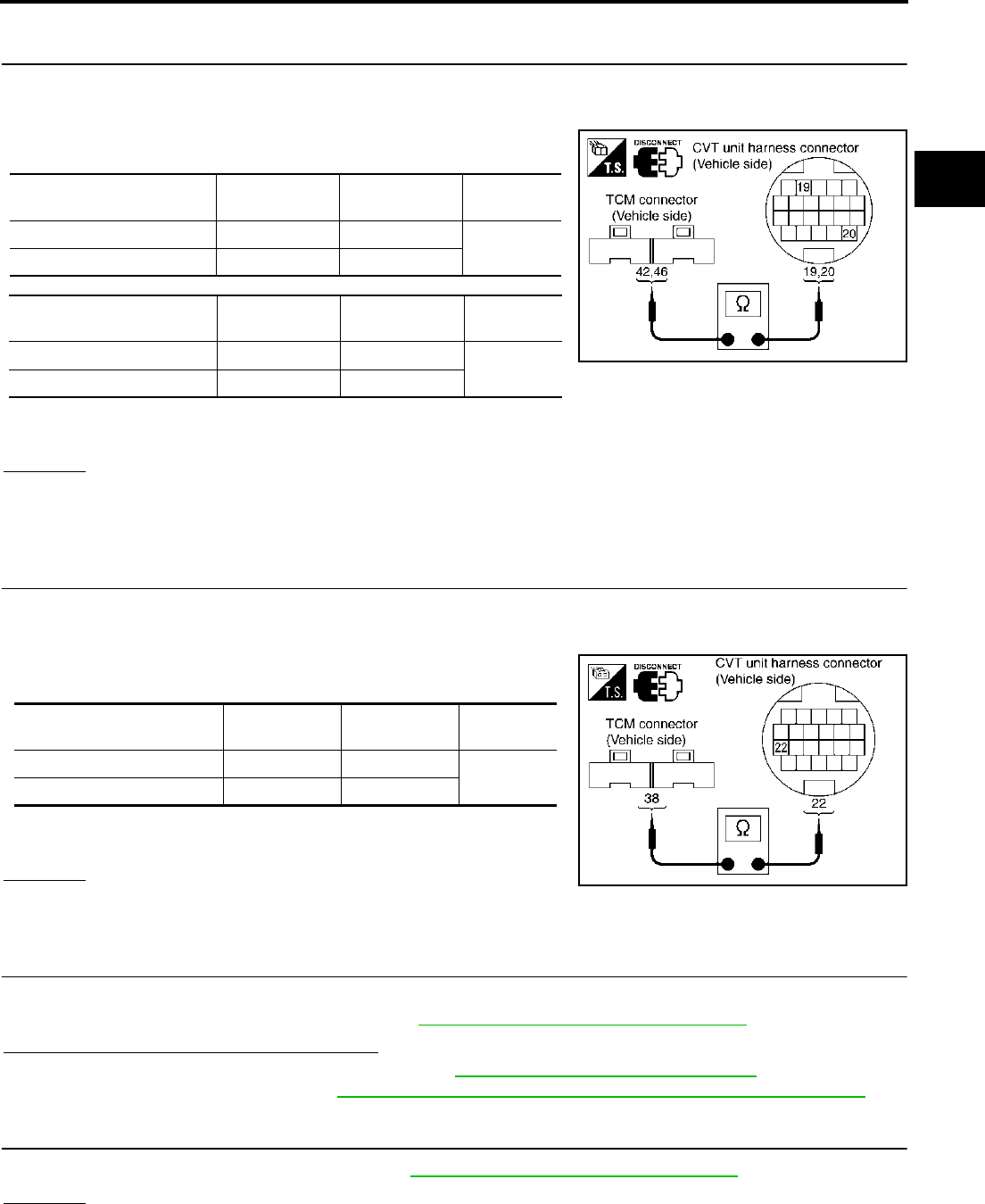

3. CHECK THE HARNESS BETWEEN TCM AND CVT UNIT HARNESS CONNECTOR (SENSOR POWER
AND SENSOR GROUND)
1. Turn ignition switch “OFF”.
2. Disconnect the TCM connector and CVT unit harness connector.
3. Check continuity between TCM connector and CVT unit harness
connector.
4. If OK, check harness for short to ground and short power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK THE HARNESS BETWEEN TCM AND CVT UNIT HARNESS CONNECTOR [INPUT SPEED
SENSOR (PRIMARY SPEED SENSOR)]
1. Turn ignition switch “OFF”.
2. Disconnect the TCM connector and CVT unit harness connector.
3. Check continuity between TCM connector and CVT unit harness
connector.
4. If OK, check harness for short to ground and short power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK THE TCM SHORT
Replace same type TCM, perform self-diagnosis. Erase self-diag result and them drive the vehicle [10km/h
(6MPH) or more], perform self-diagnosis. Refer to CVT-95, "DTC Confirmation Procedure" .
Is the “IN PY SPD SEN/CIR” detected again?
YES >> Replace the transaxle assembly. Refer to CVT-197, "Removal and Installation" .
NO >> Replace the TCM. Refer to CVT-8, "Precautions for TCM and CVT Assembly Replacement" .
6. CHECK DTC
Perform “DTC Confirmation Procedure”. Refer to CVT-95, "DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 7.
Item Connector No. Terminal No.
(Wire color) Continuity
TCM F104 42 (W/R) Yes
CVT unit harness connector F6 19 (W/R)
Item Connector No. Terminal No.
(Wire color) Continuity
TCM F104 46 (L/O) Yes
CVT unit harness connector F6 20 (L/O)
SCIA2340E
Item Connector
No.
Terminal No.
(Wire color) Continuity
TCM F104 38 (LG) Yes
CVT unit harness connector F6 22 (LG)
SCIA2341E
CVT-100
DTC P0715 INPUT SPEED SENSOR CIRCUIT (PRI SPEED SENSOR)
Revision; 2004 April 2003 Murano
7. PERFORM TCM INSPECTION
1. Perform TCM input/output signal inspection.
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
DTC P0720 VEHICLE SPEED SENSOR CVT (SECONDARY SPEED SENSOR)
CVT-101
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
DTC P0720 VEHICLE SPEED SENSOR CVT (SECONDARY SPEED SENSOR)
PFP:31935
Description ACS002SY
The vehicle speed sensor CVT [output speed sensor (secondary speed sensor)] detects the revolution of the
CVT output shaft and emits a pulse signal. The pulse signal is sent to the TCM, which converts it into vehicle
speed.
NOTE:
CONSULT-II screen terms are shown differently depending on the version of CONSULT-II card.
CONSULT-II Reference Value ACS002SZ
Remarks: Specification data are reference values.
On Board Diagnosis Logic ACS002T0
●This is an OBD-II self-diagnostic item.
●Diagnostic trouble code “VEH SPD SEN/CIR AT” with CONSULT-II or P0720 without CONSULT-II is
detected TCM does not receive the proper signal from the sensor.
Possible Cause ACS002T1
●Harness or connectors
(The sensor circuit is open or shorted.)
●Output speed sensor (secondary speed sensor)
DTC Confirmation Procedure ACS002T2
CAUTION:
●Always drive vehicle at a safe speed.
●Be careful not to rev engine into the red zone on the tachometer.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 5 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON” and select “DATA MONITOR” mode for
“ENGINE” with CONSULT-II.
2. Start engine and maintain the following conditions for at least 12
consecutive seconds.
ACC PEDAL OPEN: More than 1/8
Selector lever: D position
Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.
Monitor item Condition Specification (Approximately)
Vehicle speed During driving Approximately matches the speedometer reading.
SCIA2272E
DTC P0720 VEHICLE SPEED SENSOR CVT (SECONDARY SPEED SENSOR)
CVT-103
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
Wiring Diagram - CVT - SESCVT ACS002IQ

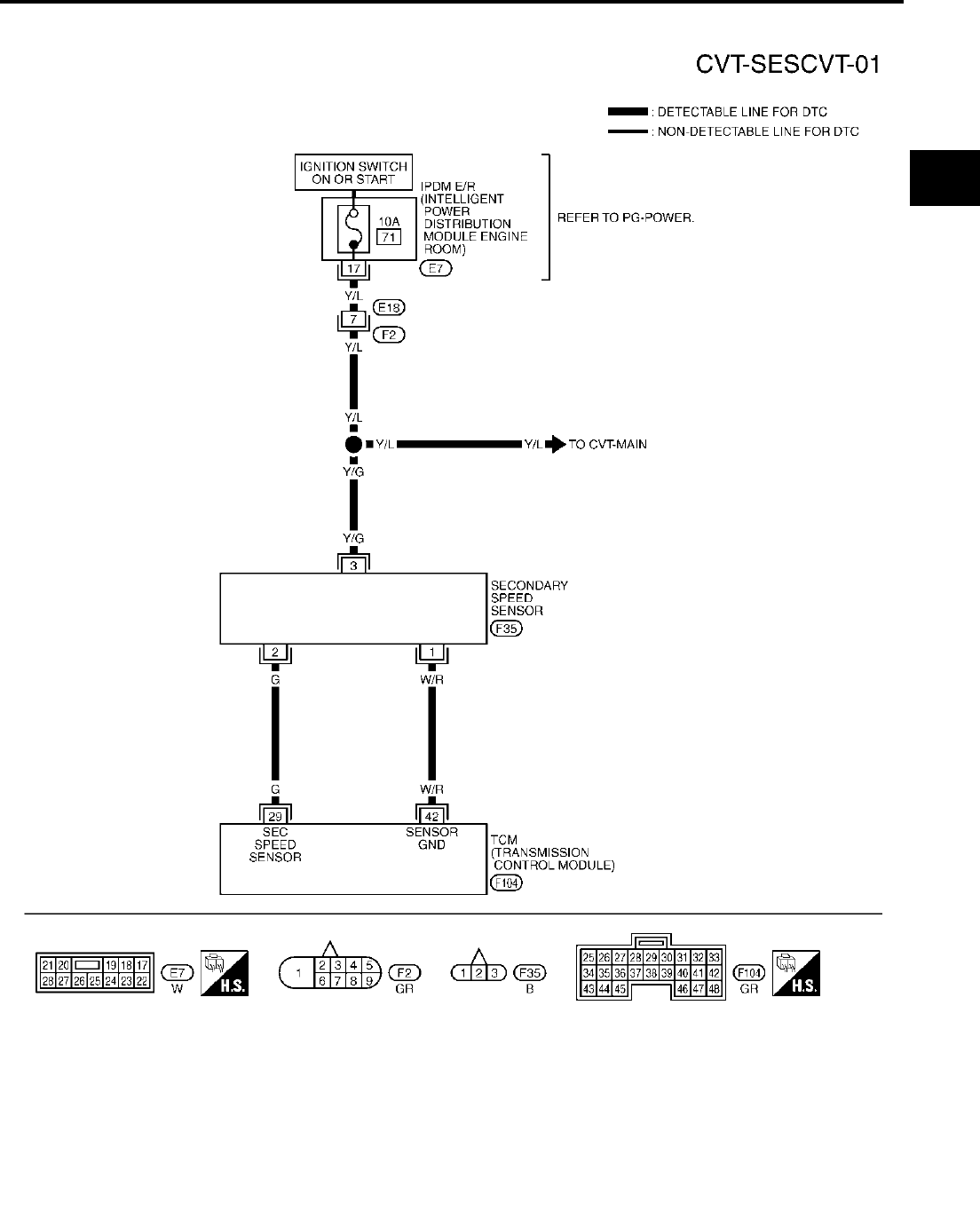

TCWA0150E
CVT-104
DTC P0720 VEHICLE SPEED SENSOR CVT (SECONDARY SPEED SENSOR)
Revision; 2004 April 2003 Murano
Remarks: Specification data are reference values.

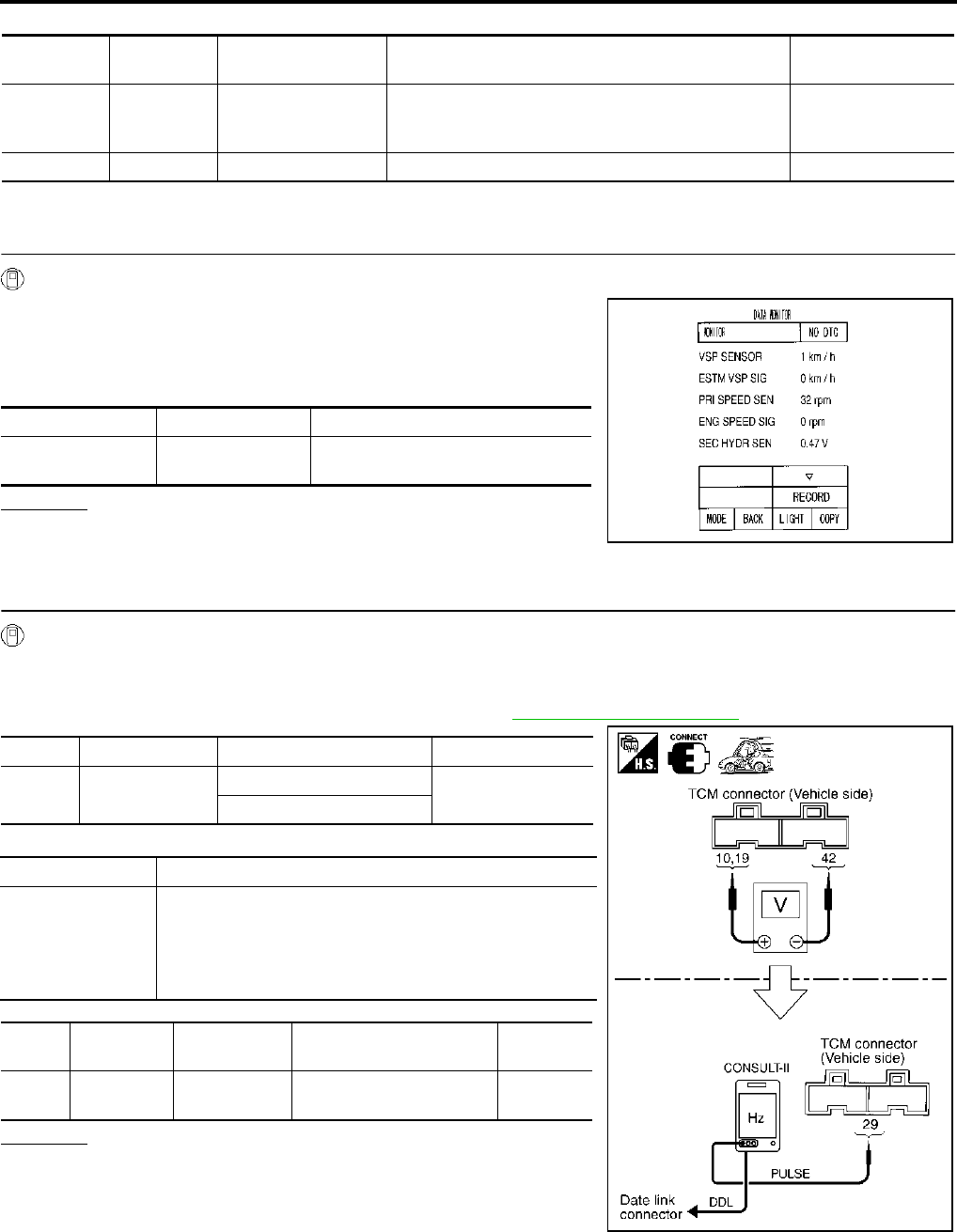

Diagnostic Procedure ACS002T3
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
3. Start vehicle and read out the value of “VSP SENSOR”.
OK or NG
OK >> GO TO 8.
NG >> GO TO 2.
2. CHECK SECONDARY SPEED SENSOR
With CONSULT-II
1. Start engine.
2. Check power supply to output speed sensor (secondary speed sensor) by voltage between TCM connec-
tor terminals 10 (Y/L), 19 (Y/L) and 42 (W/R). Refer to CVT-55, "Circuit Diagram" .
3. If OK check the pulse when vehicle cruises.
OK or NG
OK >> GO TO 8.
NG >> GO TO 3.
Terminal No. Wire color Item Condition Judgement standard
(Approx.)
29 G
Output speed sensor
(secondary speed
sensor)
When driving [D position, 20 km/h (12 MPH)] 300 Hz
42 W/R Sensor ground — —
Monitor item Condition Specification (Approximately)
VSP SENSOR During driving Approximately matches the speed-
ometer reading.
SCIA2279E
Item Connector No. Terminal No. (Wire color) Data (Approx.)
TCM F103, F104 10 (Y/L) - 42 (W/R) Battery voltage
19 (Y/L) - 42 (W/R)
Name Condition
Output speed sen-
sor (secondary
speed sensor)
When running at 20 km/h (12 MPH) in “D” position, use the
CONSULT-II pulse frequency measuring function.
CAUTION:
Connect the data link connector to the vehicle-side diag-
nosis connector.
Item Connector
No.
Terminal No.
(Wire color) Name Data
(Approx.)
TCM F104 29 (G) Output speed sensor
(secondary speed sensor) 300 (Hz)
SCIA2344E
DTC P0720 VEHICLE SPEED SENSOR CVT (SECONDARY SPEED SENSOR)
CVT-105
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano

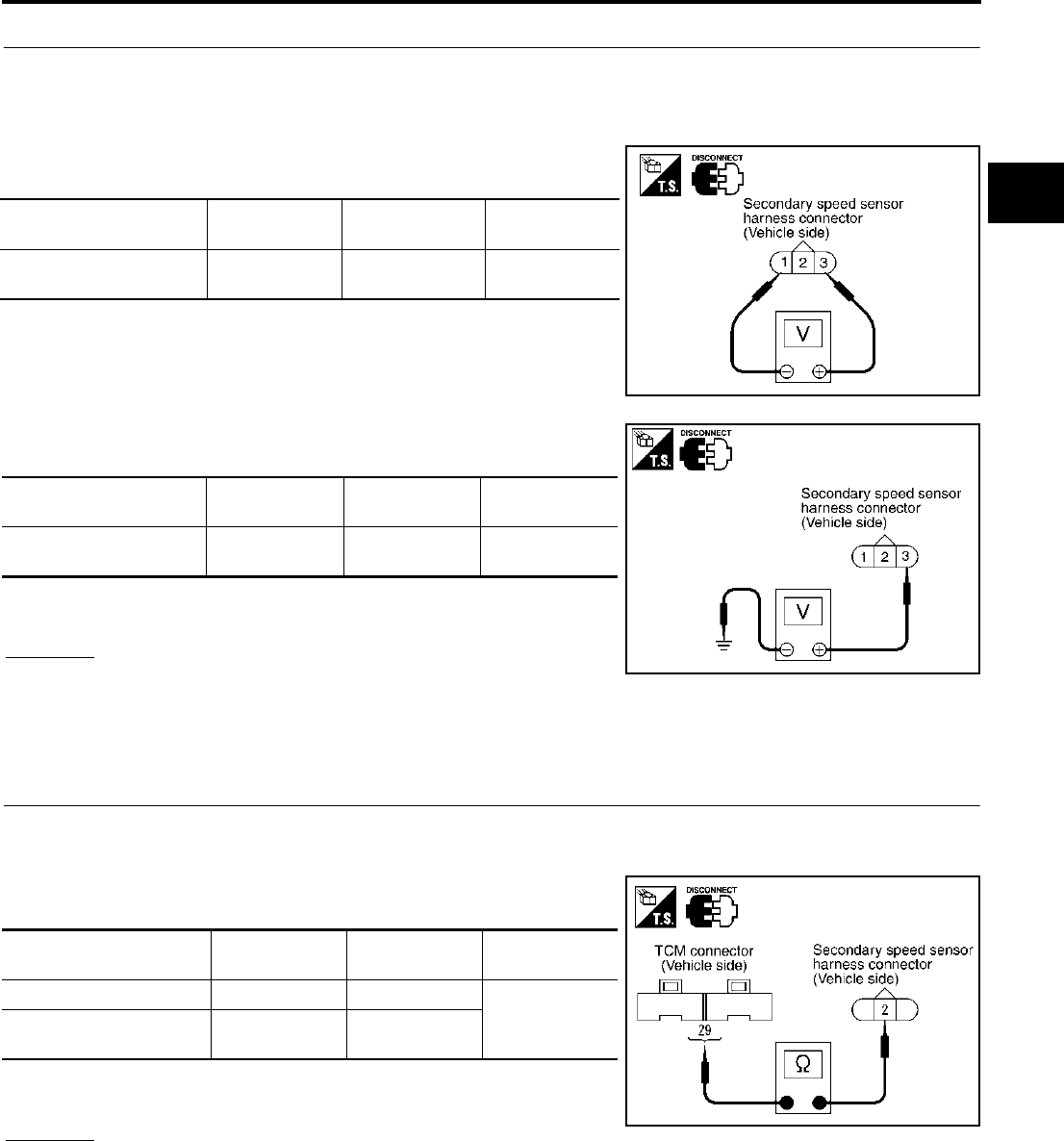

3. CHECK THE POWER AND SENSOR GROUND
1. Turn ignition switch “OFF”.
2. Disconnect the output speed sensor (secondary speed sensor) harness connector.
3. Turn ignition switch “ON”.
4. Check voltage between output speed sensor (secondary speed
sensor) harness connector 1 (W/R) and 3 (Y/G).
5. Check voltage between output speed sensor (secondary speed
sensor) harness connector 3 (Y/G) and ground.
6. If OK, check harness for short to ground and short power.
7. Reinstall any part removed.
OK or NG
OK >> GO TO 4.
NG - 1 >> Battery voltage is not supplied between terminals 1 and 3, terminals 1 and ground.:GO TO 6.
NG - 2 >> Battery voltage is not supplied between terminals 1 and 3 only.: GO TO 7.
4. CHECK THE HARNESS BETWEEN TCM AND OUTPUT SPEED SENSOR (SECONDARY SPEED
SENSOR)
1. Turn ignition switch “OFF”.
2. Disconnect the TCM connector and output speed sensor (secondary speed sensor) harness connector.
3. Check continuity between TCM connector and output speed
sensor (secondary speed sensor) harness connector.
4. If OK, check harness for short to ground and short power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
Item Connector
No.
Terminal No.
(Wire color) Data (Approx.)
Output speed sensor
(secondary speed sensor) F35 1 (W/R) - 3 (Y/G) Battery voltage
SCIA2345E
Item Connector No. Terminal No.
(Wire color) Data (Approx.)
Output speed sensor
(secondary speed sensor) F35 3 (Y/G) - ground Battery voltage
SCIA2346E
Item Connector No. Terminal No.
(Wire color) Continuity
TCM F104 29 (G)
Yes
Output speed sensor
(secondary speed sensor) F35 2 (G)
SCIA1967E
CVT-106
DTC P0720 VEHICLE SPEED SENSOR CVT (SECONDARY SPEED SENSOR)
Revision; 2004 April 2003 Murano
5. CHECK THE TCM SHORT
Replace same type TCM, perform self-diagnosis. Erase self-diag result and them drive the vehicle [more than
40km/h (25MPH)], perform self-diagnosis. Refer to CVT-101, "DTC Confirmation Procedure" .
Is the “VEH SPD SEN/CIR AT” detected again?
YES >> Replace the transaxle assembly. Refer to CVT-197, "Removal and Installation" .
NO >> Replace the TCM. Refer to CVT-8, "Precautions for TCM and CVT Assembly Replacement" .

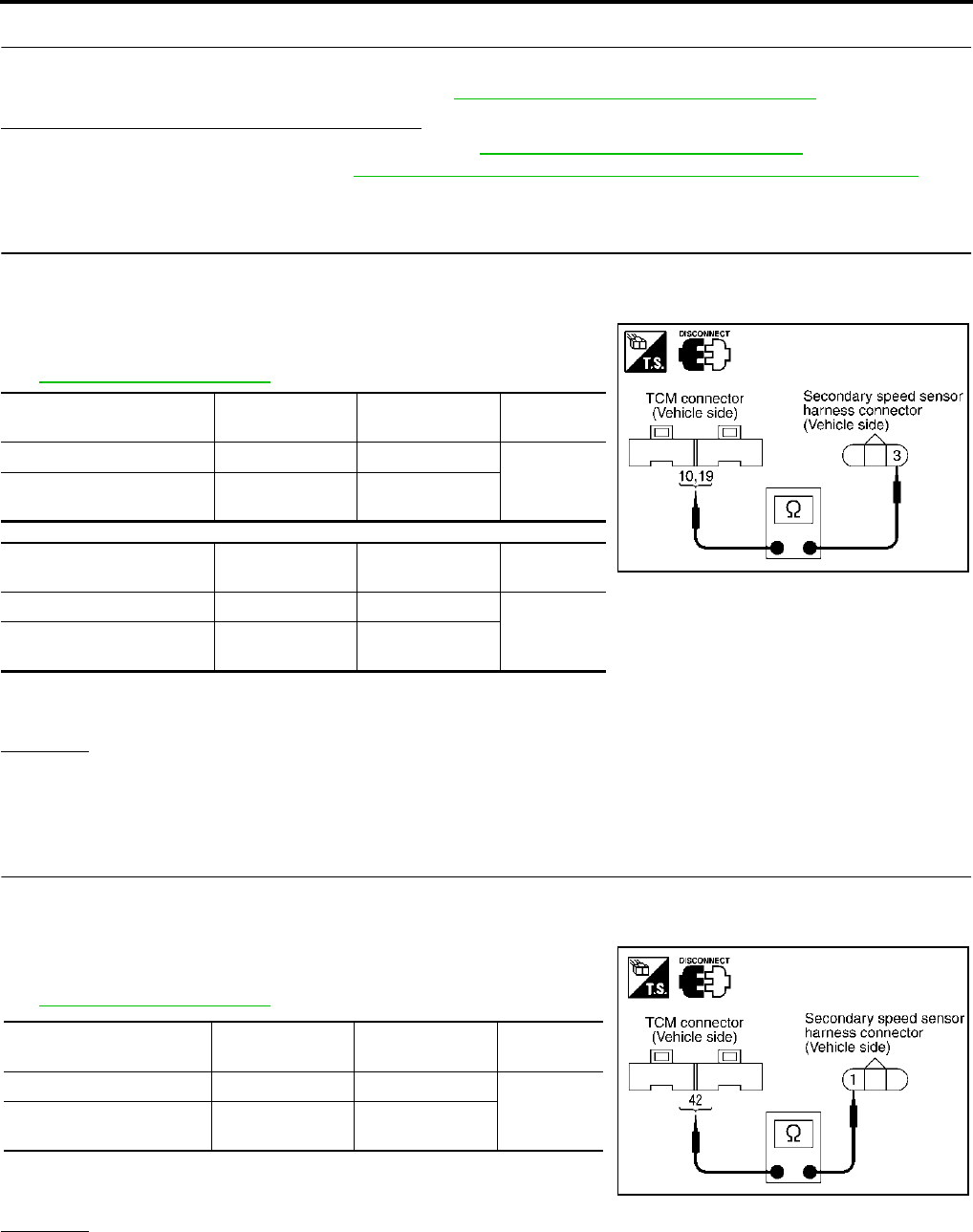

6. CHECK THE HARNESS BETWEEN TCM AND OUTPUT SPEED SENSOR (SECONDARY SPEED
SENSOR) (POWER)
1. Turn ignition switch “OFF”.
2. Disconnect the TCM connector and output speed sensor (secondary speed sensor) harness connector.
3. Check continuity between TCM connector and output speed
sensor (secondary speed sensor) harness connector. Refer to
CVT-55, "Circuit Diagram" .
4. If OK, check harness for short to ground and short power.
5. Reinstall any part removed.
OK or NG
OK >> 10A fuse (No.71, located in the IPDM E/R) or ignition switch are malfunctioning.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK THE HARNESS BETWEEN TCM AND OUTPUT SPEED SENSOR (SECONDARY SPEED
SENSOR) (SENSOR GROUND)
1. Turn ignition switch “OFF”.
2. Disconnect the TCM connector and output speed sensor (secondary speed sensor) harness connector.
3. Check continuity between TCM connector and output speed
sensor (secondary speed sensor) harness connector. Refer to
CVT-55, "Circuit Diagram" .
4. If OK, check harness for short to ground and short power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
Item Connector No. Terminal No.
(Wire color) Continuity
TCM F103 10 (Y/L)
Yes
Output speed sensor
(secondary speed sensor) F35 3 (Y/G)
Item Connector No. Terminal No.
(Wire color) Continuity
TCM F103 19 (Y/L)
Yes
Output speed sensor
(secondary speed sensor) F35 3 (Y/G)
SCIA2369E
Item Connector No. Terminal No.
(Wire color) Continuity
TCM F104 42 (W/R)
Yes
Output speed sensor
(secondary speed sensor) F35 1 (W/R)
SCIA2347E
DTC P0720 VEHICLE SPEED SENSOR CVT (SECONDARY SPEED SENSOR)
CVT-107
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
8. CHECK DTC
Perform “DTC Confirmation Procedure”. Refer to CVT-101, "DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 9.
9. PERFORM TCM INSPECTION
1. Perform TCM input/output signal inspection.
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
CVT-108
DTC P0725 ENGINE SPEED SIGNAL
Revision; 2004 April 2003 Murano
DTC P0725 ENGINE SPEED SIGNAL PFP:24825
Description ACS001U4
The engine speed signal is sent from the ECM to the TCM.
On Board Diagnosis Logic ACS001U5
●This is not an OBD-II self-diagnostic item.
●Diagnostic trouble code “ENGINE SPEED SIG” with CONSULT-II is detected when TCM does not receive
the engine speed signal (input by CAN communication) from ECM.
Possible Cause ACS001U6
Harness or connectors
(The ECM to the TCM circuit is open or shorted.)
DTC Confirmation Procedure ACS001U7
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON” and select “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
2. Start engine and maintain the following conditions for at least 10
consecutive seconds.
PRI SPEED SEN: More than 1000rpm
3. If DTC is detected, go to CVT-108, "Diagnostic Procedure" .
Diagnostic Procedure ACS001U8
1. CHECK DTC WITH TCM
With CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “SELF-DIAG RESULTS” mode for “TRANSMISSION”
with CONSULT-II. Refer to CVT-71, "Self-Diagnostic Result Test
Mode" .
OK or NG
OK >> GO TO 2.
NG >> Check the DTC Detected Item, Go to CVT-70, "SELF-
DIAGNOSTIC PROCEDURE (WITH CONSULT-II)" .
●If CAN communication line is detected, go to CVT-76,
"DTC U1000 CAN COMMUNICATION LINE" .
SCIA2272E
SCIA2272E
DTC P0725 ENGINE SPEED SIGNAL
CVT-109
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
2. CHECK INPUT SIGNALS
With CONSULT-II
1. Start engine.
2. Select “ECM INPUT SIGNALS” in “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
3. While monitoring engine speed, check for engine speed change
corresponding to “ACC PEDAL OPEN”.
OK or NG
OK >> GO TO 3.
NG >> Check the Ignition Signal Circuit.
●Refer to EC-596, "IGNITION SIGNAL" .
3. CHECK DTC
Perform “DTC Confirmation Procedure”. Refer to CVT-108, "DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 4.
4. PERFORM TCM INSPECTION
1. Perform TCM input/output signal inspection. Refer to CVT-63, "TCM Input/Output Signal Reference Val-
ues" .
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
SCIA2278E
CVT-110
DTC P0730 BELT DAMAGE
Revision; 2004 April 2003 Murano
DTC P0730 BELT DAMAGE PFP:31935
Description ACS002IU
TCM selects the gear ratio using the engine load (throttle position), the primary pulley revolution speed, and
the secondary pulley revolution speed as input signal. Then it change the operating pressure of the primary
pulley and the secondary pulley and change the groove width of the pulley.
CONSULT-II Reference Value ACS002T4
Remarks: Specification data are reference values.
On Board Diagnosis Logic ACS002IV
●This is not an OBD-II self-diagnostic item.
●TCM calculates the actual gear ratio with input speed sensor (primary speed sensor) and output speed
sensor (secondary speed sensor).
●Diagnostic trouble code “BELT DAMAGE” with CONSULT-II is detected, when TCM receives the unex-
pected gear ratio detected.
Possible Cause ACS002IW
●Transaxle assembly
DTC Confirmation Procedure ACS002T5
CAUTION:
●Always drive vehicle at a safe speed.
●Be careful not to rev engine into the red zone on the tachometer.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 5 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON” and select “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
2. Make sure that output voltage of CVT fluid temperature sensor
is within the range below.
FLUID TEMP SEN: 1.0 - 2.0V
If out of range, drive the vehicle to decrease the voltage
(warm up the fluid) or stop engine to increase the voltage
(cool down the fluid)
3. Select “DATA MONITOR” mode for “TRANSMISSION” with
CONSULT-II.
4. Start engine and maintain the following conditions for at least 30
consecutive seconds.
TEST START FROM 0 km/h (0 MPH)
CONSTANT ACCELERATION: Keep 30 sec or more
VEHICLE SPEED: 10 km/h (6 MPH) or more
ACC PEDAL OPEN: More than 1/8
Selector lever: D position
ENG SPEED: 450 rpm or more
5. If the check result is NG, GO TO CVT-111, "Diagnostic Proce-
dure" .
Monitor item Condition Specification (Approximately)
GEAR RATIO During driving 2.37 - 0.43
SCIA2272E
SCIA5492E
DTC P0730 BELT DAMAGE
CVT-111
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
Diagnostic Procedure ACS002IY
1. CHECK DTC
Perform DTC Confirmation Procedure.
●Refer to CVT-110, "DTC Confirmation Procedure" .
Are any DTC displayed?
YES - 1>> DTC except for “BELT DAMG” is displayed: Go to Check the DTC detected item. Refer to CVT-71,
"Self-Diagnostic Result Test Mode" .
YES - 2>> DTC for “BELT DAMG” is displayed: Replace the transaxle assembly. Refer to CVT-197,
"Removal and Installation" .
NO >> INSPECTION END
CVT-112
DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE
Revision; 2004 April 2003 Murano
DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE PFP:31940
Description ACS00210
●The torque converter clutch solenoid valve is activated by the TCM in response to signals sent from the
vehicle speed and throttle position sensors. Lock-up piston operation will then be controlled.
●Lock-up operation, however, is prohibited when CVT fluid temperature is too low.
●When the accelerator pedal is depressed (less than 2/8) in lock-up condition, the engine speed should not
change abruptly. If there is a big jump in engine speed, there is no lock-up.
CONSULT-II Reference Value ACS00211
Remarks: Specification data are reference values.
On Board Diagnosis Logic ACS00212
●This is an OBD-II self-diagnostic item.
●Diagnostic trouble code “TCC SOLENOID/CIRC” with CONSULT-II or P0740 without CONSULT-II is
detected under the following conditions.
–When TCM detects an improper voltage drop when it tries to operate the solenoid valve.
Possible Cause ACS00213
●Torque converter clutch solenoid valve
●Harness or connectors
(The solenoid circuit is open or shorted.)
DTC Confirmation Procedure ACS00214
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “DATA MONITOR” mode for “TRANSMISSION” with
CONSULT-II and wait at least 10 consecutive seconds.
3. If DTC is detected, go to CVT-114, "Diagnostic Procedure" .
WITH GST
Follow the procedure “With CONSULT-II”.

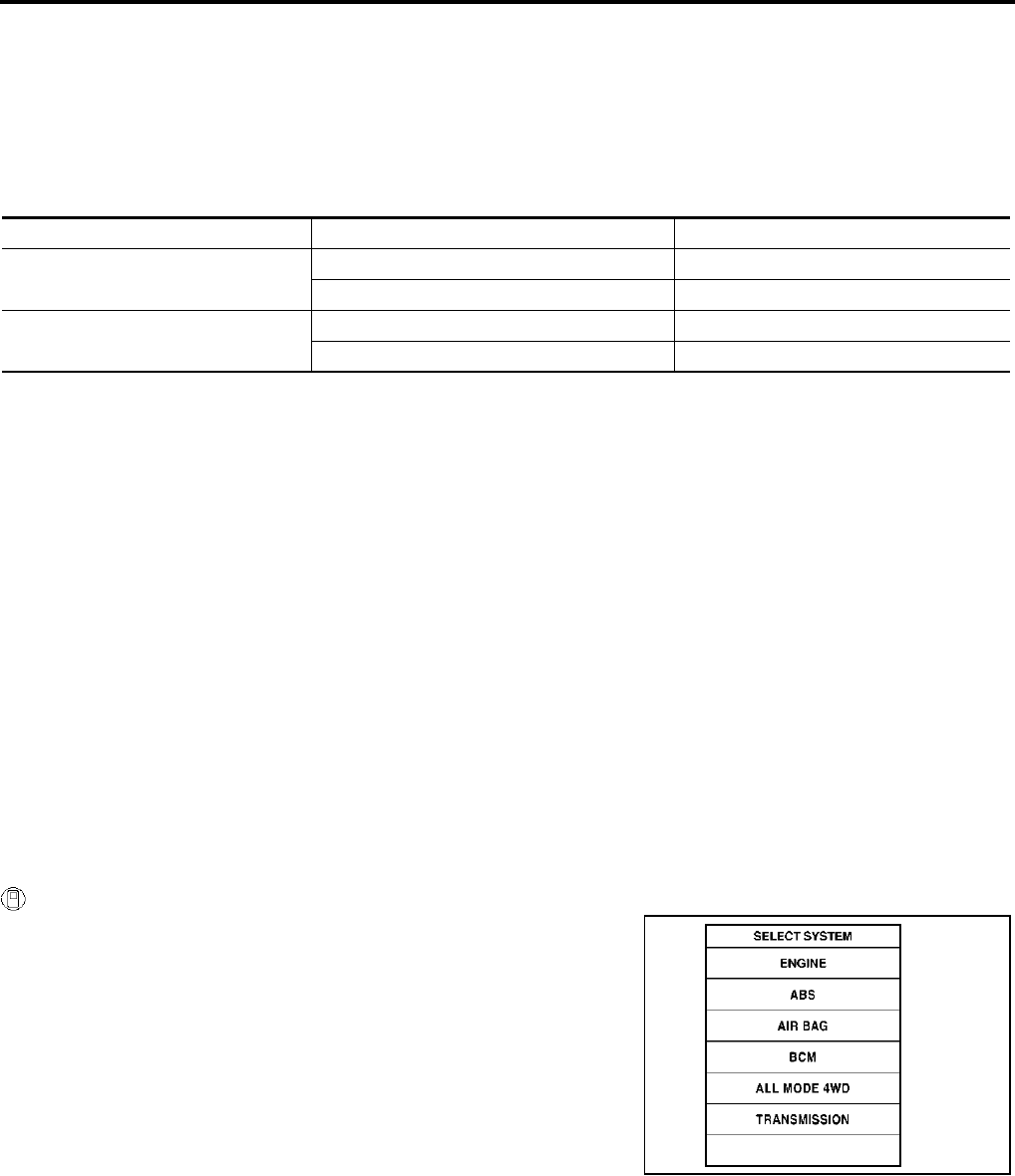

Monitor item Condition Specification
ISOLT1 When vehicle cruises
in “D” position
Lock-up “OFF” Approximately 0.7A
Lock-up “ON” Approximately 0.0A
SCIA2272E
DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE
CVT-113
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
Wiring Diagram - CVT - TCV ACS002T6

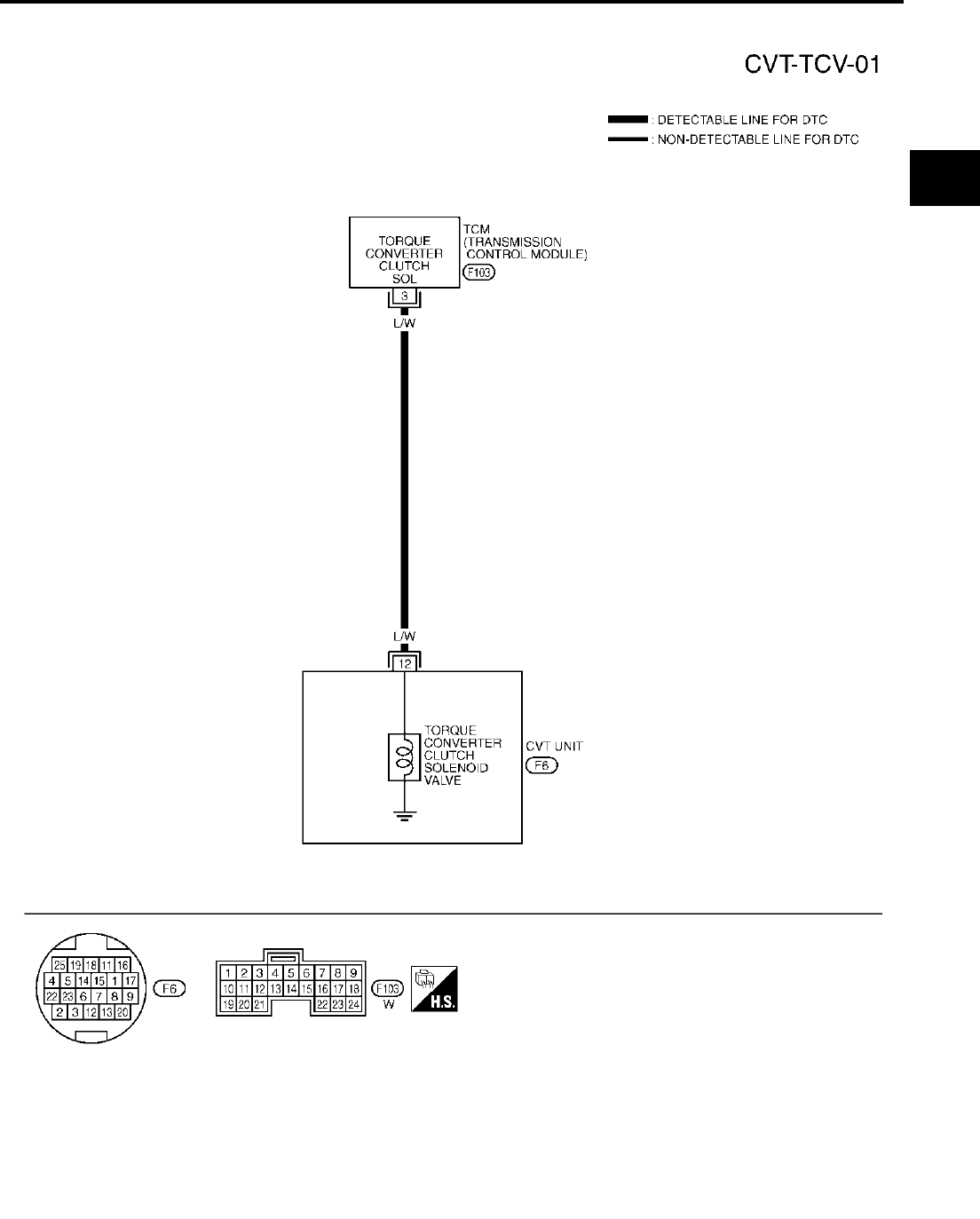

TCWA0153E
CVT-114
DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE
Revision; 2004 April 2003 Murano
Remarks: Specification data are reference values.

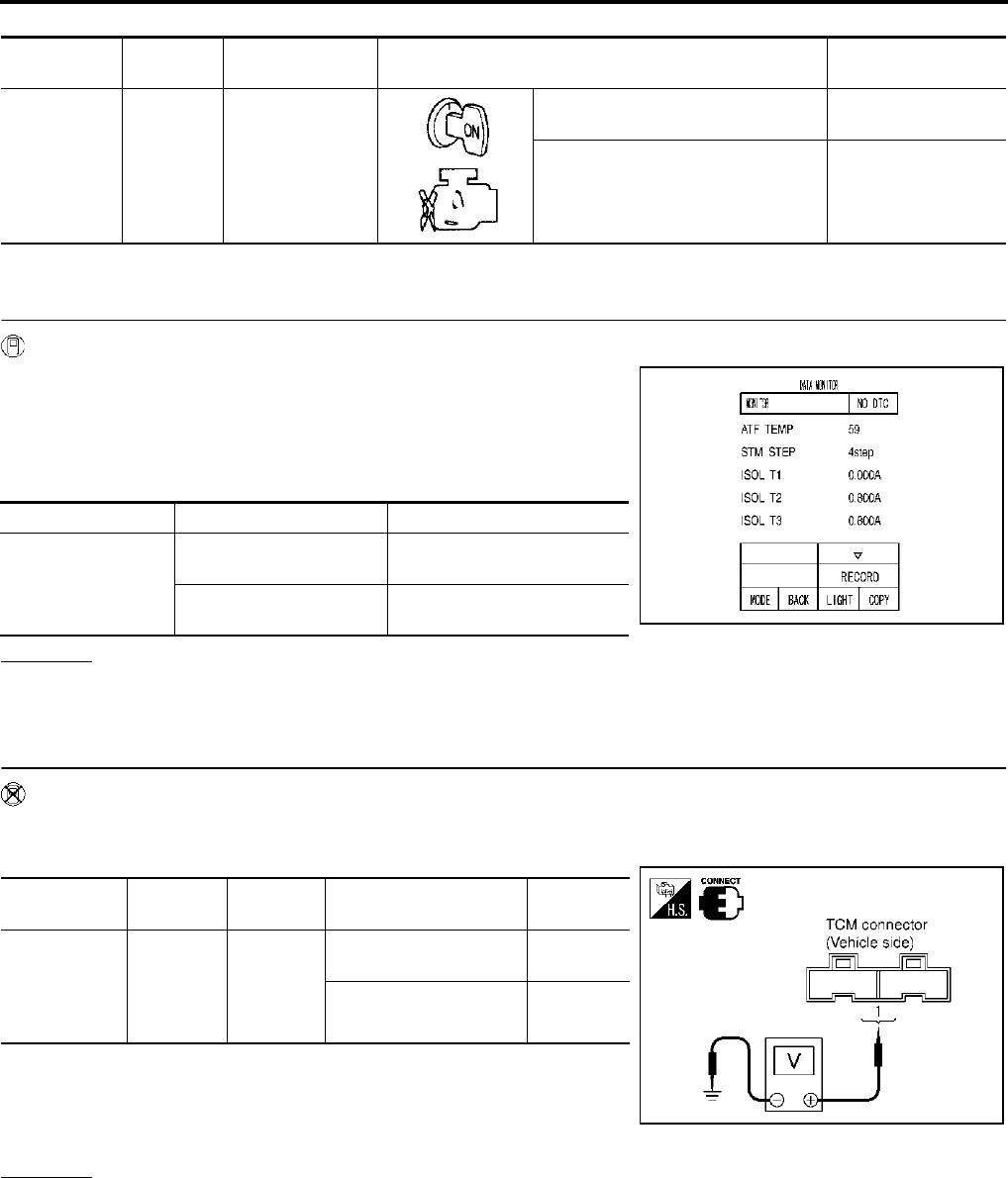

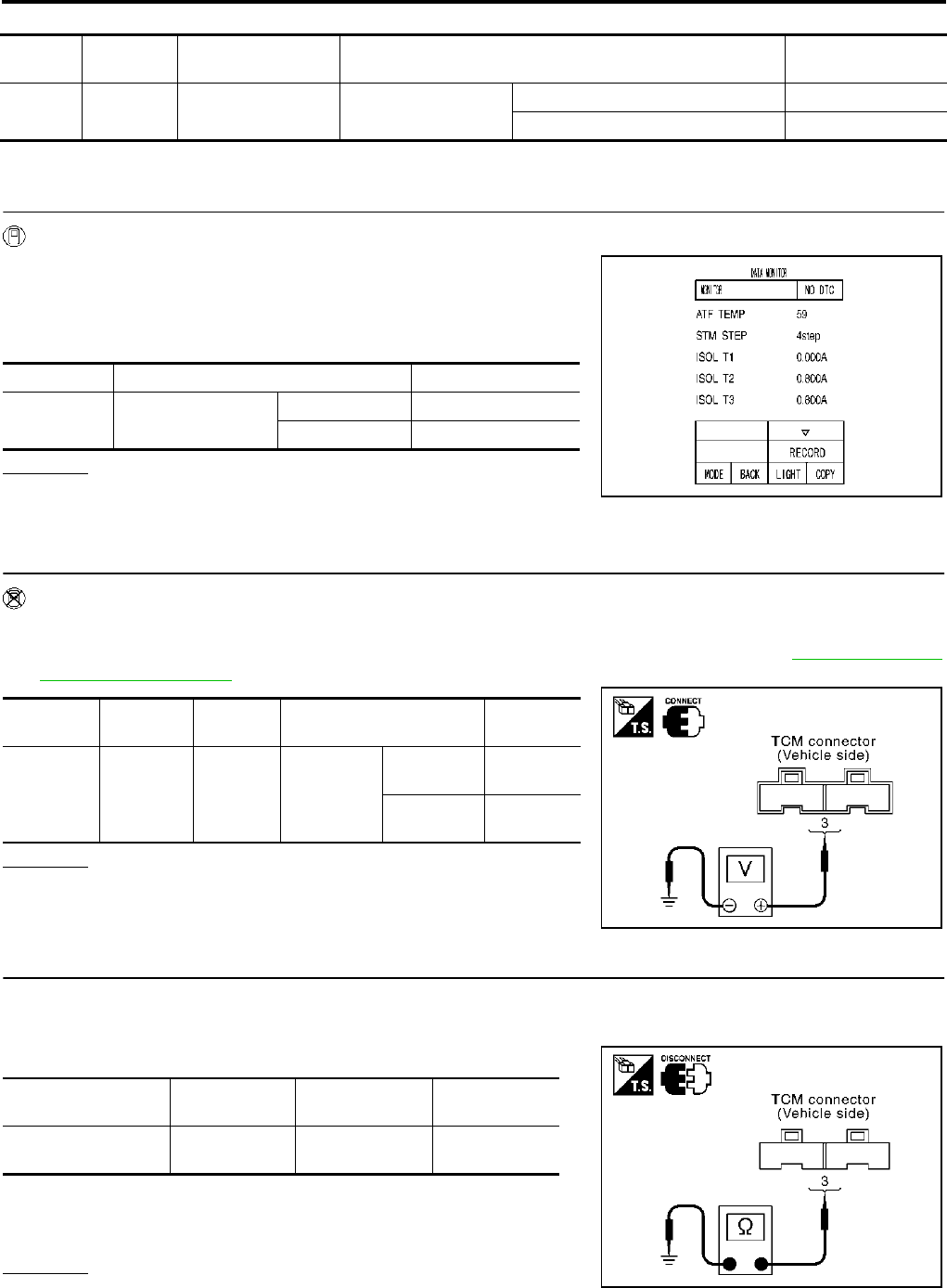

Diagnostic Procedure ACS00215
1. CHECK INPUT SIGNAL (WITH CONSULT-II)
With CONSULT-II
1. Start engine.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
3. Start vehicle and read out the value of “ISOLT1”.
OK or NG
OK >> GO TO 6.
NG >> GO TO 3.
2. CHECK INPUT SIGNAL (WITHOUT CONSULT-II)
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM connector and ground while warming up CVT. Refer to CVT-113, "Wiring
Diagram - CVT - TCV" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 3.
3. CHECK TORQUE CONVERTER CLUTCH SOLENOID VALVE CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect the TCM connector.
3. Check resistance between terminals 3 and ground.
4. Disconnect the TCM connector.
5. Check if there is continuity between the connector terminal and
ground.
OK or NG
OK >> GO TO 6.
NG >> GO TO 4.
Terminal
No. Wire color Item Condition Judgement standard
(Approx.)
3L/W
Torque converter
clutch solenoid valve
When vehicle cruises
in “D” position
When CVT performs lock-up 6.0V
When CVT does not perform lock-up 1.0V
Monitor item Condition Specification
ISOLT1 When vehicle cruises
in “D” position
Lock-up “OFF” Approximately 0.7A
Lock-up “ON” Approximately 0.0A
SCIA2349E
Name Connector
No.
Terminal
No. Condition Voltage (V)
(Approx.)
Torque
converter
clutch sole-
noid valve
F103 3 (L/W) -
ground
When vehi-
cle cruises
in “D” posi-
tion
Lock-up
“OFF” 6.0
Lock-up
“ON” 1.0
SCIA1917E
Name Connector No. Terminal No.
(Wire color)
Resistance (Ω)
(Approx.)
Torque converter
clutch solenoid valve F103 3 (L/W) - ground 3 - 9
SCIA1970E
DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE
CVT-115
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano

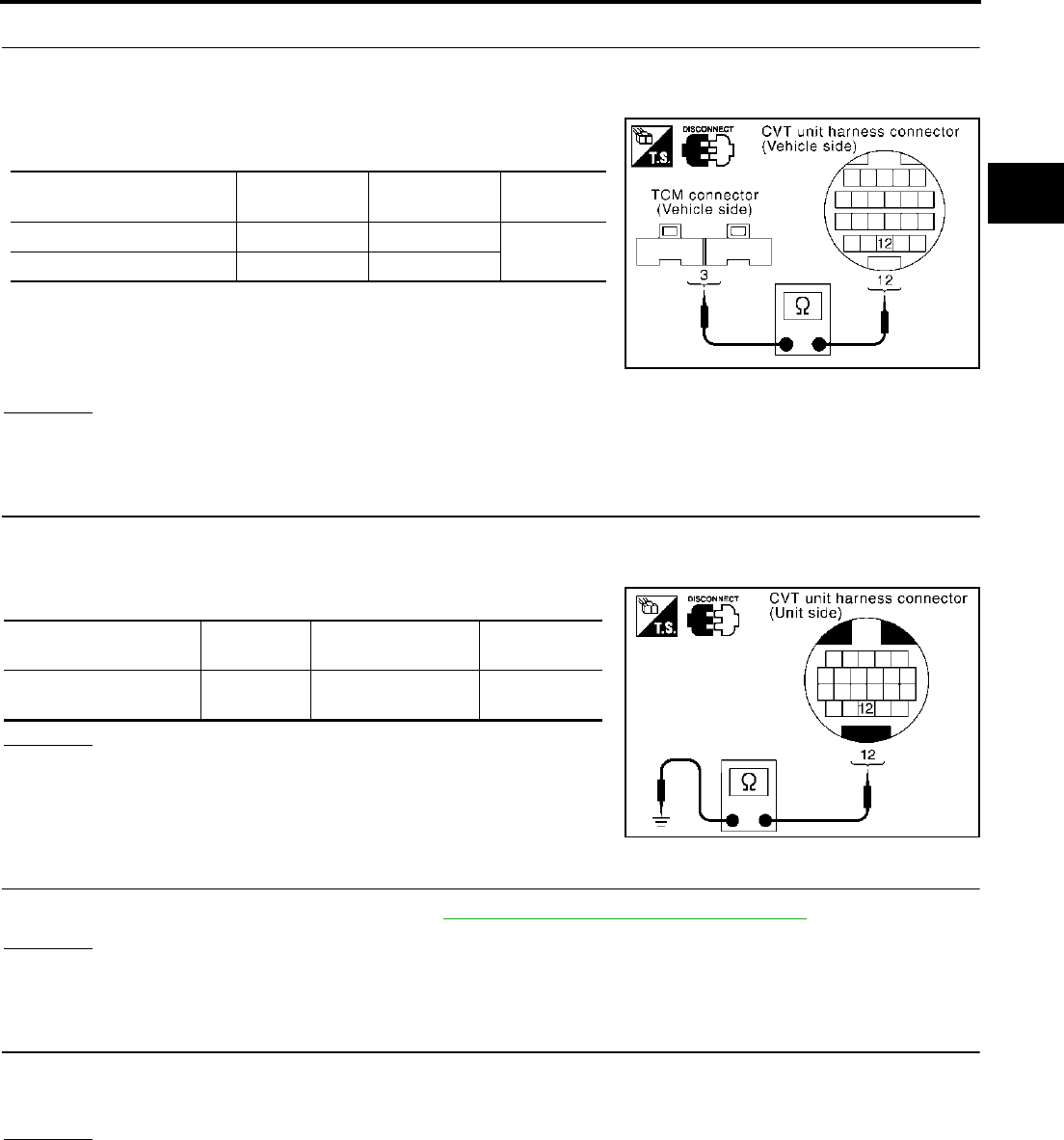

4. CHECK THE HARNESS BETWEEN TCM AND TORQUE CONVERTER CLUTCH SOLENOID VALVE
1. Turn ignition switch “OFF”.
2. Disconnect the TCM connector and CVT unit harness connector.
3. Check continuity between TCM connector and CVT unit harness
connector.
4. If OK, check harness for short to ground and short power.
5. If OK, check continuity between body ground and CVT assem-
bly.
6. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. CHECK TORQUE CONVERTER CLUTCH SOLENOID VALVE RESISTANCE
1. Turn ignition switch “OFF”.
2. Disconnect CVT unit harness connector.
3. Check resistance between terminal and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6. CHECK DTC
Perform “DTC Confirmation Procedure”. Refer to CVT-112, "DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 6.
7. PERFORM TCM INSPECTION
1. Perform TCM input/output signal inspection.
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
Item Connector No. Terminal No.
(Wire color) Continuity
TCM F103 3 (L/W) Yes
CVT unit harness connector F6 12 (L/W)
SCIA3701E

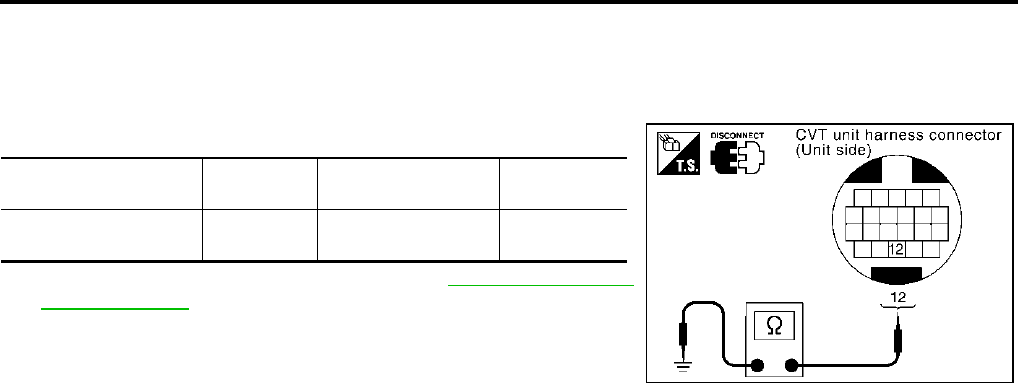

Solenoid Valve Connector
No. Terminal No. Resistance
(Ω) (Approx.)
Torque converter clutch
solenoid valve F6 12 - Ground 3 - 9
SCIA2358E
CVT-116
DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE
Revision; 2004 April 2003 Murano
Component Inspection ACS003KZ
TORQUE CONVERTER CLUTCH SOLENOID VALVE
1. Turn ignition switch “OFF”.
2. Disconnect CVT unit harness connector.
3. Check resistance between terminal and ground.
4. If NG, replace transaxle assembly. Refer to CVT-197, "Removal
and Installation" .
Solenoid Valve Connector
No. Terminal No. Resistance
(Ω) (Approx.)
Torque converter clutch
solenoid valve F6 12 - Ground 3 - 9
SCIA2358E
DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)
CVT-117
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP) PFP:31940
Description ACS001UG
This malfunction is detected when the torque converter clutch does not lock-up as instructed by the TCM. This
is not only caused by electrical malfunction (circuits open or shorted), but also by mechanical malfunction such
as control valve sticking, improper solenoid valve operation, etc.
CONSULT-II Reference Value ACS002T7
Remarks: Specification data are reference values.
On Board Diagnosis Logic ACS001UH
●This is an OBD-II self-diagnostic item.
●Diagnostic trouble code “A/T TCC S/V FNCTN” with CONSULT-II or P0744 without CONSULT-II is
detected under the following conditions.
–When CVT cannot perform lock-up even if electrical circuit is good.
–When TCM compares difference value with slip revolution and detects an irregularity.
Possible Cause ACS001UI
●Torque converter clutch solenoid valve
●Hydraulic control circuit
DTC Confirmation Procedure ACS001UJ
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “DATA MONITOR” mode for “TRANSMISSION” with
CONSULT-II.
3. Start engine and maintain the following condition for at least 30
seconds.
ACC PEDAL OPEN: More than 1.0/8
Selector lever: “D” position
[Vehicle speed: Constant speed of more than 40 km/h (25
MPH)]
4. If DTC is detected go to “Diagnostic Procedure”, CVT-118 .
WITH GST
Follow the procedure “With CONSULT-II”.
Monitor item Condition Specification (Approximately)
ENG SPEED SIG Engine running Closely matches the tachometer reading.
PRI SPEED SEN During driving (lock-up ON) Approximately matches the engine speed.
SCIA2272E
CVT-118
DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)
Revision; 2004 April 2003 Murano

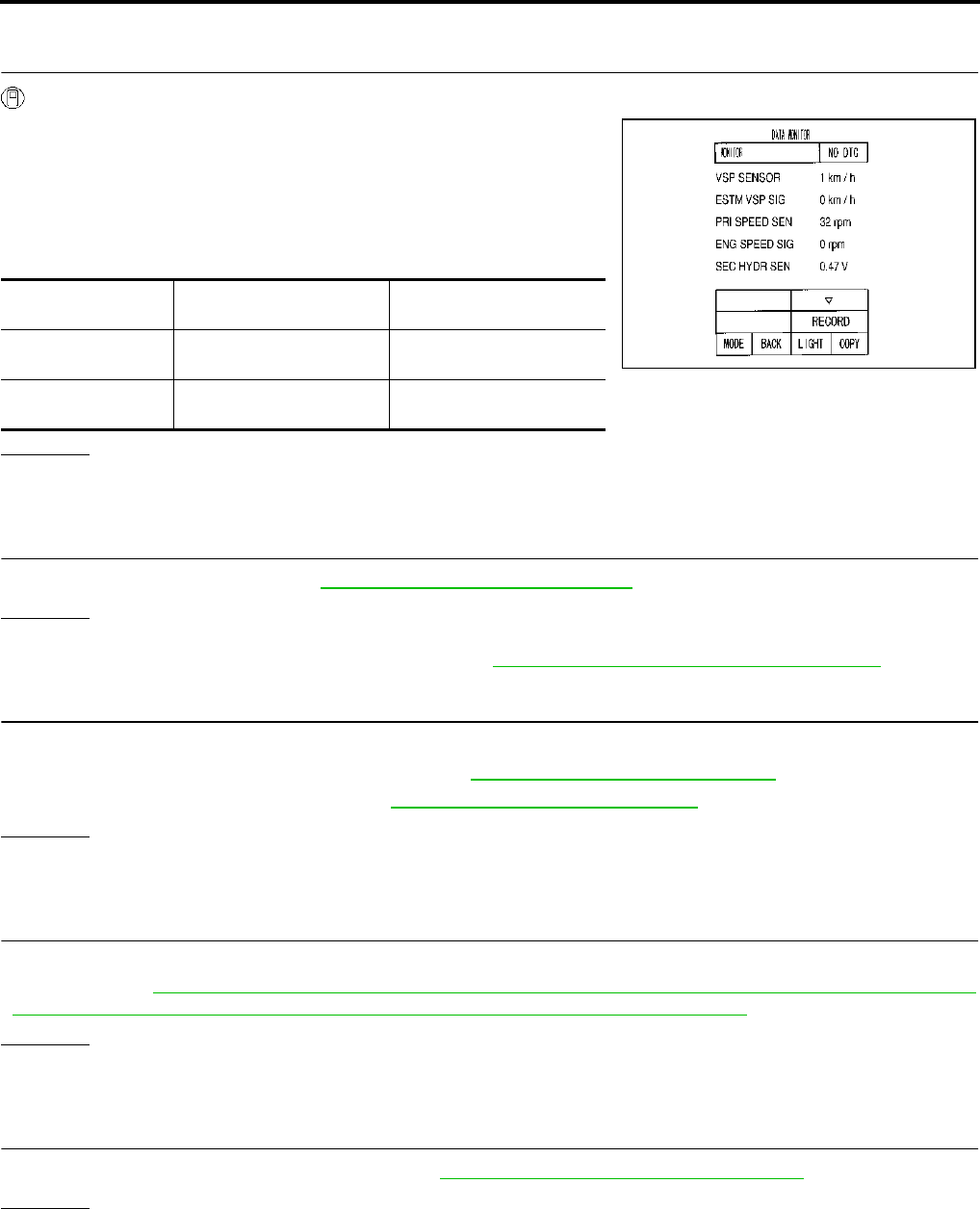

Diagnostic Procedure ACS001UL
1. CHECK INPUT SIGNALS
With CONSULT-II
1. Start engine.
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
3. Start vehicle.
4. Check if there is a great difference between “ENG SPEED SIG”
and “PRI SPEED SEN”. (Lock-up ON.)
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
2. CHECK LINE PRESSURE
Perform line pressure test. Refer to CVT-57, "LINE PRESSURE TEST" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts. Refer to CVT-58, "Judgement of Line Pressure Test" .
3. DETECT MALFUNCTIONING ITEM
Check the following:
●Torque converter clutch solenoid valve. Refer to CVT-116, "Component Inspection" .
●Lock-up select solenoid valve. Refer to CVT-166, "Component Inspection" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4. CHECK SECONDARY SPEED SENSOR SYSTEM AND PRIMARY SPEED SENSOR SYSTEM
Check output speed sensor (secondary speed sensor) system and input speed sensor (primary speed sensor)
system. Refer to CVT-101, "DTC P0720 VEHICLE SPEED SENSOR CVT (SECONDARY SPEED SENSOR)"
, CVT-95, "DTC P0715 INPUT SPEED SENSOR CIRCUIT (PRI SPEED SENSOR)" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. CHECK DTC
Perform “DTC Confirmation Procedure”. Refer to CVT-117, "DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 6.
Monitor item Condition Specification
(Approximately)
ENG SPEED SIG Engine running Closely matches the
tachometer reading.
PRI SPEED SEN During driving (lock-up ON) Approximately matches the
engine speed.
SCIA2279E
DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)
CVT-119
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
6. PERFORM TCM INSPECTION
1. Perform TCM input/output signal inspection.
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> 1. Repair or replace damaged parts.
2. Replace the transaxle assembly. Refer to CVT-197, "Removal and Installation" .
CVT-120
DTC P0745 LINE PRESSURE SOLENOID VALVE
Revision; 2004 April 2003 Murano
DTC P0745 LINE PRESSURE SOLENOID VALVE PFP:31940
Description ACS001UM
The pressure control solenoid valve A (line pressure solenoid valve) regulates the oil pump discharge pres-
sure to suit the driving condition in response to a signal sent from the TCM.
CONSULT-II Reference Value ACS002T8
Remarks: Specification data are reference values.
On Board Diagnosis Logic ACS001UN
●This is an OBD-II self-diagnostic item.
●Diagnostic trouble code “L/PRESS SOL/CIRC” with CONSULT-II or P0745 without CONSULT-II is
detected under the following conditions.
–When TCM detects an improper voltage drop when it tries to operate the solenoid valve.
–When TCM compares target value with monitor value and detects an irregularity.
Possible Cause ACS001UO
●Harness or connectors
(The solenoid circuit is open or shorted.)
●Pressure control solenoid valve A (line pressure solenoid valve)
DTC Confirmation Procedure ACS001UP
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON” and select “DATA MONITOR” mode for
“ENGINE” with CONSULT-II.
2. Start engine and wait at least 5 seconds.
3. If DTC is detected, go to CVT-122, "Diagnostic Procedure" .
WITH GST
Follow the procedure “With CONSULT-II”.
Monitor item Condition Specification (Approximately)
ISOLT2 Release your foot from the accelerator pedal. 0.8A
Press the accelerator pedal all the way down. 0.3 - 0.6A
SCIA2272E
DTC P0745 LINE PRESSURE SOLENOID VALVE
CVT-121
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
Wiring Diagram — CVT — LPSV ACS001UQ

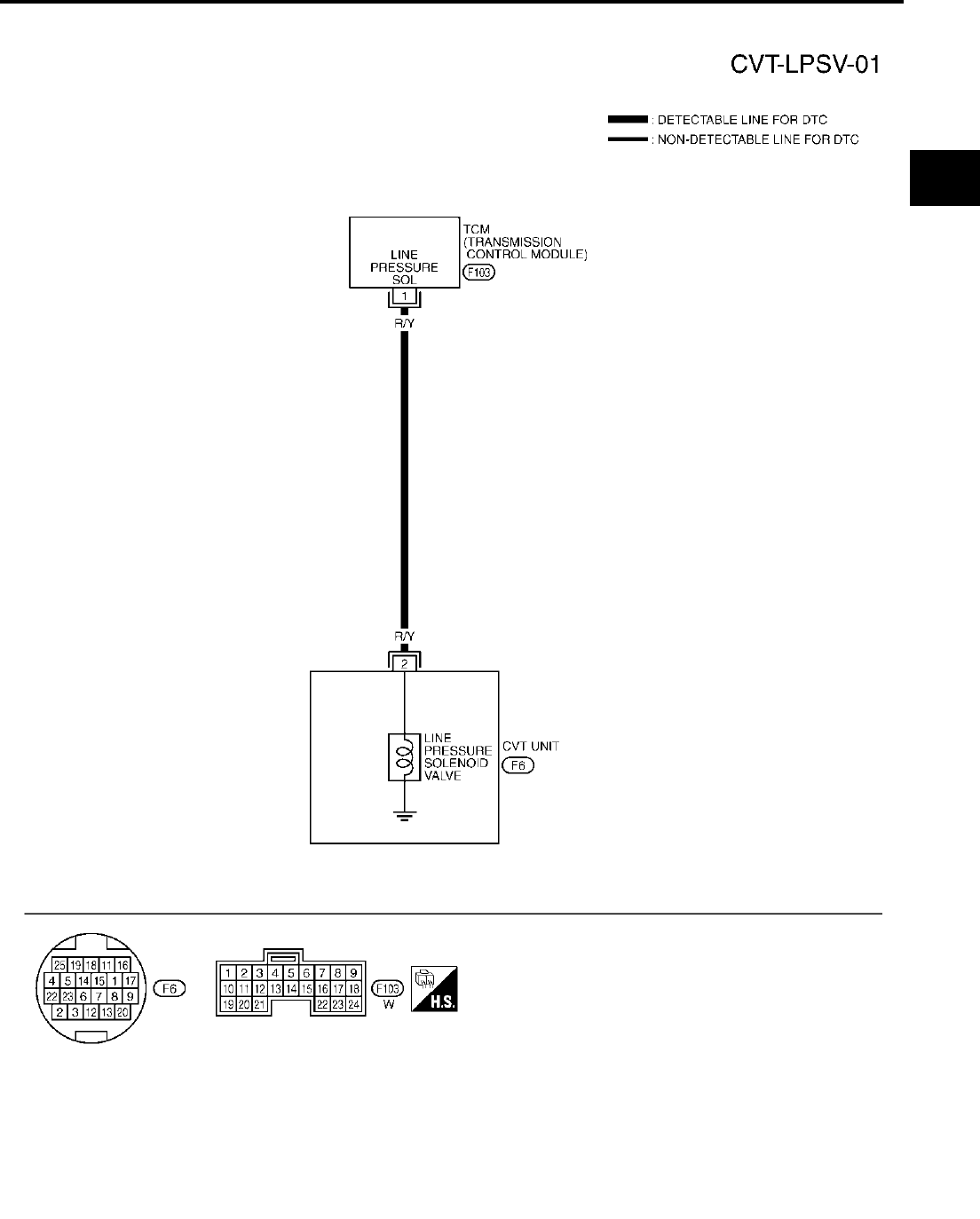

TCWA0151E
CVT-122
DTC P0745 LINE PRESSURE SOLENOID VALVE
Revision; 2004 April 2003 Murano
Remarks: Specification data are reference values.
Diagnostic Procedure ACS001UR
1. CHECK INPUT SIGNAL (WITH CONSULT-II)
With CONSULT-II
1. After warming up the engine, turn ignition switch “ON” position
(Do not start engine).
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “TRAS-
MISSION” with CONSULT-II.
3. Read out the value of “ISOLT2”.
OK or NG
OK >> GO TO 6.
NG >> GO TO 3.
2. CHECK INPUT SIGNAL (WITHOUT CONSULT-II)
Without CONSULT-II
1. After warming up the engine, turn ignition switch “ON” position (Do not start engine).
2. Check voltage between TCM connector and ground.
3. Turn ignition switch “OFF”.
4. Disconnect the TCM connector.
5. Check if there is continuity between the connector terminal and
ground.
OK or NG
OK >> GO TO 6.
NG >> GO TO 3.
Terminal No. Wire color Item Condition Judgement standard
(Approx.)
1R/Y
Pressure control
solenoid valve A
(line pressure
solenoid valve)
Release your foot from the accelera-
tor pedal. 5.0 - 7.0V
Press the accelerator pedal all the
way down. 1.0V
Item name Condition Display value (Approx.)
ISOLT2
Release your foot from
the accelerator pedal. 0.8A
Press the accelerator
pedal all the way down. 0.3 - 0.6A SCIA2349E
Name Connector
No.
Terminal
No. Condition Voltage
(Approx.)
Pressure con-
trol solenoid
valve A (line
pressure sole-
noid valve)
F103 1 (R/Y) -
ground
Release your foot from
the accelerator pedal. 5.0 - 7.0V
Press the accelerator
pedal all the way down. 1.0V
SCIA2348E
DTC P0745 LINE PRESSURE SOLENOID VALVE
CVT-123
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano

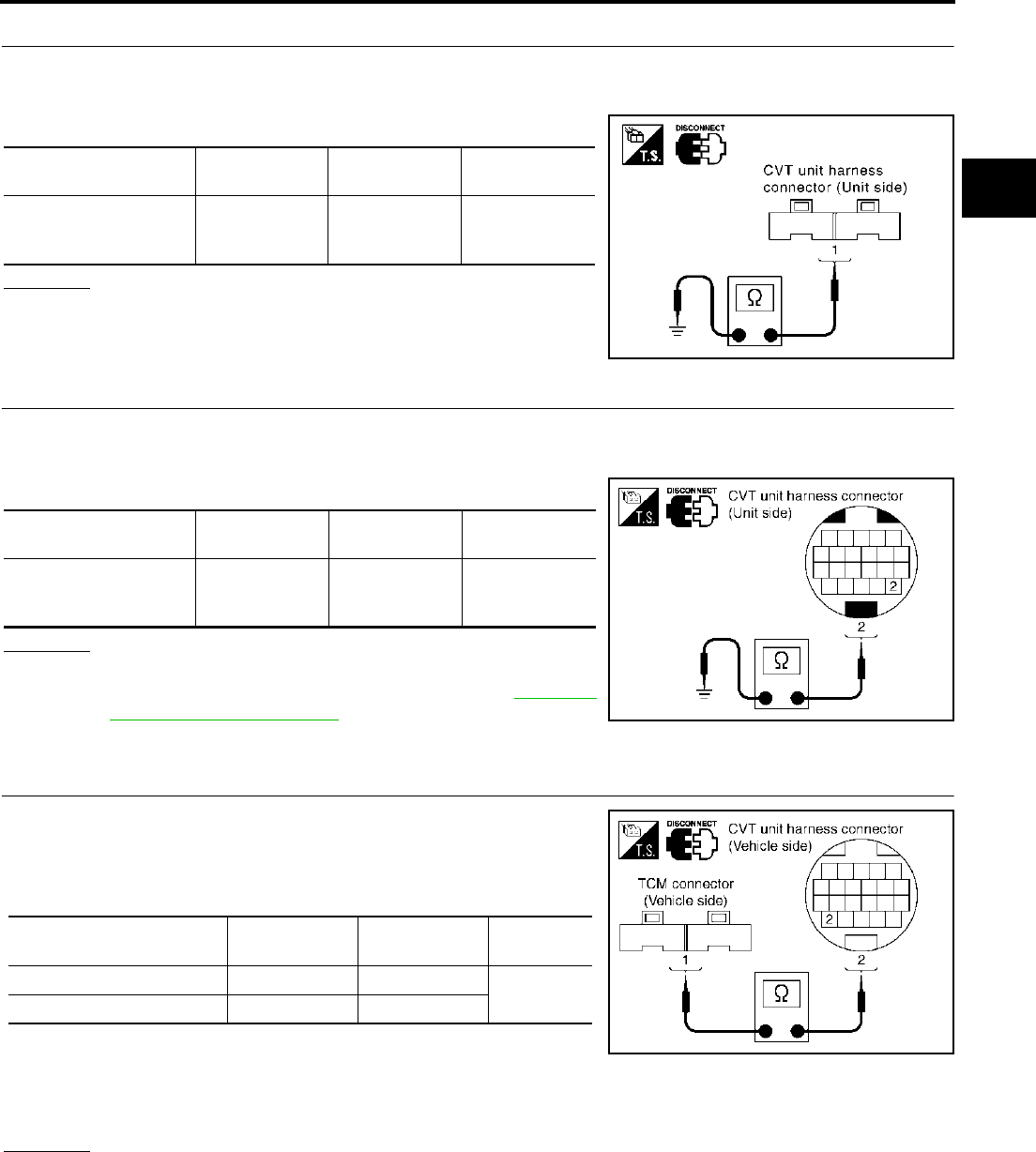

3. CHECK PRESSURE CONTROL SOLENOID VALVE A (LINE PRESSURE SOLENOID VALVE) CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect TCM connector.
3. Check resistance between TCM connector terminal and ground.
OK or NG
OK >> GO TO 6.
NG >> GO TO 4.
4. CHECK VALVE RESISTANCE
1. Turn ignition switch “OFF”.
2. Disconnect CVT unit harness connector.
3. Check resistance between terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> Replace the transaxle assembly. Refer to CVT-197,
"Removal and Installation" .
5. CHECK THE HARNESS BETWEEN TCM AND PRESSURE CONTROL SOLENOID VALVE A (LINE
PRESSURE SOLENOID VALVE)
1. Turn ignition switch “OFF”.
2. Disconnect CVT unit harness connector and TCM connector.
3. Check continuity between CVT unit harness connector and TCM
connector.
4. If OK, check harness for short to ground and short to power.
5. If OK, check continuity between body ground and CVT assem-
bly.
6. Reinstall any part removed.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
Solenoid Valve Connector No. Terminal No.
(Wire color)
Resistance
(Approx.)
Pressure control sole-
noid valve A (line pres-
sure solenoid valve)
F103 1 (R/Y) - ground 3.0 - 9.0 Ω
SCIA1971E
Solenoid Valve Connector No. Terminal No. Resistance
(Approx.)
Pressure control sole-
noid valve A (line pres-
sure solenoid valve)
F6 2 - Ground 3.0 - 9.0 Ω
SCIA2030E
Item Connector No. Terminal No.
(Wire color) Continuity
TCM F103 1 (R/Y) Yes
CVT unit harness connector F6 2 (R/Y)
SCIA2031E
CVT-124
DTC P0745 LINE PRESSURE SOLENOID VALVE
Revision; 2004 April 2003 Murano
6. CHECK DTC
Check again.
●Refer to CVT-120, "DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 7.
7. CHECK TCM INSPECTION
1. Perform TCM input/output signal inspection.
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> 1. Repair or replace damaged parts.
2. Replace the transaxle assembly. Refer to CVT-197, "Removal and Installation" .

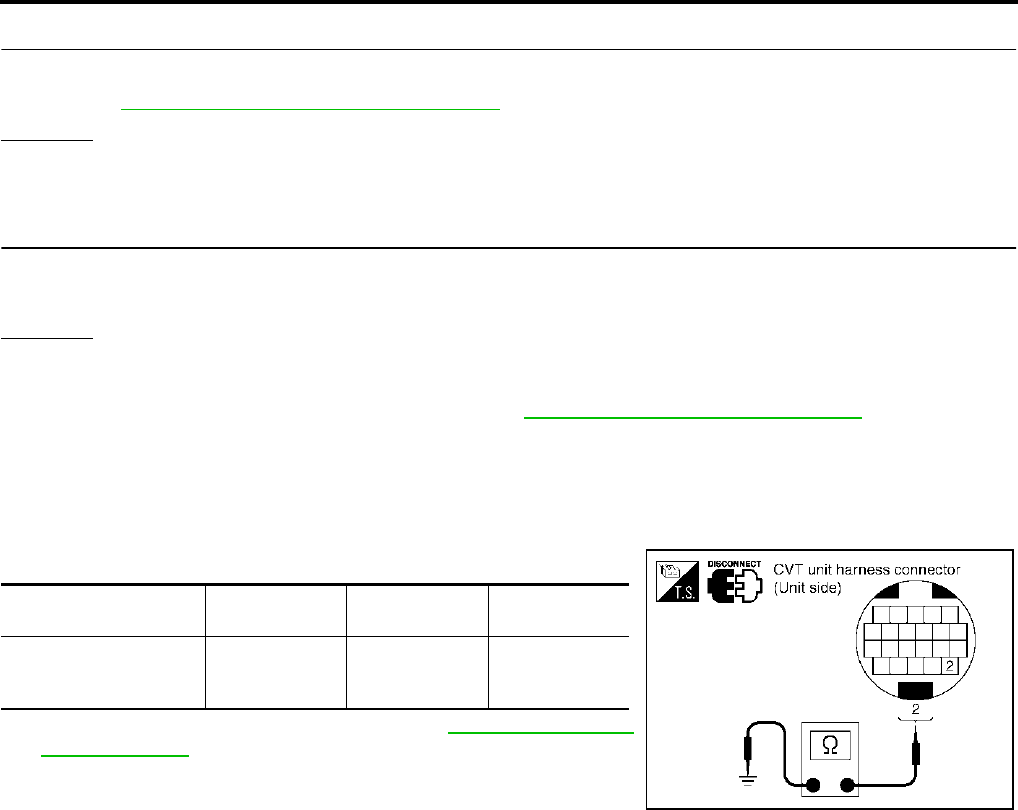

Component Inspection ACS002T9
PRESSURE CONTROL SOLENOID VALVE A (LINE PRESSURE SOLENOID VALVE)
1. Turn ignition switch “OFF”.
2. Disconnect CVT unit harness connector.
3. Check resistance between terminal and ground.
4. If NG, replace transaxle assembly. Refer to CVT-197, "Removal
and Installation" .
Solenoid Valve Connector No. Terminal No. Resistance
(Approx.)
Pressure control sole-
noid valve A (line pres-
sure solenoid valve)
F6 2 - Ground 3.0 - 9.0 Ω
SCIA2030E
DTC P0746 PRESSURE CONTROL SOLENOID A PERFORMANCE (LINE PRES-
SURE SOLENOID VALVE)
CVT-125
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
DTC P0746 PRESSURE CONTROL SOLENOID A PERFORMANCE (LINE PRES-
SURE SOLENOID VALVE) PFP:31941
Description ACS002IZ
The pressure control solenoid valve A (line pressure solenoid valve) regulates the oil pump discharge pres-
sure to suit the driving condition in response to a signal sent from the TCM.
NOTE:
CONSULT-II screen terms are shown differently depending on the version of CONSULT-II card.
On Board Diagnosis Logic ACS002J0
●This is an OBD-II self-diagnostic item.
●Diagnostic trouble code “L/PRESS SOL/FNCTN” with CONSULT-II or P0746 without CONSULT-II is
detected under the following conditions.
–Unexpected gear ratio was detected in the LOW side due to excessively low line pressure.
Possible Cause ACS002J1
●Line pressure control system
●Output speed sensor (secondary speed sensor)
●Input speed sensor (primary speed sensor)
DTC Confirmation Procedure ACS002TA
CAUTION:
●Always drive vehicle at a safe speed.
●Be careful not to rev engine into the red zone on the tachometer.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 5 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON” and select “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
2. Start engine and maintain the following conditions for at least 10
consecutive seconds. Test start from 0km/h (0 MPH).
ATF TEMP SEN: 1 - 2V
ACC PEDAL OPEN: More than 1.0/8
Selector lever: D position
VHCL SPEED: 10 km/h (6 MPH) More than
Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.
If the check result is NG, go to “Diagnostic Procedure”, CVT-126
.
WITH GST
Follow the procedure “With CONSULT-II”.
SCIA2272E
SCIA5492E
CVT-126
DTC P0746 PRESSURE CONTROL SOLENOID A PERFORMANCE (LINE PRES-
SURE SOLENOID VALVE)
Revision; 2004 April 2003 Murano

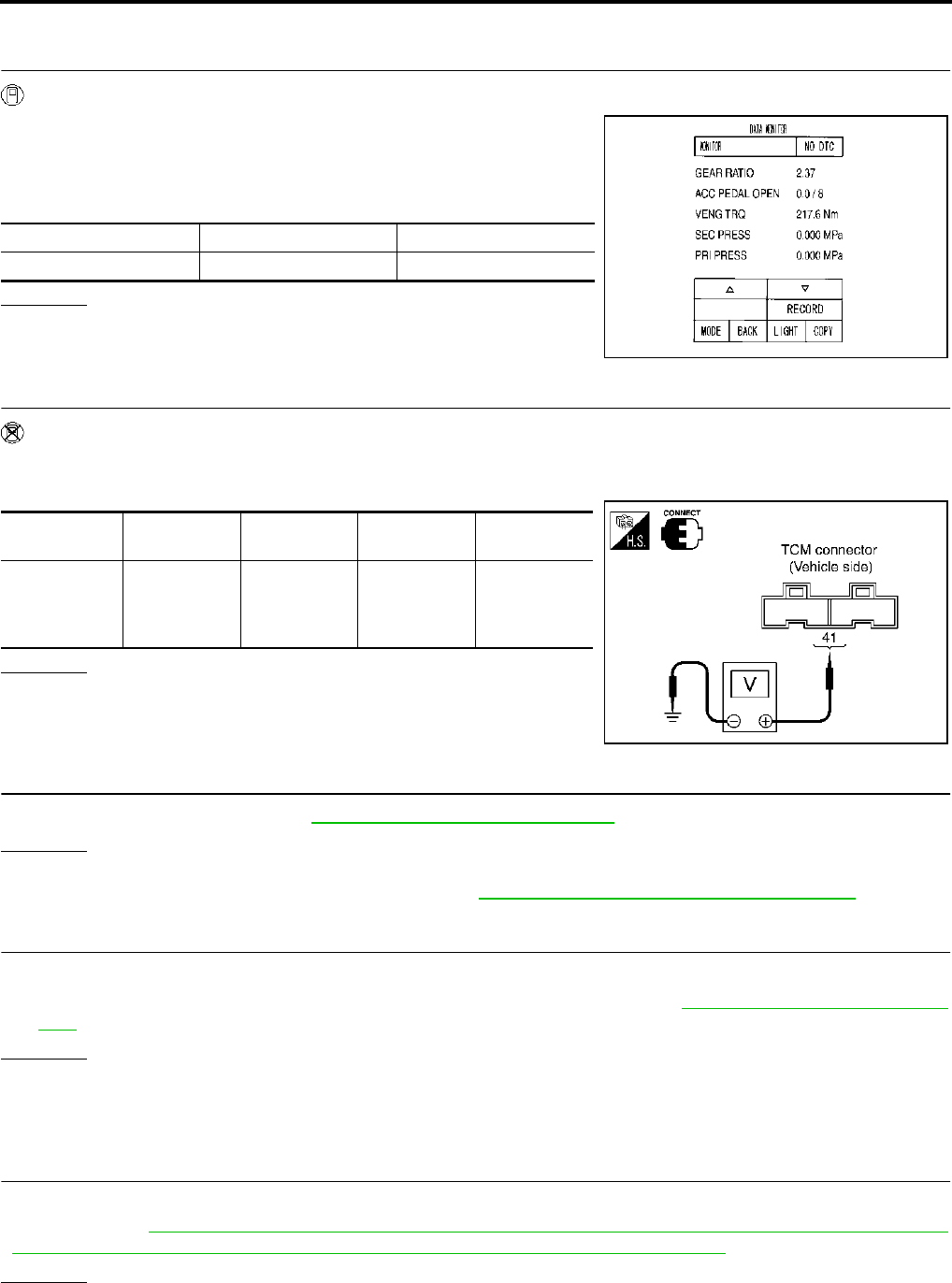

Diagnostic Procedure ACS002J3
1. CHECK INPUT SIGNAL (WITH CONSULT-II)
With CONSULT-II
1. Start engine.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
3. Start vehicle and read out the value of “PRI PRESS”.
OK or NG
OK >> GO TO 6.
NG >> GO TO 3.
2. CHECK INPUT SIGNAL (WITHOUT CONSULT-II)
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM connector and ground.
OK or NG
OK >> GO TO 6.
NG >> GO TO 3.
3. CHECK LINE PRESSURE
Perform line pressure test. Refer to CVT-57, "LINE PRESSURE TEST" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts. Refer to CVT-58, "Judgement of Line Pressure Test" .
4. DETECT MALFUNCTIONING ITEM
Check the following:
●Pressure control solenoid valve A (line pressure solenoid valve). Refer to CVT-124, "Component Inspec-
tion" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. CHECK OUTPUT SPEED SENSOR (SECONDARY SPEED SENSOR) SYSTEM AND INPUT SPEED
SENSOR (PRIMARY SPEED SENSOR) SYSTEM
Check output speed sensor (secondary speed sensor) system and input speed sensor (primary speed sensor)
system. Refer to CVT-101, "DTC P0720 VEHICLE SPEED SENSOR CVT (SECONDARY SPEED SENSOR)"
, CVT-95, "DTC P0715 INPUT SPEED SENSOR CIRCUIT (PRI SPEED SENSOR)" .
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
Monitor item Condition Specification
PRI PRESS “ N” position idle 0.3 - 0.7MPa
SCIA2366E
Name Connector
No. Terminal No. Condition Voltage
(Approx.)
Input speed
sensor (pri-
mary pressure
sensor)
F104 41 (V/O) -
ground
“ N” position
idle 0.7 - 1.2V
SCIA1922E
DTC P0746 PRESSURE CONTROL SOLENOID A PERFORMANCE (LINE PRES-
SURE SOLENOID VALVE)
CVT-127
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
6. DETECT MALFUNCTIONING ITEM
Check the following:
●Power supply and ground circuit for TCM.
●The TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
7. CHECK DTC
Perform DTC Confirmation Procedure.
●Refer to CVT-125, "DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> Replace the transaxle assembly or TCM. Refer to CVT-197, "Removal and Installation" .
CVT-128
DTC P0776 PRESSURE CONTROL SOLENOID B PERFOMANCE (SEC PRES-
SURE SOLENOID VALVE)
Revision; 2004 April 2003 Murano
DTC P0776 PRESSURE CONTROL SOLENOID B PERFOMANCE (SEC PRES-
SURE SOLENOID VALVE) PFP:31941
Description ACS002J4
The pressure control solenoid valve B (secondary pressure solenoid valve) regulates the secondary pressure
to suit the driving condition in response to a signal sent from the TCM.
NOTE:
CONSULT-II screen terms are shown differently depending on the version of CONSULT-II card.
CONSULT-II Reference Value ACS002TB
Remarks: Specification data are reference values.
On Board Diagnosis Logic ACS002TC
●This is an OBD-II self-diagnostic item.
●Diagnostic trouble code “SECONDARY PRESSURE SOLENOID VALVE FUNCTION” with CONSULT-II
or P0776 without CONSULT-II is detected when secondary pressure is too high or too low compared with
the commanded value while driving.
Possible Cause ACS002J6
●Harness or connectors
(The solenoid circuit is open or shorted.)
●Pressure control solenoid valve B (secondary pressure solenoid valve system)
●Transmission pressure sensor A (secondary pressure sensor)
●Line pressure control system
DTC Confirmation Procedure ACS002TD
CAUTION:
●Always drive vehicle at a safe speed.
●Be careful not to rev engine into the red zone on the tachometer.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 5 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON” and select “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
2. Start engine and maintain the following conditions for at least 30
consecutive seconds.
ATF TEMP SEN: 1 - 2V
ACC PEDAL OPEN: More than 1.0/8
Selector lever: D position
VHCL SPEED: 10 km/h (6 MPH) More than
Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.
Monitor item Condition Specification (Approximately)
SEC PRESS N position idle 0.5MPa
SCIA2272E
DTC P0776 PRESSURE CONTROL SOLENOID B PERFOMANCE (SEC PRES-
SURE SOLENOID VALVE)
CVT-129
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano

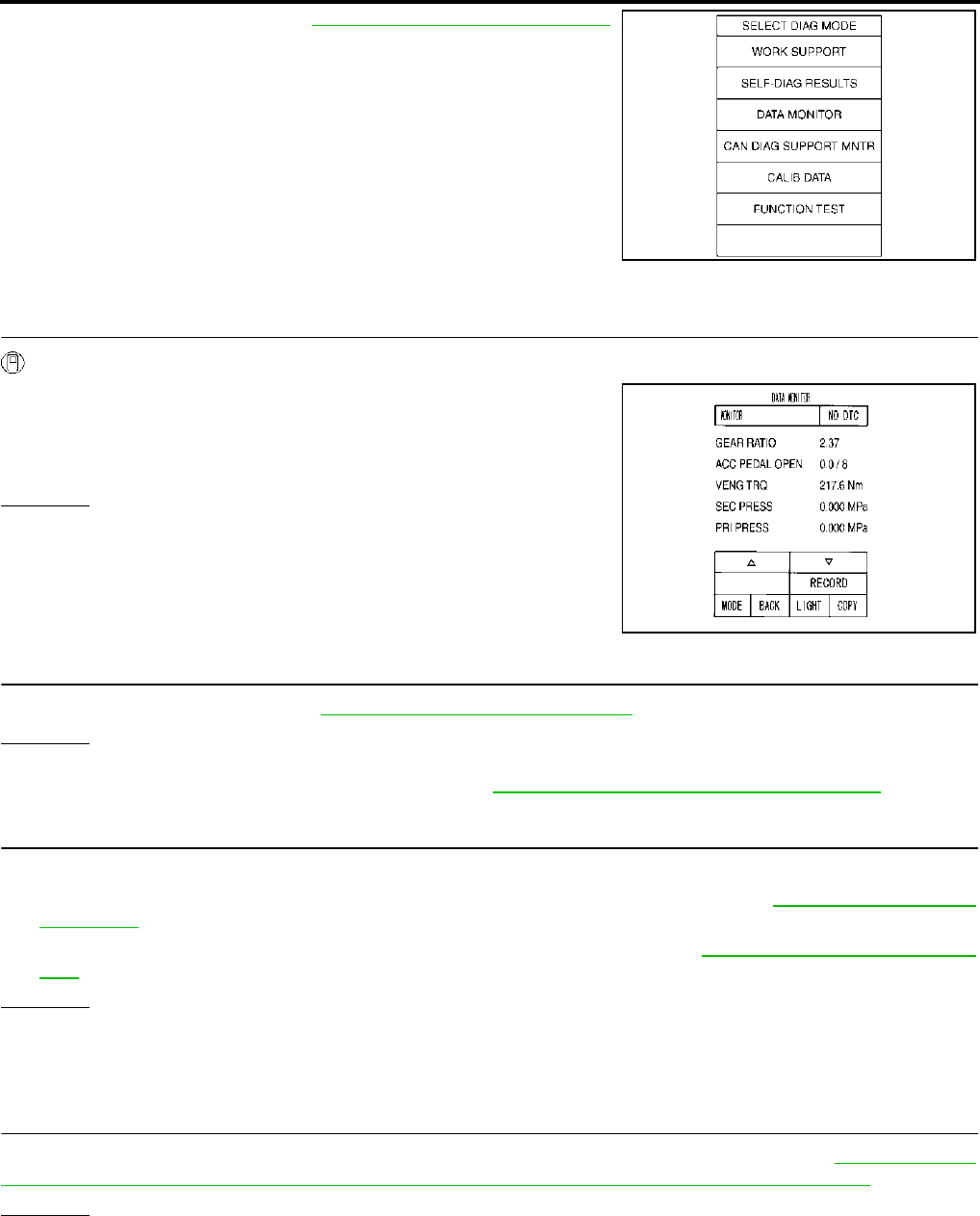

If the check result is NG, go to “Diagnostic Procedure”, CVT-129
.
WITH GST
Follow the procedure “With CONSULT-II”.
Diagnostic Procedure ACS002TE
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
3. Start vehicle and read out the value of “SEC PRESS”.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
2. CHECK LINE PRESSURE
Perform line pressure test. Refer to CVT-57, "LINE PRESSURE TEST" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts. Refer to CVT-58, "Judgement of Line Pressure Test" .
3. DETECT MALFUNCTIONING ITEM
Check the following:
●Pressure control solenoid valve B (secondary pressure solenoid valve). Refer to CVT-134, "Component
Inspection" .
●Pressure control solenoid valve A (line pressure solenoid valve). Refer to CVT-124, "Component Inspec-
tion" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4. CHECK SECONDARY PRESSURE SENSOR SYSTEM
Check transmission pressure sensor A (secondary pressure sensor) system. Refer to CVT-135, "DTC P0840
TRANSMISSION FLUID PRESSURE SENSOR A CIRCUIT (SEC PRESSURE SENSOR)" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
SCIA5492E
Monitor item Condition Specification (Approximately)
SEC PRESS N position idle 0.5MPa
SCIA2366E
CVT-130
DTC P0776 PRESSURE CONTROL SOLENOID B PERFOMANCE (SEC PRES-
SURE SOLENOID VALVE)
Revision; 2004 April 2003 Murano
5. DETECT MALFUNCTIONING ITEM
Check the following:
●Power supply and ground circuit for TCM.
●The TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6. CHECK DTC
Perform DTC Confirmation Procedure.
●Refer to CVT-128, "DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> Replace the transaxle assembly. Refer to CVT-197, "Removal and Installation" .
DTC P0778 PRESSURE CONTROL SOLENOID B ELECTRICAL (SEC PRES-
SURE SOLENOID VALVE)
CVT-131
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
DTC P0778 PRESSURE CONTROL SOLENOID B ELECTRICAL (SEC PRESSURE
SOLENOID VALVE) PFP:31941
Description ACS002J9
The pressure control solenoid valve B (secondary pressure solenoid valve) regulates the oil pump discharge
pressure to suit the driving condition in response to a signal sent from the TCM.
The secondary pressure duty cycle value is not consistent when the closed throttle position signal is
“ON”. To confirm the secondary pressure duty cycle at low-pressure, the accelerator (throttle) should
be open until the closed throttle position signal is “OFF”.
NOTE:
CONSULT-II screen terms are shown differently depending on the version of CONSULT-II card.
CONSULT-II Reference Value ACS002TF
Remarks: Specification data are reference values.
On Board Diagnosis Logic ACS002JA
●This is an OBD-II self-diagnostic item.
●Diagnostic trouble code “SEC/PRESS SOL/CIRC” with CONSULT-II or P0778 without CONSULT-II is
detected under the following conditions.
–When TCM detects an improper voltage drop when it tries to operate the solenoid valve.
–When TCM compares target value with monitor value and detects an irregularity.
Possible Cause ACS002JB
●Harness or connectors
(The solenoid circuit is open or shorted.)
●Pressure control solenoid valve B (secondary pressure solenoid valve)
DTC Confirmation Procedure ACS002JC
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode for “TRANSMISSION” with
CONSULT-II.
3. Start engine and wait at least 5 seconds.
4. If DTC is detected, go to CVT-133, "Diagnostic Procedure" .
WITH GST
Follow the procedure “With CONSULT-II”.
Monitor item Condition Specification (Approximately)
ISOLT3 N position idle 0.6 - 0.7A
When stalled 0.4 - 0.6A
SOLMON3 N position idle 0.6 - 0.7A
When stalled 0.4 - 0.6A
SCIA2272E
CVT-132
DTC P0778 PRESSURE CONTROL SOLENOID B ELECTRICAL (SEC PRES-
SURE SOLENOID VALVE)
Revision; 2004 April 2003 Murano
Wiring Diagram — CVT — SECPSV ACS002TG
TCWA0152E
DTC P0778 PRESSURE CONTROL SOLENOID B ELECTRICAL (SEC PRES-
SURE SOLENOID VALVE)
CVT-133
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
Remarks: Specification data are reference values.

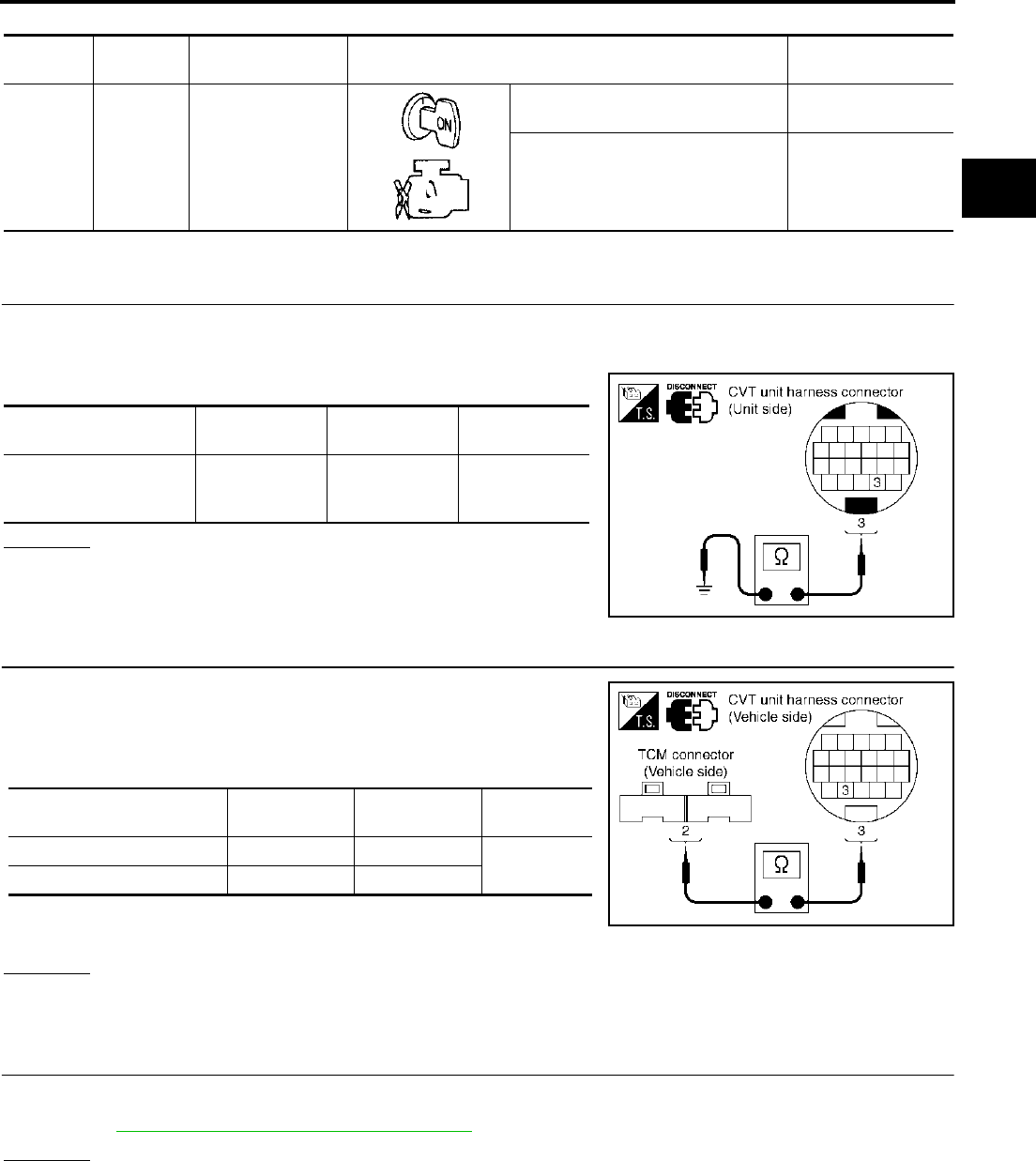

Diagnostic Procedure ACS002TH
1. CHECK VALVE RESISTANCE
1. Turn ignition switch “OFF”.
2. Disconnect CVT unit harness connector.
3. Check resistance between terminal and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace damaged parts.
2. CHECK POWER SOURCE CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect TCM connector and CVT unit harness connector.
3. Check continuity between CVT unit harness connector and TCM
connector.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. CHECK DTC
Check again.
●Refer to CVT-131, "DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 4.
Terminal
No. Wire color Item Condition Judgement standard
(Approx.)
2W/B
Pressure control
solenoid valve B
(secondary pres-
sure solenoid valve)
Release your foot from the accelera-
tor pedal. 5.0 - 7.0V
Press the accelerator pedal all the
way down. 3.0 - 4.0V
Solenoid Valve Connector No. Terminal No. Resistance
(Approx.)
Pressure control sole-
noid valve B (secondary
pressure solenoid valve)
F6 3 - Ground 3.0 - 9.0 Ω
SCIA2032E
Item Connector No. Terminal No.
(Wire color) Continuity
TCM connector F103 2 (W/B) Yes
CVT unit harness connector F6 3 (W/B)
SCIA2033E
CVT-134
DTC P0778 PRESSURE CONTROL SOLENOID B ELECTRICAL (SEC PRES-
SURE SOLENOID VALVE)
Revision; 2004 April 2003 Murano
4. CHECK TCM INSPECTION
1. Perform TCM input/output signal inspection.
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> 1. Repair or replace damaged parts.
2. Replace the transaxle assembly. Refer to CVT-197, "Removal and Installation" .

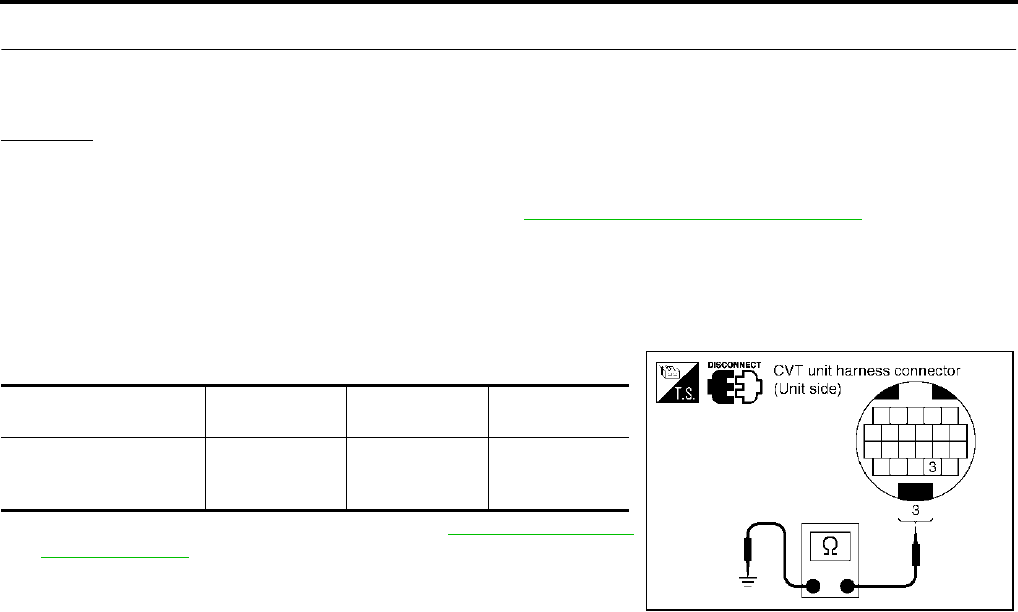

Component Inspection ACS002TI
PRESSURE CONTROL SORENOID VALVE B (SECONDARY PRESSURE SOLENOID VALVE)
1. Turn ignition switch “OFF”.
2. Disconnect CVT unit harness connector.
3. Check resistance between terminal and ground.
4. If NG, replace transaxle assembly. Refer to CVT-197, "Removal
and Installation" .
Solenoid Valve Connector No. Terminal No. Resistance
(Approx.)
Pressure control sole-
noid valve B (secondary
pressure solenoid valve)
F6 3 - Ground 3.0 - 9.0 Ω
SCIA2032E
DTC P0840 TRANSMISSION FLUID PRESSURE SENSOR A CIRCUIT (SEC
PRESSURE SENSOR)
CVT-135
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
DTC P0840 TRANSMISSION FLUID PRESSURE SENSOR A CIRCUIT (SEC
PRESSURE SENSOR) PFP:31936
Description ACS002JM
The transmission fluid pressure sensor A (secondary pressure sensor) detects secondary pressure of CVT
and sends TCM the signal.
NOTE:
CONSULT-II screen terms are shown differently depending on the version of CONSULT-II card.
CONSULT-II Reference Value ACS002TJ
Remarks: Specification data are reference values.
On Board Diagnosis Logic ACS002TK
●This is an OBD-II self-diagnostic item.
●Diagnostic trouble code “SEC PRS SEN/CIRC” with CONSULT-II or P0840 without CONSULT-II is
detected when TCM detects an improper voltage drop when it tries to operate the sensor.
Possible Cause ACS002JO
●Transmission fluid pressure sensor A (secondary pressure sensor)
●Harness or connectors
(The switch circuit is open or shorted.)
DTC Confirmation Procedure ACS002JP
CAUTION:
●Always drive vehicle at a safe speed.
●Be careful not to rev engine into the red zone on the tachometer.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 5 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON” and select “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
2. Make sure that output voltage of line temperature sensor is
within the range below.
ATF TEMP SEN: 1 - 2V
If out of range, drive the vehicle to decrease the voltage
(warm up the fluid) or stop engine to increase the voltage
(cool down the fluid)
3. Start engine and wait for at least 5 consecutive seconds.
If the check result is NG, go to “Diagnostic Procedure”, CVT-137,
"Diagnostic Procedure" .
WITH GST
Follow the procedure “With CONSULT-II”.
Monitor item Condition Specification (Approximately)
SEC HYDR SEN N position idle 0.8V
SEC PRS During driving [40km/h (25 MPH)] 0.4MPa

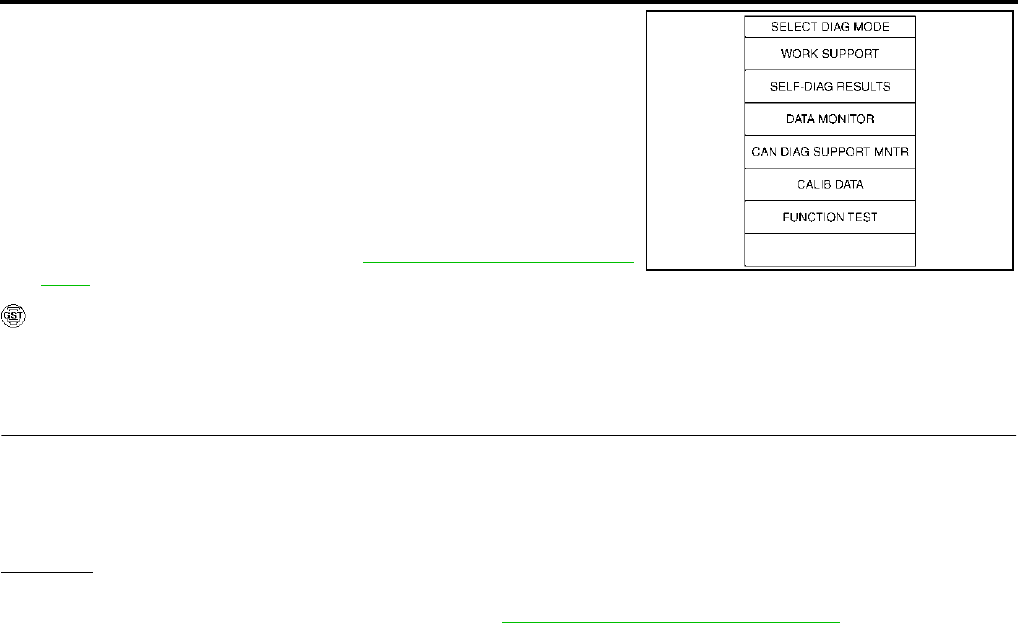

SCIA2272E
CVT-136
DTC P0840 TRANSMISSION FLUID PRESSURE SENSOR A CIRCUIT (SEC
PRESSURE SENSOR)
Revision; 2004 April 2003 Murano
Wiring Diagram - CVT - SECPS ACS002TL
TCWA0155E
DTC P0840 TRANSMISSION FLUID PRESSURE SENSOR A CIRCUIT (SEC
PRESSURE SENSOR)
CVT-137
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
Remarks: Specification data are reference values.
Diagnostic Procedure ACS002JQ
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
3. Start vehicle and read out the value of “SEC HYDR SEN”.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
2. CHECK SENSOR POWER AND SENSOR GROUND
1. Turn ignition switch “ON”. (Do not start engine)
2. Check voltage between TCM connector 46 and 42.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
Terminal
No. Wire color Item Condition Judgement standard
(Approx.)
37 V/W
Transmission fluid
pressure sensor A
(secondary pressure
sensor)
N position idle 0.8V
SCIA2279E
Item Connector No. Terminal No.
(Wire color) Data (Approx.)
TCM connector F104 46 (L/O) - 42 (W/R) 5V
SCIA2367E
CVT-138
DTC P0840 TRANSMISSION FLUID PRESSURE SENSOR A CIRCUIT (SEC
PRESSURE SENSOR)
Revision; 2004 April 2003 Murano

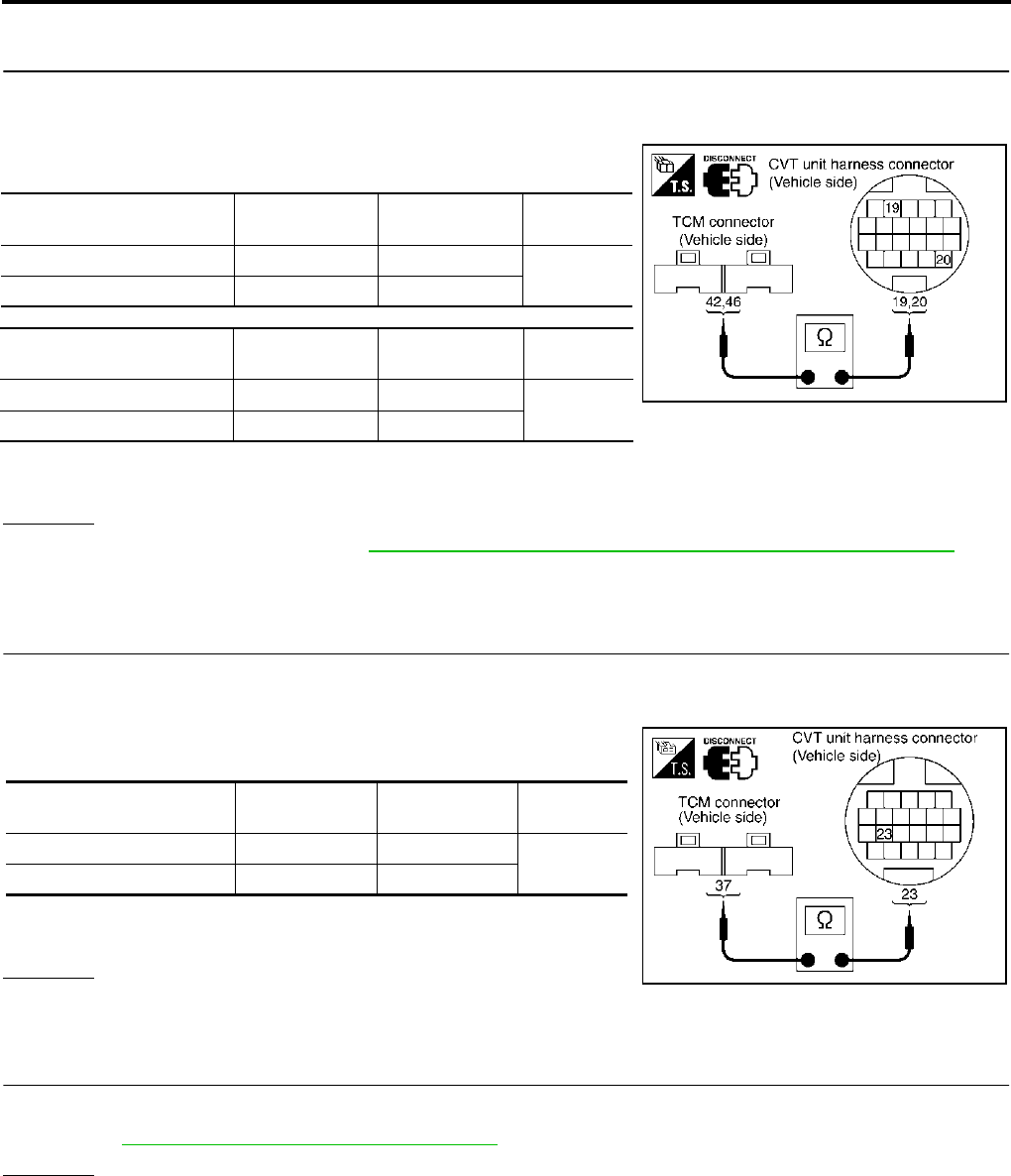

3. CHECK THE HARNESS BETWEEN TCM AND CVT UNIT HARNESS CONNECTOR (SENSOR POWER
AND SENSOR GROUND)
1. Turn ignition switch “OFF”.
2. Disconnect the TCM connector and CVT unit harness connector.
3. Check continuity between TCM connector and CVT unit harness
connector.
4. If OK, check harness for short to ground and short power.
5. Reinstall any part removed.
OK or NG
OK >> Replace the TCM. Refer to CVT-8, "Precautions for TCM and CVT Assembly Replacement" .
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK TRANSMISSION FLUID PRESSURE SENSOR A (SECONDARY PRESSURE SENSOR) CIR-
CUIT
1. Turn ignition switch “OFF”.
2. Disconnect TCM connector and CVT unit harness connector.
3. Check continuity between CVT unit harness connector and TCM
connector.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK DTC
Perform DTC Confirmation Procedure.
●Refer to CVT-135, "DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 5.
Item Connector No. Terminal No.
(Wire color) Continuity
TCM F104 42 (W/R) Yes
CVT unit harness connector F6 19 (W/R)
Item Connector No. Terminal No.
(Wire color) Continuity
TCM F104 46 (L/O) Yes
CVT unit harness connector F6 20 (L/O)
SCIA2340E
Item Connector No. Terminal No.
(Wire color) Continuity
TCM F104 37 (V/W) Yes
CVT unit harness connector F6 23 (V/W)
SCIA2368E
DTC P0840 TRANSMISSION FLUID PRESSURE SENSOR A CIRCUIT (SEC
PRESSURE SENSOR)
CVT-139
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
6. PERFORM TCM INSPECTION
1. Perform TCM input/output signal inspection.
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> Replace the transaxle assembly. Refer to CVT-197, "Removal and Installation" .
NG >> Repair or replace damaged parts.
CVT-140
DTC P0841 PRESSURE SENSOR FUNCTION
Revision; 2004 April 2003 Murano
DTC P0841 PRESSURE SENSOR FUNCTION PFP:31936
Description ACS002TM
Using the engine load (throttle position), the primary pulley revolution speed, and the secondary pulley revolu-
tion speed as input signal, change the operating pressure of the primary pulley and the secondary pulley and
change the groove width of the pulley to control the gear ratio.
CONSULT-II Reference Value ACS002TN
Remarks: Specification data are reference values.
On Board Diagnosis Logic ACS002JS
●This is not an OBD-II self-diagnostic item.
●Diagnostic trouble code “PRESS SEN/FNCTN” with CONSULT-II is detected when correlation between
the values of the secondary pressure sensor and the primary pressure sensor is out of specification.
Possible Cause ACS002JT
●Transmission pressure sensor A (secondary pressure sensor)
●Transmission pressure sensor B (primary pressure sensor)
●Harness or connectors
(The sensor circuit is open or shorted.)
DTC Confirmation Procedure ACS002TO
CAUTION:
●Always drive vehicle at a safe speed.
●Be careful not to rev engine into the red zone on the tachometer.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 5 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON” and select “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
2. Start engine and maintain the following conditions for at least 12
consecutive seconds.
VHCL SPEED: 40 km/h (25 MPH) More than
Selector lever: D position
Monitor item Condition Specification (Approximately)
PRI HYDR SEN N position idle 0.7V - 1.2V
During driving [40km/h (25 MPH)] 1.0V
SEC HYDR SEN N position idle 0.8V
During driving 0.7V
SCIA2272E
DTC P0841 PRESSURE SENSOR FUNCTION
CVT-141
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano

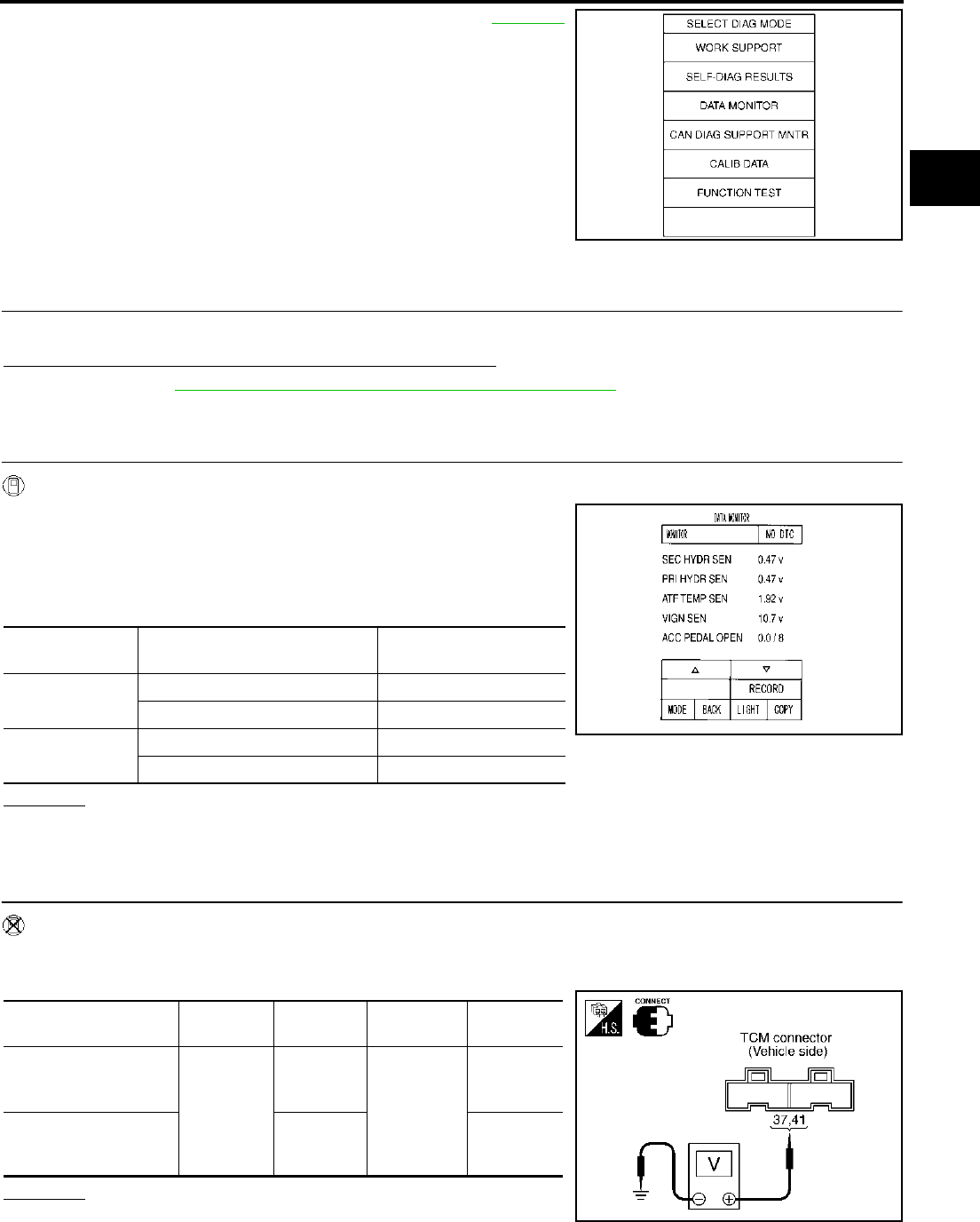

If the check result is NG, go to “Diagnostic Procedure”, CVT-141
.
Diagnostic Procedure ACS002TP
1. CHECK CAN COMMUNICATION CIRCUIT
Perform the self-diagnosis.
Is any malfunction of the “CAN COMM CIRCUIT” indicated?
YES >> Refer to CVT-76, "DTC U1000 CAN COMMUNICATION LINE" .
NO >> GO TO 2.
2. CHECK INPUT SIGNAL (WITH CONSULT-II)
With CONSULT-II
1. Start engine.
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
3. Start vehicle and read out the value of “SEC HYDR SEN” and
“PRI HYDR SEN”.
OK or NG
OK >> GO TO 7.
NG >> GO TO 4.
3. CHECK INPUT SIGNAL (WITHOUT CONSULT-II)
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM connector and ground.
OK or NG
OK >> GO TO 7.
NG >> GO TO 4.
SCIA5492E
Monitor item Condition Specification
(Approximately)
PRI HYDR SEN N position idle 0.7V - 1.2V
During driving [40km/h (25 MPH)] 1.0V
SEC HYDR SEN N position idle 0.8V
During driving 0.7V
SCIA2277E
Name Connector
No.
Terminal
No. Condition Voltage
(Approx.)
Transmission pressure
sensor B (primary pres-
sure sensor) F104
41 (V/O) -
ground “ N” position
idle
0.7 - 1.2V
Transmission pressure
sensor A (secondary
pressure sensor)
37 (V/W) -
ground 0.8V
SCIA1943E
CVT-142
DTC P0841 PRESSURE SENSOR FUNCTION
Revision; 2004 April 2003 Murano
4. CHECK LINE PRESSURE
Perform line pressure test. Refer to CVT-57, "LINE PRESSURE TEST" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts. Refer to CVT-58, "Judgement of Line Pressure Test" .
5. CHECK TRANSMISSION PRESSORE SENSOR A (SECONDARY PRESSURE SENSOR) SYSTEM
AND TRANSMISSION PRESSURE SENSOR B (PRIMARY PRESSURE SENSOR) SYSTEM
Check secondary pressure sensor system and primary pressure sensor system. Refer to CVT-135, "DTC
P0840 TRANSMISSION FLUID PRESSURE SENSOR A CIRCUIT (SEC PRESSURE SENSOR)" , CVT-143,
"DTC P0845 TRANSMISSION FLUID PRESSURE SENSOR B CIRCUIT (PRI PRESSURE SENSOR)" .
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6. DETECT MALFUNCTIONING ITEM
Check the following:
●Line pressure solenoid valve. Refer to CVT-124, "Component Inspection" .
●Secondary pressure solenoid valve. Refer to CVT-134, "Component Inspection" .
●Step motor. Refer to CVT-172, "Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
7. CHECK DTC
Perform DTC Confirmation Procedure.
●Refer to CVT-140, "DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> Replace the TCM or transaxle assembly. Refer to CVT-197, "Removal and Installation" .
DTC P0845 TRANSMISSION FLUID PRESSURE SENSOR B CIRCUIT (PRI
PRESSURE SENSOR)
CVT-143
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
DTC P0845 TRANSMISSION FLUID PRESSURE SENSOR B CIRCUIT (PRI PRES-
SURE SENSOR) PFP:31936
Description ACS002TQ
The primary pressure sensor detects primary pressure of CVT and sends TCM the signal.
NOTE:
CONSULT-II screen terms are shown differently depending on the version of CONSULT-II card.
CONSULT-II Reference Value ACS002TR
Remarks: Specification data are reference values.
On Board Diagnosis Logic ACS002TS
●This is an OBD-II self-diagnostic item.
●Diagnostic trouble code “PRI PRS SEN/CIRC” with CONSULT-II or P0845 without CONSULT-II is
detected under the following conditions.
–When TCM detects an improper voltage drop when it tries to operate the sensor.
–When TCM compares target value with monitor value and detects an irregularity.
Possible Cause ACS002TT
●Transmission fluid pressure sensor B (primary pressure sensor)
●Harness or connectors
(The sensor circuit is open or shorted.)
DTC Confirmation Procedure ACS002TU
CAUTION:
●Always drive vehicle at a safe speed.
●Be careful not to rev engine into the red zone on the tachometer.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 5 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON” and select “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
2. Make sure that output voltage of line temperature sensor is
within the range below.
ATF TEMP SEN: 1 - 2V
If out of range, drive the vehicle to decrease the voltage
(warm up the fluid) or stop engine to increase the voltage
(cool down the fluid).
3. Start engine and wait for at least 5 consecutive seconds.
If the check result is NG, go to “Diagnostic Procedure”, CVT-145
.
WITH GST
Follow the procedure “With CONSULT-II”.
Monitor item Condition Specification (Approximately)
PRI HYDR SEN N position idle 0.7 - 1.2V
During driving [40 km/h (25 MPH)] 1.0V
SCIA2272E
CVT-144
DTC P0845 TRANSMISSION FLUID PRESSURE SENSOR B CIRCUIT (PRI
PRESSURE SENSOR)
Revision; 2004 April 2003 Murano
Wiring Diagram - CVT - PRIPS ACS002TV
TCWA0157E
DTC P0845 TRANSMISSION FLUID PRESSURE SENSOR B CIRCUIT (PRI
PRESSURE SENSOR)
CVT-145
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano

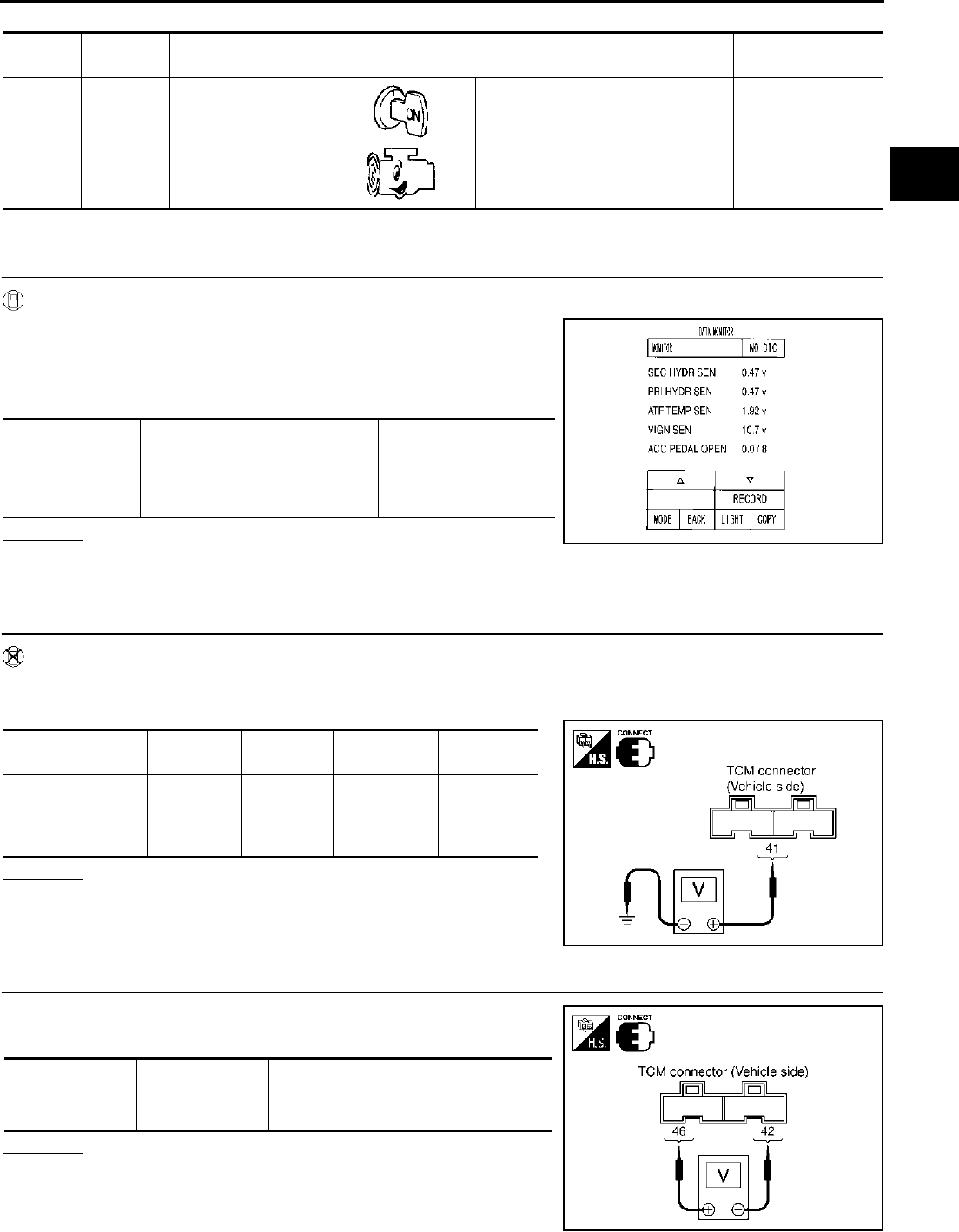

Remarks: Specification data are reference values.
Diagnostic Procedure ACS002TW
1. CHECK INPUT SIGNAL (WITH CONSULT-II)
With CONSULT-II
1. Start engine.
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
3. Start vehicle and read out the value of “PRI HYDR SEN”.
OK or NG
OK >> GO TO 6.
NG >> GO TO 3.
2. CHECK INPUT SIGNAL (WITHOUT CONSULT-II)
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM connector and ground.
OK or NG
OK >> GO TO 6.
NG >> GO TO 3.
3. CHECK SENSOR POWER AND SENSOR GROUND
1. Turn ignition switch “ON”. (Do not start engine)
2. Check voltage between TCM connector 46 and 42.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
Terminal
No. Wire color Item Condition Judgement standard
(Approx.)
41 V/O
Transmission fluid
pressure sensor B
(primary pressure
sensor)
N position idle 0.7 - 1.2V
Monitor item Condition Specification
(Approximately)
PRI HYDR SEN N position idle 0.7V - 1.2V
During driving [40 km/h (25 MPH)] 1.0V
SCIA2277E
Name Connector
No.
Termina l
No. Condition Voltage
(Approx.)
Transmission fluid
pressure sensor B
(primary pressure
sensor)
F104 41 (V/O) -
ground
“ N” position
idle 0.7 - 1.2V
SCIA4509E
Item Connector No. Terminal No.
(Wire color) Data (Approx.)
TCM connector F104 46 (L/O) - 42 (W/R) 5V
SCIA2367E
CVT-146
DTC P0845 TRANSMISSION FLUID PRESSURE SENSOR B CIRCUIT (PRI
PRESSURE SENSOR)
Revision; 2004 April 2003 Murano

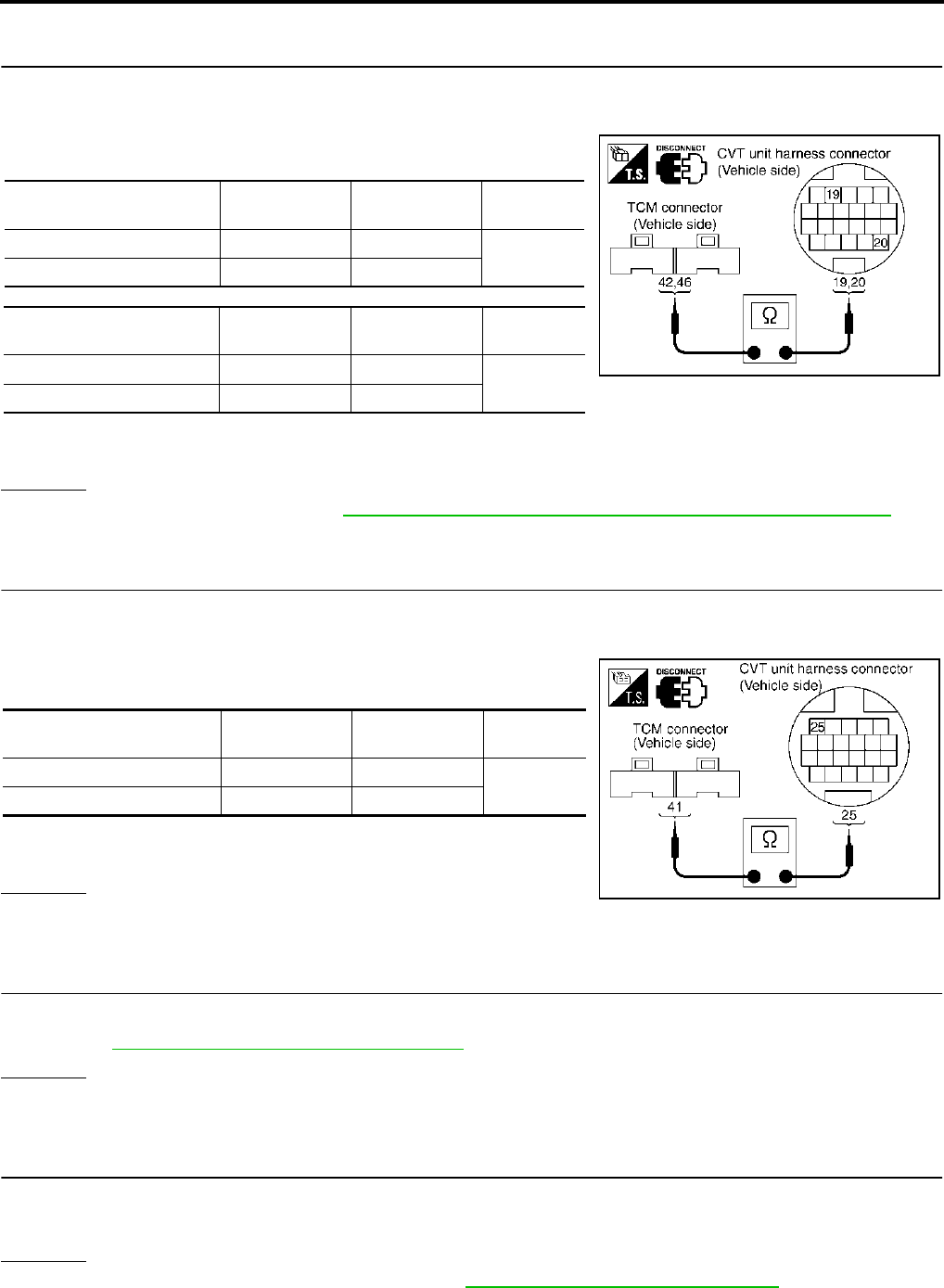

4. CHECK THE HARNESS BETWEEN TCM AND CVT UNIT HARNESS CONNECTOR (SENSOR POWER
AND SENSOR GROUND)
1. Turn ignition switch “OFF”.
2. Disconnect the TCM connector and CVT unit harness connector.
3. Check continuity between TCM connector and CVT unit harness
connector.
4. If OK, check harness for short to ground and short power.
5. Reinstall any part removed.
OK or NG
OK >> Replace the TCM. Refer to CVT-8, "Precautions for TCM and CVT Assembly Replacement" .
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK TRANSMISSION FLUID PRESSURE SENSOR B (PRIMARY PRESSURE SENSOR) CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect TCM connector.
3. Check continuity between CVT unit harness connector and TCM
connector.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
6. CHECK DTC
Perform DTC Confirmation Procedure.
●Refer to CVT-143, "DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 7.
7. PERFORM TCM INSPECTION
1. Perform TCM input/output signal inspection.
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> Replace the transaxle assembly. Refer to CVT-197, "Removal and Installation" .
NG >> Repair or replace damaged parts.
Item Connector No. Terminal No.
(Wire color) Continuity
TCM F104 42 (W/R) Yes
CVT unit harness connector F6 19 (W/R)
Item Connector No. Terminal No.
(Wire color) Continuity
TCM F104 46 (L/O) Yes
CVT unit harness connector F6 20 (L/O)
SCIA2340E
Item Connector No. Terminal No.
(Wire color) Continuity
TCM F104 41 (V/O) Yes
CVT unit harness connector F6 25 (V/O)
SCIA2037E
DTC P0868 SECONDARY PRESSURE DOWN
CVT-147
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
DTC P0868 SECONDARY PRESSURE DOWN PFP:31941
Description ACS002TX
The pressure control solenoid valve B (secondary pressure solenoid valve) regulates the secondary pressure
to suit the driving condition in response to a signal sent from the TCM.
The secondary pressure duty cycle value is not consistent when the closed throttle position signal is
“ON”. To confirm the secondary pressure duty cycle at low-pressure, the accelerator (throttle) should
be open until the closed throttle position signal is “OFF”.
CONSULT-II Reference Value ACS002TY
Remarks: Specification data are reference values.
On Board Diagnosis Logic ACS002TZ
●This is not an OBD-II self-diagnostic item.
●Diagnostic trouble code “SEC/PRESS DOWN” with CONSULT-II is detected when secondary fluid pres-
sure is too low compared with the commanded value while driving.
Possible Cause ACS002U0
●Harness or connectors
(The solenoid circuit is open or shorted.)
●Pressure control solenoid valve B (secondary pressure solenoid valve) system
●Transmission pressure sensor A (secondary pressure sensor)
●Line pressure control system
DTC Confirmation Procedure ACS002U1
CAUTION:
●Always drive vehicle at a safe speed.
●Be careful not to rev engine into the red zone on the tachometer.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 5 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON” and select “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
2. Make sure that output voltage of CVT fluid temperature sensor
is within the range below.
FLUID TEMP SEN: 1.0 - 2.0V
If out of range, drive the vehicle to decrease the voltage
(warm up the fluid) or stop engine to increase the voltage
(cool down the fluid)
3. Start engine and maintain the following conditions for at least 10
consecutive seconds.
VEHICLE SPEED (accelerate slowly): 0 → 50km/h (31 MPH)
ACC PEDAL OPEN: 0.5/8 - 1.0/8
Selector lever: D position
Monitor item Condition Specification (Approximately)
SEC PRESS N position idle 0.5MPa
SCIA2272E
CVT-148
DTC P0868 SECONDARY PRESSURE DOWN
Revision; 2004 April 2003 Murano
If the check result is NG, go to CVT-148, "Diagnostic Procedure"
.
Diagnostic Procedure ACS002U2
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
3. Start vehicle and read out the value of “SEC PRESS”.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
2. CHECK LINE PRESSURE
Perform line pressure test. Refer to CVT-57, "LINE PRESSURE TEST" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts. Refer to CVT-58, "Judgement of Line Pressure Test" .
3. DETECT MALFUNCTIONING ITEM
Check the following:
●Pressure control solenoid valve B (secondary pressure solenoid valve). Refer to CVT-134, "Component
Inspection" .
●Pressure control solenoid valve A (line pressure solenoid valve). Refer to CVT-124, "Component Inspec-
tion" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4. CHECK TRANSMISSION FLUID PRESSURE SENSOR A (SECONDARY PRESSURE SENSOR) SYS-
TEM
Check transmission fluid pressure sensor A (secondary pressure sensor) system. Refer to CVT-135, "DTC
P0840 TRANSMISSION FLUID PRESSURE SENSOR A CIRCUIT (SEC PRESSURE SENSOR)" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
SCIA5492E
SCIA2366E
DTC P0868 SECONDARY PRESSURE DOWN
CVT-149
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
5. DETECT MALFUNCTIONING ITEM
Check the following:
●Power supply and ground circuit for TCM.
●The TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6. CHECK DTC
Perform DTC Confirmation Procedure.
●Refer to CVT-147, "DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> Replace the transaxle assembly. Refer to CVT-197, "Removal and Installation" .
CVT-150
DTC P1701 TRANSMISSION CONTROL MODULE (POWER SUPPLY)
Revision; 2004 April 2003 Murano
DTC P1701 TRANSMISSION CONTROL MODULE (POWER SUPPLY) PFP:31036
Description ACS006C5
When the power supply to the TCM is cut “OFF”, for example because the battery is removed, and the self-
diagnostics memory function stops, malfunction is detected.
NOTE:
Since “TCM-POWER SUPPLY” will be indicated when replacing TCM, perform diagnosis after erasing
“SELF-DIAG RESULTS”
On Board Diagnosis Logic ACS006C6
●This is not an OBD-II self-diagnostic item.
●Diagnostic trouble code “TCM-POWER SUPPLY” with CONSULT-II is detected when TCM does not
receive the voltage signal from the battery power supply.
●This is not a malfunction message. (Whenever shutting “OFF” a power supply to the TCM, this message
appears on the screen.)
Possible Cause ACS006C7
Harness or connectors
(Battery or ignition switch and TCM circuit is open or shorted.)
DTC Confirmation Procedure ACS006C8
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch OFF and
wait at least 10 seconds before conducting the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Turn ignition switch ON and select “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
3. Wait for at least 2 consecutive seconds.
4. If DTC is detected, go to CVT-152, "Diagnostic Procedure" .
SCIA4825E
DTC P1701 TRANSMISSION CONTROL MODULE (POWER SUPPLY)
CVT-151
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
Wiring Diagram — CVT — POWER ACS006C9
TCWB0005E
CVT-152
DTC P1701 TRANSMISSION CONTROL MODULE (POWER SUPPLY)
Revision; 2004 April 2003 Murano
TCM terminals and data are reference values, measured between each terminal and ground.
Diagnostic Procedure ACS006CA
1. CHECK DTC
1. Turn ignition switch ON. (Do not start engine.)
2. Select “SELF-DIAG RESULTS” mode for “TRANSMISSION”
with CONSULT-II.
3. Erase self-diagnostic results. Refer to CVT-47, "HOW TO
ERASE DTC (WITH CONSULT-II)" .
4. Turn ignition switch OFF, and wait for 5 seconds or more.
5. Start engine.
6. Confirm self-diagnostic results again. Refer to CVT-66, "CON-
SULT-II" .
Is the “TCM-POWER SUPPLY” displayed?
YES >> GO TO 2.
NO >> INSPECTION END
2. CHECK TCM POWER SOURCE, STEP 1
1. Turn ignition switch OFF.
2. Check voltage between TCM connector terminal and ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 4.
Terminal Wire color Item Condition Data (Approx.)
10 Y/L Power supply
– Battery voltage
–0V
19 Y/L Power supply
– Battery voltage
–0V
25 B Ground – –
28 Y/R Power supply
(memory back-up) Always Battery voltage
48 B Ground – –
SCIA5492E
Name Connector Terminal
(Wire color) Condition Voltage
(Approx.)
Power supply
(memory back-
up)
F104 28 (Y/R) -
Ground Always Battery
voltage
SCIA4783E
DTC P1701 TRANSMISSION CONTROL MODULE (POWER SUPPLY)
CVT-153
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
3. CHECK TCM POWER SOURCE, STEP 2
1. Turn ignition switch ON. (Do not start engine.)
2. Check voltage between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING ITEM
Check the following items:
●Harness for short or open between battery and TCM connector terminal 28
●Harness for short or open between ignition switch and TCM connector terminal 10, 19
●10A fuse (No19, located in the fuse block)
●10A fuse (No71, located in the IPDM E/R)
●Ignition switch. Refer to PG-3, "POWER SUPPLY ROUTING CIRCUIT" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. CHECK TCM GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect TCM connector.
3. Check continuity between TCM connector terminal and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
Name Connector Terminal
(Wire color) Condition Voltage
(Approx.)
Power supply
F103
10 (Y/L) -
Ground
Battery
voltage
0V
Power supply 19 (Y/L) -
Ground
Battery
voltage
0V
Power supply
(memory
back-up)
F104 28 (Y/R) -
Ground Always Battery
voltage
SCIA4784E
Name Connector Terminal
(Wire color) Continuity
Ground F104 25 (B) Yes
48 (B)
SCIA2671E
CVT-154
DTC P1701 TRANSMISSION CONTROL MODULE (POWER SUPPLY)
Revision; 2004 April 2003 Murano
6. CHECK DTC
Check again. Refer to CVT-150, "DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 7.
7. CHECK TCM
1. Check TCM input/output signal. Refer to CVT-63, "TCM Input/Output Signal Reference Values" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
DTC P1705 THROTTLE POSITION SENSOR
CVT-155
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
DTC P1705 THROTTLE POSITION SENSOR PFP:22620
Description ACS001VE
Electric throttle control actuator consists of throttle control motor, accelerator pedal position sensor, throttle
position sensor etc. The actuator sends a signal to the ECM, and ECM sends signals to TCM with CAN com-
munication.
On Board Diagnosis Logic ACS001VF
●This is not an OBD-II self-diagnostic item.
●Diagnostic trouble code “TP SEN/CIRC A/T” with CONSULT-II is detected when TCM does not receive
the proper accelerator pedal position signals (input by CAN communication) from ECM.
Possible Cause ACS001VG
●ECM
●Harness or connectors
(CAN communication line is open or shorted.)
DTC Confirmation Procedure ACS001VH
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “DATA MONITOR” mode for “TRANSMISSION” with
CONSULT-II.
3. In fully depressed and fully released conditions, wait for 5 sec-
onds.
4. If DTC is detected, go to CVT-155, "Diagnostic Procedure" .
Diagnostic Procedure ACS001VI
1. CHECK CAN COMMUNICATION LINE
Perform the self-diagnosis.
Is any malfunction of the “CAN COMM CIRCUIT” indicated?
YES >> Check the CAN communication line. Refer to CVT-76, "DTC U1000 CAN COMMUNICATION
LINE" .
NO >> GO TO 2.
SCIA2272E
CVT-156
DTC P1705 THROTTLE POSITION SENSOR
Revision; 2004 April 2003 Murano
2. CHECK INPUT SIGNAL
With CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
3. Read out the value of “ACC PEDAL OPEN”.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. CHECK DTC WITH ECM
With CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “SELF-DIAG RESULTS” mode for “ENGINE” with CON-
SULT-II. Refer to EC-125, "CONSULT-II Function" .
OK or NG
OK >> GO TO 4.
NG >> Check the DTC Detected Item. Go to EC-125, "CON-
SULT-II Function" .
4. CHECK DTC
Check again.
●Refer to CVT-155, "DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
Monitor item Condition Specification
(Approximately)
ACC PEDAL OPEN
Release your foot from
the accelerator pedal.
↓
Press the accelerator
pedal all the way down.
0.0/8
↓
8/8 SCIA2277E
SCIA2272E
DTC P1722 ESTM VEHICLE SPEED SIGNAL
CVT-157
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
DTC P1722 ESTM VEHICLE SPEED SIGNAL PFP:47660
Description ACS002K6
The vehicle speed signal is transmitted from ABS actuator and electric unit (control unit) to TCM by CAN com-
munication line.
On Board Diagnosis Logic ACS002K7
●This is not an OBD-II self-diagnostic item.
●Diagnostic trouble code “ESTM VEH SPD SIG” with CONSULT-II is detected when TCM does not receive
the proper vehicle speed signal (input by CAN communication) from ABS actuator and electric unit (con-
trol unit).
Possible Cause ACS002K8
●Harness or connectors
(The sensor circuit is open or shorted.)
●ABS actuator and electric unit (control unit)
DTC Confirmation Procedure ACS002K9
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “DATA MONITOR” mode for “TRANSMISSION” with
CONSULT-II.
3. Start engine and maintain the following conditions for at least 5
consecutive seconds.
ACCELE POS: 1/8 or less
VHCL SPEED SE: 30 km/h (17 MPH) or more
4. If DTC is detected, go to CVT-157, "Diagnostic Procedure" .
Diagnostic Procedure ACS002KA
1. CHECK CAN COMMUNICATION LINE
Perform the self-diagnosis. Is a malfunction in the CAN communication indicated in the results?
Is any malfunction of the “CAN COMM CIRCUIT” indicated?
YES >> Check CAN communication line. Refer to CVT-76, "DTC U1000 CAN COMMUNICATION LINE" .
NO >> GO TO 2.
2. CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)
Perform ABS actuator and electric unit (control unit) self-diagnosis. Refer to BRC-40, "Control Unit Input/Out-
put Signal Standard" , BRC-109, "Control Unit Input/Output Signal Standard" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
SCIA2272E
CVT-158
DTC P1722 ESTM VEHICLE SPEED SIGNAL
Revision; 2004 April 2003 Murano
3. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode
for “TRANSMISSION” with CONSULT-II.
3. Drive vehicle and read out the value of “VEHICLE SPEED” and
“ESTM VSP SIG”.
4. Check if there is a great difference between the two values.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. CHECK TCM
Perform TCM input/output signal inspection. Refer to CVT-63, "TCM Input/Output Signal Reference Values" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. CHECK DTC
Perform DTC Confirmation Procedure.
●Refer to CVT-157, "DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 2.
SCIA2279E
DTC P1723 CVT SPEED SENSOR FUNCTION
CVT-159
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
DTC P1723 CVT SPEED SENSOR FUNCTION PFP:31907
Description ACS002KB
The vehicle speed sensor CVT [output speed sensor (secondary speed sensor)] detects the revolution of the
idler gear parking pawl lock gear and emits a pulse signal. The pulse signal is sent to the TCM, which converts
it into vehicle speed.
The input speed sensor (primary speed sensor) detects the primary pulley revolution speed and sends a sig-
nal to the TCM.
On Board Diagnosis Logic ACS002U3
●This is not an OBD-II self-diagnostic item.
●Diagnostic trouble code “CVT SPD SEN/FNCTN” with CONSULT-II is detected when there is a great dif-
ference between the vehicle speed signal and the secondary speed sensor signal.
CAUTION:
One of the “secondary rotation”, the “primary rotation or the “engine speed“ is displayed at the same
time.
Possible Cause ACS002KD
●Harness or connectors
(The sensor circuit is open or shorted.)
●Output speed sensor (secondary speed sensor)
●Input speed sensor (primary speed sensor)
●Engine speed signal system
DTC Confirmation Procedure ACS002U4
CAUTION:
●Always drive vehicle at a safe speed.
●Be careful not to rev engine into the red zone on the tachometer.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 5 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON” and select “DATA MONITOR” mode for
“ENGINE” with CONSULT-II.
2. Start engine and maintain the following conditions for at least 5
consecutive seconds.
VHCL SPEED SE: 10 km/h (6 MPH) or more
THRTL POS SEN: More than 1.2V
Selector lever: D position
ENG SPEED: 450 rpm or more
Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test. SCIA2272E
CVT-160
DTC P1723 CVT SPEED SENSOR FUNCTION
Revision; 2004 April 2003 Murano
If the check result is NG, go to CVT-160, "Diagnostic Procedure"
.
Diagnostic Procedure ACS002KF
1. CHECK STEP MOTOR FUNCTION
Perform the self-diagnosis. Refer to CVT-70, "SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II)" .
Is a malfunction in the step motor function indicated in the results?
YES >> Repair or replace damaged parts. (Check the step motor function. Refer to CVT-173, "DTC P1778
STEP MOTOR - FUNCTION" .)
NO >> GO TO 2.
2. CHECK OUTPUT SPEED SENSOR (SECONDARY SPEED SENSOR SYSTEM) AND INPUT SPEED
SENSOR (PRIMARY SPEED SENSOR) SYSTEM
Check secondary speed sensor system and primary speed sensor system. Refer to CVT-101, "DTC P0720
VEHICLE SPEED SENSOR CVT (SECONDARY SPEED SENSOR)" , CVT-95, "DTC P0715 INPUT SPEED
SENSOR CIRCUIT (PRI SPEED SENSOR)" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. CHECK ENGINE SPEED SIGNAL SYSTEM
Check engine speed signal system. Refer to CVT-108, "DTC P0725 ENGINE SPEED SIGNAL" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts. Refer to EC-596, "IGNITION SIGNAL" .
4. DETECT MALFUNCTIONING ITEM
Check the following:
●Power supply and ground circuit for TCM.
●The TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. CHECK DTC
Perform DTC Confirmation Procedure.
●Refer to CVT-159, "DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> Replace the TCM or transaxle assembly. Refer to CVT-8, "Precautions for TCM and CVT Assem-
bly Replacement" , CVT-197, "Removal and Installation" .
SCIA5492E
DTC P1726 ELECTRIC THROTTLE CONTROL SYSTEM
CVT-161
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
DTC P1726 ELECTRIC THROTTLE CONTROL SYSTEM PFP:23710
Description ACS002KG
Electric throttle control actuator consists of throttle control motor, accelerator pedal position sensor, throttle
position sensor etc. The actuator sends a signal to the ECM, and ECM sends signals to TCM with CAN com-
munication.
On Board Diagnosis Logic ACS002U5
●This is not an OBD-II self-diagnostic item.
●Diagnostic trouble code “ELEC TH CONTROL·” with CONSULT-II is detected when the electronically con-
trolled throttle for ECM is malfunctioning.
Possible Cause ACS002KI
Harness or connectors
(The sensor circuit is open or shorted.)
DTC Confirmation Procedure ACS002KJ
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “DATA MONITOR” mode for “TRANSMISSION” with
CONSULT-II.
3. Start engine and let it idle for 5 second.
4. If DTC is detected, go to CVT-161, "Diagnostic Procedure" .
Diagnostic Procedure ACS002KK
1. CHECK DTC WITH ECM
With CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “SELF-DIAG RESULTS” mode for “ENGINE” with CON-
SULT-II. Refer to EC-125, "CONSULT-II Function" .
OK or NG
OK >> GO TO 2.
NG >> Check the DTC Detected Item. Refer to EC-125, "CON-
SULT-II Function" .
●If CAN communication line is detected, go to CVT-76,
"DTC U1000 CAN COMMUNICATION LINE" .
SCIA2272E
SCIA2272E
CVT-162
DTC P1726 ELECTRIC THROTTLE CONTROL SYSTEM
Revision; 2004 April 2003 Murano
2. CHECK DTC
Perform DTC Confirmation Procedure.
●Refer to CVT-161, "DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 3.
3. DETECT MALFUNCTIONING ITEM
Check the following:
●The TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> Replace the TCM. Refer to CVT-8, "Precautions for TCM and CVT Assembly Replacement" .
NG >> Repair or replace damaged parts.
DTC P1740 LOCK-UP SELECT SOLENOID VALVE CIRCUIT
CVT-163
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
DTC P1740 LOCK-UP SELECT SOLENOID VALVE CIRCUIT PFP:31941
Description ACS002U6
●Lock-up select solenoid valve switches, which controls lock-up clutch pressure or forward clutch pressure
(reverse brake pressure).
●When controlling lock-up clutch, turns OFF. When controlling forward clutch, turns ON.
CONSULT-II Reference Value ACS002KM
On Board Diagnosis Logic ACS002KN
●This is an OBD-II self-diagnostic item.
●Diagnostic trouble code “LU-SLCT SOL/CIRC” with CONSULT-II or P1740 without CONSULT-II is
detected under the following conditions.
–When TCM compares target value with monitor value and detects an irregularity.
Possible Cause ACS002KO
●Lock-up select solenoid valve
●Harness or connectors
(The solenoid circuit is open or shorted.)
DTC Confirmation Procedure ACS002U7
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “DATA MONITOR” mode for “TRANSMISSION” with
CONSULT-II.
3. Start engine and maintain the following conditions for at least 5
consecutive seconds.
SELECTOR LEVER: “D” position and “N” position
(At each time, wait for 5 seconds.)
4. If DTC is detected, go to CVT-165, "Diagnostic Procedure" .
WITH GST
Follow the procedure “With CONSULT-II”.
Item name Condition Display value
LUSEL SOL OUT
N position ON
Wait at least for 5 seconds with the selector
lever in D position OFF
SCIA2272E
CVT-164
DTC P1740 LOCK-UP SELECT SOLENOID VALVE CIRCUIT
Revision; 2004 April 2003 Murano
Wiring Diagram - CVT - L/USSV ACS002U8
TCWA0154E
DTC P1740 LOCK-UP SELECT SOLENOID VALVE CIRCUIT
CVT-165
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
Remarks: Specification data are reference values.
Diagnostic Procedure ACS002U9
1. CHECK VALVE RESISTANCE
1. Turn ignition switch “OFF”.
2. Disconnect CVT unit harness connector.
3. Check resistance between terminal and ground.
OK or NG
OK >> GO TO 2.
NG >> Replace the transaxle assembly. Refer to CVT-197,
"Removal and Installation" .
2. CHECK POWER SOURCE CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect TCM connector.
3. Check continuity between CVT unit harness connector and TCM
connector.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK DTC
Check again.
●Refer to CVT-163, "DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 4.
4. PERFORM TCM INSPECTION
1. Perform TCM input/output signal inspection.
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> 1. Repair or replace damaged parts.
2. Replace the TCM. Refer to CVT-8, "Precautions for TCM and CVT Assembly Replacement" .
Terminal
No. Wire color Item Condition Judgement standard
(Approx.)
4L/Y
Lock-up select
solenoid valve
N position Battery voltage
Wait at least for 5 seconds with the selector lever in D position. 0V
Solenoid Valve Connector
No. Terminal No. Resistance
(Approx.)
Lock-up select
solenoid valve F6 13 - Ground 6.0 - 19.0 Ω
SCIA2038E
Item Connector No. Terminal No.
(Wire color) Continuity
TCM F103 4 (L/Y) Yes
CVT unit harness connector F6 13 (L/Y)
SCIA2039E
CVT-166
DTC P1740 LOCK-UP SELECT SOLENOID VALVE CIRCUIT
Revision; 2004 April 2003 Murano
Component Inspection ACS002UA
LOCK-UP SELECT SOLENOID VALVE
1. Turn ignition switch “OFF”.
2. Disconnect CVT unit harness connector.
3. Check resistance between terminal and ground.
4. If NG, replace transaxle assembly. Refer to CVT-197, "Removal
and Installation" .
Solenoid Valve Connector No. Terminal No. Resistance
(Approx.)
Lock-up select
solenoid valve F6 13 - Ground 6.0 - 19.0 Ω
SCIA2038E
DTC P1745 LINE PRESSURE CONTROL
CVT-167
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
DTC P1745 LINE PRESSURE CONTROL PFP:31036
Description ACS002KR
The pressure control solenoid valve A (line pressure solenoid valve) regulates the oil pump discharge pres-
sure to suit the driving condition in response to a signal sent from the TCM.
On Board Diagnosis Logic ACS002UB
●This is not an OBD-II self-diagnostic item.
●Diagnostic trouble code “L/PRESS CONTROL” with CONSULT-II is detected when TCM detects the unex-
pected line pressure.
Possible Cause ACS002KT
●TCM
DTC Confirmation Procedure ACS002UC
CAUTION:
●Always drive vehicle at a safe speed.
●Be careful not to rev engine into the red zone on the tachometer.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 5 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON” and select “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
2. Make sure that output voltage of CVT fluid temperature sensor
is within the range below.
FLUID TEMP SEN: 1.0 - 2.0V
If out of range, drive the vehicle to decrease the voltage
(warm up the fluid) or stop engine to increase the voltage
(cool down the fluid)
If the check result is NG, go to “Diagnostic Procedure”, CVT-167
.
Diagnostic Procedure ACS002UD
1. CHECK DTC
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select SELF-DIAG RESULTS item at SELECT DIAG MODE.
3. Erase self-diagnostic results. Refer to CVT-47, "HOW TO
ERASE DTC (WITH CONSULT-II)" .
4. Turn ignition switch OFF, and wait for 5 seconds or more.
5. Start engine.
6. Confirm self-diagnostic results again. Refer to CVT-71, "Self-
Diagnostic Result Test Mode" .
Is the line pressure control displayed?
YES >> Replace the TCM. Refer to CVT-8, "Precautions for
TCM and CVT Assembly Replacement" .
NO >> INSPECTION END
SCIA2272E
SCIA5492E
CVT-168
DTC P1777 STEP MOTOR - CIRCUIT
Revision; 2004 April 2003 Murano
DTC P1777 STEP MOTOR - CIRCUIT PFP:31020
Description ACS00216
●The step motor changes the step with turning 4 coils ON/OFF according to the signal from TCM.
As a result, the flow of line pressure to primary pulley is changed and pulley ratio is controlled.
CONSULT-II Reference Value ACS0032M
Remarks: Specification data are reference values.
On Board Diagnosis Logic ACS0032N
●This is an OBD-II self-diagnostic item.
●Diagnostic trouble code “STEP MOTOR/CIRC” with CONSULT-II or P1777 without CONSULT-II is
detected under the following conditions.
–When in operating step motor ON and OFF, there is no proper change in the voltage of the terminal TCM
which corresponds to it.
Possible Cause ACS0032O
●Step motor
●Harness or connectors
(The step motor circuit is open or shorted.)
DTC Confirmation Procedure ACS0032P
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 5 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON” and select “DATA MONITOR” mode for
“TRANMISSION” with CONSULT-II.
Monitor item Condition Specification
STM STEP
The vehicle runs a safe condition and
press/depress accelerator pedal.
-20 step - 190 step
SMCOIL A Changes ON⇔OFF.
SMCOIL B Changes ON⇔OFF.
SMCOIL C Changes ON⇔OFF.
SMCOIL D Changes ON⇔OFF.
SCIA2272E
CVT-170
DTC P1777 STEP MOTOR - CIRCUIT
Revision; 2004 April 2003 Murano
Wiring Diagram — CVT — STM ACS00217
TCWA0158E
DTC P1777 STEP MOTOR - CIRCUIT
CVT-171
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
Remarks: Specification data are reference values.
Diagnostic Procedure ACS00218
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-II.
3. Vehicle start and read out the value of “STM STEP”, “SMCOIL A”, “SMCOIL B”, “SMCIOL C”, and
“SMCOIL D”.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
2. CHECK STEP MOTOR CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect CVT unit connector and TCM connector.
3. Check continuity between CVT unit harness connector and TCM
connector.
4. If OK, check harness for short to ground and short to power.
5. If OK, check continuity between body ground and CVT assembly.
6. Reinstall any part removed.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK STEP MOTOR
Check step motor Refer to CVT-172, "Component Inspection" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
Terminal
No. Wire color Item Condition Judgement standard
(Approx.)
11 G/R
Step motor
Within 2 seconds after key switch “ON”, check the time measure-
ment by using the pulse width measurement function (Hi level) of
CONSULT-II.
●CONSULT-II cable connect to data link connector.
●This inspection cannot be measured by circuit tester.
30.0 msec
12 O/B 10.0 msec
20 R 30.0 msec
21 R/G 10.0 msec
Item Connector No. Terminal No.
(Wire color) Continuity
TCM F103 11 (G/R) Yes
CVT unit harness connector F6 6 (G/R)
TCM F103 12 (O/B) Yes
CVT unit harness connector F6 7 (O/B)
TCM F103 20 (R) Yes
CVT unit harness connector F6 8 (R)
TCM F103 21 (R/G) Yes
CVT unit harness connector F6 9 (R/G)
SCIA3704E
CVT-172
DTC P1777 STEP MOTOR - CIRCUIT
Revision; 2004 April 2003 Murano
4. CHECK DTC
Check again.
●Refer to CVT-168, "DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 5.
5. CHECK TCM INSPECTION
1. Perform TCM input/output signal inspection.
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
Component Inspection ACS00219
STEP MOTOR
1. Turn ignition switch “OFF”.
2. Disconnect CVT unit harness connector.
3. Check resistance between terminals.
4. If NG, replace transaxle assembly. Refer to CVT-197, "Removal and Installation" .
Control valve Connector No. Terminal No. Resistance
(Approx.)
Step motor F6
6 - 7 30Ω
8 - 9
6 - Ground
15Ω
7 - Ground
8 - Ground
9 - Ground SCIA2040E
DTC P1778 STEP MOTOR - FUNCTION
CVT-173
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
DTC P1778 STEP MOTOR - FUNCTION PFP:31947
Description ACS0021D
●The step motor's 4 aspects of ON/OFF change according to the signal from TCM.
As a result, the flow of line pressure to primary pulley is changed and pulley ratio is controlled.
●This diagnosis item detects when electrical system is OK, but mechanical system is NG.
●This diagnosis item detects when the state of the changing the speed mechanism in unit does not operate
normally.
CONSULT-II Reference Value ACS0032Q
Remarks: Specification data are reference values.
On Board Diagnosis Logic ACS0032R
●This is an OBD-II self-diagnostic item.
●Diagnostic trouble code “STEP MOTOR/FNCTN” with CONSULT-II or P1778 without CONSULT-II is
detected under the following conditions.
–When not changing the pulley ratio according to the instruction of TCM.
Possible Cause ACS0032S
●Step motor
DTC Confirmation Procedure ACS0032T
CAUTION:
●Always drive vehicle at a safe speed.
●Be careful not to rev engine into the red zone on the tachometer.
●Before starting “DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE”, confirm
“Hi” or “Mid” or “Low” fixation by “PRI SPEED” and “VEHICLE SPEED” on “DATA MONITOR
MODE”.
●If hi-geared fixation, go to diagnostic procedure soon.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 5 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON” and select “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
2. Make sure that output voltage of CVT fluid temperature sensor
is within the range below.
FLUID TEMP SEN: 1.0 - 2.0V
If out of range, drive the vehicle to decrease the voltage
(warm up the fluid) or stop engine to increase the voltage
(cool down the fluid)
Monitor item Condition Specification (Approximately)
STM STEP The vehicle runs a safe condi-
tion and press/depress acceler-
ator pedal.
-20 step - 190 step
GEAR RATIO 2.37 - 0.43
SCIA2272E
CVT-174
DTC P1778 STEP MOTOR - FUNCTION
Revision; 2004 April 2003 Murano
3. Select “DATA MONITOR” mode for “TRANSMISSION” with
CONSULT-II.
4. Start engine and maintain the following conditions for at least 30
consecutive seconds.
TEST START FROM 0 km/h (0 MPH)
CONSTANT ACCELERATION: Keep 30 sec or more
VEHICLE SPEED: 10 km/h (6 MPH) or more
ACC PEDAL OPEN: More than 1/8
Selector lever: D position
ENG SPEED: 450 rpm or more
If the check result is NG, GO TO CVT-174, "Diagnostic Proce-
dure" .
WITH GST
Follow the procedure “With CONSULT-II”.
Diagnostic Procedure ACS0032U
1. CHECK STEP MOTOR
●It is monitoring whether “CVT ratio: 2.37 - 0.43” changes similarly to “STM STEP: -20 - 190” by DATA
MONITOR mode.
●If no CONSULT-II, inspect the engine speed (rise and descend), vehicle speed, throttle opening angle,
and check shift change.
OK or NG
OK >> INSPECTION END
NG >> Replace the transaxle assembly. Refer to CVT-197, "Removal and Installation" .
SCIA5492E
SECOND POSITION SWITCH
CVT-175
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
SECOND POSITION SWITCH PFP:34910
Description ACS0032V
Second position switch is built into CVT control device.
When selector lever is in “S” or “L” positions, second position switch turns ON and sends a signal to unified
meter and A/C amp.
Then signal is transferred to TCM with CAN communications to improve engine brake performance.
CONSULT-II Reference Value ACS00332
Remarks: Specification data are reference values.
Possible Cause ACS0032Y
●Harness or connectors
(These switch circuits are open or shorted.)
●Second position switch (Into control device)
Monitor item Condition Specification
SECOND POS SW Selector lever in “S” position ON
Other than the above (except “L” position) OFF
CVT-176
SECOND POSITION SWITCH
Revision; 2004 April 2003 Murano
Wiring Diagram — CVT — SPSW ACS00333
TCWA0162E
SECOND POSITION SWITCH
CVT-177
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
Diagnostic Procedure ACS00330
1. CHECK CAN COMMUNICATION LINE
Perform the self-diagnosis.
Is any malfunction of the “CAN COMM CIRCUIT” indicated?
YES >> Check CAN communication line. Refer to CVT-76, "DTC U1000 CAN COMMUNICATION LINE" .
NO >> GO TO 2.
2. CHECK SECOND POSITION SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“TRANSMISSION” with CONSULT-II.
3. Read out ON/OFF switching action of the “SECOND POS SW”.
OK or NG
OK >> INSPECTION END
NG >> GO TO 3.
3. CHECK SECOND POSITION SWITCH
Check continuity between CVT device (Second position switch) connector M57 terminals 1 (G) and 2 (B).
●Refer to CVT-177, "Component Inspection" .
OK or NG
OK >> ●Check the following item. If NG, repair or replace damaged parts.
–Unified meter and A/C amp. Refer to DI-57, "CONSULT-II Function" .
–Combination meter. Refer to DI-14, "Meter/Gauge Operation and Odo/Trip Meter" .
NG >> Repair or replace damaged parts.
Component Inspection ACS00331
SECOND POSITION SWITCH
Check continuity between terminals.
SCIA2283E
Item Condition Connector
No.
Terminal No.
(Unit side) Continuity
Second
position
switch
Selector lever in “S”
position
M57 1 - 2
Yes
Other than the
above except “L”
position
No
SCIA2041E
CVT-178
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision; 2004 April 2003 Murano
TROUBLE DIAGNOSIS FOR SYMPTOMS PFP:00007
Wiring Diagram — CVT — NONDTC ACS001Z0
TCWA0163E
TROUBLE DIAGNOSIS FOR SYMPTOMS
CVT-179
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
TCWA0164E
CVT-180
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision; 2004 April 2003 Murano
TCWA0159E
TROUBLE DIAGNOSIS FOR SYMPTOMS
CVT-181
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
TCM terminals and data are reference values. Measured between each terminal and ground.
Terminal
No.
Wire
color Item Condition Data (Approx.)
5 L CAN H – – –
6 Y CAN L – – –
8R
BACK-UP LAMP
relay IGN ON Selector lever in “R” position. 0V
Selector lever in other position. Battery voltage
13 G/W ROM assembly ——
——
14 L/R ROM assembly ——
——
15 BR/R ROM assembly ——
——
42 W/R Sensor ground — 0V
46 L/O Sensor power — 4.5-5.5V
CVT-182
SHIFT CONTROL SYSTEM
Revision; 2004 April 2003 Murano
SHIFT CONTROL SYSTEM PFP:34901
Control Device Removal and Installation ACS001ZN
1. Select lever knob 2. A/T console finisher 3. Control device assembly
4. Lock plate 5. Knob cover 6. Lock pin
7. Control cable 8. Bracket 9. Bracket
10. Lock plate
SCIA4594E
SHIFT CONTROL SYSTEM
CVT-183
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
REMOVAL
1. Remove knob cover below select lever downward.
2. Pull lock pin out of select lever knob.
3. Remove select lever knob.
4. Remove A/T console finisher.
●Refer to IP-18, "Removal and Installation" .
5. Remove console box assembly.
●Refer to IP-18, "Removal and Installation" .
6. Disconnect control cable of control device.
7. Disconnect control device harness connector.
8. Remove control device assembly.
INSTALLATION
Note the following, and install in the reverse order of removal.
●After installation is completed, adjust and check CVT position.
Adjustment of CVT Position ACS001ZO
1. Place PNP switch and selector lever in “P” position.
2. Loosen nut of manual lever.
3. While pressing manual lever toward front of vehicle (in P posi-
tion direction), tighten nut to specified torque.
Checking of CVT Position ACS001ZP
1. Place selector lever in “P” position, and turn ignition switch ON (engine stop).
2. Make sure selector lever can be shifted to other than “P” position when brake pedal is depressed. Also
make sure selector lever can be shifted from “P” position only when brake pedal is depressed.
3. Move the selector lever and check for excessive effort, sticking, noise or rattle.
4. Confirm the selector lever stops at each position with the feel of engagement when it is moved through all
the positions. Check whether or not the actual position the selector lever is in matches the position shown
by the shift position indicator and the transaxle body.
5. The method of operating the lever to individual positions cor-
rectly should be as shown in the figure.
6. Confirm the back-up lamps illuminate only when lever is placed
in the “R” position. Confirm the back-up lamps do not illuminate
when selector lever is in the “P” or “N” position with the lever
pushed against the “R” position.
7. Confirm the engine can only be started with the selector lever in
the “P” and “N” positions.
8. Make sure transaxle is locked completely in “P” position.
SCIA2002E
:11 - 14 N·m (1.2 - 1.4 kg-m, 9 - 10 ft-lb)
SCIA2001E
SCIA4299E
CVT-184
CVT SHIFT LOCK SYSTEM
Revision; 2004 April 2003 Murano
CVT SHIFT LOCK SYSTEM PFP:00000
Description ACS00334
●The electrical key interlock mechanism also operates as a shift lock:
With the ignition switch turned to ON, the selector lever cannot be shifted from “P” (parking) to any other
position unless the brake pedal is depressed.
With the key removed, the selector lever cannot be shifted from “P” to any other position.
The key cannot be removed unless the selector lever is placed in “P”.
●The shift lock and key interlock mechanisms are controlled by the ON-OFF operation of the shift lock sole-
noid and by the operation of the rotator and slider located inside the key cylinder, respectively.
Shift Lock System Electrical Parts Location ACS00335
SCIA2003E
CVT SHIFT LOCK SYSTEM
CVT-185
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
Wiring Diagram — CVT — SHIFT ACS00336
TCWA0165E
CVT-186
CVT SHIFT LOCK SYSTEM
Revision; 2004 April 2003 Murano
TCWA0166E
CVT SHIFT LOCK SYSTEM
CVT-187
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
Shift Lock Control Unit Reference Values ACS00337
SHIFT LOCK HARNESS CONNECTOR TERMINALS LAYOUT
SHIFT LOCK CONTROL UNIT INSPECTION TABLE
Data are reference values.
SCIA2004E
Terminal
(Wire color) Item Condition Judgement standard
1
(R/Y)
8
(B) Power source Always Battery voltage
2
(L)
8
(B)
Detention switch (for
key)
When selector lever is not in “P” position with
key inserted. Battery voltage
When selector lever is in “P” position with key
inserted. Approx. 0V
3
(L/W)
8
(B)
Detention switch (for
shift)
When selector lever is not “P” position. Battery voltage
When selector lever is “P” position. Approx. 0V
4
(R/G)
8
(B) Stop lamp switch When brake pedal is depressed Battery voltage
When brake pedal is released Approx. 0V
5
(V/W)
8
(B)
Vehicle speed signal
(8pulse signal) Speed meter is operated
6
(G)
8
(B) Ignition signal Ignition switch: OFF Approx. 0V
Ignition switch: ON Battery voltage
7
(R/L)
8
(B) Shift lock solenoid
●When selector lever is in “P” position, brake
pedal is depressed, and ignition switch is ON.
●When selector lever is not in “P” position,
ignition switch is ON, and vehicle speed is
10km/h or less.
●For 3minutes after selector lever is not in “P”
position, vehicle speed is 10km/h or less, and
ignition switch is ON → OFF.
Approx. 0V
Except the above Battery voltage
8
(B) — Ground — Approx. 0V
9
(V)
8
(B) Key lock solenoid When selector lever is not “P” position. Battery voltage for approx. 0.1 sec.
(Note)
When selector lever is “P” position. Approx. 0V
10
(W/B)
8
(B) Key unlock solenoid
When selector lever is “P” position with ignition
switch is OFF.
Battery voltage for approx. 0.1 sec.
(Note)
When selector lever is not “P” position with igni-
tion switch is OFF. Approx. 0V
ELF1084D
CVT-188
CVT SHIFT LOCK SYSTEM
Revision; 2004 April 2003 Murano
NOTE:
Confirm that the pointer swings only momentarily because the output time is so short. If the inspection is done with an oscilloscope, it
should be observed that the power source voltage lasts for 3.5 to 10 ms.
Component Inspection ACS00338
SHIFT LOCK SOLENOID
●Check operation by applying battery voltage to the CVT device
harness connector.
CAUTION:
Be sure to apply the voltage of the correct polarity to the
respective terminals. Otherwise, the part may be damaged.
DETENTION SWITCH
For Key:
●Check continuity between terminals of the CVT device harness
connector.
DETENTION SWITCH
For Shift:
●Check continuity between terminals of the CVT device harness
connector.
KEY LOCK SOLENOID
Key Lock
●Check operation by applying battery voltage to key switch and
key lock solenoid harness connector.
CAUTION:
Be careful not to cause burnout of the harness.
Connector No. Terminal No.
M57 9 (Battery voltage) - 10 (Ground)
SCIA2005E
Condition Connector
No. Terminal No. Continuity
When selector lever is “P”
position. M57 5 - 6
No
When selector lever is not “P”
position. Yes
SCIA2006E
Condition Connector
No. Terminal No. Continuity
When selector lever is “P”
position. M57 13 - 14
No
When selector lever is not “P”
position. Yes
SCIA2046E
Connector No. Terminal No.
M28 1 (Battery voltage) - 2 (Ground)
SCIA2042E
CVT SHIFT LOCK SYSTEM
CVT-189
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
Key Unlock
●Check operation by applying battery voltage to key switch and
key lock solenoid harness connector.
CAUTION:
Be careful not to cause burnout of the harness.
KEY SWITCH
●Check continuity between terminals of the key switch and key
lock solenoid harness connector.
STOP LAMP SWITCH
●Check continuity between terminals of the stop lamp switch har-
ness connector.
Check stop lamp switch after adjusting brake pedal. Refer to BR-6,
"Inspection and Adjustment" .
Connector No. Terminal No.
M28 2 (Battery voltage) - 1 (Ground)
SCIA2043E
Condition Connector No. Terminal No. Continuity
Key inserted M28 3 - 4 Yes
Key withdrawn No
SCIA2044E
Condition Connector
No. Terminal No. Continuity
When brake pedal is depressed E116 1 - 2 Yes
When brake pedal is released No
SCIA2045E
CVT-190
AIR BREATHER HOSE
Revision; 2004 April 2003 Murano
AIR BREATHER HOSE PFP:31098
Removal and Installation ACS001ZV
Refer to the figure below for air breather hose and air breather removal and installation procedure.
CAUTION:
●Securely insert the hose into the air breather until it touches the bottom.
SCIA2284E
DIFFERENTIAL SIDE OIL SEAL
CVT-191
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
DIFFERENTIAL SIDE OIL SEAL PFP:33111
Removal and Installation ACS003L0
REMOVAL
1. Remove drive shaft assembly. Refer to FAX-7, "FRONT DRIVE
SHAFT" .
2. Remove transfer from transaxle assembly. (with AWD models)
Refer to TF-12, "Removal and Installation" .
3. Remove differential side oil seal using a flat-bladed screwdriver.
CAUTION:
Be careful not to scratch transaxle case.
1. Transaxle assembly 2. Differential side oil seal
SCIA2408E
SCIA2412E
CVT-192
DIFFERENTIAL SIDE OIL SEAL
Revision; 2004 April 2003 Murano
INSTALLATION
1. As shown below, use a drift to drive the differential side oil seal
into the case until it is flush. Refer to dimensions A. Unit: mm (in)
NOTE:
The differential side oil seal pulling direction is used as the refer-
ence.
Drift to be used:
CAUTION:
●When installing differential side oil seal, apply a coat of NISSAN CVT Fluid NS-2.
●Do not reuse differential side oil seal.
2. Reinstall any part removed.
CAUTION:
If lubricant leak has occurred, after finishing work, check oil level. Refer to CVT-14, "Checking CVT
Fluid" .
Dimensions A 0± 0.5 (0±0.020)
SCIA2411E
Location 2WD models AWD models
Transaxle case side (left)
Tool number
(Kent-Moore No.)
ST33400001
(J26082)
ST33400001
(J26082)
Converter housing side
(right)
Tool number
(Kent-Moore No.)
ST33400001
(J47005)
KV40100621
(J25273)
SCIA3710E
CVT FLUID COOLER VALVE
CVT-193
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
CVT FLUID COOLER VALVE PFP:21630
Removal and Installation ACS006P5
COMPONENTS
1. Harness bracket 2. CVT fluid cooler inlet tube assembly 3. Transaxle assembly
4. Hose clamp 5. Inlet water hose 6. Hose clamp
7. Outlet water hose 8. Hose clamp 9. Heater hose
10. CVT fluid cooler outlet tube assembly 11. CVT fluid cooler valve assembly
SCIA4344E
CVT-194
CVT FLUID COOLER VALVE
Revision; 2004 April 2003 Murano
REMOVAL
WARNING:
Never remove the radiator cap when the engine is hot. Serious burns could occur from high pressure
engine coolant escaping from the radiator.
1. Remove engine undercover.
2. Drain engine coolant. Refer to CO-8, "Changing Engine Coolant" .
CAUTION:
Perform when the engine is cold.
3. Remove air duct (inlet). Refer to EM-14, "Removal and Installation" .
4. Remove battery. Refer to SC-9, "Removal and Installation" .
5. Remove air cleaner case (upper and lower), resonator, mass air flow sensor and air duct assembly. Refer
to EM-14, "Removal and Installation" .
6. Remove fuse and fusible link block from battery bracket.
7. Remove battery bracket.
8. Remove battery bracket mounting.
SCIA2749E
SCIA2750E
SCIA2751E
CVT FLUID COOLER VALVE
CVT-195
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
9. Remove air cleaner bracket. Refer to EM-14, "Removal and
Installation" .
10. Remove control cable from transaxle assembly. Refer to CVT-
182, "Control Device Removal and Installation" .
11. Remove water bypass hose from water bypass pipe. Refer to
CO-26, "Removal and Installation" .
12. Remove harness bracket and control cable bracket from tran-
saxle assembly. Refer to CVT-182, "Control Device Removal
and Installation" and CVT-193, "COMPONENTS" .
13. Remove inlet water hose and outlet water hose. Refer to CVT-
193, "COMPONENTS" .
14. Remove heater hose from heater pipe. Refer to CO-26,
"Removal and Installation" .
15. Remove CVT fluid cooler valve assembly from transaxle assem-
bly. Refer to CVT-193, "COMPONENTS" .
16. Remove heater hose from CVT fluid cooler valve assembly.
17. Remove CVT fluid cooler inlet tube assembly and CVT fluid
cooler outlet tube assembly from CVT fluid cooler valve assem-
bly.
SCIA2752E
SCIA4350E
SCIA2753E
SCIA4349E
SCIA4348E
CVT-196
CVT FLUID COOLER VALVE
Revision; 2004 April 2003 Murano
INSTALLATION
Note the following, and install in the reverse order of removal.
●After completing installation, check for engine coolant leakage, engine coolant level, and the positions of
CVT. Refer to CO-8, "Inspection" and CVT-183, "Checking of CVT Position" .
CAUTION:
●Install hose clamp with tabs aligned with markings of CVT fluid cooler valve assembly and each
hose.
●Do not reuse CVT fluid cooler inlet tube assembly and CVT fluid cooler outlet tube assembly.
●Apply LLC around O-ring when installing CVT fluid cooler inlet tube and CVT fluid cooler outlet
tube assembly to CVT fluid cooler valve assembly.
Component Inspection ACS006P6
1. Make sure that CVT fluid cooler valve is fully opened at room
temperature.
2. Put CVT fluid cooler valve into a water-filled container, and then
heat it up to 82°C (180°F) or more for 10 minutes or more.
3. Make sure that CVT fluid cooler valve is fully closed.
Standard
Dimension A from CVT fluid cooler valve port end
to tip of valve shaft
(At room temperature)
: Approx 72.0 mm or more
SCIA2711J
SCIA2710E
Standard
Dimension A from CVT fluid cooler valve port end
to tip of valve shaft
(When heating to 82°C (180°F) or more for 10 min-
utes or more)
: Approx 66.5 mm or less
SCIA2711J
TRANSAXLE ASSEMBLY
CVT-197
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
TRANSAXLE ASSEMBLY PFP:32020
Removal and Installation ACS002KZ
COMPONENTS (2WD MODELS)
1XD00 models
SCIA5135E
1. Transaxle assembly 2. LH engine mounting bracket 3. Fluid cooler tube
4. Copper washer 5. LH engine mounting insulator 6. Hose clamp
7. CVT fluid cooler hose 8. O-ring 9. Rear gusset
10. CVT fluid cooler hose 11. CVT fluid charging pipe 12. CVT fluid level gauge
CVT-198
TRANSAXLE ASSEMBLY
Revision; 2004 April 2003 Murano
1XD07 models
SCIA4352E
1. Rear gusset 2. Air breather hose 3. CVT fluid level gauge
4. CVT fluid charging pipe 5. O-ring 6. Hose clamp
7. Copper washer 8. Fluid cooler tube 9. CVT fluid cooler hose
10. Hose clamp 11. Clip 12. CVT fluid cooler hose
13. Hose clamp 14. LH engine mounting bracket 15. LH engine mounting insulator
16. Transaxle assembly
TRANSAXLE ASSEMBLY
CVT-199
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
COMPONENTS (AWD MODELS)
1XD01 models
SCIA5136E
1. Transaxle assembly 2. LH engine mounting bracket 3. Fluid cooler tube
4. Copper washer 5. Transfer gusset 6. Hose clamp
7. CVT fluid cooler hose 8. O-ring 9. Rear gusset
10. Transfer assembly 11. CVT fluid charging pipe 12. CVT fluid level gauge
13. LH engine mounting insulator 14. CVT fluid cooler hose
CVT-200
TRANSAXLE ASSEMBLY
Revision; 2004 April 2003 Murano
1XD08 models
SCIA4353E
1. Rear gusset 2. Transfer gusset 3. Air breather hose
4. Transfer assembly 5. Front engine mounting bracket 6. CVT fluid level gauge
7. CVT fluid charging pipe 8. O-ring 9. Hose clamp
10. Copper washer 11. Fluid cooler tube 12. CVT fluid cooler hose
13. Hose clamp 14. Clip 15. CVT fluid cooler hose
16. Hose clamp 17. LH engine mounting bracket 18. LH engine mounting insulator
19. Transaxle assembly 20. Rear engine mounting bracket
TRANSAXLE ASSEMBLY
CVT-201
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
REMOVAL
CAUTION:
The transaxle assembly it self cannot be removed from the vehicle. Remove the transaxle assembly
and engine assembly together from the vehicle.
1. Remove exhaust front tube with power tool. Refer to EX-3, "Removal and Installation" .
2. Remove dust cover from converter housing part.
3. Turn crankshaft, and remove the four tightening nuts for drive
plate and torque converter.
CAUTION:
The crankshaft should be rotated clockwise, viewed from
the front of the engine.
4. Remove the four bolts in the figure.
5. Remove transaxle assembly and engine assembly together
from the vehicle. Refer to EM-95, "Removal and Installation" .
6. Remove drive shaft. Refer to FAX-7, "Removal and Installation
(Left Side)" , FAX-8, "Removal and Installation (Right Side)" .
CAUTION:
Be sure to replace the new differential side oil seal every
removal of drive shaft. Refer to CVT-191, "Removal and
Installation" .
7. Remove transfer gusset. (with AWD models)
8. Remove transfer assembly. Refer to TF-12, "Removal and
Installation" . (with AWD models)
CAUTION:
Be sure to replace the new differential side oil seal (converter housing side only) every removal of
transfer. Refer to CVT-191, "Removal and Installation" .
9. Remove CVT fluid charging pipe.
10. Disconnect harness connector and wire harness.
SCIA1860E
SCIA1861E
SCIA1893E
SCIA1894E
CVT-202
TRANSAXLE ASSEMBLY
Revision; 2004 April 2003 Murano
11. Remove POS sensor, from engine assembly. Refer to EM-26,
"Removal and Installation" .
CAUTION:
●Do not subject it to impact by dropping or hitting it.
●Do not disassemble.
●Do not allow metal filings, etc., to get on the sensor's
front edge magnetic area.
●Do not place in an area affected by magnetism.
12. Remove starter motor. Refer to SC-16, "Removal and Installa-
tion" .
13. Remove CVT fluid cooler valve assembly. (With CVT fluid cooler
tube assembly and heater hose).
14. Install slinger to transaxle assembly.
15. Remove rear gusset.
16. Remove LH engine mounting bracket and LH engine mounting
insulator.
17. Remove front suspension member from transaxle assembly and
engine assembly. Refer to EM-95, "Removal and Installation" .
(with AWD models)
18. Remove transaxle assembly fixing bolts with power tool.
19. Remove transaxle assembly from engine assembly with a hoist.
●Secure torque converter to prevent it from dropping.
SCIA1895E
SCIA1896E
SCIA1898E
SCIA1868E
TRANSAXLE ASSEMBLY
CVT-203
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
INSPECTION
Installation and Inspection of Torque Converter
● After inserting a torque converter to a transaxle, be sure to
check distance A to ensure it is within the reference value limit.
INSTALLATION
Install the removed parts in the reverse order of the removal, while paying attention to the following work.
●Screw and set the locate into the stud bolts for the torque con-
verter locate.
●Rotate the torque converter for the locate to go down.
●Rotate the drive plate for the hole of the drive plate locate to go
down.
Distance A : 14.0 mm (0.55 in) or more
SCIA1869E
SCIA1871E
SCIA1873E
SCIA1872E
CVT-204
TRANSAXLE ASSEMBLY
Revision; 2004 April 2003 Murano
●Installing transaxle assembly from engine assembly with a hoist.
●When installing fluid cooler tube to transaxle assembly, tran-
saxle assembly the part with the tube aligned with the rib.
●When installing transaxle to the engine, attach the fixing bolts in accordance with the following standard.
●When installing CVT fluid cooler valve assembly to the engine,
attach the fixing bolts in accordance with the following standard.
●Align the positions of tightening nuts for drive plate with those of
the torque converter, and temporarily tighten the nuts. Then,
tighten the nuts with the specified torque.
CAUTION:
●When turning crankshaft, turn it clockwise as viewed from
the front of the engine.
SCIA1868E
SCIA2285E
Bolt No. 1 2 3 4
Number of bolts 1 2 2 4
Bolt length
“ ”mm (in) 52 (2.05) 36 (1.42) 105 (4.13) 35 (1.38)
Tightening torque
N-m (kg-m, ft-lb) 75 (7.7, 55) 47 (4.8, 35)
SCIA1870E
: 30N-m (3.1kg-m, 22ft-lb)
SCIA1896E
: 51N-m (5.2kg-m, 38ft-lb)
SCIA1861E
TRANSAXLE ASSEMBLY
CVT-205
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
●When tightening the tightening nuts for the torque converter after fixing the crankshaft pulley
bolts, be sure to confirm the tightening torque of the crankshaft pulley mounting bolts.
● After converter is installed to drive plate, rotate crankshaft several turns and check to be sure that
transaxle rotates freely without binding.
●Install POS sensor. Refer to EM-26, "Removal and Installation" .
●After completing installation, check for fluid leakage, fluid level, and the positions of CVT. Refer to CVT-14,
"Checking CVT Fluid" , CVT-183, "Adjustment of CVT Position" , CVT-183, "Checking of CVT Position" .
●When replacing the CVT assembly, erase EEP ROM in TCM. Refer to CVT-8, "Precautions for TCM and
CVT Assembly Replacement" .
CVT-206
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision; 2004 April 2003 Murano
SERVICE DATA AND SPECIFICATIONS (SDS) PFP:00030
General Specifications ACS001ZX
*1: Refer to MA-11, "Fluids and Lubricants" .
Stall Speed ACS00201
Line Pressure ACS002SA
Solenoid Valves ACS00339
CVT Fluid Temperature Sensor ACS002SC
Primary Speed Sensor ACS002SD
Applied model VQ35DE engine
2WD AWD
CVT model RE0F09A
CVT assembly Model code number 1XD00, 1XD07 1XD01, 1XD08
transmission gear ratio
D range Variable
Reverse 1.766
Final drive 5.173
Recommended fluid NISSAN CVT fluid NS-2*1
Fluid capacity 10.2 liter (10-6/8 US qt, 9 Imp qt)
CAUTION:
●Use only NISSAN Genuine CVT fluid NS-2. Do not mix with other fluid.
●Using CVT fluid other than Nissan Genuine CVT fluid NS-2 will deteriorate in driveability and CVT durability, and may dam-
age the CVT, which is not covered by the warranty.
Stall speed 2,700 - 3,250 rpm
Engine speed
rpm
Line pressure kPa (kg/cm2 , psi)
R position D position L position
Idle 750 (7.65, 108.8)
Stall 5300 - 5700 (54.06 - 58.14, 768.5 - 826.5)
Name Resistance (Approx.) (Ω) Terminal No.
Pressure control solenoid valve B (secondary
pressure solenoid valve)
3 - 9
3
Pressure control solenoid valve A (line pressure
solenoid valve) 2
Torque converter clutch solenoid valve 12
Lock-up select solenoid valve 6 - 19 13
Name Condition CONSULT-II “DATA MONITOR” (Approx.) Resistance (Approx.)
CVT fluid temperature sensor 1 20°C (68°F) 2.0 V 2.5 kΩ
80°C (176°F) 1.0 V 0.3 kΩ
Name Condition Data (Approx.)
Primary speed sensor
When running at 20 km/h (12MPH) in “L” position with the closed throttle position
switch “OFF”, use the CONSULT-II pulse frequency measuring function.
CAUTION:
Connect the diagnosis data link connector to the vehicle diagnosis connector.
600 Hz
SERVICE DATA AND SPECIFICATIONS (SDS)
CVT-207
D
E
F
G
H
I
J
K
L
M
A
B
CVT
Revision; 2004 April 2003 Murano
Secondary Speed Sensor ACS002SE
Removal and Installation ACS002SG
Unit: mm (in)
Name Condition Data (Approx.)
Secondary speed sensor
When moving at 20 km/h (12MPH), use the CONSULT-II pulse frequency measuring
function.
CAUTION:
Connect the diagnosis data link connector to the vehicle diagnosis connector.
300 Hz
Distance between end of converter housing and torque converter 14.0 mm (0.55 in) or more
CVT-208
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision; 2004 April 2003 Murano
