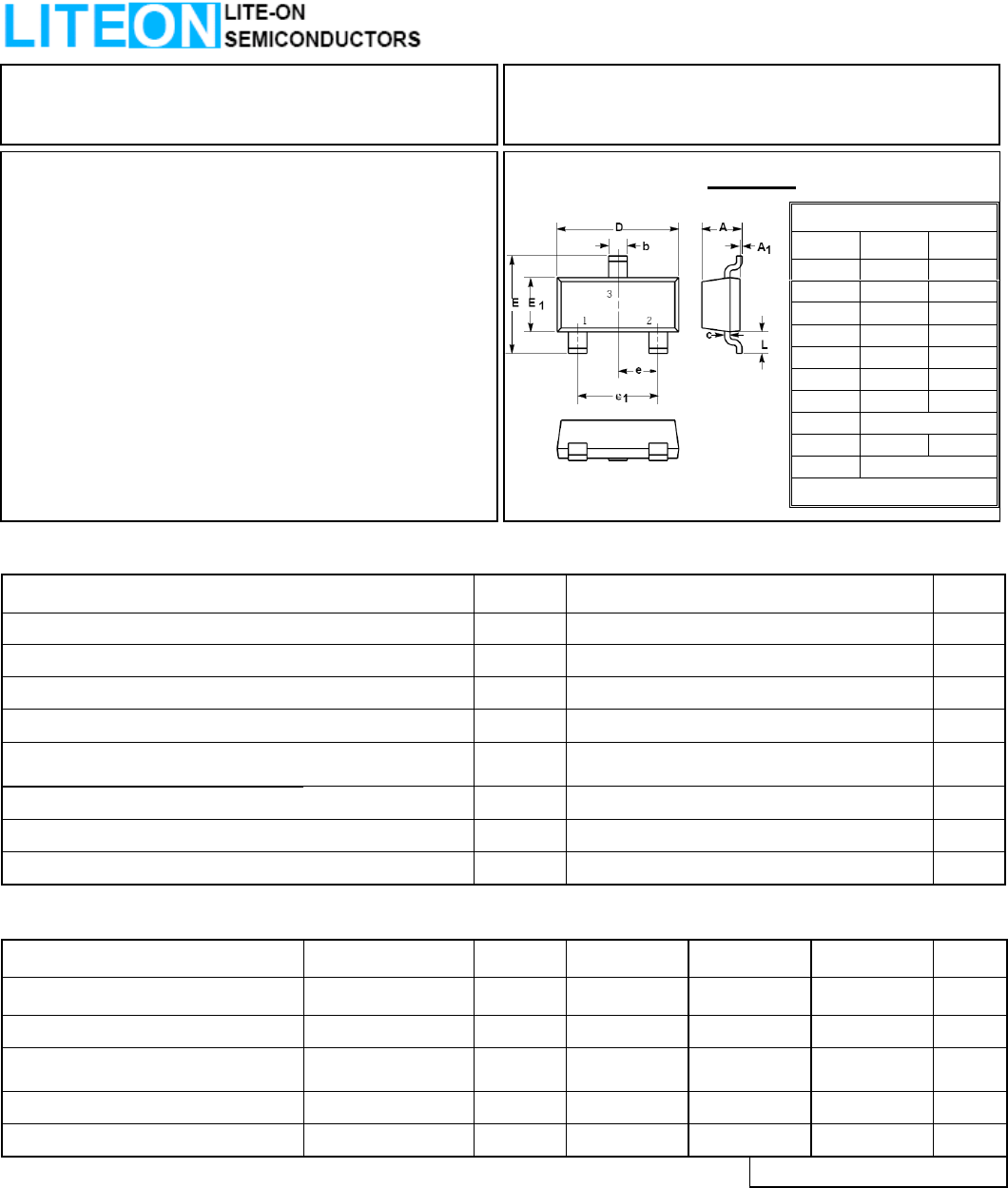

DAP202U
SURFACE MOUNT
FAST SWITCHING DIODE
REVERSE VOLTAGE – 80 Volts
FORWARD CURRENT – 0.1 Ampere
FEATURES
•
Fast switching speed
•
Ideally suited for automatic insertion
•
For general purpose switching applications
MECHANICAL DATA
•
Case: SOT-323 Plastic
•
Case material: “Green” molding compound, UL
flammability classification 94V-0, (No Br. Sb. CI)
•
Moisture sensitivity: Level 1 per J-STD-020D
•
Lead free in RoHS 2002/95/EC compliant
SOT-323
SOT-323
Dim. Min. Max.
A 0.90 1.10
A1 0.00 0.10
b 0.20 0.40
c 0.08
0.15
D 2.00 2.20
E 2.15 2.45
E1 1.15 1.35
e 0.65 Typ.
e1 1.20 1.40
L 0.525 Ref.
Dimensions in millimeter
Maximum Ratings & Thermal Characteristics
@ T
A
= 25℃ unless otherwise specified
Characteristic Symbol
DAP202U Units
Peak Reverse Voltage V
RM
80
V
DC Blocking Voltage V
R
80 V
Forward Continuous Current I
FM
300 mA
Average Rectified Output Current I
O
100 mA
Non-Repetitive Peak Forward
Surge Current @t=1.0us
I
FSM
300 mA
Power Dissipation P
D
200 mW
Operating Temperature Range T
J
150 ℃
Storage Temperature Range T
STG
-55~+150 ℃
Electrical Characteristics
@
T
A
= 25℃ unless otherwise specified
Characteristic Test Condition Symbol
Min. Typ. Max. Unit
Reverse Breakdown Voltage I
R
= 100uA V
BR
80 -- -- V
Maximum Forward Voltage I
F
= 100mA V
F
-- -- 1.2 V
Maximum DC Reverse Current
at Rated DC Blocking Voltage
V
R
= 70V I
R
-- -- 0.1 uA
Typical Diode Capacitance V
R
=6V,f=1MHz C
D
-- -- 3.5 pF
Reverse Recovery time V
R
=6V, I
F
=5mA trr -- -- 4 ns
REV. 2, Oct-2010, KSYR57

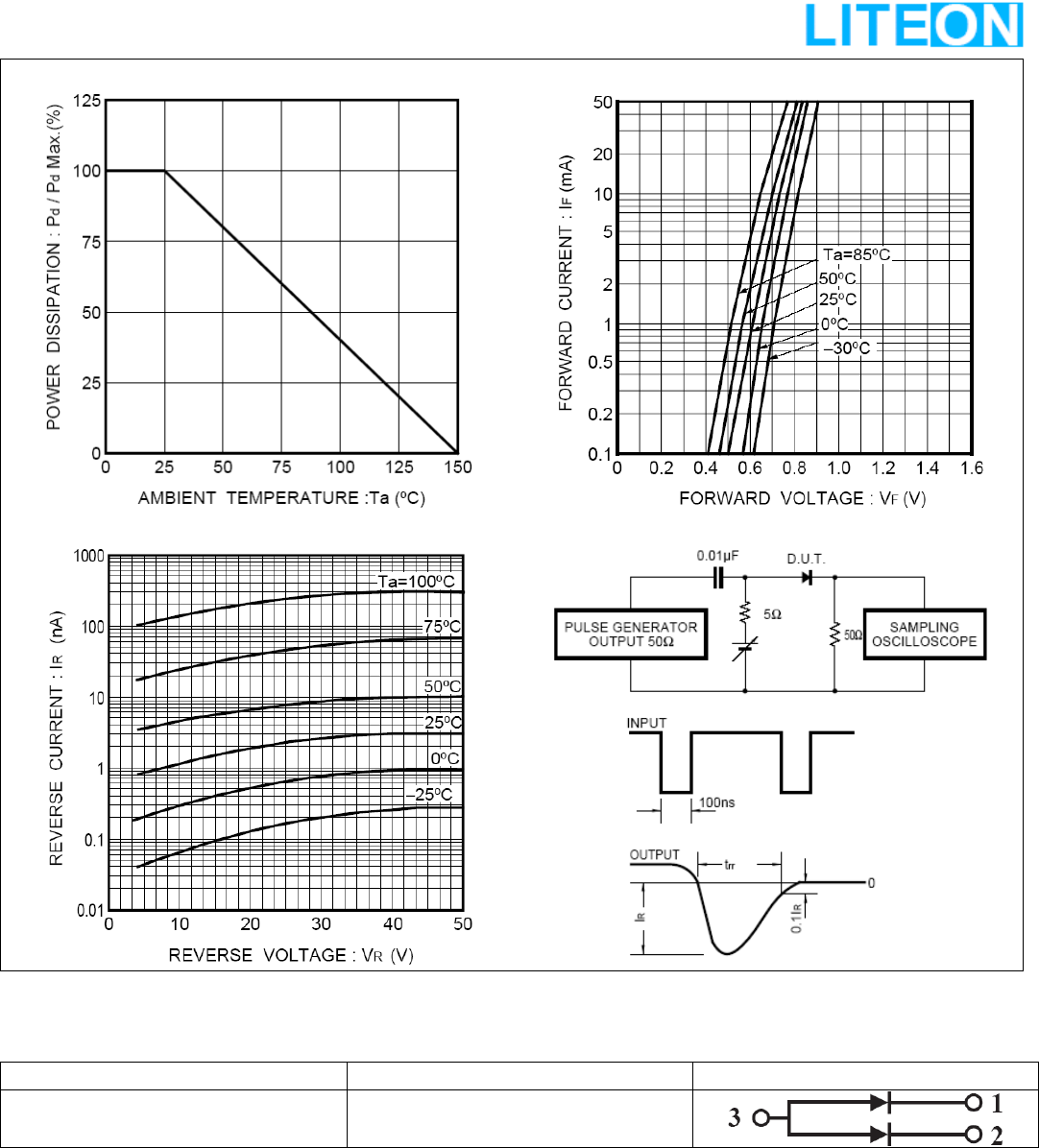

RATING AND CHARACTERISTIC CURVES
DAP202U
Device Marking :
Device P/N Marking code Equivalent Circuit Diagram
DAP202U P
Fig.1 Power Derating Curve Fig.2 Typical Forward Characteristics
Fig.3 Typical Reverse Characteristics Fig.4 Reverse recovery time (trr) measurement circuit
