Cisco 880 Series Integrated Services Routers
The Cisco® 880 Series Integrated Services Routers (ISRs) combine Internet access,
security, voice, and wireless services onto a single, secure device that is simple to use
and manage for small businesses and enterprise small branch offices and
teleworkers. The Cisco 880 Series delivers features including firewall, content filtering,
VPNs, and Wireless LANs (WLANs) at broadband speeds to small offices. Easy
deployment and centralized management features enable enterprises or service
providers to deploy the Cisco 880 Series in small branch offices or small businesses.
Product Overview
Cisco 880 Series Integrated Services Routers are fixed-configuration routers that provide collaborative business
solutions for secure voice and data communication to small businesses and enterprise teleworkers. They offer
concurrent broadband services over third-generation (3G), Metro Ethernet, and multiple DSL technologies to
provide business continuity. Wireless 802.11n and 3G offer LAN and WAN mobility. The routers provide the
performance required for concurrent services, including firewall, intrusion prevention, content filtering, and
encryption for VPNs; optional 802.11g/n for mobility; and Quality-of-Service (QoS) features for optimizing voice and
video applications. In addition, the web-based Cisco Configuration Professional configuration tool simplifies setup
and deployment. Centralized management capabilities give network managers visibility and control of the network
configurations at the remote site.
Cisco 880 Series Integrated Services Routers offer:
High performance for broadband access in small offices and small branch-office and teleworker sites
Collaborative services with secure analog, digital voice, and data communication
Business continuity and WAN diversity with redundant WAN links: Fast Ethernet, Multimode G.SHDSL
(Ethernet in the First Mile [EFM] and ATM), Multimode DSL (very-high-data-rate DSL 2 [VDSL2] and
Asymmetric DSL 2 and 2+ [ADSL2 and ADSL2+, respectively]), 3G, and ISDN
Voice-enabling features:
Cisco Unified Communications Manager Express (5 user), which offers innovative key system and small
Private-Branch-Exchange (PBX) capabilities for small and medium-sized business customers
Survivable Remote Site Telephony (SRST) voice continuity for enterprise small branch-office and
teleworker sites
Cisco Unified Border Element (Cisco UBE) IP-IP voice gateway functions for connecting to Session
Initiation Protocol (SIP) trunking services as a replacement for Primary Rate Interface (PRI) or
Foreign-Exchange-Office (FXO) voice connectivity to the service provider. Note: Cisco Unified Border
Element support for the Cisco 880 Series has feature limitations as compared to the Cisco Integrated
Services Routers Generation 2 (ISR G2) Routers. Go to https://www.cisco.com/go/cube for the full set of
Cisco Unified Border Element features. Cisco Unified Border Element limitations on Cisco 880 Routers
are listed later in this document.
© 2017 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 2 of 24
Enhanced security, including:
Firewall with advance application and control for email, Instant Messaging (IM), and HTTP traffic
Site-to-site remote-access and dynamic VPN services: IP Security (IPsec) VPNs (Triple Data Encryption
Standard [3DES] or Advanced Encryption Standard [AES]), Dynamic Multipoint VPN (DMVPN), Group
Encrypted Transport VPN with onboard acceleration, and Secure Sockets Layer (SSL) VPN
Intrusion Prevention System (IPS): An inline, deep-packet inspection feature that effectively mitigates a
wide range of network attacks
Content filtering: A subscription-based integrated security solution that offers category-based reputation
rating; keyword blocking; and protection against adware, malware, spyware, and Uniform Resource
Locator (URL) blocking
Four-port 10/100 Fast Ethernet managed switch with VLAN support; two ports support Power over Ethernet
(PoE) for powering IP phones or external access points
Secure 802.11g/n access-point option based on draft 802.11n standard with support for autonomous or
Cisco Unified WLAN architectures
Newer Cisco 880 Series (part numbers C881-K9, C886VA-K9, C886VAJ-K9, C887VA-K9, C887VAM-K9
and C888-K9), which are fanless, providing a quiet, comfortable working environment in small offices
CON/AUX port for console or external modem
One USB 1.1 port for security eToken credentials, booting from USB, and loading configuration
Easy setup, deployment, and remote-management capabilities through web-based tools and Cisco IOS®
Software
Figure 1 shows a Cisco 881 Integrated Services Router.

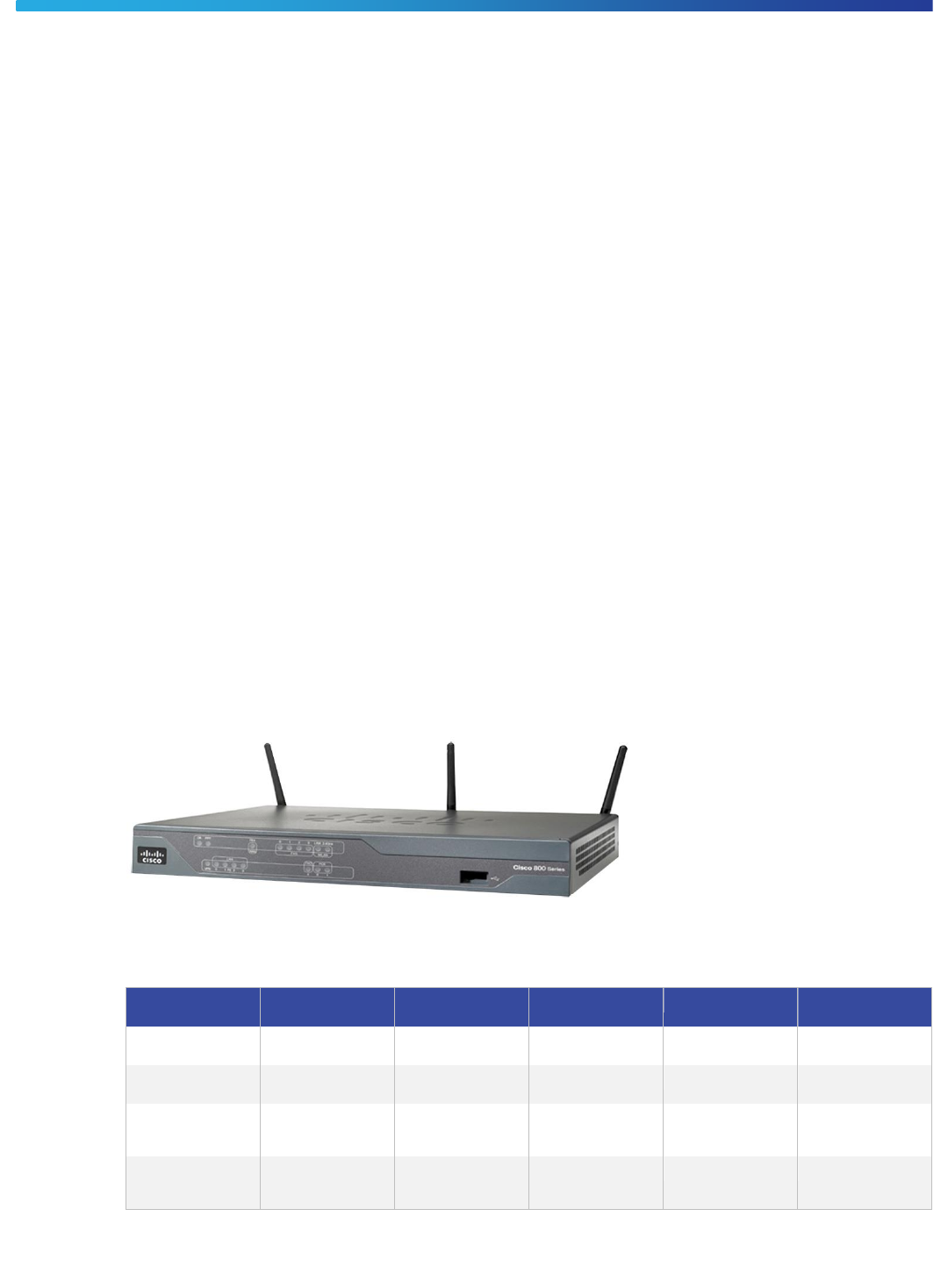

Figure 1. Cisco 881 Integrated Services Router with Integrated 802.11n Access Point
Tables 1 and 2 list the routers that currently make up the Cisco 880 data, voice, and SRST series, respectively.
Table 1. Cisco 880 Series Data Models
Models
WAN Interface
LAN Interfaces
802.11g/n Option
Embedded 3G
Integrated ISDN Dial
Backup
C881
10/100-Mbps Fast
Ethernet
4-port 10/100-Mbps
managed switch
No
No
No
Cisco 881
10-/100-Mbps Fast
Ethernet
4-port 10-/100-Mbps
managed switch
Yes (Cisco 881W)
Yes (Cisco 881G)
No
C886VA
Multimode
VDSL2/ADSL2/2+
over ISDN
4-port 10-/100-Mbps
managed switch
No
No
Yes
C886VAJ
Multimode
VDSL/ADSL Annex J
over ISDN
4-port 10-/100-Mbps
managed switch
No
No
Yes
© 2017 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 3 of 24
Models
WAN Interface
LAN Interfaces
802.11g/n Option
Embedded 3G
Integrated ISDN Dial
Backup
Cisco 886 VA
Multimode
VDSL2/ADSL2/2+
over ISDN
4-port 10-/100-Mbps
managed switch
Yes (Cisco 886VAW)
Yes (Cisco 886VAG)
Yes
Cisco 887VA
Multimode
VDSL2/ADSL2/2+
over basic telephone
service
4-port 10-/100-Mbps
managed switch
Yes (Cisco 887VAW)
Yes (Cisco 887VAG)
No
Cisco 886
ADSL2/2+ over ISDN
(Annex B)
4-port 10-/100-Mbps
managed switch
Yes (Cisco 886W)
Yes (Cisco 886G)
Yes
C887
Multimode
VDSL/ADSL over
POTS
4-port 10-/100-Mbps
managed switch
No
No
No
C887VAM
Multimode
VDSL/ADSL Annex-M
over POTS
4-port 10-/100-Mbps
managed switch
No
No
No
Cisco 887
ADSL2/2+ over basic
telephone service
(Annex A)
4-port 10-/100-Mbps
managed switch
Yes (Cisco 887W)
Yes (Cisco 887G)
Yes
Cisco 887V
VDSL2 over basic
telephone service
4-port 10-/100-Mbps
managed switch
Yes (Cisco 887V)
Yes (Cisco 887VG)
Yes
C888
G.SHDSL(EFM/ATM)
(No ATM IMA support)
4-port 10-/100-Mbps
managed switch
No
No
Yes
Cisco 888
G.SHDSL (ATM)
4-port 10-/100-Mbps
managed switch
Yes (Cisco 888W)
Yes (Cisco 888G)
Yes
Cisco 888E
G.SHDSL (EFM)
4-port 10-/100-Mbps
managed switch
Yes (Cisco 888W)
Yes (Cisco 888EG)
Yes
Cisco 888EA
Multimode G.SHDSL
(EFM/ATM)
4-port 10-/100-Mbps
managed switch
No
No
Yes
Table 2. Cisco 880 Series Voice Models
Models
LAN Interfaces
Voice Ports
802.11g/n Option
Cisco881V
4-port 10-/100-Mbps managed
switch
4 foreign-exchange-station (FXS)
ports, 2 Basic Rate Interface(BRI)
ports, and 1 foreign-exchange-office
(FXO) port for Public-Switched-
Telephone-Network (PSTN) fallback
No
Cisco887VA-V
4-port 10-/100-Mbps managed
switch
4 Foreign-Exchange-Station (FXS)
ports and 2 Basic Rate Interface(BRI)
ports
Yes (Cisco887VA-V-
W-K9)
Cisco 881 SRST
4-port 10-/100-Mbps managed
switch
4 Foreign-Exchange-Station (FXS)
ports and 1 FXO port for Public-
Switched-Telephone-Network (PSTN)
fallback
Yes (Cisco 881
SRSTW)
Cisco 888 SRST
4-port 10-/100-Mbps managed
switch
4 FXS ports and 1 Basic Rate
Interface (BRI) port for PSTN fallback
Yes (Cisco 888
SRSTW)
Cisco 881 with
Cisco Unified
Border Element
4-port 10-/100-Mbps managed
switch
No
No
Cisco 886VA with
Cisco Unified
Border Element
4-port 10-/100-Mbps managed
switch
No
No
Cisco 887VA with
Cisco Unified
Border Element
4-port 10-/100-Mbps managed
switch
No
No
© 2017 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 4 of 24
Models
LAN Interfaces
Voice Ports
802.11g/n Option
Cisco 888E with
Cisco Unified
Border Element
4-port 10-/100-Mbps managed
switch
No
No
Cisco 888 with
Cisco Unified
Border Element
4-port 10-/100-Mbps managed
switch
No
No
The Cisco 880 Series is ideal for small branch offices and teleworkers who need to be connected to larger
enterprise networks as well as small businesses for either voice or data applications. These routers help extend
corporate networks to secure remote sites while giving users access to the same applications found in a corporate
office. When users require WLAN access, visibility and control of network security are even more critical at the
remote site. The Cisco 880 Series meets this need with a single device that combines integrated 802.11g/n
capabilities with security features such as Wi-Fi Protected Access (WPA), including authentication with IEEE
802.1x with Cisco Extensible Authentication Protocol (LEAP) and Protected EAP (PEAP) and encryption with WPA
Temporal Key Integrity Protocol (TKIP). (Refer to the wireless solution overview and security data sheet for more
information.) The Cisco 880 Series models that include the integrated access point can use either autonomous or
Cisco Unified WLAN modes. In Cisco Unified WLAN mode, as part of an enterprise WLAN architecture, all
WLAN functions are centrally managed through Cisco Wireless LAN Controllers and the Cisco Wireless Control
System (WCS).
Service providers and value-added resellers can take advantage of the Cisco 880 Series to provide a true
business-class broadband service. Business customers are using broadband access to connect to the Internet or
to connect offices together, and they require a platform that incorporates voice and security without sacrificing
performance. The Cisco 881V and Cisco 887VA-V voice routers offer industry-leading voice gateway capability
with the ability enable Cisco Unified Communications Manager Express or SRST as required. Many of these
customers are connecting computers in offices through WLANs; having a single device for both WAN and WLAN
access provides a new option for managed services. These customers also require a higher level of support to
keep their networks operational. Services with these customers should be simple to set up, while allowing a level of
remote management and troubleshooting to address support inquiries quickly. The Cisco 880 Series meets the
requirements of small offices and managed services providers.
© 2017 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 5 of 24
Figure 2 shows deployment scenarios.

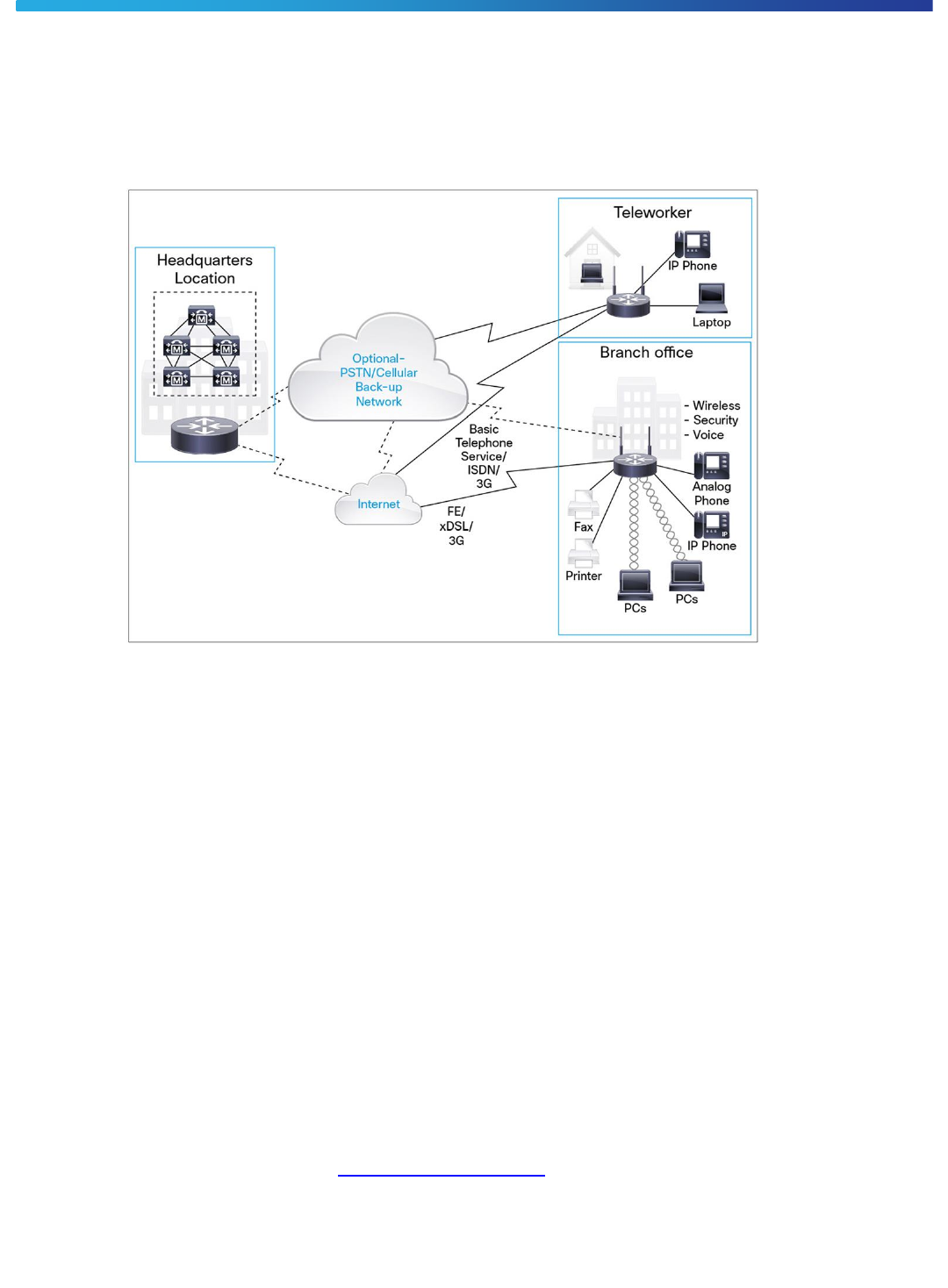

Figure 2. Deployment Scenarios
Applications
The Cisco 880 Series is ideally suited for deployment in a small office or in a small office that is part of a large
network, most often with a secure VPN connection. These types of offices can include the following:
Small remote office: The Cisco 880 Series can connect users in a small remote office, such as an
insurance, lawyer, or sales office. When connecting to the main office, VPN encryption and integrated
security such as firewall and intrusion prevention protect the network at the perimeter. The Cisco 880 with
the Cisco Unified Border Element Series can also support connection to SIP trunking Voice-over-IP (VoIP)
services the service provider offers. Additionally, IT managers can centrally manage the remote site to
quickly troubleshoot any network problems. For added reliability, customers can also use the integrated 3G
or ISDN backup or connect through an external modem if the primary broadband link fails. Integrated
secure unified WLAN connectivity simplifies the deployment and management devices at the remote site.
Redundant WAN links offer business continuity, enabling nondisruptive business operation.
Virtual office: The Cisco 880 Series is ideal for corporate teleworkers who have a mix of broadband
connection types such as DSL, 3G, and Metro Ethernet. The Cisco 880 Voice Gateway and SRST Series
provides a secure virtual office with all the collaborative services such as data, voice, and fax services.
SRST helps ensure voice services are operational in case of WAN link failure, and redundant WAN links
help ensure business continuity. QoS features in the Cisco 880 Series allow for connection of an IP or
analog phone to the router, giving voice traffic precedence over data applications. Integrated WLAN support
in the Cisco 880 Series helps ensure that if wireless connectivity is used it is secure. (Refer to the Cisco
Virtual Office Solution, https://www.cisco.com/go/cvo, for more information.)
© 2017 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 6 of 24
Remote call-center agent: Similar to teleworking applications, this solution extends the Cisco IP Contact
Center solution for telephone call-center agents to remote sites. With a high-quality, secure connection
through the Cisco 880 Series, call-center agents can be dispersed away from costly call-center facilities
while maintaining secure and productive voice and data access in their homes. SRST and business-
continuity solutions in the Cisco 880 Series provide reliability and continuous business operation.
Alternatively, the remote call-center agent can be provided with SIP trunking service with service
demarcation provided by Cisco Unified Border Element features, and the central call center can forward
calls to the remote call-center agent through the remote-office SIP trunk.
Retail VPN: Retail stores migrating from dialup connections for point-of-sale transactions can use the Cisco
880 Series to take advantage of low-cost broadband access with the required security to comply with
Payment-Card-Industry (PCI) and other data security requirements. They can then add multiple devices and
applications to the store network to take advantage of the increased bandwidth and also incorporate
optional WLAN support to enable secure mobility and enhance productivity.
Managed services: Service providers and value-added resellers can use the Cisco 880 Series as a platform
to offer differentiated business-class security, voice, and WLAN services for small business customers. With
built-in analog and digital voice ports and the ability to upgrade to a five-user Cisco Unified Communications
Manager Express IP PBX, service providers can now offer all the Cisco Unified Communications benefits to
small and medium-sized businesses. The SIP trunking connectivity features of the Cisco 880 with the Cisco
Unified Border Element Series Router can provide the high-quality VoIP service needed through the service
provider cloud.
Features and Benefits
Table 3 lists the features and benefits of the Cisco 880 Series Integrated Services Routers.
Table 3. Features and Benefits of Cisco 880 Series Routers
Feature
Benefit
Increased performance to run
concurrent services
Cisco 880 Series Router performance allows customers to take advantage of broadband network
speeds while running secure, concurrent data, voice, video, and wireless services.
Enhanced security
An integrated stateful and application inspection firewall provides network perimeter security.
High-speed IPsec 3DES and AES encryption offers data privacy over the Internet.
Intrusion prevention enforces security policy in a larger enterprise or service provider network.
Content filtering offers category-based URL classification and blocking, thus providing increased
productivity and better use of company resources.
WAN diversity
Multiple WAN links include Fast Ethernet, multimode VDSL2/ADSL2/2+, multimode G.SHDSL, 3G, and
ISDN.
Redundant WAN links
Redundant WAN links provide business continuity and WAN diversity.
Four-port 10-/100-Mbps managed
switch
The Cisco 880 Series allows for connection of multiple devices in a small office, with the ability to
designate a port as the network edge.
An optional external PoE adapter powers IP phones and external access points to avoid individual
power supplies or power injectors.
VLANs allow for secure segmentation of network resources.
CON/AUX port
A single dual-purpose port provides direct connection to a console or external modem for management
or backup access points.
Optional 802.11g/n access point
This broadband router offers a secure integrated access point in a single device.
This integrated Wi-Fi access point offers IEEE 802.11n 2.0 standard support for mobile access to high-
bandwidth data, voice, and video applications through the use of Multiple-Input, Multiple-Output
(MIMO) technology that provides increased throughput, reliability, and predictability.
The Cisco 880 Series supports both autonomous and unified modes.
Real-time clock
A built-in real-time clock maintains an accurate date and time for applications that require an accurate
time stamp, such as logging and digital certificates.
© 2017 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 7 of 24
Feature
Benefit
Voice gateway (supported on
881V and 887VA-V voice models)
The Cisco 881V and 887VA-V models provide voice gateway functions with the ability to upgrade to a
five-user Cisco Unified Communications Manager Express or five-user SRST).
SRST (supported on SRST voice
models)
SRST provides business continuity for voice when the WAN link fails by switching calls to the PSTN.
Cisco Unified Border Element
(supported on Cisco Unified
Border Element voice models)
Support for SIP trunk connectivity, including demarcation and interworking, is based on a Cisco Unified
Border Element feature license.
Transcoding of media is not supported on the Cisco 880 Series Cisco Unified Border Element feature
set.
Cisco Configuration Professional
Cisco Configuration Professional uses smart wizards and task-based tutorials, which resellers and
customers can use to quickly and easily deploy, configure, and monitor a Cisco access router without
requiring knowledge of the Cisco IOS Software Command-Line Interface (CLI).
Unified wireless management
Configuration and management of access points is automated and simplified without manual
intervention.
A unified Hybrid Remote-Edge Access Point (HREAP) provides the following:
WLAN services to remote and branch offices without deploying a WLAN controller at each location
Central configuration and control of unified WLAN services for remote offices through a WAN link
Flexibility in setting up wireless access at remote locations by specifying how traffic is to be bridged
or tunneled
Summary
Cisco 880 Series Integrated Services Routers combine increased network performance with advanced security to
allow small-office customers to get the most from their broadband connections for both data and voice applications.
With models supporting different broadband technologies such as DSL, 3G, and Metro Ethernet, the Cisco 880
Series can be deployed at any small-office location. Optional integrated 802.11g/n wireless capabilities provide true
business-class WAN and WLAN access in a single solution. With the Cisco 880 Series, enterprise IT managers
and service providers can take advantage of a solution that can be easily set up at the remote site and can be
centrally managed to reduce ongoing operational costs.
Cisco ONE Software
Cisco ONE Software offers a valuable and flexible way to buy software for the WAN, access, and data center
domains. At each stage in the product lifecycle, Cisco ONE Software helps make buying, managing, and upgrading
your network and infrastructure software easier. Cisco ONE Software provides:
Flexible licensing models to smoothly distribute customers’ software spending over time
Investment protection for software purchases through software servicesenabled license portability
Access to updates, upgrades, and new technology from Cisco through Cisco® Software Support Services
(SWSS)
Cisco ONE for WAN gives organizations broad capabilities for branch offices and the enterprise edge. Cisco ONE
Foundation for WAN connects and secures your branch office while optimizing for cost. Cisco ONE WAN
Collaboration integrates voice and video into your branch office and network edge.
© 2017 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 8 of 24
Product Specifications
Cisco IOS Software Support
Table 4 lists the minimum Cisco IOS Software releases and the default Cisco IOS Software feature sets.
Table 4. Cisco IOS Software Releases and Default Cisco IOS Software Feature Sets
Models
Universal Image
Default Feature Set
First Cisco IOS Software
Release
Cisco 881
Data
Advanced Security
12.4(20)T
Cisco 881 SEC, Embedded 3G
Data
Advanced IP
12.4(20)T, 15.1(4)M
Cisco 881V
Voice
Advanced IP*
15.1(4)M
Cisco 881 SRST
Voice
Advanced IP*
12.4(20)T
Cisco 886VA and 887VA
Data
Advanced Security
15.1(2)T
Cisco 886VA and 887VA WLAN
Data
Advanced Security
15.1(3)T
Cisco 886VA and 887VA
Embedded 3G
Data
Advanced Security
15.1(4)M
Cisco 886 and 887
Data
Advanced Security
12.4(22)YB3
Cisco 886 and 887 SEC, 3G
Data
Advanced IP
12.4(22)YB3
Cisco 887V
Data
Advanced Security
12.4(22)YB, 12.4(24)T
Cisco 887V SEC, 3G
Data
Advanced IP
12.4(22)YB, 12.4(24)T
Cisco 887V WLAN
Data
Advanced Security
15.0(1)M
Cisco 887V 3G
Data
Advanced IP
15.0(1)M
Cisco 887VA-V
Voice
Advanced IP
15.1(4)M
Cisco 887VA-V-W
Voice
Advanced IP
15.1(4)M
Cisco 888
Data
Advanced Security
12.4(20)T
Cisco 888 SEC, 3G
Data
Advanced IP
12.4(20)T, 15.1(4)M
Cisco 888 SRST
Voice
Advanced IP*
12.4(20)T
Cisco 888E
Data
Advanced Security
15.1(1)T
Cisco 888E Embedded 3G
Data
Advanced IP
15.1(4)M
Cisco 888EA
Data
Advanced Security
15.2(2)T
Cisco 881, 886VA, 887VA, 888,
888E with Cisco Unified Border
Element
Voice
Advanced IP
15.1(4)M
C881-K9, C886-K9, C886VAJ-K9,
C887VA-K9, and C887VAM-K9
Data
Advanced Security
15.3(3)M2, 15.4(1)T
C888-K9
Data
Advanced Security
15.4(2)T
Access-point software (ap801)
-
-
12.4(10b)JA3
* Cisco 881V, 887VA-V, 881 SRST, and 888 SRST run the Cisco 880 voice universal image, which shares the same data and
security features as the Advanced IP feature sets of Cisco 880 data models.
© 2017 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 9 of 24
Tables 5 and 6 list Cisco IOS Software features of the Cisco 880 Series.
Table 5. Cisco IOS Software Features on Cisco 880 Series: Advanced Security Feature Set (Default)
Feature
Description
IP and IP services features
Routing Information Protocol Versions 1 and 2 (RIPv1 and RIPv2)
Generic routing encapsulation (GRE) and Multipoint GRE (MGRE)
Cisco Express Forwarding
Standard 802.1d Spanning Tree Protocol
Layer 2 Tunneling Protocol (L2TP)
Network Address Translation (NAT)
Dynamic Host Configuration Protocol (DHCP) server, relay, and client
Dynamic Domain Name System (DNS)
DNS Proxy
DNS Spoofing
Access control lists (ACLs)
ATM features
(ADSL and G.SHDSL ATM
models only)
ATM Variable Bit Rate real-time (VBR-rt)
ATM Unspecified Bit Rate (UBR), Constant Bit Rate (CBR), and Variable Bit Rate non-realtime (VBR-nrt)
ATM Operations, Administration, and Maintenance (OA&M) support for F5 Continuity Check; segment and
end-to-end loopback; and Integrated Local Management Interface (ILMI) support
TX ring adjustment
Virtual-circuit (VC) bundling
Per-VC queuing
Per-VC traffic shaping
10 ATM virtual circuits on the 886, 887, and 888 models
4 ATM virtual circuits on the 886VA and 887VA models
RFCs 1483 and 2684
Point-to-Point Protocol over ATM (PPPoA)
PPP over Ethernet (PPPoE)
Switch features
Auto Media Device In/Media Device Cross-Over (Medium Dependent Interface (MDI)/MDI crossover (MDX)
Eight 802.1Q VLANs
MAC filtering
Two-port 802.3af and Cisco compliant PoE
Switched Port Analyzer (SPAN)
Storm Control
Smartports
Security features
Secure connectivity:
SSL VPN for secure remote access
Hardware-accelerated DES, 3DES, AES 128, AES 192, and AES 256
Public-key-infrastructure (PKI) support
20 IPsec tunnels
Cisco Easy VPN Client and Server
NAT transparency
Zone-based policy firewall:
Stateful inspection transparent firewall
Advanced application inspection and control
Secure HTTP (HTTPS), FTP, and Telnet authentication proxy
Dynamic and static port security
QoS features
Low-Latency Queuing (LLQ)
Weighted Fair Queuing (WFQ)
Class-Based WFQ (CBWFQ)
Class-Based Traffic Shaping (CBTS) (on Fast Ethernet WAN ports and DSL ports in Packet Transport Mode
[PTM] only)
Class-Based Traffic Policing (CBTP)
Policy-Based Routing (PBR)
Class-Based QoS MIB
Class of service (CoS)-to-differentiated services code point (DSCP) mapping
© 2017 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 10 of 24
Feature
Description
Management features
Cisco Configuration Professional
Cisco Configuration Express
Cisco Configuration Engine support
Cisco AutoInstall
IP service-level agreement (SLA)
Cisco IOS Embedded Event Manager (EEM)
CiscoWorks
Cisco Security Manager
Telnet, Simple Network Management Protocol Version 3 (SNMPv3), Secure Shell (SSH) Protocol, CLI, and
HTTP management
RADIUS and TACACS+
Out-of-band management with ISDN S/T port or external modem through virtual auxiliary port
Cisco WCS for management of unified access points in models supporting WLAN
High-availability features
Virtual Router Redundancy Protocol (VRRP) (RFC 2338)
Hot Standby Router Protocol (HSRP)
Multigroup HSRP (MHSRP)
Dial backup with external modem through virtual auxiliary port
Dial backup with ISDN S/T port (select DSL models only)
3G backup (3G models only)
Number of recommended
users
20
Table 6. Cisco IOS Software Features on Cisco 880 Series: WLAN Features (Available with Wireless Option)
Feature
Description
WLAN hardware
IEEE 802.11n draft 2.0 standards-based access point with 802.11 b/g compatibility
Automatic rate selection for 802.11g/n
Captive omnidirectional 2-dBi gain dipole antennas
2 x 3 MIMO radio operation
Removable antennas on Cisco 881W models
Wi-Fi 802.11n Draft v2.0 certified
WLAN software features
Autonomous or unified access point
Cisco WCS support for monitoring of autonomous-mode access points
Option to maximize throughput or maximize range
Software-configurable transmit power
Radio roles, including access point, root bridge, nonroot bridge, and workgroup bridge
Wi-Fi Multimedia (WMM) certification
Traffic specifications (TSPEC) Call Admission Control (CAC) to ensure voice quality is maintained
Unscheduled Automatic Power Save Delivery (UPSD) to reduce latency
WLAN security features
Standard 802.11i
WPA and AES (WPA2)
EAP authentication: Cisco LEAP, PEAP, Extensible Authentication Protocol Transport Layer Security (EAP
TLS), Extensible Authentication Protocol-Flexible Authentication via Secure Tunneling (EAP-FAST),
Extensible Authentication Protocol-Subscriber Information Module (EAP-SIM), Extensible Authentication
Protocol-Message Digest Algorithm 5 (EAP-MD5), and Extensible Authentication Protocol-Tunneled TLS
(EAP-TTLS)
Static and dynamic Wired Equivalent Privacy (WEP)
Temporal Key Integrity Protocol/Simple Security Network (TKIP/SSN) encryption
MAC authentication and filter
User database for survivable local authentication using LEAP and EAP-FAST
Configurable limit to the number of wireless clients
Configurable RADIUS accounting for wireless clients
Pre-shared keys (PSKs) (WPA-Small Office or Home Office [WPA-SOHO])
Certifications
© 2017 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 11 of 24
Feature
Description
Service set identifiers
(SSIDs)
16
Wireless VLANs
8
Encrypted wireless VLANs
8
Multiple broadcast service
set identifiers (MBSSIDs)
16
Cisco IOS Software Advanced IP Services Feature Set (Optional Software Upgrade)
The Advanced IP Services software image has all the features of the Advanced Security software image with the
addition of the features listed in Tables 7 through 10.
Table 7. Cisco IOS Software Features on Cisco 880 Series: Advanced IP Services Feature Set (Optional Software Upgrade)
Feature
Description
IP and IP services features
IPv4 and IPv6 Multicast
Open Shortest Path First (OSPF)
Border Gateway Protocol (BGP)
Enhanced Interior Gateway Routing Protocol (EIGRP)
Virtual Route Forwarding (VRF) Lite
Next Hop Resolution Protocol (NHRP)
Layer 2 Tunneling Protocol Version 3 (L2TPv3)
Bidirectional Forwarding Detection (BFD)
Web Cache Communication Protocol (WCCP)
Switch features
Internet Group Management Protocol Version 3 (IGMPv3) snooping
802.1x
Security features
Secure connectivity:
DMVPN
Tunnel-less Group Encrypted Transport VPN
IPsec stateful failover
VRF-aware IPsec
IPsec over IPv6
Adaptive control technology
SIP application layer gateway
Cisco IOS Firewall:
Firewall stateful failover
VRF-aware firewall
Content Filtering:
Cisco Cloud Web Security connector (Subscription based)
Cisco IOS Software black and white lists
Integrated threat control:
IPS
Control Plane Policing
Flexible Packet Matching
Network foundation protection
QoS features
Class-Based Weighted Random Early Detection (CBWRED)
Network-Based Application Recognition (NBAR)
Link fragmentation and interleaving (LFI)
Resource Reservation Protocol (RSVP)
Real-Time Transport Protocol (RTP) header compression (cRTP)
Differentiated Services (DiffServ)
QoS preclassify and prefragmentation
Hierarchical QoS (HQoS)
© 2017 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 12 of 24
Feature
Description
Metro Ethernet features
Ethernet Operations, Administration, and Maintenance (Ethernet OAM)
Ethernet Local Management Interface (Ethernet LMI)
Hierarchial QOS (HQoS)
IPv6 features
IPv6 addressing architecture
IPv6 name resolution
IPv6 statistics
IPv6 translation: Transport packets between IPv6-only and IPv4-only endpoints (NAT-PT)
Internet Control Message Protocol Version 6 (ICMPv6)
IPv6 DHCP
Unified WLAN management
Unified access-point features:
Supported by wireless LAN controller and Cisco WCS
Configurable local or central switching for HREAP mode
Radio management through Cisco WCS
Transparent roaming with Mobility Groups
Table 8. Cisco IOS Software Features on Cisco 880V Series: Advanced IP Services Feature Set
Feature
Description
Cisco Voice Gateway
4 FXS ports and 2 Basic Rate Interface (BRI) port for PBX connectivity; 1 FXO port is available on the Cisco 881V
SKU
Cisco Unified
Communications Manager
Express
(Cisco UCME)/SRST
version
Ability to upgrade to 5-user license of Cisco UCME/SRST; Version 8.6 and later are supported
Call-control signaling
H.323 Versions 1, 2, 3, and 4; Media Gateway Control Protocol (MGCP) 0.1 and 1.0; Skinny Client Control
Protocol (SCCP); and SIP call-control protocols are supported.
ITU standard voice codecs
G.711, G.729, G.729a/b, G.723.1, G.726, and G.728, which are standards-based compression technologies
allowing transmission of voice across IP, are supported. The G.711 standard employs 64-kbps pulse code
modulation (PCM) using either mu-law or a-law. Other codecs employ lower bit rates.
Cisco Unified
Communications Manager
support
For SRST features for IP phones, refer to the SRST data sheet at:
https://www.cisco.com/en/US/products/sw/voicesw/ps2169/products_data_sheets_list.html.
Cisco Unified Communications Manager support for analog and digital ports come with Releases 7.1(5), 8.5(1),
and 8.6(2).
Telephony interface
signaling support
Cisco 880 V supports the following signaling protocols:
FXS loop-start and ground-start signaling
FXO
Inbound signaling (such as dual-tone multifrequency [DTMF] and multifrequency support)
BRI QSIG
Voice features
Echo cancellation: This feature cancels echo on tail circuits up to 64 msec (configurable tail length).
Silence suppression and Voice Activity Detection (VAD): Bandwidth is used only when someone is speaking.
During silent periods of a phone call, bandwidth is available for data traffic.
Comfort-noise generation: This feature reassures the phone user that the connection is being maintained,
even when no voice packets are being transmitted.
Caller ID support: Per-port caller ID (with per-call unblocking) is configurable over analog FXS.
Dial-plan mapping: This feature simplifies configuration and management through automatic mapping of
dialed phone numbers to IP addresses.
Voice port-specific features
FXS: FXS provides battery polarity reversal detection and initiation for disconnect supervision and far-end
answer supervision.
ISDN BRI network side and phantom power: The BRI port provides the ability to connect a private branch
exchange (PBX) or private automatic branch exchange (PABX) configured as user side directly to the router. It
also provides phantom power to accommodate equipment that requires it.
LED indicators show voice-processing resources and port status.
Fax and modem
Fax and modem pass-through allows fax and modem traffic to pass through a voice port.
Fax Relay provides a more robust protocol for fax transmission over packet networks. It also supports the T.37
and T.38 fax protocols.
© 2017 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 13 of 24
Feature
Description
High-performance flexible
digital-signal-processor
(DSP) architecture
Channel capacity: Cisco 880V supports up to four voice channels.
Flexible DSP architecture: There is no need to specify codec complexity at configuration. An appropriate
codec is dynamically selected when a call is established, while DSP resources are allocated optimally.
Feature upgrades: The DSP architecture allows for addition of new features through simple code updates.
Table 9. Cisco IOS Software Features on Cisco 880 SRST Series: Advanced IP Services Feature Set
Feature
Description
Cisco SRST version
SRST 7.0 and later are supported.
Call-control signaling
H.323 Versions 1, 2, 3, and 4, Media Gateway Control Protocol MGCP 0.1 and 1.0, Skinny Client Control Protocol
(SCCP), and SIP call-control protocols are supported.
ITU standard voice codecs
G.711, G.729, G.729a/b, G.723.1, G.726, and G.728, which are standards-based compression technologies
allowing transmission of voice across IP, are supported. The G.711 standard employs 64-kbps pulse code
modulation (PCM) using either mu-law or a-law. Other codecs employ lower bit rates.
Cisco Unified
Communications Manager
support
For SRST features for IP phones, refer to the SRST data sheet at:
https://www.cisco.com/en/US/products/sw/voicesw/ps2169/products_data_sheets_list.html.
Cisco Unified Communications Manager support for analog and digital ports comes with Releases 6.1(3), 7.0(2),
and 7.1(3).
Telephony interface
signaling support
Cisco 880 SRST supports the following signaling protocols:
FXS loop-start and ground-start signaling
FXO
Inbound signaling (such as Dual-Tone Multifrequency [DTMF] and multifrequency support)
BRI QSIG
Voice features
Echo cancellation: This feature cancels echo on tail circuits up to 64 msec (configurable tail length).
Silence suppression and Voice Activity Detection (VAD): Bandwidth is used only when someone is speaking.
During silent periods of a phone call, bandwidth is available for data traffic.
Comfort-noise generation: This feature reassures the phone user that the connection is being maintained,
even when no voice packets are being transmitted.
Caller ID support: Per-port caller ID (with per-call unblocking) is configurable over analog FXS.
Dial-plan mapping: This feature simplifies configuration and management through automatic mapping of
dialed phone numbers to IP addresses.
Voice port-specific features
FXS: FXS provides battery polarity reversal detection and initiation for disconnect supervision and far-end
answer supervision.
ISDN BRI network side and phantom power: The BRI port provides the ability to connect a Private Branch
Exchange (PBX) or Private Automatic Branch Exchange (PABX) configured as user side directly to the router.
It also provides phantom power to accommodate equipment that requires it.
LED indicators show voice-processing resources and port status.
Fax and modem
Fax and modem pass-through allows fax and modem traffic to pass through a voice port.
Fax Relay provides a more robust protocol for fax transmission over packet networks. It also supports the T.37
and T.38 fax protocols.
High-performance flexible
digital-signal-processor
(DSP) architecture
Channel capacity: Cisco 880 SRST supports up to four voice channels.
Flexible DSP architecture: There is no need to specify codec complexity at configuration. An appropriate
codec is dynamically selected when a call is established, while DSP resources are allocated optimally.
Feature upgrades: The DSP architecture allows for addition of new features through simple code updates.
© 2017 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 14 of 24
Table 10. Cisco IOS Software Features on Cisco 880 Series with Cisco Unified Border Element: Advanced IP Services
Feature Set
Feature
Description
Cisco Unified Border
Element version
Cisco Unified Border Element 7.0 and later are supported.
Call-control signaling
H.323 Versions 1, 2, 3, and 4; MGCP 0.1 and 1.0; SCCP; and SIP call-control protocols are supported.
ITU standard voice codecs
G.711, G.729, G.729a/b, G.723.1, G.726, and G.728, which are standards-based compression technologies that
allow transmission of voice across IP, are supported. The G.711 standard employs 64-kbps Pulse Code
Modulation (PCM) using either mu-law or a-law. Other codecs employ lower bit rates.
Cisco Unified
Communications Manager
support
For SRST features for IP phones, refer to the SRST data sheet at:
https://www.cisco.com/en/US/products/sw/voicesw/ps2169/products_data_sheets_list.html.
Cisco Unified Communications Manager support for analog and digital ports comes with Releases 6.1(3), 7.0(2),
and 7.1(3).
Telephony interface
signaling support
Cisco 880 SRST supports the following PSTN trunk signaling protocols:
FXS loop-start and ground-start signaling
FXO
Inbound signaling (such as Dual-Tone Multifrequency [DTMF] and multifrequency support)
BRI QSIG
Cisco 880 Cisco Unified Border Element supports the following VoIP trunk signaling protocols:
Up to 15 SIP-to-SIP sessions. (no H.323 support)
Note: The Cisco 880 with Cisco Unified Border Element does not include DSP feature support such as
transcoding or transrating.
Note: The Cisco 880 with Cisco Unified Border Element does not support concurrent operation of SRST or Cisco
Unified Communications Manager Express.
Voice features
Echo cancellation: This feature cancels echo on tail circuits up to 64 msec (configurable tail length).
Silence suppression and VAD: Bandwidth is used only when someone is speaking. During silent periods of a
phone call, bandwidth is available for data traffic.
Comfort-noise generation: This feature reassures the phone user that the connection is being maintained,
even when no voice packets are being transmitted.
Caller ID support: Per-port caller ID (with per-call unblocking) is configurable over analog FXS.
Dial-plan mapping: This feature simplifies configuration and management through automatic mapping of
dialed phone numbers to IP addresses.
Voice port-specific features
FXS: FXS provides battery polarity reversal detection and initiation for disconnect supervision and far-end
answer supervision.
ISDN BRI network side and phantom power: The BRI port provides the ability to connect a PBX or PABX
configured as user side directly to the router. It also provides phantom power to accommodate equipment that
requires it.
LED indicators show voice-processing resources and port status.
System Specifications
Tables 11 and 12 list the system specifications for the Cisco 880 Series Routers.
Table 11. System Specifications
Feature
Description
Default and maximum flash
memory
128 MB on Cisco 880 Series data, embedded 3G Wireless WAN (WWAN), and Cisco Unified Border Element
models
256 MB on Cisco 880 Series Voice and SRST models
256 MB on newer C881-K9, C886VA-K9, C886VAJ-K9, C887VA-K9, C887VAM-K9 and C888-K9 models
WAN
Fast Ethernet
Multimode VDSL2 and ADSl2/2+ over ISDN with ISDN backup
Multimode VDSL2 and ADSl2/2+ over basic telephone service
ADSL2/2+ over ISDN with ISDN backup
ADSL2/2+ over basic telephone service with ISDN backup
VDSL2 over basic telephone service with ISDN backup
Multimode G.SHDSL (2- and 4-wire support) with ISDN backup
Fast Ethernet and 3G WAN for Code Division Multiple Access (CDMA) and High-Speed Downlink Packet
Access (HSDPA)
© 2017 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 15 of 24
Feature
Description
LAN switch
Managed 4-port 10/100BASE-T with autosensing Media Device In/Media Device Cross-Over (MDI/MDX) for auto
crossover
Standard 802.11g/n access
point based on IEEE
802.11n draft 2.0 standard
Optional on all models
Console or auxiliary port
RJ-45
One USB 1.1 port for
advanced security features
such as security tokens or
USB flash memory
One USB 1.1 port on Cisco 880 Series Routers
USB devices supported:
USB eTokens
USB flash memory
Note: The USB 1.1 port cannot be used for connecting external devices other than those specified at:
https://www.cisco.com/en/US/prod/collateral/modules/ps6247/product_data_sheet0900aecd80232473.html.
ISDN BRI S/T
Available on:
Cisco 886, 886VA, 887, 887V, 888, and 888EA for out-of-band management and dial backup or primary
3G express card modem
Available on:
Cisco 881G, 886G, 887G, 887VG, and 888G for out-of-band management and backup or primary
Cisco 888G for out-of-band management and backup or primary
Note: Cisco 887VG currently ships with HSPA modem only.
External power supply
Universal 100 to 240 VAC input; 60W, 12 VDC output
Physical dimensions
and weight
Product dimensions, nonwireless models (H x W x D):
1.9 x 12.8 x 9.8 in. (48 x 325 x 249 mm) (includes rubber feet)
1.75 x 12.8 x 9.8 in. (44 x 325 x 249 mm) (without rubber feet)
Product dimensions, wireless models (H x W x D):
1.9 x 12.8 x 10.4 in. (48 x 325 x 264 mm) (includes rubber feet)
1.75 x 12.8 x 10.4 in. (44 x 325 x 264 mm) (without rubber feet; excludes antennas)
Weight: 5.5 lb (2.5 kg) maximum
Power
Product power specifications:
AC input voltage: 100 to 240 VAC
Frequency: 50 to 60 Hz
Maximum output power: 60W
Output voltages: 12 VDC
Optional internal PoE with external adapter:
Maximum output power: 80W
External output voltage: 48 VDC
Approvals and compliance
Emissions:
47 CFR Part 15: 2006
CISPR22: 2005
EN300386: V1.3.3: 2005
EN55022: 2006
EN61000-3-2: 2000 [Inc amd 1 and 2]
EN61000-3-3: 1995 [+ amd 1: 2001]
ICES-003 Issue 4: 2004
KN 22: 2005
VCCI: V-3/2006.04
Immunity:
CISPR24: 1997 [+ amd 1 and 2]
EN300386: V1.3.3: 2005
EN50082-1: 1992
EN50082-1: 1997
EN55024: 1998 [+ amd 1 and 2]
EN61000-6-1: 2001
The following are supported on teleworker models:
AS/NRZ 3548: 1992 Class B
CFR 47 Part 15 Class B
EN60555-2 Class B
EN55022 Class B
ICES-003, Issue 2, Class B, April 1997S
© 2017 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 16 of 24
Feature
Description
Certifications
Environmental
operating range
Nonoperating temperature: -4 to 149°F (-20 to 65°C)
Nonoperating humidity: 5 to 95% relative humidity (noncondensing)
Nonoperating altitude: 0 to 15,000 ft (0 to 4570m)
Operating temperature
At sea level: 32 to 104°F (0 to 40°C)
Up 10,000 ft: 32 to 77°F (0 to 25°C)
Derating 2.7°F/10,000 ft (1.5°C/1,000 ft)
Operating humidity: 10 to 85% relative humidity (noncondensing)
Operating altitude: 0 to 10,000 ft (0 to 3000m)
Table 12. Wireless LAN and 3G Specifications
SRST Specifications
SRST specifications
Packet fax and voice DSP module PVDM2-16
FXS voice-port specifications:
Tip and ring interfaces for each FXS port (subscriber line interface card [SLIC])
Ring voltage
Ring frequency
Ring waveform
Ring load
Ringer Equivalence Number (REN)
Loop resistance
On- and off-hook characteristics
On-hook voltage (tip and ring)
Off-hook current
RJ-11 FXS port terminating impedance option
BRI voice-port specifications:
Interface type
Compliance
Safety conformance
ITU compliance
Interface
ISDN digital access
Physical connector
Phantom power
Wireless Specifications
Radio frequency band
2.4 GHz
Data rates supported
802.11b: 1, 2, 5.5, 6, 9, and 11 Mbps
802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
802.11n: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54, and m0-m15
Maximum transmit power
(2-channel aggregate)
Note: Maximum power setting is subject to changes by channel and by region, depending on regulations.
802.11b 20 dBm
802.11g 17 dBm
802.11n 16 dBm
3G specifications
Data rates
CDMA: 850 and 1900 MHz
HSDPA: 850, 900, 1900, and 2100 MHz
© 2017 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 17 of 24
DSL Specifications
Tables 13 through 21 list the DSL features specifications and DSL Access Multiplexer (DSLAM) interoperability
support for the Cisco 880 Series Routers. For more information and details about DSLAM and line-card
interoperability, please refer to the following document: What Is Cisco ISR and ISR G2 xDSL Interoperability?
Table 13. DSL Features Specifications
DSL Specifications
Multimode DSL (VDSL2 and
ADSL2/2+)
(886VA and 887VA models)
Broadcom Chipset
Dying gasp
IEEE 802.1q VLAN tagging
Independent DSL firmware loading
VDSL2
ITU G.993.2 (VDSL2)
997 and 998 band plans
VDSL2 profiles: 8a, 8b, 8c, 8d, 12a, 12b, and 17a
U0 band support (25-276 kHz)
Ethernet PTM mode only based on IEEE 802.3ah 64/65 octet encapsulation
DELT Diagnostics Mode
ADSL2/2+
ADSL over basic telephone service with Annex A and Annex B ITU G. 992.1 (ADSL), G.992.3 (ADSL2), and
G.992.5 (ADSL2+)
ADSL over basic telephone service with Annex M (extended upstream bandwidth) G.992.3 (ADSL2) and
G.992.5 (ADSL2+)
Cisco 887VA-M is optimized for PSD Mask EU-64 M9.
Cisco 887VA-M supports UK Annex M.
G.994.1 ITU Ghs
Reach-extended ADSL2 (G.922.3) Annex L for increased performance on loop lengths greater than 16,000
feet from central office
T1.413 ANSI ADSL DMT issue 2 compliance
DSL Forum TR-067 conformity
Inpulse Noise Protection (INP) and extended INP
Downstream Power Back-Off (DPBO)
ATM mode only
ADSL specifications
(886 and 887 models)
ST-Microelectronics 20190 Chipset
ADSL over basic telephone service with Annex A and Annex B ITU G. 992.1 (ADSL), G.992.3 (ADSL2), and
G.992.5 (ADSL2+)
ADSL over basic telephone service with Annex M (extended upstream bandwidth) G.992.3 (ADSL2) and
G.992.5 (ADSL2+)
Cisco 887-M is optimized for PSD Mask EU-64 M9.
Cisco 887M supports UK Annex M only with Huawei 5300 DSLAM and its EADB line card with
Customer-Premises-Equipment (CPE) firmware Version 4.0.17.
G.994.1 ITU G.hs
Reach-extended ADSL2 (G.922.3) Annex L for increased performance on loop lengths greater than 16,000
feet from central office
T1.413 ANSI ADSL DMT issue 2 compliance
DSL Forum TR-067 conformity
Does not provide interoperability with carrierless amplitude modulation/phase modulation (CAP)-based ADSL
lines
Dying gasp
IEEE 802.1q VLAN tagging with Cisco IOS Software Release 15.1(1)T or later
© 2017 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 18 of 24
DSL Specifications
VDSL2 specifications
(887V models)
Broadcom Chipset
ITU G.993.2 (VDSL2) over basic telephone service only
997 and 998 band plans, over basic telephone service only
VDSL2 profiles supported: 8a, 8b, 8c, 8d, 12a, 12b, and 17a
U0 band support (25276 kHz)
Ethernet PTM mode only based on IEEE 802.3ah 64/65 octet encapsulation
DELT Diagnostics Mode
IEEE 802.1q VLAN tagging
G.SHDSL (ATM mode)
specifications (Cisco 888)
Conexant/Ikanos Chipset
2- and 4-wire modes
Symmetrical WAN speeds up to 2.304 Mbps over a single copper pair and up to 4.608 Mbps over two copper
pairs using ITU-T G.991.2 Annex A and Annex B
Wetting current (Section A.5.3.3 of G.991.2)
Dying gasp; uses power status bit (Section 7.1.2.5.3 of G.991.2) for signaling
G.SHDSL (EFM mode)
specifications (Cisco 888E)
Conexant/Ikanos Chipset
2-wire mode
Symmetrical WAN speeds up to 2.304 Mbps over a single copper pair using ITU-T G.991.2 Annex A and
Annex B
Symmetrical WAN speeds from 768 kbps to 5.696 Mbps over a single copper pair using ITU-T G.991.2 Annex
F and Annex G
Symmetrical WAN speeds up to 22.784 Mbps over four copper pairs using IEEE 802.3ah EFM bonding
Wetting current (Section A.5.3.3 of G.991.2)
Dying gasp; uses power status bit (Section 7.1.2.5.3 of G.991.2) for signaling
Rate adaption
Multimode G.SHDSL
(EFM/ATM) specifications
(Cisco 888EA)
Lantiq Chipset
4-pair support
Compliance with standard based on ITU Recommendation G.991.2
Support for G.SHDSL Annexes A (U.S. signaling) and B (European signaling)
Support for Annexes F and G
Symmetrical WAN speeds up to 1 x 2304 kbps over single copper pair, up to 2 x 2304 kbps over two copper
pairs, up to 3 x 2304 kbps over three copper pairs, and up to 4 x 2304 kbps over four copper pairs using ITU-T
G.991.2 Annexes A and B
Symmetrical WAN speeds up to 1 x 5696 kbps over single copper pair, up to 2 x 5696 kbps over two copper
pairs, up to 3 x 5696 kbps over three copper pairs, and up to 4 x 56964 kbps over four copper pairs using ITU-
T G.991.2 Annexes F and G
Support for EFM bonding; supports up to four SHDSL pairs bonding
In ATM mode, support for maximum of 8 Permanent Virtual Circuits (PVCs)
Support for dying gasp and wetting current
Support for point-to-point configuration
Support for 802.1Q, QinQ, trunk, and VLAN tagging
Support for ATM CoS and IP QoS features, 802.1P, and DSCP
Support for EFM (IEEE 802.3ah) OA&M
Ability to configure multiple G.SHDSL EFM EHWICs per Cisco 1921, 1941, 2900, and 3900 Series Routers
Compliance with single RJ-45 connector system requirements
Table 14. Multimode DSL DSLAM Interoperability for Cisco 887VA
DSLAM
VDSL2 over Basic Telephone Service Line-Card Chipset
ZTE 9806
Broadcom
Huawei MA5600
Broadcom
Table 15. Multimode DSL DSLAM Interoperability for Cisco 886VA
Siemens HIX 5300
Infineon
ECI 480
Infineon
Alcatel ASAM 7300
Globespan
© 2017 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 19 of 24
Table 16. ADSL-over-ISDN DSLAM Interoperability for Cisco 886
DSLAM
ADSL2/2+ over ISDN Line-Card Chipset
Siemens HIX 5300
Infineon
ECI 480
Infineon
Alcatel ASAM 7300
Globespan
Table 17. ADSL over Basic Telephone Service DSLAM Interoperability for Cisco 887 and 887M
DSLAM
ADSL2/2+ over Basic Telephone Service Line-Card Chipset
Alcatel ASAM 7300
Broadcom (Annex A and Annex M)
ECI 480
Infineon (Annex A and Annex M)
Ericsson
Broadcom (Annex A and M)
Huawei 5600
Globespan (Annex A only)
Lucent Stinger
Globespan (Annex A and Annex M)
Table 18. VDSL2 DSLAM Interoperability for Cisco 887V
DSLAM
VDSL2 over Basic Telephone Service Line-Card Chipset
ZTE 9806
Broadcom
Huawei MA5600
Broadcom
Table 19. G.SHDSL DSLAM Interoperability for Cisco 888
DSLAM
G.SHDSL (2- and 4-Wire) Line-Card Chipset
ECI Hi-Focus SAM 480
Infineon
Alcatel ASAM7300
Conexant/Ikanos
Lucent Stinger
Conexant/Ikanos
Siemens Hix-5300
Infineon
Table 20. G.SHDSL DSLAM Interoperability for Cisco 888E
DSLAM
G.SHDSL (2- and 4-Wire) Line-Card Chipset
Huawei 5603
Infineon
Alcatel ISAM 7302
Infineon
Hatteras HN4000e
Infineon
Table 21. Multimode G.SHDSL DSLAM Interoperability for Cisco 888EA-K9
DSLAM
G.SHDSL (4-Pair) Line-Card Chipset
Huawei 5603
Infineon
Alcatel ISAM 7302
Infineon
Hatteras HN4000e
Infineon
Alcatel ASAM 7300
Lucent Stringer
ECI 480
Alcatel ISAM_7330_FTTN
Actelis ML698
© 2017 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 20 of 24
Ordering Information
Table 22 lists ordering information for the Cisco 880 Series. To place an order, visit the Cisco ordering homepage.
Table 22. Ordering Information
Part Number
Product Name
Ethernet
C881-K9
Cisco 881 Ethernet Security Router
CISCO881-K9
Cisco 881 Ethernet Security Router
C881-CUBE-K9
Cisco 881 Ethernet Security Router with integrated CUBE Licenses
CISCO881-SEC-K9
Cisco 881 Ethernet Security Router with Advanced IP Services
CISCO881W-GN-A-K9
Cisco 881 Ethernet Security Router with 802.11n FCC Compliant
CISCO881W-GN-E-K9
Cisco 881 Ethernet Security Router with 802.11n ETSI Compliant
CISCO881W-GN-P-K9
Cisco 881 Ethernet Security Router with 802.11n Japan Compliant
Ethernet and 3G
CISCO881G-K9
Cisco 881 Ethernet Security Router with 3G
CISCO881GW-GN-A-K9
Cisco 881 Ethernet Security Router with 3G, 802.11n FCC Compliant
CISCO881GW-GN-E-K9
Cisco 881 Ethernet Security Router with 3G, 802.11n ETSI Compliant
CISCO881G-S-K9
Cisco 881G Ethernet Security Router with 3G Sprint
CISCO881G-V-K9
Cisco 881G Ethernet Security Router with 3G Verizon
CISCO881G-A-K9
Cisco 881G Ethernet Security Router with 3G GSM North America
C881G-U-K9
Secure Router with WAN FE and Embedded 3.5G HSPA with SMS/GPS
C881G-S-K9
Secure Router with WAN FE and Embedded 3G EVDO Rev A with SMS/GPS for Sprint Networks
C881G-V-K9
Secure Router with WAN FE and Embedded 3G EVDO Rev A with SMS/GPS for Verizon Wireless Networks
C881G-B-K9
Secure Router with WAN FE and Embedded 3G EVDO Rev A with SMS/GPS for BSNL Networks
C881G+7-K9
Secure Router with WAN FE and Embedded 3.7G HSPA+ Release 7 with SMS/GPS
C881G+7-A-K9
Secure Router with WAN FE and Embedded 3.7G HSPA+ Release 7 with SMS/GPS for AT&T Networks
Multi-mode DSL (VDSL2 and ADSl2/2+)
C886VA-K9
Cisco 886 VDSL/ADSL over ISDN Multi-mode Router
C886VAJ-K9
Cisco 886 VDSL/ADSL Annex J over ISDN Multi-mode Router
CISCO886VA-K9
Cisco 886VA router with VDSL2/ADSL2+ over ISDN
CISCO886VA-SEC-K9
Cisco 886VA Secure router with VDSL2/ADSL2+ over ISDN
C886VA-CUBE-K9
Cisco 886VA Secure router with VDSL2/ADSL2+ over ISDN and integrated CUBE licenses
C887VA-K9
Cisco 887 VDSL/ADSL over POTS Multi-mode Router
C887VAM-K9
Cisco 887 VDSL/ADSL Annex M over POTS Multi-mode Router
CISCO887VA-K9
Cisco 887VA router with VDSL2/ADSL2+ over POTS
CISCO887VA-SEC-K9
Cisco 887VA Secure router with VDSL2/ADSL2+ over POTS
CISCO887VA-M-K9
Cisco 887VA Annex M router
C887VA-CUBE-K9
Cisco 887VA router with VDSL2/ADSL2+ over ISDN and integrated CUBE licenses
Multi-mode DSL (VDSL2 and ADSl2/2+) with WLAN
C886VA-W-E-K9
Cisco 886VA router with VDSL2/ADSL2+ over ISDN with 802.11n ETSI Compliant
C887VA-W-A-K9
Cisco 887VA router with VDSL2/ADSL2+ over POTS with 802.11n FCC Compliant
C887VA-W-E-K9
Cisco 887VA router with VDSL2/ADSL2+ over POTS with 802.11n ETSI Compliant
C887VAM-W-E-K9
Cisco 887VA Annex M router with 802.11n ETSI Compliant
© 2017 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 21 of 24
Part Number
Product Name
Multi-mode DSL (VDSL2 and ADSl2/2+) with Embedded 3G
C886VAG+7-K9
Secure Router with VDSL2/ADSL2+ over ISDN and Embedded 3.7G HSPA+ Release 7 with SMS/GPS
C887VAG-S-K9
Secure Router with VDSL2/ADSL2+ over POTS and Embedded 3G EVDO Rev A with SMS/GPS for
Sprint Networks
C887VAG+7-K9
Secure Router with VDSL2/ADSL2+ over POTS and Embedded 3.7G HSPA+ Release 7 with GPS
C887VAMG+7-K9
Secure Router with Raiders VDSL2/ADSL2+ over POTS (Annex M) and Embedded 3.7G HSPA+ Release 7
with GPS
ADSL2/2+
CISCO886-K9
Cisco 886 ADSL2/2+ Annex B Router
CISCO886-SEC-K9
Cisco 886 ADSL2/2+ Annex B Security Router with Advanced IP Services
CISCO886W-GN-E-K9
Cisco 886 ADSL2/2+ Annex B Router with 802.11n ETSI Compliant
CISCO887-K9
Cisco 887 ADSL2/2+ Annex A Router
CISCO887-SEC-K9
Cisco 887 ADSL2/2+ Annex A Security Router with Advanced IP Services
CISCO887W-GN-A-K9
Cisco 887 ADSL2/2+ Annex A Router with 802.11n FCC Compliant
CISCO887W-GN-E-K9
Cisco 887 ADSL2/2+ Annex A Router with 802.11n ETSI Compliant
CISCO887M-K9
Cisco 887 ADSL2/2+ Annex M Router
CISCO887MW-GN-E-K9
Cisco 887 ADSL2/2+ Annex M Router with 802.11n ETSI Compliant
ADSL2/2+ and 3G
CISCO886G-K9
Cisco 886 ADSL2/2+ Annex B Router with 3G
CISCO886GW-GN-E-K9
Cisco 886 ADSL2/2+ Annex B Router with 3G, 802.11n ETSI Compliant
CISCO887G-K9
Cisco 887 ADSL2/2+ Annex A Router with 3G
CISCO887GW-GN-A-K9
Cisco 887 ADSL2/2+ Annex A Router with 3G, 802.11n FCC Compliant
CISCO887GW-GN-E-K9
Cisco 887 ADSL2/2+ Annex A Router with 3G, 802.11n ETSI Compliant
VDSL2
CISCO887V-K9
Cisco 887 VDSL2 over POTS Router
CISCO887V-SEC-K9
Cisco 887 VDSL2 over POTS Security Router with Advanced IP Services
CISCO887VW-GNA-K9
Cisco 887V VDSL2 Router with 802.11n FCC Compliant
CISCO887VW-GNE-K9
Cisco 887V VDSL2 Router with 802.11n ETSI Compliant
VDSL2 and 3G
CISCO887VG-K9
Cisco 887V VDSL2 Router with 3G
CISCO887VGW-GNA-K9
Cisco 887V VDSL2 Router with 3G, 802.11n FCC Compliant
CISCO887VGW-GNE-K9
Cisco 887V VDSL2 Router with 3G, 802.11n ETSI Compliant
G.SHDSL (ATM)
CISCO888-K9
Cisco 888 G.SHDSL Router
C888-CUBE-K9
Cisco 888 G.SHDSL Router with integrated CUBE licenses
CISCO888-SEC-K9
Cisco888 G.SHDSL Security Router with Adv IP Services
CISCO888W-GN-A-K9
Cisco 888 G.SHDSL Router with 802.11n FCC Compliant
CISCO888W-GN-E-K9
Cisco 888 G.SHDSL Router with 802.11n ETSI Compliant
C888-K9
Cisco 888 G.SHDSL (EFM/ATM) Router
G.SHDSL (EFM)
CISCO888E-K9
Cisco 888E G.SHDSL Router with 802.3ah EFM Support
CISCO888EW-GN-A-K9
Cisco 888E G.SHDSL Router with 802.11n FCC Compliant and 802.3ah EFM Support
CISCO888EW-GN-E-K9
Cisco 888E G.SHDSL Router with 802.11n ETSI Compliant and 802.3ah EFM Support
C888E-CUBE-K9
Cisco 888E G.SHDSL Router with 802.3ah EFM Support and integrated CUBE licenses
© 2017 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 22 of 24
Part Number
Product Name
Multimode G.SHDSL (EFM/ATM)
C888EA-K9
Cisco Multimode 888EA G.SHDSL (EFM/ATM) Router with 802.3 ah EFM Support
G.SHDSL (ATM) and 3G
CISCO888G-K9
Cisco 888 G.SHDSL Router with 3G
CISCO888GW-G-NA-K9
Cisco 888 G.SHDSL Router with 3G, 802.11n FCC Compliant
CISCO888GW-G-NE-K9
Cisco 888 G.SHDSL Router with 3G, 802.11n ETSI Compliant
G.SHDSL (EFM) and 3G
C888EG+7-K9
Secure Router with Ethernet over G.SHDSL (EFM) and Embedded 3.7G HSPA+ Release 7 with SMS/GPS
Voice Gateway
C887VA-V-K9
Cisco887, V/ADSL2 WAN, 4 FXS, 2BRI, 1ISDN
C887VA-V-W-E-K9
Cisco887, V/ADSL2, 4 FXS, 2BRI, 1ISDN, 2.4GHz
C881-V-K9
Cisco881, FE WAN, 4 FXS, 2BRI, 1FXO
SRST
C881SRST-K9
Cisco 881 SRST Ethernet Security Router with FXS, FXO
C881SRSTW-GN-A-K9
Cisco 881 SRST Ethernet Security Router with FXS, FXO; 802.11n FCC Compliant
C881SRSTW-GN-E-K9
Cisco 881 SRST Ethernet Security Router with FXS, FXO; 802.11n ETSI Compliant
C888SRST-K9
Cisco 888 SRST G.SHDSL Router with FXS, BRI
C888SRSTW-GN-A-K9
Cisco 888 SRST G.SHDSL Router with FXS, BRI; 802.11n FCC Compliant
C888SRSTW-GN-E-K9
Cisco 888 SRST G.SHDSL Router with FXS, BRI; 802.11n ETSI Compliant
Teleworker
C881W-GN-A-K9
Cisco 881 Ethernet Security Router with 802.11n FCC Compliant
C881W-GN-E-K9
Cisco 881 Ethernet Security Router with 802.11n ETSI Compliant
C881W-GN-P-K9
Cisco 881 Ethernet Security Router with 802.11n Japan Compliant
POE
800-IL-PM=2
2 port 802.3af capable inline power module for 880 routers
DRAM
MEM8XX-256U512D
256-MB DRAM upgrade to 512 MB for Cisco 880 Series Routers
MEM8XX-256U768D
512-MB DRAM upgrade to 768 MB for Cisco 880 Series Routers
MEM8XX-512U768D
512-MB DRAM upgrade to 768 MB for Cisco 880 Series Routers
MEM8XX-512U1GB**
512-MB DRAM upgrade to 1GB for Cisco 880 Series Routers
3G Modem
PCEX-3G-CDMA-V
Cisco 3G EVDO Rev A/0/1xRTT Modem-Verizon Networks
PCEX-3G-CDMA-S
Cisco 3G EVDO Rev A/0/1xRTT Modem-Sprint Networks
PCEX-3G-CDMA-B
Cisco 3G EVDO Rev A/0/1xRTT Modem-BSNL Networks
PCEX-3G-HSPA-US
Cisco 3.5G HSPA/UMTS/EDGE/GPRS Modem-AT&T Network Only
PCEX-3G-HSPA-G
Cisco 3.5G HSPA/UMTS/EDGE/GPRS Modem-Global Networks (Global SKU, excluding USA)
Cisco IOS Universal Software for Cisco 880
S880DUDK9*
Cisco 880 Series IOS UNIVERSAL DATA
S880VUDK9*
Cisco 880 Series IOS UNIVERSAL VOICE
Software License for Cisco 880 Data
SL-880-ADVSEC (default)
Cisco 880 Advanced Security Image Feature License
SL-880-AIS
(upgrade option)
Cisco 880 Advanced IP Services Image Feature License
© 2017 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 23 of 24
Part Number
Product Name
SL-880-ADVSEC-NPE
Cisco 880 Advanced Security NPE License PAK (Paper)
SL-880-AIS-NPE
(upgrade option)
Cisco 880 Advanced IP Services NPE License PAK (Paper)
Software License for Cisco 880 Data (Bulk)
L-SL-800-SEC-K9
Advanced IP e-Delivery PAK for Cisco 800 Series
Software License for Cisco 880 SRST and CUBE
SL-SRST880-AIS
(included by default)
Cisco 880 Advanced IP Services Image Feature License
SL-880-AIS and SL-880-
ADVSEC
(included by default)
Cisco 880 Advanced IP Services and Security Image Feature License for 3G, Embedded 3G and CUBE models
Router Software
C880data-universalk9-mz
Universal image for Cisco 880 ISR Data Router Series
C880voice-universalk9-mz
Universal image for Cisco 880 SRST and CUBE Router Series
c800-universalk9-mz
Universal image for C881-K9, C886VA-K9, C886VAJ-K9, C887VA-K9, C887VAM-K9 and C888-K9
Access Point Software
ap801-k9w7-tar
Autonomous software image for ap801
ap801-rcvk9w8-tar
LWAPP recovery image for ap801
Cisco ONE Software for WAN is available for the ISR 880.
Cisco ONE Software offers a complete solution that delivers an optimal experience over any connection while
helping you get the most from your WAN investment with secure, fault-tolerant connectivity.
Benefits:
Connect branch offices and your campus securely at an optimal cost by improving application performance
through application protocol acceleration and optimization techniques that offload the WAN.
Integrate voice and video across branch offices and your campus to increase productivity.
For ordering information for Cisco ONE Software for the ISR 880, go
to https://www.cisco.com/c/en/us/products/software/one-wan/wan-part-numbers.html.
* Each software part number has the Cisco IOS Software release number at the end of the string. For example, the part number
of IOS 12.4(20)T data universal image for Cisco 880 series is S880DUK9-12420T.
** This Memory license is only valid for C881-K9, C886VA-K9, C886VAJ-K9, C887VA-K9, C887VAM-K9 and C888-K9
Cisco License Manager is a secure client- and server-based application used to manage Cisco IOS Software
activation and licenses. For more information about Cisco License Manager, visit https://www.cisco.com/go/clm.
Cisco Services for the Branch Office
Services from Cisco and our certified partners can help you reduce the cost and complexity of branch-office
deployments. We have the depth and breadth of experience across technologies to architect a blueprint for a
branch-office solution to meet your company's needs. Planning and design services align technology with business
goals and can increase the accuracy, speed, and efficiency of deployment. Technical services help maintain
operational health, strengthen software application functions, solve performance problems, and lower expenses.
Optimization services are designed to continually improve performance and help your team succeed with new
technologies. For more information, please visit https://www.cisco.com/go/services.
© 2017 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 24 of 24
Cisco Capital Financing Helps You Achieve Your Objectives
Cisco Capital® financing can help you acquire the technology you need to achieve your objectives and stay
competitive. We can help you reduce capital expenditures (CapEx), accelerate your growth, and optimize your
investment dollars and ROI. Cisco Capital financing gives you flexibility in acquiring hardware, software, services,
and complementary third-party equipment. And there’s just one predictable payment. Cisco Capital financing is
available in more than 100 countries. Learn more.
Printed in USA C78-459542-20 08/17

Navigation menu
