Data Sheet

© 2008 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information. Page 1 of 4

Cisco WRV200 Wireless-G VPN Router: RangeBooster

Cisco Small Business Routers

Secure Wireless Network Access for Small Offices

Highlights

● IPsec and SSL VPN connectivity on a single device

● Built-in 4-port 10/100 Fast Ethernet switch

● Multiple SSIDs and VLANs provide separate secure networks

● Simple, browser-based configuration

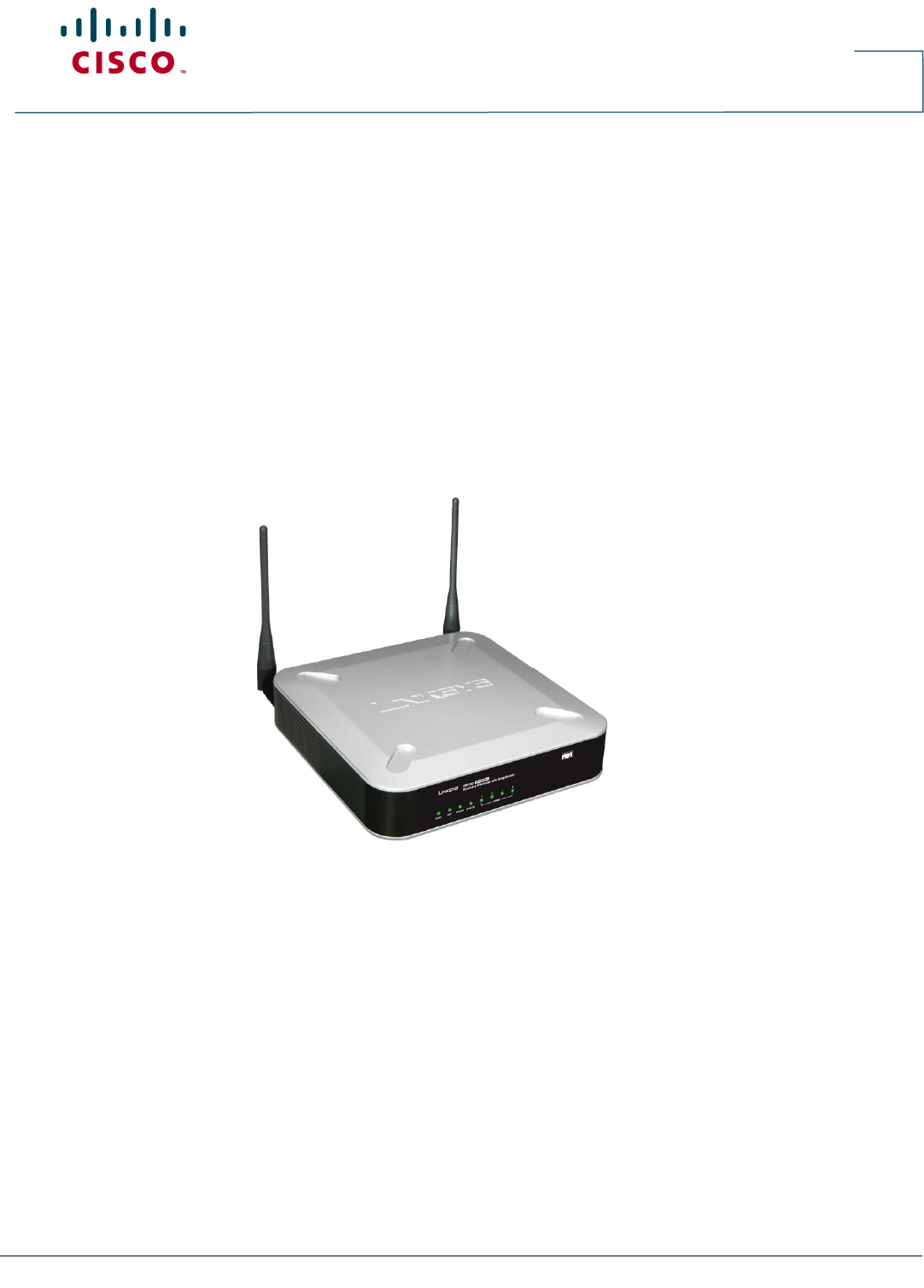

Figure 1. Cisco WRV200 Wireless-G VPN Router: RangeBooster

Product Overview

Cisco® Small Business Solutions enable small companies to connect employees, customers, and

suppliers - easily, reliably, and affordably. Drawing on a broad portfolio of Cisco products, local

partners build and maintain individualized solutions that help small businesses around the world

work better.

The Cisco WRV200 Wireless-G VPN Router (Figure 1) enables secure, reliable wireless network

access for your small business. Its intuitive web-based interface allows you to easily set up its

features. Simple Network Management Protocol (SNMP) gives you the ability to remotely manage

and monitor the device.

Ten IP Security (IPsec) QuickVPN tunnels with a throughput of 30 Mbps give your mobile workers

a secure and easy-to-use way to stay connected. As an essential element of your business, this

product provides security functions for authentication, encryption, and firewall.

Data Sheet

© 2008 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information. Page 2 of 4

The VPN router gives your business multiple service set identifiers (SSIDs) and VLANs for traffic

separation, and enhanced quality of service (QoS) features for improved voice and video quality.

With support for wireless QoS (Wi-Fi Multimedia [WMM]) and wired QoS (port prioritization),

consistent voice and video quality is maintained throughout your business.

The RangeBooster technology provides increased range and reliability, using multiple-input,

multiple-output (MIMO). The RF output allows flexible control of the wireless access coverage.

Features

● 802.11g supports data rates up to 54 Mbps

● Dual fixed antennas with MIMO provide two to three times better coverage than standard

802.11g wireless devices

● Supports multiple SSID mapping to specific VLAN to create separate, secured networks

● 10 IPsec VPN tunnels with QuickVPN support

Specifications

Table 1 contains the specifications, minimum requirements, and package contents for the Cisco

WRV200 Wireless-G VPN Router.

Table 1. Specifications for the Cisco WRV200 Wireless-G VPN Router: RangeBooster

Specifications

Standards IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u, 802.1x (security authentication),

802.11i ready (security WPA2), 802.11e ready (wireless QoS)

Ports Ethernet, Antenna, Power

Buttons Reset

Cabling type Unshielded twisted pair (UTP) Category 5

LEDs Power, DMZ, Wireless, Internet, LAN 1-4

Operating system Linux

Performance

Network Address Translation

(NAT) throughput Wire speed: 100 Mb/s

IPsec throughput 30 Mb/s Triple Data Encryption Standard (3DES) throughput

Setup/Configuration

Web user interface Built-in web user interface for easy browser-based configuration (HTTP/HTTPS)

Management

SNMP version SNMP version 1, 2c

Event logging Local, syslog, email

Web firmware upgrade Firmware upgradable through web browser

Diagnostics Flash, RAM, LAN, WLAN

Wireless

Spec./modulation Radio and modulation type: 802.11b/DSSS, 802.11g/OFDM

Data rates Data rates supported: 802.11b: 1, 2, 5.5, 11 Mbps; 802.11g: 6, 9, 11, 12, 18, 24, 36, 48, 54

Mbps

Channels Operating channels: 11 North America, 13 most of Europe (ETSI and Japan)

External antennas 2 (omnidirectional)

Antenna connector type Fixed

Transmit power Transmit power (adjustable) at normal temperature range: 802.11.g: typical -18 dBm,

802.11.b: typical -20 dBm

Data Sheet

© 2008 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information. Page 3 of 4

Adjustable power Yes

Antenna gain 2 dBi

Receiver sensitivity 802.11.g: 54 Mbps at -69 dBm; 802.11.b: 11Mbps at - 86 dBm

Wireless QoS WMM, 802.11e ready

Security

Wired Equivalent Privacy

(WEP)/WPA/WPA2 WEP 64 bit/128 bit, WPA Temporal Key Integrity Protocol (WPA-TKIP)/Advanced

Encryption Standard (AES), WPA Pre-Shared Key (WPA2-PSK), WPA2-ENT

802.1X RADIUS authentication 802.1x: RADIUS (Message Digest Algorithm 5 [MD5], Secure Hash Algorithm 1 [SHA1],

Transport Layer Security [TLS], Tunneled TLS [TTLS], Protected Extensible Authentication

Protocol [PEAP]), dynamically varying encryption keys

Access control Access control list (ACL) capability: MAC and IP-based

Firewall Stateful packet inspection (SPI) firewall

DoS DoS prevention

Network

VLAN support 4 LAN ports and 4 SSIDs can be mapped to up to 5 VLANs

SSID broadcast SSID broadcast enable/disable

Multiple SSID Supports up to 4 SSIDs

Wireless VLAN map Supports SSID to VLAN mapping with wireless client isolation

Wireless domain services

(WDS) Allow wireless signals to be repeated by a repeater

DMZ Software configurable on any LAN port

VPN 10 IPsec tunnels, 3DES/AES encryption, MD5, SHA1 authentication, IPsec NAT

transparency (NAT-T), QuickVPN support

Routing Static and Routing Information Protocol (RIP) v1, v2

Environmental

Device dimensions

(W x H x D) 7.32 x 6.89 x 1.89) in.

(170 x 42 x 193.5 mm)

Weight 12.52 oz (.355 kg)

Power 12V 1A DC input

Certifications FCC, IC-03, CE

Operating temperature 32º to 104ºF (0º to 40ºC)

Storage temperature -4º to 158ºF (-20º to 70ºC)

Operating humidity 10% to 85% noncondensing

Storage humidity 5% to 90% noncondensing

Minimum Requirements

● 802.11b or 802.11g wireless adapter with TCP/IP installed per PC

● Network adapter with Ethernet network cable and TCP/IP installed per PC

● Web-based configuration: Java-enabled web browser (Internet Explorer or Mozilla Firefox)

Package Contents

● Cisco WRV200 Wireless-G VPN Router with 2 fixed antennas

● User guide and set-up wizard on CD-ROM

● Network cable

● Power adapter

● Registration card

● Quick install guide

Product Warranty

3-year limited hardware warranty with return to factory replacement and 90-day limited software warranty.

Data Sheet

© 2008 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information. Page 4 of 4

Cisco Limited Warranty for Cisco Small Business Series Products

This Cisco Small Business product comes with a 3-year limited hardware warranty with return to

factory replacement and a 90-day limited software warranty. In addition, Cisco offers software

application updates for bug fixes and telephone technical support at no charge for the first 12

months following the date of purchase. To download software updates, go to:

http://www.cisco.com/go/smallbiz.

Product warranty terms and other information applicable to Cisco products are available at

http://www.cisco.com/go/warranty.
