DEMCO Butterﬂy Valves

Quality design and rugged dependability in meeting the rigorous requirements of

industrial, oilﬁeld and drilling applications

DEMCO BUTTERFLY VALVES

Introduction .......................................................................................... 2

Features and Beneﬁts ........................................................................... 3

Styles and Accessories ........................................................................... 6

Series NE-C, NE-I, NE-D, NEI-T ............................................................... 9

Series NF-C ........................................................................................... 10

Base Part Numbers and Weights ........................................................... 12

Marine Series ........................................................................................ 13

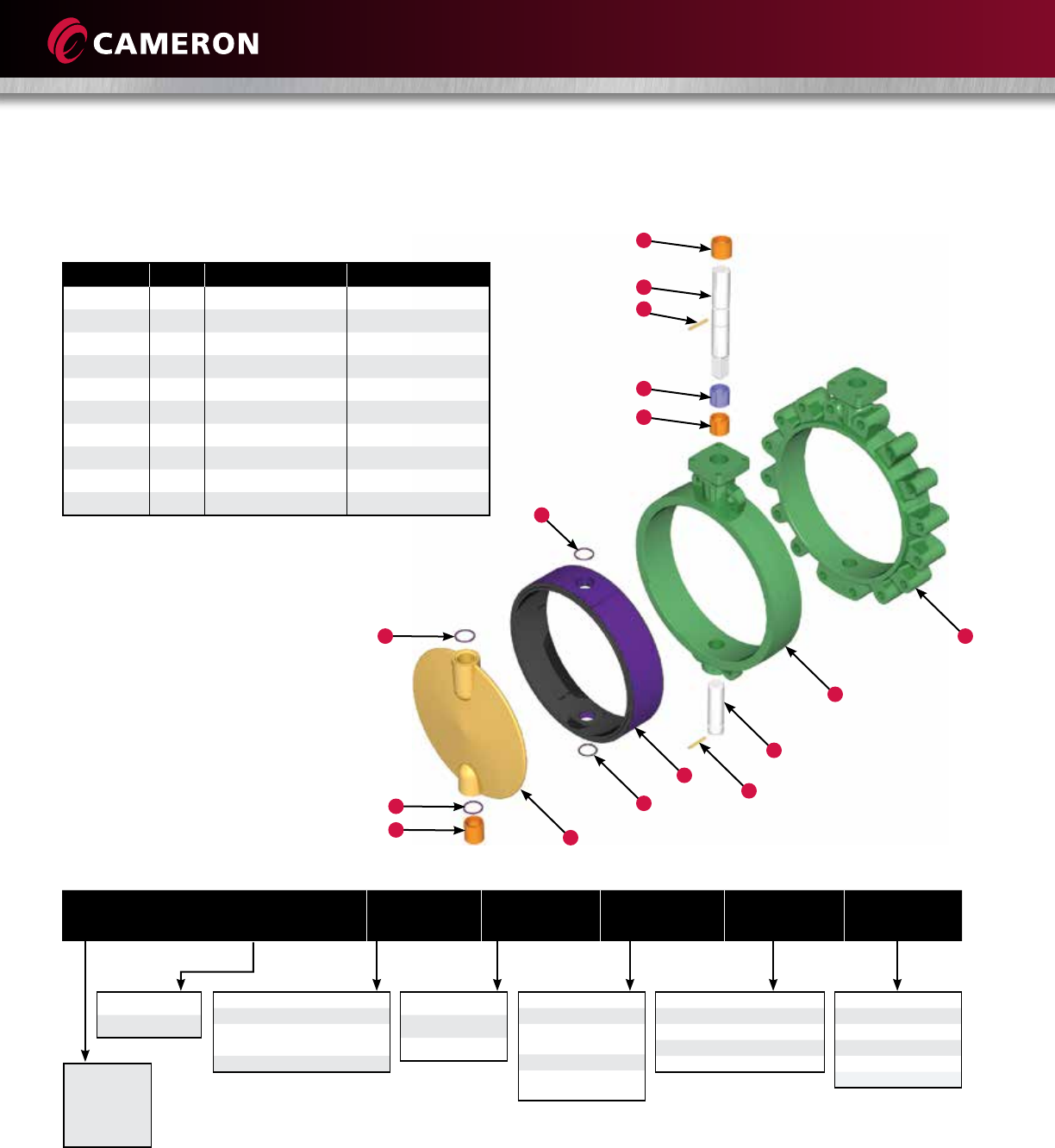

Component Parts List ............................................................................ 14

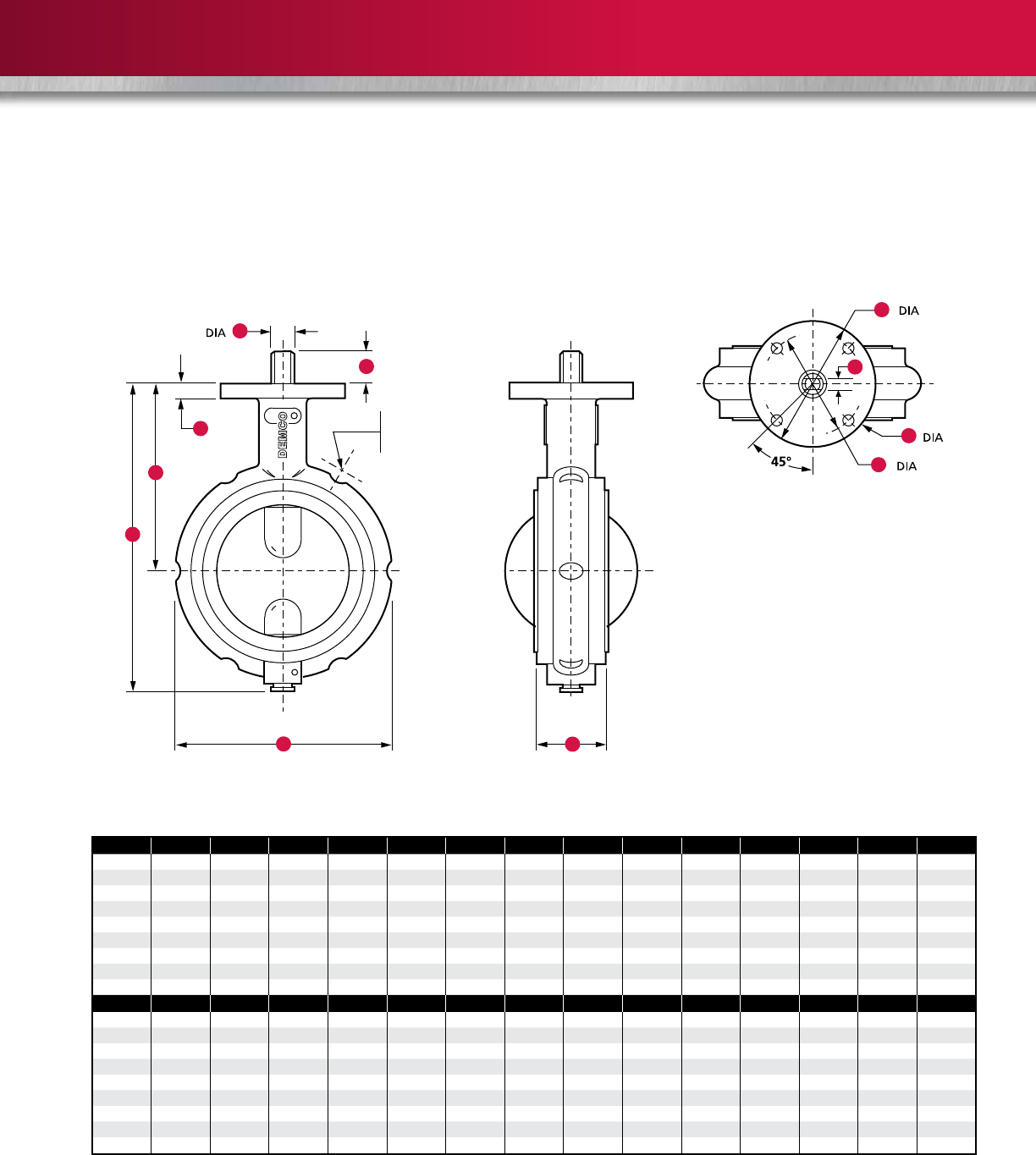

Dimensional Data (Valves) ..................................................................... 16

Handles ................................................................................................ 22

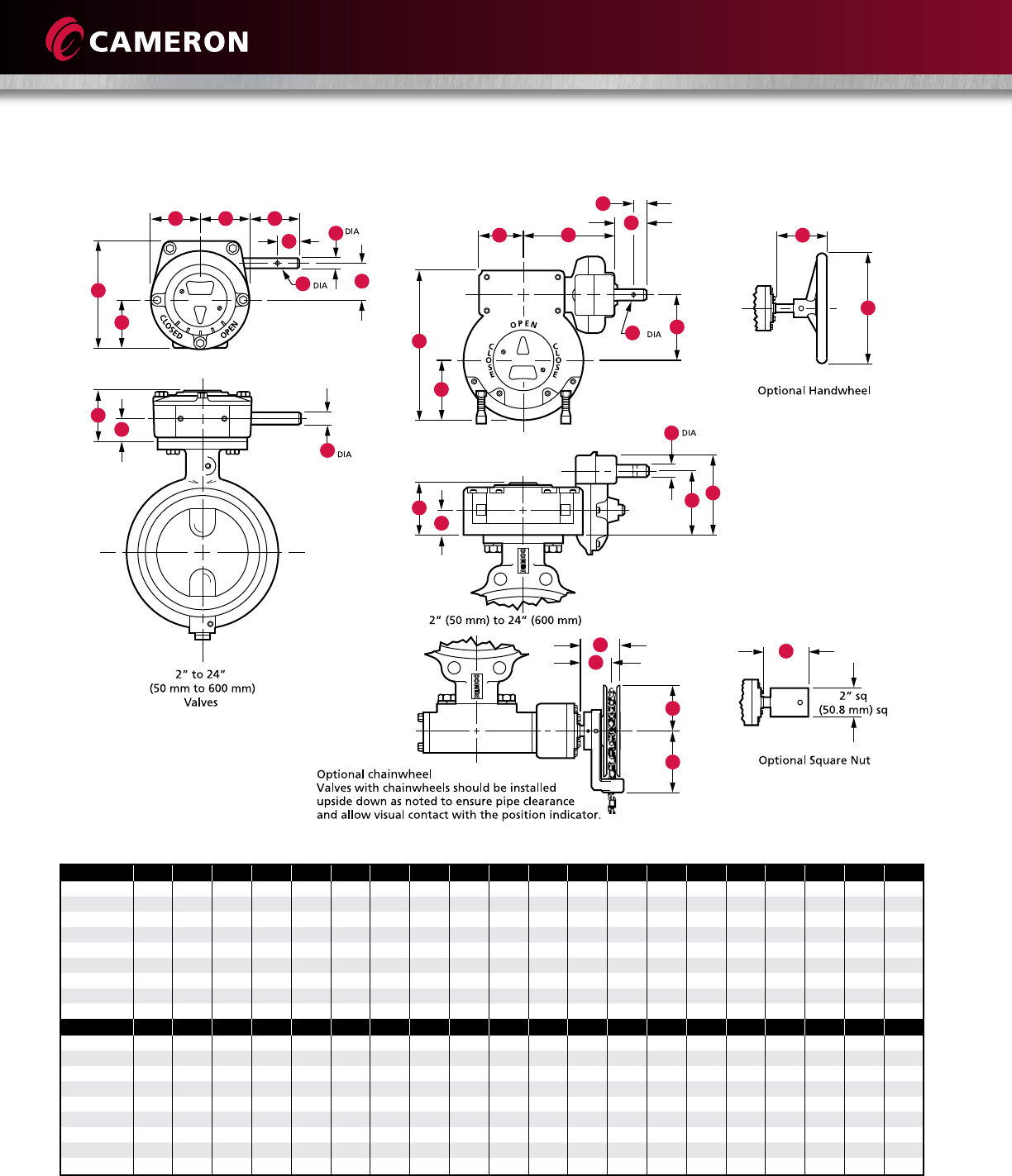

Worm Gear Operators .......................................................................... 23

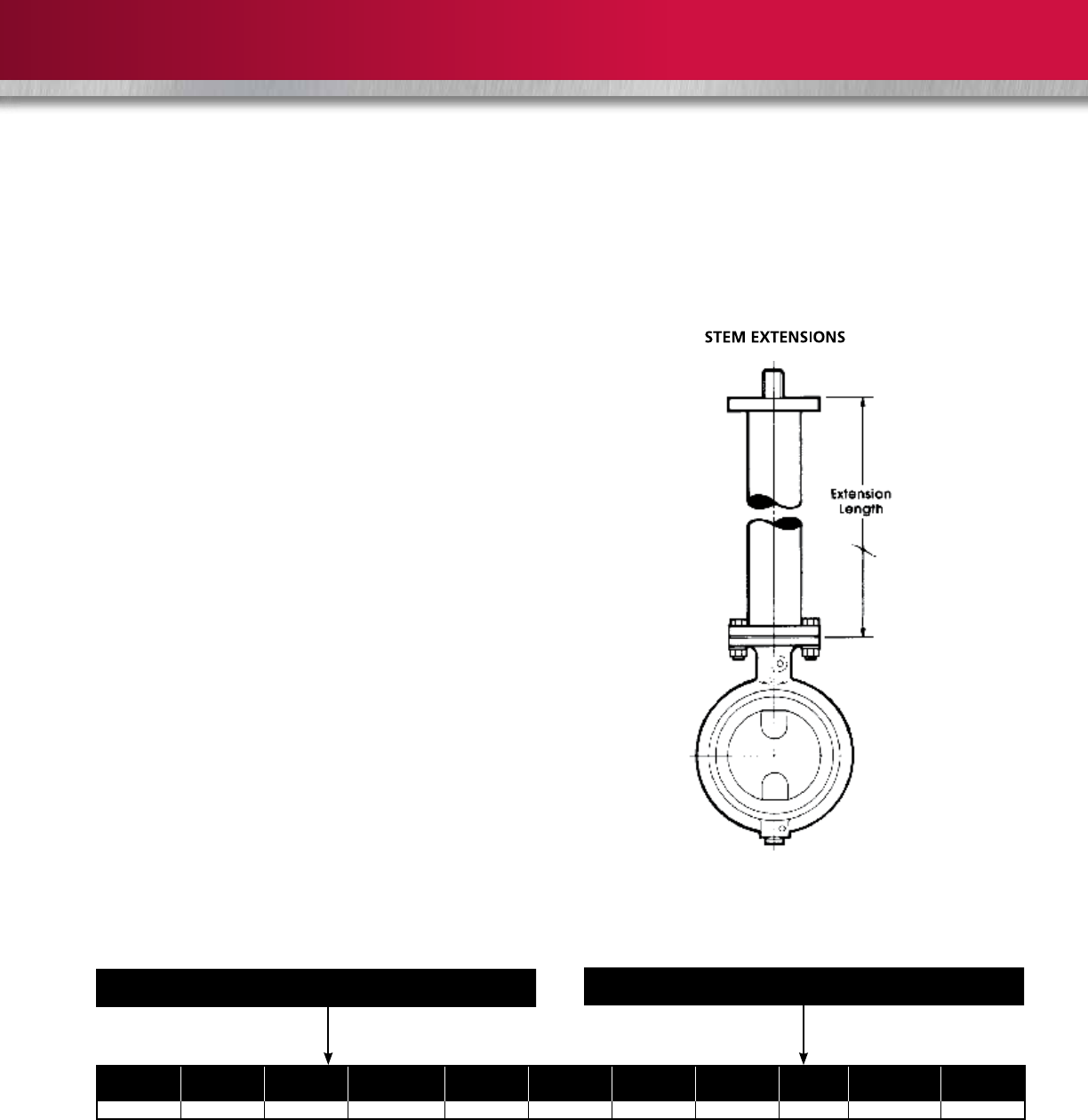

Stem Extensions .................................................................................... 25

General Technical Information ............................................................... 26

Torque Data .......................................................................................... 31

Standard Material Data ......................................................................... 32

Material Selection Guide ....................................................................... 33

Services for Valves and Actuation .......................................................... 39

Trademark Information ......................................................................... 40

Table of Contents

DEMCO Butterﬂy Valves

Cameron is a leading provider of valves, valve automation, and measurement

systems to the oil and gas industry. Our products are primarily used to control, direct

and measure the ﬂow of oil and gas as it is moved to reﬁneries, petrochemical

plants, and industrial centers for processing.

We provide valve products that are sold through distributor networks worldwide for

use in both oil and gas and industrial applications and include such widely

recognized brands as DEMCO®, NAVCO®, NEWCO®, NUTRON®, THORNHILL

CRAVER®, TECHNO™, TOM WHEATLEY®, WHEATLEY®, and WKM®.

Cameron’s DEMCO butterﬂy valves are the valves of choice, engineered and proven

for drilling and production industries. Designed for dependable, heavy-duty

performance in abrasive and corrosive service conditions, DEMCO butterﬂy valves are

commonly selected for a number of oilﬁeld applications.

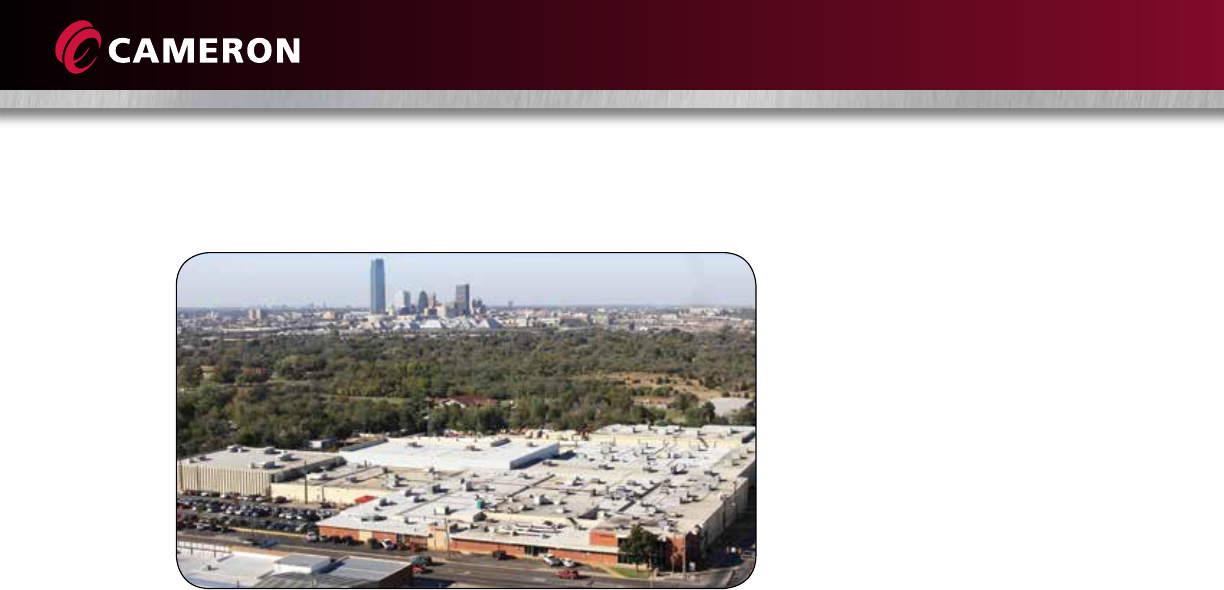

Oklahoma City,

Okla., USA

FEATURES AND BENEFITS

As one of the most durable resilient-seated butterﬂy valves in

the industry, Cameron’s DEMCO butterﬂy valve excels in a

variety of applications.

Cast in both wafer and tapped lug patterns in a variety of

material choices, DEMCO butterﬂy valves feature a one-piece

body for reduced weight and increased strength.

The unique stem hole design in the disc ensures the dry stem

journal, and the hard-backed seat allows ease of installation,

reliable operation and in-ﬁeld repairability without special

tools. DEMCO butterﬂy valves are available in sizes 2” to 36”

(50 mm to 900 mm).

Engineered for long-term, reduced-maintenance

performance, DEMCO butterﬂy valves are commonly

selected for a variety of applications in the following

industries:

• Chemical and petrochemical

• Agriculture

• Oil and gas drilling and production

• Food and beverage

• Water and waste water

• Cooling towers (HVAC)

• Power

• Mining and materials

• Dry bulk handling

• Marine and government

Bi-Directional Sealing

Cameron’s DEMCO butterﬂy valve provides bi-directional

sealing at full-rated pressure with identical ﬂow from either

direction.

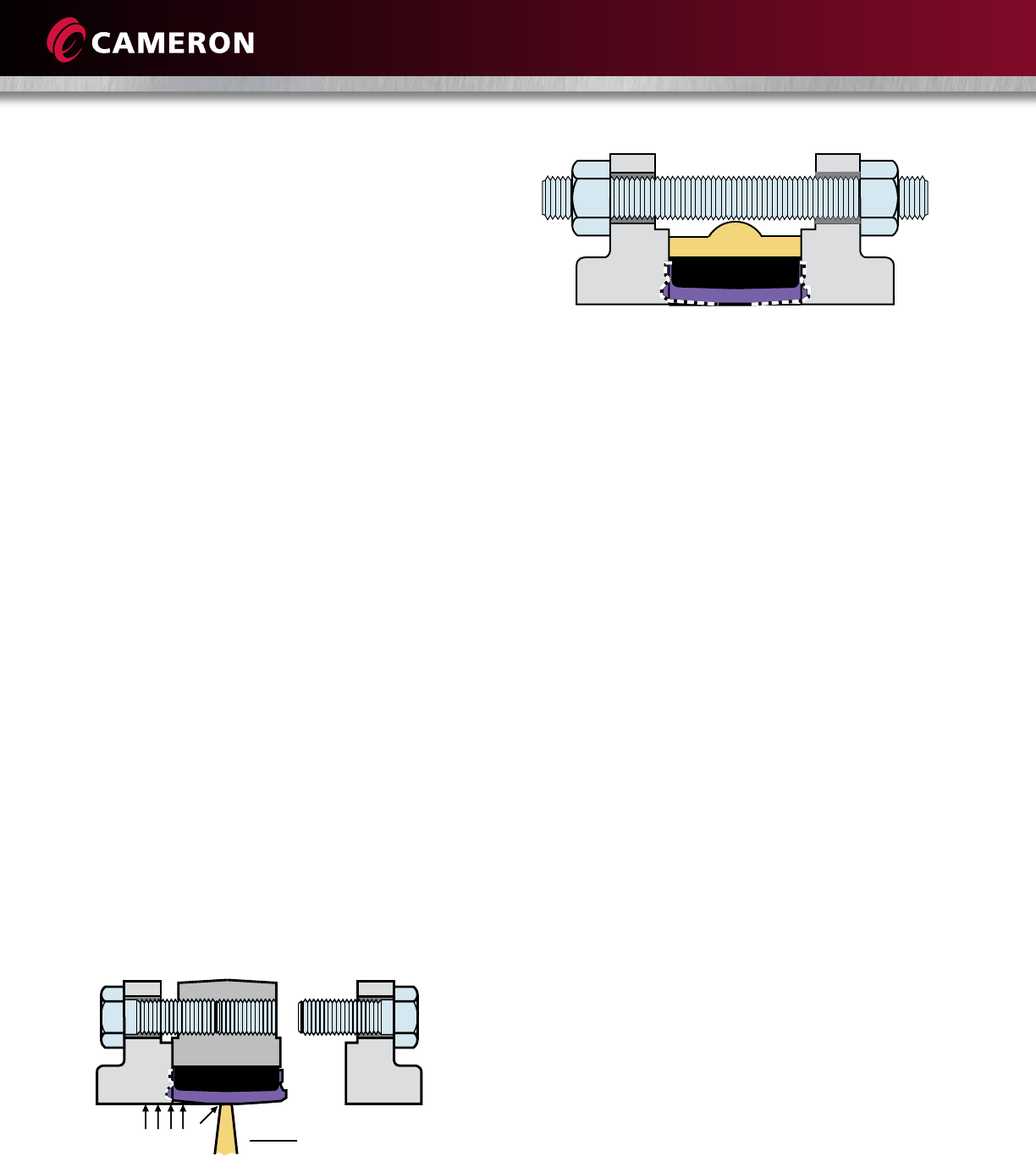

Integral Flange Seal

An integral ﬂange seal molded into the edge of the seat

accommodates ASME weld neck, slip-on, threaded, socket

and stub end type C ﬂanges.

ASME Class 150 Rating

With a body rating of ASME Class 150 (285 psi non-shock),

the wafer body diameters are designed to self-center in the

ASME Class 150 ﬂange pattern.

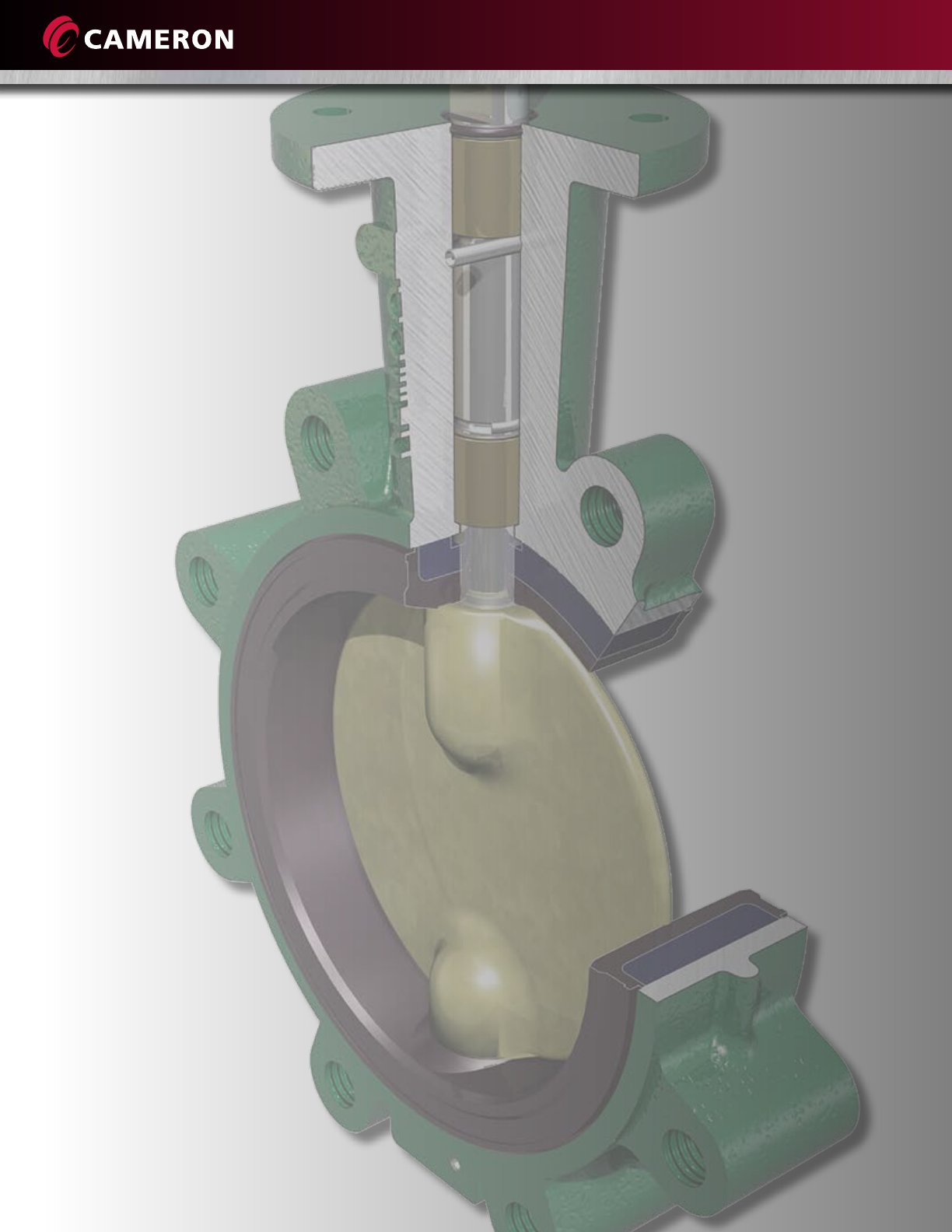

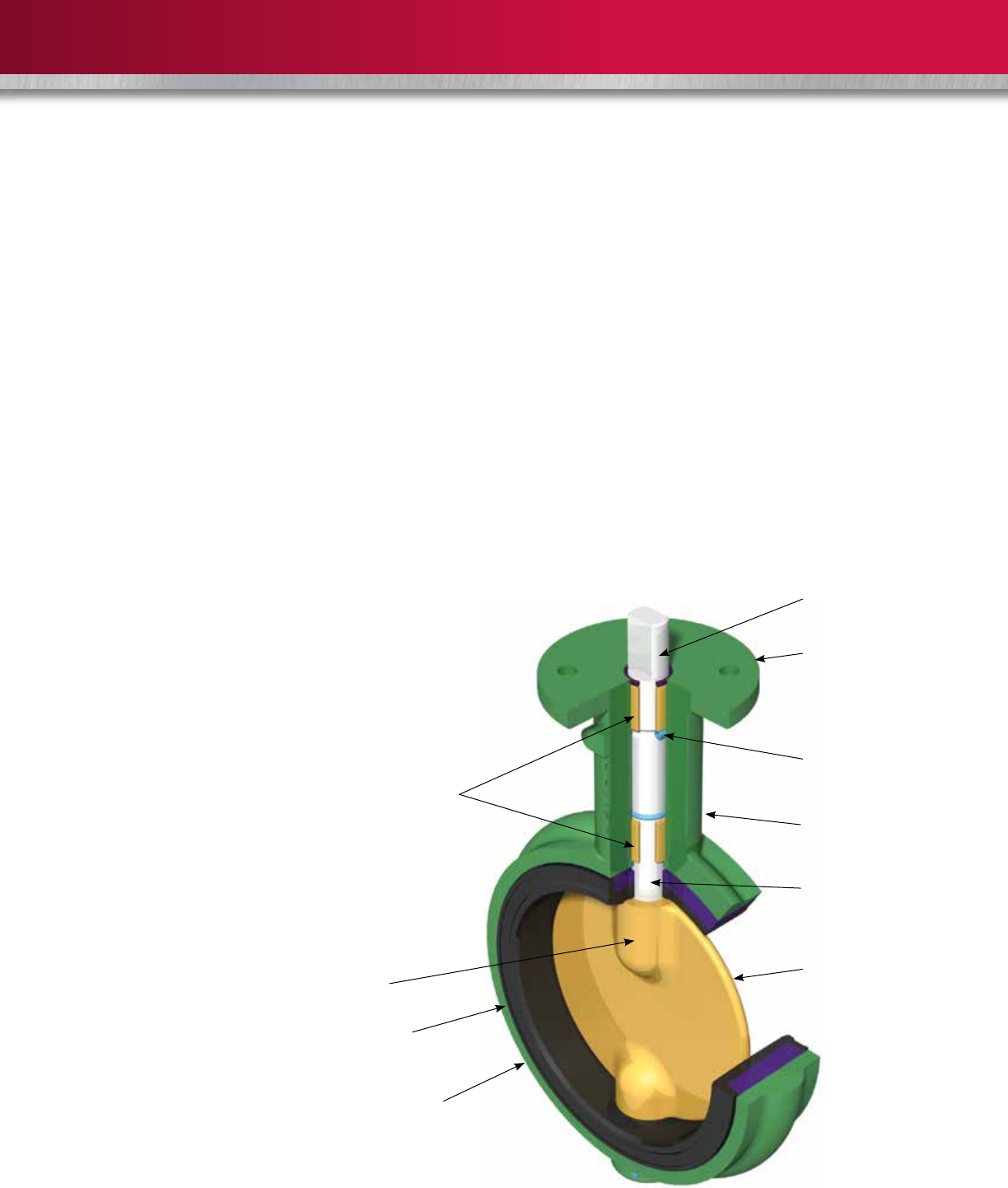

Flatted Double D

Upper Stem

Large Flange Top for

Ease of Power

Automation

Positive Stem Retention

for Blowout-Proof

Stems

MSS-SP-25 Marking is

Standard

Triple Stem Seal

High-Flow Disc

Bronze Bearings

Positively Oriented Disc

Hard-Backed Cartridge Seat

Wafer Style Shown

One-Piece Body

Multiple Pressure Ratings

Three drop-tight pressure ratings are offered for 2” to 12” (50 mm to 300 mm) sizes. The standard shut-off pressure rating is

200 psi, but 285 and 50 psi shut-off ratings are also available. A throttling 0 psi-rated valve is available where drop-tight closure

is not required and minimal torque is desired. Both the 50 psi and throttling ratings allow for smaller actuators, which can

signiﬁcantly reduce overall installation cost in automated applications. The 14” to 36” (350 mm to 900 mm) size valves are

available in 150 and 50 psi drop-tight shut-off ratings, as well as throttling.

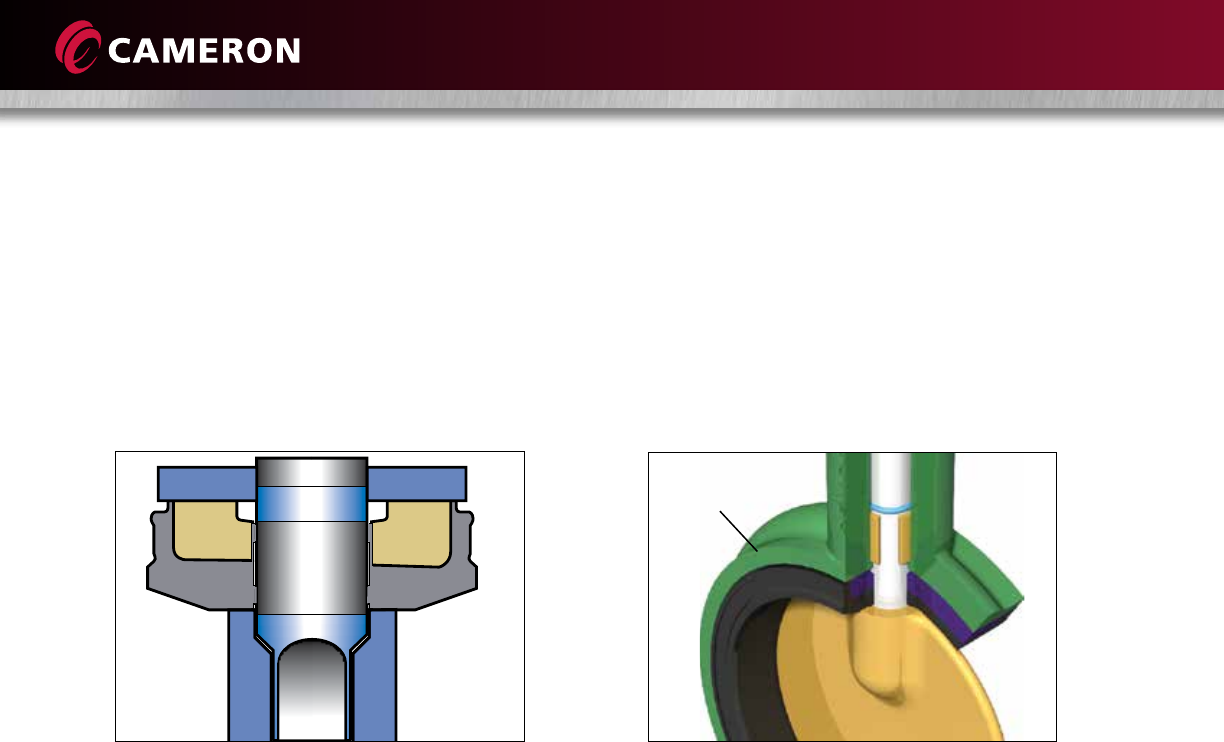

A. Dry Stem Journal Reduces Potential for

Leakage

The DEMCO valve’s disc is uniquely designed with a

continuous annular-raised band around the stem hole and

disc edge, which presses into the seat ﬂat at every angular

position.

The resilient seat presses back with a higher force than the

line pressure, preventing leakage to the stem. In addition,

two O-ring ribs are provided in the seat stem bore, creating a

triple stem seal. In competitive stem seal designs with boot

seats, a seal is accomplished by an interference squeezing on

the stem or an O-ring in the stem journal. The potential for

leakage behind the seat is high for this competitive design.

As the disc wipes the seat, elongation of the stem seal area

allows leakage to collect behind the seat. This condition is

reduced by the DEMCO valve’s dry stem journal and hard-

backed seat.

B. Hard-Backed Cartridge Seat

The DEMCO valve’s cartridge seat is constructed by

permanently bonding a resilient elastomer to a rigid backing

ring. In addition to superior sealing integrity, this design:

• Makes valve installation easier because no special

precautions are required for disc position. This is

especially advantageous when installing valves with

fail-closed actuators.

• Reduces high torque and premature failure caused by

elastomer distortion, as found in other non-rigid seat

designs.

• Simpliﬁes seat replacement because the seat is slip-ﬁtted

into the body with no need for special tools.

Hard-Backed

Seat

FEATURES AND BENEFITS (CONT.)

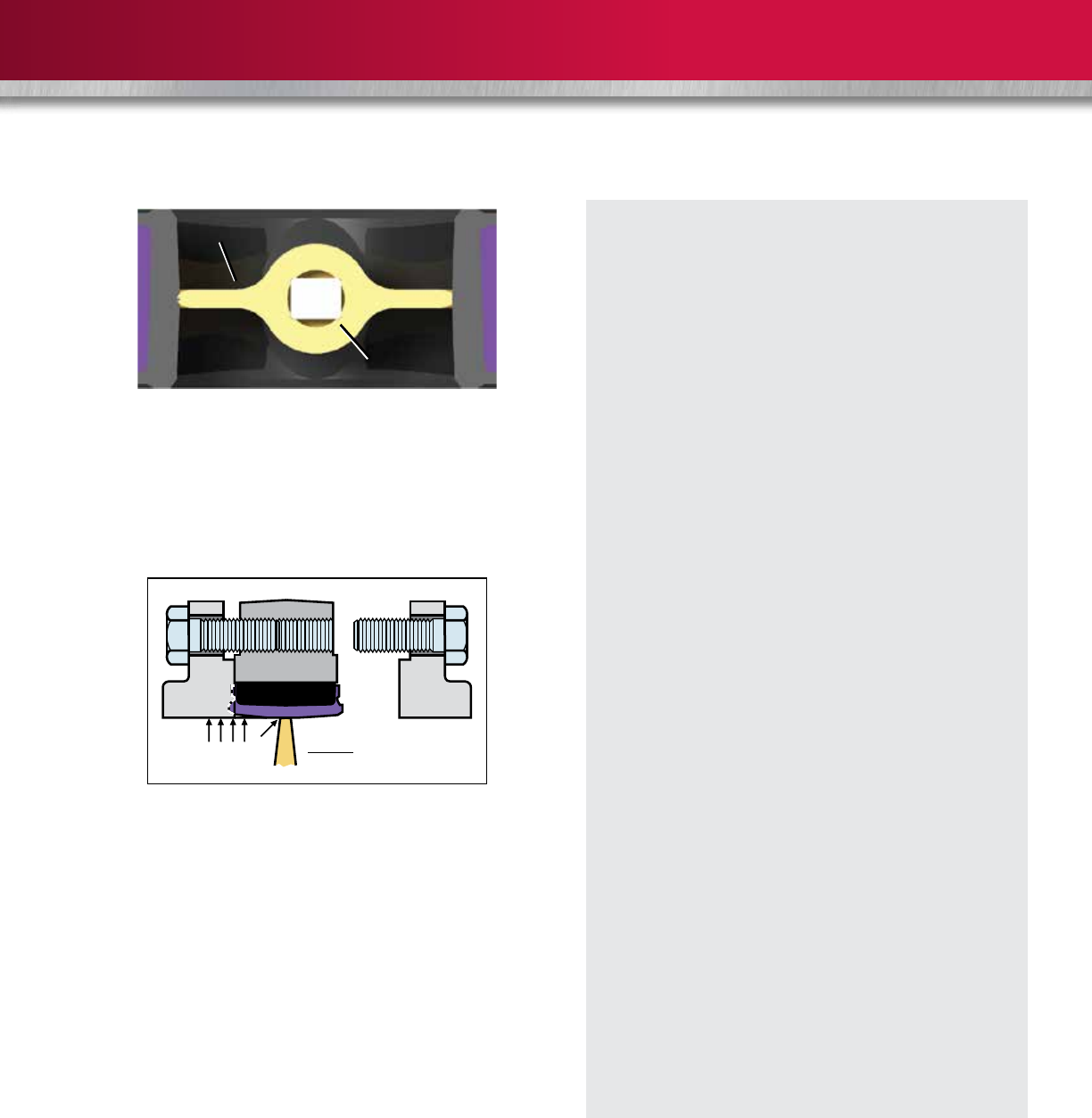

C. Positively Oriented Disc

The rectangular drive ensures the proper orientation of the

stem disc connection. In 2” to 24” (50 mm to 600 mm) size

valves, the disc is permitted to ﬂoat on the stem to center in

the valve seat. This design enhances drop-tight sealing and

prolongs service life.

Sizes

2” to 36” (50 mm to 900 mm)

Body Type and Style Designations

Long-Neck NE-C and NF-C: 2” to 36” (50 mm to

900 mm) wafer/lug, 36” (900 mm)

Short-Neck NE-I and NE-I Sanitary: 2” to 12“ (50

mm to 300 mm) wafer/lug

NE-IT Teﬂon: 2” to 10” (50 mm to 250 mm)

wafer/lug

NE-D: 2” to 12” (50 mm to 300 mm) wafer

Marine: 2” to 24” (50 mm to 600 mm) wafer/lug

Pressure Rating

2“ to 12” (50 mm to 300 mm):

0 (throttling); 50, 200 and 285 psi

NEI-T: 2” to 10” (50 mm to 250 mm): 150 psi

14” to 36” (350 mm to 900 mm): 0, 50 and 150 psi

Operating Temperatures

-30º F to 300º F (-34º C to 204º C), depending on

seat material selection and application (see page 32)

Standard Material Options

Bodies: Iron, steel, stainless steel and bronze

Discs: Nickel-plated ductile iron, bronze and stainless

steel

Stems: 416 and 316 stainless steel

Seats: Buna-N, EPDM, FKM and Neoprene

* Many more options available (consult Cameron or

see pages 9, 10 and 11 on how to order).

D. End-of-Line Service

Lug body valves may be used in end-of-line service with

downstream piping removed. Only weld-neck or socket

ﬂanges can be used for this service. Since upstream pressure

is excluded between the ﬂange and the seat face by the

DEMCO ﬂange seal design, there is no effective force to slide

the seat downstream. DEMCO 2” to 12” (50 mm to 300

mm) lug butterﬂy valves are suitable for liquid service up to

200 psi with downstream piping removed at 150 psi for 14”

to 36” (350 mm to 900 mm) valves.

Lug body valves are recommended for isolation of pumps,

control devices or other system components, which may

need to be removed for repair or replacement. Lug valves

also are suitable for installation at points from which piping

expansion may proceed. Such valves normally are blanked

with blind ﬂanges to protect the exposed seats until new

piping is attached.

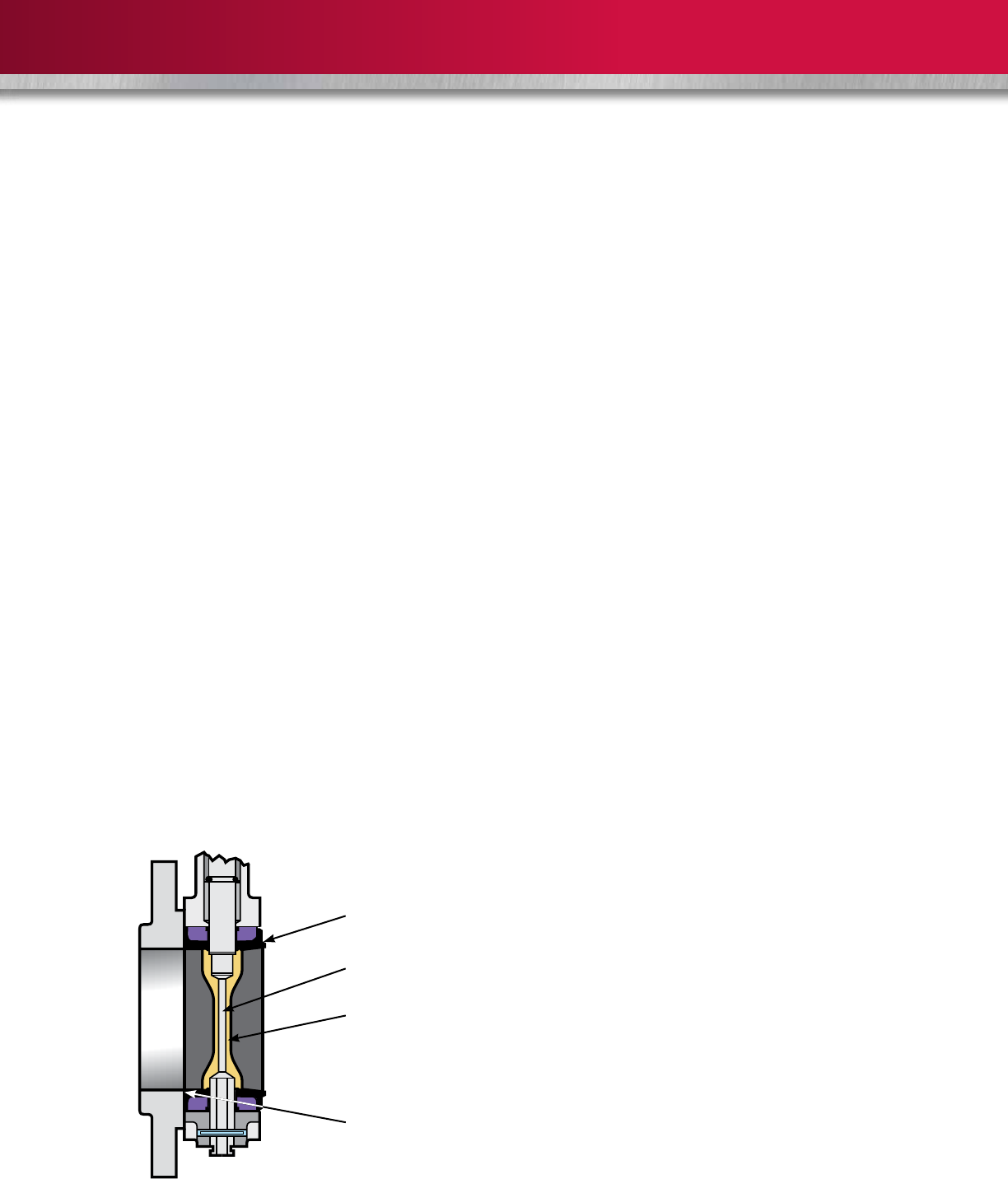

Upstream Disc

Disc

Stem

SPECIFICATIONS

STYLES AND ACCESSORIES

The DEMCO butterﬂy valve comes in a variety of styles to suit a range of applications. In addition, a variety of quality accessories

are available to further enhance its suitability to the application.

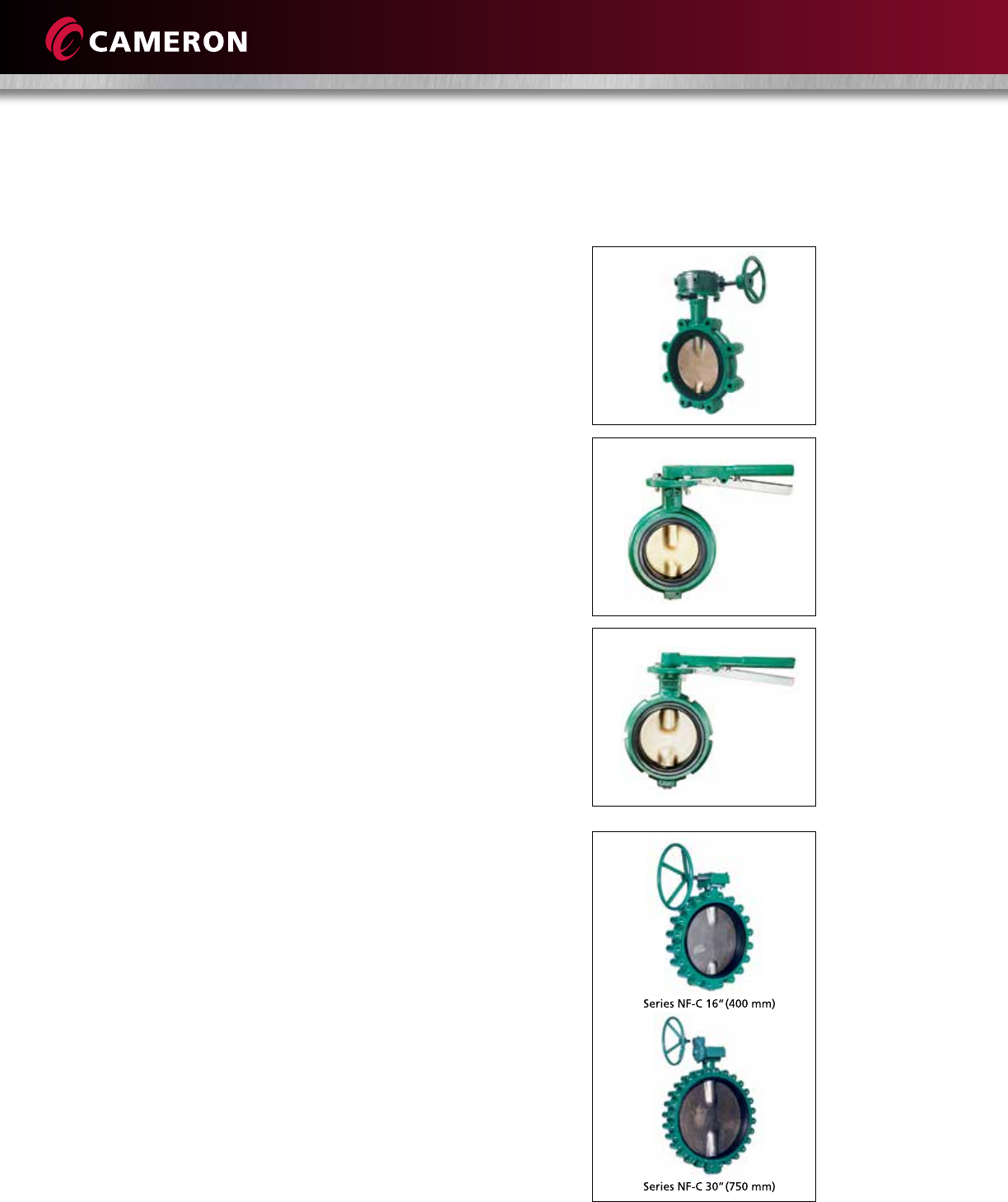

Series NE-C

Sizes 2” to 12” (50 mm to 300 mm) are available in both

wafer and lug styles. This series is a general purpose valve

with a neck length designed to provide full clearance for the

valve top over 2” of insulation on ASME Class 150 pipe

ﬂanges.

Series NE-I

Sizes 2” to 12” (50 mm to 300 mm) are suited for a range

of applications in many industries, including food and

beverage utilities and process ﬂowlines. This short neck

design is offered in a variety of body materials. The valves

are designed for installation between ASME Class 125 and

150 ﬂanges.

Series NE-D

The valves in this series can be made in sizes 2” to 12” (50

mm to 300 mm). The Series NE-D valve is a short-neck valve

with body notches to ﬁt popular, lightweight ﬂange

patterns, making it ideal for both the bulk material handling

and the transportation industries. Valves also will center in

ASME Class 125 and 150 ﬂanges.

Series NF-C

Sizes 14” to 36” (350 mm to 900 mm) are available in both

wafer and lug styles. The wafer body has two drilled locator

lugs at the top and bottom for ASME Class 150 ﬂanges.

Bronze bearings are installed on both stems for reduced

operating torque.

Series NE-I Sanitary

This series comes in sizes 2” to 12” (50 mm to 300 mm). It

is similar to the Series NE-I valve, but is exclusively designed

to meet the rigorous requirements of sanitary service in the

food and beverage industry. The body is available in bronze,

stainless steel, aluminum or electroless nickel-coated ductile

iron.

FDA-approved materials are used for all wetted parts.

Handle parts are bronze and stainless steel, permitting

caustic washdown.

Other beneﬁts:

• The DEMCO dry journal stem seal system ensures sanitary

butterﬂy valve construction.

• Drilled passageways, a design originated by the DEMCO

brand, vent the entire interior of the disc. No closed

chamber is provided for the culture of undesirable

organisms.

• Discs are produced from smooth and non-porous

investment castings. Stem bosses are reduced for

increased ﬂow.

• The mating ﬂange contacts and compresses the

projecting inner surface of the resilient seat to form a

smooth and uninterrupted ﬂow way. This positive seal

between the innermost contact of the seat and ﬂange

ensures aseptic conditions after a piping ﬂush.

Sanitary Features

Series NEI-T Teﬂon

Because of the inert, aseptic, non-stick character of Teﬂon®,

the DEMCO NEI-T Teﬂon-lined butterﬂy valve is ideal for

clean lines in food and beverage plants. The Teﬂon seat

consists of a virgin Teﬂon liner overlaid and bonded to an

elastomer EPDM cushion, which provides resilience for

sealing. The Teﬂon liner extends over the seat faces,

completely covering and sealing the resilient material from

contact with line ﬂuids.

Marine

DEMCO marine butterﬂy valves are available in the NE-C lug,

NE-I lug and wafer, and NE-D wafer styles, and conform to:

• Title 46 of the Code of Federal Regulations

• Part 56 of the US Coast Guard’s Marine Engineering

Regulations

• The American Bureau of Shipping Standard, including

tagging per MSS-SP-25 and testing per MSS-SP-67

Stem Seal

Vented

Design

High-Flow

Discs

Trap-Free

Flow Way

A. Actuators

Consult Cameron or visit www.c-a-m.com/valveautomation

for actuation options.

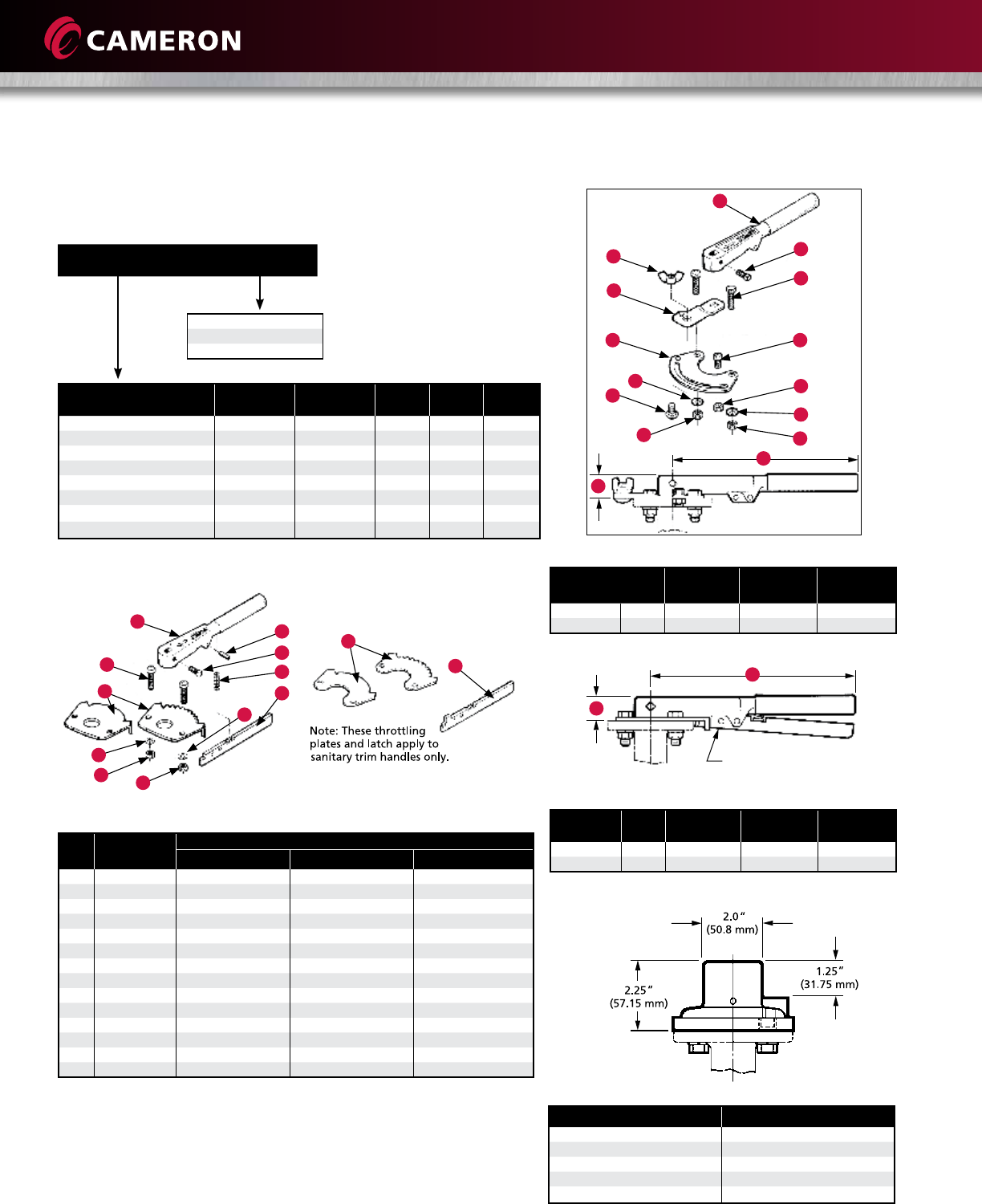

B. Handles and Stem Extensions

There are three basic handle designs that are compatible

with any 2” to 12” (50 mm to 300 mm) valve: ten-position

locking, two-position locking and memory stop. Memory-

stop handles provide throttling, which is inﬁnitely adjustable

and can be set by a lock nut with a memory-stop setting

(adjustable open stop). Handles are available in basic trim,

corrosion-resistant trim and sanitary trim. Stem extensions

are fabricated from carbon steel parts and contained in a

tubular housing. Gaskets and O-rings seal the stem

extension at the top and bottom. These extensions are

fabricated to speciﬁed lengths.

C. Gear Operators

DEMCO weatherproof gear operators are offered with a

choice of handwheel, chainwheel or square nuts. The worm

gear has either self-locking set screws to control open and

closed positioning or an optional adjustable memory-stop

for balance return to a preset open position after closing.

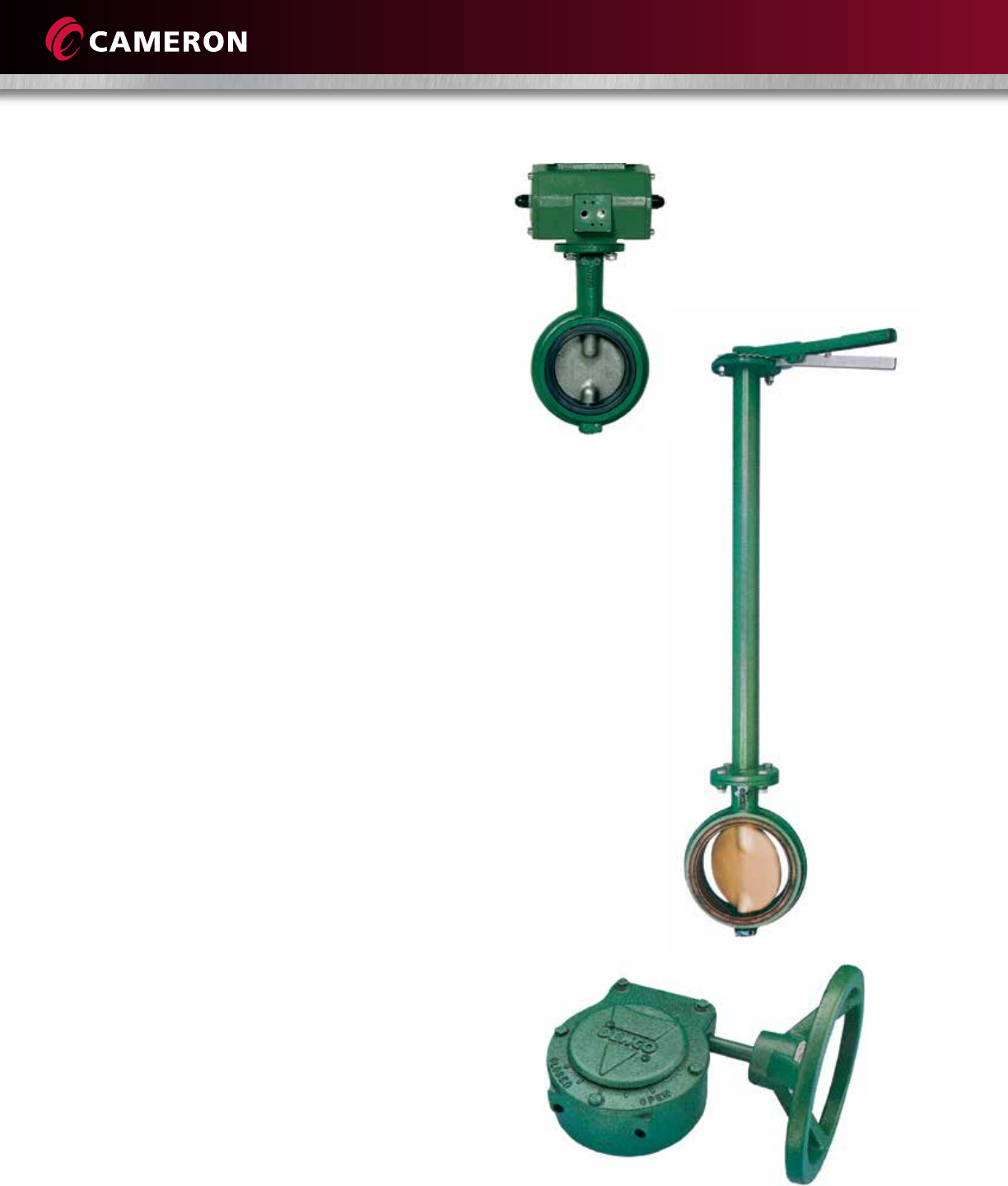

A. DEMCO NE-C Wafer

B. Stem Extension with

Handle on Series NE-I

Butterﬂy Valve

C. Gear-Operated

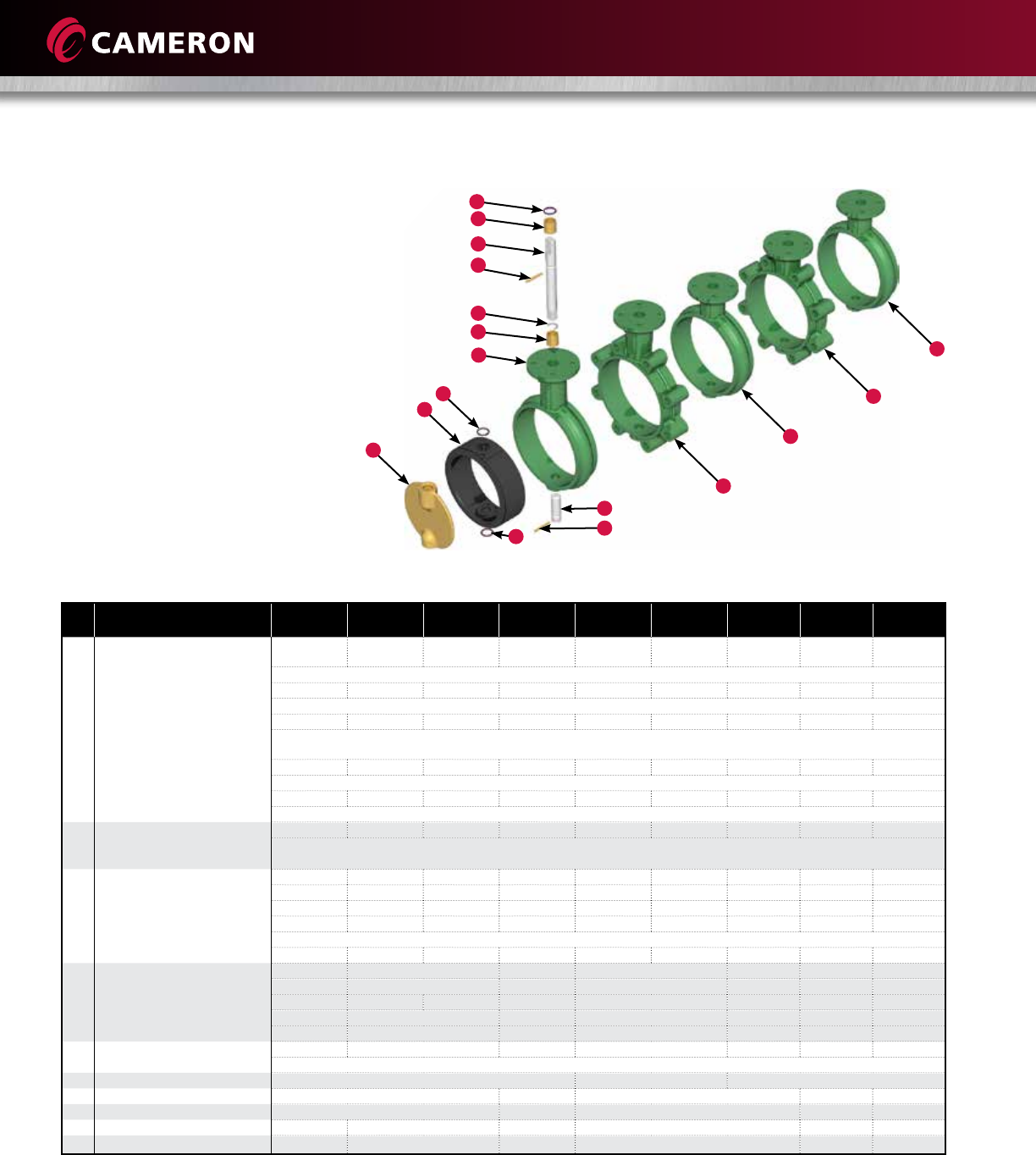

STYLES AND ACCESSORIES (CONT.)

SERIES NE-C, NE-I, NE-D, NEI-T

2” to 12” (50 mm to 300 mm)

Key No. Qty. Description Material

1 1 Body *

2 1 Seat *

3 1 Disc *

4 1 Upper Stem *

6 1 Lower Stem *

7 2 Spring Pin Stainless Steel

14 1 Retainer Stainless Steel

22 1 Top O-ring Buna-N

23 • Stem O-ring Buna-N

24 2 Bearing Bronze

* See How to Order for material choices/styles.

Complete material specs on page 32.

• Four required for throttling valves only.

HOW TO ORDER

(Example: 6” (150 mm) NE-C, 200 psi, Wafer, Standard Trim

with Handle – 22124-1215311)

* Standard coating is green enamel; other coatings are available on request.

** 17-4 PH SS for 8” to 12” (200 mm to 300 mm) upper stem only.

*** Except 17-4 PH upper 8” and 10” (200 mm and 250 mm).

1 200 psi only.

2 Except 285 psi.

3 Polished – ground to #4 dairy ﬁnish; tumbled – vibratory ﬁnish to remove as cast surface; unpolished – as cast surface.

4 When these options are used with NE-I sanitary butterﬂy valves, handles will be bronze with stainless steel (SS) parts and fasteners.

5 Gear operator recommended for 8” to 12” (200 mm to 300 mm) sizes in all series.

6 See material trademark note on page 40.

7 Other seat options available (consult Cameron).

Handle

10 Position Lkg. 14

Throttling Mem./

Stop

Square Nut 5

2-Position Lkg. 64

10-Position Sanitary

(NEI-T Only)

None 9

10-Position Lkg.

Corrosion-Resistant

2-Position Lkg.

Corrosion-Resistant

Throttling Mem./

Stop Corrosion-

Resistant

Gear Operators5

Handwheel A

Crank 2” to 12” (50

mm to 300 mm)

Chainwheel C

Square Nut D

Bare Shaft E

NE-C, NE-I and NE-D7

Buna-N 31

Black Neoprene 32

Hypalon633

FKM 34

Peroxide-Cured, EPDM 35

Natural Rubber 36

White Neoprene 37

ETM-30230 01

Fluorosteam 02

Peroxide-Cured

Food Grade, EPDM 03

Peroxide-Cured, Buna-N 04

Sulfur-Cured

Food Grade, EPDM 05

NEI-T

Peroxide-Cured, EPDM/Teﬂon635

Sulfur-Cured, EPDM/Teﬂon605

NE-I Sanitary

All Seats Food Grade

Black Neoprene 32

FKM 34

EPDM 35

White Neoprene 37

Sulfur-Cured, EPDM 05

NE-C, NE-I and NE-D

316 SS 2

Monel63

Aluminum

Bronze 4

Ductile Iron,

Nickel-Plated 5

PVF-Coated

Ductile Iron16

Alloy 2027

Hastelloy “C”68

NEI-T and

NE-I Sanitary

316 SS Polished32

316 SS Tumbled35

Alloy 20

(NEI-T Only) 7

Hastelloy “C”6

(NEI-T Only) 8

316 SS Unpolished39

NE-C, NE-I

and NE-D

416 SS 1

316 SS** 2

Monel63

NEI-T

316 SS

Vented*** 2

316 SS

Solid*** 9

NEI-Sanitary

316 SS*** 2

NE-C (Long-Neck)

Ductile Iron (Lug) 1

Cast Iron (Wafer) 2

NE-I and NE-I Sanitary

Ductile Iron (NE-I, Wafer Only) 1

Aluminum Bronze 3

Carbon Steel (NE-I Only) 4

Aluminum (NE-I, Wafer Only) 5

ENC-Coated Ductile Iron 6

Stainless Steel 8

NE-D

Ductile Iron 1

NEI-T

Ductile Iron

Wafer – Short-Neck

Lug – Long-Neck

Gray Iron (Long-Neck Wafer) 2

Aluminum Bronze 3

Carbon Steel 4

Aluminum (Wafer Only) 5

Stainless Steel 8

NE-C/NE-I/NEI-T

Wafer 1

Lug 5

NE-D

Wafer 1

Based on

valve series

and shut-off

pressure.

See page 12.

X X X X X

Base Part Number -

X X X X XX X

Body

Conﬁguration Body Material* Stem

Material

Disc

Material Seat Elastomer Actuation

Series NE-C

Wafer

Series NE-I

Wafer

Series NE-I

Lug

Series NE-D

Wafer

Series NE-C

Lug

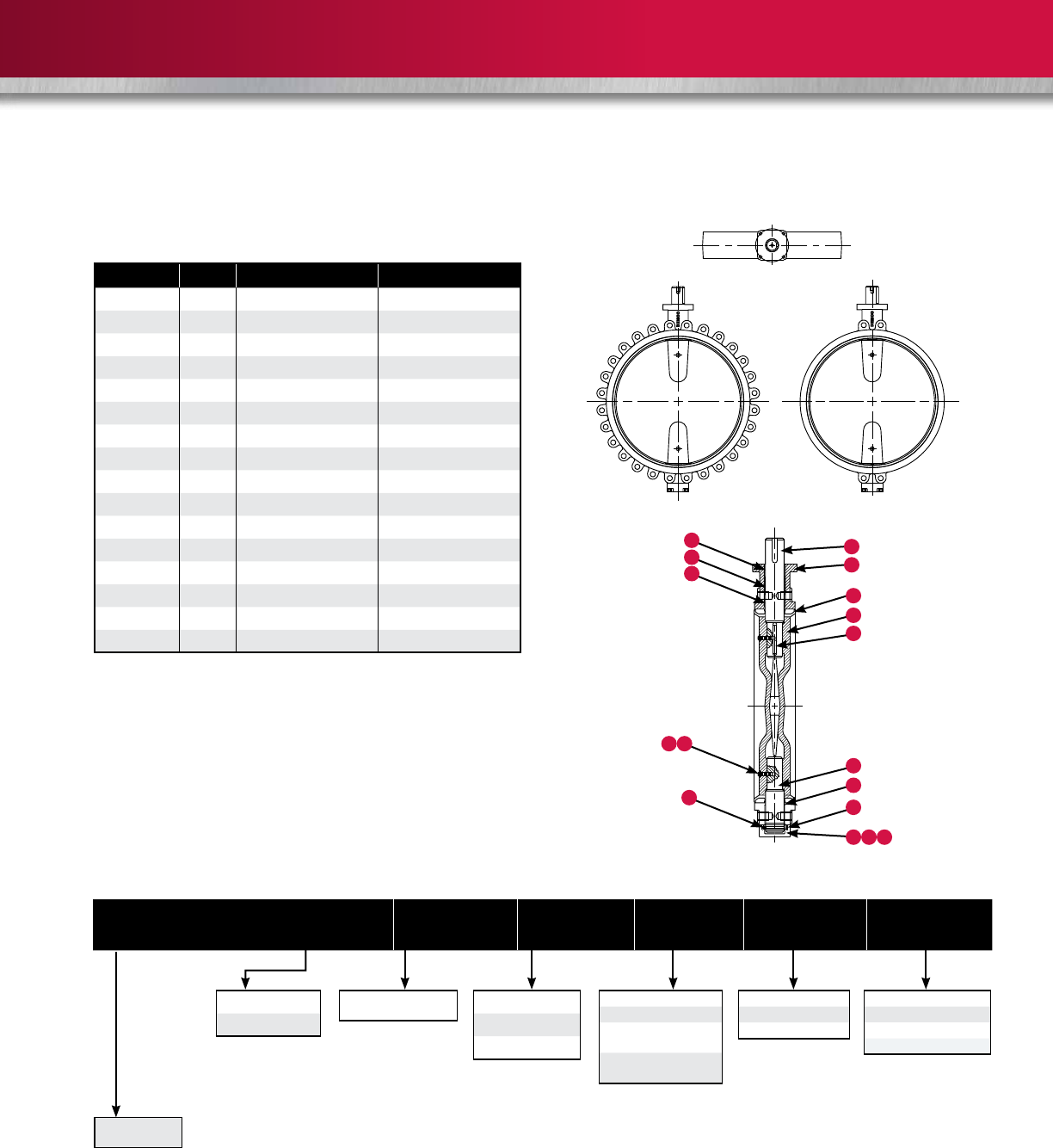

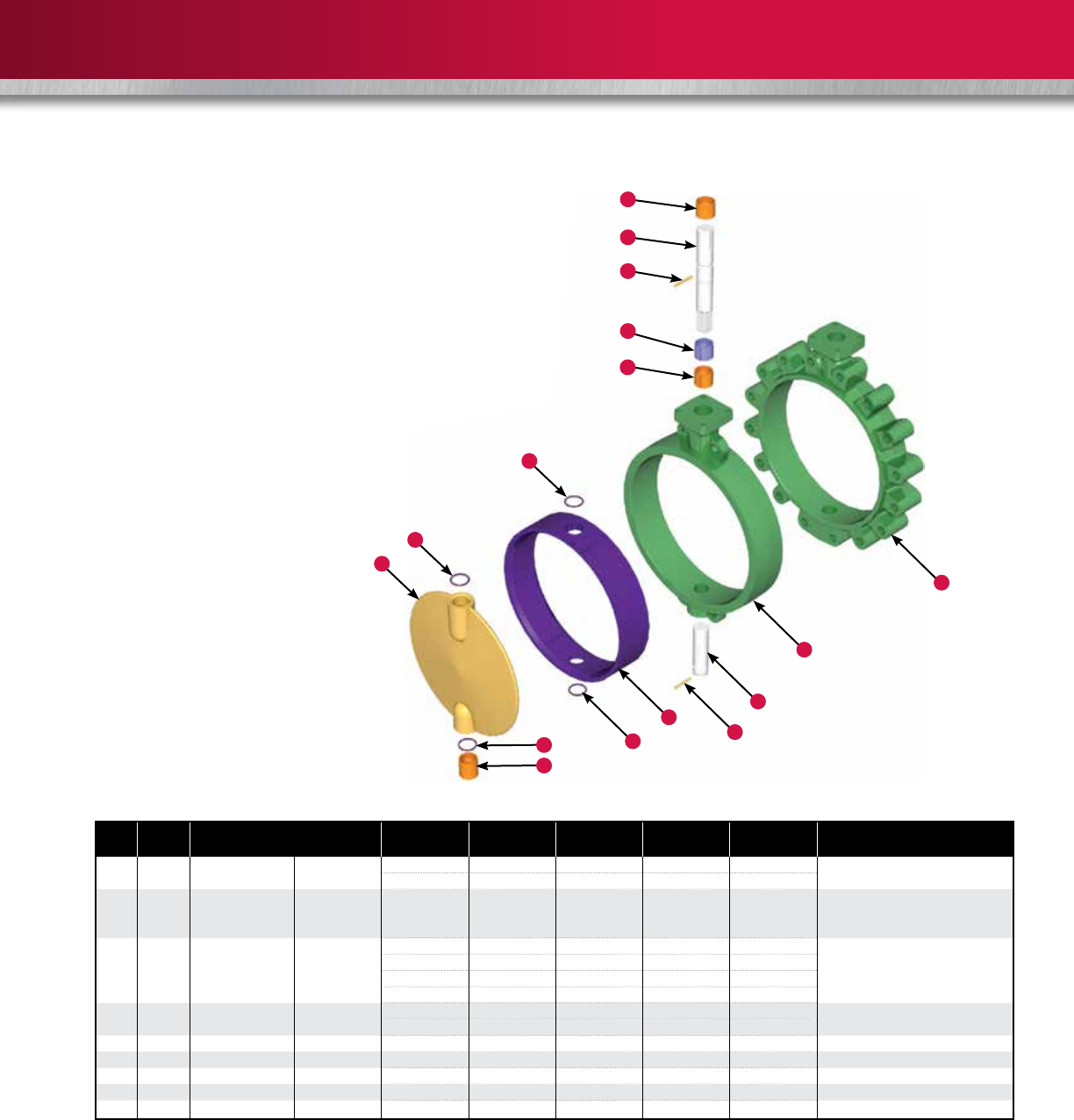

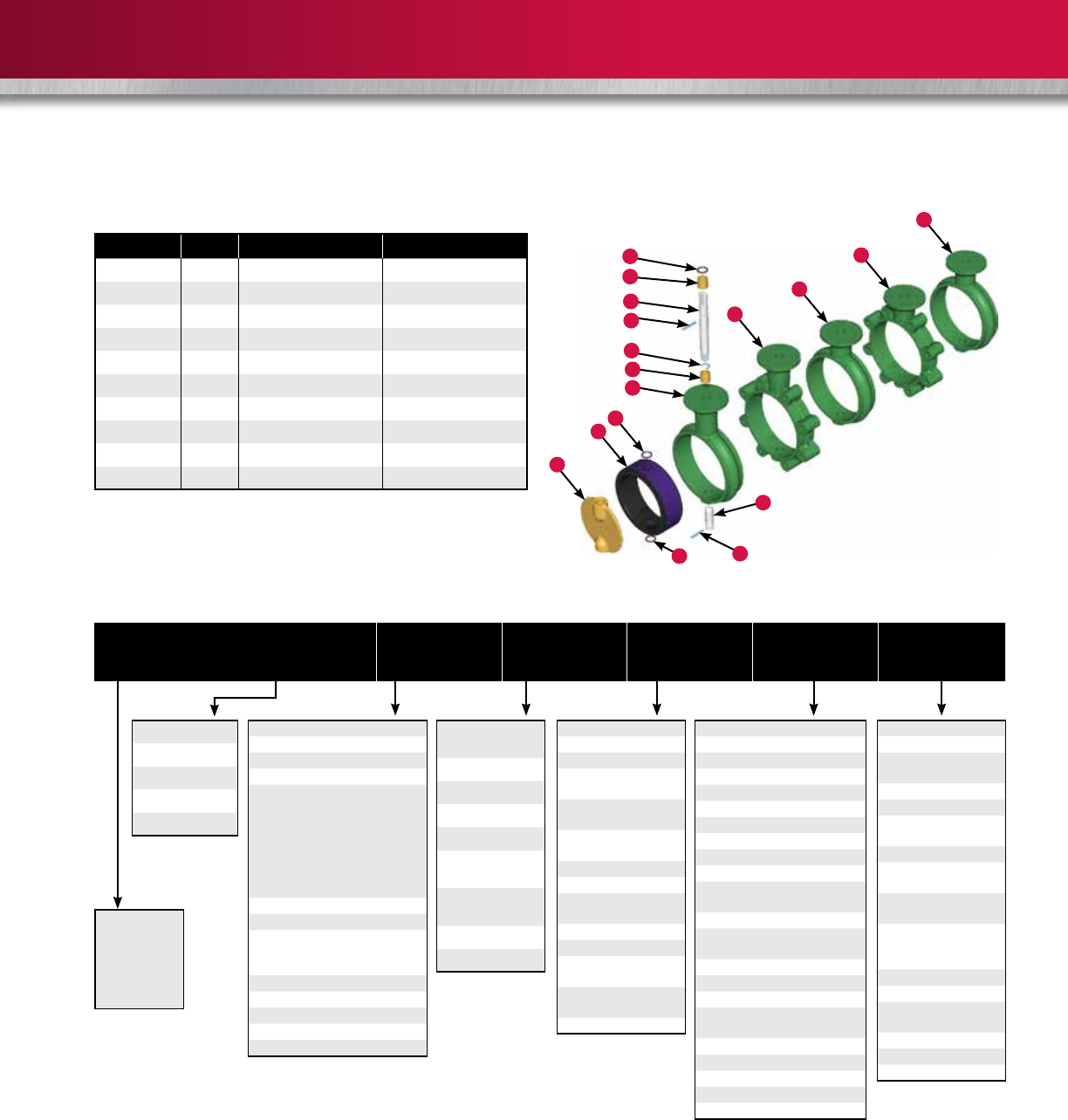

SERIES NF-C

14” to 24” (350 mm to 600 mm)

Key No. Qty. Description Material

1 1 Body *

2 1 Seat *

3 1 Disc *

4 1 Upper Stem *

6 1 Lower Stem *

7 2 Spring Pin Stainless Steel

14 1 Retainer (Spacer) + Stainless Steel

22 1 Top O-ring Buna-N

23 • Stem O-ring Buna-N

24 2 Bearing Bronze

HOW TO ORDER

(Example: 18” (450 mm) NF-C, 150 psi Lug, SS Trim, Buna-N Seat, WGO – 23822-512231A)

None 9

Gear Operators

Handwheel A

Chainwheel C

Square Nut D

Bare Shaft E

Buna-N 31

Black Neoprene 32

Hypalon633

FKM 34

EPDM 35

316 SS 2

Monel23

Aluminum

Bronze 4

Nickel-Plated Iron 5

PVF-Coated

Ductile Iron16

416 SS 1

316 SS 2

Monel23

Ductile Iron (Lug) 1

Cast Iron (Wafer) 2

Aluminum Bronze (Lug) 3

Steel (Lug) 4

Stainless Steel (Lug) 8

Wafer 1

Lug 5

X X X X X

Base Part Number -

X X X X XX X

Body

Conﬁguration Body Material* Stem

Material

Disc

Material Seat Elastomer Actuation

Based on

valve series

and shut-off

pressure.

See page 12.

* See How to Order for material choices/styles.

Complete material specs are on page 32.

• Four required for throttling valves only.

+ 14” to 20” (350 mm to 500 mm) spacer.

* Standard coating is green enamel; other coatings are available on request.

1 150 psi only.

2 See material trademark note on page 40.

SERIES NF-C

30“ and 36” (750 mm and 900 mm)

Key No. Qty. Description Material

1 1 Body *

2 1 Seat – Hard-Backed *

3 1 Disc *

4 1 Upper Stem *

6 1 Lower Stem *

7 2 Disc Screw 18-8 SS

8 1 Key Stainless Steel

9 2 O-ring Buna-N

14 1 Spacer Steel

24 2 Upper Bearing Bronze

25 1 Lower Bearing Bronze

26 1 Thrust Collar Bronze

27 1 Set Screw 18-8 SS

28 1 Cap Ductile Iron

29 4 Screw Carbon Steel

30 4 Lockwasher Carbon Steel

* See How to Order for material choices/styles.

Complete material specs on page 32.

HOW TO ORDER

(Example: 36 “ (900 mm), 150 psi, Bronze Disc, EPDM Seat with Gear Op. – 24357-111435A)

* Standard coating is green enamel; other coatings are available on request.

1 See material trademark note on page 40.

Handwheel A

Chainwheel C

Square Nut D

Bare Shaft E

Buna-N 31

FKM 34

EPDM 35

316 SS 2

Monel13

Aluminum

Bronze 4

Ductile Iron, Nickel-

Plated 5

416 SS 1

316 SS 2

Monel13

Ductile Iron

(Wafer or Lug) 1

Wafer 1

Lug 5

See page 12.

X X X X X

Base Part Number -

X X X X XX X

Body

Conﬁguration Body Material* Stem

Material

Disc

Material Seat Elastomer Actuation

28 29 30

BASE PART NUMBERS AND WEIGHTS

Description in. 2 2-1/2 3 4 5 6 8 10 12

(mm) (50) (65) (80) (100) (125) (150) (200) (250) (300)

200 psi 22119 22120 22121 22122 22123 22124 22125 22126 22127

285 psi 22225 22226 22227 22228 22229 22230 22231 22232 22233

50 psi 22234 22235 22236 22237 22238 22239 22240 22241 22242

Throttling 22243 22244 22245 22246 22247 22248 22249 22250 22251

Weight

(lb – bare stem)

Wafer 5.8 7.0 7.7 11.4 14.7 17.6 28.5 47.9 71.0

Lug 8.0 9.9 10.7 17.0 24.5 28.5 43.5 65.9 98.5

Description in. 2 2-1/2 3 4 5 6 8 10 12

(mm) (50) (65) (80) (100) (125) (150) (200) (250) (300)

200 psi 22128 22129 22130 22131 22132 22133 22134 22135 22136

285 psi 22252 22253 22254 22255 22256 22257 22258 22259 22260

50 psi 22261 22262 22263 22264 22265 22266 22267 22268 22269

Throttling 22270 22271 22272 22273 22274 22275 22276 22277 22278

Weight

(lb – bare stem)

Wafer

Iron, Steel, SS 4.9 6.4 6.9 10.2 13.7 16.4 28.4 44.8 66.8

Bronze 4.7 6.2 6.7 9.9 13.4 16.0 28.0 44.3 66.3

Aluminum 2.8 3.4 4.1 5.9 8.7 10.8 18.2 30.4 47.2

(lb – bare stem)

Lug

Bronze 6.8 8.7 9.5 15.7 23.1 27.0 42.0 64.4 96.8

Steel, SS 7.0 8.9 9.7 16.0 23.5 27.5 42.5 64.9 97.5

Description in. 2 2-1/2 3 4 6 8 10 12

(mm) (50) (65) (80) (100) (150) (200) (250) (300)

200 psi 23150 23151 23152 23153 23154 23155 23156 23157

Weight See chart above: NE-I, 2” to 12” (50 mm to 300 mm)

Description in. 2 2-1/2 3 4 5 6 8 10 12

(mm) (50) (65) (80) (100) (125) (150) (200) (250) (300)

200 psi 22181 22129 25093 22183 22184 22185 22134 22186 22136

285 psi 22279 22253 25135 22281 22282 22283 22258 22284 22260

50 psi 22285 22262 25132 22287 22288 22289 22267 22290 22269

Throttling 22291 22271 25136 22293 22294 22295 22276 22296 22278

Weight (lb – bare stem) Wafer 4.9 6.4 6.9 10.2 13.7 16.4 28.4 44.8 66.8

Description in. 2 2-1/2 3 4 6 8 10

(mm) (50) (65) (80) (100) (150) (200) (250)

150 psi 24680 24681 24682 24683 24684 24685 24686

Weight

(lb – bare stem)

Wafer**

Iron, Steel, SS 4.9 6.4 6.9 10.2 16.4 28.4 44.8

Bronze 4.7 6.2 6.7 9.9 16.0 28.0 44.3

Aluminum 2.8 3.4 4.1 5.9 10.8 18.2 30.4

(lb – bare stem)

Lug**

Bronze 6.8 8.7 9.5 15.7 27.0 42.0 64.4

Steel, SS 7.0 8.9 9.7 16.0 27.5 42.5 64.9

Description in. 14 16 18 20 24

(mm) (350) (400) (450) (500) (600)

150 psi 23820 23821 23822 23823 23824

50 psi 24440 24441 24442 24443 24444

Throttling 24445 24446 24447 24448 24449

Weight

(lb – bare stem)

Wafer 102 166 214 257 401

Lug 116 203 239 332 535

* Gear operator recommended for 8” to 12” (200 mm to 300 mm) sizes.

** See NE-C chart above for weights of long-neck wafer and lug valves.

Marine valves: consult Cameron for data sheets B-255, B-256 and B-258.

Description in. 30 36

(mm) (750) (900)

150 psi 24141 24357

50 psi 24924 25061

Weight Wafer 935 1500

Lug 1050 2020

Series NE-C, 2” to 12“ (50 mm to 300 mm)*

Series NE-I, 2” to 12“ (50 mm to 300 mm)*

Series NE-I, Sanitary 2” to 12“ (50 mm to 300 mm)*

Series NE-D, 2” to 12“ (50 mm to 300 mm)*

Series NEI-T, 2” to 10“ (50 mm to 250 mm)*

Series NF-C, 14” to 24“ (350 mm to 600 mm) Series NF-C, 30” to 36“ (750 mm to 900 mm)

DEMCO marine butterﬂy valves meet all the requirements of US Coast Guard’s Marine Engineering Regulations as outlined in

Title 46 of the Code of Federal Regulations, Part 56 and The American Bureau of Shipping Standard, including tagging per

MSS-SP-25 and testing per MSS-SP-67. All valves are shell tested at 1-1/2 times rated working pressure and seat tested at rated

working pressure.

Description in. 2 2-1/2 3 4 5 6 8 10 12

(mm) (50) (65) (80) (100) (125) (150) (200) (250) (300)

200 psi 22923 22924 22925 22926 22927 22928 22929 22930 22931

50 psi 22932 22933 22934 22935 22936 22937 22938 22939 22940

285 psi 22914 22915 22916 22917 22918 22919 22920 22921 22922

Weight

(lb – bare stem)

NE-C Long-Neck Body

Wafer Gray Iron 5.8 7.0 7.7 11.4 14.7 17.6 28.5 47.9 71.0

Lug Ductile Iron 8.0 9.9 10.7 17.0 24.5 28.5 43.5 65.9 98.5

NE-I Short-Neck Body

Wafer Iron, Steel, SS 4.9 6.4 6.9 10.2 13.7 16.4 28.4 44.8 66.8

Bronze 4.7 6.2 6.7 9.9 13.4 16.0 28.0 44.3 66.3

Lug Bronze 6.8 8.7 9.5 15.7 23.1 27.0 42.0 64.4 96.8

SS, Steel 7.0 8.9 9.7 16.0 23.5 27.5 42.5 64.9 97.5

Description in. 14 16 18 20 24 30 36

(mm) (350) (400) (450) (500) (600) (750) (900)

150 psi 24611 24612 24613 24614 24615 2227182 2227183

50 psi 24653 24654 24655 24656 24657 2227184 2227185

Weight

(lb – bare stem)

NF-C Long-Neck Body

Lug Ductile Iron 116 203 239 332 535 1050 2020

Bronze 113 199 235 325 525 N/A N/A

HOW TO ORDER

(Example: 6” (150 mm) 200 psi Wafer, Standard Trim with 10-Position Handle – 22928-1114311)

10-Position Handle 1

Throttling

Memory Stop 2

2-Position Locking 6

Worm Gear

Handwheel A

Buna-N* 31

Black Neoprene 32

Hypalon133

FKM 34

EPDM* 35

Natural Rubber 36

White Neoprene 37

Stainless Steel 2

Monel13

Aluminum

Bronze* 4

416 SS* 1

316 SS 2

Monel13

Ductile Iron 1

Aluminum Bronze 3

Carbon Steel 4

Stainless Steel 8

Wafer 1

Lug 5

X X X X X

Base Part Number -

X X X X XX X

Body

Conﬁguration Body Material* Stem

Material

Disc

Material

Seat

Material Actuation

Base part no.

of valve

shown above.

* Standard base trim options.

** Wafer 2” to 12” (50 mm to 300 mm) only.

Lug 2” to 36” (50 mm to 900 mm).

Note: 30” and 36” (750 mm to 900 mm) available with ductile iron lug body only.

1 See material trademark note on page 40.

MARINE SERIES

Marine Series, 2” to 36“ (50 mm to 900 mm)

Series NF-C, 30” to 36“ (750 mm to 900 mm)

COMPONENT PARTS LIST:

SERIES NE-C, NE-I, NE-D

Key Description 2” 2-1/2” 3” 4” 5” 6” 8” 10” 12”

No. (50 mm) (65 mm) (80 mm) (100 mm) (125 mm) (150 mm) (200 mm) (250 mm) (300 mm)

1 Body NE-C Wafer

Options

22137-012 22138-012 22139-012 22140-012 22141-012 22142-012 22143-012 22144-012 22145-012

ASTM A48 Gray Iron -012

NE-C Lug 21986-051 21987-051 21988-051 21989-051 21990-051 21991-051 21992-051 21993-051 21994-051

Options ASTM A395 Ductile Iron -051

NE-I Wafer 22681-01x 22682-01x 22683-01x 22684-01x 22685-01x 22686-01x 22687-01x 22688-01x 22689-01x

Options ASTM A395 Ductile Iron -011, ASTM B148 Aluminum Bronze -013, ASTM A216 WCB Steel -014,

ASTM B179 Aluminum -015, DI/ENC -016, ASTM A351 SS -018

NE-I Lug 22695-05x 22696-05x 22697-05x 22698-05x 22699-05x 22700-05x 22701-05x 22702-05x 22703-05x

Options ASTM B148 Aluminum Bronze -053, ASTM A216 WCB Steel -054, ASTM A351 SS -058

NE-D Wafer 22187-021 22682-011 20594-021 22189-021 22190-021 22191-021 22687-011 22192-021 22689-011

Options ASTM A395 Ductile Iron -0x1

2 Seat 1786-xxx 1788-xxx 1790-xxx61792-xxx 1794-xxx 1002-xxx 1798-xxx 1815-xxx 1817-xxx

Options Buna-N -031, Black Neoprene -032, Hypalon7 -033, FKM -034, EPDM1 -135, Natural Rubber -036

White Neoprene -037, Peroxide-Cured Buna-N -231, Fluorosteam -244, ETM-30230 -331

3” NE-D Seat (See Below6)

3 Disc 200 psi 22045-0xx 22046-0xx 22047-0xx 22048-0xx 22049-0xx 22050-0xx 22051-0xx 22052-0xx 22053-0xx

285 psi 22196-0xx 22197-0xx 22198-0xx 22199-0xx 22200-0xx 22201-0xx 22202-0xx 22203-0xx 22204-0xx

50 psi 22205-0xx 22206-0xx 22207-0xx 22208-0xx 22209-0xx 22210-0xx 22211-0xx 22212-0xx 22213-0xx

Throttling 22214-0xx 22215-0xx 22216-0xx 22217-0xx 22218-0xx 22219-0xx 22220-0xx 22221-0xx 22222-0xx

Options 316 SS -002, Monel -003, Nickel-Plated Ductile Iron -005, Alloy 202 -007, Hastelloy C7 -008, Aluminum Bronze3 -014

PVF-Coated, 200 psi 22714-001 22715-001 22716-001 22717-001 22718-001 22719-001 22720-001 22721-001 22722-001

4 Upper Stem NE-C 22066-00x 22067-00x 22068-00x 22069-00x 22070-00x 22071-00x 22072-00x

NE-I 22073-00x 22074-00x 22075-00x 22076-00x 22077-00x 22078-00x 22079-00x

NE-D 22073-00x 22074-00x 22193-00x 22194-00x 22195-00x 22077-00x 22078-00x 22079-00x

Upper Stem NE-C 22334-00x 22335-00x 22336-00x 22337-00x 22338-00x 22339-00x 22340-00x

-Utility Top NE-I 22341-00x 22342-00x 22343-00x 22344-00x 22345-00x 22346-00x 22347-00x

6 Lower Stem 22080-00x 22081-00x 22082-00x 22083-00x 22084-00x 22085-00x 22086-00x

Stem Material Options 416 SS -001, 316 SS4 -002, Monel7 -003

7 Spring Pin (2) 302 SS 5448-18720 5448-18724 5448-25028

14 Retainer Stainless Steel 22117 13704 13705 13706 13707

22 Top O-ring Buna-N 5526-114 5526-115 5526-117 5526-119 5526-125

23 Stem O-ring5Buna-N 5526-113 5526-115 5526-116 5526-212 5526-214 5526-220

24 Bearing (2) Bronze 22526-001 22118-001 13112-001 13115-001 13116-001 13117-001

1 EPDM seat options: Standard – Peroxide-Cured -135, Food Grade -035 Peroxide-Cured, Sulfur-Cured -235.

2 Alloy 20 not available for 285 psi.

3 8” to 12” (200 mm to 300 mm), 285 psi Aluminum Bronze, use -024.

4 8” to 12” (200 mm to 300 mm), Upper Stem 17-4 PH SS (part number sufﬁx -012), Lower Stem 316 SS.

5 Four required for throttling (0 psi) valves only.

6 3” (80 mm) NE-D seat part number 25095-xxx.

7 See material trademark note on page 40

Parts List for Series NE-C, NE-I and NE-D (Consult a Cameron representative for replacement parts for Series NE, NE-S and NE-N.)

COMPONENT PARTS LIST:

SERIES NF-C

1 Four required for throttling valves only.

2 14” to 20” (350 mm to 500 mm) retainer, 24” (600 mm) spacer.

3 EPDM seat options: Standard – Peroxide-Cured -135, Food Grade -035 Peroxide-Cured, Sulfur-Cured -235.

4 See material trademark note on page 40.

Key Qty. Description 14” 16” 18” 20” 24” Material

No. (350 mm) (400 mm) (450 mm) (500 mm) (600 mm)

1 1 Body Lug 23827-051 23911-051 23901-051 23891-051 23875-051 Ductile Iron (Lug) -051

Wafer 23825-012 23907-012 23899-012 23881-012 23873-012 Cast Iron (Wafer) -012

Buna-N -031 Blk. Neoprene -032

2 1 Seat 23829-03x 23913-03x 23903-03x 23893-03x 7103-03x Hypalon4 -033, FKM -034

EPDM3 -X35

Disc 150 psi 23830-0xx 23915-0xx 23905-0xx 23895-0xx 23877-0xx 316 SS -002 Monel4 -003

3 1 50 psi 24450-0xx 24451-0xx 24452-0xx 24453-0xx 24454-0xx Aluminum Bronze -014

Throttling 24455-0xx 24456-0xx 24457-0xx 24458-0xx 24459-0xx Nickel-Plated Iron -005

PVF-Coated 24460-001 24461-001 24462-001 24463-001 24464-001 PVF-Coated Iron -001

4 1 Upper Stem 23833-00x 23917-00x 23897-00x 23897-00x 23879-00x 416 SS -001, 316 SS -002

6 1 Lower Stem 23834-00x 23918-00x 23898-00x 23898-00x 23880-00x Monel4 -003

7 2 Spring Pin 5446-25040 5446-25040 5446-25048 5446-25048 5446-25064 Stainless Steel

14 1 Retainer (Spacer)25502-137 5502-150 5502-175 5502-175 24470 Steel

23 Note 1 Disc O-ring 5526-220 5526-223 5526-328 5526-328 5526-331 Buna-N

24 2 Upper Bearing 5086-044 5086-050 5086-048 5086-048 5086-046 Bronze

25 1 Lower Bearing 5086-045 5086-051 5086-049 5086-049 5086-047 Bronze

Part List for Series NF-C, (Consult a Cameron representative for replacement parts for Series NF.)

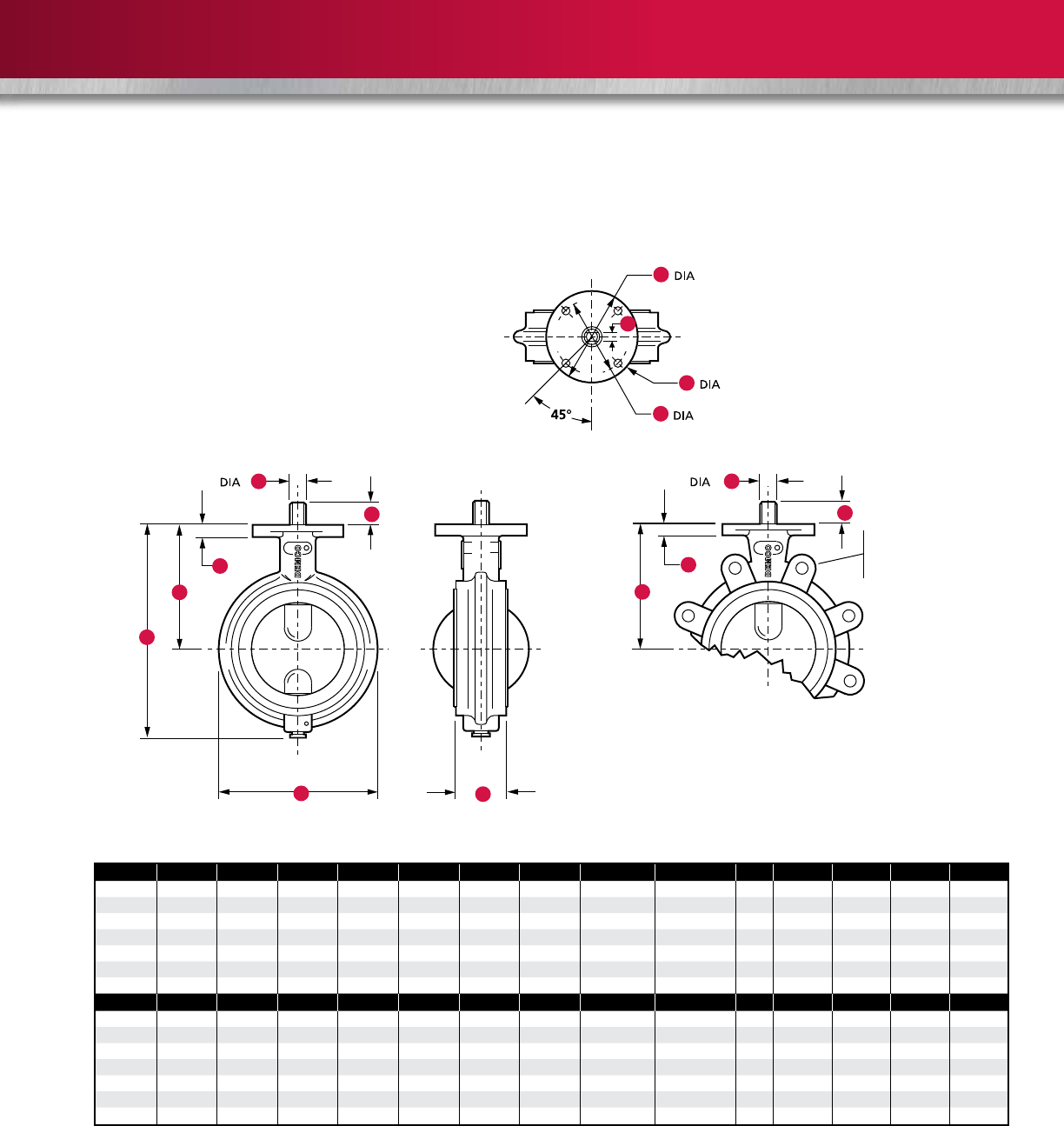

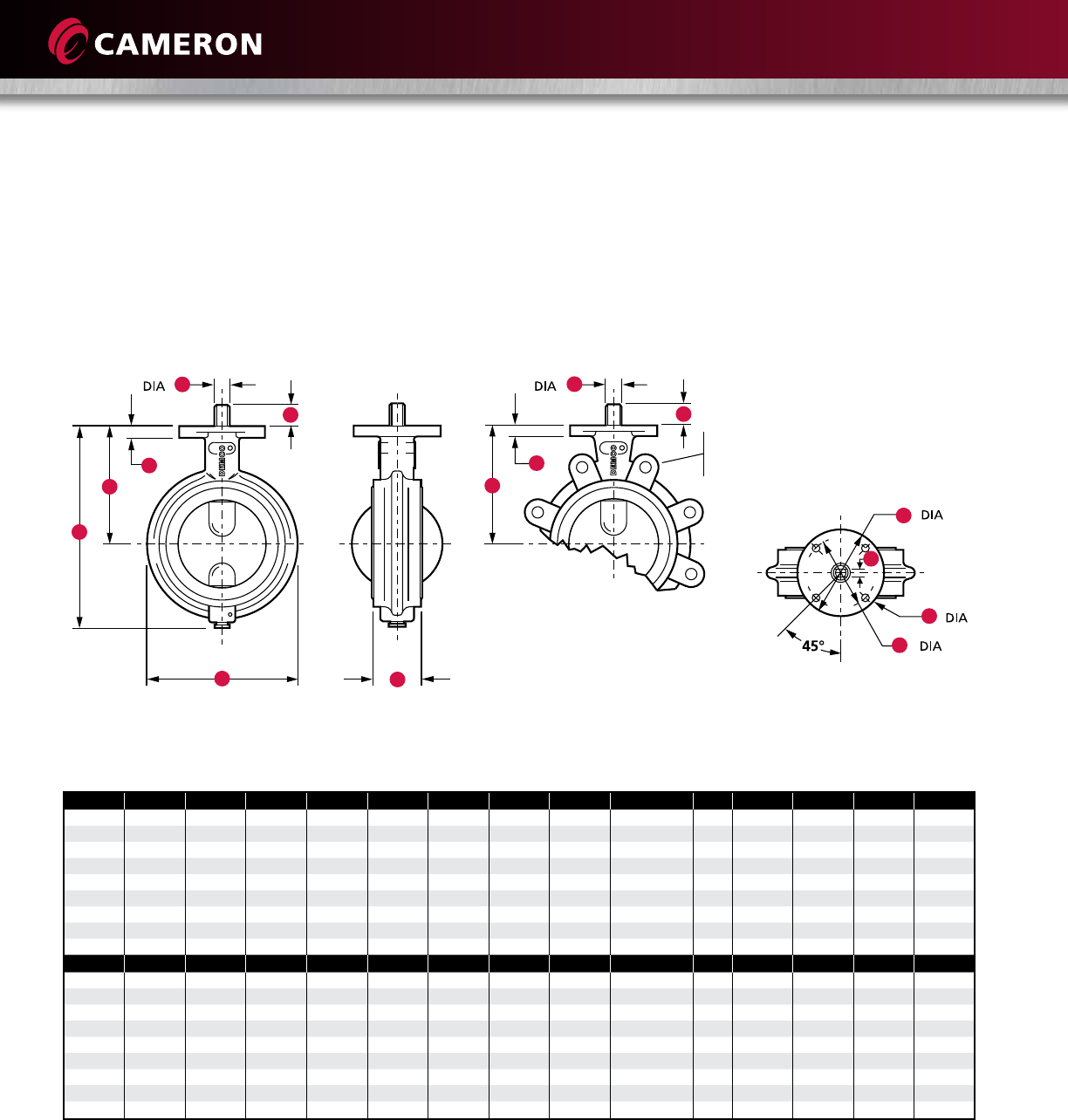

SERIES NE-C DIMENSIONAL DATA

2” to 12” (50 mm to 300 mm)

Note: For general dimensions, see page 28.

Size in. A C D E F G H J K L N P R S

2 1.74 5.62 8.44 4.12 4.00 3.25 0.408 4.75 5/8 - 11 4 1.00 0.44 0.625 0.375

2-1/2 1.86 6.12 9.19 4.88 4.00 3.25 0.408 5.50 5/8 - 11 4 1.00 0.44 0.625 0.375

3 1.86 6.38 9.69 5.38 4.00 3.25 0.408 6.00 5/8 - 11 4 1.00 0.44 0.625 0.375

4 2.11 7.12 11.00 6.88 4.00 3.25 0.408 7.50 5/8 - 11 8 1.00 0.44 0.625 0.375

5 2.24 7.75 12.12 7.75 4.00 3.25 0.408 8.50 3/4 - 10 8 1.25 0.44 0.838 0.500

6 2.24 8.25 13.25 8.75 4.00 3.25 0.408 9.50 3/4 - 10 8 1.25 0.44 0.838 0.500

8 2.54 9.44 15.56 11.00 6.00 5.00 0.533 11.75 3/4 - 10 8 1.38 0.56 0.838 0.500

10 2.74 11.25 18.69 13.38 6.00 5.00 0.533 14.25 7/8 - 9 12 1.38 0.56 0.963 0.625

12 3.24 12.19 21.69 16.12 6.00 5.00 0.533 17.00 7/8 - 9 12 1.38 0.56 1.338 0.750

Size mm

50 44 143 214 105 102 83 10.36 121 5/8 - 11 4 25 11.2 15.88 9.53

65 47 155 233 124 102 83 10.36 140 5/8 - 11 4 25 11.2 15.88 9.53

80 47 162 246 137 102 83 10.36 152 5/8 - 11 4 25 11.2 15.88 9.53

100 54 181 279 175 102 83 10.36 191 5/8 - 11 8 25 11.2 15.88 9.53

125 57 197 308 197 102 83 10.36 216 3/4 - 10 8 32 11.2 21.29 12.70

150 57 210 337 222 102 83 10.36 241 3/4 - 10 8 32 11.2 21.29 12.70

200 65 240 395 279 152 127 13.54 298 3/4 - 10 8 35 14.2 21.29 12.70

250 70 286 475 340 152 127 13.54 362 7/8 - 9 12 35 14.2 24.46 15.88

300 82 310 551 409 152 127 13.54 432 7/8 - 9 12 35 14.2 33.99 19.05

Dimensional Data

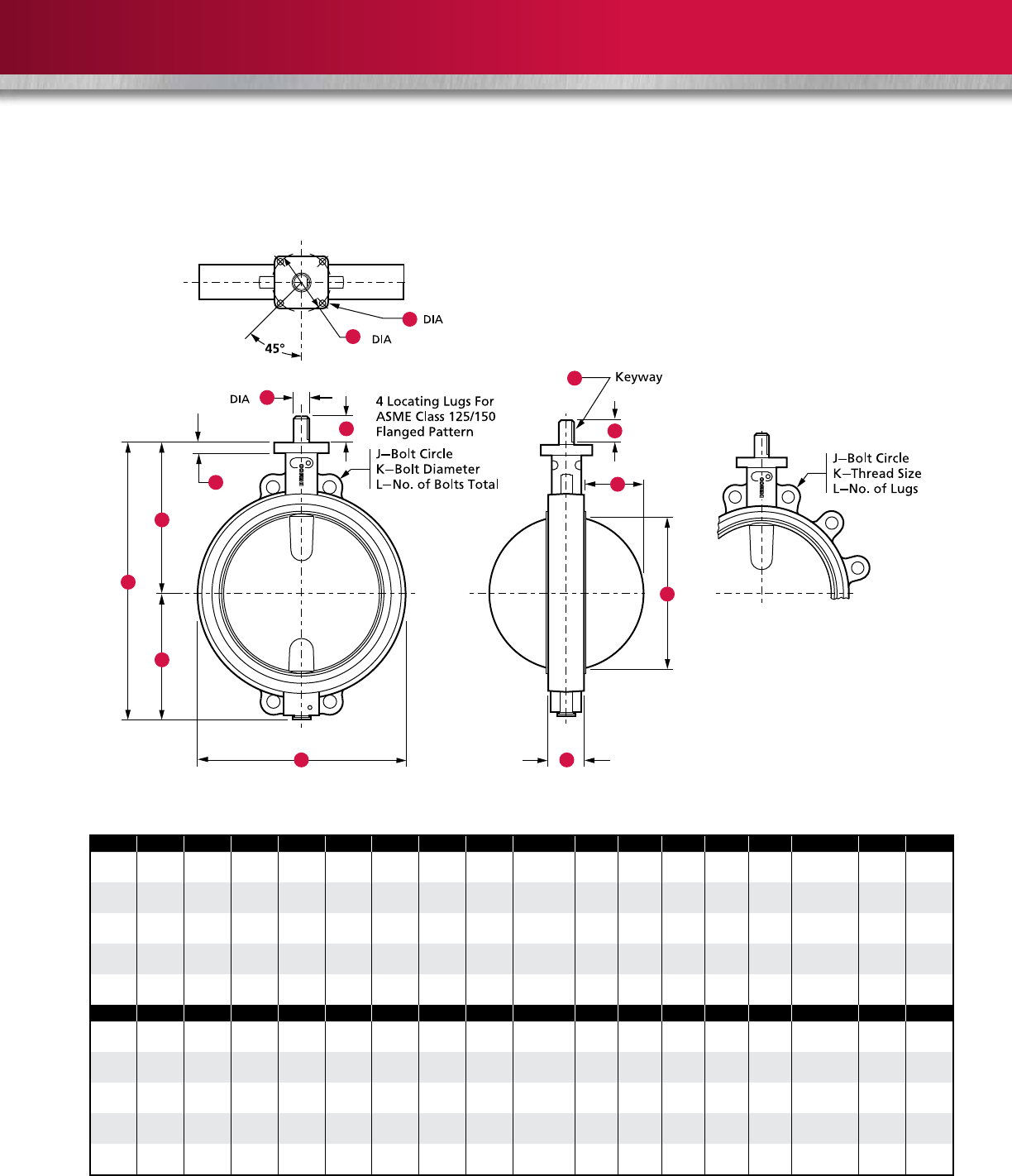

SERIES NF-C DIMENSIONAL DATA

14” to 24” (350 mm to 600 mm)

Size in.

A B C D E G H J K L M N P R S T U

14 3.00 10.63 12.75 23.4 16.20 5.00 0.56 18.75 1 - 8 12 2.00 2.25 0.88 1.375 5/16 x 5/32 5.12 12.89

17.3* 1*

16 4.00 11.66 13.75 25.4 18.16 5.00 0.56 21.25 1 - 8 16 2.00 2.25 0.88 1.625 3/8 x 3/16 5.65 14.76

19.2* 1*

18 4.50 12.96 14.75 27.7 20.35 6.50 0.81 22.75 1-1/8 - 7 16 2.50 2.75 1.00 1.875 1/2 x 3/16 6.37 16.63

21.4* 1-1/8*

20 5.00 13.97 15.75 29.7 22.63 6.50 0.81 25.00 1-1/8 - 7 20 2.50 2.75 1.00 1.875 1/2 x 3/16 7.12 18.58

23.6* 1-1/8*

24 6.00 16.19 19.00 35.2 27.31 6.50 0.81 29.50 1-1/4 - 7 20 2.50 3.00 1.00 1.875 1/2 x 3/16 8.67 22.56

28.3* 1-1/4*

Size mm

350 76 270 324 594 411 127 14.2 476 1 - 8 12 51 57 22.4 34.93 7.94 x 3.97 130 327

439* 1*

400 102 296 349 645 461 127 14.2 540 1 - 8 16 51 57 22.4 41.28 9.53 x 4.76 144 375

488* 1*

450 114 329 375 704 517 165 20.6 578 1-1/8 - 7 16 64 57 25.4 47.63 12.70 x 4.76 162 422

544* 1-1/8*

500 127 355 400 754 575 165 20.6 635 1-1/8 - 7 20 64 57 25.4 47.63 12.70 x 4.76 181 472

599* 1-1/8*

600 152 411 483 894 694 165 20.6 749 1-1/4 - 7 20 64 76 25.4 47.63 12.70 x 4.76 220 573

719* 1-1/4*

* Wafer valve dimension is the bottom ﬁgure. Lug valve dimension is the top ﬁgure.

Note: For general dimensions, see page 28.

Dimensional Data

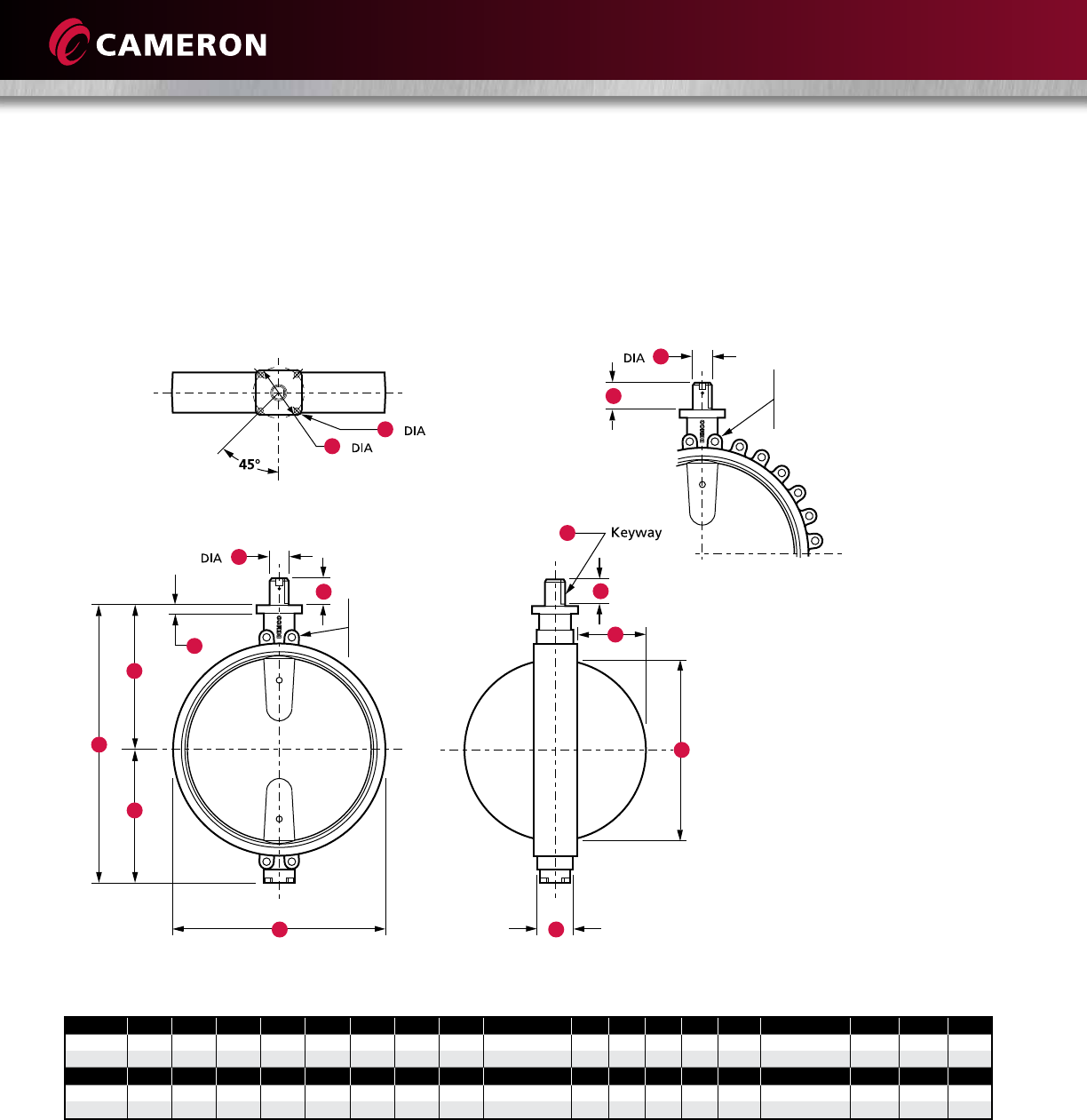

SERIES NF-C DIMENSIONAL DATA

30” to 36” (750 mm to 900 mm)

Note: For general dimensions, see page 28.

Size in. A B C D E G H J K L M N P R S T U V

30 6.50 21.2 23.0 44.2 34.1 8.00 0.69 36.00 1-1/4 - 7UNC 28 3.4 3.7 1.2 3.000 3/4 x 3/8 11.45 28.55 1.750

36 7.88 25.0 27.8 52.8 40.5 10.25 0.81 42.75 1-1/2 - 6UNC 32 4.0 4.4 1.5 3.625 7/8 x 7/16 13.86 34.71 1.750

Size mm

750 165 538 584 1123 866 203 17.53 914 1-1/4 - 7UNC 28 86 94 30.5 76.2 19.05 x 9.53 291 725 44.45

900 200 635 706 1342 1029 260 20.57 1086 1-1/2 - 6UNC 32 102 112 38.1 92.1 22.23 x 11.11 352 882 44.45

For ASME Class 150 Series A

and MSS-SP-44 Flanged Pattern

4 Locating lugs for

ASME Class 150 Series A

and MSS SP-44

Flanged Pattern

J–Bolt Circle

K–Bolt Size

L–No. of Bolts Total

V–Depth of Thread

J–Bolt Circle

K–Bolt Size

L–No. of Bolts Total

V–Depth of Thread

Dimensional Data

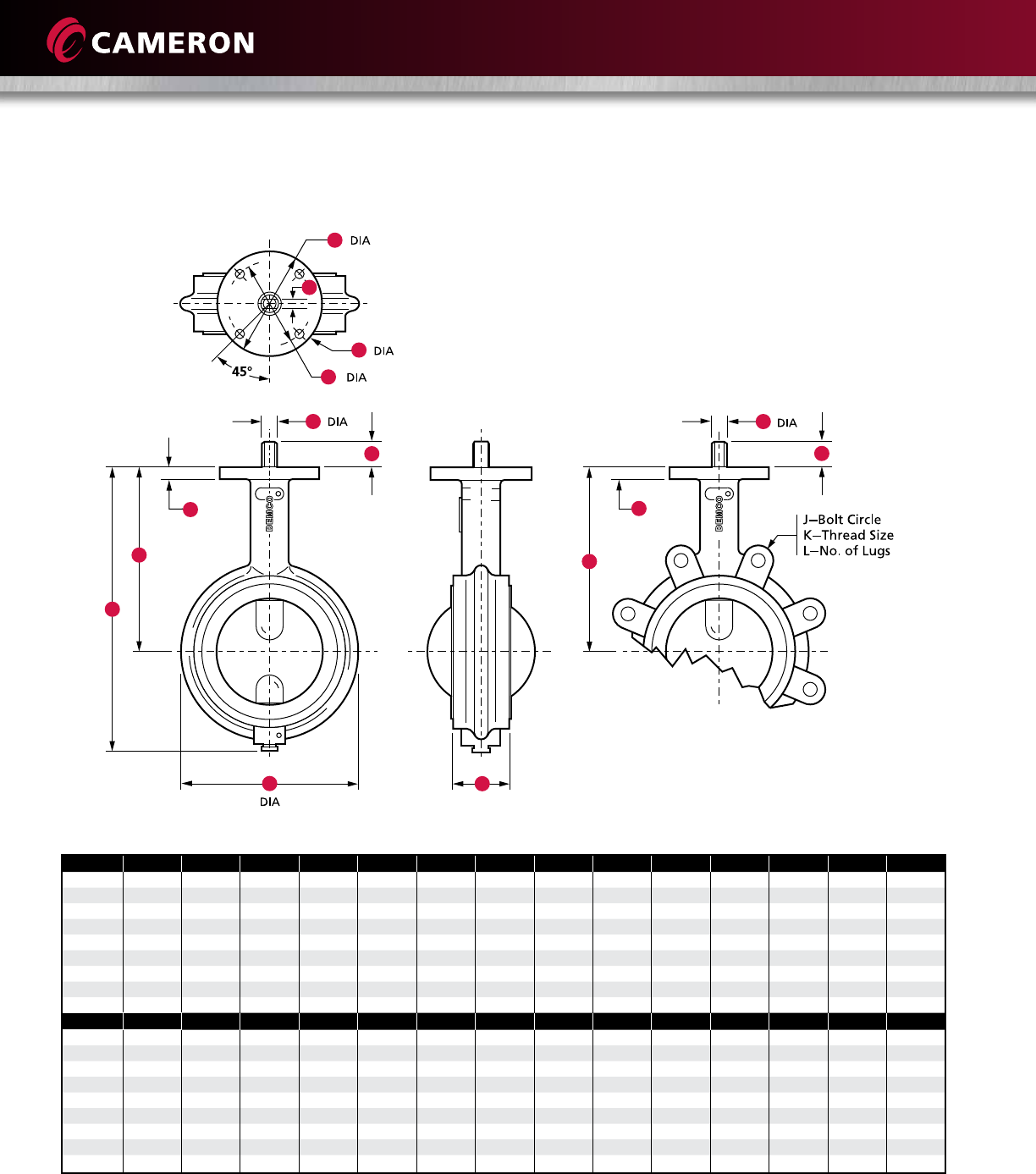

SERIES NE-D DIMENSIONAL DATA

2” to 12” (50 mm to 300 mm)

Size in. A C D E F G H J K L N P R S

2 1.74 3.94 6.75 4.12 4.00 3.25 0.408 4.27 3/8 4 1.00 0.44 0.625 0.375

2-1/2 1.86 4.44 7.50 4.88 4.00 3.25 0.408 5.31 3/8 4 1.00 0.44 0.625 0.375

3 1.86 4.88 8.19 5.38 4.00 3.25 0.408 4.91 3/8 6 1.00 0.44 0.625 0.375

4 2.11 6.00 9.88 6.88 4.00 3.25 0.408 7.03 1/2 6 1.00 0.44 0.625 0.375

5 2.24 6.00 10.38 7.75 4.00 3.25 0.408 7.56 1/2 6 1.25 0.44 0.838 0.500

6 2.24 6.50 11.50 8.75 4.00 3.25 0.408 9.16 1/2 8 1.25 0.44 0.838 0.500

8 2.54 8.06 14.19 11.00 6.00 5.00 0.533 11.72 5/8 8 1.38 0.56 0.838 0.500

10 2.74 9.97 17.41 13.38 6.00 5.00 0.533 13.72 5/8 8 1.38 0.56 0.963 0.625

12 3.24 10.91 20.41 16.12 6.00 5.00 0.533 16.62 1/2 12 1.38 0.56 1.338 0.750

Size mm

50 44 100 171 105 102 83 10.36 108 10 4 25 11.2 15.88 9.53

65 47 113 191 124 102 83 10.36 135 10 4 25 11.2 15.88 9.53

80 47 124 208 137 102 83 10.36 125 10 6 25 11.2 15.88 9.53

100 54 152 251 175 102 83 10.36 179 15 6 25 11.2 15.88 9.53

125 57 152 264 197 102 83 10.36 192 15 6 32 11.2 21.29 12.70

150 57 165 292 222 102 83 10.36 233 15 8 32 11.2 21.29 12.70

200 65 205 360 279 152 127 13.54 298 16 8 35 14.2 21.29 12.70

250 70 253 442 340 152 127 13.54 348 16 8 35 14.2 24.46 15.88

300 82 277 518 409 152 127 13.54 422 15 12 35 14.2 33.99 19.05

Note: For general dimensions, see page 28.

J–Bolt Circle

K–Stud Size

L–No. of Studs

Dimensional Data

SERIES NE-I, NE-I SANITARY

2” to 12” (50 mm to 300 mm)

Size in. A C D E F G H J K L N P R S

2 1.74 3.94 6.75 4.12 4.00 3.25 0.408 4.75 5/8 - 11 4 1.00 0.44 0.625 0.375

2-1/2 1.86 4.44 7.50 4.88 4.00 3.25 0.408 5.50 5/8 - 11 4 1.00 0.44 0.625 0.375

3 1.86 4.69 8.00 5.38 4.00 3.25 0.408 6.00 5/8 - 11 4 1.00 0.44 0.625 0.375

4 2.11 5.44 9.31 6.88 4.00 3.25 0.408 7.50 5/8 - 11 8 1.00 0.44 0.625 0.375

5* 2.24 6.38 10.75 7.75 4.00 3.25 0.408 8.50 3/4 - 10 8 1.25 0.44 0.838 0.500

6 2.24 6.88 11.88 8.75 4.00 3.25 0.408 9.50 3/4 - 10 8 1.25 0.44 0.838 0.500

8 2.54 8.06 14.19 11.00 6.00 5.00 0.533 11.75 3/4 - 10 8 1.38 0.56 0.838 0.500

10 2.74 9.97 17.41 13.38 6.00 5.00 0.533 14.25 7/8 - 9 12 1.38 0.56 0.963 0.625

12 3.24 10.91 20.41 16.12 6.00 5.00 0.533 17.00 7/8 - 9 12 1.38 0.56 1.338 0.750

Size mm

50 44 100 171 105 102 83 10.36 121 5/8 - 11 4 25 11.2 15.88 9.53

65 47 113 191 124 102 83 10.36 140 5/8 - 11 4 25 11.2 15.88 9.53

80 47 119 203 137 102 83 10.36 152 5/8 - 11 4 25 11.2 15.88 9.53

100 54 138 236 175 102 83 10.36 191 5/8 - 11 8 25 11.2 15.88 9.53

125* 57 162 273 197 102 83 10.36 216 3/4 - 10 8 32 11.2 21.29 12.70

150 57 175 302 222 102 83 10.36 241 3/4 - 10 8 32 11.2 21.29 12.70

200 65 205 360 279 152 127 13.54 298 3/4 - 10 8 35 14.2 21.29 12.70

250 70 253 442 340 152 127 13.54 362 7/8 - 9 12 35 14.2 24.46 15.88

300 82 277 518 409 152 127 13.54 432 7/8 - 9 12 35 14.2 33.99 19.05

* NE-I sanitary 5” (125 mm) not available.

Note: For general dimensions, see page 28.

J–Bolt Circle

K–Stud Size

L–No. of Studs

Dimensional Data

SERIES NEI-T

2” to 10” (50 mm to 250 mm)

Size in.

A C D E F G H J K L N P R S

2 1.74 3.94 6.75 4.12 4.00 3.25 0.408 4.75 5/8 - 11 4 1.00 0.44 0.625 0.375

2-1/2 1.86 4.44 7.50 4.88 4.00 3.25 0.408 5.50 5/8 - 11 4 1.00 0.44 0.625 0.375

3 1.86 4.69 8.00 5.38 4.00 3.25 0.408 6.00 5/8 - 11 4 1.00 0.44 0.625 0.375

4 2.11 5.44 9.31 6.88 4.00 3.25 0.408 7.50 5/8 - 11 8 1.00 0.44 0.625 0.375

6 2.24 6.88 11.88 8.75 4.00 3.25 0.408 9.50 3/4 - 10 8 1.25 0.44 0.838 0.500

8 2.54 8.06 14.19 11.00 6.00 5.00 0.533 11.75 3/4 - 10 8 1.38 0.56 0.838 0.500

10 2.74 9.97 17.41 13.38 6.00 5.00 0.533 14.25 7/8 - 9 12 1.38 0.56 0.963 0.625

Size mm

50 44 100 171 105 102 83 10.36 121 5/8 - 11 4 25 11.2 15.88 9.53

65 47 113 191 124 102 83 10.36 140 5/8 - 11 4 25 11.2 15.88 9.53

80 47 119 203 137 102 83 10.36 152 5/8 - 11 4 25 11.2 15.88 9.53

100 54 138 236 175 102 83 10.36 191 5/8 - 11 8 25 11.2 15.88 9.53

150 57 175 302 222 102 83 10.36 241 3/4 - 10 8 32 11.2 21.29 12.70

200 65 205 360 279 152 127 13.54 298 3/4 - 10 8 35 14.2 21.29 12.70

250 70 253 442 340 152 127 13.54 362 7/8 - 10 12 35 14.2 24.46 15.88

Note: For general dimensions, see page 28.

J–Bolt Circle

K–Stud Size

L–No. of Lugs

Dimensional Data

HOW TO ORDER

(X X X X X - 0 0 X)

Standard 1

Corrosion-Resistant 2

Sanitary 3

Description in. 2 to 4 5 to 6 8 10 12

(mm) (50 to 100) (125 to 150) (200) (250) (300)

10-Position, Standard, CR 24227 24228 24229 24230 24231

2-Position, Standard, CR 24232 24233 24234 24235 24236

10-Position, Sanitary 22319 22320 22321 22322 22323

2-Position, Sanitary 22324 22325 22326 22327 22328

Throttling, Standard, CR 24252 24253 24254 24255 24256

Throttling, Sanitary 22329 22330 22331 22332 22333

Square Nut, Standard 23356 23357 23358 23359 22360

Weight (lb) 2.3 2.9 6.5 6.5 6.5

X X X X X -00X

Base Part Number Trim

Key

No. Description Material

Standard Corrosion-Resistant Sanitary

5 Screw Steel Stainless Steel Stainless Steel

8 Handle Ductile Iron Ductile Iron Bronze

10 Latch Zinc-Plated Steel Stainless Steel Stainless Steel

11 Spring Spring Steel Stainless Steel Stainless Steel

12 Spring Pin Spring Steel Stainless Steel Stainless Steel

15 Throttle Plate Zinc-Plated Steel Stainless Steel Stainless Steel

16 Lockwasher Steel Stainless Steel Stainless Steel

19 Nut Steel Stainless Steel Stainless Steel

20 Set Screw Steel Stainless Steel Stainless Steel

25* Throttling Tab Zinc-Plated Steel Stainless Steel Stainless Steel

26* Carriage Bolt Steel Stainless Steel Stainless Steel

27* Wing Nut Steel Stainless Steel Stainless Steel

28* Screw Steel Stainless Steel Stainless Steel

29* Nut Steel Stainless Steel Stainless Steel

* For throttling, memory stop handle only.

2-Position/10-Position Locking Handles

HANDLES

Dimension in. 2 to 4 5 to 6 8 to 12

(mm) (50 to 100) (125 to 150) (200 to 300)

M 9.50 (241) 11.00 (279) 15.00 (381)

N 0.85 (21.6) 1.07 (27.2) 1.13 (28.7)

Inﬁnite Throttling with Memory Stop Handle

0.25 Padlock hole

2-Position/10-Position Locking Handles

Square Nut Handle

Dimension in. 2 to 4 5 to 6 8 to 12

(mm) (50 to 100) (125 to 150) (200 to 300)

M 9.50 (241) 11.00 (279) 15.00 (381)

N 0.87 (22.1) 1.07 (27.2) 1.13 (28.7)

Description Material

Square Nut Hub Ductile Iron

Throttle Plate Steel

Screw Steel

Set Screw Steel

Lock Washer Spring Steel

19 19

HOW TO ORDER

2” to 12” (50 mm to 300 mm)

WORM GEAR OPERATORS

Manual worm gear operators are self-locking in all positions.

Adjustment screws stop travel at open and closed positions.

Position indicator is standard on all models. Gearing is

permanently lubricated.

Gray iron weatherproof case and cover enclose a ductile iron

gear and hardened steel worm supported by bronze bearings.

Standard external coating is green enamel. White epoxy, coal

tar epoxy and inorganic zinc primer are available upon special

request.

(Example: 6” (150 mm) with Handwheel – 22622-21352)

Ductile Iron 1Gray Iron 2

X X X X X

Base Part Number -

XXXXX

Case Material Gear Material Actuation Valve Size Conﬁguration

Crank 1

Handwheel 3

Chainwheel 5

Square Nut 6

None 9

2” to 4”

(50 mm to 100 mm) 1

5” and 6”

(125 mm and 150 mm) 5

8” (200 mm) 7

10” (250 mm) 8

12” (300 mm) 9

Standard 2

Description 2” to 4” 5” to 6” 8” 10” 12”

(50 mm to 500 mm) (125 mm to 150 mm) (200 mm) (250 mm) (300 mm)

Operator Base No. 22622 22622 22623 22623 22623

Additional Information

Chain Suffix = Length in ft* 4462-XXX 4462-XXX 4462-XXX 4462-XXX 4462-XXX

Weight lb (kg) with Handwheel 7.8 (3.5) 7.8 (3.5) 17.2 (7.8) 17.2 (7.8) 18.6 (8.4)

14” to 36” (350 mm to 900 mm)

X X X X X

Base Part Number -

Gear Operator

Assembly Part Number

Gear Operator Less Actuation 09

Gear Operator with Handwheel 03

Gear Operator with Chainwheel 05

Gear Operator with Square Nut 06

Description 14” 16” 18” to 20” 24” 30” 36”

(350 mm) (400 mm) (450 mm to 500 mm) (600 mm) (750 mm) (900 mm)

Operator Base No. 2060229 2060230 2060231 2060232 2060332 2060334

Additional Information

Chain Sufﬁx = Length in ft* 4462-XXX 4463-XXX 4463-XXX 19932-XXX 4463-XXX 19932-XXX

Weight (lb (kg) with handwheel) 19.0 (8.6) 22.0 (10.0) 33.0 (15.0) 43.0 (19.5) 107.0 (48.5) 137.0 (62.1)

Valve Size in. (mm) Gear Ratio Turns/90 Degree

Rotation Maximum Input Torque

2 to 6 (50 to 150) 30:1 7-1/2 46 ft-lb

8 to 12 (200 to 300) 48:1 12 65 ft-lb

14 to 16 (350 to 400) 48:1 12 65 ft-lb

18 to 20 (450 to 500) 57:1 14-1/4 98 ft-lb

24 (600) 60:1 15 164 ft-lb

30 (750) 316:1 79 104 ft-lb

36 (900) 240:1 60 174 ft-lb

* Chain length (xxx) = 000 to 999 ft (chain ordered separately).

WORM GEAR OPERATORS (CONT.)

Size in. A B C D E F G H J K L M M1 N P R S T U V

2 to 6 1.80 1.80 3.80 1.64 1.59 4.97 0.90 2.30 0.623 1.00 0.19 - - 4.80 6 4.80 4.10 3.50 4.80 4.60

8 to 10 2.88 2.88 3.38 2.50 2.88 6.50 1.38 3.00 0.623 1.00 0.19 - - 4.32 6 4.32 3.72 3.50 4.80 4.12

12 2.88 2.88 3.38 2.50 2.88 6.50 1.38 3.00 0.623 1.00 0.19 - - 5.02 8 4.32 3.72 3.50 4.80 4.12

14 2.88 2.88 5.12 2.50 2.88 6.50 1.38 3.00 0.623 1.25 0.19 - - 6.56 12 5.88 5.25 5.81 5.75 5.69

16 2.88 2.88 5.88 2.50 2.88 6.50 1.38 3.00 0.623 1.25 0.25 - - 11.00 18 7.69 6.38 9.12 8.69 6.75

18 to 20 3.12 3.12 7.12 3.00 3.12 7.69 1.50 3.25 1.000 1.25 0.25 - - 11.25 18 8.94 7.63 9.12 8.69 8.00

24 3.44 3.44 5.28 3.63 3.25 8.38 1.63 3.56 1.000 1.25 0.38 - - 10.91 24 7.59 5.91 11.00 12.25 6.16

30 4.56 8.88 4.52 4.63 4.63 11.08 2.00 4.44 1.000 1.25 0.39 6.00 7.38 8.65 18 7.59 6.28 9.12 8.69 5.41

36 5.88 9.12 4.56 6.25 5.88 14.50 2.31 5.00 1.000 1.25 0.39 6.36 8.00 10.19 24 8.13 6.44 11.00 12.25 5.44

Size mm

50 to 150 46 46 97 42 40 126 23 58 16 25 4.8 - - 122 152 122 104 89 122 117

200 to 250 73 73 86 64 73 165 35 76 16 25 4.8 - - 110 152 110 94 89 122 105

300 73 73 86 64 73 165 35 76 16 25 4.8 - - 128 203 110 94 89 122 105

350 73 73 130 64 73 165 35 76 16 32 4.8 - - 167 305 149 133 148 146 145

400 73 73 149 64 73 165 35 76 16 32 6.4 - - 279 457 195 162 232 221 171

450 to 500 79 79 181 76 79 195 38 83 25 32 6.4 - - 286 457 227 194 232 221 203

600 87 87 134 92 83 213 41 90 25 32 9.7 - - 277 610 193 150 279 311 156

750 116 226 115 118 118 281 51 113 25 32 9.9 152 187 220 457 193 160 232 221 137

900 149 232 116 159 149 368 59 127 25 32 9.9 162 203 259 610 207 164 279 311 138

* DT-1 gear operator dimensions became standard gear operator mid-year 2000 (for old style DT-3, consult Cameron).

valves

Dimensional Data

Fabricated from carbon steel, stem extensions are contained

in a tubular housing. Lengths from 3” to 16 ft are fabricated

to order. Torsional deﬂection of lengths greater than 16 ft

require special design consideration and are available by

special order only.

STEM EXTENSIONS

HOW TO ORDER

2” to 12” (50 mm to 300 mm)

X X X X X -XXX

Base Part Number Length in. (mm)

X X X X X -XXX00

Base Part Number Length in. (mm)

14” to 24” (350 mm to 600 mm)

Description in. 2 to 4 5 to 6 8 10 12 14 16 18 to 20 24

(mm) (50 to 500) (125 to 150) (200) (250) (300) (350) (400) (450 to 500) (600)

Carbon Steel 23318 23319 23320 23321 23322 24529 24530 24531 24532

* Note: Consult Cameron for 30” (750 mm) and 36” (900 mm) valve stem extensions.

GENERAL TECHNICAL INFORMATION

Pressure Rating

Three drop-tight pressure ratings are offered for DEMCO

butterﬂy valves. Normally, 200-psi shutoff is used in butterﬂy

applications. However, 285-psi shutoff is optionally available

for higher pressure applications. For smaller actuator sizing,

50-psi valves offer reduced torque.

For reduced torque, throttling valves, which do not provide

drop-tight closure, are available.

Vacuum Rating

DEMCO butterﬂy valves will seal against 10 microns of

vacuum (29.9 inHg). For reduced torque and extended seat

life, 50-psi discs are recommended for the dry service

conditions found in many vacuum applications.

End-of-Line Service

Lug body valves can be used in end-of-line service, with

downstream piping removed. Only weld neck or socket

ﬂanges can be used for this service. Since upstream pressure

is excluded between the ﬂange and the seat face by the

exclusive DEMCO ﬂange seal, there is no effective force to

slide the seat downstream. DEMCO lug butterﬂy valves are

recommended for liquid service up to 200 psi with

downstream piping removed.

Lug body valves are recommended for the isolation of

pumps, control devices or other system components that

may need to be removed for repair or replacement.

Lug valves also are suitable for installation at points from

which piping expansions may proceed. Such valves normally

are blanked with blind ﬂanges to protect the exposed seats

until new piping is attached.

Marking

Each valve is positively identiﬁed by marking and tagging per

MSS-SP-25.

Actuation

Positive latch handles, worm gear operators and automatic

actuators are available and interchangeable on the DEMCO

valve.

The DEMCO top ﬂange is dimensionally compatible with

other competitive butterﬂy valves. With the optional “utility

top” stem, the DEMCO valve interchanges directly with

competitive valves, allowing valve replacement without the

need for new actuation.

Installation and Maintenance

DEMCO butterﬂy valves are bi-directional, with identical ﬂow

way from either face. To install, simply close the valve, insert

between ﬂanges and make up with studs or capscrews. No

regular maintenance or lubrication is ever required.

Disassembly for inspection or replacement of parts is simple.

Open the valve, remove handle or actuator, remove

tangential pins, pull out the stems, and push the disc and

seat out of the body. Reassemble in reverse order, with a

small amount of general purpose non-hydrocarbon based

lubricant on the outside of stems, seat and disc ﬂats.

Steel or cast iron ﬂanges of either raised or ﬂat-faced type

are suitable for use with DEMCO butterﬂy valves. Plastic

ﬂanges are subject to damage at installation by over-

tightening the bolting and may deﬂect or cup, resulting in

ﬂange leaks. Refer proposed plastic ﬂange installations to

Cameron’s DEMCO brand quotations department for review

and recommendation.

Throttling discs with no seat interference do not provide a

stem seal. Stem O-rings are provided for this application.

Flange gaskets assist the O-rings in 2” to 12” (50 mm to

300 mm) valves, and must be used only with throttling discs.

Wafer Valve Connection

Lug Valve Connection with Downstream Flange Removed

Upstream Disc

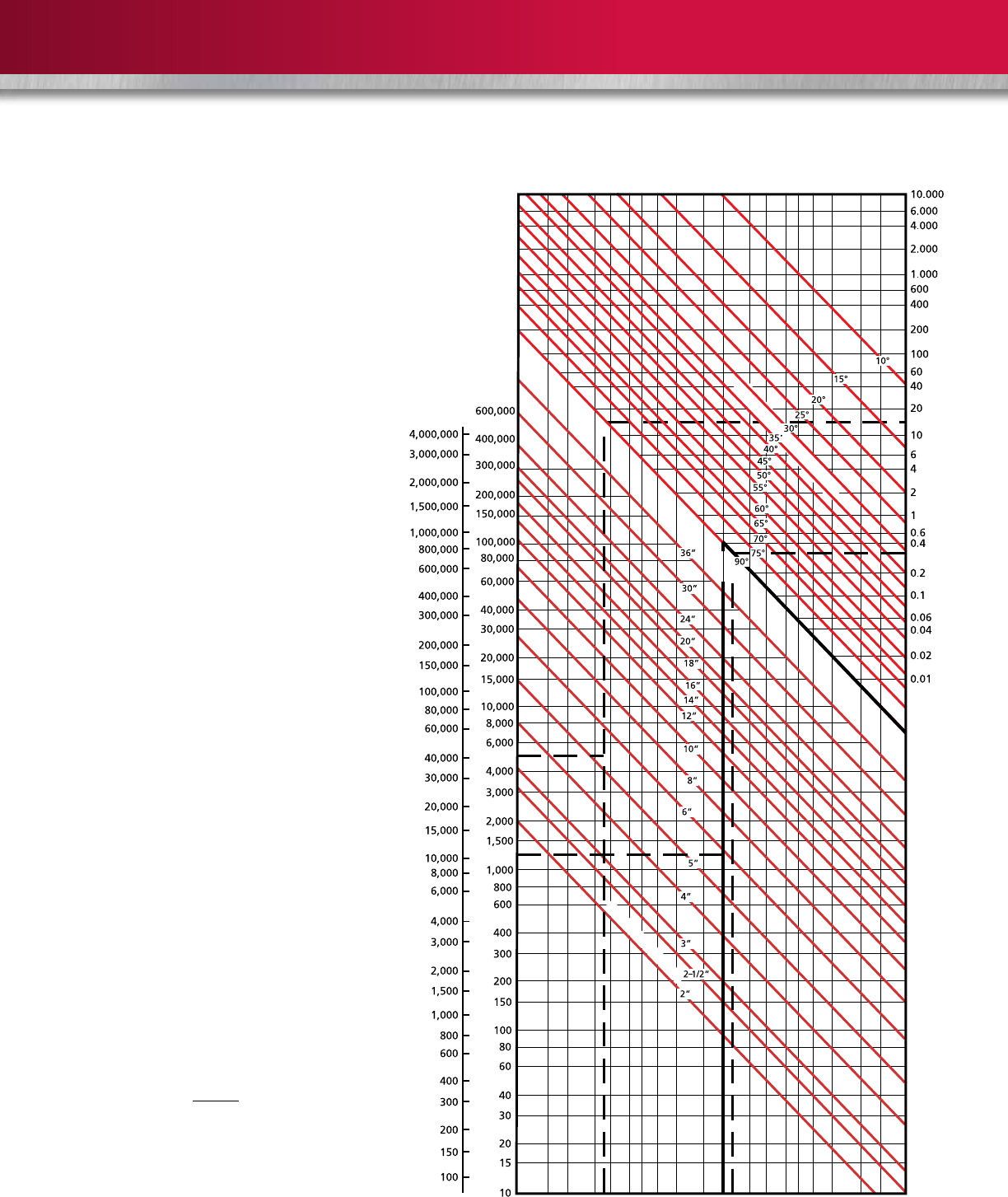

This nomograph gives corresponding values

for the parameters of ﬂow rate, valve size,

disc angle and pressure drop of DEMCO

butterﬂy valves in 1.0 speciﬁc gravity water

service at 68° F (20° C).

The lower right-hand corner of the graph

with the heavy line border represents line

velocities below 15 ft /sec and normally is

used for valve sizing in liquid applications.

Butterﬂy valves are economical throttling

devices. Reliable throttling can be attained at

disc openings from 25 to 70 degrees.

Sample Computation for Water

Water, with speciﬁc gravity of 1.0 and ﬂow

rate of 1200 gal/min, to 6” (160 mm)

butterﬂy valve.

Required: Pressure drop at full and

75-degree disc openings. Project horizontally

from 1200 gal/min to 6” (150 mm) valve

curve. Project vertically upward to fully open

valve curve, then horizontally to read 0.35

psi pressure drop. Continue upward

projection to intersect 75-degree opening

curve, then horizontally to read 0.8 psi

pressure drop.

Sample Computation for Air

Air, with density of 0.217 lb/cf, ﬂow rate of

40,000 cf/hr, to 5” (125 mm) butterﬂy valve.

Required: Pressure drop through fully open

valve. Disregarding change in gas condition

by pressure drop across valve, proceed from

40,000 cf/hr, as in liquid computation, to

read 15 psi pressure drop. Convert pressure

drop from water to air by multiplying this

value times the ratio of air-to-water

densities:

To determine pressure drop for any ﬂuid,

multiply value obtained from the nomograph

by the quotient of the ﬂuid density, in lb/cf,

divided by 62.4. Gas Liquid

Pressure Drop Through Full-Open Valve

Disc Angle Degrees Open

Valve Size – Inches

Flow Rate (cf/hr)

Pressure Drop (psi) Water at 68º F

Flow Rate (gpm)

15 psi x = 0.052 psi

0.217

62.4

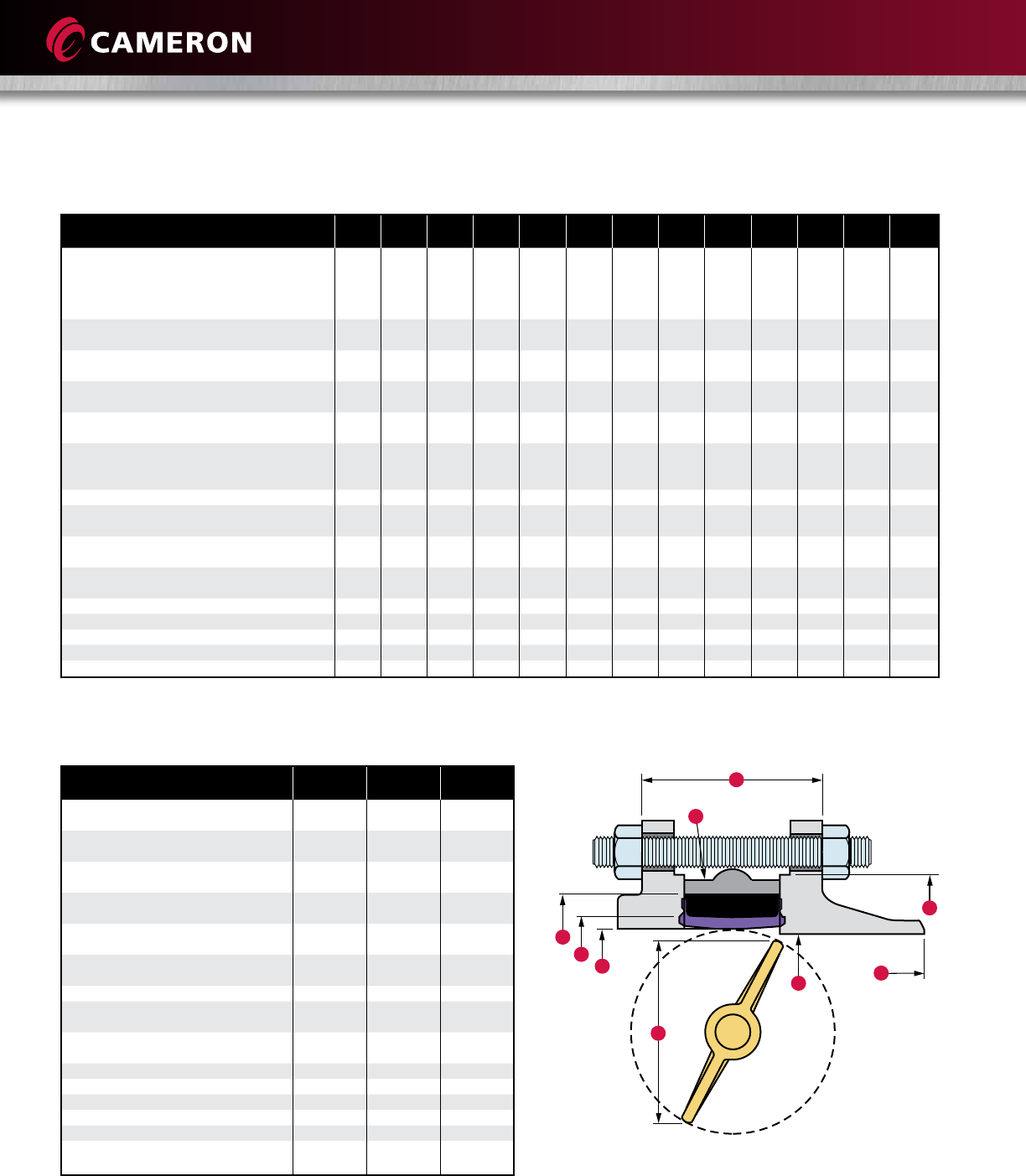

Dimensions Valve Size in. 2 2-1/2 3 4 5 6 8 10 12 14 16 18 20

(mm) (50) (65) (80) (100) (125) (150) (200) (250) (300) (350) (400) (450) (500)

2.07 2.47 3.07 4.03 5.05 6.07 7.98 10.02 12.00 13.25 15.25 17.25 19.25

A – Schedule 40

Flange ID*

(Except Slip-On)

(Slip-On)

(53) (63) (78) (102) (128) (154) (203) (255) (305) (337) (387) (438) (489)

2.44 2.94 3.57 4.57 5.66 6.72 8.72 10.88 12.88 14.14 16.16 18.18 20.20

(62) (75) (91) (116) (144) (171) (221) (276) (327) (359) (410) (462) (513)

B – Seal Diameter 2.65 3.15 3.78 4.78 5.84 7.03 8.96 11.09 13.09 14.14 16.16 18.18 20.20

(67) (80) (96) (121) (148) (179) (228) (282) (332) (359) (410) (462) (513)

C – Raised Face Diameter 3.62 4.12 5.00 6.18 7.31 8.50 10.62 12.75 15.00 16.25 18.50 21.00 23.00

(92) (105) (127) (157) (186) (216) (270) (324) (381) (413) (470) (533) (5840)

D – Valve Body Diameter 4.12 4.87 5.37 6.87 7.75 8.75 11.00 13.37 16.12 17.20 19.27 21.43 23.60

(105) (124) (136) (174) (197) (222) (279) (340) (409) (437) (489) (544) (599)

E – Seat OD 3.12 3.62 4.25 5.25 6.31 7.46 9.43 11.56 13.56 15.14 17.04 19.06 21.08

(79) (92) (108) (133) (160) (189) (240) (294) (344) (385) (433) (484) (535)

F – End-to-End

Threaded ASME Socket and Slip-On 3-3/4 4-1/8 4-1/4 4-3/4 5-1/8 5-3/8 6-1/16 6-5/8 7-5/8 7-1/2 9 9-13/16 10-11/16

Weld End ASME 6-3/4 7-3/8 7-3/8 8-1/8 9-1/4 9-1/4 10-9/16 10-3/4 12-1/4 13 14 15-7/16 16-5/16

Grooved 6-5/8 7-3/16 7-1/8 7-7/8 8-15/16 8-7/8 10-3/16 10-5/16 11-13/16 - - - -

G – Seat ID 2-1/4 2-13/16 3-5/16 4-3/16 5-1/16 6-1/16 7-15/16 10 11-15/16 13-5/32 15-7/32 17-5/32 19-5/32

H – Disc Chord** Resilient Seated Valves 1.467 2.144 2.743 3.601 4.582 5.624 7.428 9.382 11.35 12.86 14.72 16.61 18.53

(37) (54) (70) (91) (116) (142.8) (189) (238) (288) (327) (374) (422) (471)

J – Outside-to-

Outside ASME 150 3.25 3.62 3.75 4.00 4.12 4.25 4.81 5.12 5.75 5.75 6.87 7.56 8.31

(83) (92) (95) (102) (105) (108) (122) (130) (146) (146) (174) (192) (211)

Throughput

Area

Resilient Seated – sq in. 2.33 3.92 5.93 10.01 14.98 22.09 39.43 61.52 89.54 111.2 150.5 186.1

% Schedule 40 Pipe 70% 82% 80% 79% 73% 76% 79% 78% 80% 82% 85% 83% 87%

Number of Studs 4 4 4 8 8 8 8 12 12 12 16 16 20

Number of Capscrews 8 8 8 16 16 16 16 24 24 24 32 32 40

Size of Studs or Capscrews – Threads per in. 5/8 - 11 5/8 - 11 5/8 - 11 5/8 - 11 3/4 - 10 3/4 - 10 3/4 - 10 7/8 - 9 7/8 - 9 1 - 8 1 - 8 1-1/ 8 - 7 1-1/ 8 - 7

Length of Studs (in.) 5 5-1/2 5-1/2 5-3/4 6-1/2 6-1/2 7 7-1/2 8-1/4 8-1/4 10 10-1/2 11-3/4

Length of Capscrews (in.) 1-1/2 1-1/2 1-3/4 1-3/4 2 2-1/4 2-1/4 2-1/2 2-1/2 3-1/4 3-1/2 4 -

* DEMCO butterﬂy valves are designed to seal without ﬂange gaskets against ﬂange faces with IDs between slip-on ﬂange bore and

schedule 40 weld neck ﬂange bore.

** 2” to 12” (50 mm to 300 mm) disc will open into schedule 80 pipe ID.

Dimensions Valve Size in. 24 30 • 36 •

(mm) (600) (750) • (900) •

A – Standard Flange ID (Except Slip-On) 23.25 29.25 35.25

(591) (743) (895)

B – Seal Diameter 24.25 30.00 35.94

(616) (762) (913)

C – Raised Face Diameter 27.25 - -

(692)

D – Valve Body Diameter 28.23 34.05 40.49

(717) (865) (1028)

E – Seat OD 25.49 31.47 37.63

(647) (799) (956)

F – End-to-End Weld End ASME 18.00 16.75 18.63

(457) (425) (473)

G – Seat ID 23-1/4 29-5/16 35-5/16

H – Disc Chord 22.57 28.67 34.70

(573) (728) (881)

J – Outside-to-Outside ASME 9.75 10.75 12.63

(248) (273) (321)

Number of Studs 20 * **

Number of Capscrews 40 56 64

Size of Capscrews – Threads per in. 1-1/4 - 7 1-1/4 - 7 1-1/2 - 6

Length of Studs (in.) 12-1/2 * **

Length of Capscrews (in.) 4 5 ***

Throughput

Area

sq in. 352.4 546 800

% std. pipe 88% 81% 82%

* 24 studs: 1-1/4” - “7 x 15-1/2”; Eight capscrews: 1-1/4” - 7” x 5”

** 28 studs: 1-1/2” - 6” x 18-1/2”; Eight capscrews: 1-1/2” - 6” x 5-1/2”

*** 56 screws: 1-1/2” - 6” x 6”; Eight screws: 1-1/2” - 6” x 5-1/2”

• Dimensions are for ASME Class 150 Series A ﬂanges or MSS-SP-44 ﬂanges.

Consult Cameron for ASME Class 125 ﬂanges.

General Dimensions 24” to 36” (600 mm to 900 mm)

GENERAL TECHNICAL INFORMATION (CONT.)

General Dimensions 2” to 20” (50 mm to 500 mm)

CV values, given above, may be employed in the formula:

Where:

Q = gal/min of ﬂow through the valve

DP = psi pressure drop across the valve

D = density of ﬂuids in lb/cu ft

Pressure drop is computed by rearranging the formula to the

following:

Sample Computations

What is the ﬂow rate of water at ambient temperature

through a 4” (100 mm) butterﬂy valve that is 70 degrees

open when the pressure drop across the valve is 0.5 psi?

(Density of water at 68° F is 62.4 lb/cu ft.)

Q = 215.6 gal/min

What is the pressure drop across an 8” (200 mm) butterﬂy

valve that is fully open, ﬂowing 2000 gal/min of solvent with

a density of 55 lb/cu ft?

DP = 0.33 psi

Water Hammer

Water hammer is a series of shocks in a piping system

caused by rapidly stopping the ﬂow of ﬂuid in that system.

Although it is difﬁcult to measure pressure spikes caused by

water hammer shock with ordinary equipment, maximum

obtainable pressures caused by instantaneous valve closure

can be approximated by the following formula:

Pressure (max.) = interrupted velocity (fps) x 58 psi/ft/sec

In other words, pressure increases 58 psi for each ft/sec of

interrupted pipeline velocity.

A pipe carrying ﬂuid at a velocity of 15 ft/sec velocity will

have an instantaneous pressure increase of 870 psi under

rapid closure conditions.

The effects of water hammer are seen in a butterﬂy valve as

bent disc and stems, a broken body or both.

Water hammer can be reduced or eliminated by slowing

valve closure time in accordance with the following formula:

Where:

Q = ﬂow in gal/min

S = upstream pipe size in sq ft

P = pressure rating of the valve in psi

Generally, a closing time of six to eight seconds is sufﬁcient

to eliminate water hammer.

Degree

Open

Valve Size in. (mm)

2 2-1/2 3 4 5 6 8 10 12 14 16 18 20 24 30 36

(50) (65) (80) (100) (125) (150) (200) (250) (300) (350) (400) (450) (500) (600) (750) (900)

90º 145 225 325 590 1125 1950 3250 5000 7500 10,000 13,600 18,000 22,600 30,000 47,000 70,000

80º 115 175 260 510 1000 1650 2725 4300 6050 8100 11,500 14,300 18,000 25,000 38,000 60,000

75º 95 135 215 410 830 1350 2200 3600 5000 6700 9500 12,100 15,000 21,000 31,500 48,000

70º 70 105 160 305 625 1030 1750 2750 4050 5100 7100 9200 11,500 16,500 25,500 39,500

60º 53 83 125 235 490 800 1300 2150 3100 4100 5100 7100 8700 11,750 18,000 28,000

50º 27 42 63 120 250 410 700 1150 1600 2200 2650 3700 4600 6100 9700 15,000

40º 17 26 38 73 155 250 420 670 1000 1300 1700 2300 2800 3800 6000 9200

30º 9 15 22 42 88 145 250 390 550 750 900 1250 1600 2200 3500 5300

25º 6 10 15 28 60 98 170 260 380 500 650 900 1125 1500 2300 3500

Flow Coefﬁcients (Cv)

DP x 62.4

Q = CV x

Q2 x D

2 x 62.4

DP =

DP x 62.4

Q = CV x

0.5 x 62.4

= 305 x

Q2 x D

2 x 62.4

DP =

(2000)2 x 55

(3250)2 x 62.4

= 305 x 0.707

0.14Q

S (P)

time seconds =

Cavitation Data

Liquid ﬂow is accelerated as it passes through a valve in

such a manner that pressure is decreased below the vapor

pressure and bubbles form. Immediately downstream of the

valve, velocity decreases while pressure increases and the

bubbles collapse, causing possible mechanical damage to the

valve and piping. This is called cavitation. Cavitation often

can be identiﬁed by the noise of the collapsing bubbles,

which sounds like gravel ﬂowing in the pipe.

Generally, butterﬂy valves operate with high-ﬂow capacities

and at low-pressure differentials and are not particularly

susceptible to cavitation.

When butterﬂy valves are used as control valves, one can

ensure that cavitation will not occur by applying the

following simpliﬁed formula:

DPmax = KC (P1 - PV)

Where:

DPmax = differential pressure across the valve

KC = cavitation constant

(approximately 0.35 for butterﬂy valves)

P1 = inlet pressure (psia)

PV = vapor pressure of the ﬂowing liquid (psia)

Example:

What is the maximum pressure drop possible through a

butterﬂy valve at 100 psig inlet pressure with water at

68° F (0.339 psia vapor pressure)?

DPmax = KC (P1 - PV)

Under the above conditions, it is possible to take a 40.03-psi

pressure drop across the valve before cavitation will begin.

GENERAL TECHNICAL INFORMATION (CONT.)

Valve Size in. 2 2-1/2 3 4 5 6 8 10 12 14 16 18 20 24 30 36

(mm) (50) (65) (80) (100) (125) (150) (200) (250) (300) (350) (400) (450) (500) (600) (750) (900)

285 psi Shutoff 225 326 510 765 1190 1530 2550 4125 7000 - - - - - - -

200 psi Shutoff 132 192 300 450 700 900 1500 2650 4500 - - - - - - -

150 psi Shutoff - - - - - - - - - 7740 10,280 12,600 15,600 30,000 50,000 67,500

50 psi Shutoff 108 108 192 264 450 550 1000 1800 3000 4500 6500 8400 10,800 20,000 30,000 50,000

Throttling* 72 72 90 108 144 180 350 700 1160 1660 2800 3400 5000 8400 - -

Valve Size in. 2 2-1/2 3 4 5 6 8 10 12 14 16 18 20 24 30 36

(mm) (50) (65) (80) (100) (125) (150) (200) (250) (300) (350) (400) (450) (500) (600) (750) (900)

285 psi Shutoff 338 489 765 1148 1785 2295 3825 6188 10,500 - - - - - - -

200 psi Shutoff 198 288 450 675 1050 1350 2250 3975 6750 - - - - - - -

150 psi Shutoff - - - - - - - - - 11,610 15,420 18,900 23,400 45,000 - -

50 psi Shutoff 162 162 288 396 675 825 1500 2700 4500 6750 9750 12,600 16,200 30,000 - -

Throttling* 144 144 180 216 288 360 700 1400 2320 3320 5600 6800 10,000 16,800 - -

* When line velocity exceeds 15 ft/sec, dynamic torque exceeds opening torque.

** Consult Cameron for the torque requirement of the Series NEI-T butterﬂy valve.

The torque (turning effort) required to operate a given

butterﬂy valve is determined by two factors: friction of the

disc and the seat. The interference and dynamic forces of

ﬂow through the valve tend to open or close the valve. The

actuator torque output must meet or exceed the maximum

torque requirement of the valve. Normal wet opening torque

requirements due to interference are tabulated below. Dry

service will increase opening torque signiﬁcantly. Consult

Cameron for dry service torque requirements.

The disc of a butterﬂy valve, in partially opened condition, is

subject to lift forces from passage of ﬂuid over its surfaces.

This effect is analogous to an airplane wing and results in an

unbalanced turning force on the disc. The dynamic torque is

proportional to the pressure drop through the valve and may

become signiﬁcant in some applications.

Dynamic torque typically is at a maximum when the disk

opening is about 70 degrees. Under high differential

pressure conditions, such torque may exceed the design

strength of stems, connections or actuators. The curves at

right may be used to calculate dynamic torque for DEMCO

butterﬂy valves and should be consulted in any case where

high differential pressure may occur during valve operation.

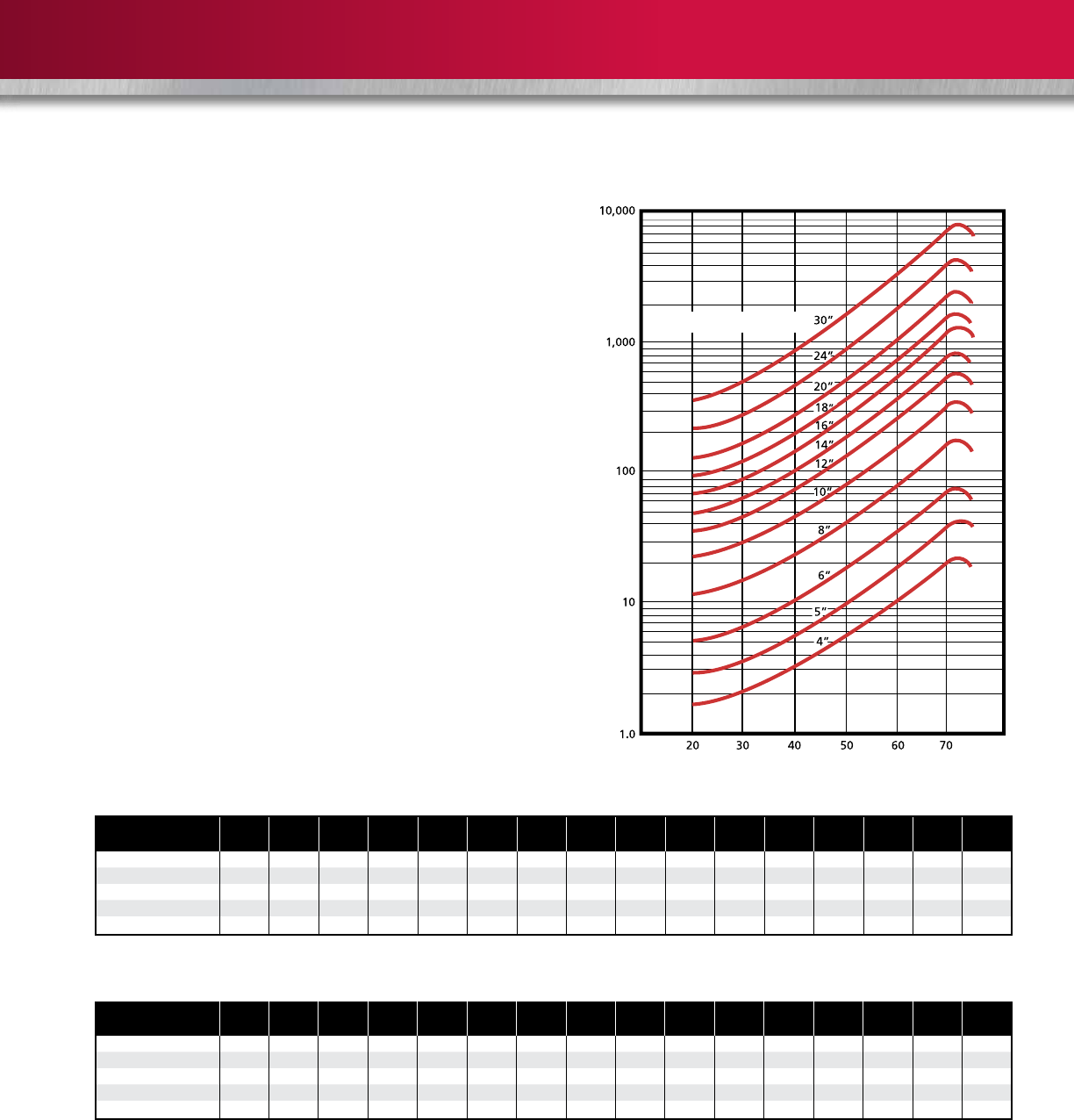

TORQUE DATA

Disc Opening, Degrees

Valve Size, in.

Dynamic Torque, in–lb/psi Pressure Drop

Butterﬂy Valve Torques (Except Series NEI-T)** – Normal Wet Opening – in-lb

Butterﬂy Valve Torques (Except Series NEI-T)** – Three-Way Assemblies – in-lb

STANDARD MATERIAL DATA

Description NE-C NF-C NF-C NE-I NE-D NE-I NEI-T

14” to 24” 30” and 36” Sanitary

See page 10 for Assembly Part Number

Ductile Iron A395 (60-40-18) * Lug Lug Wafer/Lug Wafer Wafer Wafer/Lug

ENC-Coated Wafer Wafer/Lug

Gray Iron A48 (Class 20) Wafer Wafer

A126 (Class B) Wafer

Bronze B148 (952) C/F Wafer/Lug Wafer/Lug Wafer/Lug

Steel A216 (WCB) * Lug Wafer/Lug Wafer/Lug

Stainless Steel A351 (CF8M) Wafer/Lug Wafer/Lug Wafer/Lug

Aluminum B26 Wafer Wafer Wafer

Discs

Ductile Iron/ Nickel-Plated A536 (65-45-12) • • • • •

Ductile Iron/ PVF-Coated A536 (65-45-12) • • • •

Aluminum B148 (954) • • •

Bronze B148 (955) • •

316 SS A743 (CF8M) • • • • • • •

Monel ** A494 (M30C) • • • •

Alloy 20, 29 NI-20 Cr A743 (CN-7M) • • • •

Hastelloy C **

61 NI-17 Mo-17 Cr A494 (CW-2M) • • • •

Stems

416 SS QQ-S-764-B • • • • • •

316 SS AMS 5648 B • • • • • • •

17-4 PH SS AMS 5643 • • • • • •

Monel ** B164 (Class A) •••••

* Conforms to USCG Marine requirements, as outlined in 46 C.F.R., part 56.

** See material trademark on page 40. Consult Cameron for special material requirements.

Seats vary. See pages 9, 10 and 11 for seat material description and part

number scheme for available options for different valve series.

Buna-N is a general purpose elastomer compounded for maximum

hydrocarbon or petroleum resistance.

0° F to 180° F (-18° C to 82° C). Same as Nitrile, Hycar* and NBR.

General Service EPDM is recommended for water service. Resistance to

saturated steam up to 275° F (135° C) is superior. EPDM is suitable in

alkaline solutions. EPDM is not suitable for oil or hydrocarbons.

Peroxide-cured 20° F to 275° F (-6° C to 135° C).

Food Grade EPDM is formulated in compliance with FDA guidelines

published in the Code of Federal Regulations, Title 21, paragraph

177.2600. This material is suitable for food service, except milk and

edible oils. Peroxide-cured 20° F to 275° F (-6° C to 135° C).

Sulfur-cured -30° F to 225° F (-34° C to 107° C).

Same as EPDM and Nordel*.

Black Neoprene complies with FDA guidelines and is principally

recommended for food and beverage service. It is resistant to vegetable

oils, brine and oxygen. 0° F to 180° F (-18° C to 82° C).

Same as Polychloroprene and CPE.

White Neoprene complies with FDA guidelines and offers chemical

resistance comparable to black neoprene, but it uses ﬁllers other than

carbon black to provide white coloration. Physical properties are not as

good as black neoprene, and white neoprene should be used only when

black cannot be tolerated. Storage should be under low light conditions

to prevent discoloration. 0° F to 180° F (-18° C to 82° C).

Hypalon* is compounded for chemical resistance and is superior in acids

and hydrocarbons. 0° F to 180° F (-18° C to 82° C). Same as CP.

FKM is superior at elevated temperatures and in harsh chemical

environments. FKM is not suitable for hot water or steam. 20° F to

300° F (-6° C to 149° C). Same as Fluoroelastomer.

Natural Rubber generally is superior to other elastomers in abrasion

resistance and is recommended for dry material handling. Use in oils and

solvents is not recommended. -30° F to 150° F (-34° C to 65° C).

Fluorosteam seats offer heat and chemical resistance to hydrocarbons

and hot water or saturated steam. Maximum temperature capability is

dependent on ﬂuid resistance, pressure and ﬂow rates. 20° F to 275° F

(-6° C to 135° C).

ETM-30230 is compounded to combine many of the better media

properties of Buna-N, EPDM or neoprene for service in hydrocarbons,

gasoline, solvents, animal oils and vegetable oils with a temperature

range of -30° F to 230° F (-34° C to 110° C). Abrasion resistance is equal

to Buna-N. Resistance to H2S and CO2 are superior to Buna-N. -30° F to

230° F (-34° C to 110° C).

NEI-T Teﬂon* SEAT is EPDM elastomer bonded to a virgin TFE covering.

This provides an inert, aseptic non-stick surface, which is excellent for

sanitary food service applications. 0° F to 50° F (-18° C to 10° C).

Other seat elastomers are available for special applications. Consult

Cameron.

* See material trademark note on page 40.

Bodies

MATERIAL SELECTION GUIDE

The following application is designed for use in determining the available material most likely to give satisfactory service and

is not meant to imply any type warranty. However, certain factors such as temperature, concentration and combinations of

chemicals may affect the ﬂuid resistance of any material. In questionable applications, testing is always the most positive way

to determine suitability. Some materials are available in certain valve sizes and series only.

Rating Interpretation

E – Excellent

G – Good

F – Fair

U – Unsatisfactory

Stem and Disc Seat

Nickel-Plated

Ductile Iron

416 SS

316 SS

Monel*

Aluminum

Bronze

Alloy 20

Hastelloy C*

PVF

Buna-N

Neoprene

Hypalon*

FKM

EPDM

Natural Rubber

ETM-30230

Acetaldehyde U U E E U E E G G F U F E U -

Acetic Acid – Crude U U E F U E E - G E E - - - -

Acetic Acid – Pure U U E F F E E E G E E - - - -

Acetic Acid – 10% U U E F U E E - G E E - - - G

Acetic Acid – 80% U U E F U E E - G E E - - - -

Acetic Acid – Anhydrite U U E F U E E U U E E U F F U

Acetone G G E E E E E U U U U U E F U

Acetophenone U U G E U - - F U - - - E - U

Acetylene G E E E E E U - G F F E - F G

Acrylonitrile G G E E E - - U U F F U U U -

Air (Dry) E E E E E - - - E E E E G - -

Alcohol – Amyl F G E E E E - E F F G G E G E

Alcohol – Butyl F G E E E E E E F G G E F F -

Alcohol – Ethyl U - E E E E E E G G G G G G E

Alcohol – Methyl U - E E E E E - F E E F E G -

Alum – Ammonium U - G - - - - - G G F G - F -

Alum – Chrome U - G - - - - - G G G G - F -

Alum-Potassium U G - - G - - - G G F E G - -

Alumina G G G G G E E - E F G G E E -

Aluminum Chloride U U F G U E - E G G G E E G G

Aluminum Fluoride U - G G - E - E G G G G E G G

Aluminum Hydroxide U - G G G - - E G G - G G - -

Aluminum Sulfate U G G - U G E - E E E E E E -

Amines U F E G - E U - U U U U F - -

Ammonia, Anhydrous F - E E U - E E G G U U G U U

Ammonia Solutions F G E G U E E - G G U U G U U

Ammonium Chloride 50% 180° F (82º C) U F G G U E E E E E E E E E G

Ammonium Hydroxide F G E F U E E E U E E G E U F

Ammonium Nitrate 5% 60° F (16º C) F G E U U E E E E E G E E G G

Ammonium Phosphate U G E G U E E E E E E E E G G

Ammonium Sulfate 90% 180° F (82º C) U F G G U G G E E E E E E G -

Amyl Acetate F G E G G E U F U U U U G U U

Amyl Chloride F G E G E E E E U U U - U U -

Aniline 90% 70° F (21º C) F G G G U E E F U U U F F U U

Aniline Dyes F G E E F E E - U F F G - - U

Antimony Chloride U - - G - - E - G G G E - - -

Arsenic Acid U G G G U E - E E E E E G G G

ASTM Oil #1 F E E E E E E - E G G E U U -

ASTM Oil #3 F E E E E E E - E U U E U U -

ASTM Ref. Fuel A F E E E G E E - E G G E U U E

ASTM Ref. Fuel B F E E E G E E - G F F E U U E

ASTM Ref. Fuel C F E E E G E E - G F F E U U -

Asphalt E E E E E E E - G - - E U U E

Barium Carbonate 60° F (16º C) U - G G G - E E E E - - E - -

Barium Chloride U - G G F - E E E E E E E E E

Barium Hydroxide F E E G U E - E E E E E E G E

Barium Sulfate 60° F (16º C) U - E G G - - E E E - - E - E

Barium Sulﬁde F E G F U E - E E E U - - U -

* See material trademark note on page 40.

Rating Interpretation

E – Excellent

G – Good

F – Fair

U – Unsatisfactory

Stem and Disc Seat

Nickel-Plated

Ductile Iron

416 SS

316 SS

Monel*

Aluminum

Bronze

Alloy 20

Hastelloy C*

PVF

Buna-N

Neoprene

Hypalon*

FKM

EPDM

Natural Rubber

ETM-30230

Beer (Beverage) U E E E U E E E G G E E E G G

Beet Sugar Liquors F E E E F E - - E E G E - G -

Benzaldehyde F E E G E E - E U U U U E U U

Benzene (Benzol) 70° F (21º) F E E G E E E G U U U G U U U

Benzoic Acid 5% 70° F (21º) U G E G G E E E U U U E U U -

Black Sulfate Liquor F G E - F E - - G G G E G F -

Bleaching Powder – Wet U G G - U E - - G E F - - F -

Borax (Sodium Borate) U F E E U E E E G E E E E G G

Boric Acid 5% 200° F (93º C) U F E G F E E E E E E E E G G

Brine (Acid) U - G G G - - E E G G - E U -

Brine – Chlorinated - - U G G - - - - - - G G - -

Bromine – Gas U U U F - U E E U U U E U U -

Bromine – Water U U U F - U E E U G G E U U -

Butadiene F G E E G - E E F - G G - U U

Butane – Butylene G E E E E E E E G G G E U U G

Butyl Acetate G E E E E E E U U U U U U U U

Butyric Acid 5% 70° F (21º C) U G E G G E E - U U U G G U -

Calcium Bisulﬁte U G E U U G - E E E E E U U -

Calcium Carbonate 60° F (16º C) F - G E G - E E E E - E - - -

Calcium Chlorate 20% 160° F (71º C) - G E G U E E E - E E - - - -

Calcium Chloride F G G G E G E E E E E - - - E

Calcium Hydroxide 50% 175° F (79º C) F E E E U E E E G E E E - - G

Calcium Hypochloride - G G - - G - - U U E E - U F

Calcium Sulfate 90% 60° F (16º C) F E E G E E - E F F - E - - -

Calgon F - E - - E - - E E - E - - -

Caliche Liquor U - E - - E - - E E E E E E -

Cane Sugar Liquors F E E G E E - - E E - - - - G

Carbon Dioxide (Dry) F E E - E E - E E G G E - G G

Carbon Disulﬁde U - E G G - - G U U U E U U -

Carbon Tetrachloride (Dry) U G G E G E - E U - - E - - F

Carbonic Acid U G E E - E E E G E E E E E G

Caster Oil G G E E G E E E G E E E G G G

Caustic Solutions 34% 200° F (93º C) U G E F U E E - F F F E G U F

China Wood Oil (Tung) F - E E F E E - E E G E U U -

Chlorine Gas – Dry 70° F (21º C) U F G G G G E E U U G E F U -

Chlorobenzene 90% 70° F (21º C) F E G G G E - E U U U G U U U

Chloroform 70° F (21º C) F G E E G E - E U U U E U U -

Chlorosulfonic Acid 10% U U G F G U E F U U U U U U -

Chocolate - - - - - - - - E U - - - - -

Chromic Acid 5% 70° F (21º C) U G G F U E - E U U E E U U -

Citrus Acid 5% 150° F 66º C) U F E G F E E E E E E E E F E

Coconut Oil (Food) U U E G G E - E E F F E F U -

Coffee (Food) U U E G F E - E E E E E E E -

Copper Chromate - - E - - - - - - - - - - - -

Copper Sulfate 80% 175° F (79º C) F G E F U E - E E E E E E E -

Corn Syrup - - E - - - - - - - - - E - -

Cottonseed Oil G E E E E E E E E F G G F U G

Creosol U F E E - E - F U U U F U U -

Creosote E E E E G E E - G U F E U U U

Cresylic Acid U G E G G E - G U U U E U U -

Crude Oil G G E E E E E - E - - E U U E

Cyclohexane F E E G G E - E U U U E U U -

Dextrose (Food) U U E - - E - - E - - - - - -

MATERIAL SELECTION GUIDE (CONT.)

* See material trademark note on page 40.

Rating Interpretation

E – Excellent

G – Good

F – Fair

U – Unsatisfactory

Stem and Disc Seat

Nickel-Plated

Ductile Iron

416 SS

316 SS

Monel*

Aluminum

Bronze

Alloy 20

Hastelloy C*

PVF

Buna-N

Neoprene

Hypalon*

FKM

EPDM

Natural Rubber

ETM-30230

Diacetone U - E - E - - U U U U U E U -

Diamylamine F E E - E E - - G F - U - G -

Dichlorethene U - G G G G - F U U - G U - U

Diesel Fuels E E E E G E E E E F F E U F E

Diethyl Amine F E E G E E - U G F F U F U -

Dimethane Sulﬁde - - - - - - - - - - F U G - -

Dowtherms G E E E G E - - U G G E - - U

Drilling Mud G - E E G - - - E F E E - G E

Ethers U - G G G E E F U U U F F U -

Ethyl Acetate F G E E G E E F U U U U G U U

Ethyl Chloride 5% 60° F (16º C) F G E G E E E E E G G G G G G

Ethyl Glycol G E E E E E E E E G E E E E -

Ethylene Dichloride U - G G G - - E U U U F U - U

Ethylene Oxide G G G G U E - U U U U U F U U

Ferric Chloride U U U U U - U E E G G E E E G

Ferric Nitrate (pH 7+) 5% 60° F (16º C) U - G F U E - E E E E E E E E

Ferric Sulfate 5% 60° F (16º C) U - E E U - - E E E E E E E E

Ferrous Sulfate F G G - U E - E E E - E E E -

Fluorine 70° F (21º C) U U F G U G - E G F G G F - -

Fluorosilicic Acid U F G G F E - E E G E - - G -

Formaldehyde 70° F (21º C) U G E G E E E G F - E E - F F

Formic Acid 5% 150° F (66º C) U G E G G E E E G E E E E E G

Freon 11 F E E E E E - E G G E G U - -

Freon 12 F E E E E E - E G G U U U - F

Freon 22 F E E E E E - E U - E U E - F

Freon 113 F E E E E E - - G G E G U U F

Freon 114 F E E E E E - - G G F F U - F

Fructose - - E - - - - - - - - - E - -

Fruit Juices (Food) 70% U U E E U E E - E E F E G G

Fuel Oil F E E E E E E E G F F E U U E

Furfural F E E G G E E U U U U U F U U

Gallic Acid 5% 200° F (93º C) U - E G - E E F G G G E G E -

Gasohol F G E - G - - E U - - G U - U

Gasoline – Regular G E E E E E E E G - G E U U E

Gasoline – Unleaded F E E E E - - E U - - E U - G

Gelatin (Food) U U E G G E - - E E E E E E E

Glucose U F E - E E - E E E E E E E E

Glycerine/Glycerol 70° F (21º C) F E E G G E E E E E E E E E E

Heptane F G E G E E - E E G G E U U -

Hexane F G E G E E - E E G G E U U E

Hydraulic Oils F G E E E E - - G F E E U U G

Hydrobromic Acid 200° F (93º C) U U U U U U E E U U E E E E -

Hydrochloric Acid 10% 60° F (16º C) U U U F U U E E F G G E G - -

Hydrochloric Acid 20% 60° F (16º C) U U U U U U E E F G G E - - -

Hydrochloric Acid 35% 60° F (16º C) U U U U U U G G F G G E - - U

Hydrocyanic Acid U - G F U E E E G G E E G G -

Hydroﬂuoric Acid 48% U F U F U F E E U U E E - - -

Hydroﬂuoric Acid 60% U U U U U F E E G U G G E G -

Hydroﬂuoric Acid 100% UUUUUF E E U U U F - - -

Hydroﬂuosilicic Acid 5% 70° F (21º C) U G G G E G E G G G E E E E -

Hydrogen F G E E F E - E E E E E E G -

Hydrogen Peroxide 90% U F G G U G E E U U G G F U G

Hydrogen Sulﬁde – Dry F F E G F G E E F - G G E G G

Hydrogen Sulﬁde – Wet F F G F F E - E - - G G G U F

* See material trademark note on page 40.

Rating Interpretation

E – Excellent

G – Good

F – Fair

U – Unsatisfactory

Stem and Disc Seat

Nickel-Plated

Ductile Iron

416 SS

316 SS

Monel*

Aluminum

Bronze

Alloy 20

Hastelloy C*

PVF

Buna-N

Neoprene

Hypalon*

FKM

EPDM

Natural Rubber

ETM-30230

Iodine Solution U U U U U U E E F U G E G F -

Iso – Octane F E E E E E E E E G G E U U G

Isopropyl Alcohol FEEEEEE-GFEEEEG

Isopropyl Ether F E E E E E E - G F F U U U -

Kerosene E E E E E E E E E G U E U U E

Lacquer Solvents F E E E E E E - U U U U U U U

Lactic Acid 5% 70° F (21º C) U F G G U E E U G E E E G G -

Lard Oil 70° F (21º C) G - E G G E E E E F U E U U E

Lemon Oil U F E E E E E E G F - - - - -

Linseed Oil F E E E E E E E E G G E U - -

Lubricating Oil E E E E E E E E E F G E U U E

Magnesium Chloride 4% 75° F (24º C) F F G G F E E E E E E E E E E

Magnesium Hydroxide F E E G G E - E G E E E E G G

Magnesium Sulfate 5% 120° F (49º C) F G E E E E E E E E E E E G E

Mecuric Chloride 3% 60° F (16º C) U U F U U F E E E E E E E E E

Mecuric Cyanide U - E U U E E F G F F F G - F

Mercurous Nitrate (pH 7+) U - G U U E E E F F - - - - -

Mercury EEEEUEEEEEEEEEE

Methyl Acetate F G E - - E - - U U U U G U U

Methyl Acetone F E E - E E - - U U U - - U -

Methyl Cellosolve F E E E E E - E U U U U G U -

Methyl Chloride G G E G E E - E U U U G F U -

Methyl Ethyl Ketone (MEK) E E E - E E - U U U U U E U U

Milk (Food) U U E F U E E E E E - E U - -

Mineral Oil F - E E G E E E E G G E U U E

Molasses (Food) U U E - U E - G - E - - E - -

Naphtha F E E G G E E E G U U E U U G

Naphthalene F E E G G E - E U U U E U U -

Natural Gas (Methane) G E E - E E - - E E E E U F E

Nickel Ammonium Sulfate U - E F U - - - - E - - - - -

Nickel Chloride U - G G U G E E E E E E E E -

Nickel Sulfate 10% 60° F (16º C) U - E G G E E E E E E E E G -

Nitric Acid 10% 70° F (21º C) U - G U U G G U U G E E G U U

Nitric Acid 30% 70° F (21º C) U - G U U G G U U F E E G U U

Nitric Acid 60% 175° F (79º C) U - G U U G G U U U U E U U U

Nitric Acid 70% U U G U U G G U U U U E U U U

Nitrobenzene U - E G - E - F U U U G U - U

Oils and Fats E E E G E E - - E - - U U - E

Oils, Fish U G E - F E - - G E F U U - E

Olecic Acid 100° F (38º C) U F G G G E E E F G G G - U G

Oleum (Fuming Sulfuric Acid) U U F - - G G - U U U E U U U

Oxalic Acid U F G F F G G F G G G E G G F

Oxygen E E E E E E - E G E E E E - G

Ozone U G E - - - - E U F E E E U G

Palmitic Acid U G E G G E - E E G F G G F G

Perchlorethylene F G E G G E - E F U U E U U F

Petroleum – Reﬁned G - E E E - - E E G E E U U E

Petroleum – Sour U G G G F G E E F - E G U - G

Phenol U - E E G E E E U U U G - U F

Phosgene - - E - - - - - G U U G U U -

Phosphoric Acid 10% 70° F (21º C) U F G F U G E E G G G E G F -

Phosphoric Acid 25% 70° F (21º C) U U G F U G G E F G G E E U -

Phosphoric Acid 75% 70° F (21º C) U U G F U - F E U G G G E U -

Phosphorous Oxychloride U - - - - - - - - - - - - - -

MATERIAL SELECTION GUIDE (CONT.)

* See material trademark note on page 40.

Rating Interpretation

E – Excellent

G – Good

F – Fair

U – Unsatisfactory

Stem and Disc Seat

Nickel-Plated

Ductile Iron

416 SS

316 SS

Monel*

Aluminum

Bronze

Alloy 20

Hastelloy C*

PVF

Buna-N

Neoprene

Hypalon*

FKM

EPDM

Natural Rubber

ETM-30230

Pickling Sol. (20% Nitric to 4% HF) U - G G - - - - U U U G F U U

Picric Acid 80% 70° F (21º C) U - G U - E E E G E E G E G -

Polyethylene Glycol Dimethyl Ether (Selexol) - - - - - - - - - - - U G U -

Potassium Chloride U - G G E E - E E E E E E E E

Potassium Cyanide F G G G U E - E E E E E E E E

Potassium Hydroxide 5% 70° F (21º C) F G E E U E E G E G E G E G -

Potassium Nitrate 6% 68° F (20º C) F G E G F E E E E E G E E E E

Potassium Phosphate U - G G F - - - E E - E - - -

Potassium Sulfate 7% 180° F (82º C) F G E E E E - E E E G E E - E

Potassium Sulﬁde U G E F U E - E E G G G G G -

Potassium Sulﬁte U - E - - E - - E G G E E G -

Propane F E E E E E - E E G G E U U E

Resins and Rosins U E E G E E E - F F F E - F -

SAE #10 Oil G - - - E - - - E - E E U - E

Sea Water 70° F (21º C) U F G E E G E E E E E G E F -

Sewage U G E G G E - E E E E E G F -

Silicate Ester Synthetic Oil - - - - - - - - - G E E U - -

Skydrol 500 G E E - E E - - U U U U E U U

Soap Solution (Stearate) 70° F (21º C) U F E E E E E E E E E E E F E

Sodium Acetate 5% 75° F (24º C) U F E G G E E E G G U U E E -

Sodium Aluminate U - E G G E - - E E G E G G -

Sodium Bisulfate U F E - - E - E E E E E E E E

Sodium Carbonate 80% 60° F (16º C) U G E E G E E E E E E E E E E

Sodium Chloride 30% 180° F (82º C) U F E E EEEEEEEEEEE

Sodium Cyanide U - G U U E - E E E E E E E -

Sodium Fluoride 5% 60° F (16º C) U - G G F - E E E E G E G G -

Sodium Hydroxide 5% U G E G F E E G G F E G E E -

Sodium Hydroxide 20% U F E E F E E G G U E G E E -

Sodium Hydroxide 50% U F G G U E E E G U G F G G -

Sodium Hydroxide 70% U U F F U G G G F U U U G F -

Sodium Hypochlorite 5% 60° F (16º C) U - G G U G E E F U E E G F G

Sodium Nitrate 30% 60° F (16º C) U G E G G E E E G G E E E G G

Sodium Perborate U G G G G - - - G G G E E G -

Sodium Peroxide U G E G U - - E G G G E E G -

Sodium Phosphate 5% 60° F (16º C) U G E G F E E E E G E E E E U

Sodium Silicate U G E G G E E E E E E E E E -

Sodium Sulfate 80% 60° F (16º C) U G E G G E E E E E E E E G E

Sodium Sulﬁde 70% 70° F (21º C) U G E - - E E E E E E E E G -

Sodium Sulﬁte 5% 70° F (21º C) U - E G U E E E E E E E E G -

Steam 225° F (107º C) U U E E E - - - U U U U G U U

Steam 300° F (149º C) U U E E G - - - U U U U U U U

Stearic Acid 90% 200° F (93º C) U G E G F E E E G G G E G G F

Steep Water ----------GG-U-

Styrene (Fumes) - - E - - - - - U - - G U - -

Sulfamic Acid - - - - - E - E - - E - G - -

Sulfur (Molten) U F G U U E E - U F U G F U F

Sulfur Dioxide 60° F (16º C) U G E E F E E E U G F E E G -

Sulfur Trioxide U G E - - E E - U U U E G G -

Sulfuric Acid 0% to 7% 70° F (21º C) U F G F U E E E U G E E U U F

Sulfuric Acid 7% to 40% 70° F (21º C) U U U U U G G E U U E E U U -

Sulfuric Acid 40% to 75% 70° F (21º C) U U U U U G G E U U G G U U -

Sulfuric Acid 75% to 95% U U U U U U G E U U U G U U -

Sulfuric Acid 95% to 100% U U U U U U E E U U G G U U U

Sulfurous Acid 80% 100° F (38º C) U U G F U E E G U U E E U - -

* See material trademark note on page 40.

Rating Interpretation

E – Excellent

G – Good

F – Fair

U – Unsatisfactory

Stem and Disc Seat

Nickel-Plated

Ductile Iron

416 SS

316 SS

Monel*

Aluminum

Bronze

Alloy 20

Hastelloy C*

PVF

Buna-N

Neoprene

Hypalon*

FKM

EPDM

Natural Rubber

ETM-30230

Tall Oil G G E G - E - E G G - E - E -

Tannic Acid 150° F (66º C) U F E G G E E G E G G E E E F

Tar F E E E E E E - F F - E U U F

Tartaric Acid 150° F (66º C) U G E G G E E G G G E E G E F

Toluol and Toluolene G E E - E E - G U U U E U U U

Toluene Sulfomic Acid --U----U---G---

Transformer Oil - - - - - - - - U - - E U - -

Tributyl Phosphate G F E - - E - E U U U U E G -

Trichloroacetic Acid U U U G G - - F G U U F G F -

Trichloroethylene F U E G G E - G U U U E U U U

Triethinolamine U U E G - - - G F E E U G G -

Trisodium Phosphate U U G G F - - E F F - - - - -

Tung Oil U U E F E E E - E G G E U U -

Turpentine U U E G G - - E G U U E U U F

Vinegar 70° F (24º C) U - E E - E E G G G E E E G -

Water, Acid – Mine U - E U - E E G F F E E F F -

Water – Deionized - - E - - - - E E - E - E - -

Water – Demineralized U - E E E E - E E E E E E F -

Water – Fresh 180° F (82º C) G E E E E E E E G G F U E U F

Water – Fresh 225° F (107º C) G E E E E E E E U U U U E U -

Water – Salt 180° F (82º C) U U G E G E E E G G F U E U -

Water – Sewage 80° F (27º C) U G E E E E E - E - - E E - -

Whiskey and Wine U U E E G E E E E E G E E - -

White Liquor U - E - - E E - G - G - - F -

Xylene, Xylol F E E - E E - E U U U E U U U

Zinc Chloride 5% 160° F (71º C) U U F G U G G E E E E E E E -

Zinc Phosphate - - G - - - - E E - - - E - -

Zinc Sulfate 25% 180° F (82º C) U G E G G E E E E E E E E G -

For proper valve repair, use genuine DEMCO replacement parts.

MATERIAL SELECTION GUIDE (CONT.)

* See material trademark note on page 40.

Startup and Commissioning

Our experts understand that each project is unique. That’s why Cameron’s service team

helps facilitate commissioning and start-up activities.

• Integrated solutions, onsite or at our global service centers

• Increased equipment and product performance

• The shortest possible trouble-free startup for your critical assets

Spare Parts and Asset Management

Cameron offers the assets and expertise to cover all aspects of valve management.

• Full inventory of quality exact OEM parts and spares

• Complete asset risk and criticality assessments

• Comprehensive inventory of your assets, including a complete recommended

spare valves and parts list

Operational Support

Cameron’s ability to address valve requirements in the ﬁeld is a reﬂection of our

commitment to life-of-asset support.

• Innovative asset management solutions

• Trouble-free installation, startup and operations

• Support from commission to operation – extending through all

phases of a valve’s life cycle

• Extensive inventory of spare valves and parts

Cameron’s site management

team helps mitigate the risk of

project delays by identifying

issues in the construction

process prior to valve installation

to ensure valve integrity.

Services for Valves and Actuation

WE BUILD IT. WE BACK IT.

Trademark Information

DEMCO is a registered trademark of Cameron.

This document contains references to registered trademarks or product designations,

which are not owned by Cameron.

Trademark Owner

CELCON Hoechst Celanese Corporation

DELRIN E.I. DuPont De Nemours & Company

FLUOREL Minnesota Mining and Manufacturing Company

HASTELLOY Haynes International, Inc.

HYCAR Hydrocarbon Chemical and Rubber Company

HYDRIN Zeon Chemicals USA, Inc.

HYPALON E.I. DuPont De Nemours & Company

INCONEL INCO Nickel Sales, Inc.

MONEL INCO Alloys International, Inc.

NORDEL E.I. DuPont De Nemours & Company

STELLITE Stoody Deloro Stellite, Inc.

TEFLON E.I. DuPont De Nemours & Company

CERTIFICATIONS

TECHNO is a trademark of Cameron. Teﬂon and all brands listed are registered trademarks or trademarks of their respective companies. | SWP 1.5M | 03/15 AD01780V

HSE Policy Statement

At Cameron, we are committed ethically, financially and personally to a

working environment where no one gets hurt and nothing gets harmed.

3250 Briarpark Drive, Suite 300

Houston, TX 77042

USA

Toll Free 1 800 323 9160

Learn more about DEMCO butterﬂy valves:

www.c-a-m.com/DEMCO

DEMCO@c-a-m.com

Demco Butterfly Valves Brochure

Navigation menu

Versions of this User Manual:

Views

Navigation
