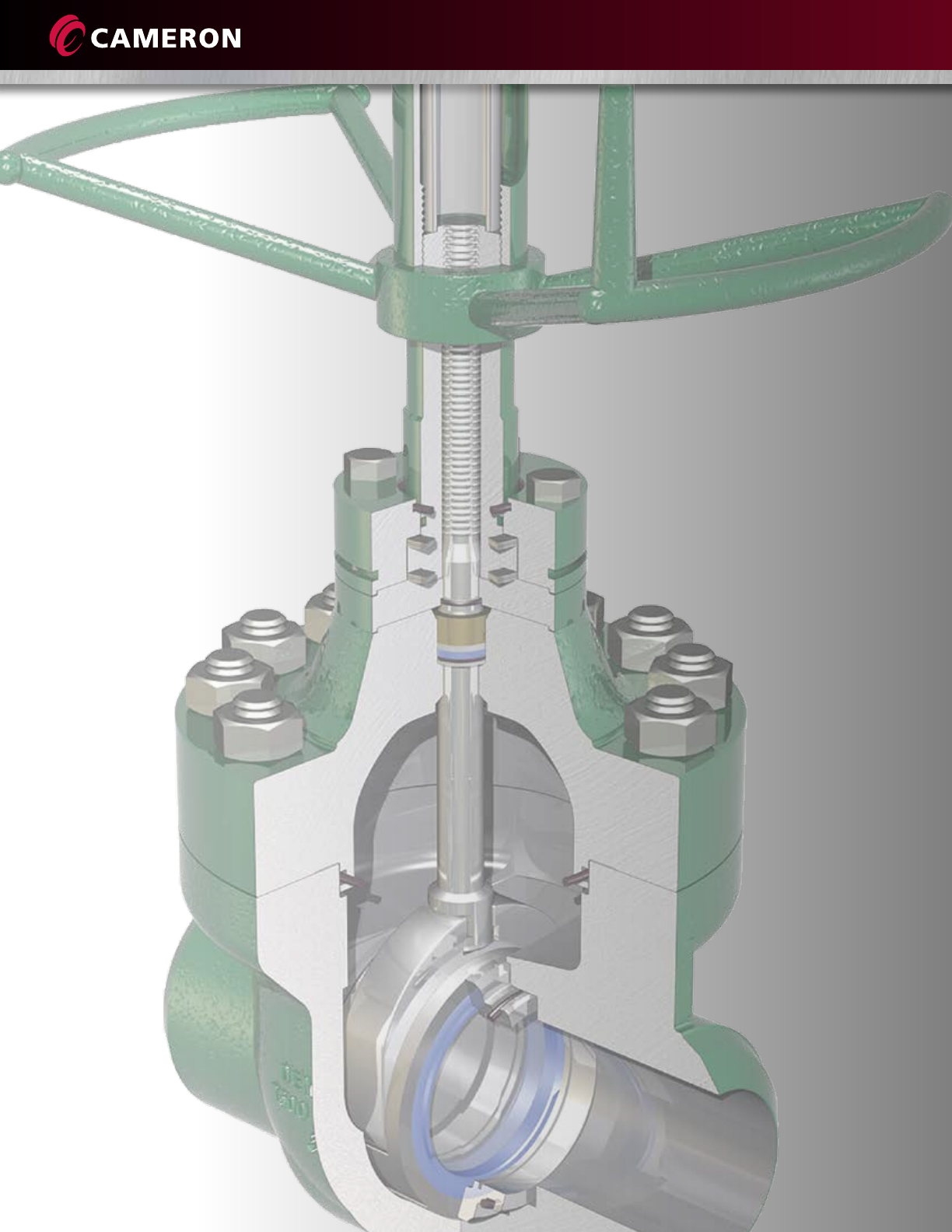

DEMCO Gate Valves
Dependability, in-line repairability, flexible trim options and drop-tight, position shutoff
1
VALVES & MEASUREMENT
DEMCO GATE VALVES
Introduction .......................................................................................... 2
Series DM Gate Valves .......................................................................... 3
Series DM 1000 to 5000 psi Gate Valves ............................................... 4
Series DM 7500 psi Gate Valves ............................................................ 5
Series DT/DB Gate Valves ...................................................................... 7
Enhanced Oil Recovery Accessories ....................................................... 9
Product Specifications
General Technical Information .......................................................... 10

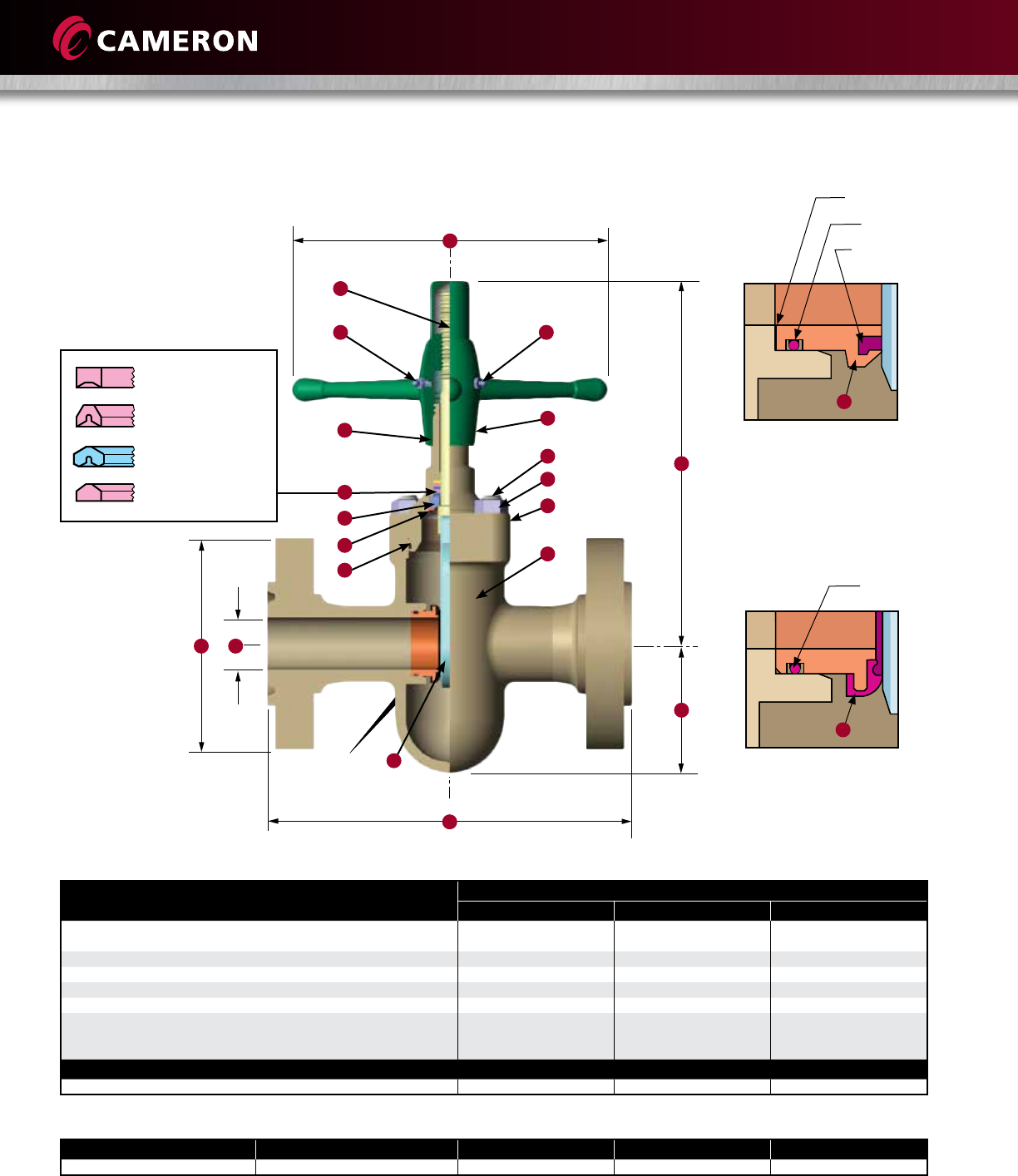

Dimensions and Materials/Parts List
Series DM 7500 Gate Valves – 7500 psi WP ..................................... 12
Series DM Gate Valves – 2000, 3000, and 5000 psi WP ................... 22
Series DM Gate Valves – ASME Class 600 ........................................ 34
Series DM Gate Valves – ASME Classes 900 and 1500 ..................... 38
Series DT Gate Valves – ASME Classes 600, 900, and 1500 .............. 42
Services for Valves and Actuation .......................................................... 52
Trademark Information ......................................................................... 53
Table of Contents
2
DEMCO Gate Valves
Cameron is a leading provider of valves, valve automation, and measurement systems
to the oil and gas industry. Our products are primarily used to control, direct, and
measure the flow of oil and gas as it is moved to refineries, petrochemical plants, and
industrial centers for processing.
We provide valve products that are sold through distributor networks worldwide for
use in both oil and gas and industrial applications and include such widely recognized
brands as DEMCO®, NAVCO®, NEWCO®, NUTRON®, THORNHILL CRAVER®, TECHNO™,
TOM WHEATLEY®, WHEATLEY®, and WKM®.
Cameron’s DEMCO gate valves are the valves of choice, engineered and proven for
drilling and production industries. Designed for dependable, heavy-duty performance
in abrasive and corrosive service conditions, DEMCO gate valves are commonly
selected for a number of oilfield applications.

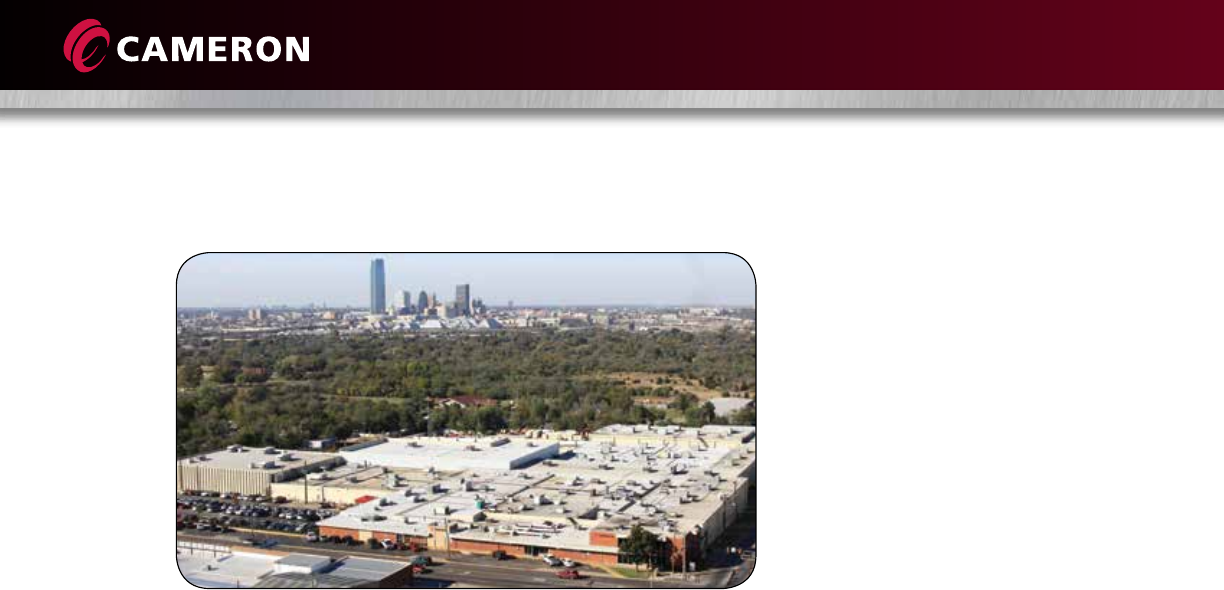

Oklahoma City,
Okla., USA
3
VALVES & MEASUREMENT
SERIES DM GATE VALVES
Cameron’s DEMCO Series DM gate valves, the premier gate valve in the oil and gas drilling market, are specifically engineered
for the rigorous requirements of oilfield applications. Designed for dependable, heavy-duty performance in abrasive service
conditions, DEMCO DM gate valves are commonly selected for a number of oilfield applications, including:
Features and Benefits
In-Line Field Repairability
The bonnet is easily removed for internal parts inspection and/or
replacement without removing the valve from the line. This
design simplicity permits fast and easy service without the need
for special tools.
Flexible Trim Offerings
Optional materials for stems, gates, seat inserts and seat
elastomers make it easier to trim valves for a wide range of
service conditions. Three internal plastic coatings for the body
and bonnet are offered to improve resistance to wear and
corrosion.
Double Acting Thread Design
for Fast Operation
A. The ASME series double acting thread design contains a
threaded stem in the gate working with threads in the
bonnet and handle assembly. Stems are polished and include
a dependable O-ring and anti-extrusion seal. This unique
design is economical and effective. Note: the 4” (100 mm)
ASME Class 1500 valve is a double acting, rising stem design,
similar to the 4” (100 mm) 3000 psi valve.
B. The DM 2000, 3000, and 5000 psig working pressure valves
contain double acting threads working together in a specially
designed stem screw, screw housing, and stem arrangement.
Note: the 4” (100 mm) and larger 5000 psi valve is a single-
thread, heavy-duty, rising stem design with bearings.
C. The rising stem design protects the stem threads from
the lading.
D. Larger DM 3000 and 5000 psi gate valves include a sight lens
to view the stem for determining gate position.
• Drilling standpipe manifold
• Pump manifold block valves
• High-pressure mud mixing lines
• High-pressure drilling system block valves
The DEMCO Series DM gate valves are available in ASME Classes 600, 900, and 1500. They also are available in API working
pressures 2000, 3000, and 5000 psig (not API monogrammed).

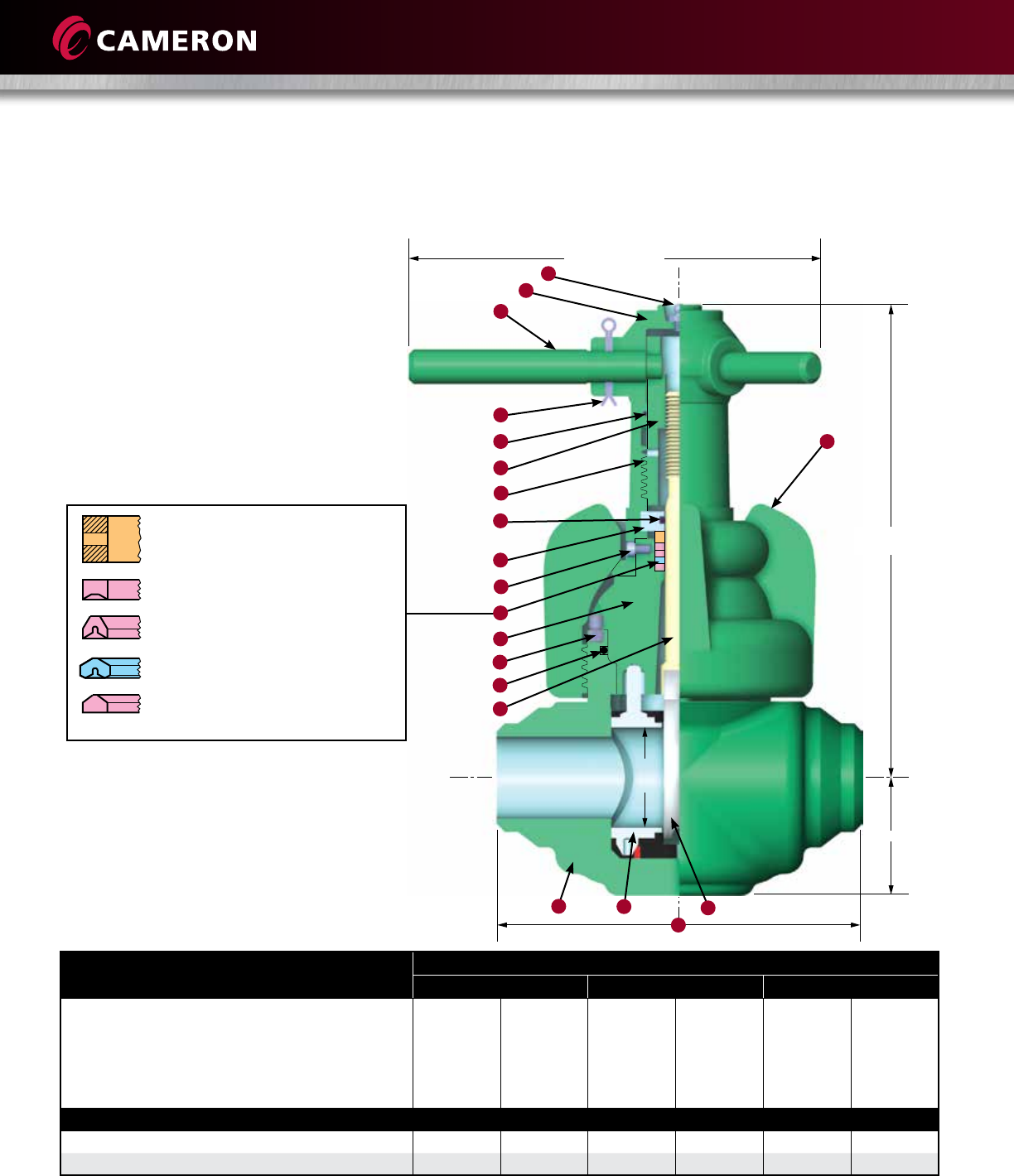

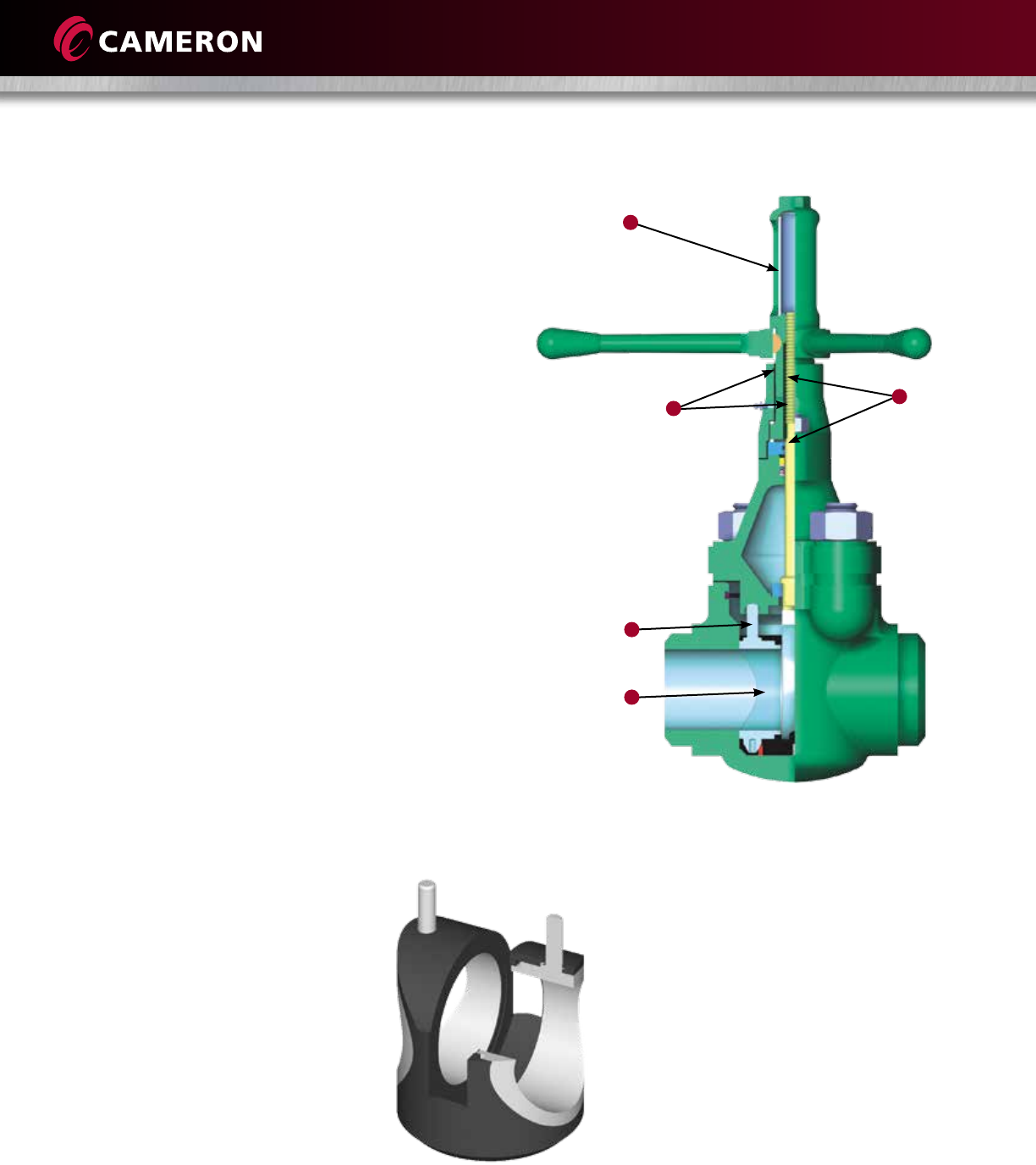

Series DM 3” (80 mm) ASME 900/1500
Gate Valve
A
E
F
4

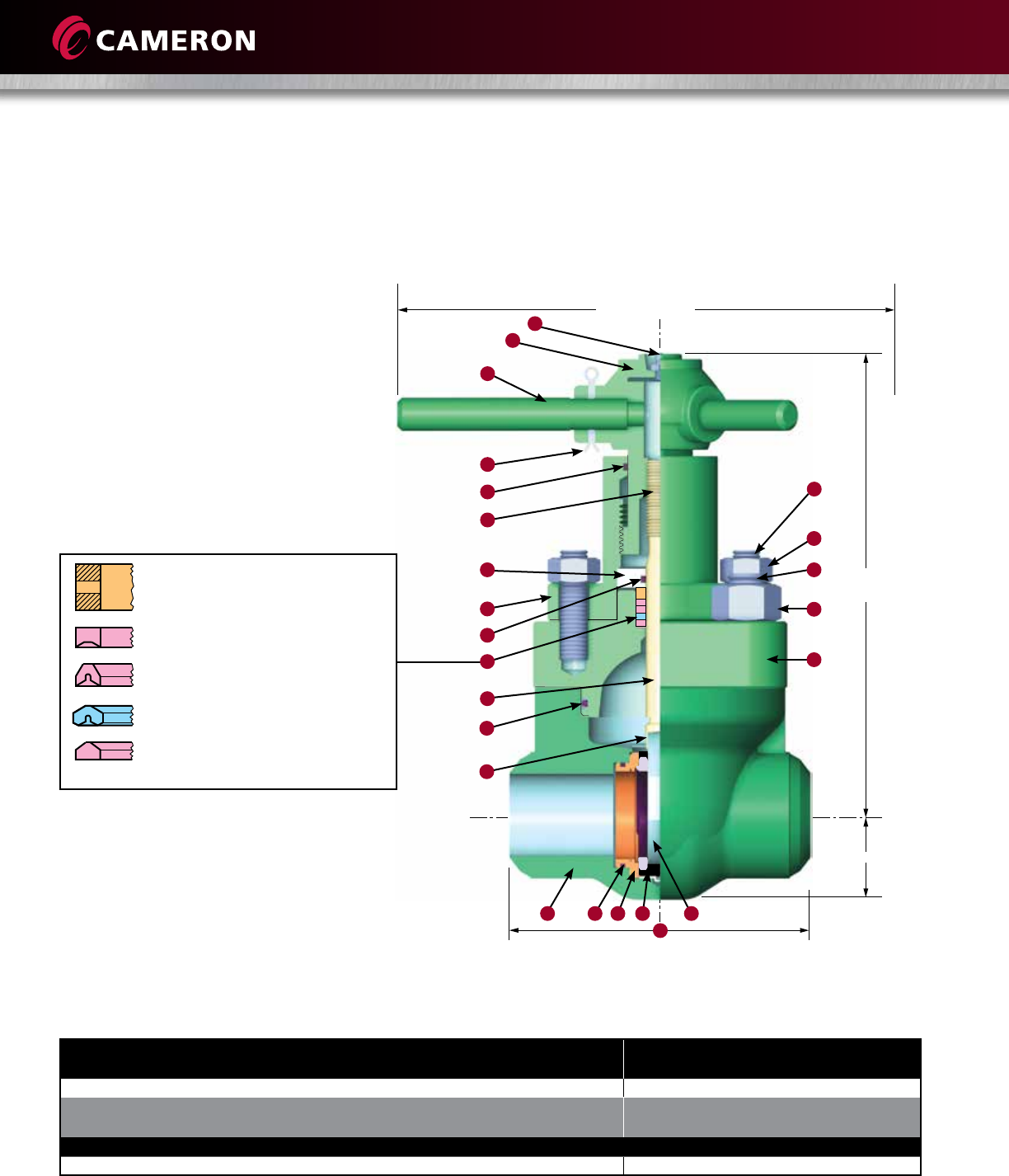

SERIES DM 1000 TO 5000 PSI GATE VALVES
Exclusive Seat Design for Drop-Tight Sealing
The DEMCO Series DM gate valve seat uses a unique design
to provide a drop-tight shutoff in abrasive and erosive service.
E. The seat consists of two identical metal wear rings
encapsulated in elastomer to form a cylindrical shape with
a gate slot and two round ports. The closed gate bears on
the downstream wear ring, while the elastomer provides
a drop-tight pressure-responsive seal around the port.
F. The cylindrical seat assembly fits into the machined body
cavity and is expanded outward toward the valve ports by
the bonnet and spread ring in the bottom of the seat. The
expansion occurs when the bonnet is tightened onto the
body while engaging the seat pin extensions from both
wear rings. The spread ring ensures the seat elastomer
presses uniformly against the body bore. This design
ensures the seat seals tight against the body and around
each valve port. This design has proven to be effective
even if the gate and seat ring become scored or abraded
during service. When it comes time for maintenance, the
seat’s single-piece design makes it easy to pull out of the
body for replacement.

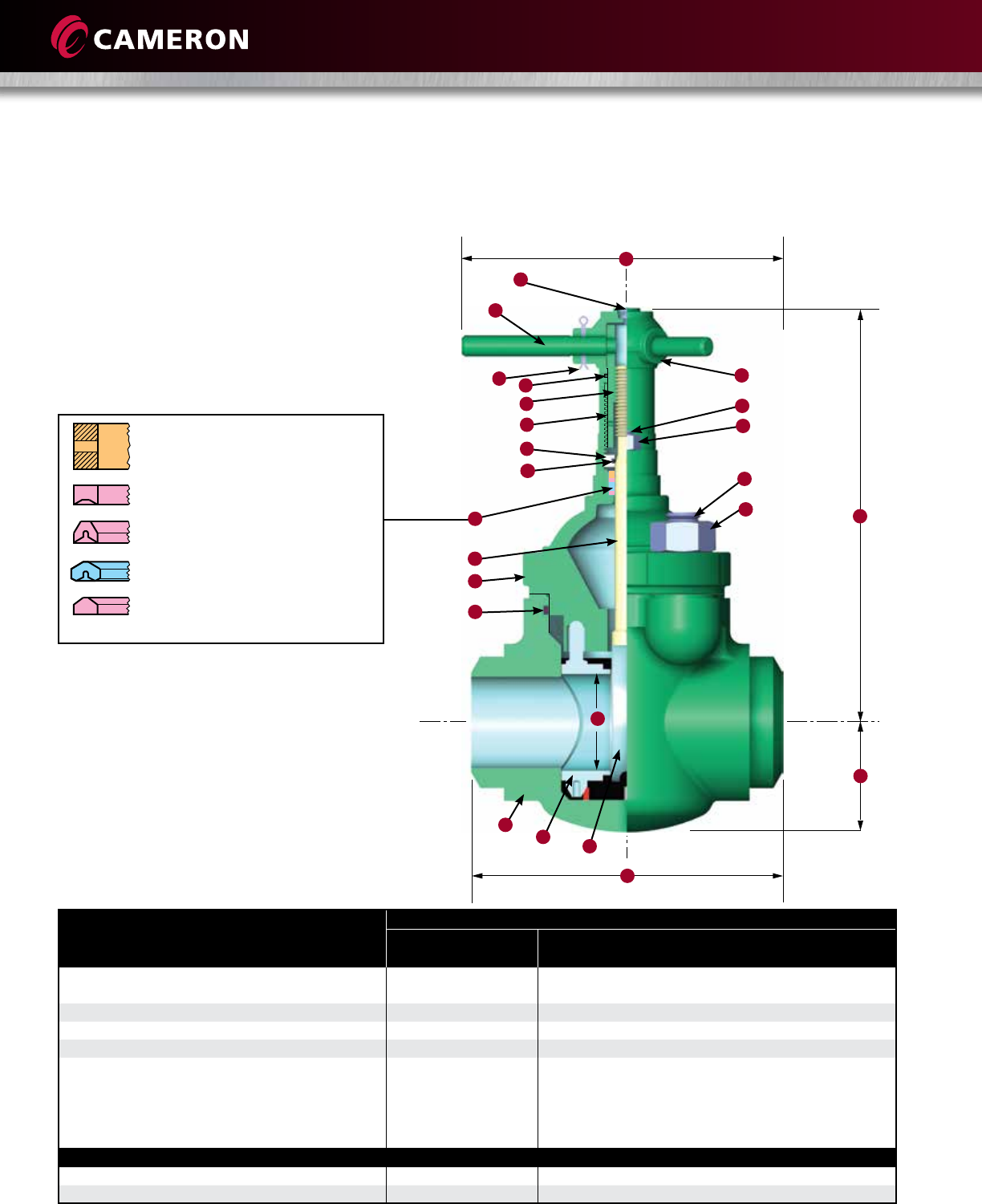

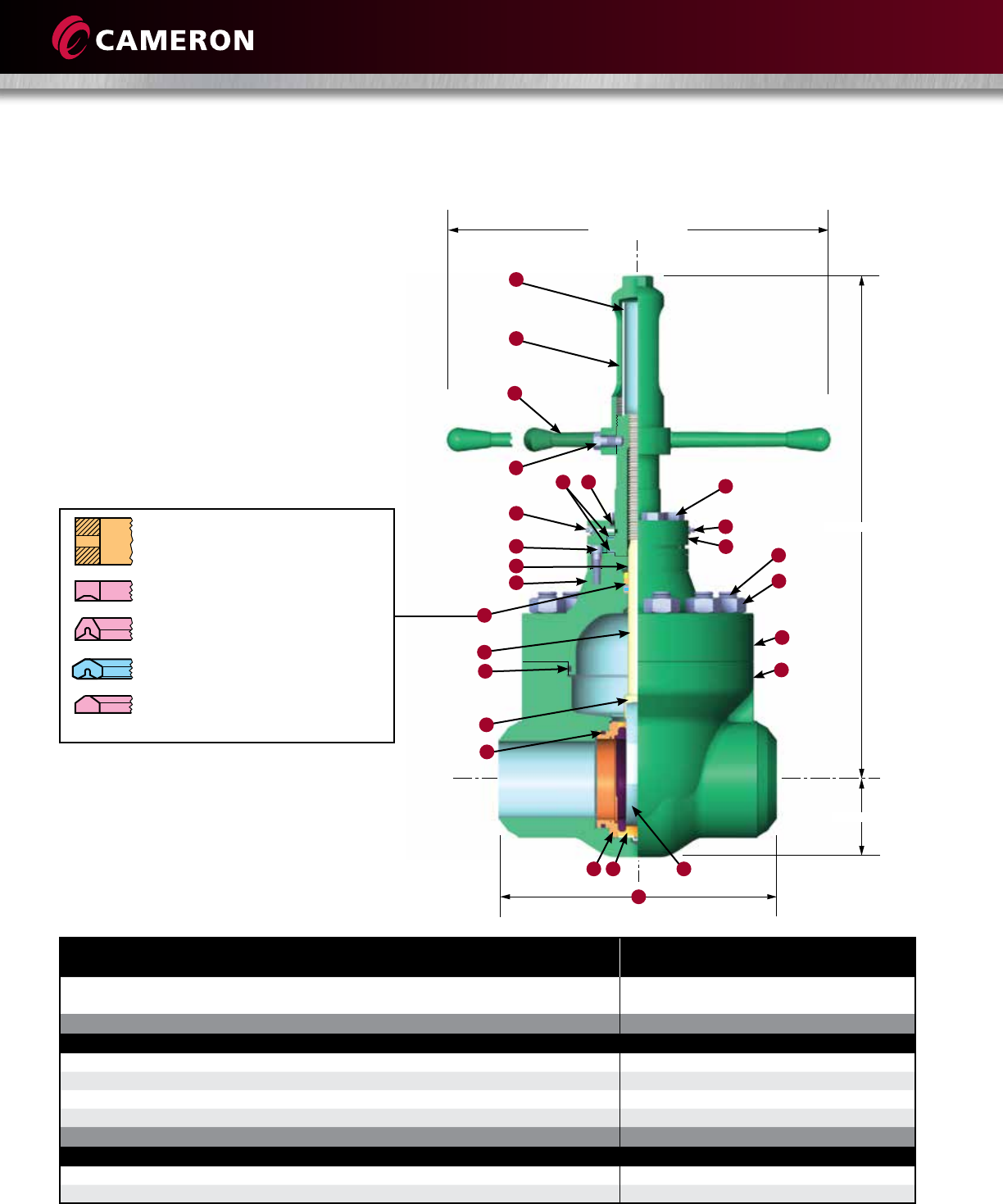

Series DM 4” (100 mm) 5000 WP
Gate Valve (Four-Bolt Design Shown)
D
C
B
F
E
For proper valve repair, use Cameron’s DEMCO replacement parts.
5
VALVES & MEASUREMENT

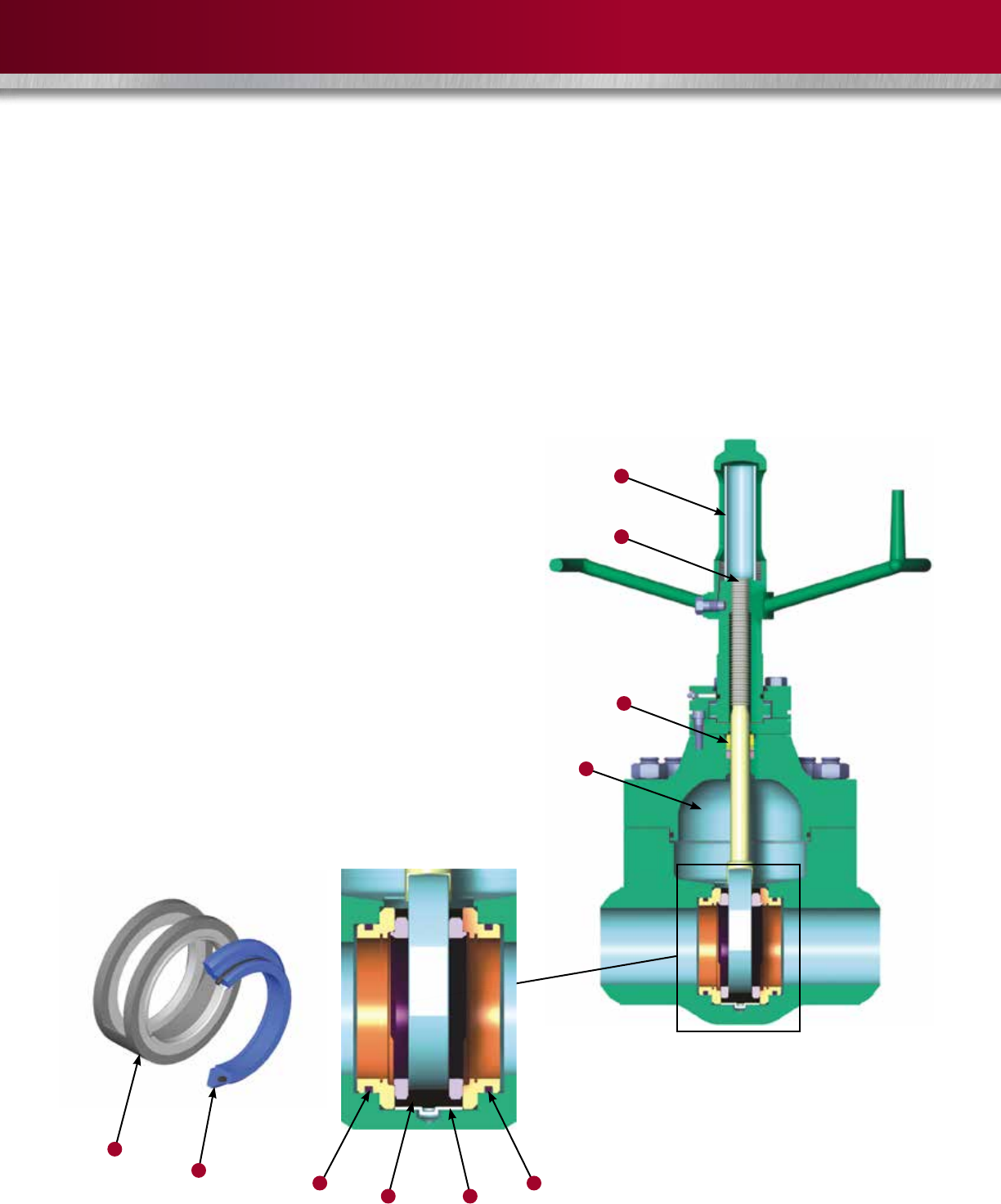

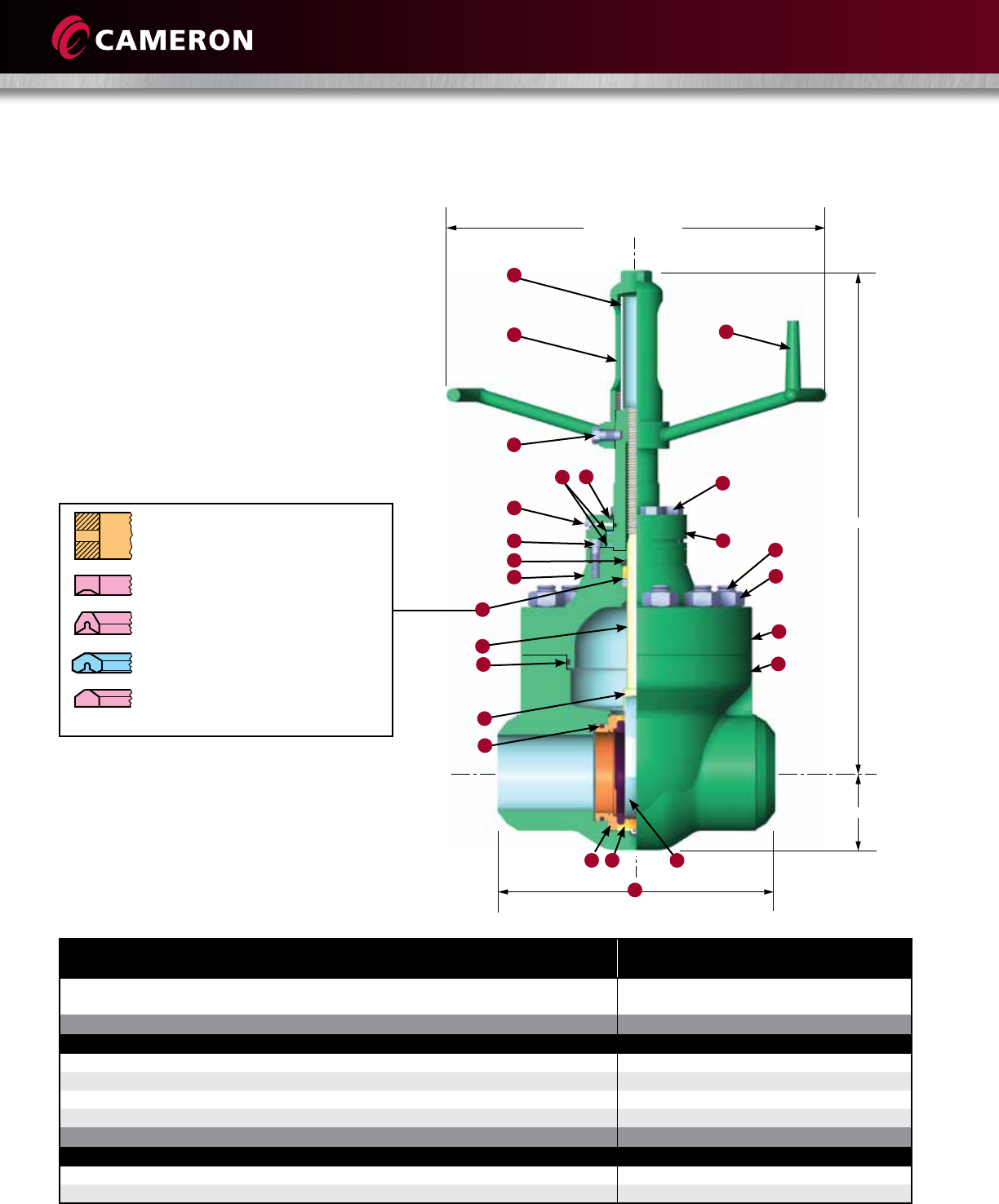

SERIES DM 7500 PSI GATE VALVES
Features and Benefits
In-Line Field Repairability
The bonnet is easily removed for internal parts inspection and/or replacement without removing the valve from the line.
This design simplicity permits fast and easy service without the need for special tools.
Heavy-Duty Roller Bearings
Heavy-duty stem roller bearings reduce torque on 4” (100 mm) and larger valves.
Floating Slab Gate Design
A slab gate with a “T” slot stem connection allows the gate to float to the seat, providing a tighter pressure-responsive seal.
A. Unique, abrasion resistant, one-piece seat design
The seat assembly consists of two stainless steel insert/
support rings to which a resilient elastomer is
permanently bonded. The elastomer provides tight
shutoff after long use in abrasive service. The stainless
steel rings are corrosion and erosion resistant. The
one-piece design makes field replacement easier.
B. Locking seat alignment
The seat assembly is engineered with a metal lock shell
that aligns the seat in the bottom of the valve. This
design ensures accurate seat alignment with reduced
resistance to flow.
C. Body wear rings
Surface hardened alloy body wear rings back up both
sides of the seat. These rings extend the service life of
the valve by absorbing erosive wear that can cause
damage to the body around the seat bore area.
E
D
F
G
C
BA
C
A
C
6
Size in. (mm) 600 900 1500 1000 2000 3000 5000 7500
RP 2” x 1-1/2” (40) • •
FP 2 (50) • • • • • • •
FP 2-1/2 (65) • • • • •
FP 3 (80) • • • • • • •
FP 4 (100) • • • • • • •
FP 5 (125) • • • •
FP 6 (150) • •
RP 2 x 1-1/2 (50 x 40) •
RP 2-1/2 x 2 (65 x 50) • • •
RP 3 x 2 (80 x 50) •
RP 4 x 3 (100 x 80) • • •
RP 5 x 4 (125 x 100) • • •
RP 6 x 4 (150 x 100) •
RP 6 x 5 (150 x 125) • •
RP 8 x 6 (200 x 150) •
D. Rising stem design
The DEMCO DM 7500 gate valve uses a rising stem
design that isolates and protects the threads from
the line medium. The rising stem also indicates
gate position.
E. Visual position indicator lens
On 3” (80 mm) and larger valves, a clear position
indicator lens allows the operator to easily determine
whether the valve is open or closed. The indicator
lens also helps to protect the stem threads from
the elements.
F. Replaceable stem packing
The stem packing can be replaced without removing the
bonnet from the valve, 3” to 6” (80 mm to 150 mm),
saving time when this maintenance may be required.
Note: line and valve pressure must be relieved before
performing this maintenance.
G. Flow cleansed design
The body cavity area is designed to allow continuous
flushing by the fluid flow. This action prevents the valve
from sanding up, even in standpipe installations.
DM Series Pressure Classes and Sizes
7
VALVES & MEASUREMENT
SERIES DT/DB GATE VALVES
Cameron’s DEMCO Series DT/DB gate valves are recognized for their quality design, rugged dependability, and corrosion
resistance, particularly for use in waterflood and CO2 applications.
DEMCO aluminum bronze and stainless steel valves and accessories are designed specifically for the demanding requirements
of corrosive CO2 injection and waterflood applications in the enhanced oil recovery market.
• The handle moves up and down on the bonnet, or the top of the stem is visible during operation, providing visible aid to
determine whether the valve is open or closed.
SEE PAGES 36 THROUGH 43
FOR MATERIAL SPECIFICATIONS
Optional Materials:
DT Series:
• SS Body and Bonnet,
FKM or P-10 Seats
DB Series:
• FKM Seat Elastomer
• Peroxide-Cured Buna-N
DT Series Threaded and Flanged
Size in. (mm)
ASME Class
600
ASME Class
900
ASME Class
1500
FP 2 (50) • • •
FP 2-1/2 (65) • • •
FP 3 (80) • • •
FP 4 (100) (Flanged Only) • • •
FP 6 (150) (Flanged Only) • •
DB Series Valves (Consult Cameron for Drawings)
FP 6 (150) • • •
RP 8 x 6 (200 x 150) • •
DT and DB Series Pressure Classes and Sizes

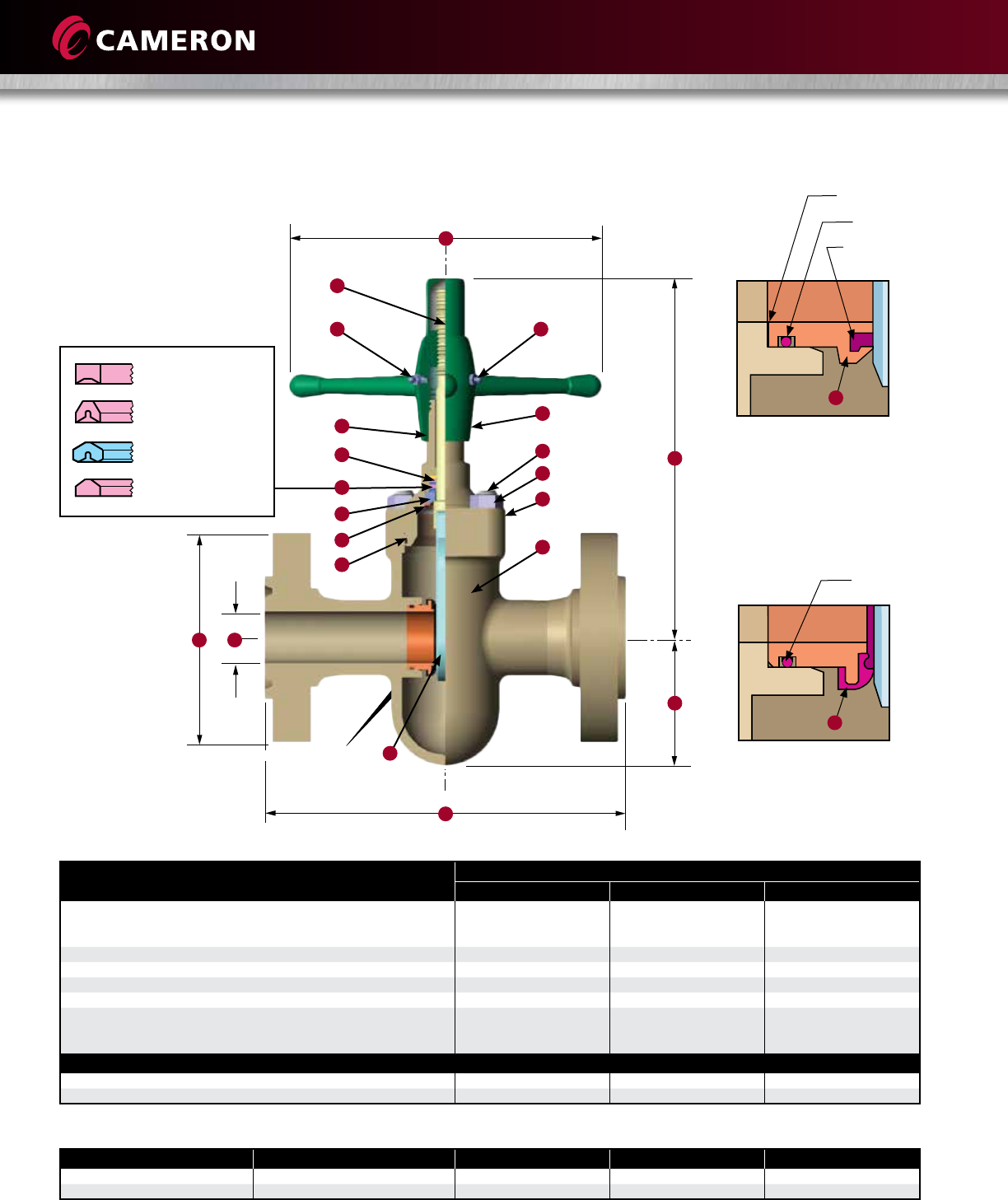

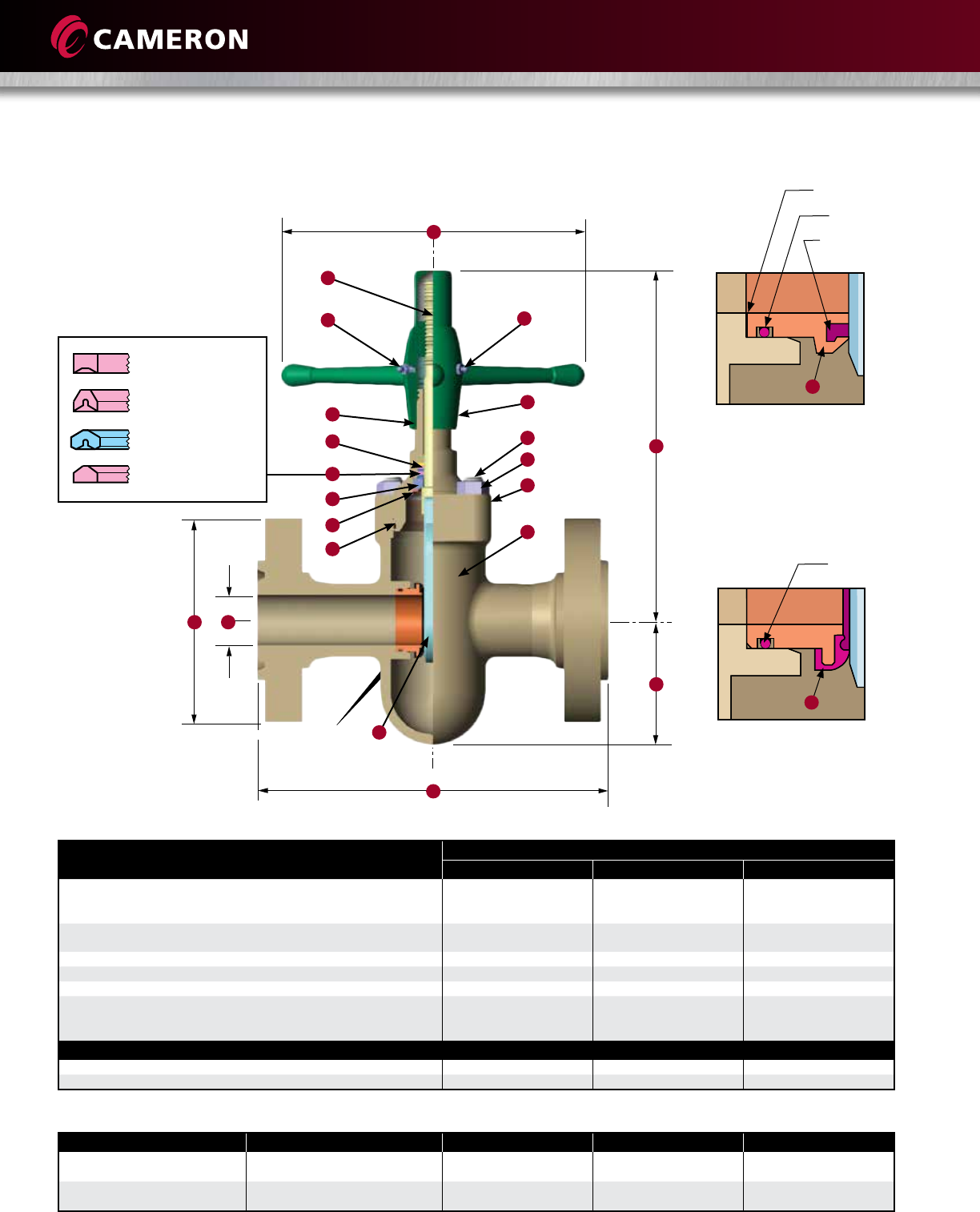

SEAT ASSEMBLY DETAIL
P-10
(SEAT/SEAL OPTION 6)
SEAT SPRING AND SEAL
PART OF SEAT ASSEMBLY
Seat Spring
Seat Seal
SEAT ASSEMBLY DETAIL
PEROXIDE-CURED BUNA-N
OR FKM
(SEAT/SEAL OPTION 1 OR 2)
SEAT SEAL PART OF SEAT
ASSEMBLY
Seat Seal
Stem Threads Isolated From Line Media
Four-Ring Packing Set
Full Through-Conduit Design
8
Features and Benefits
In-Line Field Repairability
The bonnet is easily removed for internal parts inspection
and/or replacement without removing the valve from the
line. This design simplicity permits fast and easy service
without the need for special tools.
Corrosion-Resistant Materials are Standard
Body and bonnet materials, as well as all internal wetted
parts, comply with NACE RP-0475.
Rising Stem Design
The handle moves up and down on the bonnet, or the top
of the stem is visible during operation, providing visible aid
to determine whether the valve is open or closed.
A. Pressure-responsive drop-tight sealing
Standard seats consist of 316 SS seat rings encapsulated
with peroxide-cured Buna-N elastomer to provide
reliable, drop-tight sealing for extended service life.
B. Superior abrasion resistance
Buna-N elastomer encapsulated seats also provide an
excellent deterrent to abrasion, further enhancing
extended service life.
C. Four-ring stem packing set
The DEMCO Series DT stem seal design uses four
packing rings, preventing leakage into the stem journal
and outside the valve.
D. Through-conduit gate design
Full through-conduit design ensures non-turbulent flow
and gate alignment for improved valve performance and
longer service life.
E. Non-wetted stem thread design
The DEMCO stem design isolates corrosive lading from
contacting stem threads, preventing stem seizure and
ensuring long, trouble-free valve performance.
For proper valve repair, use Cameron’s DEMCO replacement parts.

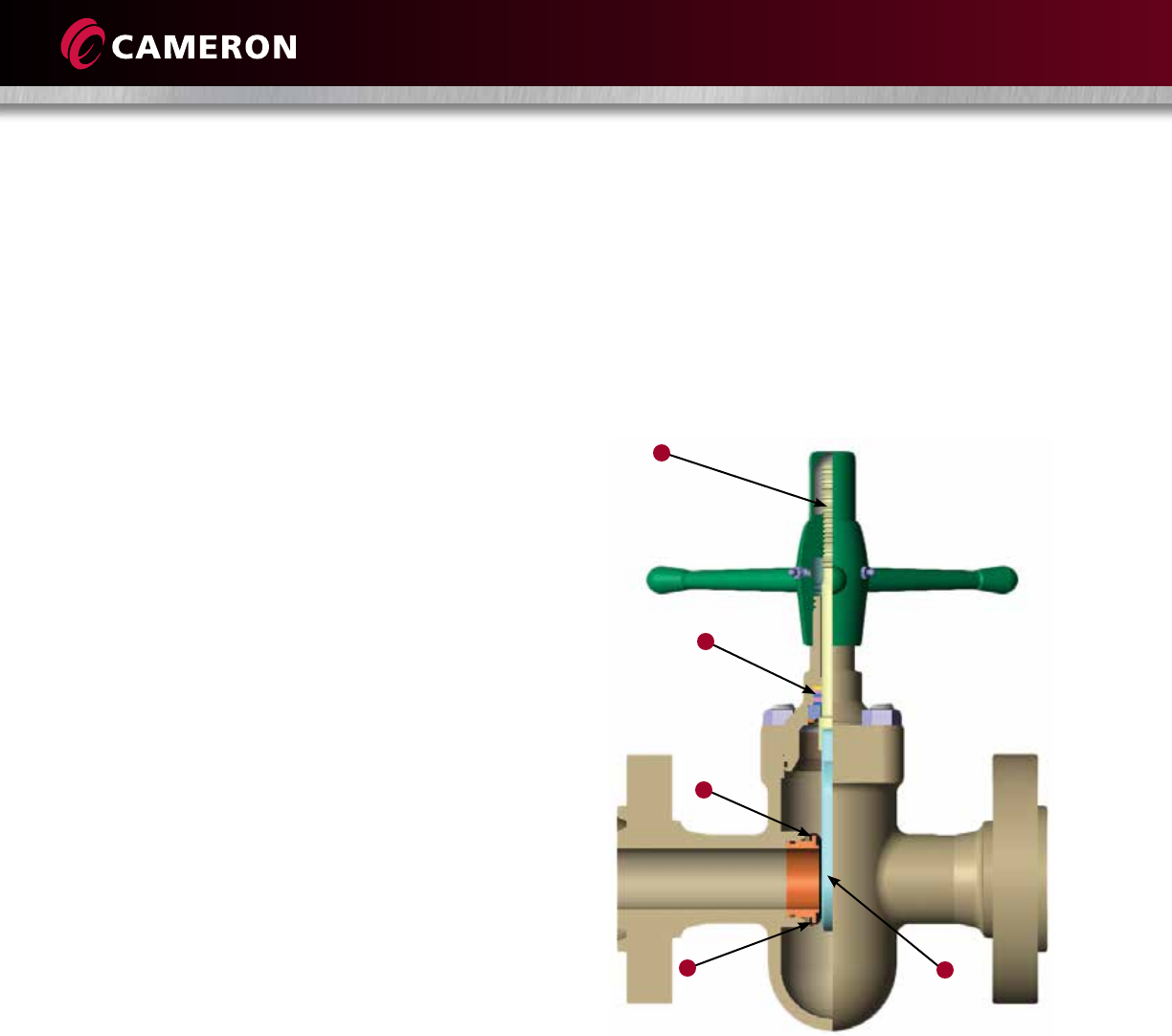

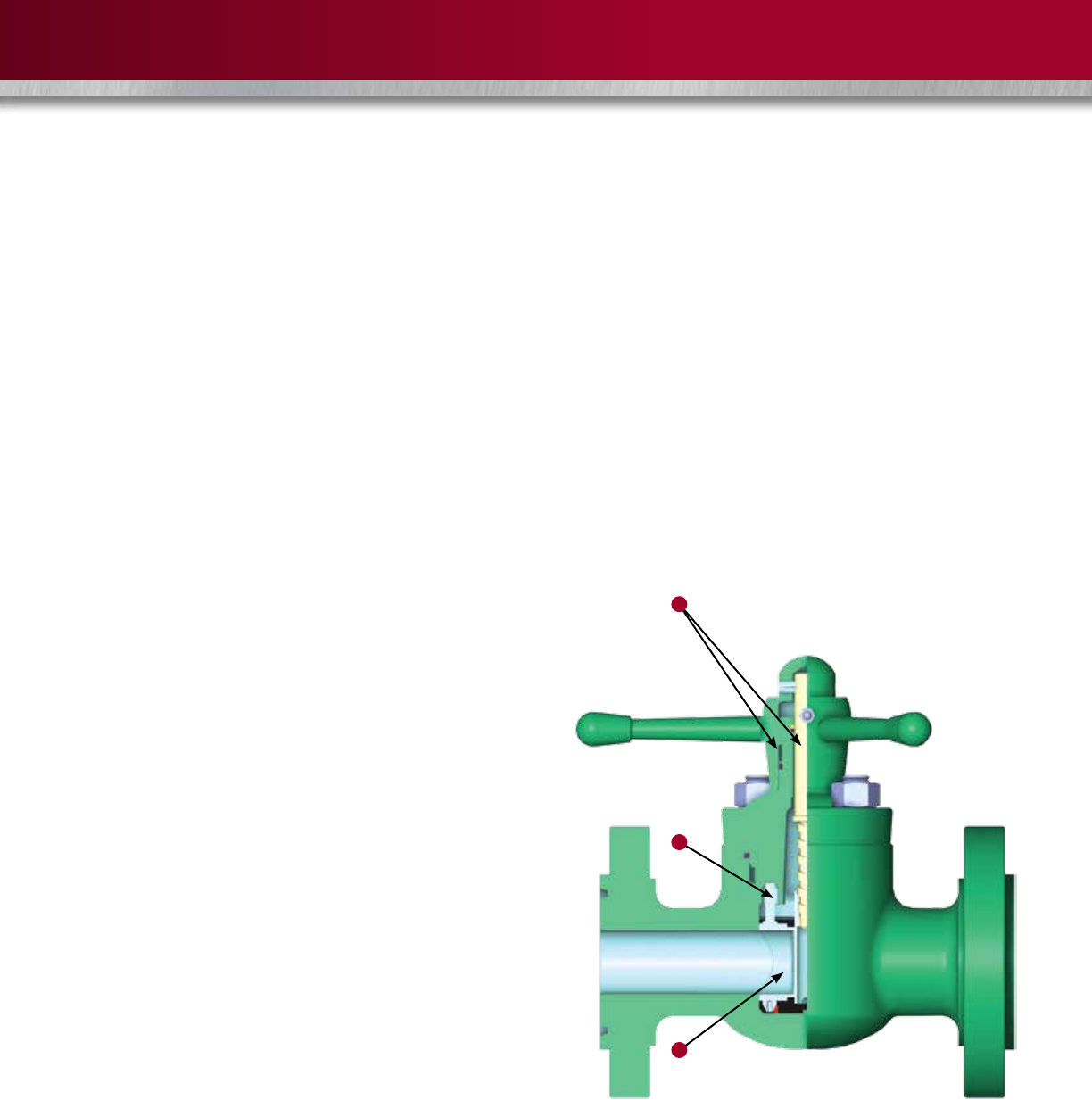

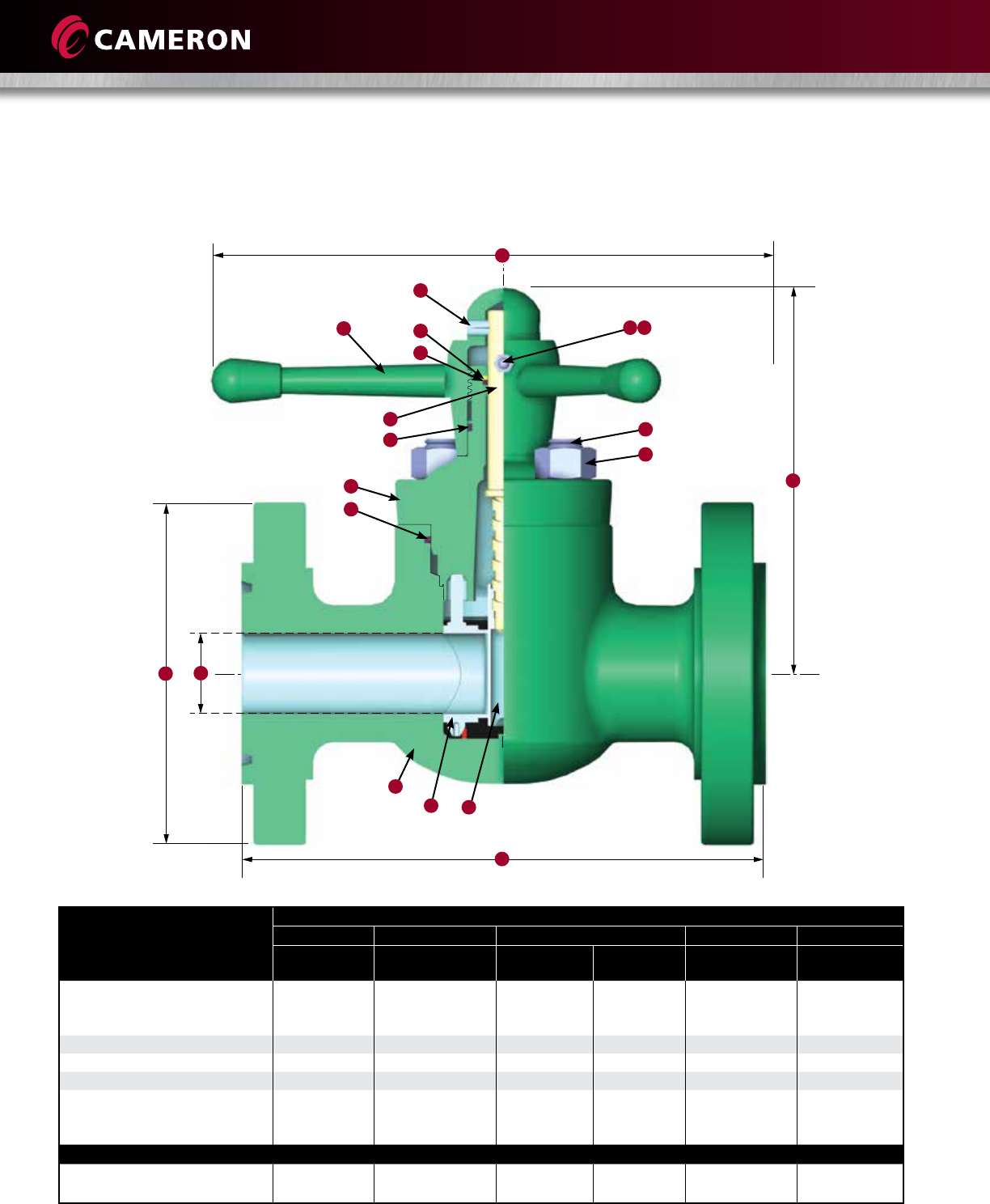

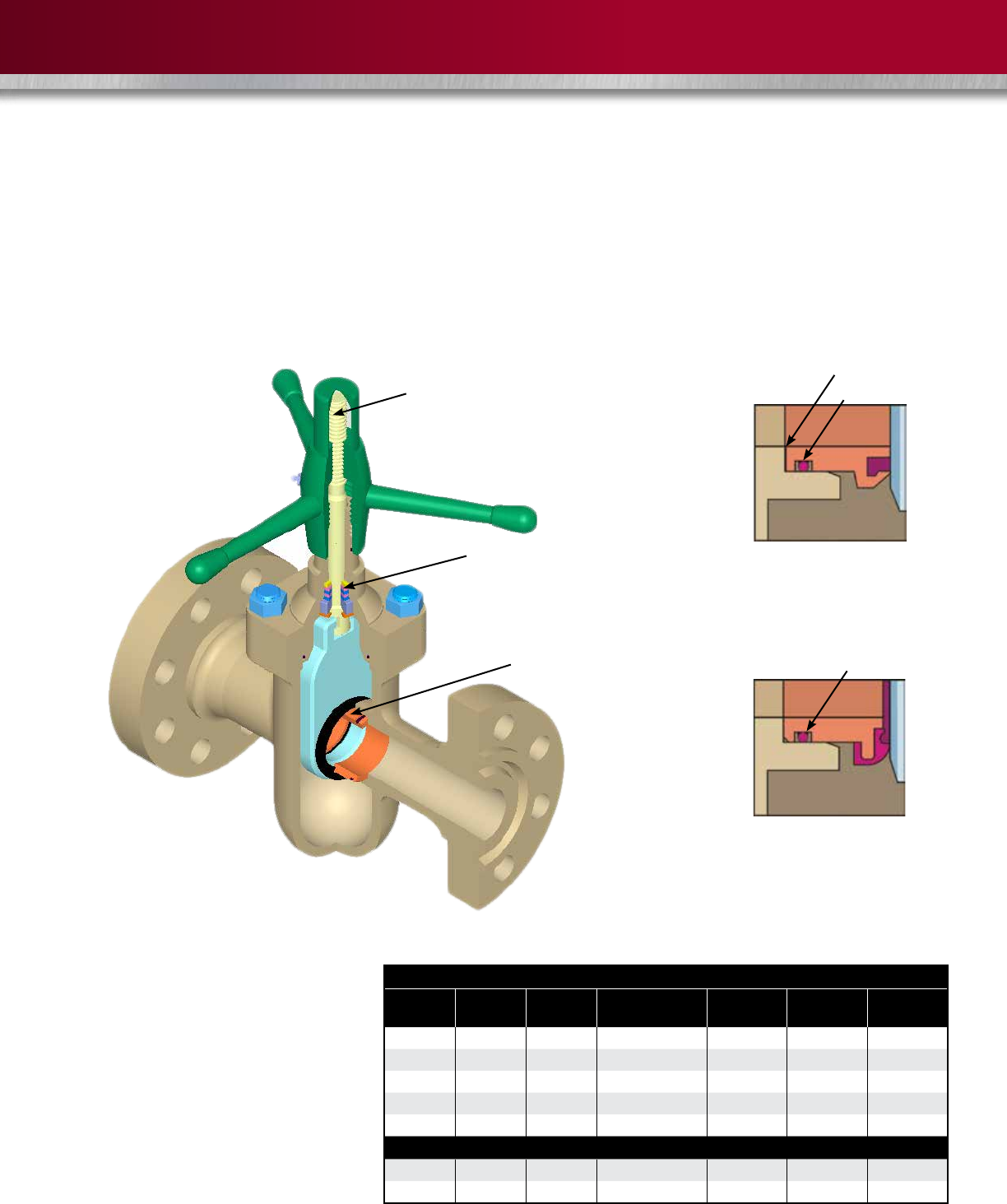

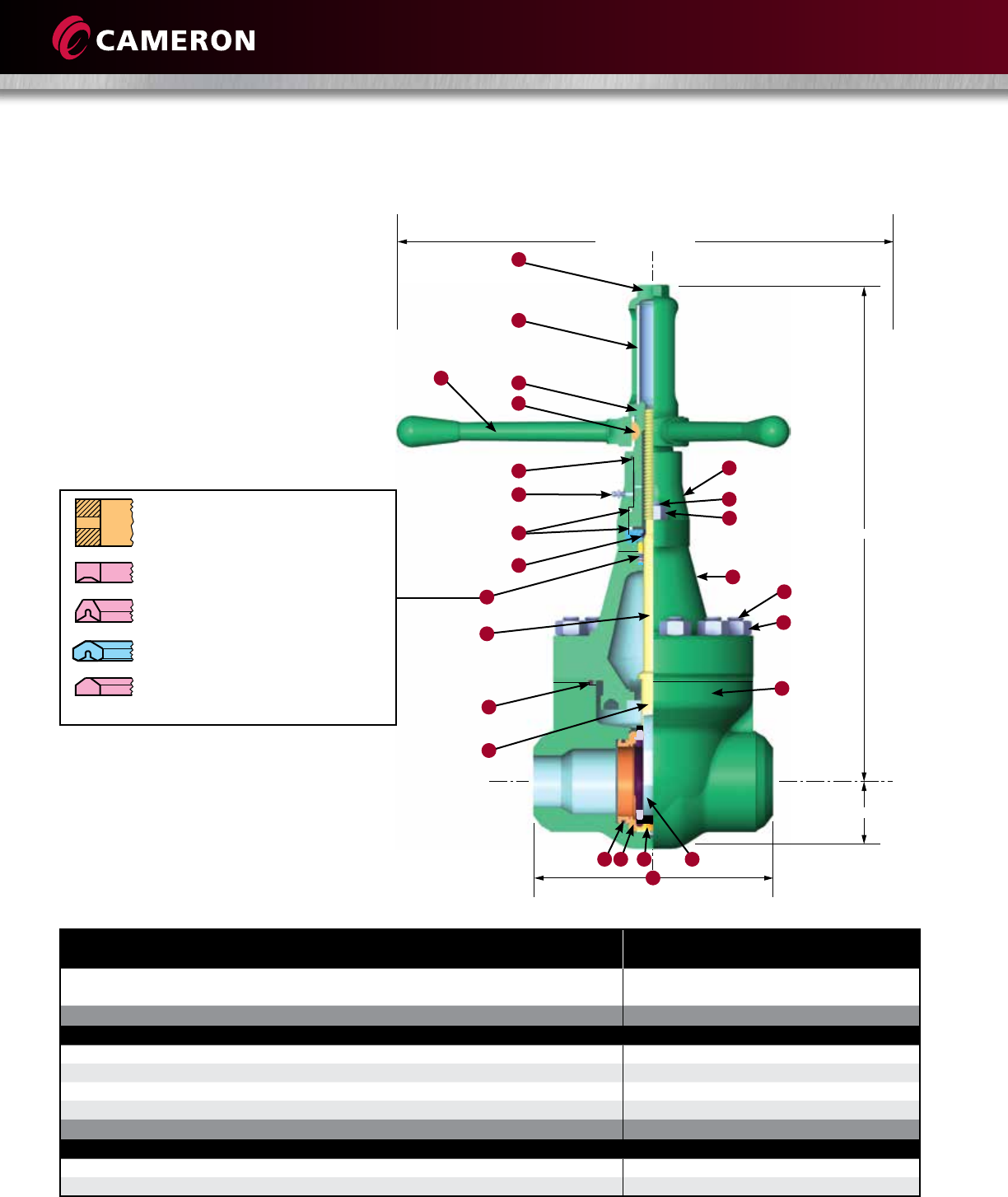

Series DT Gate Valves
E
C
D
B
A
9
VALVES & MEASUREMENT

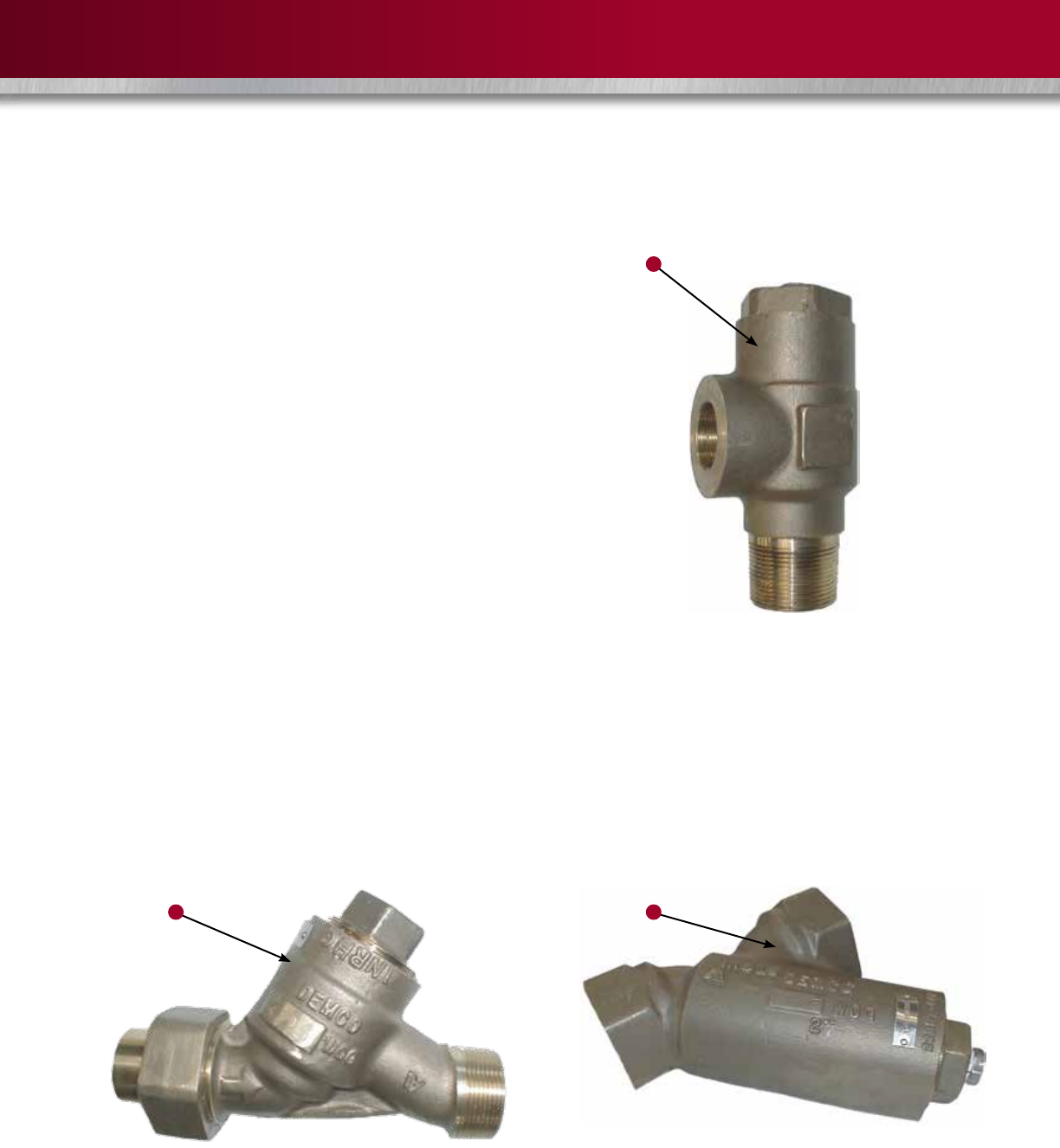

ENHANCED OIL RECOVERY ACCESSORIES
Series DB Gate Valve
The DEMCO Series DB gate valve is available for the large
6” (150 mm) and 8” (200 mm) pipe sizes in the enhanced oil
recovery market. These valves also feature an aluminum
bronze body and bonnet as standard. Internal parts are 316
SS. The exclusive seat design of the DEMCO Series DB gate
valve is the same proven design found in the DEMCO Series
DM gate valve. The seat consists of two identical metal wear
rings encapsulated in elastomer to form a cylindrical shape
with a gate slot and two round ports. The closed gate bears
down on the downstream wear ring, while the elastomer
provides a drop-tight pressure-responsive seal around the
port. This design provides an effective seal even if the gate
and seat ring become scored or abraded during service. The
DEMCO Series DB gate valve also is field repairable while the
valve is in-line.
Accessories
Ball check valves, flow tees, and strainers are available to
complete requirements for an entire injection assembly.
F. Ball Check Valves
G. Flow Tees
H. Strainers
Flow Tees
G
Ball Check Valves
F
Strainers
H
10
SERIES DM, DT, AND DB GATE VALVES
GENERAL TECHNICAL INFORMATION
Valve Size Designations and Weld End Dimensional Information
1. All references to pipe size in this catalog are the nominal size.
The actual OD and ID for various nominal sizes and schedules are tabulated below.
Weld end bodies are machined at each end to match the pipe OD and ID.
2. Reduced port valve size descriptions are designated by two numbers.
The first number is the nominal size of the end connection.
The second number is the ID of the valve seat (dimension “C” in the tables).
PRESSURE RATINGS
DEMCO gate valves are designed for the maximum working pressures and test pressures tabulated below.
ASME Class
600
ASME Class
900
ASME Class
1500
1000 2000 3000 5000 7500
WP WP WP WP WP
1480 WP 2220 WP 3705 WP 1000 WP 2000 WP 3000 WP 5000 WP 7500 WP
2225 Test 3350 Test 5575 Test 2000 Test 4000 Test 6000 Test 7500 Test 11,250 Test
Gate valve rating must be selected to match the piping system in which the valve will be installed. Tabulated below are
working pressures at 100º F (38º C) for ASTM A106 Grade B and AISI 4130 60K minimum yield pipe in sizes corresponding to
DEMCO gate valves.
Nominal Size ID
in. (mm) OD Sch 40 Sch 80 Sch 160 XXH
1-1/2 (40) 1.900 1.610 1.500 - -
2 (50) 2.375 2.067 1.939 1.687 1.503
2-1/2 (65) 2.875 2.469 2.323 2.125 1.771
3 (80) 3.500 3.068 2.900 2.624 2.300
4 (100) 4.500 4.026 3.826 3.438 3.152
5 (125) 5.563 - 4.813 4.313 4.063
6 (150) 6.625 6.065 5.761 5.187 4.897
Size ASTM A106 Grade B 4130 60k Min. Yield
in. (mm) Sch 40 Sch 80 Sch 160 XXH XXH
1-1/2 (40) 1340 2430 - - -
2 (50) 1210 2220 4300 5970 10,234
2-1/2 (65) 1620 2590 3950 6590 -
3 (80) 1460 2370 3930 5880 10,080
4 (100) 1300 2130 3830 5150 8826
5 (125) - 1970 3730 4650 7971
6 (150) 1110 1970 3650 4724 8098
8 (200) 1030 1790 - - -
Product Specifications
11
VALVES & MEASUREMENT
Quality, Inspections and Testing
• Cameron’s quality system is based on ISO 9000 and API Q1 requirements and is ISO 9001:2008 certified. Cameron’s Quality
department monitors all phases of valve production, from material receipt to final inspection, including a liaison with third-party
inspectors and certifying authorities.
All DEMCO gate valves are hydrostatically tested; stem seal, body and seat are inspected for zero leakage under pressure before
being released for shipment. Hydrotest specifications are based upon API 6A latest edition testing requirements; DEMCO Series DM
7500 group 2 and 3 valves undergo additional test cycles, including low-pressure seat tests prior to being released for shipment.
Certifications
• DEMCO DM 5000 Gate Valves 2” to 5” are available with ABS Type approval upon request.
• DEMCO DM 7500 Gate Valves 2” to 5” are available with ABS or DNV Type approval upon request.
Seat Seal Options
• Buna-N (Nitrile)
Is excellent for petroleum oil and gases, fuel oils, and alcohols from -10° F to 200° F (-23° C to 93° C).
• FKM
Highly resistant to mineral acids and hydrocarbons and resists moderate concentrations of H
2
S. Serviceable from -10° F to 400° F
(-23° C to 204° C). (Not suitable for steam).
• HNBR
Formulated for use with synthetic and oil-based drilling mud service from -20° F to 250° F (-29° C to 121° C).
Coatings – DM Gate Valves Only
• DEMCO 12 (Internal Coating only)
A baked-on phenolic epoxy, tougher and more abrasion resistant. Excellent for service in caustics and saltwater up to 200° F (93° C).
• ENDURO-BOND
™
(For Internal and External use)
An engineered dry powder coating process for metal surfaces that provides a protective barrier against corrosion and abrasive
wear. Coating thickness is from 1 to 4 mil; is superior to plastics, epoxies and ceramics; and has a high heat resistance to 800º F
(427º C).
Ordering Information
• Give size, pressure class, and end connection.
• Specify pressure class of flanged ends, raised face (RF), or ring type joint (RTJ).
• For threaded ends, provide type of pipe:
TBG (non-upset tubing) LCSG (long casing thread)
UPTBG (external upset tubing) CSG (short casing thread)
• For weld ends, give schedule of mating pipe.
• For applications in high-pressure gas above 3000 psi or involving concentrations of H
2
S or CO
2
, consult Cameron for
recommendations.
12

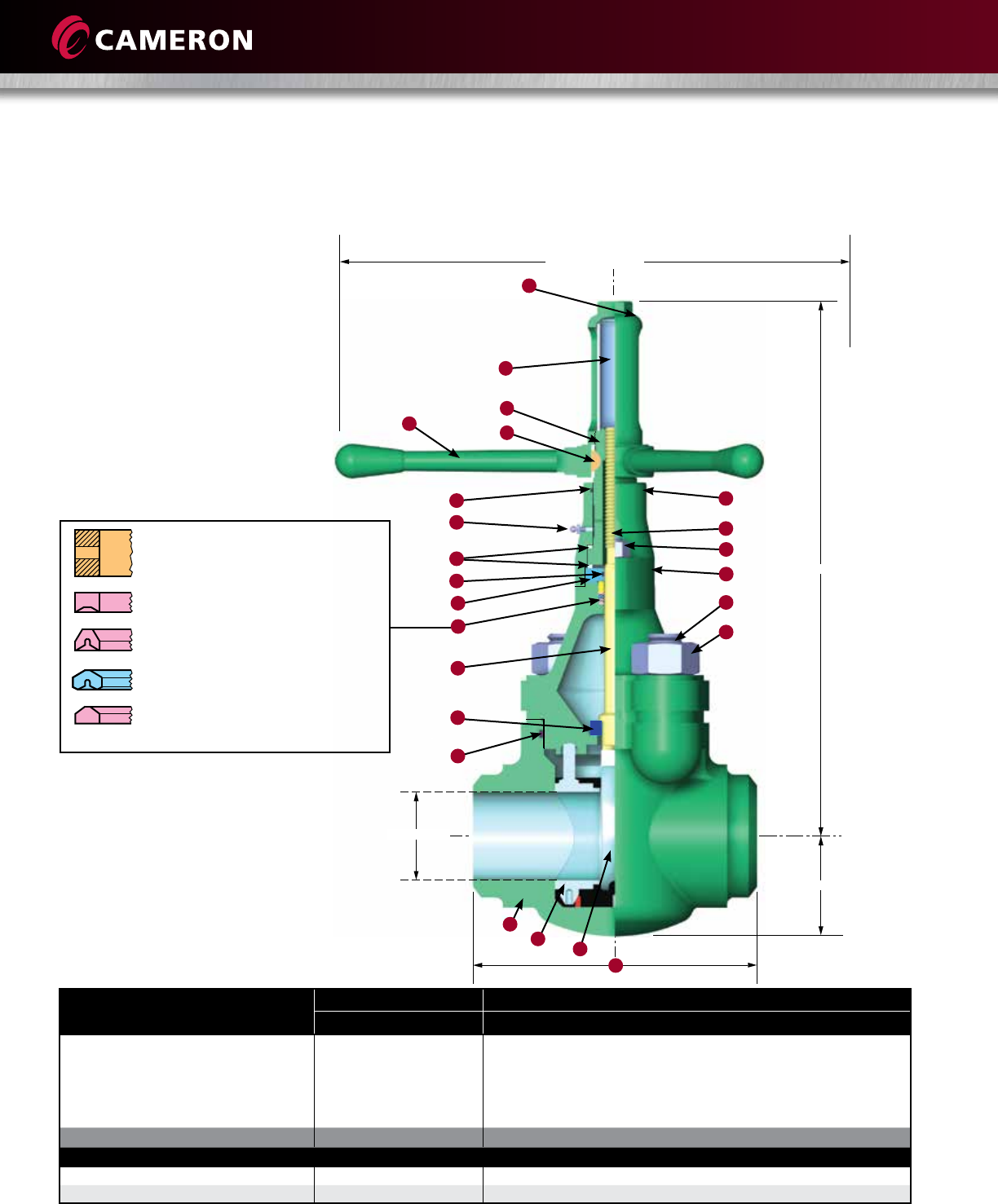

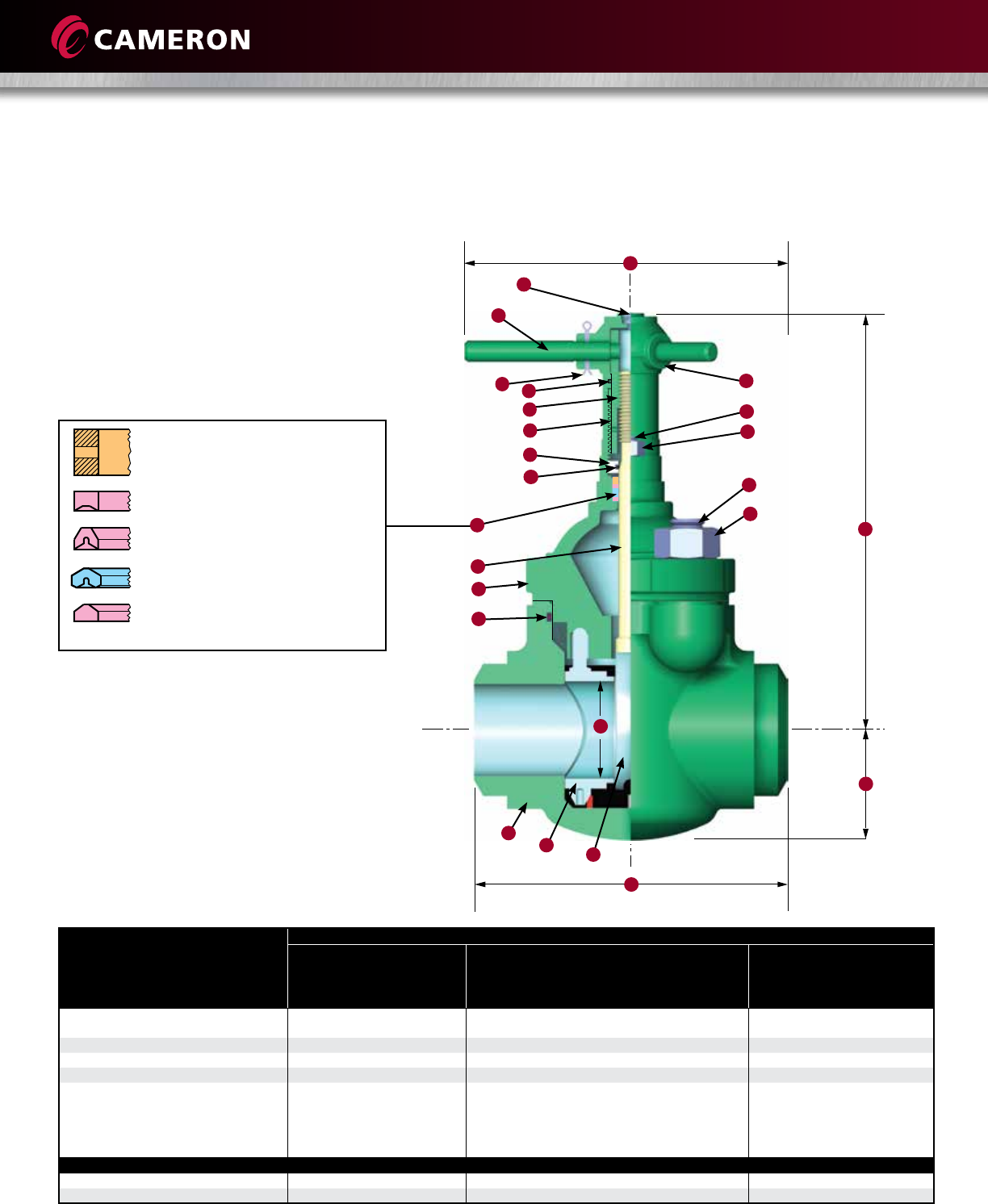

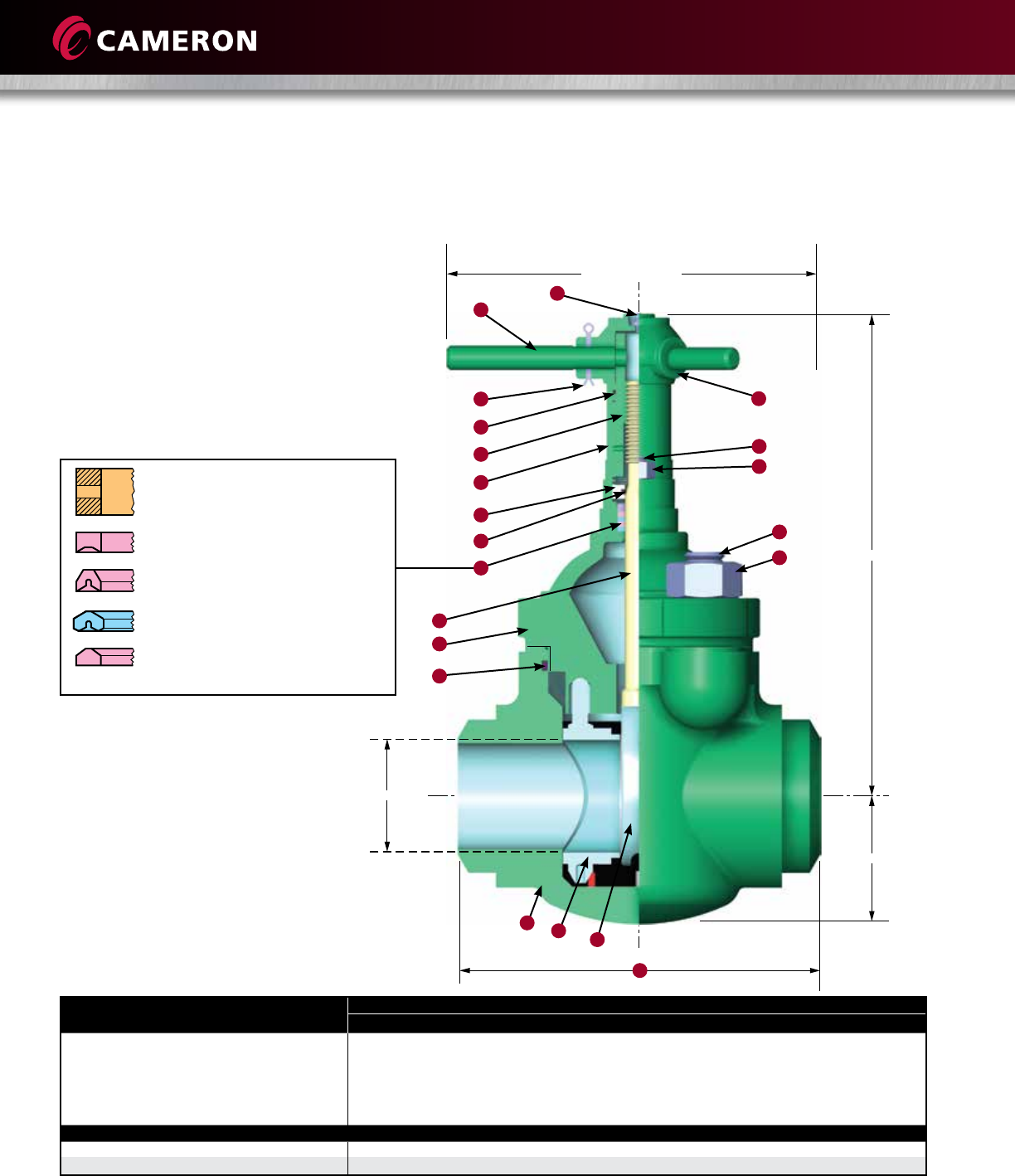

SERIES DM 7500 GATE VALVES – 7500 PSI WP
2” (50 mm) XXH with 1-1/2” (40 mm) Bore
Dimension
Valve Size: 2” (50 mm) RP
7500 WP
A Weld End 9.00 (229)
Valve Seat ID 1.50 (40)
Number of Handle Turns from Open to Closed 7.00
Weight lb (kg)
Weld End 76 (34)

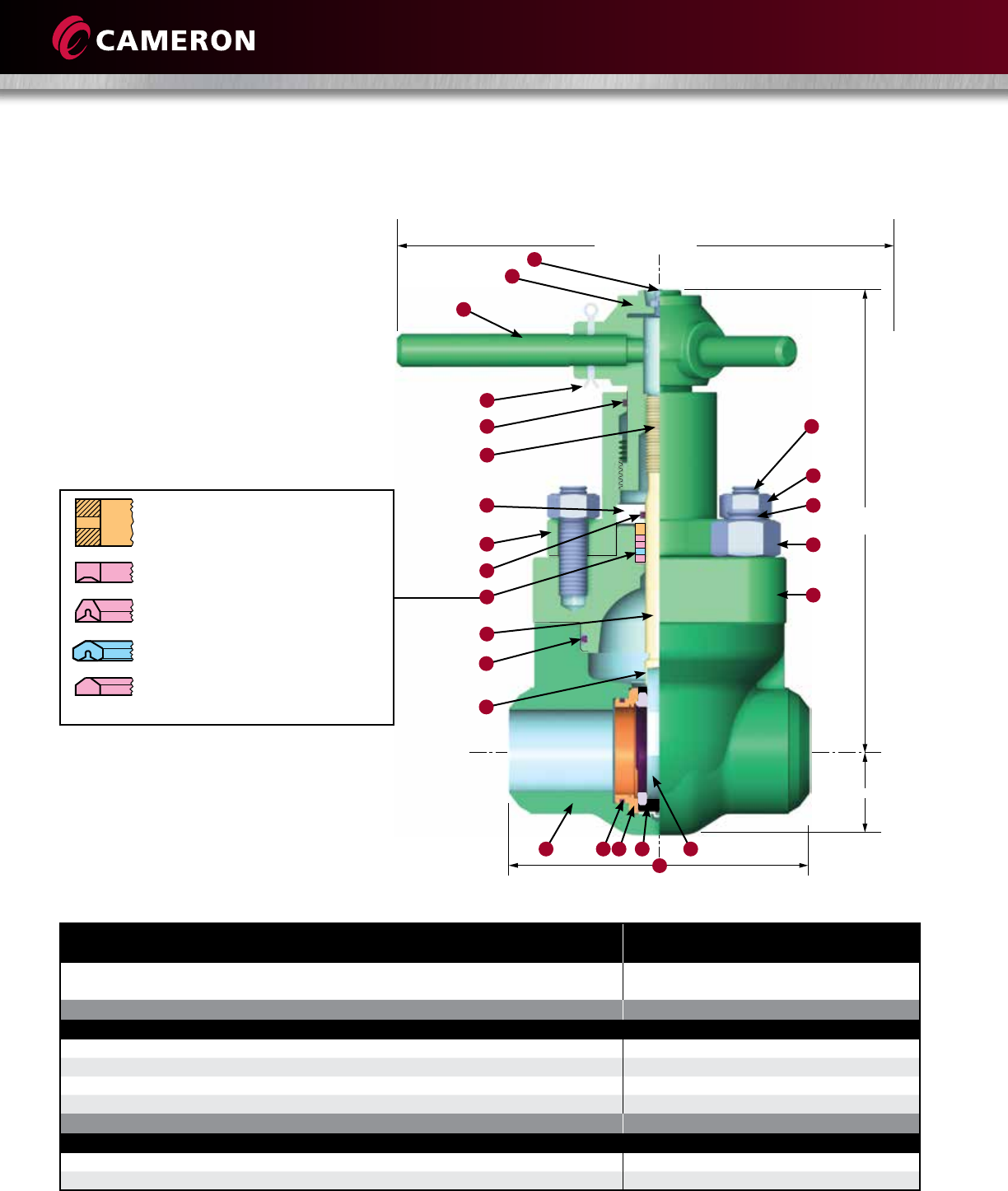

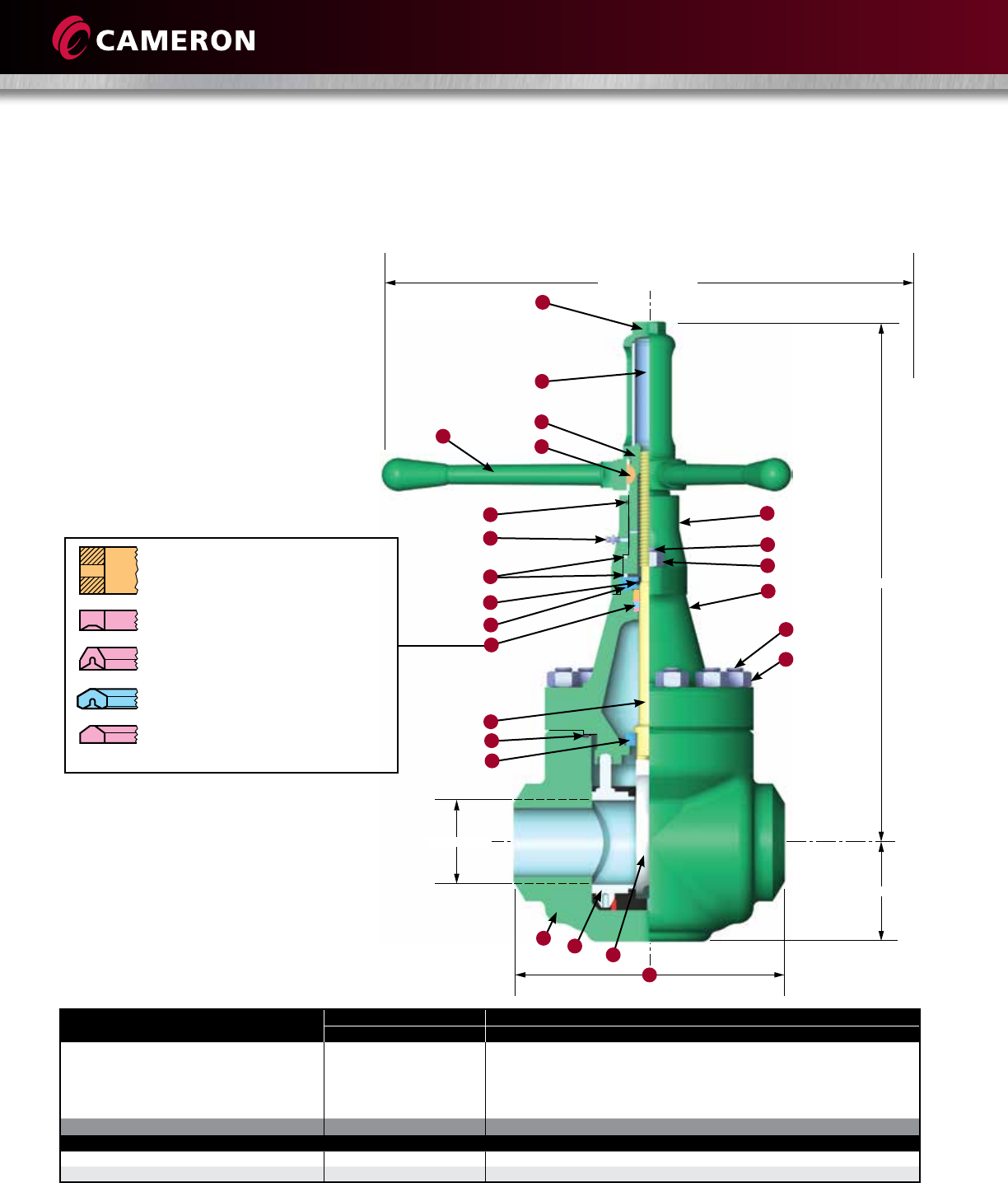

Dimensions and Materials/Parts List
Dimensional Data and Weights
14.00 (356) DIA
1
2
22
4
7
6
8
11
10
9
18
13
A
2.63 (67)
20 15 14 21 19
23
24
25
16
26
BRONZE BUSHING
FLAT TOP FOLLOWER
FABRIC REINFORCED SEAL RING
HOMOGENEOUS RUBBER SEAL RING
FLAT BOTTOM ADAPTER
12
13.04 (331)
(Open)
13
VALVES & MEASUREMENT
ASSEMBLY PART NUMBER
Group 1 Basic valve. Hydrostatic shell test: 11,250 psi for three minutes. Hydrostatic seat test: 7500 psi for three minutes, each side. Material
traceability on body and bonnet.
Group 2 Same as Group 1, except: Hydrostatic shell test: 11,250 psi for three minutes, drop to 0 psi, then 11,250 psi for 15 minutes. Test is
charted. Hydrostatic seat test: 7500 psi for three minutes, drop to 0 psi, 7500 for 15 minutes, drop to 0 psi, then 300 psi for five
minutes, each side. Test is charted. Material traceability on body, bonnet, stem, and bolting. Impact tests at or below -50° F (-46° C)
on body, bonnet, stem and bolting. Surface NDE on body, bonnet and stem.
Group 3 Same as Group 2, plus volumetric NDE on body and bonnet.
2 - 2.38 (60 mm) OD x 1.50 (40 mm) ID (2” (50 mm) XXH)
5 - Weld
7 - 410 SS
2 - Steel/Steel 7 - 410 SS/410 SS
1 - 410 SS
2 - FKM/FKM 4 - HNBR/HNBRSeat/Seal Elastomer
Seat Ring Material
Gate/Wear Ring Material
Stem Material
Body Configuration
End Connection
Weld
Key
No. Qty. Description
Valve Size: 2” (50 mm) RP
Group 1 Group 2 Group 3
Assembly Base Number XXH Weld End: General Service
XXH Weld End: NACE Compliant
J025196
J025200
J025197
J025201
J025217
J025218
1 1 Lube Fitting Steel 005929-18
Consult Cameron for
Part Numbers
2 1 Handle Ductile Iron ASTM A536 Grade 65-45-12 2139712-01
4 1 Lock Handle AISI C-1213 J001891
n6 1 Stem Screw AISI C-1213 J001913
n7 1 Housing Seal Buna-N J005526-224
8 1 Screw Housing ASTM A350 Grade LF2 Class 1 J024982
n9 1 Stem 410 SS 2269413-01
n10 1 Secondary Seal HNBR 2712425-13
FKM J005531-210
11 1 Packing Retainer AISI C-1213 J001940 -
17-4 PH SS - J021432
n12 1 Stem Seal Assembly HNBR J023231-008
(With Bronze Bushing – ASTM B505 Alloy 93200) FKM J023231-006
n•13 1 Gate Clip AISI 302 SS M450480
n•14 2 Body Wear Ring
For Steel Gate, AISI 4140 w/QPQ Nitride Coating 2269414-01
For SS Gate, AISI 410 Stainless Steel 2269414-02
n•15 2 Wear Ring Seal HNBR 2712425-18
FKM J005521-225
16 1 Bonnet ASTM A487 Grade 4 Class D J024985-030 2140428-01
n•18 1 Bonnet Seal HNBR 2712425-60
FKM J005521-342
n•19 1 Gate Steel AISI 4140 w/QPQ Nitride Coating 2269412-01
410 SS 2269412-02
20 1 Body Materials Weld End – ASTM A487 Grade 4 Class D Consult Cameron
Body Part Numbers
n•21 1 Seat Rings: AISI 410 SS; Elastomer: HNBR 2269403-01
Rings: AISI 410 SS; Elastomer: FKM 2269403-02
22 1 Cotter Pin Steel J005420-18728
23 2 Housing Stud J002066 J021436
Materials ASTM A193 Grade B7 ASTM A193 Grade L7
24 2 Housing Stud Nut 2709000-08-01 J053252-034
Materials ASTM A194 Grade 2H ASTM A194 Grade 7
25 4 Body Stud J015432 J021442
Materials ASTM A193 Grade B7 ASTM A193 Grade L7
26 4 Body Stud Nut 2709000-10-01 J053252-038
Materials ASTM A194 Grade 2H ASTM A194 Grade 7
n Major repair kit J025177-11574 – One each for one year of service.
• Minor repair kit J025177-01574.
Major and minor repair kits listed for trim option J0XXXXX-XX72140 (410 SS Stem, Steel/QPQ Gate, HNBR Seat/Seals)
Consult Cameron for optional repair kit trim options
Parts List
14

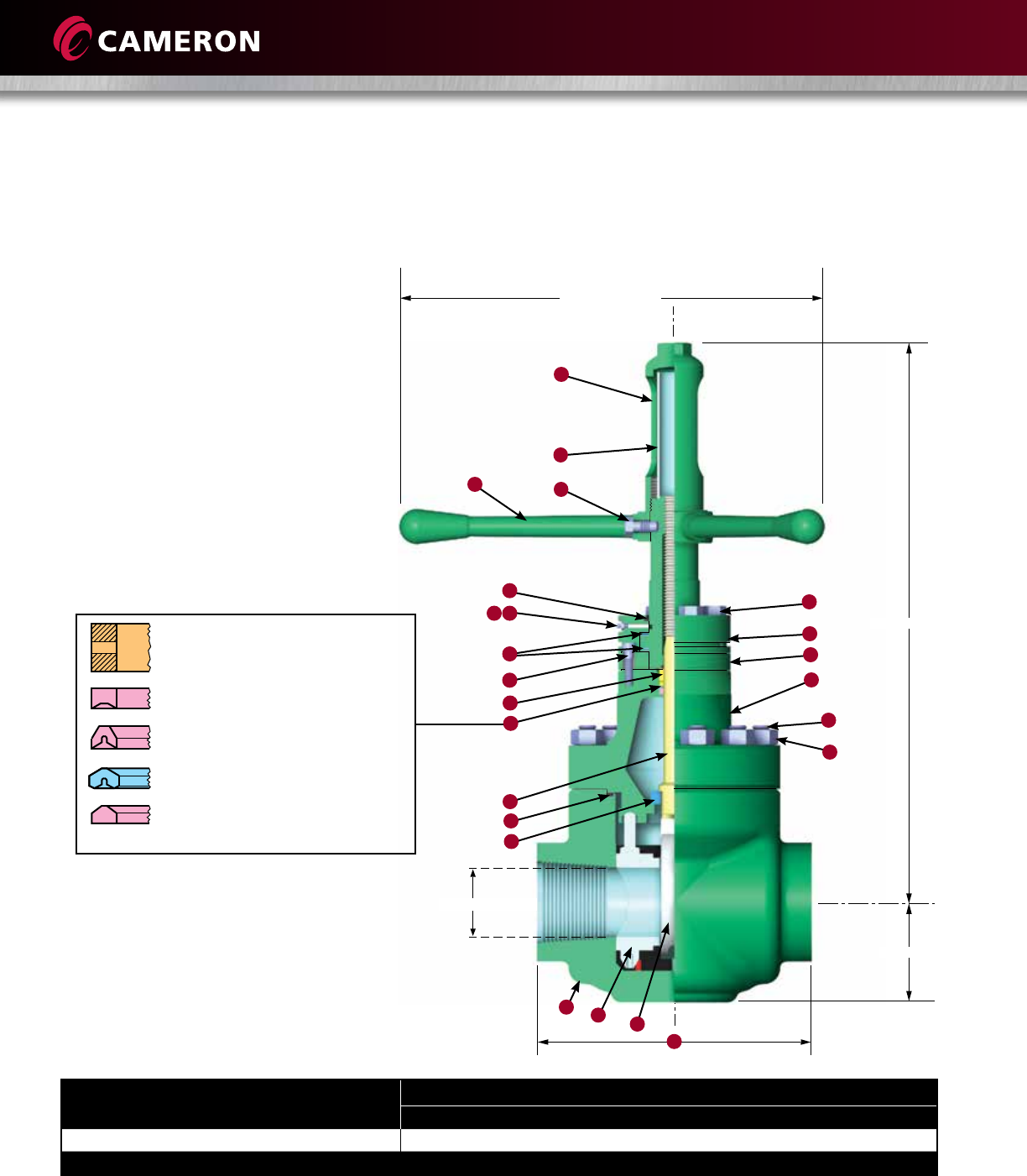

SERIES DM 7500 GATE VALVES – 7500 PSI WP
2” (50 mm) Full Port
Dimension
Valve Size: 2” (50 mm) FP
7500 WP
A Weld End 9.00 (229)
Flanged End, API Length 20.50 (521)
Valve Seat ID 2.00 (50)
For Flanged Ends
API Ring Number BX-152
Flange ID 2.06 (52)
Flange OD 7.88 (200)
Flange Bolts (Qty., Size: in.) 8 – 3/4
Number of Handle Turns from Open to Closed 8.60
Weight lb (kg)
Weld End 76 (34)
Flanged End 124 (56)
Dimensional Data and Weights
14.00 (356) DIA
1
2
22
4
7
6
8
11
10
9
18
13
A
2.63 (67)
20 15 14 21 19
23
24
25
16
26
BRONZE BUSHING
FLAT TOP FOLLOWER
FABRIC REINFORCED SEAL RING
HOMOGENEOUS RUBBER SEAL RING
FLAT BOTTOM ADAPTER
12
13.04 (331)
(Open)
15
VALVES & MEASUREMENT
ASSEMBLY PART NUMBER
Group 1 Basic valve. Hydrostatic shell test: 11,250 psi for three minutes. Hydrostatic seat test: 7500 psi for three minutes, each side. Material
traceability on body and bonnet.
Group 2 Same as Group 1, except: Hydrostatic shell test: 11,250 psi for three minutes, drop to 0 psi, then 11,250 psi for 15 minutes. Test is
charted. Hydrostatic seat test: 7500 psi for three minutes, drop to 0 psi, 7500 for 15 minutes, drop to 0 psi, then 300 psi for five
minutes, each side. Test is charted. Material traceability on body, bonnet, stem, and bolting. Impact tests at or below -50° F (-46° C)
on body, bonnet, stem and bolting. Surface NDE on body, bonnet and stem.
Group 3 Same as Group 2, plus volumetric NDE on body and bonnet.
2 - 2.38 (60 mm) OD x 1.50 (40 mm) ID (2” (50 mm) XXH)
3 - 10,000 RT
4 - 3.00 (80 mm) OD x 2.00 (50 mm) ID
5 - Weld 7 - Flanged
7 - 410 SS
2 - Steel/Steel 7 - 410 SS/410 SS
1 - 410 SS
2 - FKM/FKM 4 - HNBR/HNBRSeat/Seal Elastomer
Seat Ring Material
Gate/Wear Ring Material
Stem Material
Body Configuration
End Connection
Flanged
Weld
Key
No. Qty. Description
Valve Size: 2” (50 mm) FP
Group 1 Group 2 Group 3
Assembly Base Number Weld End: General Service
Weld End: NACE Compliant
Flanged End, API Length: General Service
Flanged End, API Length: NACE Compliant
J024993
J025088
J025130
J025142
J025077
J025103
J025208
TBA
J025078
J025104
J025131
J025143
1 1 Lube Fitting Steel 005929-18
2 1 Handle Ductile Iron ASTM A536 Grade 65-45-12 2139712-01
4 1 Lock Handle AISI C-1213 J001891
n6 1 Stem Screw AISI C-1213 J001913
n7 1 Housing Seal Buna-N J005526-224
8 1 Screw Housing ASTM A350 Grade LF2 Class 1 J024982
n9 1 Stem 410 SS J024983-107
n10 1 Secondary Seal HNBR 2712425-13
FKM J005531-210
11 1 Packing Retainer AISI C-1213 J001940 -
17-4 PH SS - J021432
n12 1 Stem Seal Assembly HNBR J023231-008
(With Bronze Bushing – ASTM B505 Alloy 93200) FKM J023231-006
n•13 1 Gate Clip AISI 302 SS M450480
n•14 2 Body Wear Ring
For Steel Gate, AISI 4140 w/QPQ Nitride Coating M452267
For SS Gate, AISI 410 Stainless Steel 2139647-02
n•15 2 Wear Ring Seal HNBR 2712425-03
FKM J005521-229
16 1 Bonnet ASTM A487 Grade 4 Class D J024985-030 2140428-01 2140341-01
n•18 1 Bonnet Seal HNBR 2712425-60
FKM J005521-342
n•19 1 Gate Steel AISI 4140 w/QPQ Nitride Coating 2171111-01
410 SS 2139624-02
20 1 Body Materials ASTM A487 Grade 4 Class D Consult Cameron for
Body Part Numbers
n•21 1 Seat 410 SS/HNBR 2139742-01
Materials Rings: AISI 410 SS; Elastomer: HNBR
410 SS/FKM 2139741-02
Materials Rings: AISI 410 SS; Elastomer: FKM
22 1 Cotter Pin Steel J005420-18728
23 2 Housing Stud J002066 J021436
Materials ASTM A193 Grade B7 ASTM A193 Grade L7
24 2 Housing Stud Nut 2709000-08-01 J053252-034
Materials ASTM A194 Grade 2H ASTM A194 Grade 7
25 4 Body Stud J015432 J021442
Materials ASTM A193 Grade B7 ASTM A193 Grade L7
26 4 Body Stud Nut 2709000-10-01 J053252-038
Materials ASTM A194 Grade 2H ASTM A194 Grade 7
n Major repair kit J025177-10274 – One each for one year of service.
• Minor repair kit J025177-00274.
Major and minor repair kits listed for trim option J0XXXXX-XX72140 (410 SS Stem, Steel/QPQ Gate, HNBR Seat/Seals)
Consult Cameron for optional repair kit trim options
Parts List
16
SERIES DM 7500 GATE VALVES – 7500 PSI WP
3” (80 mm) Full Port
Dimension
Valve Size: 3” (80 mm) FP
7500 WP
A Weld End 13.00 (330)
Flanged End, API Length 24.38 (619)
Valve Seat ID 3.00 (80)
For Flanged Ends
API Ring Number BX-154
Flange ID 3.06 (78)
Flange OD 10.62 (270)
Flange Bolts (Qty., Size: in.) 8 – 1
Number of Handle Turns from Open to Closed 16.01
Weight lb (kg)
Weld End 256 (116)
Flanged End 372 (169)

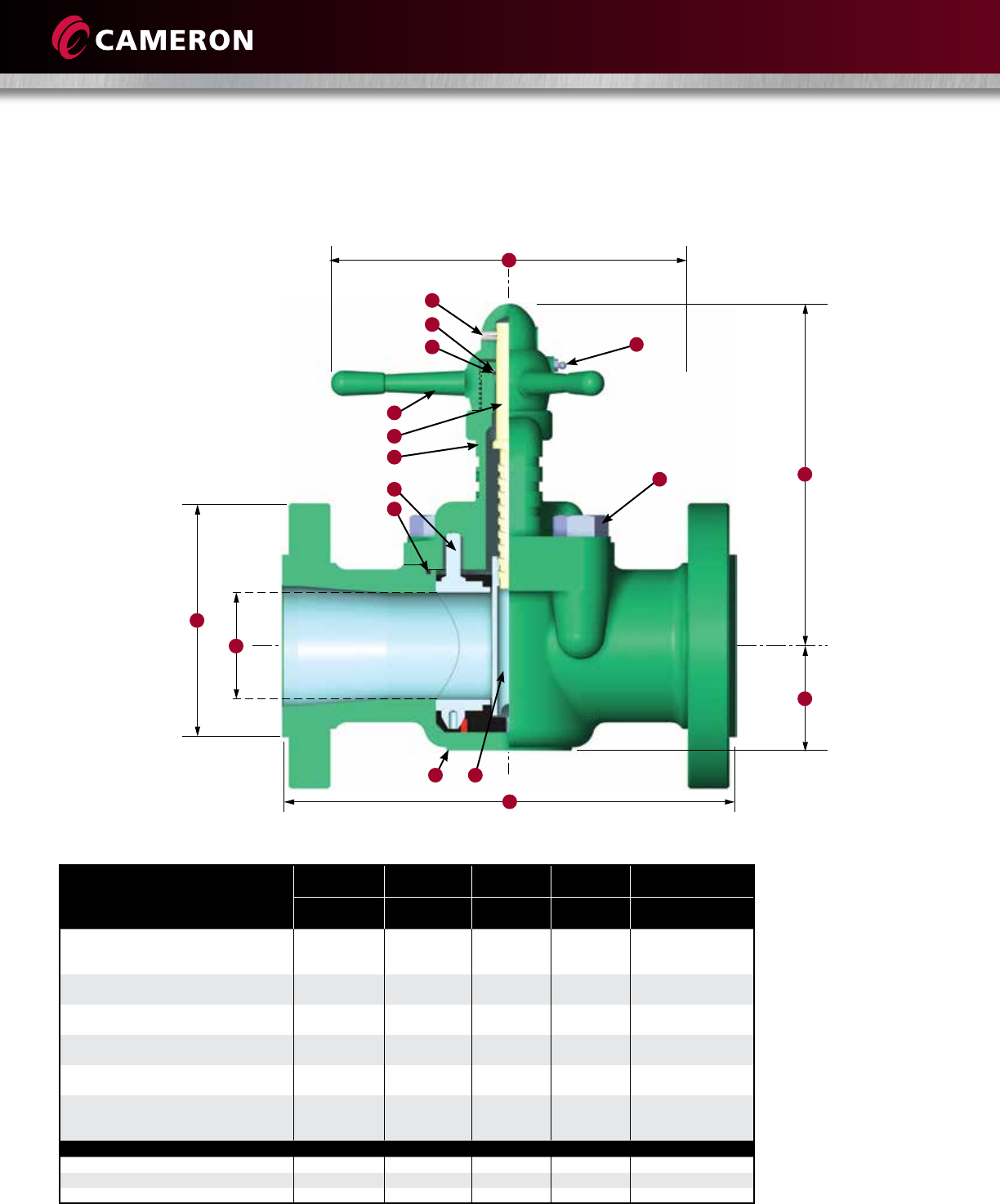

Dimensional Data and Weights
23.00 (584) DIA
4
3
7
1
9
18
14
A
3.38 (86)
17 15 21 19
8
23
16
24
BRONZE BUSHING
FLAT TOP FOLLOWER
FABRIC REINFORCED SEAL RING
HOMOGENEOUS RUBBER SEAL RING
FLAT BOTTOM ADAPTER
12
6
5
13
10
2
25
26
20
24.60 (625)
17
VALVES & MEASUREMENT
ASSEMBLY PART NUMBER
Group 1 Basic valve. Hydrostatic shell test: 11,250 psi for three minutes. Hydrostatic seat test: 7500 psi for three minutes, each side. Material
traceability on body and bonnet.
Group 2 Same as Group 1, except: Hydrostatic shell test: 11,250 psi for three minutes, drop to 0 psi, then 11,250 psi for 15 minutes. Test is
charted. Hydrostatic seat test: 7500 psi for three minutes, drop to 0 psi, 7500 for 15 minutes, drop to 0 psi, then 300 psi for five
minutes, each side. Test is charted. Material traceability on body, bonnet, stem and bolting. Impact tests at or below -50° F (-46° C)
on body, bonnet, stem, and bolting. Surface NDE on body, bonnet and stem.
Group 3 Same as Group 2, plus volumetric NDE on body and bonnet.
End Connection
Body Configuration
Stem Material
Gate/Wear Ring Material
Seat Ring Material
Seat/Seal Elastomer 2 - FKM/FKM 4 - HNBR/HNBR
1 - 410 SS
2 - Steel/Steel 7 - 410 SS/410 SS
7 - Flanged
7 - 410 SS
5 - Weld
3 - 10,000 RTJ
2 - 3.50 (89 mm) OD x 2.30 (58 mm) ID (3” (80 mm) XXH)
4 - 4.50 (114 mm) OD x 3.15 (80 mm) ID (4” (100 mm) XXH)
5 - 4.50 (114 mm) OD x 2.96 (75 mm) ID
Flanged
Weld
Key
No. Qty. Description
Valve Size: 3” (80 mm) FP
Group 1 Group 2 Group 3
Base Assembly Number General Service
NACE Compliant
J025051
J025089
J025079
J025105
J025080
J025106
1 1 Lube Fitting Steel 005929-18
2 1 Handle Ductile Iron ASTM A536 Grade 65-45-12 2139481-01
3 1 Stem Tube Clear Acrylic J007459
4 1 Stem Cap Ductile Iron ASTM A536 Grade 65-45-12 J007411
5 1 Key Steel J005305-10016
n6 1 Stem Screw AISI C-1213 J007416
n7 1 Housing Seal Buna-N J005526-226
8 1 Housing ASTM A350 Grade LF2 Class 1 J007418 J021448-040
Materials AISI C-1029 Normalized ASTM A352 Grade LCC
n9 1 Stem 410 SS J024951-107
n10 1 Secondary Seal HNBR 2712425-01
FKM J005531-214
11 1 Packing Retainer J007413 J021434
Materials AISI C-1213 17-4 PH SS
n12 1 Stem Seal Assembly HNBR J001951-008
(With Bronze Bushing – SAE 660) FKM J001951-006
n13 2 Bearing Teflon®/Phenolic J007426
n•14 1 Gate Clip AISI 302 SS M450505
n•15 2 Body Wear Ring For Steel Gate M452571
Material AISI 4140 w/QPQ Nitride Coating
For SS Gate 2139648-02
Material AISI 410 Stainless Steel
16 1 Bonnet ASTM A487 Grade 4 Class D J017289-029 2140370-01 2140370-02
n•17 2 Wear Ring Seal HNBR 2712783-03
FKM J005521-340
n•18 1 Bonnet Seal HNBR 2712787-07
FKM J005521-361
n•19 1 Gate AISI 4140 w/QPQ Nitride Coating 2171112-01
410 SS 2139628-02
20 1 Body Materials ASTM A487 Grade 4 Class D Consult Cameron for
Body Part Numbers
n•21 1 Seat 410 SS/HNBR 2139744-01
Materials Rings: AISI 410 SS; Elastomer: HNBR
410 SS/FKM 2139743-02
Materials Rings: AISI 410 SS; Elastomer: FKM
23 2 Housing Stud J002072 J021441
Materials ASTM A193 Grade B7 ASTM A193 Grade L7
24 2 Housing Stud Nut 2709000-09-01 J053252-036
Materials ASTM A194 Grade 2H ASTM A194 Grade 7
25 12 Body Stud J015432 J021442
Materials ASTM A193 Grade B7 ASTM A193 Grade L7
26 12 Body Stud Nut 2709000-10-01 J053252-038
Materials ASTM A194 Grade 2H ASTM A194 Grade 7
n Major repair kit J025177-10374 – One each for one year of service.
• Minor repair kit J025177-00374.
Major and minor repair kits listed for trim option J0XXXXX-XX72140 (410 SS Stem, Steel/QPQ Gate, HNBR Seat/Seals)
Consult Cameron for optional repair kit trim options
Parts List
18
SERIES DM 7500 GATE VALVES – 7500 PSI WP
4” (100 mm) Full Port
Dimension
Valve Size: 4“ (100 mm) FP
7500 WP
A Weld End 16.00 (406)
Flanged End 26.38 (670)
Valve Seat ID 4.00 (100)
For Flanged Ends
API Ring Number BX-155
Flange ID 4.06 (103)
Flange OD 12.44 (316)
Flange Bolts (Qty., Size: in.) 8 – 1-1/8
Number of Handle Turns from Open to Closed 21.36
Weight lb (kg)
Weld End 310 (141)
Flanged End 475 (215)

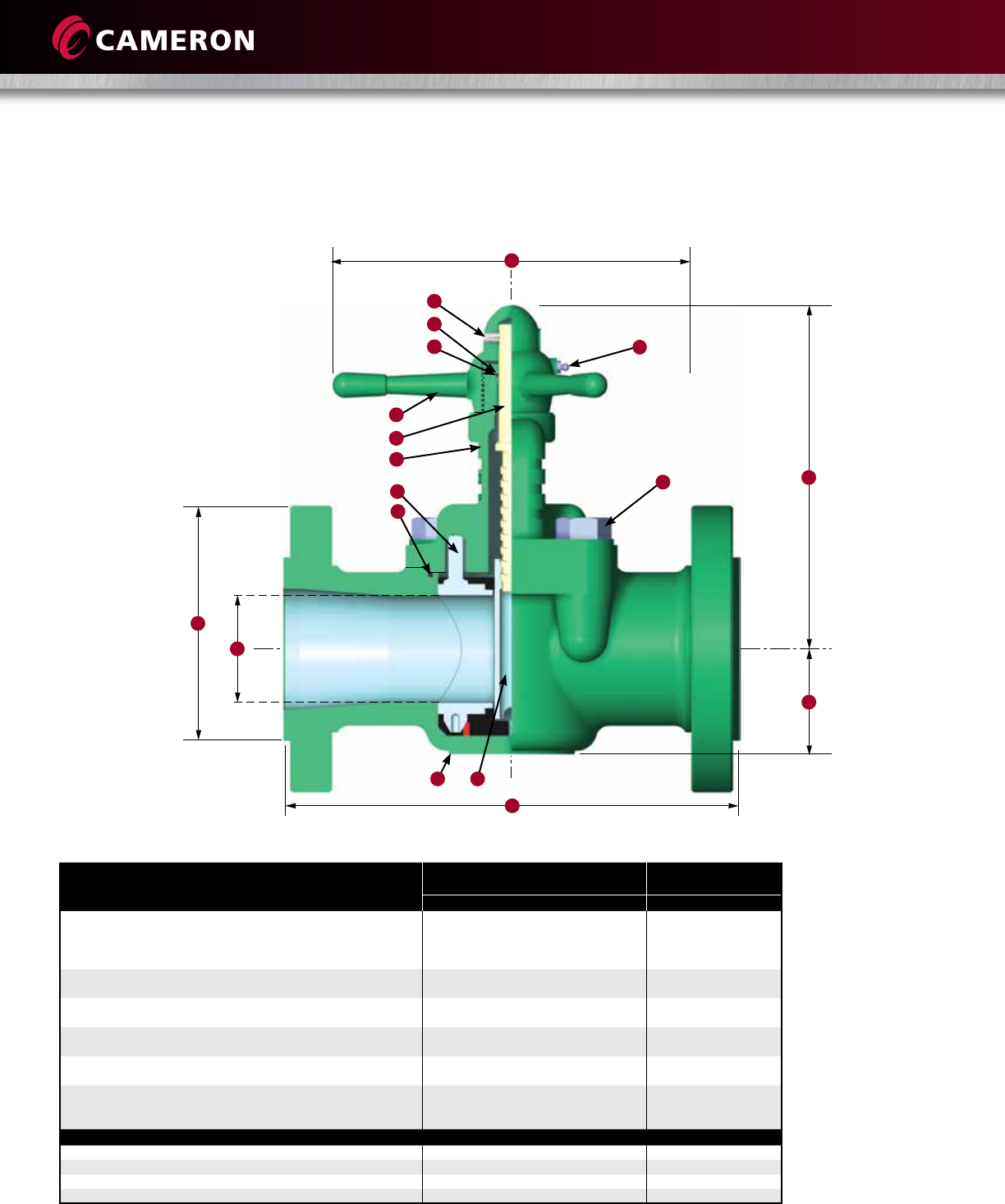

Dimensional Data and Weights
24.00 (610) DIA
23
24
25
6
4
16
A
4.40 (112)
15 12 13
22
26
9
19
BRONZE BUSHING
FLAT TOP FOLLOWER
FABRIC REINFORCED SEAL RING
HOMOGENEOUS RUBBER SEAL RING
FLAT BOTTOM ADAPTER
5
2
3
11
1
8
18 14
20
21
10
7
27.54 (700)
19
VALVES & MEASUREMENT
ASSEMBLY PART NUMBER
Group 1 Basic valve. Hydrostatic shell test: 11,250 psi for three minutes. Hydrostatic seat test: 7500 psi for three minutes, each side. Material
traceability on body and bonnet.
Group 2 Same as Group 1, except: Hydrostatic shell test: 11,250 psi for three minutes, drop to 0 psi, then 11,250 psi for 15 minutes. Test is
charted. Hydrostatic seat test: 7500 psi for three minutes, drop to 0 psi, 7500 for 15 minutes, drop to 0 psi, then 300 psi for five
minutes, each side. Test is charted. Material traceability on body, bonnet, stem and bolting. Impact tests at or below -50° F (-46° C)
on body, bonnet, stem and bolting. Surface NDE on body, bonnet and stem.
Group 3 Same as Group 2, plus volumetric NDE on body and bonnet.
3 - 10,000 RTJ
3 - 5.56 (141 mm) OD x 4.06 (103 mm) ID (5” (125 mm) XXH)
5 - 5.75 (146 mm) OD x 3.93 (100 mm) ID
6 - 6.00 (152 mm) OD x 4.00 (100 mm) ID
5 - Weld 7 - Flanged
7 - 410 SS
2 - Steel/Steel 7 - 410 SS/410 SS
4 - HNBR/HNBR2 - FKM/FKM
1 - 410 SS
Seat/Seal Elastomer
Seat Ring Material
Gate/Wear Ring Material
Stem Material
Body Configuration
End Connection
Flanged
Weld
Key Valve Size: 4” (100 mm) FP
No. Qty. Description Group 1 Group 2 Group 3
Base Assembly Number General Service
NACE Compliant
J025100
J025102
J025101
J025107
J025081
J025108
1 1 Handwheel Ductile Iron ASTM A536 Grade 65-45-12 2227565-01
2 1 Handwheel Screw AISI C-1018 J014832
3 4 Retainer Screw J005665-32028 J005666-32028
Materials Alloy Steel 18-8 SS
n•4 1 Gate Clip AISI 302 SS M450505
n5 1 Stem Seal Assembly HNBR J015853-008
(With Bronze Bushing – ASTM B271 Alloy C95500) FKM J015853-006
n6 1 Stem 410 SS 2140684-01
7 1 Bonnet ASTM A487 Grade 4 Class D 2172523-01 2172523-02 2172523-03
8 10 Body Stud 2171976-11-01 2171978-11-01
Materials ASTM A193 Grade B7 ASTM A193 Grade L7
9 10 Body Stud Nut 2709000-11-01 J053252-140
Materials ASTM A194 Grade 2H ASTM A194 Grade 7
n•10 1 Bonnet Seal HNBR 2712426-11
FKM J005521-364
11 1 Body Materials ASTM A487 Grade 4 Class D Consult Cameron for
Body Part Numbers
n•12 1 Seat 410 SS/HNBR 2139746-01
Materials Rings: AISI 410 Stainless Steel; Elastomers: HNBR
410 SS/FKM 2139745-02
Materials Rings: AISI 410 Stainless Steel; Elastomers: FKM
n•13 1 Gate – Steel/QPQ AISI 4140 w/QPQ Nitride Coating 2171267-01
410 SS 2139637-02
n14 1 Housing Seal Buna-N J005526-228
n•15 2 Body Wear Ring For Steel Gate M452290
Materials AISI 4140 w/QPQ Nitride Coating
For Stainless Steel Gate 2139649-02
Materials AISI 410 Stainless Steel
n•16 2 Wear Ring Seal HNBR 2712787-04
FKM J005521-349
n18 1 Stem Screw with Bearings J0023888
Materials Stem Screw: AISI C-1018
Bearings: Hardened Steel Needle Thrust Bearings
19 1 Housing AISI C-1018 J015332
n20 1 Secondary Seal HNBR 2726268-01
FKM J005531-216
21 1 Packing Retainer J015330 2172425-02
Materials AISI C-1018 AISI 4130
22 4 Housing Screw Steel SAE Grade 5 702500-14-00-34
23 1 Stem Tube Clear Acrylic J012852
24 1 Stem Cap Ductile Iron J015855
25 1 Lube Fitting Steel 005929-18
26 1 Relief Fitting Steel J051971
n Major repair kit J025177-10474 – One each for one year of service.
• Minor repair kit J025177-00474.
Major and minor repair kits listed for trim option J0XXXXX-XX72140 (410 SS Stem, Steel/QPQ Gate, HNBR Seat/Seals)
Consult Cameron for optional repair kit trim options
Parts List
20
SERIES DM 7500 GATE VALVES – 7500 PSI WP
5” (125 mm) Full Port
Dimension
Valve Size: 5” (125 mm) FP
7500 WP
A Weld End 17.88 (454)
Flanged End 29.00 (737)
Valve Seat ID 5.00 (125)
For Flanged Ends
API Ring Number BX-169
Flange ID 5.12 (130)
Flange OD 14.06 (357)
Flange Bolts (Qty., Size: in.) 12 – 1-1/8
Number of Handle Turns from Open to Closed 27.67
Weight lb (kg)
Weld End 506 (230)
Flanged End 761 (345)
24.00 (610) DIA
23
24
25
6
4
16
A
31.81 (808)
5.00 (125)
15 12 13
22
9
19
BRONZE BUSHING
FLAT TOP FOLLOWER
FABRIC REINFORCED SEAL RING
HOMOGENEOUS RUBBER SEAL RING
FLAT BOTTOM ADAPTER
5
2
3
11
1
8
18 14
20
21
10
7

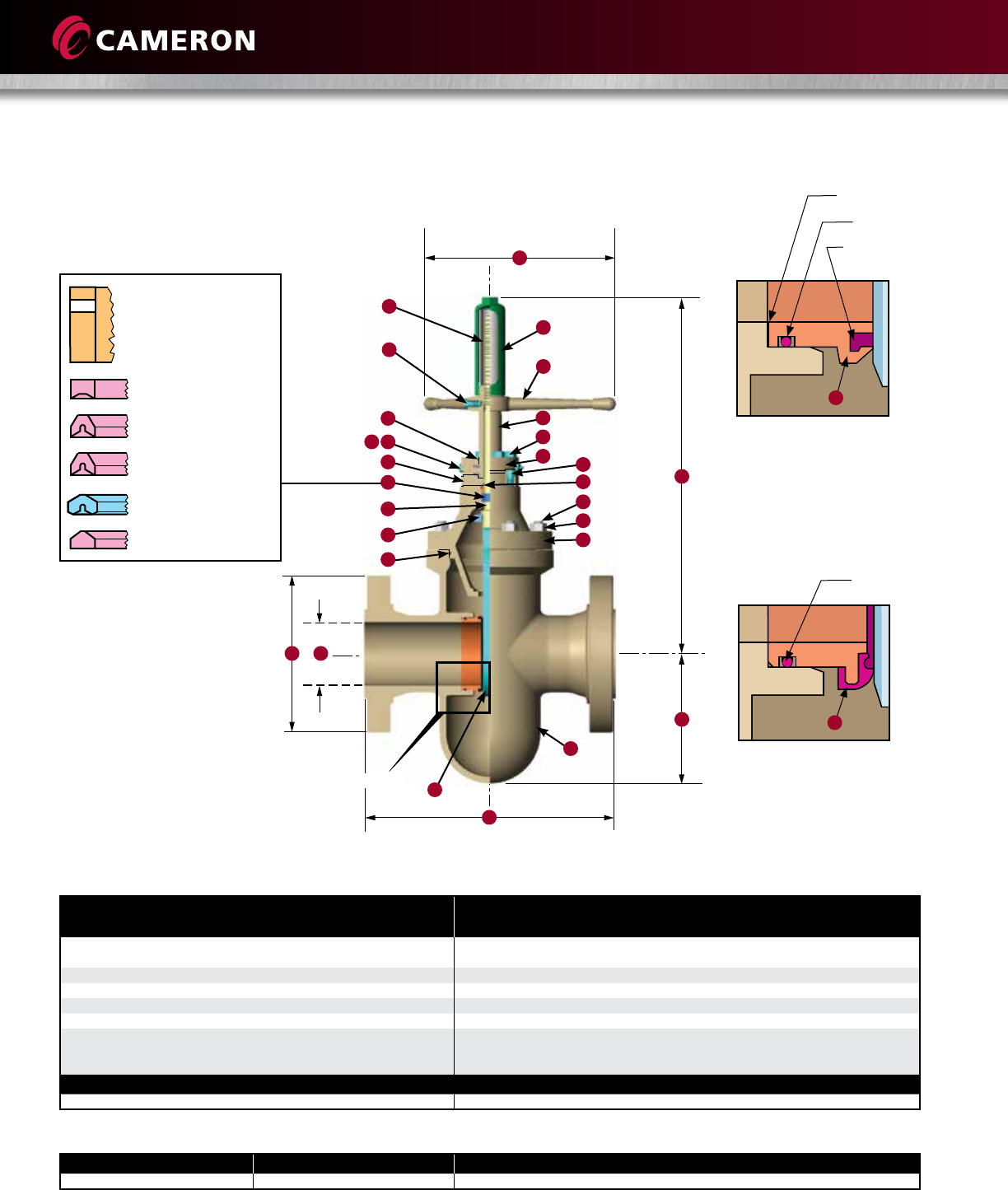

Dimensional Data and Weights
21
VALVES & MEASUREMENT
ASSEMBLY PART NUMBER
Group 1 Basic valve. Hydrostatic shell test: 11,250 psi for three minutes. Hydrostatic seat test: 7500 psi for three minutes, each side. Material
traceability on body and bonnet.
Group 2 Same as Group 1, except: Hydrostatic shell test: 11,250 psi for three minutes, drop to 0 psi, then 11,250 psi for 15 minutes. Test is
charted. Hydrostatic seat test: 7500 psi for three minutes, drop to 0 psi, 7500 for 15 minutes, drop to 0 psi, then 300 psi for five
minutes, each side. Test is charted. Material traceability on body, bonnet, stem and bolting. Impact tests at or below -50° F (-46° C)
on body, bonnet, stem and bolting. Surface NDE on body, bonnet and stem.
Group 3 Same as Group 2, plus volumetric NDE on body and bonnet.
Key
No. Qty. Description
Valve Size: 5” (125 mm) FP
Group 1 Group 2 Group 3
Assembly Base Number General Service
NACE Compliant
J024994
J025090
J025083
J025109
J025084
J025110
1 1 Handwheel Ductile Iron ASTM A536 Grade 65-45-12 J016986
2 1 Handwheel Screw AISI C-1018 J016987
3 4 Retainer Screw J005665-32028 J005666-32028
Materials Alloy Steel 18-8 SS
n•4 1 Gate Clip AISI 302 SS M451649
n5 1 Stem Seal Assembly HNBR J016995-008
(With Bronze Bushing – ASTM B271 Alloy C95500) FKM J016995-006
n6 1 Stem 410 SS J024943-107
7 1 Bonnet ASTM A487 Grade 4 Class D J024956-030 J024956-051 J024956-052
8 12 Body Stud 2171976-12-01 2171978-12-02
Materials ASTM A193 Grade B7 ASTM A193 Grade L7
9 12 Body Stud Nut 2709000-12-01 J053252-142
Materials ASTM A194 Grade 2H ASTM A194 Grade 7
n•10 1 Bonnet Seal HNBR 2712425-78
FKM J005521-446
11 1 Body Materials ASTM A487 Grade 4 Class D Consult Cameron for
Body Part Numbers
n•12 1 Seat 410 SS/HNBR 2139748-01
Materials Rings: AISI 410 Stainless Steel; Elastomers: HNBR
410 SS/FKM 2269500-01
Materials Rings: AISI 410 Stainless Steel; Elastomers: FKM
n•13 1 Gate – Steel/QPQ AISI 4140 w/QPQ Nitride Coating 2171108-01
410 SS 2139629-02
n14 1 Housing Seal Urethane 2726191-02-95
n•15 2 Body Wear Ring For Steel Gate M452619
Materials AISI 4140 w/QPQ Nitride Coating
For Stainless Steel Gate 2139650-02
Materials AISI 410 Stainless Steel
n•16 2 Wear Ring Seal HNBR 2726268-02
FKM J005521-435
n18 1 Stem Screw with Bearings J023848
Materials Stem Screw: AISI C-1018
Bearings: Hardened Steel Needle Thrust Bearings
19 1 Housing AISI C-1018 J018190
n20 1 Secondary Seal HNBR 2712425-12
FKM J005531-218
21 1 Packing Retainer J018191 2171930-01
Materials AISI C-1018 AISI 4130
22 4 Housing Screw Steel SAE Grade 5 702500-16-00-40
23 1 Stem Tube Clear Acrylic J018192
24 1 Stem Cap Ductile Iron J018193
25 1 Lube Fitting Steel 005929-18
4 - HNBR/HNBR
7 - 410 SS/410 SS2 - Steel/Steel
1 - 410 SS
2 - FKM/FKM
7 - 410 SS
5 - Weld 7 - Flanged
End Connection
Body Configuration
Stem Material
Gate/Wear Ring Material
Seat Ring Material
Seat/Seal Elastomer
Flanged
Weld
3 - 10,000 RTJ
4 - 6.62 (168 mm) OD x 4.90 (124 mm) ID (6” (150 mm) XXH)
6 - 7.25 (184 mm) OD x 5.12 (130 mm) ID
n Major repair kit J025177-10574 – One each for one year of service.
• Minor repair kit J025177-00574.
Major and minor repair kits listed for trim option J0XXXXX-XX72140 (410 SS Stem, Steel/QPQ Gate, HNBR Seat/Seals)
Consult Cameron for optional repair kit trim options
Parts List
22
SERIES DM GATE VALVES – 2000, 3000, AND 5000 PSI WP
2” (50 mm) Full Port and 2-1/2” (65 mm) Reduced Port
* 2-1/2” x 2” (65 mm x 50 mm) RP only available in weld end.
Dimension
Valve Size: 2” (50 mm) FP and 2-1/2” x 2” (65 mm x 50 mm) RP*
2000 WP 3000 WP 5000 WP
A Threaded, Weld and Grooved 9.00 (229) 9.00 (229) 9.00 (229) 9.00 (229) 9.00 (229) 9.00 (229)
Flanged – RTJ 11.62 (295) - 11.62 (295) - 12.12 (308) -
Flange OD 6.50 (165) - 8.50 (216) - 8.50 (216) -
Flange Bolts (Qty., Size: in.) 8 – 5/8 - 8 – 7/8 - 8 – 7/8 -
Ring Number (RTJ) R-23 - R-24 - R-24 -
Weight lb (kg)
Threaded, Weld and Grooved 56 (25) 56 (25) 58 (26) 58 (26) 58 (26) 58 (26)
Flanged 70 (32) - 100 (45) - 110 (50) -
14.00 (356) DIA
1
2
22
4
7
6
11
10
16
17
9
A
13.00 (330)
(Open)
2.62 (67)
20 21 19
15
13
18
2.00
(50)
BRONZE BUSHING
FLAT TOP FOLLOWER
FABRIC REINFORCED SEAL RING
HOMOGENEOUS RUBBER SEAL RING
FLAT BOTTOM ADAPTER
8
12
Dimensional Data and Weights
23
VALVES & MEASUREMENT
ASSEMBLY PART NUMBER
Key
No. Qty. Description
Valve Size: 2” (50 mm) FP and 2-1/2” (65 mm) RP
2000 WP
General/(NACE)
3000 WP
General/(NACE)
5000 WP
General/(NACE)
Assembly Base 2” (50 mm) Full Port – Threaded J001026/(TBA) J001027/(J025092) J001028/(J024929)
Part Number – Weld J001029/(TBA) J001030/(J025092) J001031/(J024929)
– Grooved J011920/(TBA) - -
– Flanged J001023/(TBA) J001024/(J025092) J001025/(J024929)
2-1/2” (65 mm) Reduced Port – Weld J001115/(TBA) J001114/(TBA) J001109/(J025205)
1 1 Lube Fitting Steel 005929-18 005929-18 005929-18
2 1 Handle ASTM A536 Ductile Iron 2139712-01 2139712-01 2139712-01
4 1 Lock Handle C-1213 J001891 J001891 J001891
n6 1 Stem Screw C-1213 J001913 J001913 J001913
n7 1 Stem Screw Seal Buna-N J005526-224 J005526-224 J005526-224
8 1 Screw Housing C-1018 J001848 J001848 J001848
n9 1 Stem 303 SS -002, 316 SS -008 J001931-XXX J001931-XXX J001931-XXX
n10 1 Secondary Seal Buna-N J005526-210 J005526-210 J005526-210
11 1 Retainer C-1213 J001940 J001940 J001940
n12 1 Stem Seal Assembly Buna-N -001, FKM -006 J001949-XXX J001949-XXX J001949-XXX
13 1 Lock Screw Steel J005665-22004 J005665-22004 J005665-22004
15 1 Coupling A216 Steel -020, A487 Steel -030 J001445-030 J001445-030 J001445-030
16 1 Bonnet ASTM A105 J001237-XXX J001237-XXX J001237-XXX
Coatings Uncoated-020, DEMCO 12-025
17 1 Index Pin Steel J001981 J001981 J001981
n•18 1 Bonnet Seal Buna-N J005526-342 J005526-342 J005526-342
FKM J005531-342 J005531-342 J005531-342
n•19 1 Gate J001887-XXX J001887-XXX J001887-XXX
Materials AISI 1045 Nickel Plated -002, Cast SS ASTM A351 Grade CF8M – 108
20 1 Body Materials
Threaded, Weld and Grooved – ASTM A105 Normalized
2000 Flanged – Fabricated from Weld Body and
Commercial Flanges Consult Cameron for
3000 Flanged – ASTM A216 Grade WCB Body Part Numbers
5000 Flanged – ASTM A487 Grade 4A or 2B
Coatings (Except Weld End Bodies):
DEMCO 12
n•21 1 Seat Assembly J001876-0XX J001876-0XX J001876-0XX
Materials Inserts: -01X Ductile Iron ASTM A395 or Steel AISI C1040
-08X 316 SS ASTM A351 Grade CF8M Annealed
Elastomers: -0X1 Buna-N, -0X2 FKM
22 1 Pin, Lock Handle Steel J005420-18728 J005420-18728 J005420-18728
Internal Coating
5 - DEMCO 12**
2” (50 mm)
2-1/2” (65 mm)
2 - 303 SS*
Consult Cameron For Additional Trim Options.
* Available on General Service valves
**Internal coating only, weld end bodies are not available with internal or external coatings
0 - Uncoated
2 - FKM/FKM
1 - Buna-N/Buna-N
1 - Ductile Iron 8 - 316 SS
8 - 316 SS
8 - 316 SS
2 - Steel
4 - Threaded 5 - Weld 6 - Grooved (2000 only) 7 - FlangedBody Configuration
Stem Material
Gate Material
Insert Material
Seat/Seal Elastomer
End Connection
0 - 2000 RTJ
0 - LP
0 - Sch 80
0 - Sch 40
Pipe
Size
1 - 3000 RTJ
2 - UPTBG
1 - Sch 80
Flanged
Threaded
Grooved
Weld
2 - 5000 RTJ
2 - XXH 5 - Sch 160
Standard Weld End Suffixes
2000 psi 3000 psi 5000 psi
1, 2 & 5
1, 2 & 5
1 & 5
1 & 5
0 & 1
0 & 1
n Major repair kit J025216-11221 – One each for one year of service.
• Minor repair kit J025216-01221.
Major and minor repair kits listed for trim option J0XXXXX-XX72140 (410 SS Stem, Steel/QPQ Gate, HNBR Seat/Seals)
Consult Cameron for optional repair kit trim options
Parts List
24
SERIES DM GATE VALVES – 2000, 3000, AND 5000 PSI WP
2-1/2” (65 mm) and 3” (80 mm) Full Port
4” (100 mm) Reduced Port
Valve Size
FP FP FP FP RP FP RP
2-1/2”
(65 mm)
3”
(80 mm)
2-1/2“
(65 mm)
3”
(80 mm)
4” x 3”
(100 x 80 mm)
3”
(80 mm)
4” x 3“
(100 x 80 mm)
Dimension 2000 WP 3000 WP 5000 WP
A Threaded, Weld and Grooved 9.75 (248) 11.00 (279) 9.75 (248) 11.00 (279) 11.00 (279) 11.00 (279) 11.00 (279)
Flanged – RTJ 16.62 (422) 14.12 (359) 16.62 (422) 14.12 (359) - 15.62 (397) -
B (Open) 17.00 (432) 18.00 (457) 17.00 (432) 18.00 (457) 18.00 (457) 18.00 (457) 18.00 (457)
C (Seat Bore) 2.50 (65) 3.00 (80) 2.50 (65) 3.00 (80) 3.00 (80) 3.00 (80) 3.00 (80)
D 19.00 (483) 19.00 (483) 19.00 (483) 19.00 (483) 19.00 (483) 19.00 (483) 19.00 (483)
E Threaded, Weld and Grooved 3.12 (79) 3.50 (89) 3.25 (83) 3.69 (94) 3.69 (94) 3.94 (100) 3.94 (100)
Flanged – RTJ 3.19 (81) 3.50 (89) 3.19 (81) 3.69 (94) - 3.94 (100) -
Flange OD 7.50 (191) 8.25 (210) 9.62 (244) 9.50 (241) - 10.50 (267) -
Flange Bolts (Qty., Size: in.) 8-3/4 8-3/4 8-1 8-7/8 - 8 – 1-1/8 -
Ring Number (RTJ) R-26 R-31 R-27 R-31 - R-35 -
Weight lb (kg)
Threaded, Weld and Grooved 74 (34) 95 (43) 87 (39) 113 (51) 113 (51) 140 (64) 140 (64)
Flanged 141 (64) 131 (59) 170 (77) 175 (79) - 241 (109) -
1
4
9
C
18
A
20
21 19
23
26
BRONZE BUSHING
FLAT TOP FOLLOWER
FABRIC REINFORCED SEAL RING
HOMOGENEOUS RUBBER SEAL RING
FLAT BOTTOM ADAPTER
12
22
E
2
25
16
B
D
7
8
6
10
11
24
Dimensional Data and Weights
25
VALVES & MEASUREMENT
ASSEMBLY PART NUMBER
8 - 316 SS
2-1/2” (65 Mm)
3” (80 Mm)
4” (100 Mm)
5 - DEMO 12**
2 - 303 SS*
Consult Cameron For Additional Trim Options.
* Available on General Service valves
**Internal coating only, weld end bodies are not available with internal or external coatings
End Connection
Body Configuration
Stem Material
Gate Material
Insert Material
Seat/Seal Elastomer
Internal Coating 0 - Uncoated
2 - KM
1 - Bundle-N
1 - Ductile Iron or Steel
7 - Flanged
8 - 316 SS
8 - 316 SS
5 - Weld 6 - Grooved (2000 only)4 - Threaded
Grooved
Weld
Flanged
Threaded
Pipe
Size
Standard Weld End Suffixes
5 - Sch 1602 - XX1 - Sch 80
0 - 2000 RT
0 - LP
1 - TBS (3” (80 mm) Full Port Only)
2 - UPTIGHT (2-1/2” (65 mm) Full Port Only)
0 - Sch 80 (2000 Only)
0 - Sch 40
1 - 3000 RT 2 - 5000 RT
2 - Steel
0 & 1
2000 Psi
0 & 1
0 & 1
1 & 5
3000 Psi
1 & 5
1 & 5
-
5000 Psi
1, 2 & 5
1, 2 & 5
Key
No.
Valve Size: 2-1/2” (65 mm) FP Valve Size: 3” (80 mm) FP and 4” (100 mm) RP
Qty. Description
2000 WP
General/(NACE)
3000 WP
General/(NACE)
5000 WP
General/(NACE)
2000 WP
General/(NACE)
3000 WP
General/(NACE)
5000 WP
General/(NACE)
Assembly Base
Part Number
2-1/2” (65 mm) and 3” (80 mm)
Full Port – Threaded J001042/(TBA) - J001043/(TBV) J001045/(TBA) J001046/(J025179) J001047/(J025119)
– Weld J001051/(TBA) - J001052/(TBV) J001054/(TBA) J001055/(J025179) J001056/(J025119)
– Grooved J011921/(TBA) - - J011922/(TBA) - -
– Flanged - J001033/(TBA) J001034/(TBV) J001036/(TBA) J001037/(TBA) J001038/(J025119)
4” (100 mm) Reduced Port – Weld - - - - J001113/(TBA) J001110/(J025116)
1 1 Lube Fitting Steel 005929-18 005929-18 005929-18 005929-18 005929-18 005929-18
2 1 Hub Assembly ASTM A536 Ductile Iron 2139713-01 2139713-01 2139713-01 2139713-01 2139713-01 2139713-01
4 1 Lock Handle AISI C1213 J001892 J001892 J001892 J001892 J001892 J001892
n6 1 Stem Screw AISI C1213 J001914-002 J001914-002 J001914-002 J001914-003 J001914-003 J001914-003
n7 1 Stem Screw Seal Buna-N J005526-226 J005526-226 J005526-226 J005526-226 J005526-226 J005526-226
8 1 Screw Housing Carbon Steel J001852 J001852 J001852 J001852 J001852 J001852
n9 1 Stem 303 SS -002, 316 SS -008 J001932-XXX J001932-XXX J001932-XXX J001932-XXX J001932-XXX J001932-XXX
n10 1 Secondary Seal Buna-N J005526-212 J005526-212 J005526-212 J005526-212 J005526-212 J005526-212
11 1 Retainer AISI C1213 J001941 J001941 J001941 J001941 J001941 J001941
n12 1 Stem Seal Assembly Buna-N -001, FKM -006 J001950-XXX J001950-XXX J001950-XXX J001950-XXX J001950-XXX J001950-XXX
16 1 Bonnet Cast Steel ASTM A487 4A or 2B J001970-XXX J001974-XXX J001974-XXX J001971-XXX J001976-XXX J001980-XXX
Coatings Uncoated -030, DEMCO 12 -035
n•18 1 Bonnet Seal Buna-N J005526-427 J005526-427 J005526-427 J005526-431 J005526-433 J005526-433
FKM J005531-427 J005531-427 J005531-427 J005531-431 J005531-433 J005531-433
n•19 1 Gate J001868-00X J001868-00X J001868-00X J001886-00X J001886-00X J001886-00X
Materials AISI 4140 Nickel Plated -002, Cast SS ASTM A351 Grade CF8M -008
20 1 Body Materials
Consult Cameron for
Body Part Numbers
ASTM A487 Grade 4 Class A or Grade 2 Class B
Coatings (Except Weld End Bodies):
DEMCO 12
n•21 1 Seat Assembly J001877-0XX J001877-0XX J001877-0XX J001878-0XX J001878-0XX J001878-0XX
Materials Inserts: -001 Ductile Iron ASTM A395 or Steel AISI C1040
-008 316 SS ASTM A351 Grade CF8M Annealed
Elastomers: -0X1 Buna-N, -0X2 FKM
22 1 Pin, Lock Handle Steel J005420-18732 J005420-18732 J005420-18732 J005420-18732 J005420-18732 J005420-18732
23 2 Bonnet Stud ASTM A193 Grade B7 J002066 J002066 J002066 J002066 J002066 J002066
24 2 Bonnet Stud Nut ASTM A194 Grade 2H 2709000-08-01 2709000-08-01 2709000-08-01 2709000-08-01 2709000-08-01 2709000-08-01
25 4 Body Stud ASTM A193 Grade B7 J002072 J002074 J002074 J002072 J002074 J002076
26 4 Body Stud Nut ASTM A194 Grade 2H 2709000-09-01 2709000-10-01 2709000-10-01 2709000-09-01 2709000-10-01 2709000-13-01
n Major repair kit J025216-12221 – One each for one year of service.
• Minor repair kit J025216-02221.
Major and minor repair kits listed for trim option J0XXXXX-XX72140 (410 SS Stem, Steel/QPQ Gate, HNBR Seat/Seals)
Consult Cameron for optional repair kit trim options
Parts List
26
SERIES DM GATE VALVES – 2000 AND 3000 PSI WP
4” (100 mm) Full Port
5” (125 mm) Reduced Port
1
4
9
C
18
A
20
21 19
23
26
BRONZE BUSHING
FLAT TOP FOLLOWER
FABRIC REINFORCED SEAL RING
HOMOGENEOUS RUBBER SEAL RING
FLAT BOTTOM ADAPTER
12
22
E
2
25
16
B
D
7
8
6
10
11
24
Valve Size
4” (100 mm) FP 4” (100 mm) FP 5” x 4” (125 mm x 100 mm) RP
Dimension 2000 WP 3000 WP
A Threaded, Weld and Grooved 13.00 (330) 13.00 (330) 13.00 (330)
Flanged – RTJ 16.38 (416) 16.38 (416) -
B (Open) 21.25 (540) 21.25 (540) 21.25 (540)
C (Seat Bore) 4.00 (100) 4.00 (100) 4.00 (100)
D 23.00 (584) 23.00 (584) 23.00 (584)
E Threaded, Weld and Grooved 4.31 (109) 4.56 (116) 4.56 (116)
Flanged – RTJ 4.31 (109) 4.56 (116) -
Flange OD 10.75 (273) 11.50 (292) -
Flange Bolts (Qty., Size: in.) 8 – 7/8 8 – 1-1/8 -
Ring Number (RTJ) R-37 R-37 -
Weight lb (kg)
Threaded, Weld and Grooved 140 (64) 162 (73) 162 (73)
Flanged 200 (91) 265 (120)
Dimensional Data and Weights
27
VALVES & MEASUREMENT
ASSEMBLY PART NUMBER
4” (100 mm)
5” (125 mm)
5 - DEMCO 12****
Consult Cameron For Additional Trim Options.
*** Available on General Service valves
****Internal coating only, weld end bodies are not available with internal or external coatings
End Connection
Body Configuration
Stem Material
Gate Material
Insert Material
Seat/Seal Elastomer
Internal Coating 0 - Uncoated
1 - Buna-N/Buna-N
2 - FKM/FKM
1 - Steel
2 - Steel
2 - 303 SS***
4 - Threaded 5 - Weld
8 - 316 SS
8 - 316 SS
8 - 316 SS
6 - Grooved (2000 only) 7 - Flanged
Standard Weld End SuffixesPipe
Size
0 - 2000 RTJ
0 - LP
0 - Sch 80
0 - Sch 40
1 - 3000 RTJ
3 - LCSG
1 - Sch 80 2 - XXH 5 - Sch 160
2000 psi
0 & 1
-
3000 psi
1 & 5
1 & 5
Grooved
Weld
Flanged
Threaded
Key
No.
Valve Size: 4” (100 mm) FP** Valve Size: 4” (100 mm) FP and
5” (125 mm) RP
Qty. Description
2000 WP
General/(NACE)
3000 WP
General/(NACE)
Assembly Base 4” (100 mm) Full Port – Threaded J001048/(TBA) J001049/(TBA)
Part Number – Weld J001057/(TBA) J001058/(TBA)
– Grooved J011923/(TBA) -
– Flanged J001039/(TBA) J001040/(TBA)
5” (125 mm) Reduced Port – Weld
- J001111/(TBA)
1 1 Lube Fitting Steel 005929-18 005929-18
2 1 Hub Assembly ASTM A536 Ductile Iron 2139714-01 2139714-01
4 1 Lock Handle C-1213 J001897 J001897
n6 1 Stem Screw C-1213 J001915 J001915
n7 1 Stem Screw Seal Buna-N J005526-227 J005526-227
8 1 Screw Housing Carbon Steel J001958 J001958
n9 1 Stem 303 SS -002, 316 SS -008 J001933-XXX J001933-XXX
n10 1 Secondary Seal Buna-N J005526-214 J005526-214
11 1 Retainer C-1213 J001942 J001942
n12 1 Stem Seal Assembly Buna-N -001, FKM -006 J001951-XXX J001951-XXX
16 1 Bonnet
Cast Steel ASTM A487 4A or 2B J001972-XXX J001977-XXX
Coatings Uncoated -030, DEMCO 12 -035
n•18 1 Bonnet Seal Buna-N J005526-438 J005526-439
FKM J005531-438 J005531-439
n•19 1 Gate J001926-00X J001926-00X
Materials AISI 4140 Nickel Plated -002
Cast SS ASTM A351 Grade CF8M Annealed -008
20 1 Body Materials
ASTM A487 Grade 4 Class A or Grade 2 Class B Consult Cameron for
Body Part Numbers
Coatings (Except Weld End Bodies):
DEMCO 12
n•21 1 Seat Assembly J002207-0XX J002207-0XX
Materials Inserts: -02X Steel AISI 1040
-08X 316 SS ASTM A351 Grade CF8M Annealed
Elastomers: -0X1 Buna-N, -0X2 FKM
22 1 Pin, Lock Handle Steel J005420-18732 J005420-18732
23 2 Bonnet Stud ASTM A193 Grade B7 J002072 J002072
24 2 Bonnet Stud Nut ASTM A194 Grade 2H 2709000-09-01 2709000-09-01
25 4 Body Stud ASTM A193 Grade B7 J002074 *J024500
26 4 Body Stud Nut ASTM A194 Grade 2H 2709000-10-01 *2709000-12-01
n Major repair kit J025216-13221 – One each for one year of service.
• Minor repair kit J025216-03221.
Major and minor repair kits listed for trim option J0XXXXX-XX72140 (410 SS Stem, Steel/QPQ Gate, HNBR Seat/Seals)
Consult Cameron for optional repair kit trim options
* Valves made prior to 1994 may use seven pitch stud J002075 and nut J053251-042.
** Available as 4-1/16” (103 mm) casing thread 2000 WP-J025020-4422110; 3000 WP-J024968-4422110.
Parts List
28
SERIES DM GATE VALVES – 5000 PSI WP – FOUR-BOLT BONNET DESIGN
4” (100 mm) Full Port
5” (125 mm) Reduced Port
Valve Size: 4” (100 mm) FP Valve Size: 5” x 4” (125 mm x 100 mm)
Dimension 5000 WP 5000 WP
AThreaded and Weld 13.00 (330) 13.00 (330)
Flanged – RTJ 18.00 (457) -
Flange OD 12.25 (311) -
Flange Bolts (Qty., Size: in.) 8 – 1-1/4 -
Ring Number (RTJ) R-39 -
Turns to Open 23 23
Weight lb (kg)
Threaded and Weld 210 (95) 210 (95)
Flanged 330 (150) -
4
9
18
21
19
23
26
BRONZE BUSHING
FLAT TOP FOLLOWER
FABRIC REINFORCED SEAL RING
HOMOGENEOUS RUBBER SEAL RING
FLAT BOTTOM ADAPTER
12
8
25
14
3
6
5
24
23.00 (584) DIA
2
16
7
1
13
10
11
4.00 (100)
4.56 (116)
A
24.56 (624)
20
Dimensional Data and Weights
29
VALVES & MEASUREMENT
ASSEMBLY PART NUMBER
Internal Coating 5 - DEMCO 12**
2 - 303 SS*
Seat/Seal Elastomer
Insert Material
Gate Material
Stem Material
End Connection
Body Configuration
0 - Uncoated
2 - FKM/FKM
1 - Buna-N/Buna-N
1 - Steel 8 - 316 SS
2 - Steel 8 - 316 SS
8 - 316 SS
4 - Threaded 5 - Weld 7 - Flanged
2 - 5000 RTJ
0 - LP
1 - Sch 80
3 - LCSG
2 - XXH 5 - Sch 160
Flanged
Threaded
Weld
Consult Cameron For Additional Trim Options.
* Available on General Service valves only
**Internal coating only, weld end bodies are not available with internal or external coatings
Key
No. Qty. Description
Valve Size: 4”
(100 mm) FP
Valve Size: 5”
(125 mm)
5000 WP
General/(NACE)
5000 WP
General/(NACE)
Assembly Base Part Number 4” (100 mm) Full Port J007420/(J025206)
-
J007420/(J025206)
-
5” (125 mm) Reduced Port – Weld
J007421/(J025118) J007421/(J025118)
1 1 Lube Fitting Steel 005929-18 005929-18
2 1 Handle ASTM A536 Ductile Iron 2139481-01 2139481-01
3 1 Tube Clear Acrylic J007459 J007459
4 1 Stem Cap ASTM A536 Ductile Iron J007411 J007411
n5 1 Key Steel J005305-10016 J005305-10016
n6 1 Stem Screw C-1213 J007416 J007416
n7 1 Stem Screw Seal Buna-N J005526-226 J005526-226
8 1 Screw Housing C-1029 J007418 J007418
n9 1 Stem 303 SS -002, 316 SS -008 J007439-XXX J007439-XXX
n10 1 Secondary Seal Buna-N J005526-214 J005526-214
n11 1 Retainer C-1213 J007413 J007413
n12 1 Stem Seal Assembly Buna-N J001951-001 J001951-001
FKM J001951-006 J001951-006
n13 2 Bearing Teflon/Phenolic J007426 J007426
n14 1 Downstop Ring 303 SS J007417 J007417
16 1 Bonnet ASTM A487 Grade 4 Class C or Grade 2 Class B J007419-XXX J007419-XXX
Coatings Uncoated -030, DEMCO 12 -035
n•18 1 Bonnet Seal Buna-N J005520-439 J005520-439
FKM J005531-439 J005531-439
n•19 1 Gate J001926-00X J001926-00X
Materials AISI 4140 Nickel Plated -002
ASTM A351 Grade CF8M -008
20 1 Body Materials
Consult Cameron for
Body Part Numbers
ASTM A487 Grade 4 Class A or Grade 2 Class B
Coatings (Except Weld End Bodies):
DEMCO 12
n•21 1 Seat Assembly J002207-0XX J002207-0XX
Materials Inserts: -02X Steel AISI 1040
-08X 316 SS ASTM A351 Grade CF8M Annealed
Elastomers: -0X1 Buna-N, -0X2 FKM
23 2 Bonnet Stud ASTM A193 Grade B7 J002072 J002072
24 2 Bonnet Stud Nut ASTM A194 Grade 2H 2709000-09-01 2709000-09-01
25 4 Body Stud ASTM A193 Grade B7 J002077 J002077
26 4 Body Stud Nut ASTM A194 Grade 2H J001890 J001890
n Major repair kit J025216-14221 – One each for one year of service.
• Minor repair kit J025216-04221.
Major and minor repair kits listed for trim option J0XXXXX-XX72140 (410 SS Stem, Steel/QPQ Gate, HNBR Seat/Seals)
Consult Cameron for optional repair kit trim options
Parts List
30
SERIES DM GATE VALVES – 5000 PSI WP – 12-BOLT BONNET DESIGN
4” (100 mm) Full Port
5” (125 mm) and 6” (150 mm) Reduced Port
4
9
14
21 19
23
26
BRONZE BUSHING
FLAT TOP FOLLOWER
FABRIC REINFORCED SEAL RING
HOMOGENEOUS RUBBER SEAL RING
FLAT BOTTOM ADAPTER
12
8
25
18
3
6
5
24
23.00 (584) DIA
2
16
7
1
13
10
11
4.69 (119)
A
24.62 (625)
4.00 (100)
20
Valve Size: 4” (100 mm) FP Valve Size: 5” x 4” (125 mm x 100 mm) and 6” x 4” (150 mm x 100 mm) RP
Dimension 5000 WP 5000 WP
AThreaded and Weld 13.00 (330) 13.00 (330)
Flanged – RTJ 18.00 (457) -
Flange OD 12.25 (311) -
Flange Bolts (Qty., Size: in.) 8 – 1-1/4 -
Ring Number (RTJ) R-39 -
Turns to Open 23 23
Weight lb (kg)
Threaded and Weld 210 (95) 210 (95)
Flanged 330 (150) -
Dimensional Data and Weights
31
VALVES & MEASUREMENT
ASSEMBLY PART NUMBER
Internal Coating 5 - DEMCO 12**
End Connection
Body Configuration
Stem Material
Gate Material
Insert Material
Seat/Seal Elastomer
0 - Uncoated
2 - FKM/FKM
1 - Buna-N/Buna-N
1 - Steel 8 - 316 SS
8 - 316 SS
2 - Steel
8 - 316 SS2 - 303 SS*
4 - Threaded 5 - Weld 7 - Flanged
2 - 5000 RTJ
0 - LP
1 - Sch 80
3 - LCSG
2 - XXH 5 - Sch 160
Flanged
Threaded
Weld
Consult Cameron For Additional Trim Options.
* Available on General Service valves
**Internal coating only, weld end bodies are not available with internal or external coatings
Key
No.
Valve Size: 4” (100 mm) FP Valve Size: 5” (125 mm) and 6” (150 mm) RP
Qty. Description 5000 WP
General/(NACE)
5000 WP
General/(NACE)
Assembly Base Number 4” (100 mm) Full Port J017263/(J025207) J017263/(J025207)
5” (125 mm) Reduced Port – Weld
J017264/(J025122) J017264/(J025122)
6” (150 mm) Reduced Port – Weld
J017265/(J024931) J017265/(J024931)
1 1 Lube Fitting Steel 005929-18 005929-18
2 1 Handle ASTM A536 Ductile Iron 2139481-01 2139481-01
3 1 Tube Clear Acrylic J007459 J007459
4 1 Stem Cap ASTM A536 Ductile Iron J007411 J007411
n5 1 Key Steel J005305-10016 J005305-10016
n6 1 Stem Screw C-1213 J007416 J007416
7 1 Stem Screw Seal Buna-N J005526-226 J005526-226
8 1 Screw Housing C-1029 J007418 J007418
n9 1 Stem 303 SS -002, 316 SS -008 J007439-XXX J007439-XXX
n10 1 Secondary Seal Buna-N J005526-214 J005526-214
n11 1 Retainer C-1213 J007413 J007413
n12 1 Stem Seal Assembly Buna-N J001951-001 J001951-001
FKM J001951-006 J001951-006
n13 2 Bearing Teflon/Phenolic J007426 J007426
n14 1 Downstop Ring 303 SS J007417 J007417
16 1 Bonnet ASTM A487 Grade 4 Class C J017289-XXX J017289-XXX
Coatings Uncoated -030, DEMCO 12 -035
n•18 1 Bonnet Seal Buna-N J005520-361 J005520-361
FKM J005531-361 J005531-361
n•19 1 Gate J001926-00X J001926-00X
Materials AISI 4140 Nickel Plated -002
ASTM A351 Grade CF8M Annealed -008
20 1 Body Materials
Consult Cameron for
Body Part Numbers
ASTM A487 Grade 4 Class A
Coatings (Except Weld End Bodies):
DEMCO 12
n•21 1 Seat Assembly J002207-0XX J002207-0XX
Materials Inserts: -02X Steel AISI 1040
-08X 316 SS ASTM A351 Grade CF8M Annealed
Elastomers: -0X1 Buna-N, -0X2 FKM
23 2 Bonnet Stud ASTM A193 Grade B7 J002072 J002072
24 2 Bonnet Stud Nut ASTM A194 Grade 2H 2709000-09-01 2709000-09-01
25 12 Body Stud ASTM A193 Grade B7 J015432 J015432
26 12 Body Stud Nut ASTM A194 Grade 2H 2709000-10-01 2709000-10-01
n Major repair kit J025216-14221 – One each for one year of service.
• Minor repair kit J025216-04221.
Major and minor repair kits listed for trim option J0XXXXX-XX72140 (410 SS Stem, Steel/QPQ Gate, HNBR Seat/Seals)
Consult Cameron for optional repair kit trim options
Parts List
32
SERIES DM GATE VALVES – 3000 AND 5000 PSI WP
5” (125 mm) Full Port
6” (150 mm) x 5” (125 mm) Reduced Port
Valve Size: 5” (125 mm) FP and 6” x 5” (150 mm x 125 mm) RP
Dimension 3000 and 5000 WP
AThreaded and Weld 16.00 (406)
Weight lb (kg) 335 (152)
24
6
4
12 13
19
9
BRONZE BUSHING
FLAT TOP FOLLOWER
FABRIC REINFORCED SEAL RING
HOMOGENEOUS RUBBER SEAL RING
FLAT BOTTOM ADAPTER
5
22
8
10
23
2
21
24.00 (610) DIA
1
7
14
26
18
3
20
5.25 (133)
5.00 (125 mm)
A
31.00 (787)
11
25
Dimensional Data and Weights
33
VALVES & MEASUREMENT
ASSEMBLY PART NUMBER
Internal Coating
Gate Material
** Available on General Service valves only
***Internal coating only, weld end bodies are not available with internal or external coatings
5 - DEMCO 12***
End Connection
Body Configuration
Stem Material
Insert Material
Seat/Seal Elastomer
0 - Uncoated
2 - FKM/FKM
1 - Buna-N/Buna-N
1 - Steel
2 - Steel
2 - 2 303 SS (3000 WP Only)**
4 - Threaded
2 - XXH (6” (150 mm) Reduced Port Only)
5 - Sch 160 (6” (150 mm) Reduced Port Only)
3 - Long Casing (5” (125 mm) Full Port Only)
Weld
Threaded
8 - 316 SS (3000 WP Only)
8 - 316 SS (3000 WP Only)
8 - 17-4 PH SS
5 - Weld
Key
No.
Valve Size: 5”
(125 mm) FP
Valve Size: 6“ (150 mm) x 5” (125 mm) RP
5” (125 mm) FP
Qty. Description
3000 WP
General/(NACE)
5000 WP
General/(NACE)
Assembly Base Part Number Full Port – Threaded J021954/(TBA) J023925/(TBA)
Reduced Port – Weld - J025086/(TBA)
1 1 Handwheel Ductile Iron ASTM A536 Grade
65-45-12
2227656-01
2 1 Screw – Handwheel Steel AISI C1018 J014832
3 4 Screw – Retainer Alloy Steel J005665-32028
4 1 Downstop Ring Steel AISI C1018 J021942
*5 1 Stem Seal Assembly w/Bushing
-001 Buna-N, -006 FKM J015853-00X
6 1 Stem -002 303 SS -009, 17-4 pH SS J021943-00X J021943-009
7 1 Bonnet
Cast Steel ASTM A487 Grade 4 Class C
J021944-03X
Coatings Uncoated -030, DEMCO 12 -035
8 12 Body Stud Steel ASTM A193 Grade B7 J015432
9 12 Body Stud Nut Steel ASTM A194 Grade 2H 2709000-10-01
*10 1 Bonnet Seal Buna-N J005526-367
FKM J005531-367
11 1 Body Materials
ASTM A487 Grade 4 Class A Consult Cameron for
Coatings (Except Weld End Bodies): Body Part Numbers
DEMCO 12
*12 1 Seat Assembly J021948-011 J021948-019
J021948-012 -
J021948-081 -
J021948-082 -
Materials Inserts: -01X Steel AISI 1040, -08X 316 SS (3000 WP Only)
Elastomers: -0X1 Buna-N, -0X2 FKM, -0X9 90 Duro Buna-N
*13 1 Gate
-002 Steel AISI 4140 Nickel Plated,
008 316 SS (3000 WP Only) J021952-00X J021952-002
14 1 Stem Screw Seal Buna-N J005526-228
18 1 Stem Screw w/Bearings
Steel AISI C1018, Steel Bearings J023888 -
AL. BRZ. ASTM B148 Alloy 955, Steel Bearings - J024526
19 1 Housing Steel AISI C1018 J015332
20 1 Secondary Seal Buna-N J005526-216
21 1 Retainer Steel AISI C1018 J015330
22 4 Screw – Housing Steel J005650-32056
23 1 Tube Clear Acrylic J012852
24 1 Stem Cap
Ductile Iron ASTM A536 Grade 65-45-12 J015855
25 1 Lube Fitting Steel 005929-18
26 1 Relief Fitting Steel J051971
* Recommended spare parts – One each for one year of service.
Parts List
34
SERIES DM GATE VALVES – ASME CLASS 600
2” (50 mm) Full Port
2” (50 mm) Reduced Port for
General Service Conditions D
11 13
E
10
8B
3
2
1
6
12
A
4
5
7
F
C
Valve Size: 2” x 1-1/2”
(50 mm x 40 mm) RP
Valve Size:
2” (50 mm) FP
Dimension ASME Class 600 ASME Class 600
A Full Port – Threaded, Weld and Grooved 7.75 (197) 8.88 (226)
Reduced Port – Threaded - 7.75 (197)
Flanged – RF - 11.50 (292)
Flanged – RTJ - 11.62 (295)
B (Open) – Full Port 7.75 (197) 8.75 (222)
(Open) – Reduced Port - 7.75 (197)
C (Seat Bore) – Full Port 1.62 (41) 2.00 (50)
(Seat Bore) – Reduced Port - 1.62 (41)
D Full Port 9.50 (241) 11.00 (279)
Reduced Port - 9.50 (241)
E Full Port 2.00 (50) 2.19 (56)
Reduced Port - 2.00 (50)
F Flange OD - 6.50 (165)
Flange Bolts (Qty., Size: in.) - 8 – 5/8
Ring Number (RTJ) - R-23
Weight lb (kg)
Full Port – Threaded, Weld and Grooved 20 (9) 26 (12)
Reduced Port – Threaded - 20 (9)
Full Port – Flanged - 44 (20)
Reduced Port – Flanged - 40 (18)
Dimensional Data and Weights
35
VALVES & MEASUREMENT
ASSEMBLY PART NUMBER
5 - DEMCO 12*Internal Coating
Consult Cameron For Additional Trim Options.
*Internal coating only, weld end bodies are not available with internal or external coatings
End Connection
Body Configuration
Stem Material
Gate Material
Insert Material
Seat/Seal Elastomer
2 - 600 RTJ
0 - API LP
0 - Sch 80
0 - Sch 40
3 - 600 RF
7 - Flanged
2 - UPTBG
6 - Grooved
1 - TBG
5 - Weld
8 - 316 SS
8 - 316 SS
4 - Threaded
2 - 303 SS
2 - Steel
1 - Ductile Iron or Steel
8 - 316 SS
1 - Buna-N/Buna-N
2 - FKM/FKM
0 - Uncoated
Flanged
Threaded
Grooved
Weld
Valve Size:
2” x 1-1/2” RP
(50 mm x 40 mm) RP
Valve Size:
2” FP
(50 mm) FP
Key
No. Qty. Description ASME Class 600 ASME Class 600
Assembly Base Part Number Full Port – Threaded J003938 J001072
– Weld - J001092
– Grooved - J001082
– Flanged - J001062
1 1 Handle
Ductile Iron ASTM A536 Grade 65-45-12 J004375 J001276
2 1 Stem Pin Spring Steel J005445-25020 J005445-37528
3 1 Lube Fitting Steel 005929-18 005929-18
4 1 Backup Ring Chrome Leather J005532-115 J005532-211
5 1 Stem Seal Buna-N J005526-115 J005526-211
FKM J005531-115 J005531-211
6 1 Stem 303 SS -002, 316 SS -008 J004376-XXX J001279-XXX
7 1 Bonnet Ductile Iron ASTM A395 - -
Steel ASTM A216 Grade WCB J004330-02X J001277-02X
Coatings Uncoated -0X0
DEMCO 12 -0X5
8 4 Body Screw SAE Grade 5 J005651-32024 J005651-32024
10 1 Bonnet Seal Buna-N J005526-234 J005526-239
FKM J005531-234 J005531-239
11 1 Body Materials
Consult Cameron for
Body Part Numbers
2” (50 mm) Full Class 400 Threaded, Grooved
and Flanged: Ductile Iron ASTM A395
2” (50 mm) Full Class 600 Threaded, Weld and
Grooved: Forged Steel AISI C1029 Normalized
All Others: Steel, ASTM A216 Grade WCB
Coatings (Except Weld End Bodies):
DEMCO 12
12 1 Seat J004081-0XX J001876-0XX
Materials Inserts: -01X Ductile Iron ASTM A395 or Steel AISI 1040
-08X Stainless Steel ASTM A351 Grade CF8M Annealed
Elastomers: -0X1 Buna-N, -0X2 FKM
13 1 Gate J004393-00X J001275-00X
Materials: -002 Steel, Nickel Plated AISI C1144 AISI C1045
-008 Stainless Steel AISI 316 Annealed ASTM A351 CF8M Annealed
Parts List
36
SERIES DM GATE VALVES – ASME CLASS 600
2-1/2” (65 mm) through 6” (150 mm) Full Port
8” (200 mm) Reduced Port for General Service Conditions
D
11 13
E
10
8B
3
2
1
6
12
A
4
5
7
F
C
2-1/2”
(65 mm) FP
3”
(80 mm) FP
4”
(100 mm) FP
6”
(150 mm) FP
8” x 6”
(200 x 150 mm) RP
Dimension
ASME Class
600
ASME Class
600
ASME Class
600
ASME Class
600
ASME Class
600
A Threaded, Weld and Grooved 10.00 (254) 10.25 (260) 11.88 (302) 15.50 (394) -
Flanged – RF 13.00 (330) 14.00 (356) 17.00 (432) 22.00 (559) 26.00 (660)
Flanged – RTJ 13.12 (333) 14.12 (359) 17.12 (435) 22.12 (562) 26.12 (663)
B (Open) – Full Port 10.62 (270) 11.38 (289) 13.88 (353) 19.25 (489) -
(Open) – Reduced Port - - - - 19.25 (489)
C (Seat Bore) – Full Port 2.50 (65) 3.00 (80) 4.00 (100) 6.00 (150) -
(Seat Bore) – Reduced Port - - - - 6.00 (150)
D Full Port 12.62 (321) 12.62 (321) 14.25 (362) 24.00 (610) -
Reduced Port - - - - 24.00 (610)
E Full Port 2.75 (70) 3.19 (81) 3.94 (100) 5.62 (143) -
Reduced Port - - - - 5.62 (143)
F Flange OD 7.50 (191) 8.25 (210) 10.75 (273) 14.00 (356) 16.50 (419)
Flange Bolts (Qty., Size: in.) 8 – 3/4 8 – 3/4 8 – 7/8 12 – 1 12 – 1-1/8
Ring Number (RTJ) R-26 R-31 R-37 R-45 R-49
Weight lb (kg)
FP – Threaded, Weld and Grooved 48 (22) 50 (23) 58 (26) 60 (27) 98 (44) 310 (141) -
FP – Flanged 70 (32) 74 (34) 90 (41) 96 (44) 176 (80) 428 (194) -
RP – Flanged - - - - - - 590 (268)
Dimensional Data and Weights
37
VALVES & MEASUREMENT
ASSEMBLY PART NUMBER
5 - DEMCO 12*
Consult Cameron For Additional Trim Options.
*Internal coating only, weld end bodies are not available with internal or external coatings
Internal Coating
End Connection
Body Configuration
Stem Material
Gate Material
Insert Material
Seat/Seal Elastomer
0 - Uncoated
1 - Buna-N/Buna-N
2 - FKM/FKM
8 - 316 SS
1 - Ductile Iron or Steel (Except 4” FP and 6” RP)
8 - 316 SS
8 - 316 SS
2 - Steel
2 - 303 SS
4 - Threaded 5 - Weld 6 - Grooved 7 - Flanged
3 - 600 RF
2 - 600 RTJ
0 - API LP
1 - TBG
2 - UPTBG
0 - Sch 80
0 - Sch 40
Flanged
Threaded
Grooved
Weld
Parts List
Valve Size
2-1/2” (65 mm) FP
Valve Size
3” (80 mm) FP
Valve Size
4” (100 mm) FP
Valve Size
6” (150 mm) FP
Key
No.
8” (200) RP
Qty. Description ASME Class 600 ASME Class 600 ASME Class 600 ASME Class 600
Assembly Base Part Number
Full Port – Threaded J001074 J001076 J001078 J001080
– Weld J001094 J001096 J001098 J001100
– Grooved J001084 J001086 J001088 J001090
– Flanged J001064 J001066 J001068 J001070
Reduced Port – Flanged - - - J003945
1 1 Handle
Ductile Iron ASTM A536 Grade 65-45-12 J001290 J001290 J001849 J001850
2 1 Stem Pin Spring Steel J005445-37528 J005445-37528 J005445-37532 J005445-37532
3 1 Lube Fitting Steel 005929-18 005929-18 005929-18 005929-18
4 1 Backup Ring Chrome Leather J005532-212 J005532-212 J005532-214 J005532-214
5 1 Stem Seal Buna-N J005526-212 J005526-212 J005526-214 J005526-214
FKM J005531-212 J005531-212 J005531-214 J005531-214
6 1 Stem 303 SS -002, 316 SS -008 J001291-XXX J001291-XXX J001853-XXX J001854-XXX
7 1 Bonnet
ASTM A395 Ductile Iron - J001856-01X - J001857-01X - J001858-01X -
ASTM A216 Grade WCB J001293-02X - J001856-02X - J001857-02X - J001858-02X
Coatings Uncoated -0X0, DEMCO 12 -0X5
8 4 Body Stud
ASTM A193 Grade B7 J002066 J001861 J001862 J001863
9 4 Body Stud Nut
ASTM A194 Grade 2H 2709000-08-01 2709000-09-01 2709000-10-01 2709000-14-01
10 1 Bonnet Seal Buna-N J005526-245 J005526-249 J005526-258 J005526-446
FKM J005531-245 J005531-249 J005531-258 J005531-446
11 1 Body Materials
Consult Cameron For
Body Part Numbers
Class 400 3” (80 mm) Full Port through 6” (150 mm)
Full Port Threaded, Grooved and Flanged:
Ductile Iron ASTM A395
All Others: Steel, ASTM A216 Grade WCB
Coatings (Except Weld End Bodies):
DEMCO 12
12 1 Seat J001877-0XX J001878-0XX J002207-0XX J001880-0XX
Materials Inserts: -01X Ductile Iron ASTM A395 or Steel AISI 1040 2-1/2”, 3”, 6”
-02X Steel AISI 1040 4”
-08X Stainless Steel ASTM A351 Grade CF8M Annealed
Elastomers: -0X1 Buna-N, -0X2 FKM
13 1 Gate J001881-00X J001882-00X J001883-00X J001884-00X
Materials -002 Steel AISI 1045, Nickel Plated, -008 316 SS Annealed
38
SERIES DM GATE VALVES – ASME CLASSES 900 AND 1500
2” (50 mm) through 6” (150 mm) Full Port
2” (50 mm) through 3” (80 mm) Full Port
D
12 13
10
8
B
3
2
1
6
7
A
4
5
14
FC
15
9
11
Valve Size
2” (50 mm) FP 2-1/2” (65 mm) FP 3” (80 mm) FP 4” (100 mm) FP 6” (150 mm) FP
Dimension
ASME Class
1500
ASME Classes
900 and 1500
ASME Class
900
ASME Class
1500
ASME Class
900
ASME Class
900
A Threaded, Weld and Grooved N/A* - 9.75 (248) 11.00 (279) 11.00 (279) 13.00 (330) 20.00 (508)
Flanged – RF 14.50 (368) 16.50 (419) 15.00 (381) 18.50 (470) 18.00 (457) 24.00 (610)
Flanged – RTJ 14.62 (371) 16.62 (422) 15.12 (384) 18.62 (473) 18.12 (460) 24.12 (613)
B Open 9.88 (251) 22.88 (581) 12.75 (324) 12.75 (324) 15.00 (381) 19.25 (489)
C Seat Bore 2.00 (50) 2.50 (65) 3.00 (80) 3.00 (80) 4.00 (100) 6.00 (150)
D 14.50 (368) 19.00 (483) 19.00 (483) 19.00 (483) 23.00 (584) 24.00 (610)
F Flange OD 8.50 (216) 9.62 (244) 9.50 (241) 10.50 (267) 11.50 (292) 15.00 (381)
Flange Bolts (Qty., Size: in.) 8 – 7/8 8 – 1 8 – 7/8 8 – 1-1/8 8 – 1-1/8 12 – 1-1/8
Ring Number (RTJ) R-24 R-27 R-31 R-35 R-37 R-45
Weight lb (kg)
Threaded, Weld and Grooved N/A* 48 (22) 87 (39) 95 (43) 113 (51) 140 (64) 325 (147)
Flanged 100 (45) 170 (77) 160 (73) 205 (93) 230 (104) 540 (245)
* Refer to 2000, 3000, and 5000 threaded, weld, and grooved end on pages 22 and 23.
Dimensional Data and Weights
39
VALVES & MEASUREMENT
ASSEMBLY PART NUMBER
Consult Cameron For Additional Trim Options.
**Internal coating only, weld end bodies are not available with internal or external coatings
5 - DEMCO 12**
1 - Ductile Iron or Steel (4” (100 mm))
Internal Coating
2-1/2” (65 mm)
3”(80 mm)
4”(100 mm)
6” (150 mm)
0 & 1
0 & 1
0 & 1
0 & 1
Seat/Seal Elastomer
Insert Material
Gate Material
Stem Material
Body Configuration
End Connection
Grooved
Weld
Threaded
Flanged 5 - 900 RF
7 - 1500 RF
1 - Sch 80 5 - Sch 160
4 - 900 RTJ
6 - 1500 RTJ
0 - API LP
1 - TBG
2 - UPTBG
0 - Sch 80
0 - Sch40
Standard Weld End Suffixes
0, 1 & 5
0, 1 & 5
-
-
Class 900 Class 1500
Pipe
Size
4 - Threaded
2 - 303 SS 8 - 316 SS
8 - 316 SS
5 - Weld 6 - Grooved End 7 - Flanged
8 - 316 SS
1 - Buna-N/Buna-N
2 - FKM/FKM
2 - Steel
0 - Uncoated
Key
No. Qty. Description
Valve Size
2” (50 mm) FP 2-1/2” (65 mm) FP 3” (80 mm) FP 4” (100 mm )FP 6” (150 mm) FP
ASME
Class
900
ASME
Class
1500
ASME
Class
900
ASME
Class
1500
ASME
Class
900
ASME
Class
1500
ASME
Class
900
ASME
Class
900
Assembly Base Part Number J003947 J003948 J003951 J003952 J003953 J003957 J003955 J003999
1 1 Handle
Ductile Iron ASTM A536
Grade 65-45-12
J023661 J0018195 J0018195 J023663 J001850
2 1 Stem Pin Spring Steel J005445-37528 J005445-37528 J005445-37528 J005445-37532
3 1 Lube Fitting Steel 005929-18 005929-18 005929-18 005929-18
4 1 Backup Ring Chrome Leather J005532-211 J005532-212 J005532-212 J005532-214
*5 1 Stem Seal Buna-N J005526-211 J005526-212 J005526-212 J005526-214
FKM J005531-211 J005531-212 J005531-212 J005531-214
6 1 Stem 303 SS -002, 316 SS -008 J004395-XXX J004396-XXX J004396-XXX J004397-00X J001854-00X
7 1 Bonnet ASTM A487 Grade 4 Class A J004320-03X J004322-03X J004324-03X J004326-03X J004328-03X J001780-03X
Coatings Uncoated -030, DEMCO 12 -035
8 4 Body Stud J002072 J002074 J002072 J002074 J002074 J002077
9 4 Body Stud Nut ASTM A194 Grade 2H 2709000-09-01 2709000-10-01 2709000-09-01 27090000-10-01 J001890
*10 1 Bonnet Seal Buna-N J005526-342 J005526-427 J005526-431 J005526-433 J005526-438 J005526-446
FKM J005531-342 J005531-427 J005531-431 J005531-433 J005531-438 J005531-446
11 1 Body Materials Consult Cameron for
ASTM A487 Grade 4 Class A or Grade 2 Class B Body Part Numbers
*12 1 Seat Assembly J001876-0XX J001877-0XX J001878-0XX J002207-0XX J001880-0XX
Materials Inserts: -01X Ductile Iron ASTM A395 or Steel AISI 1040
-08X 316 SS ASTM A351 Grade CF8M Annealed
Elastomers: -0X1 Buna-N, -0X2 FKM
*13 1 Gate J001275-XXX J001881-XXX J001882-00X J001883-00X J001884-00X
Materials -002 Nickel Plated Steel AISI 4145
-008 316 SS Wrought Type - 2” (50 mm) Only ASTM A351 CF8M – Others
14 1 Screw Seal Buna-N J005526-222 J005526-234 J005526-224 J005526-226 -
15 1 Relief Fitting Steel J005197 J005197 J005197 J005197 -
* Recommended spare parts – one each for one year of service.
Parts List
40
SERIES DM GATE VALVES – ASME CLASS 1500
4” (100 mm) Full Port for General Service Conditions
BRONZE BUSHING
FLAT TOP FOLLOWER
FABRIC REINFORCED SEAL RING
HOMOGENEOUS RUBBER SEAL RING
FLAT BOTTOM ADAPTER
5
23.00 (584) DIA
3
1
22
16
14
18
21
19
6
10
A
21.25 (540)
4.56 (116)
23
20
7
8
9
24
4.00 (100)
12 13
11
Valve Size: 4” (100 mm) FP
Dimension ASME Class 1500
AThreaded and Weld 13.00 (330)
Flanged – RF 21.50 (546)
Flanged – RTJ 21.62 (549)
Flange OD 12.25 (311)
Flange Bolts (Qty., Size: in.) 8 – 1-1/4
Ring Number (RTJ) R-39
Weight lb (kg)
Threaded and Weld 162 (73)
Flanged 320 (145)
Dimensional Data and Weights
41
VALVES & MEASUREMENT
ASSEMBLY PART NUMBER
Key
No. Qty. Description
Valve Size: 4” (100 mm) FP
ASME Class: 1500
Assembly Base Part Number J003010
1 1 Handle Assembly Ductile Iron ASTM A536 Grade 65-45-12 2139714-01
3 1 Lube Fitting Steel 005929-18
*5 1 Stem Seal Assembly Buna-N J001951-001
FKM J001951-006
6 1 Stem 303 SS -002, 316 SS -008 J001933-XXX
7 1 Bonnet ASTM A487 Grade 4 Class A or Class B J001977-XXX
Coatings Uncoated -030, DEMCO 12 -035
8 4 Body Stud ASTM A193 Grade B7 **J0024500
9 4 Body Stud Nut ASTM A194 Grade 2H **2709000-12-01
*10 1 Bonnet Seal Buna-N J005526-439
FKM J005531-439
11 1 Body Materials Consult Cameron for
ASTM A487 Grade 4 Class A or Grade 2 Class B Body Part Numbers
*12 1 Seat J002207-0XX
Materials Inserts: -02X Steel AISI 1040
-08X 316 SS ASTM A351 Grade CF8M Annealed
Elastomers: -0X1 Buna-N, -0X2 FKM
*13 1 Gate J001926-XXX
Materials -002 AISI 4140 Nickel Plated
-008 ASTM A351 Grade CF8M
14 1 Screw Seal Buna-N J005526-227
16 1 Lock Handle AISI C1213 J001897
18 1 Stem Screw AISI C1213 J001915
19 1 Screw Housing AISI 1029 J001958
*20 1 Secondary Seal Buna-N J005526-214
21 1 Retainer AISI C1213 J001942
22 1 Pin, Lock Handle Steel J005420-18732
23 2 Bonnet Stud ASTM A193 Grade B7 J002072
24 2 Body Stud Nut ASTM A194 Grade 2H 2709000-09-01
Internal Coating 5 - DEMCO 12***
Consult Cameron For Additional Trim Options.
***Internal coating only, weld end bodies are not available with internal or external coatings
End Connection
Body Configuration
Stem Material
Gate Material
Insert Material
Seat/Seal Elastomer
Flanged
Threaded
Weld
6 - 1500 RTJ
0 - API LP
3 - LCSG
0 - Sch 40
7 - 1500 RF
1 - Sch 80 5 - Sch 160
7 - Flanged
5 - Weld
8 - 316 SS
8 - 316 SS
8 - 316 SS1 - Steel
2 - Steel
2 - 303 SS
4 - Threaded
1 - Buna-N/Buna-N
2 - FKM/FKM
0 - Uncoated
* Recommended spare parts – one each for one year of service.
** Valves made prior to 1994 may use 7 pitch stud J002075 and nut J053251-042.
Parts List
42
SERIES DT GATE VALVES – ASME CLASSES 600, 900, AND 1500
2” (50 mm) Full Port NACE Compliant
Valve Size: 2” (50 mm) FP
Dimension ASME Class 600 ASME Class 900 ASME Class 1500
A Threaded - 8.50 (216) 8.50 (216)
Flanged – RF 11.50 (292) 14.50 (368) 14.50 (368)
Flanged – RTJ 11.62 (295) 14.62 (371) 14.62 (371)
B (Open) 15.54 (395) 15.54 (395) 15.54 (395)
C (Seat Bore) 2.06 (52) 2.06 (52) 2.06 (52)
D 14.50 (368) 14.50 (368) 14.50 (368)
E 5.00 (127) 5.25 (133) 5.25 (133)
F Flange OD 6.50 (165) 8.50 (216) 8.50 (216)
Flange Bolts (Qty., Size: in.) 8 – 5/8 8 – 7/8 8 – 7/8
Ring Number (RTJ) R-23 R-24 R-24
Weight lb (kg)
Threaded - 44 (20) 44 (20)
Flanged 48 (22) 82 (37) 82 (37)
End Connection Material ASME Class 600 ASME Class 900 ASME Class 1500
Threaded Bronze - 2220 3705
Stainless Steel - 2220 3705
Flanged Bronze 1480 2220 3705
Stainless Steel 1440 2160 3600
Dimensional Data and Weights
Working Pressure (psi)
FLAT TOP FOLLOWER
FABRIC REINFORCED
SEAL RING
HOMOGENEOUS
RUBBER SEAL RING
FLAT BOTTOM
ADAPTER
100
D
120130
40
180
90
21
C
30
60
70
F
200
20
SEE SEAT DETAIL
10
160
B
E
A
(Open)
SEAT ASSEMBLY DETAIL
P-10
SEAT SPRING AND SEAL
PART OF SEAT ASSEMBLY
SEAT ASSEMBLY DETAIL
PC BUNA, FKM, HNBR
SEAT SEAL
PART OF SEAT ASSEMBLY
Seat Spring
Seat Seal
P-10 Insert
50
Seat Seal
50
110
43
VALVES & MEASUREMENT
End Connection
Body Configuration
Stem Material
Gate Material
Seat Ring Material
Seat Insert/Seal
Body/Bonnet
Flanged
Threaded
2 - 600 RTJ
3 - 600 RF
4 - 900 RTJ
5 - 900 RF
6 - 1500 RTJ
7 - 1500 RF
0 - API LP
2 - UPTBG
4 - Threaded
7 - Flanged
8 - Stainless Steel
8 - Stainless Steel
8 - Stainless Steel
1 - PC Buna/PC Buna
2 - FKM/FKM
5 - HNBR/HNBR
6 - P-10/PC Buna
7 - P-10/HNBR
8 - P-10/FKM
9 - P-10/AFLAS
6 - Aluminum Bronze
8 - Stainless Steel
ASSEMBLY PART NUMBER
Key
No. Qty. Description
Valve Size: 2” (50 mm) FP
Material Specification (See Note 1)
ASME Class 600 ASME Class
900/1500
Assembly Base Part Number J024997 J024998/J024999
10 1 Body Consult Cameron for Body Part Numbers Aluminum Bronze ASTM B148 Alloy 955
Stainless Steel CF8M
20 1 Bonnet 2060241-11 J024323-060
J024660-080
Aluminum Bronze ASTM B148 Alloy 955
2060241-12 Stainless Steel CF8M
21 1 Stem Bushing (f/SS Bonnet) J024661-060 Bronze ASTM B505 Alloy 93200
30 1 Gate 1, 2, 5 J024558-008 Stainless Steel CF8M
(See Note 2) 6, 7, 8, 9 J024559-008
40 1 Stem J024089-008 316 SS
50 2 Seat Assembly 1 2061588-01 Ring: CF8M; Elastomer: Buna-N
(See Note 2) 2 2061589-01 Ring: CF8M; Elastomer: FKM
5 2227057-01 Ring: CF8M; Elastomer: HNBR
6 2061590-01 Ring: CF8M; Insert: PEEK; Seal: Buna-N
Spring: INCONEL® X-750
7 2227058-01 Ring: CF8M; Insert: PEEK; Seal: HNBR
Spring: INCONEL X-750
8 Consult Cameron for Assembly Part Numbers Ring: CF8M; Insert: PEEK; Seal: HNBR
Spring: INCONEL X-750
9 Consult Cameron for Assembly Part Numbers Ring: CF8M; Insert: PEEK; Seal: AFLAS
Spring: INCONEL X-750
60 1 Handle 2139937-01 Ductile Iron ASTM A536 Grade 65-45-12
70 1 Stem Packing Retainer J024324-008 316 SS
90 1 Stem Seal Assembly J024882-601 Teflon/Elgiloy
100 1 Retainer Snap Ring J090066-162 PH 15-7 Mo
110 4 Stud 219066-07-02-21 219066-08-02-61 ASTM A193 B7M/Zinc-Plated
120 1 Lube Fitting 005929-18 Steel
130 1 Vent Fitting 2726258-01 Steel
160 1 Bonnet Seal 1, 6 J005520-234 Buna-N
(See Note 2) 2, 8 J005521-234 FKM
5, 7 2712425-37 HNBR
9 2788035-08 AFLAS
180 1 Handle Seal J005526-219 Buna-N
200 4 Nut 2709000-07-11 2709000-08-11 ASTM A194 2HM/Zinc-Plated
Notes: 1. CF8M is ASTM A351 Grade CF8M annealed. 316 SS is AISI Type 316 SS annealed.
2. These parts are keyed to the assembly part number. ”Seat insert/seal” code numbers indicated.
Parts List
44
SERIES DT GATE VALVES – ASME CLASSES 600, 900, AND 1500
2-1/2” (65 mm) Full Port NACE Compliant
Valve Size: 2-1/2” (65 mm) FP
Dimension ASME Class 600 ASME Class 900 ASME Class 1500
A Threaded - 8.75 (222) 8.75 (222)
Flanged – RF 13.00 (330) 16.50 (419) 16.50 (419)
Flanged – RTJ 13.12 (333) 16.62 (422) 16.62 (422)
B (Open) - Bronze
- Stainless Steel
18.18 (462)
18.18 (462)
18.18 (462)
19.42 (493)
18.18 (462)
19.42 (493)
C (Seat Bore) 2.56 (65) 2.56 (65) 2.56 (65)
D 14.75 (375) 14.75 (375) 14.75 (375)
E 6.12 (155) 6.38 (162) 6.38 (162)
F Flange OD 7.50 (191) 9.62 (244) 9.62 (244)
Flange Bolts (Qty., Size: in.) 8 – 3/4 8 – 1 8 – 1
Ring Number (RTJ) R-26 R-27 R-27
Weight lb (kg)
Threaded - 57 (26) 57 (26)
Flanged 77 (35) 110 (50) 110 (50)
End Connection Material ASME Class 600 ASME Class 900 ASME Class 1500
Threaded Bronze - 2220 3705
Stainless Steel - 2220 3705
Flanged Bronze 1480 2220 3705
Stainless Steel 1440 2160 3600
Dimensional Data and Weights
Working Pressure (psi)
FLAT TOP FOLLOWER
FABRIC REINFORCED
SEAL RING
HOMOGENEOUS
RUBBER SEAL RING
FLAT BOTTOM
ADAPTER
10 0
D
120
130
40
180
90
21
C
30
60
70
F
20
SEE SEAT DETAIL
10
160
B
E
A
(Open)
SEAT ASSEMBLY DETAIL
P-10
SEAT SPRING AND SEAL
PART OF SEAT ASSEMBLY
SEAT ASSEMBLY DETAIL
PC BUNA, FKM, HNBR
SEAT SEAL
PART OF SEAT ASSEMBLY
Seat Spring
Seat Seal
P-10 Insert
50
Seat Seal
50
200
110
45
VALVES & MEASUREMENT
ASSEMBLY PART NUMBER
Key
No. Qty. Description
Valve Size: 2-1/2” (65 mm) FP
Material Specification (See Note 1)
ASME Class
600
ASME Class
900/ 1500
Assembly Base Part Number J025000 J025001/J025002
10 1 Body Consult Cameron for Body Part Numbers Aluminum Bronze ASTM B148 Alloy 955
Stainless Steel CF8M
20 1 Bonnet Aluminum Bronze 2139015-11 2139020-11 Aluminum Bronze ASTM B148 Alloy 955
Stainless Steel 2139015-12 2061920-01 Stainless Steel CF8M
21 1 Stem Bushing (f/SS Bonnet) J024676-060 Bronze ASTM B150 Alloy C63000
30 1 Gate 1, 2, 5 2060265-01 Stainless Steel CF8M
(See Note 2) 6, 7, 8, 9 2060266-01
40 1 Stem f/ Aluminum Bronze Valve 2060256-02 316 SS
f/ Stainless Steel Valve 2060256-02 2061921-01
50 2 Seat Assembly 1 2061588-02 Ring: CF8M; Elastomer: Buna-N, Peroxide-Cured
(See Note 2) 2 2061589-02 Ring: CF8M; Elastomer: FKM
5 Consult Cameron for Seat Assembly Part Numbers Ring: CF8M; Elastomer: HNBR
6 2061590-02 Ring: CF8M; Insert: PEEK; Seal: Buna-N
Spring: INCONEL X-750
7Consult Cameron for Seat Assembly Part Numbers Ring: CF8M; Insert: PEEK; Seal: HNBR
Spring: INCONEL X-750
8Consult Cameron for Seat Assembly Part Numbers Ring: CF8M; Insert: PEEK; Seal: FKM
Spring: INCONEL X-750
9Consult Cameron for Seat Assembly Part Numbers Ring: CF8M; Insert: PEEK; Seal: AFLAS
Spring: INCONEL X-750
60 1 Handle 2227862-01 Ductile Iron ASTM A536 Grade 65-45-12
70 1 Stem Packing Retainer 2060259-08 316 SS
90 1 Stem Seal Assembly J024882-603 Teflon/Elgiloy
100 1 Retainer Snap Ring J090066-162 PH 15-7 Mo
110 4 Stud 219066-07-02-21 219066-09-03-21 ASTM A193 B7M/Zinc-Plated
120 1 Lube Fitting 005929-18 Steel
130 1 Vent Fitting 2726258-01 Steel
160 1 Bonnet Seal 1, 6 J005520-239 Buna-N
(See Note 2) 2, 8 J005521-239 FKM
5, 7
9
2712425-08
2788035-08
HNBR
AFLAS
180 1 Handle Seal J005526-221 Buna-N
200 4 Nut 2709000-07-11 2709000-09-11 ASTM A194 2HM/Zinc-Plated
Notes: 1. CF8M is ASTM A351 Grade CF8M annealed. 316 SS is AISI Type 316 SS annealed.
2. These parts are keyed to the assembly part number. ”Seat insert/seal” code numbers indicated.
Parts List
End Connection
Body Configuration
Stem Material
Gate Material
Seat Ring Material
Seat Insert/Seal
Body/Bonnet
Flanged
Threaded
2 - 600 RTJ
3 - 600 RF
4 - 900 RTJ
5 - 900 RF
6 - 1500 RTJ
7 - 1500 RF
0 - API LP
2 - UPTBG
4 - Threaded
7 - Flanged
8 - Stainless Steel
8 - Stainless Steel
8 - Stainless Steel
1 - PC Buna/PC Buna
2 - FKM/FKM
5 - HNBR/HNBR
6 - P-10/PC Buna
7 - P-10/HNBR
8 - P-10/FKM
9 - P-10/AFLAS
6 - Aluminum Bronze
8 - Stainless Steel
46
SERIES DT GATE VALVES – ASME CLASSES 600, 900, AND 1500
3” (80 mm) Full Port NACE Compliant
Valve Size: 3” (80 mm) FP
Dimension ASME Class 600 ASME Class 900 ASME Class 1500
A Threaded - 9.69 (246) -
Flanged – RF 14.00 (356) 15.00 (381) 18.50 (470)
Flanged – RTJ 14.12 (359) 15.12 (384) 18.62 (373)
B (Open) 19.50 (495) 19.50 (495) 20.31 (516)
C (Seat Bore) 3.12 (79) 3.12 (79) 3.12 (79)
D 14.75 (375) 14.75 (375) 18.00 (457)
E 6.81 (173) 6.94 (176) 7.15 (182)
F Flange OD 8.25 (210) 9.50 (241) 10.50 (267)
Flange Bolts (Qty., Size: in.) 8 – 3/4 8 – 7/8 8 – 1-1/8
Ring Number (RTJ) R-31 R-31 R-35
Weight lb (kg)
Threaded - 75 (34) -
Flanged 100 (45) 125 (57) 185 (84)
End Connection Material ASME Class 600 ASME Class 900 ASME Class 1500
Threaded Bronze - 2220 -
Flanged Bronze 1480 2220 3705
Dimensional Data and Weights
Working Pressure (psi)
FLAT TOP FOLLOWER
FABRIC REINFORCED
SEAL RING
HOMOGENEOUS
RUBBER SEAL RING
FLAT BOTTOM
ADAPTER
100
D
120130
40
180
90
21
C
30
60
70
F
20
SEE SEAT DETAIL
10
160
B
E
A
(Open)
SEAT ASSEMBLY DETAIL
P-10
SEAT SPRING AND SEAL
PART OF SEAT ASSEMBLY
SEAT ASSEMBLY DETAIL
PC BUNA, FKM, HNBR
SEAT SEAL
PART OF SEAT ASSEMBLY
Seat Spring
Seat Seal
P-10 Insert
50
Seat Seal
50
200
110
47
VALVES & MEASUREMENT
ASSEMBLY PART NUMBER
Key
No. Qty. Description
Valve Size: 3” (80 mm) FP
Material Specification (See Note 1)
ASME Class
600
ASME Class
900
ASME Class
1500
Assembly Base Part Number J025003 J025004 J025005
10 1 Body Consult Cameron for Body Part Numbers Aluminum Bronze ASTM B148 Alloy 955
20 1 Bonnet J024624-006 J024642-006 Aluminum Bronze ASTM B148 Alloy 955
30 1 Gate 1, 2,5 J024621-008 Stainless Steel CF8M
(See Note 2) 6, 7, 8, 9 J024623-008
40 1 Stem J024620-008 J024820-008 316 SS
50 2 Seat Assembly 1 2061588-03 Ring: CF8M; Elastomer: Buna-N
(See Note 2) 2 2061589-03 Ring: CF8M; Elastomer: FKM
5 Consult Cameron for Seat Assembly Part Numbers Ring: CF8M; Elastomer: HBNR
6 2061590-03 Ring: CF8M; Insert: PEEK; Seal: Buna-N
Spring: INCONEL X-750
7 Consult Cameron for Seat Assembly Part Numbers Ring: CF8M; Insert: PEEK; Seal: HPNR
Spring: INCONEL X-750
8 Consult Cameron for Seat Assembly Part Numbers Ring: CF8M; Insert: PEEK; Seal: FKM
Spring: INCONEL X-750
9 Consult Cameron for Seat Assembly Part Numbers Ring: CF8M; Insert: PEEK; Seal: AFLAS
Spring: INCONEL X-750
60 1 Handle 2139931-01 2139932-01 Ductile Iron ASTM A536 Grade 65-45-12
70 1 Stem Packing Retainer 2060259-08 316 SS
90 1 Stem Seal Assembly J024882-603 Filled PTFE/Elgiloy
100 1 Retainer Snap Ring J090066-162 PH 15-7 Mo
110 4 Stud 219066-09-03-21 219066-10-03-61 ATM A193 B7M/Zinc-Plated
120 1 Lube Fitting 005929-18 Steel
130 1 Relief Fitting 2726258-01 Steel
160 1 Bonnet Seal 1, 6 J005520-244 Buna-N
(See Note 2) 2, 8 J005521-244 FKM
5, 7
9
Consult Cameron for Bonnet Seal Part Numbers
2788035-07
HBNR
AFLAS
180 1 Handle Seal J005526-221 Buna-N
200 4 Nut 2709000-09-11 2709000-10-11 ASTM A194 2HM/Zinc-Plated
Body/Bonnet
Seat Insert/Seal
Seat Ring Material
Gate Material
Stem Material
Body Configuration
End Connection
Flanged
Threaded
2 - 600 RTJ
3 - 600 RF
4 - 900 RTJ
5 - 900 RF
6 - 1500 RTJ
7 - 150 RF
0 - API LP (3” (80 mm) 900 Only)
4 - Threaded
7 - Flanged
8 - Stainless Steel
8 - Stainless Steel
8 - Stainless Steel
1 - PC Buna/PC Buna
2 - FKM/FKM
5 - HNBR/HNBR
6 - P-10/PC Buna
7 - P-10/HNBR
8 - P-10/FKM
9 - P-10/AFLAS
6 - Aluminum Bronze
Notes: 1. CF8M is ASTM A351 Grade CF8M annealed. 316 SS is AISI Type 316 SS annealed.
2. These parts are keyed to the assembly part number. ”Seat insert/seal” code numbers indicated.
Parts List
48
SERIES DT GATE VALVES – ASME CLASSES 600, 900, AND 1500
4” (100 mm) Full Port NACE Compliant
Valve Size: 4” (100 mm) FP
Dimension ASME Class 600 ASME Class 900 ASME Class 1500
A Flanged – RF 17.00 (432) 18.00 (457) 21.50 (546)
Flanged – RTJ 17.12 (435) 18.12 (460) 21.62 (549)
B (Open) 24.08 (612) 24.08 (612) 24.38 (619)
C (Seat Bore) 4.06 (103) 4.06 (103) 4.06 (103)
D 23.00 (584) 23.00 (584) 23.00 (584)
E 9.00 (229) 9.12 (232) 9.41 (239)
F Flange OD 10.75 (273) 11.50 (292) 12.25 (311)
Flange Bolts (Qty., Size: in.) 8 – 7/8 8 – 1-1/8 8 – 1-1/4
Ring Number (RTJ) R-37 R-37 R-39
Weight lb (kg)
Flanged 170 (77) 215 (98) 295 (134)
End Connection Material ASME Class 600 ASME Class 900 ASME Class 1500
Flanged Bronze 1480 2220 3705
Dimensional Data and Weights
Working Pressure (psi)
FLAT TOP FOLLOWER
FABRIC REINFORCED
SEAL RING
HOMOGENEOUS
RUBBER SEAL RING
FLAT BOTTOM
ADAPTER
100
D
120130
40
180
90
C
30
SEAT ASSEMBLY DETAIL
P-10
SEAT SPRING AND SEAL
PART OF SEAT ASSEMBLY
SEAT ASSEMBLY DETAIL
PC BUNA, FKM, HNBR
SEAT SEAL
PART OF SEAT ASSEMBLY
60
70
F
20
SEE SEAT DETAIL
10
160
B
E
A
(Open)
Seat Spring
Seat Seal
P-10 Insert
50
Seat Seal
50
200
110
49
VALVES & MEASUREMENT
ASSEMBLY PART NUMBER
Key
No. Qty. Description
Valve Size: 4” (100 mm) FP
ASME Class
600
ASME Class
900
ASME Class
1500 Material Specification (See Note 1)
Assembly Base Part Number J025006 J025007 J025008
10 1 Body – 4” Consult Cameron for Body Part Numbers Aluminum Bronze ASTM B148 Alloy 955
20 1 Bonnet J024711-006 J024712-006 J024713-006 Aluminum Bronze ASTM B148 Alloy 955
30 1 Gate 1, 2, 5 J024719-008 J024721-008 Stainless Steel CF8M
(See Note 2) 6, 7, 8, 9 J024720-008 J024722-008
40 1 Stem J024717-008 J024718-008 316 SS – 600 and 900 Only; XM-19 1500 Only
50 2 Seat Assembly 1 2061588-04 Ring: CF8M; Elastomer: Buna-N
(See Note 2) 2 2061589-04 Ring: CF8M; Elastomer: FKM
5 Consult Cameron for Seat Assembly Part Numbers Ring: CF8M; Elastomer: HBNR
6 2061590-04 Ring: CF8M; Insert: PEEK; Seal: Buna-N
Spring: INCONEL X-750
7 Consult Cameron for Seat Assembly Part Numbers Ring: CF8M; Insert: PEEK; Seal: HNBR
Spring: INCONEL X-750
8Consult Cameron for Seat Assembly Part Numbers Ring: CF8M; Insert: PEEK; Seal: FKM
Spring: INCONEL X-750
9Consult Cameron for Seat Assembly Part Numbers Ring: CF8M; Insert: PEEK; Seal: AFLAS
Spring: INCONEL X-750
60 1 Handle 2139933-01 Ductile Iron ASTM A536 Grade 65-45-12
70 1 Stem Packing Retainer J024716-008 316 SS
90 1 Stem Seal Assembly J024882-604 Teflon/Elgiloy
100 1 Retainer Snap Ring J090066-175 PH 15-7 Mo
110 4 Stud 219066-08-02-61 219066-09-03-21 219066-11-04-21 ASTM A193 B7M/Zinc-Plated
120 1 Lube Fitting 005929-18 Steel
130 1 Relief Fitting 2726258-01 Steel
160 1 Bonnet Seal 1, 6 J005520-254 Buna-N
(See Note 2) 2, 8 J005521-254 FKM
5, 7 Consult Cameron for Bonnet Seal Part Numbers HBNR
9 2788035-10 AFLAS
180 1 Handle Seal J005526-223 Buna-N
200 4 Nut 2709000-08-11 2709000-09-11 2709000-11-11 ASTM A194 2HM/Zinc-Plated
End Connection
Body Configuration
Stem Material
Gate Material
Seat Ring Material
Seat Insert/Seal
Body/Bonnet
1 - PC Buna/PC Buna
2 - FKM/FKM
5 - HNBR/HNBR
6 - P-10/PC Buna
7 - P-10/HNBR
8 - P-10/FKM
9 - P-10/AFLAS
6 - Aluminum Bronze
8 - Stainless Steel
8 - Stainless Steel
8 - Stainless Steel
7 - Flanged
2 - 600 RTJ
3 - 600 RF
4 - 900 RTJ
5 - 900 RF
6 - 1500 RTJ
7 - 1500 RF
Notes: 1. CF8M is ASTM A351 Grade CF8M annealed. 316 SS is AISI Type 316 SS annealed.
2. These parts are keyed to the assembly part number. ”Seat insert/seal” code numbers indicated.
Parts List
50
SERIES DT GATE VALVES – ASME CLASS 900
6” (150 mm) Full Port NACE Compliant
Valve Size: 6” (150 mm) FP
ASME Class 900
Dimension
A Flanged – RF 24.00 (610)
Flanged – RTJ 24.12 (613)
B (Open) 33.85 (860)
C (Seat Bore) 6.06 (154)
D 24.00 (610)
E 12.38 (314)
F Flange OD 15.00 (381)
Flange Bolts (Qty., Size: in.) 12 – 1-1/8
Ring Number (RTJ) R-45
Weight lb (kg)
Flanged Consult Cameron
End Connection Material ASME Class 900
Flanged Bronze 2220
Dimensional Data and Weights
Working Pressure (psi)
190
D
260
150
250
180
90
C
30
SEAT ASSEMBLY DETAIL
P-10
SEAT SPRING AND SEAL
PART OF SEAT ASSEMBLY
SEAT ASSEMBLY DETAIL
PC BUNA, FKM, HNBR
SEAT SEAL
PART OF SEAT ASSEMBLY
60
40
F
210
160
B
E
A
Seat Spring
Seat Seal
P-10 Insert
50
Seat Seal
50
BRONZE BUSHING
FLAT TOP FOLLOWER
FABRIC REINFORCED
SEAL RING
HOMOGENEOUS
RUBBER SEAL RING
FLAT BOTTOM
ADAPTER
200
240
170
220
110
130
230
10
14 0
20
120
SEE SEAT DETAIL
51
VALVES & MEASUREMENT
ASSEMBLY PART NUMBER
End Connection
Body Configuration
Stem Material
Gate Material
Seat Ring Material
Seat Insert/Seal
Body/Bonnet
4 - 900 RTJ
5 - 900 RF
7 - Flanged
8 - Stainless Steel
8 - Stainless Steel
8 - Stainless Steel
1 - PC Buna/PC Buna
2 - FKM/FKM
5 - HNBR/HNBR
6 - P-10/PC Buna
7 - P-10/HNBR
8 - P-10/FKM
9 - P-10/AFLAS/Filled PTFE Stem Seal
6 - Aluminum Bronze
Key
No. Qty. Description
Valve Size: 6”
(150 mm) FP
Material Specification (See Note 1)
ASME Class 900
Assembly Base Part Number J025150
10 1 Body 6” (150 mm) RF – AL BRZ 2227657-00-56 Aluminum Bronze ASTM B148 Alloy 955
RTJ – AL BRZ 2227657-00-46
20 1 Bonnet AL BRZ 2227661-06 Aluminum Bronze ASTM B148 Alloy 955
30 1 Gate 1, 2, 5 2227658-08 Stainless Steel CF8M
(See Note 2) 6, 7, 8, 9 2227964-08
40 1 Stem 2227666-08 316 SS
50 2 Seat Assembly 1 2061588-06 Ring: CF8M; Elastomer: Buna-N
(See Note 2) 2 2061589-06 Ring: CF8M; Elastomer: FKM
5 Consult Cameron for Part Number Ring: CF8M; Elastomer: HNB
6 2061590-06 Ring: CF8M; Insert: PEEK; Seal: Buna-N
Spring: INCONEL X-750
7 Consult Cameron for Part Number Ring: CF8M; Insert: PEEK; Seal: HNBR; Spring: INCONEL X-750
8 Consult Cameron for Part Number Ring: CF8M; Insert: PEEK; Seal: FKM; Spring: INCONEL X-750
9 Consult Cameron for Part Number Ring: CF8M; Insert: PEEK; Seal: AFLAS; Spring: INCONEL X-750
60 1 Handle 2227656-01 Ductile Iron ASTM A536 Grade 65-45-12
90 1 Stem Seal Assembly 1, 6 J021706-001 Buna-N
(See Note 2) 2, 8 J015853-006 FKM
5, 7 J015853-008 HNBR
9 Consult Cameron for Part Number PTFE
110 8 Stud 2119066-09-04-21 ASTM A193 B7M/Zinc-Plated
120 1 Lube Fitting 005929-18 Steel
130 1 Relief Fitting J051971 Steel
140 8 Nut 2709000-09-11 ASTM A194 2HM/Zinc-Plated
150 1 Screw – Handle J014832 Steel AISI C1018
160 1 Body Seal 1, 6 J005520-367 Buna-N
(See Note 2) 2, 8 J005521-367 FKM
5, 7 2738507-15 HNBR
9 2788035-11 AFLAS
170 4 Screw – Retainer 702589-14-00-16 Alloy Steel
180 1 Stem Screw Seal J005526-228 Buna-N on 900
190 1 Downstop Ring J015848 316 SS
200 1 Stem Screw with Bearings J023888 Stem Screw with Steel AISI C1018
Bearings: Hardened Steel Needle Thrust Bearings
210 1 Housing J015332 Steel AISI C1018
220 1 Secondary Seal 1, 6 J005526-216 Buna-N
(See Note 2) 2, 8 J005531-216 FKM
5, 7, 9 2738507-09 HNBR
230 1 Retainer J015330-101 Steel AISI C1018
240 4 Screw – Housing J056511-32056 ASTM A193 B7M/Zinc-Plated
250 1 Tube J019160 Clear Acrylic
260 1 Stem Cap J019161 Ductile Iron ASTM A536 Grade 65-45-12
Notes: 1. CF8M is ASTM A351 Grade CF8M annealed. XM-19 is ASTM A479 Type XM-19 hot rolled.
2. These parts are keyed to the assembly part number. ”Seat insert/seal” code numbers indicated.
Parts List
52
Startup and Commissioning
Our experts understand that each project is unique. That’s why Cameron’s
services help facilitate commissioning and start-up activities.
• Integrated solutions, onsite or at our global service centers
• Increased equipment and product performance
• The shortest possible trouble-free startup for your critical assets
Spare Parts and Asset Management
Cameron offers the assets and expertise to cover all aspects of valve management.
• Full inventory of quality exact OEM parts and spares
• Complete asset risk and criticality assessments
• Comprehensive inventory of your assets, including a complete recommended
spare valves and parts list
Operational Support
Cameron’s ability to address valve requirements in the field is a reflection of our
commitment to life-of-asset support.
• Innovative asset management solutions
• Trouble-free installation, startup and operations
• Support from commission to operation – extending through all
phases of a valve’s life cycle
• Extensive inventory of spare valves and parts
Cameron’s site management
team helps mitigate the risk of
project delays by identifying
issues in the construction
process prior to valve
installation to ensure valve
integrity.
Services for Valves and Actuation
WE BUILD IT. WE BACK IT.
53
VALVES & MEASUREMENT
Trademark Information
DEMCO is a registered trademark of Cameron.
This document contains references to registered trademarks or product designations,
which are not owned by Cameron.
CERTIFICATIONS American Bereau of Shipping
Trademark Owner
ENDURO-BOND Energy & Environmental Services, Inc.
TEFLON E.I. DuPont De Nemours & Company
WARNING: Failure to comply with Cameron operations and maintenance manuals, safety alerts, engineering bulletins and other documentation and failure to
use OEM parts can adversely affect performance and can cause serious injury or death and property damage.
©2015 Cameron | DEMCO, NAVCO, NUTRON, THORNHILL CRAVER, TOM WHEATLEY, WHEATLEY, and WKM are registered trademarks of Cameron.
TECHNO is a trademark of Cameron. Teflon and all brands listed are registered trademarks or trademarks of their respective companies. | SWP 1.5M 7/15 AD01823V
H
E
A
L
T
H
S
A
F
E
T
Y
A
N
D
E
N
V
I
R
O
N
M
E
N
T
A
L
E
X
C
E
L
L
E
N
C
E
C
A
M
E
R
O
N
3250 Briarpark Drive, Suite 300
Houston, TX 77042
USA
Toll Free 1 800 323 9160
Learn more about DEMCO gate valves:
www.c-a-m.com/DEMCO
DEMCO@c-a-m.com
HSE Policy Statement
At Cameron, we are committed ethically, financially and personally to a
working environment where no one gets hurt and nothing gets harmed.
