Product Data Sheet
See tables below for Flexible stranded and multiple wire
approvals.
Wire Range:
Line side: 3/8 – 16 X 1 3/16
PDM-14-K2/0-X
Replace “X” with 1, 2 or 3 for number of poles

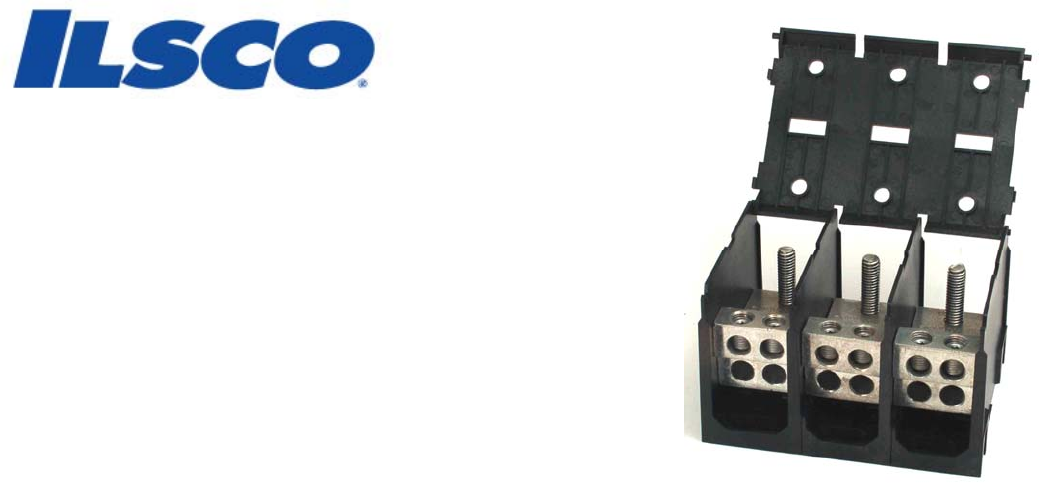

Power Stud / Distribution Block
510 Amps, 600 Volts (AC/DC)
1,000V
A
C/DC CE
(
IEC 60947-7-1
)
Load Side: (4) #2/0 – 14 AWG
Electrical Ratings:
• 510A Copper wire, 510A Aluminum wire (Based on NEC Table 310-16, 75°C columns)
• CE Rated Voltage (Ui): 1,000 V AC/DC per IEC 60947-7-1
• Material Group: IIIa
• Pollution Degree: 3
• 600 Volts AC/DC (UL 1059 Class C, User Group - General Industrial)
• Factory and Field Wiring
Mechanical Ratings:
• Maximum insulator base and cover temperature: 125°C (257°F) UL RTI
• Flammability rating of insulator base and cover: UL 94 V-0
* Use outside these ratings needs to be judged in the end-use application.
Materials:
• Connector: High conductivity aluminum, tin plated
• Insulator base: Glass filled polycarbonate (thermoplastic)
• Terminal set screws: Aluminum, tin plated
• Studs: Brass, tin plated
• Nuts: Brass, nickel plated
• Connector mounting screws: Steel, zinc plated
• Hinged Cover: Glass filled polycarbonate (thermoplastic)
Agency Approvals:
• UL Recognized, UL 1059 Terminal Block Standard, File No. E84782
• CSA Certified, CSA C22.2 No. 158, File No. MC 249467 (Wire Classes B & C only)
• CE compliant to IEC 60947-7-1
• RoHS Compliant
Wire Approvals:
Line Side Torque Approvals:
3/8 – 16 Stud: 192 in. lbs
Load Side Wire Approvals:
Copper Wire Stranding Classes - Number of Strands
Wire Size Torque Solid Class B Class C Class G Class H Class I Class K
2/0 AWG 120 in. lbs 19 37
1/0 120 in. lbs 19 37
1 120 in. lbs 19 37 ~ 133 ~ 259 ~ 210 ~ 836
2 120 in. lbs 7 19 ~ 49 ~ 133 ~ 161 ~ 665
4 120 in. lbs 7 19 ~ 49 ~ 133 ~ 105 ~ 420
6 120 in. lbs (1 - 2)* 7 (1 - 2)* 19 ~ 49 ~ 133 ~ 63 ~ 266
8 40 in. lbs (1 - 2)* 7 (1 - 2)* 19 (1 - 2)* ~ 49 (1 - 2)* ~ 133 (1 - 2)* ~ 41 (1 - 2)* ~ 168
10 35 in. lbs 1 (1 - 2)* 7 (1 - 2)* 19 (1 - 2)* ~ 27 (1 - 2)* ~ 104
12 35 in. lbs 1 (1 - 2)* 7 (1 - 2)* 19 (1 - 2)* ~ 19 (1 - 2)* ~ 65
14 35 in. lbs 1 (1 - 2)* 7 (1 - 2)* 19 (1 - 2)* ~ 19 (1 - 2)* ~ 41
~Quantity of strands for Classes G, H, I, K may vary by manufacturer.
* Multiple conductor approvals (copper wire only)
Aluminum Wire Range: #2/0 – #8 AWG
• Wire strip length, load side taps: top – 11/16”, bottom – 1 1/8”
• Hex key required : 3/16”
• Panel mountable: #10 fastener, torque to 25-30 in. lbs.
Accessories:
• Marker Strips. MS-X-L (Replace X with 1, 2, or 3 for no. of poles)
.
