1ASUS V9520 Series
Hardware Features

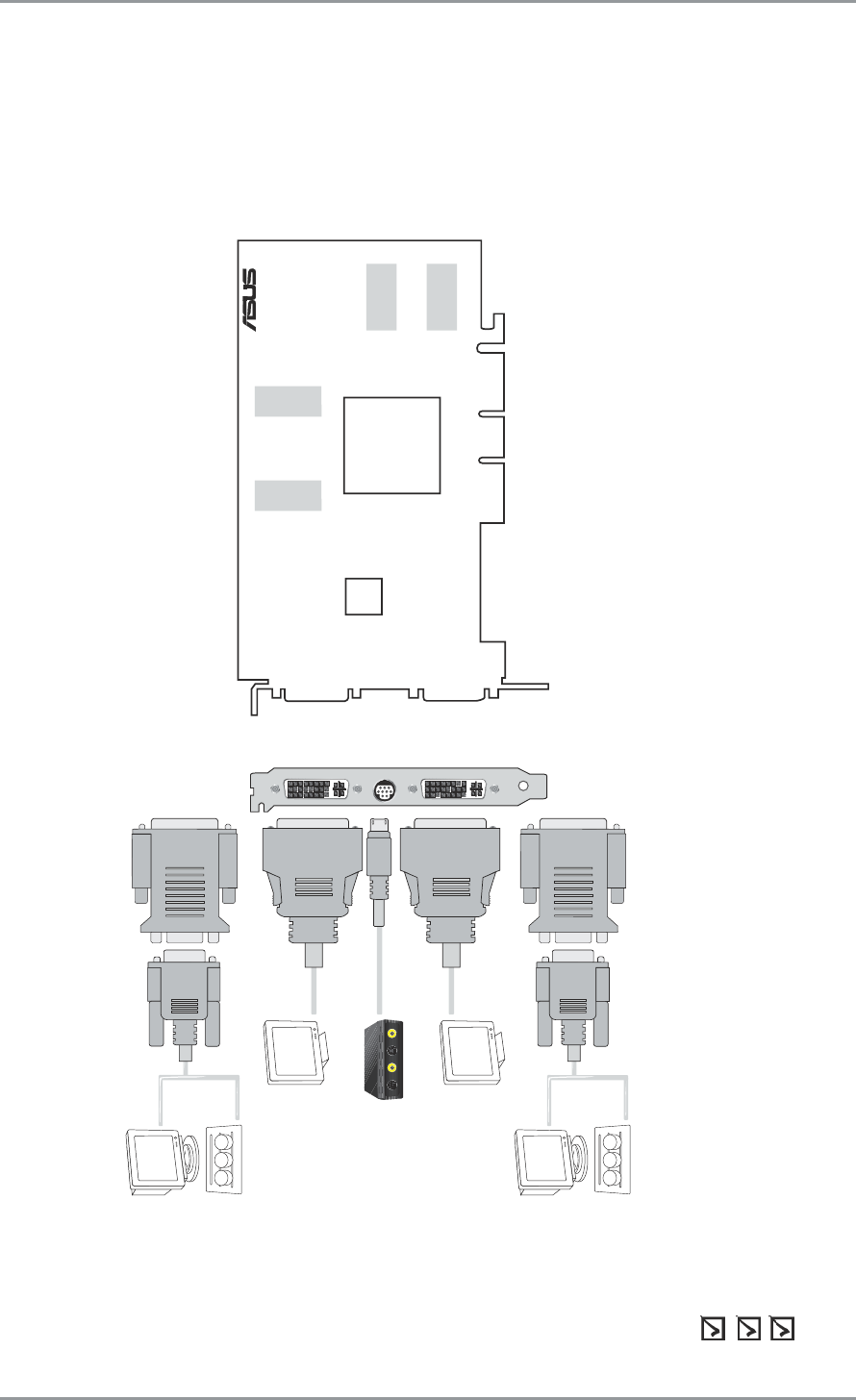

ASUS V9520 Video Suite / 2DTV Layout
128MB DDR Frame Buffer
Item Checklist
ASUS V9520 Video Suite Graphics Card (PAL or NTSC)
This User’s Manual
ASUS V9520 Driver and Utility CD
®
Frame
Buffer
(DDR)
V9520 VIDEO SUITE
NVIDIA
TM
GeForce
FX 5200
GPU Chip
(Graphics Processing Unit)
DVI-enabled Flat-Panel Display
Frame
Buffer
(DDR)
Frame Buffer
(DDR)
Frame Buffer
(DDR)
VGA Output
Projector
OR
S-Video
DVI-I Dual-Link
output (24pins)
Video-in port
TV-out port
DVI-I Dual-Link
output (24pins)
DVI-enabled Flat-Panel Display
OR
VGA Output
Projector
OR
Video
Decoder/
TV
Encoder
ASUS VIVO Adapter
SS
Notes
•Use the same TV standard for all devices.
•Drawings are for reference only, actual card layout may vary.
ASUS V9520 Series2
2. H/W Setup
2. H/W Setup
Installation

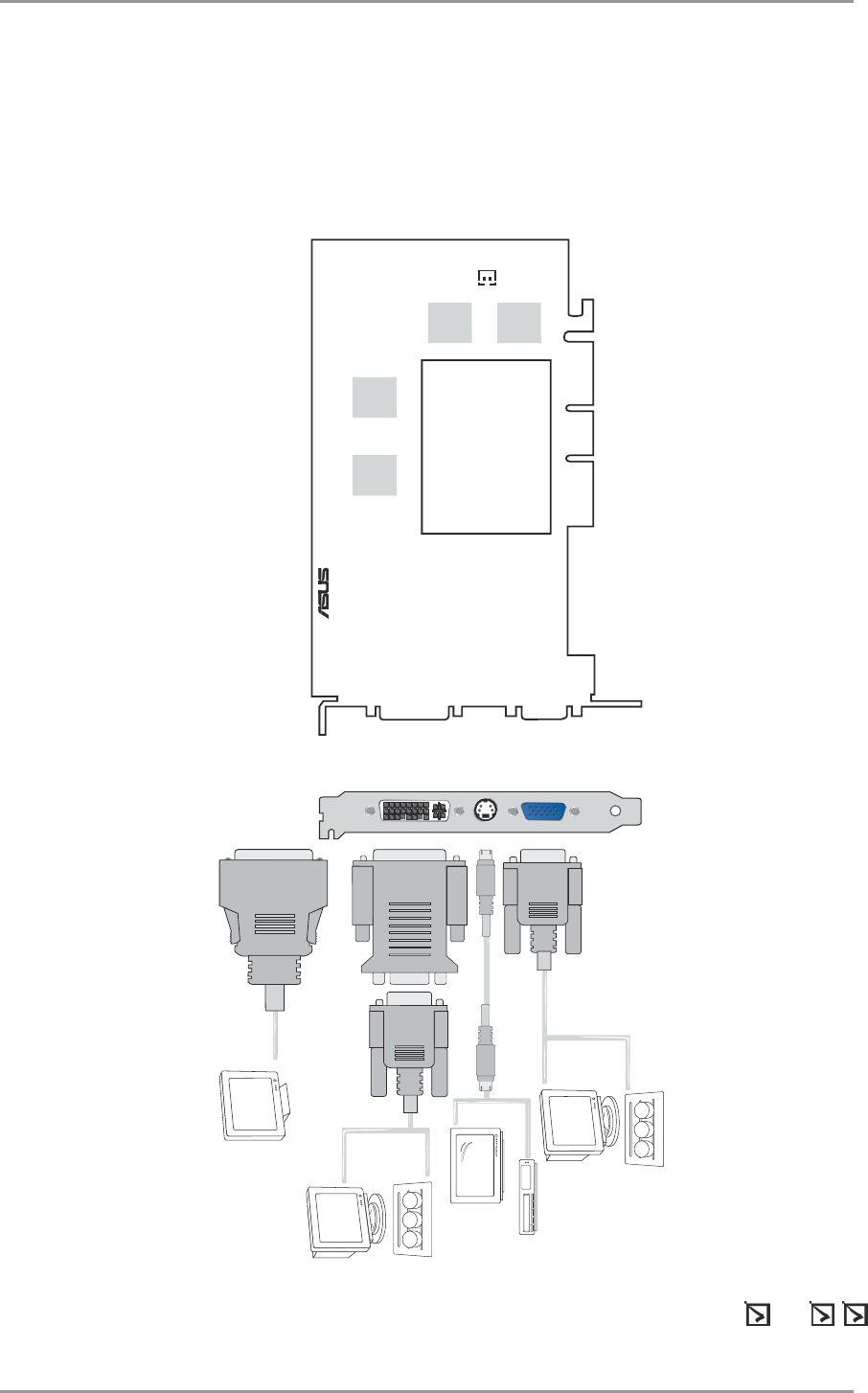

ASUS V9520 TD Layout
ASUS V9520 Magic / TD Layout
256MB / 128MB DDR Frame Buffer
Item Checklist
ASUS V9520 / TD, V9520 Magic / TD Graphics Card
(PAL or NTSC)
This User’s Manual
ASUS V9520 Driver and Utility CD
Notes
•Use the same TV standard for all devices.
•Drawings are for reference only, actual card layout may vary.
®
Frame
Buffer
(DDR)
VGA Monitor
Output(15pin)
(Standard)
TV-out port
VGA Output
Projector
Frame
Buffer
(DDR)
Frame
Buffer
(DDR)
Frame
Buffer
(DDR)
DVI-I Dual-Link
output (24pins)
NVIDIA
TM
GeForce FX
5200
GPU Chip
(Graphics Processing Unit)
VGA Output
Projector
OR
DVI-enabled Flat-Panel Display
S-Video Output
Hardware Features
3ASUS V9520 Series
2. H/W Setup
2. H/W Setup
Installation

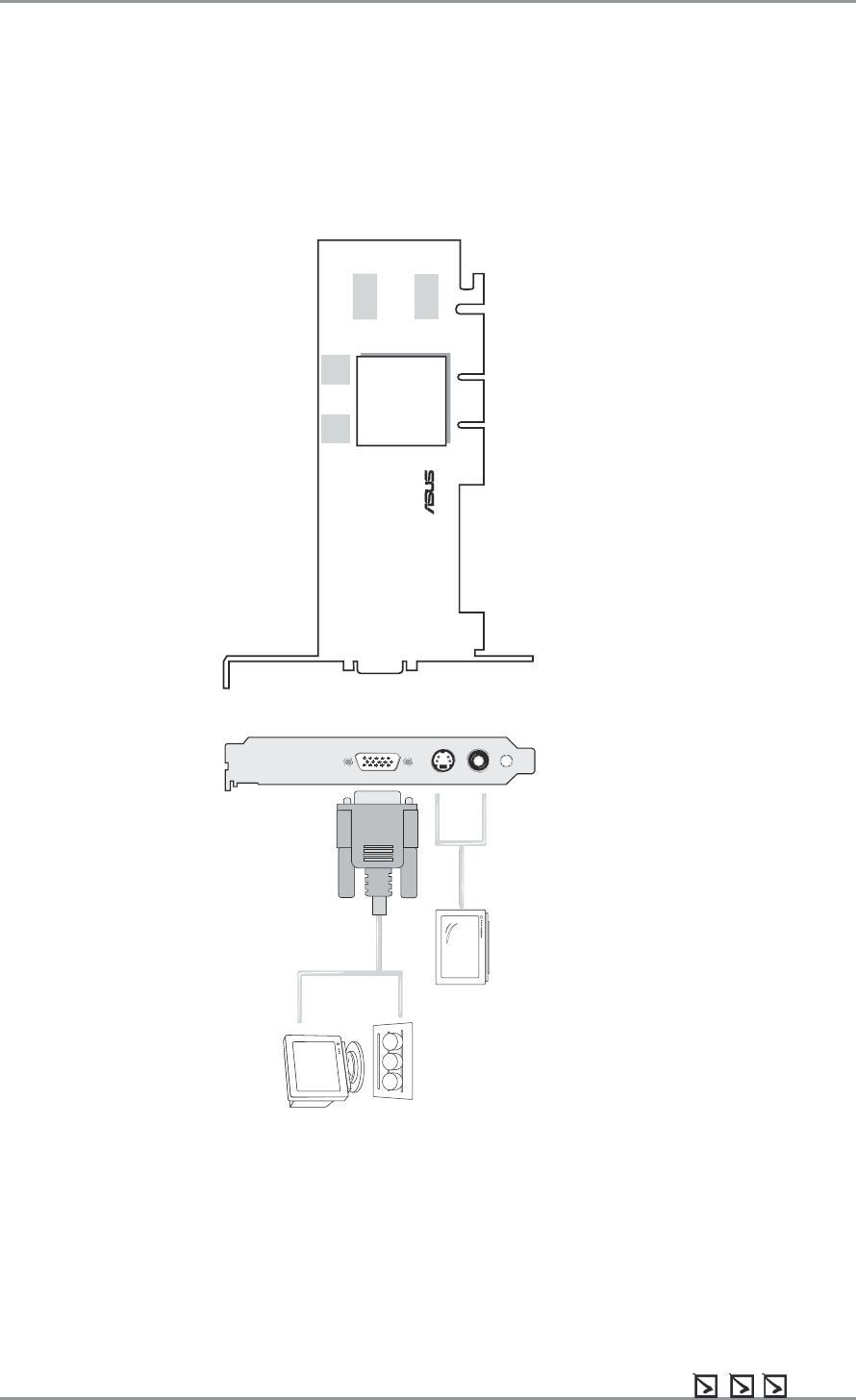

ASUS V9520 MAGIC / T Layout
128MB / 64MB DDR Frame Buffer
Item Checklist
ASUS V9520 MAGIC / T Graphics Card (PAL or NTSC)
This User’s Manual
ASUS V9520 Driver and Utility CD
TV-out port
(S-Video)
VGA Monitor
output (15pin)
(standard)
VGA Output
®
NVIDIA
TM
GeForce FX
5200
GPU Chip
(Graphics Processing Unit)
Frame Buffer
(DDR)
Frame Buffer
(DDR)
Projector
Frame
Buffer
(DDR)
Frame
Buffer
(DDR)
TV-out put
(composite)
Hardware Features
Notes
•Use the same TV standard for all devices.
•Drawings are for reference only, actual card layout may vary.
ASUS V9520 Series4
Introduction
1. Introudction1. Introudction
Models Available
•V9520 Video Suite / 2DTV (128MB)
•V9520 / TD (256MB / 128MB)
•V9520 Magic / TD (128MB)
•V9520 Magic / T (128MB / 64 MB)
Thank you for purchasing an ASUS V9520 Series GPU Graphics Card.
With this purchase, you join a legion of mainstream graphics enthusiasts.
Powered by the NVIDIA™ GeForce FX™ 5200 graphics processing unit
(GPU), the ASUS V9520 series delivers breakthrough leading-edge
graphics performance. Enjoy superior image fidelity regardless of the CPU
(central processing unit) employed by the computer system.With the ASUS
V9520 series, you will not only see but also experience stunning, dynamic,
realistic 3D worlds and characters.
Highlights
•Powered by the programmable, precise and powerful CineFX
GPU: NVIDIA
®
GeForce FX 5200
~ Delivers cinema-quality video to your PC.
•Built-in 128MB/64MB Double Data Rate frame buffer:
~ More resolutions and color depths up to 2048x1536 @ 85Hz
•AGP 8X support
~ By adding support for the latest AGP 8X (AGP 3.0) standard, the
V9520 series takes advantage of the new peak AGP bandwidth to offer
even higher graphics performance.
•nVIEW™ display technology for various display devices
connectivity:
~ Supports TV encoder at 1024x768 resolution with two independent
display pipelines, providing the ultimate multiple display flexibility and
user control
•Fully programmable Vertex/Pixel Shaders 2.0:
~ Delivers advanced custom lighting and texture blending models with
pixel-level effect.
•Digital Vibrance Control 3.0:
~ DVC color controls
~ DVC image sharpening control
•Optimized for DirectX
®
9.0 and OpenGL
®
1.4 features:
~ Ensures broad application support.
