Elinchrom Flash System
Studio & Outdoor
Power by Elinca
Facing Right
Elinchrom System
CONTENTS
More details and actual news about Elinchrom products:
• Classic Compacts
• Classic 3000 Power Pack
• Digital 3000 Asymmetric Power Packs
• Flashheads compatibility list
• Special Offers
find at
www.elinchrom.com
Compacts Style FX 100, 400 2
Style BX 100, 400
Style FX & BX To Go Set 3
Compacts Style 300 RX 4
Style 600 RX
Style 1200 RX
Style RX To Go Set 5
Power Packs Digital 1200 RX, Digital 2400 RX
Digital 1500 AS, Digital 3000 AS
6

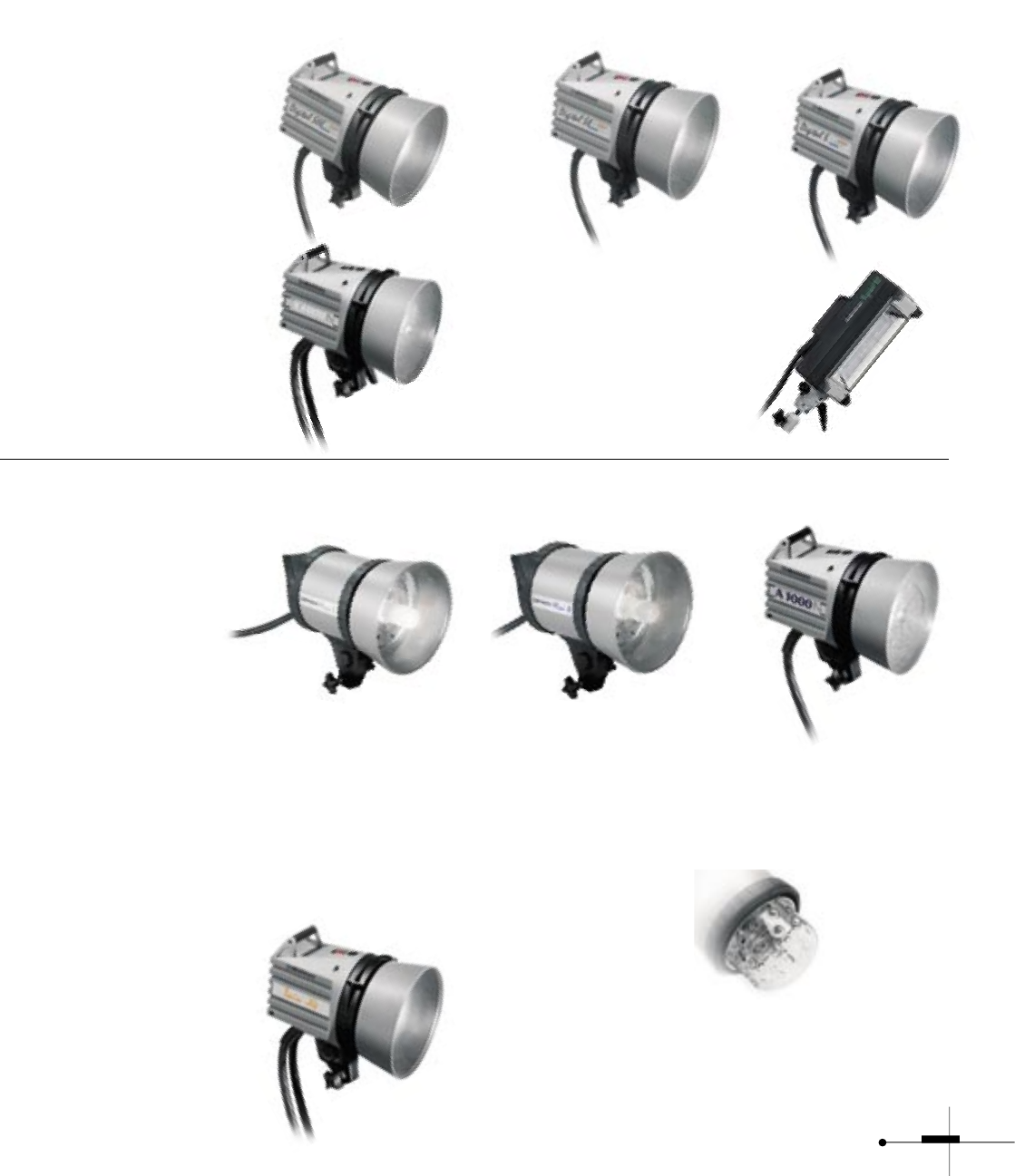

EL- Flashheads for RX & all Classic Packs 7
Autonomous Flash Ranger RX, Ranger RX Speed,
Ranger RX Speed AS, 8

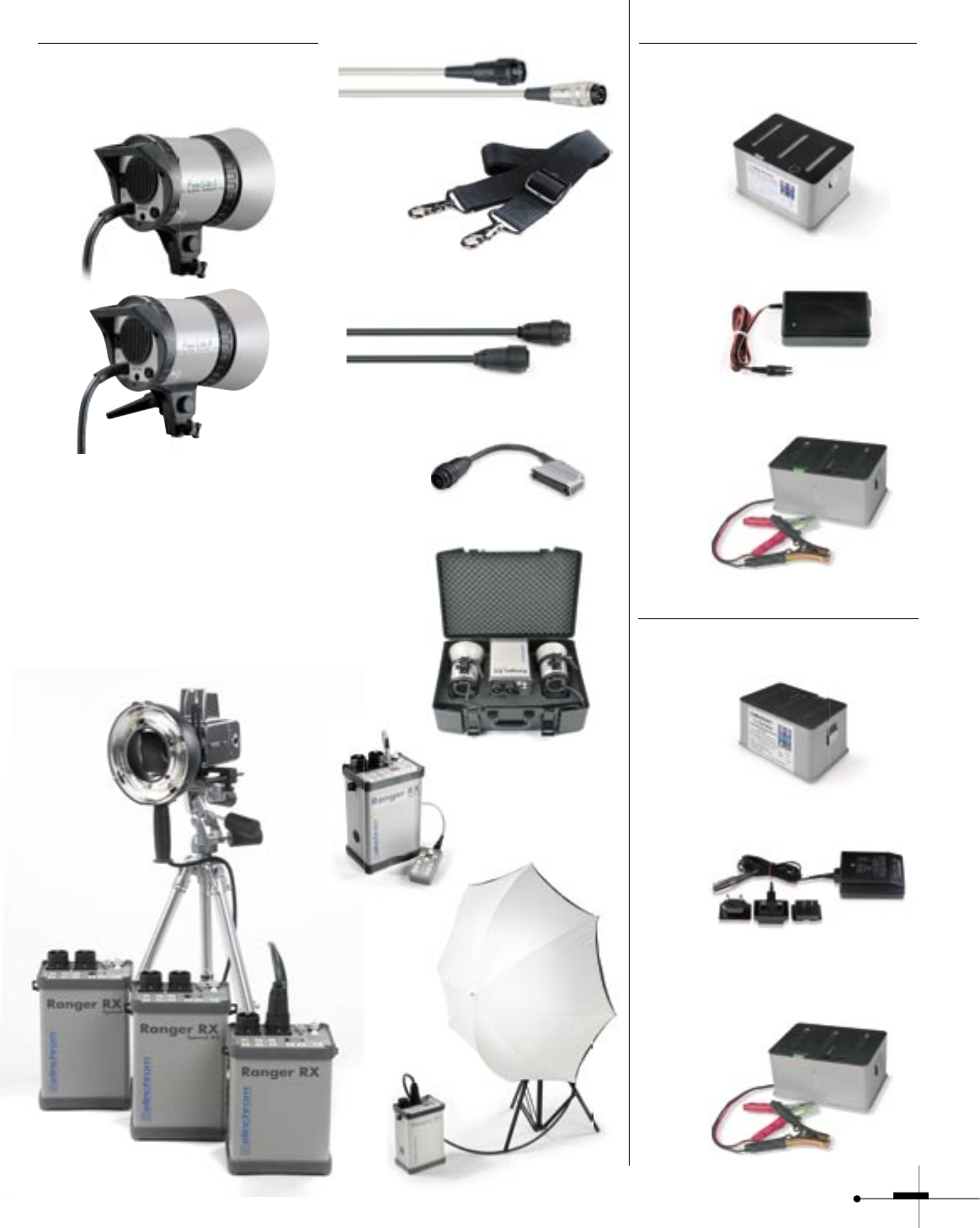

Ranger Accessories Ranger RX, Ranger RX Speed & AS, 9

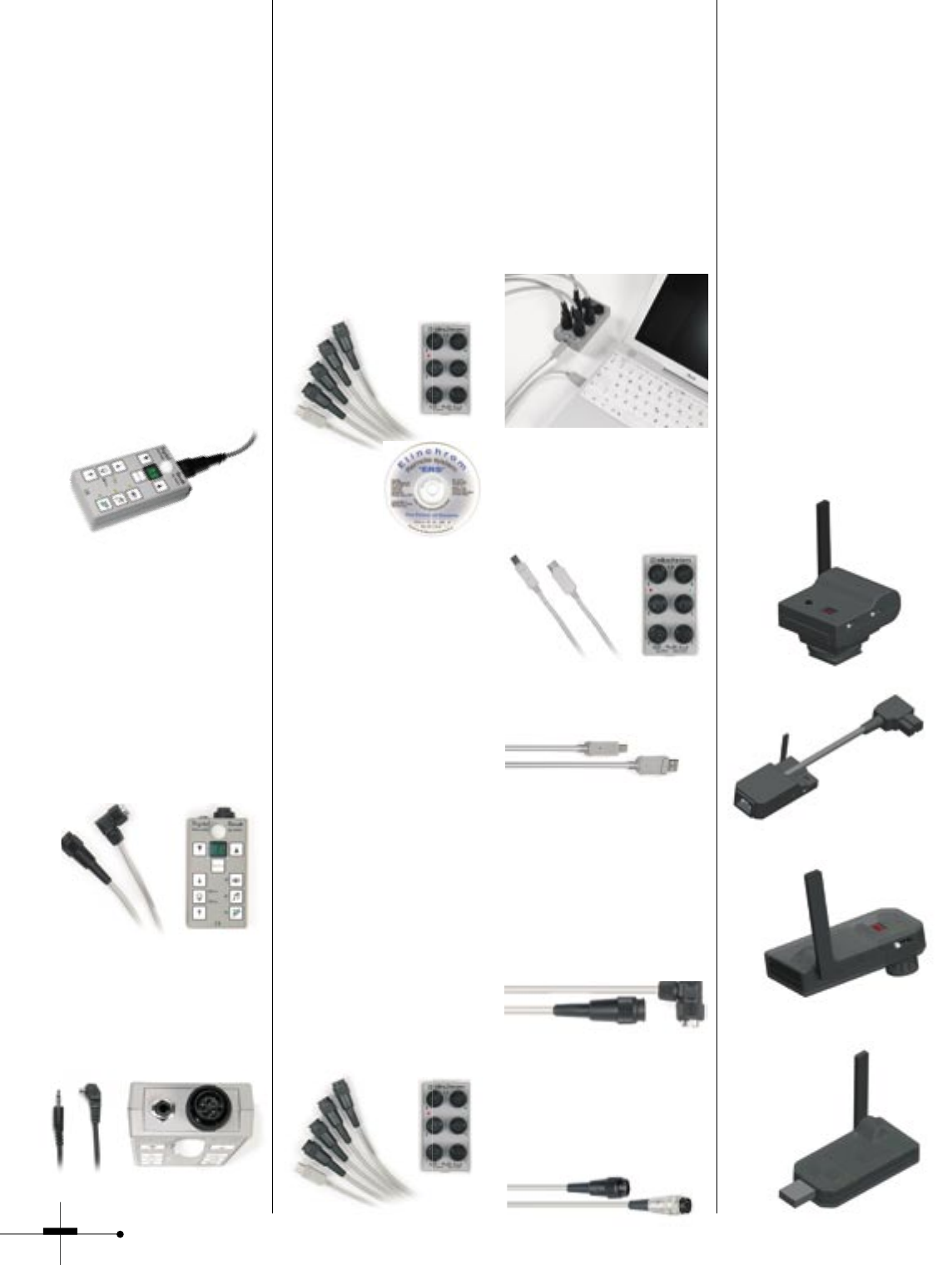

RX Elinchrom Remote Studio ERS Remote Mac OSX & Windows, Skyport 10
RX Remote Accessories Hand Remote

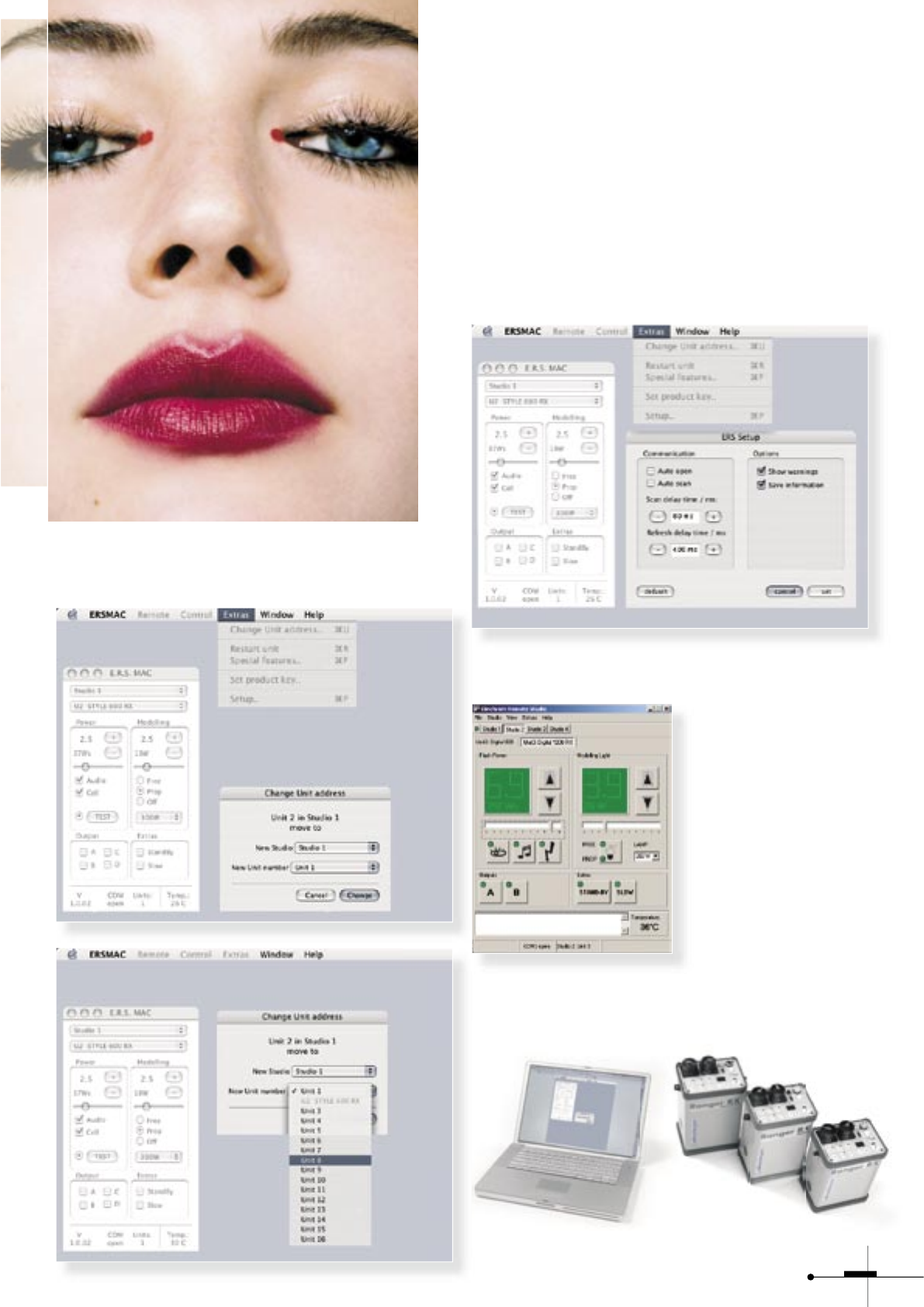

ERS Remote Mac & Windows 12

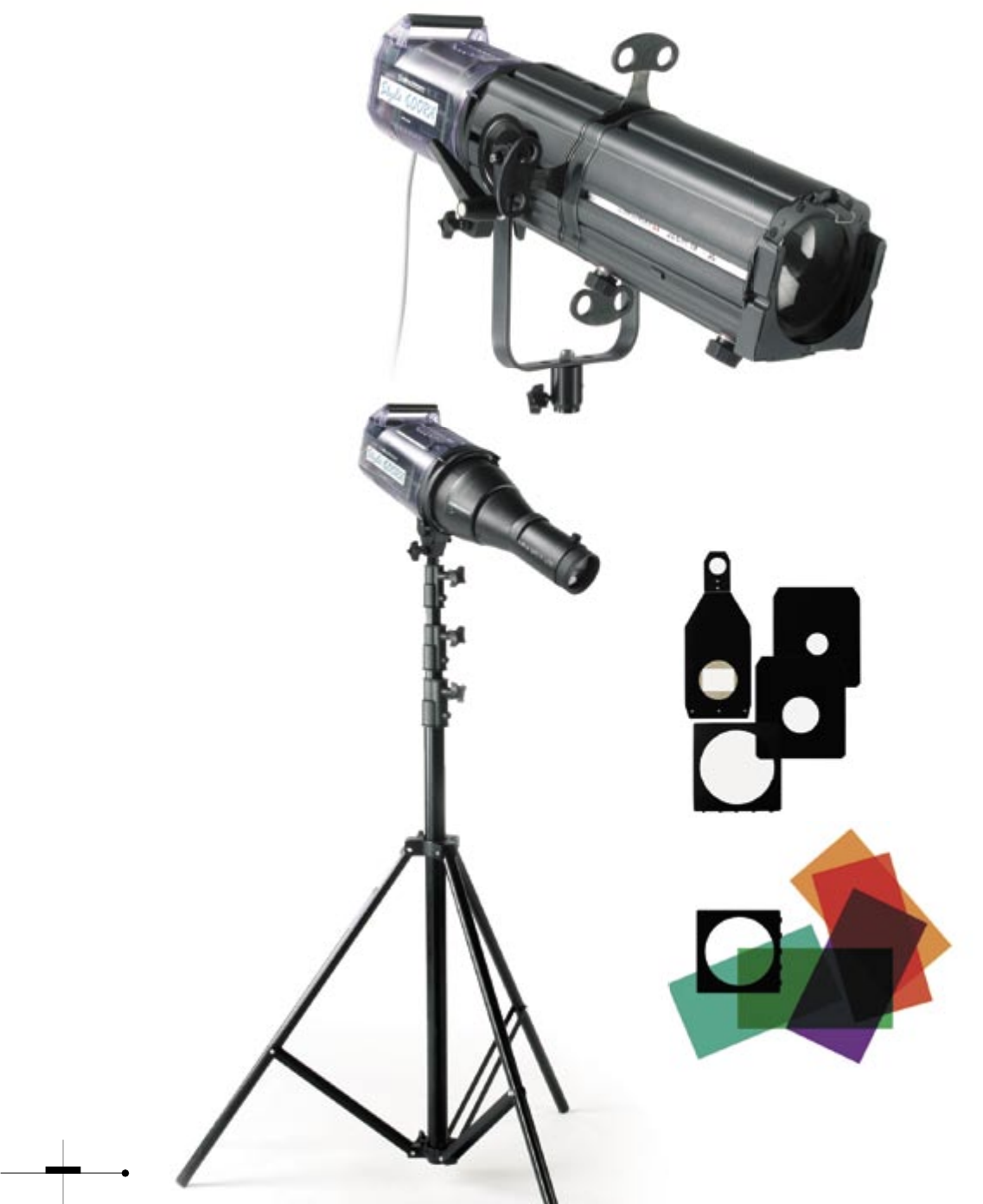

Special Effect Lights Spotlites, Fiberlite & Ringfl ash 14
Continuous Light ScanLite & MiniLite 16

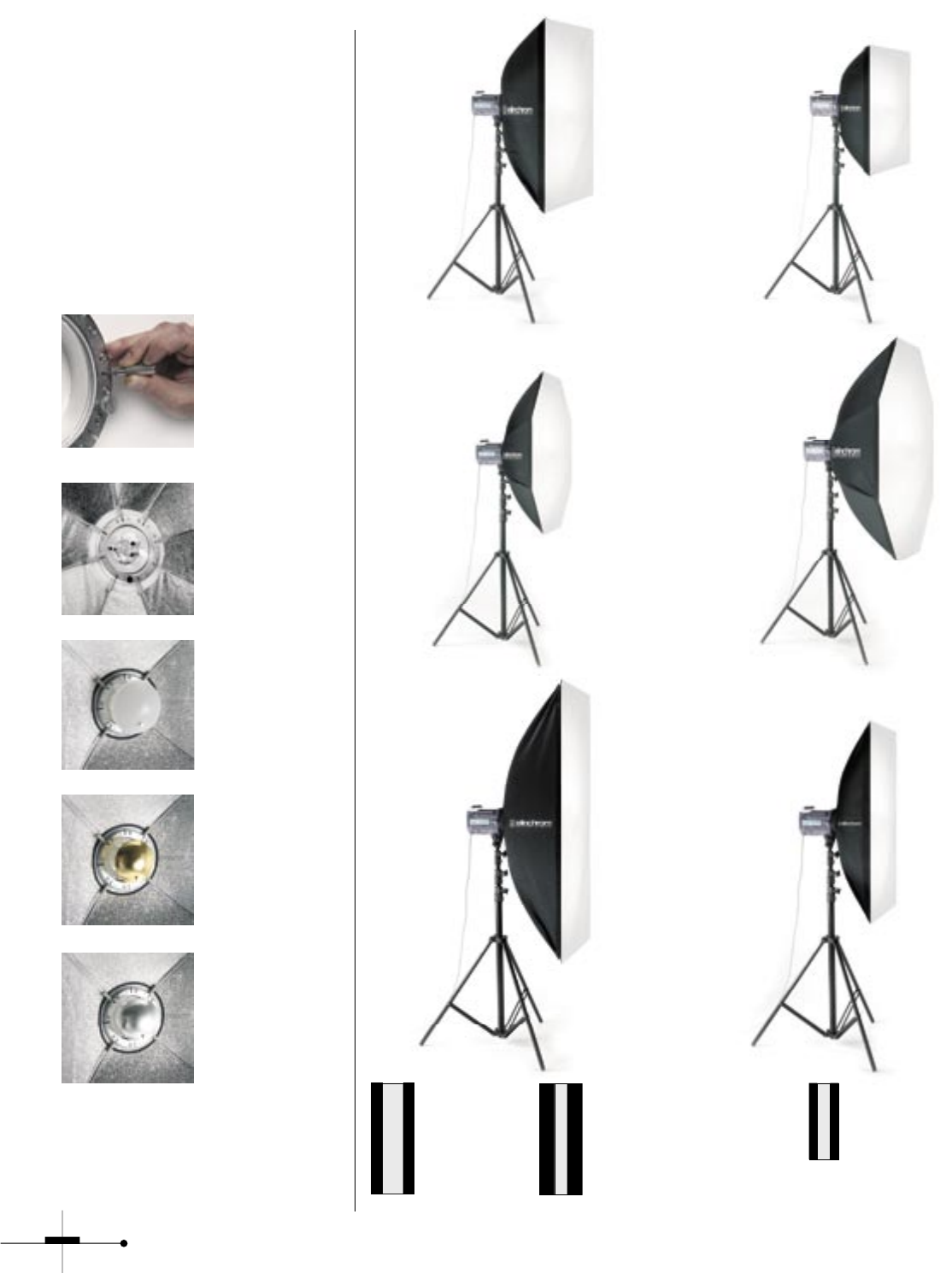

Rotalux Softbox Just more than a Boxlite 18
Indirect Softlites Octa, Quadra, Recta & Strip 19

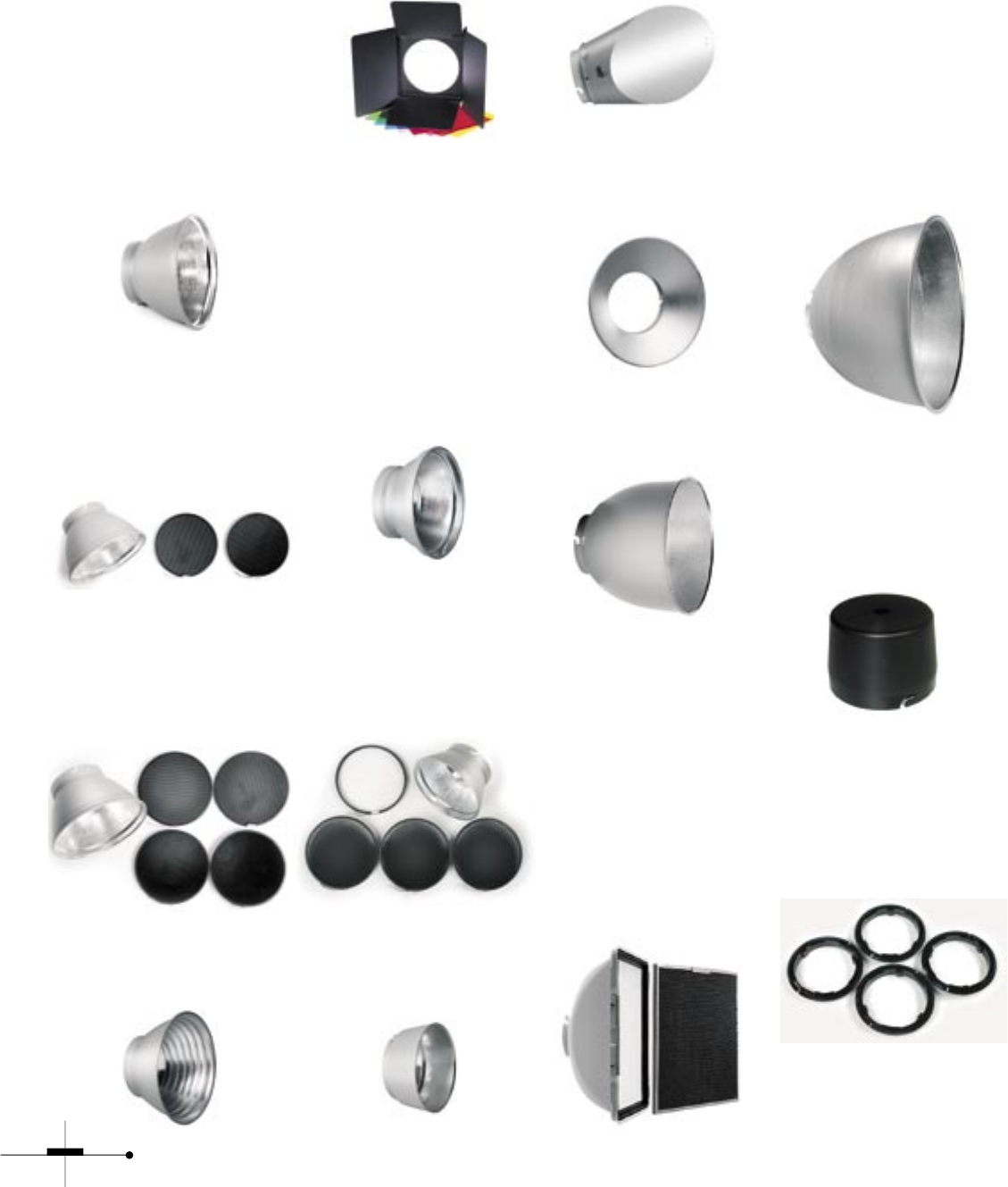

Accessories Refl ectors & Grids 20
Refl ectors & Umbrellas 21

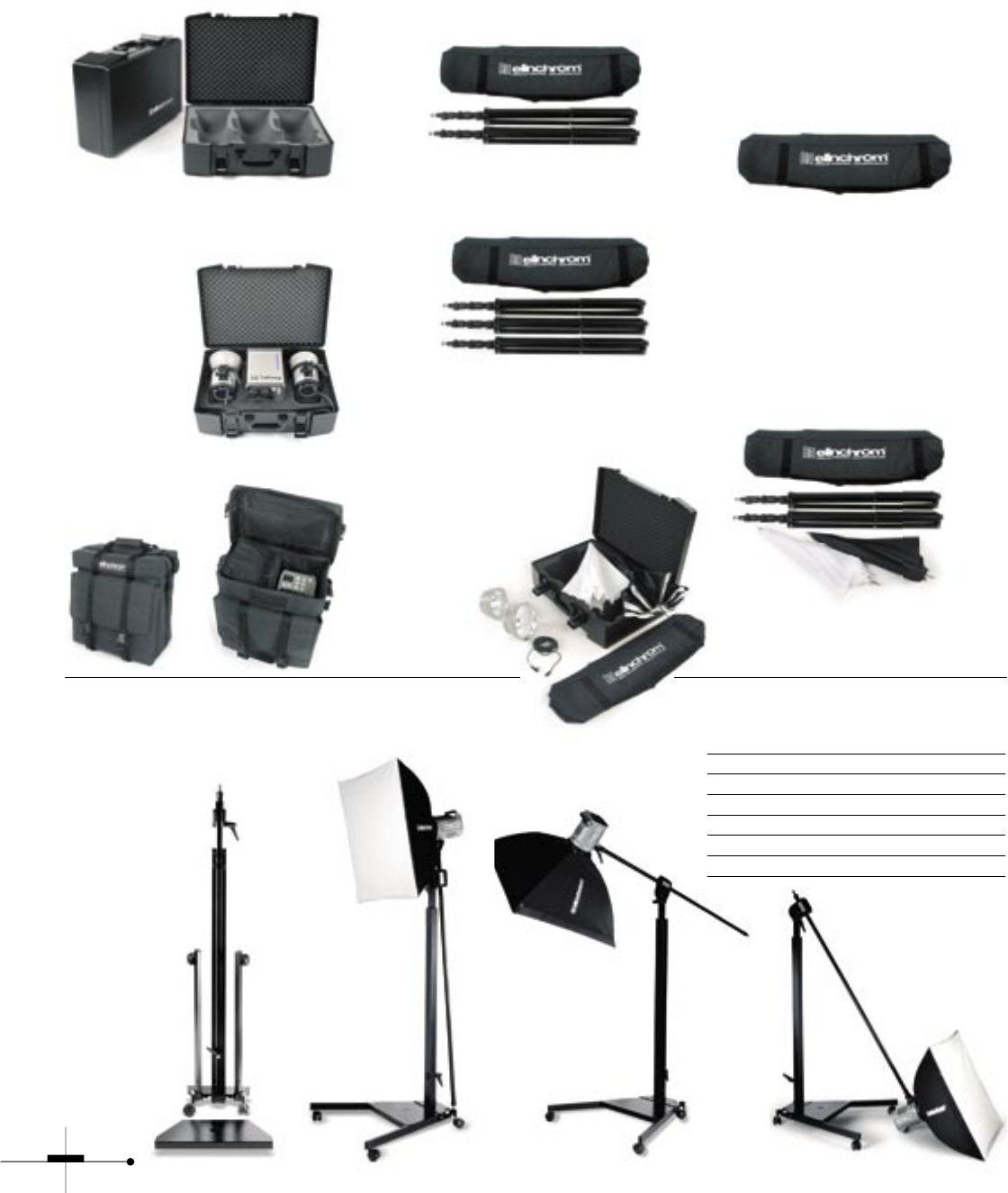

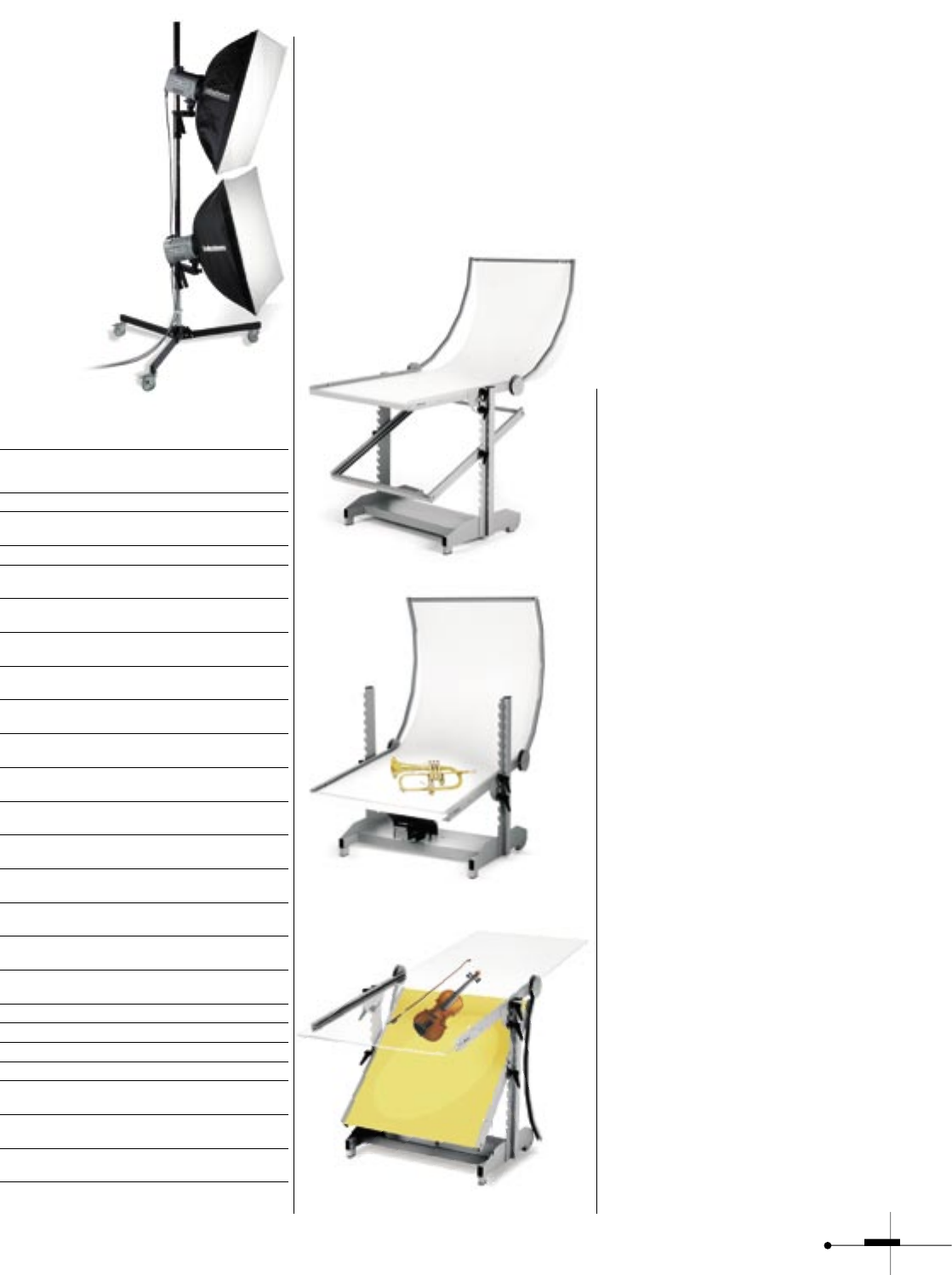

Cases, Bags, Stands & Still Life Table 22

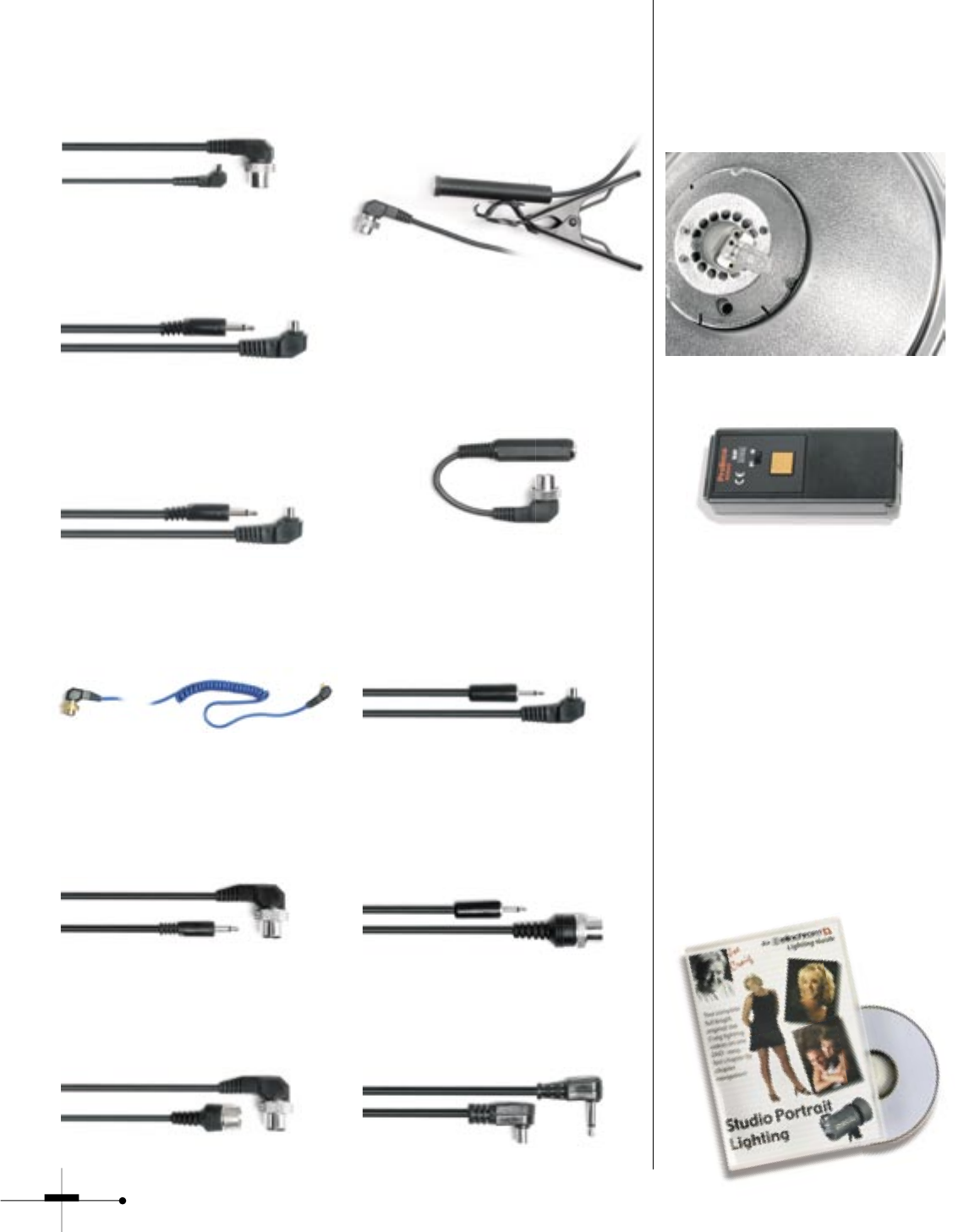

Sync Cords, Photocells,
IR, DVD Lighting Guide 24
Power Specifi cations Last but not least 26
2

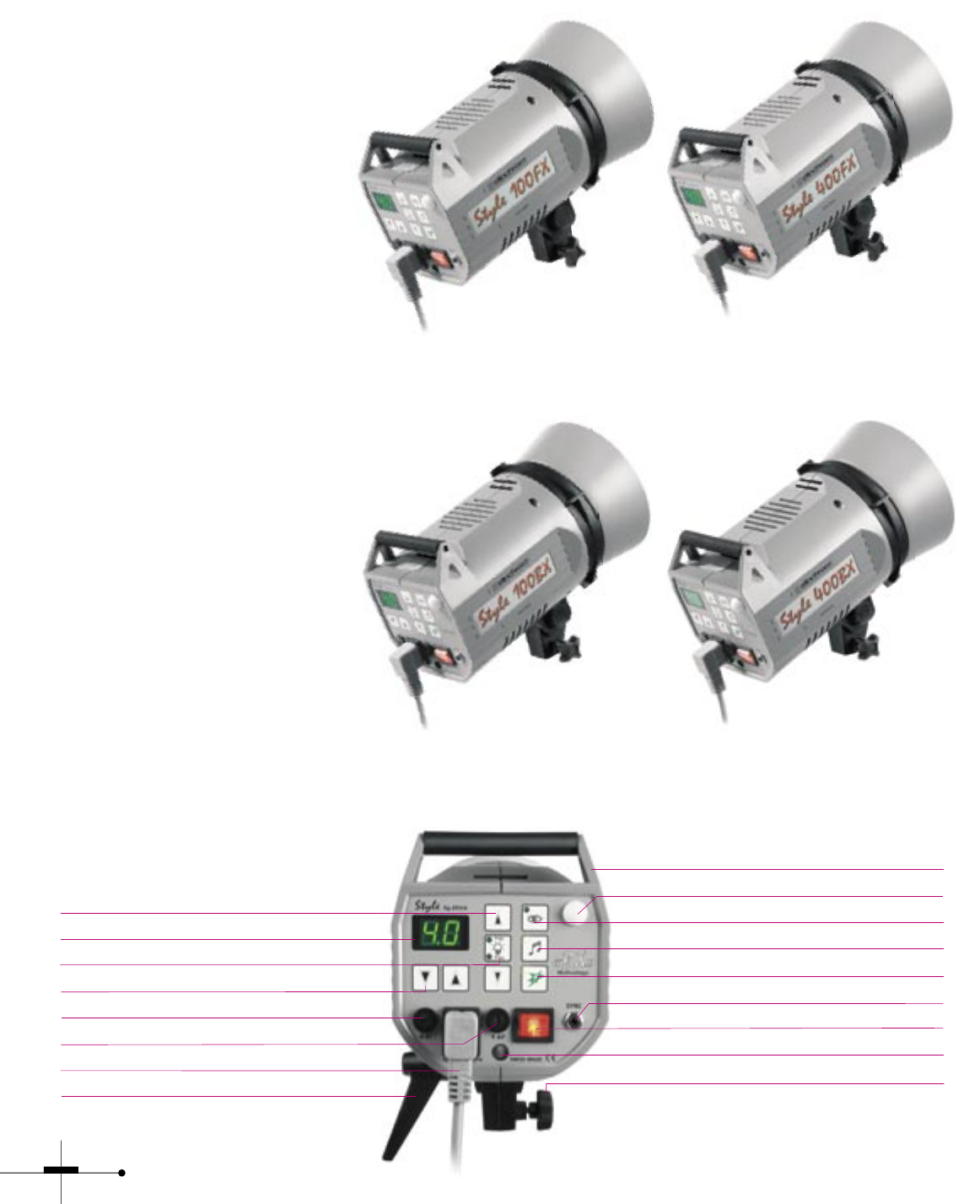

Style FX & BX
Compact Flash Series
Style BX 400
Multivoltage / 20534
Style FX 100
230 V / 20529
Style BX 100
Multivoltage / 20532
Style FX 400
230 V / 20531
Power Control FX & BX
Power control for modelling lamp +/- 1/10 f-stop
Large precise LED power display
Three modelling lamp modes, proportional / free / off
Power control for flash power +/- 1/10 f-stop
Mains fuse
Fuse for modelling lamp
Mains inlet socket
Level tilt head
Handle
Highly sensitive photocell
Photocell on / off
Charge ready beep, on / off
Open flash with LED indicator
Sync socket, 3.5 mm jack
Illuminated mains switch on / off
Centred tube, for EL-umbrellas, ø 7 mm
Knurled clamp screw
“Uniquely Elinchrom”
Four new Style compact flash units with
tomorrow’s specifications, at yesterday’s prices!
New digitally stabilised entry level compacts
for the most demanding imaging. Power ran-
ges 400 Ws - 25 Ws and 100 Ws - 6.5 Ws,
with stability to less than 0.5 Ws! Ready to go
anywhere … with Style BX Multivoltage
(90 V-260 V) and plug-in flash tube.
These are the most advanced low cost units in
the world. Another Elinchrom First!
Why Style FX & BX?
• Multivoltage 90 V – 260 V for Style 100 BX
and Style 400 BX.
• Plug-in flashtube for Style BX units.
• Rapid re-cycling times with fast flash duration
for all FX and BX.
• Fan cooling for all FX and BX units.
• Three modelling lamp modes; proportional /
free / off.
• Auto Dump Function, ensuring efficient power
correction.
• 5 f-stop power range variable in precise 1/10
steps (1/16 – 1/1).
• Large and digital power LED readout.
• Low 5 V sync voltage to protect digital
camera electronics.
• Centred umbrella fitting.
• Sensitive photocell.
• Lightweight and compact for Location work
• Our omega flashtube is precisely positioned
in the internal reflector, to avoid the inherent
uneven illumination produced by other non-
concentric or U-shaped flashtubes!
• Style BX offers Multivoltage technology with
automatic voltage detection from 90 V to
260 V and a long life Halostar modelling
lamp. When changing voltages, only replace
modelling lamp.
3

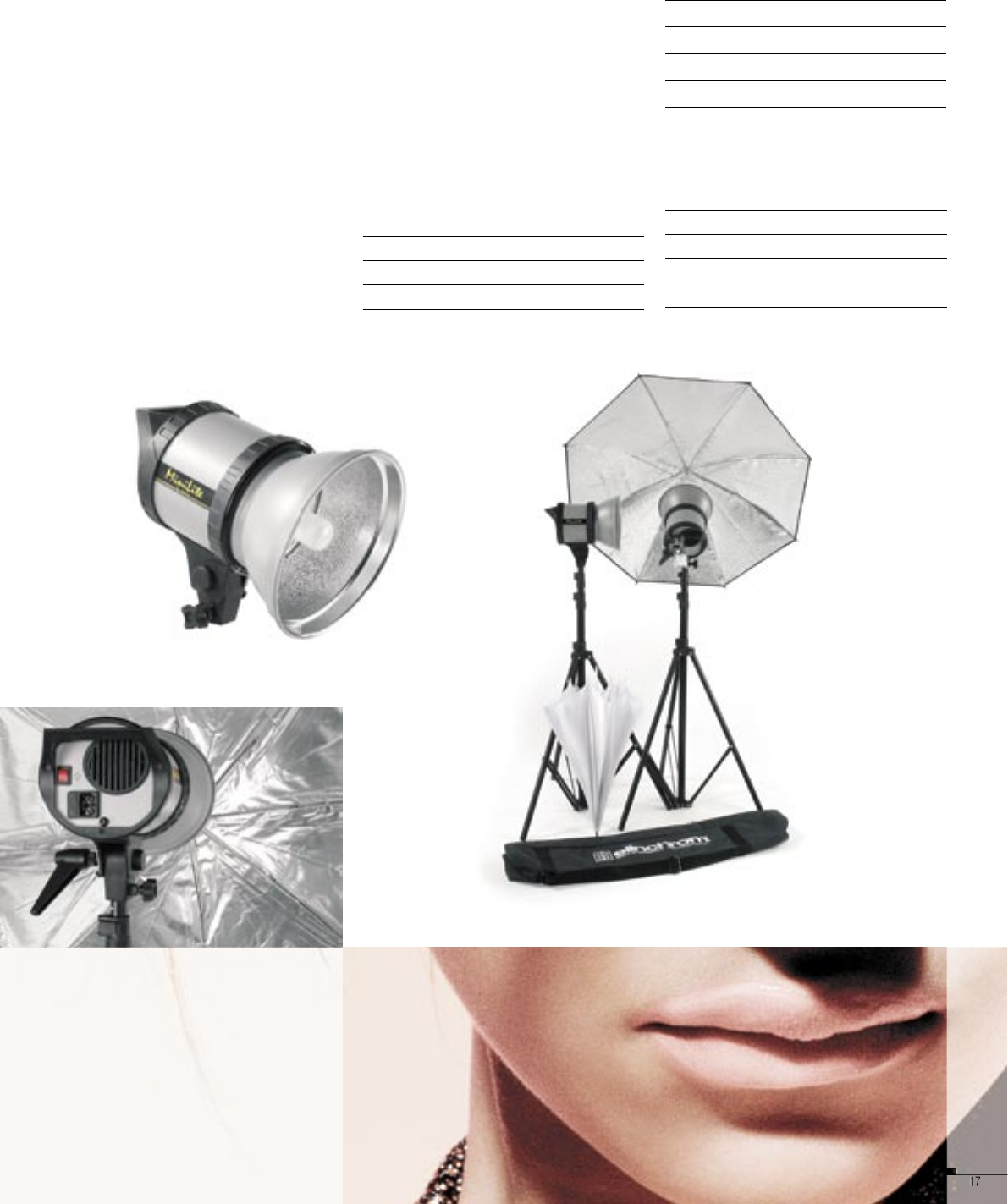

The portable studio flash system,
advanced… and low cost!
FX To Go
Style FX To Go 200 V – 260 V
Qty Item
20647 2 Style FX 400
20646 2 Style FX 100
BX To Go
Style BX To Go Multivoltage 90 V – 260 V
Plug-in tube
Qty Item
20747 2 Style BX 400
20746 2 Style BX 100
2 Modelling lamps, 2 flashtubes, fuses,
1 sync cord, 2 power cables are
included standard items in each head set.
Each pair of heads & accessory set fits into the
Elinchrom case.
The umbrella stand set is listed separately but
together makes up the complete set.
Each head set also includes:
Accessory set
Qty Item
26143 1 Refl ector 16 cm
26124 1 Protective hood
26127 1 Portalite 60 x 60 cm
26305 1 Translucent defl ector and rod
33209 1 Travelling Case
Umbrella Stand Set 20564
Qty Item
26350 1 Umbrella silver 83 cm
26351 1 Umbrella translucent 83 cm
30101 2 Stand 88 x 235 cm
33220 1 Carrying bag
Translucent Defl ector
Included, to modify softness. Only Elinchrom
offers a central fitting for even light distribution.
Lightweight, performance and power at low
cost for your trip!
Power To Go… Style FX & BX
Style FX & BX are the third generation of
Style compacts. Performance and value at
affordable prices are typical of Elinchrom.
Don’t compromise... buy the best!
The internal reflector with 90° light distribution
avoids inherent uneven illumination produced by
non–concentric or U-shaped flashtubes.
The bayonet reflector fitting with additional
security breech lock accepts all Elinchrom &
Prolinca reflectors since 1974.
Another first is the centred umbrella fitting for
deflectors or umbrellas.
Elinchrom standards for all Style FX, BX, RX
compact flash units and flashheads.
4
Today’s digital workflow and camera systems
demand greater precision at all power settings
with an extended power range to cover extreme
requirements. Precise repeatability with ultra-
stable electronics controlled by large digital
displays. Elinchrom performance characteristics
now exceed the most demanding criteria. The
revised range of Style RX units, with power
variation from 1200 Ws to 9 Ws, offer optio-
nal digital 2-way remote control and provide
the possibility to interface with Mac and PC
workstations, combining seamlessly with the
new digital RX packs.
Why Style RX ?
• Interface for Mac and Windows workstations.
Control 1, 2, 3 or 4 studios each with 16
units.
• Low 5 V sync voltage protects digital camera
systems.
• Ultra consistent performance for every digital
application. (QuickTime VR, multi and single
shot digital imaging).
• Rapid re-cycling times, maintaining stability.
• Action freezing flash durations at full power
Style RX 300-1/2850 s; RX 600-1/2050 s;
RX 1200-1/1450 s / t=0.5

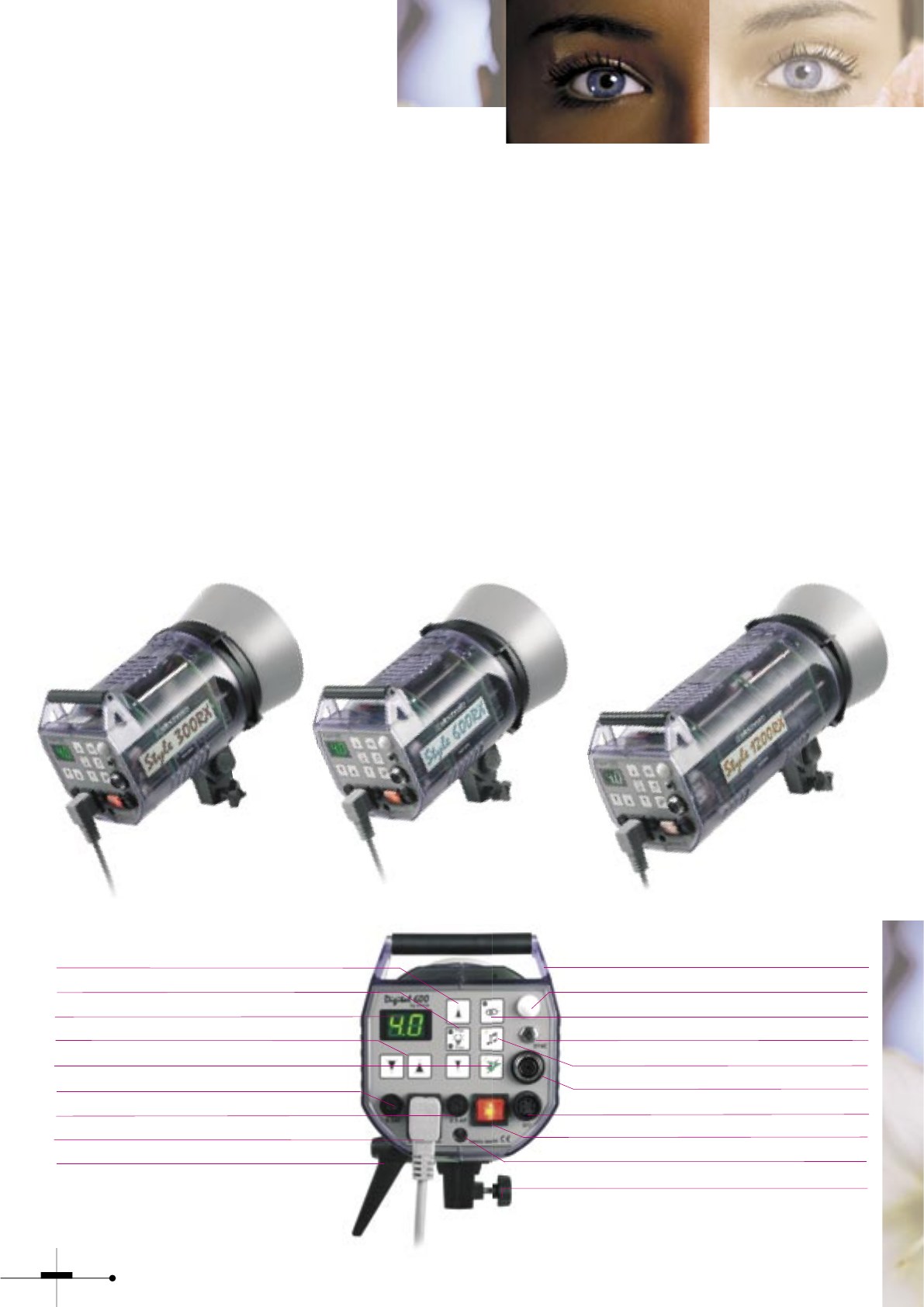

Style RX
Digital Performance All In One
Style 1200 RX
230 V / 20627 - 110 V / 20727
Style 300 RX
230 V / 20625 - 110 V / 20725
Style 600 RX
230 V / 20626 - 110 V / 20726
• Optional remote control with large digital LED
feedback display of all functions!
• New translucent, fire retardant, robust body
shell encasing the die cast alloy chassis.
• Lightweight elegance for easy ”out of studio
use”.
• Integral reflector, designed to maximise
power efficiency combined with our plug-in
omega flashtube precisely positioned avoids
the inherent uneven illumination produced by
non–concentric or U-shaped flashtubes.
Power Control RX
Power control for modelling lamp +/- 1/10 f-stop
Three modelling lamp modes, proportional / free / off
Large precise LED power display
Power control for flash power +/- 1/10 f-stop
Open flash with LED indicator
Mains fuse
Fuse for modelling lamp
Mains inlet socket
Level tilt head
Handle
Highly sensitive photocell
Photocell on / off
Sync socket, 3.5 mm jack
Charge ready beep, on / off
EL standard sync socket
Interface for Computer & Hand Remote Control
Illuminated mains switch on / off
Centred tube, only for EL-umbrellas, ø 7 mm
Knurled clamp screw
5

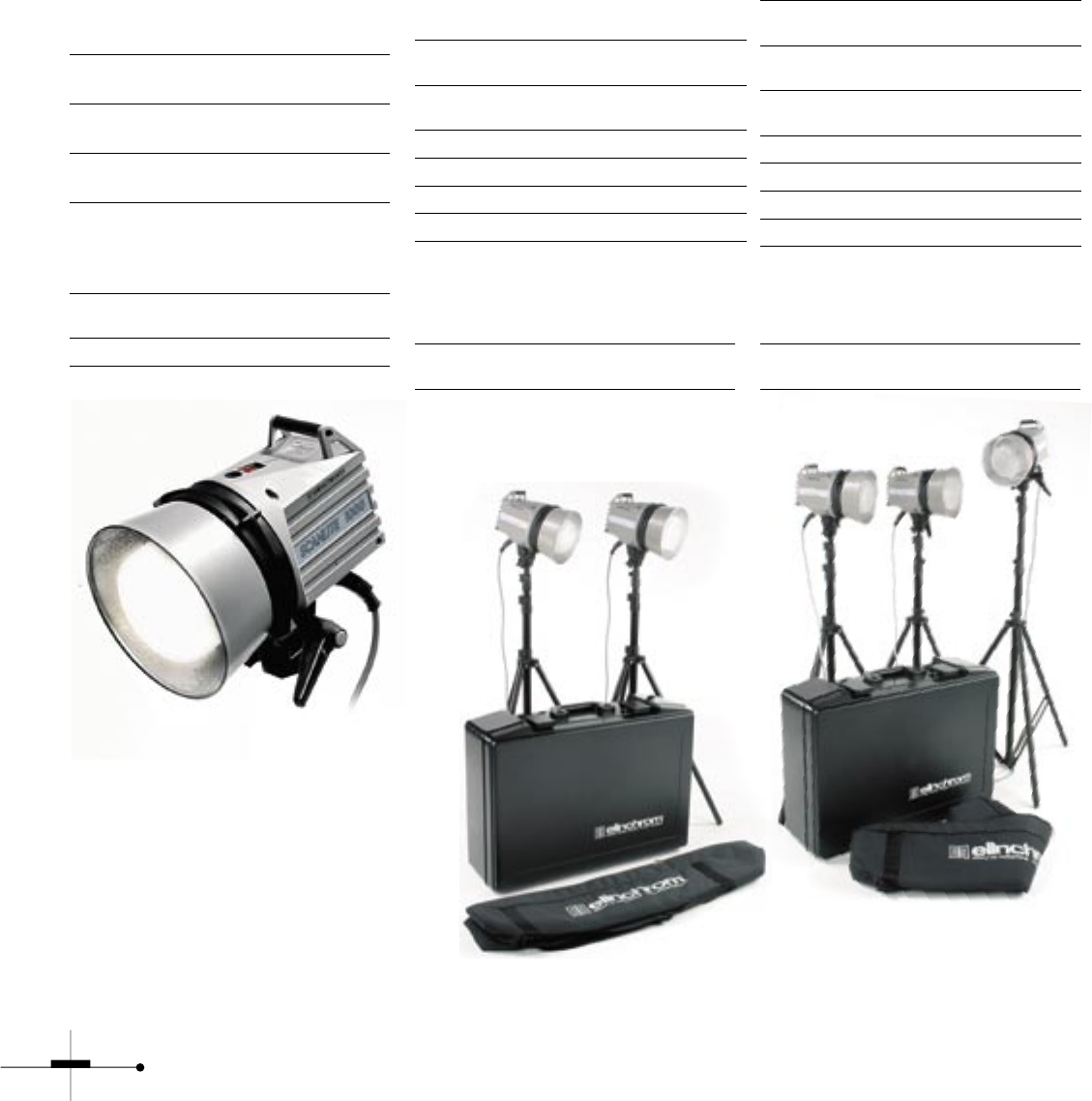

Why Style RX To Go
• Integrated Mac-PC interface for computer
control.
• Integrated socket for hand remote control.
• Ultra consistent performance for digital.
• Rapid re-cycling times.
• Action freezing flash duration.
• Lightweight elegance for easy out of studio
use.
• 6 f-stop variable flash power in 1/10 steps.
• Fan cooled.
• Plug-in flash tube.
• Digital touch button display.

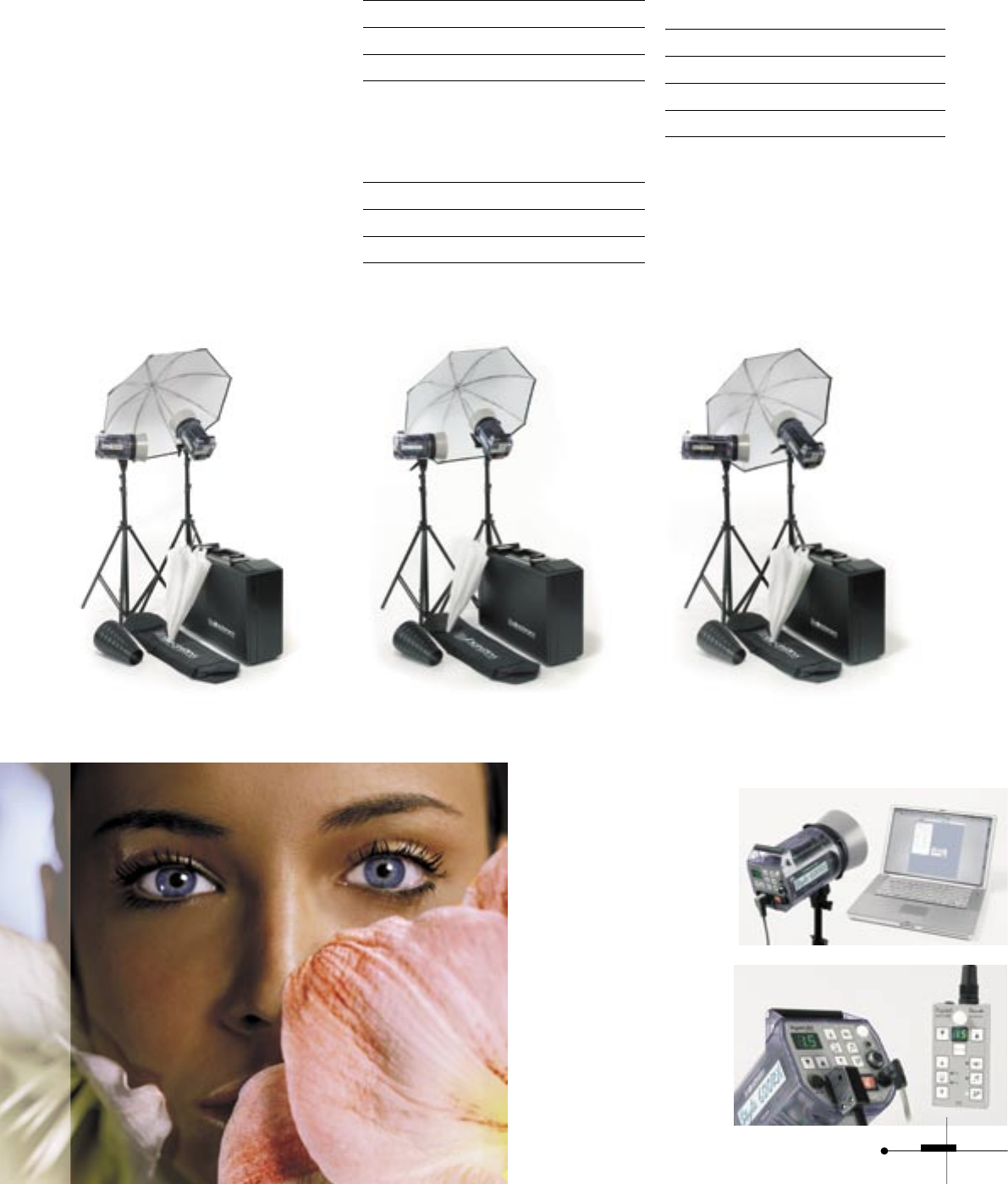

Style RX 300 To Go
Style RX To Go
Style RX 600 To Go Style RX 1200 To Go
Style RX To Go
230 V 110 V
20643 20743 2 Style RX 300/300
20644 20744 2 Style RX 600/600
20645 20745 2 Style RX 1200/1200
1 Sync cord, 2 power cables, 2 modelling
lamps are included.
Each head set also includes:
Accessory set
33209 1 Elinchrom head case
26143 2 Refl ector 16 cm
26425 1 Snoot
Stand Umbrella Set 20536
This set completes any of the head sets to
make a complete studio set.
26371 1 Umbrella translucent 85 cm
26372 1 Umbrella brilliant white 85 cm
30101 2 Stand 85-235 cm
33220 1 EL carrying bag
Optional computer remote
Multilink Set 19345
Optional hand remote
Hand Remote Set 19342
6

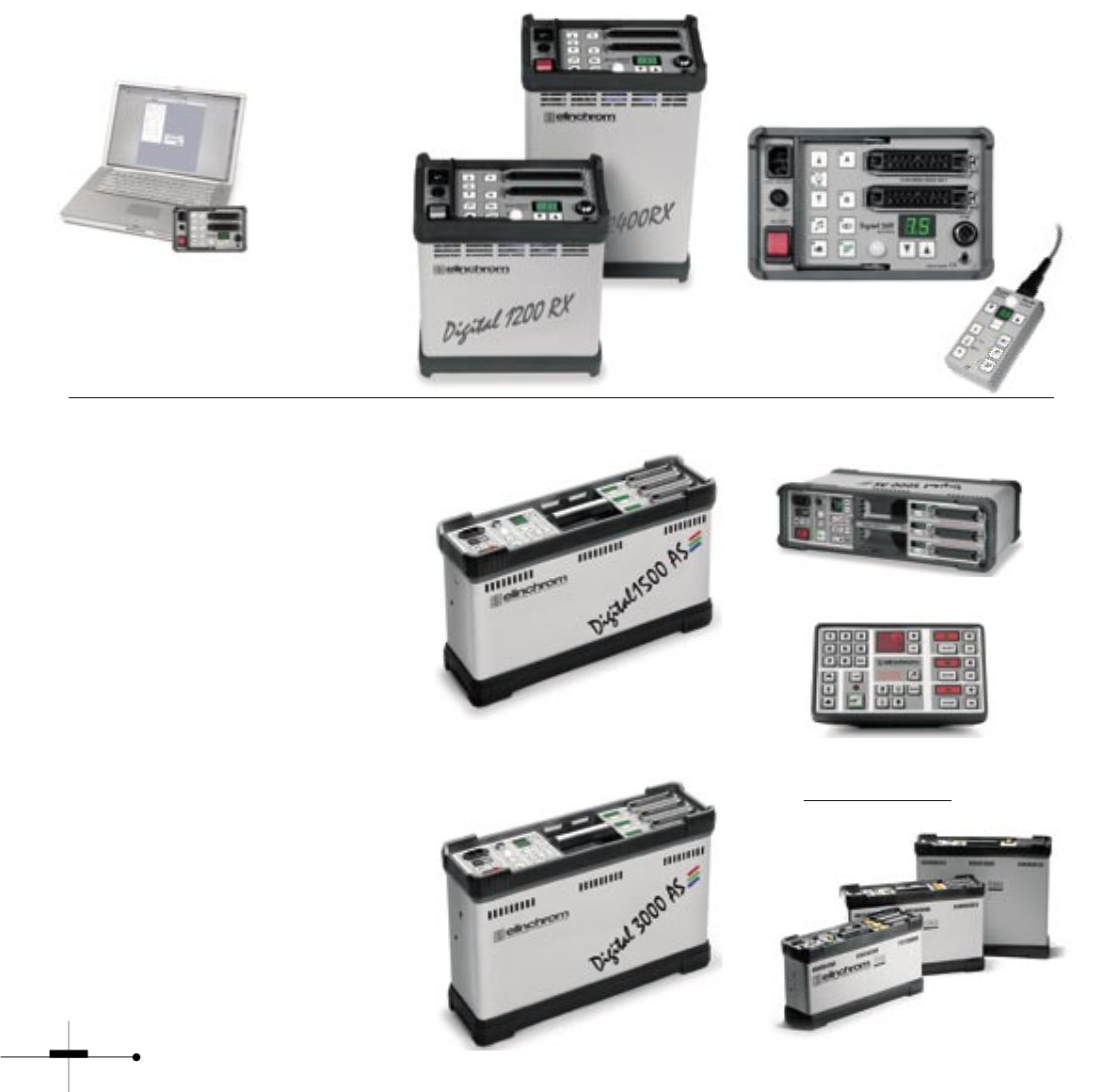

Digital 1200 RX & 2400 RX
Elinchrom has a long tradition of excellent
power pack designs for professional imaging.
The latest Digital RX series incorporates
electronic know how combined with high manu-
facturing quality at affordable prices. Highlights
like computer interface, ultra stable circuitry for
consistent flash power and low sync voltage to
protect digital cameras are just some of many
advantages.

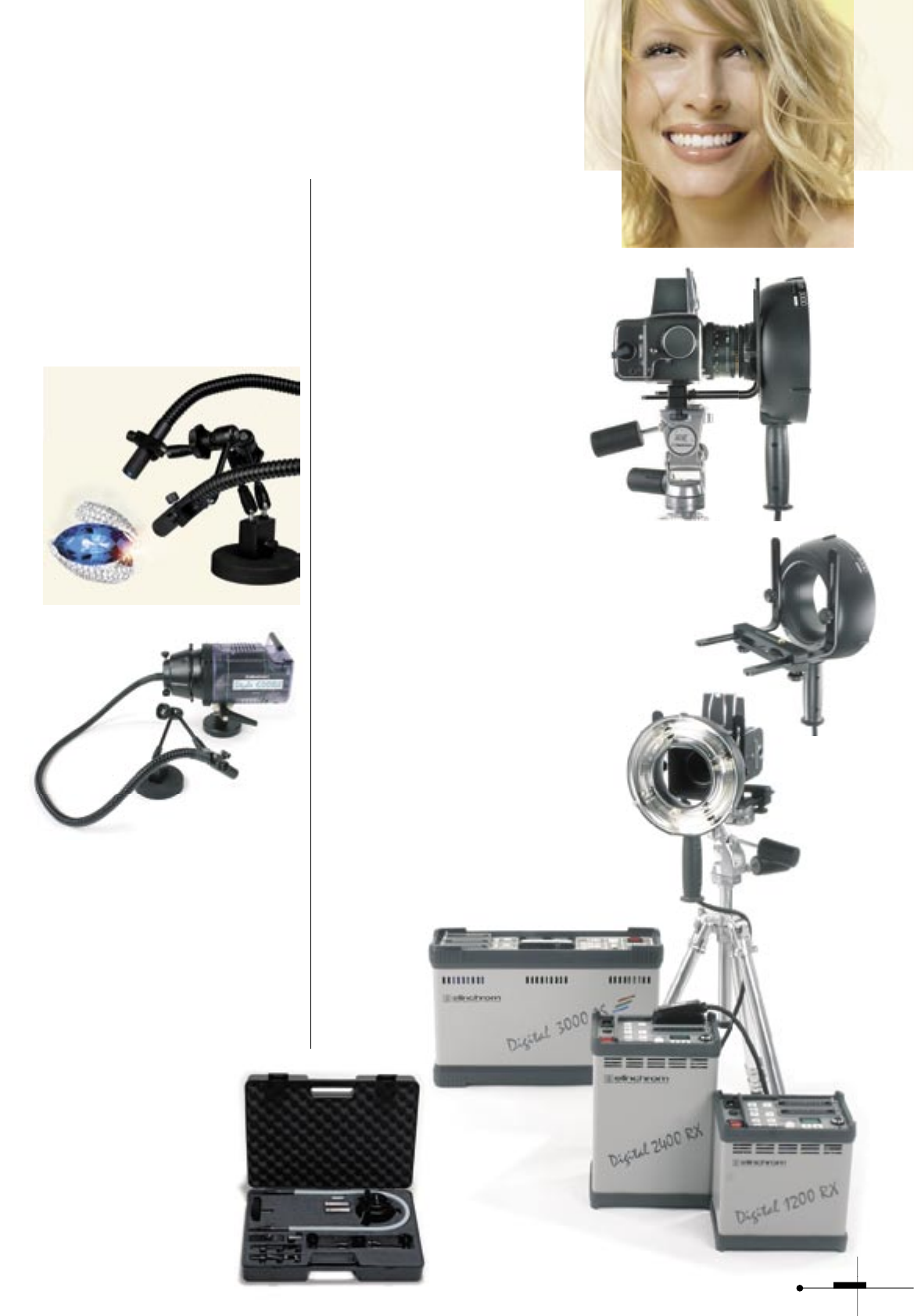

Digital Power Packs
Digital 2400 RX
230 V – 10258
110 V – 10257
Digital 1200 RX
230 V – 10256
110 V – 10255
Digital 1500 AS & 3000 AS
Total Asymmetry
The super stabilised Digital AS line for single
and multi-shot digital photography with user
friendly total power asymmetry allow 57 (power
variation options) in 1/10 f-stop on each head
and permit hundreds of 2 head or 3 head
power combinations. Maximum total power
is always available as the microprocessor
compensates for each and every modification.
Why Digital AS?
• Total power asymmetry, each head accepts
different power settings.
• Large green LED power displays.
• Charge speed selectors, rapid, speed,
normal.
• Full modelling lamp control with soft start
function to increase lamp life.
• Initial charge control, when the pack has not
been recently used, to reform capacitors it
will charge slow.
• 8 channel infrared remote control.
Digital 3000 AS
230 V – 10254 / 110 V – 10253
Digital 1500 AS
230 V – 10248 / 110 V – 10247
Why Digital RX power packs ?
• Ultra stable circuitry for absolutely consistent
flash power.
• Unique dedicated Digital S flashheads for
QTVR and 4-shot durability and stability.
• Budget priced Digital SE, SEE flashheads for
single shot use.
• High Speed A - and regular S heads available
for fashion and general purpose photography.
• Precise digital power display to complement
advanced technology.
• Digital power values compatible with the
Elinchrom system.
• Modelling lamps proportional or independent,
with display.
• Fast recycling consistent with precision and
stability.
• Remote control (optional), 2-way with read
out. Extension cables available for tracking /
wall installations
• Surge resistant circuits, Auto Dump Function,
twin sync sockets, ready beep, sensitive
photocell, anti shock edgings, fan cooled.
• Interface for Mac and Windows computer,
controlling up to 4 studio locations, each with
16 units with the optional ERS system.
• Price / performance / quality – Elinchrom
value, just buy the best!!
Digital 1500 AS, 3000 AS and Classic 3000
Details at www.elinchrom.com
Hand Remote Set 19342
7
EL- Flashheads
For Elinchrom power packs
Why Elinchrom Digital
Flashheads?
• To ensure the ultimate
retention of colour balance,
Digital flashheads with advanced
specifications will satisfy the
most demanding applications,
like QuickTime VR or Flash.
Designed to withstand extreme
frequency of use, the heavier
duty flashtubes minimise chan-
ges in light characteristics and
output.
• The ideal combination with the
Elinchrom Digital microproces-
sor-controlled power packs.
• NB. For best digital multishot
results, flashheads should be of
similar type and make. “Do not
mix flashheads!”
Digital SEE
230 V – 20172 / 110 V – 20173
This flashhead can be used up
to 2400 Ws. The “long life” Swiss
made flashtube covers all universal
studio use. This head is equipped
with 300 W halogen lamps. Glass
domes optional.
Digital SE
230 V – 20174 / 110 V – 20175
This head accepts 3000 Ws and
is suitable for standard multishot
imaging. The heavier duty flash-
tube has electrodes that are less
affected by colour variations with
frequent use e.g. normal three or
four shot systems. Glass domes
optional.
Digital S
230 V – 20150 / 110 V – 20149
This head offers the ultimate in sta-
bility for standard multishot imaging
and QuickTime VR sequences. To
resist heat stress, these flashtubes
have over sized heavy-duty elec-
trodes complementing and optimi-
sing the precision of the Digital RX
units. Glass domes optional.
X 6000 N
230 V – 20182 / 110 V – 20183
The flat twin interlocking flashtubes
bring a focusable light source to
high power users. Cabled into a
single 6000 Ws power source, the
flash duration is halved. Cabled
into two 3000 Ws power sources,
faster discharges may be cycled
quicker. Glass domes optional.
Digital RE
230 V – 20170 / 110 V – 20169
This head creates sharp linear
shadows and spreads light evenly
over a wide area. Excellent also for
sunlight effects (windows, Venetian
blinds), depth enhancing “oblique”
and dynamic shadow effects. The
articulated head facilitates precise
positioning to any angle. Integral
supports for barndoors and filters.
Flashhead Extension
Cables
Flashhead ext. cable 5 m
21040
Flashhead ext. cable 10 m
21041
Pyrex Glass Domes
Glass domes are delivered in
transparent, as protection and
in satin matt to soften shadow
edges. The 440° K glass dome
gives a warm tone for portraiture
or food photography.
Glass Dome Transparent
with fi tting set 24925
Glass Dome Satin with fi tting
set 24926
Glass Dome 400°K warm with
fi tting set 24927
Spare fi tting set 620.207 / 3 x
Why Elinchrom Flashheads?
• Efficient built-in reflector, with a
90° light distribution to maximise
softbox performance.
• Small flashtube diameters for
short flash durations and better
subject control. UV coated.
• Extremely lightweight, only
2.4 kg, including heavy-duty
cable, 5 m long.
• Reflector-bayonet with breech
locking ring, fits all Elinchrom
reflectors since 1974. Huge
reflector/softbox range.
• Aluminium chassis with polya-
mide fire resistant housing.
• Centred umbrella fitting with
additional umbrella holder on the
stand adapter.
• Efficient low noise fan cooling.
• Three optional Pyrex domes:
transparent, mat and 400°K
warm.
• Illuminated on/off modelling lamp
switch.
• 500 multi-strand power cables
for maximum power with flexibi-
lity.
Mini S
Budget priced
230 V – 20106 / 110 V – 20105
Mini A Speed
Budget priced
230 V – 20104 / 110 V – 20103
The classical metal housings com-
plement the compact dimensions
of the RX power packs. These are
not eco-units; all components,
flashtubes, fans, power cables
conform to the normal Elinchrom
standards.
Twin X4
230 V – 20180 / 110 V – 20181
Twin cables and flashtubes extend
the range of use. Both cables in
one unit halves flashdurations.
The twin cables plugged into two
Chic / Digital 1 power units give
the power of a Chic 2 with the
recharge time of the Chic 1 or the
head delivers 4800 Ws maximum
power units. An economical twin
head for softboxes.
A 3000 N Speed
230 V – 20168 / 110 V – 20167
Unique super short flash duration
with a single, twin electrode
flashtube to ensure even light
distribution. Glass domes optional.
8
The upgraded Ranger RX unit, plus the new
Speed and Speed AS units are designated
RX because they may be operated by remote
control – by computer or by a handset – enor-
mously increasing the ease of use on location.
The basic unit has an improved “fast” recycling
sequence and the Speed unit will recycle to full
power in 2.9 seconds plus up to 250 flashes.
The Speed unit is available with either 2:1
asymmetrical or symmetrical output.
It incorporates the most advanced miniaturised
components weighing in at only 8 Kg – much
lighter and smaller than any comparable unit.
The same modified circuitry has permitted an
extension of its power range to 7 f-stop, with
enhanced stability. We believe these will be the
units to which others will be compared.
Autonomous Flash
Ranger RX System
What is new ?
Ranger RX Ranger RX Speed Ranger RX Speed AS
Quick re-charging to full power 5.5 s 2.9 s 2.9 s
Power range 7 f-stop 1100 Ws – 8.5 Ws 1100 Ws – 5.5 Ws
Remote connection For optional RX Hand Remote Control / all models
PC interface To connect to computers with MAC/Windows operating systems / all models
Asymmetrical power Symmetrical Symmetrical 66% - 33%, two heads connected
Autonomy max. / min. power 140 – 3800 250 - 5100
Weight 6 kg 8 kg only, smallest unit in this class
Why Ranger RX Speed AS & Ranger
RX ?
• Consistent flash power at any battery level.
• Guide number all units max. power
f-64.1 @ 2 m distance 100 ISO
• Charger, Multi-voltage with European, USA
and UK adapters.
• Battery re-charging - to full power- 3 hours.
• The charger can charge the battery in the
unit or externally.
• Power saving, auto cut off of modelling
lamp and charging
• Modelling Lamp modes, 15 s, 30 s & off
• Photocell, adapted to release in bright
ambient light.
• Charge Ready Beep, on/off, with green LED
indicator.
• Charge Ready Light / Open Flash, indicated
with bright LED!
• Auto Dump Function, adjust power levels
after setting automatically
• Battery Charge Indicator, two green LED
100%, one green LED 50%, one red LED
approx. 10%. The Ranger electronic protects
the battery from over and complete dischar-
ging. The battery can be recharged at any
level. There is no “Memory-Effect”!
• Battery-Box Quick Release, to release, press
the two push buttons at the left and right
side of the housing, lift up the unit releasing
the existing battery - then place the pack
over the replacement battery, pressing firmly
down for automatic locking.
• Moisture resistant rubber protectors.
• Raised sockets complete with covers; elec-
tronics only in the upper part of the unit.
Ranger
RX
10263
incl. Shoulder Strap, Battery Box,
Sync cord, Charger
Ranger
RX Speed
10265
incl. Shoulder Strap, Battery Box,
Sync cord, Charger
Ranger
RX Speed AS
10267
incl. Shoulder Strap, Battery Box,
Sync cord, Charger
Ranger RX computer remote option.
Actual Ranger RX Way To Go Sets fi nd at www.elinchrom.com
9
Ranger RX
with Varistar,
umbrella, spread
light in wide areas.
Ranger RX with
Hand Remote,
additional
accessories.
Ranger RX Accessories
Accessories
Ranger RX, RX Speed &
RX Speed AS
Free Lite S 20100
Free Lite A Speed 20101
Ranger RX Ringfl ash 1500 20493
The ultimate combination for “In” and “Out”
door photography!
Ranger RF 1500, complete with 4-pole flashtu-
be, freezes movement with a 1/2600 s (t0.5) @
full power. Two metre flash cable enables pho-
tographers to use it freehand (with the battery
pack shouldered or in a backpack). The internal
Ringflash diameter of 100 mm accepts a wide
range of camera lenses.
Shoulder Strap 19289
Car Battery Supply 11094
for use with any 12 V car battery. Integrated
protection circuit against reversed polarity.
Remote Adapter 11110
for optional Hand Remote and ERS
accessories.
Ranger RX Speed &
Speed AS
Battery Box 19280
complete with battery for approx. 250 fl ashes
@ full power.
Multivoltage Quickcharger 19283
Only for 10265 and 10267
Car Battery Supply 11097
for use with any 12 V car battery.
EL Travelling Case 33215
For Ranger and power packs
Ranger RX
Battery Box 19290
complete with battery for approx. 140 fl ashes
@ full power.
Multivoltage Quickcharger 19293
with multi-socket adapters.
FreeLite Extension Cable 11096
4 m only for FreeLite S and A fl ashheads.
Ranger Adaptor Cable 11095
adapts EL standard fl ashheads to the Ranger
RX power packs. (Mains modelling lamp and
fan are deactivated.)
10
Need to control your Elinchrom studio flash system together with your
digital camera controls on the same computer?
You want it? We made it...
Take a look @ ERS and let it roll! Scan the Flash-Net... After installing
ERSMAC Software, connect your Style RX compacts or Digital RX power
packs to your computer. Open ERSMAC, the Elinchrom Software starts
automatically to search for connected RX units.
Elinchrom Remote Studio
Mac OSX & Windows
Additional features such as Flash and Power On Counters are useful for
Rental and Service.
In “Single Mode” each RX unit can be operated separately in all functions.
The Studio Mode and Net Mode enables global changes such as “stand
by” to be made by studio or to the complete network of studios.
ERS-Mac supports Apple Macintosh operating systems OSX 10.2.8 and
higher
11
Place RX flash units in four different Studios or working areas and
address the RX flash units from Unit 1 to Unit 16.
Set Studio and Unit address; Flash power settings in 1/10 f-stop with
accurate +/- buttons or traditional Elinchrom digital-slider; Modelling lamp
modes: Free / Proportional / Off; Audio Ready Beep, on/off; Photo Cell,
on/off; Power Pack flashhead sockets, on/off; Stand By, on/off;
Slow Charge, on/off.
Easier control of all functions.
Last But Not Least The ERS Setup facilitates customised settings.
ERS-Windows offers the same controls and settings as ERS Mac and
supports Win 98 SE, 2000 and XP.
The Elinchrom Remote Studio we made it for you!
Please download free RX ERS software at www.elinchrom.com
12
The Hand Remote Control
enormously increases the flexibility
of all “RX” flash units. Optional
remote cables in 1.2 to 19.2 m,
the integrated highly sensitive
photocell and the 3.5 mm sync
socket helps to control and trigger
any RX flash unit at long distances.
This item operates all functions of
Style 300 RX, 600 RX and
1200 RX.
The RX power pack range Digital
RX 1200/2400 and the new
Ranger RX battery powered
system accepts the same Hand
Remote and operates almost all
functions.
(Slow charge and the head A or
B selection for power packs is
not available. Only the PC / Mac
Software can operate all power
pack functions).
Hand Remote
Control
ERS System 19339
Mac / Windows
The complete starter set includes the
PC-Mac software and four Remote
cables for RX units.
Note: To connect six RX units, two
Remote cables must be ordered
separately.
USB Cable 3 m
Remote cable 2.4 m / 2x
Remote cable 4.8 m / 2x
USB Multilink converter
for maximum six RX unit.
CD-R including Mac/Windows
Software and USB Driver
Hand Remote &
ERS
RX Hand Remote Control
Set 19342
Hand Remote 19340
Remote Cable 1.2 m 11100
For Style RX, Digital RX, for
Ranger RX adapter cable 11110
is required.
Ranger RX Hand Remote
Set 19343
Hand Remote 19340
Ranger RX Remote Kabel 1.6 m
11106
Sync Cables
Sync Cord 3.5 jack, 2 m 11084
Sync Cord 3.5 jack, 5 m 11088
Set USB Multilink 19345
(to connect 4 RX units)
Sample: to operate ten RX units,
two Multilink boxes and eleven
Remote cables are required.
(One cable to connect the Multilink
boxes and ten for the RX units.)
Alternatively the included USB
cable can be used to set up a
second remote network with
another computer.
Note: Each linked RX unit and
Multilink box will require one
remote cable! Remote cables can
be ordered separately.
USB Cable 3 m
Remote Cable 2.4 m / 2x
Remote Cable 4.8 m / 2x
USB Multilink Converter
for 6 RX units
USB-Multilink converter
19344
USB Multilink Converter
for 6 RX units
USB cable 3 m
Note: Remote cables must be
ordered separately.
Software ERS 19341
Elinchrom Remote System
The CD-R includes ERS software
for Mac OSX 10.2.6 or higher and
for Windows, USB Multilink Drivers
for Mac and Windows. Help files to
set up the ERS-Network and other
useful information. USB Cable 3 m 11098
to connect the Multilink conver-
ter to a Macintosh or Windows
computer.
ERS-Network and Hand
Remote Cables
Only RX Series
The Remote cables are required to
connect USB Multilink converter
with RX units & RX Hand Remote.
Remote cable 1.2 m 11100
Remote cable 2.4 m 11101
Remote cable 4.8 m 11102
Remote cable 9.6 m 11103
Remote cable 19.2 m 11104
Ranger Remote Cable
for ERS Network & Hand Remote
Remote cable 1.6 m 11106
Remote cable 3.2 m 11107
Remote cable 6.4 m 11108
Ranger RX Adapter cable
20 cm 11110
ERS Network
The image shows the USB
Multilink converter connected to a
Mac computer via USB cable. The
four Remote cables can be linked
to Style RX 300, RX 600, RX 1200
compacts, Ranger RX or to the
Digital RX 1200 and 2400 power
packs. One Multilink box operates
six RX units. The other option is to
link five RX units and an additional
Multilink box for five more RX units.
EL Remote System for Style RX, Ranger
RX & Digital RX / Mac & Windows
EL-Skyport
Elinchrom Wireless System
The new EL-Skyport uses the 2.4
GHz frequency band with 40 bit
encryption for secure - and
interference free flash triggering or
wireless operating of Elinchrom RX
flash units with Mac or Windows
operating systems. Most trigger
systems work with less than 3 bits,
what may force interference
problems with other wireless
systems. The long life Lithium
battery accepts about 50000 flashes
or approximately six-month lifetime.
Skyport is a mini size system, only
3 x 5 cm and 15 g lightweight for
each component. The movable
antenna can be directed to increase
working area. Studio operating
distance is about 50 m and 100 m
outdoors.
Details find under
www.elinchrom.com
EL-Skyport Transmitter
EL-Skyport Receiver
Universal
EL-Skyport Transreceiver RX
EL-Skyport RX Computer USB
13
14
Special Effect Lights
Spot on @ Elinca
The Elinchrom Fresnel- and Projection
Spot-Line covers all professional needs for
sophisticated lighting in portrait and commercial
photography. High quality projection-lenses
allow precise and crisp illumination.
Spot - Accessory Type
Usable with any Elinchrom/Prolinca head.
Minispot - Accessory Type
26420
A basic hard edged spot. Supplied
complete with gobo/fi lter holder and
one set of gobo’s, various shapes and
spots. Fits to any ventilated Elinchrom
fl ashhead.
Incl. listed accessories:
Set of 5 gobos ø 52.5mm 26418
Filter holder 26422
Lens 26423
Zoom Spot 18°- 36° 26481
The new accessory spot accepts all
Elinchrom and Prolinca heads. High quality
lenses for size and sharpness control.
Complete with four integral masking “blades”.
To simplify maintenance, the lenses are easily
accessible for cleaning.
Zoom Spot Accessory Set 26484
Gobo holder, 10 gobos, 2 front masks, fi lter
holder, set of 10 assorted fi lters. The ultimate
“Zoom Set”.
15
Ringfl ash 3000 20494
The RF 3000 is dedicated to Elinchrom power
packs discharging up to a maximum of 3000
ws per exposure. To retain ease of handling,
the unit has a single 5 m power cable, which
reduces weight to approximately 1.9 kg. The
universal camera adapter with full adjustments
enables any 35 mm or medium format camera
to be conveniently fitted. The Ringflash is a
unique light source ensuring totally shadow less
but concentrated illumination for high contrast
or high key lighting. Very popular light source for
fashion, beauty, industrial and much advertising
photography. To modify the light characteristic
into a semi diffuse light source, replace the pro-
tection glass filter with the matt glass diffuser
code 402.013. To use the RF 3000 with Ranger
RX the Ranger adapter cable 11095 is required.
RF Ranger RX 1500 20493
The Ringflash Ranger RX 1500 is compatible
the Ranger RX battery pack system and ope-
rates everywhere, a flexible solution for creative
imagers.
Why Ringflash…?
Lightweight - only 1.9 kg. Use it freehand, with
it’s integrated ergonomic handgrip.
Action freezing - the 4 -pole speed flashtube
freezes action with a 1/2600 s flash duration.
The multi camera fitting combined with the 100
mm internal diameter accepts a wide range of
cameras and lenses.
Glass-Diffuser RF 402.013
To modify the light characteristic into a semi
diffuse light source, replace the protection glass
filter with the matt glass diffuser code 402.013.
Fibre Optic Kit
Kit with two glass fi bre cables 26430
Kit with one glass fi bre cable 26431
The “captor” holds up to three cables, one
metre long and 10 mm diameter for maximum
light transmission. Correctly colour balanced,
they are indispensable for most small object-
photography and dynamise larger subjects by
highlighting or throwing long isolated shadows.
Fits to any ventilated Elinchrom flashhead.
Fibre Optic Kit 1 26431
Incl. listed accessories:
Fibre cable adapter 26433
Accessory/fi lter-holder 26434
Focussing tube 26435
Lens hood 26436
Adapter f. duct extension 26437
Set of 10 fi lters 26438
Quick coupling device 31150
Metal base plate 31153
Articulated arm 31161
Fibre duct holder 31162
Mini holder for accessories 31163
Carrying base 33208
Fibre duct 50163
Fibre Optic Kit 2 26430
Additional to Kit 1:
Accessory/fi lter holder 26434
Focussing tube 26435
Lens hood 26436
Articulated arm 31161
Fibre cable holder 31162
Fibre cable 50163
16
ScanLite 300, 650, 1000
Continuous Light
ScanLite
Halogen ScanLites are an excellent choice for
low cost digital photography, video and many
other imaging requirements. Essentially they
are flashheads without full electronics, they
have the same low noise fan and the huge
range of Elinchrom accessories.
Available as single units of three different
powers, two head and three head sets are
offered with included selection of lamps and
fuses to allow varied power combinations.
ScanLite To Go 2 Head Set 20657
230 V
20996 1 ScanLite 300W
incl. glass dome, lamp
20997 1 ScanLite 650W
incl. glass dome, lamp
26143 2 Refl ector 16 cm
23005 1 Halogen 650 W
23052 1 Halogen 1000 W + 19037. PC
33209 1 Elinchrom black case
Note: Replace fuse when used with other
halogen lamp wattage
Stand Set A
30160 1 2 Stands 88-235 cm,
1 carrying bag
ScanLite To Go 3 Head Set 20658
230 V
20996 1 ScanLite 300 W
incl. glass dome, lamp
20997 1 ScanLite 650 W
incl. glass dome, lamp
20994 1 ScanLite 1000 W
incl. glass dome, lamp
26143 3 Refl ector 16 cm
23005 1 Halogen 650 W
23052 1 Halogen 1000 W
33209 1 Elinchrom black case
Note: Replace fuse when used with other
halogen lamp wattage
Stand Set B
30161 1 3 Stands 88-235 cm,
1 carrying bag
Halogen ScanLite
230V
20996 ScanLite 300 W incl. glass dome,
lamp
20997 ScanLite 650 W incl. glass dome,
lamp
20994 ScanLite 1000 W incl. glass dome,
lamp
Halogen ScanLite 1000
110V
20993 ScanLite 1000 W incl. glass dome,
lamp
23053 Halogen 1000 W
ScanLite To Go
Housed in the stylish Elinchrom 33209 case,
they make an elegant outfit when in use.
The approximate stand sets and carrying
bag are listed separately as requested by the
owners of flash systems who wish to purchase
the lamp heads. If the stand umbrella sets are
required, they are priced very competitively.
Why ScanLite?
• Asymmetrical distribution by using 150 W,
300 W, 650 W &1000 W Halogen lamps with
Pyrex dome.
• Low noise cooling fan and overheat
protection (thermal cut out).
• Huge range of accessories; reflectors,
umbrellas and softboxes.
• Reflector bayonet with breech locking ring,
accepts Elinchrom accessories since 1974.
17
17
A low priced professional lighting system ideal
for digital imaging of small portable products.
Supplied as head sets alone for users already
equipped with stands or as a complete “Ready
to Go” kit.
Why MiniLite?
• Robust lightweight metal housing.
Classic Elinchrom!
• Low noise fan cooling and illuminated on / off
switch!
• Multi-purpose reflector, for direct or indirect
lighting!
• Detachable mains cable!
• Accepts all Prolinca and Elinchrom
accessories!
MiniLite Set 20651
230V
20990 1 MiniLite incl. cable
23018 1 Halolux 250 W / E27
23002 1 Lamp 100 W / E27
26144 1 Refl ector 18 cm
MiniLite Kit 20653
230V
20990 2 MiniLite incl. cable
23018 2 Halolux 250 W / E27
23002 2 Lamp 100 W / E27
26144 2 Refl ector 18 cm
Stand / Umbrella Set To Go 20564
30101 2 Stand 85 – 235 cm
26351 1 Umbrella translucent 83 cm
26350 1 Umbrella silver 83 cm
33220 1 Elinchrom Carrying bag
MiniLite To Go, Set & Kit
These are super economy units using
a modified Elinchrom flashhead for tungsten
(Halostar) imaging. The Set is a single system
without stand. The Kit is a double set without
stands. A stand set with carrying bag is
available at a promotional price and any
Elinchrom accessory may be used to create an
almost unlimited range of effects.
MiniLite
18
Rotalux
The easy mounting Rotalux system is probably
the most widely copied of all Softbox systems.
However, it is easier to copy a design than a
quality and they remain the best units in their
class.
What continues to make the Elinchrom units
unique are the sets of deflectors – gold, silver
and translucent that enable the softness / hard-
ness and colour to be modified; fitting centrally
over the flashtube at your chosen distance.
Folding down like an umbrella, they are easily
transported, or just kept clean in their optional
carrying bag.
Rotalux Softbox
More than just a “Boxlite”
Rotalux 70 x 70 cm
26178
Rotalux 100 x 100 cm
26179
Rotalux 100 cm
(octagonal)
26183
Rotalux 135 cm
(octagonal)
26184
Rotalux 35 x 90 cm
26180
Rotalux optional
diffuser
15 x 90 cm
26268
Rotalux 50 x 130 cm
26181
Rotalux optional
diffuser
15 x 130 cm
26269
Rotalux optional
diffuser
25 x 130 cm
26270
Rotalux folds like
an umbrellas for
transportation
360° rotating system
for all Rotalux softboxes
Deflector translucent,
optional 26305
Delfector gold, optional
Set gold / silver 26303
Delfector silver, optional
Set gold / silver 26303
Carrying bags see page 22
19
19
Indirect Softlites
The Beauty Light
Recta, Strip, Octa, Quadra
Invented in 1982, their unique patented
construction and design have won these large
lightweight softboxes worldwide popularity.
A lightweight die cast rigid central mounting for
the flashhead inside the unit which places the
flashtube at the point of focus.
The optical result is a light source, which is so
even at the diffuser surface, that many famous
photographers use the Octa as a single light
source for portrait photography. In the U.S.A.
it is often referred to as “The Beauty Light”.
This exceptional softness of the light has sold
many of thousands of units, adapted to other
flash systems which do not have equivalent
light sources.
Note: most of the Beauty shots in this
catalogue are created with this light source!
Illumination table see page 31.
EL Strip 33 x 175 cm
26160 / 360° rotating system
incl. Carrying bag
EL Recta 72 x 175 cm
26154 / 360° rotating system
incl. Carrying bag
EL Quadra 145 x 145 cm
26156 / 360° rotating system
incl. Carrying bag
EL Octa 190 cm
26158 / 360° rotating system
incl. Carrying bag
20
Bayonet Refl ector
Support Set 22061
This useful set of four bayonet
adapter rings accepts any
Elinchrom refl ector since 1974.
Mounted on free studio wall,
refl ectors and softboxes are
safely stored. White softbox
diffusers will say Thank You!
Background Refl ector
26165
Delivers an oval pool of evenly
distributed light for background
and still life. 32 x 21 cm; 360°
rotating
Refl ector 16 cm 90° 26143
Gives a wide even coverage,
excellent for copy work, single
source or groups.
Varistar Refl ector
24 cm 90° 26164
Wide coverage with central
”hotspot”.
High Performance
Refl ector 26 cm 48° 26137
A bright, high performance
reflector. Ideal for general sports
applications.
Protective Hood 26124
For all heads and compacts
A wide range of superbly, designed
accessories, completely com-
patible with the entire Elinchrom
and Prolinca studio flash system.
Each reflector is designed to do a
different job. Decide how you want
the lighting to look like and there
will be a reflector with precisely the
right profile. Endless lighting possi-
bilities guaranteed!
Standard Refl ector 21 cm
50° 26141
This universal reflector combines a
high output with a good spread of
light. Now with internal recess for
push in high efficiency grids.
Grid Set 21 Basic 26049
Refl ector 21 cm 50° 26141
30° Grid 26052
20° Grid 26053
Grid Set 21 Complete
26051
Refl ector 21 cm 50° 26141
30° Grid 26052
20° Grid 26053
12° Grid 26054
8° Grid 26055
Compact Refl ector 21cm
65° 26140
A medium, to wide angle reflector.
Well suited for colour gelling large
areas.
Barndoor Set 21 26037
Light shaper carrier 26034
Barndoors 26 x 16 cm
26006 / 2x
Barndoors 21 x 15 cm
26009 / 2x
Barndoor Set 21
Professional 26039
Light shaper carrier 26034
including
Trapezium, various sizes
Barndoors 26 x 16 cm / 2x
Barndoors 20 x 15 cm / 2x
Barndoors 20 x 15 cm / 4x
Rectangular size
Barndoors 21 x 15 cm
26009 / 2x
G.P. Grid Refl ector
18 cm 60° 26144
A general purpose reflector for
travel and 18 cm grids
Grid Set 18 Complete
26135
Refl ector 18 cm 60° 26144
30° Grid 26100
20° Grid 26101
12° Grid 26102
Gel holder 26132
Maxi Lite Refl ector
40 cm 43° 26147
Ideal for sunlight effects through
windows, creates hard and brilliant
highlights.
Maxi Spot Refl ector
40 cm 29° 26149
The same shape as the Maxi
Lite Reflector, but produced with
brilliant, glossy reflection material
for very high efficiency, throws
light even over longest distances.
A narrow powerful beam creates
deep, sharp shadows.
Barndoor Set 26 26040
Lightshaper carrier 26035
Rectangular size
Barndoors 26x16 cm
26006 / 4x
Trapezium Size
Barndoors 26x16 cm / 2x
Square Refl ector
44 cm 80° Set 26146
incl. honeycomb Maxispot 30°
diffusing fi lter and support
Honeycomb Maxispot 44 cm
26016
Diffusing Filter 44 cm 26246
Accessoires
Refl ectors & Grids
21
Accessoires
Refl ectors & Umbrellas
Defl ector Set gold / silver
11.2 cm 26303
Defl ector Set gold / silver
16.5 cm 26304
Defl ector translucent
14 cm 26305
The Softlite Refl ectors
44 and 70 cm
Ideal reflectors for soft and diffused
light used in conjunction with
either the gold, silver or translucent
deflector dish, colour and softness
can be modified.
Softlite Refl ector 44 cm 55°
26166, silver,
incl. Defl ector Set 26303
Softlite Refl ector 44 cm 80°
26168 white,
incl. Defl ector Set 26303
Softlite Refl ector 70 cm 64°
26167 silver,
incl. Defl ector Set 26304
Softlite Refl ector 70 cm 82°
26169 white,
incl. Defl ector Set 26304

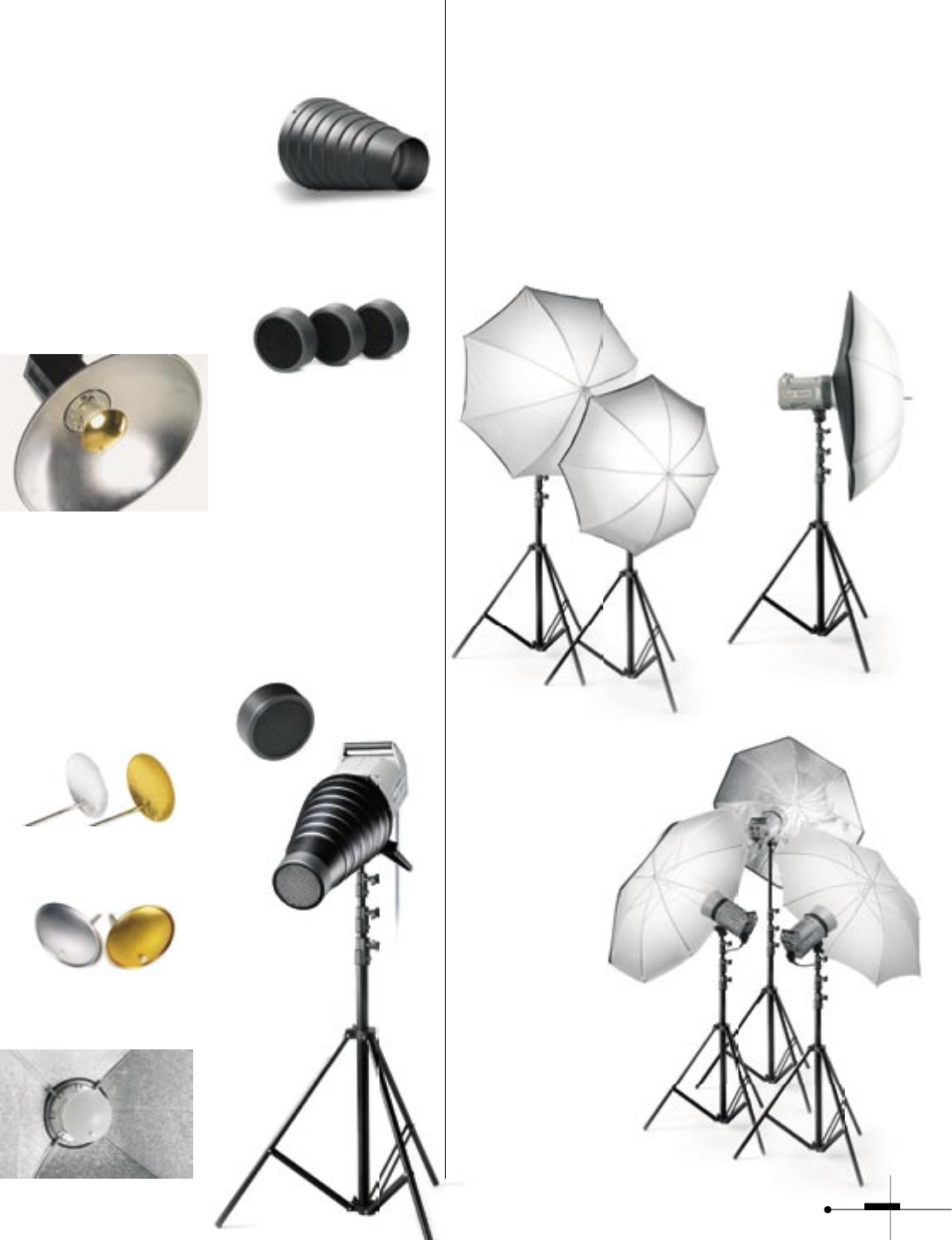

Snoot 26425
A traditional accessory, designed
to give an approx. 15° controlled
spot of light, with a hard shadow
effect.
Snoot Grid 26426
The single “Snoot Grid” is a
professional accessory for the
Elinchrom Snoot.Grids of various
honeycomb sizes deliver a shar-
ply defi ned concentrated light
source of exceptional quality.
The grid is an easy retro fi t, with
clips to grip the interior of the
snoot.
Note: The Grid necessarily
restricts ventilation of the
Snoot. Please monitor heat
level at all times. High wattage
tungsten lamps or high power
multi-fl ashing are liable to cause
overheating.
Snoot Grid Set 3 26427
Set of three Grids, various
honeycomb sizes.
Umbrellas
VariStar 85 & 105
The multitalented umbrella for
in and out of studio use. Easy
to erect, lightweight and fits into
most Elinchrom carrying bags. The
umbrella comes with protective
bag and the VariStar Set includes
one 26164 VariStar Reflector 24
cm. Ideal for industrial, portraits
and groups.
VariStar is even in light distribution
due to its central positioning over
reflector and flashtube.
Budget umbrellas
Translucent 83 cm 26351
Silver 83 cm 26350
Professional umbrellas
White 85 cm 26372
Translucent 85 cm 26371
Silver 105 cm 26361
Translucent 105 cm 26374
White 105 cm 26375
Gold 105 cm 26377
Gold/silver 105 cm 26378
VariStar Umbrella 85 cm
incl. protection bag 26383
VariStar Umbrella 105 cm
incl. protection bag 26384
VariStar Set 105 26385
VariStar 105 cm, incl.
protection bag, 26384
VariStar Refl ector 24 cm
26164
VariStar Set 85 26386
VariStar 85 cm, incl. protection
bag 26383
VariStar Refl ector 24 cm
26164
Elinchrom and Prolinca are the only
systems with the central umbrella
fitting, which is essential when
reflectors or Rotalux softboxes
are used with Deflector Sets.
Accessories, which can eliminate,
soften and tone sharp shadow
edges. Very efficient with Rotalux
softboxes.
22
Softbag 33197
For 2 x Style FX, BX, RX 300/600 and Classic
Compacts.
Stands by Elinca
Accessories
PolyStand
31045
EL Stand
30101
Length min. 150 cm 85 cm
Length max. 335 cm 235 cm
Diameter 33 x 21 cm 8 cm
Boom 154 cm
Max. load approx. 6 kg 5 kg
Weight in kg 5.5 1.45
Elinchrom Set Case 33209
New modern look with ergonomic carrying
handle and locking system. Carries and pro-
tects three compact flashes Style 300, 600,
1200 or Elinchrom flashheads.
63.5 x 46 x 20.5 cm, 4.75 kg
EL-Power Pack Case 33215
For all Digital RX packs, all Ranger RX models
and 1-2 flashheads.
Pro Basic Set 20767
Sync cord 11075
Refl ector 16 cm 26143
Refl ector 18 cm 26144
Umbrella translucent 85 cm 26371
Umbrella white 85 cm 26372
Elinchrom Case 33209
Carrying bag 33220
Stand / Umbrella Sets
The EL stand/umbrella sets are dedicated to
the Elinchrom flash sets and can be ordered
separately. The configurations are covering 2
and 3-headed sets.
Stand Set A 30160
Stand 85–235 cm 30101 / 2 x
Elinchrom Carrying bag 33220
Stand Set B 30161
Stand 85–235 cm 30101 / 3 x
Elinchrom Carrying bag 33220
Stand / Umbrella Set To Go 20564
Stand 85–235 cm 30101 / 2 x
Umbrella translucent 83 cm 26351
Umbrella silver 83 cm 26350
Elinchrom Carrying bag 33220
Stand / Umbrella Set To Go 20536
Stand 85–235 cm 30101 / 2 x
Umbrella translucent 85 cm 26371
Umbrella white 85 cm 26372
Elinchrom Carrying bag 33220
PolyStand 31045
With the PolyStand unique sliding column and
adjustable permanently mounted boom a head
or accessory can be placed up to 335 cm, or
as low as 5 cm from floor level. Folds flat for
travelling.
Carrying Bags
Carrying bag 33218
For stands & umbrellas 68 cm
Carrying bag 33220
For stands & umbrellas up to 87 cm
Carrying bag 33221
For Octa, Quadra, Recta & Strip
Carrying bag 33222
For stands & umbrellas up to 110 cm
Carrying bag 33223
For Rotalux 26178, 26180, 26183
Carrying bag 33224
For Rotalux 26179, 26181, 26184
23
Manfrotto Tripods
& Accessories
Studio Stand 30151
Sliding arm studio stand
with braked wheels.
It features a very low
minimum head position
(15 to 250 cm) and
accepts additional sliding
arms. Weight 7.5 kg
Elinca Manfrotto
14599 013
Adapter Spigot
1/4+-3/8” male
f. Multi-table
19223 220
Manfrotto Light Table
30127.B 366b
First tripod 85-200
black
30128.B 049b
Deluxe Tripod,
black
30129 017
Roller Set Deluxe
for 30128.B, ø 19 mm
30139.B 012b
Mini Tripod
9-85 cm, black
30149.B 004b
Master Tripod
109-385 cm
30150 018
Roller Set Master
for 30149
30151 231
Sliding Support Stand
complete
30152 231Arm
Sliding Support Arm
Spare, only for 30151
31061.B 024b
Boom Arm 3 x 70 cm
black
31065.B 085bs
Light Boom
Stand & boom in black
31070.B 025bs
Super Boom
Stand & boom in black
31074 083Nw
Tripod 2 Wind-up
+ wheel set
31075 087Nw
104
Tripod 3 Wind-up
+ wheel set
31077 104
Wheel Set
diam. 75
for 31074 + 31075
31151.B 154b
Triple lamp support
black (lamp carrier)
31152 026Z
Umbrella Adapter
31158.B 098b
Telescopic Wall Boom
31159 143
Magic Arm Set
31164 035Z
Super Clamp
32058.B 032b
Autopole
2,1-3,7m, black
32059 045
Triple Hooks
for background paper
32060 046
Expan Set
holds background paper
Still Life Multi Table
This uniquely creative tool offers variable radius
curves with a multi-angle, adjustable height
shooting surface. A secondary transparent
shooting surface enables heavier objects to be
photographed without the surface deforming.
An additional tray frame facilitates reflective or
transmitted lighting effects. The table has two
rear castors for easy positioning and when
stored takes up a minimum of studio space.
Diffusing Filters
Add extra softness. The diffusers are available in
three sizes. Manufactured from a spun glass
material to provide resistance to heat.
Diffusing Filters 44 cm 26246
Set of fi ve fi lters, to fi t the Square
Refl ector 26146
Diffusing Filters 21 cm 26249
Set of ten fi lters, to fi t the 21 cm
Accessory holder 26034
Diffusing Filters 26 cm 26250
Set of ten fi lters, to fi t the 26 cm
Accessory holder 26035
Polarizing Filters
The rotating facility of the Accessory holders
means that Elinchrom flash can be success-
fully polarized to help control reflections and
unwanted highlights. Polarizing filters absorb
heat, so reduce modelling lamp power
whenever possible.
Polarizing Filter 21cm 26244
One fi lter, to fi t the 21 cm
Accessory holder 26034
Polarizing Filter 26 cm 26248
One fi lter, to fi t the 26 cm
Accessory holder 26035
Colour Gels 21 cm 26243
Set of ten assorted gels in bright colours.
They can be fi tted on the 21 cm 26034
to bring vivid colour to any photography.
Note: green blue and purple all absorb heat
rapidly and may melt.
Security Filter
Give extra protection to the linear R Lampheads.
Security Filter Matt 26254
23 x 24 cm
Still Life MultiTable Complete 19221
Includes a Plexiglas matt, opal plate 26265 and
a Plexiglas transparent plate 26266.
26.5 kg
Still Life Multi Table 19222
without plates / 7.5 kg
Plexiglas plate white matt 26265
200 x 80 x 0.3 cm / 7.5 kg
Plexiglas plate transparent 26266
150 x 80 x 0.8 cm / 11.5 kg
Adapter Spigot 14599
1/4 - 3/8” male
Accessories
24
Lighting Guide on DVD 72403
The Joe Craig DVD Lighting Guide is a fully
edited version of the Joe Craig “Studio Lighting,
your introduction video and his “Portrait Video”.
The total running time is 90 minutes and the
“Portrait Video” comprises 14 chapters ranging
from portraits with two umbrellas, to multiple
lighting arrangements and last but not least,
hints and tips on posing – it doesn’t matter how
good your lighting is, finally it is the right pose
that reveals the subject.
Accessories
EL-Sync Cord 5 m 11088
Camera X > 3.5 mm jack
EL units with 3.5 mm sync plug:
Style, Style S, Style RX, FX, BX, Chic 1/2,
Digital 1/2, Digital RX 1200/2400.
EL-Sync Cord 2 m 11084
Camera X > 3.5 mm jack
EL units with 3.5 mm sync plug:
Style, Style S, Style RX, FX, BX, Chic 1/2,
Digital 1/2, Digital RX 1200/2400.
EL-Spiral Sync Cord 5 m 11074
Camera X > EL-Amphenol
Gold plated contacts to increase
the connectivity, with a fl exible spiral section,
for all EL compacts and power packs.
Except Style FX & BX.
EL-Sync Hardwire Cord 5 m 11089
3.5 mm jack > EL-Amphenol
To hardwire units in case the photocell has a
bad reception due to long distance between
fl ash units. For all Style, S, RX compacts and
Chic, Digital and Digital RX power packs.
EL-Sync Extension Cord 10 m 11080
EL-Amphenol female > male
To extend following sync cords: 11075,
11074, 11089, 11081, 11083, 11072.
EL-External Photocell with clamp 5 m
11081
EL-Amphenol > photocell
A photocell mounted on a clamp with 5 m
sync cable and standard
EL-Amphenol plug for EL fl ash units, except
Style FX & BX. To be used when the master
fl ash is too far or even hidden from the built-in
photocell.
EL-Sync Adapter 6.35 phone jack 10 cm
11083
EL Amphenol > 6.35 phone jack female
To connect sync cords with 6.35 phone jack.
Except Style FX, BX.
EL- FRC Sync Cable 50 cm 11071
Camera X > 2.5 jack
To synchronise the FRC transmitter and
camera
EL-FRC Sync Cable-Receiver 50 cm 11072
EL-Amphenol male > 2.5 jack
This cable connects the FRC Receiver 19316
with the EL fl ash unit. Except Style FX, BX.
EL-Sync Cord-Prolinca IR-Transmitter
30 cm / 40203 Cord
Camera X > 2.5 jack
This cable connects the Prolinca
IR-Transmitter with the camera.
Halogen Lamp Adapter 23101
Adapts from an E 27 to a GX 6.35 socket.
Only suitable for use with Compacts EL 250
and 500 and former Lampheads EL S and T.
Note: Once the adapter is fi tted use only with
the following lamps:
For Compacts 23034
For Lampheads 23022 or 23005
Modelling Lamps 230 V
See page 31
Power Cables
5 m for compacts 11055
5 m for power packs 11070
5 m for the EL 101 R, 202
and 404 power packs 11065
EL-Sync Cords and Accessories
EL-Sync Cord 5 m 11075
Camera X > EL-Amphenol
Elinchrom standard sync cord for all self
contained (compact) fl ash units and power
packs. Except Style FX & BX.
Prolinca IR-Transmitter 40203
25
25
Power Specs
26
Style FX & BX Style 100 FX Style 400 FX Style 100 BX Style 400 BX
Joule / WS; max. 100 400 100 400
F-stop, 1m, 100 ISO, 1/250 s; Refl ector 48° 32.5 64.5 32.5 64.5
Power range; Ws 6.25 – 100 25 – 400 6.25 – 100 25 – 400
Mains voltage; Volt 200 V – 260 V 200 V – 260 V 90 V – 260 V 90 V – 260 V
Variable fl ash power, in f-stop stepless 5 f-stop 1/16 – 1/1
Recycling, min. / max. 230 V 0.2 / 0.5 s 0.3 / 1.2 s 0.2 / 0.5 s 0.3 / 1 s
Recycling, min. / max. 115 V - - 0.2 / 0.6 s 0.3 / 1.2 s
Flash duration @ t 0,5 1 / 1800 s 1 / 900 s 1 / 1800 s 1 / 900 s
Voltage stabilization +/- 0.5 % maximum stability for digital imaging
Sync voltage 5 V maximum compatibility with digital cameras
Modelling lamp 230 V 100 W – E 27 Code 23002 150 W – E27 Code 23035
Modelling lamp 115 V - 150 W – E27 Code 23019
Flashtube code 24032 24029
Plug-in fl ashtube - Flashtube, user replaceable
Fan cooled All models
Dimensions: length x diameter in cm 21 x 14 cm
Weight in kg 1.55 1.9 1.65 1.95
Code 220 V - 240 V 50 - 60 Hz 20529 20531 20532 20534
Code 90 V - 260 V 50 - 60 Hz - - 20532 20534
Style RX Style 300 RX Style 600 RX Style 1200 RX
Joule / WS; max. 300 600 1200
F-stop, 1m, 100 ISO, 1/250 s; Refl ector 48° 64.1 90.1 128.1
Power range; Ws 9 - 300 18 - 600 37 - 1200
Variable fl ash power, in f-stop stepless 6 f-stop 1/32 -1/1
Recycling, min. / max. 230 V 0.2 - 0.6 s 0.22 - 1.0 s 0.25 - 1.8 s
Recycling, min. / max. 115 V 0.25 - 0.8 s 0.3 - 1.5 s 0.4 - 2.9 s
Flash duration @ t 0,5 1/2850 s 1/2050 s 1/1450 s
Voltage stabilization +/- 0.5 %
Sync voltage 5 V
Modelling lamp 230 V 250 W E 27-230 V 300 W GX 6.35-230 V
Modelling lamp 115 V USA 150 W - BA 15 D 250 W - BA 15 D
Flashtube code 24029 24068
Interface for Mac and PC All models
Plug for Remote control All models
Plug-in fl ashtube All models
Fan cooled 1 fan 2 fans
Dimensions: length x diameter in cm 21 x 14 21 x 14 30 x 14
Weight in kg 2.3 2.6 3.45
Code 230 V 50 - 60 Hz 20625 20626 20627
Code 115 V - 140 V 50 - 60 Hz 20725 20726 20727
27
Digital RX Power Packs Digital 1200 RX Digital 2400 RX
Joule / Ws 1200 2400
F-stop 1m ISO 100; 1 / 125 s; Refl ector 48° 128 180
Recycling min. / max. 230 V / fast 0.24 – 1.0 s 0.4 – 1.9 s
Recycling min. / max. 230 V / slow 0.35 – 1.9 s 0.55 – 3.6 s
Flash duration t 0.5, max. power, 2 x A heads 1/3400 s 1/1700 s
Flash duration t 0.5, max. power, 1x Digital S head 1/1200 s 1/600 s
Power range in Ws, 6 f-stop 37 – 1200 75 – 2400
Computer Interface All models
Socket for Remote control All models
Sync voltage 5 V
Voltage stabilization + - 0.5%
Fan cooled All models
Modelling lamp, proportional / free / off All models
Charge ready beep / on-off All models
Photocell / on-off All models
ADF, auto dump function All models
Dimensions in cm 22 x 13 x 23 22 x 13 x 32
Lightweight in kg 4.6 6.6
Code 230 V 50 - 60 Hz 10256 10258
Code 115 - 130 V 50 - 60 Hz 10255 10257
Digital AS Digital 3000 AS Digital 1500 AS
Joule / Ws 230 V min. / max. 62 - 3000 31 - 1500
F-stop 1m ISO 100; 1 / 250 s; Refl ector 48° 230 V 180.3 128.6
Recycling rapid/medium, max. power 230 V 3.5 s / 4.5 s 1.5 s / 2.1 s
Flash duration t 0.5 max. power, 3 S heads connected 1/1150 s 1/1850 s
Memory Retains last setting
IR Remote control All functions, 8 channel settings
Power range 6.6 f-stop
Total power asymmetry 56 individual power settings for each head
Sync voltage 12 V
Ready beep on / off All modells
Photocell on / off All modells
Dimensions in cm 49 x 14 x 32 49 x 14 x 27
Weight in kg 11.65 8.6
Code 230 V 50 - 60 Hz 10254 10248
Code 115 - 130 V 50 - 60 Hz 10253 10247
Note: Tolerances of specifications and components conform to IEC and CE standards. Technical data subject to change. No guarantee for misprints.
The listed values can differ due to tolerances in components, or measuring instruments.
28
Budget Flashheads Mini S Mini A Speed Twin X 4
Output in Joule / Ws 2400 2400 2 x 2400
Modelling lamp 230 V 250 W / E27 250 W / E27 300 W / GX 6.35
Modelling lamp 110 V 150 W / E27 150 W / E27
Modelling lamp on / off All models
Safety Fuse 230 V 2.5 AF 2.5 AF
Safety Fuse 110 V 2 AF 5 AF
Flashtube Omega Speed Twin Tube
Centred umbrella holder All models
Stand adapter All models incl. additional umbrella holder
Cooling fan All models
Bayonet, breech-lock-ring All models since 1974
Weight incl. 5 m fl ash cable 2.4 2.4 3.3
Dimensions in cm 22 x 13.5 22 x 13.5 22 x 14
Code 230 V 50-60 Hz 20106 20104 20180
Code 110 V 50-60 Hz 20105 20103 20181
Code Flashtube 24034 s 24053
Professional Flashheads Digital SEE Digital SE Digital S A 3000 N Speed X 6000 N Twin Digital RE
Output in Joule / Ws 2400 3000 4000 3000 2x 3000 3000
Modelling lamp 230 V
Modelling lamp 110 V 300 W / GX 6.35 650 W
GX 6.35
500 W or
625 W / R7s
Modelling lamp on / off All models
Safety Fuse 230 V 2.5 AF 4 AF
Safety Fuse 110 V 5 AF 8AF
Flashtube Digital X Digital XL Digital XXL Speed Twin Tube Linear
Centred umbrella holder All models
Stand adapter All models incl. additional umbrella holder
Cooling fan All models
Bayonet, breech-lock-ring All models Barndoor support
Weight incl. 5 m fl ash cable 2.4 2.4 2.4 2.4 3.3 2.5
Dimensions in cm 22 x 14 9 x 37.5
Code 230 V 50-60 Hz 20172 20174 20150 20168 20182 20170
Code 110 V 50-60 Hz 20173 20175 20149 20167 20183 20169
Code Flashtube 24034 24045 24037 24053 2 x 24069 24022
Ringfl ash RF 3000 Ranger RX-RF 1500
Max. fl ash power 3000 Ws / all EL power packs 1500 Ws / only Ranger RX
Compatible power packs Digital RX 1200 & 2400, Digital AS 1500 &
3000,Classic 1500 & 3000, Micro AS 1500 &
3000
Ranger RX, Ranger RX Speed, Ranger RX
Speed AS
Flash duration @ full power t 0.5 – t 0.1 1/2600 – 1/935 (Digital RX 1200) 1/2600 – 1/935 (Ranger RX)
Flash duration @ min. power t 0.5 – t 0.1 1/1920 – 1/760 (Digital RX 1200) 1/1920 – 1/760 (Ranger RX)
F-stop 2 m, ISO 100, @ full power, 1/500 s 22.3 (Digital RX 1200) 22.3 (Ranger RX)
Inner diameter 10 cm
Outer diameter 20 cm
Cable length 5 m 2 m
Camera adaptation Universal, incl. 1/4” and 3/8” camera screw
Dimensions (L x W x H) 23 x 20 x 32 cm
Weight Including cable, 1.9 kg Including cable, 1.8 kg
Supplied with UV coated protection glass fi lter / fl ash cable
Ringfl ash 120 /230 V 20494 20493
Matt glass diffuser, optional accessory 402.013
UV coated protection glass fi lter, spare part 402.012
N.B. Prevent overheating, cool down after
maximum 25 fl ashes
.
29
Autonomous Flash
Ranger RX Ranger RX Speed Ranger RX Speed AS
Joule / WS; max. 1100
Power distribution Symmetrical Asymmetrical
Interface for Computer and Hand Remote All RX models; requires optional accessories + ERS software
F-stop, 2 m, 100 ISO, 1/250 s; Refl ector 48° 64 64 @ 100% ; 45 @ 66%
32 @ 33%
Power range; Ws 17 – 1100
100%: 17 – 1100
66%: A output: 11.5 – 733
33%: B output: 5.7- 366
Power range in f-stop 7 / 1.5 – 7.5 8.5
Recycling, fast @ min. / max. power 0.5 s / 5.5 s 0.3 s / 3 s A output: fast 0.3 s / 3 s
B output: fast 0.19 s / 1.2 s
Recycling slow @ min. / max. power 0.9 s / 14 s 0.45 s / 5.5 s A output: slow 0.45 s / 5.5 s
B output: slow 0.22 s / 1.9 s
Flash duration @ t 0,5; 1 / 2 A heads 1/2300 s / 1/4310 s A output: 1/2300 s / 1/4310 s
B output: 1/5120 s
Flash duration @ t 0,5; 1 / 2 S heads 1/1160 s / 1/2250 s A output: 1/1250 s / 1/2250 s
B output only: 1/2310 s
*Flashes out of one charged Battery
@ min. power, slow/fast recycle 3800 / 2600 5100 / 3700
*Flashes, out of one charged Battery
@ max. power, slow/fast recycle 140 / 110 250 / 195
Sync voltage 5 VDC
Stabilisation +/- 1 V
**Battery lead acid (gel-electrolyte) 12 V / 7 Ah lead acid 12 V / 12 Ah lead acid
Modelling lamp:
***1 head connected 2 x 50 W / 12 V or ***1 x 100 W / 12 V
Standard charger: recharge time, approx. 3 h 5 h
Quick charger: recharge time, approx. Do not use 3 h
Dimensions in cm 19 x 14 x 24 19 x 14 x 28
Weight in kg, incl. Battery 6.5 8
Ranger pack, included parts 10263 incl.: 19290 + 11075
+ 19289 + 19293
10265 incl.: 19280 + 11075
+ 19289 + 19283
10267 incl.: 19280 + 11075
+ 19289 + 19283
* Note: The number of fl ashes, recharging time and battery life, may vary from battery to battery!!
**Note: Used batteries may need to be recycled! Check your local regulations!
*** Note: Deliveries for 110 V countries includes Charger 19293
Note: Tolerances of specifications and components conform to IEC and CE standards. Technical data subject to change. No guarantee for misprints.
The listed values can differ due to tolerances in components, or measuring instruments.
Ranger Heads Free Lite S Free Lite A Speed Ringfl ash 1500
Output in Joule / Ws 2400 2400 1500
Modelling lamp 50 W 12 V 50 W 12 V -
Modelling lamp timer on / off 15 & 30 seconds -
Safety Fuse 5AF -
Flashtube Omega Speed 4 pole - Speed
Centred umbrella holder All models -
Stand adapter All models 3/8 – 1/4
Bayonet, breech-lock-ring All models since 1974 -
Weight incl. 5 m fl ash cable 2.4 kg 2.4 kg 1.8 kg / *2m cable
Dimensions in cm 22 x 13.5 22 x 13.5 23 x 20 x 32 cm
Code 20100 20101 20493
Code Flashtube 24034 s 24053
30
Rotalux Angle Coverage Brightness
The table shows: coverage represents 1 f-stop difference centre to edge in degrees and f-stop at 2 m distance and code numbers for spare diffusers.
Rotalux: Quadra, Octa, Recta, Strip in degrees minus 1f-stop from centre in meters 2 m distance Style 600 @ 1 / 250 s
26178 Rotalux 70 x 70cm 69° 2.8 16.6
26288 Front Diff. (without outer diffuser) 68° 2.7 22.1
26295 Inner Diff. (without inner diffuser) 83° 3.6 22.2
26179 Rotalux 100 x 100cm 69° 2.8 16.7
26289 Front Diff. (without outer diffuser) 69° 2.8 22.1
26296 Inner Diff. (without inner diffuser) 81° 3.4 22.2
26180 Rotalux 35 x 90 cm vert. / horizontal 66° / 69° 2.6 / 2.8 16.5
26290 Front Diff. (without outer diffuser) 59° / 73° 2.3 / 3 22.1
26297 Inner Diff. (without inner diffuser) 66° / 82° 2.6 / 3.5 22.6
26268 Diff. (for 26180) 15 x 90 cm vert. / horizontal 55° / 63 2 / 2.3 11.5
26181 Rotalux 50 x 130cm vert. / horizontal 59° / 69° 2.3 / 2.8 16.6 / 16.5
26291 Front Diff. (without outer diffuser) 61° / 75° 2.4 / 3.1 22.2
26298 Inner Diff. (without inner diffuser) 64° / 87° 2.5 / 3.8 22.8
26270 Diff. (for 26181) 25 x 130 cm vert. / horizontal 59° / 66° 2.3 / 2.6 11.5
26269 Diff. (for 26181) 15 x 130 cm vert. / horizontal 58° / 55° 1.9 / 2.1 11
26183 Rotalux 100 cm octagonal 68° 2.7 16.6
26293 Front Diff. (without outer diffuser) 66° 2.6 22.1
26300 Inner Diff. (without inner diffuser) 82° 3.5 22.2
26184 Rotalux 135 cm octagonal 81° 3.4 22.2
26294 Front Diff. (without outer diffuser) 61° 2.6 22.2
26301 Inner Diff. (without inner diffuser) 75° 3.1 22.3
NB. Without diffusers the effect is of a huge normal refl ector
Continuous Light Scanlite (1000 W) Minilite (250 W)
Aperture: 2m / 100 ISO 1/30 s, Ref. 48° 8.6 5.6
Aperture with Pyrex dome mat 8.0 -
Lux @ 1000 W 6500 -
Lux @ 250 W - 1050
Colour Temperature °K 3200°K 3200°K
Bayonet, breech-lock-ring All models since 1974
Modelling lamps, confi gurations 300, 650, 1000 / GX 6.35 100, 250 W / E27
Cooling fan All models
Weight in kg 1.2 / incl. cable 1.7 1.1
Dimensions in cm 14x18 / incl. glass dome 22 22 x 13
Code 230 V 50 - 60 Hz incl. lamp 20996-300 W / 20997-650 W / 20994-1000 W 20651
Code 115 V 50 - 60 Hz exclude- / inc.l lamp 20993-1000 W -
Ranger RX / F- Stop Power Table
F-Stop @ 2m, 100 ISO, Free Lite S Head + Ranger RX Pack
26149 Maxi Spot Refl ector 29° 90.1
26147 Maxi Lite Refl ector 43° 64.6
26137 High Performance Refl ector 48° 64.1
26141 Standard Refl ector 50° 45.8
26140 Compact Refl ector 65° 45.2
26144 Grid Refl ector 60° 45.0
26164 Varistar Refl ector 90° 32.6
26143 Wide Refl ector 90° 32.0
Display Power Equivalents
7.5 1100 Ws
7.0 780 Ws
6.5 550 Ws
6.0 390 Ws
5.5 275 Ws
5.0 195 Ws
4.5 137 Ws
4.0 98 Ws
3.5 68 Ws
2.5 34 Ws
1.5 17 Ws
31
Modelling Lamps 230 V
Code Power Lumen Av. Life Type Socket To use with
23044 50 W /12 V 900 3000 h Halogen GX 6.35 Free Lite S, FreeLite A
23046 100 W /12V 2200 2000 h Halogen GX 6.35 Free Lite S, FreeLite A
23002 100 W 2700 500 h Krypton E 27 EL 250, 250 S, 500, 500 S, 22, 23, 66, S, T, Box Lite,
Style 300 / 600, Style FX 100 / 400, MiniLite
23035 150 W 2400 2000 h Halogen E 27 Style BX 100 / 400
23004 250 W 4000 500 h Halogen E 14 EL A
23005 650 W 20000 45 h Halogen GX 6.35 EL X6000N, Spot Lite 3000, X 8000, X, ScanLite
23018 250 W 4500 2000 h Halogen E 27 EL 66, S, T, Style S & RX 300/600, Mini S/A, MiniLite
23020 500 W 9000 500 h Halogen E 14 EL A
23022 300 W 8500 45 h Halogen GX 6.35 EL S1500N, S3000N, S1500, S3000, A3000N, A4000
A2/4, Style S / RX 1200, Digital SEE, SE, S, ScanLite
23029 625 W 9500 2000 h Halogen R7 s EL R3000, Mini R Head, R2000, R2, R4
23052 1000 W 27500 75 h Halogen GX 6.35 ScanLite
23034 200 W 4000 45 h Halogen GX 6.35 El 1000, 750 S, 1500 S, 1500 R
Note: Tolerances of specifications and components conform to IEC and CE standards. Technical data subject to change. No guarantee for misprints.
The listed values can differ due to tolerances in components, or measuring instruments.
Indirect Softlites Angle Coverage Brightness
The table shows: coverage represents 1 f-stop difference centre to edge in degrees and f-stop at 2 m distance and code numbers for spare diffusers.
Recta, Strip, Octa, Quadra in degrees minus 1 f-stop from centre in m 2 m dist. Style RX 600 @ 1/250 s
26154 EL Recta Lite 72 x 175 cm vert. / horizontal 56° / 77° 2.16 / 3.2 16
26224 Front Diff . (without outer diffuser) 46° / 95° 1.7 / 4.4 16.6
26160 EL Strip Lite 33 x 175 cm vert. / horizontal 64° / 73 2.5 / 3 8.7
26230 Front Diff. (without outer diffuser) 48° / 100° 1.8 / 4.8 11.6
26158 EL Octa Lite 190 x 190 cm 71° 2.9 16
26228 Front Diff. (without outer diffuser) 82° 3.54 16.2
26156 EL Quadra Lite 145 x 145cm 73° 3 11.8
26226 Front Diff. (without outer diffuser) 75° 3.10 16.2
26236 Round Diff. 125 cm 66° 2.6 11
NB. Without diffusers the effect is of a huge normal refl ector.
Elinchrom Spots Minispot ZoomSpot 18°-36° Fiber Lite
Diameter of illumination,
distance 2 m, min. / max. 1 m 0.7 / 1.3 m Dist. 5 cm ø 4 cm
Dist. 10 cm ø 7 cm
Aperture from 2 m, 100 ISO,
t 1/125, Chic 1 - 1200 J @ max. power, spot / wide 11.5 22.6 / 16.7 Dist. 10 cm with
Lens / 64.9 f
Code 230 V 50 - 60 Hz 26420 26481 26430 / 31
Code 115 - 130 V 50 - 60 Hz
Max. fl ash power in Joule / Ws 3000
Max. modelling light 300 / 650 W Note: Enclosing accessories can build up excessive heat!
Dimensions: L x W x H in cm 26 x 12 45 x 15 x 15 -
Weight in kg 0.6 4.75 -
34
elinca s.a. switzerland www.elinchrom.com
ELINCA HAS BEEN AT THE FOREFRONT OF
PHOTOGRAPHIC LIGHTING TECHNOLOGY SINCE THE
EARLIEST DAYS OF STUDIO FLASH MANUFACTURE.
A RESULT OF CONSTANT PRODUCT REFINEMENTS AND
A DEDICATION TO RESEARCH AND DEVELOPMENT,
OUR PRODUCTS ARE OWNED AND RENTED BY THE
WORLD’S LEADING PHOTOGRAPHERS.
FROM OUR HEADQUARTERS AND MANUFACTURING
FACILITY OVERLOOKING LAKE GENEVA, WE EXPORT
ELINCHROM STUDIO FLASH AROUND THE WORLD.
OUR BUILDING REFLECTS NOT ONLY OUR SUCCESS
BUT ALSO OUR COMMITMENT TO ALL USERS OF
ELINCHROM - BOTH PRESENT AND FUTURE.
Réalisation: SFS DESIGN / Design: Nataša Camo / Beauty shots by Akos, New York / www.akosphotography.com
