Pro7827HD
DLP Projector
User Guide
Model No. VS16232
IMPORTANT: Please read this User Guide to obtain important information on installing
and using your product in a safe manner, as well as registering your product for future
service. Warranty information contained in this User Guide will describe your limited
coverage from ViewSonic Corporation, which is also found on our web site at http://

box in the upper right corner of our website. “Antes de operar su equipo lea cu
idadosamente las instrucciones en este manual”
Thank you for choosing ViewSonic
As a world leading provider of visual solutions,ViewSonic is dedicated to
exceeding the world’s expectations for technological evolution, innovation,
and simplicity. At ViewSonic, we believe that our products have the
potential to make a positive impact in the world, and we are confident that
the ViewSonic product you have chosen will serve you well.
Once again, thank you for choosing ViewSonic !
Compliance Information
FCC Compliance Statement
This device complies with part 15 of FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy, and if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Warning: You are cautioned that changes or modifications not expressly approved
by the party responsible for compliance could void your authority to operate the
equipment.
Industry Canada Statement
CAN ICES-3 (B)/NMB-3(B)
CE Conformity for European Countries
The device complies with the EMC Directive 2014/30/EU and Low Voltage
Directive 2014/35/EU.
Following information is only for EU-member states:
The mark is in compliance with the Waste Electrical and Electronic
Equipment Directive 2012/19/EU (WEEE).
The mark indicates the requirement NOT to dispose the equipment
including any spent or discarded batteries or accumulators as unsorted
municipal waste, but use the return and collection systems available.
If the batteries, accumulators and button cells included with this equipment,
display the chemical symbol Hg, Cd, or Pb, then it means that the battery
has a heavy metal content of more than 0.0005% Mercury or more than,
0.002% Cadmium, or more than 0.004% Lead.
Declaration of RoHS2 Compliance
This product has been designed and manufactured in compliance with Directive
2011/65/EU of the European Parliament and the Council on restriction of the use
of certain hazardous substances in electrical and electronic equipment (RoHS2
Directive) and is deemed to comply with the maximum concentration values issued
by the European Technical Adaptation Committee (TAC) as shown below:
Substance
Proposed Maximum
Concentration
Actual Concentration
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium (Cr6+) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%
Certain components of products as stated above are exempted under the Annex III
of the RoHS2 Directives as noted below:
Examples of exempted components are:
1. 
lamps (CCFL and EEFL) for special purposes not exceeding (per lamp):
(1) Short length (500 mm): maximum 3.5 mg per lamp.
(2) Medium length (500 mm and 1,500 mm): maximum 5 mg per lamp.
(3) Long length (1,500 mm): maximum 13 mg per lamp.
2. Lead in glass of cathode ray tubes.
3. 
4. Lead as an alloying element in aluminium containing up to 0.4% lead by weight.
5. Copper alloy containing up to 4% lead by weight.
6. Lead in high melting temperature type solders (i.e. lead-based alloys containing
85% by weight or more lead).
7. Electrical and electronic components containing lead in a glass or ceramic other
than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or
ceramic matrix compound.
Indian Restriction of Hazardous Substances
Restriction on Hazardous Substances statement (India) This product complies
with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent
chromium, polybrominated biphenyls or polybrominated diphenyl ethers in
concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for
the exemptions set in Schedule 2 of the Rule.
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this unit near water.
6. Clean with a soft, dry cloth.
7. Do not block any ventilation openings. Install the unit in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves,
or other devices (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade and the third
prong are provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs.
Convenience receptacles and the point where they exit from the unit. Be sure
that the power outlet is located near the unit so that it is easily accessible.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the unit. When a cart is used, use caution
when moving the cart/unit combination to avoid injury from tipping
over.
13. Unplug this unit when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
unit has been damaged in any way, such as: if the power-supply cord or plug is
damaged, if liquid is spilled onto or objects fall into the unit, if the unit is exposed
to rain or moisture, or if the unit does not operate normally or has been dropped.
Copyright Information
Copyright © ViewSonic Corporation, 2017. All rights reserved.
Macintosh and Power Macintosh are registered trademarks of Apple Inc.
Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft
Corporation in the United States and other countries.
ViewSonic and the three birds logo are registered trademarks of ViewSonic
Corporation.
VESA is a registered trademark of the Video Electronics Standards Association.
DPMS and DDC are trademarks of VESA.
PS/2, VGA and XGA are registered trademarks of International Business Machines
Corporation.
Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors
or omissions contained herein; nor for incidental or consequential damages resulting
from furnishing this material, or the performance or use of this product.
In the interest of continuing product improvement, ViewSonic Corporation reserves
the right to change product specifications without notice. Information in this
document may change without notice.
No part of this document may be copied, reproduced, or transmitted by any means,
for any purpose without prior written permission from ViewSonic Corporation.
Product Registration
To fulfill possible future product needs, and to receive additional product information
as it becomes available, please visit your region section on ViewSonic’s website to
register your product online.
The ViewSonic CD also provides an opportunity for you to print the product
registration form. Upon completion, please mail or fax to a respective ViewSonic
office. To find your registration form, use the directory “:\CD\Registration”.
Registering your product will best prepare you for future customer service needs.
Please print this user guide and fill the information in the “For Your Records” section.
For additional information, please see the “Customer Support” section in this guide.
For Your Records
Product Name: Pro7827HD
ViewSonic DLP Projector
Model Number: VS16232
Document Number: Pro7827HD_UG_ENG Rev. 1C 05-31-17
Serial Number:
Purchase Date:
Product disposal at end of product life
The lamp in this product contains mercury which can be dangerous to you and the
environment. Please use care and dispose of in accordance with local, state or
federal laws.
ViewSonic respects the environment and is committed to working and living green.
Thank you for being part of Smarter, Greener Computing.
Please visit ViewSonic website to learn more.
USA & Canada: http://www.viewsonic.com/company/green/recycle-program/
Europe: http://www.viewsoniceurope.com/eu/support/call-desk/
Taiwan: http://recycle.epa.gov.tw/recycle/index2.aspx
1
Table of contents
Important safety
instructions .......................2
Introduction......................4
Projector features ................................. 4
Shipping contents.................................5
Projector exterior view......................... 6
Controls and functions ......................... 7
Positioning your projector
.........................................12
Choosing a location............................ 12
Projection dimensions ........................13
Shifting the projection lens vertically
............................................................ 15
Connection......................16
Connecting a computer or a monitor.. 17
Connecting Video source devices ...... 18
Playing sound through the projector .. 20
Using the cable management cover ... 21
Operation........................22
Starting up the projector..................... 22
Using the menus................................. 23
Utilizing the password function ......... 24
Switching input signal........................ 26
Adjusting the projected image ........... 27
Magnifying and searching for details
............................................................ 29
Selecting the aspect ratio.................... 30
Optimizing the image......................... 31
Setting the presentation timer ............35
Hiding the image................................ 36
Locking control keys.......................... 36
Creating your own startup screen ...... 36
Operating in a high altitude environment
........................................................... 37
Using the CEC function..................... 37
Using the 3D functions ...................... 37
Using the projector in standby mode
........................................................... 38
Adjusting the sound ........................... 38
Shutting down the projector .............. 40
Menu operation.................................. 41
Maintenance ...................50
Care of the projector .......................... 50
Using the dust filter (optional accessory)
........................................................... 50
Lamp information .............................. 52
Troubleshooting .............55
Specifications..................56
Projector specifications...................... 56
Dimensions ........................................ 57
Ceiling mount installation ................. 57
Tripod mount installation .................. 58
Timing chart ...................................... 59
Copyright information ..63
Appendix.........................64
IR control table .................................. 64
RS232 command table....................... 65
2
Important safety instructions
Your projector is designed and tested to meet the latest standards for safety of information
technology equipment. However, to ensure safe use of this product, it is important that you
follow the instructions mentioned in this manual and marked on the product.
Safety Instructions
1. Please read this manual before you operate your projector. Save it for future
reference.
2. Do not look straight at the projector lens during operation. The intense light beam
may damage your eyes.
3. Refer servicing to qualified service personnel.
4. Always open the lens shutter or remove the lens cap when the projector lamp is
on.
5. In some countries, the line voltage is NOT stable. This projector is designed to operate
safely within a mains voltage between 100 to 240 volts AC, but could fail if power
cuts or surges of ±10 volts occur. In areas where the mains voltage may fluctuate
or cut out, it is recommended that you connect your projector through a power
stabilizer, surge protector or uninterruptible power supply (UPS).
6. Do not block the projection lens with any objects when the projector is under
operation as this could cause the objects to become heated and deformed or even
cause a fire. To temporarily turn off the lamp, press BLANK on the projector or
remote control.
7. The lamp becomes extremely hot during operation. Allow the projector to cool for
approximately 45 minutes prior to removing the lamp assembly for replacement.
8. Do not operate lamps beyond the rated lamp life. Excessive operation of lamps
beyond the rated life could cause them to break on rare occasions.
9. Never replace the lamp assembly or any electronic components unless the projector is
unplugged.
10. Do not place this product on an unstable cart, stand, or table. The product may fall,
sustaining serious damage.
11. Do not attempt to disassemble this projector. There are dangerous high voltages inside
which may cause death if you should come into contact with live parts. The only user
serviceable part is the lamp which has its own removable cover.
Under no circumstances should you ever undo or remove any other covers. Refer
servicing only to suitably qualified professional service personnel.
12. Do not place this projector in any of the following environments.
- Space that is poorly ventilated or confined. Allow at least 50 cm clearance from walls
and free flow of air around the projector.
- Locations where temperatures may become excessively high, such as the inside of a
car with all windows rolled up.
- Locations where excessive humidity, dust, or cigarette smoke may contaminate optical
components, shortening the projector's life span and darkening the picture.
- Locations near fire alarms
- Locations with an ambient temperature above 40°C / 104°F
- Locations where the altitudes are higher than 3000 m (10000 feet).
3
13. Do not block the ventilation holes. If the ventilation holes are seriously obstructed,
overheating inside the projector may result in a fire.
- Do not place this projector on a blanket, bedding or any other soft surface.
- Do not cover this projector with a cloth or any other item.
- Do not place inflammables near the projector.
14. Always place the projector on a level, horizontal surface during operation.
- Do not use if tilted at an angle of more than 10 degrees left to right, nor at angle of
more than 15 degrees front to back. Using the projector when it is not fully horizontal
may cause a malfunction of, or damage to, the lamp.
15. Do not stand the projector on end vertically. Doing so may cause the projector to fall
over, causing injury or resulting in damage to the projector.
16. Do not step on the projector or place any objects upon it. Besides probable physical
damage to the projector, doing so may result in accidents and possible injury.
17. Do not place liquids near or on the projector. Liquids spilled into the projector may
cause it to fail. If the projector does become wet, disconnect it from the power
supply's wall socket and call your local service center to have the projector serviced.
18. This product is capable of displaying inverted pictures for ceiling mount installation.
Use only qualified ceiling mount kit for mounting the projector and ensure it is
securely installed.
19. When the projector is under operation, you may sense some heated air and odor from
its ventilation grill. It is a normal phenomenon and not a product defect.
20. Do not use the Security bar for transporting or installation. It should be used with a
commercially available theft prevention cable.
Safety instructions for ceiling mounting of the
projector
We want you to have a pleasant experience using your projector, so we need to bring this
safety matter to your attention to prevent damage to person and property.
If you intend to mount your projector on the ceiling, we strongly recommend that you use a
proper fitting projector ceiling mount kit and that you ensure it is securely and safely
installed.
If you use an inappropriate projector ceiling mount kit, there is a safety risk that the
projector may fall from the ceiling due to an improper attachment through the use of the
wrong gauge or length screws.
You can purchase a projector ceiling mount kit from the place you purchased your projector.
We recommend that you also purchase a separate security cable and attach it securely to
both the anti-theft lock slot on the projector and the base of the ceiling mount bracket. This
will perform the secondary role of restraining the projector should its attachment to the
mounting bracket become loose.
4
Introduction
Projector features
The projector integrates high-performance optical engine projection and a user-friendly
design to deliver high reliability and ease of use.
The projector offers the following features.
Dynamic mode adjusting the power consumption of the lamp according to the
brightness of the image being projected
Power saving function decreasing the power consumption of the lamp by up to 70%
when no input signal can be detected for a set period of time.
Presentation timer for better control of time during presentations
Supports 3D display
•Color Management allowing color adjustments to your liking
Less than 0.5W power consumption when power saving mode is turned on
Screen Color correction allowing projection on surfaces of several predefined colors
Quick auto search speeding up the signal detecting process
Color modes providing choices for different projection purposes
Selectable quick power off function
One-key auto-adjustment to display the best picture quality
Digital keystone correction and 4 corner adjustment to correct distorted images
Adjustable color management control for data/video display
Ability to display 1.07 billion colors
Multi-language On-Screen Display (OSD) menus
Switchable normal and economic modes to reduce the power consumption
Component HDTV compatibility (YPbPr)
HDMI CEC (Consumer Electronics Control) function allows synchronized power ON/
OFF operation between the projector and a CEC-compatible DVD player device
connected to the HDMI input of the projector
ISF certified professional image tools with Day/Night modes to optimize color
performance
The apparent brightness of the projected image will vary depending on the ambient lighting
conditions, selected input signal contrast/brightness settings, and is directly proportional to
projection distance.
The lamp brightness will decline over time and may vary within the lamp manufacturers
specifications. This is normal and expected behavior.
5
Shipping contents
Carefully unpack and verify that you have all of the items shown below. If any of these
items are missing, please contact your place of purchase.
Standard accessories
The supplied accessories will be suitable for your region, and may differ from those
illustrated.
Optional accessories
1. Replacement lamp (RLC-101)
2. Soft carry case
3. VGA-Component adapter
4. Dust filter
Projector Power Cord
VGA Cable Multi-language User
Manual CD Quick Start Guide
Remote Control & Batteries Cable management
cover
6
Projector exterior view
1. External control panel
(See "Projector" on page 7 for
details.)
2. Lamp cover
3. Vent (heated air exhaust)
4. Front IR remote sensor
5. Adjuster foot
6. Lens shift wheel
7. Focus and Zoom rings
8. HDMI/MHL-3 port
9. Micro-USB cable
10. Projection lens
11. Audio signal output socket
12. Audio signal input socket 2/
Microphone
13. Audio signal input socket 1
14. S-Video input socket
15. Video input socket
16. USB port-1 (5V/2A out)
17. HDMI-1 port
18. HDMI/MHL-2 port
19. RGB signal output socket
20. RGB (PC)/Component video
(YPbPr/YCbCr) signal input socket
21. Mini USB port
22. RS-232 control port
23. AC power cord inlet
24. Security bar for anti-theft lock slot
Warning
THIS APPARATUS MUST BE EARTHED.
When installing the unit, incorporate a readily accessible disconnect device in the fixed wiring,
or connect the power plug to an easily accessible socket-outlet near the unit. If a fault should
occur during operation of the unit, operate the disconnect device to switch the power supply
off, or disconnect the power plug.
1
2
3
4
5
7
8
6
10
9
Front/upper side
23
24
1817
21 22
15 16141211 13 19
20
Rear/lower side
7
Controls and functions
Projector
1. Focus ring
Adjusts the focus of the projected image.
2. Zoom ring
Adjusts the size of the projected image.
3. Lens shift wheel
Shifts the projection lens vertically.
4. Menu
Turns on the On-Screen Display (OSD)
menu.
Exit
Goes back to previous OSD menu, exits
and saves menu settings.
5. / / / (Keystone keys)
Manually corrects distorted images
resulting from an angled projection.
Left/Right/Up/Down
Selects the desired menu items and makes
adjustments.
6. Power
Toggles the projector between standby
mode and Power ON.
7. Source
Displays the source selection bar.
(Help)
Displays the HELP menu by a long press
for 3 seconds.
8. Enter
Enacts the selected On-Screen Display
(OSD) menu item.
Displays the Corner Adj. page.
9. (My Button)
Allows user to define a short cut key on
this button, and the function item is
selected in OSD menu.
10. (Power indicator light)
Lights up or flashes when the projector is
under operation.
11. (Temperature indicator light)
Lights up red if the projector's
temperature becomes too high.
12. (Lamp indicator light)
Indicates the status of the lamp. Lights up
or flashes when the lamp has developed a
problem.
13. Color Mode
Selects an available picture setup mode.
1
2
3
55 54
76 5 13
9
11
10
12
8
8
Remote control
To use the remote mouse control keys
(Page Up, Page Down, , and ), see
"Using the remote mouse control" on
page 10 for details.
1. Power
Toggles the projector between standby
mode and Power ON.
2. Source selection keys
COMP1/COMP2
Selects D-Sub / Comp. 1 or D-Sub /
Comp. 2 source for display.
HDMI
Selects HDMI source for display.
3. Auto Sync
Automatically determines the best
picture timings for the displayed
image.
4. / (Keystone keys)
Manually corrects distorted images
resulting from an angled projection.
5. Left/ Right/ Up/ Down
Selects the desired menu items and
makes adjustments.
6. Enter
Enacts the selected On-Screen Display
(OSD) menu item.
7. Menu
Turns on the On-Screen Display
(OSD) menu.
8. (Left mouse button)
Performs the same function as the left
mouse button when the mouse mode is
activated.
Only available when a PC input signal
is selected.
9. (Right mouse button)
Performs the same function as the
right mouse button when the mouse
mode is activated.
Only available when a PC input signal
is selected.
1
2
7
8
3
5
4
16
17
19
22
23
15
18
20
21
26
24
27
25
6
9
13
10
14
11
12
4
COMP1 COMP2 HDMI
Source
Enter
Menu 3D Exit
PgUp
Mouse
Pattern
Blank
PgDn
Eco
Mode
Color
Mode
Auto
Sync
9
Remote control code
The projector can be assigned to 8 different remote control codes, 1 to 8. When several
adjacent projectors are in operation at the same time, switching the remote control codes
can prevent interference from other remote controls. Set the remote control code for the
projector first before changing that for the remote control.
To switch the code for the projector, select from among 1 to 8 in the SYSTEM SETTING:
ADVANCED > Remote Control Code menu.
To switch the code for the remote control, press ID set and the
number button corresponding to the remote control code set in
the projector OSD together for 5 seconds or more. The initial
code is set to 1. When the code is switched to 8, the remote
control can control every projector.
10.Mouse
Switches between the normal and mouse
modes.
PgUp, PgDn, , : active after pressing
Mouse. An icon appears on the screen to
indicate the activation of the mouse mode.
Only available when a PC input signal is
selected.
11. (Panel Key Lock)
Activates panel key lock.
12. (Presentation Timer)
Displays the presentation timer settings
menu.
13. (Volume Up)
Increases the volume level.
14.Eco Mode
Selects a lamp mode.
15.LED indicator
16. (My Button)
Allows user to define a short cut key on the
remote control, and the function item is
selected in OSD menu.
17. Source
Displays the source selection bar.
18. 3D
Displays the 3D settings menu.
19. Exit
Goes back to previous OSD menu, exits
and saves menu settings.
20.PgUp (Page Up)/PgDn (Page Down)
Operates your display software program
(on a connected PC) which responds to
page up/down commands (like Microsoft
PowerPoint) when the mouse mode is
activated.
Only available when a PC input signal is
selected.
21. Pattern
Displays embedded test pattern.
22.Blank
Hides the screen picture.
23. (Help)
Displays the HELP menu.
24. (Mute)
Toggles the projector audio between on
and off.
25. (Zoom)
Displays the zoom bar that magnifies or
reduces the projected picture size.
26.Color Mode
Selects an available picture setup mode.
27. (Volume Down)
Decreases the volume level.
COMP1COMP2HDMI
Source
Enter
Menu 3D Exit
PgUp
Mouse
Pattern
Blank
PgDn
Eco
Mode
Color
Mode
Auto
Sync
C
o
l
o
r
od
e
10
The capability of operating your computer with the remote control gives you more
flexibility when delivering presentations.
1. Take a USB cable and connect one end to the the Mini USB port on the projector and
other end to your PC or notebook prior to using the remote control in place of your
computers mouse. See "Connecting a computer" on page 17 for details.
2. Set the input signal to D-Sub / Comp..
3. Press Mouse on the remote control to switch from the normal mode to the mouse
mode. An icon appears on the screen to indicate the activation of the mouse mode.
4. Perform the desired mouse controls on your remote control.
To move the cursor on the screen, press / / / .
To left-click, press .
To right-click, press .
To operate your display software program (on a connected PC) which responds to
page up/down commands (like Microsoft PowerPoint), press PgUp/PgDn.
To return to the normal mode, press Mouse again or other keys except for the
mouse related multi-function keys.
Remote control effective range
The Infra-Red (IR) remote control is located on the front
of the projector. The remote control must be held at an
angle within 30 degrees perpendicular to the projector's
IR remote control sensor to function correctly. The
distance between the remote control and the sensor should
not exceed 8 meters (~ 26 feet).
Make sure that there are no obstacles between the remote
control and the IR sensor on the projector that might
obstruct the infra-red beam.
Approx. 30°
If different codes are set on the projector and remote control,
there will be no response from the remote control. When that
happens, a messgae will display to remind you to switch the
code for the remote control.
Using the remote mouse control
Remote Control Setting
Remote Control Code
11
Replacing the remote control batteries
1. To open the battery cover, turn the remote control over to view its back, press on the
finger grip on the cover and pull it up in the direction of the arrow as illustrated.
2. Remove any existing batteries (if necessary) and install two AAA batteries observing
the battery polarities as indicated in the base of the battery compartment. Positive (+)
goes to positive and negative (-) goes to negative.
3. Refit the cover by aligning it with the base and pushing it back down into position.
Stop when it clicks into place.
WARNING
Avoid leaving the remote control and batteries in an excessive heat or humid environment
like the kitchen, bathroom, sauna, sunroom or in a closed car.
Replace only with the same or equivalent type recommended by the battery manufacturer.
Dispose of the used batteries according to the manufacturer's instructions and local
environment regulations for your region.
Never throw the batteries into a fire. There may be danger of an explosion.
If the batteries are drained or if you will not be using the remote control for an extended
period of time, remove the batteries to avoid damage to the remote control from possible
battery leakage.
12
Positioning your projector
Choosing a location
Your room layout or personal preference will dictate which installation location you select.
Take into consideration the size and position of your screen, the location of a suitable power
outlet, as well as the location and distance between the projector and the rest of your
equipment.
Your projector is designed to be installed in one of the following 4 possible installation
locations:
1. Front Table
Select this location with the projector placed near
the floor in front of the screen. This is the most
common way to position the projector for quick
setup and portability.
2. Front Ceiling
Select this location with the projector suspended
upside-down from the ceiling in front of the screen.
Purchase the projector ceiling mount kit from your
dealer to mount your projector on the ceiling.
Set Front Ceiling in the SYSTEM SETTING:
BASIC > Projector Position menu after you turn
the projector on.
3. Rear Ceiling
Select this location with the projector suspended
upside-down from the ceiling behind the screen.
Note that a special rear projection screen and the
projector ceiling mounting kit are required for this
installation location.
Set Rear Ceiling in the SYSTEM SETTING:
BASIC > Projector Position menu after you turn
the projector on.
4. Rear Table
Select this location with the projector placed near
the floor behind the screen.
Note that a special rear projection screen is
required.
Set Rear Table in the SYSTEM SETTING:
BASIC > Projector Position menu after you turn
the projector on.
13
Projection dimensions
The "screen" mentioned below refers to the projection screen usually consisting of a screen
surface and a support structure.
(a)
(c)
(b)
(e)
(f)
(d)
(a)
(c)
(b)
(e)
(f)
(d)
(a)
(c)
(b)
(e)
(f)
(d)
(f): Center of lens(e): Screen
16:9 image on a 16:9 screen
16:9 image on a 4:3 screen
(a)
(d)
(c)
(b)
(e)
(f)
(a) Screen Size
[inch (m)]
16:9 image on a 16:9 Screen
(b) Projection distance [m (inch)] (c) Image height
[cm (inch)]
(d) Vertical offset
[cm (inch)]
min. max. min. max.
30 (0.8) 0.8 (30) 1.0 (39) 37 (15) 1.9 (0.7) 5.6 (2.2)
40 (1.0) 1.0 (40) 1.3 (52) 50 (20) 2.5 (1.0) 7.5 (2.9)
50 (1.3) 1.3 (50) 1.7 (65) 62 (25) 3.1 (1.2) 9.3 (3.7)
60 (1.5) 1.5 (60) 2.0 (79) 75 (29) 3.7 (1.5) 11.2 (4.4)
70 (1.8) 1.8 (70) 2.3 (92) 87 (34) 4.4 (1.7) 13.1 (5.1)
80 (2.0) 2.0 (81) 2.7 (105) 100 (39) 5.0 (2.0) 14.9 (5.9)
90 (2.3) 2.3 (91) 3.0 (118) 112 (44) 5.6 (2.2) 16.8 (6.6)
100 (2.5) 2.6 (101) 3.3 (131) 125 (49) 6.2 (2.5) 18.7 (7.4)
120 (3.0) 3.1 (121) 4.0 (157) 149 (59) 7.5 (2.9) 22.4 (8.8)
150 (3.8) 3.8 (151) 5.0 (196) 187 (74) 9.3 (3.7) 28.0 (11.0)
200 (5.1) 5.1 (201) 6.7 (262) 249 (98) 12.5 (4.9) 37.4 (14.7)
250 (6.4) 6.4 (252) 8.3 (327) 311 (123) 15.6 (6.1) 46.7 (18.4)
300 (7.6) 7.7 (302) 10.0 (393) 374 (147) 18.7 (7.4) 56.0 (22.1)
14
There is 3% tolerance among these numbers due to optical component variations. It is
recommended that if you intend to permanently install the projector, you should physically
test the projection size and distance using the actual projector in situ before you permanently
install it, so as to make allowance for this projector's optical characteristics. This will help you
determine the exact mounting position so that it best suits your installation location.
(a) Screen Size
[inch (m)]
16:9 image on a 4:3 Screen
(b) Projection distance [m (inch)] (c) Image height
[cm (inch)]
(d) Vertical offset
[cm (inch)]
min. max. min. max.
30 (0.8) 0.7 (28) 0.9 (36) 34 (14) 1.7 (0.7) 5.1 (2.0)
40 (1.0) 0.9 (37) 1.2 (48) 46 (18) 2.3 (0.9) 6.9 (2.7)
50 (1.3) 1.2 (46) 1.5 (60) 57 (23) 2.9 (1.1) 8.6 (3.4)
60 (1.5) 1.4 (55) 1.8 (72) 69 (27) 3.4 (1.4) 10.3 (4.1)
70 (1.8) 1.6 (65) 2.1 (84) 80 (32) 4.0 (1.6) 12.0 (4.7)
80 (2.0) 1.9 (74) 2.4 (96) 91 (36) 4.6 (1.8) 13.7 (5.4)
90 (2.3) 2.1 (83) 2.7 (108) 103 (41) 5.1 (2.0) 15.4 (6.1)
100 (2.5) 2.3 (92) 3.1 (120) 114 (45) 5.7 (2.3) 17.1 (6.8)
120 (3.0) 2.8 (111) 3.7 (144) 137 (54) 6.9 (2.7) 20.6 (8.1)
150 (3.8) 3.5 (139) 4.6 (180) 171 (68) 8.6 (3.4) 25.7 (10.1)
200 (5.1) 4.7 (185) 6.1 (240) 229 (90) 11.4 (4.5) 34.3 (13.5)
250 (6.4) 5.9 (231) 7.6 (300) 286 (113) 14.3 (5.6) 42.9 (16.9)
300 (7.6) 7.0 (277) 9.2 (360) 343 (135) 17.1 (6.8) 51.4 (20.3)
15
Shifting the projection lens vertically
The vertical lens shift control provides flexibility for installing your projector. It allows the
projector to be positioned slightly above or below the top level of the projected images.
Use the wheel to shift the projection lens upwards or downwards within the allowable range
depending on your desired image position.
To use the lens shift wheel:
Turn the wheel to adjust the projected image position.
Do not over-tighten the wheel.
Lens shift adjustment does not result in a degraded picture quality.
16
Connection
When connecting a signal source to the projector, be sure to:
1. Turn all equipment off before making any connections.
2. Use the correct signal cables for each source.
3. Ensure the cables are firmly inserted.
In the connections shown below, some cables may not be included with the projector (see
"Shipping contents" on page 5). They are commercially available from electronics stores.
The connection illustrations below are for reference only. The rear connecting jacks available
on the projector vary with each projector model.
For detailed connection methods, see pages 17-20.
1. VGA cable
2. VGA to DVI-A cable
3. USB cable
4. Component Video to VGA (D-Sub)
adapter cable
5. S-Video cable
6. Video cable
7. Audio cable
8. HDMI cable
9. HDMI dongle
10. MHL dongle
7
5 48 13
12
9
7
7
10
6
910
Notebook or
desktop
computer
Speakers
or
A/V device
Monitor
(DVI)
(VGA)
Microphone
or
17
Connecting a computer or a monitor
Connecting a computer
1. Take the supplied VGA cable and connect one end to the D-Sub output socket of the
computer.
2. Connect the other end of the VGA cable to the COMPUTER IN signal input socket
on the projector.
3. If you wish to use the remote mouse control function, take a USB cable and connect
the larger end to the USB port of the computer, and smaller end to the MINI USB
socket on the projector. See "Using the remote mouse control" on page 10 for details.
Many notebooks do not turn on their external video ports when connected to a projector.
Usually a key combo like FN + F3 or CRT/LCD key turns the external display on/off. Locate a
function key labeled CRT/LCD or a function key with a monitor symbol on the notebook. Press
FN and the labeled function key simultaneously. Refer to your notebook's documentation to
find your notebook's key combination.
Connecting a monitor
If you want to view your presentation close-up on a monitor as well as on the screen, you
can connect the MONITOR OUT signal output socket on the projector to an external
monitor with a VGA cable following the instructions below:
1. Connect the projector to a computer as described in "Connecting a computer" on page
17.
2. Take a suitable VGA cable (only one supplied) and connect one end of the cable to the
D-Sub input socket of the video monitor.
Or if your monitor is equipped with a DVI input socket, take a VGA to DVI-A cable
and connect the DVI end of the cable to the DVI input socket of the video monitor.
3. Connect the other end of the cable to the MONITOR OUT socket on the projector.
The MONITOR OUT output only works when COMPUTER IN connection is made to the
projector.
To use this connection method when the projector is in standby mode, turn on the Active VGA
Out function under the SOURCE > Standby Settings menu.
18
Connecting Video source devices
You can connect your projector to various Video source devices that provide any one of the
following output sockets:
• HDMI
Component Video
•S-Video
Video (composite)
You need only connect the projector to a Video source device using just one of the above
connecting methods, however each provides a different level of video quality. The method
you choose will most likely depend upon the availability of matching terminals on both the
projector and the Video source device as described below:
Best video quality
The best available video connection method is HDMI. If your source device is equipped
with an HDMI socket, you can enjoy uncompressed digital video quality.
See "Connecting an HDMI device" on page 19 for how to connect the projector to an HDMI
source device and other details.
If no HDMI source is available, the next best video signal is Component video (not to be
confused with composite video). Digital TV tuner and DVD players output Component
video natively, so if available on your devices, this should be your connection method of
choice in preference to (composite) video.
See "Connecting a Component Video source device" on page 19 for how to connect the
projector to a component video device.
Better video quality
The S-Video method provides a better quality analog video than standard composite Video.
If you have both composite Video and S-Video output terminals on your Video source
device, you should elect to use the S-Video option.
See "Connecting an S-Video source device" on page 20 for how to connect the projector to
an S-Video device.
Least video quality
Composite Video is an analog video and will result in a perfectly acceptable, but less than
optimal result from your projector, being the least video quality of the available methods
described here.
See "Connecting a composite Video source device" on page 20 for how to connect the
projector to a composite Video device.
Connecting audio
The projector has built-in mono speaker(s) which is designed to provide basic audio
functionality accompanying data presentations for business purposes only. It is not designed
for, nor intended for stereo audio reproduction use as might be expected in home theater or
home cinema applications. Any stereo audio input (if provided), is mixed into a common
mono audio output through the projector speaker.
If you wish, you can make use of the projector (mixed mono) speaker in your presentations,
and also connect separate amplified speakers to the Audio Out socket of the projector. The
audio output is a mixed mono signal and controlled by the projector Volume and Mute
settings.
19
If you have a separate sound system, you will most likely want to connect the audio output
of your Video source device to that sound system, instead of to the mono audio projector.
Connecting an HDMI device
You should use an HDMI cable when making connection between the projector and HDMI
devices.
1. Take an HDMI cable and connect one end to the HDMI output port of the video
device.
2. Connect the other end of the cable to the HDMI input port on the projector.
In the unlikely event that you connect the projector to a DVD player via the projector’s HDMI
input and the projected picture displays wrong colors, please change the color space to YUV.
See "Changing HDMI input settings" on page 27 for details.
The projector is only capable of playing mixed mono audio, even if a stereo audio input is
connected. See "Connecting audio" on page 18 for details.
Connecting a Component Video source device
Examine your Video source device to determine if it has a set of unused Component Video
output sockets available:
If so, you can continue with this procedure.
If not, you will need to reassess which method you can use to connect to the device.
1. Take a VGA (D-Sub)-Component adaptor cable and connect the end with 3 RCA type
connectors to the Component Video output sockets of the Video source device. Match
the color of the plugs to the color of the sockets; green to green, blue to blue, and red
to red.
2. Connect the other end of the VGA (D-Sub)-Component adaptor cable (with a D-Sub
type connector) to the COMPUTER IN socket on the projector.
The projector is only capable of playing mixed mono audio, even if a stereo audio input is
connected. See "Connecting audio" on page 18 for details.
If the selected video image is not displayed after the projector is turned on and the correct
video source has been selected, check that the Video source device is turned on and
operating correctly. Also check that the signal cables have been connected correctly.
VGA-Component adapter
(ViewSonic P/N: CB-00008906)
20
Connecting an S-Video source device
Examine your Video source device to determine if it has an unused S-Video output socket
available:
If so, you can continue with this procedure.
If not, you will need to reassess which method you can use to connect to the device.
1. Take an S-Video cable and connect one end to the S-Video output socket of the Video
source device.
2. Connect the other end of the S-Video cable to the S-VIDEO socket on the projector.
The projector is only capable of playing mixed mono audio, even if a stereo audio input is
connected. See "Connecting audio" on page 18 for details.
If the selected video image is not displayed after the projector is turned on and the correct
video source has been selected, check that the Video source device is turned on and
operating correctly. Also check that the signal cables have been connected correctly.
If you have already made a Component Video connection between the projector and this S-
Video source device using Component Video connections, you need not connect to this
device using an S-Video connection as this makes an unnecessary second connection of
poorer picture quality. See "Connecting Video source devices" on page 18 for details.
Connecting a composite Video source device
Examine your Video source device to determine if it has a set of unused composite Video
output sockets available:
If so, you can continue with this procedure.
If not, you will need to reassess which method you can use to connect to the device.
1. Take a Video cable and connect one end to the composite Video output socket of the
Video source device.
2. Connect the other end of the Video cable to the VIDEO socket on the projector.
The projector is only capable of playing mixed mono audio, even if a stereo audio input is
connected. See "Connecting audio" on page 18 for details.
If the selected video image is not displayed after the projector is turned on and the correct
video source has been selected, check that the Video source device is turned on and
operating correctly. Also check that the signal cables have been connected correctly.
You need only connect to this device using a composite Video connection if Component Video
and S-Video inputs are unavailable for use. See "Connecting Video source devices" on page
18 for details.
Playing sound through the projector
You can make use of the projector (mixed mono) speaker in your presentations, and also
connect separate amplified speakers to the AUDIO OUT socket of the projector.
If you have a separate sound system, you will most likely want to connect the audio output
of your Video source device to that sound system, instead of to the mono audio projector.
You can also use a microphone to output the sound through the projector speaker when the
SYSTEM SETTING: ADVANCED > Audio Settings > Audio In 2 menu is set to
Microphone. See "Adjusting the Audio In 2 setting" on page 40 for details.
Once connected, the audio can be controlled by the projector On-Screen Display (OSD)
menus. See "Adjusting the sound" on page 39 for details.
21
About the microphone input
If you wish to use a microphone, connect a 3.5 mini jack cable microphone to the
projector.
You can use a wireless microphone as long as a wireless module is attached to the
projectors microphone input jack and it works well with the associated devices. To
ensure a quality use of the wireless microphone, it is recommended that your
microphone conforms to the specifications listed in the table below.
There are two ways to adjust microphone volumes.
Directly set microphone volume levels in the SYSTEM SETTING:
ADVANCED > Audio Settings > Microphone Volume menu.
Set projector volume levels in the SYSTEM SETTING: ADVANCED > Audio
Settings > Audio Settings > Audio Volume menu, or press (Volume) on the
remote control. (The projector volume setting will affect the microphone volume.)
If the microphone is not working, check the volume setting and cable connection.
You might get feedback noise from the microphone when you are too close to the
speaker of the projector. Move the microphone away from the speaker of the projector.
The greater volume you require, the greater distance you need to be away from the
speaker to prevent the noise.
Using the cable management cover
This cable management cover helps you to conceal and organize the cables connected to the
back of the projector. It is especially useful when the projector is ceiling-mounted or wall-
mounted.
1. Make sure that all the cables are properly
connected to the projector.
2. Attach the cable management cover to the
back of the projector.
3. Tighten the screws that secure the cable
management cover.
Signal Parameter Min Type Max
Microphone
Transducer Principle Dynamic
Impedance 300 1K ohm
Frequency response 600 16k Hz
22
Operation
Starting up the projector
1. Plug the power cord into the projector and into a
wall socket. Turn on the wall socket switch
(where fitted).
2. (If available) Remove the lens cap.
3. Press Power to start the projector. As soon as
the lamp lights up, a "Power On Ring Tone" will
be heard. The Power indicator light stays blue
when the projector is on.
(If necessary) Rotate the focus ring to adjust the image clearness.
If the projector is still hot from previous activity, it will run the cooling fan for approximately 60
seconds before energizing the lamp.
To maintain the lamp life, once you turn the projector on, wait at least 5 minutes before turning
it off.
To turn off the ring tone, see "Turning off the Power On/Off Ring Tone" on page 39 for details.
4. If the projector is activated for the first time, select your OSD language following the
on-screen instructions.
5. Switch all of the connected equipment on.
6. The projector will start to search for input signals. The current input signal being
scanned appears in the upper left corner of the screen. If the projector doesn't detect a
valid signal, the message 'No Signal' will continue to be displayed until an input
signal is found.
You can also press Source to select your desired input signal. See "Switching input
signal" on page 26 for details.
If the frequency/resolution of the input signal exceeds the projector's operating range, you will
see the message 'Out of Range' displayed on a blank screen. Please change to an input signal
which is compatible with the projector's resolution or set the input signal to a lower setting.
See "Timing chart" on page 59 for details.
Contact Information for Sales & Authorized Service (Centro Autorizado de Servicio) within Mexico:
Name, address, of manufacturer and importers:
México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas,
Col. San Fernando Huixquilucan, Estado de México
Tel: (55) 3605-1099 http://www.viewsonic.com/la/soporte/index.htm
NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004
Hermosillo:
Distribuciones y Servicios Computacionales SA de CV.
Calle Juarez 284 local 2
Col. Bugambilias C.P: 83140
Tel: 01-66-22-14-9005
E-Mail: disc2@hmo.megared.net.mx
Villahermosa:
Compumantenimietnos Garantizados, S.A. de C.V.
AV. GREGORIO MENDEZ #1504
COL, FLORIDA C.P. 86040
Tel: 01 (993) 3 52 00 47 / 3522074 / 3 52 20 09
E-Mail: compumantenimientos@prodigy.net.mx
Puebla, Pue. (Matriz):
RENTA Y DATOS, S.A. DE C.V. Domicilio:
29 SUR 721 COL. LA PAZ
72160 PUEBLA, PUE.
Tel: 01(52).222.891.55.77 CON 10 LINEAS
E-Mail: datos@puebla.megared.net.mx
Veracruz, Ver.:
CONEXION Y DESARROLLO, S.A DE C.V. Av. Americas # 419
ENTRE PINZÓN Y ALVARADO
Fracc. Reforma C.P. 91919
Tel: 01-22-91-00-31-67
E-Mail: gacosta@qplus.com.mx
Chihuahua
Soluciones Globales en Computación
C. Magisterio # 3321 Col. Magisterial
Chihuahua, Chih.
Tel: 4136954
E-Mail: Cefeo@soluglobales.com
Cuernavaca
Compusupport de Cuernavaca SA de CV
Francisco Leyva # 178 Col. Miguel Hidalgo
C.P. 62040, Cuernavaca Morelos
Tel: 01 777 3180579 / 01 777 3124014
E-Mail: aquevedo@compusupportcva.com
Distrito Federal:
QPLUS, S.A. de C.V.
Av. Coyoacán 931
Col. Del Valle 03100, México, D.F.
Tel: 01(52)55-50-00-27-35
E-Mail : gacosta@qplus.com.mx
Guadalajara, Jal.:
SERVICRECE, S.A. de C.V.
Av. Niños Héroes # 2281
Col. Arcos Sur, Sector Juárez
44170, Guadalajara, Jalisco
Tel: 01(52)33-36-15-15-43
E-Mail: mmiranda@servicrece.com
Guerrero Acapulco
GS Computación (Grupo Sesicomp)
Progreso #6-A, Colo Centro
39300 Acapulco, Guerrero
Tel: 744-48-32627
Monterrey:
Global Product Services
Mar Caribe # 1987, Esquina con Golfo Pérsico
Fracc. Bernardo Reyes, CP 64280
Monterrey N.L. México
Tel: 8129-5103
E-Mail: aydeem@gps1.com.mx
MERIDA:
ELECTROSER
Av Reforma No. 403Gx39 y 41
Mérida, Yucatán, México CP97000
Tel: (52) 999-925-1916
E-Mail: rrrb@sureste.com
Oaxaca, Oax.:
CENTRO DE DISTRIBUCION Y
SERVICIO, S.A. de C.V.
Murguía # 708 P.A., Col. Centro, 68000, Oaxaca
Tel: 01(52)95-15-15-22-22
Fax: 01(52)95-15-13-67-00
E-Mail. gpotai2001@hotmail.com
Tijuana:
STD
Av Ferrocarril Sonora #3780 L-C
Col 20 de Noviembre
Tijuana, Mexico
FOR USA SUPPORT:
ViewSonic Corporation
14035 Pipeline Ave. Chino, CA 91710, USA
7HO(QJOLVK6SDQLVK
E-Mail: http://www.viewsonic.com
Projector Mexico Warranty Term Template In UG
VSC_TEMP_2006
89
24
Utilizing the password function
For security purposes and to help prevent unauthorized use, the projector includes an option
for setting up password security. The password can be set through the On-Screen Display
(OSD) menu. For details of the OSD menu operation, please refer to "Using the menus" on
page 23.
You will be inconvenienced if you enable the password function yet forget the password
somehow. Do make a note of your password, and keep the note in a safe place for later recall.
Setting a password
Once a password has been set and the power on lock is enabled, the projector cannot be used
unless the correct password is entered every time the projector is started.
1. Open the OSD menu and go to the SYSTEM SETTING: ADVANCED > Advanced
> Security Settings menu.
2. Press Enter and the Security Settings page is displayed.
3. Highlight Power On Lock and select On by pressing /.
4. As pictured to the right, the four arrow keys
( , , , ) respectively represent 4 digits (1,
2, 3, 4). According to the password you desire to
set, press the arrow keys to enter six digits for the
password.
5. Confirm the new password by re-entering the
new password.
Once the password is set, the OSD menu returns
to the Security Settings page.
6. To leave the OSD menu, press Exit.
If you forget the password
If the password function is activated, you will be asked
to enter the six-digit password every time you turn on
the projector. If you enter the wrong password, the
password error message as pictured to the right is
displayed lasting for 5 seconds, and the message
'INPUT PASSWORD' follows. You can retry by
entering another six-digit password, or if you did not record the password in this user
manual, and you absolutely do not remember it, you can use the password recall procedure.
See "Entering the password recall procedure" on page 25 for details.
If you enter an incorrect password 5 times in succession, the projector will automatically
shut down in a short time.
INPUT PASSWORD
BackMENU
Password Error
Please try again.
25

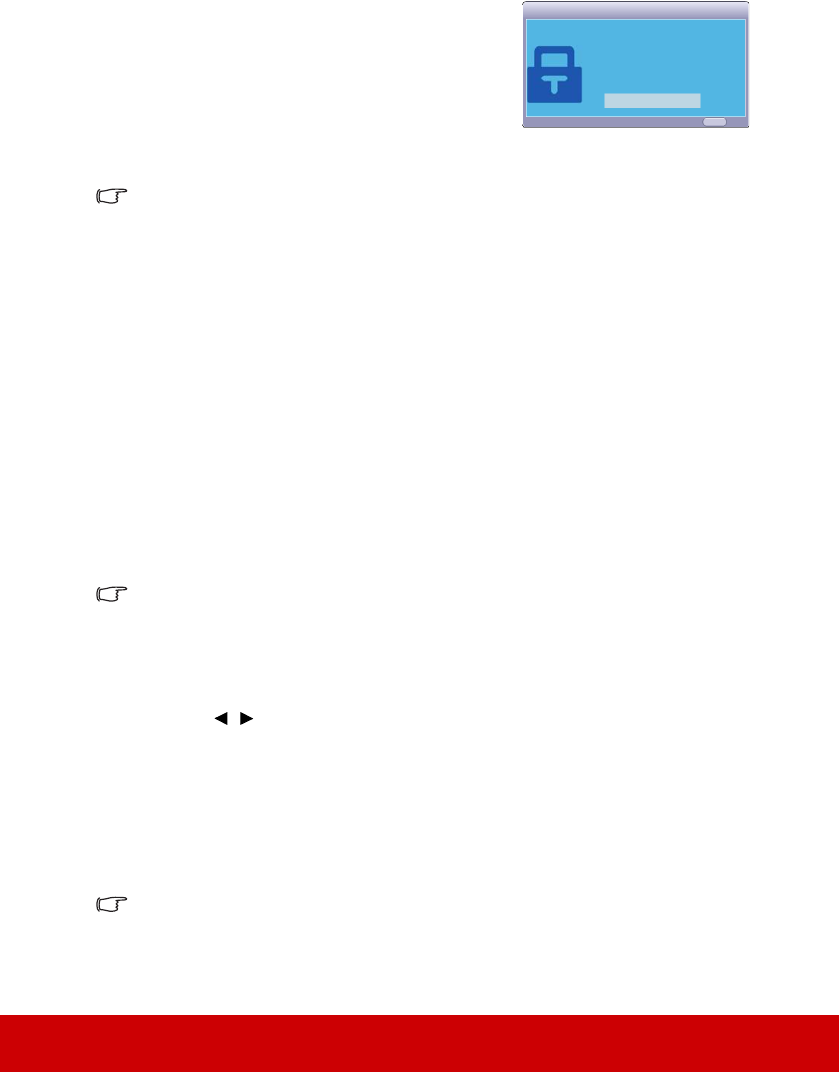

Entering the password recall procedure
1. Press and hold Auto Sync on the remote control
for 3 seconds. The projector will display a coded
number on the screen.
2. Write down the number and turn off your
projector.
3. Seek help from the local service center to decode
the number. You may be required to provide
proof of purchase documentation to verify that
you are an authorized user of the projector.
The "XXX" shown in the above screenshot are numbers that vary depending on different
projector models.
Changing the password
1. Open the OSD menu and go to the SYSTEM SETTING: ADVANCED > Advanced
> Security Settings > Change Password menu.
2. Press Enter. The message 'INPUT CURRENT PASSWORD' is displayed.
3. Enter the old password.
If the password is correct, another message 'INPUT NEW PASSWORD' is
displayed.
If the password is incorrect, the password error message is displayed lasting for
5 seconds, and the message 'INPUT CURRENT PASSWORD' is displayed
for your retry. You can press Exit to cancel or try another password.
4. Enter a new password.
5. Confirm the new password by re-entering the new password.
6. You have successfully assigned a new password to the projector. Remember to enter
the new password next time the projector is started.
7. To leave the OSD menu, press Exit.
The digits being input will be displayed as asterisks on-screen. Do make a note of your
password, and then keep the note in a safe place for later recall.
Disabling the password function
1. Open the OSD menu and go to the SYSTEM SETTING: ADVANCED > Advanced
> Security Settings > Power On Lock menu.
2. Press / to select Off.
3. The message 'INPUT PASSWORD' is displayed. Enter the current password.
If the password is correct, the OSD menu returns to the Security Settings page
with 'Off' shown in the row of Power On Lock. You will not have to enter the
password next time you turn on the projector.
If the password is incorrect, the password error message is displayed lasting for
5 seconds, and the message 'INPUT PASSWORD' is displayed for your retry.
You can press Exit to cancel or try another password.
Though the password function is disabled, you need to keep the old password in hand should
you ever need to re-activate the password function by entering the old password.
Please write down the recall code,
and contact ViewSonic
Customer Center.
Recall code:
X X X X
RECALL PASSWORD
Exit
MENU
26
Switching input signal
The projector can be connected to multiple devices at the same time. However, it can only
display one full screen at a time.
Be sure the Quick Auto Search function in the SOURCE menu is On if you want the
projector to automatically search for the signals.
You can also manually select the desired signal by
pressing one of the source selection keys on the
remote control, or cycle through the available input
signals.
1. Press Source. A source selection bar is
displayed.
2. Press / until your desired signal is
selected and press Enter.
Once detected, the selected source information
will be displayed on the screen for seconds. If
there are multiple devices connected to the
projector, repeat steps 1-2 to search for another
signal.
Please see "Projector specifications" on page 56 for
the native display resolution of this projector. For best
display picture results, you should select and use an
input signal which outputs at this resolution. Any
other resolutions will be scaled by the projector
depending upon the 'aspect ratio' setting, which may
cause some image distortion or loss of picture clarity.
See "Selecting the aspect ratio" on page 30 for
details.
Changing HDMI input settings
In the unlikely event that you connect the projector to a device (like a DVD or Blu-ray
player) via the projector’s HDMI input and the projected picture displays wrong colors,
please change the color space to an appropriate one that fits the color space setting of the
output device.
To do this:
1. Open the OSD menu and go to the PICTURE > HDMI Settings menu.
2. Press Enter.
3. Highlight HDMI Format and press / to select a suitable color space according
to the color space setting of the output device connected.
RGB: Sets the color space as RGB.
YUV: Sets the color space as YUV.
Auto: Sets the projector to detect the color space setting of the input signal
automatically.
4. Highlight HDMI Range and press / to select a suitable HDMI color range
according to the color range setting of the output device connected.
Enhanced: Sets the HDMI color range as 0 - 255.
Normal: Sets the HDMI color range as 15 - 235.
27
Auto: Sets the projector to detect the HDMI range of the input signal
automatically.
This function is only available when the HDMI input port is in use.
Refer to the documentation of the device for information on the color space and HDMI range
settings.
Adjusting the projected image
Adjusting the projection angle
The projector is equipped with an adjuster foot. It
changes the image height and vertical projection
angle. Screw the adjuster foot to fine tune the
angle until the image is positioned where you
want it.
If the projector is not placed on a flat surface or
the screen and the projector are not perpendicular
to each other, the projected image becomes
trapezoidal. To correct this situation, see
"Correcting keystone" on page 28 for details.
Do not look into the lens while the lamp is on. The strong light from the lamp may cause
damage to your eyes.
Auto-adjusting the image
In some cases, you may need to optimize the picture quality. To do this, press Auto Sync on
the remote control. Within 5 seconds, the built-in Intelligent Auto Adjustment function will
re-adjust the values of Frequency and Clock to provide the best picture quality.
The current source information will be displayed in the upper left corner of the screen for 3
seconds.
The screen will be blank while auto adjustment is functioning.
This function is only available when PC D-Sub input signal (analog RGB) is selected.
28
Fine-tuning the image clarity
Correcting keystone
Keystoning refers to the situation where the projected image becomes a trapezoid due to
angled projection.
To correct this, besides adjusting the height of the projector, you will need to manually
correct it following one of these steps.
Using the remote control
1. Press /// to display the Keystone
correction page.
2. Press to correct keystoning at the top of
the image. Press to correct keystoning at
the bottom of the image. Press to correct
keystoning at the right side of the image.
Press to correct keystoning at the left side
of the image.
Using the OSD menu
1. Open the OSD menu and go to the DISPLAY > Keystone menu.
2. Press Enter. The Keystone correction page is displayed.
3. Highlight Vertical and press to correct keystoning at the top of the image or press
to correct keystoning at the bottom of the image.
4. You can also highlight Horizontal and press to correct keystoning at the right side
of the image. Press to correct keystoning at the left side of the image.
1. Adjust the projected image to the size
that you need using the zoom ring.
2. If necessary, sharpen the image by rotating
the focus ring.
Press /
Press /
Press / Press /
29
Adjusting 4 corners
You can manually adjusts the shape and size of an image that is unevenly rectangular on all
sides.
1. To display the Corner Adj. page, you can do
one of the followings:
i. Press Enter.
ii. Open the OSD menu and go to the
DISPLAY > Corner Adj. menu and
press Enter. The Corner Adj. page is
displayed.
2. Press / / / to select the corner you
wish to adjust and press Enter.
3. Press / to select an adjustment method
that suits your need and press Enter.
4. As indicated on the screen ( / for a 45-
degree angle adjustment and / / / for
a 90-degree angle adjustment), press / /
/ to adjust its shape and size. You can
press Menu or Exit to go back to a previous
step. A long press for 2 seconds on Enter will
reset the settings on the corner that you chose.
Adjusting keystone will reset the Corner Adj. settings.
After the Corner Adj. settings have been modified, some aspect ratios or timings are not
available. When that happens, reset the settings on all 4 corners.
The following messages will appear:
Magnifying and searching for details
If you need to find the details on the projected picture, magnify the picture. Use the
direction arrow keys for navigating the picture.
Using the remote control
1. Press on the remote control to display the Zoom bar.
2. Press repeatedly to magnify the picture to a desired size.
3. To navigate the picture, press Enter to switch to the paning mode and press the
directional arrows ( , , , ) to navigate the picture.
Corner Adj.
Press [Menu/Exit] to save or exit.
[Corner Adj.] will be reset if adjust [Keystone].
Hold [Enter] for 2 sec. to reset.
A long press for 2 seconds on
Enter when this page displays
will reset the settings on all 4
corners.
Corner Adj.
Press [Enter] after selection.
Press [Menu/Exit] to return.
Hold [Enter] for 2 sec. to reset.
Indicates the corner that you
selected.
Please re-set the corner adj.
or switch to other aspect ratio
Screen Color
Aspect Ratio
Corner Adj.
Phase
H. Size
Zoom
Off
Auto
MENU Exit
Keystone
16
0
Analog RGB
Position
30
4. To reduce size of the picture, press Enter to switch back to the zoom in/out
functionality, and press repeatedly until it is restored to the original size. You can
also press Auto Sync on the remote control to restore the picture to its original size.
Using the OSD menu
1. Open the OSD menu and go to the DISPLAY > Zoom menu.
2. Press Enter. The Zoom bar is displayed.
3. Repeat steps 2-4 in the section of Using the remote control above.
The picture can only be navigated after it is magnified. You can further magnify the picture
while searching for details.
Selecting the aspect ratio
The 'aspect ratio' is the ratio of the image width to the image height. Most analog TV and
computers are in 4:3 ratio, and digital TV and DVDs are usually in 16:9 ratio.
With the advent of digital signal processing, digital display devices like this projector can
dynamically stretch and scale the image output to a different aspect than that of the image
input signal.
To change the projected image ratio (no matter what aspect the source is):
1. Open the OSD menu and go to the DISPLAY > Aspect Ratio menu.
2. Press / to select an aspect ratio to suit the format of the video signal and your
display requirements.
About the aspect ratio
In the pictures below, the black portions are inactive areas and the white portions are active
areas. OSD menus can be displayed on those unused black areas.
1. Auto: Scales an image proportionally to fit the
projector's native resolution in its horizontal
width. This is suitable for the incoming image
which is neither in 4:3 nor 16:9 and you want to
make most use of the screen without altering the
image's aspect ratio.
2. 4:3: Scales an image so that it is displayed in the
center of the screen with a 4:3 aspect ratio. This
is most suitable for 4:3 images like computer
monitors, standard definition TV and 4:3 aspect
DVD movies, as it displays them without aspect
alteration.
3. 16:9: Scales an image so that it is displayed in
the center of the screen with a 16:9 aspect ratio.
This is most suitable for images which are
already in a 16:9 aspect, like high definition TV,
as it displays them without aspect alteration.
16:10 picture
15:9 picture
4:3 picture
16:9 picture
31
4. Panorama: Scales a 4:3 image vertically and
horizontally in a non-linear manner so that it
fills the screen.
5. 2.35:1: Scales an image so that it is displayed in
the center of the screen with a 2.35:1 aspect
ratio without aspect alteration.
6. Anamorphic: Scales a 2.35:1 aspect image so
that it fills the screen.
Optimizing the image
Selecting a picture mode
The projector is preset with several predefined picture modes so that you can choose one to
suit your operating environment and input signal picture type.
To select an operation mode that suits your need, you can follow one of the following steps.
Press Color Mode repeatedly until your desired mode is selected.
•Go to the PICTURE > Color Mode menu and press / to select a desired mode.
Picture modes for different types of signals
The picture modes available for different types of signals are listed below.
1. Brightest mode: Maximizes the brightness of the projected image. This mode is
suitable for environments where extra-high brightness is required, such as using the
projector in well lit rooms.
2. Dynamic mode: Is designed for presentations under daylight environment to match
PC and notebook coloring. In addition, the projector will optimize the image quality
using the dynamic PC function in accordance with the projected contents.
3. Standard mode: Is designed for presentations under daylight environment to match
PC and notebook coloring.
4. ViewMatch sRGB mode: Switches between high brightness performance and
accurate color performance.
5. Movie mode: Is appropriate for playing colorful movies, video clips from digital
cameras or DVs through the PC input for best viewing in a blackened (little light)
environment.
6. ISF Day/ISF Night mode: Only available when ISF Mode is On.
4:3 picture
2.35:1 picture
2.35:1 picture
32
Selectable lamp modes may vary depending on the Color Mode selected.
Using Screen Color
In the situation where you are projecting onto a colored surface such as a painted wall which
may not be white, the Screen Color feature can help correct the projected picture’s colors to
prevent possible color difference between the source and projected pictures.
To use this function, go to the DISPLAY > Screen Color menu and press / to select a
color which is closest to the color of the projection surface. There are several precalibrated
colors to choose from: Whiteboard, Greenboard, and Blackboard. The effects of these
settings may vary depending on different models.
This function is only available when a PC or HDMI input signal is selected.
Fine-tuning the image quality in user modes
According to the detected signal type, there are some user-definable functions available.
You can make adjustments to these functions based on your needs.
Adjusting Brightness
Go to the PICTURE > Brightness menu and press /.
The higher the value, the brighter the image. And the
lower the setting, the darker the image. Adjust this
control so the black areas of the image appear just as
black and that detail in the dark areas is visible.
Adjusting Contrast
Go to the PICTURE > Contrast menu and press /.
The higher the value, the greater the contrast. Use this
to set the peak white level after you have previously
adjusted the Brightness setting to suit your selected
input and viewing environment.
Adjusting Color
Go to the PICTURE > Advanced > Color menu and press /.
Lower setting produces less saturated colors. If the setting is too high, colors on the image
will be overpowering, which makes the image unrealistic.
This function is only available when the input signal is S-Video, Video, YPbPr (digital) or
YCbCr (digital).
Adjusting Tint
Go to the PICTURE > Advanced > Tint menu and press /.
The higher the value, the more reddish the picture becomes. The lower the value, the more
greenish the picture becomes.
This function is only available when the input signal is S-Video, Video, YPbPr (digital) or
YCbCr (digital).
Adjusting Sharpness
Go to the PICTURE > Advanced > Sharpness menu and press /.
The higher the value, the sharper the picture becomes. The lower the value, the softer the
picture becomes.
50
-30 +80
-30 0+40
33
This function is only available when the input signal is S-Video, Video, YPbPr (digital) or
YCbCr (digital).
Adjusting Brilliant Color
Go to the PICTURE > Advanced > Brilliant Color menu and press /.
This feature utilizes a new color-processing algorithm and system level enhancements to
enable higher brightness while providing truer, more vibrant colors in the projected picture.
It enables a greater than 50% brightness increase in mid-tone images, which are common in
video and natural scenes, so the projector reproduces images in realistic and true colors. If
you prefer images with that quality, select a level that suits your need. If you don’t need it,
select Off.
Reducing image noise
Go to the PICTURE > Advanced > Noise Reduction menu and press /.
This function reduces electrical image noise caused by different media players. The higher
the setting, the less the noise.
This function is only available when a PC, Video or S-Video input signal is selected.
Selecting a gamma setting
Go to the PICTURE > Advanced > Gamma menu and select a preferred setting by
pressing /.
Gamma refers to the relationship between input source and picture brightness.
Selecting a Color Temperature
Go to the PICTURE > Color Temp. menu and press /.
The options available for color temperature settings vary according to the signal type
selected.
1. Cool: With the highest color temperature, Cool makes the image appear the most
bluish white than other settings.
2. Neutral: Makes images appear bluish white.
3. Normal: Maintains normal colorings for white.
4. Warm: Makes images appear reddish white.
Setting a preferred color temperature
1. Go to the PICTURE > Color Temp. menu.
2. Press / to select Cool, Neutral, Normal or Warm and press Enter.
3. Press / to highlight the item you want to change and adjust the values by
pressing /.
Red Gain/Green Gain/Blue Gain: Adjusts the contrast levels of Red, Green,
and Blue.
Red Offset/Green Offset/Blue Offset: Adjusts the brightness levels of Red,
Green, and Blue.
This function is only available when a PC input signal is selected.
Color Management
Only in permanent installations with controlled lighting levels such as boardrooms, lecture
theaters, or home theaters, should color management be considered. Color management
34
provides fine color control adjustment to allow for more accurate color reproduction, should
you require it.
If you have purchased a test disc which contains various color test patterns and can be used
to test the color presentation on monitors, TVs, projectors, etc., you can project any image
from the disc on the screen and enter the Color Management menu to make adjustments.
To adjust the settings:
1. Open the OSD menu and go to the PICTURE > Advanced > Color Management
menu.
2. Press Enter and the Color Management page is displayed.
3. Highlight Primary Color and press / to select a color from among Red, Yellow,
Green, Cyan, Blue, or Magenta.
4. Press to highlight Hue and press / to select its range. Increase in the range
will include colors consisted of more proportions of its two adjacent colors.
Please refer to the illustration to the right for
how the colors relate to each other.
For example, if you select Red and set its
range at 0, only pure red in the projected
picture will be selected. Increasing its range
will include red close to yellow and red close
to magenta.
5. Press to highlight Saturation and adjust
its values to your preference by pressing /
. Every adjustment made will reflect to the
image immediately.
For example, if you select Red and set its
value at 0, only the saturation of pure red will
be affected.
Saturation is the amount of that color in a video picture. Lower settings produce less
saturated colors; a setting of “0” removes that color from the image entirely. If the saturation
is too high, that color will be overpowering and unrealistic.
6. Press to highlight Gain and adjust its values to your preference by pressing /.
The contrast level of the primary color you select will be affected. Every adjustment
made will reflect to the image immediately.
7. Repeat steps 3 to 6 for other color adjustments.
8. Make sure you have made all of the desired adjustments.
9. Press Exit to exit and save the settings.
RED
BLUE
GREEN
Yellow
Cyan
Magenta
35
Setting the presentation timer
Presentation timer can indicate the presentation time on the screen to help you achieve
better time management when giving presentations. Follow these steps to utilize this
function:
1. Press on the remote control to access the Presentation Timer menu or go to the
SYSTEM SETTING: BASIC > Advanced > Presentation Timer menu.
2. Press Enter to display the Presentation Timer page.
3. Highlight Timer Period and decide the time period by pressing /. The length of
time can be set from 1 to 5 minutes in 1-minute increments and 5 to 240 minutes in 5-
minute increments.
If the timer is already on, the timer will restart whenever the Timer Period is reset.
4. Press to highlight Timer Display and choose if you want the timer to show up on
the screen by pressing /.
5. Press to highlight Timer Position and set the timer position by pressing /.
6. Press to highlight Timer Counting Direction and select your desired counting
direction by pressing /.
7. Press to highlight Sound Reminder and decide if you want to activate sound
reminder by pressing /. If you select On, a double beep sound will be heard at
the last 30 seconds of counting down/up, and a triple beep sound will be produced
when the timer is up.
8. To activate the presentation timer, press and press / to highlight Start
Counting and press Enter.
9. A confirmation message displays. Highlight Yes and press Enter to confirm. You will
see the message “Timer is On” displaying on the screen. The timer starts counting
when the timer is on.
To cancel the timer, perform the following steps:
1. Go to the SYSTEM SETTING: BASIC > Advanced > Presentation Timer menu.
2. Highlight Off. Press Enter. A confirmation message displays.
3. Highlight Yes and press Enter to confirm. You will see the message “Timer is Off
displaying on the screen.
Selection Description
Always Displays the timer on screen throughout the presentation
time.
1 min/2 min/3 min Displays the timer on screen in the last 1/2/3 minute(s).
Never Hides the timer throughout the presentation time.
Top-Left Bottom-Left Top-Right Bottom-Right
Selection Description
Count Up Increases from 0 to the preset time.
Count Down Decreases from the preset time to 0.
36
Hiding the image
In order to draw the audience's full attention to the presenter, you can press BLANK to hide
the screen image. Press any key on the projector or remote control to restore the image. The
word 'BLANK' appears at the lower right corner of the screen while the image is hidden.
You can set the blank time in the SYSTEM SETTING: BASIC > Blank Timer menu to
let the projector return the image automatically after a period of time when there is no action
taken on the blank screen.
Once Blank is pressed, the projector enters Eco mode automatically.
CAUTION
Do not block the projection lens from projecting as this could cause the blocking object to
become heated and deformed or even cause a fire.
Locking control keys
With the control keys on the projector locked, you can prevent your projector settings from
being changed accidentally (by children, for example). When the Panel Key Lock is on, no
control keys on the projector will operate except Power.
1. Press (Panel Key Lock), or go to the SYSTEM SETTING: ADVANCED >
Advanced > Panel Key Lock menu
2. Press / to select On.
3. A confirmation message is displayed. Select Yes to confirm.
To release panel key lock, press and hold on the projector for 3 seconds.
You can also use the remote control to enter the SYSTEM SETTING: ADVANCED >
Advanced > Panel Key Lock menu and press / to select Off.
Keys on the remote control are still functional when panel key lock is enabled.
If you press Power to turn off the projector without disabling panel key lock, the projector
will still be in locked status the next time it is turned on.
Creating your own startup screen
In addition to selecting the projector preset startup screen from among Black, Blue, or
ViewSonic screen, you can make your own startup screen that is a picture projected from
your computer or video source.
To create your own startup screen:
1. Project the picture you want to use as your startup screen from either a computer or
video source.
2. Open the OSD menu and go to the SYSTEM SETTING: BASIC > Screen Capture
menu.
3. Press Enter.
4. A confirmation message displays. Press Enter again.
5. The message 'Screen Capturing...' displays while the projector is processing the
picture. Please wait.
6. If the action is successful, you see the message 'Captured Succeeded' on the screen.
The captured picture is saved as Screen Capture and have been set as your current
startup screen.
37
In the unlikely event that the capturing action fails, change your target picture. When the
resolution of the input signal is higher than the projectors native display resolution (See
"Projector specifications" on page 56 for details.), the capture action may fail. When it
happens, please set the resolution of the input signal under native resolution and try again.
Operating in a high altitude environment
We recommend you use the High Altitude Mode when your environment is between 1500
m–3000 m above sea level, and temperature is between 5°C–25°C.
CAUTION
Do not use the High Altitude Mode if your altitude is between 0 m and 1500 m and temperature
is between 5°C and 35°C. The projector will be over cooled, if you turn the mode on under
such a condition.
To activate the High Altitude Mode:
1. Open the OSD menu and go to the SYSTEM
SETTING: ADVANCED > High Altitude
Mode menu.
2. Press / to select On. A confirmation
message is displayed.
3. Highlight Yes and press Enter.
Operation under "High Altitude Mode" may cause a
higher decibel operating noise level because of increased fan speed necessary to improve
overall system cooling and performance.
If you use this projector under other extreme conditions excluding the above, it may display
auto shut-down symptoms, which is designed to protect your projector from over-heating.
In cases like this, you should switch to High Altitude Mode to solve these symptoms.
However, this is not to state that this projector can operate under any and all harsh or
extreme conditions.
Using the CEC function
This projector supports CEC (Consumer Electronics Control) function for synchronized
power on/off operation via HDMI connection. That is, if a device that also supports CEC
function is connected to the HDMI input of the projector, when the projectors power is
turned off, the power of the connected device will also be turned off automatically. When
the power of the connected device is turned on, the projectors power will be turned on
automatically.
To turn on the CEC function:
1. Open the OSD menu and go to the SOURCE > Auto Power On > CEC menu.
2. Press / to select Enable.
In order for the CEC function to work properly, make sure that the device is correctly
connected to the HDMI input of the projector via an HDMI cable, and its CEC function is turned
on.
Depending on the connected device, the CEC function may not work.
Using the 3D functions
This projector features 3D function which enables you to enjoy 3D movies, videos, and
sporting events in a more realistic way by presenting the depth of the images. You need to
wear a pair of 3D glasses to view 3D images.
We recommend you use the High Altitude
mode by selecting it whenever your
environment is higher than 1500 m.
Yes No
Notice
Do you want to turn High Altitude
Mode ON?
38
If the 3D signal is input from an HDMI 1.4a compatible device, the projector detects the
signal for 3D Sync information and once detected, it projects images in 3D format
automatically. In other cases, you may need to manually select a 3D Sync format for the
projector to project 3D images correctly.
To select a 3D Sync format:
1. Press 3D on the remote control to access the 3D Settings menu or go to the
SOURCE > 3D Settings menu.
2. Press Enter. The 3D Settings page is displayed.
3. Highlight 3D Sync and press Enter.
4. Press to select a 3D Sync setting and then press Enter to confirm.
When the 3D Sync function is on:
The brightness level of the projected image will decrease.
The Color Mode cannot be adjusted.
The Zoom function can only magnify the pictures to limited sizes.
If you discover the inversion of the 3D image depth, set the 3D Sync Invert function to “Invert”
to correct the problem.
Using the projector in standby mode
Some of the projector functions are available in standby mode (plugged in but not turned
on). To use these functions, be sure you have turned on the corresponding menus under
SOURCE > Standby Settings, and the cable connections are correctly made. For the
connection methods, see the Connection chapter.
Active VGA Out
Selecting On outputs a VGA signal when the COMPUTER IN and COMPUTER OUT
sockets are correctly connected to devices. The projector outputs the signal received only
from COMPUTER IN.
Active Audio Out
Selecting On outputs an audio signal when the AUDIO IN 1 socket is correctly connected
to a proper device.
Adjusting the sound
The sound adjustments made as below will have an effect on the projector speaker. Be sure
you have made a correct connection to the projector audio input/output jacks. See
"Connection" on page 16 for more details.
Adjusting the audio mode
1. Open the OSD menu and go to the SYSTEM SETTING: ADVANCED > Audio
Settings > Audio Mode menu.
2. Press / to select a preferred audio mode.
If available, you can press Audio Mode on the remote control to select a preferred audio mode.
Muting the sound
1. Open the OSD menu and go to the SYSTEM SETTING: ADVANCED > Audio
Settings > Mute menu.
2. Press / to select On.
If available, you can press on the remote control to toggle the projector audio between on
and off.
39
Adjusting the sound level
1. Open the OSD menu and go to the SYSTEM SETTING: ADVANCED > Audio
Settings > Audio Volume menu.
2. Press / to select a desired sound level.
If available, you can press on the remote control to adjust the projectors sound level.
Adjusting the Audio In 2 setting
1. Open the OSD menu and go to the SYSTEM SETTING: ADVANCED > Audio
Settings > Audio In 2 menu.
2. Press / to decide the audio input source for the AUDIO IN 2/MIC port. This
will affect the connection method for different devices, and where the sound is from.
When Audio is selected:
The selected input signal determines which sound will be played by the projector speaker, and
which sound will be output from the projector when AUDIO OUT is connected. For instance, if
you select a D-Sub / Comp. 1 source, the projector can play the sound received from AUDIO IN
1.
When Microphone is selected:
Adjusting the microphone sound level
1. Open the OSD menu and go to the SYSTEM SETTING: ADVANCED > Audio
Settings > Microphone Volume menu.
2. Press / to select a desired sound level.
This function is only available when the SYSTEM SETTING: ADVANCED > Audio Settings >
Audio In 2 menu is set to Microphone.
Turning off the Power On/Off Ring Tone
1. Open the OSD menu and go to the SYSTEM SETTING: ADVANCED > Audio
Settings > Power On/Off Ring Tone menu.
2. Press / to select Off.
The only way to change Power On/Off Ring Tone is setting On or Off here. Setting the sound
mute or changing the sound level will not affect the Power On/Off Ring Tone.
Device COMPUTER IN Video/S-Video
Audio input port AUDIO IN 1 AUDIO IN 2
The projector can play the
sound from... AUDIO IN 1 AUDIO IN 2
Audio output port AUDIO OUT AUDIO OUT
Device COMPUTER IN Video/S-Video
Audio input port AUDIO IN 1 AUDIO IN 1
The projector can play the
sound from...
AUDIO IN 1
•MIC
AUDIO IN 1
•MIC
Audio output port AUDIO OUT AUDIO OUT
40
Shutting down the projector
1. Press Power and a confirmation message is
displayed prompting you.
If you don't respond in a few seconds, the
message will disappear.
2. Press Power a second time.
3. Once the cooling process finishes, a "Power
Off Ring Tone" will be heard. Disconnect the
power cord from the wall socket if the
projector will not be used in an extended
period of time.
To turn off the ring tone, see "Turning off the Power On/Off Ring Tone" on page 39 for details.
CAUTION
To protect the lamp, the projector will not respond to any commands during the cooling
process.
To shorten the cooling time, you can also activate the Quick Power Off function. See
"Quick Power Off" on page 46 for details.
Do not unplug the power cord before the projector shutdown sequence is complete.
41
Menu operation
Menu system
Please note that the on-screen display (OSD) menus vary according to the signal type
selected.
The menu items are available when the projector detects at least one valid signal. If there is
no equipment connected to the projector or no signal detected, limited menu items are
accessible.
Main menu Sub-menu Options
1.
DISPLAY
Screen Color Off/Blackboard/Greenboard/Whiteboard
Aspect Ratio Auto/4:3/16:9/Panorama/2.35:1/
Anamorphic
Keystone
Corner Adj.
Position
Phase
H. Size
Zoom
2.
Color Mode Brightest/Dynamic/Standard/ViewMatch sRGB/Movie/
ISF Day/ISF Night
Brightness
Contrast
Color Temp.
Warm Red Gain/Green Gain/
Blue Gain/Red Offset/
Green Offset/Blue Offset
Normal
Neutral
Cool
OverScan Off/1/2/3/4/5
HDMI
Settings
HDMI Format Auto/RGB/YUV
HDMI Range Auto/Enhanced/Normal
Advanced
Color
Tint
Sharpness
Gamma 1/2/3/4/5/6/7/8
Brilliant Color Off/1/2/3/4/5/6/7/8/9/10
Noise Reduction
Color
Management
Primary Color
Hue
Saturation
Gain
Reset Color Settings Reset/Cancel
ISF Mode (input password)
42
Main menu Sub-menu Options
3. SOURCE
Quick Auto Search Off/On
3D Settings 3D Sync
Auto/Off/Frame Sequential/
Frame Packing/Top-Bottom/
Side-by-Side
3D Sync Invert Disable/Invert
Standby
Settings
Active VGA Out Off/On
Active Audio Out Off/On
Auto Power On
Computer Disable/Enable
CEC Disable/Enable
Direct Power On Off/On
Smart Energy
Auto Power Off Disable/10 min/20 min/30 min
Sleep Timer Disable/30 min/1 hr /2 hr/3 hr/
4 hr/8 hr/12 hr
Power Saving Enable/Disable
Smart Restart Disable/Enable
Quick Power Off Disable/Enable
Lamp SPA Mode Disable/Enable
MHL Settings Power Out HDMI/MHL 2/HDMI/MHL 3/
USB 1/USB 2
MHL Reset Reset/Cancel
4.
SYSTEM
SETTING:
BASIC
Language Multi-language OSD
selection
Projector Position Front Table/Rear Table/
Rear Ceiling/Front Ceiling
Menu Settings
Menu Display Time 5 sec/10 sec/15 sec/20 sec/
25 sec/30 sec
Menu Position Center/Top-Left/Top-Right/
Bottom-Left/Bottom-Right
Blank Timer Disable/5 min/10 min/15 min/
20 min/25 min/30 min
Splash Screen Black/Blue/ViewSonic/
Screen Capture/Off
Screen Capture
My Button
Auto/Projection (Projector Position)/Menu
Position/Color Temp./Brightness/Contrast/3D
Settings/Screen Color/Splash Screen/Message/
Quick Auto Search/CEC/DCR/Closed Caption/
Power Saving/Freeze/INFORMATION/Aspect Ratio/
Power Out
43
Main menu Sub-menu Options
4.
SYSTEM
SETTING:
BASIC
Advanced
Pattern Off/Test Card
Message On/Off
Presentation Timer
Timer Period
Timer Display
Timer Position
Timer Counting
Direction
Sound Reminder
Start Counting/Off
5.
SYSTEM
SETTING:
ADVANCED
High Altitude Mode On/Off
DCR On/Off
Audio Settings
Audio Mode Standard/Speech/
Entertainment
Mute On/Off
Audio Volume
Audio In 2 Audio/Microphone
Microphone Volume
Power On/Off Ring
Tone On/Off
Closed Caption
Closed Caption
Enable On/Off
Caption Version CC1/CC2/CC3/CC4
Lamp Settings
Lamp Mode Normal/Eco/Dynamic/
SuperEco
Reset Lamp Hours
Lamp Hours
Filter Settings
Filter Mode On/Off
Reset Filter Hours
Filter Hours
Remote Control Code 1/2/3/4/5/6/7/8
Advanced Security Settings Change Password
Power On Lock
Panel Key Lock Off/On
Reset Settings Reset/Cancel
6.
INFORMATION Current System Status
Source
Color Mode
Resolution
Color System
Firmware Version
44
Description of each menu
Function Description
Screen Color
See "Using Screen Color" on page 32 for details.
This function is only available when a PC input signal is
selected.
Aspect Ratio See "Selecting the aspect ratio" on page 30 for details.
Keystone See "Correcting keystone" on page 28 for details.
Corner Adj. See "Adjusting 4 corners" on page 29 for details.
Position
Displays the position adjustment page. To move the projected
image, use the directional arrow keys. The values shown on the
lower position of the page change with every key press you made
until they reach their maximum or minimum.
This function is only available when a PC input signal is
selected.
The adjustment range may vary under different timings.
Phase
Adjusts the clock phase to reduce image
distortion.
This function is only available when
a PC input signal is selected.
H. Size
Adjusts the horizontal width of the image.
This function is only available when a PC input signal is
selected.
Zoom See "Magnifying and searching for details" on page 29 for
details.
Color Mode See "Selecting a picture mode" on page 31 for details.
Brightness See "Adjusting Brightness" on page 32 for details.
Contrast See "Adjusting Contrast" on page 32 for details.
Color Temp. See "Selecting a Color Temperature" on page 33 and "Setting a
preferred color temperature" on page 33 for details.
OverScan
Adjusts the overscan rate from 0% to 5%.
This function is only available when a Composite Video,
S-Video or HDMI input signal is selected.
HDMI Settings See "Changing HDMI input settings" on page 26 for details.
1. DISPLAY menu
2. PICTURE menu
45
Function Description
Advanced
Color
See "Adjusting Color" on page 32 for details.
Tint
See "Adjusting Tint" on page 32 for details.
The function is only available when Video or S-Video
input with NTSC system is selected.
Sharpness
See "Adjusting Sharpness" on page 32 for details.
Gamma
See "Selecting a gamma setting" on page 33 for details.
Brilliant Color
See "Adjusting Brilliant Color" on page 33 for details.
Noise Reduction
See "Reducing image noise" on page 33 for details.
Color Management
See "Color Management" on page 33 for details.
Reset Color
Settings Returns all color settings to the factory preset values.
ISF Mode
The ISF calibration menu is password protected and only
accessible by authorized ISF calibrators. The ISF (Imaging
Science Foundation) has developed carefully crafted, industry-
recognized standards for optimal video performance and has
implemented a training program for technicians and installers
to use these standards to obtain optimal picture quality from
ISF certified display devices. Accordingly, we recommend that
setup and calibration be performed by an ISF certified
installation technician.
The default password is: , , , , , .
For more information, go to www.imagingscience.com or
contact the dealer or retailer from whom you purchased
the projector.
Quick Auto
Search See "Switching input signal" on page 26 for details.
3D Settings See "Using the 3D functions" on page 37 for details.
Standby
Settings
See "Using the projector in standby mode" on page 38 for
details.
2. PICTURE menu
3. SOURCE menu
46
Function Description
Auto Power On
Computer
Selecting Enable allows the projector to turn on
automatically once the VGA signal is fed through the VGA
cable.
CEC
See "Using the CEC function" on page 37 for details.
Direct Power On
Selecting On allows the projector to turn on automatically
once the power is fed through the power cord.
Smart Energy
Auto Power Off
See "Setting Auto Power Off" on page 52 for details.
Sleep Timer
See "Setting Sleep Timer" on page 52 for details.
Power Saving
See "Setting Power Saving" on page 52 for details.
Smart Restart
Selecting Enable enables you to restart the projector
immediately within 120 seconds after turning it off. After 120
seconds, if the projector is not turned on again, it will directly
enter the standby mode.
It takes some time to initiate this function. Make sure
the projector has been turned on for more than 4
minutes. If the projector is resumed by using the Smart
Restart feature, this function can be executed
immediately.
When Enable is selected, the Quick Power Off function
will be automatically set to “Enable”.
Quick Power
Off
Selecting Enable enables the function and the projector will
not enter the cooling process after being shut down. Selecting
Disable disables the function and the projector will enter
normal cooling process after being shut down.
If you attempt to restart the projector right after it’s been
turned off, it may not be turned on successfully and will
rerun its cooling procedure.
When Disable is selected, the Smart Restart function
will be automatically turned off.
Lamp SPA
Mode
Selecting Enable sets the projectors cooling time after being
shut down to 180 seconds. If Disable is selected, the cooling
procedure will depend on the Smart Restart and Quick
Power Off settings.
When Enable is selected, the Smart Restart and Quick
Power Off functions will be automatically turned off.
MHL Settings
Power Out
Sets the MHL power output port. If the MHL/HDMI input
can't be detected. Reset Power Out.
MHL Reset
Selecting Reset to reapply power after a power outage.
3. SOURCE menu
47
Function Description
Language Sets the language for the On-Screen Display (OSD) menus.
See "Using the menus" on page 23 for details.
Projector
Position See "Choosing a location" on page 12 for details.
Menu Settings
Menu Display Time
Sets the length of time the OSD will remain active after your
last key press. The range is from 5 to 30 seconds in 5-second
increments.
Menu Position
Sets the On-Screen Display (OSD) menu position.
Blank Timer See "Hiding the image" on page 36 for details.
Splash Screen Allows you to select which logo screen will be displayed
during projector start-up.
Screen Capture See "Creating your own startup screen" on page 36 for
details.
My Button Sets a hotkey on remote control.
Advanced
Pattern
The projector can display several test patterns. It helps you
adjust the image size and focus and check that the projected
image is free from distortion.
Message
Selecting On displays the current information on the screen
when the projector is detecting or searching for a signal.
Presentation Timer
See "Setting the presentation timer" on page 35 for details.
High Altitude
Mode
A mode for operation in high altitude areas. See "Creating
your own startup screen" on page 36 for details.
DCR
Enables or disables the DCR (Dynamic Contrast Ratio)
function. Selecting On enables the function and the
projector will automatically switch the lamp mode between
normal and economic modes according to the input image
detected.
This function is only available when a PC input signal
is selected.
After enabling DCR, frequent lamp mode switching
may shorten lamp life and noise level will vary during
operation.
Audio Settings See "Adjusting the sound" on page 38 for details.
4. SYSTEM SETTING: BASIC menu
5. SYSTEM SETTING: ADVANCED menu
48
Function Description
Closed Caption
Closed Caption Enable
Activates the function by selecting On when the selected
input signal carries closed captions.
Captions: An on-screen display of the dialogue, narration,
and sound effects of TV programs and videos that are
closed captioned (usually marked as "CC" in TV listings).
This function is only available when a Composite video
or S-Video input signal is selected and its system format
is NTSC.
Caption Version
Selects a preferred closed captioning mode. To view captions,
select CC1, CC2, CC3, or CC4 (CC1 displays captions in the
primary language in your area).
Lamp Settings
Lamp Mode
See "Setting Lamp Mode as Eco" on page 52 for details.
Reset Lamp Hours
Resets the lamp timer after new lamp is installed. For
changing the lamp, please contact qualified service personnel.
Lamp Hours
See "Getting to know the lamp hour" on page 52 for details on
how the total lamp hour is calculated.
Filter Settings See "Using the dust filter (optional accessory)" on page 50 for
details.
Remote Control
Code See "Remote control code" on page 9 for details.
Advanced
Security Settings
See "Utilizing the password function" on page 24 for details.
Panel Key Lock
See "Locking control keys" on page 36 for details.
Reset Settings
Returns all settings to the factory preset values.
The following settings will still remain: Keystone,
OverScan, Language, Projector Position, High Altitude
Mode, Security Settings, Remote Control Code, Corner
Adj., 3D Settings, ISF Mode.
5. SYSTEM SETTING: ADVANCED menu
5. SYSTEM SETTING: ADVANCED menu
49
Function Description
Current System
Status
Source
Shows the current signal source.
Color Mode
Shows the selected mode in the PICTURE menu.
Resolution
Shows the native resolution of the input signal.
Color System
Shows input system format.
Firmware Version
Shows the current firmware version.
6. INFORMATION menu
50
Maintenance
Care of the projector
You need to keep the lens and/or filter (optional accessory) clean on a regular basis.
Never remove any parts of the projector. Contact your dealer when any part of the projector
needs replacing.
Cleaning the lens
Clean the lens whenever you notice dirt or dust on the surface.
Use a canister of compressed air to remove dust.
If there is dirt or smears, use lens-cleaning paper or moisten a soft cloth with lens
cleaner and gently wipe the lens surface.
CAUTION
Never rub the lens with abrasive materials.
Cleaning the projector case
Before you clean the case, turn the projector off using the proper shutdown procedure as
described in "Shutting down the projector" on page 40 and unplug the power cord.
To remove dirt or dust, wipe the case with a soft, lint-free cloth.
To remove stubborn dirt or stains, moisten a soft cloth with water and a neutral pH
detergent. Then wipe the case.
CAUTION
Never use wax, alcohol, benzene, thinner or other chemical detergents. These can damage the
case.
Storing the projector
If you need to store the projector for an extended time, please follow the instructions below:
Make sure the temperature and humidity of the storage area are within the
recommended range for the projector. Please refer to "Specifications" on page 56 or
consult your dealer about the range.
Retract the adjuster foot.
Remove the battery from the remote control.
Pack the projector in its original packing or equivalent.
Transporting the projector
It is recommended that you ship the projector with its original packing or equivalent.
Using the dust filter (optional accessory)
CAUTION
It is recommended to clean the dust filter every 100 hours after the dust filter is installed.
Be sure to turn off the projector and unplug it from power source before installing or
detaching the filter.
51
If your projector is ceiling-mounted or is not easily accessible, pay special attention to
your personal safety when replacing the dust filter.
Installing the dust filter
1. Be sure to turn off the projector and unplug it
from power source.
2. As the arrows shown to the right, fit the filter
by aligning and inserting it into the projector
slots. Make sure it clicks into place.
For first time installation:
3. Open the OSD menu and go to the SYSTEM SETTING: ADVANCED > Filter
Settings menu.
4. Press Enter and the Filter Settings page is displayed.
5. Highlight Filter Mode and press / to select On. The filter timer starts counting.
Set Filter Mode to On only when using the projector after the dust filer (optional accessory) is
properly attached. Failing to do so will result in a shorter lamp life.
Obtaining the filter hour information
1. Open the OSD menu and go to the SYSTEM SETTING: ADVANCED >
Filter Settings menu.
2. Press Enter. The Filter Settings page is displayed.
3. You will see the Filter Hours information on the menu.
Cleaning the dust filter
1. Be sure to turn off the projector and unplug it from power source.
2. Press the latches on the dust filter and remove the filter from the projector.
3. Use a small vacuum cleaner or a soft brush to sweep the dust on the filter away.
4. Re-install the dust filter.
Resetting the filter timer
5. Open the OSD menu and go to the SYSTEM SETTING: ADVANCED >
Filter Settings menu.
6. Press Enter and the Filter Settings page is displayed.
7. Highlight Reset Filter Hours and press Enter. A warning message is displayed
asking if you want to reset the filter timer.
8. Highlight Reset and press Enter. The lamp time will be reset to '0'.
CAUTION
Remember to set Filter Mode to Off in the SYSTEM SETTING: ADVANCED > Filter Settings
menu when using the projector with the dust filter removed. Setting Filter Mode to Off does
not reset the filter timer. The timer will continue counting the next time you fit the filter back on
and set Filter Mode to On.
52
Lamp information
Getting to know the lamp hour
When the projector is in operation, the duration (in hours) of lamp usage is automatically
calculated by the built-in timer.
To obtain the lamp hour information:
1. Open the OSD menu and go to the SYSTEM SETTING: ADVANCED >
Lamp Settings menu.
2. Press Enter and the Lamp Settings page is displayed.
3. You will see the Lamp Hours information on the menu.
4. To leave the menu, press Exit.
Extending lamp life
The projection lamp is a consumable item. To keep the lamp life as long as possible, you
can do the following settings via the OSD menu.
Setting Lamp Mode as Eco
Using Eco mode reduces system noise and power consumption by 20%. If the Eco mode is
selected, the light output will be reduced and result in darker projected pictures.
Setting the projector in Eco mode also extends the lamp operation life. To set Eco mode, go
to the SYSTEM SETTING: ADVANCED > Lamp Settings > Lamp Mode menu and
press / to select Eco.
Setting Auto Power Off
This function allows the projector to turn off automatically after a set period of time once no
input source is detected to prevent unnecessary waste of lamp life.
1. Open the OSD menu and go to the SOURCE > Smart Energy menu.
2. Press Enter and the Smart Energy page is displayed.
3. Highlight Auto Power Off and press /.
4. If the preset time lengths are not suitable for your need, select Disable. The projector
will not automatically shut down in a certain time period.
Setting Sleep Timer
This function allows the projector to turn off automatically after a set period of time to
prevent unnecessary waste of lamp life.
1. Open the OSD menu and go to the SOURCE > Smart Energy menu.
2. Press Enter and the Smart Energy page is displayed.
3. Highlight Sleep Timer and press / .
4. If the preset time lengths are not suitable for your need, select Disable. The projector
will not automatically shut down in a certain time period.
Setting Power Saving
The projector lowers the power consumption if no input source is detected after 5 minutes to
prevent unnecessary waste of lamp life. You can further decide if you would like the
projector to turn off automatically after a set period of time.
1. Open the OSD menu and go to the SOURCE > Smart Energy menu.
2. Press Enter and the Smart Energy page is displayed.
53
3. Highlight Power Saving and press /.
4. When Enable is selected, the projector lamp will be changed to Eco
mode after no signal is detected for 5 minutes.
The lamp power will be changed to SuperEco mode after no
signal is detected for 20 minutes.
Timing of replacing the lamp
Please install a new lamp or consult your dealer when the Lamp indicator light lights up. An
old lamp may cause a malfunction in the projector and in some instances the lamp may
explode.
CAUTION
The Lamp indicator light and Temperature indicator light will light up if the lamp becomes too
hot. Turn the power off and let the projector cool for 45 minutes. If the Lamp indicator light or
Temperature indicator light still lights up after turning the power back on, please contact your
dealer. See "Indicators" on page 54 for details.
Replacing the lamp
Turn the power off and disconnect the projector from the power outlet. Please contact
qualified service personnel for changing the lamp.
Type number:
• RLC-101
54
Indicators
Light
Status & Description
Power events
Blue
Flashing Off Off Stand-by mode
Blue Off Off Powering up
Blue Off Off Normal operation
Blue
Flashing Off Off Normal power-down cooling (3 sec)
Red Off Off Downloading
Blue Blue Blue Burn in off
Lamp events
Blue
Flashing Off Red First Lamp-Lit error cooling (60 sec)
Off Off Red Lamp error in normal operation (30 sec)
Blue Off Red CW start fail (30 sec)
Thermal events
Off Red Off Fan 1 error (the actual fan speed is +25% outside the
desired speed.)
Off Red Red Fan 2 error (the actual fan speed is +25% outside the
desired speed.)
Off Red Blue Fan 3 error (the actual fan speed is +25% outside the
desired speed.)
Off Red Purple Fan 4 error (the actual fan speed is +25% outside the
desired speed.)
Red Red Red Thermal sensor 1 open error (the remote diode has an
open-circuit condition.)
Red Red Blue Thermal sensor 2 open error (the remote diode has an
open-circuit condition.)
Blue Red Red Thermal sensor 1 short error (the remote diode has an
short-circuit condition.)
Off Red Blue Thermal sensor 2 short error (the remote diode has an
short-circuit condition.)
Purple Red Red Temperature 1 error (over limited temperature)
Purple Red Blue Temperature 2 error (over limited temperature)
Off Blue Red Fan IC #1 I2C connection error
55
Troubleshooting
The projector does not turn on.
No picture
Blurred image
Remote control does not work
Cause Remedy
There is no power from the power cord.
Plug the power cord into the AC inlet on the
projector, and plug the power cord into the power
outlet. If the power outlet has a switch, make sure
that it is switched on.
Attempting to turn the projector on again
during the cooling process. Wait until the cooling down process has completed.
Cause Remedy
The video source is not turned on or
connected correctly.
Turn the video source on and check that the signal
cable is connected correctly.
The projector is not correctly connected to
the input signal device. Check the connection.
The input signal has not been correctly
selected.
Select the correct input signal with the Source key
on the projector or remote control.
Cause Remedy
The projection lens is not correctly focused. Adjust the focus of the lens using the focus ring.
The projector and the screen are not
aligned properly.
Adjust the projection angle and direction as well as
the height of the projector if necessary.
Cause Remedy
The battery is out of power. Replace the battery with a new one.
There is an obstacle between the remote
control and the projector. Remove the obstacle.
You are too far away from the projector. Stand within 8 meters (26 feet) from the projector.
The remote control code on the projector
and that on the remote control are not
consistent.
Adjust the remote control code.
56
Specifications
Projector specifications
All specifications are subject to change without notice.
Not all models can be purchased in your region.
General
Product name DLP Projector
Optical
Resolution 1920 x 1080 1080p
Display system 1-CHIP DMD
Lamp 240 W lamp
Electrical
Power supply AC100–240V, 50–60 Hz (Automatic)
Power consumption 365 W (Max); < 0.5 W (Standby)
Mechanical
Weight 2.6 Kg (5.73 lbs)
Input terminal
Computer input
RGB input D-Sub 15-pin (female) x 1
Video signal input
S-VIDEO Mini DIN 4-pin port x 1
VIDEO RCA jack x 1
SD/HDTV signal input
Analog – D-Sub <–> Component RCA jack x 3 (through RGB input)
Digital – HDMI V1.4a x 1
Audio signal input Audio in jack x 1
Audio in jack/Microphone in x 1
HDMI/MHL input x 2
57
Dimensions
316 mm (W) x 97.7 mm (H) x 228 mm (D) (Excluding extrusions)
Ceiling mount installation
Output terminal
RGB output D-Sub 15-pin (female) x 1
Audio signal output Audio jack x 1
Speaker 10 watt x 1
Control terminal
RS-232 serial control 9 pin x 1
USB serial control Type mini B
IR receiver x 1 (Front)
Environmental Requirements
Operating temperature 0°C–40°C at sea level
Operating relative
humidity
10%–90% (without condensation)
Operating altitude 0–1499 m at 5°C–35°C
1500–3000 m at 5°C–25°C (with High Altitude Mode on)
228
97.7
316
103.7
60.87
63.62
1.45 198.10
Ceiling mount screws:
M4 x 8 (Max. L = 8 mm)
Unit: mm
58
Tripod mount installation
13.00
27.13
Unit: mm
59
Timing chart
Analog RGB
Signal Resolution (dots) Aspect Ratio Refresh Rate (Hz)
VGA 640 x 480 4:3 60/72/75/85
SVGA 800 x 600 4:3 60/72/75/85
XGA
1024 x 768 4:3 60/70/75/85
1152 x 864 4:3 75
WXGA
1280 x 768 15:9 60
1280 x 800 16:10 60/75/85
1360 x 768 16:9 60
Quad-VGA 1280 x 960 4:3 60/85
SXGA 1280 x 1024 5:4 60
SXGA+ 1400 x 1050 4:3 60
WXGA+ 1440 x 900 16:10 60
UXGA 1600 x 1200 4:3 60
WSXGA+ 1680 x 1050 16:10 60
HD 1280 x 720 16:9 60
MAC 13" 640 x 480 4:3 67
MAC 16" 832 x 624 4:3 75
MAC 19" 1024 x 768 4:3 75
MAC 21" 1152 x 870 4:3 75
HDTV (1080p) 1920 x 1080 16:9 60
60
HDMI
Signal Resolution (dots) Aspect Ratio Refresh Rate (Hz)
VGA 640 x 480 4:3 60
SVGA 800 x 600 4:3 60
XGA 1024 x 768 4:3 60
WXGA
1280 x 768 15:9 60
1280 x 800 16:10 60
1360 x 768 16:9 60
Quad-VGA 1280 x 960 4:3 60
SXGA 1280 x 1024 5:4 60
SXGA+ 1400 x 1050 4:3 60
WXGA+ 1440 x 900 16:10 60
WSXGA+ 1680 x 1050 16:10 60
HDTV (1080p) 1920 x 1080 16:9 50 / 60
HDTV (1080i) 1920 x 1080 16:9 50 / 60
HDTV (720p) 1280 x 720 16:9 50 / 60
SDTV (480p) 720 x 480 4:3 / 16:9 60
SDTV (576p) 720 x 576 4:3 / 16:9 50
SDTV (480i) 720 x 480 4:3 / 16:9 60
SDTV (576i) 720 x 576 4:3 / 16:9 50
61
3D (HDMI signal included)
Signal Resolution (dots) Aspect Ratio Refresh Rate (Hz)
SVGA 800 x 600 4:3 60* / 120**
XGA 1024 x 768 4:3 60* / 120**
HD 1280 x 720 16:9 60* / 120**
WXGA 1280 x 800 16:9 60* / 120**
for Video Signal
Signal Resolution (dots) Aspect Ratio Refresh Rate (Hz)
SDTV (480i)*** 720 x 480 4:3 / 16:9 60
*
60Hz signals are supported for
Side-by-Side
,
Top-Bottom
, and
Frame Sequential
formats.
** 120 Hz signals are supported for Frame Sequential format only.
*** Video signal (SDTV 480i) is supported for Frame Sequential format only.
HDMI 3D
In Frame packing format
Signal Resolution (dots) Aspect Ratio Refresh Rate (Hz)
1080p 1920 x 1080 16:9 23.98/24
720p 1280 x 720 16:9 50/59.94/60
In Side by side format
Signal Resolution (dots) Aspect Ratio Refresh Rate (Hz)
1080i 1920 x 1080 16:9 50/59.94/60
In Top and Bottom format
Signal Resolution (dots) Aspect Ratio Refresh Rate (Hz)
1080p 1920 x 1080 16:9 23.98/24
720p 1280 x 720 16:9 50/59.94/60
62
Component video
Signal Resolution (dots) Aspect Ratio Refresh Rate (Hz)
HDTV (1080p) 1920 x 1080 16:9 50 / 60
HDTV (1080i) 1920 x 1080 16:9 50 / 60
HDTV (720p) 1280 x 720 16:9 50 / 60
SDTV (480p) 720 x 480 4:3 / 16:9 60
SDTV (576p) 720 x 576 4:3 / 16:9 50
SDTV (480i) 720 x 480 4:3 / 16:9 60
SDTV (576i) 720 x 576 4:3 / 16:9 50
Composite video
Signal Aspect Ratio Refresh Rate (Hz)
NTSC 4:3 60
PAL 4:3 50
PAL60 4:3 60
SECAM 4:3 50
63
Copyright information
Copyright
Copyright 2015. All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system or translated into any language or
computer language, in any form or by any means, electronic, mechanical, magnetic, optical,
chemical, manual or otherwise, without the prior written permission of ViewSonic
Corporation.
Disclaimer
ViewSonic Corporation makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims any warranties,
merchantability or fitness for any particular purpose. Further, ViewSonic Corporation
reserves the right to revise this publication and to make changes from time to time in the
contents hereof without obligation to notify any person of such revision or changes.
*DLP and Digital Micromirror Device (DMD) are trademarks of Texas Instruments. Others
are copyrights of their respective companies or organizations.
64
Appendix
IR control table
Key Format Byte1 Byte2 Byte3 Byte4
PgDn NEC X3 F4 05 FA
PgUp NEC X3 F4 06 F9
Blank NEC X3 F4 07 F8
Auto sync NEC X3 F4 08 F7
Up NEC X3 F4 0B F4
Down NEC X3 F4 0C F3
Left NECX3F40EF1
Right NEC X3 F4 0F F0
Color Mode NEC X3 F4 10 EF
Mute NEC X3 F4 14 EB
Enter NEC X3 F4 15 EA
Power ON NEC X3 F4 17 E8
Presentation Timer NEC X3 F4 27 D8
Exit NEC X3 F4 28 D7
D. ECO
(Eco mode) NECX3F42BD4
Menu NEC X3 F4 30 CF
Mouse NEC X3 F4 31 CE
Mouse Left NEC X3 F4 36 C9
Mouse Right NEC X3 F4 37 C8
Source NECX3F440BF
Pattern NEC X3 F4 55 AA
My button NEC X3 F4 56 A9
HDMI/MHL NEC X3 F4 58 A7
COMP NEC X3 F4 41 be
VIDEO NEC X3 F4 9F 60
Panel Key Lock NEC X3 F4 8E 71
Volume NEC X3 F4 2E D1
Help NEC X3 F4 21 DE
Magnify NEC X3 F4 32 CD
Audio Mode NEC X3 F4 9E 61
65
Address code
RS232 command table
<Pin assignment for this two end>
<Interface>
Code 1 83F4
Code 2 93F4
Code 3 A3F4
Code 4 B3F4
Code 5 C3F4
Code 6 D3F4
Code 7 E3F4
Code 8 F3F4
Pin Description Pin Description
1NC2RX
3TX4NC
5GND6NC
7RTSZ8CTSZ
9NC
RS-232 protocol
Baud Rate 115200 bps (default)
Data Length 8 bit
Parity Check None
Stop Bit 1 bit
Flow Control None
66
<RS232 command table>
Function Statu
sAction cmd
Power
Write
Turn on 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x00 0x00 0x5D
Turn off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x01 0x00 0x5E
Read Power status
(on/off) 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x00 0x5E
Reset all
settings Execute 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x02 0x00 0x5F
Reset Color
Settings Execute 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x2A 0x00 0x87
Splash
Screen
Write
Splash Screen
Black 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x00 0x67
Splash Screen
Blue 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x01 0x68
Splash Screen
ViewSonic 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x02 0x69
Splash Screen
Screen
Capture 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x03 0x6A
Splash Screen
Off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x04 0x6B
Read Splash Screen
status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x0A 0x68
Quick
Power Off
Write
Quick Power
Off Off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0B 0x00 0x68
Quick Power
Off On 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0B 0x01 0x69
Read Quick Power
Off status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x0B 0x69
High
Altitude
Mode
Write
High Altitude
Mode Off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0C 0x00 0x69
High Altitude
Mode On 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0C 0x01 0x6A
Read High Altitude
Mode status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x0C 0x6A
Lamp Mode
Write
Normal 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x10 0x00 0x6D
Economic 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x10 0x01 0x6E
Dynamic 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x10 0x02 0x6F
Sleep Mode 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x10 0x03 0x70
Read Lamp Mode
status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x10 0x6E
67
Message
Write
Message Off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x27 0x00 0x84
Message On 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x27 0x01 0x85
Read Message
status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x27 0x85
Projector
Position
Write
Front Table 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x00 0x00 0x5E
Rear Table 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x00 0x01 0x5F
Rear Ceiling 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x00 0x02 0x60
Front Ceiling 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x00 0x03 0x61
Read projector
position status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x00 0x5F
3D Sync
Write
OFF 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x00 0x7E
Auto 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x01 0x7F
Frame
Sequential 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x02 0x80
Frame
Packing 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x03 0x81
Top-Bottom 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x04 0x82
Side-by-Side 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x05 0x83
Read 3D Sync
Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x20 0x7F
3D Sync
Invert
Write
Off 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x21 0x00 0x7F
On 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x21 0x01 0x80
Read 3D Sync Invert
Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x21 0x80
Contrast
Write
Contrast
decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x02 0x00 0x60
Contrast
increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x02 0x01 0x61
Read Contrast ratio 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x02 0x61
Brightness
Write
Brightness
decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x03 0x00 0x61
Brightness
increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x03 0x01 0x62
Read Brightness 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x03 0x62
68
Aspect ratio
Write
Aspect ratio
Auto 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x00 0x62
Aspect ratio
4:3 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x02 0x64
Aspect ratio
16:9 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x03 0x65
Aspect ratio
16:10 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x04 0x66
Aspect ratio
Anamorphic 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x05 0x67
Aspect ratio
Wide 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x06 0x68
Aspect ratio
2.35:1 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x07 0x69
Aspect ratio
Panorama 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x08 0x6A
Read Aspect ratio 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x04 0x63
Auto Adjust Execute 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x05 0x00 0x63
Horizontal
position
Write
Horizontal
position shift
right 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x06 0x01 0x65
Horizontal
position shift
left 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x06 0x00 0x64
Read Horizontal
position 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x06 0x65
Vertical
position
Write
Vertical
position shift
up 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x07 0x00 0x65
Vertical
position shift
down 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x07 0x01 0x66
Read read Vertical
position 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x07 0x66
Color
temperature
Write
color
temperature
Warm 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x08 0x00 0x66
color
temperature
Normal 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x08 0x01 0x67
color
temperature
Neutral 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x08 0x02 0x68
color
temperature
Cool 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x08 0x03 0x69
Read color
temperature
status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x08 0x67
69
Blank
Write
Blank on 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x09 0x01 0x68
Blank off 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x09 0x00 0x67
Read Blank status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x09 0x68
Keystone-
Vertical
Write
Decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0A 0x00 0x68
Increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0A 0x01 0x69
Read Keystone
status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x0A 0x69
Keystone-
Horizontal
Write
Decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x31 0x00 0x8E
Increase 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x31 0x01 0x8F
Read Keystone
status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x31 0x8F
Color mode
Write
Brightest 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x00 0x69
Movie 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x01 0x6A
Standard 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x04 0x6D
ViewMatch 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x05 0x6E
Dynamic 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x08 0x71
Read Preset mode
status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x0B 0x6A
Primary
Color
Write
Primary color
R0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x00 0x6E
Primary color
G0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x01 0x6F
Primary color
B0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x02 0x70
Primary color
C0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x03 0x71
Primary color
M0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x04 0x72
Primary color
Y0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x05 0x73
Read Primary color
status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x10 0x6F
Hue
Write
Hue decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x11 0x00 0x6F
Hue increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x11 0x01 0x70
Read Hue 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x11 0x70
70
Saturation
Write
Saturation
decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x12 0x00 0x70
Saturation
increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x12 0x01 0x71
Read Saturation 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x12 0x71
Gain
Write
Gain decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x13 0x00 0x71
Gain increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x13 0x01 0x72
Read Gain 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x13 0x72
Freeze
Write
Freeze on 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x00 0x01 0x60
Freeze off 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x00 0x00 0x5F
Read Freeze status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x13 0x00 0x60
Source
input
Write
Input source
VGA 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x00 0x60
Input source
VGA2 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x08 0x68
Input source
HDMI 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x03 0x63
Input source
HDMI/MHL 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x07 0x67
Input source
Composite 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x05 0x65
Input source
SVIDEO 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x06 0x66
Read Source 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x13 0x01 0x61
Quick Auto
Search
Write
Quick Auto
Search on 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x02 0x01 0x62
Quick Auto
Search off 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x02 0x00 0x61
Read Quick Auto
Search status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x13 0x02 0x62
Mute
Write
Mute on 0x06 0x14 0x00 0x04 0x00 0x34 0x14 0x00 0x01 0x61
Mute off 0x06 0x14 0x00 0x04 0x00 0x34 0x14 0x00 0x00 0x60
Read Mute status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x14 0x00 0x61
Volume
Write
Increase
Volume 0x06 0x14 0x00 0x04 0x00 0x34 0x14 0x01 0x00 0x61
Decrease
Volume 0x06 0x14 0x00 0x04 0x00 0x34 0x14 0x02 0x00 0x62
Read Volume 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x14 0x03 0x64
71
Language
Write
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x00 0x61
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x01 0x62
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x02 0x63
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x03 0x64
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x04 0x65
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x05 0x66
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x06 0x67
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x07 0x68
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x08 0x69
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x09 0x6A
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0a 0x6B
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0b 0x6C
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0c 0x6D
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0d 0x6E
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0e 0x6F
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0f 0x70
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x10 0x71
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x11 0x72
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x12 0x73
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x13 0x74
0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x14 0x75
Read Language 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x15 0x00 0x62
Lamp Time
Write Reset Lamp
usage hour 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x01 0x00 0x62
Read Lamp usage
hour 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x15 0x01 0x63
72
HDMI
Format
Write
RGB 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x28 0x00 0x85
YUV 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x28 0x01 0x86
Auto 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x28 0x02 0x87
Read HDMI Format
status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x28 0x86
HDMI
Range
Write
Enhanced 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x29 0x00 0x86
Normal 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x29 0x01 0x87
Auto 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x29 0x02 0x88
Read HDMI Range
status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x29 0x87
CEC
Write
Off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x2B 0x00 0x88
On 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x2B 0x01 0x89
Read CEC status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x2B 0x89
Error status Read Read error
status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x0C 0x0D 0x66
Brilliant
Color
Write
Brilliant Color
00x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x00 0x6D
Brilliant Color
10x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x01 0x6E
Brilliant Color
20x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x02 0x6F
Brilliant Color
30x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x03 0x70
Brilliant Color
40x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x04 0x71
Brilliant Color
50x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x05 0x72
Brilliant Color
60x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x06 0x73
Brilliant Color
70x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x07 0x74
Brilliant Color
80x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x08 0x75
Brilliant Color
90x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x09 0x76
Brilliant Color
10 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x0A 0x77
Read Brilliant Color
status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x0F 0x6E
73
Remote
Control
code
Write
code 1 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x00 0xA0
code 2 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x01 0xA1
code 3 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x02 0xA2
code 4 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x03 0xA3
code 5 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x04 0xA4
code 6 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x05 0xA5
code 7 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x06 0xA6
code 8 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x07 0xA7
Read Remote
Control code
status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x0C 0x048 0xA1
Screen
Color
Write
Screen color
Off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x32 0x00 0x8F
Blackboard 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x32 0x01 0x90
Greenboard 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x32 0x02 0x91
Whiteboard 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x32 0x03 0x92
Read Screen Color
status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x32 0x90
Over Scan
Write
Overscan Off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x00 0x90
Overscan 1 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x01 0x91
Overscan 2 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x02 0x92
Overscan 3 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x03 0x93
Overscan 4 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x04 0x94
Overscan 5 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x05 0x95
Read Overscan
status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x33 0x91
74
Remote Key Write
Menu 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0F 0x61
Exit 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x13 0x65
Up 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0B 0x5D
Down 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0C 0x5E
Left 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0D 0x5F
Right 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0E 0x60
Source 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x04 0x56
Enter 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x15 0x67
Auto 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x08 0x5A
My Button 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x11 0x63
Customer Support
For technical support or product service, see the table below or contact your reseller.
NOTE: You will need the product serial number.
Country/Region Website T= Telephone
C = CHAT ONLINE Email
Australia
New Zealand www.viewsonic.com.au AUS= 1800 880 818
NZ= 0800 008 822 service@au.viewsonic.com
Canada www.viewsonic.com T= 1-866-463-4775 service.ca@viewsonic.com
Europe www.viewsoniceurope.com www.viewsoniceurope.com/uk/support/call-desk/
Hong Kong www.hk.viewsonic.com T= 852 3102 2900 service@hk.viewsonic.com
India www.in.viewsonic.com T= 1800 419 0959 service@in.viewsonic.com
Korea ap.viewsonic.com/kr/ T= 080 333 2131 service@kr.viewsonic.com
Latin America
(Argentina) www.viewsonic.com/la/ C= http://www.viewsonic.com/
la/soporte/servicio-tecnico soporte@viewsonic.com
Latin America
(Chile) www.viewsonic.com/la/ C= http://www.viewsonic.com/
la/soporte/servicio-tecnico soporte@viewsonic.com
Latin America
(Columbia) www.viewsonic.com/la/ C= http://www.viewsonic.com/
la/soporte/servicio-tecnico soporte@viewsonic.com
Latin America
(Mexico) www.viewsonic.com/la/ C= http://www.viewsonic.com/
la/soporte/servicio-tecnico soporte@viewsonic.com
Nexus Hightech Solutions, Cincinnati #40 Desp. 1 Col. De los Deportes Mexico D.F.
Tel: 55) 6547-6454 55)6547-6484
Other places please refer to http://www.viewsonic.com/la/soporte/servicio-tecnico#mexico
Latin America
(Peru) www.viewsonic.com/la/ C= http://www.viewsonic.com/
la/soporte/servicio-tecnico soporte@viewsonic.com
Macau www.hk.viewsonic.com T= 853-2840-3687 service@hk.viewsonic.com
Middle East ap.viewsonic.com/me/ Contact your reseller service@ap.viewsonic.com
Puerto Rico &
Virgin Islands www.viewsonic.com
T= 1-800-688-6688 (English)
C= http://www.viewsonic.com/
la/soporte/servicio-tecnico
service.us@viewsonic.com
soporte@viewsonic.com
Singapore/
Malaysia/Thailand www.ap.viewsonic.com T= 65 6461 6044 service@sg.viewsonic.com
South Africa ap.viewsonic.com/za/ Contact your reseller service@ap.viewsonic.com
United States www.viewsonic.com T= 1-800-688-6688 service.us@viewsonic.com
Limited Warranty
ViewSonic® Projector
What the warranty covers:
ViewSonic warrants its products to be free from defects in material and workmanship, under normal
use, during the warranty period. If a product proves to be defective in material or workmanship during
the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product.
Replacement product or parts may include remanufactured or refurbished parts or components.
Limited Three (3) year General Warranty
Subject to the more limited one (1) year warranty set out below, North and South America: Three
(3) years warranty for all parts excluding the lamp, three (3) years for labor, and one (1) year for the
original lamp from the date of the first consumer purchase.
Other regions or countries: Please check with your local dealer or local ViewSonic office for the
warranty information.
Limited One (1) year Heavy Usage Warranty:
Under heavy usage settings, where a projector’s use includes more than fourteen (14) hours average
daily usage, North and South America: One (1) year warranty for all parts excluding the lamp, one (1)
year for labor, and ninety (90) days for the original lamp from the date of the first consumer purchase;
Europe: One (1) year warranty for all parts excluding the lamp, one (1) year for labor, and ninety (90)
days for the original lamp from the date of the first consumer purchase.
Other regions or countries: Please check with your local dealer or local ViewSonic office for the
warranty information.
Lamp warranty subject to terms and conditions, verification and approval. Applies to manufacturer’s
installed lamp only. All accessory lamps purchased separately are warranted for 90 days.
Who the warranty protects:
This warranty is valid only for the first consumer purchaser.
What the warranty does not cover:
1. Any product on which the serial number has been defaced, modified or removed.
2. Damage, deterioration or malfunction resulting from:
a. Accident, abuse, misuse, neglect, fire, water, lightning, or other acts of nature, improper
maintenance, unauthorized product modification, or failure to follow instructions supplied with
the product.
b. Operation outside of product specifications.
c. Operation of the product for other than the normal intended use or not under normal
conditions.
d. Repair or attempted repair by anyone not authorized by ViewSonic.
e. Any damage of the product due to shipment.
f. Removal or installation of the product.
g. Causes external to the product, such as electric power fluctuations or failure.
h. Use of supplies or parts not meeting ViewSonic’s specifications.
i. Normal wear and tear.
j. Any other cause which does not relate to a product defect.
3. Removal, installation, one way transportation, insurance, and set-up service charges.
How to get service:
1. For information about receiving service under warranty, contact ViewSonic Customer Support
(Please refer to Customer Support page). You will need to provide your product's serial number.
2. To obtain warranty service, you will be required to provide (a) the original dated sales slip, (b)
your name, (c) your address, (d) a description of the problem, and (e) the serial number of the
product.
3. Take or ship the product freight prepaid in the original container to an authorized ViewSonic
service center or ViewSonic.
4. For additional information or the name of the nearest ViewSonic service center, contact
ViewSonic.
Limitation of implied warranties:
There are no warranties, express or implied, which extend beyond the description contained herein
including the implied warranty of merchantability and fitness for a particular purpose.
Exclusion of damages:
ViewSonic's liability is limited to the cost of repair or replacement of the product. ViewSonic shall not
be liable for:
1. Damage to other property caused by any defects in the product, damages based upon
inconvenience, loss of use of the product, loss of time, loss of profits, loss of business
opportunity, loss of goodwill, interference with business relationships, or other commercial loss,
even if advised of the possibility of such damages.
2. Any other damages, whether incidental, consequential or otherwise.
3. Any claim against the customer by any other party.
4. Repair or attempted repair by anyone not authorized by ViewSonic.
Effect of state law:
This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state. Some states do not allow limitations on implied warranties and/or do not allow the exclusion
of incidental or consequential damages, so the above limitations and exclusions may not apply to you.
Sales outside the U.S.A. and Canada:
For warranty information and service on ViewSonic products sold outside of the U.S.A. and Canada,
contact ViewSonic or your local ViewSonic dealer.
The warranty period for this product in mainland China (Hong Kong, Macao and Taiwan Excluded) is
subject to the terms and conditions of the Maintenance Guarantee Card.
For users in Europe and Russia, full details of warranty provided can be found in www.
viewsoniceurope.com under Support/Warranty Information.
Projector Warranty Term Template In UG
VSC_TEMP_2005
Mexico Limited Warranty
ViewSonic® Projector
What the warranty covers:
ViewSonic warrants its products to be free from defects in material and workmanship, under normal use, during
the warranty period. If a product proves to be defective in material or workmanship during the warranty period,
ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts
may include remanufactured or refurbished parts or components & accessories.
How long the warranty is effective:
3 years for all parts excluding the lamp, 3 years for labor, 1 year for the original lamp from the date of the first
consumer purchase.
Lamp warranty subject to terms and conditions, verification and approval. Applies to manufacturer’s installed
lamp only.
All accessory lamps purchased separately are warranted for 90 days.
Who the warranty protects:
This warranty is valid only for the first consumer purchaser.
What the warranty does not cover:
1. Any product on which the serial number has been defaced, modified or removed.
2. Damage, deterioration or malfunction resulting from:
a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product
modification, unauthorized attempted repair, or failure to follow instructions supplied with the product.
b. Any damage of the product due to shipment.
c. Causes external to the product, such as electrical power fluctuations or failure.
d. Use of supplies or parts not meeting ViewSonic's specifications.
e. Normal wear and tear.
f. Any other cause which does not relate to a product defect.
3. Any product exhibiting a condition commonly known as "image burn-in" which results when a static image is
displayed on the product for an extended period of time.
4. Removal, installation, insurance, and set-up service charges.
How to get service:
For information about receiving service under warranty, contact ViewSonic Customer Support (Please refer to the
attached Customer Support page). You will need to provide your product's serial number, so please record the
product information in the space provided below on your purchase for your future use. Please retain your receipt
of proof of purchase to support your warranty claim.
For Your Records
Product Name: _____________________________ Model Number: _________________________________
Document Number: _________________________ Serial Number: _________________________________
Purchase Date: _____________________________ Extended Warranty Purchase? _________________ (Y/N)
If so, what date does warranty expire? _______________
1. To obtain warranty service, you will be required to provide (a) the original dated sales slip, (b) your name, (c)
your address, (d) a description of the problem, and (e) the serial number of the product.
2. Take or ship the product in the original container packaging to an authorized ViewSonic service center.
3. Round trip transportation costs for in-warranty products will be paid by ViewSonic.
Limitation of implied warranties:
There are no warranties, express or implied, which extend beyond the description contained herein including the
implied warranty of merchantability and fitness for a particular purpose.
Exclusion of damages:
ViewSonic's liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for:
1. Damage to other property caused by any defects in the product, damages based upon inconvenience, loss
of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference
with business relationships, or other commercial loss, even if advised of the possibility of such damages.
2. Any other damages, whether incidental, consequential or otherwise.
3. Any claim against the customer by any other party.
4. Repair or attempted repair by anyone not authorized by ViewSonic.
Contact Information for Sales & Authorized Service (Centro Autorizado de Servicio) within Mexico:
Name, address, of manufacturer and importers:
México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas,
Col. San Fernando Huixquilucan, Estado de México
Tel: (55) 3605-1099 http://www.viewsonic.com/la/soporte/index.htm
NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004
Hermosillo:
Distribuciones y Servicios Computacionales SA de CV.
Calle Juarez 284 local 2
Col. Bugambilias C.P: 83140
Tel: 01-66-22-14-9005
