FDR Manual
Release 4.2.0
University of Oxford
December 20, 2016
CONTENTS
1 Introduction 1
1.1 Citing FDR ................................................ 1
2 The FDR User Interface 3
2.1 Getting Started .............................................. 3
2.2 Session Window ............................................. 8
2.3 Debug Viewer .............................................. 15

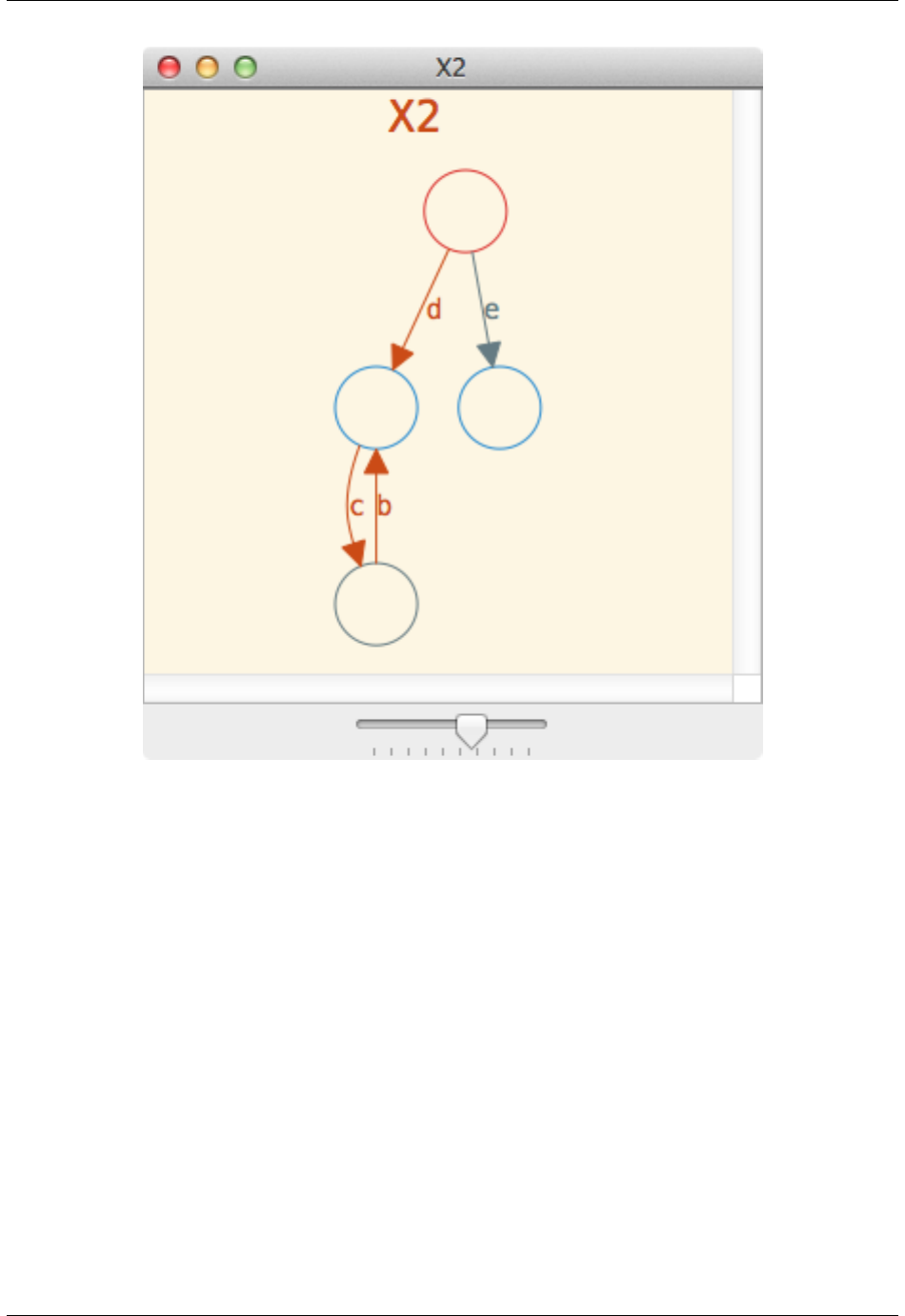

2.4 Process Graph Viewer .......................................... 20
2.5 Probe ................................................... 23
2.6 Node Inspector .............................................. 24
2.7 Communication Graph Viewer ...................................... 26

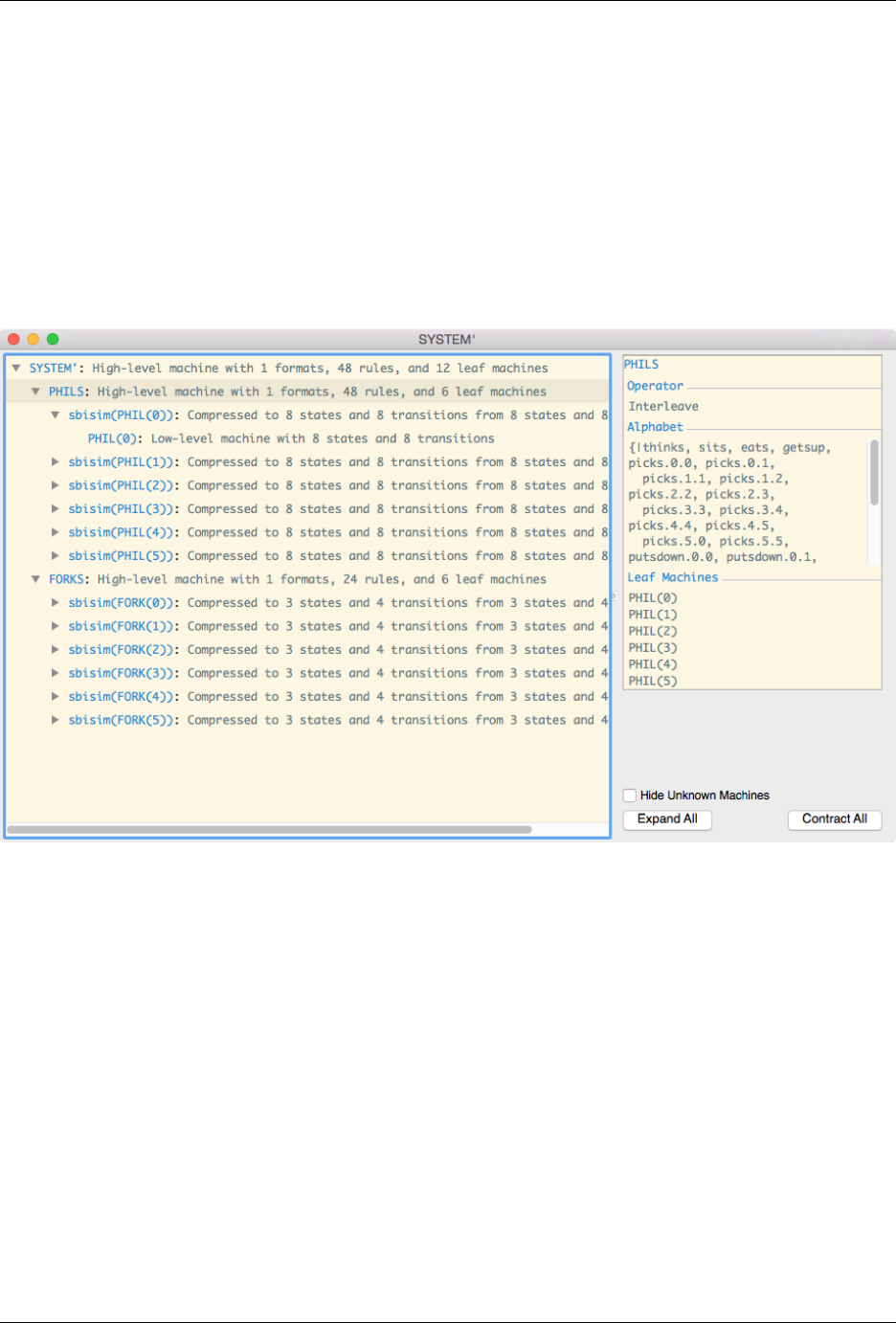

2.8 Machine Structure Viewer ........................................ 28
2.9 Options .................................................. 29
3 The FDR Command-Line Interface 35
3.1 Command-Line Flags .......................................... 35
3.2 Examples ................................................. 37
3.3 Using a Cluster .............................................. 38
3.4 Machine-Readable Formats ....................................... 41
4 CSPM49
4.1 Definitions ................................................ 49
4.2 Functional Syntax ............................................ 59
4.3 Defining Processes ............................................ 68
4.4 Type System ............................................... 75
4.5 Built-In Definitions ............................................ 77
4.6 Profiling ................................................. 86
5 Integrating FDR into Other Tools 89
5.1 The FDR API ............................................... 89
5.2 API Examples .............................................. 93
6 Optimising 105
6.1 Overview ................................................. 105
6.2 Compression ............................................... 107
7 Implementation Notes 109
7.1 Semantic Models ............................................. 109
7.2 Compilation ............................................... 109
7.3 Refinement Checking .......................................... 110
i
7.4 Type Checking .............................................. 113
8 Release Notes 115
8.1 4.2.0 (20/12/2016) ............................................ 115
8.2 3.4.0 (09/03/2016) ............................................ 115
8.3 3.3.1 (17/06/2015) ............................................ 115
8.4 3.3.0 (15/06/2015) ............................................ 116
8.5 3.2.1 – 3.2.3 (06/01/2015) ........................................ 116
8.6 3.2.0 (30/01/2015) ............................................ 117
8.7 3.1.0 (11/08/2014) ............................................ 117
8.8 3.0.0 (09/12/2013) ............................................ 118
9 Example Files 125
9.1 FDR4 Introduction ............................................ 125
9.2 Dining Philosophers ........................................... 128
9.3 Inductive Compression .......................................... 130
10 References 135
11 Licenses 137
11.1 boost ................................................... 137
11.2 boost.nowide ............................................... 137
11.3 CityHash ................................................. 138
11.4 google-sparsehash ............................................ 138
11.5 graphviz ................................................. 139
11.6 libcspm .................................................. 140
11.7 LLVM .................................................. 141
11.8 lz4 .................................................... 142
11.9 popcount.h ................................................ 143
11.10 QT .................................................... 143
11.11 zlib .................................................... 152
11.12 Haskell .................................................. 153
Bibliography 165
Index 167
ii
CHAPTER
ONE
INTRODUCTION
FDR is a tool for analysing programs written in Hoare’s CSP notation, in particular machine-readable CSP namely
CSPM, which combines the operators of CSP with a functional programming language. The original FDR was written
in 1991 by Formal Systems (Europe) Ltd, and a completely revised version FDR2 was released in the mid-1990s by
the same organisation. The current version of the tool is FDR4, first released in October 2016 following FDR3 which
was first released in 2013. Both of these versions were released by the University of Oxford, which also released
FDR2 versions 2.90 and above in the period 2008-12.
FDR4.0 has extremely similar functionality to FDR2.94, but is completely re-written. The main differences are:
1. The user interface has been completely revised.
2. The debugger has been completely revised and gives simultaneous information about all components of a sys-
tem, rather than one at a time.
3. There is an integrated type checker for CSPM.
4. It now uses multi-core parallelism to speed up its operation.
5. A version of the ProBE CSP animator has been integrated.
6. There is a utility for drawing graphical representations of the labelled transition systems that represent processes
within FDR.
The only significant functionality of FDR2.94 that FDR4.0 lacks is support for the revivals and refusal testing models
of CSP and their divergence-strict versions (i.e. [V=,[VD=,[R= and [RD=). Note that the batch mode of FDR2.94
has been replaced by a new machine-readable interface based on standard formats (JSON, XML and YAML are
supported).
FDR uses many algorithms and data structures. The ones used in FDR4 are in some cases the same, in some cases
mildly modified, and in other cases completely new. Papers about FDR4 and its development can be found in Refer-
ences. Many books and papers have been written about CSP and earlier versions of FDR.
1.1 Citing FDR
When citing FDR, please refer to the following paper:
@inproceedings{fdr,
title={{FDR3 --- A Modern Refinement Checker for CSP}},
author={Thomas Gibson-Robinson, Philip Armstrong, Alexandre Boulgakov, A.W. Roscoe},
booktitle={Tools and Algorithms for the Construction and Analysis of Systems},
year = {2014},
pages = {187-201},
volume={8413},
series={Lecture Notes in Computer Science},
1
FDR Manual, Release 4.2.0
editor={Ábrahám, Erika and Havelund, Klaus},
}
The manual may be cited as:
@manual{fdrmanual,
title={{Failures Divergences Refinement (FDR) Version 3}},
author={Thomas Gibson-Robinson, Philip Armstrong, Alexandre Boulgakov, A.W. Roscoe},
year={2013},
url={https://www.cs.ox.ac.uk/projects/fdr/},
}
2 Chapter 1. Introduction
CHAPTER
TWO
THE FDR USER INTERFACE
To launch FDR on Mac OS X simply open the FDR application that you have downloaded (normally this will be
inside Downloads in your home folder). To launch FDR under Linux simply type fdr4 from a command prompt
(providing the installation instructions have been followed). Alternatively, a particular file can be loaded by typing
fdr4 file.csp into a command prompt.

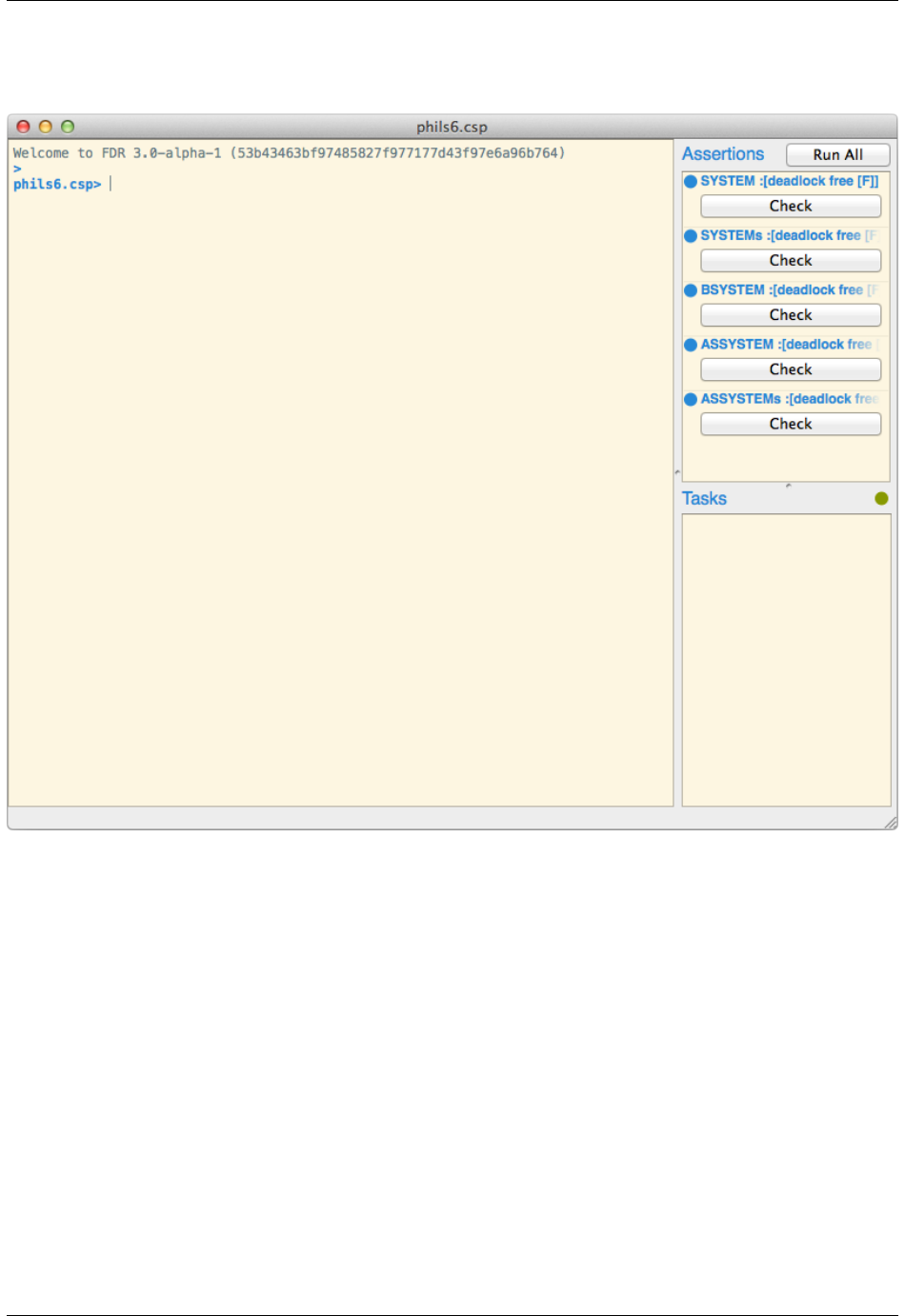

However FDR is launched, the main window that is presented is known as the session window, and is documented
further in Session Window.
2.1 Getting Started
In this section we give a brief overview of the basics of operating FDR4. Firstly, we give recommended installation
instructions before giving a short tutorial introduction to FDR4. If FDR4 is already installed, simply skip ahead to A
Short Tutorial Introduction.
Warning: It is strongly recommended that when using FDR you have at least a basic knowledge of CSP, or
are acquiring this by studying it. Roscoe’s books The Theory and Practice of Concurrency and Understanding
Concurrent Systems each contains an introduction to CSP that covers the use of FDR and, in particular, covers
CSPM.
2.1.1 Installation
To install FDR4 simply follow the installation instructions below for your platform.
Linux
The recommended method of installing FDR is to add the FDR repository using the software manager for your Linux
distribution. This makes it extremely easy to update to new FDR releases, whilst also ensuring that FDR is correctly
installed and accessible.
If your distribution uses yum (e.g. RHEL, CentOS or Fedora) as its package manager, the following commands can
be used to install FDR:
sudo sh -c ’echo -e "[fdr]\nname=FDR Repository\nbaseurl=http://www.cs.ox.ac.uk/projects/fdr/downloads/yum/\nenabled=1\ngpgcheck=1\ngpgkey=http://www.cs.ox.ac.uk/projects/fdr/downloads/linux_deploy.key" > /etc/yum.repos.d/fdr.repo’
sudo yum install fdr
The first of the above commands adds the FDR software repository to yum, whilst the second command installs fdr.
If your distribution uses apt-get (e.g. Debian or Ubuntu), then the following commands can be used to install FDR:
3
FDR Manual, Release 4.2.0
sudo sh -c ’echo "deb http://www.cs.ox.ac.uk/projects/fdr/downloads/debian/ fdr release\n" > /etc/apt/sources.list.d/fdr.list’
wget -qO - http://www.cs.ox.ac.uk/projects/fdr/downloads/linux_deploy.key | sudo apt-key add -
sudo apt-get update
sudo apt-get install fdr
The first of these adds the FDR software repository to apt-get, the second installs the GPG key that is used to sign
FDR releases, the third fetches new software from all repositories, whilst the last command actually installs FDR.
Alternatively, if your system does not use apt-get or yum, FDR can also be installed simply by downloading the
tar.gz package. To install FDR from such a package, firstly extract it. For example, if you downloaded FDR4 to
~/Downloads/fdr-linux-x86_64.tar.gz, then it can be extracted by running the following commands in
a terminal:
cd ~/Downloads
tar xzvf fdr-linux-x86_64.tar.gz
This will create a folder ~/Downloads/fdr4, that contains FDR4.
Next, pick an installation location and copy the FDR4 files to the location. For example, you may wish to install FDR4
in /usr/local and can do so as follows:
mv ~/Downloads/fdr4 /usr/local/fdr4
At this point FDR4 can be run be executing /usr/local/fdr4/bin/fdr4. In order to make it accessi-
ble from the command line simply as fdr4, a symbolic link needs to be created from a location on $PATH to
/usr/local/fdr4/bin/fdr4. For example, on most distributions /usr/local/bin is on $PATH and there-
fore running:
ln -s/usr/local/fdr4/bin/fdr4 /usr/local/bin/fdr4
The above command may have to be run using sudo, i.e. sudo ln -s /usr/local/fdr4/bin/fdr4
/usr/local/bin/fdr4. At this point you should be able to run FDR4 by simply typing fdr4 into the com-
mand prompt.
Mac OS X
To install FDR4 on Mac OS X, simply open the downloaded application, which is named FDR4. On the first run,
FDR4 will offer to move itself to the Applications folder. FDR4 can now be opened like any other program, by
double clicking on FDR4 within Applications.
Warning: When running Mac OS X 10.8 or later with Gatekeeper enabled, in order to open FDR4 you need to
right-click on FDR4, and select ‘Open’.
2.1.2 A Short Tutorial Introduction
It is strongly recommended that when using FDR you have at least a basic knowledge of CSP, or are acquiring this
by studying it. Roscoe’s books Understanding Concurrent Systems and Theory and Practice of Concurrency each
contains an introduction to CSP that covers the use of FDR and particular covers CSPM. This introduction therefore
does not attempt to give a detailed introduction to CSP.
As a quick introduction to FDR, including many of the new features in FDR4, we recommend downloading and
completing the simple exercises in the following file.
Download intro.csp
4 Chapter 2. The FDR User Interface
FDR Manual, Release 4.2.0
1-- Introducing FDR4.0
2-- Bill Roscoe, November 2013
3
4-- A file to illustrate the functionality of FDR4.0.
5
6-- Note that this file is necessarily basic and does not stretch the
7-- capabilities of the tool.
8
9-- To run FDR4 with this file just type "fdr4 intro.csp" in the directory
10 -- containing intro.csp, assuming that fdr4 is in your $PATH or has been aliased
11 -- to run the tool.
12
13 -- Alternatively run FDR4 and enter the command ":load intro.csp".
14

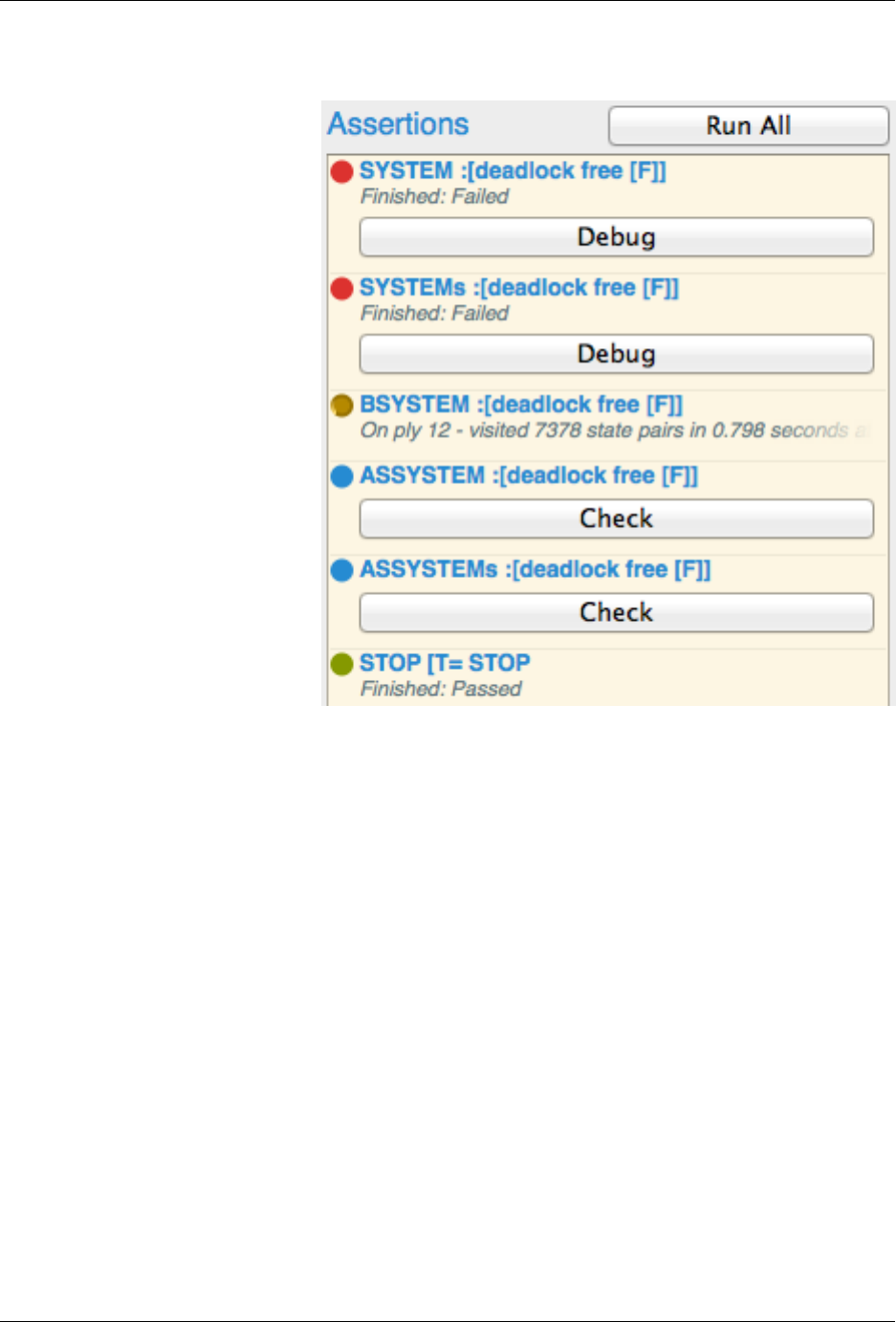

15 -- You will see that all the assertions included in this file appear on the RHS
16 -- of the window as prompts. This allows you to run them.
17
18 -- This file contains some examples based on playing a game of tennis between A
19 -- and B.
20
21 channel pointA,pointB,gameA,gameB
22
23 Scorepairs ={(x,y) |x<- {0,15,30,40}, y<- {0,15,30,40}, (x,y) != (40,40)}
24
25 datatype scores =NUM.Scorepairs |Deuce |AdvantageA |AdvantageB
26
27 Game(p) = pointA -> IncA(p)
28 [] pointB -> IncB(p)
29
30 IncA(AdvantageA) = gameA -> Game(NUM.(0,0))
31 IncA(NUM.(40,_)) = gameA -> Game(NUM.(0,0))
32 IncA(AdvantageB) = Game(Deuce)
33 IncA(Deuce) = Game(AdvantageA)
34 IncA(NUM.(30,40)) = Game(Deuce)
35 IncA(NUM.(x,y)) = Game(NUM.(next(x),y))
36 IncB(AdvantageB) = gameB -> Game(NUM.(0,0))
37 IncB(NUM.(_,40)) = gameB -> Game(NUM.(0,0))
38 IncB(AdvantageA) = Game(Deuce)
39 IncB(Deuce) = Game(AdvantageB)
40 IncB(NUM.(40,30)) = Game(Deuce)
41 IncB(NUM.(x,y)) = Game(NUM.(x,next(y)))
42 -- If you uncomment the following line it will introduce a type error to
43 -- illustrate the typechecker.
44 -- IncB((x,y)) = Game(NUM.(next(x),y))
45
46 next(0)=15
47 next(15)=30
48 next(30)=40
49
50 -- Note that you can check on non-process functions you have written. Try typing
51 -- next(15) at the command prompt of FDR4.
52
53 -- Game(NUM.(0,0)) thus represents a game which records when A and B win
54 -- successive games, we can abbreviate it as
55
56 Scorer = Game(NUM.(0,0))
57
58 -- Type ":probe Scorer" to animate this process.
2.1. Getting Started 5
FDR Manual, Release 4.2.0
59 -- Type ":graph Scorer" to show the transition system of this process
60
61 -- We can compare this process with some others:
62
63 assert Scorer [T= STOP
64 assert Scorer [F= Scorer
65 assert STOP [T= Scorer
66
67 -- The results of all these are all obvious.
68
69 -- Also, compare the states of this process
70
71 assert Scorer [T= Game(NUM.(15,0))
72 assert Game(NUM.(30,30)) [FD= Game(Deuce)
73
74 -- The second of these gives a result you might not expect: can you explain why?
75 -- (Answer below....)
76

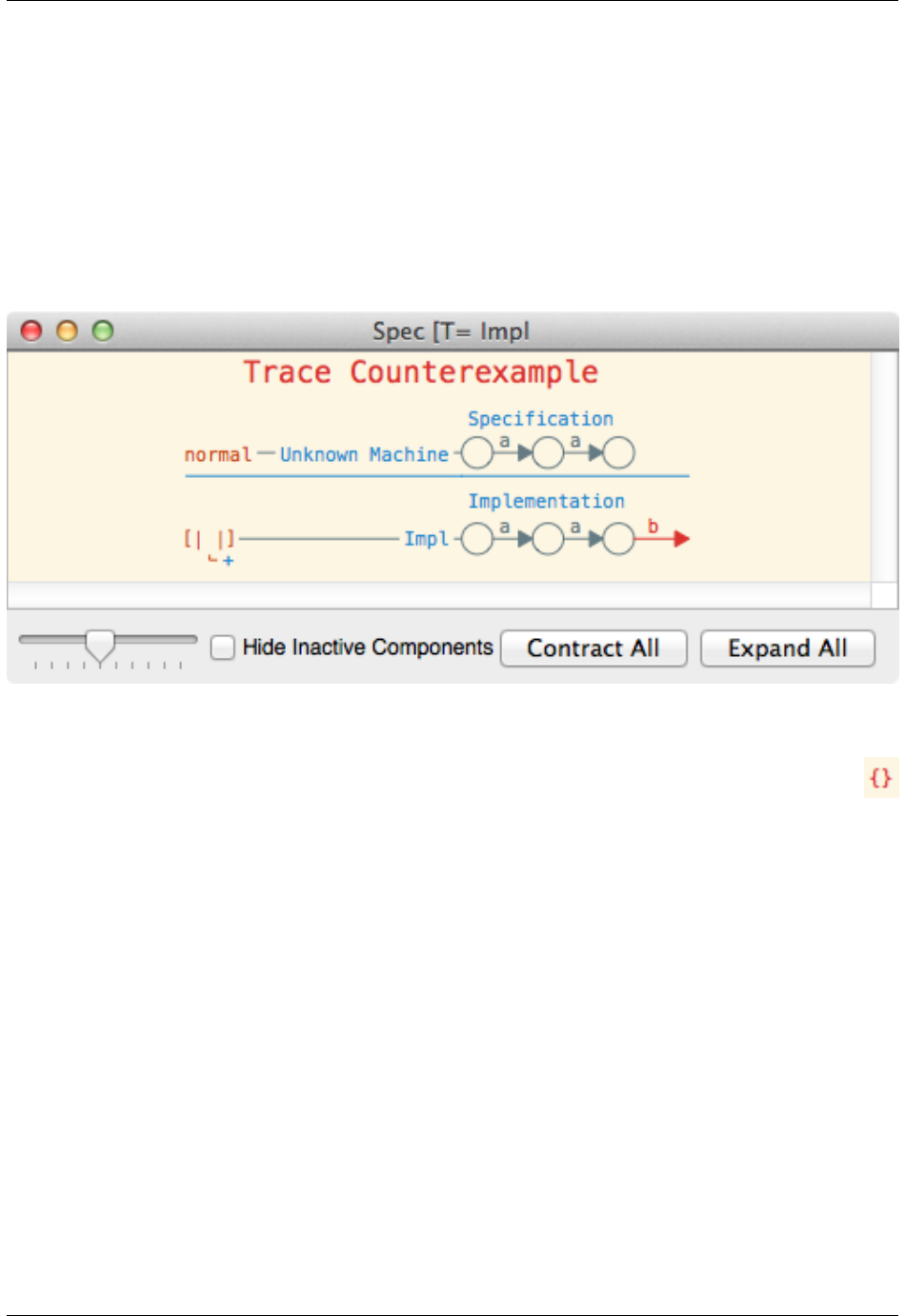

77 -- For the checks that fail, you can run the debugger, which illustrates why the
78 -- given implementation (right-hand side) of the check can behave in a way that
79 -- the specification (LHS) cannot. Because the examples so far are all
80 -- sequential processes, you cannot subdivide the implementation behaviours into
81 -- sub-behaviours within the debugger.
82
83 -- One way of imagining the above process is as a scorer (hence the name) that
84 -- keeps track of the results of the points that A and B score. We could put a
85 -- choice mechanism in parallel: the most obvious picks the winner of each point
86 -- nondeterministically:
87
88 ND = pointA -> ND |~| pointB -> ND
89
90 -- We can imagine one where B gets at least one point every time A gets one:
91
92 Bgood = pointA -> pointB -> Bgood |~| pointB -> Bgood
93
94 -- and one where B gets two points for every two that A get, so allowing A to
95 -- get two consecutive points:
96
97 Bg = pointA -> Bg1 |~| pointB -> Bg
98
99 Bg1 = pointA -> pointB -> Bg1 |~| pointB -> Bg
100
101 assert Bg [FD= Bgood
102 assert Bgood [FD= Bg
103
104 -- We might ask what effect these choice mechanisms have on our game of tennis:
105 -- do you think that B can win a game in these two cases?
106
107 BgoodS = Bgood [|{pointA,pointB}|] Scorer
108 BgS =Bg[|{pointA,pointB}|] Scorer
109
110 assert STOP [T= BgoodS \diff(Events,{gameA})
111 assert STOP [T= BgS \diff(Events,{gameA})
112
113 -- You will find that A can in the second case, and in fact can win the very
114 -- first game. You can now see how the debugger explains the behaviours inside
115 -- hiding and of different parallel components.
116
6 Chapter 2. The FDR User Interface
FDR Manual, Release 4.2.0
117 -- Do you think that in this case A can ever get two games ahead? In order to
118 -- avoid an infinite-state specification, the following one actually says that A
119 -- can’t get two games ahead when it has never been as many as 6 games behind:
120
121 Level = gameA -> Awinning(1)
122 [] gameB -> Bwinning(1)
123
124 Awinning(1) = gameB -> Level -- A not permitted to win here
125
126 Bwinning(6) = gameA -> Bwinning(6)[] gameB -> Bwinning(6)
127 Bwinning(1) = gameA -> Level [] gameB -> Bwinning(2)
128 Bwinning(n) = gameA -> Bwinning(n-1)[] gameB -> Bwinning(n+1)
129
130 assert Level [T= BgS \{pointA,pointB}
131
132 -- Exercise for the interested: see how this result is affected by changing Bg
133 -- to become yet more liberal. Try Bgn(n) as n copies of Bgood in ||| parallel.
134
135 -- Games of tennis can of course go on for ever, as is illustrated by the check
136
137 assert BgS\{pointA,pointB} :[divergence-free]
138
139 -- Notice that here, for the infinite behaviour that is a divergence, the
140 -- debugger shows you a loop.
141
142 -- Finally, the answer to the question above about the similarity of
143 -- Game(NUM.(30,30)) and Game(Deuce).
144
145 -- Intuitively these processes represent different states in the game: notice
146 -- that 4 points have occurred in the first and at least 6 in the second. But
147 -- actually the meaning (semantics) of a state only depend on behaviour going
148 -- forward, and both 30-all and deuce are scores from which A or B win just when
149 -- they get two points ahead. So these states are, in our formulation,
150 -- equivalent processes.
151
152 -- FDR has compression functions that try to cut the number of states of
153 -- processes: read the books for why this is a good idea. Perhaps the simplest
154 -- compression is strong bisimulation, and you can see the effect of this by
155 -- comparing the graphs of Scorer and
156
157 transparent sbisim,wbisim,diamond
158
159 BScorer = sbisim(Scorer)
160
161 -- Note that FDR automatically applies bisimulation in various places.
162
163 -- To see how effective compressions can sometimes be, but that
164 -- sometimes one compression is better than another compare
165
166 NDS = (ND [|{pointA,pointB}|] Scorer)\{pointA,pointB}
167
168 wbNDS = wbisim(NDS)
169 sbNDS = sbisim(NDS)
170 nNDS = sbisim(diamond(NDS))
2.1. Getting Started 7
FDR Manual, Release 4.2.0
2.2 Session Window
The main window of the GUI is the session window, and is illustrated above. The session window provides the main
interface to CSP files, and allows them to be loaded (see load), expressions to be evaluated (see Available Statements)
and assertions run (see The Assertion List). Below, we give an overview of the three main components of the session

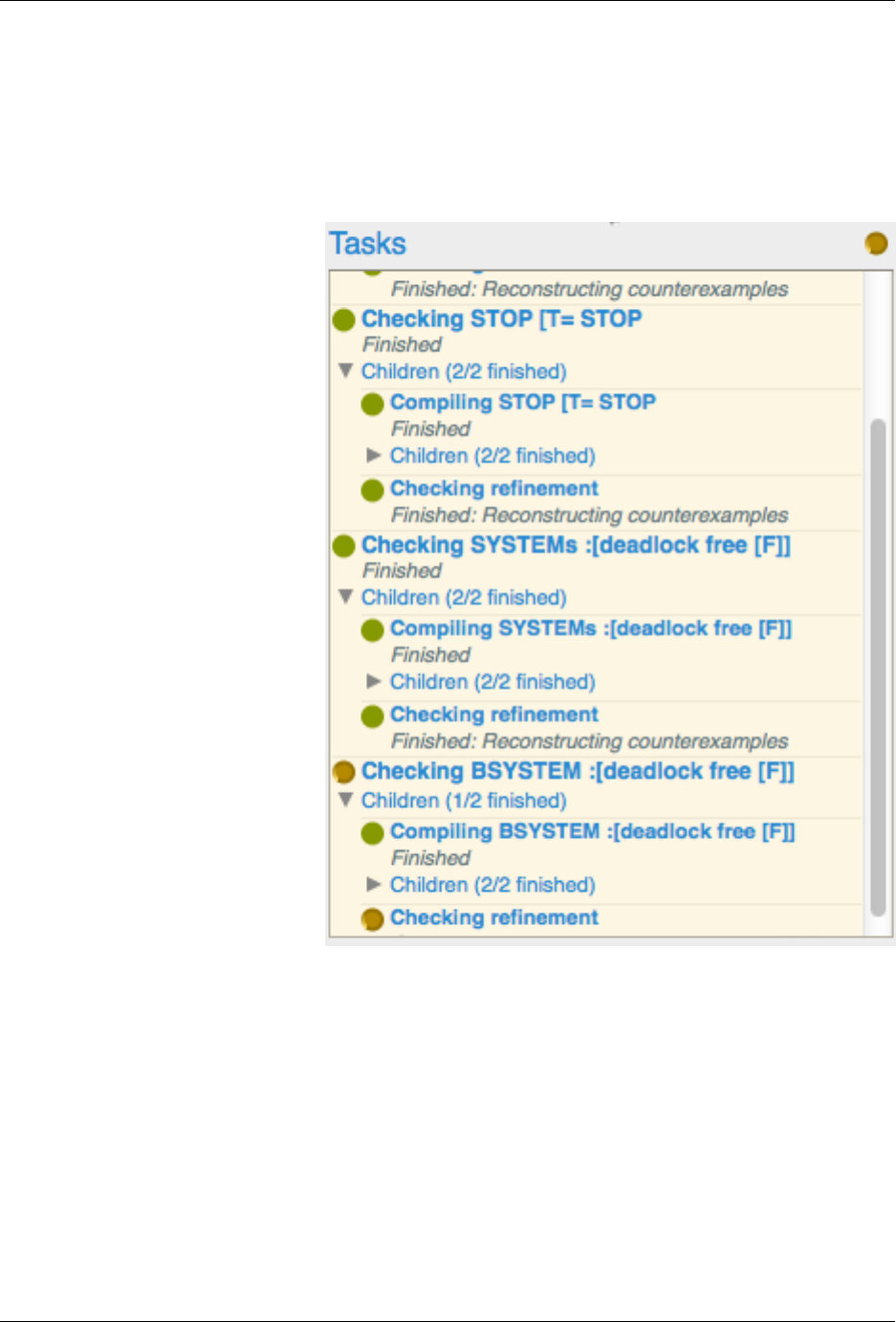

window; the Interactive Prompt, the Assertion List and the Task List.
2.2.1 The Interactive Prompt
The GUI is structured around an interactive prompt, in which expressions may be evaluated, new definitions given,
and assertions specified. For example, if FDR was started with Dining Philosophers loaded (i.e. by typing fdr4
phils6.csp from a command prompt), then the following session is possible:
phils6.csp>head(<1..>)
1
phils6.csp>let f(x) =24
phils6.csp>f(1)
24
phils6.csp>assert not PHIL(1)[F= PHIL(2)
Assertion 5created (run using :run 5).
8 Chapter 2. The FDR User Interface
FDR Manual, Release 4.2.0
The command prompt also exposes a number of commands which are prefixed with :. For example, the type of an
expression can be pretty printed using :type:
phils6.csp> :type head
head :: (<a>)-> a
In addition, the command prompt has intelligent (at least in some sense) tab completion. For example:
phils6.csp>c<tab>
card concat
phils6.csp> :<tab>
assertions debug graph help load options
processes quit reload run type version
The interactive prompt will also indicate when a file has been modified on disk, but has not yet been reloaded, by
suffixing the file name at the prompt with a *.
Available Statements
Expressions can be evaluated by simply typing them in at the prompt. For example, typing 1+1 would print 2. In
order to create a new definition, let can be used as follows:
phils6.csp>let f(x) =x+1
phils6.csp>let (z,y) =(1,2)
As with interactive prompts for other languages, each let statement overrides any previous definitions of the same
variables, but does not change the version that previous definitions refer to. For example, consider the following:
phils6.csp>let f=1
phils6.csp>let g=f
phils6.csp>let f(x) =g+x
phils6.csp>f(1)
2
In the above, even though fhas been re-bound to a function, gstill refers to the previous version.
Transparent and external functions can be imported by typing transparent x, y at the prompt:
phils6.csp>normal(STOP)
<interactive>:1:1-7:
normal is not in scope
Did you mean:normal (import using ’transparent normal’)
phils6.csp>transparent normal
phils6.csp>normal(STOP)
...
New assertions can be created exactly as they would be in a CSP file, by typing assert X [T= Y, or assert
STOP :[deadlock free [F]]. For example:
phils6.csp>assert not PHIL(1)[F= PHIL(2)
Assertion 5created (run using :run 5).
Available Commands
There are a number commands available at the command prompt that expose various pieces of functionality. Note that
all commands below may be abbreviated, providing the abbreviation is unambiguous. For example, :assertions
may be abbreviated to :a, but :reload cannot be abbreviated to :r as this could refer to :run.
2.2. Session Window 9
FDR Manual, Release 4.2.0
command :assertions
Lists all of the currently defined assertions. For example, assuming that Dining Philosophers is loaded:
phils6.csp> :assertions
0:SYSTEM :[deadlock free [F]]
1:SYSTEMs :[deadlock free [F]]
2:BSYSTEM :[deadlock free [F]]
3:ASSYSTEM :[deadlock free [F]]
4:ASSYSTEMs :[deadlock free [F]]
The index displayed on the left is the index that should be used for other commands that act on assertions (such
as debug).

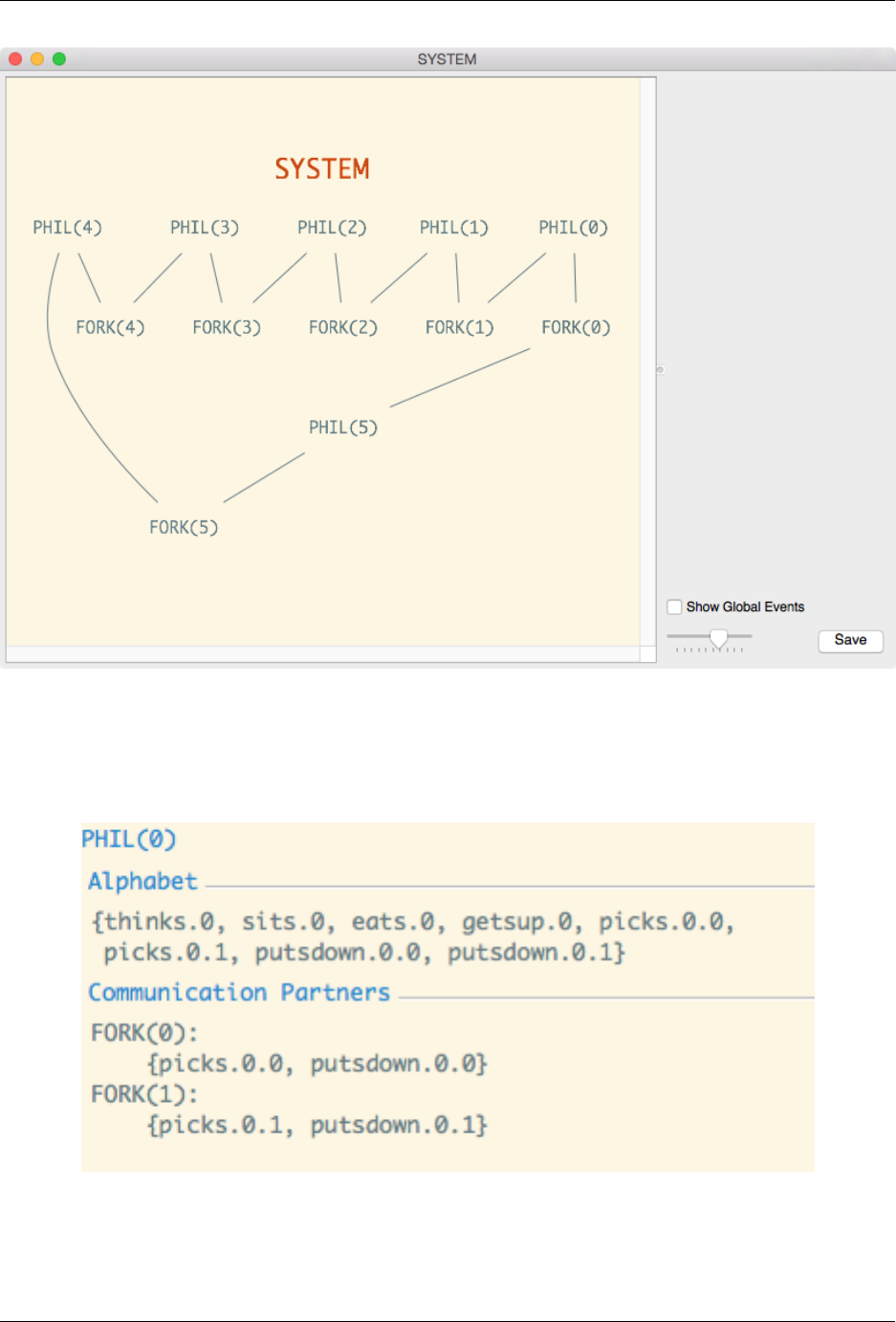

command :communication_graph <expression>
Given a CSP expression that evaluates to a process, displays the communication graph of the process, as per
Communication Graph Viewer.
command :counterexample <assertion index>
Assuming that the given assertion has been checked and fails, pretty prints a textual represenation of the coun-
terexamples to the specified assertion.
command :cd <directory name>
Changes the current directory that files are loaded from. This will affect subsequent calls to load.

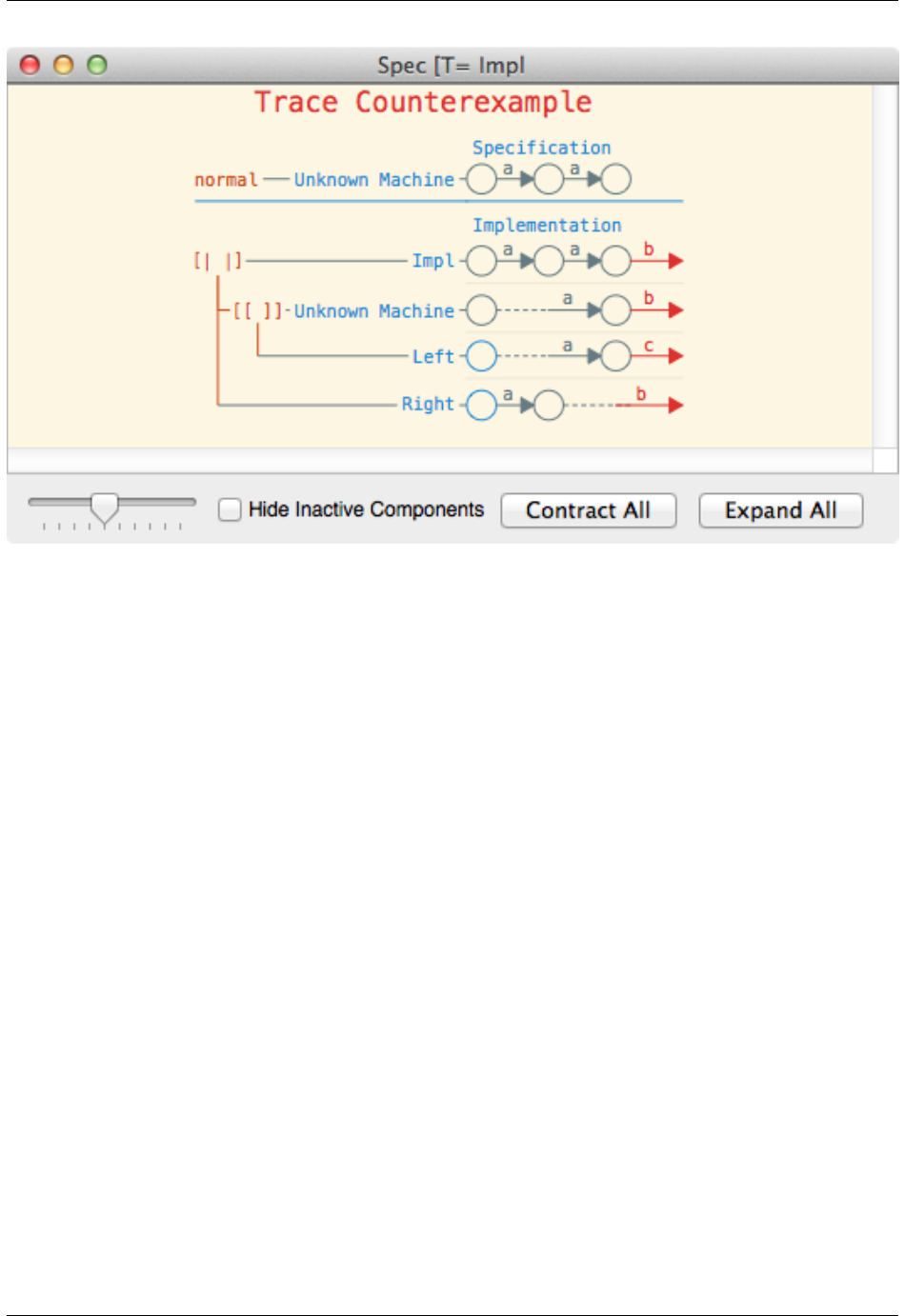

command :debug <assertion index>
Assuming that the given assertion has been checked and fails, opens the Debug Viewer on the counterexample
to the specified assertion.

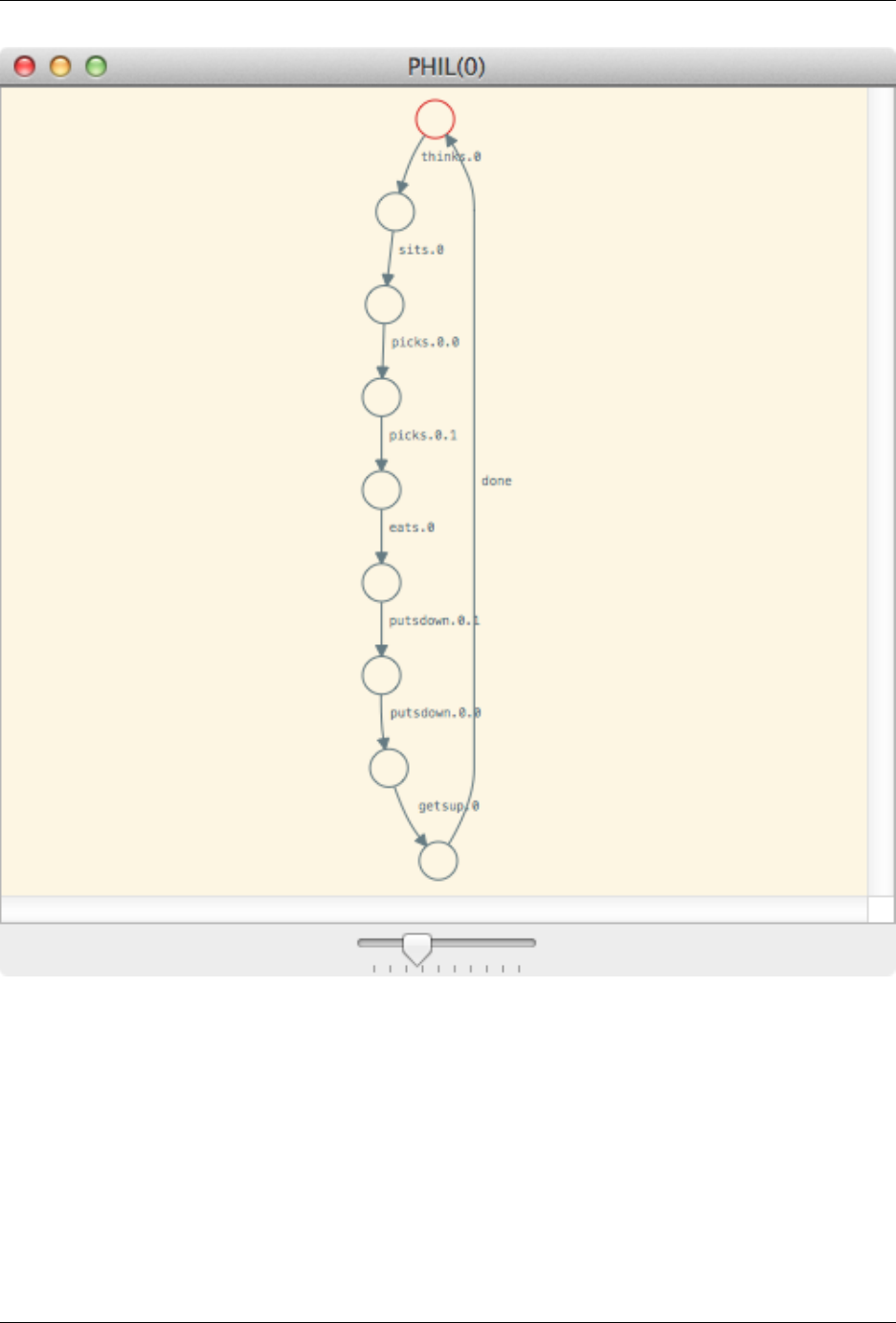

command :graph <model> <expression>
Given a CSP expression that evaluates to a process, displays a graph of the process in the Process Graph Viewer.
By default, the process will be compiled in the failures-divergences model but a specific model can be specified,
for example, by typing :graph [Model] P, where the model is specified as per assertions. For example,
:graph [F] P will cause the failures model to be used.
command :help
Displays the list of available commands and gives a short description for each.
command :help <command name>
Displays more verbose help about the given command, which should be given without a :. For example :help
type displays the help about the type command.
command :load <file name>
Loads the specified file, discarding any definitions or assertions that were given at the prompt.
command :options
See options list.
command :options get <option>
Displays the current value for the specified option.
command :options help <option>
Displays a brief description about the specified option, along with details on the range of permitted values.
command :options list
Lists all available program options and prints a brief description and the current value for each option. See
Options for details on the available options.
command :options reset <option>
Resets the specified option to the default value.
command :options set <option> <value>
Sets the specified option to the given value, displaying an error if the value is not permitted.
10 Chapter 2. The FDR User Interface
FDR Manual, Release 4.2.0
command :probe <expression>
Given a CSP expression that evaluates to a process, explores the transitions of the process using Probe.
command :processes
Lists all currently defined processes, including functions that evaluate to processes.
command :processes false
Lists all currently defined processes but, in contrast to processes, does not include functions that evaluate to
processes.
command :profiling_data
If cspm.profiling.active is set to On and the current file has been loaded/reloaded since this option was
activated, this will display profiling data about every function that has been executed since the file was loaded.
For example, suppose the following sequence of commands had been executed at the prompt:
phils6.csp> :option set cspm.evaulator.profiling On
phils6.csp> :run 0
phils6.csp> :profiling_data
Then any profiling data that was generated by executing the first assertion (which would include any function
calls made by any function executed as part of the first assertion) in the file would be displayed.
For an explanation of the output format see Profiling.
command :quit
Closes FDR.
command :reload
If no file is currently loaded then this resets the current session to a blank session, discarding any definitions or
assertions that were given at the prompt. Otherwise, if a file is loaded, then this loads a fresh copy of the file,
again discarding any definitions or assertions that had been given at the prompt.
command :run <assertion index>
Runs the given assertion. This consists of two phases; in the first phase the specification and implementation of
the given assertion are compiled into state machines whilst in the second phase the assertion itself is checked.
Presently, no further commands may be evaluated until the first phase has completed.

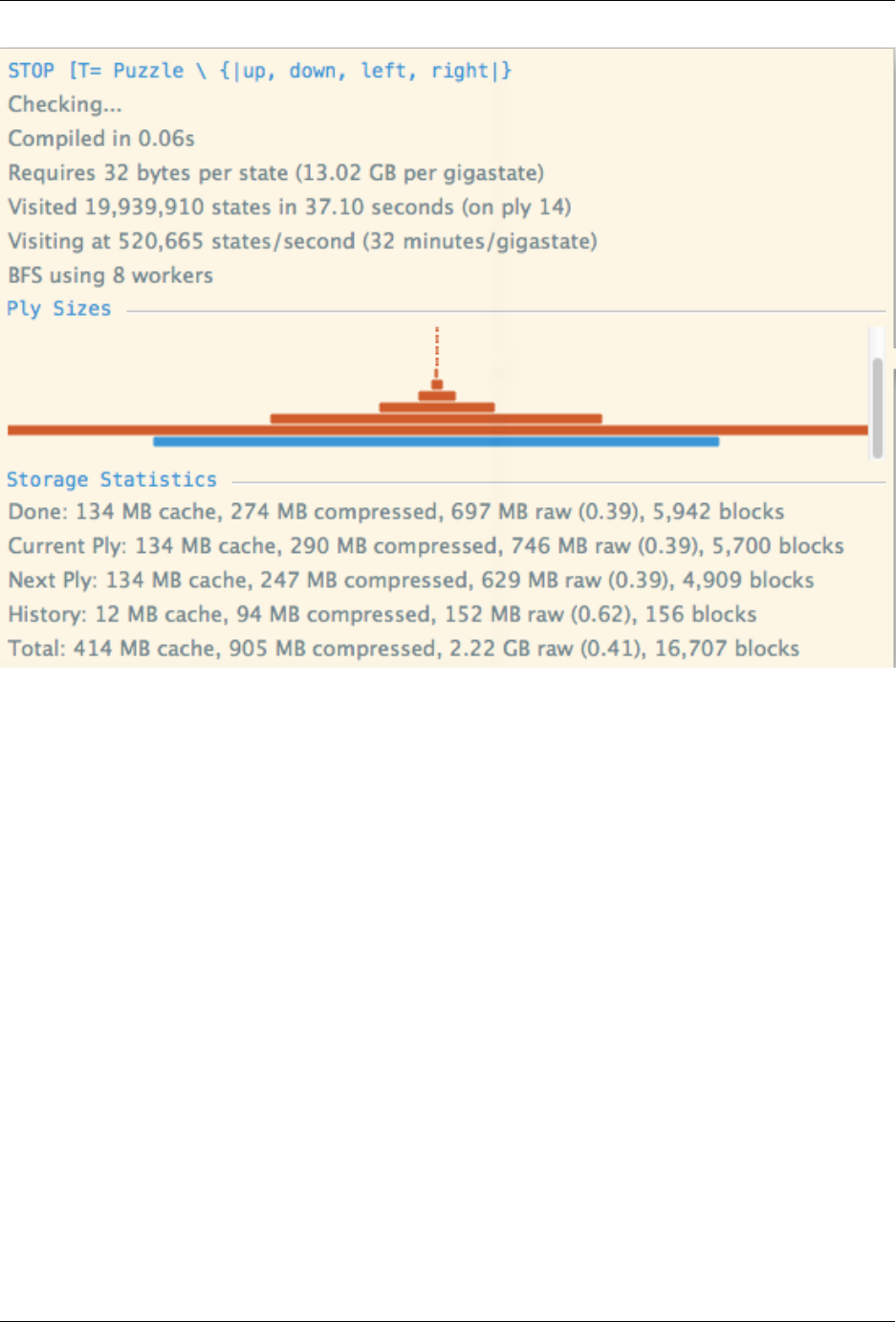

command :statistics <assertion index>
Assuming the given assertion is either running or has already completed, this displays various statistics relating
to the assertion including: the number of states visited, the number of transitions visited, the amount of time
required to complete the check, and the amount of memory used.

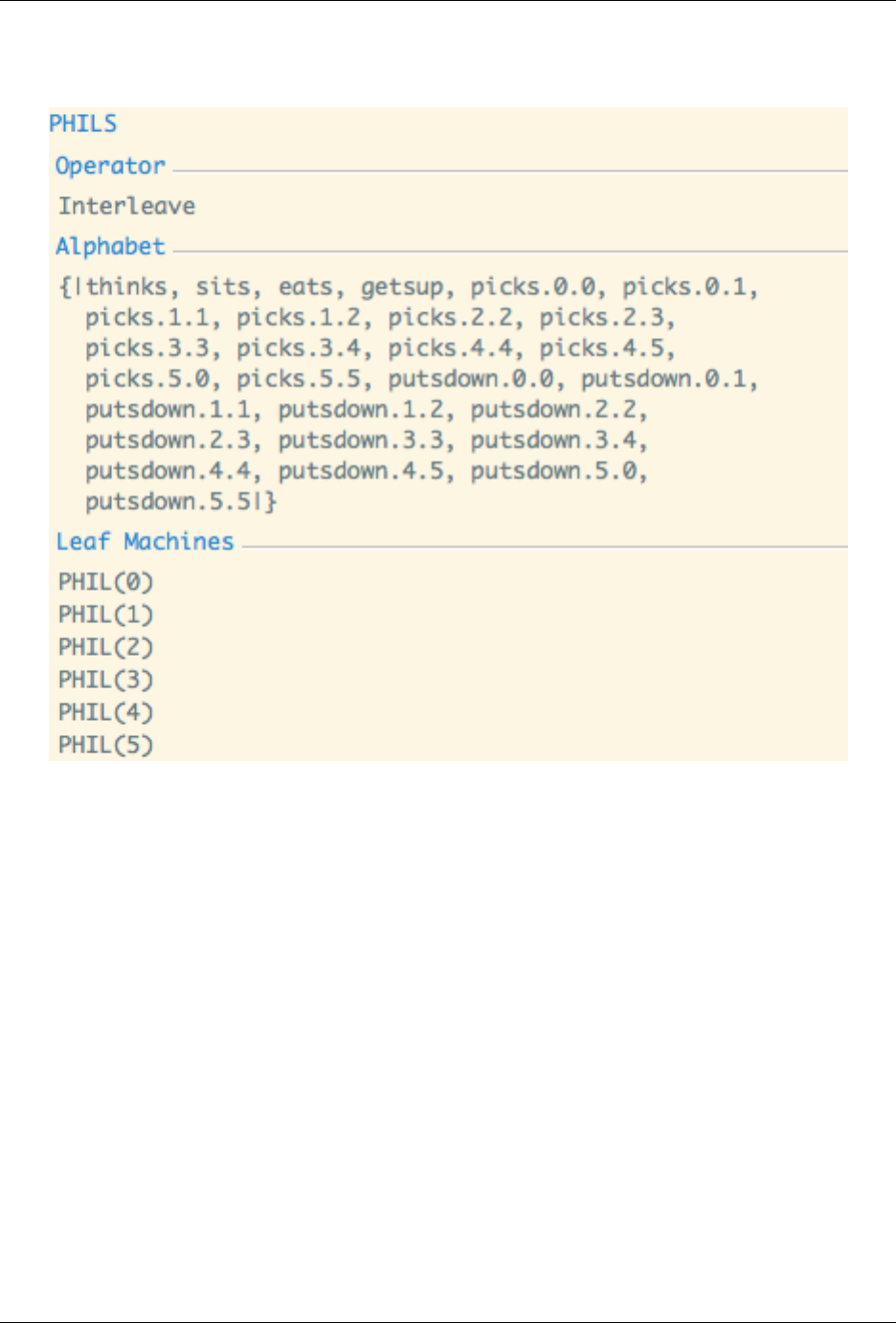

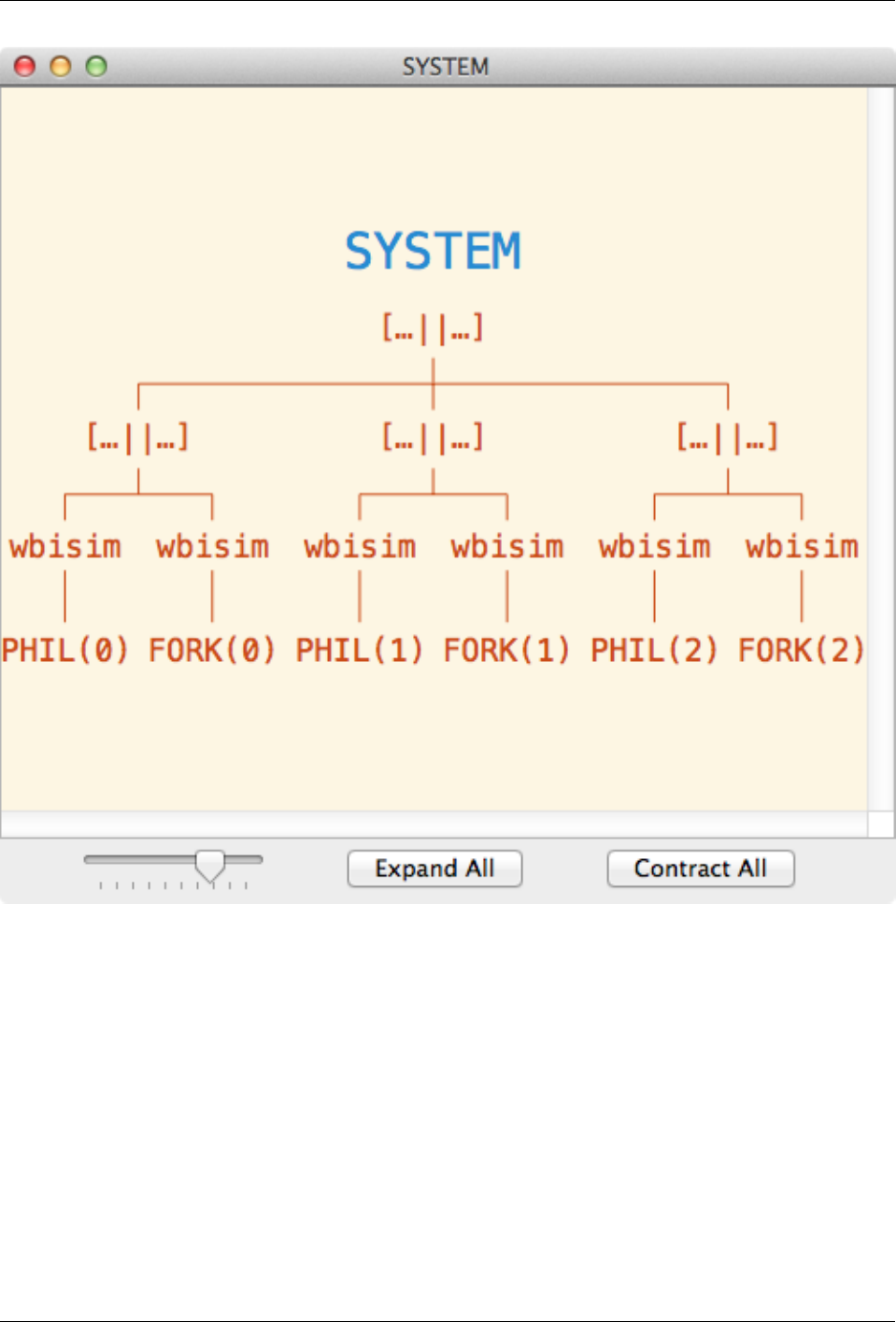

command :structure <expression>

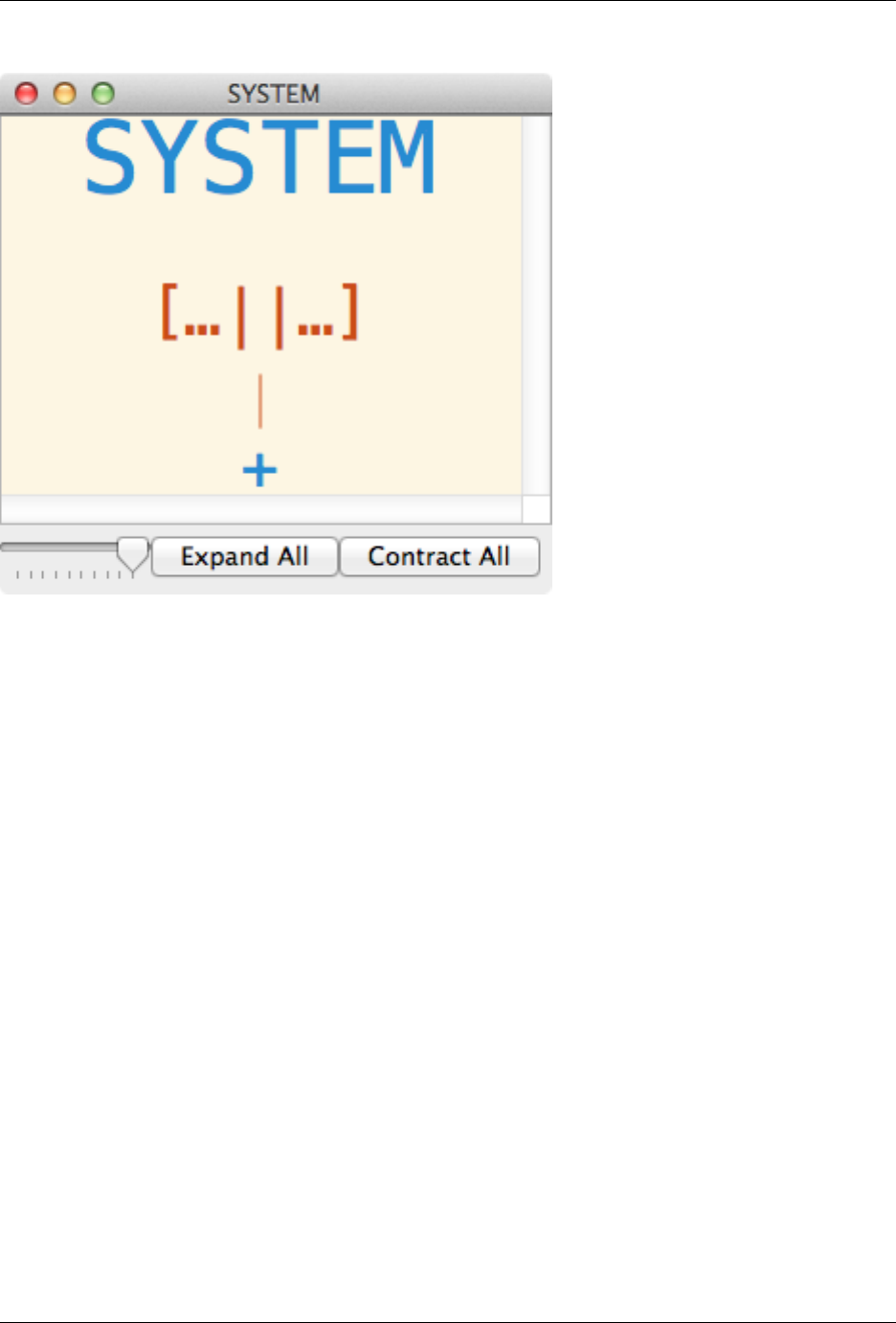

Given a CSP expression that evaluates to a process, displays the compiled structure of the process, as per
Machine Structure Viewer.
command :type <expression>
Prints the type of the given CSP expression. For example, :type STOP prints STOP :: Proc.
command :version
Displays the full version number of the currently running FDR.
2.2. Session Window 11
FDR Manual, Release 4.2.0
2.2.2 The Assertion List
The top-right of the session window, illustrated to the right, displays the list of assertions that have been defined.
This includes all assertions defined in the source file, together with all of those defined in the session, in the order of
definition. An assertion may be run by clicking the appropriate Check button. Alternatively, the Run All button may be
clicked, which will run all of the un-checked assertions, in parallel. If an assertion has been run and fails, the Debug
button may be pressed, which will launch the Debug Viewer.
Whilst an assertion is being checked, the progress of the check is displayed inline, just below the title of the assertion.
The status of the assertion is indicated by the small circle next to the title of each assertion. The colours indicate the
following:
Blue The assertion has not yet been run.
Yellow The assertion is currently being checked.
Red The assertion has been checked and has failed.
Green The assertion has been checked and passed.
Clicking the info button (with a question mark) on an individual assertion displays a window that with various perfor-
mance statistics about the refinement check. For example:
12 Chapter 2. The FDR User Interface
FDR Manual, Release 4.2.0
This window displays, in descending order of display:
Compilation Time The time taken to compile the assertion.
Storage Requirements The number of uncompressed bytes to store each node pair encountered during the check.
The total amount of storage required is therefore proportional to the number of visited states times this figure,
multiplied by the average achieved compression ratio (see below).
Visited States The number of states visited, and the current ply of the breadth-first search.
Number of Workers The number of workers used in the parallel breadth-first search (this can be configured using
refinement.bfs.workers).
Ply Sizes The relative size of each of the plys in the breadth-first search is indicated by the width of the bars. The
absolute size of a ply can be viewed by hovering over a particular ply in the search. The current ply of the search
is drawn in blue.
Storage Statistics The total amount of memory, allocated for each type of block-level storage in the search. The
cache figure is the amount of memory used to store uncompressed blocks in memory. Compressed refers to the
amount of memory allocated for storing compressed blocks whilst raw indicates the amount of memory that
would have been required to store the blocks uncompressed. Finally, the achieved compression ratio is given.
Storage statistics are provided for each of the main block stores. Done is the store used to store blocks used
by the set of visited states. Current level is the store used to store blocks used by the set of states to visit
on the current ply of the search. Next level is the store used to store block that will be visited on the next
ply whilst history is the store used to store blocks that indicate how node pairs were reached (for purposes of
counterexample reconstruction). Blocks is the number of memory blocks allocated to store data (note that they
are of a fixed size). Total is simply the sum of the above figures.
Thus, the total amount of block-level storage required is equal to the total cache size plus the total size of the
2.2. Session Window 13
FDR Manual, Release 4.2.0
compressed store (although this will not include the cost to store state machines and other miscellaneous data
structures).
For more information on what these statistics represent see Compilation and Refinement Checking.
2.2.3 The Task List
The bottom-right of the session window, illustrated to the right, displays the list of tasks that are currently running. A
task is any long-running job performed by the GUI, and includes items like checking refinements, graphing processes
or evaluating expressions. The list of tasks is hierarchical, allowing the dependencies between tasks to be tracked. For
example, if a task is a Checking Refinement task, then the task will have two children; a compiling task and a checking
refinement task (see Compilation for more details about tasks during compilation).
The status of each task, if available, is displayed inline, below the task title. Any child tasks of the parent are displayed
below the status, in a section that can be expanded or contracted by clicking the triangle. The circular indicator next
to the task title indicates the task status; if it is yellow then the task is running, green indicates that the task completed
successfully whilst red indicates that the task fails. Hovering over the circular indicator will display the runtime of the
task.
14 Chapter 2. The FDR User Interface
FDR Manual, Release 4.2.0
2.3 Debug Viewer

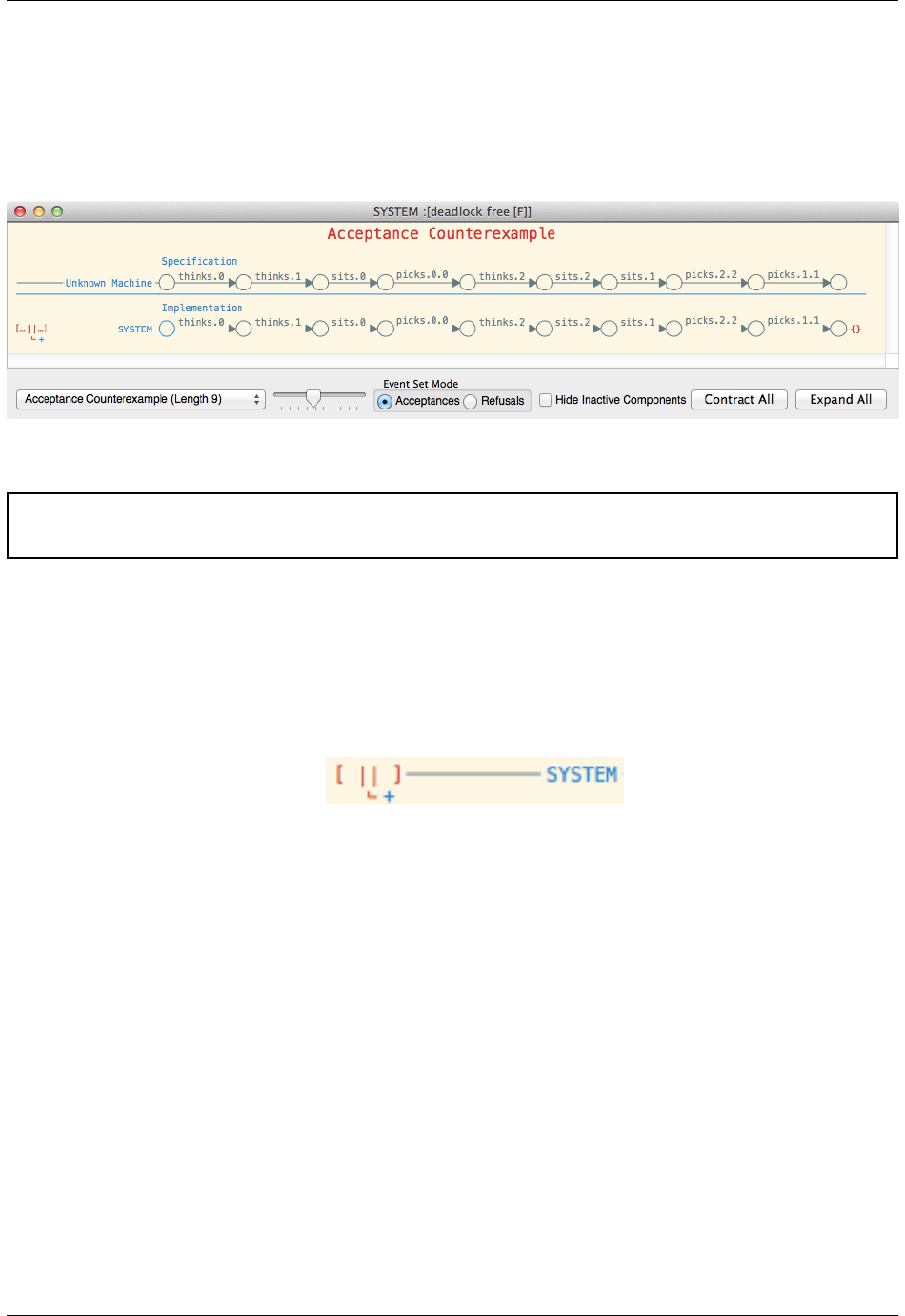

The debug viewer, as shown below, allows a counterexample to a refinement assertion to be viewed. In
particular, it attempts to explain how the implementation evolved into a state where it could perform a be-
haviour that was prohibited by the specification. Conceptually, the debug viewer is a table where the rows
represent behaviours of particular machines whilst the columns represent events that are synchronised.
The above counterexample, which we use as an example throughout this section, is to the first assertion of an edited
version of Dining Philosophers where N=3(for ease of exposition).
Warning: Note that the counterexample that is displayed will be picked somewhat non-deterministically. See
Counterexamples for further details.
2.3.1 Behaviours
The individual rows within the counterexample represent the behaviour of a machine. A behaviour of a particular
machine is a sequence of states that the machine transitioned through, along with the events that it performed. In the
default view of a counterexample, the first row represents the behaviour of the specification machine, whilst the second
row represents the behaviour of the implementation.
On the left of a behaviour row, two
items of information are displayed, as shown to the right. The first is the operator that the machine represents, whilst
the second is the name of the machine, if one was given to it in the script. Note that the operator is only displayed if
the machine is a high-level or a compressed machine. Hovering over the operator will reveal the operator type and its
arguments. For example, hovering over the operator in the image to the right displays the following.
Alphabetised parallel with process alphabets:
1: {thinks.0, sits.0, eats.0, getsup.0, picks.0.0, picks.0.1,
picks.2.0, putsdown.0.0, putsdown.0.1, putsdown.2.0}
2: {thinks.1, sits.1, eats.1, getsup.1, picks.0.1, picks.1.1,
picks.1.2, putsdown.0.1, putsdown.1.1, putsdown.1.2}
3: {thinks.2, sits.2, eats.2, getsup.2, picks.1.2, picks.2.0,
picks.2.2, putsdown.1.2, putsdown.2.0, putsdown.2.2}
which indicates that the operator in question is an alphabetised parallel operator with 3 processes, each of which has
the corresponding alphabet.
Hovering over the machine name will display extra information in the right pane that includes the full name (if it
had to be abbreviated), a scrollable view of the trace (which is particularly useful if the trace is long), and a textual
representation of the behaviour, if the row represents an error. For example, hovering over the SYSTEM name in the
above displays the following:
2.3. Debug Viewer 15
FDR Manual, Release 4.2.0

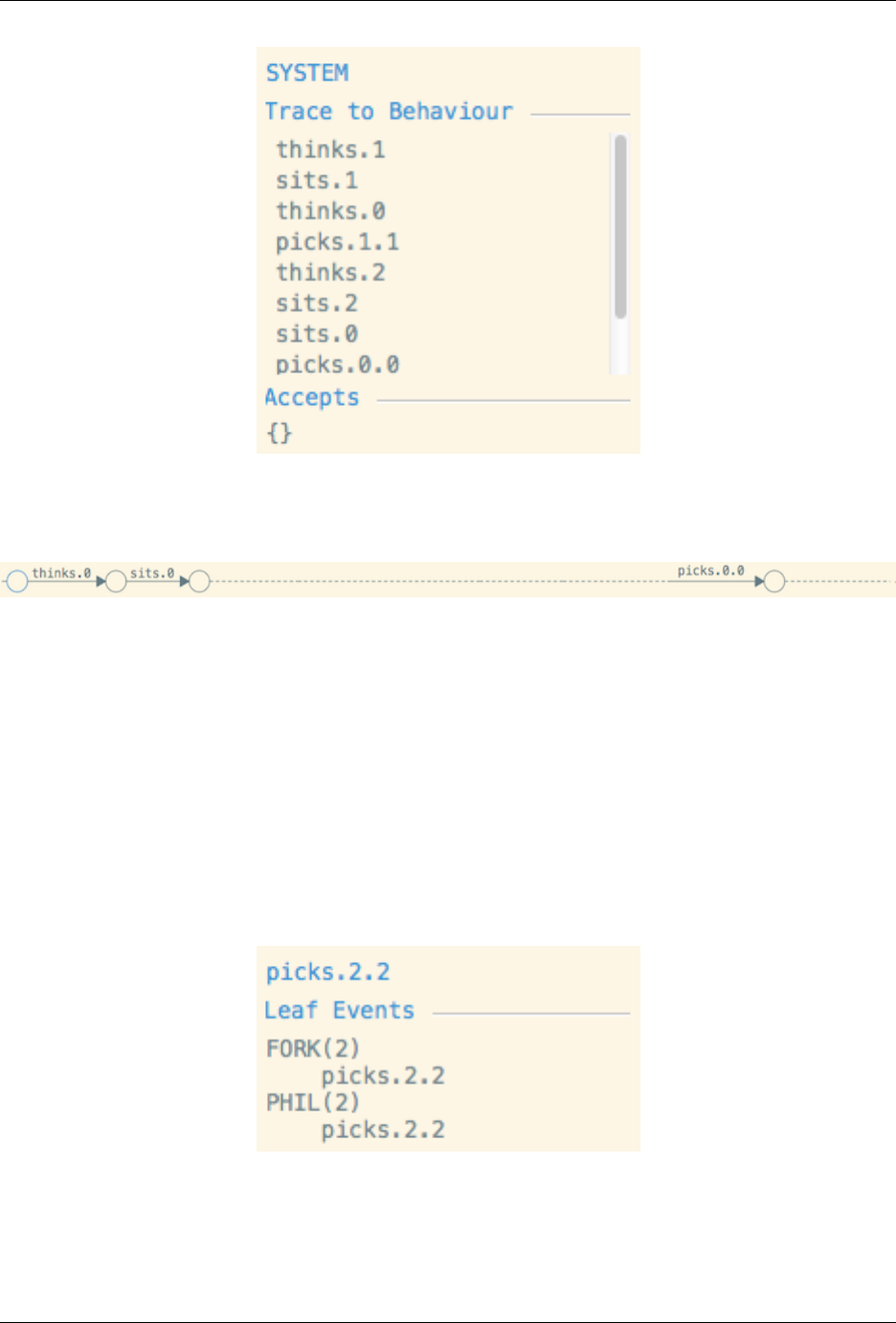

This indicates the trace that SYSTEM performed and the fact it accepted {} at the end of trace, violating the specifica-
tion.
The second component, which is the main section, shows the trace that this machine performed:
Each of the circles represents a state that the machine reaches. The edges between the states are labelled by the events
that the machine performs. Named states are drawn in blue and, when hovering over a state, identical states of the
machine are highlighted in red. A dashed edge indicates that the machine performed no event. Green edges indicate
that the machine was restarted by the event (e.g. consider P=X;P).
Clicking on a state will reveal several items of information about it including: the state name (if any); the available
events of the state; the minimal acceptances of the state. It also allows Probe to be launched to inspect the state’s
transitions and, providing the machine does not have too many states, allows the Process Graph Viewer to be launched
on the state. If the graph view is launched, then in addition to displaying the usual graph of the machine, the behaviour
in the selected row will be highlighted (see Behaviours for more information).
Clicking on an edge will display several extra pieces of information in the right pane. In particular, if the event is a tau
that resulting from a hiding it will reveal what the inner event is. Further, it will detail what events the leaf processes
perform in order to perform the overall event. For example, hovering over the last event in the above counterexample
(i.e. picks.1.1) in the row labelled Implementation will display the following in the right pane:
This indicates that FORK(2) and PHIL(2) both performed picks.2.2 in order to produce the overall
picks.2.2 event.
The third and rightmost component of a behaviour indicates how this machine contributes to the prohibited behaviour
of the specification. For example, consider the following script:
16 Chapter 2. The FDR User Interface
FDR Manual, Release 4.2.0
channel a,b,c
Left =a-> c-> STOP
Right =a-> b-> STOP
Impl = Left[[c<- b]] [| {b}|]Right
Spec =a-> Spec
assert Spec [T= Impl
The above assertion will fail as Impl can perform the trace a, a, b, which is
not a trace of the specification. This results in the following counterexample:
The rightmost component of the implementation behaviour indicates that the process attempted to perform the event
b, which was disallowed by the specification (hence it is an error and is thus drawn in red).
Acceptance errors are indicated by giving the erroneous acceptance. Hence, in the above case, as shown to the right,
the empty acceptance is shown as the machine deadlocks after the given trace. It is also possible to view maximal
refusals rather than acceptances by selecting Refusals in the Event Set Mode in the bottom left hand corner of the debug
viewer (as shown in the above case). The maximal refusals are relative to the set of events the machine in question
can perform.
2.3. Debug Viewer 17
FDR Manual, Release 4.2.0

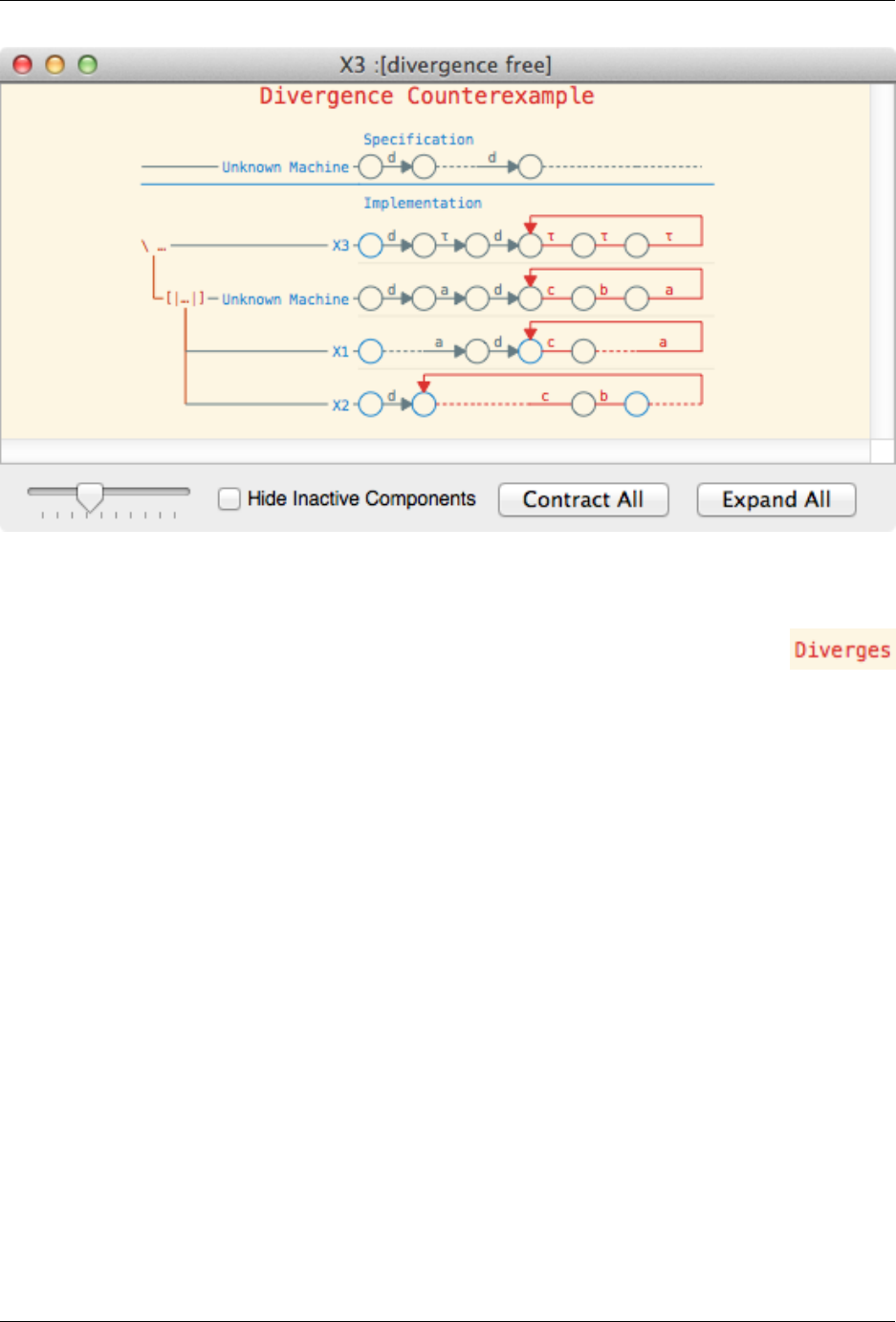

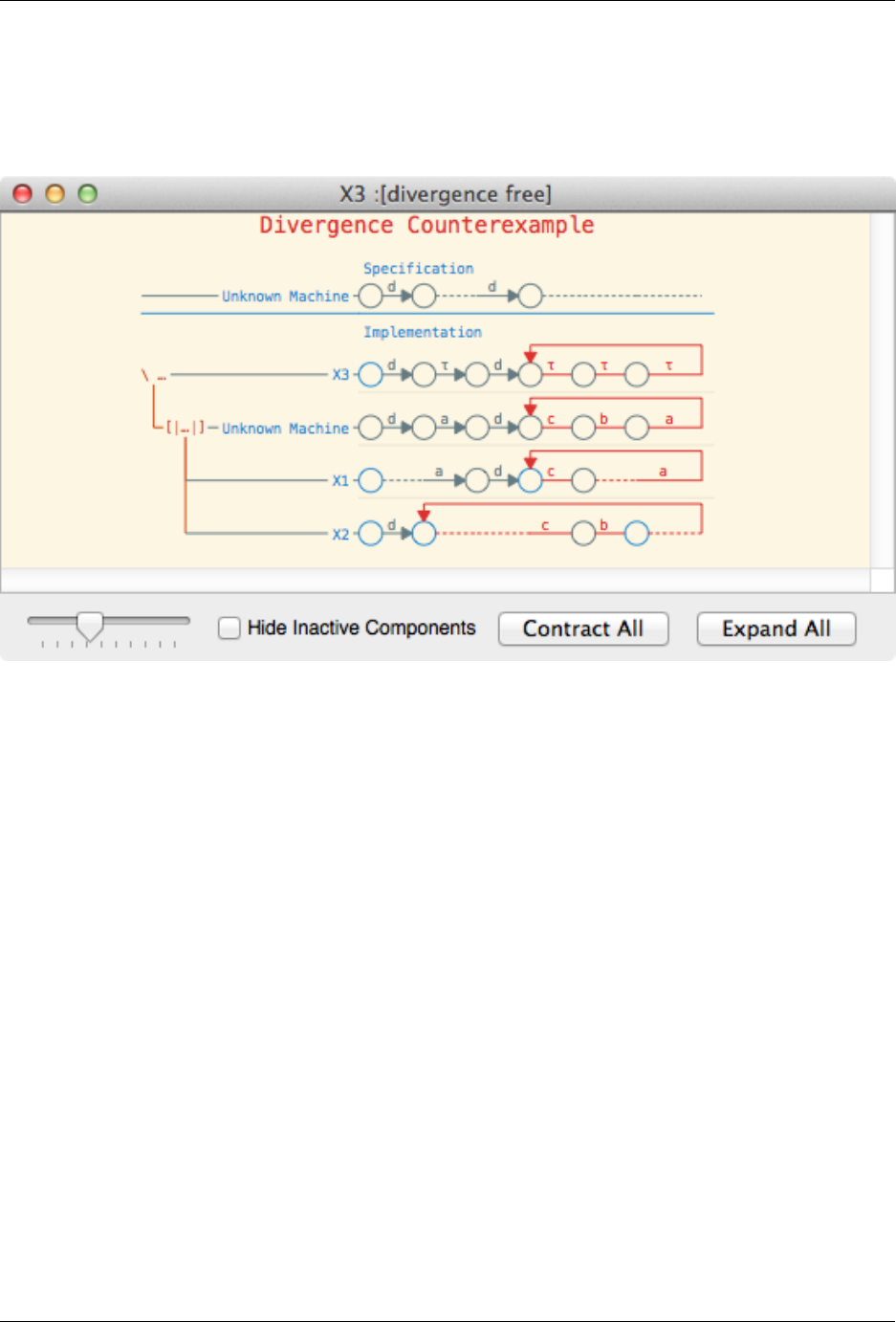

Divergence errors, or loop errors, are indicated by drawing the trace that repeats in red. For example, in the above
screenshot, the process X3 can diverge by repeating a sequence of three taus, which actually is caused by a machine
repeating the trace c, b, a, which are then all hidden.
Divergence errors may also be indicated by simply stating that a given state diverges, as indicated to the right. This
occurs, for example, when checking normal(div) (for a suitable definition of div) for livelock freedom. For more
information see Generalised Low-Level Machine.
2.3.2 Dividing Behaviours
If a behaviour is a behaviour of a high-level machine or a compressed machine then it may be divided into behaviours
of its components. This can help significantly with working out either how a machine performed a particular event,
or why the machine can perform the behaviour that was prohibited by the specification. A behaviour can be divided
either by double clicking the operator of the machine, double clicking the plus button under the operator or double
clicking any blank space in the middle section of the behaviour (i.e. the section with the states and events).
For example, consider the simple example script shown above. Clicking Expand All reveals the following:
18 Chapter 2. The FDR User Interface
FDR Manual, Release 4.2.0
The left portion of the diagram shows the structure of the machines. In particular, we can deduce that the implementa-
tion process (i.e. Impl) is a parallel composition of Right and a renaming of Left (the operator arguments can be
viewed by hovering over the operators themselves).
We can also deduce how the events synchronise together, as events in the same column indicate that they are synchro-
nised. Thus, in the above we can deduce that the first aevent occurred because Right performed an a, whilst the
second occurred because Left performed an a. In both cases we can see that the event did not synchronise with any
other event, due to the dashed edges. The diagram also allows us to deduce why the bwas performed. In particular, the
bmust have occurred due to Right and the renamed copy of Left synchronising on a b. Further, this was possible
because Left performed a cthat was renamed to a b.
2.3.3 Navigating The Debug Viewer
The debug viewer can be panned (or moved) by clicking and dragging whilst scrolling will zoom in or out. Further,
double clicking will zoom in by a constant amount. Alternatively, if gestures are supported, zooming can be accom-
plished by pinching (as on a touch screen device) and panning is instead done by scrolling. In either case, the zoom
level can be modified by moving the slider in the bottom left.
Hovering over the title of the counterexample (i.e. Acceptance Counterexample) in the above screenshot displays a
textual description of the counterexample. For example, in the above case the description is:
After performing the trace:
thinks.0, sits.0, thinks.2, picks.0.0, thinks.1, sits.2, sits.1,
picks.1.1, picks.2.2
the implementation offers the set of events:
{}
which is not a superset of one of the specification acceptances:
{thinks.0}, {sits.0}, {eats.0}, {getsup.0}, {picks.0.0},
{picks.0.1}, {picks.2.0}, {putsdown.0.0}, {putsdown.0.1},
{putsdown.2.0}, {thinks.1}, {sits.1}, {eats.1}, {getsup.1},
{picks.1.1}, {picks.1.2}, {putsdown.1.1}, {putsdown.1.2},
{thinks.2}, {sits.2}, {eats.2}, {getsup.2}, {picks.2.2},
{putsdown.2.2}.
2.3. Debug Viewer 19
FDR Manual, Release 4.2.0
Checking Hide Inactive Components will elide any rows in which the machine does not contribute to the overall be-
haviour (i.e. it is inactive). Unchecking View Taus will elide any column in which only taus are visible. Clicking
Expand All or Contract All will result in all behaviours being divided recursively, or contracted recursively, respec-
tively. If refinement.desired_counterexample_count is set to a value greater than 1 and FDR is able to
find multiple counterexamples, then the displayed counterexample can be selected using the drop-down on the bottom
left corner of the debug viewer, as shown above. Clicking on a cell in the debug viewer will higlight the row and
column corresponding to that cell.
2.4 Process Graph Viewer
FDR is also capable of displaying graphs of processes, rendered using GraphViz. This can be very useful for vi-
sualising small processes, but once the graph grows beyond a few hundred states or transitions, it quickly becomes
unmanageable (and can cause GraphViz to consume vast amounts of memory).
For example, if Dining Philosophers is loaded, then typing :graph PHIL(0) into the prompt will display the
following window:
20 Chapter 2. The FDR User Interface
FDR Manual, Release 4.2.0
The graph is rendered in the obvious way. Each state of a process is rendered as a circular node, whilst the transitions
are drawn as labelled edges. The initial node of the machine is drawn in red, whilst named nodes are drawn in blue
(i.e. if a node corresponds to a named process). Clicking on a node will, as with the Debug Viewer, display some
information about the node in the right-hand pane, including the available events, its minimal acceptances, and the
node name, if one is available. It also allows Probe to be launched from the selected state.
The graph can be navigated exactly like the Debug Viewer. Thus, it can be panned (or moved) by clicking and dragging
whilst scrolling will zoom in or out. Double clicking will zoom in by a constant amount. Alternatively, if gestures are
supported, zooming can be accomplished by pinching (as on a touch screen device) and panning is instead done by
scrolling. In either case, the zoom level can be modified by moving the slider at the bottom.
2.4. Process Graph Viewer 21
FDR Manual, Release 4.2.0
2.4.1 Behaviours
If the process graph viewer is launched on a machine or a node from within the debug viewer, then the selected
behaviour is highlighted on the graph. For example, suppose the following counterexample is being viewed in the
debug viewer:
Clicking on View Graph in the right pane will display the following graph:
22 Chapter 2. The FDR User Interface
FDR Manual, Release 4.2.0
In the above, each transition that formed part of the behaviour of X2 is highlighted. Hence, the dtransition to the c,b
loop is highlighted, since this is the behaviour that is being displayed in the debug viewer. In addition, hovering over
the machine name will display a textual description of the behaviour. For example, in the above window hovering over
X2 will display the following text:
Highlighting the behaviour:
X2 (Repeat Behaviour):
Trace: <d>
Repeats the trace: <c, b>
2.5 Probe
Probe can be used to manually explore the transitions of a process as a tree, which can be very helpful when debugging
a process definition. Probe can be launched on any process by typing :probe P into the prompt. Alternatively,
Probe may be launched on any state via a node (such as those in the Debug Viewer or Process Graph Viewer) by
clicking the Probe button.
As an example of how to use Probe, consider loading Dining Philosophers and typing :probe SYSTEM into the
prompt; this will result in the following window being displayed:
2.5. Probe 23
FDR Manual, Release 4.2.0

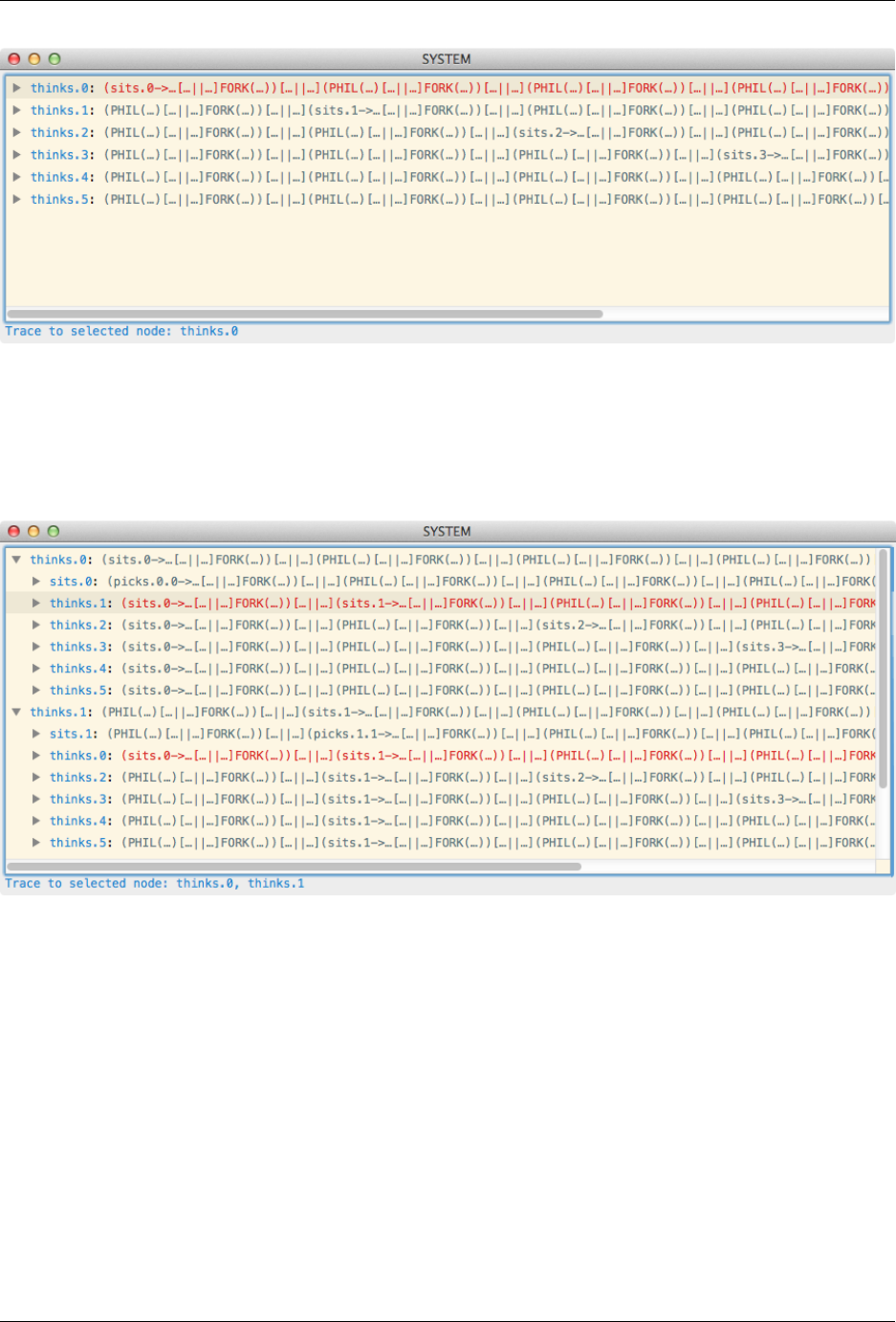

In the above, the transitions of the initial state (i.e. SYSTEM) are shown in sorted order of event. A line of the form ev:
Pmeans that the process can perform the event ev and evolve into the process P. Further, each of these lines can be
expanded to reveal the transitions of the resulting process, yielding a tree of transitions. To expand the transitions of
a process either double click on the row, click on the triangle to the left of the row, or use the right arrow keyboard
button. To contract a row, either double click on the row, click on the triangle or use the left arrow keyboard button.
For example, if we expand the first and the second rows, we see the following view:
Probe also highlights syntactically equivalent nodes in red. For example, in the above screenshot there are two rows
highlighted as the state reached by SYSTEM performing thinks.0 and then thinks.1 is identical to the state
reached by performing the events in the opposite order.
The trace required to reach the currently selected node is displayed at the bottom of the window.
2.6 Node Inspector
When debugging a counterexample or when using probe, FDR allows an individual node (i.e. state) to be in-
spected in order to allow the actual structure of the node to be understood. The node inspector can be launched
on any state in Probe by selecting a row, right-clicking and then selecting Inspect Node in the resulting menu.
To launch the node inspector from the Debug Viewer, hover over the desired state and select Inspect Node in
the window that appears. For example, suppose the counterexample shown as part of the Debug Viewer is be-
ing viewed and that the very first node of the implementation row is hovered over (i.e. the blue node on the
24 Chapter 2. The FDR User Interface
FDR Manual, Release 4.2.0
SYSTEM line). Clicking Node Inspector in the resulting window will result in the following being displayed:
Clicking on Expand All will result in the full node structure of the selected node being displayed, as shown below:
2.6. Node Inspector 25
FDR Manual, Release 4.2.0
The above indicates that the selected node is an alphabetised parallel of three alphabetised parallels, the first of which
is a parallel of the weak bisimulation of PHIL(0) and the weak bisimulation of FORK(0). Hovering over the nodes
in the window will display information various information, such as the synchronisation sets in use. Unknown nodes
are indicated using a ?. Note that hovering over the node will reveal some information about it, such as which state
machine the node is a member of (if known).
2.7 Communication Graph Viewer
The communication graph of a process is a graph that indicates which processes communicate with which other
processes. Thus, it is a graph in which the vertices are subprocesses of the top-level process, and in which there is an
edge between any two processes if they can both perform some event. For example, if Dining Philosophers is loaded,
then typing :communication_graph SYSTEM into the prompt would show the following window:
26 Chapter 2. The FDR User Interface
FDR Manual, Release 4.2.0
In the graph, there is a vertex for each PHIL process and a vertex for each FORK process. Further, there is a edge
between each PHIL and its neighbouring FORK processes, since they can both perform pickup and putsdown
events.
Clicking on a node in the graph will change the contents of the right-hand pane. For example, selecting PHIL(0)
will change the contents of the right-hand pane to the following:
This indicates the name of the process that is selected, along with the processes’ alphabet (i.e. the set of events it can
actually perform). Further, the pane also displays communication partners, which are the other processes with which
the process communicates, along with the set of events upon which they synchronise.
The Show Global Events option on the bottom right can be used to toggle whether or not a global event is considered
2.7. Communication Graph Viewer 27
FDR Manual, Release 4.2.0
in the communication graph. A global event is defined as any event that more than 90% of the processes participate in,
and common examples are events such as tock. If this box is left unchecked, then such events will be elided, which
will often result in a reduction in the number of edges in the graph.
2.8 Machine Structure Viewer
The machine structure viewer provides a way of viewing FDR’s internal representation of a CSP process. This takes
the form of a tree of processes, where the leaves are simple processes, and the internal vertices (i.e. non-leaf nodes) cor-
respond to processes composed of others. For example, if Dining Philosophers is loaded, then typing :structure
SYSTEM’ into the prompt would show the following window:
This indicates that the process SYSTEM’ is composed of two subprocesses, PHILS and FORKS. Further, PHILS
is composed of 6 subprocesses, each of the form sbisim(PHIL(i)) (i.e. sbisim applied to PHIL(i)). This
viewer can be a useful tool for checking that a process has been defined correctly, and for investigating how FDR has
represented the process in order to diagnose any performance problems. It is also a useful tool for investigating the
effectiveness of compression, since it is capable of displaying the number of states both before and after compression.
In general, there are three different types of nodes that will appears in the tree. Exactly which node will appear depends
on how FDR internally decides to represent a process.
• High-level machine nodes: these correspond to individual CSP operators, such as Alphabetised
Parallel and Hide, that are applied to any number of subprocesses (depending on the operator). In this
case, the node will display the number of formats and rules, which can be a useful indicator of the complexity
of a machine (the more formats and rules, the more complex the machine).
• Low-level machine nodes: these will generally correspond to simple recursive CSP processes which FDR de-
cides to compile into a single labelled-transition system, and thus these nodes are not divisible. The number of
states and transitions is given.
• Compressed machines: these will appear wherever a compression function, such as normal or sbisim, is
applied. This will indicate how many states and transitions the compression managed to save. This data is used
to estimate the total number of states and transitions that compression saved.
28 Chapter 2. The FDR User Interface
FDR Manual, Release 4.2.0
The right-hand pane displays information about the selected process. For example, if PHILS is selected, the informa-
tion pane displays the following:
This shows information about what CSP operator the process represents (if the node is a non-leaf node), the alphabet
of the process (i.e. the set of events it can perform), and the list of processes that are leaf processes underneath this
vertex (if the node is not a leaf itself).
2.9 Options
The options are catagorised according to what they affected below.
2.9.1 Compiler
option compiler.check_for_immediate_recursions
Default On
If true, FDR will check to see if any processes of the form P = P [] STOP are defined. If this option is not
set then such a process will cause FDR to fail at runtime, generally with a segmentation fault. If you know that,
by construction, no such processes can be contained within your file then this option can be disabled to reduce
the time required to compile processes. Note that this will only have an impact on huge processes, that contain
millions of names. On anything smaller the different will be negligible.
option compiler.leaf_compression
2.9. Options 29
FDR Manual, Release 4.2.0
Default sbisim
The compression that is used for compressing arguments of high-level machines. This may either be none,
indicating that no compression should be used, or sbisim or wbisim, to indicate that the strong or weak
bisimulation compression function should be used, respectively.
option compiler.recursive_high_level
Default On
If true FDR will compile processes of the form P=Q;Pin an optimised format. It is recommended that
this is not disabled, unless it is producing poor results on such a process.
option compiler.reuse_machines
Default On
If true FDR will, at the cost of increased memory usage, re-use named state machines in different assertions. If
the same state machine is not being used in more than one assertion then it may make sense to disable this as it
will decrease memory use.
2.9.2 Functional Language
option cspm.evaluator_heap_size
Default A default value chosen by FDR.
This option allows for more memory to be allocated for the evaluator up front and can be used to improve
performance in some cases. If the value is suffixed by K,M, or G, it is a size in kilobytes, megabytes, or
gigabytes, respectively. Otherwise, it is a size in bytes.
Warning: This option will not take effect until FDR is restarted.
option cspm.profiling.active
Default Off
If set to On, then simple profiling statistics are collected that detail how many times each function has been
called, and by which other functions. For further details on profiling see Profiling. Note that turning on this
option will reduce the performance of the evaluator and therefore, this option should only be kept activated for
as long as necessary.
Warning: This option will not take effect until load or reload is executed.
option cspm.profiling.flatten_recursion
Default On
This option affects how profiling statistics are reported (and is therefore only relevant assuming
cspm.profiling.active is On). If this option is Off, then recursive functions, such as:
f(0)=0
f(x) = f(x-1)
will result in a hierarchy that is as deep as the longest possible chain of recursive calls, causing profiling to be
slower and making the data more accurate, but potentially more difficult to interpret. See Profiling for further
details.
Warning: This option will not take effect until load or reload is executed.
30 Chapter 2. The FDR User Interface
FDR Manual, Release 4.2.0
option cspm.runtime_range_checks
Default On
If Off, then FDR will not check to see if the values that are dotted with channel or datatype constructors are in
the defined sets. For example, consider the following script:
channel c: {0..1}
datatype X=Y.{0..1}
If this option is On, then FDR would throw an error if c.2 or Y.2 were evaluated. Turning this option off will
suppress these errors.
This option should only be used for performance reasons in circumstances in which you are confident that it
would be impossible for this error to be produced. In particular, whilst turning this option off will never cause
FDR to emit further errors, it is possible to construct processes that are incorrect. For example, in theory, hiding
Events should result in a process that can perform no visible events, but (c.2 -> STOP) \ Events is
equivalent to c.2 -> STOP, since c.2 is not a valid event and is therefore not in Events.
Warning: This option will not take effect until load or reload is executed.
2.9.3 Graphical User Interface
option gui.close_windows_on_load
Deafult Off
If set to On, then whenever a load or reload command is executed, all windows relating to the current session
will be closed.
option gui.console.history_length
Default 100
The number of history entries to keep in the command prompt. Any integer strictly greater than 0 is permitted
for this option.
2.9.4 Refinement Checking
option refinement.bfs.workers
Default The number of available cores.
The number of workers to use for a refinement check that is using breadth first search. This may be set to any
value strictly greater than 0. If 1 core is selected then the algorithm used is identical to the algorithm of FDR2
(at least conceptually). If more than 1 worker is required then a parallelised version of breadth first search is
used, as explained in Refinement Checking.
option refinement.cluster.homogeneous
Default false
If set to true, FDR will assume that the nodes in the cluster are homogeneous (i.e. each node has the same
number of cores of the same speed), rather than trying to calculate the speed of each machine.
If you are operating on a homogeneous cluster, it is strongly recommended that this flag should be set, as
otherwise the cluster may end up being imbalanced.
option refinement.desired_counterexample_count
2.9. Options 31
FDR Manual, Release 4.2.0
Default 1
The number of counterexamples that FDR should attempt to find during a refinement check. Note that FDR may
not be able to find this many counterexamples, but will continue to search until it has either found the desired
number, or until every state pair has been explored.
See Uniqueness for further details on what FDR considers to be a unique counterexample. See Debug Viewer
for a description on how to view the different counterexamples.
option refinement.explorer.storage.type
Default A default value chosen by FDR.
The data structure used for storing states to visit on the next ply of the breadth first search. The permitted values
are:
Default Indicates that FDR should choose a storage structure. Presently, the default value is always a BTree,
but at some point in the future it may be auto-selected depending on the problem.
BTree Use a BTree to store the states. This uses memory proportional to the number of node pairs stored, but
with an overhead of at least 8 bytes per node pair stored.
LSMTree Use a Log-Space Merge Tree. This tree should perform only slightly worse than the BTree in the
worst case, but may be much faster on some examples, particularly those that incorporate machines that
have relatively random transition systems. This has essentially no storage overhead, but can end up storing
multiple copies of the same node pair. However, the number of duplicate copies is bounded by log of the
number of stored node pairs.
option refinement.storage.compressor
Default A default value chosen by FDR.
The type of compressor to use for the block-based storage used during refinement checking.
Default Lets FDR chose a compressor. Currently, this always defaults to LZ4.
DefaultHigh Lets FDR chose a compressor that will result in a high compaction ratio. Currently, this defaults
to Zip. This can be useful on checks that exceed the amount of RAM available.
LZ4 Compresses the data using the LZ4 compression algorithm. This generally reduces the storage require-
ments to 0.3 of the original, whilst having no noticeable impact on checking time.
LZ4HC Compresses the data using the LZ4HC compression algorithm. This generally reduces the storage
requirements to around 0.25 the original requirement, but halves the number of states that can be checked
per second compared to LZ4.
Zip Compresses the data using the Zip compression algorithm. This generally reduces the storage requirements
to around 0.2 of the original requirement, but will reduce the number of states that can be checked per
second to around three quarters of the number that can be checked per second using LZ4.
option refinement.storage.file.path
Default None
If set to a comma-separated list of writeable directory paths FDR will use on-disk storage to store data during
refinement checks, rather than relying on the system’s swap implementation. In particular, FDR will still make
use of RAM to cache data, but when the cache is filled, FDR will evict data to files stored in the directory as set
above. The size of the in-memory cache can be set using refinement.storage.file.cache_size.
For example, setting this to /scratch/disk1,/scratch/disk2 will cause FDR to write data to both
folders.
This option is only useful if the amount of memory required to complete a check exceeds the available RAM. In
such cases, setting this option to a valid directory path typically increases performance. Further, it allows FDR
to allocate more memory than is available to the system (which can only use RAM and swap).
32 Chapter 2. The FDR User Interface
FDR Manual, Release 4.2.0
For maximum performance this directory should point to a location on a solid-state drive (SSD). Use of tradi-
tional disk drives is not recommended since FDR is not optimised for such cases.
When this option is selected it may be necessary to increase the maximum number of files that are allowed to
be simultaneously open. On large checks that consume several hundred gigabytes of storage, FDR will easily
require several thousand files to be simultaneously open. The required number of files can be estimated by
dividing the number of megabytes of storage required for the check by 64 (which is the file size FDR uses by
default). To adjust the maximum number consult the documentation for your Linux distribution (searching for
“set maximum number of open files” generates useful results). FDR checks at runtime if this value is sufficient
for operation.
See Also:
refinement.storage.file.cache_size Allows the amount of memory that FDR uses for the in-
memory cache to be set.
refinement.storage.file.checksum If set, FDR will verify data that is written to the disk.
refinement.storage.file.compressor Allows extra compression to be applied to blocks written to
disk, thus minimising the amount of on-disk storage required.
option refinement.storage.file.cache_size
Default 90%
If file based storage is being used (see refinement.storage.file.path), this specified the amount of
memory to use before evicting data to disk. This can be specified either as a percentage of the available system
RAM at the point the refinement check starts, or as an absolute number of bytes. For example, specifying 50%
will cause FDR to use 50% of the remaining system RAM at the point the check starts, whilst 100GB would
cause FDR to use 100GB of RAM for the cache. KB,MB,GB and TB may be used as suffixes to specify the
amount of RAM to use for the cache.
For maximum performance this value should be set as high as possible, but must not be set so high that FDR
would start to use swap for its in-memory cache.
option refinement.storage.file.checksum
Default Off
If file based storage is being used (see refinement.storage.file.path) and this option is set to On,
this will cause FDR to verify data that is read from disk. This can be useful as a guard against disk corruption.
If FDR detects a corrupted block it will abort the check (there is no way to simply revisit the affected states,
unfortunately). This causes a small increase in runtime, generally around 5%.
option refinement.storage.file.compressor
Default None
If file based storage is being used (see refinement.storage.file.path) and this is set to a value other
than None, this specifies an additional type of compression to apply to blocks that evicted to disk. This can be
useful to minimise the amount of disk storage that is being used, but does result in the time to check a property
increasing by anywhere between 5 and 50% (depending on the problem).
This may be set to any of the values that refinement.storage.compressor can be set to, in addition
to the value None.
option refinement.track_history
Default On
This option controls whether FDR will record information that enables it to reconstruct traces if a counterexam-
ple is found. If this option is disabled, FDR will require less memory (up to 50% less), but will not be able to
2.9. Options 33
FDR Manual, Release 4.2.0
report any counterexamples. This option should only be used if the check passes, since FDR will not provide
any information about why the check fails if the assertion does not pass.
34 Chapter 2. The FDR User Interface
CHAPTER
THREE
THE FDR COMMAND-LINE INTERFACE
In addition to the graphical interface, FDR also exposes a command-line interface. Whilst this is not particularly
useful as a standalone tool, primarily due to the difficulty in navigating counterexamples, it can be useful for quickly
checking if assertions pass. More importantly, the command-line tool can also produce machine-readable output (in
either JSON, XML or YAML), providing an easy way of integrating FDR into other tools. The command-line version
can also be executed on clusters, enabling massive problems to be tackled.
On Linux the command-line tool can be invoked simply as refines (providing the standard installation
instructions have been followed). Under Mac OS X, the command line tool can be invoked by launch-
ing /Applications/FDR4.app/Contents/MacOS/refines, assuming that FDR has been installed to
/Applications/.
3.1 Command-Line Flags
refines takes as input a list of files and will check all assertions in all files. For example:
$refines a.csp b.csp
will cause refines to load a.csp, check all assertions in it, then load b.csp and then check all assertions. If the
filename is set to -, then refines will then read from stdin. For instance:
$refines - < a.csp
will cause refines to check assertions in a.csp, since it is piped into stdin.
refines takes various option flags, as follows
-archive <output_file>
If this option is specified then FDR will read in the specified CSP file, calculate all files that it includes, and then
save all of these into a single compressed file named output_file. output_file may subsequently be loaded
by refines in the normal way. For example:
$refines --archive phils.arch phils6.csp
Saved phils8.csp (and all depdendent files)to phils.arch
$refines phils.arch
SYSTEM :[deadlock free [F]]:
Log:
Found 50 processes including 7 names
...
This is intended to help running refines on a remote server since only the single combined archive needs to be
transferred, rather than all files that the root file includes. For example:
35
FDR Manual, Release 4.2.0
$refines --archive phils.arch phils6.csp
$scp phils.arch server:phils.arch
$ssh server "refines phils.arch"
would execute refines on the computer named server.
-brief,-b
If this option is included then only the result of each assertion is printed, rather than a description of the coun-
terexample.
See Also:
refines --divide,refines --reveal-taus
-divide,-d
If selected, any counterexample that is generated will be split and the behaviours of component machines will
also be output (as per the Debug Viewer).
See Also:
refines --brief,refines --reveal-taus
-format <format>, -f <format>
Specifies the output format, which must be one of:
colour This is the default mode. This pretty-prints texts in a human-readable format and uses some colours
to highlight text printed to the terminal.
plain As per colour, but no colours are used.
json Outputs machine-readable JSON, as described below in Machine-Readable Formats.
framed_json This is as per the json format, but instead outputs one complete JSON object after each
assertion or print statement. See Machine-Readable Formats for further details.
xml Outputs machine-readable XML, as described below in Machine-Readable Formats.
yaml Outputs machine-readable YAML, as described below in Machine-Readable Formats.
-help,-h
Prints the list of command-line flags that are available.
-quiet,-q
This suppresses all the progress logging that FDR normally generates.
-remote <ssh_host>
This causes refines to check the assertions on the specified remote host, using SSH. refines will connect
to the specified server, upload the script (including any scripts it includes), and then invokes refines on the
remote server. For example:
$refines --remote myserver phils6.csp
would cause refines to use SSH to connect to myserver and then invoke refines on the remote
server in order to check all assertions in ‘‘phils6.csp.
The --remote option can be used to specify an arbitrary sequence of options to ssh. For instance:
$refines --remote ’-o "PubkeyAuthentication=yes" -p 1000 user@remote’ phils6.csp
would mean refines invoked ssh as ssh -o "PubkeyAuthentication=yes" -p 1000
user@remote> (along with some other options to start refines on the remote server).
36 Chapter 3. The FDR Command-Line Interface
FDR Manual, Release 4.2.0
In order to use this comand, ssh (or ssh.exe on Windows) must be available on your $PATH, and refines
must be available on your $PATH on the remote server. The version of refines does not need to exactly
match the version on the remote server, but should be similar.
See Also:
refines --remote-path in order to change the path to refines on the remote server.
-remote-path <path>
This can be used to specify the path to refines on the remote server when using refines --remote. For
example:
$refines --remote myserver --remote-path /var/bin/refines phils6.csp
would cause /var/bin/refines to be invoked on the remote server, rather than refines.
See Also:
refines --remote for further details on how to invoke refines with the --remote option.
-reveal-taus
If selected, will print the top-level trace of the system with all taus revealed. That is, any tau in the counterex-
ample that is a tau that resulted from hiding will be revealed and the event that was hidden given instead.
For example, consider the following CSP script:
channel a,b
P=a-> b-> STOP
assert STOP [T= P\ {a}
Running refines on this file using the above option would print:
Trace: <τ>
Error Event:b
Unhidden trace: <a>
which indicates that the first tau was an a.
See Also:
refines --brief,refines --divide
-typecheck,-t
Typecheck the file arguments and exit.
-version,-v
Prints the version of the current version of FDR.
Further, any of the options that are available in the GUI, listed in Options can also be specified from the command line
by replacing each .or _in the option name with a -. For example, refinement.storage.compressor can
be set to Zip by adding the argument --refinement-storage-compressor Zip.
3.2 Examples
The following causes FDR to check all assertions in the file, outputting as much information as possible.
$refines phils6.csp
SYSTEM :[deadlock free [F]]:
Log:
3.2. Examples 37
FDR Manual, Release 4.2.0
Found 50 processes including 7 names
Visited 43 processes and discovered 6 recursive names
Constructed 0 of 1 machines
Constructed 0 of 2 machines
Constructed 0 of 3 machines
...
The next example will cause FDR to check all assertions in the file, but suppresses all logging (due to refines
--quiet) and causes only a summary of the results to be produced (due to refines --brief).
$refines --brief --quiet phils6.csp
SYSTEM :[deadlock free [F]]: Failed
SYSTEMs :[deadlock free [F]]: Failed
BSYSTEM :[deadlock free [F]]: Passed
ASSYSTEM :[deadlock free [F]]: Passed
ASSYSTEMs :[deadlock free [F]]: Passed
This example supresses all logging, but will cause FDR to pretty-print counterexamples to any assertions that fail.
FDR will also divide the counterexamples to give behaviours for each subprocess of the main process (thus allowing
each component’s contribution to the error to be deduced).
$refines --divide --quiet phils6.csp
SYSTEM :[deadlock free [F]]:
Log:
Result: Failed
Visited States: 181
Visited Transitions: 493
Visited Plys: 9
Counterexample (Deadlock Counterexample)
Implementation Debug:
SYSTEM (Failure Behaviour):
Trace: <thinks.1, sits.1, thinks.0, thinks.2, sits.2, sits.0,
picks.1.1, picks.0.0, picks.2.2>
Min Acceptance: {}
Component Behaviours:
...
3.3 Using a Cluster
refines can also be executed on clusters using MPI <http://www.mpi-forum.org/> in the standard way. For example:
$mpiexec refines phils6.csp
will execute refines on whatever cluster mpiexec is configured to use. Note that all other options for refines, including
those that control machine- readable output, function as normal.
For optimal performance, refines should be executed on a cluster with a high-performance interconnect and con-
sisting of homogeneous compute nodes (i.e. with the same number and speed of cores). Further, exactly one copy of
refines should be executed on each physical server. refines will still use all of the cores, but will use a more
efficient communication algorithm for communication with other threads on the same physical node.
For example, to execute refine on two homogeneous nodes node001 and node002, the following could be used:
$mpiexec -hosts node001,node002 refines --refinement-cluster-homogeneous true phils6.csp
Note that refinement.cluster.homogeneous has been set to true. This option should always be specified
when using a homogeneous cluster, since it makes FDR assume the cluster is homogeneous. If it is not specified there
38 Chapter 3. The FDR Command-Line Interface
FDR Manual, Release 4.2.0
is a small chance FDR may fail to detect the homogeneity of the cluster, leading to suboptimal performance.
The required interconnect speed depends on the problem, but in our experience, if each node in the cluster has 8 cores,
the interconnect needs to be able to support 750 Mb/s (e.g. gigabit Ethernet), whilst if each node has 16 cores, the
interconnect needs to support 1500 Mb/s (e.g. 10-gigabit Ethernet, or InfiniBand).
See Also:
refines --archive If your CSPMscripts make use of Include Files, then refines --archive can help
when transferring files over to a cluster since it packages all files, including all files that are included, into a
single compressed archive. For example:
$refines --archive phils.arch phils6.csp
$scp phils.arch cluster-master:phils.arch
$ssh cluster-master "mpiexec -hosts node001,node002 refines --refinement-cluster-homogeneous true phils.arch"
would execute FDR on the cluster consisting of node001 and node002.
Warning: At the present time, only checks in the traces and failures models will take full advantage of the cluster
mode as parallelising divergence checking has not be parallelised to take advantage of multiple machines in an
optimal way.
3.3.1 Supported MPI Versions
Currently the cluster version of refines only supports Linux running one of the following MPI distributions:
•MPICH 1.4.1;
•MPICH 3.1.2;
•MVAPICH 1.8.1.
The usage of MPICH 3.1 (or any other MPI3 compliant distribution) is strongly recommended, particularly on larger
clusters.
Further, FDR4 requires that the MPI distribution has support for multi-threaded applications (in particular
MPI_THREAD_FUNNELED). When running under mvapich, this requires -env IPATH_NO_CPUAFFINITY 1
-env MV2_ENABLE_AFFINITY 0 to be passed to mpiexec.
Please contact us if you would like us to add support for an alternative MPI distribution, or if refines fails to
auto-detect your MPI distribution.
3.3.2 Using Cloud Computing Services
Amazon’s EC2 is ideally suited to being used for FDR. In particular, Amazon’s support for Enhanced Networking
(i.e. 10-gigabit Ethernet) and the availability of Placement Groups (which guarantee optimal network performance
between compute nodes) means that they are ideal hosts for FDR. In particular, the large r3.4xlarge (8 cores) and
r3.8xlarge (16 cores) provide an excellent balance of memory and compute power for refines.
Creating and optimally configuring a cluster on Amazon is complex. We recommend the use of StarCluster, which
can automatically setup and configure a cluster on EC2. You may use the following starcluster configuration as a
starting point for a FDR-compatible cluster. Note the presence of SUBNET_ID and VPC_ID: in order for Enhanced
Networking to function correctly, the nodes in the cluster must be part of VPC on Amazon. The StarCluster user guide
can provide more help on this point.
3.3. Using a Cluster 39
FDR Manual, Release 4.2.0
[cluster fdr]
CLUSTER_SIZE =...
NODE_INSTANCE_TYPE =r3.8xlarge
DNS_PREFIX =True
NODE_IMAGE_ID =ami-52a0c53b
SUBNET_ID =...
VPC_ID =...
PLUGINS =mpich2, mpich3, pkginstaller, sge
DISABLE_QUEUE =True
[plugin mpich2]
SETUP_CLASS =starcluster.plugins.mpich2.MPICH2Setup
[plugin sge]
# Don’t use the default SGE setup because we only want one slot per node
SETUP_CLASS =starcluster.plugins.sge.SGEPlugin
SLOTS_PER_HOST =1
[plugin pkginstaller]
SETUP_CLASS =starcluster.plugins.pkginstaller.PackageInstaller
PACKAGES =language-pack-en
[plugin mpich3]
SETUP_CLASS =mpich3.MPICH3Setup
This also requires the following plugin, which builds mpich3 from source, to be installed to
~/.starcluster/plugins/mpich3.py:
from starcluster.clustersetup import ClusterSetup
from starcluster.logger import log
class MPICH3Setup(ClusterSetup):
def _configure_node(self, node):
env_file =node.ssh.remote_file(’/etc/profile.d/mpich3.sh’,’w’)
env_file.write("PATH=/home/sgeadmin/mpich3/bin:$PATH\n")
env_file.close()
def run(self, nodes, master, user, user_shell, volumes):
log.info("Building mpich 3.1.1 from source")
master.ssh.execute("""
cd /home/sgeadmin
wget http://www.mpich.org/static/downloads/3.1.1/mpich-3.1.1.tar.gz
tar xzvf mpich-3.1.1.tar.gz
cd mpich-3.1.1
./configure --prefix=/home/sgeadmin/mpich3
make -j16
make install
""")
log.info("Setting environment on all nodes...")
for node in nodes:
self._configure_node(node)
def on_add_node(self, node, nodes, master, user, user_shell, volumes):
self._configure_node(node)
from starcluster.clustersetup import ClusterSetup
from starcluster.logger import log
from starcluster import threadpool
40 Chapter 3. The FDR Command-Line Interface
FDR Manual, Release 4.2.0
class FDR4Setup(ClusterSetup):
def _configure_node(self, node):
node.ssh.execute("echo \"deb http://www.cs.ox.ac.uk/projects/fdr/downloads/debian/ fdr release\n\" > /etc/apt/sources.list.d/fdr.list")
node.ssh.execute("wget -qO - http://www.cs.ox.ac.uk/projects/fdr/downloads/linux_deploy.key | apt-key add -")
node.ssh.execute("apt-get update")
node.ssh.execute("apt-get install fdr")
def run(self, nodes, master, user, user_shell, volumes):
log.info("Installing FDR4 on each node")
pool =threadpool.get_thread_pool(20,False)
for node in nodes:
pool.simple_job(self._configure_node, (node), jobid=node.alias)
pool.wait(numtasks=len(nodes))
def on_add_node(self, node, nodes, master, user, user_shell, volumes):
self._configure_node(node)
Other cloud computing services are only suitable if they can guarantee extremely high performance connections be-
tween the compute nodes in the cluster (multi gigabit sustained throughput for each node, and very low latency).
3.4 Machine-Readable Formats
Warning: Before deciding to use the machine-readable interface to FDR, please firstly consider using the FDR
API instead, which allows for more thorough integration.
When a machine-readable format is selected (i.e. when refines --format is set to framed_json,json,
xml or yaml, e.g. refines --format json file.csp), the behaviour of refines is slightly modified, as
follows. Firstly, errors and warnings that are generated as a result of the input script are no-longer sent to stderr,
but instead are included as part of the machine-readable output. Errors that result from incorrect command-line flags
being passed are still sent to stderr. If refines --quiet is not specified, then log messages are now sent to stderr.
The machine-readable output is sent to stdout. The exit code for refines will be 0 precisely when valid machine-
readable output has been generated, and a value other than 0 indicates some sort of catastrophic error, either as a result
of incorrect flags being passed or a runtime crash (check stderr for more information). In particular, an error in the
input CSP script, or a failing assertion, will result in an exit code of 0 and the errors will be included as part of the
machine-readable output.
The machine-readable output consists essentially of a number of key-value pairs, specified in either JSON, XML or
YAML. The format of the various element types is specified below. The top-level element of the output (the element
type is file in XML) and is documented in Files.
If refines --format is set to framed_json, then the behaviour of refines is further altered. Normally,
if refines were to be killed, or crashed, when the JSON format is specified, then only a partially-formed JSON
object will be output. This means that any assertion results that were already finished are essentially lost. The
framed_json format is designed to avoid this problem. Instead of outputing a JSON document only when all
assertions and print statements are checked, it outputs a fully formed JSON object after each assertion or print state-
ment. Thus, the results for the ith assertion are contained in the ith file object.
The delimiter between the different files is a single LF character (i.e. \\n). This means the output can be parsed as
follows:
for document in fdr_output.split(’\n’):
file_object =json.loads(document)
3.4. Machine-Readable Formats 41
FDR Manual, Release 4.2.0
Each JSON document is a fully formed File object, as documented in Files. However, each File object will contain the
results of precisely one assertion or print statement.
3.4.1 Files
The top-level element in the output conceptually represents an input file, and has the following properties.
Element Meaning
errors A list of errors that were generated in response to loading the file.
event_map For various reasons, FDR internally represents events as integers. Thus, in the
counterexamples below all events are actually integers, rather than strings. This element
contains a map from each integer event to the corresponding string representation.
Warning: In the case of JSON the keys to this map are actually strings, rather than
integers since JSON requires all keys to be strings.
In the case of XML, the map is represented by a series of elements of the form
<i_40>done</i_40>, which indicates that the event 40 maps to the string done.
This is to compensate for the fact that XML does not allow elements to start with num-
bers.
Warning: No guarantees are provided about the order of the keys in the map. The only
guarantee that is provided is that each key will appear in the map at most once.
file_name The name of the file that was loaded.
results A list of assertion results, the format of which is described below. This will be empty if
errors was non-empty. The results will appear in the same order as the assertions in the
original file.
print_statement_resultsA list of results from evaulating print statements, the format of which is described below. As
with results, this will be empty if errors was non-empty, and the results will appear in
the same order as the print statements in the original file.
warnings A list of warnings that were generated when loading the file.
For example, executing refines --quiet --format=json phils6.csp will result in the following JSON
to be produced:
{
"errors": [],
"event_map": {
"13": "thinks.1",
"14": "sits.1",
...
},
"file_name": "phils6.csp",
"results": [
...
],
"print_statement_results": [],
"warnings": []
}
Examples of the result section are given below.
3.4.2 Assertion Results
Each item in the results list of Files will contain the following fields.
42 Chapter 3. The FDR Command-Line Interface
FDR Manual, Release 4.2.0
Element Meaning
assertion_stringA string representation of the assertion.
counterexamplesAn list of counterexamples to the assertion. If the assertion failed (i.e. result is 0) or the
assertion passed but is_negated is 1, this will be non-empty. Otherwise it will be empty.
The keys that this contains are specified below.
errors A list of errors that were encountered whilst compiling the assertion. If this list is non-empty
then none of the following elements will be present.
is_negated This will be 1if the assertion is of the form assert not and 0otherwise.
result This will be 1if the assertion passes and 0otherwise. Note that if the assertion is negated and
the inner assertion fails, then this will be 1.
visited_plys An integer giving the number of plys that were visited in the breadth-first search.
visited_statesAn integer giving the number of states visited during the search.
visited_transitionsAn integer giving the number of transitions that were visited.
For example, executing refines --quiet --format=json phils6.csp and extracting the first element
of the results array will give the following JSON:
{
"assertion_string": "SYSTEM :[deadlock free [F]]",
"counterexamples": [
...
],
"errors": [],
"is_negated": 0,
"result": 0,
"visited_plys": 9,
"visited_states": 181,
"visited_transitions": 493
},
The contents of an element of the counterexamples list are given below.
3.4.3 Counterexample
A counterexample to an assertion conceptually consists of a behaviour of the implementation that violates the assertion
in some way. A counterexample element contains the following fields.
3.4. Machine-Readable Formats 43
FDR Manual, Release 4.2.0
Element Meaning
implementation_behaviour ABehaviour of the implementation that the specifica-
tion cannot perform. The format of this is specified be-
low.
specification_behaviour ABehaviour of the specification. The format of this
is specified below. This item is only present when the
assertion is a refinement assertion, or a determinism as-
sertion; for all other assertions (such as deadlock and
divergence free assertions), this will not be present.
type A string representing the type of the counterexample.
This will either be:
deadlock This is generated as a counterexample to
a:[deadlock free] assertion and indicates
that the implementation can deadlock after a cer-
tain trace (or, if the failures-divergences model is
being used, that the implementation can diverge).
In this case, specification_behaviour is
not present since its behaviour is not relevant.
determinism This is generated in response
to a :[determinism] assertion, and
indicates that the implementation can di-
verge after a certain trace. In this case,
specification_behaviour and
implementation_behaviour are not
really behaviours of the specification and the
implementation, but instead are two behaviours
that demonstrate non-determinism in the imple-
mentation process. Either: one behaviour will
be a trace behaviour (indicating it can perform
a certain visible event) and once behaviour will
be an acceptance behaviour, indicating that the
process can refuse the event; or one behaviour
will be a divergence behaviour and the other will
be an irrelevant trace behaviour.
divergence This is generated in response to
a:[divergence free] assertion, and
indicates that the implementation can di-
verge after a certain trace. In this case,
specification_behaviour is not present
since its behaviour is not relevant.
refinement_divergence This is generated in re-
sponse to a violation of a failures-divergences re-
finement assertion, and indicates that the imple-
mentation can diverge after a certain trace, but the
specification cannot.
failure This indicates that this counterexample is
from a failing failures check. Hence, the imple-
mentation can refuse to perform events that the
specification does not allow to be refused.
trace This indicates that the implementation can per-
form a trace that the specification cannot.
For example, executing refines --quiet --format=json phils6.csp and extracting the first element
44 Chapter 3. The FDR Command-Line Interface
FDR Manual, Release 4.2.0
of the counterexamples array from the JSON example given in Assertion Results will give the following JSON:
{
"implementation_behaviour": ...,
"type": "deadlock"
}
The contents of the implementation_behaviour value are given below.
3.4.4 Behaviour
Conceptually, a behaviour of a machine (i.e. a process) is a trace that it can perform, along with some action that it
can perform after performing the trace that is of interest. For example, a behaviour may indicate that the machine can
diverge after a certain trace, or that it accept only a certain set of events, etc. A behaviour element has the following
fields:
3.4. Machine-Readable Formats 45
FDR Manual, Release 4.2.0
Element Meaning
child_behaviours If refines --divide is specified and this machine
is divisible, this will consist of an array of behaviours of
the subprocesses of this machine. For example, if this
behaviour is a behaviour of P ||| Q, then this would
have two elements, one representing Pand the other rep-
resenting Q.
machine_name If this behaviour is a behaviour of a machine whose
name is known (i.e. this is a behaviour of a process
that is defined as P=X|||Yin the input file), this
this field contains a string representation of the process
name.
trace This is an array of integers that represent the events that
lead up to the actual behaviour. Note that unlike traces
from CSP theory, this may include taus.
Note that FDR aligns all traces (as seen in the Debug
Viewer), meaning that if you have two behaviours then
their trace lengths are guaranteed to be the same. Fur-
ther, if two behaviours both perform an event at some
index iand neither is the child of the other, then it must
be the case that the two events are synchronised some-
how. In order to ensure that all traces are identical, FDR
inserts the event 0in traces to indicate that this machine
does not contribute to this event and does not change
state. For example, consider:
channel a,b
P=a-> a-> STOP
Q=a-> b-> aSTOP
assert a-> b-> STOP [T= P[| {a}|]Q
A counterexample to this will have
implementation_behaviour being a trace
behaviour with trace <a, b> and error event a. Its
two children will have traces <a, 0> and <a, b>
respectively. This indicates that both components syn-
chronise on the a, but the second component performs
the bindependently of the first.
revealed_trace This field is only present if refines
--reveal-taus is specified and this is the top-
level implementation behaviour. If so, then this will be
as per trace, but any taus that resulted from hiding
will be revealed and the original visible event printed
instead.
type This indicates the type of the behaviour, and will be one
of the following strings:
divergence This indicates that the process can di-
verge having performed the trace. There are no
extra properties of the behaviour in this case.
loop This indicates that the process can repeat some
suffix of the trace infinitely often. In this case the
field loop_start contains an integer that spec-
ifies the index at which the repeat starts. For ex-
ample, if loop_start was 0then this indicates
the machine can repeat the entire trace, whilst a
value of 1means that it can repeat all but the first
event. This often appears when dividing diver-
gence counterexamples.
min_acceptance This indicates that the process
will only accept a certain set of events having per-
formed the trace. The set of events that it accepts
is given by the acceptance field, which is a list
of integers corresponding to the events that it ac-
cepts. This will appear either in a deadlock coun-
terexample where the acceptance field will be
the empty array for the top-most implementation
behaviour (indicating that it accepts no events, i.e.
it deadlocks). It also appears during failure
counterexamples.
segmented This behaviour type appears when coun-
terexamples involving processes such as P =
normal(Q) ; P are discovered. In this case
FDR will have, most likely, compiled these
to [recursive high-level machines](@ref com-
piler_machine_types). It is possible for a be-
haviour of Pto require several loops around Q.
Such behaviours are represented by segmented be-
haviours. Conceptually, these consist of a series
of sections, which are themselves behaviours, that
the machine performs in sequence. Thus, seg-
mented behaviours have two extra fields:
last_section Abehaviour that is the last
behaviour the machine performs. This is the
behaviour that will exhibit the counterexam-
ple to the assertion (i.e. this behaviour may
be a divergence, loop etc.).
prior_sections A list of behaviour ele-
ments, all of which are guaranteed to have
type trace. The machine performs these
in order. The error_event in each of
the behaviours is what causes the machine
to change to the next segment.
For example, consider:
channel a
transparent normal
Q=a-> SKIP
P= normal(Q) ;P
assert a-> STOP [T= P
A counterexample to the above consists of the im-
plementation behaviour where ais performed af-
ter performing the trace <a, τ>(where the τ
comes from the X). This is represented by the
following segmented behaviour:
{
"child_behaviours": [],
"last_section": {
"error_event":"a",
"machine_name":"normal(Q)",
"trace": [],
"type":"trace"
},
"machine_name":"normal(Q)",
"prior_sections": [
{
"error_event":"X",
"machine_name":"normal(Q)",
"trace": [
"a"
],
"type":"trace"
}
],
"trace": [
"a",
"X"
],
"type":"segmented"
}
Note in the above the integers that represent the
event have been replaced by strings to ease expla-
nation.
trace This indicates that the machine can perform a
particular event of interest having performed the
trace. The event it performs is included in the
field error_event. If this event is 0, this in-
dicates that the machine did not contribute to the
event in question. For example, the behaviour
that violates assert STOP [T= STOP |||
a -> STOP will be a trace behaviour with error
event a. This will have two child behaviours (one
for STOP and one for a -> STOP), the first of
which will be a trace behaviour with error event 0
since it does not contribute to the a.
46 Chapter 3. The FDR Command-Line Interface
FDR Manual, Release 4.2.0
For example, executing refines --quiet --format=json phils6.csp and extracting the
implementation_behaviour of the counterexample element in the JSON example given in Coun-
terexample will give the following JSON:
{
"acceptance": [],
"child_behaviours": [
...
]
"machine_name": "SYSTEM",
"trace": [
13,
14,
...
],
"type": "min_acceptance"
}
3.4.5 Print Statements
Each item in the print_statement_results list of Files will contain the following fields.
Element Meaning
print_statementThe print statement being evaluated.
location The location in the source code of the print statement.
errors A list of errors that were encountered whilst evaluating the print statement. If this list is
non-empty then none of the following elements will be present.
result This element is only present if errors is empty, and gives the result of evaluating the print
statement.
For example, suppose test.csp contains the line print 1+1. Then, executing refines --quiet
--format=json test.csp, and inspecting the first item in the print_statement array will give:
{
"print_statement":"1+1",
"location":"test.csp:1:1-10",
"errors": [],
"result":"2"
}
3.4.6 Code Examples
The following Python program invokes refines and will check all of the assertions in the given file, printing out
limited debug information. This can be used as a skeleton for calling refines.
# Used for parsing the output of refines
import json
# Used to invoke refines
import subprocess
# For accessing command line arguments
import sys
path_to_refines ="refines"
def run_fdr(file_to_check):
print "Running FDR on", file_to_check
3.4. Machine-Readable Formats 47
FDR Manual, Release 4.2.0
# Documented at
# http://docs.python.org/2/library/subprocess.html#subprocess.Popen
fdr_process =subprocess.Popen([path_to_refines, "--format=json", file_to_check],
stdout =subprocess.PIPE, stderr =subprocess.PIPE)
# We launch FDR inside a try block to catch a user pressing CTRL+C and
# then terminate FDR. If we did not do this FDR would continue running
# in the background
try:
# Documented at
# http://docs.python.org/2/library/subprocess.html#subprocess.Popen.communicate
(stdout, stderr) =fdr_process.communicate()
except KeyboardInterrupt:
fdr_process.terminate()
# Re-throw the exception
raise
print "Finished"
if fdr_process.returncode == 0:
print "Log data was:"
print stderr
# Parse the machine-readable data
parsed_data =json.loads(stdout)
for error in parsed_data["errors"]:
print "Error:", error
for warning in parsed_data["warnings"]:
print "Warning:", error
# If we generated results (if there were errors above this would not
# be present)
if "results" in parsed_data:
for assertion in parsed_data["results"]:
print "Assertion:", assertion["assertion_string"]
# If the assertion has errors then we emit those.
if "errors" in assertion:
print " Errors during assertion"
for error in assertion["errors"]:
print "Error:", error
else:
print " Visited States:", assertion["visited_states"]
print " Passed:", assertion["result"]== 1
else:
# Since FDR exited with a non-zero exit code we cannot parse the
# data on stdout, since it may well be malformed.
print "Failed - exit code", fdr_process.returncode
if __name__ == "__main__":
if len(sys.argv) != 2:
print "Please specify exactly one file"
else:
run_fdr(sys.argv[1])
Note: We would welcome contributions of similar examples in other languages.
48 Chapter 3. The FDR Command-Line Interface
CHAPTER
FOUR
CSPM
CSPMis a lazy functional language with built-in support for defining CSP processes. It also allows assertions to be
made about the resulting CSP processes.
4.1 Definitions
CSPMfiles consist of a number of definitions, which are described below. Some of these definitions can also be given
at the FDR The Interactive Prompt and within Let expressions. In this Section we give an overview of the type
of declarations allowed in CSPM. A declaration list is simply a list of the declarations in this section, separated by
newlines.
4.1.1 Constants
The simplest type of definition in CSPMbinds the value of an expression to a pattern. In particular, if pis a pattern
and eis an expression, both of some type a, then p=ematches the value of eagainst pand, if pdoes match then
binds all the variables of p, otherwise throws an error. For example, x=5binds xto 5,(x, y) = (5, f(5))
binds xto 5and yto f(5). Alternatively, given <x> = <> the following error is thrown upon evaluating x:
Pattern match failure: Value <> does not match the pattern <x>
4.1.2 Functions
CSPMprovides a rich syntax for defining functions that is highly expressive. The simplest example of a function is
the identify function, which simply returns its argument unaltered. This can be written in CSPMas id(x) = x and
has type (a) -> a. CSPMalso allows function definitions to use pattern matching to define functions. For example,
given the definition of fas:
f(0)=1
f(1)=2
f(_) = error("Disallowed argument")
Then f(0) evaluates to 1,f(1) evaluates to 2, whilst any other argument evaluates to an error. Functions can also
take multiple arguments, separated by commas. Thus, f(x,y) = x*ydefines the multiplication function.
CSPMalso provides support for curried function definitions. For example, f(x)(y) = x+y means that fis of type
(Int) -> (Int)->Int (noting that -> is right associative). Evaluating f(4) yields a function to which the
second argument may be passed. Thus, f(4)(2) = 6.
49
FDR Manual, Release 4.2.0
4.1.3 Type Annotations
Functions and constants may have their type specified by providing a type annotation on a separate line to the main
definition. For example, the following specifies that the function fhas the type of the identity function:
f:: (a) -> a
It is also possible to specify that a type variable has certain type constraints. For example, the following requires that
gis a function that takes two arguments of the same type that must satisfy the Eq type constraint:
g:: Eqa=> (a,a) -> Bool
The type annotations, in addition to being a useful way of documenting programs, are used by the type-checker to
guide it to deducing the correct type, particularly for functions that use Dot in various complex ways. Further, the use
of type annotations will result in more useful errors being emitted.
In general, a type annotation is a line of the form:
n1,n2, ..., nM :: Type
n1,n2, ..., nM :: TypeConstraint a => Type
n1,n2, ..., nM :: (TypeConstraint a, ..., TypeConstraint a) => Type
where the ni are names whose definitions are given at the same lexical level (i.e. if the type of fis declared inside
a let expression, then fmust also be declared inside exactly the same let expression); TypeConstraint is a type
constraint;Type is a Type System Type expression.
Type variables within type annotations are scoped in the same way as variables. For example, consider the following
definition, which contains a let expression:
f:: Set a=> (a) -> {a}
f(x) =
let
g:: (a) -> {a}
g(x) = {x}
within g(x)
In the above, the type variable ain the type annotation for gis precisely the same type variable as in the type annotation
for f. Hence, the type annotation for gdoes not require the Set type constraint since this has already been specified
in the type annotation for f(in general, type constraints may only be specified in the type annotation where a type
variable is created).
Warning: Specifying type annotations for non-existent names will result in an error, as will specifying multiple
type annotations for the same name. Further, type constraints may only be specified in the type annotation that
creates the type variable.
See Also:
Type System This gives the full syntax for types in CSPM.
Type Constraints This includes a complete list of supported type constraints.
New in version 3.0.
4.1.4 Datatypes
CSPMalso allows structured datatypes to be declared, which are similar to Haskell’s data declarations. The simplest
kind of datatype declaration simply declares constants:
50 Chapter 4. CSPM
FDR Manual, Release 4.2.0
datatype NamedColour =Red |Green |Blue
This declares Red,Green and Blue as symbols of type NamedColour, and binds NamedColour to the set
{Red, Green, Blue}. Datatypes can also have parameters. For example, we could add a RGB colour data
constructor as follows:
datatype ComplexColour =Named.NamedColour |RGB.{0..255}.{0..255}.{0..255}
This declares Named to be a data-constructor, of type NamedColour => ComplexColour,RGB to be a data-
constructor of type Int => Int => Int => RGB and ComplexColour to be the set:
union({Named.c|c<- NamedColour},
{RGB.r.g.b|r<- {0..255}, g<- {0..255}, b<- {0..255}})
Thus, in general, if a datatype Tis declared, then Tis bound to the set of all possible datatype values that may be
constructed. Note that, as mentioned in Dot, if an invalid data-value is constructed then an error is thrown. Thus,
constructing RGB.1000.0.0 would throw an error, as 1000 is not in the permitted range of values. This is the
primary difference between datatypes in other languages and CSPM: CSPMrequires the actual set of values allowed
at runtime to be declared, whilst other languages merely require the type. This is done to allow Prefix to be used
more conveniently.
One important consideration is that the datatype must be rectangular, in that in must be decomposable into a Cartesian
product. For example, consider the following:
datatype X=A.{x.y|x<- {0..2}, y<- {0..2}, x+y<2}
This datatype is not rectangular as the datatype declaration cannot be rewritten as the Cartesian product of a number
of sets, since A.0.1 is valid, whilst A.1.1 is not. This will result in the following error being thrown:
./test.csp:1:14-57:
The set: {0.0, 0.1, 1.0}
cannot be decomposed into a cartesian product (i.e. it is not rectangular).
The cartesian product is equal to: {0.0, 0.1, 1.0, 1.1}
and thus the following values are missing: {1.1}
Datatypes can also be recursive. For example, the type of binary trees storing integers can be declared as follows:
datatype Tree =Leaf.Int |Node.Int.Tree.Tree
For example, the following function flattens a binary tree to a list of its contents:
flatten(Leaf.x)=<x>
flatten(Node.x.l.r) = flatten(l)^<x>^flatten(r)
This function is of type (Tree) -> <Int>.
In general a CSPMdatatype declaration takes the following form:
datatype N=C1.te1 |C2.te2 | ...
where N is the datatype name, the tei are optional and are Type Expressions (which differ from regular expressions)
and the Ci are the clause names. As a result of this, each Ci is bound to a datatype constructor that when dotted with
appropriate values (according to tei), yield a datatype of type N. In particular, if tei is of type {t1.(...).tN},
then Ci is of type t1 => ... => tN => N. Further, Nis bound to the set of all valid datatypes values of type
N.
Note: CSPMdatatypes cannot be parametric, so it is not possible, for instance, to declare a binary tree that stores any
type at its node.
4.1. Definitions 51
FDR Manual, Release 4.2.0
See Also:
Variable Pattern for a warning on channel names to avoid.
Type Expressions
The expressions in datatype and channel declarations are interpreted differently to regular expressions. Type expres-
sions can either be any Expressions that evaluates to a set or a dot separated list of type expressions, or a tuple of type
expressions. Thus a type expression te is of the form:
e | (te1, ..., teN) | te1.(...).teN
where edenotes an :ref‘expression <csp_expression>‘ of type {a}. A type expression of the form (te1, ...,
teN) constructs the set of all tuples where the ith element is drawn from tei. For example, ({0..1}, {2..3})
evaluates to {(0, 2), (0, 3), (1, 2), (1, 3)}. A type expression of the form te1.(...).teN eval-
uates like a tuple type expression, but instead dots together the value. Thus, {0..1}.{2..3} evaluates to {0.2,
0.3, 1.2, 1.3}. For example, consider the following datatype declarations:
datatype X=A.(Bool,Bool)
datatype Y=B.Bool.Bool
This means that Xis equal to the set {A.(false, false), A.(false, true), A.(true, false),
A.(true, true)}, whilst Yis equal to the set {B.false.false, B.false.true, B.true.false,
B.true.true}.
4.1.5 Channels
CSPMchannels are used to create events and are declared in a very similar way to datatypes. For example:
channel done
channel x,y: {0..1}.Bool
declares three channels, one that takes no parameters (and hence done is of type Event), and two that have two com-
ponents: a value from {0.1} and a boolean. Thus, the set of events defined by the above is {done, x.0.false,
x.1.false, x.0.true, x.1.true, y.0.false, y.1.false, y.0.true, y.1.true}. These
events can then by used by Prefix to declare processes such as P = x?a?b -> STOP.
In general, channels are declared using the following syntax:
channel n1, ..., nM :te
where te is a Type Expressions and the ni are unqualified names. As a result of this, n1,nM are bound to event
constructors that when dotted with appropriate values (according to te), yield an event‘‘. In particular, if te is of type
{t1.(...).tN}, then each ni is of type t1 => ... => tN => Event.
See Also:
Variable Pattern for a warning on channel names to avoid.
4.1.6 Subtypes
CSPMallows subtypes to be declared, which bind a set to a subset of datatype values. For example, consider the
following:
52 Chapter 4. CSPM
FDR Manual, Release 4.2.0
datatype Type =Y.Bool |Z.Bool
subtype SubType =Y.Bool
This creates a datatype, as above, but additionally binds SubType to the set {Y.false, Y.true}. In general a
subtype takes the following form:
subtype N =C1.te1 |C2.te2 | ...
where Nis the name of the subtype, the Ci are the names of existing data constructors and the tei are Type Expres-
sions. Note that the Ci.tei must all be of some common type T, which must be the type of a datatype (e.g., in the
above example, Y.Bool is of type Type).
4.1.7 Named Types
Named types simply associate a name with a set of values, defined using type expressions. For example:
nametype X = {0..1}.{0..1}
binds Xto the set {0.0, 0.1, 1.0, 1.1}. This is no more powerful than a Set Comprehension, but as it
uses Type Expressions, it can be significantly more convenient. The general form of a nametype is:
nametype X =te
where te is a Type Expressions.
4.1.8 Assertions
CSPMalso allows various assertions to be defined in CSPMfiles. These are then added to the list of assertions in
FDR in order to allow convenient execution of the assertions. FDR permits several different forms of assertions, as
described below. Further, options such as partial order reduction may be specified to. See Assertion Options for further
details.
Refinement Assertions The simplest assertion in CSPMare refinement assertions, which are lines of the form:
assert P[T= Q
The above will cause FDR to check whether PvTQ. The semantic model can be any of the following:
• The traces model, written as [T=;
• The failures model, written as [F=;
• The failures-divergences model, written as [FD=.
Deadlock Freedom It is possible to assert that a process is deadlock free, in a particular semantic model. In all
cases, FDR internally converts this into a refinement assertion of the form DF (A)vP, where Ais the
alphabet of events that Pperforms and DF(A) is the most non-deterministic process over A, i.e. DF (A) =
ux∈Ax→
DF (A). Intuitively, in the failures model, this means that the process can never get into a state where no event
is offered. This assertion can be written as:
assert P:[deadlock free]
which defaults to checking the assertion in the failures-divergences model, or a particular semantic model can
be specified using:
4.1. Definitions 53
FDR Manual, Release 4.2.0
assert P:[deadlock free [F]]
which insists that the failures model will be used to check the assertion. Note that only the failures and failures-
divergences models are supported for deadlock freedom assertions.
Hint: If the process Pis known to be divergence free, then checking the deadlock freedom assertion in the
failures model, instead of the failures divergences model will result in increased performance. If Pis not known
to be divergence free, then separately checking that Pis livelock free and that Psatisfies an appropriate (livelock
free) traces or failures specification will, again, result in increased performance.
Divergence Freedom In the failures-divergences model it is also possible to check if a process can diverge, i.e.
perform an infinite amount of internal work (this is also known as a livelock freedom check). FDR converts all
such checks into a refinement assertion of the form CHAOS(A)vP, where Ais the alphabet of the process P.
This essentially says that the process can have arbitrary behaviour, but may never diverge. This can be written
as:
assert P:[divergence free]
which defaults to checking in the failures-divergences model, or a particular semantic model can be specified as
follows:
assert P:[divergence free [FD]]
which insists that the failures-divergences model will be used to check the assertion. Note that only the failures-
divergences model is supported for divergence freedom assertions.
Determinism FDR can be used to check if a given process is deterministic by asserting:
assert P:[deterministic]
The above assertion will check if Pis deterministic in the failures- divergences model. As with other property
checks, a specific model can be specified as follows:
assert P:[deterministic [FD]]
Note that FDR considers a process Pto be deterministic providing no witness to non-determinism exists, where
a witness consists of a trace tr and an event ev such that Pcan both accept and refuse aafter tr. Formally, in
the failures model, Pis non-deterministic iff ∃tr, a ·tr^hai ∈ traces(P)∧(tr, {a})∈f ailures(P). In the
failures-divergences model, failures is replaced by failures⊥.
Internally, for the failures-divergences model, FDR actually constructs a deterministic version of the process
P(using deter) and then checks if deter(P) [FD= P. Thus, whilst the compilation phase can appear to
take a long time to finish, the checking phase is typically faster. For the failures model, FDR uses Lazic’s
determinism check which runs two copies of the process in parallel. If the process contains a lot of taus, then
this can cause the number of states that need to be checked to increase greatly.
Has Trace Assertions FDR has support for asserting that a process has a certain trace. For instance:
assert P:[has trace]: <a,b,c>
asserts that Pcan perform the trace <a, b, c> in the failures-divergences model. This assertion supports the
following semantic models:
• The traces model, written as :[has trace [T]]:. This means that Pmust be able to perform this
trace.
• The failures model, written as :[has trace [F]]:. This means that Pmust not be able to refuse to
perform this trace. For instance:
54 Chapter 4. CSPM
FDR Manual, Release 4.2.0
assert STOP |~| a-> STOP :[has trace [F]]: <a>
would fail in the failures model, since the process may refuse to perform the a.
• The failures-divergences model, written as :[has trace [FD]]:. This means that Pmust not be able
to refuse to perform this trace, and may not diverge whilst performing it.
The intention is that this assertion is used for simple unit tests of processes, rather than as a specification in
itself.
New in version 3.3.0.
Negated Assertions FDR also allows any assertion to be negated by writing, for example, assert not P [T=
Q. Note that if a negated assertion fails, it is not possible to debug it since this merely implies that the underlying
assertion passed. Conversely, a passing negated assertion can be debugged.
Assertion Options
It is also possible to specify options to the assertions. Not all options are supported by all assertions (and there are no
general rules for this in many cases), so FDR will throw an error when it is unable to support a particular assertion
option.
Warning: Partial order reduction is still experimental, and improvements are still required, particularly to perfor-
mance.
Partial Order Reduction FDR can use partial order reduction to attempt to automatically reduce the size of the state
space of a system in a safe manner. For example, the assertion:
assert P[T= Q:[partial order reduce]
is precisely the same as the standard trace assertion, but FDR will attempt to automatically reduce the state
space. Partial order reduction also has three difference modes precise (default), hybrid and fast. This
achieve progressively smaller reductions in the state space, but should run faster. The mode can be selected as
follows:
assert P[T= Q:[partial order reduce [hybrid]]
Partial order reduction will only work on some examples. Generally, it is simplest to try it and to see what state
space reduction and time difference it causes. Further, if partial order reduction works well on one instance of a
problem, it will also work on larger instances.
In general, partial order reduction will be effective on examples where there is a parallel composition where each
process, or group of processes, has a number of events that are independent of the events that other processes
perform. For example, dinning philosophers achieves excellent partial order reduction because each philosopher
has a number of events that do not conflict with other philosophers (e.g. thinks.i,eats.i etc). Partial order
reduction will remove the redundant interleavings.
The degree of reduction that partial order reduction can achieve is also affected by the specification in question.
It is most efficient when given a deadlock-freedom assertion in the failures model. In general, refinement
assertions will achieve less reduction. To improve the amount of reduction that can be achieved in refinement
checks, the specification alphabet should be made as small as possible. New in version 3.1.
Tau Priority Over This allows tau to be given priority over a specific set of events. For example, the assertion:
assert P[T= Q:[tau priority]: {tock}
is equivalent to the assertion:
4.1. Definitions 55
FDR Manual, Release 4.2.0
assert prioritise(P, <{}, {tock})>)[T= prioritise(Q, <{}, {tock})>)
For further information see prioritise. New in version 2.94.
4.1.9 Transparent and External Functions
A number of functions within FDR are available only if they are imported using transparent or external.
Transparent functions are all applied to processes, and are semantics preserving. External functions are either non-
semantics preserving process functions, or are utility functions provided by FDR. See Compression Functions for
examples of transparent functions, and mtransclose for an example of an external function.
Transparent and external functions may be imported into a script as follows: Transparent and External Functions
4.1.10 Modules
CSPMalso supports a limited version of modules that allow code to be encapsulated, to avoid leaking. For example,
the following declares a simple module A:
module A
X=2
Y=X+2
exports
Z=2+Y+X
endmodule
f(x) = A::Z
As seen above, modules can have a number of private definitions (in this case Xand Yare private and can only be
referred to by Z), and public or exported definitions (in the above case, just Z). Exported definitions are accessible in
other parts of the same script using their fully qualified name, which consists of ModuleName::VariableName.
The general syntax for modules is as follows:
module ModuleName
<private declaration list>
exports
<public declaration list>
endmodule
where both declaration lists can contain any declarations with the exception of assertions. Modules may also be nested,
as the following example shows:
module M1
X=1
exports
Y=1+M2::Y
module M2
X=2
exports
Y=1+X
endmodule
endmodule
f=1+M1::Y+M1::M2::Y
56 Chapter 4. CSPM
FDR Manual, Release 4.2.0
Nested modules can either be public or private.
Parameterised Modules
Modules may also be defined to take arguments. For example, consider the module:
module M1(X)
check(x) = member(x,X)
exports
f(y) = if check(y) then "Inside X" else "Outside of X"
datatype X=Y|Z
endmodule
The above defines a module M1 that takes a single parameter X, which must be of type {a}, for some type a. The
arguments in the module definition are in scope within all of the declarations defined within the module. Instances of
the module may then be created to call the functions within a particular instance of the module. For example, if the
following module instance is declared:
instance M2 =M1({0})
the expression M2::f(0) would evaluate to “Inside X”. Note that declarations inside parametrised modules are
accessible only via a module instance (thus M1::f(0) is an invalid expression). If a datatype is declared inside a
parametrised module, then different module instances will contain distinct versions of the datatype. For example give
the module instances:
instance M2 =M1({0})
instance M3 =M1({0})
M2::X and M3::X are not of the same type and hence the expression M2::X == M3::X would result in a type
error.
More generally, a module that takes N arguments can be declared by:
module ModuleName(Arg1, ..., ArgN)
<private declaration list>
exports
<public declaration list>
endmodule
An instance of a module that takes N arguments can be declared as follows:
instance ModuleInstanceName =ModuleName(E1, ..., EN)
where E1 and EN are expressions of a type appropriate for ModuleName. Instances of modules that do not take
parameters can also be created simply by eliding the (E1, ..., EN) portion of the instance declaration.
Warning: An instance declaration can only appear strictly after the definition of the module in the input file.
4.1.11 Timed Sections
Tock CSP is a discretely-timed variant of CSP that uses the event tock to model the passage of time. In order to
specify tock-CSP processes, CSPMincludes a timed section syntax that automatically translates CSP processes to
tock-CSP. For example:
4.1. Definitions 57
FDR Manual, Release 4.2.0
channel tock
OneStep(_) = 1
Timed(OneStep) {
P=a-> P
}
P’ =a-> tock -> P’ [] tock -> P’
will translate Pinto tock-CSP. The resulting process will, in fact, be equivalent to P’ (see below for the full translation).
In general, timed sections are written as:
Timed(expression) {
declarations
}
where:
declarations This is a list of declarations to be translated into tock-CSP. All declarations, including nested timed
sections, are permitted inside timed sections (however, if this timed section is inside a Let or module, then the
usual restrictions apply). Note that within these declarations timed_priority and WAIT may be used.
expression This is an expression, known as the timing function, of type (Event)->Int. This function
returns the number of time units that the given event takes to complete. For example, in the above example, each
event is defined as taking 1 time unit (note that this can be defined using a Lambda).
Before using a timed section, tock must be declared as an event. Failure to do so, or defining tock as something of
an incompatible type, will result in a type-checker error.
The definitions inside the timed section are translated into tock-CSP according to the following translation, assuming
that the timing function is called time:
Process Translated To
STOP TSTOP, where TSTOP = tock -> TSTOP.
SKIP TSKIP, where TSKIP = SKIP [] tock -> TSKIP.
a -> P X = tock -> X [] a -> tock -> ... -> tock -> P where time(a) tocks
occur after the a.
c?x ->
P(x)
X = tock -> X [] c?x -> tock -> ... -> tock -> P(x) where
time(c.x) tocks occur after the c.x.
P [] Q P [+ {tock} +] Q
b & P if b then P else TSTOP
P [A ||
B] Q
P [union({tock},A) || union({tock},B)] Q
P [| A |]
Q
P [| union({tock},A) |] Q
P ||| Q P [| {tock} |] Q
P /\ Q P /+ {tock} +\ Q
P [+ A +]
Q
P [+ union({tock}, A) +] Q
P /+ A +\
Q
P /+ union({tock}, A) +\ Q
The remaining operators, i.e. Exception,Hide,Internal Choice,Rename,Sequential
Composition and Sliding Choice, are not affected by the translation. All the replicated operators are trans-
lated analogously to the above.
58 Chapter 4. CSPM
FDR Manual, Release 4.2.0
Warning: At the present time, Linked Parallel and the Non-deterministic Input of Prefix are not per-
mitted inside timed sections.
See Also:
Model checking Timed CSP The paper that fully describes the timed CSP translation.
Synchronising External Choice Used in the translation of External Choice into tock-CSP.
Synchronising Interrupt Used in the translation of Interrupt into tock-CSP.
New in version 2.94.Changed in version 3.0: In FDR2, tock was automatically defined when a timed section was
encountered. FDR3 requires tock to be defined to be defined by the user as an event, in order to allow timed sections
in more contexts. In addition, FDR2 defined TOCKS as a global constant in a file that mentioned timed sections;
FDR3 no longer does so.
4.1.12 Print Statements
If a CSPMfile contains a statement of the form:
print 1+1
print head(<5..>)
then FDR will add the statements to a list on the right hand side of the session window, thus allowing the expressions
to be easily evaluated.
4.1.13 Include Files
Sometimes it can helpful to split a single CSPMfile into several files, either because some code is common to several
problems, or to simply break up large file. This can be accomplished by using an include "file.csp" expression
in the file. For example, if file1.csp and file2.csp are in the same directory, and file1.csp contains:
include "file2.csp"
f=g+2
and file2.csp contains:
g=2
then this is equivalent to a single file that contains:
g=2
f=g+2
Each include statement must be on a separate line and all paths are relative to the file that contains a particular
include statement.
4.2 Functional Syntax
In this section we give a full overview of the CSPMfunctional syntax. This is divided up into Expressions, which
defines what expressions are, Patterns, which defines CSPM‘s pattern syntax, and Statements, which defines what
statements (which appear in the context of various comprehensions) are. The relative binding strengths of the operators
is given in Binding Strength, and the list of reserved words is documented in Reserved Words.
4.2. Functional Syntax 59
FDR Manual, Release 4.2.0
4.2.1 Expressions
Expressions in CSPMevaluate to values. An expression is either a process expression, which is something that uses
one of CSP’s process operators, or a non-process expression. In this section we define the syntax of non-process
expressions. The syntax of process expressions is defined separately in Defining Processes.
syntax Function Application f(e1, ..., eN)
Applies the function fto the arguments e1, ..., eN. The arguments have to be of the type that the function
expects and, further, must satisfy any type constraints imposed by the function.
syntax Binary Boolean Function e1 and e2, e1 or e2
Return type Bool
Given two expressions e1 and e2 of type Bool, returns either the boolean conjunction or disjunction of the
two values.
Both and and or are lazy in their second argument. Thus, False and error("Error") evaluates to
False and True or error("Error") evaluates to True.
syntax Unary Boolean Function not e
Return type Bool
Given an expression of type Bool, returns the negation of the boolean value.
syntax Comparison e1 < e2, e1 <= e2, e1 > e2, e1 >= e2
Return type Bool
Given two values of type a type tthat satisfies Ord, returns a boolean giving the result of comparing the two
values using the selected comparison operator. The comparison performed is dictated by the argument type, as
follows:
Ar-
gu-
ment
Type
Type of Comparison Examples of True Comparisons
Int Standard integer comparison. 1<2,2<4.
Char Compares characters according to their integer
value.
’a’ < ’b’,’f’ < ’z’.
<a> Compares the sequences using the list prefix
operator.
<> < <1>,<1,2> < <1,2,3>,not
(<1,2> < <1,3,4>).
{a} Compares the sets using the subset operator. {} < {1,2},{4,6} < {4,6,7,8}.
(e1,
...,
eN)
Compares the tuples lexicographically. (1,2) < (2,0),(1,2) < (1,3),not
((1,2) < (1,1)).
(|
k
=>
v
|)
Compares the maps using the submap relation
(i.e. m1 is a submap of m2 if m2 has all keys of
m1 and the values are related using the
appropriate comparison function).
(||)<(|1=>2|),(| 1 => 1
|)<(|1=>2|),not (| 1 => 2
|)<(|1=>2|),(| 1 => 2 |)
<= (| 1 => 2 |).
syntax Dot e1.e2
Given two values of type aand type breturns the result of combining them together using the dot operator. The
outcome of this operator depends upon the value of e1. If e1 is anything but a data constructor or channel, then
the value e1.e2 is formed. For example, given a definition of fas f(x,y) = x.y,f(1, true) evaluates
to 1.true, whilst f(STOP, false) evaluates to STOP.false. If e1 is a data constructor or channel then,
informally, e1.e2 combines e2 into the partially constructed event or datatype. When doing so, it also checks
that e2 is permitted by the data or channel declarations. For example, given the following definitions:
60 Chapter 4. CSPM
FDR Manual, Release 4.2.0
datatype Type =A.{0}|B.Type.{1}
then evaluating A.1 would throw an error, as 1is not a value permitted by the definition of Type.
More formally, when combining e1 and e2 using .,e1 is examined to find the first incomplete datatype or
event. For example, given the above definitions, if e1 is B.A then e2 will not be combined with the B, but
instead with the Aas this is the first incomplete constructor. Thus, B.A.0 evaluates to B.(A.0), whilst
B.A.0.1 evalutes to B.(A.0).1, as the Ais already complete.
Warning: Dot is not intended for use as a general functional programming construct; it is primarily intended
for use as a data or event constructor, although it is occasionally used more generally in the context of the
Prefix operator. Using it as functional programming construct is not supported and may result in various
type-checker errors. Instead, tuples and lists should be used.
syntax Equality Comparison e1 == e2, e1 != e2
Return type Bool
Given two values of a type tthat satisfies Eq, returns a boolean giving the result of comparing the values for
equality.
syntax If if b then e1 else e2
Parameters
•b(Bool) – The branch condition.
•e1 (a) – The expression to evaluate if bis true.
•e2 (a) – The expression to evaluate if bis false.
Evaluates band then evaluates e1 if bis true and otherwise evaluates e2.
syntax Lambda \ps@e
Given a comma separated list of pattern of type a1, ..., aN and an expression of type b, constructs a function of
type (a1, ..., aN) -> b. When the function is evaluated with arguments as,as is matched against the
patterns ps and, if it succeeds, eis evaluated in the resulting environment. If it fails, then an error is thrown.
syntax Let let <declaration list> within e
The let definition allows new definitions to be introduced that are usable only in the expression e. When a let
expression is evaluated, the declarations are made available for eduring evaluation. The return value of a let
expression is equal to the return value of e.
The declaration list is formatted exactly as the top-level of a CSPM-file is, but only external,transparent,func-
tion,pattern and timed sections declarations are allowed. For example, the following is a valid let expression:
f(xs) =
let
external normal
<y>^ys =tail(xs)
within normal(if ys == <> then STOP else SKIP)
syntax Literal 0.., True/False, ’c’, "string"
CSPMallows integer literals to be written in decimal. Boolean literals can are written as true and false.
Character literals are enclosed between ’brackets whilst string literals are enclosed between "brackets. Char-
acters can be escaped using the \\ character. Thus, ’\” evaluates to the character ’, whilst "\"" evaluates to
the string ".
syntax Binary Maths Operation e1 + e2, e1 - e2, e1 *e2, e1 / e2, e1 % e2
Return type Int
4.2. Functional Syntax 61
FDR Manual, Release 4.2.0
All maths operations take two arguments of type Int and return a value of type Int giving the result of the
appropriate function. Note that unlike many programming languages, e1 / e2 returns the quotient (rounding
towards negative infinity), whilst e1 % e2 returns the modulus.
syntax Unary Maths Operation -e
Return type Int
Returns the negation of the expression e, which must be of type Int.
syntax Parenthesis (e)
Brackets an existing expression without altering the type or value of the expression.
syntax Tuple (e1, ..., eN)
Given nexpressions of type a1, etc, returns a tuple of type (a1, ..., an).
syntax Variable v
Returns the value of the variable in the current evaluation environment. These must begin with an alphabetic
character and are followed by any number of alphanumeric characters or underscores optionally followed by any
number of prime characters (’). There is no limit on the length of identifiers and case is significant. Identifiers
with a trailing underscore (such as f_) are reserved for machine-generated code. Variables in modules can be
accessed using the :: operator. Thus, if Mis a module that exports a variable X, then M::X can be used to refer
to that particular X.
Sequences
syntax Concat e1^e2
This operator takes two sequences of type <a> and returns their concatenation. Thus, <1,2>^<3,4> ==
<1,2,3,4>. This takes time proportional to the length of e1.
syntax List <e1, ..., eN>
Given Nexpressions, each of some common type a, constructs the explicit list where the ith element is ei.
syntax List Comprehension <e1, ..., eN | s1, ..., sN>
For each value generated by the sequence statements,s1 to sN, evaluates e1 to eN, which must all be of some
common type a, and adds them to the list in order. Thus, <x, x+1 | x <- <0,2>> == <0, 1, 2,
3>. The variables bound by the statements are available for use by the ei.
syntax Infinite Int List <e..>
Return type <Int>
Given e, which must be of type Int, constructs the infinite list of all integers greater than or equal to e. Thus,
<5..> == <5,6,7,...>.
syntax Infinite Ranged List Comprehension <e.. | s1, ..., sN>
Return type <Int>
For each value generated by the sequence statements,s1 to sN, evaluates eand creates the infinite list of
all integers starting at e. Thus, <1.. | false> == <>, whilst <1.. | true> == <1..>. The
variables bound by the statements are available for use by e.
syntax Ranged Int List <e1..e2>
Return type <Int>
Given e1 and e2 which must both be of type Int, constructs the list of all integers between e1 and e2,
inclusive. For example, <5..7> == <5,6,7>.
syntax Ranged List Comprehension <e1..e2 | s1, ..., sN>
Return type <Int>
62 Chapter 4. CSPM
FDR Manual, Release 4.2.0
For each value generated by the sequence statements,s1 to sN, evaluates e1 and e2, which must be of type
Int, and adds them to the list in order. Thus, <x..y | (x,y) <- <(0,1),(1,2)>> == <0, 1, 1,
2>. The variables bound by the statements are available for use by e1 and e2.
syntax List Length #e
Return type Int
Given a list of type <a>, returns a value of type Int indicating the length of the list. This takes time proportional
to the length of the list.
Sets
syntax Set {e1, ..., eN}
Given Nelements of some common type athat satisfies Set, constructs the set containing all of the ei. Thus,
for each ei,member(ei, {e1, ..., eN}) evaluates to True.
syntax Set Comprehension {e1, ..., eN | s1, ..., sN}
For each value generated by the set statements,s1 to sN, evaluates e1 to eN, which must all be of some
common type athat satisfies Set, and adds them to the resulting set. Thus, {x, x+1 | x <- {0,2}}
== {0, 1, 2, 3}. The variables bound by the statements are available for use by the ei.
syntax Infinite Int Set {e..}
Return type {Int}
Given e, which must be of type Int, constructs the infinite set of all integers greater than or equal to e. Thus,
{5..} == {5,6,7,...}.
syntax Infinite Ranged List Comprehension {e.. | s1, ..., sN}
Return type {Int}
For each value generated by the set statements,s1 to sN, evaluates eand creates the infinite set of all inte-
gers starting at e. Thus, {1.. | false} == {}, whilst {1.. | true} == {1..}. The variables
bound by the statements are available for use by e.
syntax Ranged Set Comprehension {e1..e2 | s1, ..., sN}
Return type {Int}
For each value generated by the set statements,s1 to sN, evaluates e1 and e2, which must be of type Int,
and adds them to the set in order. Thus, {x..y | (x,y) <- {(0,1),(1,2)}} == {0, 1, 2}. The
variables bound by the statements are available for use by e1 and e2.
syntax Ranged Int Set {e1..e2}
Return type {Int}
Given e1 and e2 which must both be of type Int, constructs the set of all integers between e1 and e2,
inclusive. For example, {5..7} == {5,6,7}.
Enumerated Sets
syntax Enumerated Set {| e1, ..., eN |}
Parameters ei (ti =>*b) – The ith value to compute productions of.
Return type Yieldable b=> {b}
4.2. Functional Syntax 63
FDR Manual, Release 4.2.0
Informally, in the case that the e1 to eN are channels, this operator returns the set of all possible events that
can be sent along the channels e1 to eN. Formally, it is equivalent to Union({productions(e1), ...,
productions(eN)}), i.e. given Nexpressions that are data constructors or channels (possibly partially
completed), constructs the set of all values of type bthat are completions of the expressions, providing b
satisfies Yieldable.
The most common use of this operator is to specify synchronisation sets. For example, suppose we have the
following channel definitions:
channel c: {0..10}.{0..10}.{0..20}
channel d: {0..10}
channel e
and we wanted to put processes Pand Qin parallel, synchronising on all events on channels dand e, and events
on channel cthat start with a 0. This synchronisation alphabet can be written as {| d, e, c.0 |}, as this
returns a set consisting of all events that are on channel d, all events on channel e(i.e. just eitself), and those
events on channel cthat start with a 0.
syntax Enumerated Set Comprehension {| e1, ..., eN | s1, ..., sM |}
Parameters ei (ti =>*b) – The ith value to compute productions of.
Return type Yieldable b=> {b}
For each value generated by the set statements,s1 to sN, evaluates productions(e1) to
productions(eN), which must all be of some common type athat satisfies Set, and adds them to the
resulting set. For example, given the following channel definitions:
channel c: {0..2}.{0..3}.{0}
channel e
Then {| c.x.(x+1), e | x <- {0,2} |} evaluates to {e, c.0.1.0, c.2.3.0}.
As with other comprehensions, the variables bound by the statements are available for use by the ei.
4.2.2 Maps
syntax Map (| k1 => v1, ..., kN => vN |)
Parameters
•ki (k) – The ith key.
•vi (v) – The ith value.
Return type (| k => v |)
Constructs a map where each key is mapped to the corresponding value. For example, (| |) == emptyMap
and (| 9 => 4 |) == mapFromList(<(9, 4)>). If a key appears more than once then the value that
the key is mapped to is picked non-deterministically.
Warning: Note that a space must always occur after the initial (| (thus (||) is invalid syntax). This is to
ease ambiguity with interleaves and non-deterministic choices that occur after parentheses.
New in version 3.0.
4.2.3 Patterns
CSPMalso allows values to be matched against patterns. For example, the following function, which takes an integer,
uses pattern matching to specify different behaviour depending upon the argument:
64 Chapter 4. CSPM
FDR Manual, Release 4.2.0
f(0) = True
f(1) = False
f(_) = error("Invalid argument")
Whilst the above could have been written as an if statement, it is much more convenient to write it in the above format.
Patterns also bind variables for use in the resulting expression. For example f(<x>^xs) = e) allows the eto refer
to the first element of the list as xand the tail of the list as xs.
Each of the allowed patterns is defined as follows.
syntax Concat Pattern p1^p2
Given two patterns, which must be of a common type <a>, matches a sequence where the start of the sequence
matches p1 and the end of the sequence matches p2 . This binds any variable bound by p1 or p2.
Warning: Not every concatenation pattern is valid as it is possible to construct ambiguous patterns. For
example, the pattern xs^ys is not valid as there is no way of deciding how to decompose the list into two
segments.
syntax Dot Pattern p1.p2
Matches any value of the form a.b where amatches p1 and bmatches p2. This, together with Variable
Pattern allows datatype values and events to be pattern matched. For example, suppose the following decla-
ration is in scope:
datatype X=A.Int.Bool
Then, A.y.True matches any Adata-value where the last component is True, and binds yto the integer
value. Note that .associates to the right, and thus matching A.0.True to the pattern x.y would bind xto A
and 0.True to y.
Warning: Pattern matching on partially constructed events or datatypes is strongly discouraged, and may
be disallowed in a future release.
syntax Double Pattern p1 @@ p2
Given two patterns, which must be of a common type a, matches any value that matches both p1 and p2. This
binds any variable bound by p1 or p2. For example, 1 @@ 2 matches no values, whilst xs @@ (<y>^ys)
matches any non-empty list, and binds xs to the whole list, yto the head of the list and ys to the tails of the
list.
syntax List Pattern <p1, ..., pN>
Given Npatterns, which must be of a common type a, matches any list where the ith element matches pi. This
binds any variable bound by any of the pi.
syntax Literal Pattern 0..., True/False, ’c’..., "x"...
Pattern Literals are written as expression literals are, and match in the obvious way. They do not bind
any variable.
syntax Parenthesis Pattern (p)
This matches any value matched by p, and binds exactly the same variables as p.
syntax Set Pattern {} or {p}
The empty-set pattern matches only the empty set (and binds no value), whilst the singleton set pattern matches
any value that is a set consisting of a single element that matches p.
syntax Tuple Pattern (p1, ..., pN)
Given Npatterns, each of type ai, matches any tuple where the ith element matches pi. This binds any variable
bound by any of the pi.
4.2. Functional Syntax 65
FDR Manual, Release 4.2.0
syntax Variable Pattern v
If vis a data constructor or a channel then vmatches only the particular data constructor or channel and binds
no value. Otherwise, vmatches anything any binds vto the value it was matched against. For example:
channel chan : {0..1}
f(chan.x) = x
In the above, chan is recognised as a channel name, and therefore matches only events of the form chan.x.
As xis not a data constructor or a channel it matches anything and binds xto the value.
Warning: As a result of the above rules, using short channel names or data constructor names is strongly
discouraged. For example, if a script contains a channel definition such as channel x : ..., then any
xin the script will only match the channel x, rather than any value.
syntax Wildcard Pattern _
This matches any value, and does not bind any variable.
4.2.4 Statements
In CSPM, there are a number of comprehension constructs that generate new sets or sequences based on existing
sequences or sets. For example, the List Comprehension <x+1 | x <- xs> increments every item in the
list xs by 1.Statements occur on the right hand side of such comprehensions and, conceptually, generate a sequence
of values that can be consumed. The different types of sequences can be described as follows.
syntax Generator Statement p <- e
Given an expression eof type, {a} if this should generate sets and <a> if this generates sequences, and a
pattern pof type a, generates all values from ethat match the pattern p. Statements to the right of this may use
variables bound by pwhilst emay refer to variables bound to the left of it.
syntax Predicate Statement e
Selects only those values such that the expression e, which must be of type Bool, evaluates to True.emay
refer to variables bound to the left of it.
4.2.5 Binding Strength
The binding strength for the CSPMoperators is given below as a list of the operators in descending order of binding
strength (i.e. items higher in the list bind tighter). Thus, as [] appears below ;, this means that P = STOP []
STOP ; STOP is parsed as P = STOP [] (STOP ; STOP). Multiple entries on a single level means that the
operators have equal binding strength, meaning that brackets may be necessary to disambiguate the meaning. The
associativity of the operators is given in brackets.
1. Parenthesis (non-associative), Rename (non-associative)
2. Concat (left-associative)
3. List Length (left-associative)
4. */ % (left-associative)
5. +,-(left-associative)
6. Comparison (non-associative), Equality Comparison (non-associative)
7. not (left-associative)
8. and (left-associative)
66 Chapter 4. CSPM
FDR Manual, Release 4.2.0
9. or (left-associative)
10. :(non-associative)
11. Dot (right-associative)
12. ?,!,$(all left-associative)
13. Guarded Expression,Prefix (all right-associative)
14. Sequential Composition (left-associative)
15. Sliding Choice or Timeout (left-associative)
16. Interrupt (left-associative)
17. External Choice (left-associative)
18. Internal Choice (left-associative)
19. Exception,Generalised Parallel,Alphabetised Parallel (all non-associative)
20. Interleave (left-associative)
21. Hide (left-associative)
22. Replicated Operators (non-associative)
23. Double Pattern (non-associative)
24. Let,If (non-associative)
4.2.6 Reserved Words
Certain words are reserved in CSPM, meaning that they cannot be used as identifiers (such as variable names, function
names etc). The following is a complete list of the reserved words:
1. and
2. or
3. not
4. if
5. then
6. else
7. let
8. within
9. channel
10. assert
11. datatype
12. subtype
13. external
14. transparent
15. nametype
16. module
4.2. Functional Syntax 67
FDR Manual, Release 4.2.0
17. exports
18. endmodule
19. instance
20. Timed
21. include
22. false
23. true
24. print
25. type
4.3 Defining Processes
In this section we define the various operators that are available in CSPM. We include only the briefest of descriptions
of each operator, instead choosing to focus on CSPM-specific issues. For more information about each of the operators
see either The Theory and Practice of Concurrency or Understanding Concurrent Systems.
Note that regular expressions can be mixed with the process expression, providing doing so makes type-sense. For
example:
P(x) = if x== 0then STOP else (STOP [] STOP)
Q(x) = let P=STOP [] STOP within P[] P
are both valid CSP expressions.
The relative binding strengths of the operators is given in Binding Strength.
4.3.1 Basic Operators
operator External Choice P [] Q
Blackboard PQ
Offers the choice of the initial events of Pand Q, which must be of type Proc.
operator Guarded Expression b&P
Blackboard b&P
Parameters
•b(Bool) – The process guard.
•P(Proc) – The process to behave as if bis true.
If bis true then behaves like P, otherwise behaves like STOP.
operator Hide P\A
Blackboard P\A
Behaves like P, which must be of type Proc, but if Pperforms any event from A, which must be of type
{Event}, the event is hidden and turned into an internal event (i.e. a tau).
operator Internal Choice P |~| Q
Blackboard PuQ
68 Chapter 4. CSPM
FDR Manual, Release 4.2.0
This non-deterministically picks one of Pand Q, which must be of type Proc, and then runs the chosen process.
operator Prefix e -> P
Blackboard e→P
This process performs the event e, which must be of type Event and then runs P, which must be of type Proc.
FDR also supports a number of more general forms of the prefix operator, which are particularly useful for
offering the choice of several events. For example, suppose the following channel declarations are in scope:
channel c: {0..1}
channel d: {0..1}.Bool
The choice of c.0 and c.1 can be written as using External Choice as c.0 -> P [] c.1 -> P,
or more concisely using Prefix as c?x : {0, 1} -> P or c?x -> P (in this case the set of allowed
values is automatically deduced from the channel declaration). It is also possible to write d.0.y -> P []
d.1.y -> P more concisely as d?x!y -> P. Note that d?x.y -> P would not be equivalent as the sec-
ond .would be transformed to a ?(see here for more information). Writing ?x causes a new variable xto
be introduced that is bound to the value that was communicated. For example, a simple Echo process could be
defined by Echo(c) = c?x -> c!x -> Echo(c).
The general form of a Prefix consists of an expression followed by a number of fields, each of which matches
some component of the event. In particular, the general form is e<f_1><f_2><...><f_n> where eis
an expression of type a => Event and each f_i is a field of type t_i such that a = t_1 . t_2 .
<...> . t_n. The available field types are as follows.
Input ?p Offers the choice (using External Choice) of any value that matches the pattern p, which must
be of a type that satisfies Complete. The set of allowed values is deduced from the channel or datatype
declaration. For example, given the above channel declarations then the set of events that c?x ranges over
is c.0 and c.1 as xmatches the first field of the channel c.
Restricted Input ?p : S Offers the choice (using External Choice) of any value from the set S, which
must be an expression of type {a}, that matches the pattern p, which must be of type aand satisfy
Complete.
Output !e This allows only the value of e, which must be an expression.
Non-deterministic Input $p This behaves exactly as ?p, but instead offers the non-deterministic choice of the
available events (using Internal Choice). At the present time, fields containing $may only appear
before fields containing ?or !. New in version 3.0.
Non-deterministic Restricted Input $p : S This behaves exactly as ?p : S, but instead offers the non-
deterministic choice of the available events (using Internal Choice). At the present time, fields
containing $may only appear before fields containing ?or !. New in version 3.0.
The set expressions in each of the fields are able to use the value of variables bound by patterns to the left of the
field. This means that expressions such as d?x?y:f(x) -> P are allowed.
The following table gives a number of prefix forms and the explicit process that they are equivalent to.
4.3. Defining Processes 69
FDR Manual, Release 4.2.0
Process Equivalent To
c?x -> P(x) c.0 -> P(0) [] c.1 -> P(1)
c?x : {0} ->
P(x)
c.0 -> P(0)
d?x : {0.True,
1.False} -> P(x)
d.0.True -> P(0.True) [] d.1.False -> P(1.False)
d?x!False ->
P(x)
d.0.False -> P(0) [] d.1.False -> P(0)
d?x.y -> P(x,y) d?x?y -> P(x,y)
c$x -> P(x) c.0 -> P(0) |~| c.1 -> P(1)
d$x?y -> P(x,y) (d.0.False -> P(0,False) [] d.0.True -> P(0,True)) |~|
(d.1.False -> P(1,False) [] d.1.True -> P(1,True))
d?x?y:{x==0} ->
P(x,y)
d.0.True -> P(0,True) [] d.1.False -> P(1,False)
Warning: Note that any .that occurs after a ?essentially becomes a ?(equally, any .after a !becomes
a!and any .after a $becomes a $). For example, d?x.y -> STOP is not equivalent to d?x!y, but
instead it is equivalent to d?x?y. This is because .binds tighter than ?, meaning that d?x.y is bracketed
as d?(x.y).
operator Project P |\ A
Blackboard PA
Behaves like P, which must be of type Proc, but if Pperforms any event not in A, which must be of type
{Event}, the event is hidden and turned into an internal event (i.e. a tau).
See Also:
Hide It is equivalent to P \ diff(Events, A), but may be more efficient when Events is large.
operator Rename P[[from <- to]]
Blackboard P[[from ←to]]
Parameters
•P(Proc) – The process to rename.
•from (a =>*Event) – The channel to rename events from.
•to (a =>*Event) – The channel to rename events to.
The renaming operator renames all events that P performs according to the given relation. The relation is
specified, as above, and causes all events of the form from.x that Pperforms to to.x (or, if from and to are
events, renames from to to). For example, in the following, Pand Qare equivalent:
channel c,d: {0..1}
channel e:Bool.{0..2}
P= (c.0-> STOP [] d.1-> STOP)[[c<- e.false,d<- e.true]]
Q= e.false.0-> STOP [] e.true.1-> STOP
It is also possible to combine the above using set statements, as follows:
P[[c.x<- e.false.(x+1),d.x<- e.true.(x+1)|x<- {0..1}, x== 0]]
This renames c.0 to e.false.1 and d.0 to e.true.1. Note that the generators in the above must be set
generators.
70 Chapter 4. CSPM
FDR Manual, Release 4.2.0
Warning: If from and to are channels, rather than events, care must be taken to ensure that the renaming
will not result in invalid events being created, otherwise a runtime error will occur. For example, given the
above definitions, evaluating:
(d.true.2-> STOP)[[d.true <- c]]
would result in an error, as 2is not in the set of values that can be sent down d.
Note: Unlike the blackboard CSP operator, the renaming relation is not required to be total. Events that are not
in the domain of the renaming relation are unaffected by the renaming.
4.3.2 Parallel Operators
operator Alphabetised Parallel P [A || B] Q
Blackboard PAkBQ
Parameters
•P(Proc) – The left process.
•A({Event}) – The set of events that Pis allowed to perform.
•B({Event}) – The set of events that Qis allowed to perform.
•Q(Proc) – The right process.
Runs Pand Qin parallel, allowing Pto only perform events from A,Qto only perform events from Band forcing
Pand Qto synchronise on A∩B. Equivalent to (P [| diff(Events, A) |] STOP) [| inter(A,
B) |] (Q [| diff(Events, B) |] STOP).
See Also:
Enumerated Sets For details on how to easily construct synchronisation sets.
operator Generalised Parallel P[|A|]Q
Blackboard PkAQ
Parameters
•P(Proc) – The left process.
•A({Event}) – The synchronisation alphabet.
•Q(Proc) – The right process.
Runs Pand Qin parallel forcing them to synchronise on events in A. Any event not in Amay be performed by
either process.
See Also:
Enumerated Sets For details on how to easily construct synchronisation sets.
operator Interleave P ||| Q
Blackboard P||| Q
Parameters
4.3. Defining Processes 71
FDR Manual, Release 4.2.0
•P(Proc) – The left process.
•Q(Proc) – The right process.
Runs Pand Qin parallel without any synchronisation. Equivalent to P [| {} |] Q.
See Also:
Enumerated Sets For details on how to easily construct synchronisation sets.
4.3.3 Replicated Operators
FDR also has replicated, or indexed, version of a number of operators. These provide an easy way to construct
a process that consists of a number of processes composed using the same operator. For example, suppose P ::
(Int)->Proc then ||| x : {0..2} @ P(x) evaluates Pfor each value of xin the given set and then
interleaves them. Thus, the above is equivalent to P(0) ||| P(1) ||| P(2).
The general form of a replicated operator is op <statements> @ P where op is a piece of operator syntax,
statements are a list of Statements and Pis the process definition (which can make use of the variables bound by the
statements). Each of the operators evaluates Pfor each value the statements take before composing them together
using op.
operator Replicated Alphabetised Parallel || <set statements> @ [A] P
Evaluates Pand Afor each value of the Statements and composes the resulting processes together using
Alphabetised Parallel, where each process has the corresponding alphabet A. If the resulting set of
processes is empty then this evaluates to SKIP. For example, in the following Qand Rare equivalent:
channel a: {0..3}
P(x) = a.x-> STOP
A(x) = {a.x}
Q=|| x: {0..3}@[A(x)] P(x)
R= a.0-> STOP ||| a.1-> STOP ||| a.2-> STOP ||| a.3-> STOP
operator Replicated External Choice [] <set statements> @ P
Replicated external choice evaluates Pfor each value of the Statements and composes the resulting processes
together using External Choice. If the resulting set of processes is empty (e.g. [] x : {} @ x), then
STOP is returned.
Hint: In CSPMthere is no way of writing a process equivalent to the blackboard CSP ?ev :X→P(ev), which
offers the choice of all events ev that are in X, just using the prefixing operator. However, using the replicated
external choice operator, an equivalent process can be defined as [] ev : X @ ev -> STOP.
operator Replicated Generalised Parallel [| A |] <set statements> @ P(x)
Evaluates Pfor each value of the Statements and composes the resulting processes together using
Generalised Parallel, synchronising them on the set A. If the resulting set of processes is empty then
this evaluates to SKIP.
operator Replicated Interleave ||| <set statements> @ P(x)
Evaluates Pfor each value of the Statements and composes the resulting processes together using
Interleave. If the resulting set of processes is empty then this evaluates to SKIP.
operator Replicated Internal Choice |~| <set statements> @ P(x)
Replicated internal choice evaluates Pfor each value of the Statements and composes the resulting processes
together using Internal Choice. If the resulting set of processes is empty then an error is thrown.
72 Chapter 4. CSPM
FDR Manual, Release 4.2.0
operator Replicated Linked Parallel [l <-> r] <sequence statements> @ P(x)
Evaluates P,land rfor each value of the Statements and composes the resulting processes together in the
same order as the statements using Linked Parallel. In particular suppose P,land revaluate to P1,P2,
etc then the following process is constructed P1 [l1 <-> r1] P2 [l2 <-> r2] .... If the resulting
sequence of processes is empty then an error is thrown.
As with Linked Parallel, the linking of events may be specified using comprehensions. For example:
channel c,d:Bool
Q(0)=c.True -> STOP
Q(1)=d.True -> STOP
P= [c.x<-> d.x|x<- <False,True>, x]y: <0,1>@Q(y)
then Pis equivalent to Q(0) [c.True <-> d.True] Q(1).
operator Replicated Sequential Composition ; <sequence statements> @ P(x)
Evaluates Pfor each value of the Statements and composes the resulting processes together in the same order as
the statements using Sequential Composition. If the resulting sequence of processes is empty then this
evaluates to SKIP.
operator Replicated Synchronising Parallel [+ A +] <set statements> @ P(x)
Evaluates Pfor each value of the Statements and composes the resulting processes together using
Synchronising External Choice. If the resulting sequence of processes is empty then this evaluates
to STOP. New in version 2.94.
4.3.4 Advanced Operators
operator Exception P[|A|>Q
Blackboard PΘAQ
Parameters
•P(Proc) – The initial process.
•A({Event}) – The set of exception events.
•Q(Proc) – The process to behave like once an exception has been thrown.
This process initially behaves like P, but if Pever performs an event from the set A, then the process Qis started.
New in version 2.91.
operator Interrupt P /\ Q
Blackboard P4Q
This operator initially behaves like P ||| Q, but if any action of Qis performed Pis discarded and the process
behaves as Q. Both Pand Qmust be of type Proc.
operator Linked Parallel P [c <-> d] Q
Blackboard P[c↔d]Q
Parameters
•P(Proc) – The left process.
•Q(Proc) – The right process.
•c(a =>*Event) – The channel of the left process to synchronise.
4.3. Defining Processes 73
FDR Manual, Release 4.2.0
•d(a =>*Event) – The channel of the right process to synchronise.
Linked parallel runs Pand Qin parallel, forcing them to synchronise on the cand devents and then hides the
synchronised events. Assuming that fis a fresh name it is equivalent to (P[[c <- f]] [| {| f |} |]
Q[[d <- f]]) \ {| f |}. However, compiling linked parallel will be significantly faster than the above
simulation.
As with Rename, multiple channels may be linked and set statements may be used to specify the linking. For ex-
ample, P [a <-> b, c <-> d] Q and P [a.x <-> b.x, c.x <-> d.x | x <- X, f(x)]
Qare both valid syntax. Again, as with Rename, care must be taken to ensure that the channels have the
same allowed values, otherwise a runtime error will occur.
operator Sequential Composition P;Q
Blackboard P;Q
Behaves like Puntil it terminates (by turning into SKIP) at which point Qis run. Both Pand Qmust be of type
Proc.
operator Sliding Choice or Timeout P [> Q
Blackboard P . Q
Initially it offers the choice of the initial events of P, but can non-deterministically change into a state where
only the events of Qare available. If Pperforms a tau to P’, then P [> Q will perform a tau transition to P’
[> Q (i.e. timeout is not resolved by taus). Both Pand Qmust be of type Proc.
operator Synchronising External Choice P[+A+]Q
Blackboard PAQ
This operator is a hybrid of External Choice and :op‘Generalised Parallel‘. Initially it offers the initial
events of both Pand Q, which must be of type Proc. As with Generalised Parallel,Pand Qare
required to synchronise on events from A, which must be of type {Event}. If either Por Qperforms any
event not in A(including a tick or a tau) then the operator behaves like External Choice and discards the
argument that did not do an event. Thus, [+ A +] is resolved only by performing events not in A, whilst events
from Aare performed simultaneously by both branches. For example, given the following:
P=a-> b-> STOP [+ {a} +]a-> c-> STOP
Q=a-> (b -> STOP [] c-> STOP)
Pand Qare equivalent. New in version 2.94.
operator Synchronising Interrupt P/+A+\Q
Blackboard P4AQ
This operator is analogous to Synchronising External Choice in that it is a hybrid of Interrupt
and Generalised Parallel. Initially it offers the initial events of both Pand Q, which must be of type
Proc. As with Generalised Parallel,Pand Qare required to synchronise on events from A, which
must be of type {Event}. As with Interrupt, any event that Pperforms does not resolve the operator
(except for tick, which terminates it). If Qever performs a visible event that is not in Athen this resolves the
choice and the process behaves as Q. For example, given the following:
P=a-> b-> STOP /+ {a}+\a-> c-> STOP
Q=a-> (b -> STOP /\ c-> STOP)
R=a-> (b -> c-> STOP [] c-> STOP)
P,Qand R’ are equivalent. New in version 2.94.
74 Chapter 4. CSPM
FDR Manual, Release 4.2.0
4.4 Type System
One of the new features of FDR3 is a builtin type-checker. The type-checker is not complete in that it will reject some
programs that are correctly typed, but permits virtually all reasonable CSPMscripts. In this section we document the
type system, starting with the type atoms, then documenting the constructed types before lastly documenting the type
constraints.
4.4.1 Type Atoms
type a
A type variable that represents some type. Like variables, these must begin with an alphabetic character
and are followed by any number of alphanumeric characters or underscores optionally followed by any number
of prime characters (’). There is no limit on the length of type variables and case is significant.
type Bool
The type of boolean values, i.e. True and False.
type Char
The type of characters. All Unicode (or equivalently ISO/IEC 10646) characters are supported.
type Datatype n
The type of a user defined datatype. For example, given the following:
datatype X=Y.{0..1}|Z
then Z :: n and Y.0 :: n.
type Event
The type of fully constructed events. For example, given the following definitions:
channel c: {0..1}
channel done
then c.0 :: Event and done :: Event.
type Int
The type of integers. This is defined as supporting values between −231 + 1 and 231 −1, inclusive.
type Proc
The type of constructed processes, such as STOP.
4.4.2 Type Constructors
type Dot a.b
The type of two items x :: a and y :: b that have been combined together using the dot operator.
For example, 1.1 :: Int.Int.
type Dotable a => b
If x :: a => b then xcan be dotted with something of type ato yield a value of type b. Thus, if y ::
athen x.y :: b. This type is used in channel and datatype declarations as follows:
channel c:Int.Int
datatype X=Y.Int.Bool
In the above, c :: Int=>Int=>Event and Y :: Int=>Bool=>X.
4.4. Type System 75
FDR Manual, Release 4.2.0
type Extendable a =>* b
A value of type a =>*bis something that can be extended to a value of type b. In particular, it is either of
type b, or is something of type a => b. Note that if something is of type a =>*bthen ais guaranteed to
be an atomic type variable and bwill satisfy Yieldable. This type most commonly appears in the context of
enumerated sets. For example if f(x) = {|x|} then f :: Yieldable b=> (a=>*b) -> {b}.
type Function (C_1 a_1, C_2 a_2, ...) => (a_1, a_2, ..., a_n) -> b
The type of a function that takes narguments of type a_1,a_2, respectively, each of which satisfies the
appropriate type constraints C_1,C_2 etc, and returns something of type b. For example, given the following
definitions:
plus(x,y)=x+y
singleton(x) = {x}
then plus :: (Int,Int)->Int and singleton :: Set a=> (a) -> {a}.
type Map (| k => v |)
The type of a map from type kto type v. New in version 3.0.
type Sequence <a>
The type of sequences where each element is of type a.
type Set {a}
The type of sets that contain items of type a. Constructing a set requires the inner type to satisfy Set.
type Tuple (a_1, a_2, ..., a_n)
Something of type (a_1, a_2, ..., a_n) is a tuple where the ith item is of type a_i.
4.4.3 Type Constraints
type constraint Eq
A type satisfying Eq can be compared using ==. All of the type atoms except for Proc satisfy Eq, although
Datatype only satisfies Eq if every field satisfies Eq. For example, if Zwas a datatype defined as datatype
Z = A.Proc | B.Int, then Zwould not satisfy Eq as Proc does not. All constructed types, except for
Function, satisfy Eq providing their type arguments do so.
type constraint Complete
A type satisfying Complete is something that is not of the type a => b. That is, it represents a value that
cannot be extended to a datatype or channel by applying Dot.
type constraint Ord
A type satisfying Ord can be compared using <,<=,>= and >. Of the type atoms, only Char and Int
satisfy Ord. Of the constructed types,Map,Sequence,Set and Tuple satisfy Ord providing all their type
arguments satisfy the type constraint Eq (bold not Ord).
See Also:
Comparison for more details on the ordering relation that each type uses.
type constraint Set
This indicates that a type variable must be something that sets can contain. Any type that satisfies Eq also
satisfies Set but, in addition, Proc also satisfies Set. Further, All constructed types, except for Function,
satisfy Set providing their type arguments do so.
Other functional languages do not generally require such a type constraint, as their set implementations merely
require that items are comparable using Eq, and possibly Ord. In CSPMthis is not an option as processes are
not comparable, but it is often useful (and indeed necessary) to construct sets of processes.
76 Chapter 4. CSPM
FDR Manual, Release 4.2.0
Note that some of the set functions require the set to contain items that satisfy Eq. This is done to prevent the
equality of two processes being checked via other means, such as via the function areEqual(p1, p2) =
card({p1, p2}) == 1, which checks if p1 and p2 are equal.
type constraint Yieldable
This type constraint is satisfied only by Event and Datatype. It indicates that the type variable must be
something that can be yielded by dotting together several values.
4.4.4 Binding Strength
The binding strength for the CSPMtype constructors is given below as a list of the constructors in descending order of
binding strength (i.e. items higher in the list bind tighter). Multiple entries on a single level means that the operators
have equal binding strength, meaning that brackets may be necessary to disambiguate the meaning. The associativity
of the operators is given in brackets.
1. Dot (right-associative)
2. Dotable,Extendable (all right-associative)
4.5 Built-In Definitions
4.5.1 Constants
constant Bool :: {Bool}
The set of all booleans, i.e. Bool = {True, False}.
constant Char :: Char
The set of all characters. See Char for more details on the range of characters supported.
constant Events :: {Event}
The set of all events that are currently defined. For example, if a CSPMfile included the following definitions:
channel a: {0,1}
channel b
then Events would evaluate to {a.0, a.1, b}.
constant Int :: {Int}
The set of all integers. See Int for more details on the range of integers supported.
constant Proc :: Proc
The set of all processes that are defined. This set may not be manipulated in any way, but is provided to allow
processes to be used in datatypes:
datatype X=C.Proc
f= C.STOP
constant False :: Bool
Evaluates to the literal false.
constant True :: Bool
Evaluates to the literal true.
4.5. Built-In Definitions 77
FDR Manual, Release 4.2.0
4.5.2 Set Functions
function card :: (Eq a)=> ({a}) -> Int
Returns the cardinality, or size, of the given set. For example, card({}) = 0 and card({0}) = 1.
function diff :: (Set a)=> ({a}, {a}) -> {a}
Returns the relative complement of two sets (i.e. X\Yis written as diff(X,Y)). For example, diff({1},
{1}) = {} and diff({1,2}, {1}) = {2}.
function empty :: (Eq a)=> ({a}) -> Bool
Returns true if the set is empty.
function inter :: (Set a)=> ({a}, {a}) -> {a}
Returns the intersection of the two sets.
function Inter :: (Set a)=> ({{a}}) -> {a}
Given a set of sets, returns the intersection of all of the sets. For example, Inter({{1}, {1,2},
{1,2,3}}) = {1}.
function member :: (Eq a)=> (a, {a}) -> Bool
Returns true if the given element is a member of the given set.
function seq :: (Eq a)=> ({a}) -> <a>
Returns a sequence consisting of all the elements in the given set. The ordering is undefined, although equal
sets will return their elements in the same order. New in version 2.91.
function Seq :: (Set a)=> ({a}) -> {<a>}.
Given a set, returns the set of all finite sequences of elements from the set. If the input set is non-empty, then
the output of this function is always infinite.
function Set :: (Set a)=> ({a}) -> {{a}}
Returns the powerset of the input set.
function union :: (Set a)=> ({a}, {a}) -> {a}
Returns the union of the two sets.
function Union :: (Set a)=> ({{a}}) -> {a}
Given a set of sets, returns the union of all the sets. For example, Union({{1}, {2}}) = {1, 2}.
4.5.3 Sequence Functions
function concat :: (<<a>>) -> <a>
Given a sequence of sequence, concatenates all the sequences into one. For example, concat(<<1>, <2>,
<3>>) = <1, 2, 3>.
function elem :: (Eq a)=> (a, <a>) -> <a>
Returns true if the first argument occurs anywhere in the given list.
function head :: (<a>) -> a
Returns the first element of the given list, throwing an error if the list is empty.
function length :: (<a>) -> Int
Returns the length of list.
function null :: (<a>) -> Bool
True if the list is empty.
function set :: (Set a)=> (<a>) -> {a}
Converts the given list into a set.
78 Chapter 4. CSPM
FDR Manual, Release 4.2.0
function tail :: (<a>) -> <a>
Returns the tail of the list starting at the second element, throwing an error if the list is empty. Thus, xs =
<head(xs)>^tail(xs).
4.5.4 Map Functions
function emptyMap :: (Set k)=> Map k v
Returns an empty map. O(1). New in version 3.0.
function mapDelete :: (Set k)=> (Map k v, k) -> Map k v
Removes the specified key from the map if it is present. O(log n). New in version 3.2.
function mapFromList :: (Set k)=> (<(k, v)>) -> Map k v
Constructs a map given a sequence of associative pairs. If the same key appears more than once, then the last
value in the list will be used (i.e. later entries will overwrite earlier entries). O(n log n). New in version 3.0.
function mapLookup :: (Set k)=> (Map k v, k) -> v
Returns the value associated with the specified key in the map. If the key is not in the domain of the map then
an error is thrown. O(log n) New in version 3.0.
function mapMember :: (Set k)=> (Map k v, k) -> Bool
Returns true if the key is in the map. O(log n). New in version 3.0.
function mapToList :: (Set k)=> (Map k v) -> <(k, v)>
Converts a map to a sequence of associative pairs. O(n). New in version 3.0.
function mapUpdate :: (Set k)=> (Map k v, k, v) -> Map k v
Inserts the specified key value pair into the map, overwriting the current value if the specified key is already in
the map. O(log n). New in version 3.0.
function mapUpdateMultiple :: (Set k)=> (Map k v, <(k, v)>) -> Map k v
Inserts each key-value pair into the map (as per mapUpdate). If the same key appears more than once, then the
last value in the list will be used (i.e. later entries will overwrite earlier entries). O(m log n), where m is the
length of the list to be inserted. New in version 3.0.
function Map :: (Set k,Set v)=> ({k}, {v}) -> {Map k v}
Returns the set of all maps from the given domain to the given image. New in version 3.0.
4.5.5 Error Handling
function error :: (<Char>) -> a
Displays the specified string as an error message. For exmaple:
f(0)=error("f is not defined for 0.")
f(n) = n-1
New in version 3.0.
function show :: (a) -> <Char>
Converts the specified object to a string in a human-readable format. For example:
f(x) = show(x)^"%2=="^show(x %2)
would print 4 %2 == 0 when f(4) is called. New in version 3.0.
4.5. Built-In Definitions 79
FDR Manual, Release 4.2.0
4.5.6 Processes
function CHAOS :: ({Event}) -> Proc
CHAOS(A) offers the non-deterministic choice over all events in A, but may also deadlock at any point.
function DIV :: Proc
DIV immediately diverges. It is equivalent to DIV = STOP [> DIV, or DIV = |~| _ : {0} @ DIV.
external function loop :: (Proc)->Proc
loop(P) computes a process that repeatedly runs the given process using Sequential Composition. In
particular, loop(P) is equal to X, where X=P;X.
Note: This function was required in prior versions of FDR to enable a more optimised representation for certain
processes. The new compiler included in 3.0 automatically recognises and optimises definitions of the form X
=P;X, negating the need for this function to be used.
function RUN :: ({Event}) -> Proc
RUN(A) offers the choice over all events in A, perpetually.
constant SKIP :: Proc
The process that immediately terminates. Thus, SKIP ; P =P, for all P.
constant STOP :: Proc
The process that offers no events and therefore represents a deadlocked process. It is equivalent to [] _ :
{} @ error("This is not called.").
function WAIT :: (Int)->Proc
WAIT(n) performs precisely n tock events and then behaves like SKIP. Note that this function is only in
scope within timed sections.
4.5.7 Compression Functions
FDR has a number of compression functions that can be applied to processes to either attempt to reduce the number
of states that a process has (and thus make refinement checking faster), or to change the semantics in useful ways (cf.
chase or prioritise).
Generally, compressions that are designed to reduce the number of states a process has are best applied to the arguments
of parallel compositions, or other similar operators. There is no point applying one of the semantics-preserving
compressions to the top-level of a process since the compression will need to visit every state of the inner process in
order to calculate the compressed machine. Clearly this is precisely what the original refinement check would have
done. For example:
-- Potentially a useful compression
assert normal(Q) ||| normal(R)
-- Not a useful compression
assert normal(Q ||| R) :[deadlock free]
Further, note that by default FDR applies compressions to the arguments of parallel compositions, meaning there is no
need to apply compression to such processes. By default, FDR uses sbisim to compress the leaf machines, but the
compression used can be configured using compiler.leaf_compression.
The best method of assessing the effectiveness of compressions is to use the machine structure viewer, which can
display details regarding the number of states and transitions that are saved by compression. In general, when attempt-
ing to reduce the state space of a process, the best compression functions to try are dbisim,diamond (followed
by sbisim), normal, and wbisim. It is often hard to predict which compression function will perform well on a
given process: in general, it is best to perform several experiments to determine which results in the best reduction
in the state space size. In general, diamond followed by sbisim is the fastest of the compressions to perform. On
80 Chapter 4. CSPM
FDR Manual, Release 4.2.0
most systems, wbisim only gives a small extra reduction in the number of states versus dbisim, which is a very
effective compression. When normal works efficiently it generally achieves very good compression ratios, but unlike
the other compressions, it can actually cause the number of states to increase.
The compression functions functions are all transparent or external functions, and thus need to be explicitly imported.
See Transparent and External Functions for more information. Compressions that are semantics preserving are trans-
parent, whilst compressions that alter the semantics and are thus unsafe are marked as external.
The algorithms that are used to compute the compressions detailed below are described in Understanding Concurrent
Systems.
external function chase :: (Proc)->Proc
Not semantics preserving - this should only be used when it has been proven that its application is safe, or if the
behaviour is desired.
chase(P) is best defined by considering how to chase an individual state sof P. If scan perform a tau to some
state s’, then chase(s) = chase(s’). If there are multiple tau transitions, then the tau transition that is
picked is not defined: it is picked according to internal implementation details. If scannot perform a tau, then
chase(s) = s. For example, if P = a -> STOP |~| b -> STOP then chase(P) could either equal
a -> STOP or b -> STOP. Thus, chase is a form of manual partial order reduction on invisible events.
chase is primarily useful when the result of performing one tau is known to not cause other taus to be-
come unavailable. For example, consider chase((a -> STOP ||| b -> STOP) \ {a, b}): ap-
plying chase to this system does not change the semantics, since whenever a hidden aor boccurs the other
action is still allowed in the resulting state.
This compression is lazy, in that it is computed on-the-fly as the process is explored. It can therefore be sensibly
applied at the top-level of a system.
Warning: Applying chase to divergent processes is unsafe any may cause FDR to crash (it will certainly
cause checking not to terminate if a divergent state is reached by chase).
Warning: As with chase, this function will not perform well once the bounds of RAM have been ex-
ceeded. This will be addressed in a future release of FDR3.
external function chase_nocache :: (Proc)->Proc
Not semantics preserving - this should only be used when it has been proven that its application is safe.
This behaves exactly as per chase, but optimises the internal representation to cache less information and thus
consume less memory (and will give a small speed up). This should only be used if it is relatively unlikely that
a state of the chased machine will be visited twice.
external function deter :: (Proc)->Proc
Not semantics preserving - this should only be used when it has been proven that its application is safe, or if the
behaviour is desired.
This is only valid in the failures-divergences model, and returns a deterministic version of the process using
the algorithm specified in Understanding Concurrent Systems. This is used internally by FDR to implement
determinism checking in the failures-divergences model, and is unlikely to be of more general use.
transparent function diamond :: (Proc)->Proc
diamond returns a new process where essentially, given a state sof the original process, as many as possible
of the transitions of states that are reachable via a series of taus from sare added to sitself. The idea behind
this is that it will potentially allow states that are reachable via chains of taus to be elided.
It is a useful compression to apply since it can never increase the size of a compressed process (unlike normal),
results in a LTS that contains no taus (which can be a useful property), and is often quick to compute. Further,
the output of diamond is guaranteed to contain no taus.
4.5. Built-In Definitions 81
FDR Manual, Release 4.2.0
diamond can only be used in the traces, failures and failures-divergences models. It applies
tau_loop_factor and explicate as preprocessing steps.
The output of this often benefits from being strongly bisimulated. In particular, it may be useful to define the
function sbdia(P) = sbisim(diamond(P)) to use as a compression function.
transparent function dbisim :: (Proc)->Proc
dbisim(P) computes the maximal delay bisimulation of Pand then returns and LTS that has been reduced
using this. In particular, it identifies any states of Pthat can perform the same visible events after performing
zero or more taus, and such that performing any such event leads to states, that are also delay bisimilar. This
differs from wbisim in that it does not require the states immediately reached after performing the visible event
to be bisimilar, but instead allows zero or more taus to occur.
dbisim is slower than sbisim to compute, but can achieve substantially more compression than sbisim
on some processes. It is faster than wbisim to compute, but wbisim can achieve a small amount of extra
compression on some processes. New in version 3.0.
transparent function explicate :: (Proc)->Proc
If the provided machine is a high-level machine, converts it to a low-level machine. Whilst the transitions of this
machine will be accessible more quickly, the resulting machine will usually use up far more memory and the
time taken to do the explication will exceed the time taken to simply access the original machine’s transitions.
Therefore, this is only of use when FDR’s compilation algorithm incorrectly selects the level to compile a
machine at. It is also used as a preprocessing stage for a number of the other compressions.
transparent function lazyenumerate :: (Proc)->Proc
This behaves like explicate, but lazily computes the low-level transition as it is being used, rather than up-
front. It is not normally necessary to use this compression function, but it is used internally by a number of
compression functions.
external function failure_watchdog :: (Proc, {Event}, Event)->Proc
This function returns thefailures watchdog of the given process, as specified in Watchdog Transformations for
Property-Oriented Model-Checking. In particular, failure_watchdog(P, evs, bark) alters Pand
returns a process P’ such that, in any state sof Pthat offers events inits, instead offers evs ∪inits and,
if any event in evs \inits is performed, transitions to a process equivalent to bark -> STOP. Further, the
watchdog will also monitor the failures of the process it is put in parallel with, and will deadlock if the process
has a disallowed failure.
This transformation can be used to turn a refinement check of the form:
assert Spec [F= Impl
into a check:
assert STOP [F= (failure_watchdog(Spec,A,bark) [| A|] Impl) \A
assuming that Ais the alphabet of Impl. The usefulness of this is as per trace_watchdog. However, note
that unlike trace_watchdog,failure_watchdog can cause the size of the specification to dramatically
increase and therefore the resulting check can be slower. In particular, specifications that require lots of events
to be simultaneously offered will be less efficient (conversely, specifications that are very nondeterministic will
be more efficient). New in version 3.1.
transparent function normal :: (Proc)->Proc
normal(P) returns a normalised version of Pin which there are no taus and such that each state contains at
most one transition labelled with a particular event. For example, the process:
P=a-> P|~| a-> STOP
is normalised to the process P’ where:
82 Chapter 4. CSPM
FDR Manual, Release 4.2.0
P’ =a-> Q’
Q’ =a-> Q’
where Q’ is labelled with the refusals {},{a} (i.e. either Q’ refuses nothing, or it refuses a).
The output of normal automatically has sbisim applied to it.
external function prioritise :: (Proc, <{Event}>) -> Proc
Not semantics preserving - this should only be used when it has been proven that its application is safe, or if the
behaviour is desired.
prioritise(P, <S1, ..., SN>) takes a process and a non-empty sequence of disjoint sets of events
(note that the latter condition is not checked). It returns a machine whose operational semantics have been
altered to only allow actions from Si providing no event from Sj is offered for all j<i. Note that tau and
tick are implicitly added to S1. Any event that is not in any of the Si is unaffected by this transformation. For
example, in the following each Pi is equivalent to Qi:
P1 = prioritise(a -> STOP [] b-> STOP, <{a}, {b}>)
Q1 =a-> STOP
P2 = prioritise(a -> STOP |~| b-> STOP, <{a}, {b}>)
Q2 =a-> STOP |~| b-> STOP
P3 = prioritise(a -> STOP [>b-> STOP, <{}, {a}>)
Q3 =b-> STOP
Note that this compression is lazy and can therefore be applied to the outer level of a system (indeed, this is the
most common usage). If there is only one set of events specified then the above function is the identity function.
This function is most commonly used when modelling timed systems using tock CSP since
prioritise(P,{},{tock}) ensures that tock cannot occur when tau or tick are available.
Note that prioritise(P, ...) cannot be applied to processes Pthat contain certain compressions that
are not prioritise safe. The only compressions that are prioritise safe are dbisim,sbisim and wbisim.
FDR will detect unsafe applications of compressions and report these as errors when necessary. New in
version 2.94.Changed in version 3.0: In FDR2, this function took either a variable number of arguments or
a sequence of sets. In FDR3 this function has been changed to only allow a sequence of sets to be passed.
Warning: As with chase, this function will not perform well once the bounds of RAM have been ex-
ceeded. This will be addressed in a future release of FDR3.
external function prioritise_nocache :: (Proc, <{Event}>) -> Proc
Not semantics preserving - this should only be used when it has been proven that its application is safe, or if the
behaviour is desired.
This behaves exactly as per prioritise, but optimises the internal representation to cache less information
and thus consume less memory (and will give a small speed up). This should only be used if it is relatively
unlikely that a state of the chased machine will be visited twice. New in version 2.94.Changed in version 3.0:
In FDR2, this function took either a variable number of arguments or a sequence of sets. In FDR3 this function
has been changed to only allow a sequence of sets to be passed.
external function prioritisepo :: (Proc, {Event}, {(Event,Event)}, {Event}) -> Proc
Not semantics preserving - this should only be used when it has been proven that its application is safe, or if the
behaviour is desired.
prioritisepo(P, E, O, M) takes a process and a specification of a partial order (the format of which
is defined below). It returns a machine whose operational semantics have been altered to only events eprovid-
ing no event above ein the specified partial order is offered. This is essentially a more advanced version of
prioritise that permits additional control.
4.5. Built-In Definitions 83
FDR Manual, Release 4.2.0
The partial order is specified by three sets: E,O, and M.Eis the set of set of all events that should be prioritised:
events not in Ewill be unaffected by prioritisepo.Ois a set of pairs such that if (u, l) is present in
O, then lis defined as being below uin the ordering (i.e. u>l, and thus uwould be prioritised over l). The
actual order used is the transitive closure of the order O. Any event in Eis assumed to be below tau and tick, but
the set Mcan be used to specify which events should be considered equal to tau and tick in the ordering. For
example, in the following each Pi is equivalent to Qi:
P1 = prioritisepo(a -> STOP [] b-> STOP, {a,b}, {(a,b)}, {})
Q1 =a-> STOP
P2 = prioritisepo(a -> STOP |~| b-> STOP, {a,b}, {(a,b)}, {})
Q2 =a-> STOP |~| b-> STOP
P3 = prioritisepo(a -> STOP [>b-> STOP, {a}, {}, {})
Q3 =b-> STOP
P4 = prioritisepo(a -> STOP [>b-> STOP, {a}, {}, {a})
Q4 =a-> STOP [>b-> STOP
As per prioritise, this compression is lazy and can therefore be applied to the outer level of a system
(indeed, this is the most common usage). If there is only one set of events specified then the above function is
the identity function.
As per prioritise,prioritisepo(P, ...) cannot be applied to processes P
that contain certain compressions that are not prioritise safe. The only compressions that
are prioritise safe are dbisim,sbisim and wbisim. FDR will detect unsafe appli-
cations of compressions and report these as errors when necessary. New in version 3.2.
Warning: As with chase, this function will not perform well once the bounds of RAM have been ex-
ceeded. This will be addressed in a future release of FDR3.
transparent function sbisim :: (Proc)->Proc
sbisim(P) computes the maximal strong bisimulation of Pand then returns and LTS that has been reduced
using this. In particular, this means that it identifies states that have identical behaviour. In particular, it identifies
any states of Pthat can perform the same events and such that performing them leads to states that are also
strongly bisimilar.
Generally, sbisim is able to compress a process very quickly, but will often not reduce the number of states
that much compared to other compressions. It is automatically applied to the result of normal, is often use-
ful to apply to the result of diamond, and is the default compression used by FDR on leaf machines (see
compiler.leaf_compression).
transparent function tau_loop_factor :: (Proc)->Proc
tau_loop_factor(P) identifies any states that are on a tau loop (i.e. it identifies any two states s and s’
such that s can reach s’ via a sequence of taus and s’ can reach s via a sequence of taus).
Generally this compression is not that useful on its own, but it is used as a preprocessing step by a number of
other compressions.
external function trace_watchdog :: (Proc, {Event}, Event)->Proc
This function returns the traces watchdog of the given process, as specified in Watchdog Transformations for
Property-Oriented Model-Checking. In particular, trace_watchdog(P, evs, bark) alters Pand re-
turns a process P’ such that, in any state sof Pthat offers events inits, instead offers evs ∪inits and, if
any event in evs \inits is performed, transitions to a process equivalent to bark -> STOP. For example,
trace_watchdog(a -> STOP, {a, b}, bark) is equivalent to the process:
a-> (a -> bark -> STOP [] b-> bark -> STOP)
[] b-> bark -> STOP
84 Chapter 4. CSPM
FDR Manual, Release 4.2.0
This transformation can be used to turn a refinement check of the form:
assert Spec [T= Impl
into a check:
assert STOP [T= (trace_watchdog(Spec,A,bark) [| A|] Impl) \A
assuming that Ais the alphabet of Impl. There are two reasons why this may be useful. Firstly, it allows various
hierarchical compression techniques to be applied to the combination of the specification and the implementa-
tion. Further, if FDR finds a counterexample to the transformed assertion then, providing Spec is deterministic,
it will be possible to divide this into behaviours of both the specification and the implementation, thus allowing
a limited form of specification debugging to occur.
Note: Counterexample can only be divided through trace_watchdog when the check is being done in the
traces model. Counterexamples for stronger models cannot be divided through trace_watchdog since there
is no guarantee that the behaviour is indeed a behaviour of the old machine.
New in version 3.1.
function timed_priority :: (Proc)->Proc
Not semantics preserving - this should only be used when it has been proven that its application is safe, or when
the behaviour is desired.
timed_priority(P) is equivalent to prioritise(P, <{}, {tock}>) and thus gives priority to tau
and tick over tock. Note that this function is only in scope within timed sections and, in contrast to the other
compression functions, does not need to be imported using transparent or external. New in version
2.94.Changed in version 3.0: In FDR2, this function was available anywhere in a file that used the timed section
syntax. In FDR3, this is only available within a timed section itself.
transparent function wbisim :: (Proc)->Proc
wbisim(P) computes the maximal weak bisimulation of Pand then returns and LTS that has been reduced
using this. In particular, it identifies any states of Pthat can perform the same visible events after performing
zero or more taus, and such that performing any such event leads to states, again after possibly performing
some more taus, that are also weakly bisimilar. This differs from dbisim in that it does not require the states
immediately reached after performing the visible event to be bisimilar, but instead allows zero or more taus to
occur.
wbisim is slower than both dbisim and sbisim, but is able to achieve a small amount of extra compression
compared to dbisim (which in turn can achieve more compression that sbisim). In the worst case, it will
take twice as long as dbisim to compute. New in version 2.94.
4.5.8 Relation Functions
external function mtransclose :: (Eq a)=> ({(a, a)}, {a}) -> {(a, a)}
Given a relation R, expressed as a set of pairs, computes the symmetric transitive closure of the relation. Then,
for each element of the second set Sit computes a representative member of its equivalence class (under the
symmetric transitive closure). It returns a set of tuples consisting of each element from Salong with its rep-
resentative (nb. the representative is the first element of the pair), providing the element is not equal to its
representative, in which case it is omitted.
external function relational_image :: (Eq a,Set b)=> ({(a, b)}) -> (a) -> {b}
Given a relation, expressed as a set of pairs, returns a function that takes an element of the domain
of the relation and returns the set of all elements of the image that it is related to. For example,
relational_image({(1,2), (1,3)})(1) = {2,3}.
This function benefits from being partially applied to its first argument.
4.5. Built-In Definitions 85
FDR Manual, Release 4.2.0
external function relational_inverse_image :: (Set a,Eq b)=> ({(a, b)}) -> (b) ->
{a}
This function is the opposite to relational_image. In particular, given a relation, expressed as a set of pairs, it
returns a function that takes an element of the image of the relation and returns the set of all elements of the
domain that it is related to. For example, relational_inverse_image({(2,1), (3,1)})(1) =
{2,3}.
external function transpose :: (Set a,Set b)=> ({(a, b)}) -> {(b, a)}
Given a relation, expressed as a set of tuples, returns the transpose of the relation. For example,
transpose({(1,2)}) = {(2,1)}.
4.5.9 Dot-Related Functions
function extensions :: (Set a,Yieldable b)=> (a => b) -> {a}
Given a partially completed datatype or channel definition d, this returns the set of all xsuch that d.x is a
completed datatype or channel definition. For example, given the following definitions:
datatype T=X.Bool
channel c:Int.T
extensions(c.0) = {X.False, X.True} and extensions(c.0.X) = {false, true}.
Changed in version 3.0: In previous versions of FDR extensions could be called on fully completed events
and datatypes. This is no longer the case as it would cause the type system to be undecidable.
function productions :: (Set b,Yieldable b)=> (a =>*b) -> {b}
Much like extensions, given a partially completed datatype or channel definition d, this returns the set of all
d.x such that d.x is a completed datatype or channel definition. For example, given the following definitions:
datatype T=X.Bool
channel c:Int.T
productions(c.0) = {c.0.X.False, c.0.X.True} and productions(c.0.X) =
{c.0.X.false, c.0.X.true}.
4.6 Profiling
FDR provides a tool cspmprofiler that is a time sampling profiler for CSPM. This means it is possible to attribute
how much time is spent in each function within a file whilst checking a refinement assertion, allowing performance
problems to be diagnosed.
cspmprofiler can be invoked on the command line by passing it a single CSPMfile:
$cspmprofiler file.csp
cspmprofiler will evaluate all processes contained in the assertions in the specified file whilst profiling how much
time is taken by each function call. Once this has completed, FDR will output a summary of the profiling data,
including the total time taken, the total number of allocations performed, a list of the most expensive functions, as well
as a hierarchical breakdown of where time and allocations were spent.
For example, suppose cspmprofiler was invoked on Dining Philosophers (i.e. by running cspmprofiler
phils6.csp). This would outptu:
Exploring phils6.csp
Exploring SYSTEM :[deadlock free [F]]
Exploring SYSTEMs :[deadlock free [F]]
Exploring BSYSTEM :[deadlock free [F]]
86 Chapter 4. CSPM
FDR Manual, Release 4.2.0
Exploring ASSYSTEM :[deadlock free [F]]
Exploring ASSYSTEMs :[deadlock free [F]]
TOTAL RUNTIME 0.01 secs (10 ticks @ 1000 us, 1 processor)
TOTAL ALLOCATIONS 10,886,392 bytes (excludes profiling overheads)
TOP FUNCTIONS
COST CENTRE ENTRIES %time %alloc
AlphaP 24 100.0 31.6
ASPHILS 1 0.0 0.7
ASPHILSs 1 0.0 0.7
ASSYSTEM 1 0.0 3.3
ASSYSTEMs 1 0.0 3.3
AlphaF 24 0.0 21.1
BSYSTEM 1 0.0 0.7
BUTLER 11 0.0 9.9
FORK 30 0.0 7.9
FORKNAMES 1 0.0 0.0
ALL FUNCTIONS
COST CENTRE ENTRIES individual inherited
%time %alloc %time %alloc
SYSTEMs 1 0.0 2.0 100.0 34.9
AlphaP 12 100.0 15.8 100.0 15.8
AlphaF 12 0.0 10.5 0.0 10.5
FORK 6 0.0 0.7 0.0 0.7
PHILs 12 0.0 5.9 0.0 5.9
union 6 0.0 0.0 0.0 0.0
ASPHILS 1 0.0 0.7 0.0 2.0
LPHIL 2 0.0 1.3 0.0 1.3
PHIL 5 0.0 0.0 0.0 0.0
ASPHILSs 1 0.0 0.7 0.0 1.3
LPHILs 2 0.0 0.7 0.0 0.7
PHILs 5 0.0 0.0 0.0 0.0
ASSYSTEM 1 0.0 3.3 0.0 3.3
ASSYSTEMs 1 0.0 3.3 0.0 3.3
BSYSTEM 1 0.0 0.7 0.0 10.5
BUTLER 11 0.0 9.9 0.0 9.9
eats 1 0.0 0.0 0.0 0.0
FORKNAMES 1 0.0 0.0 0.0 0.0
FORKS 1 0.0 0.7 0.0 1.3
FORK 6 0.0 0.7 0.0 0.7
getsup 1 0.0 0.0 0.0 0.0
N 1 0.0 0.0 0.0 0.0
PHILNAMES 1 0.0 0.0 0.0 0.0
picks 1 0.0 0.0 0.0 0.0
putsdown 1 0.0 0.0 0.0 0.0
sits 1 0.0 0.0 0.0 0.0
SYSTEM 1 0.0 2.0 0.0 43.4
AlphaF 12 0.0 10.5 0.0 10.5
AlphaP 12 0.0 15.8 0.0 15.8
4.6. Profiling 87
FDR Manual, Release 4.2.0
FORK 18 0.0 6.6 0.0 6.6
PHIL 12 0.0 8.6 0.0 8.6
union 6 0.0 0.0 0.0 0.0
thinks 1 0.0 0.0 0.0 0.0
We explain the output of each section in turn.
Firstly, the output lists which processes it explored during the profiling. If there were a large number of processes, it
would also display its progress. It then outputs a summary of how long it took to explore all the processes, and the
total number of bytes allocated during the exploration.
The first import section is the TOP FUNCTIONS section. This is a list of the 10 functions in the script that take the
most time overall. In this case, we can see that AlphaP is the most expensive function, in fact taking 100% of the
overall execution time. (This example is really too small for profiling to show anything notable.)
The last section displays the time taken by each individual function hierarchically. For example, consider the first few
lines
COST CENTRE ENTRIES individual inherited
%time %alloc %time %alloc
SYSTEMs 1 0.0 2.0 100.0 34.9
AlphaP 12 100.0 15.8 100.0 15.8
AlphaF 12 0.0 10.5 0.0 10.5
FORK 6 0.0 0.7 0.0 0.7
PHILs 12 0.0 5.9 0.0 5.9
union 6 0.0 0.0 0.0 0.0
The columns are as follows:
•COST CENTRE ENTRIES displays the CSPMname to which this row refers to.
•ENTRIES indicates how many times each entry was called.
•individual %time refers to the amount of time was spent in this function. It excludes any time made
during calls to other functions.
•individual %alloc refers to the number of memory allocations that were made in this function. It ex-
cludes any allocations made during calls to other functions.
•inherited %time refers to the total amount of time that was spent in this function, including inside any
calls to other functions. For example, for SYSTEMs we see that the inherited time is 100%, but the individual
time is 0%. This is because the inherited time includes the time inside the recursive call to AlphaP.
•inherited %alloc this is similar to inherited %time, but for allocations.
The hierarchy displays which functions are called by which other functions. For example, the above indicates that
SYSTEMs calls AlphaP etc. As another example, consider the following profile:
COST CENTRE ENTRIES
f 1
g 12
h 12
This indicates that fcalls gwhich calls h.
Note that because cspmprofiler is a sampling profiler, this means that erroneous results can be obtained (although
this happens rarely in practice). This is because a sampling profiler periodically records the function at the top of the
execution stack. Clearly it is possible that, somehow, the profiler always picks the wrong moment to record this and
therefore creates incorrect results.
Internally, cspmprofiler is implemented using the GHC’s profiler for Haskell.
88 Chapter 4. CSPM
CHAPTER
FIVE
INTEGRATING FDR INTO OTHER
TOOLS
FDR can also be integrated into other tools by utilising either a simple machine-readable output format, or using the
more powerful API. These both allow for FDR to be used as a verification back-end for other tools. These APIs both
expose various capabilities, including the ability to run assertions and then inspect the counterexamples. There are
two ways of integrating with FDR:
1. Use the machine-readable output of the command-line tool.
2. Use the FDR API, which is available for C++, Java, and Python.
For anything but the most trivial applications, we strongly recommend the use of the API over the command-line
tool. This is because the API allows for much finer control over FDR, such as choosing which assertions to run and
when. Further, whilst the machine-readable interface will not be augmented in the future, the API can be extended if
additional functionality is required.
Warning: Note that you may not bundle FDR with your tools (i.e. include a copy of FDR as part of the download
of your own tool). You must instead direct your users to download FDR directly from the website, thus ensuring
that the user is aware of the FDR license terms.
5.1 The FDR API
libfdr is a 64-bit only library available for C++, Java, and Python that exposes part of FDR’s internals to external
tools. This API is designed to be stable, and we will endeavour to make backwards-incompatible changes only when
absolutely necessary. libfdr currently exposes functionality that allows files to be loaded, particular assertions to
be executed, counterexamples to be interrogated, and arbitrary expressions to be evaluated. As such, it exposes a strict
superset of functionality as compared to the machine-readable output of the command-line interface.
As a simple example, the following python loads a file, executes all assertions, and then begins to inspect any coun-
terexamples:
session =fdr.Session()
session.load_file("phils8.csp")
# Evaluate an expression
print session.evaluate_expression("<0,1>^<2,3>",None).result
# Run the assertions
for assertion in session.assertions():
assertion.execute(None)
89
FDR Manual, Release 4.2.0
for counterexample in assertion.counterexamples():
debug_context =fdr.DebugContext(counterexample, True)
debug_context.initialise(None);
spec =debug_context.specification()
impl =debug_context.implementation()
Full API documentation for the C++ version is available. Stub API documentation for the Java version is available. At
the present time there is no full documentation available for the Java and Python APIs, however, the C++ documenta-
tion should be a suitable reference. In particular, the Python function names are identical, and the Java function names
are simply converted into camel-case (e.g. node_path() becomes nodePath()).
If you are interested in additional functionality please contact us and describe the additional functionality that you
would like.
5.1.1 Getting Started with C++
In order to use the C++ API, a C++11 compatible compiler, such as g++ 4.8, or clang++ 3.1 is required. The
following file demonstrates the basics of using libfdr. Firstly, libfdr is initialised, then Session is created, into
which the file phils8.csp is loaded. Lastly, all the assertions are executed.
#include <fdr/fdr.h>
#include <iostream>
int main(int argc, char** argv)
{
FDR::library_init(&argc, &argv);
try
{
FDR::Session session;
session.load_file("phils8.csp");
for (const std::shared_ptr<FDR::Assertions::Assertion>& assertion
:session.assertions())
{
assertion->execute(nullptr);
std::cout << assertion->to_string() << " "
<< (assertion->passed() ?"Passed" :"Failed");
}
}
catch (const FDR::Error&error)
{
std::cout << error.what() << std::endl;
}
FDR::library_exit();
return 0;
}
If FDR is installed at /opt/fdr (which it is by default on Linux), and the above file is saved as main.cc, then the file
above can be compiled and linked using:
g++ -std=c++11 -I/opt/fdr/include -L/opt/fdr/lib -D_GLIBCXX_USE_CXX11_ABI=0
-o libfdr_demo main.cc
-Wl,-rpath=/opt/fdr/lib -lfdr
90 Chapter 5. Integrating FDR into Other Tools
FDR Manual, Release 4.2.0
A more interesting example is included in API Examples. The C++ API is fully documented and is available here.
Note that all strings used by libfdr are UTF-8 encoded. The use of the boost.nowide is strongly recommended.
ABI Compatibility
Different C++ implementations are not always compatible with each other. Below, we list the compiler version that
libfdr was compiled with, and also versions that it will be compatible with.
On Linux, libfdr was compiled with g++ 4.8. We believe that this should be compatible with all C++-11 compliant
releases of g++. It should also be compatible with any other C++11 compliant compiler that also uses libstdc++.
On Mac OS X, libfdr was compiled using the system-provided clang++ using libc++ as the standard library.
This means that when compiling under Mac OS X, the compiler flag -stdlib=libc++ must be used. Failure to do
so will lead to various link errors.
On Windows, libfdr was compiled using g++ 4.8 using the mingw-w64 build with POSIX threads and Structured
Exception Handling (SEH). Unfortunately, on Windows, compiler compatibility is currently very limited. We hope to
provide ABI compatibility with MSVC at some point in the future.
5.1.2 Getting Started with Java
FDR also provides a Java interface, which was generated using SWIG and provides equivalent functionality to the
C++ interface. In order to use the FDR Java interface, at least Java 1.6 is required. The following file gives a simple
example of how the API can be used. This initialises FDR, loads the file phils8.csp, and then executes all of the
assertions in the file.
import uk.ac.ox.cs.fdr.*;
package FDRDemo {
public static void main(String[] argv)
{
try {
Session session =new Session();
session.loadFile("phils8.csp");
for (Assertion assertion :session.assertions()) {
assertion.execute(null);
System.out.println(assertion.toString()+" "+
(assertion.passed()?"Passed" :"Failed"));
}
}
catch (InputFileError error) {
System.out.println(error);
}
catch (FileLoadError error) {
System.out.println(error);
}
fdr.libraryExit();
}
}
The above example can be compiled and executed as follows, assuming that FDR has been installed into its usual
location on Linux:
5.1. The FDR API 91
FDR Manual, Release 4.2.0
javac -classpath /opt/fdr/lib/fdr.jar FDRDemo.java
java -classpath /opt/fdr/lib/fdr.jar:. FDRDemo
A more interesting example is included in API Examples, and can be compiled in similar fashion. The Java API has
stub documentation available here, and therefore the C++ documentation may also be useful to refer to.
Warning: Many of the classes contain a delete() method. This is considered an internal implementation
detail, and as such should not be manually called. It is likely to be removed in a future release.
5.1.3 Getting Started with Python
FDR also provides a Python interface, which was generated using SWIG and provides equivalent functionality to the
C++ interface. In order to use the FDR Python interface, at least Python 2.6 is required. The following file gives a
simple example of how the API can be used. This initialises FDR, loads the file phils8.csp, and then executes all
of the assertions in the file.
import os
import platform
import sys
if platform.system() == "Linux":
for bin_dir in os.environ.get("PATH","").split(":"):
fdr4_binary =os.path.join(bin_dir, "fdr4")
if os.path.exists(fdr4_binary):
real_fdr4 =os.path.realpath(os.path.join(bin_dir, "fdr4"))
sys.path.append(os.path.join(os.path.basename(os.path.basename(real_fdr4)), "lib"))
break
elif platform.system() == "Darwin":
for app_dir in ["/Applications", os.path.join("~","Applications")]:
if os.path.exists(os.path.join(app_dir, "FDR4.app")):
sys.path.append(os.path.join(app_dir, "FDR4.app","Contents","Frameworks"))
break
import fdr
fdr.library_init()
session =fdr.Session()
try:
session.load_file("phils8.csp")
for assertion in session.assertions():
assertion.execute(None)
print "%s:%s"%(assertion, "Passed" if assertion.passed() else "Failed")
catch FDRError, e:
print e
fdr.library_exit()
The above example can be executed using python fdr_demo.py.
A more interesting example is included in API Examples, and can be executed in similar fashion.
92 Chapter 5. Integrating FDR into Other Tools
FDR Manual, Release 4.2.0
5.2 API Examples
For each language a simple command line tool has been produced that will check all assertions in a file, and then print
the counterexample that is produced. This includes dividing the counterexample into sub-behaviours of the various
components of the system. You may use these files as the basis of your integration into FDR3.
The files below (namely, command_line.cc,CommandLine.java and command_line.py) are hereby
placed in the public domain. This means that any parts of these files may be incorporated into your own files that
you then license under different means.
5.2.1 C++
Compilation instructions: g++ -std=c++11 -I/opt/fdr/include -L/opt/fdr/lib -lfdr -o
libfdr_demo command_line.cc.
Download
1#include <iostream>
2
3#include <fdr/fdr.h>
4
5/// Pretty prints the specified behaviour to stdout
6static void describe_behaviour(
7const FDR::Session&session,
8const FDR::Assertions::DebugContext&debug_context,
9const FDR::Assertions::Behaviour&behaviour,
10 unsigned int indent,
11 const bool recurse)
12 {
13 // Describe the behaviour type
14 std::cout << std::string(indent, ’ ’)<< "behaviour type: ";
15 indent += 2;
16 if (dynamic_cast<const FDR::Assertions::ExplicitDivergenceBehaviour*>(&behaviour))
17 std::cout << "explicit divergence after trace";
18 else if (dynamic_cast<const FDR::Assertions::IrrelevantBehaviour*>(&behaviour))
19 std::cout << "irrelevant";
20 else if (auto loop =
21 dynamic_cast<const FDR::Assertions::LoopBehaviour*>(&behaviour))
22 std::cout << "loops after index " << loop->loop_index();
23 else if (auto min_acceptance =
24 dynamic_cast<const FDR::Assertions::MinAcceptanceBehaviour*>(&behaviour))
25 {
26 std::cout << "minimal acceptance refusing {";
27 for (const FDR::LTS::CompiledEvent event :min_acceptance->min_acceptance())
28 std::cout << session.uncompile_event(event)->to_string() << ", ";
29 std::cout << "}";
30 }
31 else if (auto segmented =
32 dynamic_cast<const FDR::Assertions::SegmentedBehaviour*>(&behaviour))
33 {
34 std::cout << "Segmented behaviour consisting of:\n";
35 // Describe the sections of this behaviour. Note that it is very
36 // important that false is passed to the the descibe methods below
37 // because segments themselves cannot be divded via the DebugContext.
38 // That is, asking for behaviour_children for a behaviour of a
39 // SegmentedBehaviour is not allowed.
40 for (const std::shared_ptr<FDR::Assertions::Behaviour>& child :
5.2. API Examples 93
FDR Manual, Release 4.2.0
41 segmented->prior_sections())
42 describe_behaviour(session, debug_context, *child, indent +2,false);
43 describe_behaviour(session, debug_context, *segmented->last(),
44 indent +2,false);
45 }
46 else if (auto trace =dynamic_cast<const FDR::Assertions::TraceBehaviour*>(&behaviour))
47 std::cout << "performs event " << session.uncompile_event(trace->error_event())->to_string();
48 std::cout << std::endl;
49
50 // Describe the trace of the behaviour
51 std::cout << std::string(indent, ’ ’)<< "Trace: ";
52 for (const FDR::LTS::CompiledEvent event :behaviour.trace())
53 {
54 if (event == FDR::LTS::INVALID_EVENT)
55 std::cout << "-, ";
56 else
57 std::cout << session.uncompile_event(event)->to_string() << ", ";
58 }
59 std::cout << std::endl;
60
61 // Describe any named states of the behaviour
62 std::cout << std::string(indent, ’ ’)<< "States: ";
63 for (const std::shared_ptr<FDR::LTS::Node>& node :behaviour.node_path())
64 {
65 if (node == nullptr)
66 std::cout << "-, ";
67 else
68 {
69 std::shared_ptr<FDR::Evaluator::ProcessName>process_name =
70 session.machine_node_name(*behaviour.machine(), *node);
71 if (process_name == nullptr)
72 std::cout << "(unknown), ";
73 else
74 std::cout << process_name->to_string() << ", ";
75 }
76 }
77 std::cout << std::endl;
78
79 // Describe our own children recursively
80 if (recurse)
81 {
82 for (const std::shared_ptr<FDR::Assertions::Behaviour>& child :
83 debug_context.behaviour_children(behaviour))
84 {
85 describe_behaviour(session, debug_context, *child, indent +2,true);
86 }
87 }
88 }
89
90 /// Pretty prints the specified counterexample to stdout
91 static void describe_counterexample(
92 const FDR::Session&session,
93 const FDR::Assertions::Counterexample&counterexample)
94 {
95 // Firstly, just print a simple description of the counterexample
96 std::cout << "Counterexample type: ";
97 if (dynamic_cast<const FDR::Assertions::DeadlockCounterexample*>(
98 &counterexample))
94 Chapter 5. Integrating FDR into Other Tools
FDR Manual, Release 4.2.0
99 std::cout << "deadlock";
100 else if (dynamic_cast<const FDR::Assertions::DeterminismCounterexample*>(
101 &counterexample))
102 std::cout << "determinism";
103 else if (dynamic_cast<const FDR::Assertions::DivergenceCounterexample*>(
104 &counterexample))
105 std::cout << "divergence";
106 else if (auto min_acceptance =
107 dynamic_cast<const FDR::Assertions::MinAcceptanceCounterexample*>(
108 &counterexample))
109 {
110 std::cout << "minimal acceptance refusing {";
111 for (const FDR::LTS::CompiledEvent event :min_acceptance->min_acceptance())
112 std::cout << session.uncompile_event(event)->to_string() << ", ";
113 std::cout << "}";
114 }
115 else if (auto trace =
116 dynamic_cast<const FDR::Assertions::TraceCounterexample*>(
117 &counterexample))
118 std::cout << "trace with event " << session.uncompile_event(
119 trace->error_event())->to_string();
120 else
121 std::cout << "unknown";
122 std::cout << std::endl;
123
124 // In order to print the children we use a DebugContext. This allows for
125 // division of behaviours into their component behaviours, and also ensures
126 // proper alignment amongst the child components.
127 if (auto refinement_counterexample =
128 dynamic_cast<const FDR::Assertions::RefinementCounterexample*>(
129 &counterexample))
130 {
131 std::cout << "Children:" << std::endl;
132 FDR::Assertions::DebugContext debug_context(*refinement_counterexample,
133 false);
134 debug_context.initialise(nullptr);
135 describe_behaviour(session, debug_context,
136 *debug_context.root_behaviours()[0], 2,true);
137 describe_behaviour(session, debug_context,
138 *debug_context.root_behaviours()[1], 2,true);
139 }
140 else if (auto property_counterexample =
141 dynamic_cast<const FDR::Assertions::PropertyCounterexample*>(
142 &counterexample))
143 {
144 std::cout << "Children:" << std::endl;
145 FDR::Assertions::DebugContext debug_context(*property_counterexample,
146 false);
147 debug_context.initialise(nullptr);
148 describe_behaviour(session, debug_context,
149 *debug_context.root_behaviours()[0], 2,true);
150 }
151 }
152
153 /// The actual main function.
154 static int real_main(int&argc, char**&argv)
155 {
156 if (!FDR::has_valid_license())
5.2. API Examples 95
FDR Manual, Release 4.2.0
157 {
158 std::cout << "Please run refines or FDR4 to obtain a valid license before running this." << std::endl;
159 return EXIT_FAILURE;
160 }
161
162 std::cout << "Using FDR version " << FDR::version() << std::endl;
163
164 if (argc != 2)
165 {
166 std::cerr << "Expected exactly one argument." << std::endl;
167 return EXIT_FAILURE;
168 }
169
170 const std::string file_name =argv[1];
171
172 std::cout << "Loading " << file_name << std::endl;
173
174 FDR::Session session;
175 try
176 {
177 session.load_file(file_name);
178 }
179 catch (const FDR::FileLoadError&error)
180 {
181 std::cout << "Could not load. Error: " << error.what() << std::endl;
182 return EXIT_FAILURE;
183 }
184
185 // Check each of the assertions
186 for (const std::shared_ptr<FDR::Assertions::Assertion>& assertion
187 :session.assertions())
188 {
189 std::cout << "Checking: " << assertion->to_string() << std::endl;
190 try
191 {
192 assertion->execute(nullptr);
193 std::cout
194 << (assertion->passed() ?"Passed" :"Failed")
195 << ", found " << assertion->counterexamples().size()
196 << " counterexamples" << std::endl;
197
198 // Pretty print the counterexamples
199 for (const std::shared_ptr<FDR::Assertions::Counterexample>&
200 counterexample :assertion->counterexamples())
201 {
202 describe_counterexample(session, *counterexample);
203 }
204 }
205 catch (const FDR::InputFileError&error)
206 {
207 std::cout << "Could not compile: " << error.what() << std::endl;
208 return EXIT_FAILURE;
209 }
210 }
211
212 return EXIT_SUCCESS;
213 }
214
96 Chapter 5. Integrating FDR into Other Tools
FDR Manual, Release 4.2.0
215 int main(int argc, char** argv)
216 {
217 FDR::library_init(&argc, &argv);
218
219 int return_code =real_main(argc, argv);
220
221 FDR::library_exit();
222
223 return return_code;
224 }
5.2.2 Java
Compilation instructions:
javac -classpath /opt/fdr/lib/fdr.jar CommandLine.java
java -classpath /opt/fdr/lib/fdr.jar:. CommandLine
Download
1import java.io.File;
2import java.io.PrintStream;
3import uk.ac.ox.cs.fdr.*;
4
5public class CommandLine {
6
7public static void main(String argv[]) {
8int returnCode;
9try {
10 returnCode =realMain(argv);
11 }
12 finally {
13 // Shutdown FDR
14 fdr.libraryExit();
15 }
16
17 System.exit(returnCode);
18 }
19
20 /**
21 *The actual main function.
22 */
23 private static int realMain(String[] argv)
24 {
25 PrintStream out =System.out;
26
27 if (!fdr.hasValidLicense())
28 {
29 out.println("Please run refines or FDR4 to obtain a valid license before running this.");
30 return 1;
31 }
32
33 out.println("Using FDR version "+fdr.version());
34
35 if (argv.length != 1) {
36 out.println("Expected exactly one argument.");
37 return 1;
5.2. API Examples 97
FDR Manual, Release 4.2.0
38 }
39
40 String fileName =argv[0];
41 out.println("Loading "+fileName);
42
43 Session session =new Session();
44 try {
45 session.loadFile(fileName);
46 }
47 catch (FileLoadError error) {
48 out.println("Could not load. Error: "+error.toString());
49 return 1;
50 }
51
52 // Check each of the assertions
53 for (Assertion assertion :session.assertions()) {
54 out.println("Checking: "+assertion.toString());
55 try {
56 assertion.execute(null);
57 out.println(
58 (assertion.passed()?"Passed" :"Failed")
59 +", found "+(assertion.counterexamples().size())
60 +" counterexamples");
61
62 // Pretty print the counterexamples
63 for (Counterexample counterexample :assertion.counterexamples()) {
64 describeCounterexample(out,session,counterexample);
65 }
66 }
67 catch (InputFileError error) {
68 out.println("Could not compile: "+error.toString());
69 return 1;
70 }
71 }
72
73 return 0;
74 }
75
76 /**
77 *Pretty prints the specified counterexample to out.
78 */
79 private static void describeCounterexample(PrintStream out,Session session,
80 Counterexample counterexample)
81 {
82 // Firstly, just print a simple description of the counterexample
83 //
84 // This uses dynamic casting to check the assertion type.
85 out.print("Counterexample type: ");
86 if (counterexample instanceof DeadlockCounterexample)
87 out.println("deadlock");
88 else if (counterexample instanceof DeterminismCounterexample)
89 out.println("determinism");
90 else if (counterexample instanceof DivergenceCounterexample)
91 out.println("divergence");
92 else if (counterexample instanceof MinAcceptanceCounterexample)
93 {
94 MinAcceptanceCounterexample minAcceptance =
95 (MinAcceptanceCounterexample)counterexample;
98 Chapter 5. Integrating FDR into Other Tools
FDR Manual, Release 4.2.0
96 out.print("minimal acceptance refusing {");
97 for (Long event :minAcceptance.minAcceptance())
98 out.print(session.uncompileEvent(event).toString()+", ");
99 out.println("}");
100 }
101 else if (counterexample instanceof TraceCounterexample)
102 {
103 TraceCounterexample trace = (TraceCounterexample)counterexample;
104 out.println("trace with event "+session.uncompileEvent(
105 trace.errorEvent()).toString());
106 }
107 else
108 out.println("unknown");
109
110 out.println("Children:");
111
112 // In order to print the children we use a DebugContext. This allows for
113 // division of behaviours into their component behaviours, and also ensures
114 // proper alignment amongst the child components.
115 DebugContext debugContext =null;
116
117 if (counterexample instanceof RefinementCounterexample)
118 debugContext =new DebugContext((RefinementCounterexample)counterexample,false);
119 else if (counterexample instanceof PropertyCounterexample)
120 debugContext =new DebugContext((PropertyCounterexample)counterexample,false);
121
122 debugContext.initialise(null);
123 for (Behaviour root :debugContext.rootBehaviours())
124 describeBehaviour(out,session,debugContext,root,2,true);
125 }
126
127 /**
128 *Prints a vaguely human readable description of the given behaviour to out.
129 */
130 private static void describeBehaviour(PrintStream out,Session session,
131 DebugContext debugContext,Behaviour behaviour,int indent,
132 boolean recurse)
133 {
134 // Describe the behaviour type
135 printIndent(out,indent); out.print("behaviour type: ");
136 indent += 2;
137 if (behaviour instanceof ExplicitDivergenceBehaviour)
138 out.println("explicit divergence after trace");
139 else if (behaviour instanceof IrrelevantBehaviour)
140 out.println("irrelevant");
141 else if (behaviour instanceof LoopBehaviour)
142 {
143 LoopBehaviour loop = (LoopBehaviour)behaviour;
144 out.println("loops after index " +loop.loopIndex());
145 }
146 else if (behaviour instanceof MinAcceptanceBehaviour)
147 {
148 MinAcceptanceBehaviour minAcceptance = (MinAcceptanceBehaviour)behaviour;
149 out.print("minimal acceptance refusing {");
150 for (Long event :minAcceptance.minAcceptance())
151 out.print(session.uncompileEvent(event).toString()+", ");
152 out.println("}");
153 }
5.2. API Examples 99
FDR Manual, Release 4.2.0
154 else if (behaviour instanceof SegmentedBehaviour)
155 {
156 SegmentedBehaviour segmented = (SegmentedBehaviour)behaviour;
157 out.println("Segmented behaviour consisting of:");
158 // Describe the sections of this behaviour. Note that it is very
159 // important that false is passed to the the descibe methods below
160 // because segments themselves cannot be divded via the DebugContext.
161 // That is, asking for behaviourChildren for a behaviour of a
162 // SegmentedBehaviour is not allowed.
163 for (TraceBehaviour child :segmented.priorSections())
164 describeBehaviour(out,session,debugContext,child,indent +2,false);
165 describeBehaviour(out,session,debugContext,segmented.last(),
166 indent +2,false);
167 }
168 else if (behaviour instanceof TraceBehaviour)
169 {
170 TraceBehaviour trace = (TraceBehaviour)behaviour;
171 out.println("performs event " +
172 session.uncompileEvent(trace.errorEvent()).toString());
173 }
174
175 // Describe the trace of the behaviour
176 printIndent(out,indent); out.print("Trace: ");
177 for (Long event :behaviour.trace())
178 {
179 // INVALIDEVENT indiciates that this machine did not perform an event at
180 // the specified index (i.e. it was not synchronised with the machines
181 // that actually did perform the event).
182 if (event == fdr.INVALIDEVENT)
183 out.print("-, ");
184 else
185 out.print(session.uncompileEvent(event).toString()+", ");
186 }
187 out.println();
188
189 // Describe any named states of the behaviour
190 printIndent(out,indent); out.print("States: ");
191 for (Node node :behaviour.nodePath())
192 {
193 if (node == null)
194 out.print("-, ");
195 else
196 {
197 ProcessName processName =session.machineNodeName(behaviour.machine(), node);
198 if (processName == null)
199 out.print("(unknown), ");
200 else
201 out.print(processName.toString()+", ");
202 }
203 }
204 out.println();
205
206 // Describe our own children recursively
207 if (recurse) {
208 for (Behaviour child :debugContext.behaviourChildren(behaviour))
209 describeBehaviour(out,session,debugContext,child,indent +2,true);
210 }
211 }
100 Chapter 5. Integrating FDR into Other Tools
FDR Manual, Release 4.2.0
212
213 /**
214 *Prints a number of spaces to out.
215 */
216 private static void printIndent(PrintStream out,int indent) {
217 for (int i=0;i<indent; ++i)
218 out.print(’ ’);
219 }
220
221 }
5.2.3 Python
Execute using python command_line.py.
Download
1import os
2import platform
3import sys
4
5fdr_to_use =None
6if sys.argv[1].startswith("--fdr="):
7fdr_to_use =sys.argv[1][len("--fdr="):]
8del sys.argv[1]
9elif platform.system() == "Linux":
10 for bin_dir in os.environ.get("PATH","").split(":"):
11 fdr4_binary =os.path.join(bin_dir, "fdr4")
12 if os.path.exists(fdr4_binary):
13 real_fdr4 =os.path.realpath(os.path.join(bin_dir, "fdr4"))
14 fdr_to_use =os.path.join(os.path.basename(os.path.basename(real_fdr4)), "lib")
15 break
16 elif platform.system() == "Darwin":
17 for app_dir in ["/Applications", os.path.join("~","Applications")]:
18 if os.path.exists(os.path.join(app_dir, "FDR4.app")):
19 fdr_to_use =os.path.join(app_dir, "FDR4.app","Contents","Frameworks")
20 break
21
22 print fdr_to_use
23 sys.path.append(fdr_to_use)
24 import fdr
25
26 def main():
27 fdr.library_init()
28 return_code =real_main()
29 fdr.library_exit()
30 sys.exit(return_code)
31
32 def real_main():
33 if not fdr.has_valid_license():
34 print "Please run refines or FDR4 to obtain a valid license before running this."
35 return 1
36
37 print "Using FDR version %s"%fdr.version()
38
39 if len(sys.argv) != 2:
40 print "Expected exactly one argument."
5.2. API Examples 101
FDR Manual, Release 4.2.0
41 return 1
42
43 file_name =sys.argv[1];
44 print "Loading %s"%file_name
45
46 session =fdr.Session()
47 try:
48 session.load_file(file_name)
49 except fdr.FileLoadError, error:
50 print "Could not load. Error: %s"%error
51 return 1
52
53 # Check each of the assertions
54 for assertion in session.assertions():
55 print "Checking: %s"%assertion
56 try:
57 assertion.execute(None)
58 print "%s, found %s counterexamples" %\
59 ("Passed" if assertion.passed() else "Failed",
60 len(assertion.counterexamples()))
61
62 # Pretty print the counterexamples
63 for counterexample in assertion.counterexamples():
64 describe_counterexample(session, counterexample)
65 except fdr.InputFileError, error:
66 print "Could not compile: %s"%error
67 return 1
68
69 return 0
70
71 """
72 Pretty prints the specified counterexample to out.
73 """
74 def describe_counterexample(session, counterexample):
75 # Firstly, just print a simple description of the counterexample
76 if isinstance(counterexample, fdr.DeadlockCounterexample):
77 t="deadlock"
78 elif isinstance(counterexample, fdr.DeterminismCounterexample):
79 t="determinism"
80 elif isinstance(counterexample, fdr.DivergenceCounterexample):
81 t="divergence"
82 elif isinstance(counterexample, fdr.MinAcceptanceCounterexample):
83 t="minimal acceptance refusing {"
84 for event in counterexample.min_acceptance():
85 t+= str(session.uncompile_event(event)) +", "
86 t+= "}"
87 elif isinstance(counterexample, fdr.TraceCounterexample):
88 t="trace with event "+str(session.uncompile_event(
89 counterexample.error_event()))
90 else:
91 t="unknown"
92
93 print "Counterexample type: "+t
94 print "Children:"
95
96 # In order to print the children we use a DebugContext. This allows for
97 # division of behaviours into their component behaviours, and also ensures
98 # proper alignment amongst the child components.
102 Chapter 5. Integrating FDR into Other Tools
FDR Manual, Release 4.2.0
99 debug_context =fdr.DebugContext(counterexample, False)
100 debug_context.initialise(None)
101
102 for behaviour in debug_context.root_behaviours():
103 describe_behaviour(session, debug_context, behaviour, 2,True)
104
105 """
106 Prints a vaguely human readable description of the given behaviour to out.
107 """
108 def describe_behaviour(session, debug_context, behaviour, indent, recurse):
109 # Describe the behaviour type
110 indent += 2;
111 if isinstance(behaviour, fdr.ExplicitDivergenceBehaviour):
112 print "%sbehaviour type: explicit divergence after trace" %(" "*indent)
113 elif isinstance(behaviour, fdr.IrrelevantBehaviour):
114 print "%sbehaviour type: irrelevant" %(" "*indent)
115 elif isinstance(behaviour, fdr.LoopBehaviour):
116 print "%sbehaviour type: loops after index %s"%(" "*indent, behaviour.loop_index())
117 elif isinstance(behaviour, fdr.MinAcceptanceBehaviour):
118 s=""
119 for event in behaviour.min_acceptance():
120 s+= str(session.uncompile_event(event)) +", "
121 print "%sbehaviour type: minimal acceptance refusing {%s}" %(" "*indent, s)
122 elif isinstance(behaviour, fdr.SegmentedBehaviour):
123 print "%sbehaviour type: Segmented behaviour consisting of:" %(" "*indent)
124 # Describe the sections of this behaviour. Note that it is very
125 # important that false is passed to the the descibe methods below
126 # because segments themselves cannot be divded via the DebugContext.
127 # That is, asking for behaviourChildren for a behaviour of a
128 # SegmentedBehaviour is not allowed.
129 for child in behaviour.prior_sections():
130 describe_behaviour(session, debug_context, child, indent +2,False)
131 describe_behaviour(session, debug_context, behaviour.last(), indent +2,False)
132 elif isinstance(behaviour, fdr.TraceBehaviour):
133 print "%sbehaviour type: loops after index %s"%(" "*indent,
134 session.uncompile_event(behaviour.error_event()))
135
136 # Describe the trace of the behaviour
137 t=""
138 for event in behaviour.trace():
139 if event == fdr.INVALID_EVENT:
140 t+= "-, "
141 else:
142 t+= str(session.uncompile_event(event)) +", "
143 print "%sTrace: %s"%(" "*indent, t)
144
145 # Describe any named states of the behaviour
146 t=""
147 for node in behaviour.node_path():
148 if node == None:
149 t+= "-, "
150 else:
151 process_name =session.machine_node_name(behaviour.machine(), node)
152 if process_name == None:
153 t+= "(unknown), "
154 else:
155 t+= str(process_name)+", "
156 print "%sStates: %s"%(" "*indent, t)
5.2. API Examples 103
FDR Manual, Release 4.2.0
157
158 # Describe our own children recursively
159 if recurse:
160 for child in debug_context.behaviour_children(behaviour):
161 describe_behaviour(session, debug_context, child, indent +2, recurse)
162
163 if __name__ == "__main__":
164 main()
104 Chapter 5. Integrating FDR into Other Tools
CHAPTER
SIX
OPTIMISING
When used properly, FDR is capable of verifying systems with billions (even trillions of states, if a cluster is being
used) of explicit states. This section explains the different ways in which scripts can be optimised to take full advantage
of FDR, whilst also explaining how to best configure and setup FDR to check a given problem.
This section assumes that you have an extremely large check that you wish to perform, but are unable to do so on your
standard computer.
6.1 Overview
6.1.1 Identifying the Problem
The first step is to identify which in which part of FDR your performance problems are occurring. There are three
main stages that FDR goes through when verifying any property (refinement, deadlock etc.):
1. Evaluation of the CSPMprocesses. During Evaluation, FDR evaluates the CSPMinto a pure CSP process. If this
stage is the bottleneck, the graphical user interface will show a task titled “Evaluating process” taking a long
time to complete (see The Task List for details on where to locate the task list). See Optimising Evaluation for
tips on how to optimise this stage.
2. Compilation of the pure CSP process. During compilation, FDR converts the CSP processes into labelled-
transition systems (LTSs) and will be indicated by a task named “Constructing machines” in the task list. See
Optimising Compilation for tips on how to optimise this stage.
3. Checking of the compiled LTS. During this stage FDR is actually verifying the property in question. This is
indicated by a task named “Checking Refinement”. See Optimising Checking for tips on how to optimise this
stage.
6.1.2 Optimising Evaluation
If evaluation is the problem it generally indicates that the CSPm you have constructed is too complex for FDR to
efficiently represent. Firstly, it is worth checking that all processes are finite state, since any infinite state process (such
as the standard CSP processes COUNT(n)) will cause FDR to spin on this stage. The other common reason is using
sets that are too large for channels or datatypes. For example, a channel such as channel c : Int means that
FDR has to expore 232 different branches whenever it sees a statement of the form c?x. Using small finite sets is
critical to ensure that FDR can efficiently evaluate the model.
Note that results about infinite types can sometimes be established by small finite state checks by using the theory of
data independence. See, for example, Understanding Concurrent Systems for further details.
105
FDR Manual, Release 4.2.0
6.1.3 Optimising Compilation
Optimising compilation is difficult since, generally, the causes of this are difficult to determine. One common cause is
using too many events, so reducing the size of channel types as far as possible can help. Further, if too much renaming
is be performed (particularly renaming a single event to many different copies of it), this can also cause performance
to decrease.
Another way to improve performance is by using a carefully placed application of explicate: generally the best
place to use it is in an argument Pof a parallel composition, where Phas a very complex definition, but actually
has a relatively small state space (at most a million states or so). Also, it can be worth experimenting by disabling
compiler.recursive_high_level as this can occasionally cause an increase in compilation time.
6.1.4 Optimising Checking
If the bottleneck is in the checking stage, there are essentially two different mitigations: either more computing
resources can be directed at the problem, or the model can be optimised to attempt to reduce its size, or increase the
speed, at which it can be verified. Often a combination of both of these is required. We review both of these techniques
below, in turn.
Using more Computing Resources
There are several ways in which FDR can make use of more computing: a larger machine can be utilised, on-disk
storage can be used, or a cluster of computers can be utilised. These are all reviewed below.
Since FDR is able to linearly scale to machines with many cores (we have tested with machines of up to 40 cores)
on many problems, using a larger machine is the first step. Note that it is also possible to rent such machines from
providers such as Amazon Web Services, or Google Compute Cloud for a small amount each hour.
If the problem is lack of memory, FDR is also able to make use of on-disk storage (although we would only recommend
SSDs, particularly on large machine). We have been able to verify problems where the on-disk storage is a factor of
4 larger than the amount of RAM without a noticeable slowdown. In order for this to be effective, the machine needs
to be configured correctly. In general, if the machine in question has multiple drives, we strongly recommend the use
of no RAID (i.e. each drive is independently mounted by the operating system). Further, numerous small drives are
better than a small number of large drives.
Once the system has been properly configured with disk storage, FDR can be
configured be setting the option: refinement.storage.file.path to a
comma separated list of paths. For example, passing the command line flag
--refinement-storage-file-path=/scratch/disk0/,/scratch/disk1/,/scratch/disk2/
to the command line version will cause FDR to store temporary data in the three different directories. By default, FDR
also uses 90% of the free memory at the time the check starts to store data in-memory. This value can be changed (see
refinement.storage.file.cache_size), but generally should not need to be.
The other solution is to use FDR on a cluster instead. For a wide variety of problems, FDR is capable of scaling
linearly as the cluster size increases providing sufficient network bandwidth is available (we achieved linear scaling
on a cluster of 64 computes connected by a full-bisection 10 gigabit network on Amazon’s EC2 compute cloud). Full
details on how to use the cluster version are in Using a Cluster.
Optimising the Model
Firstly, check to see if the semantic model that the check is being performed in is necessary. Checks in the failures-
divergences model are slower than those in the failures model, which are in turn slower than those in the traces
model. Further, the failures-divergences model is actually particularly slow and does not scale as well as the number
of cores increases (which will reduce the benefit of more computing power). If it is possible to statically determine
106 Chapter 6. Optimising
FDR Manual, Release 4.2.0
that divergence is impossible, or if divergence is not relevant to the property in question, then a potentially large
performance boost can be obtained by moving to the failures or traces model. Clearly, care must be taken when
choosing a different denotational model, since this clearly remove violations of the specification.
The most powerful technique that FDR has for optimising models is compression. Compression takes a LTS and
returns an equivalent LTS (according to the relevant denotational model) that, hopefully has fewer states. Compression
is a complex technique to utilise effectively, but is by far the most powerful method of reducing the number of states
that have to be verified. Compression is described in Compression.
Another possibility for optimising models is to use partial order reduction. This attempts to remove redundant reoder-
ings of events (for example, if a process can perform both aand bin any order, then partial-order reduction would
only consider one ordering). Thus, this is similar to compression, but can be applied much more easily. Equally,
partial-order reduction is unable to reduce some systems that compression can reduce. Since it is trivial to enable
partial-order reduction (see the instructions at partial order reduction), it is often worth enabling it just to see if it
helps.
Lastly, since CSP is compositional, it may sometimes be possible to decompose a check of a large system into a
series of smaller checks. In particular, CSP is compositional in the sense that if PvQ, then for any CSP context
C,C[P]vC[Q]. For example, suppose a system contained a complex model of a finite state buffer. Separately, a
verification could be done that showed that the complex finite state buffer satisfies the standard CSP finite-state buffer
specification. Then, the original system could be verified with the standard CSP finite-state buffer specification taking
the place of the complex buffer. This should reduce the number of states that need to be verified.
6.2 Compression
Compression converts a labelled-transition system (LTS) into an equivalent LTS that, hopefully, is smaller and thus
more efficient to use in a check. Generally, one of the many compression functions that FDR provides is applied to a
component of a parallel composition. For example, normal is one commonly-used compression functions, as could,
for instance be applied as normal(Q) ||| R. Compression will have little affect on a process that contains no
hiding. Thus, it makes sense to compress a process that has just had a significant amount of hiding applied to it. For
example, if P\Ais used at some point in a system and Acontains a large number of the events Pcan perform, then
compressing P\Amay significantly reduce size of the system that needs to be verified. Intuitively, compression
removes the hidden events in such a way as to preserve sufficient behaviour, but not too much. This also implies that it
is worth hiding as much as possible as early as possible (i.e. as far down the process tree as possible), since that gives
compression more options to remove events.
Note it is not worth compressing a whole system. For example, when verifying if Qis deadlock-free, there is no
point in verifying normal(Q) is deadlock-free instead, since FDR has to traverse the whole of Qto construct the
normalised version anyway.
FDR provides many compression functions, as listed in Compression Functions, all of which are CSPMfunctions
of type (Proc) -> Proc. Generally, the most useful functions to apply are normal,wbisim, and the func-
tion sbdia(P) = sbisim(diamond(P)) which combines sbisim and diamond. Further advice on how to
choose a compression function is given in Compression Functions, but note that it is difficult to predict in advance
which compression function will be most effective, and thus some experimentation will be required. The best method
of assessing the effectiveness of compressions is to use the machine structure viewer, which can display details re-
garding the number of states and transitions that are saved by compression.
A more advanced usage of compression is inductive compression. In this, the system is constructed in stages, with
each intermediate stage being compressed. For example, when modelling a token ring, only the events on the very
left-most and very right-most processes must not be hidden. Therefore, the system can be constructed inductively
by taking the existing system, adding one more node, hiding the events between the old system and the new node,
and then compressing it. Understanding Concurrent Systems describes this in more detail. Further, the file Inductive
Compression contains some utility functions, written by Roscoe, for constructing systems in such a way.
6.2. Compression 107
FDR Manual, Release 4.2.0
108 Chapter 6. Optimising
CHAPTER
SEVEN
IMPLEMENTATION NOTES
7.1 Semantic Models
7.1.1 Traces Model
Todo
Write
7.1.2 Failures Model
Todo
Write
7.1.3 Failures-Divergences Model
Todo
Write
7.2 Compilation
Compilation is the process of turning a tree of CSP operator applications, as produced by the evaluator, into concrete
state machines, on which refinement checking can be performed.
We start by specifying the different types of machines that FDR can produce, before giving a high-level overview of
how compilation proceeds.
109
FDR Manual, Release 4.2.0
7.2.1 Machine Types
Low-Level Machine
Todo
Write
Generalised Low-Level Machine
Todo
Write
High-Level Machine
Todo
Write
7.2.2 Compiling Processes
Todo
Write
7.3 Refinement Checking
In order to check if a process Impl refines (in a particular semantic model) a process Spec, FDR firstly converts
Impl and Spec into labelled transition systems, as described in Compilation. FDR then normalises the specification
machine, as described in normal. FDR then explores the states of these processes in breadth-first order, checking
that the states are related according to the semantic model. As soon as FDR finds a counterexample it immediately
reports it. Thus, thanks to the breadth-first order, any counterexample that FDR returns will be minimal in the length
of the trace (including taus).
In order to understand exactly how FDR visits state pairs during a refinement check, consider the following script:
channel a,b,c
P1 =a-> P2
P2 =P3|~| P4
P3 =b-> P2
P4 =a-> P1
Q1 =a-> Q2
Q2 =b-> Q1
110 Chapter 7. Implementation Notes
FDR Manual, Release 4.2.0
assert Q1 [T= P1
FDR initialises the search by looking at the state pair (Q1, P1) (nb. state pairs consist of a specification state and
an implementation state). In the traces model, FDR only has to check that the events (excluding tau) offered by P1 are
a subset of those offered by Q1, which is clearly the cases here. Hence, FDR now adds the successor state pairs for
each event offered by P1 to the search. In this case, there is only one successor state pair after a,(Q2, P2).
When considering the state pair (Q2, P2) note that P2 does not offer any visible events, and therefore the event
check is trivially true. FDR now needs to add any new state pairs to the search. In this case, the two state pairs (Q2,
P3) and (Q2, P4) are added to the search. Note that the specification part of the state pair is kept the same because
the implementation performs a tau. FDR will now consider the new state pairs. In particular, when it considers (Q2,
P4) FDR will find a counterexample since the events offered by P4 are not a subset of those offered by Q2.
In order to reconstruct the trace that the invalid state pair was reached by, FDR stores a parent state pair of each state
pair that it finds during the search. Thus, in the above example, FDR will set the parent of (Q2, P4) as (Q2, P2)
and the parent of (Q2, P2) to (Q1, P1). Thus, FDR can reconstruct the counterexample trace by finding events
that transition between (Q1, P1) and (Q2, P2), and (Q2, P2) and (Q2, P4). This will yield the trace <a,
tau>, in this case.
7.3.1 Counterexamples
A counterexample to a refinement assertion consists of a trace leading to a particular state pair that are not related
according the to semantic model in use. Thus, if the traces model is in use, then this must mean that the implementation
can perform an event that the specification cannot. If the failures model is in use, then either the above case applies, or
the implementation can refuse a set of events that the specification cannot. If the failures-divergences model is in use,
then this must mean that either one of the above cases applies, or the implementation is divergent but the specification
is not.
Uniqueness
If FDR is asked to generate multiple counterexamples then this motivates the question of what FDR considers distinct
counterexamples to be. In all cases, only a single counterexample will be generated from a single state pair. Thus,
if a state pair is reachable via two different traces then only one counterexample will be generated, regardless of
the number requested. Further, once FDR has found a counterexample for a given state pair, it does not look at
successors of the state pair to see if they are counterexamples. Thus, for FDR to report two distinct counterexamples
the counterexamples must be distinct state pairs, and the second state pair must be reachable via a path that does
not include the first state pair. For example, the following has two counterexamples since the two STOP states are
reachable via distinct paths:
P1 =STOP |~| P2
P2 =STOP
assert P1 :[deadlock free [F]]
However, the following only has one counterexample, since the second invalid state pair is only reachable via the first
invalid state pair:
P1 =a-> P2 [] b-> STOP
P2 =a-> P1
Spec =a-> Spec
assert Spec [T= P1
Note that both P1 and‘ P2 violate the property, but P2 is only reachable via P1 and thus is not considered.
7.3. Refinement Checking 111
FDR Manual, Release 4.2.0
Non-Determinism
As noted above, thanks to the breadth-first ordering that FDR visits the state pairs in, FDR will always pick the
counterexample that is reachable in the fewest events (either tau or a visible event). Whilst this might imply that the
counterexample returned is chosen deterministically, this is not the case when FDR is being used in parallel mode (i.e.
refinement.bfs.workers is greater than 1) for two reasons:
1. The predecessor state pair of each state pair is chosen by a race between the different processor cores on each
ply. For example, if two different cores both discover the same state pair on the same ply, then the state pair that
is marked as the new state pair’s predecessor is chosen non-deterministically. This can result in a different trace
being returned. The following script should exhibit this behaviour:
channel a,b,c
P=a-> b-> Q[] b-> a-> Q
Q=c-> STOP
R=a-> R[] b-> R[] c-> R
assert R[F= P
Note that there is precisely one state that violates the refinement, Q, but there are two different routes to Q, via
either <a, b> or <b, a>. Hence, since the states b -> Q and a -> Q are discovered on the same ply of the
breadth-first search the winner will be chosen non-deterministically (assuming that they are visited by different
cores). This should result in FDR non-deterministically returning either the counterexample trace <a, b, c>
or <b, a, c>.
2. On each ply of the search, there is essentially a race between the processor cores to find a counterexample: the
first core that finds a counterexample wins. For example, consider the following refinement check:
channel a,b
P=a-> STOP |~| b-> STOP
assert STOP [T= P
There are two different counterexamples to this assertion: either the event acan be performed, or the event b.
Since these counterexamples are both found on the second ply of the search (the first ply simply explores the tau
transitions available from the starting state), FDR will pick the counterexample non-deterministically, providing
the two different states are picked by different cores.
In general use, the fact that different counterexamples are produced should hopefully not be an issue. Unfortunately,
there is no efficient way to make a parallel version of FDR deterministically return the same counterexample. If it is
important that the same counterexample is returned each time then refinement.bfs.workers should be set to
1, thus disabling the parallel refinement checker. This will obviously result in a decrease in performance, but it does
mean that the same counterexample will always be returned.
7.3.2 Implementation
Todo
Write
112 Chapter 7. Implementation Notes
FDR Manual, Release 4.2.0
BTrees
Log-Space Merge Trees
7.4 Type Checking
Todo
Write
7.4. Type Checking 113
FDR Manual, Release 4.2.0
114 Chapter 7. Implementation Notes
CHAPTER
EIGHT
RELEASE NOTES
8.1 4.2.0 (20/12/2016)
This release includes a large number of internal changes that affect the way FDR is organised, and lay the groundwork
for future extensions that are currently being worked on.
8.2 3.4.0 (09/03/2016)
• Added refines --remote which can automatically run refines on a remote server (but using a local file),
connecting to it via SSH.
• Added the ability for refines to read its input from stdin.
• Added a licensing system that requires you to provide a name and email address before using FDR.
• Improved the presentation of loop counterexamples in the GUI.
• Enhanced the API to add:
–A method load_strings_as_file that allows a file to be loaded from a set of files.
–Methods task_id that return the task id for long running tasks, such as refinement checks. This can be used
to provide better progress reporting.
• Fixed an issue where some recursive datatypes would erroneously fail to satisfy the Eq constraint.
• Fixed an error that could cause duplicate states to be created by wbisim.
• Fixed an error that could occur when evaluating polymorphic functions that used dot in a particular way.
• Fixed an error that could cause superfluous compressions to be performed.
• Fixed several crashes that could occur when debugging counterexamples in the GUI.
8.3 3.3.1 (17/06/2015)
• Fixed a problem that prevented FDR3 from being opened under Windows.
• Added support for a new machine-readable output format, framed_json (refines --format).
• Added a new method reveal_taus_in_trace to the DebugContext object in the API.
115
FDR Manual, Release 4.2.0
8.4 3.3.0 (15/06/2015)
• Greatly improved performance when evaluating CSPM. 3.3.0 can evaluate CSPM scripts in half the time that
FDR 3.2.0 could.
• Added a new assertion, intended for unit-testing, to assert that a machine has a trace.
• Refinement checking performance has been further improved on large machines with 16 or more cores; checks
can be between 10-20% faster.
• Added a new time-sampling profiler for CSPM that replaces the previous profiler.
• Removed popovers from various places in the GUI. They have been replaced by a combination of easier-to-use
windows.
• Updated to QT5 which fixes various issues with the GUI.
• API: added support for dynamically created assertions.
• API: fixed the hash implementation on various objects.
• Added a new built-in process, RUN.
• Added a new built-in process, DIV.
• Added a new operator Project that is like Hide, but instead allows you to specify what events should be left
unhidden, rather than what must be hidden.
• Added a new flag refines --reveal-taus to the command-line version that prints the visible event
corresponding to any tau in a counterexample trace that resulted from a hiding.
• Banned the use of Double Pattern within prefix statements, due to the complexity of correctly and effi-
ciently supporting it.
• Renamed the type constraint Inputable to Complete.
• Fixes several performance issues with very large renamings, and with calls to CHAOS(X) where Xis very large.
• Fixed two issues with the low-level version of Alphabetised Parallel.
• Fixed a issue on Windows whereby the command line version would appear to finish early and would give the
wrong return code.
• Fixed an issue with Probe where it would appear to hang.
• Fixes several issues where type-incorrect scripts would pass the typechecker.
• Fixed a crash during division of some chase counterexamples.
• Fixed a crash that could occur compiling complex processes using the recursive high-level strategy.
8.5 3.2.1 – 3.2.3 (06/01/2015)
• Fixed an issue that prevented graphs from being viewed under Linux and Mac OS.
• Fixed a performance problem with compiling certain large non-recursive processes.
• Fixed a issue that prevented type signatures that used datatypes from being used.
116 Chapter 8. Release Notes
FDR Manual, Release 4.2.0
8.6 3.2.0 (30/01/2015)
• Added an beta Windows release, which is compatible with Windows 7 and above.
• Vastly improved partial-order reduction performance. This improves the performance by at least one order of
magnitude. On certain examples, the performance improvements is two orders of magnitude.
• The performance of dbisim and wbisim has been improved by a factor of 2-4, depending on the example.
• Added a machine structure viewer to the user interface that shows the structure of a process.
• Added a communication graph viewer that allows the communication graph of a process to be visualised.
• Added a new version of prioritise, prioritisepo that takes a partial order to prioritise the events over.
• Added a function mapDelete that deletes a key from a map.
• Changed the machine-readable command-line interface to also serialise the results of evaluating print statements
Print Statements.
Bug Fixes:
• Fixed a bug that prevented the C++ API being used under Mac OS X.
• Improve the compiler performance on certain examples with nested uses of the sequential composition operator.
• Fix some problems with the deduction of which MPI version is being used.
• Fixed a bug where the cluster version would never terminate if counterexamples were not being tracked.
• Fixed parsing of string literals.
• Fixed pretty-printing of map values.
• Fixed a bug where type signatures that were too liberal were erroneously accepted.
• Fixed a bug with pattern matching of complex nested datatypes.
• Fixed a bug that occurred when parametrised modules were instantiated with the wrong number of arguments.
• Fixed a bug that occurred when subtypes were instantiated with the wrong number of arguments.
• Fixed type-checking of parameterless modules in various obscure cases.
• Fixed an issue that caused terms of the form chase(chase(...(chase(P)...) to appear when probing
chase(P).
8.7 3.1.0 (11/08/2014)
Major New Features:
• Added a cluster based refinement-checking algorithm that is able to scale linearly to clusters of at least 1024
cores, providing a suitable interconnect is available. See Cluster Refinement Checking for further details.
• An API for C++, Java, and Python has been made available, allowing FDR to be easily embedded into external
tools.
• Added a function failure_watchdog that constructs the failures watchdog for the given specification pro-
cess.
• Added a function trace_watchdog that constructs the trace watchdog for the given specification process.
• Improved the output of the type checker so that it provides more useufl information regarding why a program is
type incorrect.
8.6. 3.2.0 (30/01/2015) 117
FDR Manual, Release 4.2.0
Performance Improvements:
• Reduced the runtime for FDR across a range of problems by between 25 and 50%.
• Improved the performance of FDR on machines with 8 or more cores by between 10 and 20 percent, depending
on the problem and the machine. After this change we have observed FDR3 scaling linearly to 40 cores.
• For some problems, reduced the memory consumption by 25%.
• For deadlock freedom and divergence freedom assertions, reduced the runtime by anywhere between 10 and
80%.
• Improved the performance of explicate by a factor of 3.
• Improved the performance and memory usage of the on-disk storage engine.
Miscellaneous Features:
• Added experimental support for partial order reduction which can automatically reduce the state space size on
some problems. See Partial Order Reduction for more details.
• Added an refines --archive that archives all CSP files required to load a particular CSP file into a single,
easy to transfer file.
• Improved counterexample division so more counterexamples can be divided.
• Added an option refinement.track_history that allows history tracking to be disabled. This will mean
that FDR consumes less memory at the cost of not being able to reconstruct counterexamples if an error is found.
• Modified the option refinement.storage.file.path to allow a comma-separated list of paths to be
specified. FDR evenly distributes writes over the paths that have sufficient space available.
Bug Fixes:
• Fixed an issue that prevented graphs containing tick from being rendered under Linux.
• Fixed a crash that would randomly occur when an assertion was started.
• Fixed a bug that caused a crash when a compressed process was probed when debugging a refinement check.
• Fixed performance issues that could arise when given extremely large CSP files with over 100,000 lines of code.
• Fixed a memory usage issue with very long running checks.
• Fixed several problems with type-checking parameterised modules.
• Fixed an issue that would cause FDR to go into an infinite loop when compiling some processes with lots of
singleton taus.
8.8 3.0.0 (09/12/2013)
FDR3 is a complete rewrite of FDR2 that includes a number of exciting new features.
• A brand new refinement checking engine that:
–Is multi-threaded, allowing it to make full use of multiple cores.
–Has been heavily optimised, meaning that single core performance tends to be around double that of FDR2.
–Includes alternative data structures for storage of states.
• Has a fully integrated type-checker, that permits the vast majority of reasonable CSP programs, whilst keeping
errors readable.
118 Chapter 8. Release Notes
FDR Manual, Release 4.2.0
• A compiler that optimises the representation of some CSP processes (compared to FDR2) and also compiles
machines in parallel.
• A completely redesigned GUI that includes:
–A redesigned and more powerful Debug Viewer that, in particular, explicitly indicates how events synchro-
nise, even through renaming.
–A fully integrated version of Probe.
–A full interactive prompt, allowing for easy experimentation with CSPM.
• An enhanced version of CSPMwith:
–Support for a new efficient key-value Map datatype.
–Support for explicit type annotations.
Compared to FDR2 there are the following differences:
• The compression function model_compress has been removed.
• The batch mode has been removed and replaced with a new output format (see Machine-Readable Formats).
• Only the Traces, Failures and Failures-Divergences models are supported. Support for the other models that
FDR2 supported will return in a subsequent release.
Compared to 3.0-beta-7, the following changes have been made:
• Enhanced the refinement checker to terminate as soon as a counterexample as found.
• Fixed an issue where the debug viewer could sometimes elide rows that were important.
• Fixed an issue that caused machines compressed using dbisim and wbisim to have more transitions than
necessary.
8.8.1 3.0-beta-7 (15/11/2013)
• Created RPM and Apt repositories to allow for easier installation on Linux. We strongly recommend that all
existing users install FDR3 in this way, if possible. Instructions for doing so can be found on the FDR3 home
page.
• Improved the performance of the on-disk storage option during refinement checks. Several
new options have been added to control it, including: refinement.storage.file.path,
refinement.storage.file.cache_size,refinement.storage.file.checksum, and
refinement.storage.file.compressor.
• Modified the behaviour of wbisim to be full weak bisimulation and renamed the old version of wbisim to
dbisim, which computes a delay bisimulation. wbisim can compress more than dbisim, but in the worst
case takes twice as long to compute.
• Adapted the compiler to elide some unnecessary taus, thus reducing the state space size of some processes. This
change is to match a feature in FDR2.
• Improved the performance of sbisim.
• Improved the performance of checks that use chase and prioritise.
• Parallelised divergence checking. This allows multiple threads to proceed in parallel, checking for divergences
that start from different nodes. This will does not parallelise divergence checks that start from a single node.
• Improved the usability and stability of the debug viewer.
• Added the cd command to the session window that changes the current directory.
8.8. 3.0.0 (09/12/2013) 119
FDR Manual, Release 4.2.0
• Fixed several crashes in the graphical user interface.
• Fixed a few performance issues and one incorrect error message that sometimes appeared when evaluating
complex CSPm scripts that make use of large recursive datatypes.
• Fixed ghosting that could occur in the debug viewer.
8.8.2 3.0-beta-6 (18/10/2013)
• Many bugs have been fixed in the graphical user interface, including:
–Fixed several issues that caused FDR3 to steal focus on Ubuntu.
–Refusal sets are now correctly calculated.
–Fixed an alignment issue with behaviours in the debug viewer.
–Fixed a bug that caused the user interface to lockup if Run All was clicked whilst another assertion was
running.
–Removed a warning that QT emitted on startup.
–Fixed an issue that prevented the user interface from shutting down on Ctrl+C.
–Fixed a crash when unchecking Show Taus.
• Added support for opening files either by dragging them to the application icon (Mac OS X only), or by opening
them using the operating system’s file browser.
• Improved the performance of refinement checks on large machines with multiple processor sockets.
• Optimised the diamond compression.
8.8.3 3.0-beta-5 (12/09/2013)
• Many improvements to the Debug Viewer, including:
–All behaviours are now always correctly aligned in the debug viewer (i.e. it is now always the case that
events in the same column are synchronised).
–Improved the presentation of divergence and deadlock counterexamples.
–Names of named compressed processes, such as normal(P), are now displayed.
–Added an option to hide taus in the trace.
–Added the ability to highlight a row and column.
–Added a new Transition Popover that appears when hovering over an event in the debug viewer. If the
event is a tau this will display the hidden event that was performed. In all cases it will display what leaf
machines synchronise to perform the event.
–When zoomed in, the machine name for a given row is now always visible, even after scrolling.
–Fixed a crash that could occur when dividing loop counterexamples.
• Added reporting of transition rates during refinement checks.
• Improved the presentation of the speed and memory graphs that appear in the refinement status popover.
• Added machine-readable output to the command-line tool; see Machine-Readable Formats for further details.
This replaces FDR2’s batch mode.
120 Chapter 8. Release Notes
FDR Manual, Release 4.2.0
• Added two new commands, counterexamples command that pretty-prints a textual representation of the
counterexamples to the given assertion to the prompt, and statistics command that prints statistics about
a completed or running refinement check to the prompt.
• Improved the performance of strong bisimulation, typically resulting in a fourfold speedup.
• Fixed parsing of expressions that mix hiding and parallel operators (such as X\Y|||Z).
• Fixed an issue that prevented the file-backed storage from allocating a file that could appear on extremely large
checks.
• Fixed a crash caused by cancelling a check during evaluation.
• Fixed a hang caused by a cancelling a check during compilation.
8.8.4 3.0-beta-4 (09/08/2013)
• Add support for checking determinism using the failures model.
• Added support for simple profiling of CSPM scripts.
• Added an option to disable runtime bounds checks for performance reasons (see
cspm.runtime_range_checks).
• Added some parallelisation to the CSPM evaluator, resulting in a speed up when complex CSPM expressions
are evaluated as part of checking an assertion.
• Allow refinement checks to use on-disk temporary storage (see refinement.storage.file.path).
• Renamed the refinement.compressor option to refinement.storage.compressor.
• Added a Node Inspector.
• Added an efficient representation of key-value maps (see Map Functions) to CSPM.
• Allow more resizing of the main window.
• Added an option to close all windows whenever a load or reload command is executed (see
gui.close_windows_on_load).
• Allow multi counterexamples to be viewed in the Debug Viewer by setting the option
refinement.desired_counterexample_count.
• Added the ability to view refusals when viewing minimal acceptance information in the Debug Viewer.
• Added an indication to windows that were created using previous versions of a file (i.e. before a reload/load).
• Changed the behaviour of print statements to allow them to be evaluated on demand, rather than always evalu-
ating them when a file is loaded.
• Enhanced the graph viewer to allow layout to be cancelled.
8.8.5 3.0-beta-3 (17/7/2013)
• Added charts for memory and checking speed to the refinement status popover.
• Enhanced type annotations to allow types defined inside modules to be used.
• Added support for nested parametrised modules. Note: instance declarations must now occur lexically after the
module that is being instantiated.
• Added support for type annotations to mention datatypes defined in modules.
• Allow refinement checks etc. to be cancelled.
8.8. 3.0.0 (09/12/2013) 121
FDR Manual, Release 4.2.0
• Improved performance of processes that contain large numbers of transitions.
• Improved some of the error messages emitted by the compiler.
• Fixed parsing of minuses immediately followed by a newline.
• Fixed a bug that could potentially caused a compiled machine to be reused even if it had not been compiled in
the correct semantic model.
• Prevent a crash that could occur if load/reload was executed whilst a refinement check was running.
8.8.6 3.0-beta-2 (15/6/2013)
• Made the compiler emit an error if prioritise is applied to a process in such a way that makes the result
semantically invalid.
• Add support for print statements.
• Reduce memory consumption during refinement checks by around 1/3.
• Added an auto-updater for Mac OS X and alert Linux users to new releases.
• Fixed a crash that could occur when loop counterexamples were divided.
• Enhanced the process graph viewer to allow behaviours from the debug viewer to be viewed.
• Fixed a bug that prevented the Mac OS X version from being opened.
• Fixed some problems with parsing files with includes inside modules.
• Expanded Lambda to allow multiple arguments to be specified.
• Increased the resilience of the parser when dealing with malformed includes.
8.8.7 3.0-beta-1 (23/5/2013)
• Add a rewritten compiler (the component which produces LTSs from processes). This should result in reduced
memory usage during compilation, as well as reduced compilation time. Further, it fixes a number of bugs that
prevented various processes from being compiled.
• Allow multiple assertions to be compiled simultaneously in the GUI.
• Added more feedback in the GUI on how compilation is proceeding.
• Add support for parametrised modules.
• Fixed the definition of WAIT in timed sections.
• Fixed the evaluation of empty replicated operators in timed sections.
8.8.8 3.0-alpha-6 (02/4/2013)
• Added support for manual type annotations, to aid with code documentation and to make the type-checker give
more accurate errors.
• Fixed a crash that could occur when dividing repeat behaviours through compressions.
122 Chapter 8. Release Notes
FDR Manual, Release 4.2.0
8.8.9 3.0-alpha-5 (26/3/2013)
• Add more information to the machine popover to allow long traces to be easily viewed.
• Enhanced the range of programs that can be successfully type-checked.
• Allow the previous and next word keyboard shortcuts to be used from the GUI terminal.
• Fixed several issues that would mean wbisim return processes that were not semantically equivalent to the
original process.
• Fixed an issue with timed CSP that would result in incorrect processes being generated.
• Fixed the low-level implementation of Alphabetised Parallel and prioritise.
• Fixed a crash that could occur when a behaviour involving chase was divided.
8.8.10 3.0-alpha-4 (15/3/2013)
• Fixed a bug that caused high-level machines with compressed process arguments to have incorrect minimal
acceptances. This may have caused some assertions to erroneously pass.
• Add support for tock-CSP via timed sections,Synchronising External Choice and
Synchronising Interrupt.
• Enhanced the refinement status popover to include storage statistics, in addition to details on the ply. Also fix a
bug where the per node storage estimate was under-reported.
• Added support for different compression algorithms which can be used during the refinement checking stage,
including LZ4HC and zlib (see refinement.storage.compressor).
• Enhanced the refinement engine to reconstruct counterexamples in parallel.
• Added support for the chase,deter,lazyenumerate,prioritise and wbisim compressions.
• Fixed the low-level implementation of Rename and Linked Parallel, which may have caused incorrect
transitions to be reported in Probe under certain circumstances.
• Added support for determinism checking in the failures-divergences model.
8.8.11 3.0-alpha-3 (19/2/2013)
• Added basic support for the failures-divergences model, including divergence freedom checks and failures-
divergences refinement checks. Note that the current implementation has not been optimised to take advantage
of multiple cores.
• Added support for ranged set and ranged list comprehensions, such as <1.. | p == 1> and
{1..2 | p == 1}. Both finite and infinite variants are supported for both the lists and the sets.
• Implemented diamond compression.
• Implemented tau_loop_factor compression.
• Added a popover to display performance statistics about refinement checks.
• Fixed loading of files where the path includes ~in FDR3.
• Improved tab completion of file names in the prompt.
• Fixes FDR3 running on older Mac’s without POPCNT.
• Fixed the use of the forward delete key, and other deletion shortcuts, at the prompt.
8.8. 3.0.0 (09/12/2013) 123
FDR Manual, Release 4.2.0
• Fixed an issue where the node highlighting in Probe was not updated after navigating away.
• Fixed a crash that occurred when launching FDR3 with too many arguments.
• Correctly return a trace error if an assertion can fail because of both an acceptance and a trace error.
• Allowed the semantic model that a process is compiled in to be specified when using the graph command.
8.8.12 3.0-alpha-2 (11/1/2013)
• Improved the pretty printing of processes in Probe.
• Improved the performance of Probe.
• Added a manual.
• Allowed extensions and productions to be type-checked.
• Added a new primitive datatype: Char that represents a character, along with associated character and string
literals.
• Added two new functions: error and show that display a given string as an error and pretty print a value,
respectively.
• Restricted the use of prefixing to make it compatible with FDR2.
• Fixed several minor GUI issues.
• Fixed a type-checker issue that allowed incorrect programs that used Extendable to pass.
• Fixed evaluation of replicated link parallel of an empty sequence.
• Fixed evaluation of prefixing where ?occurred before $.
8.8.13 3.0-alpha-1 (21/12/2012)
The initial alpha release.
124 Chapter 8. Release Notes
CHAPTER
NINE
EXAMPLE FILES
9.1 FDR4 Introduction
Download
1-- Introducing FDR4.0
2-- Bill Roscoe, November 2013
3
4-- A file to illustrate the functionality of FDR4.0.
5
6-- Note that this file is necessarily basic and does not stretch the
7-- capabilities of the tool.
8
9-- To run FDR4 with this file just type "fdr4 intro.csp" in the directory
10 -- containing intro.csp, assuming that fdr4 is in your $PATH or has been aliased
11 -- to run the tool.
12
13 -- Alternatively run FDR4 and enter the command ":load intro.csp".
14
15 -- You will see that all the assertions included in this file appear on the RHS
16 -- of the window as prompts. This allows you to run them.
17
18 -- This file contains some examples based on playing a game of tennis between A
19 -- and B.
20
21 channel pointA,pointB,gameA,gameB
22
23 Scorepairs ={(x,y) |x<- {0,15,30,40}, y<- {0,15,30,40}, (x,y) != (40,40)}
24
25 datatype scores =NUM.Scorepairs |Deuce |AdvantageA |AdvantageB
26
27 Game(p) = pointA -> IncA(p)
28 [] pointB -> IncB(p)
29
30 IncA(AdvantageA) = gameA -> Game(NUM.(0,0))
31 IncA(NUM.(40,_)) = gameA -> Game(NUM.(0,0))
32 IncA(AdvantageB) = Game(Deuce)
33 IncA(Deuce) = Game(AdvantageA)
34 IncA(NUM.(30,40)) = Game(Deuce)
35 IncA(NUM.(x,y)) = Game(NUM.(next(x),y))
36 IncB(AdvantageB) = gameB -> Game(NUM.(0,0))
37 IncB(NUM.(_,40)) = gameB -> Game(NUM.(0,0))
38 IncB(AdvantageA) = Game(Deuce)
39 IncB(Deuce) = Game(AdvantageB)
125
FDR Manual, Release 4.2.0
40 IncB(NUM.(40,30)) = Game(Deuce)
41 IncB(NUM.(x,y)) = Game(NUM.(x,next(y)))
42 -- If you uncomment the following line it will introduce a type error to
43 -- illustrate the typechecker.
44 -- IncB((x,y)) = Game(NUM.(next(x),y))
45
46 next(0)=15
47 next(15)=30
48 next(30)=40
49
50 -- Note that you can check on non-process functions you have written. Try typing
51 -- next(15) at the command prompt of FDR4.
52
53 -- Game(NUM.(0,0)) thus represents a game which records when A and B win
54 -- successive games, we can abbreviate it as
55
56 Scorer = Game(NUM.(0,0))
57
58 -- Type ":probe Scorer" to animate this process.
59 -- Type ":graph Scorer" to show the transition system of this process
60
61 -- We can compare this process with some others:
62
63 assert Scorer [T= STOP
64 assert Scorer [F= Scorer
65 assert STOP [T= Scorer
66
67 -- The results of all these are all obvious.
68
69 -- Also, compare the states of this process
70
71 assert Scorer [T= Game(NUM.(15,0))
72 assert Game(NUM.(30,30)) [FD= Game(Deuce)
73
74 -- The second of these gives a result you might not expect: can you explain why?
75 -- (Answer below....)
76
77 -- For the checks that fail, you can run the debugger, which illustrates why the
78 -- given implementation (right-hand side) of the check can behave in a way that
79 -- the specification (LHS) cannot. Because the examples so far are all
80 -- sequential processes, you cannot subdivide the implementation behaviours into
81 -- sub-behaviours within the debugger.
82
83 -- One way of imagining the above process is as a scorer (hence the name) that
84 -- keeps track of the results of the points that A and B score. We could put a
85 -- choice mechanism in parallel: the most obvious picks the winner of each point
86 -- nondeterministically:
87
88 ND = pointA -> ND |~| pointB -> ND
89
90 -- We can imagine one where B gets at least one point every time A gets one:
91
92 Bgood = pointA -> pointB -> Bgood |~| pointB -> Bgood
93
94 -- and one where B gets two points for every two that A get, so allowing A to
95 -- get two consecutive points:
96
97 Bg = pointA -> Bg1 |~| pointB -> Bg
126 Chapter 9. Example Files
FDR Manual, Release 4.2.0
98
99 Bg1 = pointA -> pointB -> Bg1 |~| pointB -> Bg
100
101 assert Bg [FD= Bgood
102 assert Bgood [FD= Bg
103
104 -- We might ask what effect these choice mechanisms have on our game of tennis:
105 -- do you think that B can win a game in these two cases?
106
107 BgoodS = Bgood [|{pointA,pointB}|] Scorer
108 BgS =Bg[|{pointA,pointB}|] Scorer
109
110 assert STOP [T= BgoodS \diff(Events,{gameA})
111 assert STOP [T= BgS \diff(Events,{gameA})
112
113 -- You will find that A can in the second case, and in fact can win the very
114 -- first game. You can now see how the debugger explains the behaviours inside
115 -- hiding and of different parallel components.
116
117 -- Do you think that in this case A can ever get two games ahead? In order to
118 -- avoid an infinite-state specification, the following one actually says that A
119 -- can’t get two games ahead when it has never been as many as 6 games behind:
120
121 Level = gameA -> Awinning(1)
122 [] gameB -> Bwinning(1)
123
124 Awinning(1) = gameB -> Level -- A not permitted to win here
125
126 Bwinning(6) = gameA -> Bwinning(6)[] gameB -> Bwinning(6)
127 Bwinning(1) = gameA -> Level [] gameB -> Bwinning(2)
128 Bwinning(n) = gameA -> Bwinning(n-1)[] gameB -> Bwinning(n+1)
129
130 assert Level [T= BgS \{pointA,pointB}
131
132 -- Exercise for the interested: see how this result is affected by changing Bg
133 -- to become yet more liberal. Try Bgn(n) as n copies of Bgood in ||| parallel.
134
135 -- Games of tennis can of course go on for ever, as is illustrated by the check
136
137 assert BgS\{pointA,pointB} :[divergence-free]
138
139 -- Notice that here, for the infinite behaviour that is a divergence, the
140 -- debugger shows you a loop.
141
142 -- Finally, the answer to the question above about the similarity of
143 -- Game(NUM.(30,30)) and Game(Deuce).
144
145 -- Intuitively these processes represent different states in the game: notice
146 -- that 4 points have occurred in the first and at least 6 in the second. But
147 -- actually the meaning (semantics) of a state only depend on behaviour going
148 -- forward, and both 30-all and deuce are scores from which A or B win just when
149 -- they get two points ahead. So these states are, in our formulation,
150 -- equivalent processes.
151
152 -- FDR has compression functions that try to cut the number of states of
153 -- processes: read the books for why this is a good idea. Perhaps the simplest
154 -- compression is strong bisimulation, and you can see the effect of this by
155 -- comparing the graphs of Scorer and
9.1. FDR4 Introduction 127
FDR Manual, Release 4.2.0
156
157 transparent sbisim,wbisim,diamond
158
159 BScorer = sbisim(Scorer)
160
161 -- Note that FDR automatically applies bisimulation in various places.
162
163 -- To see how effective compressions can sometimes be, but that
164 -- sometimes one compression is better than another compare
165
166 NDS = (ND [|{pointA,pointB}|] Scorer)\{pointA,pointB}
167
168 wbNDS = wbisim(NDS)
169 sbNDS = sbisim(NDS)
170 nNDS = sbisim(diamond(NDS))
9.2 Dining Philosophers
Download
1-- The five dining philosophers for FDR
2
3-- Bill Roscoe
4
5-- The most standard example of them all. We can determine how many
6-- (with the conventional number being 5):
7
8N=6
9
10 PHILNAMES={0..N-1}
11 FORKNAMES ={0..N-1}
12
13 channel thinks,sits,eats,getsup:PHILNAMES
14 channel picks,putsdown:PHILNAMES.FORKNAMES
15
16 -- A philosopher thinks, sits down, picks up two forks, eats, puts down forks
17 -- and gets up, in an unending cycle.
18
19 PHIL(i) = thinks.i-> sits!i-> picks!i!i-> picks!i!((i+1)%N) ->
20 eats!i-> putsdown!i!((i+1)%N) -> putsdown!i!i-> getsup!i-> PHIL(i)
21
22 -- Of course the only events relevant to deadlock are the picks and putsdown
23 -- ones. Try the alternative "stripped down" definition
24
25 PHILs(i) = picks!i!i-> picks!i!((i+1)%N) ->
26 putsdown!i!((i+1)%N) -> putsdown!i!i-> PHILs(i)
27
28
29
30 -- Its alphabet is
31
32 AlphaP(i) = {thinks.i,sits.i,picks.i.i,picks.i.(i+1)%N,eats.i,putsdown.i.i,
33 putsdown.i.(i+1)%N,getsup.i}
34
35 -- A fork can only be picked up by one neighbour at once!
36
128 Chapter 9. Example Files
FDR Manual, Release 4.2.0
37 FORK(i) = picks!i!i-> putsdown!i!i-> FORK(i)
38 [] picks!((i-1)%N)!i-> putsdown!((i-1)%N)!i-> FORK(i)
39
40 AlphaF(i) = {picks.i.i,picks.(i-1)%N.i,putsdown.i.i,putsdown.(i-1)%N.i}
41
42 -- We can build the system up in several ways, but certainly
43 -- have to use some form of parallel that allows us to
44 -- build a network parameterized by N. The following uses
45 -- a composition of N philosopher/fork pairs, each individually
46 -- a parallel composition.
47
48 SYSTEM =|| i:PHILNAMES@[union(AlphaP(i),AlphaF(i))]
49 (PHIL(i)[AlphaP(i)|| AlphaF(i)] FORK(i))
50
51 -- or stripped down
52
53 SYSTEMs =|| i:PHILNAMES@[union(AlphaP(i),AlphaF(i))]
54 (PHILs(i)[AlphaP(i)|| AlphaF(i)] FORK(i))
55
56
57 -- As an alternative (see Section 2.3) we can create separate
58 -- collections of the philosophers and forks, each composed
59 -- using interleaving ||| since there is no communication inside
60 -- these groups.
61
62 PHILS =||| i:PHILNAMES@PHIL(i)
63 FORKS =||| i:FORKNAMES@FORK(i)
64
65 SYSTEM’ = PHILS[|{|picks,putsdown|}|]FORKS
66
67 -- The potential for deadlock is illustrated by
68
69 assert SYSTEM :[deadlock free [F]]
70
71 -- or equivalently in the stripped down
72 assert SYSTEMs :[deadlock free [F]]
73
74 -- which will find the same deadlock a lot faster.
75
76 -- There are several well-known solutions to the problem. One involves a
77 -- butler who must co-operate on the sitting down and getting up events,
78 -- and always ensures that no more than four of the five
79 -- philosophers are seated.
80
81 BUTLER(j) = j>0&getsup?i-> BUTLER(j-1)
82 []j<N-1&sits?i-> BUTLER(j+1)
83
84 BSYSTEM = SYSTEM [|{|sits,getsup|}|] BUTLER(0)
85
86 assert BSYSTEM :[deadlock free [F]]
87
88 -- We would have to reduce the amount of stripping down for this,
89 -- since it makes the sits and getsup events useful...try this.
90
91 -- A second solution involves replacing one of the above right-handed (say)
92 -- philosophers by a left-handed one:
93
94 LPHIL(i)= thinks.i-> sits.i-> picks.i.((i+1)%N) -> picks.i.i->
9.2. Dining Philosophers 129
FDR Manual, Release 4.2.0
95 eats.i-> putsdown.i.((i+1)%N) -> putsdown.i.i-> getsup.i-> LPHIL(i)
96
97 ASPHILS =||| i:PHILNAMES @if i==0then LPHIL(i) else PHIL(i)
98
99 ASSYSTEM = ASPHILS[|{|picks,putsdown|}|]FORKS
100
101 -- This asymmetric system is deadlock free, as can be proved using Check.
102
103 assert ASSYSTEM :[deadlock free [F]]
104
105 -- If you want to run a lot of dining philosophers, the best results will
106 -- probably be obtained by removing the events irrelevant to ASSYSTEM
107 -- (leaving only picks and putsdown) in:
108 LPHILs(i)= picks.i.((i+1)%N) -> picks.i.i->
109 putsdown.i.((i+1)%N) -> putsdown.i.i-> LPHILs(i)
110
111 ASPHILSs =||| i:PHILNAMES @if i==0then LPHILs(i) else PHILs(i)
112
113 ASSYSTEMs = ASPHILSs[|{|picks,putsdown|}|]FORKS
114
115 assert ASSYSTEMs :[deadlock free [F]]
116
117 -- Setting N=10 will show the spectacular difference in running the
118 -- stripped down version. Try to undertand why there is such an
119 -- enormous difference.
120
121 -- Compare the stripped down versions with the idea of "Leaf Compression"
122 -- discussed in Chapter 8.
9.3 Inductive Compression
Download
1-- compression09.csp
2
3-- This DRAFT file supports various semi-automated compression techniques over
4-- CSP networks for use with FDR.
5
6-- It it is designed to accompany the author’s forthcoming book
7-- "Understanding Concurrency"
8-- and is an updated version of the 1997 file "compresion.csp" that
9-- accompanied "Theory and Practice of Concurrency".
10
11 -- Bill Roscoe
12
13 -- We assume that networks are presented to us as
14 -- structures comprising process/alphabet pairs arranged in list
15 -- arrangements,
16
17 -- or (09) as members of the structured datatype
18
19 datatype PStruct =PSLeaf.(Proc,Set(Events)) |PSNode.Seq(PStruct)
20
21 -- This can only be used with FDR 2.91 and up where processes (Proc) are allowed
22 -- as parts of user-defined types.
23
130 Chapter 9. Example Files
FDR Manual, Release 4.2.0
24 -- We may (subject to alterations to FDR) be able to support more complex
25 -- structured types over processes.
26
27 -- The alphabet of any such list is the union of the alphabets of
28 -- the component processes:
29
30 alphabet(ps) = Union(set(<A|(P,A) <- ps>))
31
32 -- The vocabulary of a list is the set of events that are synchronised
33 -- between at least two members:
34
35 vocabulary(ps) = if #ps<2then {} else
36 let A=snd(head(ps))
37 V= vocabulary(tail(ps))
38 A’ = alphabet(tail(ps))
39 within
40 union(V,inter(A,A’))
41
42 -- The following is a function
43 -- that composes a process/alphabet list without any
44 -- compression:
45
46 ListPar(ps) = let N=#ps within
47 || i:{0..N-1}@[snd(cnth(i,ps))] fst(cnth(i,ps))
48
49 -- The most elementary transformation we can do on a network is to
50 -- hide all events in individual processes that are neither relevant to
51 -- the specification nor are required for higher synchronisation.
52 -- The following function takes as its (curried) arguments a compression
53 -- function to apply at the leaves, a process/alphabet list to compose
54 -- in parallel and a set of events which it is desired to hide (either
55 -- because they are genuinely internal events or irrelevant to the spec).
56 -- It hides as much as it can in the processes, but does not combine them
57
58 CompressLeaves(compress)(ps)(X) = let V=vocabulary(ps)
59 N=#ps
60 H=diff(X,V)
61 within
62 <(compress(P\inter(A,H)),diff(A,H)) |(P,A) <- ps>
63
64 -- The following uses this to produce a combined process
65
66 LeafCompress(compress)(ps)(X) = ListPar(CompressLeaves(compress)(ps)(X))\X
67
68 -- It is often advantageous to be able to apply lazy or mixed abstraction
69 -- operators in the same sort of way as the above does for hiding. The
70 -- following are two functions that generalize the above: they take a
71 -- pair of event-sets (X,S): X is the set we want to abstract and S is
72 -- the set of signal events (which need not be a subset of X). The
73 -- result is that inter(X,S) is hidden and diff(X,S) is lazily
74 -- abstracted. Note that you can get the effect of pure hiding (eager
75 -- abstraction by setting S=Events) and pure lazy abstraction by setting
76 -- S={}. Note also, however, that if you are trying to lazily abstract
77 -- a network with some natural hiding in it, that all these hidden events
78 -- should be treated as signals.
79
80 LeafMixedAbs(compress)(ps)(X,S) =
81 let V=vocabulary(ps)
9.3. Inductive Compression 131
FDR Manual, Release 4.2.0
82 N=#ps
83 D=diff(X,S)
84 H’=diff(X,V)
85 within
86 <(compress((P[|inter(A,D)|]
87 compress(CHAOS(inter(A,D))))\inter(A,H’)),diff(A,H’))
88 |(P,A) <- ps>
89
90 -- The substantive function is then:
91
92 MixedAbsLeafCompress(compress)(ps)(X,S) =
93 ListPar(LeafMixedAbs(compress)(ps)(X,S))\X
94
95
96 -- The next transformation builds up a list network in the order defined
97 -- in the (reverse of) the list, applying a specified compression function
98 -- to each partially constructed unit.
99
100 InductiveCompress(compress)(ps)(X) =
101 compress(IComp(compress)(CompressLeaves(compress)(ps)(X))(X))
102
103 IComp(compress)(ps)(X) = let p=head(ps)
104 P= fst(p)
105 A= snd(p)
106 A’ = alphabet(ps’)
107 ps’ =tail(ps)
108 within
109 if #ps == 1then P\X
110 else
111 let Q=IComp(compress)(ps’)(diff(X,A))
112 within
113 (P[A||A’]compress(Q))\inter(X,A)
114
115 InductiveMixedAbs(compress)(ps)(X,S) =
116 compress(IComp(compress)(LeafMixedAbs(compress)(ps)(X,S))(X))
117
118 -- Sometimes compressed subnetworks grow to big to make the above
119 -- function conveniently applicable. The following function allows you
120 -- to compress each of a list-of-lists of processes, and then
121 -- combine them all without trying to compress any further.
122
123 StructuredCompress(compress)(pss)(X) =
124 let N= #pss
125 as =<alphabet(ps) |ps <- pss>
126 ss =<Union({inter(cnth(i,as),cnth(j,as)) |
127 j<- {0..N-1}, j!=i})|i<- <0..N-1>>
128 within
129 (ListPar(<(compress(
130 InductiveCompress(compress)(cnth(i,
131 pss))(diff(X,cnth(i,ss)))
132 \(diff(X,cnth(i,ss)))),
133 cnth(i,as)) |i<- <0..N-1>>))\X
134
135 -- The analogue of ListPar
136
137 StructuredPar(pss) = ListPar(<(ListPar(ps),alphabet(ps)) |ps <- pss>)
138
139 -- and the mixed abstraction analogue:
132 Chapter 9. Example Files
FDR Manual, Release 4.2.0
140
141 StructuredMixedAbs(compress)(pss)(X,S) =
142 let N= #pss
143 as =<alphabet(ps) |ps <- pss>
144 ss =<Union({inter(cnth(i,as),cnth(j,as)) |
145 j<- {0..N-1}, j!=i})|i<- <0..N-1>>
146 within
147 (ListPar(<(compress(
148 InductiveMixedAbs(compress)(cnth(i,
149 pss))(diff(X,cnth(i,ss)),S)
150 \(diff(X,cnth(i,ss)))),
151 cnth(i,as)) |i<- <0..N-1>>))\X
152
153 -- The following are some functional programming constructs used above
154
155 cnth(i,xs) = if i==0then head(xs)
156 else cnth(i-1,tail(xs))
157
158 fst((x,y)) = x
159 snd((x,y)) = y
160
161 -- The following function can be useful for partitioning a process list
162 -- into roughly equal-sized pieces for structured compression
163
164 groupsof(n)(xs) = let xl=#xs within
165 if xl==0then <> else
166 if xl<=n or n==0then <xs>
167 else let
168 m=if (xl/n)*n==xl then nelse (n+1)
169 within
170 <take(m)(xs)>^groupsof(n)(drop(m)(xs))
171
172 take(n)(xs) = if n==0then <> else <head(xs)>^take(n-1)(tail(xs))
173
174 drop(n)(xs) = if n==0then xs else drop(n-1)(tail(xs))
175
176 -- The following define some similar compression functions for PStruct
177
178
179 StructPar(t) = let (P,_) =SPA(t) within P
180
181 SPA(PSLeaf.(P,A)) = (P,A)
182
183 SPA(PSNode.ts) = let ps = <SPA(t) |t<- ts>
184 A=Union(set(<a_ |(_,a_) <- ps>))
185 within
186 (ListPar(ps),A)
187
188 PSmap(f,PSLeaf.p) = PSLeaf.(f(p))
189 PSmap(f,PSNode.ts) = PSNode.<PSmap(f,t) |t<- ts>
190
191 PSvocab(t) = let as =psalphas(t)
192 within
193 Union({inter(cnth(i,as),cnth(j,as)) |
194 i<- {1..(#as)-1}, j<- {0..i-1}})
195
196 psalphas(PSLeaf.(P,A)) = <A>
197 psalphas(PSNode.ts) = <A|u<- ts,A<- psalphas(u)>
9.3. Inductive Compression 133
FDR Manual, Release 4.2.0
198 --psalphas(PSNode.ts) = <>
199
200 CompressPSLeaves(compress)(t)(X) = let V=PSvocab(t)
201 H=diff(X,V)
202 f((P,A)) = (compress(P\H),A)
203 within
204 PSmap(f,t)
205
206
207 PSLeafCompress(compress)(t)(X) = let ct =CompressPSLeaves(compress)(t)(X)
208 within
209 StructPar(ct)\X
210
211 psalphabet(PSLeaf.(P,A)) = A
212 psalphabet(PSNode.ts) = let AS = <psalphabet(t) |t<- ts>
213 within Union(set(AS))
214
215
216 PSStructCompress(compress) =
217 let G(PSLeaf.(P,A)) =let f(X) =P\Xwithin f
218 G(PSNode.ts) = \X@
219 let as = <psalphabet(t) |t<- ts>
220 tlv =Union({inter(cnth(i,as),cnth(j,as)) |
221 i<- {1..#ts-1}, j<- {0..i-1}})
222
223 ps =<(compress(PSStructCompress(compress)(t)(
224 inter(psalphabet(t),diff(X,tlv)))),
225 psalphabet(t))
226 |t<- ts >
227 within
228 ListPar(ps)\X
229 within G
134 Chapter 9. Example Files
CHAPTER
TEN
REFERENCES
135
FDR Manual, Release 4.2.0
136 Chapter 10. References
CHAPTER
ELEVEN
LICENSES
FDR incorporates software from a number of other sources. The licenses of any piece of software that requires its
license to be reproduced are given below.
11.1 boost
Boost Software License - Version 1.0 - August 17th, 2003
Permission is hereby granted, free of charge, to any person or organization
obtaining a copy of the software and accompanying documentation covered by
this license (the "Software") to use, reproduce, display, distribute,
execute, and transmit the Software, and to prepare derivative works of the
Software, and to permit third-parties to whom the Software is furnished to
do so, all subject to the following:
The copyright notices in the Software and this entire statement, including
the above license grant, this restriction and the following disclaimer,
must be included in all copies of the Software, in whole or in part, and
all derivative works of the Software, unless such copies or derivative
works are solely in the form of machine-executable object code generated by
a source language processor.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE, TITLE AND NON-INFRINGEMENT. IN NO EVENT
SHALL THE COPYRIGHT HOLDERS OR ANYONE DISTRIBUTING THE SOFTWARE BE LIABLE
FOR ANY DAMAGES OR OTHER LIABILITY, WHETHER IN CONTRACT, TORT OR OTHERWISE,
ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER
DEALINGS IN THE SOFTWARE.
11.2 boost.nowide
Boost Software License - Version 1.0 - August 17th, 2003
Permission is hereby granted, free of charge, to any person or organization
obtaining a copy of the software and accompanying documentation covered by
this license (the "Software") to use, reproduce, display, distribute,
execute, and transmit the Software, and to prepare derivative works of the
Software, and to permit third-parties to whom the Software is furnished to
do so, all subject to the following:
137
FDR Manual, Release 4.2.0
The copyright notices in the Software and this entire statement, including
the above license grant, this restriction and the following disclaimer,
must be included in all copies of the Software, in whole or in part, and
all derivative works of the Software, unless such copies or derivative
works are solely in the form of machine-executable object code generated by
a source language processor.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE, TITLE AND NON-INFRINGEMENT. IN NO EVENT
SHALL THE COPYRIGHT HOLDERS OR ANYONE DISTRIBUTING THE SOFTWARE BE LIABLE
FOR ANY DAMAGES OR OTHER LIABILITY, WHETHER IN CONTRACT, TORT OR OTHERWISE,
ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER
DEALINGS IN THE SOFTWARE.
11.3 CityHash
Copyright (c) 2011 Google, Inc.
Permission is hereby granted, free of charge, to any person obtaining a copy
of this software and associated documentation files (the "Software"), to deal
in the Software without restriction, including without limitation the rights
to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
copies of the Software, and to permit persons to whom the Software is
furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in
all copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
THE SOFTWARE.
11.4 google-sparsehash
Copyright (c) 2005, Google Inc.
All rights reserved.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are
met:
*Redistributions of source code must retain the above copyright
notice, this list of conditions and the following disclaimer.
*Redistributions in binary form must reproduce the above
copyright notice, this list of conditions and the following disclaimer
in the documentation and/or other materials provided with the
distribution.
*Neither the name of Google Inc. nor the names of its
138 Chapter 11. Licenses
FDR Manual, Release 4.2.0
contributors may be used to endorse or promote products derived from
this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
"AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
11.5 graphviz
The source code from GraphViz as used in FDR3 can be obtained directly from the GraphViz website (version 2.30.1
is currently in use).
Eclipse Public License - v 1.0
THE ACCOMPANYING PROGRAM IS PROVIDED UNDER THE TERMS OF THIS ECLIPSE PUBLIC LICENSE ("AGREEMENT"). ANY USE, REPRODUCTION OR DISTRIBUTION OF THE PROGRAM CONSTITUTES RECIPIENT’S ACCEPTANCE OF THIS AGREEMENT.
1. DEFINITIONS
"Contribution" means:
a) in the case of the initial Contributor, the initial code and documentation distributed under this Agreement, and
b) in the case of each subsequent Contributor:
i) changes to the Program, and
ii) additions to the Program;
where such changes and/or additions to the Program originate from and are distributed by that particular Contributor. A Contribution ’originates’ from a Contributor if it was added to the Program by such Contributor itself or anyone acting on such Contributor’s behalf. Contributions do not include additions to the Program which: (i) are separate modules of software distributed in conjunction with the Program under their own license agreement, and (ii) are not derivative works of the Program.
"Contributor" means any person or entity that distributes the Program.
"Licensed Patents" mean patent claims licensable by a Contributor which are necessarily infringed by the use or sale of its Contribution alone or when combined with the Program.
"Program" means the Contributions distributed in accordance with this Agreement.
"Recipient" means anyone who receives the Program under this Agreement, including all Contributors.
2. GRANT OF RIGHTS
a) Subject to the terms of this Agreement, each Contributor hereby grants Recipient a non-exclusive, worldwide, royalty-free copyright license to reproduce, prepare derivative works of, publicly display, publicly perform, distribute and sublicense the Contribution of such Contributor, if any, and such derivative works, in source code and object code form.
b) Subject to the terms of this Agreement, each Contributor hereby grants Recipient a non-exclusive, worldwide, royalty-free patent license under Licensed Patents to make, use, sell, offer to sell, import and otherwise transfer the Contribution of such Contributor, if any, in source code and object code form. This patent license shall apply to the combination of the Contribution and the Program if, at the time the Contribution is added by the Contributor, such addition of the Contribution causes such combination to be covered by the Licensed Patents. The patent license shall not apply to any other combinations which include the Contribution. No hardware per se is licensed hereunder.
c) Recipient understands that although each Contributor grants the licenses to its Contributions set forth herein, no assurances are provided by any Contributor that the Program does not infringe the patent or other intellectual property rights of any other entity. Each Contributor disclaims any liability to Recipient for claims brought by any other entity based on infringement of intellectual property rights or otherwise. As a condition to exercising the rights and licenses granted hereunder, each Recipient hereby assumes sole responsibility to secure any other intellectual property rights needed, if any. For example, if a third party patent license is required to allow Recipient to distribute the Program, it is Recipient’s responsibility to acquire that license before distributing the Program.
d) Each Contributor represents that to its knowledge it has sufficient copyright rights in its Contribution, if any, to grant the copyright license set forth in this Agreement.
3. REQUIREMENTS
11.5. graphviz 139
FDR Manual, Release 4.2.0
A Contributor may choose to distribute the Program in object code form under its own license agreement, provided that:
a) it complies with the terms and conditions of this Agreement; and
b) its license agreement:
i) effectively disclaims on behalf of all Contributors all warranties and conditions, express and implied, including warranties or conditions of title and non-infringement, and implied warranties or conditions of merchantability and fitness for a particular purpose;
ii) effectively excludes on behalf of all Contributors all liability for damages, including direct, indirect, special, incidental and consequential damages, such as lost profits;
iii) states that any provisions which differ from this Agreement are offered by that Contributor alone and not by any other party; and
iv) states that source code for the Program is available from such Contributor, and informs licensees how to obtain it in a reasonable manner on or through a medium customarily used for software exchange.
When the Program is made available in source code form:
a) it must be made available under this Agreement; and
b) a copy of this Agreement must be included with each copy of the Program.
Contributors may not remove or alter any copyright notices contained within the Program.
Each Contributor must identify itself as the originator of its Contribution, if any, in a manner that reasonably allows subsequent Recipients to identify the originator of the Contribution.
4. COMMERCIAL DISTRIBUTION
Commercial distributors of software may accept certain responsibilities with respect to end users, business partners and the like. While this license is intended to facilitate the commercial use of the Program, the Contributor who includes the Program in a commercial product offering should do so in a manner which does not create potential liability for other Contributors. Therefore, if a Contributor includes the Program in a commercial product offering, such Contributor ("Commercial Contributor") hereby agrees to defend and indemnify every other Contributor ("Indemnified Contributor") against any losses, damages and costs (collectively "Losses") arising from claims, lawsuits and other legal actions brought by a third party against the Indemnified Contributor to the extent caused by the acts or omissions of such Commercial Contributor in connection with its distribution of the Program in a commercial product offering. The obligations in this section do not apply to any claims or Losses relating to any actual or alleged intellectual property infringement. In order to qualify, an Indemnified Contributor must: a) promptly notify the Commercial Contributor in writing of such claim, and b) allow the Commercial Contributor to control, and cooperate with the Commercial Contributor in, the defense and any related settlement negotiations. The Indemnified Contributor may participate in any such claim at its own expense.
For example, a Contributor might include the Program in a commercial product offering, Product X. That Contributor is then a Commercial Contributor. If that Commercial Contributor then makes performance claims, or offers warranties related to Product X, those performance claims and warranties are such Commercial Contributor’s responsibility alone. Under this section, the Commercial Contributor would have to defend claims against the other Contributors related to those performance claims and warranties, and if a court requires any other Contributor to pay any damages as a result, the Commercial Contributor must pay those damages.
5. NO WARRANTY
EXCEPT AS EXPRESSLY SET FORTH IN THIS AGREEMENT, THE PROGRAM IS PROVIDED ON AN "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, EITHER EXPRESS OR IMPLIED INCLUDING, WITHOUT LIMITATION, ANY WARRANTIES OR CONDITIONS OF TITLE, NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Each Recipient is solely responsible for determining the appropriateness of using and distributing the Program and assumes all risks associated with its exercise of rights under this Agreement , including but not limited to the risks and costs of program errors, compliance with applicable laws, damage to or loss of data, programs or equipment, and unavailability or interruption of operations.
6. DISCLAIMER OF LIABILITY
EXCEPT AS EXPRESSLY SET FORTH IN THIS AGREEMENT, NEITHER RECIPIENT NOR ANY CONTRIBUTORS SHALL HAVE ANY LIABILITY FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING WITHOUT LIMITATION LOST PROFITS), HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OR DISTRIBUTION OF THE PROGRAM OR THE EXERCISE OF ANY RIGHTS GRANTED HEREUNDER, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
7. GENERAL
If any provision of this Agreement is invalid or unenforceable under applicable law, it shall not affect the validity or enforceability of the remainder of the terms of this Agreement, and without further action by the parties hereto, such provision shall be reformed to the minimum extent necessary to make such provision valid and enforceable.
If Recipient institutes patent litigation against any entity (including a cross-claim or counterclaim in a lawsuit) alleging that the Program itself (excluding combinations of the Program with other software or hardware) infringes such Recipient’s patent(s), then such Recipient’s rights granted under Section 2(b) shall terminate as of the date such litigation is filed.
All Recipient’s rights under this Agreement shall terminate if it fails to comply with any of the material terms or conditions of this Agreement and does not cure such failure in a reasonable period of time after becoming aware of such noncompliance. If all Recipient’s rights under this Agreement terminate, Recipient agrees to cease use and distribution of the Program as soon as reasonably practicable. However, Recipient’s obligations under this Agreement and any licenses granted by Recipient relating to the Program shall continue and survive.
Everyone is permitted to copy and distribute copies of this Agreement, but in order to avoid inconsistency the Agreement is copyrighted and may only be modified in the following manner. The Agreement Steward reserves the right to publish new versions (including revisions) of this Agreement from time to time. No one other than the Agreement Steward has the right to modify this Agreement. The Eclipse Foundation is the initial Agreement Steward. The Eclipse Foundation may assign the responsibility to serve as the Agreement Steward to a suitable separate entity. Each new version of the Agreement will be given a distinguishing version number. The Program (including Contributions) may always be distributed subject to the version of the Agreement under which it was received. In addition, after a new version of the Agreement is published, Contributor may elect to distribute the Program (including its Contributions) under the new version. Except as expressly stated in Sections 2(a) and 2(b) above, Recipient receives no rights or licenses to the intellectual property of any Contributor under this Agreement, whether expressly, by implication, estoppel or otherwise. All rights in the Program not expressly granted under this Agreement are reserved.
This Agreement is governed by the laws of the State of New York and the intellectual property laws of the United States of America. No party to this Agreement will bring a legal action under this Agreement more than one year after the cause of action arose. Each party waives its rights to a jury trial in any resulting litigation.
11.6 libcspm
Copyright (c) 2011, University of Oxford
All rights reserved.
140 Chapter 11. Licenses
FDR Manual, Release 4.2.0
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:
*Redistributions of source code must retain the above copyright
notice, this list of conditions and the following disclaimer.
*Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
*Neither the name of the author nor the
names of its contributors may be used to endorse or promote products
derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND
ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THOMAS GIBSON-ROBINSON BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;
LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
11.7 LLVM
==============================================================================
LLVM Release License
==============================================================================
University of Illinois/NCSA
Open Source License
Copyright (c) 2003-2013 University of Illinois at Urbana-Champaign.
All rights reserved.
Developed by:
LLVM Team
University of Illinois at Urbana-Champaign
http://llvm.org
Permission is hereby granted, free of charge, to any person obtaining a copy of
this software and associated documentation files (the "Software"), to deal with
the Software without restriction, including without limitation the rights to
use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies
of the Software, and to permit persons to whom the Software is furnished to do
so, subject to the following conditions:
*Redistributions of source code must retain the above copyright notice,
this list of conditions and the following disclaimers.
*Redistributions in binary form must reproduce the above copyright notice,
this list of conditions and the following disclaimers in the
documentation and/or other materials provided with the distribution.
*Neither the names of the LLVM Team, University of Illinois at
11.7. LLVM 141
FDR Manual, Release 4.2.0
Urbana-Champaign, nor the names of its contributors may be used to
endorse or promote products derived from this Software without specific
prior written permission.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS
FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
CONTRIBUTORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS WITH THE
SOFTWARE.
==============================================================================
Copyrights and Licenses for Third Party Software Distributed with LLVM:
==============================================================================
The LLVM software contains code written by third parties. Such software will
have its own individual LICENSE.TXT file in the directory in which it appears.
This file will describe the copyrights, license, and restrictions which apply
to that code.
The disclaimer of warranty in the University of Illinois Open Source License
applies to all code in the LLVM Distribution, and nothing in any of the
other licenses gives permission to use the names of the LLVM Team or the
University of Illinois to endorse or promote products derived from this
Software.
The following pieces of software have additional or alternate copyrights,
licenses, and/or restrictions:
Program Directory
------- ---------
Autoconf llvm/autoconf
llvm/projects/ModuleMaker/autoconf
llvm/projects/sample/autoconf
Google Test llvm/utils/unittest/googletest
OpenBSD regex llvm/lib/Support/{reg*, COPYRIGHT.regex}
pyyaml tests llvm/test/YAMLParser/{*.data, LICENSE.TXT}
ARM contributions llvm/lib/Target/ARM/LICENSE.TXT
11.8 lz4
LZ4 - Fast LZ compression algorithm
Copyright (C) 2011-2012, Yann Collet.
BSD 2-Clause License (http://www.opensource.org/licenses/bsd-license.php)
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are
met:
*Redistributions of source code must retain the above copyright
notice, this list of conditions and the following disclaimer.
*Redistributions in binary form must reproduce the above
copyright notice, this list of conditions and the following disclaimer
in the documentation and/or other materials provided with the
distribution.
142 Chapter 11. Licenses
FDR Manual, Release 4.2.0
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
"AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
You can contact the author at :
- LZ4 homepage : http://fastcompression.blogspot.com/p/lz4.html
- LZ4 source repository : http://code.google.com/p/lz4/
11.9 popcount.h
New BSD License
Copyright (c) 2013, Kim Walisch.
All rights reserved.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:
*Redistributions of source code must retain the above copyright
notice, this list of conditions and the following disclaimer.
*Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
*Neither the name of the author nor the names of its contributors may
be used to endorse or promote products derived from this software
without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND
ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL <COPYRIGHT HOLDER> BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;
LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
11.10 QT
GNU LESSER GENERAL PUBLIC LICENSE
Version 2.1, February 1999
Copyright (C) 1991, 1999 Free Software Foundation, Inc.
51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA
11.9. popcount.h 143
FDR Manual, Release 4.2.0
Everyone is permitted to copy and distribute verbatim copies
of this license document, but changing it is not allowed.
[This is the first released version of the Lesser GPL. It also counts
as the successor of the GNU Library Public License, version 2, hence
the version number 2.1.]
Preamble
The licenses for most software are designed to take away your
freedom to share and change it. By contrast, the GNU General Public
Licenses are intended to guarantee your freedom to share and change
free software--to make sure the software is free for all its users.
This license, the Lesser General Public License, applies to some
specially designated software packages--typically libraries--of the
Free Software Foundation and other authors who decide to use it. You
can use it too, but we suggest you first think carefully about whether
this license or the ordinary General Public License is the better
strategy to use in any particular case, based on the explanations below.
When we speak of free software, we are referring to freedom of use,
not price. Our General Public Licenses are designed to make sure that
you have the freedom to distribute copies of free software (and charge
for this service if you wish); that you receive source code or can get
it if you want it; that you can change the software and use pieces of
it in new free programs; and that you are informed that you can do
these things.
To protect your rights, we need to make restrictions that forbid
distributors to deny you these rights or to ask you to surrender these
rights. These restrictions translate to certain responsibilities for
you if you distribute copies of the library or if you modify it.
For example, if you distribute copies of the library, whether gratis
or for a fee, you must give the recipients all the rights that we gave
you. You must make sure that they, too, receive or can get the source
code. If you link other code with the library, you must provide
complete object files to the recipients, so that they can relink them
with the library after making changes to the library and recompiling
it. And you must show them these terms so they know their rights.
We protect your rights with a two-step method: (1) we copyright the
library, and (2) we offer you this license, which gives you legal
permission to copy, distribute and/or modify the library.
To protect each distributor, we want to make it very clear that
there is no warranty for the free library. Also, if the library is
modified by someone else and passed on, the recipients should know
that what they have is not the original version, so that the original
author’s reputation will not be affected by problems that might be
introduced by others.
Finally, software patents pose a constant threat to the existence of
any free program. We wish to make sure that a company cannot
effectively restrict the users of a free program by obtaining a
restrictive license from a patent holder. Therefore, we insist that
any patent license obtained for a version of the library must be
144 Chapter 11. Licenses
FDR Manual, Release 4.2.0
consistent with the full freedom of use specified in this license.
Most GNU software, including some libraries, is covered by the
ordinary GNU General Public License. This license, the GNU Lesser
General Public License, applies to certain designated libraries, and
is quite different from the ordinary General Public License. We use
this license for certain libraries in order to permit linking those
libraries into non-free programs.
When a program is linked with a library, whether statically or using
a shared library, the combination of the two is legally speaking a
combined work, a derivative of the original library. The ordinary
General Public License therefore permits such linking only if the
entire combination fits its criteria of freedom. The Lesser General
Public License permits more lax criteria for linking other code with
the library.
We call this license the "Lesser" General Public License because it
does Less to protect the user’s freedom than the ordinary General
Public License. It also provides other free software developers Less
of an advantage over competing non-free programs. These disadvantages
are the reason we use the ordinary General Public License for many
libraries. However, the Lesser license provides advantages in certain
special circumstances.
For example, on rare occasions, there may be a special need to
encourage the widest possible use of a certain library, so that it becomes
a de-facto standard. To achieve this, non-free programs must be
allowed to use the library. A more frequent case is that a free
library does the same job as widely used non-free libraries. In this
case, there is little to gain by limiting the free library to free
software only, so we use the Lesser General Public License.
In other cases, permission to use a particular library in non-free
programs enables a greater number of people to use a large body of
free software. For example, permission to use the GNU C Library in
non-free programs enables many more people to use the whole GNU
operating system, as well as its variant, the GNU/Linux operating
system.
Although the Lesser General Public License is Less protective of the
users’ freedom, it does ensure that the user of a program that is
linked with the Library has the freedom and the wherewithal to run
that program using a modified version of the Library.
The precise terms and conditions for copying, distribution and
modification follow. Pay close attention to the difference between a
"work based on the library" and a "work that uses the library". The
former contains code derived from the library, whereas the latter must
be combined with the library in order to run.
GNU LESSER GENERAL PUBLIC LICENSE
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0. This License Agreement applies to any software library or other
program which contains a notice placed by the copyright holder or
other authorized party saying it may be distributed under the terms of
this Lesser General Public License (also called "this License").
11.10. QT 145
FDR Manual, Release 4.2.0
Each licensee is addressed as "you".
A "library" means a collection of software functions and/or data
prepared so as to be conveniently linked with application programs
(which use some of those functions and data) to form executables.
The "Library", below, refers to any such software library or work
which has been distributed under these terms. A "work based on the
Library" means either the Library or any derivative work under
copyright law: that is to say, a work containing the Library or a
portion of it, either verbatim or with modifications and/or translated
straightforwardly into another language. (Hereinafter, translation is
included without limitation in the term "modification".)
"Source code" for a work means the preferred form of the work for
making modifications to it. For a library, complete source code means
all the source code for all modules it contains, plus any associated
interface definition files, plus the scripts used to control compilation
and installation of the library.
Activities other than copying, distribution and modification are not
covered by this License; they are outside its scope. The act of
running a program using the Library is not restricted, and output from
such a program is covered only if its contents constitute a work based
on the Library (independent of the use of the Library in a tool for
writing it). Whether that is true depends on what the Library does
and what the program that uses the Library does.
1. You may copy and distribute verbatim copies of the Library’s
complete source code as you receive it, in any medium, provided that
you conspicuously and appropriately publish on each copy an
appropriate copyright notice and disclaimer of warranty; keep intact
all the notices that refer to this License and to the absence of any
warranty; and distribute a copy of this License along with the
Library.
You may charge a fee for the physical act of transferring a copy,
and you may at your option offer warranty protection in exchange for a
fee.
2. You may modify your copy or copies of the Library or any portion
of it, thus forming a work based on the Library, and copy and
distribute such modifications or work under the terms of Section 1
above, provided that you also meet all of these conditions:
a) The modified work must itself be a software library.
b) You must cause the files modified to carry prominent notices
stating that you changed the files and the date of any change.
c) You must cause the whole of the work to be licensed at no
charge to all third parties under the terms of this License.
d) If a facility in the modified Library refers to a function or a
table of data to be supplied by an application program that uses
the facility, other than as an argument passed when the facility
is invoked, then you must make a good faith effort to ensure that,
in the event an application does not supply such function or
146 Chapter 11. Licenses
FDR Manual, Release 4.2.0
table, the facility still operates, and performs whatever part of
its purpose remains meaningful.
(For example, a function in a library to compute square roots has
a purpose that is entirely well-defined independent of the
application. Therefore, Subsection 2d requires that any
application-supplied function or table used by this function must
be optional: if the application does not supply it, the square
root function must still compute square roots.)
These requirements apply to the modified work as a whole. If
identifiable sections of that work are not derived from the Library,
and can be reasonably considered independent and separate works in
themselves, then this License, and its terms, do not apply to those
sections when you distribute them as separate works. But when you
distribute the same sections as part of a whole which is a work based
on the Library, the distribution of the whole must be on the terms of
this License, whose permissions for other licensees extend to the
entire whole, and thus to each and every part regardless of who wrote
it.
Thus, it is not the intent of this section to claim rights or contest
your rights to work written entirely by you; rather, the intent is to
exercise the right to control the distribution of derivative or
collective works based on the Library.
In addition, mere aggregation of another work not based on the Library
with the Library (or with a work based on the Library) on a volume of
a storage or distribution medium does not bring the other work under
the scope of this License.
3. You may opt to apply the terms of the ordinary GNU General Public
License instead of this License to a given copy of the Library. To do
this, you must alter all the notices that refer to this License, so
that they refer to the ordinary GNU General Public License, version 2,
instead of to this License. (If a newer version than version 2 of the
ordinary GNU General Public License has appeared, then you can specify
that version instead if you wish.) Do not make any other change in
these notices.
Once this change is made in a given copy, it is irreversible for
that copy, so the ordinary GNU General Public License applies to all
subsequent copies and derivative works made from that copy.
This option is useful when you wish to copy part of the code of
the Library into a program that is not a library.
4. You may copy and distribute the Library (or a portion or
derivative of it, under Section 2) in object code or executable form
under the terms of Sections 1 and 2 above provided that you accompany
it with the complete corresponding machine-readable source code, which
must be distributed under the terms of Sections 1 and 2 above on a
medium customarily used for software interchange.
If distribution of object code is made by offering access to copy
from a designated place, then offering equivalent access to copy the
source code from the same place satisfies the requirement to
distribute the source code, even though third parties are not
11.10. QT 147
FDR Manual, Release 4.2.0
compelled to copy the source along with the object code.
5. A program that contains no derivative of any portion of the
Library, but is designed to work with the Library by being compiled or
linked with it, is called a "work that uses the Library". Such a
work, in isolation, is not a derivative work of the Library, and
therefore falls outside the scope of this License.
However, linking a "work that uses the Library" with the Library
creates an executable that is a derivative of the Library (because it
contains portions of the Library), rather than a "work that uses the
library". The executable is therefore covered by this License.
Section 6 states terms for distribution of such executables.
When a "work that uses the Library" uses material from a header file
that is part of the Library, the object code for the work may be a
derivative work of the Library even though the source code is not.
Whether this is true is especially significant if the work can be
linked without the Library, or if the work is itself a library. The
threshold for this to be true is not precisely defined by law.
If such an object file uses only numerical parameters, data
structure layouts and accessors, and small macros and small inline
functions (ten lines or less in length), then the use of the object
file is unrestricted, regardless of whether it is legally a derivative
work. (Executables containing this object code plus portions of the
Library will still fall under Section 6.)
Otherwise, if the work is a derivative of the Library, you may
distribute the object code for the work under the terms of Section 6.
Any executables containing that work also fall under Section 6,
whether or not they are linked directly with the Library itself.
6. As an exception to the Sections above, you may also combine or
link a "work that uses the Library" with the Library to produce a
work containing portions of the Library, and distribute that work
under terms of your choice, provided that the terms permit
modification of the work for the customer’s own use and reverse
engineering for debugging such modifications.
You must give prominent notice with each copy of the work that the
Library is used in it and that the Library and its use are covered by
this License. You must supply a copy of this License. If the work
during execution displays copyright notices, you must include the
copyright notice for the Library among them, as well as a reference
directing the user to the copy of this License. Also, you must do one
of these things:
a) Accompany the work with the complete corresponding
machine-readable source code for the Library including whatever
changes were used in the work (which must be distributed under
Sections 1 and 2 above); and, if the work is an executable linked
with the Library, with the complete machine-readable "work that
uses the Library", as object code and/or source code, so that the
user can modify the Library and then relink to produce a modified
executable containing the modified Library. (It is understood
that the user who changes the contents of definitions files in the
Library will not necessarily be able to recompile the application
148 Chapter 11. Licenses
FDR Manual, Release 4.2.0
to use the modified definitions.)
b) Use a suitable shared library mechanism for linking with the
Library. A suitable mechanism is one that (1) uses at run time a
copy of the library already present on the user’s computer system,
rather than copying library functions into the executable, and (2)
will operate properly with a modified version of the library, if
the user installs one, as long as the modified version is
interface-compatible with the version that the work was made with.
c) Accompany the work with a written offer, valid for at
least three years, to give the same user the materials
specified in Subsection 6a, above, for a charge no more
than the cost of performing this distribution.
d) If distribution of the work is made by offering access to copy
from a designated place, offer equivalent access to copy the above
specified materials from the same place.
e) Verify that the user has already received a copy of these
materials or that you have already sent this user a copy.
For an executable, the required form of the "work that uses the
Library" must include any data and utility programs needed for
reproducing the executable from it. However, as a special exception,
the materials to be distributed need not include anything that is
normally distributed (in either source or binary form) with the major
components (compiler, kernel, and so on) of the operating system on
which the executable runs, unless that component itself accompanies
the executable.
It may happen that this requirement contradicts the license
restrictions of other proprietary libraries that do not normally
accompany the operating system. Such a contradiction means you cannot
use both them and the Library together in an executable that you
distribute.
7. You may place library facilities that are a work based on the
Library side-by-side in a single library together with other library
facilities not covered by this License, and distribute such a combined
library, provided that the separate distribution of the work based on
the Library and of the other library facilities is otherwise
permitted, and provided that you do these two things:
a) Accompany the combined library with a copy of the same work
based on the Library, uncombined with any other library
facilities. This must be distributed under the terms of the
Sections above.
b) Give prominent notice with the combined library of the fact
that part of it is a work based on the Library, and explaining
where to find the accompanying uncombined form of the same work.
8. You may not copy, modify, sublicense, link with, or distribute
0the Library except as expressly provided under this License. Any
attempt otherwise to copy, modify, sublicense, link with, or
distribute the Library is void, and will automatically terminate your
rights under this License. However, parties who have received copies,
11.10. QT 149
FDR Manual, Release 4.2.0
or rights, from you under this License will not have their licenses
terminated so long as such parties remain in full compliance.
9. You are not required to accept this License, since you have not
signed it. However, nothing else grants you permission to modify or
distribute the Library or its derivative works. These actions are
prohibited by law if you do not accept this License. Therefore, by
modifying or distributing the Library (or any work based on the
Library), you indicate your acceptance of this License to do so, and
all its terms and conditions for copying, distributing or modifying
the Library or works based on it.
10. Each time you redistribute the Library (or any work based on the
Library), the recipient automatically receives a license from the
original licensor to copy, distribute, link with or modify the Library
subject to these terms and conditions. You may not impose any further
restrictions on the recipients’ exercise of the rights granted herein.
You are not responsible for enforcing compliance by third parties with
this License.
11. If, as a consequence of a court judgment or allegation of patent
infringement or for any other reason (not limited to patent issues),
conditions are imposed on you (whether by court order, agreement or
otherwise) that contradict the conditions of this License, they do not
excuse you from the conditions of this License. If you cannot
distribute so as to satisfy simultaneously your obligations under this
License and any other pertinent obligations, then as a consequence you
may not distribute the Library at all. For example, if a patent
license would not permit royalty-free redistribution of the Library by
all those who receive copies directly or indirectly through you, then
the only way you could satisfy both it and this License would be to
refrain entirely from distribution of the Library.
If any portion of this section is held invalid or unenforceable under any
particular circumstance, the balance of the section is intended to apply,
and the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any
patents or other property right claims or to contest validity of any
such claims; this section has the sole purpose of protecting the
integrity of the free software distribution system which is
implemented by public license practices. Many people have made
generous contributions to the wide range of software distributed
through that system in reliance on consistent application of that
system; it is up to the author/donor to decide if he or she is willing
to distribute software through any other system and a licensee cannot
impose that choice.
This section is intended to make thoroughly clear what is believed to
be a consequence of the rest of this License.
12. If the distribution and/or use of the Library is restricted in
certain countries either by patents or by copyrighted interfaces, the
original copyright holder who places the Library under this License may add
an explicit geographical distribution limitation excluding those countries,
so that distribution is permitted only in or among countries not thus
excluded. In such case, this License incorporates the limitation as if
written in the body of this License.
150 Chapter 11. Licenses
FDR Manual, Release 4.2.0
13. The Free Software Foundation may publish revised and/or new
versions of the Lesser General Public License from time to time.
Such new versions will be similar in spirit to the present version,
but may differ in detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Library
specifies a version number of this License which applies to it and
"any later version", you have the option of following the terms and
conditions either of that version or of any later version published by
the Free Software Foundation. If the Library does not specify a
license version number, you may choose any version ever published by
the Free Software Foundation.
14. If you wish to incorporate parts of the Library into other free
programs whose distribution conditions are incompatible with these,
write to the author to ask for permission. For software which is
copyrighted by the Free Software Foundation, write to the Free
Software Foundation; we sometimes make exceptions for this. Our
decision will be guided by the two goals of preserving the free status
of all derivatives of our free software and of promoting the sharing
and reuse of software generally.
NO WARRANTY
15. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO
WARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED BY APPLICABLE LAW.
EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR
OTHER PARTIES PROVIDE THE LIBRARY "AS IS" WITHOUT WARRANTY OF ANY
KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE
LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME
THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
16. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN
WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY
AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE LIABLE TO YOU
FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE
LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING
RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A
FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF
SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
END OF TERMS AND CONDITIONS
How to Apply These Terms to Your New Libraries
If you develop a new library, and you want it to be of the greatest
possible use to the public, we recommend making it free software that
everyone can redistribute and change. You can do so by permitting
redistribution under these terms (or, alternatively, under the terms of the
ordinary General Public License).
To apply these terms, attach the following notices to the library. It is
safest to attach them to the start of each source file to most effectively
convey the exclusion of warranty; and each file should have at least the
11.10. QT 151
FDR Manual, Release 4.2.0
"copyright" line and a pointer to where the full notice is found.
<one line to give the library’s name and a brief idea of what it does.>
Copyright (C) <year> <name of author>
This library is free software; you can redistribute it and/or
modify it under the terms of the GNU Lesser General Public
License as published by the Free Software Foundation; either
version 2.1 of the License, or (at your option) any later version.
This library is distributed in the hope that it will be useful,
but WITHOUT ANY WARRANTY; without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU
Lesser General Public License for more details.
You should have received a copy of the GNU Lesser General Public
License along with this library; if not, write to the Free Software
Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA
Also add information on how to contact you by electronic and paper mail.
You should also get your employer (if you work as a programmer) or your
school, if any, to sign a "copyright disclaimer" for the library, if
necessary. Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright interest in the
library ‘Frob’ (a library for tweaking knobs) written by James Random Hacker.
<signature of Ty Coon>, 1 April 1990
Ty Coon, President of Vice
That’s all there is to it!
11.11 zlib
Copyright (C) 1995-2013 Jean-loup Gailly and Mark Adler
This software is provided ’as-is’, without any express or implied
warranty. In no event will the authors be held liable for any damages
arising from the use of this software.
Permission is granted to anyone to use this software for any purpose,
including commercial applications, and to alter it and redistribute it
freely, subject to the following restrictions:
1. The origin of this software must not be misrepresented; you must not
claim that you wrote the original software. If you use this software
in a product, an acknowledgment in the product documentation would be
appreciated but is not required.
2. Altered source versions must be plainly marked as such, and must not be
misrepresented as being the original software.
3. This notice may not be removed or altered from any source distribution.
Jean-loup Gailly Mark Adler
jloup@gzip.org madler@alumni.caltech.edu
152 Chapter 11. Licenses
FDR Manual, Release 4.2.0
11.12 Haskell
11.12.1 GHC
The Glasgow Haskell Compiler License
Copyright 2002, The University Court of the University of Glasgow.
All rights reserved.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:
- Redistributions of source code must retain the above copyright notice,
this list of conditions and the following disclaimer.
- Redistributions in binary form must reproduce the above copyright notice,
this list of conditions and the following disclaimer in the documentation
and/or other materials provided with the distribution.
- Neither name of the University nor the names of its contributors may be
used to endorse or promote products derived from this software without
specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE UNIVERSITY COURT OF THE UNIVERSITY OF
GLASGOW AND THE CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
UNIVERSITY COURT OF THE UNIVERSITY OF GLASGOW OR THE CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY
OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
11.12.2 array/base/containers/directory/ghc-prim/integer-gmp/old-locale/old-
time/pretty/text
This library (libraries/base) is derived from code from several
sources:
*Code from the GHC project which is largely (c) The University of
Glasgow, and distributable under a BSD-style license (see below),
*Code from the Haskell 98 Report which is (c) Simon Peyton Jones
and freely redistributable (but see the full license for
restrictions).
*Code from the Haskell Foreign Function Interface specification,
which is (c) Manuel M. T. Chakravarty and freely redistributable
(but see the full license for restrictions).
The full text of these licenses is reproduced below. All of the
licenses are BSD-style or compatible.
11.12. Haskell 153
FDR Manual, Release 4.2.0
-----------------------------------------------------------------------------
The Glasgow Haskell Compiler License
Copyright 2004, The University Court of the University of Glasgow.
All rights reserved.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:
- Redistributions of source code must retain the above copyright notice,
this list of conditions and the following disclaimer.
- Redistributions in binary form must reproduce the above copyright notice,
this list of conditions and the following disclaimer in the documentation
and/or other materials provided with the distribution.
- Neither name of the University nor the names of its contributors may be
used to endorse or promote products derived from this software without
specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE UNIVERSITY COURT OF THE UNIVERSITY OF
GLASGOW AND THE CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
UNIVERSITY COURT OF THE UNIVERSITY OF GLASGOW OR THE CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY
OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
-----------------------------------------------------------------------------
Code derived from the document "Report on the Programming Language
Haskell 98", is distributed under the following license:
Copyright (c) 2002 Simon Peyton Jones
The authors intend this Report to belong to the entire Haskell
community, and so we grant permission to copy and distribute it for
any purpose, provided that it is reproduced in its entirety,
including this Notice. Modified versions of this Report may also be
copied and distributed for any purpose, provided that the modified
version is clearly presented as such, and that it does not claim to
be a definition of the Haskell 98 Language.
-----------------------------------------------------------------------------
Code derived from the document "The Haskell 98 Foreign Function
Interface, An Addendum to the Haskell 98 Report" is distributed under
the following license:
Copyright (c) 2002 Manuel M. T. Chakravarty
The authors intend this Report to belong to the entire Haskell
154 Chapter 11. Licenses
FDR Manual, Release 4.2.0
community, and so we grant permission to copy and distribute it for
any purpose, provided that it is reproduced in its entirety,
including this Notice. Modified versions of this Report may also be
copied and distributed for any purpose, provided that the modified
version is clearly presented as such, and that it does not claim to
be a definition of the Haskell 98 Foreign Function Interface.
-----------------------------------------------------------------------------
11.12.3 bytestring
Copyright (c) Don Stewart 2005-2009
(c) Duncan Coutts 2006-2011
(c) David Roundy 2003-2005
(c) Simon Meier 2010-2011
All rights reserved.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions
are met:
1. Redistributions of source code must retain the above copyright
notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
3. Neither the name of the author nor the names of his contributors
may be used to endorse or promote products derived from this software
without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS ‘‘AS IS’’ AND
ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHORS OR CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS
OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY
OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF
SUCH DAMAGE.
11.12.4 deepseq
This library (deepseq) is derived from code from the GHC project which
is largely (c) The University of Glasgow, and distributable under a
BSD-style license (see below).
-----------------------------------------------------------------------------
The Glasgow Haskell Compiler License
Copyright 2001-2009, The University Court of the University of Glasgow.
All rights reserved.
11.12. Haskell 155
FDR Manual, Release 4.2.0
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:
- Redistributions of source code must retain the above copyright notice,
this list of conditions and the following disclaimer.
- Redistributions in binary form must reproduce the above copyright notice,
this list of conditions and the following disclaimer in the documentation
and/or other materials provided with the distribution.
- Neither name of the University nor the names of its contributors may be
used to endorse or promote products derived from this software without
specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE UNIVERSITY COURT OF THE UNIVERSITY OF
GLASGOW AND THE CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
UNIVERSITY COURT OF THE UNIVERSITY OF GLASGOW OR THE CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY
OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
-----------------------------------------------------------------------------
11.12.5 filepath
Copyright Neil Mitchell 2005-2007.
All rights reserved.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are
met:
*Redistributions of source code must retain the above copyright
notice, this list of conditions and the following disclaimer.
*Redistributions in binary form must reproduce the above
copyright notice, this list of conditions and the following
disclaimer in the documentation and/or other materials provided
with the distribution.
*Neither the name of Neil Mitchell nor the names of other
contributors may be used to endorse or promote products derived
from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
"AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
156 Chapter 11. Licenses
FDR Manual, Release 4.2.0
DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
11.12.6 graph-wrapper
Copyright Max Bolingbroke 2006-2007.
All rights reserved.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are
met:
*Redistributions of source code must retain the above copyright
notice, this list of conditions and the following disclaimer.
*Redistributions in binary form must reproduce the above
copyright notice, this list of conditions and the following
disclaimer in the documentation and/or other materials provided
with the distribution.
*Neither the name of Max Bolingbroke nor the names of other
contributors may be used to endorse or promote products derived
from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
"AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
11.12.7 hashable
Copyright Milan Straka 2010
All rights reserved.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:
*Redistributions of source code must retain the above copyright
notice, this list of conditions and the following disclaimer.
*Redistributions in binary form must reproduce the above
copyright notice, this list of conditions and the following
disclaimer in the documentation and/or other materials provided
with the distribution.
11.12. Haskell 157
FDR Manual, Release 4.2.0
*Neither the name of Milan Straka nor the names of other
contributors may be used to endorse or promote products derived
from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
"AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
11.12.8 hashtables
Copyright (c) 2011-2012, Google, Inc.
All rights reserved.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:
*Redistributions of source code must retain the above copyright notice,
this list of conditions and the following disclaimer.
*Redistributions in binary form must reproduce the above copyright notice,
this list of conditions and the following disclaimer in the documentation
and/or other materials provided with the distribution.
*Neither the name of Google, Inc. nor the names of other contributors may
be used to endorse or promote products derived from this software without
specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND
ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR
ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;
LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON
ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
11.12.9 libgmp
GNU LESSER GENERAL PUBLIC LICENSE
Version 3, 29 June 2007
Copyright (C) 2007 Free Software Foundation, Inc. <http://fsf.org/>
Everyone is permitted to copy and distribute verbatim copies
of this license document, but changing it is not allowed.
158 Chapter 11. Licenses
FDR Manual, Release 4.2.0
This version of the GNU Lesser General Public License incorporates
the terms and conditions of version 3 of the GNU General Public
License, supplemented by the additional permissions listed below.
0. Additional Definitions.
As used herein, "this License" refers to version 3 of the GNU Lesser
General Public License, and the "GNU GPL" refers to version 3 of the GNU
General Public License.
"The Library" refers to a covered work governed by this License,
other than an Application or a Combined Work as defined below.
An "Application" is any work that makes use of an interface provided
by the Library, but which is not otherwise based on the Library.
Defining a subclass of a class defined by the Library is deemed a mode
of using an interface provided by the Library.
A "Combined Work" is a work produced by combining or linking an
Application with the Library. The particular version of the Library
with which the Combined Work was made is also called the "Linked
Version".
The "Minimal Corresponding Source" for a Combined Work means the
Corresponding Source for the Combined Work, excluding any source code
for portions of the Combined Work that, considered in isolation, are
based on the Application, and not on the Linked Version.
The "Corresponding Application Code" for a Combined Work means the
object code and/or source code for the Application, including any data
and utility programs needed for reproducing the Combined Work from the
Application, but excluding the System Libraries of the Combined Work.
1. Exception to Section 3 of the GNU GPL.
You may convey a covered work under sections 3 and 4 of this License
without being bound by section 3 of the GNU GPL.
2. Conveying Modified Versions.
If you modify a copy of the Library, and, in your modifications, a
facility refers to a function or data to be supplied by an Application
that uses the facility (other than as an argument passed when the
facility is invoked), then you may convey a copy of the modified
version:
a) under this License, provided that you make a good faith effort to
ensure that, in the event an Application does not supply the
function or data, the facility still operates, and performs
whatever part of its purpose remains meaningful, or
b) under the GNU GPL, with none of the additional permissions of
this License applicable to that copy.
3. Object Code Incorporating Material from Library Header Files.
The object code form of an Application may incorporate material from
11.12. Haskell 159
FDR Manual, Release 4.2.0
a header file that is part of the Library. You may convey such object
code under terms of your choice, provided that, if the incorporated
material is not limited to numerical parameters, data structure
layouts and accessors, or small macros, inline functions and templates
(ten or fewer lines in length), you do both of the following:
a) Give prominent notice with each copy of the object code that the
Library is used in it and that the Library and its use are
covered by this License.
b) Accompany the object code with a copy of the GNU GPL and this license
document.
4. Combined Works.
You may convey a Combined Work under terms of your choice that,
taken together, effectively do not restrict modification of the
portions of the Library contained in the Combined Work and reverse
engineering for debugging such modifications, if you also do each of
the following:
a) Give prominent notice with each copy of the Combined Work that
the Library is used in it and that the Library and its use are
covered by this License.
b) Accompany the Combined Work with a copy of the GNU GPL and this license
document.
c) For a Combined Work that displays copyright notices during
execution, include the copyright notice for the Library among
these notices, as well as a reference directing the user to the
copies of the GNU GPL and this license document.
d) Do one of the following:
0) Convey the Minimal Corresponding Source under the terms of this
License, and the Corresponding Application Code in a form
suitable for, and under terms that permit, the user to
recombine or relink the Application with a modified version of
the Linked Version to produce a modified Combined Work, in the
manner specified by section 6 of the GNU GPL for conveying
Corresponding Source.
1) Use a suitable shared library mechanism for linking with the
Library. A suitable mechanism is one that (a) uses at run time
a copy of the Library already present on the user’s computer
system, and (b) will operate properly with a modified version
of the Library that is interface-compatible with the Linked
Version.
e) Provide Installation Information, but only if you would otherwise
be required to provide such information under section 6 of the
GNU GPL, and only to the extent that such information is
necessary to install and execute a modified version of the
Combined Work produced by recombining or relinking the
Application with a modified version of the Linked Version. (If
you use option 4d0, the Installation Information must accompany
the Minimal Corresponding Source and Corresponding Application
160 Chapter 11. Licenses
FDR Manual, Release 4.2.0
Code. If you use option 4d1, you must provide the Installation
Information in the manner specified by section 6 of the GNU GPL
for conveying Corresponding Source.)
5. Combined Libraries.
You may place library facilities that are a work based on the
Library side by side in a single library together with other library
facilities that are not Applications and are not covered by this
License, and convey such a combined library under terms of your
choice, if you do both of the following:
a) Accompany the combined library with a copy of the same work based
on the Library, uncombined with any other library facilities,
conveyed under the terms of this License.
b) Give prominent notice with the combined library that part of it
is a work based on the Library, and explaining where to find the
accompanying uncombined form of the same work.
6. Revised Versions of the GNU Lesser General Public License.
The Free Software Foundation may publish revised and/or new versions
of the GNU Lesser General Public License from time to time. Such new
versions will be similar in spirit to the present version, but may
differ in detail to address new problems or concerns.
Each version is given a distinguishing version number. If the
Library as you received it specifies that a certain numbered version
of the GNU Lesser General Public License "or any later version"
applies to it, you have the option of following the terms and
conditions either of that published version or of any later version
published by the Free Software Foundation. If the Library as you
received it does not specify a version number of the GNU Lesser
General Public License, you may choose any version of the GNU Lesser
General Public License ever published by the Free Software Foundation.
If the Library as you received it specifies that a proxy can decide
whether future versions of the GNU Lesser General Public License shall
apply, that proxy’s public statement of acceptance of any version is
permanent authorization for you to choose that version for the
Library.
11.12.10 mtl
The Glasgow Haskell Compiler License
Copyright 2004, The University Court of the University of Glasgow.
All rights reserved.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:
- Redistributions of source code must retain the above copyright notice,
this list of conditions and the following disclaimer.
11.12. Haskell 161
FDR Manual, Release 4.2.0
- Redistributions in binary form must reproduce the above copyright notice,
this list of conditions and the following disclaimer in the documentation
and/or other materials provided with the distribution.
- Neither name of the University nor the names of its contributors may be
used to endorse or promote products derived from this software without
specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE UNIVERSITY COURT OF THE UNIVERSITY OF
GLASGOW AND THE CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
UNIVERSITY COURT OF THE UNIVERSITY OF GLASGOW OR THE CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY
OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
11.12.11 primitive
Copyright (c) 2008-2009, Roman Leshchinskiy
All rights reserved.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:
- Redistributions of source code must retain the above copyright notice,
this list of conditions and the following disclaimer.
- Redistributions in binary form must reproduce the above copyright notice,
this list of conditions and the following disclaimer in the documentation
and/or other materials provided with the distribution.
- Neither name of the University nor the names of its contributors may be
used to endorse or promote products derived from this software without
specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE UNIVERSITY COURT OF THE UNIVERSITY OF
GLASGOW AND THE CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
UNIVERSITY COURT OF THE UNIVERSITY OF GLASGOW OR THE CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY
OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
162 Chapter 11. Licenses
FDR Manual, Release 4.2.0
11.12.12 transformers
The Glasgow Haskell Compiler License
Copyright 2004, The University Court of the University of Glasgow.
All rights reserved.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:
- Redistributions of source code must retain the above copyright notice,
this list of conditions and the following disclaimer.
- Redistributions in binary form must reproduce the above copyright notice,
this list of conditions and the following disclaimer in the documentation
and/or other materials provided with the distribution.
- Neither name of the University nor the names of its contributors may be
used to endorse or promote products derived from this software without
specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE UNIVERSITY COURT OF THE UNIVERSITY OF
GLASGOW AND THE CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
UNIVERSITY COURT OF THE UNIVERSITY OF GLASGOW OR THE CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY
OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
11.12.13 unix
The Glasgow Haskell Compiler License
Copyright 2004, The University Court of the University of Glasgow.
All rights reserved.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:
- Redistributions of source code must retain the above copyright notice,
this list of conditions and the following disclaimer.
- Redistributions in binary form must reproduce the above copyright notice,
this list of conditions and the following disclaimer in the documentation
and/or other materials provided with the distribution.
- Neither name of the University nor the names of its contributors may be
used to endorse or promote products derived from this software without
specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE UNIVERSITY COURT OF THE UNIVERSITY OF
GLASGOW AND THE CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES,
11.12. Haskell 163
FDR Manual, Release 4.2.0
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
UNIVERSITY COURT OF THE UNIVERSITY OF GLASGOW OR THE CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY
OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
11.12.14 value-supply
Copyright (c) 2006 Iavor S. Diatchki
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
11.12.15 vector
Copyright (c) 2008-2012, Roman Leshchinskiy
All rights reserved.
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:
- Redistributions of source code must retain the above copyright notice,
this list of conditions and the following disclaimer.
- Redistributions in binary form must reproduce the above copyright notice,
this list of conditions and the following disclaimer in the documentation
and/or other materials provided with the distribution.
- Neither name of the University nor the names of its contributors may be
used to endorse or promote products derived from this software without
specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE UNIVERSITY COURT OF THE UNIVERSITY OF
GLASGOW AND THE CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
UNIVERSITY COURT OF THE UNIVERSITY OF GLASGOW OR THE CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY
OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
164 Chapter 11. Licenses
BIBLIOGRAPHY
[ALOR12] Philip Armstrong, Gavin Lowe, Joel Ouaknine, and A. W. Roscoe. Model checking Timed CSP.
HOWARD. Easychair, pub. 2012.
[GRABR14] Thomas Gibson-Robinson, Philip Armstrong, Alexandre Boulgakov, and A.W. Roscoe. FDR3 — A
Modern Refinement Checker for CSP. Tools and Algorithms for the Construction and Analysis of Systems 2014.
LNCS vol. 8413.
[GMRWZ03] Michael Goldsmith, Nick Moffat, A. W. Roscoe, Tim Whitworth, and Irfan Zakiuddin Watchdog Trans-
formations for Property-Oriented Model-Checking. FME 2003: Formal Methods. LNCS vol. 2805.
[Ros98] A. W. Roscoe. The Theory and Practice of Concurrency. Prentice Hall. 1998.
[Ros10] A. W. Roscoe. Understanding Concurrent Systems. Springer. 2010.
165
FDR Manual, Release 4.2.0
166 Bibliography
INDEX
Symbols
–archive <output_file>
refines command line option, 35
–brief, -b
refines command line option, 36
–divide, -d
refines command line option, 36
–format <format>, -f <format>
refines command line option, 36
–help, -h
refines command line option, 36
–quiet, -q
refines command line option, 36
–remote <ssh_host>
refines command line option, 36
–remote-path <path>
refines command line option, 37
–reveal-taus
refines command line option, 37
–typecheck, -t
refines command line option, 37
–version, -v
refines command line option, 37
A
a (type), 75
Alphabetised Parallel (operator), 71
assert (definition), 53
:[deadlock free] (definition), 53
:[deterministic] (definition), 54
:[divergence free] (definition), 54
:[has trace] (definition), 54
:[livelock free] (definition), 54
not (definition), 55
refinement (definition), 53
assertions, 53
deadlock freedom, 53
determinism, 54
divergence, 54
has trace, 54
negated, 55
partial order reduction, 55
refinement, 53
tau priority over, 55
assertions (command), 9
B
Binary Boolean Function (syntax), 60
Binary Maths Operation (syntax), 61
Bool (constant), 77
Bool (type), 75
C
card (function), 78
cd (command), 10
channel (definition), 52
CHAOS (function), 80
Char (constant), 77
Char (type), 75
chase (function), 81
chase_nocache (function), 81
Cloud Computing, 39
Cluster, 38
communication_graph (command), 10
Comparison (syntax), 60
compiler.check_for_immediate_recursions (option), 29
compiler.leaf_compression (option), 29
compiler.recursive_high_level (option), 30
compiler.reuse_machines (option), 30
Complete (type constraint), 76
concat (function), 78
Concat (syntax), 62
Concat Pattern (syntax), 65
constants (definition), 49
counterexample (command), 10
cspm.evaluator_heap_size (option), 30
cspm.profiling.active (option), 30
cspm.profiling.flatten_recursion (option), 30
cspm.runtime_range_checks (option), 30
D
datatype (definition), 50
167
FDR Manual, Release 4.2.0
Datatype (type), 75
dbisim (function), 82
debug (command), 10
deter (function), 81
diamond (function), 81
diff (function), 78
DIV (function), 80
Dot (syntax), 60
Dot (type), 75
Dot Pattern (syntax), 65
Dotable (type), 75
Double Pattern (syntax), 65
E
EC2, 39
elem (function), 78
empty (function), 78
emptyMap (function), 79
Enumerated Set (syntax), 63
Enumerated Set Comprehension (syntax), 64
Eq (type constraint), 76
Equality Comparison (syntax), 61
error (function), 79
Event (type), 75
Events (constant), 77
Exception (operator), 73
explicate (function), 82
Extendable (type), 75
extensions (function), 86
external (definition), 56
External Choice (operator), 68
F
failure_watchdog (function), 82
False (constant), 77
Function (type), 76
Function Application (syntax), 60
functions (definition), 49
G
Generalised Parallel (operator), 71
Generator Statement (syntax), 66
graph (command), 10
Guarded Expression (operator), 68
gui.close_windows_on_load (option), 31
gui.console.history_length (option), 31
H
head (function), 78
help (command), 10
Hide (operator), 68
I
If (syntax), 61
include (definition), 59
Infinite Int List (syntax), 62
Infinite Int Set (syntax), 63
Infinite Ranged List Comprehension (syntax), 62,63
Int (constant), 77
Int (type), 75
Inter (function), 78
inter (function), 78
Interleave (operator), 71
Internal Choice (operator), 68
Interrupt (operator), 73
L
Lambda (syntax), 61
lazyenumerate (function), 82
length (function), 78
Let (syntax), 61
Linked Parallel (operator), 73
List (syntax), 62
List Comprehension (syntax), 62
List Length (syntax), 63
List Pattern (syntax), 65
Literal (syntax), 61
Literal Pattern (syntax), 65
load (command), 10
loop (function), 80
M
Map (function), 79
Map (syntax), 64
Map (type), 76
mapDelete (function), 79
mapFromList (function), 79
mapLookup (function), 79
mapMember (function), 79
mapToList (function), 79
mapUpdate (function), 79
mapUpdateMultiple (function), 79
member (function), 78
module (definition), 56
MPI, 38
mtransclose (function), 85
N
nametype (definition), 53
normal (function), 82
null (function), 78
O
options (command), 10
options get (command), 10
options help (command), 10
options list (command), 10
168 Index
FDR Manual, Release 4.2.0
options reset (command), 10
options set (command), 10
Ord (type constraint), 76
P
Parenthesis (syntax), 62
Parenthesis Pattern (syntax), 65
partial order reduction, 55
Predicate Statement (syntax), 66
Prefix (operator), 69
print (definition), 59
prioritise (function), 83
prioritise_nocache (function), 83
prioritisepo (function), 83
probe (command), 10
Proc (constant), 77
Proc (type), 75
processes (command), 11
processes false (command), 11
productions (function), 86
profiling_data (command), 11
Project (operator), 70
Q
quit (command), 11
R
Ranged Int List (syntax), 62
Ranged Int Set (syntax), 63
Ranged List Comprehension (syntax), 62
Ranged Set Comprehension (syntax), 63
refinement.bfs.workers (option), 31
refinement.cluster.homogeneous (option), 31
refinement.desired_counterexample_count (option), 31
refinement.explorer.storage.type (option), 32
refinement.storage.compressor (option), 32
refinement.storage.file.cache_size (option), 33
refinement.storage.file.checksum (option), 33
refinement.storage.file.compressor (option), 33
refinement.storage.file.path (option), 32
refinement.track_history (option), 33
refines command line option
–archive <output_file>, 35
–brief, -b, 36
–divide, -d, 36
–format <format>, -f <format>, 36
–help, -h, 36
–quiet, -q, 36
–remote <ssh_host>, 36
–remote-path <path>, 37
–reveal-taus, 37
–typecheck, -t, 37
–version, -v, 37
relational_image (function), 85
relational_inverse_image (function), 86
reload (command), 11
Rename (operator), 70
Replicated Alphabetised Parallel (operator), 72
Replicated External Choice (operator), 72
Replicated Generalised Parallel (operator), 72
Replicated Interleave (operator), 72
Replicated Internal Choice (operator), 72
Replicated Linked Parallel (operator), 72
Replicated Sequential Composition (operator), 73
Replicated Synchronising Parallel (operator), 73
run (command), 11
RUN (function), 80
S
sbisim (function), 84
Seq (function), 78
seq (function), 78
Sequence (type), 76
Sequential Composition (operator), 74
Set (function), 78
set (function), 78
Set (syntax), 63
Set (type constraint), 76
Set (type), 76
Set Comprehension (syntax), 63
Set Pattern (syntax), 65
show (function), 79
SKIP (constant), 80
Sliding Choice or Timeout (operator), 74
statistics (command), 11
STOP (constant), 80
structure (command), 11
subtype (definition), 52
Supercomputer, 38
Synchronising External Choice (operator), 74
Synchronising Interrupt (operator), 74
T
tail (function), 78
tau_loop_factor (function), 84
Timed (definition), 57
timed_priority (function), 85
trace_watchdog (function), 84
transparent (definition), 56
transpose (function), 86
True (constant), 77
Tuple (syntax), 62
Tuple (type), 76
Tuple Pattern (syntax), 65
type (command), 11
type annotations (definition), 49
type expressions, 52
Index 169
FDR Manual, Release 4.2.0
U
Unary Boolean Function (syntax), 60
Unary Maths Operation (syntax), 62
Union (function), 78
union (function), 78
V
Variable (syntax), 62
Variable Pattern (syntax), 65
version (command), 11
W
WAIT (function), 80
wbisim (function), 85
Wildcard Pattern (syntax), 66
Y
Yieldable (type constraint), 77
170 Index
