Complete Cylinder Head
Torque Specifications
for Domestic and
Imported Passenger
Cars and Light/
Medium Duty Trucks
Torque
Tables™
©2009 Federal-Mogul Corporation. All rights reserved.
Printed in U.S.A. Form# FP099191

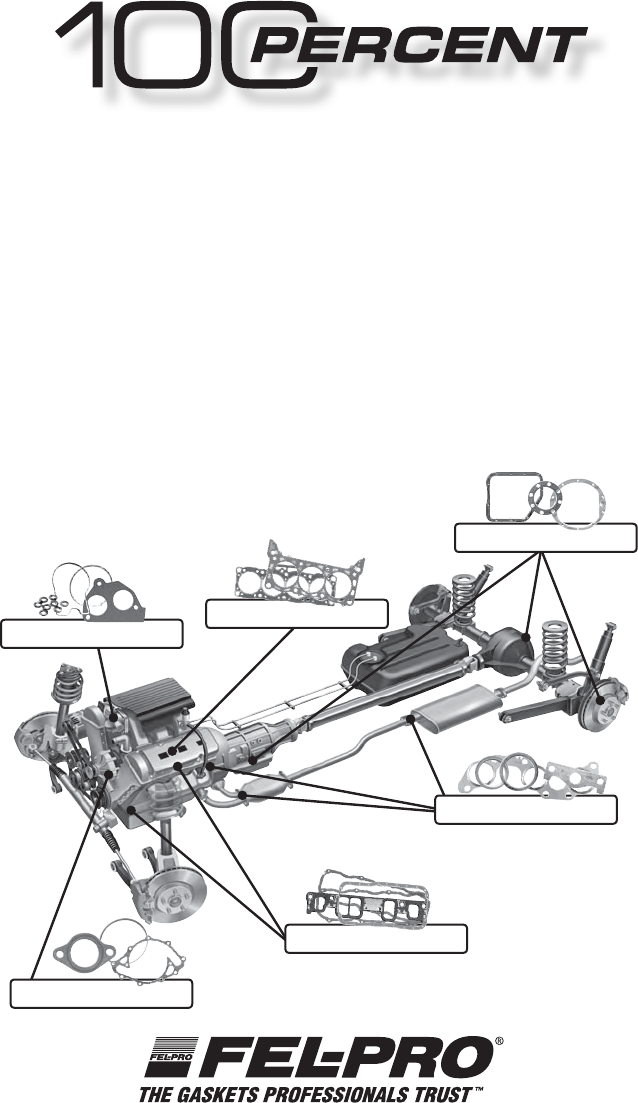

LEAK REPAIR
COOLING SYSTEM
EXHAUST SYSTEM
DRIVETRAIN
ENGINE REPAIR
FUEL SYSTEM
VEHICLE SEALING
When you consider what can go wrong when
even “minor” gaskets fail, you realize one thing:
THERE ARE NO UNIMPORTANT GASKETS!
Each one, no matter how small, plays a critical
role in vehicle sealing. Each has to be the best.
That’s why you should be… 100% Fel-Pro.®
Why trust Fel-Pro gaskets
for ALL of your vehicle sealing needs?
• The undisputed sealing technology leader
• Engineered for the repair environment
• Molded rubber chemistry and
manufacturing expertise
• Global engineering resources
• Latest technology across every
gasket repair category
FEL-PRO® ONLINE
The “Fel-Pro Only” website gives countermen and technicians
easy access to the latest Fel-Pro sealing information and
updates, including:
TEC bulletins
Sealing solutions for problematic applications,
straight from Fel-Pro engineers.
Product applications
Quick links to downloadable charts and the latest
on technology trends and new number availability.
Product news
Press releases and helpful “Did You Know” articles.
Torque specs
Find the most up-to-date torque spec listings in electronic format.
FelPro-Only.com is your convenient source for advanced sealing
information. It’s the place to learn and share “tricks of the trade,”
nd proper diagnosis and installation instructions, and enjoy easy
access to parts reference. While there, you can also sign up for
email alerts for Inside Sealing, the Fel-Pro newsletter that helps
you solve sealing challenges on popular domestic and import
engines. Written by our technical experts, it covers a full range
of sealing topics.
www.felpro-only.com
Engine Repair
Fel-Pro® oers comprehensive
coverage of virtually every engine
repair opportunity, from complete
rebuilds to the replacement of a
single gasket or seal. In addition,
Fel-Pro oers the best gasket
material and design for each
application to ensure a perfect
seal the rst time, every time.
Engine Repair Technologies:
• PermaTorqueMLS® – These head
gaskets provide the correct design
for MLS-equipped vehicles and
feature a unique aftermarket
coating that accommodates
less-than-perfect surface nishes.
• PermaTorque® – The industry
standard for no-retorque head
gaskets features premium coatings,
facings and combustion armors.
• PermaTorqueSD® – Severe-duty
head gaskets engineered for extra
strength under punishing conditions.
I

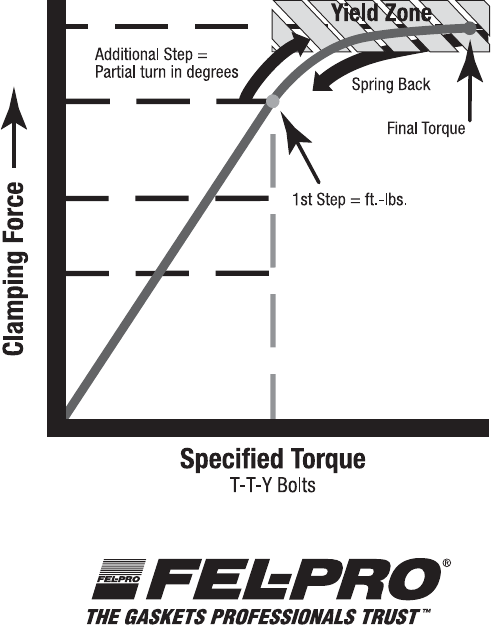

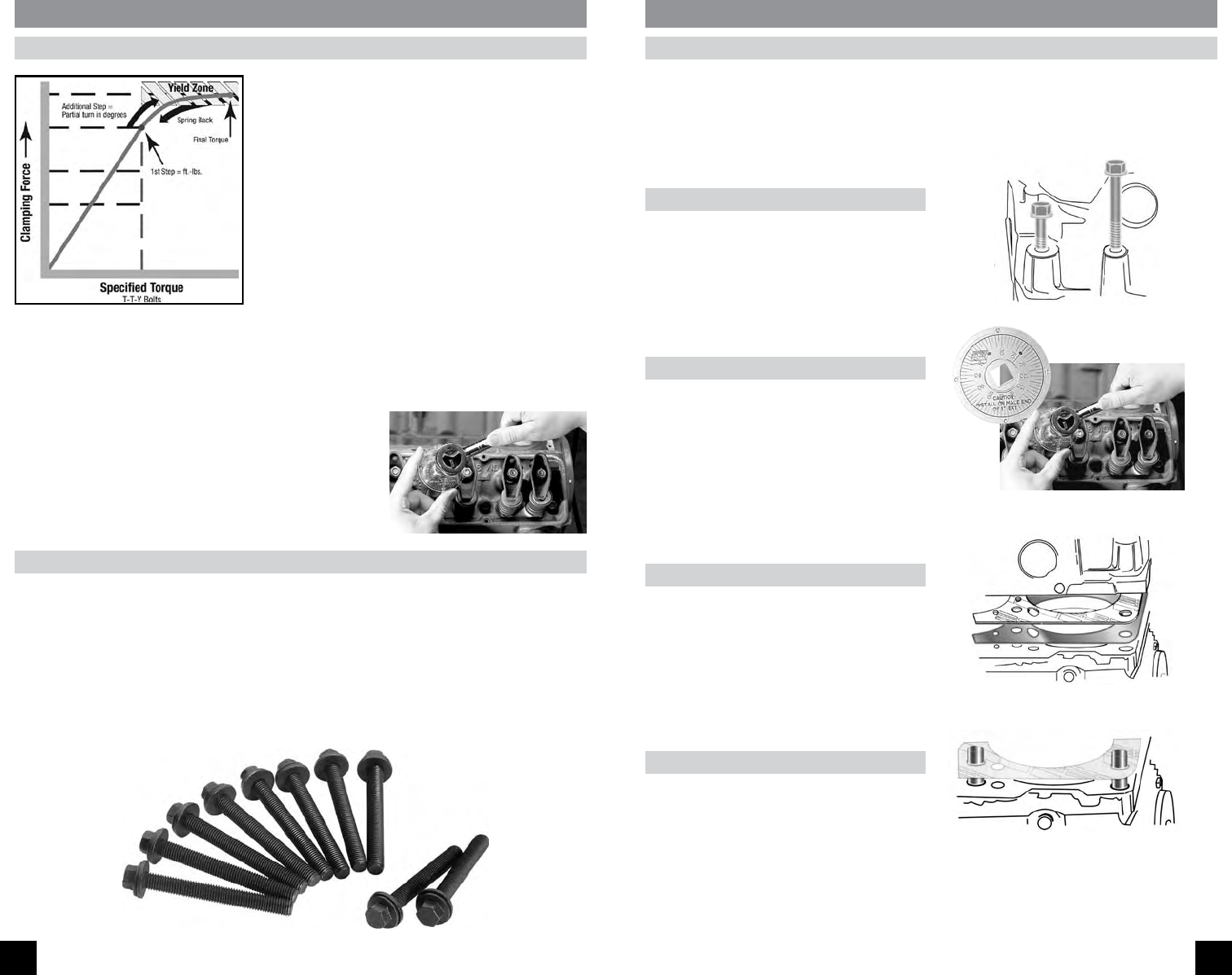

Understanding Torque-to-Yield
Head Bolts
T-T-Y head bolts are particularly common on engines using
aluminum heads and/or multi-layer steel head gaskets.
These bolts are engineered to stretch within a controlled
“yield zone”. Once they reach this zone, they spring back to
provide a precise level of clamping force over the entire
area of the gasket.
It’s important to carefully follow the manufacturer’s
tightening specication. Once T-T-Y bolts are stretched
beyond their yield zone, they become useless. Typically,
T-T-Y bolts are torqued to a specied limit, then again with
an additional partial turn to reach the bolt’s yield zone.
It is recommend to never reuse a T-T-Y head bolt. Chances
are too great that it has already exceeded its elasticity barrier
and won’t spring back to properly seal the engine.
II

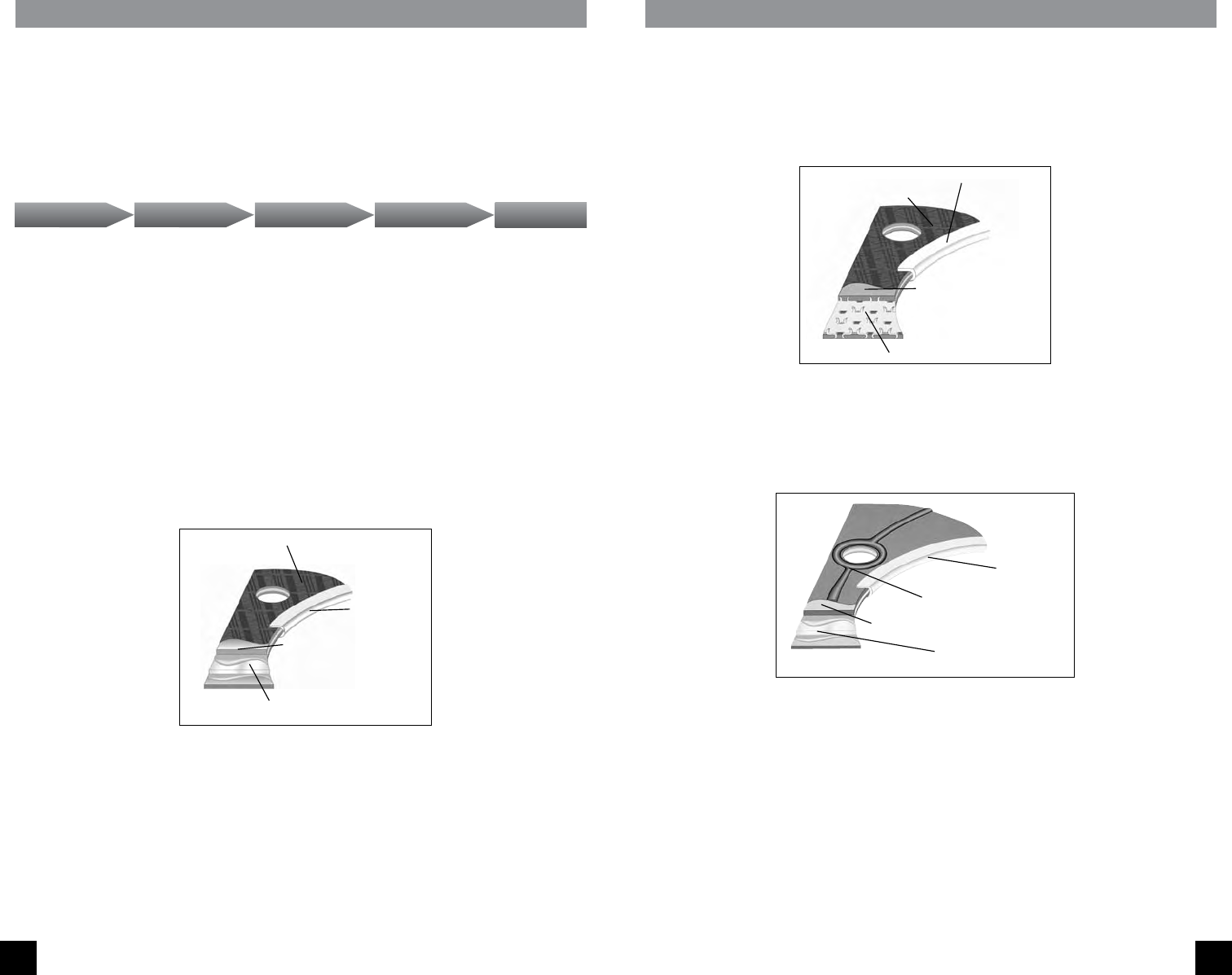

Importance of Proper Torque
When a head gasket is installed between the cylinder head
and engine block, tightening the head bolts compresses the
gasket slightly, allowing the soft facing material on the
gasket to conform to the small irregularities on the head and
block deck surfaces. This allows the gasket to “cold seal” so it
won’t leak coolant before the engine is started. The head
gasket’s ability to achieve a positive cold seal, as well as to
maintain a long-lasting, leak-free seal depends on two
things: its own ability to retain torque over time (which
depends on the design of the gasket and the materials
used in its construction) and the clamping force applied
by the head bolts.

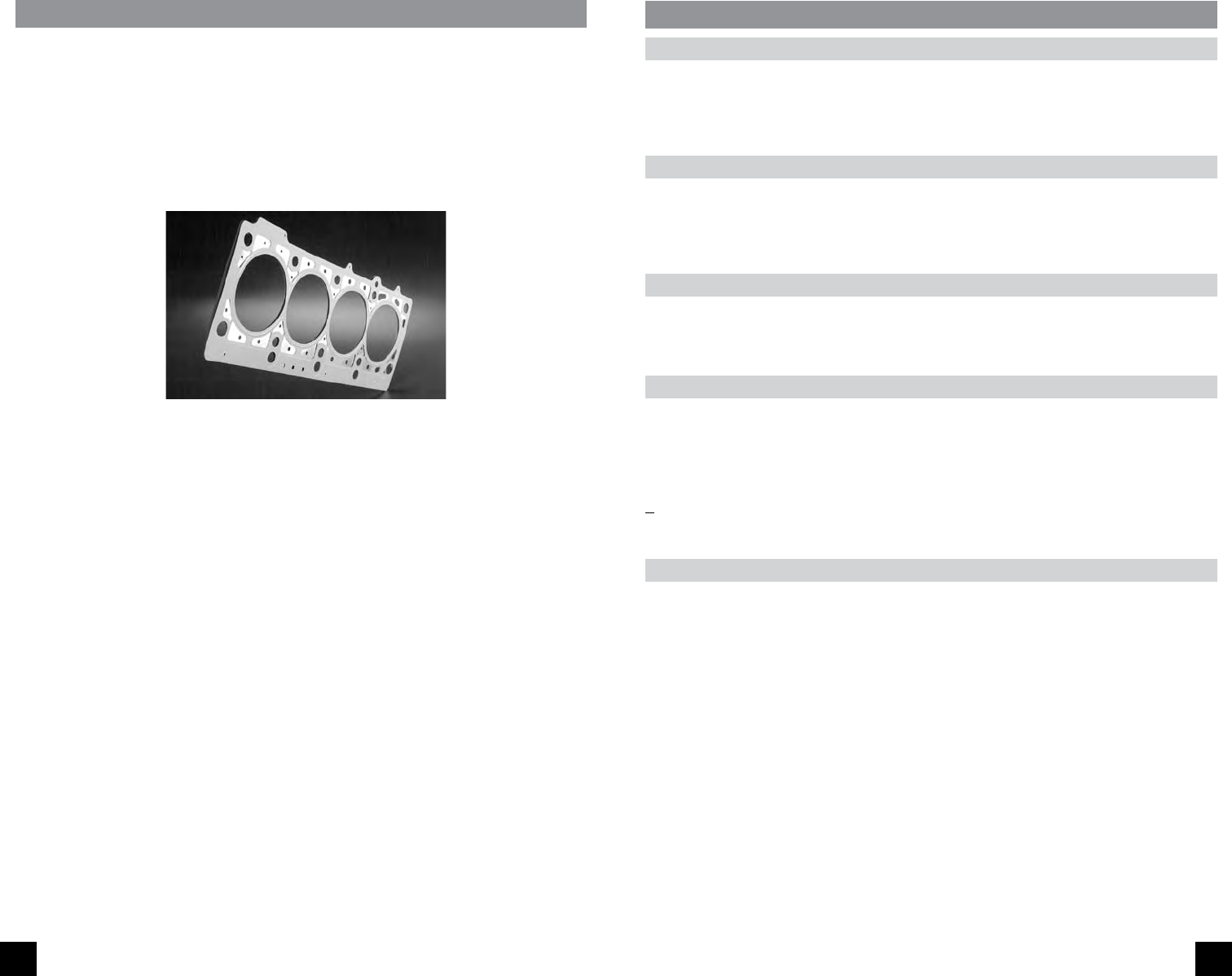

PermaTorque® head gaskets are made with top-quality
materials and designed to remain resilient so they retain
torque, so no retorquing is necessary. (Some competitive
head gaskets alleged to be “no retorque” can lose as much
as 50 to 60% of their original torque after only 100 hours
of service.)

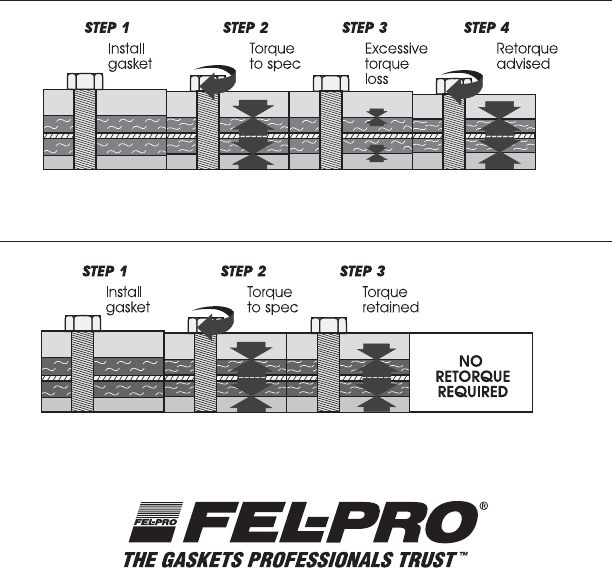

Competitive Head Gasket:
PermaTorque® Head Gasket:
III

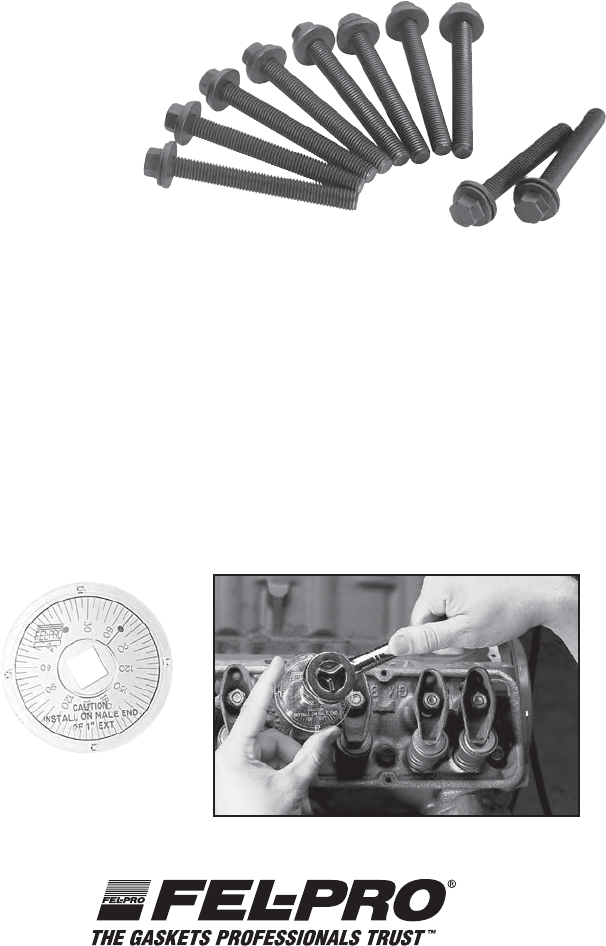

Torque-to-Angle Indicator
(Part Number TRQ-1)
With T-T-Y head bolts, the Torque-To-Angle Indicator
(Part Number TRQ-1) should be used in conjunction with
a torque wrench to achieve proper bolt loading. While the
head bolts are being torqued to the specied value, the
technician can use the TRQ-1 tool to accurately measure
the degrees of additional rotation required. This eliminates
guesswork and assures more consistent results.
Torque-To-Angle
Indicator (Part Number TRQ-1)
Head Bolts
Previously installed Torque-to-Yield head bolts should
never be reused. Damage to engine and cylinder heads
can occur.
• Fel-Pro® Head Bolts provide the most consistent
clamping force possible.
• Properly torque
for best results.
IV

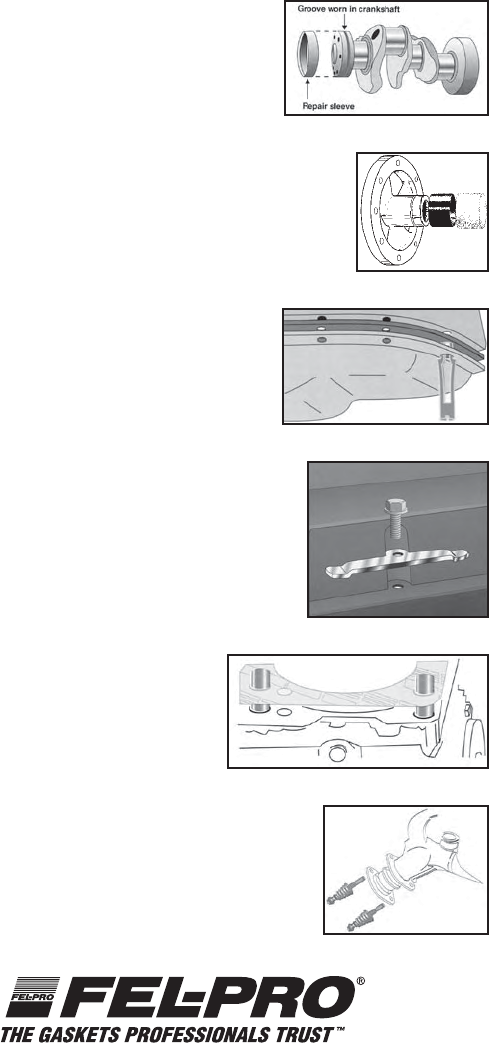

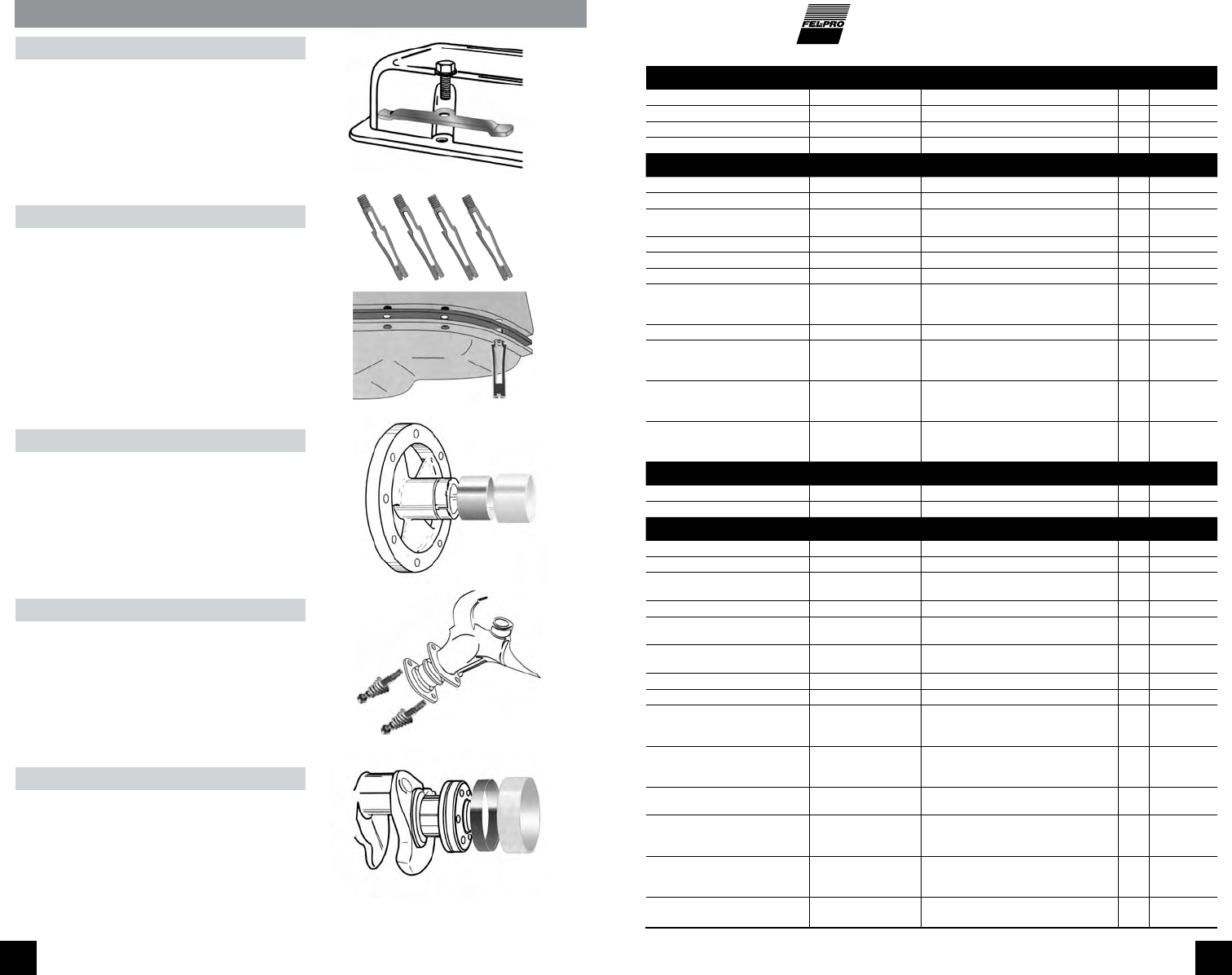

Other Products from Fel-Pro®
that aid in installation
Crankshaft Repair Sleeves
Repairs crankshaft grooves at
the rear main bearing seal area.
Sleeve ’N’ Seal®
Repairs harmonic balancer grooves
at the timing cover seal area.
Oil Pan SnapUps®
SnapUps® are designed to hold up
the oil pan and gaskets, and allow for
quick, convenient bolt installation.
SnapUps are included with premium
PermaDryPlus® oil pan gasket sets.
Valve Cover Load Spreaders®
Load Spreaders distribute the
clamping force more evenly on
the valve cover ange. This results
in a better seal between the valve
cover and the head.
Cylinder Head Dowel Pins
Cylinder head alignment dowel pins
assure proper gasket and casting
alignment for an accurate seal and
trouble-free engine operation.
Exhaust Flange Bolts/Springs
Exhaust Flange Bolt & Spring Kits
ensure a tight exhaust ange seal at
the pipe joint.
V
1
TABLE OF CONTENTS
How To Use the FEL-PRO® Torque Tables™ .................................3
FEL-PRO PermaTorque® Cylinder Head Gaskets .............................4
Cylinder Head Gasket Installation Tips .....................................7
FEL-PRO T-T-Y Head Bolts ..............................................9
FEL-PRO Engine$aver® Hardware........................................11
Torque Specification Tables .............................................13

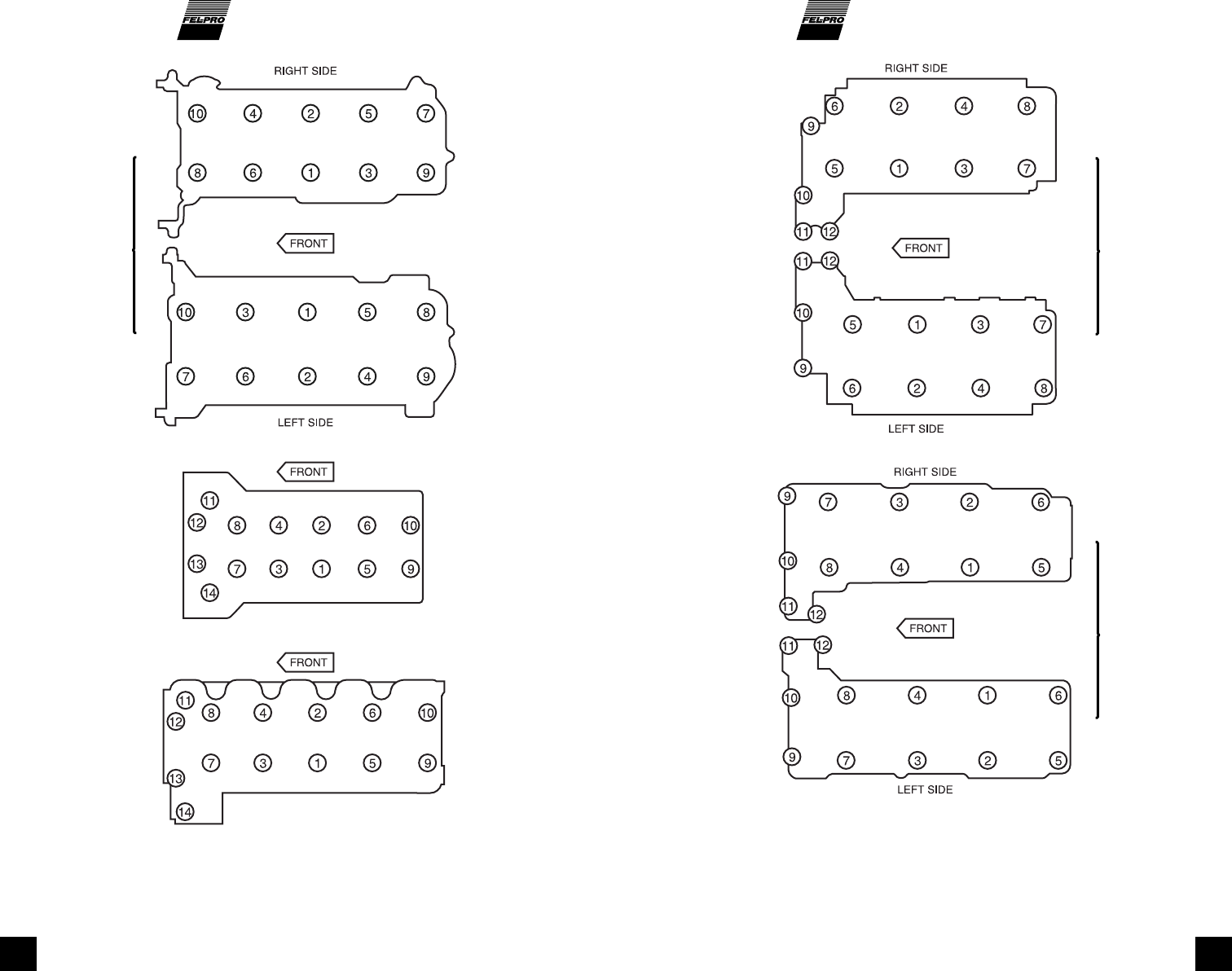

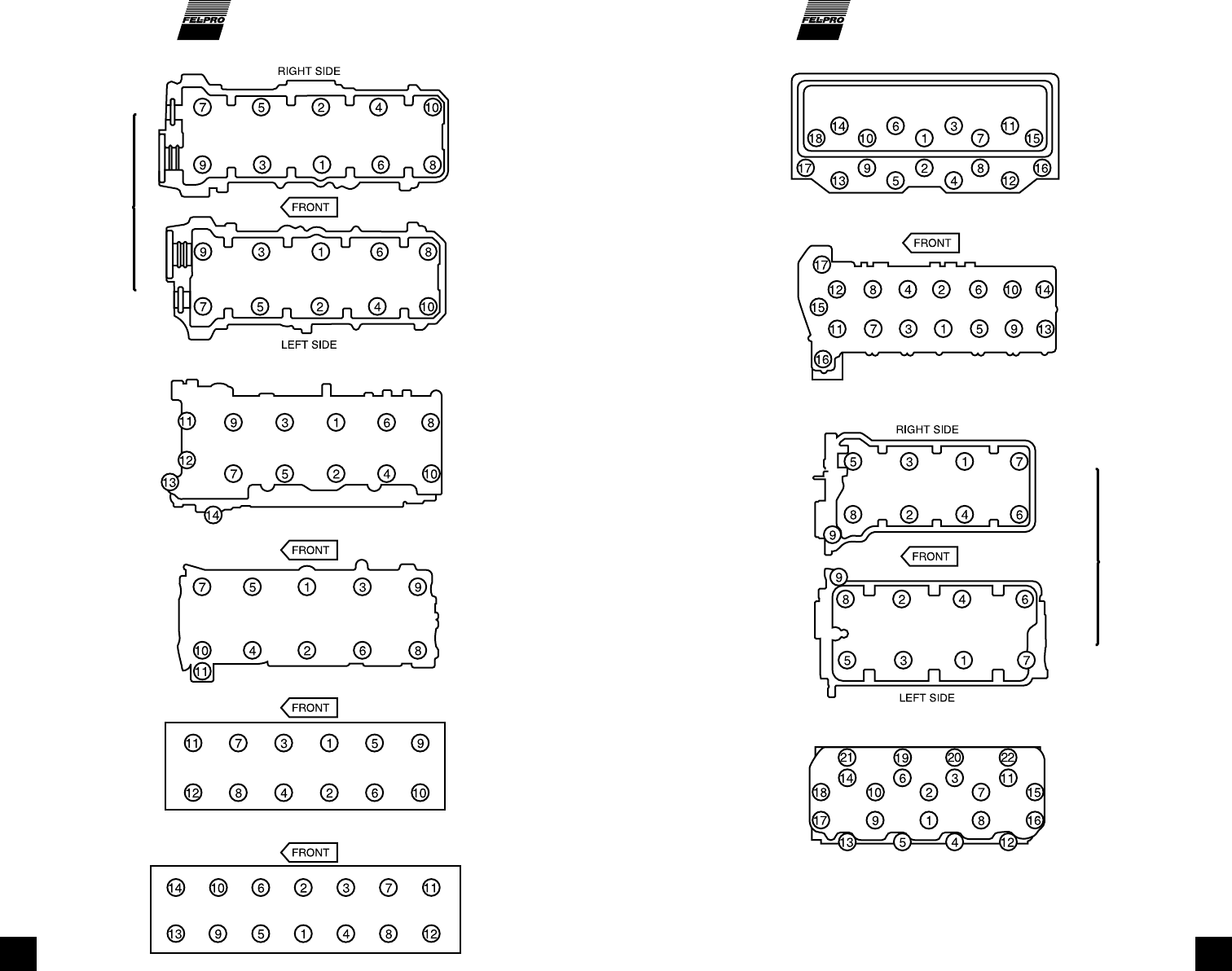

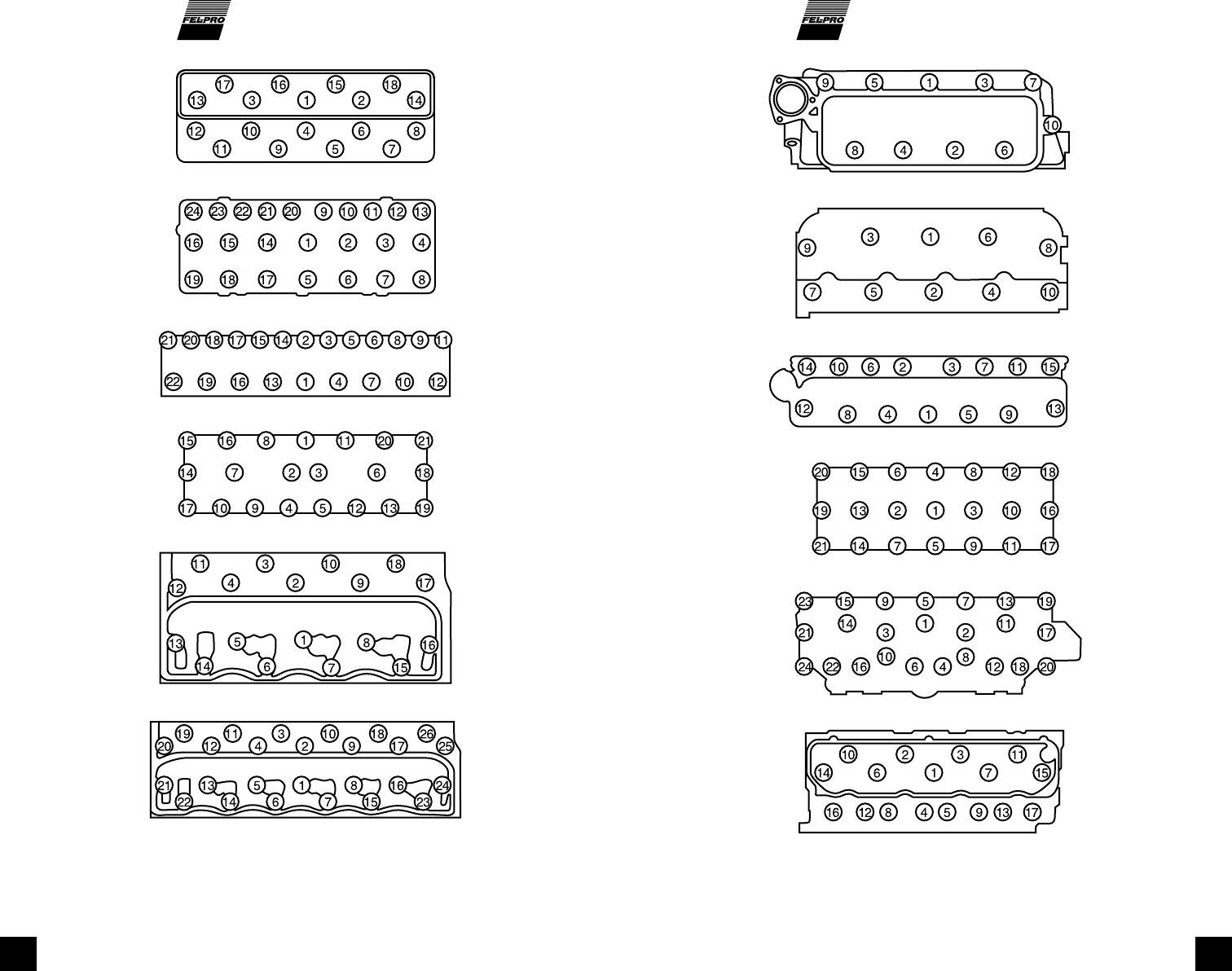

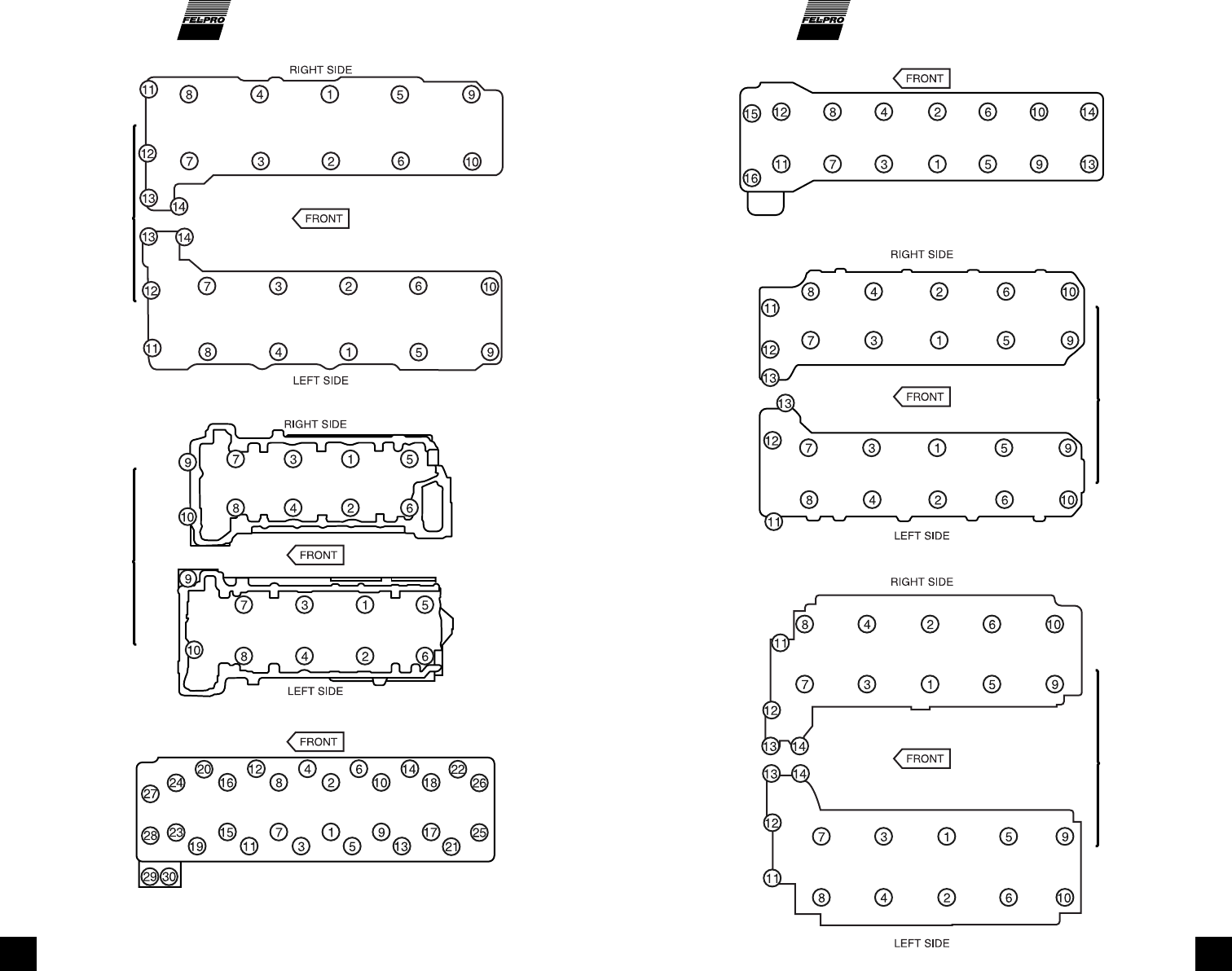

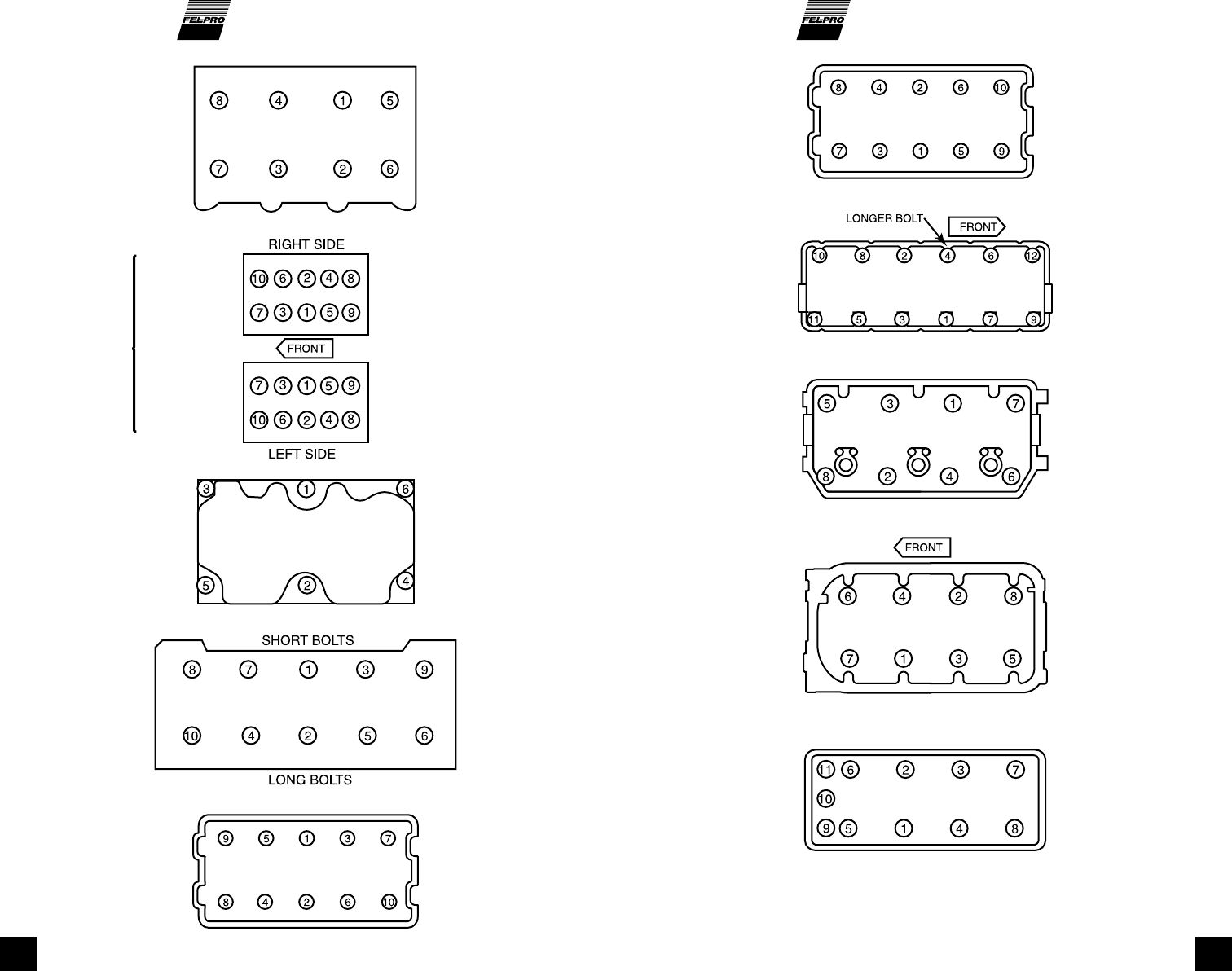

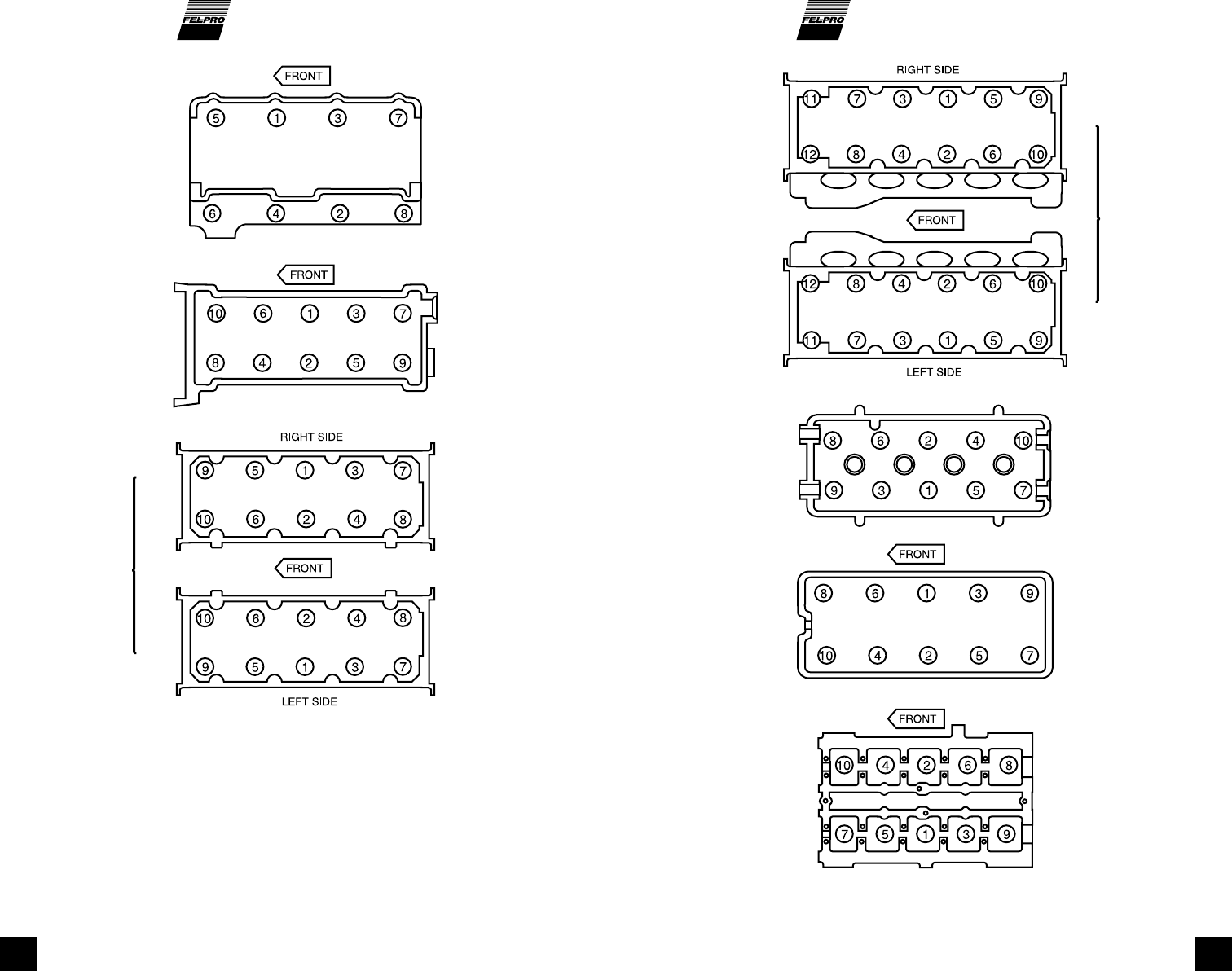

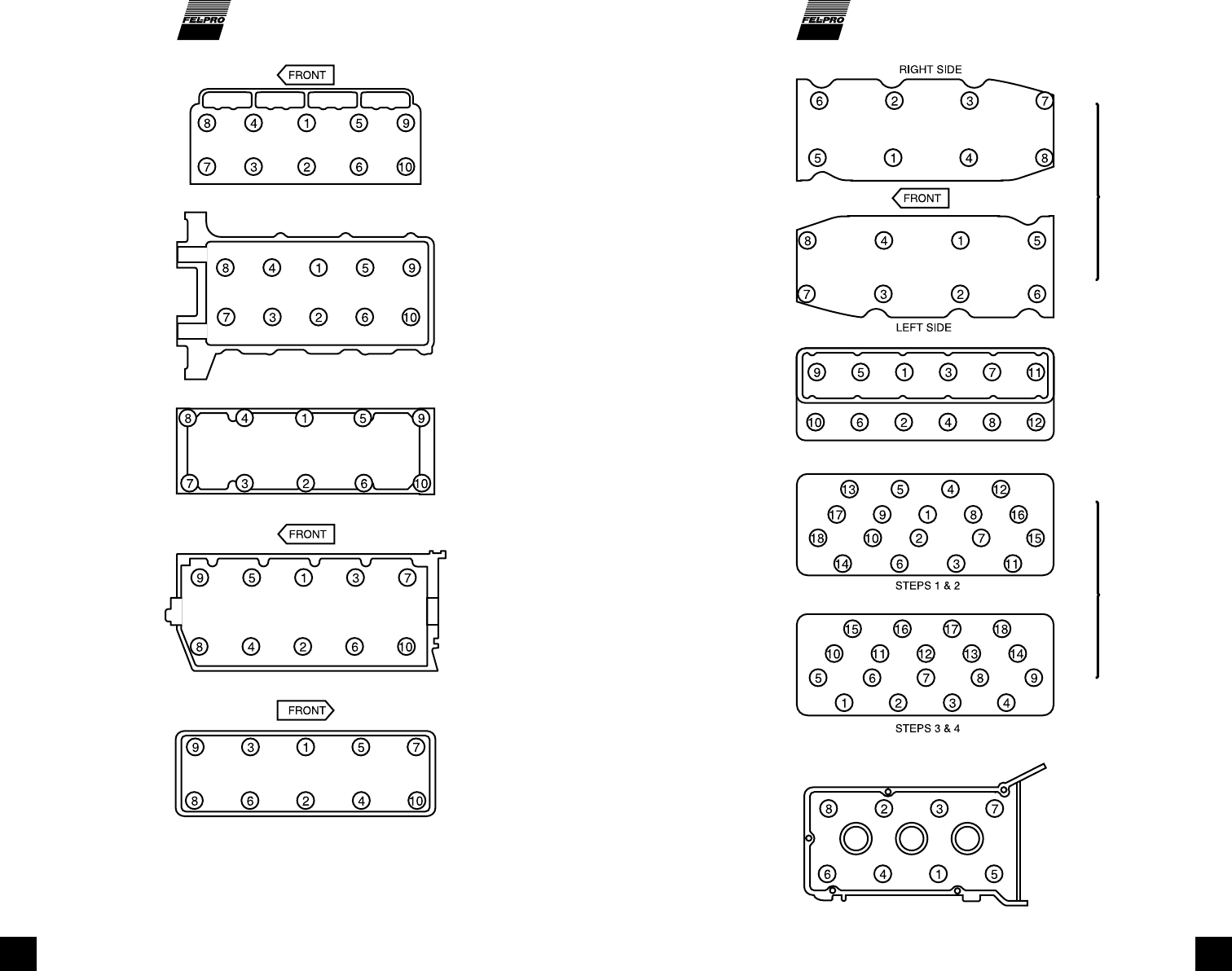

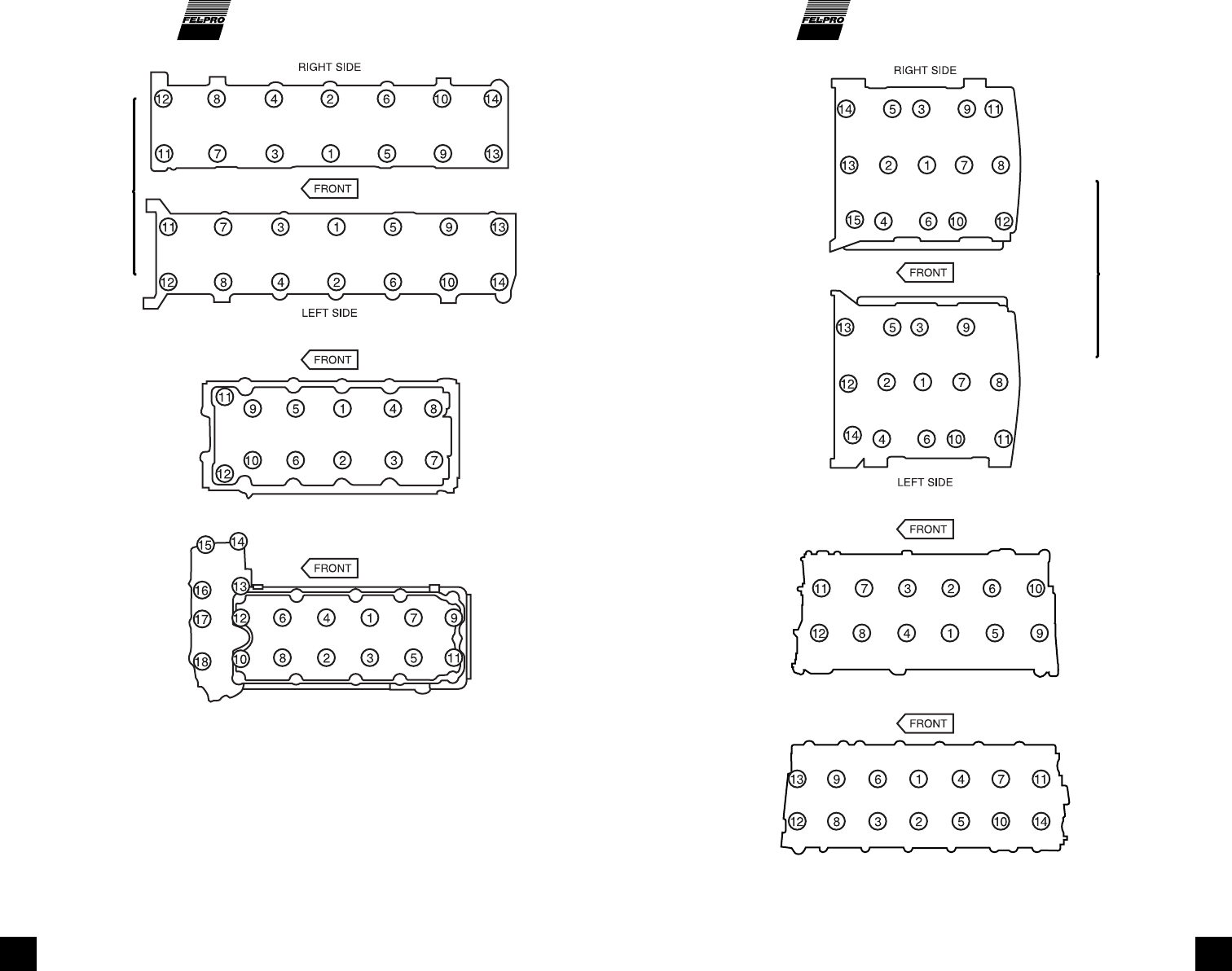

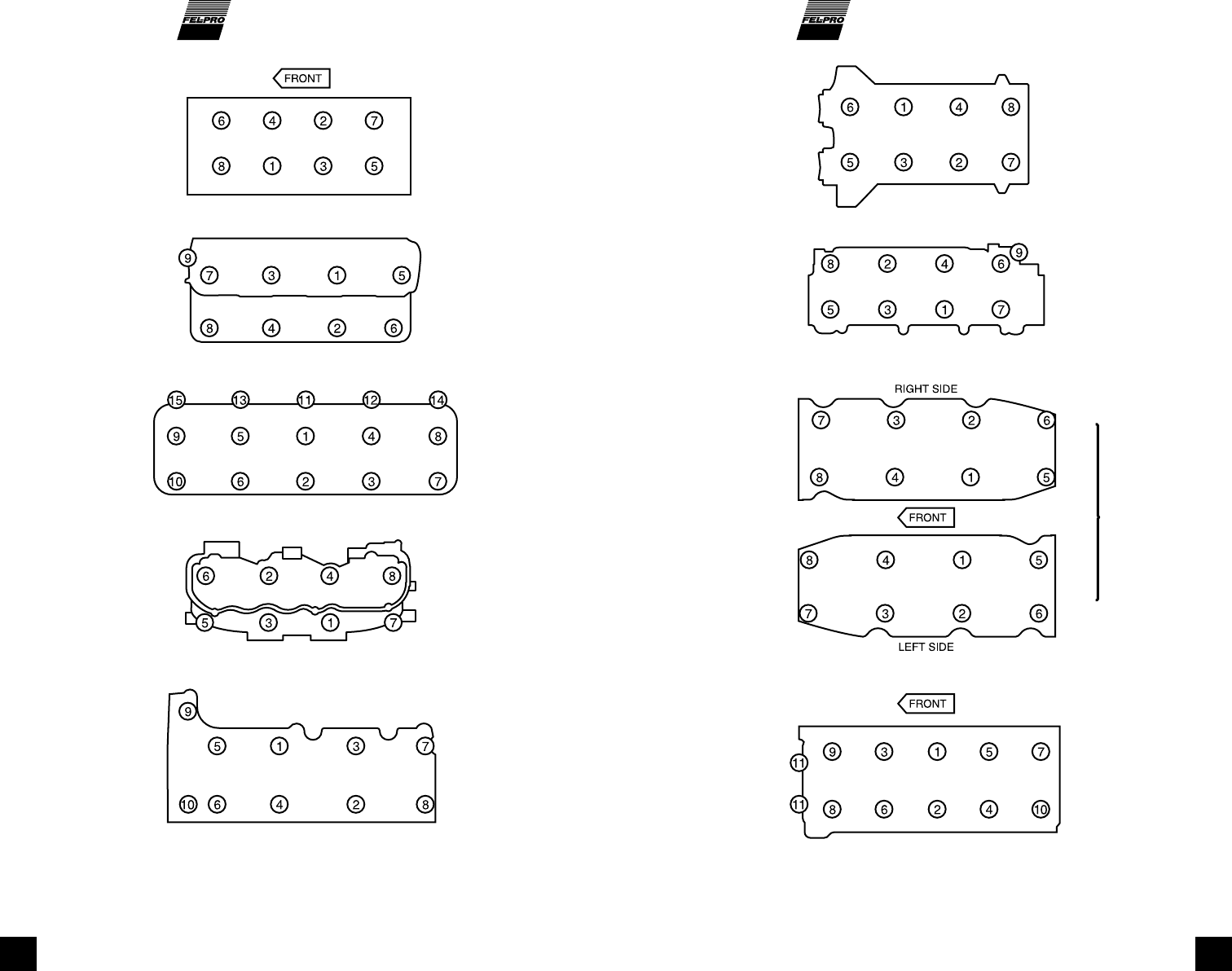

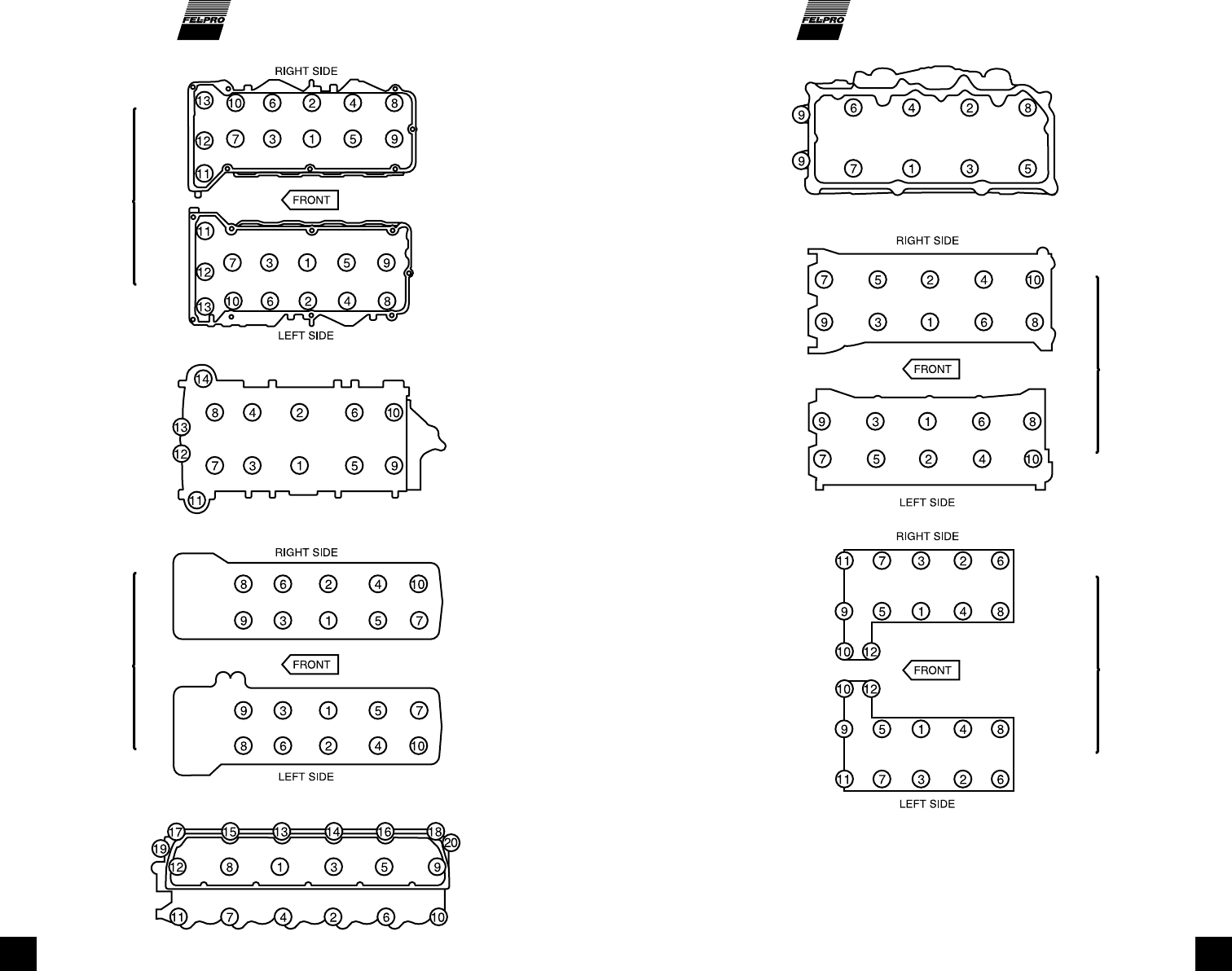

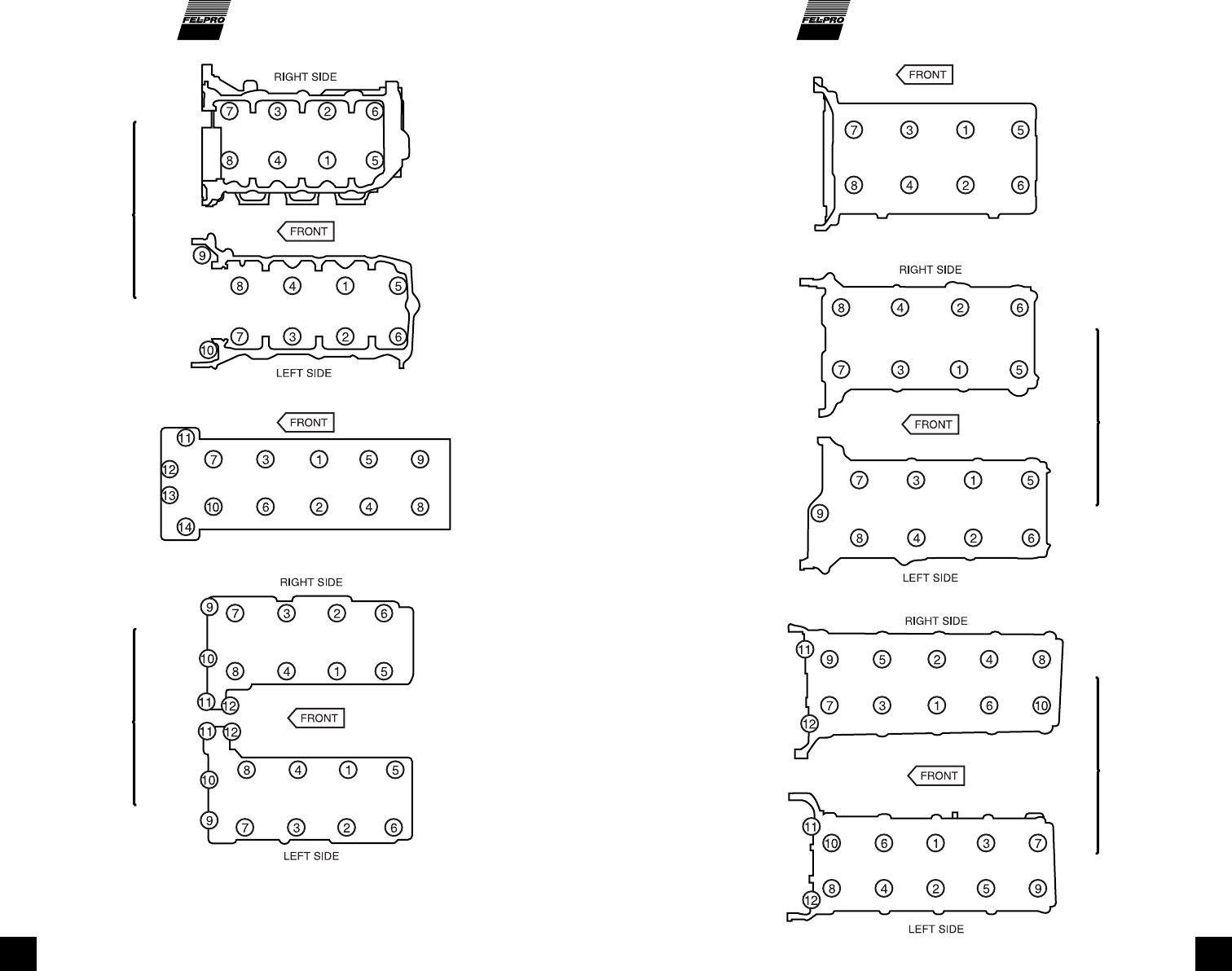

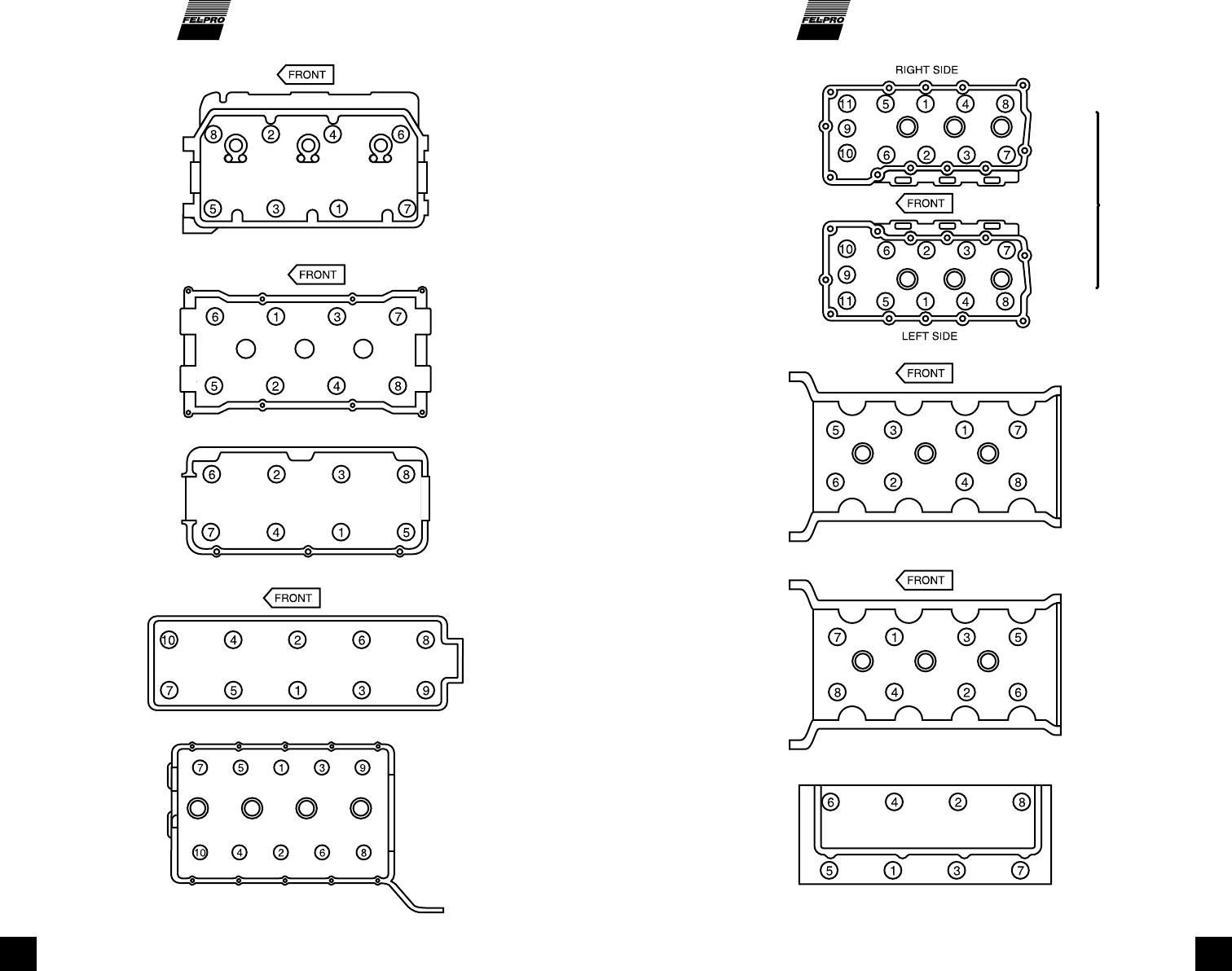

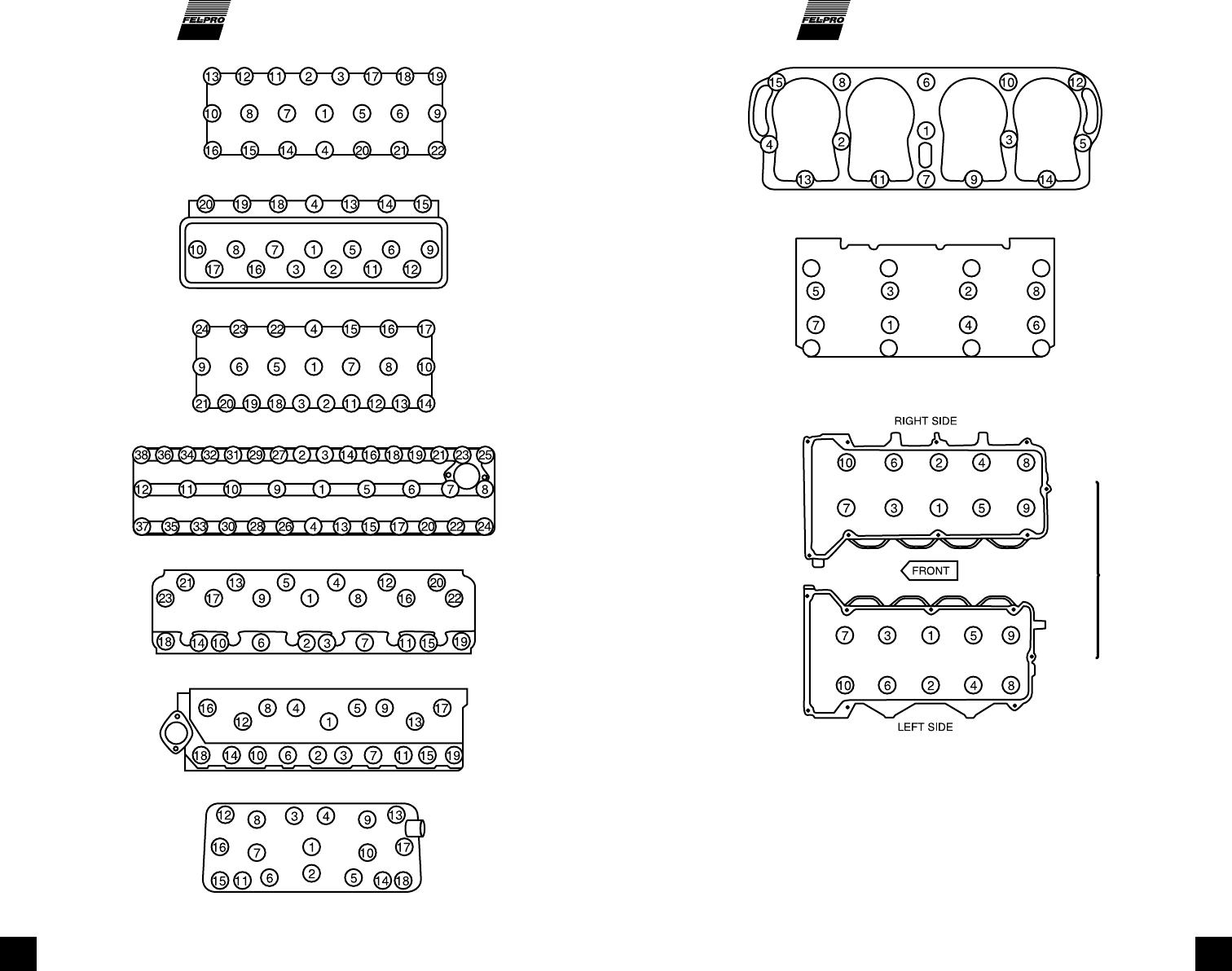

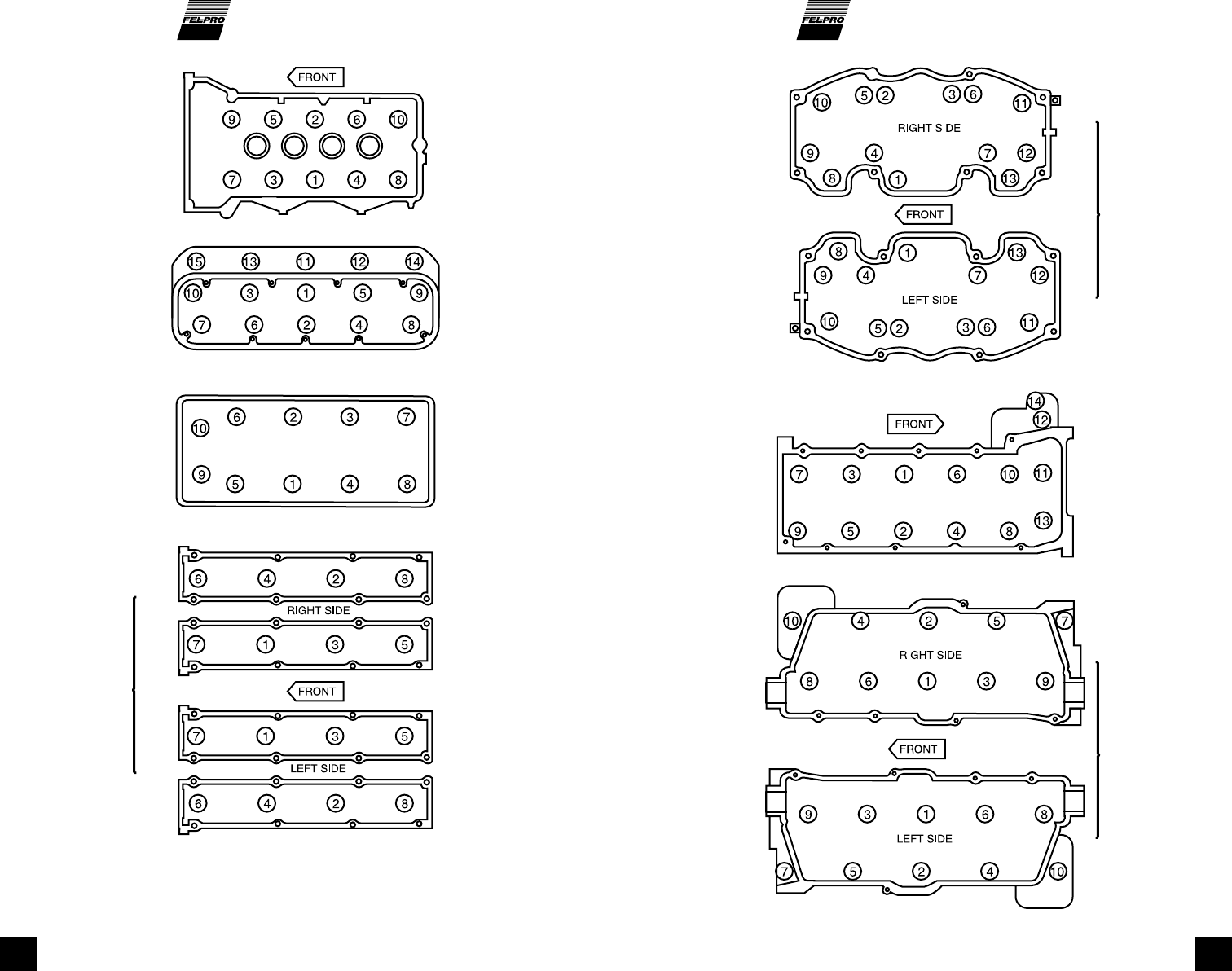

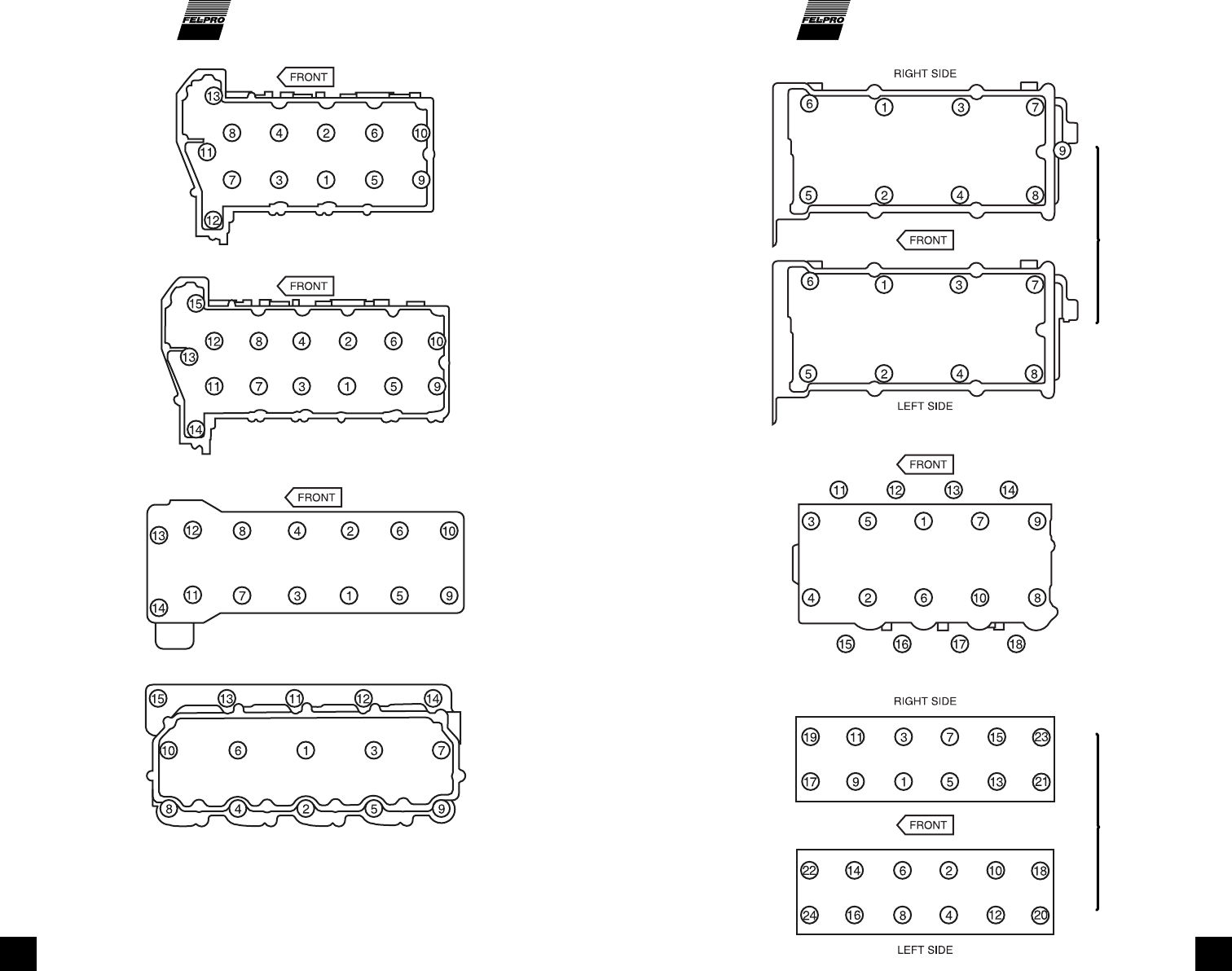

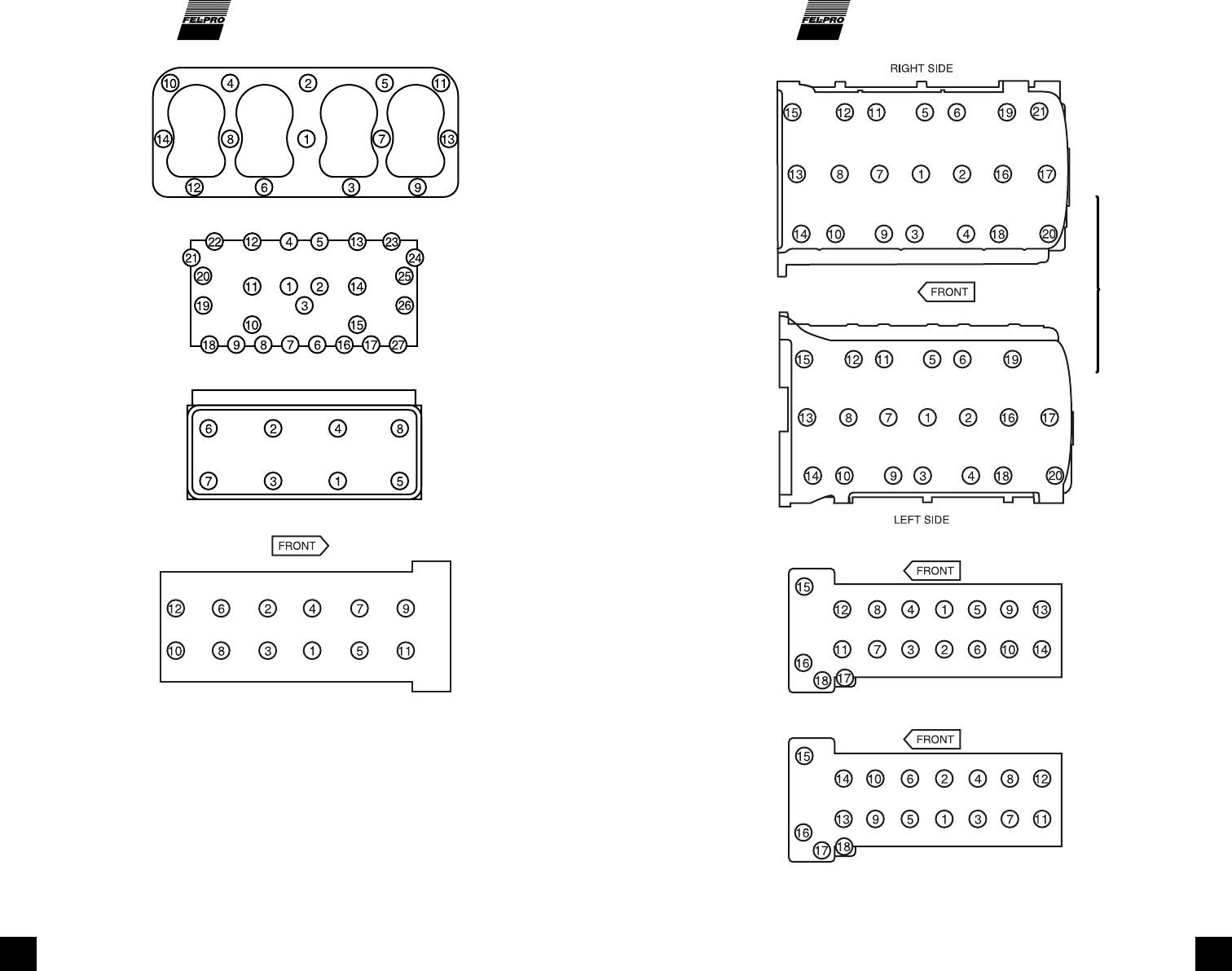

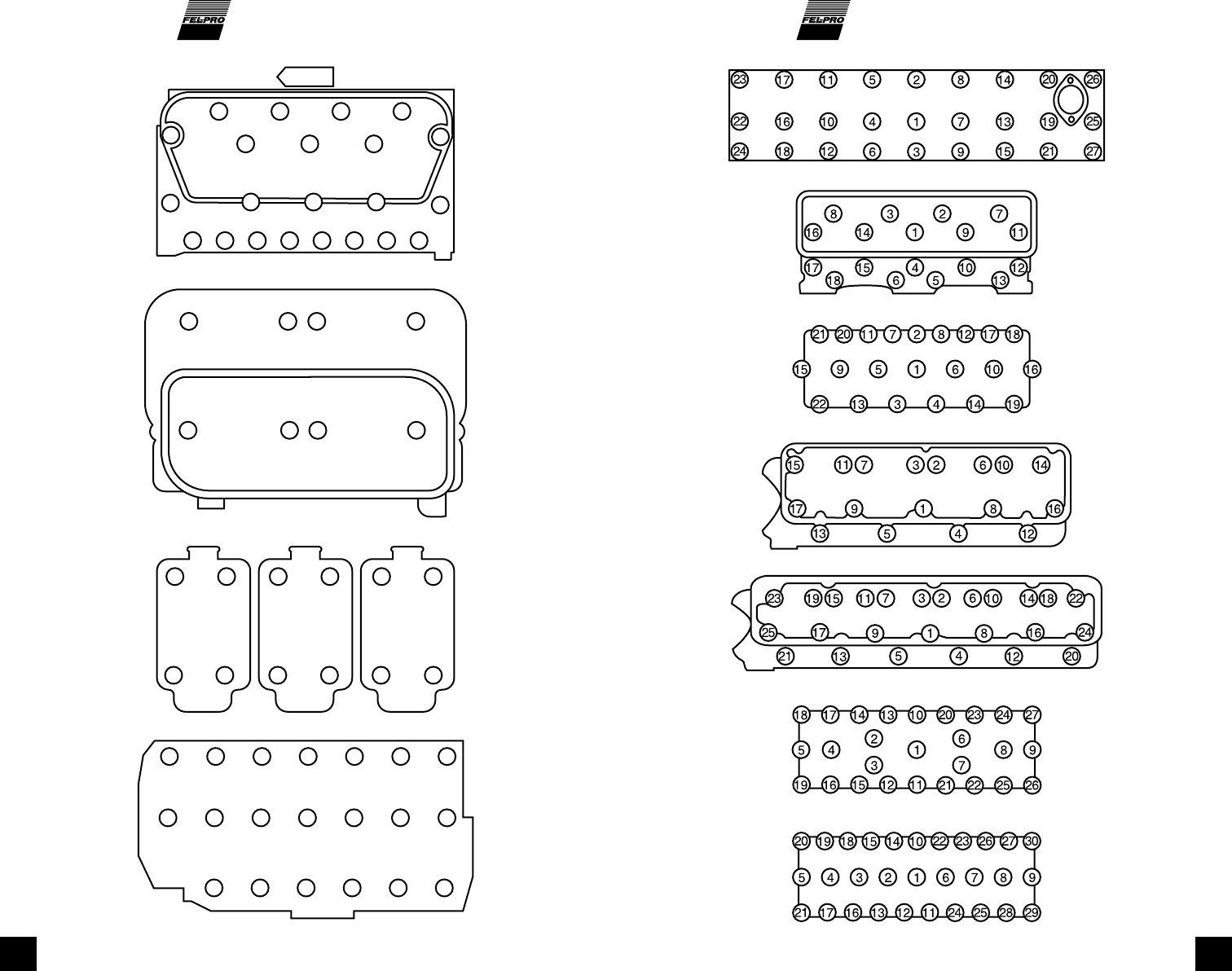

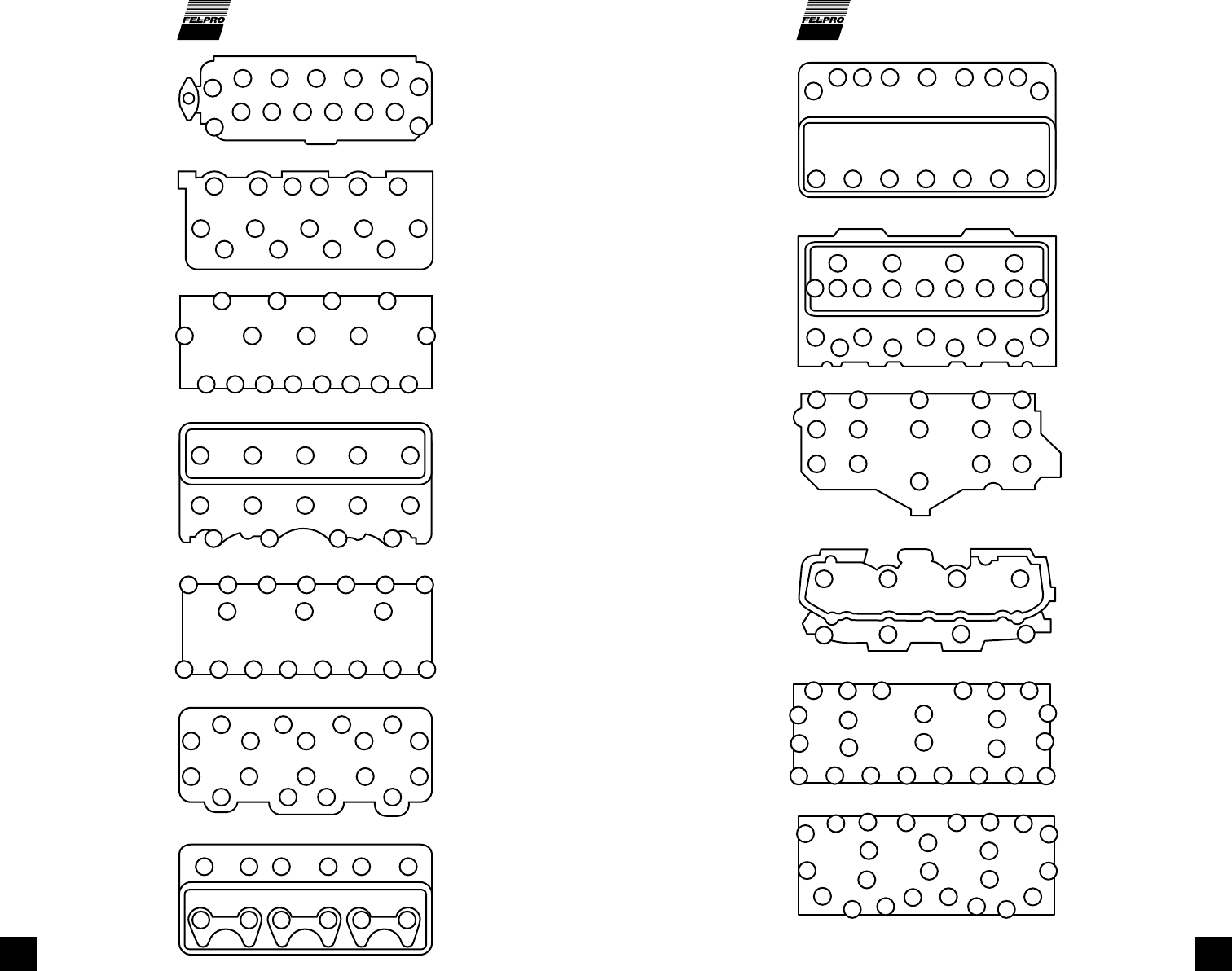

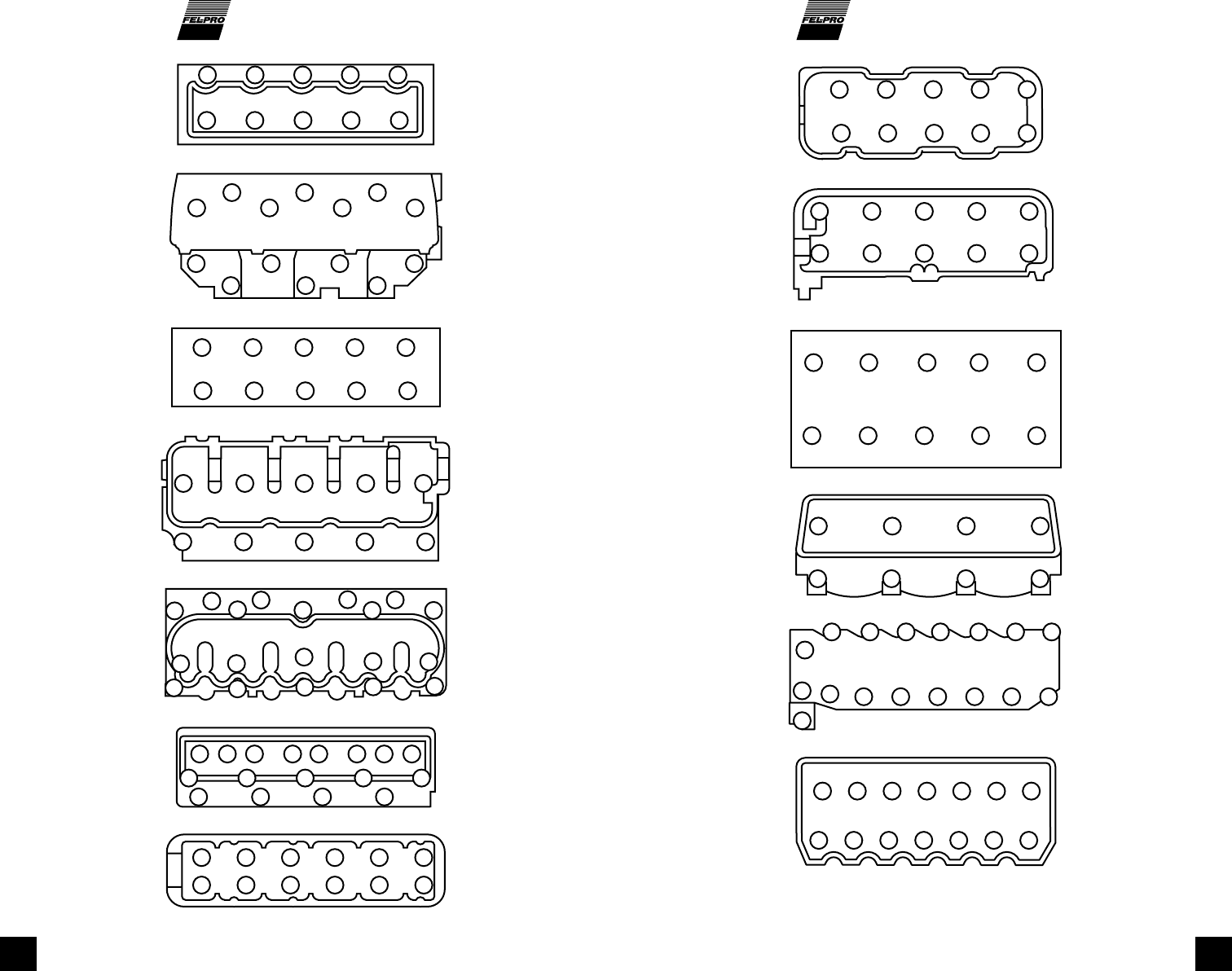

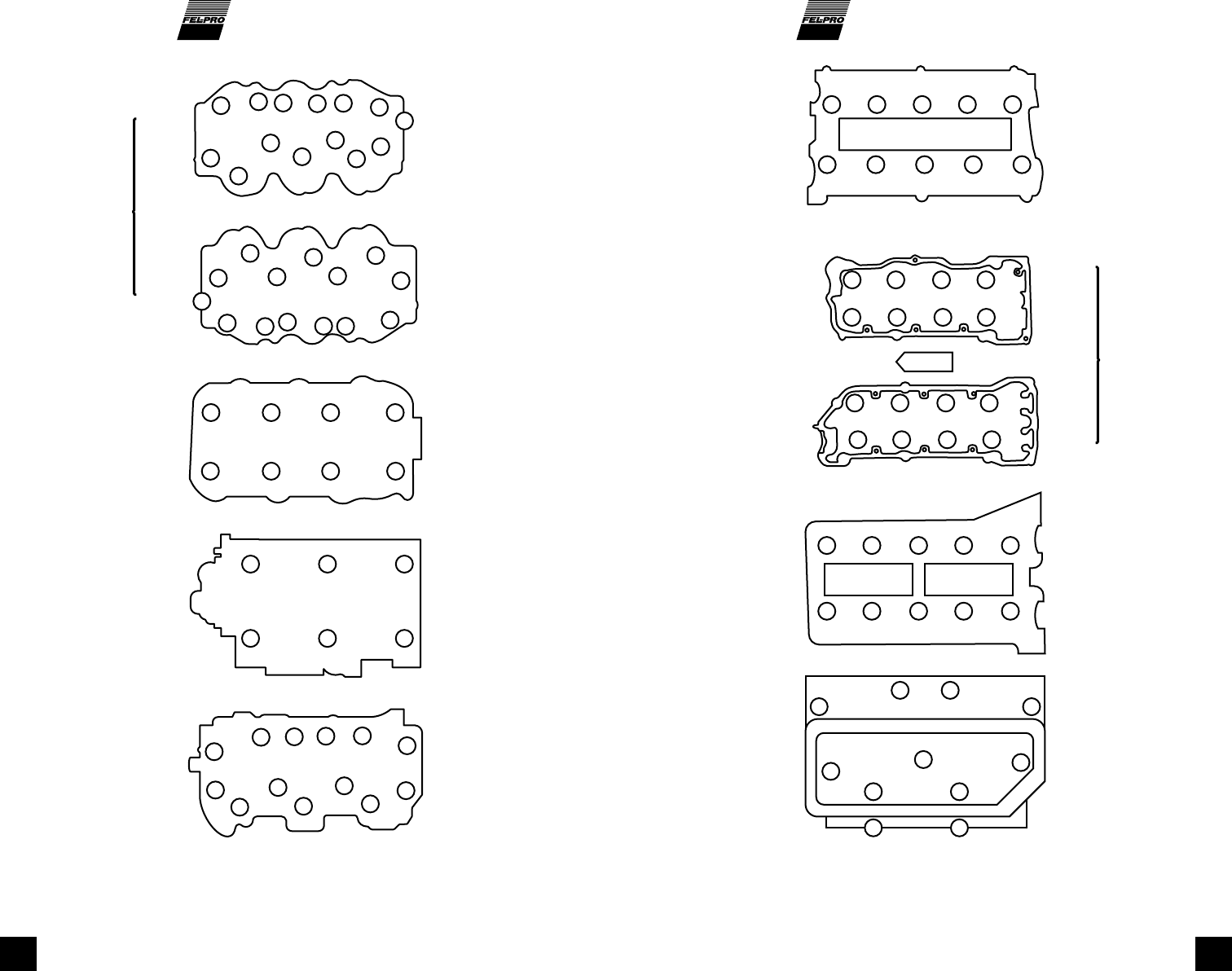

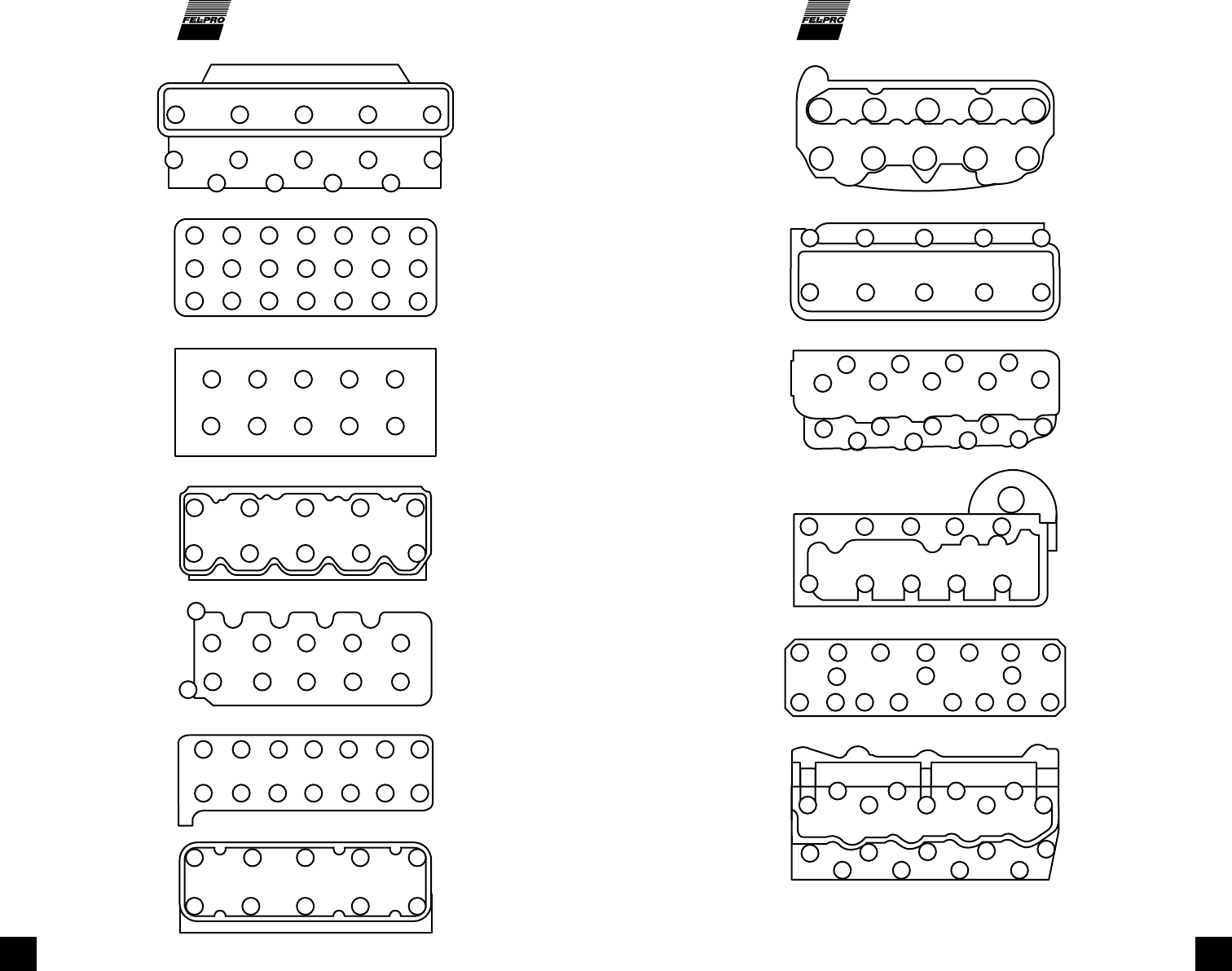

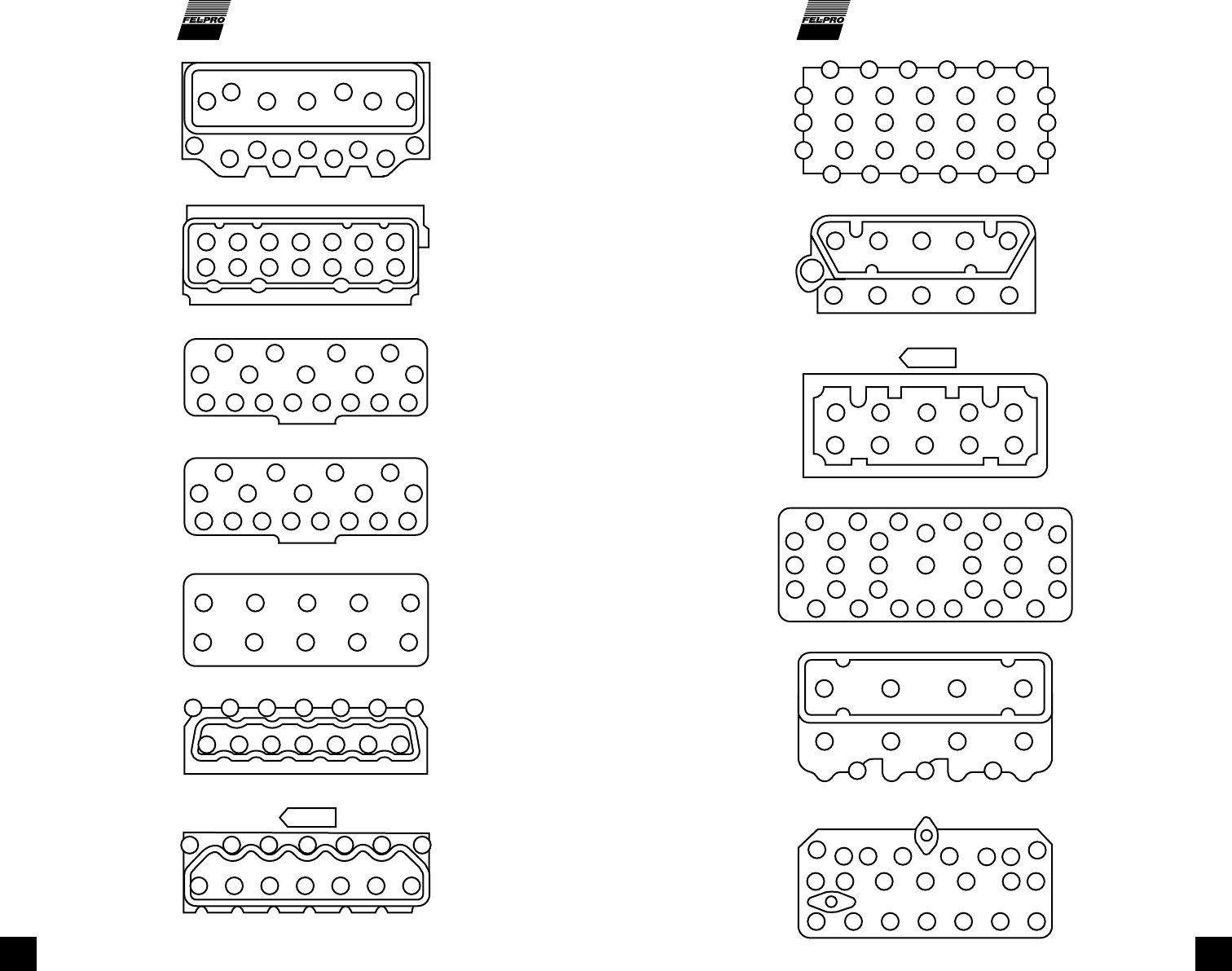

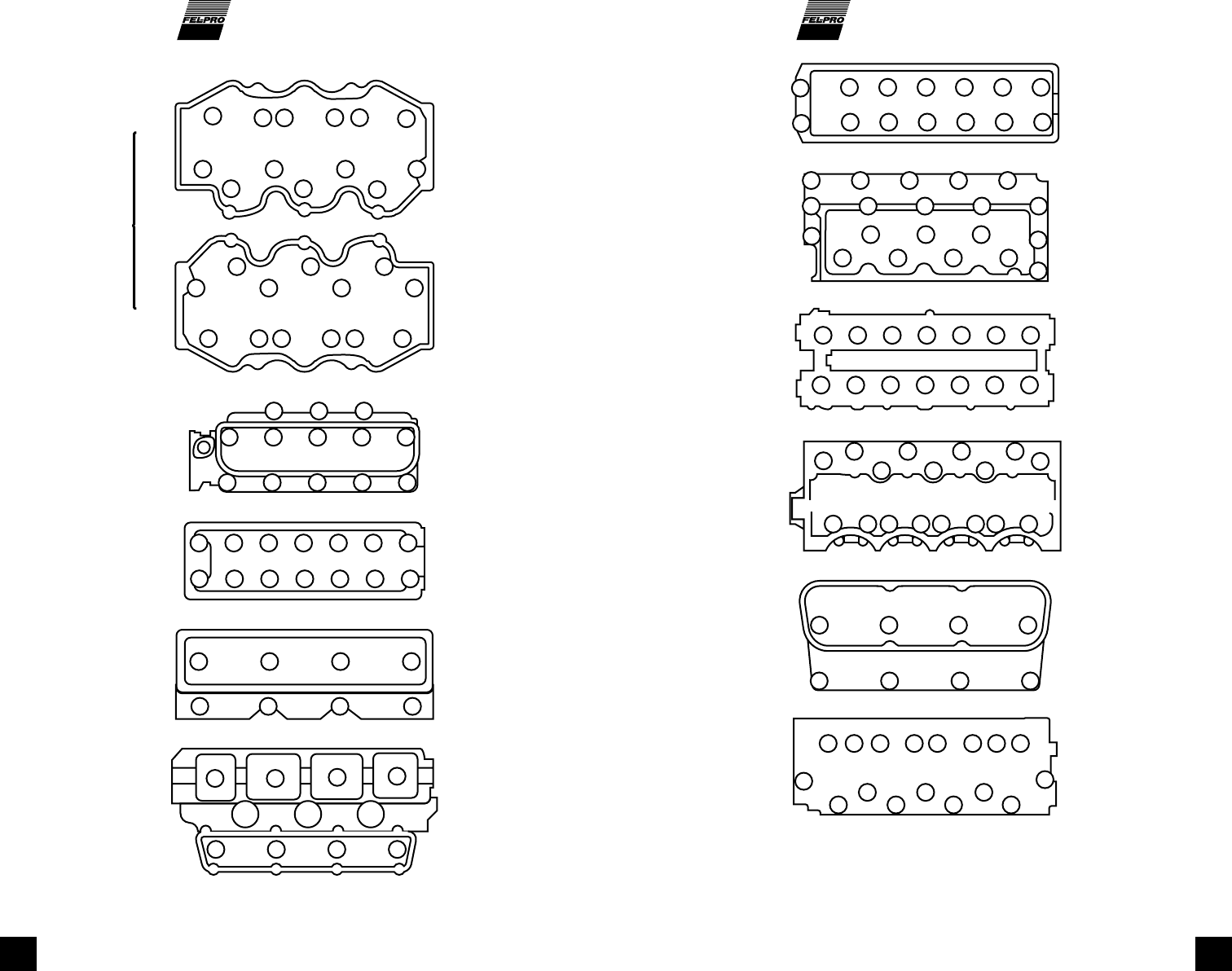

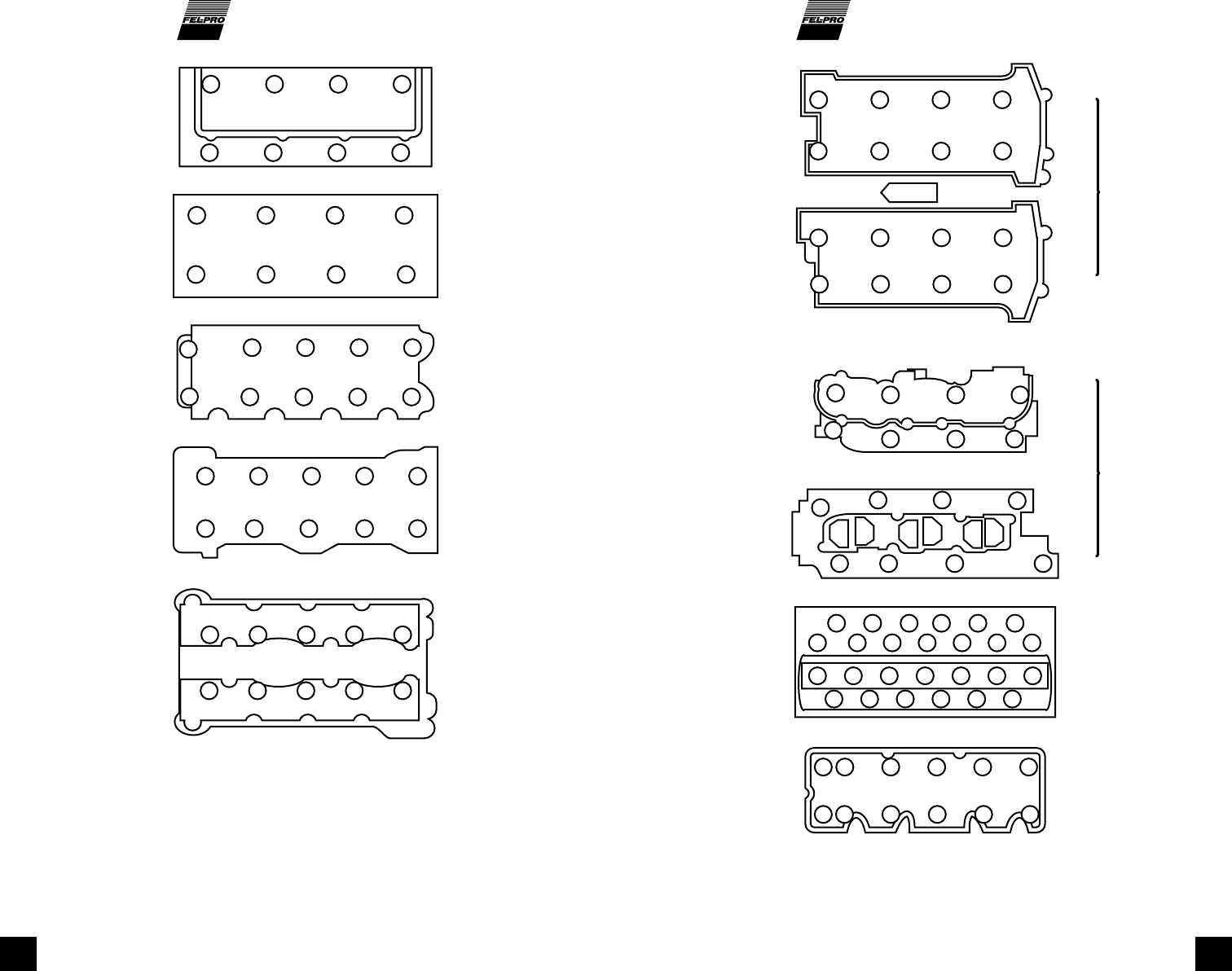

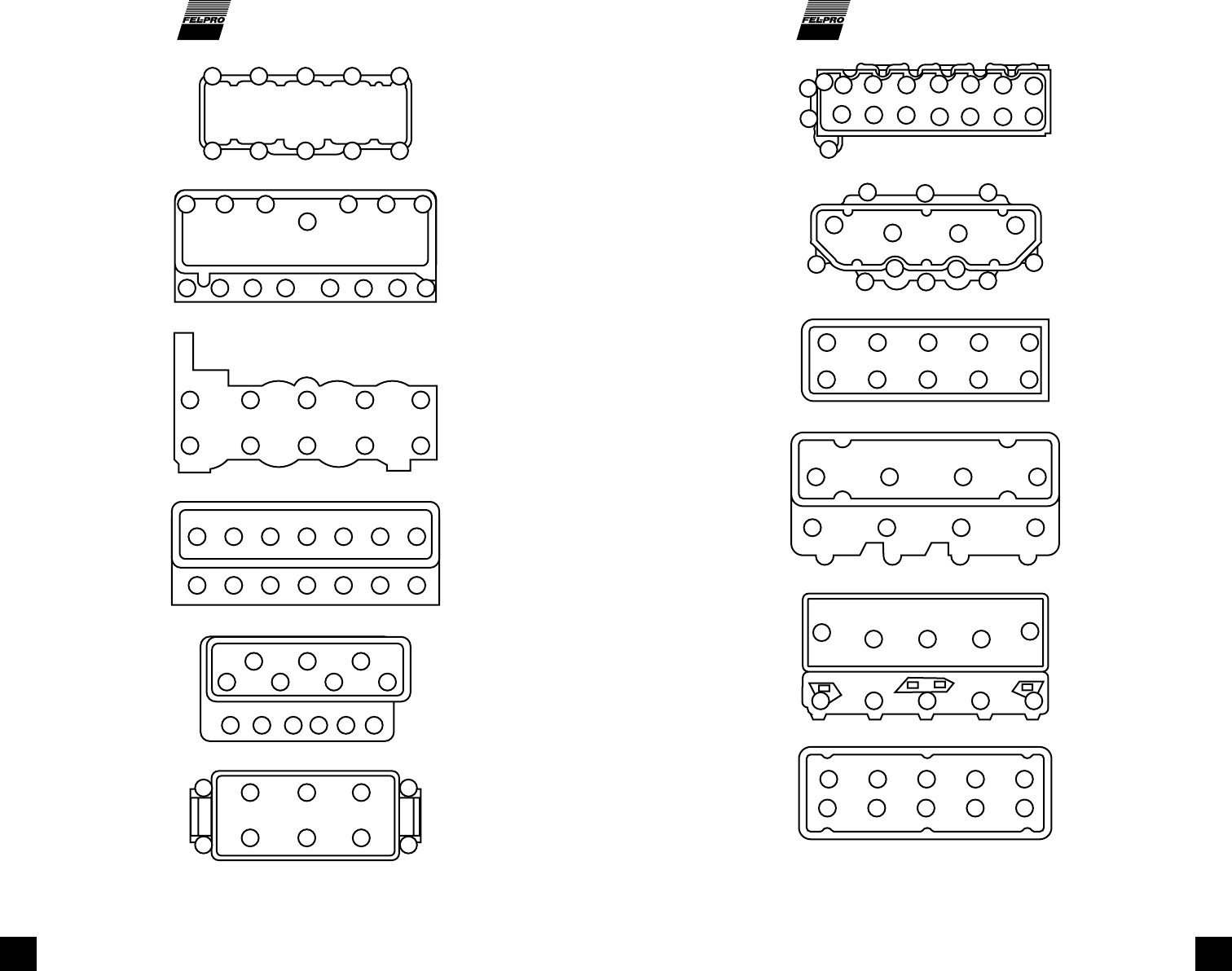

Torque Sequence Diagrams.............................................83
AC Cobra ........................................................................................................................................13
Acura ............................................................................................................................................. 13
AM General ................................................................................................................................... 14
AMC ................................................................................................................. See American Motors
American Motors ............................................................................................................................ 14
Amphicar ........................................................................................................................................ 15
Apollo .............................................................................................................................................. 15
Aro .................................................................................................................................................. 15
Audi ............................................................................................................................................... 15
Aurora ............................................................................................................................................. 17
Austin .............................................................................................................................................. 17
Austin-Healey ................................................................................................................................. 17
Avanti II ........................................................................................................................................... 17
Bertone ..................................................................................................................................See Fiat
Bizzarrini .........................................................................................................................................18
BMW ..............................................................................................................................................18
Bricklin ............................................................................................................................................ 20
Buick ..................................................................................................................... See GM Products
Cadillac ................................................................................................................. See GM Products
Callaway ......................................................................................................................................... 20
Checker .......................................................................................................................................... 20
Chevrolet .............................................................................................................. See GM Products
Chrysler .........................................................................................................See Chrysler Products
Chrysler Products ........................................................................................................................... 20
Daewoo .......................................................................................................................................... 25
Daihatsu ......................................................................................................................................... 26
Datsun .............................................................................................................................See Nissan
DeLorean ........................................................................................................................................26
DeSoto ............................................................................................................See Chrysler Products
DeTomaso ...................................................................................................................................... 26
Dodge ............................................................................................................See Chrysler Products
Eagle ..............................................................................................................See Chrysler Products
Edsel .....................................................................................................................See Ford Products
Elva ................................................................................................................................................. 26
Excalibur .........................................................................................................................................26
Facel Vega ...................................................................................................................................... 26
Fairthorpe ....................................................................................................................................... 27
Fargo .............................................................................................................See Chrysler Products
Fiat .................................................................................................................................................. 27
Ford ..................................................................................................................... See Ford Products
Ford Products ................................................................................................................................. 27
Frazer ............................................................................................................................... See Kaiser
Freightliner ......................................................................................................... See Mercedes-Benz
Geo ....................................................................................................................... See GM Products
GM Products .................................................................................................................................. 35
GMC ..................................................................................................................... See GM Products
Grumman ......................................................................................................................................47
Henry J ............................................................................................................................. See Kaiser
Honda ............................................................................................................................................ 47
Hudson ............................................................................................................ See American Motors
Hummer (1992-2001) .............................................................................................. See AM General
Hummer (2002-2008) ............................................................................................ See GM Products
Hyundai ......................................................................................................................................... 49
TORQUE SPECIFICATIONS BY VEHICLE MANUFACTURER
© 2008 Federal-Mogul Corporation. All rights reserved.
2
3
The torque specifications and sequences listed in this publication are considered accurate and reliable at the
time of publication. However, since engine manufacturers may revise their specifications, FEL-PRO engineers
suggest the installer consult the O.E. manufacturer for the latest information.
Infiniti ............................................................................................................................................. 51
International ................................................................................................................................... 51
Iso ...................................................................................................................................................52
Isuzu .............................................................................................................................................. 52
Jaguar ............................................................................................................................................. 53
Jeep ................................................................................................................................................53
Jensen ............................................................................................................................................ 55
Kaiser ............................................................................................................................................. 55
Kia .................................................................................................................................................. 55
LaForza .......................................................................................................................................... 56
Lancia ....................................................................................................................................See Fiat
Land Rover ..................................................................................................................................... 56
Lexus ............................................................................................................................................. 56
Lincoln ................................................................................................................. See Ford Products
Lotus ...............................................................................................................................................57
Marcos ............................................................................................................................................57
Mazda ............................................................................................................................................58
Mercedes-Benz .............................................................................................................................. 60
Mercury ...............................................................................................................See Ford Products
Merkur ..................................................................................................................See Ford Products
Metropolitan ....................................................................................................................................63
MG ..................................................................................................................................................63
Mini ................................................................................................................................................. 63
Mitsubishi ...................................................................................................................................... 63
Morgan ........................................................................................................................................... 65
Morris.............................................................................................................................................. 65
Nash ................................................................................................................ See American Motors
Navistar ..................................................................................................................See International
Nissan ........................................................................................................................................... 65
Oldsmobile ........................................................................................................... See GM Products
Opel ................................................................................................................................................ 68
Packard ........................................................................................................................................... 68
Panoz ............................................................................................................................................. 68
Peugeot .......................................................................................................................................... 68
Pinninfarina ...........................................................................................................................See Fiat
Plymouth .......................................................................................................See Chrysler Products
Pontiac .................................................................................................................. See GM Products
Porsche........................................................................................................................................... 69
Puma .............................................................................................................................................. 69
Rambler ........................................................................................................... See American Motors
Renault ........................................................................................................................................... 69
Riley ................................................................................................................................................ 70
Rover .............................................................................................................................................. 70
Saab ............................................................................................................................................... 70
Saturn ............................................................................................................................................ 71
Scion ............................................................................................................................................. 72
Shelby ............................................................................................................................................. 72
Sterling ........................................................................................................................................... 72
Studebaker .................................................................................................................................... 72
Subaru ........................................................................................................................................... 73
Sunbeam ........................................................................................................................................ 74
Suzuki ............................................................................................................................................74
Toyota ............................................................................................................................................ 75
Triumph ........................................................................................................................................... 78
Turner ............................................................................................................................................. 78
TVR ................................................................................................................................................ 78
Volkswagen ..................................................................................................................................... 78
Volvo .............................................................................................................................................. 80
Willys ..................................................................................................................................See Jeep
Workhorse ...................................................................................................................................... 82
Yugo................................................................................................................................................ 82
TORQUE SPECIFICATIONS BY VEHICLE MANUFACTURER
1. Locate the vehicle manufacturer listing in the torque specification tables. All manufacturers
are listed in alphabetical order. To save space in the listings, all Chrysler Products
vehicles, all Ford Products vehicles, and all General Motors Products vehicles are
each grouped together in a single section. Check the Table of Contents at the front
of the book to find where each vehicle manufacturer is located. Each manufacturer
section includes passenger cars, minivans, SUV’s, light-duty and medium-duty trucks
for that nameplate.
2. Within each vehicle manufacturer section, engines are arranged by number of cylinders
(smallest to largest), then by engine size (CID or CC: smallest to largest), then by
model years (newest year first). Check VIN codes carefully on domestic manufacturers,
and engine codes carefully on imported manufacturers, to assure selecting the
correct torquing information.
3. Special footnote symbols are included to show if a FEL-PRO PermaTorque® head
gasket (●) or FEL-PRO head bolt set (❍) is available for that engine application.
4. Locate the specific engine desired. Correct torque specifications are shown in
foot-pounds in bold type.
Torque specifications are shown either as an exact figure, or a specific range. Follow
any special instructions or multi-step directions carefully to assure correct final torque.
There may be different specifications for different size bolts, bolts in different positions,
tightening bolts in several stages, or a cold engine vs. a warm engine. For example,
in some cases bolts are first torqued to the figure for a cold engine and retorqued to
the figure for a warm/hot engine. Remember that retorquing is NOT required when
installing a FEL-PRO PermaTorque head gasket.
For torque-to-yield applications, head bolts are torqued additional partial turns (shown
as “degrees” in the tables) after reaching a specified torque in foot-pounds. Please
see the following Installation Tips for more information on torque-to-yield bolts.
5. The “Torque Sequence” column shows which diagram to use as the specific bolt
torquing sequence for your engine. All diagrams can be found in numerical sequence
at the back of this publication.
HOW TO USE THE FEL-PRO® Torque Tables™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
FORD PRODUCTS 6 & V6 (CONT.)
183 OHV (3.0L) 12 Valve Ford 2008-99 Truck ●❍ 1st 36-39, 2nd loosen one turn,
3rd 20-24, 4th turn 85-95 degrees,
5th turn 85-95 degrees
141 ES 72136
ES 72174
183 OHV (3.0L) 12 Valve Ford 1998-91 Truck ●❍ 1st 59, 2nd loosen one turn,
3rd 37, 4th 68
141 ES 72136
ES 72174
183 OHV (3.0L) 12 Valve Ford 1990-86 Truck ●❍ 1st 33-41, 2nd 63-73 141 ES 72136
4
5
The FEL-PRO PermaTorque/Blue Stripe® and PermaTorque/Printoseal® cylinder head
gaskets do not need retorquing. They combine the proper amount of compressibility
with torque-retaining materials for a long-lasting seal.
FEL-PRO cylinder head gaskets use a variety of gasket constructions and materials,
carefully chosen by our engineers for each specific engine application and thoroughly
tested. All FEL-PRO PermaTorque cylinder head gaskets consist of four basic parts –
the core, the facing material, the coating, and the armor. Other special enhancements,
such as elastomeric sealing beads, may be added to improve sealing even further.
Coatings can be either PTFE rubber or silicone-based. They help seal minor surface
imperfections, resist sticking, and help the gasket resist the shearing action that occurs
in bi-metal engines. Aluminum cylinder heads and cast iron engine blocks expand
and contract at different rates during engine heating/cooling cycles. The anti-friction
coatings used on PermaTorque head gaskets allow both the head and block to “slip”
over the gasket surface and still maintain a good seal.
Formed metal armors are added to protect the gasket body at cylinder openings.
Each armor is precision stamped and then formed to the gasket body. Engineers specify
different armor materials, ranging from tinplate to stainless steel, depending on the
specific engine application.
The most common PermaTorque/Blue Stripe design uses a solid steel core with rubber/
fiber facing material. The solid steel core minimizes torque loss, while the soft facing
conforms to seal minor surface irregularities.
rubber/fiber
facing material
tinplate or
stainless steel
armor
anti-friction coating
solid steel core
eliminates retorquing
FEL-PRO® PermaTorque® CYLINDER HEAD GASKETS
core facing coating armor reliability
PermaTorque/Blue Stripe Solid Core Design
PermaTorque/Blue Stripe Clinched Core Design
PermaTorque/Printoseal Solid Core Design
Another popular PermaTorque/Blue Stripe design uses a clinched steel core construction,
combined with either expanded graphite or dense composite facing material. The “S” shaped
protrusions of the clinched core allow more uniform loading of the gasket than competitive
designs. High-density expanded graphite is used for high-temperature applications where
required. The composite facing material uses rubber/fiber design that is densified during
the production process. This material is dense enough to help maintain torque, yet
compressible enough to conform to minor surface irregularities.
When the engine requires additional sealability, Printoseal® elastomeric sealing beads
are applied around critical openings such as coolant and oil ports, to prevent oil and
coolant leakage. On many current lightweight engines, the beads also help seal
aluminum castings that have uneven clamping force across the gasket surface.
clinched steel core
dense composite
facing material
eliminates
retorquing
tinplate or
stainless steel
armor
anti-friction coating
tinplate or
stainless steel
armor
Printoseal
®
elastomeric
sealing bead
rubber/fiber
facing material
solid steel core
eliminates retorquing
FEL-PRO® PermaTorque® CYLINDER HEAD GASKETS
6
7
The latest development in head gasket technology is the multi-layer
steel (MLS) design.
At first glance, these gaskets look like the old-style embossed steel shim gaskets, but
they are radically different. First, a thin rubber coating is bonded to the stainless steel
shim and, as required, multiple layers (up to five) of this rubber-coated steel shim
are assembled into a single gasket. The high-temperature rubber coating provides
excellent fluid sealability across the outer faces and between the individual layers,
while also sealing minor head and block surface imperfections. MLS head gaskets
provide the ultimate in torque retention and supply extra strength to support current
lightweight aluminum casting designs. They are specified on most current domestic
and imported engines in production.
Traditional original equipment manufacturer (OEM) type MLS head gaskets don’t
easily conform to surface irregularities, and require an incredibly smooth surface finish
to provide a satisfactory seal. When the castings are new and the finish is fresh, most
OEM-style MLS gaskets work quite well. But when the castings are old or resurfaced
with a less than perfect finish, leaks usually result.
To seal under these adverse conditions, FEL-PRO® engineers have developed the exclusive
PermaTorqueMLS® design. These newly redesigned MLS gaskets have many unique
features that
allow them to seal better than other MLS gaskets on the market today
:
 •Full-hardstainlesssteelmaintainsitsshapedespitethermalexpansion,and
resists the scrubbing action between head and block
 •Precision-engineeredembossedsealingbeadsplacedatallcriticalsealing
areas to eliminate leak paths
 •Anexclusiveextra-strong“stopper”layerincorporatedtoprovideasuperior
primary combustion seal
 •Specialrubbercoatingspecificallyformulatedfortheaftermarketrepair
environment, which is more forgiving of surface finish requirements
Remeber that although PermaTorque MLS head gaskets are more forgiving than other
designs, the finish on both the head and block must be flatter and smoother than what
has been traditionally required for composite-type gaskets.
FEL-PRO® engineers determine which PermaTorque construction provides the best
sealing for each individual engine design. Look for the “PT” suffix on the FEL-PRO
part number for PermaTorque head gaskets, the most reliable no-retorque designs
available on the market today.
FEL-PRO® PermaTorque® CYLINDER HEAD GASKETS
Remove Cylinder Heads Carefully
Loosen the head bolts in stages, in the reverse order of the tightening sequence. On
engines with aluminum cylinder heads, remove the head only after the engine has cooled
completely and reverse EXACTLY the recommended torquing procedure. Failure to do
so may result in head warpage.
Never Reuse Head Gaskets
When a new head gasket is installed, it conforms to the microscopic surface irregularities
of the cylinder head and engine block. The gasket material is permanently compressed in
that position. If you reuse the gasket, it is impossible to refit it in the exact same position
and it will not have the “life” to readjust itself, so gasket failure may result.
Clean Mating Surfaces
Thoroughly clean the cylinder head, engine block, head bolts, and bolt holes. A dirty bolt
can alter torque readings by as much as 20 foot-pounds, and can form pockets in the
gasket allowing leakage and eventual gasket failure.
Check for Warpage and Distortion
Check for warpage of both head and block sealing surfaces with a straightedge and a feeler
gauge. Out-of-flat along the length should not be more than 0.003" for three-cylinder
applications, 0.004" for four-cylinder applications, and 0.006" for six-cylinder applications.
Across the width should never exceed 0.002" out-of-flat. These are combined measurements
for both the head and block together, and should not exceed the maximum amounts shown.
There should be no sudden irregularities exceeding .001" and a maximum out-of-flat of
+ .001" in any 3" diameter should not be exceeded. When necessary, machine surfaces
to return them to flat.
Check Head and Block Finishes
Surface finish is critical for a good seal. FEL-PRO® engineers recommend a micro inch
surface finish between 60 to 100 Ra (400 to 800 Rz) for cast iron heads and blocks,
50 to 60 Ra (200 to 600 Rz) for aluminum heads and blocks, and 10 to 30 Ra maximum
(500 Rz maximum) for multi-layered steel (MLS)
applications. Check the finishes with a
profilometer or another type of surface finish comparator
. Check for a preferred waviness
height of .0004"/.0005" with a waviness peak spacing of .100" (these values are usually
associated with milling machines). Always consult your manufacturer’s service manual
for surface finish requirements.
CYLINDER HEAD GASKET INSTALLATION TIPS
8
9
Use A Non-Hardening Gasket Sealer
Sealers are NOT required on FEL-PRO PermaTorque® head gaskets. However, embossed
steel shim, copper-faced, or steel-faced gaskets should be coated with a non-hardening
automotive gasket sealer as a supplemental seal.
Lightly coat bolt threads and the underside of the bolt heads with EP grease or similar
lubricant. When they enter the water jackets of an engine, bolt threads should be coated with
a non-hardening automotive sealer to prevent leakage. Refer to the manufacturer’s service
manual or examine the engine to determine where the bolt holes lead.
Watch Bolt Lengths and Sizes
Head bolts on some engines may vary in length and size, and it is important that they be
replaced in their original location. Either mark the bolts by position, or place them on a
bench in the order you remove them.
Use A Torque Wrench
Uneven torque can cause block distortion and head warpage, resulting in coolant or
combustion leaks. Use a good torque wrench, properly calibrated, and follow exact
specifications for the proper torque. The basic tightening procedure is to first snug up
bolts, then tighten in stages, and then complete with the final torque specified.
Follow Torquing Sequences
Each manufacturer has an approved torquing sequence to follow for each engine, to insure
the best possible seal and eliminate chances of distortion and warpage. In general, the
sequence starts at the center and spirals out to the ends of the head.
Warm Engine and Retorque Head
Run the engine to normal operating temperature after torquing head bolts. Heat expansion
and contraction can radically change the torque readings. Retorque all head bolts to the
correct settings while the engine is still warm. If working with aluminum components, let
the engine cool completely first. Remember that FEL-PRO® PermaTorque® designs do
NOT require retorquing.
Retorque After 300 to 500 Miles
If retorque-type head gaskets are used, retorque after 300 to 500 miles.
CYLINDER HEAD GASKET INSTALLATION TIPS
Torque-to-Yield Head Bolts
Torque-to-yield is a method used by most current engine manufacturers to tighten head
bolts. The head bolts are torqued to their yield point, which may permanently stretch the
bolts. This results in a more even clamping force over the entire area of the gasket. Bolts
should first be tightened to a specified torque (measured in foot-pounds), and then tightened
an additional partial turn (measured in degrees) to the bolt yield point. The inexpensive
FEL-PRO® Torque-to-Angle Indicator (part number TRQ-1) will help you accurately
measure the required partial turn in degrees.
Because the head bolts may have stretched, the engine manufacturer may recommend
against reusing them. Consult the OEM manual on head bolt reuse. Since you may not
know how many times a T-T-Y bolt has been removed and reinstalled, FEL-PRO engineers
suggest that it is always a good idea to use new bolts. FEL-PRO head bolt sets are available
for many domestic and imported engines. The Torque Tables™ indicate which engines
have bolt sets offered in the FEL-PRO product line.
FEL-PRO® T-T-Y HEAD BOLTS
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
FORD PRODUCTS 6 & V6 (CONT.)
232 OHV (3.8L) 12 Valve Ford 2003-96 Truck ●❍ 1st 15, 2nd 29, 3rd 37,
PERFORM THE NEXT THREE STEPS ON
EACH BOLT BEFORE MOVING TO NEXT
BOLT IN SEQUENCE: 1) loosen 2-3 turns,
2) Long bolts 29-37; Short bolts 15-22,
3) turn 175-185 degrees
94 ES 72156
ES 72160
232 OHV (3.8L) 12 Valve Ford 1995 Truck ●❍ 1st 15, 2nd 30, 3rd 37,
PERFORM THE NEXT THREE STEPS ON
EACH BOLT BEFORE MOVING TO NEXT
BOLT IN SEQUENCE: 1) loosen 2-3 turns,
2) Long bolts 11-19; Short bolts 7-15,
3) turn 85-95 degrees
94 ES 72131
232 OHV (3.8L) 12 Valve Ford 2004-98 Car ●❍ 1st 15, 2nd 30, 3rd 37,
PERFORM THE NEXT THREE STEPS ON
EACH BOLT BEFORE MOVING TO NEXT
BOLT IN SEQUENCE: 1) loosen 2-3 turns,
2) Long bolts 29-37; Short bolts 15-22,
3) turn 180 degrees
94 ES 72160
232 OHV (3.8L) 12 Valve Ford 1997-96 Car ●❍ 1st 15, 2nd 30, 3rd 37,
PERFORM THE NEXT THREE STEPS ON
EACH BOLT BEFORE MOVING TO NEXT
BOLT IN SEQUENCE: 1) loosen 2-3 turns,
2) Long bolts 30-37; Short bolts 15-22,
3) turn 175-185 degrees
94 ES 72156
ES 72160
232 OHV (3.8L) 12 Valve Ford 1995-94 Car ●❍ 1st 15, 2nd 30, 3rd 37,
PERFORM THE NEXT THREE STEPS ON
EACH BOLT BEFORE MOVING TO NEXT
BOLT IN SEQUENCE: 1) loosen 2-3 turns,
2) Long bolts 11-19; Short bolts 10-15,
3) turn 85-95 degrees
94 ES 72131
232 OHV (3.8L) 12 Valve Ford 1993-91 Car ●❍ 1st 37, 2nd 45, 3rd 52, 4th 59,
PERFORM THE NEXT THREE STEPS ON
EACH BOLT BEFORE MOVING TO NEXT
BOLT IN SEQUENCE: 1) loosen 2-3 turns,
2) 11-18, 3) Long bolts turn 85-105 degrees
;
Short bolts turn 65-85 degrees
94 ES 72131
232 OHV (3.8L) 12 Valve Ford 1990-84 Car ●❍ Flanged Hex Head bolts: 1st 37, 2nd 45,
3rd 52, 4th 59, PERFORM THE NEXT
THREE STEPS ON EACH BOLT BEFORE
MOVING TO NEXT BOLT IN SEQUENCE:
1) loosen 2-3 turns, 2) 11-18,
3) Long bolts turn 85-105 degrees;
Short bolts turn 65-85 degrees
82 ES 72129
ES 72131
10
11
Parts to Help Reduce Repair Costs
The FEL-PRO Engine$aver Hardware line is a collection of “problem solvers” that
provide cost-saving alternatives to engine component replacement. They bring engine
components back to proper performance, at a fraction of their replacement cost.
Engine$aver Hardware Is Cost Efficiency Without Compromise
Understanding Torque-to-Yield Head Bolts
Although Torque-to-Yield (T-T-Y) head bolts are
becoming more common, some people still don’t
fully understand how they work.
Bolts on T-T-Y applications are tightened to their
yield point, creating a more even clamping force
over the entire area of the gasket.
During engine assembly at the factory, precision
machines tighten the bolts so they are just in the
“yield zone.” Technicians making repairs in the field
do not have access to this type of equipment.
Engineers have found that by tightening head bolts
to specified torque and then tightening them an
additional partial turn, technicians can reach the
yield zone.
Fel-Pro® engineers suggest technicians use a gauge such as the inexpensive Fel-Pro®
Torque-to-Angle Indicator (part number TRQ-1). It fits easily on the 1/2” drive of a torque
wrench and eliminates uncertainty about the additional torquing required for T-T-Y head bolts.
Are T-T-Y Head Bolts Reusable?
The torque-to-yield procedure stretches the bolts into their elastic range. On some
engines, this stretching approaches the bolts’ elastic limit and the bolts are permanently
stretched. If these bolts are removed and reused, it is likely that either the head gasket
will fail due to false torque readings or that the bolts may break. Each engine manufacturer
offers guidelines as to whether torque-to-yield head bolts are reusable. Some guidelines
allow limited reuse, while others recommend you never reuse the bolts. Since technicians
may not know how many times a T-T-Y bolt has been removed and reinstalled, we recommend
never reusing a T-T-Y head bolt.
FEL-PRO® Engine$aver® HARDWAREFEL-PRO® T-T-Y HEAD BOLTS
NOTE: There is no way to
visually tell if a bolt is the
Torque-to-Yield design –
the only way to tell is by
its torque specifications.
Cylinder Head Bolts
Help avoid the risks that go with reuse of
head bolts on torque-to-yield applications.
Torque-to-Angle Indicator TRQ-1
Assures that proper installation procedures
are followed when using torque-to-angle
cylinder head bolts.
HeadSaver® Spacer Shims
Compensates for excess metal removed
during machining operations, so you don’t
have to replace costly cylinder heads.
Cylinder Head Dowel Pins
Assure proper gasket and casting alignment
for an accurate seal and correct head-to-
block assembly.
12
13
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
AC COBRA V8
260 Ford 1964-62 ●65-70 70
289 Ford 1968-63 ● 65-70 70
427 Ford 1967-64 ●100-105 70
428 Ford 1968-66 ●80-90 70
ACURA 4
1590cc DOHC (D16A1) 16 Valve 1989-86 ● 1st 22, 2nd 48 106
1678cc DOHC (B17A1) 16 Valve 1993-92 1st 22, 2nd 61 127
1797cc DOHC (B18C1, B18C5)
16 Valve
2001-94 ●1st 22, 2nd 63 127
1834cc DOHC (B18B1) 16 Valve 2001-94 ●1st 22, 2nd 63 128
1834cc DOHC (B18A1) 16 Valve 1993-92 ●1st 22, 2nd 63 106
1834cc DOHC (B18A1) 16 Valve 1991-90 ●1st 22, 2nd 61 106
1998cc DOHC (K20A2, K20A3,
K20Z1) 16 Valve
2006-02 1st 29, 2nd turn 90 degrees,
3rd turn 90 degrees
NOTE: New bolts turn additional 90 degrees
106
2156cc SOHC (F22B1) 16 Valve 1997 ●1st 29, 2nd 51, 3rd 72.3 108
2254cc SOHC (F23A4) 16 Valve 2000-98 ●1st 22, 2nd turn 90 degrees,
3rd turn 90 degrees
NOTE: New bolts turn additional 90 degrees
108
2301cc DOHC Turbo (K23A1)
16 Valve
2008-07 1st 29, 2nd turn 90 degrees,
3rd turn 90 degrees
NOTE: New bolts turn additional 90 degrees
106
2354cc DOHC (K24A2) 16 Valve 2008-04 1st 29, 2nd turn 90 degrees,
3rd turn 90 degrees
NOTE: New bolts turn additional 90 degrees
106
ACURA 5
2451cc SOHC (G25A4) 20 Valve 1998-95 1st 29, 2nd 51, 3rd 72.3 129
2451cc SOHC (G25A1) 20 Valve 1994-92 72 in three steps 78
ACURA V6
2494cc SOHC (C25A1) 24 Valve 1987-86 ●1st 29, 2nd 56 89
2675cc SOHC (C27A1) 24 Valve 1990-87 ●1st 29, 2nd 56 107
2977cc DOHC (C30A1) 24 Valve 2005-91 Automatic trans. 56 in three steps;
Manual trans. 71 in three steps
130
2997cc SOHC (J30A1) 24 Valve 2000-97 ●1st 29, 2nd 51, 3rd 72.3 131
3165cc SOHC (6VD1) 24 Valve
Isuzu
1997-96 ●M11 bolts 1-8 47; M8 bolts 9-11 15 132
3179cc DOHC (C32B1) 24 Valve 2005-97 Automatic trans. 56 in three steps;
Manual trans. 71 in three steps
130
3206cc SOHC (C32A6) 24 Valve 1998-96 ●56 in three steps 130
3206cc SOHC (C32A1) 24 Valve 1995-91 ●56 in three steps 130
3210cc SOHC (J32A3) 24 Valve 2008-04 ●6 point bolts 1st 29, 2nd 29 again,
3rd 51, 4th 51 again, 5th 72.3,
6th 72.3 again
131
3210cc SOHC (J32A3) 24 Valve 2008-04 ●12 point bolts 1st 22, 2nd turn 90 degrees,
3rd turn 90 degrees
NOTE: New bolts turn additional 90 degrees
131
3210cc SOHC (J32A1, J32A2)
24 Valve
2003-99 ●1st 29, 2nd 51, 3rd 72.3 131
3471cc SOHC (J35A5, J35A8)
24 Valve
2008-04 ●6 point bolts 1st 29, 2nd 29 again,
3rd 51, 4th 51 again, 5th 72.3,
6th 72.3 again
131
3471cc SOHC (J35A5, J35A8)
24 Valve
2008-04 ●12 point bolts 1st 22, 2nd turn 90 degrees,
3rd turn 90 degrees
NOTE: New bolts turn additional 90 degrees
131
3471cc SOHC (J35A3, J35A5)
24 Valve
2003-01 ●1st 29, 2nd 29 again, 3rd 51,
4th 51 again, 5th 72.3, 6th 72.3 again
131
Valve Cover Load Spreaders™
Evenly distribute the clamping
force on the valve cover flange
and allow a proper seal between
the valve cover and the
new gasket.
Oil Pan SnapUps™
Save time and prevent
frustration
by holding the pan and the gasket
in
place for quick convenient
bolt installation.
ES 72863 for 5/16" applications
ES 72864 for 6mm applications
ES 72865 for 8mm applications
Sleeve ’N’ Seal®
Repairs worn sealing surfaces and helps
avoid replacement of costly harmonic
balancers.
Exhaust Flange Bolt & Spring Kits
Quickly connect the exhaust manifold and
exhaust pipe on FWD vehicles and assure
correct clamping force.
Crankshaft Repair Sleeves
Repair worn sealing surfaces without costly
crankshaft replacement.
FEL-PRO® Engine$aver® HARDWARE
Engine$aver Hardware line products
also appear in the FEL-PRO® Passenger
Car/Light Truck and Heavy Duty
master catalogs.
14 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
15
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
AMERICAN MOTORS 6 (CONT.)
258 (4.2L) 1980-73 ●105 in three steps 2
258 (4.2L) 1972-71 ●80-85 2
308 L-Head Hudson 1954-51 70 35
AMERICAN MOTORS V8
250 1962-56 58-62 22
287 1966-63 58-62 22
290 1969-66 ●90-100 1
304 1979-70 ●1st 80, 2nd 110 1
320 Packard 1955 60-65 22
327 1966-56 58-62 22
343 1969-67 ●90-100 1
352 Packard 1956 60-65 22
360 1978-70 ●1st 80, 2nd 110 1
390 1970 ●1st 80, 2nd 110 1
390 1969-68 ●90-100 1
401 1976-71 ●1st 80, 2nd 110 1
AMPHICAR 4
1147cc OHV Triumph 1968-61 42-46 42
APOLLO V8
215 Buick 1963-62 ●50-55 24
300 Buick 1965-64 ●65-70 4
ARO 4
140 SOHC (2.3L) Ford 1990 ●❍ 1st 50-60, 2nd 80-90 17 ES 72137
AUDI 4
1471cc SOHC (8 Valve) 1974-73 1st 29, 2nd 43, 3rd turn 90 degrees,
4th turn 90 degrees
60
1588cc SOHC (8 Valve) 1980-75 ●12 point bolts 1st 29, 2nd 43,
3rd turn 90 degrees, 4th turn 90 degrees
60
1588cc SOHC (8 Valve) 1980-75 ●6 point bolts 1st 29, 2nd 43, 3rd 54,
4th warm engine, 5th 61,
6th retorque after 1000 miles
60
1588cc SOHC Diesel (8 Valve) 1983-82 ●❍ 12 point M12 bolts 1st 29, 2nd 43,
3rd turn 90 degrees, 4th turn 90 degrees,
5th warm engine, 6th turn 90 degrees,
7th after 1000 miles turn 90 degrees
60 ES 74028
1588cc SOHC Diesel (8 Valve) 1983-82 ●6 point M11 bolts 1st 35, 2nd 50,
3rd 65, 4th warm engine, 5th 65 again,
6th after 1000 miles turn 90 degrees
60
1588cc SOHC Turbo Diesel
(8 Valve)
1983-82 ●❍ 12 point M12 bolts 1st 29, 2nd 43,
3rd turn 90 degrees, 4th turn 90 degrees,
5th warm engine, 6th turn 90 degrees,
7th after 1000 miles turn 90 degrees
60 ES 74028
1715cc SOHC (8 Valve) 1983-81 ●1st 29, 2nd 43, 3rd turn 90 degrees,
4th turn 90 degrees
60
1760cc OHV (8 Valve) 1972-70 1st 29, 2nd 43.5, 3rd 58, 4th 65 12
1780cc SOHC (8 Valve) 1987-84 ●❍ 1st 29, 2nd 43, 3rd turn 90 degrees,
4th turn 90 degrees
60 ES 74029
1780cc DOHC Turbo (20 Valve) 2006-04 ●❍ 1st 29.5, 2nd turn 90 degrees,
3rd turn 90 degrees
60 ES 71172
1780cc DOHC Turbo (20 Valve) 2003-97 ●❍ 1st 44, 2nd turn 90 degrees,
3rd turn 90 degrees
60 ES 71172
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
ACURA V6 (CONT.)
3474cc SOHC (C35A1) 24 Valve 2004-96 ●56 in three steps 133
3494cc DOHC (6VE1) 24 Valve
Isuzu
2000-98 ●1st M11 Bolts 1-8 21,
2nd M11 Bolts 1-8 47, 3rd M8 Bolt 9 15
257
3664cc SOHC (J37A1) 24 Valve 2008-07 1st 22, 2nd turn 90 degrees,
3rd turn 90 degrees
NOTE: New bolts turn additional 90 degrees
131
AM GENERAL 4
121 SOHC (2.0L) Audi 1979 ●1st 20, 2nd 40, 3rd 65, 4th warm engine,
5th loosen 45 degrees, 6th 80
60
134F F-Head Jeep 1971-69 65-70 30
150 (2.5L) AMC 1984-83 ●Bolts 1-7, 9-10 85; Bolt 8 75 72
151 (2.5L) Pontiac 1983-80 ●92 in three steps 37
AM GENERAL 6
232 AMC 1978-73 ●105 in three steps 2
232 AMC 1972 ●80-85 2
258 (4.2L) AMC 1979-74 ●105 in three steps 2
AM GENERAL V8
350 (5.7L) Chevrolet Truck 1997 VIN D ●❍ 1st all bolts 22,
2nd Long bolts turn 75 degrees,
3rd Medium bolts turn 65 degrees,
4th Short bolts turn 55 degrees
7ES 72856
350 (5.7L) Chevrolet Truck 1996 VIN D ●❍ 1st 24, 2nd 45, 3rd 65 7ES 72856
350 (5.7L) Chevrolet Truck 1995-94 VIN D ●❍ 65 in three steps 7 ES 72856
379 Diesel (6.2L)
Chevrolet Truck
1994-92 VIN X ●❍ 1st 20, 2nd 50, 3rd turn 90 degrees 77 ES 72724
395 Diesel (6.5L)
Chevrolet Truck
2000-94 VIN Y ●❍ 1st 20, 2nd 55, 3rd 55 again,
4th turn 90 degrees
77 ES 72724
395 Turbo Diesel (6.5L)
Chevrolet Truck
2001-96 VIN Z ●❍ 1st 20, 2nd 55, 3rd 55 again,
4th turn 90 degrees
77 ES 72724
AMC ......................................................................SEE AMERICAN MOTORS
AMERICAN MOTORS 4
85.2 OHV (1.4L) Renault 1987-83 ●1st 41-44, 2nd warm engine &
allow to cool, 3rd loosen 180 degrees,
4th 41-44 again
149
105.1 SOHC (1.7L) Renault 1987-85 ●1st 22, 2nd 52, 3rd loosen all bolts,
4th 15, 5th turn 123 degrees
149
120 SOHC (2.0L) Renault 1987 ●1st 22, 2nd 52, 3rd loosen all bolts,
4th 15, 5th turn 123 degrees
149
121 SOHC (2.0L) Audi 1979-77 ●1st 20, 2nd 40, 3rd 65, 4th warm engine,
5th loosen 45 degrees, 6th 80
60
150 (2.5L) AMC 1988-83 ●Bolts 1-7, 9-10 85; Bolt 8 75 72
151 (2.5L) Pontiac 1983-80 ●92 in three steps 37
AMERICAN MOTORS 6
184 L-Head Nash 1955-53 ●60 20
195.6 L-Head 1965-53 ●60 20
195.6 OHV Cast Iron 1965-56 60 21
195.6 OHV Aluminum 1964-61 50 21
199 1970-65 ●80-85 2
232 1979-73 ●105 in three steps 2
232 1972-64 ●80-85 2
258 (4.2L) 1988-81 ●85 in three steps 2
16 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
17
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
AUDI V8 (CONT.)
4172cc DOHC (40 Valve) 2005-00 1st 26, 2nd 44, 3rd turn 90 degrees,
4th turn 90 degrees
136
4172cc DOHC Turbo (40 Valve) 2003 1st 26, 2nd 44, 3rd turn 90 degrees,
4th turn 90 degrees
136
AUDI V10
5204cc DOHC (40 Valve) 2008-07 1st 22, 2nd 44, 3rd turn 90 degrees,
4th turn 90 degrees
226
AUDI V12
5998cc DOHC (48 Valve) 2008-05 1st 22, 2nd 37, 3rd turn 90 degrees,
4th turn 90 degrees
227
AURORA V8
302 (5.0L) Ford 1988-87 ●Standard Hex Head bolts:
Intake Side 80, Exhaust Side 68
70
AUSTIN 4
803cc OHV 1956-52 40 54
848cc OHV 1974-59 40 54
948cc OHV 1962-56 40 54
997cc OHV 1969-61 40 54
998cc OHV 1974-61 40 54
1098cc OHV 1974-62 46 54
1198cc OHV 1957-54 45 182
1275cc OHV 1977-65 46 in three steps 54
1489cc OHV 1961-54 45 182
1622cc OHV 1966-61 45 182
1798cc OHV 1977-68 45-50 in three steps 55
AUSTIN-HEALEY 4
948cc OHV 1962-58 40 54
1098cc OHV 1967-62 46 54
1275cc OHV 1971-66 46 in three steps 54
AVANTI II V6
244 SOHC (4.0L) 12 Valve Ford 2007-06 ●❍ 1st M12 Bolts 1-8 9,
2nd M12 Bolts 1-8 18,
3rd M8 Bolts 9-10 24,
4th M12 Bolts 1-8 turn 90 degrees,
5th M12 Bolts 1-8 turn 90 degrees
218 ES 72171
AVANTI II V8
281 SOHC (4.6L) 24 Valve Ford 2007-05 ●❍ 1st 27-32, 2nd turn 85-95 degrees,
3rd turn 85-95 degrees
144 ES 72798
305 (5.0L) Chevrolet 1991-81 ●❍ 65 in three steps 7 ES 72856
327 Chevrolet 1969-65 ●❍ 65 7ES 72856
346 OHV (5.7L) Chevrolet 2004
2nd Design Bolts
●❍ 1st M11 Bolts 1-10 22,
2nd M11 Bolts 1-10 turn 90 degrees,
3rd M11 Bolts 1-10 turn 70 degrees,
4th M8 Bolts 11-15 22
159 ES 72220
346 OHV (5.7L) Chevrolet 2004-01
1st Design Bolts
●❍ 1st M11 Bolts 1-10 22,
2nd M11 Bolts 1-10 turn 90 degrees,
3rd M11 Bolts 1-8 turn 90 degrees,
4th M11 Bolts 9-10 turn 50 degrees,
5th M8 Bolts 11-15 22
159 ES 72173
350 (5.7L) Chevrolet 1980-69 ●❍ 65 in three steps 7 ES 72856
400 Chevrolet 1978-73 ●❍ 65 in three steps 7 ES 72856
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
AUDI 4 (CONT.)
1871cc OHV (8 Valve) 1977-72 1st 29, 2nd 43.5, 3rd 58, 4th 65 12
1984cc SOHC (8 Valve) 1990-88 ●1st 29, 2nd 43, 3rd turn 90 degrees,
4th turn 90 degrees
60
1984cc DOHC Turbo (20 Valve) 2008-05 ●1st 29.5, 2nd turn 90 degrees,
3rd turn 90 degrees
60
AUDI 5
1986cc SOHC Diesel (10 Valve) 1982-81 12 point M12 bolts 1st 29, 2nd 43,
3rd turn 90 degrees, 4th turn 90 degrees,
5th warm engine, 6th turn 90 degrees,
7th after 1000 miles turn 90 degrees
78
1986cc SOHC Diesel (10 Valve) 1981-79 6 point M11 bolts 1st 35, 2nd 50,
3rd 65, 4th warm engine, 5th 65 again,
6th after 1000 miles turn 90 degrees
78
1986cc SOHC Turbo Diesel
(10 Valve)
1985-82 12 point M12 bolts 1st 29, 2nd 43,
3rd turn 90 degrees, 4th turn 90 degrees,
5th warm engine, 6th turn 90 degrees,
7th after 1000 miles turn 90 degrees
78
2144cc SOHC (10 Valve) 1985-78 ●1st 29, 2nd 43, 3rd turn 90 degrees,
4th turn 90 degrees
78
2144cc SOHC Turbo (10 Valve) 1985-80 ●1st 29, 2nd 43, 3rd turn 90 degrees,
4th turn 90 degrees
78
2226cc SOHC (10 Valve) 1988-84 ●1st 29, 2nd 43, 3rd turn 90 degrees,
4th turn 90 degrees
78
2226cc SOHC Turbo (10 Valve) 1991-86 ●1st 29, 2nd 43, 3rd turn 90 degrees,
4th turn 90 degrees
78
2226cc DOHC Turbo (20 Valve) 1997-90 1st 29, 2nd 43, 3rd turn 90 degrees,
4th turn 90 degrees
78
2309cc SOHC (10 Valve) 1992-87 ●1st 29, 2nd 43, 3rd turn 90 degrees,
4th turn 90 degrees
78
2309cc DOHC (20 Valve) 1992-89 ●1st 29, 2nd 43, 3rd turn 90 degrees,
4th turn 90 degrees
78
AUDI V6
2671cc DOHC Turbo (30 Valve) 2005-00 1st 44, 2nd turn 90 degrees,
3rd turn 90 degrees
135
2771cc SOHC (12 Valve) 1998-92 1st 44, 2nd turn 90 degrees,
3rd turn 90 degrees
135
2771cc DOHC (30 Valve) 2001-97 ●1st 44, 2nd turn 90 degrees,
3rd turn 90 degrees
135
2976cc DOHC (30 Valve) 2006-02 1st 30, 2nd turn 90 degrees,
3rd turn 90 degrees
135
3123cc DOHC (30 Valve) 2008-05 1st 30, 2nd turn 90 degrees,
3rd turn 90 degrees
135
3189cc DOHC (24 Valve) 2008-04 1st 22, 2nd 37, 3rd turn 90 degrees,
4th turn 90 degrees
168
3597cc DOHC (24 Valve) 2008-07 1st 22, 2nd 37, 3rd turn 90 degrees,
4th turn 90 degrees
168
AUDI V8
3562cc DOHC (32 Valve) 1991-90 1st 30, 2nd 44, 3rd turn 90 degrees,
4th turn 90 degrees
136
3697cc DOHC (32 Valve) 1999-97 1st 30, 2nd 44, 3rd turn 90 degrees,
4th turn 90 degrees
136
4163cc DOHC (40 Valve) 2008-04 1st 22, 2nd 44, 3rd turn 90 degrees,
4th turn 90 degrees
136
4172cc DOHC (32 Valve) 2004-97 1st 30, 2nd 44, 3rd turn 90 degrees,
4th turn 90 degrees
136
4172cc DOHC (32 Valve) 1994-92 1st 30, 2nd 44, 3rd turn 90 degrees,
4th turn 90 degrees
136
18 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
19
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
BMW 6 (CONT.)
2996cc DOHC (N52B30) 24 Valve 2008-06 1st Bolts 1-14 22, 2nd Bolts 1-14 turn
90 degrees, 3rd Bolts 1-10 turn 90 degrees,
4th Bolts 1-14 turn 45 degrees,
5th Bolts 15-17 5, 6th Bolts 15-17
turn 90 degrees, 7th Bolt 18 11,
8th Bolt 18 turn 90 degrees
228
2996cc DOHC Turbo (N54B30)
24 Valve 2008-07 1st Bolts 1-14 22, 2nd Bolts 1-14 turn
90 degrees, 3rd Bolts 1-10 turn 90 degrees,
4th Bolts 1-14 turn 45 degrees,
5th Bolts 15-18 16.2
229
3152cc DOHC (S52B32) 24 Valve 2000-96 1st 22.1, 2nd turn 90 degrees,
3rd turn 90 degrees
84
3210cc SOHC (M30B32) 12 Valve 1984-83 1st 25-29, 2nd 42-45, 3rd wait 20 minutes,
4th 56-59, 5th turn 20-30 degrees
87
3210cc SOHC (M30B32) 12 Valve 1982-78 1st 25-32, 2nd 49-52, 3rd 56-59,
4th warm engine, 5th 56-59 again,
6th retorque after 600 miles
87
3245cc DOHC (S54B32) 24 Valve 2008-01 1st 22.1, 2nd turn 90 degrees,
3rd turn 90 degrees
84
3430cc SOHC (M30B34) 12 Valve 1993-85 ●1st 25-29, 2nd 42-44, 3rd wait 20 minutes,
4th 57-59, 5th warm engine,
6th turn 30-40 degrees
84
3453cc DOHC (S38B35) 24 Valve 1988-87 1st 35-37, 2nd 57-59, 3rd wait 15 minutes,
4th 71-73 84
3535cc DOHC (S38B35) 24 Valve 1993-91 1st 43-46, 2nd wait 20 minutes,
3rd 58-60, 4th warm engine,
5th turn 30-40 degrees
84
BMW V8
2997cc DOHC (M60B30) 32 Valve 1995-94 1st 22.1, 2nd turn 80 degrees,
3rd turn 80 degrees
137
3982cc DOHC (M60B40) 32 Valve 1995-93 ●1st 22.1, 2nd turn 80 degrees,
3rd turn 80 degrees
137
4398cc DOHC (N62B44) 32 Valve 2007-02 1st 22.1, 2nd turn 80 degrees,
3rd turn 80 degrees
137
4398cc DOHC (M62B44) 32 Valve 2003-96 ●1st 22.1, 2nd turn 80 degrees,
3rd turn 80 degrees
137
4398cc DOHC Supercharged
(N62B44S) 32 Valve 2008-07 1st 22.1, 2nd turn 80 degrees,
3rd turn 80 degrees
137
4619cc DOHC (M62B46) 32 Valve 2003-02 1st 22.1, 2nd turn 80 degrees,
3rd turn 80 degrees
137
4799cc DOHC (N62B48) 32 Valve 2008-04 1st 22.1, 2nd turn 80 degrees,
3rd turn 80 degrees
137
4837cc DOHC (S62B48) 32 Valve 2004-03 1st 22.1, 2nd turn 80 degrees,
3rd turn 80 degrees
137
4941cc DOHC (S62B50) 32 Valve 2003-00 1st 22.1, 2nd turn 80 degrees,
3rd turn 80 degrees
137
BMW V10
4999cc DOHC (S85B50) 40 Valve 2008-06 1st 29.5, 2nd turn 90 degrees,
3rd turn 90 degrees
155
BMW V12
4988cc SOHC (M70B50) 24 Valve 1994-88 1st 22.1, 2nd wait 15 minutes,
3rd turn 60 degrees, 4th turn 60 degrees
84
5379cc SOHC (M73B54) 24 Valve 2001-95 1st 22.1, 2nd turn 60 degrees,
3rd turn 60 degrees
84
5576cc SOHC (S70B56) 24 Valve 1995-94 1st 22.1, 2nd turn 60 degrees,
3rd turn 60 degrees
84
5972cc DOHC (N73B60) 48 Valve 2008-03 1st 22.1, 2nd turn 80 degrees,
3rd turn 80 degrees
84
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
BERTONE ...................................................................................SEE FIAT
BIZZARRINI V8
327 Chevrolet 1969-65 ●❍ 65 7ES 72856
BMW 4
1766cc SOHC (M10B18) 8 Valve 1985-84 1st 25-29, 2nd 42-44, 3rd wait 15 minutes,
4th turn 30-36 degrees, 5th warm engine,
6th turn 20-30 degrees
65
1766cc SOHC (M10B18) 8 Valve 1983-80 1st 25-32, 2nd 49-52, 3rd 56-59,
4th warm engine, 5th 56-59 again,
6th retorque after 600 miles
65
1796cc DOHC (M42B18) 16 Valve 1995-91 ●1st 24, 2nd turn 90-95 degrees,
3rd turn 90-95 degrees
137
1895cc DOHC (M44B19) 16 Valve 1999-96 ●1st 22.1, 2nd turn 90 degrees,
3rd turn 90 degrees
137
1990cc SOHC (M10B20, 121)
8 Valve
1979-66 1st 25-32, 2nd 49-52, 3rd 56-59,
4th warm engine, 5th 56-59 again,
6th retorque after 600 miles
65
1990cc SOHC Turbo (121) 8 Valve 1974-73 1st 25-32, 2nd 49-52, 3rd 56-59,
4th warm engine, 5th 56-59 again,
6th retorque after 600 miles
65
2302cc DOHC (S14B23) 16 Valve 1991-88 1st 35-37, 2nd 57-59, 3rd wait 15 minutes,
4th 71-73
137
BMW 6
2443cc SOHC Turbo Diesel
(M21D24) 12 Valve
1986-85 1st 22-29, 2nd 50-60, 3rd wait 15 minutes,
4th 70-76, 5th warm engine,
6th turn 85-95 degrees
90
2494cc SOHC (M20B25) 12 Valve 1993-87 Hexagon bolts 1st 29-33,
2nd wait 20 minutes, 3rd 43-47,
4th warm engine, 5th turn 25-30 degrees;
Torx bolts 1st 22.1, 2nd turn 90 degrees,
3rd turn 90 degrees
84
2494cc DOHC (M54B25) 24 Valve 2006-01 ●1st 29.5, 2nd turn 90 degrees,
3rd turn 90 degrees
84
2494cc DOHC (M52B25) 24 Valve 2000-98
Cast Iron block
●1st 22.1, 2nd turn 90 degrees,
3rd turn 90 degrees
84
2494cc DOHC (M52B25) 24 Valve 2000-98
Aluminum block
●1st 29.5, 2nd turn 90 degrees,
3rd turn 90 degrees
84
2494cc DOHC (M50B25) 24 Valve 1995-91 ●1st 24, 2nd turn 90-95 degrees,
3rd turn 90-95 degrees
84
2693cc SOHC (M20B27) 12 Valve 1988-82 1st 29-33, 2nd wait 20 minutes,
3rd 43-47, 4th warm engine,
5th turn 25-30 degrees
84
2788cc SOHC (M30B28, 128)
12 Valve
1981-79 1st 25-32, 2nd 49-52, 3rd 56-59,
4th warm engine, 5th 56-59 again,
6th retorque after 600 miles
87
2793cc DOHC (M52B28) 24 Valve 2000-96
Cast Iron block
●1st 22.1, 2nd turn 90 degrees,
3rd turn 90 degrees
84
2793cc DOHC (M52B28) 24 Valve 2000-96
Aluminum block
●1st 29.5, 2nd turn 90 degrees,
3rd turn 90 degrees
84
2979cc DOHC (M54B30) 24 Valve 2006-01 1st 29.5, 2nd turn 90 degrees,
3rd turn 90 degrees
84
2985cc SOHC (M30B30) 12 Valve 1978-75 1st 25-32, 2nd 49-52, 3rd 56-59,
4th warm engine, 5th 56-59 again,
6th retorque after 600 miles
87
2990cc DOHC (S50B30) 24 Valve 1995-94 1st 22.1, 2nd turn 90 degrees,
3rd turn 90 degrees
84
20 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
21
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
CHRYSLER PRODUCTS 4 (CONT.)
107.1 SOHC (1.8L) 8 Valve
Mitsubishi
1994-89 ●❍ 1st 25, 2nd 51-54 81 ES 71174
ES 71175
109.7 DOHC (1.8L) 16 Valve
Chrysler
2008
2nd Design Bolts 1st 25, 2nd 54, 3rd 54 again,
4th turn 90 degrees
71
109.7 DOHC (1.8L) 16 Valve
Chrysler
2008-07
1st Design Bolts 1st 25, 2nd 45, 3rd 45 again,
4th turn 90 degrees
71
111.8 SOHC (1.8L) 16 Valve
Mitsubishi
1996-92 ●❍ 1st 54, 2nd loosen all bolts, 3rd 15,
4th turn 90 degrees, 5th turn 90 degrees
71 ES 71209
121.7 SOHC (2.0L) 8 Valve
Mitsubishi
1982-74 ●Bolts 1-10 Cold 65-72, Hot 73-79;
Bolts 11 11-15
38
122 SOHC (2.0L) 16 Valve
Chrysler
2005-04 ●❍ 1st Bolts 1-10 25, 2nd Bolts 1-6 50,
3rd Bolts 7-10 35, 4th Bolts 1-6 50 again,
5th Bolts 7-10 35 again,
6th Bolts 1-10 turn 90 degrees
37 ES 72157
122 SOHC (2.0L) 16 Valve
Chrysler
2003-95 ●❍ 1st 25, 2nd 50, 3rd 50 again,
4th turn 90 degrees
37 ES 72157
122 SOHC (2.0L) 16 Valve
Mitsubishi
1993 ●1st 58, 2nd loosen all bolts, 3rd 15,
4th turn 90 degrees, 5th turn 90 degrees
71
122 SOHC (2.0L) 8 Valve
Mitsubishi
1992-83 ●Cold 65-72, Warm 73-79 71
122 DOHC (2.0L) 16 Valve
Chrysler
2008
2nd Design Bolts 1st 25, 2nd 54, 3rd 54 again,
4th turn 90 degrees
71
122 DOHC (2.0L) 16 Valve
Chrysler
2008-07
1st Design Bolts 1st 25, 2nd 45, 3rd 45 again,
4th turn 90 degrees
71
122 DOHC (2.0L) 16 Valve
Chrysler
2004-02 ●❍ 1st Long bolts 25; Short bolts 20,
2nd Long bolts 50; Short bolts 20,
3rd Long bolts 50; Short bolts 20,
4th all bolts turn 90 degrees
37 ES 72166
122 DOHC (2.0L) 16 Valve
Chrysler
1999-95 ●❍ 1st Long bolts 25; Short bolts 20,
2nd Long bolts 50; Short bolts 20,
3rd Long bolts 50; Short bolts 20,
4th all bolts turn 90 degrees
37 ES 72166
122 DOHC (2.0L) 16 Valve
Mitsubishi
1994-93 ●❍ 1st 58, 2nd loosen all bolts, 3rd 15,
4th turn 90 degrees, 5th turn 90 degrees
71 ES 71175
122 DOHC (2.0L) 16 Valve
Mitsubishi
1992-89 ●❍ Cold 65-72 in three steps 81 ES 71175
122 DOHC Turbo (2.0L) 16 Valve
Mitsubishi
1998-95 ●❍ 1st 58, 2nd loosen all bolts, 3rd 15,
4th turn 90 degrees, 5th turn 90 degrees
71 ES 71177
122 DOHC Turbo (2.0L) 16 Valve
Mitsubishi
1994-93 ●❍ 1st 58, 2nd loosen all bolts, 3rd 15,
4th turn 90 degrees, 5th turn 90 degrees
71 ES 71175
122 DOHC Turbo (2.0L) 16 Valve
Mitsubishi
1992-89 ●❍ Cold 65-72 in three steps 81 ES 71175
132 SOHC (2.2L) 8 Valve Renault 1989-88
Medallion 1st 37, 2nd 59, 3rd loosen all bolts,
4th 64-72
149
135 SOHC (2.2L) 8 Valve Chrysler 1994-85
exc. Medallion
●❍ M11 bolts: 1st 45, 2nd 65, 3rd 65 again,
4th turn 90 degrees
37 ES 72723
ES 72176
135 SOHC (2.2L) 8 Valve Chrysler 1985-81 ●❍ M10 bolts: 1st 30, 2nd 45, 3rd 45 again,
4th turn 90 degrees
37 ES 72118
135 DOHC (2.2L) 16 Valve
Chrysler
1991-88 M11 bolts: 1st 45, 2nd 65, 3rd 65 again,
4th turn 90 degrees
100
135 SOHC Turbo (2.2L) 8 Valve
Chrysler
1990-85 ●❍ M11 bolts: 1st 45, 2nd 65, 3rd 65 again,
4th turn 90 degrees
37 ES 72723
ES 72176
135 SOHC Turbo (2.2L) 8 Valve
Chrysler
1985-84 ●❍ M10 bolts: 1st 30, 2nd 45, 3rd 45 again,
4th turn 90 degrees
37 ES 72118
135 DOHC Turbo (2.2L) 16 Valve
Chrysler
1993-89 M11 bolts: 1st 45, 2nd 65, 3rd 65 again,
4th turn 90 degrees
100
143 SOHC Turbo Diesel (2.3L)
8 Valve Mitsubishi
1986-83 ●Cold 76-83, Warm 84-90 43
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
BRICKLIN V8
351 Modified Ford 1976-75 ●95-105 70
351 Windsor Ford 1976-75 ●1st 85, 2nd 95, 3rd 105-112 70
360 AMC 1974 ●1st 80, 2nd 110 1
BUICK .......................................................................... SEE GM PRODUCTS
CADILLAC ...................................................................... SEE GM PRODUCTS
CALLAWAY V8
346 OHV (5.7L) Chevrolet 1999 ●❍ 1st M11 Bolts 1-10 22,
2nd M11 Bolts 1-10 turn 90 degrees,
3rd M11 Bolts 1-8 turn 90 degrees,
4th M11 Bolts 9-10 turn 50 degrees,
5th M8 Bolts 11-15 22
159 ES 72173
CHECKER 6 & V6
226 OHV Continental 1964-59 70-75 193
226L L-Head Continental 1964-47 30-35 18
229 (3.8L) Chevrolet 1982-80 ●65 in three steps 64
230 Chevrolet 1968-64 ●95 2
250 Chevrolet 1979-74 ●Bolts 1-10, 12-14 95; Bolt 11 85 2
250 Chevrolet 1973-69 ●95 2
CHECKER V8
267 (4.4L) Chevrolet 1982-80 ●❍ 65 in three steps 7 ES 72856
283 Chevrolet 1967-64 ●❍ 65 7ES 72856
305 (5.0L) Chevrolet 1982-77 ●❍ 65 in three steps 7 ES 72856
307 Chevrolet 1970-68 ●❍ 65 7ES 72856
318 Chrysler 1966-64 ●95 12
318 Chrysler 1963-59 ●85 12
327 Chevrolet 1969-64 ●❍ 65 7ES 72856
350 (5.7L) Chevrolet 1980-69 ●❍ 65 in three steps 7 ES 72856
350 Diesel (5.7L) Oldsmobile 1982-80 ●1st 100, 2nd 130 3
CHEVROLET ................................................................... SEE GM PRODUCTS
CHRYSLER ............................................................ SEE CHRYSLER PRODUCTS
CHRYSLER PRODUCTS 4
86 SOHC (1.4L) 8 Valve Mitsubishi 1984-79 ●1st 25, 2nd 51-54 81
89.5 SOHC (1.5L) 12 Valve
Mitsubishi
1996-91 ●❍ 1st 25, 2nd 51-54 71 ES 71206
89.5 SOHC (1.5L) 8 Valve
Mitsubishi
1991-85 ●1st 25, 2nd 51-54 81
97.1 OHV (1.6L) 8 Valve Peugeot 1986-83 ●52 in three steps 37
97.3 DOHC (1.6L) 16 Valve
Mitsubishi
1990-89 ●Cold 65-72, Warm 72-80 81
97.3 DOHC Turbo (1.6L)
16 Valve Mitsubishi
1990-89 ●Cold 65-72, Warm 72-80 81
97.5 SOHC (1.6L) 8 Valve
Mitsubishi
1984-78 ●1st 25, 2nd 51-54 81
97.5 SOHC (1.6L) 8 Valve
Mitsubishi
1977-71 ●Bolts 1-10 1st 25, 2nd 51-54;
Bolts 11 3rd 11-15
38
97.5 SOHC Turbo (1.6L) 8 Valve
Mitsubishi
1990-84 ●1st 25, 2nd 51-54 81
105 SOHC (1.7L) 8 Valve
Volkswagen
1983-78 ●1st 29, 2nd 43, 3rd 54,
4th turn 90 degrees
60
22 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
23
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
CHRYSLER PRODUCTS 6 & V6 (CONT.)
181.1 SOHC (3.0L) 12 Valve
Mitsubishi
2000-92
exc. Stealth,
Monaco, Premier
●❍ Cold 80 in three steps 154 ES 72859
181.1 SOHC (3.0L) 12 Valve
Mitsubishi
1991-87
exc. Stealth,
Monaco, Premier
●❍ Cold 70 in three steps 154 ES 72859
181.1 SOHC (3.0L) 12 Valve
Mitsubishi
1996-93 Stealth ●❍ Cold 80 in three steps 154 ES 72859
181.1 SOHC (3.0L) 12 Valve
Mitsubishi
1992-91 Stealth ●❍ Cold 70 in three steps 154 ES 72859
181.1 SOHC (3.0L) 24 Valve
Mitsubishi
2005-01 ●❍ 1st 80 in three steps, 2nd loosen all bolts,
3rd 80 in three steps again
154 ES 72859
181.1 DOHC (3.0L) 24 Valve
Mitsubishi
1996-91 Stealth ●❍ Cold 80 in three steps 154 ES 72859
181.1 DOHC Turbo (3.0L)
24 Valve Mitsubishi
1996-91 Stealth ●❍ Cold 90 in three steps 154 ES 72859
182 DOHC Turbo Diesel (3.0L)
24 Valve Mercedes-Benz
2008-07
Sprinter VIN 4, 5 1st Bolts 1-8 44, 2nd Bolts 9-10 15,
3rd Bolts 1-8 turn 90 degrees,
4th Bolts 9-10 15 again,
5th Bolts 1-8 turn 90 degrees
242
195 SOHC (3.2L) 18 Valve
Mercedes-Benz
2008-04
Crossfire 1st Bolts 1-8 7, 2nd Bolts 1-8 22,
3rd Bolts 1-8 turn 90 degrees,
4th Bolts 1-8 turn 90 degrees,
5th Bolts 9-12 15
232
195 SOHC Supercharged (3.2L)
18 Valve Mercedes-Benz
2006-05
Crossfire 1st Bolts 1-8 7, 2nd Bolts 1-8 22,
3rd Bolts 1-8 turn 90 degrees,
4th Bolts 1-8 turn 90 degrees,
5th Bolts 9-12 15
232
197 SOHC (3.2L) 24 Valve
Chrysler
2001-98 ●❍ 1st 45, 2nd 65, 3rd 65 again,
4th turn 90 degrees
49 ES 72895
198 OHV 1974-70 ●65-70 9
201 OHV (3.3L) 12 Valve Chrysler 2008-97 ●❍ M11 Bolts 1-8 1st 45, 2nd 65,
3rd 65 again, 4th turn 90 degrees;
M8 Bolt 9 5th 25 in three steps
215 ES 72163
201 OHV (3.3L) 12 Valve Chrysler 1996-90 ●❍ M11 Bolts 1-8 1st 45, 2nd 65,
3rd 65 again, 4th turn 90 degrees;
M8 Bolt 9 5th 25 in three steps
215 ES 72849
ES 72176-1
201.3 L-Head 1941-34 70 35
213 DOHC (3.5L) 24 Valve
Mercedes-Benz
2008-07
Sprinter VIN 6 1st Bolts 1-8 15, 2nd Bolts 1-8 30,
3rd Bolts 1-8 turn 90 degrees,
4th Bolts 1-8 turn 90 degrees;
5th Bolts 9-12 12,
6th Bolts 9-12 turn 90 degrees
239
215 SOHC (3.5L) 24 Valve Chrysler 2008-98 ●❍ 1st 45, 2nd 65, 3rd 65 again,
4th turn 90 degrees
49 ES 72895
215 SOHC (3.5L) 24 Valve Chrysler 1997-93 ●❍ 1st 45, 2nd 65, 3rd 65 again,
4th turn 90 degrees
49 ES 72138
217.8 L-Head 1954-34 70 35
225 OHV (3.7L) 1987-60 ●70 in three steps 9
226 SOHC (3.7L) 12 Valve
Dodge Truck
2008-02 ●❍ 1st M11 Bolts 1-8 20,
2nd M11 Bolts 1-8 20 again,
3rd M8 Bolts 9-12 10,
4th M11 Bolts 1-8 turn 90 degrees,
5th M11 Bolts 1-8 turn 90 degrees,
6th M8 Bolts 9-12 19
204 ES 71129-1
228.1 L-Head 1954-37 70 35
230 L-Head 1960-42 70 35
231 OHV (3.8L) 12 Valve Chrysler 2008-97 ●❍ M11 Bolts 1-8 1st 45, 2nd 65,
3rd 65 again, 4th turn 90 degrees;
M8 Bolt 9 5th 25 in three steps
215 ES 72163
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
CHRYSLER PRODUCTS 4 (CONT.)
143.4 SOHC (2.4L) 16 Valve
Mitsubishi 2005-01 Car ●❍ 1st 58, 2nd loosen all bolts, 3rd 15,
4th turn 90 degrees, 5th turn 90 degrees
71 ES 71177
143.4 SOHC (2.4L) 16 Valve
Mitsubishi 1996-93 Car ●1st 58, 2nd loosen all bolts, 3rd 15,
4th turn 90 degrees, 5th turn 90 degrees
71
143.4 SOHC (2.4L) 8 Valve
Mitsubishi 1992 Car ●Cold 65-72, Warm 73-79 71
143.4 SOHC (2.4L) 8 Valve
Mitsubishi 1993 Truck ●1st 58, 2nd loosen all bolts, 3rd 15,
4th turn 90 degrees, 5th turn 90 degrees
71
143.4 SOHC (2.4L) 8 Valve
Mitsubishi 1992-90 Truck ●Cold 65-72, Warm 73-79 71
144 DOHC (2.4L) 16 Valve
Chrysler 2008
2nd Design Bolts
●1st 25, 2nd 54, 3rd 54 again,
4th turn 90 degrees
71
144 DOHC (2.4L) 16 Valve
Chrysler 2008-07
1st Design Bolts
●❍ 1st 25, 2nd 45, 3rd 45 again,
4th turn 90 degrees
71 ES 71028
144 DOHC Turbo (2.4L) 16 Valve
Chrysler 2008
2nd Design Bolts
●1st 25, 2nd 54, 3rd 54 again,
4th turn 90 degrees
71
144 DOHC Turbo (2.4L) 16 Valve
Chrysler 2008
1st Design Bolts
●❍ 1st 25, 2nd 45, 3rd 45 again,
4th turn 90 degrees
71 ES 71028
148 DOHC (2.4L) 16 Valve
Chrysler 2008-05 ●❍ 1st 25, 2nd 60, 3rd 60 again,
4th turn 90 degrees
37 ES 71028
148 DOHC (2.4L) 16 Valve
Chrysler 2004-95 ●❍ 1st 25, 2nd 50, 3rd 50 again,
4th turn 90 degrees
37 ES 71028
148 DOHC Turbo (2.4L)
16 Valve Chrysler 2008-05 ●❍ 1st 25, 2nd 60, 3rd 60 again,
4th turn 90 degrees
37 ES 71028
148 DOHC Turbo (2.4L)
16 Valve Chrysler 2004-03 ●❍ 1st 25, 2nd 50, 3rd 50 again,
4th turn 90 degrees
37 ES 71028
150 OHV (2.5L) 8 Valve Jeep 2002-97 Truck ●❍ 1st 22, 2nd 45, 3rd 45 again,
4th Bolts 1-6, 8-10 110; Bolt 7 100 151 ES 72896
150 OHV (2.5L) 8 Valve Jeep 1996 Truck ●1st 22, 2nd 45, 3rd 45 again,
4th Bolts 1-6, 8-10 110; Bolt 7 100 151
150 OHV (2.5L) 8 Valve AMC 1989-88
Premier
●1st 22, 2nd 45,
3rd Bolts 1-7, 9-10 110; Bolt 8 100 72
153 SOHC (2.5L) 8 Valve Chrysler 1995-86 ●❍ 1st 45, 2nd 65, 3rd 65 again,
4th turn 90 degrees
37 ES 72723
ES 72176
153 SOHC Turbo (2.5L)
8 Valve Chrysler 1992-89 ●❍ 1st 45, 2nd 65, 3rd 65 again,
4th turn 90 degrees
37 ES 72723
ES 72176
156 SOHC (2.6L) 8 Valve
Mitsubishi 1989-78 ●❍ Bolts 1-10 Cold 65-72, Warm 73-79;
Bolts 11 11-15 38 ES 72860
156 SOHC Turbo (2.6L)
8 Valve Mitsubishi 1989-84 ●❍ Bolts 1-10 Cold 65-72, Warm 73-79;
Bolts 11 11-15 38 ES 72860
CHRYSLER PRODUCTS 5
164 DOHC Turbo Diesel (2.7L)
20 Valve Mercedes-Benz 2007-03
Sprinter VIN C, 4
●❍ 1st Bolts 1-12 12, 2nd Bolts 13-14 15,
3rd Bolts 1-12 45, 4th Bolts 13-14 15 again,
5th Bolts 1-12 turn 90 degrees,
6th Bolts 1-12 turn 90 degrees
255 ES 71233
CHRYSLER PRODUCTS 6 & V6
152.2 SOHC (2.5L) 24 Valve
Mitsubishi 2000-98 ●❍ Cold 80 in three steps 154 ES 72859
152.2 SOHC (2.5L) 24 Valve
Mitsubishi 1997-95 ●Cold 80 in three steps 154
167 DOHC (2.7L) 24 Valve
Chrysler 2008-98 ●❍ Bolts 1-8 1st 35, 2nd 55, 3rd 55 again,
4th turn 90 degrees; Bolts 9-11 5th 21 138 ES 72897
170 OHV 1971-60 ●65-70 9
181 SOHC (3.0L) 12 Valve Volvo 1992-90
Monaco, Premier 1st 44, 2nd loosen all bolts, 3rd 30,
4th turn 180 degrees
221
181 SOHC (3.0L) 12 Valve Volvo 1989-88
Premier 1st 44, 2nd loosen all bolts, 3rd 15,
4th turn 104-108 degrees,
5th warm engine & allow to cool,
6th turn 45 degrees
221
24 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
25
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
CHRYSLER PRODUCTS L8 & V8 (CONT.)
330 DeSoto 1956 85 12
331 Chrysler 1956-51 ●85 12
340 1973-68 ●95 12
341 DeSoto 1957-56 85 12
345 Hemi (5.7L) 16 Valve Chrysler 2008-03 ●❍ 1st M12 Bolts 1-10 25,
2nd M8 Bolts 11-15 15,
3rd M12 Bolts 1-10 40,
4th M8 Bolts 11-15 15 again,
5th M12 Bolts 1-10 turn 90 degrees,
6th M8 Bolts 11-15 25
216 ES 72200
345 DeSoto 1957 85 12
350 1958 ●70 11
353 Dodge Truck 1956-55 ●85 12
354 Chrysler 1959-55 ●85 12
360 (5.9L) 2003-94 ●❍ 1st 50, 2nd 105, 3rd 105 again 12 ES 71038-1
360 (5.9L) 1993-85 ●1st 50, 2nd 105, 3rd 105 again 12
360 (5.9L) 1984-78 ●105 12
360 (5.9L) 1977-71 ●95 12
361 1966-58 Car ●70 11
361 1977-69 Truck 70 11
361 1968-60 Truck ●70 11
370 Hemi (6.1L) 16 Valve Chrysler 2008-05 1st M12 Bolts 1-10 25,
2nd M8 Bolts 11-15 15,
3rd M12 Bolts 1-10 40,
4th M8 Bolts 11-15 15 again,
5th M12 Bolts 1-10 turn 90 degrees,
6th M8 Bolts 11-15 25
216
383 1971-59 ●70 11
392 Chrysler 1958-57 ●85 12
400 (6.6L) 1980-71 ●70 11
413 1965-59 Car ●70 11
413 1977-69 Truck 70 11
413 1968-60 Truck ●70 11
426 1965-63
exc. Hemi
●70 11
426 1971-66 Hemi 75 10
426 1965-64 Hemi 70 10
440 (7.2L) 1980-66 ●70 11
CHRYSLER PRODUCTS V10
488 OHV (8.0L) 20 Valve Chrysler 2002-92 Car Bolts 1-12 1st 35, 2nd 90;
Bolts 13-20 3rd 9
201
488 OHV (8.0L) 20 Valve Chrysler 2004-94 Truck ●❍ 1st 43, 2nd 105 155 ES 72894
ES 72904
505 OHV (8.3L) 20 Valve Chrysler 2007-03 ●❍ Bolts 1-12 1st 35, 2nd 90;
Bolts 13-20 3rd 9201 ES 72209
512 OHV (8.4L) 20 Valve Chrysler 2008 Bolts 1-12 1st 26, 2nd 35,
3rd turn 90 degrees; Bolts 13-20 4th 8
201
DAEWOO 4
1598cc DOHC (A16DMS)
16 Valve Opel 2002-01 1st 18, 2nd turn 70 degrees,
3rd turn 70 degrees, 4th turn 30 degrees
40
1598cc DOHC (A16DMS)
16 Valve Opel 2000-98 1st 18, 2nd turn 60 degrees,
3rd turn 60 degrees, 4th turn 60 degrees,
5th turn 10 degrees
40
1998cc DOHC (A20DMS)
16 Valve Opel 2002-98 ●1st 18, 2nd turn 90 degrees,
3rd turn 90 degrees, 4th turn 90 degrees
100
2198cc DOHC (A22DMS)
16 Valve Opel 2002-98 ●1st 18, 2nd turn 90 degrees,
3rd turn 90 degrees, 4th turn 90 degrees
100
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
CHRYSLER PRODUCTS 6 & V6 (CONT.)
231 OHV (3.8L) 12 Valve Chrysler 1996-91 ●❍ M11 Bolts 1-8 1st 45, 2nd 65,
3rd 65 again, 4th turn 90 degrees;
M8 Bolt 9 5th 25 in three steps
215 ES 72849
ES 72176-1
236.6 L-Head 1953-42 70 35
239 OHV (3.9L) 12 Valve
Dodge Truck 2003-94 ●❍ 1st 50, 2nd 105, 3rd 105 again 94 ES 71038
239 OHV (3.9L) 12 Valve
Dodge Truck 1993-86 ●1st 50, 2nd 105, 3rd 105 again 94
241 SOHC (4.0L) 24 Valve
Dodge Truck 2008-07 1st 45, 2nd 65, 3rd 65 again,
4th turn 90 degrees
154
241.5 L-Head 1941-38 70 35
251 L-Head 1968-42 70 35
265 L-Head 1960-52 70 35
359 OHV Turbo Diesel (5.9L)
24 Valve Cummins 2008-03
VIN C, 6, 7
●❍ 1st 52, 2nd loosen one turn, 3rd 77,
4th 77 again, 5th turn 90 degrees
111 ES 72193
359 OHV Turbo Diesel (5.9L)
24 Valve Cummins 2002-98
VIN C, 6, 7
●❍ 1st 59, 2nd 77, 3rd 77 again,
4th turn 90 degrees
111 ES 72193
359 OHV Turbo Diesel (5.9L)
12 Valve Cummins 1999-91
VIN C, D
●1st all bolts 66, 2nd Long bolts 89,
3rd all bolts turn 90 degrees
111
359 OHV Turbo Diesel (5.9L)
12 Valve Cummins 1991-88
VIN 8
●1st 29, 2nd 62, 3rd 93 111
408 OHV Turbo Diesel (6.7L)
24 Valve Cummins 2008-07
VIN A 1st 52, 2nd loosen one turn, 3rd 77,
4th 77 again, 5th turn 90 degrees
111
CHRYSLER PRODUCTS L8 & V8
241.4 Dodge, Plymouth 1956-53 85 12
259.2 Dodge Truck 1956-55 85 12
260 Plymouth 1955 85 12
270 Dodge, Plymouth 1956-55 ●85 12
273 1969-64 ●85 12
276 DeSoto 1954-52 85 12
277 Plymouth 1957-56 ●85 12
287 SOHC (4.7L) 16 Valve
Dodge Truck 2008 ●❍ 1st M11 Bolts 1-10 20,
2nd M11 Bolts 1-10 20 again,
3rd M8 Bolts 11-14 10,
4th M11 Bolts 1-10 turn 90 degrees,
5th M11 Bolts 1-10 turn 90 degrees,
6th M8 Bolts 11-14 19
163 ES 71129
287 SOHC (4.7L) 16 Valve
Dodge Truck 2007-00 ●❍ 1st M11 Bolts 1-10 15,
2nd M11 Bolts 1-10 35,
3rd M8 Bolts 11-14 18,
4th M11 Bolts 1-10 turn 90 degrees,
5th M8 Bolts 11-14 22
163 ES 71129
291 DeSoto 1955 85 12
301 Plymouth 1957 ●85 12
301 Chrysler 1955 ●85 12
303 Plymouth 1957-56 ●85 12
313 Plymouth 1964-57 ●85 12
315 Dodge 1959-56 ●85 12
318 (5.2L) 2003-94 ●❍ 1st 50, 2nd 105, 3rd 105 again 12 ES 71038-1
318 (5.2L) 1993-85 ●1st 50, 2nd 105, 3rd 105 again 12
318 (5.2L) 1984-80 ●95 12
318 (5.2L) 1979-78 ●105 12
318 (5.2L) 1977-64 ●95 12
318 (5.2L) 1963-57 ●85 12
323.5 L-Head Chrysler 1950-46 65-70 169
325 Dodge 1958-57 ●85 12
326 Dodge 1959 ●85 12
26 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
27
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
FACEL VEGA V8 (CONT.)
301 Plymouth 1958 ●85 12
330 DeSoto 1957-56 85 12
354 Chrysler 1958 ●85 12
383 Chrysler 1964-59 ●70 11
FAIRTHORPE 4
948cc OHV Austin 1962-58 40 54
998cc OHV Austin 1962-58 40 54
FARGO ................................................................ SEE CHRYSLER PRODUCTS
FIAT 4
817cc OHV 1971-68 29 41
843cc OHV 1968-65 29 41
903cc OHV 1973-67 36 in three steps 41
1116cc SOHC 1973-71 69 in three steps 41
1290cc SOHC 1979-72 ●69 in three steps 41
1438cc OHV 1973-70 56 41
1438cc DOHC 1971-68 54 41
1498cc SOHC 1989-79 ●M17 bolts 1st 15, 2nd 29,
3rd turn 90 degrees, 4th turn 90 degrees
41
1498cc SOHC 1989-79 ●M19 bolts 1st 29, 2nd 69,
3rd loosen 1/2 turn, 4th 29 again, 5th 69
41
1592cc DOHC 1978-72 61 in three steps 41
1608cc DOHC 1973-71 58 in three steps 41
1756cc DOHC 1978-74 61 in three steps 41
1995cc DOHC 1987-78 61 in three steps 41
FORD .........................................................................SEE FORD PRODUCTS
FORD PRODUCTS 4
80.8 SOHC (1.3L) 8 Valve Mazda 1997-88 ●1st 35-40, 2nd 56-60 150
97.5 SOHC (1.6L) 8 Valve Mazda 1989-87 Tracer ●56-60 in three steps 150
97.5 DOHC (1.6L) 16 Valve Mazda 1994-91 Capri ●56-60 in three steps 150
97.5 DOHC Turbo (1.6L)
16 Valve Mazda
1994-91 Capri ●56-60 in three steps 150
98 OHV (1.6L) 8 Valve Ford 1980-78 ●65-70 16
98 OHV (1.6L) 8 Valve Ford 1973-71 ●65-70 16
98 SOHC (1.6L) 8 Valve Ford 1985-81 ●❍ 1st 44, 2nd turn 90 degrees,
3rd turn 90 degrees
36 ES 72672
98 SOHC Turbo (1.6L)
8 Valve Ford
1985-84 ●❍ 1st 44, 2nd turn 90 degrees,
3rd turn 90 degrees
36 ES 72672
109.6 SOHC (1.8L) 8 Valve Mazda 1978-72 Courier ●Cold 63-68, Warm 69-73 150
112.2 DOHC (1.8L) 16 Valve
Mazda
1996-91 ●56-60 in three steps 150
114 SOHC (1.9L) 8 Valve Ford 1996-85 ●❍ 1st 30, 2nd 44, 3rd loosen one turn,
4th 30 again, 5th 44, 6th turn 90 degrees,
7th turn 90 degrees
36 ES 72672
119.7 L-Head Ford 1942-41 Stud Nuts 50-55; Bolts 65-70 194
120.2 SOHC (2.0L) 8 Valve Mazda 1982-79 Courier ●Cold 59-64, Warm 69-72 150
121 SOHC (2.0L) 8 Valve Ford 2004-00 Focus ●❍ 1st 37, 2nd loosen 1/2 turn,
3rd 37 again, 4th turn 90 degrees,
5th turn 90 degrees
36 ES 72672
121 SOHC (2.0L) 8 Valve Ford 2003-97
Escort, Tracer
●❍ 1st 30-44, 2nd loosen 1/2 turn,
3rd 30-44 again, 4th turn 90 degrees,
5th turn 90 degrees
36 ES 72672
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
DAIHATSU 3
993cc SOHC (CB) 6 Valve 1992-88 40-47 in three steps 214
DAIHATSU 4
1295cc SOHC (HCE) 16 Valve 1992-89 44-49 in three steps 147
1589cc SOHC (HDC, HDE) 16 Valve 1992-90 44-49 in three steps 147
DATSUN ................................................................................. SEE NISSAN
DeLOREAN V6
2849cc SOHC (B3) 12 Valve Volvo 1983-81 1st 7, 2nd 22, 3rd 44, 4th loosen all bolts,
5th 11-14, 6th turn 116-120 degrees,
7th warm engine & allow to cool,
8th loosen all bolts, 9th 11-14 again,
10th turn 113-117 degrees
52
DeSOTO ............................................................... SEE CHRYSLER PRODUCTS
DeTOMASO V8
281 DOHC (4.6L) 32 Valve Ford 2002-00 ●❍ 1st 27-32, 2nd turn 85-95 degrees,
3rd loosen one turn, 4th 27-32 again,
5th turn 85-95 degrees,
6th turn 85-95 degrees
124 ES 72798
289 Ford 1967 ●65-70 70
302 Ford 1972-67
exc. Boss
●Intake Side 80, Exhaust Side 68 70
302 Ford 1971-69 Boss ●Upper 80; Lower 70 70
351 Cleveland Ford 1974-71 ●95-105 70
351 Windsor (5.8L) Ford 1989-81 ●1st 85, 2nd 95, 3rd 105-112 70
DODGE ................................................................ SEE CHRYSLER PRODUCTS
EAGLE ................................................................. SEE CHRYSLER PRODUCTS
EDSEL ........................................................................SEE FORD PRODUCTS
ELVA 4
1489cc OHV MG 1961-58 45 182
1588cc OHV MG 1961-58 45 182
1622cc OHV MG 1966-62 45 182
1798cc OHV MG 1966-62 45-50 in three steps 55
EXCALIBUR V8
289 Studebaker 1965 55-65 170
305 (5.0L) Chevrolet 1990-80 ●❍ 65 in three steps 7 ES 72856
327 Chevrolet 1969-65 ●❍ 65 7ES 72856
350 (5.7L) Chevrolet 1996 ●❍ 1st all bolts 22,
2nd Short bolts turn 67 degrees;
3rd Medium bolts &
Long bolts turn 80 degrees
7ES 72856
350 (5.7L) Chevrolet 1995-93 ●❍ 65 in three steps 7 ES 72856
350 (5.7L) Chevrolet 1990-70 ●❍ 65 in three steps 7 ES 72856
454 Chevrolet 1979-72 ●80 in three steps 8
FACEL VEGA 4
1780cc OHV (B18D) Volvo 1964-63 61-69 110
FACEL VEGA V8
276 DeSoto 1954 85 12
277 Plymouth 1958 ●85 12
291 DeSoto 1957-55 85 12
28 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
29
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
FORD PRODUCTS 6 & V6 (CONT.)
152.4 DOHC (2.5L) 24 Valve
Mazda
1997-93 Probe ●1st 17-19, 2nd turn 90 degrees,
3rd turn 90 degrees
123
155 DOHC (2.5L) 24 Valve Ford 2000-98
Duratec VIN G
●❍ 1st 28-31, 2nd turn 85-90 degrees,
3rd loosen one turn, 4th 28-31 again,
5th turn 85-90 degrees,
6th turn 85-90 degrees
139 ES 72159
155 DOHC (2.5L) 24 Valve Ford 2000-98
Duratec VIN L
●❍ 1st 29, 2nd turn 90 degrees,
3rd loosen one turn, 4th 29 again,
5th turn 90 degrees, 6th turn 90 degrees
140 ES 72159
155 DOHC (2.5L) 24 Valve Ford 1997
Duratec VIN L
●❍ 1st 28-31, 2nd turn 85-95 degrees,
3rd loosen one turn, 4th 28-31 again,
5th turn 85-95 degrees,
6th turn 85-95 degrees
140 ES 72159
155 DOHC (2.5L) 24 Valve Ford 1996-95
Duratec VIN L
●❍ 1st 27-32, 2nd turn 85-95 degrees,
3rd loosen one turn, 4th 27-32 again,
5th turn 85-95 degrees,
6th turn 85-95 degrees
140 ES 72159
155.6 OHV (2.6L) 1973-72 1st 29-40, 2nd 40-51, 3rd 65-80 31
170 OHV 1972-60 ●70-75 13
171 OHV (2.8L) 1986-83 Truck ●1st 29-40, 2nd 40-51, 3rd 70-85 57
171 OHV (2.8L) 1979-75 Car ●1st 29-40, 2nd 40-51, 3rd 65-80 57
171 OHV (2.8L) 1974 Car ●1st 29-40, 2nd 40-51, 3rd 65-80 31
177 OHV (2.9L) 1992-86 ●❍ 1st 22, 2nd 51-55, 3rd turn 90 degrees 97 ES 72794
181 SOHC (3.0L) 12 Valve Nissan 1998-93 Villager ●1st 22, 2nd 43, 3rd loosen all bolts,
4th 22 again, 5th 40-47;
OR turn 60-65 degrees
85
181 DOHC (3.0L) 24 Valve Ford 2008-01
Duratec VIN 1
●❍ 1st 30, 2nd turn 90 degrees,
3rd loosen one turn, 4th 30 again,
5th turn 90 degrees, 6th turn 90 degrees
140 ES 72159
181 DOHC (3.0L) 24 Valve Ford 2005-00
Duratec VIN S
Lincoln LS
●❍ 1st 22, 2nd turn 90 degrees,
3rd loosen one turn, 4th 22 again,
5th turn 90 degrees, 6th turn 90 degrees
233 ES 72208
181 DOHC (3.0L) 24 Valve Ford 2005-97
Duratec VIN S
Taurus, Sable
●❍ 1st 28-31, 2nd turn 85-95 degrees,
3rd loosen one turn, 4th 28-31 again,
5th turn 85-95 degrees,
6th turn 85-95 degrees
139 ES 72159
181 DOHC (3.0L) 24 Valve Ford 1996
Duratec VIN S
Taurus, Sable
●❍ 1st 27-32, 2nd turn 85-95 degrees,
3rd loosen one turn, 4th 27-32 again,
5th turn 85-95 degrees,
6th turn 85-95 degrees
139 ES 72159
183 OHV (3.0L) 12 Valve Ford 2007-99 Car ●❍ 1st 36-39, 2nd loosen one turn,
3rd 20-24, 4th turn 85-95 degrees,
5th turn 85-95 degrees
96 ES 72136
ES 72174
183 OHV (3.0L) 12 Valve Ford 1998-91 Car ●❍ 1st 59, 2nd loosen one turn,
3rd 37, 4th 68
96 ES 72136
ES 72174
183 OHV (3.0L) 12 Valve Ford 1990-86 Car ●❍ 1st 33-41, 2nd 63-73 96 ES 72136
183 OHV (3.0L) 12 Valve Ford 2008-99 Truck ●❍ 1st 36-39, 2nd loosen one turn,
3rd 20-24, 4th turn 85-95 degrees,
5th turn 85-95 degrees
141 ES 72136
ES 72174
183 OHV (3.0L) 12 Valve Ford 1998-91 Truck ●❍ 1st 59, 2nd loosen one turn,
3rd 37, 4th 68
141 ES 72136
ES 72174
183 OHV (3.0L) 12 Valve Ford 1990-86 Truck ●❍ 1st 33-41, 2nd 63-73 141 ES 72136
183 DOHC (3.0L) 24 Valve
Yamaha
1995-89 SHO ●❍ 1st 37-51, 2nd 62-69 101 ES 74030
195 DOHC (3.2L) 24 Valve
Yamaha
1995-93 SHO ●❍ 1st 37-51, 2nd 62-69 101 ES 74030
199.8 SOHC (3.3L) 12 Valve
Nissan
2002-99 Villager ●❍ 1st 22, 2nd 43, 3rd loosen all bolts,
4th 7, 5th 22, 6th 40-47;
OR turn 60-65 degrees
162 ES 72194
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
FORD PRODUCTS 4 (CONT.)
121 DOHC (2.0L) 16 Valve Ford 2004-01 Zetec
Escape
●❍ 1st 15, 2nd 30, 3rd turn 90 degrees 148 ES 72175
121 DOHC (2.0L) 16 Valve Ford 2004-00 Zetec
Focus
●❍ 1st 15, 2nd 30, 3rd turn 90 degrees 148 ES 72175
121 DOHC (2.0L) 16 Valve Ford 2003-98 Zetec
Escort, ZX2
●❍ 1st 12-18, 2nd 26-33,
3rd turn 105 degrees
148 ES 72175
121 DOHC (2.0L) 16 Valve Ford 2002-98 Zetec
Contour, Cougar,
Mystique
●❍ 1st 18, 2nd 33, 3rd turn 105 degrees 148 ES 72175
121 DOHC (2.0L) 16 Valve Ford 1997-95 Zetec ●❍ 1st 15-22, 2nd 30-37,
3rd turn 90 degrees
148 ES 72175
121.5 DOHC (2.0L) 16 Valve
Mazda
1997-93 Probe ●❍ 1st 13-16, 2nd turn 90 degrees,
3rd turn 90 degrees
150 ES 74020
121.7 SOHC (2.0L) 8 Valve Ford 1974-71 ●1st 14-29, 2nd 36-50, 3rd 65-80 17
122 SOHC (2.0L) 8 Valve Ford 1988-83 Ranger ●1st 50-60, 2nd 80-90 17
122 SOHC Diesel (2.0L) 8 Valve
Mazda
1987-84 1st 21, 2nd turn 90 degrees,
3rd turn 90 degrees
150
122 DOHC (2.0L) 16 Valve Ford 2008-05 Duratec ●❍ 1st 4, 2nd 11, 3rd 33,
4th turn 90 degrees, 5th turn 90 degrees
150 ES 72207
133 SOHC (2.2L) 12 Valve Mazda 1992-89 Probe ●1st 29-32, 2nd 59-64 37
133 SOHC Turbo (2.2L) 12 Valve
Mazda
1992-89 Probe ●1st 29-32, 2nd 59-64 37
134.8 OHV Diesel (2.2L) 8 Valve
Mazda
1984-83 ●1st 25, 2nd 45, 3rd 80-85,
4th warm engine, 5th 80-85 again
6
138 DOHC (2.3L) 16 Valve Ford 2008-01 Duratec ●❍ 1st 4, 2nd 11, 3rd 33,
4th turn 90 degrees, 5th turn 90 degrees
150 ES 72207
138 DOHC (2.3L) 16 Valve
Hybrid Ford
2008-05 Duratec ●❍ 1st 4, 2nd 11, 3rd 33,
4th turn 90 degrees, 5th turn 90 degrees
150 ES 72207
140 OHV (2.3L) 8 Valve Ford 1994-84 HSC ●1st 52-59, 2nd 70-76 37
140 SOHC (2.3L) 8 Valve Ford 1997-93 ●❍ Bolts with 85mm long threads: 1st 51,
2nd 51 again, 3rd turn 90-100 degrees
17 ES 72137
140 SOHC (2.3L) 8 Valve Ford 1993-91 ●❍ Bolts with 44mm long threads:
1st 50-60, 2nd 80-90
17 ES 72137
140 SOHC (2.3L) 8 Valve Ford 1990-74 ●❍ 1st 50-60, 2nd 80-90 17 ES 72137
140 SOHC Turbo (2.3L)
8 Valve Ford
1989-79 ●❍ 1st 50-60, 2nd 80-90 17 ES 72137
143 SOHC Turbo Diesel (2.3L)
8 Valve Mitsubishi
1987-85 ●Cold 76-83, Warm 84-90 43
153 OHV (2.5L) 8 Valve Ford 1991-86 HSC ●1st 52-59, 2nd 70-76 37
153 SOHC (2.5L) 8 Valve Ford 2001-98 ●❍ 1st 51, 2nd 51 again,
3rd turn 90-100 degrees
17 ES 72137
177 L-Head Ford 1927-09 Model T 1st 50-55, 2nd warm engine, 3rd 60 195
200 L-Head Ford 1934-28
Models A, B
50 223
220 OHV Diesel (3.6L) Ford 1966-63
Dagenham
85-90 172
FORD PRODUCTS 6 & V6
144 OHV 1966-60 ●70-75 13
149 SOHC Turbo Diesel (2.4L)
12 Valve BMW
1985-84 1st 22-29, 2nd 36-43, 3rd 65-69,
4th warm engine, 5th turn 85-95 degrees
90
152 DOHC (2.5L) 24 Valve Ford 2002-01
Duratec VIN G
●❍ 1st 28-31, 2nd turn 85-90 degrees,
3rd loosen one turn, 4th 28-31 again,
5th turn 85-90 degrees,
6th turn 85-90 degrees
139 ES 72159
152 DOHC (2.5L) 24 Valve Ford 2002-01
Duratec VIN L
●❍ 1st 29, 2nd turn 90 degrees,
3rd loosen one turn, 4th 29 again,
5th turn 90 degrees, 6th turn 90 degrees
140 ES 72159
30 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
31
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
FORD PRODUCTS 6 & V6 (CONT.)
232 OHV (3.8L) 12 Valve Ford 1990-84 Car ●❍ Standard Hex Head bolts: 1st 37, 2nd 45,
3rd 52, 4th 59, 5th loosen 2-3 turns,
6th repeat steps 1-4
82 ES 72129
ES 72131
232 OHV (3.8L) 12 Valve Ford 1983-82 Car,
Truck
●❍ 1st 47, 2nd 55, 3rd 63, 4th 74,
5th loosen 2-3 turns, 6th repeat steps 1-4
82 ES 72129
232 OHV Supercharged
(3.8L) 12 Valve Ford
1995-94 Car ●❍ 1st 37, 2nd 45, 3rd 52, 4th 59,
PERFORM THE NEXT THREE STEPS ON
EACH BOLT BEFORE MOVING TO NEXT
BOLT IN SEQUENCE: 1) loosen 2-3 turns,
2) 11-19, 3) turn 175-185 degrees
94 ES 72131
232 OHV Supercharged
(3.8L) 12 Valve Ford
1993-89 Car ●❍ 1st 37, 2nd 45, 3rd 52, 4th 59,
PERFORM THE NEXT THREE STEPS ON
EACH BOLT BEFORE MOVING TO NEXT
BOLT IN SEQUENCE: 1) loosen 2-3 turns,
2) 48-55, 3) turn 90-110 degrees
94 ES 72131
238 OHV (3.9L) 12 Valve Ford 2007-04 Car,
Truck
●❍ 1st 15, 2nd 29, 3rd 37,
PERFORM THE NEXT THREE STEPS ON
EACH BOLT BEFORE MOVING TO NEXT
BOLT IN SEQUENCE: 1) loosen 2-3 turns,
2) Long bolts 29-37; Short bolts 15-22,
3) turn 175-185 degrees
94 ES 72160
240 OHV (3.9L) 1976-65 ●70-75 14
244 OHV (4.0L) 12 Valve Ford 2001-95 Truck ●❍ 1st 23, 2nd 53, 3rd turn 90 degrees 217 ES 72794
244 OHV (4.0L) 12 Valve Ford 1994-90 Truck ●❍ INSTALL HEAD BOLTS AND LOWER
INTAKE BOLTS TOGETHER (TORQUE
ALTERNATELY): Head bolts 1st 44,
2nd 59, 3rd turn 80-85 degrees;
Lower intake bolts 1st 3-6, 2nd 6-11,
3rd 11-15, 4th 15-18
102 ES 72794
244 SOHC (4.0L) 12 Valve Ford 2008-05 Car,
Truck
●❍ 1st M12 Bolts 1-8 9,
2nd M12 Bolts 1-8 18,
3rd M8 Bolts 9-10 24,
4th M12 Bolts 1-8 turn 90 degrees,
5th M12 Bolts 1-8 turn 90 degrees
218 ES 72171
244 SOHC (4.0L) 12 Valve Ford 2004-02 Truck ●❍ 1st M12 Bolts 1-8 24,
2nd M8 Bolts 9-10 24,
3rd M12 Bolts 1-8 turn 80 degrees,
4th M12 Bolts 1-8 turn 80 degrees
218 ES 72171
244 SOHC (4.0L) 12 Valve Ford 2001-00 Truck ●❍ 1st M12 Bolts 1-8 28,
2nd M8 Bolts 9-10 28,
3rd M12 Bolts 1-8 turn 90 degrees,
4th M12 Bolts 1-8 turn 90 degrees
218 ES 72171
244 SOHC (4.0L) 12 Valve Ford 1999-97 Truck ●❍ 1st M12 Bolts 1-8 26,
2nd M8 Bolts 9-10 26,
3rd M12 Bolts 1-8 turn 90 degrees,
4th M12 Bolts 1-8 turn 90 degrees
218 ES 72171
250 OHV (4.1L) 1980-78 ●1st 50-55, 2nd 60-65, 3rd 70-75 51
250 OHV (4.1L) 1977-69 ●1st 50-55, 2nd 60-65, 3rd 70-75 13
254 L-Head 1953-49 65-75 15
254 L-Head 1948 50-60 15
256 OHV (4.2L) 12 Valve Ford 2008-97 Truck ●❍ 1st 14, 2nd 29, 3rd 36,
PERFORM THE NEXT THREE STEPS ON
EACH BOLT BEFORE MOVING TO NEXT
BOLT IN SEQUENCE: 1) loosen 2-3 turns,
2) Long bolts 30-36; Short bolts 15-22,
3) turn 175-185 degrees
94 ES 72160
262 OHV 1964-61 ●105-115 28
300 OHV (4.9L) 1997-95 ●1st 45-55, 2nd turn 90 degrees 14
300 OHV (4.9L) 1994-75 ●1st 50-55, 2nd 60-65, 3rd 70-85 14
300 OHV (4.9L) 1974-65 ●70-75 14
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
FORD PRODUCTS 6 & V6 (CONT.)
200 OHV (3.3L) 1983-78 ●1st 50-55, 2nd 60-65, 3rd 70-75 51
200 OHV (3.3L) 1977-63 ●1st 50-55, 2nd 60-65, 3rd 70-75 13
213 DOHC (3.5L) 24 Valve Ford 2008-07
Duratec
VIN C, T, W
1st Bolts 1-8 15, 2nd Bolts 1-8 26,
3rd Bolts 1-8 turn 90 degrees,
4th Bolts 1-8 turn 90 degrees,
5th Bolts 1-8 turn 90 degrees,
6th Bolt 9 7.5
234
215 OHV 1953-51 ●65-75 28
223 OHV 1964-61 ●105-115 28
223 OHV 1960-54 ●65-75 28
226 L-Head 1951-49
95 HP Series H
65-75 15
226 L-Head 1948-47
95 HP Series H
50-60 15
226 L-Head 1947-41
90 HP
Series G, GA
50-60 15
232 OHV (3.8L) 12 Valve Ford 2003-96 Truck ●❍ 1st 15, 2nd 29, 3rd 37,
PERFORM THE NEXT THREE STEPS ON
EACH BOLT BEFORE MOVING TO NEXT
BOLT IN SEQUENCE: 1) loosen 2-3 turns,
2) Long bolts 29-37; Short bolts 15-22,
3) turn 175-185 degrees
94 ES 72156
ES 72160
232 OHV (3.8L) 12 Valve Ford 1995 Truck ●❍ 1st 15, 2nd 30, 3rd 37,
PERFORM THE NEXT THREE STEPS ON
EACH BOLT BEFORE MOVING TO NEXT
BOLT IN SEQUENCE: 1) loosen 2-3 turns,
2) Long bolts 11-19; Short bolts 7-15,
3) turn 85-95 degrees
94 ES 72131
232 OHV (3.8L) 12 Valve Ford 2004-98 Car ●❍ 1st 15, 2nd 30, 3rd 37,
PERFORM THE NEXT THREE STEPS ON
EACH BOLT BEFORE MOVING TO NEXT
BOLT IN SEQUENCE: 1) loosen 2-3 turns,
2) Long bolts 29-37; Short bolts 15-22,
3) turn 180 degrees
94 ES 72160
232 OHV (3.8L) 12 Valve Ford 1997-96 Car ●❍ 1st 15, 2nd 30, 3rd 37,
PERFORM THE NEXT THREE STEPS ON
EACH BOLT BEFORE MOVING TO NEXT
BOLT IN SEQUENCE: 1) loosen 2-3 turns,
2) Long bolts 30-37; Short bolts 15-22,
3) turn 175-185 degrees
94 ES 72156
ES 72160
232 OHV (3.8L) 12 Valve Ford 1995-94 Car ●❍ 1st 15, 2nd 30, 3rd 37,
PERFORM THE NEXT THREE STEPS ON
EACH BOLT BEFORE MOVING TO NEXT
BOLT IN SEQUENCE: 1) loosen 2-3 turns,
2) Long bolts 11-19; Short bolts 10-15,
3) turn 85-95 degrees
94 ES 72131
232 OHV (3.8L) 12 Valve Ford 1993-91 Car ●❍ 1st 37, 2nd 45, 3rd 52, 4th 59,
PERFORM THE NEXT THREE STEPS ON
EACH BOLT BEFORE MOVING TO NEXT
BOLT IN SEQUENCE: 1) loosen 2-3 turns,
2) 11-18, 3) Long bolts turn 85-105 degrees
;
Short bolts turn 65-85 degrees
94 ES 72131
232 OHV (3.8L) 12 Valve Ford 1990-84 Car ●❍ Flanged Hex Head bolts: 1st 37, 2nd 45,
3rd 52, 4th 59, PERFORM THE NEXT
THREE STEPS ON EACH BOLT BEFORE
MOVING TO NEXT BOLT IN SEQUENCE:
1) loosen 2-3 turns, 2) 11-18,
3) Long bolts turn 85-105 degrees;
Short bolts turn 65-85 degrees
82 ES 72129
ES 72131
32 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
33
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
FORD PRODUCTS V8 (CONT.)
281 SOHC (4.6L) 16 Valve Ford 1992-91 Car ●❍ 1st 15-22, 2nd turn 85-95 degrees,
3rd turn 85-95 degrees
124 ES 72798
281 SOHC (4.6L) 24 Valve Ford 2008-05 Car,
Truck
●❍ 1st 27-32, 2nd turn 85-95 degrees,
3rd turn 85-95 degrees
144 ES 72798
281 DOHC (4.6L) 32 Valve Ford 2005-03 Truck ●❍ 1st 27-32, 2nd turn 85-95 degrees,
3rd loosen one turn, 4th 27-32 again,
5th turn 85-95 degrees,
6th turn 85-95 degrees
124 ES 72798
281 DOHC (4.6L) 32 Valve Ford 2004-96 Car ●❍ 1st 27-32, 2nd turn 85-95 degrees,
3rd loosen one turn, 4th 27-32 again,
5th turn 85-95 degrees,
6th turn 85-95 degrees
124 ES 72798
281 DOHC (4.6L) 32 Valve Ford 1995-93 Car ●❍ 1st 25-30, 2nd turn 85-95 degrees,
3rd turn 85-95 degrees
124 ES 72798
281 DOHC Supercharged (4.6L)
32 Valve Ford
2004-03 Car ●❍ 1st 27-32, 2nd turn 85-95 degrees,
3rd loosen one turn, 4th 27-32 again,
5th turn 85-95 degrees,
6th turn 85-95 degrees
124 ES 71173
289 1968-63 ●65-70 70
292 1965-55 ●70-75 70
302 (5.0L) 2001-96 Truck
VIN P
●❍ Flanged Hex Head bolts:
1st 30, 2nd 50, 3rd turn 90 degrees
70 ES 72155
302 (5.0L) 1996-92 Truck
VIN N
●❍ Flanged Hex Head bolts: 1st 25-35,
2nd 45-55, 3rd turn 85-95 degrees
70 ES 72155
302 (5.0L) 1995-92 Car ●❍ Flanged Hex Head bolts: 1st 25-35,
2nd 45-55, 3rd turn 85-95 degrees
70 ES 72155
302 (5.0L) 1992-86 ●Standard Hex Head bolts:
Intake Side 80, Exhaust Side 68
70
302 (5.0L) 1985-68
exc. Boss
●Intake Side 80, Exhaust Side 68 70
302 (5.0L) 1971-69 Boss ●Upper 80; Lower 70 70
302 1963-56 Truck ●100-110 70
312 1960-56 ●65-75 70
312 Supercharged 1957 ●65-75 70
317 1955-52 Truck ●Exc. Bolts marked “FT” 90;
Bolts marked “FT” 110
70
317.5 Lincoln 1954-52 Car ●80-90 70
330 OHV (5.4L) 1978-64 Truck ●80-90 70
330 SOHC (5.4L) 16 Valve Ford 2008-97 Truck ●❍ 1st 27-32, 2nd turn 85-95 degrees,
3rd turn 85-95 degrees
144 ES 72798
330 SOHC (5.4L) 24 Valve Ford 2008-04 Truck ●❍ 1st 27-32, 2nd turn 85-95 degrees,
3rd turn 85-95 degrees
144 ES 72798
330 DOHC (5.4L) 32 Valve Ford 2004-99 Truck ●❍ 1st 27-32, 2nd turn 85-95 degrees,
3rd turn 85-95 degrees
144 ES 72798
330 DOHC (5.4L) 32 Valve Ford 2001-99 Car 1st 30, 2nd turn 90 degrees,
3rd loosen one turn, 4th 30 again,
5th turn 90 degrees, 6th turn 90 degrees
124
330 SOHC Supercharged (5.4L)
16 Valve Ford
2004-99 Truck ●1st 27-32, 2nd turn 85-95 degrees,
3rd turn 85-95 degrees
144
330 SOHC Supercharged (5.4L)
24 Valve Ford
2008 Truck ●❍ 1st 27-32, 2nd turn 85-95 degrees,
3rd turn 85-95 degrees
144 ES 72798
330 DOHC Supercharged (5.4L)
32 Valve Ford
2008-07 Car 1st 15, 2nd 37, 3rd 59,
4th turn 90 degrees, 5th turn 90 degrees
124
330 DOHC Supercharged (5.4L)
32 Valve Ford
2006-05 Car 1st 30, 2nd turn 90 degrees,
3rd loosen one turn, 4th 30 again,
5th turn 90 degrees, 6th turn 90 degrees
124
332 1966-56 Truck ●100-110 70
332 1959-58 Car ●80-90 70
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
FORD PRODUCTS 6 & V6 (CONT.)
330 OHV Diesel (5.4L) Ford 1966-62
Dagenham
85-90 173
359 OHV Turbo Diesel (5.9L)
12 Valve Cummins
1997-92 ●1st all bolts 66, 2nd Long bolts 89,
3rd all bolts turn 90 degrees
111
403 OHV Turbo Diesel (6.6L) Ford 1995-86 ●1st 115, 2nd 140, 3rd 160 103
476 OHV Turbo Diesel (7.8L) Ford 1995-87 ●1st 115, 2nd 140, 3rd 160 103
FORD PRODUCTS V8
136 L-Head (60 HP 17 Stud head)
Ford 1940-37
Cast Iron heads 50-60 32
136 L-Head (60 HP 17 Stud head)
Ford 1940-37
Aluminum heads 35-40 32
207 DOHC (3.4L) 32 Valve Yamaha 1999-96 SHO 1st 20-23, 2nd turn 85-95 degrees 143
221 OHV 1963-62 65-70 70
221 L-Head (85 HP 21 Stud head)
Ford 1942-32 Car
Cast Iron heads 50-60 32
221 L-Head (85 HP 21 Stud head)
Ford 1942-32 Car
Aluminum heads 35-40 32
221 L-Head (90 HP 24 Stud head)
Ford 1947-38 Truck
Cast Iron heads 50-60 32
221 L-Head (90 HP 24 Stud head)
Ford 1947-38 Truck
Aluminum heads 35-40 32
221 L-Head (85 HP 21 Stud head)
Ford 1937-32 Truck
Cast Iron heads 50-60 32
221 L-Head (85 HP 21 Stud head)
Ford 1937-32 Truck
Aluminum heads 35-40 32
239 OHV Ford 1955-54 Truck ●70 70
239 OHV Ford 1954 Car 70 70
239.4 L-Head Ford 1953-48 Truck 65-70 33
239.4 L-Head Ford 1953-49 Car 65-70 33
239.4 L-Head (90, 95, 100 HP
24 Stud head) Ford, Mercury 1948-39
Cast Iron heads 50-60 32
239.4 L-Head (90, 95, 100 HP
24 Stud head) Ford, Mercury 1948-39
Aluminum heads 35-40 32
241 DOHC (3.9L) 32 Valve Jaguar 2006-00
Lincoln LS,
Thunderbird
1st Bolts 1-10 15, 2nd Bolts 1-10 26,
3rd Bolts 1-10 33,
4th Bolts 1-10 turn 90 degrees,
5th Bolts 1-10 turn 90 degrees;
6th Bolts 11-12 15,
7th Bolts 11-12 turn 90 degrees
235
255 OHV (4.2L) 1982-80 ●65-72 70
255.4 L-Head Mercury 1954-48 65-70 33
256 OHV Mercury 1955-54 ●75 70
260 1965-62 ●65-70 70
272 1958-55 ●70-75 70
279 1955-52 Truck ●Exc. Bolts marked “FT” 90;
Bolts marked “FT” 110 70
281 SOHC (4.6L) 16 Valve Ford 2008-97 Truck
Exc. Explorer,
Mountaineer
●❍ 1st 27-32, 2nd turn 85-95 degrees,
3rd turn 85-95 degrees
144 ES 72798
281 SOHC (4.6L) 16 Valve Ford 2005-02 Truck
Explorer,
Mountaineer
●❍ 1st 30, 2nd turn 85-95 degrees,
3rd loosen one turn, 4th 30 again,
5th turn 85-95 degrees,
6th turn 85-95 degrees
144 ES 72798
281 SOHC (4.6L) 16 Valve Ford 2008-96 Car ●❍ 1st 27-32, 2nd turn 85-95 degrees,
3rd loosen one turn, 4th 27-32 again,
5th turn 85-95 degrees,
6th turn 85-95 degrees
124 ES 72798
281 SOHC (4.6L) 16 Valve Ford 1995-93 Car ●❍ 1st 25-30, 2nd turn 85-95 degrees,
3rd turn 85-95 degrees
124 ES 72798
34 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
35
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
FORD PRODUCTS V8 (CONT.)
462 Lincoln 1968-66 ●135-145 70
475 (7.8L) 1979-72 Truck ●170-180 70
477 (7.8L) 1981-64 Truck ●170-180 70
477 (7.8L) 1963-58 Truck ●130-150 70
534 (8.8L) 1981-64 Truck ●170-180 70
534 (8.8L) 1963-58 Truck ●130-150 70
FORD PRODUCTS V10
415 SOHC (6.8L) 20 Valve Ford 2008-97 Truck ●❍ 1st 27-32, 2nd turn 85-95 degrees,
3rd turn 85-95 degrees
145 ES 72798-1
415 SOHC (6.8L) 30 Valve Ford 2008-05 Truck ●1st 27-32, 2nd turn 85-95 degrees,
3rd turn 85-95 degrees
145
FORD PRODUCTS V12
267.3 L-Head Lincoln 1939-36
Cast Iron heads
50 171
267.3 L-Head Lincoln 1939-36
Aluminum heads
40 171
292 L-Head Lincoln 1948-40
Cast Iron heads
50 171
292 L-Head Lincoln 1948-40
Aluminum heads
40 171
305 L-Head Lincoln 1942
Cast Iron heads
50 171
305 L-Head Lincoln 1942
Aluminum heads
40 171
FRAZER ................................................................................. SEE KAISER
FREIGHTLINER ............................................................. SEE MERCEDES-BENZ
GEO ............................................................................. SEE GM PRODUCTS
GM PRODUCTS 3
61 SOHC (1.0L) 6 Valve Suzuki 2001-89 Metro,
Firefly VIN 6
●❍ 54 in three steps 142 ES 74021
61 SOHC (1.0L) 6 Valve Suzuki 1988-85 Sprint,
Firefly VIN M, 5
●❍ 46-50 in three steps 142 ES 74015
61 SOHC Turbo (1.0L) 6 Valve
Suzuki
1991-89 Metro,
Firefly VIN 2
●❍ 54 in three steps 142 ES 74021
61 SOHC Turbo (1.0L) 6 Valve
Suzuki
1988-87 Sprint,
Firefly VIN 2
●❍ 46-50 in three steps 142 ES 74015
159 OHV Diesel (3-53)
Detroit Diesel
1970-65 170-180 225
GM PRODUCTS 4
81 SOHC (1.3L) 16 Valve Suzuki 2001-98 Metro,
Firefly VIN 2
●49 in three steps 110
81 SOHC (1.3L) 8 Valve Suzuki 1997-92 Metro,
Firefly VIN 9
●51-54 in three steps 59
85 SOHC (1.4L) 8 Valve Chevrolet 1977-76
Chevette,
Acadian VIN I
●75 in three steps 37
89.7 SOHC (1.5L) 8 Valve Isuzu 1989-85
Spectrum,
Sunburst VIN K, 7
●1st 29, 2nd 58 37
89.7 SOHC Turbo (1.5L) 8 Valve
Isuzu
1989-87
Spectrum,
Sunburst VIN 9
●1st 29, 2nd 58 37
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
FORD PRODUCTS V8 (CONT.)
333 Canadian 1966-56 Truck ●100-110 70
336.7 L-Head Lincoln 1951-49 Nuts 50-55; Cap screws 65-70 224
341 Lincoln 1955 80-90 70
351 Cleveland 1974-70 ●95-105 70
351 Modified (5.8L) 1982-75 ●95-105 70
351 Windsor (5.8L) 1998-73 ●1st 85, 2nd 95, 3rd 105-112 70
351 Windsor (5.8L) 1972-69 ●95-100 70
352 1967-57 ●80-90 70
359 (5.9L) 1978-73 Truck ●90 70
360 (5.9L) 1977-68 Truck ●90 70
361 (5.9L) 1978-64 Truck ●90 70
361 1959-58 Car ●80-90 70
365 OHV Turbo Diesel (6.0L)
32 Valve DI International
2008-03
PowerStroke
●❍ 1st Bolts 1-10 65, 2nd Bolts 1-10 85,
3rd Bolts 1-10 turn 90 degrees,
4th Bolts 1-10 turn 90 degrees,
5th Bolts 1-10 turn 90 degrees,
6th Bolts 11-15 18, 7th Bolts 11-15 23
256 ES 72229
ES 72242
368 Lincoln 1957-56 80-90 70
370 (6.1L) 1991-79 Truck ●1st 80-90, 2nd 100-110, 3rd 130-140 70
383 Mercury 1960-58 ●85-105 70
389 (6.4L) 1978-73 Truck ●90 70
390 (6.4L) 1977-61 ●90 70
390 OHV Turbo Diesel (6.4L)
32 Valve DI International
2008
PowerStroke 1st Bolts 1-10 70, 2nd loosen Bolts 1-10,
3rd Bolts 1-10 115,
4th Bolts 1-10 turn 90 degrees,
5th Bolts 1-10 turn 90 degrees,
6th Bolts 11-15 18, 7th Bolts 11-15 23
261
391 (6.4L) 1978-64 Truck ●90 70
400 (6.6L) 1982-71 ●95-105 70
401 1978-64 Truck ●170-180 70
401 1963-58 Truck ●130-150 70
406 1963-62 ●100-105 70
410 Mercury 1967-66 ●80-90 70
410 Edsel 1958 ●85-105 70
420 OHV Diesel (6.9L)
IDI International
1987-85 ●1st 40, 2nd 70, 3rd 80, 4th 87 95
420 OHV Diesel (6.9L)
IDI International
1984-83 ●1st 40, 2nd 70, 3rd 80, 4th 80 again 95
427 1969-63 ●100-105 70
428 1970-66 ●80-90 70
429 (7.0L) 1999-87 Truck ●1st 80-90, 2nd 100-110, 3rd 130-140 70
429 (7.0L) 1986-79 Truck ●130-140 70
429 (7.0L) 1973-68 ●130-140 70
430 1965-64 ●125-135 70
430 1963-58 ●85-105 70
444 OHV Diesel (7.3L)
IDI International
1995-91 ●1st 65, 2nd 90, 3rd 110, 4th 110 again 95
444 OHV Diesel (7.3L)
IDI International
1990-88 ●1st 65, 2nd 90, 3rd 100 95
444 OHV Turbo Diesel (7.3L)
DI International
2003-00
PowerStroke
●❍ 1st 65, 2nd 85, 3rd 95, 4th 95 again 156 ES 72161
444 OHV Turbo Diesel (7.3L)
DI International
1999-94
PowerStroke
●❍ 1st 65, 2nd 85, 3rd 105, 4th 105 again 156 ES 72161
444 OHV Turbo Diesel (7.3L)
IDI International
1994-92 ●1st 65, 2nd 90, 3rd 110, 4th 110 again 95
460 (7.5L) 1998-68 ●1st 80-90, 2nd 100-110, 3rd 130-140 70
36 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
37
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
GM PRODUCTS 4 (CONT.)
121.7 DOHC (2.0L) 16 Valve
Suzuki
2004-99
Tracker VIN C
●❍ Bolts 1-10 1st 38.5, 2nd 61,
3rd loosen all bolts, 4th 38.5 again,
5th 76; Bolt 11 6th 8
207 ES 72206
122 SOHC (2.0L) 8 Valve Opel 1994-87 VIN H, K ●❍ 1st 18, 2nd turn 60 degrees,
3rd turn 60 degrees, 4th turn 60 degrees,
5th warm engine, 6th turn 30-50 degrees
151 ES 72728
122 SOHC Turbo (2.0L) 8 Valve
Opel
1990-87 VIN M ●❍ 1st 18, 2nd turn 60 degrees,
3rd turn 60 degrees, 4th turn 60 degrees,
5th warm engine, 6th turn 30-50 degrees
151 ES 72728
122 DOHC (2.0L) 16 Valve Opel 2007-04
Optra VIN Z
●1st 18, 2nd turn 60 degrees,
3rd turn 60 degrees, 4th turn 60 degrees,
5th turn 10 degrees
128
122 DOHC Supercharged (2.0L)
16 Valve Opel
2007-05 Ecotec
VIN P Bolts 1-10 1st 22, 2nd turn 155 degrees;
Bolts 11-14 3rd 26
231
122 DOHC Turbo (2.0L) 16 Valve
Opel
2008-07 Ecotec
VIN X Bolts 1-10 1st 22, 2nd turn 155 degrees;
Bolts 11-14 3rd 26
231
134 OHV (2.2L) 8 Valve Chevrolet 2003-95 VIN 4, 5 ●❍ 1st Long bolts 46; Short bolts 43,
2nd all bolts turn 90 degrees
149 ES 72170
ES 72172
134 OHV (2.2L) 8 Valve Chevrolet 1994-92 VIN 4 ●❍ 1st Long bolts 46; Short bolts 43,
2nd all bolts turn 90 degrees
149 ES 72164
ES 74016
134 OHV (2.2L) 8 Valve Chevrolet 1991 VIN G ●❍ Bolts 1, 4, 5, 8, 9 73-83;
Bolts 2, 3, 6, 7, 10 62-70
149 ES 72164
134 OHV (2.2L) 8 Valve Chevrolet 1990 VIN G ●❍ 1st Long bolts 46; Short bolts 43,
2nd all bolts turn 90 degrees
149 ES 72164
134.1 DOHC (2.2L) 16 Valve
Opel
2008-02 Ecotec
VIN D, F, 6
●❍ Bolts 1-10 1st 22, 2nd turn 155 degrees;
Bolts 11-14 3rd 26
231 ES 72196
136.5 OHV Diesel (2.2L) 8 Valve
Isuzu
1985-81 VIN S ●1st 40-47, 2nd New bolts 54-61;
Used bolts 61-69
76
138 SOHC (2.3L) 8 Valve
Oldsmobile
1994 VIN 3 ●❍ 1st Long bolts 30; Short bolts 26,
2nd all bolts turn 90 degrees
98 ES 72727
138 SOHC (2.3L) 8 Valve
Oldsmobile
1993-92 VIN 3 ●❍ 1st Long bolts 30; Short bolts 26,
2nd all bolts turn 90 degrees
148 ES 72727
138 DOHC (2.3L) 16 Valve
Oldsmobile
1996-94
VIN A, D, G
●❍ 1st Long bolts 30; Short bolts 26,
2nd all bolts turn 90 degrees
98 ES 72727
138 DOHC (2.3L) 16 Valve
Oldsmobile
1993-92
VIN A, D, G
●❍ 1st Long bolts 30; Short bolts 26,
2nd all bolts turn 90 degrees
148 ES 72727
138 DOHC (2.3L) 16 Valve
Oldsmobile
1991-90 VIN A, D ●❍ 1st Long bolts 1-8 26,
2nd Long bolts 1-8 turn 110 degrees,
3rd Short bolts 9-10 26,
4th Short bolts 9-10 turn 100 degrees
98 ES 72727
138 DOHC (2.3L) 16 Valve
Oldsmobile
1989-87 VIN A, D ●❍ 1st Long bolts 1-8 26,
2nd Long bolts 1-8 turn 90 degrees,
3rd Short bolts 9-10 26,
4th Short bolts 9-10 turn 80 degrees
98 ES 72727
140 SOHC (2.3L) 8 Valve Chevrolet 1977-71 ●60 in three steps 37
145 DOHC (2.4L) 16 Valve Opel 2008-06 Ecotec
VIN B, P Bolts 1-10 1st 22, 2nd turn 155 degrees;
Bolts 11-14 3rd 26
231
145 DOHC (2.4L) 16 Valve Hybrid
Opel
2008 Ecotec
VIN 5 Bolts 1-10 1st 22, 2nd turn 155 degrees;
Bolts 11-14 3rd 26
231
146 DOHC (2.4L) 16 Valve
Oldsmobile
2002-96 VIN T ●❍ 1st Long bolts 1-8 40; Short bolts 9-10 30,
2nd all bolts turn 90 degrees
98 ES 72165
151 OHV (2.5L) Pontiac 1993-88 VIN A, E
(Truck)
●❍ 1st all bolts 18,
2nd Bolts 1-8, 10 26; Bolt 9 18,
3rd all bolts turn 90 degrees
72 ES 72733
151 OHV (2.5L) Pontiac 1987 VIN E
(Truck)
●❍ 1st all bolts 18,
2nd Bolts 1-8, 10 26; Bolt 9 30,
3rd Bolts 1-8, 10 turn 120 degrees;
Bolt 9 turn 90 degrees
72 ES 72733
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
GM PRODUCTS 4 (CONT.)
96.8 SOHC (1.6L) 8 Valve Toyota 1988-85
Nova VIN 4
●43 in three steps 71
96.8 DOHC (1.6L) 16 Valve Toyota 1997-93
Prizm VIN 6
●1st 22, 2nd turn 90 degrees,
3rd turn 90 degrees
71
96.8 DOHC (1.6L) 16 Valve Toyota 1992-89
Prizm VIN 6
●44 in three steps 99
96.8 DOHC (1.6L) 16 Valve Toyota 1992-90
Prizm VIN 5
●44 in three steps 121
96.8 DOHC (1.6L) 16 Valve Toyota 1988
Nova VIN 5
●1st 22, 2nd turn 90 degrees,
3rd turn 90 degrees
121
96.9 SOHC (1.6L) 12 Valve Isuzu 1993-90
Storm VIN 6
●1st 29, 2nd 58 37
96.9 DOHC (1.6L) 16 Valve Isuzu 1991-90
Storm VIN 5
●1st 29, 2nd 58 100
97 SOHC (1.6L) 16 Valve Suzuki 2002-99
Tracker VIN 6
●1st 26, 2nd 41, 3rd loosen all bolts,
4th 26 again, 5th 52 110
97 SOHC (1.6L) 16 Valve Suzuki 1998-94 Tracker,
SunRunner VIN 6
●1st 26, 2nd 41, 3rd 52 110
97 SOHC (1.6L) 8 Valve Suzuki 1995-89 Tracker,
SunRunner VIN U
●51-54 in three steps 59
97.5 SOHC (1.6L) 8 Valve Opel 1993-88
LeMans,
Optima VIN 6
●1st 18, 2nd turn 60 degrees,
3rd turn 60 degrees, 4th turn 30 degrees,
5th warm engine, 6th turn 30-50 degrees
151
97.5 DOHC (1.6L) 16 Valve Opel 2008-04 Aveo,
Optra, Wave
VIN D, 6
1st 18, 2nd turn 60 degrees,
3rd turn 60 degrees, 4th turn 60 degrees,
5th turn 10 degrees
128
98 SOHC (1.6L) 8 Valve Chevrolet 1987-76
Chevette,
T1000, Acadian
●75 in three steps 37
107.5 DOHC (1.8L) 16 Valve
Toyota
1997-93
Prizm VIN 8
●1st 22, 2nd turn 90 degrees,
3rd turn 90 degrees
71
109.4 DOHC (1.8L) 16 Valve
Toyota
2008-03
Vibe VIN 8
●❍ 1st 18, 2nd 36, 3rd 36 again,
4th turn 90 degrees
99 ES 71066-1
109.4 DOHC (1.8L) 16 Valve
Toyota
2002-98
Prizm VIN 8
●❍ 1st 18, 2nd 36, 3rd 36 again,
4th turn 90 degrees
99 ES 71066-1
109.5 SOHC (1.8L) 8 Valve Opel 1986-82 VIN 0 ●❍ 1st 18, 2nd turn 60 degrees,
3rd turn 60 degrees, 4th turn 60 degrees,
5th warm engine, 6th turn 30-50 degrees
151 ES 72728
109.5 SOHC Turbo (1.8L) 8 Valve
Opel
1986-84 VIN J ●❍ 1st 18, 2nd turn 60 degrees,
3rd turn 60 degrees, 4th turn 60 degrees,
5th warm engine, 6th turn 30-50 degrees
151 ES 72728
109.5 DOHC (1.8L) 16 Valve
Toyota
2006-03
Vibe VIN L
●❍ 1st 26, 2nd turn 90 degrees,
3rd turn 90 degrees
99 ES 71066-1
110.3 DOHC (1.8L) 16 Valve Isuzu 1993-92
Storm VIN 8
●1st 29, 2nd 58 100
110.8 SOHC (1.8L) 8 Valve Isuzu 1982-76 LUV ●1st 61, 2nd 72 37
110.8 SOHC (1.8L) 8 Valve Isuzu 1975-72 LUV ●1st 43, 2nd loosen all bolts,
3rd Bolts 1, 2, 3, 6 70;
Bolts 4, 5, 7, 8, 9, 10 60
44
110.8 SOHC Diesel (1.8L) 8 Valve
Isuzu
1986-81 VIN D ●1st 21-36, 2nd New bolts 83-98;
Used bolts 90-105 75
112 OHV (1.8L) 8 Valve Chevrolet 1982 VIN G ●65-75 in three steps 12
118.9 SOHC (1.9L) 8 Valve Isuzu 1985-82 VIN A ●72 in three steps 37
121 OHV (2.0L) 8 Valve Chevrolet 1989-87 VIN 1 ●❍ Bolts 1, 4, 5, 8, 9 73-83;
Bolts 2, 3, 6, 7, 10 62-70 149 ES 72158
121 OHV (2.0L) 8 Valve Chevrolet 1986-85 VIN P ●❍ Long bolts 73-85; Short bolts 62-70 12 ES 72162
121 OHV (2.0L) 8 Valve Chevrolet 1984-83 VIN B, P
(Car)
●❍ 65-75 in three steps 12 ES 72162
121 OHV (2.0L) 8 Valve Chevrolet 1984-83 VIN Y
(Truck)
●65-75 in three steps 12
38 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
39
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
GM PRODUCTS 6 & H06 & V6 (CONT.)
170 DOHC (2.8L) 24 Valve Opel 2007-05 VIN T Right Head 1st 33, 2nd turn 120 degrees;
Left Head 1st Bolts 1-8 33,
2nd Bolts 1-8 turn 120 degrees,
3rd Bolts 9-10 11,
4th Bolts 9-10 turn 60 degrees
230
173 OHV (2.8L) 12 Valve Chevrolet 1993-88 VIN R
(Truck)
●❍ 1st 40, 2nd turn 90 degrees 49 ES 72857
173 OHV (2.8L) 12 Valve Chevrolet 1987-86 VIN R
(Truck)
●❍ 70 49 ES 72857
173 OHV (2.8L) 12 Valve Chevrolet 1985-82 VIN B
(Truck)
●❍ 65-75 49 ES 72857
173 OHV (2.8L) 12 Valve Chevrolet 1989-87 VIN W
(FWD)
●❍ 1st 33, 2nd turn 90 degrees 49 ES 74017
ES 74018
173 OHV (2.8L) 12 Valve Chevrolet 1989-87 VIN S
(RWD)
●❍ 1st 40, 2nd turn 90 degrees 49 ES 72857
173 OHV (2.8L) 12 Valve Chevrolet 1988-87 VIN 9
(Fiero)
●❍ 65-75 49 ES 72857
173 OHV (2.8L) 12 Valve Chevrolet 1986-80 Car ●❍ 65-75 49 ES 72857
181 OHV (3.0L) 12 Valve Buick 1988-86 VIN L ●❍ 1st 25, 2nd turn 90 degrees,
3rd turn 90 degrees
88 ES 72726
181 OHV (3.0L) 12 Valve Buick 1985 VIN L ●❍ 1st 25, 2nd turn 90 degrees,
3rd turn 90 degrees
88 ES 72725
181 OHV (3.0L) 12 Valve Buick 1985-84 VIN E ●80 in three steps 88
181 OHV (3.0L) 12 Valve Buick 1983-82 VIN E ●80 in three steps 69
181 DOHC (3.0L) 24 Valve Opel 2002-01 VIN R
(Catera)
●❍ 1st 18.5, 2nd turn 90 degrees,
3rd turn 90 degrees, 4th turn 90 degrees,
5th turn 15 degrees, 6th turn 15 degrees
49 ES 72906
181 DOHC (3.0L) 24 Valve Opel 2000-97 VIN R
(Catera)
●❍ 1st 18.5, 2nd turn 90 degrees,
3rd turn 90 degrees, 4th turn 90 degrees,
5th turn 15 degrees
49 ES 72906
189 OHV (3.1L) 12 Valve Chevrolet 2005-01 VIN J ●❍ 1st 44, 2nd turn 95 degrees 196 ES 72892
ES 74017
189 OHV (3.1L) 12 Valve Chevrolet 2000-99 VIN J ●❍ 1st 37, 2nd turn 90 degrees 49 ES 72892
ES 74017
189 OHV (3.1L) 12 Valve Chevrolet 1999-96 VIN M ●❍ 1st 33, 2nd turn 90 degrees 49 ES 72892
ES 74017
189 OHV (3.1L) 12 Valve Chevrolet 1995-93 VIN M ●❍ 1st 33, 2nd turn 90 degrees 49 ES 74019
189 OHV (3.1L) 12 Valve Chevrolet 1994-88 VIN T
(FWD)
●❍ 1st 33, 2nd turn 90 degrees 49 ES 74017
ES 74018
189 OHV (3.1L) 12 Valve Chevrolet 1992-90 VIN T
(RWD)
●❍ 1st 40, 2nd turn 90 degrees 49 ES 72857
189 OHV (3.1L) 12 Valve Chevrolet 1993 VIN W
(FWD)
●❍ 1st 33, 2nd turn 90 degrees 49 ES 74018
189 OHV (3.1L) 12 Valve Chevrolet 1995-90 VIN D
(Truck)
●❍ 1st 40, 2nd turn 90 degrees 49 ES 72901
189 OHV Turbo (3.1L) 12 Valve
Chevrolet
1990-89 VIN V ●❍ 1st 33, 2nd turn 90 degrees 49 ES 74018
194 OHV Chevrolet 1967-62 ●95 2
194 DOHC (3.2L) 24 Valve Opel 2005-03 VIN N Right Head 1st 33, 2nd turn 120 degrees;
Left Head 1st Bolts 1-8 33,
2nd Bolts 1-8 turn 120 degrees,
3rd Bolts 9-10 11,
4th Bolts 9-10 turn 60 degrees
230
196 OHV (3.2L) Buick 1979-78 VIN C ●80 in three steps 69
198 OHV Buick 1963-62 ●65-70 19
200 OHV (3.3L) Chevrolet 1979-78 VIN M ●65 in three steps 64
204 OHV (3.3L) Buick 1993-89 VIN N ●❍ 1st 35, 2nd turn 130 degrees,
3rd Bolts 1-4 turn 30 degrees
88 ES 74031
206.8 OHV Chevrolet 1936-35 75-80 61
207 OHV (3.4L) 12 Valve Chevrolet 2008-04 VIN F, 9 ●❍ 1st 44, 2nd turn 95 degrees 196 ES 72892
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
GM PRODUCTS 4 (CONT.)
151 OHV (2.5L) Pontiac 1986-85 VIN E
(Truck)
●❍ 90 in three steps 72 ES 72733
151 OHV (2.5L) Pontiac 1992-87 VIN R ●❍ 1st all bolts 18,
2nd Bolts 1-8, 10 26; Bolt 9 18,
3rd all bolts turn 90 degrees
72 ES 72733
151 OHV (2.5L) Pontiac 1986 VIN R, 2 ●❍ 1st all bolts 18,
2nd Bolts 1-8, 10 22; Bolt 9 29,
3rd Bolts 1-8, 10 turn 120 degrees;
Bolt 9 turn 90 degrees
72 ES 72733
151 OHV (2.5L) Pontiac 1985 VIN R, 2 ●❍ 92 in three steps 72 ES 72733
151 OHV (2.5L) Pontiac 1991-87 VIN U ●❍ 1st all bolts 18,
2nd Bolts 1-8, 10 26; Bolt 9 18,
3rd all bolts turn 90 degrees
72 ES 72858
151 OHV (2.5L) Pontiac 1986 VIN U ●❍ 1st all bolts 18,
2nd Bolts 1-8, 10 22; Bolt 9 29,
3rd Bolts 1-8, 10 turn 120 degrees;
Bolt 9 turn 90 degrees
72 ES 72858
151 OHV (2.5L) Pontiac 1985 VIN U ●❍ 92 in three steps 72 ES 72858
151 OHV (2.5L) Pontiac 1984 ●92 in three steps 72
151 OHV (2.5L) Pontiac 1983-80 ●85 in three steps 72
151 OHV (2.5L) Pontiac 1979-77 ●95 in three steps 72
153 OHV Chevrolet 1970-62 ●95 37
169 DOHC (2.8L) 16 Valve
Chevrolet Truck
2006-04 VIN 8 ●❍ Bolts 1-10 1st 22, 2nd turn 90 degrees,
3rd turn 65 degrees; Bolt 11 4th 5.1,
5th turn 120 degrees; Bolts 12-13
6th 5.1, 7th turn 60 degrees
253 ES 72195
178 DOHC (2.9L) 16 Valve
Chevrolet Truck
2008-07 VIN 9 Bolts 1-10 1st 22, 2nd turn 90 degrees,
3rd turn 65 degrees; Bolt 11 4th 5.1,
5th turn 120 degrees; Bolts 12-13
6th 5.1, 7th turn 60 degrees
253
195 OHV Pontiac 1963-61 ●95 40
235.3 OHV Diesel (3.9L) 8 Valve
Isuzu
1988-87 ●1st 50, 2nd 65, 3rd turn 60-90 degrees 180
235.3 OHV Turbo Diesel (3.9L)
8 Valve Isuzu
1998-87 ●1st 50, 2nd 65, 3rd turn 60-90 degrees 180
GM PRODUCTS 5
211 DOHC (3.5L) 20 Valve
Chevrolet Truck
2006-04 VIN 6 ●❍ Bolts 1-12 1st 22, 2nd turn 90 degrees,
3rd turn 65 degrees; Bolt 13 4th 5.1,
5th turn 120 degrees; Bolts 14-15
6th 5.1, 7th turn 60 degrees
254 ES 72195
223 DOHC (3.7L) 20 Valve
Chevrolet Truck
2008-07 VIN E Bolts 1-12 1st 22, 2nd turn 90 degrees,
3rd turn 65 degrees; Bolt 13 4th 5.1,
5th turn 120 degrees; Bolts 14-15
6th 5.1, 7th turn 60 degrees
254
GM PRODUCTS 6 & H06 & V6
140 OHV Chevrolet 1961-60 Corvair 27-33 27
145 OHV Chevrolet 1963-61 Corvair 27-33 27
145 OHV Turbo Chevrolet 1963-62 Corvair 27-33 27
152 DOHC (2.5L) 24 Valve Daewoo 2006-04
Epica VIN L 1st 15, 2nd 18, 3rd turn 70 degrees,
4th turn 70 degrees
39
152 DOHC (2.5L) 24 Valve Suzuki 2004-01
Tracker VIN 4 Bolts 1-8 1st 38.5, 2nd 61,
3rd loosen all bolts, 4th 38.5 again,
5th 61, 6th 76; Bolt 9 7th 8
212
164 OHV Chevrolet 1969-65 Corvair 40 27
164 OHV Chevrolet 1964 Corvair 27-33 27
164 OHV Turbo Chevrolet 1966-65 Corvair 40 27
164 OHV Turbo Chevrolet 1964 Corvair 27-33 27
40 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
41
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
GM PRODUCTS 6 & H06 & V6 (CONT.)
231 OHV (3.8L) 12 Valve Buick 1985-78 ●80 in three steps 88
231 OHV (3.8L) 12 Valve Buick 1977-75 ●80 in three steps 69
231 OHV Supercharged (3.8L)
12 Valve Buick
2007-01 VIN 1, 4 ●❍ 1st 37, 2nd turn 120 degrees 88 ES 74033
231 OHV Supercharged (3.8L)
12 Valve Buick
2000-96 VIN 1 ●❍ 1st 37, 2nd turn 130 degrees,
3rd Bolts 1-4 turn 30 degrees
88 ES 74033
231 OHV Supercharged (3.8L)
12 Valve Buick
1995-91 VIN 1 ●❍ 1st 37, 2nd turn 130 degrees,
3rd Bolts 1-4 turn 30 degrees
88 ES 72167
231 OHV Turbo (3.8L) 12 Valve
Buick
1989 VIN 7 ●❍ 1st 25, 2nd turn 90 degrees,
3rd turn 90 degrees
88 ES 74022
231 OHV Turbo (3.8L) 12 Valve
Buick
1987-86 VIN 7 ●❍ 1st 25, 2nd turn 90 degrees,
3rd turn 90 degrees
88 ES 74022
231 OHV Turbo (3.8L) 12 Valve
Buick
1985-84 ●80 in three steps 88
231 OHV Turbo (3.8L) 12 Valve
Buick
1983-78 ●80 in three steps 69
233 L-Head GMC Truck 1938-35 60 174
235 OHV Chevrolet 1963-53 90-95 25
235 OHV Chevrolet 1952-40 75-80 61
236 OHV GMC Truck 1949-41 90-100 61
238 L-Head Oldsmobile 1948-41 60-70 177
239.2 L-Head Pontiac 1954-41 60 174
242 OHV (3.9L) 12 Valve Chevrolet 2008
VIN R, W, 1, 3
●❍ 1st 44, 2nd turn 140 degrees 196 ES 72230
242 OHV (3.9L) 12 Valve Chevrolet 2007-06
VIN R, W, 1, 3
●❍ 1st 44, 2nd turn 95 degrees 196 ES 72230
248 OHV GMC Truck 1955-39 90-100 61
250 OHV (4.1L) Chevrolet 1984-74 VIN D, Q ●Bolts 1-10, 12-14 95; Bolt 11 85 2
250 OHV (4.1L) Chevrolet 1973-65 ●95 2
250 SOHC Pontiac 1969-68 ●85-100 2
252 OHV (4.1L) Buick 1985-84 VIN 4 ●80 in three steps 88
252 OHV (4.1L) Buick 1983-80 VIN 4 ●80 in three steps 69
254 DOHC (4.2L) 24 Valve
Chevrolet Truck
2008-02 VIN S ●❍ Bolts 1-14 1st 22, 2nd turn 90 degrees,
3rd turn 65 degrees; Bolt 15 4th 5.1,
5th turn 120 degrees; Bolts 16-17
6th 5.1, 7th turn 60 degrees
211 ES 72195
261 OHV Chevrolet 1962-54 90-95 45
262 OHV (4.3L) Chevrolet Truck 2008-02 VIN X ●❍ 1st all bolts 22,
2nd Long bolts turn 75 degrees,
3rd Medium bolts turn 65 degrees,
4th Short bolts turn 55 degrees
64 ES 74034
262 OHV (4.3L) Chevrolet Truck 1999-96 VIN X ●❍ 1st all bolts 22,
2nd Long bolts turn 75 degrees,
3rd Medium bolts turn 65 degrees,
4th Short bolts turn 55 degrees
64 ES 74034
262 OHV (4.3L) Chevrolet Truck 1996-94 VIN Z ●❍ 1st all bolts 22,
2nd Long bolts turn 75 degrees,
3rd Medium bolts turn 65 degrees,
4th Short bolts turn 55 degrees
64 ES 74034
262 OHV (4.3L) Chevrolet Truck 1993-85
VIN B, N, Z
●❍ 65 in three steps 64 ES 74034
262 OHV (4.3L) Chevrolet 1993-85 VIN Z ●❍ 65 in three steps 64 ES 74034
262 H.O. OHV (4.3L) Chevrolet
Truck
2003-96 VIN W ●❍ 1st all bolts 22,
2nd Long bolts turn 75 degrees,
3rd Medium bolts turn 65 degrees,
4th Short bolts turn 55 degrees
64 ES 74034
262 H.O. OHV (4.3L) Chevrolet
Truck
1995-92 VIN W ●❍ 65 in three steps 64 ES 74034
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
GM PRODUCTS 6 & H06 & V6 (CONT.)
207 OHV (3.4L) 12 Valve Chevrolet 2005-01 VIN E ●❍ 1st 44, 2nd turn 95 degrees 196 ES 72892
ES 74017
207 OHV (3.4L) 12 Valve Chevrolet 2000-96 VIN E ●❍ 1st 37, 2nd turn 90 degrees 49 ES 72892
ES 74017
207 OHV (3.4L) 12 Valve Chevrolet 1995-93 VIN S ●❍ 1st 41, 2nd turn 90 degrees 49 ES 72857
207 DOHC (3.4L) 24 Valve
Chevrolet
1997-93 VIN X ●❍ 1st 44, 2nd turn 90 degrees 49 ES 72177
207 DOHC (3.4L) 24 Valve
Chevrolet
1992-91 VIN X ●❍ 1st 37, 2nd turn 90 degrees 49 ES 72177
208 L-Head Pontiac 1936-35 60 174
213 OHV (3.5L) 12 Valve Chevrolet 2008-04 VIN L, 8 ●1st 44, 2nd turn 95 degrees 196
214 OHV (3.5L) 12 Valve Chevrolet 2008 VIN K, N ●❍ 1st 44, 2nd turn 140 degrees 196 ES 72230
214 OHV (3.5L) 12 Valve Chevrolet 2007-06 VIN K, N ●❍ 1st 44, 2nd turn 95 degrees 196 ES 72230
214 DOHC (3.5L) 24 Valve
Oldsmobile
2002-01 VIN H ●❍ 1st M11 bolts 30,
2nd M11 bolts turn 100 degrees,
3rd M11 bolts turn 100 degrees,
4th M6 long bolt 8.8,
5th M6 short bolts 8.8
157 ES 72191
214 DOHC (3.5L) 24 Valve
Oldsmobile
2000-99 VIN H ●❍ 1st M11 bolts 30,
2nd M11 bolts turn 60 degrees,
3rd M11 bolts turn 60 degrees,
4th M11 bolts turn 80 degrees,
5th M6 long bolt 8.8,
6th M6 short bolts 8.8
157 ES 72191
215 OHV Pontiac 1965-64 ●90-95 2
216.5 OHV Chevrolet 1953-37 75-80 61
217 DOHC (3.6L) 24 Valve Opel 2008-07 VIN V, 7 Right Head 1st Bolts 1-8 22,
2nd Bolts 1-8 turn 150 degrees,
3rd Bolt 9 11, 4th Bolt 9 turn 75 degrees;
Left Head 1st Bolts 1-8 22,
2nd Bolts 1-8 turn 150 degrees,
3rd Bolts 9-10 11,
4th Bolts 9-10 turn 75 degrees
260
217 DOHC (3.6L) 24 Valve Opel 2006-04 VIN 7 Right Head 1st 33, 2nd turn 120 degrees;
Left Head 1st Bolts 1-8 33,
2nd Bolts 1-8 turn 120 degrees,
3rd Bolts 9-10 11,
4th Bolts 9-10 turn 60 degrees
230
219 L-Head Oldsmobile 1939-37 60-70 177
222.7 L-Head Pontiac 1940-35 60 174
225 OHV Buick 1967-64 ●65-70 19
228 OHV GMC Truck 1953-39 90-100 61
229 OHV (3.8L) Chevrolet 1984-80 VIN K, 9 ●65 in three steps 64
229.7 L-Head Oldsmobile 1940-37 60-70 177
230 OHV Chevrolet 1970-63 ●95 2
230 SOHC Pontiac 1967-66 ●85-100 2
231 OHV (3.8L) 12 Valve Buick 2008-01 VIN K, 2
(FWD)
●❍ 1st 37, 2nd turn 120 degrees 88 ES 74033
231 OHV (3.8L) 12 Valve Buick 2000-95 VIN K
(FWD)
●❍ 1st 37, 2nd turn 130 degrees,
3rd Bolts 1-4 turn 30 degrees
88 ES 74033
231 OHV (3.8L) 12 Valve Buick 2002-98 VIN K
(RWD)
●❍ 1st 37, 2nd turn 120 degrees 88 ES 74033
231 OHV (3.8L) 12 Valve Buick 1997-95 VIN K
(RWD)
●❍ 1st 37, 2nd turn 130 degrees,
3rd Bolts 1-4 turn 30 degrees
88 ES 74033
231 OHV (3.8L) 12 Valve Buick 1995-90 VIN L ●❍ 1st 35, 2nd turn 130 degrees,
3rd Bolts 1-4 turn 30 degrees
88 ES 74031
231 OHV (3.8L) 12 Valve Buick 1991-88 VIN C ●❍ 1st 35, 2nd turn 130 degrees,
3rd turn 30 degrees
88 ES 74031
231 OHV (3.8L) 12 Valve Buick 1988-86
VIN A, B, 3
●❍ 1st 25, 2nd turn 90 degrees,
3rd turn 90 degrees
88 ES 74022
42 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
43
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
GM PRODUCTS L8 & V8 (CONT.)
281 DOHC (4.6L) 32 Valve Cadillac 2008-06
VIN A, Y, 9
●❍ 1st M11 bolts 22, 2nd turn 60 degrees,
3rd turn 60 degrees, 4th turn 60 degrees,
5th M6 bolts 8.8
198 ES 72217
281 DOHC (4.6L) 32 Valve Cadillac 2005-04
VIN A, Y, 9
●❍ 1st M11 bolts 22, 2nd turn 60 degrees,
3rd turn 60 degrees, 4th turn 60 degrees,
5th M6 bolts 8.8
198 ES 72187
281 DOHC (4.6L) 32 Valve Cadillac 2003-00 VIN Y, 9 ●❍ 1st M11 bolts 30, 2nd turn 70 degrees,
3rd turn 60 degrees, 4th turn 45 degrees,
5th M6 bolts 8.8
198 ES 72187
281 DOHC (4.6L) 32 Valve Cadillac 1999-93 VIN Y, 9 ●❍ 1st M11 bolts 30, 2nd turn 70 degrees,
3rd turn 60 degrees, 4th turn 60 degrees,
5th M6 bolts 8.8
198 ES 72186
283 Chevrolet 1967-57 ●❍ 65 7ES 72856
287.2 Pontiac 1955 95 40
288 GMC Truck 1955 95 40
293 OHV (4.8L) Chevrolet Truck 2008-07 VIN C
2nd Design Bolts
●❍ 1st M11 Bolts 1-10 22,
2nd M11 Bolts 1-10 turn 90 degrees,
3rd M11 Bolts 1-10 turn 70 degrees,
4th M8 Bolts 11-15 22
159 ES 72220
293 OHV (4.8L) Chevrolet Truck 2008-04 VIN V
2nd Design Bolts
●❍ 1st M11 Bolts 1-10 22,
2nd M11 Bolts 1-10 turn 90 degrees,
3rd M11 Bolts 1-10 turn 70 degrees,
4th M8 Bolts 11-15 22
159 ES 72220
293 OHV (4.8L) Chevrolet Truck 2004-99 VIN V
1st Design Bolts
●❍ 1st M11 Bolts 1-10 22,
2nd M11 Bolts 1-10 turn 90 degrees,
3rd M11 Bolts 1-8 turn 90 degrees,
4th M11 Bolts 9-10 turn 50 degrees,
5th M8 Bolts 11-15 22
159 ES 72173
298 OHV (4.5L) Cadillac 1995-91 VIN B ●1st 38, 2nd 68, 3rd Bolts 1, 3, 4 90 74
300 Buick 1967-64 ●65-70 4
301 (4.9L) Pontiac 1981-77 VIN W, Y ●95 in three steps 40
301 Turbo (4.9L) Pontiac 1981-80 VIN T ●95 in three steps 40
302 Chevrolet 1969-67 ●❍ 65 7ES 72856
303 Oldsmobile 1953-49 65-70 29
305 (5.0L) Chevrolet Truck 2002-97 VIN M ●❍ 1st all bolts 22,
2nd Long bolts turn 75 degrees,
3rd Medium bolts turn 65 degrees,
4th Short bolts turn 55 degrees
7ES 72856
305 (5.0L) Chevrolet Truck 1996 VIN M ●❍ 1st 24, 2nd 45, 3rd 65 7ES 72856
305 (5.0L) Chevrolet 1995-76 ●❍ 65 in three steps 7 ES 72856
307 (5.0L) Oldsmobile 1990-89 VIN Y, 9 ●1st 40, 2nd Bolts 1-7, 9 turn 120 degrees,
3rd Bolts 8, 10 turn 95 degrees
3
307 (5.0L) Oldsmobile 1988-80 VIN Y, 9 ●130 in three steps 3
307 Chevrolet 1973-68 ●❍ 65 7ES 72856
316 Pontiac 1956 95 40
316 GMC Truck 1956-55 95 40
320.2 OHV Buick 1952-36 65-70 178
322 Buick 1956-53 65-75 34
322 GMC Truck 1959-56 65-75 34
324 Oldsmobile 1956-54 65-70 29
324 GMC Truck 1956-55 65-70 29
325 OHV (5.3L) Chevrolet 2008-05 VIN C
2nd Design Bolts
●❍ 1st M11 Bolts 1-10 22,
2nd M11 Bolts 1-10 turn 90 degrees,
3rd M11 Bolts 1-10 turn 70 degrees,
4th M8 Bolts 11-15 22
159 ES 72220
325 OHV (5.3L) Chevrolet Truck 2008-07
VIN J, L, 0, 3
2nd Design Bolts
●❍ 1st M11 Bolts 1-10 22,
2nd M11 Bolts 1-10 turn 90 degrees,
3rd M11 Bolts 1-10 turn 70 degrees,
4th M8 Bolts 11-15 22
159 ES 72220
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
GM PRODUCTS 6 & H06 & V6 (CONT.)
262 OHV Turbo (4.3L) Chevrolet
Truck 1993-91 VIN Z 65 in three steps 64
262 OHV Diesel (4.3L) Oldsmobile 1985-82
VIN T, V, 7
●Bolts 1, 2, 3, 4, 7, 8, 9, 10 142;
Bolts 5, 6, 11, 12, 13, 14 59 73
270 OHV GMC Truck 1962-39 90-100 61
292 OHV (4.8L) Chevrolet Truck 1989-74 VIN T ●Bolts 1-10, 12-14 95; Bolt 11 85 2
292 OHV (4.8L) Chevrolet Truck 1973-63 ●95 2
302 OHV GMC Truck 1959-52 90-100 61
305 OHV GMC Truck 1974-60 65-72 67
351 OHV GMC Truck 1973-60 65-72 67
D351 OHV Diesel GMC Truck 1969-64 125-135 67
353 OHV Turbo Diesel (5.8L)
12 Valve Isuzu 1995-87 ●1st 50, 2nd 65, 3rd turn 60-90 degrees 181
379 OHV GMC Truck 1974-73 7/16” bolts 60-65; 1/2” bolts 90-100 67
401 OHV GMC Truck 1973-60 65-72 67
426 OHV GMC Truck 1955-49 80-90 192
432 OHV GMC Truck 1974-73 7/16” bolts 60-65; 1/2” bolts 90-100 67
478 OHV GMC Truck 1974-62 65-72 67
D478 OHV Diesel GMC Truck 1975-64 125-135 67
DH478 OHV Diesel GMC Truck 1975-64 125-135 67
503 OHV GMC Truck 1959-57 75-80 192
503 OHV GMC Truck 1956-49 80-90 192
GM PRODUCTS L8 & V8
215 Buick, Pontiac 1963-61 ●50-55 24
215 Oldsmobile 1963-61 ●45-55 176
215 Turbo Oldsmobile 1963-62 ●45-55 176
223.4 L-Head Pontiac 1935-33 60 175
232.3 L-Head Pontiac 1936 60 175
244 DOHC (4.0L) 32 Valve
Oldsmobile 2003-01 VIN C ●❍ 1st 30, 2nd turn 70 degrees,
3rd turn 60 degrees, 4th turn 60 degrees,
5th M6 bolts 8.8
198 ES 72187
244 DOHC (4.0L) 32 Valve
Oldsmobile 1999-95 VIN C ●❍ 1st 30, 2nd turn 70 degrees,
3rd turn 60 degrees, 4th turn 60 degrees,
5th M6 bolts 8.8
198 ES 72186
248 OHV Buick 1950-34 65-70 178
248.9 L-Head Pontiac 1949-37 60 175
250 OHV (4.1L) Cadillac 1988-82 VIN 7, 8 ●1st 38, 2nd 74, 3rd Bolts 1, 3, 4 90 74
260 (4.3L) Oldsmobile 1982-75 VIN F, 8 ●1st 60, 2nd 85 3
260 Diesel (4.3L) Oldsmobile 1979 VIN P ●1st 100, 2nd 130 3
262 Chevrolet 1976-75 VIN G ●❍ 65 in three steps 7 ES 72856
263 OHV Buick 1953-50 65-70 178
264 Buick 1955-54 65-75 34
265 (4.3L) Chevrolet 1996-95 VIN W ●❍ 1st all bolts 22,
2nd Long bolts turn 80 degrees,
3rd Medium bolts turn 65 degrees,
4th Short bolts turn 55 degrees
7ES 72856
265 (4.3L) Chevrolet 1994 VIN W ●❍ 65 in three steps 7 ES 72856
265 (4.3L) Pontiac 1981-80 VIN S ●95 in three steps 40
265 Chevrolet 1957-55 ●❍ 65 7ES 72856
267 OHV (4.4L) Chevrolet 1982-79 VIN J ●❍ 65 in three steps 7 ES 72856
267 DOHC Supercharged (4.4L)
32 Valve Cadillac 2008-06 VIN D 1st M11 bolts 22, 2nd turn 60 degrees,
3rd turn 60 degrees, 4th turn 60 degrees,
5th turn 40 degrees, 6th M6 bolts 8.8
198
268.2 L-Head Pontiac 1954-50 60 175
273 OHV (4.5L) Cadillac 1992-88
VIN 3, 5, 8
●1st 38, 2nd 68, 3rd Bolts 1, 3, 4 90 74
44 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
45
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
GM PRODUCTS L8 & V8 (CONT.)
350 (5.7L) Pontiac 1977-76
VIN M, P
●95 in three steps 40
350 (5.7L) Pontiac 1975-68 ●95 in three steps 40
350 DOHC (5.7L) 32 Valve
Chevrolet
1995-90 VIN J 1st 45, 2nd 74, 3rd 118 200
350 Diesel (5.7L) Oldsmobile 1985-78 VIN N, Z ●1st 100, 2nd 130 3
364 OHV (6.0L) Chevrolet 2008 VIN Y
2nd Design Bolts
●❍ 1st M11 Bolts 1-10 22,
2nd M11 Bolts 1-10 turn 90 degrees,
3rd M11 Bolts 1-10 turn 70 degrees,
4th M8 Bolts 11-15 22
159 ES 72220
364 OHV (6.0L) Chevrolet 2007-05 VIN H, U
2nd Design Bolts
●❍ 1st M11 Bolts 1-10 22,
2nd M11 Bolts 1-10 turn 90 degrees,
3rd M11 Bolts 1-10 turn 70 degrees,
4th M8 Bolts 11-15 22
159 ES 72220
364 OHV (6.0L) Chevrolet Truck 2008-07 VIN K, Y
2nd Design Bolts
●❍ 1st M11 Bolts 1-10 22,
2nd M11 Bolts 1-10 turn 90 degrees,
3rd M11 Bolts 1-10 turn 70 degrees,
4th M8 Bolts 11-15 22
159 ES 72220
364 OHV (6.0L) Chevrolet Truck 2008-04
VIN H, N, U
2nd Design Bolts
●❍ 1st M11 Bolts 1-10 22,
2nd M11 Bolts 1-10 turn 90 degrees,
3rd M11 Bolts 1-10 turn 70 degrees,
4th M8 Bolts 11-15 22
159 ES 72220
364 OHV (6.0L) Chevrolet Truck 2004-99 VIN N, U
1st Design Bolts
●❍ 1st M11 Bolts 1-10 22,
2nd M11 Bolts 1-10 turn 90 degrees,
3rd M11 Bolts 1-8 turn 90 degrees,
4th M11 Bolts 9-10 turn 50 degrees,
5th M8 Bolts 11-15 22
159 ES 72173
364 OHV (6.0L) Hybrid Chevrolet
Truck
2008 VIN 5
2nd Design Bolts
●❍ 1st M11 Bolts 1-10 22,
2nd M11 Bolts 1-10 turn 90 degrees,
3rd M11 Bolts 1-10 turn 70 degrees,
4th M8 Bolts 11-15 22
159 ES 72220
364 Buick 1961-57 ●65-75 34
365 Cadillac 1958-56 ●65-70 23
366 (6.0L) Chevrolet Truck 1998-66 ●80 8
368 (6.0L) Cadillac 1984-80 VIN 6, 9 ●95 in three steps 37
370 Pontiac 1958 ●95 40
370 GMC Truck 1959-57 65-70 29
371 Oldsmobile 1960-59 60-80 29
371 Oldsmobile 1958-57 60-70 29
378 OHV (6.2L) Chevrolet 2008 VIN W
2nd Design Bolts
●❍ 1st M11 Bolts 1-10 22,
2nd M11 Bolts 1-10 turn 90 degrees,
3rd M11 Bolts 1-10 turn 70 degrees,
4th M8 Bolts 11-15 22
159 ES 72220
378 OHV (6.2L) Chevrolet Truck 2008-07 VIN 8
2nd Design Bolts
●❍ 1st M11 Bolts 1-10 22,
2nd M11 Bolts 1-10 turn 90 degrees,
3rd M11 Bolts 1-10 turn 70 degrees,
4th M8 Bolts 11-15 22
159 ES 72220
379 OHV Diesel (6.2L) Chevrolet
Truck
1993-87 VIN C, J ●❍ 1st 20, 2nd 50, 3rd turn 90 degrees 77 ES 72724
379 OHV Diesel (6.2L) Chevrolet
Truck
1986-82 VIN C, J ●❍ 95-105 in three steps 77 ES 72724
389 Pontiac 1966-59 ●95 40
390 Cadillac 1963 ●75 7
390 Cadillac 1962-61 ●75 23
390 Cadillac 1960-59 ●65-70 23
394 Oldsmobile 1964-59 ●60-80 29
395 OHV Diesel (6.5L) Chevrolet
Truck
1999-94 VIN P, Y ●❍ 1st 20, 2nd 55, 3rd 55 again,
4th turn 90 degrees
77 ES 72724
395 OHV Turbo Diesel (6.5L)
Chevrolet Truck
2005-92
VIN F, S, Z
●❍ 1st 20, 2nd 55, 3rd 55 again,
4th turn 90 degrees
77 ES 72724
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
GM PRODUCTS L8 & V8 (CONT.)
325 OHV (5.3L) Chevrolet Truck 2008-04
VIN B, M, P, T, Z
2nd Design Bolts
●❍ 1st M11 Bolts 1-10 22,
2nd M11 Bolts 1-10 turn 90 degrees,
3rd M11 Bolts 1-10 turn 70 degrees,
4th M8 Bolts 11-15 22
159 ES 72220
325 OHV (5.3L) Chevrolet Truck 2004-99
VIN P, T, Z
1st Design Bolts
●❍ 1st M11 Bolts 1-10 22,
2nd M11 Bolts 1-10 turn 90 degrees,
3rd M11 Bolts 1-8 turn 90 degrees,
4th M11 Bolts 9-10 turn 50 degrees,
5th M8 Bolts 11-15 22
159 ES 72173
325 OHV (5.3L) Hybrid Chevrolet
Truck 2007-05 VIN T
2nd Design Bolts
●❍ 1st M11 Bolts 1-10 22,
2nd M11 Bolts 1-10 turn 90 degrees,
3rd M11 Bolts 1-10 turn 70 degrees,
4th M8 Bolts 11-15 22
159 ES 72220
326 Pontiac 1967-63 ●95 40
327 Chevrolet 1969-62 ●❍ 65 7ES 72856
330 Oldsmobile 1967-64 ●80 3
331 Cadillac 1955-49 ●65-70 23
336.9 GMC Truck 1959-58 95 40
340 Buick 1967-66 ●65-70 4
346 OHV (5.7L) Chevrolet 2005-04 VIN G, S
2nd Design Bolts
●❍ 1st M11 Bolts 1-10 22,
2nd M11 Bolts 1-10 turn 90 degrees,
3rd M11 Bolts 1-10 turn 70 degrees,
4th M8 Bolts 11-15 22
159 ES 72220
346 OHV (5.7L) Chevrolet 2004-98 VIN G, S
1st Design Bolts
●❍ 1st M11 Bolts 1-10 22,
2nd M11 Bolts 1-10 turn 90 degrees,
3rd M11 Bolts 1-8 turn 90 degrees,
4th M11 Bolts 9-10 turn 50 degrees,
5th M8 Bolts 11-15 22
159 ES 72173
346 OHV (5.7L) Chevrolet 1997 VIN G
1st Design Bolts
●❍ 1st M11 Bolts 1-10 22,
2nd M11 Bolts 1-10 turn 76 degrees,
3rd M11 Bolts 1-8 turn 76 degrees,
4th M11 Bolts 9-10 turn 34 degrees,
5th M8 Bolts 11-15 22
159 ES 72173
346 L-Head Cadillac 1948-37 70-75 179
347 Pontiac 1957 95 40
347 GMC Truck 1957 95 40
348 Chevrolet 1965-58 ●65 26
350 (5.7L) Buick 1981-75
VIN B, H, J, X
●80 in three steps 5
350 (5.7L) Buick 1974-73 ●80 in three steps 5
350 (5.7L) Buick 1972-68 ●65-75 4
350 (5.7L) Cadillac 1980-75
VIN B, R, 8
●130 in three steps 3
350 (5.7L) Chevrolet Truck 2002-97 VIN R ●❍ 1st all bolts 22,
2nd Long bolts turn 75 degrees,
3rd Medium bolts turn 65 degrees,
4th Short bolts turn 55 degrees
7ES 72856
350 (5.7L) Chevrolet Truck 1996 VIN R ●❍ 1st 24, 2nd 45, 3rd 65 7ES 72856
350 (5.7L) Chevrolet 1997-96 VIN P, 5 ●❍ 1st all bolts 22,
2nd Short bolts turn 67 degrees,
3rd Medium bolts &
Long bolts turn 80 degrees
7ES 72856
350 (5.7L) Chevrolet 1995-92 VIN P ●❍ 65 in three steps 7 ES 72856
350 (5.7L) Chevrolet 1995-67
Cast Iron heads
exc. VIN P, 5
●❍ 65 in three steps 7 ES 72856
350 (5.7L) Chevrolet 1991-86
Aluminum heads
exc. VIN P
●❍ Short Bolts 60; Medium Bolts 65;
Long Bolts 65 7ES 72856
350 (5.7L) Oldsmobile 1980-77 VIN R ●1st 100, 2nd 130 3
350 (5.7L) Oldsmobile 1976-68 ●1st 60, 2nd 85 3
46 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
47
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
GM PRODUCTS L8 & V8 (CONT.)
496 OHV (8.1L) Chevrolet Truck 2007-01 VIN G ●❍ 1st 22, 2nd 22 again,
3rd turn 120 degrees,
4th Bolts 1, 2, 3, 6, 7, 8, 9, 10,
11, 14, 16, 17 turn 60 degrees,
5th Bolts 15, 18 turn 45 degrees,
6th Bolts 4, 5, 12, 13 turn 30 degrees
210 ES 72188
500 Cadillac 1976-70 ●115 in three steps 37
GM PRODUCTS V12
702 OHV GMC Truck 1965-60 65-72 67
GMC ............................................................................ SEE GM PRODUCTS
GRUMANN 4
134 OHV (2.2L) Chevrolet 1995 VIN 4 ●❍ 1st Long bolts 46; Short bolts 43,
2nd all bolts turn 90 degrees
149 ES 72172
134 OHV (2.2L) Chevrolet 1994 VIN 4 ●❍ 1st Long bolts 46; Short bolts 43,
2nd all bolts turn 90 degrees
149 ES 74016
151 OHV (2.5L) Pontiac 1993-88 VIN A, E ●❍ 1st all bolts 18,
2nd Bolts 1-8, 10 26; Bolt 9 18,
3rd all bolts turn 90 degrees
72 ES 72733
151 OHV (2.5L) Pontiac 1987 VIN E ●❍ 1st all bolts 18,
2nd Bolts 1-8, 10 26; Bolt 9 30,
3rd Bolts 1-8, 10 turn 120 degrees;
Bolt 9 turn 90 degrees
72 ES 72733
HENRY J ................................................................................ SEE KAISER
HONDA 3
995cc SOHC (ECA1) 12 Valve
Hybrid 2006-00 Bolts 1-8 1st 29, 2nd turn 90 degrees;
Bolts 9 3rd 8.7 202
HONDA 4
1169cc SOHC (EB1) 8 Valve 1973 ●37-42 in two steps 153
1238cc SOHC (EB2, EB3) 8 Valve 1979-74 ●37-42 in two steps 153
1335cc SOHC (EJ1) 8 Valve 1983-80 ●1st 22, 2nd 43 60
1335cc SOHC (EN1) 8 Valve 1983-80 ●37-42 in two steps 153
1339cc SOHC (LDA1, LDA2)
16 Valve Hybrid 2008-03 1st 22, 2nd turn 130 degrees 60
1342cc SOHC (D13A1, D13A2)
8 Valve 1987 ●1st 22, 2nd 43 37
1342cc SOHC (EV1, EV2) 8 Valve 1986-84 ●1st 22, 2nd 43 37
1488cc SOHC (D15A1, D15A2,
D15A3) 12 Valve 1987 ●1st 22, 2nd 43 37
1488cc SOHC (EW1, EW2)
12 Valve 1986-84 ●1st 22, 2nd 43 37
1488cc SOHC (EW3, EW4)
12 Valve 1986-85 ●1st 22, 2nd 43 37
1488cc SOHC (D15A2) 8 Valve 1987 ●1st 22, 2nd 43 37
1488cc SOHC (EW1) 8 Valve 1986-85 ●1st 22, 2nd 43 37
1488cc SOHC (EM1) 8 Valve 1983-80 ●1st 22, 2nd 43 60
1488cc SOHC (EC, ED1, ED2,
ED3, ED4) 8 Valve 1979-75 ●44 in two steps 60
1493cc SOHC (D15B7) 16 Valve 1995-92 ●1st 14, 2nd 36, 3rd 49,
4th Bolts 1-2 49 again
108
1493cc SOHC (D15Z1) 16 Valve 1995-92 ● 1st 14, 2nd 36, 3rd 49,
4th Bolts 1-2 49 again
108
1493cc SOHC (D15B1, D15B2)
16 Valve 1991-88 ●1st 22, 2nd 43 108
1493cc SOHC (D15B8) 8 Valve 1995-92 ●1st 14, 2nd 36, 3rd 49,
4th Bolts 1-2 49 again
108
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
GM PRODUCTS L8 & V8 (CONT.)
396 Chevrolet 1969-65 ●80 8
400 Buick 1969-68 ●100 4
400 Buick 1967 ●100-120 4
400 Buick 1966-65 ●65-80 24
400 (6.6L) Chevrolet 1980-70 ●❍ 65 in three steps 7 ES 72856
400 Oldsmobile 1969-65 ●80 3
400 Pontiac 1979-67 ●95 in three steps 40
401 Buick 1966-62 ●65-80 24
401 Buick 1961-59 ●65-75 34
402 Chevrolet 1972-70 ●80 8
402 OHV Turbo Diesel (6.6L)
32 Valve Isuzu
2008-05
DuraMax VIN D,
1, 2, 3, 6
●❍ 1st M12 bolts 37, 2nd M12 bolts 59,
3rd M12 bolts turn 60 degrees,
4th M12 bolts turn 60 degrees,
5th M8 bolts 18
213 ES 72199
402 OHV Turbo Diesel (6.6L)
32 Valve Isuzu
2004-01
DuraMax
VIN 1, 2
2nd Design
Head Gasket
●❍ 1st M12 bolts 37, 2nd M12 bolts 59,
3rd M12 bolts turn 60 degrees,
4th M12 bolts turn 60 degrees,
5th M8 bolts 18
213 ES 72199
402 OHV Turbo Diesel (6.6L)
32 Valve Isuzu
2004-01
DuraMax
VIN 1, 2
1st Design
Head Gasket
●❍ 1st M12 bolts 37, 2nd M12 bolts 59,
3rd M12 bolts turn 90 degrees,
4th M12 bolts turn 75 degrees,
5th M8 bolts 18
213 ES 72199
403 Oldsmobile 1979-77 VIN K ●1st 100, 2nd 130 3
409 Chevrolet 1965-61 ●65 26
421 Pontiac 1966-61 ●95 40
425 Buick 1966-63 ●65-80 24
425 Cadillac 1979-77 VIN S, T ●95 in three steps 37
425 Oldsmobile 1967-65 ●80 3
427 OHV (7.0L) Chevrolet 2008-06 VIN E
2nd Design Bolts
●❍ 1st M11 Bolts 1-10 22,
2nd M11 Bolts 1-10 turn 90 degrees,
3rd M11 Bolts 1-10 turn 70 degrees,
4th M8 Bolts 11-15 22
159 ES 72220
427 (7.0L) Chevrolet Truck 1998-68 ●80 8
427 (7.0L) Chevrolet 1969-66
Cast Iron heads
●80 8
427 (7.0L) Chevrolet 1969-67
Aluminum heads
●Short bolts 65; Medium bolts 75;
Long bolts 75
8
428 Pontiac 1969-67 ●95 40
429 Cadillac 1967-64 ●60 7
430 Buick 1969-68 ●100 4
430 Buick 1967 ●100-120 4
454 (7.4L) Chevrolet Truck 2000-98 VIN B, J ●1st 37, 2nd Bolts 1, 2, 3, 6, 7, 8, 9,
12, 13, 14, 15, 16 turn 150 degrees,
3rd Bolts 4, 5, 10, 11 turn 90 degrees
8
454 (7.4L) Chevrolet Truck 1997-91 VIN J, N ●1st 30, 2nd 60, 3rd 80 8
454 (7.4L) Chevrolet 1990-70
Cast Iron heads
●80 in three steps 8
454 (7.4L) Chevrolet 1972-70
Aluminum heads
●Short bolts 65; Medium bolts 75;
Long bolts 75
8
455 Buick 1976-70 ●100 5
455 Oldsmobile 1976-68 ●85 3
455 Pontiac 1976-70 ●95 40
472 Cadillac 1974-68 ●115 37
48 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
49
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
HONDA 4 (CONT.)
2354cc DOHC (K24A1, K24A4,
K24A8, K24Z1) 16 Valve
2008-02 ●1st 29, 2nd turn 90 degrees,
3rd turn 90 degrees
NOTE: New bolts turn additional 90 degrees
106
2559cc SOHC (4ZE1) 8 Valve Isuzu 1997-94 ●1st 58, 2nd 72 79
HONDA V6
2675cc SOHC (C27A4) 24 Valve 1997-95 ●1st 29, 2nd 56 107
2997cc SOHC (J30A4, J30A5)
24 Valve
2007-04 ●6 point bolts 1st 29, 2nd 29 again,
3rd 51, 4th 51 again, 5th 72.3,
6th 72.3 again
131
2997cc SOHC (J30A4, J30A5)
24 Valve
2007-04 ●12 point bolts 1st 22, 2nd turn 90 degrees,
3rd turn 90 degrees
NOTE: New bolts turn additional 90 degrees
131
2997cc SOHC (J30A1, J30A4)
24 Valve
2003-98 ●1st 29, 2nd 51, 3rd 72.3 131
2997cc SOHC (JNA1) 24 Valve
Hybrid
2007-05 ●6 point bolts 1st 29, 2nd 29 again,
3rd 51, 4th 51 again, 5th 72.3,
6th 72.3 again
131
2997cc SOHC (JNA1) 24 Valve
Hybrid
2007-05 ●12 point bolts 1st 22, 2nd turn 90 degrees,
3rd turn 90 degrees
NOTE: New bolts turn additional 90 degrees
131
3165cc SOHC (6VD1) 24 Valve
Isuzu
1997-96 ●M11 Bolts 1-8 47; M8 Bolts 9-11 15 132
3165cc SOHC (6VD1) 24 Valve
Isuzu
1995-94 ●M11 Bolts 1-8 47; M8 Bolts 9-10 15 160
3165cc DOHC (6VD2) 24 Valve
Isuzu
2002-98 ●1st 21, 2nd 47 134
3471cc SOHC (J35A7, J35A8,
J35A9, J35Z1) 24 Valve
2008-05 ● 6 point bolts 1st 29, 2nd 29 again,
3rd 51, 4th 51 again, 5th 72.3,
6th 72.3 again
131
3471cc SOHC (J35A7, J35A8,
J35A9, J35Z1) 24 Valve
2008-05 ●12 point bolts 1st 22, 2nd turn 90 degrees,
3rd turn 90 degrees
NOTE: New bolts turn additional 90 degrees
131
3471cc SOHC (J35A1, J35A4,
J35A6) 24 Valve
2008-99 ●1st 29, 2nd 29 again, 3rd 51,
4th 51 again, 5th 72.3, 6th 72.3 again
131
HUDSON ..................................................................SEE AMERICAN MOTORS
HUMMER (1992-2001) ......................................................... SEE AM GENERAL
HUMMER (2002-2008) ....................................................... SEE GM PRODUCTS
HYUNDAI 4
1439cc SOHC (4G33) 8 Valve
Mitsubishi
1987-83 ●Bolts 1-10 1st 25, 2nd 51-54;
Bolts 11 3rd 11-15
38
1468cc SOHC (G4AJ, G4DJ, G15B,
4G15) 8 Valve Mitsubishi
1994-86 ●Cold 51-54, Hot 58-61 81
1494cc SOHC (G4EK) 12 Valve 2002-00 ●❍ 1st 17-20, 2nd turn 60-62 degrees,
3rd turn 60-62 degrees
147 ES 71201
1494cc SOHC (G4EK) 12 Valve 1999-93 ●❍ Cold 51-54, Hot 58-61 147 ES 71201
1494cc DOHC (G4FK) 16 Valve 1998-96 ●❍ Cold 51-54, Hot 58-61 147 ES 71204
1494cc SOHC Turbo (G4EK-T)
12 Valve
1995-93 ●❍ Cold 51-54, Hot 58-61 147 ES 71201
1595cc DOHC (G4CR) 16 Valve 1995-92 ●76-83 in two steps 147
1597cc SOHC (G32B, 4G32)
8 Valve Mitsubishi
1987-84 ●Bolts 1-10 1st 25, 2nd 51-54;
Bolts 11 3rd 11-15
38
1599cc DOHC (G4EC, G4ED)
16 Valve
2008-01 ●❍ 1st 22, 2nd turn 90 degrees,
3rd loosen all bolts, 4th 22 again,
5th turn 90 degrees
71 ES 71203
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
HONDA 4 (CONT.)
1493cc SOHC (D15B6) 8 Valve 1991-88 ●1st 22, 2nd 43 108
1496cc SOHC (L15A1) 16 Valve 2008-07 1st 22, 2nd turn 130 degrees 153
1590cc SOHC (D16B5) 16 Valve 2000-98 1st 13, 2nd 36, 3rd 49,
4th Bolts 1-2 49 again
152
1590cc SOHC (D16Y5, D16Y7,
D16Y8) 16 Valve
2000-96 ●1st 13, 2nd 36, 3rd 49,
4th Bolts 1-2 49 again
36
1590cc SOHC (D16Z6) 16 Valve 1995-92 ●1st 14, 2nd 36, 3rd 49,
4th Bolts 1-2 49 again
108
1590cc SOHC (D16A6) 16 Valve 1991-88 ●1st 22, 2nd 43 108
1595cc DOHC (B16A2, B16A3)
16 Valve
2000-94 ●1st 22, 2nd 61 152
1599cc SOHC (EF1, EF2, EG)
12 Valve
1979-76 ●44 in two steps 60
1601cc SOHC (EZ1) 12 Valve 1985-84 ●1st 22, 2nd 49 60
1601cc SOHC (EL) 12 Valve 1983-79 ●1st 22, 2nd 43 60
1668cc SOHC (D17A1, D17A2,
D17A6, D17A7) 16 Valve
2005-01 ●1st 14, 2nd 36, 3rd 49 108
1751cc SOHC (EK1) 12 Valve 1983-79 ●1st 22, 2nd 43 60
1799cc SOHC (R18A1, R18A4)
16 Valve
2008-06 1st 29, 2nd turn 90 degrees,
3rd turn 90 degrees
NOTE: New bolts turn additional 60 degrees
106
1829cc SOHC (A18A1, A18A2)
12 Valve
1987 ●1st 22, 2nd 49 60
1829cc SOHC (ET1, ET2) 12 Valve 1986-84 ●1st 22, 2nd 49 60
1829cc SOHC (ES1, ES2, ES3)
12 Valve
1985-83 ●1st 22, 2nd 49 60
1955cc SOHC (A20A1, A20A2,
A20A3, A20A4) 12 Valve
1989-87 ●1st 22, 2nd 49 60
1955cc SOHC (BS1, BS2) 12 Valve 1986 ●1st 22, 2nd 49 60
1955cc SOHC (BT1, BT2) 12 Valve 1986-85 ●1st 22, 2nd 49 60
1958cc SOHC (B20A3) 12 Valve 1990-88 ●1st 22, 2nd 49 108
1958cc DOHC (B20A5) 16 Valve 1991-88 ●1st 22, 2nd 49 108
1972cc DOHC (B20Z2) 16 Valve 2001-99 ●1st 22, 2nd 63 146
1972cc DOHC (B20B4) 16 Valve 1998-97 ●1st 22, 2nd 63 146
1997cc DOHC (F20C1) 16 Valve 2003-00 Bolts 1-10 1st 22, 2nd turn 90 degrees,
3rd turn 90 degrees
NOTE: New bolts turn additional 90 degrees;
Bolts 11 4th 16
222
1998cc DOHC (K20A3, K20Z3)
16 Valve
2008-02 1st 29, 2nd turn 90 degrees,
3rd turn 90 degrees
NOTE: New bolts turn additional 90 degrees
106
2056cc DOHC (B21A1) 16 Valve 1991-90 ●1st 22, 2nd 49 108
2156cc SOHC (F22B1, F22B2,
F22B6) 16 Valve
1997-94 ●1st 29, 2nd 51, 3rd 72.3 108
2156cc SOHC (F22A1, F22A6)
16 Valve
1996-92 ●1st 29, 2nd 51, 3rd 72.3 108
2156cc SOHC (F22A1, F22A4,
F22A6) 16 Valve
1991-90 ●1st 29, 2nd 51, 3rd 78 108
2157cc DOHC (H22A4) 16 Valve 2001-97 1st 29, 2nd 51, 3rd 72.3 152
2157cc DOHC (H22A1) 16 Valve 1996-93 1st 29, 2nd 51, 3rd 78 152
2178cc DOHC (F22C1) 16 Valve 2008-04 Bolts 1-10 1st 22, 2nd turn 90 degrees,
3rd turn 90 degrees
NOTE: New bolts turn additional 90 degrees;
Bolts 11 4th 16
222
2254cc SOHC (F23A1, F23A4,
F23A5, F23A7) 16 Valve
2002-98 ●1st 22, 2nd turn 90 degrees,
3rd turn 90 degrees
NOTE: New bolts turn additional 90 degrees
108
2259cc DOHC (H23A1) 16 Valve 1996-92 ●1st 29, 2nd 51, 3rd 78 152
50 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
51
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
INFINITI 4
1998cc DOHC (SR20DE) 16 Valve 2002-99 ●❍ 1st 29, 2nd 58, 3rd loosen all bolts,
4th 25-33, 5th turn 90-95 degrees,
6th turn 90-95 degrees
109 ES 72192
1998cc DOHC (SR20DE) 16 Valve 1996-91 ●❍ 1st 29, 2nd 58, 3rd loosen all bolts,
4th 25-33, 5th turn 90-100 degrees,
6th turn 90-100 degrees
109 ES 72192
INFINITI V6
2960cc SOHC (VG30E) 12 Valve 1992-90 ●1st 22, 2nd 43, 3rd loosen all bolts,
4th 22 again, 5th 40-47;
OR turn 60-65 degrees
85
2960cc DOHC (VG30DE) 24 Valve 1997-93 ●1st 29, 2nd 90, 3rd loosen all bolts,
4th 25-33, 5th 90;
OR turn 60-70 degrees
161
2988cc DOHC (VQ30DE) 24 Valve 2001-96 ●❍ 1st 72, 2nd loosen all bolts,
3rd 25-33, 4th turn 90-95 degrees,
5th turn 90-95 degrees
161 ES 72900
3274cc SOHC (VG33E) 12 Valve 2000-97 ●❍ 1st 22, 2nd 43, 3rd loosen all bolts,
4th 7, 5th 22, 6th 40-47;
OR turn 60-65 degrees
162 ES 72194
3498cc DOHC (VQ35HR) 24 Valve 2008-07 1st 77, 2nd loosen all bolts, 3rd 29,
4th turn 95 degrees, 5th turn 95 degrees
161
3498cc DOHC (VQ35DE) 24 Valve 2008-01 ●❍ 1st 72, 2nd loosen all bolts,
3rd 25-33, 4th turn 90-95 degrees,
5th turn 90-95 degrees
161 ES 72900
3696cc DOHC (VQ37VHR) 24 Valve 2008 1st 77, 2nd loosen all bolts, 3rd 29,
4th turn 95 degrees, 5th turn 95 degrees
161
INFINITI V8
4130cc DOHC (VH41DE) 32 Valve 2001-97 1st 22, 2nd 69, 3rd loosen all bolts,
4th 18-25, 5th turn 90-95 degrees
110
4494cc DOHC (VK45DE) 32 Valve 2008-02 1st 72, 2nd loosen all bolts,
3rd 29-36, 4th turn 60-65 degrees,
5th turn 60-65 degrees
203
4494cc DOHC (VH45DE) 32 Valve 1996-90 ●1st 22, 2nd 69, 3rd loosen all bolts,
4th 18-25, 5th 69-72;
OR turn 90-95 degrees
110
5552cc DOHC (VK56DE) 32 Valve 2008-04 ●1st 72, 2nd loosen all bolts, 3rd 33,
4th turn 60 degrees, 5th turn 60 degrees
203
INTERNATIONAL 4
90.8 (A55) Austin 1963-58 45 182
152 1971-61 ●90-100 183
152 Turbo 1967-65 ●90-100 183
196 (3.2L) 1980-66 ●90-100 183
INTERNATIONAL 6
220 1968-50 85-95 184
232 AMC 1972-69 ●80-85 2
240 1970-56 85-95 184
258 AMC 1974-73 ●105 in three steps 2
258 AMC 1972 ●80-85 2
264 1970-58 85-95 184
INTERNATIONAL V8
266 1972-59 ●90-100 183
304 (5.0L) 1980-60 ●90-100 183
345 (5.6L) 1985-61 ●90-100 183
392 (6.4L) 1985-66 ●90-100 183
401 AMC 1974 ●1st 80, 2nd 110 1
420 Diesel (6.9L) IDI 1990-85 ●1st 40, 2nd 70, 3rd 80, 4th 87 95
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
HYUNDAI 4 (CONT.)
1796cc DOHC (G4GM) 16 Valve 1998-96 ●M10 bolts 1st 22, 2nd turn 60-65
degrees, 3rd turn 60-65 degrees;
M12 bolts 1st 26, 2nd turn 60-65
degrees, 3rd turn 60-65 degrees
121
1836cc DOHC (G4CN) 16 Valve 1995-93 ●76-83 in two steps 147
1975cc DOHC (G4GF) 16 Valve 2008-04 ●M10 bolts 1st 18, 2nd turn 60-65
degrees, 3rd turn 60-65 degrees;
M12 bolts 1st 22, 2nd turn 60-65
degrees, 3rd turn 60-65 degrees
147
1975cc DOHC (G4GF) 16 Valve 2003-99 ●M10 bolts 1st 22, 2nd turn 60-65
degrees, 3rd turn 60-65 degrees;
M12 bolts 1st 26, 2nd turn 60-65
degrees, 3rd turn 60-65 degrees
121
1975cc DOHC (G4GF) 16 Valve 1998-97 ●M10 bolts 1st 22, 2nd turn 60-65
degrees, 3rd turn 60-65 degrees;
M12 bolts 1st 26, 2nd turn 60-65
degrees, 3rd turn 60-65 degrees
147
1997cc SOHC (G63B) 8 Valve
Mitsubishi
1988-87 ●Cold 65-72, Warm 73-79 71
1997cc DOHC (G4CP) 16 Valve 1998-95 ●❍ Cold 65-72 in two steps 147 ES 71177
1997cc DOHC (G4CP) 16 Valve 1994-92 ●❍ 76-83 in two steps 147 ES 71175
2351cc SOHC (G4CS) 8 Valve
Mitsubishi
1991-89 ●Cold 65-72, Warm 73-79 71
2351cc DOHC (G4JS) 16 Valve 2006-99 ●❍ 1st 46, 2nd loosen all bolts, 3rd 14,
4th turn 90 degrees, 5th turn 90 degrees
147 ES 72211
2359cc DOHC (G4KC) 16 Valve 2008-06 ●1st 25, 2nd turn 90 degrees,
3rd turn 90 degrees
147
HYUNDAI V6
2493cc DOHC (G6BV) 24 Valve 2001-99 Cold 1st 18, 2nd turn 60-64 degrees,
3rd turn 45-49 degrees,
4th warm engine & allow to cool,
5th loosen all bolts, 6th 18 again,
7th turn 60-64 degrees,
8th turn 45-49 degrees
154
2656cc DOHC (G6BA) 24 Valve 2008-04 ●❍ 1st 18, 2nd turn 60 degrees,
3rd turn 45 degrees
154 ES 72205
2656cc DOHC (G6BA) 24 Valve 2003-01 ●❍ Cold 1st 18, 2nd turn 58-62 degrees,
3rd turn 43-47 degrees,
4th warm engine & allow to cool,
5th loosen all bolts, 6th 18 again,
7th turn 58-62 degrees,
8th turn 43-47 degrees
154 ES 72205
2972cc SOHC (G6AT) 12 Valve
Mitsubishi
1998-93 ●❍ 76-83 in three steps 154 ES 72859
2972cc SOHC (G6AT) 12 Valve
Mitsubishi
1992-90 ●❍ Cold 65-72, Warm 72-80 154 ES 72859
2972cc DOHC (G6CT) 24 Valve 2001 Cold 1st 75-82 in three steps,
2nd warm engine & allow to cool,
3rd loosen all bolts,
4th 75-82 in three steps again
154
3342cc DOHC (G6DB) 24 Valve 2008-06 1st 29, 2nd turn 120 degrees,
3rd turn 90 degrees, 4th single bolt 15
154
3497cc DOHC (G6CU) 24 Valve 2006-04 ●❍ 76-83 in three steps 154 ES 72859
3497cc DOHC (G6CU) 24 Valve 2003-02 ●❍ Cold 1st 75-82 in three steps,
2nd warm engine & allow to cool,
3rd loosen all bolts,
4th 75-82 in three steps again
154 ES 72859
3778cc DOHC (G6DA) 24 Valve 2008-06 1st 29, 2nd turn 120 degrees,
3rd turn 90 degrees, 4th single bolt 15
154
52 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
53
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
ISUZU 5
3460cc DOHC (VIN 6) 20 Valve
Chevrolet Truck 2006 ●❍ Bolts 1-12 1st 22, 2nd turn 90 degrees,
3rd turn 65 degrees; Bolt 13 4th 5.1,
5th turn 120 degrees; Bolts 14-15
6th 5.1, 7th turn 60 degrees
254 ES 72195
3654cc DOHC (VIN E) 20 Valve
Chevrolet Truck 2008-07 Bolts 1-12 1st 22, 2nd turn 90 degrees,
3rd turn 65 degrees; Bolt 13 4th 5.1,
5th turn 120 degrees; Bolts 14-15
6th 5.1, 7th turn 60 degrees
254
ISUZU 6 & V6
2835cc OHV (LL2) 12 Valve
Chevrolet Truck 1991-89 ●❍ 1st 40, 2nd turn 90 degrees 49 ES 72857
3136cc OHV (LG6) 12 Valve
Chevrolet Truck 1994-91 ●❍ 1st 40, 2nd turn 90 degrees 49 ES 72901
3165cc SOHC (6VD1) 24 Valve 1997-96 ●M11 Bolts 1-8 47; M8 Bolts 9-11 15 132
3165cc SOHC (6VD1) 24 Valve 1995-92 ●M11 Bolts 1-8 47; M8 Bolts 9-10 15 160
3165cc DOHC (6VD2) 24 Valve 2004-98 ●1st 21, 2nd 47 134
3165cc DOHC (6VD2) 24 Valve 1995-92 ●M11 Bolts 1-8 47; M8 Bolts 9-10 15 160
3494cc DOHC (6VE1) 24 Valve 2004-98 ●1st M11 Bolts 1-8 21,
2nd M11 Bolts 1-8 47, 3rd M8 Bolt 9 15 257
4160cc DOHC (VIN S) 24 Valve
Chevrolet Truck 2008-03 ●❍ Bolts 1-14 1st 22, 2nd turn 90 degrees,
3rd turn 65 degrees; Bolt 15 4th 5.1,
5th turn 120 degrees; Bolts 16-17
6th 5.1, 7th turn 60 degrees
211 ES 72195
4293cc OHV (LB4, LF6) 12 Valve
Chevrolet Truck 2001-97 ●❍ 1st all bolts 22,
2nd Long bolts turn 75 degrees,
3rd Medium bolts turn 65 degrees,
4th Short bolts turn 55 degrees
64 ES 74034
5785cc OHV Turbo Diesel (6BD1-T)
12 Valve 1995-87 ●1st 50, 2nd 65, 3rd turn 60-90 degrees 181
ISUZU V8
5328cc OHV (VIN M, P)
Chevrolet Truck 2007-04
2nd Design Bolts
●❍ 1st M11 Bolts 1-10 22,
2nd M11 Bolts 1-10 turn 90 degrees,
3rd M11 Bolts 1-10 turn 70 degrees,
4th M8 Bolts 11-15 22
159 ES 72220
5328cc OHV (VIN P) Chevrolet
Truck 2004-03
1st Design Bolts
●❍ 1st M11 Bolts 1-10 22,
2nd M11 Bolts 1-10 turn 90 degrees,
3rd M11 Bolts 1-8 turn 90 degrees,
4th M11 Bolts 9-10 turn 50 degrees,
5th M8 Bolts 11-15 22
159 ES 72173
5736cc OHV (CPC) Chevrolet
Truck 2000-97 ●❍ 1st all bolts 22,
2nd Long bolts turn 75 degrees,
3rd Medium bolts turn 65 degrees,
4th Short bolts turn 55 degrees
7ES 72856
5736cc OHV (CPC) Chevrolet
Truck 1996 ●❍ 1st 24, 2nd 45, 3rd 65 7ES 72856
5736cc OHV (CPC) Chevrolet
Truck 1995-93 ●❍ 65 in three steps 7 ES 72856
JAGUAR V6
2495cc DOHC (VIN D) 24 Valve
Ford 2005-02 Duratec ●❍ 1st 22, 2nd turn 90 degrees,
3rd loosen one turn, 4th 22 again,
5th turn 90 degrees, 6th turn 90 degrees
233 ES 72208
2967cc DOHC (VIN F) 24 Valve
Ford 2008-00 Duratec ●❍ 1st 22, 2nd turn 90 degrees,
3rd loosen one turn, 4th 22 again,
5th turn 90 degrees, 6th turn 90 degrees
233 ES 72208
JEEP 4
122 DOHC (2.0L) 16 Valve Chrysler 2008 VIN 0
2nd Design Bolts 1st 25, 2nd 54, 3rd 54 again,
4th turn 90 degrees
71
122 DOHC (2.0L) 16 Valve Chrysler 2008-07 VIN 0
1st Design Bolts 1st 25, 2nd 45, 3rd 45 again,
4th turn 90 degrees
71
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
INTERNATIONAL V8 (CONT.)
420 Diesel (6.9L) IDI 1984-80 ●1st 40, 2nd 70, 3rd 80, 4th 80 again 95
444 Diesel (7.3L) IDI 1993-91 ●1st 65, 2nd 90, 3rd 110, 4th 110 again 95
444 Diesel (7.3L) IDI 1990-88 ●1st 65, 2nd 90, 3rd 100 95
444 Turbo Diesel (7.3L) DI 1997-94 ●❍ 1st 65, 2nd 85, 3rd 105, 4th 105 again 156 ES 72161
444 Turbo Diesel (7.3L) IDI 1994-93 ●1st 65, 2nd 90, 3rd 110, 4th 110 again 95
ISO V8
327 Chevrolet 1970-63 ●❍ 65 7ES 72856
ISUZU 4
1471cc SOHC (4XC1) 8 Valve 1989-85 ●1st 29, 2nd 58 37
1471cc SOHC Turbo (4XC1-T)
8 Valve
1989-87 ●1st 29, 2nd 58 37
1588cc SOHC (4XE1V) 12 Valve 1993-90 ●1st 29, 2nd 58 37
1588cc DOHC (4XE1W) 16 Valve 1992-89 ●1st 29, 2nd 58 100
1588cc DOHC Turbo (4XE1W-T)
16 Valve
1992-90 ●1st 29, 2nd 58 100
1808cc DOHC (4XF1) 16 Valve 1993-92 ●1st 29, 2nd 58 100
1817cc SOHC (G180Z) 8 Valve 1985-81 ●72 37
1817cc SOHC Diesel (4FB1)
8 Valve
1985-81 ●New bolts 98; Used bolts 105 75
1949cc SOHC (G200Z) 8 Valve 1987-83 ●1st 61, 2nd 72 37
1994cc SOHC Turbo (4ZC1-T)
8 Valve
1989-85 ●1st 62, 2nd 72 12
2156cc SOHC (F22B6) 16 Valve
Honda
1997-96 ●1st 29, 2nd 51, 3rd 72.3 108
2189cc OHV (LN2) 8 Valve
Chevrolet Truck
2001-98 ●❍ 1st Long bolts 46; Short bolts 43,
2nd all bolts turn 90 degrees
149 ES 72170
2189cc OHV (LN2) 8 Valve
Chevrolet Truck
1997-96 ●❍ 1st Long bolts 46; Short bolts 43,
2nd all bolts turn 90 degrees
149 ES 72172
2198cc DOHC (X22SE) 16 Valve
Opel
2003-98 1st 18, 2nd turn 90 degrees,
3rd turn 90 degrees, 4th turn 90 degrees
109
2238cc OHV Diesel (C223)
8 Valve
1987-81 ●1st 40-47, 2nd 54-61 76
2238cc OHV Turbo Diesel (C223-T)
8 Valve
1987-86 ●1st 30-40, 2nd turn 120-150 degrees 76
2254cc SOHC (F23A7) 16 Valve
Honda
1999-98 ●1st 22, 2nd turn 90 degrees,
3rd turn 90 degrees
NOTE: New bolts turn additional 90 degrees
108
2254cc SOHC (4ZD1) 8 Valve 1995-86 ●1st 58, 2nd 72 79
2559cc SOHC (4ZE1) 8 Valve 1997-88 ●1st 58, 2nd 72 79
2770cc DOHC (VIN 8) 16 Valve
Chevrolet Truck
2006 ●❍ Bolts 1-10 1st 22, 2nd turn 90 degrees,
3rd turn 65 degrees; Bolt 11 4th 5.1,
5th turn 120 degrees; Bolts 12-13
6th 5.1, 7th turn 60 degrees
253 ES 72195
2921cc DOHC (VIN 9) 16 Valve
Chevrolet Truck
2008-07 Bolts 1-10 1st 22, 2nd turn 90 degrees,
3rd turn 65 degrees; Bolt 11 4th 5.1,
5th turn 120 degrees; Bolts 12-13
6th 5.1, 7th turn 60 degrees
253
3856cc OHV Diesel (4BD1-N)
8 Valve
1988-85 ●1st 50, 2nd 65, 3rd turn 60-90 degrees 180
3856cc OHV Turbo Diesel
(4BD1-T, 4BD2-TC) 8 Valve
1998-85 ●1st 50, 2nd 65, 3rd turn 60-90 degrees 180
54 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
55
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
JEEP 6 & V6 (CONT.)
258 OHV (4.2L) 1980-73 ●105 in three steps 9
258 OHV (4.2L) 1972-71 ●80-85 2
JEEP V8
287 SOHC (4.7L) 16 Valve
Dodge Truck
2008 ●❍ 1st M11 Bolts 1-10 20,
2nd M11 Bolts 1-10 20 again,
3rd M8 Bolts 11-14 10,
4th M11 Bolts 1-10 turn 90 degrees,
5th M11 Bolts 1-10 turn 90 degrees,
6th M8 Bolts 11-14 19
163 ES 71129
287 SOHC (4.7L) 16 Valve
Dodge Truck
2007-99 ●❍ 1st M11 Bolts 1-10 15,
2nd M11 Bolts 1-10 35,
3rd M8 Bolts 11-14 18,
4th M11 Bolts 1-10 turn 90 degrees,
5th M8 Bolts 11-14 22
163 ES 71129
304 (5.0L) 1981-71 ●1st 80, 2nd 110 1
318 OHV (5.2L) Dodge Truck 1998-94 ●❍ 1st 50, 2nd 105, 3rd 105 again 12 ES 71038-1
318 OHV (5.2L) Dodge Truck 1993 ●1st 50, 2nd 105, 3rd 105 again 12
327 1970-65
Vigilante
58-62 22
345 Hemi (5.7L) 16 Valve
Dodge Truck
2008-05 ●❍ 1st M12 Bolts 1-10 25,
2nd M8 Bolts 11-15 15,
3rd M12 Bolts 1-10 40,
4th M8 Bolts 11-15 15 again,
5th M12 Bolts 1-10 turn 90 degrees,
6th M8 Bolts 11-15 25
216 ES 72200
350 Buick 1971-68 ●65-75 4
360 OHV (5.9L) Dodge Truck 1998 ●❍ 1st 50, 2nd 105, 3rd 105 again 12 ES 71038-1
360 (5.9L) AMC 1993-70 ●1st 80, 2nd 110 1
370 Hemi (6.1L) 16 Valve Chrysler 2008-06 1st M12 Bolts 1-10 25,
2nd M8 Bolts 11-15 15,
3rd M12 Bolts 1-10 40,
4th M8 Bolts 11-15 15 again,
5th M12 Bolts 1-10 turn 90 degrees,
6th M8 Bolts 11-15 25
216
401 1978-74 ●1st 80, 2nd 110 1
JENSEN V8
383 Chrysler 1972-68 ●70 11
440 Chrysler 1976-72 ●70 11
KAISER 4
134L L-Head Jeep 1954-51 65-70 30
KAISER 6
161F F-Head Willys 1954 60-65 186
161L L-Head Willys 1954-51 60-65 185
226L L-Head Continental 1955-46 30-35 18
KIA 4
1493cc DOHC (B5) 16 Valve 2002-01 ●❍ 1st 36.1, 2nd loosen all bolts, 3rd 18,
4th turn 90 degrees, 5th turn 90 degrees
150 ES 72227
1594cc DOHC (B6) 16 Valve 2005-03 ●❍ 1st 36.1, 2nd loosen all bolts, 3rd 18,
4th turn 90 degrees, 5th turn 90 degrees
150 ES 72227
1597cc SOHC (B6) 8 Valve Mazda 1995-93 ●56-60 in three steps 150
1597cc SOHC (B6) 16 Valve Mazda 1995 ●56-60 in three steps 150
1597cc DOHC (B6-ZE) 16 Valve
Mazda
1997-95 ●56-60 in three steps 150
1599cc DOHC (G4ED) 16 Valve 2008-06 ●❍ 1st 22, 2nd turn 90 degrees,
3rd loosen all bolts, 4th 22 again,
5th turn 90 degrees
71 ES 71203
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
JEEP 4 (CONT.)
126 SOHC Turbo Diesel (2.1L)
8 Valve Renault 1990-85 ●1st 22, 2nd 37, 3rd 73.5 93
134F F-Head 1973-50
Hurricane 65-70 30
134L L-Head 1968-38
Lightning 65-70 30
144 DOHC (2.4L) 16 Valve Chrysler 2008 VIN W
2nd Design Bolts 1st 25, 2nd 54, 3rd 54 again,
4th turn 90 degrees
71
144 DOHC (2.4L) 16 Valve Chrysler 2008-07 VIN W
1st Design Bolts
●❍ 1st 25, 2nd 45, 3rd 45 again,
4th turn 90 degrees
71 ES 71028
148 DOHC (2.4L) 16 Valve
Dodge Truck 2006-05 VIN 1 ●❍ 1st 25, 2nd 60, 3rd 60 again,
4th turn 90 degrees
37 ES 71028
148 DOHC (2.4L) 16 Valve
Dodge Truck 2004-02 VIN 1 ●❍ 1st 25, 2nd 50, 3rd 50 again,
4th turn 90 degrees
37 ES 71028
150 OHV (2.5L) AMC 2002-98 ●❍ 1st 22, 2nd 45, 3rd 45 again,
4th Bolts 1-6, 8-10 110; Bolt 7 100 151 ES 72896
150 OHV (2.5L) AMC 1997 ●❍ 1st 22, 2nd 45,
3rd Bolts 1-6, 8-10 110; Bolt 7 100 151 ES 72896
150 OHV (2.5L) AMC 1996-91 ●1st 22, 2nd 45,
3rd Bolts 1-6, 8-10 110; Bolt 7 100 151
150 OHV (2.5L) AMC 1990-89 ●1st 22, 2nd 45,
3rd Bolts 1-7, 9-10 110; Bolt 8 100 72
150 OHV (2.5L) AMC 1988-83 ● Bolts 1-7, 9-10 85; Bolt 8 75 72
151 OHV (2.5L) Pontiac 1983-80 ●92 in three steps 37
169 DOHC Turbo Diesel (2.8L)
16 Valve VM Motori 2006-05 VIN 5 1st Bolts 1-18 22,
2nd Bolts 1-10 turn 75 degrees,
3rd Bolts 11-18 turn 50 degrees,
4th Bolts 1-18 turn 75 degrees
258
JEEP 6 & V6
148L L-Head Willys 1951-47 60-65 185
161F F-Head Willys 1955-52 60-65 186
161L L-Head Willys 1955-50 60-65 185
173 OHV (2.8L) 12 Valve
Chevrolet Truck 1986-84 VIN W ●❍ 70 in three steps 49 ES 72857
182 DOHC Turbo Diesel (3.0L)
24 Valve Mercedes-Benz 2008-07 VIN M 1st Bolts 1-8 44, 2nd Bolts 9-10 15,
3rd Bolts 1-8 turn 90 degrees,
4th Bolts 9-10 15 again,
5th Bolts 1-8 turn 90 degrees
242
225 OHV Buick 1971-66 ●65-70 19
226 SOHC (3.7L) 12 Valve
Dodge Truck 2008-02 ●❍ 1st M11 Bolts 1-8 20,
2nd M11 Bolts 1-8 20 again,
3rd M8 Bolts 9-12 10,
4th M11 Bolts 1-8 turn 90 degrees,
5th M11 Bolts 1-8 turn 90 degrees,
6th M8 Bolts 9-12 19
204 ES 71129-1
226L L-Head Continental 1966-47 30-35 18
230 SOHC Continental 1965-62 Tornado 80-95 47
231 OHV (3.8L) 12 Valve
Dodge Truck 2008-07 ●❍ M11 Bolts 1-8 1st 45, 2nd 65,
3rd 65 again, 4th turn 90 degrees;
M8 Bolt 9 5th 25 in three steps
215 ES 72163
232 OHV 1979-73 ●105 in three steps 9
232 OHV 1972-65 ●80-85 2
242 OHV (4.0L) 2006-96 ●❍ 1st 22, 2nd 45, 3rd 45 again,
4th Bolts 1-10, 12-14 110; Bolt 11 100 2ES 71102
242 OHV (4.0L) 1995-91 ●1st 22, 2nd 45, 3rd 45 again,
4th Bolts 1-10, 12-14 110; Bolt 11 100 2
242 OHV (4.0L) 1990-87 ●1st 22, 2nd 45,
3rd Bolts 1-13 110; Bolt 14 100 9
258 OHV (4.2L) 1990-81 ●85 in three steps 9
56 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
57
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
LEXUS 6 & V6 (CONT.)
2958cc DOHC (3VZFE) 24 Valve 1993-92 ●1st 12 point bolts 25,
2nd 12 point bolts turn 90 degrees,
3rd 12 point bolts turn 90 degrees,
4th recessed bolts 13
112
2995cc DOHC (3GRFSE) 24 Valve 2006 1st Bolts 1-8 27,
2nd Bolts 1-8 turn 90 degrees,
3rd Bolts 1-8 turn 90 degrees,
4th Bolts 9-10 22
262
2995cc DOHC (1MZFE) 24 Valve 2003-94 1st 12 point bolts 40,
2nd 12 point bolts turn 90 degrees,
3rd recessed bolts 13
120 ES 71036
2997cc DOHC (2JZGE) 24 Valve 2005-92 ●❍ 1st 26, 2nd turn 90 degrees,
3rd turn 90 degrees
92 ES 72213
3311cc DOHC (3MZFE) 24 Valve 2006-04 ●1st 12 point bolts 40,
2nd 12 point bolts turn 90 degrees,
3rd recessed bolts 13
120
3311cc DOHC (3MZFXE)
24 Valve Hybrid 2008-06 ●1st 12 point bolts 40,
2nd 12 point bolts turn 90 degrees,
3rd recessed bolts 13
120
3456cc DOHC (2GRFE) 24 Valve 2008-07 ●❍ 1st Bolts 1-8 27,
2nd Bolts 1-8 turn 90 degrees,
3rd Bolts 1-8 turn 90 degrees,
4th Bolts 9-10 22
262 ES 72249
3456cc DOHC (2GRFSE) 24 Valve 2008-06 ●❍ 1st Bolts 1-8 27,
2nd Bolts 1-8 turn 90 degrees,
3rd Bolts 1-8 turn 90 degrees,
4th Bolts 9-10 22
262 ES 72249
3456cc DOHC (2GRFSE)
24 Valve Hybrid 2008-07 ●❍ 1st Bolts 1-8 27,
2nd Bolts 1-8 turn 90 degrees,
3rd Bolts 1-8 turn 90 degrees,
4th Bolts 9-10 22
262 ES 72249
4476cc DOHC (1FZFE) 24 Valve 1997-96 1st 29, 2nd turn 90 degrees,
3rd turn 90 degrees
92
LEXUS V8
3968cc DOHC (1UZFE) 32 Valve 2000-98 ●❍ 1st 29, 2nd turn 90 degrees 164 ES 72202
3968cc DOHC (1UZFE) 32 Valve 1997-90 ●1st 29, 2nd turn 90 degrees 164
4293cc DOHC (3UZFE) 32 Valve 2008-01 ●❍ 1st 44, 2nd turn 90 degrees 205 ES 72202
4608cc DOHC (1URSFE) 32 Valve 2008-07 1st 27, 2nd turn 90 degrees,
3rd turn 90 degrees
236
4663cc DOHC (2UZFE) 32 Valve 2008-05 ●❍ 1st 30, 2nd turn 90 degrees,
3rd turn 90 degrees
164 ES 74035
4663cc DOHC (2UZFE) 32 Valve 2004-98 ●❍ 1st 24, 2nd turn 90 degrees,
3rd turn 90 degrees
164 ES 74035
4968cc DOHC (2URSFE)
32 Valve Hybrid 2008-07 1st Bolts 1-10 27,
2nd Bolts 1-10 turn 90 degrees,
3rd Bolts 1-10 turn 90 degrees;
4th Bolts 11-12 15
263
5663cc DOHC (3URFE) 32 Valve 2008 1st Bolts 1-10 27,
2nd Bolts 1-10 turn 90 degrees,
3rd Bolts 1-10 turn 90 degrees;
4th Bolts 11-12 15
264
LINCOLN .....................................................................SEE FORD PRODUCTS
LOTUS 4
948cc OHV Austin 1961-58 40 54
1588cc DOHC Turbo (4XE1W-T)
16 Valve Isuzu 1993-90 ●1st 29, 2nd 58 100
1796cc DOHC (2ZZGE) 16 Valve
Toyota 2007-04 ●❍ 1st 26, 2nd turn 90 degrees,
3rd turn 90 degrees
99 ES 71066
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
KIA 4 (CONT.)
1793cc DOHC (T8) 16 Valve 2004-98 ●❍ 1st 36.1, 2nd loosen all bolts, 3rd 28.9,
4th turn 90 degrees, 5th turn 90 degrees
37 ES 72909
1839cc DOHC (BP-ZE) 16 Valve
Mazda 1997-95 ●❍ 56-60 in three steps 150 ES 72909
1975cc DOHC (G4GF) 16 Valve 2008-04 ●M10 bolts 1st 18, 2nd turn 60-65
degrees, 3rd turn 60-65 degrees;
M12 bolts 1st 22, 2nd turn 60-65
degrees, 3rd turn 60-65 degrees
147
1998cc SOHC (FE) 8 Valve Mazda 1995 ●59-64 37
1998cc DOHC (FED) 16 Valve
Mazda 2002-95 ●59-64 37
2351cc DOHC (G4JS) 16 Valve 2006-01 ●❍ 1st 46, 2nd loosen all bolts, 3rd 14,
4th turn 90 degrees, 5th turn 90 degrees
147 ES 72211
2359cc DOHC (G4KC) 16 Valve 2008-06 ●1st 25, 2nd turn 90 degrees,
3rd turn 90 degrees
147
KIA V6
2493cc DOHC (G6BV) 24 Valve 2001 1st 18, 2nd turn 60-64 degrees,
3rd turn 45-49 degrees
154
2656cc DOHC (G6BA) 24 Valve 2008-02 ●❍ 1st 18, 2nd turn 60 degrees,
3rd turn 45 degrees
154 ES 72205
3342cc DOHC (G6DB) 24 Valve 2008 1st 29, 2nd turn 120 degrees,
3rd turn 90 degrees, 4th single bolt 15 154
3497cc DOHC (G6CU) 24 Valve 2006-04 ●❍ 76-83 in three steps 154 ES 72859
3497cc DOHC (G6CU) 24 Valve 2003-02 ●❍ Cold 1st 75-82 in three steps,
2nd warm engine & allow to cool,
3rd loosen all bolts,
4th 75-82 in three steps again
154 ES 72859
3778cc DOHC (G6DA) 24 Valve 2008-06 1st 29, 2nd turn 120 degrees,
3rd turn 90 degrees, 4th single bolt 15 154
LaFORZA V8
302 (5.0L) Ford 2001-92 ●❍ Flanged Hex Head bolts: 1st 25-35,
2nd 45-55, 3rd turn 85-95 degrees
70 ES 72155
302 (5.0L) Ford 1992-89 ●Standard Hex Head bolts:
Intake Side 80, Exhaust Side 68 70
302 Supercharged (5.0L) Ford 2001-98 ●❍ Flanged Hex Head bolts: 1st 25-35,
2nd 45-55, 3rd turn 85-95 degrees
70 ES 72155
LANCIA ......................................................................................SEE FIAT
LAND ROVER 6 & V6
3192cc DOHC (B6324S)
24 Valve Volvo 2008 1st 33, 2nd 33 again,
3rd turn 90 degrees, 4th turn 180 degrees
252
4015cc SOHC (F40) 12 Valve
Ford Truck 2008-05 ●❍ 1st M12 Bolts 1-8 9,
2nd M12 Bolts 1-8 18,
3rd M8 Bolts 9-10 24,
4th M12 Bolts 1-8 turn 90 degrees,
5th M12 Bolts 1-8 turn 90 degrees
218 ES 72171
LAND ROVER V8
4398cc DOHC (M62B44)
32 Valve BMW 2005-03 1st 22.1, 2nd turn 80 degrees,
3rd turn 80 degrees
137
LEXUS 6 & V6
2499cc DOHC (4GRFSE) 24 Valve 2008-06 1st Bolts 1-8 27,
2nd Bolts 1-8 turn 90 degrees,
3rd Bolts 1-8 turn 90 degrees,
4th Bolts 9-10 22
262
2507cc DOHC (2VZFE) 24 Valve 1991-90 ●1st 12 point bolts 25,
2nd 12 point bolts turn 90 degrees,
3rd 12 point bolts turn 90 degrees,
4th recessed bolts 13
112
58 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
59
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
MAZDA 4 (CONT.)
2302cc SOHC (8A) 8 Valve Ford 1997-94 ●❍ 1st 51, 2nd 51 again,
3rd turn 90-100 degrees 17 ES 72137
2503cc SOHC (VIN C) 8 Valve Ford 2001-98 ●❍ 1st 51, 2nd 51 again,
3rd turn 90-100 degrees 17 ES 72137
2555cc SOHC (AM1, G54B)
8 Valve Mitsubishi 1988-87 ●❍ Bolts 1-10 Cold 65-72, Warm 73-79;
Bolts 11-12 11-15 105 ES 72860
2606cc SOHC (G6) 12 Valve 1994-89 ●Bolts 1-10 59-64; Bolts 11-12 12-17 104
MAZDA V6
1844cc DOHC (K8-ZE) 24 Valve 1996-92 1st 17-19, 2nd turn 90 degrees,
3rd turn 90 degrees 123
2254cc DOHC Supercharged
(EJ) 24 Valve 2002-95 1st 17-19, 2nd turn 90 degrees,
3rd turn 90 degrees 154
2495cc DOHC (GY) 24 Valve
Ford 2001-00 Duratec ●❍ 1st 28-31, 2nd turn 90 degrees,
3rd loosen one turn, 4th 28-31 again,
5th turn 90 degrees, 6th turn 90 degrees
140 ES 72159
2497cc DOHC (KL-ZE) 24 Valve 2002-93 ●1st 17-19, 2nd turn 90 degrees,
3rd turn 90 degrees 123
2954cc SOHC (JE, JE-E) 18 Valve 1999-92 ●1st 13-16, 2nd turn 90 degrees,
3rd turn 90 degrees 123
2954cc SOHC (JE, JE-06, JE-07,
JE-39) 18 Valve 1991-88 ●1st 14, 2nd turn 90 degrees,
3rd turn 90 degrees 123
2954cc DOHC (JE-ZE, JE-48)
24 Valve 1995-92 ●1st 13-16, 2nd turn 90 degrees,
3rd turn 90 degrees 123
2954cc DOHC (JE-ZE, JE-27)
24 Valve 1991-90 ●1st 14, 2nd turn 90 degrees,
3rd turn 90 degrees 123
2967cc DOHC (ADJ, AJ, MZI)
24 Valve Ford 2008-01 Duratec ●❍ 1st 30, 2nd turn 90 degrees,
3rd loosen one turn, 4th 30 again,
5th turn 90 degrees, 6th turn 90 degrees
140 ES 72159
2982cc OHV (8U) 12 Valve Ford 2008-99 ●❍ 1st 36-39, 2nd loosen one turn,
3rd 20-24, 4th turn 85-95 degrees,
5th turn 85-95 degrees
141 ES 72136
ES 72174
2982cc OHV (8U) 12 Valve Ford 1998-94 ●❍ 1st 59, 2nd loosen one turn,
3rd 37, 4th 68 141 ES 72136
ES 72174
3496cc DOHC 24 Valve Ford 2007 Duratec 1st Bolts 1-8 15, 2nd Bolts 1-8 26,
3rd Bolts 1-8 turn 90 degrees,
4th Bolts 1-8 turn 90 degrees,
5th Bolts 1-8 turn 90 degrees,
6th Bolt 9 7.5
234
3721cc DOHC 24 Valve Ford 2008 Duratec 1st Bolts 1-8 15, 2nd Bolts 1-8 26,
3rd Bolts 1-8 turn 90 degrees,
4th Bolts 1-8 turn 90 degrees,
5th Bolts 1-8 turn 90 degrees,
6th Bolt 9 7.5
234
4015cc OHV (8X) 12 Valve Ford 2000-95 ●❍ 1st 23, 2nd 53, 3rd turn 90 degrees 217 ES 72794
4015cc OHV (ZZL, 8X) 12 Valve
Ford 1994-91 ●❍ INSTALL HEAD BOLTS AND LOWER
INTAKE BOLTS TOGETHER (TORQUE
ALTERNATELY): Head bolts 1st 44,
2nd 59, 3rd turn 80-85 degrees;
Lower intake bolts 1st 3-6, 2nd 6-11,
3rd 11-15, 4th 15-18
102 ES 72794
4015cc SOHC (VIN E) 12 Valve
Ford 2008-05 ●❍ 1st M12 Bolts 1-8 9,
2nd M12 Bolts 1-8 18,
3rd M8 Bolts 9-10 24,
4th M12 Bolts 1-8 turn 90 degrees,
5th M12 Bolts 1-8 turn 90 degrees
218 ES 72171
4015cc SOHC (VIN E) 12 Valve
Ford 2004-02 ●❍ 1st M12 Bolts 1-8 24,
2nd M8 Bolts 9-10 24,
3rd M12 Bolts 1-8 turn 80 degrees,
4th M12 Bolts 1-8 turn 80 degrees
218 ES 72171
4015cc SOHC (VIN E) 12 Valve
Ford 2001 ●❍ 1st M12 Bolts 1-8 28,
2nd M8 Bolts 9-10 28,
3rd M12 Bolts 1-8 turn 90 degrees,
4th M12 Bolts 1-8 turn 90 degrees
218 ES 72171
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
MARCOS 6
2980cc OHV (B30A) Volvo 1972-70 61-69 2
MAZDA 4
1272cc SOHC (TC) 8 Valve 1978-76 Cold 47-51, Warm 51-54 37
1415cc SOHC (UC) 8 Valve 1980-79 Cold 47-51, Warm 51-54 149
1489cc DOHC (Z5-DE) 16 Valve 1998-95 ●1st 13-16, 2nd turn 90 degrees,
3rd turn 90 degrees
150
1490cc SOHC (D5) 8 Valve 1986-81 56-59 150
1490cc SOHC (E5) 8 Valve 1986-81 ●56-59 150
1586cc SOHC (NA) 8 Valve 1977-70 ●1st 20, 2nd 40, 3rd 56-60,
4th warm engine, 5th 69-72 37
1597cc SOHC (B6) 8 Valve 1995-86 ●56-60 in three steps 150
1597cc SOHC (B6) 16 Valve 1993-92 ●56-60 in three steps 150
1597cc DOHC (ZM-DE) 16 Valve 2003-99 1st 13-16, 2nd turn 85-95 degrees,
3rd turn 85-95 degrees
150
1597cc DOHC (B6-ZE) 16 Valve 1996-90 ●56-60 in three steps 150
1597cc DOHC Turbo (B6-T)
16 Valve
1989-88 ●56-60 in three steps 150
1796cc SOHC (VB) 8 Valve 1978-77 ●1st 20, 2nd 40, 3rd 56-60,
4th warm engine, 5th 69-72 150
1796cc SOHC (VB) 8 Valve 1973-72 ●1st 20, 2nd 40, 3rd 56-60,
4th warm engine, 5th 69-72 37
1839cc SOHC (BP-ZD) 16 Valve 1996-90 ●56-60 in three steps 150
1839cc DOHC (BP-Z3, BP-4W)
16 Valve
2005-99 ●56-60 in three steps 150
1839cc DOHC (FP-ZE) 16 Valve 2001-99 ●1st 13-16, 2nd turn 85-95 degrees,
3rd turn 85-95 degrees
150
1839cc DOHC (BP-ZE) 16 Valve 1998-90 ●56-60 in three steps 150
1839cc DOHC Turbo (BP-Z3T)
16 Valve
2005-04 ●56-60 in three steps 150
1970cc SOHC (MA) 8 Valve 1984-82 ●Cold 65-69, Warm 69-72 150
1970cc SOHC (MA) 8 Valve 1981-79 ●Cold 59-64, Warm 69-72 150
1988cc DOHC (YF) 16 Valve Ford 2004-01 Zetec ●❍ 1st 15, 2nd 30, 3rd turn 90 degrees 148 ES 72175
1991cc DOHC (FS-DE) 16 Valve 2003-98 ●1st 13-16, 2nd turn 85-95 degrees,
3rd turn 85-95 degrees
150
1991cc DOHC (FS-DE) 16 Valve 1997-93 ●❍ 1st 13-16, 2nd turn 85-95 degrees,
3rd turn 85-95 degrees
150 ES 74020
1991cc DOHC Turbo (FS-DET)
16 Valve
2003 ●1st 13-16, 2nd turn 85-95 degrees,
3rd turn 85-95 degrees
150
1998cc SOHC (FE, FEH1) 8 Valve 1987-83 ●59-64 37
1998cc SOHC Turbo (FE-T, FEH5)
8 Valve
1987-86 ●59-64 37
1998cc SOHC Diesel (RF) 8 Valve 1985-84 1st 21, 2nd turn 90 degrees,
3rd turn 90 degrees
150
1999cc DOHC (LFD) 16 Valve Ford 2008-04 Duratec ●❍ 1st 4, 2nd 11, 3rd 33,
4th turn 90 degrees, 5th turn 90 degrees
150 ES 72207
2184cc SOHC (F2G, F2L) 8 Valve 1993-87 Truck ●59-64 in three steps 37
2184cc SOHC (F2) 12 Valve 1992-88 Car ●59-64 in three steps 37
2184cc SOHC Turbo (F2-T)
12 Valve
1992-88 Car ● 59-64 in three steps 37
2209cc OHV Diesel (S2) 8 Valve 1984-82 ●1st 25, 2nd 45, 3rd 80-85,
4th warm engine, 5th 80-85 again
91
2261cc DOHC (MZR) 16 Valve Ford 2008-01 Duratec ●❍ 1st 4, 2nd 11, 3rd 33,
4th turn 90 degrees, 5th turn 90 degrees
150 ES 72207
2261cc DOHC (MZR) 16 Valve
Hybrid Ford
2008 Duratec ●❍ 1st 4, 2nd 11, 3rd 33,
4th turn 90 degrees, 5th turn 90 degrees
150 ES 72207
2261cc DOHC Turbo (MZR-T)
16 Valve Ford
2008-06 Duratec ●❍ 1st 4, 2nd 11, 3rd 33,
4th turn 90 degrees, 5th turn 90 degrees
150 ES 72207
60 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
61
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
MERCEDES-BENZ 6 & V6 (CONT.)
2996cc DOHC (272.940, 272.941,
272.942) 24 Valve
2008-06 1st Bolts 1-8 15, 2nd Bolts 1-8 30,
3rd Bolts 1-8 turn 90 degrees,
4th Bolts 1-8 turn 90 degrees;
5th Bolts 9-12 12,
6th Bolts 9-12 turn 90 degrees
239
2996cc DOHC Diesel (606.912)
24 Valve
1997-94 1st Bolts 1-26 12, 2nd Bolts 1-26 26,
3rd Bolts 1-26 turn 90 degrees,
4th wait 10 minutes,
5th Bolts 1-26 turn 90 degrees;
6th Bolts 27-30 18
243
2996cc DOHC Turbo Diesel
(606.962) 24 Valve
1999-98 1st Bolts 1-26 12, 2nd Bolts 1-26 26,
3rd Bolts 1-26 turn 90 degrees,
4th wait 10 minutes,
5th Bolts 1-26 turn 90 degrees;
6th Bolts 27-30 18
243
3199cc SOHC (112.946, 112.947,
112.953, 112.955) 18 Valve
2005-01 1st Bolts 1-8 7.5, 2nd Bolts 1-8 22,
3rd Bolts 1-8 turn 90 degrees,
4th Bolts 1-8 turn 90 degrees;
5th Bolts 9-12 15
240
3199cc SOHC (112.940, 112.941,
112.942) 18 Valve
2005-98 1st Bolts 1-8 7.5, 2nd Bolts 1-8 22,
3rd Bolts 1-8 turn 90 degrees,
4th Bolts 1-8 turn 90 degrees;
5th Bolts 9-12 15
240
3199cc DOHC (104.991, 104.994,
104.995) 24 Valve
1999-94 ●1st 40, 2nd turn 90 degrees,
3rd turn 90 degrees
39
3199cc DOHC (104.990, 104.992)
24 Valve
1995-92 ●1st 40, 2nd turn 90 degrees,
3rd turn 90 degrees
39
3199cc SOHC Supercharged
(112.960) 18 Valve
2004-02 1st Bolts 1-8 7.5, 2nd Bolts 1-8 22,
3rd Bolts 1-8 turn 90 degrees,
4th Bolts 1-8 turn 90 degrees;
5th Bolts 9-12 15
240
3222cc DOHC Turbo Diesel
(648.961) 24 Valve
2006-05 1st Bolts 1-14 12, 2nd Bolts 15-16 15,
3rd Bolts 1-14 45, 4th Bolts 15-16 15 again,
5th Bolts 1-14 turn 90 degrees,
6th Bolts 1-14 turn 90 degrees
244
3498cc DOHC (272.056, 272.087)
24 Valve
2008-06 1st Bolts 1-8 15, 2nd Bolts 1-8 30,
3rd Bolts 1-8 turn 90 degrees,
4th Bolts 1-8 turn 90 degrees;
5th Bolts 9-12 12,
6th Bolts 9-12 turn 90 degrees
239
3498cc DOHC (272.960)
24 Valve
2008-06 1st Bolts 1-8 15, 2nd Bolts 1-8 30,
3rd Bolts 1-8 turn 90 degrees,
4th Bolts 1-8 turn 90 degrees;
5th Bolts 9-12 12,
6th Bolts 9-12 turn 90 degrees
239
3498cc DOHC (272.963, 272.964,
272.967, 272.972) 24 Valve
2008-05 1st Bolts 1-8 15, 2nd Bolts 1-8 30,
3rd Bolts 1-8 turn 90 degrees,
4th Bolts 1-8 turn 90 degrees;
5th Bolts 9-12 12,
6th Bolts 9-12 turn 90 degrees
239
3606cc DOHC (104.941) 24 Valve 1997-95 ●1st 40, 2nd turn 90 degrees,
3rd turn 90 degrees
39
3724cc SOHC (112.M37, 112.972)
18 Valve
2006-03 1st Bolts 1-8 7.5, 2nd Bolts 1-8 22,
3rd Bolts 1-8 turn 90 degrees,
4th Bolts 1-8 turn 90 degrees;
5th Bolts 9-12 15
240
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
MERCEDES-BENZ 4
1796cc DOHC Supercharged
(111.983) 16 Valve
2005-03 1st Bolts 1-10 40,
2nd Bolts 1-10 turn 90 degrees,
3rd Bolts 1-10 turn 90 degrees,
4th Bolts 11-14 13,
5th Bolts 11-14 turn 90 degrees
237
2199cc DOHC (111.961)
16 Valve
1996-94 1st Bolts 1-10 40,
2nd Bolts 1-10 turn 90 degrees,
3rd Bolts 1-10 turn 90 degrees,
4th Bolts 11-14 13,
5th Bolts 11-14 turn 90 degrees
237
2295cc DOHC (111.974)
16 Valve
1998-97 ●1st Bolts 1-10 40,
2nd Bolts 1-10 turn 90 degrees,
3rd Bolts 1-10 turn 90 degrees,
4th Bolts 11-14 13,
5th Bolts 11-14 turn 90 degrees
237
2295cc DOHC Supercharged
(111.973, 111.975, 111.983)
16 Valve
2005-98 1st Bolts 1-10 40,
2nd Bolts 1-10 turn 90 degrees,
3rd Bolts 1-10 turn 90 degrees,
4th Bolts 11-14 13,
5th Bolts 11-14 turn 90 degrees
237
2298cc SOHC (102.985) 8 Valve 1993-91 1st Bolts 1-10 40,
2nd Bolts 1-10 turn 90 degrees,
3rd Bolts 1-10 turn 90 degrees,
4th Bolts 11-14 21
238
2298cc SOHC (102.961, 102.985)
8 Valve
1988-84 ●1st Bolts 1-10 40,
2nd Bolts 1-10 turn 90 degrees,
3rd Bolts 1-10 turn 90 degrees,
4th Bolts 11-14 21
238
MERCEDES-BENZ 5
2686cc DOHC Turbo Diesel
(602.984) 20 Valve
2007-02 ●❍ 1st Bolts 1-12 12, 2nd Bolts 13-14 15,
3rd Bolts 1-12 45, 4th Bolts 13-14 15 again,
5th Bolts 1-12 turn 90 degrees,
6th Bolts 1-12 turn 90 degrees
255 ES 71233
MERCEDES-BENZ 6 & V6
2496cc DOHC (272.920) 24 Valve 2007-06 1st Bolts 1-8 15, 2nd Bolts 1-8 30,
3rd Bolts 1-8 turn 90 degrees,
4th Bolts 1-8 turn 90 degrees;
5th Bolts 9-12 12,
6th Bolts 9-12 turn 90 degrees
239
2597cc SOHC (112.912, 112.916)
18 Valve
2005-01 1st Bolts 1-8 7.5, 2nd Bolts 1-8 22,
3rd Bolts 1-8 turn 90 degrees,
4th Bolts 1-8 turn 90 degrees;
5th Bolts 9-12 15
240
2599cc SOHC (103.940, 103.942)
12 Valve
1993-87 ●1st 40, 2nd turn 90 degrees,
3rd turn 90 degrees
39
2799cc SOHC (112.920) 18 Valve 2000-98 1st Bolts 1-8 7.5, 2nd Bolts 1-8 22,
3rd Bolts 1-8 turn 90 degrees,
4th Bolts 1-8 turn 90 degrees;
5th Bolts 9-12 15
240
2799cc DOHC (104.941, 104.942,
104.961) 24 Valve
1997-93 ●1st 40, 2nd turn 90 degrees,
3rd turn 90 degrees
39
2962cc SOHC (103.981, 103.983,
103.985) 12 Valve
1993-86 ●1st 40, 2nd turn 90 degrees,
3rd turn 90 degrees
39
2962cc DOHC (104.980, 104.981)
24 Valve
1993-90 1st 40, 2nd turn 90 degrees,
3rd turn 90 degrees
39
2987cc DOHC Turbo Diesel
(642.920, 642.940) 24 Valve
2008-07 Bluetec 1st Bolts 1-8 44, 2nd Bolts 9-10 15,
3rd Bolts 1-8 turn 90 degrees,
4th Bolts 9-10 15 again,
5th Bolts 1-8 turn 90 degrees
242
62 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
63
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
MERCEDES-BENZ V8 (CONT.)
5461cc DOHC (273.965, 273.967)
32 Valve
2008-07 1st Bolts 1-10 15, 2nd Bolts 1-10 30,
3rd Bolts 1-10 turn 90 degrees,
4th Bolts 1-10 turn 90 degrees;
5th Bolts 11-14 12,
6th Bolts 11-14 turn 90 degrees
246
6208cc DOHC (156.980, 156.982,
156.983, 156.984) 32 Valve
2008-07 1st Bolts 1-10 7.5, 2nd Bolts 1-10 37,
3rd Bolts 1-10 turn 90 degrees,
4th Bolts 1-10 turn 90 degrees;
5th Bolts 1-10 turn 90 degrees,
6th Bolts 11-14 15
241
MERCEDES-BENZ V12
5987cc DOHC (120.980, 120.981,
120.982, 120.983) 48 Valve
2002-92 1st 40, 2nd turn 90 degrees,
3rd turn 90 degrees
247
MERCURY ...................................................................SEE FORD PRODUCTS
MERKUR .....................................................................SEE FORD PRODUCTS
METROPOLITAN 4
1198cc OHV 1957-54 45 182
1489cc OHV 1962-56 45 182
MG 4
948cc OHV 1962-61 40 54
1098cc OHV 1968-62 46 54
1275cc OHV 1974-67 46 in three steps 54
1489cc OHV 1961-54 45 182
1493cc OHV 1979-75 46 in three steps 42
1588cc OHV 1961-59 45 182
1622cc OHV 1968-61 45 182
1798cc OHV 1981-61 45-50 in three steps 55
MG V8
3528cc OHV 1977-75 ●Bolts 1-10 65-70; Bolts 11-14 40-45 24
MINI 4
1598cc SOHC (W10B16) 16 Valve
BMW Tritec
2008-02 1st Bolts 1-10 30,
2nd Bolts 1-10 turn 90 degrees,
3rd Bolts 11-12 21
248
1598cc SOHC Supercharged
(W11B16) 16 Valve BMW Tritec
2008-02 1st Bolts 1-10 30,
2nd Bolts 1-10 turn 90 degrees,
3rd Bolts 11-12 21
248
MITSUBISHI 4
1468cc SOHC (G4DJ, 4G15)
8 Valve
1994-89 ●51-54 in three steps 81
1468cc SOHC (G4AJ, G15B)
8 Valve
1989-85 ●51-54 in three steps 81
1468cc SOHC (4G15) 12 Valve 2002-97 ●❍ 1st 36, 2nd loosen all bolts, 3rd 15,
4th turn 90 degrees, 5th turn 90 degrees
71 ES 71206
1468cc SOHC (4G15) 12 Valve 1996-91 ●❍ 53 in three steps 71 ES 71206
1595cc DOHC (4G61) 16 Valve 1992-90 ●Cold 65-72 in three steps 81
1595cc DOHC Turbo (4G61-T)
16 Valve
1989 ●Cold 65-72 in three steps 81
1597cc SOHC Turbo (G32B-T)
8 Valve
1988-85 ●51-54 in three steps 81
1755cc SOHC (4G37) 8 Valve 1994-89 ●❍ 53 in three steps 81 ES 71174
ES 71175
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
MERCEDES-BENZ V8
4196cc SOHC (116.965) 16 Valve 1991-86 1st Bolts 1-10 40,
2nd Bolts 1-10 turn 90 degrees,
3rd Bolts 1-10 turn 90 degrees,
4th Bolts 11-13 18.5
245
4196cc DOHC (119.971, 119.975,
119.981) 32 Valve
1999-92 ●1st Bolts 1-10 40,
2nd Bolts 1-10 turn 90 degrees,
3rd Bolts 1-10 turn 90 degrees,
4th Bolts 11-13 18.5
245
4266cc SOHC (113.941, 113.948)
24 Valve
2006-00 1st Bolts 1-10 7.5, 2nd Bolts 1-10 22,
3rd Bolts 1-10 turn 90 degrees,
4th Bolts 1-10 turn 90 degrees;
5th Bolts 11-14 15
241
4266cc SOHC (113.940, 113.942,
113.943, 113.944) 24 Valve
2003-98 1st Bolts 1-10 7.5, 2nd Bolts 1-10 22,
3rd Bolts 1-10 turn 90 degrees,
4th Bolts 1-10 turn 90 degrees;
5th Bolts 11-14 15
241
4663cc DOHC (273.923) 32 Valve 2008-07 1st Bolts 1-10 15, 2nd Bolts 1-10 30,
3rd Bolts 1-10 turn 90 degrees,
4th Bolts 1-10 turn 90 degrees;
5th Bolts 11-14 12,
6th Bolts 11-14 turn 90 degrees
246
4966cc SOHC (113.960, 113.961)
24 Valve
2008-99 1st Bolts 1-10 7.5, 2nd Bolts 1-10 22,
3rd Bolts 1-10 turn 90 degrees,
4th Bolts 1-10 turn 90 degrees;
5th Bolts 11-14 15
241
4966cc SOHC (113.965, 113.966,
113.969) 24 Valve
2006-02 1st Bolts 1-10 7.5, 2nd Bolts 1-10 22,
3rd Bolts 1-10 turn 90 degrees,
4th Bolts 1-10 turn 90 degrees;
5th Bolts 11-14 15
241
4973cc DOHC (119.970, 119.980,
119.982) 32 Valve
1999-92 ●1st Bolts 1-10 40,
2nd Bolts 1-10 turn 90 degrees,
3rd Bolts 1-10 turn 90 degrees,
4th Bolts 11-13 18.5
245
4973cc DOHC (119.960, 119.972,
119.974) 32 Valve
1995-90 ●1st Bolts 1-10 40,
2nd Bolts 1-10 turn 90 degrees,
3rd Bolts 1-10 turn 90 degrees,
4th Bolts 11-13 18.5
245
5439cc SOHC (113.982, 113.984,
113.988, 113.989) 24 Valve
2008-01 1st Bolts 1-10 7.5, 2nd Bolts 1-10 22,
3rd Bolts 1-10 turn 90 degrees,
4th Bolts 1-10 turn 90 degrees;
5th Bolts 11-14 15
241
5439cc SOHC (113.980, 113.981)
24 Valve
2003-99 1st Bolts 1-10 7.5, 2nd Bolts 1-10 22,
3rd Bolts 1-10 turn 90 degrees,
4th Bolts 1-10 turn 90 degrees;
5th Bolts 11-14 15
241
5439cc SOHC Supercharged
(113.980, 113.982, 113.987,
113.992) 24 Valve
2008-03 1st Bolts 1-10 7.5, 2nd Bolts 1-10 22,
3rd Bolts 1-10 turn 90 degrees,
4th Bolts 1-10 turn 90 degrees;
5th Bolts 11-14 15
241
5439cc SOHC Supercharged
(155.980) 24 Valve
2008-03 1st Bolts 1-10 7.5, 2nd Bolts 1-10 22,
3rd Bolts 1-10 turn 90 degrees,
4th Bolts 1-10 turn 90 degrees;
5th Bolts 11-14 15
241
5461cc DOHC (273.960, 273.961,
273.962) 32 Valve
2008-07 1st Bolts 1-10 15, 2nd Bolts 1-10 30,
3rd Bolts 1-10 turn 90 degrees,
4th Bolts 1-10 turn 90 degrees;
5th Bolts 11-14 12,
6th Bolts 11-14 turn 90 degrees
246
64 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
65
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
MITSUBISHI V6 (CONT.)
2972cc SOHC (6G72) 24 Valve 2005-95 ●❍ 1st 76-83 in three steps,
2nd loosen all bolts,
3rd 76-83 in three steps again
154 ES 72859
2972cc DOHC (6G72) 24 Valve 1999-93 ●❍ 1st 76-83 in three steps,
2nd loosen all bolts,
3rd 76-83 in three steps again
154 ES 72859
2972cc DOHC (6G72) 24 Valve 1992-91 ●❍ 76-83 in three steps 154 ES 72859
2972cc DOHC Turbo (6G72-T)
24 Valve 1999-93 ●❍ 1st 87-94 in three steps,
2nd loosen all bolts,
3rd 87-94 in three steps again
154 ES 72859
2972cc DOHC Turbo (6G72-T)
24 Valve 1992-91 ●❍ 87-94 in three steps 154 ES 72859
2998cc SOHC (6B31) 24 Valve 2008-07 1st 33, 2nd turn 75 degrees,
3rd turn 75 degrees
154
3497cc SOHC (6G74) 24 Valve 2005-97 ●❍ 76-83 in three steps 154 ES 72859
3497cc DOHC (6G74) 24 Valve 1996-94 76-83 in three steps 154
3704cc SOHC (VIN K) 12 Valve
Dodge Truck 2008-06 ●❍ 1st M11 Bolts 1-8 20,
2nd M11 Bolts 1-8 20 again,
3rd M8 Bolts 9-12 10,
4th M11 Bolts 1-8 turn 90 degrees,
5th M11 Bolts 1-8 turn 90 degrees,
6th M8 Bolts 9-12 19
204 ES 71129-1
3828cc SOHC (6G75) 24 Valve 2008-03 ●76-83 in three steps 154
MITSUBISHI V8
4703cc SOHC (VIN N) 16 Valve
Dodge Truck 2008 ●❍ 1st M11 Bolts 1-10 20,
2nd M11 Bolts 1-10 20 again,
3rd M8 Bolts 11-14 10,
4th M11 Bolts 1-10 turn 90 degrees,
5th M11 Bolts 1-10 turn 90 degrees,
6th M8 Bolts 11-14 19
163 ES 71129
4703cc SOHC (VIN N) 16 Valve
Dodge Truck 2007-06 ●❍ 1st M11 Bolts 1-10 15,
2nd M11 Bolts 1-10 35,
3rd M8 Bolts 11-14 18,
4th M11 Bolts 1-10 turn 90 degrees,
5th M8 Bolts 11-14 22
163 ES 71129
MORGAN 4
1597cc SOHC (8 Valve) Ford 1994-82 ●❍ 1st 44, 2nd turn 90 degrees,
3rd turn 90 degrees
36 ES 72672
MORGAN V8
3528cc OHV Rover 1971-68 ●Bolts 1-10 65-70; Bolts 11-14 40-45 24
MORRIS 4
803cc OHV 1956-52 40 54
948cc OHV 1962-56 40 54
1098cc OHV 1971-62 46 54
1489cc OHV 1961-54 45 182
1622cc OHV 1971-61 45 182
NASH .....................................................................SEE AMERICAN MOTORS
NAVISTAR .................................................................... SEE INTERNATIONAL
NISSAN 4
988cc OHV (A10) 8 Valve 1971-65 ●35 40
1171cc OHV (A12) 8 Valve 1973 ●42 40
1171cc OHV (A12) 8 Valve 1972-71 ●35 40
1237cc OHV (A12A) 8 Valve 1982-79 ●53 40
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
MITSUBISHI 4 (CONT.)
1795cc SOHC (G62B) 8 Valve 1983 ●Cold 65-72, Warm 73-79 71
1795cc SOHC Turbo (G62B-T)
8 Valve
1988-84 ●Cold 65-72, Warm 73-79 71
1834cc SOHC (4G93) 16 Valve 2002-97 ●❍ 1st 54, 2nd loosen all bolts, 3rd 15,
4th turn 90 degrees, 5th turn 90 degrees
71 ES 71209
1834cc SOHC (4G93) 16 Valve 1996-93 ●❍ 1st 14.5, 2nd turn 90 degrees,
3rd turn 90 degrees
71 ES 71209
1834cc SOHC (4G93) 16 Valve 1992 ●❍ 1st 54, 2nd loosen all bolts, 3rd 15,
4th turn 90 degrees, 5th turn 90 degrees
71 ES 71209
1996cc DOHC (A588, 420A)
16 Valve Chrysler
1999-95 ●❍ 1st Long bolts 25; Short bolts 20,
2nd Long bolts 50; Short bolts 20,
3rd Long bolts 50; Short bolts 20,
4th all bolts turn 90 degrees
37 ES 72166
1997cc SOHC (4G63) 16 Valve 1993 ●1st 58, 2nd loosen all bolts, 3rd 15,
4th turn 90 degrees, 5th turn 90 degrees
71
1997cc SOHC (G63B, 4G63)
8 Valve
1992-83 ●Cold 65-72, Warm 73-79 71
1997cc DOHC (4G63) 16 Valve 1994-93 ●❍ 1st 58, 2nd loosen all bolts, 3rd 15,
4th turn 90 degrees, 5th turn 90 degrees
71 ES 71175
1997cc DOHC (4G63) 16 Valve 1992-89 ●❍ Cold 65-72, Warm 73-79 81 ES 71175
1997cc DOHC Turbo (4G63-T)
16 Valve
1999-95 ●❍ 1st 58, 2nd loosen all bolts, 3rd 15,
4th turn 90 degrees, 5th turn 90 degrees
71 ES 71177
1997cc DOHC Turbo (4G63-T)
16 Valve
1994-93 ●❍ 1st 58, 2nd loosen all bolts, 3rd 15,
4th turn 90 degrees, 5th turn 90 degrees
71 ES 71175
1997cc DOHC Turbo (4G63-T)
16 Valve
1992-89 ●❍ Cold 65-72, Warm 73-79 81 ES 71175
1999cc SOHC (4G94) 16 Valve 2007-02 ●1st 54, 2nd loosen all bolts, 3rd 15,
4th turn 90 degrees, 5th turn 90 degrees
71
1999cc DOHC Turbo (4G94-T)
16 Valve
2007-03 1st 54, 2nd loosen all bolts, 3rd 15,
4th turn 90 degrees, 5th turn 90 degrees
71
2346cc SOHC Turbo Diesel
(4D55-T) 8 Valve
1985-83 ●Cold 76-83, Warm 84-90 43
2351cc SOHC (4G64) 8 Valve 1996-93 ●1st 58, 2nd loosen all bolts, 3rd 15,
4th turn 90 degrees, 5th turn 90 degrees
71
2351cc SOHC (G64B, 4G64)
8 Valve
1992-85 ●Cold 65-72, Warm 73-79 71
2351cc SOHC (4G64) 16 Valve 2005-00 ●❍ 1st 58, 2nd loosen all bolts, 3rd 15,
4th turn 90 degrees, 5th turn 90 degrees
71 ES 71177
2351cc SOHC (4G64) 16 Valve 1999-93 ●1st 58, 2nd loosen all bolts, 3rd 15,
4th turn 90 degrees, 5th turn 90 degrees
71
2351cc DOHC (4G64) 16 Valve 1997-94 1st 58, 2nd loosen all bolts, 3rd 15,
4th turn 90 degrees, 5th turn 90 degrees
71
2378cc SOHC (4G69) 16 Valve 2008-04 ●1st 58, 2nd loosen all bolts, 3rd 15,
4th turn 90 degrees, 5th turn 90 degrees
71
2555cc SOHC (G54B) 8 Valve 1989-83 ●❍ Bolts 1-10 Cold 65-72, Warm 73-79;
Bolts 11 11-15
38 ES 72860
2555cc SOHC Turbo (G54B-T)
8 Valve
1989-83 ●❍ Bolts 1-10 Cold 65-72, Warm 73-79;
Bolts 11 11-15
38 ES 72860
3907cc OHV Turbo Diesel
(4D34-T, 4D34-T3) 8 Valve
1999-92 ●145 187
MITSUBISHI V6
2497cc SOHC (6G73) 24 Valve 1998 ●❍ Cold 80 in three steps 154 ES 72859
2497cc SOHC (6G73) 24 Valve 1997-95 ●Cold 80 in three steps 154
2972cc SOHC (6G72) 12 Valve 1999-93 ●❍ 1st 76-83 in three steps,
2nd loosen all bolts,
3rd 76-83 in three steps again
154 ES 72859
2972cc SOHC (6G72) 12 Valve 1992-88 ●❍ 65-72 in three steps 154 ES 72859
66 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
67
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
NISSAN 4 (CONT.)
2389cc SOHC (Z24, Z24I, Z24S)
8 Valve 1990-83 ●❍ 1st 22, 2nd 58, 3rd loosen all bolts,
4th 22 again, 5th 54-61 79 ES 74026
2389cc SOHC (KA24E) 12 Valve 1997-89 ●❍ 1st 22, 2nd 58, 3rd loosen all bolts,
4th 22 again, 5th 54-61;
OR turn 80-85 degrees
80 ES 74026
2389cc DOHC (KA24DE) 16 Valve 2004-98 Truck ●❍ 1st 22, 2nd 59, 3rd loosen all bolts,
4th 18-25, 5th turn 55-62;
OR turn 86-91 degrees
80 ES 72231
2389cc DOHC (KA24DE) 16 Valve 2001-91 Car ●1st 22, 2nd 59, 3rd loosen all bolts,
4th 18-25, 5th turn 55-62;
OR turn 86-91 degrees
80
2488cc DOHC (QR25DE) 16 Valve 2008-07 Car 1st 72, 2nd loosen all bolts, 3rd 29,
4th turn 75 degrees, 5th turn 75 degrees
80
2488cc DOHC (QR25DE) 16 Valve 2006-04 Car ●❍ 1st 37, 2nd turn 60 degrees,
3rd loosen all bolts, 4th 32,
5th turn 75-80 degrees,
6th turn 75-80 degrees
80 ES 72198
2488cc DOHC (QR25DE) 16 Valve 2003-02 Car ●❍ 1st 72, 2nd loosen all bolts,
3rd 25-33, 4th turn 75-80 degrees,
5th turn 75-80 degrees
80 ES 72198
2488cc DOHC (QR25DE) 16 Valve 2008-05 Truck ●❍ 1st 37, 2nd turn 60 degrees,
3rd loosen all bolts, 4th 29,
5th turn 75 degrees, 6th turn 75 degrees
80 ES 72198
2488cc DOHC (QR25DE)
16 Valve Hybrid 2008-07 Car 1st 72, 2nd loosen all bolts, 3rd 29,
4th turn 75 degrees, 5th turn 75 degrees
80
2488cc OHV Diesel (SD25) 8 Valve 1986-83 ●Main bolts 87-94; Sub bolts 33-40 50
NISSAN 6 & V6
2393cc SOHC (L24E) 12 Valve 1984-83 ●62 39
2393cc SOHC (L24E) 12 Valve 1982-77 ●56 39
2393cc SOHC (L24) 12 Valve 1973-70 ●54 39
2565cc SOHC (L26) 12 Valve 1974 ●57 39
2753cc SOHC (L28E) 12 Valve 1983 ●62 39
2753cc SOHC (L28E) 12 Valve 1982-75 ●56 39
2753cc SOHC Turbo (L28ET)
12 Valve 1983 ●62 39
2753cc SOHC Turbo (L28ET)
12 Valve 1982-81 ●56 39
2793cc SOHC Diesel (LD28)
12 Valve 1983-81 1st 29, 2nd 43, 3rd 87-94,
4th warm engine, 5th 87-94 again
9
2960cc SOHC (V30E, VG30,
VG30E, VG30I) 12 Valve 1998-84 ●1st 22, 2nd 43, 3rd loosen all bolts,
4th 22 again, 5th 40-47;
OR turn 60-65 degrees
85
2960cc DOHC (VG30D, VG30DE)
24 Valve 1996-92 ●1st 29, 2nd 90, 3rd loosen all bolts,
4th 25-33, 5th 90;
OR turn 60-70 degrees
161
2960cc DOHC (VG30D, VG30DE)
24 Valve 1991-90 ●1st 29, 2nd 90, 3rd loosen all bolts,
4th 25-33, 5th 90;
OR turn 60-70 degrees
114
2960cc DOHC (VE30DE) 24 Valve 1994-92 1st 29, 2nd 90, 3rd loosen all bolts,
4th 25-33, 5th 87-94 161
2960cc SOHC Turbo (V30ET,
VG30T) 12 Valve 1989-84 ●1st 22, 2nd 43, 3rd loosen all bolts,
4th 22 again, 5th 40-47;
OR turn 60-65 degrees
85
2960cc DOHC Turbo (VG30DETT,
VG30DTT) 24 Valve 1996-92 ●1st 29, 2nd 90, 3rd loosen all bolts,
4th 25-33, 5th 90;
OR turn 60-70 degrees
161
2960cc DOHC Turbo (VG30DETT,
VG30DTT) 24 Valve
1991-90 ●1st 29, 2nd 90, 3rd loosen all bolts,
4th 25-33, 5th 90;
OR turn 60-70 degrees
114
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
NISSAN 4 (CONT.)
1288cc OHV (A13) 8 Valve 1974-72 ●53 40
1397cc OHV (A14) 8 Valve 1982-75 ●53 40
1487cc OHV (A15) 8 Valve 1982-79 ●53 40
1487cc SOHC (E15) 8 Valve 1983-82 ●1st 29-33, 2nd 51-54 42
1487cc SOHC Turbo (E15ET,
E15T) 8 Valve
1984-83 ●1st 29-33, 2nd 51-54 42
1595cc SOHC (L16) 8 Valve 1973-68 ●43 40
1597cc SOHC (E16I, E16S) 8 Valve 1988-86 ●❍ 1st 22, 2nd 51, 3rd loosen all bolts,
4th 22 again, 5th 51-54
42 ES 74024
1597cc SOHC (E16) 8 Valve 1987-83 ●1st 22, 2nd 51, 3rd loosen all bolts,
4th 22 again, 5th 51-54
42
1597cc SOHC (GA16I) 12 Valve 1990-89 ●❍ 1st Bolts 1-10 22, 2nd Bolts 1-10 47,
3rd loosen all bolts,
4th Bolts 1-10 22 again,
5th Bolt 1 turn 80-85 degrees;
Bolts 2-10 turn 60-65 degrees,
6th Bolts 11-15 4.6-6.1
113 ES 74025
1597cc DOHC (GA16DE) 16 Valve 1999-91 ●1st Bolts 1-10 22, 2nd Bolts 1-10 43,
3rd loosen all bolts,
4th Bolts 1-10 22 again,
5th Bolts 1-10 turn 50-55 degrees,
6th Bolts 11-15 4.6-6.1
113
1598cc DOHC (CA16DE) 16 Valve 1987 ●1st 22, 2nd 76, 3rd loosen all bolts,
4th 22 again, 5th 76
36
1680cc SOHC Diesel (CD17)
8 Valve
1987-83 1st 43-51, 2nd 72-80 36
1769cc DOHC (QG18DE) 16 Valve 2006-00 ●❍ 1st Bolts 1-10 22, 2nd Bolts 1-10 43,
3rd loosen all bolts,
4th Bolts 1-10 22 again,
5th Bolts 1-10 turn 50-55 degrees,
6th Bolts 11-14 4.6-6.1
206 ES 72203
1770cc SOHC (L18) 8 Valve 1974-73 ●54 40
1797cc DOHC (MR18DE) 16 Valve 2008-07 1st 30, 2nd turn 100 degrees,
3rd loosen all bolts, 4th 30 again,
5th turn 100 degrees,
6th turn 100 degrees
80
1809cc DOHC (CA18DE) 16 Valve 1990-88 ●1st 22, 2nd 76, 3rd loosen all bolts,
4th 22 again, 5th 76
36
1809cc SOHC Turbo (CA18ET)
8 Valve
1987-84 ●❍ 1st 22, 2nd 58, 3rd loosen all bolts,
4th 22 again, 5th 54-61
79 ES 74023
1952cc SOHC (Z20) 8 Valve 1987-83 ●1st 22, 2nd 58, 3rd loosen all bolts,
4th 22 again, 5th 54-61 79
1952cc SOHC (Z20E, Z20S)
8 Valve 1981-80 ●58 79
1952cc SOHC (L20B) 8 Valve 1980-74 ●54 40
1974cc SOHC (CA20E) 8 Valve 1989-84 ●1st 22, 2nd 58, 3rd loosen all bolts,
4th 22 again, 5th 54-61 79
1974cc SOHC (CA20S) 8 Valve 1986-82 ●1st 22, 2nd 58, 3rd loosen all bolts,
4th 22 again, 5th 54-61 79
1998cc DOHC (MR20DE) 16 Valve 2008-07 1st 30, 2nd turn 100 degrees,
3rd loosen all bolts, 4th 30 again,
5th turn 100 degrees,
6th turn 100 degrees
80
1998cc DOHC (SR20DE) 16 Valve 2001-91 ●❍ 1st 29, 2nd 58, 3rd loosen all bolts,
4th 25-33, 5th turn 90-95 degrees,
6th turn 90-95 degrees
109 ES 72192
2164cc OHV Diesel (SD22) 8 Valve 1983-81 Main bolts 87-108; Sub bolts 36-47 50
2187cc SOHC (Z22E, Z22S)
8 Valve 1983-81 ●58 79
68 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
69
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
PEUGEOT 4 (CONT.)
1971cc OHV (XN-1, XN-6) 8 Valve 1979-71 1st 43, 2nd 60 37
2155cc SOHC Turbo (N9-T, N9-TE)
8 Valve Renault 1992-85 1st 36, 2nd 62 149
2165cc SOHC (ZD-JL) 8 Valve
Renault 1992-87 1st 37, 2nd 59, 3rd loosen all bolts,
4th 64-72 149
2304cc OHV Diesel (XD-2) 8 Valve 1983-77 1st 22, 2nd 47, 3rd loosen all bolts
90 degrees, 4th 22 again, 5th 47 165
2304cc OHV Turbo Diesel (XD-2S)
8 Valve 1986-81 1st 22, 2nd 51, 3rd loosen all bolts
90 degrees, 4th 22 again, 5th 51 165
2498cc OHV Turbo Diesel (XD-3T)
8 Valve 1988-85 1st 22, 2nd 51, 3rd loosen all bolts
90 degrees, 4th 22 again, 5th 51 165
PEUGEOT V6
2664cc SOHC (ZM) 12 Valve 1978-77 1st 7, 2nd 22, 3rd 44, 4th loosen all bolts,
5th 11-14, 6th turn 116-120 degrees,
7th warm engine & allow to cool,
8th loosen all bolts, 9th 11-14 again,
10th turn 113-117 degrees
52
2849cc SOHC (ZN, ZN-3J) 12 Valve 1990-79 1st 7, 2nd 22, 3rd 44, 4th loosen all bolts,
5th 15, 6th turn 106 degrees,
7th warm engine & allow to cool,
8th turn 45 degrees
52
PINNINFARINA .............................................................................SEE FIAT
PLYMOUTH ........................................................... SEE CHRYSLER PRODUCTS
PONTIAC ....................................................................... SEE GM PRODUCTS
PORSCHE 4 & H04
1679cc OHV Volkswagen 1973-70 23 in three steps 166
1795cc OHV Volkswagen 1975-74 23 in three steps 166
1970cc OHV Volkswagen 1976-73 23 in three steps 166
1984cc SOHC (8 Valve) 1982-77 ●1st 47, 2nd turn 90 degrees,
3rd turn 90 degrees
60
1984cc SOHC Turbo (8 Valve) 1982-80 1st 47, 2nd turn 90 degrees,
3rd turn 90 degrees
60
2479cc SOHC (8 Valve) 1988-83 1st 14, 2nd 36, 3rd 65 17
2479cc SOHC Turbo (8 Valve) 1988-86 1st 14, 2nd 36, 3rd 65 17
PORSCHE H06 & V6
3164cc OHV 1989-84 1st 11, 2nd turn 90 degrees 167
3189cc DOHC (24 Valve)
Volkswagen 2007-04 1st 22, 2nd 37, 3rd turn 90 degrees,
4th turn 90 degrees
168
3597cc DOHC (24 Valve)
Volkswagen 2008-07 1st 22, 2nd 37, 3rd turn 90 degrees,
4th turn 90 degrees
168
PUMA H04
1584cc OHV Volkswagen 1982-81 1st 11, 2nd 23 166
RAMBLER................................................................SEE AMERICAN MOTORS
RENAULT 4
1289cc OHV (810) 8 Valve 1979-68 1st 40, 2nd warm engine &
allow to cool, 3rd 45 71
1397cc OHV (C3J, 847) 8 Valve 1987-80 ●1st 41-44, 2nd warm engine &
allow to cool, 3rd loosen 180 degrees,
4th 41-44 again
149
1565cc OHV Turbo (A7L) 8 Valve 1985-82 1st 30, 2nd 57-61, 3rd warm engine &
allow to cool, 4th 57-61 again
149
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
NISSAN 6 & V6 (CONT.)
2988cc DOHC (VQ30DE) 24 Valve 2001-95 ●❍ 1st 72, 2nd loosen all bolts,
3rd 25-33, 4th turn 90-95 degrees,
5th turn 90-95 degrees
161 ES 72900
3274cc SOHC (VG33E) 12 Valve 2004-96 ●❍ 1st 22, 2nd 43, 3rd loosen all bolts,
4th 7, 5th 22, 6th 40-47;
OR turn 60-65 degrees
162 ES 72194
3274cc SOHC Supercharged
(VG33ER) 12 Valve
2004-01 ●❍ 1st 22, 2nd 43, 3rd loosen all bolts,
4th 7, 5th 22, 6th 40-47;
OR turn 60-65 degrees
162 ES 72194
3498cc DOHC (VQ35HR) 24 Valve 2008-07 1st 77, 2nd loosen all bolts, 3rd 29,
4th turn 95 degrees, 5th turn 95 degrees
161
3498cc DOHC (VQ35DE) 24 Valve 2008-01 ●❍ 1st 72, 2nd loosen all bolts,
3rd 25-33, 4th turn 90-95 degrees,
5th turn 90-95 degrees
161 ES 72900
3954cc DOHC (VQ40DE) 24 Valve 2008-05 ●1st 72, 2nd loosen all bolts,
3rd 25-33, 4th turn 90-95 degrees,
5th turn 90-95 degrees
161
NISSAN V8
5552cc DOHC (VK56DE) 32 Valve 2008-04 ●1st 72, 2nd loosen all bolts, 3rd 33,
4th turn 60 degrees, 5th turn 60 degrees
203
OLDSMOBILE .................................................................. SEE GM PRODUCTS
OPEL 4
1817cc SOHC (G180Z) 8 Valve
Isuzu
1979-76 ●1st 61, 2nd 72 37
1897cc SOHC (1.9S) 8 Valve 1975-67 ●72 56
PACKARD L8 & V8
288 L-Head 1954-48 63 191
289 OHV 1958-57 55-65 170
289 OHV Supercharged 1958-57 55-65 170
320 OHV 1955 60-65 22
327 L-Head 1954-48 63 191
352 OHV 1956-55 60-65 22
356 L-Head 1950-48 63 191
359 L-Head 1954-53 63 191
374 OHV 1956 60-65 22
PANOZ V8
281 DOHC (4.6L) 32 Valve Ford 2007-99 ●❍ 1st 27-32, 2nd turn 85-95 degrees,
3rd loosen one turn, 4th 27-32 again,
5th turn 85-95 degrees,
6th turn 85-95 degrees
124 ES 72798
281 DOHC Supercharged (4.6L)
32 Valve Ford
2007-04 ●❍ 1st 27-32, 2nd turn 85-95 degrees,
3rd loosen one turn, 4th 27-32 again,
5th turn 85-95 degrees,
6th turn 85-95 degrees
124 ES 71173
PEUGEOT 4
1905cc SOHC (XU-9J2) 8 Valve 1992-89 1st 44, 2nd loosen all bolts, 3rd 15,
4th turn 300 degrees
149
1905cc DOHC (XU-9J4) 16 Valve 1992-89 1st 44, 2nd loosen all bolts, 3rd 15,
4th turn 300 degrees
149
1971cc OHV (XN-2, XN-6) 8 Valve 1987-80 1st 36, PERFORM THE NEXT THREE
STEPS ON EACH BOLT BEFORE
MOVING TO NEXT BOLT IN SEQUENCE:
1) loosen completely, 2) 14,
3) turn 90 degrees
37
70 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
71
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
SAAB 4 & H04 (CONT.)
2119cc DOHC (B212I) 16 Valve 1994-91 1st 44, 2nd 59, 3rd turn 90 degrees 151
2290cc DOHC (B234I) 16 Valve 1998-90 1st 44, 2nd 59, 3rd turn 90 degrees 151
2290cc DOHC Turbo (B235E,
B235L, B235R) 16 Valve
2008-99 1st 30, 2nd 44, 3rd turn 90 degrees 151
2290cc DOHC Turbo (B234E,
B234L, B234R) 16 Valve
1998-91 1st 44, 2nd 59, 3rd turn 90 degrees 151
2457cc SOHC (EJ251, EJ253)
16 Valve Subaru
2006-05 ●❍ 1st 22, 2nd 51, 3rd loosen 180 degrees,
4th loosen 180 degrees, 5th 31,
6th turn 80-90 degrees,
7th turn 40-45 degrees,
8th Bolts 1-2 turn 40-45 degrees
125 ES 72212
2457cc DOHC Turbo (EJ25T,
EJ255) 16 Valve Subaru
2006 ●❍ 1st 22, 2nd 51, 3rd loosen 180 degrees,
4th loosen 180 degrees, 5th 36,
6th turn 80-90 degrees,
7th turn 40-45 degrees,
8th Bolts 1-2 turn 40-45 degrees
125 ES 72212
SAAB 6 & V6
2498cc DOHC (B258I) 24 Valve
Opel
1997-94 1st 18.5, 2nd turn 90 degrees,
3rd turn 90 degrees, 4th turn 90 degrees
49
2792cc DOHC Turbo (B284L)
24 Valve Opel
2008-06 Right Head 1st 33, 2nd turn 120 degrees;
Left Head 1st Bolts 1-8 33,
2nd Bolts 1-8 turn 120 degrees,
3rd Bolts 9-10 11,
4th Bolts 9-10 turn 60 degrees
230
2962cc DOHC (B308I) 24 Valve
Opel
2000-95 ●❍ 1st 18.5, 2nd turn 90 degrees,
3rd turn 90 degrees, 4th turn 90 degrees
49 ES 72906
2962cc DOHC Turbo (B308E)
24 Valve Opel
2004-99 ●❍ 1st 18.5, 2nd turn 90 degrees,
3rd turn 90 degrees, 4th turn 90 degrees
49 ES 72906
4160cc DOHC (VIN S) 24 Valve
Chevrolet Truck
2008-05 ●❍ Bolts 1-14 1st 22, 2nd turn 90 degrees,
3rd turn 65 degrees; Bolt 15 4th 5.1,
5th turn 120 degrees; Bolts 16-17
6th 5.1, 7th turn 60 degrees
211 ES 72195
SAAB V8
5328cc OHV (VIN M) 16 Valve
Chevrolet Truck
2008-05
2nd Design Bolts
●❍ 1st M11 Bolts 1-10 22,
2nd M11 Bolts 1-10 turn 90 degrees,
3rd M11 Bolts 1-10 turn 70 degrees,
4th M8 Bolts 11-15 22
159 ES 72220
5967cc OHV (VIN H) 16 Valve
Chevrolet Truck
2008
2nd Design Bolts
●❍ 1st M11 Bolts 1-10 22,
2nd M11 Bolts 1-10 turn 90 degrees,
3rd M11 Bolts 1-10 turn 70 degrees,
4th M8 Bolts 11-15 22
159 ES 72220
SATURN 4
1796cc DOHC (1.8L) 16 Valve
Opel
2008 Ecotec
VIN 1 1st 18, 2nd turn 90 degrees,
3rd turn 90 degrees, 4th turn 90 degrees,
5th turn 45 degrees
100
1901cc SOHC (1.9L) 8 Valve 2002-91 VIN 8, 9 ●❍ 1st 22, 2nd 33, 3rd turn 90 degrees 151 ES 72902
1901cc DOHC (1.9L) 16 Valve 2002-91 VIN 7 ●❍ 1st 22, 2nd 37, 3rd turn 90 degrees 151 ES 72903
1998cc DOHC Supercharged
(2.0L) 16 Valve Opel
2007-04 Ecotec
VIN P Bolts 1-10 1st 22, 2nd turn 155 degrees;
Bolts 11-14 3rd 26
231
1998cc DOHC Turbo (2.0L)
16 Valve Opel
2008-07 Ecotec
VIN X Bolts 1-10 1st 22, 2nd turn 155 degrees;
Bolts 11-14 3rd 26
231
2198cc DOHC (2.2L) 16 Valve
Opel
2007-00 Ecotec
VIN D, F, 2
●❍ Bolts 1-10 1st 22, 2nd turn 155 degrees;
Bolts 11-14 3rd 26
199 ES 72196
2384cc DOHC (2.4L) 16 Valve
Opel
2008-05 Ecotec
VIN B, P Bolts 1-10 1st 22, 2nd turn 155 degrees;
Bolts 11-14 3rd 26
231
2384cc DOHC (2.4L) 16 Valve
Hybrid Opel
2008-07 Ecotec
VIN Z, 5 Bolts 1-10 1st 22, 2nd turn 155 degrees;
Bolts 11-14 3rd 26
231
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
RENAULT 4 (CONT.)
1647cc OHV (841, 843) 8 Valve 1983-72 1st 30, 2nd 57-61, 3rd warm engine &
allow to cool, 4th 57-61 again
149
1721cc SOHC (F3N) 8 Valve 1987-85 ●1st 22, 2nd 52, 3rd loosen all bolts,
4th 15, 5th turn 123 degrees
149
1965cc SOHC (F3R) 8 Valve 1987 ●1st 22, 2nd 52, 3rd loosen all bolts,
4th 15, 5th turn 123 degrees
149
2165cc SOHC (J7T) 8 Valve 1989-84 1st 37, 2nd 59, 3rd loosen all bolts,
4th 64-72
149
RILEY 4
1489cc OHV 1960-58 45 182
ROVER V8
3528cc OHV 1982-68 ●Bolts 1-10 65-70; Bolts 11-14 40-45 24
SAAB 4 & H04
1985cc SOHC (B201, B201I)
8 Valve
1988-85 ●1st 44, 2nd 66, 3rd warm engine & allow
to cool, 4th loosen all bolts, 5th 44 again,
6th 66, 7th turn 90 degrees
151
1985cc SOHC (B201, B201I)
8 Valve
1984-81 ●1st 45, 2nd 65, 3rd warm engine & allow
to cool, 4th loosen all bolts, 5th 45 again,
6th 65, 7th turn 90 degrees
151
1985cc SOHC (B20, B201I)
8 Valve
1980-79 1st 44, 2nd 70 151
1985cc SOHC (B20) 8 Valve 1978-72 1st 44, 2nd 17mm bolts 70; 12mm &
15mm bolts 59, 3rd warm engine &
allow to cool, 4th loosen all bolts,
5th 17mm bolts 70 again; 12mm &
15mm bolts 59 again, 6th 12mm &
15mm bolts turn 90 degrees
151
1985cc DOHC (B202I) 16 Valve 1990-86
900 Series
●1st 45, 2nd 63, 3rd warm engine & allow
to cool, 4th loosen all bolts, 5th 45 again,
6th 63, 7th turn 90 degrees
151
1985cc DOHC (B202I) 16 Valve 1990-87
9000 Series
●1st 44, 2nd 66, 3rd warm engine & allow
to cool, 4th loosen all bolts, 5th 44 again,
6th 66, 7th turn 90 degrees
151
1985cc SOHC Turbo (B201L)
8 Valve
1984-81 ●1st 45, 2nd 65, 3rd warm engine & allow
to cool, 4th loosen all bolts, 5th 45 again,
6th 65, 7th turn 90 degrees
151
1985cc SOHC Turbo (B201L)
8 Valve
1980-78 1st 44, 2nd 70 151
1985cc DOHC Turbo (B205L,
B205R) 16 Valve
2003-99 1st 30, 2nd 44, 3rd turn 90 degrees 151
1985cc DOHC Turbo (B204L)
16 Valve
1998-94 1st 44, 2nd 59, 3rd turn 90 degrees 151
1985cc DOHC Turbo (B202L)
16 Valve
1994-91
900 Series
●1st 44, 2nd 59, 3rd turn 90 degrees 151
1985cc DOHC Turbo (B202L)
16 Valve
1990-85
900 Series
●1st 44, 2nd 66, 3rd warm engine & allow
to cool, 4th loosen all bolts, 5th 44 again,
6th 66, 7th turn 90 degrees
151
1985cc DOHC Turbo (B202L)
16 Valve
1990-86
9000 Series
●1st 44, 2nd 66, 3rd warm engine & allow
to cool, 4th loosen all bolts, 5th 44 again,
6th 66, 7th turn 90 degrees
151
1994cc DOHC Turbo (EJ20T,
EJ205) 16 Valve Subaru
2005 1st 22, 2nd 51, 3rd loosen 180 degrees,
4th loosen 180 degrees, 5th 29,
6th turn 80-90 degrees,
7th turn 40-45 degrees,
8th Bolts 1-2 turn 40-45 degrees
125
1998cc DOHC Turbo (B207L,
B207R) 16 Valve Opel
2008-03 Bolts 1-10 1st 22, 2nd turn 155 degrees;
Bolts 11-14 3rd 26
231
72 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
73
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
STUDEBAKER 6 (CONT.)
245.6 L-Head 1960-55 55-65 190
245.6 L-Head 1954-36 80-85 190
STUDEBAKER V8
224 OHV 1955 Car 46-50 170
224 OHV 1956-55 Truck 55-65 170
232 OHV 1954-51 46-50 170
259 OHV 1964-56 Car 55-65 170
259 OHV 1955 Car 46-50 170
259 OHV 1964-55 Truck 55-65 170
283 OHV Chevrolet 1966-65 ●❍ 65 7ES 72856
289 OHV 1964-56 55-65 170
289 OHV Supercharged 1964-57 55-65 170
304 OHV 1964-63 55-65 170
304 OHV Supercharged 1964-63 55-65 170
352 OHV Packard 1956 60-65 22
SUBARU 3
1189cc SOHC (EF12) 9 Valve 1994-89 ●1st 29, 2nd 54, 3rd loosen 90 degrees,
4th 54 again
116
1189cc SOHC (EF12) 9 Valve 1988-87 ●1st 29, 2nd 43, 3rd 51 116
SUBARU H04
1361cc OHV (EA63) 8 Valve 1976-73 Bolts 1-9 1st 14, 2nd 25-29, 3rd 37-43;
Bolts 10-11 4th 6.5-8
122
1595cc OHV (EA71) 8 Valve 1988-82 ●1st 22, 2nd 43, 3rd 47 58
1595cc OHV (EA71) 8 Valve 1981-79 ●Bolts 1-9 1st 22, 2nd 43, 3rd 47;
Bolts 10-11 4th 6.5-8
122
1595cc OHV (EA71) 8 Valve 1978-76 ●Bolts 1-9 1st 14, 2nd 25-29, 3rd 37-43;
Bolts 10-11 4th 6.5-8
122
1781cc OHV (EA81) 8 Valve 1989-82 ●1st 22, 2nd 43, 3rd 47 58
1781cc OHV (EA81) 8 Valve 1981-80 ●Bolts 1-9 1st 22, 2nd 43, 3rd 47;
Bolts 10-11 4th 6.5-8
122
1781cc SOHC (EA82) 8 Valve 1994-85 ●1st 22, 2nd 43, 3rd 47 58
1781cc OHV Turbo (EA81T)
8 Valve
1984-83 ●1st 22, 2nd 43, 3rd 47 58
1781cc SOHC Turbo (EA82T)
8 Valve
1990-85 ●1st 22, 2nd 43, 3rd 47 58
1820cc SOHC (EJ18E) 16 Valve 1997-93 ●1st 22, 2nd 51, 3rd loosen 180 degrees,
4th loosen 180 degrees,
5th Bolts 1-2 25, 6th Bolts 3-6 11,
7th all bolts turn 80-90 degrees,
8th all bolts turn 80-90 degrees
117
1994cc DOHC Turbo (EJ20T,
EJ205) 16 Valve
2005-02 1st 22, 2nd 51, 3rd loosen 180 degrees,
4th loosen 180 degrees, 5th 29,
6th turn 80-90 degrees,
7th turn 40-45 degrees,
8th Bolts 1-2 turn 40-45 degrees
125
2212cc SOHC (EJ22E, EJ22EZ,
EJ222) 16 Valve
2001-90 ●1st 22, 2nd 51, 3rd loosen 180 degrees,
4th loosen 180 degrees,
5th Bolts 1-2 25, 6th Bolts 3-6 11,
7th all bolts turn 80-90 degrees,
8th all bolts turn 80-90 degrees
125
2212cc SOHC Turbo (EJ22T)
16 Valve
1995-90 ●1st 22, 2nd 51, 3rd loosen 180 degrees,
4th loosen 180 degrees,
5th Bolts 1-2 27, 6th Bolts 3-6 14,
7th all bolts turn 80-90 degrees,
8th all bolts turn 80-90 degrees
125
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
SATURN V6
2962cc DOHC (3.0L) 24 Valve
Opel
2005-00 VIN B, R ●❍ 1st 18.5, 2nd turn 90 degrees,
3rd turn 90 degrees, 4th turn 90 degrees,
5th turn 15 degrees
49 ES 72906
3471cc SOHC (3.5L) 24 Valve
Honda
2007-06 VIN 4 ●❍ 12 point bolts 1st 22, 2nd turn 90 degrees,
3rd turn 90 degrees
NOTE: New bolts turn additional 90 degrees
131 ES 72221
3471cc SOHC (3.5L) 24 Valve
Honda
2005-04 VIN 4 ●❍ 6 point bolts 1st 29, 2nd 29 again,
3rd 51, 4th 51 again, 5th 72.3,
6th 72.3 again
131 ES 72221
3491cc OHV (3.5L) 12 Valve
Chevrolet
2006-05 VIN L ●1st 44, 2nd turn 95 degrees 196
3510cc OHV (3.5L) 12 Valve
Chevrolet
2008 VIN N ●❍ 1st 44, 2nd turn 140 degrees 196 ES 72230
3510cc OHV (3.5L) 12 Valve
Chevrolet
2007 VIN N ●❍ 1st 44, 2nd turn 95 degrees 196 ES 72230
3564cc DOHC (3.6L) 24 Valve
Opel
2008-07 VIN 7 Right Head 1st Bolts 1-8 22,
2nd Bolts 1-8 turn 150 degrees,
3rd Bolt 9 11, 4th Bolt 9 turn 75 degrees;
Left Head 1st Bolts 1-8 22,
2nd Bolts 1-8 turn 150 degrees,
3rd Bolts 9-10 11,
4th Bolts 9-10 turn 75 degrees
260
3880cc OHV (3.9L) 12 Valve
Chevrolet
2007-06 VIN W, 1 ●❍ 1st 44, 2nd turn 95 degrees 196 ES 72230
SCION 4
1497cc DOHC (1NZFE) 16 Valve 2007-03 ●❍ 1st 22, 2nd turn 90 degrees,
3rd turn 90 degrees
99 ES 72197
ES 72184
1798cc DOHC (2ZRFE) 16 Valve 2008 1st 36, 2nd turn 90 degrees,
3rd turn 45 degrees
99
2362cc DOHC (2AZFE) 16 Valve 2008-05 ●❍ 1st 58, 2nd turn 90 degrees 71 ES 71183
ES 72899
SHELBY V8
244 DOHC (4.0L) 32 Valve
Oldsmobile
2000 ●❍ 1st 30, 2nd turn 70 degrees,
3rd turn 60 degrees, 4th turn 60 degrees,
5th M6 bolts 8.8
198 ES 72187
244 DOHC (4.0L) 32 Valve
Oldsmobile
1999 ●❍ 1st 30, 2nd turn 70 degrees,
3rd turn 60 degrees, 4th turn 60 degrees,
5th M6 bolts 8.8
198 ES 72186
244 DOHC Supercharged (4.0L)
32 Valve Oldsmobile
2002-01 ●❍ 1st 30, 2nd turn 70 degrees,
3rd turn 60 degrees, 4th turn 60 degrees,
5th M6 bolts 8.8
198 ES 72187
STERLING V6
2494cc SOHC (C25A1) 24 Valve
Honda
1988-87 ●1st 29, 2nd 56 89
2675cc SOHC (C27A1) 24 Valve
Honda
1991-89 ●1st 29, 2nd 56 107
STUDEBAKER 6
164.3 L-Head 1940-39 52 188
169.6 L-Head 1960-51 46-50 188
169.6 L-Head 1950-39 52 188
169.6 OHV 1964-61 46-50 189
185.6 L-Head 1960-55 46-50 188
194 OHV Chevrolet 1966-65 ●95 2
217.8 L-Head 1937-36 80-85 190
226.2 L-Head 1948-36 80-85 190
230 OHV Chevrolet 1966 ●95 2
74 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
75
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
SUZUKI 4 (CONT.)
1590cc SOHC (G16KV) 16 Valve 2002-00 Car ●1st 26, 2nd 41, 3rd loosen all bolts,
4th 26 again, 5th 52 110
1590cc SOHC (G16KV) 16 Valve 1999-92 Car ●49 in three steps 110
1590cc SOHC (G16KV) 16 Valve 2001-99 Truck ●1st 26, 2nd 41, 3rd loosen all bolts,
4th 26 again, 5th 52 110
1590cc SOHC (G16KV) 16 Valve 1998-92 Truck ●1st 26, 2nd 41, 3rd 52 110
1788cc DOHC (SY418) 16 Valve 2002-99 Car Bolts 1-10 1st 38.5, 2nd 61,
3rd loosen all bolts, 4th 27,
5th 76; Bolt 11 6th 8
207
1788cc DOHC (G18KV) 16 Valve 1998-96 Truck Bolts 1-10 1st 38.5, 2nd 61,
3rd loosen all bolts, 4th 27,
5th 76; Bolt 11 6th 8
207
1995cc DOHC (J20A) 16 Valve 2008-07 Bolts 1-10 1st 38.5, 2nd 61,
3rd loosen all bolts, 4th 38.5 again,
5th 76; Bolt 11 6th 8
207
1995cc DOHC (J20A) 16 Valve 2004-99 ●❍ Bolts 1-10 1st 38.5, 2nd 61,
3rd loosen all bolts, 4th 38.5 again,
5th 76; Bolt 11 6th 8
207 ES 72206
1998cc DOHC (A20DMS)
16 Valve Opel 2008-04 ●1st 18, 2nd turn 90 degrees,
3rd turn 90 degrees, 4th turn 90 degrees
100
2290cc DOHC (J23A) 16 Valve 2007-04 ●❍ Bolts 1-10 1st 38.5, 2nd 61,
3rd loosen all bolts, 4th 38.5 again,
5th 76; Bolt 11 6th 8
207 ES 72206
SUZUKI 6 & V6
2492cc DOHC (RP625) 24 Valve
Daewoo
2006-04 1st 15, 2nd 18, 3rd turn 70 degrees,
4th turn 70 degrees
39
2492cc DOHC (H25A) 24 Valve 2005-99 Bolts 1-8 1st 38.5, 2nd 61,
3rd loosen all bolts, 4th 38.5 again,
5th 76; Bolt 9 6th 8
212
2736cc DOHC (H27A) 24 Valve 2008-01 Bolts 1-8 1st 38.5, 2nd 61,
3rd loosen all bolts, 4th 38.5 again,
5th 76; Bolt 9 6th 8
212
3564cc DOHC (N36A) 24 Valve
Opel 2008-07 Right Head 1st Bolts 1-8 22,
2nd Bolts 1-8 turn 150 degrees,
3rd Bolt 9 11, 4th Bolt 9 turn 75 degrees;
Left Head 1st Bolts 1-8 22,
2nd Bolts 1-8 turn 150 degrees,
3rd Bolts 9-10 11,
4th Bolts 9-10 turn 75 degrees
260
TOYOTA 4
1077cc OHV (KC) 8 Valve 1969-68 39-48 71
1166cc OHV (3KC) 8 Valve 1979-69 39-48 71
1290cc OHV (4KC, 4KE) 8 Valve 1984-81 ●40-47 71
1452cc SOHC (1AC, 3AC) 8 Valve 1988-80 ●40-47 71
1456cc SOHC (3EE) 12 Valve 1994-90 ●❍ 1st 22, 2nd 36, 3rd turn 90 degrees 80 ES 74027
1456cc SOHC (3E) 12 Valve 1990-87 ●1st 22, 2nd 36, 3rd turn 90 degrees 80
1497cc DOHC (1NZFE) 16 Valve 2008-00 ●❍ 1st 22, 2nd turn 90 degrees,
3rd turn 90 degrees
99 ES 72197
ES 72184
1497cc DOHC (1NZFXE)
16 Valve Hybrid
2008-01 ●❍ 1st 22, 2nd turn 90 degrees,
3rd turn 90 degrees
99 ES 72197
ES 72184
1497cc DOHC (5EFE) 16 Valve 1999-92 ●❍ 1st 33, 2nd turn 90 degrees 71 ES 72181
ES 72184
1587cc SOHC (4AC, 4ALC)
8 Valve
1988-83 ●40-47 71
1587cc DOHC (4AF) 16 Valve 1989-88 ●40-47 99
1587cc DOHC (4AFE) 16 Valve 1997-93 ●1st 22, 2nd turn 90 degrees,
3rd turn 90 degrees
71
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
SUBARU H04 (CONT.)
2457cc SOHC (EJ251, EJ253)
16 Valve 2008-04 ●❍ 1st 22, 2nd 51, 3rd loosen 180 degrees,
4th loosen 180 degrees, 5th 31,
6th turn 80-90 degrees,
7th turn 40-45 degrees,
8th Bolts 1-2 turn 40-45 degrees
125 ES 72212
2457cc SOHC (EJ251, EJ252,
EJ253) 16 Valve 2003-99 ●❍ 1st 22, 2nd 51, 3rd loosen 180 degrees,
4th loosen 180 degrees,
5th Bolts 1-2 25, 6th Bolts 3-6 11,
7th all bolts turn 80-90 degrees,
8th all bolts turn 80-90 degrees
125 ES 72212
2457cc DOHC (EJ25D) 16 Valve 1999-96 ●❍ 1st 22, 2nd 51, 3rd loosen 180 degrees,
4th loosen 180 degrees,
5th Bolts 1-2 25, 6th Bolts 3-6 11,
7th all bolts turn 80-90 degrees,
8th all bolts turn 80-90 degrees
125 ES 72905
2457cc DOHC Turbo (EJ25T,
EJ255, EJ257) 16 Valve 2008-04 ●❍ 1st 22, 2nd 51, 3rd loosen 180 degrees,
4th loosen 180 degrees, 5th 36,
6th turn 80-90 degrees,
7th turn 40-45 degrees,
8th Bolts 1-2 turn 40-45 degrees
125 ES 72212
SUBARU H06
2672cc SOHC (ER27) 12 Valve 1991-88 ●1st 29, 2nd 47, 3rd loosen 90 degrees,
4th 47 again
118
2999cc DOHC (EZ30D) 24 Valve 2008-04 1st 14, 2nd 37, 3rd loosen 180 degrees,
4th loosen 180 degrees, 5th 14,
6th Bolts 1-4 35, 7th Bolts 5-8 33,
8th Bolts 1-8 turn 90 degrees,
9th Bolts 1-4 turn 45 degrees
131
2999cc DOHC (EZ30D) 24 Valve 2003-01 1st 15, 2nd 37, 3rd loosen 180 degrees,
4th loosen 180 degrees, 5th 18.5,
6th 18.5 again, 7th turn 90 degrees,
8th Bolts 1-4 turn 90 degrees,
9th Bolts 5-8 turn 45 degrees
116
3318cc DOHC (EG33D) 24 Valve 1997-92 1st 22, 2nd 51, 3rd loosen 180 degrees,
4th loosen 180 degrees,
5th 20, 6th Bolts 1-4 33,
7th Bolts 1-4 turn 80-90 degrees,
8th Bolts 5-8 33,
9th Bolts 5-8 turn 80-90 degrees
219
3630cc DOHC (EZ36D) 24 Valve 2008 1st 14, 2nd 37, 3rd loosen 180 degrees,
4th loosen 180 degrees, 5th 14,
6th Bolts 1-4 35, 7th Bolts 5-8 33,
8th Bolts 1-8 turn 90 degrees,
9th Bolts 1-4 turn 45 degrees
131
SUNBEAM V8
260 Ford 1967-64 ●65-70 70
289 Ford 1968-64 ●65-70 70
SUZUKI 3
993cc SOHC (G10) 6 Valve 1994-92 ●❍ 54 in three steps 142 ES 74021
993cc SOHC (G10) 6 Valve 1988-85 ●❍ 46-50 in three steps 142 ES 74015
993cc SOHC Turbo (G10-T) 6 Valve 1988-85 ●❍ 46-50 in three steps 142 ES 74015
SUZUKI 4
1298cc DOHC (G13B) 16 Valve 1994-89 ●47-50 in three steps 119
1324cc SOHC (SW413) 16 Valve 2001-98 Car ●49 in three steps 110
1324cc SOHC (G13A) 8 Valve 1997-89 Car ●51-54 in three steps 59
1324cc SOHC (G13A) 8 Valve 1995-89 Truck ●51-54 in three steps 59
1324cc SOHC (G13A) 8 Valve 1988-85 Truck ●46-50 in three steps 59
1590cc SOHC (G16KC) 8 Valve 1995-89 ●51-54 in three steps 59
76 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
77
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
TOYOTA 4 (CONT.)
2366cc SOHC Turbo (22RTEC)
8 Valve
1989-87 ●❍ 58 in three steps 81 ES 71178
2366cc SOHC Turbo (22RTEC)
8 Valve
1986-85 ●58 in three steps 81
2438cc DOHC (2RZFE) 16 Valve 2004-95 ●❍ 1st 29, 2nd turn 90 degrees,
3rd turn 90 degrees
71 ES 72182
2438cc DOHC (2TZFE) 16 Valve 1996-91 ●1st 29, 2nd turn 90 degrees,
3rd turn 90 degrees
71
2438cc DOHC Supercharged
(2TZFZE) 16 Valve
1997-94 ●1st 29, 2nd turn 90 degrees,
3rd turn 90 degrees
71
2446cc SOHC Diesel (2L) 8 Valve 1987-84 ●84-90 in three steps 46
2446cc SOHC Turbo Diesel (2LT)
8 Valve
1987-84 ●84-90 in three steps 46
2693cc DOHC (2TRFE) 16 Valve 2008-05 1st 29, 2nd turn 90 degrees,
3rd turn 90 degrees
71
2693cc DOHC (3RZFE) 16 Valve 2004-94 ●❍ 1st 29, 2nd turn 90 degrees,
3rd turn 90 degrees
71 ES 72182
TOYOTA 6 & V6
2253cc SOHC (2M) 12 Valve 1972-67 12mm bolts 54-61; 8mm bolts 11-16 83
2507cc DOHC (2VZFE) 24 Valve 1992-88 ●1st 12 point bolts 25,
2nd 12 point bolts turn 90 degrees,
3rd 12 point bolts turn 90 degrees,
4th recessed bolts 13
112
2563cc SOHC (4M) 12 Valve 1979-71 ●12mm bolts 54-61; 8mm bolts 11-16 83
2563cc SOHC (4ME) 12 Valve 1980-79 ●12mm bolts 55-61; 8mm bolts 11-15 66
2759cc SOHC (5ME) 12 Valve 1982-81 ●12mm bolts 55-61; 8mm bolts 11-15 66
2759cc DOHC (5MGE) 12 Valve 1988-82 ●58 in three steps 48
2954cc DOHC (7MGE) 24 Valve 1992-86 ●58 in three steps 92
2954cc DOHC Turbo (7MGTE)
24 Valve
1992-87 ●58 in three steps 92
2958cc SOHC (3VZE) 12 Valve 1995-88 ●❍ 1st Bolts 1-8 27, 2nd Bolts 1-8 33,
3rd Bolts 1-8 turn 90 degrees,
4th Bolts 1-8 turn 90 degrees,
5th Bolt 9 27
220 ES 72185
2958cc DOHC (3VZFE) 24 Valve 1993-92 ●1st 12 point bolts 25,
2nd 12 point bolts turn 90 degrees,
3rd 12 point bolts turn 90 degrees,
4th recessed bolts 13
112
2995cc DOHC (1MZFE) 24 Valve 2006-94 ●❍ 1st 12 point bolts 40,
2nd 12 point bolts turn 90 degrees,
3rd recessed bolts 13
120 ES 71036
2997cc DOHC (2JZGE) 24 Valve 1998-93 ●❍ 1st 25, 2nd turn 90 degrees,
3rd turn 90 degrees
92 ES 72213
2997cc DOHC Turbo (2JZGTE)
24 Valve
1998-93 ●❍ 1st 25, 2nd turn 90 degrees,
3rd turn 90 degrees
92 ES 72213
3311cc DOHC (3MZFE) 24 Valve 2008-04 ●1st 12 point bolts 40,
2nd 12 point bolts turn 90 degrees,
3rd recessed bolts 13
120
3311cc DOHC (3MZFXE)
24 Valve Hybrid
2008-06 ●1st 12 point bolts 40,
2nd 12 point bolts turn 90 degrees,
3rd recessed bolts 13
120
3378cc DOHC (5VZFE) 24 Valve 2004-95 ●❍ 1st 12 point bolts 25,
2nd 12 point bolts turn 90 degrees,
3rd 12 point bolts turn 90 degrees,
4th recessed bolts 13
112 ES 72168
ES 72899
3456cc DOHC (2GRFE) 24 Valve 2008-05 ●❍ 1st Bolts 1-8 27,
2nd Bolts 1-8 turn 90 degrees,
3rd Bolts 1-8 turn 90 degrees,
4th Bolts 9-10 22
262 ES 72249
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
TOYOTA 4 (CONT.)
1587cc DOHC (4AFE) 16 Valve 1992-90 ●44 in three steps 99
1587cc DOHC (4AFE) 16 Valve 1989-88 ●40-47 99
1587cc DOHC (4AGE) 16 Valve 1991-88 ●1st 22, 2nd turn 90 degrees,
3rd turn 90 degrees
121
1587cc DOHC (4AGEC) 16 Valve 1987-85 ●40-47 121
1587cc DOHC (4AGELC) 16 Valve 1989-85 ●44 in three steps 121
1587cc DOHC Supercharged
(4AGZE) 16 Valve
1989-88 ●1st 22, 2nd turn 90 degrees,
3rd turn 90 degrees
121
1588cc OHV (2T, 2TC) 8 Valve 1979-71 ●62-68 80
1762cc DOHC (7AFE) 16 Valve 1997-93 ●1st 22, 2nd turn 90 degrees,
3rd turn 90 degrees
71
1770cc OHV (3TC) 8 Valve 1982-80 ●62-68 80
1794cc DOHC (1ZZFE) 16 Valve 2008-98 ●❍ 1st 36, 2nd turn 90 degrees 99 ES 71066
1796cc DOHC (2ZZGE) 16 Valve 2006-00 ●❍ 1st 26, 2nd turn 90 degrees,
3rd turn 90 degrees
99 ES 71066
1839cc SOHC Diesel (1CLC)
8 Valve
1985-84 62 in three steps 46
1839cc SOHC Turbo Diesel
(1CTLC) 8 Valve
1986-84 62 in three steps 46
1858cc SOHC (8R, 8RC) 8 Valve 1971-69 ●75-85 59
1968cc SOHC (18RC) 8 Valve 1974-72 ●75-85 59
1974cc SOHC Turbo Diesel
(2CTLC) 8 Valve
1986 1st 33, 2nd turn 90 degrees,
3rd turn 90 degrees
46
1995cc SOHC (2SELC) 8 Valve 1986-83 ●47 in three steps 71
1998cc OHV (3YEC) 8 Valve 1985-84 ●14mm bolts 65; 12mm bolts 14 86
1998cc DOHC (1AZFE) 16 Valve 2003-01 ●❍ 1st 36, 2nd turn 90 degrees,
3rd turn 90 degrees
71 ES 71183
ES 72899
1998cc DOHC (3SFE) 16 Valve 2000-96 ●❍ 1st 36, 2nd turn 90 degrees,
3rd turn 90 degrees
71 ES 72154
ES 72183
1998cc DOHC (3SFE) 16 Valve 1992-90 ●❍ 1st 36, 2nd turn 90 degrees 71 ES 72154
ES 72183
1998cc DOHC (3SFE) 16 Valve 1989-87 ●❍ 47 in three steps 71 ES 74032
1998cc DOHC (3SGELC) 16 Valve 1989-86 ●40 in three steps 71
1998cc DOHC Turbo (3SGTE)
16 Valve
1995-90 ●1st 36, 2nd turn 90 degrees 71
1998cc DOHC Turbo (3SGTE)
16 Valve
1989-88 ●40 in three steps 71
2164cc DOHC (5SFE, 5SNFE)
16 Valve
2001-90 ●❍ 1st 36, 2nd turn 90 degrees 71 ES 72154
ES 72183
2188cc SOHC Diesel (L) 8 Valve 1983-81 ●84-90 in three steps 46
2189cc SOHC (20R) 8 Valve 1980-75 ●53-63 in three steps 53
2237cc OHV (4YEC) 8 Valve 1990-86 ●14mm bolts 65; 12mm bolts 14 86
2362cc DOHC (2AZFE) 16 Valve 2008-07
Camry, Solara
●❍ 1st 52, 2nd turn 90 degrees 71 ES 71183
ES 72899
2362cc DOHC (2AZFE) 16 Valve 2006-02
Camry, Solara
●❍ 1st 58, 2nd turn 90 degrees 99 ES 71183
ES 72899
2362cc DOHC (2AZFE) 16 Valve 2008-06
RAV4
●❍ 1st 52, 2nd turn 90 degrees 71 ES 71183
ES 72899
2362cc DOHC (2AZFE) 16 Valve 2005-04
RAV4
●❍ 1st 58, 2nd turn 90 degrees 99 ES 71183
ES 72899
2362cc DOHC (2AZFE) 16 Valve 2007-01
Highlander
●❍ 1st 58, 2nd turn 90 degrees 99 ES 71183
ES 72899
2362cc DOHC (2AZFXE)
16 Valve Hybrid
2008-07 ●❍ 1st 52, 2nd turn 90 degrees 71 ES 71183
ES 72899
2366cc SOHC (22R, 22RE, 22REC)
8 Valve
1995-87 ●❍ 58 in three steps 81 ES 71178
2366cc SOHC (22R, 22REC)
8 Valve
1986-81 ●58 in three steps 81
78 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
79
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
VOLKSWAGEN 4 & H04 (CONT.)
1588cc SOHC Diesel (8 Valve) 1992-82 ●❍ 12 point M12 bolts 1st 29, 2nd 43,
3rd turn 90 degrees, 4th turn 90 degrees,
5th warm engine, 6th turn 90 degrees,
7th after 1000 miles turn 90 degrees
60 ES 74028
1588cc SOHC Diesel (8 Valve) 1984-81 ●6 point M11 bolts 1st 35, 2nd 50,
3rd 65, 4th warm engine, 5th 65 again,
6th after 1000 miles turn 90 degrees
60
1588cc SOHC Turbo Diesel
(8 Valve) 1992-82 ●❍ 12 point M12 bolts 1st 29, 2nd 43,
3rd turn 90 degrees, 4th turn 90 degrees,
5th warm engine, 6th turn 90 degrees,
7th after 1000 miles turn 90 degrees
60 ES 74028
1679cc OHV 1974-71 1st 11, 2nd 23 166
1715cc SOHC (8 Valve) 1984-81 ●1st 29, 2nd 43, 3rd turn 90 degrees,
4th turn 90 degrees
60
1780cc SOHC (8 Valve) 1993-83 ●❍ 1st 29, 2nd 43, 3rd turn 90 degrees,
4th turn 90 degrees
60 ES 74029
1780cc DOHC (16 Valve) 1989-86 ●1st 29, 2nd 43, 3rd turn 90 degrees,
4th turn 90 degrees
60
1780cc SOHC Supercharged
(8 Valve) 1994-90 ●1st 29, 2nd 43, 3rd turn 90 degrees,
4th turn 90 degrees
60
1780cc DOHC Turbo (20 Valve) 2006-04
exc. Passat
●❍ 1st 29.5, 2nd turn 90 degrees,
3rd turn 90 degrees
60 ES 71172
ES 71193
1780cc DOHC Turbo (20 Valve) 2005-04
Passat
●❍ 1st 29.5, 2nd 44, 3rd turn 90 degrees,
4th turn 90 degrees
60 ES 71172
ES 71193
1780cc DOHC Turbo (20 Valve) 2003-98 ●❍ 1st 44, 2nd turn 90 degrees,
3rd turn 90 degrees
60 ES 71172
ES 71193
1795cc OHV 1975-74 1st 11, 2nd 23 166
1896cc SOHC Diesel (8 Valve) 1995-92 1st 30, 2nd 44, 3rd turn 90 degrees,
4th turn 90 degrees
60
1896cc SOHC Turbo Diesel
(BRM) (8 Valve) 2007-05 ●1st 29.5, 2nd turn 90 degrees,
3rd turn 90 degrees
60
1896cc SOHC Turbo Diesel (AAZ,
AHU, ALH, BEW) (8 Valve) 2007-96 ●1st 30, 2nd 44, 3rd turn 90 degrees,
4th turn 90 degrees
60
1915cc OHV 1985-83 26 166
1969cc SOHC Turbo Diesel
(BHW) (8 Valve) 2007-04 1st 29.5, 2nd 44, 3rd turn 90 degrees,
4th turn 90 degrees
60
1970cc OHV 1983-80 22 166
1970cc OHV 1979-76 1st 11, 2nd 23 166
1984cc SOHC (AEG, AVH, AZG,
BBW, BDC, BEV, BGD) (8 Valve) 2006-04 ●❍ 1st 29.5, 2nd turn 90 degrees,
3rd turn 90 degrees
60 ES 72189
1984cc SOHC (AEG, AVH, AZG,
BDC) (8 Valve) 2003-98 ●❍ 1st 30, 2nd turn 90 degrees,
3rd turn 90 degrees
60 ES 72189
1984cc SOHC (ABA) (8 Valve) 2002-93 ●❍ 1st 30, 2nd 44, 3rd turn 90 degrees,
4th turn 90 degrees
60 ES 74029
1984cc DOHC (16 Valve) 1994-90 ●1st 29, 2nd 43, 3rd turn 90 degrees,
4th turn 90 degrees
60
1984cc DOHC Turbo (20 Valve) 2008-06 ● 1st 29.5, 2nd turn 90 degrees,
3rd turn 90 degrees
60
2109cc OHV 1991-86 1st 7, 2nd 30, 3rd 37 166
VOLKSWAGEN 5
2144cc SOHC (10 Valve) 1985-83 ●1st 29, 2nd 43, 3rd turn 90 degrees,
4th turn 90 degrees 78
2226cc SOHC (10 Valve) 1988-85 ●1st 29, 2nd 43, 3rd turn 90 degrees,
4th turn 90 degrees 78
2461cc SOHC (10 Valve) 1996-92 1st 30, 2nd 44, 3rd turn 90 degrees,
4th turn 90 degrees 78
2480cc DOHC (20 Valve) 2008-05 1st Bolts 1-12 30,
2nd Bolts 1-12 turn 90 degrees,
3rd Bolts 1-12 turn 90 degrees;
4th Bolts 13-18 7.5
249
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
TOYOTA 6 & V6 (CONT.)
3878cc OHV (F) 12 Valve 1974-67 83-98 in three steps 61
3955cc DOHC (1GRFE) 24 Valve 2008-03 ●❍ 1st Bolts 1-8 27,
2nd Bolts 1-8 turn 90 degrees,
3rd Bolts 1-8 turn 90 degrees,
4th Bolts 9-10 22
262 ES 72249
3956cc OHV (3FE) 12 Valve 1992-88 ●90 in three steps 61
4230cc OHV (2F) 12 Valve 1987-75 ●83-98 in three steps 61
4476cc DOHC (1FZFE) 24 Valve 1997-93 1st 29, 2nd turn 90 degrees,
3rd turn 90 degrees
92
TOYOTA V8
4663cc DOHC (2UZFE) 32 Valve 2008-05 ●❍ 1st 30, 2nd turn 90 degrees,
3rd turn 90 degrees
164 ES 74035
4663cc DOHC (2UZFE) 32 Valve 2004-98 ●❍ 1st 24, 2nd turn 90 degrees,
3rd turn 90 degrees
164 ES 74035
5663cc DOHC (3URFE) 32 Valve 2008-07 1st Bolts 1-10 27,
2nd Bolts 1-10 turn 90 degrees,
3rd Bolts 1-10 turn 90 degrees;
4th Bolts 11-12 15
264
TRIUMPH 4
1147cc OHV 1970-61 42-46 42
1296cc OHV 1972-67 42-46 42
1493cc OHV 1980-73 46 in three steps 42
1998cc SOHC 1982-75 55 in three steps 62
TRIUMPH 6
1998cc OHV 1973-67 42-46 63
2498cc OHV 1976-67 80 in three steps 63
TRIUMPH V8
3528cc OHV 1982-77 ●Bolts 1-10 65-70; Bolts 11-14 40-45 24
TURNER 4
948cc OHV Austin 1963-59 40 54
TVR 6 & V6
2498cc OHV Triumph 1977-76 80 in three steps 63
2792cc OHV Ford 1986-82 ●1st 29-40, 2nd 40-51, 3rd 70-85 57
2935cc OHV Ford 1988-87 ●❍ 1st 22, 2nd 51-55, 3rd turn 90 degrees 97 ES 72794
VOLKSWAGEN 4 & H04
1192cc OHV 1966-54 1st 7, 2nd 23 166
1285cc OHV 1966 1st 7, 2nd 23 166
1457cc SOHC (8 Valve) 1980-78 ●1st 29, 2nd 43, 3rd turn 90 degrees,
4th turn 90 degrees 60
1471cc SOHC (8 Valve) 1975-74 1st 29, 2nd 43, 3rd turn 90 degrees,
4th turn 90 degrees 60
1471cc SOHC Diesel (8 Valve) 1980-77 12 point M12 bolts 1st 29, 2nd 43,
3rd turn 90 degrees, 4th turn 90 degrees,
5th warm engine, 6th turn 90 degrees,
7th after 1000 miles turn 90 degrees
60
1471cc SOHC Diesel (8 Valve) 1980-77 6 point M11 bolts 1st 35, 2nd 50,
3rd 65, 4th warm engine, 5th 65 again,
6th after 1000 miles turn 90 degrees
60
1493cc OHV 1969-63 1st 7, 2nd 23 166
1584cc OHV 1980-66 1st 11, 2nd 23 166
1588cc SOHC (8 Valve) 1980-75 ●12 point bolts 1st 29, 2nd 43,
3rd turn 90 degrees, 4th turn 90 degrees 60
1588cc SOHC (8 Valve) 1980-75 ●6 point bolts 1st 29, 2nd 43, 3rd 54,
4th warm engine, 5th 61,
6th retorque after 1000 miles
60
80 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
81
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
VOLKSWAGEN V6
2771cc DOHC (30 Valve) 2005-98 ●1st 44, 2nd turn 90 degrees,
3rd turn 90 degrees
135
2792cc SOHC (12 Valve) 2002-92 Car ●1st 30, 2nd 44, 3rd turn 90 degrees,
4th turn 90 degrees
168
2792cc SOHC (12 Valve) 2000-97 Truck ●1st 30, 2nd 37, 3rd turn 90 degrees,
4th turn 90 degrees
168
2792cc DOHC (24 Valve) 2005-04 Car ●1st 22, 2nd 37, 3rd turn 90 degrees,
4th turn 90 degrees
168
2792cc DOHC (24 Valve) 2003-01 Car ●1st 37, 2nd turn 90 degrees,
3rd turn 90 degrees
168
2792cc DOHC (24 Valve) 2004-01 Truck ●1st 22, 2nd 37, 3rd turn 90 degrees,
4th turn 90 degrees
168
3189cc DOHC (24 Valve) 2008-03 1st 22, 2nd 37, 3rd turn 90 degrees,
4th turn 90 degrees
168
3597cc DOHC (24 Valve) 2008-06 1st 22, 2nd 37, 3rd turn 90 degrees,
4th turn 90 degrees
168
VOLKSWAGEN V8
3998cc DOHC (32 Valve) 2005-02 1st 22, 2nd 37, 3rd turn 90 degrees,
4th turn 90 degrees
250
4163cc DOHC (40 Valve) 2008-07 1st 22, 2nd 44, 3rd turn 90 degrees,
4th turn 90 degrees
136
4172cc DOHC (40 Valve) 2007-03 1st 22, 2nd 44, 3rd turn 90 degrees,
4th turn 90 degrees
136
VOLKSWAGEN V10
4921cc SOHC Turbo Diesel
(20 Valve)
2008-04 1st 22, 2nd 44, 3rd turn 180 degrees,
4th turn 180 degrees
259
VOLKSWAGEN V12
5998cc DOHC (48 Valve) 2006-04 1st 22, 2nd 37, 3rd turn 90 degrees,
4th turn 90 degrees
227
VOLVO 4
1580cc OHV (B16A, B16B, B16D)
8 Valve
1961-57 61-69 110
1780cc OHV (B18A, B18B, B18D)
8 Valve
1968-61 61-69 110
1948cc DOHC Turbo (B4194T,
B4204T2, B4204T3) 16 Valve
2004-00 1st Bolts 1-2 15, 2nd Bolts 3-10 44,
3rd turn all bolts 130 degrees
40
1986cc OHV (B20E, B20F)
8 Valve
1975-70 1st 29, 2nd 58, 3rd 65,
4th warm engine, 5th 65 again
110
1986cc OHV (B20A, B20B)
8 Valve
1974-69 61-69 110
2127cc SOHC (B21E, B21F)
8 Valve
1984-76 ●1st 43, 2nd 76-83, 3rd warm engine,
4th 76-83 again
110
2127cc SOHC Turbo (B21FT)
8 Valve
1985-81 ●1st 15, 2nd 44, 3rd turn 90 degrees 110
2316cc SOHC (B230F, B230FD,
B230FS) 8 Valve
1995-85 ●1st 14, 2nd 43, 3rd turn 90 degrees 110
2316cc SOHC (B23E, B23F)
8 Valve
1984-81 ●1st 15, 2nd 44, 3rd turn 90 degrees 110
2316cc DOHC (B234F) 16 Valve 1991-89 ●1st 15, 2nd 30, 3rd turn 115 degrees 110
2316cc SOHC Turbo (B234FT,
B234T) 8 Valve
1995-89 ●1st 14, 2nd 43, 3rd turn 90 degrees 110
2316cc SOHC Turbo (B230FT)
8 Valve
1995-85 ●1st 14, 2nd 43, 3rd turn 90 degrees 110
2316cc SOHC Turbo (B23FT)
8 Valve
1984 ●1st 15, 2nd 44, 3rd turn 90 degrees 110
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
VOLVO 5
2319cc DOHC Turbo (B5234FT,
B5234T3) 20 Valve
2008-04 1st 15, 2nd 44, 3rd turn 130 degrees 251
2319cc DOHC Turbo (B5234FT,
B5234T, B5234T3) 20 Valve
2003-94 1st 15, 2nd 44, 3rd turn 130 degrees 208
2435cc DOHC (B5244FS, B5244S,
B5244S4, B5244S5, B5244S6,
B5244S7, B5254FS, B5254S)
20 Valve
2008-04 ●❍ 1st 15, 2nd 44, 3rd turn 130 degrees 251 ES 72908
2435cc DOHC (B5244FS, B5244S,
B5254FS, B5254S) 20 Valve
2003-93 ●❍ 1st 15, 2nd 44, 3rd turn 130 degrees 208 ES 72908
2435cc DOHC Turbo (B5244T3,
B5254FT, B5254T) 20 Valve
2008-04 ●❍ 1st 15, 2nd 44, 3rd turn 130 degrees 251 ES 72908
2435cc DOHC Turbo (B5244T,
B5244T2, B5244T3, B5254FT,
B5254T) 20 Valve
2003-97 ●❍ 1st 15, 2nd 44, 3rd turn 130 degrees 208 ES 72908
2521cc DOHC Turbo (B5254T2,
B5254T3, B5254T4) 20 Valve
2008-04 1st 15, 2nd 44, 3rd turn 130 degrees 251
2521cc DOHC Turbo (B5254T2)
20 Valve
2003 1st 15, 2nd 44, 3rd turn 130 degrees 208
VOLVO 6 & V6
2383cc SOHC Diesel (D24)
12 Valve
1985-81 12 point M12 bolts 1st 30, 2nd 44,
3rd 55, 4th turn 180 degrees,
5th warm engine, 6th turn 90 degrees,
7th after 1000 miles turn 90 degrees
84
2383cc SOHC Diesel (D24)
12 Valve
1981-80 6 point M11 bolts 1st 35, 2nd 50,
3rd 65, 4th warm engine, 5th 65 again,
6th after 1000 miles turn 90 degrees
84
2383cc SOHC Turbo Diesel
(D24T) 12 Valve
1986-83 12 point M12 bolts 1st 30, 2nd 44,
3rd 55, 4th turn 180 degrees,
5th warm engine, 6th turn 90 degrees,
7th after 1000 miles turn 90 degrees
84
2664cc SOHC (B27E, B27F)
12 Valve
1979-75 1st 7, 2nd 22, 3rd 44, 4th loosen all bolts,
5th 11-14, 6th turn 116-120 degrees,
7th warm engine & allow to cool,
8th loosen all bolts, 9th 11-14 again,
10th turn 113-117 degrees
52
2783cc DOHC Turbo (B6284T)
24 Valve
2004-99 1st 15, 2nd 44, 3rd turn 130 degrees 209
2849cc SOHC (B280F) 12 Valve 1991-90 1st 7, 2nd 22, 3rd 44,
4th loosen all bolts, 5th 30,
6th turn 160-180 degrees
52
2849cc SOHC (B280F) 12 Valve 1989-86 1st 7, 2nd 22, 3rd 44, 4th loosen all bolts,
5th 15, 6th turn 106 degrees,
7th warm engine & allow to cool,
8th turn 45 degrees
52
2849cc SOHC (B28F) 12 Valve 1986 1st 7, 2nd 22, 3rd 44, 4th loosen all bolts,
5th 15, 6th turn 106 degrees,
7th warm engine & allow to cool,
8th turn 45 degrees
52
2849cc SOHC (B28F) 12 Valve 1985-80 1st 7, 2nd 22, 3rd 44, 4th loosen all bolts,
5th 11-14, 6th turn 116-120 degrees,
7th warm engine & allow to cool,
8th loosen all bolts, 9th 11-14 again,
10th turn 113-117 degrees
52
2922cc DOHC (B6294S, B6304F,
B6304S, B6304S3) 24 Valve
2006-92 1st 15, 2nd 44, 3rd turn 130 degrees 209
2922cc DOHC Turbo (B6294T)
24 Valve
2006-03 1st 15, 2nd 44, 3rd turn 130 degrees 209
82 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
83
To r q u e Ta b l e s ™
1
2
3 4 5
6
7
8910 11
1213
14
1
2
3
4
5
6
7
8
9
10
123 4 5
678 9 10
1
2
3
45
6
7
89
10
1
23
4 5
67
8 9
10
11
12 13
14
FRONT
FRONT
1
2
3
45
6
7
8 9
10
11
12 13
14
15
16
17
18
19
20
1
2
34
5
6
78
9
10
1112
13
14
1516
17
1
2
3
4
5
6
7
ENGINE YEARS FT.-LBS.
TORQ.
SEQ.
HEAD BOLT SET
PART NUMBER
VOLVO 6 & V6 (CONT.)
2980cc OHV (B30E, B30F)
12 Valve
1975-71 1st 29, 2nd 58, 3rd 65,
4th warm engine, 5th 65 again
2
2980cc OHV (B30A) 12 Valve 1972-69 61-69 2
3192cc DOHC (B6324S) 24 Valve 2008-07 1st 33, 2nd 33 again,
3rd turn 90 degrees, 4th turn 180 degrees
252
VOLVO V8
4414cc DOHC (B8444S) 32 Valve
Yamaha
2008-05 1st 29.5, 2nd turn 90 degrees 68
WILLYS ..................................................................................... SEE JEEP
WORKHORSE V8
350 OHV (5.7L) Chevrolet Truck 2002-01 VIN R ●❍ 1st all bolts 22,
2nd Long bolts turn 75 degrees,
3rd Medium bolts turn 65 degrees,
4th Short bolts turn 55 degrees
7ES 72856
395 OHV Turbo Diesel (6.5L)
Chevrolet Truck
2003-99 VIN F ●❍ 1st 20, 2nd 55, 3rd 55 again,
4th turn 90 degrees
77 ES 72724
454 OHV (7.4L) Chevrolet Truck 2000-99 VIN J ●1st 37, 2nd Bolts 1, 2, 3, 6, 7, 8, 9,
12, 13, 14, 15, 16 turn 150 degrees,
3rd Bolts 4, 5, 10, 11 turn 90 degrees
8
496 OHV (8.1L) Chevrolet Truck 2006-01 VIN G ●❍ 1st 22, 2nd 22 again,
3rd turn 120 degrees,
4th Bolts 1, 2, 3, 6, 7, 8, 9, 10,
11, 14, 16, 17 turn 60 degrees,
5th Bolts 15, 18 turn 45 degrees,
6th Bolts 4, 5, 12, 13 turn 30 degrees
210 ES 72188
YUGO 4
1116cc SOHC (128A) 8 Valve 1989-86 1st 15, 2nd 30, 3rd 69 41
1290cc SOHC (128A.064) 8 Valve 1992-87 1st 15, 2nd 30, 3rd 69 41
84
To r q u e Ta b l e s ™
85
To r q u e Ta b l e s ™
1
2 3
4 5
6
78
9
10
11
12
13 14
15
16
17
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
2
3
4
5
6
7
8
9
10
1
23
4 5
67
8 9
10 11
1213
14
1
23
45
67
89
10
11
1213
14
FRONT
1
2
3
45
6
78
9
1011
12 13
14
15
16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
8
9
10
11
12
13
14
1
2
3
456 7 8 9
10
11 12
13
14
15 16
17
18
19 20
21
22
23
27
31
30
26
25
24
29
28
32
33
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
FRONT
1
2
3
4
5 6
7
8
9
1011
12
13
14
15 16
17
18
19
2021
22
23
24
25
31
32
33
27
26
28
29
30
1
23 4
56 7 8
9
10 11
1
2
34 5 6 7
8 9 10 111214 13
151617
18 19 20 21 22
15
16
17
18
19
20
86
To r q u e Ta b l e s ™
87
To r q u e Ta b l e s ™
21
22
23
24
25
26
27
1
2
3
45
6
7
8
910
1112
14
13
15
1
23
4
5
6
7
8
9
10
11
12 14
13 15
1
23
4
5
67
8
9
10 11
12
14
13
15
16
17
1
37
8 4
2
6
5 911
1012
1
2
34
5 6
7
8
9 11
1210
14 13
15
16
17
18
1
2
3
45
6
7
8 9
11
12
14
10
13
15
16 17
18
123
4
5
678910
11 1214 13
28
29
30
31
32
33
1
23
45
6 7
8
9
10 11
12
14
13
15
16
1
2
3 4
5
6
7
8
9
10
11 12
13
14
15 16
17
18
19 20 21 22
23
24
1
2
3
4
5
6
78
9
10 11
12
13
14
15
16
17
18
19 20
21
22
23
24
1
4
3
2
5
6
7
8
15
10
11
13
12
14
5 7
2
8
9
3
6
1
4
1518 123
759 64
10
11
13 14
16
17
19 20 21 22
8
12
88
To r q u e Ta b l e s ™
89
To r q u e Ta b l e s ™
34
35
36
37
38
39
40
1
2
3
4
5
6
7
8
9
10
1
2 3
4
5
6 7
8
9
10
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
3
4
5
6
7
8
9
10
11
12
14
13
15
17
16
18
19
20
21
1
2
3
45
6
7
89
10
11
11
1
26 4 8
59 3 7
10
137 5 9
2 648 10
11
12
13
14
41
42
43
44
45
46
1 3 749
510 2 6 8
1
25
9
7
3 6 8
410
1 79
28
3
4
6
5
10
11
12
13
14
15
16
17
18
1
4 65
2 3 87
910
141317
15 11 1612
18
1 7
29
8
53
6 4
10
11
1312
14
15
16 17
18
4 2 5 7
10
1 3 968
90
To r q u e Ta b l e s ™
91
To r q u e Ta b l e s ™
47
48
49
50
51
52
53
13
4
7 5
6
9
8 2 10
12
13
14
11
61
2 4 859
37 10
11
12
13
14
6 2 3 7
5 1 4 8
1
2
3
4
5
6
7
8
9
10
11 12
13 14
15 16
17 18
1
23
45
6 7
8
9
10
1213
1114
1
2 3
4 5
6
7
8
1
268 4 9
5310 7
54
55
56
57
58
59
159 4 8
6 2 3 7
10 11
1 3 75
2 846
1
2 3
5 4
6 7
89
1 368
9 4 2 5
7
10
13
3
57
9
2
2
4
4
6
6
8
8
7 5 1 3 9
10 4 2 6 8
92 ● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
93
● PermaTorque® Head Gasket available ❍ Head Bolt Set available
To r q u e Ta b l e s ™
60
61
62
63
64
65
15 9 5 4 8 12
1410
6
2371113
1
10 4268
75139
5 3 1 2 4
10 8 6 7 9
14 10 6 2 4 8 12
12
11 7 3 2 6 10
4 1 13
8 5 9
8
9
10
7
6
3
2
1
4
5
11 7 3 1 5 9 13
66
67
68
69
70
71
9
5
4
8
12
10
6
23
7
11
13
1
14
1
2
3
4 5
6 7
8 9
10
12 3 4
56 7 8
1
2
3
4
5
6
7
8
9
10
1
2
3
4 5
6
7
8 9
10
1
9
5
4
8
12
17
14
15
16 10 631 711
13
2
18
94
To r q u e Ta b l e s ™
95
To r q u e Ta b l e s ™
72
73
74
75
76
77
78
1
2 3
45
6
78
910
1
2 3
45
6 7
89
10 11
1213
14 15
1617
1
2
3
4
5
6
7
89
10
11 12
13
14
15
16 17
18
19
2 367 10
1
2
3 4 56
7 8 910
1
2
3
4
5
6
7
89
10
11
1213
14
1
2
3
4
5
6
7
8
9
10
11
12
1 458 9
79
80
81
82
83
84
1
2
3
4
5
6
7
8
9
10
1
2
3
45
6
7
89
10
1
2
3
4 5
6
7
8 9
10
1
2
3
4 5
6 7
8 9
10 11
12 13
14
15
17
16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1 35 7
26 4 8
96
To r q u e Ta b l e s ™
97
To r q u e Ta b l e s ™
85
86
87
88
89
LEFT SIDE
RIGHT SIDE
1
2
3
4 5
6 7
8 9
10 11
12 13
2
45
1 6
37
8
9
10
11
1213
1
2
3
4 5
6 7
8
1
2
3
4
5
6
7
8
1
2
3
4 5
6
7
8 9
10
111213
1
2
3
4
5
6
7
8
9
10
11
12
13
14
90
91
92
93
94
95
1
2
3
45
6
7
89
10
11
1213
14
15
16
17
18
19
20
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
3
4 5
6 7
8 9
10 11
12 13
14
1
23
4 5
67
8 9
1011
12 13
1415
16 17
1
2
3
4
5
6
7
8
1
23
4 5
67
8 9
1011
12 13
1415
16 17
98
To r q u e Ta b l e s ™
99
To r q u e Ta b l e s ™
96
97
98
99
100
1
2
3
4
5
6
7
8
1
23
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4 5
6 7
8 9
10
1
2 3
45
6 7
89
10
9
10
101
102
103
104
Cylinder Head Bolt Tightening Sequence
1
2
3
4
5
6
7
8
Lower Intake Manifold Bolt Tightening Sequence
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24 26
25
1
2 3
45
6 7
89
1012
11
1
2
3
4
5
6
7
1 3 57
8
24 68
FRONT
100
To r q u e Ta b l e s ™
101
To r q u e Ta b l e s ™
105
106
107
108
109
110
1
2
3
4 5
6
7
8 9
10
11
12
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
9
10
FRONT
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
111
112
113
114
1
2
3
4
5
6 7
8
1
2
3
4
5
67
8
1
23
4
5
67
8
9
10 11
12
13
14 15
16
17
18 19
2021
22
26
25
23
24
1
2
3
4
5
6
7
8
FRONT
FRONT
1
2
3
4
5
6
7
8
9
10
12
14
13
15
11
102
To r q u e Ta b l e s ™
103
To r q u e Ta b l e s ™
115
116
117
118
RIGHT SIDE
LEFT SIDE
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
11
11
10
10
12
12
14
14
13
13
1
2
3
4
5
6
1
2
3
4
5
6
7
8
1
2
345
6
7
8
9
11
10 12
13
119
120
121
122
1
2
3
4
5
6
7
8
9
10
1
2 3
45
6 7
8
9
11 10
1
2
3
45
67
8
9
10
FRONT
13 8
5
24 67
1
24
3
6
85
7
104
To r q u e Ta b l e s ™
105
To r q u e Ta b l e s ™
123
124
125
126
127
128
129
130
131
132
106
To r q u e Ta b l e s ™
107
To r q u e Ta b l e s ™
133
134
135
136
137
138
139
140
141
108
To r q u e Ta b l e s ™
109
To r q u e Ta b l e s ™
142
143
144
145
146
147
148
110
To r q u e Ta b l e s ™
111
To r q u e Ta b l e s ™
149
150
151
152
153
154
155
156
157
112
To r q u e Ta b l e s ™
113
To r q u e Ta b l e s ™
158
159
160
161
162
163
164
114
To r q u e Ta b l e s ™
115
To r q u e Ta b l e s ™
165
166
167
168
FRONT
1
2 3
45
6 7
8
9
1011 12
1314
15
16
1718 19
20 2122
13
2 4
5
6
7
8
1
23
4
5
67
89
10 11
12
1
2
3
4 5
6
78
9
10 11
12
1314
15
16 17
18
19
20
169
170
171
172
173
174
175
116
To r q u e Ta b l e s ™
117
To r q u e Ta b l e s ™
176
177
178
179
180
181
182
183
184
185
186
187
118
To r q u e Ta b l e s ™
119
To r q u e Ta b l e s ™
188
189
190
191
192
193
194
195
196
197
120
To r q u e Ta b l e s ™
121
To r q u e Ta b l e s ™
198
199
200
201
202
203
204
122
To r q u e Ta b l e s ™
123
To r q u e Ta b l e s ™
205
206
207
208
209
210
211
212
213
124
To r q u e Ta b l e s ™
125
To r q u e Ta b l e s ™
214
215
216
217
218
219
220
221
222
126
To r q u e Ta b l e s ™
127
To r q u e Ta b l e s ™
223
224
225
226
227
228
229
128
To r q u e Ta b l e s ™
129
To r q u e Ta b l e s ™
230
231
232
233
234
235
130
To r q u e Ta b l e s ™
131
To r q u e Ta b l e s ™
236
237
238
239
240
132
To r q u e Ta b l e s ™
133
To r q u e Ta b l e s ™
241
242
243
244
245
246
134
To r q u e Ta b l e s ™
135
To r q u e Ta b l e s ™
247
248
249
250
251
252
136
To r q u e Ta b l e s ™
137
To r q u e Ta b l e s ™
253
254
255
256
257
258
259
138
To r q u e Ta b l e s ™
139
To r q u e Ta b l e s ™
260
261
262
263
FRONT
7
135
642
8
9
10
264
LEAK REPAIR
COOLING SYSTEM
EXHAUST SYSTEM
DRIVETRAIN
ENGINE REPAIR
FUEL SYSTEM
VEHICLE SEALING
When you consider what can go wrong when
even “minor” gaskets fail, you realize one thing:
THERE ARE NO UNIMPORTANT GASKETS!
Each one, no matter how small, plays a critical
role in vehicle sealing. Each has to be the best.
That’s why you should be… 100% Fel-Pro.®
Why trust Fel-Pro gaskets
for ALL of your vehicle sealing needs?
• The undisputed sealing technology leader
• Engineered for the repair environment
• Molded rubber chemistry and
manufacturing expertise
• Global engineering resources
• Latest technology across every
gasket repair category
FEL-PRO® ONLINE
The “Fel-Pro Only” website gives countermen and technicians
easy access to the latest Fel-Pro sealing information and
updates, including:
TEC bulletins
Sealing solutions for problematic applications,
straight from Fel-Pro engineers.
Product applications
Quick links to downloadable charts and the latest
on technology trends and new number availability.
Product news
Press releases and helpful “Did You Know” articles.
Torque specs
Find the most up-to-date torque spec listings in electronic format.
FelPro-Only.com is your convenient source for advanced sealing
information. It’s the place to learn and share “tricks of the trade,”
nd proper diagnosis and installation instructions, and enjoy easy
access to parts reference. While there, you can also sign up for
email alerts for Inside Sealing, the Fel-Pro newsletter that helps
you solve sealing challenges on popular domestic and import
engines. Written by our technical experts, it covers a full range
of sealing topics.
www.felpro-only.com
Complete Cylinder Head
Torque Specifications
for Domestic and
Imported Passenger
Cars and Light/
Medium Duty Trucks
Torque
Tables™
©2009 Federal-Mogul Corporation. All rights reserved.
Printed in U.S.A. Form# FP099191

Navigation menu
