BREEZE
www.redlineequip.com
Extractors
Model Numbers:
000-100: Breeze
000-110: Breeze Plus
000-120/1100: Breeze-Pro/Expedition
000-130: Breeze Special
000-140: Breeze Deluxe
000-150: Breeze HP

BREEZE
www.redlineequip.com
TABLE OF CONTENTS:
This manual is furnished with each new model. It
provides necessary operation and maintenance
instructions and an illustrated parts list.
Read this manual completely and understand the
machine before operating or servicing it.
Use the illustrated Parts List to order parts. Before
ordering parts or supplies, be sure to have your
machine model number and serial number handy.
Parts and supplies may be ordered by phone or mail
from any authorized parts and service center,
distributor or from any of the manufacturer’s
subsidiaries.
• The machine is operated with reasonable
care.
• The machine is maintained regularly – per
the maintenance instructions provided.
• The machine is maintained with
manufacturer supplied or equivalent parts.
MACHINE DATA
Please fill out at time of installation for future
reference.
Model No. – _____________________________
Install Date – ____________________________
Serial No. – _____________________________
SAFETY PRECAUTIONS 3
GROUNDING INSTRUCTIONS 3
MACHINE COMPONENTS 4
MACHINE SET UP 4
PRIME PUMP 5
MACHINE OPERATION 6
WHILE OPERATING 6
DRAINING RECOVERY TANK 7
MACHINE MAINTENANCE 7
DAILY MAINTENANCE 7
WEEKLY MAINTENANCE 7
STORING MACHINE 8
TROUBLESHOOTING 8
SPECIFICATIONS 10
LIMITED WARRENTY 11
RETURNED MATERIAL PROCEDURE 12

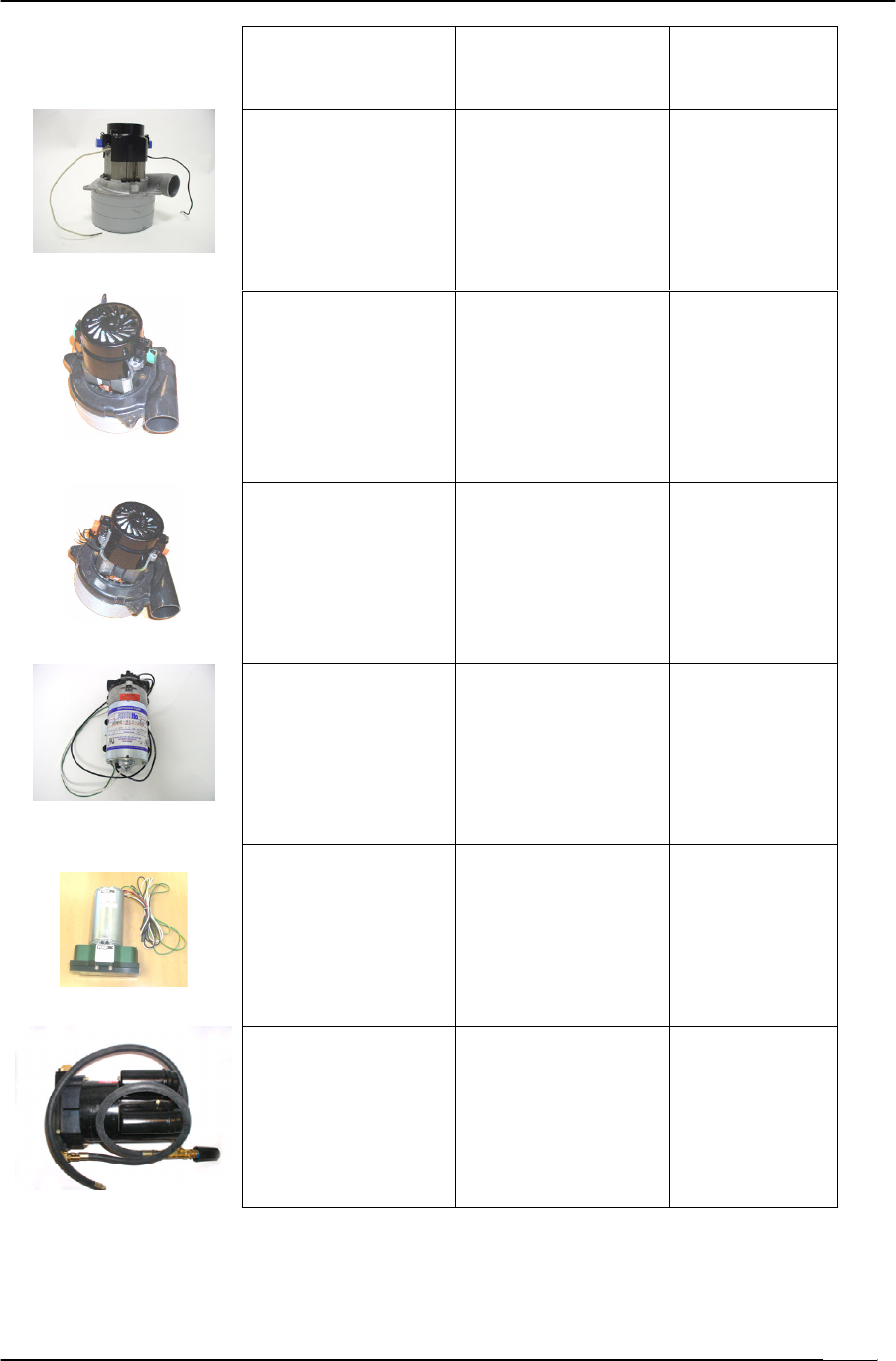

ASSEMBLY PARTS LIST 13
2
BREEZE
www.redlineequip.com
SAFETY PRECAUTIONS
This machine is intended for commercial use. It is
designed to clean carpet and upholstery in an indoor
environment and is not constructed for any other
use. Use only recommended cleaning solutions and
accessory tools.
All operators must read, un
derstand and practice the
following safety precautions.
The following safety alerts symbols are used
throughout this manual as indicated in their
description:
WARNING: To warn of hazards or unsafe
practices which could result in severe personal
injury or death.
FOR SAFETY: To identify actions which must be
followed for safe operation of equipment.
The following information signal potentially
dangerous conditions to the operator or equipment:
FOR SAFETY:
1. Do not operate machine:
- Unless trained and authorized.
-
Unless operator manual has been read
and understood.
- In flammable or explosive areas.
- Unless cord is properly grounded.
- With damaged cord or plug.
- If not in proper operating condition.
- In outdoor areas.
- In standing water.
- With the use of an extension cord.
2. Before operating machine:
- Make sure all safety devices are in
place and operate properly.
3. When using machine:
- Do not run machine over cord.
- Do not pull machine by plug or cord.
- Do not pull cord around s
harp edges or
corners
- Do not unplug by pulling on cord.
- Do not stretch cord.
- Do not handle plug with wet hands.
- Keep cord away from heated surfaces.
-Report machine damage or faulty
operation immediately to your
distributor.
- Follow mixing and handling
instructions on chemical containers.
4. Before leaving or servicing machine:
- Turn off machine.
- Unplug cord from wall outlet.
5. When servicing machine:
- Unplug cord from wall outlet.
- Avoid moving parts.
- Do not wear loose jackets, shirts, or
sleeves.
- Use manufacturer supplied or
approved replacement parts.
WARNING: Hazardous Voltage. Shock or
electrocution can result. Always unplug machine
before servicing.
WARNING: Flammable materials can
cause an explosion or fire. Do not use flammab
le
materials in tank(s).
WARNING: Flammable materials or
reactive metals can cause an explosion or fire.
Do not pick up.

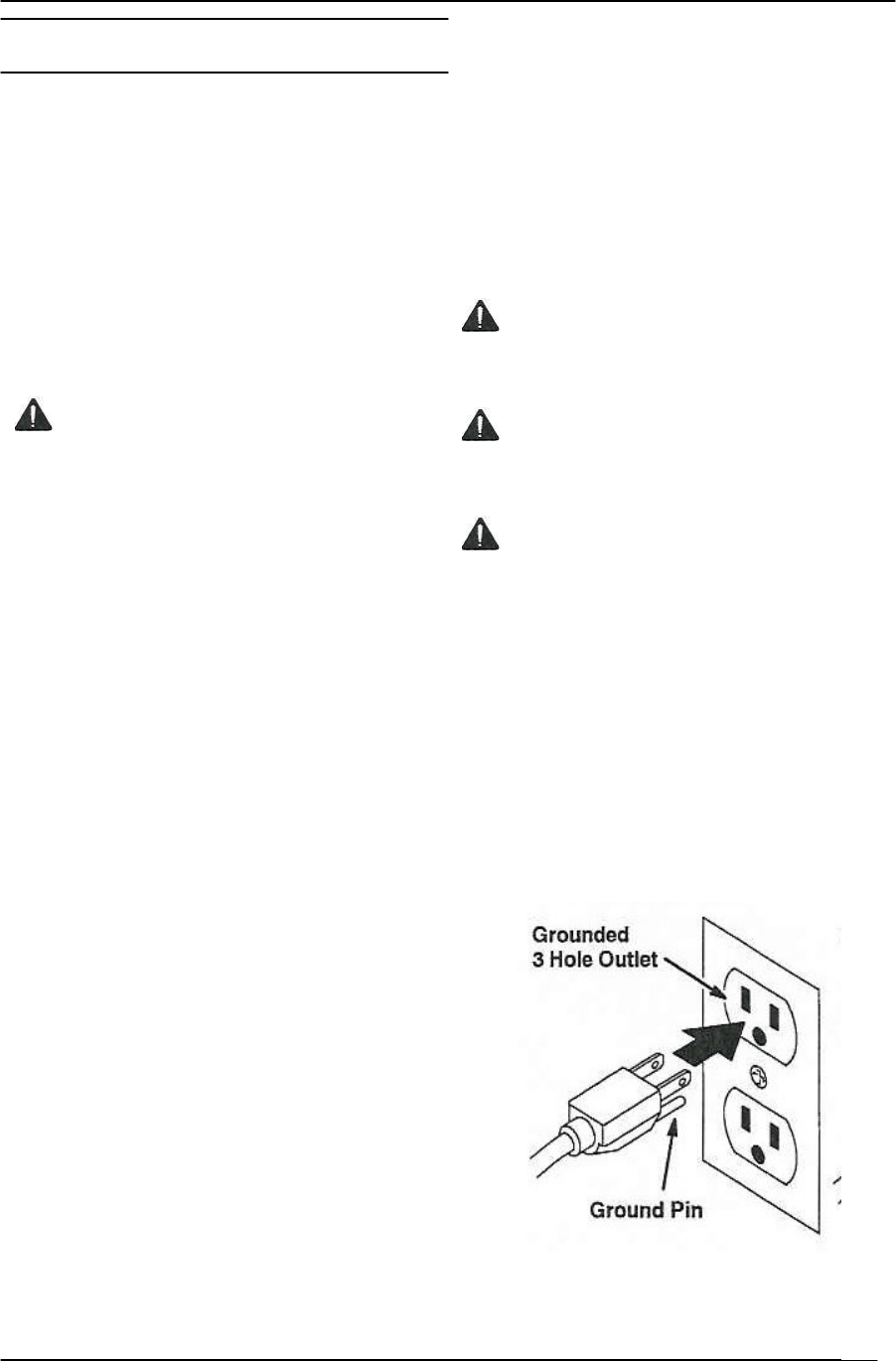

GROUNDING INSTRUCTIONS
Machine must be grounded. If it should
malfunction or breakdown, grounding provides a
path of least resistance for electrical shock. This
machine is equipped with a cord having an
equipment-grounding conductor and grounding
plug. The plug must be plugged into an
appropriate outlet that is properly installed in
accordance with all local code and ordinances.
Do not remove ground pin; if missing, replace
plug before use.
3
BREEZE
www.redlineequip.com

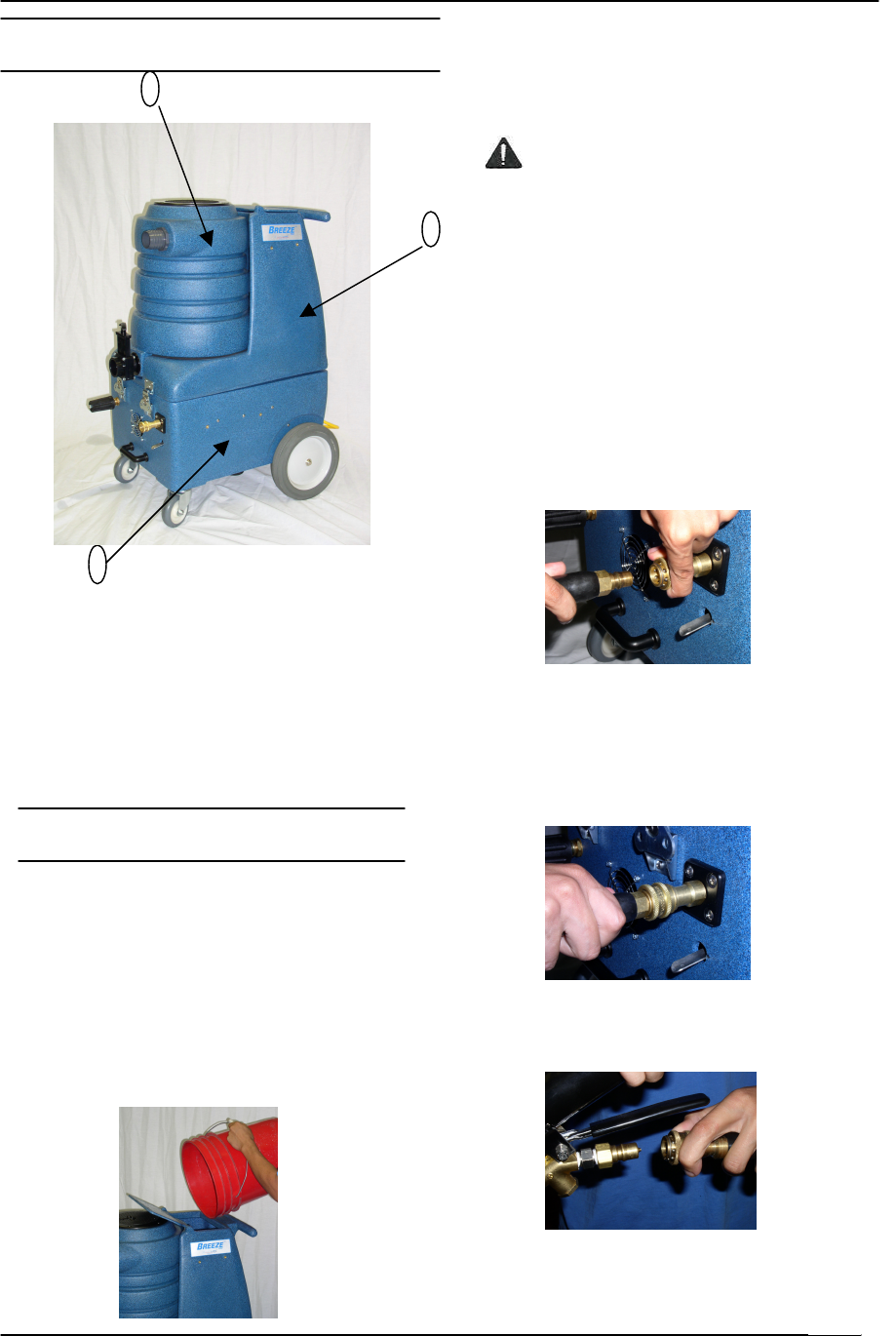

MACHINE COMPONENTS
MACHINE SETUP
1. Recovery Tank
2. Solution Tank
3. Motor Housing/Base
1
2
3
1. Carefully check carton for signs of damage,
and report damage at once to freight carrier.
The machine is shipped fully assembled and is
ready for use.
ATTENTION: Do not use recovery tank to fill
solution tank. Residual dirt or debris could
cause damage to solution pump.
WARNING: Flammable materials can
c
ause an explosion or fire. Do not use flammable
materials in tank(s).
FOR SAFETY: When using machine, follow
mixing and handling instructions on chemical
containers.
ATTENTION: If using powdered cleaning
chemicals, mix prior to adding.
4. Attach other end of solution hose to wand.
NOTE: Make sure the quick
disconnects snap together firmly. As
you do this, always inspect hoses for
cracks or fraying. Do not use if hoses
are damaged.
3. Attach solution hose. (Located front of
machine.)
2. Open lid of solution tank. Fill solution tank
with water or approved cleaning agent.
4
BREEZE
www.redlineequip.com
5

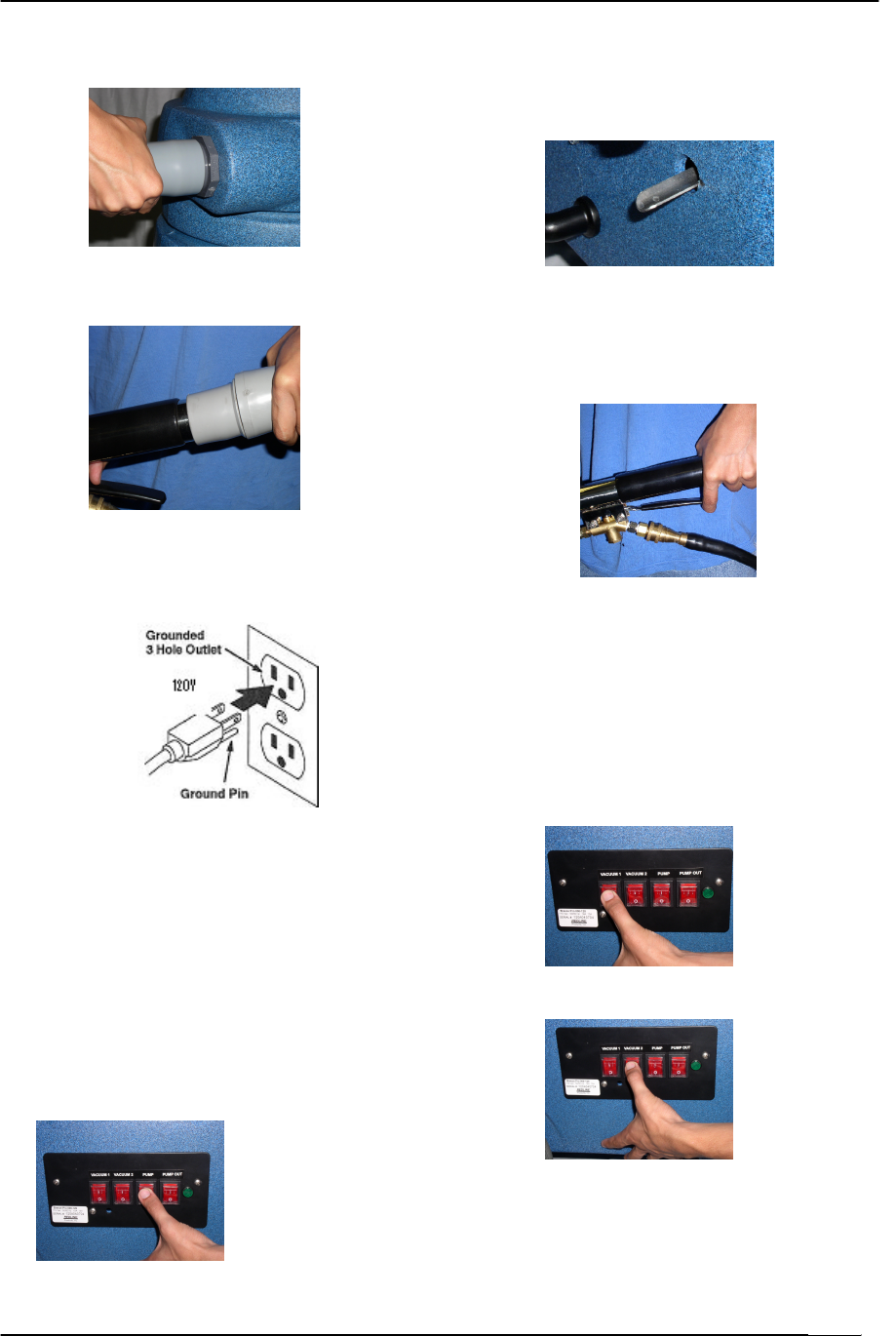

5. Attach vacuum hose to recovery tank.
6. Attach the other end of the vacuum hose to
the wand.
7. Plug machine’s electrical cord into a
dedicated 20-amp circuit outlet.
FOR SAFETY: Do not operate machine unless
cord is properly grounded.
FOR SAFETY: Do not operate machine with the
use of an extension cord.
Pump
B. Pull up on power prime le
ver for 30 seconds.
This will prime the pump.
C. Pull up on wand lever to release air in the line.
Hold lever until you have a steady flow of water
coming out of the wand.
Vacuum 1
Vacuum 2
D. Once pump is primed and you have pressure
in the solution line, turn on heater switch(s) and
wait a few minutes for water to heat up.
E. Once water is heated, turn on vacuum
motors and begin cleaning.
8. Turning machine on:
A. Turn pump switch on.
BREEZE
www.redlineequip.com
WARNING: Flammable materials or
reactive metals can cause an explosion or
fire. Do not pick up.
1. Work away from outlet and power cord to
prevent cord damage.
2. Periodically check for excessive foam buildup in
recovery tank. Use a recommended foam control
solution to prevent vacuum motor damage.
3. To clean heavily soiled areas, repeat cleaning
path from different direction.
MACHINE OPERATION
FOR SAFETY: Do not operate machine unless
operator manual has been read and understood.
PRE-OPERATION
1. Vacuum carpet and remove other debris.
2. Perform MACHINE SETUP procedures.
3. Inspect power cord for damage.
4.
To begin cleaning, pull trigger until water
comes out of wand
5. FOR BREEZE PRO ONLY: As water fills the
solution tank (from the auto fill hose) the white plastic
float will start to float up and eventually shut off the
auto fill.
WHILE OPERATING
6
Note: Auto fill and auto dump hoses are not
included with machine

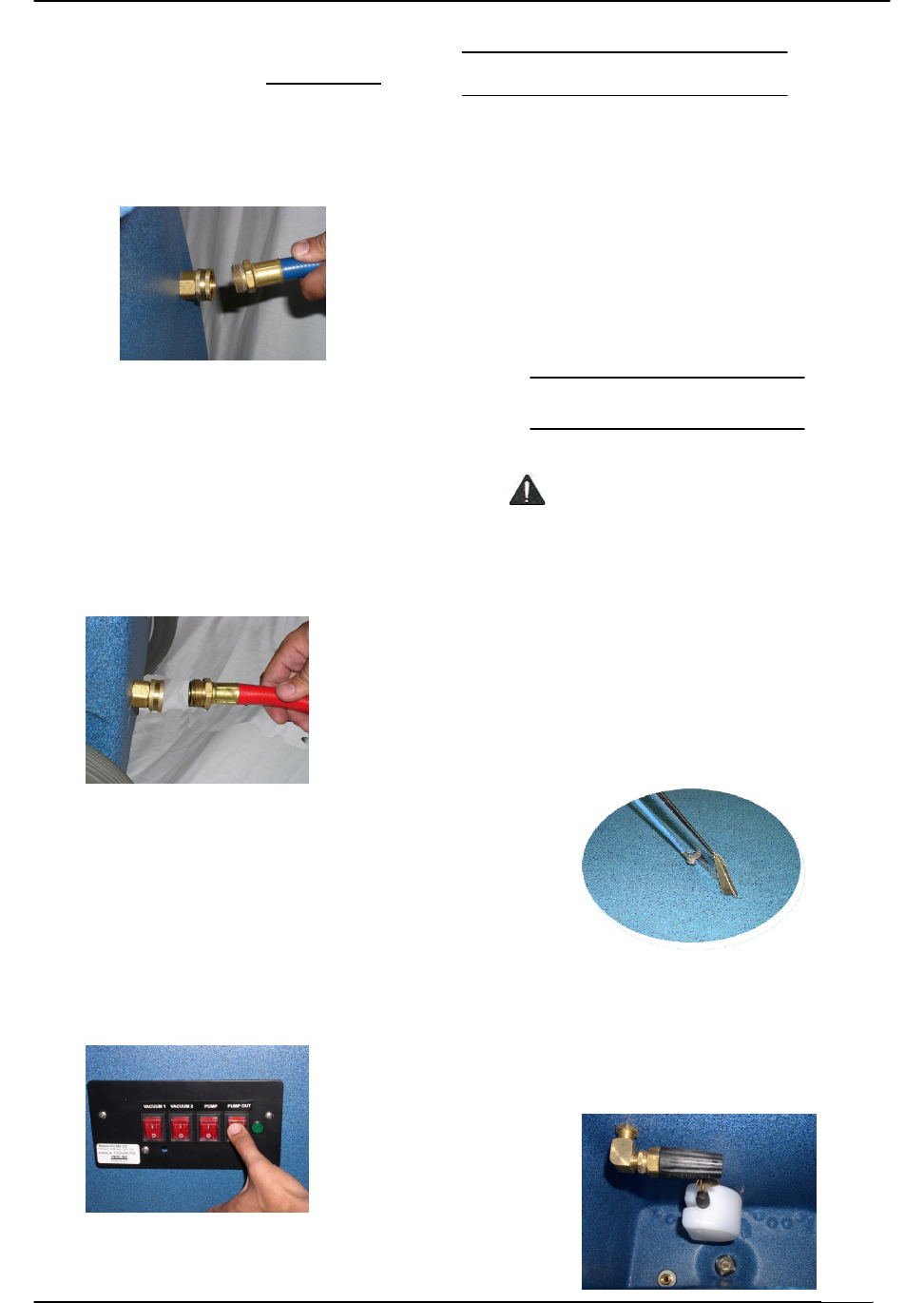

10. Other end of auto fill hose attaches to water
supply.
11. Attach auto dump hose. (Located towards
bottom of base.)
9. Attach auto fill hose. (Located towards top of
solution tank.)
**NOTE: Step 9-12 is for Breeze-Pro only**
12. Other end of auto dump hose attaches
to drain source.
13. Turn on pump out switch
BREEZE
www.redlineequip.com
6. After cleaning:
1. Disconect vacuum hose from wand and
use the gray vacuum hose to vacuum out any
excess clean water in the solution tank.
2. Turn off heater
3. Turn off vacuum motors
4. Relieve water pressure from tool before
disconnecting solution hose by Squeezing trigger for
five seconds after turning pump switch off.
WEEKLY MAINTENANCE
(EVERY 20 HOURS OF OPERATION)
2. Inspect vacuum hoses for holes and loose cuffs.
3. Inspect spray pattern for plugging. If plugged,
remove spray tips and soak them in a
recommended liquid neutralizer for up to six
hours. To remove spray tip, twist spray tip body
counter-clockwise. Do not use pointed objects to
unplug tips, damage will occur.
4. Lubricate wheels with water resistant oil.
5. Inspect machine for water leaks and loose
hardware.

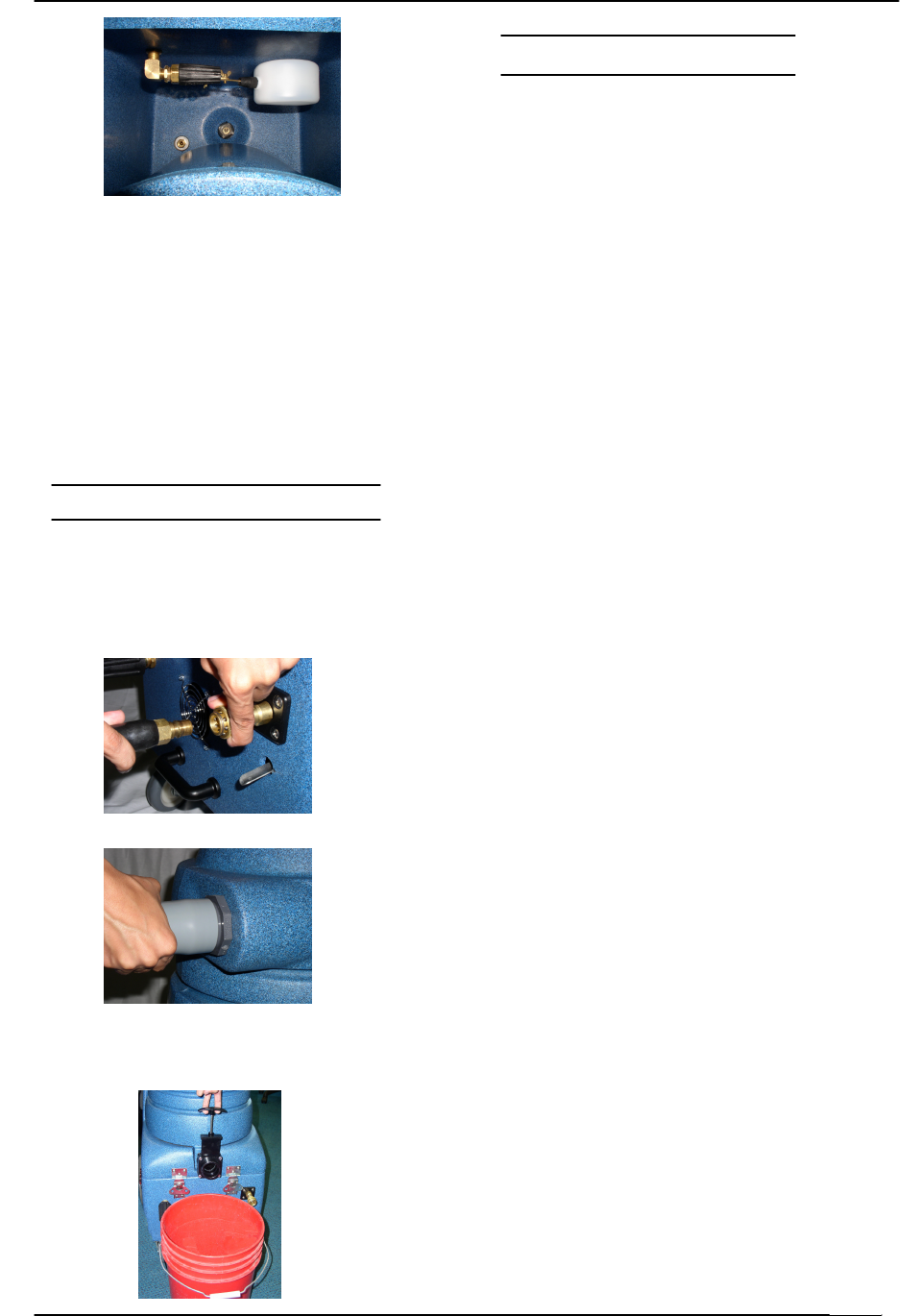

DRAINING RECOVERY TANK
FOR SAFETY
: When servicing machine, unplug
cord from wall outlet.
1. Turn machine off and unplug all cords.
2. Remove solution & vacuum hose
To keep machine in good working condition,
simply follow machine’s daily and weekly
maintenance procedures.
FOR SAFETY: When servicing machine,
unplug cord from wall outlet.
MACHINE MAINTENENCE
2. Wipe off power cord and check for damage,
replace if necessary. Coil cord neatly after use.
3. Clean machine with an all purpose cleaner and
damp cloth
DAILY MAINTENANCE
(EVERY 4 HOURS OF OPERATION)
1. Empty and rinse out solution tank.
1. Flush solution system with recommended liquid
neutralizer to dissolve normal chemical buildup.
a. Pour 7.5L (2 gal) of hot water 60°C (140°F)
into solution tank. Add Mytee system
maintainer according to mixing instructions on
bottle.
FOR SAFETY: When using machine, follow
mixing and handling instructions on chemical
containers.
b. Operate machine for one minute.
c. Shut off machine and allow remaining
solution to break down chemical buildup
overnight.
d. Next day, spray out remaining solution
and flush system with 11L (3gal) of
clean water.
3. Lift up drain valve lever to empty
solution tank.
7
BREEZE
www.redlineequip.com
SYMPTOM: UNIT WILL NOT TURN ON:
PROBLEM: Not plugged in.
SOLUTION: Plug machine in proper outlet.
PROBLEM: Circuit breaker has popped.
SOLUTION: Reset circuit breaker. Make sure no other items are running on the same circuit as
machine. Outlet must be a 20-amp circuit.
SYMPTOM: PUMP IS NOT RUNNING PROPERLY OR HAS NO PRESSURE:
PROBLEM: Heaters were turned on or left on before pump was primed.
SOLUTION: Turn off heaters. Once heaters have cooled down, re-prime the pump.
PROBLEM: The solution tank is empty.
SOLUTION: Fill the solution tank up with a premixed detergent.
PROBLEM: Quick disconnects are not completely locked together.
SOLUTION: Snap quick disconnects firmly together.
PROBLEM: Jet on upholstery tool is clogged.
SOLUTION: Clean jet with soft wire brush or remove jet and flush clean.
PROBLEM: Filters are clogged.
SOLUTION: Remove filters and rinse clean with water.
TROUBLESHOOTING
STORING MACHINE
1. Before storing machine, be certain to
completely drain and rinse tanks of all
water and solution.
2. Drain and dry the vacuum hose as well,
using the drain hose provided
3. Store machine in a dry area in the upright
position.
4. Open recovery tank cover to promote air
circulation.
ATTENTION: Do not expose to rain. Store
indoors.
ATTENTION: If storing machine in freezing
temperatures, be sure that machine and solution
system are completely drained and dry.
8
BREEZE
www.redlineequip.com
PROBLEM: Heater is blocked with hard water deposits.
SOLUTION: Flush out heaters with system maintainers. If they are still blocked, replace heaters.
SYMPTOM: HEATER IS NOT WORKING PROPERLY:
PROBLEM: The back up sensor, mounted on the heater has popped.
SOLUTION: Reset sensor by pushing in button.
PROBLEM: The automatic sensor mounted to the heater has worn out.
SOLUTION: Replace with a new automatic sensor.
SYMPTOM: VACUUM MOTOR IS NOT WORKING PROPERLY:
PROBLEM: Hose not connected tightly to upholstery tool or machine.
SOLUTION: Connect hose tightly.
PROBLEM: Vacuum tank lid is not on tightly.
SOLUTION: Secure the vacuum tank tightly.
PROBLEM: Ball float is shut off.
SOLUTION: Empty the vacuum tank of all wastewater.
PROBLEM: Drain valve is not shut completely.
SOLUTION: Close drain valve completely.
PROBLEM: Floor Wand or Upholstery tool is clogged with hair, carpet fibers and or debris.
SOLUTION: Clean upholstery tool.
PROBLEM: Ball float is not installed correctly.
SOLUTION: Make sure that ball float is firmly installed on the elbow.
PROBLEM: Water is coming out of vacuum motor.
SOLUTION: Use a low foaming detergent.
SPECIFICATIONS
Breeze Extractors
The Breeze line of extractors offers a wide range of carpet cleaning machines for commercial
cleaning application. The Breeze has an 11 gallon capacity tank on a 10” wheels and 4” casters
for easy transportation.
Features & Specs:
BREEZE 000-100
• Dual 2 stage vacuum motors
• 100 P.S.I pump
• 25’ 12/3 power cord
• Simple ports for filling and dumping
• Quick and easy access to components for servicing
• Durable polyethylene body
BREEZE
www.redlineequip.com
BREEZE PLUS 000-110
• Dual 2 stage high performance vacuum motors
• 100 P.S.I pump
• 2400 watts of heat
• Dual 25’ 12/3 power cord HEAT
• Simple ports for filling and dumping
• Quick and easy access to components for servicing
• Durable polyethylene body
BREEZE PRO 000-120
• Dual 2 stage high performance vacuum motors
• 0-1200 P.S.I pump
• Auto fill/auto pump-out CARPET CLEANING
• Dual 25’ 12/3 power cords &
• Simple ports for filling and dumping HARD SURFACES
• Quick and easy access to components for servicing
• Durable polyethylene body
BREEZE DELUXE 000-130
• Dual 3 stage high performance vacuum motors
• 250 P.S.I pump
• Dual 25’ 12/3 power cords
• Simple ports for filling and dumping
• Quick and easy access to components for servicing
• Durable polyethylene body
BREEZE SPECIAL 000-140
• Dual 3 stage high performance vacuum motors
• 250 P.S.I pump
• 2400 watts of heat
• Dual 25’ 12/3 power cords HEAT
• Simple ports for filling and dumping
• Quick and easy access to components for servicing
• Durable polyethylene body
BREEZE H.P. 000-150
• Single 3 stage high performance vacuum motor
• 100 P.S.I pump
• 1200 watts of heat
• 25’ 12/3 power cord HEAT
• Simple ports for filling and dumping
• Quick and easy access to components for servicing
• Durable polyethylene body
10
BREEZE
www.redlineequip.com
REDLINE PRODUCTS, INC. LIMITED WARRANTY
Redline Products Inc. warrants its products to be free of defects in workmanship
or materials, to the original purchaser only, for a period of 90 days on wear
parts*, 1 year on pumps and vacuum motors** and 5 years on rotational molded
housings***. Normal use, abuse, neglect, chemical change, lack of maintenance
or modification is absolutely disclaimed and will not be covered. This warrantee is
limited to exchange of any part deemed defective by the manufacturer. This
warrantee does not cover Labor and each dealer or service center will charge
labor at its prevailing rate. Any transportation or freight costs incurred are not
covered by this warrantee and is the sole responsibility of the purchaser. Redline
Products Inc. also reserves the right to make changes in materials and
specifications and to amend this warrantee at its discretion at any time with out
written notice or obligation.
There are no other warranties, either expressed or implied beyond the description on the face hereof.
Redline Products Inc. will not be responsible for incidental or consequential damage, property
damage, personal injury/death arising from the use of any Redline product to the extent permitted
by law. Nor shall Redline Products Inc. incur any other obligations or liabilities on its part or be
liable for any lost profits, incidental damages, consequential damages, time charges or any other
losses incurred in connection with the purchase of equipment or exchange of parts under this limited
warrantee.
To obtain parts exchange under this warrantee the complete unit, intact, must be
serviced by a Mytee Products, Inc. Distributor or a Mytee Products, Inc.
Authorized Service Center.
*Wear parts are defined as any items that wear out in the normal course of use
such as but not limited to, molded inserts, vacuum and pump motor carbon
brushes, bearings, gaskets, pump and regulator seals, pump valves, wheels,
brass fittings, power chords, hoses, switches, heater elements and heater
sensors.
** Components such as pumps and vacuum motors are subject to the warrantee
of the manufacturer of the said component. Redline Products Inc. Responsibility
is limited to exchange of the defective part only and not exchange of the entire
component.
*** Warrantee on rotational molded housings is limited to rusting, chipping or
cracking of housing thru normal use.
BREEZE
www.redlineequip.com
RETURNED MATERIAL AUTHORIZATION PROCEDURE
It is the responsibility of any Authorized Service Center (ASC) or Distributor with
written authorization to ensure the Customer’s equipment is repaired as soon as
possible. If the Distributor does not have the facilities to repair the equipment it
may be shipped back to Redline Products, Inc. or to any one of Redline
Products, Inc. ASC for repair. Only Redline Products, Inc. or its authorized
dealers with written authorization, service centers, and agents may make
warranty repairs on these products. All others do so at their own risk and
expense.
The Distributor must follow Redline Products, Inc. standard RMA procedure:
1. When a repair falls within the Warranty time period for a piece of
equipment, the Distributor will fill out an RMA/Warranty claim form. This
form will act as a repair order to replace any defective parts.
2. All defective parts must be returned to Redline Products, Inc. with the
RMA/claim form for evaluation at the customer’s expense. This shipping
is non-refundable. All warranty claims are subject to an evaluation by
Redline Products, Inc. to determine if warranty will be approved. Any
credit for repair and/or parts will only be issued upon evaluation and
approval from Redline Products, Inc.
3. When Warranty is approved, the Distributor’s account will be credited for
the replacement part(s). Redline Products, Inc. will ship the warranted
replacement part(s) to the Distributor prepaid. If Warranty is denied the
Distributor’s account will not be credited for any parts sent for this claim.
12
BREEZE
www.redlineequip.com

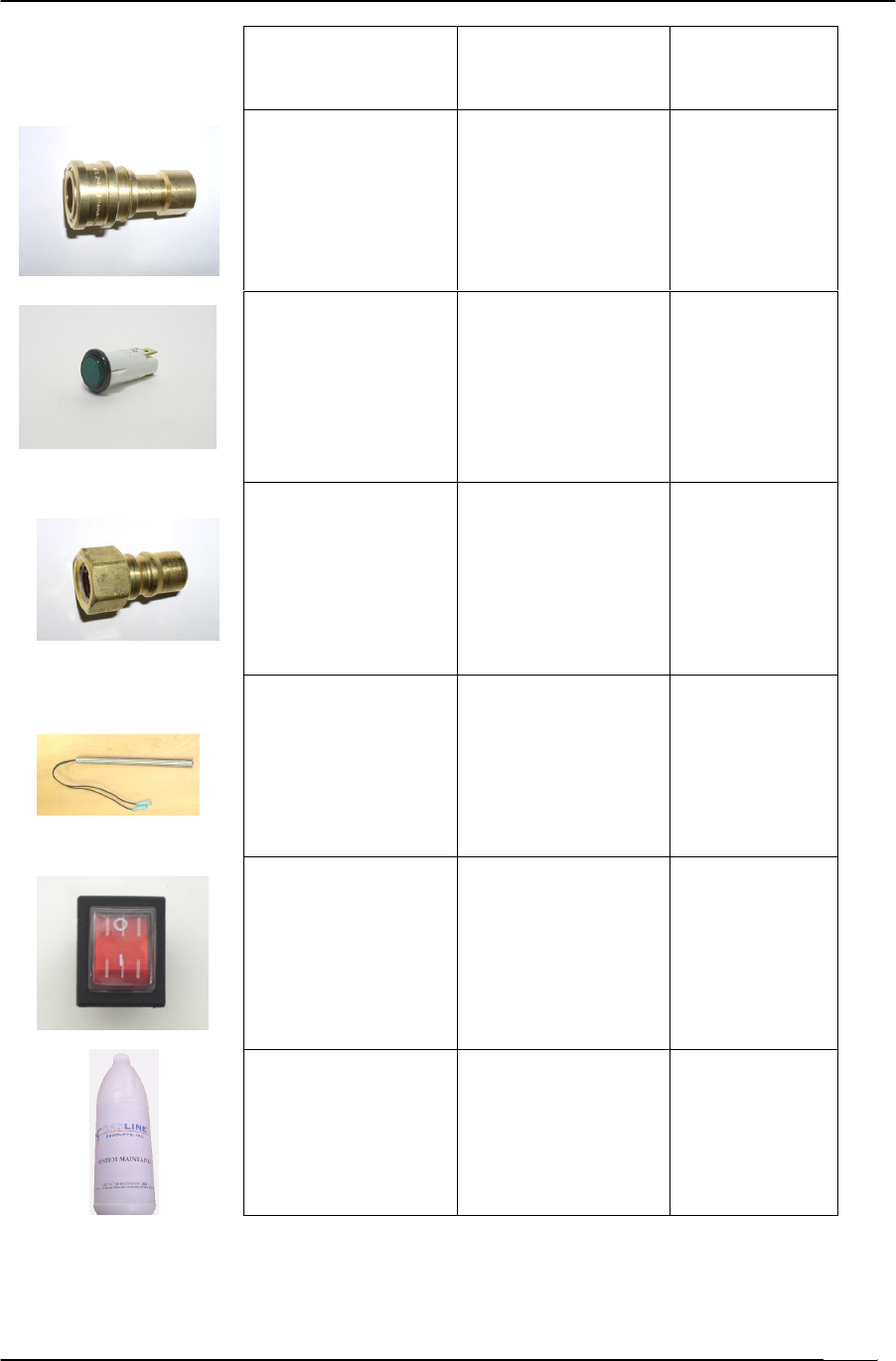

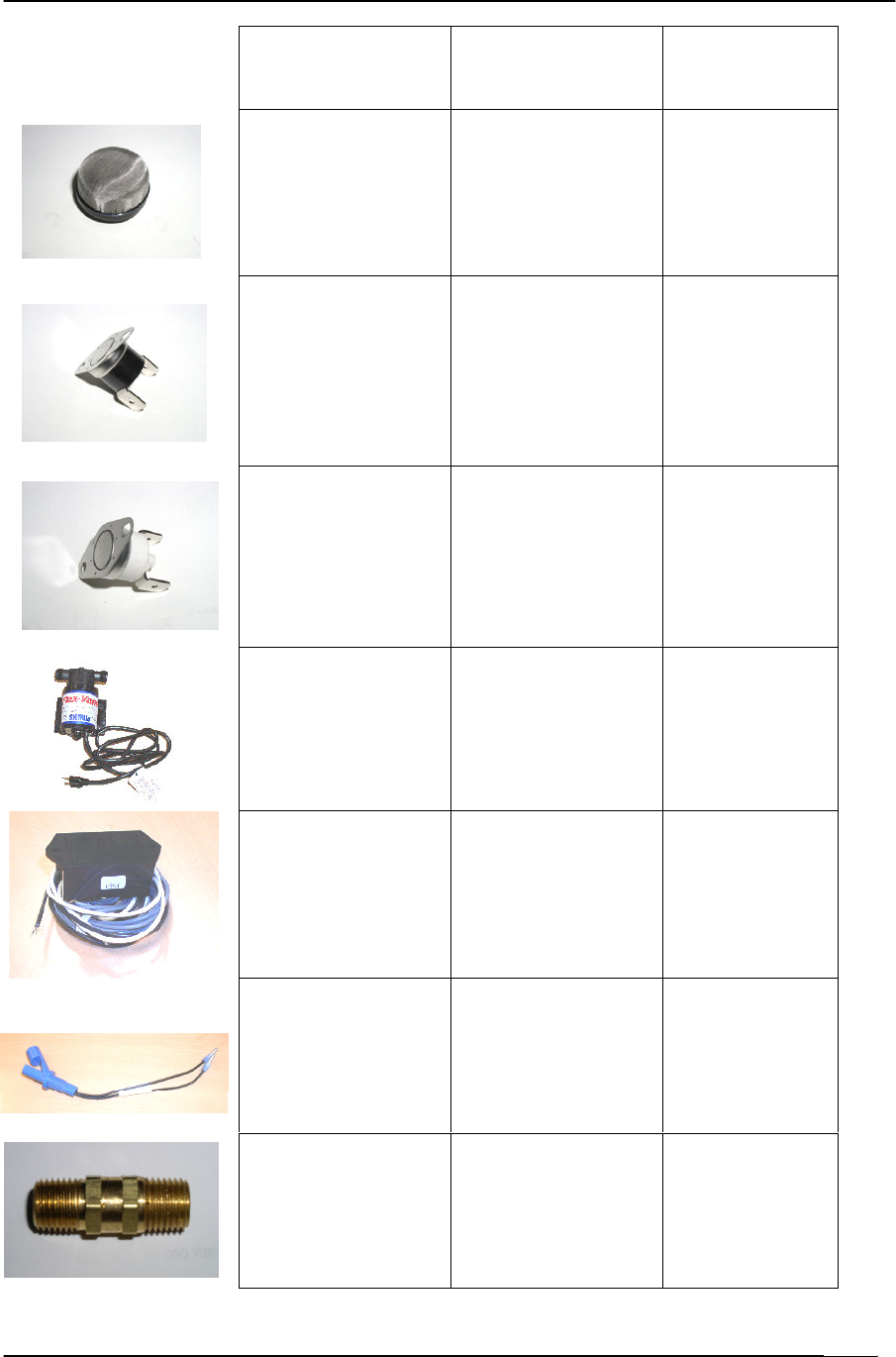

DESCRIPTION
WHERE USED
PART
NUMBER
Vacuum motor
3 stage 115v
000-130
000-140
000-150
C302
Vacuum motor
2 stage, 115v
000-100
000-101
C301
Vacuum motor
2 stage high
performance
115v
000-120
000-110
C301
Pump, 100 psi
000-100
000-101
000-110
000-150
C305
Pump, 250 psi
000-130
000-140
C322
Pump, 1200 psi
000-120
C359A
13
BREEZE
www.redlineequip.com
DESCRIPTION
WHERE USED
PART
NUMBER
Quick connect
Female ¼”
Hose
B102
Light, green
000-120
000-130
000-110
000-140
E512
Quick connect
Male ¼”
000-100
000-120
000-130
000-110
000-140
000-150
B101
Element heater
600 watt
000-110
000-140
000-150
E571
Switch, 2 position
000-100
000-120
000-130
000-110
000-140
000-150
E592
System maintainer,
12 quarts per case
Maintains all
internal hose lines
& inline heaters
150-006
14
BREEZE
www.redlineequip.com
DESCRIPTION
WHERE USED
PART
NUMBER
Strainer, filter
½” sol tank
000-100
000-120
000-130
000-110
000-140
000-150
B119A
Thermostat sensor
210° auto
000-110
000-140
000-150
E573
Thermostat sensor
375° manual
000-110
000-140
0009-150
E574
Pump out, 115v
000-120
C381
Controller, separate
circuit indicator
000-120
000-130
000-110
000-140
E564
Switch, water level
float
000-120
E626
Brass check valve 000-110
000-150 B108
15

Navigation menu
