Form No. 70290A 7/01 CLARKE TECHNOLOGY Printed in the USA
READ THIS BOOK
This book has important information for the use and safe operation of this machine. Failure to read
this book prior to operating or attempting any service or maintenance procedure to your ALTO
machine could result in injury to you or to other personnel; damage to the machine or to other property
could occur as well. You must have training in the operation of this machine before using it. If your
operator(s) cannot read English, have this manual explained fully before attempting to operate this
machine.
Si Ud. o sus operadores no pueden leer el Inglés, se hagan explicar este manual completamente antes
de tratar el manejo o servicio de esta máquina.
All directions given in this book are as seen from the operator’s position at the rear of the machine.
For new books write to: ALTO U.S. INC., 2100 Highway 265, Springdale, Arkansas 72764.
FILTRA-PAC
Operator's
Manual
E
Page 2 CLARKE TECHNOLOGY Filtra-Pac Operator's Manual
Operator Safety Instructions ............................................................................................................ 3
Safety Information ........................................................................................................................... 4
Introduction & Machine Specifications ............................................................................................ 5
Grounding Instructions .................................................................................................................... 6
Maintenance .................................................................................................................................... 7
How To Change The Filter Bag ........................................................................................... 7
How To Clean The Motor Filter ............................................................................................ 8
SECTION II Parts and Service Manual

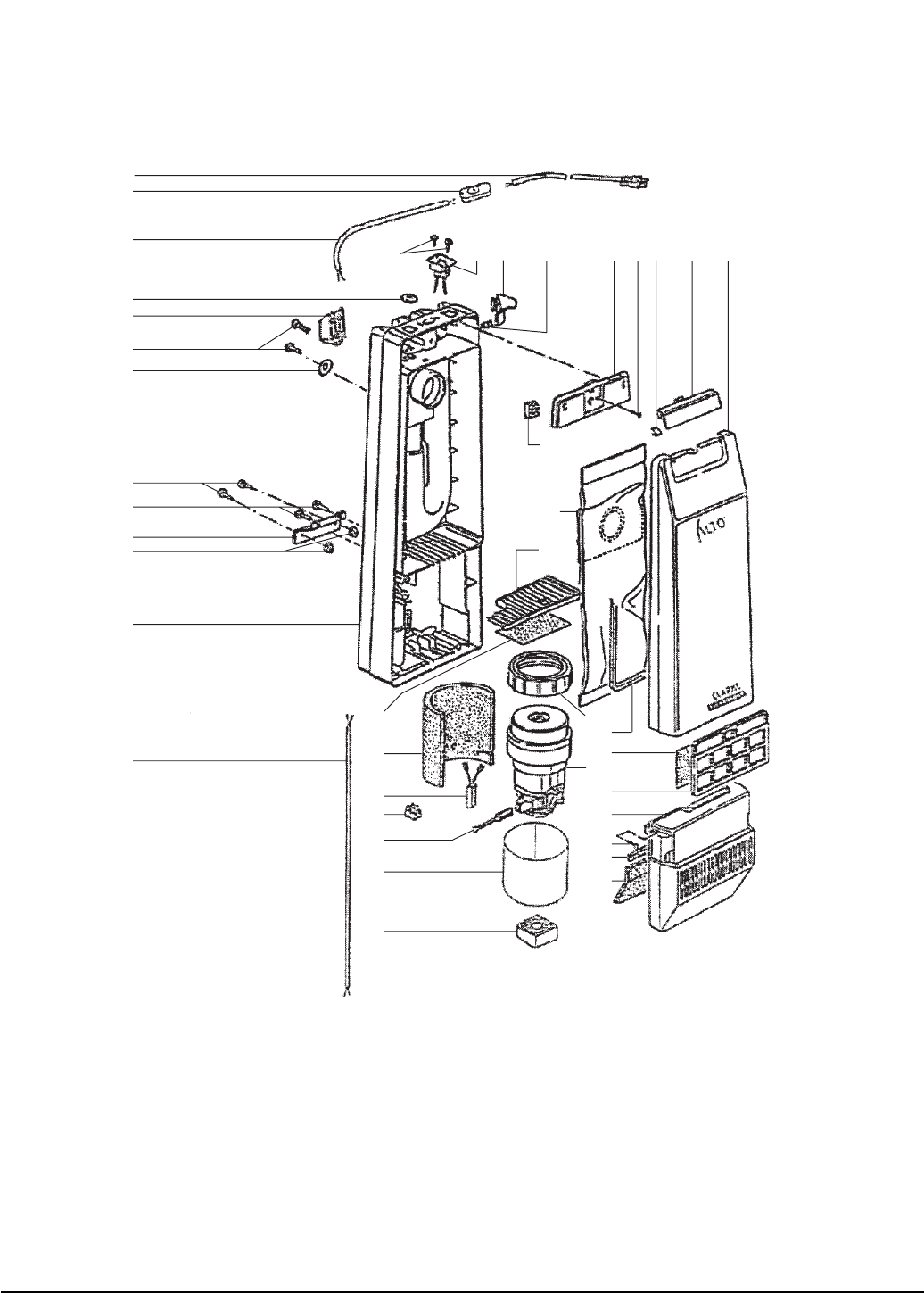

Main Body Assembly Drawing ......................................................................................................... 10
Main Body Assembly Parts List ........................................................................................................ 11

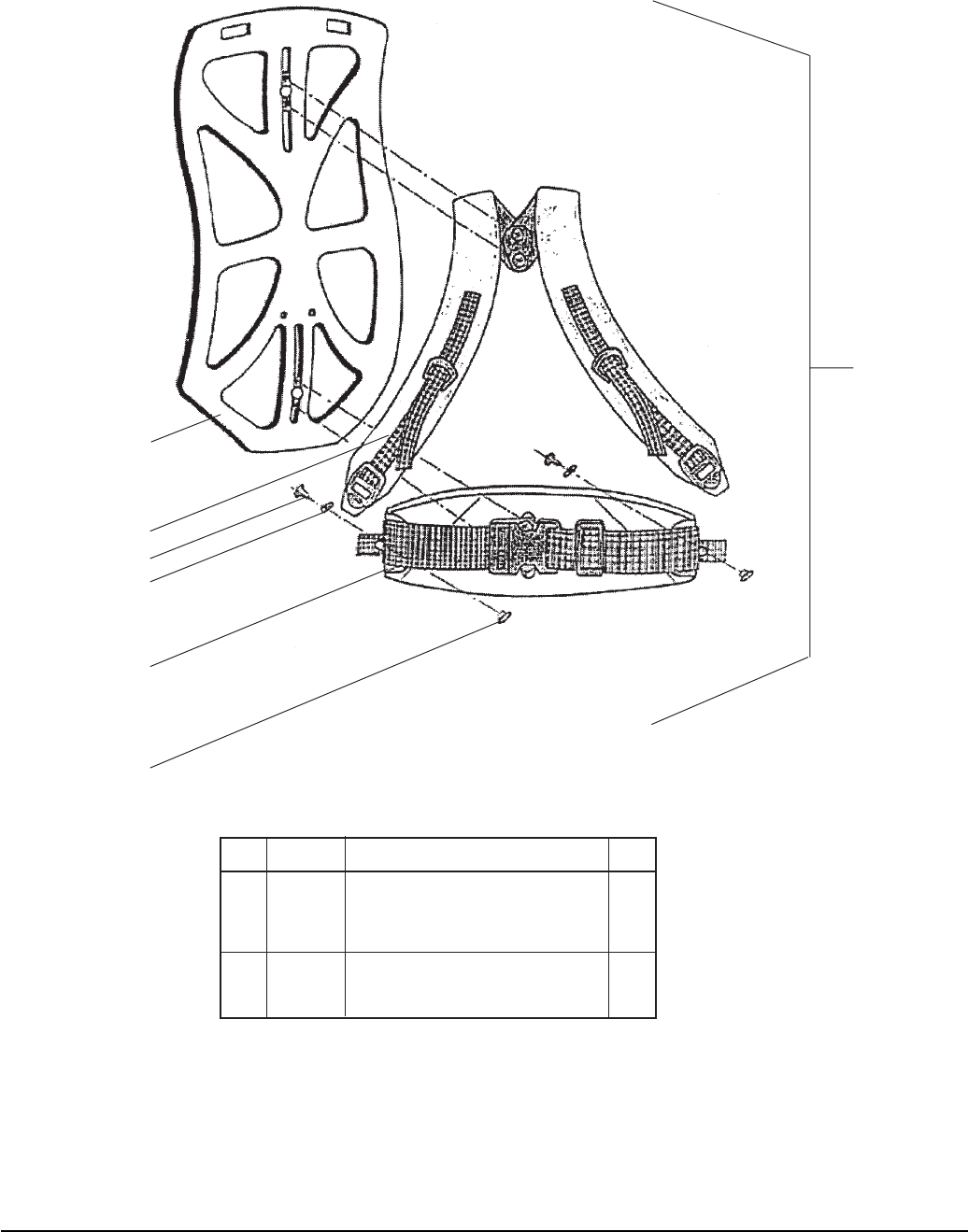

Back Frame and Harness Assembly Drawing and Parts List ............................................................ 12

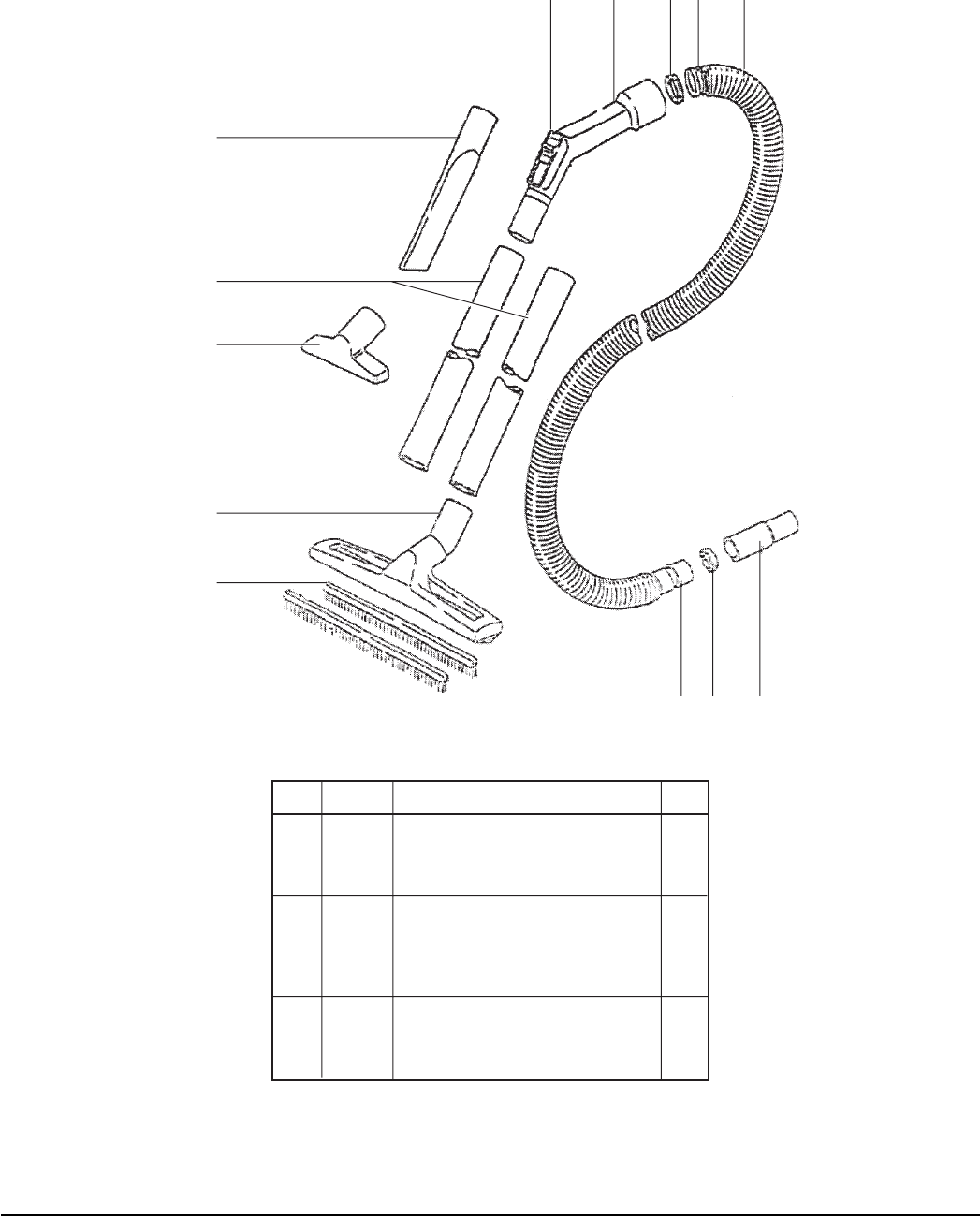

Hose, Wand and Tools Assembly Drawing and Parts List ................................................................ 13
Table of Contents
CLARKE TECHNOLOGY Filtra-Pac Operator's Manual Page 3
When using an electrical appliance, basic precautions should be followed including
the following: Read all instructions before using these appliances
IMPORTANT SAFETY INSTRUCTIONS
WARNING AVERTISSEMENT ADVERTENCIA
DANGER: Failure to read and observe all DANGER statements could result in severe
bodily injury or death. Read and observe all DANGER statements found in
your Owner's Manual and on your machine.
WARNING: Failure to read and observe all WARNING statements could result in injury
to you or to other personnel; property damage could occur as well. Read
and observe all WARNING statements found in your Owner's Manual and on
your machine.
CAUTION: Failure to read and observe all CAUTION statements could result in damage
to the machine or to other property. Read and observe all CAUTION
statements found in your Owner's Manual and on your machine.
WARNING: To reduce the risk of fire, electric shock, or injury:
1. Do not leave appliance when plugged in. Unplug from outlet when not in use and before
servicing.
2. Do not use outdoors or on wet surfaces.
3. Do not allow to be used as a toy. Close attention is necessary when used by or near
children.
4. Use only as described in the manual. Use only manufacturer's recommended attach-
ments.
5. Do not use with damaged cord or plug. If appliance is not working as it should, has
been dropped, damaged, left outdoors, or dropped into water, return it to a service
center.
6. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord
around sharp edges or corners. Do not run appliance over cord. Keep cord away from
heated surfaces.
7. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
8. Do not handle plug or appliance with wet hands.
9. Do not put any object into openings. Do not use with any opening blocked; keep free
of dust, lint, hair and anything that may reduce air flow.
10. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving
parts.
11. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or
hot ashes.
12. Do not use without dust bag and/or filters in place.
13. Turn off all controls before unplugging.
14. Use extra care when cleaning on stairs.
15. Do not use to pick up flammable or combustible liquids such as gasoline or use in
areas where they may be present.
16. Connect to properly grounded outlet. See "Grounding Instructions".
SAVE THESE INSTRUCTIONS
Page 4 CLARKE TECHNOLOGY Filtra-Pac Operator's Manual
SAFETY INFORMATION
Information for your safety and notes on disposal
Before using the Filtra-Pac, please read the information
below with care. This gives important guidance on the
safety use and maintenance of the Filtra-Pac. Keep this
booklet in a safe place, and if appropriate, hand it on to the
next owner.
• This ALTO vacuum complies with recognized
technological standards and the current safety
regulations for electrical appliances.
• This appliance fulfills the requirements of EU
guidelines 89/336/EEC (Electromagnetic
compatibility) and 73/23/EEC (Low voltage
guideline). The appliance is marked with the CE
symbol on the rating plate for 230V models.
ALTO reserves the right to modify designs and
specifications without notice.
Important Information
• Do not switch on the appliance if the housing
exhibits any evidence of damage (cracks/
fractures), if the connecting lead is defective, or
if an internal defect is suspected (e.g. if the
appliance has been dropped).
• Appliance only to be connected to voltage
indicated on the rating plate.
• ALTO will not accept any liability for damage or
injury if the appliance is used other than for its
intended purpose or is improperly operated or
inexpertly repaired and maintained.
• Before use, check to ensure that all the filters
are correctly installed. The appliance must not
be used without filters.
• Use only genuine ALTO filters and accessories.
• When connecting accessories, cleaning,
repairing or servicing the unit, unplug the unit.
• Do not let children use electrical appliances
unsupervised.
• This appliance is not suitable to be used to pick
up substances constituting a health hazard.
• Repairs should be carried out by on authorized
ALTO service center (see Operator's Manual for
list of addresses). Incorrect repairs may expose
the user to electrical danger.
• Any appliance used commercially is to be
operated only by persons properly instructed in
it's use and operation.
Safety Precautions
• Do not pull out the plug from power supply socket
by pulling on the connecting lead.
• Do not pull the connecting lead over sharp edges
or allow it to become jammed.
• Do not use damaged extension leads.
• If required, the connecting lead has to be
replaced together with the cable rewind by a
specialist.
• Never replace the power supply cable with
anything other than the same type of cable
specified by the maker (H 05 VVF 2 x 0.75).
• The supply cable has to be replaced by an
authorized ALTO After-Sales-Service only.
• Before any maintenance operation or replacing a
filter, and after use, switch off the appliance and
pull out the mains plug.
• Keep the nozzles and ends of tubes well away
from the eyes and ears.
• The appliance must only be used for dry vacuum
cleaning. It is not a dual purpose (wt/dry)
vacuum cleaner.
• Do not use the appliance to pick up hot or
glowing substances.
• Do not use the appliance to pick up coarse
slivers of glass.
• Don not use the appliance to pick up any
solvents, explosive liquids or gases.
• Do not store the appliance outdoors.
• Do not expose the machine to weather, humidity
nor excessive heat.
• Clean the appliance only with a dry or slightly
moist cloth. Do not allow any of the electrical
components (switches, plug, socket, electronics,
etc.) to come into contact with water.
CLARKE TECHNOLOGY Filtra-Pac Operator's Manual Page 5
Power Supply 115V-60 Cycle
Vacuum Motor 19,200 rpm
Power Brush Motor 11,000 rpm
Cord 40 ft.
Wand Attachment 1 3/8" x 20 1/2" (2)
Hose 1 1/4" x 64"
Filter Bags 6 lt, 2-ply disposable
Weight 13.5 lbs.
Shipping Weight 17 lbs
Warranty 1 year
Model Filtra-Pac 02150A

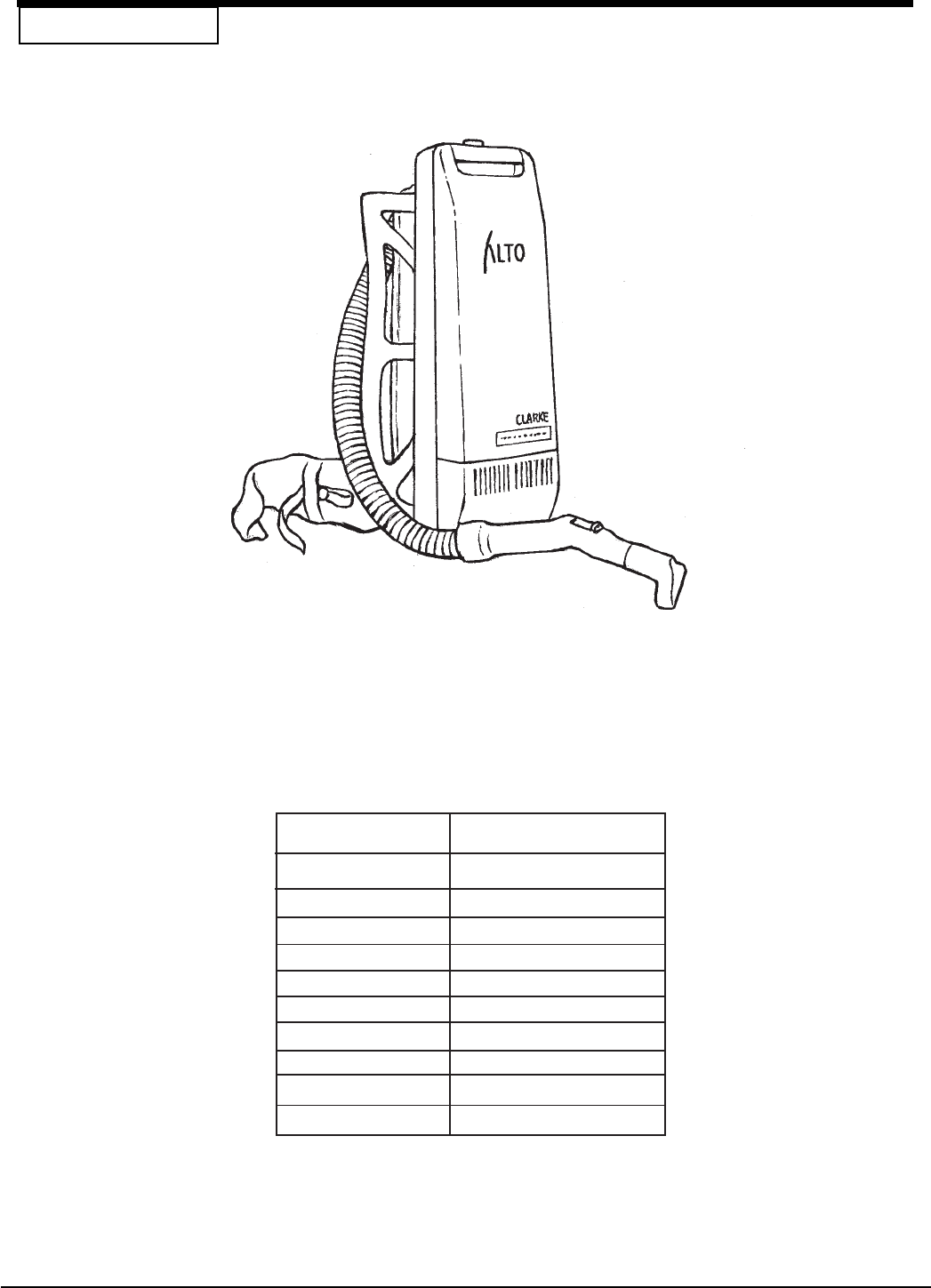

INTRODUCTION
The Filtra-Pac is a vacuum for cleaning carpet. This machine is used to remove dry material from carpet. This
machine is intended for commercial use.
MACHINE SPECIFICATIONS
An electric power wand is available (P/N 52393A)
GROUNDING INSTRUCTIONS
This appliance must be grounded. If it should malfunc-
tion or breakdown, grounding provides a path of least
resistance for electric current to reduce the risk of
electric shock. This appliance is equipped with a cord
having an equipment-grounding conductor and ground-
ing plug. The plug must be plugged into an appropriate
outlet that is properly installed and grounded in accor-
dance with all local codes and ordinances.
WARNING: Improper connection of
the equipment-grounding conductor can result
in risk of electric shock. Check with a qualified
electrician or service person if you are in doubt
as to whether the outlet is properly grounded.
Do not modify the plug provided with the
appliance - if it will not fit the outlet, have a
proper outlet installed by a qualified electrician.

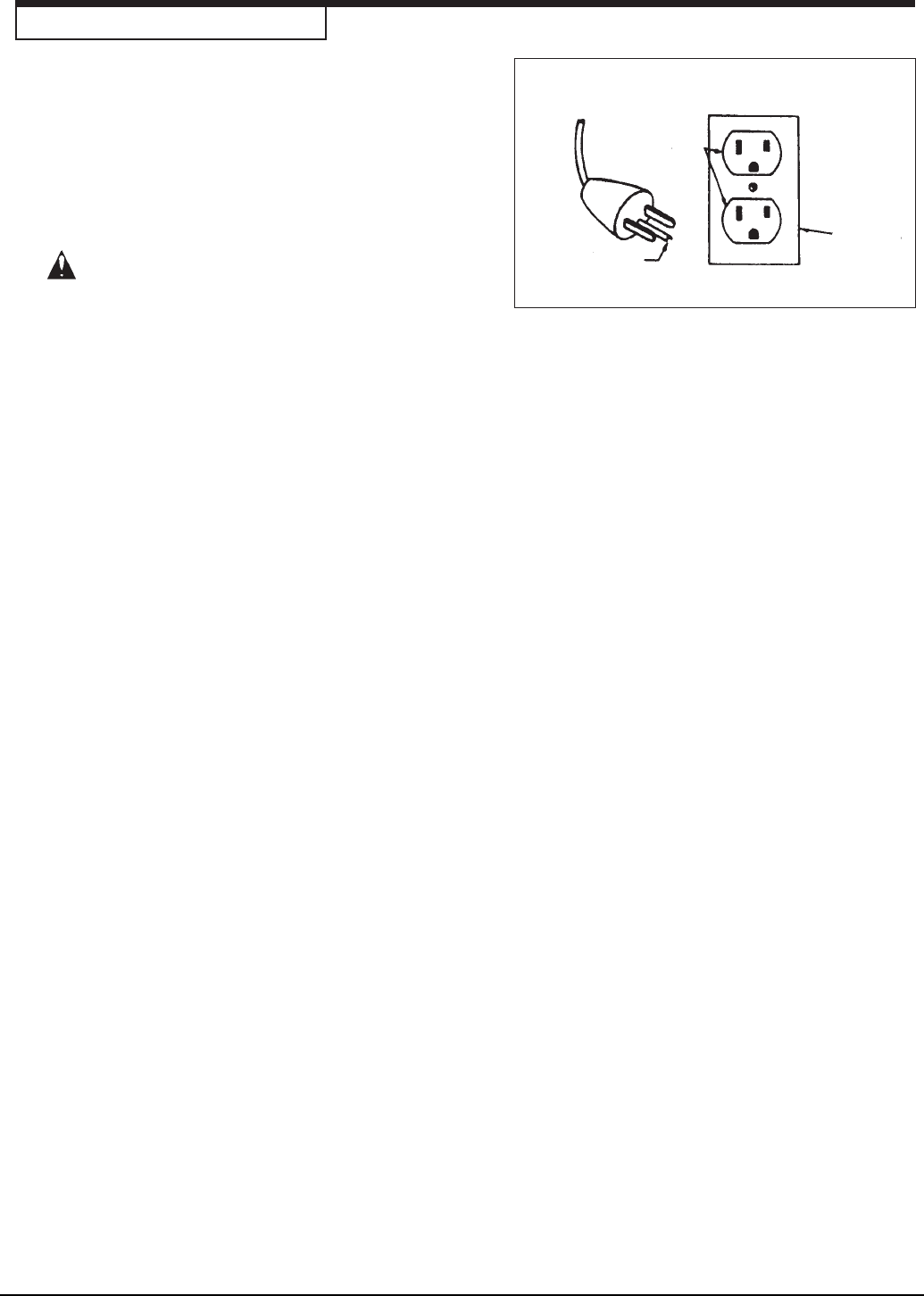

This appliance is for use on a nominal 120-volt circuit
and has a ground plug that looks like the plug illustrated
in figure 1. Make sure that the appliance is connected
to an outlet having the same configuration as the plug.
No adapter should be used with this appliance.
Grounding
Pin
Grounded
Outlet
Grounded
Outlet
Box
Figure 1
Page 6 CLARKE TECHNOLOGY Filtra-Pac Operator's Manual
Figure 2
Figure 3
Figure 4
MAINTENANCE
WARNING: To prevent injury, always remove
the electrical plug from the electrical outlet
before doing any maintenance or repairs to
the machine.
WARNING: Maintenance and repairs must be
done by authorized personnel only. Use only
genuine Clarke Technology parts.

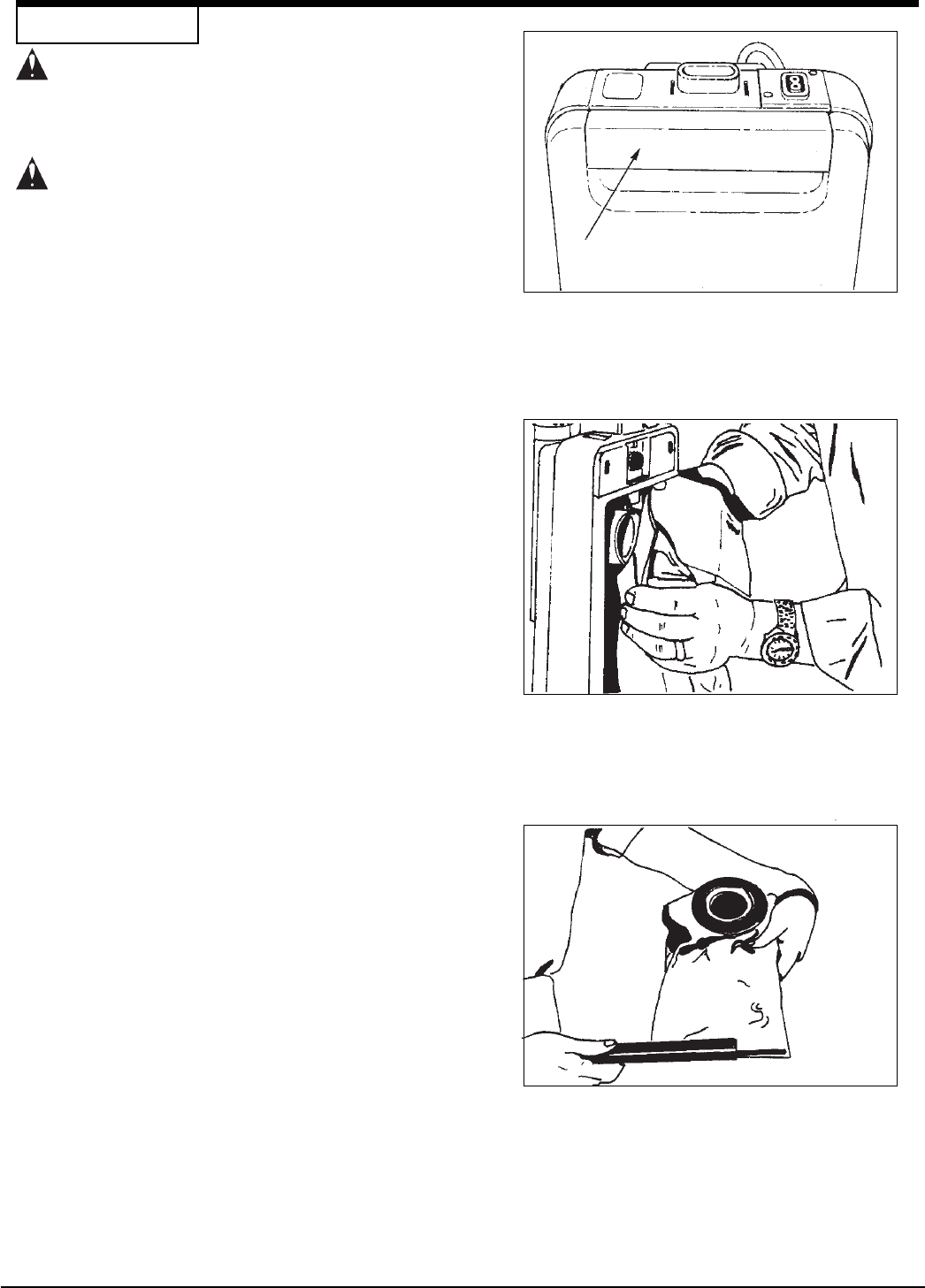

How To Change The Filter Bag
The machine uses a paper filter bag or a cloth filter bag. To
change the paper filter bag, follow this procedure:
1. Make sure the ON/OFF switch in the "O"
position.
2. Open the front of the tank housing. To open the
tank housing, press the tank release bar. See
figure 2.
3. Hold the bag by the cardboard inlet.
4. Pull the bag out.
5. Install a new filter bag. To install a new filter bag,
follow this procedure:
a. Unfold the filter bag.
b. Hold the bag by the cardboard inlet.
c. Put the opening in the cardboard inlet over the
bag adapter. See figure 3.
d. Close the tank housing.
To empty the cloth filter bag, follow this procedure:
1. Open the front of the tank housing.
2. Remove the cloth filter bag from the bag adapter.
3. Slide the clamp off the filter bag. See figure 4.
4. Remove the dirt from the bag.
5. Slide the clamp on the bottom of the filter bag.
6. Install the filter bag in the machine.
7. Close the tank housing.
CLARKE TECHNOLOGY Filtra-Pac Operator's Manual Page 7
Page 8 CLARKE TECHNOLOGY Filtra-Pac Operator's Manual
Figure 5

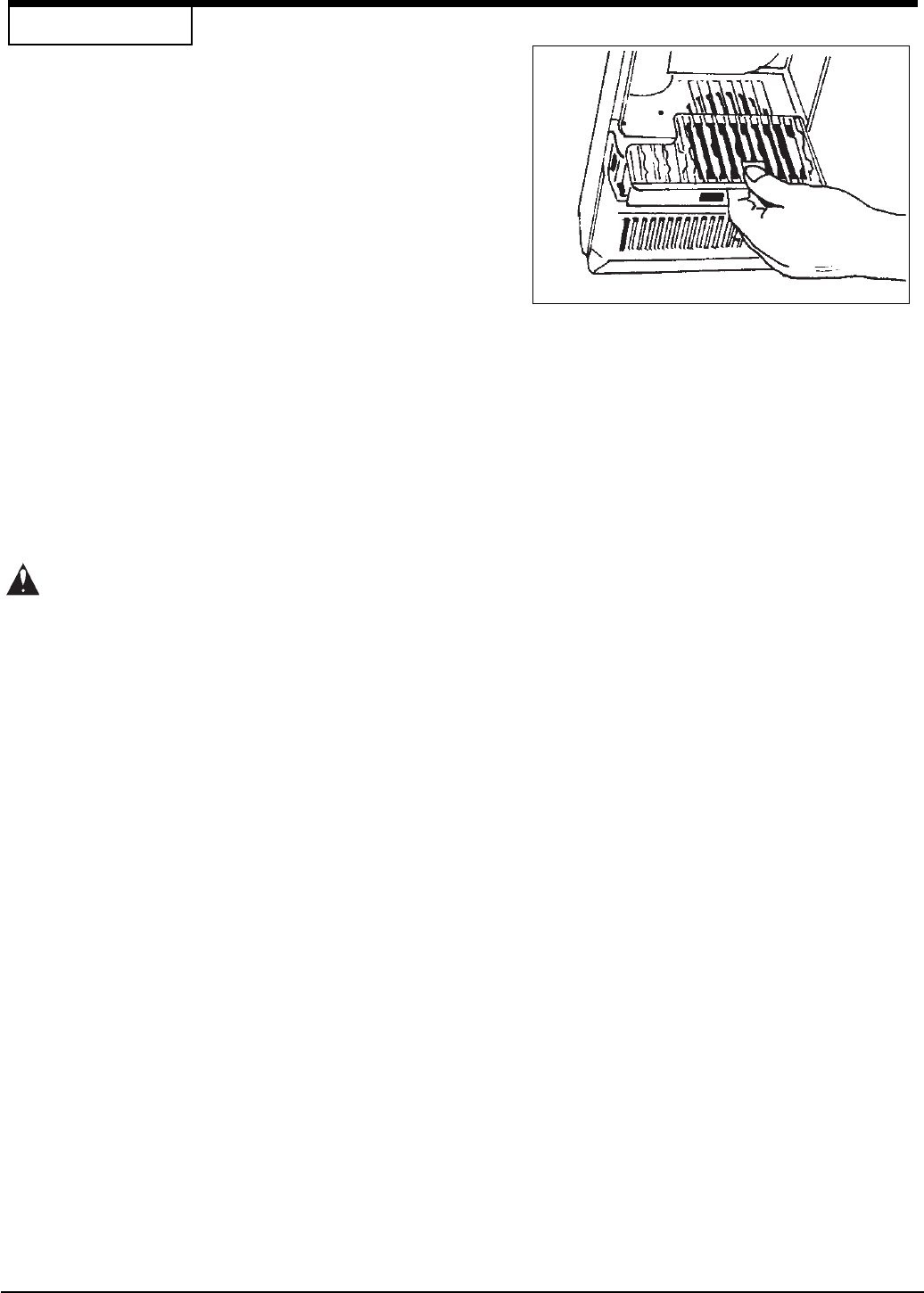

How To Clean The Motor Filter
Clean the motor filter whenever it is dirty. To clean the
motor filter, follow this procedure:
1. Open the tank assembly.
2. Remove the filter bag.
3. Pull the filter cover off the filter disc.
4. Remove the filter.
5. Wash the filter in water.
6. Put the filter in a cloth and apply pressure to dry
the filter.
7. Put the filter in the filter cover.
NOTE: Install the filter cover with the opening
toward the back of the tank housing. See
figure 5.
CAUTION: Check the motor protection filter
while changing the paper bag. Please change
the motor protection filter after use of 6 paper
bags.
8. Install the filter bag.
9. Close the tank assembly.
MAINTENANCE
CLARKE TECHNOLOGY Filtra-Pac Operator's Manual Page 9
FILTRA-PAC
Section II
Parts and Service Manual
(70290A)
Page 10 CLARKE TECHNOLOGY Filtra-Pac Operator's Manual
CLARKE TECHNOLOGY
Filtra Pac
Main Body
Assembly Drawing 7/01
1
2
3
4
5
6
7
8
6
9
10
11
12
25
26
27
21
28
29
30
38
37
6
36
35
34
33
32
31
24
23
21
14
13 15 16 17 6 18 19 20
CLARKE TECHNOLOGY Filtra-Pac Operator's Manual Page 11
Ref. Part No. Description Qty.
1 52370A Power Cord only 1
2 52371A Switch only 1
3 52372A Power Cord w/Switch 1
4 52373A Cover Washer 1
5 52374A Strain Relief 1
6 57951A Screw 4mm x 20 8
7 52375A Washer 8
8 964004 Screw, 5mm x .8 x 16mm 2
9 52376A Angle Bracket 1
10 52377A Nut 4mm 2
11 52378A Rear Canister 1
12 52379A Flat Cable 1
13 80067A Screw 3mm x 12 2
14 52380A Socket, Receptacle 1
15 55658A Bar, Locking 1
16 58693A Spring, Spiral 1
17 52381A Cover Plate 1
18 53408A Spring 1
19 55715B Latch 1
20 52906B Cover, Canister 1
21 912313 Terminal Block 1
22
23 50721B Bag, Paper 10 Pak
24 54023A Filter Frame 1
25 54024A Filter, Motor 1
26 54734A Insulating Insert 1
27 52382A Overheat Cutout 1
28 52383A Carbon Brush w/Holder 2
29 43607A Insulation, Motor 1
30 52384A Motor Bearing Block 1
31 57862A Motor Gasket Seal 1
32 54360A Gasket, Cainster Front 1
33 54025A Filter, Micro Exhaust 1
34 52385A Vac Motor 120 Volt 1
35 54026A Filter Cassette 1
36 52386A Motor Cover 1
37 54361A Gasket Strip 1
38 53931A Foam Insulation 1
CLARKE TECHNOLOGY
Filtra Pac
Main Body
Assembly Drawing Parts List 7/01
Page 12 CLARKE TECHNOLOGY Filtra-Pac Operator's Manual
Ref. Part No. Description Qty.
50 52387A Carry Frame Complete 1
51 52388A Carry Frame 1
52 52389A Shoulder Strap 1
53 52390A Rivet 4
54 980205 Washer 2
55 52391A Waist Belt 1
56 52394A Rivet Nut 4
50
51
52
53
54
55
56
CLARKE TECHNOLOGY
Filtra Pac
Back Frame and Harness
Assembly Drawing and Parts List 7/01
CLARKE TECHNOLOGY Filtra-Pac Operator's Manual Page 13
CLARKE TECHNOLOGY
Filtra Pac
Hose, Wand and Tools
Assembly Drawing Parts List 7/01
Ref. Part No. Description Qty.
60 59203A Crevice Tool 1
61 59818A Wand 2
62 59204A Nozzle Upholstery 1
63 59206A Nozzle 1
64 52395A Bristle Set 1
65 52396A Regulating Slide 1
66 52397A Hand Tube 1
67 52398A Spring Ring 1
68 52399A Connecting Socket 1
69 52440A Hose 1
70 53054A Swivel End, Hose 1
71 57405A Retainer, Spring 1
72 53075A Socket, Connecting 1
6968676665
60
61
62
63
64
70 71 72
Page 14 CLARKE TECHNOLOGY Filtra-Pac Operator's Manual
NOTES
CLARKE TECHNOLOGY Filtra-Pac Operator's Manual Page 15
ALTO® PRODUCT SUPPORT BRANCHES
PRODUCTION FACILITIES
ALTO Danmark A/S, Aalborg
Blytaekkervej 2
DK-9000 Aalborg
+45 72 18 21 00
ALTO Danmark A/S, Hadsund
Industrikvarteret
DK-9560 Hadsund
+45 72 18 21 00
SALES SUBSIDIARIES
ALTO Canada Ltd., Rexdale Ontario
24 Constellation Ct.
(416) 675-5830
ALTO Overseas Inc., Sydney (Australia)
1B/8 Resolution Drive
Caringbah NSW 2229
+61 2 9524 6122
ALTO Cleaning Systems Asia Pte Ltd., Singapore
No. 17 Link Road
Singapore 619034
+65 268 1006
ALTO Deutschland GmbH, Frondenberg (Germany)
Ardeyer Str. 15
D-58730 Frondenberg
+49 2373 754 200
ALTO Cleaning Systems (UK) Ltd., Penrith
Gilwilly Industrial Estate
Penrith
Cumbria CA11 9BN
+44 1768 868 995
ALTO France S.A. Strasbourg
B.P. 44, 4 Place d’Ostwald
F-67036 Strasbourg
Cedex 2
+33 3 8828 8400
ALTO Nederland B.V. Vianen
Stuartweg 4C
NL-4131 NJ Vianen
+31 347 324000
ALTO Sverige AB, Molndal (Sweden)
Aminogatan 18
Box 4029
S-431 04 Molndal
+46 31 706 73 00
ALTO Norge A/S, Oslo (Norway)
Bjornerudveien 24
N-1266
+47 2275 1770
CLARKE TECHNOLOGY
AMERICAN SANDERS TECHNOLOGY
A.L. COOK TECHNOLOGY
Customer Service Headquarters and Factory
2100 Highway 265
Springdale, Arkansas 72764
(501) 750-1000
Technical Service
1-800-356-7274
U. S. A. Locations European Locations
HEAD OFFICE
ALTO U.S. Inc., St. Louis, Missouri
16253 Swingley Ridge Road, Suite 200
Chesterfield, Missouri 63017-1725
PRODUCTION FACILITIES
ALTO U.S. Inc., Springdale, Arkansas
2100 Highway 265
Springdale, Arkansas 72764
(501) 750-1000
Customer Service - 1-800-253-0367
Technical Service - 1-800-356-7274
ALTO U.S. Inc., Bowling Green, Ohio 43402
1100 Haskins
ALTO U.S. Inc., Clearwater, Florida 33765
1500 N. Belcher Road
SERVICE FACILITIES
ALTO U.S. Inc., Carlstadt, New Jersey 07072
150 Commerce Road
(201) 460-4774
ALTO U.S. Inc., Elk Grove, Illinois 60007
2280 Elmhurst Road
(847) 956-7900
ALTO U.S. Inc., Denver, Colorado 80204
1955 West 13th Ave.
(303) 623-4367
ALTO U.S. Inc., Houston, Texas 77040
7215 North Gessner Road
SALES AND SERVICE FACILITIES
ALTO U.S. Inc., Madison Heights, Michigan 48071-0158
29815 John R.
(810) 544-6300
ALTO U.S. Inc., Marietta, Georgia 30062
1355 West Oak Common Lane
(770) 973-5225
This Clarke Technology Industrial/Commercial Product is warranted to be free from defects in materials
and workmanship under normal use and service for a period of one year from the date of purchase,
when operated and maintained in accordance with Clarke Technology’s Maintenance and Operations
Instructions.
This warranty is extended only to the original purchaser for use of the product. It does not cover
normal wear parts such as electrical cable, rubber parts, hoses and motor brushes.
If a difficulty develops with the product, you should:
(a).Contact the nearest authorized Clarke Technology repair location or contact the Clarke Technology
Service Operations Department, 2100 Highway 265, Springdale, Arkansas 72764, for the nearest
authorized Clarke Technology repair location. Only these locations are authorized to make repairs to
the product under this warranty.
(b).Return the product to the nearest Clarke Technology repair location. Transportation charges to and
from the repair location must be prepaid by the purchaser.
(c).Clarke Technology will repair the product and/or replace any defective parts without charge within
a reasonable time after receipt of the product.
Clarke Technology’s liability under this warranty is limited to repair of the product, and/or replacement
of parts and is given to purchaser in lieu of all other remedies, including INCIDENTAL AND CONSEQUEN-
TIAL DAMAGES.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE SPECIFIED HEREIN. THERE ARE NO
WARRANTIES WHICH EXTENT BEYOND THE DESCRIPTION OF THE FACE HEREOF. NO WARRANTIES,
INCLUDING BUT NOT LIMITED TO WARRANTY OF MERCHANTABILITY, SHALL BE IMPLIED. A warranty
registration card is provided with your Clarke Technology product. Return the card to assist Clarke
Technology in providing the performance you expect from your new floor machine.
ALTO U.S. INC., 2100 Highway 265, Springdale, Arkansas 72764.
CLARKE TECHNOLOGY U. S. WARRANTY
CLARKE TECHNOLOGY reserves the right to make changes or improvements to its
machines without notice.
CLARKE TECHNOLOGY
2100 Highway 265
Springdale, Arkansas 72764

Navigation menu
