Owner’s Manual
Hayetsira St. 17, Yokneam, Israel
Tel: +972-48-290-168 | Fax: +972-48-325-251 | www.fit-iot.com
www.fit-iot.com
Page 2 of 17
fitlet2 owner’s manual
Safety instructions
Use the following safety guidelines to help protect your computer from potential damage and
to help to ensure your personal safety. Unless otherwise noted, each procedure included in this
document assumes that you have read the safety information that shipped with your
computer.
WARNING: Disconnect all power sources before opening the computer cover or
panels. After you finish working inside the computer, replace all covers, panels, and
screws before connecting to the power source.
CAUTION: Some repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and support
team. Damage due to servicing that is not authorized by Compulab is not covered by your
warranty. Read and follow the safety instructions that came with the product.
CAUTION: To avoid electrostatic discharge and prevent internal components damage
from electrostatic discharge when touching computer or its parts, ground yourself by
using a wrist grounding strap or by periodically touching an unpainted metal surface, such
as a connector on the back of the computer.
CAUTION: Handle components and cards with care. Do not touch the components or
contacts on a card. Hold a card by its edges or by its metal mounting bracket. Hold a
component such as a processor by its edges, not by its pins.
CAUTION: When you disconnect a cable, pull on its connector or on its pull-tab, not
on the cable itself. Some cables have connectors with locking tabs; if you are
disconnecting this type of cable, press in on the locking tabs before you disconnect the
cable. As you pull connectors apart, keep them evenly aligned to avoid bending any
connector pins. Also, before you connect a cable, ensure that both connectors are
correctly oriented and aligned.
Hayetsira St. 17, Yokneam, Israel
Tel: +972-48-290-168 | Fax: +972-48-325-251 | www.fit-iot.com
www.fit-iot.com
Page 3 of 17
fitlet2 owner’s manual
Table of contents
Safety instructions ......................................................................... 2
Introduction ........................................................................................ 4
fitlet2 features ................................................................................................ 4
Package contents........................................................................................ 4
Hardware specifications......................................................................... 5
Connectors layout....................................................................................... 6
Quick start guide ............................................................................. 7
Minimum requirements .......................................................................... 7
Identifying fitlet2 configuration ......................................................... 7
Opening fitlet2 ............................................................................................... 7
Installing RAM ................................................................................................ 9
M.2 cooling plate and SSD.................................................................. 10
RTC battery .................................................................................................... 12
Re-assembling fitlet2 ............................................................................. 13
Connecting fitlet2 ...................................................................................... 14
Entering BIOS Setup ................................................................................ 15
Installing and booting operating system ................................ 15
Service ................................................................................................ 16
Support .............................................................................................................. 16
Warranty ........................................................................................................... 16
RMA ...................................................................................................................... 16
For more information and to obtain the latest revision of this document,
please visit: www.fit-iot.com
For technical support and product related questions,
please email: support@fit-iot.com
Hayetsira St. 17, Yokneam, Israel
Tel: +972-48-290-168 | Fax: +972-48-325-251 | www.fit-iot.com
www.fit-iot.com
Page 4 of 17
fitlet2 owner’s manual
Introduction
Thank you for purchasing fitlet2. It is a miniature PC designed to be tough, capable, versatile
and user-friendly. With proper installation we expect fitlet2 to serve you for many years. The
unique fanless design of fitlet2 eliminates the need for any maintenance after installation.
Please consult this owner’s manual for getting started with fitlet2. You are welcome to contact
fitlet2 manufacturer – Compulab at www.fit-iot.com or support@fit-iot.com should you have
any technical questions.
fitlet2 features
• Intel Apollo Lake CPU
• Up to 16 GB RAM
• eMMC | M.2 SATA | 2.5” storage*
• Dual head 4K display
• Up to 4 Gbit Ethernet ports* | WiFi* | cellular communication*
• USB 3.0, audio, serial port, SD card, indicator LEDs
• Supports Windows 10 and Linux
• Can be extended with Function And Connectivity Extention T-Cards (FACET Cards)
• All-metal fanless housing 112 mm X 84 mm X 34 mm
• Operating temperature range up to -40°C to 85°C (depending on ordered configuration)
* Feature may require an extension FACET card
Package contents
1. fitlet2 computer
2. Power supply: input 100-240VAC 50/60Hz, output 12VDC 3A with universal AC plugs
3. M.2 cooling plate with spacers and screws
4. RTC battery with cord
5. Owner’s manual
Notes
• additional accessories can be purchased separately
• Some fitlet2 configurations come pre-installed with additional devices and accessories
Hayetsira St. 17, Yokneam, Israel
Tel: +972-48-290-168 | Fax: +972-48-325-251 | www.fit-iot.com
www.fit-iot.com
Page 5 of 17
fitlet2 owner’s manual
Hardware specifications
Processor / SoC
Type
Memory
Intel Apollo Lake (Atom | Celeron)
Dual-core or quad-core
Supported
1x SO-DIMM 204-pin DDR3L SDRAM
Up to 16GB Non-ECC DDR3L-1866 (1.35V)
Storage
Supported
1x M.2 M-key 2242 | 2260
Optional eMMC
Optional 2.5” HDD | SSD
Graphics
Display Interface 1
HDMI 1.4b up to 3840 x 2160 @ 30Hz
Display Interface 2
DisplayPort 1.2 up to 4096 x 2160 @ 60 Hz (via Mini DP connector)
Audio
Codec
Realtek ALC1150 HD audio codec
Audio Output
Analog stereo output | Digital 7.1 channels S/PDIF output (3.5mm jack)
Audio Input
Analog stereo Microphone input (3.5mm jack)
Networking
LAN
LAN1: Intel I211 GbE controller (RJ-45)
LAN2: Intel I211 GbE controller (RJ-45)
Wireless
1x M.2 E-key 2230 slot
WiFi adapter sold separately
Connectivity
USB
2x USB 3.0
2x USB 2.0
Serial
1x Serial communication ports
COM1: RS232 via mini serial connector
Expansion
FACET rev 2 slot (PCIe x2, USB2.0, eDP1.3, I2S, I2C, UART)
Operating System
Supported
Windows 10 | Linux
Operating Conditions
Input Voltage
Unregulated 7 - 20VDC input
Power Consumption
5W to 15W
depending on configuration and system load
Operating Temperature
Commercial: 0°C to 45°C
Extended: -20°C to 70°C
Industrial: -40°C to 85°C
Relative Humidity
5% to 95% (non-condensing)
Enclosure
Material
Die Cast Aluminum
Cooling
Passive Cooling (fanless)
Dimensions
112 mm X 84 mm X 34 mm
Weight
350g
Warranty
5 years
Warranty notes
Storage device warranty in accordance with device manufacturer’s warranty.
Excludes battery.
For the latest specifications please visit:
www.fit-iot.com/web/products/fitlet2/fitlet2-specifications/
Hayetsira St. 17, Yokneam, Israel
Tel: +972-48-290-168 | Fax: +972-48-325-251 | www.fit-iot.com
www.fit-iot.com
Page 7 of 17
fitlet2 owner’s manual
Quick start guide
Minimum requirements
To use fitlet2 you will need:
• RAM and storage device (if not pre-installed)
• A display with HDMI or DisplayPort input + HDMI or mini-DisplayPort cable
• USB keyboard and mouse
Identifying fitlet2 configuration
fitlet2 configuration is detailed on the label attached to the bottom side of the computer.
Note
Pay attention to RAM and storage. If not installed fitlet2 will not boot. You will have to first
install these devices.
Opening fitlet2
You will need to open fitlet2 in order to install RAM, storage and RTC battery.
Required tool: Phillips screwdriver.
Hayetsira St. 17, Yokneam, Israel
Tel: +972-48-290-168 | Fax: +972-48-325-251 | www.fit-iot.com
www.fit-iot.com
Page 8 of 17
fitlet2 owner’s manual

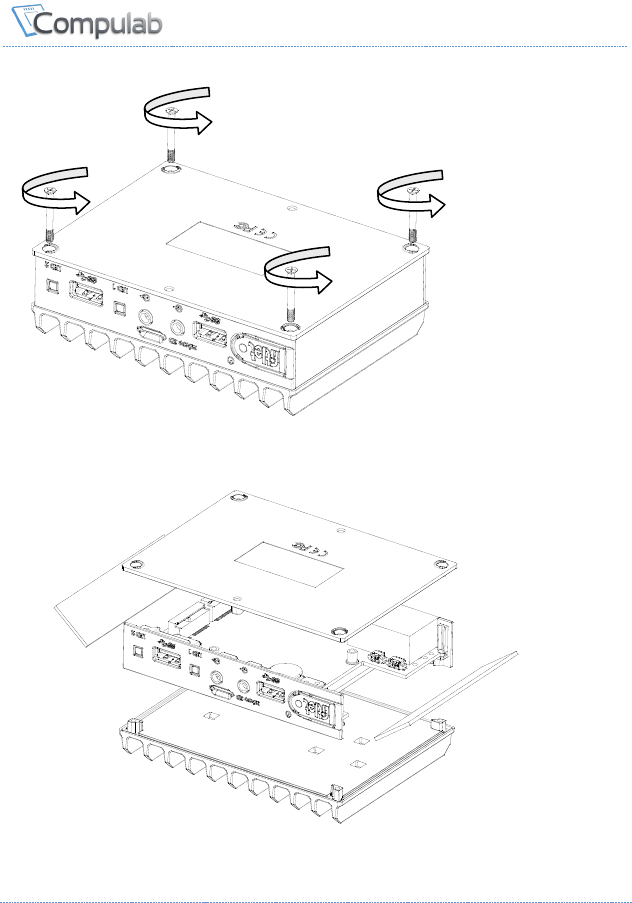

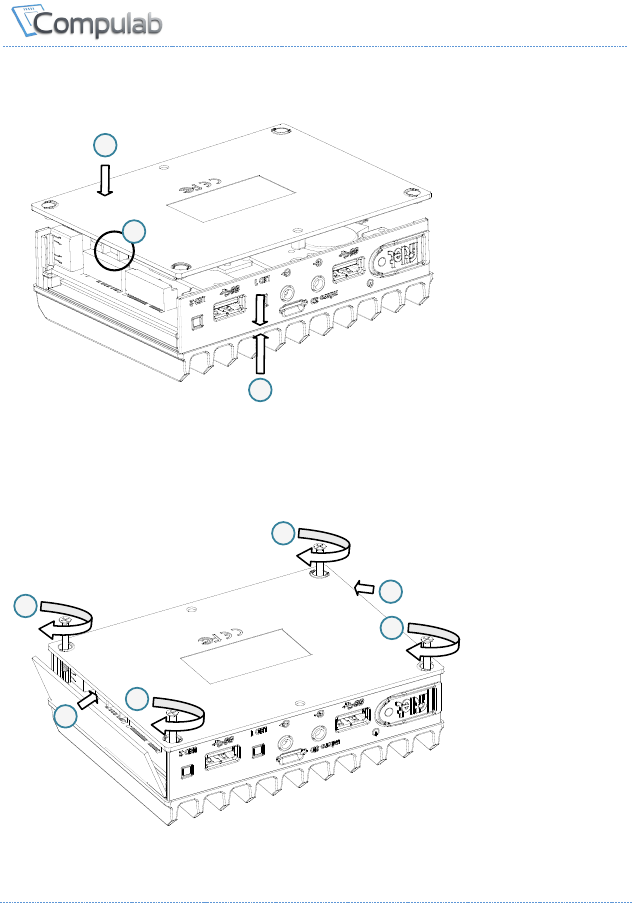

To open fitlet2 please follow these steps:
1. Place fitlet2 on a flat surface bottom-up.
2. Open the four screws using the Phillips screwdriver (counter clock-wise).
3. Lift the bottom cover to remove it. Side panels should fall-off.
4. Lift fitlet2 from the top cover.
Hayetsira St. 17, Yokneam, Israel
Tel: +972-48-290-168 | Fax: +972-48-325-251 | www.fit-iot.com
www.fit-iot.com
Page 9 of 17
fitlet2 owner’s manual
Installing RAM
RAM socket is positioned on the top side of the motherboard.
fitlet2 accepts a single SODIMM DDR3L (1.35V).
Insert DDR3L SODIMM module and press it down until it is latched firmly on both sides.
Hayetsira St. 17, Yokneam, Israel
Tel: +972-48-290-168 | Fax: +972-48-325-251 | www.fit-iot.com
www.fit-iot.com
Page 10 of 17
fitlet2 owner’s manual
M.2 cooling plate and SSD
The M.2 cooling plate has several purposes:
• Allow installation of multiple form factor M.2 devices and FACET Cards
• Provide cooling to M.2 devices
• Assist in battery placement
• Provide proper cable management inside fitlet2
fitlet2 accepts M.2 M-key 2242 | 2260 SATA SSD.
The SSD has to be fastened to the M.2 cooling plate. Then the M.2 cooling plate is placed at the
underside of the motherboard and fastened to the front and back panel.
To install SSD onto M.2 cooling plate
1
2
3

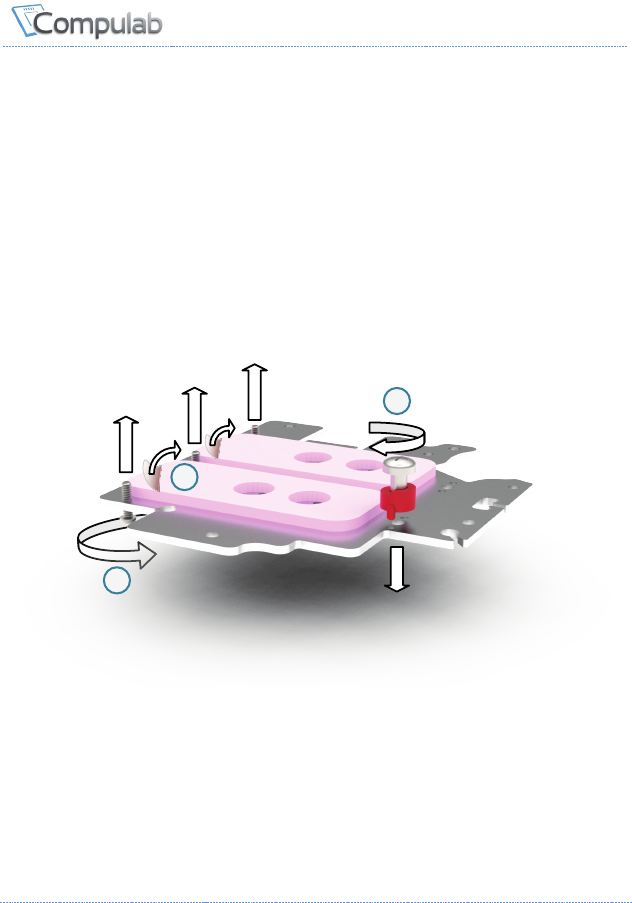

1. Screw the 3 alignment screws into the marked holes. These screws are used to position the
M.2 devices
2. Peel-off protective film from the two thermal pads.
3. Place the red M.2 spacer according to the length of the M.2 SSD as depicted below.
Note orientation of the spacer: The recessed side should face the alignment screws.
Insert M.2 fastening screw but do not tighten.
Hayetsira St. 17, Yokneam, Israel
Tel: +972-48-290-168 | Fax: +972-48-325-251 | www.fit-iot.com
www.fit-iot.com
Page 11 of 17
fitlet2 owner’s manual
4
5

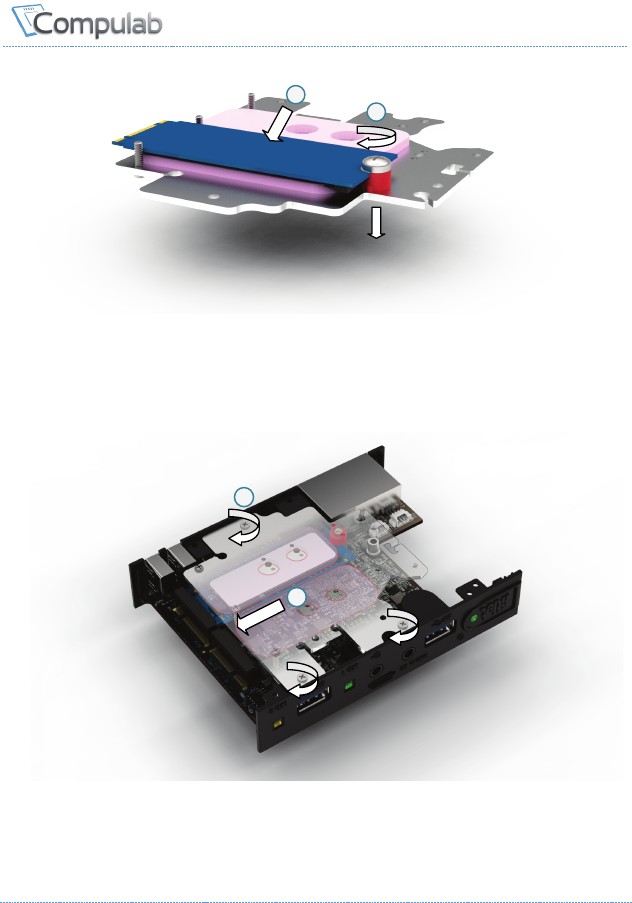

4. Place edge of M.2 SSD against the fastening screw and press the SSD firmly against the
thermal pad until its connector edge is seated between the alignment screws.
Once positioned correctly the connector edge should stick out above the edge of the M.2
cooling plate.
5. Tighten the fastening screw.
6
7
6. Turn over the M.2 cooling plate and push the M.2 SSD into its socket at the underside of the
motherboard.
7. Push down the M.2 cooling plate and tighten the 3 panel screws
Hayetsira St. 17, Yokneam, Israel
Tel: +972-48-290-168 | Fax: +972-48-325-251 | www.fit-iot.com
www.fit-iot.com
Page 12 of 17
fitlet2 owner’s manual
RTC battery
The RTC battery is used for keeping time and date while fitlet2 is disconnected from power.
BIOS settings and power-up policy is independent of battery. fitlet2 normally ships with the
battery unplugged to ensure that the battery is not discharged during warehousing.
The battery can keep charge for approx. 5 years when fitlet2 is disconnected and significantly
longer when fitlet2 is connected to power. Battery can be purchased separately to be replaced
by the user.
Installing RTC battery
1
2
3

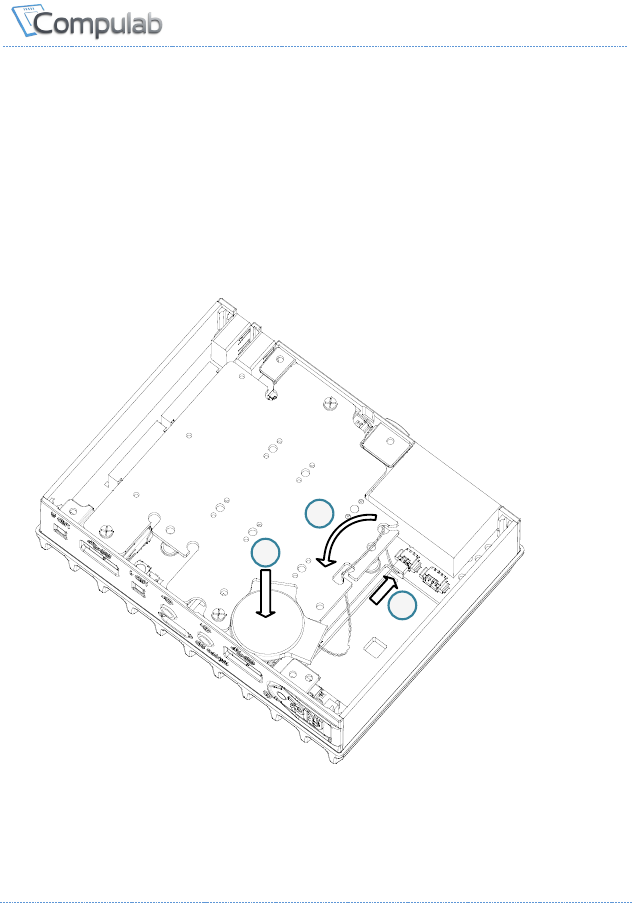

1. Connect the battery plug to the corresponding socket (see illustration).
2. Place the wire as shown inside the slots of the M.2 cooling plate to minimize clutter.
3. Place the battery in the marked pocket. Once fitlet2 bottom cover is assembled the
battery is secured in place.
Hayetsira St. 17, Yokneam, Israel
Tel: +972-48-290-168 | Fax: +972-48-325-251 | www.fit-iot.com
www.fit-iot.com
Page 13 of 17
fitlet2 owner’s manual
Re-assembling fitlet2
1
2
!
1. Place the fitlet2 onto the top cover.
Note: The top cover is symmetric – direction does not matter.
2. Place the bottom cover onto the fitlet2.
Important note: The tall U-shaped boss has to be near the M.2 sockets. Otherwise the
bottom cover will not fit!
3
3
4
4
4
4
3. Click both side panels into place
4. Tighten the 4 screws
Hayetsira St. 17, Yokneam, Israel
Tel: +972-48-290-168 | Fax: +972-48-325-251 | www.fit-iot.com
www.fit-iot.com
Page 14 of 17
fitlet2 owner’s manual
Connecting fitlet2
1
2
1. Before connecting fitlet2 please ensure that RAM and storage device are installed as
detailed in the above sections.
2. Connect the display to fitlet2 using HDMI or mini-DP cable.
3. Connect to fitlet2 USB keyboard and mouse.
4. Insert the DC plug into the fitlet2 DC-in jack. Rotate clockwise 90° to secure.
5. Slide into the power-supply the AC blade correct to your country and plug the power-
supply into an AC-outlet. The power button on fitlet2 should turn green, in a few seconds
an image should appear on the display.
6. Connect Ethernet cable as needed. When link is established the link LED on RJ45 should
light.
7. If fitlet2 has WiFi adapter installed you will observe two SMA connectors (gold color
screws) on the side panel. Connect the included antennas by screwing them clockwise
onto the SMA connectors to enable WiFi communication.
Hayetsira St. 17, Yokneam, Israel
Tel: +972-48-290-168 | Fax: +972-48-325-251 | www.fit-iot.com
www.fit-iot.com
Page 15 of 17
fitlet2 owner’s manual
Entering BIOS Setup
Turn off the fitlet2.
Turn on while holding down the Del key, until access into AMI Inc. BIOS utility.
See http://www.fit-pc.com/wiki/index.php/Main_Page.
Installing and booting operating system
Please consult https://www.fit-iot.com/web/products/fitlet2/os for instructions.
Hayetsira St. 17, Yokneam, Israel
Tel: +972-48-290-168 | Fax: +972-48-325-251 | www.fit-iot.com
www.fit-iot.com
Page 16 of 17
fitlet2 owner’s manual
Service
Support
For technical support and product related questions, please email: support@fit-iot.com
For fitlet2 on support wiki please visit: http://fit-pc.com/wiki/index.php/Fitlet2
Warranty
• Compulab guarantees products against defects in workmanship and material for a
period of 60 months from the date of shipment.
• Your sole remedy and Compulab’s sole liability shall be for Compulab, at its sole
discretion, to either repair or replace the defective product at no charge.
• This warranty is void if the product has been altered or damaged by accident, misuse
or abuse.
RMA
• Keep the original package for shipping.
• Please contact the seller of that fitlet2.
• When issuing an RMA please provide the following required information:
o fitlet2 serial number
o Name and address of buyer
o Invoice number
o Problem description
• If fitlet2 was purchased directly from Compulab, please email: rma@fit-pc.com
Hayetsira St. 17, Yokneam, Israel
Tel: +972-48-290-168 | Fax: +972-48-325-251 | www.fit-iot.com
www.fit-iot.com
Page 17 of 17
fitlet2 owner’s manual
fitlet2
Manufacturer: Compulab Ltd.
This device complies with Part 15
of the FCC Rules.
Operation is subject to the
following two conditions:
(1) This device may not cause
harmful interference, and
(2) This device must accept any
interference received, including
interference that may cause
undesired operation.
Statement
Changes or modifications to this
equipment not expressly approved
by the party responsible for
compliance (Compulab Ltd.) could
void the user’s authority to
operate the equipment.
Statement
NOTE: This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which
can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment
and receiver.
-Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV
technician for help.
WEEE
This symbol means that you must dispose of an
electrical item AND/OR containing in it Li-Mn
battery separately from general household waste
when they reach the end of their useful life. Take
your PC or the battery to your local waste collection
point or center. This applies to all countries of the
European Union, and to other countries with a
separate waste collection system.
