C
B
E
SWITCHING CHARACTERISTICS (at Tamb=25 °C unless otherwise stated)
PARAMETER SYMBOL FMMT3905 FMMT3906 UNIT CONDITIONS
MIN MAX MIN MAX
Delay Time td35 35 ns VCC
=-3V, VBE(off)
=-0.5V
IC=-10mA, IB1=-1mA
(See Fig.1)
Rise Time tr35 35 ns
Storage Time ts200 225 ns VCC
=-3V, IC=-10mA
IB1=-IB2=-1mA
(See Fig.2)
Fall Time tf60 75 ns

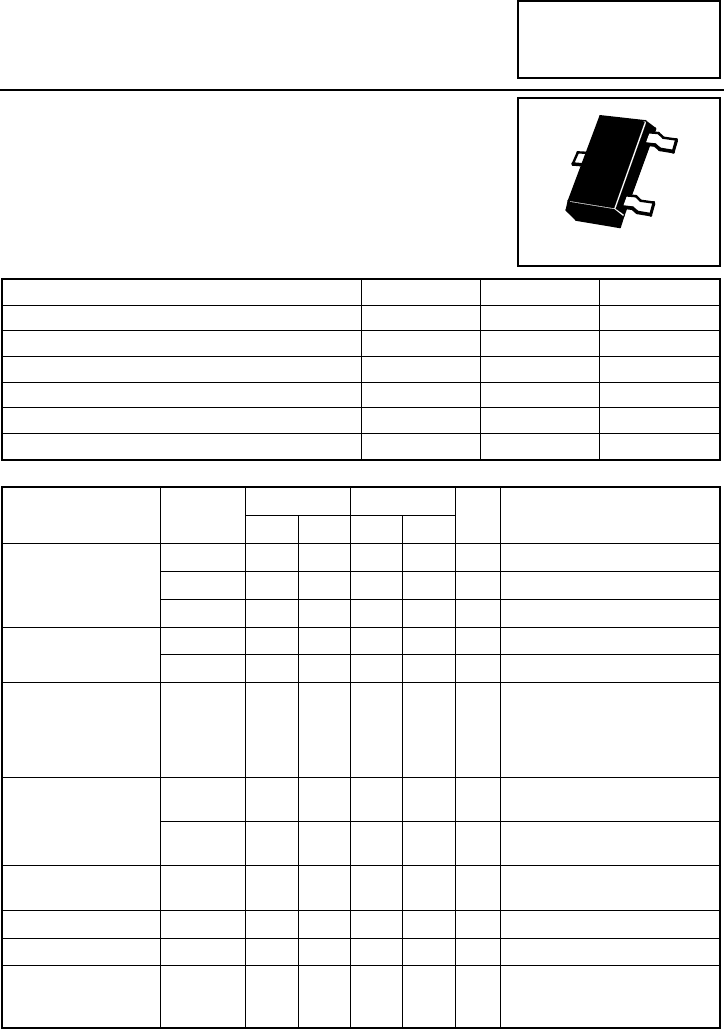

FMMT3905
FMMT3906
SOT23 PNP SILICON PLANAR
SWITCHING TRANSISTORS
ISSUE 4 – MARCH 2000
PARTMARKING DETAILS - FMMT3905 - 2W
FMMT3906 - 2A
COMPLEMENTARY TYPES - FMMT3905 - FMMT3903
FMMT3906 - FMMT3904
ABSOLUTE MAXIMUM RATINGS.
PARAMETER SYMBOL VALUE UNIT
Collector-Base Voltage VCBO -40 V
CollectorEmitter Voltage VCEO -40 V
Emitter-Base Voltage VEBO -5 V
Continuous Collector Current IC-200 mA
Power Dissipation at Tamb
=25°C Ptot 330 mW
Operating and Storage Temperature Range Tj:Tstg -55 to +150 °C
ELECTRICAL CHARACTERISTICS (at Tamb = 25°C unless otherwise stated).
PARAMETER SYMBOL FMMT3905 FMMT3906. UNIT CONDITIONS.
MIN MAX MIN MAX
BreakdownVoltages V(BR)CBO -40 -40 V IC=-10µA, IE=0
V(BR)CEO -40 -40 V IC=-1mA, IB=0*
V(BR)EBO -5 -5 V IE=-10µA, IC=0
Cut-Off Currents ICEX -50 -50 nA VCE
=-30V, VBE(off)
=-3V
IBEX -50 -50 nA VCE
=-30V, VEB(off)
=-3V
Static Forward
Current
Transfer Ratio
hFE 30
40
50
30
15
150
60
80
100
60
30
300
IC=-0.1mA, VCE
=-1V*
IC=-1mA, VCE
=-1V*
IC=-10mA, VCE
=-1V*
IC=-50mA, VCE
=-1V*
IC=-100mA, VCE
=-1V*
Saturation
Voltages
VCE(sat) -0.25
-0.4
0.25
0.4
V
V
IC=-10mA, IB=-1mA*
IC=-50mA, IB=-5mA*
VBE(sat) -0.65 -0.85
-0.95
-0.65 -0.85
-0.95
V
V
IC=-10mA, IB=-1mA*
IC=-50mA, IB=-5mA*
Transition
Frequency
fT200 250 MHz IC=-10mA, VCE
=-20V
f=100MHz
Output Capacitance Cobo 4.5 4.5 pF VCB
=-5V, IE=0, f=100KHz
Input Capacitance Cibo 10 10 pF VBE=0.5V, IC=0, f=100KHz
Noise Figure N 5 4 dB IC=-200mA, VCE
=-5V
Rg=2kΩ, f=30Hz to 15kHz
at -3dB points
*Measured under pulsed conditions. Pulse width=200µs. Duty cycle =1%
FMMT3905
FMMT3906
Delay and Rise Time
Equivalent Test Circuit
Storage and Fall Time
Equivalent Test Circuit
PAGE NUMBER PAGE NUMBER
C
B
E
SWITCHING CHARACTERISTICS (at Tamb=25 °C unless otherwise stated)
PARAMETER SYMBOL FMMT3905 FMMT3906 UNIT CONDITIONS
MIN MAX MIN MAX
Delay Time td35 35 ns VCC
=-3V, VBE(off)
=-0.5V
IC=-10mA, IB1=-1mA
(See Fig.1)
Rise Time tr35 35 ns
Storage Time ts200 225 ns VCC
=-3V, IC=-10mA
IB1=-IB2=-1mA
(See Fig.2)
Fall Time tf60 75 ns
FMMT3905
FMMT3906
SOT23 NPN SILICON PLANAR
SWITCHING TRANSISTORS
ISSUE 3  NOVEMBER 1995 ✪
PARTMARKING DETAILS - FMMT3905 - 2W
FMMT3906 - 2A
COMPLEMENTARY TYPES - FMMT3905 - FMMT3903
FMMT3906 - FMMT3904
ABSOLUTE MAXIMUM RATINGS.
PARAMETER SYMBOL VALUE UNIT
Collector-Base Voltage VCBO -40 V
CollectorEmitter Voltage VCEO -40 V
Emitter-Base Voltage VEBO -5 V
Continuous Collector Current IC-200 mA
Power Dissipation at Tamb
=25°C Ptot 330 mW
Operating and Storage Temperature Range Tj:Tstg -55 to +150 °C
ELECTRICAL CHARACTERISTICS (at Tamb = 25°C unless otherwise stated).
PARAMETER SYMBOL FMMT3905 FMMT3906. UNIT CONDITIONS.
MIN MAX MIN MAX
BreakdownVoltages V(BR)CBO -40 -40 V IC=-10µA, IE=0
V(BR)CEO -40 -40 V IC=-1mA, IB=0*
V(BR)EBO -5 -5 V IE=-10µA, IC=0
Cut-Off Currents ICEX -50 -50 nA VCE
=-30V, VBE(off)
=-3V
IBEX -50 -50 nA VCE
=-30V, VEB(off)
=-3V
Static Forward
Current
Transfer Ratio
hFE 30
40
50
30
15
150
60
80
100
60
30
300
IC=-0.1mA, VCE
=-1V*
IC=-1mA, VCE
=-1V*
IC=-10mA, VCE
=-1V*
IC=-50mA, VCE
=-1V*
IC=-100mA, VCE
=-1V*
Saturation
Voltages
VCE(sat) -0.25
-0.4
0.25
0.4
V
V
IC=-10mA, IB=-1mA*
IC=-50mA, IB=-5mA*
VBE(sat) -0.65 -0.85
-0.95
-0.65 -0.85
-0.95
V
V
IC=-10mA, IB=-1mA*
IC=-50mA, IB=-5mA*
Transition
Frequency
fT200 250 MHz IC=-10mA, VCE
=-20V
f=100MHz
Output Capacitance Cobo 4.5 4.5 pF VCB
=-5V, IE=0, f=100KHz
Input Capacitance Cibo 10 10 pF VBE=0.5V, IC=0, f=100KHz
Noise Figure N 5 4 dB IC=-200mA, VCE
=-5V
Rg=2kΩ, f=30Hz to 15kHz
at -3dB points
*Measured under pulsed conditions. Pulse width=200µs. Duty cycle =1%
FMMT3905
FMMT3906
Delay and Rise Time
Equivalent Test Circuit
Storage and Fall Time
Equivalent Test Circuit
PAGE NUMBER PAGE NUMBER
