Parts Manual

. No. Descri

tion

Models

7800885 BTXPV226750HW, 22" 6.75GT Brute Steel Deck Self-

Propelled Walk Behind Mower (2012)

Revision A

Manual Part No. 1754554

Rev. Date: 2/29/2012

Not for

Reproduction

Not for

Reproduction

Table Of Content

Torque Specification Chart ..................................................................... Inside Back Cover

PRODUCT COMPONENTS PAGES

Handle & Controls Group ..................................................................................................................................... 4

Engine Group ....................................................................................................................................................... 6

Transmission Group, Front Wheel Drive ............................................................................................................. 8

Wheels Group ...................................................................................................................................................... 10

Decals Group ....................................................................................................................................................... 12

Deck Group .......................................................................................................................................................... 14

Grass Catcher ...................................................................................................................................................... 16

Not for

Reproduction

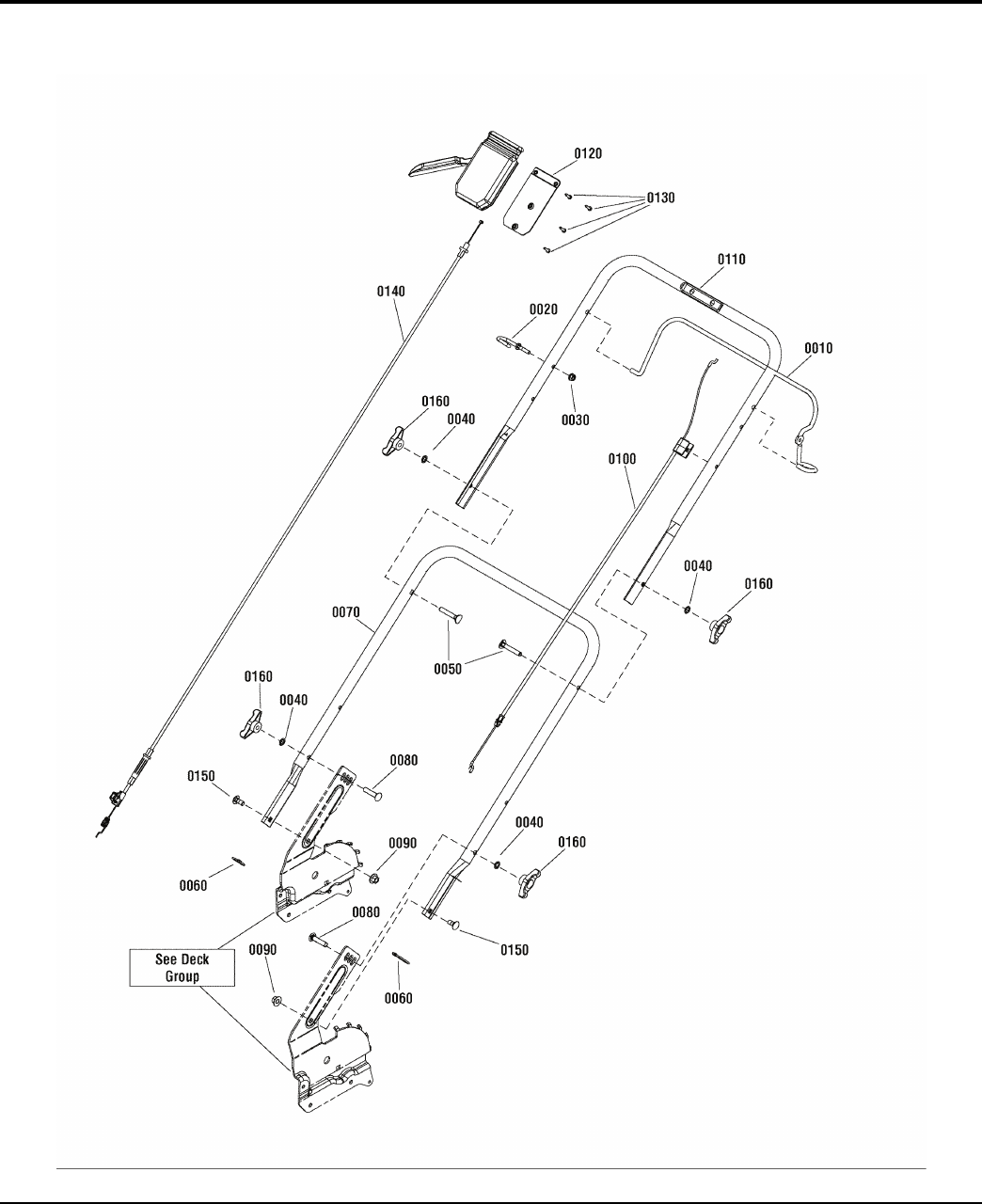

Handle & Controls Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

The above parts group applies to the following Mfg. Nos.:

Briggs & Stratton Power Porducts Group

2012

7800885 - BTXPV226750HW

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Handle & Controls Group

Footnotes

BAIL, Operator Presence Control, Propelled, Brute 0010 7101731AMA 1

GUIDE, ROPE (1/4-20 thread) 0020 7028488MA 1

NUT, Hex Flange, 1/4-20 0030 2860694SM 1

WASHER, 5/16" Internal Tooth Lock 0040 7090391SM 4

BOLT, Curved Head Square Neck, 5/16-18 x 2”, GR 2 0050 7091189YP 2

WIRE TIE, 11 Inch Std Black Nylon 0060 7024649YP 2

HANDLE, Lower, 21” Rear Discharge 0070 7300592AMA 1

BOLT, 5/16-18 x 1-1/2" Short Square Neck Carriage GR 5 0080 1931337SM 2

NUT, 5/16-18 Hex Large Flange Center Lock 0090 7090951SM 2

CABLE, Bail, 22" Walk-Behind Mower 0100 7101395YP 1

HANDLE, Upper, Brute, Propelled 0110 7300676AMA 1

PLATE, Control Panel 0120 7300130AMA 1

SCREW, #8-16 Torxplus Recessed Pan Head, Twin Helix 0130 7100225YP 4

ASSEMBLY, Control Box, Variable Speed 0140 7103677YP 1

BOLT, Carriage 5/16-18 x .75 0150 340720MA 2

KNOB, 5/16-18, Wing, Black 0160 7035744YP 4

The above parts group applies to the following Mfg. Nos.:

Briggs & Stratton Power Porducts Group

2012

7800885 - BTXPV226750HW

Not for

Reproduction

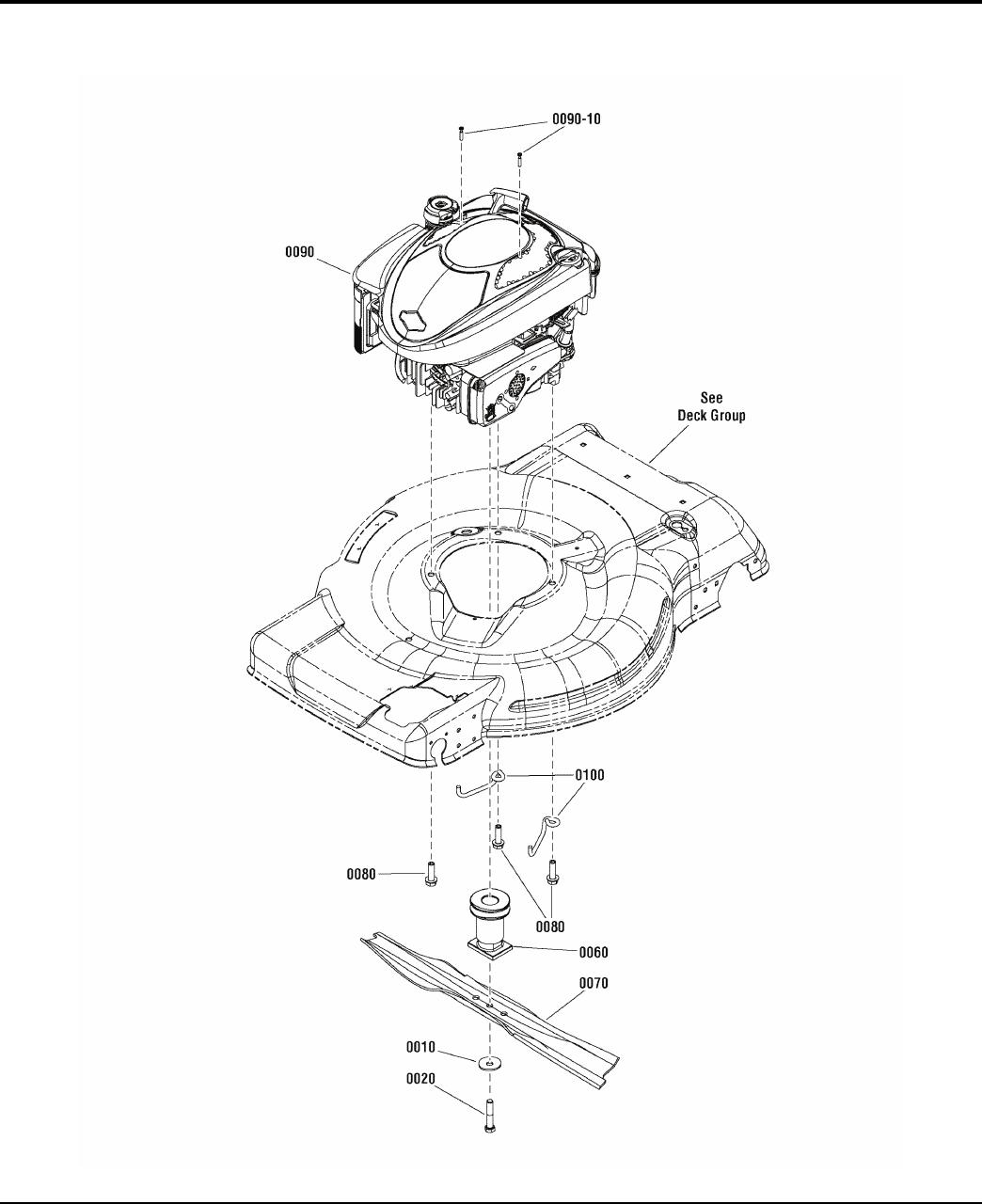

Engine Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

The above parts group applies to the following Mfg. Nos.:

Briggs & Stratton Power Porducts Group

2012

7800885 - BTXPV226750HW

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Engine Group

Footnotes

Note* See your local Briggs & Stratton distributor for parts and service.

The above parts group applies to the following Mfg. Nos.:

Briggs & Stratton Power Porducts Group

2012

7800885 - BTXPV226750HW

WASHER, Cone 00107012063SM 1

CAPSCREW, Hex Head, 3/8-16 x 2, GR 5 00207090167SM 1

HUB & PULLEY ASSEMBLY 00607105154YP 1

BLADE, Wave, Steel Deck 00707103288YP 1

SCREW, Hex Washer Head, Self Tap, 3/8-16 x 1-1/4 00807900072YP 3

* ENGINE, 6.75TP Briggs & Stratton (Engine Model 126M02-0675-F3)(Used before

Serial No. 2015745891)

0090126M02-0675-F3 1

* ENGINE, 6.75TP Briggs & Stratton (Engine Model: 126L02-4675-F3)(Used after

Serial No. 2015745892)

0090126L02-4675-F3 1

SCREW, Pan HD Cross Recess, Tapping 0090-10 691138 2

BELT GUIDE 01007103517YP 2

Not for

Reproduction

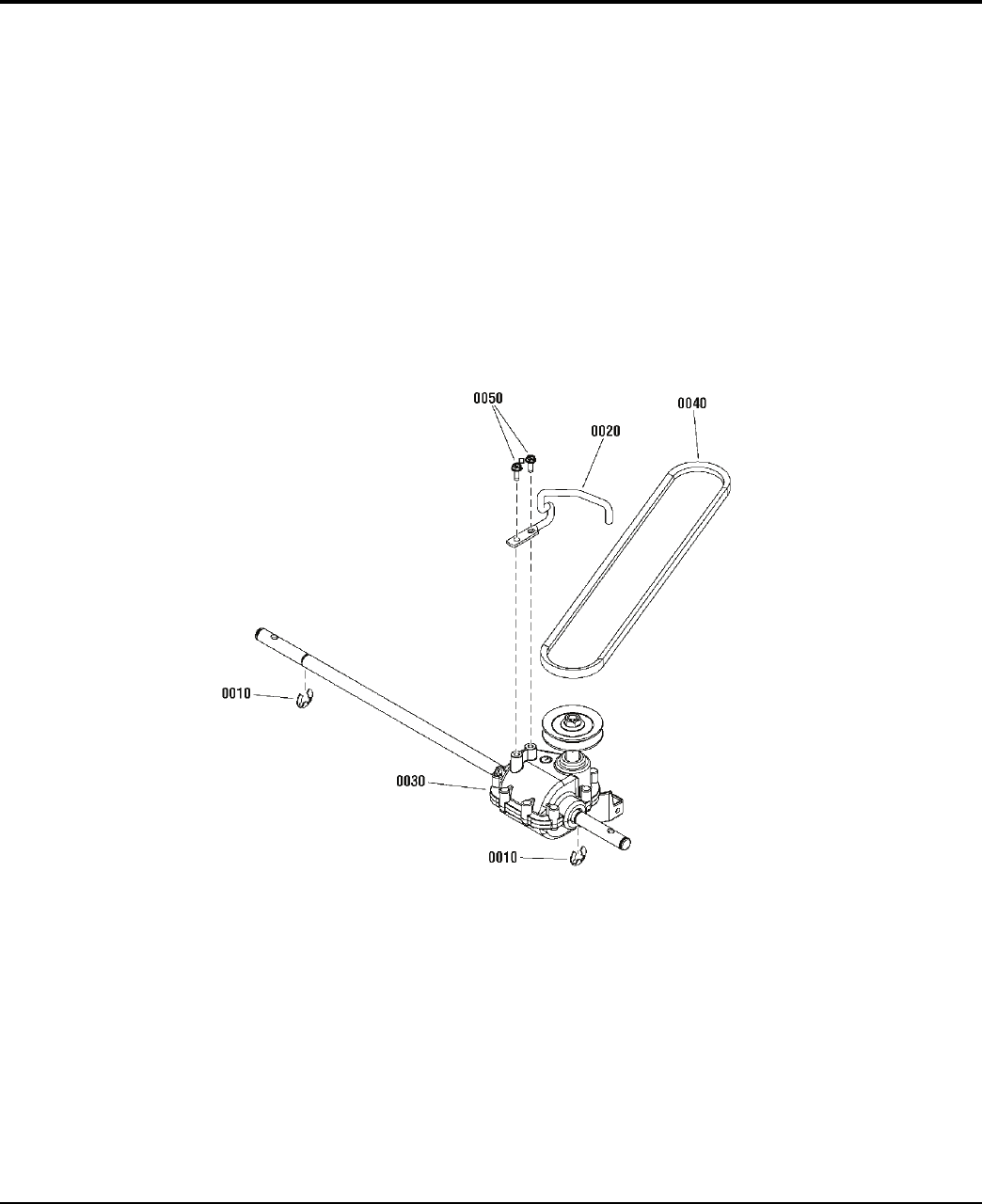

Transmission Group, Front Wheel Drive

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

The above parts group applies to the following Mfg. Nos.:

Briggs & Stratton Power Porducts Group

2012

7800885 - BTXPV226750HW

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Transmission Group, Front Wheel Drive

Footnotes

RETAINING RING, 1/4” (Waldes No. 5133-50 or equivalent) 0010 7014341YP 2

BELT GUIDE, Front Wheel Drive 0020 7103304YP 1

TRANSMISSION, VS, FWD 0030 7103311YP 1

* BELT, 3L, Traction Drive, 22” WBM, FWD (32.40 Effective Length) 0040 7103362YP 1

SCREW, #10-14 x 1/2” Hex Washer Self-Tap, Plastite 0050 7900055YP 2

NOTE: * Part Number is stamped on belt.

The above parts group applies to the following Mfg. Nos.:

Briggs & Stratton Power Porducts Group

2012

7800885 - BTXPV226750HW

Not for

Reproduction

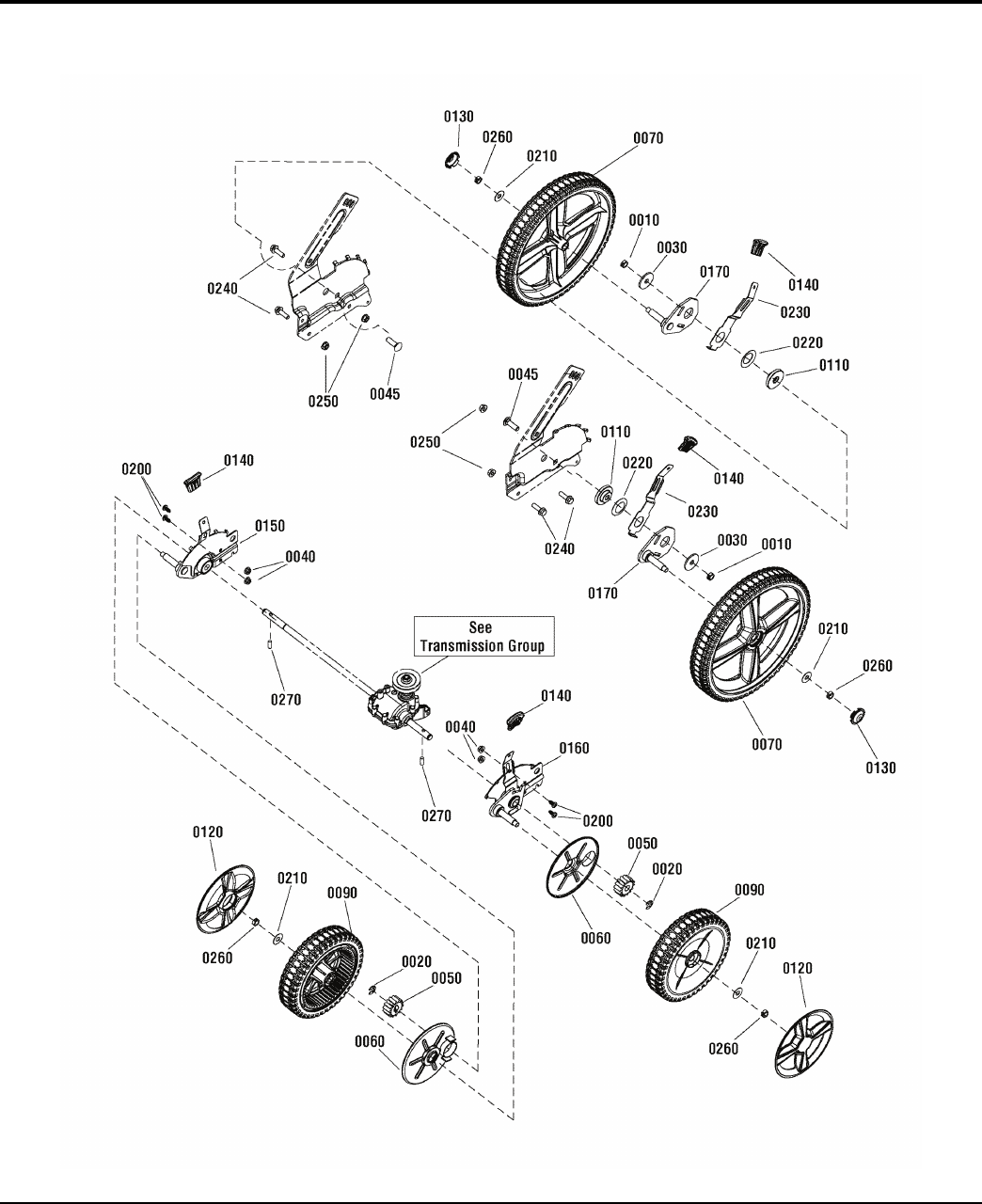

Wheels Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

The above parts group applies to the following Mfg. Nos.:

Briggs & Stratton Power Porducts Group

2012

7800885 - BTXPV226750HW

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Wheels Group

Footnotes

NUT, Hex Centerlock Jam, 3/8-16 0010 1960251SM 2

RING, External Retaining 0020 7014341YP 2

WASHER, 13/32 x 1-1/2” x .120 Flat, YZ 0030 7091331SM 2

NUT, 1/4-20 Hex Flange Lock, GR 5 0040 7091584SM 4

BOLT, Carriage, 3/8-16 x 1-1/4, GR5 0045 7091790YP 2

GEAR, Pinion, 22" WBM, Front Wheel Drive 0050 7101207YP 2

SHIELD, Dust, 22” WBM, Front Wheel Drive 0060 7101402YP 2

WHEEL,12" x 2" Idle, w/Db Tread, Brute Yellow 0070 7101708MA 2

WHEEL, 8" X 2" Idle w/Db Tread, Brute, Satin Black 0090 7103500YP 2

BUSHING, Pivot, Hi-Wheel, Rear 0110 7103511YP 2

HUBCAP, 8"& 9" Wheel Spoked, P-391 St Yellow 0120 7103539YP 2

HUBCAP, 12" Rim Yellow 0130 7103540YP 2

GRIP, Height Latch, P-391-St, Yellow 0140 7103542YP 4

ASSEMBLY, Height-Of-Cut, RF, 22" WBM, Propelled 0150 7600104YP 1

ASSEMBLY, Height-Of-Cut, LF, 22" WBM, Propelled 0160 7600105YP 1

ASSEMBLY, Wheel Bracket, Rear, High-Wheel (staked) 0170 7501639YP 2

SCREW, Pan Head, Self Tap, Torx, 1/4-20 x 1/2 0200 7900067YP 4

WASHER, Flat, 3/8 0210 17X169MA 4

WASHER, 1” ID x 1.64 OD Bellville 0220 17X178MA 2

LEVER, Front, Height-Of-Cut, 22" 0230 7103301YP 2

BOLT, 5/16-18 x 1" Hex Flange Lock, GR 5, YZ 0240 7091591SM 4

NUT, 5/16-18 Hex Flange lock, YZ 0250 7091601SM 4

NUT, Center Lock Hex, 3/8-16, GR 5 0260 7091585SM 4

DRIVE PIN, 22" WBM, Front Wheel Drive 0270 7101270YP 2

The above parts group applies to the following Mfg. Nos.:

Briggs & Stratton Power Porducts Group

2012

7800885 - BTXPV226750HW

Not for

Reproduction

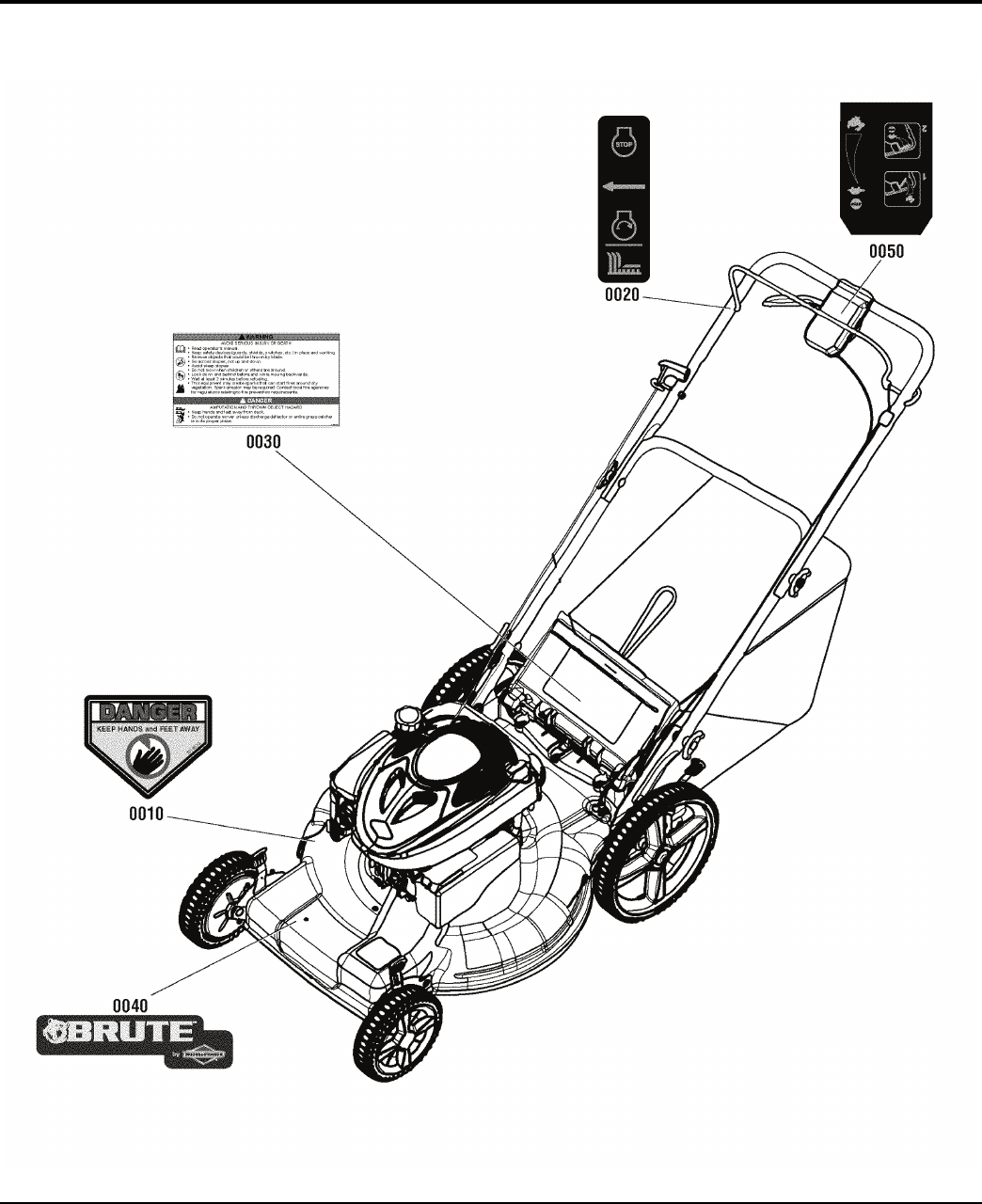

Decals Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

The above parts group applies to the following Mfg. Nos.:

Briggs & Stratton Power Porducts Group

2012

7800885 - BTXPV226750HW

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Decals Group

Footnotes

DECAL, Danger, Cut Finger 0010 7013010SM 1

DECAL, OPC Bail International Symbol 0020 7029782MA 1

DECAL, Warning, Walk-Behind Mower 0030 7105219YP 1

DECAL, Brute Walk-Behind Mower 0040 7103545YP 1

DECAL, Control Head 0050 7105307YP 1

The above parts group applies to the following Mfg. Nos.:

Briggs & Stratton Power Porducts Group

2012

7800885 - BTXPV226750HW

Not for

Reproduction

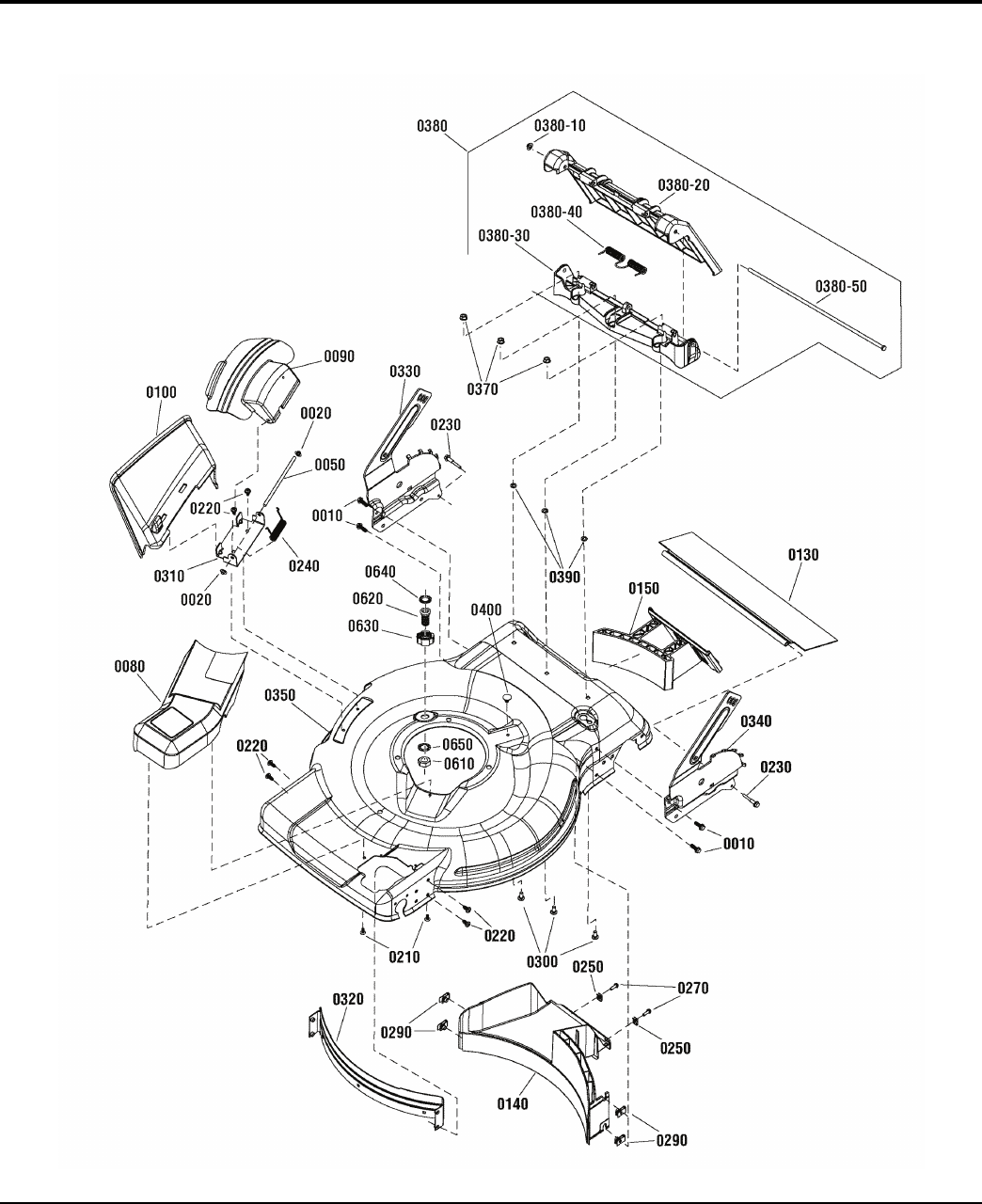

Deck Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

The above parts group applies to the following Mfg. Nos.:

Briggs & Stratton Power Porducts Group

2012

7800885 - BTXPV226750HW

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Deck Group

Footnotes

BOLT, 1/4-20 x 3/4" Hex Flange Lock, GR 5 0010 7090699YP 4

PUSHNUT, 1/4" 0020 7091020YP 2

ROD, Pivot 0050 7101067YP 1

ASSEMBLY, Belt Cover w/Heat Patch 0080 7600108YP 1

COVER, Mulching 0090 7103298YP 1

CHUTE, Side Discharge, 22" WBM 0100 7103299YP 1

GUARD, Rear 22" 0130 7103323YP 1

BAFFLE, Rear, Front Wheel Drive WBM 0140 7103452YP 1

PLUG, Mulching, 22" Deck 0150 7103453YP 1

SCREW, Hi-Lo, 4.8 x 1.59 x 13mm Round Washer Head 0210 7900018YP 2

SCREW, Pan Head, Self Tap, Torx, 1/4-20 x 1/2 0220 7900067YP 6

BOLT, Drag Shield, 1/4-20 x 1-1/2” 0230 7900073YP 2

SPRING, Torsion 0240 166X38MA 1

SPEED NUT, #10-24 Retainer with Extrusion 0250 1960593SM 2

SCREW, Hex Washer Self Tap, #10C x 5/8, GR 5 0270 7091075SM 2

U-NUT, 1/4-20 0290 7023295SM 4

BOLT, 1/4-20 x 5/8” Flat Head Square Neck, GR 5 0300 7090803YP 3

BRACKET, Chute 0310 7300855BMYP 1

BAFFLE, Front 0320 7301020YP 1

BRACKET, Lower Handle, RH, Hi-Wheel 0330 7301090AYP 1

BRACKET, Lower Handle, LH, Hi-Wheel 0340 7301091AYP 1

DECK, 22", Front Wheel Drive, Washout 0350 7301111ZYP 1

NUT, Flange Lock, 1/4-20 0370 15X143MA 3

DOOR ASSEMBLY, Rear (Incl. Ref. Nos. 0380-10, 0380-20, 0380-30, 0380-40, &

0380-50)

0380 7501541YP 1

NUT, Push, 1/4 (Included with Ref. No. 0380) 0380-10 7091020YP 1

DOOR, Rear Discharge (Included with Ref. No. 0380) 0380-20 7103291YP 1

HINGE, Door (Included with Ref. No. 0380) 0380-30 7103292YP 1

SPRING, Torsion, Rear Door (Included with Ref. No. 0380) 0380-40 7103309YP 1

ROD, Pivot, Rear Door (Included with Ref. No. 0380) 0380-50 7103322YP 1

RETAINER, 1/4" Bolt 0390 1960518SM 3

FASTENER, Panel 0400 0193X1MA 1

WASHOUT PORT ASSEMBLY -- ----- 1

NUT, 5/8-11 NC-2B Hex Jam 0610 1960716SM 1

ADAPTOR, Washout Port, WBM 0620 7103804YP 1

COUPLING, Hose 0630 7103919YP 1

WASHER, Hose 0640 7103957YP 1

WASHER, Internal Tooth, 5/8 0650 7090880YP 1

The above parts group applies to the following Mfg. Nos.:

Briggs & Stratton Power Porducts Group

2012

7800885 - BTXPV226750HW

Not for

Reproduction

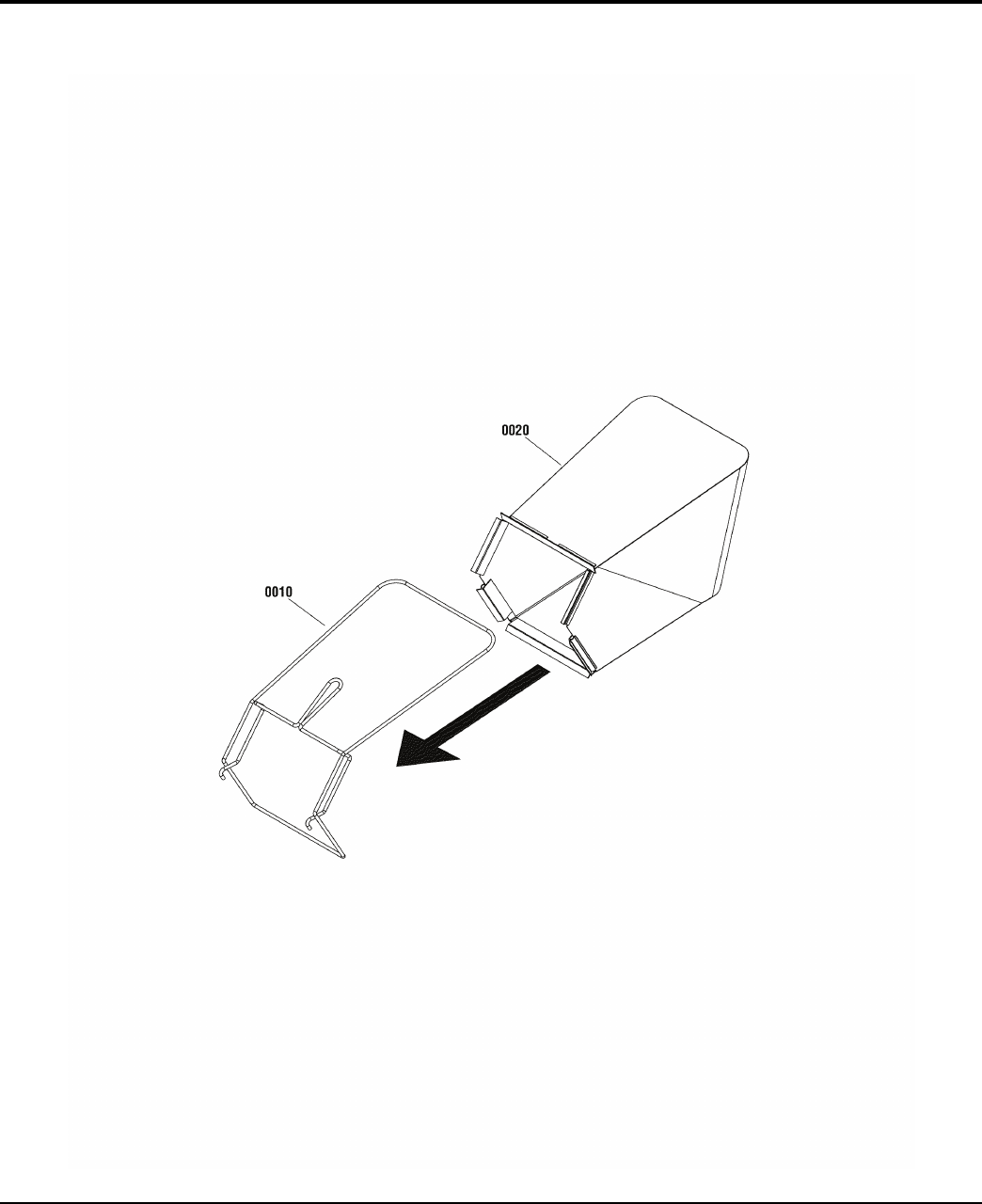

Grass Catcher

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

The above parts group applies to the following Mfg. Nos.:

Briggs & Stratton Power Porducts Group

2012

7800885 - BTXPV226750HW

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Grass Catcher

Footnotes

FRAME, Grass Bag, Rear Discharge 0010 7103305AYP 1

GRASS BAG, 22” Rear Discharge 0020 7103375YP 1

The above parts group applies to the following Mfg. Nos.:

Briggs & Stratton Power Porducts Group

2012

7800885 - BTXPV226750HW

Not for

Reproduction

BRITISH COLUMBIA ALBERTA SASKATCHEWAN MANITOBA

ONTARIO QUEBEC

Small Engine Clinic

12/07

HAWAII

INCLUDES TRUST ISLANDS WITH

UNITED STATES ZIPCODES

Magneto Power

Atlantic Power

MWE

Central Power

Preferred Power

SEDCO

Power Source Canada

(800) 733-7388

(800) 456-5692

(800) 683-8484 (800) 331-7164 (905) 829-0006

(800) 444-7774 (800) 346-4260

Not for

Reproduction

Briggs & Stratton Corporation

INTEGRATED DISTRIBUTOR NETWORK

Midwest Engines 700 Enterprise Rd Aurora, IL 60504 www.mwe.net (800) 683-8484

Central Power Systems 3700 Paragon Dr Columbus, OH 43228 www.centralpower.com (800) 444-7774

Atlantic Power 20 Empire Stat Rd Castleton, NY 12033 www.atlanticpowerinc.com (800) 456-5692

Preferred Power Inc 6509-A Northpark Blvd Charlotte, NC 28216 www.centralpower.com (800) 331-7164

Central Power Systems 3700 Paragon Dr Columbus, OH 43228 www.centralpower.com (800) 444-7774

Magneto Power LLC 1000 W. Donges Bay Rd Suite 100 Mequon, WI 53092 www.magnetopower.com (800) 733-7388

Sedco, Inc 225 Henry D. Robinson Blvd Pendergrass, GA 30567 www.sedcoinc.com (800) 346-4260

Power Source Canada, LTD 2815 Bristol Circle, Unit 1 Oakville, ON L6H 6X5 www.powersourcecanada.ca (905) 829-0006

Not for

Reproduction

Not for

Reproduction

Not for

Reproduction

Not for

Reproduction

in/lbs

ft/lbs

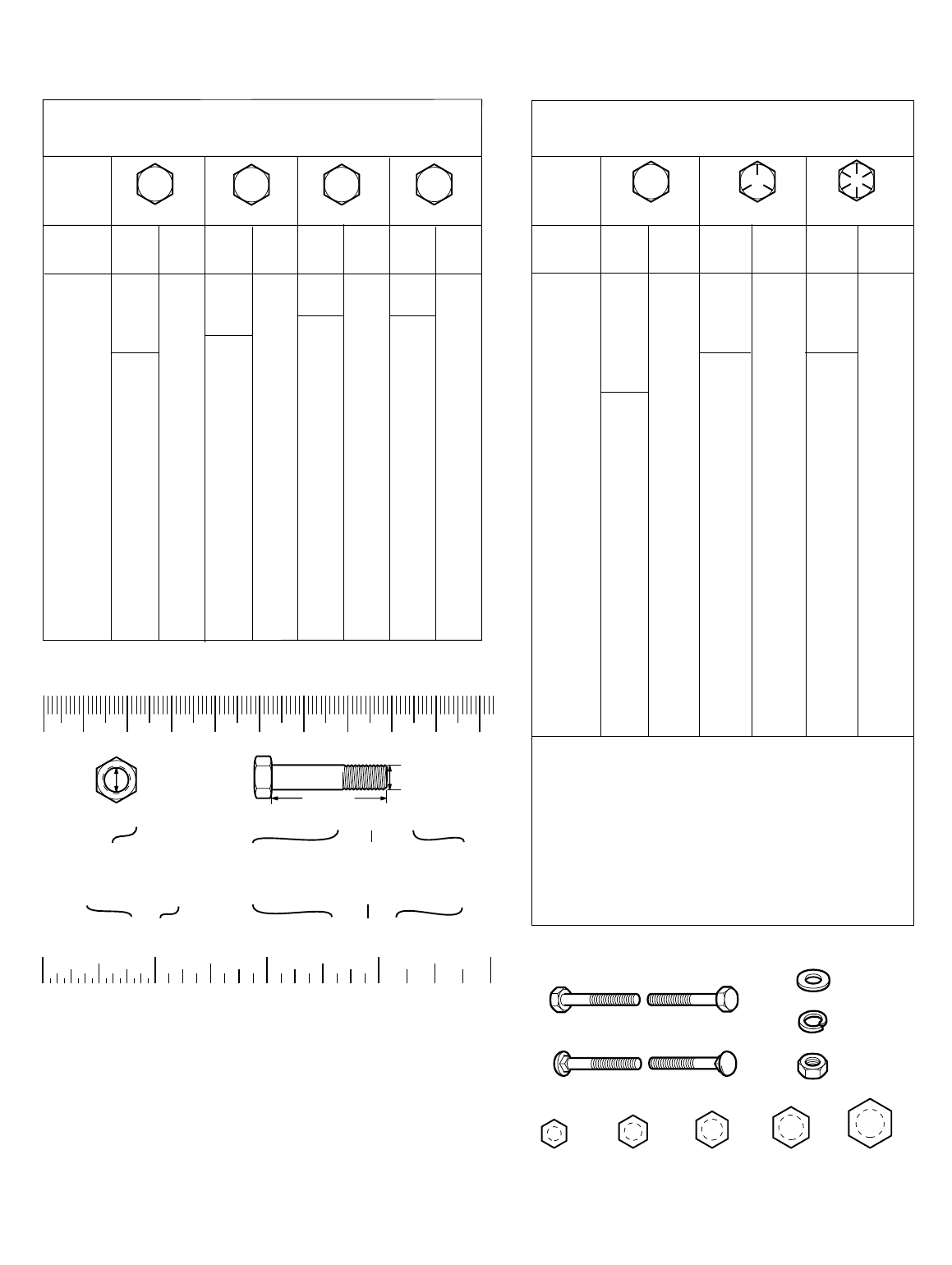

Torque Specification Chart

FOR STANDARD METRIC MACHINE HARDWARE (Tolerance ± 20%)

Property

Class

Class 8.8 Class 10.9 Class 12.9

Size Of

Hardware Nm. Nm. Nm. Nm.

1.28

2.90

5.75

9.9

16.5

132

200

275

390

530

375

995

1350

1830

2360

3050

13.44 1.80

4.10

8.10

117

185

285

390

550

745

960

1400

1900

2580

3310

4290

19.2 22.92

2.15

30.72 43.44 52.56

4.95

60.96

5.97 7.15

16.5

9.7

M6 7.3 10.3 12.1

M7 12.1 16.9 19.9 27

M8 17.7 25 29 40

M10 35 50 59 81

M12 61 86.2 103 140

M14 101 136 162 220

M16 147 210 250 340

M18 202 287 346 470

M20 290 405 486 660

M22 390 559 656 890

M24 497 708 840 1140

M27 733 1032 1239 1680

M30 995 1401 1681 2280

M33 1349 1902 2278 3090

M36 1740 2441

3798

2935 3980

M39 2249 3163

Torque Specification Chart

FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)

Hardware

Grade

SAE Grade 2 SAE Grade 5 SAE Grade 8

Size Of

in/lbs

ft/lbs

in/lbs

ft/lbs

in/lbs

ft/lbs

in/lbs in/lbs

Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.

8-32

2.1

3.4

4.6

8-36

2.3

3.5

4.9

10-24

3.1

4.9

6.8

10-32

3.5

5.5

7.7

1/4-20

7.6 810.9 12 16.3

1/4-28

8.6 10 13.6 14 19.0

5/16-18 11 15.0 17 23.1 25 34.0

5/16-24 12 16.3 19 25.8 29 34.0

3/8-16 20 27.2 30 40.8 45 61.2

3/8-24 23 31.3 35 47.6 50 68.0

7/16-14 30 40.8 50 68.0 70 95.2

7/16-20 35 47.6 55 74.8 80 108.8

1/2-13 50 68.0 75 102.0 110 149.6

1/2-20 55 74.8 90 122.4 120 163.2

9/16-12 65 88.4 110 149.6 150 204.0

9/16-18 75 102.0 120 163.2 170 231.2

5/8-11 90 122.4 150 204.0 220 299.2

5/8-18 100 136 180 244.8 240 326.4

3/4-10 160 217.6 260 353.6 386 525.0

3/4-16 180 244.8 300 408.0 420 571.2

7/8-9 140 190.4 400 544.0 600 816.0

7/8-14 155 210.8 440 598.4 660 897.6

1-8 220 299.2 580 788.8 900 1,244.0

1-12 240 326.4 640 870.4 1,000 1,360.0

Hex Head Capscrew

Hex Nut

Lockwasher

Washer

Carriage Bolt

NOTES

1. These torque values are to be used for all hardware

excluding: locknuts, self-tapping screws, thread forming

screws, sheet metal screws and socket head setscrews.

2. Recommended seating torque values for locknuts:

a. for prevailing torque locknuts - use 65% of grade 5

torques.

b. for flange whizlock nuts and screws - use 135% of

grade 5 torques.

3. Unless otherwise noted on assembly drawings, all torque

values must meet this specification.

Hardware Identification & Torque Specifications

Common Hardware Types

Marks

The guides and ruler furnished below are designed to

help you select the appropriate hardware.

8.8 10.9 12.9

Class 5.6

5.6

5150

13.44 1.28

5.88

26.4 2.50

44.64 4.3

5.2

7.1

7.7

10.5

988

1340

759

1030

590

800

435

590

320

435

217

295

169

230

126

171

121

.56

Thread

Diameter (mm)

Screw, 1/2- 16 x 2

Body

Diameter

Inside

Diameter (in)

Nut, 1/2-16

1/4 3/4

1/2

1/4 3/4

1/2 1/4 3/4

1/2

90 10070 80

50 60

30 40

01020

Thread

Diameter (mm)

Nut, M8 Screw, M8- 1.25 x 25

Distance between

threads (mm)

Body

Length (in)

Body

Length (mm)

3/8” Bolt or Nut

Wrench—9/16”

5/16” Bolt or Nut

Wrench—1/2”

1/4” Bolt or Nut

Wrench—7/16”

1/2” Bolt or Nut

Wrench—3/4”

7/16” Bolt or Nut

Wrench (Bolt)—5/8”

Wrench (Nut)—11/16”

in/lbs

Threads

per inch

Threads

per inch

Body Length

Body

When a washer or nut is identified as 1/2” (M8), this is

the

Nominal size

, meaning the

inside diameter

is 1/2 inch

(8mm metric thread diameter); if a second number is present

it represents the

threads per inch

(distance between threads).

When bolt or capscrew is identified as 1/2 - 16 x 2” (M8 - 1.25 x 50 ),

this means the

Nominal size

, or body diameter is 1/2 inch (8mm

metric thread diameter), the second number,16, represents the

threads per inch, (1.25 thread diameter).

The final number is the

body length of the bolt or screw, 2 inches (50mm).

Standard Hardware Sizing

M6 Bolt or Nut

Wrench—10mm

M8 Bolt or Nut

Wrench—13mm

M10 Bolt or Nut

Wrench—17mm

M12 Bolt or Nut

Wrench—19mm

M14 Bolt or Nut

Wrench—22 mm

Wrench & Fastener Size Guide

Not for

Reproduction

12301 W. Wirth Street

Wauwatosa, WI, 53222 USA

www.brutepower.com

2012

Briggs & Stratton Power Products Group

IT IS THE POLICY OF BRIGGS & STRATTON CORP. TO IMPROVE ITS PRODUCTS

WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO

MAKE CHANGES OR ADD IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY

OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS.

BRUTE™ is a trademark of Briggs & Stratton Power Products.

reproduced or transmitted in any form by any means without the express written permission of Briggs &

Stratton Power Products Group.

ILLUSTRATED PARTS LIST Brute 22 6.75TP 7800885 BTXPV226750HW !! Fmnrz IS.QFz XFix2

Preview ! fmnrzIS.QFzXFix2 2wire Lawn Mower Manuals - Lawn Mower Manuals – The Best Lawn Mower Manuals Collection

Navigation menu

Versions of this User Manual:

Views

Navigation
