Home Audio 2007
Focal-JMlab® - BP 374 - 108, rue de l’Avenir - 42353 La Talaudière cedex - France
Tel. +33 4 77 435 700 - Fax +33 4 77 435 704 - www.focal-fr.com
© Focal-JMlab 2006 - SCAB-070202/2
Focal®, Utopia®, Electra®, Profile®, Chorus®, Sib & Co®, ”W”®, Gamma Structure®, Focus Time®,
Focus Ring®, Power Flower®, Be Tweeter®, IAL®, Multiferrite®, Polyglass®, OPC®, Powerflow®, Wall Boost Control®, Polyfix®
are registred trademark of Focal-JMlab®, BASH® is a trademark of Indigo™.
Due to constant technological advances, Focal-JMlab® reserves its right to modify specifi cations without notice. Images may not conform exactly to specifi c product - Photos L’Atelier Sylvain Madelon.
Home Audio
> The birthplace of French industry,
St-Etienne has become the European
capital of design. Between tradition
and modernism, Focal is rich with
a unique savoir-faire, which allows
it to rise to the status of a luxury
manufacturer. All the R & D, the drive-
unit manufacturing and loudspeaker
assembly are concentrated on a single
production site, where more than
200 people are driven by the same
passion: to offer you the best of Focal
loudspeakers.
Since 1980, Focal has designed, deve-
loped and manufactured drive-units and
loudspeakers. Our renown is internatio-
nal: that of a market leader in the seg-
ment of quality acoustic loudspeakers.
Over these years, several legendary
models and series have appeared and
led the way to greater success and
prestige. At the zenith of this evolution,
the Grande Utopia Be. This speaker
alone created a worldwide shock that
inscribed Focal into history books as the
most innovative loudspeaker brand on
the planet.
Innovation, design and industrialisa-
tion follow in a tradition where skilled
handwork remains an essential element
of our luxury offerings, and justifies our
activities in research and development,
and most of all the manufacturing of
our loudspeakers at our production site.
Dynamism and creativity are intrinsic
Focal values.
As we believe that to push limits is the
only possible avenue to innovation and
that all that belongs to the domain of
the impossible simply represents a chal-
lenge. The inverted-dome tweeter, pure
Beryllium, the exclusive ”W” sandwich
composite cone, Polyglass, the OPC
crossover, Focus Ring, IAL structure,
high-output BASH® digital amplification,
subwoofers with digital processing…
all these technologies represent solu-
tions to the previously impossible.
the Spirit of Sound

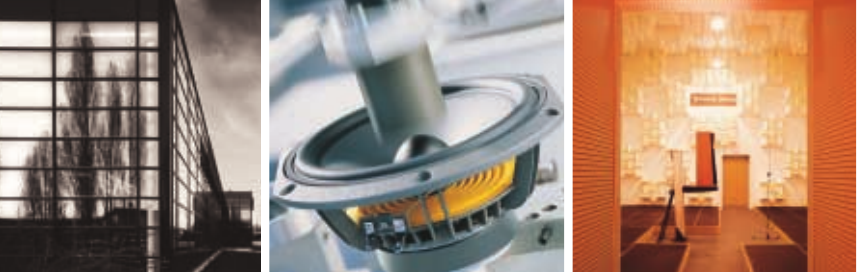

> Utopia series assembly line
> On site Corporate Headquarters
> Our logistic department supplies
worldwide distribution
> Supply store
> Focal-JMlab site map in Saint-Etienne (France).
> R&D center
> 500m3 anechoic chamber
> Two listening rooms
> Drive unit and tweeter
production area
> Car audio assembly unit
> Home audio assembly unit

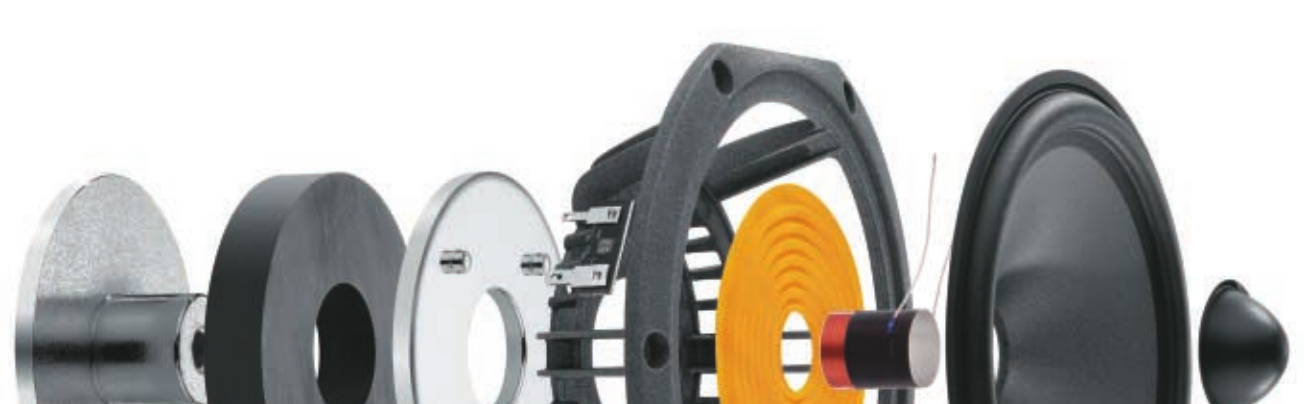

> Multiferrite® Woofer, Utopia Be.
The exception to the ordinary
Utopia Be

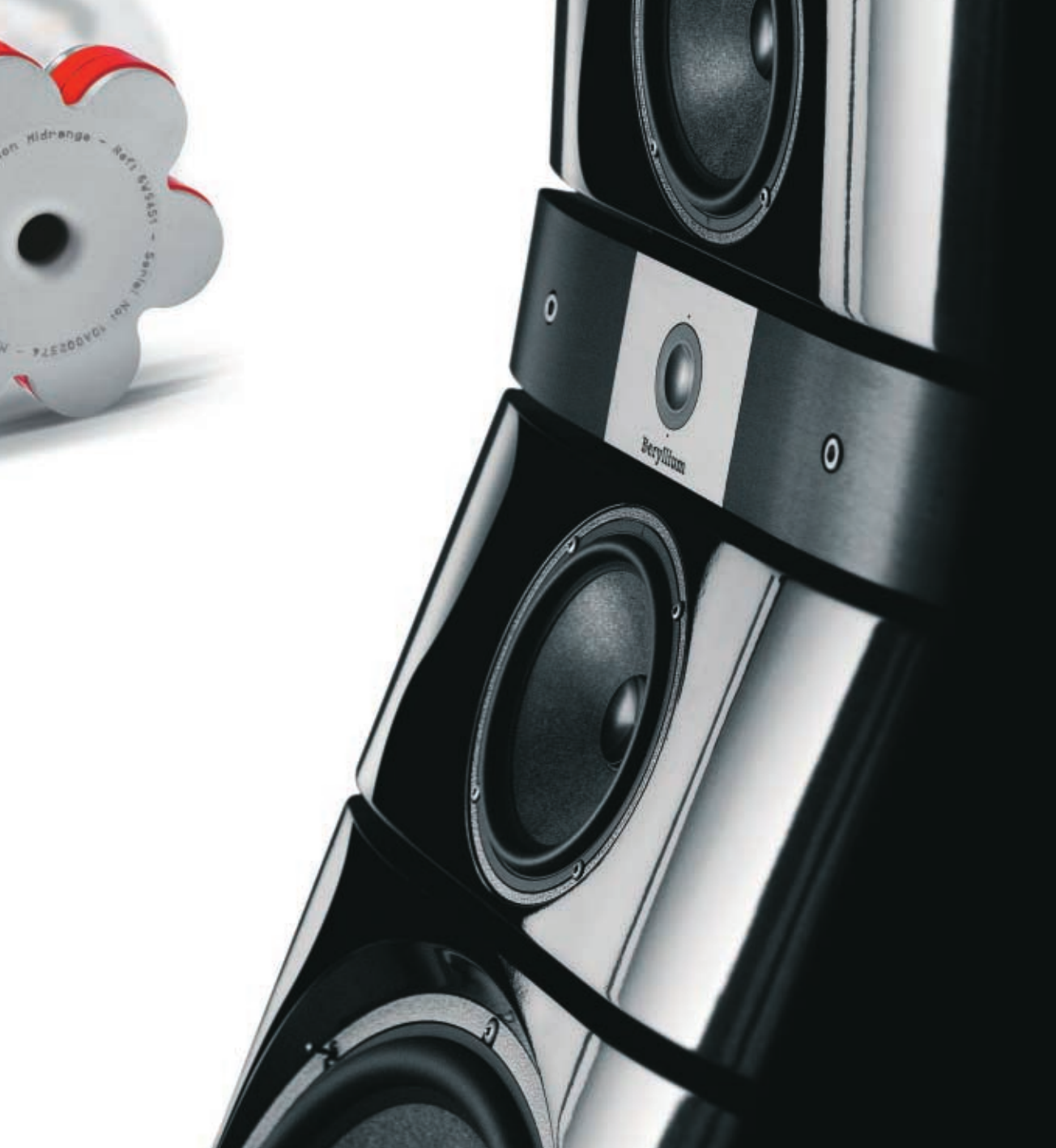

The Utopia Be is truly unique.
Unique especially due to the technolo-
gical challenges. Certainly, there is the
Beryllium tweeter, but also a multitude of
refi nements put into place: ”W” sand-
wich, magnetic circuits (Focus Ring,
Power Flower, Multiferrite), cabinet design
(Focus Time, Gamma Structure) and
crossover design (OPC).
Unique thanks to the quality of the ma-
terials and the incredible care given to
manufacturing. Unique in the scope of
the offering, which no other participant
in this industry can approximate. We
formulate a response to the multitude of
limitations in terms of environment and
integration, in audio as well as Home
Theater with detail that is on the edge
of obsession. The Utopia Be line is the
realisation of more than 25 years of re-
lentless work to appease an unlimited
passion for music reproduction. Years
of investment in industrial research and
development to obtain a total technical
mastery.
This is a condition sine qua none to
achieve an ultimate optimization in all of
the parameters required in the magic of
sound recreation.
It is our pleasure to share it now with you.
And so we gave life to Utopia Be…
Surpassing this technological challenge,
the Utopia Be line is above all a uni-
que human adventure for the group of
collaborators within Focal. Enthusiasm
and passion are the most extraordinary
agents of progress…
And then our progress is lauded with ju-
bilation when it is rewarded with the most
prestigious international reviews, as was
the case with the Grande Utopia Be. This
represented for Focal a true milestone in
the history of sound reproduction.

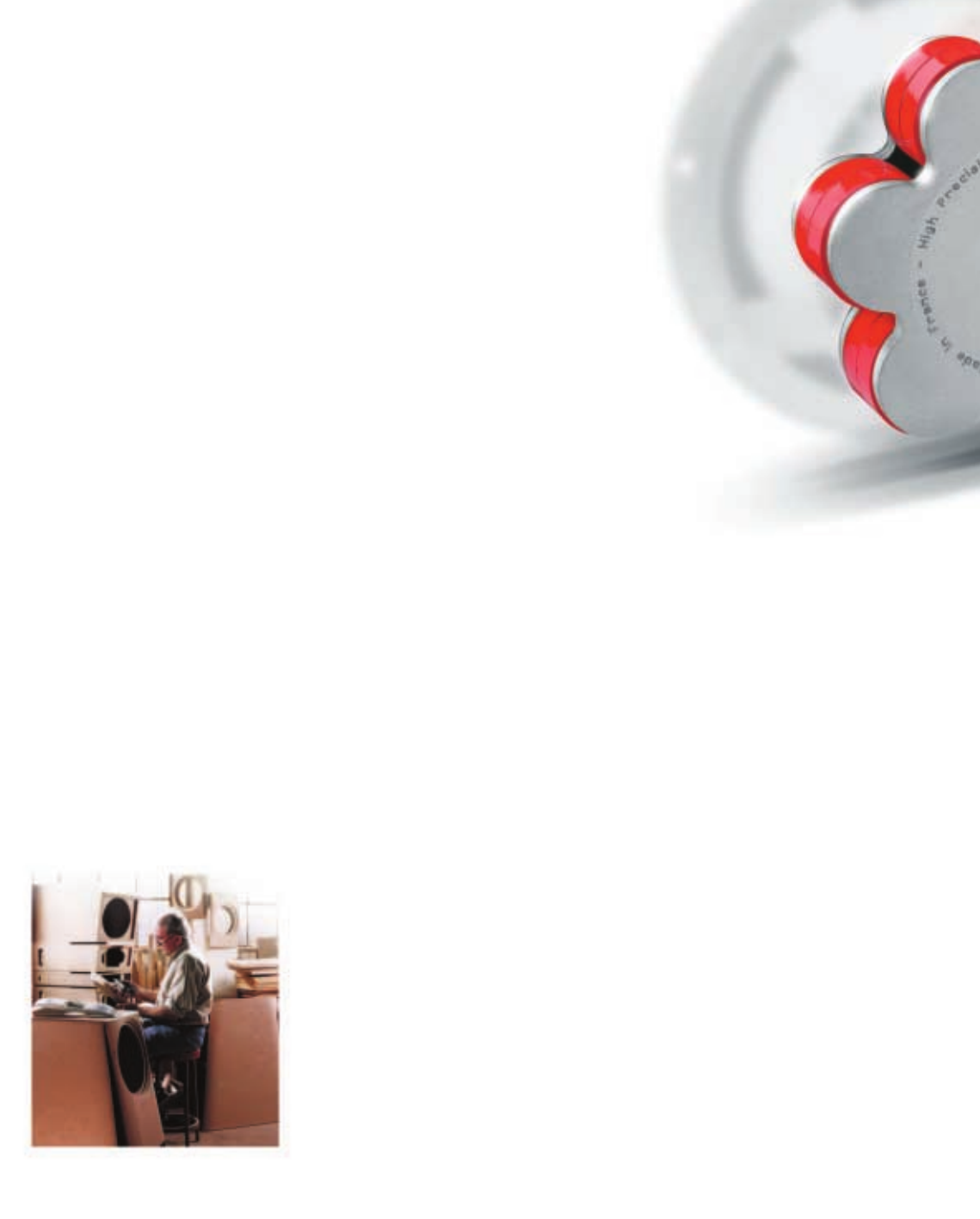

> All the loudspeakers of the Utopia Be series are
hand-crafted by artisan cabinet-makers.

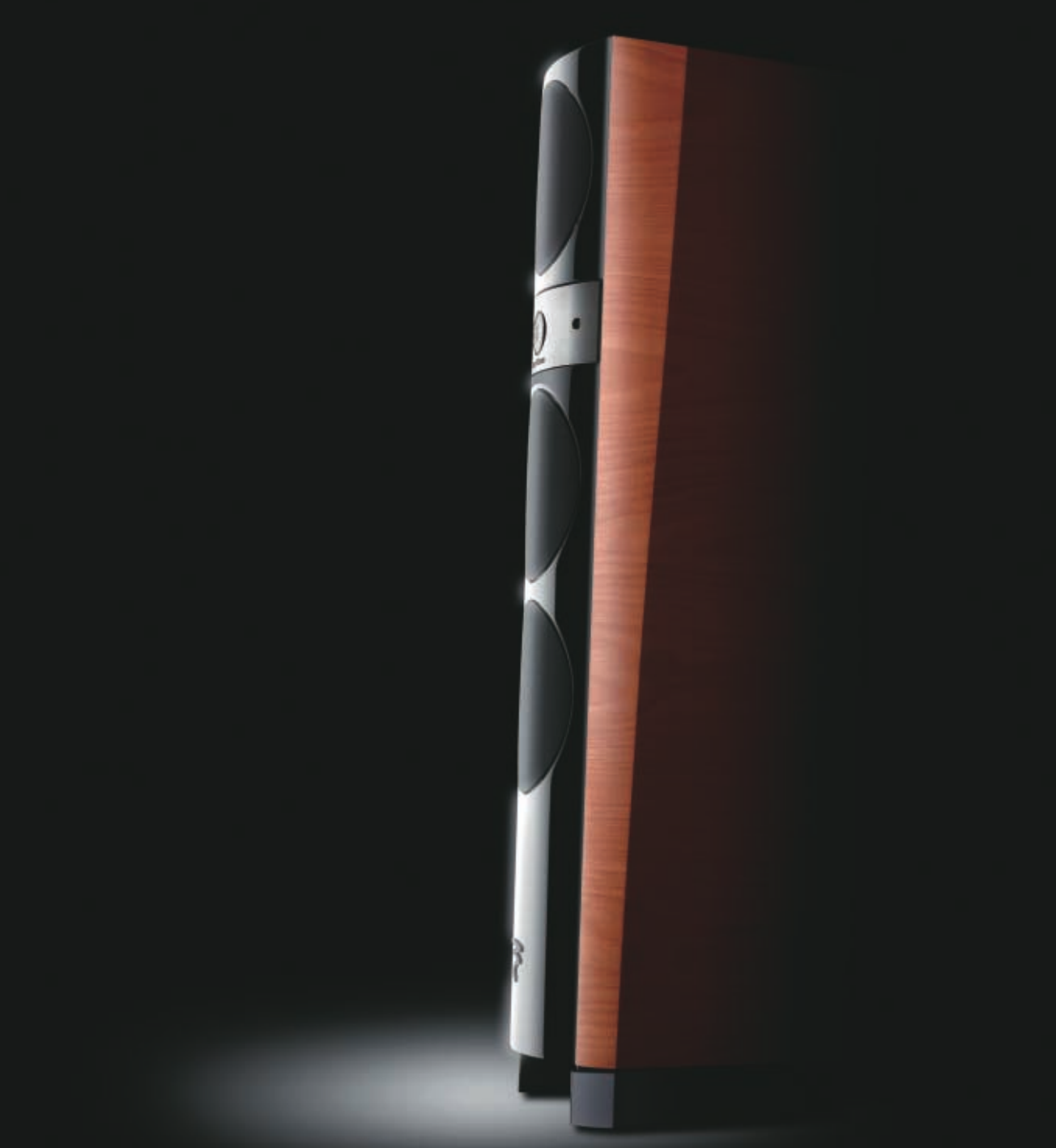

> Grande Utopia Be.
> 24" (60cm) optional SMU stand.
The Diva Utopia Be, it’s the expres-
sion of a single idea: to incorporate
the technologies from the Utopia Be
line into a compact floorstander.
Taking a midrange-tweeter configu-
ration derived from the Micro Utopia
Be, the Diva Utopia Be then adds
extra bass depth, thanks to two 8”
(21cm) sandwich ”W” woofers in
push-push mode on each side of
the speaker. The Diva Utopia Be
shines as an excellent transducer in
rooms of smaller dimensions, where
performance and integration can
frequently co-exist.
Closely related to the Grande
Utopia Be, the Alto Utopia Be
revisits all the technological ele-
ments. And although it may be
technically more simple, with a
11” (27cm) woofer and a single
Power Flower midrange, this was
a deliberate decision. Easy to
install and to position, the Alto
Utopia Be is above all a reference
loudspeaker which is easy to live
with in an everyday environment.
It is truly a fascinating loudspea-
ker that will propel you into a
musical universe without equal.
The Nova Utopia Be benefits
from the same pure Beryllium,
inverted-dome tweeter and two
Power Flower midranges that are
used in a similar configuration to
that of the Grande Utopia Be. Its
construction, just as elaborate,
uses the same principle as
independent loudspeakers for
each of the drive-units in order
to prevent all types of possible
interaction. The Nova Utopia Be
constitutes the ideal reference
solution for rooms of modest
dimensions.
The Grande Utopia Be is so much
more than a loudspeaker. It is a
true concept, the expression of
a dream: to create an ultimate
reference. The exclusive maste-
ring of pure Beryllium, the Focus
Ring and Power Flower drive-unit
motors are incredible innovations
that modestly help us progress
towards perfection. A true tech-
nological sculpture, the Grande
Utopia Be has imposed itself as
an international reference.
Grande Utopia Be
Classic finish
Nova Utopia Be
Signature finish
Alto Utopia Be
Style finish
Diva Utopia Be
Classic finish
• Type 4-way bass-refl ex fl oor
standing speaker. 3-way bass-refl ex fl oor
standing speaker. 3-way bass-refl ex fl oor
standing speaker. 3-way bass-refl ex fl oor
standing speaker.
• Drivers
15" (38cm) "W" Multiferrite woofer.
11" (27cm) "W" Multiferrite midbass.
2x61/2" (16.5cm) "W" Power Flower
midranges.
1" (25mm) TBU pure Beryllium
inverted dome tweeter.
13" (33cm) "W" Multiferrite woofer.
2x61/2" (16.5cm) "W" Power Flower
midranges.
1" (25mm) TBU pure Beryllium
inverted dome tweeter.
11" (27cm) "W" Multiferrite woofer.
61/2" (16.5cm) "W" Power Flower
midrange.
1" (25mm) TBU pure Beryllium
inverted dome tweeter.
2x11" (21cm) "W" woofer.
61/2" (16.5cm) "W" Power Flower
midrange.
1" (25mm) TBU pure Beryllium
inverted dome tweeter.
• Frequency response
(±3dB) 20Hz - 40kHz 25Hz - 40kHz 30Hz - 40kHz 35Hz - 40kHz
• Low frequency point
(-6dB) 16Hz 20Hz 25Hz 30Hz
• Sensitivity
(2.83V/1m) 92dB 91.5dB 91dB 90dB
• Nominal
impedance 8 Ohms 8 Ohms 8 Ohms 8 Ohms
• Minimum
impedance 3 Ohms 3.6 Ohms 3.2 Ohms 3 Ohms
• Crossover frequency 50Hz / 250Hz / 2 500Hz 250Hz / 2 500Hz 250Hz / 2 500Hz 180Hz / 2 500Hz
• Recommended
amplifier power 60 - 1000W 60 - 750W 40 - 500W 40 - 400W
• Dimensions
(HxWxD) 681/2x195/8x303/4"
(1 740x500x780mm) 521/2x171/4x241/2"
(1 337x440x621mm) 471/4x143/4x203/4"
(1 208x370x530mm) 431/4x95/8x21"
(1 100x250x532mm)
• Net weight 462.5lbs (210kg) 274.2lbs (124kg) 166.2lbs (75.5kg) 105.7lbs (48kg)
> 20" (50cm) optional SCU stand.
The Micro Utopia Be is a more
recent addition to the Focal-JMlab
tradition of high-quality two-way
loudspeakers. It is an ultimate
vision, as it incorporates all the
technologies of the Grande Utopia
Be: Beryllium tweeter, Focus Ring,
”W” cone, Power Flower, OPC,
”Gamma” structure, and Focus
Time designed to sit on the sand-
filled SMU stands. The Micro sedu-
ces with the incomparable fluidity
of its midrange-high frequencies.
The Sub Utopia Be is for the
bass what the inverted-dome, pure
Beryllium tweeter is for the treble.
Its 16” (40cm) woofer, propelled
by an enormous, 8kg Multiferrite
magnet and a 1000W RMS BASH®
amplifier is capable of delivering
125dB SPL in the bass. The TFP
port, the flexibility of its connection,
the incomparable finish and its
respectable weight of 52kg are as
well indications of an exceptional
product.
The L&R Utopia Be is a redrawn
Center Utopia Be designed to
be used in a vertical position for
very high-end home theater confi-
gurations that require identical
speakers in the front and back. It
can as well be used as a surround
loudspeaker to accompany floors-
tanders from the Utopia Be line.
All the qualities of the Utopia Be
are conserved in this loudspeaker
capable of an exceptional 3D
presentation.
A true 3-way, integrating a 10”
(25cm) woofer on top of the
speaker, the Center Utopia uses
two Power Flower midranges sur-
rounding the Beryllium tweeter.
The Center Utopia Be is designed
to sit on the SCU stand which is
sand-filled and at the optimum
height. This overly gifted louds-
peaker is ideal to accompany the
performance of the other speakers
in the line.
Micro Utopia Be
Style finish
Center Utopia Be
Signature finish
L&R Utopia Be
Style finish
Sub Utopia Be
Classic finish
• Type 2-way bass-refl ex bookshelf speaker. 3-way bass-refl ex center speaker. 3-way bass-refl ex LCR speaker. Active bass-refl ex subwoofer.
• Drivers
61/2" (16.5cm) "W" Power Flower
midbass.
1" (25mm) TBU pure Beryllium
inverted dome tweeter.
10" (25cm) "W" woofer.
2x61/2" (16.5cm) "W" Power Flower
midranges.
1" (25mm) TBU pure Beryllium
inverted dome tweeter.
10" (25cm) "W" woofer.
2x61/2" (16.5cm) "W" Power Flower
midranges.
1" (25mm) TBU pure Beryllium
inverted dome tweeter.
16" (40cm) "W" Multiferrite woofer.
• Frequency response
(±3dB) 50Hz - 40kHz 45Hz - 40kHz 45Hz - 40kHz 20Hz - 160Hz
• Low frequency point
(-6dB) 40Hz 35Hz 35Hz 16Hz
• Sensitivity
(2.83V/1m) 89dB 90dB 90dB
• Nominal
impedance 8 Ohms 8 Ohms 8 Ohms
• Minimum
impedance 5 Ohms 3.4 Ohms 3.4 Ohms
• Crossover frequency 2 500Hz 250Hz / 2 500Hz 250Hz / 2 500Hz
• Recommended
amplifier power 25 - 200W 40 - 500W 40 - 500W 1 000W BASH® amplifi er
• Dimensions
(HxWxD) 165/8x97/8x15"
(425x250x380mm) 113/4x275/8x171/2"
(300x700x443mm) 275/8x113/4x171/2"
(700x300x443mm) 193/4x205/8x245/8"
(500x530x633mm)
• Net weight 38.5lbs (17.5kg) 85.9lbs (39kg) 85.9lbs (39kg) 114.6lbs (52kg)
Subwoofer features
Adjustable LPF: 40Hz to 160Hz
(18dB/oct.),
adjustable phase (0 to 180°),
Stereo/Lfe RCA inputs,
Stereo/Lfe XLR inputs,
Stereo/Lfe XLR outputs,
Autopower,
Turbulence Free Port (TFP).
All of the models in the Utopia Be range are available in Classic, Style & Signature fi nishes.
But may not be available in some countries and/or in some retail outlets.
> Electra 1027 Be.
That which stirs emotion....
Electra 1000 Be
The Limited Edition Electra Be series
celebrated the 25th anniversary of
Focal. Its success was considerable,
as it was founded on a truly simple
concept: to make more accessible the
technologies previously reserved for
Utopia Be.
But in order to improve a series already
considered a reference, we had to
go further than ever before. In creating
Electra 1000 Be, we had to assimilate
an extraordinary technical heritage and
imagine innovative solutions in order
to progress. The new IAL tweeter, the
Advanced Gamma Structure cabinet
and other elements of the design were
created and employed to achieve a
single objective: a superlative, high-
defi nition sound.
Yet we didn’t want the Electra 1000 Be
range to be appreciated only for it’s
technical superiority: we also desired
it to be modern, balanced and easy to
integrate. We entrusted our ideas and
innovations to a design group in Paris
who sketched out the fi rst contours in
order to unite style and performance.
The result is the Electra 1000 Be
series, which is complete, ready for
hi-fi or home theatre, and easy to
install and use. Electra 1000 Be elicits
an emotional response in all who
experience its sophisticated aesthetics
and sensational performance.

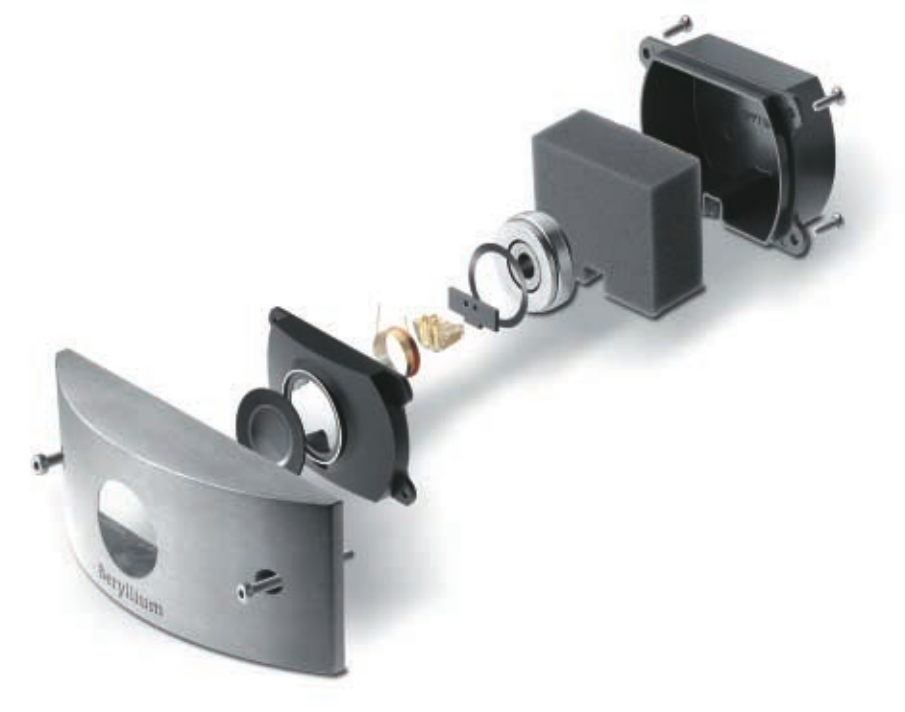

> Pure Beryllium inverted dome IAL tweeter.
Electra 1007 Be
Signature finish
Electra 1027 Be
Classic finish
Electra 1037 Be
Signature finish
Electra CC 1000 Be
Classic finish
• Type 2-way bass-refl ex bookshelf speaker. 3-way bass-refl ex fl oor standing
speaker. 3-way bass-refl ex fl oor standing
speaker. 3-way bass-refl ex shielded center
speaker.
• Drivers 61/2" (16.5cm) "W" mid-bass.
1" (25mm) pure Beryllium IAL inverted
dome tweeter.
Two 61/2" (16.5cm) "W" woofers.
61/2" (16.5cm) "W" midrange.
1" (25mm) pure Beryllium IAL
inverted dome tweeter.
Three 7" (18cm) "W" woofers.
61/2" (16.5cm) "W" midrange.
1" (25mm) pure Beryllium IAL
inverted dome tweeter.
Two 61/2" (16.5cm) "W" woofers.
3" (8cm) "W" midrange.
1" (25mm) pure Beryllium IAL
inverted dome tweeter.
• Frequency response
(±3dB) 46Hz - 40kHz 38Hz - 40kHz 33Hz - 40kHz 55Hz - 40kHz
• Low frequency point
(-6dB) 41Hz 30Hz 26Hz 50Hz
• Sensitivity
(2.83V/1m) 89dB 91dB 93dB 91dB
• Nominal
impedance 8 Ohms 8 Ohms 8 Ohms 8 Ohms
• Minimum
impedance 3.9 Ohms 3.5 Ohms 3.3 Ohms 4.1 Ohms
• Crossover frequency 2 000Hz 350Hz / 2 000Hz 230Hz / 2 000Hz 500Hz / 2 000Hz
• Recommended
amplifier power 25 - 150W 40 - 300W 40 - 400W 40 - 200W
• Dimensions
(HxWxD) 153/16x103/8x133/4"
(385x264x350mm) 4311/16x103/8x133/4"
(1 110x264x350mm) 493/16x1115/16x153/4"
(1 250x303x400mm) 91/4x24x133/4"
(235x609x350mm)
• Net weight 33lbs (15kg) 72.6lbs (33kg) 112.2lbs (51kg) 41.8lbs (19kg)
The Electra CC 1000 Be center
channel speaker inaugurates the
3 way Focal design adapted to
the pure Beryllium technology of
IAL. The timbre, perfectly matched
to the sound aesthetic of the other
loudspeakers and its controlled
horizontal directivity and exceptio-
nal linearity represent many rare
qualities for a truly exceptional
center channel speaker.
The Electra 1027 Be is an excep-
tional 3-way loudspeaker! Its
thoroughbred lines, truly unique
finish, its very strong personality
have no equal other than that of
the Utopia Be technology. A true
high-end product with a human
face, thanks to its mastered shape;
a key product in the Focal line-up.
A 2006 newcomer, the Electra
1037 Be adopts DNA from 1027
Be, but replaces the two 61/2”
(16.5cm) woofers in ”W” sand-
wich for three 7” (18cm) woofers.
Authority, rapidity and solidity in
the bass add to the fine Electra
1000 Be sonic signature and
pedigree.
The Electra 1007 Be symbolises
a two way, compact statement to
the very high end in the Focal lan-
guage. An impressive bass depth
and transparency for a loudspea-
ker of these dimensions. It comes
with a foam bung to be placed
when necessary into the port slot
to control the level of bass.

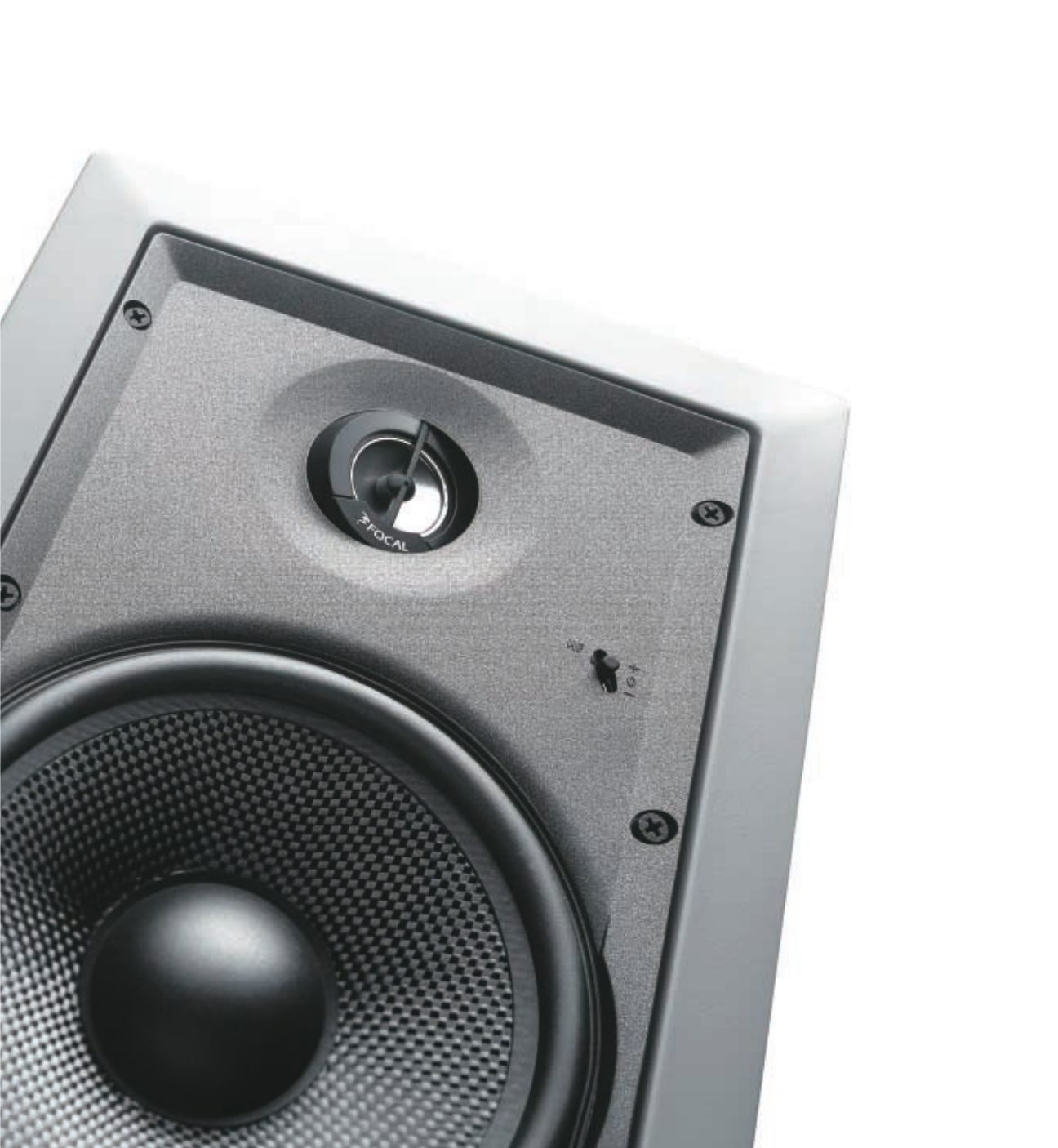

> In-Wall speaker, Electra IW 1000 Be (refer to Custom line).
Electra SR 1000 Be
High gloss slate grey finish
Electra SW 1000 Be
Signature finish
• Type 2-way sealed bipole/twin mono
effects speaker Active bass-refl ex subwoofer
• Drivers Two 61/2" (16.5cm) "W" mid-bass.
Two 1" (25mm) pure Beryllium
inverted dome tweeter. 13" (33cm) "W" woofer.
• Frequency response
(±3dB) 72Hz - 40kHz 20Hz - 150Hz
• Low frequency point
(-6dB) 59Hz 18Hz
• Sensitivity
(2.83V/1m) 91dB -
• Nominal
impedance 8 Ohms -
• Minimum
impedance 3 Ohms/6 Ohms
(bi/twin) -
• Crossover frequency 2 400Hz
• Recommended
amplifier power 40 - 200W 600W (750W max.) BASH® amplifi er
• Dimensions
(HxWxD) 153/8x17x71/2"
(390x430x190mm) 211/16x1911/16x17"
(535x500x432mm)
• Net weight 27.7lbs (12.6kg) 92.4lbs (42kg)
Subwoofer features
Adjustable LPF: 50Hz to 150Hz
(24dB/oct.),
48dB/oct. adjustable subsonic fi lter,
adjustable phase, Boost mode,
Night mode, 3 user memories,
LFe/Stereo/Digital enter.
24 bit digital processor, possibility
of settings and adaptation to the
room dynamics and dimensions,
600 Watt Rms BASH® amplifier
mated to a 13” (33cm) ”W” cone,
the SW 1000 Be offers high level
reproduction with a low roll-off at
18Hz and a sound pressure level
achieving 119dB.

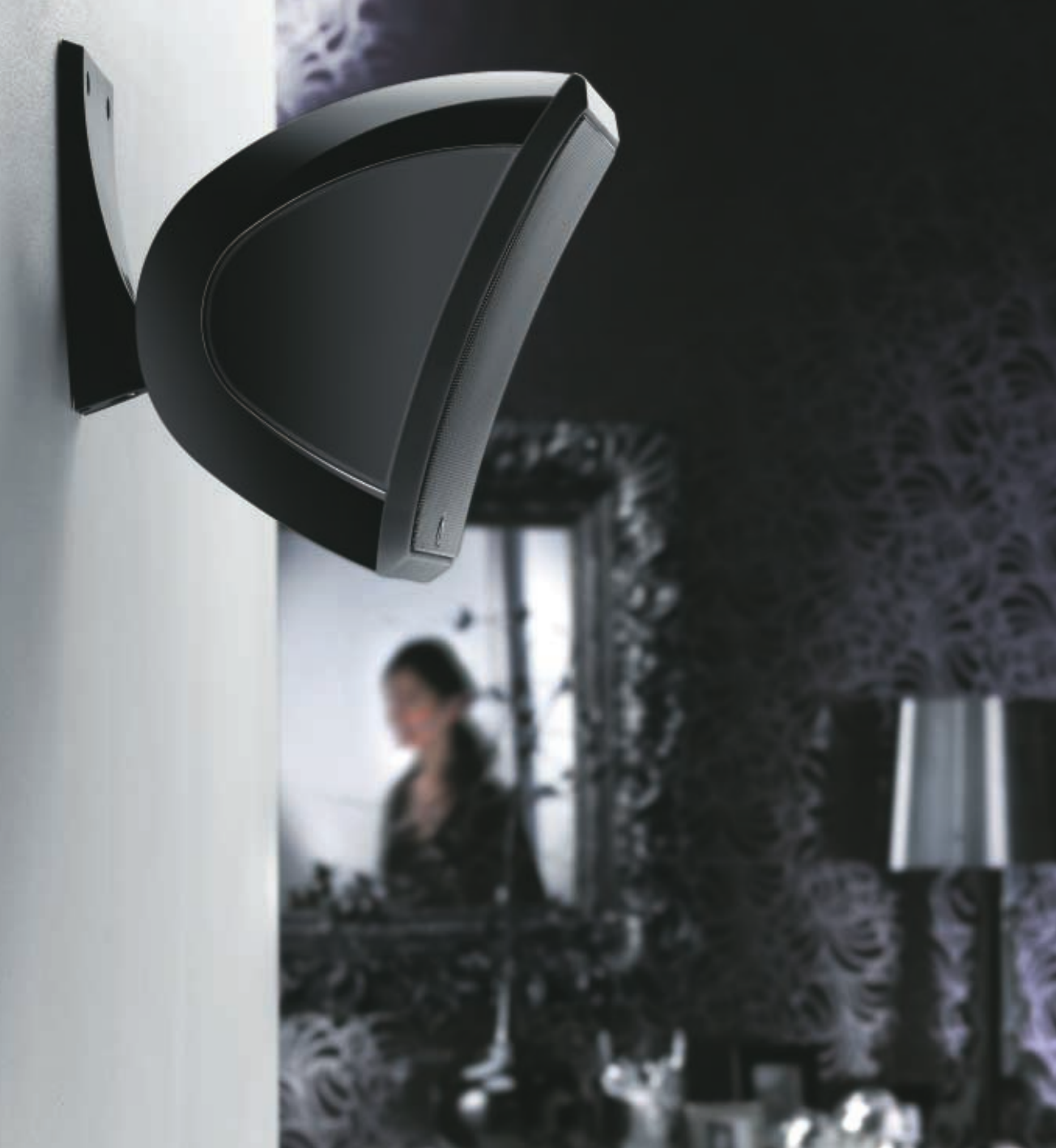

The SR 1000 Be is a wall-mount
effects speaker very deserving of
Electra 1000 Be pedigree. A pure
Beryllium inverted-dome tweeter,
61/2” (16.5cm) ”W” woofer, OPC,
”Wall Boost Control” to suppress
the resonances provoked by the
wall effect, it innovates by its com-
partmentalized structure which
permits installation in bipolar or
double monopolar (double input)
for a 7.1 configuration.
All of the models in the Electra 1000 Be range (except SR 1000 Be) are available in Classic & Signature fi nishes.
But may not be available in some countries and/or in some retail outlets.
> 24" (60cm) Standard Electra S 1007.1 Be stand,
Aluminum.
> 24" (60cm) High Gloss Electra S 1007 Be stand,
Slate Grey laquer.

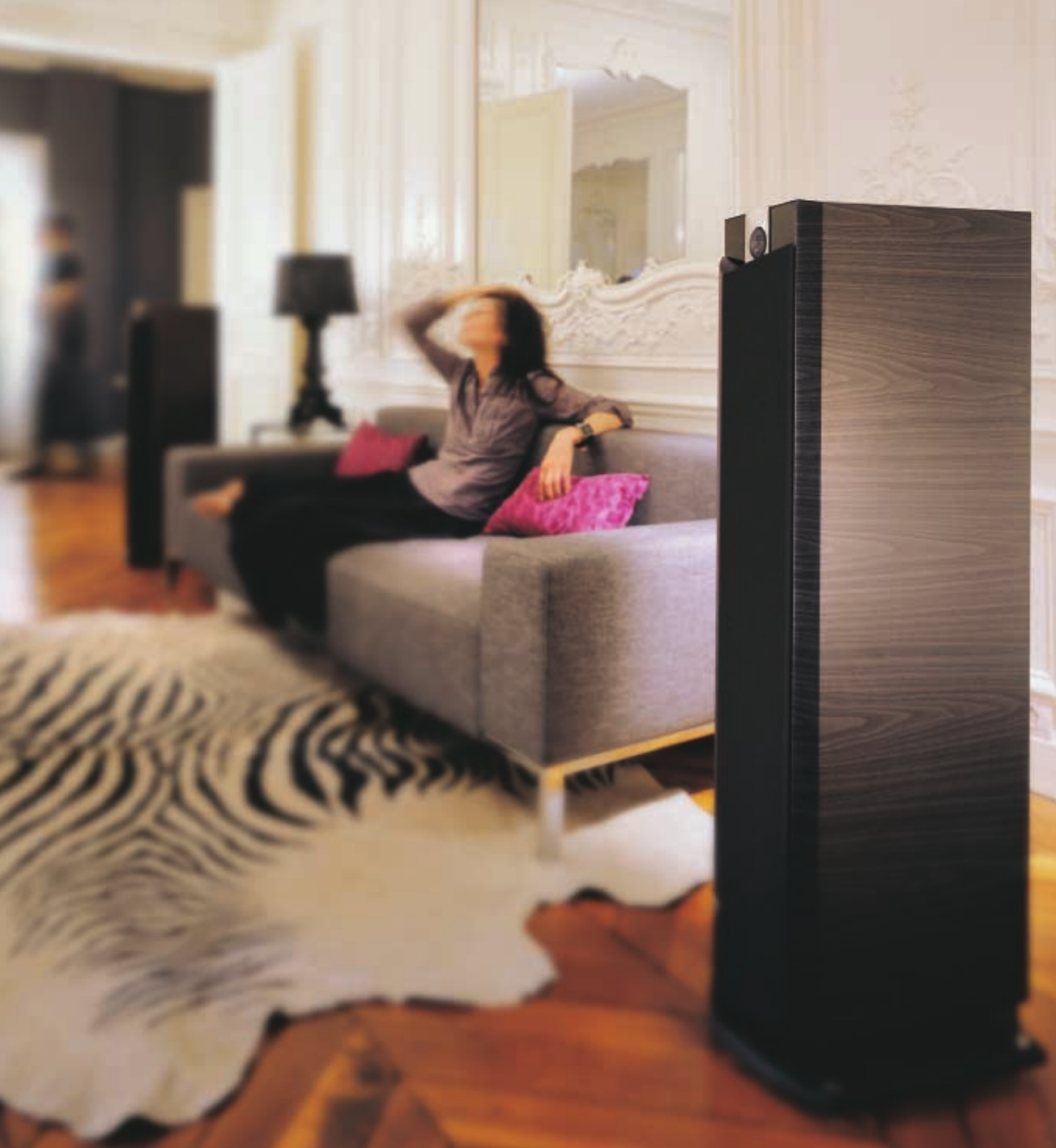

> Profile 928, Diamond Black.
Breaking the limits
Profile 900
The Profile 900 line is the expression of
an idea: create an acoustic loudspeaker
whose function is immediately apparent.
To pursue the superfluous, remove all
unnecessary visual elements that render
the object aggressive or intruding, lean
towards a formal simplicity for each
detail, each curve seems organic rather
than drawn… this is the only possible
way to create in the end a loudspeaker
that easily integrates just as surely as
it carries a strong personality. But this
only becomes possible when technology
and aesthetics have become one, when
they have consumed and absorbed their
own restrictions. Profile 900 is above all
a high performance loudspeaker line,
which cannot allow even the smallest
concession to aesthetics. It is this chal-
lenge, the result of two years of hard
work in collaboration with a design
house which motivated Profile to evolve
new technological solutions never seen
in the segment. Invent a new manu-
facturing process and adopt a resolute
attitude to turn and test the impossible,
these are the keys to the Profile 900
project. To push the limits is the only
possible way to innovation.
> Choose the textures, colours, Profile is available in
three finishes: Classic, Style and Signature in real-wood
veneer. To the traditional wood finishes we add a fourth
finish called ”Diamond Black” in Acrylic (organic glass).
The intensity of the brilliant finish can easily surpass that
of a piano black lacquer...

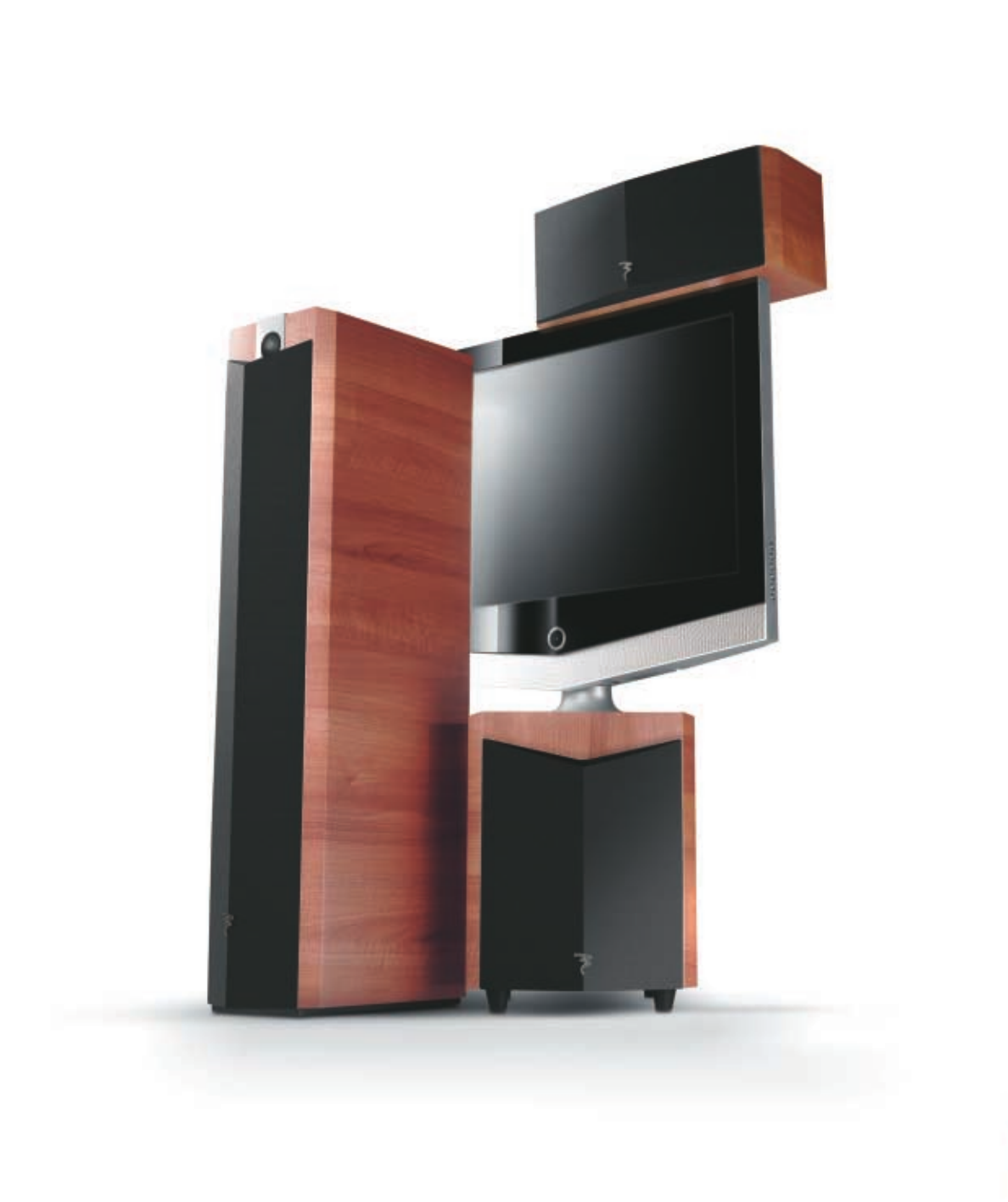

> The subwoofer SW 908 introduces new
electronics with a 24 bit DSP (Digital
Signal Processor) and 500 Watt RMS
BASH® amplifier.
Profile 908
Signature finish
Profile 918
Diamond Black finish
Profile 928
Style finish
Profile CC 908
Classic finish
• Type 2-way bass-reflex bookshelf speaker. 2 1/2-way bass-reflex floor standing
speaker. 3-way bass-reflex floor standing
speaker. 3-way bass-reflex shielded center
speaker.
• Drivers 61/2" (16.5cm) "W" mid-bass.
1" (25mm) Al/Mg inverted
dome tweeter.
61/2" (16.5cm) "W" woofer.
61/2" (16.5cm) "W" mid-bass.
1" (25mm) Al/Mg inverted
dome tweeter.
Two 61/2" (16.5cm) "W" woofer.
61/2" (16.5cm) "W" midrange.
1" (25mm) Al/Mg inverted
dome tweeter.
Two 61/2" (16.5cm) "W" woofers.
3" (8cm) "W" midrange.
1" (25mm) Al/Mg inverted
dome tweeter.
• Frequency response
(±3dB) 50Hz - 30.5kHz 40Hz - 30.5kHz 38Hz - 30.5kHz 65Hz - 30.5kHz
• Low frequency point
(-6dB) 45Hz 36Hz 32Hz 52Hz
• Sensitivity
(2.83V/1m) 89dB 90dB 91dB 91dB
• Nominal
impedance 8 Ohms 8 Ohms 8 Ohms 8 Ohms
• Minimum
impedance 3.7 Ohms 3.2 Ohms 3 Ohms 4.2 Ohms
• Crossover frequency 2 600Hz 180Hz / 2 600Hz 300Hz / 2 600Hz 500Hz / 2 600Hz
• Recommended
amplifier power 25 - 150W 40 - 200W 40 - 300W 40 - 200W
• Dimensions
(HxWxD) 153/8x9x107/8"
(390x230x275mm) 39x9x133/4"
(990x230x350mm) 42x9x137/8"
(1 066x230x353mm) 8x247/8x123/4"
(205x632x324mm)
• Net weight 18.7lbs (8.5kg) 43lbs (19.5kg) 49.1lbs (22.3kg) 31.9lbs (14.5kg)
This absolutely elegant two and
a half way concentrates all the
know-how of Focal. But its refined
curves and the strength of its
design do not only serve its aes-
thetic, but the exceptional rigidity
of the cabinet and the absence of
parallel inner walls are immedia-
tely apparent assets.
The Profile spirit shines in the
appearance of the 908: advan-
ced technologies, innovation at
all levels, but also beauty in
the curves and compact size.
Musical and aesthetic, the
Profile 908 expresses a great
”joie de vivre”
Barely larger than the 918, the
Profile 928 is a charismatic 3 way.
The richness and dynamism of its
midrange underlines the power and
articulation of the two ‘W” woofers.
The CC 908 is constructed accor-
ding to the same model as the
Electra CC 1000 Be: same woo-
fers and midrange but with the
aluminium-magnesium tweeter. It
functions in total harmony with
the other speakers in the range,
in regards to the sonic signature
as well as the directivity charac-
teristics.
> 24" (60cm) optional Profile S 908 stand.
> In-Wall speaker, Profile IW 908 (refer to Custom line).
Profile SR 908
Grey or Black finish
Profile SW 908
Signature finish
Profile SW 904
Black satin finish
• Type 2-way sealed bipolar effects speaker. Active bass-refl ex subwoofer. Active bass-refl ex subwoofer.
• Drivers Two 61/2" (16.5cm) "W" woofers.
Two 1" (25mm) Al/Mg inverted
dome tweeter. 13" (33cm) "W" woofer. 11" (27cm) "W" woofer.
• Frequency response
(±3dB) 75Hz - 30.5kHz 27Hz - 150Hz 32Hz - 150Hz
• Low frequency point
(-6dB) 61Hz 23Hz 27Hz
• Sensitivity
(2.83V/1m) 91dB
• Nominal
impedance 8 Ohms
• Minimum
impedance 5.2 Ohms
• Crossover frequency 2 600Hz
• Recommended
amplifier power 40 - 200W 500W (700W max.) BASH® amplifi er 350W (450W max.) BASH® amplifi er
• Dimensions
(HxWxD) 115/8x157/8x75/8"
(295x403x194mm) 20x191/4x15"
(510x488x380mm) 1913/16x1615/16x123/8"
(504x430x315mm)
• Net weight 19.4lbs (8.8kg) 59.4lbs (27kg) 50.6 lbs (23kg)
Very compact, this bipolar louds-
peaker was designed with the
same obsessive attention to
coherence as the other Profile
loudspeakers. The dispersion, very
large and homogeneous, gives
the speaker the rare capability
to fill the listening room. 3D sur-
round effects are guarantied.
This active, remotely controlled
subwoofer starts with the same
motor as the Electra SW 1000
Be: 24 bit DSP processor, 13”
(33cm) ”W” woofer, and BASH®
amplifier. The power of its impact
is reference-quality, even at unbe-
lievable pressure levels.
Compact version of the SW 908,
the Profile SW 904 adopts the
same structure and DSP pro-
cessing, but with a 11” (27cm)
woofer. It represents an excel-
lent choice where the positively
seismic pressure levels of the
SW 908 may not be required.
Subwoofer features
Adjustable LPF: 50Hz to 150Hz
(24dB/oct.),
24dB/oct. adjustable subsonic fi lter,
adjustable phase, Boost mode,
Night mode, 3 user memories,
LFe/Stereo/Digital enter.
Subwoofer features
Adjustable LPF: 50Hz to 150Hz
(24dB/oct.),
24dB/oct. adjustable subsonic fi lter,
adjustable phase, Boost mode,
Night mode, 3 user memories,
LFe/Stereo/Digital enter.
All of the models (except SR 908 and SW 904) in the Profi le range are available in Diamond Black, Signature, Classic, Style fi nishes.
But may not be available in some countries and/or in some retail outlets.
> 16" (40cm) optional Profile SCC 908 stand.
Affordable luxury
Chorus 800 V
For Focal, Chorus symbolizes one of
the most stimulating challenges for the
loudspeaker and refined product manu-
facturer that we are: to allow the grea-
test number of consumers to access our
technological innovations. For the first
two generations Chorus (2000) and
Chorus S (2003), the objective was to
conserve a hi-end sound and maintain
sophisticated Focal technologies by
adapting our industrial machine to the
highest standards. While outsourcing
had become a key economic strategy
for the majority of manufacturers, we
chose on the contrary to heavily invest
in our manufacturing process in order
to achieve an exceptional sound quality
while at the same time remaining com-
petitive. It is the only possible way in this
path of permanent innovation: deve-
lopment and manufacturing of louds-
peakers ”Made in France”, design by
cabinet-makers, mastery of quality, total
autonomy in the design and develop-
ment of our products. This strategy has
been key to the success of the preceding
Chorus lines.
This third generation known as
Chorus 800 V will go even further
in this strategy. Technological innovation
does not only solely touch strategic
components of the speaker, but the actual
whole of the design. Thanks to the use
of advanced and exclusive materials,
elaborate manufacturing techniques of
the cabinets, the Chorus 800 V line
of today shines with a unique, hi-end
esthetic. Chorus V isn’t only a perfor-
ming product line, ideal for entering
the Focal universe, but objects that will
inhabit living spaces, with an innovative
esthetic, quality of manufacture and a
finish worthy of a higher segment. This is
indeed a new esthetic dimension, a new
era for the ”Spirit of Sound”.

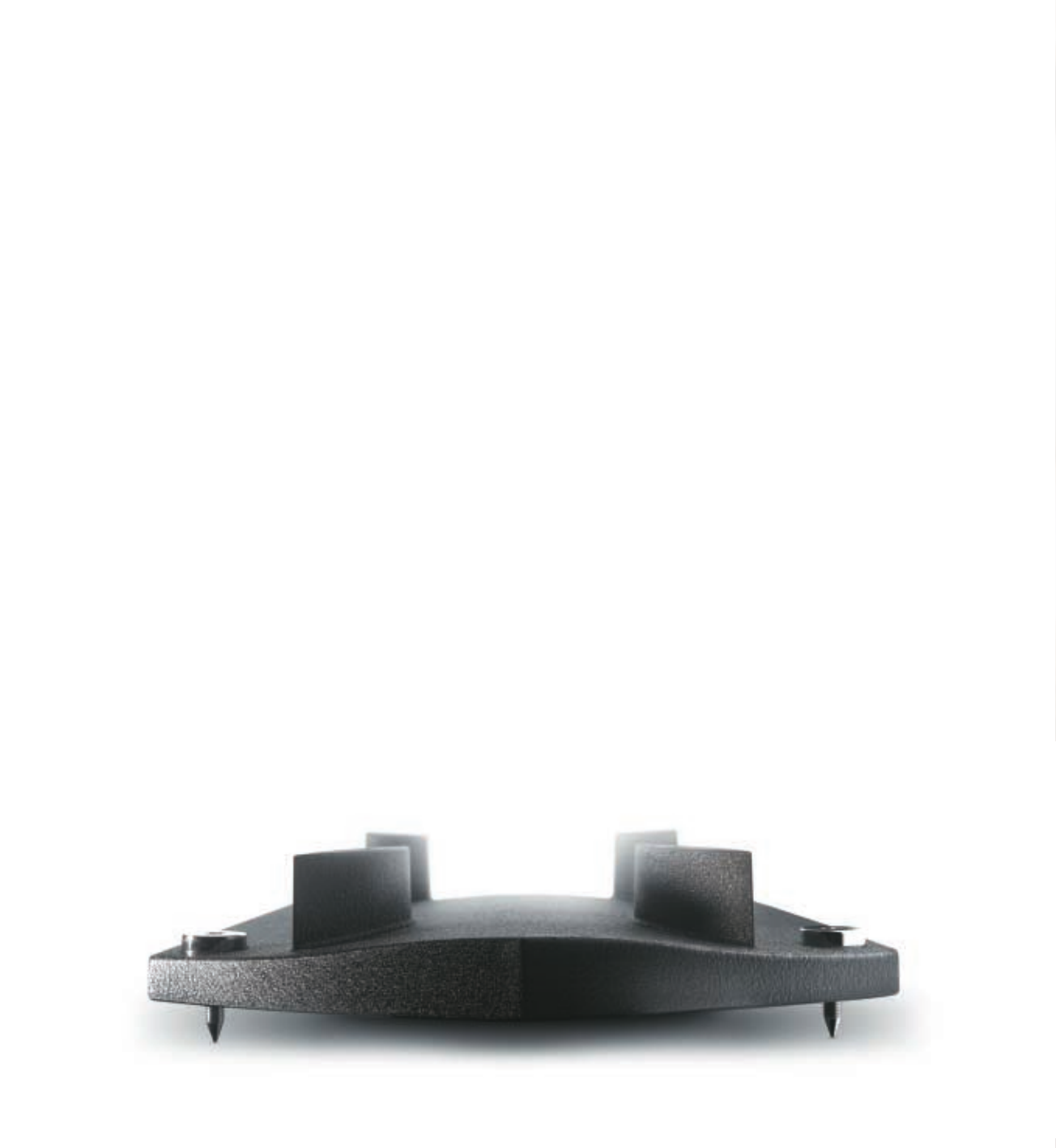

> Cast aluminum base of the Powerflow® bass-reflex system, for Chorus 800 V.

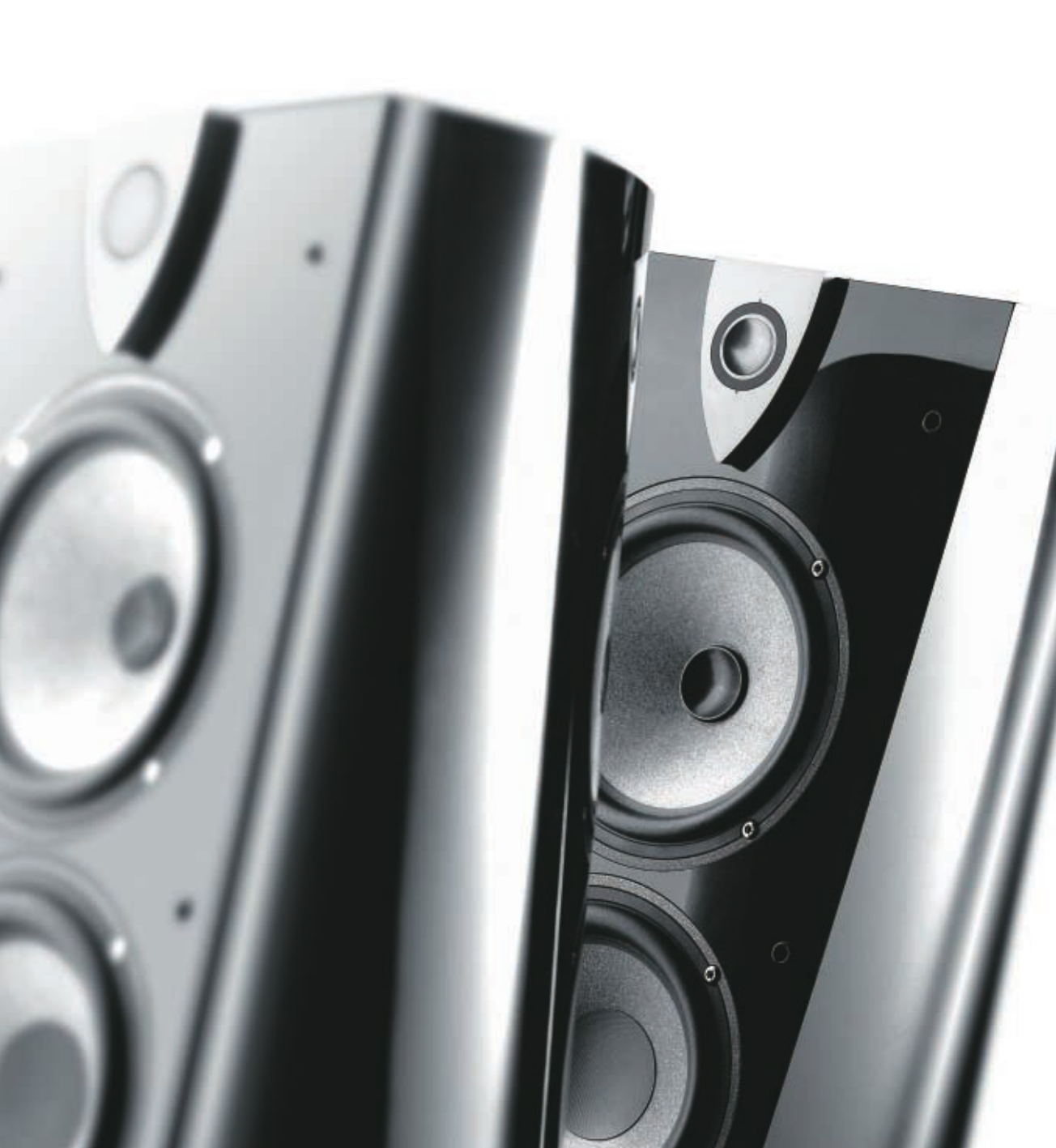

> Chorus 826 V, Ebony.
> The Chorus V range has two models suitable for custom
installation, the IC 706 V and IW 706 V. (refer to Custom line).
This good-looking, two-way spea-
ker, the only equipped with a
7" (18cm) woofer, has the true
spirit of the legendary DB19:
powerful bass, a big speaker for
a guaranteed rock ‘n’ roll sound.
Neutral and balanced, the Chorus
806 V seduces by the richness of
its upper midrange and the speed
of its bass. An entirely refined
speaker, ideal to play in rooms
under 20 m2 without any limits.
And easily larger spaces if it is
combined with SW 800 V.
Chorus 816 V makes the most of
the 2 and a half-way configuration:
elevated performance in lower
octaves thanks to the combina-
tion of woofers working in unison.
Up to 30m2.
The star floor-stander of the
series combines power from
its two woofers, double ports
and separate midrange. A very
classy speaker, untiring even
whilst copiously performing in
rooms up to 40m2.
Chorus 806 V
Ebony finish
Chorus 807 V
Moka finish
Chorus 816 V
Ebony finish
Chorus 826 V
Moka finish
• Type 2-way bass-reflex bookshelf speaker. 2-way bass-reflex bookshelf speaker. 2 1/2-way bass-reflex floor standing
speaker, Powerflow. 3-way bass-reflex floor standing
speaker, Powerflow.
• Drivers 61/2" (16.5cm) Polyglass mid-bass.
1" (25mm) TNV Al/Mg inverted
dome tweeter.
7" (18cm) Polyglass mid-bass.
1" (25mm) TNV Al/Mg inverted
dome tweeter.
61/2" (16.5cm) Polyglass woofer.
61/2" (16.5cm) Polyglass mid-bass.
1" (25mm) TNV Al/Mg inverted
dome tweeter.
2x61/2" (16.5cm) Polyglass woofers.
61/2" (16.5cm) Polyglass midrange.
1" (25mm) TNV Al/Mg inverted
dome tweeter.
• Frequency response
(±3dB) 55Hz - 28kHz 50Hz - 28kHz 47Hz - 28kHz 45Hz - 28kHz
• Low frequency point
(-6dB) 47Hz 41Hz 39Hz 37Hz
• Sensitivity
(2.83V/1m) 90dB 92dB 91.5dB 91.5dB
• Nominal
impedance 8 Ohms 8 Ohms 8 Ohms 8 Ohms
• Minimum
impedance 3.6 Ohms 4.2 Ohms 4.3 Ohms 2.9 Ohms
• Crossover frequency 3 000Hz 3 000Hz 300Hz / 3 000Hz 300Hz / 3 000Hz
• Recommended
amplifier power 25 - 120W 25 - 175W 40 - 200W 40 - 250W
• Dimensions
(HxWxD) 153/8x83/4x119/16"
(390x222x293mm) 175/8x91/3x131/8"
(448x237x333mm) 395/16x111/8x143/4"
(998x282x375mm) 407/8x111/8x143/4"
(1038x282x375mm)
• Net weight 18lbs (8.2kg) 22.2lbs (10.1kg) 49.5lbs (22.5kg) 56.8lbs (25.8kg)
> 24" (60cm) optional Chorus S 800 V stand, black satin/acrylic finish.
The CC 800 V enjoys the deve-
lopments from the Profile 900
and the Electra 1000 Be lines: a
perfectly mastered directionality,
linearity, neutrality, gentleness and
dynamics, its timbre is calibrated to
match that of all of its Chorus 800 V
loudspeakers.
Three-way, 3 woofers, 5 drivers
in all… the Chorus 836 V has
no fear of (very) large spaces.
High-end in sound and shape,
the power of the bass will surprise
you. 836 V is nothing short of a
grande dame, generous, powerful
but refined and subtle as well.
Its capacity to fill surround space
with precision is spectacular. Its
behavior is optimized thanks to the
integrated ”Wall Boost Control” and
with a exacting directivity. Compact,
discrete, but Chorus in its spirit with
an acrylic finish.
The power of the SW 800 V climbs
to 350W RMS and the frequency
response extends to 32Hz. Over-
equipped and capable of genera-
ting bass with a substantial power
output of 115dB, it stands arms
and shoulders above others in
its category.
Chorus 836 V
Ebony finish
Chorus CC 800 V
Moka finish
Chorus SR 800 V
Black satin finish
Chorus SW 800 V
Moka finish
• Type 3-way bass-reflex floor standing
speaker, Powerflow. 2-way bass-reflex shielded
center speaker. 2-way sealed bipolar effects speaker,
Polyfix™ wall bracket. Active bass-refl ex subwoofer.
• Drivers
3x61/2" (16.5cm) Polyglass woofers.
61/2" (16.5cm) Polyglass midrange.
1" (25mm) TNV Al/Mg inverted
dome tweeter.
2x61/2" (16.5cm) Polyglass mid-bass.
1" (25mm) TNV Al/Mg inverted
dome tweeter.
2x5" (14cm) Polyglass mid-bass.
2x1" (25mm) TNV Al/Mg inverted
dome tweeters. 11" (27cm) Polyglass woofer.
• Frequency response
(±3dB) 40Hz - 28kHz 57Hz - 28kHz 75Hz - 28kHz 32Hz - 160Hz
• Low frequency point
(-6dB) 33Hz 50Hz 65Hz 27Hz
• Sensitivity
(2.83V/1m) 92dB 91dB 90dB
• Nominal
impedance 8 Ohms 8 Ohms 8 Ohms
• Minimum
impedance 3 Ohms 4 Ohms 3.7 Ohms
• Crossover frequency 250Hz / 3 000Hz 3 000Hz 3 000Hz
• Recommended
amplifier power 40 - 300W 25 - 200W 25 - 150W 350W (500W max.) BASH® amplifier
• Dimensions
(HxWxD) 453/16x111/8x143/4"
(1148x282x375mm) 77/16x197/16x119/16"
(189x493x294mm) 117/16x153/4x67/8"
(290x400x175mm) 1715/16x123/4x163/4"
(456x324x426mm)
• Net weight 66lbs (30kg) 24.2lbs(11kg) 12.3lbs (5.6kg) 41.4lbs (18.8 kg)
Subwoofer features
Adjustable LPF: 40Hz to 160Hz,
Night mode,
Subsonic mode (35Hz, 24dB/oct.),
phase inverter,
Boost mode (+ 3dB @ 40Hz),
Autopower,
Lfe (mono) and Stereo input.
All of the models in the Chorus 800 V range are available in Ebony and Moka fi nishes.
But may not be available in some countries and/or in some retail outlets.
> Chorus 726 V, CC 700 V and SW 700 V.
Innovation is our business
Chorus 700 V
Since the year 2000, the different
generations of the Chorus line have
benefited from this approach, as we
produced speakers that cost less and
performed better. To achieve this goal, we
invested massively in a superior method to
speaker manufacturing, where intelligent
machining and precise handwork were
absolutely necessary.
It was the only possible way in this drive for
quality and competitiveness: development
and manufacturing of French-made
loudspeakers, design of the cabinets,
quality control, a total autonomy in the
development and design of our own
products. This method allows us to
innovate, to entirely and independently
turn ideas into reality, to place patents
internationally, and have the means to
anticipate trends. And finally, to progress.
The third generation, Chorus 700 V,
goes even further. A direct descendant
of the Chorus 800 V line of which it
heavily borrows technical elements
(except Powerflow) yet with a more Amati
traditional finish, Chorus 700 V invites you
in to the Focal universe. The build quality
and high-end finishing work are entirely
unknown in this price-range.
> 61/2” (16.5cm) Polyglass® woofer.
> 24" (60cm)optional Chorus S 700 V stand
Chorus 705 V
Amati finish
Chorus 706 V
Amati finish
Chorus 714 V
Amati finish
Chorus 716 V
Amati finish
• Type 2-way bass-reflex bookshelf speaker,
wall mounting. 2-way bass-reflex bookshelf speaker. 2 1/2-way bass-reflex floor standing
speaker. 2 1/2-way bass-reflex floor standing
speaker.
• Drivers 5" (14cm) Polyglass mid-bass.
1" (25mm) TNV Al/Mg inverted
dome tweeter.
61/2" (16.5cm) Polyglass mid-bass.
1" (25mm) TNV Al/Mg inverted
dome tweeter.
5" (14cm) Polyglass woofer.
5" (14cm) Polyglass mid-bass.
1" (25mm) TNV Al/Mg inverted
dome tweeter.
61/2" (16.5cm) Polyglass woofer.
61/2" (16.5cm) Polyglass mid-bass.
1" (25mm) TNV Al/Mg inverted
dome tweeter.
• Frequency response
(±3dB) 65Hz - 28kHz 55Hz - 28kHz 52Hz - 28kHz 50Hz - 28kHz
• Low frequency point
(-6dB) 57Hz 47Hz 43Hz 41Hz
• Sensitivity
(2.83V/1m) 89dB 90dB 91dB 91.5dB
• Nominal
impedance 8 Ohms 8 Ohms 8 Ohms 8 Ohms
• Minimum
impedance 3 Ohms 3.6 Ohms 4.2 Ohms 4.3 Ohms
• Crossover frequency 3 000Hz 3 000Hz 300Hz / 3 000Hz 300Hz / 3 000Hz
• Recommended
amplifier power 25 - 100W 25 - 120W 25 - 150W 40 - 200W
• Dimensions
(HxWxD) 123/8x79/16x93/4"
(315x192x248mm) 153/8x83/4x119/16"
(390x222x293mm) 357/16x8x115/8"
(900x201x295mm) 373/8x83/4x133/8"
(950x222x340mm)
• Net weight 12.5lbs (5.7kg) 18lbs (8.2kg) 35.6lbs (16kg) 45.1lbs (20.5kg)
Chorus 706 V is the epitome of a
reference, compact loudspeaker:
a true Focal tradition. Superbly
balanced and neutral, its accu-
racy and definition are ideal
for rooms near 20m2 without a
drop in perceived volume.
Chorus 705 V is the ideal louds-
peaker for installation in rooms
of modest dimensions (approxi-
mately 15m2). With a responsive
and lively bass, it represents the
foundations of a great system,
especially when paired with the
SW 700 V subwoofer.
The smallest of the Chorus V
floorstanders exhibits a fine form
with a minimal footprint. Elaborate
yet balanced, the Chorus 714
V benefits from two 5" (14cm)
woofers in a 2-and-a-half way
configuration to deliver solid bass.
Ideal for rooms of 15 to 25m2.
The Chorus 716 V examines the
2-and-a-half way formula in a
high-end configuration, with two
61/2" (16.5cm) woofers working
in tandem in the bass (only
the higher unit also reproduces
the midrange). Double the bass
impact for rooms up to 30m2.
> The Chorus V range has two models suitable for custom
installation, the IC 706 V and IW 706 V. (refer to Custom line).
Chorus 726 V
Amati finish
Chorus CC 700 V
Amati finish
Chorus SR 700 V
Black satin finish
Chorus SW 700 V
Amati finish
• Type 3-way bass-reflex floor standing
speaker. 2-way bass-reflex shielded center
speaker. 2-way sealed bipolar effects speaker,
Polyfix® wall bracket. Active bass-reflex subwoofer.
• Drivers
2x61/2" (16.5cm) Polyglass woofers
61/2" (16.5cm) Polyglass midrange
1" (25mm) TNV Al/Mg inverted
dome tweeter.
2x61/2" (16.5cm) Polyglass mid-bass.
1" (25mm) TNV Al/Mg inverted
dome tweeter.
61/2" (16.5cm) Polyglass mid-bass.
1" (25mm) TNV Al/Mg inverted
dome tweeter. 11" (27cm) Polyglass woofer.
• Frequency response
(±3dB) 49Hz - 28kHz 61Hz - 28kHz 75Hz - 28kHz 36Hz - 160Hz
• Low frequency point
(-6dB) 39Hz 52Hz 65Hz 29Hz
• Sensitivity
(2.83V/1m) 91.5dB 91dB 90dB
• Nominal
impedance 8 Ohms 8 Ohms 8 Ohms
• Minimum
impedance 2.9 Ohms 5.2 Ohms 3.7 Ohms
• Crossover frequency 300Hz / 3 000Hz 3 000Hz 3 000Hz
• Recommended
amplifier power 40 - 250W 25 - 200W 25 - 100W 300W (450W max.) BASH® amplifier
• Dimensions
(HxWxD) 39x83/4x143/4"
(990x222x375mm) 75/16x197/16x9"
(185x493x229mm) 115/8x155/8x57/8"
(295x398x149mm) 169/16x1213/16x171/16"
(420x326x433mm)
• Net weight 51.7lbs (23.5kg) 16.5lbs (7.5kg) 10.3lbs (4.7kg) 33.7lbs (15.3kg)
Subwoofer features
Adjustable 40Hz to 160Hz,
phase inverter,
Autopower,
Lfe (mono) and Stereo input.
The Chorus CC 700 V is a
centre loudspeaker that has
been phase-optimized to offer
an optimal directionality. Its
qualities of dynamics, linearity
and timbre are equally in phase
with the ensemble of the Chorus
700 V line to maintain an
excellent sonic coherence.
The Chorus 726 V is the accessible
high-end loudspeaker incarnate:
technically very advanced, its 3-
way design marries the exceptional
definition of the medium with the
power of the two 61/2" (16.5cm)
woofers. A great sound, ample,
generous, and more… up to 40m2.
The same drive-units as in the
Chorus V line, in a very flat
and compact loudspeaker, this
is the key to the SR 700 V. It
is aesthetic, discrete and an
all-out performer! Ideal to fill
large surround spaces and to
accompany Chorus 700 V in
multi-channel mode
A considerable evolution of the
famous SW 700 S subwoofer
of the last generation, the
new SW 700 V uses the same
motor (BASH® amplifier and 11”
Polyglass woofer) in a more ela-
borate cabinet design which is
among other things, much more
rigid. More depth, more impact.

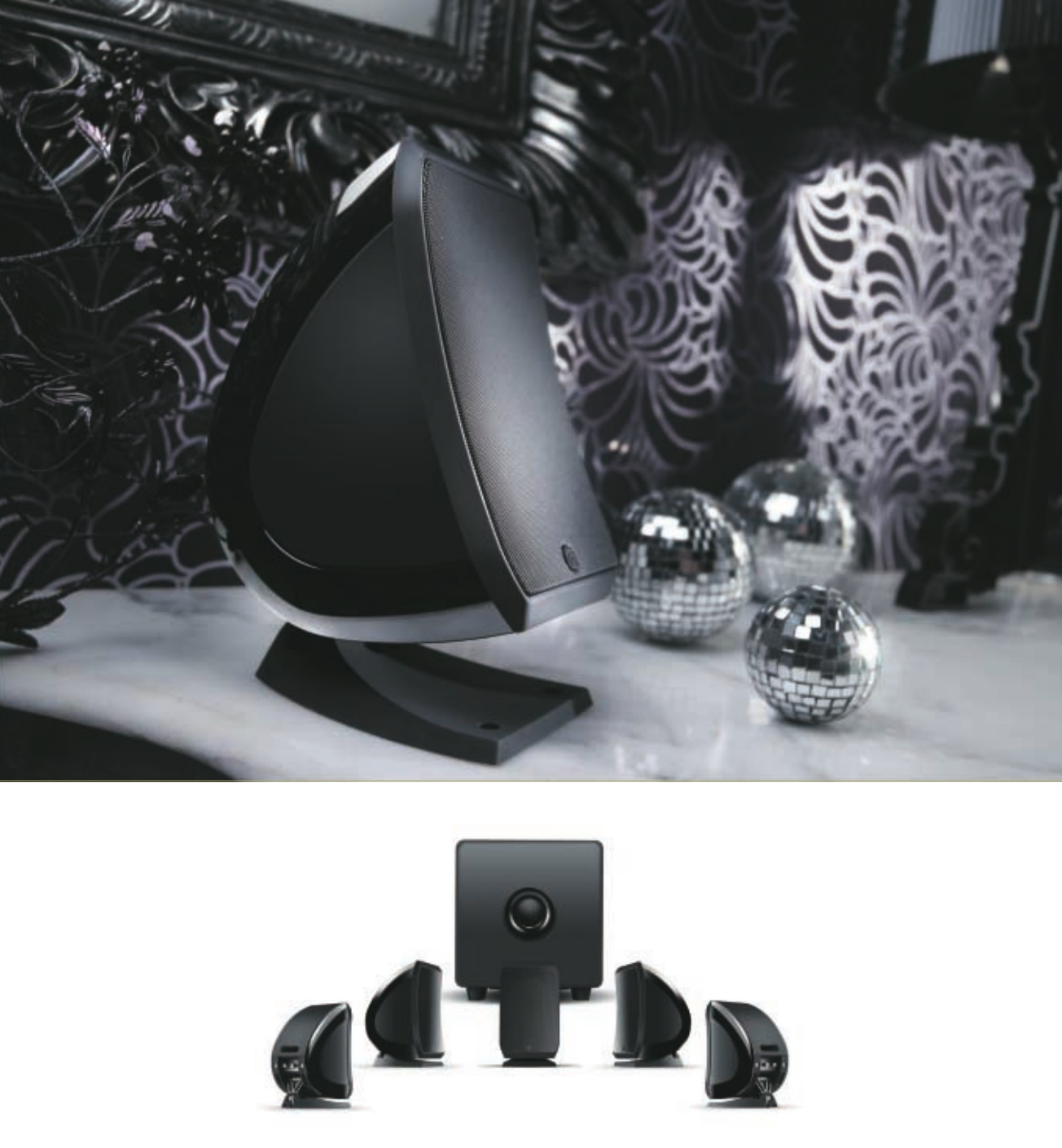

> Sib Jet Black.
A new way of life and listening
Sib & Co
Sib & Co is a product line for those who
wish an audio-video system without
sacrifi cing high-quality Focal sound: we
didn’t create the world reference louds-
peaker the Grande Utopia Be by taking
the easy road! Indeed, Sib & Co is a
true line of three products, built with the
same quality requirements as any other
Focal product line, in order to guarantee
the highest level of performance in this
speaker category.
Designed to offer unmatched faci-
lity of integration in all environments,
Sib & Co was conceived to be easy
to live with day-to-day, with music or
with home theatre soundtracks, thanks
to its practical aspects and multiple
mounting solutions on its stand or
”On-Wall”, beside a Plasma screen,
for example.
Because we couldn’t let you buy a high-
end fl at panel and not give you the
sound to go with it….

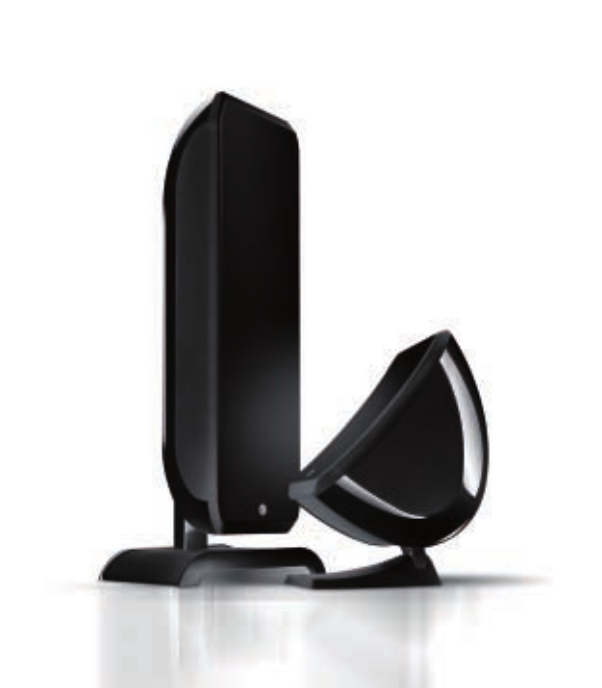

> Sib XL Jet Black and Sib Jet Black.
Since the creation of Sib in 2002,
this little speaker remains a musi-
cal reference in the high quality
playback of all categories such as
two-channel, home theatre, bac-
kground music and multiroom.
Delivered with its own integrated
stand-wall mount, or the Hip (tall)
as an option.
Sib XL was created to harmonize
with flat panel Plasma and LCD’s.
Sib XL is delivered with the Polyfix®
wall mount, which allows for verti-
cal and horizontal installation. The
stands Bop (short) and Hop (tall)
are available as an option to make
Sib XL a totally universal solution.
Sib XL Sib
• Type 2-way bass-reflex LCR speaker.
Polyfix® wall bracket. 2-way compact bass-reflex speaker.
• Drivers 2x5" (2x13cm)Polyflex mid-bass.
OAL 3/4" (19mm) aluminium
tweeter dome.
5" (13cm) Polyflex mid-bass.
3/4" (19mm) mylar tweeter dome.
• Frequency response
(±3dB) 67Hz - 35kHz 75Hz - 20kHz
• Low frequency point
(-6dB) 59Hz 69Hz
• Sensitivity
(2.83V/1m) 91dB 90dB
• Nominal
impedance 8 Ohms 8 Ohms
• Minimum
impedance 4 Ohms 4 Ohms
• Crossover frequency 3 500Hz 3 500Hz
• Recommended
amplifier power 15 - 150W 15 - 75W
• Dimensions
(HxWxD) 197/8x55/8x41/4"
(505x142x108mm) 103/4x5x9/16x67/16"
(247x142x164mm)
• Net weight 8.8lbs (4kg) 4.6lbs (2.1kg)
> 14” (35cm) and 7” (17cm) optional Bop stand > 35” (90cm) optional Hop stand > Sib on 35” (90cm) optional Hip stand
Thanks to its 8” (21cm) woofer,
150W BASH® amplifier and a
new generation port, the Cub 2
possesses unlimited resources
for its small size. It is the natural
complement to the speakers of
the Sib & Co line for a marriage
of integration and performance.
Cub 2
• Type Active bass-refl ex subwoofer.
• Drivers 8" (21cm) Polyflex woofer.
• Frequency response
(±3dB) 40Hz - 150Hz
• Low frequency point
(-6dB) 32Hz
• Subwoofer features
• Power amplifier 150W BASH® amplifier
• Dimensions
(HxWxD) 131/6x1113/16x1113/16"
(333x300x300mm)
• Net weight 22.2lbs (11kg)
Variable crossover 50Hz to 150Hz,
phase inverter 0°/180°,
Autopower,
high/low level input,
LFE input.
> Wall mounting Polyfix® system.
> Pack Sib 5.1
The Focal sound, integrated
Custom solutions
And now the Focal sound, but invisible.
This is our new conquest-the world of
In-Wall and In-Ceiling. All our expertise
as a world leader in high-end loudspea-
ker manufacturing was used to create
new optimal integration solutions whilst
preserving absolutely extraordinary
performance. Inverted-dome tweeters
in pure Beryllium or aluminium alloy,
”W” cone and Polyglass woofers, OPC
crossovers… are all exclusive and reco-
gnized technologies that will guarantee
a unique acoustic experience.
Electra 1000 Be, Profile, Chorus V and
Custom 100… All these models are
designed with the same attention to per-
fection as our free-standing speakers,
developed by the same engineers, on
the same production site and with the
unique uncompromising drive. For all
of these loudspeakers are developed by
Focal. Permanent quality control, mas-
tering of all the processes of manufac-
turing, creation of the best loudspeaker
possible in its class, this is our enga-
gement to offer you the most high-end
speaker solution.
> Profile IW 908 boasts thick baffles made
from medium density fibreboard offering
a high level of production quality.
> The aluminium baffle of the tweeter and
midrange can be reoriented to maintain the
same level of performance for horizontally
or vertically mounting.
> Custom IW 106.
Electra IW 1000 Be Profile IW 908 Profile IC 908 Chorus IW 706 V Chorus IC 706 V
• Type Sealed enclosure In-Wall speaker. Sealed enclosure In-Wall speaker. 2-way In-Ceiling speaker. In-Wall speaker. In-Ceiling speaker.
• Speakers
61/2" (16.5cm) "W" passive radiator.
61/2" (16.5cm) "W" woofer.
3" (8cm) "W" midrange.
1" (25mm) pure Beryllium IAL
inverted dome tweeter.
61/2" (16.5cm) "W" midbass.
1" (25mm) Al/Mg inverted
dome tweeter.
61/2" (16.5cm) "W" midbass.
1" (25mm) Al/Mg inverted
dome tweeter.
61/2" (16.5cm) Polyglass
midbass.
1" (25mm) Al/Mg TNC inver-
ted dome adjustable tweeter.
61/2" (16.5cm) Polyglass
midbass.
1" (25mm) Al/Mg TNC inver-
ted dome adjustable tweeter.
• Frequency response
(±3dB) 49Hz - 40kHz 60Hz - 30.5kHz 60Hz - 30.5kHz 65Hz - 28kHz 65Hz - 28kHz
• Sensitivity
(2,83V/1m) 90dB 88dB 88dB 89dB 89dB
• Nom. impedance 8 Ohms 8 Ohms 8 Ohms 8 Ohms 8 Ohms
• Protection Autoreset Polyswitch fuse Autoreset Polyswitch fuse Autoreset Polyswitch fuse Autoreset Polyswitch fuse Autoreset Polyswitch fuse
• Recommended
amplifier power 25 - 240W 25 - 150W 25 - 150W 25 - 120W 25 - 120W
• Ajustement Tweeter: - 3dB / 0dB / +3dB
Medium: - 3dB / 0dB / +3dB Tweeter: - 3dB / 0dB / +3dB Tweeter: - 3dB / 0dB / +3dB Tweeter: - 3dB / 0dB / +3dB Tweeter: - 3dB / 0dB / +3dB
• Crossover frequency 400Hz - 2 000Hz 2 600Hz 2 600Hz 2 400Hz 2 400Hz
• Frame size (HxWxD) 279/16x113/4"x4"
(700x298x102mm) 163/8x113/4x4"
(415x298x102mm) Ø 10x33/4"
(Ø 253x96mm) 125/8x91/4x33/4"
(321x235x96mm) ø 10x33/4"
(ø 253x96mm)
• Cut-out dimensions
(HxW) 261/8x103/8" (664x262mm) 147/8x103/8" (379x262mm) Ø 811/16" (221mm) 111/3x8" (288x203mm) Ø 811/16" (221mm)
• Depth from wall 37/8" (99mm) 37/8" (99mm) 35/8" (92mm) 35/8" (92mm) 35/8" (92mm)
• Net weight 22lbs (10kg) 13.6lbs (6.2kg) 4.6 lbs(2.1kg) 4.4 lbs (2kg) 4.2 lbs (1.9kg)
A very sophisticated design,
comparable to an In-Wall
version of Profile 908, the
IW 908 earns its status
as high-end In-Wall louds-
peaker thanks to its adop-
tion of a loaded, sealed
MDF cabinet, ”Wall Boost
Control” system, Profile
tweeter and 61/2”(16.5cm)
”W” woofer.
True, concentrated Focal
technology, the Electra IW
1000 Be integrates the best
of Focal: Beryllium IAL tweeter,
”W” cones, OPC crossover
and passive radiator repre-
sent an alternative to the
traditional high-end louds-
peaker. All the expertise of
Focal in a reference In-Wall
loudspeaker.
In-Ceiling adaptation of the
IW 908, the IC 908 Profile
is a high-range loudspea-
ker equipped with an exclu-
sive coaxial speaker, with
a W cone and an Al/Mg
tweeter, for maximum musi-
cality and power handling.
An optional specific sealed
BB6 Back Box is available.
Two-way, In-Wall acous-
tic loudspeaker IW 706 V
benefits from all the tech-
nology that came forth
from the Chorus V line.
A superior quality sound in
stereo or multi-channel,
and an extremely well-
adapted surround speaker
ready for the Chorus 700 V
and 800 V speakers.
The In-Ceiling version of the
IW 706 V, the Chorus IC 706
V revisits all the same tech-
nology with a 61/2” (16.5cm)
Polyglass woofer, coaxial
version of the TNV and ”Wall
Boost Control”. It benefits
from an update and evolu-
tion without concessions as
does any Focal loudspeaker.
The most compact In-Ceiling
solution with a 5” (13cm) woo-
fer and an inverted dome, alu-
minium coaxial tweeter: ideal
for small rooms, bedrooms or
bathrooms, outside use or sail-
boats.
As in the entire Custom 100 line,
the In-Wall IW 106 benefits drive-
units from Focal Audiomobile:
power handling and high output,
compatibility with damp environ-
ments, inverted dome tweeter and
fibreglass cone make a 100%
Focal product.
Fairly balanced with compact
size, performance and bass
reproduction, the IC 106 is the
ultra multi-purpose and adapta-
ble In-Ceiling loudspeaker thanks
to its heritage and numerous
possible settings. The true Focal
sound at a competitive price.
With its 8” (21cm) fibreglass
woofer, 91dB sensitivity, and very
high power handling, the IC
108 recreates a large, powerful
sound, capable of properly
playing in rooms of very large
dimensions.
Custom IW 106 Custom IC 105 Custom IC 106 Custom IC 108
• Type In-Wall speaker. In-Ceiling speaker. In-Ceiling speaker. In-Ceiling speaker.
• Speakers 61/2" (16.5cm) fiberglass midbass.
1" (25mm) aluminum inverted
dome adjustable tweeter.
5" (13cm) fiberglass midbass.
1" (25mm) aluminum inverted
dome tweeter.
61/2" (16.5cm) fiberglass midbass.
1" (25mm) aluminum inverted
dome adjustable tweeter.
8" (21cm) fiberglass midbass.
1" (25mm) aluminum inverted
dome adjustable tweeter.
• Frequency response
(±3dB) 60Hz - 20kHz 65Hz - 20kHz 60Hz - 20kHz 50Hz - 20kHz
• Sensitivity
(2,83V/1m) 89dB 88dB 89dB 91dB
• Nom. impedance 8 Ohms 8 Ohms 8 Ohms 8 Ohms
• Protection Autoreset Polyswitch fuse Autoreset Polyswitch fuse Autoreset Polyswitch fuse Autoreset Polyswitch fuse
• Recommended
amplifier power 10 - 120W 10 - 100W 10 - 120W 10 - 140W
• Tweeter ajustement -3dB / 0dB / +3dB -3dB / 0dB / +3dB -3dB / 0dB / +3dB -3dB / 0dB / +3dB
• Crossover frequency 3 300Hz 3 300Hz 3 300Hz 3 300Hz
• Frame size (HxWxD) 123/16 x81/8x215/16"
(310x207x74mm) Ø 77/8x37/16"
(200x87mm) Ø 99/16x33/16"
(243x81mm) Ø 111/8x41/8"
(282x105mm)
• Cut-out dimensions
(HxW) 105/8x611/16"
(273x170mm) Ø 61/2"
(165mm) Ø 83/16"
(208mm) Ø 911/16"
(246mm)
• Depth from wall 213/16" (71mm) 35/16" (84mm) 31/16" (78mm) 4" (102mm)
• Net weight 3.4lbs (1.6kg) 2.3lbs (1.1kg) 3.4lbs (1.6kg) 5.5lbs (2.5kg)
