FPS1000 24 Fps
User Manual: FPS1000-24
Open the PDF directly: View PDF
.
Page Count: 6
FPS
A-47
・All specifications are subject to change without notice.

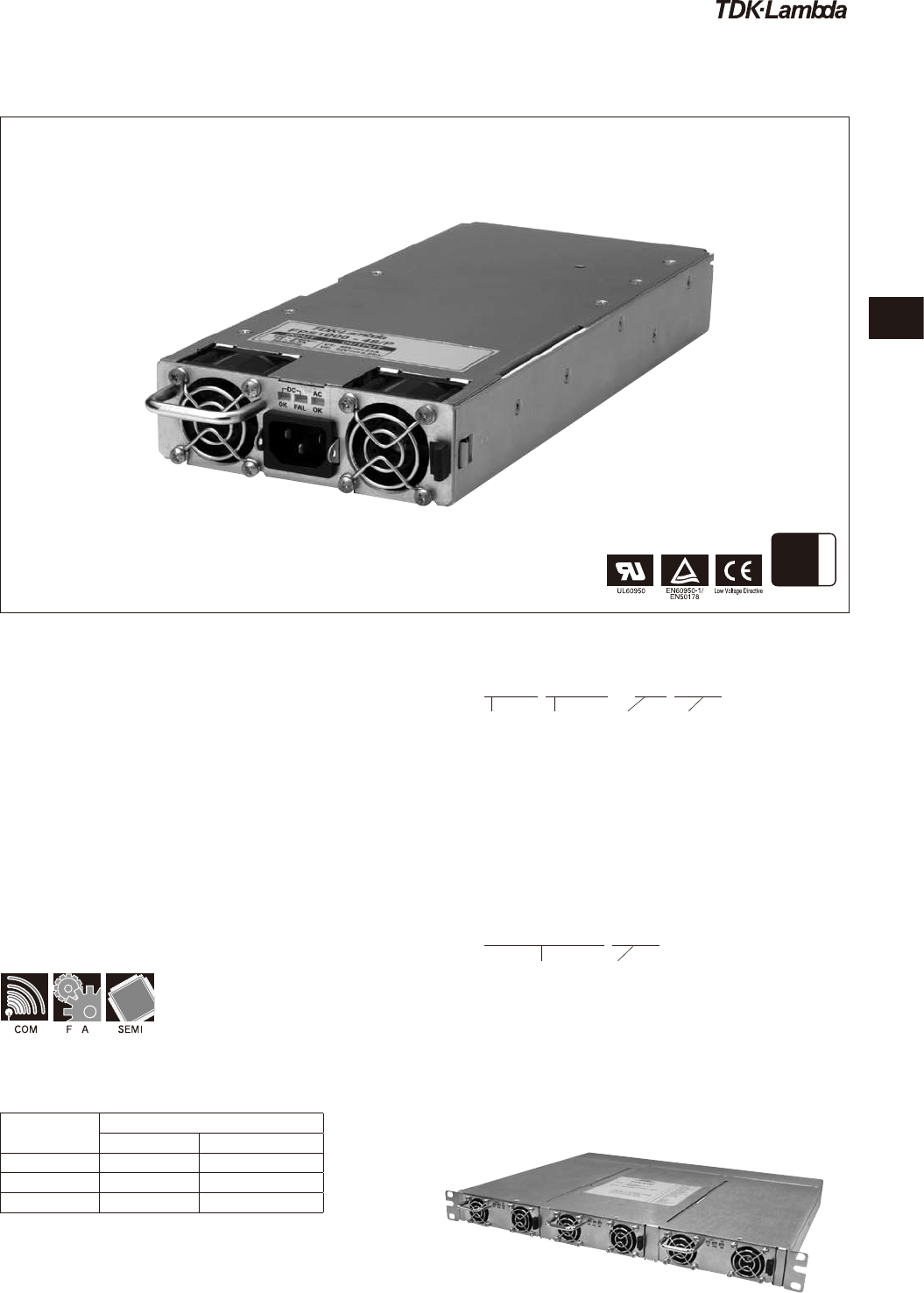

■ Features
● Compact, 1U high, and, high power density
Size: 127(W)×41(H)×290(D) mm
Power Density: 11W/inch3,
Maximum Output Power: 1kW
● Universal Input: AC85-265V
● Up to 3000W (3 units) in 19"rack
●
Hot swap / N+1 redundant parallel operation available
● I2C option available (/S, /PS model)
● Front IEC inlet model (AC input) available,
(/P, /PS model)
AC/DC Front End
■
Power Supply Identication
FPS 1000 - 48 /PS
Senes O/P Power O/P Voltage
Y
E
A
R
S
warranty
2
■ Product Line up
Output Voltage 1000W
Output Current Model
12V 72A FPS1000-12
24V 40A FPS1000-24
48V 21A FPS1000-48
FPS3000 - □
Shelf type: 3 units of FPS1000 mounting in a 19-inch
shelf (FPS-S1U) with maximum 3kW
Size: 440(W)×43.6(H)×351(D) mm
■ Applications
医 療 計 測 F A 半導体 その他
その他
ks
コンピュータ
通 信 F A 半導体
その他
ph
pf-a
hk-a
hws
alpha
dlp
fps
フォーマット
コンピュータ
通 信 F A 半導体
その他
コンピュータ
通 信 医 療 計 測 F A 半導体
その他
コンピュータ
通 信 医 療 計 測 F A 半導体
その他
コンピュータ
通 信 医 療 計 測 F A 半導体
その他
コンピュータ
通 信 医 療 計 測 F A 半導体
その他
医 療 計 測 F A 半導体 その他
その他
ks
コンピュータ
通 信 F A 半導体
その他
ph
pf-a
hk-a
hws
alpha
dlp
fps
フォーマット
コンピュータ
通 信 F A 半導体
その他
コンピュータ
通 信 医 療 計 測 F A 半導体
その他
コンピュータ
通 信 医 療 計 測 F A 半導体
その他
コンピュータ
通 信 医 療 計 測 F A 半導体
その他
コンピュータ
通 信 医 療 計 測 F A 半導体
その他
Option
1000(W)
3000(W)
12(V)
24(V)
48(V)
Blank: Standard Model
/P : IEC Inlet Type (on front panel)
/S : I²C Opton built-in
/PS : IEC inlet +I²C Option
FPS-S1U /PS
Senes Option
Blank: Standard Model
(For FPS1000-*, FPS1000-*/S)
/P : IEC Inlet Type (on front panel,
for FPS1000-*/P, FPS1000-*/PS)
Note: FPS3000 is 3x FPS + FPS-S1U in one rack.
FPS3000 can include 3x FPS with same ratings.
This means that, in conformity with EU Directive 2002/95/
EC, lead, cadmium, mercury, hexavalent chromium, and
specic bromine-based ame retardants, PBB and PBDE,
have not been used, except for exempted applications.
■
Conformity to RoHS Directive
Note: FPS-S1U does not have FPS1000. This is 1U rack
only. Up to 3x FPS1000 (with same voltage rating)
can be installed into FPS-S1U.
FPS SERIES
FPS
A-48
Fig.1 Rated output current vs rated output voltage
V2
Vout (V)
V1
l1 l2
FPS1000
-24
V1
V1
Model
24V
V2 29V
l1 33A
l2 40A
FPS1000
-12
12V
13.2V
66A
72A
48V
58V
17.25A
21A
FPS1000
-48
Iout （A）
・All specifications are subject to change without notice.
ITEMS/UNITSMODEL FPS1000-12 FPS1000-24 FPS1000-48
Input
Voltage Range (*1) V AC85 - 265 continuous (Universal input)
Frequency (*1) Hz 47 - 63, single phase
Power Factor (115/230VAC) (typ)
More than 0.98 at maximum output power
Efficiency (typ) (*2) ％81 / 83 84 / 86 85 / 88
Current (100/200VAC) (max) A 12.0 / 6.0
Inrush Current (*3) A Less than 40
Leakage Current (230VAC) mA Less than 1.1
Output
Nominal Voltage
VDC
12 24 48
Maximum Current (*Fig.1) A 72 40 21
Maximum Power W 864 960 1008
Voltage Set Point 12V +/-1% 24V +/-1% 48V +/-1%
Maximum Line Regulation (*5)
0.40%
Maximum Load Regulation (*6)
0.80%
Temperature Coefficient 200PPM/℃
Warm Up Drift
0.1% of rated Vout for 8hrs after 30min warm-up. Constant line, load and temperature.
Maximum Ripple & Noise (*4)
mVp-p
150 200 300
Hold-up Time (100VAC)(typ) ms 20 at rated output voltage and less than 80% of rated load.
Voltage Adjustable Range
VDC
10.5 - 13.2 21.5 - 29 43 - 58
Function
Over Current Protection (*Fig.1)
105 - 125% of maximum output current.
Over Voltage Protection (*8)
VDC
14.3 - 15.7 31 - 34 62 - 66
Over Temperature Protection Inverter shut down method, automatic reset.
Remote Sensing (*7) Possible. Refer to instruction manual.
Remote ON/OFF Control By electrical signal or dry contact. ON: 0 - 0.6V or short. OFF: 2 - 15V or open.
Parallel Operation (*9) Possible. Refer to instruction manual.
Series Operation (*10) Possible. Refer to instruction manual.
Over Temperature Alarm Signal
Open collector signal. Normal: ON, Max.sink current: 10mA.
DC OK signal Open collector signal. On when Vout>80+/-5% rated output. Max.sink current: 10mA
AC Fail Signal Open collector signal. On when Vin > 85VAC, Max.sink current: 10mA.
AUX-BIAS Power Supply 11.2 - 12.5VDC. 0.25A maximum output current.
Output Voltage Trimming Possible, via Vout trim pin in the I/O connector. Refer to instruction manual.
Front Panel Indicators AC OK, DC OK, DC FAIL
I²C Interface Optional. Refer to instruction manual.
Environment
Operating Temperature ℃0 to 50: 100% load. Derate 2%/℃, 50 to 60
Storage Temperature ℃-30 to 85
Operating Humidity
％RH
10 - 90, no condensation.
Storage Humidity
％RH
10 - 95, no condensation.
Vibration Built to meet ETS 300 019
Shock Built to meet ETS 300 019
Cooling By internal fans. Variable speed control.
Isolation
Withstand Voltage
Input-Output: 3000Vrms, 1min. Input-Ground: 2000Vrms, 1min. Output-Ground: 500Vrms, 1min.
Isolation Resistance More than 100Mohm at 25℃ and 70% RH. Output-Ground: 500VDC
Standards
Safety Standards Approved by UL60950-1, EN60950-1, CSA C22.2 No.60950-1
EMI (*11) EN55022B, FCC part 15J-B, VCCI-B
Mechanical
Weight (typ) g 2000
Size (W x H x D) mm 127 x 41 x 290 (Refer to outline drawing.)
(*1) For cases where conformance to various safety standards (UL, EN etc.)
is required, to be described as 100-240Vac (50/60Hz).
(*2) At 100/200VAC, rated load and 25℃ ambient temperature.
(*3) Not applicable for the noise filter inrush current less than 0.2ms.
(*4) Measured with JEITA RC-9131 1:1 probe, 20MHz B.W.
(*5) From 85-132Vac or 170-265VAC, constant load.
(*6) From no-load to rated load, constant input voltage.
Measured at the sensing point in remote sense.
(*7) Remote sensing can compensate up to 1V drop on
each load wire.
(*8) Inverter shut down method. Reset by AC voltage
recycle or by ON/OFF control.
(*9) Derate maximum output power by 10% for input
voltage less than 100V
RMS
.
(*10) Series operation is not applicable for units
with I
2
C bus option (/S, /PS model).
(*11) For FPS 1000-12/P(S), when used not with FPS-S1U or FPS-T1U
racks, an EMI suppressor clamp should be attached to the AC cable,
as close as possible to the AC inlet, to meet class B.
FPS1000 Specifications
FPS1000
FPS
A-49
・All specifications are subject to change without notice.

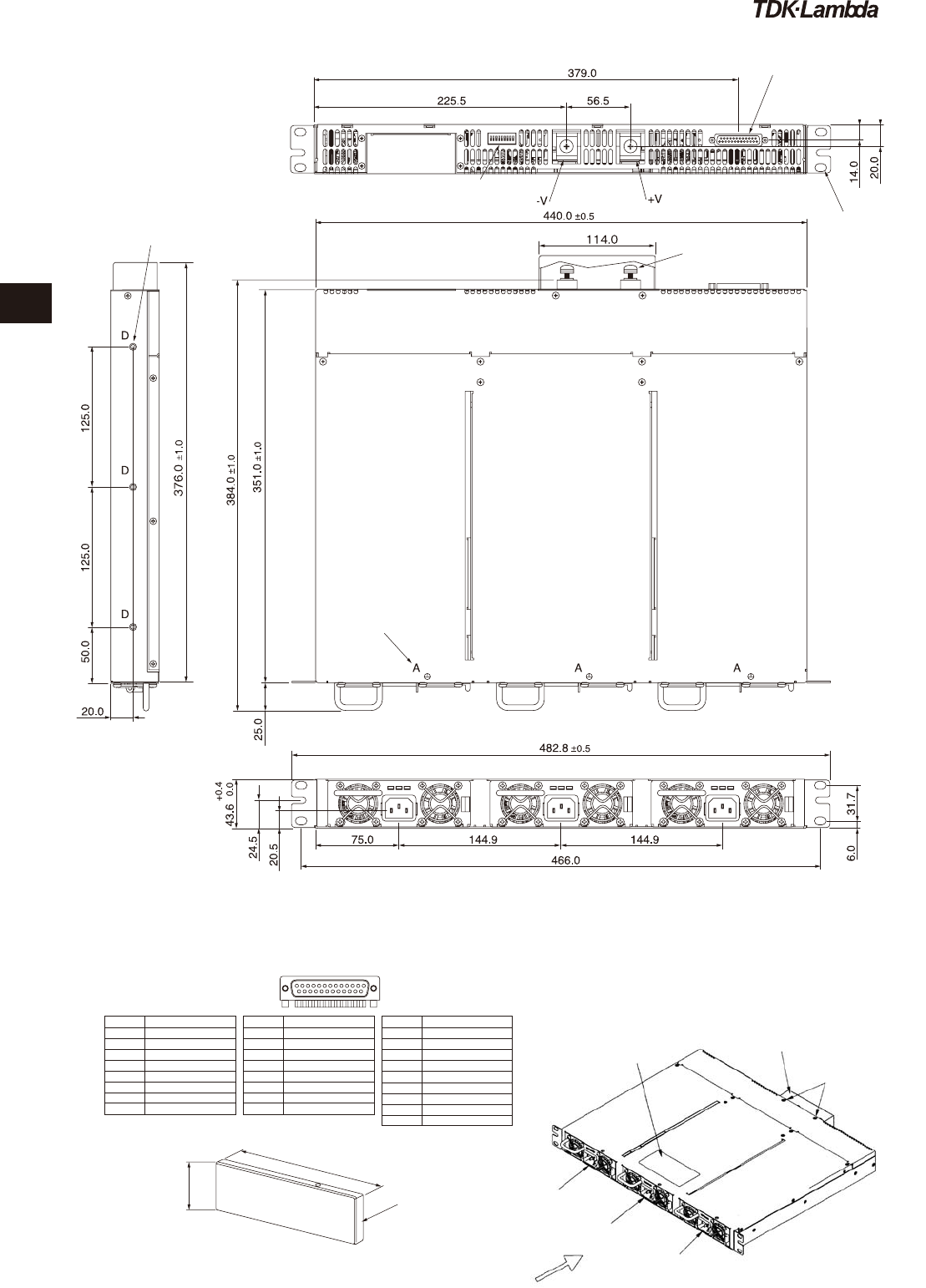

【FPS1000/P】
REAR VIEW
FRONT VIEW
AIR FLOW
DIRECTION
SEE NOTE 2
OUTPUT CONNECTOR SEE NOTE 1
AC CABLE
LOCK OPTION
IEC320
AC INLET
1
2
3
4
5
6
7
8
9
19
20
21 22
23
24
SEE NOTE 4
3 MOUNTING HOLES M3 MARKED "A" SEE NOTE 3
FUNCTION FUNCTION
DC_OK
SIGNAL_RTN
AC_FAIL
TEMP_ALARM
-S
V_TRIM
CS
+12V_AUX
PIN
NUMBER. PIN
NUMBER.
+v
+v
-v
+v
-v
-v
ON/OFF
+S
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
FUNCTION
SDA (I2C)
SCL (I2C)
A0 (I2C)
A1 (I2C)
A2 (I2C)
NC
NC
NC
PIN
NUMBER.
17
18
19
20
21
22
23
24
NOTES
1. CONNECTOR TYPE: PCIB24W9M400A1, PO-
SITRONIC. FEMALE CONNECTOR TYPE:
PCIB24W9F400A1,-S1031(not attached with
unit)
2. LED INDICATORS. REFER TO INSTRUCTION
MANUAL.
3. MOUNTING SCREWS MUST NOT PENETR-
ATE MORE THAN 3mm INTO THE UNIT.
4. MODEL NAME, INPUT AND OUTPUT RATING
AND SAFETY APPROVALS SYMBOLS ARE
DESCRIBED ON TOP SURFACE LABEL.
5. ALLOW MINIMUM 50mm OF UNRESTRICTED
AIR SPACE AT THE REAR OF UNIT. DO NOT
OBSTRUCT AIR FLOW TO THE UNIT FRONT
PANEL.
6. IN OUT CONNECTOR BACK VIEW AND PINS
ASSIGNMENT:
AIR FLOW
DIRECTION
IN/OUT CONNECTOR
SEE NOTE 1
3 MOUNTING HOLES M3 MARKED "A" SEE NOTE 3
SEE NOTE 2
1
2
3
4
5
6
7
8
9
19
20
21 22
23
24 FUNCTION FUNCTION
DC_OK
SIGNAL_RTN
AC_FAIL
TEMP_ALARM
-S
V_TRIM
CS
+12V_AUX
PIN
NUMBER. PIN
NUMBER.
+v
+v
-v
+v
-v
-v
ON/OFF
+S
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
FUNCTION
SDA (I2C)
SCL (I2C)
A0 (I2C)
A1 (I2C)
A2 (I2C)
ACG
ACL
ACN
PIN
NUMBER.
17
18
19
20
21
22
23
24
NOTES
1. CONNECTOR TYPE: PCIB24W9M400A1, POS-
ITRONIC. FEMALE CONNECTOR TYPE: PCIB-
24W9F400A1,-S1031(not attached with unit)
2. LED INDICATORS. REFER TO INSTRUCTION
MANUAL.
3. MOUNTING SCREWS MUST NOT PENETRATE
MORE THAN 3mm INTO THE UNIT.
4. MODEL NAME, INPUT AND OUTPUT RATING
AND SAFETY APPROVALS SYMBOLS ARE
DESCRIBED ON TOP SURFACE LABEL.
5. ALLOW MINIMUM 50mm OF UNRESTRICTED
AIR SPACE AT THE REAR OF UNIT. DO NOT
OBSTRUCT AIR FLOW TO THE UNIT FRONT
PANEL.
6. IN OUT CONNECTOR BACK VIEW AND PINS
ASSIGNMENT:
REAR VIEW
FRONT VIEW SEE NOTE 4
（unit: mm）
（unit: mm）

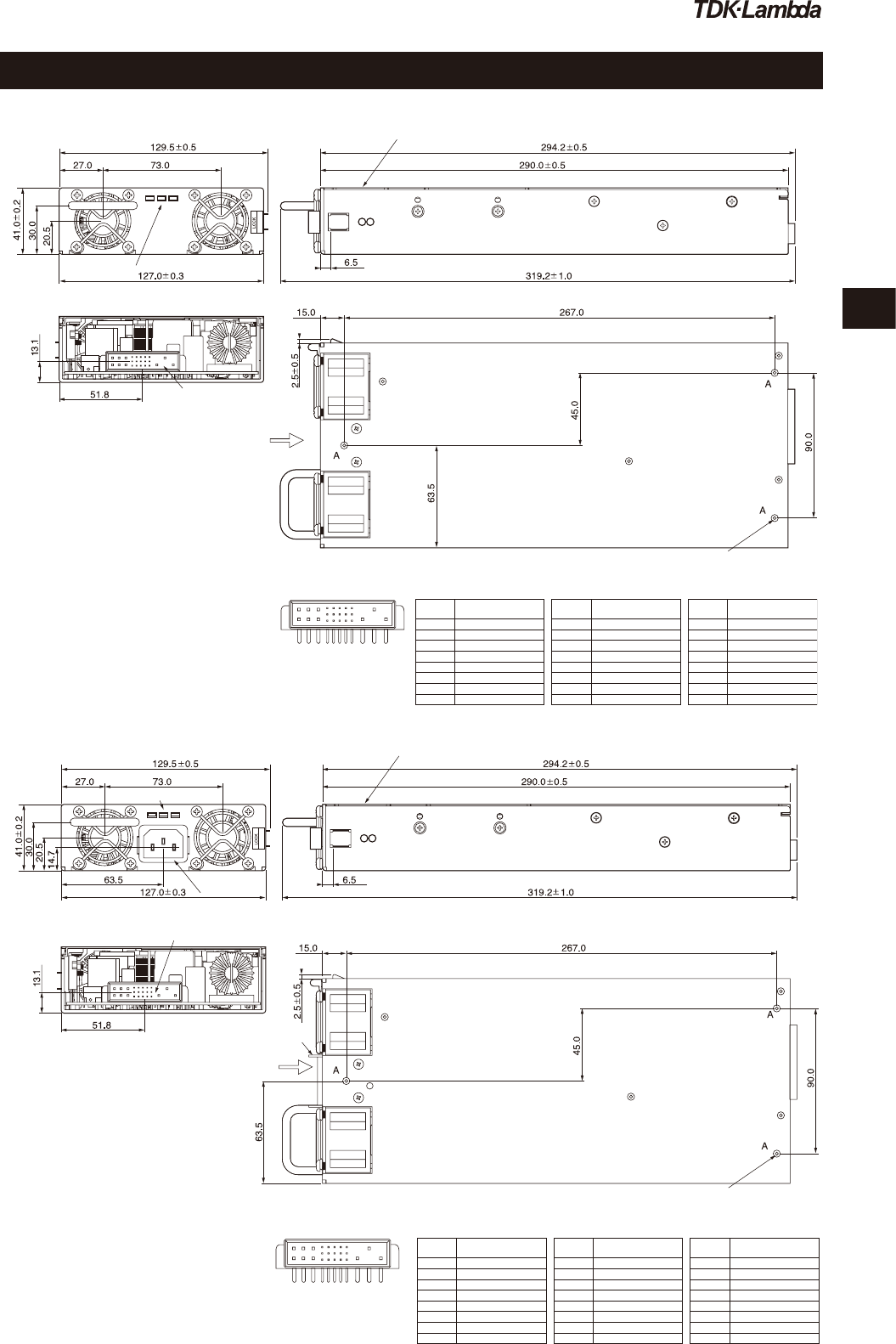

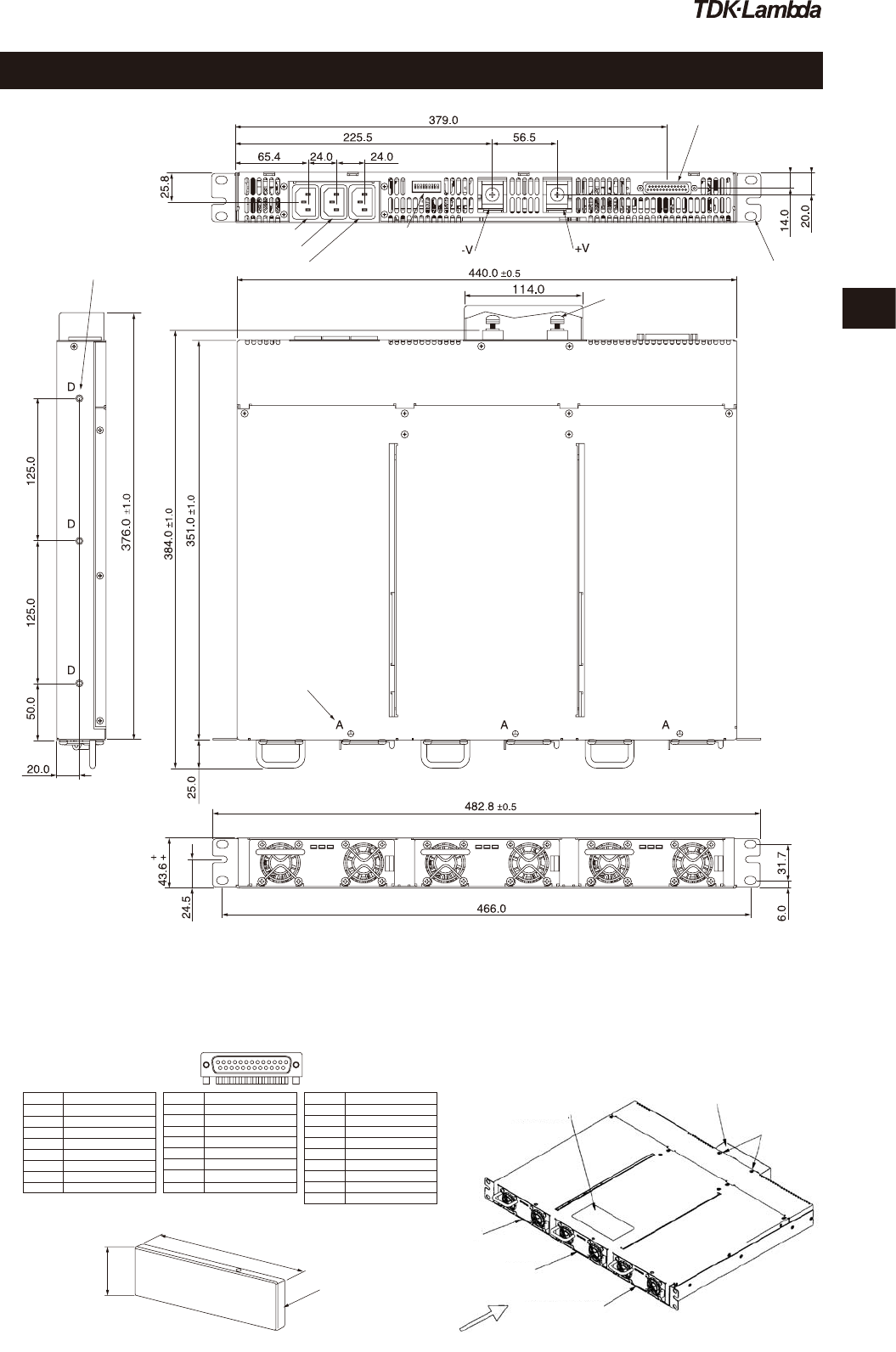

【FPS1000】
Outline Drawing
FPS 1000
FPS
A-50
・All specifications are subject to change without notice.
ITEMS/UNITSMODEL FPS-S1U
Input
Voltage Range (*2) V AC85 - 265 continuous (Universal input)
Frequency (*2) Hz 47 - 63, Single phase
Current (100/200VAC)(max) A 12.0 / 6.0 for each FPS1000 unit installed
Output Maximum Power (*1) W 3000
Function
Remote Sensing (*3) Possible.
Remote ON/OFF Control Separate control for each FPS1000 unit, by electrical signal or dry contact.
On: 0 - 0.6V or short. OFF: 2 - 15V or open.
Parallel Operation (*6) Possible.
Series Operation (*4) Possible. Up to 2 racks of the same voltage and current rating.
Over Temperature Alarm
Signal
Separate control for each FPS1000 unit, open collector signal.
Normal: ON, max.sink current: 10mA
DC OK Signal Separate control for each FPS1000 unit, open collector signal.
On when Vout>80%+/-5% max.sink current: 10mA
AC Fail Signal Separate control for each FPS1000 unit, open collector signal.
On when Vin > 85VAC, max.sink current: 10mA.
AUX-BIAS Power Supply
11.2 - 12.5VDC. Maximum output current: 0.25A x Number of installed FPS1000 units.
Output Voltage Trimming Possible. Refer to instruction manual.
AC Input Connector FPS-S1U: IEC inlet for each power supply module. FPS-S1U/P: None
Output Terminals Bus-bars. Refer to outline drawing.
Number of Power Supply Modules
(*5) Maximum 3 FPS1000 modules of the same output voltage rating.
Environment
Operating Temperature ℃0 to 50: 100% load. Derate 2%/℃, 50 to 60.
Storage Temperature ℃-30 to 85
Operating Humidity
％RH
10 - 90, no condensation.
Storage Humidity
％RH
10 - 95, no condensation.
Vibration Built to meet ETS 300 019
Shock Built to meet ETS 300 019
Isolation
Withstand Voltage
Input-Output: 3000Vrms, 1min. Input-Ground: 2000Vrms, 1min. Output-Ground: 500Vrms, 1min.
Isolation Resistance More than 100MΩ at 25℃ and 70% RH. Output-Ground: 500VDC
Standards
Safety Standards UL60950-1, EN60950-1, CSA C22.2 No.60950-1
Mechanical
Weight (typ) g 3700
Size (W x H x D) mm 440 x 44 x 351 (Refer to outline drawing.)
(*1) For input voltage lower than 100VAC, maximum output power is 2700W.
(*2) For cases where conformance to various safety standards (UL, EN etc.) is required, to be described as 100-240VAC (50/60Hz).
(*3) Remote sensing can compensate up to 1V drop on each load wire.
(*4) Not applicable for units with I2C bus option.
(*5) The output of all the FPS1000 modules are connected in parallel in the rack.
(*6) Up to 3 racks with max.8 FPS1000 units of the same voltage and current rating.
FPS-S1U Specifications
FPS-S1U
FPS
A-51
・All specifications are subject to change without notice.
MODULE "A"
MODULE "B"
MODULE "C"
I2C INTERFACE
ADDRESS SWITCH
(SEE NOTE 3)
SEE NOTE 2.
SEE NOTE 1.
OUTPUT
BUS BAR
SIGNAL & CONTROL
CONNECTOR D-TYPE 25 PINS
SIDE MOUNTING HOLES
MARKED "D" 3 ON EACH SIDE
(SEE NOTE 5.)
HOLES FOR BLANK PANEL
MOUNTING: USE FLAT
HEAD SCREWS M3x6- 6
PLACES MARKED "A"
BLANK PANEL
INFORMATION:
(OPTIONAL)
ORDER NAME: FPS-BP
1
1425
13
PIN NUMBER.
FUNCTION
1 V_TRIM_B
2 TEMP_ALARM_B
3 DC_OK_B
4 TEMP_ALARM_A
5 ON/OFF_A
6 DC_OK_A
7 V_TRIM_A
8 +12V_AUX
CONNECTOR DESCRIPTION:
D-TYPE RIGHT ANGLE, 25 POSITIONS,
FRONT METAL SHELL,
AMP P/N: 747846-4
SIGNALS & CONTROL CONNECTOR PINS ASSIGNMENT
PIN NUMBER.
FUNCTION
9 CS
10 V_TRIM_C
11 SIGNAL_RTN
12 DC_OK_C
13 +S
14 AC_FAIL_B
15 ON/OFF_B
16 AC_FAIL_A
PIN NUMBER.
FUNCTION
17 NC
18 NC
19 NC
20 SCL（l2C）
21 SDA（l2C）
22 -S
23 TEMP_ALARM_C
24 AC_FAIL_C
25 ON/OFF_C
41.0
127.0
NOTES
(*1) MOUNTING HOLES FOR 19" RACK, USE M6x12 TO FIX THE UNIT
TO A RACK.
(*2) M6x16 SCREWS FOR LOAD WIRES FIXING, USE M6 LUG FOR
THE LOAD WIRES, RECOMMENDED TIGHTENING TORQUE 42 - 56
Kgf.cm
(*3) REFER TO INSTRUCTION MANUAL FOR SETTING DETAILS.
(*4) MODEL NAME , VOLTAGE AND CURRENT RATING AND SAFETY
APPROVALS SYMBOLS WILL BE SHOWN HERE ACCORDING TO
THE SPECIFICATIONS.
(*5) MOUNTING HOLES M5 FOR MOUNTING BRACKETS . USE M5x8
SCREWS TO FIX THE BRACKETS TO THE CHASSIS. SCREWS
MUST NOT PENETRATE THE CHASSIS MORE THAN 6 mm.
(*6) THE FPS-S1U RACK IS SHOWN WITH 3 FPS1000 UNITS
INSTALLED.
0.4
0.0
【FPS-S1U】
SEE NOTE 4 FLAT HEAD
SCREW M3x6
-2 PLACES-
PS MODULE "A"
OUTPUT TERMINAL COVER.
INSTALL AFTER LOAD
CABELS CONNECTION.
PS MODULE "B"
PS MODULE "C"
AIR FLOW
DIRECTION
UNIT : mm
UNIT : mm
Outline Drawing
FPS-S1U
FPS
A-52
・All specifications are subject to change without notice.
SIGNAL & CONTRO
CONNECTOR D-TYP 25 PINS
SEE NOTE 2.
SEE NOTE 1.
OUTPUT
BUS BAR
I2C INTERFACE
ADDRESS SWITCH
(SEE NOTE 3.)
SIDE MOUNTING HOLES
MARKED "D" 3 ON EACH SIDE
(SEE NOTE 5.)
HOLES FOR BLANK PANEL
MOUNTING: USE FLAT
HEAD SCREW M3x6-
6PLACES MARKED "A"
1
1425
13
PIN NUMBER.
FUNCTION
1 V_TRIM_B
2 TEMP_ALARM_B
3 DC_OK_B
4 TEMP_ALARM_A
5 ON/OFF_A
6 DC_OK_A
7 V_TRIM_A
8 +12V_AUX
CONNECTOR DESCRIPTION:
D-TYPE RIGHT ANGLE, 25 POSITIONS,
FRONT METAL SHELL.
AMP P/N: 747846-4
SIGNALS & CONTROL CONNECTOR PINS ASSIGNMENT
PIN NUMBER.
FUNCTION
9 CS
10 V_TRIM_C
11 SIGNAL_RTN
12 DC_OK_C
13 +SENSE
14 AC_FAIL_B
15 ON/OFF_B
16 AC_FAIL_A
PIN NUMBER.
FUNCTION
17 NC
18 NC
19 NC
20 SCL(I2C)
21 SDA(I2C)
22 -SENSE
23 TEMP_ALARM_C
24 AC_FAIL_C
25 ON/OFF_C
BLANK PANEL
INFORMATION:
(OPTIONAL)
ORDER NAME: FPS-BP
41.0
127.0
NOTES
(*1) MOUNTING HOLES FOR 19" RACK, USE M6x12 TO FIX THE UNIT
TO A RACK.
(*2) M6x16 SCREWS FOR LOAD WIRES FIXING. USE M6 LUG FOR THE
LOAD WIRES. RECOMMENDED TIGHTENING TORQUE 42 - 56
Kgf.cm
(*3) REFER TO INSTRUCTION MANUAL FOR SETTING DETAILS.
(*4) MODEL NAME , VOLTAGE AND CURRENT RATING AND SAFETY
APPROVALS SYMBOLS WILL BE SHOWN HERE ACCORDING TO
THE SPECIFICATIONS.
(*5) MOUNTING HOLES M5 FOR MOUNTING BRACKETS . USE M5x8
SCREWS TO FIX THE BRACKETS TO THE CHASSIS. SCREWS
MUST NOT PENETRATE THE CHASSIS MORE THAN 6 mm.
(*6) THE FPS-S1U/P RACK IS SHOWN WITH 3 FPS1000/P UNITS
INSTALLED.
【FPS-S1U / P】
AIR FLOW
DIRECTION
SEE NOTE 4
PS MODULE "A"
PS MODULE "B"
PS MODULE "C"
FLAT HEAD
SCREW M3x6
-2 PLACES-
OUTPUT TERMINAL COVER.
INSTALL AFTER LOAD
CABLES CONNECTION.
UNIT : mm
UNITS:mm
FPS-S1U/P
