Fussion Series 3-Way Active Speaker System

SPEAKER

FUSSION 3000

■ Mackie’s FUSSION 3000 is a high-output, 3-way, medium-

throw, active speaker system. It features high-precision trans-

ducers combined with application-specifi c amplifi er technol-

ogy that allows this integrated system to generate high output

levels with very low distortion characteristics.

■ FUSSION 3000 transducers include a special, low induc-

tance, double voice-coil 8-inch, horn-loaded (80˚ x 70˚ )

midrange transducer designed to deliver the lowest possible

distortion even at full power. It operates between 500Hz and

2,500Hz, eliminating the placement of a crossover point in the

middle of critical voice frequencies. The result is super-smooth

phase and power response that delivers extraordinary intel-

ligibility at high output levels.

■ A 3-inch titanium diaphragm compression driver, mounted

to an 80˚ x 70˚ horn with a 1.4-inch exit throat, reproduces fre-

quencies above 2,500Hz. Mackie Designs has implemented a

unique “Vacuum Tube” philosophy for amplifi ers designed for

mid and high-frequency reproduction. The FUSSION 3000 fea-

tures two Trans-Fet amplifi ers, one for the midrange driver and

a modifi ed version for the high-frequency compression driver.

Our Trans-Fet technology combines a very simple Class AB

design topology with special transformers fi tted on the ampli-

fi er outputs, that assists in eliminating intermodulation distor-

tion by-products. This type of design emulates the celebrated

warmth and transparency of vacuum tube amps. The result is

clear, and accurate reproduction.

■ The FUSSION 3000 delivers deep, quick bass through the

use of four 12-inch high output woofers. Each 12-inch woofer

handles 350 watts RMS long term. Placing four devices within

the cabinet allows the FUSSION 3000 to produce very deep,

precise reproduction of low frequencies. Using four 12-inch

woofers allows low frequency reproduction to be extremely

“quick” compared to other designs. The low frequency ampli-

fi er module is an excellent example of the effi ciency of active

designs. This amplifi er uses a high-effi ciency, high-current

topology to produce 1500 watts of power from a module the

size of a single sheet of paper.

■ Frequency response of the FUSSION 3000 is linear between

55Hz and 18KHz. The system processor provides complete sys-

tem management of all electronic and acoustic functions includ-

ing electronic active crossover, electronic phase alignment,

electronic time correction, electronic equalization and complete

amplifi er and component protection. Because it is designed to

Features

■ Active, high-output, wide dispersion 3-way system

■ 80° x 70° coverage pattern

■ High output, 133dB in High Pass Mode Operation

■ Four 12” high-precision transducers

■ Low distortion, horn-loaded 8” mid-range transducer

■ 3” titanium diaphragm compression driver

■ 18mm birch plywood construction

■ 1500W high-effi ciency, high-current amplifi er

for woofers

■ 300W Trans-Fet amplifi er for mid-range

■ 150W Trans-Fet amplifi er for compression driver

■ On-board acoustic management control system

■ Integrated ATM hanging and fl ying hardware

Applications

■ Main PA

■ Fills

■ Night Clubs

■ Corporate Events

oF 6 PAGES

1OF 8 PAGES

(continued on last page)

FUSSION 3000

oF 6 PAGES

2OF 6 PAGES

3-Way Active Speaker System

FUSSION 3000

SPEAKER

FUSSION 3000

oF 6 PAGES

2OF 8 PAGES

Specifi cations

System Acoustic

Frequency Range (–10dB): 45Hz–20kHz

Frequency Response (–3dB): 55Hz–18kHz

Horizontal Coverage Angle (–6dB): 80˚ averaged

2kHz to 10kHz

Vertical Coverage Angle (–6dB): 70˚ averaged

2kHz to 10kHz

Directivity Factor; DI(Q): 10.19 (10.46) averaged

2kHz to 10kHz

Rated Maximum SPL (long term): 130dB @ 1m

Rated Maximum SPL (peak): 133dB @ 1m

Rated Maximum SPL-High Pass On: 85Hz–18kHz: 132dB

(long term)

Rated Maximum SPL-High Pass On: 85Hz–18kHz: 135dB

(peak)

Crossover Points: 500Hz, 2,500Hz

Dynamic Range: >110dB

Phase Response: ±35˚ from 500Hz to 10kHz

Transducers

Low Frequency (4 each wired series-parallel)

Cone Diameter: 12” (300mm)

Voice Coil Diameter: 3” (75mm)

Power Handling: 350 watts rms (long term)1

Mid Frequency

Cone Diameter: 8” (200mm)

Voice Coil Diameter: 2” (50mm)

Power Handling:

150 watts rms (long term)1

High Frequency

Diaphragm Diameter: 3” (75mm)

Throat Exit Diameter: 1.4” (35.6mm)

Diaphram Material: Titanium

Power Handling: 75 watts rms (long term)1

Amplifi ers

Low Frequency:

Rated Output per AES standard @ low frequency

driver impendance:

1000 watts Continuous Average Power

1500 watts peak

Type: Class G High Effi ciency, High Current

Cooling: Convection Extrusion

Mid Frequency:

Rated Output per AES standard @ mid frequency

driver impendance:

200 watts Continuous Average Power

300 watts peak

Type: Mosfet Based Class AB

Cooling: Convection Extrusion

High Frequency:

Rated Output per AES standard @ high frequency

driver impendance:

100 watts Continuous Average Power

150 watts peak

Type: Mosfet Based Class AB

Cooling: Convection Extrusion

Audio Input / Output / Controls

Main Input, Loop Out: 50kΩ impedance, balanced

Sub-Out Signal: 85Hz low pass output with

protection and active monitoring

for FUSSION 1800S/1800SA

active subwoofer system

Fill Out Signal: 85Hz high-pass signal

Fill Out Signal Level Control: 0 dB to –30 dB

Fill Out Phase Control: 0˚–180˚

High-Pass Switch: Allows system to

operate from 85Hz up only

Line Input Power

US: 120VAC, 60Hz

Recommended Amperage Service: 20A

AC Connector: 3 pin Twistlock 250VAC, 20A male

Europe: 230VAC, 50Hz

Recommended Amperage Service: 16A

AC Connector: 3 pin IEC 250VAC, 16A male

In-rush Current Protection: Yes, transistor based

Control System Functions

Electronic Crossover

Phase Alignment

Time Correction

Equalization

Safety Features

RMS Limiting: Monitoring and limiting of

continuous RMS output of amplifi ers

Thermal: Monitoring of thermal condition of

power supply and amplifi ers. High

temperature condition engages input

stage shut down and auto reset function.

Physical

Enclosure: Trapezoidal, 15° side angles,

18mm multi-layered birch

Hanging Inserts: 4 points on top

Rigging Inserts: 2 points, 1 each side ATM MEGS

1 pull back clip, bottom

Handles: 4 ea. aluminum/rubber grips

Color: Black, splatter paint

Grille: Custom perforated oval steel grille

with anti-corrosive treatment

Dimensions:

Height: 41 in (104.1cm)

Front Width: 25 in (63.5cm)

Rear Width: 13.9 in (35.3cm)

Depth: 23 in (58.4cm)

Net Weight: 246 lbs. (112kg)

Options

Active Subwoofer System: Fussion 1800SA / 1800S

Flyware: ATM Megs Compatible

Footnote 1: Power handling for transducers is based on AES long term power testing standard

conducted for 100 hours full power, free air.

oF 6 PAGES

3OF 6 PAGES

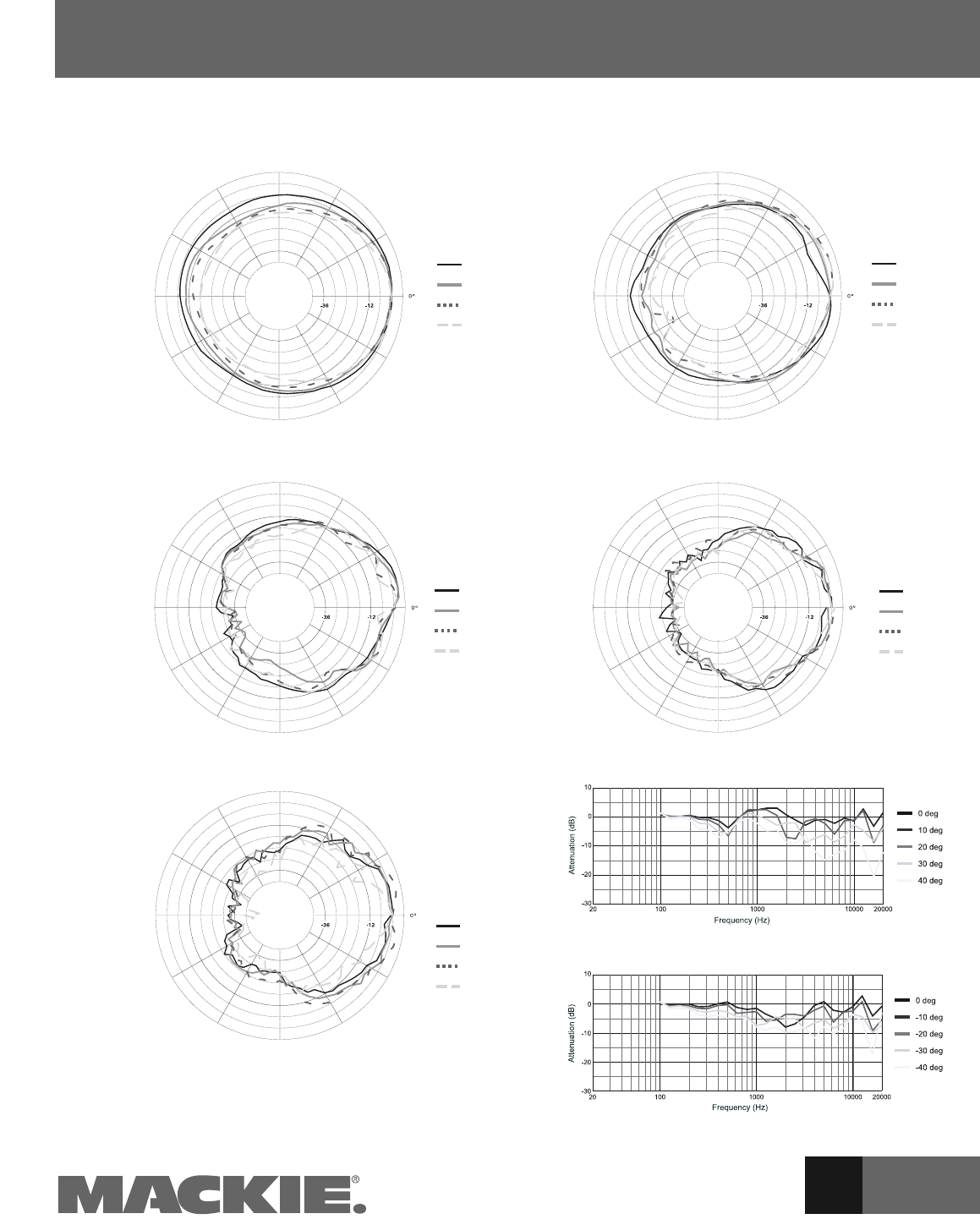

Vertical Off-Axis Frequency Response (DOWN)

Vertical Off-Axis Frequency Response (UP)

200Hz

250Hz

315Hz

400Hz

500Hz

630Hz

800Hz

1kHz

3.15kHz

4kHz

5kHz

6.3kHz

8kHz

10kHz

12.5kHz

16kHz

1.25kHz

1.6kHz

2kHz

2.5kHz

FUSSION 3000

Vertical Polars

3-Way Active Speaker System

FUSSION 3000

OF 8 PAGES

3-Way Active Speaker System

FUSSION 3000

oF 6 PAGES

4OF 8 PAGES

FUSSION

3000

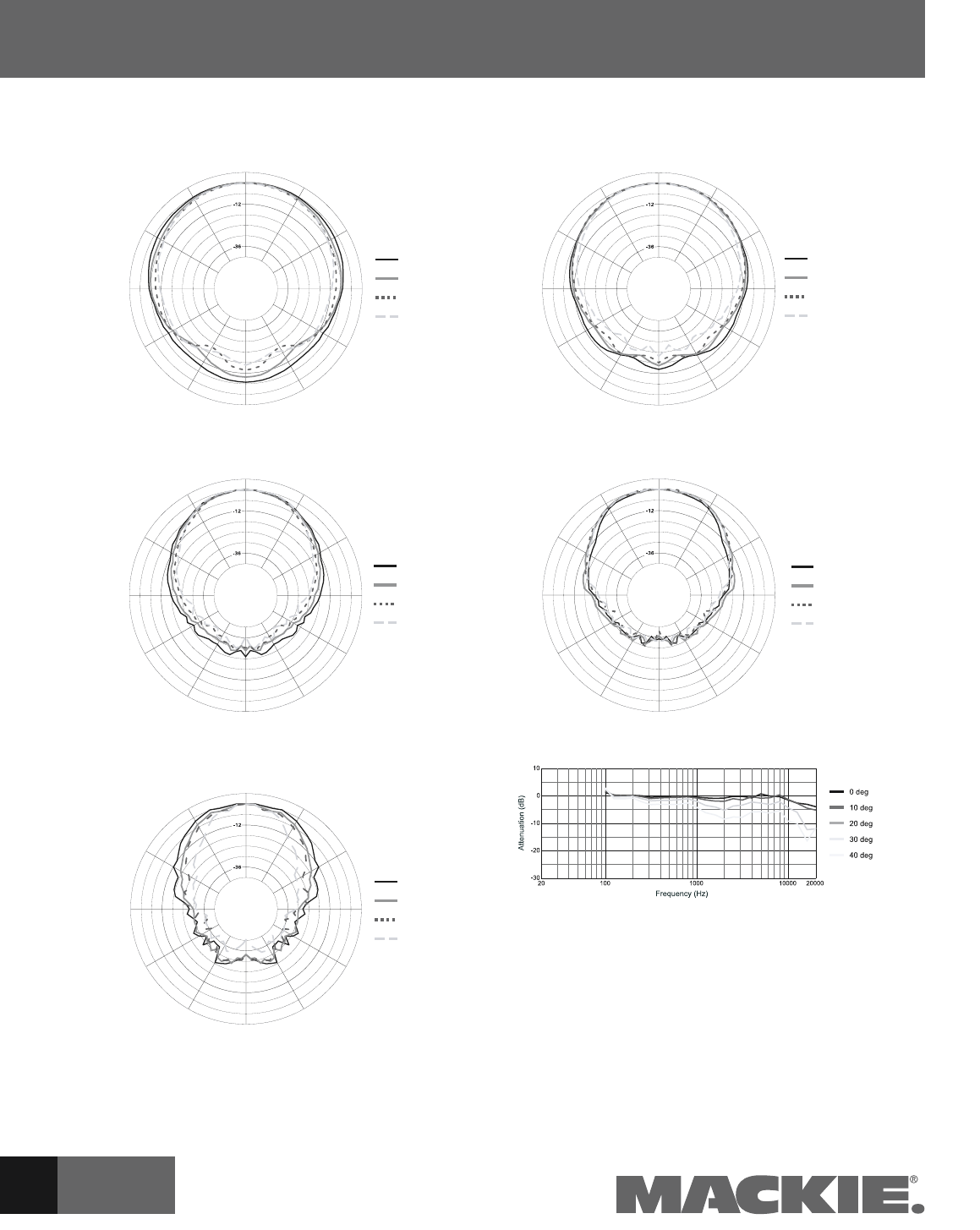

Horizontal Polars

0˚

200Hz

250Hz

315Hz

400Hz

0˚

500Hz

630Hz

800Hz

1kHz

0˚

3.15kHz

4kHz

5kHz

6.3kHz

Horizontal Off-Axis Frequency Response

0˚

8kHz

10kHz

12.5kHz

16kHz

1.25kHz

1.6kHz

2kHz

2.5kHz

0˚

3-Way Active Speaker System

FUSSION 3000

oF 6 PAGES

5OF 8 PAGES

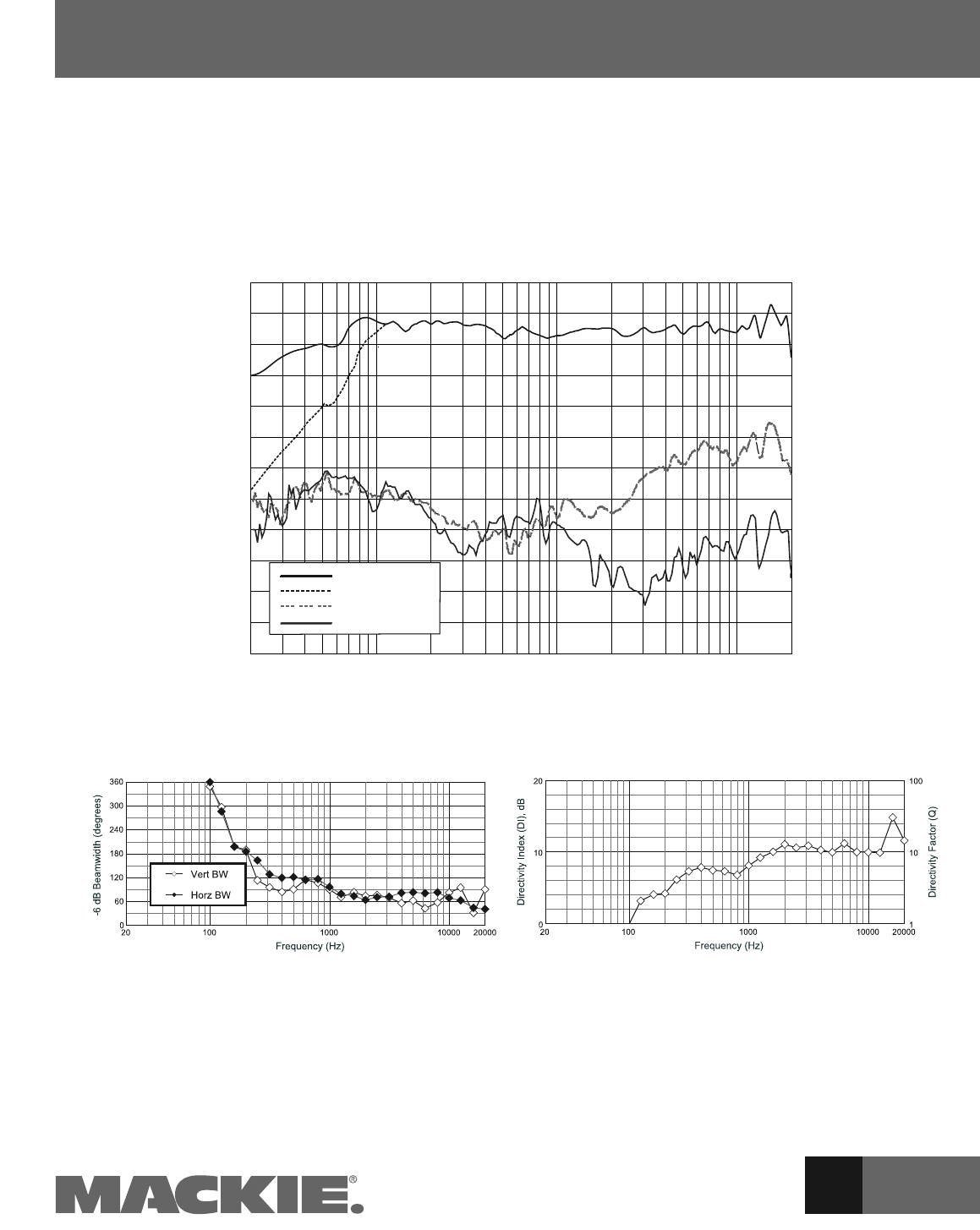

Directivity Index

Beamwidth vs. Frequency

Frequency (Hz)

100 1000 10000

0

20

40

60

80

100

120

dB SPL

20 20000

Frequency response

Fundamental

2nd harmonic

3rd harmonic

High Pass On

3-Way Active Speaker System

FUSSION 3000

oF 6 PAGES

6OF 8 PAGES

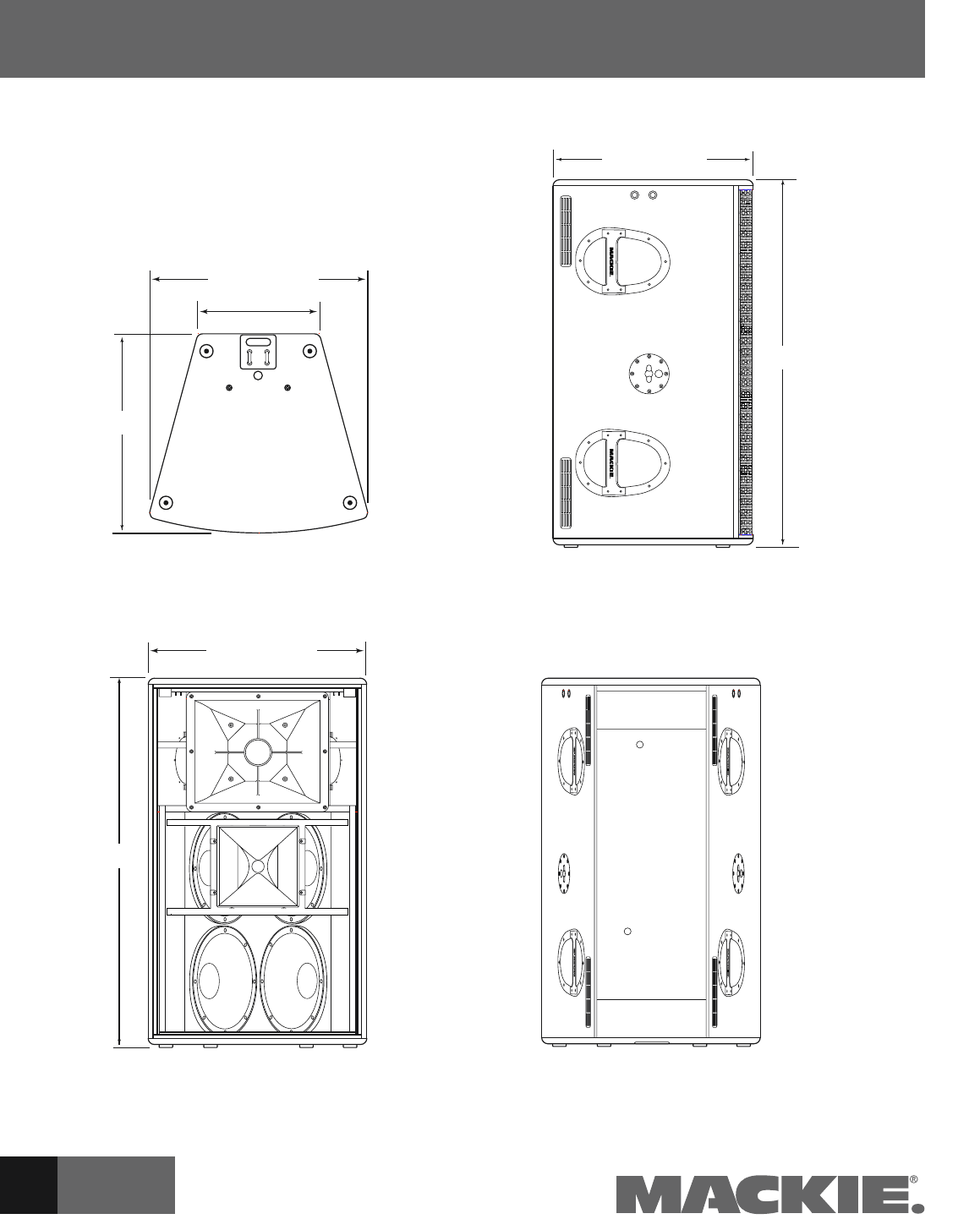

13.86" (352mm)

24.72" (628mm)

24.72" (628mm)

SIDE

FRONT REAR

BOTTOM

41.89" (1064mm)

41.89" (1064mm)

22.64" (575mm)

22.64" (575mm)

3-Way Active Speaker System

FUSSION 3000

oF 6 PAGES

7OF 8 PAGES

FUSE

3000

FUSSION

WARNING:

THIS SURFACE MAY REACH HIGH TEMPERATURE DURING

STANDARD USE. TO ENSURE PROPER OPERATION ALLOW A MINIMUM OF 6 INS.

OF CLEARANCE FROM THIS SURFACE AND ADEQUATE VENTILATION. TO REDUCE

THE RISK OF ELECTRIC SHOCK DO NOT REMOVE THIS PANEL OR ANY ATTACHED

COMPONENT. NO OPERATOR SERVICEABLE PARTS INSIDE. REFER SERVICING TO

QUALIFIED PERSONNEL. TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT

EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

REPLACE WITH THE SAME TYPE FUSE AND RATING.

DISCONNECT SUPPLY CORD BEFORE CHANGING FUSE

UTILISE UN FUSIBLE DE RECHANGE DE MÊME TYPE.

DEBRANCHER AVANT DE REMPLACER LE FUSIBLE

CAUTION

AVIS:

RISQUE DE CHOC ELECTRIQUE — NE PAS OUVRIR

SERIAL NUMBER MANUFACTURING DATE

FS

CONCEIVED, DESIGNED, AND MANUFACTURED BY MACKIE DESIGNS INC, WOODINVILLE, WA, USA

AND MACKIE EUROPE • MANUFACTURED IN ITALY • COPYRIGHT ©1998 •

THE FOLLOWING ARE TRADEMARKS OR REGISTERED TRADEMARKS OF MACKIE DESIGNS INC.:

"MACKIE", AND THE "RUNNING MAN" FIGURE • PATENT PENDING

™10

0

MAIN INPUTLOOP OUT

PIN 1- GND / PIN 2- POS (+) /

PIN 3- NEG (-)

HIGH PASS

85Hz - 20kHz

FULL RANGE

55Hz - 20kHz

POWER (GREEN)

PROTECT (RED)

FILL OUT

85Hz - 20kHz

OUTPUT

LEVEL

SUB-OUT

20Hz - 85Hz

PHASE

0˚ 180˚

MAIN INPUT

ON

PARALLEL

FUSE

10A / SB

16A - 230 VAC

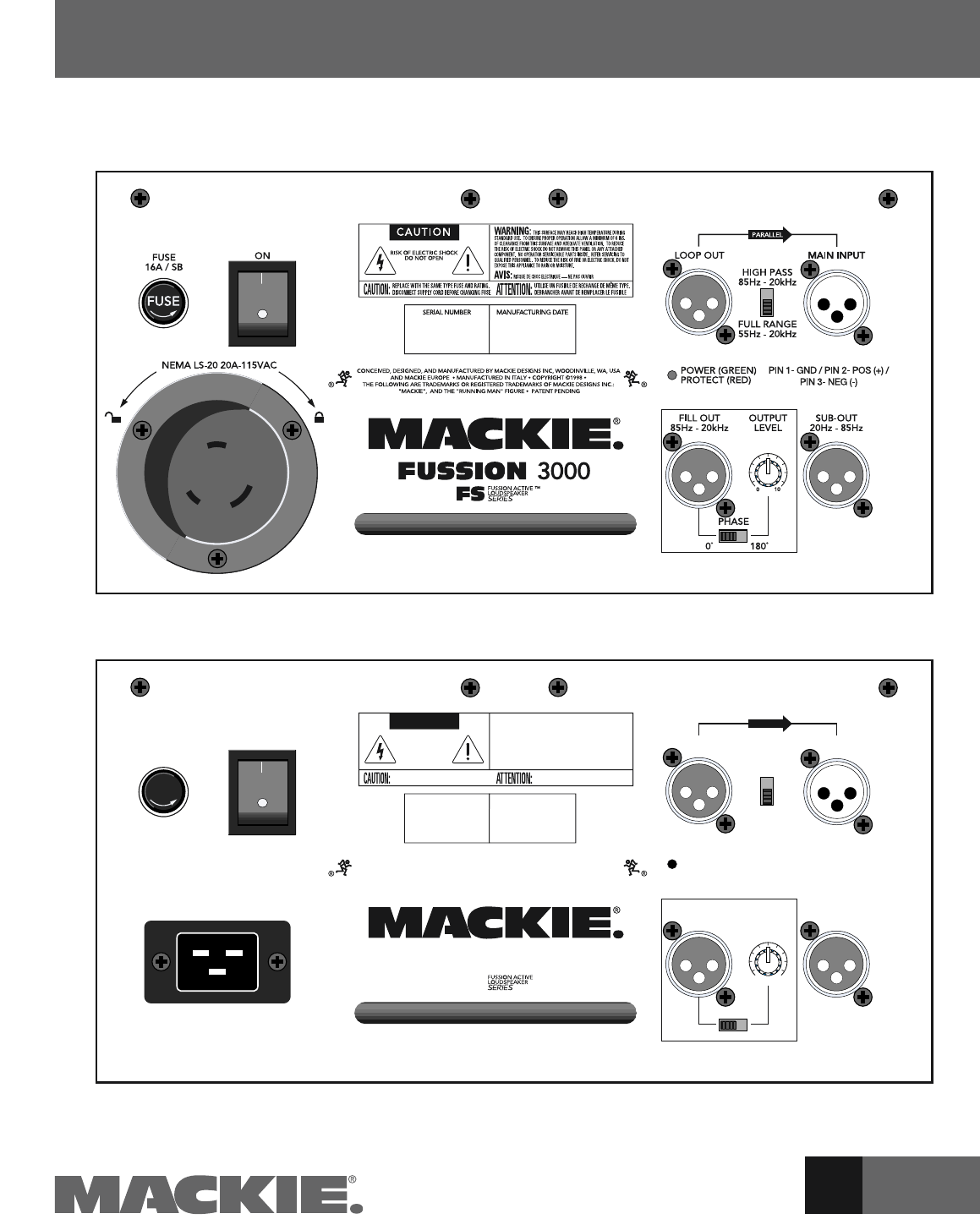

Input/Output Control Panel

Euro/230V Control Panel with IEC AC Connector

3-Way Active Speaker System

FUSSION 3000

oF 6 PAGES

8OF 8 PAGES

Architects’ and Engineers’ Specifi cations

The active, 3-way, full-range loudspeaker system shall

incorporate four 12-inch low-frequency (LF) transducers,

one horn-loaded 8-inch mid-frequency (MF) transducer and

a 1.4-inch exit, 3-inch titanium diaphragm, compression

driver high-frequency (HF) transducer. The LF drivers shall be

mounted in a vented, multi-ply birch wood enclosure, tuned

for optimum low-frequency response. The MF transducer

shall be sealed from the rear and loaded on a one-piece horn

assembly providing optimum compression ratio and disper-

sion characteristics. The HF transducer shall be mounted on

an aluminum, constant-directivity horn. The system shall pro-

vide a nominal coverage pattern of 80˚ (horizontal) x 70˚ (ver-

tical). System frequency response shall vary no more than

±3dB from 60Hz to 18kHz measured on axis. The loudspeaker

shall incorporate a low-frequency amplifi er, capable of deliv-

ering 1500 watts over a frequency range of 20Hz to 500Hz.

The system shall incorporate a 300-watt amplifi er specifi cally

designed to power the MF driver over the range of 500Hz

to 2.5kHz and a 150-watt amplifi er specifi cally designed to

power the high-

frequency driver over the range of 2.5kHz to 20kHz. The

amplifi ers shall be mounted on an aluminum heat sink

installed within the cabinet. The loudspeaker enclosure shall

have a trapezoidal shape and shall incorporate four side han-

dles along with hanging and rigging hardware. The system

will include a control panel with XLR input connector and an

XLR loop-through signal connector, a high-pass or full-range

mode selection switch, a sub-out XLR connector providing

low-pass audio and control signal for subwoofer systems, a

“Fill-Out” XLR connector with level and phase controls, and

power and protection mode LED indicators. The front of the

loudspeaker shall be covered with a powder-coated, weather-

resistant perforated steel grille.

The active 3-way full-range loudspeaker system shall be

the Mackie Designs FUSSION 3000.

deliver very high output levels (133dB peak-full range) and

wide dispersion, the system can only be line-arrayed with

other FUSSION 3000 cabinets. The system’s wide dispersion

characteristics do not allow it to be used in large arrays.

■ FUSSION 3000 is the fi rst professional speaker system

to create a completely ideal union between transducers

and amplifi ers. To ensure long-term reliability and perfor-

mance, the amplifi er cards and processor are mounted to a

huge heat sink eliminating the need for fans, dramatically

extending life expectancy and eliminating maintenance

cycles. An easily-accessible rear input and control panel

offers substantial signal routing fl exibility. All audio connec-

tions are via XLR connectors, including a main input with a

loop-through output for connection to other enclosures.A

Full Range/High Pass switch allows the FUSSION 3000 to

be operated full range or above 85Hz only. A SUB-OUT con-

nector allows simple connection to the Fussion 1800AS/

1800S active subwoofer system. The SUB-OUT signal is

low-passed below 85Hz and also contains the limiting and

protection circuitry for the active subs. For sound reinforce-

ment situations where “fi ll” speakers are needed, there is a

Fill-Out connector with level and (0˚–180˚) phase controls.

Mackie’s FUSSION 3000 can run on 115V AC or 230V AC

single phase. The system features soft-start circuitry that

eliminates “pops” and precisely controls AC in-rush current

surges.

www.mackie.com

16220 Wood-Red Rd NE, Woodinville, WA 98072 USA

800.898.3211, fax 425.487.4337, sales@mackie.com

UK +44 1268 571 212, fax +44 1268 570 809, mackie.uk@rcf-uk.com

ITALY +39 0522 354 111, fax +39 0522 332 294, mackieitaly@rcf.it

FRANCE +33 3 8546 9160, fax +33 3 8546 9161, rcf.commercial@wanadoo.fr

GERMANY +49 2572 96042 0, fax +49 2572 96042 10, info@mackie.de

Electronic fi les for this product available at:

www.mackie.com

This Specifi cation Sheet FUSSION3000.PDF

Architects’ & Engineers’ Specifi cations FUSSION3000AE.TXT

Quick-Start Manual FUSSION3000QS.PDF

Applications Guide FUSSION3000AG.PDF

Owner/Operator’s Manual FUSSION3000ML.PDF

CADD fi les FUSSION3000.DXF

EASE data FUSSION3000.EAS

Mackie continually engages in research related to product improvement. New material, production meth-

ods, and design refi nements are introduced into existing products without notice as a routine expres-

sion of that philosophy. For this reason, any current Mackie product may differ in some respect from its

published description, but will always equal or exceed the original design specifi cations unless otherwise

stated. ©1999-2000 Mackie Inc. All rights Reserved. and are registered trademarks of

Mackie Inc. Mackie is a trademark of Mackie Designs Inc.

part no. 910-225-00 Rev A

(continued from fi rst page)

SPEAKER

FUSSION 3000
