Gigabyte GA 8I915ME GL Schematics. Www.s Manuals.com. R1.02 Schematics

User Manual: Motherboard Gigabyte GA-8I915ME-GL - Schematics. Free.

Open the PDF directly: View PDF .
Page Count: 37

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

Revision 1.02

SHEET TITLE

COMPONENT SIDE

GND SIDE

(1 oz. Copper)

(1 oz. Copper)

(1 oz. Copper)

(1 oz. Copper)

VCC SIDE

SOLDER SIDE

01

02

03

04

05

06

07

08

09

10

11

12

13

14

15

16

17

18

19

20

21

22

SHEET TITLE

23

24

25

26

27

28

29

30

31

BOM & PCB MODIFY HISTORY

COVER SHEET

P4_LGA775_A

P4_LGA775_B

P4_LGA775_C

GMCH-GRANTSDALE_HOST

GMCH-GARNTSDALE_DDR

DDR CHANNEL B

DDR TERMINATION

ICH6 PCI, USB, DMI, LAN

ICH6 IDE, GPIO, SATA, CTRL

ICH6 VCC, GND

CLK GEN

PCI SLOT 1,2

ITE8712HX

KB_MS

COM/LPT/FDD

32

33

34

HWMO/FAN/FWH BIOS

BLOCK DIAGRAM

GMCH-GRANTSDALE_PWR

VCORE POWER

35 FRONT PANEL/BZ

(FRONT+REAR)USB/RING/IDE

PCI SLOT 3

FAN & WOL

Model Name: 8I915ME-GL

ALL POWER

ATX POWER CONN.

LAN RTL8110S/8100C

AUDIO JACK

AC97 CODEC ALC655

DDR CHANNEL A

GMCH-GRANTSDALE_GND

GMCH-GRANTSDALE_INT VGA

GMCH-GRANTSDALE_PCI E, DMI

P4_LGA775_D

DATE:05/02-1

GA-8I915ME-GL

1.02

Cover Sheet

GIGABYTE

Custom

1 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

BLOCK DIAGRAM

PAGE 4, 5, 6,7

VCC3

INTEL Pentium4

LGA775

VCORE = 1.75V / SLEEP : 1.3V

PAGE 9,10,11,12,13,14

VCORE = 1.75V / SLEEP : 1.3V

GMCH

GRANTSDALE

2_5VSTR = 2.5V(MEMORY)

VDDQ = 1.5V (AGP POWER 4X, HUBLINK)

PAGE 8,33,34

PWM/OTHER POWER

VCORE = 1.75V (650-1100MHZ) / SLEEP : 1.3V

VID0~4

2_5VSTR = 2.5V(MEMORY,SUSPEND POWER)

PAGE 16

DDR SDRAM DIMM X1

VTT_DDR = 1.25V

MAA0~14

MDD0~63

-DQSD0~7

DM0~7

HL0~10

5VSB,-12V,+12V,VCC,VCC3,3VDUAL

VTT_DDR,2_5VSTR

PAGE 22

CLOCK GENERATOR

CKVDD = 3.3V

CONTROL BUS

HUB LINK

VCC3 = 3.3V

5VUSB = 5V

AVDD = 5V

VCC = 5V 5VSB = 5V

RTCVDD = 3.3V

PAGE 27,28,29

-12 = -12V

VCC = 5VVCC3 = 3.3V

COMB

PAGE 30

VCC = 5V

COMA IR

FRONT AUDIO

VCC3 = 3V

LPT

TELE

VBAT = 3V

MIC

3VDUAL = 3.3V(SUSPEND POWER)

LIN_ OUT

5VSB = 5V

+12 = 12V

AZALIA

LINK

CD_IN

PCI BUS

AMRUSB+ / -

AUX_IN

LPC BUS

VCC = 5V

PAGE 25

ICH6

USB PORTS 0~7

PS2

PAGE 23,24

LINE_IN

PAGE 19,20,21

PAGE 29

AUDIO PORTS :

3VDUAL = 3V

LPC ITE8712IX

I/O PORTS :

PAGE 31

FDD

VCC25 = 2.5V(I/O,MEMORY/I,VLINK/I)

PVCC = 5V

PAGE 36

FRONT PANEL/BZ

+12 = 12V

5VSB = 5V

VCC = 5V

PCI SLOT

1,2,3

MAA_CPC1~5

MAB_CPC1~5

2_5VSTR = 2.5V(MEMORY,SUSPEND POWER)

PAGE 15

DDR SDRAM DIMM X 1

VTT_DDR = 1.25V

CHANNEL A

CHANNEL B

IDE Primary

PAGE 29

VCC = 5V

SERIAL ATA

PAGE 20

VCC = 5V

PAGE 26

FWH/HWMO

VCC = 5V

VCC3 = 3V

AC97

ALC655

PAGE 32

LAN RTL8110S/8100C

PAGE 35

+12V = 12V

GA-8I915ME-GL

1.02

BOM & PCB MODIFY HISTORY

GIGABYTE

Custom

2 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

Version: 1.02

Component value change

history

Circuit or PCB layout change

for next version

PAGE Change Item Reason

Data Change Item Reason

Model Name: 8I915ME-GL

2005/01/10

02/15 FROM 8IGV775-CH1 cost down rev:1.0

rev:1.02 for EMI & noise &F10 power issue03/25

FROM 8I915ME-CH1 FOR DIST GL04/18

05/02 BOM:102B FOR PVT

GA-8I915ME-GL

1.02

BOM & PCB MODIFY HISTORY

GIGABYTE

Custom

3 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

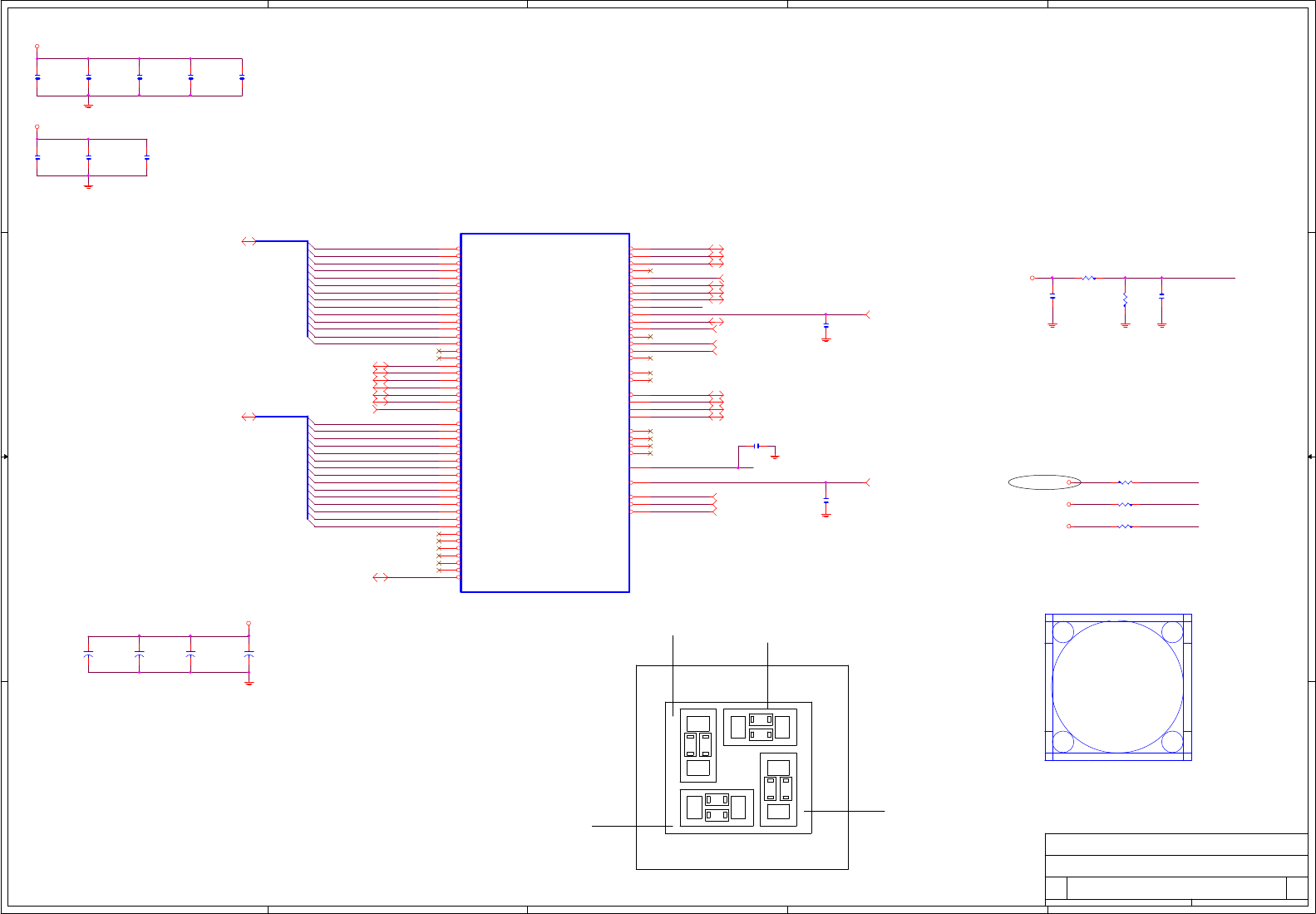

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

SP-CAP X 4PCS

Closed to

Pin-H1

*

EC2

BC1/BC2

BC3/BC4

BC5/BC6

BC7/BC8

上

100U/2V/SPCAP

EC3

上

100U/2V/SPCAP

上

10U/12/X/6.3V X2

顆

上

10U/12/X/6.3V X2

顆

+

+

EC1

+

EC4

+

-

04/06

04/20 BOM

GA-8I915ME-GL

1.02

P4_LGA775-A

GIGABYTE

Custom

4 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

-HTRDY

HA5

-HREQ3

HA7

-HLOCK

-HINIT

-CPURST

-DEFER

HA4

HA8

HA12

HA13

HA15

-HITM

-BR0

-BNR

HA3

HA[3..16]

HA6

-RS0

-DBSY

HA9

HA11

-HADS

HA10

HA14

-HREQ2

HA16

-HADSTB1

-DRDY

-HREQ0

-HREQ4

-IERR

TESTHI10

TESTHI8

TESTHI9

-HREQ1

-HADSTB0

HA22

HA17

HA19

HA30

HA26

HA23

HA18

HA25

HA21

HA27

HA29

HA28

HA20

HA31

HA[17..31]

HA24

-BPRI

-RS1

-RS2

-HIT

-EDRDY

-HPCREQ

-IERR

-BR0

GTLREF

GTLREF

-CPURST

HA[3..16][9]

-HADSTB1[9]

-HTRDY [9]

-CPURST [9]

-HINIT [20]

-DRDY [9]

-DEFER [9]

-DBSY [9]

-BNR [9]

-HADS [9]

-HREQ4[9] -HREQ3[9] -HREQ2[9]

-HREQ0[9]

-RS0 [9]

-HLOCK [9]

-BR0 [9]

-HREQ1[9]

-HADSTB0[9]

HA[17..31][9]

-BPRI [9]

-RS2 [9]

-RS1 [9]

-HIT [9]

-HITM [9]

-EDRDY [9]

-HPCREQ[9] TESTHI8 [5]

TESTHI9 [5]

TESTHI10 [5]

VCORE

VCORE

VCORE

VTT_OL

VTT_OL

VTT_OR

VTT_OL

C4

22P/4/N/50V

BC7

10U/12/X/6.3V/X

R8 62/6

C2

33P/4/N/50V

+

EC2

100U/2V/SPCAP[10CL3-201000-11]/X

BC8

10U/12/X/6.3V

BC5

10U/12/X/6.3V

BC6

10U/12/X/6.3V/X

+

EC1

100U/2V/SPCAP[10CL3-201000-11]/X

+

EC133

100U/2V/SPCAP[10CL3-201000-11]/X

+

EC132

100U/2V/SPCAP[10CL3-201000-11]/X

U1A

LGA775/D/[11SC1-920775-01]

L5

P6

M5

L4

M4

R4

T5

U6

T4

U5

U4

V5

V4

W5

N4

P5

K4

J5

M6

K6

J6

R6

G5

AB6

W6

Y6

Y4

AA4

AD6

AA5

AB5

AC5

AB4

AF5

AF4

AG6

AG4

AG5

AH4

AH5

AJ5

AJ6

AC4

AE4

AD5

D2

C2

D4

H4

G8

E4

B2

C1

AB2

P3

C3

E3

AD3

G7

AB3

F2

U2

U3

F3

G3

G4

H5

J16

H15

H16

J17

H1

G23

B3

F5

A3

A03#

A04#

A05#

A06#

A07#

A08#

A09#

A10#

A11#

A12#

A13#

A14#

A15#

A16#

RSVD

RSVD

REQ0#

REQ1#

REQ2#

REQ3#

REQ4#

ADSTB0#

PCREQ#

A17#

A18#

A19#

A20#

A21#

A22#

A23#

A24#

A25#

A26#

A27#

A28#

A29#

A30#

A31#

A32#

A33#

A34#

A35#

RSVD

RSVD

ADSTB1#

ADS#

BNR#

HIT#

RSP#

BPRI#

HITM#

DBSY#

DRDY#

IERR#

INIT#

LOCK#

TRDY#

BINIT#

DEFER#

MCERR#

EDRDY#

AP0#

AP1#

BR0#

TESTHI08

TESTHI09

TESTHI10

DP0#

DP1#

DP2#

DP3#

GTLREF

RESET#

RS0#

RS1#

RS2#

R1

49.9/6/1

R2

100/6/1

BC11

0.01U/6/X/50V

C1

220P/4/N/50V

C3

1U/6/Y/10V

R6 62/6

CR

CPU RETAINTION/X

BC3

10U/12/X/6.3V

BC2

10U/12/X/6.3V

BC1

10U/12/X/6.3V/X BC4

10U/12/X/6.3V/X

R7 62/6

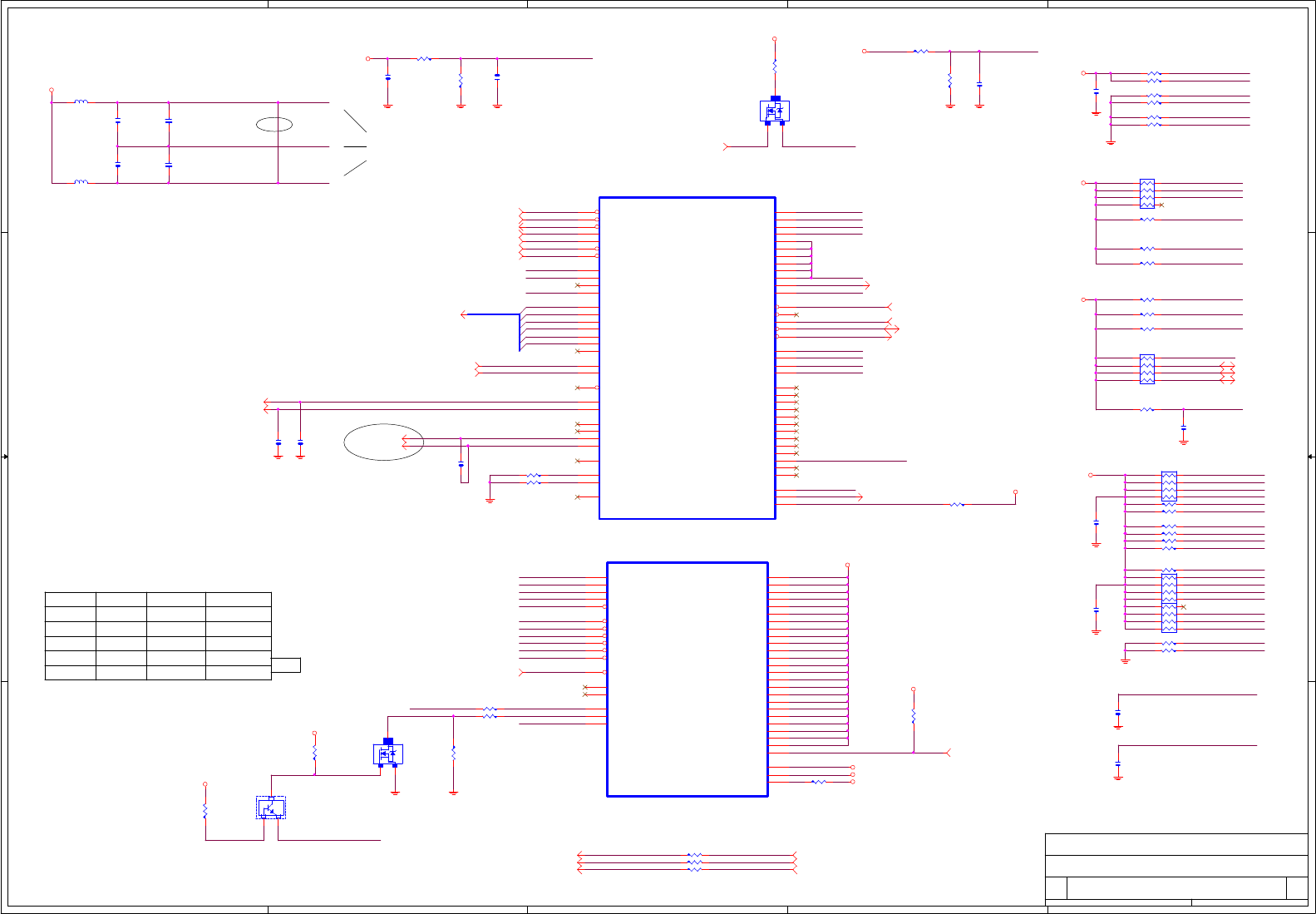

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

Note:

VCCA & VCOREPLL

define doesn't same as

old P4 design kit

As close as possible to

CPU socket

Trace width doesn't

less than 12 Mil

Place outside of CPU socket

Locate at ICH6 Side

03/17

0

0

100MHz

200MHz

1

0

133MHz

166MHz

1

0

0

266MHz

FSBSEL0FSBSEL1

X

0

10

1

X

0

0

0

1

FSBSEL2

CPU

Clock

Closed to

Pin-H2

02/04 for layout

GA-8I915ME-GL

1.02

P4_LGA775-B

GIGABYTE

Custom

5 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

TESTHI11

-STPCLK

-A20M

COMP1

TDO

VCCA

NMI

-TRST

-SMI

-BPM5

COMP0

-BPM4

VSSA

INTR

TCK

TESTHI12

-THRMTRIP

VID5

TMS

VCCA

-BPM2

-BPM1

-BPM0

-BPM3

TDI

VSSA

-TRST

-FERR

VCOREPLL

VCOREPLL

-IGNNE

-CPUCLK

CPUCLK

VID1

VID3

VID2

VID4

VID0

VID[0..5]

BOOTSEL

COMP2

COMP3

CPUPWROK

-PROCHOT

-CPUSLP TESTHI12

TESTHI1

TESTHI0

TESTHI1

LL_ID0

-FORCEPR

BOOTSEL

RSVD_G6

TDI

TCK

TESTHI2_7

-THRMTRIP

TESTHI2_7

-CPUSLP

-SYS_RST

COMP2

COMP3

COMP1

COMP0

-FERR

VID0

FSBSEL2

FSBSEL0

VID4

VID1

VID3

FSBSEL0 BSEL0

FSBSEL1 BSEL1

FSBSEL2 BSEL2

RSVD_G6

-PROCHOT

CPUPWROK

-BPM4

-BPM5

-BPM3

-BPM2

FSBSEL2

FSBSEL1

TESTHI11

TESTHI9

TESTHI0

TESTHI0

VTT_PWRGD

FSBSEL0

FSBSEL11

GTLREF1

GTLREF1

COMP3

COMP2

FSBSEL0 FSBSEL00

FSBSEL1

-FORCEPR

-BPM1

-BPM0

VID2

VID5

TMS

TDO

TESTHI10

TESTHI8

-PROCHOT [36]

-THRMTRIP [20]

-STPCLK[20]

-A20M[20]

INTR[20] NMI[20]

-SMI[20]

CPU_TEMP[25,26] THERMDC[25]

-FERR[20]

-IGNNE[20]

CPUCLK[22] -CPUCLK[22]

VID[0..5][8] -CPUSLP [20]

VTT_PWRGD [8,34]

-SYS_RST[20,22,34,35]

CPUPWROK [20]

BSEL0 [12]

BSEL1 [12]

BSEL2 [12]

FSBSEL0[22] FSBSEL1[22] FSBSEL2[22]

LL_ID0

TESTHI9 [4]

GTL_DET[7,9]

VCC_SENSE

VSS_SENSE

-FORCEPR [36]

TESTHI10 [4]

TESTHI8 [4]

VTT_GMCH

VTT_GMCH

VCC3

VTT_OL

VTT_OR

VTT_OL

VTT_OR

VTT_GMCH

VTT_OL

VCC3

VTT_OR

VCC3

VCC

VTT_GMCH

VTT_OR

VTT_GMCH

R54 8.2K/6

RN104

62/8P4R

1 2

3 4

5 6

7 8

R29 62/6

R53 8.2K/6

R52 1K/6/X

C5

0.1U/6/Y/25V

R30 100/6

R33 330/6

C304

0.1U/6/Y/25V

R34 330/6

C305

0.1U/6/Y/25V

RN1 330/8P4R

1 2

3 4

5 6

7 8

R35 120/6

R1669

61.9/6/1

R1703 62/6/X

U1D

LGA775/D/[11SC1-920775-01]

AE1

AD1

AF1

AC1

AG1

AJ2

AJ1

AD2

AG2

AF2

AG3

AC2

G29

H30

G30

AK3

AJ3

A29

B25

B29

B30

C29

A26

B27

C28

A25

A28

A27

C30

A30

C25

C26

C27

B26

D27

D28

D25

D26

B28

D29

D30

AM6

AA1

J1

F27

TCK

TDI

TDO

TMS

TRST#

BPM0#

BPM1#

BPM2#

BPM3#

BPM4#

BPM5#

DBR#

BSEL0

BSEL1

BSEL2

ITPCLK0

ITPCLK1

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTTPWRGD

VTT_OUT

VTT_OUT

VTT_SEL

C1338

1N/4/N/50V/X

BC213

4.7U/8/Y/10V/X

R1705 0/6/X

BC23

22U/12/X5/6.3V/X

C6

1U/6/Y/10V

R1704 0/6

R48 62/6

R1700 60.4/6/1/X

R24 62/6

R1708

1K/6

RN106 62/8P4R

1 2

3 4

5 6

7 8

R22 62/6

R1706

8.2K/6

BC214

4.7U/8/Y/10V/X

R36 62/6/X

Q281 MMBT2222A/S

13

2

R1699 60.4/6/1/X

R39 62/6

R1707

0/6/X

R1675

249/6/1

G S

D

Q280

2N7002/S

2

13

R15 60.4/6/1

R14 60.4/6/1

C9

1N/4/X/50V

U1C

LGA775/D/[11SC1-920775-01]

P2

K3

R3

K1

L1

N2

M3

A23

B23

D23

C23

AM2

AL5

AM3

AL6

AK4

AL4

AM5

F28

G28

AE8

AL1

AK1

AN3

AN4

AN5

AN6

F29

F26

W3

P1

W2

F25

G25

G27

G26

G24

F24

L2

AH2

N1

AL2

M2

A13

T1

G2

R1

N5

AE6

C9

G10

D16

A20

E23

E24

F23

H2

J2

J3

Y1

V2

AA2

AK6

G6

W1

F6

E7

V1

SMI#

A20M#

FERR#/PBE#

LINT0

LINT1

IGNNE#

STPCLK#

VCCA

VSSA

RSVD

VCCIOPLL

VID0

VID1

VID2

VID3

VID4

VID5

RSVD

BCLK0

BCLK1

SKTOCC#

THERMDA

THERMDC

VCC_SENSE

VSS_SENSE

RSVD

RSVD

VTT_PKGSENSE

TESTHI00

TESTHI01

TESTHI11

TESTHI12

TESTHI02

TESTHI03

TESTHI04

TESTHI05

TESTHII06

TESTHI07

SLP#

RSVD

PWRGOOD

PROCHOT#

THERMTRIP#

COMP0

COMP1

COMP2

COMP3

RSVD

RSVD

RSVD

RSVD

RSVD

RSVD

N/C

N/C

N/C

GTLREF1

N/C

N/C

BOOTSELECT

LL_ID0

LL_ID1

FORCEPR#

RSVD

MSID0

RSVD_F6

N/C

MSID1

C8

1N/4/X/50V

R49 62/6

BC34

1N/4/X/50V

G S

D

Q279

2N7002/S

2

13

L1

10UH/0806/S/[10LI2-12100A-01_10LI2-12100A-02_10LI2-12100A-03_10LI2-12100A-04]

C7

1U/6/Y/10V

C10

33P/4/N/50V

R38 62/6

R1676

680/6

L2

10UH/0806/S/[10LI2-12100A-01_10LI2-12100A-02_10LI2-12100A-03_10LI2-12100A-04]

BC621

0.01U/6/X/50V/X

R27 62/6

R1698

100/6/1/X R11 100/6/1

R1697

49.9/6/1/X

R10 100/6/1

C1339

1U/6/Y/10V/X

R26 62/6/X

R1702 62/6/X

R1701 62/6/X

R23 110/6/1

RN105 62/8P4R

1 2

3 4

5 6

7 8

R37 62/6/X

RN103

470/8P4R

1 2

3 4

5 6

7 8

R25 62/6

C1333

0.1U/6/Y/25V

R55 8.2K/6

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

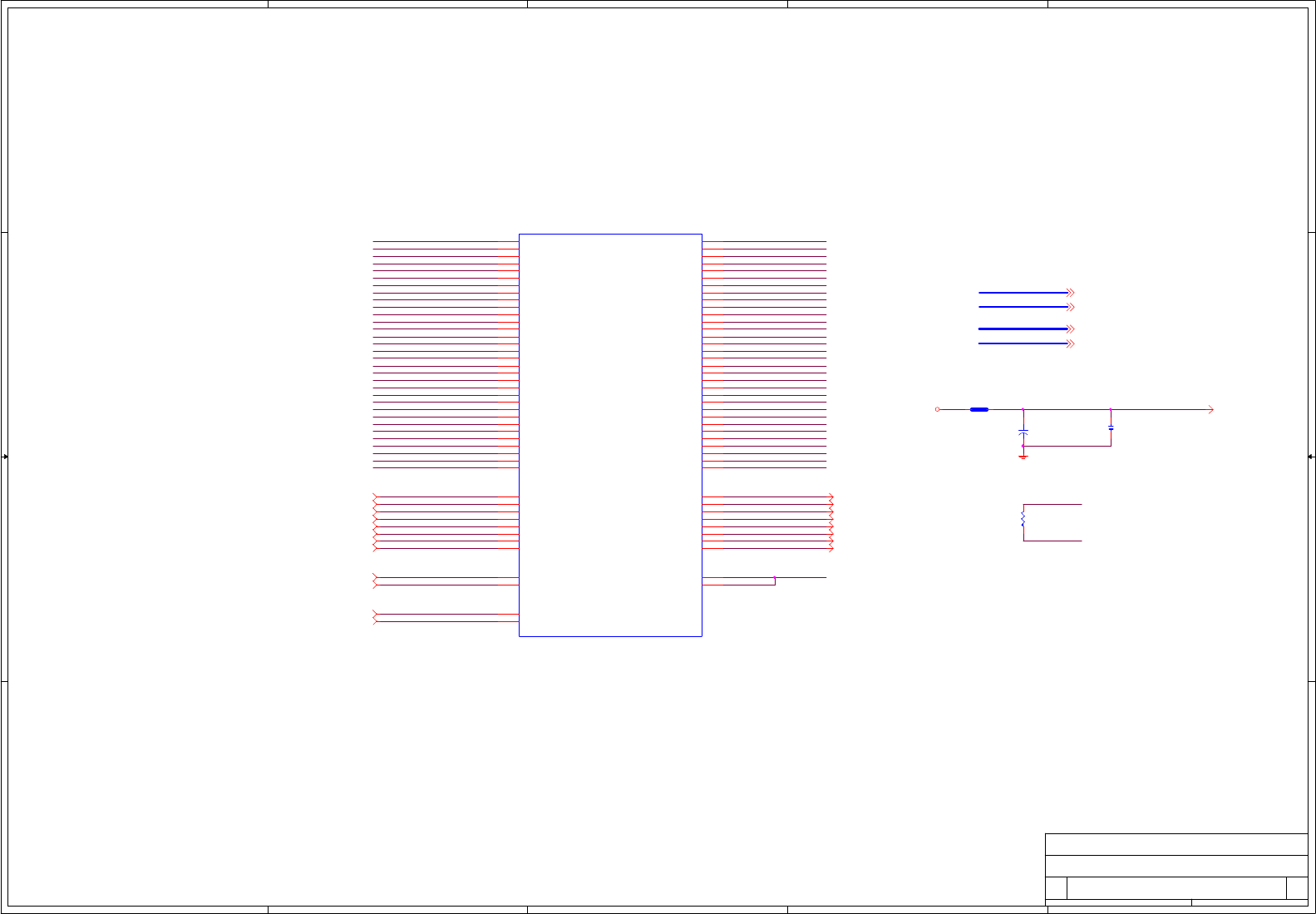

GA-8I915ME-GL

1.02

P4_LGA775-C

GIGABYTE

Custom

6 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

HD0

HD26

HD28

HD31

HD24

HD27

HD29

HD25

HD30

HD18

HD20

HD23

HD16

HD19

HD21

HD17

HD22

-DBI0

STBP0

STBN0

-DBI1

STBP1

STBN1

HD42

HD44

HD47

HD40

HD43

HD45

HD41

HD46

HD34

HD36

HD39

HD32

HD35

HD37

HD33

HD38

HD62

-DBI2

HD60

HD63

STBP2

HD61

STBN2

HD54

HD56

HD59

HD52

HD55

HD57

HD53

HD58

STBN3

HD48

HD51

-DBI3

HD49

STBP3

HD50

HD[16..31]

HD15

HD7

HD5

HD9

HD6

HD11

HD1

HD14

HD13

HD8

HD12

HD4

HD10

HD[0..15]

HD2

HD3

HD[0..15][9]

HD[16..31][9]

-DBI0[9] STBN0[9] STBP0[9]

-DBI1[9]

STBP1[9] STBN1[9] -DBI3 [9]

STBN3 [9]

STBP3 [9]

-DBI2 [9]

STBN2 [9]

STBP2 [9] HD[48..63] [9]

HD[32..47] [9]

U1B

LGA775/D/[11SC1-920775-01]

B4

C5

A4

C6

A5

B6

B7

A7

A10

A11

B10

C11

D8

B12

C12

D11

G9

F8

F9

E9

D7

E10

D10

F11

F12

D13

E13

G13

F14

G14

F15

G15

G16

E15

E16

G18

G17

F17

F18

E18

E19

F20

E21

F21

G21

E22

D22

G22

D20

D17

A14

C15

C14

B15

C18

B16

A17

B18

C21

B21

B19

A19

A22

B22

A8

C8

B9

G11

G12

E12

D19

G20

G19

C20

A16

C17

D00#

D01#

D02#

D03#

D04#

D05#

D06#

D07#

D08#

D09#

D10#

D11#

D12#

D13#

D14#

D15#

D16#

D17#

D18#

D19#

D20#

D21#

D22#

D23#

D24#

D25#

D26#

D27#

D28#

D29#

D30#

D31#

D32#

D33#

D34#

D35#

D36#

D37#

D38#

D39#

D40#

D41#

D42#

D43#

D44#

D45#

D46#

D47#

D48#

D49#

D50#

D51#

D52#

D53#

D54#

D55#

D56#

D57#

D58#

D59#

D60#

D61#

D62#

D63#

DBI0#

DSTBN0#

DSTBP0

DBI1#

DSTBN1#

DSTBP1

DBI2#

DSTBN2#

DSTBP2

DBI3#

DSTBN3#

DSTBP3

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

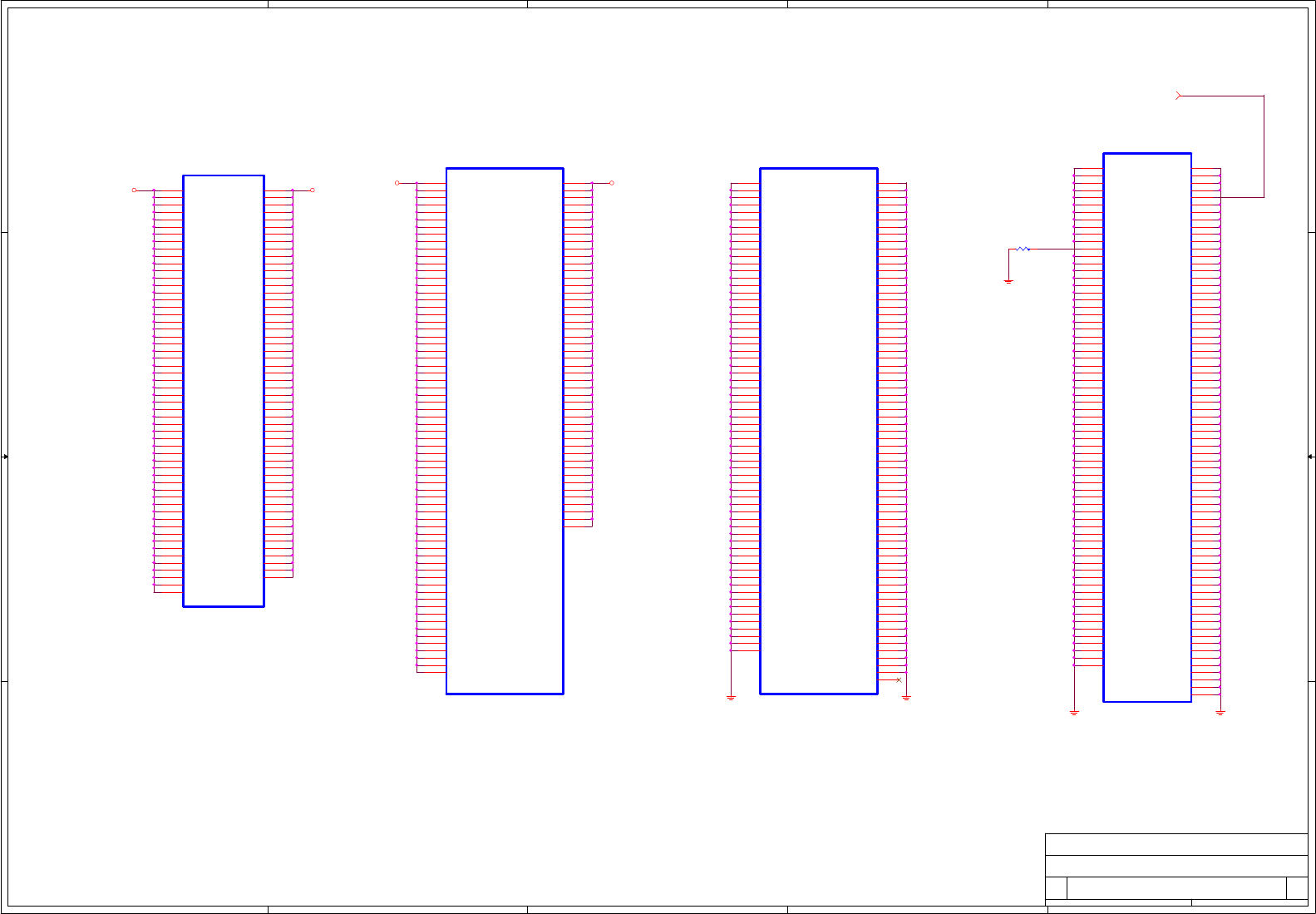

GA-8I915ME-GL

1.02

P4_LGA775-D

GIGABYTE

Custom

7 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

GTL_DET[5,9]

VCORE VCORE

VCORE VCORE

R1709 62/6

U1H

LGA775/D/[11SC1-920775-01]

AN1

AN10

AN13

AN16

AN17

AN2

AN20

AN23

AN24

AN27

AN28

AN7

B1

B11

B14

B17

B20

B24

B5

B8

C10

C13

C16

C19

C22

C24

C4

C7

D12

D15

D18

D21

D24

D3

D5

D6

D9

E11

E14

E17

E2

E20

E25

E26

E27

E28

E29

E8

F10

F13

F16

F19

F22

F4

F7

G1

H10

H11

H12

H13

H14

H17

H18

H19

H20

H21

H22

H23

H24

H25

H26

H27

H28

H29

H3

H6

H7

H8

H9

J4

J7

K2

K5

K7

L23

L24

L25

L26

L27

L28

L29

L3

L30

L6

L7

M1

M7

N3

N6

N7

P23

P24

P25

P26

P27

P28

P29

P30

P4

P7

R2

R23

R24

R25

R26

R27

R28

R29

R30

R5

R7

T3

T7

U1

U7

V23

V24

V25

V26

V27

V28

V29

V3

V30

V6

V7

W4

W7

Y2

Y5

Y7

T6

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

U1E

LGA775/D/[11SC1-920775-01]

AA8

AB8

AC23

AC24

AC25

AC26

AC27

AC28

AC29

AC30

AC8

AD23

AD24

AD25

AD26

AD27

AD28

AD29

AD30

AD8

AE11

AE12

AE14

AE15

AE18

AE19

AE21

AE22

AE23

AE9

AF11

AF12

AF14

AF15

AF18

AF19

AF21

AF22

AF8

AF9

AG11

AG12

AG14

AG15

AG18

AG19

AG21

AG22

AG25

AG26

AG27

AG28

AG29

AG30

AG8

AG9

AH11

AH12

AH14

AH15

AH18

AH19

AH21

AH22

AH25

AH26

AH27

AH28

AH29

AH30

AH8

AH9

AJ11

AJ12

AJ14

AJ15

AJ18

AJ19

AJ21

AJ22

AJ25

AJ26

AJ8

AJ9

AK11

AK12

AK14

AK15

AK18

AK19

AK21

AK22

AK25

AK26

AK8

AK9

AL11

AL12

AL14

AL15

AL18

AL19

AL21

AL22

AL25

AL26

AL29

AL30

AL8

AL9

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

U1G

LGA775/D/[11SC1-920775-01]

A12

A15

A18

A2

A21

A24

A6

A9

AA23

AA24

AA25

AA26

AA27

AA28

AA29

AA3

AA30

AA6

AA7

AB1

AB23

AB24

AB25

AB26

AB27

AB28

AB29

AB30

AB7

AC3

AC6

AC7

AD4

AD7

AE10

AE13

AE16

AE17

AE2

AE20

AE24

AE25

AE26

AE27

AE28

AE29

AE30

AE5

AE7

AF10

AF13

AF16

AF17

AF20

AF23

AF24

AF25

AF26

AF27

AF28

AF29

AF3

AF30

AF6

AF7

AG10

AG13

AG16

AG17

AG20

AG23

AG24

AG7

AH1

AH10

AH13

AH16

AH17

AH20

AH23

AH24

AH3

AH6

AH7

AJ10

AJ13

AJ16

AJ17

AJ20

AJ23

AJ24

AJ27

AJ28

AJ29

AJ30

AJ4

AJ7

AK13

AK16

AK17

AK2

AK20

AK23

AK24

AK27

AK28

AK29

AK30

AK5

AK7

AL10

AL13

AL16

AL17

AL20

AL23

AL24

AL27

AL28

AL3

AL7

AM1

AM10

AM13

AM16

AM17

AM20

AM23

AM24

AM27

AM28

AM4

AM7

AK10

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

U1F

LGA775/D/[11SC1-920775-01]

AM11

AM12

AM14

AM15

AM18

AM19

AM21

AM22

AM25

AM26

AM29

AM30

AM8

AM9

AN11

AN12

AN14

AN15

AN18

AN19

AN21

AN22

AN25

AN26

AN29

AN30

AN8

AN9

J10

J11

J12

J13

J14

J15

J18

J19

J20

J21

J22

J23

J24

J25

J26

J27

J28

J29

J30

J8

J9

K23

K24

K25

K26

K27

K28

K29

K30

K8

L8

M23

M24

M25

M26

M27

M28

M29

M30

M8

N23

N24

N25

N26

N27

N28

N29

N30

N8

P8

R8

T23

T24

T25

T26

T27

T28

T29

T30

T8

U23

U24

U25

U26

U27

U28

U29

U30

U8

V8

W23

W24

W25

W26

W27

W28

W29

W30

Y23

Y24

Y25

Y26

Y27

Y28

Y29

Y30

Y8

W8

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

PRO

以上

,MOSFET (1

上

2

下

)

BOTTOM PAD CONNECT TO GND

THROUGH 10 VIA

DRT PUT CLOSE OUTPUT L

ALL MOSFET =8~9m OHM

CLOSE TO CPU

約

150KHZ

MOSFEF SOLDER SIDE

需加

ICT TEMP.

約

170A

03/30 for 1.4 spec

03/30 for 1.4 spec

GA-8I915ME-GL

1.02

VRD 10.1

GIGABYTE

Custom

8 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

LGATE1

LGATE3

UGATE3

UGATE2

UGATE1

LGATE2

PHASE3

PHASE2

PHASE1

PWM_VID3

PWM_VID2

PWM_VID1

PWM_VID0

PWM_VID5

VTT_PWRGD[5,34]

VID3[5]

VID1[5] VID0[5]

VID2[5]

VID5[5] VID4[5]

IO_VID0 [25]

IO_VID1 [25]

IO_VID2 [25]

IO_VID3 [25]

IO_VID4 [25]

IO_VID5 [25]

PWM_VID0

PWM_VID1

PWM_VID2

PWM_VID3

PWM_VID4

PWM_VID5

PWM_VID4

VRMGD[20]

FB

VIN

VIN

VCORE

VIN

VCC

V12

V12

V12

VCC

V12

VTT_GMCH

VCORE

DL3

0.6uH/TO-5018/40A/1P/[11LC5-40600C-D1]

DR84 8.2K/6

DC34

22N/6/X/25V/[10CM1-022202-35]

DRN4 0/8P4R

1 2

3 4

5 6

7 8

DR102

8.2K/6

DR115

8.2K/6/X

DL2

0.6uH/TO-5018/40A/1P/[11LC5-40600C-D1]

DR99

2.2/6

DR120 0/6

DR95 3.3K/6

+1

DEC16

1500U/D/16V/AK

DR108

2.2/6

DR112 27.4K/6/1

DR104 2.2/6

DR91 2.2/6

DR80 2.2/6

DR118 0/6

DBC24

0.1U/6/Y/25V/X

DQ6

2SK3918/FDD8880/SUD50N024-09P/TO252/[10IF4-083918-01R_10IF4-098880-10R_10IF4-492409-01R]

1

32

DR121 0/6/X

DR96 75K/6

DR79

8.2K/6

DC35

0.01U/6/X/50V/X

DR107 3.3K/6

DQ10

2SK3918/FDD8880/SUD50N024-09P/TO252/[10IF4-083918-01R_10IF4-098880-10R_10IF4-492409-01R]

1

32

DR101 2.2/6

DR103 3.3K/6

DBC13

1U/6/Y/16V

DC29

560P/4/N/50V/X

DQ12

2SK3918/FDD8880/SUD50N024-09P/TO252/[10IF4-083918-01R_10IF4-098880-10R_10IF4-492409-01R]

1

32

DBC21

1U/8/Y/25V

DR97 0/6/SHT/X

DR83 0/6/SHT/X

DQ2

2SK3918/FDD8880/SUD50N024-09P/TO252/[10IF4-083918-01R_10IF4-098880-10R_10IF4-492409-01R]

1

32

DR106 30K/6

+1

DEC17

1500U/D/16V/AK/X

DR116

8.2K/6/X

DBC16

1U/8/Y/25V

DR87 750/6/X

DR93

2.2/6

+1

DEC13

3300U/D/6.3V/SANYO[11CL1-AN3301-02_11CL1-AN3301-05_11CL1-AN3301-07_11CL1-AN3301-08]

+1

DEC18

1500U/D/16V/AK

DR113 27.4K/6/1

DRN2

8.2K/8P4R/X

12 34 56 78

DR109 0/6/SHT/X

DR100

178K/6/1

DBC15

0.1U/6/X/25V

DR89

8.2K/6

DBC17 1U/8/Y/25V

DR105 0/6

DR98

1K/6/X

DL4

0.6uH/TO-5018/40A/1P/[11LC5-40600C-D1]

DC30

1000P/4/N/50V/X

DC27

1000P/4/X/50V

DQ7

2SK3918/FDD8880/SUD50N024-09P/TO252/[10IF4-083918-01R_10IF4-098880-10R_10IF4-492409-01R]

1

32

DBC23

0.1U/6/Y/25V/X

DBC22

0.1U/6/X/25V

SDD1

1N5820/X

SDD3

1N5820/X

DQ4

2SK3918/FDD8880/SUD50N024-09P/TO252/[10IF4-083918-01R_10IF4-098880-10R_10IF4-492409-01R]

1

32

SDD2

1N5820/X

DR85

2.2/6

+1

DEC19

560U/4V/8K/CHEMICON/[11CO1-895600-01_11CO4-885600-01_11CO4-885600-02]

DR86 1K/6

+1

DEC4

560U/4V/8K/CHEMICON/[11CO1-895600-01_11CO4-885600-01_11CO4-885600-02]

DL1

SHORT-WIRE[11NH2-011507-01]

DC26 5.6N/4/X/25V

DR76

2.2/6

DR117 1K/6

DQ1

2SK3918/FDD8880/SUD50N024-09P/TO252/[10IF4-083918-01R_10IF4-098880-10R_10IF4-492409-01R]

1

32

+1

DEC21

560U/4V/8K/CHEMICON/[11CO1-895600-01_11CO4-885600-01_11CO4-885600-02]/X

DC32

0.01U/6/X/50V

DBC14 1U/8/Y/25V

DBC20 1U/8/Y/25V

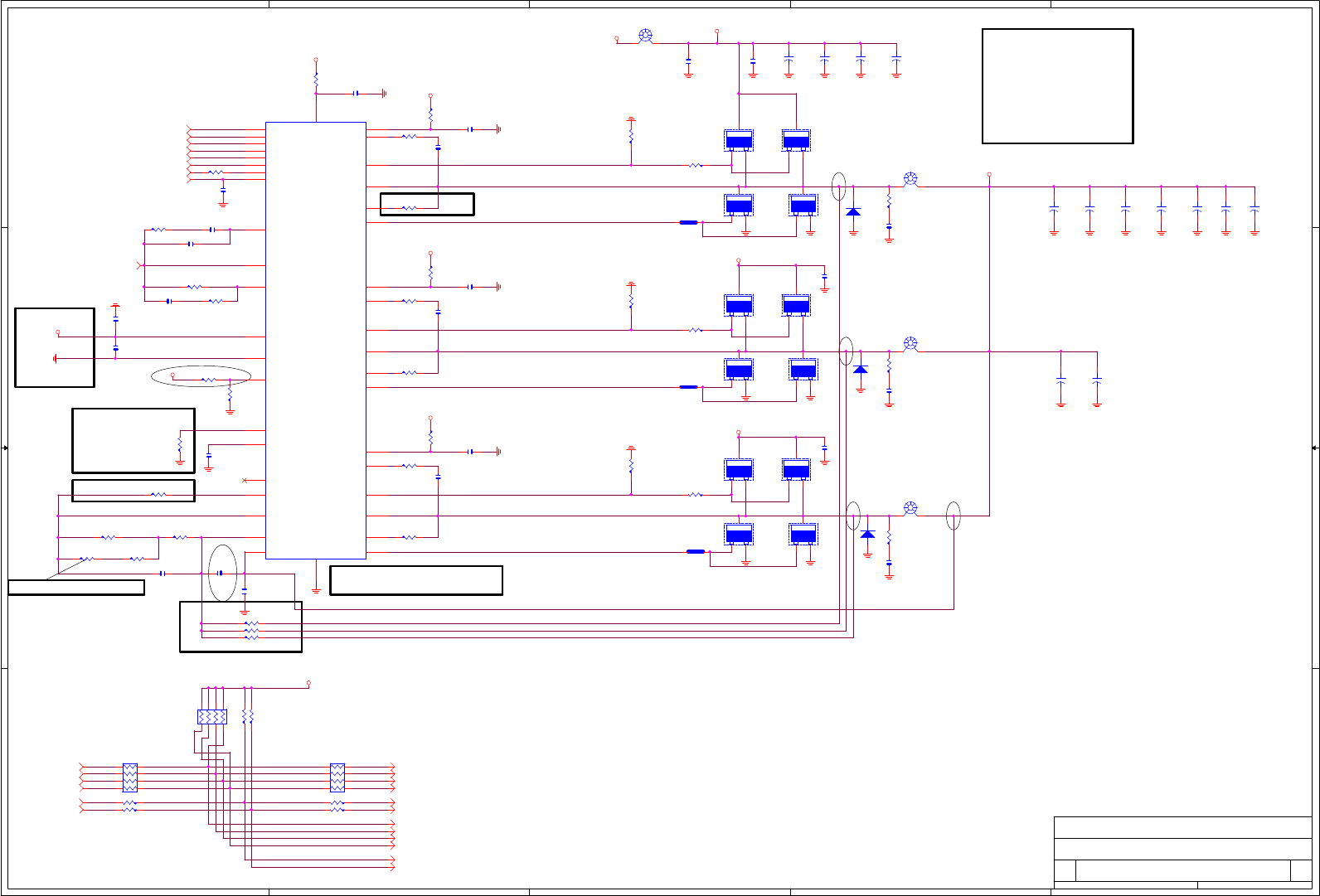

U80

ISL6566CR/[10TA1-606566-01]

34

9

38

39

40

1

2

8

29

30

31

6

37

27

26

3

41

28

23

4

32

33

7

24

25

18

21

20

22

19

17

15

14

13

16

12

11

10

35

5

36

LGATE1

FB

VID4

VID3

VID2

VID1

VID0

COMP

PHASE1

BOOT1

UGATE1

OFST

ENLL

UGATE2

BOOT2

DACSEL/VID5

GND

PHASE2

LGATE2

VRM10

ISEN1

PVCC1

VCC

PVCC2

ISEN2

PVCC3

BOOT3

UGATE3

PHASE3

ISEN3

LGATE3

ISUM

ICOMP

OCSET

IREF

VSEN

RGND

VDIFF

PGOOD

REF

FS

DR110 200K/6/X

DR82 3.9K/6

DQ11

2SK3918/FDD8880/SUD50N024-09P/TO252/[10IF4-083918-01R_10IF4-098880-10R_10IF4-492409-01R]

1

32

DBC19

0.1U/6/X/25V

DQ8

2SK3918/FDD8880/SUD50N024-09P/TO252/[10IF4-083918-01R_10IF4-098880-10R_10IF4-492409-01R]

1

32

DR111 27.4K/6/1

DR77

2.2/6

DRN3 1K/8P4R

1 2

3 4

5 6

7 8

DBC12

1U/8/Y/25V/X

DQ3

2SK3918/FDD8880/SUD50N024-09P/TO252/[10IF4-083918-01R_10IF4-098880-10R_10IF4-492409-01R]

1

32

DR119 1K/6

DBC11

2.2U/8/Y/16V/X

DC28 180P/4/N/50V

+1

DEC20

560U/4V/8K/CHEMICON/[11CO1-895600-01_11CO4-885600-01_11CO4-885600-02]/X

DC33

1000P/4/X/50V

DR78 2.2/6

+1

DEC5

560U/4V/8K/CHEMICON/[11CO1-895600-01_11CO4-885600-01_11CO4-885600-02]

+1

DEC2

560U/4V/8K/CHEMICON/[11CO1-895600-01_11CO4-885600-01_11CO4-885600-02]/X

DRT1

100K/6/THERMISTOR/X

+1

DEC14

3300U/D/6.3V/SANYO[11CL1-AN3301-02_11CL1-AN3301-05_11CL1-AN3301-07_11CL1-AN3301-08]

DC31

1000P/4/X/50V

DR88 2.2/6

DQ5

2SK3918/FDD8880/SUD50N024-09P/TO252/[10IF4-083918-01R_10IF4-098880-10R_10IF4-492409-01R]

1

32

+1

DEC3

560U/4V/8K/CHEMICON/[11CO1-895600-01_11CO4-885600-01_11CO4-885600-02]

DQ9

2SK3918/FDD8880/SUD50N024-09P/TO252/[10IF4-083918-01R_10IF4-098880-10R_10IF4-492409-01R]

1

32

DC36

0.01U/6/X/50V

+1

DEC15

1500U/D/16V/AK

DR81

2.2/6

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

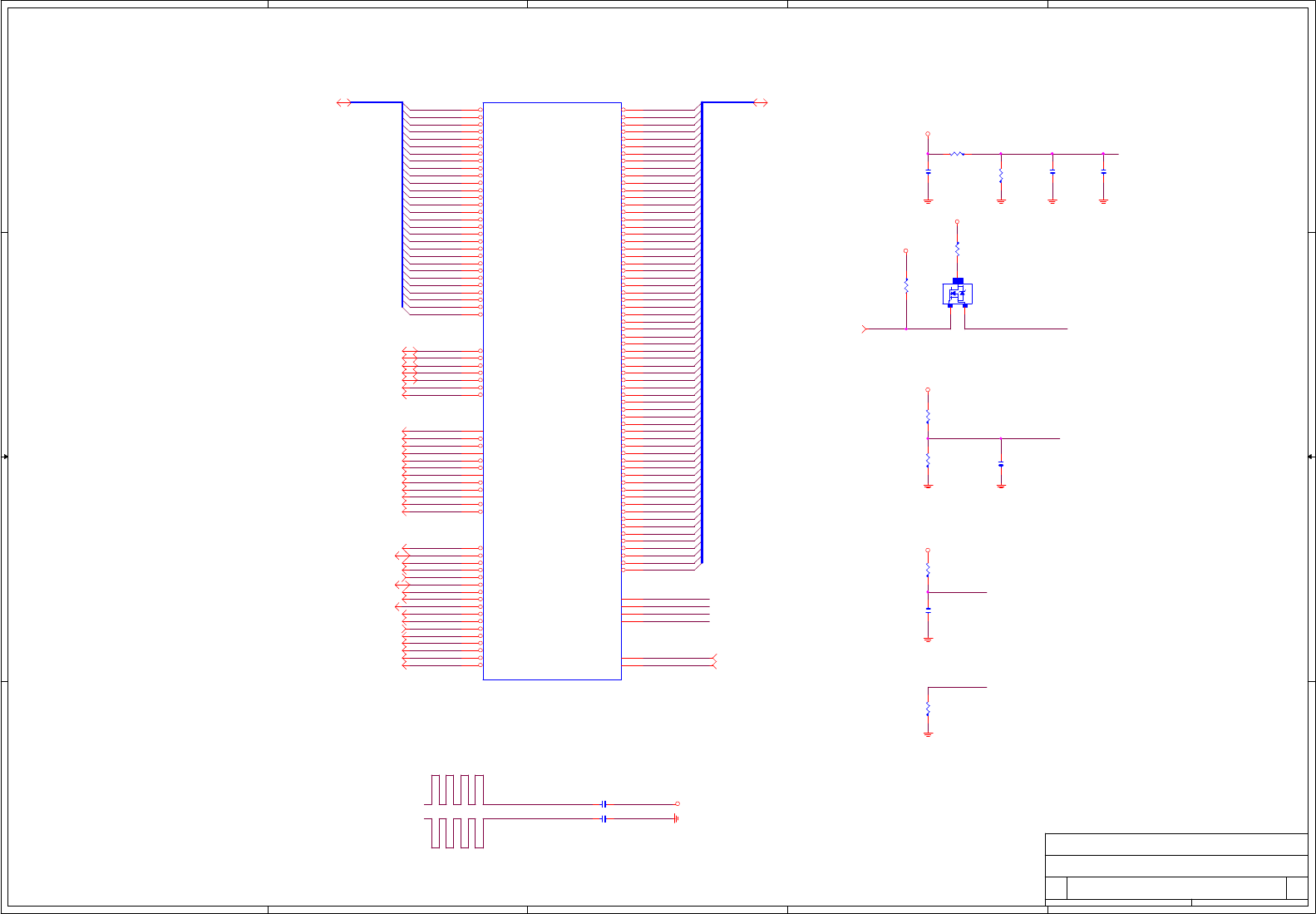

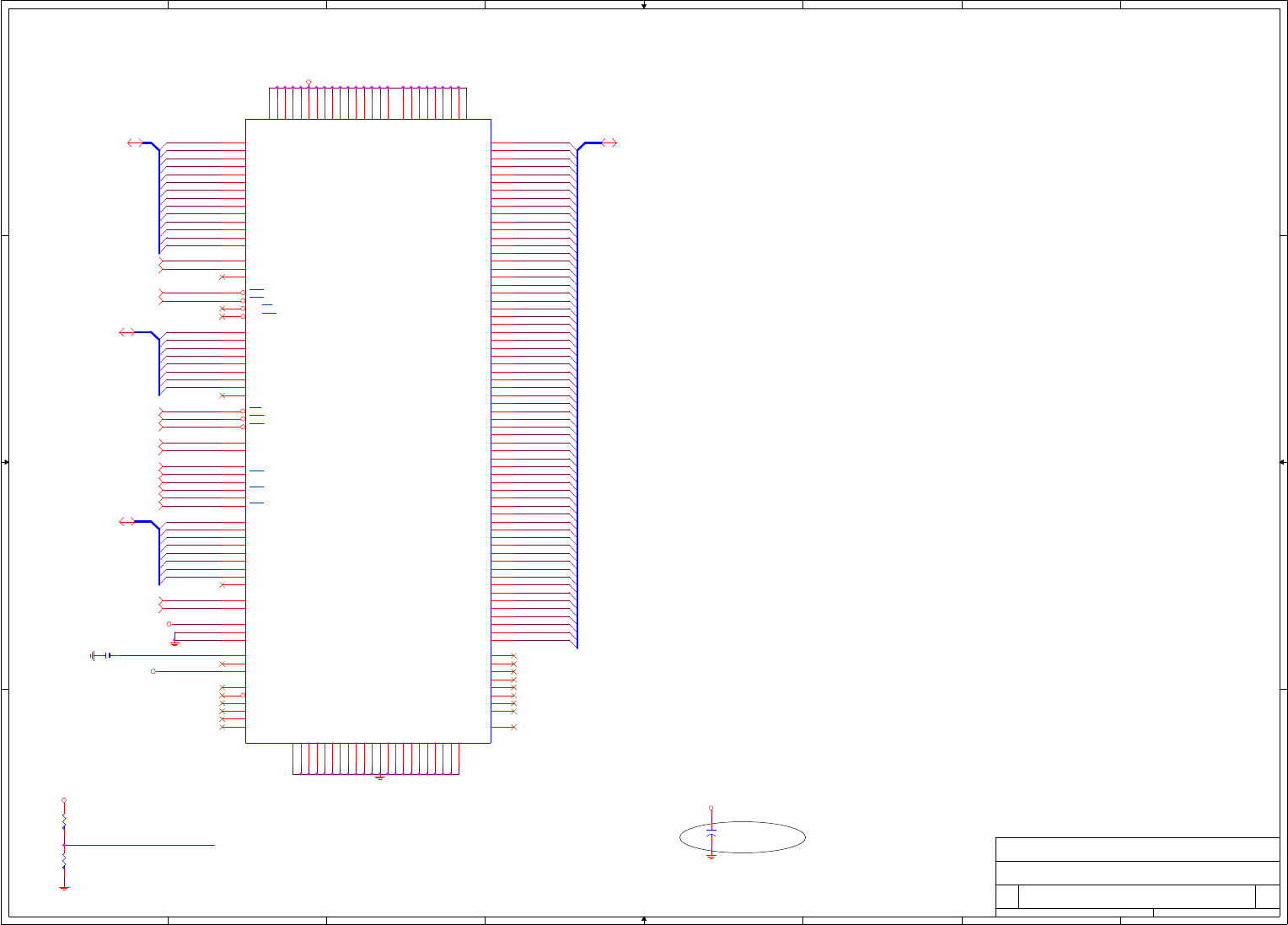

CPU INTERFACE

GA-8I915ME-GL

1.02

GMCH-HOST

GIGABYTE

Custom

9 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

COUPON2

COUPON1

HA[3..31]

HD43

HD15

HD0

HD58

HD53

HD46

HD38

HD33

HD31

HD13

HA31

HA11

HD52

HD3

HA15

HSWNG

HD28

MCH_GTLREF

HD32

HD23

HA14

HA6

HD47

HD21

HD17

HD9

HD1

HD57

HD14

HA29

HA10

HD54

HD12

HA27

HA23

HA8

HA3

HD59

HD41

HD37

HD25

HD8

HD4

HA18

HA7

HD55

HD40

HD29

HD24

HD16

HD11

HD7

HD5

HA9

HD63

HD44

HD34

HD2

HD50

HD19

HA16

HA4

HD[0..63]

HD62

HD42

HD18

HD6

HA30

HA5

HD61

HD60

HD51

HD26

HD20

HA25

HD49

HD45

HD39

HD10

HA24

HA13

HD56

HD36

HD22

HA28

HA21

HA20

HA19

HA17

HA12

HD48

HD35

HD30

HD27

HA26

HA22

HSCOMP

HRCOMP

-HLOCK

-HTRDY

-HIT

-RS1

-BR0

-BPRI

-RS0

-HADS

-RS2

-DBSY

-CPURST

-HITM

-DRDY

-DEFER

-BNR

-EDRDY

STBP3

STBN2

STBP1

-DBI2

-DBI3

-DBI0

STBN0

STBN1

STBP2

STBN3

-DBI1

STBP0

-HREQ4

-HADSTB1

-HREQ3

-HREQ1

-HREQ2

-HADSTB0

-HREQ0

-HPCREQ

MCHCLK

-MCHCLK

HSWNG

MCH_GTLREF

HSCOMP

HRCOMP

MCH_GTLREF

HD[0..63] [6]HA[3..31][4]

-RS0[4]

-BR0[4]

-RS1[4]

-HITM[4]

-DBSY[4]

-HTRDY[4]

-CPURST[4]

-HLOCK[4]

-DEFER[4]

-BNR[4]

-RS2[4]

-HADS[4]

-BPRI[4]

-HIT[4]

-DRDY[4] -EDRDY[4]

STBP3[6]

-DBI3[6]

STBP2[6] STBN2[6]

-DBI0[6]

STBN3[6]

-DBI1[6]

STBP0[6]

STBP1[6] STBN1[6]

STBN0[6]

-DBI2[6]

-HREQ2[4] -HREQ1[4]

-HREQ4[4]

-HREQ0[4]

-HADSTB0[4]

-HREQ3[4]

-HADSTB1[4]

-HPCREQ[4]

-MCHCLK [22]

MCHCLK [22]

GTL_DET[5,7]

VCORE

VTT_GMCH

VTT_GMCH

VTT_GMCH

VCORE

+12V

C35

0.01U/6/X/50V

R114

301/6/1

R115

100/6/1

R117

20/6/1

COUPON1 COUPON/X

21

BC44

0.1U/6/Y/25V

R112

100/6/1

BC43

1U/6/Y/10V C34

220P/4/N/50V

R113

210/6/1

C36

2.2P/4/X/16V/X

R116

60.4/6/1

COUPON2 COUPON/X

21

G S

D

Q277

2N7002/S

2

13

R1670

619/6/1

R1671

8.2K/6

U9A

GRANTSDALE-915GL/C2/[10HB1-032940-B1]

H29

K29

J29

G30

G32

K30

L29

M30

L31

L28

J28

K27

K33

M28

R29

L26

N26

M26

N31

P26

N29

P28

R28

N33

T27

T31

U28

T26

T29

F33

E32

H31

G31

F31

J31

N27

E33

E35

E34

H26

F26

J26

J19

F19

K19

B29

C29

B26

M31

M35

E30

R33

G24

L35

J35

M32

P33

L34

N35

L33

E31

K34

P34

J32

N34

J33

H33

J34

G35

H35

G34

F34

G33

D34

C33

D33

B34

C34

B33

C32

B32

E28

C30

D29

H28

G29

J27

F28

F27

E27

E25

G25

J25

K25

L25

L23

K23

J22

J24

K22

J21

M21

H23

M19

K21

H20

H19

M18

K18

K17

G18

H18

F17

A25

C27

C31

B30

B31

A31

B27

A29

C28

A28

C25

C26

D27

A27

E24

B25

A23

D24

B23

A24

M23

M22

HA3*

HA4*

HA5*

HA6*

HA7*

HA8*

HA9*

HA10*

HA11*

HA12*

HA13*

HA14*

HA15*

HA16*

HA17*

HA18*

HA19*

HA20*

HA21*

HA22*

HA23*

HA24*

HA25*

HA26*

HA27*

HA28*

HA29*

HA30*

HA31*

HREQ0*

HREQ1*

HREQ2*

HREQ3*

HREQ4*

HADSTB0*

HADSTB1*

HDSTBP0

HDSTBN0*

HDINV0*

HDSTBP1

HDSTBN1*

HDINV1*

HDSTBP2

HDSTBN2*

HDINV2*

HDSTBP3

HDSTBN3*

HDINV3*

HADS*

HBNR*

HBPRI*

HBREQ0*

HCPURST*

HDBSY*

HDEFER*

HDRDY*

HEDRDY*

HHIT*

HHITM*

HLOCK*

HPCREQ*

HRS0*

HRS1*

HRS2

HTRDY*

HD0*

HD1*

HD2*

HD3*

HD4*

HD5*

HD6*

HD7*

HD8*

HD9*

HD10*

HD11*

HD12*

HD13*

HD14*

HD15*

HD16*

HD17*

HD18*

HD19*

HD20*

HD21*

HD22*

HD23*

HD24*

HD25*

HD26*

HD27*

HD28*

HD29*

HD30*

HD31*

HD32*

HD33*

HD34*

HD35*

HD36*

HD37*

HD38*

HD39*

HD40*

HD41*

HD42*

HD43*

HD44*

HD45*

HD46*

HD47*

HD48*

HD49*

HD50*

HD51*

HD52*

HD53*

HD54*

HD55*

HD56*

HD57*

HD58*

HD59*

HD60*

HD61*

HD62*

HD63*

HXSWING

HXSCOMP

HXRCOMP

HVREF

HCLKINP

HCLKINN

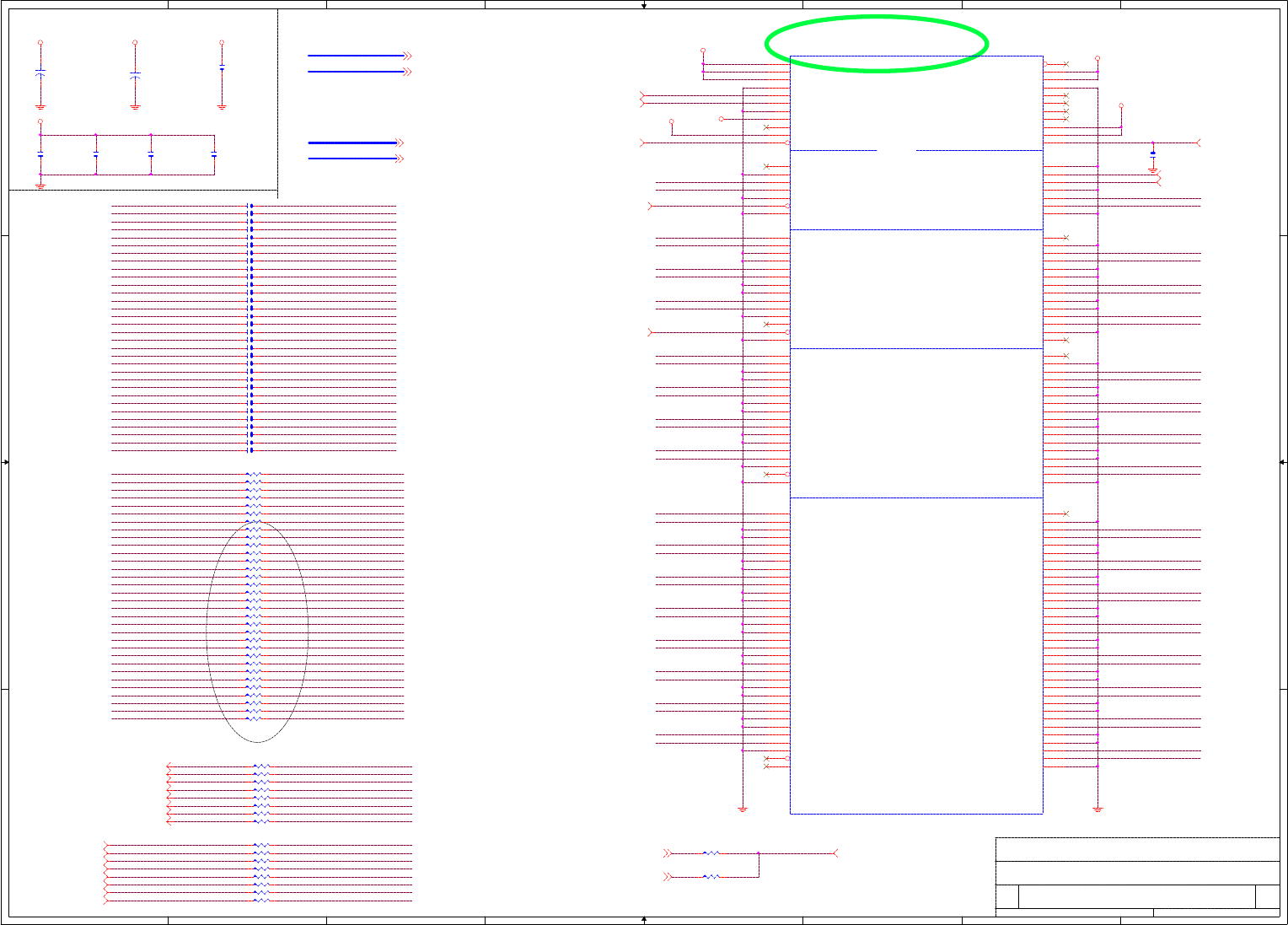

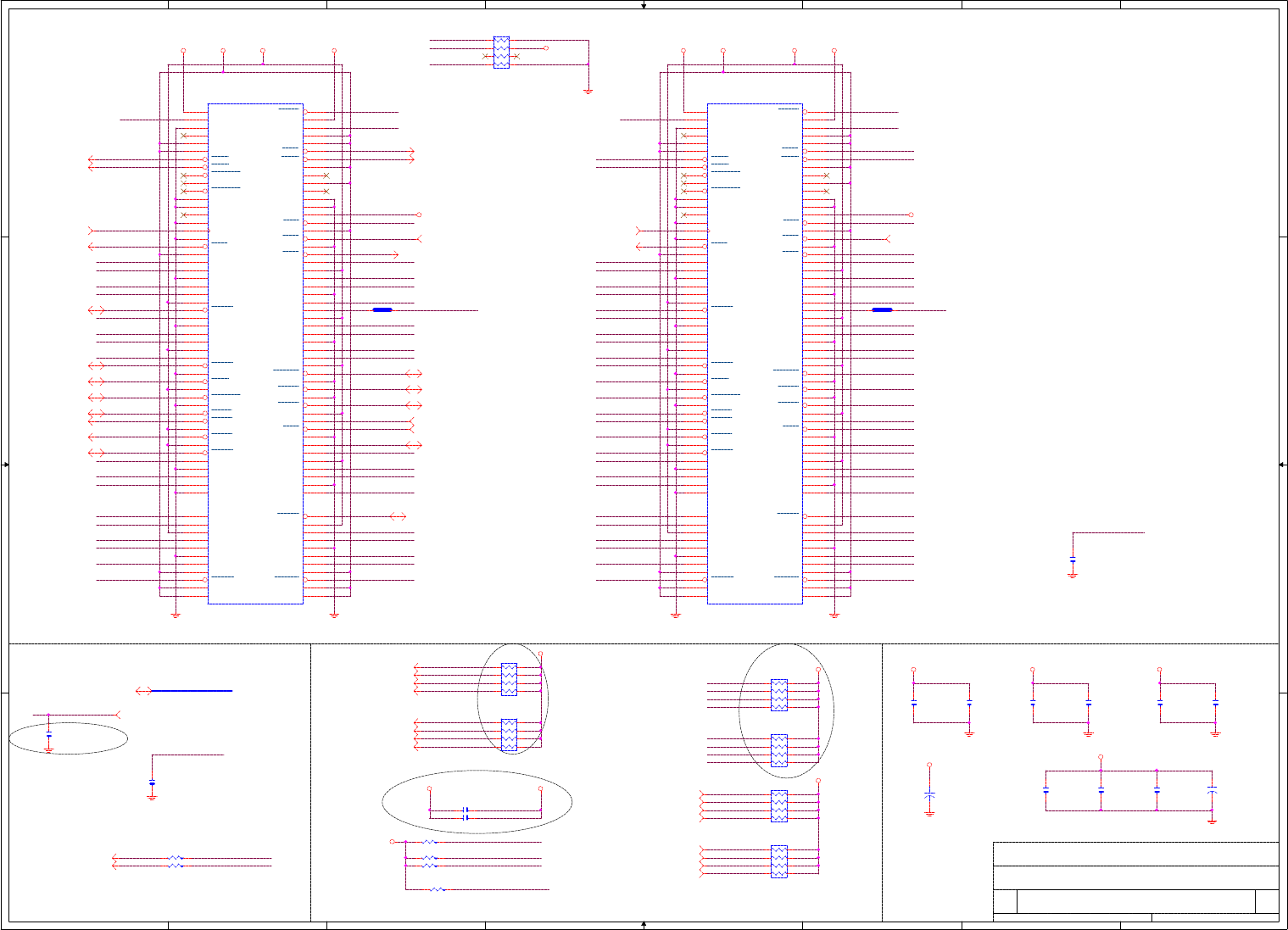

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

DDR INTERFACE

GA-8I915ME-GL

1.02

GMCH-DDR

GIGABYTE

Custom

10 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

MAAB11

MAAB0

MAAB12

MAAB2

MAAB9

MAAB10

MAAB5

MAAB3

MAAB4

MAAB6

MAAB1

MAAB8

MAAB7

DMB[0..7]

MDB[0..63]

DQSB[0..7]

MAAB[0..13]

SMRCOMPN

DMA[0..7]

MAAA[0..13]

MDA[0..63]

-SRASB

-SCASB

-SWEB

SBAB0

SBAB1

-CSB3

-CSB2

-CSB0

-CSB1

CKEB3

CKEB2

CKEB1

CKEB0

DCLKB0

-DCLKB0

-DCLKB1

DCLKB1

DCLKB2

-DCLKB2

MAAB13

SMRCOMPN

SMRCOMPP

DQSB0

MDB7

MDB0

MDB1

MDB5

DMB0

MDB2

MDB6

MDB4

MDB3

DQSB1

DMB1

MDB9

MDB10

MDB11

MDB15

MDB14

MDB12

MDB8

MDB13

DMB2

MDB20

MDB19

MDB18

MDB22

MDB16

DQSB2

MDB21

MDB17

MDB23

DQSB3

MDB25

MDB24

MDB30

MDB27

MDB29

DMB3

MDB31

MDB26

MDB28

DMB4

DQSB4

MDB39

MDB35

MDB38

MDB33

MDB32

MDB36

MDB34

MDB37

MDB47

MDB42

MDB43

MDB41

MDB46

MDB44

DQSB5

DMB5

MDB40

MDB45

MDB49

MDB51

DQSB6

MDB55

DMB6

MDB53

MDB54

MDB50

MDB52

MDB48

MDB63

MDB62

MDB61

MDB60

MDB58

MDB59

MDB56

MDB57

DMB7

DQSB7

SMRCOMPP

DDRVREFB

DDRVREFB

DQSA[0..7]

DQSA7

MDA53

MDA22

MDA10

MDA0

CKEA3

MAAA3

DMA2

MDA60

MDA26

DQSA1

MDA4

CKEA0

DQSA3

MDA55

MDA40

MDA12

MAAA13

MAAA10

MDA29

MDA23

MDA2

MAAA7

MDA57

MDA49

MDA44

MDA18

DCLKA0

MAAA9

MDA16

DQSA0

MDA5

MDA59

MDA25

DCLKA1

MAAA8

DDRVREFA

MDA48

MDA41

MDA38

MDA15

MDA8

-DCLKA0

MAAA0

MDA27

MDA20

MDA1

DCLKA2

DMA5

DQSA4

MDA56

MDA34

DMA1

-DCLKA1

-CSA0

MAAA4

MAAA2

MDA51

MDA31

MDA17

MDA14

DMA0 DDRVREFA

MDA62

MDA43

MDA42

MDA35

MDA33

MDA28

MDA13

-DCLKA2

SBAA0

-SCASA

MAAA5

DMA7

DQSA5

MDA52

MDA37

MDA11

-CSA2

MAAA11

DMA3

MDA61

MDA30

MDA21

MDA7

CKEA2

DMA4

MDA63

MDA54

MDA46

MDA45

MDA32

MDA9

-CSA1

SBAA1

-SWEA

MAAA6

MAAA1

DQSA2

MDA50

MDA39

MDA24

MDA19

MDA6

MDA3

-SRASA

DMA6

DQSA6

MDA58

MDA47

MDA36

CKEA1

-CSA3

MAAA12

DMB[0..7][16,17]

MDB[0..63][16,17]

DQSB[0..7][16,17]

MAAB[0..13][16,17]

MAAA[0..13][15,17]

DMA[0..7][15,17]

MDA[0..63][15,17]

-SCASA[15,17] -SWEA[15,17]

-SRASA[15,17]

SBAA0[15,17] SBAA1[15,17]

-CSA1[15,17] -CSA0[15,17]

-CSA3[17] -CSA2[17]

CKEA1[15,17] CKEA0[15,17]

CKEA3[17] CKEA2[17]

DCLKA0[15] -DCLKA0[15]

-DCLKA1[15] DCLKA1[15]

DCLKA2[15] -DCLKA2[15]

-SWEB[16,17]

-SRASB[16,17] -SCASB[16,17]

SBAB0[16,17] SBAB1[16,17]

-CSB1[16,17] -CSB0[16,17]

-CSB2[17] -CSB3[17]

CKEB0[16,17]

CKEB3[17] CKEB2[17] CKEB1[16,17]

-DCLKB1[16]

DCLKB0[16]

DCLKB1[16] -DCLKB0[16]

-DCLKB2[16] DCLKB2[16]

DQSA[0..7][15,17]

DDR25V

DDR25V

DDR25V

SC6

0.1U/6/Y/25V/X

TP3

TP1

BC49

0.1U/6/Y/25V

U9E

GRANTSDALE-915GL/C2/[10HB1-032940-B1]

AN22

AP22

AN21

AP21

AM21

AP19

AR20

AN16

AN18

AM15

AN23

AP15

AP13

AN31

AP31

AL34

AN29

AN28

AP26

AR23

AM34

AL35

AK34

AL33

AL12

AN11

AP11

AR11

AP33

AR24

AR28

AR29

AM24

AN2

AB34

AN25

AN3

AC33

AP25

AM2

AC35

AN26

AM3

AC34

AB33

AH15

AE16

AJ12

AK12

AE7

AE3

AF3

AH2

AJ2

AE2

AE1

AG3

AH3

AF2

AG2

AG1

AJ1

AK2

AN4

AP4

AJ3

AK3

AP2

AP3

AL1

AL2

AL3

AP5

AR5

AN8

AP9

AN5

AP6

AR8

AN9

AK16

AL17

AD17

AF19

AF16

AJ17

AE19

AH18

AH27

AK27

AN30

AK31

AL27

AJ28

AL30

AL31

AJ34

AH35

AG32

AF34

AJ33

AH33

AF33

AE33

AE35

AE34

Y33

W34

AD31

AD35

AA32

Y35

V34

V33

R32

R34

W35

W33

T33

T35

AP7

AF17

AM30

AG35

AA34

U34

AG17

AL29

AG33

AA35

U35

AN7

AH16

AK29

AG34

AA33

U33

AR7

SAMA0

SAMA1

SAMA2

SAMA3

SAMA4

SAMA5

SAMA6

SAMA7

SAMA8

SAMA9

SAMA10

SAMA11

SAMA12

RSV

SAWE*

SACAS*

SARAS*

SABA0

SABA1

RSV

SACS0*

SACS1*

SACS2*

SACS3*

SACKE0

SACKE1

SACKE2

SACKE3

RSV

RSV

RSV

RSV

SACK0

SACK1

SACK2

SACK0*

SACK1*

SACK2*

SACK3

SACK4

SACK5

SACK3*

SACK4*

SACK5*

SADDR1MA13

RSV_TP1

RSV_TP0

SMXSLEWIN0

SMXSLEWOUT0

SMVREF0

SADQ0

SADQ1

SADQ2

SADQ3

SADQ4

SADQ5

SADQ6

SADQ7

SADM0

RSV

SADQS0

SADQ8

SADQ9

SADQ10

SADQ11

SADQ12

SADQ13

SADQ14

SADQ15

SADM1

RSV

SADQS1

SADQ16

SADQ17

SADQ18

SADQ19

SADQ20

SADQ21

SADQ22

SADQ23

SADQ24

SADQ25

SADQ26

SADQ27

SADQ28

SADQ29

SADQ30

SADQ31

SADQ32

SADQ33

SADQ34

SADQ35

SADQ36

SADQ37

SADQ38

SADQ39

SADQ40

SADQ41

SADQ42

SADQ43

SADQ44

SADQ45

SADQ46

SADQ47

SADQ48

SADQ49

SADQ50

SADQ51

SADQ52

SADQ53

SADQ54

SADQ55

SADQ56

SADQ57

SADQ58

SADQ59

SADQ60

SADQ61

SADQ62

SADQ63

SADQS2

SADQS3

SADQS4

SADQS5

SADQS6

SADQS7

RSV

RSV

RSV

RSV

RSV

SADM2

SADM3

SADM4

SADM5

SADM6

SADM7

RSV

TP4

TP2

R124

80.6/6/1

R123

80.6/6/1

R118

1K/6/1

R119

1K/6/1

BC46

0.1U/6/Y/25V

BC47

1U/6/Y/10V

R121

1K/6/1/X

R122

1K/6/1/X

U9F

GRANTSDALE-915GL/C2/[10HB1-032940-B1]

AM18

AP18

AN17

AR16

AR15

AN15

AP17

AL15

AP14

AN13

AN20

AR12

AM12

AL24

AR27

AN27

AP27

AM27

AR19

AP23

AP34

AN34

AN33

AM33

AN10

AM9

AP10

AR9

AN32

AP29

AP30

AP32

AH22

AL11

AE26

AL23

AK9

AD29

AG23

AJ11

AE25

AK22

AL9

AD28

AD32

AK15

AN14

AF9

AE10

AE8

AG8

AG4

AE5

AF5

AH7

AJ6

AL5

AN6

AG9

AH4

AM5

AL6

AJ7

AL7

AF11

AE11

AJ8

AL8

AG10

AG11

AE13

AF13

AG14

AD14

AD12

AH12

AF14

AD15

AD18

AK19

AE22

AH21

AL18

AH19

AF22

AD21

AF23

AF25

AL25

AJ26

AD23

AF24

AJ25

AL26

AJ29

AJ31

AG30

AG31

AK33

AK32

AG27

AF28

AE31

AF27

AB27

AB26

AE29

AE27

AC28

AC26

AA29

W29

U26

V29

Y26

AA28

W26

V28

AK5

AK10

AK13

AD20

AH25

AH28

AB31

W27

AL4

AH10

AL14

AF20

AG26

AH30

AC30

Y28

AJ5

AH9

AH13

AG20

AG24

AH31

AD24

W31

SBMA0

SBMA1

SBMA2

SBMA3

SBMA4

SBMA5

SBMA6

SBMA7

SBMA8

SBMA9

SBMA10

SBMA11

SBMA12

RSV

SBWE*

SBCAS*

SBRAS*

SBBA0

SBBA1

RSV

SBCS0*

SBCS1*

SBCS2*

SBCS3*

SBCKE0

SBCKE1

SBCKE2

SBCKE3

RSV

RSV

RSV

RSV

SBCK0

SBCK1

SBCK2

SBCK3

SBCK4

SBCK5

SBCK0*

SBCK1*

SBCK2*

BLCK3*

SBCK4*

SBCK5*

SBDDR1MA13

RSV_TP3

RSV_TP2

SMYSLEWIN1

SMYSLEWOUT1

SMVREF1

SMRCOMP1

SMRCOMP0

RSV

RSV

SBDQ0

SBDQ1

SBDQ2

SBDQ3

SBDQ4

SBDQ5

SBDQ6

SBDQ7

SBDQ8

SBDQ9

SBDQ10

SBDQ11

SBDQ12

SBDQ13

SBDQ14

SBDQ15

SBDQ16

SBDQ17

SBDQ18

SBDQ19

SBDQ20

SBDQ21

SBDQ22

SBDQ23

SBDQ24

SBDQ25

SBDQ26

SBDQ27

SBDQ28

SBDQ29

SBDQ30

SBDQ31

SBDQ32

SBDQ33

SBDQ34

SBDQ35

SBDQ36

SBDQ37

SBDQ38

SBDQ39

SBDQ40

SBDQ41

SBDQ42

SBDQ43

SBDQ44

SBDQ45

SBDQ46

SBDQ47

SBDQ48

SBDQ49

SBDQ50

SBDQ51

SBDQ52

SBDQ53

SBDQ54

SBDQ55

SBDQ56

SBDQ57

SBDQ58

SBDQ59

SBDQ60

SBDQ61

SBDQ62

SBDQ63

SBDQS0

SBDQS1

SBDQS2

SBDQS3

SBDQS4

SBDQS5

SBDQS6

SBDQS7

RSV

RSV

RSV

SBDQS3*

RSV

RSV

RSV

RSV

SBDM0

SBDM1

SBDM2

SBDM3

SBDM4

SBDM5

SBDM6

SBDM7

BC48

0.1U/6/Y/25V

BC45

1U/6/Y/10V

R120

0/SHT/X

SC5

0.1U/6/Y/25V/X

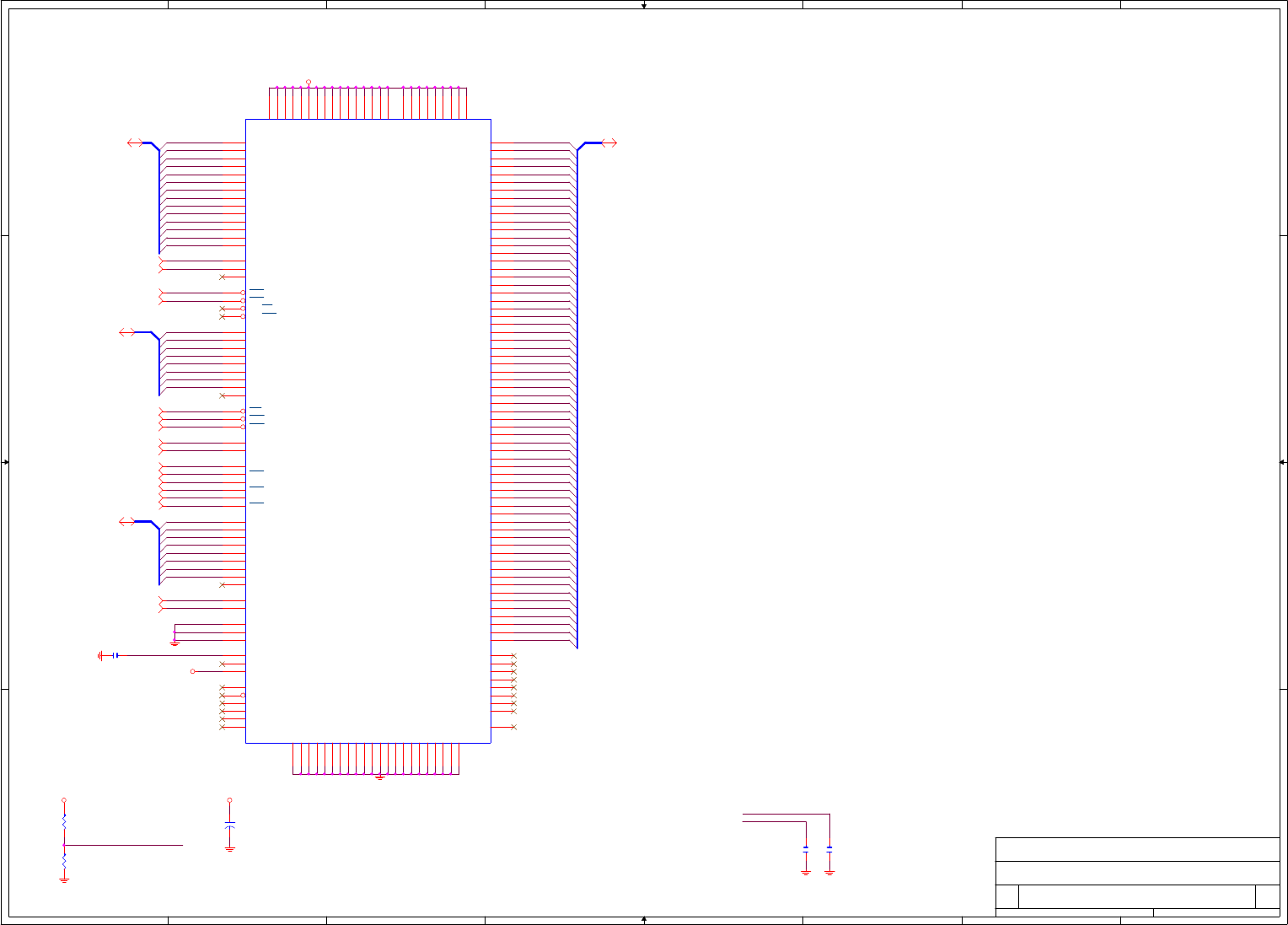

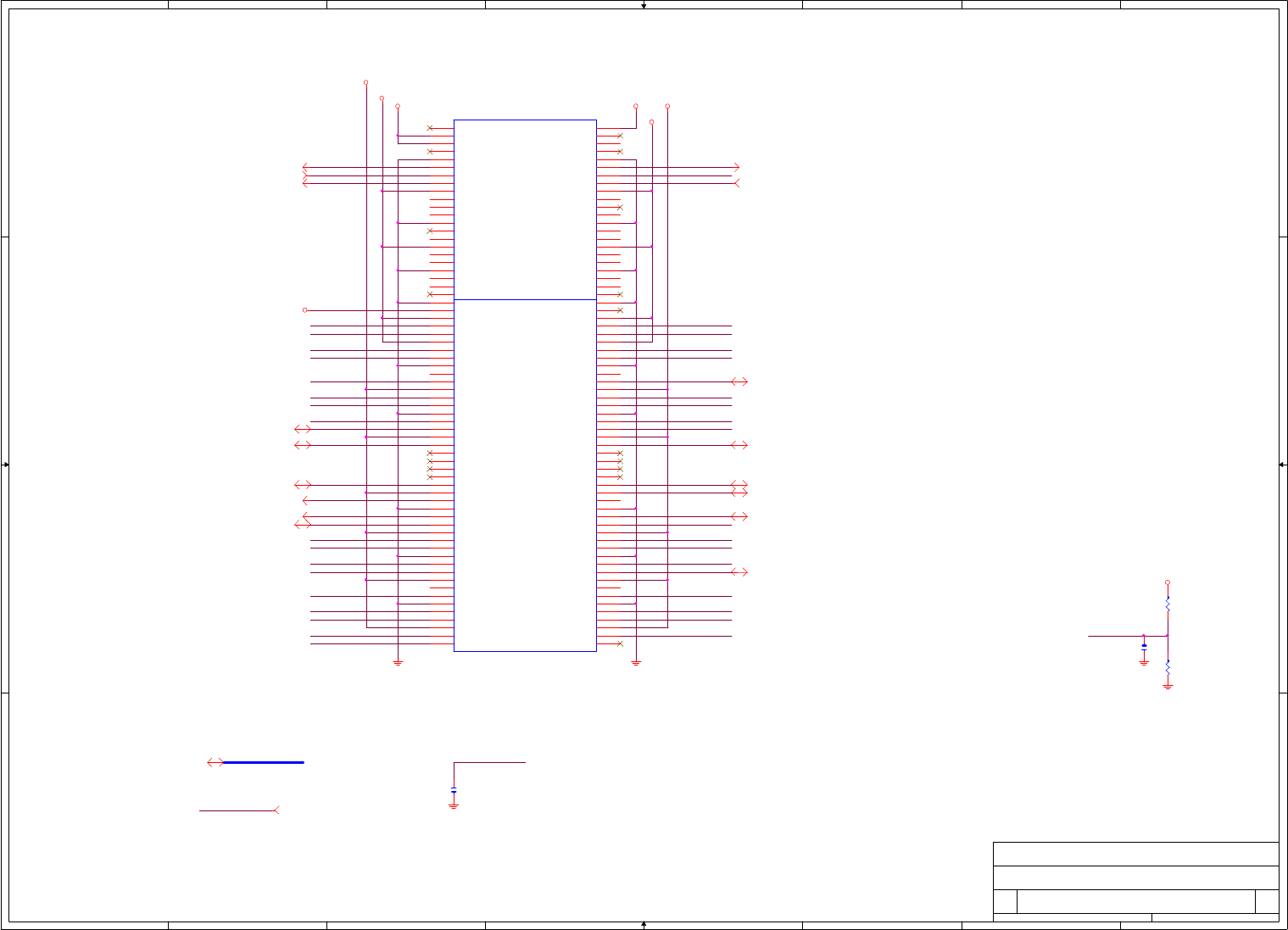

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

GA-8I915ME-GL

1.02

GMCH-PCI E & DMI

GIGABYTE

Custom

11 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

GRCOMP

VCC1_5PCIEX

DMI_0RXP

DMI_1RXP

DMI_0RXN

DMI_2RXN

DMI_3RXN

DMI_3RXP

DMI_1RXN

DMI_2RXP

GRCOMP

DMI_1TXP

DMI_0TXP

DMI_2TXN

DMI_1TXN

DMI_0TXN

DMI_3TXN

DMI_3TXP

DMI_2TXP

VCC1_5PCIEX

EXP_A_TXP13

EXP_A_RXN[0..15]

EXP_A_RXN0

EXP_A_TXN2

EXP_A_RXN10

EXP_A_TXP4

EXP_A_TXP0

EXP_A_TXP6

EXP_A_TXN7

EXP_A_RXP1

EXP_A_RXP11

EXP_A_RXP7

EXP_A_TXN10

EXP_A_TXP12

EXP_A_RXN5

EXP_A_RXP6

EXP_A_RXP15

EXP_A_TXN1

EXP_A_RXN9

EXP_A_TXN5

EXP_A_TXP3

EXP_A_RXN14 EXP_A_TXN14

EXP_A_TXN8

EXP_A_TXN9

EXP_A_TXN15

EXP_A_RXP10

EXP_A_RXP5

EXP_A_TXN12

EXP_A_TXP11

EXP_A_RXN4

EXP_A_TXP7

EXP_A_RXP14 EXP_A_TXN13

EXP_A_RXN8

EXP_A_RXN13

EXP_A_TXN11

EXP_A_RXP[0..15]

EXP_A_RXN3

EXP_A_TXP15

EXP_A_TXP2

EXP_A_RXP9

EXP_A_RXP4

EXP_A_TXP10

EXP_A_RXP13

EXP_A_TXN[0..15]

EXP_A_RXN2

EXP_A_RXN7

EXP_A_RXN12

EXP_A_RXP0

EXP_A_TXP14

EXP_A_TXP1

EXP_A_RXP8

EXP_A_TXN3

EXP_A_TXP9

EXP_A_RXP3

EXP_A_TXP5

EXP_A_RXP12

EXP_A_TXP[0..15]

EXP_A_RXN1

EXP_A_TXN6EXP_A_RXN6

EXP_A_RXN11

EXP_A_TXN4

EXP_A_RXN15

EXP_A_TXN0

EXP_A_TXP8

EXP_A_RXP2

VCC1_5PCIEX [14]

SRCCLK_MCH[22] -SRCCLK_MCH[22]

DMI_0RXN[19] DMI_0RXP[19]

DMI_1RXP[19] DMI_1RXN[19] DMI_2RXP[19]

DMI_3RXN[19]

DMI_2RXN[19]

DMI_0TXP [19]

DMI_0TXN [19]

DMI_1TXP [19]

DMI_1TXN [19]

DMI_2TXP [19]

DMI_2TXN [19]

DMI_3TXP [19]

DMI_3TXN [19]

DMI_3RXP[19]

EXP_A_TXP[0..15] [18]

EXP_A_TXN[0..15] [18]

SDVO_CLCLK[18]SDVO_CLDATA[18]

EXP_A_RXP[0..15] [18]

EXP_A_RXN[0..15] [18]

VCC1_5

R125

24.9/6/1

BC50

10U/12/X/6.3V

L8 0/8/SHT/X

U9B

GRANTSDALE-915GL/C2/[10HB1-032940-B1]

E11

J11

F9

F7

B3

D5

G6

H8

J6

K8

L6

P10

M8

N6

P7

R6

F11

H11

E9

E7

B4

E5

G5

H7

J5

K7

L5

R10

M7

N5

P8

R5

U5

T9

V7

V10

U6

T8

V8

U10

A11

B11

K13

J13

C10

A9

C8

A7

C6

C2

E3

F1

G3

H1

J3

K1

L3

M1

N3

P1

C9

A8

C7

A6

C5

D2

F3

G1

H3

J1

K3

L1

M3

N1

P3

R1

R3

T1

U3

V5

T3

U1

V3

W5

Y10

W10

EXPARXP0

EXPARXP1

EXPARXP2

EXPARXP3

EXPARXP4

EXPARXP5

EXPARXP6

EXPARXP7

EXPARXP8

EXPARXP9

EXPARXP10

EXPARXP11

EXPARXP12

EXPARXP13

EXPARXP14

EXPARXP15

EXPARXN0

EXPARXN1

EXPARXN2

EXPARXN3

EXPARXN4

EXPARXN5

EXPARXN6

EXPARXN7

EXPARXN8

EXPARXN9

EXPARXN10

EXPARXN11

EXPARXN12

EXPARXN13

EXPARXN14

EXPARXN15

DMIRXP0

DMIRXP1

DMIRXP2

DMIRXP3

DMIRXN0

DMIRXN1

DMIRXN2

DMIRXN3

GCLKINP

GCLKINN

SDVOCTRLDATA

SDVOCTRLCLK

EXPATXP0

EXPATXP1

EXPATXP2

EXPATXP3

EXPATXP4

EXPATXP5

EXPATXP6

EXPATXP7

EXPATXP8

EXPATXP9

EXPATXP10

EXPATXP11

EXPATXP12

EXPATXP13

EXPATXP14

EXPATXP15

EXPATXN0

EXPATXN1

EXPATXN2

EXPATXN3

EXPATXN4

EXPATXN5

EXPATXN6

EXPATXN7

EXPATXN8

EXPATXN9

EXPATXN10

EXPATXN11

EXPATXN12

EXPATXN13

EXPATXN14

EXPATXN15

DMITXP0

DMITXP1

DMITXP2

DMITXP3

DMITXN0

DMITXN1

DMITXN2

DMITXN3

EXPACOMPO

EXPACOMPI

+1

EC19

100U/D/10V/57/X

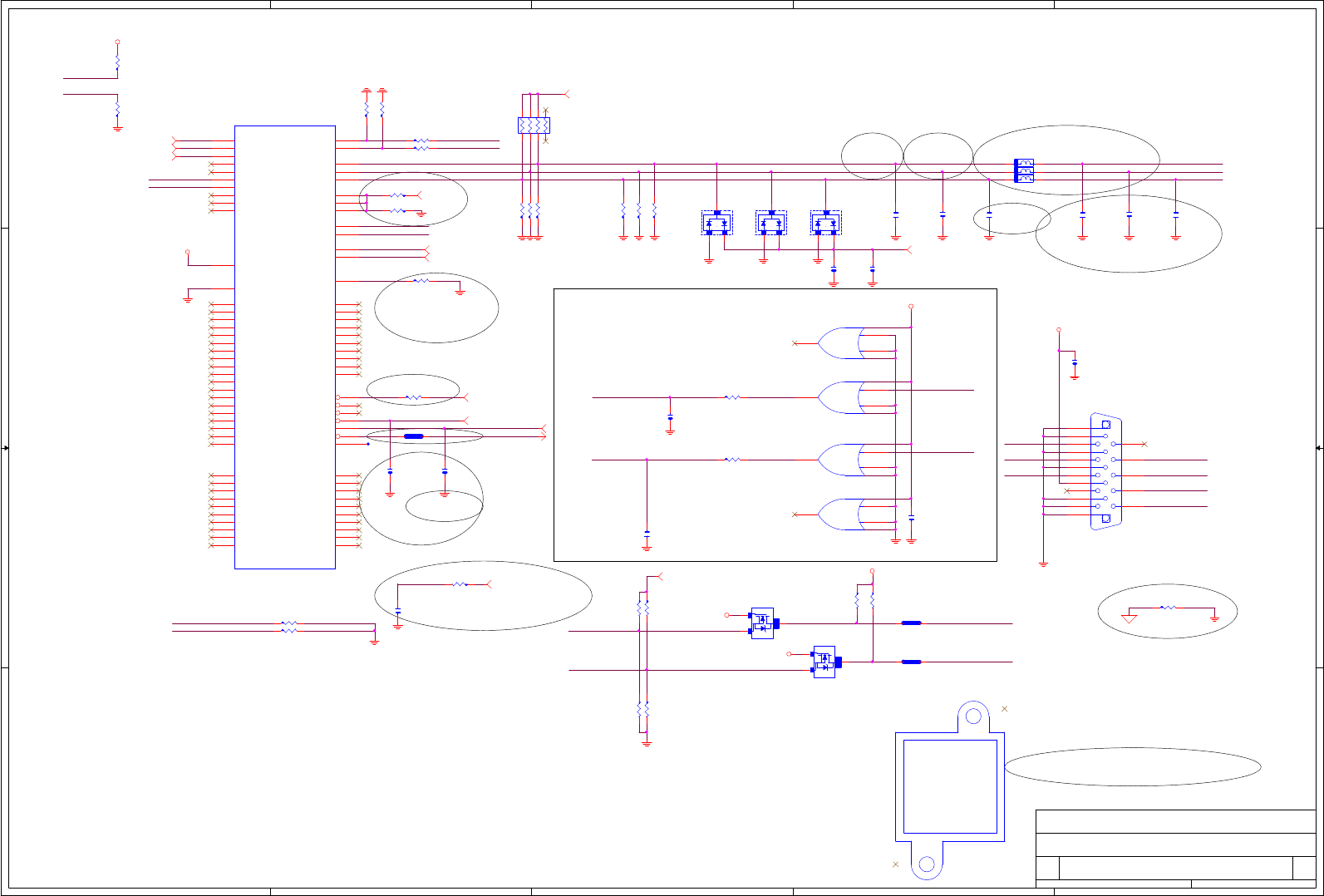

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

(TDK PN# MMZ2012S800A)

FOR NONE VGA

FOR NONE VGA

FOR NONE VGA

FOR NONE VGA

FOR NONE VGA

R132=0/6

FRONT(CHIPSET) REAR(CONN)

03/30

03/30

04/07

11/01

11/01

11/01 11/01

11/01

12/16 TCL EMI issue

03/25 for EMI

03/28

GA-8I915ME-GL

1.02

GMCH-INTERNAL VGA

GIGABYTE

Custom

12 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

MTYPE

EXP_SLRVGADDCDATA

DDCCLK

DDCCLK

DDCDATA

DOTCLK

-DOTCLK

REFSET

VGA_R

VGA_G

VGA_B

VGADDCCLK

DDCDATA

PWROK1

GHSYNC

GVSYNC

EXP_SLR

MTYPE

DOTCLK

-DOTCLK

-PFMRST1

VGADDCCLK

VSYNC

HSYNC

VGADDCDATA

VGA_R

VGA_G

VGA_B

GVSYNC

VSYNC

HSYNC GHSYNC

-ICHSYNC

-ICHSYNC

BSEL2[5]

BSEL0[5] BSEL1[5]

-ICHSYNC [20]

DDR25V_MCH [14,34]

-DOTCLK[22]

DOTCLK[22] DDR25V_DAC [14]

DDR25V_DAC [14]

PWROK1 [20,25,29,34]

-PFMRST1 [25]

DDR25V_DAC [14]

DDR25V_MCH [14,34]

DDR25V_MCH [14,34]

VCC3

VCC3

VCC

VCC1_5

VCC1_5

GAMEVCC

VCC3

R1419

0/6/X

C41

10P/4/N/50V

G S

D

SOT23

Q23

2N7002/S

2

13

R142 100/6/SHT/X

R1418

0/6/X

R145

8.2K/6/X

R141

8.2K/6

U9G

GRANTSDALE-915GL/C2/[10HB1-032940-B1]

H16

E15

D17

M16

F15

C15

A16

B15

C14

K15

L10

AN19

AL28

AJ14

AH24

AD30

AG6

P30

L19

L12

K12

J12

H17

H15

H12

G12

AJ21

AK21

AK24

AL21

AL20

AK18

AJ24

AJ18

AJ23

AJ20

E12

D12

F14

D14

H14

G14

E14

J14

L14

M15

A15

M13

M12

AR35

AR34

AR2

AR1

AP35

AP1

B1

A2

K16

G16

R35

AF7

AG7

M14

A35

B35

A34

F24

F12

C16

V31

V30

U30

V32

Y30

AB29

R31

R30

AA31

AA30

E16

M10

BSEL0

BSEL1

BSEL2

RSV

RSV

MTYPE

EXP_SLR

RSV

RSV

RSV

VCCDREFSSCLKINP

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

RSVRD

RSVRD

RSVRD

RSVRD

RSVRD

RSVRD

RSVRD

RSVRD

RSVRD

RSVRD

CRTHSYNC

CRTVSYNC

CRTRED

CRTGREEN

CRTBLUE

CRTREDB

CRTGREENB

CRTBLUEB

CRTDDCDATA

CRTDDCCLK

CRTREF

DREFCLKINP

DREFCLKINN

NC

NC

NC

NC

NC

NC

NC

NC

EXTTS*

RSV

RSV

RSTIN*

PWORK

ICH_SYNC*

NC

NC

NC

NC

NC

NC

RSVRD

RSVRD

RSVRD

RSVRD

RSVRD

RSVRD

RSVRD

RSVRD

RSVRD

RSVRD

NC

VCCDREFSSCLKINN

TP34

VGA

VGA/BLUE/S

10

9

8

7

611

12

13

5

4

16

1

2

3

14

15

17

R147 1K/6/X

R1422 0/6/X

C40

10P/4/N/50V

R571 39/6

U13-3

74LVC32/74LCX32/SO14/[10TC1-117432-01_10TC1-117432-02_10TC1-117432-03]

9

10

8

147

FB2

FB80/6/S/3A/[10LF1-25800A-02_10LF1-25800A-01_10LF1-25800A-03]

R1420

8.2K/6/X

C42

10P/4/N/50V

U13-4

74LVC32/74LCX32/SO14/[10TC1-117432-01_10TC1-117432-02_10TC1-117432-03]

12

13

11

147

R126

150/6/X

R138

8.2K/6

C44

0.1U/6/Y/25V

R1421

8.2K/6/X

R143 100/6/SHT/X

R134 39/6

C43

1U/6/Y/10V/X

G S

D

SOT23

Q22

2N7002/S

2

13

R1423 0/6

BC170

0.1U/6/Y/25V/X

R570 39/6

R129

75/6/1

R1674 0/S6/X

U11

BAV99/S

13

2

C11

22P/4/N/50V

R127

150/6/X R130

75/6/1

NB_HEATSINK

HEAT-SINK/[12SP2-04E004-A1_12SP2-04E004-A2_12SP2-04E004-A3_12SP2-04E004-A4]

1

2

U12

BAV99/S

13

2

R144

8.2K/6/X

U13-2

74LVC32/74LCX32/SO14/[10TC1-117432-01_10TC1-117432-02_10TC1-117432-03]

4

5

6

147

R131

75/6/1

R132

255/6/1

C1329

3.3P/4/N/50V

R1753 0/6/X

R135 39/6

R1673

8.2K/6

BC587

0.1U/4/Y/25V/X

C39

10P/4/N/50V

FB1 FB80/6/S/3A/[10LF1-25800A-02_10LF1-25800A-01_10LF1-25800A-03]

R146 1K/6/X

U13-1

74LVC32/74LCX32/SO14/[10TC1-117432-01_10TC1-117432-02_10TC1-117432-03]

1

2

3

147

R133 8.2K/6

C37

10P/4/N/50V

R128

150/6/X

C1265

1000P/4/X/50V/X

R139

8.2K/6

U10

BAV99/S

13

2

FB3

FB80/6/S/3A/[10LF1-25800A-02_10LF1-25800A-01_10LF1-25800A-03]

RN107

0/8P4R/X

1 2

3 4

5 6

7 8

C12

1000P/6/X/50V

R140

8.2K/6

C1330

3.3P/4/N/50V

C38

10P/4/N/50V

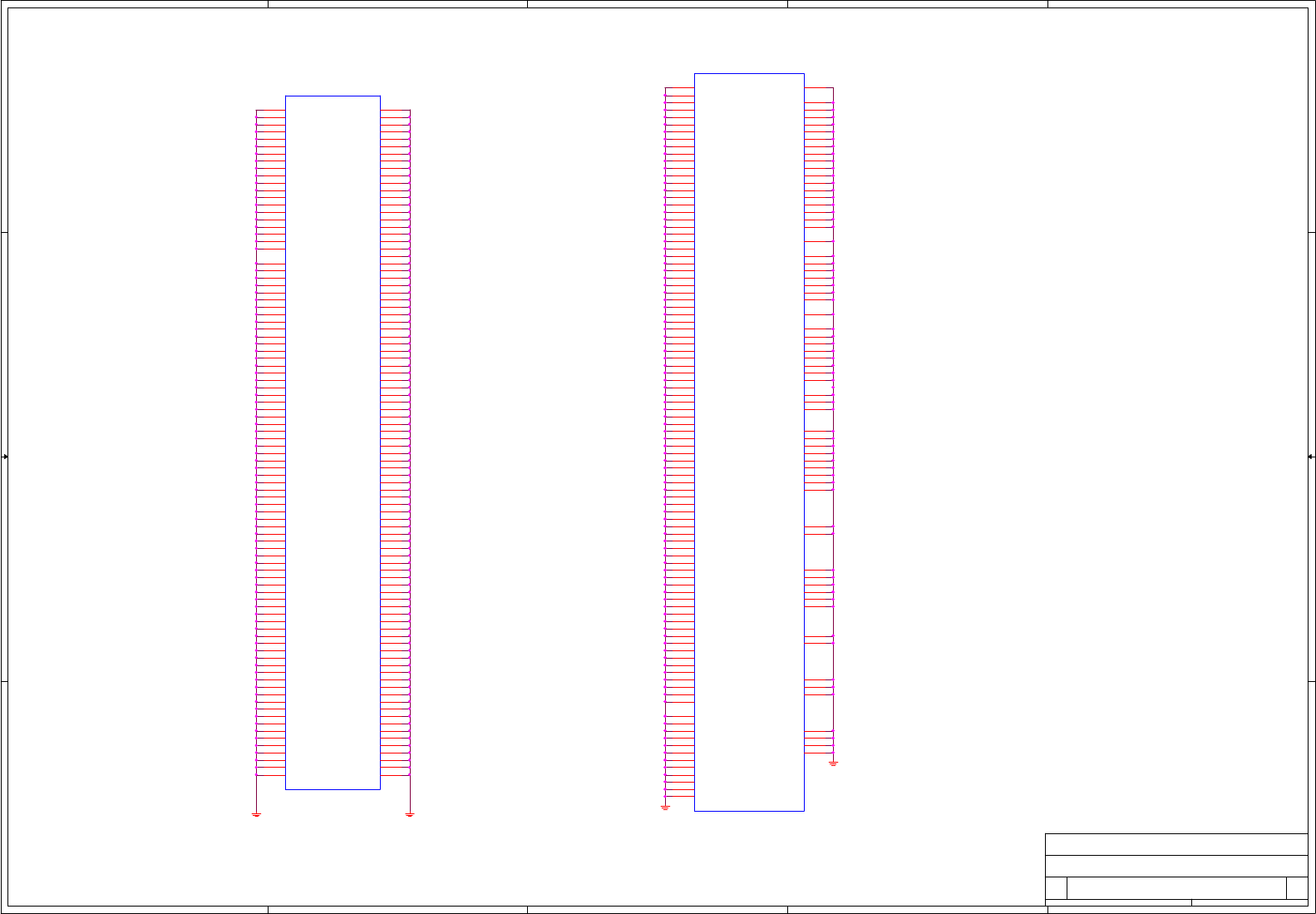

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

GA-8I915ME-GL

1.02

GMCH-GND

GIGABYTE

Custom

13 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

U9I

GRANTSDALE-915GL/C2/[10HB1-032940-B1]

N10

N2

N28

N30

N32

N4

N7

N8

N9

P2

P27

P29

P31

P32

P35

P4

P5

P6

P9

R2

R26

R27

R4

R7

R8

R9

T10

T2

T28

T30

T32

T34

T4

T5

T6

T7

U17

U19

U2

U27

U29

U31

U32

U4

U7

U8

U9

V1

V18

V2

V26

V27

V35

V4

V6

V9

W17

W19

W28

W30

W32

Y29

Y31

Y32

Y34

F23

F25

F29

F30

F32

F35

F4

F5

F6

F8

G10

G11

G13

G15

G17

G19

G2

G20

G23

G26

G27

G28

G4

G7

G8

G9

H10

H13

H2

H21

H24

H25

H27

H30

H32

H34

H4

H5

H6

H9

J10

J15

J16

J17

J18

J2

J20

J23

J30

J4

J7

J8

J9

K10

K11

K14

K2

K20

K24

K26

K28

K31

K32

K35

K4

K5

K6

K9

L11

L13

L16

L17

L18

L2

L20

L21

L22

L24

L27

L30

L32

L4

L7

L8

L9

M17

M2

M20

M24

M25

M27

M29

M34

M4

M5

M6

M9

VSS_301

VSS_305

VSS_307

VSS_308

VSS_309

VSS_310

VSS_311

VSS_312

VSS_313

VSS_317

VSS_320

VSS_321

VSS_322

VSS_323

VSS_324

VSS_325

VSS_326

VSS_327

VSS_328

VSS_332

VSS_335

VSS_336

VSS_337

VSS_338

VSS_339

VSS_340

VSS_341

VSS_344

VSS_347

VSS_348

VSS_349

VSS_350

VSS_351

VSS_352

VSS_353

VSS_354

VSS_357

VSS_358

VSS_359

VSS_363

VSS_364

VSS_365

VSS_366

VSS_367

VSS_368

VSS_369

VSS_370

VSS_371

VSS_374

VSS_375

VSS_379

VSS_380

VSS_381

VSS_382

VSS_383

VSS_384

VSS_387

VSS_388

VSS_392

VSS_393

VSS_394

VSS_400

VSS_401

VSS_402

VSS_403

VSS_201

VSS_202

VSS_203

VSS_204

VSS_205

VSS_206

VSS_207

VSS_208

VSS_209

VSS_210

VSS_211

VSS_212

VSS_213

VSS_214

VSS_215

VSS_216

VSS_217

VSS_218

VSS_219

VSS_220

VSS_221

VSS_222

VSS_223

VSS_224

VSS_225

VSS_226

VSS_227

VSS_228

VSS_229

VSS_230

VSS_231

VSS_232

VSS_233

VSS_234

VSS_235

VSS_236

VSS_237

VSS_238

VSS_239

VSS_240

VSS_241

VSS_242

VSS_243

VSS_244

VSS_245

VSS_246

VSS_247

VSS_248

VSS_249

VSS_250

VSS_251

VSS_252

VSS_253

VSS_254

VSS_255

VSS_256

VSS_257

VSS_258

VSS_259

VSS_260

VSS_261

VSS_262

VSS_263

VSS_264

VSS_265

VSS_266

VSS_267

VSS_268

VSS_269

VSS_270

VSS_272

VSS_273

VSS_274

VSS_275

VSS_276

VSS_277

VSS_278

VSS_279

VSS_280

VSS_281

VSS_282

VSS_283

VSS_284

VSS_285

VSS_286

VSS_289

VSS_290

VSS_291

VSS_292

VSS_293

VSS_294

VSS_295

VSS_296

VSS_297

VSS_298

VSS_299

VSS_300

U9H

GRANTSDALE-915GL/C2/[10HB1-032940-B1]

A10

A18

A26

A3

A30

A33

A5

AA1

AA10

AA2

AA26

AA27

AA3

AA4

AA5

AA6

AA7

AA8

AA9

AB28

AB32

AB35

AC27

AC29

AC31

AC32

AD11

AD13

AD16

AD19

AD22

AD26

AD27

AD34

AE12

AE14

AE15

AE17

AE18

AE20

AE21

AE23

AE24

AE28

AE30

AE32

AE4

AE6

AE9

AF1

AF10

AF12

AF15

AF18

AF21

AF26

AF29

AF30

AF31

AF32

AF35

AF4

AF6

AF8

AG12

AG13

AG15

AG16

AG18

AG19

AG21

AG22

AG25

AG28

AG29

AG5

AH1

AH11

AH14

AH17

AH20

AH23

AH26

AH29

AH32

AH34

AH5

AH6

AH8

AJ10

AJ13

AJ15

AJ16

AJ19

AJ22

AJ27

AJ30

AJ32

AJ35

AJ4

AJ9

AK1

AK11

AK14

AK17

AK20

AK23

AK25

AK26

AK28

AK30

AK4

AK6

AK7

AK8

AL10

AL13

AL16

AL19

AL22

AL32

AM29

AM31

AM4

AM6

AM7

AM8

AN1

AP8

AR13

AR17

AR21

AR25

AR3

AR30

AR6

B12

B14

B16

B10

B7

B18

B24

B2

C17

C18

C23

C3

C35

C4

D10

D11

D15

D16

D18

D23

D25

D26

D28

D3

D30

D31

D32

D4

D6

D7

D8

D9

E1

E10

E17

E18

E2

E23

E26

E29

E4

E6

E8

F10

F16

F18

F2

VSS_1

VSS_2

VSS_3

VSS_4

VSS_5

VSS_6

VSS_7

VSS_8

VSS_9

VSS_14

VSS_16

VSS_17

VSS_18

VSS_19

VSS_20

VSS_21

VSS_22

VSS_23

VSS_24

VSS_26

VSS_28

VSS_29

VSS_31

VSS_32

VSS_33

VSS_34

VSS_35

VSS_36

VSS_37

VSS_38

VSS_39

VSS_41

VSS_42

VSS_43

VSS_44

VSS_45

VSS_46

VSS_47

VSS_48

VSS_49

VSS_50

VSS_51

VSS_52

VSS_53

VSS_54

VSS_55

VSS_56

VSS_57

VSS_58

VSS_59

VSS_60

VSS_61

VSS_62

VSS_63

VSS_64

VSS_65

VSS_66

VSS_67

VSS_68

VSS_69

VSS_70

VSS_71

VSS_72

VSS_73

VSS_74

VSS_75

VSS_76

VSS_77

VSS_78

VSS_79

VSS_80

VSS_81

VSS_82

VSS_83

VSS_84

VSS_85

VSS_86

VSS_87

VSS_88

VSS_89

VSS_90

VSS_91

VSS_92

VSS_93

VSS_94

VSS_95

VSS_96

VSS_97

VSS_98

VSS_99

VSS_100

VSS_101

VSS_102

VSS_103

VSS_104

VSS_105

VSS_106

VSS_107

VSS_108

VSS_109

VSS_110

VSS_111

VSS_112

VSS_113

VSS_114

VSS_115

VSS_116

VSS_117

VSS_118

VSS_119

VSS_120

VSS_121

VSS_122

VSS_123

VSS_124

VSS_125

VSS_126

VSS_127

VSS_128

VSS_129

VSS_130

VSS_131

VSS_132

VSS_133

VSS_134

VSS_135

VSS_136

VSS_137

VSS_138

VSS_139

VSS_140

VSS_141

VSS_142

VSS_143

VSS_144

VSS_145

VSS_147

VSS_148

VSS_149

VSS_146

VSS_156

VSS_150

VSS_152

VSS_151

VSS_162

VSS_163

VSS_164

VSS_165

VSS_166

VSS_167

VSS_168

VSS_169

VSS_170

VSS_171

VSS_172

VSS_173

VSS_174

VSS_175

VSS_176

VSS_177

VSS_178

VSS_179

VSS_180

VSS_181

VSS_182

VSS_183

VSS_184

VSS_185

VSS_186

VSS_187

VSS_188

VSS_189

VSS_190

VSS_191

VSS_192

VSS_193

VSS_194

VSS_195

VSS_196

VSS_197

VSS_198

VSS_199

VSS_200

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

45mA

55mA

55mA

45mA

60mA

70mA

DG 1.0 change to 180ohm/0805 FB

07/08

GA-8I915ME-GL

1.02

GMCH-PWR

GIGABYTE

Custom

14 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

VCCA_HPLL

VCCA_DPLLA

VCCA_DPLLB

VCCA_MPLL

VCCA_GPLL

DDR25V_DAC

VCCA_HPLL

VCCA_MPLL

VCCA_DPLLA

VCCA_DPLLB

VCCA_GPLL

DDR25V_DAC

DDR25V_MCH

DDR25V_MCH[12,34]

VCC1_5PCIEX[11]

DDR25V_DAC [12]

VTT_GMCHVTT_GMCH

DDR25V DDR25V

DDR25V

VCC1_5

VCC1_5

VCC1_5

VCC1_5

VCC1_5

VCC1_5

VCC1_5

DDR25V

VCC1_5

VTT_GMCH

VCC1_5

SC2

0.1U/6/Y/25V/X

L10 0/8/SHT/X

SC3

0.1U/6/Y/25V/X

0.1U/6/Y/25V

BC55

BC207

4.7U/8/Y/10V/X

FB4 0/8/SHT/X

C59

0.1U/6/Y/25V

0.1U/6/Y/25V

BC59

0.1U/6/Y/25V

BC58

0.1U/6/Y/25V

BC54

0.1U/6/Y/25V

BC53

BC211

4.7U/8/Y/10V

L12 0/8/SHT/X

0.1U/6/Y/25V

BC56

C56

0.1U/6/Y/25V

C60

0.01U/6/X/50V

+1

EC67

1000U/D/6.3V/8C

BC210

4.7U/8/Y/10V/X

BC208

4.7U/8/Y/10V/X

L11 0/8/SHT/X

BC209

4.7U/8/Y/10V/X

BC212

4.7U/8/Y/10V/X

C55

0.1U/6/Y/25V

C58

0.1U/6/Y/25V

U9C

GRANTSDALE-915GL/C2/[10HB1-032940-B1]

AC11

AB11

Y20

Y19

Y17

Y16

W20

U20

U16

T20

T19

T17

T16

AA13

AA14

AA16

AA18

AA20

AA21

AA22

AA23

AA24

AB13

AB14

AB15

AB16

AB17

AB18

AB19

AB20

AB21

AB22

AB23

N13

AB24

N14

N15

N16

N18

N20

N21

P13

P14

P15

P17

P19

P21

P22

R13

R14

R15

R16

R18

R20

R22

R23

T13

T14

T15

T21

Y15

T24

T23

U14

U13

U22

U24

V13

V15

Y21

V14

V23

V21

V24

W14

W13

W22

W24

Y13

Y14

Y23

Y24

W16

AC25

AB25

AA25

AA11

Y25

Y18

Y11

W25

W11

V25

V20

V16

V11

U25

U11

T25

T18

T11

R25

R11

P25

P11

N25

AD25

N11

M11

AA15

AA17

AA19

N17

N19

P16

P18

P20

R17

R19

R21

T22

U15

U21

U23

V22

W21

W15

W23

Y22

AC12

AC13

AC14

AC15

AC16

AC17

AC18

AC19

AC20

AC21

AC22

N12

N22

N23

N24

P12

P23

P24

R12

T12

U12

V12

W12

Y12

AA12

AB12

AC23

AC24

R24

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VCCNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

VSSNCTF

RSVRD

RSVRD

RSVRD

RSVRD

RSVRD

RSVRD

RSVRD

RSVRD

RSVRD

RSVRD

RSVRD

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

NC

C47

0.1U/6/Y/25V

L13 0/8/SHT/X

C51

1U/6/Y/10V

C50

1U/6/Y/10V

C63

0.1U/6/Y/25V

U9D

GRANTSDALE-915GL/C2/[10HB1-032940-B1]

AD1

AD2

AD3

AD4

AD5

AD6

AD7

AD8

AD9

AD10

AC1

AC2

AC3

AC4

AC5

AC6

AC7

AC8

AC9

AC10

AB1

AB10

W18

V19

AB2

AB3

AB4

AB5

AB6

AB7

AB8

AB9

V17

U18

Y1

Y2

Y3

Y4

Y5

Y6

Y7

Y8

Y9

W1

W2

W3

W4

W6

W7

W8

W9

A17

B17

A12

B13

A14

A13

E13

D13

F13

AR33

AR31

AR26

AR22

AR18

AR14

AR10

AP28

AP24

AP20

AP16

AP12

AN35

AM32

AM28

AM26

AM25

AM23

AM22

AM20

AM19

AM17

AM16

AM14

AM13

AM11

AM10

AK35

H22

G22

G21

F22

F21

F20

D22

D21

D20

D19

C22

C21

C20

C19

B22

B21

B20

B19

A22

A20

A21

A19

E19

E20

E21

E22

AB30

B28

B5

B6

B7

B8

B9

C1

C11

C13

L15

Y27

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC3G

VCC3G

VCC3G

VCC3G

VCC3G

VCC3G

VCC3G

VCC3G

VCC3G

VCC3G

VCC3G

VCC3G

VCC3G

VCC3G

VCC3G

VCC3G

VCC3G

VCCA_HPLL

VCCA_SMPLL

VCCA_DPLLA

VCCA_DPLLB

VCCA_3GPLL

VCC2

VCCA_DAC

VCCA_DAC

VSSA_DAC

VCCSM

VCCSM

VCCSM

VCCSM

VCCSM

VCCSM

VCCSM

VCCSM

VCCSM

VCCSM

VCCSM

VCCSM

VCCSM

VCCSM

VCCSM

VCCSM

VCCSM

VCCSM

VCCSM

VCCSM

VCCSM

VCCSM

VCCSM

VCCSM

VCCSM

VCCSM

VCCSM

VCCSM

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

VTT

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

C62

1U/6/Y/10V/X

SC4

0.1U/6/Y/25V/X

C49

0.1U/6/Y/25V/X

C45

0.1U/6/Y/25V/X C46

0.1U/6/Y/25V

0.1U/6/Y/25V

BC57

0.1U/6/Y/25V

BC52

L9 0/8/SHT/X

C48

0.1U/6/Y/25V/X

C61

0.1U/6/Y/25V/X

SC1

0.1U/6/Y/25V/X

8

8

7

7

6

6

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

GA-8I915ME-GL

1.02

DDR CHANNEL A

GIGABYTE

B

15 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

DQSA3

DQSA1

-DCLKA2

DQSA7

DQSA2

VREF_DDRA

DQSA0

DQSA4

DQSA6

DCLKA2

DQSA5

DMA0

DMA1

DMA2

DMA3

DMA4

DMA5

DMA6

DMA7

SBAA1

SBAA0

MAAA1

MAAA7

MAAA4

MAAA2

MAAA6

MAAA11

MAAA0

MAAA9

MAAA8

MAAA10

MAAA3

MAAA5

CKEA0

CKEA1

-SCASA

-CSA1

-CSA0

DCLKA1

-DCLKA1

-DCLKA0

DCLKA0

-SRASA

-SWEA

SMBDATA

VREF_DDRA

SMBDATA

MAAA12

MAAA13

MDA31

MDA35

MDA3

MDA12

MDA21

MDA7

MDA51

MDA49

MDA59

MDA41

MDA39

MDA45

MDA34

MDA24

MDA5

MDA6

MDA4

MDA26

MDA17

MDA61

MDA38

MDA13

MDA15

MDA23

MDA52

MDA54

MDA2

MDA29

MDA63

MDA50

MDA25

MDA53

MDA19

MDA36

MDA32

MDA58

MDA57

MDA48

MDA11

MDA28

MDA1

MDA37

MDA55

MDA40

MDA8

MDA18

MDA30

MDA9

MDA20

MDA46

MDA44

MDA0

MDA10

MDA47

MDA62

MDA22

MDA14

MDA42

MDA56

MDA16

MDA33

MDA27

MDA60

MDA43

SMBCLK

SMBCLK

DMA[0..7][10,17]

DQSA[0..7][10,17]

MDA[0..63] [10,17]MAAA[0..13][10,17]

SBAA0[10,17] SBAA1[10,17]

-CSA0[10,17] -CSA1[10,17]

-SWEA[10,17] -SCASA[10,17] -SRASA[10,17]

CKEA0[10,17] CKEA1[10,17]

DCLKA1[10] -DCLKA1[10]

-DCLKA0[10] DCLKA0[10]

-DCLKA2[10] DCLKA2[10]

SMBDATA[16,18,20,22,23,34] SMBCLK[16,18,20,22,23,34]

DDR25V

DDR25V

DDR25V

DDR25V

C66

100P/4/N/50V/X C67

100P/4/N/50V/X

R149

75/6/1

R150

75/6/1

C65 0.1U/6/Y/25V

DDR1

DDR/GF/B/[11SM1-510184-59_11SM1-510184-57_11SM1-510184-5A_11SM1-510184-55]

48

43

41

130

37

32

125

29

122

27

141

2

4

6

8

94

95

98

99

12

13

19

20

105

106

109

110

23

24

28

31

114

117

121

123

33

35

39

40

126

127

131

133

53

55

57

60

146

147

150

151

61

64

68

69

153

155

161

162

72

73

79

80

165

166

170

171

83

84

87

88

174

175

178

179

44

45

49

51

134

135

142

144

63

118

115

167

59

52

65

154

15

22

30

54

62

77

96

104

112

128

136

143

156

164

172

180

7

38

46

70

85

108

120

148

168

113

157

158

71

163

97

107

119

129

149

159

169

177

140

21

111

16

17

137

138

75

76

90

5

14

25

36

56

67

78

86

47

91

92

181

182

183

184

82

1

9

10

101

102

173

103

3

11

18

26

34

42

50

58

66

74

81

89

93

100

116

124

132

139

145

152

160

176

A0

A1

A2

A3

A4

A5

A6

A7

A8

A9

A10

D0

D1

D2

D3

D4

D5

D6

D7

D8

D9

D10

D11

D12

D13

D14

D15

D16

D17

D18

D19

D20

D21

D22

D23

D24

D25

D26

D27

D28

D29

D30

D31

D32

D33

D34

D35

D36

D37

D38

D39

D40

D41

D42

D43

D44

D45

D46

D47

D48

D49

D50

D51

D52

D53

D54

D55

D56

D57

D58

D59

D60

D61

D62

D63

CB0

CB1

CB2

CB3

CB4

CB5

CB6

CB7

WE

A11

A12

A13

BA0

BA1

CAS

RAS

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

BA2

CS0

CS1

NC/CS2

NC/CS3

DQM0

DQM1

DQM2

DQM3

DQM4

DQM5

DQM6

DQM7

DQM8

CKE0

CKE1

CK0/DNU

CK0/DNU

CK1

CK1

CK2/DNU

CK2/DNU

WP

DQS0

DQS1

DQS2

DQS3

DQS4

DQS5

DQS6

DQS7

DQS8

SDA

SCL

SA0

SA1

SA2

VDDSPD

VDDID

VREF

NC

NC

NC

NC

NC

NC/FETEN

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

+

EC20

1500U/D/6.3V/8K

8

8

7

7

6

6

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

CLOSE TO DDR SOCKET

03/25 for EMI

GA-8I915ME-GL

1.02

DDR CHANNEL B

GIGABYTE

B

16 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

DQSB3

DQSB1

-DCLKB2

DQSB7

DQSB2

VREF_DDRB

DQSB0

DQSB4

DQSB6

DCLKB2

DQSB5

DMB0

DMB1

DMB2

DMB3

DMB4

DMB5

DMB6

DMB7

SBAB1

CKEB0

CKEB1

-SCASB

-CSB1

-CSB0

DCLKB1

-DCLKB1

-DCLKB0

DCLKB0

-SRASB

-SWEB

SMBCLK

SMBDATA

SBAB0

MAAB7

MAAB0

MAAB9

MAAB10

MAAB6

MAAB11

MAAB8

MAAB4

MAAB1

MAAB3

MAAB5

MAAB2

MDB5

MDB4

MDB7

MDB3

MDB1

MDB0

MDB6

MDB2

MDB9

MDB8

MDB11

MDB10

MDB15

MDB13

MDB12

MDB14

MDB17

MDB21

MDB19

MDB18

MDB23

MDB20

MDB16

MDB22

MDB27

MDB24

MDB31

MDB29

MDB28

MDB25

MDB32

MDB33

MDB39

MDB34

MDB35

MDB36

MDB37

MDB38

MDB43

MDB46

MDB42

MDB44

MDB47

MDB45

MDB40

MDB41

MDB50

MDB48

MDB49

MDB60

MDB62

MDB53

MDB59

MDB51

MDB58

MDB54

MDB52

MDB55

VREF_DDRB

MDB63

MDB57

MDB61

MDB56

MDB26

MDB30

MAAB12

MAAB13

DMB[0..7][10,17]

DQSB[0..7][10,17]

MAAB[0..13][10,17]

SBAB0[10,17] SBAB1[10,17]

-CSB1[10,17] -CSB0[10,17]

-SWEB[10,17] -SCASB[10,17] -SRASB[10,17]

CKEB0[10,17] CKEB1[10,17]

-DCLKB1[10] DCLKB1[10]

-DCLKB0[10] DCLKB0[10]

-DCLKB2[10] DCLKB2[10]

SMBDATA[15,18,20,22,23,34] SMBCLK[15,18,20,22,23,34]

MDB[0..63] [10,17]

DDR25V

DDR25V

DDR25V

DDR25V

DDR25V

DDR2

DDR/GF/B/[11SM1-510184-59_11SM1-510184-57_11SM1-510184-5A_11SM1-510184-55]

48

43

41

130

37

32

125

29

122

27

141

2

4

6

8

94

95

98

99

12

13

19

20

105

106

109

110

23

24

28

31

114

117

121

123

33

35

39

40

126

127

131

133

53

55

57

60

146

147

150

151

61

64

68

69

153

155

161

162

72

73

79

80

165

166

170

171

83

84

87

88

174

175

178

179

44

45

49

51

134

135

142

144

63

118

115

167

59

52

65

154

15

22

30

54

62

77

96

104

112

128

136

143

156

164

172

180

7

38

46

70

85

108

120

148

168

113

157

158

71

163

97

107

119

129

149

159

169

177

140

21

111

16

17

137

138

75

76

90

5

14

25

36

56

67

78

86

47

91

92

181

182

183

184

82

1

9

10

101

102

173

103

3

11

18

26

34

42

50

58

66

74

81

89

93

100

116

124

132

139

145

152

160

176

A0

A1

A2

A3

A4

A5

A6

A7

A8

A9

A10

D0

D1

D2

D3

D4

D5

D6

D7

D8

D9

D10

D11

D12

D13

D14

D15

D16

D17

D18

D19

D20

D21

D22

D23

D24

D25

D26

D27

D28

D29

D30

D31

D32

D33

D34

D35

D36

D37

D38

D39

D40

D41

D42

D43

D44

D45

D46

D47

D48

D49

D50

D51

D52

D53

D54

D55

D56

D57

D58

D59

D60

D61

D62

D63

CB0

CB1

CB2

CB3

CB4

CB5

CB6

CB7

WE

A11

A12

A13

BA0

BA1

CAS

RAS

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDDQ

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

VDD

BA2

CS0

CS1

NC/CS2

NC/CS3

DQM0

DQM1

DQM2

DQM3

DQM4

DQM5

DQM6

DQM7

DQM8

CKE0

CKE1

CK0/DNU

CK0/DNU

CK1

CK1

CK2/DNU

CK2/DNU

WP

DQS0

DQS1

DQS2

DQS3

DQS4

DQS5

DQS6

DQS7

DQS8

SDA

SCL

SA0

SA1

SA2

VDDSPD

VDDID

VREF

NC

NC

NC

NC

NC

NC/FETEN

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

+

EC27

1500U/D/6.3V/8K

C69

0.1U/6/Y/25V

R152

75/6/1

1 2

R151

75/6/1

1 2

8

8

7

7

6

6

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

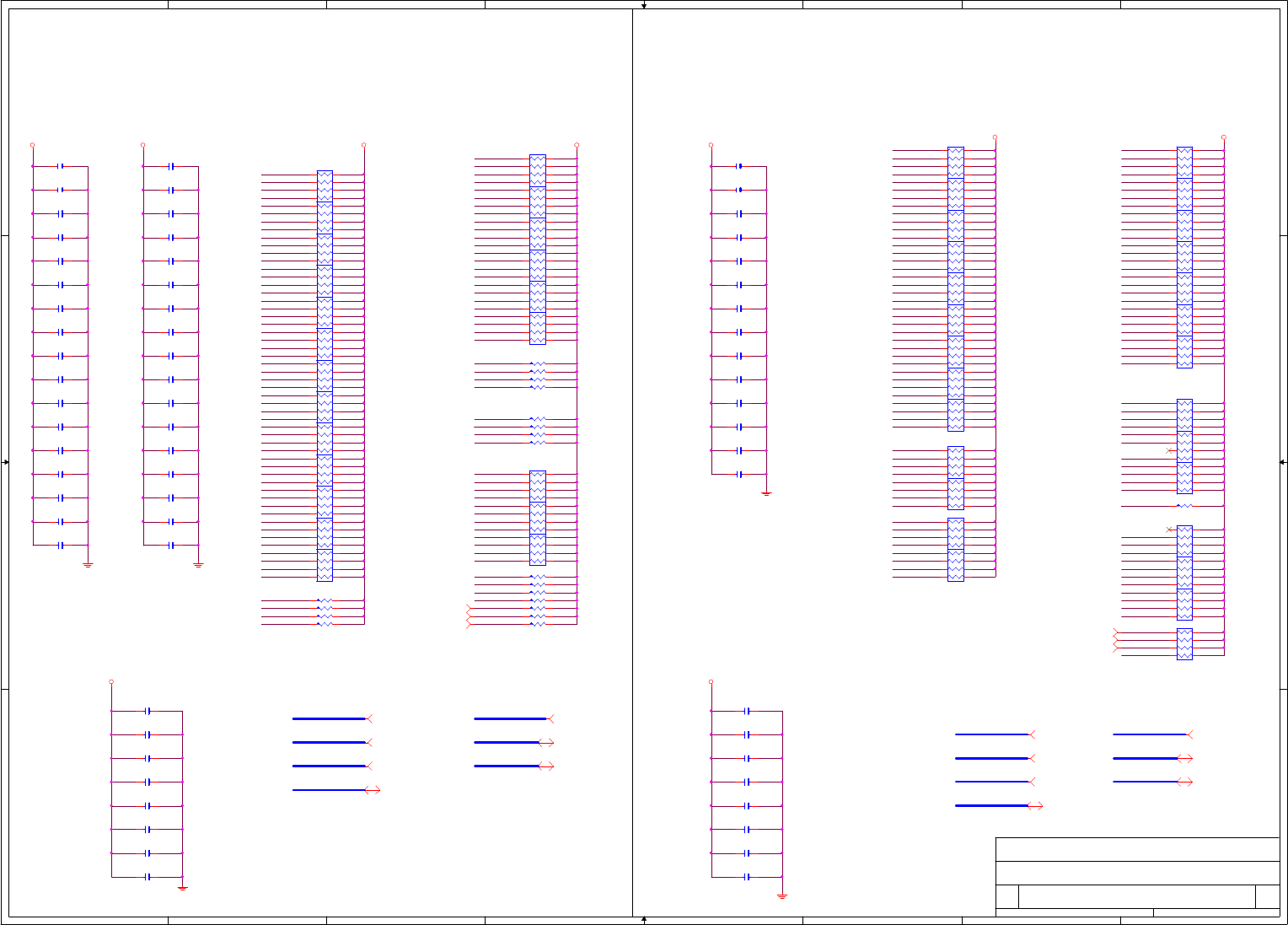

DDRVTT Decouple

DDR25V Decouple

DDR TERMINATION

CHANNEL A

DDRVTT Decouple

DDR25V

Decouple

CHANNEL B

56 Ohms

47 Ohms 56 Ohms

47 Ohms

04/08

GA-8I915ME-GL

1.02

DDR TERMINATOR

GIGABYTE

B

17 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

DMA[0..7]

MDA[0..63]

DQSA[0..7]

-CSB[0:3]

SBAB[0:1]

MAAB[0..13]

CKEB[0:3]

DQSB[0..7]

DMB[0..7]

MDB[0..63]

MDA13

MDA21

MDA34

SBAA[0:1]

-CSA[0:3]

CKEA[0:3]

MAAA[0..13]

DMA0

DMA4

DQSA0

DQSA1

DQSA3

DQSA4

MDA0

MDA1

MDA12

MDA17

MDA18

MDA22

MDA25

MDA27

MDA29

MDA3

MDA31

MDA32

MDA33

MDA36

MDA37

MDA38

MDA4

MDA6

MDA7

MDA8

MDA9

DMA3

DMA6

DQSA6

MDA42

MDA43

MDA46

MDA47

MDA48

MDA49

MDA50

MDA51

MDA52

MDA53

MDA54

MDA55

MDA59

MDA60

MDA62

MDA19

MDA24

MDA28

MDA35

MDA39

MDA40

MDA44

MDA57

MDA15

MDA14

MDA11

MDA10

DQSA7

DMA7

MAAA2

MAAA7

DQSA5

MDA41

MDA45

MAAA4

MAAA3

DMA5

MDA5

DMA1

MDA2

MDA56

MDA58

MDA63

MDA26

MDA30

MDA61

MDB1

MDB13

MDB19

DQSB3

MDB12

MDB18

MDB2

MDB21

MDB22

MDB23

MDB24

MDB25

MDB27

MDB28

MDB29

MDB31

MDB32

MDB33

MDB36

MDB37

MDB5

MDB26

MDB30

DMB0

DMB1

DMB2

CKEB0

MAAB2

MAAB5

MDB54

MAAB9

DMB6

DQSB4

DQSB5

DQSB6

DQSB7

MAAB0

MAAB1

MAAB10

MAAB11

MAAB12

MAAB6

MAAB7

MAAB8

MDB34

MDB35

MDB38

MDB39

MDB40

MDB45

MDB44

MDB41

MDB50

MDB51

MDB55

MDB57

MDB59

MDB60

MDB62

SBAB1

MDB58

MDB63

MDB61

MDB56

MAAB3

MAAB4

-CSB0

-CSB1

CKEB1

DMB4

DMB5

DMB7

DQSB1

MDB17

MDB3

MDB42

MDB43

MDB48

MDB49

MDB52

MDB53

MDB7

MDB8

MDB9

DQSB2

MDB6

MDB4

MDB0

MDB15

MDB14

MDB11

MDB10

DQSB0

DMB3

MDB47

MDB20

MDB16

-CSB2

-CSB3

CKEB3

CKEB2

MDA23

MDB46

MAAA13

MAAB13

SBAB0

MAAA8

MAAA9

MAAA12

MAAA11

SBAA0

CKEA2

CKEA0

CKEA3

CKEA1

MDA20

MDA16

MAAA5

MAAA6

MAAA10

SBAA1

MAAA0

MAAA1

-CSA2

-CSA1

-CSA3

-CSA0

DQSA2

DMA2

MDA[0..63] [10,15]

DQSA[0..7] [10,15]

DMA[0..7] [10,15] SBAB[0:1] [10,16]

CKEB[0:3] [10,16]

-CSB[0:3] [10,16]

MAAB[0..13] [10,16]

MDB[0..63] [10,16]

DQSB[0..7] [10,16]

DMB[0..7] [10,16]

-CSA[0:3] [10,15]

SBAA[0:1] [10,15]

CKEA[0:3] [10,15]

MAAA[0..13] [10,15]

-SRASB[10,16]

-SCASB[10,16] -SWEB[10,16]

-SWEA[10,15] -SRASA[10,15]

-SCASA[10,15]

DDR25V

DDRVTT DDRVTT

DDR25V

DDRVTT DDRVTT

DDRVTT DDRVTTDDRVTT

R1650 47/6

BC172 10U/12/Y/10V/X

RN33

47/8P4R

1 2

3 4

5 6

7 8

0.1U/6/Y/25V

BC63

BC174 10U/12/Y/10V/X

RN15

56/8P4R

1 2

3 4

5 6

7 8

1U/6/Y/10V

BC185

RN26

56/8P4R

1 2

3 4

5 6

7 8

1U/6/Y/10V

BC183

1U/6/Y/10V/X

BC604

RN29

56/8P4R

1 2

3 4

5 6

7 8

R1649 47/6

1U/6/Y/10V

BC191 RN32

56/8P4R

1 2

3 4

5 6

7 8

1U/6/Y/10V

BC175

RN38

56/8P4R

1 2

3 4

5 6

7 8

1U/6/Y/10V

BC187

R1654 47/6

R1657 56/6

RN42

56/8P4R

1 2

3 4

5 6

7 8

BC171 10U/12/Y/10V

RN7

56/8P4R

1 2

3 4

5 6

7 8

1U/6/Y/10V

BC189

RN27

56/8P4R

1 2

3 4

5 6

7 8

0.1U/6/Y/25V/X

BC612

BC173 10U/12/Y/10V

RN3

56/8P4R

1 2

3 4

5 6

7 8

1U/6/Y/10V/X

BC599

1U/6/Y/10V

BC193

RN23

56/8P4R

1 2

3 4

5 6

7 8

R1653 47/6

1U/6/Y/10V

BC181

1U/6/Y/10V/X

BC606

1U/6/Y/10V/X

BC603 1U/6/Y/10V

BC179

0.1U/6/Y/25V

BC74

1U/6/Y/10V

BC177

R1647 47/6

RN45

56/8P4R

1 2

3 4

5 6

7 8

1U/6/Y/10V

BC195

RN39

56/8P4R

1 2

3 4

5 6

7 8

1U/6/Y/10V/X

BC601

1U/6/Y/10V

BC197

RN51

47/8P4R

1 2

3 4

5 6

7 8

0.1U/6/Y/25V/X

BC588

RN52

47/8P4R

1 2

3 4

5 6

7 8

R1664 47/6

R1658 47/6

RN11

56/8P4R

1 2

3 4

5 6

7 8

R1659 56/6 R1662 47/6

RN19

56/8P4R

1 2

3 4

5 6

7 8

1U/6/Y/10V/X

BC610

R1660 47/6

RN4

56/8P4R

1 2

3 4

5 6

7 8

R1651 47/6

R543 47/6

RN31

56/8P4R

1 2

3 4

5 6

7 8

1U/6/Y/10V/X

BC600

RN24

56/8P4R

1 2

3 4

5 6

7 8

0.1U/6/Y/25V/X

BC589

RN25

56/8P4R

1 2

3 4

5 6

7 8

0.1U/6/Y/25V/X

BC590

RN20

56/8P4R

1 2

3 4

5 6

7 8

0.1U/6/Y/25V

BC64

R1663 56/6

0.1U/6/Y/25V

BC66

RN36

47/8P4R

1 2

3 4

5 6

7 8

0.1U/6/Y/25V

BC68

RN40

47/8P4R

1 2

3 4

5 6

7 8

R1655 47/6

RN16

56/8P4R

1 2

3 4

5 6

7 8

RN47

47/8P4R

1 2

3 4

5 6

7 8

1U/6/Y/10V/X

BC605

RN12

56/8P4R

1 2

3 4

5 6

7 8

RN8

56/8P4R

1 2

3 4

5 6

7 8

1U/6/Y/10V/X

BC598

R1661 56/6

RN41

47/8P4R

1 2

3 4

5 6

7 8

RN49

56/8P4R

1 2

3 4

5 6

7 8

RN17

56/8P4R

1 2

3 4

5 6

7 8

0.1U/6/Y/25V

BC70

0.1U/6/Y/25V

BC199

0.1U/6/Y/25V

BC72

R1648 47/6

RN43

56/8P4R

1 2

3 4

5 6

7 8

0.1U/6/Y/25V/X

BC614

1U/6/Y/10V/X

BC607

1U/6/Y/10V

BC196

1U/6/Y/10V/X

BC602 RN14

56/8P4R

1 2

3 4

5 6

7 8

RN9

56/8P4R

1 2

3 4

5 6

7 8

1U/6/Y/10V

BC198

RN18

56/8P4R

1 2

3 4

5 6

7 8

1U/6/Y/10V

BC186 RN22

56/8P4R

1 2

3 4

5 6

7 8

RN35

56/8P4R

1 2

3 4

5 6

7 8

1U/6/Y/10V

BC194

R1652 47/6

RN50

56/8P4R

1 2

3 4

5 6

7 8

0.1U/6/Y/25V

BC71

0.1U/6/Y/25V/X

BC613

1U/6/Y/10V

BC192

RN46

56/8P4R

1 2

3 4

5 6

7 8

0.1U/6/Y/25V

BC62

1U/6/Y/10V

BC190

RN13

56/8P4R

1 2

3 4

5 6

7 8

0.1U/6/Y/25V

BC69

R1646 47/6

0.1U/6/Y/25V

BC73

0.1U/6/Y/25V

BC67

1U/6/Y/10V

BC182

RN21

56/8P4R

1 2

3 4

5 6

7 8

0.1U/6/Y/25V

BC65

1U/6/Y/10V

BC178

RN2

56/8P4R

1 2

3 4

5 6

7 8

0.1U/6/Y/25V

BC75

1U/6/Y/10V

BC188

1U/6/Y/10V/X

BC609

RN91

47/8P4R

1 2

3 4

5 6

7 8

RN44

47/8P4R

1 2

3 4

5 6

7 8

R1656 47/6

1U/6/Y/10V

BC184

1U/6/Y/10V/X

BC608

RN6

56/8P4R

1 2

3 4

5 6

7 8

RN28

56/8P4R

1 2

3 4

5 6

7 8

1U/6/Y/10V

BC176

RN10

56/8P4R

1 2

3 4

5 6

7 8

RN5

56/8P4R

1 2

3 4

5 6

7 8

1U/6/Y/10V

BC180

RN48

47/8P4R

1 2

3 4

5 6

7 8

0.1U/6/Y/25V

BC61

1U/6/Y/10V/X

BC611

8

8

7

7

6

6

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

03/25

GA-8I915ME-GL

1.02

PCI EXPRESS * 16

GIGABYTE

Custom

18 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

EXP_A_TXP[0..15]

EXP_A_TXN[0..15]

EXP_A_TXP0

EXP_A_TXN0

EXP_A_TXP1

EXP_A_TXP2

EXP_A_TXP3

EXP_A_TXP4

EXP_A_TXP5

EXP_A_TXP6

EXP_A_TXP8

EXP_A_TXP9

EXP_A_TXP10

EXP_A_TXP11

EXP_A_TXP12

EXP_A_TXP13

EXP_A_TXP14

EXP_A_TXP15

EXP_A_TXN1

EXP_A_TXN2

EXP_A_TXN3

EXP_A_TXN4

EXP_A_TXN5

EXP_A_TXN6

EXP_A_TXP7

EXP_A_TXN7

EXP_A_TXN8

EXP_A_TXN9

EXP_A_TXN10

EXP_A_TXN11

EXP_A_TXN12

EXP_A_TXN13

EXP_A_TXN14

EXP_A_TXN15

EXP_A_TXP3C

EXP_A_TXP8C

EXP_A_TXN14C

EXP_A_TXP0C

EXP_A_TXP2C

EXP_A_TXP15C

EXP_A_TXN5C

EXP_A_TXP4C

EXP_A_TXP10C

EXP_A_TXN6C

EXP_A_TXN13C

EXP_A_TXP5C

EXP_A_TXP7C

EXP_A_TXN9C

EXP_A_TXN10C

EXP_A_TXP9C

EXP_A_TXN15C

EXP_A_TXN0C

EXP_A_TXP13C

EXP_A_TXN3C

EXP_A_TXP11C

EXP_A_TXN7C

EXP_A_TXP1C

EXP_A_TXN11C

EXP_A_TXP6C

EXP_A_TXP14C

EXP_A_TXN4C

EXP_A_TXN2C

EXP_A_TXN1C

EXP_A_TXN8C

EXP_A_TXN12C

EXP_A_TXP12C

EXP_A_RXP[0..15]

EXP_A_RXN[0..15]

EXP_A_TXN4C

EXP_A_TXP1C

EXP_A_TXP10C

EXP_A_TXP13C

EXP_A_TXN9C

EXP_A_TXN10C

EXP_A_TXP15C

EXP_A_TXP5C

EXP_A_TXP0C

EXP_A_TXN5C

EXP_A_TXP9C

EXP_A_TXP7C

EXP_A_TXN12C

EXP_A_TXN0C

EXP_A_TXN2C

EXP_A_TXP4C

EXP_A_TXN15C

EXP_A_TXN13C

EXP_A_TXN7C

EXP_A_TXP12C

EXP_A_TXP6C

EXP_A_TXN6C

EXP_A_TXN11C

EXP_A_TXN3C

EXP_A_TXN1C

EXP_A_TXP2C

EXP_A_TXP8C

EXP_A_TXN14C

EXP_A_TXP3C

EXP_A_TXN8C

EXP_A_TXP11C

EXP_A_TXP14C

EXP_A_RXP0C

EXP_A_RXP1C

EXP_A_RXP2C

EXP_A_RXP5C

EXP_A_RXP7C

EXP_A_RXP8C

EXP_A_RXP9C

EXP_A_RXP10C

EXP_A_RXP12C

EXP_A_RXP13C

EXP_A_RXP14C

EXP_A_RXP15C

EXP_A_RXN0C

EXP_A_RXN2C

EXP_A_RXN4C

EXP_A_RXN5C

EXP_A_RXN6C

EXP_A_RXN7C

EXP_A_RXN8C

EXP_A_RXN9C

EXP_A_RXN10C

EXP_A_RXN11C

EXP_A_RXN12C

EXP_A_RXN13C

EXP_A_RXN14C

EXP_A_RXN1C

EXP_A_RXN3C

EXP_A_RXP3C

EXP_A_RXP4C

EXP_A_RXP6C

EXP_A_RXP11C

EXP_A_RXN15C

-PCIEWAKE

SMBDATA

SMBCLK

SVDO_CLCLK

SVDO_CLDATA

-PCIEWAKE

EXP_A_RXN11C

EXP_A_RXN3C

EXP_A_RXN6

EXP_A_RXN11

EXP_A_RXN2C

EXP_A_RXN15

EXP_A_RXP2

EXP_A_RXN14C

EXP_A_RXP11

EXP_A_RXP8

EXP_A_RXN10C

EXP_A_RXN1

EXP_A_RXP5C

EXP_A_RXP13C

EXP_A_RXN5

EXP_A_RXP10

EXP_A_RXN10

EXP_A_RXP12C

EXP_A_RXP1

EXP_A_RXN14

EXP_A_RXP8C

EXP_A_RXP6 EXP_A_RXN5C

EXP_A_RXN9C

EXP_A_RXP15

EXP_A_RXN13C

EXP_A_RXN0C

EXP_A_RXN4EXP_A_RXN4C

EXP_A_RXP1C

EXP_A_RXN9

EXP_A_RXN12C

EXP_A_RXN0

EXP_A_RXN13

EXP_A_RXP5

EXP_A_RXP15C

EXP_A_RXP14

EXP_A_RXP7C

EXP_A_RXN6C

EXP_A_RXP14C

EXP_A_RXN8

EXP_A_RXN7C

EXP_A_RXN8C

EXP_A_RXP4

EXP_A_RXP2C

EXP_A_RXP13

EXP_A_RXP9

EXP_A_RXN15C

EXP_A_RXN3

EXP_A_RXP10C

EXP_A_RXN7

EXP_A_RXP6C

EXP_A_RXP11C

EXP_A_RXN12

EXP_A_RXN1C

EXP_A_RXP3CEXP_A_RXP3

EXP_A_RXP12

EXP_A_RXP9C

EXP_A_RXN2

EXP_A_RXP4C

EXP_A_RXP7

EXP_A_RXP0CEXP_A_RXP0

EXP_A_RXP1C

EXP_A_RXN2C

EXP_A_RXP3C

EXP_A_RXN0C

EXP_A_RXP0C

EXP_A_RXN1C

EXP_A_RXN3C

EXP_A_RXP2C

EXP_A_TXN0C

EXP_A_TXP2C

EXP_A_TXN2C

EXP_A_TXP1C

EXP_A_TXP3C

EXP_A_TXP0C

EXP_A_TXN3C

EXP_A_TXN1C

PCIE_OP0

PCIE_ON0

PCIE_OP1

PCIE_ON1

PCIE_OP2

PCIE_ON2

PCIE_OP3

PCIE_ON3

PCIE_IP0

PCIE_IN0

PCIE_IP1

PCIE_IN1

PCIE_IP2

PCIE_IN2

PCIE_IP3

PCIE_IN3

EXP_A_TXP[0..15] [11]

EXP_A_TXN[0..15][11]

EXP_A_RXP[0..15] [11]

EXP_A_RXN[0..15] [11]

-PCIEWAKE

-SRCCLK_3GIO [22]

SMBDATA[15,16,20,22,23,34] SMBCLK[15,16,20,22,23,34]

SDVO_CLCLK[11]

SDVO_CLDATA[11]

-PCIE_RST [25]

SRCCLK_3GIO [22]

-PCIE_WAKE[20]

-PCIEWAKE-PCIPME[19,23,32]

PCIE_OP0[19] PCIE_ON0[19] PCIE_OP1[19] PCIE_ON1[19] PCIE_OP2[19] PCIE_ON2[19] PCIE_OP3[19] PCIE_ON3[19]

PCIE_IP0[19] PCIE_IN0[19] PCIE_IP1[19] PCIE_IN1[19] PCIE_IP2[19] PCIE_IN2[19] PCIE_IP3[19] PCIE_IN3[19]

+12VVCC3

VCC3 3VDUAL

+12V

+12V

VCC3

VCC3

+12V

SR37 0/4

C418

100P/4/N/50V/X

C96 0.1U/4/Y/16V/X

SR19 0/4/X

SR3 0/4/X

SR23 0/4/X

C82 0.1U/4/Y/16V/X

BC78

0.1U/6/Y/25V/X

SR25 0/4/X

SR36 0/4

C70 0.1U/4/Y/16V/X

SR43 0/4

C93 0.1U/4/Y/16V/X

SR1 0/4/X

BC77

0.1U/6/Y/25V/X

SR12 0/4/X

SR4 0/4/X

C79 0.1U/4/Y/16V/X

SR22 0/4/X

SR33 0/4

C84 0.1U/4/Y/16V/X

C99 0.1U/4/Y/16V/X

BC80

0.1U/6/Y/25V/X

SR27 0/4/X

SR44 0/4

C90 0.1U/4/Y/16V/X

SR31 0/4/X

C72 0.1U/4/Y/16V/X

SR11 0/4/X

SR39 0/4

SR45 0/4

SR7 0/4/X

C81 0.1U/4/Y/16V/X

SR21 0/4/X

+1

EC123

470U/D/16V/8B

C101 0.1U/4/Y/16V/X

SR2 0/4/X

C87 0.1U/4/Y/16V/X

C71 0.1U/4/Y/16V/X

C92 0.1U/4/Y/16V/X

SR30 0/4/X

SR46 0/4

SR14 0/4/X

SR5 0/4/X

C78 0.1U/4/Y/16V/X

SR24 0/4/X

C98 0.1U/4/Y/16V/X

C89 0.1U/4/Y/16V/X

SR29 0/4/X

SR38 0/4

SR42 0/4

C75 0.1U/4/Y/16V/X

SR16 0/4/X

SR8 0/4/X

C80 0.1U/4/Y/16V/X

C95 0.1U/4/Y/16V/X

SR18 0/4/X

C100 0.1U/4/Y/16V/X

R1732 0/6/X

R1733 0/6

C86 0.1U/4/Y/16V/X

+

EC31

1000U/D/6.3V/8C/X

SR32 0/4/X

SR41 0/4

C77 0.1U/4/Y/16V/X

SR13 0/4/X

SR6 0/4/X

C97 0.1U/4/Y/16V/X

SR20 0/4/X

SR40 0/4

BC79

0.1U/6/Y/25V/X

C83 0.1U/4/Y/16V/X

3GIO_*16

KEY

PCIE_16

PCI-E16/L

B1

B2

B3

B4

B5

B6

B7

B8

B9

B10

B11

A1

A2

A3

A5

A6

A7

A8

A9

A10

A11

A4

B12

B13

B14

B15

B16

B17

B18

B26

A12

A13

A14

A15

A16

A17

A18

B19

B20

B21

B22

B23

B24

B25

B27

B28

B29

B30

B31

B32

A19

A20

A21

A22

A23

A24

A25

A26

A27

A28

A29

A30

A32

A31

B33

B34

B35

B36

B37

B38

B39

B40

B41

B42

B43

B44

B45

B46

B47

B48

B49

B50

A33

A34

A35

A36

A37

A38

A39

A40

A41

A42

A43

A44

A45

A46

A47

A48

A49

B51

B52

B53

B54

B55

B56

B57

B58

B59

B60

B61

B62

B63

B64

B65

B66

B67

B68

B69

B70

B71

B72

B73

B74

B75

B76

B77

B78

B79

B80

B81

B82

A50

A51

A52

A53

A54

A55

A56

A57

A58

A59

A60

A61

A62

A63

A64

A65

A66

A67

A68

A69

A70

A71

A72

A73

A74

A75

A76

A77

A78

A79

A80

A81

A82

12V

12V

RSVD

GND

SMCLK

SMDAT

GND

3.3V

JTAG1

3.3VAUX

WAKE*

PRSNT1*

12V

12V

JTAG2

JTAG3

JTAG4

JTAG5

3.3V

3.3V

PWRGD

GND

RSVD

GND

HSOP0

HSON0

GND

PRSNT2*

GND

GND

GND

REFCLK+

REFCLK-

GND

HSIP0

HSIN0

GND

HSOP1

HSON1

GND

GND

HSOP2

HSON2

GND

HSOP3

HSON3

GND

RSVD

PRSNT2*

GND

RSVD

GND

HSIP1

HSIN1

GND

GND

HSIP2

HSIN2

GND

GND

HSIP3

HSIN3

RSVD

GND

HSOP4

HSON4

GND

GND

HSOP5

HSON5

GND

GND

HSOP6

HSON6

GND

GND

HSOP7

HSON7

GND

PRSNT2*

GND

HSOP8

RSVD

GND

HSIP4

HSIN4

GND

GND

HSIP5

HSIN5

GND

GND

HSIP6

HSIN6

GND

GND

HSIP7

HSIN7

GND

HSON8

GND

GND

HSOP9

HSON9

GND

GND

HSOP10

HSON10

GND

GND

HSOP11

HSON11

GND

GND

HSOP12

HSON12

GND

GND

HSOP13

HSON13

GND

GND

HSOP14

HSON14

GND

GND

HSOP15

HSON15

GND

PRSNT2*

RSVD

RSVD

GND

HSIP8

HSIN8

GND

GND

HSIP9

HSIN9

GND

GND

HSIP10

HSIN10

GND

GND

HSIP11

HSIN11

GND

GND

HSIP12

HSIN12

GND

GND

HSIP13

HSIN13

GND

GND

HSIP14

HSIN14

GND

GND

HSIP15

HSIN15

GND

C88 0.1U/4/Y/16V/X

SR10 0/4/X

SR9 0/4/X

SR26 0/4/X

SR47 0/4

C74 0.1U/4/Y/16V/X

SR15 0/4/X

SR34 0/4

C94 0.1U/4/Y/16V/X

SR17 0/4/X

C85 0.1U/4/Y/16V/X

BC76

0.1U/6/Y/25V/X

C73 0.1U/4/Y/16V/X

SR35 0/4

SR28 0/4/X

SR48 0/4

C76 0.1U/4/Y/16V/X

C91 0.1U/4/Y/16V/X

8

8

7

7

6

6

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

DMI Connection Note

GMCH TX Pin Need Connect to ICH6 RX Pin

ICH6 TX Pin Need Connect to GMCH RX Pin

03/17

GA-8I915ME-GL

1.02

ICH6-PCI, DMI, LAN, USB

GIGABYTE

B

19 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

DMI_1TXP

DMI_2TXP

DMI_0TXP

DMI_0RXP

DMI_1RXN

DMI_2TXN

DMI_2RXP

DMI_1TXN

DMI_0TXN

DMI_1RXP

DMI_0RXN

DMI_2RXN

DMI_3TXN

DMI_3TXP

DMI_3RXN

DMI_3RXP

-SRCCLK_ICH

SRCCLK_ICH

+USBP4

+USBP5

-USBP4

-USBP0

-USBP5

-USBP2

+USBP1

-USBP1

+USBP3

+USBP0

+USBP2

-USBP3

-USBP6

+USBP6

+USBP7

-USBP7

USBCLK48

-USBOC_F

-USBOC_R

A_D13

-PIRQH

-GNT2

A_D10

A_D26

A_D24

A_D15

A_D11

-PIRQB

-IRDY

ICH33

A_D31

A_D20

A_D18

A_D9

A_D7

-REQ5

-REQ2

-DEVSEL

-C_BE1

A_D16

-PIRQE

-REQ4

-TRDY

-C_BE3

A_D22

A_D21

A_D12

A_D6

A_D1

-SERR

A_D29

A_D28

A_D19

A_D17

A_D8

A_D0

-REQ0

-PLOCK

-C_BE2

A_D14

A_D2

-PIRQA

-REQ6

PAR

A_D25

A_D23

-REQ3

-PIRQD

-PERR

-PCIPME

A_D30

A_D3

-C_BE0

-PIRQC

-REQ1

-GNT0

-FRAME

-STOP

A_D4

-PIRQF

-GNT1

-PIRQG

A_D27

A_D5

-GNT3

-GNT4

GPO_D2

PCIE_IP2

PCIE_OP0

PCIE_OP3

PCIE_ON2

PCIE_OP1

PCIE_ON3

PCIE_ON1

PCIE_IN2

PCIE_IP3

PCIE_IN0

PCIE_OP2

PCIE_IP1

PCIE_IN1

PCIE_IP0

PCIE_ON0

PCIE_IN3

-GNT6

-IRDY[23,24,32]

-DEVSEL[23,24,32]

-STOP[23,24,32]

PAR[23,24,32]

-PLOCK[23]

-SERR[23,24,32]

-PCIRST[23,24] ICH33[22]

-PCIPME[18,23,32]

-TRDY[23,24,32] -PERR[23,24,32]-FRAME[23,24,32]

-PFMRST[25,27]

-REQ0[23] -REQ1[23] -REQ2[23] -REQ3[23] -REQ4[23,32] -REQ5[23] -REQ6[23,24]

-GNT1[23] -GNT0[23]

-GNT2

-PIRQB[23,24]

-PIRQF[23,32]

-PIRQA[23,24]

-PIRQE[23] -PIRQD[23]

-PIRQH[23] -PIRQG[23]

-PIRQC[23]

A_D[0..31] [23,24,32]

DMI_1RXP[11] DMI_1RXN[11]

DMI_0RXP[11] DMI_0RXN[11]

DMI_2TXP[11] DMI_2TXN[11]

DMI_2RXN[11]

DMI_1TXP[11] DMI_1TXN[11]

DMI_0TXP[11]

DMI_2RXP[11]

DMI_0TXN[11]

DMI_3RXN[11] DMI_3TXP[11] DMI_3TXN[11]

DMI_3RXP[11]

-C_BE0 [23,24,32]

-C_BE3 [23,24,32]

-C_BE2 [23,24,32]

-C_BE1 [23,24,32]

-SRCCLK_ICH[22] SRCCLK_ICH[22]

-USBP0 [29]

+USBP0[29]

-USBP1 [29]

+USBP1[29]

-USBP2 [29]

+USBP2[29]

-USBP3 [29]

+USBP3[29]

-USBP4 [29]

+USBP4[29]

-USBP5 [29]

+USBP5[29]

-USBP6 [32]

+USBP6[32]

-USBP7 [32]

+USBP7[32]

USBCLK48 [22]

-USBOC_F [29]

-USBOC_R [32]

-GNT3

GPO_D2[20] -GNT4[32]

PCIE_ON1[18] PCIE_IP1[18]

PCIE_IN3[18]

PCIE_OP0[18]

PCIE_ON2[18]

PCIE_ON3[18]

PCIE_IP2[18]

PCIE_ON0[18] PCIE_IP0[18]

PCIE_IN1[18]

PCIE_OP3[18]

PCIE_OP1[18]

PCIE_IN0[18]

PCIE_OP2[18]

PCIE_IN2[18]

PCIE_IP3[18]

-GNT6[24]

PCIE_15V_ICH

U19B

ICH6/B2(QH16)/[10HB1-032801-I1]

T25

T24

R27

R26

V25

V24

U27

U26

Y25

Y24

W27

W26

AB24

AB23

AA27

AA26

H25

H24

G27

G26

K25

K24

J27

J26

M25

M24

L27

L26

P24

P23

N27

N26

F24

F23

AD25

AC25

C21

D21

A20

B20

D19

C19

A18

B18

E17

D17

B16

A16

C15

D15

A14

B14

C27

B27

B26

C26

C23

D23

C25

C24

B22

A22

A27

DMI_0RXN

DMI_0RXP

DMI_0TXN

DMI_0TXP

DMI_1RXN

DMI_1RXP

DMI_1TXN

DMI_1TXP

DMI_2RXN

DMI_2RXP

DMI_2TXN

DMI_2TXP

DMI_3RXN

DMI_3RXP

DMI_3TXN

DMI_3TXP

PERn1

PERp1

PETn1

PETp1

PERn2

PERp2

PETn2

PETp2

PERn3

PERp3

PETn3

PETp3

PERn4

PERp4

PETn4

PETp4

DMI_ZCOMP

DMI_IRCOMP

DMI_CLKN

DMI_CLKP

USBP_0N

USBP_0P

USBP_1N

USBP_1P

USBP_2N

USBP_2P

USBP_3N

USBP_3P

USBP_4N

USBP_4P

USBP_5N

USBP_5P

USBP_6N

USBP_6P

USBP_7N

USBP_7P

OC_0#

OC_1#

OC_2#

OC_3#

OC_4#_GPIO9

OC_5#_GPIO10

OC_6#_GPIO14

OC_7#_GPIO15

USBRBIAS

USBRBIAS#

CLK48

R169 22/6

U19A

ICH6/B2(QH16)/[10HB1-032801-I1]

E1

C3

G6

R2

R5

A3

P6

G5

J1

C5

J2

E3

J3

C1

B6

F1

C8

E7

F6

D8

L5

B5

M5

B8

F7

E8

B7

N2

L2

M1

L3

D9

C7

C6

M3

E2

E5

C2

F5

F3

E9

F2

D6

E6

D3

A2

D2

D5

H3

B4

J5

K2

K5

D4

L6

G3

H4

H2

H5

B3

M6

B2

K6

K3

A5

L1

K4

G2

G4

H6

J6

PAR

DEVSEL#

PCICLK

PCIRST#

PLTRST#

IRDY#

PME#

SERR#

STOP#

PLOCK#

TRDY#

PERR#

FRAME#

GNT_0#

GNT_1#

GNT_2#

GNT_3#

GNT_4#_GPIO48

GNT_5#_GPIO17

GNT_6#_GPIO16

REQ_0#

REQ_1#

REQ_2#

REQ_3#

REQ_4#_GPIO40

REQ_5#_GPIO1

REQ_6#_GPIO0

PIRQA#

PIRQB#

PIRQC#

PIRQD#

PIRQE#_GPIO2

PIRQF#_GPIO3

PIRQG#_GPIO4

PIRQH#_GPIO5

AD_0

AD_1

AD_2

AD_3

AD_4

AD_5

AD_6

AD_7

AD_8

AD_9

AD_10

AD_11

AD_12

AD_13

AD_14

AD_15

AD_16

AD_17

AD_18

AD_19

AD_20

AD_21

AD_22

AD_23

AD_24

AD_25

AD_26

AD_27

AD_28

AD_29

AD_30

AD_31

C_BE_3 #

C_BE_ 2#

C_BE_ 1#

C_BE_ 0#

R171

22.6/6/1

R172

24.9/6/1

SB_HEATSINK

ICH6_HEATSINK/[12SP2-030010-21]/X

1

2

R170 33/6

C103

100P/4/N/50V/X

C102

100P/4/N/50V/X

C1347 0.1U/4/Y/16V

C1346 0.1U/4/Y/16V

C1340 0.1U/4/Y/16V

C1341 0.1U/4/Y/16V

C1342 0.1U/4/Y/16V

C1343 0.1U/4/Y/16V

C1344 0.1U/4/Y/16V

C1345 0.1U/4/Y/16V

8

8

7

7

6

6

5

5

4

4

3

3

2

2

1

1

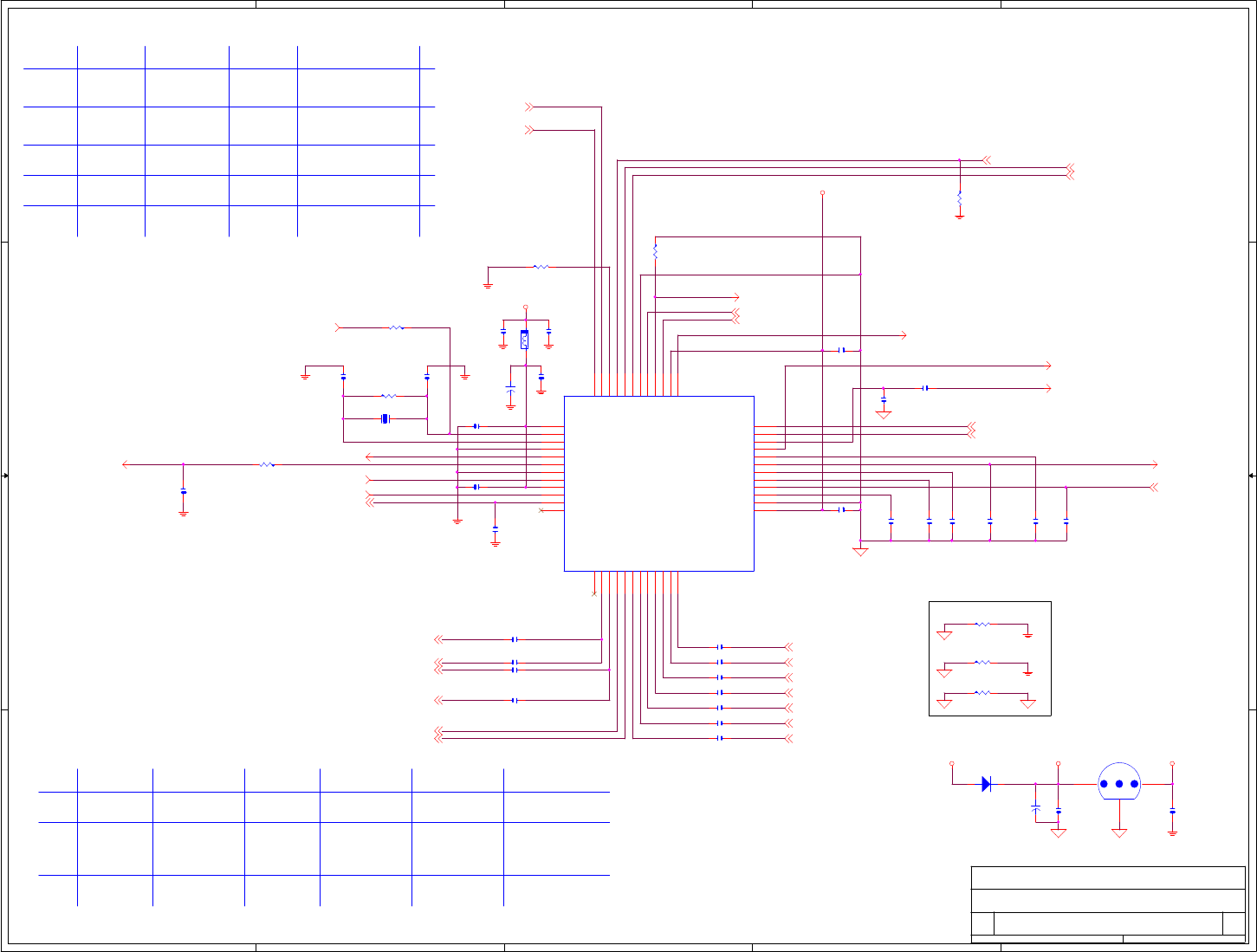

D D

C C

B B

A A

Enable VCC2_5 INT VR

P.D RESISTOR FOR

Need Change to X5R or X7R type

P.D resistor For

82562 only

FOR A2 Not Install FOR B0 Install

03/17

04/07

FOR BIOS DEBUG

03/30

03/30

08/03

11/01

11/04

NORMAL

CLR_CMOS

SHORT CLEAR CMOS

OPEN

CLEAR CMOS

OPEN

SHORT

CLR_CMOS: 1-2

NORMAL

Strapping PCI-E w/s

1Lane or 4Lane mode

FOR CH1

GA-8I915ME-GL

1.02

ICH6-IDE, SATA, GPIO, CTRL

GIGABYTE

Custom

20 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

PDA[0..2]

PDD[0..15] PDD15

PDD13

PDD10

PDD12

PDD14

PDD8

PDD5

PDD7

PDD2

PDD0

PDD4

PDD9

PDD6

PDD1

PDD3

PDD11

PDA2

PDA1

PDA0

-PCS1

-PCS3

PDDREQ

-PDIOW

-PDDACK

-PDIOR

PIORDY

SATA0TXP

SATA0TXN

SATA0RXN

SATA0RXP

SATA1RXN

SATA1RXP

SATA1TXN

SATA1TXP

SATA2RXN

SATA2RXP

SATA2TXP

SATA3TXP

SATA3TXN

SATA3RXP

SATA3RXN

SATA2TXN

SMBCLK

SMBDATA

SMLINK0

LINK_ALT

-SATALED

-RTCRST

-RSMRST

INTVRMEN

RTCVDD

INTVRMEN

SPKR

SMLINK1

CPUPWROK

MB_D2

-SLP_BTN

GPO20

AGPOV2

GPIO25

-SMBALRT

GPO_D3

AGPOV1

-LANWAKE

-PCIE_WAKE

-THERM

-KBRST

SERIRQ

-LPCPME

-SYS_RST

-SUSTAT

-SMBALRT

CPUOV2

IDEIRQ

VRMGD

PWRBTSW

-RI

-SLP_S3

-SYS_RST

-BATLOW

-SUSTAT

-S4_S5

-LAN_RST

LAD2

-LFRAME

-LDRQ0

LAD0

LAD3

LAD1

ACZ_SDIN2

ICHCLK14

-SMI

-KBRST

SERIRQ

A20GATE

-A20M

-CPUSLP

-FERR

-STPCLK

-IGNNE

-HINIT

INTR

NMI

-THRMTRIP

-FWHINIT

GPIO25

SATA0TXP

SATA0TXN

SATA0RXN

SATA0RXP

SATA2TXP

SATA2TXN

SATA2RXN

SATA2RXP

SATA1TXP

SATA1TXN

SATA1RXN

SATA1RXP

SATA3RXN

SATA3RXP

SATA3TXP

SATA3TXN

PWROK1

BIOS_WP

-LAN_RST

MB_D3

GREEN_LED

DDROV1

-PWRLED

MB_D1

GPO_D4

-ICHSYNC

-BATLOW

-LPCPME

-RI

-SLP_BTN

SMLINK0

LINK_ALT

A20GATE

VRMGD

ACZ_BITCLK

MB_D1

MB_D2

GPO_D2

MB_D3

-LANWAKE

SMLINK1

SMBCLK

SMBDATA

GPO_D2

GPO_D3

GPO_D4

-RTCRST

PDD[0..15][27]

-PDIOW[27]

PDDREQ[27] -PDIOR[27]

PIORDY[27]

PDA[0..2][27]

-PCS3[27] -PCS1[27]

-PDDACK[27]

SMBCLK [15,16,18,22,23,34]

SMBDATA[15,16,18,22,23,34]

-RSMRST [25,34]

VBAT [25]

RTCVDD [21,26]

SPKR [35]

-SLP_BTN[35]

GPO20[26]

SRCCLK_SATA [22]

-SRCCLK_SATA [22]

-LPCPME[25]

IDEIRQ[27]

PWRBTSW[25]

-SLP_S3[25,33,34]

-SUSTAT

-S4_S5[34,35]

-PCIE_WAKE[18] PWROK1[12,25,29,34]

-THERM[25]

-ICHSYNC[12]

VRMGD[8]

-RI[29,36]

-SYS_RST[5,22,34,35]

-LDRQ0 [25]

-LFRAME [25,26]

LAD3 [25,26]

LAD2 [25,26]

LAD1 [25,26]

LAD0 [25,26]

ACZ_BITCLK [30]

ACZ_SYNC [30]

-ACZ_RST [30]

ACZ_SDOUT [30]

ACZ_SDIN2 [30]

ICHCLK14 [22]

A20GATE[25]

-FERR [5]

-A20M [5]

-CPUSLP [5]

-IGNNE [5]

-HINIT [4]

INTR [5]

NMI [5]

-KBRST[25]

SERIRQ [25]

-SMI [5]

-STPCLK[5]

-THRMTRIP[5]

-FWHINIT [26]

VBAT [25]

-SATALED [27]

BIOS_WP[26]

GREEN_LED[35] DDROV1

AGPOV1

AGPOV2

CPUOV2

-PWRLED[35]

CPUPWROK[5]

MB_D1

GPO_D3

GPO_D2[19]

RTCVDD

3VDUAL

3VDUAL

3VDUAL

VCC3

VCC3

VCC3

VCC3

VCC3

VCC3

VCC3

VCC3

VCC3

VCC3

C276 0.01U/4/X/16V/X

R186 8.2K/6/X

R1696 8.2K/6/X

SATA0

SATA1/RED

1

2

3

4

5

6

7

GND

A+

A-

GND

B-

B+

GND

RN55

8.2K/8P4R

1 2

3 4

5 6

7 8

D18

BAT54C/S

13

2

TP10

R1505 8.2K/6/X

C309 0.01U/4/X/16V

C284 0.01U/4/X/16V/X

R1680 8.2K/6

C282 0.01U/4/X/16V/X

C311 0.01U/4/X/16V

TP17

R1678 8.2K/6/X

U19C

ICH6/B2(QH16)/[10HB1-032801-I1]

AD13

AG15

AE15

AC13

AB13

AB12

AF13

AE13

AB11

AD11

AC11

AE14

AD12

AF14

AF15

AD14

AB15

AB14

AE16

AC14

AF16

AC16

AB17

AC17

AD16

AE17

AB16

AE3

AD3

AG2

AF2

AC5

AD5

AF4

AG4

AD7

AC7

AF6

AG6

AC9

AD9

AF8

AG8

AC2

AC1

AG11

AF11

Y4

W5

Y5

W4

U6

AC19

AF17

AE18

AF18

AG18

AA3

Y3

Y1

Y2

AA2

AA5

F8

DD_15

DD_14

DD_13

DD_12

DD_11

DD_10

DD_9

DD_8

DD_7

DD_6

DD_5

DD_4

DD_3

DD_2

DD_1

DD_0

DDACK#

DDREQ

DIOR#

DIOW#

IORDY

DA0

DA1

DA2

DCS1#

DCS3#

IDEIRQ

SATA_0RXN

SATA_0RXP

SATA_0TXN

SATA_0TXP

SATA_1RXN

SATA_1RXP

SATA_1TXN

SATA_1TXP

SATA_2RXN

SATA_2RXP

SATA_2TXN

SATA_2TXP

SATA_3RXN

SATA_3RXP

SATA_3TXN

SATA_3TXP

SATA_CLKN

SATA_CLKP

SATARBIAS#

SATARBIAS

SMBCLK

SMBDATA

LINKALERT#

SMLINK_0

SMLINK_1

SATALED#

SATA_0GP/GPIO26

SATA_1GP/GPIO29

SATA_2GP/GPIO30

SATA_3GP/GPIO31

INTRUDER#

RSMRST#

RTCX1

RTCX2

RTCRST#

INTVRMEN

SPKR

TP15

C313 0.01U/4/X/16V

C112

10P/4/N/50V/X

R1735 8.2K/6

C315 0.01U/4/X/16V

R185 390K/6

C312 0.01U/4/X/16V/X

R193 8.2K/6/X

TP40

TP39

C310 0.01U/4/X/16V/X

TP13

C118

1U/6/Y/10V/X

C316 0.01U/4/X/16V/X

TP9

C275 0.01U/4/X/16V

R199 1K/6

R175 56/6

R192 8.2K/6/X

CR2032

+

BAT

CR2032

R191 8.2K/6

R189 8.2K/6

C273 0.01U/4/X/16V

CLR_CMOS

PH/1*2/BLACK/[11NH2-000102-03_11NH2-000102-01]

1

2

3

CLR_CMOS

PH/1*2/X

C314 0.01U/4/X/16V/X

RN56

8.2K/8P4R

1 2

3 4

5 6

7 8

SATA2

SATA1/RED

1

2

3

4

5

6

7

GND

A+

A-

GND

B-

B+

GND

SATA3

SATA1/RED/X

1

2

3

4

5

6

7

GND

A+

A-

GND

B-

B+

GND

R1477 8.2K/6/X

SATA1

SATA1/RED/X

1

2

3

4

5

6

7

GND

A+

A-

GND

B-

B+

GND

D3

BAT54C/S

13

2

C113

18P/4/N/50V

R1638 8.2K/6

C114

18P/4/N/50V

C117

1U/6/Y/10V

BAT

BAT+BAT SOCKET(high)/[11SA1-012032-23_11SA1-012032-22]

12

R181 10M/6

R188 1K/6/X

R176 33/6

R1639 8.2K/6/X

C116

1U/6/Y/10V

R1679 8.2K/6

R177 33/6

R1734 8.2K/6

R677

8.2K/6

X1

32.768K/12.5p/20ppm/40K/TF38

34

R194

20K/6

R183 8.2K/6/X

C306

1000P/4/X/50V

C115

1U/6/Y/10V

TP41

R1731 8.2K/6/X

RN57

8.2K/8P4R

1 2

3 4

5 6

7 8

X1_SHORTWIRE

SHORT_WIRE/[11NH2-010005-00]

R178 24.9/6/1

RN53

8.2K/8P4R

1 2

3 4

5 6

7 8

R195 0/6/SHT/XR196

1K/6

R572 1K/6

R1730 8.2K/6

RN92

8.2K/8P4R

1 2

3 4

5 6

7 8

R180 1M/6

R1504 8.2K/6

C281 0.01U/4/X/16V

C283 0.01U/4/X/16V

U19D

ICH6/B2(QH16)/[10HB1-032801-I1]

P4

P2

N3

N5

N4

N6

P3

C10

A10

F11

F10

B10

C9

B9

E10

D12

F13

D11

B12

F12

B11

E12

E11

C13

C12

C11

E13

AF22

AF23

AE27

AE20

AE24

AD27

AG26

AE22

AF27

AG24

AF24

AF25

AD23

AB20

AG27

AE26

AE23

AD19

AE19

R1

W6

M2

R6

AC21

AB21

AD22

AD20

AD21

V3

P5

R3

T3

AF19

AF20

AC18

AG25

AG21

U1

T2

T4

T5

T6

W3

V6

U2

V5

V2

U3

AF21

AC20

U5

AA1

LDRQ_1/GPIO41

LAD_0/FB0

LAD_1/FB1

LAD_2/FB2

LAD_3/FB3

LDRQ_0#

LFRAME#

ACZ_BIT_CLK

ACZ_RST#

ACZ_SDIN_0

ACZ_SDIN_1

ACZ_SDIN_2

ACZ_SDOUT

ACZ_SYNC

CLK14

EE_CS

EE_DIN

EE_DOUT

EE_SHCLK

LAN_CLK

LAN_RSTSYNC

LAN_RXD_0

LAN_RXD_1

LAN_RXD_2

LAN_TXD_0

LAN_TXD_1

LAN_TXD_2

A20GATE

A20M#

CPUSLP#

DPRSLPVR/TP_1

DPRSLP#/TP_4

DPSLP#/TP_2

IGNNE#

INIT3_3V#

INIT#

INTR

FERR#

NMI

RCIN#

SERIRQ

SMI#

STPCLK#

THRMTRIP#

GPI6

GPI7

GPI8

SMBALERT#/GPI11

GPI12

GPI13

STP_PCI#/GPO18

GPO19

STP_CPU#/GPO20

GPO21

GPO23

GPIO24

GPIO25

GPIO27

GPIO28

CLKRUN#/GPIO32

GPIO33

GPIO34

CPUPWRGD/GPO49

MCH_SYNC#

PWRBTN#

RI#

SLP_S3#

SLP_S4#

SLP_S5#

SUS_STAT*/LPCPD#

SUSCLK

SYS_RESET#

LAN_RST#

BATLOW#/TP_0

TP_3

VRMPWRGD

THRM#

WAKE#

PWROK

R179 0/6/X

R197 1K/6/X

C274 0.01U/4/X/16V/X

8

8

7

7

6

6

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

DG use 10ohm resistor

台慶

FOR

漏電

03/30

GA-8I915ME-GL

1.02

ICH6-PWR & GND

GIGABYTE

B

21 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

ICH6VREF

RTCVDD [20,26]

VCC1_5

3VDUAL

5VSB

VCC1_5

VCC3

VCC

VCC25_ICH

VCC1_5

VTT_GMCH

VCC3

VCC1_5

VCC1_5

VCC1_5

PCIE_15V_ICH

U19E

ICH6/B2(QH16)/[10HB1-032801-I1]

A8

AA18

AB18

P7

F21

E26

E27

AG10

A24

AC27

AE1

A25

AA22

AA23

AA24

AA25

AB25

AB26

AB27

F25

F26

F27

G22

G23

G24

G25

H21

H22

J21

J22

K21

K22

L21

L22

M21

M22

N21

N22

N23

N24

N25

P21

P25

P26

P27

R21

R22

T21

T22

U21

U22

V21

V22

W21

W22

Y21

Y22

AA6

AB4

AB5

AB6

AC4

AD4

AE4

AE5

AG5

AF5

AA7

AA8

AA9

AB8

AC8

AD8

AE8

AE9

AF9

AG9

G10

G11

AA19

AA20

AA21

L11

L12

L14

L16

L17

M11

M17

P11

P17

T11

T17

U11

U12

U14

U16

U17

G8

D24

D25

D26

D27

E20

E21

E22

E23

E24

F9

F20

G20

AB22

AD26

AG23

A13

F14

G13

G14

AA10

AA12

AA14

AA15

AA17

AC15

AD17

AG13

AG16

AG19

A6

B1

E4

H1

H7

J7

L4

L7

M7

P1

A11

U4

V1

V7

W2

Y7

A17

B17

C16

C17

D16

E16

F15

F16

F18

G15

G16

G17

G18

AB3

R7

U7

G19

V5REF_1

V5REF_2

VCC2_5

VCC2_5

V5REF_SUS

VCC3

GND

VCC3

VCCSUS3_3

VCCDMIPLL

VCCSATAPLL

VCCUSBPLL

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_B

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCCLAN1_5/VCCSUS1_5_1

VCCLAN1_5/VCCSUS1_5_2

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

VCC1_5_A

V_CPU_IO_1

V_CPU_IO_2

V_CPU_IO_3

VCCLAN3_3/VCCSUS3_3

VCCLAN3_3/VCCSUS3_3

VCCLAN3_3/VCCSUS3_3

VCCLAN3_3/VCCSUS3_3

VCC3

VCC3

VCC3

VCC3

VCC3

VCC3

VCC3

VCC3

VCC3

VCC3

VCC3

VCC3

VCC3

VCC3

VCC3

VCC3

VCC3

VCC3

VCC3

VCC3

VCCSUS3_3

VCCSUS3_3

VCCSUS3_3

VCCSUS3_3

VCCSUS3_3

VCCSUS3_3

VCCSUS3_3

VCCSUS3_3

VCCSUS3_3

VCCSUS3_3

VCCSUS3_3

VCCSUS3_3

VCCSUS3_3

VCCSUS3_3

VCCSUS3_3

VCCSUS3_3

VCCSUS3_3

VCCSUS3_3

VCCSUS3_3

VCCRTC

VCCSUS1_5_A

VCCSUS1_5_B

VCCSUS1_5_C

C135

0.1U/6/Y/25V/X

+

EC32

1000U/D/6.3V/8C/X

C130

4.7U/8/Y/10V/X

C128

0.1U/6/Y/25V

C147

0.1U/6/Y/25V

R201

1K/6D4

1N5817/S

BC81

1U/6/Y/10V

BC83

0.1U/6/Y/25V

C131

0.1U/6/Y/25V/X C132

0.1U/6/Y/25V

C162 0.1U/6/Y/25V

C151

0.1U/6/Y/25V/X

L16 0/8/SHT/X

C154

1U/6/Y/10V

C149

0.1U/6/Y/25V

C126

4.7U/8/Y/10V/X

C138

0.1U/6/Y/25V

C140

0.1U/6/Y/25V

C145

0.1U/6/Y/25V

C148

0.1U/6/Y/25V/X

U19F

ICH6/B2(QH16)/[10HB1-032801-I1]

A1

A12

A15

A19

A21

A23

A26

A4

A7

A9

AA11

AA13

AA16

AA4

AB1

AB10

AB19

AB2

AB7

AB9

AC10

AC12

AC22

AC23

AC24

AC26

AC3

AC6

AD1

AD10

AD15

AD18

AD2

AD24

AD6

AE10

AE11

AE12

AE2

AE21

AE25

AE6

AE7

AF1

AF12

AF26

AF3

AF7

AG1

AG12

AG14

AG17

AG20

AG22

AG3

AG7

B13

B15

B19

B21

B23

B25

C14

C18

C20

C22

C4

D1

D10

D13

D14

D18

D20

D22

D7

E14

E15

E18

E19

E25

F17

F19

F22

F4

G1

G12

G21

G7

G9

H23

H26

H27

J23

J24

J25

J4

K1

K23

K26

K27

K7

L13

L15

L23

L24

L25

M12

M13

M14

M15

M16

M23

M26

M27

M4

N1

N11

N12

N13

N14

N15

N16

N17

N7

P12

P13

P14

P15

P16

P22

R11

R12

R13

R14

R15

R16

R17

R23

R24

R25

R4

T1

T12

T13

T14

T15

T16

T23

T26

T27

T7

U13

U15

U23

U24

U25

V23

V26

V27

V4

W1

W23

W25

W7

Y23

Y26

Y27

Y6

AF10

B24

W24

VSS1

VSS2

VSS3

VSS4

VSS5

VSS6

VSS7

VSS8

VSS9

VSS10

VSS11

VSS12

VSS13

VSS14

VSS15

VSS16

VSS17

VSS18

VSS19

VSS20

VSS21

VSS22

VSS23

VSS24

VSS25

VSS26

VSS27

VSS28

VSS29

VSS30

VSS31

VSS32

VSS33

VSS34

VSS35

VSS36

VSS37

VSS38

VSS39

VSS40

VSS41

VSS42

VSS43

VSS44

VSS45

VSS46

VSS47

VSS48

VSS49

VSS50

VSS51

VSS52

VSS53

VSS54

VSS55

VSS56

VSS57

VSS58

VSS59

VSS60

VSS61

VSS62

VSS63

VSS64

VSS65

VSS66

VSS67

VSS68

VSS69

VSS70

VSS71

VSS72

VSS73

VSS74

VSS75

VSS76

VSS77

VSS78

VSS79

VSS80

VSS81

VSS82

VSS83

VSS84

VSS85

VSS86

VSS87

VSS88

VSS89

VSS90

VSS91

VSS92

VSS93

VSS94

VSS95

VSS96

VSS97

VSS98

VSS99

VSS100

VSS101

VSS102

VSS103

VSS104

VSS105

VSS106

VSS107

VSS108

VSS109

VSS110

VSS111

VSS112

VSS113

VSS114

VSS115

VSS116

VSS117

VSS118

VSS119

VSS120

VSS121

VSS122

VSS123

VSS124

VSS125

VSS126

VSS127

VSS128

VSS129

VSS130

VSS131

VSS132

VSS133

VSS134

VSS135

VSS136

VSS137

VSS138

VSS139

VSS140

VSS141

VSS142

VSS143

VSS144

VSS145

VSS146

VSS147

VSS148

VSS149

VSS150

VSS151

VSS152

VSS153

VSS154

VSS155

VSS156

VSS157

VSS158

VSS159

VSS160

VSS161

VSS162

VSS163

VSS164

VSS165

VSS166

VSS167

VSS168

VSS169

VSS170

VSS171

L15 0/8/SHT/X

C163 0.1U/6/Y/25V

C164 0.1U/6/Y/25V

BC85

0.1U/6/Y/25V

BC82

0.1U/6/Y/25V

BC206

0.047U/4/X/10V

C353

0.1U/6/Y/25V C354

1U/6/Y/10V

BC205

0.047U/4/X/10V

C157

0.1U/6/Y/25V/X

C155

0.1U/6/Y/25V

C159

0.1U/6/Y/25V/X

C161

0.1U/6/Y/25V

C133

0.1U/6/Y/25V

C150

0.1U/6/Y/25V/X

C119

0.1U/6/Y/25V

C120

0.1U/6/Y/25V/X

C123

0.1U/6/Y/25V

C152

0.1U/6/Y/25V/X

C160

0.1U/6/Y/25V

C156

0.1U/6/Y/25V/X

C158

0.1U/6/Y/25V

C144

0.1U/6/Y/25V/X

C127

0.1U/6/Y/25V C125

0.1U/6/Y/25V/X

C129

0.1U/6/Y/25V

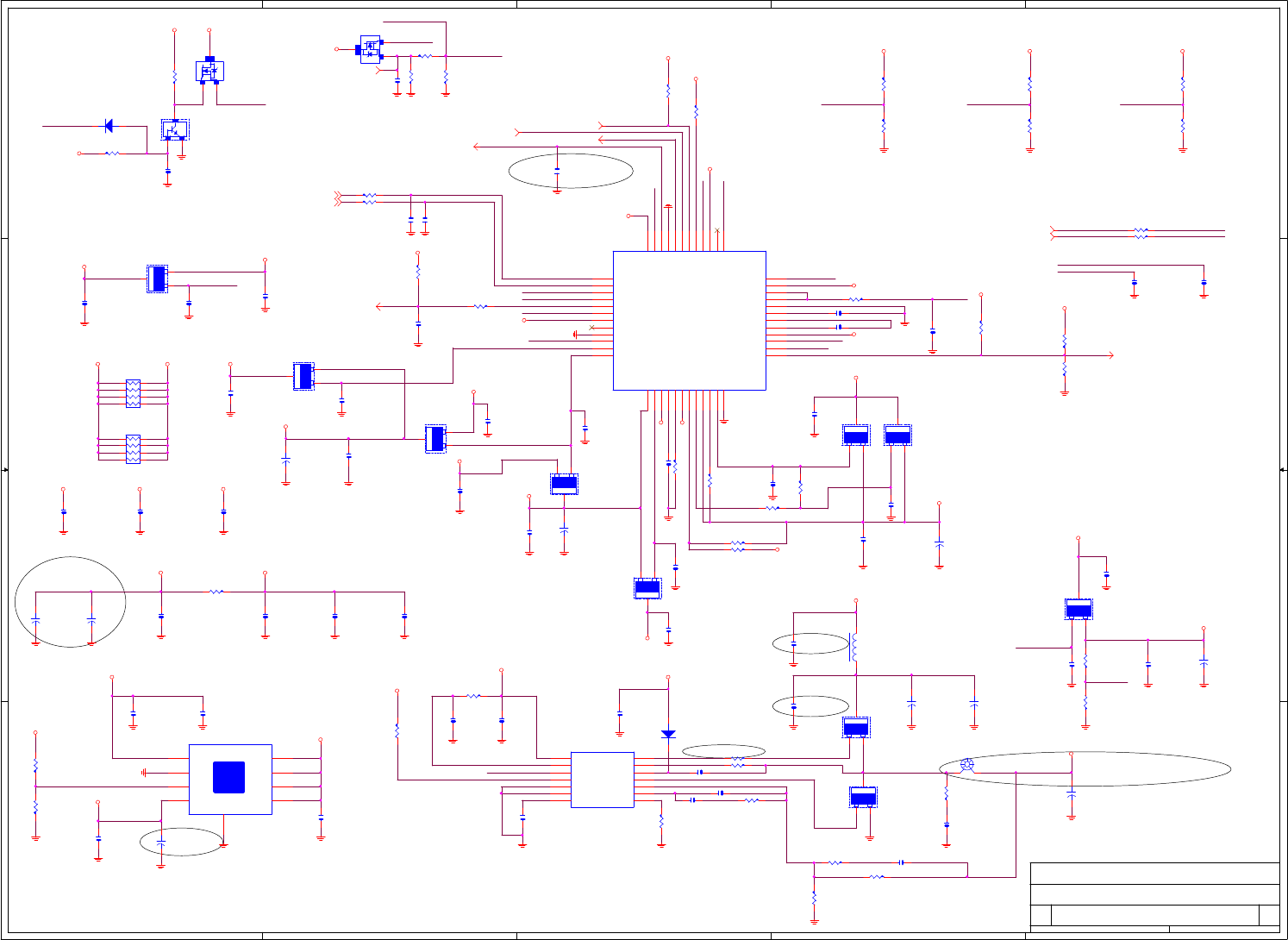

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

P.D --> PIN35/36 for SRCCLK7

FOR CK410M

FOR CLOCK GEN RST

01/20 C1 ISSUE

04/06

05/24

05/26

05/27

05/27

12/16 TCL EMI issue

12/16 TCL EMI issue

GA-8I915ME-GL

1.02

CK410M/GBT_CLK GEN

GIGABYTE

Custom

22 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

SMBDATA

SMBCLK

-SRCCLK_ICH

SRCCLK_ICH

-SRCCLK_MCH

SRCCLK_MCH

LPCCLK48

USBCLK48

ICHCLK14

CPUCLK

-MCHCLK

MCHCLK

-CPUCLK

DOTCLK

-DOTCLK

ICH33

LANCLK33

SRCCLK_SATA

-SRCCLK_SATA

CLK_RT#

CLK_T1

CLK_T1

FWH33

CPUCLK

-CPUCLK

MCHCLK

-MCHCLK

SRCCLK_SATA

-SRCCLK_SATA

USBCLK48

LPCCLK48

LPC33

FWH33

ICH33

-DOTCLK

DOTCLK

SRCCLK_MCH

-SRCCLK_MCH

SRCCLK_ICH

-SRCCLK_ICH

LANCLK33

PCLK0

ICHCLK14

LPC33

CLK_RT#

PCLK0

PCLK1

PCLK1

PCLK2

PCLK2

AUDIO14

AUDIO14

SRCCLK_3GIO

-SRCCLK_3GIO

-SRCCLK_3GIO

SRCCLK_3GIO

SMBDATA[15,16,18,20,23,34] SMBCLK[15,16,18,20,23,34]

SRCCLK_ICH [19]

-SRCCLK_ICH [19]

-SRCCLK_MCH [11]

SRCCLK_MCH [11]

LPCCLK48 [25]

USBCLK48 [19]

CPUCLK [5]

-CPUCLK [5]

MCHCLK [9]

-MCHCLK [9]

FSBSEL0 [5]

DOTCLK [12]

-DOTCLK [12]

-SRCCLK_SATA [20]

SRCCLK_SATA [20]

FWH33 [26]

ICHCLK14 [20]

LANCLK33 [32]

ICH33 [19]

LPC33 [25]

-SYS_RST [5,20,34,35]

PCLK0 [23]

PCLK1 [23]

PCLK2 [24]

AUDIO14 [30]

SRCCLK_3GIO [18]

-SRCCLK_3GIO [18]

FSBSEL1[5] FSBSEL2[5]

CKVDD

VCC3

VCC3

VTT_GMCH

VCORE

VCC3

VCC3

VCC3

VCC3

VCC3

R1507 22/6

C177

100P/4/N/50V/X

R683 22/6

R238 51.1/6/1

R235 33/6

R259 51.1/6/1

R1737 33/6

R241 51.1/6/1

R220 33/6

R1736 33/6

R243 51.1/6/1

R218 33/6

R221 51.1/6/1R682 33/6

R230 51.1/6/1

FB5 30/8/S/4A

C171 10P/4/N/50V/X

R684 22/6 R234 51.1/6/1

U23

CK410M_CY28411/[10H6L-188411-20L]

48

1

7

37

11

21

42

38

2

6

13

29

45

51

50

49

39

14

12

53

16

18

19

47

46

17

8

10

9

54

55

56

3

4

5

44

43

41

40

36

35

20

52

28

34

22

23

24

25

26

27

31

30

33

32

15

VDDREF

VDDPCI

VDDPCI

VDDA

VDD48

VDD_SRC

VDDCPU

GNDA

GND

GND

GND

GND

GND

GND

X1

X2

I REF

96MHz_DOTCLK

48MHz_USB/FS_A

FS_C/TEST_SEL/REFOUT1

FS_B/TEST_MODE

SRCCLK0#

SRCCLK1

SDATA

SCLK

SRCCLK0

ITP_EN/PCICLK_F0

VTT_PWRGD#/PD

TURBO0/PCICLK_F1

RESET#/CPU_STOP#

TURBO1/PCI_STOP#

PCICLK2

PCICLK3

PCICLK4

PCICLK5

CPUCLK0

CPUCLK0#

CPUCLK1

CPUCLK1#

SRCCLK7_ITPCLK

SRCCLK7_ITPCLK#

SRCCLK1#

REFOUT0

VDD_SRC

VDD_SRC

SRCCLK2

SRCCLK2#

SRCCLK3

SRCCLK3#

SATAP_SRCCLK4

SATAN_SRCCLK4#

SRCCLK5

SRCCLK5#

SRCCLK6

SRCCLK6#

96MHz_DOTCLK#

R687 22/6

R255 51.1/6/1

R694

8.2K/6

R551

220/6

C174 10P/4/N/50V/X

R210 22/6

R250

475/6/1

R208 22/6

BC90

1U/6/Y/10V

BC100

0.1U/6/Y/25V

BC92

0.1U/6/Y/25V

R1739 8.2K/6

FB7 30/8/S/4A

BC99

0.1U/6/Y/25V

R690

8.2K/6

BC215

0.1U/6/Y/25V

C1267 10P/4/N/50V

C172 10P/4/N/50V/X

R222 33/6

C176

22P/4/N/50V

R224 33/6

R1738 8.2K/6

X2

14.318M/16p/20ppm/40/49US/D

C173 10P/4/N/50V/X

R228

1K/6/X

BC88

0.1U/6/Y/25V

R688 33/6

R1740 51.1/6/1

FB6 30/8/S/4A C170 10P/4/N/50V/X

BC95

0.1U/6/Y/25V

R1741 51.1/6/1

R1506 33/6

C168 10P/4/N/50V/X

R1416

8.2K/6

C167 10P/4/N/50V/X

R223 10K/6 C175 10P/4/N/50V/X

SOT23

Q194

MMBT2222A/S/X

13

2

R686 22/6

SOT23

Q24

MMBT2222A/S

13

2

R1417

8.2K/6/X

BC216

1U/6/Y/10V

C1266 10P/4/N/50V/X

BC94

1U/6/Y/10V

BC93

0.1U/6/Y/25V

R211 22/6

BC97

0.1U/6/Y/25V

R246 33/6

BC98

0.1U/6/Y/25V

R247 33/6

R214 51.1/6/1

BC91

0.1U/6/Y/25V

BC101

0.01U/6/X/50V/X

C179

22P/4/N/50V

C166 10P/4/N/50V/X

RN59 33/8P4R

1 2

3 4

5 6

7 8

R219 51.1/6/1

R232

8.2K/6/X

R1636 8.2K/6

R217 51.1/6/1

C178

100P/4/N/50V/X

R237 33/6

R236 51.1/6/1

8

8

7

7

6

6

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

AD16/-PIRQ(E-D-C-A)/-REQ0/-GNT0 AD17/-PIRQ(D-C-A-E)/-REQ1/-GNT1

Place close to PCI1

Place close to PCI1

Place close to PCI2

04/20 BOM

04/20 BOM

07/06 BOM

07/06 BOM

03/25 for noise

03/25 for EMI

GA-8I915ME-GL

1.02

PCI SLOT 1

GIGABYTE

B

23 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

-PCIRST

-REQ0

A_D30

A_D29 A_D28

A_D27 A_D26

A_D25 A_D24

-C_BE3 A_D17

A_D23 A_D22

A_D21 A_D20

A_D19 A_D18

A_D17 A_D16

-C_BE2 -FRAME

-IRDY -TRDY

-DEVSEL -STOP

-PLOCK

-PERR PCI_A40

PCI_A41

-SERR PAR

-C_BE1 A_D15

A_D14 A_D13

A_D12 A_D11

A_D10 A_D9

A_D8 -C_BE0

A_D7 A_D6

A_D5 A_D4

A_D3 A_D2

A_D1 A_D0

A_D[0..31] -DEVSEL

-TRDY

-IRDY

-FRAME

-PLOCK

-STOP

PCLK0

-SERR

-PERR

-GNT0

-PCI1_REQ64

A_D31

-PIRQE

-PIRQD

-PIRQA -PIRQC

PCI1_ACK64

-REQ4

PCI_A41

PCI_A40

-PIRQC

-PIRQB

-PIRQG

-PIRQF

-REQ2

PCI1_ACK64

-PIRQD

-PIRQA

A_D3

A_D19

A_D22

-STOP

-TRDY

-IRDY

A_D20

A_D23

A_D6

PAR

-PCIPME

A_D17

-PCI2_REQ64

A_D0

A_D10

A_D28

A_D2

A_D14

-PLOCK

A_D26

A_D5

-C_BE0

-C_BE1

-DEVSEL

-C_BE3

A_D16

A_D30

-PERR

-PIRQC

A_D9

PCI_A41

A_D27

PCI2_ACK64

A_D1

A_D13

-FRAME

A_D24

A_D25

-PCIRST

A_D4

A_D7

A_D21

A_D29

A_D15

A_D18

-PIRQD

PCI_A40

-C_BE2

A_D8

A_D18

-PIRQE -PIRQA

A_D31

A_D11A_D12

-SERR

-PCI2_REQ64

-PIRQE

-PIRQH

-REQ0

PAR

-REQ1

-REQ3

-REQ5

-REQ6

-PCIRST

PCLK0

PCLK1

TCK_PCI TCK_PCI TMS_PCI

-TRST_PCI

TMS_PCI

-TRST_PCI

TMS_PCI

TCK_PCI

-TRST_PCI

-PCI1_REQ64

PCI2_ACK64

PCLK0[22]

A_D[0..31][19,24,32]

-REQ0[19]

-C_BE3[19,24,32]

-C_BE2[19,24,32]

-IRDY[19,24,32]

-DEVSEL[19,24,32]

-PLOCK[19] -PERR[19,24,32]

-SERR[19,24,32]

-C_BE1[19,24,32]

-FRAME [19,24,32]

-TRDY [19,24,32]

-STOP [19,24,32]

PAR [19,24,32]

-C_BE0 [19,24,32]

-GNT0[19]

-PIRQE [19]

-PIRQD[19] -PIRQA[19,24]

-PCIPME [18,19,32]

-REQ2[19] -REQ4[19,32]

SMBDATA[15,16,18,20,22,34] SMBCLK[15,16,18,20,22,34]

-PIRQB[19,24] -PIRQC[19]

-PIRQF[19,32] -PIRQG[19]

-PIRQD[19]

-PIRQA[19,24]

-PIRQC [19]

-GNT1[19]

PCLK1[22]

-REQ1[19]

-PIRQE[19]

-PIRQH[19]

-REQ0[19] PAR[19,24,32]

-REQ1[19] -REQ3[19]

-REQ5[19] -REQ6[19,24]

PCI_A40

PCI_A41

-PCIRST [19,24]

-12V +12VVCC3

-12V

VCC3

+12V

3VDUAL

VCC

VCC

VCC

VCC

VCC

VCC3

VCC

VCC-12V VCC3 +12V

3VDUAL

VCC

VCC

VCC3

R1756 2.2K/6

C1334

10P/4/N/50V/X

BC626 0.1U/6/Y/25V/X

R1758 2.2K/6

C1331

10P/4/N/50V/X

RN108

8.2K/8P4R

1 2

3 4

5 6

7 8

R1757 2.2K/6

R271 0/6S/X

R1755 2.2K/6

R276 0/6/X

R277 0/6/X

RN63

2.2K/8P4R

1 2

3 4

5 6

7 8

RN61

2.2K/8P4R

1 2

3 4

5 6

7 8

+

EC33

1000U/D/6.3V/8C

R270 0/6/SHT/X

RN66

8.2K/8P4R

1 2

3 4

5 6

7 8

C180

33P/4/N/50V/X

PCI2

PCI

A1

A2

A3

A4

A5

A6

A7

A8

A9

A10

A11

A12

A13

A14

A15

A16

A17

A18

A19

A20

A21

A22

A23

A24

A25

A26

A27

A28

A29

A30

A31

A32

A33

A34

A35

A36

A37

A38

A39

A40

A41

A42

A43

A44

A45

A46

A47

A48

A49

A52

A53

A54

A55

A56

A57

A58

A59

A60

A61

A62

B1

B2

B3

B4

B5

B6

B7

B8

B9

B10

B11

B12

B13

B14

B15

B16

B17

B18

B19

B20

B21

B22

B23

B24

B25

B26

B27

B28

B29

B30

B31

B32

B33

B34

B35

B36

B37

B38

B39

B40

B41

B42

B43

B44

B45

B46

B47

B48

B49

B52

B53

B54

B55

B56

B57

B58

B59

B60

B61

B62

TRST

+12V

TMS

TDI

+5V

INTA

INTC

+5V

RESERVED

+5V

RESERVED

GND

GND

3.3V_AUX

RST

+5V

GNT

GND

PME

AD30

+3.3V

AD28

AD26

GND

AD24

IDSEL

+3.3V

AD22

AD20

GND

AD18

AD16

+3.3V

FRAME

GND

TRDY

GND

STOP

+3.3V

SDONE

SBO

GND

PAR

AD15

+3.3V

AD13

AD11

GND

AD9

C/BE0

+3.3V

AD6

AD4

GND

AD2

AD0

+5V

REQ64

+5V

+5V

-12V

TCK

GND

TDO

+5V

+5V

INTB

INTD

PRSNT1

RESERVED

PRSNT2

GND

GND

RESERVED

GND

CLK

GND

REQ

+5V

AD31

AD29

GND

AD27

AD25

+3.3V

C/BE3

AD23

GND

AD21

AD19

+3.3V

AD17

C/BE2

GND

IRDY

+3.3V

DEVSEL

GND

LOCK

PERR

+3.3V

SERR

+3.3V

C/BE1

AD14

GND

AD12

AD10

GND

AD8

AD7

+3.3V

AD5

AD3

GND

AD1

+5V

ACK64

+5V

+5V

BC107

0.1U/6/Y/25V

BC627 0.1U/6/Y/25V/X

BC110

0.1U/6/Y/25V

BC105

0.01U/6/X/50V/X

BC104

0.1U/6/Y/25V

BC108

0.1U/6/Y/25V

BC103

0.01U/6/X/50V/X

BC109

0.1U/6/Y/25V

BC106

0.1U/6/Y/25V

BC102

0.1U/6/Y/25V

RN62

2.2K/8P4R

1 2

3 4

5 6

7 8

RN64

2.2K/8P4R

1 2

3 4

5 6

7 8

PCI1

PCI

A1

A2

A3

A4

A5

A6

A7

A8

A9

A10

A11

A12

A13

A14

A15

A16

A17

A18

A19

A20

A21

A22

A23

A24

A25

A26

A27

A28

A29

A30

A31

A32

A33

A34

A35

A36

A37

A38

A39

A40

A41

A42

A43

A44

A45

A46

A47

A48

A49

A52

A53

A54

A55

A56

A57

A58

A59

A60

A61

A62

B1

B2

B3

B4

B5

B6

B7

B8

B9

B10

B11

B12

B13

B14

B15

B16

B17

B18

B19

B20

B21

B22

B23

B24

B25

B26

B27

B28

B29

B30

B31

B32

B33

B34

B35

B36

B37

B38

B39

B40

B41

B42

B43

B44

B45

B46

B47

B48

B49

B52

B53

B54

B55

B56

B57

B58

B59

B60

B61

B62

TRST

+12V

TMS

TDI

+5V

INTA

INTC

+5V

RESERVED

+5V

RESERVED

GND

GND

3.3V_AUX

RST

+5V

GNT

GND

PME

AD30

+3.3V

AD28

AD26

GND

AD24

IDSEL

+3.3V

AD22

AD20

GND

AD18

AD16

+3.3V

FRAME

GND

TRDY

GND

STOP

+3.3V

SDONE

SBO

GND

PAR

AD15

+3.3V

AD13

AD11

GND

AD9

C/BE0

+3.3V

AD6

AD4

GND

AD2

AD0

+5V

REQ64

+5V

+5V

-12V

TCK

GND

TDO

+5V

+5V

INTB

INTD

PRSNT1

RESERVED

PRSNT2

GND

GND

RESERVED

GND

CLK

GND

REQ

+5V

AD31

AD29

GND

AD27

AD25

+3.3V

C/BE3

AD23

GND

AD21

AD19

+3.3V

AD17

C/BE2

GND

IRDY

+3.3V

DEVSEL

GND

LOCK

PERR

+3.3V

SERR

+3.3V

C/BE1

AD14

GND

AD12

AD10

GND

AD8

AD7

+3.3V

AD5

AD3

GND

AD1

+5V

ACK64

+5V

+5V

RN65

8.2K/8P4R

1 2

3 4

5 6

7 8

+1

EC68

1000U/D/6.3V/8C/X

8

8

7

7

6

6

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

Place close to PCI2

GA-8I915ME-GL

1.02

PCI SLOT 3

GIGABYTE

B

24 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

A_D[0..31]

-PCIRST

PCLK2

A_D14

A_D17

A_D30

-C_BE1

A_D9

A_D26

VREF_CG

-C_BE0

A_D25 A_D24

-IRDY

-GNT6

A_D18

-SERR

-TRDY

-PIRQB

A_D21

A_D7

-PCIRST

A_D31

A_D5

A_D1

A_D19

A_D16

-C_BE3

-DEVSEL

-FRAME

A_D0

A_D29

-PERR

A_D13

A_D6

A_D28

A_D27

PAR

A_D15

A_D12

VREF_CG

-PIRQA

-REQ6

A_D10

A_D3

A_D8

A_D4

-C_BE2

PCLK2

A_D22

A_D20

A_D23

A_D11

-STOP

A_D2

A_D[0..31][19,23,32]

-PCIRST [19,23]

-REQ6[19,23] -GNT6[19]

PCLK2[22] -PIRQB[19,23]

-C_BE2[19,23,32]

-IRDY[19,23,32]

-DEVSEL[19,23,32]

-PERR[19,23,32]

-SERR[19,23,32]

-C_BE1[19,23,32]

-FRAME [19,23,32]

-TRDY [19,23,32]

-STOP [19,23,32]

PAR [19,23,32]

-C_BE0 [19,23,32]

-PIRQA [19,23]

-C_BE3 [19,23,32]

VCC3

VCC3

3VDUAL

VCC3

VCC3

VCC3

+12V

VCC

C1335

10P/4/N/50V/X

C1349

0.1U/6/Y/25V

GEAR

AGP/124/C/GREEN/[11AC1-05R124-91]

B1

B2

B3

B4

B5

B6

B7

B8

B9

B10

B11

B12

B13

B14

B15

B16

B17

B18

B19

B20

B21

B22

B23

B24

B25

B26

B27

B28

B29

B30

B31

B32

B33

B34

B35

B36

B37

B38

B39

B40

B41

B42

B43

B44

B45

B46

B47

B48

B49

B50

B51

B52

B53

B54

B55

B56

B57

B58

B59

B60

B61

B62

B63

B64

B65

B66

A1

A2

A3

A4

A5

A6

A7

A8

A9

A10

A11

A12

A13

A14

A15

A16

A17

A18

A19

A20

A21

A22

A23

A24

A25

A26

A27

A28

A29

A30

A31

A32

A33

A34

A35

A36

A37

A38

A39

A40

A41

A42

A43

A44

A45

A46

A47

A48

A49

A50

A51

A52

A53

A54

A55

A56

A57

A58

A59

A60

A61

A62

A63

A64

A65

A66

OVRCNT#

VCC5

VCC5

USB+

GND

INTB#

CLK

RED#

VCC3.3

ST0

ST2

RBF#

GND

SPARE

SBA0

VCC3.3

SBA2

SB/STB#

GND

SBA4

SBA6

RSVD

GND

3.3VAUX

VCC3.3

AD31

AD29

VCC3.3

AD27

AD25

GND

AD_STB1

AD23

VDDQ

AD21

AD19

GND

AD17

C_BE2#

VDDQ

IRDY#

3.3VAUX

GND

RSVD

VCC3.3

DEVSEL#

VDDQ

PERR#

GND

SERR#

C_BE1#

VDDQ

AD14

AD12

GND

AD10

AD8

VDDQ

AD_STB0

AD7

GND

AD5

AD3

VDDQ

AD1

VREFCG

VCC12

TYPEDET#

RES

USB-

GND

INTA#

RST#

GNT#

VCC3.3

ST1

RST

PIPE#

GND

WBF#

SBA1

VCC3.3

SBA3

SB/STB#

GND

SBA5

SBA7

RSVD

GND

RSVD

VCC3.3

AD30

AD28

VCC3.3

AD26

AD24

GND

AD_STB1#

C_BE3#

VDDQ

AD22

AD20

GND

AD18

AD16

VDDQ

FRAME#

RSVD

GND

RSVD

VCC3.3

TRDY#

STOP#

PME#

GND

PAR

AD15

VDDQ

AD13

AD11

GND

AD9

C_BE0#

VDDQ

AD_STB0#

AD6

GND

AD4

AD2

VDDQ

AD0

VREFGC

R1751

1K/6

R1752

1K/6

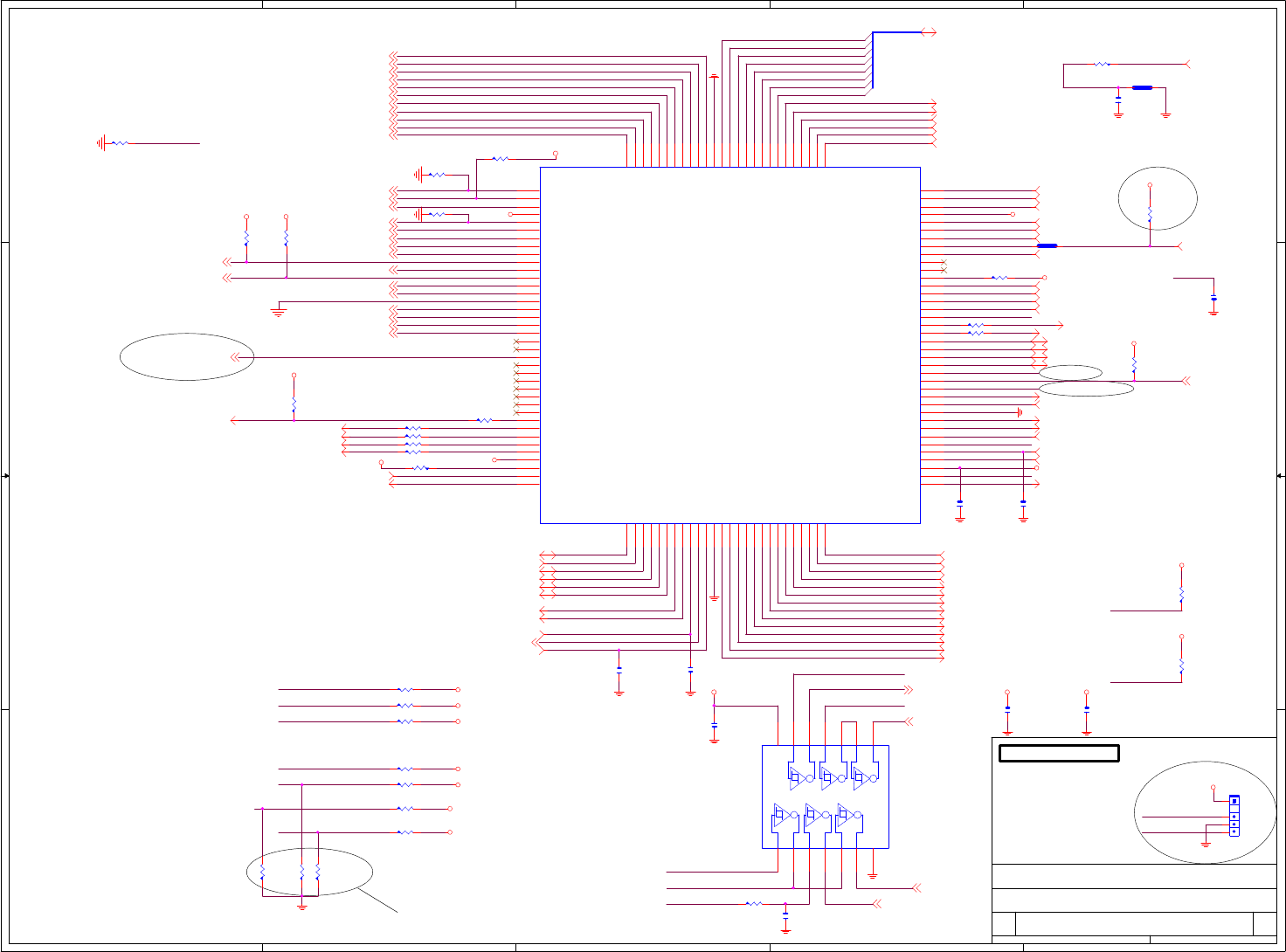

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

IR CONNECTOR

To IDE Connector

To ALL PCI Express Conn(X1,X16).

To PCI LAN/1394/FWH

To PCI_E(LAN ONBOARD)/SATA/GMCH

Only For Push-Pull Mode

To GMCH & ICH6

Set -PCIRST from Enhance

O.D mode to Push-Pull Mode

Have P.U at ICH6 side

PWROK1>> GMCH/ICH6/5VDUAL S.W

-PFMRST>> ICH6 TO IT8712/-IDERST INPUT

IT8712F/IX + Grantsdale schematic

使用

VID0-5

注意事項

,

也就是說

SOUT(680

Ohm pull down)

選擇

VID threshold

0.8/0.4

8712/IX(-LPCPD-->VIDVCC)

8712/IX(-LPCPD-->VIDVCC)-->FOR VID OUTPUT LEVEL

USED(BUT VID

OUTPUT

會衝突

CPU/PWM,

目前不建議使用

OUT,PULL-UP VCC3)

RTS2-FOR FAN FULL SPEED(PWR ON PULL-HI)

03/30

RTS2-FOR FAN FULL SPEED(PWR ON PULL-LO)

05/26

05/27

11/04

RTS2- ==LOW CPU FAN 50%

==HIGH 100%

03/25 for MEMO

GA-8I915ME-GL

1.02

LPC I/O

GIGABYTE

Custom

25 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

THERMDC

LAD2

PD1

BUSY

PWRBTSW

IRTX

PD0

GNDA

MDAT

-INIT

PE

A20GATE

-KBRST

PD4

PD5

PD3

PD2

-STB

-LFRAME

-PFMRST

LAD0

IRRX

-AFD

LAD3

LPC33

MCLK

-SLP_S3

PD7

KDAT

-LPCPME

PD[0..7]

LAD1

PD6

SLCT

LPCCLK48

-ACK

-ERR

-LDRQ0

-SLIN

KCLK

-CASEOPEN

-LPCPD

GNDA

PWROK1

-IDERST

-PFMRST2

-PFMRST1

VBAT

RTS2-

-RSMRST

TURBO1

-RST_BTN

ITE_PWROK

IRTX

IRRX

TURBO0

TURBO1

SERIRQ

-LPCPD

ITE_PWROK

-PFMRST

-PFMRST2

PFMRST

ITE_PWROK

PFMRST

ATXPG

ATXPG

RTS2-

TURBO0

-LDRQ0

-PCIE_RST

PFMRST

SERIRQ[20]

-PFMRST[19,27] -LDRQ0[20]

LPC33[22]

LPCCLK48[22]

-LFRAME[20,26] LAD0[20,26] LAD1[20,26] LAD2[20,26] LAD3[20,26]

-KBRST[20] A20GATE[20]

WGATE- [28]

PD[0..7] [28]

INDEX- [28]

TK00- [28]

RDATA- [28]

SIDE1- [28]

STEP- [28]

DIR- [28]

WDATA- [28]

DRVB- [28]

DRVA- [28]

MOTEB- [28]

MOTEA- [28]

DENSEL- [28]

-STB [28]

-AFD [28]

-ERR [28]

-INIT [28]

-SLIN [28]

-ACK [28]

PE [28]

BUSY [28]

SLCT [28]

DSKCHG- [28]

MCLK [27]

MDAT [27]

KCLK [27]

KDAT [27]

VBAT [20]

-SLP_S3 [20,33,34]

-LPCPME [20]

VREF [26]

SYS_TEMP [26]

PWRBTSW- [35]

PWRBTSW [20]

VIN0 [26]

VIN1 [26]

VIN2 [26]

THERMDC [5]

-CASEOPEN [26]

PWROK1[12,20,29,34]

-PFMRST1[12]

WPT- [28]

DCD2-[28]

DSR1-[28]

CTS1-[28]

DCD1-[28]

RXD1[28]

RTS1-[28]

RI1-[28]

RI2-[28]

TXD1[28]

DTR1-[28]

CTS2-[28]

RTS2-[28] DTR2-[28]

DSR2-[28]

IO_VID2[8]

IO_VID0[8]

RXD2[28]

IO_VID4[8]

FANIO2[36]

IO_VID3[8]

TXD2[28]

IO_VID1[8]

FANIO1[36] FANPWM1[36]

IO_VID5[8]

-RSMRST [20,34]

-IDERST [27]

-PS_ON [34]

BEEP-[35]

-RST_BTN[35]

-THERM [20]

-PFMRST2[26,32]

FANPWM2[36] FANIO3[36]

CPU_TEMP [5,26]

PWM_TEMP [26]

PWROK1 [12,20,29,34]

-PFMRST1 [12]

-PFMRST2 [26,32]

VIN4 [26] PWOK [33]

FANPWM3[36]

-PCIE_RST[18]

-PCIE_RST [18]

GP25[36]

VCC

VCC

5VSB

VCC

VCC3

VCC3

VCC3

VCC

VCC

VCC3

VCC3

VCC3

3VDUAL

VCC

VCC

VCC

VCC3

3VDUAL

VCC

VCC

5VSB

VCC

VTT_GMCH

VCC3

VCC3

R1677

470/6/X

R1501 8.2K/6

IRDA

JP1x5/2/H/X

1

3

4

5

BC591

0.1U/6/Y/25V

R1424 22/6/X

U68

74HC14/SO14

1

2

3

4

5

6

7

14

13

12

11

10

9

8

I0

O0

I1

O1

I2

O2

GND

VCC

I5

O5

I4

O4

I3

O3

R1425 22/6/X

R1743 8.2K/6

R1745

8.2K/6/X

R288 0/6

BC113

1U/6/Y/10V

R697

680/6/X

GBT

IT8712F/IX

U28

IT8712GB/IX4/[10HP2-118712-53]

35

41

39

61

40

38

59

74

73

72

69

68

67

60

75

37

36

34

33

32

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

62

63

64

65

66

70

71

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

VCC

FAN_CTL2/GP51

FAN_CTL1

RESETCON#/CIRTX/GP15

FAN_TAC2/GP52

FAN_TAC1

MIDI_OUT/GP17

LAD2

LAD1

LAD0

LDRQ#

LRESET#

LPCPD#/VIDVCC

MIDI_IN/GP16

LAD3

SIN2

SOUT2/JP6

DSR2#

RTS2#

DTR2#/JP4

FAN_TAC3/GP37

FAN_CTL3/GP36

VID5/GP35

VID4/GP34

GNDD

VID3/GP33

VID2/GP32

VID1/GP31

VID0/GP30

JSBB2/GP27/FAN_CTL4

JSBB1/GP26/FAN_CTL5

JSBCY/GP25/FAN_TAC4

JSBCX/GP24/FAN_TAC5

JSAB2/GP23

JSAB1/GP22

JSACY/GP21

JSACX/GP20

PCIRST1#/SCRRST/GP14

PWROK1/SCRFET#/GP13

PCIRST2#/SCRIO/GP12

PCIRST3#/SCRCLK/GP11

VCC

SERIRQ

LFRAME

KRST#

GA20

PCICLK

CLKRUN#/GP50/PCIRST#5

CLKIN

GNDD

DENSEL#

MTRA#

MTRB#/THERMO#

DRVA#

DRVB#

WDATA#

DIR#

STEP#

HDSEL#

WGATE#

RDATA#

TRK0#

INDEX#

WPT#

DSKCHG#

IRTX/GP47

VCCH

COPEN#

VBAT

IRRX/GP46

PSIN/GP45

PWRON#GP44

PME#/GP54

GNDD

PANSWH#/GP43

PSON#/GP42

GP53

PWROK2//GP41

GP40

KDAT

KCLK

MDAT

MCLK

PCIRST4#/SCRPRES#/GP10

RSMRST#/CIRRX/GP55

GNDA

TMPIN3

TMPIN2

TMPIN1

VREF

VIN7/PCIRSTIN#

VIN6

VIN5

VIN4

VIN3/ATXPG

VIN2

VIN1

VIN0

VCC

SLCT

PE

BUSY

ACK#

SLIN#

INIT#

ERR#

AFD#

STB#

PD0

PD1

PD2

PD3

PD4

PD5

PD6

PD7

GNDD

DCD1#

RI1#

CTS1#

DTR1#/JP1

RTS1#/JP2

DSR1#

SOUT1/JP3

SIN1

DCD2#

RI2#

CTS2#

R1500 680/6

R287

8.2K/6

C182

10P/4/N/50V/X

R1667 8.2K/6

R1746 0/6

BC116

0.1U/6/Y/25V

BC115

1U/6/Y/10V

BC111

0.01U/4/X/16V/X

R279 0/6

R1742 22/6/X

BC114

0.1U/6/Y/25V

R1665 8.2K/6/X

R698

8.2K/6/X

R286

0/6/X

R280 0/6/SHT/X

R298 8.2K/6/X

R297 8.2K/6/X

C1348

0.1U/6/Y/25V/X

R296 8.2K/6/X

R290 22/6

C1332

1000P/4/X

C181

10P/4/N/50V/X

R1666 0/6/SHT/X

R292 0/6

R285 22/6/X

R1427

8.2K/6

R1426

8.2K/6

R283 22/6/X

R1642

8.2K/6/X

R1681

1K/6

R300

8.2K/6/X

R1744 8.2K/6/X

R301

8.2K/6/X

R1729

8.2K/6/X

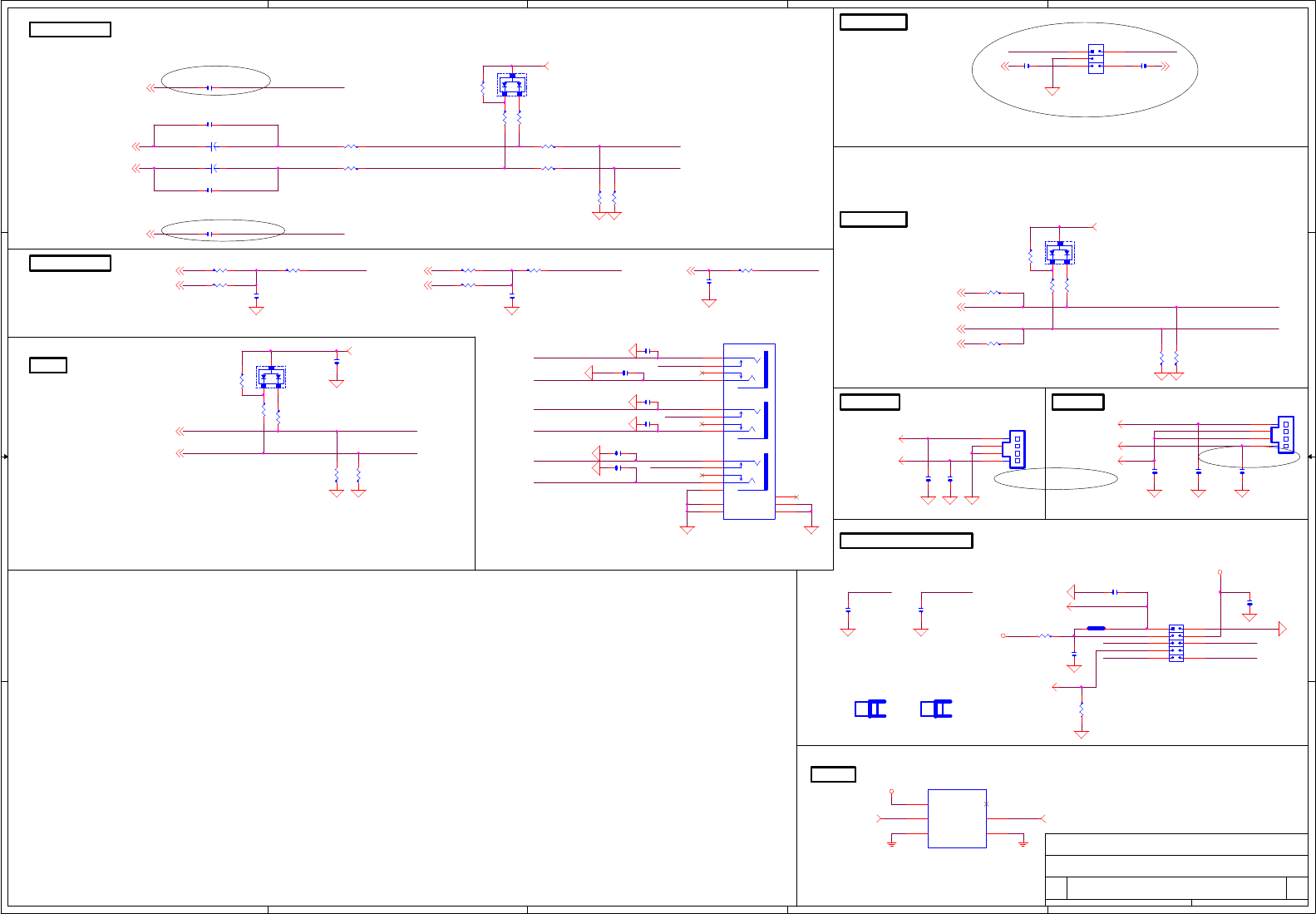

8

8

7

7

6

6

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

TEMP. SENSE

CASE OPEN (N/A)

FWH BIOS

CPU/SYS FAN

** **

VOLTAGE SENSE

03/30

FOR CH1

11/01

05/02

GA-8I915ME-GL

1.02

HWM/FAN/CI/BIOS

GIGABYTE

B

26 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

-CASEOPEN

FWH33

FGPI3

-FWP

-FWHINIT

-LFRAME

LAD0

LAD1

LAD2 LAD3

FGPI1

FGPI2 IC

FGPI4

-PFMRST2

FGPI0

-FWP

-TBL

-TBL

-CASEOPEN [25]RTCVDD[20,21]

VREF[25]

SYS_TEMP[25]

PWM_TEMP[25]

CPU_TEMP[5,25]

LAD0[20,25] LAD1[20,25] LAD2[20,25]

-PFMRST2[25,32]

LAD3 [20,25]

-LFRAME [20,25]

FWH33 [22]

GPO20[20]

P66DET [27]

-FWHINIT [20]

BIOS_WP[20]

VIN2[25] VIN4[25]

VIN1[25] VIN0[25]

VCC3

VCC3

VCC3

VCC3

VCORE VCC3DDR25V +12V

R315

8.2K/6

R206 0/6

BC118

0.1U/6/Y/25V/X

C186

0.01U/4/X/16V

BC119

0.1U/6/Y/25V/X

R316

1M/6

BC120

0.1U/6/Y/25V/X

CI

RPO1x2/W/[11NH2-000102-03_11NH2-000102-01]

1

2

BC87

0.1U/6/Y/25V

BC122

0.1U/6/Y/25V/X

C165 220P/4/N/50V

R204 8.2K/6

R302

10K/6/1

BC86

0.1U/6/Y/25V

R313

30K/6/1

BIOS_WP

PH/1*2/BLACK/[11NH2-000102-03_11NH2-000102-01]

1

2

3

R203 8.2K/6

R304

30K/6/1

U22

SST49LF003A_3M/[10HL4-132003-33]

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16 17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

VPP

RST#

FGPI3

FGPI2

FGPI1

FPGI0

WP#

TBL#

ID3

ID2

ID1

ID0

FWH0

FWH1

FWH2

GND FWH3

RFU

RFU

RFU

RFU

RFU

FWH4

INIT#

VCC

GND

VCC

GND

IC(VIL)

FGPI4

CLK

VCC

R202 1K/6

R227 8.2K/6

R205 8.2K/6

TBL_WP

H1X2/X

1

2

R303

10K/6/1

RS1

HR10K/6/X C185

1U/6/Y/10V

C184

1U/6/Y/10V/X

C183

1U/6/Y/10V

R305

8.2K/6 R307

8.2K/6

R306

8.2K/6

RN58 8.2K/8P4R

1 2

3 4

5 6

7 8

R309

24.3K/6/1

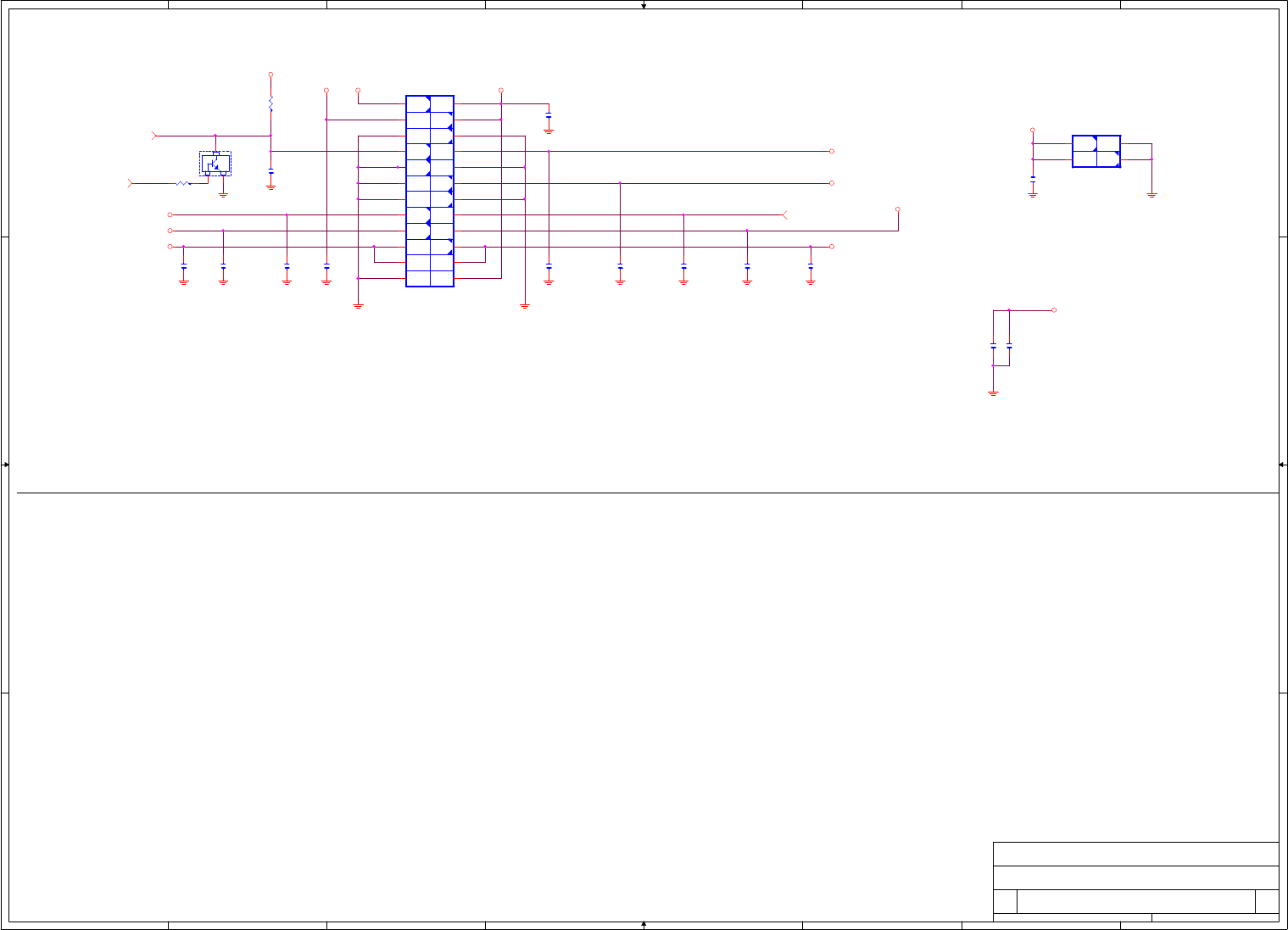

8

8

7

7

6

6

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

KB/MS

IDE

IDE1

PRIMARY IDE CONNECTOR

Close to

connector

IDE RESET

IDE/SATA LED

01/20 POWER ON ISSUE

04/01

05/02

GA-8I915ME-GL

1.02

PS/2 KB & MS

GIGABYTE

B

27 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

KDAT

MCLK

MDAT

MCLK

MDAT

KBDATA

MSCLK

KBCLK

MSDATA

KDAT

KCLK

KCLK

KBDATA

KBCLK

MSCLK

MSDATA

PDD3

PDD7

-RST1

PDD5

P66DET

-IDEACTP

PDD7

-PCS3

PDD14

IDEIRQ

PDD1

PDD2

PDD6

PDD4 PDD12

PDD10

-PDIOR

PDD11

PDA0

-RST1

IDEIRQ

PDD15

-PDIOW

P66DET

PDA2

PDD8 IDEPU0

PIORDY

PDD[0..15]

PDD9

-PDDACK

-IDERST

-PCS1

PDD13

PIORDY

PDA1

PDD0

IDEPU0

PDDREQ

PDDREQ

-IDERST

-IDEACTP

KDAT[25] KCLK[25] MDAT[25] MCLK[25]

PDA1[20]

-PDDACK[20]

-PCS3 [20]

-PDIOW[20]

PDA2 [20]

PIORDY[20]

-IDERST[25]

-PDIOR[20]

P66DET[26]

PDDREQ[20]

-PCS1[20]

PDD[0..15][20]

IDEIRQ[20]

PDA0[20]

-PFMRST[19,25]

-SATALED[20]

-HDLED [35]

FUSEVCC

FUSEVCC

FUSEVCC

VCC3

VCCVCC

VCC3

VCC3

R329 15K/6/X

KB

MS

KB_MS

KB/MS/S

1

2

3

4

5

6

7

8

9

10

11

12

R670 8.2K/6

BC127

0.1U/6/Y/25V

BC128

0.1U/6/Y/25V

C196

0.047U/4/X/10V

CN33

180P/8P4C

2 1

4 3

6 5

8 7

RN71

8.2K/8P4R

12 34 56 78

R553

1K/6

MH1

HOLE_3/X

2

3

8

7

6

5

4

1

R554

1K/6

I2

HOLD/X

1

1

SOT23

Q66

MMBT2222A/S

13

2

I1

HOLD/X

1

1

IDE

IDE/B/[11NH3-010220-B6]

1 2

3 4

5 6

7 8

9 10

11 12

13 14

15 16

17 18

19

21 22

23 24

25 26

27 28

29 30

31 32

33 34

35 36

37 38

39 40

MH2

HOLE_3/X

2

3

8

7

6

5

4

1

R326 8.2K/6/X

MH3

HOLE_3/X

2

3

8

7

6

5

4

1

R327 5.6K/6/X

R325 8.2K/6

K6

K_ICT/X

1

1

R328 470/6

K5

K_ICT/X

1

1

R323 33/6

K4

K_ICT/X

1

1

R324 4.7K/6

K3

K_ICT/X

1

1

C195

180P/4/N/50V/X

Q252

MMBT2222A/S

13

2

K2

K_ICT/X

1

1

R1497

8.2K/6

K1

K_ICT/X

1

1

R1499

8.2K/6

D17

1N4148/S

MH4

HOLE_3/X

2

3

8

7

6

5

4

1

Q253

MMBT2222A/S

13

2

MH5

HOLE_3/X

2

3

8

7

6

5

4

1

R1498

1K/6

SOT23

Q71

MMBT2222A/S

13

2

C1262

1000P/4/N/50V/X

MH7

HOLE_3/X

2

3

8

7

6

5

4

1

MH8

HOLE_3/X

2

3

8

7

6

5

4

1

RN72

82/8P4R

12 34 56 78

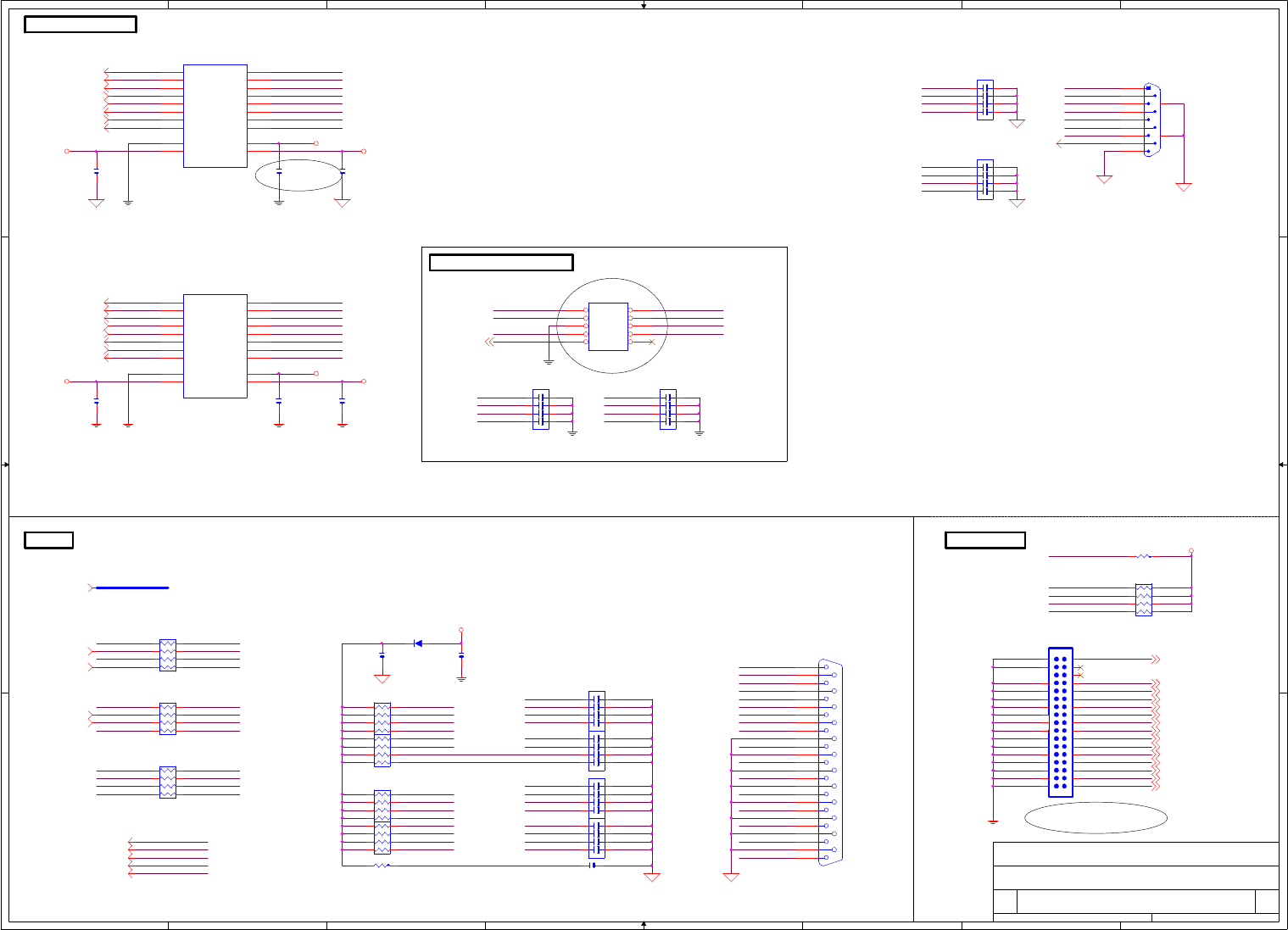

8

8

7

7

6

6

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

FLOPPYLPT

INTERNAL COMB

COMA/COMB

05/25

05/26

03/25 for EMI

GA-8I915ME-GL

1.02

COM, LPT, FDD

GIGABYTE

B

28 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

PD[0..7]

LPT1

LPT2

-ERR

LPT3

LPT16

LPT4

LPT17

LPT5

LPT6

LPT7

LPT8

LPT9

-ACK

BUSY

PE

SLCTBUSY

PE

SLCT

LPT9

LPT8

-ACK

PE

SLCT

LPT1

LPT5PD3

PD4 LPT6

LPT9PD7

PD0

LPT3

-ERR

LPT16

LPT4

LPT17

LPT5

LPT5

LPT17

LPT7

LPT6

LPT3

-ERR-ERR

-ACK

LPT6

LPT7

LPT16

LPT4

BUSY

NRIA-

NCTSA-

NDSRA-

NRTSA-

NDTRA-

NSINA

NSOUTA

NDCDA-

NDCDA-

NSOUTA

NRTSA-

NRIA-

NSINA

NDTRA-

NCTSA-

NDSRA-

NRIB-

NCTSB-

NDSRB-

NRTSB-

NDTRB-

NSINB

NSOUTB

NDCDB-

NCTSB-

NDTRA-

NSOUTA

NSINA

NDCDA-

NRIA-

NDSRA-

NCTSA-

NRTSA-

NCTSB-

NDTRB-

NRIB-

NDSRB-

NRTSB-

NSINBNDCDB-

NSOUTB

INDEX-

-ACK

BUSY

PE

-INIT LPT16

LPT17-SLIN

LPT4PD2

-STB LPT2

LPT7PD5 LPT8PD6

-AFD LPT14

LPT3PD1

LPT14

LPT14

LPT2

LPT2

SLCT

LPT14

LPT1

WPT-

DSKCHG-

TK00-

RDATA-

NRIB-

NSINB

NDCDB-

NDTRB-

NSOUTB

NRTSB-

NDSRB-

PD[0..7][25]

-ERR[25] -ACK[25] BUSY[25] PE[25] SLCT[25]

DENSEL- [25]

INDEX- [25]

MOTEA- [25]

DRVB- [25]

DRVA- [25]

MOTEB- [25]

DIR- [25]

STEP- [25]

WDATA- [25]

WGATE- [25]

WPT-[25]

RDATA- [25]

SIDE1- [25]

DSKCHG- [25]

TK00- [25]

CTS1-[25] DSR1-[25]

DCD1-[25]

DTR1-[25] RTS1-[25]

RI1-[25]

RXD1[25] TXD1[25]

DCD2-[25]

RTS2-[25] DSR2-[25]

RI2-[25] CTS2-[25]

DTR2-[25]

TXD2[25] RXD2[25]

NRIA-[29]

NRIB-[29]

-INIT[25] -SLIN[25]

-STB[25]

-AFD[25]

VCC

-12V VCC +12V

-12V VCC +12V

VCC

FDD

BX/2X17/5/B/[11NH3-010217-B6]

1 2

4

6

7 8

9 10

11 12

13 14

15 16

17 18

19

21 22

23 24

25 26

27 28

29 30

31 32

33 34

20

3

COM2

PH/2*5K10/WHITE/[11NH2-000205-W5_11NH2-000205-W6]

1 2

3 4

5 6

7 8

9 10

BCN4

180P/8P4C

21 43 65 87

ACN2

180P/8P4C

21 43 65 87

BU1

GD75232PWR/S

2

3

4

5

6

7

8

1

19

18

17

16

15

14

13 9

10

11

12

20

RA1

RA2

RA3

DY1

DY2

RA4

DY3

12V

RY1

RY2

RY3

DA1

DA2

RY4

DA3 RA5

-12V

GND

RY5

5V

AU1

GD75232PWR/S

2

3

4

5

6

7

8

1

19

18

17

16

15

14

13 9

10

11

12

20

RA1

RA2

RA3

DY1

DY2

RA4

DY3

12V

RY1

RY2

RY3

DA1

DA2

RY4

DA3 RA5

-12V

GND

RY5

5V

D9

1N4148/S

R278 470/6

BBC1

0.1U/6/Y/25V/X

CN38

180P/8P4C

21 43 65 87

RN68

470/8P4R

12 34 56 78

ABC2

0.1U/6/Y/25V

LPT

LPT/BURGUNDY

13

25

12

24

11

23

10

22

9

21

8

20

7

19

6

18

5

17

4

16

3

15

2

14

1

ACN1

180P/8P4C

21 43 65 87

CN39

180P/8P4C

21 43 65 87

BCN3

180P/8P4C

21 43 65 87

RN75

33/8P4R

1 2

3 4

5 6

7 8

BBC2

0.1U/6/Y/25V/X

COM1

COM/GREEN

1

2

3

4

5

6

7

8

9

10

11

BBC3

0.1U/6/Y/25V/X

RN78

1K/8P4R 12 34 56 78

ABC3

0.1U/6/Y/25V/X

CN40

180P/8P4C

21 43 65 87

ABC1

0.1U/6/Y/25V/X

RN77

33/8P4R

1 2

3 4

5 6

7 8

RN73

33/8P4R

1 2

3 4

5 6

7 8 BC136

0.1U/6/Y/25V/X

BC135

0.1U/6/Y/25V

RN79

1K/8P4R 12 34 56 78

RN74

1K/8P4R 12 34 56 78

RN76

1K/8P4R 12 34 56 78

CN41

180P/8P4C

21 43 65 87

C197 180P/4/N/50V

R330

1K/6

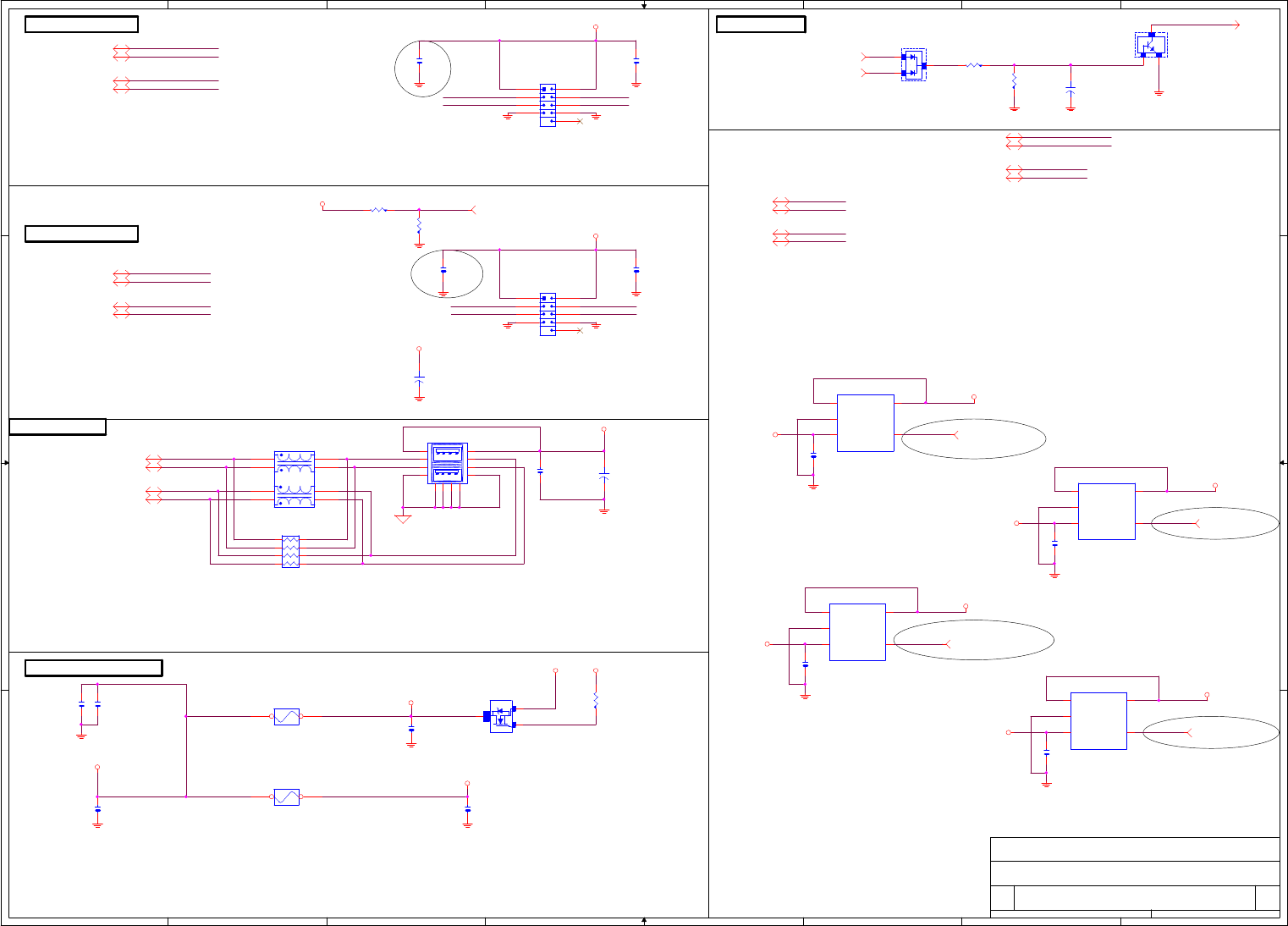

8

8

7

7

6

6

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

FRONT USB1

FRONT USB2

FUSEVCC,GAMEVCC

160MILS

80MILS

80MILS 80MILS

80MILS

RING IN

REAR USB

FRONT USB

60mil

60mil

60mil

60mil

60mil

60mil

60mil

PLACE BESIDE R_USB

PLACE BESIDE

USB_LAN

60mil

PLACE BESIDE F_USB1

PLACE BESIDE F_USB2

REAR USB

03/29 LE POWER issue

03/29 LE POWER issue

03/29 LE POWER issue

03/29 LE POWER issue

FOR CH1

05/27

11/04

11/04

03/25 for EMI

03/25 for EMI

GA-8I915ME-GL

1.02

FRONT/REAR USB CONNECTOR/IDE

GIGABYTE

Custom

29 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

+USBP2

-USBP3

+USBP3

-USBP2

-USBP0

+USBP0

+USBP1

+USBP0

-USBP0 +USBP1

-USBP1

-USBOC_F

-USBP1

-USBP2

+USBP2 +USBP3

-USBP3

-RI

PWROK1

PWROK1

PWROK1

PWROK1

P4-

P4+

P5+

-USBP5

+USBP5

P5-

+USBP4

-USBP2

+USBP2

-USBP0

-USBP1

+USBP0

-USBP3

+USBP3

+USBP1

-USBP4

-USBOC_F [19]

+USBP2[19] -USBP2[19]

-USBP3[19] +USBP3[19]

-USBP0[19] +USBP0[19]

-USBP1[19] +USBP1[19]

-RI [20,36]

NRIA-[28]

NRIB-[28]

PWROK1 [12,20,25,34]

PWROK1 [12,20,25,34]

PWROK1 [12,20,25,34]

PWROK1 [12,20,25,34]

+USBP5[19] -USBP5[19]

-USBP4[19] +USBP4[19]

-USBP3[19] +USBP3[19]

-USBP2[19] +USBP2[19]

-USBP1[19]

+USBP0[19] -USBP0[19]

+USBP1[19]

FUSEVCC1

FUSEVCC1

FUSEVCC1

FUSEVCC1

FUSEVCC

FUSEVCC1

VCC

VCC

FUSEVCC

FUSEVCC

VCC

VCC

FUSEVCC1

FUSEVCC1

+12V

GAMEVCC

FUSEVCC

5VUSB

U65

9701/SOT23-5/X

1

2

3 4

5

VOUT

GND

VIN CE

VOUT

357 1

2468

R_USB

USB/S/BLACK/[11NR6-302004-22_11NR6-302004-23]

1 2

3 4

5 6

7 8

12

10

11

9

BC584

0.1U/4/Y/16V/X

SOT23

Q25

MMBT2222A/S

13

2

U67

9701/SOT23-5/X

1

2

3 4

5

VOUT

GND

VIN CE

VOUT

R335

75K/6

R336

8.2K/6

+1

EC36

22U/D/16V/47/X

U66

9701/SOT23-5/X

1

2

3 4

5

VOUT

GND

VIN CE

VOUT

RN85

0/8P4R/X

1 2

3 4

5 6

7 8

F1

POLYFUSE/2.5A/D/[11FP1-30250B-21_11FP1-30250B-12_11FP1_30250B-04]

1 2

F_USB2

JP2X5/-9/B[11NH2-000205-73_11NH2-000205-71]

1

32

5 6

87 10

4

G S

D

SOT23

Q72

2N7002/S

2

1

3

F2

POLYFUSE/2.5A/D/[11FP1-30250B-21_11FP1-30250B-12_11FP1_30250B-04]

1 2

R700

1K/6

BC628

0.1U/6/Y/25V

BC201

0.1U/6/Y/25V/X

BC586

0.1U/4/Y/16V/X

F_USB1

JP2X5/-9/B[11NH2-000205-73_11NH2-000205-71]

1

32

5 6

87 10

4

D21

BAT54C/S

13

2

BC200

0.1U/6/Y/25V/X

R332

270K/6

BC615

0.1U/6/Y/25V

+1

EC34

1000U/D/6.3V/8C

BC202

0.1U/6/Y/25V

R331 150K/6

BC585

0.1U/4/Y/16V/X

BC629

0.1U/6/Y/25V

+1

EC62

1000U/D/6.3V/8C

BC137

0.1U/6/Y/25V

BC169

0.1U/6/Y/25V

BC616

0.1U/4/Y/16V

BC138

0.1U/6/Y/25V

BC583

0.1U/4/Y/16V/X

L21

OD6560T-E601T/S

1

2

3

4 5

6

7

8

U64

9701/SOT23-5/X

1

2

3 4

5

VOUT

GND

VIN CE

VOUT

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

14.318MHZ from clock

gen. CLK for 650

FOR658

FOR658

Filter Cap design:

Pin-31Pin-29 Pin-34Pin-30

ALC658

ALC655

ALC650

1000pf 1000pf

1000pf 1000pf 1uf 1uf

1uf

XX X JD4

Front-MIC2

ALC655

Rev D

Rev C 1000pf 1000pf 1uf X

ALC655

ALC658

Pin-45(JD0) Pin-17(JD1) Pin-16(JD2) Pin-40(JD3) Pin-31(JD4)

for FRONT-OUTfor MIC-IN for LINE-IN

for UAJ1 for UAJ2 for LINE-INfor FRONT-OUT

Arrangement of Jack detection Pin:

for MIC-IN

Exernal pull

high is

needed

Exernal pull

high is

needed

ALC850 1000pf 1000pf JD4 Front-MIC2

Pin-13(JD5)

ALC850 for MIC-IN for FRONT-OUT for LINE-INfor Front

Pannel OUT for Front

Pannel IN for SurrBack Out

CO-LAY

EMI

GA-8I915ME-GL

1.02

ALC655/658/850

GIGABYTE

Custom

30 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

LINE_OUTR

ACZ_SDOUT

LINE_OUTL

Z102

ACZ_SYNC

ACZ_BITCLK

-ACZ_RST

ACZ_SDIN2

LINE_IN_L [31]

JD0 [31]

CD_R [31]

LINE_IN_R [31]

SPDIFI[31]

MIC1 [31]

LFE_OUT [31]

AUD_REF [31]

QUAD_OUT_L [31]

LINE_OUTR [31]

CENTER_OUT [31]

CDGND [31]

LINE_OUTL [31]

CD_L [31]

MIC2 [31]

QUAD_OUT_R [31]

SPDIF[31]

ACZ_BITCLK[20]

-ACZ_RST[20]

ACZ_SDOUT[20]

ACZ_SYNC[20]

AUX_R[31]

UAJ2_L[31]

JD2[31] JD1[31]

UAJ2_R[31]

AUX_L[31]

FRONT_MIC [31]

VREFOUT3 [31]

VREFOUT2 [31]

JD3 [31]

JD4 [31]

ACZ_SDIN2[20]

AUDIO14[22]

AVDD

VCC3

AVDD +12V5VSB

CC17

1000P/4/X/50V

CR39

1U/6/Y/10V

CR5 0/6

CBC23 1U/6/Y/10V

CBC22 2.2U/8/Y/16V

CBC15

2.2U/8/Y/16V

CBC19 0.1U/6/Y/25V

CR69 0/6

CBC12

0.01U/4/X/16V

CR8 22/6

CBC52 2.2U/8/Y/16V/X

CBC27 0.1U/6/Y/25V

CBC24 0.1U/6/Y/25V

CR9 0/6

CBC50

1U/6/Y/10V

CR7 1M/6/X

CC16

1000P/4/X/50V

CBC2

0.1U/6/Y/25V/X

CR37

8.2K/6/X

CC15

22P/4/N/50V/X

CBC6

4.7U/8/Y/10V

CR3 0/6

CR68 0/6/X

CBC1

0.1U/6/Y/25V

+

1

CEC4

100U/D/10V/57/X

CX1

24.576MHz/X

1 2

CR38

22K/6/X

CBC20 2.2U/8/Y/16V

CU1

ALC655-D/S

26

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

25

AVSS1

DVDD1

XTL_IN

XTL_OUT

DVSS1

SDATA_OUT

BIT_CLK

DVSS2

SDATA_IN

DVDD2

SYNC

RESET#

PC_BEEP

PHONE

AUX_L

AUX_R

VIDEO_L

VIDEO_R

CD_L

NC

CD_R

MIC1

MIC2

LINE_IN_L

LINE_IN_R

VREF

NC

AFILT1

AFILT2

VRAD

VRDA

NC

NC

LINE_OUT_L

LINE_OUT_R

MONO_OUT

AVDD2

NC

TEST2

TEST3

AVSS2

TEST1

TEST4

TEST5

TEST6

NC

NC

AVDD1

CBC9

0.1U/6/Y/25V

CBC18

0.01U/4/X/16V/X

CC14

22P/4/N/50V/X

+

1

CEC1

100U/D/10V/57/X

CBC8 1U/6/Y/10V

CBC25 0.1U/6/Y/25V

CBC21 0.1U/6/Y/25V

CBC53 2.2U/8/Y/16V/X

CBC28

4.7U/8/Y/10V

CD1

1N4148/S/X

CBC10

0.01U/4/X/16V

CBC14

0.1U/6/Y/25V

CC13

10P/4/N/50V/X

CBC29 1U/6/Y/10V

CBC26

0.01U/4/X/16V/X

TOP

OUT GND IN

CQ1

78L05/D

1

2

3

CBC3

0.1U/6/Y/25V/X

CBC51

1U/6/Y/10V/X

CFB1

2.2/8

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

CD INAUX IN

LINE-IN

SPDIF

INTEL FRONT AUDIO

For EMI

SUR_CEN

CO-LAY

LINE IN SENSING(

當

OUTPUT)

R>4K OHM=>POWER SPEAKER

4K OHM>R>400 OHM=>MICROPHONE

R<400 OHM=>HEADPHONE

LINE IN SENSING( INPUT)

當

swing of input signal>-40dbv(10mv)===>line in

device active

swing of input signal<-40dbv(10mv)===>unknown

line in device

LINE OUT

JDO,JD2,GPIO0

為偵測

DEVICE INPUT LOW

時由

TO HIGH Edge trigger(pop manual)

CO-LAY

LINE OUT SENSING

R>4K OHM=>POWER SPEAKER

4K OHM>R>400 OHM=>MICROPHONE

R<400 OHM=>HEADPHONE

1/2(3.14)RC=1/2(3.14)8.2K*4.7U=4.3HZ AC TO

以上 信號全部衰減

0V

不會造成

JDO

誤動作

(

無

device

時

play wav )

MICROPHONE IN SENSING( OUTPUT)

當

R>4K OHM=>POWER SPEAKER

4K OHM>R>400 OHM=>MICROPHONE

R<400 OHM=>HEADPHONE

CO-LAY

MICROPHONE IN SENSING(

當

INPUT)(

利用

vref

偏壓

與

CR43,CR32 )

並聯求出阻抗

7.1k ohm>R>2.3k ohm===>microphone in

R<2.3k ohm or R>7.1k ohm===>unknown device

MIC

MIC-INLINE-IN LINE-OUT

AC97 JACK

11/01

11/01

05/02

05/02

03/31

11/04

GA-8I915ME-GL

1.02

AUDIO OUTPUT,GAME PORT

GIGABYTE

Custom

31 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

SUR_OUTRSUR_OUTL

FRONT_L

FRONT_R

FRONT_L

BACK_R

FRONT_R

BACK_L

LINE_IN_L

LINE_IN_R

FRONT_R BACK_R

SUR_OUTL

SUR_OUTR

BACK_LFRONT_L

MIC1

MIC2

AJ_C4

MIC2

LINE_IN_R

AJ_A4

AJ_B4

BACK_L

MIC1

BACK_R

LINE_IN_L

AJ_B4 AJ_A4AJ_C4

AUX_L[30]

LFE_OUT [30]

CDGND[30]AUX_R[30]

CD_R[30]

CENTER_OUT[30]

SPDIF[30]

FRONT_MIC[30]

CD_L[30]

SPDIFI [30]

JD1[30]

LINE_IN_L[30]

UAJ2_R[30]

VREFOUT2 [30]

LINE_IN_R[30]

UAJ2_L[30]

LINE_OUTR[30]

QUAD_OUT_R[30]

VREFOUT3 [30]

LINE_OUTL[30]

QUAD_OUT_L[30]

AUD_REF [30]

MIC2[30]

MIC1[30]

JD1[30]

JD3[30] JD0[30]

JD4[30]

JD2[30]

AVDD

AVDD

VCC

CR44 0/6/X

CBC47

0.1U/6/Y/25V/X

CR52 0/6/X

CR67

22K/6/X

CR53 8.2K/6

CR42

2.2K/6/X

CBC45 1000P/6/X/50V

SPDIF_IO

PH2x3/-2/B/[11NH2-000203-13_11NH2-000203-11]

1

3

5 6

2

4

VCC

S_OUT

GND GND

KEY

S_IN

CBC60

0.1U/6/Y/25V

CBC55 10U/8/Y/10V

CBC46

1K/6

CR65

2.2K/6/X

CR63

0/6

GND

GND

GND

LINE-IN

LINE-OUT

MIC-IN

AUDIO

3RJ+15F/[11NR6-403004-11_11NR6-403004-12_11NR6-403004-16]

MH1

MH2

MH3

MH4

MH5

C5

C2

C3

C4

B2

B3

B4

B5

A1

A2

A3

A4

A5

MH1

MH2

MH3

MH4

MH5

C5

C2

C3

C4

B2

B3

B4

B5

A1

A2

A3

A4

A5

CR56 0/6

CR60 0/6/X

CR41

2.2K/6/X

CR62

22K/6/X

SOT23

BAT54A/SOT23/X

CD2

CR54 8.2K/6

CBC31

1U/6/Y/10V

SOT23

BAT54A/SOT23/X

CD4

CR50 0/6

CR48

22K/6/X

CBC41

1000P/4/X/50V/X

CC20

180P/4/N/50V

CBC40

1000P/4/X/50V/X

CBC54 2.2U/8/Y/16V

CR55 0/6/X

CR47

22K/6/X

CR51 8.2K/6

SOT23

BAT54A/SOT23/X

CD3

CBC32

1U/6/Y/10V

CR46 0/6/X

CR43 22/6

CC23

180P/4/N/50V CBC44

1000P/4/X/50V/X

CR58

2.2K/6/X

CR61

22K/6/X

CR45 22/6

F_AUDIO_SHUNTER2

9-10/B

AUX_IN

WF1x4/W/[11NH5-010104-51_11NH5-010104-50]

1

2

3

4

F_AUDIO_SHUNTER1

5-6/B

F_AUDIO

PH/2*5K8/BLACK

1

3

5

7

9

2

4

6

10

CR59 0/6/X

CBC59

4.7U/8/Y/10V

CR34 0/6/SHT/X

CC18

180P/4/N/50V

CC22

180P/4/N/50V

CD_IN

WF1x4/B/[11NH5-010104-12_11NH5-010104-10]

1

2

3

4

CR49

0/6/X

CBC49

180P/4/N/50V/X

CB1

4.7U/8/Y/10V

CBC48

180P/4/N/50V/X

CBC39

1000P/4/X/50V

CR57

2.2K/6/X

CR36

22K/6/X

H2*3/-4

SUR_CEN

1

3

5

2

6

CR35 8.2K/6

CBC58

4.7U/8/Y/10V

CR64

2.2K/6

CBC57 2.2U/8/Y/16V

CC21

180P/4/N/50V

+

1

CEC2 100U/D/10V/57/X

CR40

0/6/X

+

1

CEC3 100U/D/10V/57/X

CBC56 10U/8/Y/10V

CBC43

1000P/4/X/50V/X

CR66

22K/6/X

CC19

180P/4/N/50V

A

A

B

B

C

C

D

D

E

E

4 4

3 3

2 2

1 1

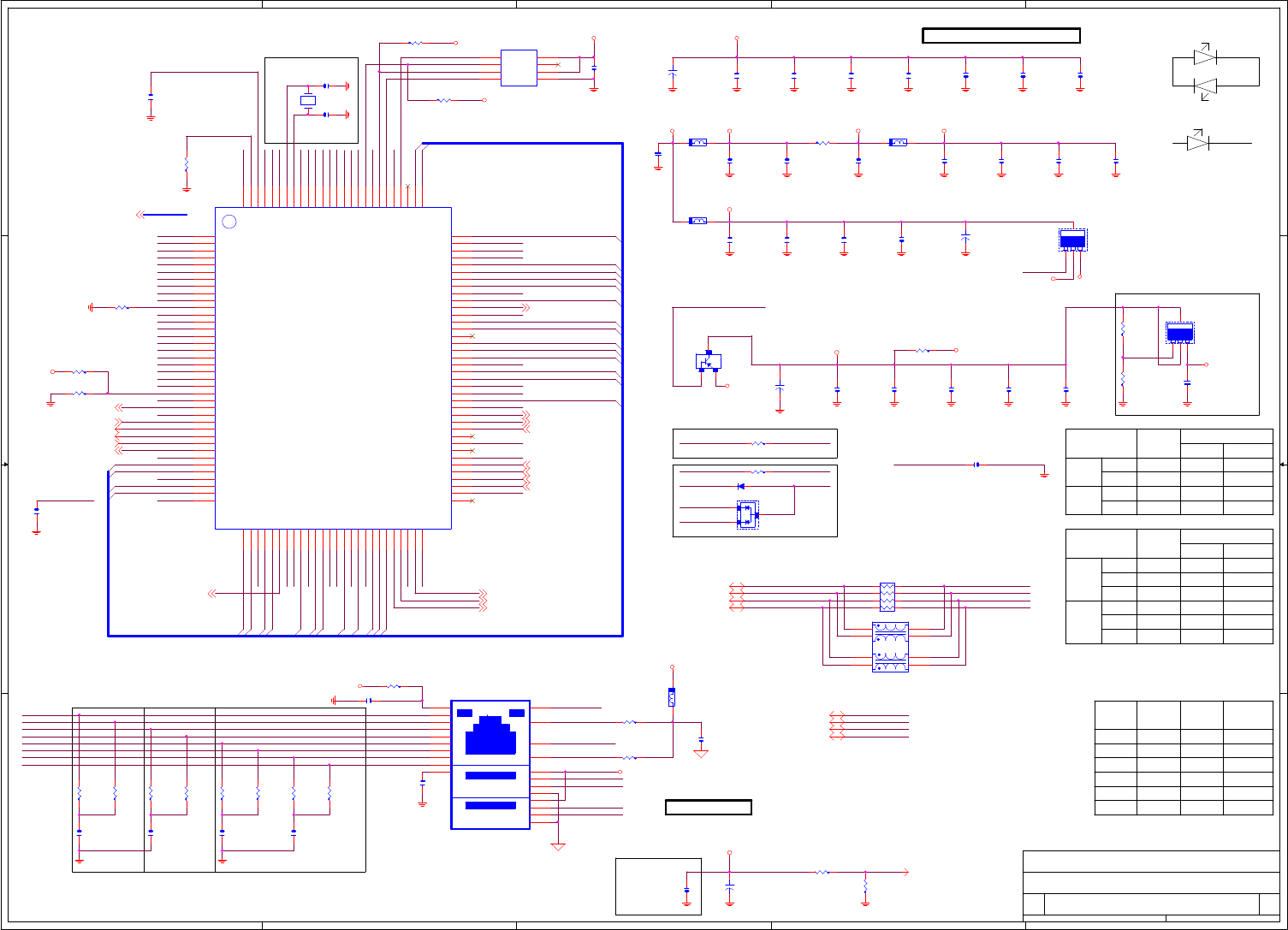

For 81OOC

1G:N/A

100M:0/8

LFB3:

1G:0/8

100M:N/A

LFB1:

For 8110SB

POWER DECOUPLING CAP.

Close to Chip

For 81OOC

Spacing : at least 50 mils between each differential pair

For RTL8110S/ RTL8100SB

USB_LAN:

100M:P35-152-11Z9

1G:P35-152-19W9

93C56:8.2K/6

93C46:N/A

LR2:

LR4:

1G:RTL8110S

100M:RTL8100C

LU2:

LR13:

100M:N/A

1G:0/6

Close to Realtek Chipset

1G:N/A

100M:0/8

clkrunb has Internal

Pull-down

DVDD

N/A

DVDD_A

AVDDL

AVDDH

V_12P

8110SB8110S8100C

V_DAC

10/100 Giga Giga

3.3V

N/A

N/A

3.3V

3.3V

3.3V

2.5V

2.5V

2.5V

2.5V

2.5V 2.5V

2.5V

1.8V

1.8V

1.3V

1.3V

Close to

Chip Close to

Chip

For EMI

For 8100C

For 8100C

100M:5.9K/6/1

1G:2.49K/6/1

LR16~LR23:

1G:49.9/6/1

100M:N/A

LBC29: Reversed

LBC34, LBC35:

100M:N/A

1G:0.01U/6

LBC31:

100M:0.1U/6

1G:0.01U/6

100M:N/A

1G:0/6(8110SB)

LR5:

100Mb

Dual Color LED

10Mb

ON

Green

Blink

OrangeYellow

ON10Mb

LINK

Blink100Mb

ACTIVE

RTL8100C

OrangeGreen

ACTIVE

LINK/

Dual Color LED

1Gb

Yellow

10Mb

ON100Mb

10Mb

100Mb

ON

ON

SPEED

Blink

Blink

ON

Blink

RTL8110S

ON

1Gb

D3

Dual Color LED

D4

Orange

Green

D3D4

Yellow

D2 D1

Single Color LED

For 8100C

For 8110S

RN & COIL CO-LAYOUT

REAR USBX2

EC

要靠近

USB_PORT

的

FUSEVCC

IDSEL 21

-PIRQF

-REQ/-GNT(4)

For RTL8100S/

RTL8110SB

SOT89

Package

REV 1.0

GA-8I915ME-GL

1.02

LAN RTL8110S/8100C

GIGABYTE

Custom

32 36Monday, May 02, 2005

Title

SizeDocument Number Rev

Date: Sheet of

YELLOW- L_YEL-

YELLOWYELLOW-

L_10M-L_YEL-

GREEN-

ORANGE-

MDI2-

YELLOW

L_YEL-

GREEN-

ORANGE-

P6+

P6-

P7-

P7+

CTRL18

3VLED

LANCLK33

A_D[0..31]

P6-

P6+

GND

GND

GND

-SERR

GND

ISOLATEB

AVDDH

EEDO

A_D4

A_D23

MDI3-

MDI0+

GND

EEDI_AUX

A_D0

A_D10

A_D15

PAR

GND

A_D31

AVDDL

GND

AVDDL

GND

DVDD

-C_BE1

3VDUAL

A_D22

-GNT4

3VDUAL

EESK

A_D24

AVDDL

GND

HSDAC+

MDI1-

MDI3-

EEDO

DVDD_A

3VDUAL

GND

3VDUAL

DVDD

GND

GND

A_D25

A_D29

MDI2+

GND

A_D2

A_D14

A_D18

A_D21

GND

DVDD

-C_BE0

-IRDY

-C_BE2

A_D21

AVDDL

RSET

GND

-FRAME

A_D20

3VDUAL

A_D28

A_D30

GND

A_D[0..31]

GREEN-

A_D1

A_D6

A_D9

-PIRQF

MDI1+

MDI3+

EECS

GND

XTAL2

A_D7

A_D13

-PFMRST2

YELLOW-

DVDD

-PERR

A_D8

A_D12

A_D19

AVDDH

MDI1-

L_10M-

ORANGE-

EECS

A_D11

DVDD

MDI2+

V_12P

MDI1+

MDI0-

GND

GND

3VDUAL

A_D17

-TRDY

DVDD

-C_BE3

A_D26

A_D27

GND

GND

MDI0-

MDI0+

EEDI_AUX

3VDUAL

A_D3

A_D5

-STOP

-DEVSEL

A_D16

GND

DVDD

MDI3+

CTRL25

-PCIPME

DVDD

-REQ4

GND

GND GND

MDI2-

DVDD

EESK

LANCLK33

CTRL25

CTRL25

P7+

P7-

XTAL1

A_D[0..31]

-PFMRST2

CTRL18

-PIRQF[19,23]

A_D[0..31][19,23,24]

-PFMRST2[25,26]

+USBP6[19] -USBP6[19]

-USBP7[19] +USBP7[19]

-USBOC_R [19]

-GNT4[19] -SERR [19,23,24]

PAR [19,23,24]

-REQ4[19,23]

-C_BE3[19,23,24]

-TRDY [19,23,24]

-FRAME [19,23,24]

-PCIPME[18,19,23]

-DEVSEL [19,23,24]

-STOP[19,23,24]

LANCLK33[22]

-C_BE1[19,23,24]

-C_BE2 [19,23,24]

-IRDY [19,23,24]

-C_BE0[19,23,24]

-PERR [19,23,24]

-USBP6[19]

+USBP7[19]

+USBP6[19] -USBP7[19]

3VDUAL

3VDUAL

FUSEVCC

3VDUAL

VCC

3VDUAL

AVDDL

3VDUAL AVDDH

AVDDL

V_12PDVDD

3VDUAL

3VDUAL

DVDD_A

3VDUAL

DVDD

FUSEVCC

3VDUAL

AVDDL

LBC7

0.1U/6/Y/25V

LC1

27P/4/N/50V

LFB4

0/8

LBC17

0.1U/6/Y/25V

LBC11

0.1U/6/Y/25V

LR3 0/8/X

LBC19

0.1U/6/Y/25V

LBC21

0.1U/6/Y/25V

LR8 1K/6

LU1

AT93C46/S

1

2

3

4 5

6

7

8

CS

SK

DI

DO GND

ORG

DC

VCC

LR19

49.9/6/1

LR10 15K/6

UP

DOWN

USB/LAN/[11NR6-LU0001-01]

USB_LAN

U1

D1

U2

U3

U4

U5

U6

U7

U8

D2

D3

D4

L1

L2

L3

L4

L5

L6

L7

L8

L9

L10

LR16 150/6

+1

LEC2

100U/D/10V/57

LBC31

0.1U/6/Y/25V

LR9

44.2/6/1/X

LBC3

0.1U/6/Y/25V

LBC30

0.1U/6/Y/25V/X

LQ2

APL1117/SOT223/X

1

2

34

BC203

1U/6/Y/10V

LBC14

0.1U/6/Y/25V

+1

LEC3

100U/D/10V/57

LBC8

0.1U/6/Y/25V

LBC12

0.1U/6/Y/25V

LR5 0/6/X

+1

EC69

100U/D/10V/57/X

LR15 0/6/X

LR7 0/6

R702

270K/6

LR25

49.9/6/1/X

LR1 3.6K/6

R701

150K/6

LR24

49.9/6/1/X

LBC24

0.1U/6/Y/25V

LBC4

1U/6/Y/10V

LR22

49.9/6/1/X

LBC1

0.1U/6/Y/25V LBC2

1U/6/Y/10V

LR20

49.9/6/1

LBC10

0.1U/6/Y/25V/X

LBC6

1U/6/Y/10V

LR21

49.9/6/1

LBC9

0.1U/6/Y/25V/X LBC15

0.1U/6/Y/25V

LBC34

0.01U/6/X/50V/X

LFB1

0/8/X

LFB2 0/8

LBC33

0.01U/6/X/50V

LBC20

0.1U/6/Y/25V/X

L22

OD6560T-E601T/S

1

2

3

4 5

6

7

8

LBC25

0.1U/6/Y/25V

LR17 150/6

LFB3

0/8

LR2 8.2K/6/X

LU2

RTL8100C/[10HP2-408100-30]

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

MDI0+

MDI0-

AVDDL

VSS

MDI1+

MDI1-

AVDDL

CTRL25

VSS

AVDDH

HSDAC+

HSDAC-

VSS

MDI2+

MDI2-

AVDDL

VSS

MDI3+

MDI3-

AVDDL

VSSPST

GND

ISOLATEB

VDD18

INTAB

VDD33

RSTB

CLK

GNTB

REQB

PMEB

VDD18

AD31

AD30

GND

AD29

AD28

VSSPST

AD27

AD26

VDD33

AD25

AD24

CBE3B

VDD18

IDSEL

AD23

GND

AD22

AD21

VSSPST

GND

AD20

VDD18

AD19

VDD33

AD18

AD17

AD16

CBE2B

FRAMEB

GND

IRDYB

VDD18

CLKRUNB

VSSPST

TRDYB

DEVSELB

STOPB

PERRB

VDD33

SMBCLK

GND

SMBDATA

SERRB

PAR

CBE1B

VDD18

AD15

GND

VSSPST

AD14

AD13

VDD33

AD12

AD11

AD10

M66EN

AD9

AD8

VSSPST

CBE0B

AD7

VDD33

AD6

AD5

AD4

AD3

VDD18

GND

VSSPST

AD2

AD1

AD0

LWAKE

EECS

VDD33

EEDO

EEDI

VDD18

EESK

GND

LED3

LED2

LED1

VDD18

LED0

GND

VSSPST

HV

XTAL1

XTAL2

VSS

VSS

CTRL18

DVDDA

RSET

VSS

LBC18

0.1U/6/Y/25V

LR4

5.6K/6/1

SOT23

BAW56/SOT23/X

LD2

23

1

LBC35

0.01U/6/X/50V/X

LBC16

0.1U/6/Y/25V

LBC13

0.1U/6/Y/25V

LD1

1N4148/S/X

LBC32

0.01U/6/X/50V

LBC26 10P/4/N/50V/X

LC2

27P/4/N/50V

LR14 0/6/X

LR23

49.9/6/1/X

LR18

49.9/6/1

LX1

25M/20P/30PPM/20/49US/D

RN94

0/8P4R/X

1 2

3 4

5 6

7 8

LC3

1N/4/X/50V/X

LR12

0/6

LQ1

2SB1132/SOT89/X

1

2

34

BC204

0.1U/6/Y/25V

LBC22

0.1U/6/Y/25V

LBC36

0.1U/6/Y/25V

LBC23

0.1U/6/Y/25V

LQ3

2907/S

13

2

LR6

100/6/1/X

LBC5

0.1U/6/Y/25V

LBC29 0.1U/6/Y/25V/X

+1

LEC1

100U/D/10V/57

8

8

7

7

6

6

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

ATX POWER CONNECTOR

04/01

GA-8I915ME-GL

1.02

ATX POWER CONNECTOR & TPM

GIGABYTE

B

33 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

-SLP_S3

-SLP_S3[20,25,34]

-ATX_PSON[34]

PWOK [25]

VCC3

+12V

VCC

VCC

-12V VCC3

VCC

VCC

-5V

5VSB

V12

+12V

5VSB

BC157

0.1U/6/Y/25V

Q38

MMBT2222A/SOT23/X

13

2

BC164

0.1U/6/Y/25V/X

BC155

0.1U/6/Y/25V

BC619

0.1U/6/Y/25V

BC159

0.1U/6/Y/25V BC161

0.1U/6/Y/25V/X

ATX_12V

ATX-PW/2*2/WHITE

1

23

4GND

GND+12V

+12V

R396

4.7K/6/X

ATX

ATX-PW/2*12/IVORY

1

2

3

4

5

6

7

8

9

10

13

14

15

16

17

18

19

20

21

22

23

24

11

12

3.3V

3.3V

GND

5V

GND

5V

GND

POK

5VSB

12V

3.3V

-12V

GND

PSON

GND

GND

GND

-5V

5V

5V

5V

GND

12V

3.3V

BC158

0.1U/6/Y/25V

BC156

0.1U/6/Y/25V

R395

470K/6

BC160

0.1U/6/Y/25V/X

BC163

0.1U/6/Y/25V BC165

0.1U/6/Y/25V

BC162

0.1U/6/Y/25V C239

0.1U/6/Y/25V

BC620

0.1U/4/Y/16V

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

PWM_MODE:

LOW : LINEAR MODE

HIGH: PWM MODE

DDRDET-:

LOW : DDR1(2.6V)

HIGH: DDR2(1.8V)

WA0(I2C ADDRESS):

LOW :0x5CH

HIGH:0x5EH

4 VIA to GND

For USB POWER

03/25 for EMI

03/25 for noise

03/25 for noise

03/25 for MEMO

03/25 for MEMO

colayout

for F3 Power 96Khz noise

03/28

05/02

GA-8I915ME-GL

1.02

DDR POWER

GIGABYTE

Custom

34 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

SLP_S3EN

PWM_MODE

WA0

LR1_DRV

LR1_SEN

-DDR_DET

PWM_MODE WA0

-DDR_DET

-ATX_PSON

W_I2C_DATA

W_I2C_CLK

VTT_PWRGD

5VUSBDRV

W_I2C_CLK

W_I2C_DATA

W_I2C_CLK

SMBDATA

SMBCLK W_I2C_DATA

5VUSBDRV

VTT_DRV

VTT_SEN

-SLP_S3

6537_FB3

LR1_SEN

LR1_DRV

6537_FB3

VPCI_REF

VPCI_REF

VTT_DRV

VTT_SEN

-PS_ON

PWROK1

SLP_S5EN

VTT_PWRGD [5,8]

-SYS_RST[5,20,22,35] -ATX_PSON[33]

SMBCLK[15,16,18,20,22,23] SMBDATA[15,16,18,20,22,23]

-RSMRST[20,25]

-S4_S5[20,35] -SLP_S3[20,25,33]

-PS_ON[25]

PWROK1[12,20,25,29]

DDR25V_MCH[12,14]

DDR25V

5VSB

5VDUAL

3VDUAL

5VSB W5VSB

VCC

W5VSB

W5VSB

5VSB

5VSB5VSB 5VSB

5VSB

VCC3

VCC3 W5VSB

3VDUAL

DDRVTT

DDR25V 3VDUAL

DDR25V

VCC

5VDUAL 5VUSB

3VDUAL

3VDUAL

VCC

VCC3

5VDUAL 5VUSB

VCC3

VTT_GMCH

3VDUAL

VCC1_5

VTT_GMCH

+12V VCC3

VCC1_5

VCC3

VCC

VCC1_5

3VDUAL

3VDUAL

VCC

VCC

5VSB

VCC

WBC24

0.1U/6/Y/25V

WR35 33/6

WR5

8.2K/6/X

WBC25

4.7U/8/Y/10V/X

WD1

1N5817/S WR9

8.2K/6

WC7 0.1U/6/Y/25V

WQ7

AOD420/TO252/[10IF4-250420-01_10IF4-254003-01_10IF4-200408-01]

1

3

2

+

1

EC134

100U/D/10V/57/X WBC20

0.1U/6/Y/25V

WQ8

SUD50N024-09P/TO252/[10IF4-492409-01R_10IF4-083918-01R_10IF4-126003-01]

1

32

WBC15

0.1U/6/Y/25V

WR11

1K/6

WBC36

1U/6/Y/10V

WBC1

0.1U/6/Y/25V

WQ15

SUD50N024-09P/TO252/[10IF4-492409-01R_10IF4-083918-01R_10IF4-126003-01]/X

1

32

WBC11

0.1U/6/Y/25V

WR29

8.2K/6

WC17

0.01U/4/Y/25V/X

G

D

S

Q274

SUD50N024-09P/TO252/[10IF4-492409-01R_10IF4-083918-01R_10IF4-126003-01]

1

32

WC6

0.01U/4/Y/25V/X

+

1

WEC9

1000U/D/6.3V/8C

WR6

8.2K/6/X

WC14

0.01U/4/Y/25V/X

WBC8

0.1U/6/Y/25V

WBC31

4.7U/8/Y/10V/X

WC20 2.2N/4/X/50V

WBC34

0.1U/6/Y/25V

W83303AD/LQFP48/[10HP2-523303-10]

WU1

1

2

3

4

5

6

7

8

9

10

11

12

24

23

22

21

20

19

18

17

16

15

14

13

36

35

34

33

32

31

30

29

28

27

26

25

37

38

39

40

41

42

43

44

45

46

47

48

S3#

S5#

I2C_DATA

I2C_CLK

RSMRST#

PWM_MODE

LR3_SEN

LR3_DRV

AGND

5VUSB

5VSBDRV

3V/5VDRV

AGND

VRAM_DRV1

I_SEN1

VRAM_SEN

VRAM_DRV2

I_SEN2

5VSB

ISET

SS

VCC3

3.3VSB_DRV

3.3V_SEN

LR1_DRV

VCC

VPCI_SEN

VPCI_DRV

AGND

CHRPMP

C2

C1

5VSB

1.2V_DRV

1.2V_SEN

VRGOOD

LR1_SEN

LR2_DRV

LR2_SEN

DDRDET#

FAULT#

PS_IN#

PW_BUT#

PS_OUT#

DGND

PWR_OK

A0

D5VSB

WBC12

0.1U/6/Y/25V/X

WC9

0.01U/4/Y/25V/X

WC16

0.1U/6/Y/25V

WR45

10K/6/X

WR19

8.2K/6/X

WR10

1K/6

G

D

S

Q275

SUD50N024-09P/TO252/[10IF4-492409-01R_10IF4-083918-01R_10IF4-126003-01]

1

32

WQ11

AOD420/TO252/[10IF4-250420-01_10IF4-254003-01_10IF4-200408-01]

1

32

WC21

1000P/6/X/50V

WC12

0.01U/4/Y/25V/X

WR48 0/6/X

WR41 100K/6

+

1

WEC10

1000U/D/6.3V/8C

WBC18

0.1U/6/Y/25V

+

1

WEC2

1000U/D/6.3V/8C

WR51

8.2K/6

+

1

EC135

1000U/D/6.3V/8C/X

WR36 10/6

WC8 0.1U/6/Y/25V

WBC14

0.1U/6/Y/25V

R402

3.3K/6/X

WBC29

0.1U/6/Y/25V

WR28 2K/6/1

WC18 0.22U/6/Y/16V

WR46

0/6

WR16 33/6

SOT23

WQ18

MMBT2222A/S

13

2

WBC5

0.1U/6/Y/25V

WQ4

AOD420/TO252/[10IF4-250420-01_10IF4-254003-01_10IF4-200408-01]/X

1

3

2

+

1

WEC8

1000U/D/6.3V/8C

WR40

2.2/6

WR38 4.7/6

WC5

22P/4/N/50V/X

L23

1.0uH/5A/D/1P/VER/[11LC4-05100B-02_11LC4-05100B-01_11LC4-05100B-03]

21

WBC3

4.7U/8/Y/10V/X

WRN1

0/8P4R

12 34 56 78

WR34 0/6

WBC17

0.1U/6/Y/25V

R735

8.2K/6/X

WC10 0.1U/6/Y/25V

U5

W83320S/SOP/[10TA1-313320-01]

1

2

3

4

5

67

8

9

10

11

12

13

14

LGATE

VDD

VDDA

PWOK

GNDA

SS COMP

FB

VREF

BG_REF

BOOT

HGATE

GND

ISEN

WC15

0.01U/4/Y/25V/X

WD2

1N5817/S

WBC21

0.1U/6/Y/25V

WR27

1K/6/1/X

WR30

100/6/1

WBC33

1N/4/X/50V/X

WBC16

0.1U/6/Y/25V

WQ10

AOD420/TO252/[10IF4-250420-01_10IF4-254003-01_10IF4-200408-01]

1

3

2

WR32

8.2K/6

WBC38

0.1U/6/X/25V

WBC35

1U/6/Y/10V

WBC40

0.1U/6/Y/25V

WBC19

0.1U/6/Y/25V

WBC7

0.1U/6/Y/25V

WR43 100K/6/X

WBC26

0.1U/6/Y/25V

WQ9

AOD420/TO252/[10IF4-250420-01_10IF4-254003-01_10IF4-200408-01]

1

3

2

WC11

0.01U/4/Y/25V/X

WR49 0/6/X

WBC6

0.1U/6/Y/25V

WR24

0/6

WQ5

AP40T03H/TO252/[10IF4-254003-01_10IF4-200408-01_10IF4-332003-01]

1

3

2

WC4

22P/4/N/50V/X

WR31

1.87K/6/1

WR44 5.1K/6

WU2

W83310DS/EPSOIC/[10HP2-523310-10]

1

2

3

4 5

6

7

8

9

VIN

GND

VREF1

VOUT BOOT_SEL

VCNTL

ENABLE

VREF2

GND

WR33 0/6

+

1

WEC11

1000U/D/6.3V/8C

WR20 100K/6

WR17

8.2K/6

WBC39

0.1U/6/Y/25V

WR42

49.9K/6/1

WBC32

1N/4/X/50V/X

WBC30

0.1U/6/Y/25V

WBC13

0.1U/6/Y/25V

+

1

WEC1

1000U/D/6.3V/8C

WR4

8.2K/6/X

+1

WEC7

1500U/D/6.3V/8K

WRN2

0/8P4R

12 34 56 78

WC19 2.2N/4/Y/25V/X

WR2

1K/6

G S

D

WQ17

2N7002/S

2

13

WBC2

0.1U/6/Y/25V

WC22 2.2N/4/Y/25V/X

L24

3UH/10A/D/[11LC3-10300B-Y0_11CL3-10300B-Y1_11CL3-10300B-Y2]

WBC4

0.1U/6/Y/25V

WR39 5.6K/6

WR23 4.7/6

WR18 0/6

WR37

8.2K/6

WBC37

1U/6/Y/10V

GS

D

WQ16 2N7002/S

2

1

3

WR47

0/6/X

WR1

1K/6

+

1

WEC3

1000U/D/6.3V/8C

WR12

1K/6

WR15 33/6

WC23

1N/4/X/50V

WR50 0/6

1

1

2

2

3

3

4

4

A A

B B

C C

D D

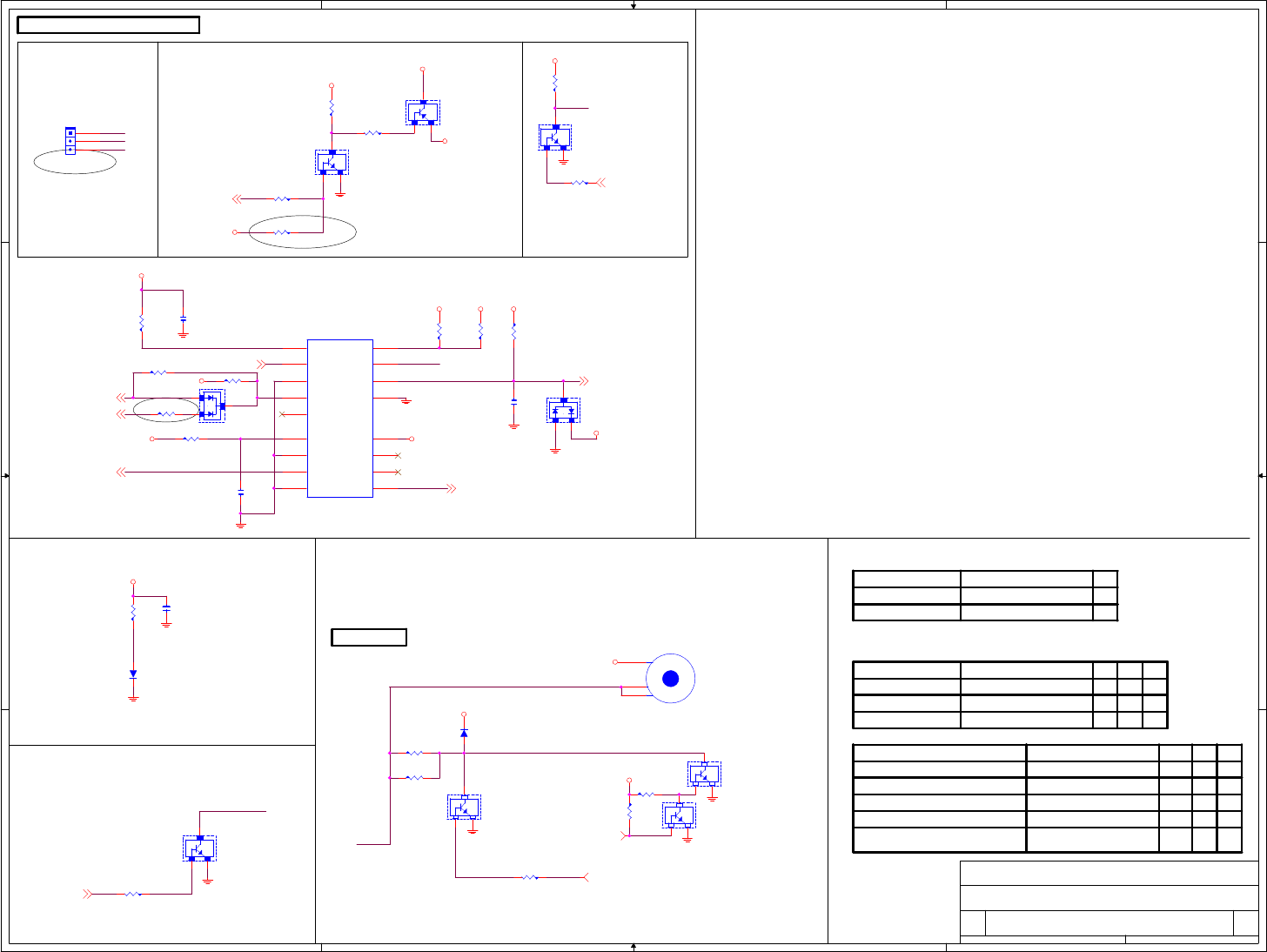

INTEL FRONT PANEL

BUZZER

3 PIN POWER LED

LAYOUT PLACE CLOSE

TO F_PANEL

States for green LED

LED States ACPI States

ON

OFF

S1,S3

S0,S5

GPO28

0

1

LED States ACPI States

OFF

Steady Green

S1,S3,S5

S0

Blinking Green S0(message waiting)

GPO25 GPO27 GPO24

1 1 NO1

111

1B1

States for a single-color power LED

S5

Steady Green

Blinking Green

OFF

ACPI StatesLED States

S0

Blinking Yellow

Steady Yellow S1,S3

S0(message waiting)

S1,S3(message

waiting)

GPO25 GPO27 GPO22

1 1 X

1 1 1

1B1

1 0 NO1

NO11 B

(GPO22 DEFAULT HIGH, main power )

NO1 GPO22 only S1 PROGRAMMING LOW

FOR S3 BLINKING

DEFAULT (N/A)

04/07

11/04

03/25

GA-8I915ME-GL

1.02

FRONT PANEL

GIGABYTE

Custom

35 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

HD+

SPK-

MPD+

GD+

GD+

MPD-

Z165

SPK-

MPD-

MPD-

MPD+

PWRBTSW-

MPD-

-SLP_BTN[20]

-HDLED[27]

GREEN_LED[20]

PWRBTSW- [25]

-SYS_RST[5,20,22,34]

SPKR [20]

-RST_BTN[25]

BEEP-[25]

-PWRLED [20]

-S4_S5[20,34]

SPK-

VCC

5VSB

VCC

DDR25V

5VSB

5VSB

5VSB

VCC

VCC

VCC

P_5VSB

P_5VSB

5VSB

P_5VSB

5VSB

DDR25V

VCC

D16

1N4148/S

R675 8.2K/6/X

BAT54C/S

Q57

R440 1K/6

R438

75/6

SOT23

Q48

MMBT2222A/S/X

13

2

R430

8.2K/6

R422 8.2K/6/X

R437

75/6

R1612 0/6/X

BZ

BUZZER

BUZZER

1

2

3

C260

180P/4/N/50V/X

Q73

MMBT2222A/S

13

2

SOT23

Q54

MMBT2222A/SOT23/X

13

2

R432 330/6/X

R426

8.2K/6

R419

8.2K/6/X

R439 4.7K/6/X

F_PANEL

JP2X10/-10,-11,-12,-13,-15,-17,-19/H/B/[11NH2-000210-A0_11NH2-000210-A1]

1

3

5

7

9

13

15

17

19

2

4

6

8

14

16

18

20

HD+

HD-

GND

RESET

RSV

GD+

GD-

GN+

GN-

MSG/PD+

MSG/PD-

PW+

PW-

SP+

NC

NC

SP-

Q55

MMBT2222A/S

13

2

R428

330/6 R416

330/6

Q51

BAV99/S

13

2

SOT23

Q46

2907/S/X

13

2

C259

0.01U/6/X/50V

R418

1K/6/X

R731

8.2K/6

BC168

0.01U/6/X/50V

R730

1K/6

SOT23

Q49

MMBT2222A/S

13

2

R423

330/6/X

Q74

MMBT2222A/S

13

2

R431

8.2K/6/X

R1611 0/6/X

R415

330/6/X

PWR_LED

JP1X3/H

1

3

2

BC167

0.01U/4/X/16V

DIMM_LED

LED/Y/S/X

R420

150/6/X

8

8

7

7

6

6

5

5

4

4

3

3

2

2

1

1

D D

C C

B B

A A

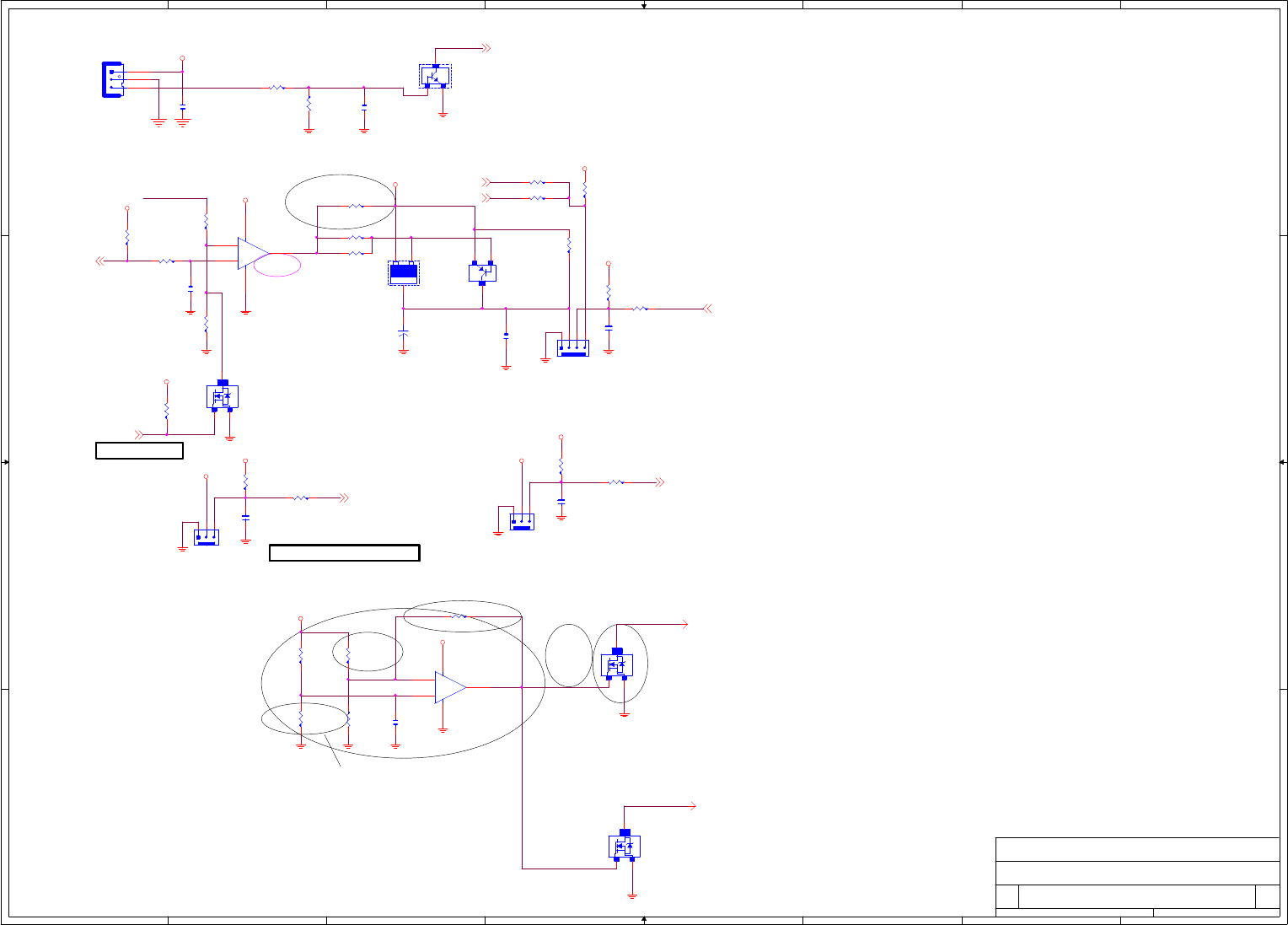

FOR CH1

SYSTEM FAN

的

Library

04/01

料號

: 11NH5-020104-41

改為

Foot Print 3PIN FAN

可與

04/07

Plase at PH4 copper

deasserted at 115 degree (RS2=1270 ohm)

PRESCOTT

如果要用

2N7002

需

OP output

注意

Hi

時的電

2V

壓是否遠大於 。

(N/A)

KA393

改為

LM358

，電源

pin

改

+12V Prochot#

接 ， 溫度需重新調整之。

asserted at 130 degree (RS2=720 ohm)

04/07

04/07

RS2 CLOSE CPU VR MOSFET

PROCESSOR HOT

03/25 for prochot

03/25 for prochot

gpiox pin

可以

3.3v or 5v

if 3pin fan

則開機後將

program is low

default is high

GA-8I915ME-GL 1.02

TSB43AB23A 1394

GIGABYTE

Custom

36 36Monday, May 02, 2005

Title

Size Document Number Rev

Date: Sheet of

-RI

CPUFAN_VCC

FANIO1CPUFAN_VCC

TSM_6

-PROCHOT

TSM_7

-FORCEPR

TSM_5

-RI [20,29]

FANIO1 [25]

FANIO2 [25]

FANIO3 [25]

FANPWM3[25]

FANPWM1[25]

-PROCHOT[5]

-FORCEPR [5]

FANPWM2[25]

GP25[25]

5VSB

VCC

+12V

VCC

VCC +12V

VCC

VCC

+12V

+12V

+12V

+12V

VCC

R1715

0/6/X

R1714 0/6

WOL

WOL1X3/[11NH5-010103-04 _11NH5-010103-05]

1

2

3

C

V

S

PWR_FAN

FAN/1*3/WHITE/X

2

1

3

R1512

1K/6 R1716 1K/6/X

R1631

8.2K/6

G S

D

Q302

2N7002/S

2

13

+

-

U40B

LM358/S

5

67

84

R563 18.2K/6/1

RS2

100K/1/6/S/[10RH2-001003-21]

R1711

8.2K/6

+

1

CE1

100U/D/16V/5B

R1520

22K/6

R1713

8.2K/6

R1718

5.1K/6

SOT23

Q272

MMBT2222A/S

13

2

Q283

PBSS5240T/SOT23/X

1

32

R1710 100/6

C

V

S

SYS_FAN

FAN/1*3/WHITE

2

1

3

BC582

0.1U/6/Y/25V

G S

D

Q284

2N7002/S/X

2

13

G

D

S

Q282

AP3310H/TO252/[10IF4-103310-01_10IF4-450603-01]

1

3

2

G

V

S

C

CPU_FAN

FAN/1*4/WHITE/[11NH5-020104-41_11NH5-020104-43]

2

1

3

4

BC581

0.1U/6/Y/25V

R1754

8.2K/6

C198

3.3N/6/X/50V/X

R1712 8.2K/6

R353

22K/6

R340

22K/6

G S

D

Q67

2N7002/S

2

13

R564

10K/6/1

R355

1K/6

BC623

0.1U/6/Y/25V/X

R565

1.47K/6/1

R1728 100/6/X

R568

1K/6/1

C200

3300P/4/X/50V/X

BC622

2.2U/8/Y/16V

R341

1K/6

C317

0.1U/6/Y/25V

R1521 1K/6

+

-

U40A

LM358/S

3

21

84

C1268

3.3N/6/X/50V

R1717

22K/6

R1632

8.2K/6

www.s-manuals.com
